07 java collection

Java Collection Framework
Version March 2009

2

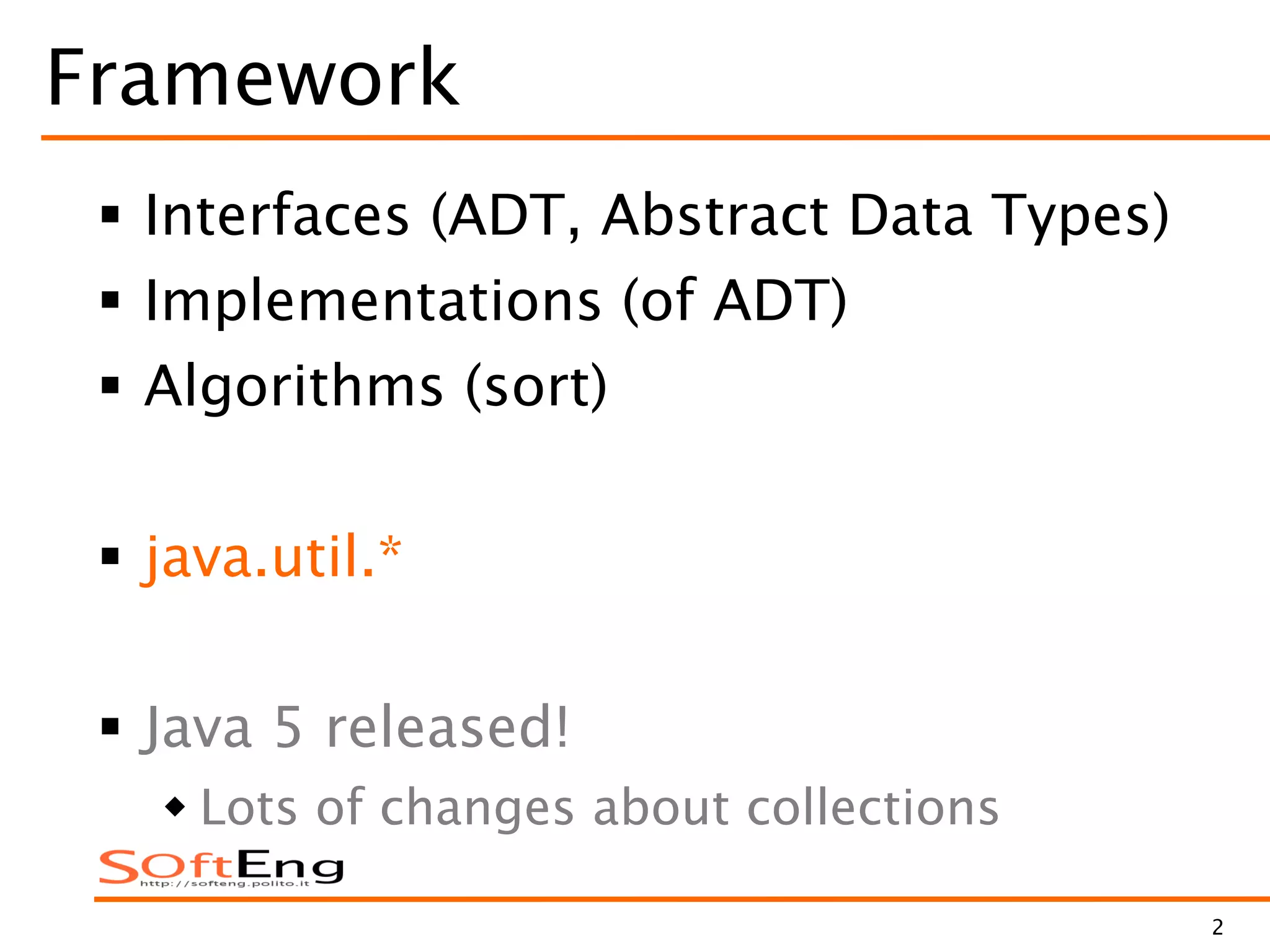

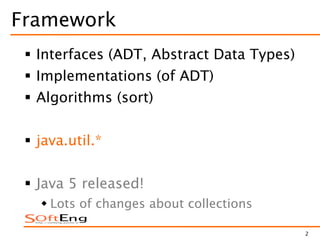

Framework
 Interfaces (ADT, Abstract Data Types)
 Implementations (of ADT)
 Algorithms (sort)
 java.util.*
 Java 5 released!
 Lots of changes about collections

3

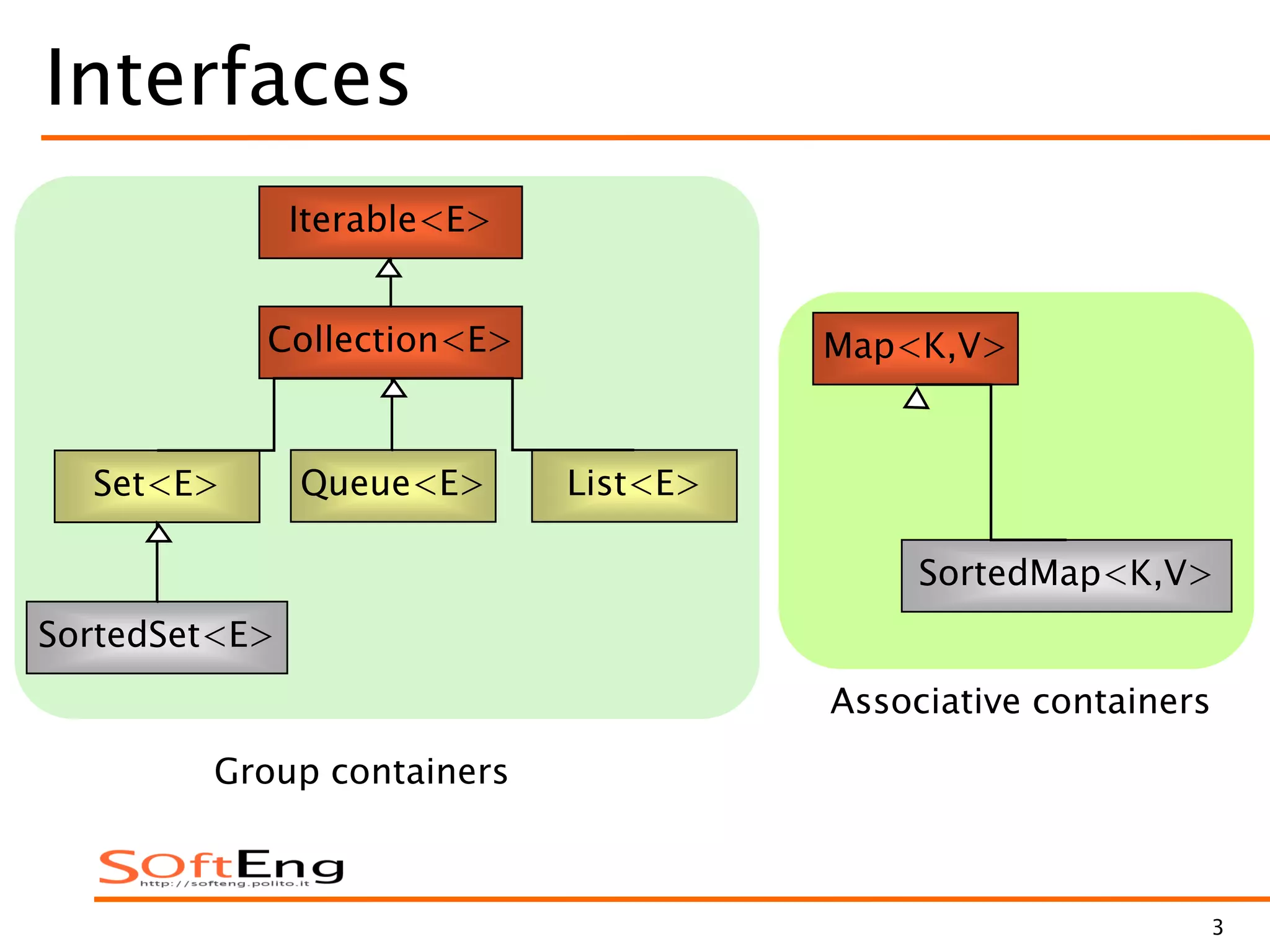

Interfaces
Collection<E>
Set<E> List<E>
Map<K,V>
SortedSet<E>
SortedMap<K,V>
Group containers
Associative containers
Queue<E>
Iterable<E>

4

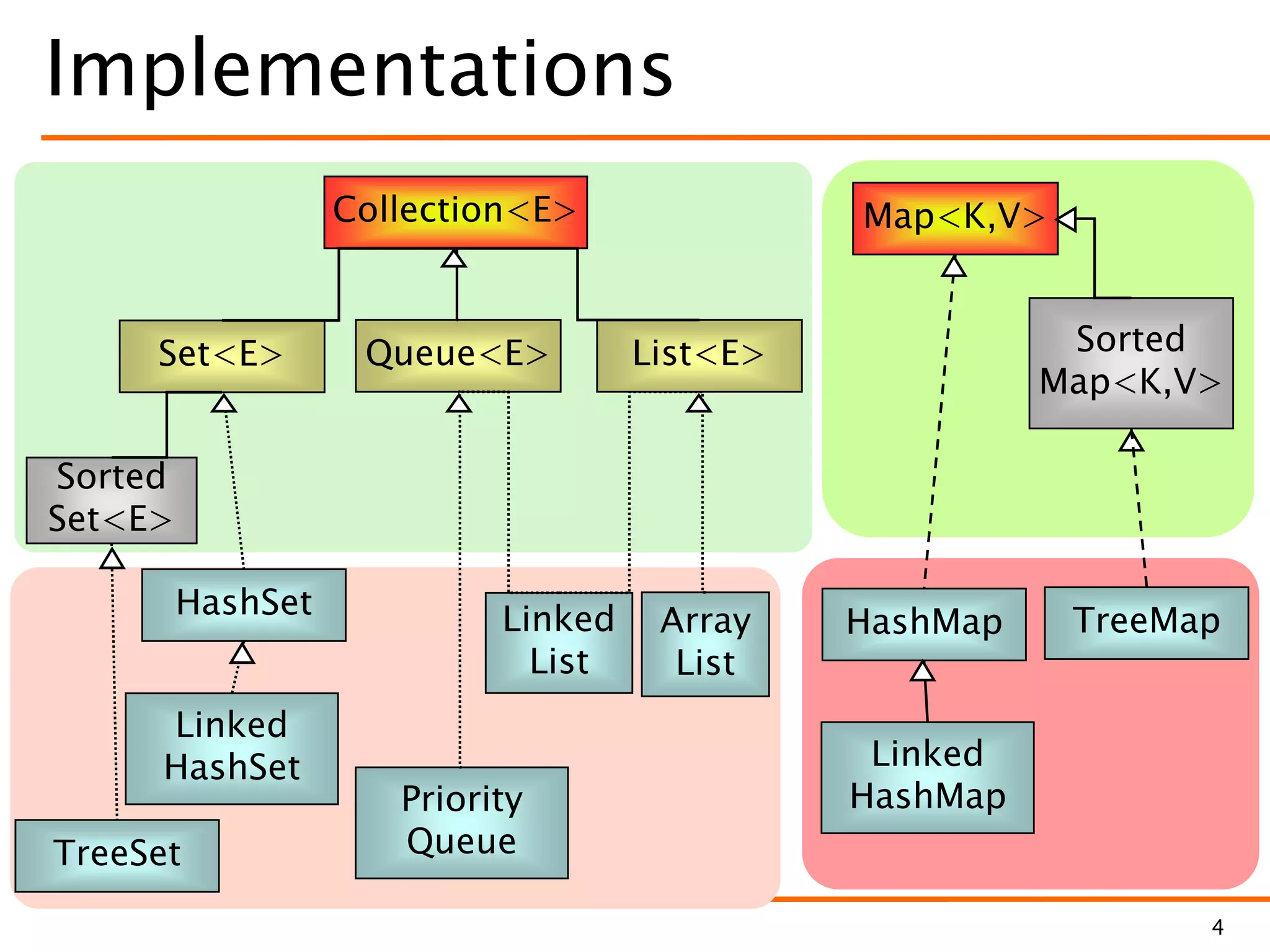

Implementations
TreeSet
TreeMapArray
List
Linked
List
HashMap
Linked
HashMap
Linked
HashSet
HashSet
Map<K,V>
Sorted
Map<K,V>
Collection<E>
Set<E> List<E>
Sorted
Set<E>
Queue<E>
Priority
Queue

5

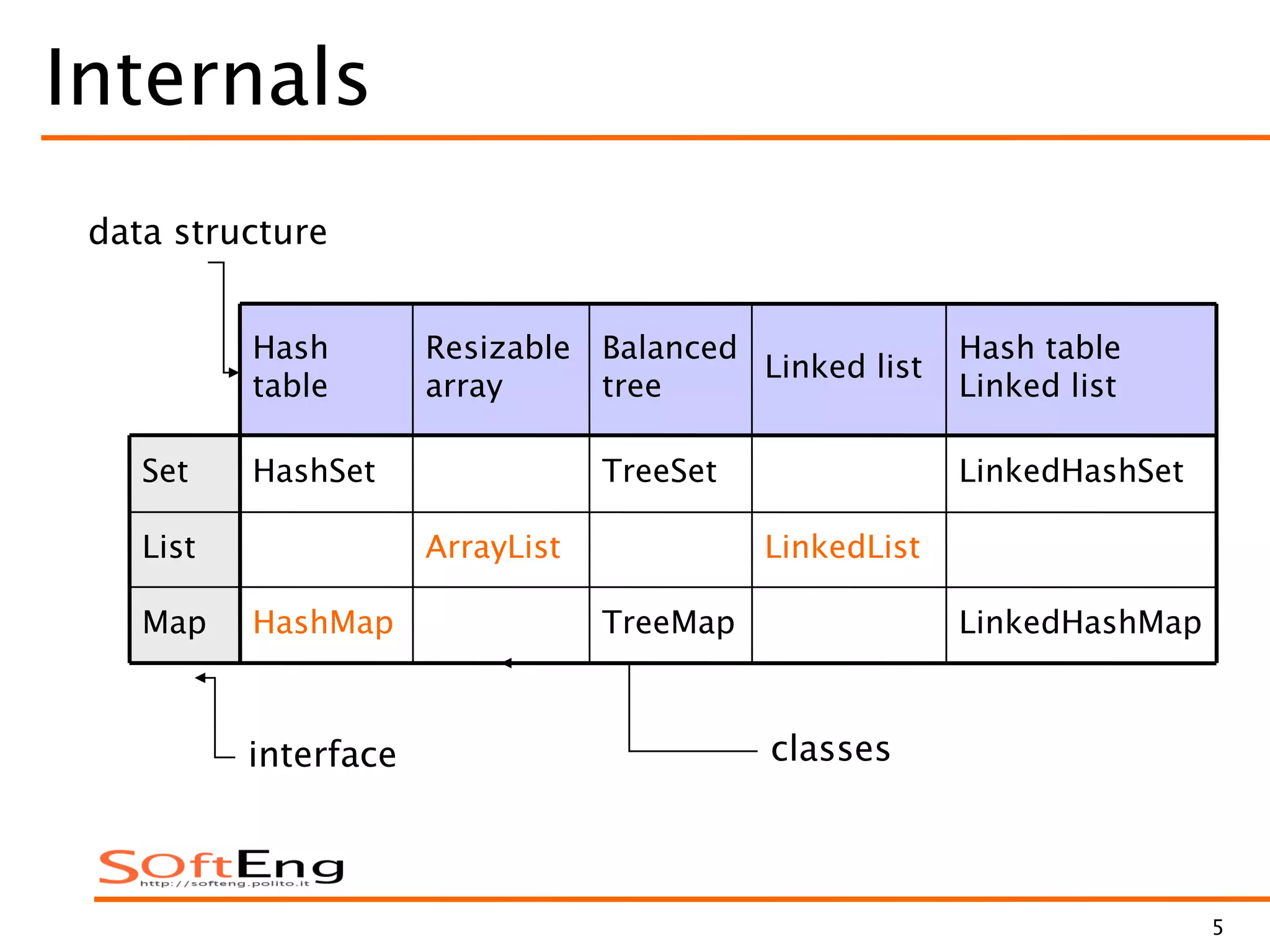

Internals
LinkedList
Linked list
LinkedHashMapTreeMapHashMapMap
ArrayListList
LinkedHashSetTreeSetHashSetSet
Hash table
Linked list
Balanced
tree
Resizable
array
Hash
table
interface
data structure
classes

6

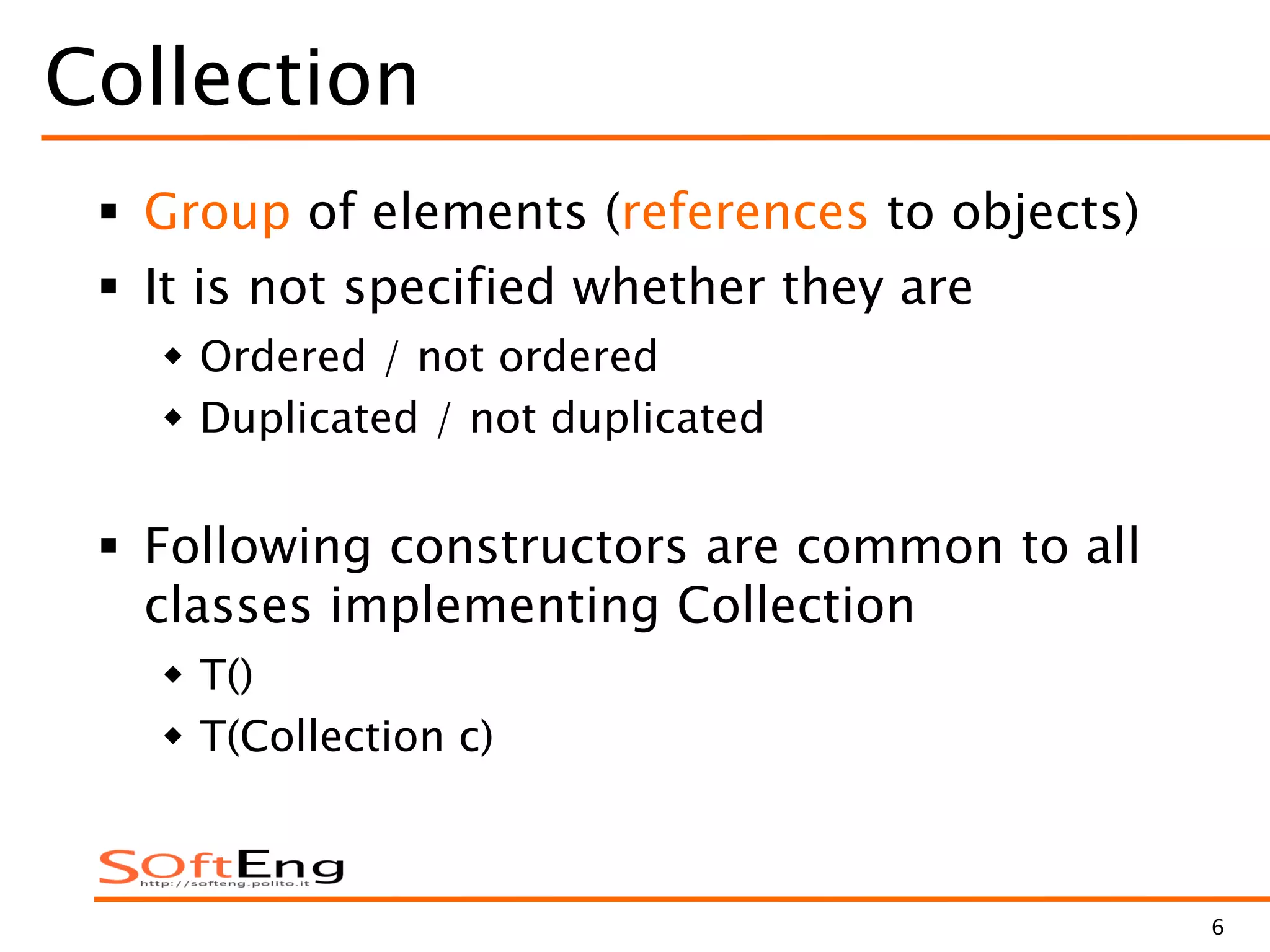

Collection
 Group of elements (references to objects)
 It is not specified whether they are
 Ordered / not ordered
 Duplicated / not duplicated
 Following constructors are common to all
classes implementing Collection
 T()
 T(Collection c)

7

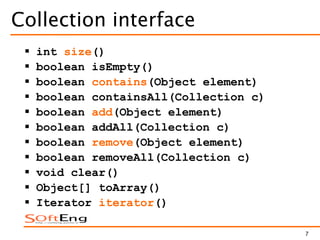

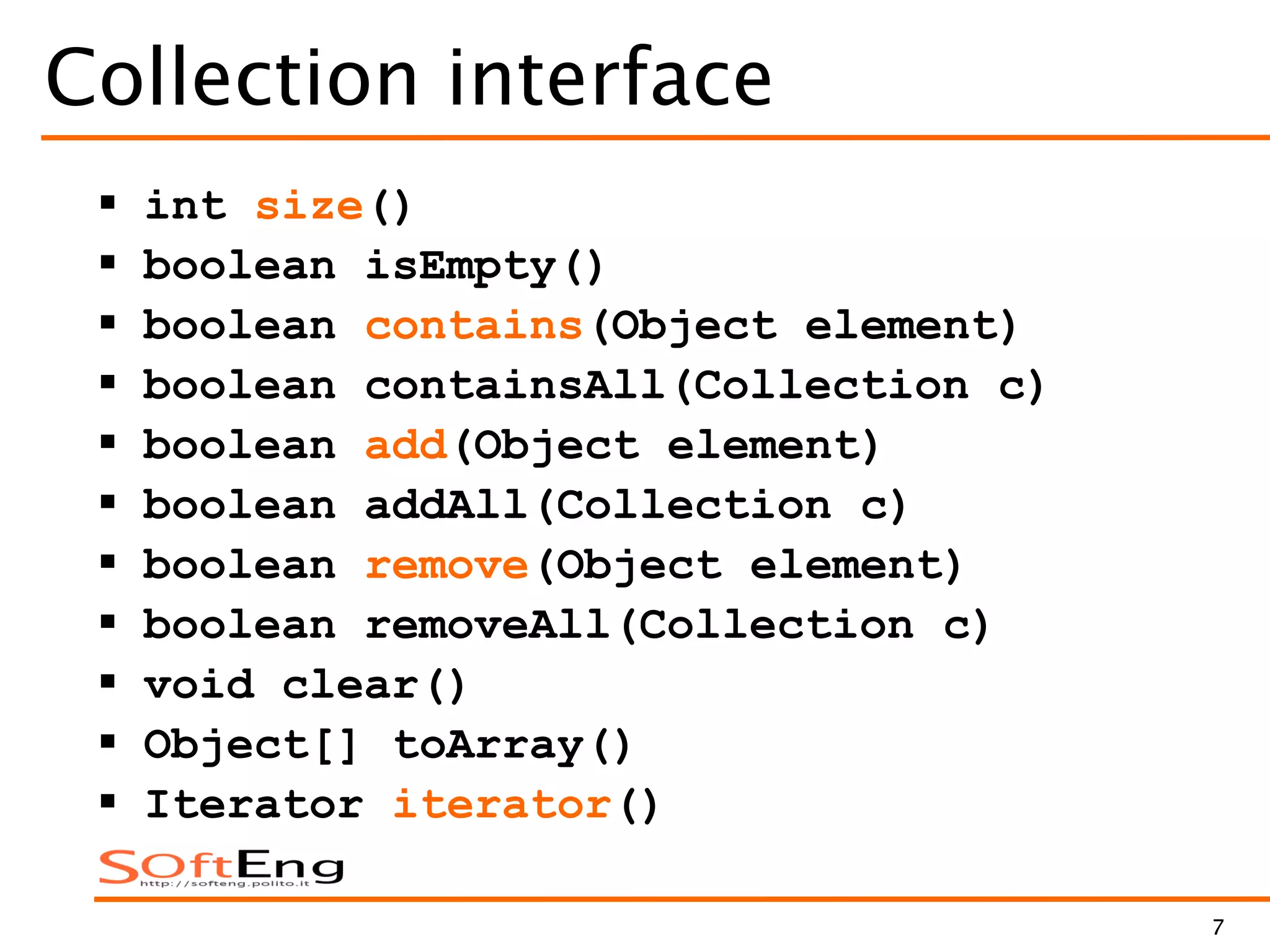

Collection interface
 int size()
 boolean isEmpty()
 boolean contains(Object element)
 boolean containsAll(Collection c)
 boolean add(Object element)
 boolean addAll(Collection c)
 boolean remove(Object element)
 boolean removeAll(Collection c)
 void clear()
 Object[] toArray()
 Iterator iterator()

8

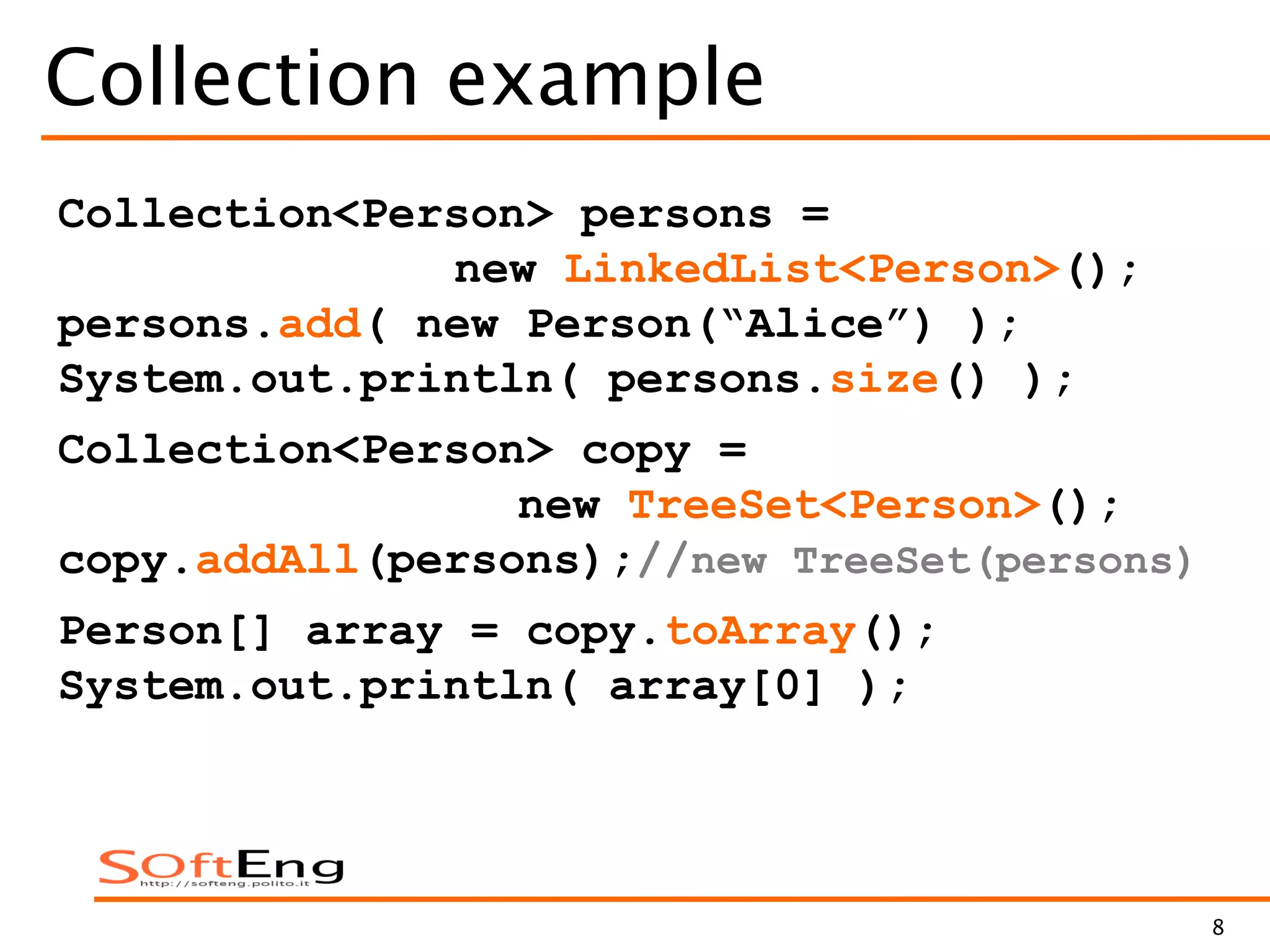

Collection example
Collection<Person> persons =
new LinkedList<Person>();
persons.add( new Person(“Alice”) );
System.out.println( persons.size() );
Collection<Person> copy =
new TreeSet<Person>();
copy.addAll(persons);//new TreeSet(persons)
Person[] array = copy.toArray();
System.out.println( array[0] );

9

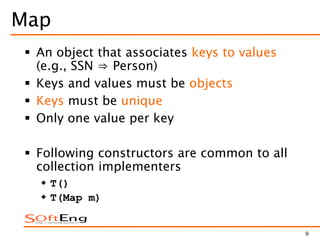

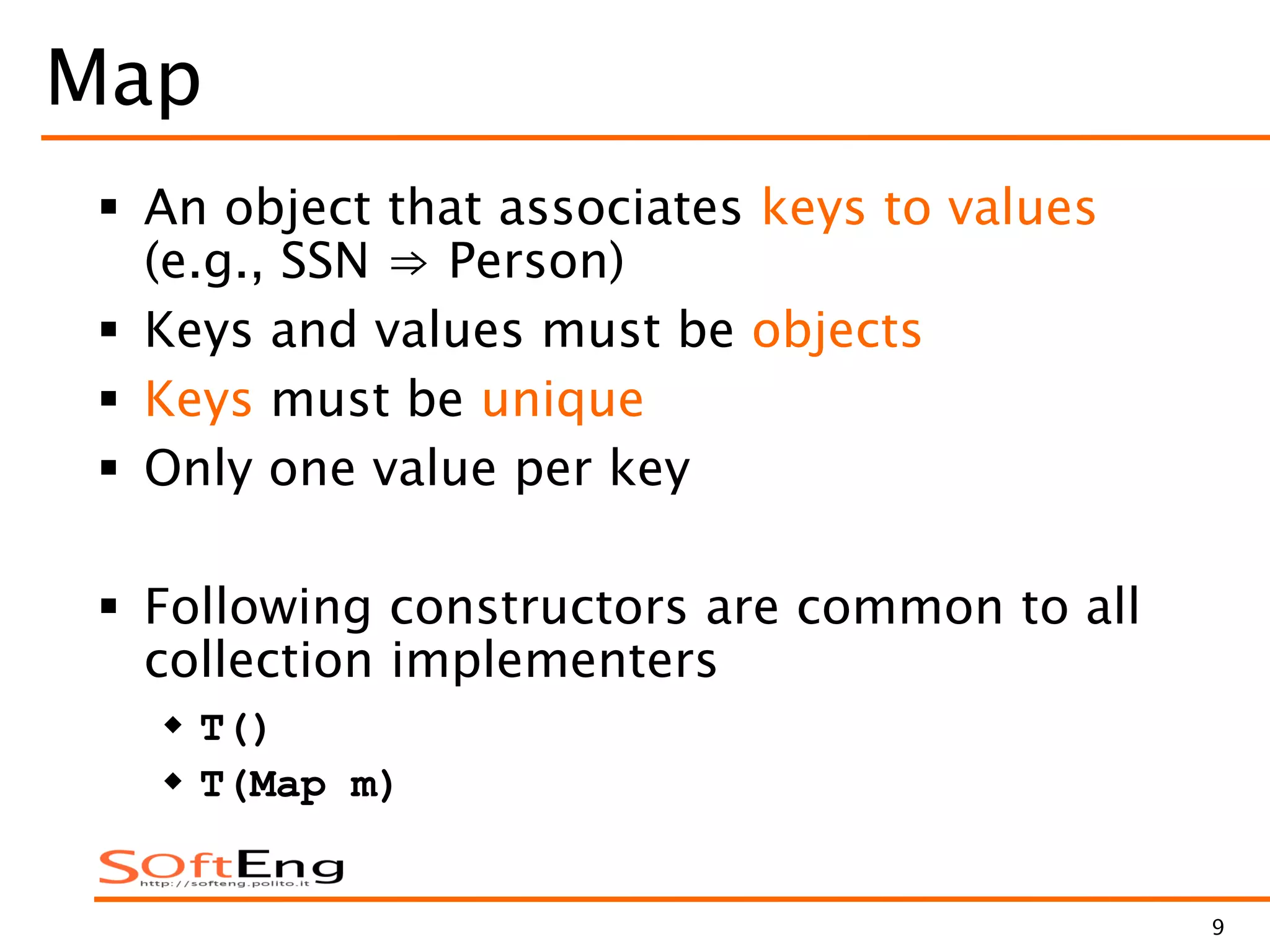

Map
 An object that associates keys to values
(e.g., SSN ⇒ Person)
 Keys and values must be objects
 Keys must be unique
 Only one value per key
 Following constructors are common to all
collection implementers
 T()
 T(Map m)

10

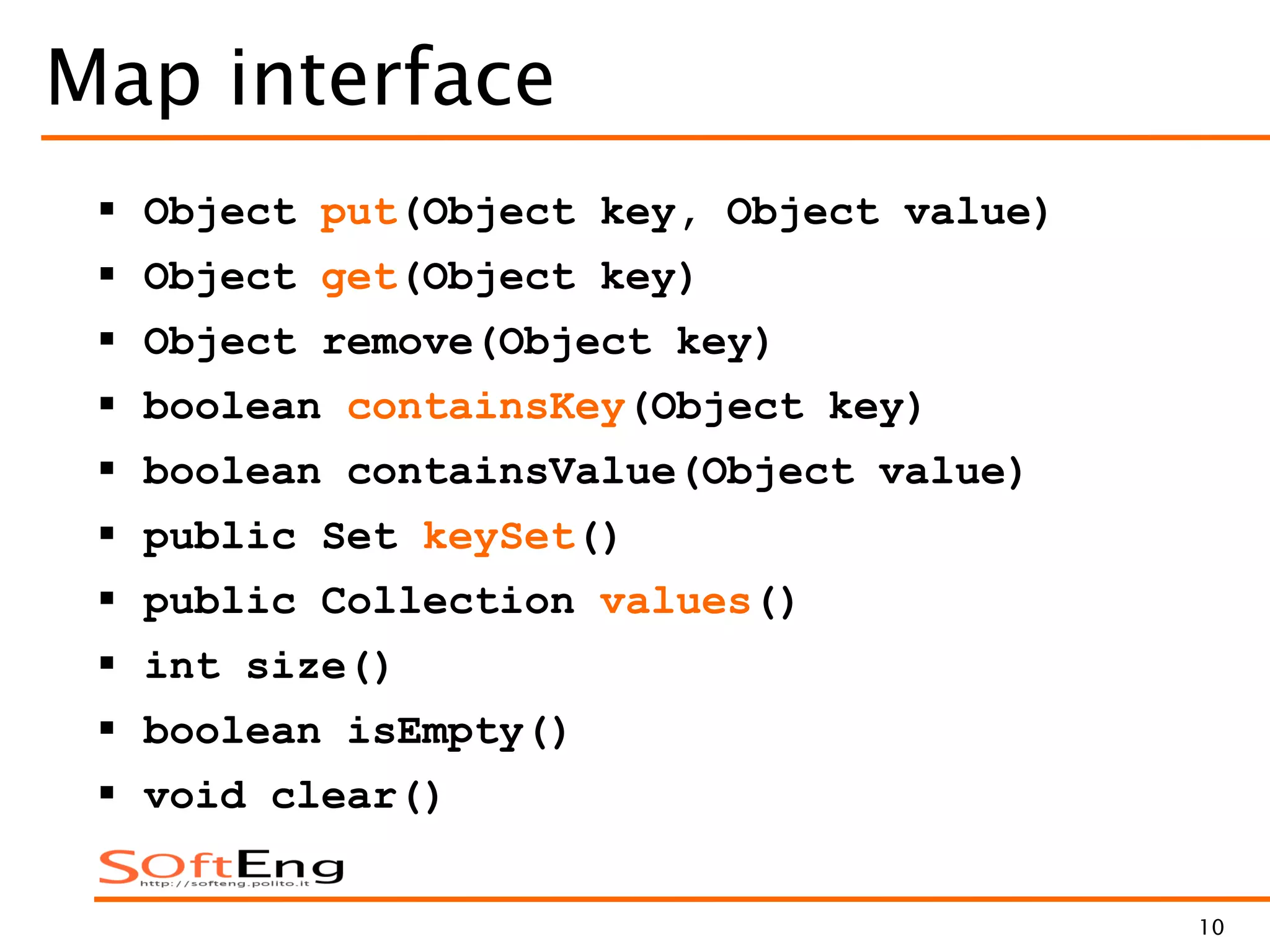

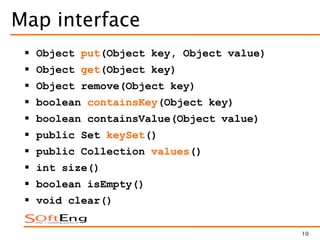

Map interface
 Object put(Object key, Object value)
 Object get(Object key)
 Object remove(Object key)
 boolean containsKey(Object key)
 boolean containsValue(Object value)
 public Set keySet()
 public Collection values()
 int size()
 boolean isEmpty()
 void clear()

11

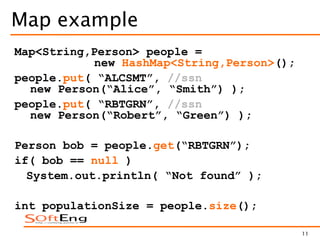

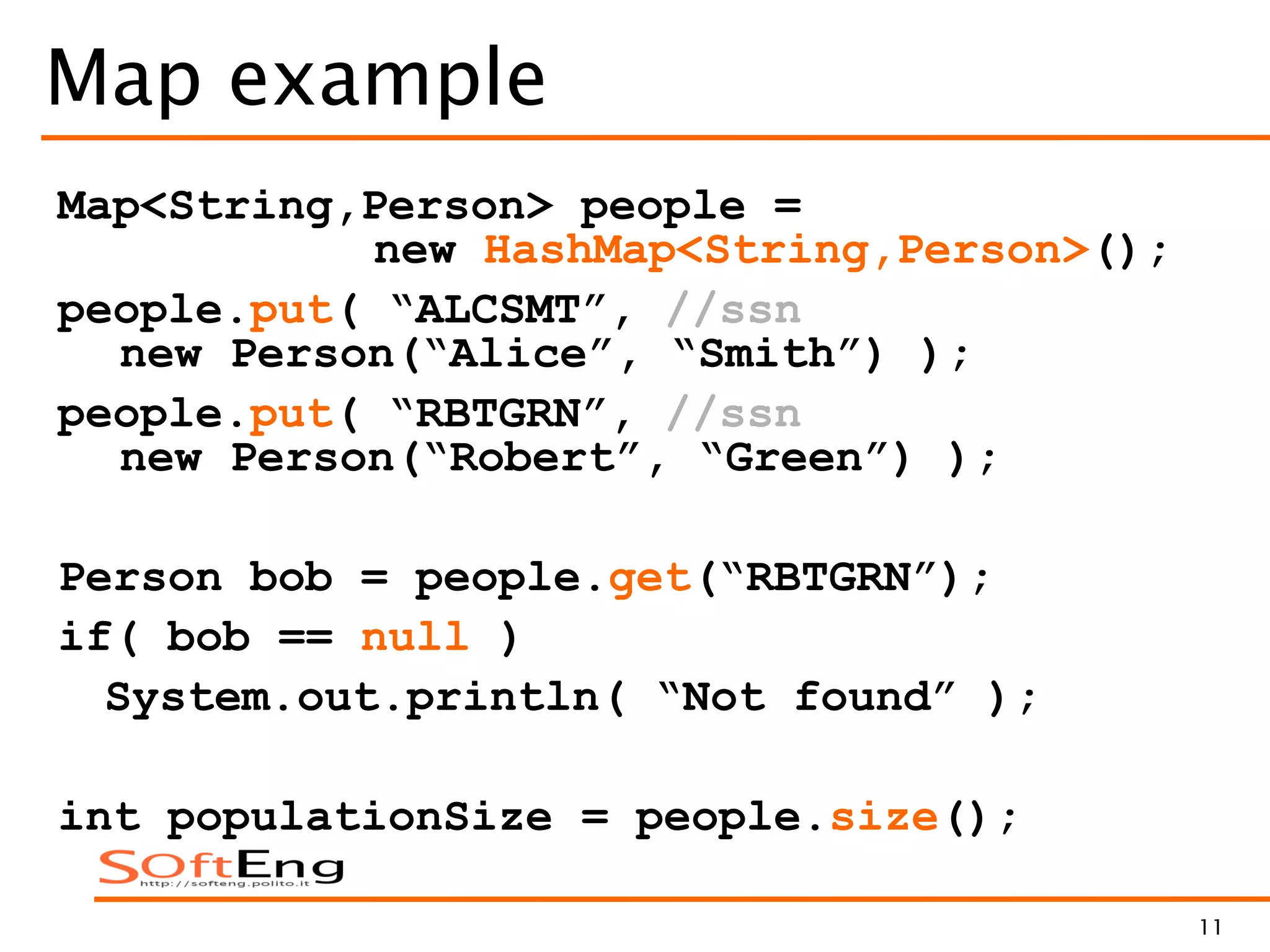

Map example
Map<String,Person> people =
new HashMap<String,Person>();
people.put( “ALCSMT”, //ssn
new Person(“Alice”, “Smith”) );
people.put( “RBTGRN”, //ssn
new Person(“Robert”, “Green”) );
Person bob = people.get(“RBTGRN”);
if( bob == null )
System.out.println( “Not found” );
int populationSize = people.size();

12

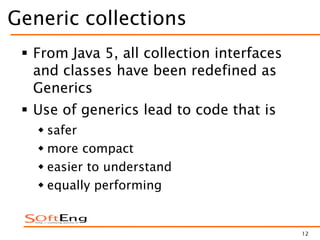

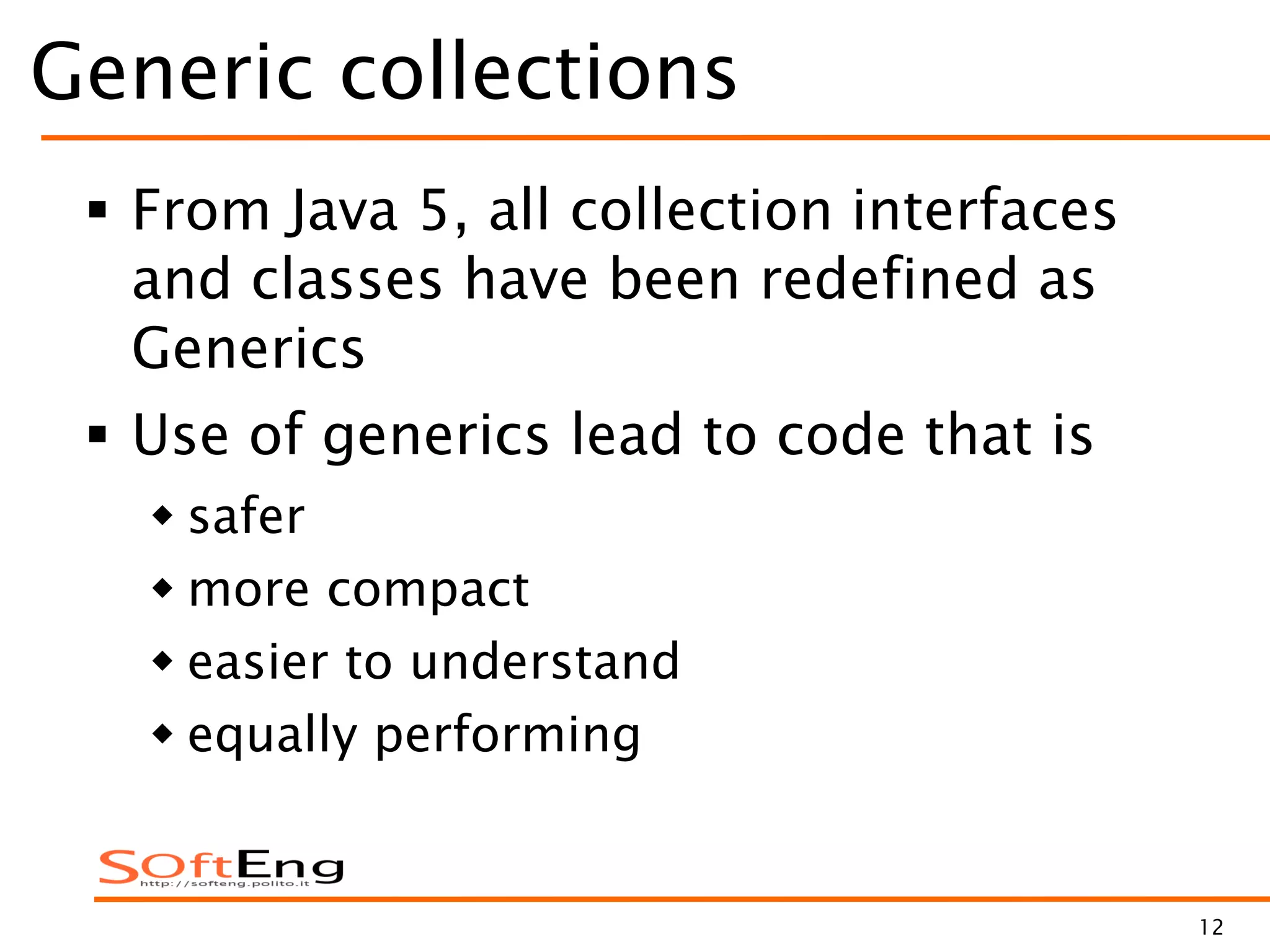

Generic collections
 From Java 5, all collection interfaces
and classes have been redefined as
Generics
 Use of generics lead to code that is
 safer
 more compact
 easier to understand
 equally performing

13

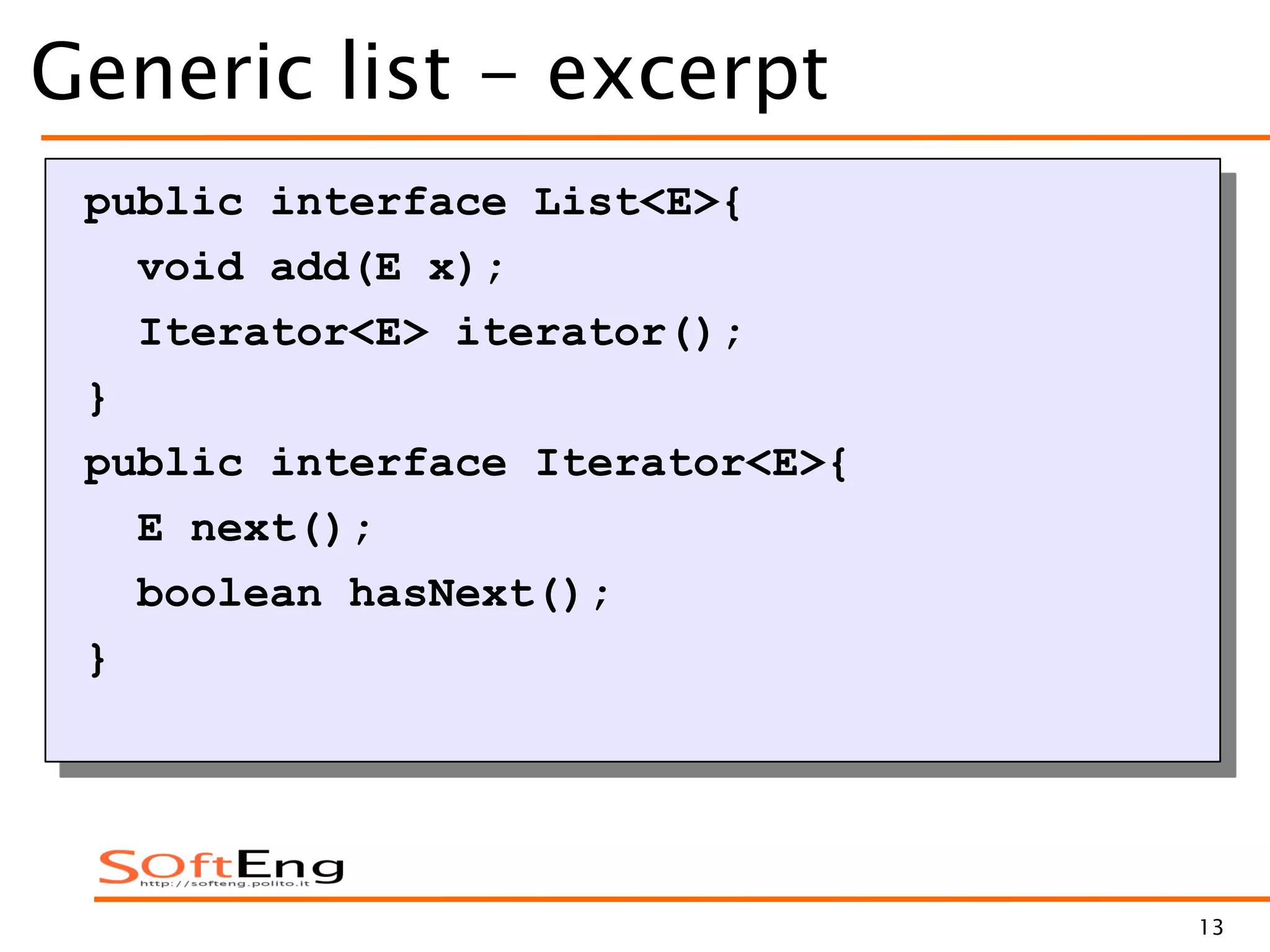

Generic list - excerpt
public interface List<E>{
void add(E x);
Iterator<E> iterator();
}
public interface Iterator<E>{
E next();
boolean hasNext();
}

14

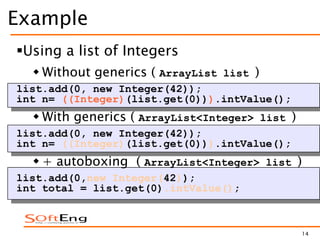

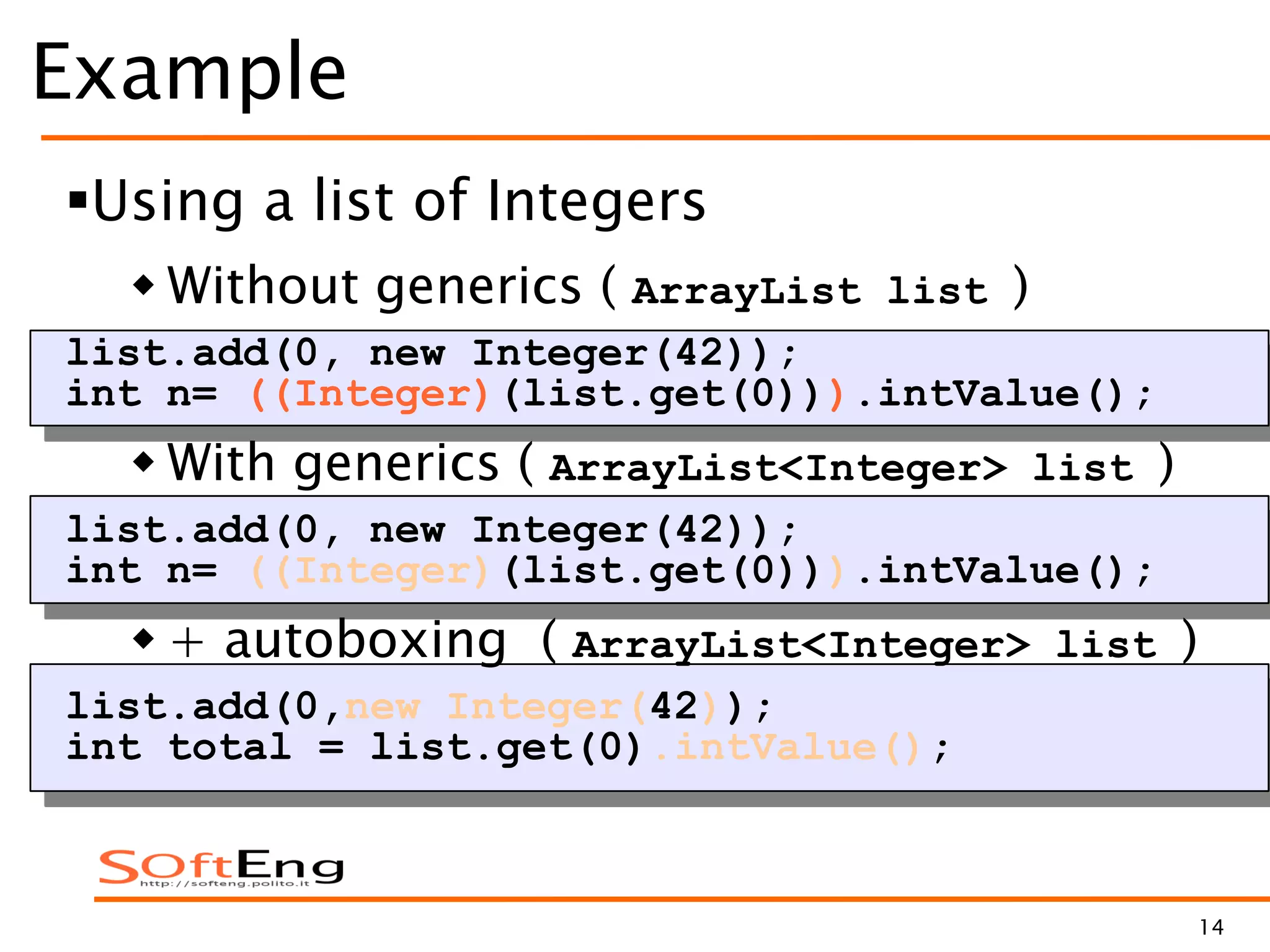

Example
Using a list of Integers
 Without generics ( ArrayList list )
list.add(0, new Integer(42));
int n= ((Integer)(list.get(0))).intValue();
 With generics ( ArrayList<Integer> list )
list.add(0, new Integer(42));
int n= ((Integer)(list.get(0))).intValue();
 + autoboxing ( ArrayList<Integer> list )
list.add(0,new Integer(42));
int total = list.get(0).intValue();

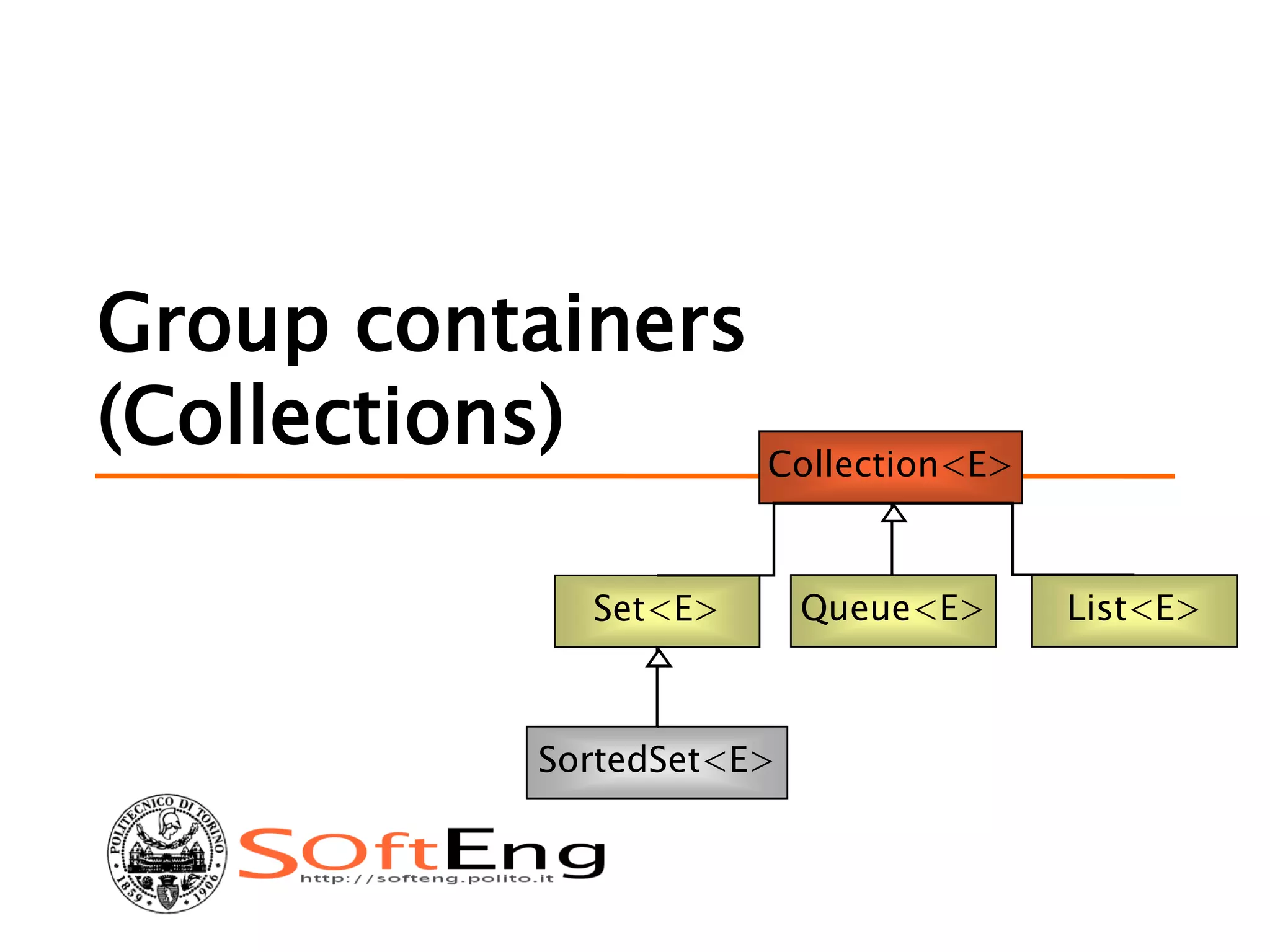

Group containers
(Collections) Collection<E>
Set<E> List<E>
SortedSet<E>
Queue<E>

16

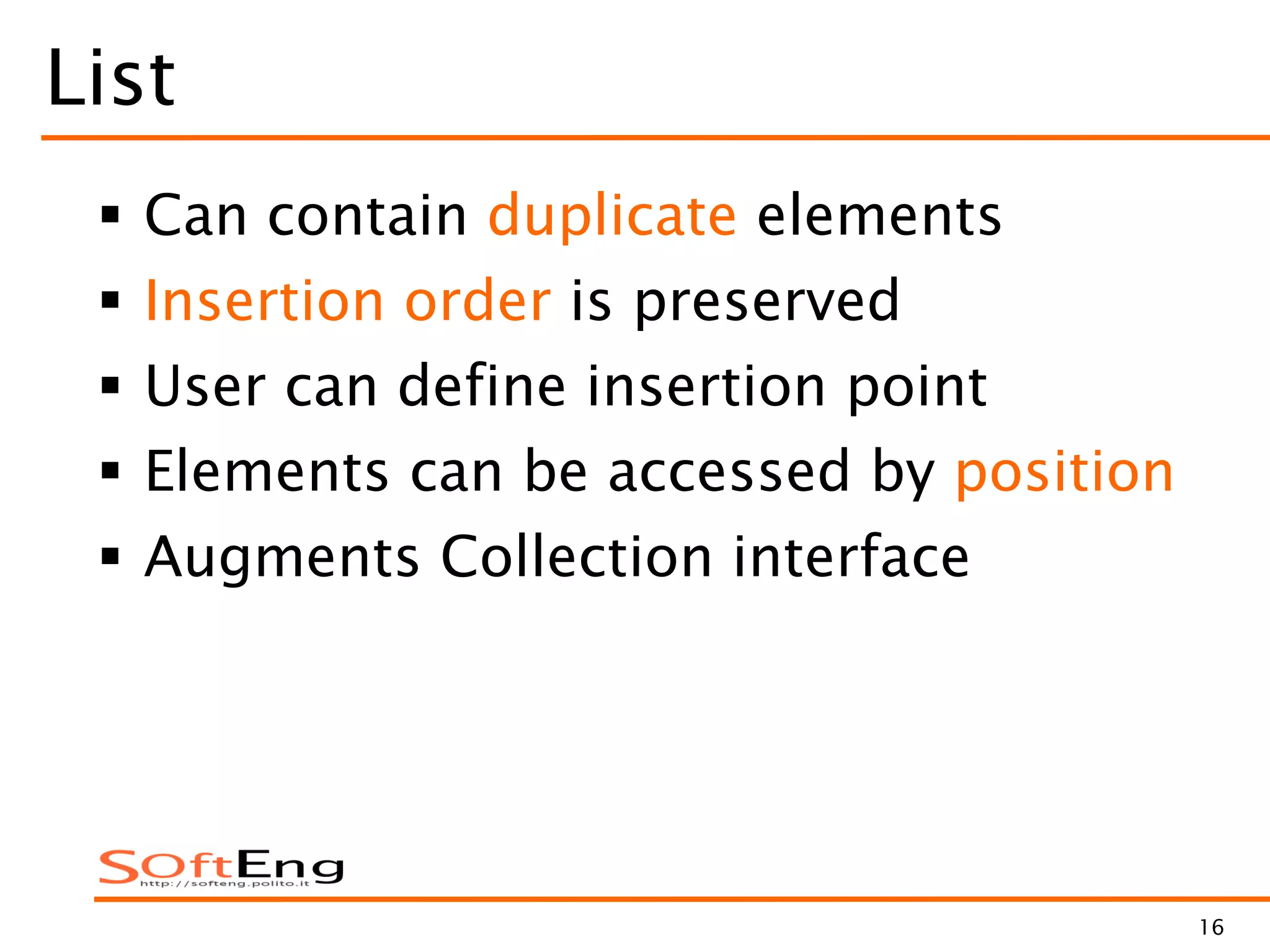

List
 Can contain duplicate elements
 Insertion order is preserved
 User can define insertion point
 Elements can be accessed by position
 Augments Collection interface

17

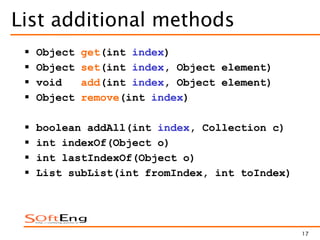

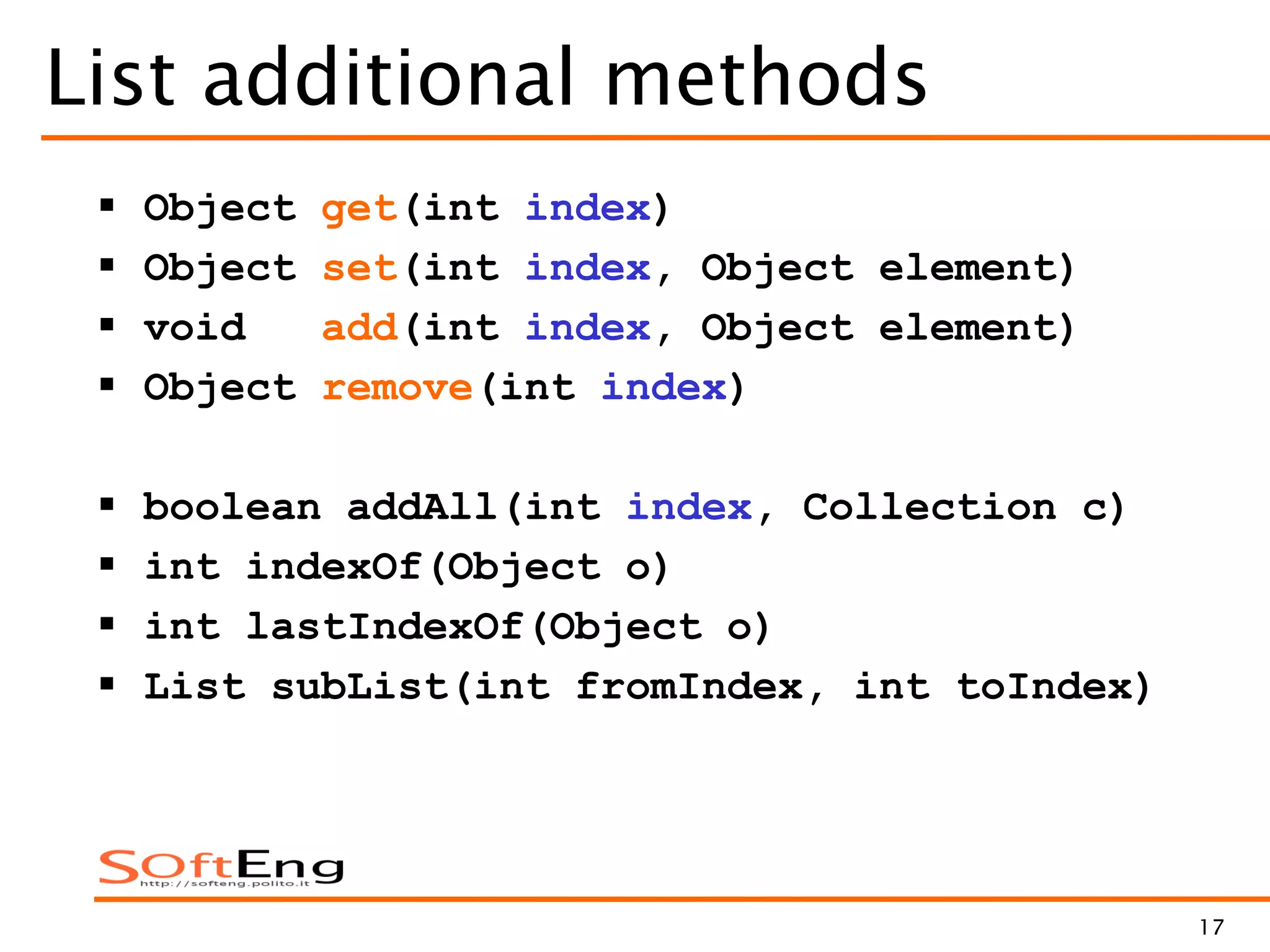

List additional methods
 Object get(int index)
 Object set(int index, Object element)
 void add(int index, Object element)
 Object remove(int index)
 boolean addAll(int index, Collection c)
 int indexOf(Object o)
 int lastIndexOf(Object o)
 List subList(int fromIndex, int toIndex)

18

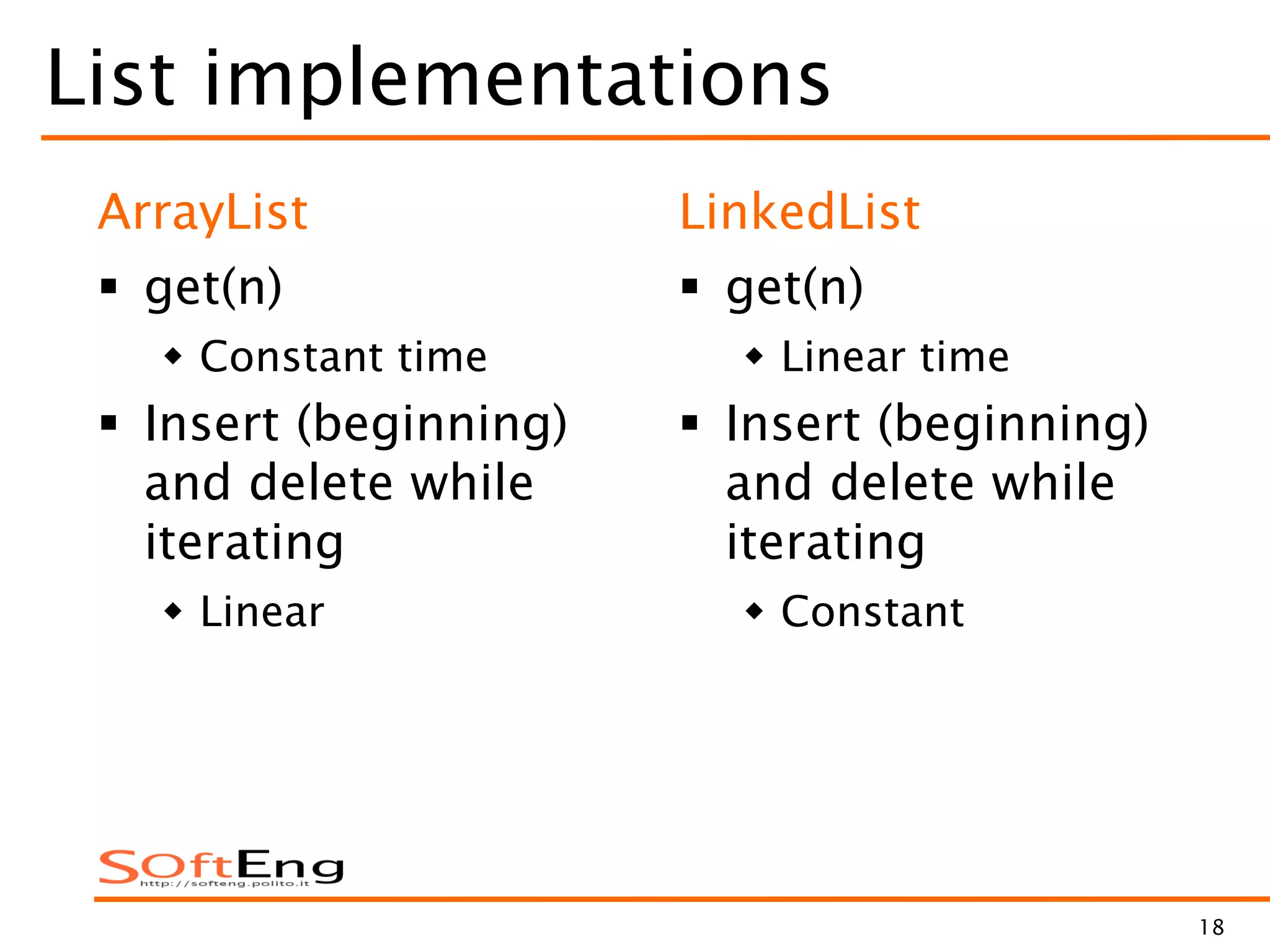

List implementations
ArrayList
 get(n)
 Constant time
 Insert (beginning)
and delete while
iterating
 Linear
LinkedList
 get(n)
 Linear time
 Insert (beginning)
and delete while
iterating
 Constant

19

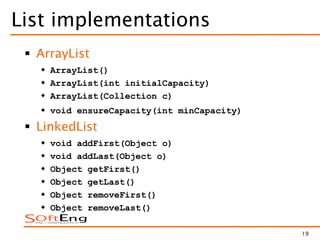

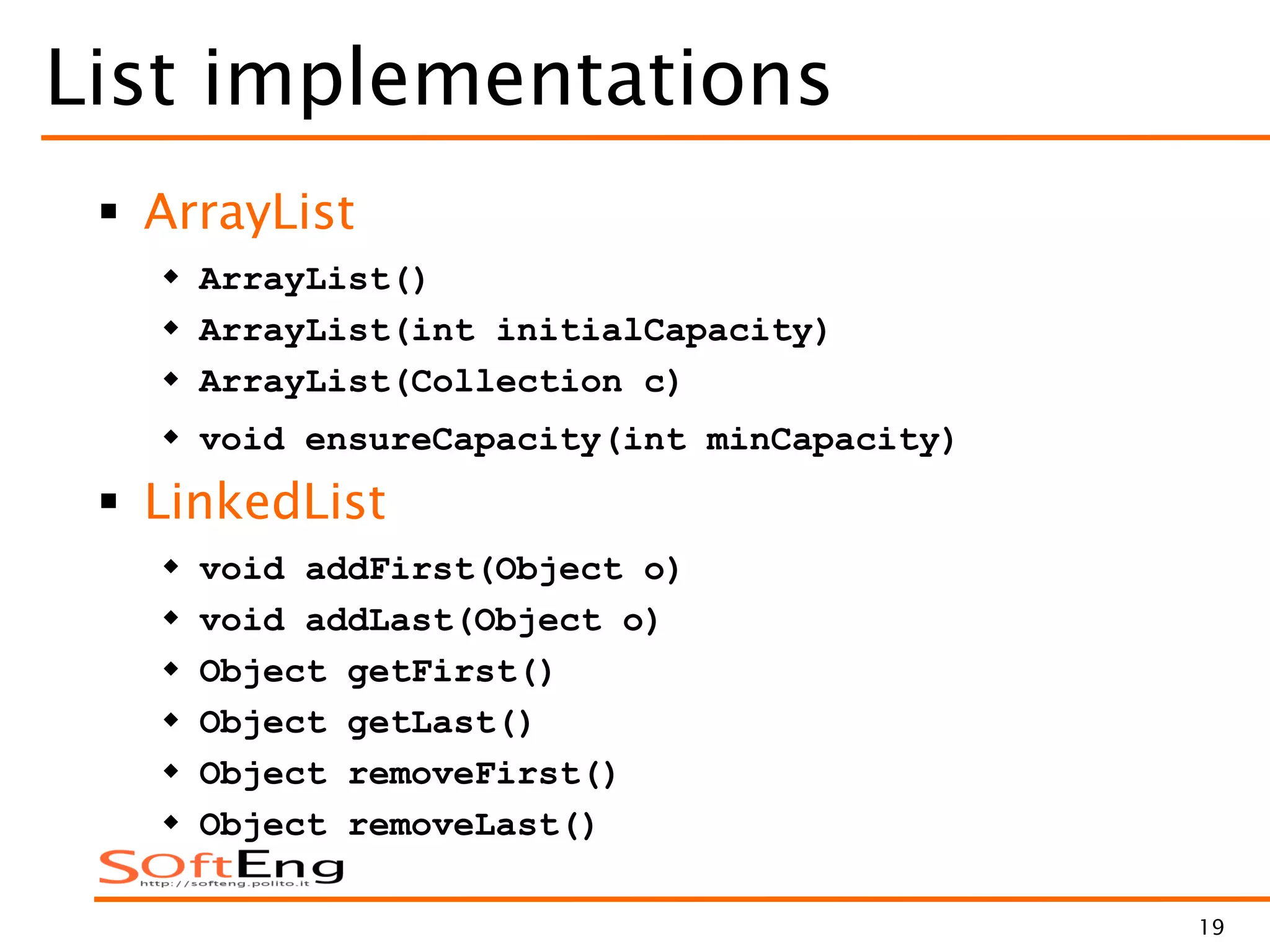

List implementations
 ArrayList
 ArrayList()
 ArrayList(int initialCapacity)
 ArrayList(Collection c)
 void ensureCapacity(int minCapacity)
 LinkedList
 void addFirst(Object o)
 void addLast(Object o)
 Object getFirst()
 Object getLast()
 Object removeFirst()
 Object removeLast()

20

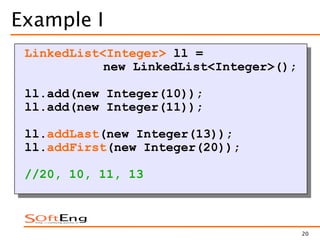

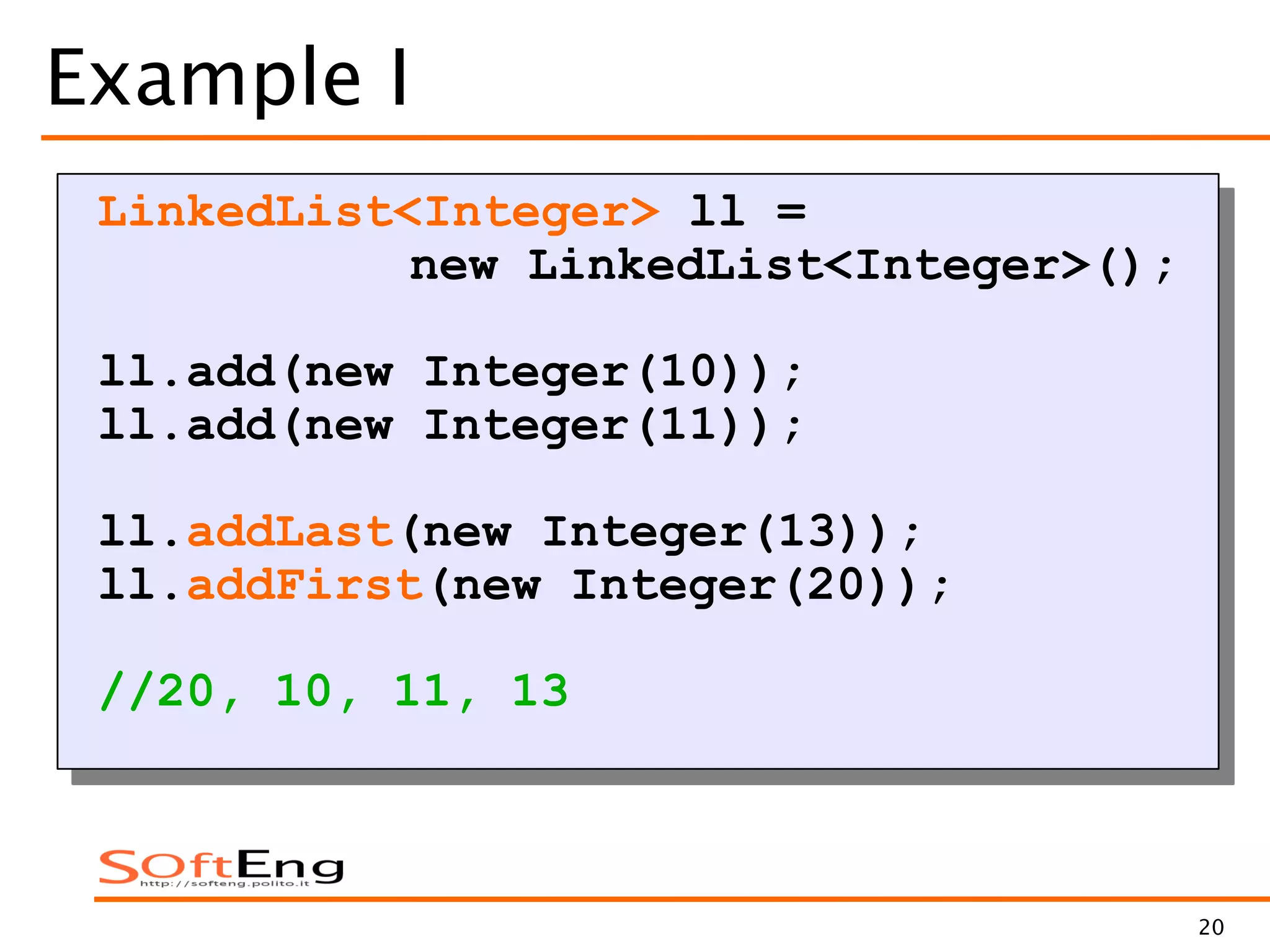

Example I
LinkedList<Integer> ll =
new LinkedList<Integer>();
ll.add(new Integer(10));
ll.add(new Integer(11));
ll.addLast(new Integer(13));
ll.addFirst(new Integer(20));
//20, 10, 11, 13

21

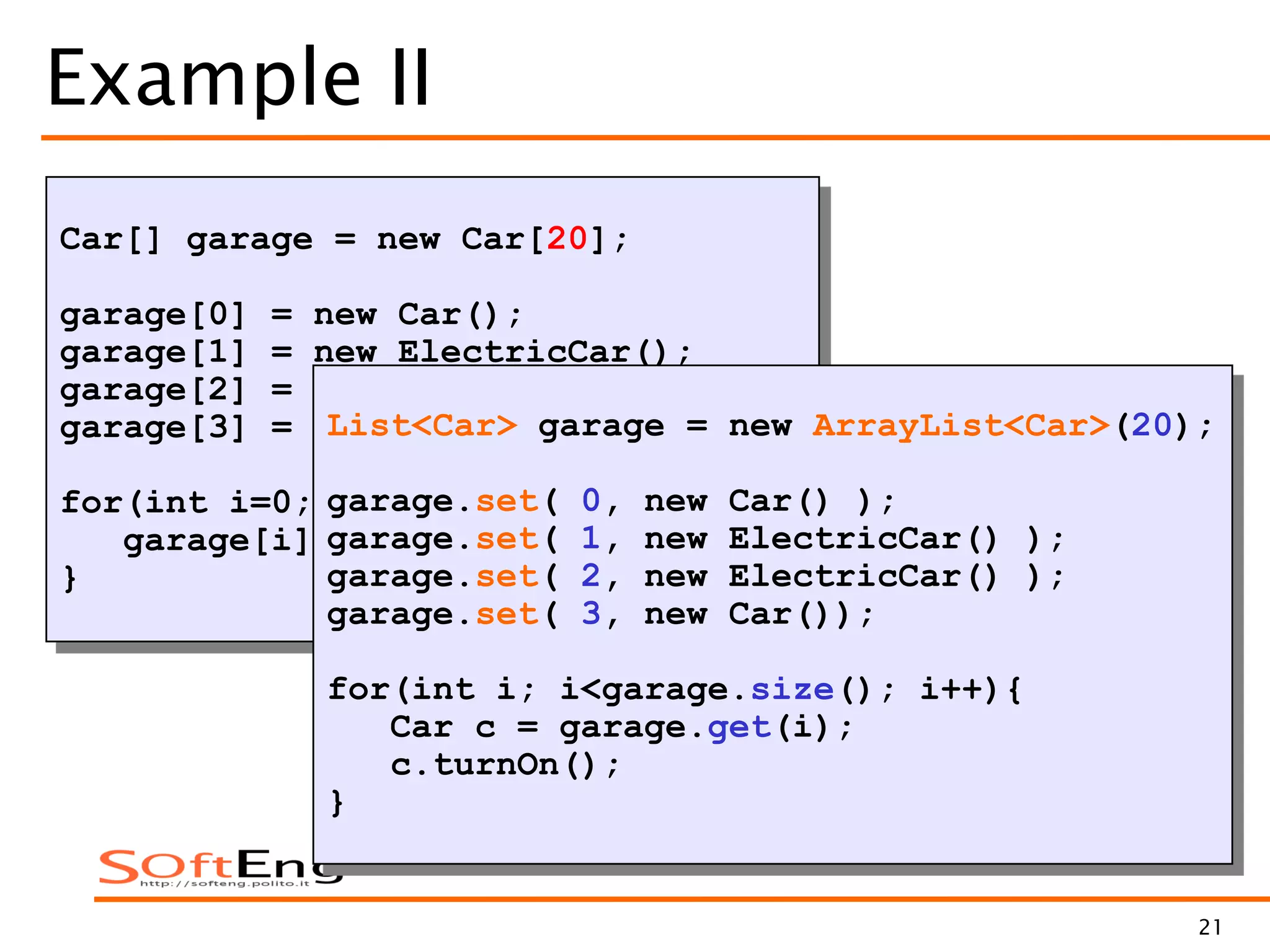

Example II
Car[] garage = new Car[20];
garage[0] = new Car();
garage[1] = new ElectricCar();
garage[2] = new ElectricCar();
garage[3] = new Car();
for(int i=0; i<garage.length; i++){
garage[i].turnOn();
}
Null pointer error
List<Car> garage = new ArrayList<Car>(20);
garage.set( 0, new Car() );
garage.set( 1, new ElectricCar() );
garage.set( 2, new ElectricCar() );
garage.set( 3, new Car());
for(int i; i<garage.size(); i++){
Car c = garage.get(i);
c.turnOn();
}

22

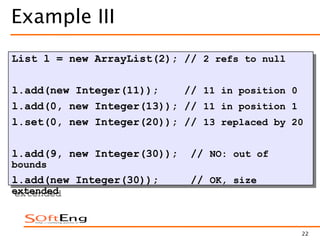

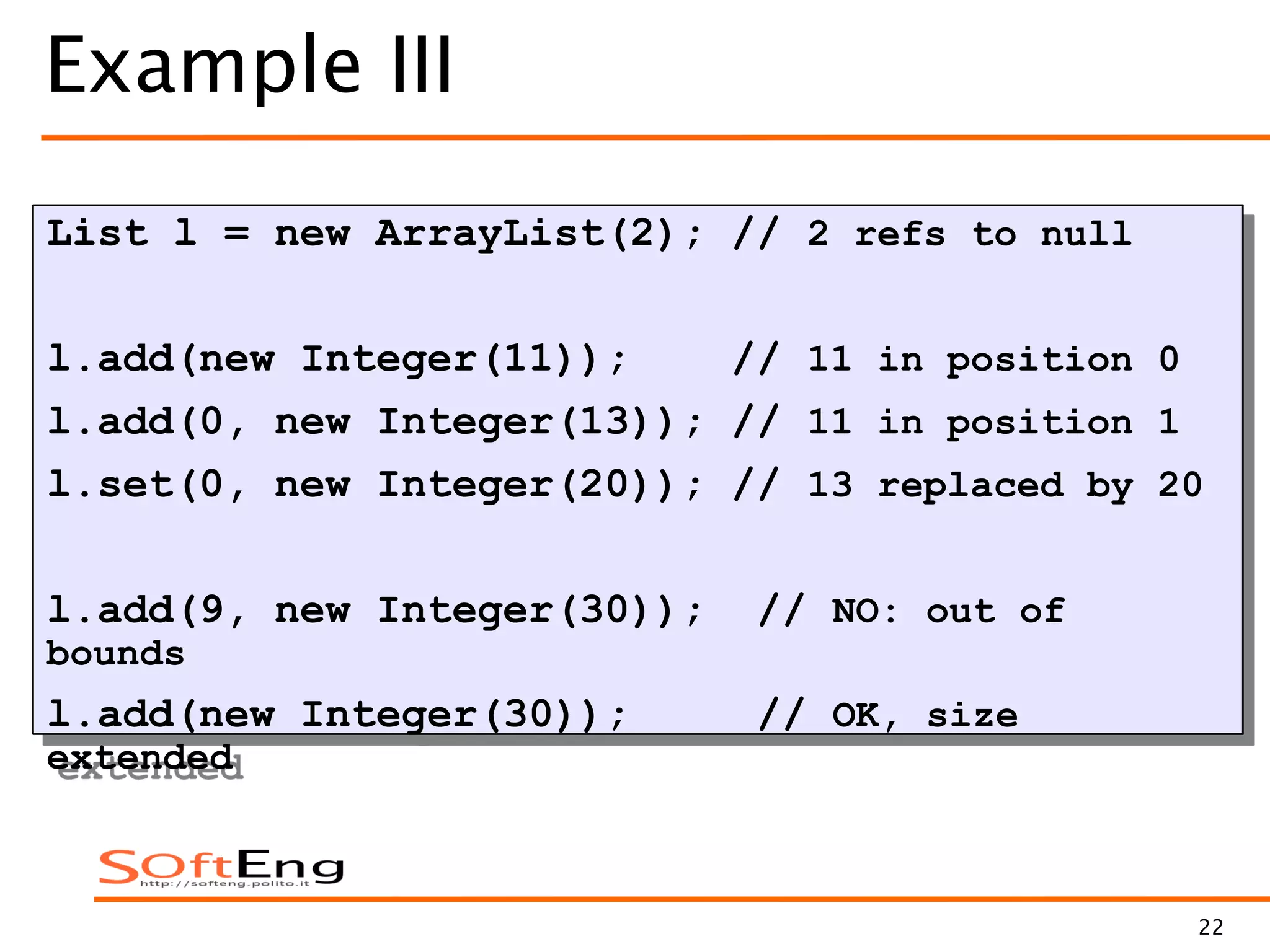

Example III
List l = new ArrayList(2); // 2 refs to null
l.add(new Integer(11)); // 11 in position 0
l.add(0, new Integer(13)); // 11 in position 1
l.set(0, new Integer(20)); // 13 replaced by 20
l.add(9, new Integer(30)); // NO: out of
bounds
l.add(new Integer(30)); // OK, size
extended

23

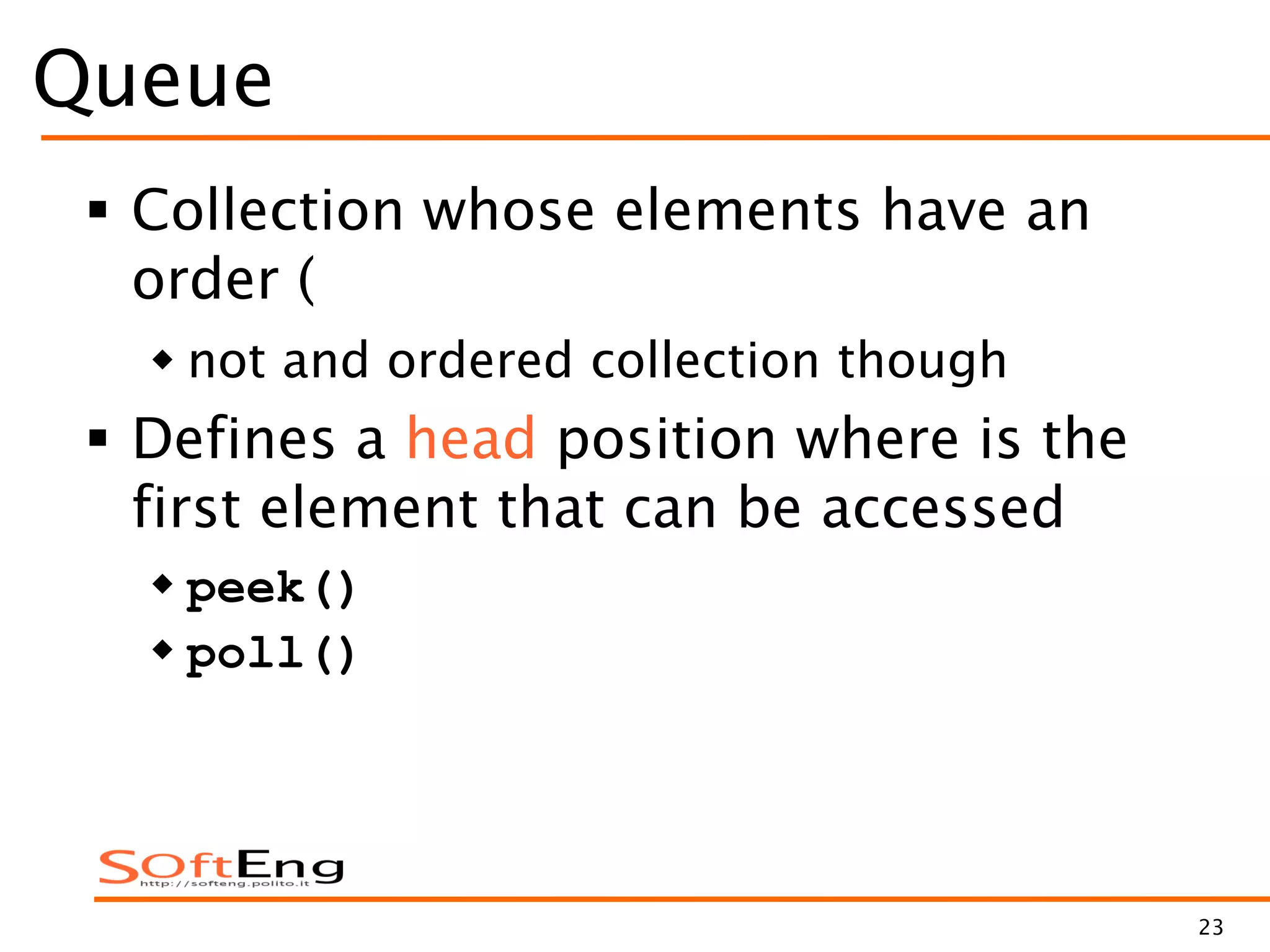

Queue
 Collection whose elements have an
order (
 not and ordered collection though
 Defines a head position where is the
first element that can be accessed
 peek()
 poll()

24

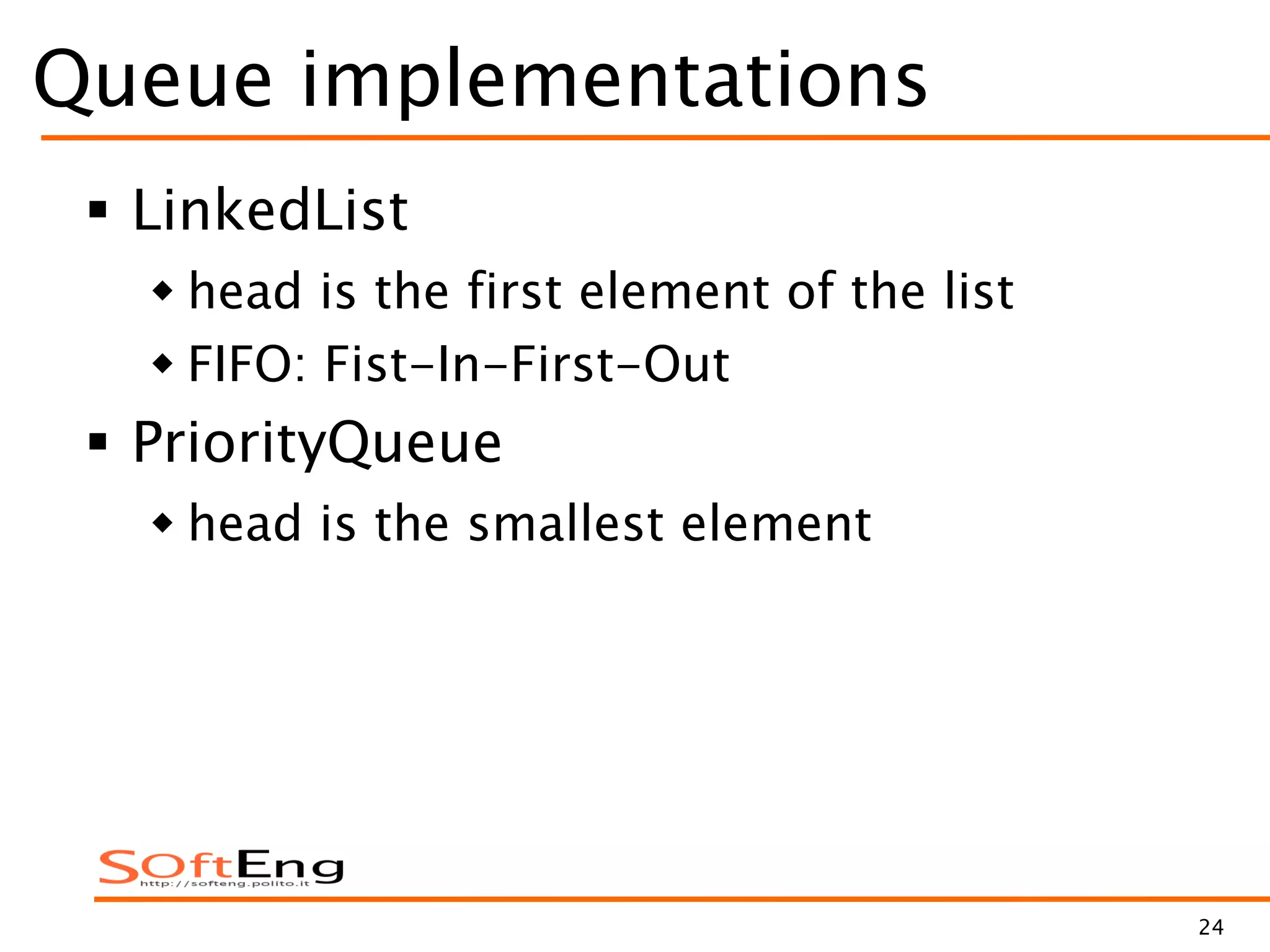

Queue implementations
 LinkedList
 head is the first element of the list
 FIFO: Fist-In-First-Out
 PriorityQueue
 head is the smallest element

25

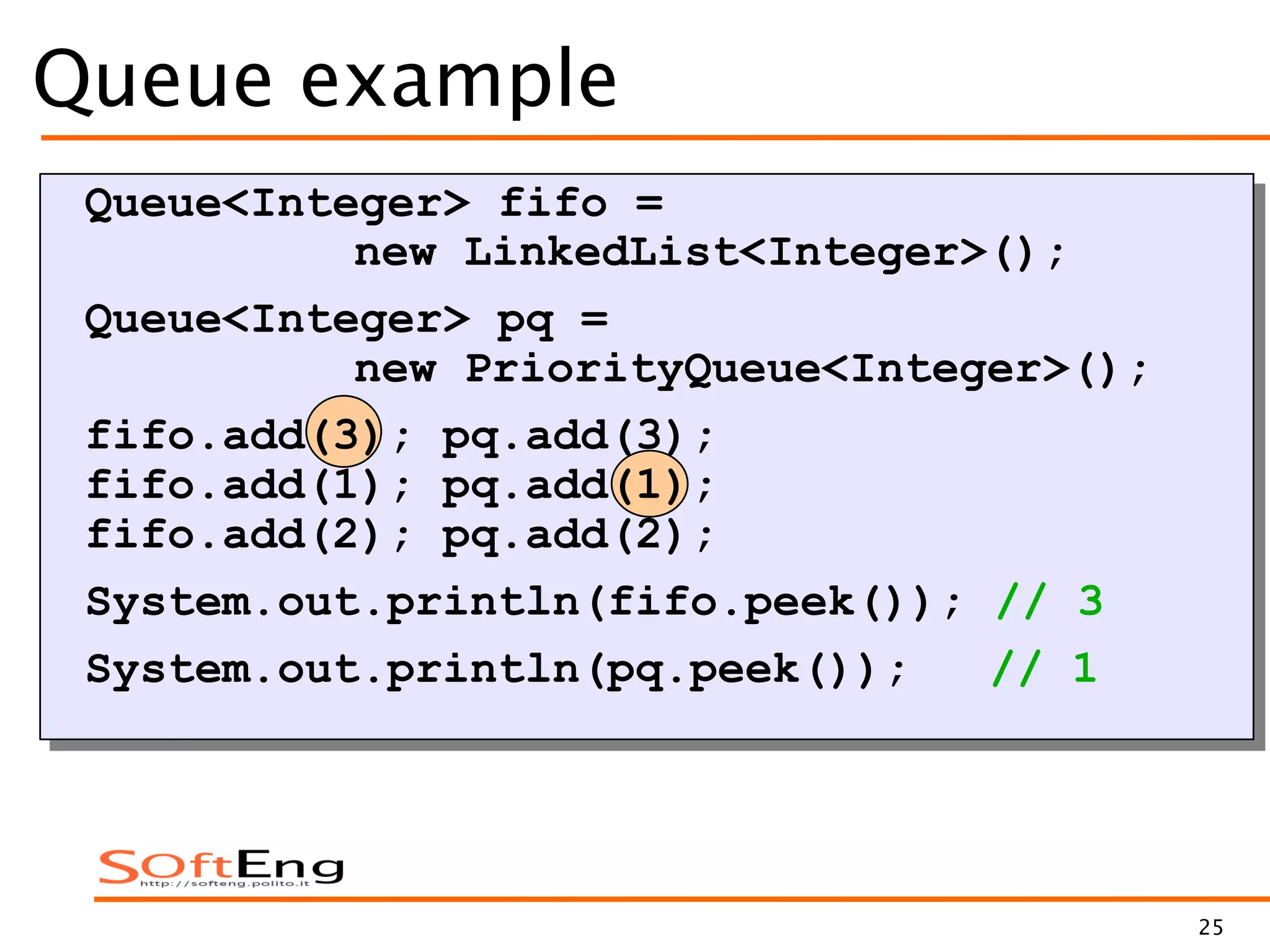

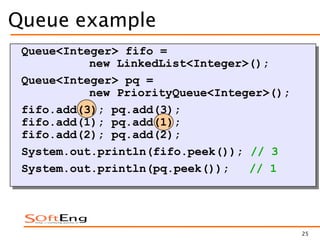

Queue example
Queue<Integer> fifo =
new LinkedList<Integer>();
Queue<Integer> pq =
new PriorityQueue<Integer>();
fifo.add(3); pq.add(3);
System.out.println(fifo.peek()); // 3
System.out.println(pq.peek()); // 1

26

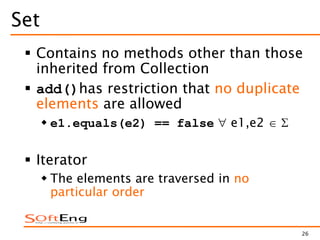

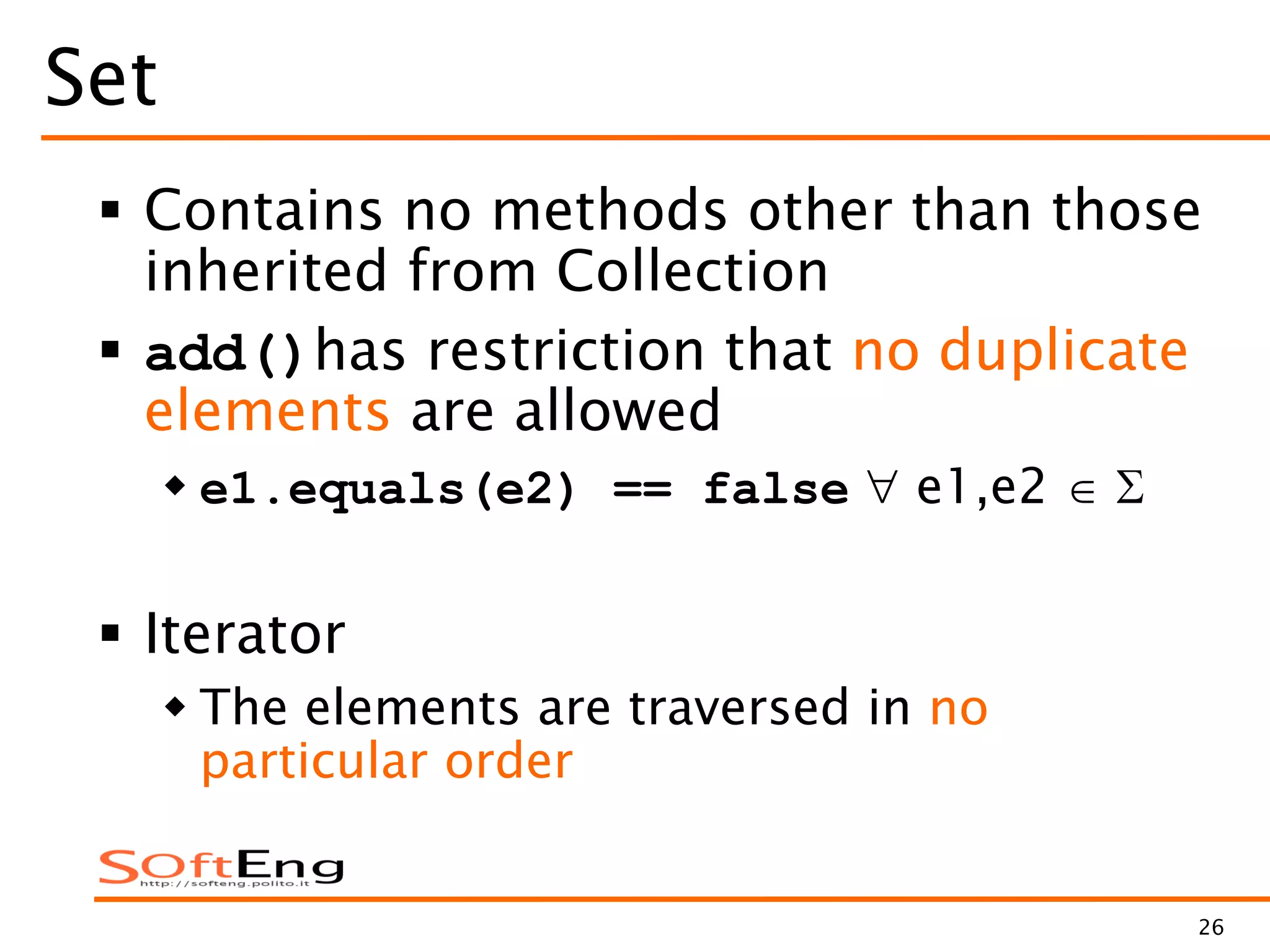

Set
 Contains no methods other than those
inherited from Collection
 add()has restriction that no duplicate
elements are allowed
 e1.equals(e2) == false e1,e2
 Iterator
 The elements are traversed in no
particular order

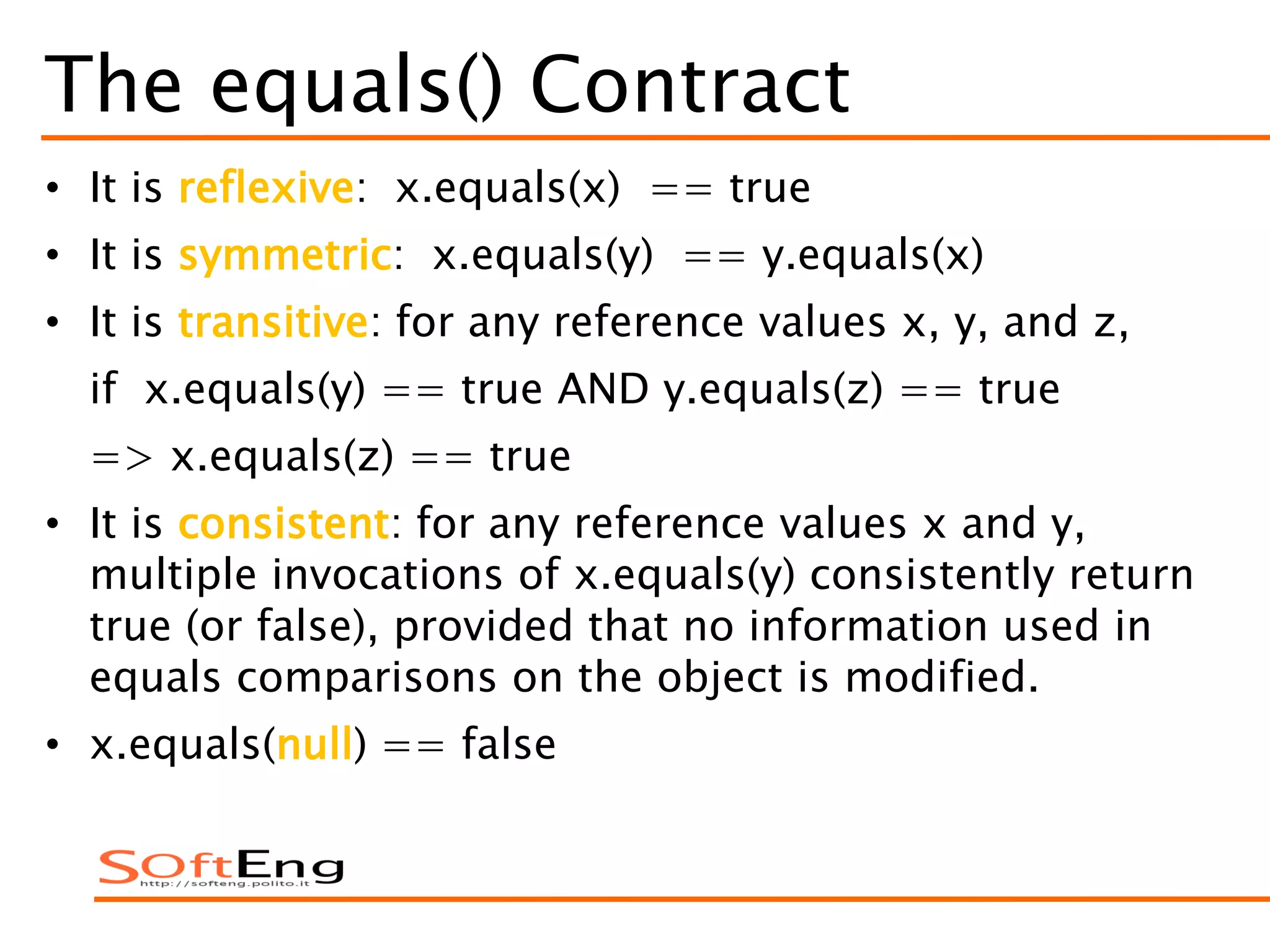

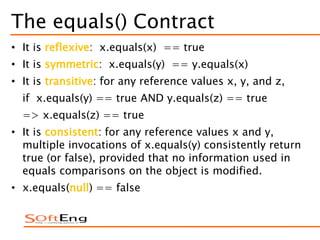

The equals() Contract
• It is reflexive: x.equals(x) == true
• It is symmetric: x.equals(y) == y.equals(x)
• It is transitive: for any reference values x, y, and z,
if x.equals(y) == true AND y.equals(z) == true
=> x.equals(z) == true
• It is consistent: for any reference values x and y,
multiple invocations of x.equals(y) consistently return
true (or false), provided that no information used in
equals comparisons on the object is modified.
• x.equals(null) == false

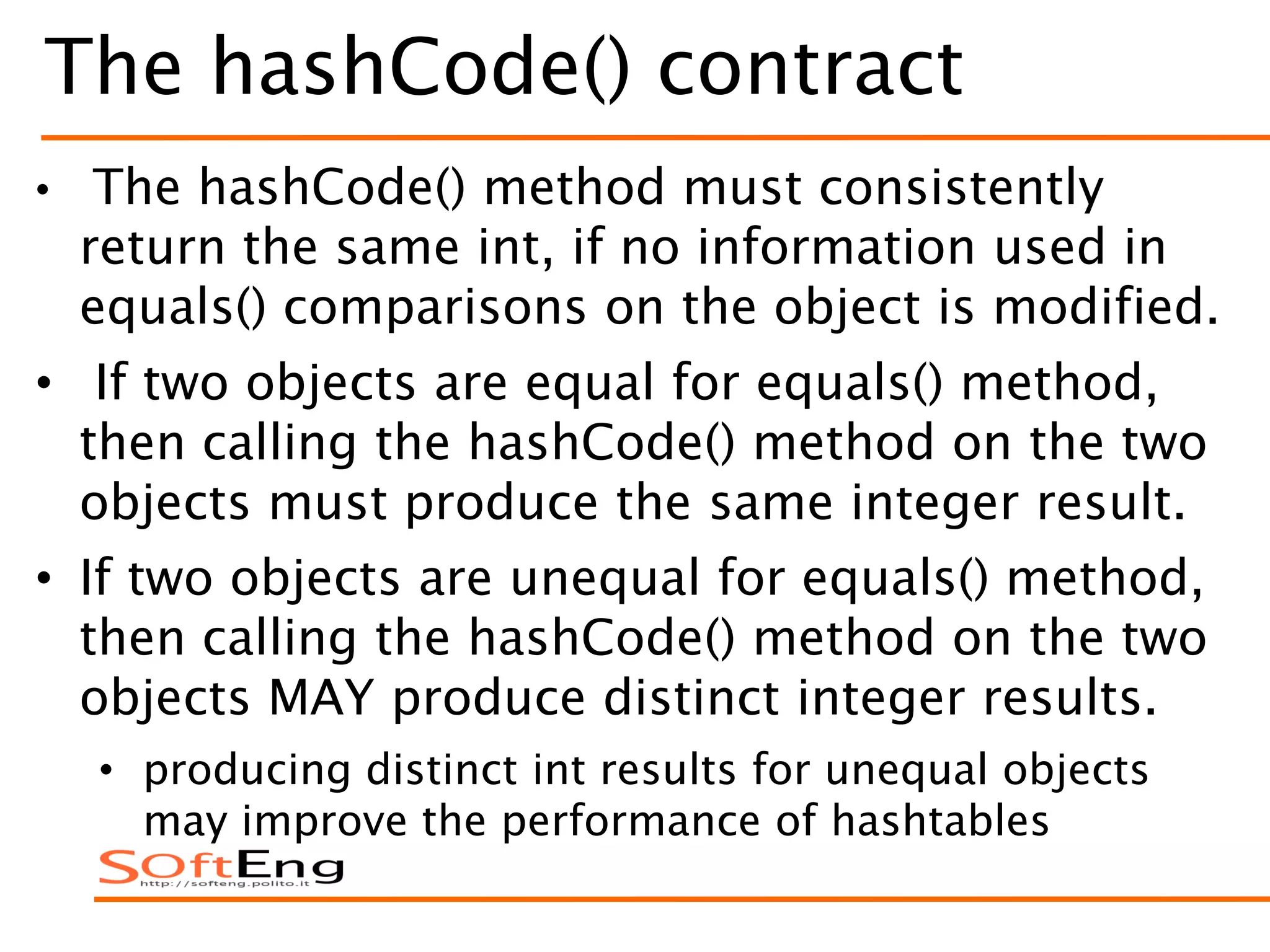

The hashCode() contract
• The hashCode() method must consistently
return the same int, if no information used in
equals() comparisons on the object is modified.
• If two objects are equal for equals() method,
then calling the hashCode() method on the two
objects must produce the same integer result.
• If two objects are unequal for equals() method,
then calling the hashCode() method on the two
objects MAY produce distinct integer results.
• producing distinct int results for unequal objects
may improve the performance of hashtables

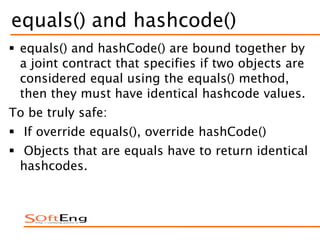

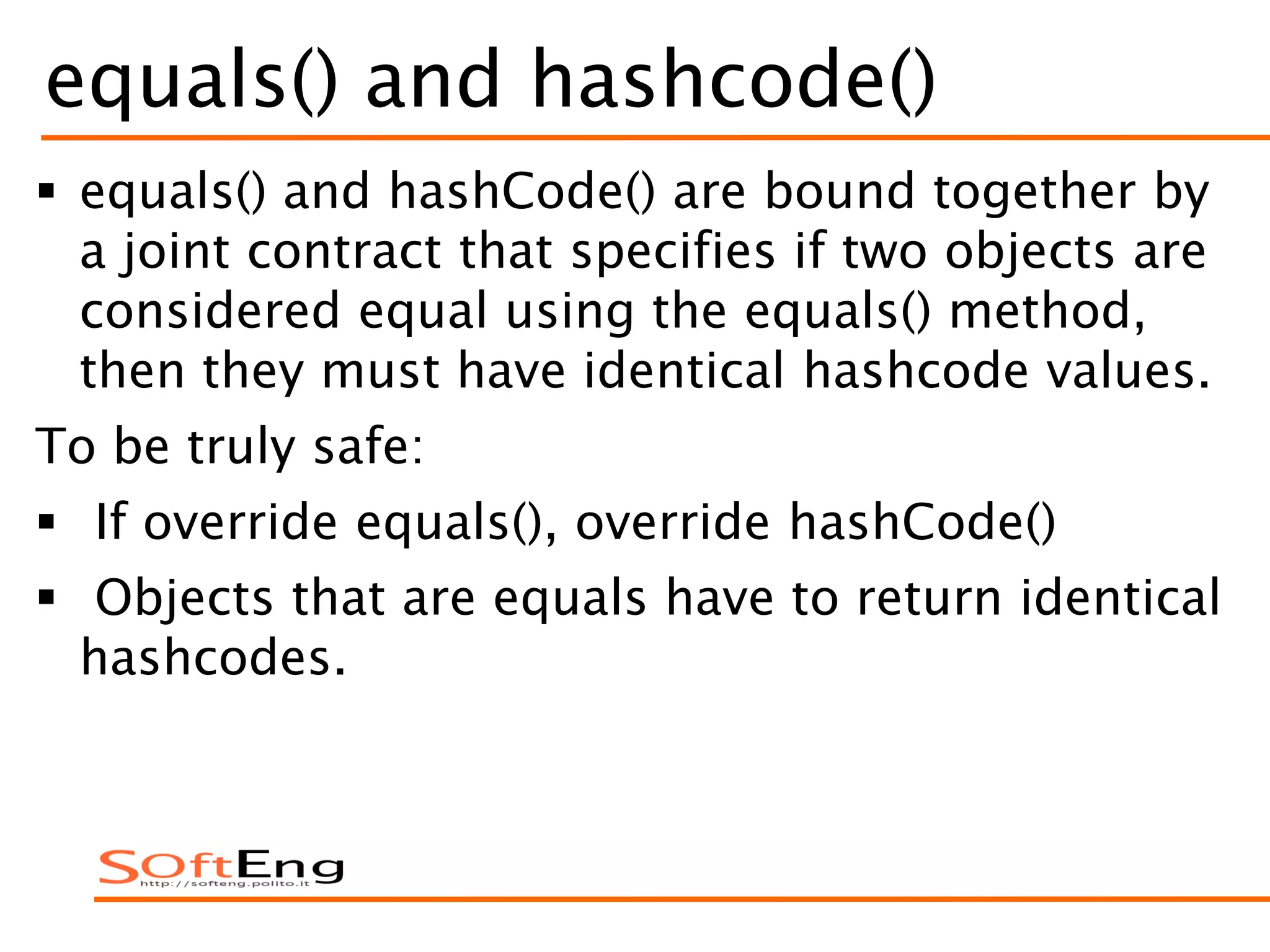

equals() and hashcode()
 equals() and hashCode() are bound together by
a joint contract that specifies if two objects are
considered equal using the equals() method,
then they must have identical hashcode values.
To be truly safe:
 If override equals(), override hashCode()
 Objects that are equals have to return identical
hashcodes.

32

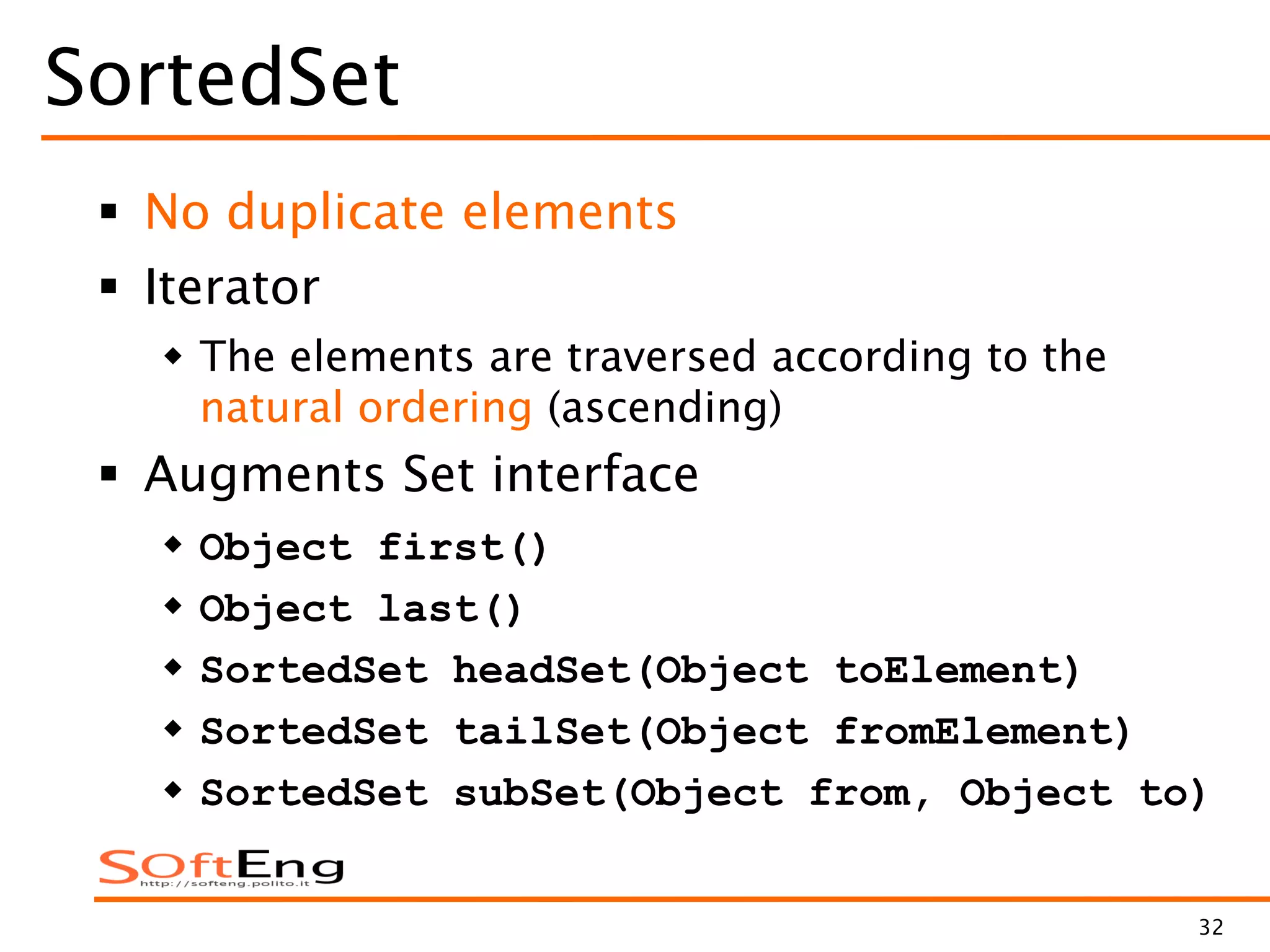

SortedSet
 No duplicate elements
 Iterator
 The elements are traversed according to the
natural ordering (ascending)
 Augments Set interface
 Object first()
 Object last()
 SortedSet headSet(Object toElement)
 SortedSet tailSet(Object fromElement)
 SortedSet subSet(Object from, Object to)

33

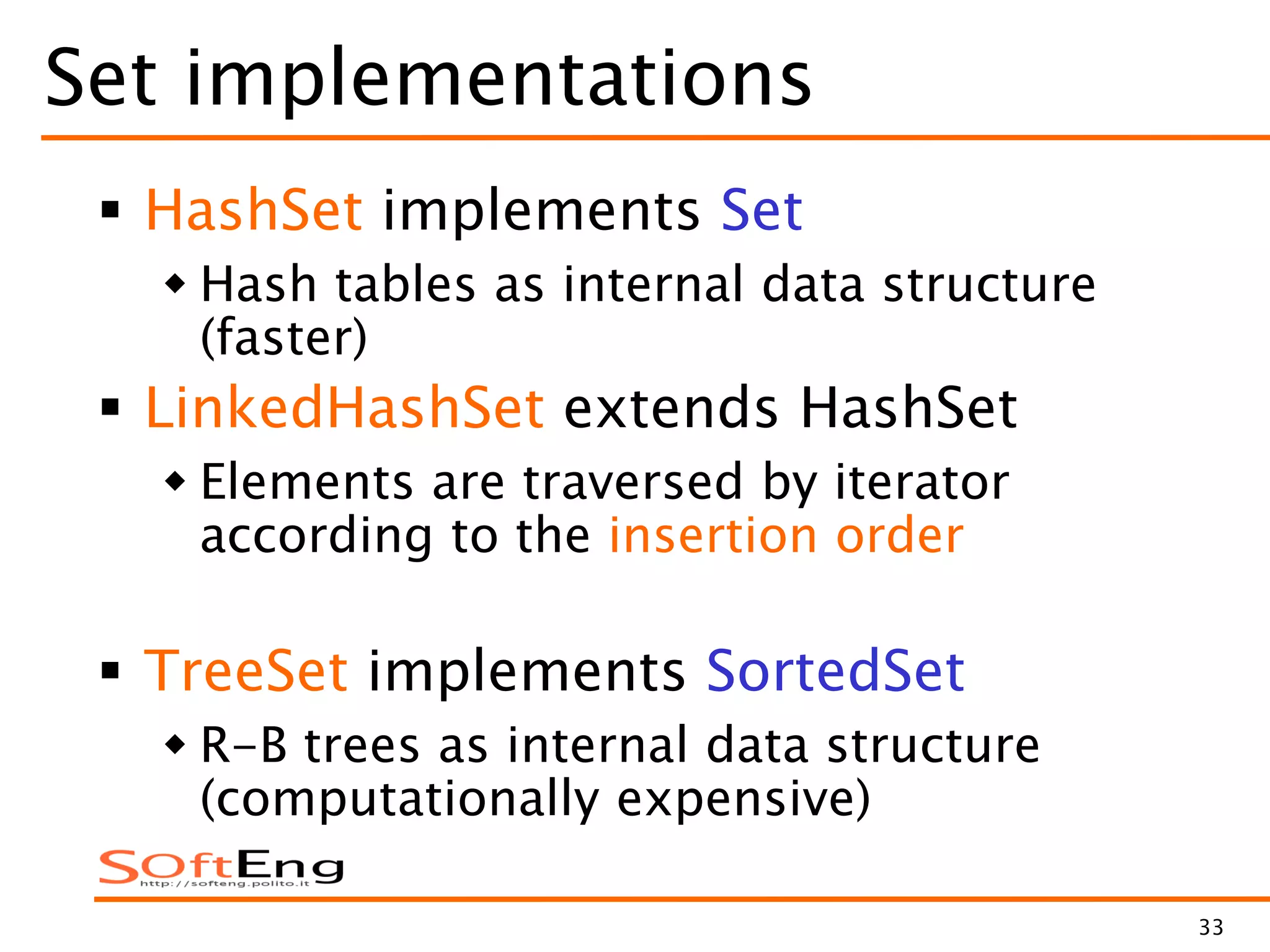

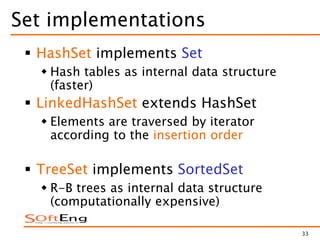

Set implementations
 HashSet implements Set
 Hash tables as internal data structure
(faster)
 LinkedHashSet extends HashSet
 Elements are traversed by iterator
according to the insertion order
 TreeSet implements SortedSet
 R-B trees as internal data structure
(computationally expensive)

34

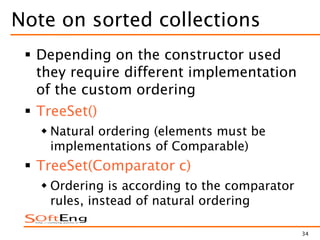

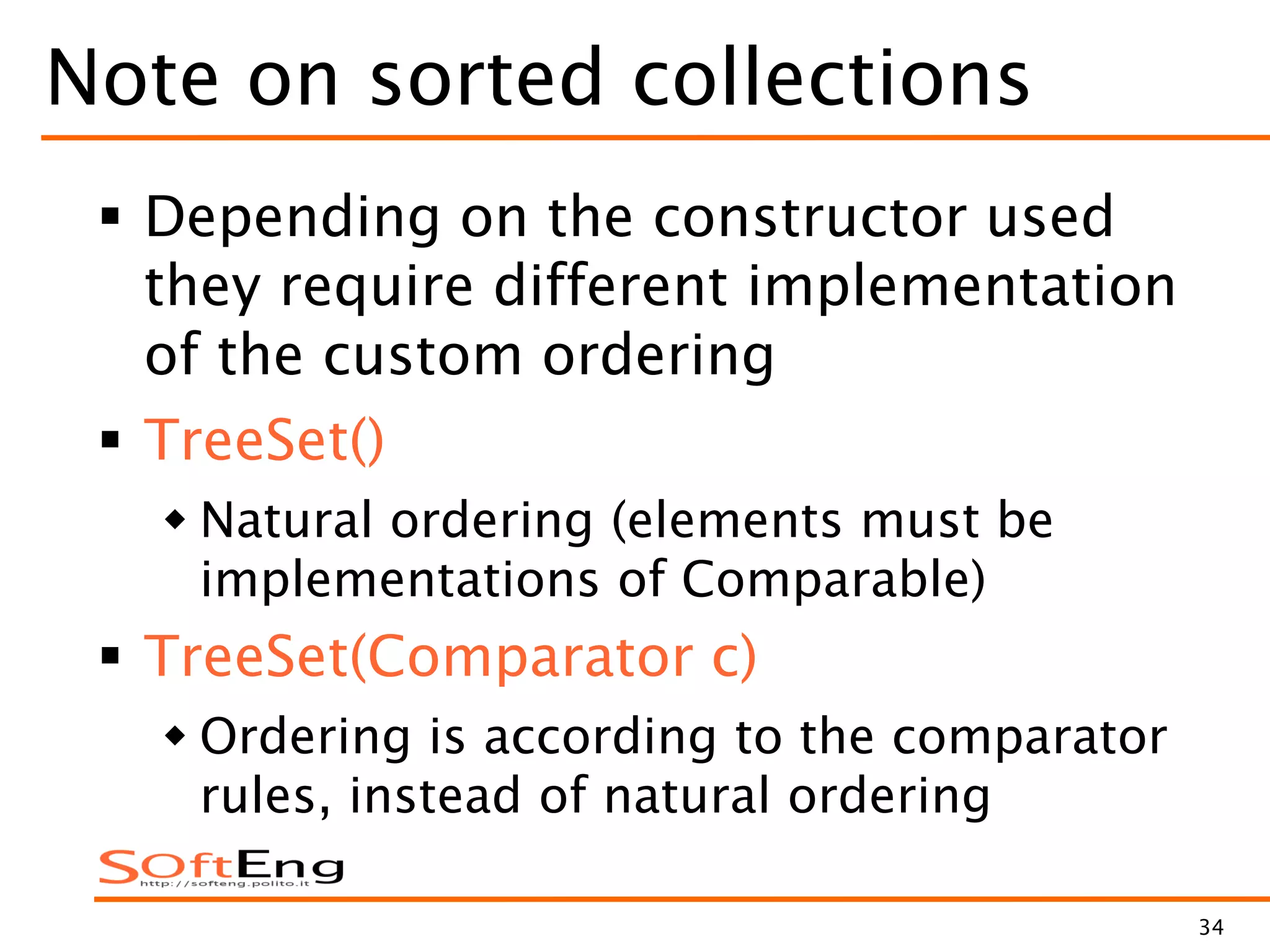

Note on sorted collections
 Depending on the constructor used
they require different implementation
of the custom ordering
 TreeSet()
 Natural ordering (elements must be
implementations of Comparable)
 TreeSet(Comparator c)
 Ordering is according to the comparator
rules, instead of natural ordering

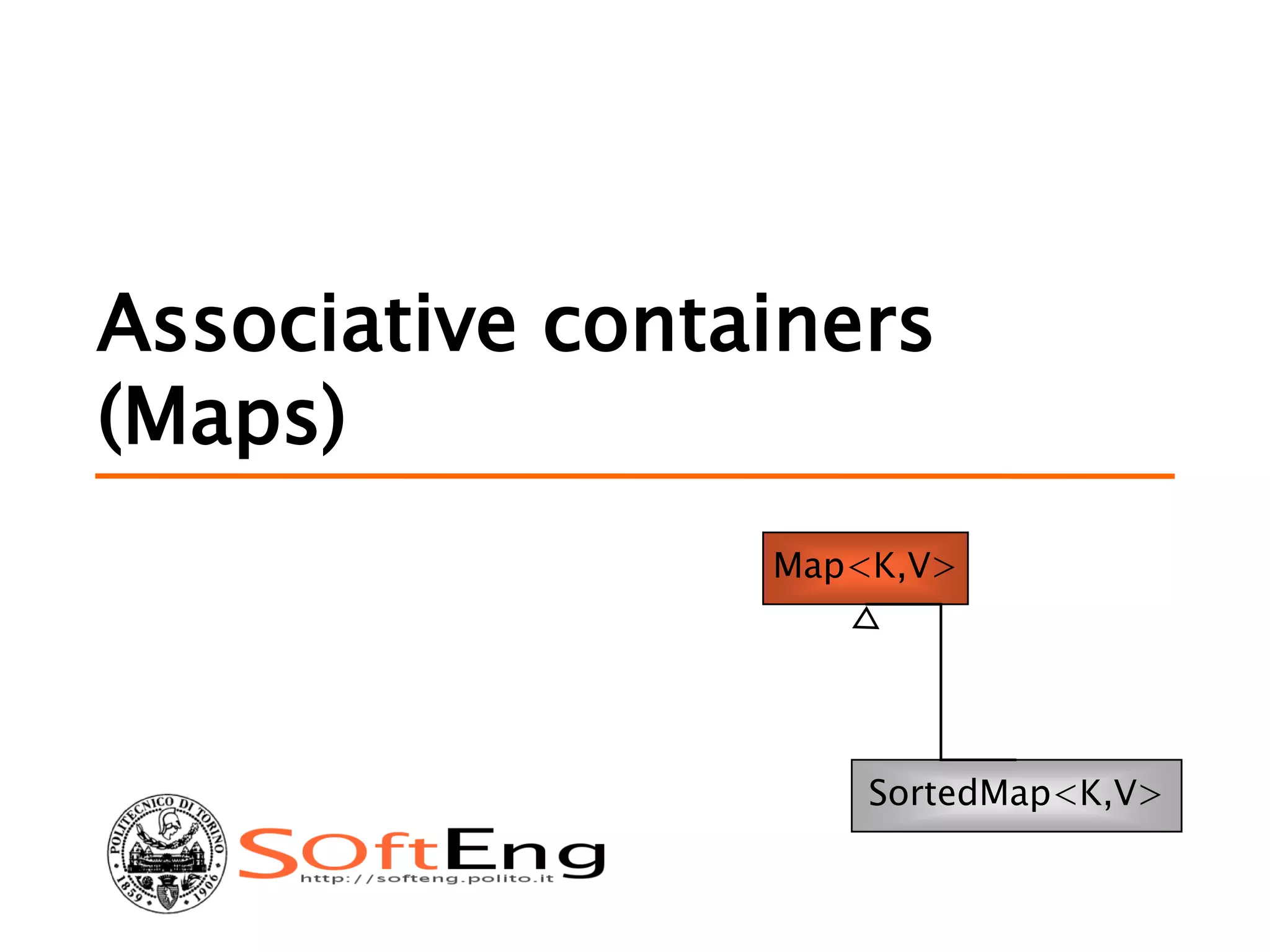

Associative containers
(Maps)
Map<K,V>
SortedMap<K,V>

36

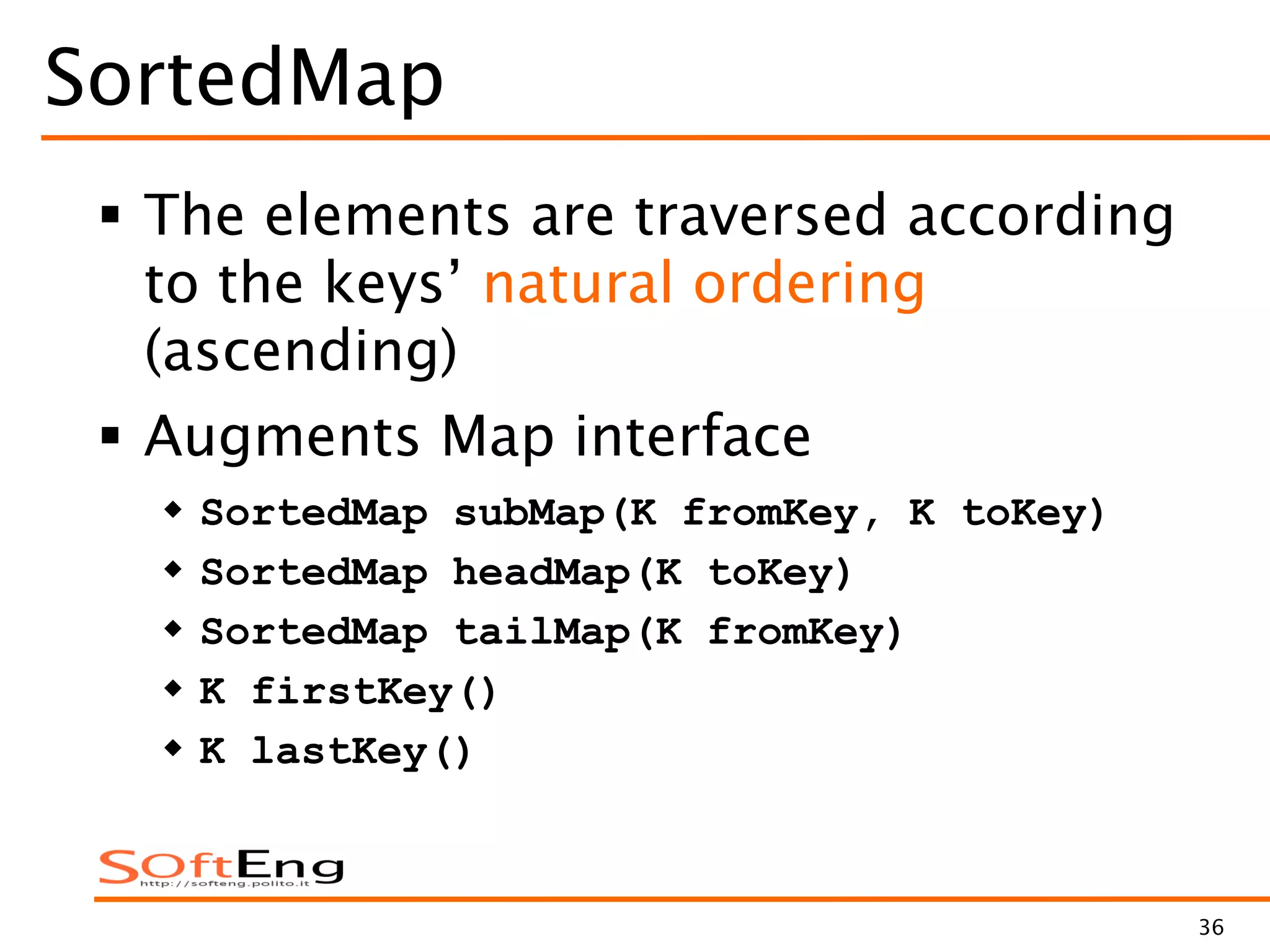

SortedMap
 The elements are traversed according
to the keys’ natural ordering
(ascending)
 Augments Map interface
 SortedMap subMap(K fromKey, K toKey)
 SortedMap headMap(K toKey)
 SortedMap tailMap(K fromKey)
 K firstKey()
 K lastKey()

37

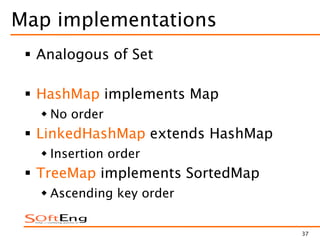

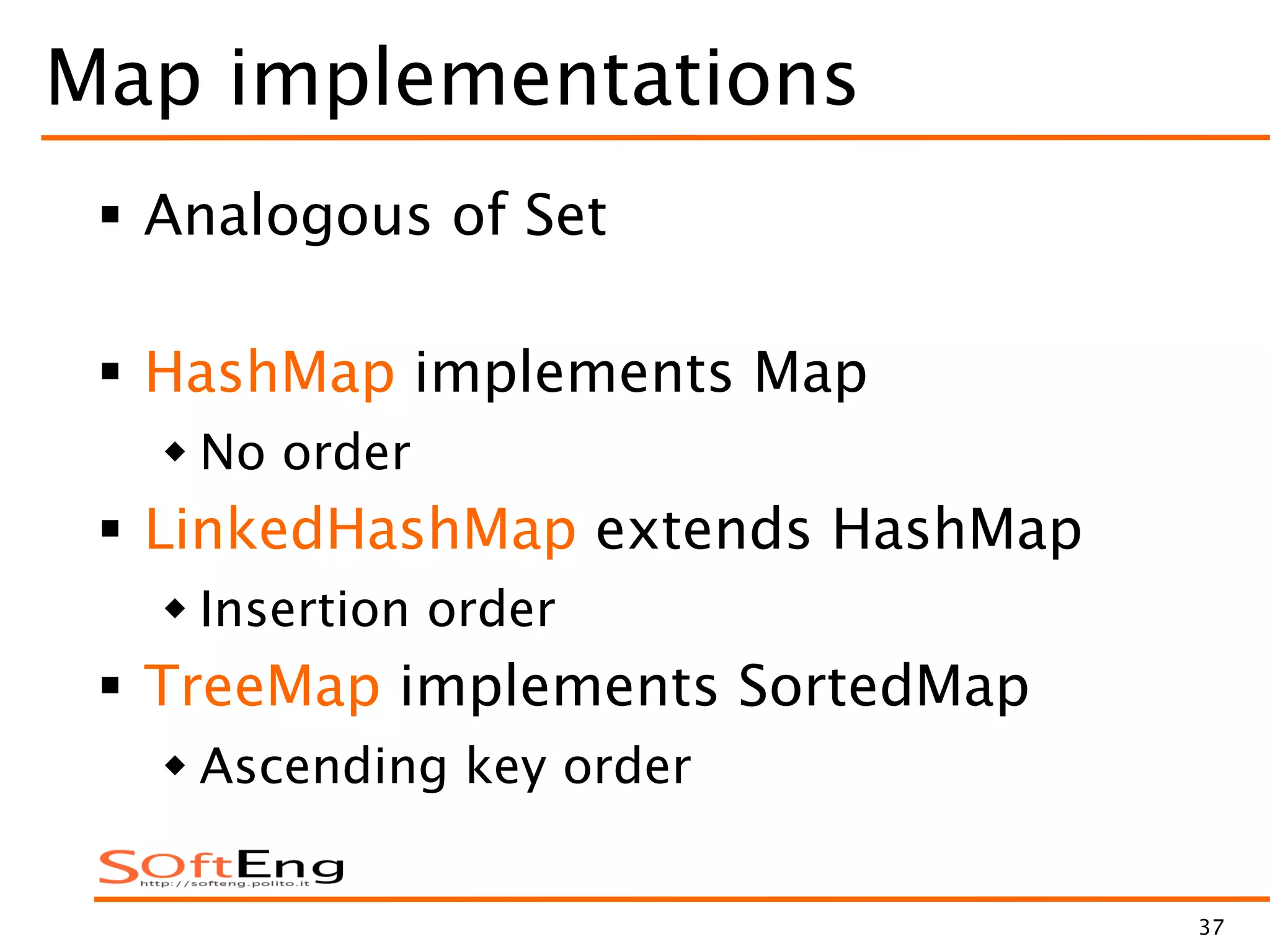

Map implementations
 Analogous of Set
 HashMap implements Map
 No order
 LinkedHashMap extends HashMap
 Insertion order
 TreeMap implements SortedMap
 Ascending key order

38

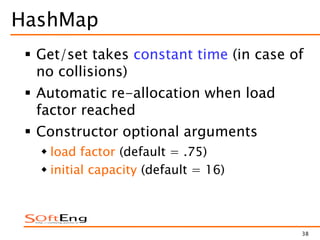

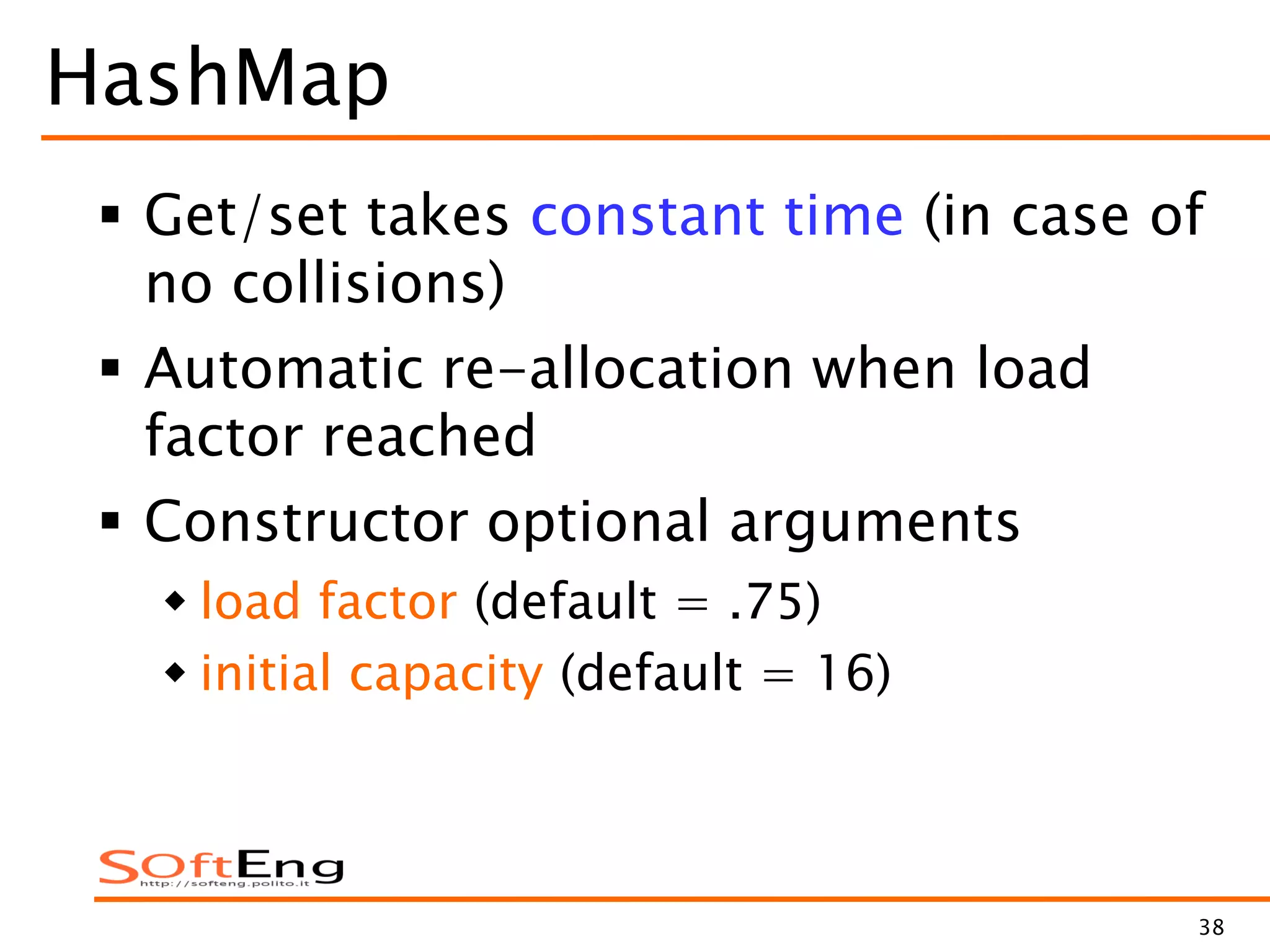

HashMap
 Get/set takes constant time (in case of
no collisions)
 Automatic re-allocation when load
factor reached
 Constructor optional arguments
 load factor (default = .75)
 initial capacity (default = 16)

39

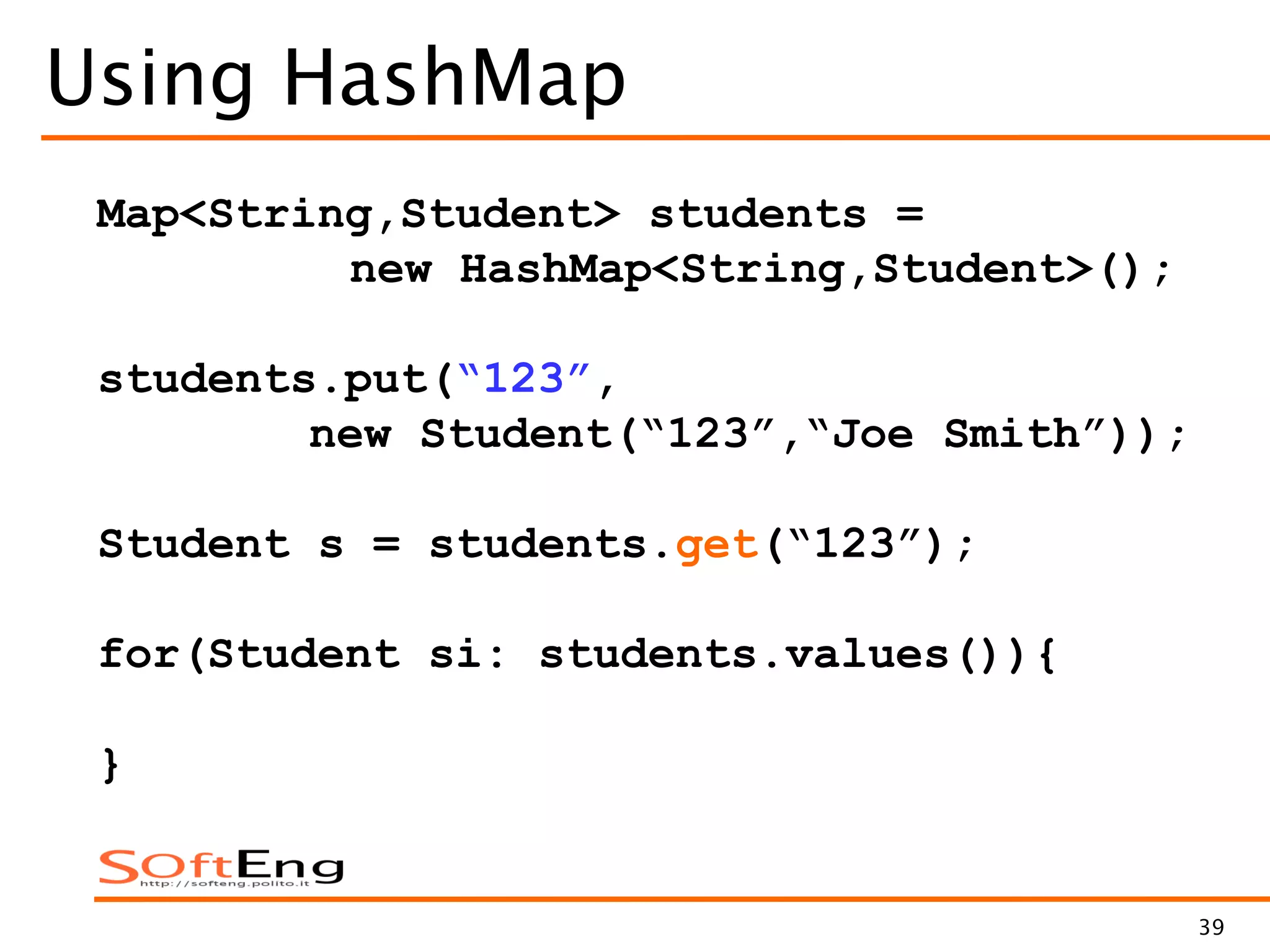

Using HashMap
Map<String,Student> students =
new HashMap<String,Student>();
students.put(“123”,
new Student(“123”,“Joe Smith”));
Student s = students.get(“123”);
for(Student si: students.values()){
}

41

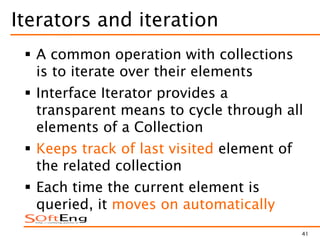

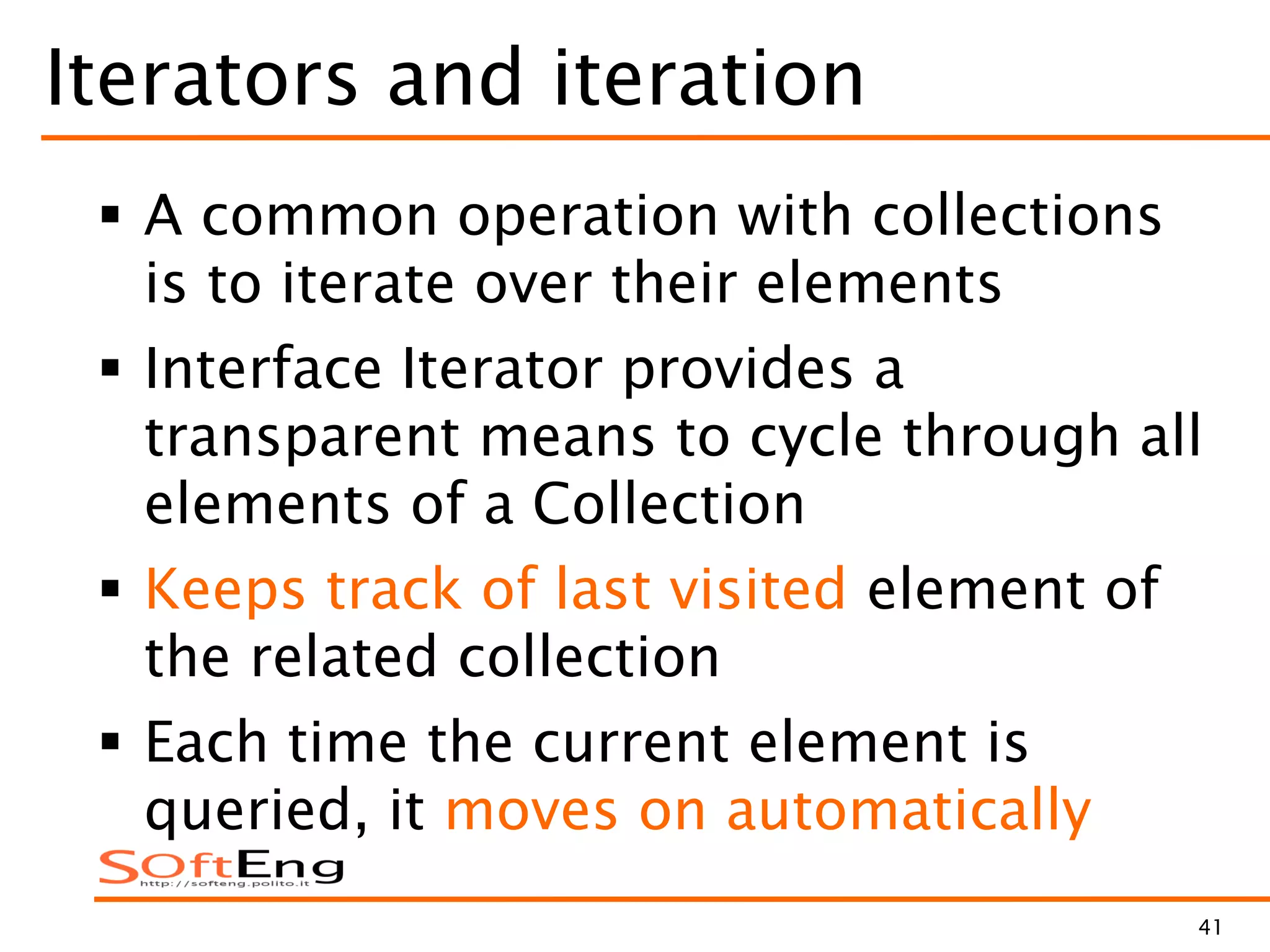

Iterators and iteration
 A common operation with collections
is to iterate over their elements
 Interface Iterator provides a
transparent means to cycle through all
elements of a Collection
 Keeps track of last visited element of
the related collection
 Each time the current element is
queried, it moves on automatically

42

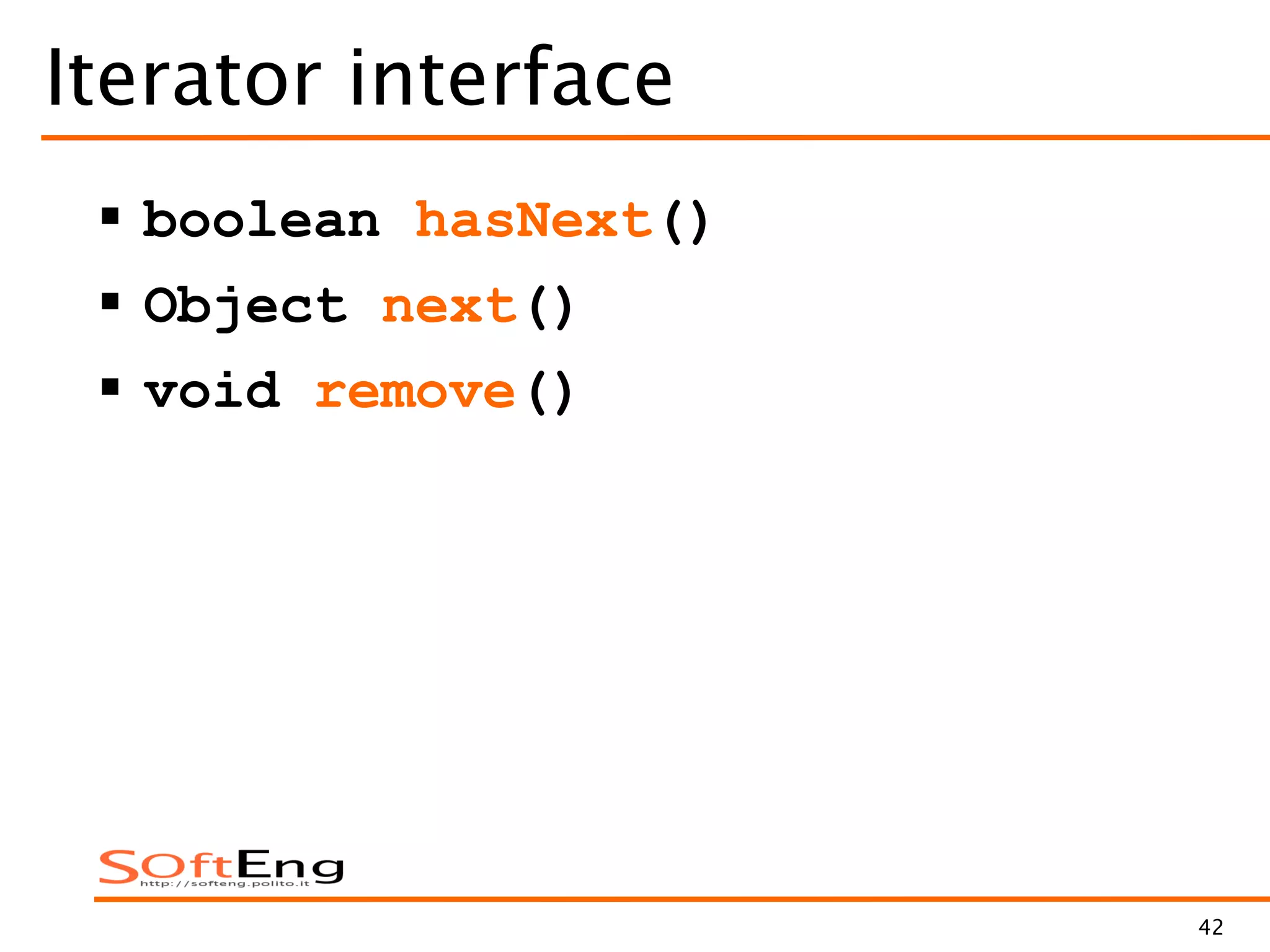

Iterator interface
 boolean hasNext()
 Object next()
 void remove()

43

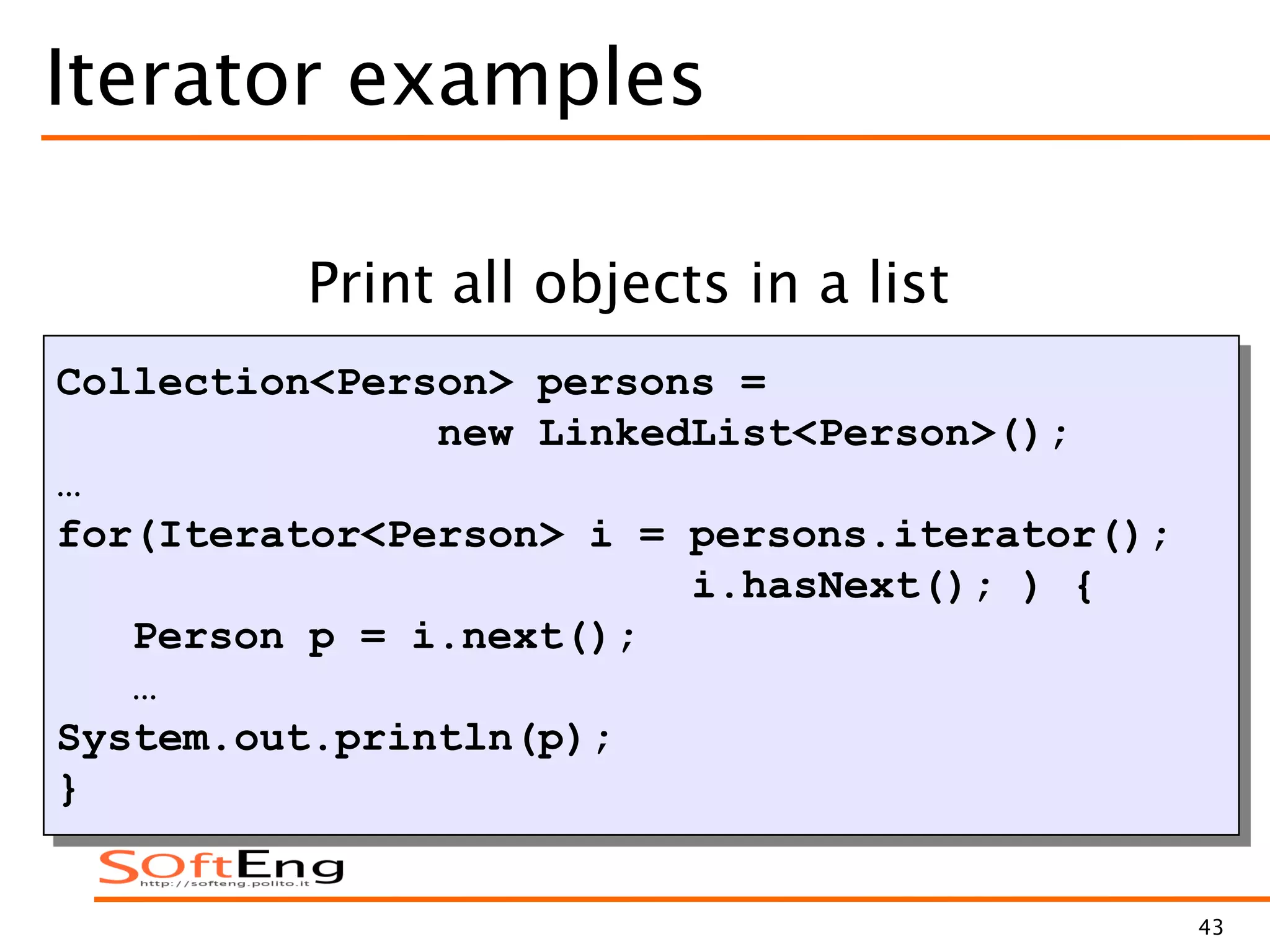

Iterator examples
…
for(Iterator<Person> i = persons.iterator();
i.hasNext(); ) {
Person p = i.next();
…
System.out.println(p);
}
Print all objects in a list

44

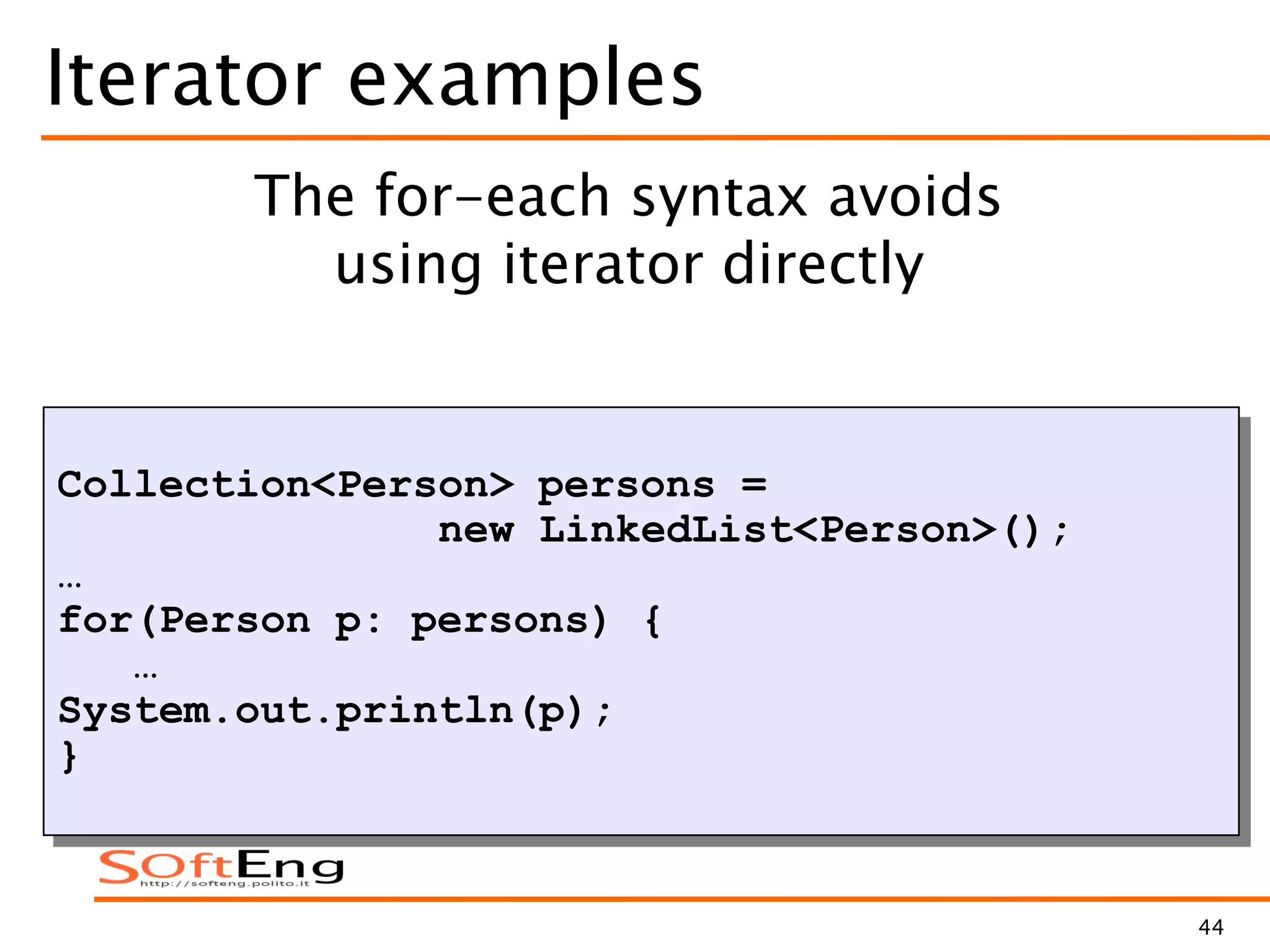

Iterator examples
…
for(Person p: persons) {
…
}
The for-each syntax avoids
using iterator directly

45

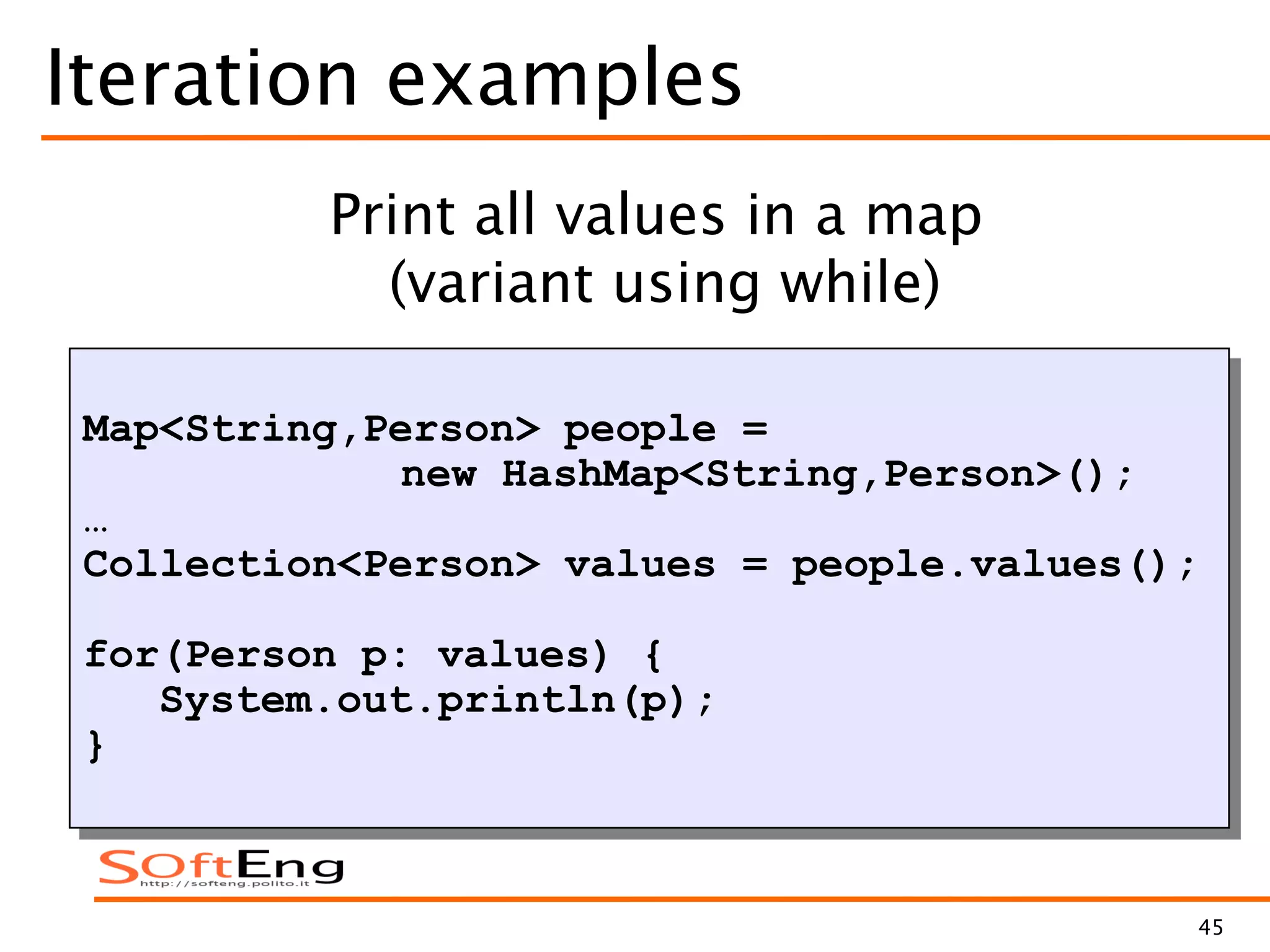

Iteration examples
…
Collection<Person> values = people.values();
for(Person p: values) {
}
Print all values in a map
(variant using while)

46

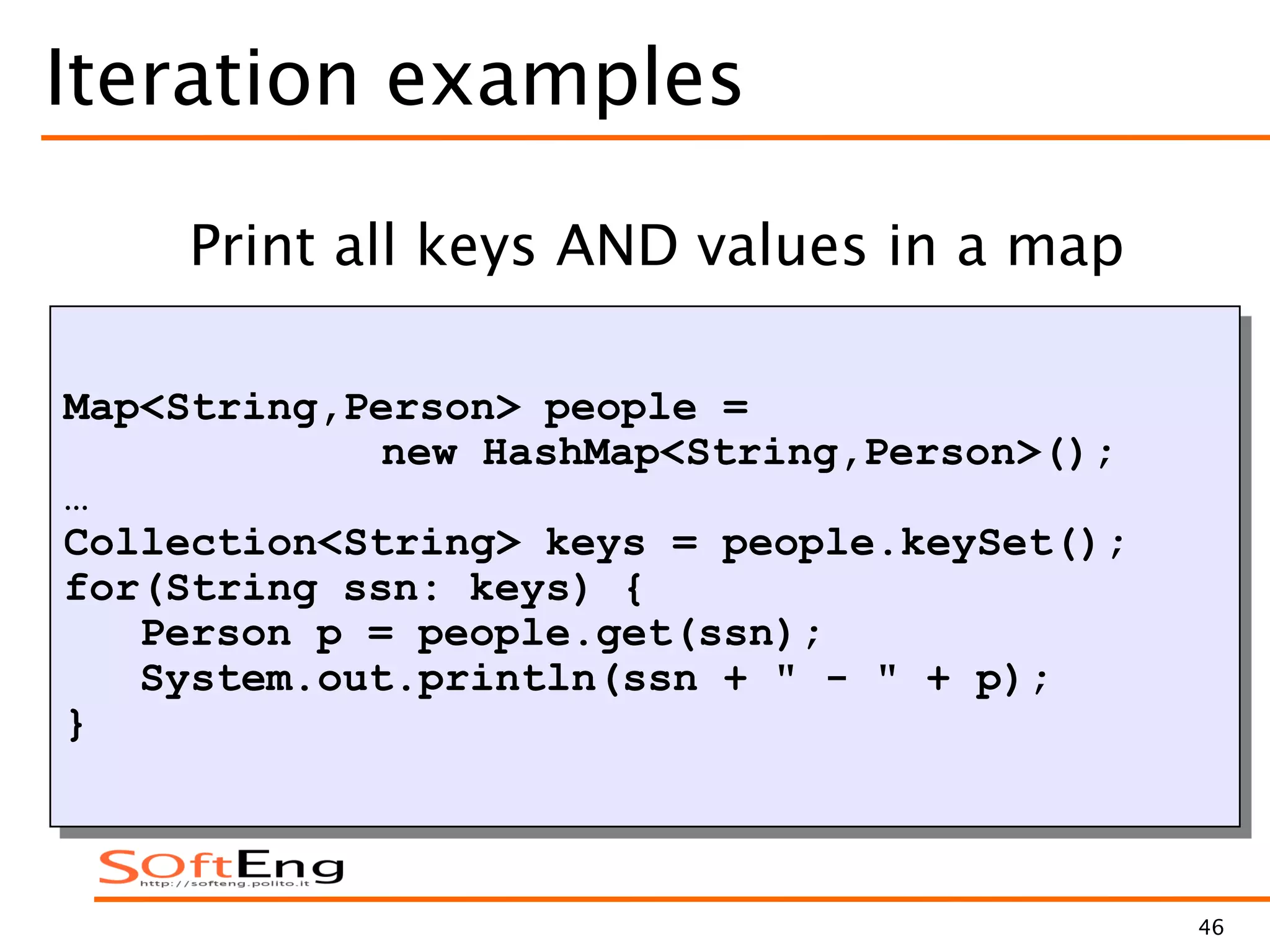

Iteration examples
…
Collection<String> keys = people.keySet();
for(String ssn: keys) {
Person p = people.get(ssn);
System.out.println(ssn + " - " + p);
}
Print all keys AND values in a map

47

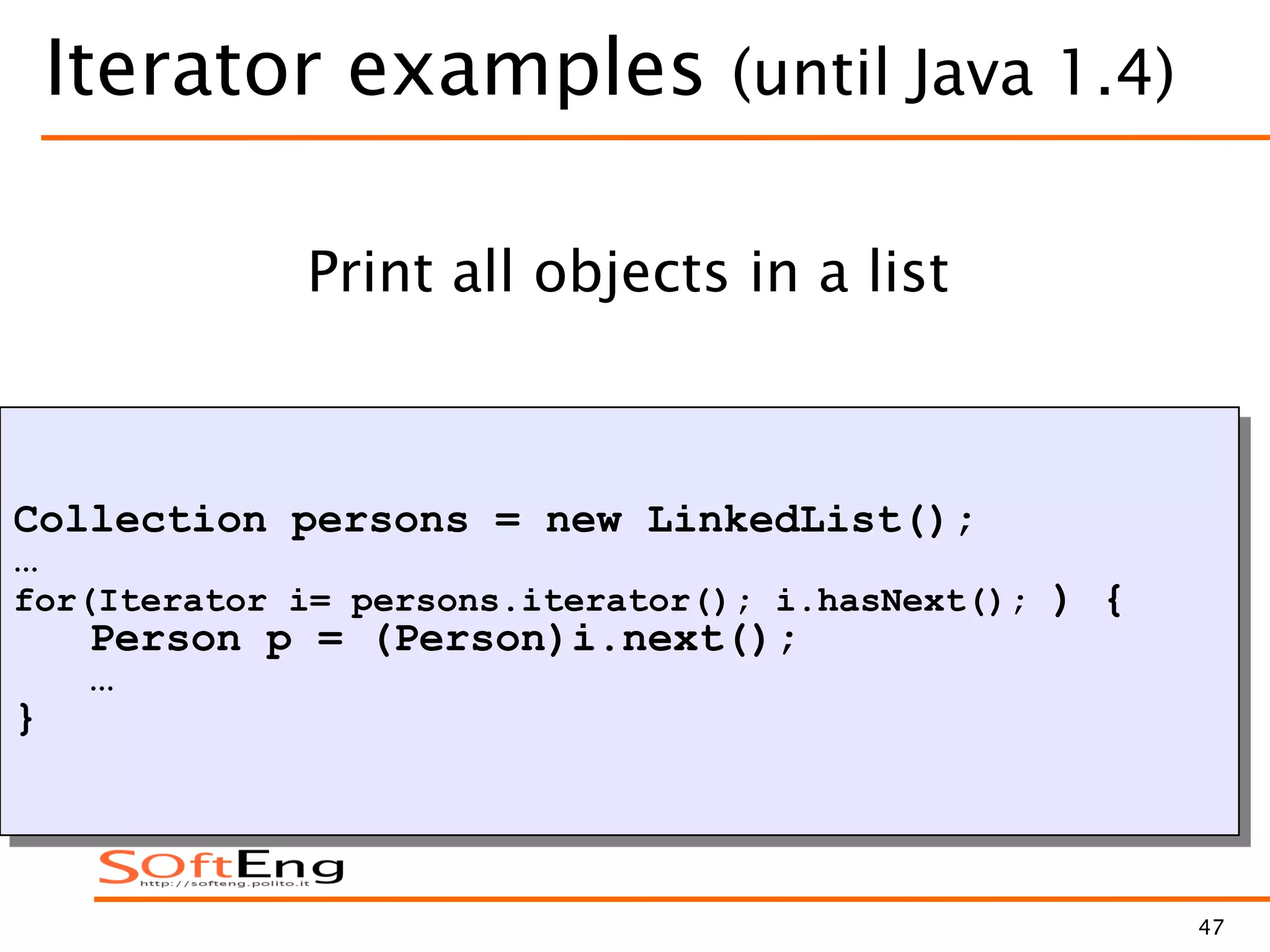

Iterator examples (until Java 1.4)
Collection persons = new LinkedList();
…
for(Iterator i= persons.iterator(); i.hasNext(); ) {
Person p = (Person)i.next();
…
}
Print all objects in a list

48

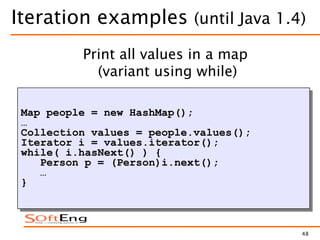

Iteration examples (until Java 1.4)
Map people = new HashMap();
…
Collection values = people.values();
Iterator i = values.iterator();
while( i.hasNext() ) {
Person p = (Person)i.next();
…
}
Print all values in a map
(variant using while)

49
Iteration examples (until Java 1.4)
Map people = new HashMap();
…
Collection keys = people.keySet();
for(Iterator i= keys.iterator(); i.hasNext();) {
String ssn = (String)i.next();
Person p = (Person)people.get(ssn);
…
}
Print all keys AND values in a map

50
Note well
 It is unsafe to iterate over a collection
you are modifying (add/del) at the
same time
 Unless you are using the iterator
methods
 Iterator.remove()
 ListIterator.add()

51

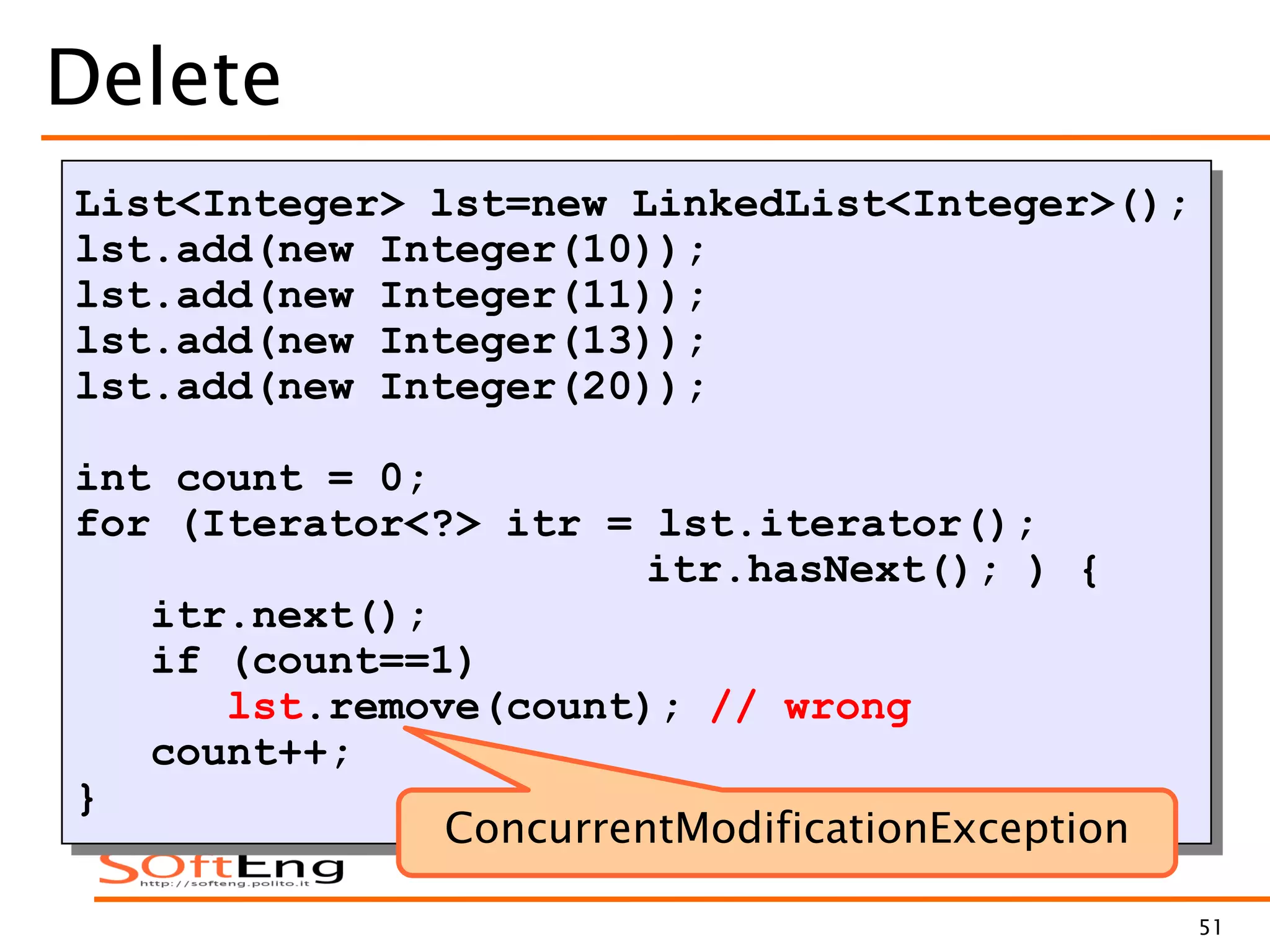

Delete
List<Integer> lst=new LinkedList<Integer>();
lst.add(new Integer(10));
int count = 0;
for (Iterator<?> itr = lst.iterator();
itr.hasNext(); ) {
itr.next();
if (count==1)
lst.remove(count); // wrong
count++;
}
ConcurrentModificationException

52

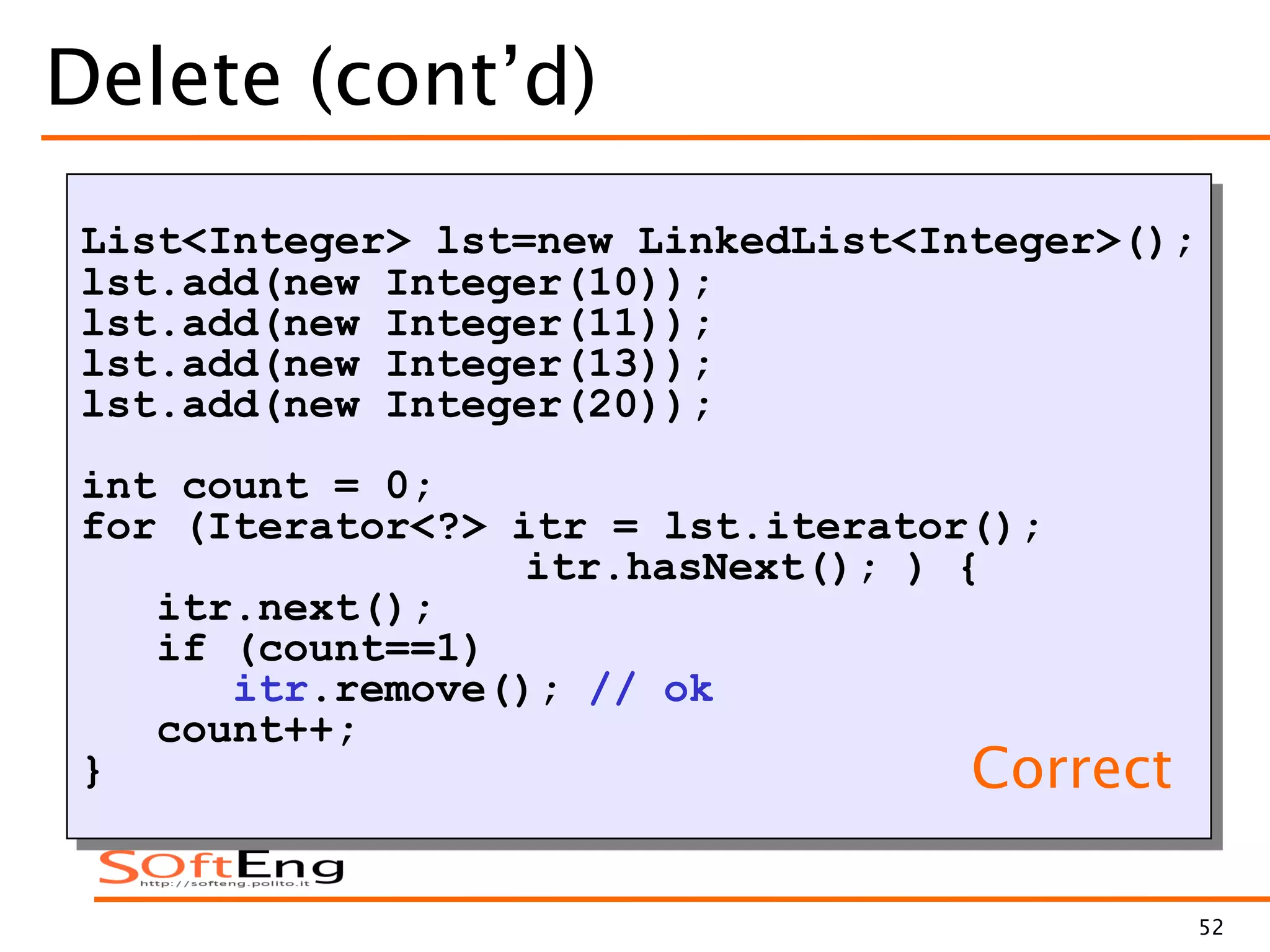

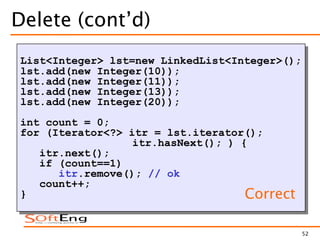

Delete (cont’d)
int count = 0;
for (Iterator<?> itr = lst.iterator();
itr.hasNext(); ) {
itr.next();
if (count==1)
itr.remove(); // ok
count++;
} Correct

53

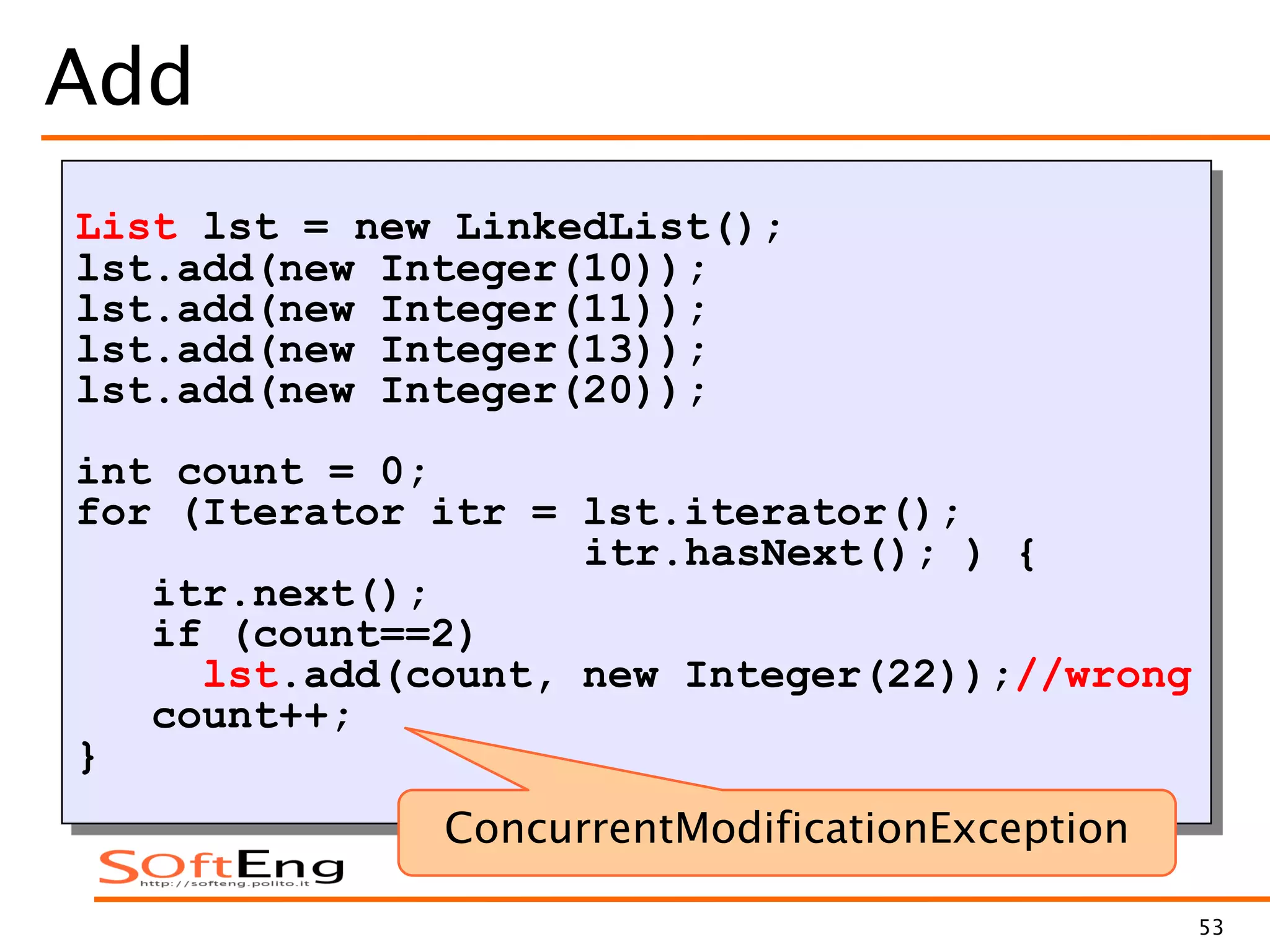

Add
List lst = new LinkedList();
int count = 0;
for (Iterator itr = lst.iterator();
itr.hasNext(); ) {
itr.next();
if (count==2)
lst.add(count, new Integer(22));//wrong
count++;
}
ConcurrentModificationException

54

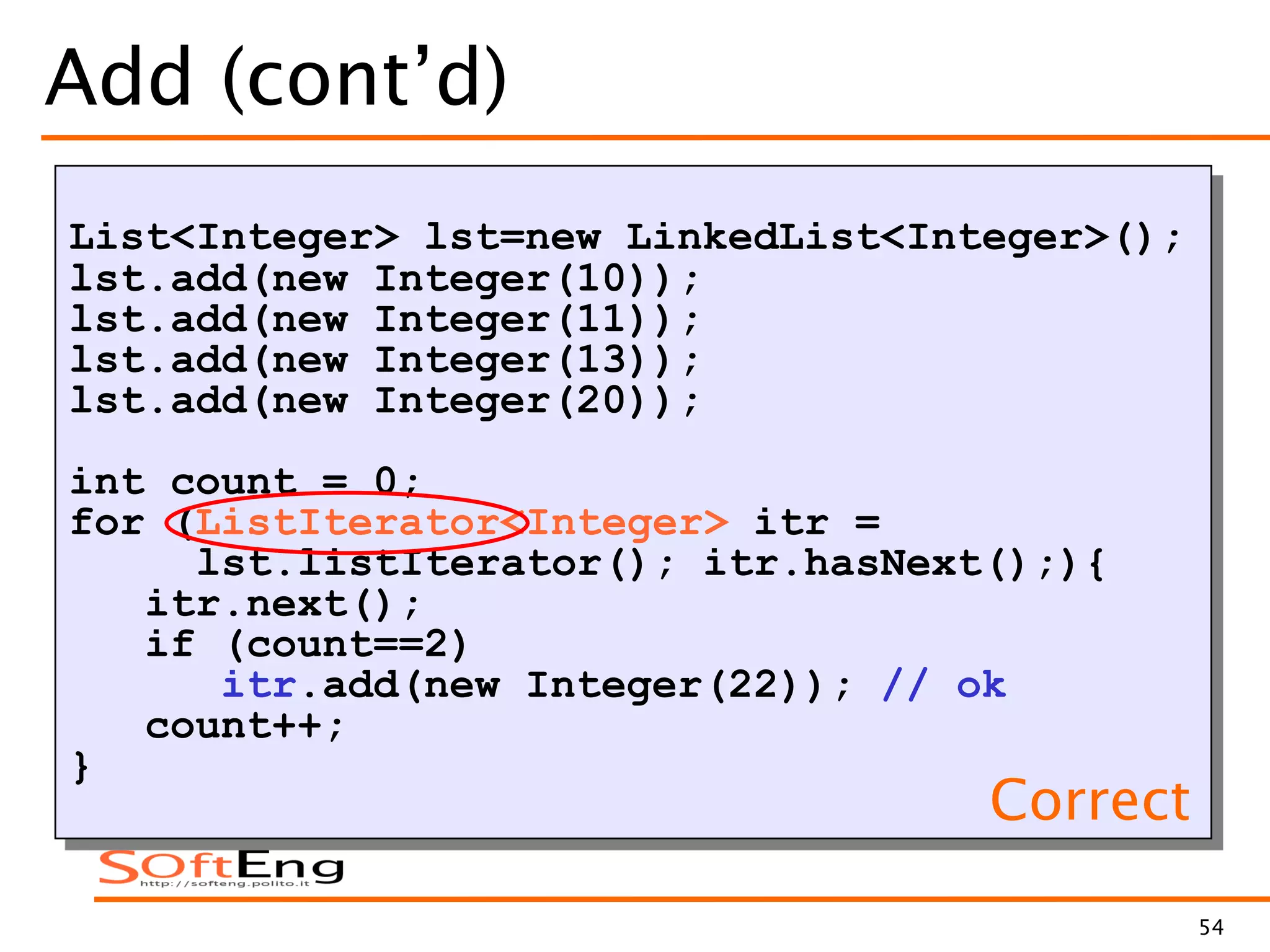

Add (cont’d)
int count = 0;
for (ListIterator<Integer> itr =
lst.listIterator(); itr.hasNext();){
itr.next();
if (count==2)
itr.add(new Integer(22)); // ok
count++;
}
Correct

56

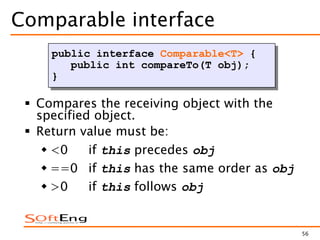

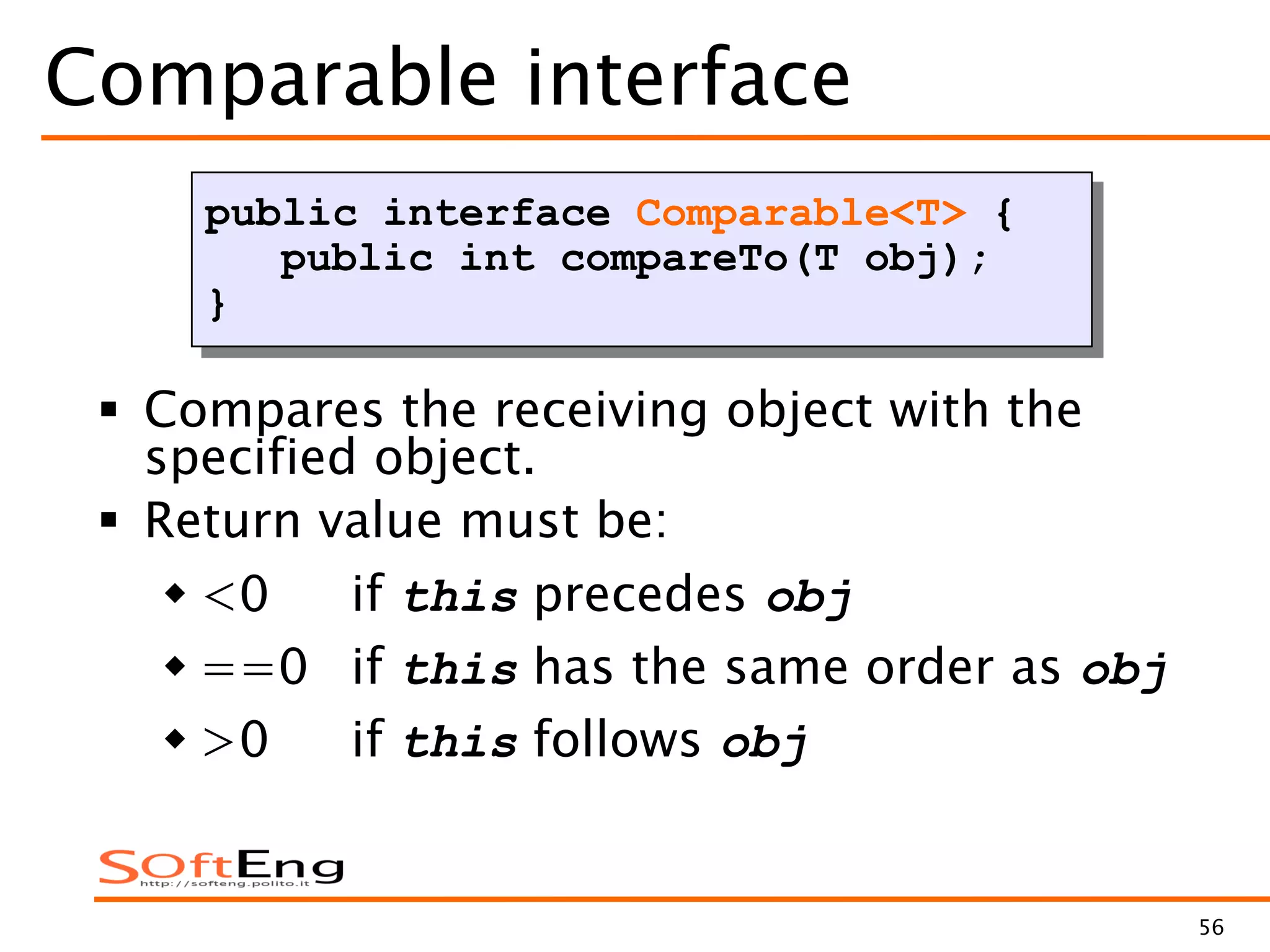

Comparable interface
 Compares the receiving object with the
specified object.
 Return value must be:
 <0 if this precedes obj
 ==0 if this has the same order as obj
 >0 if this follows obj
public interface Comparable<T> {
public int compareTo(T obj);
}

57

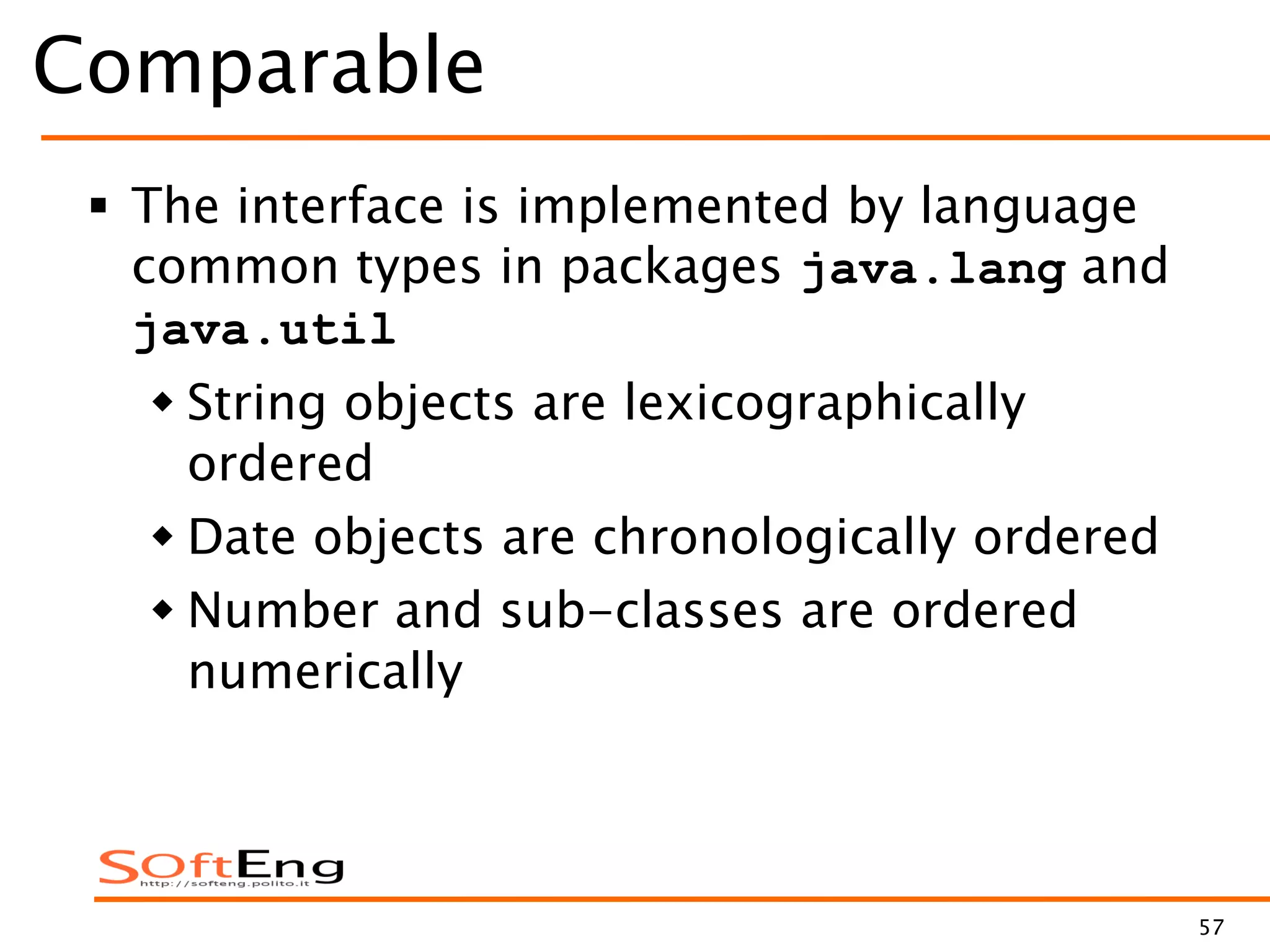

Comparable
 The interface is implemented by language
common types in packages java.lang and
java.util
 String objects are lexicographically
ordered
 Date objects are chronologically ordered
 Number and sub-classes are ordered
numerically

58

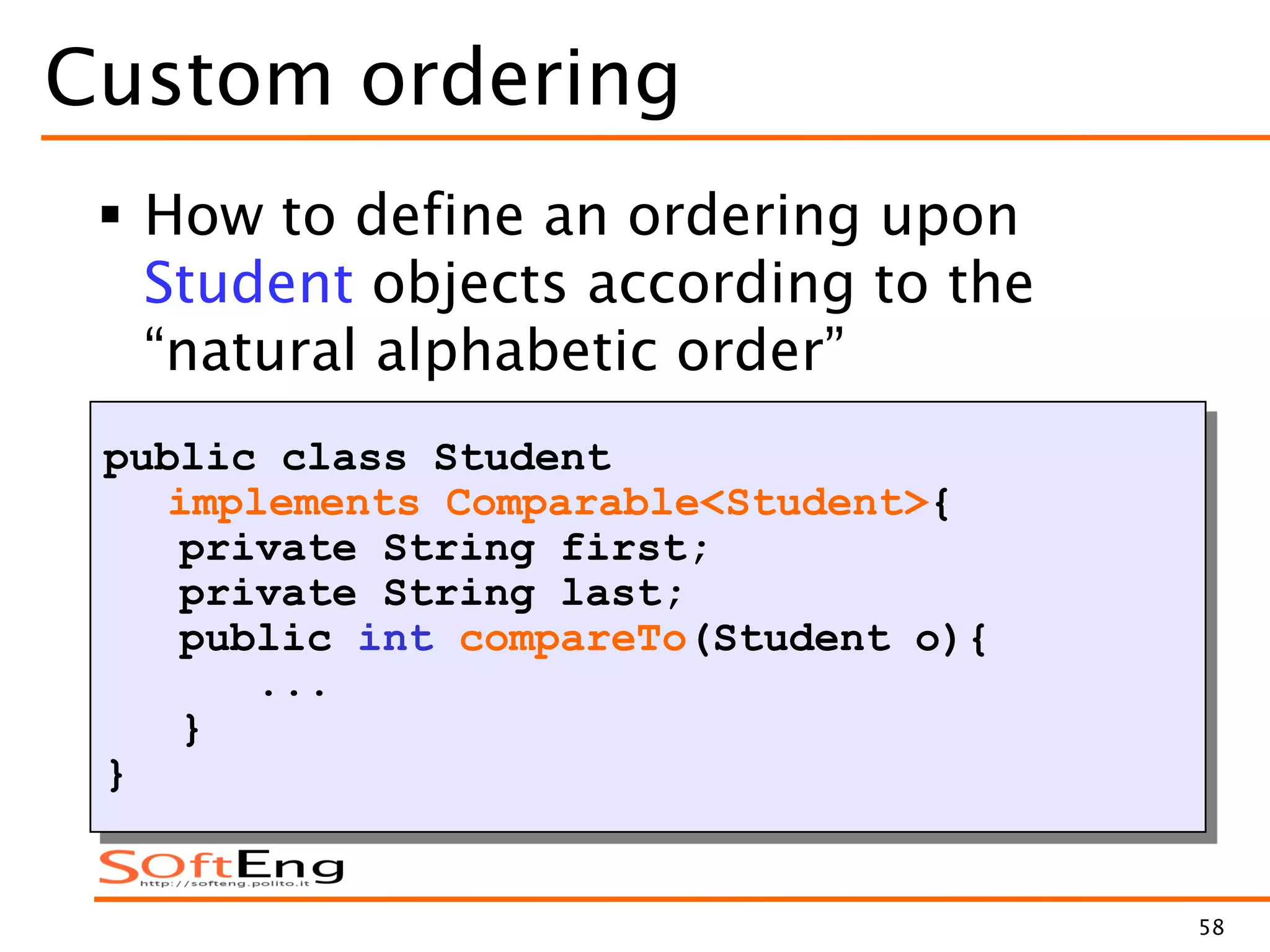

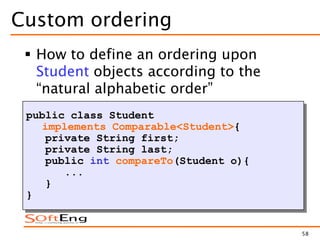

Custom ordering
 How to define an ordering upon
Student objects according to the
“natural alphabetic order”
public class Student
implements Comparable<Student>{
private String first;
private String last;
public int compareTo(Student o){
...
}
}

59

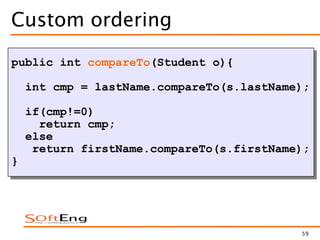

Custom ordering
public int compareTo(Student o){
int cmp = lastName.compareTo(s.lastName);
if(cmp!=0)
return cmp;
else
return firstName.compareTo(s.firstName);
}

60

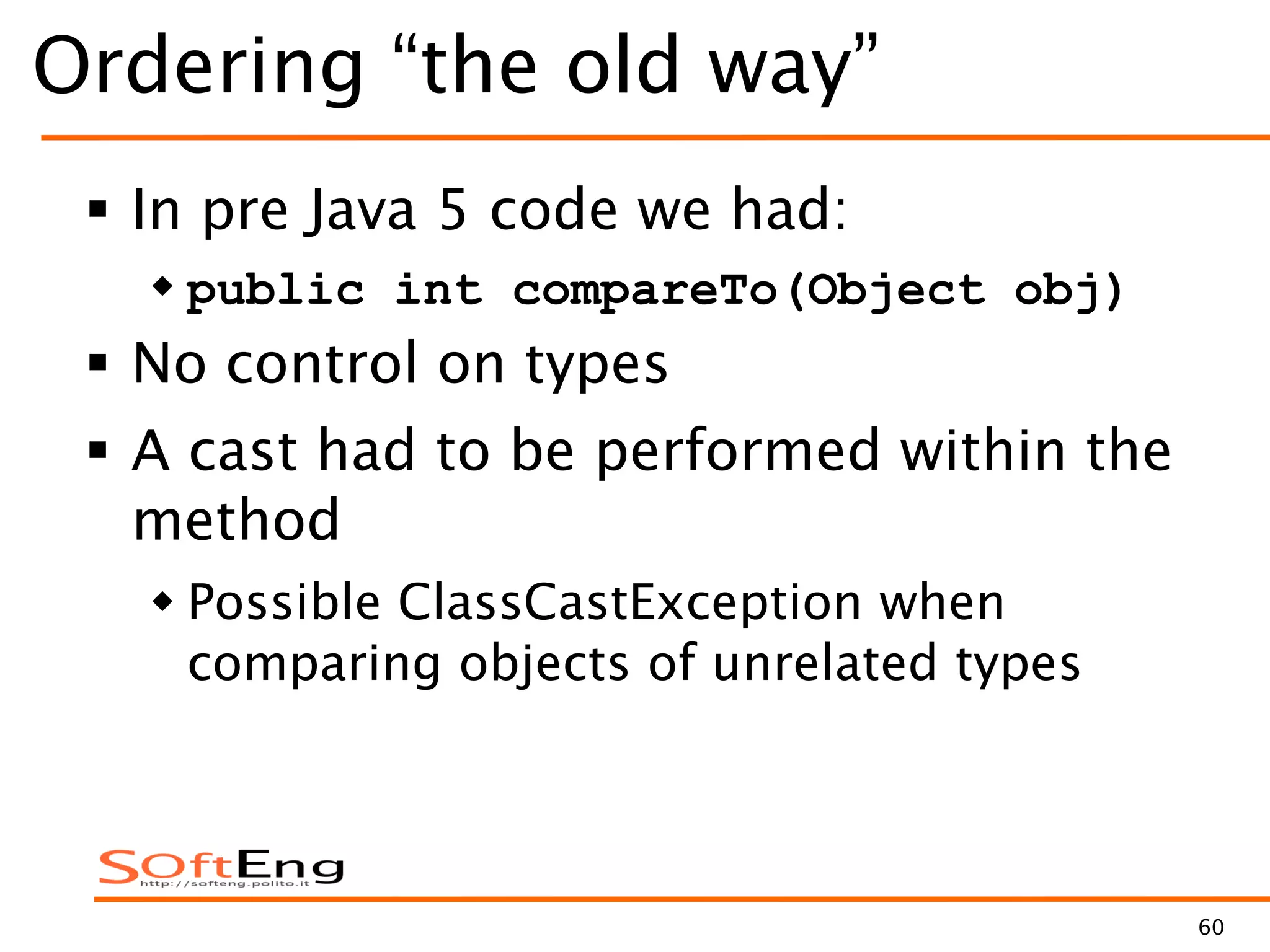

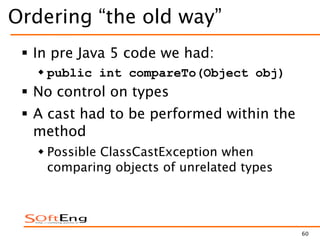

Ordering “the old way”
 In pre Java 5 code we had:
 public int compareTo(Object obj)
 No control on types
 A cast had to be performed within the
method
 Possible ClassCastException when
comparing objects of unrelated types

61
Ordering “the old way”
public int compareTo(Object obj){
Student s = (Student)obj;
int cmp = lastName.compareTo(s.lastName);
if(cmp!=0)
return cmp;
else
return firstName.compareTo(s.firstName);
}
possible
run-time error

62

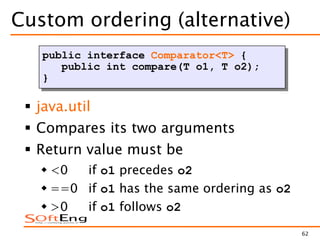

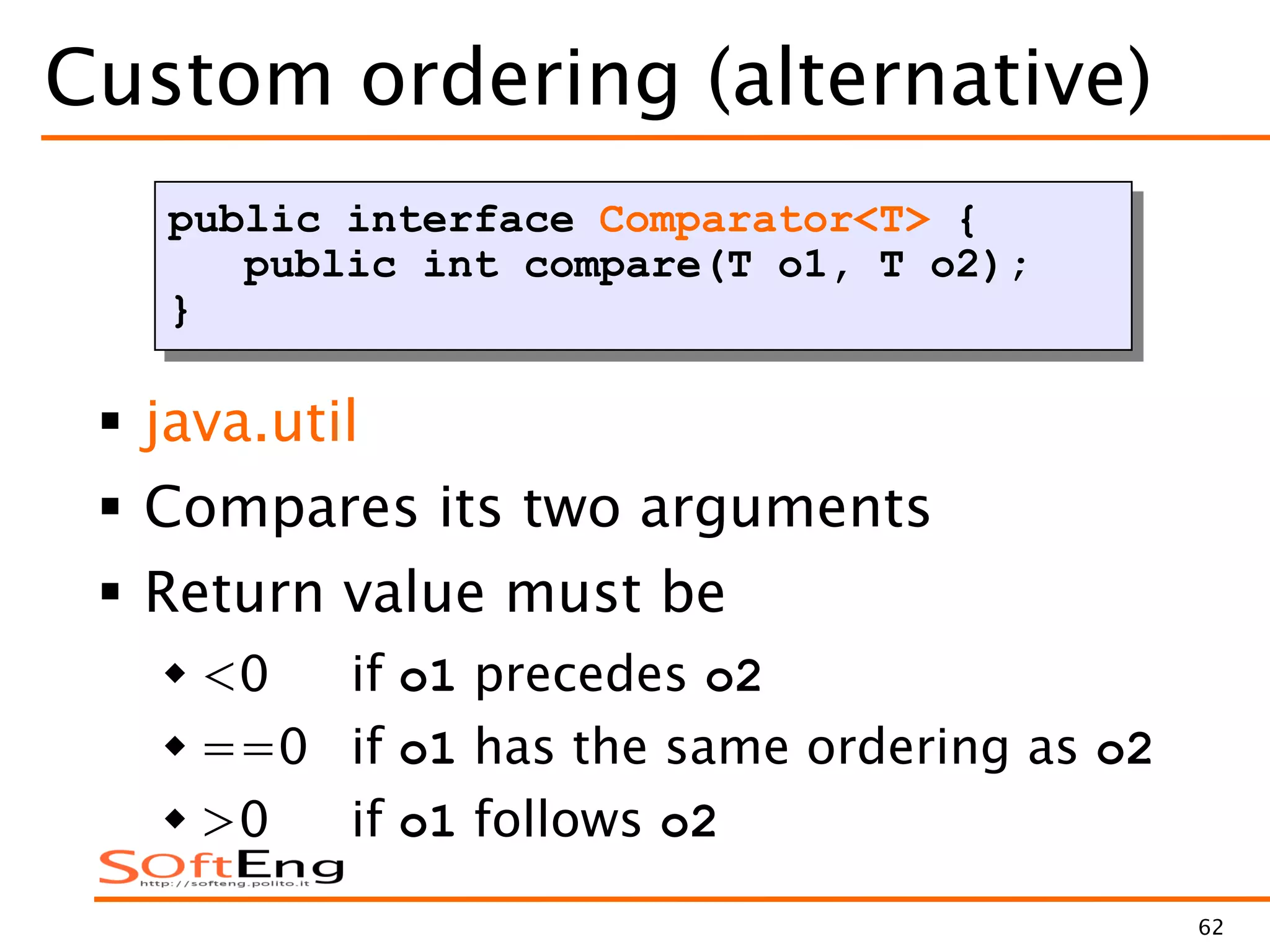

Custom ordering (alternative)
 java.util
 Compares its two arguments
 Return value must be
 <0 if o1 precedes o2
 ==0 if o1 has the same ordering as o2
 >0 if o1 follows o2
public interface Comparator<T> {
public int compare(T o1, T o2);
}

63

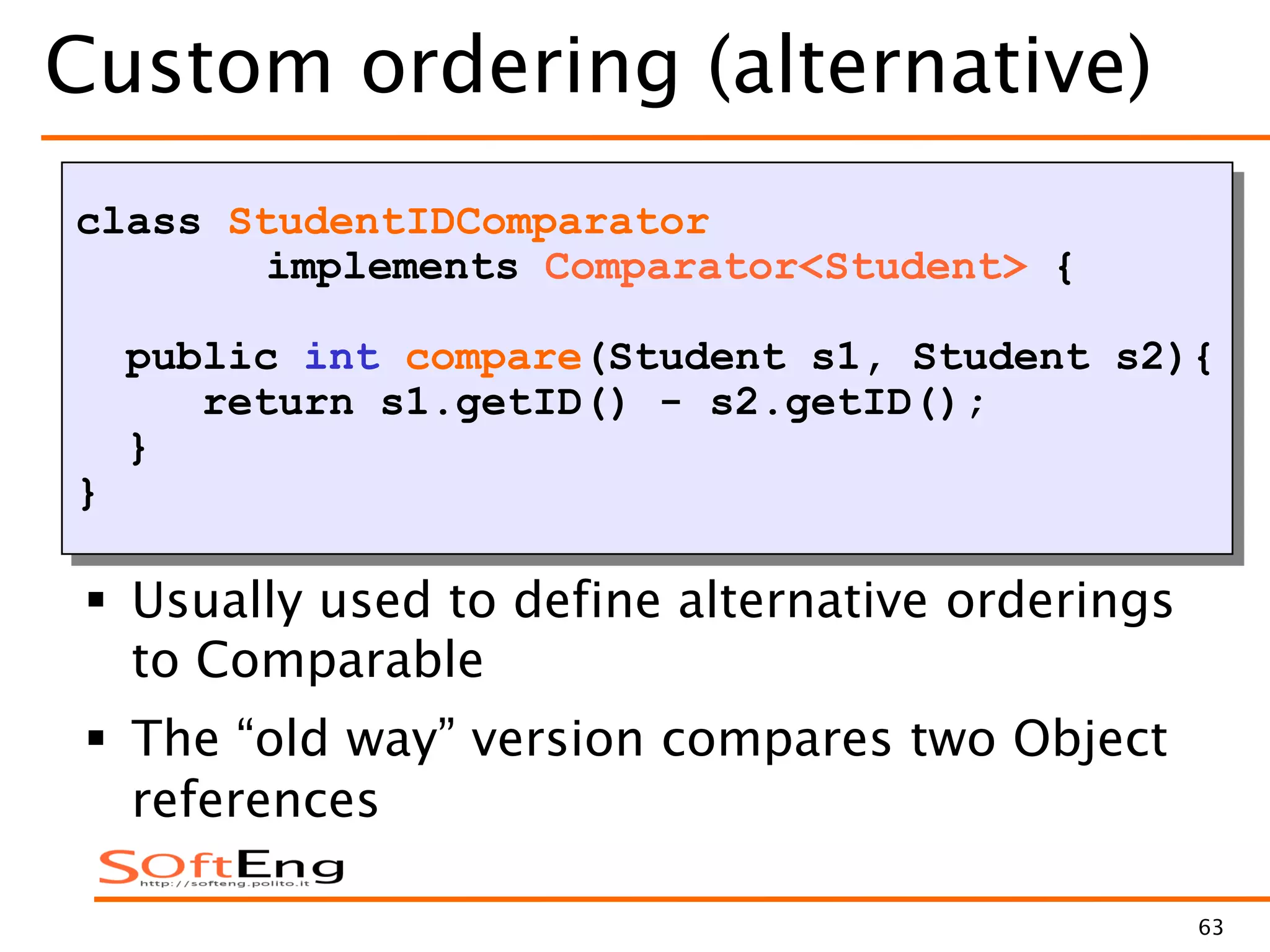

class StudentIDComparator
implements Comparator<Student> {
public int compare(Student s1, Student s2){
return s1.getID() - s2.getID();
}
}
 Usually used to define alternative orderings
to Comparable
 The “old way” version compares two Object
references

65
Algorithms
 Static methods of java.util.Collections class
 Work on lists
 sort() - merge sort, n log(n)
 binarySearch() – requires ordered sequence
 shuffle() – unsort
 reverse() - requires ordered sequence
 rotate() – of given a distance
 min(), max() – in a Collection

66
Sort method
 Two generic overloads:
 on Comparable objects:
public static <T extends Comparable<? super T>>
void sort(List<T> list)
 using a Comparator object:
public static <T>
void sort(List<T> list, Comparator<? super T>)

67

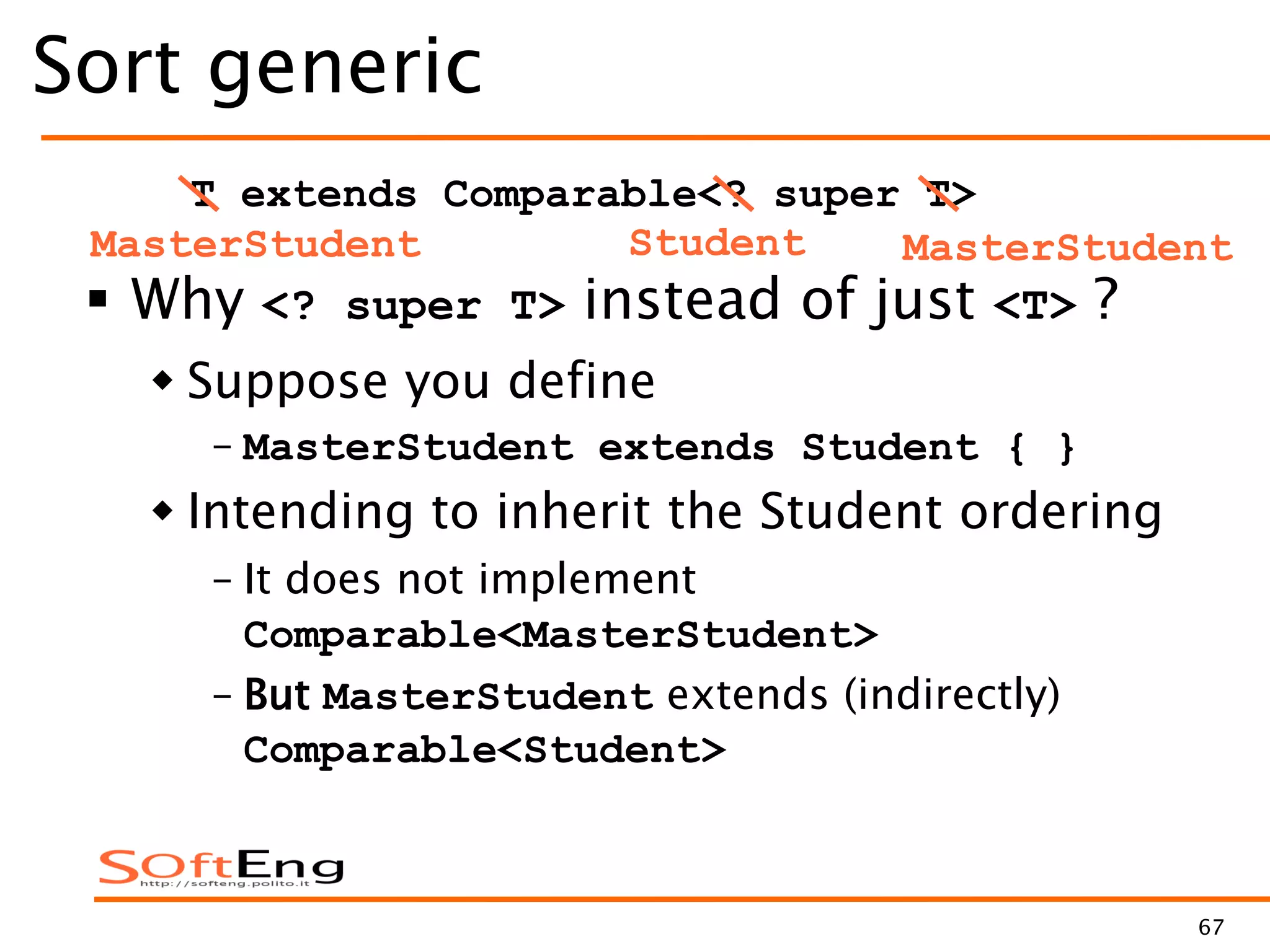

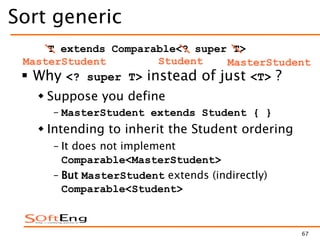

Sort generic
 Why <? super T> instead of just <T> ?
 Suppose you define
– MasterStudent extends Student { }
 Intending to inherit the Student ordering
– It does not implement
Comparable<MasterStudent>
– But MasterStudent extends (indirectly)
Comparable<Student>
T extends Comparable<? super T>
Student MasterStudentMasterStudent

68

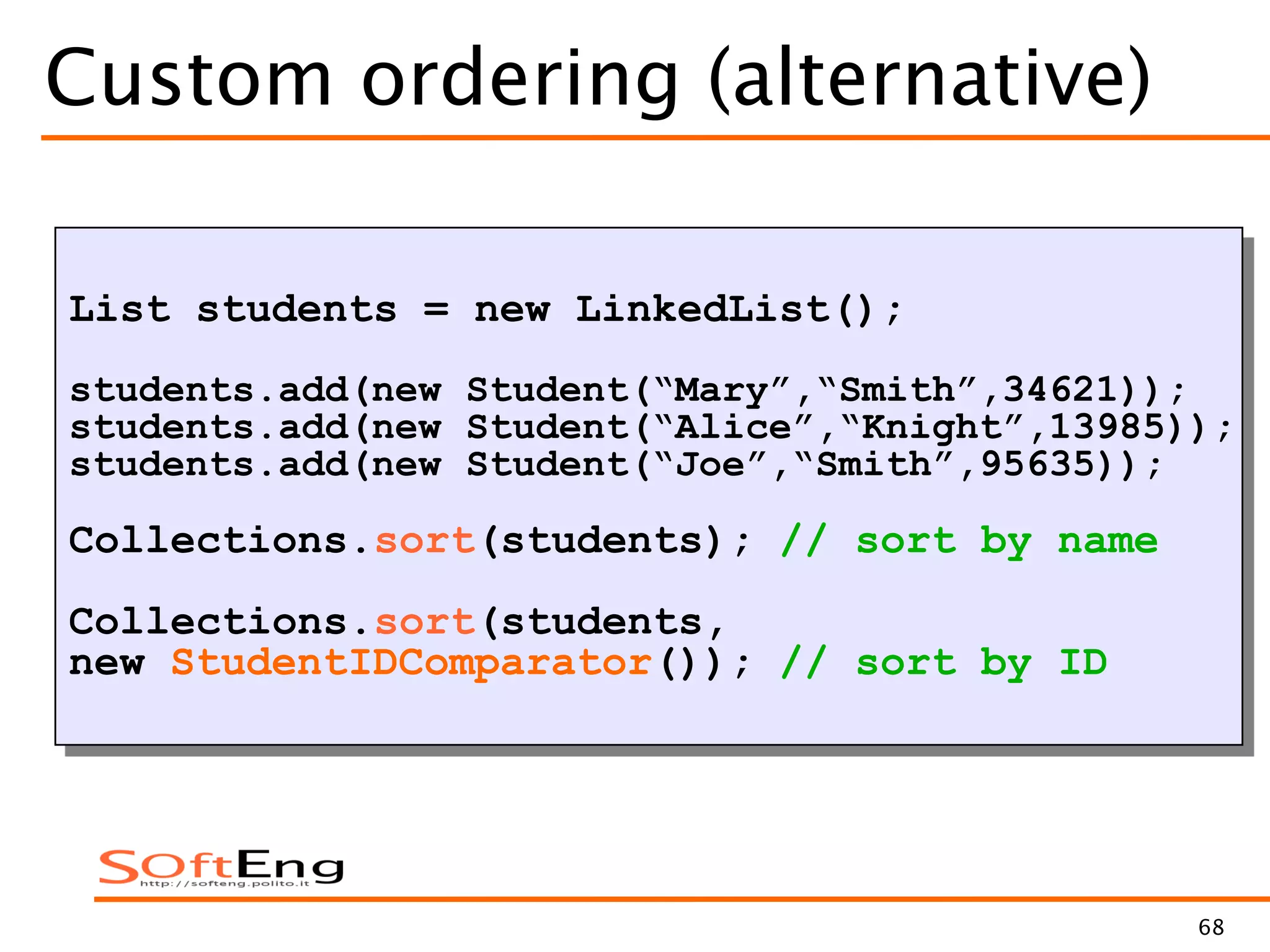

List students = new LinkedList();
students.add(new Student(“Mary”,“Smith”,34621));
students.add(new Student(“Alice”,“Knight”,13985));
students.add(new Student(“Joe”,“Smith”,95635));
Collections.sort(students); // sort by name
Collections.sort(students,
new StudentIDComparator()); // sort by ID

69

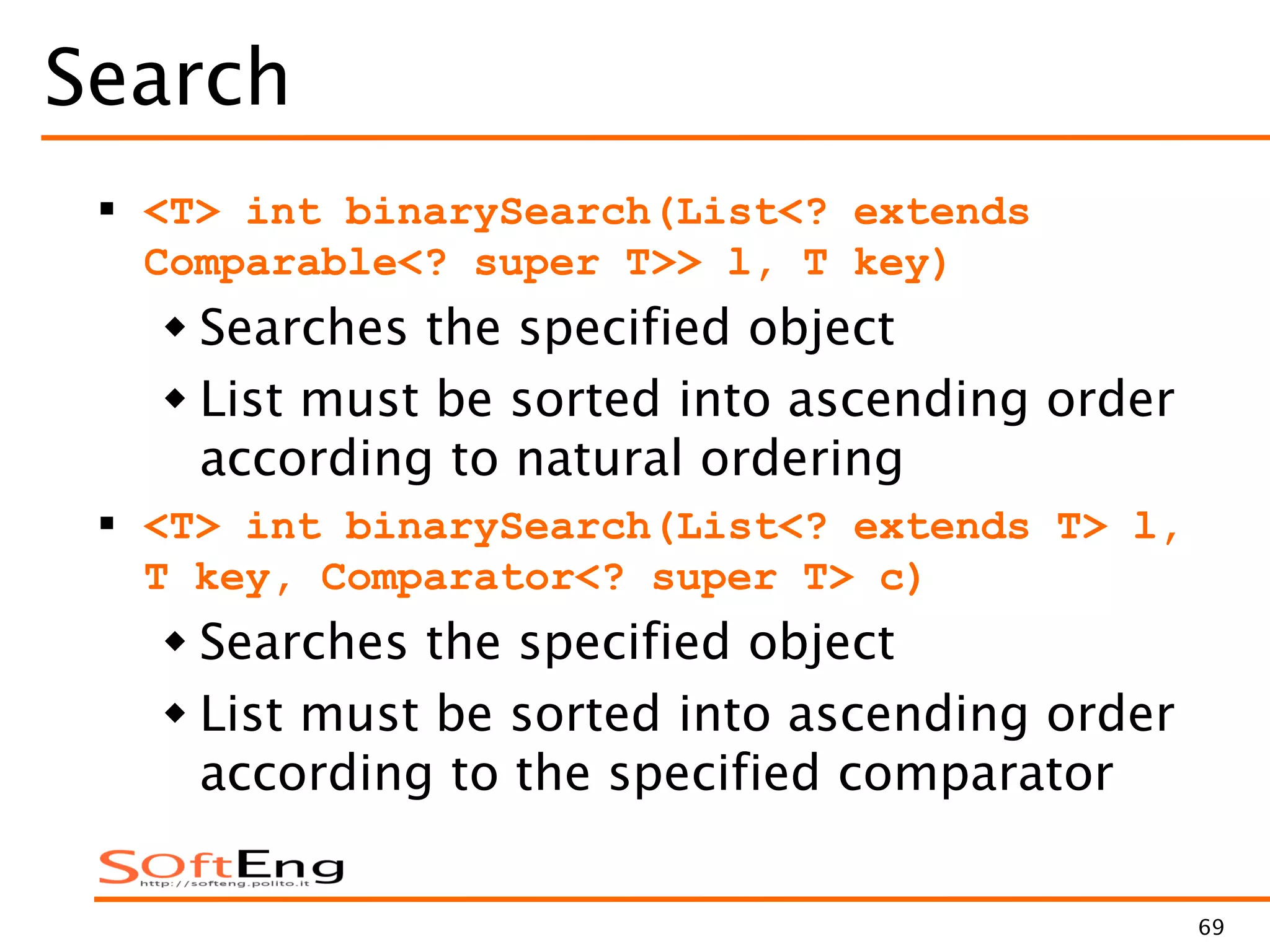

Search
 <T> int binarySearch(List<? extends
Comparable<? super T>> l, T key)
 Searches the specified object
 List must be sorted into ascending order
according to natural ordering
 <T> int binarySearch(List<? extends T> l,
T key, Comparator<? super T> c)
 List must be sorted into ascending order
according to the specified comparator

70

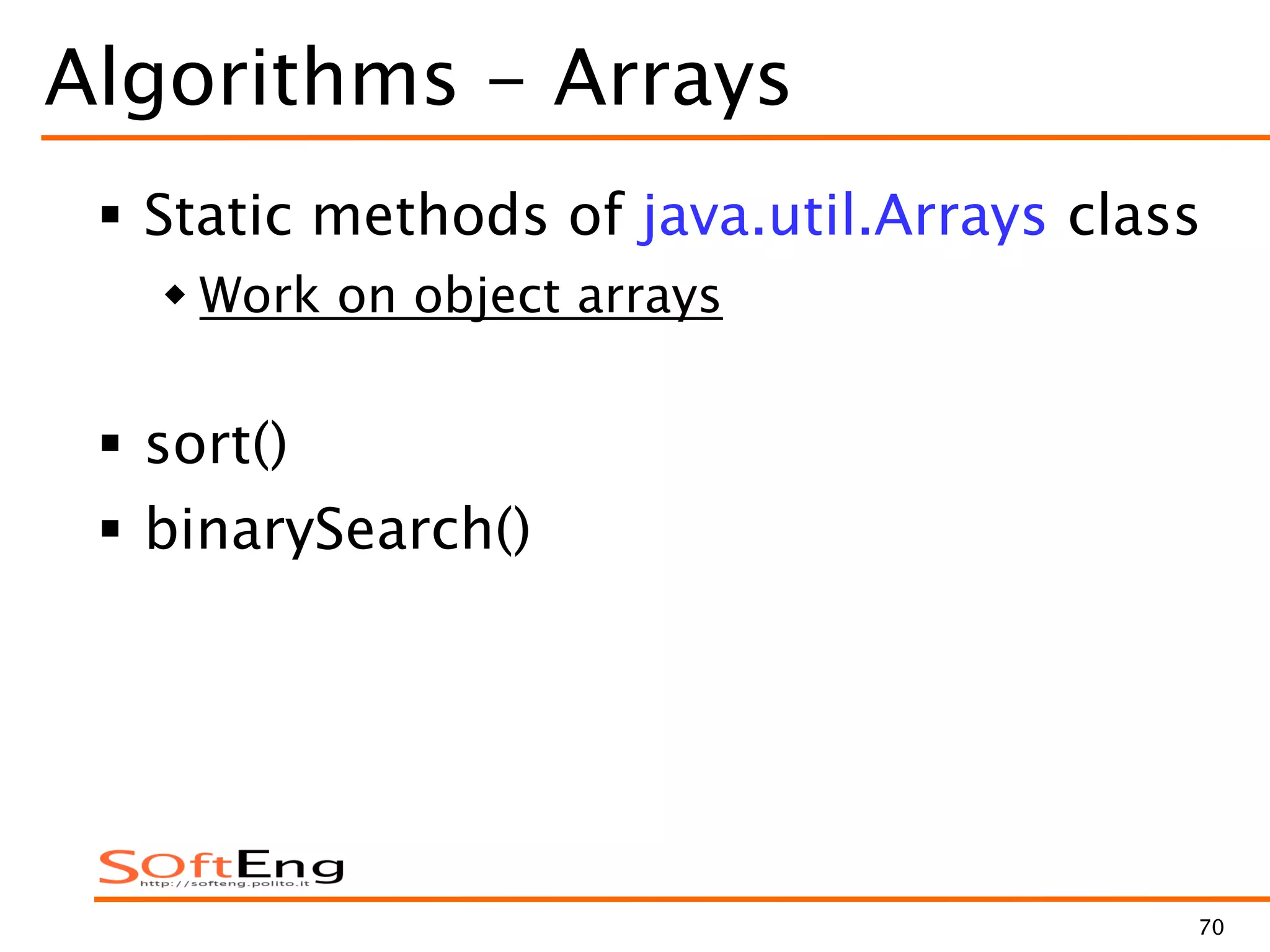

Algorithms - Arrays
 Static methods of java.util.Arrays class
 Work on object arrays
 sort()
 binarySearch()

71

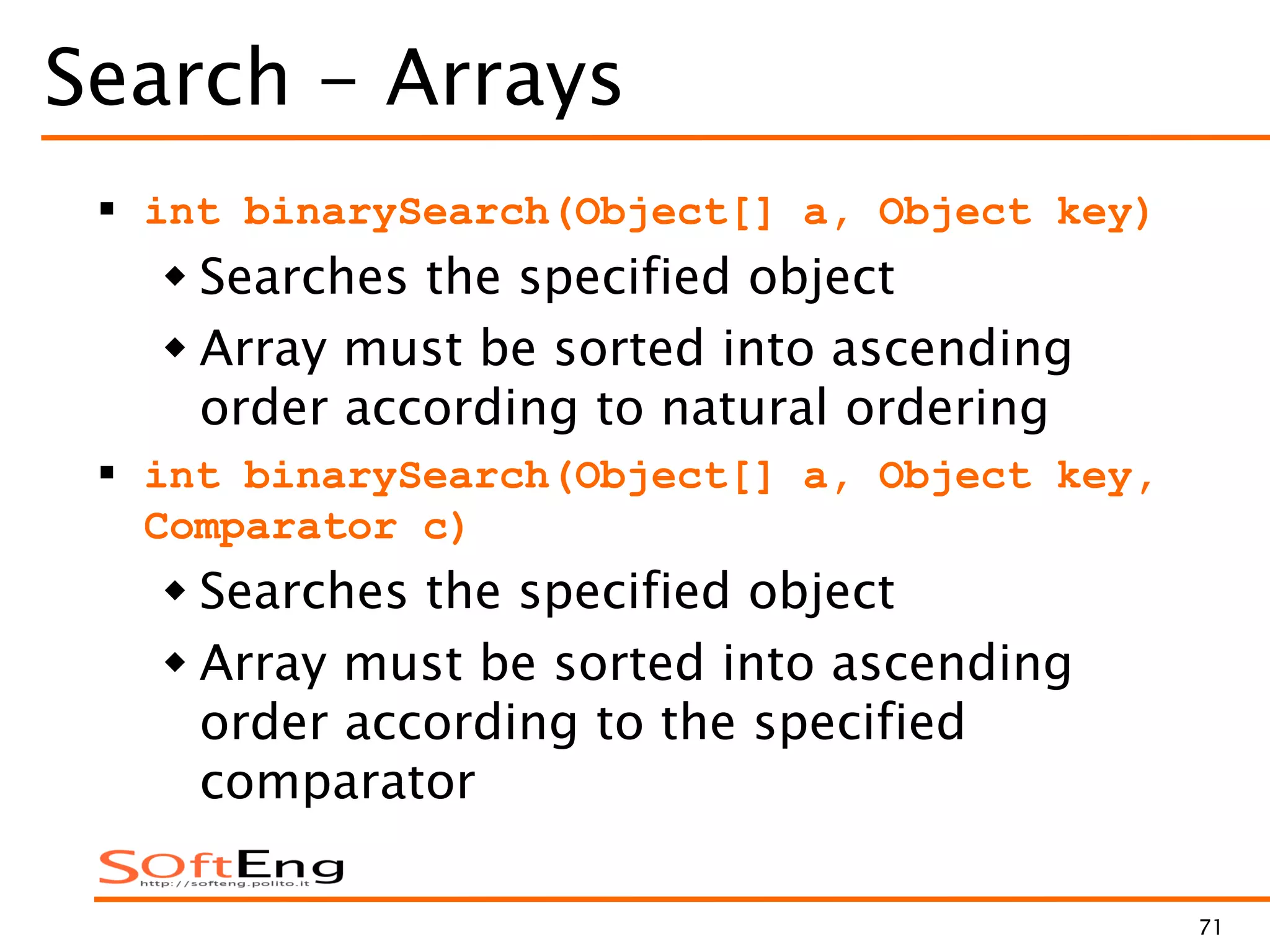

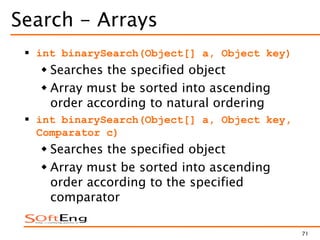

Search - Arrays
 int binarySearch(Object[] a, Object key)
 Array must be sorted into ascending
order according to natural ordering
 int binarySearch(Object[] a, Object key,
Comparator c)
 Array must be sorted into ascending
order according to the specified
comparator

07 java collection

In this document

More Related Content

What's hot

Viewers also liked

Similar to 07 java collection

More from Abhishek Khune

Recently uploaded

07 java collection
