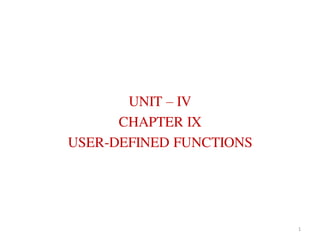

UNIT – IV
CHAPTER IX
USER-DEFINED FUNCTIONS
1

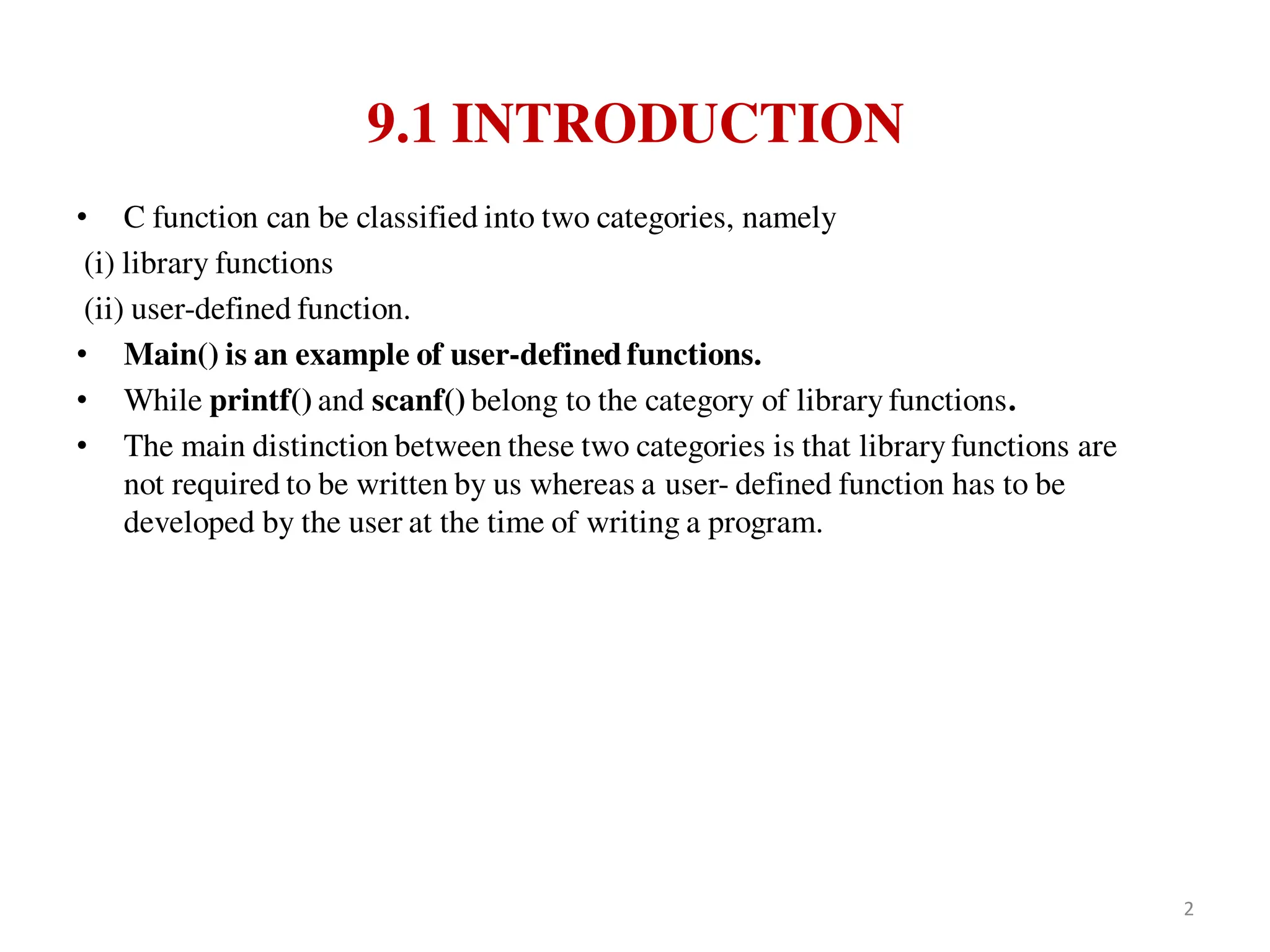

9.1 INTRODUCTION
• C function can be classified into two categories, namely
(i) library functions
(ii) user-defined function.
• Main() is an example of user-defined functions.
• While printf() and scanf() belong to the category of library functions.
• The main distinction between these two categories is that library functions are
not required to be written by us whereas a user- defined function has to be
developed by the user at the time of writing a program.
2

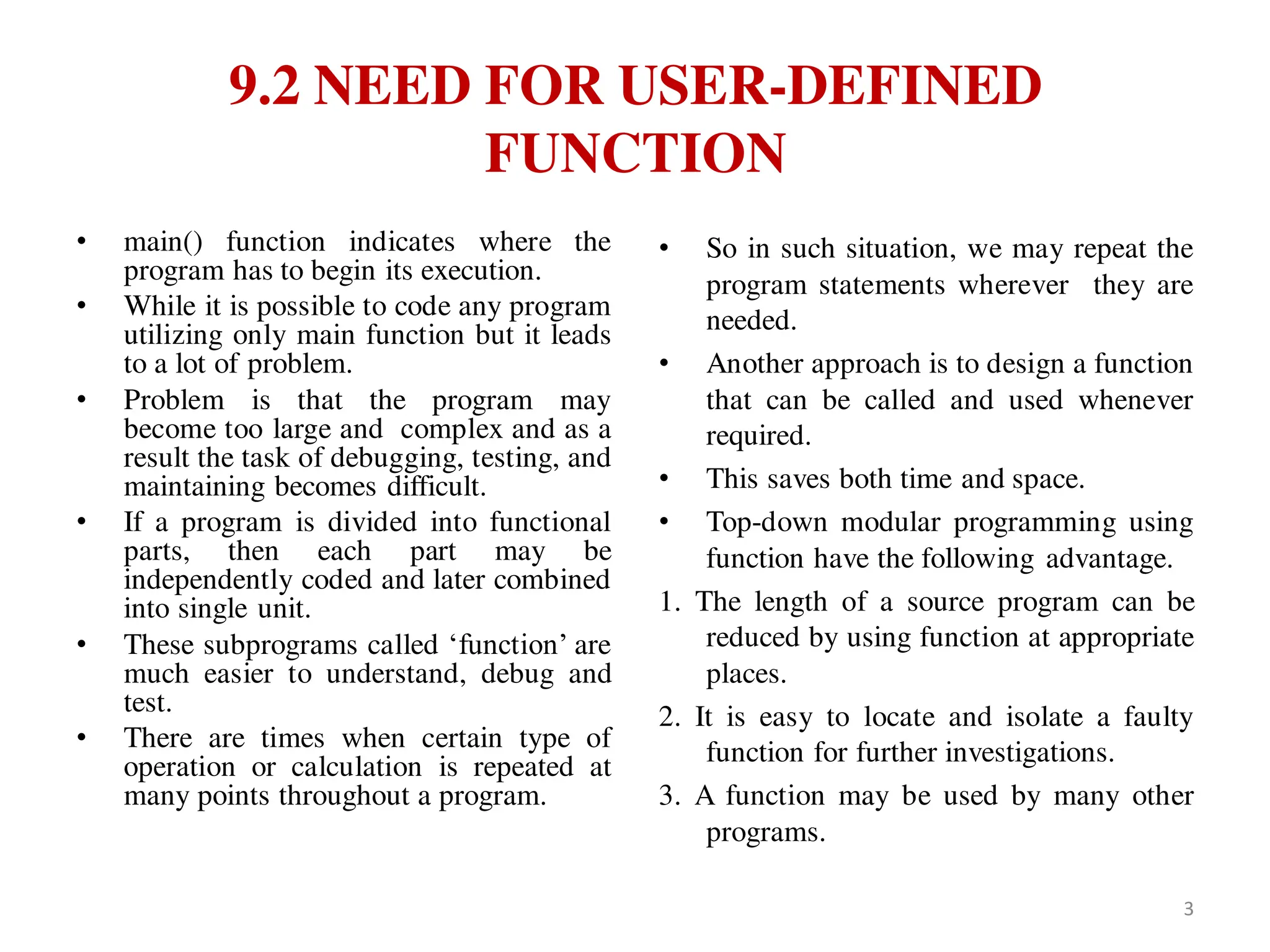

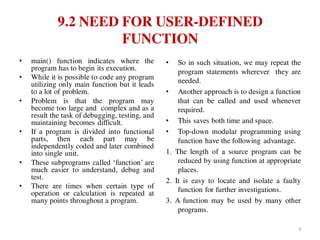

9.2 NEED FOR USER-DEFINED
FUNCTION
• main() function indicates where the
program has to begin its execution.
• While it is possible to code any program
utilizing only main function but it leads
to a lot of problem.
• Problem is that the program may
become too large and complex and as a
result the task of debugging, testing, and
maintaining becomes difficult.
• If a program is divided into functional
parts, then each part may be
independently coded and later combined
into single unit.
• These subprograms called ‘function’ are
much easier to understand, debug and
test.
• There are times when certain type of
operation or calculation is repeated at
many points throughout a program.
• So in such situation, we may repeat the
program statements wherever they are
needed.
• Another approach is to design a function
that can be called and used whenever
required.
• This saves both time and space.
• Top-down modular programming using
function have the following advantage.
1. The length of a source program can be
reduced by using function at appropriate
places.
2. It is easy to locate and isolate a faulty
function for further investigations.
3. A function may be used by many other
programs.
3

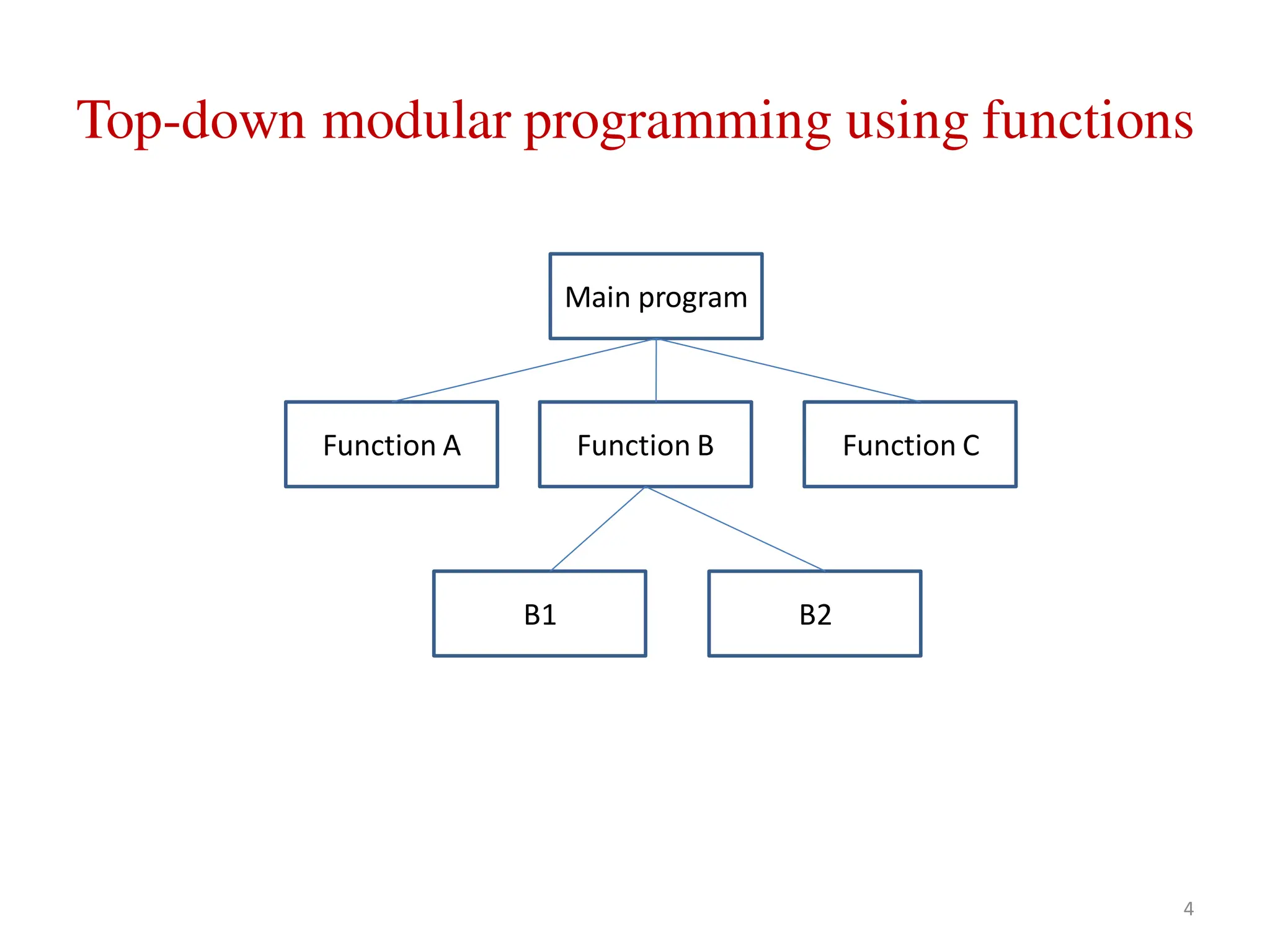

Top-down modular programming using functions
Main program
Function A Function B Function C
B1 B2
4

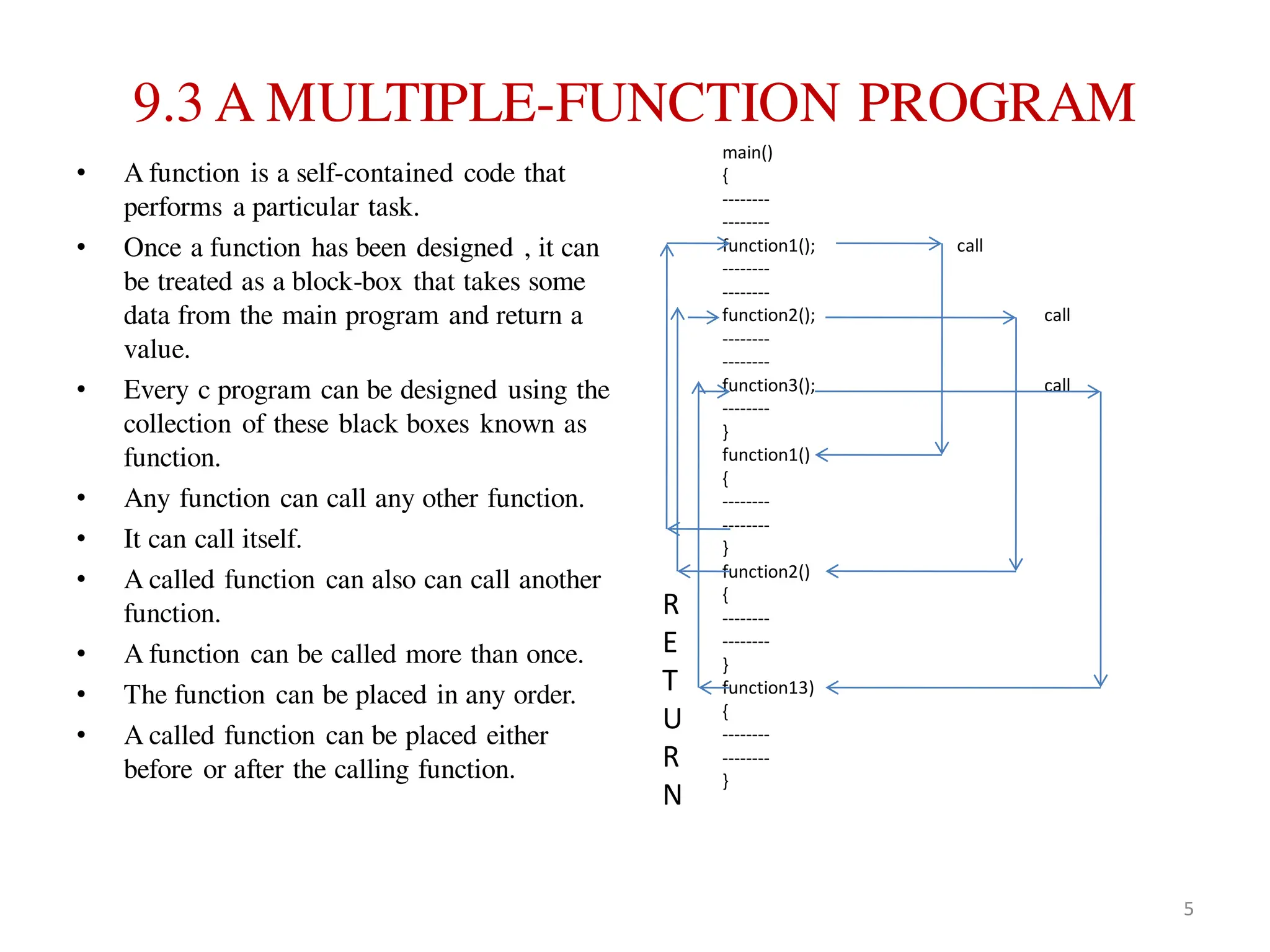

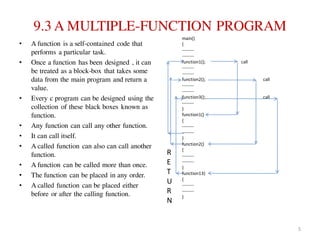

9.3 A MULTIPLE-FUNCTION PROGRAM
• A function is a self-contained code that
performs a particular task.
• Once a function has been designed , it can
be treated as a block-box that takes some
data from the main program and return a
value.
• Every c program can be designed using the
collection of these black boxes known as
function.
• Any function can call any other function.
• It can call itself.
• A called function can also can call another
function.
• A function can be called more than once.
• The function can be placed in any order.
• A called function can be placed either
before or after the calling function.
main()
{
--------
--------
function1(); call
--------
--------
function2(); call
--------
--------
function3(); call
--------
}
function1()
{
--------
--------
}
function2()
{
--------
--------
}
function13)
{
--------
--------
}
R
E
T
U
R
N
5

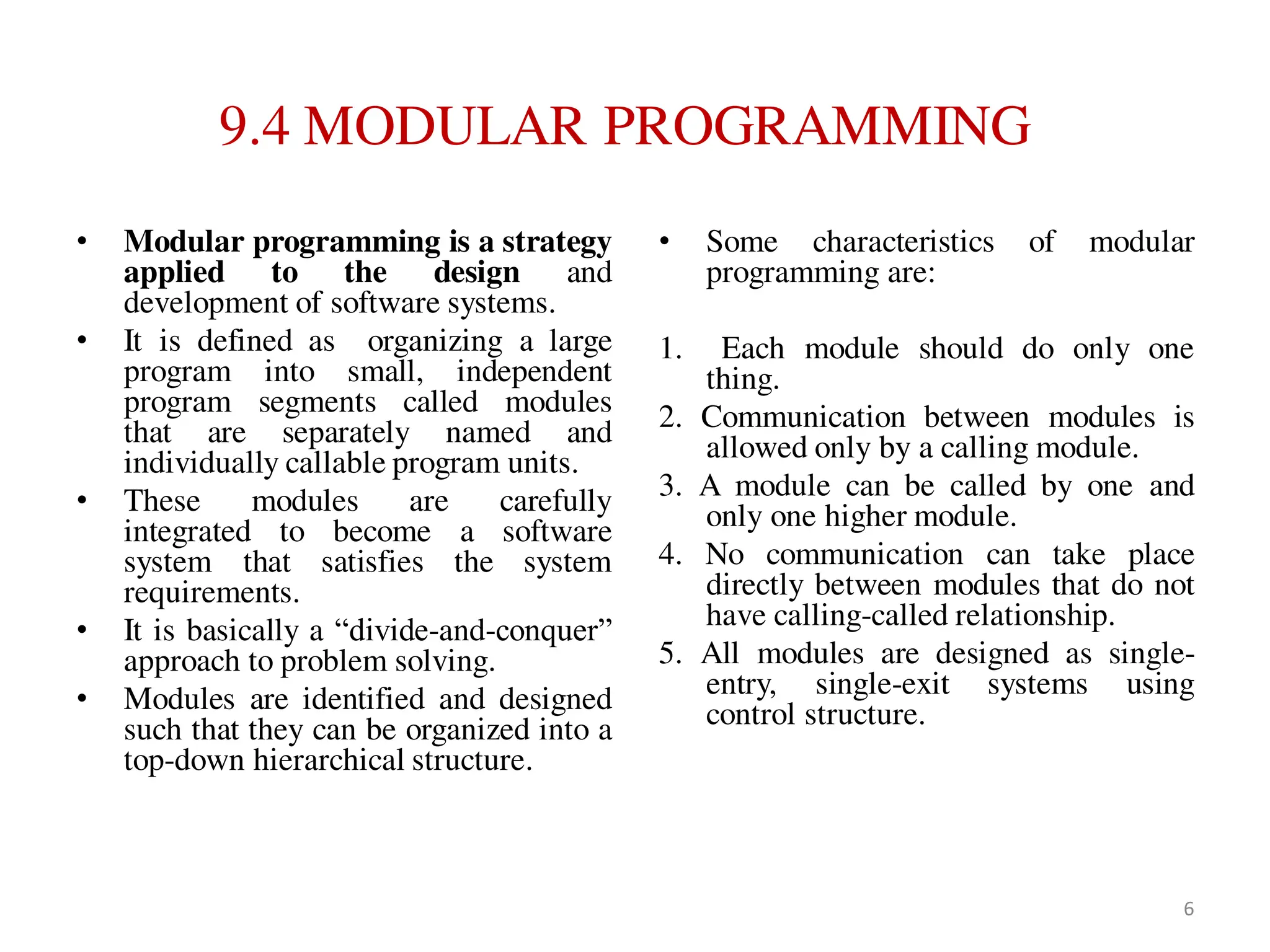

9.4 MODULAR PROGRAMMING
• Modular programming is a strategy
applied to the design and
development of software systems.
• It is defined as organizing a large
program into small, independent
program segments called modules
that are separately named and
individually callable program units.
• These modules are carefully
integrated to become a software
system that satisfies the system
requirements.
• It is basically a “divide-and-conquer”
approach to problem solving.
• Modules are identified and designed
such that they can be organized into a
top-down hierarchical structure.
• Some characteristics of modular
programming are:
1. Each module should do only one
thing.
2. Communication between modules is
allowed only by a calling module.
3. A module can be called by one and
only one higher module.
4. No communication can take place
directly between modules that do not
have calling-called relationship.
5. All modules are designed as single-
entry, single-exit systems using
control structure.
6

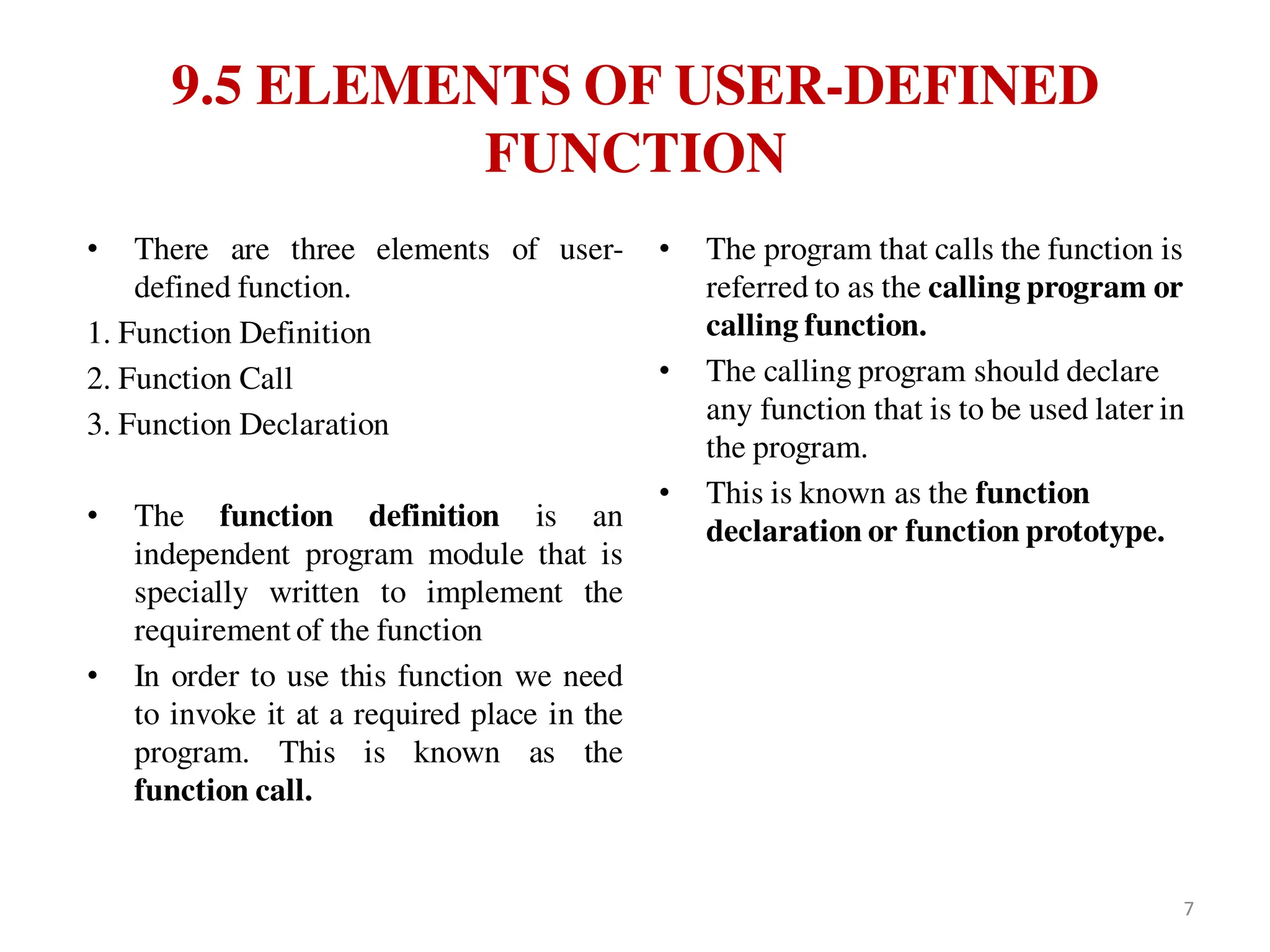

9.5 ELEMENTS OF USER-DEFINED
FUNCTION
• There are three elements of user-
defined function.
1. Function Definition
2. Function Call
3. Function Declaration
• The function definition is an
independent program module that is
specially written to implement the
requirement of the function
• In order to use this function we need
to invoke it at a required place in the
program. This is known as the
function call.
• The program that calls the function is
referred to as the calling program or
calling function.
• The calling program should declare
any function that is to be used later in
the program.
• This is known as the function
declaration or function prototype.
7

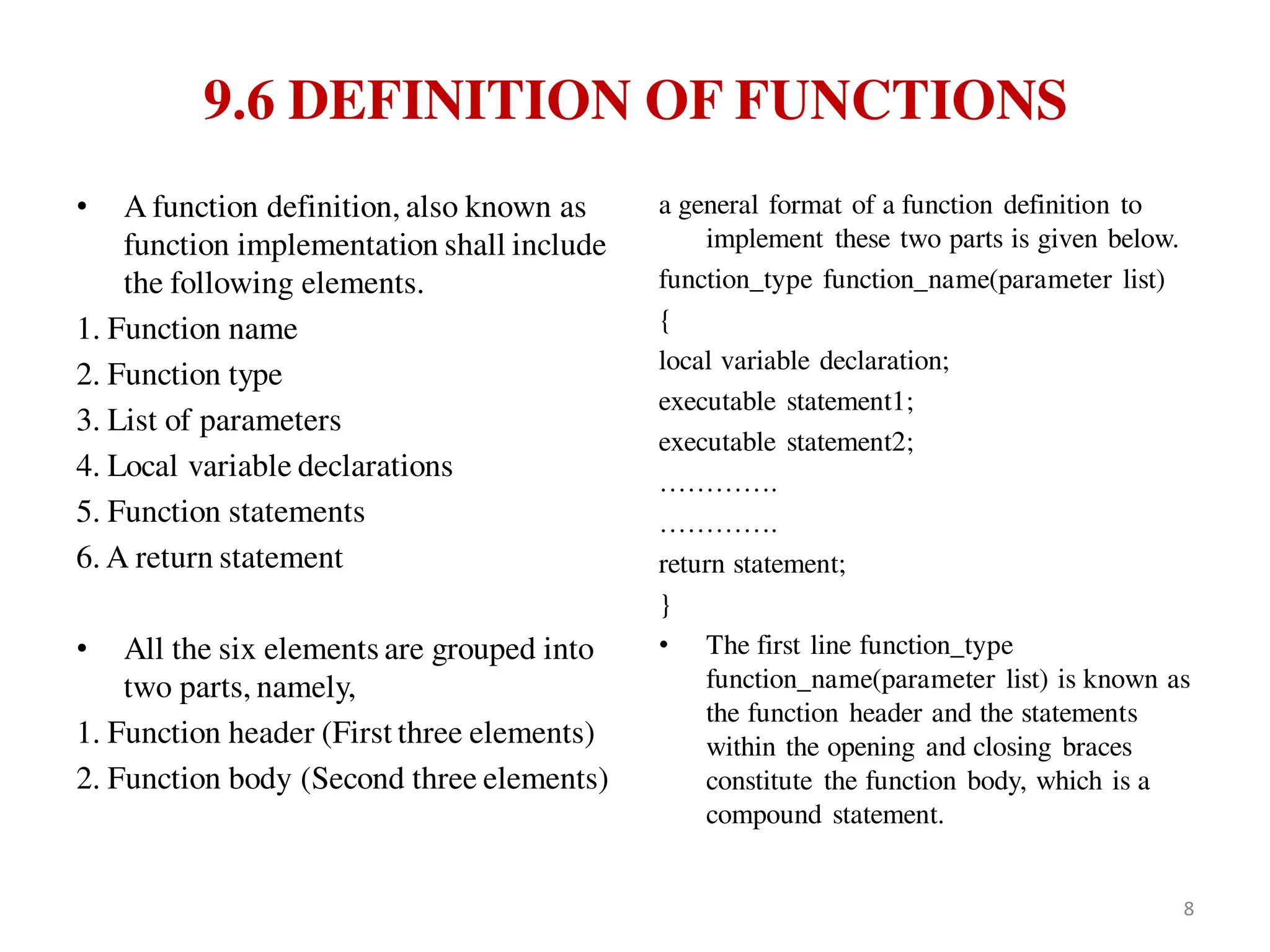

9.6 DEFINITION OF FUNCTIONS
• A function definition, also known as
function implementation shall include
the following elements.
1. Function name
2. Function type
3. List of parameters
4. Local variable declarations
5. Function statements
6. A return statement
• All the six elements are grouped into
two parts, namely,
1. Function header (First three elements)
2. Function body (Second three elements)
a general format of a function definition to
implement these two parts is given below.
function_type function_name(parameter list)
{
local variable declaration;
executable statement1;
executable statement2;
………….
………….
return statement;
}
• The first line function_type
function_name(parameter list) is known as
the function header and the statements
within the opening and closing braces
constitute the function body, which is a
compound statement.
8

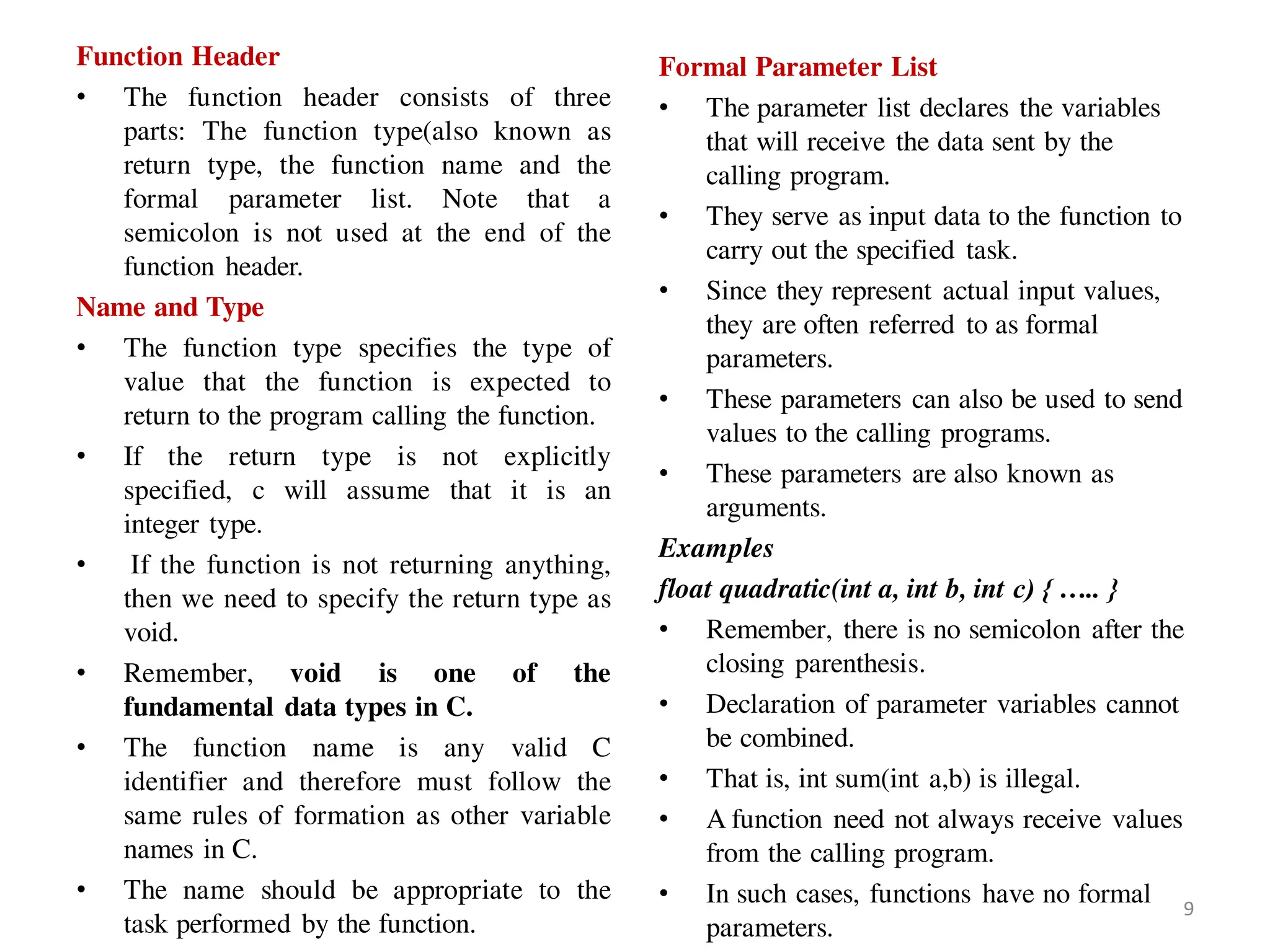

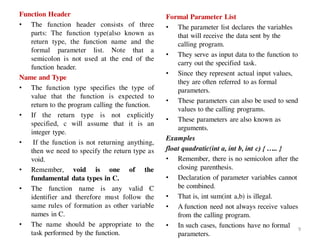

Function Header
• The function header consists of three
parts: The function type(also known as
return type, the function name and the
formal parameter list. Note that a
semicolon is not used at the end of the
function header.
Name and Type
• The function type specifies the type of
value that the function is expected to
return to the program calling the function.
• If the return type is not explicitly
specified, c will assume that it is an
integer type.
• If the function is not returning anything,
then we need to specify the return type as
void.
• Remember, void is one of the
fundamental data types in C.
• The function name is any valid C
identifier and therefore must follow the
same rules of formation as other variable
names in C.
• The name should be appropriate to the
task performed by the function.
Formal Parameter List
• The parameter list declares the variables
that will receive the data sent by the
calling program.
• They serve as input data to the function to
carry out the specified task.
• Since they represent actual input values,
they are often referred to as formal
parameters.
• These parameters can also be used to send
values to the calling programs.
• These parameters are also known as
arguments.
Examples
float quadratic(int a, int b, int c) { ….. }
• Remember, there is no semicolon after the
closing parenthesis.
• Declaration of parameter variables cannot
be combined.
• That is, int sum(int a,b) is illegal.
• A function need not always receive values
from the calling program.
• In such cases, functions have no formal
parameters.
9

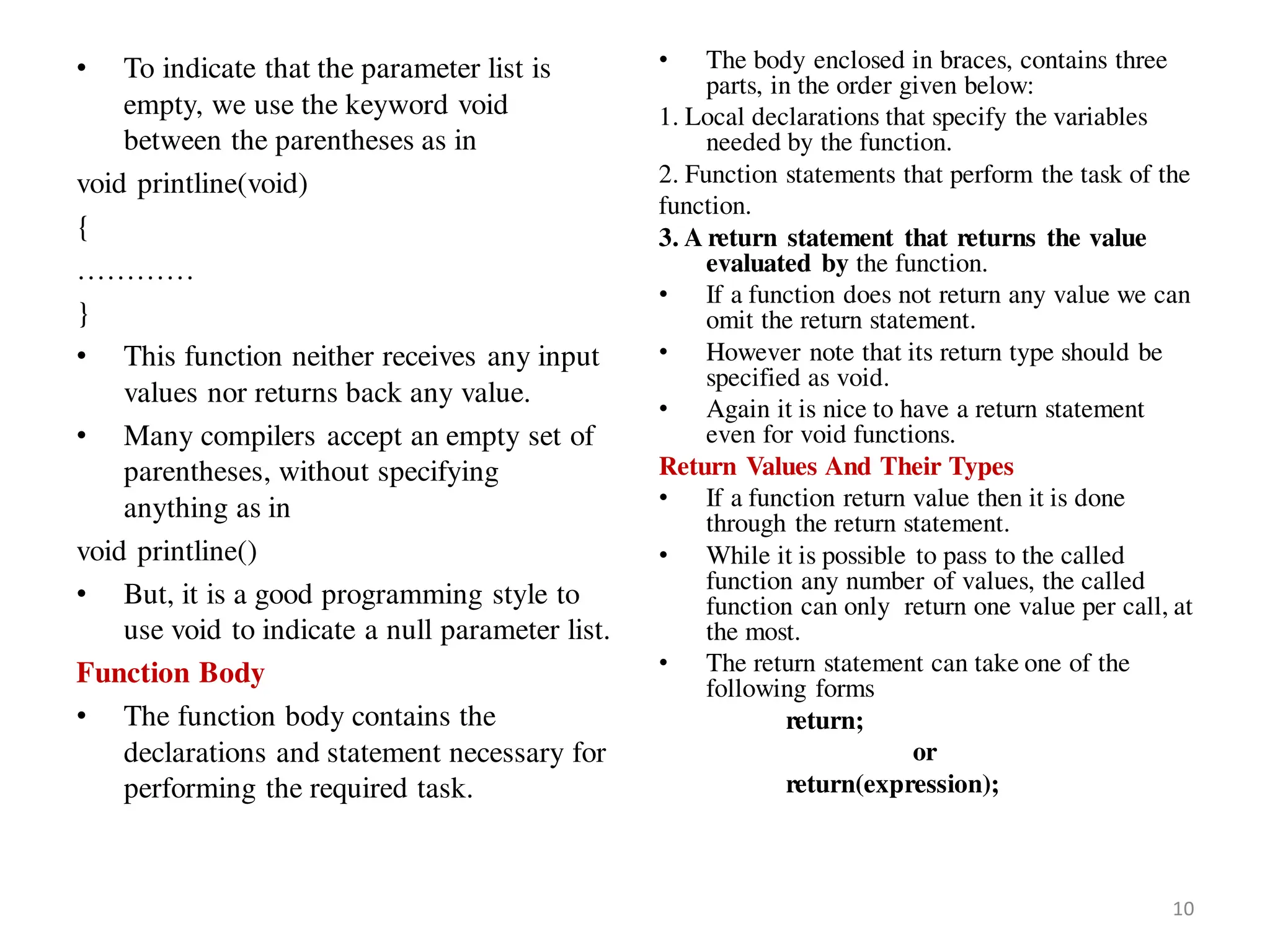

• To indicate that the parameter list is
empty, we use the keyword void
between the parentheses as in
void printline(void)
{
…………
}
• This function neither receives any input
values nor returns back any value.
• Many compilers accept an empty set of
parentheses, without specifying
anything as in
void printline()
• But, it is a good programming style to
use void to indicate a null parameter list.
Function Body
• The function body contains the
declarations and statement necessary for
performing the required task.
• The body enclosed in braces, contains three
parts, in the order given below:
1. Local declarations that specify the variables
needed by the function.
2. Function statements that perform the task of the
function.
3. A return statement that returns the value
evaluated by the function.
• If a function does not return any value we can
omit the return statement.
• However note that its return type should be
specified as void.
• Again it is nice to have a return statement
even for void functions.
Return Values And Their Types
• If a function return value then it is done
through the return statement.
• While it is possible to pass to the called
function any number of values, the called
function can only return one value per call, at
the most.
• The return statement can take one of the
following forms
return;
or
return(expression);
10

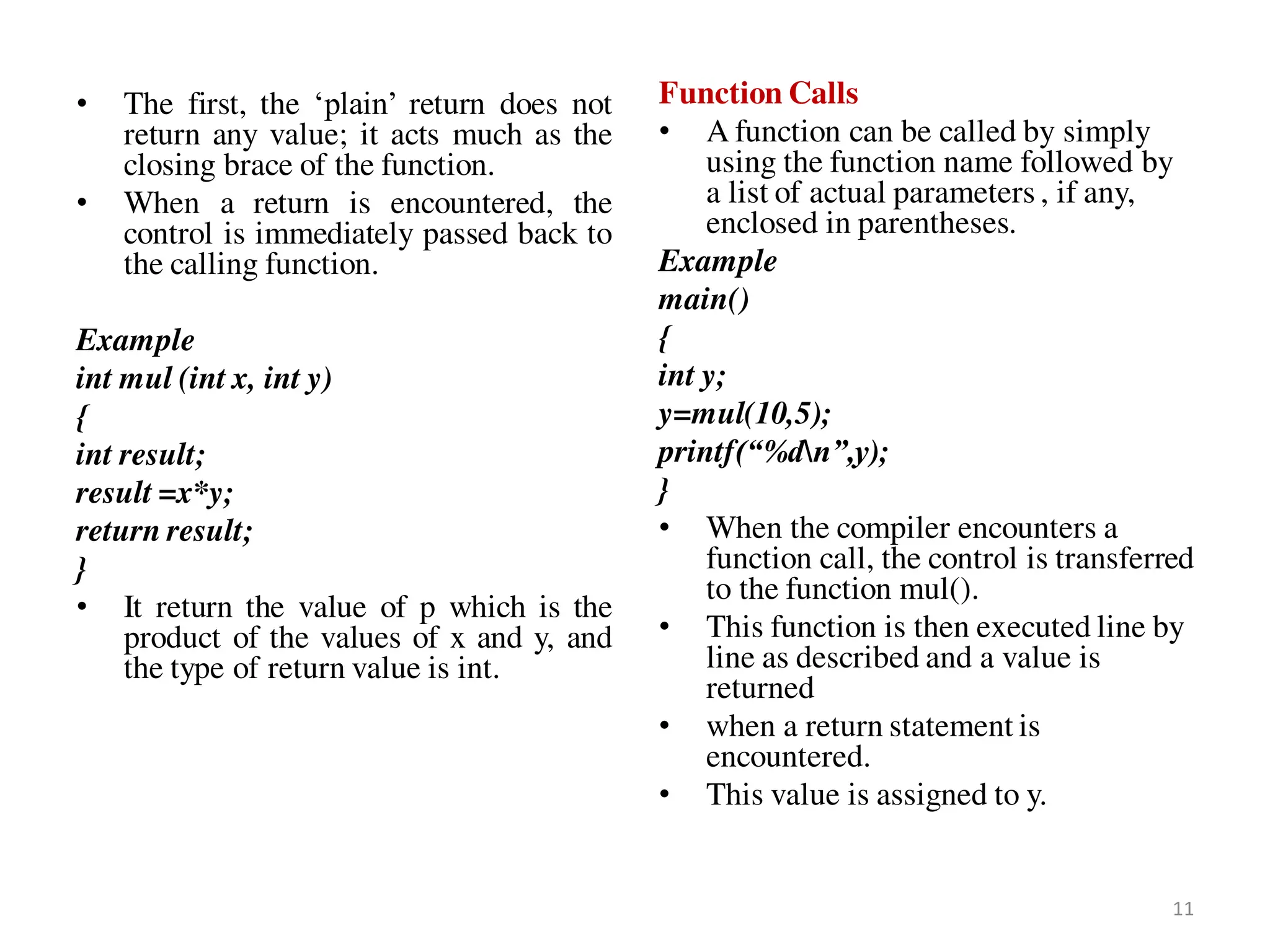

• The first, the ‘plain’ return does not
return any value; it acts much as the
closing brace of the function.
• When a return is encountered, the
control is immediately passed back to
the calling function.
Example
int mul (int x, int y)
{
int result;
result =x*y;
return result;
}
• It return the value of p which is the
product of the values of x and y, and
the type of return value is int.
Function Calls
• A function can be called by simply
using the function name followed by
a list of actual parameters , if any,
enclosed in parentheses.
Example
main()
{
int y;
y=mul(10,5);
printf(“%dn”,y);
}
• When the compiler encounters a
function call, the control is transferred
to the function mul().
• This function is then executed line by
line as described and a value is
returned
• when a return statement is
encountered.
• This value is assigned to y.
11

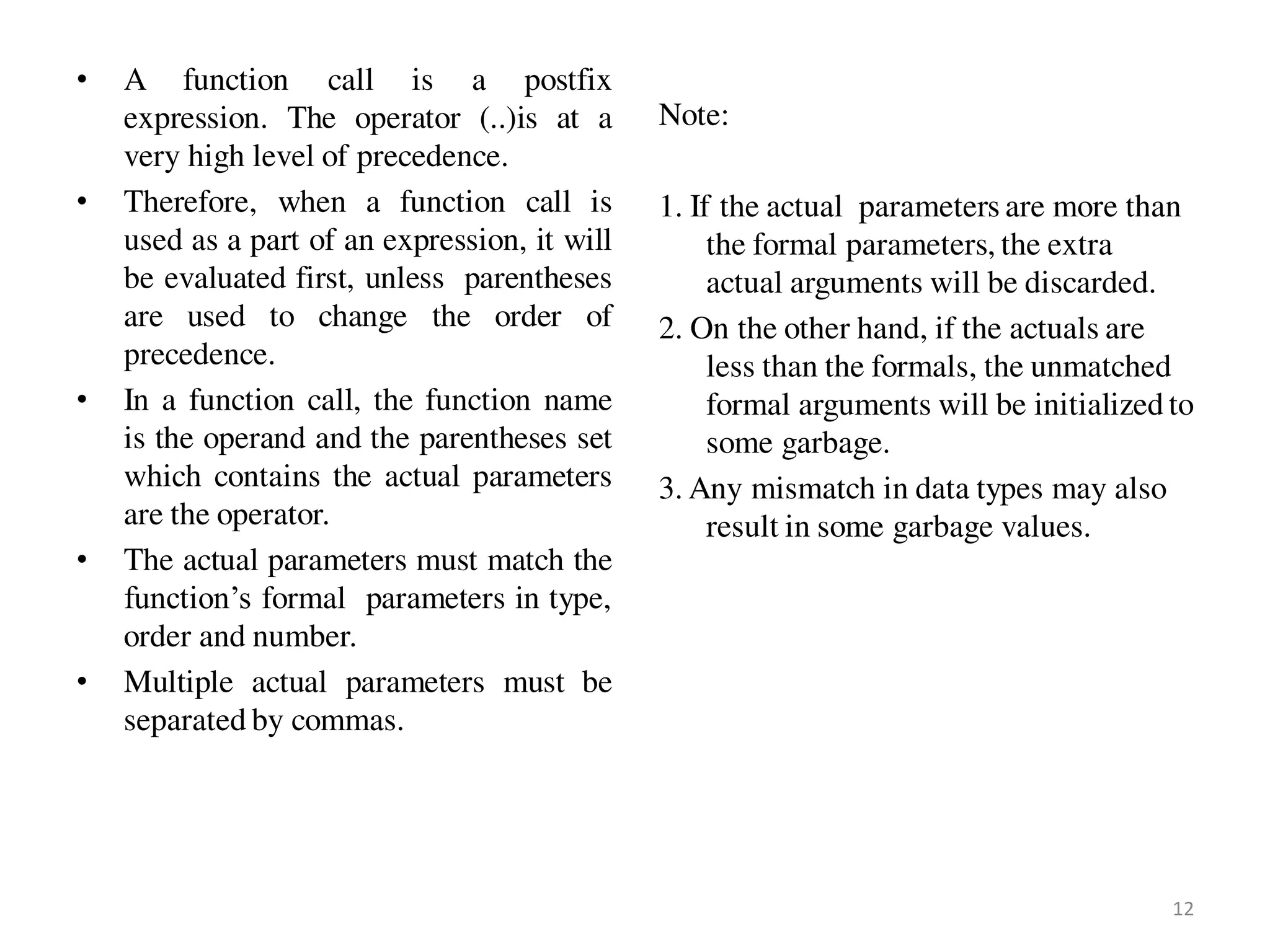

• A function call is a postfix
expression. The operator (..)is at a
very high level of precedence.
• Therefore, when a function call is
used as a part of an expression, it will
be evaluated first, unless parentheses
are used to change the order of
precedence.
• In a function call, the function name
is the operand and the parentheses set
which contains the actual parameters
are the operator.
• The actual parameters must match the
function’s formal parameters in type,
order and number.
• Multiple actual parameters must be
separated by commas.
Note:
1. If the actual parameters are more than
the formal parameters, the extra
actual arguments will be discarded.
2. On the other hand, if the actuals are
less than the formals, the unmatched
formal arguments will be initialized to
some garbage.
3. Any mismatch in data types may also
result in some garbage values.
12

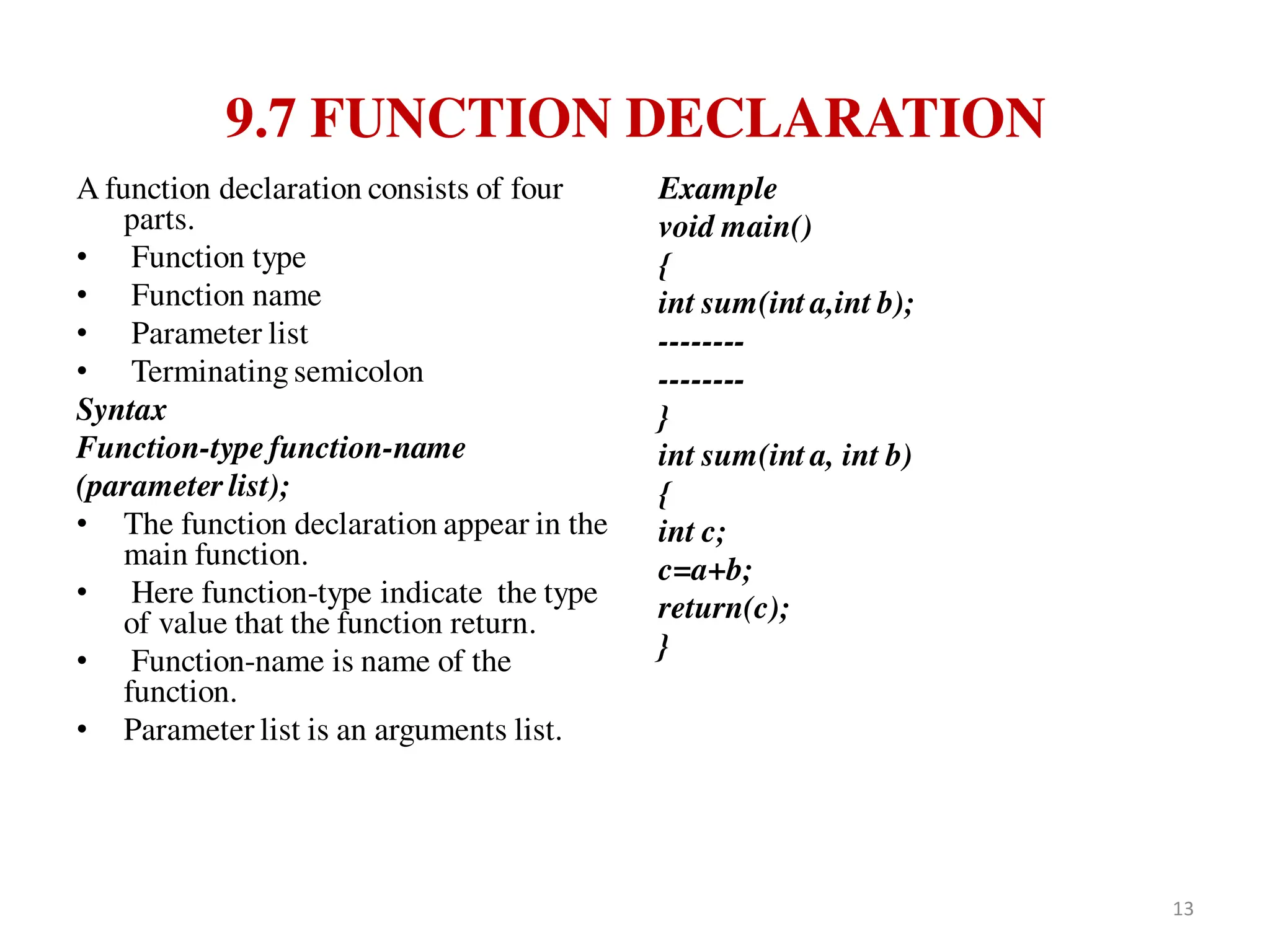

9.7 FUNCTION DECLARATION
A function declaration consists of four
parts.
• Function type
• Function name
• Parameter list
• Terminating semicolon
Syntax
Function-type function-name
(parameter list);
• The function declaration appear in the
main function.
• Here function-type indicate the type
of value that the function return.
• Function-name is name of the
function.
• Parameter list is an arguments list.
Example
void main()
{
int sum(int a,int b);
--------
--------
}
int sum(int a, int b)
{
int c;
c=a+b;
return(c);
}
13

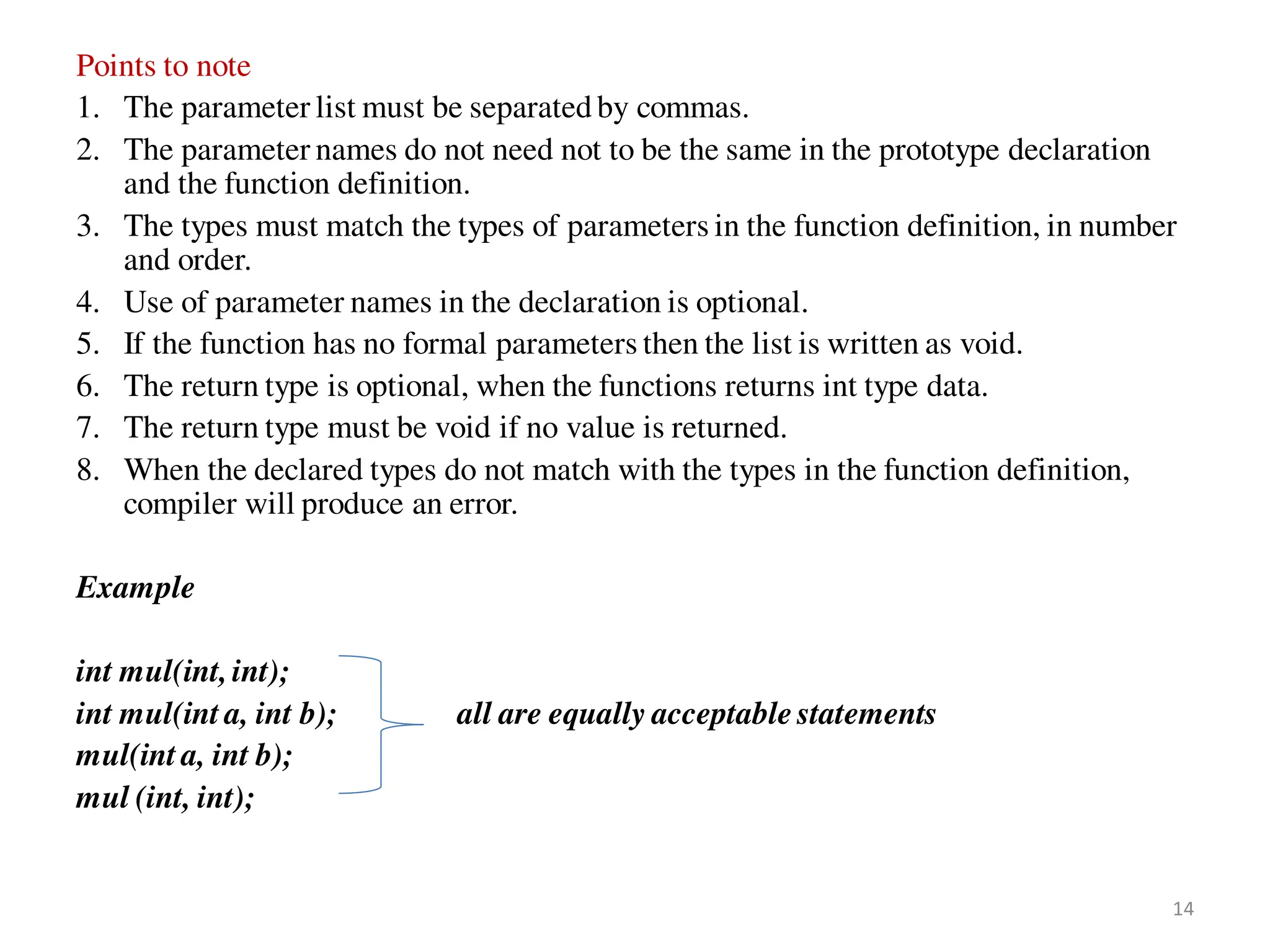

Points to note
1. The parameter list must be separated by commas.
2. The parameter names do not need not to be the same in the prototype declaration
and the function definition.
3. The types must match the types of parameters in the function definition, in number
and order.
4. Use of parameter names in the declaration is optional.
5. If the function has no formal parameters then the list is written as void.
6. The return type is optional, when the functions returns int type data.
7. The return type must be void if no value is returned.
8. When the declared types do not match with the types in the function definition,
compiler will produce an error.
Example
int mul(int,int);
int mul(int a, int b); all are equally acceptable statements
mul(int a, int b);
mul (int, int);
14

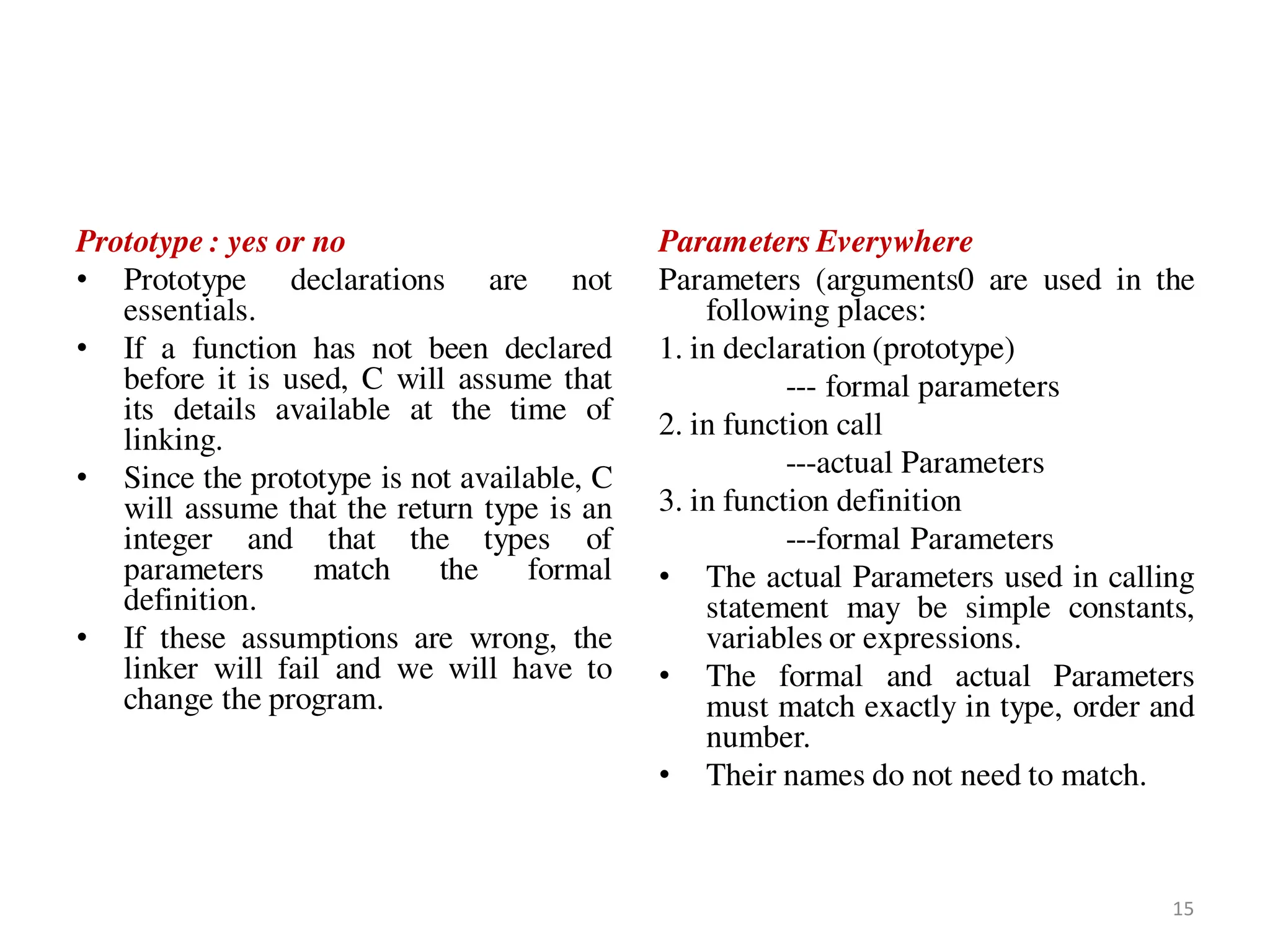

Prototype : yes or no
• Prototype declarations are not
essentials.
• If a function has not been declared
before it is used, C will assume that
its details available at the time of
linking.
• Since the prototype is not available, C
will assume that the return type is an
integer and that the types of
parameters match the formal
definition.
• If these assumptions are wrong, the
linker will fail and we will have to
change the program.
Parameters Everywhere
Parameters (arguments0 are used in the
following places:
1. in declaration (prototype)
--- formal parameters
2. in function call
---actual Parameters
3. in function definition
---formal Parameters
• The actual Parameters used in calling
statement may be simple constants,
variables or expressions.
• The formal and actual Parameters
must match exactly in type, order and
number.
• Their names do not need to match.
15

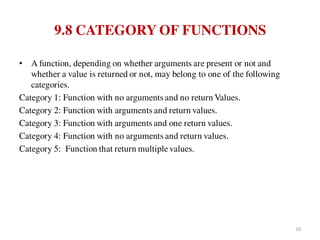

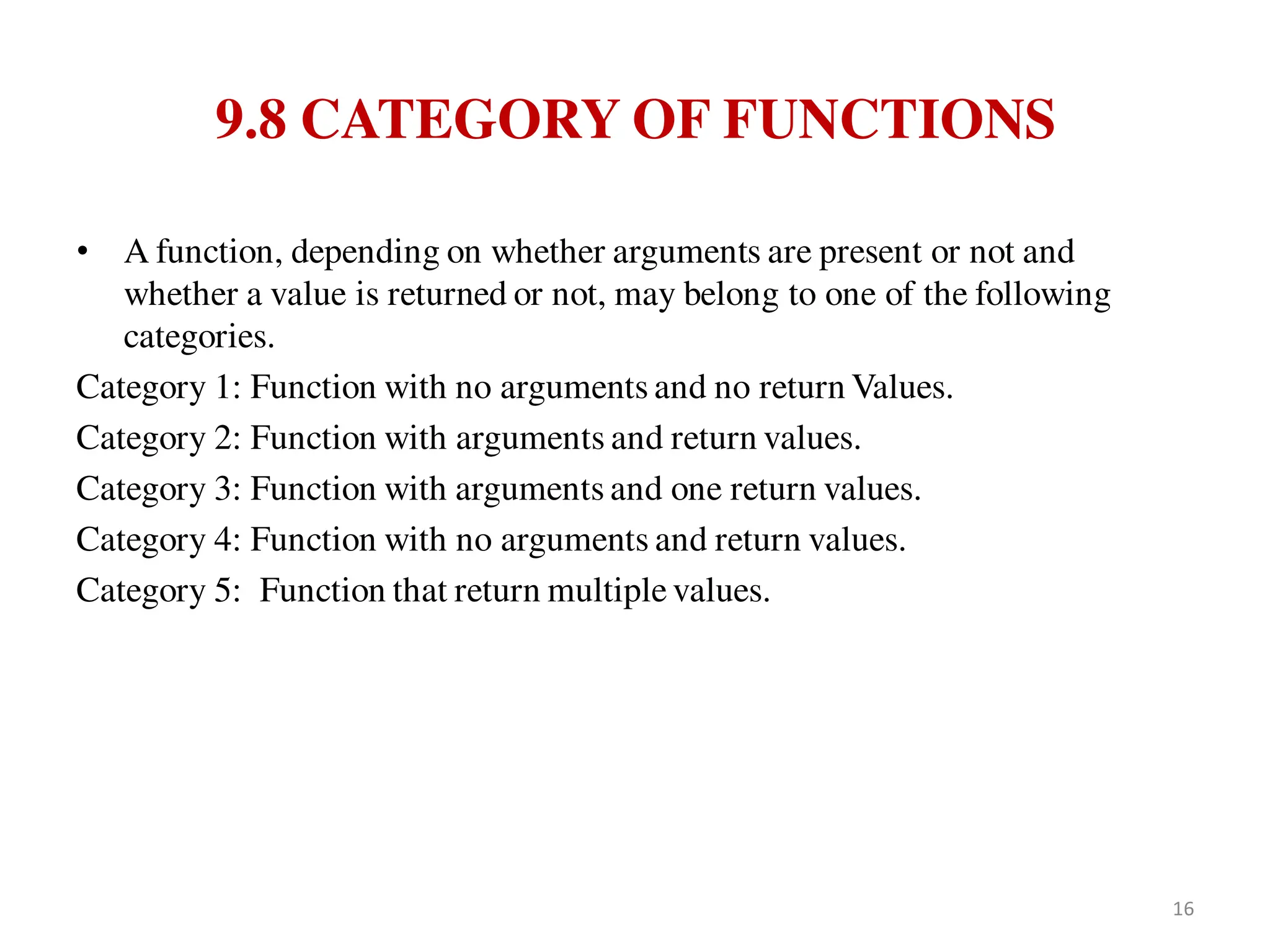

9.8 CATEGORY OF FUNCTIONS
• A function, depending on whether arguments are present or not and
whether a value is returned or not, may belong to one of the following
categories.
Category 1: Function with no arguments and no return Values.
Category 2: Function with arguments and return values.
Category 3: Function with arguments and one return values.
Category 4: Function with no arguments and return values.
Category 5: Function that return multiple values.
16

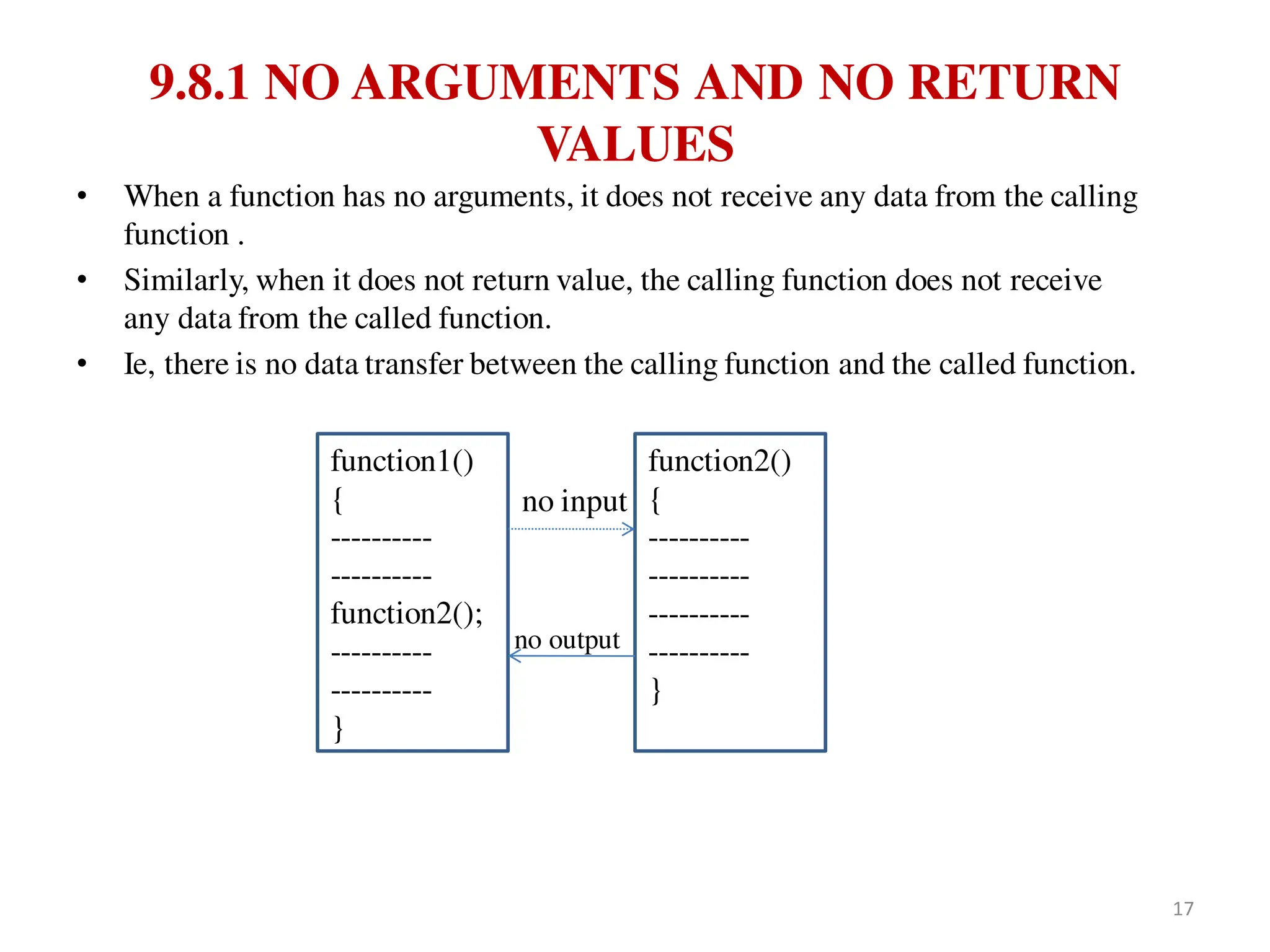

9.8.1 NO ARGUMENTS AND NO RETURN
VALUES
• When a function has no arguments, it does not receive any data from the calling
function .
• Similarly, when it does not return value, the calling function does not receive
any data from the called function.
• Ie, there is no data transfer between the calling function and the called function.
no input
no output
function1()
{
----------
----------
function2();
----------
----------
}
function2()
{
----------
----------
----------
----------
}
17

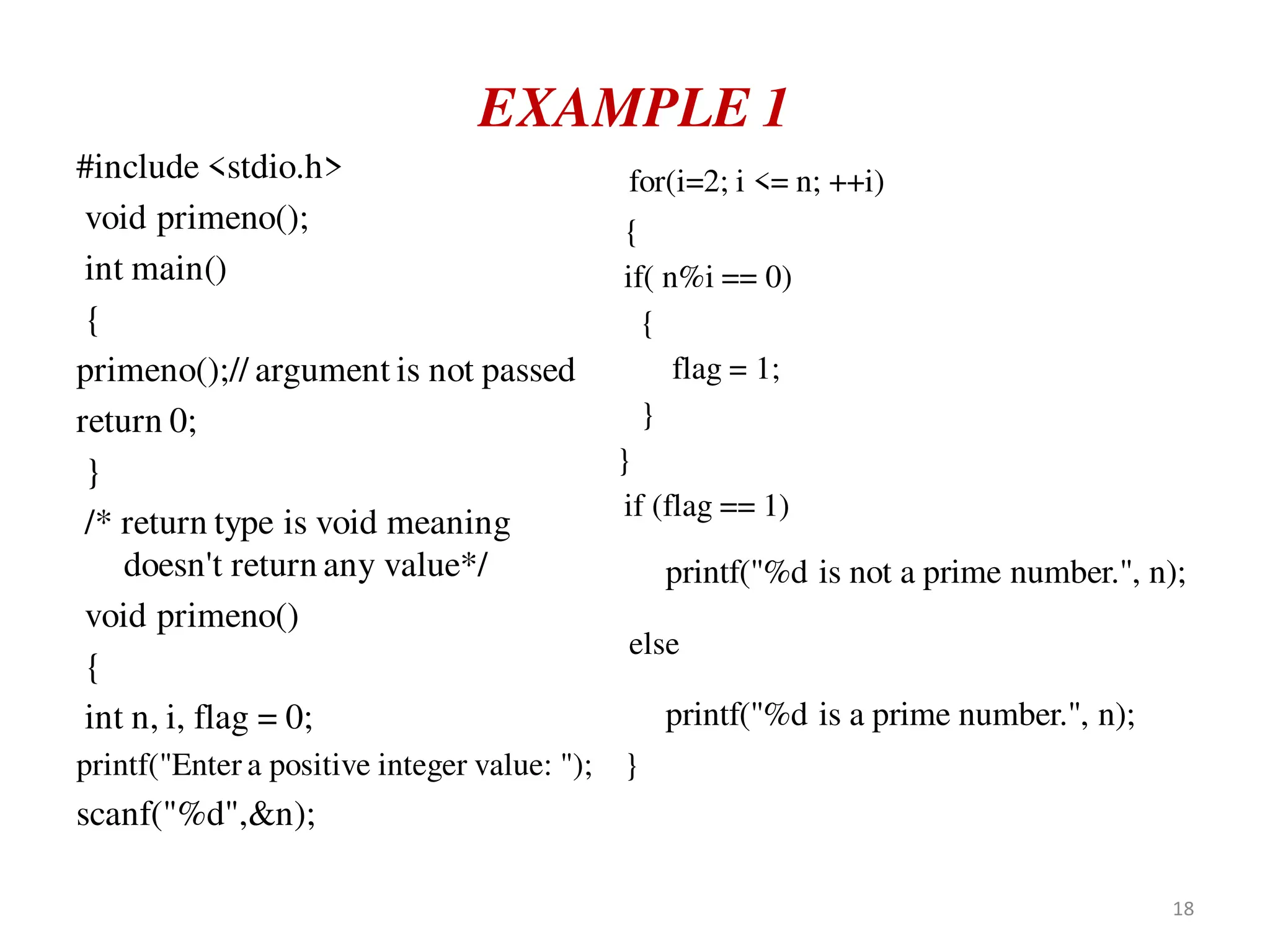

EXAMPLE 1
#include <stdio.h>
void primeno();
int main()
{
primeno();// argument is not passed
return 0;
}
/* return type is void meaning
doesn't return any value*/
void primeno()
{
int n, i, flag = 0;
printf("Enter a positive integer value: ");
scanf("%d",&n);
for(i=2; i <= n; ++i)
{
if( n%i == 0)
{
flag = 1;
}
}
if (flag == 1)
printf("%d is not a prime number.", n);
else
printf("%d is a prime number.", n);
}
18

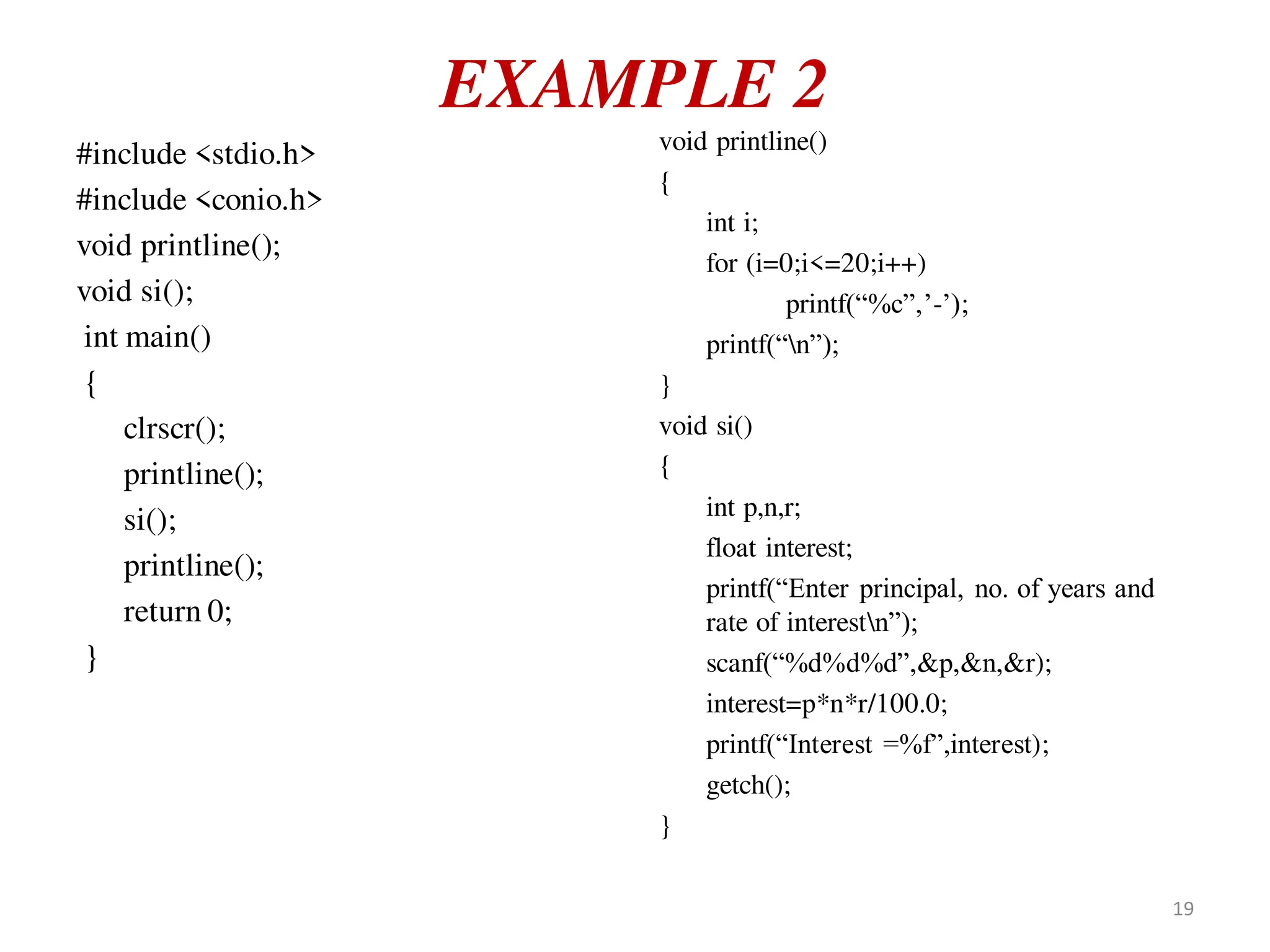

EXAMPLE 2
#include <stdio.h>
#include <conio.h>
void printline();
void si();
int main()
{
clrscr();
printline();
si();
printline();
return 0;
}
void printline()
{
int i;
for (i=0;i<=20;i++)
printf(“%c”,’-’);
printf(“n”);
}
void si()
{
int p,n,r;
float interest;
printf(“Enter principal, no. of years and
rate of interestn”);
scanf(“%d%d%d”,&p,&n,&r);
interest=p*n*r/100.0;
printf(“Interest =%f”,interest);
getch();
}
19

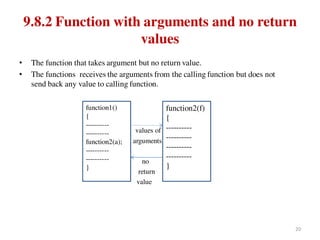

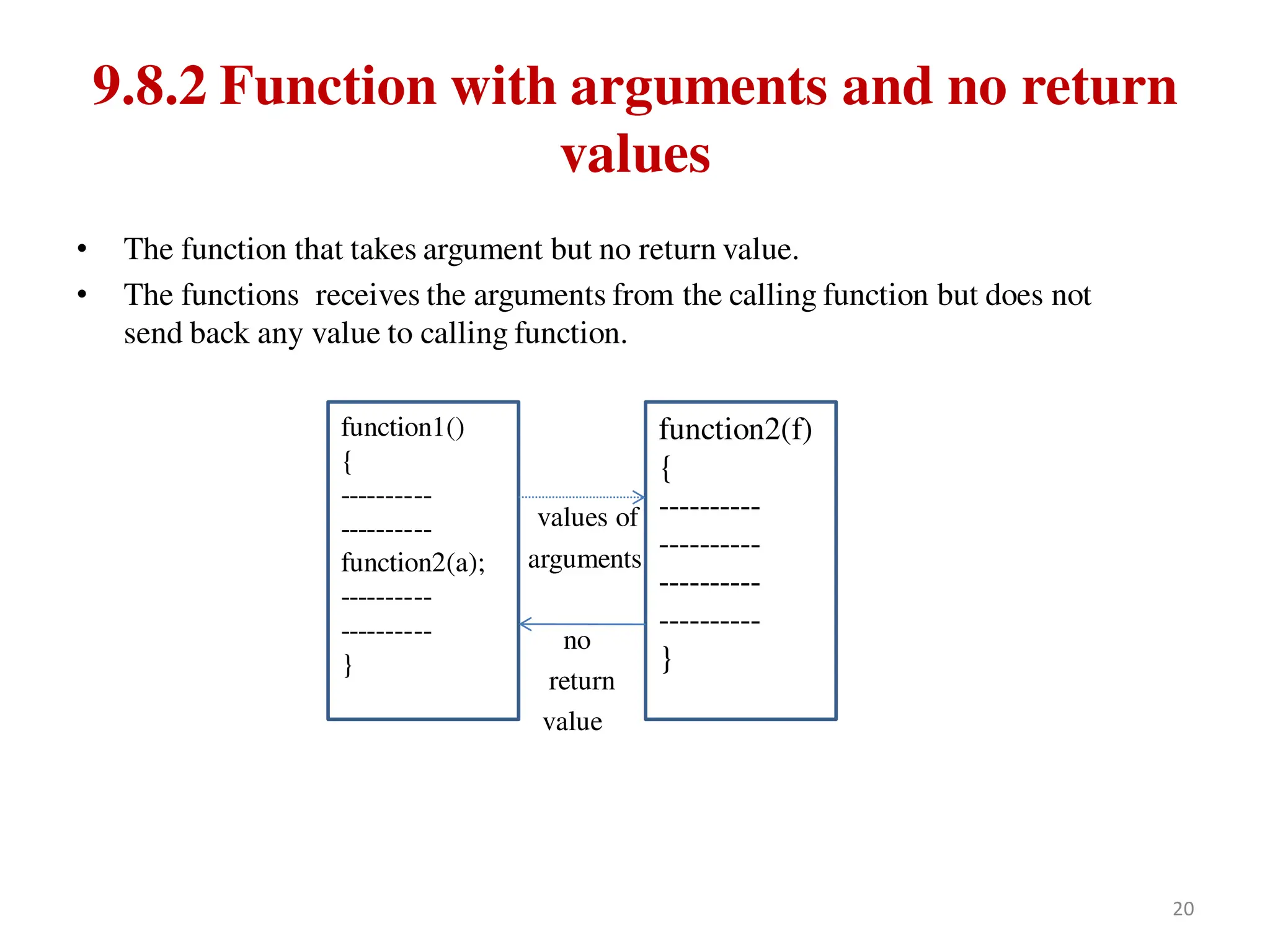

9.8.2 Function with arguments and no return
values
• The function that takes argument but no return value.
• The functions receives the arguments from the calling function but does not
send back any value to calling function.
values of
arguments
no
return
value
function1()
{
----------
----------
function2(a);
----------
----------
}
function2(f)
{
----------
----------
----------
----------
}
20

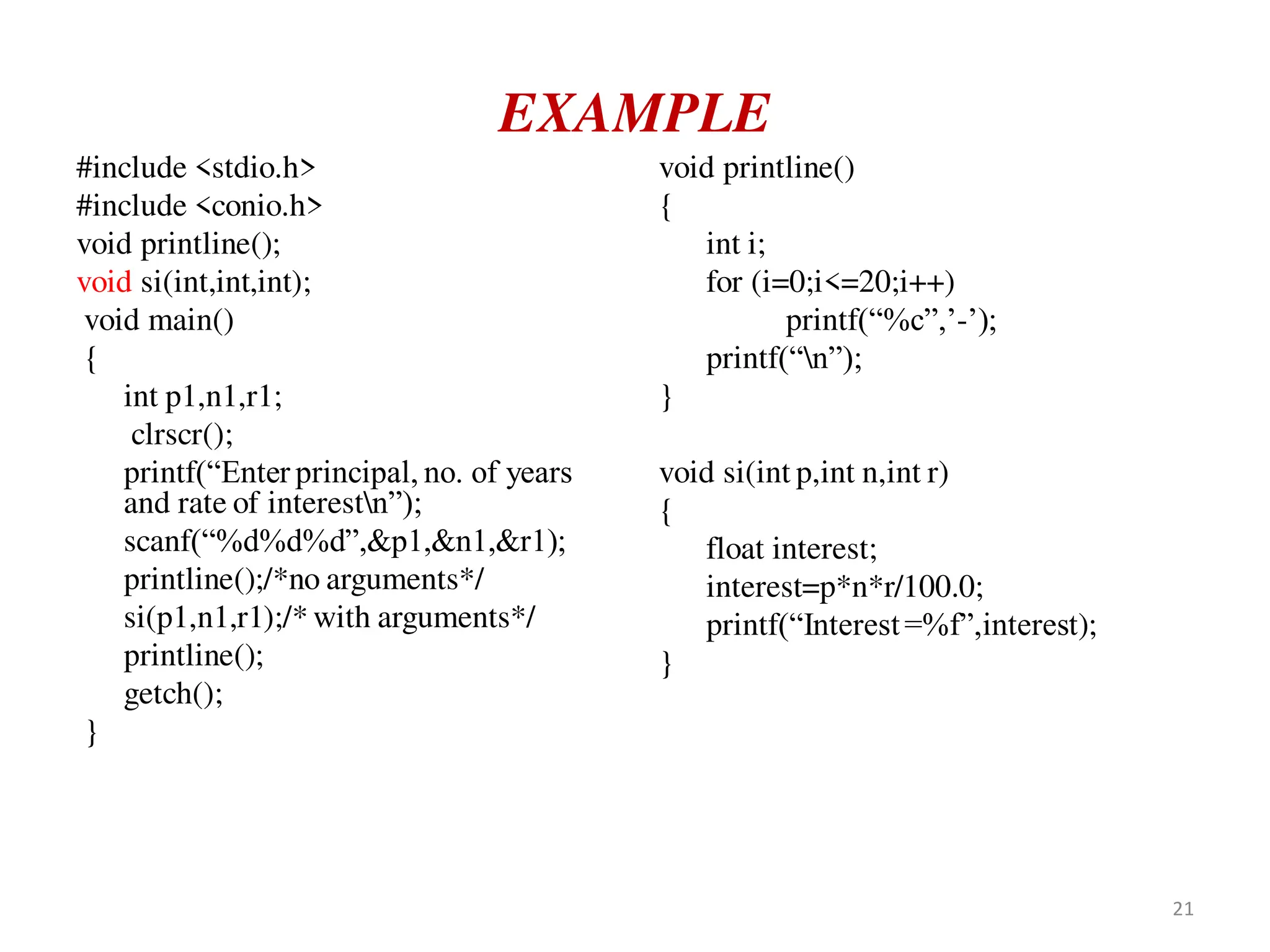

EXAMPLE
#include <stdio.h>
#include <conio.h>
void printline();
void si(int,int,int);
void main()
{
int p1,n1,r1;
clrscr();
printf(“Enter principal, no. of years
and rate of interestn”);
scanf(“%d%d%d”,&p1,&n1,&r1);
printline();/*no arguments*/
si(p1,n1,r1);/* with arguments*/
printline();
getch();
}
void printline()
{
int i;
for (i=0;i<=20;i++)
printf(“n”);
}
void si(int p,int n,int r)
{
float interest;
printf(“Interest=%f”,interest);
}
21

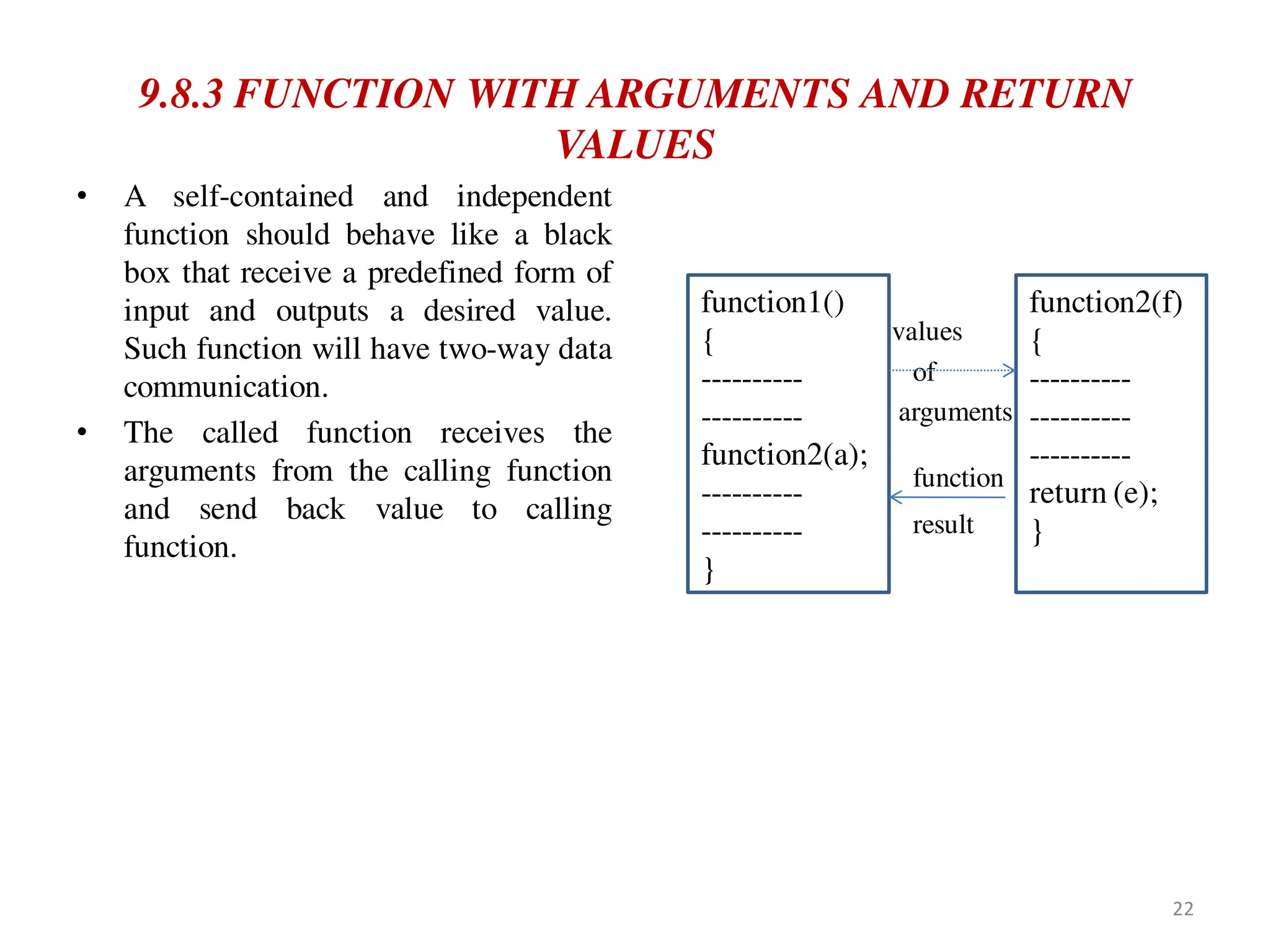

9.8.3 FUNCTION WITH ARGUMENTS AND RETURN
VALUES
• A self-contained and independent
function should behave like a black
box that receive a predefined form of
input and outputs a desired value.
Such function will have two-way data
communication.
• The called function receives the
arguments from the calling function
and send back value to calling
function.
values
of
arguments
function
result
function1()
{
----------
----------
function2(a);
----------
----------
}
function2(f)
{
----------
----------
----------
return (e);
}
22

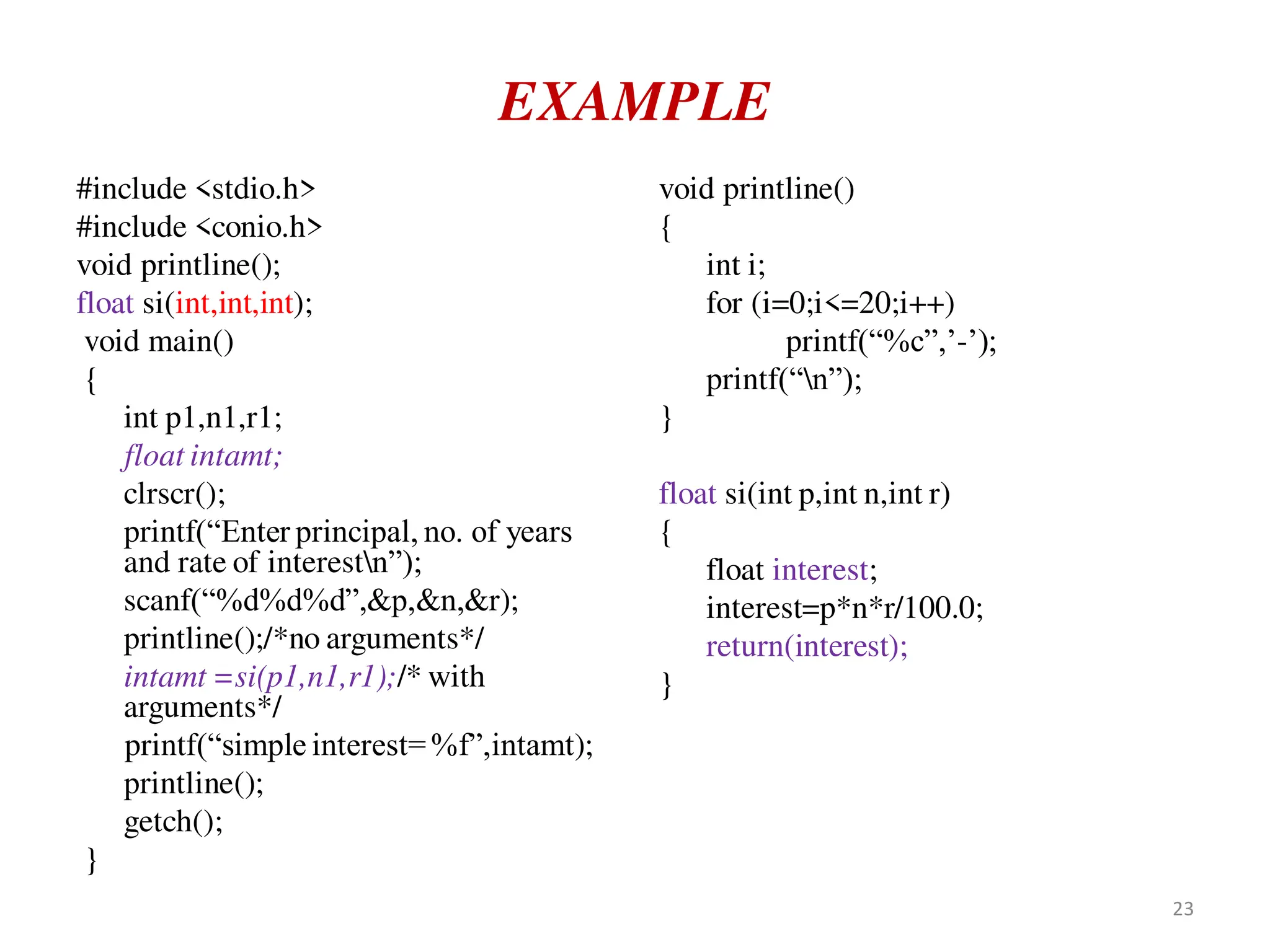

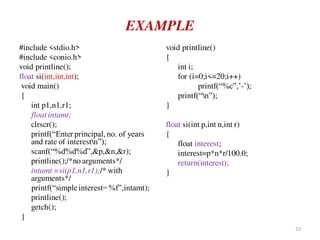

EXAMPLE
#include <stdio.h>
#include <conio.h>
void printline();
float si(int,int,int);
void main()
{
int p1,n1,r1;
float intamt;
clrscr();
printf(“Enter principal, no. of years
and rate of interestn”);
scanf(“%d%d%d”,&p,&n,&r);
printline();/*no arguments*/
intamt =si(p1,n1,r1);/* with
arguments*/
printf(“simple interest=%f”,intamt);
printline();
getch();
}
void printline()
{
int i;
for (i=0;i<=20;i++)
printf(“n”);
}
float si(int p,int n,int r)
{
float interest;
return(interest);
}
23

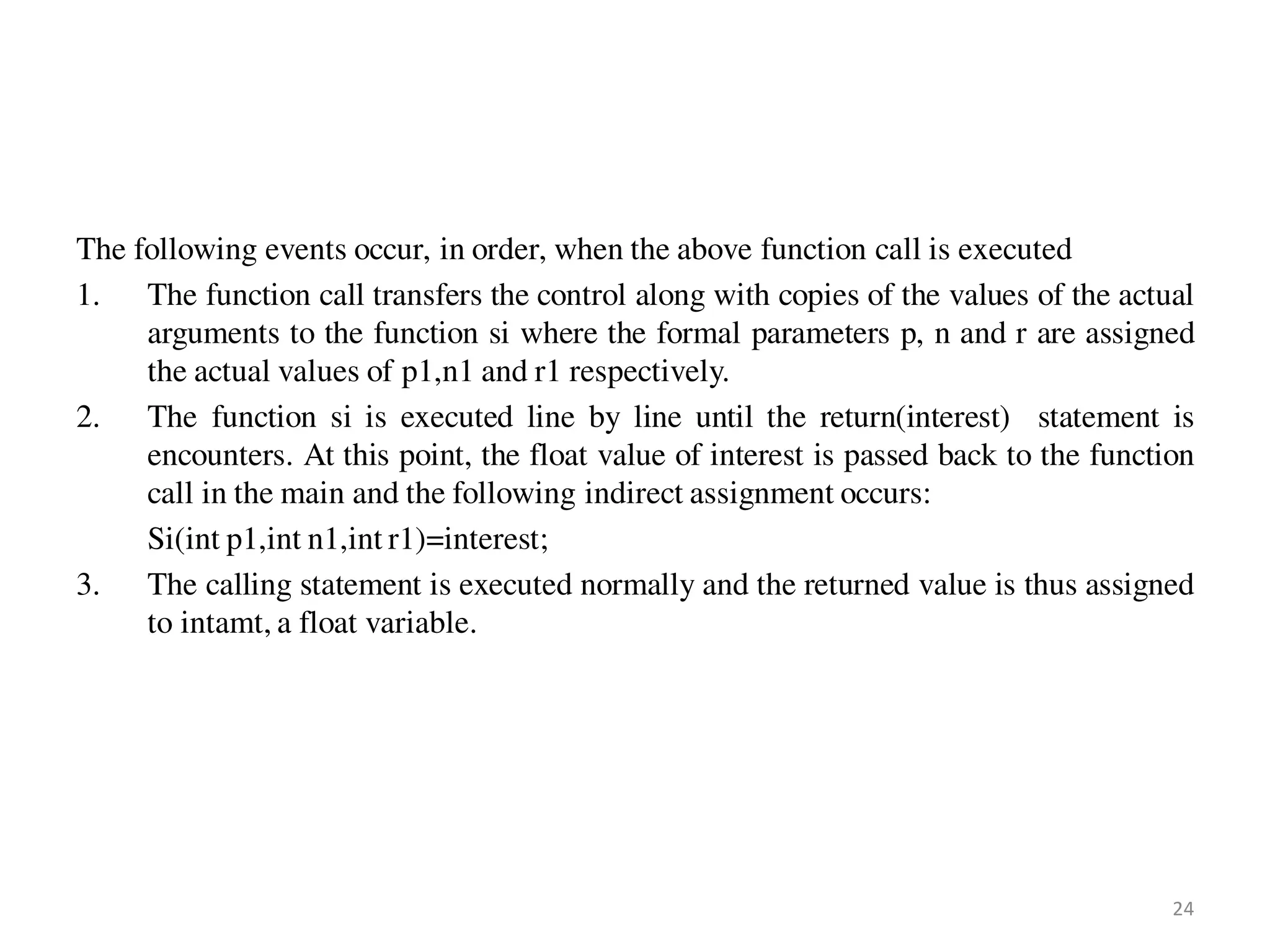

The following events occur, in order, when the above function call is executed
1. The function call transfers the control along with copies of the values of the actual
arguments to the function si where the formal parameters p, n and r are assigned
the actual values of p1,n1 and r1 respectively.
2. The function si is executed line by line until the return(interest) statement is
encounters. At this point, the float value of interest is passed back to the function
call in the main and the following indirect assignment occurs:
Si(int p1,int n1,int r1)=interest;
3. The calling statement is executed normally and the returned value is thus assigned
to intamt, a float variable.
24

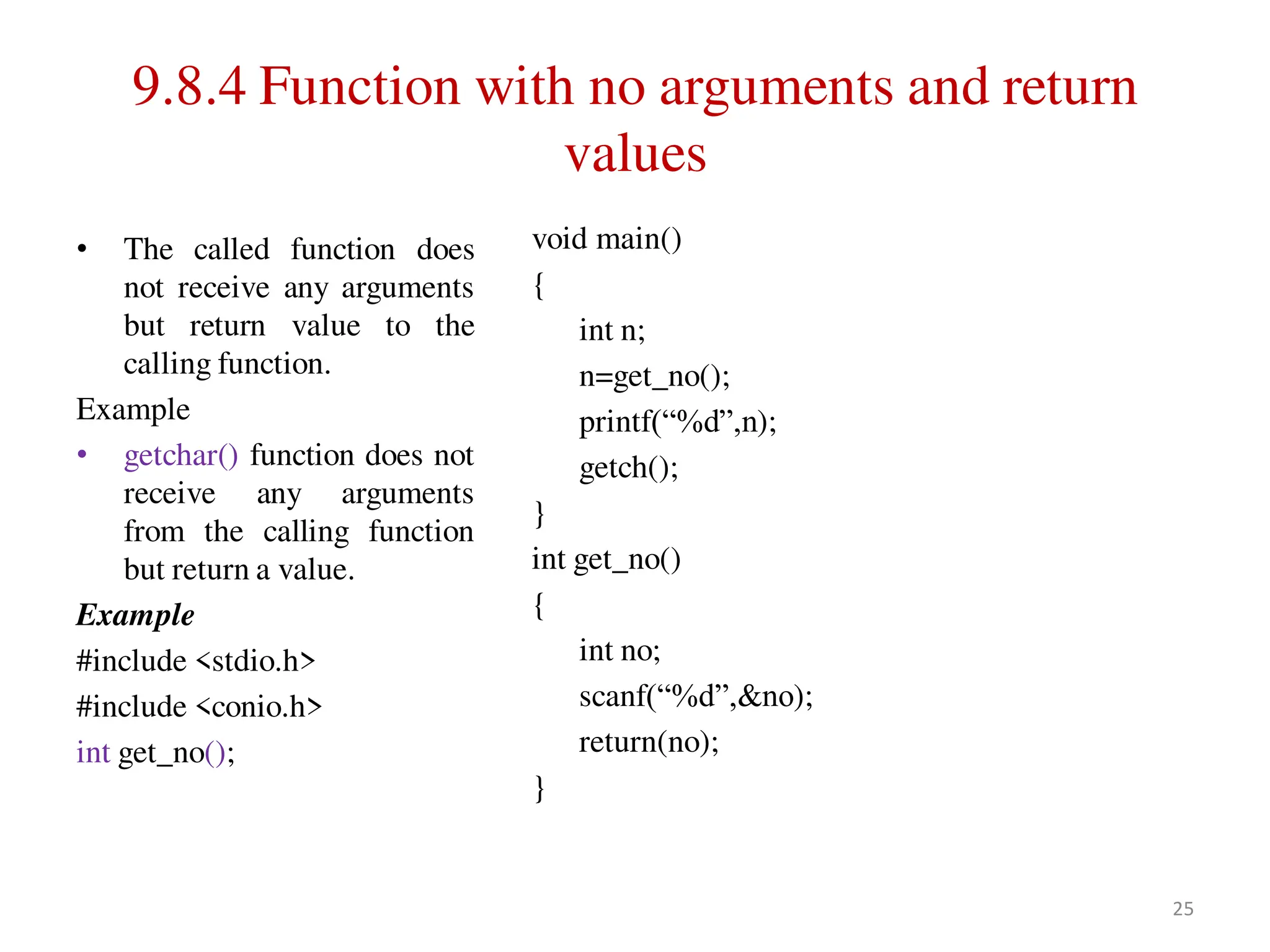

9.8.4 Function with no arguments and return
values
• The called function does
not receive any arguments
but return value to the
calling function.
Example
• getchar() function does not
receive any arguments
from the calling function
but return a value.
Example
#include <stdio.h>
#include <conio.h>
int get_no();
void main()
{
int n;
n=get_no();
printf(“%d”,n);
getch();
}
int get_no()
{
int no;
scanf(“%d”,&no);
return(no);
}
25

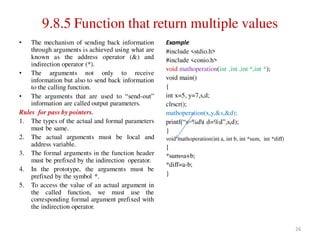

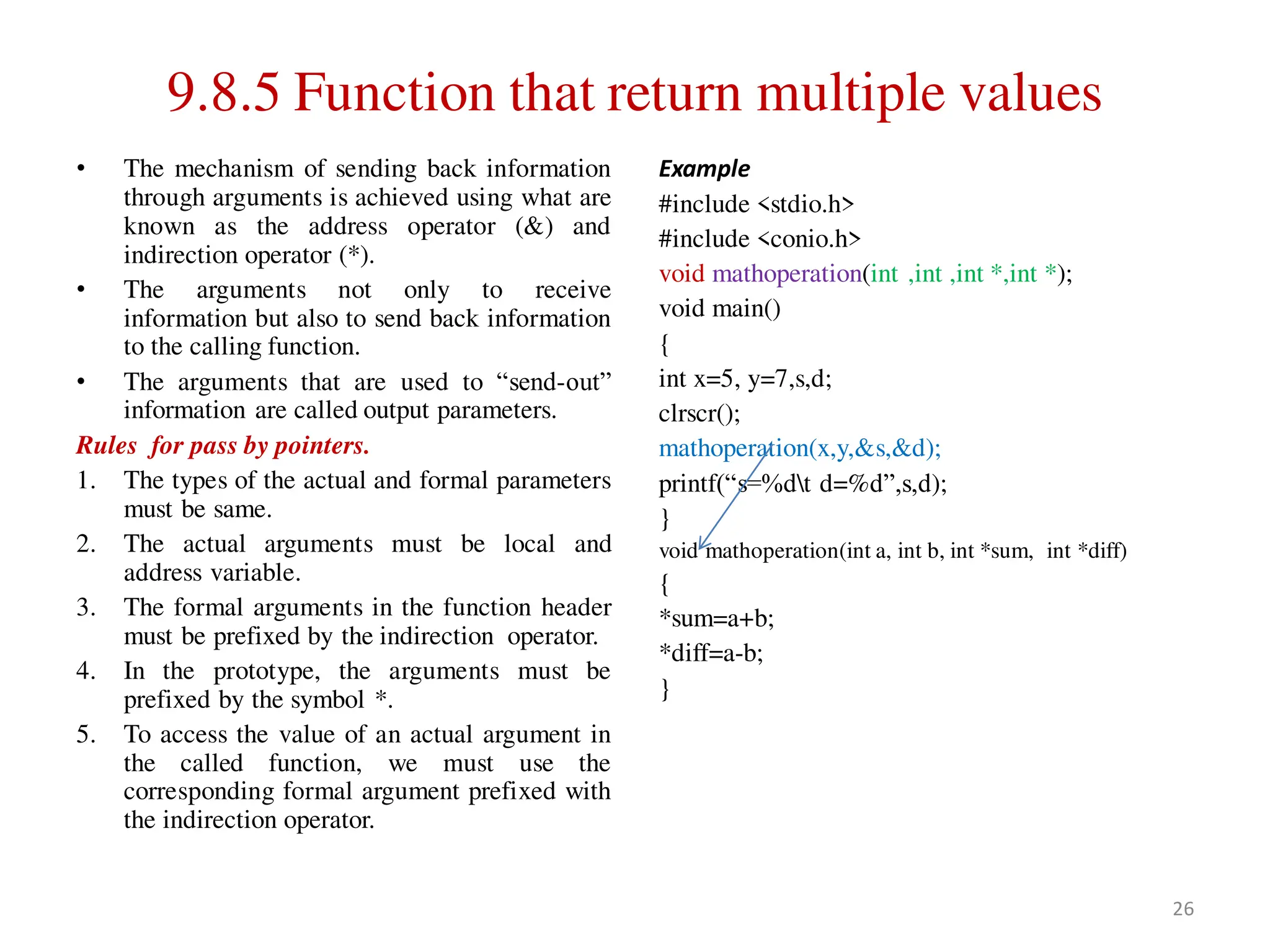

9.8.5 Function that return multiple values
• The mechanism of sending back information
through arguments is achieved using what are
known as the address operator (&) and
indirection operator (*).
• The arguments not only to receive
information but also to send back information
to the calling function.
• The arguments that are used to “send-out”
information are called output parameters.
Rules for pass by pointers.
1. The types of the actual and formal parameters
must be same.
2. The actual arguments must be local and
address variable.
3. The formal arguments in the function header
must be prefixed by the indirection operator.
4. In the prototype, the arguments must be
prefixed by the symbol *.
5. To access the value of an actual argument in
the called function, we must use the
corresponding formal argument prefixed with
the indirection operator.
Example
#include <stdio.h>
#include <conio.h>
void mathoperation(int ,int ,int *,int *);
void main()
{
int x=5, y=7,s,d;
clrscr();
mathoperation(x,y,&s,&d);
printf(“s=%dt d=%d”,s,d);
}
void mathoperation(int a, int b, int *sum, int *diff)
{
*sum=a+b;
*diff=a-b;
}
26

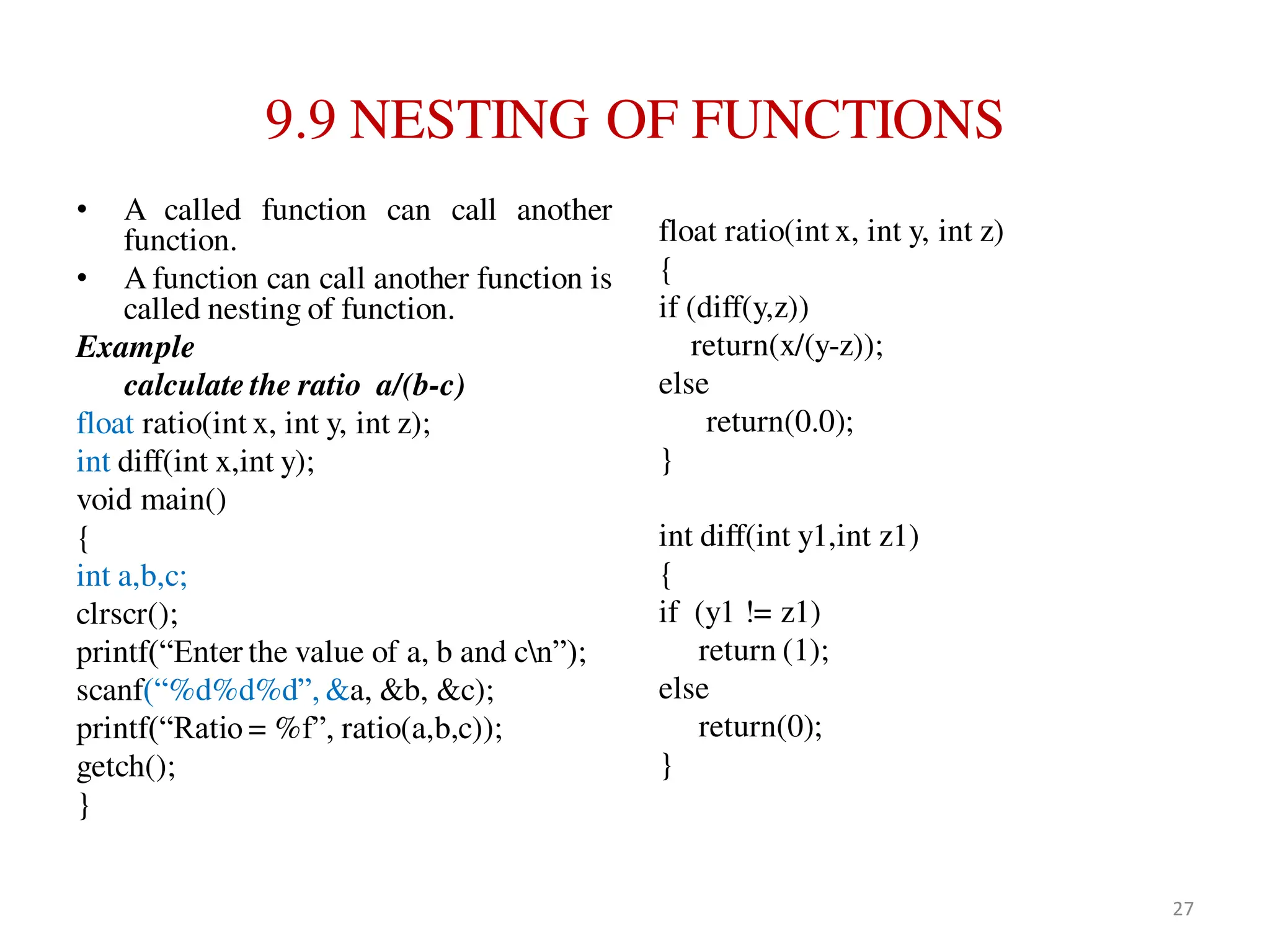

9.9 NESTING OF FUNCTIONS
• A called function can call another
function.
• A function can call another function is
called nesting of function.
Example
calculate the ratio a/(b-c)
float ratio(int x, int y, int z);
int diff(int x,int y);
void main()
{
int a,b,c;
clrscr();
printf(“Enter the value of a, b and cn”);
scanf(“%d%d%d”, &a, &b, &c);
printf(“Ratio = %f”, ratio(a,b,c));
getch();
}
float ratio(int x, int y, int z)
{
if (diff(y,z))
return(x/(y-z));
else
return(0.0);
}
int diff(int y1,int z1)
{
if (y1 != z1)
return (1);
else
return(0);
}
27

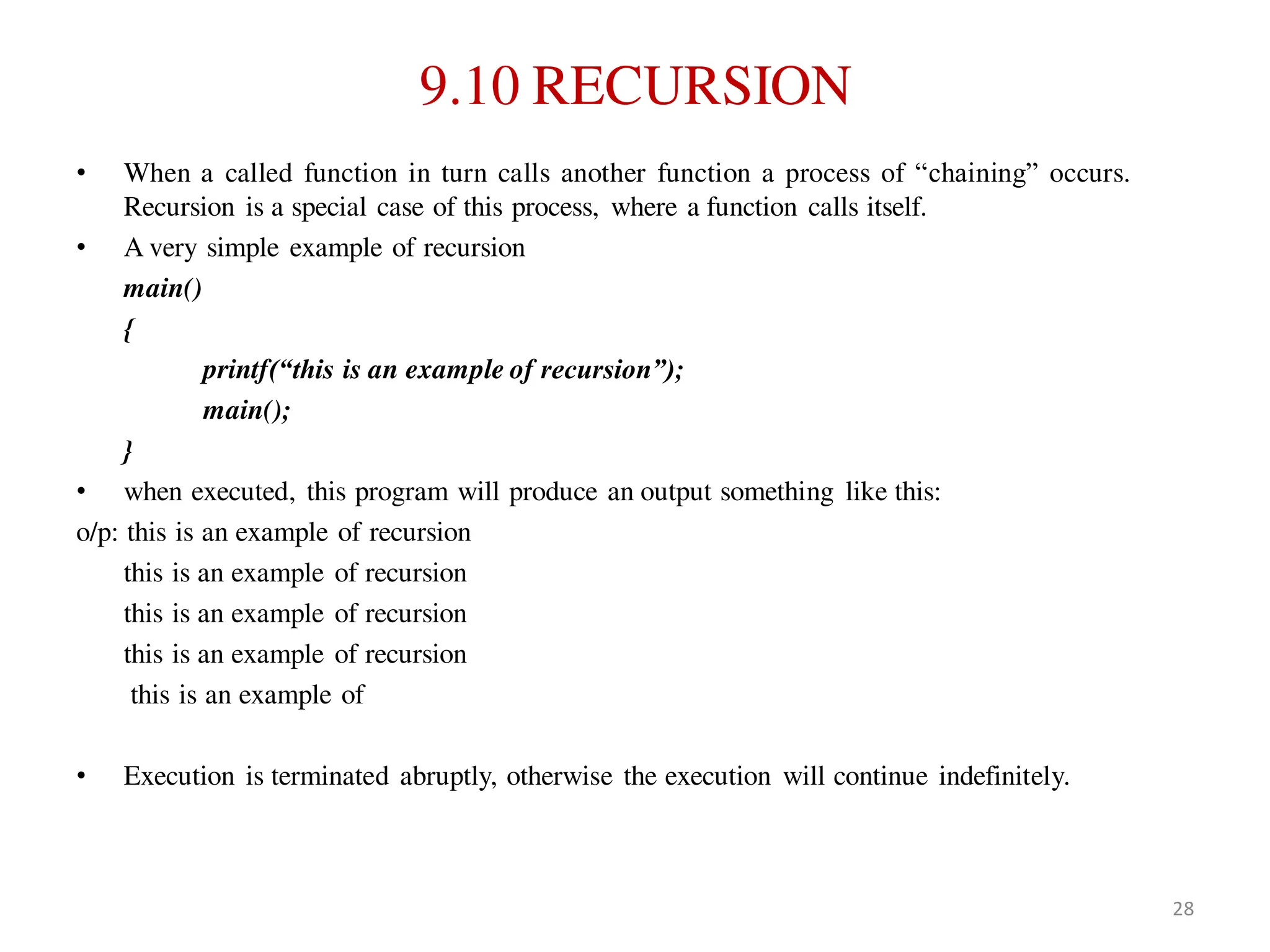

9.10 RECURSION
• When a called function in turn calls another function a process of “chaining” occurs.
Recursion is a special case of this process, where a function calls itself.
• A very simple example of recursion
main()
{
printf(“this is an example of recursion”);
main();
}
• when executed, this program will produce an output something like this:
o/p: this is an example of recursion
this is an example of recursion
this is an example of
• Execution is terminated abruptly, otherwise the execution will continue indefinitely.
28

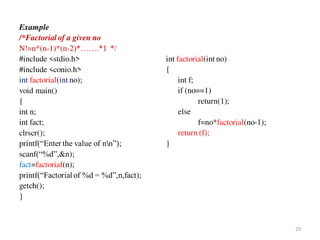

Example
/*Factorial of a given no
N!=n*(n-1)*(n-2)*…….*1 */
#include <stdio.h>
#include <conio.h>
int factorial(int no);
void main()
{
int n;
int fact;
clrscr();
printf(“Enter the value of nn”);
scanf(“%d”,&n);
fact=factorial(n);
printf(“Factorial of %d = %d”,n,fact);
getch();
}
int factorial(int no)
{
int f;
if (no==1)
return(1);
else
f=no*factorial(no-1);
return (f);
}
29

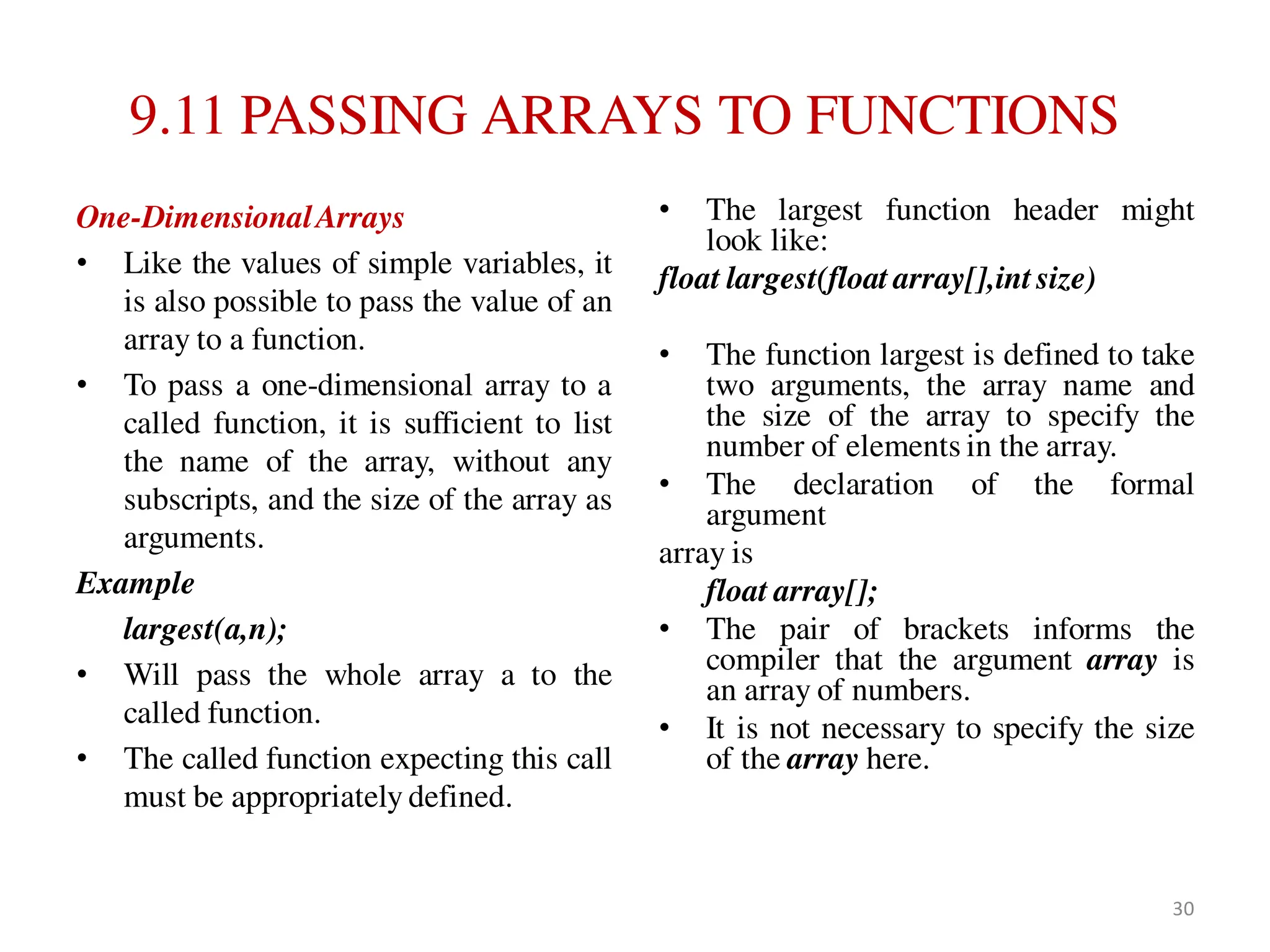

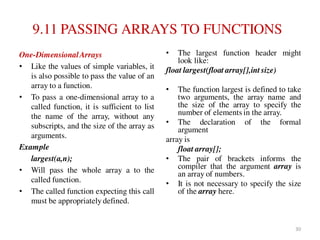

9.11 PASSING ARRAYS TO FUNCTIONS
One-DimensionalArrays
• Like the values of simple variables, it
is also possible to pass the value of an
array to a function.
• To pass a one-dimensional array to a
called function, it is sufficient to list
the name of the array, without any
subscripts, and the size of the array as
arguments.
Example
largest(a,n);
• Will pass the whole array a to the
called function.
• The called function expecting this call
must be appropriately defined.
• The largest function header might
look like:
float largest(float array[],int size)
• The function largest is defined to take
two arguments, the array name and
the size of the array to specify the
number of elements in the array.
• The declaration of the formal
argument
array is
float array[];
• The pair of brackets informs the
compiler that the argument array is
an array of numbers.
• It is not necessary to specify the size
of the array here.
30

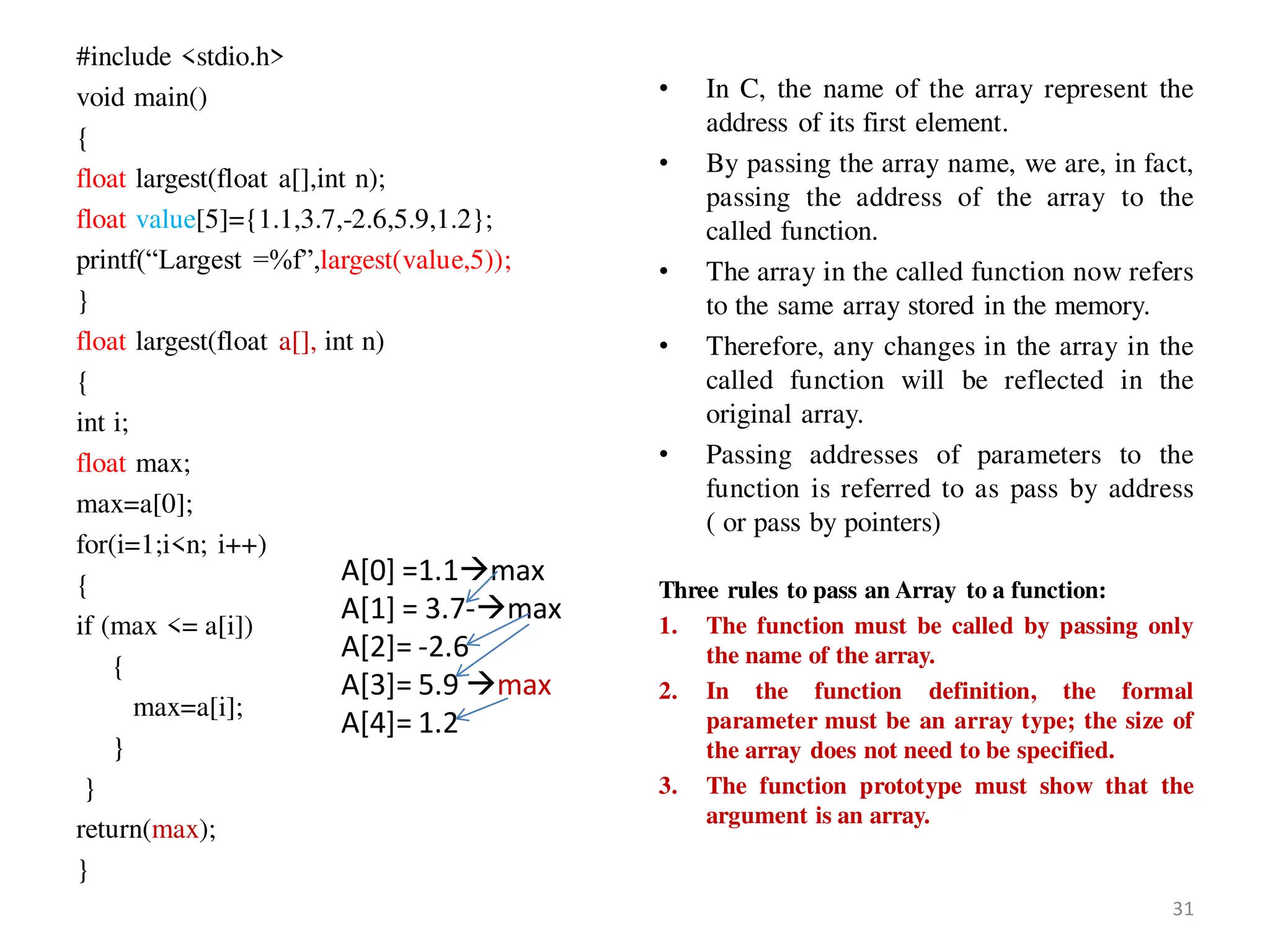

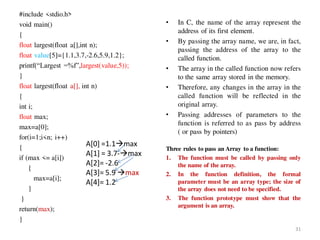

#include <stdio.h>
void main()
{
float largest(float a[],int n);
float value[5]={1.1,3.7,-2.6,5.9,1.2};
printf(“Largest =%f”,largest(value,5));
}
float largest(float a[], int n)
{
int i;
float max;
max=a[0];
for(i=1;i<n; i++)
{
if (max <= a[i])
{
max=a[i];
}
}
return(max);
}
• In C, the name of the array represent the
address of its first element.
• By passing the array name, we are, in fact,
passing the address of the array to the
called function.
• The array in the called function now refers
to the same array stored in the memory.
• Therefore, any changes in the array in the
called function will be reflected in the
original array.
• Passing addresses of parameters to the
function is referred to as pass by address
( or pass by pointers)
Three rules to pass an Array to a function:
1. The function must be called by passing only
the name of the array.
2. In the function definition, the formal
parameter must be an array type; the size of
the array does not need to be specified.
3. The function prototype must show that the
argument is an array.
31
A[0] =1.1max
A[1] = 3.7-max
A[2]= -2.6
A[3]= 5.9 max
A[4]= 1.2

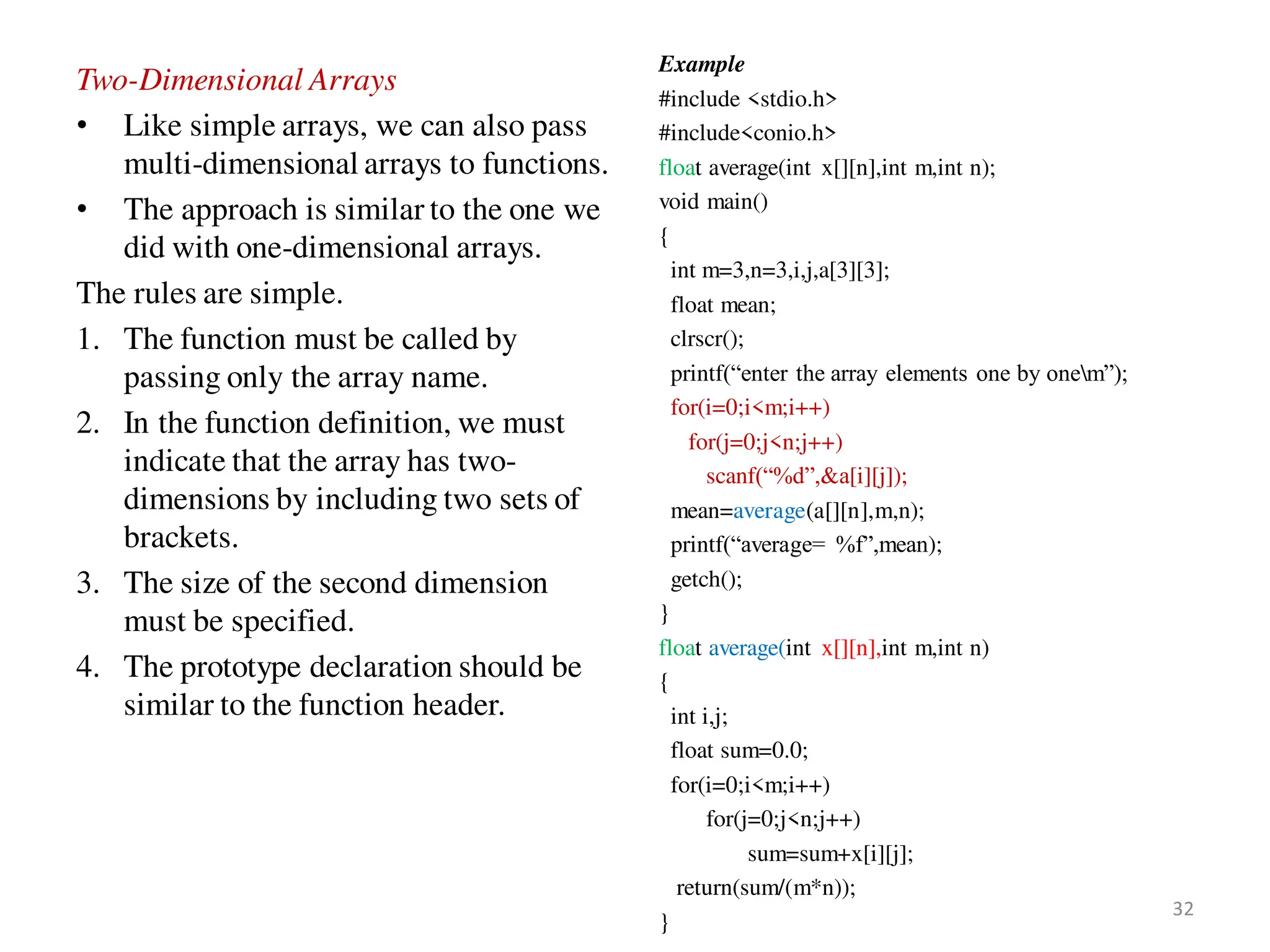

Two-Dimensional Arrays
• Like simple arrays, we can also pass
multi-dimensional arrays to functions.
• The approach is similar to the one we
did with one-dimensional arrays.
The rules are simple.
1. The function must be called by
passing only the array name.
2. In the function definition, we must
indicate that the array has two-
dimensions by including two sets of
brackets.
3. The size of the second dimension
must be specified.
4. The prototype declaration should be
similar to the function header.
Example
#include <stdio.h>
#include<conio.h>
float average(int x[][n],int m,int n);
void main()
{
int m=3,n=3,i,j,a[3][3];
float mean;
clrscr();
printf(“enter the array elements one by onem”);
for(i=0;i<m;i++)
for(j=0;j<n;j++)
scanf(“%d”,&a[i][j]);
mean=average(a[][n],m,n);
printf(“average= %f”,mean);
getch();
}
float average(int x[][n],int m,int n)
{
int i,j;
float sum=0.0;
for(i=0;i<m;i++)
for(j=0;j<n;j++)
sum=sum+x[i][j];
return(sum/(m*n));
}
32

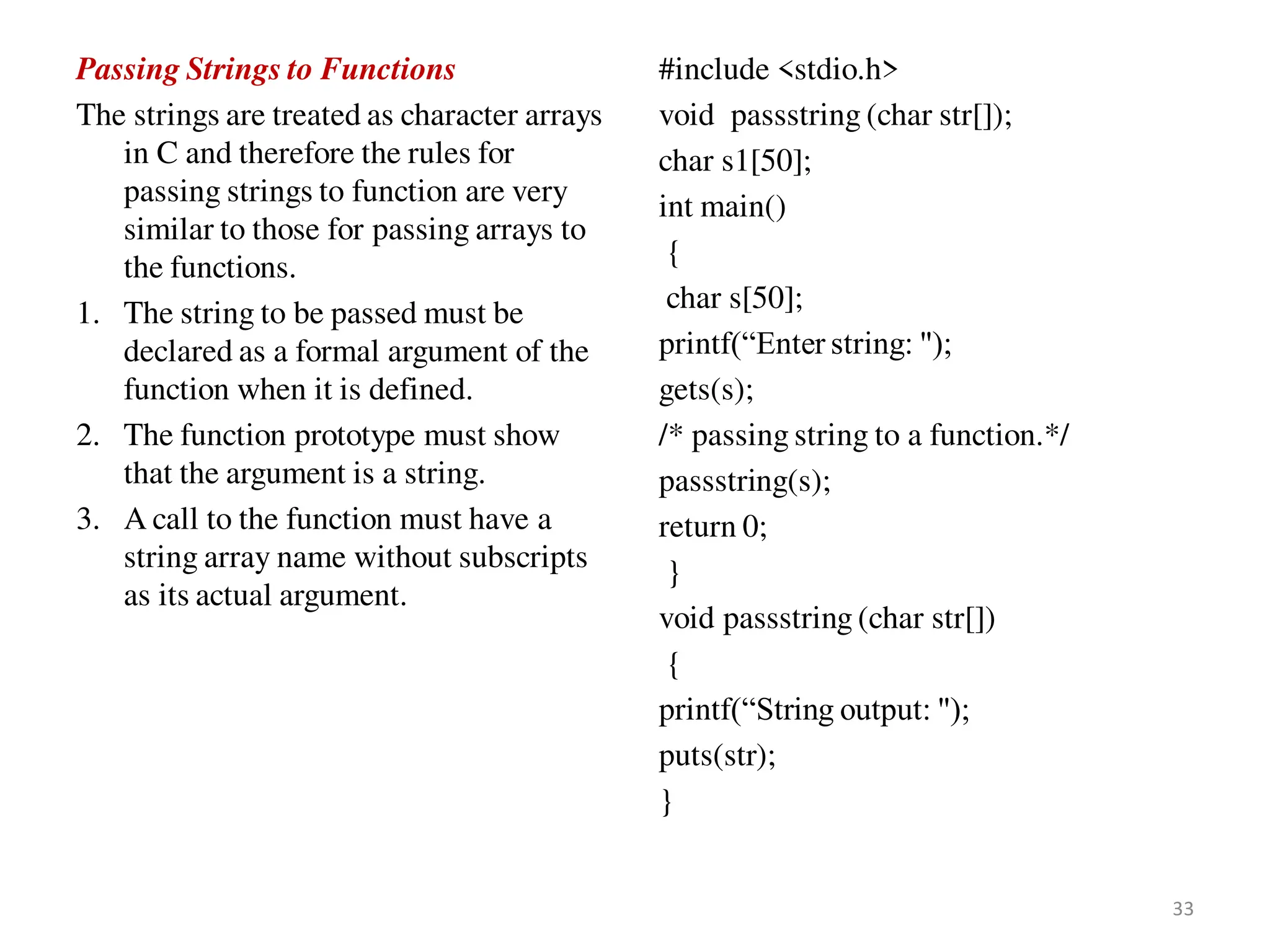

Passing Strings to Functions
The strings are treated as character arrays
in C and therefore the rules for
passing strings to function are very
similar to those for passing arrays to
the functions.
1. The string to be passed must be
declared as a formal argument of the
function when it is defined.
2. The function prototype must show
that the argument is a string.
3. A call to the function must have a
string array name without subscripts
as its actual argument.
#include <stdio.h>
void passstring (char str[]);
char s1[50];
int main()
{
char s[50];
printf(“Enter string: ");
gets(s);
/* passing string to a function.*/
passstring(s);
return 0;
}
void passstring (char str[])
{
printf(“String output: ");
puts(str);
}
33

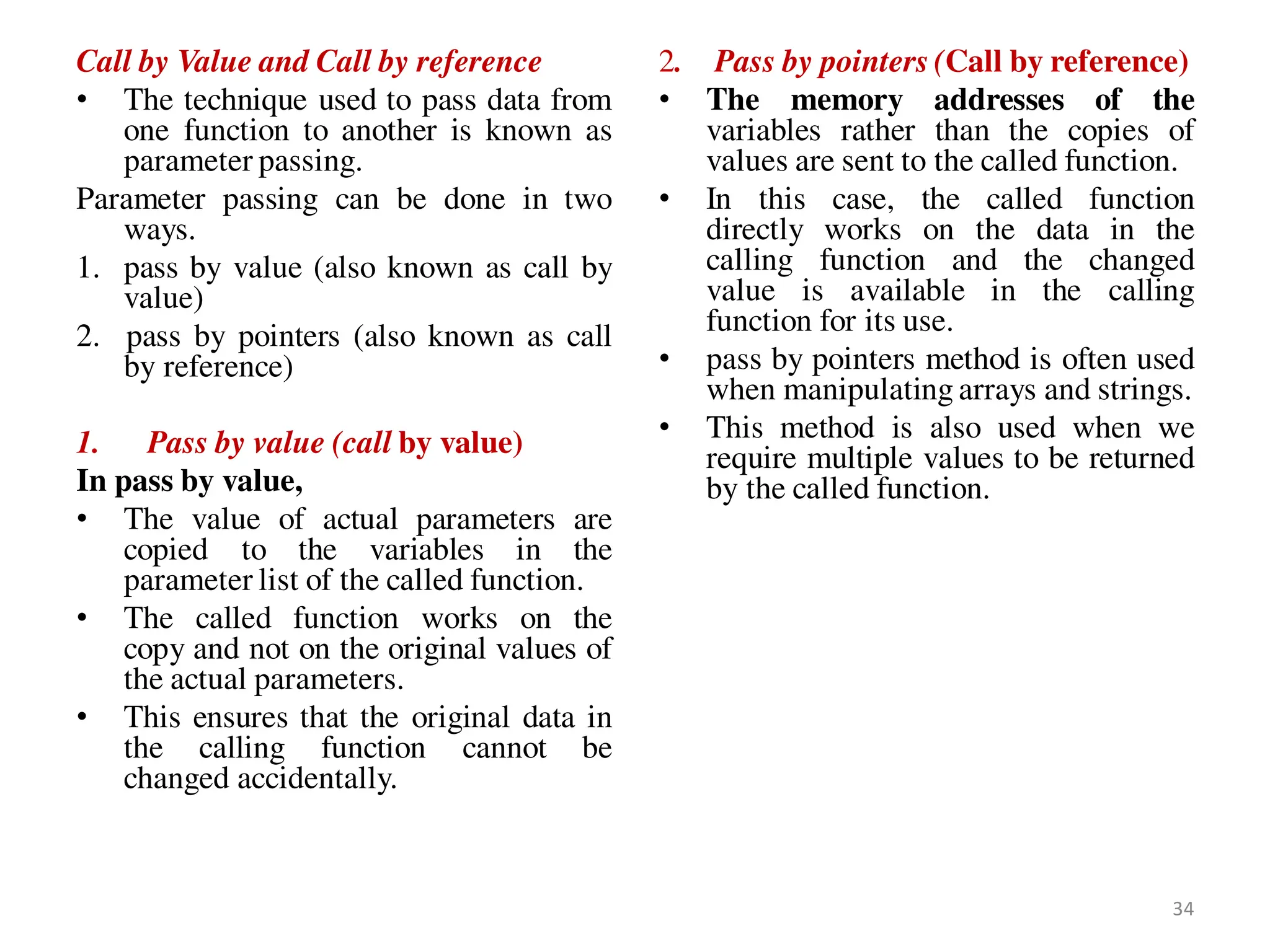

Call by Value and Call by reference
• The technique used to pass data from
one function to another is known as
parameter passing.
Parameter passing can be done in two
ways.
1. pass by value (also known as call by
value)
2. pass by pointers (also known as call
by reference)
1. Pass by value (call by value)
In pass by value,
• The value of actual parameters are
copied to the variables in the
parameter list of the called function.
• The called function works on the
copy and not on the original values of
the actual parameters.
• This ensures that the original data in
the calling function cannot be
changed accidentally.
2. Pass by pointers (Call by reference)
• The memory addresses of the
variables rather than the copies of
values are sent to the called function.
• In this case, the called function
directly works on the data in the
calling function and the changed
value is available in the calling
function for its use.
• pass by pointers method is often used
when manipulating arrays and strings.
• This method is also used when we
require multiple values to be returned
by the called function.
34

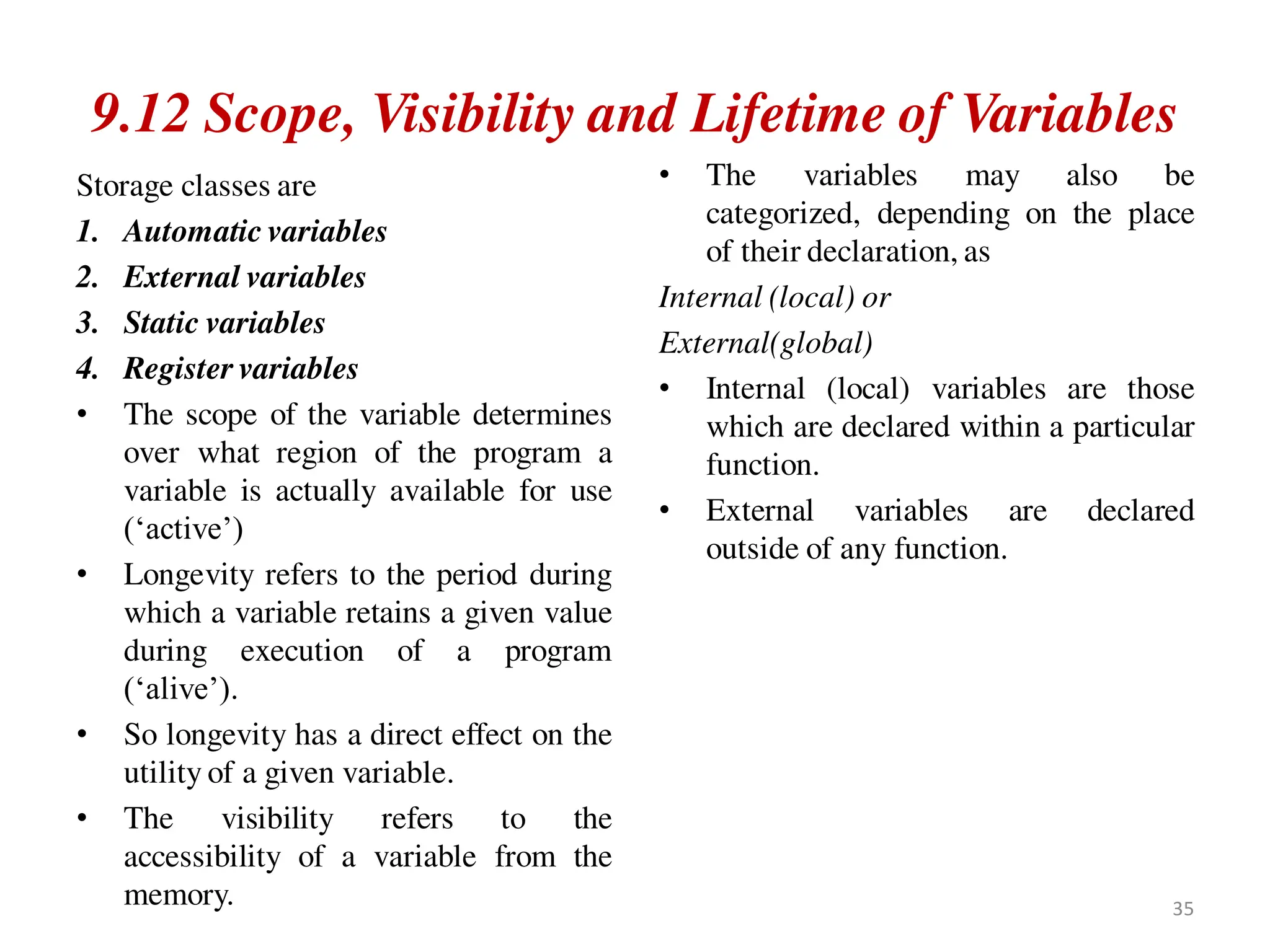

9.12 Scope, Visibility and Lifetime of Variables
Storage classes are
1. Automatic variables
2. External variables
3. Static variables
4. Register variables
• The scope of the variable determines
over what region of the program a
variable is actually available for use
(‘active’)
• Longevity refers to the period during
which a variable retains a given value
during execution of a program
(‘alive’).
• So longevity has a direct effect on the
utility of a given variable.
• The visibility refers to the
accessibility of a variable from the
memory.
• The variables may also be
categorized, depending on the place
of their declaration, as
Internal (local) or
External(global)
• Internal (local) variables are those
which are declared within a particular
function.
• External variables are declared
outside of any function.
35

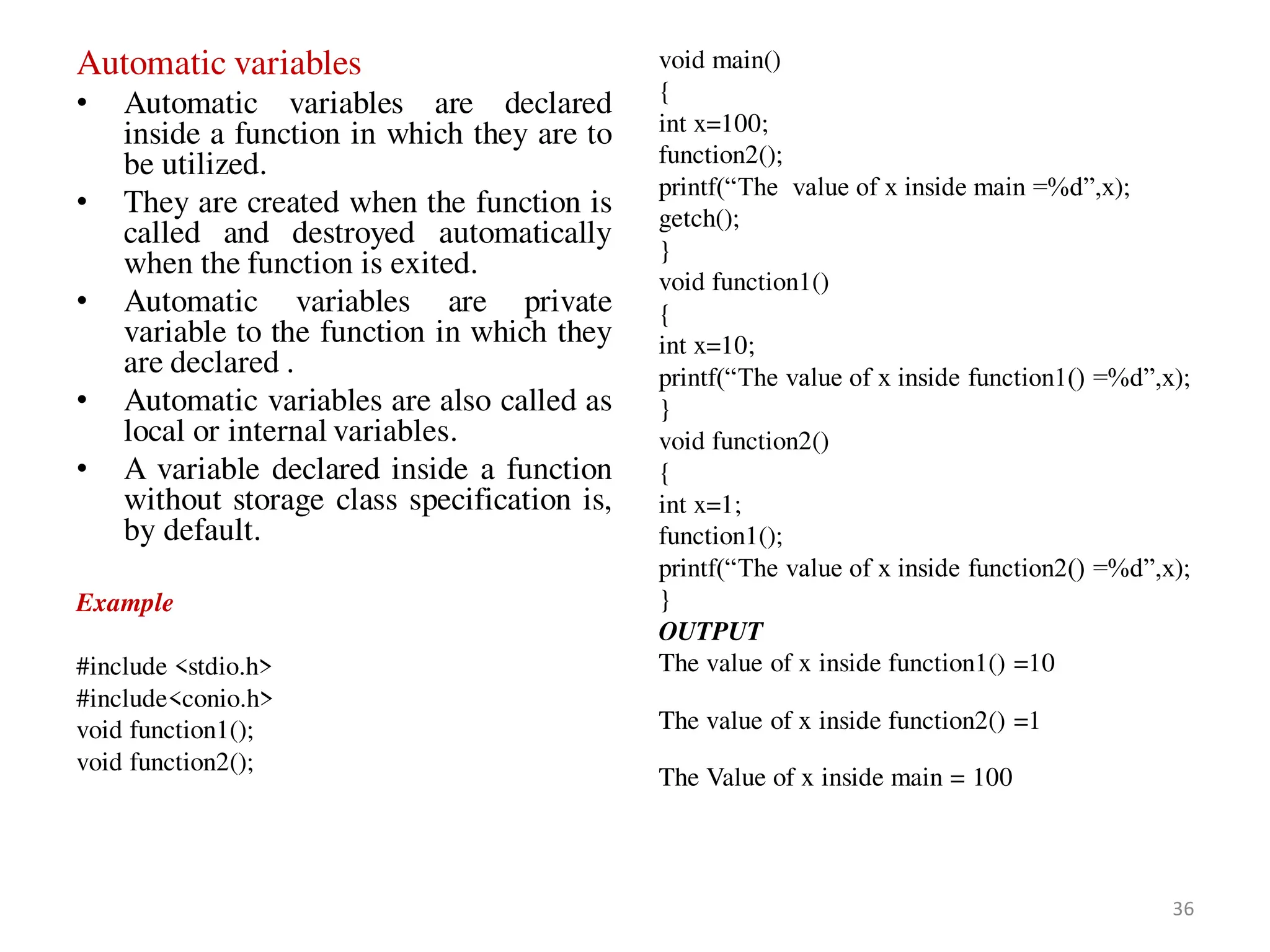

Automatic variables
• Automatic variables are declared
inside a function in which they are to
be utilized.
• They are created when the function is
called and destroyed automatically
when the function is exited.
• Automatic variables are private
variable to the function in which they
are declared .
• Automatic variables are also called as
local or internal variables.
• A variable declared inside a function
without storage class specification is,
by default.
Example
#include <stdio.h>
#include<conio.h>
void function1();
void function2();
void main()
{
int x=100;
function2();
printf(“The value of x inside main =%d”,x);
getch();
}
void function1()
{
int x=10;
printf(“The value of x inside function1() =%d”,x);
}
void function2()
{
int x=1;
function1();
printf(“The value of x inside function2() =%d”,x);
}
OUTPUT
The value of x inside function1() =10
The value of x inside function2() =1
The Value of x inside main = 100
36

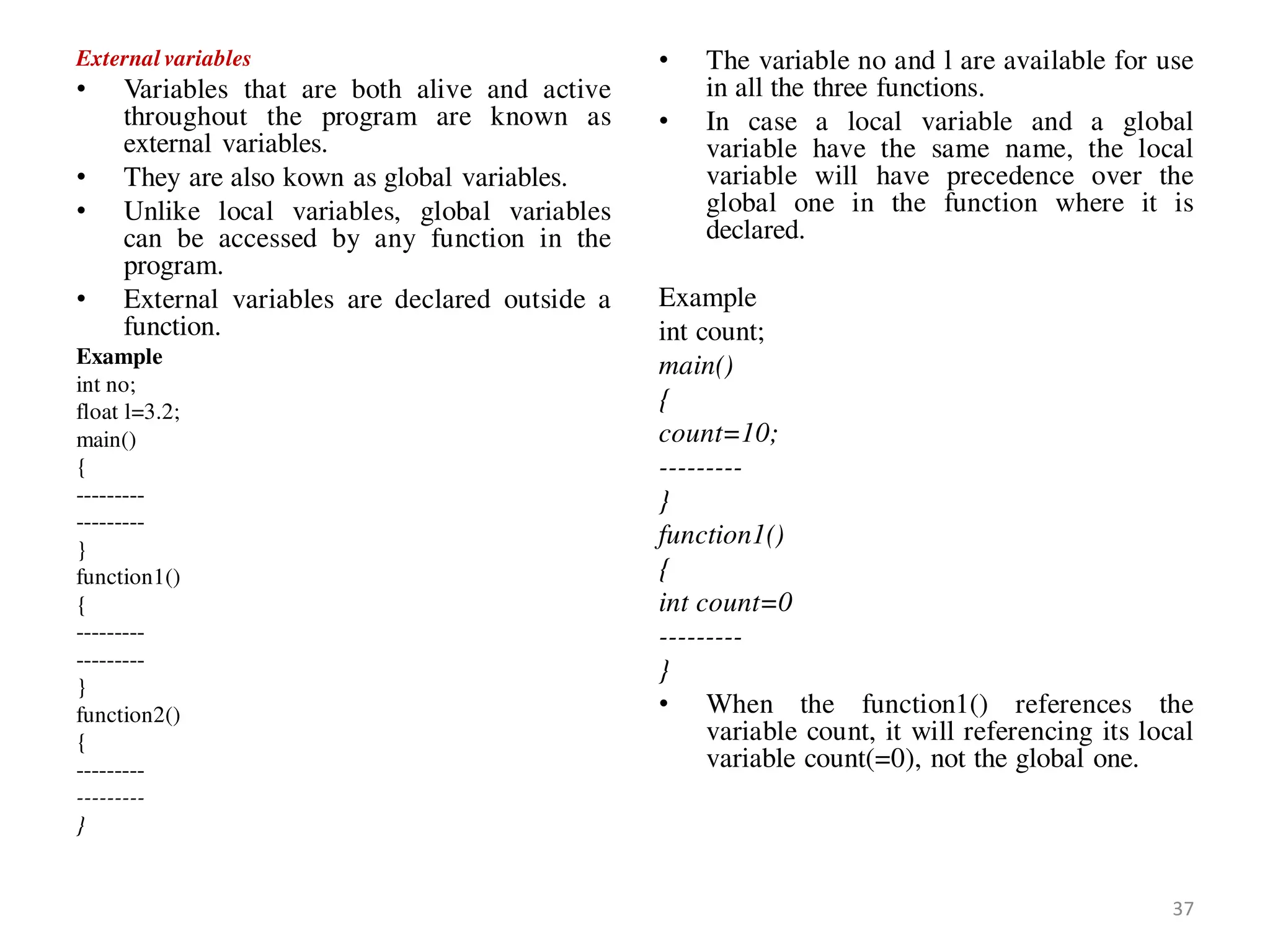

External variables
• Variables that are both alive and active
throughout the program are known as
external variables.
• They are also kown as global variables.
• Unlike local variables, global variables
can be accessed by any function in the
program.
• External variables are declared outside a
function.
Example
int no;
float l=3.2;
main()
{
---------
---------
}
function1()
{
---------
---------
}
function2()
{
---------
---------
}
• The variable no and l are available for use
in all the three functions.
• In case a local variable and a global
variable have the same name, the local
variable will have precedence over the
global one in the function where it is
declared.
Example
int count;
main()
{
count=10;
---------
}
function1()
{
int count=0
---------
}
• When the function1() references the
variable count, it will referencing its local
variable count(=0), not the global one.
37

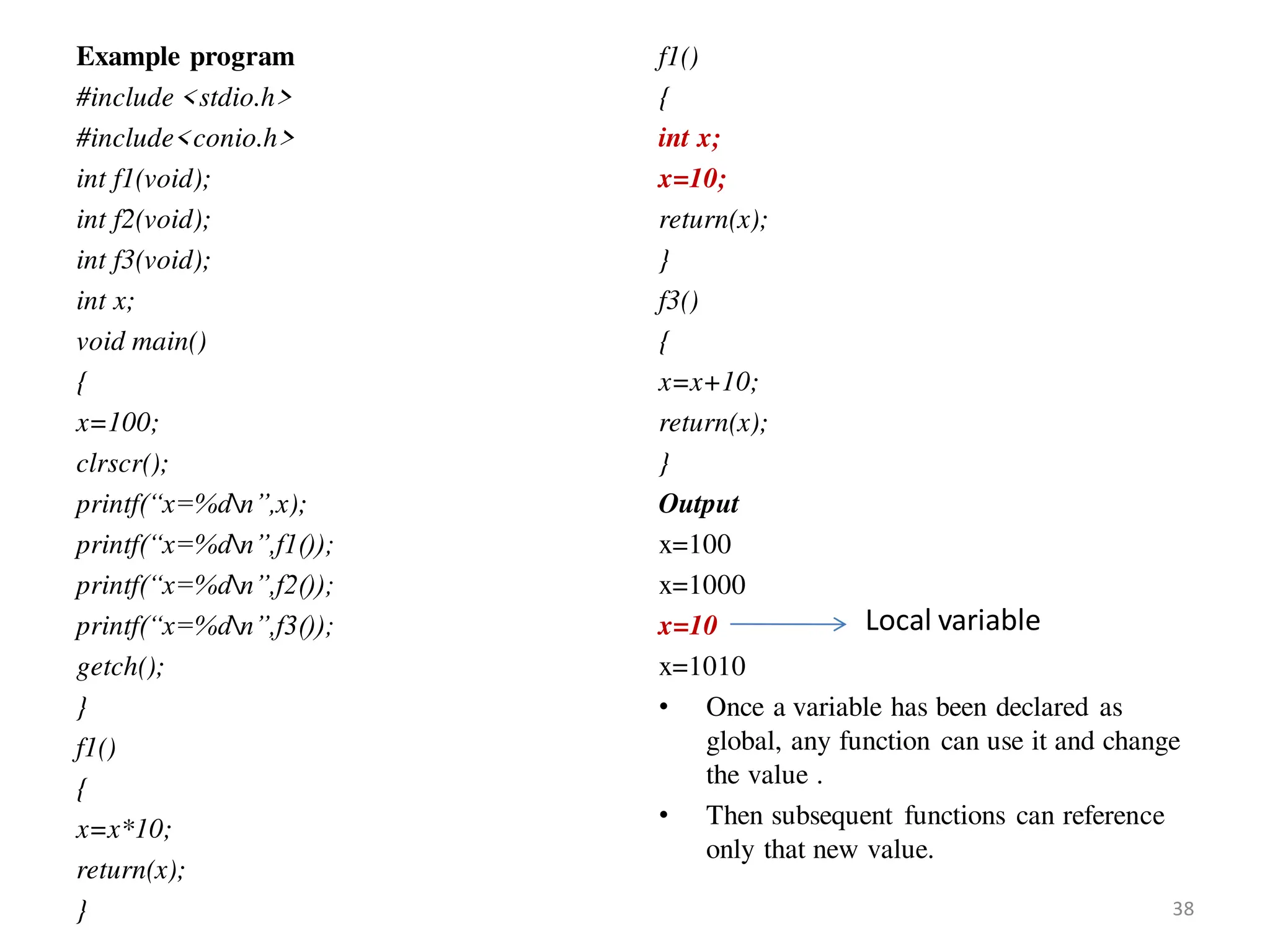

Example program
#include <stdio.h>
#include<conio.h>
int f1(void);
int f2(void);
int f3(void);
int x;
void main()
{
x=100;
clrscr();
printf(“x=%dn”,x);
printf(“x=%dn”,f1());
getch();
}
f1()
{
x=x*10;
return(x);
}
f1()
{
int x;
x=10;
return(x);
}
f3()
{
x=x+10;
return(x);
}
Output
x=100
x=1000
x=10
x=1010
• Once a variable has been declared as
global, any function can use it and change
the value .
• Then subsequent functions can reference
only that new value.
Local variable
38

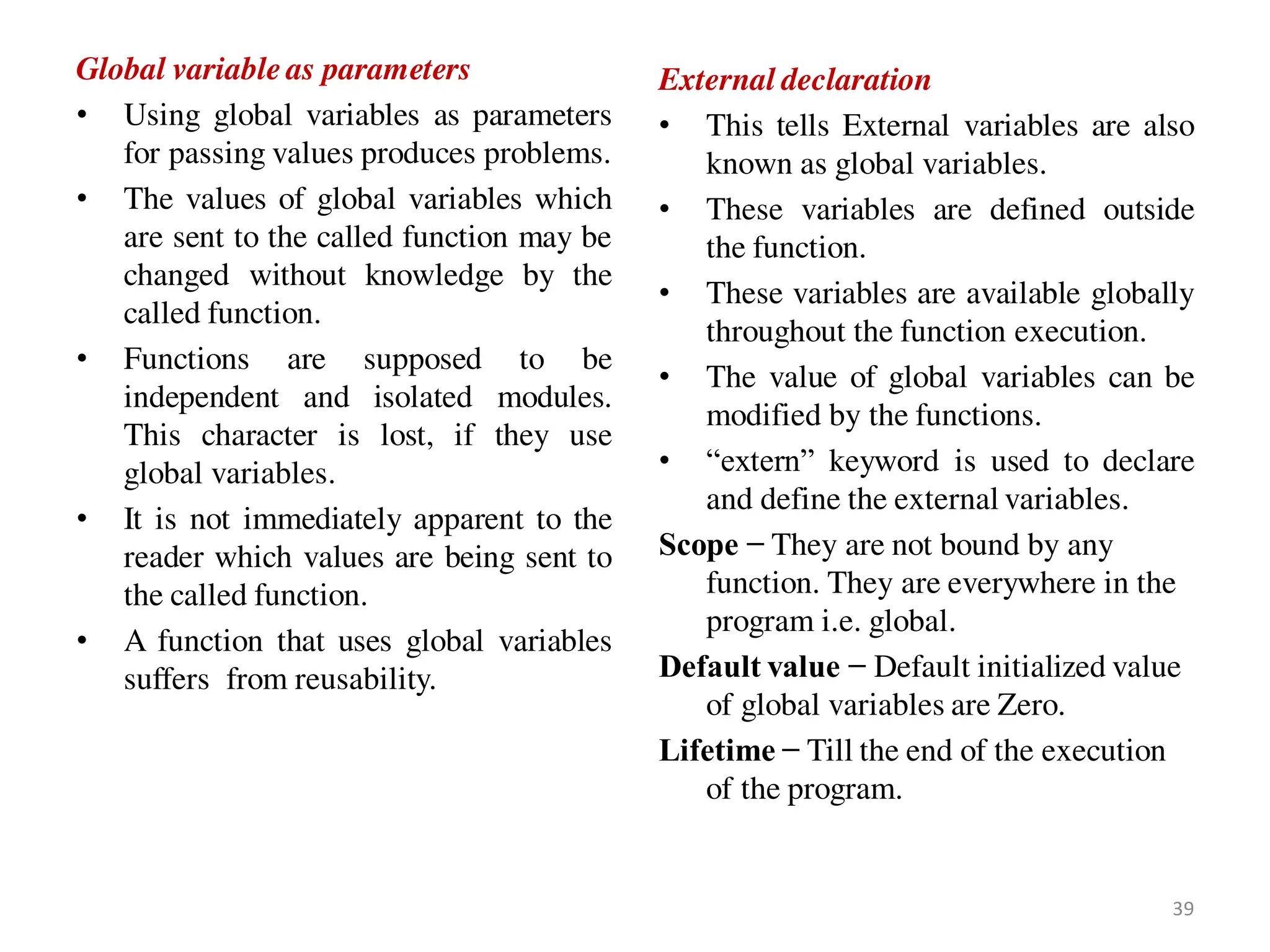

Global variable as parameters
• Using global variables as parameters
for passing values produces problems.
• The values of global variables which
are sent to the called function may be
changed without knowledge by the
called function.
• Functions are supposed to be
independent and isolated modules.
This character is lost, if they use
global variables.
• It is not immediately apparent to the
reader which values are being sent to
the called function.
• A function that uses global variables
suffers from reusability.
External declaration
• This tells External variables are also
known as global variables.
• These variables are defined outside
the function.
• These variables are available globally
throughout the function execution.
• The value of global variables can be
modified by the functions.
• “extern” keyword is used to declare
and define the external variables.
Scope − They are not bound by any
function. They are everywhere in the
program i.e. global.
Default value − Default initialized value
of global variables are Zero.
Lifetime − Till the end of the execution
of the program.
39

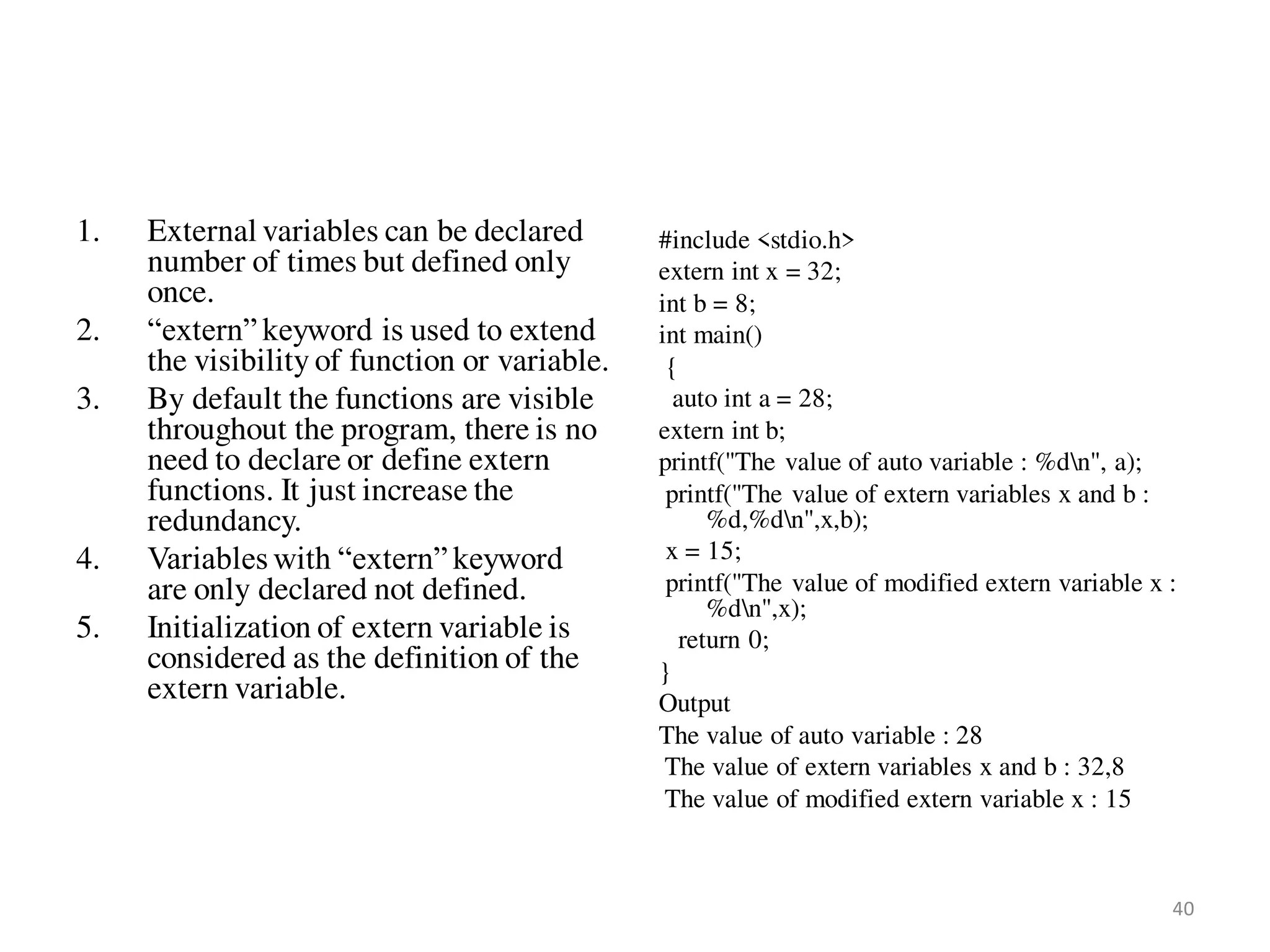

1. External variables can be declared
number of times but defined only
once.
2. “extern” keyword is used to extend
the visibility of function or variable.
3. By default the functions are visible
throughout the program, there is no
need to declare or define extern
functions. It just increase the
redundancy.
4. Variables with “extern” keyword
are only declared not defined.
5. Initialization of extern variable is
considered as the definition of the
extern variable.
#include <stdio.h>
extern int x = 32;
int b = 8;
int main()
{
auto int a = 28;
extern int b;
printf("The value of auto variable : %dn", a);
printf("The value of extern variables x and b :
%d,%dn",x,b);
x = 15;
printf("The value of modified extern variable x :
%dn",x);
return 0;
}
Output
The value of auto variable : 28
The value of extern variables x and b : 32,8
The value of modified extern variable x : 15
40

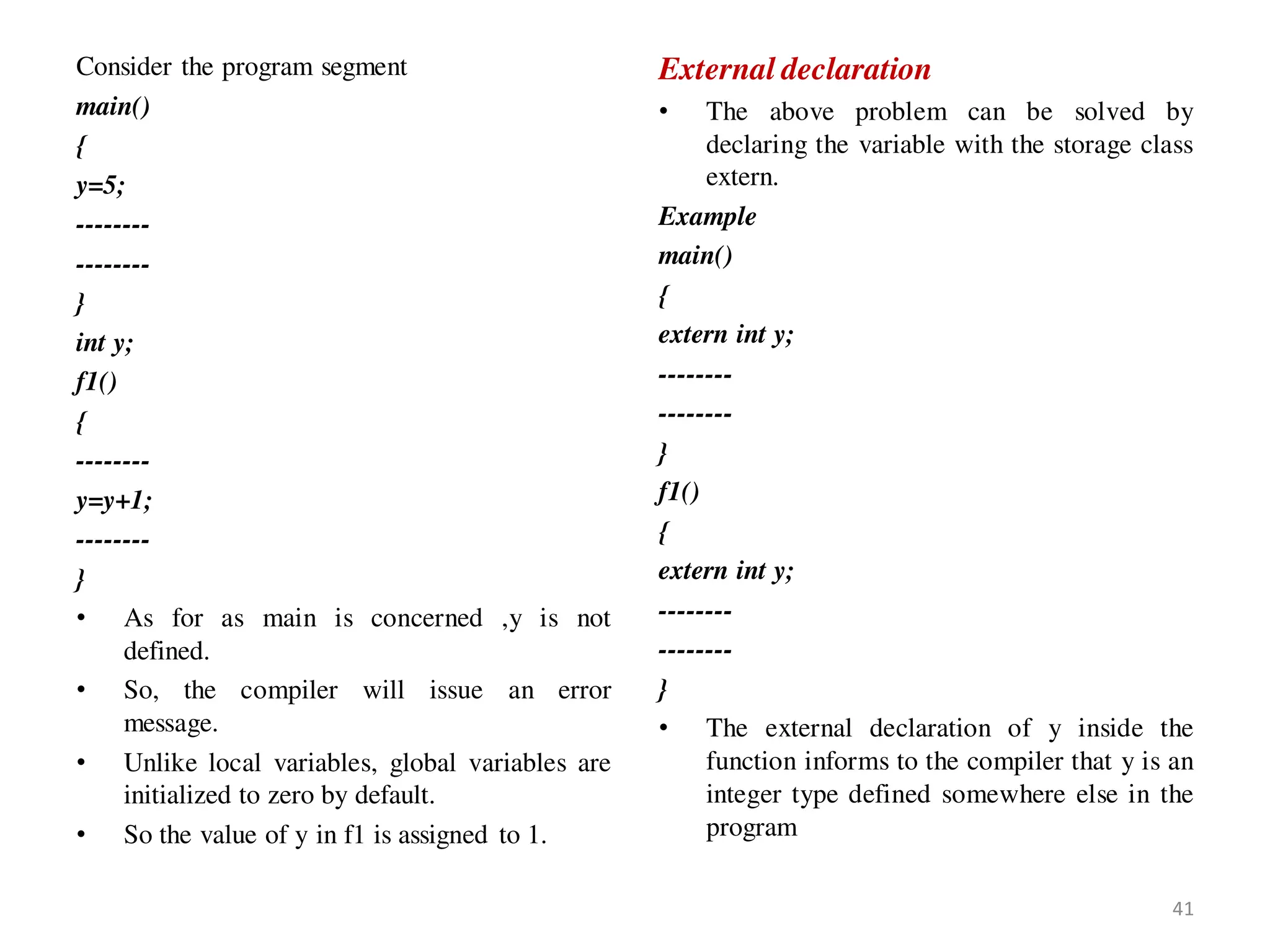

Consider the program segment
main()
{
y=5;
--------
--------
}
int y;
f1()
{
--------
y=y+1;
--------
}
• As for as main is concerned ,y is not
defined.
• So, the compiler will issue an error
message.
• Unlike local variables, global variables are
initialized to zero by default.
• So the value of y in f1 is assigned to 1.
External declaration
• The above problem can be solved by
declaring the variable with the storage class
extern.
Example
main()
{
extern int y;
--------
--------
}
f1()
{
extern int y;
--------
--------
}
• The external declaration of y inside the
function informs to the compiler that y is an
integer type defined somewhere else in the
program
41

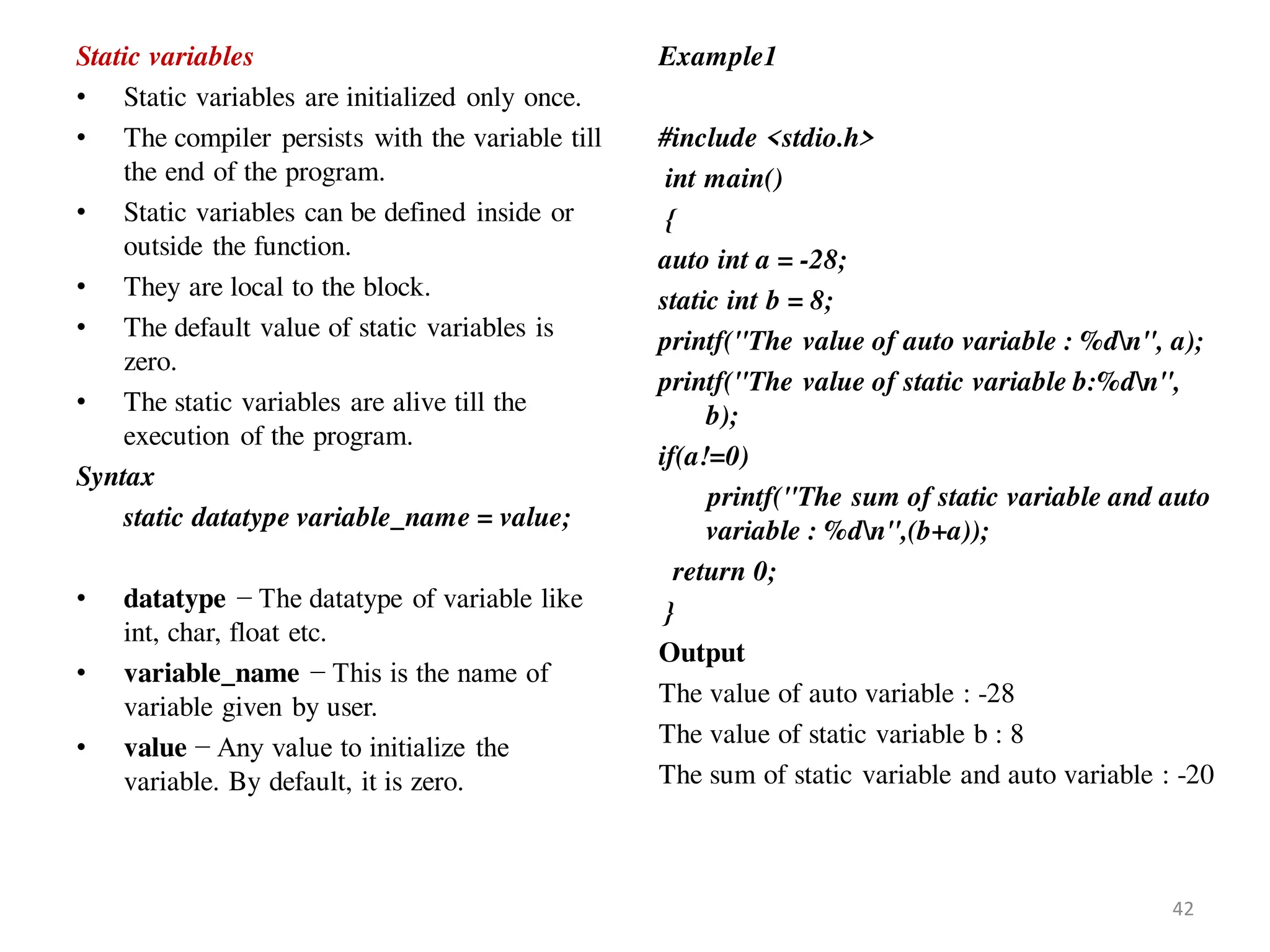

Static variables
• Static variables are initialized only once.
• The compiler persists with the variable till
the end of the program.
• Static variables can be defined inside or
outside the function.
• They are local to the block.
• The default value of static variables is
zero.
• The static variables are alive till the
execution of the program.
Syntax
static datatype variable_name = value;
• datatype − The datatype of variable like
int, char, float etc.
• variable_name − This is the name of
variable given by user.
• value − Any value to initialize the
variable. By default, it is zero.
Example1
#include <stdio.h>
int main()
{
auto int a = -28;
static int b = 8;
printf("The value of auto variable : %dn", a);
printf("The value of static variable b:%dn",
b);
if(a!=0)
printf("The sum of static variable and auto
variable : %dn",(b+a));
return 0;
}
Output
The value of auto variable : -28
The value of static variable b : 8
The sum of static variable and auto variable : -20
42

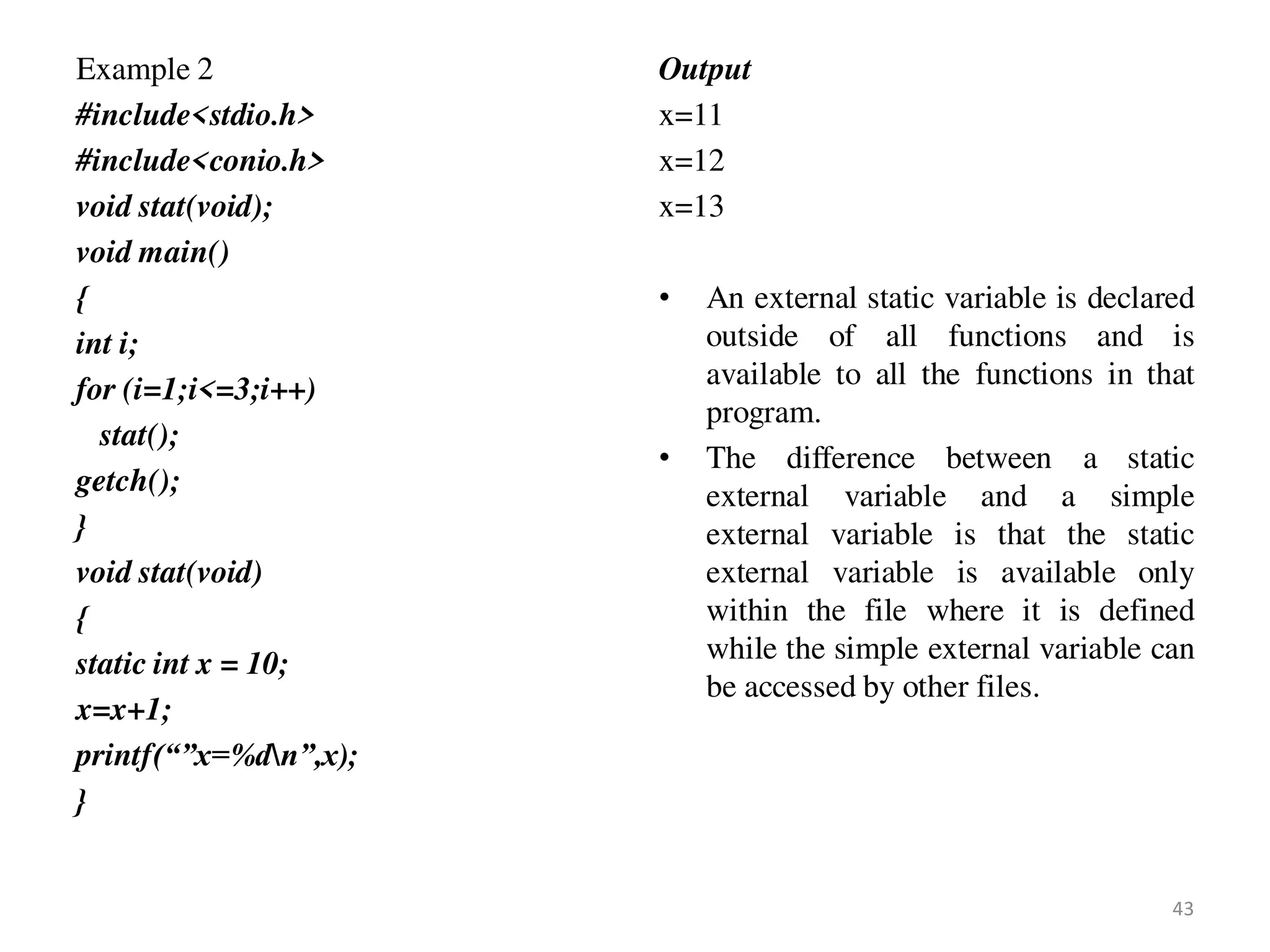

Example 2
#include<stdio.h>
#include<conio.h>
void stat(void);
void main()
{
int i;
for (i=1;i<=3;i++)
stat();
getch();
}
void stat(void)
{
static int x = 10;
x=x+1;
printf(“”x=%dn”,x);
}
Output
x=11
x=12
x=13
• An external static variable is declared
outside of all functions and is
available to all the functions in that
program.
• The difference between a static
external variable and a simple
external variable is that the static
external variable is available only
within the file where it is defined
while the simple external variable can
be accessed by other files.
43

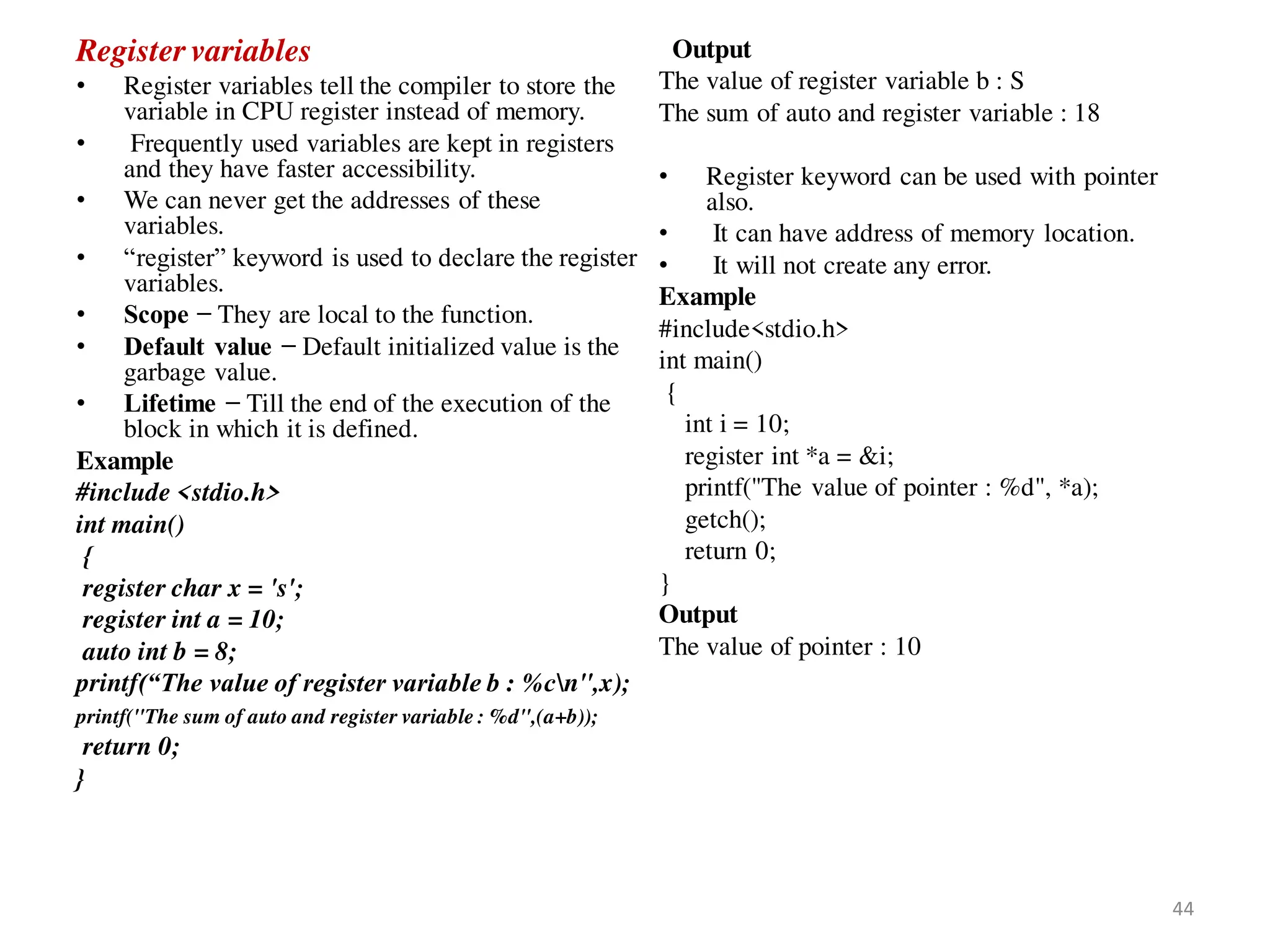

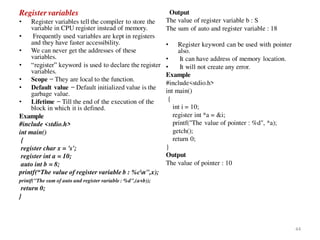

Register variables
• Register variables tell the compiler to store the
variable in CPU register instead of memory.
• Frequently used variables are kept in registers
and they have faster accessibility.
• We can never get the addresses of these
variables.
• “register” keyword is used to declare the register
variables.
• Scope − They are local to the function.
• Default value − Default initialized value is the
garbage value.
• Lifetime − Till the end of the execution of the
block in which it is defined.
Example
#include <stdio.h>
int main()
{
register char x = 's';
register int a = 10;
auto int b = 8;
printf(“The value of register variable b : %cn",x);
printf("The sum of auto and register variable : %d",(a+b));
return 0;
}
Output
The value of register variable b : S
The sum of auto and register variable : 18
• Register keyword can be used with pointer
also.
• It can have address of memory location.
• It will not create any error.
Example
#include<stdio.h>
int main()
{
int i = 10;
register int *a = &i;
printf("The value of pointer : %d", *a);
getch();
return 0;
}
Output
The value of pointer : 10
44

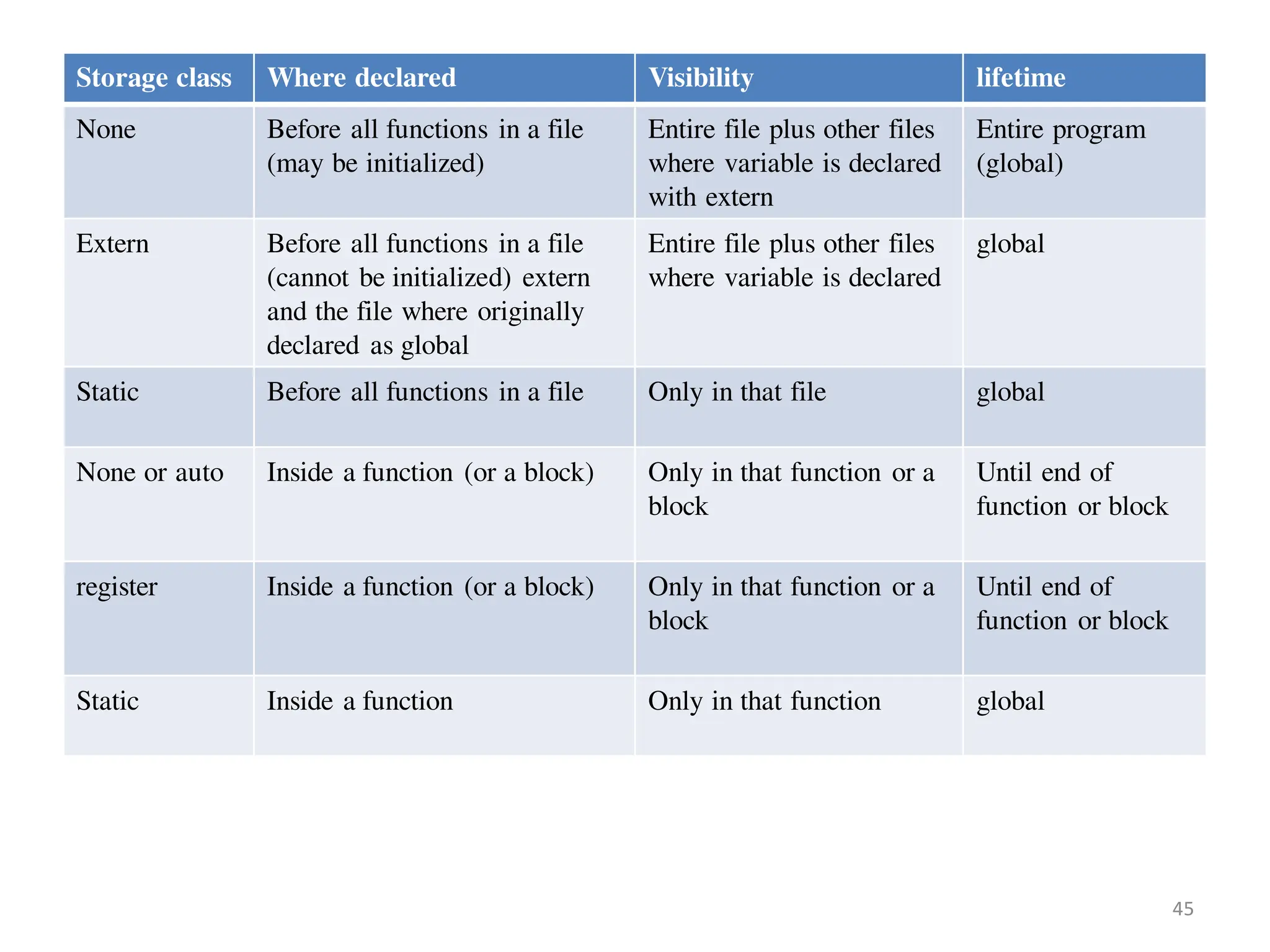

Storage class Where declared Visibility lifetime
None Before all functions in a file
(may be initialized)
Entire file plus other files
where variable is declared
with extern
Entire program
(global)
Extern Before all functions in a file
(cannot be initialized) extern
and the file where originally
declared as global
Entire file plus other files
where variable is declared
global
Static Before all functions in a file Only in that file global
None or auto Inside a function (or a block) Only in that function or a
block
Until end of
function or block
register Inside a function (or a block) Only in that function or a
block
Until end of
function or block
Static Inside a function Only in that function global
45

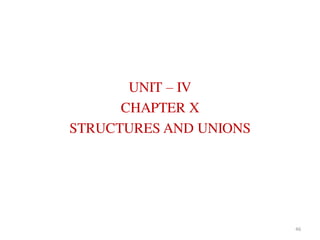

UNIT – IV
CHAPTER X
STRUCTURES AND UNIONS
46

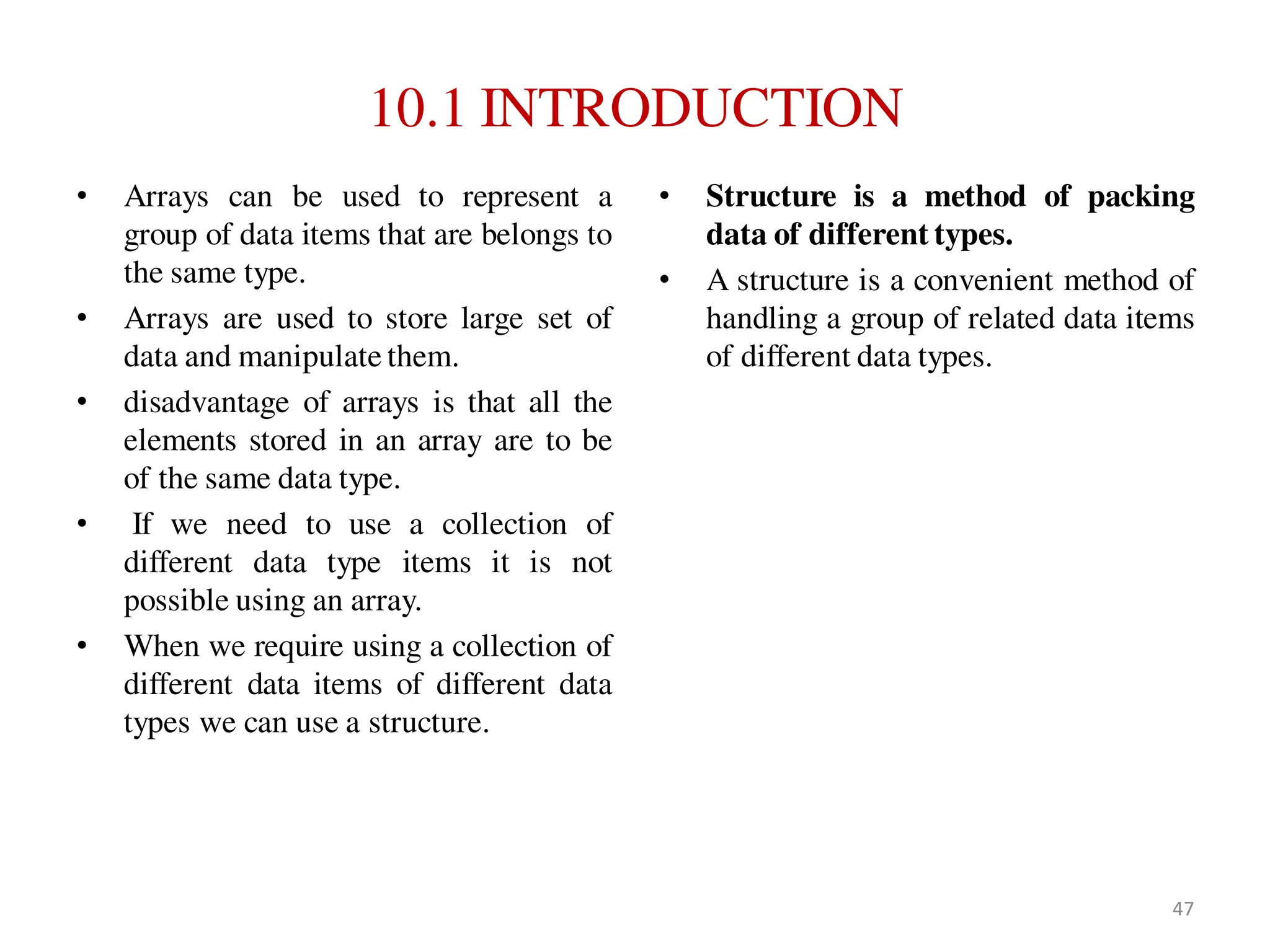

10.1 INTRODUCTION
• Arrays can be used to represent a
group of data items that are belongs to
the same type.
• Arrays are used to store large set of
data and manipulate them.
• disadvantage of arrays is that all the
elements stored in an array are to be
of the same data type.
• If we need to use a collection of
different data type items it is not
possible using an array.
• When we require using a collection of
different data items of different data
types we can use a structure.
• Structure is a method of packing
data of different types.
• A structure is a convenient method of
handling a group of related data items
of different data types.
47

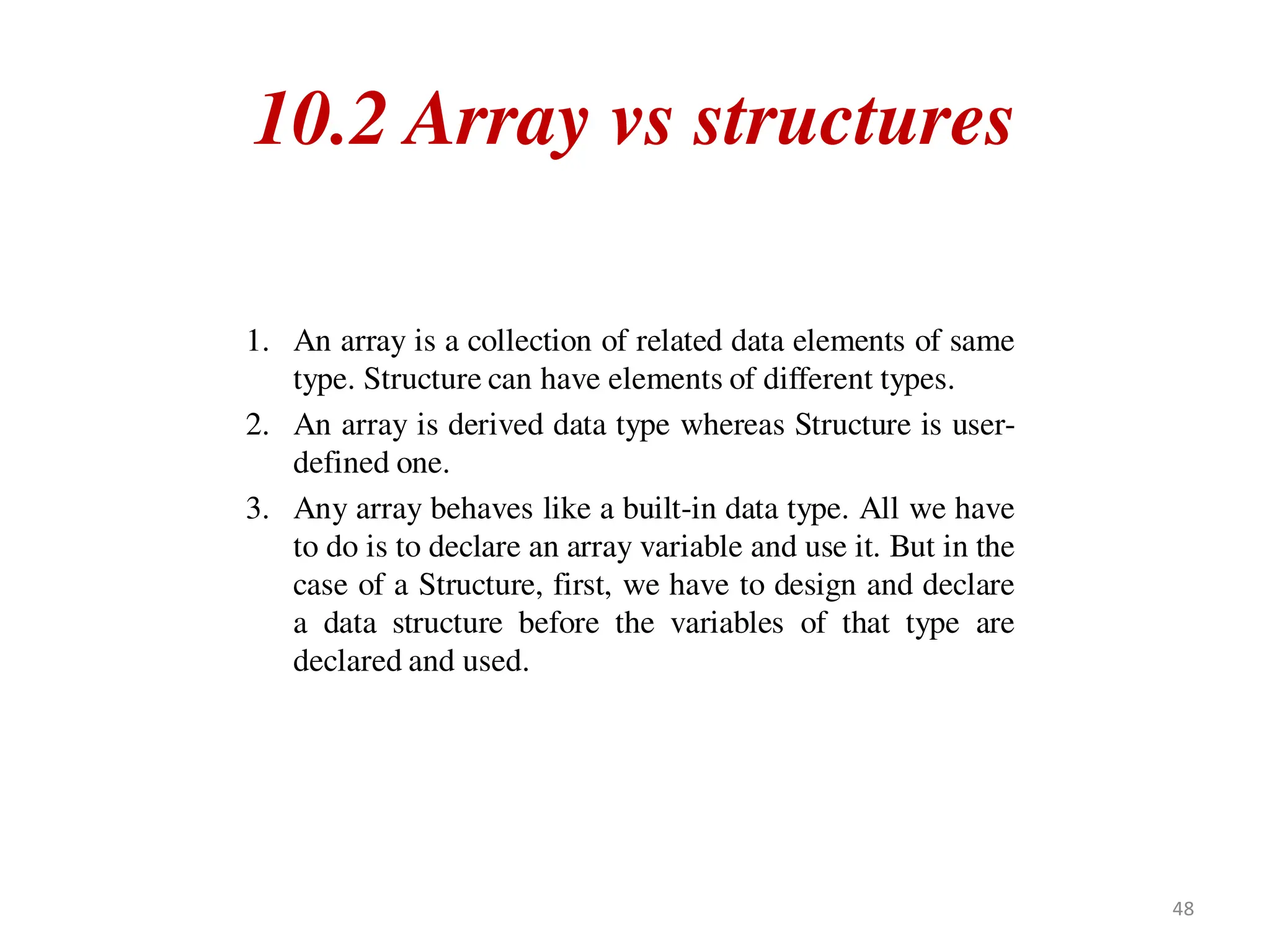

10.2 Array vs structures
1. An array is a collection of related data elements of same
type. Structure can have elements of different types.
2. An array is derived data type whereas Structure is user-
defined one.
3. Any array behaves like a built-in data type. All we have
to do is to declare an array variable and use it. But in the
case of a Structure, first, we have to design and declare
a data structure before the variables of that type are
declared and used.
48

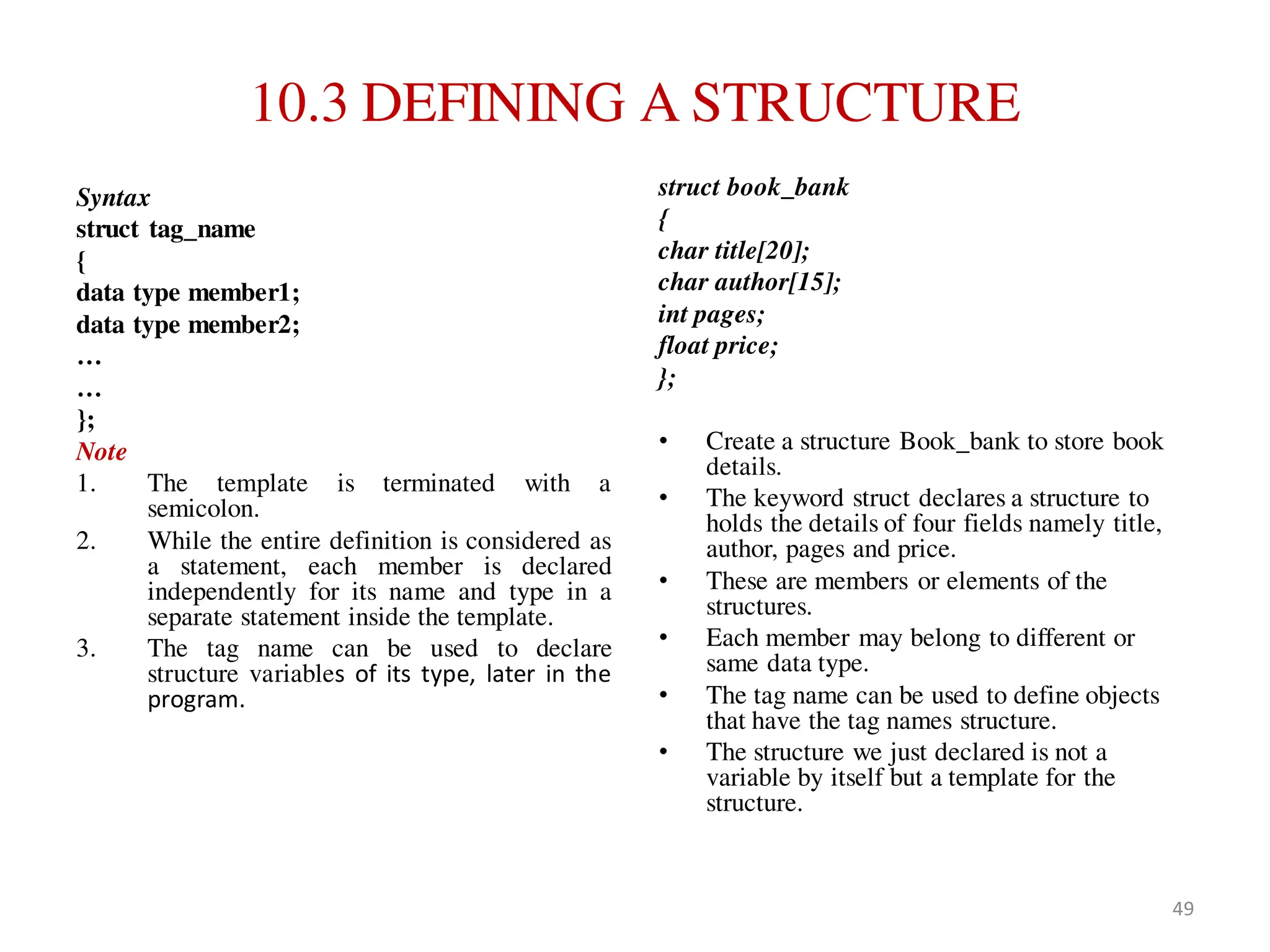

10.3 DEFINING A STRUCTURE
Syntax
struct tag_name
{
data type member1;
data type member2;
…
…
};
Note
1. The template is terminated with a
semicolon.
2. While the entire definition is considered as
a statement, each member is declared
independently for its name and type in a
separate statement inside the template.
3. The tag name can be used to declare
structure variables of its type, later in the
program.
struct book_bank
{
char title[20];
char author[15];
int pages;
float price;
};
• Create a structure Book_bank to store book
details.
• The keyword struct declares a structure to
holds the details of four fields namely title,
author, pages and price.
• These are members or elements of the
structures.
• Each member may belong to different or
same data type.
• The tag name can be used to define objects
that have the tag names structure.
• The structure we just declared is not a
variable by itself but a template for the
structure.
49

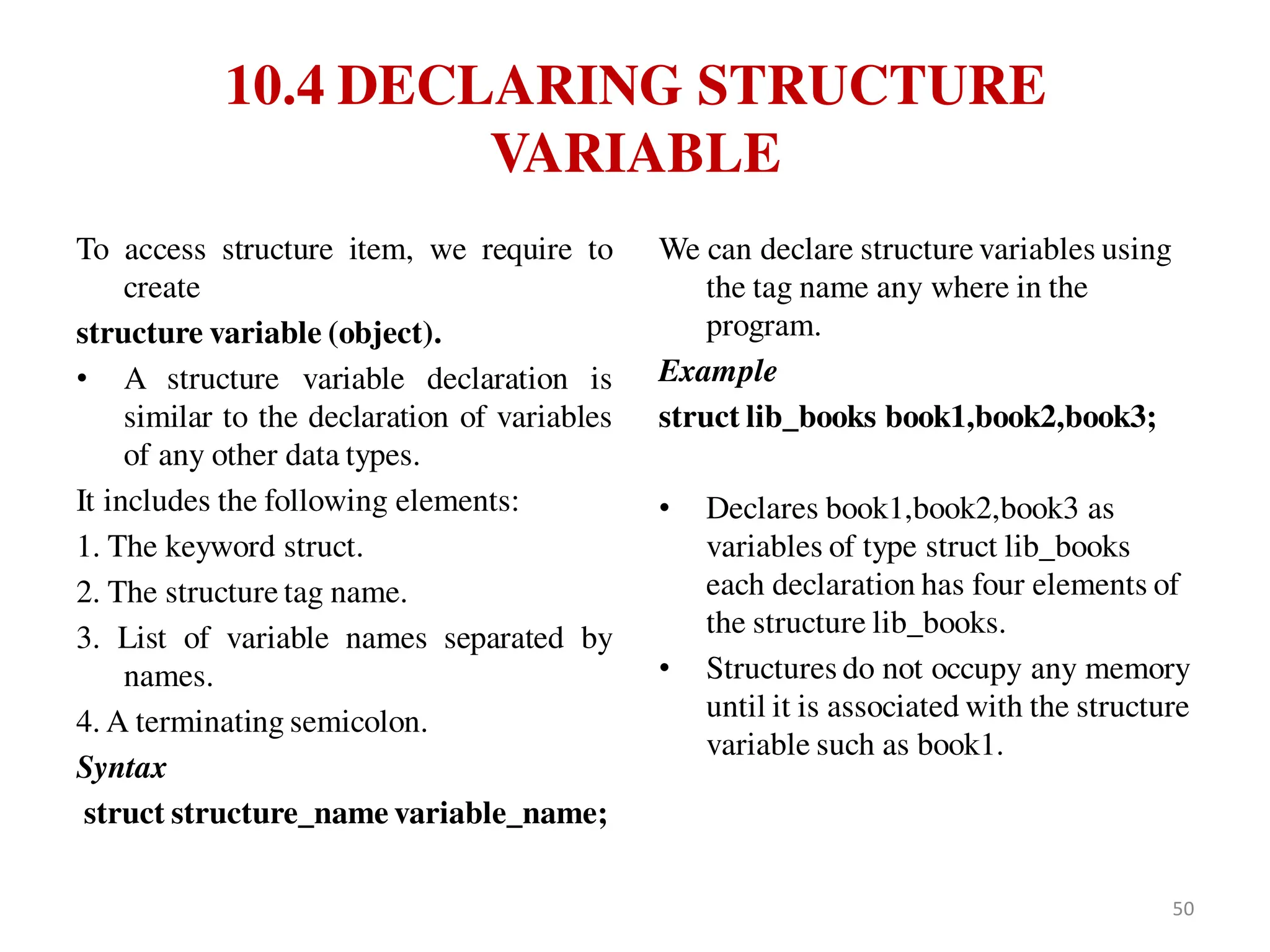

10.4 DECLARING STRUCTURE
VARIABLE
To access structure item, we require to
create
structure variable (object).
• A structure variable declaration is
similar to the declaration of variables
of any other data types.
It includes the following elements:
1. The keyword struct.
2. The structure tag name.
3. List of variable names separated by
names.
4. A terminating semicolon.
Syntax
struct structure_name variable_name;
We can declare structure variables using
the tag name any where in the
program.
Example
struct lib_books book1,book2,book3;
• Declares book1,book2,book3 as
variables of type struct lib_books
each declaration has four elements of
the structure lib_books.
• Structures do not occupy any memory
until it is associated with the structure
variable such as book1.
50

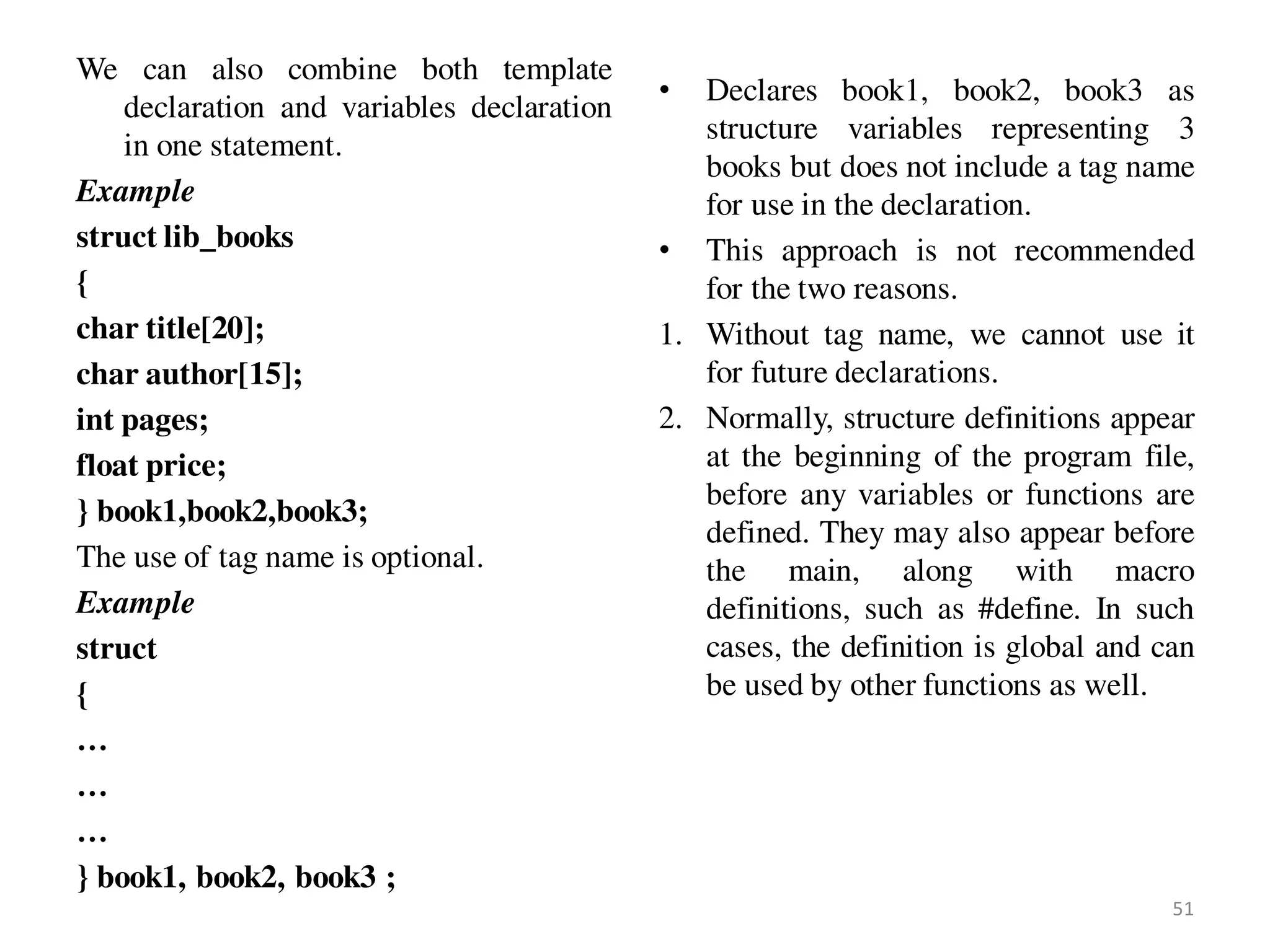

We can also combine both template
declaration and variables declaration
in one statement.
Example
struct lib_books
{
char title[20];
char author[15];
int pages;
float price;
} book1,book2,book3;
The use of tag name is optional.
Example
struct
{
…
…
…
} book1, book2, book3 ;
• Declares book1, book2, book3 as
structure variables representing 3
books but does not include a tag name
for use in the declaration.
• This approach is not recommended
for the two reasons.
1. Without tag name, we cannot use it
for future declarations.
2. Normally, structure definitions appear
at the beginning of the program file,
before any variables or functions are
defined. They may also appear before
the main, along with macro
definitions, such as #define. In such
cases, the definition is global and can
be used by other functions as well.
51

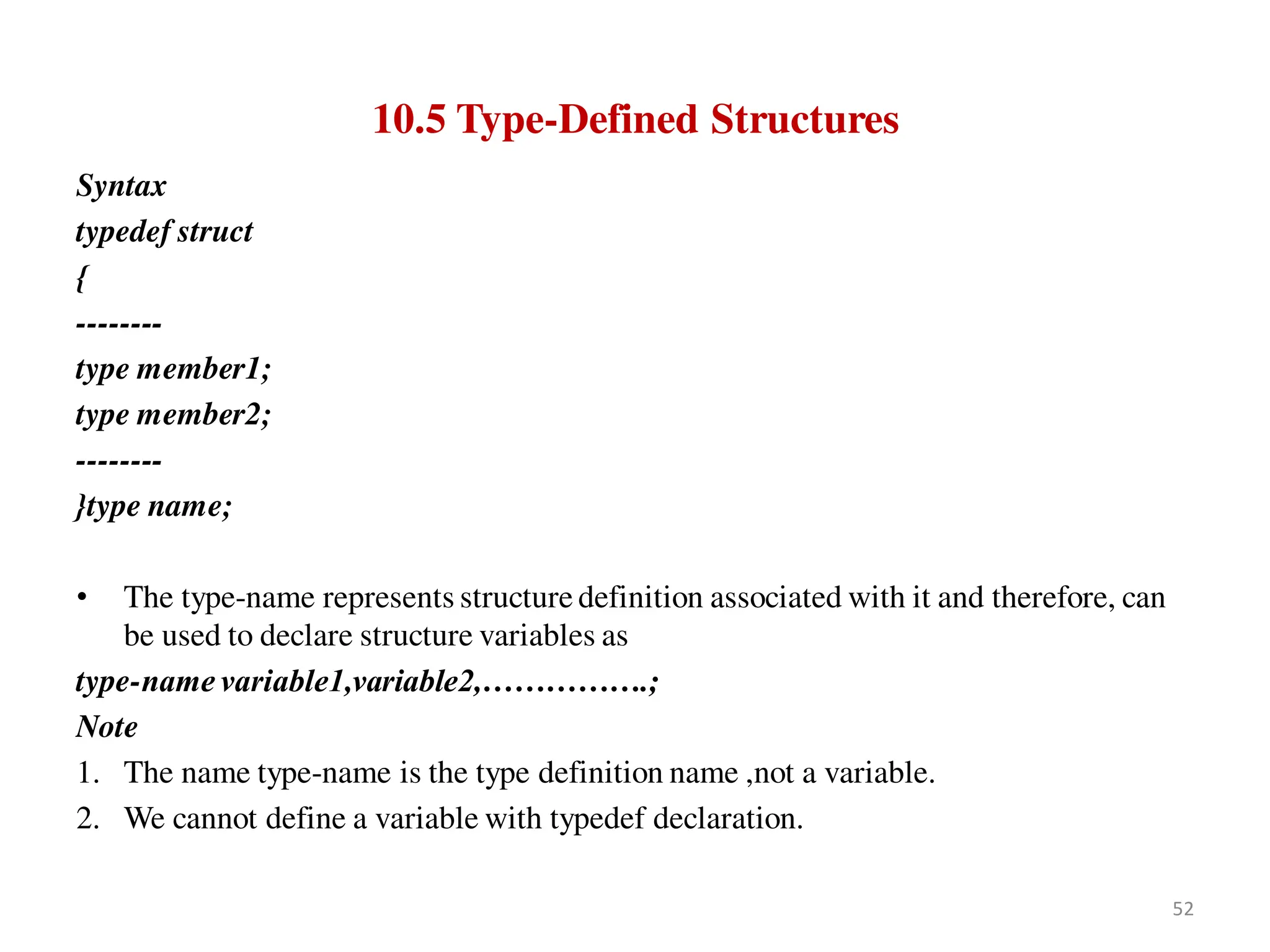

10.5 Type-Defined Structures
Syntax
typedef struct
{
--------
type member1;
type member2;
--------
}type name;
• The type-name represents structure definition associated with it and therefore, can
be used to declare structure variables as
type-name variable1,variable2,…………….;
Note
1. The name type-name is the type definition name ,not a variable.
2. We cannot define a variable with typedef declaration.
52

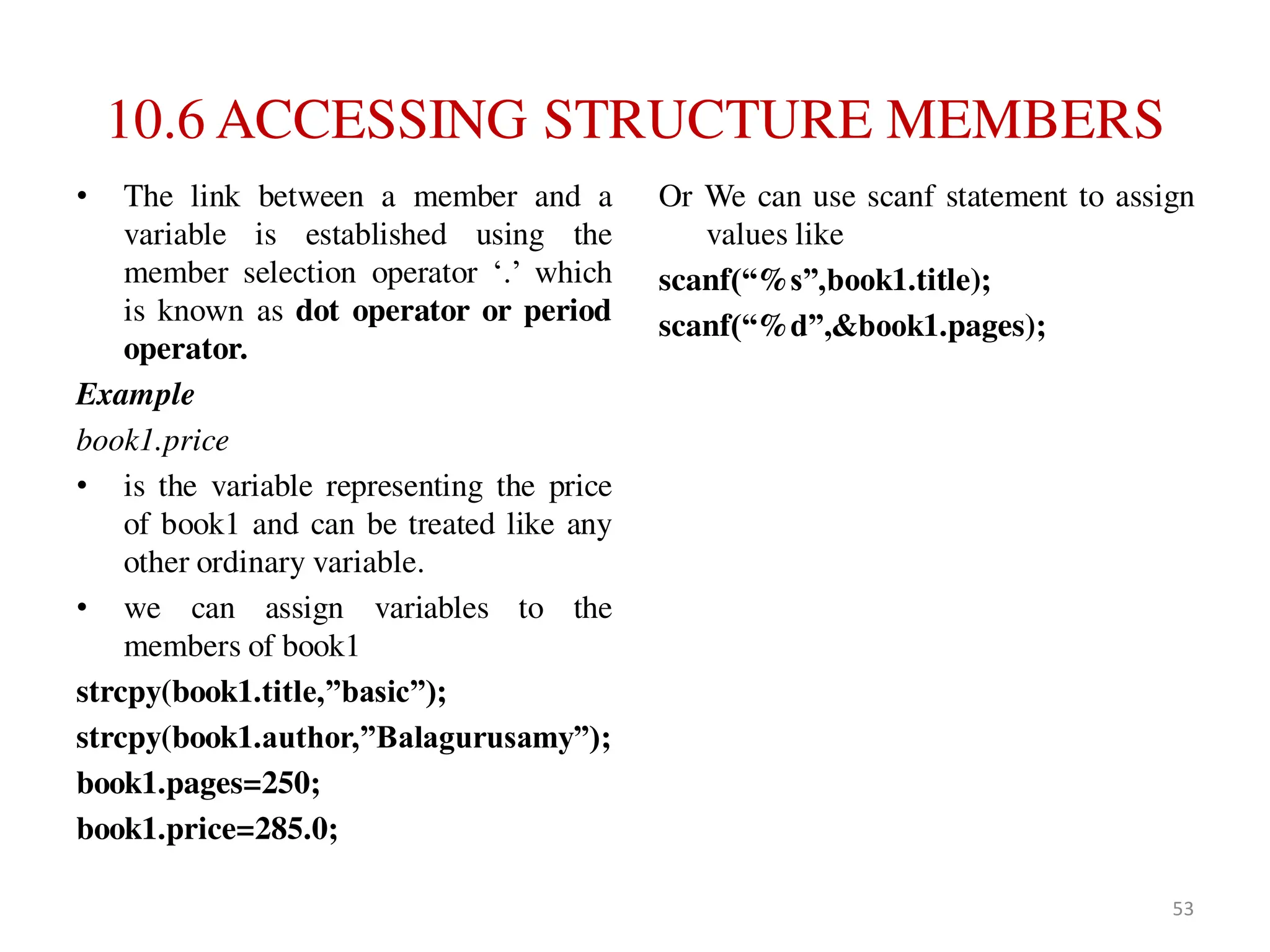

10.6 ACCESSING STRUCTURE MEMBERS
• The link between a member and a
variable is established using the
member selection operator ‘.’ which
is known as dot operator or period
operator.
Example
book1.price
• is the variable representing the price
of book1 and can be treated like any
other ordinary variable.
• we can assign variables to the
members of book1
strcpy(book1.title,”basic”);
strcpy(book1.author,”Balagurusamy”);
book1.pages=250;
book1.price=285.0;
Or We can use scanf statement to assign
values like
scanf(“%s”,book1.title);
scanf(“%d”,&book1.pages);
53

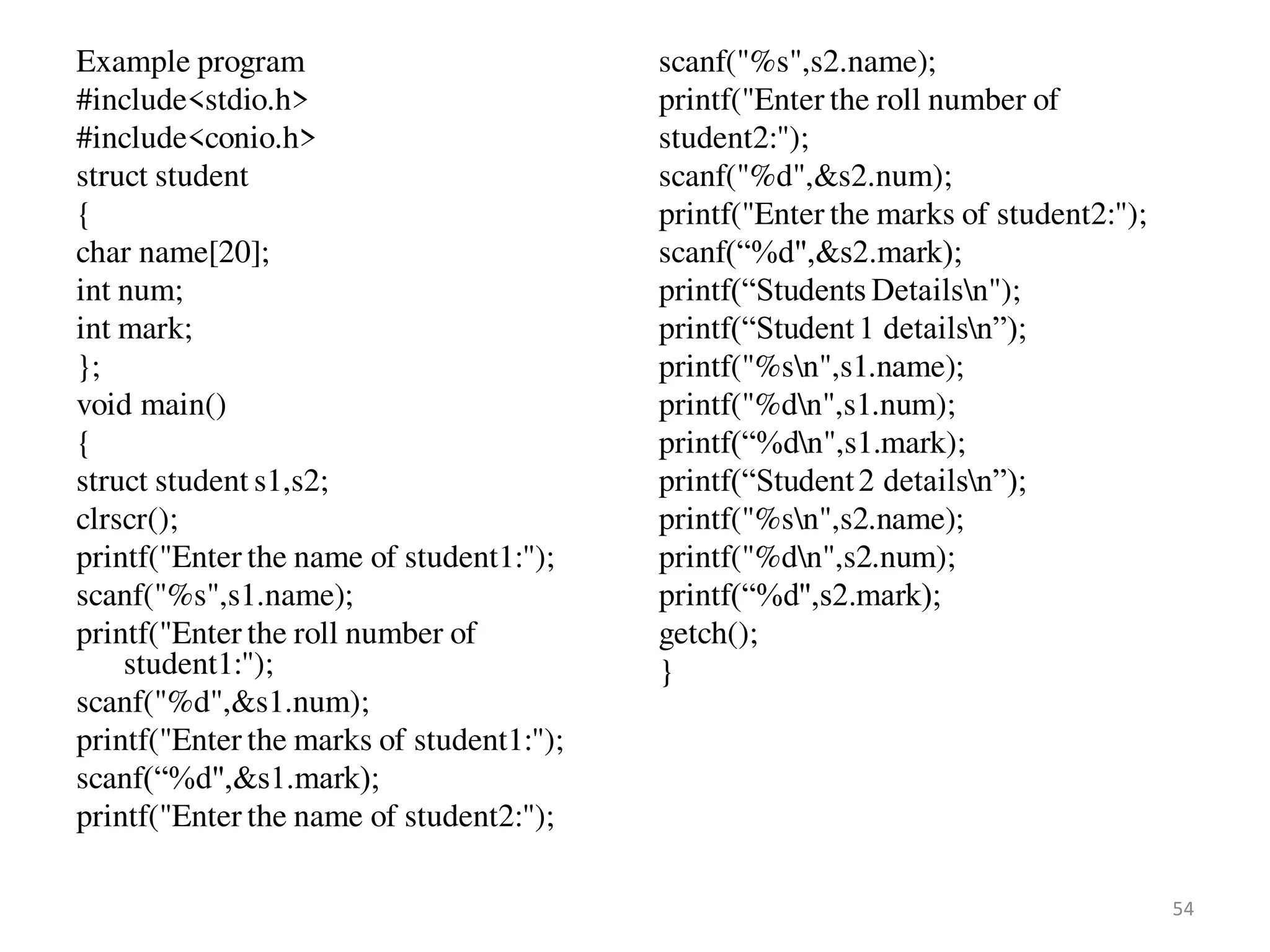

Example program
#include<stdio.h>
#include<conio.h>
struct student
{
char name[20];
int num;
int mark;
};
void main()
{
struct student s1,s2;
clrscr();
printf("Enter the name of student1:");
scanf("%s",s1.name);
printf("Enter the roll number of
student1:");
scanf("%d",&s1.num);
printf("Enter the marks of student1:");
scanf(“%d",&s1.mark);
printf("Enter the name of student2:");
scanf("%s",s2.name);
printf("Enter the roll number of
student2:");
scanf("%d",&s2.num);
printf("Enter the marks of student2:");
scanf(“%d",&s2.mark);
printf(“Students Detailsn");
printf(“Student1 detailsn”);
printf("%sn",s1.name);
printf("%dn",s1.num);
printf(“%dn",s1.mark);
printf(“Student2 detailsn”);
printf("%sn",s2.name);
printf("%dn",s2.num);
printf(“%d",s2.mark);
getch();
}
54

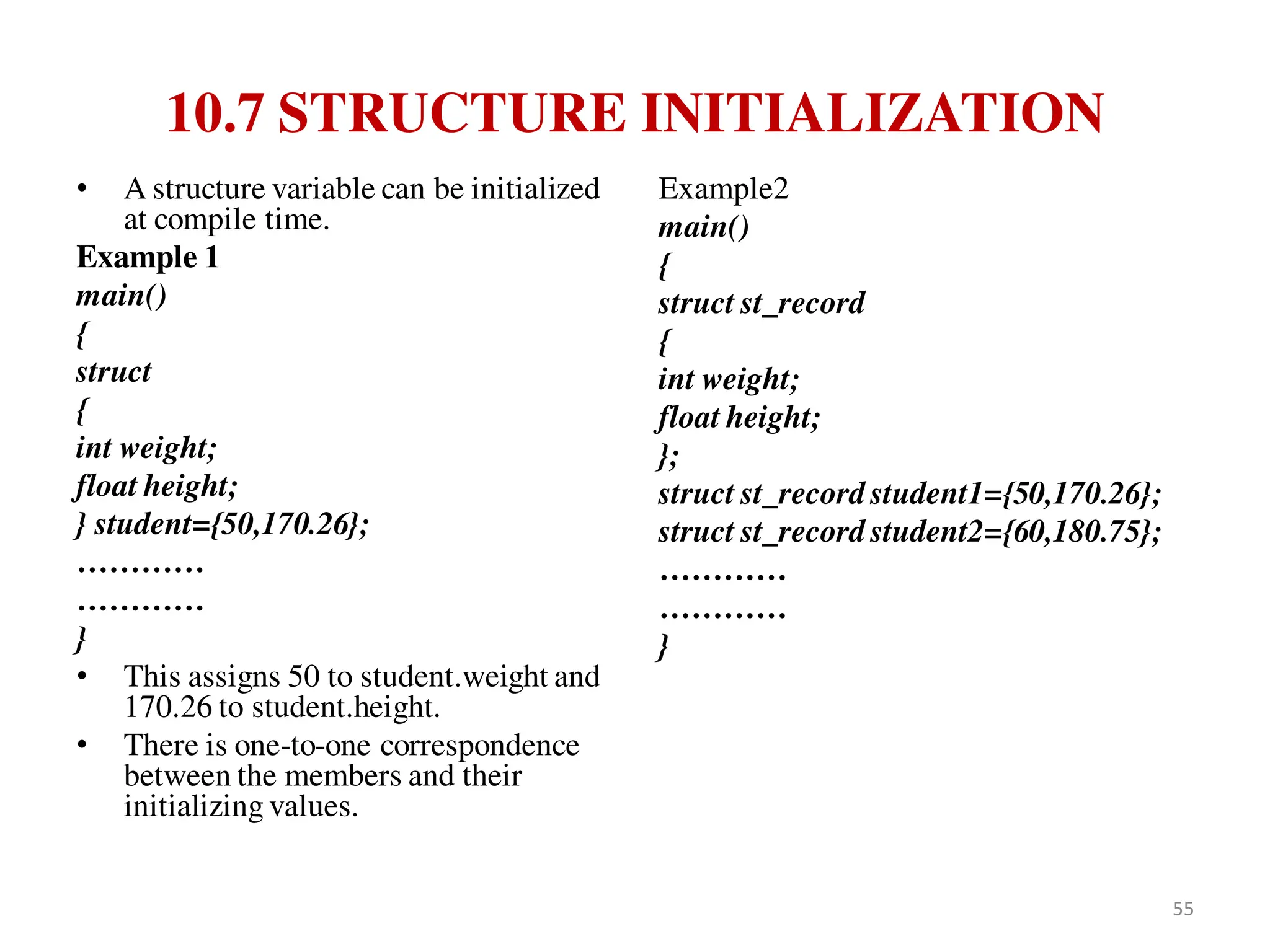

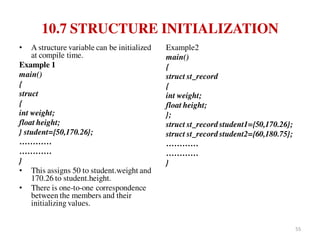

10.7 STRUCTURE INITIALIZATION
• A structure variable can be initialized
at compile time.
Example 1
main()
{
struct
{
int weight;
float height;
} student={50,170.26};
…………
…………
}
• This assigns 50 to student.weight and
170.26 to student.height.
• There is one-to-one correspondence
between the members and their
initializing values.
Example2
main()
{
struct st_record
{
int weight;
float height;
};
struct st_record student1={50,170.26};
…………
…………
}
55

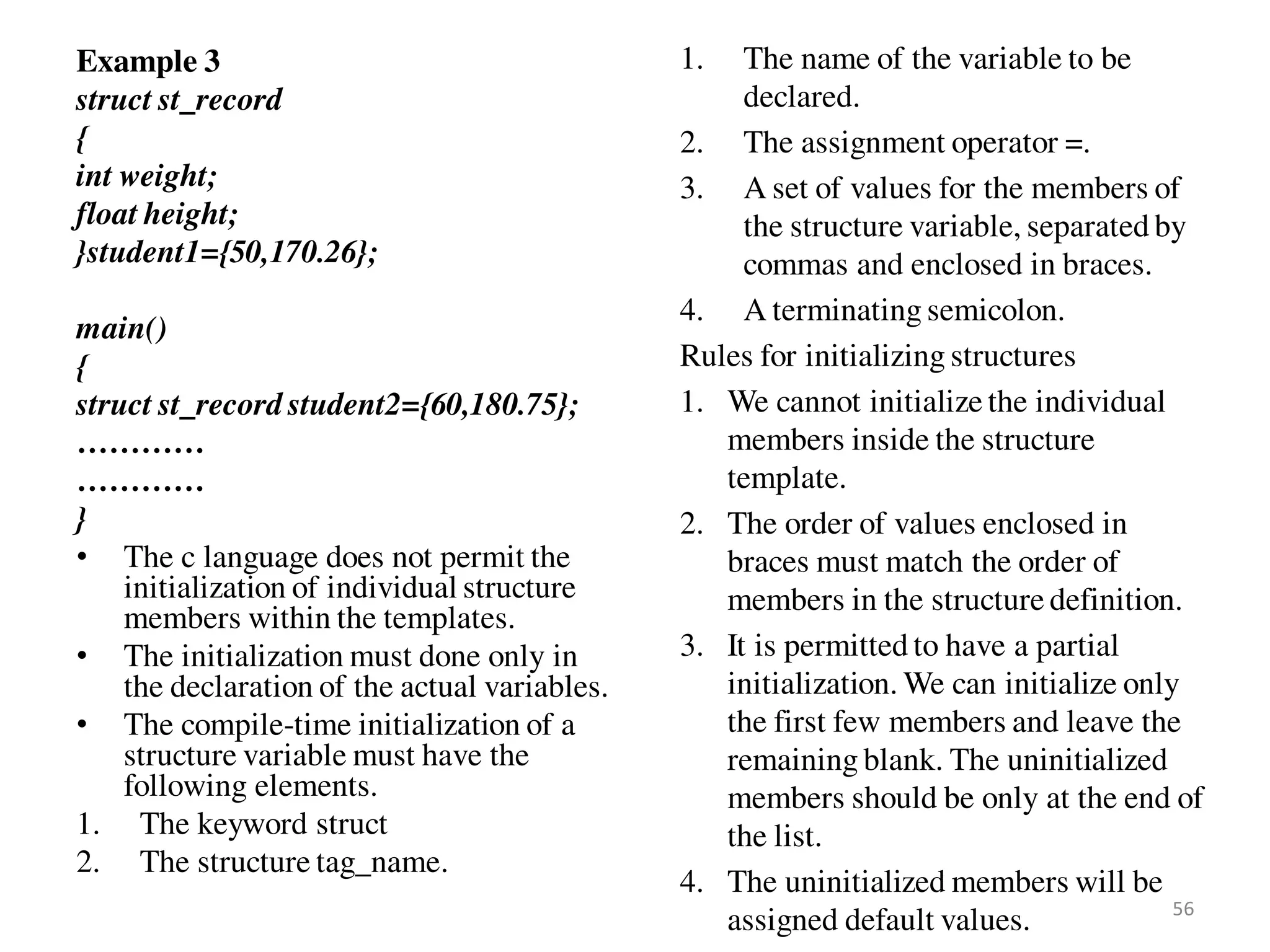

Example 3
struct st_record
{
int weight;
float height;
}student1={50,170.26};
main()
{
…………
…………
}
• The c language does not permit the
initialization of individual structure
members within the templates.
• The initialization must done only in
the declaration of the actual variables.
• The compile-time initialization of a
structure variable must have the
following elements.
1. The keyword struct
2. The structure tag_name.
1. The name of the variable to be
declared.
2. The assignment operator =.
3. A set of values for the members of
the structure variable, separated by
commas and enclosed in braces.
4. A terminating semicolon.
Rules for initializing structures
1. We cannot initialize the individual
members inside the structure
template.
2. The order of values enclosed in
braces must match the order of
members in the structure definition.
3. It is permitted to have a partial
initialization. We can initialize only
the first few members and leave the
remaining blank. The uninitialized
members should be only at the end of
the list.
4. The uninitialized members will be
assigned default values. 56

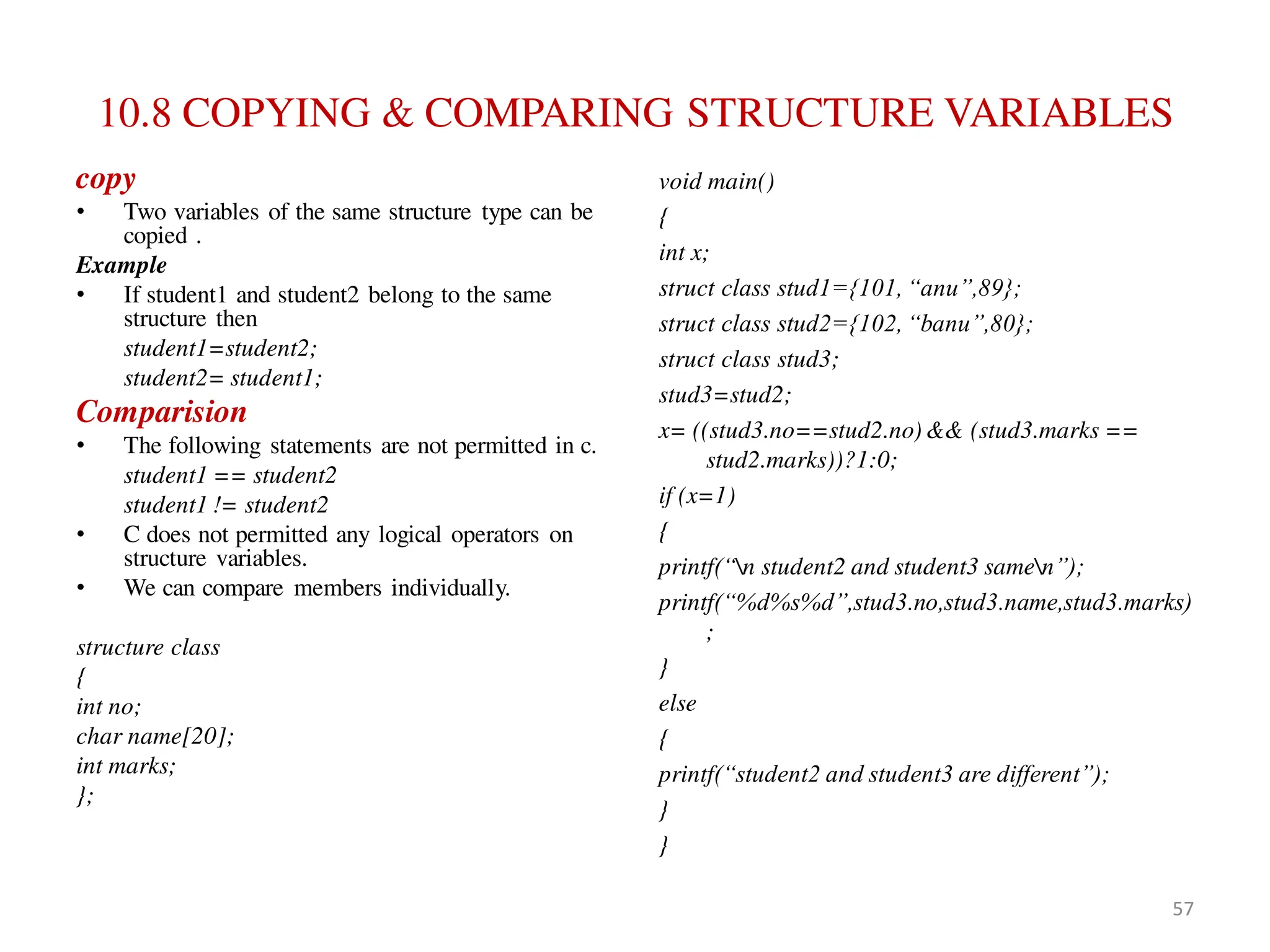

10.8 COPYING & COMPARING STRUCTURE VARIABLES
copy
• Two variables of the same structure type can be
copied .
Example
• If student1 and student2 belong to the same
structure then
student1=student2;
student2= student1;
Comparision
• The following statements are not permitted in c.
student1 == student2
student1 != student2
• C does not permitted any logical operators on
structure variables.
• We can compare members individually.
structure class
{
int no;
char name[20];
int marks;
};
void main()
{
int x;
struct class stud1={101, “anu”,89};
struct class stud2={102, “banu”,80};
struct class stud3;
stud3=stud2;
x= ((stud3.no==stud2.no)&& (stud3.marks ==
stud2.marks))?1:0;
if (x=1)
{
printf(“n student2 and student3 samen”);
printf(“%d%s%d”,stud3.no,stud3.name,stud3.marks)
;
}
else
{
printf(“student2 and student3 are different”);
}
}
57

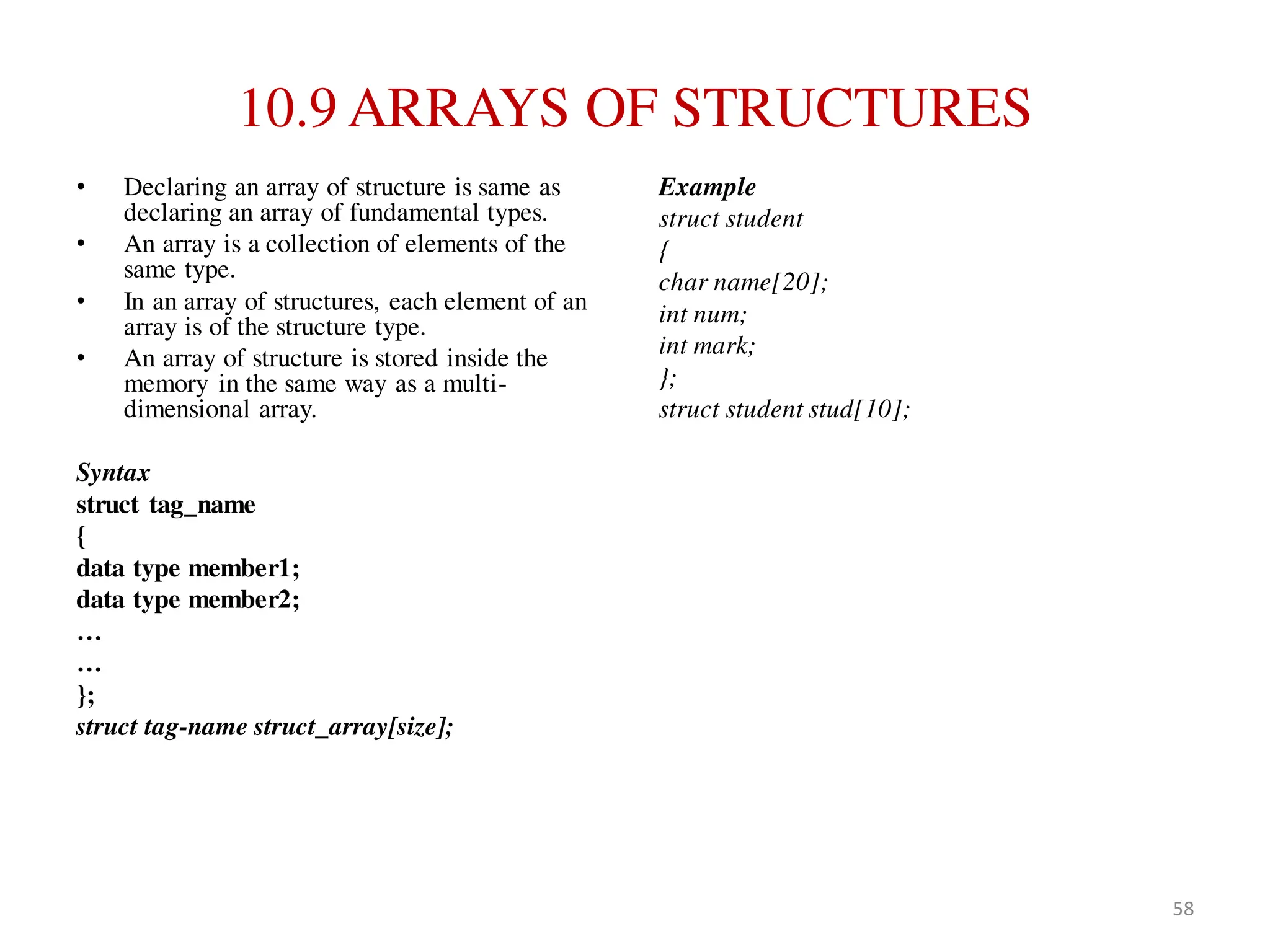

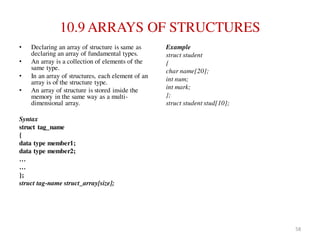

10.9 ARRAYS OF STRUCTURES
• Declaring an array of structure is same as
declaring an array of fundamental types.
• An array is a collection of elements of the
same type.
• In an array of structures, each element of an
array is of the structure type.
• An array of structure is stored inside the
memory in the same way as a multi-
dimensional array.
Syntax
struct tag_name
{
data type member1;
data type member2;
…
…
};
struct tag-name struct_array[size];
Example
struct student
{
char name[20];
int num;
int mark;
};
struct student stud[10];
58

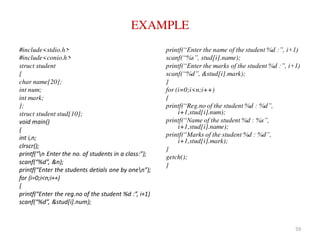

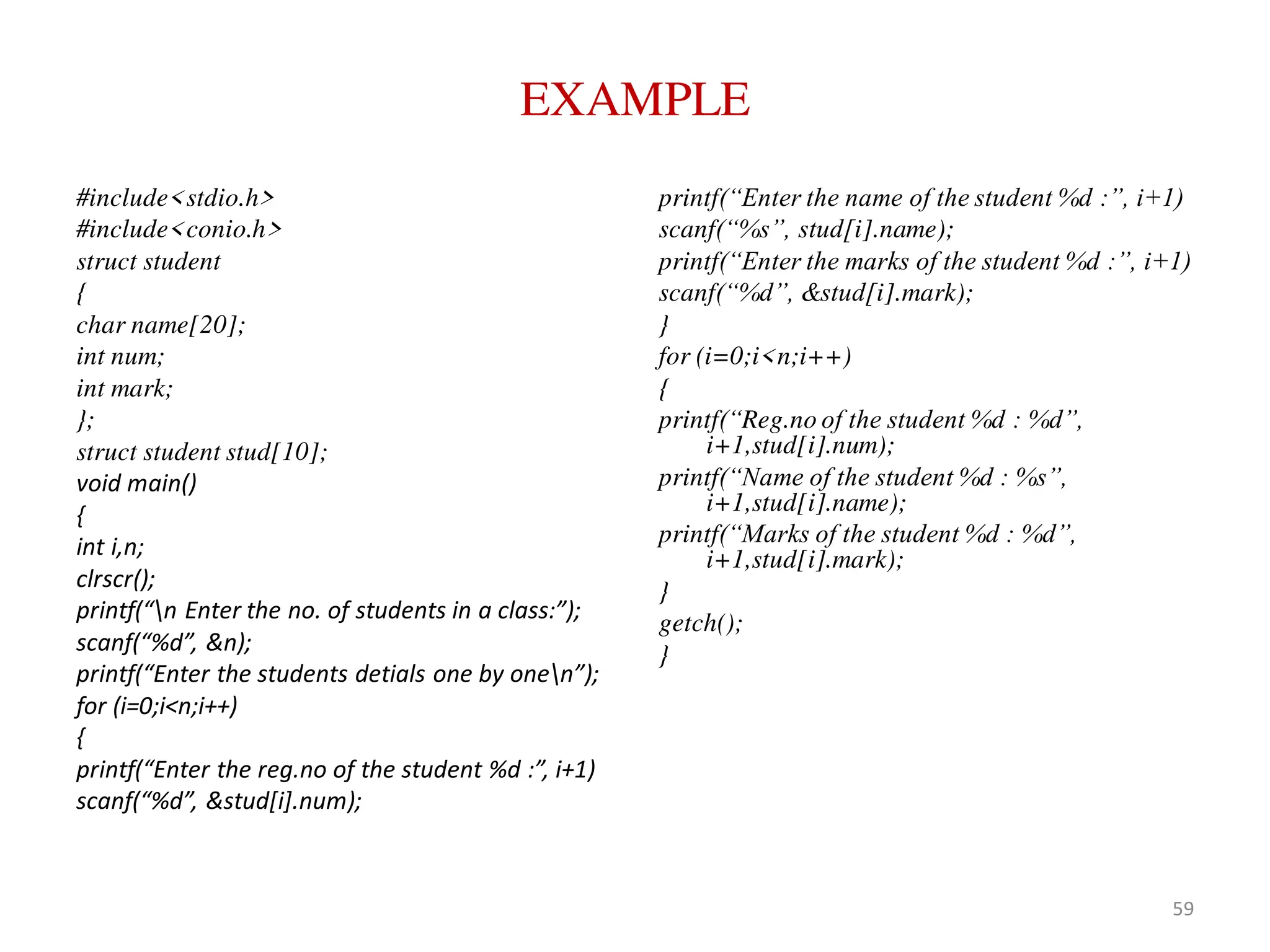

EXAMPLE
#include<stdio.h>
#include<conio.h>
struct student
{
char name[20];
int num;
int mark;
};
void main()
{
int i,n;
clrscr();
printf(“n Enter the no. of students in a class:”);
scanf(“%d”, &n);
printf(“Enter the students detials one by onen”);
for (i=0;i<n;i++)
{
printf(“Enter the reg.no of the student %d :”, i+1)
scanf(“%d”, &stud[i].num);
printf(“Enter the name of the student %d :”, i+1)
scanf(“%s”, stud[i].name);
printf(“Enter the marks of the student %d :”, i+1)
scanf(“%d”, &stud[i].mark);
}
for (i=0;i<n;i++)
{
printf(“Reg.no of the student %d : %d”,
i+1,stud[i].num);
printf(“Name of the student %d : %s”,
i+1,stud[i].name);
printf(“Marks of the student %d : %d”,
i+1,stud[i].mark);
}
getch();
}
59

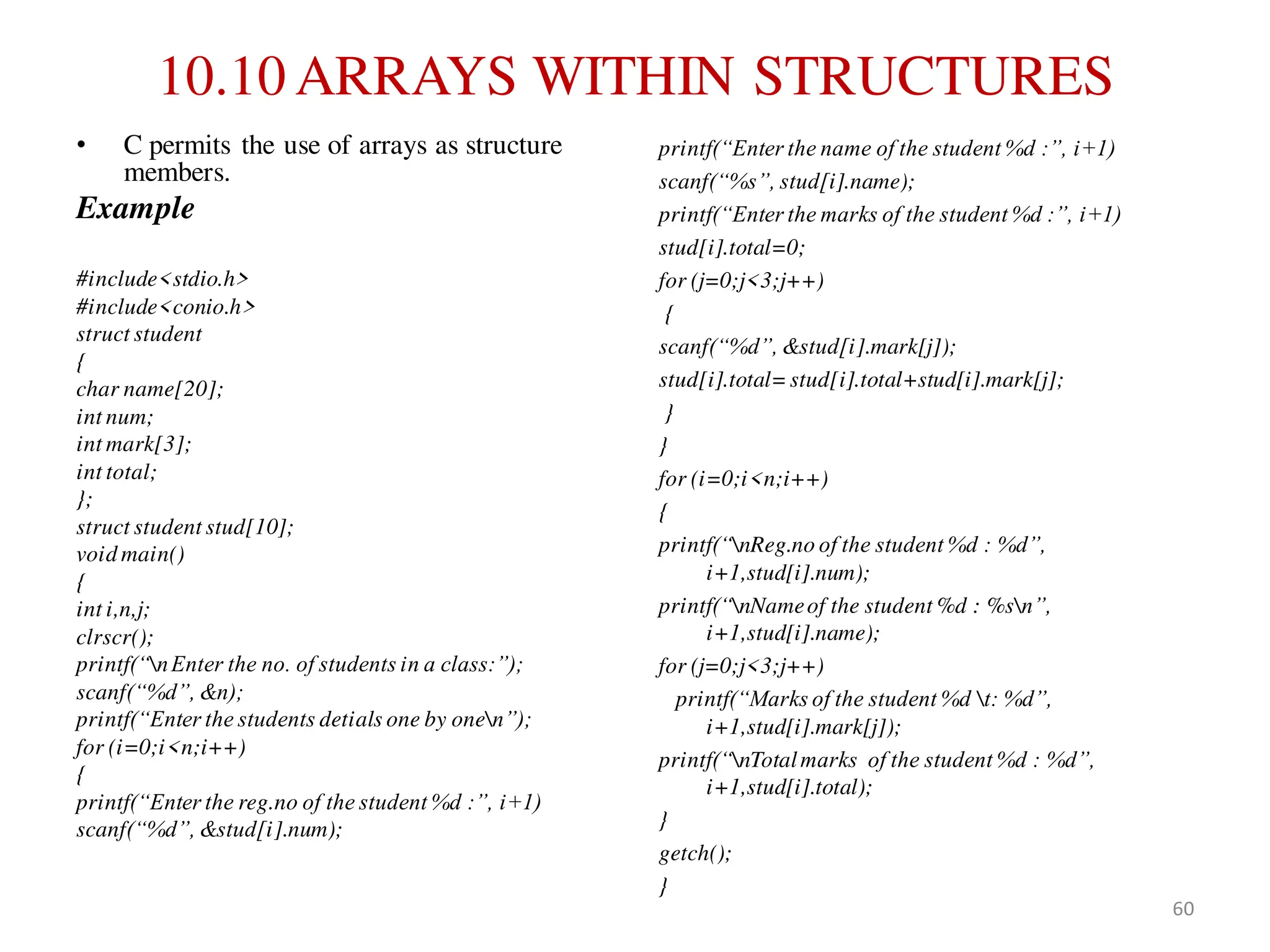

10.10 ARRAYS WITHIN STRUCTURES
• C permits the use of arrays as structure
members.
Example
#include<stdio.h>
#include<conio.h>
struct student
{
char name[20];
int num;
int mark[3];
int total;
};
void main()
{
int i,n,j;
clrscr();
printf(“nEnter the no. of students in a class:”);
scanf(“%d”, &n);
printf(“Enter the students detials one by onen”);
for (i=0;i<n;i++)
{
printf(“Enter the reg.no of the student %d :”, i+1)
scanf(“%d”, &stud[i].num);
printf(“Enter the name of the student %d :”, i+1)
scanf(“%s”, stud[i].name);
printf(“Enter the marks of the student %d :”, i+1)
stud[i].total=0;
for (j=0;j<3;j++)
{
scanf(“%d”, &stud[i].mark[j]);
stud[i].total=stud[i].total+stud[i].mark[j];
}
}
for (i=0;i<n;i++)
{
printf(“nReg.no of the student %d : %d”,
i+1,stud[i].num);
printf(“nNameof the student %d : %sn”,
i+1,stud[i].name);
for (j=0;j<3;j++)
printf(“Marks of the student %d t: %d”,
i+1,stud[i].mark[j]);
printf(“nTotalmarks of the student %d : %d”,
i+1,stud[i].total);
}
getch();
}
60

10.11 STRUCTURES WITHIN STRUCTURES
• Structure within a structure is called
nested structure.
Example
struct salary
{
char name[20];
char dept[30];
struct
{
int da;
int hra;
int cca;
}allowance;
} employee;
• The salayy structure contains a
member named allowance, which
itself is a structure with three
members.
• The members contained in the inner
structure namely da, hra and cca can
be reffered as
employee.allowance.da;
employee.allowance.hra;
employee.allowance.cca;
• A inner-most member in a nested-
structure can be accessed by chaining
all the concerned structures variables
with member using dot operator.
61

10.12 STRUCTURES & FUNCTIONS
There are 3 methods to transferred structure
from one function to another.
1. Pass each member of structure as an actual
argument of the function call. The actual
arguments are then treated independently
like ordinary variables. This is the most
elementary method and becomes
unmanageable and inefficient when the
structure size is large.
2. Passing of a copy of the entire structure to
the called function. Since the function is
working on a copy of the structure, any
changes to structure members within the
function are not reflected in the original
structure. Therefore the necessary for the
function to return the entire structure back
to the calling function.
3. Using pointers to pass the structure as an
argument.
• The general format of sending a copy of a
structure to the called function is
function_name(structure_variable_name);
• The called function format
data_type
function_name(struct_variable_name)
{
………….
………….
return(expression);
}
Note
1. The called function must be declared for
its type, appropriate to the data type it is
expected to return.
2. The structure variable used as the actual
argument and the corresponding formal
parameter in the called function must be of
the same struct type.
62

3. The return statement is necessary only
when the function is returning some data
back to the calling function. The
expression may be any simple variable or
structure variable or an expression using
simple variables
4. When a function returns a structure, it
must be assigned to a structure of identical
type in the calling function.
5. The called functions must be declared in
the calling function appropriately.
Example
#include<stdio.h>
#include<conio.h>
/* structure is defined above all functions so it
is global. */
struct student
{
char name[20];
int roll_no;
int marks;
};
void print_struct(struct student stu);
void main()
{
struct student stu = {"George", 10, 69};
print_struct(stu);
return 0;
}
void print_struct(struct student stu)
{
printf("Name: %sn", stu.name);
printf("Roll no: %dn", stu.roll_no);
printf("Marks: %dn", stu.marks);
printf("n");
}
63

10.13 UNIONS
• A union is a special data type available in
C that allows to store different data types
in the same memory location.
• We can define a union with many
members, but only one member can
contain a value at any given time.
• Unions provide an efficient way of using
the same memory location for multiple-
purpose.
Defining a Union
union [union tag]
{
member definition;
member definition;
...
member definition;
} [one or more union variables];
• The union tag is optional and each
member definition is a normal variable
definition, such as int i; or float f; or any
other valid variable definition.
• At the end of the union's definition, before
the final semicolon, you can specify one or
more union variables but it is optional.
Example
union Data
{
int i;
float f;
char str[20];
} data;
• A variable of Data type can store an
integer, a floating-point number, or a
string of characters.
64

• It means a single variable, i.e., same
memory location, can be used to store
multiple types of data.
• We can use any built-in or user defined
data types inside a union based on your
requirement.
• The memory occupied by a union will be
large enough to hold the largest member of
the union.
Example
• Data type will occupy 20 bytes of
memory space because this is the
maximum space which can be occupied by
a character string.
Accessing Union Members
• To access any member of a union, we use
the member access operator (.).
• The member access operator is coded as a
period between the union variable name
and the union member that we wish to
access.
• The keyword union to define variables of
union type.
#include <stdio.h>
#include <string.h>
union Data
{
int i;
float f;
char str[20];
};
int main( )
{
union Data data;
data.i = 10;
data.f = 220.5;
strcpy( data.str, "C Programming");
printf( "data.i : %dn", data.i);
printf( "data.f : %fn", data.f);
printf( "data.str : %sn", data.str);
return 0;
}
Output: data.str : C Programming
65

10.14 BIT FIELDS
• A bit field is a set of adjacent bits whose
size can be from 1 to 16 bits length.
• A word can therefore be divided into a
number of bit fields.
• The name and size of bit fields are defined
using structure.
Syntax
struct tag-name
{
data-type name:bit-length;
……………..
……………..
};
• The data type is either signed int or
unsigned int and the bit-length is the no. of
bits used for a specified name.
• A signed bit field should have at least 2
bits(one bit for sign).
• The field name is followed by a colon.
• The bit-length is decided by the range of
value to be stored.
• The largest value that can be stored is 2n-,
where n is bit-length.
• The internal representation of bit fields is
machine dependent.
• It depends on the size of int and ordering of
bits.
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
name n ……………………. name2 name1
66

Note
1. The first field always starts with the first
bit of the word.
2. A bit field cannot overlap integer
boundaries. Ie. The sum of lengths of all
the fields in a structure should not be
more than the size of a word. In case, it
is more, the overlapping field is
automatically forced to the beginning of
the next word.
3. There can be unnamed fields declared
with size.
4. There can be unused bits in the word.
5. We cannot take the address of a bit field
variable. This means we cannot use
scanf() function to read values into bit
fields. We can neither use pointer to
access the bit fields.
6. Bit fields cannot be arrayed.
7. Bit fields should be assigned values that
are within the range of their size.. If we
try to assign larger values, behaviour
would be unpredicted.
Example
#include <stdio.h>
#include <string.h>
struct
{
unsigned int age : 3;
} Age;
int main( )
{
Age.age = 4;
printf( "Sizeof( Age ) : %dn", sizeof(Age) );
printf( "Age.age : %dn", Age.age );
Age.age = 7;
Age.age = 8;
return 0;
}
67

References
1. E. Balagurusamy, ”Programming in ANSI C”, Seventh Edition, McGraw Hill Education India
Private Ltd, 2017.
2. https://www.tutorialspoint.com/cprogramming/
3. https://overiq.com/c-programming-101/structures-and-functions-in-c/
68

18BCS23C-U4 c programming for unit 4 c program

More Related Content

Similar to 18BCS23C-U4 c programming for unit 4 c program

Recently uploaded

18BCS23C-U4 c programming for unit 4 c program
