2FA Protocol Presentation
- 1.

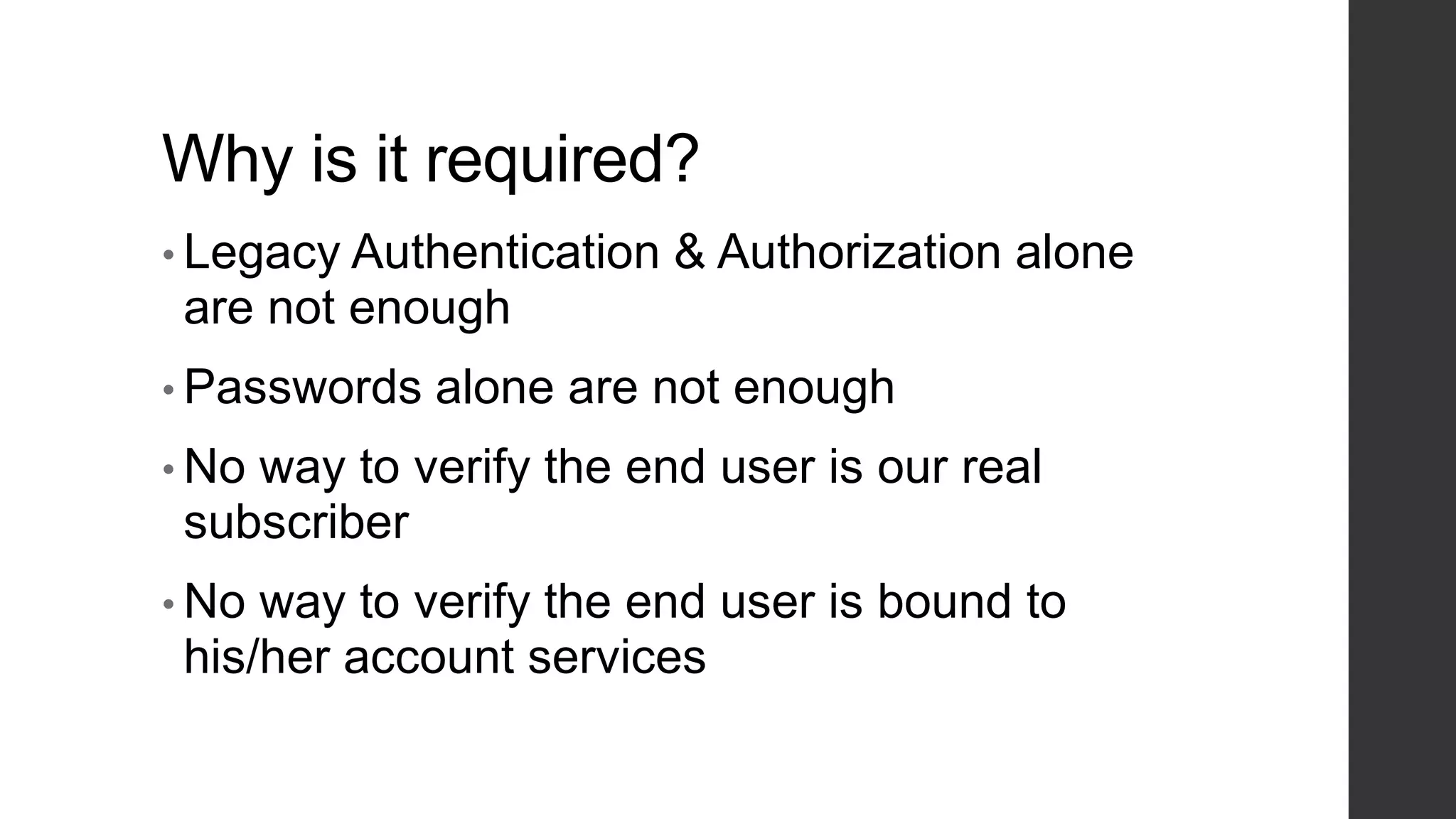

- 2. Why is itrequired? • Legacy Authentication & Authorization alone are not enough • Passwords alone are not enough • No way to verify the end user is our real subscriber • No way to verify the end user is bound to his/her account services

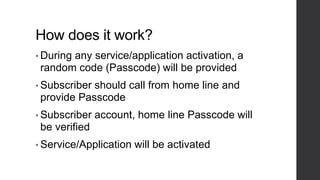

- 4. How does itwork? • During any service/application activation, a random code (Passcode) will be provided • Subscriber should call from home line and provide Passcode • Subscriber account, home line Passcode will be verified • Service/Application will be activated

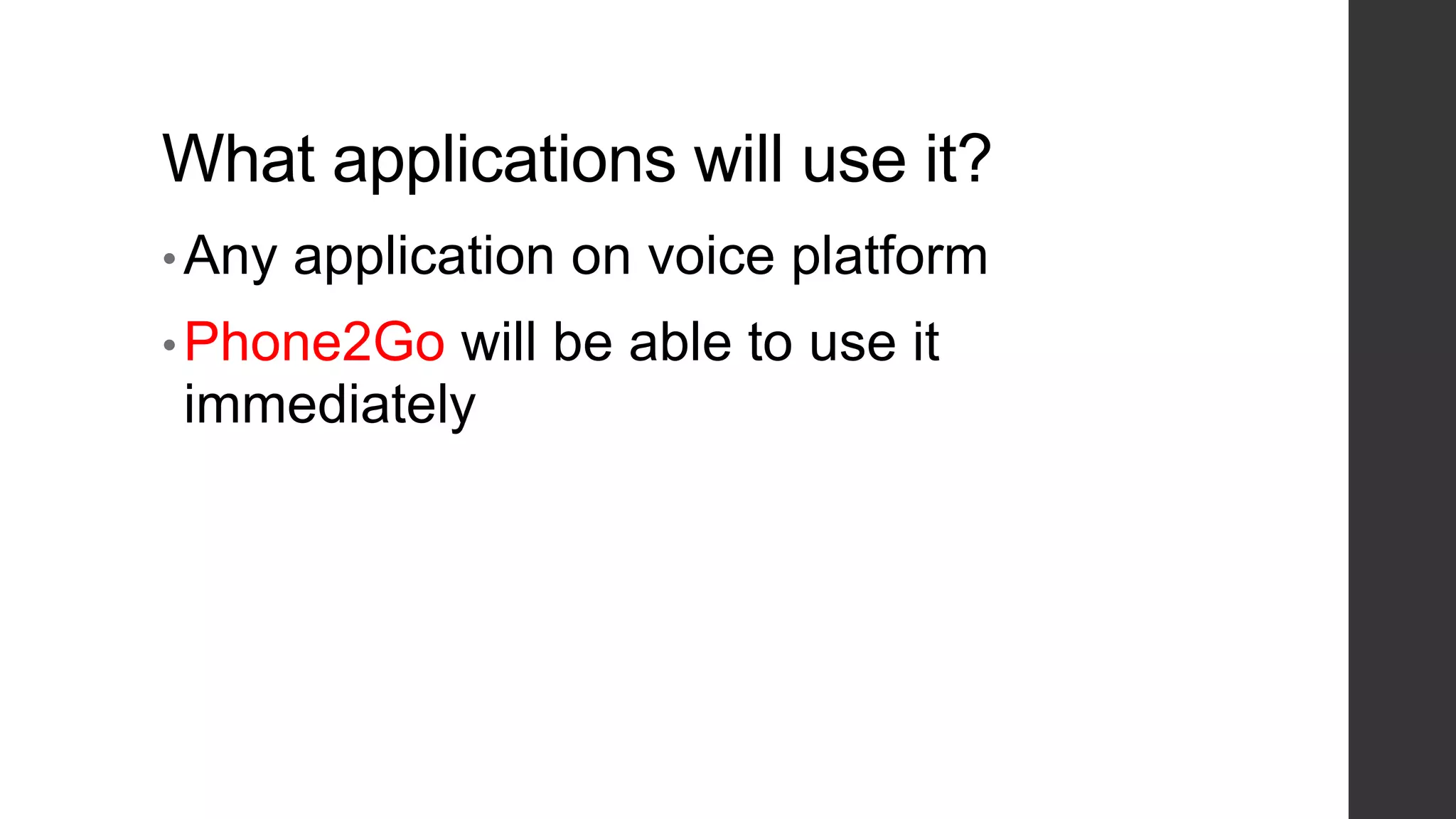

- 5. What applications willuse it? • Any application on voice platform • Phone2Go will be able to use it immediately

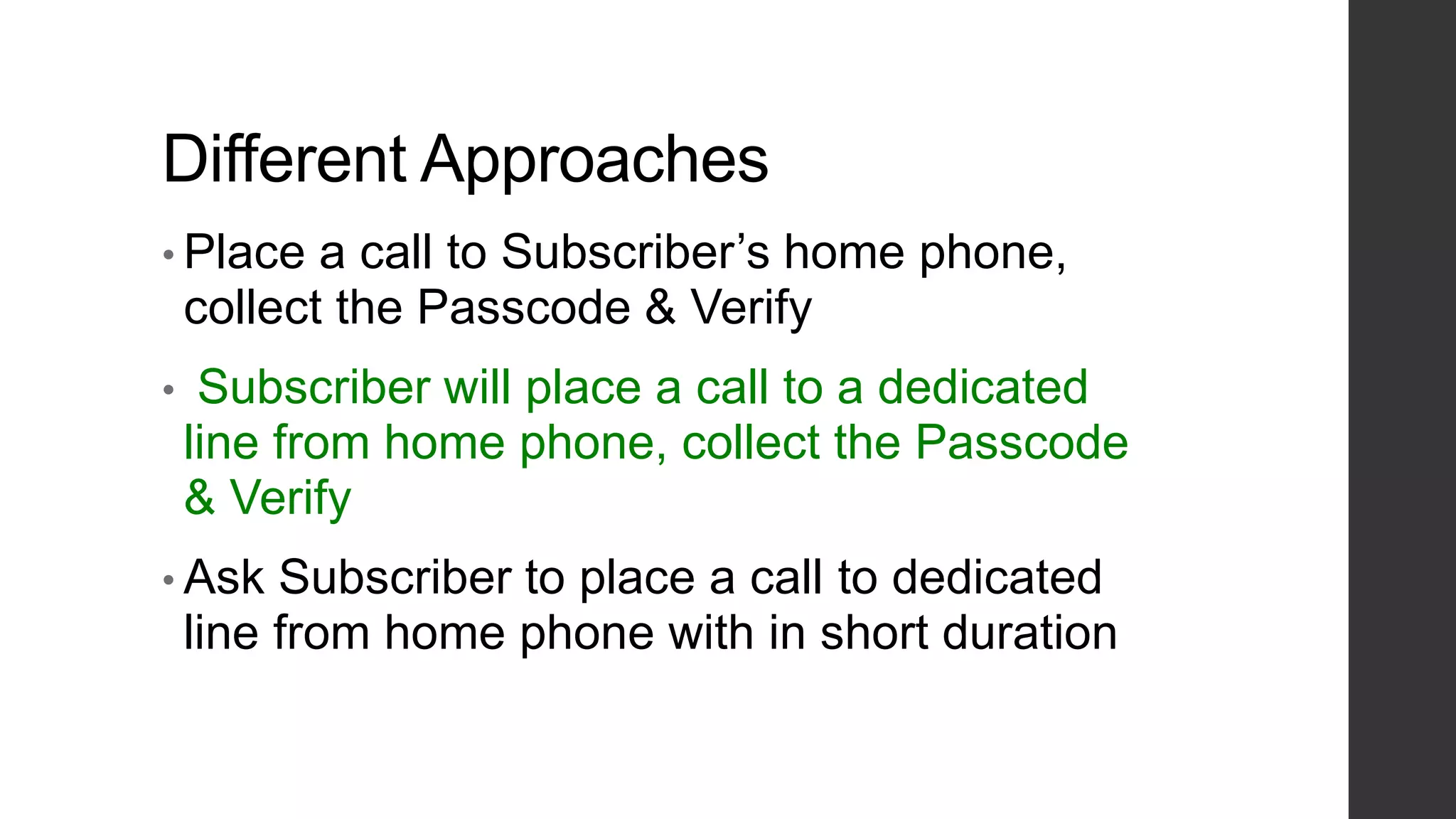

- 6. Different Approaches • Placea call to Subscriber’s home phone, collect the Passcode & Verify • Subscriber will place a call to a dedicated line from home phone, collect the Passcode & Verify • Ask Subscriber to place a call to dedicated line from home phone with in short duration

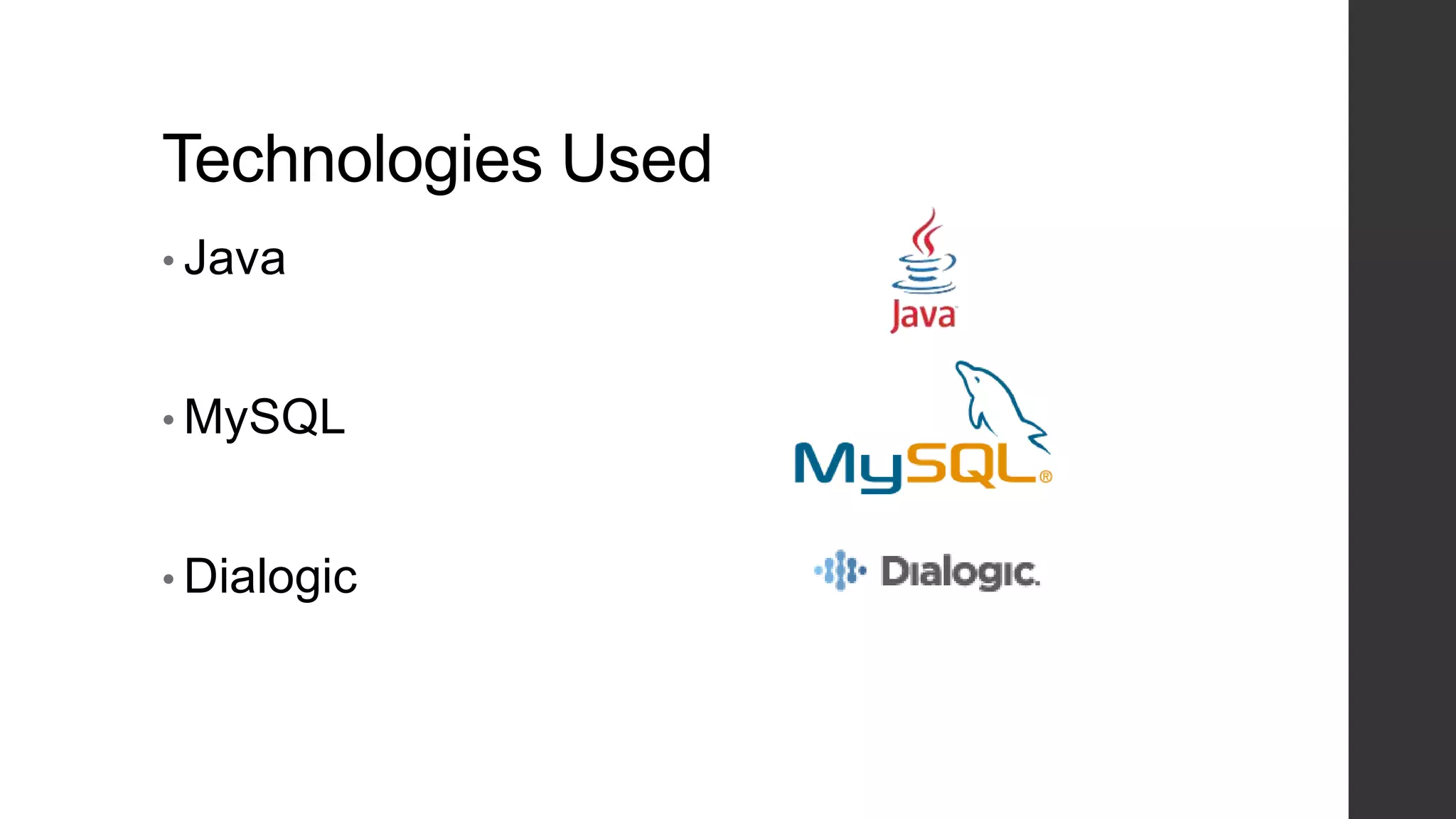

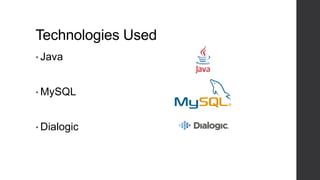

- 7. Technologies Used • Java •MySQL • Dialogic
- 8.
- 9.

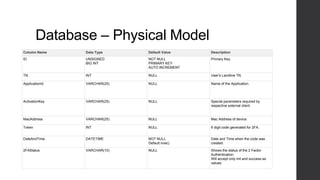

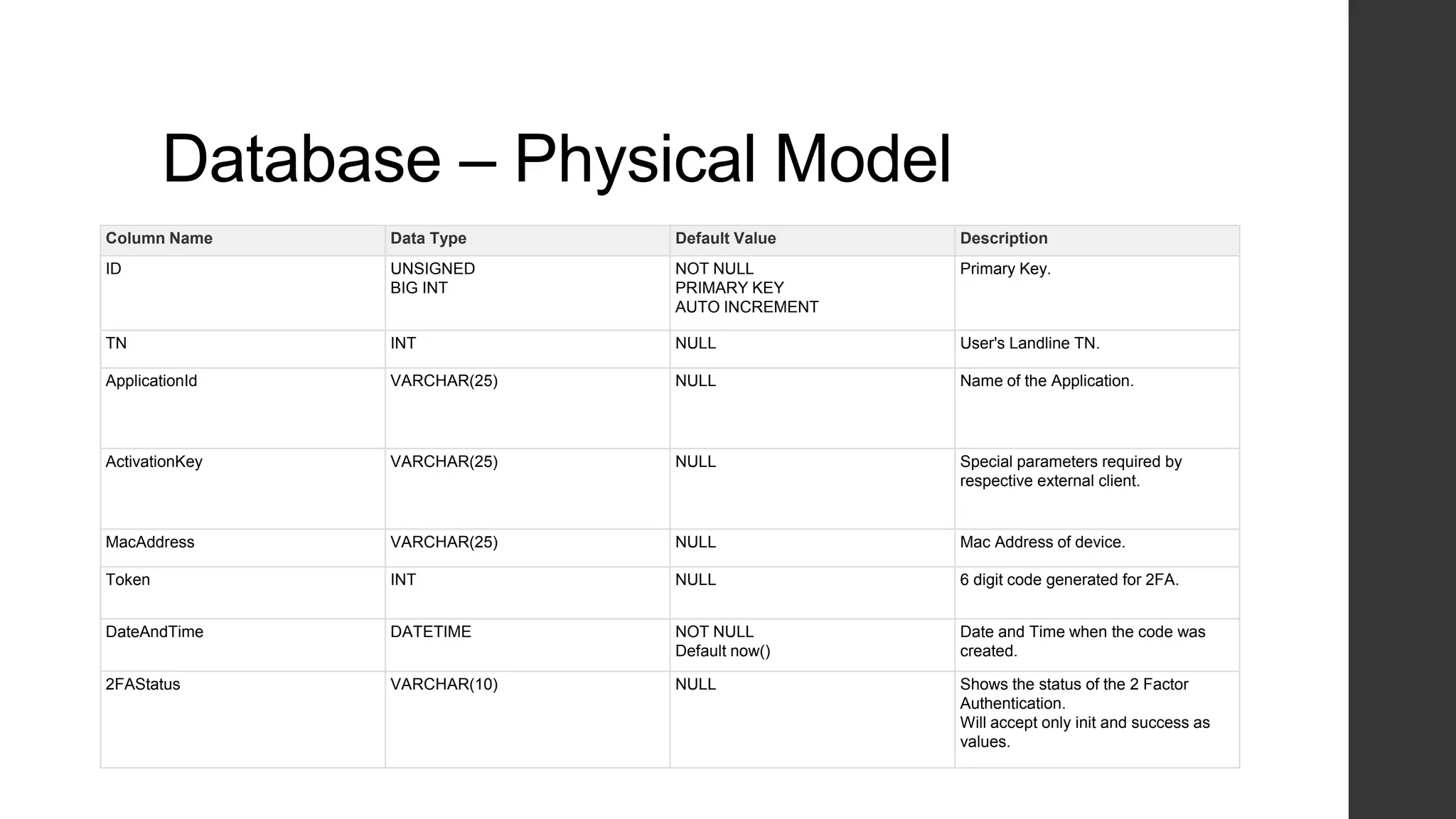

- 10. Database – PhysicalModel Column Name Data Type Default Value Description ID UNSIGNED BIG INT NOT NULL PRIMARY KEY AUTO INCREMENT Primary Key. TN INT NULL User's Landline TN. ApplicationId VARCHAR(25) NULL Name of the Application. ActivationKey VARCHAR(25) NULL Special parameters required by respective external client. MacAddress VARCHAR(25) NULL Mac Address of device. Token INT NULL 6 digit code generated for 2FA. DateAndTime DATETIME NOT NULL Default now() Date and Time when the code was created. 2FAStatus VARCHAR(10) NULL Shows the status of the 2 Factor Authentication. Will accept only init and success as values.
- 11. REST Module -Layered Architecture

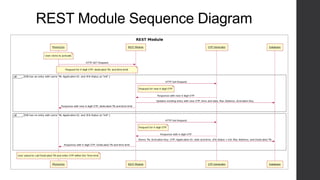

- 12. REST Module SequenceDiagram

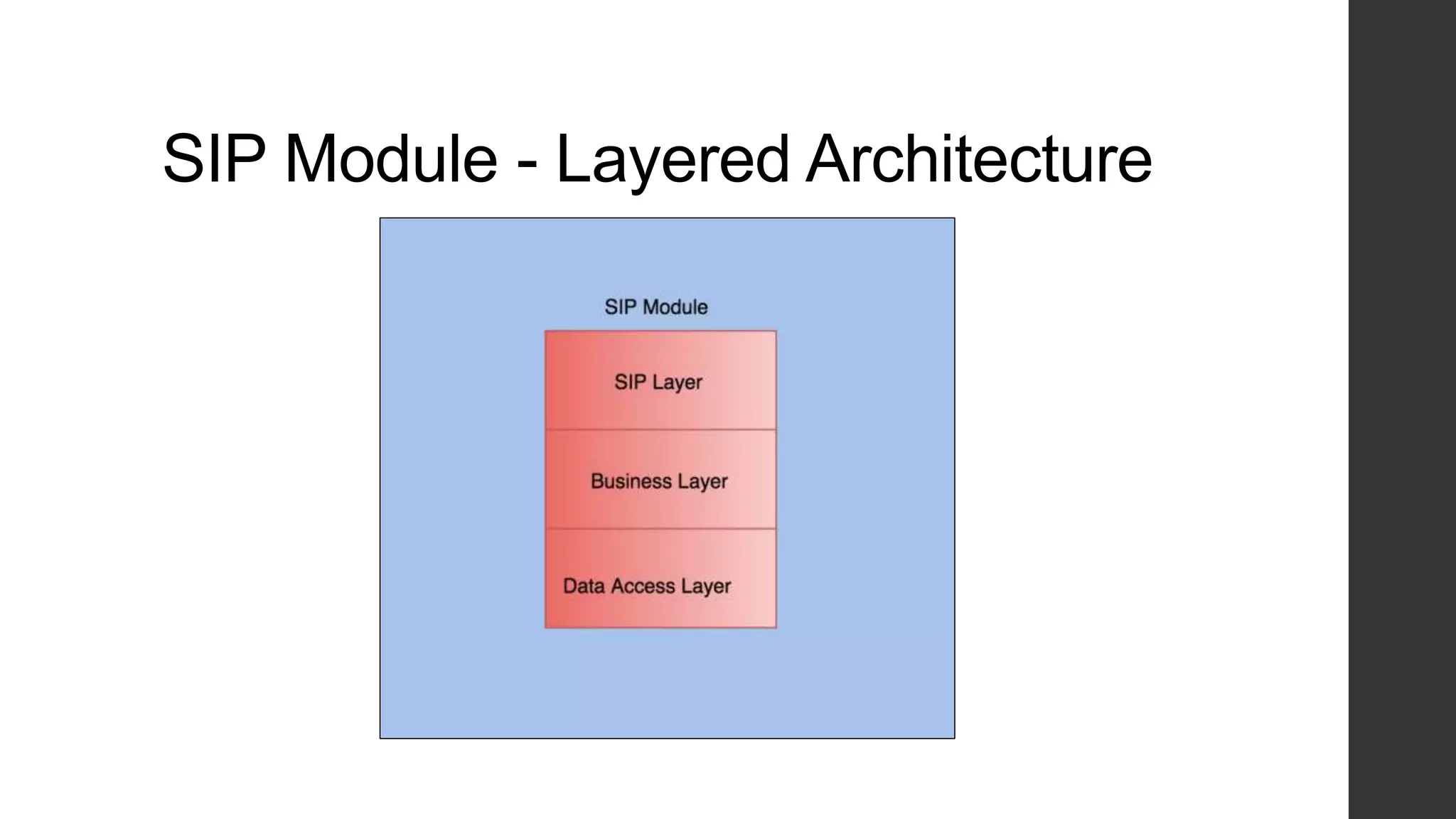

- 13. SIP Module -Layered Architecture

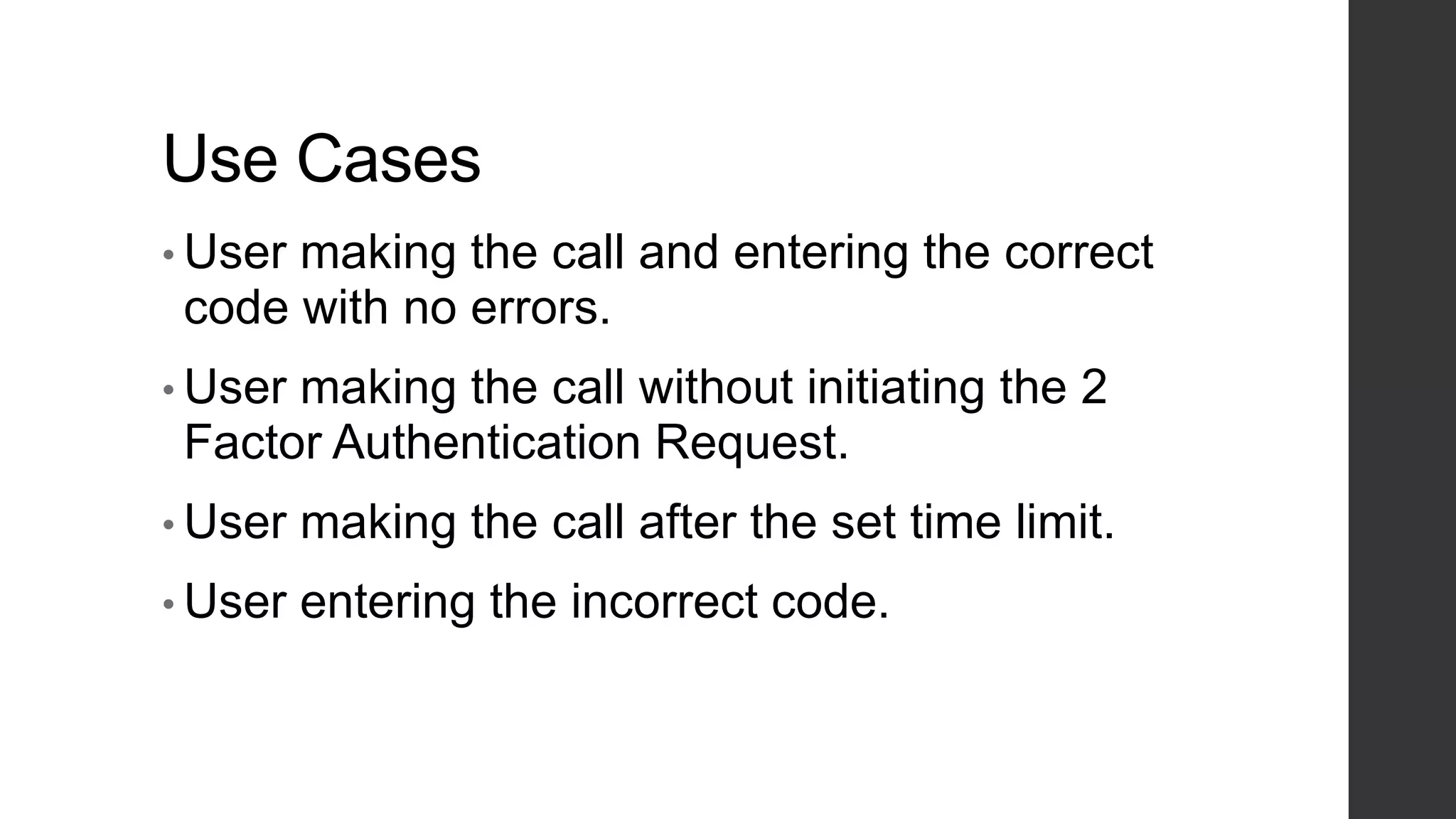

- 14. Use Cases • Usermaking the call and entering the correct code with no errors. • User making the call without initiating the 2 Factor Authentication Request. • User making the call after the set time limit. • User entering the incorrect code.

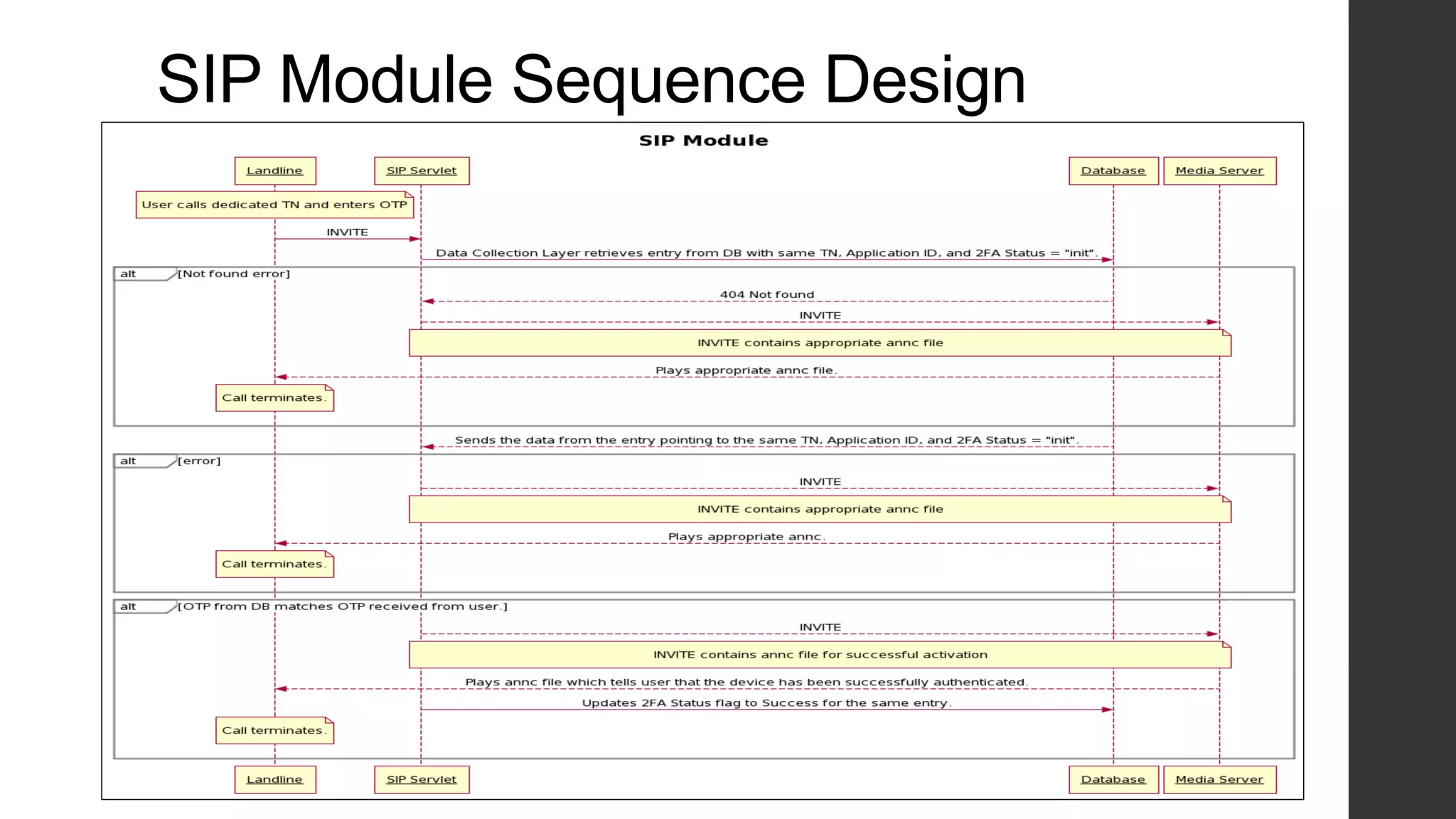

- 15. SIP Module SequenceDesign

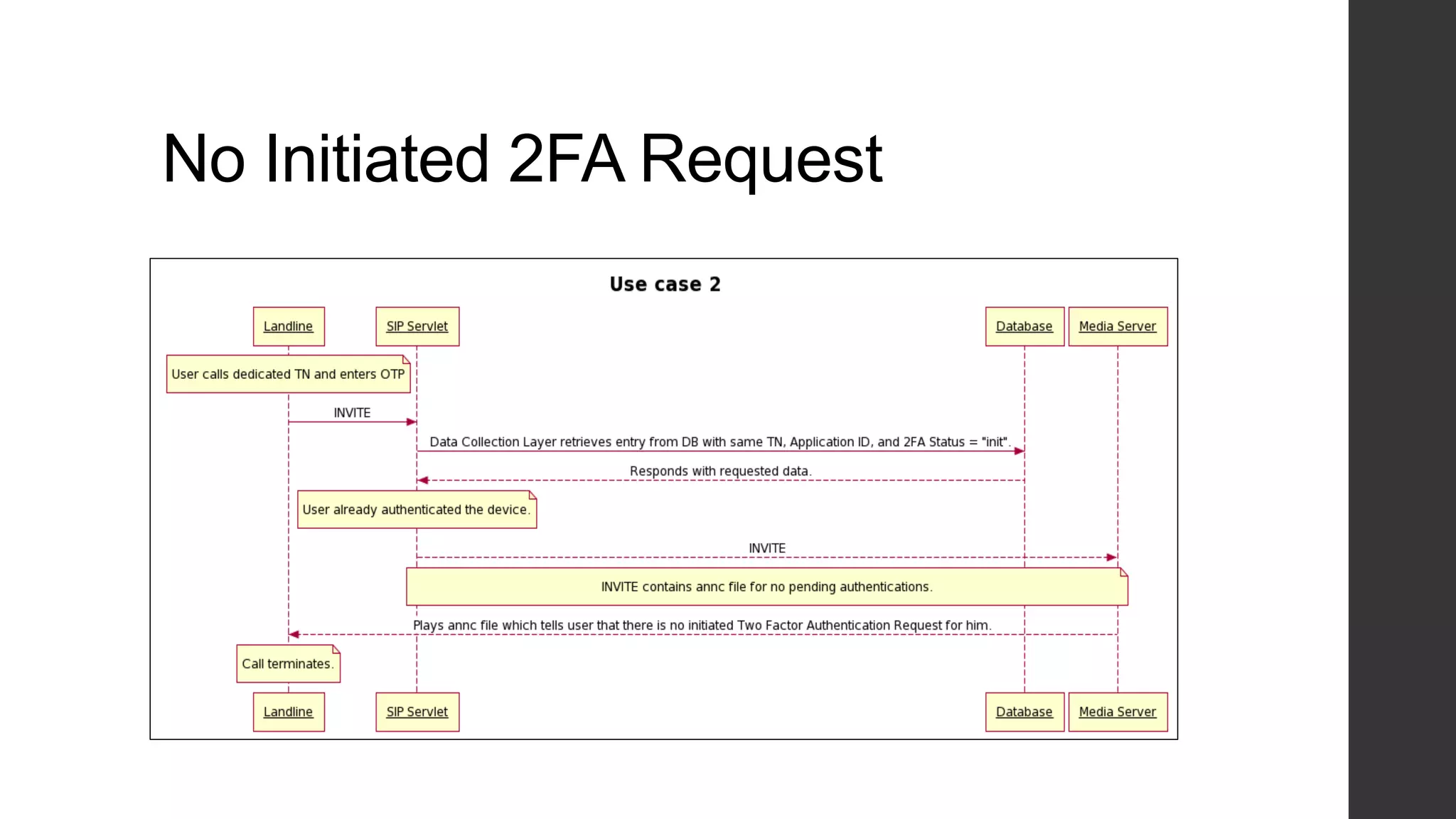

- 16. No Initiated 2FARequest

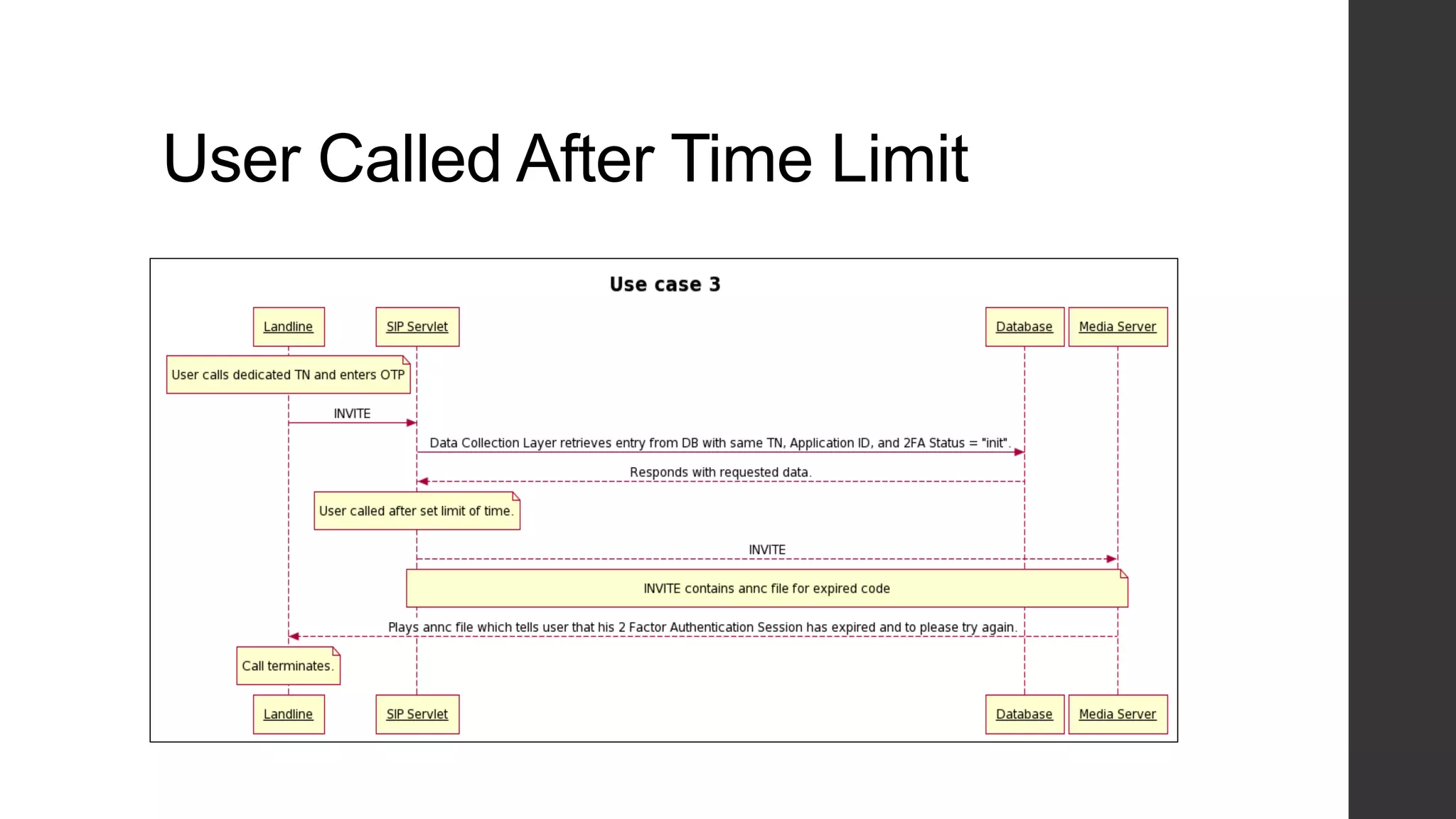

- 17. User Called AfterTime Limit

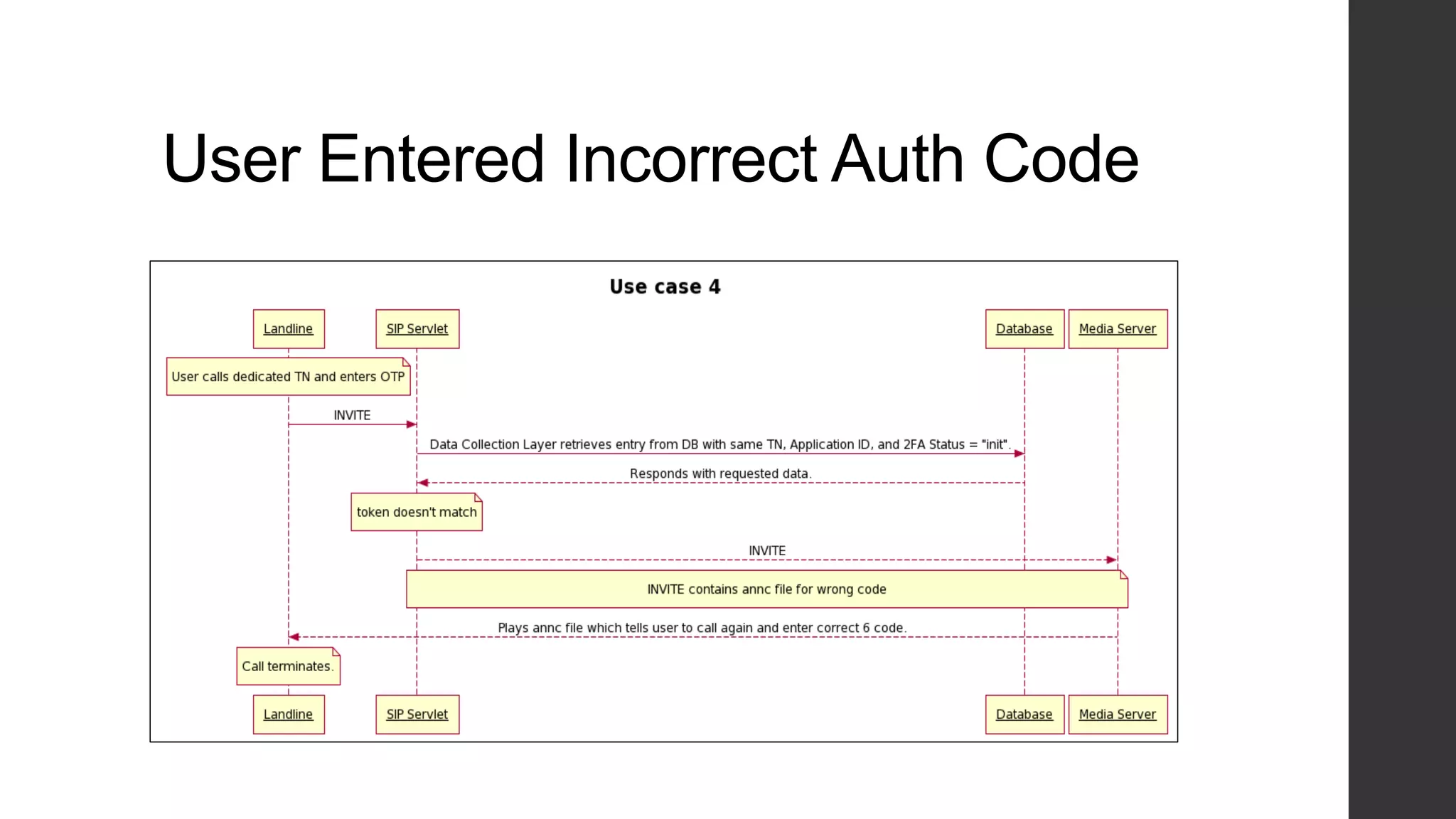

- 18. User Entered IncorrectAuth Code

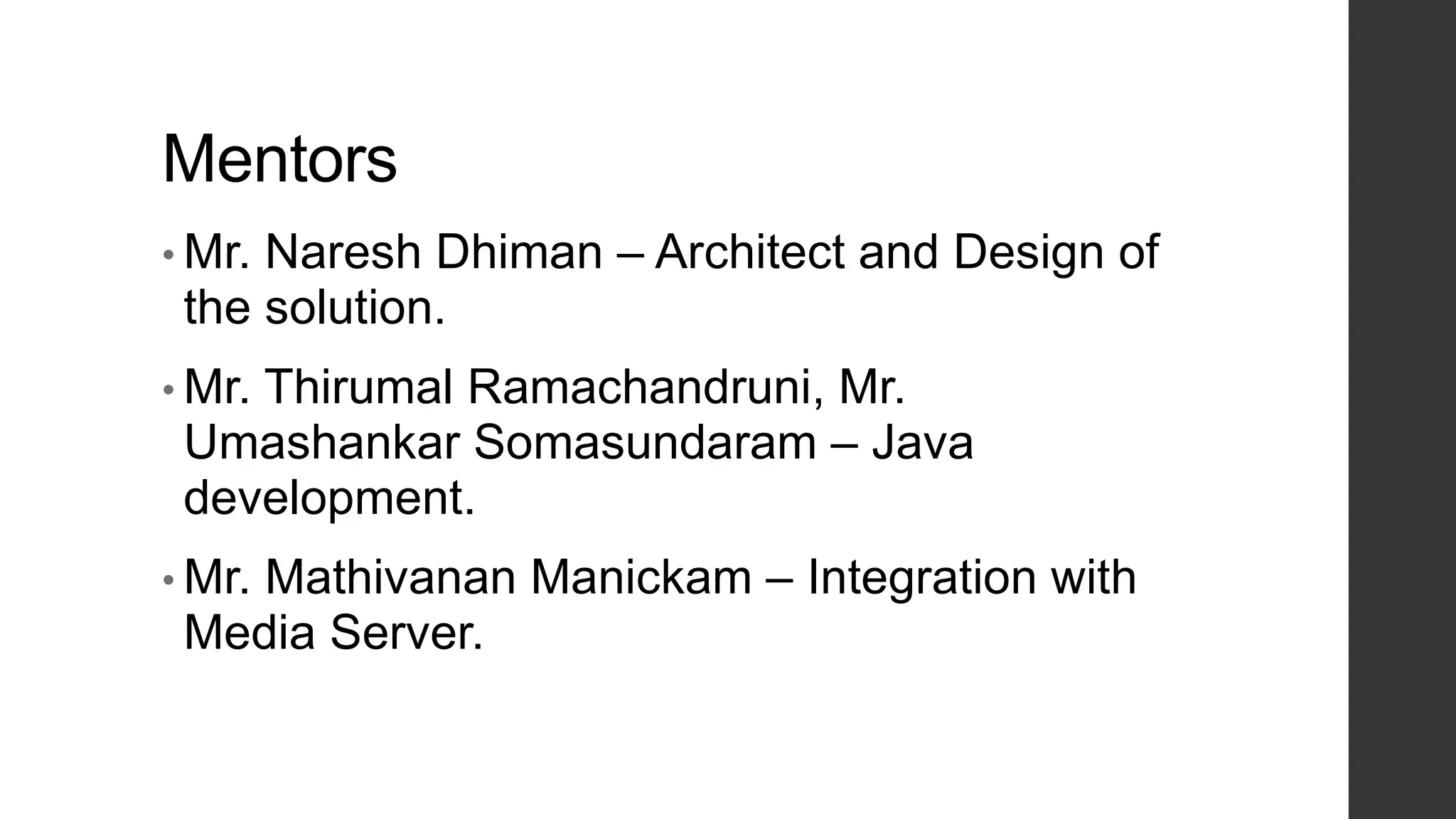

- 19. Mentors • Mr. NareshDhiman – Architect and Design of the solution. • Mr. Thirumal Ramachandruni, Mr. Umashankar Somasundaram – Java development. • Mr. Mathivanan Manickam – Integration with Media Server.

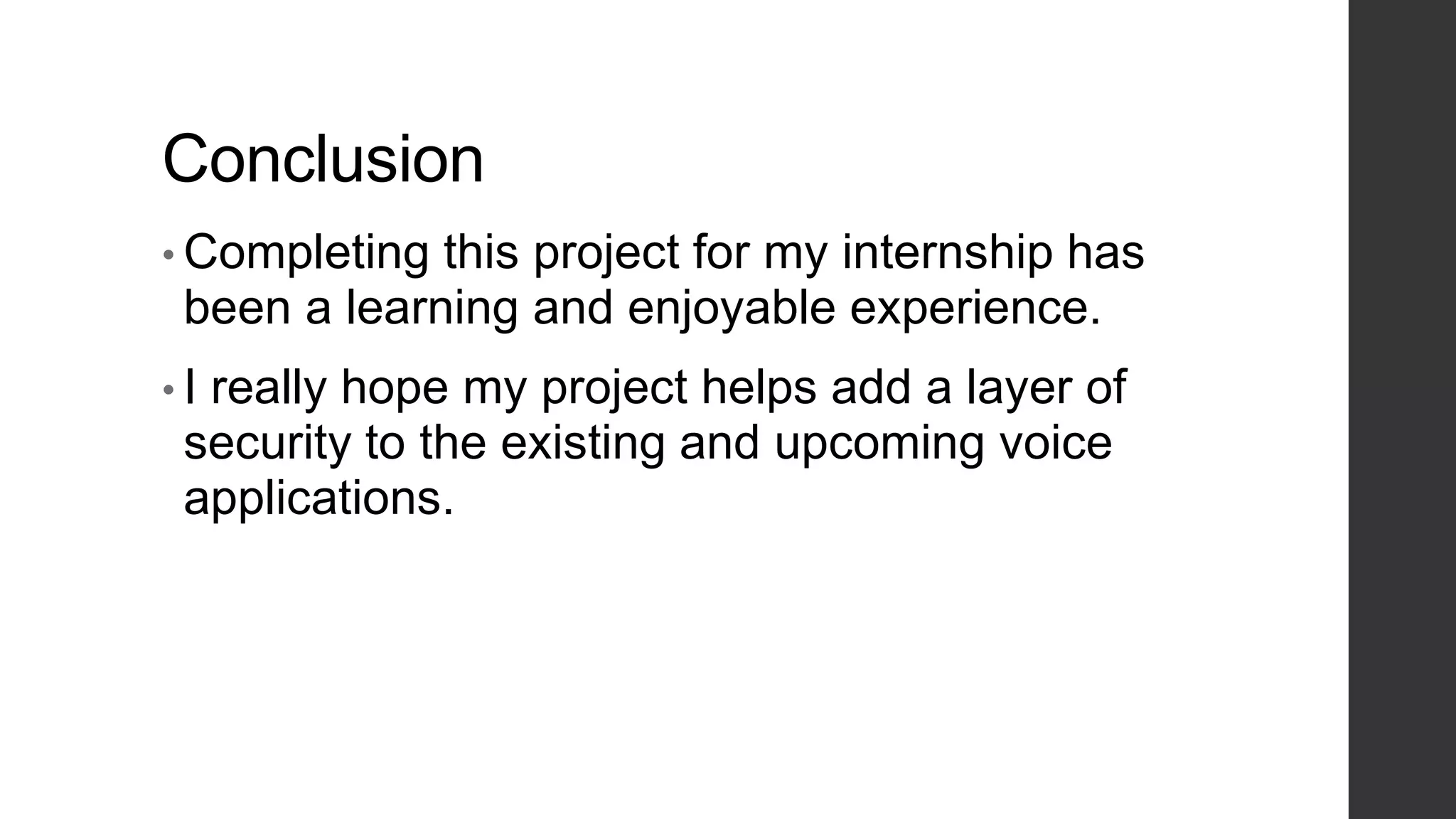

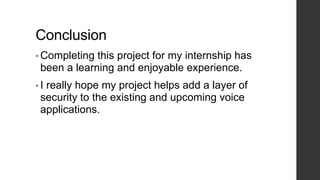

- 20. Conclusion • Completing thisproject for my internship has been a learning and enjoyable experience. • I really hope my project helps add a layer of security to the existing and upcoming voice applications.
