An Introduction to Redis for .NET Developers.pdf
- 1. An Introduction toRedis for .NET Developers Presented By: Steve Lorello @slorello
- 2.

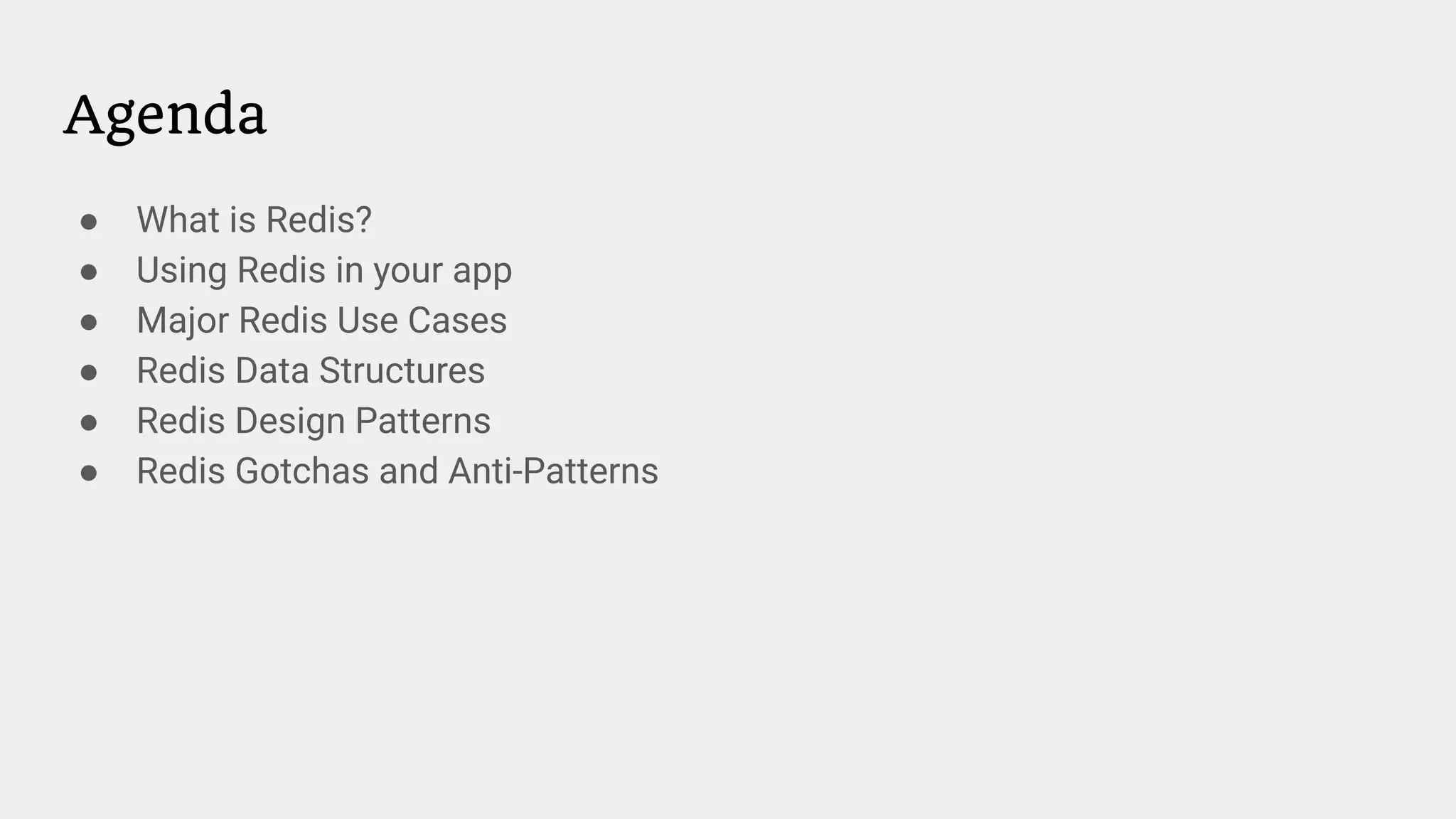

- 3. Agenda ● What isRedis? ● Using Redis in your app ● Major Redis Use Cases ● Redis Data Structures ● Redis Design Patterns ● Redis Gotchas and Anti-Patterns
- 4.

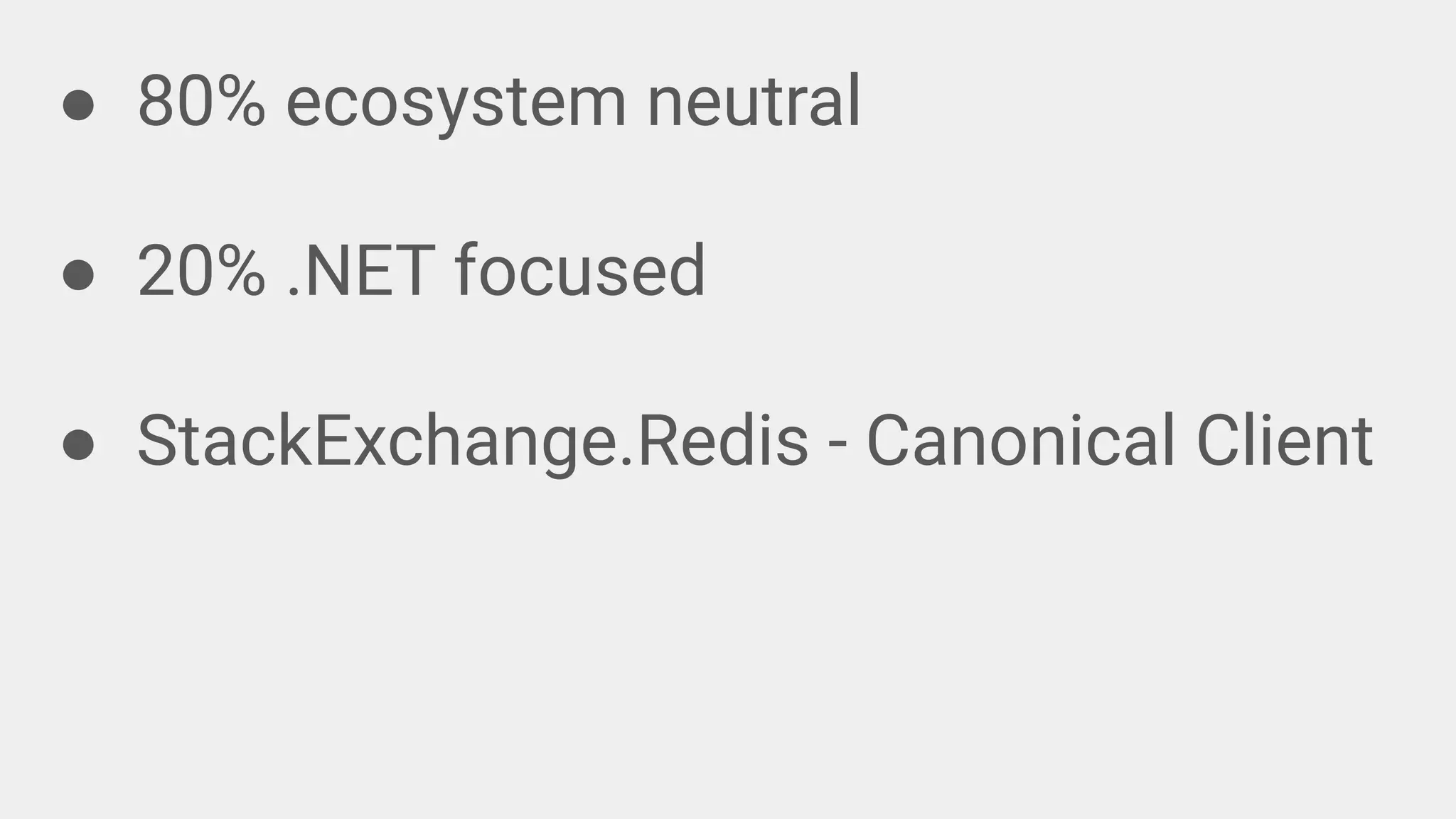

- 5. ● 80% ecosystemneutral ● 20% .NET focused ● StackExchange.Redis - Canonical Client
- 6.

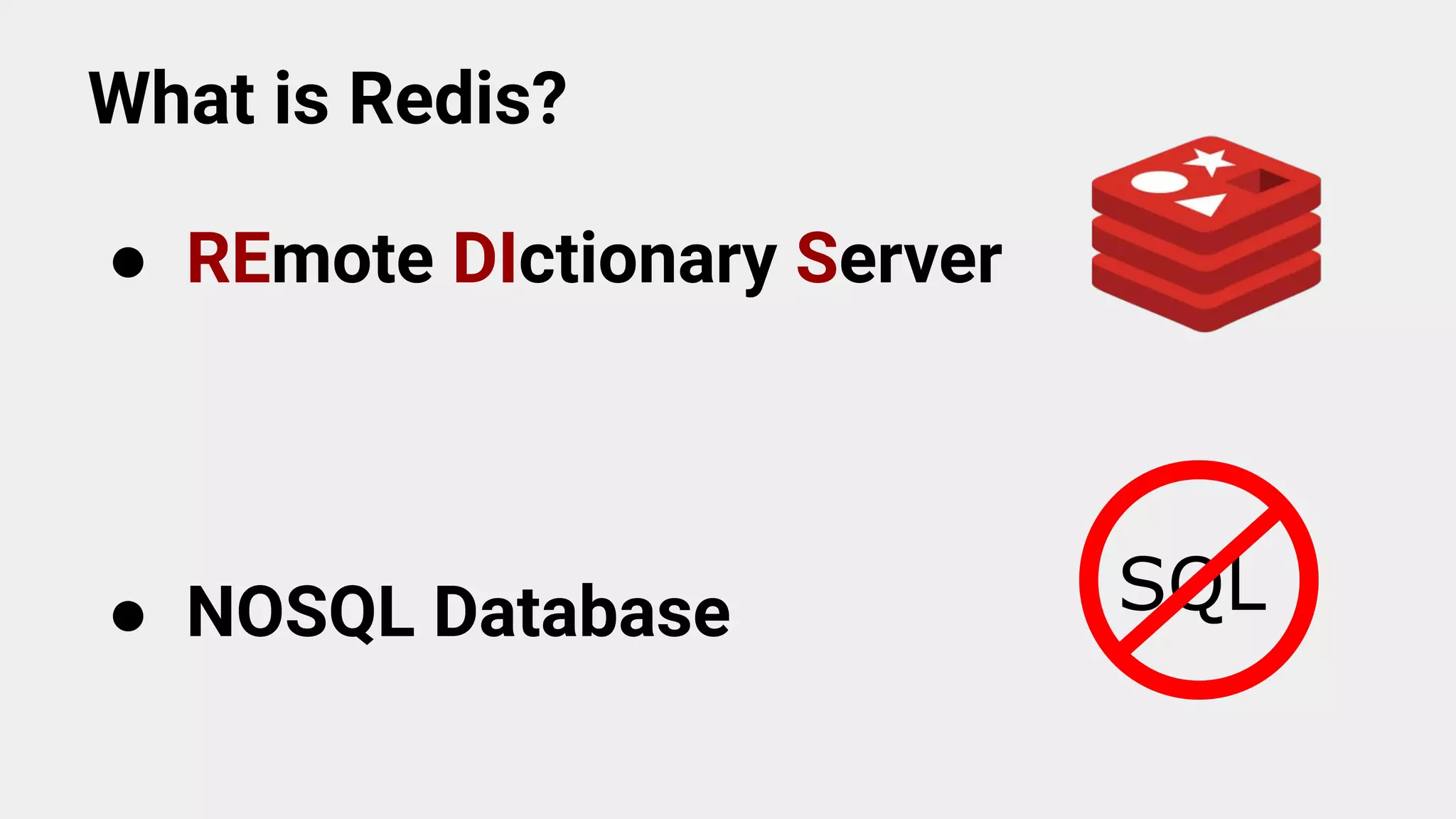

- 7. What is Redis? ●NOSQL Database ● REmote DIctionary Server

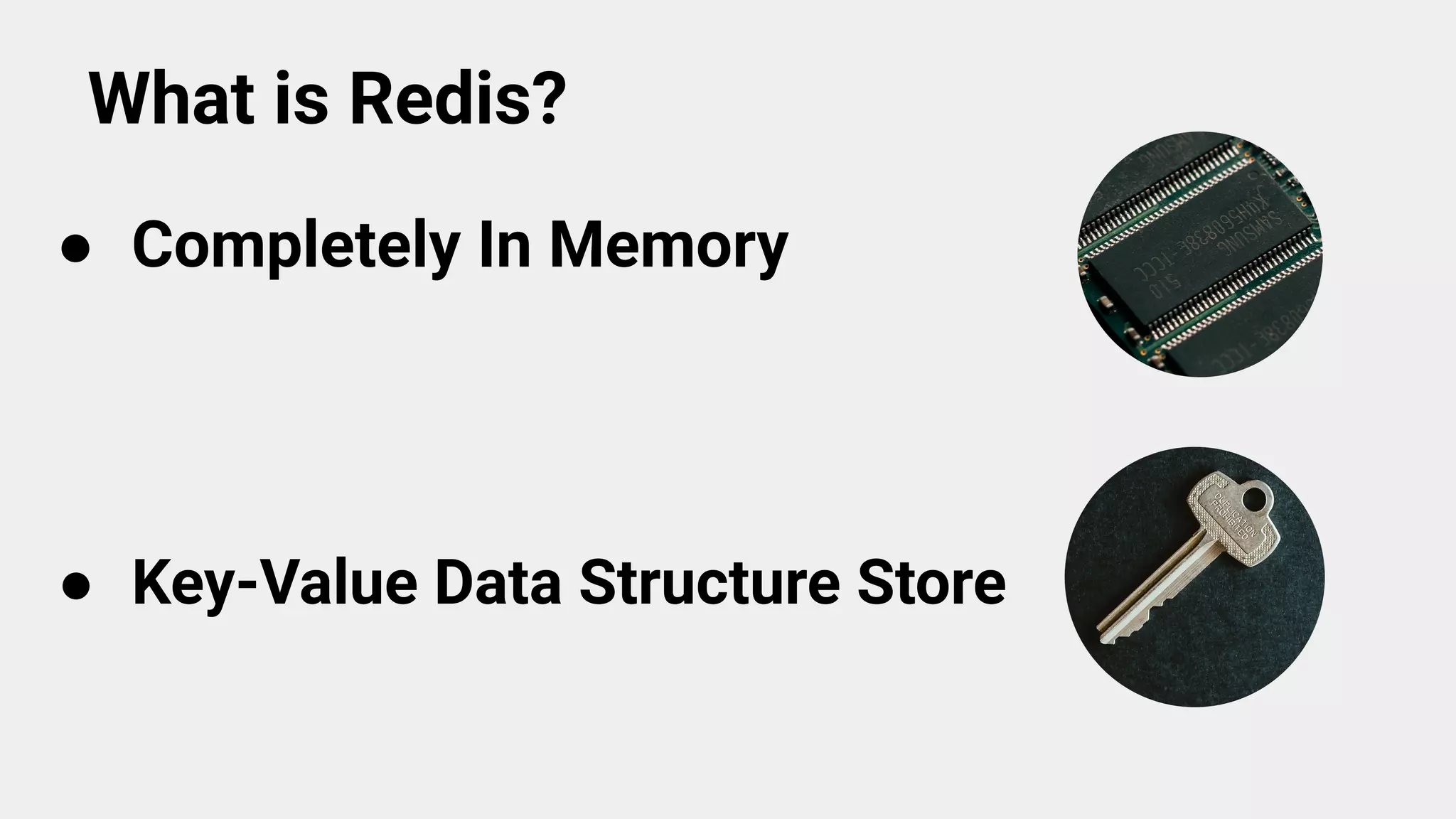

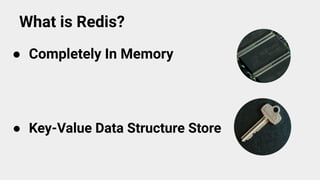

- 8. What is Redis? ●Completely In Memory ● Key-Value Data Structure Store

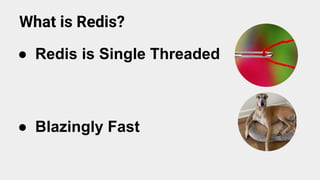

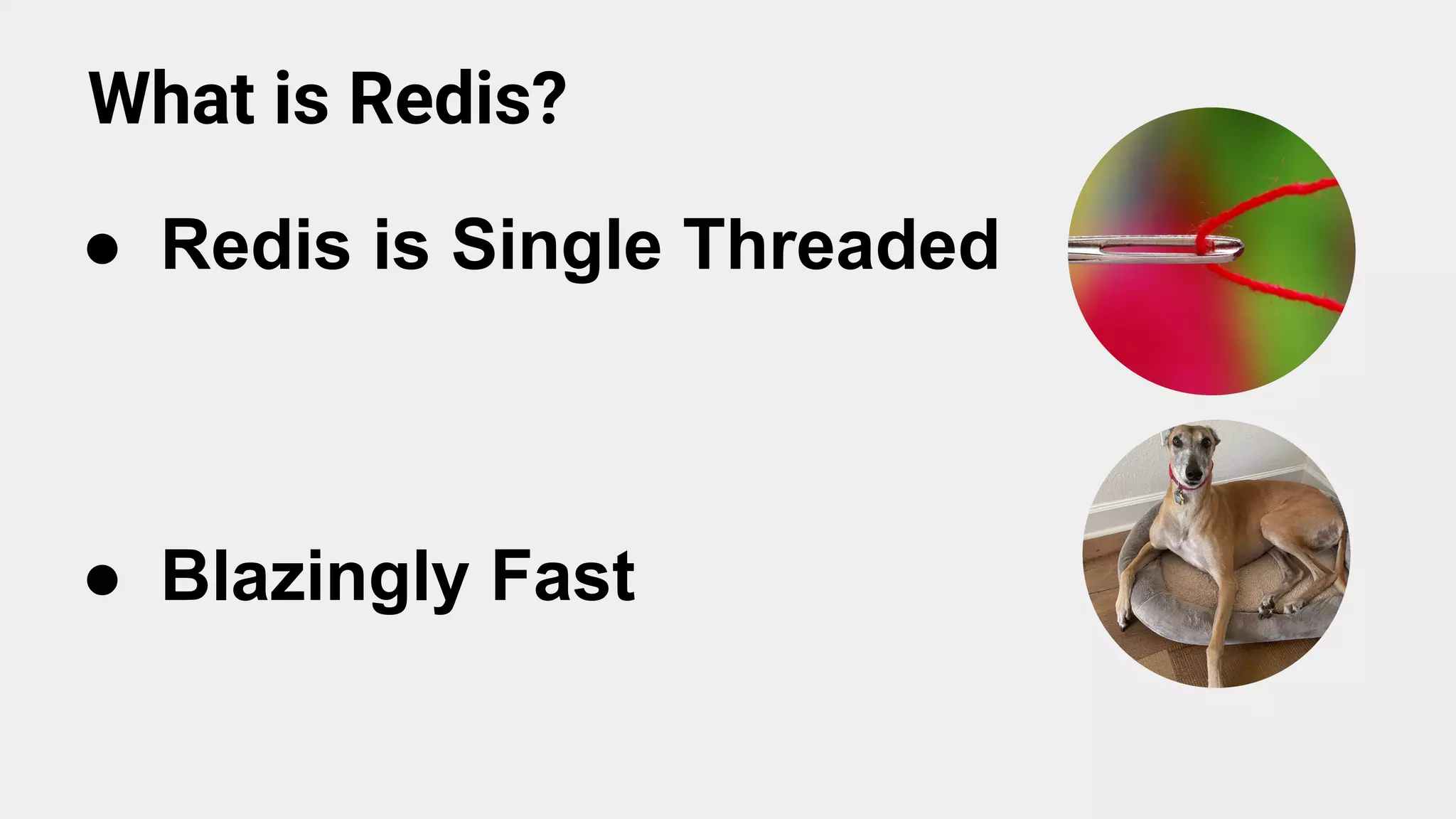

- 9. What is Redis? ●Redis is Single Threaded ● Blazingly Fast

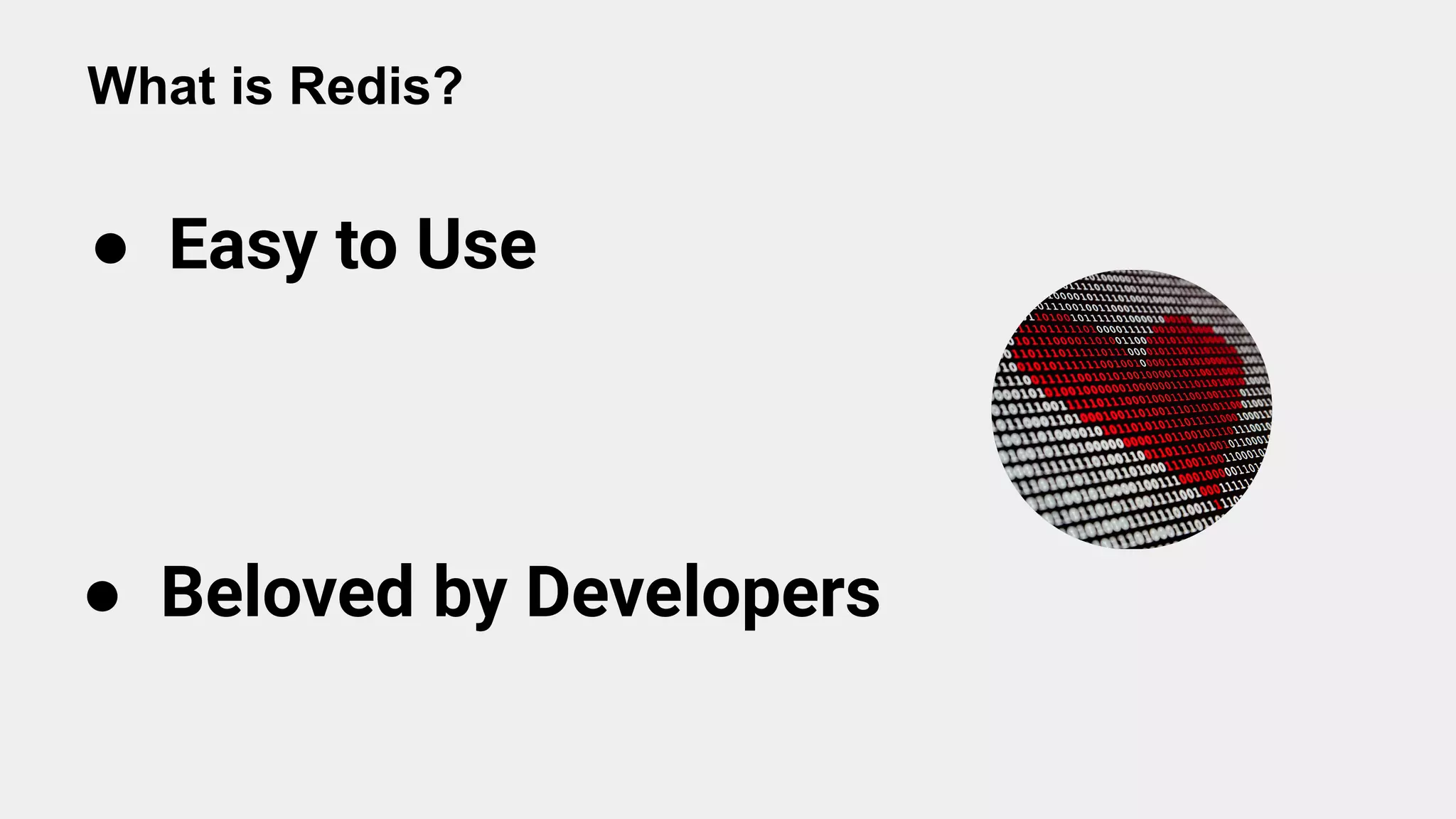

- 10. ● Easy toUse ● Beloved by Developers What is Redis?
- 11.

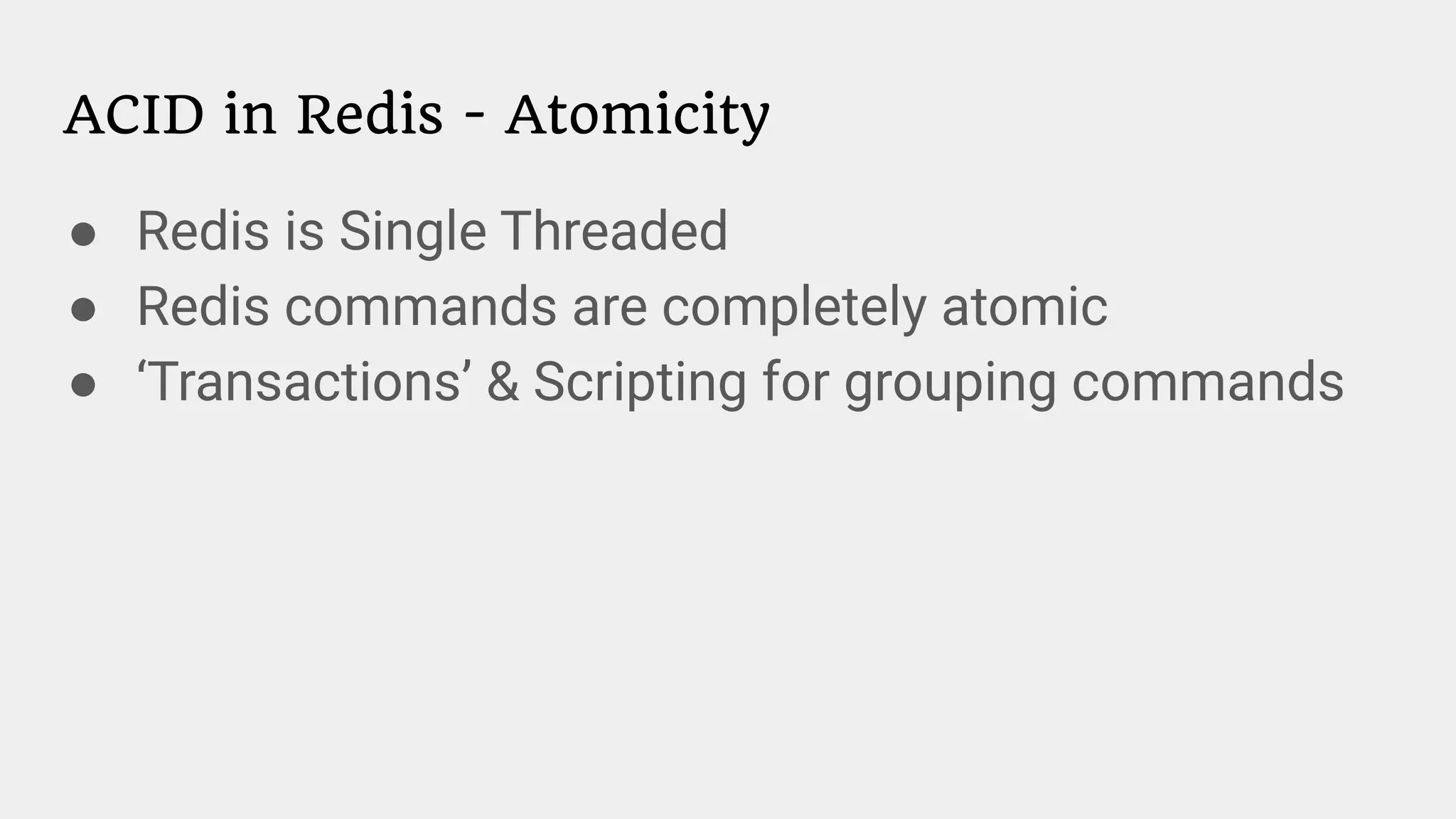

- 12. ACID in Redis- Atomicity ● Redis is Single Threaded ● Redis commands are completely atomic ● ‘Transactions’ & Scripting for grouping commands

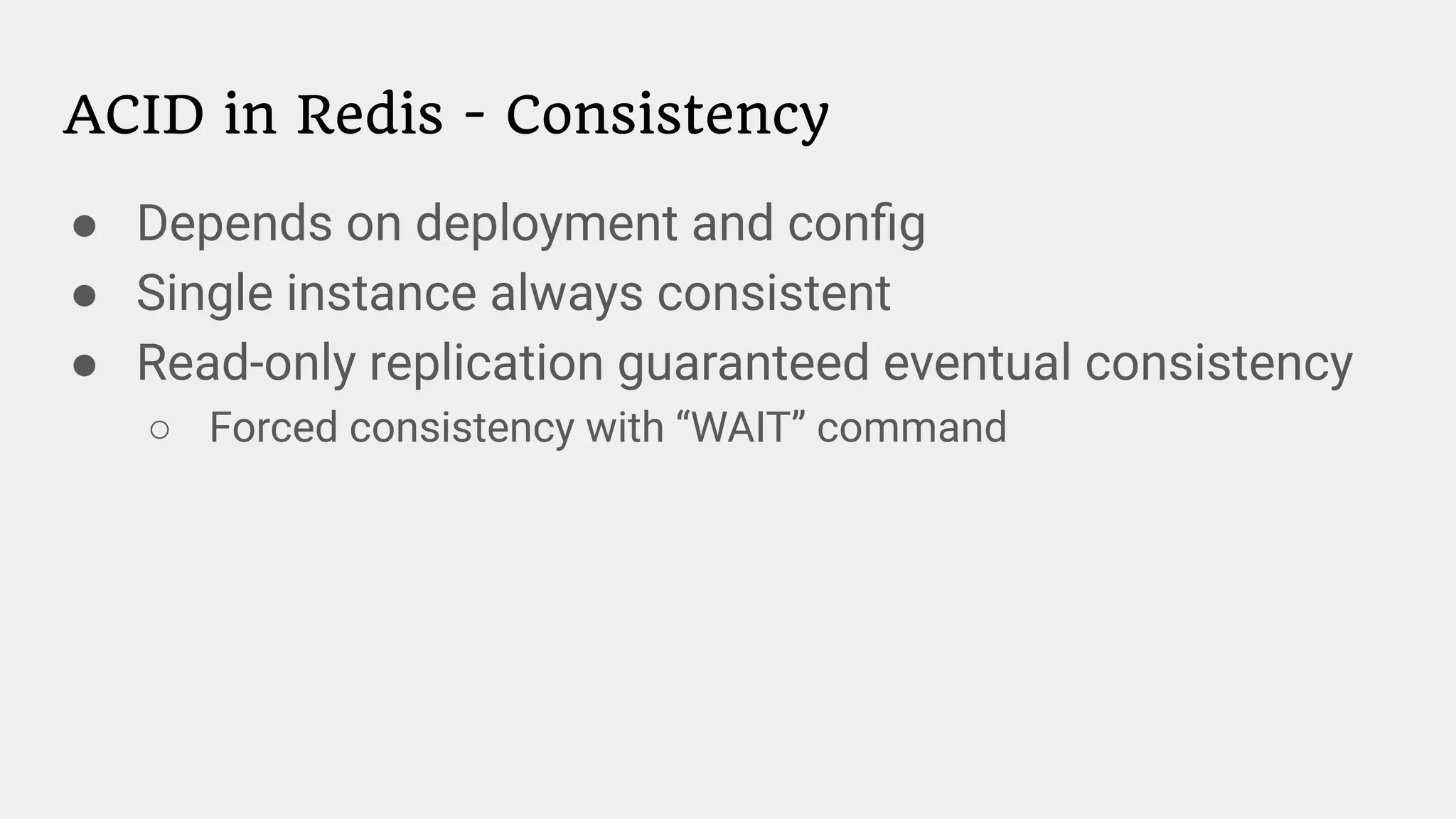

- 13. ACID in Redis- Consistency ● Depends on deployment and config ● Single instance always consistent ● Read-only replication guaranteed eventual consistency ○ Forced consistency with “WAIT” command

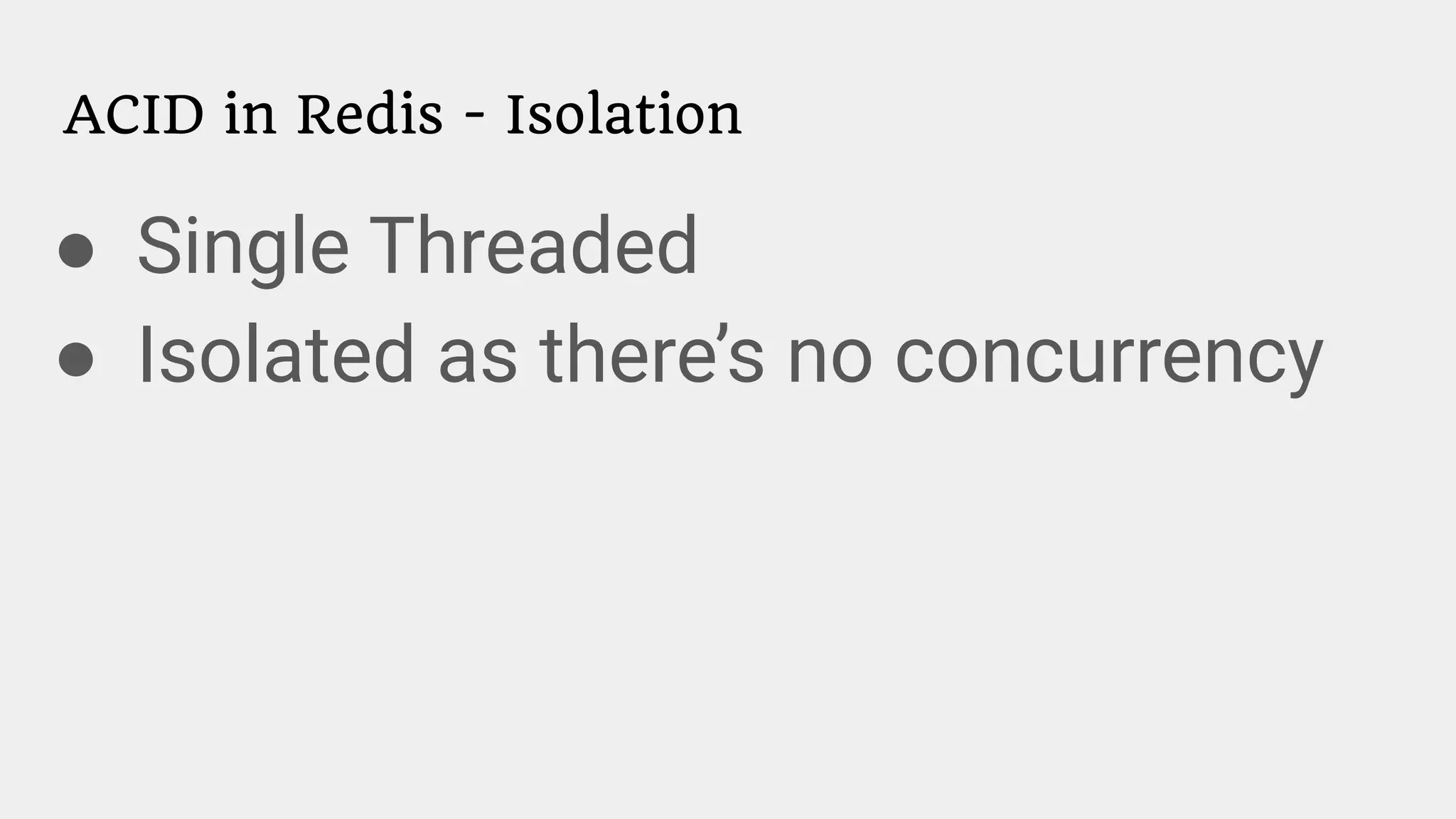

- 14. ACID in Redis- Isolation ● Single Threaded ● Isolated as there’s no concurrency

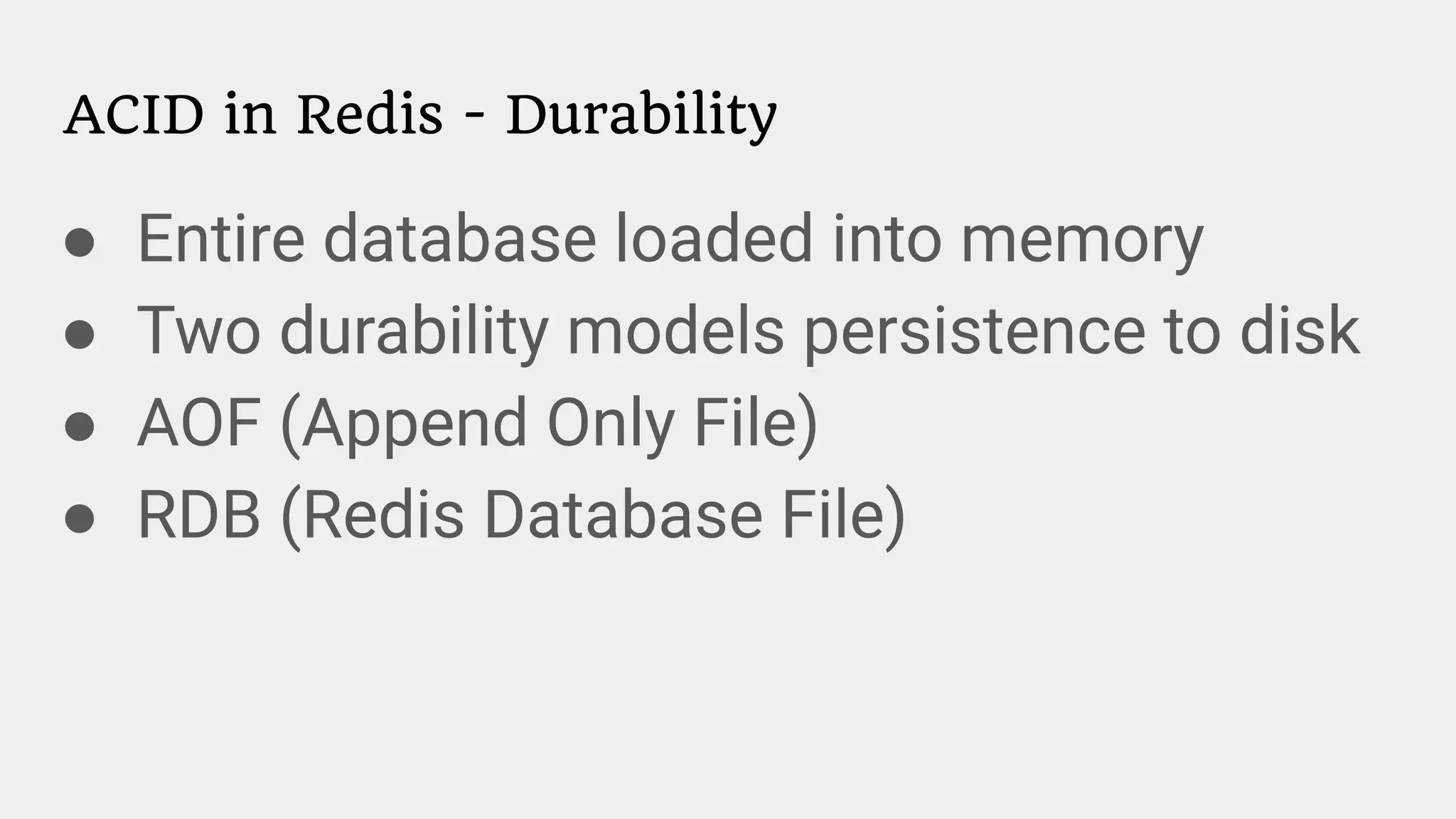

- 15. ACID in Redis- Durability ● Entire database loaded into memory ● Two durability models persistence to disk ● AOF (Append Only File) ● RDB (Redis Database File)

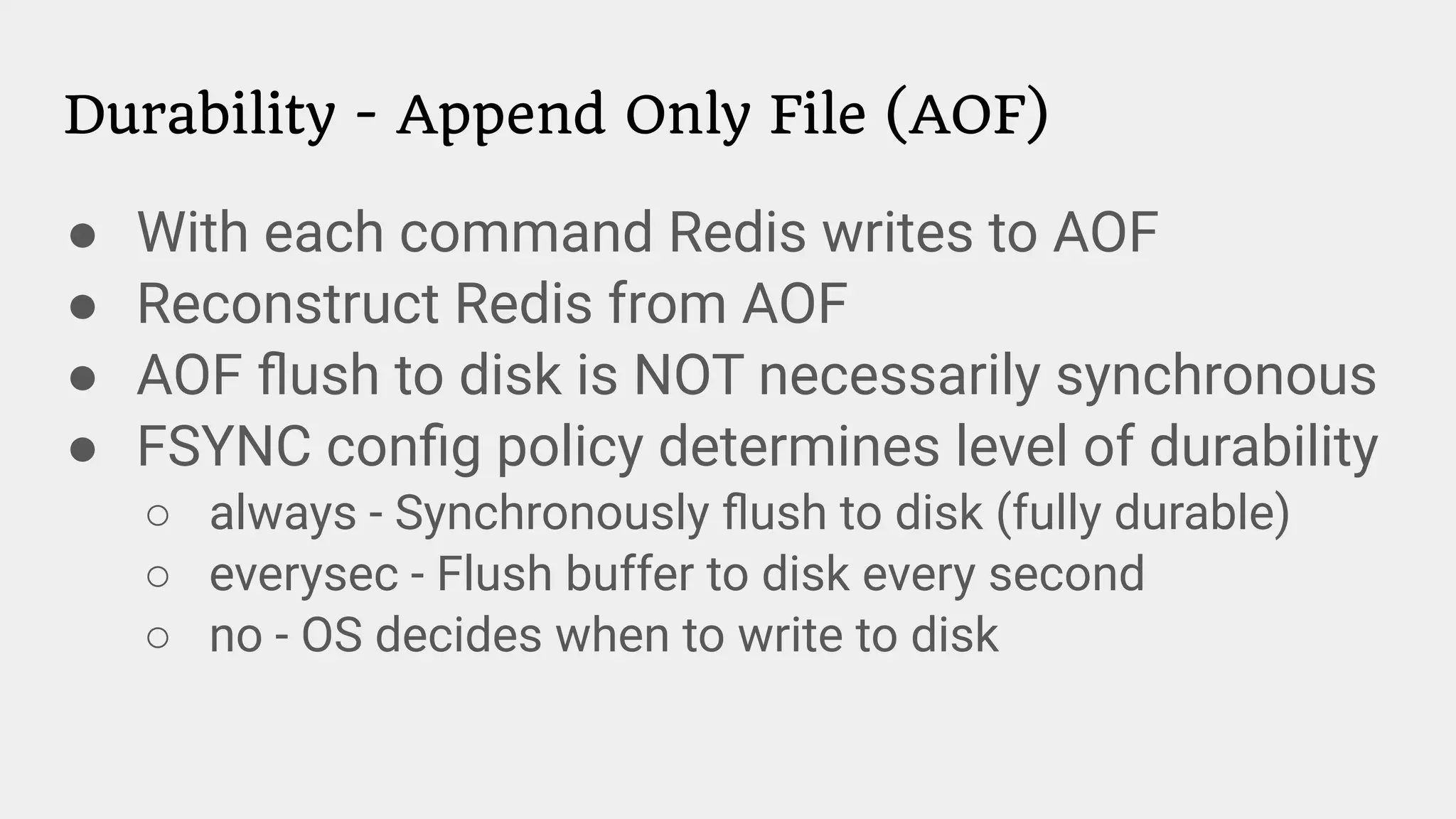

- 16. Durability - AppendOnly File (AOF) ● With each command Redis writes to AOF ● Reconstruct Redis from AOF ● AOF flush to disk is NOT necessarily synchronous ● FSYNC config policy determines level of durability ○ always - Synchronously flush to disk (fully durable) ○ everysec - Flush buffer to disk every second ○ no - OS decides when to write to disk

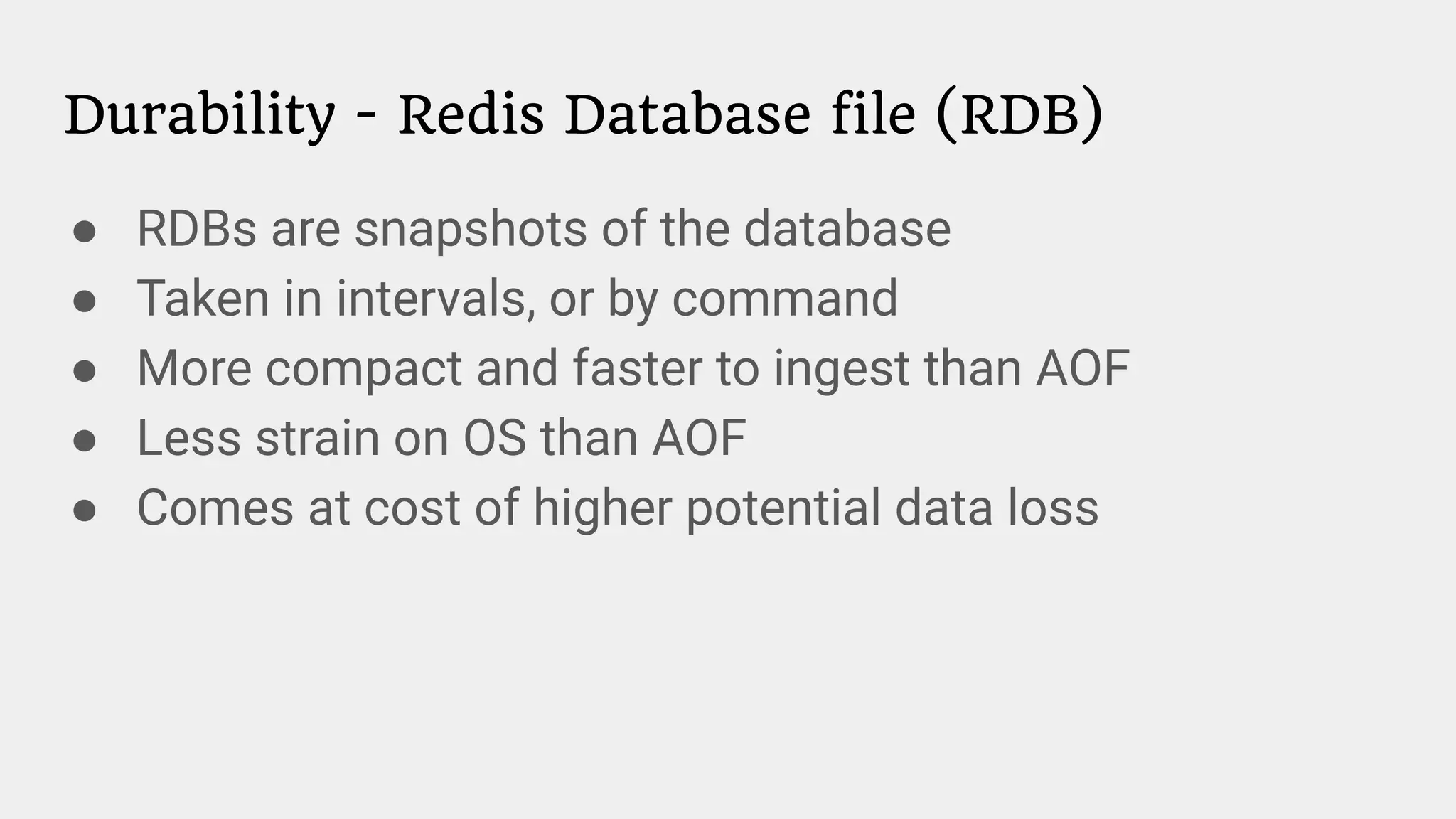

- 17. Durability - RedisDatabase file (RDB) ● RDBs are snapshots of the database ● Taken in intervals, or by command ● More compact and faster to ingest than AOF ● Less strain on OS than AOF ● Comes at cost of higher potential data loss

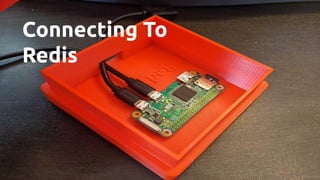

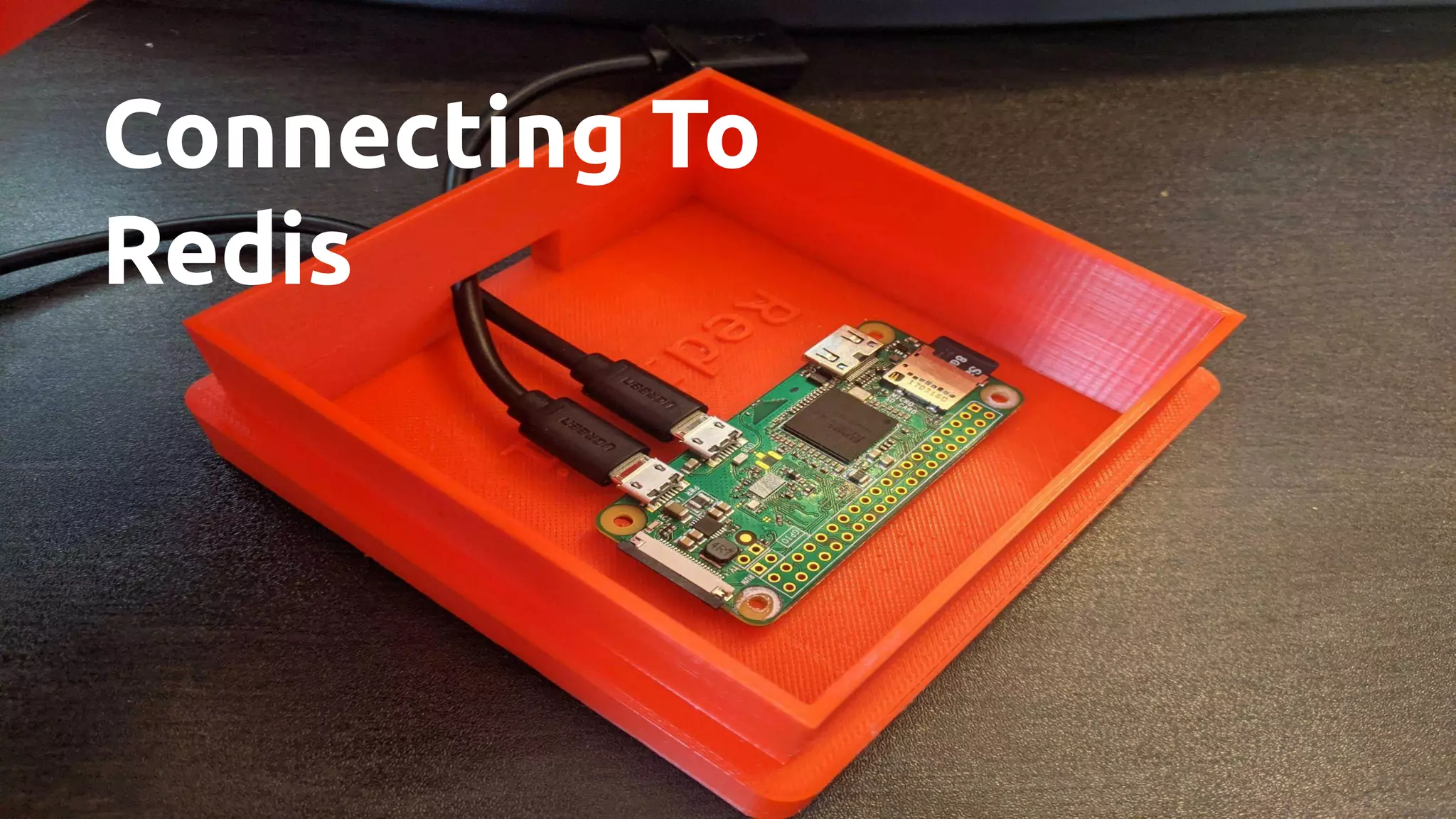

- 18.

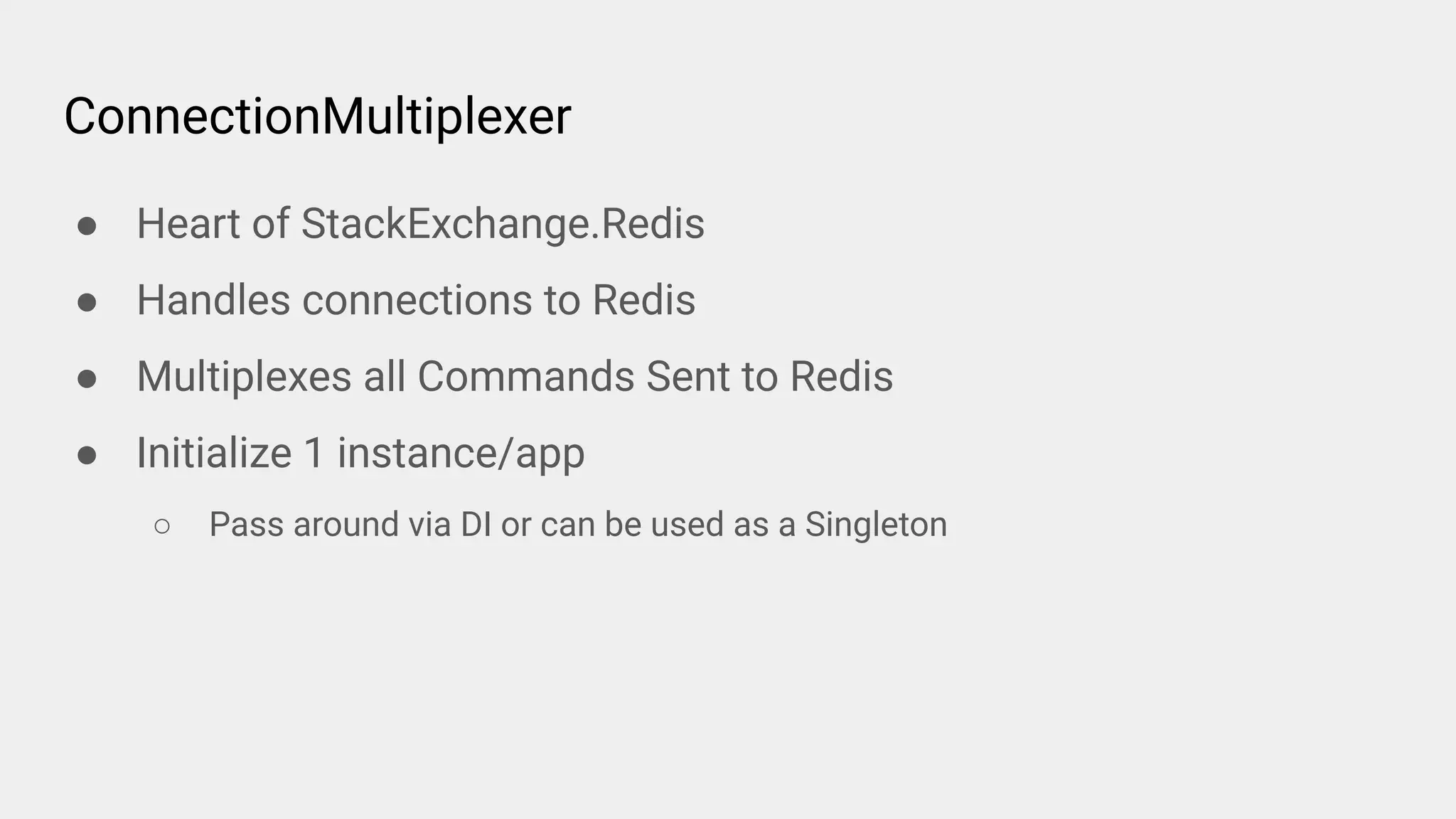

- 19. ConnectionMultiplexer ● Heart ofStackExchange.Redis ● Handles connections to Redis ● Multiplexes all Commands Sent to Redis ● Initialize 1 instance/app ○ Pass around via DI or can be used as a Singleton

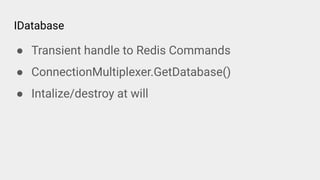

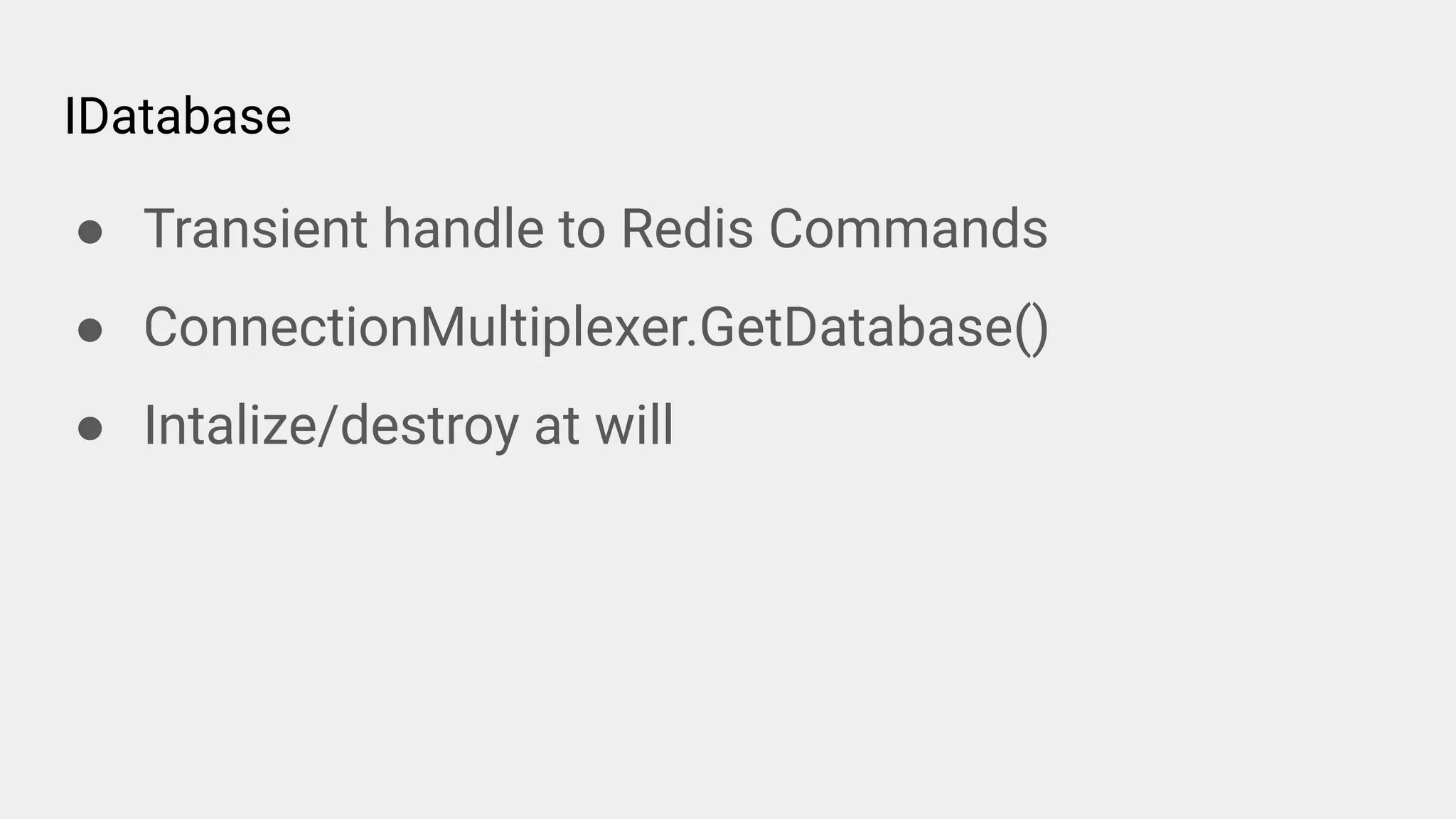

- 20. IDatabase ● Transient handleto Redis Commands ● ConnectionMultiplexer.GetDatabase() ● Intalize/destroy at will

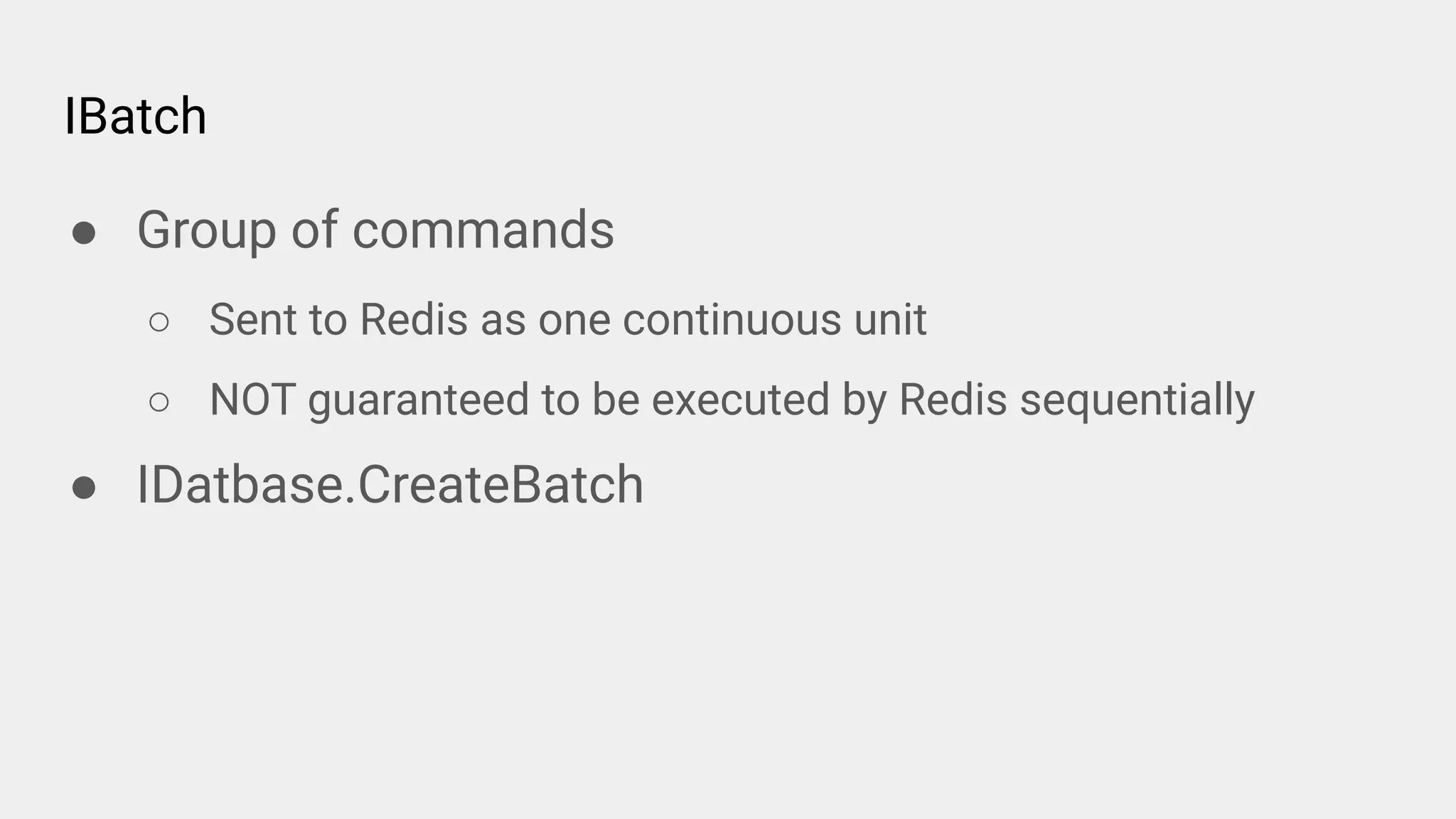

- 21. IBatch ● Group ofcommands ○ Sent to Redis as one continuous unit ○ NOT guaranteed to be executed by Redis sequentially ● IDatbase.CreateBatch
- 22.
- 23.

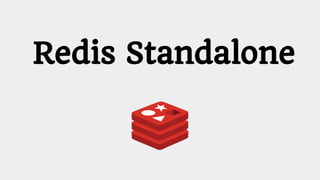

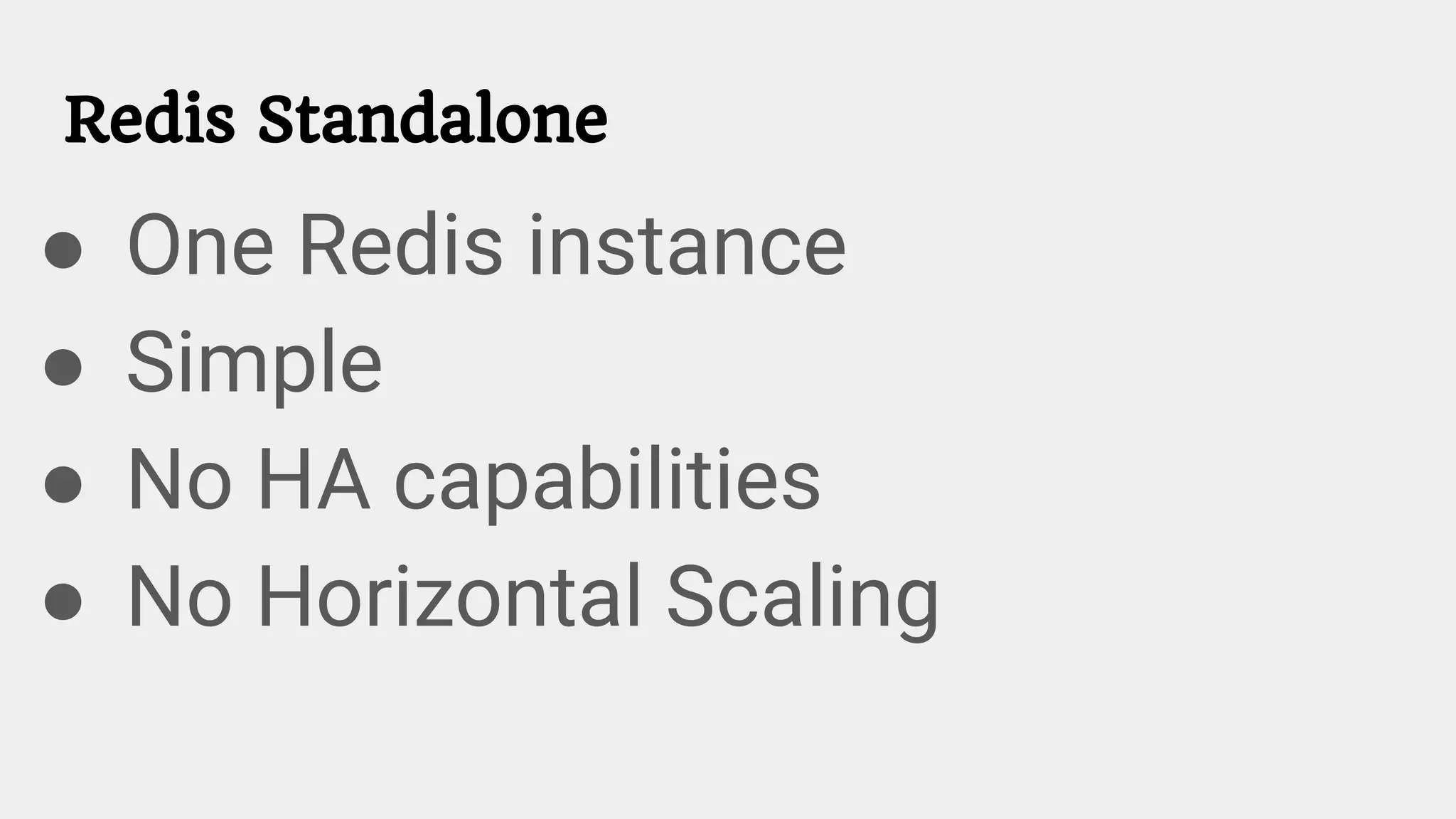

- 24. Redis Standalone ● OneRedis instance ● Simple ● No HA capabilities ● No Horizontal Scaling

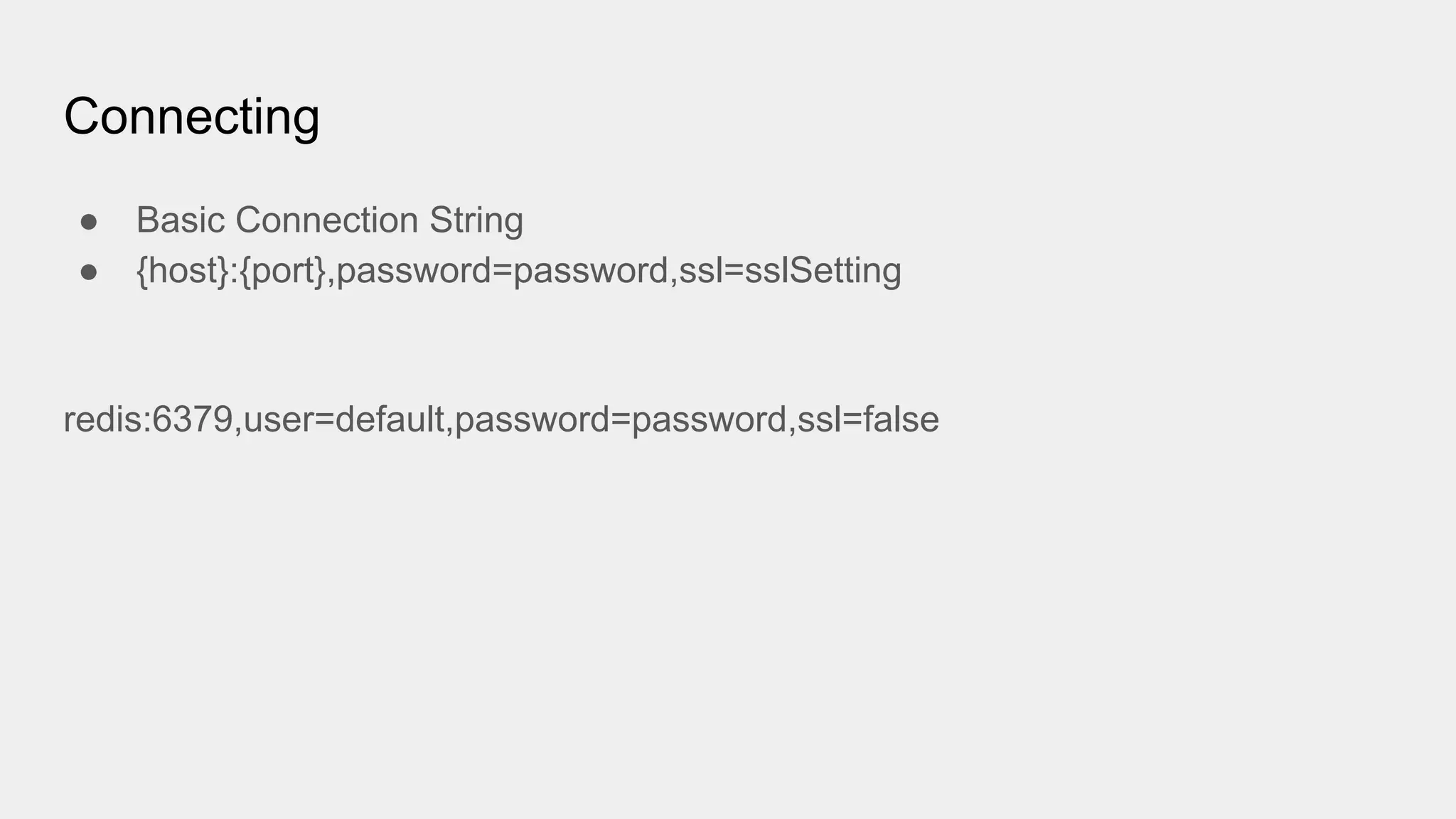

- 25. Connecting ● Basic ConnectionString ● {host}:{port},password=password,ssl=sslSetting redis:6379,user=default,password=password,ssl=false
- 27.

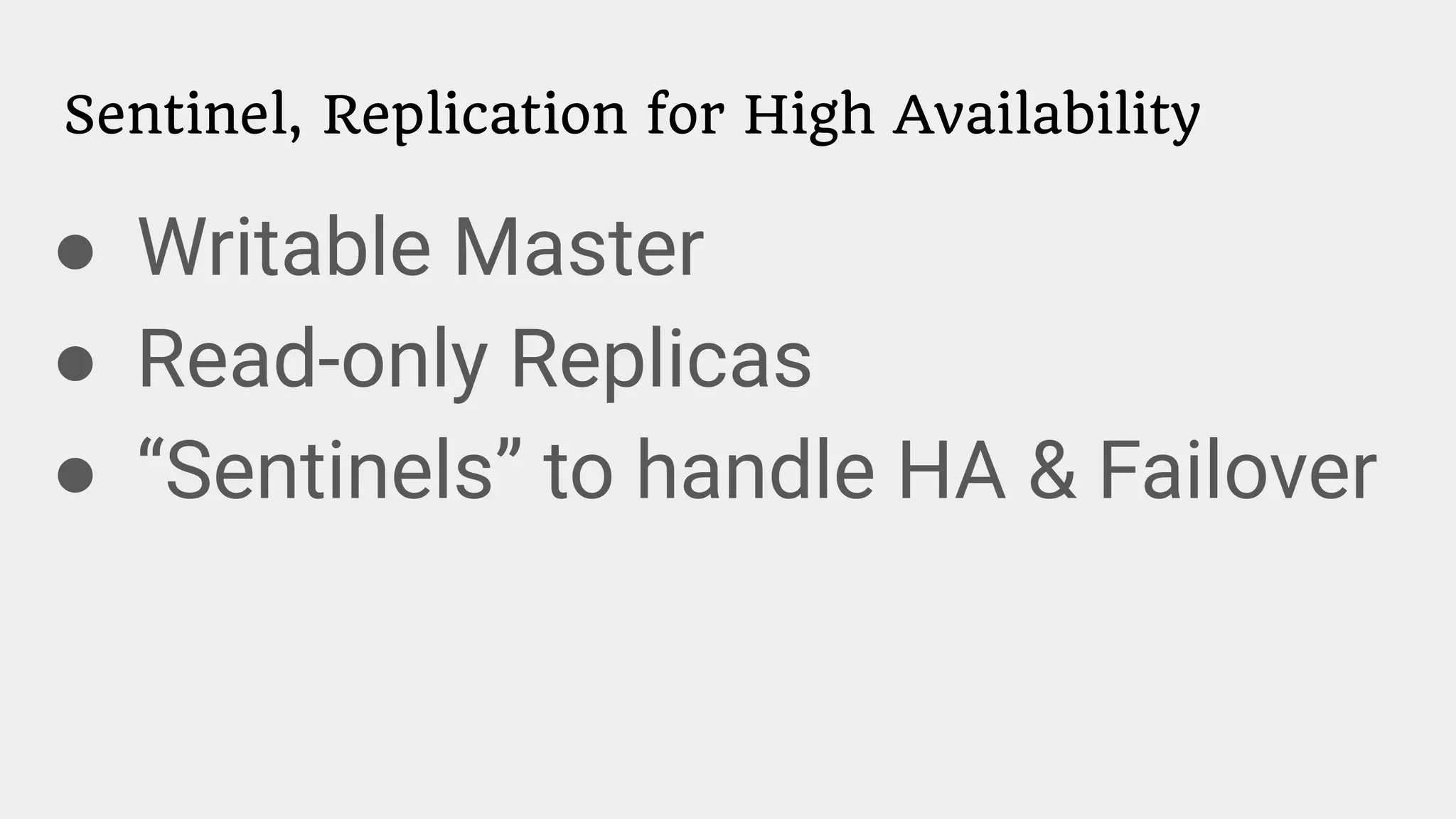

- 28. Sentinel, Replication forHigh Availability ● Writable Master ● Read-only Replicas ● “Sentinels” to handle HA & Failover

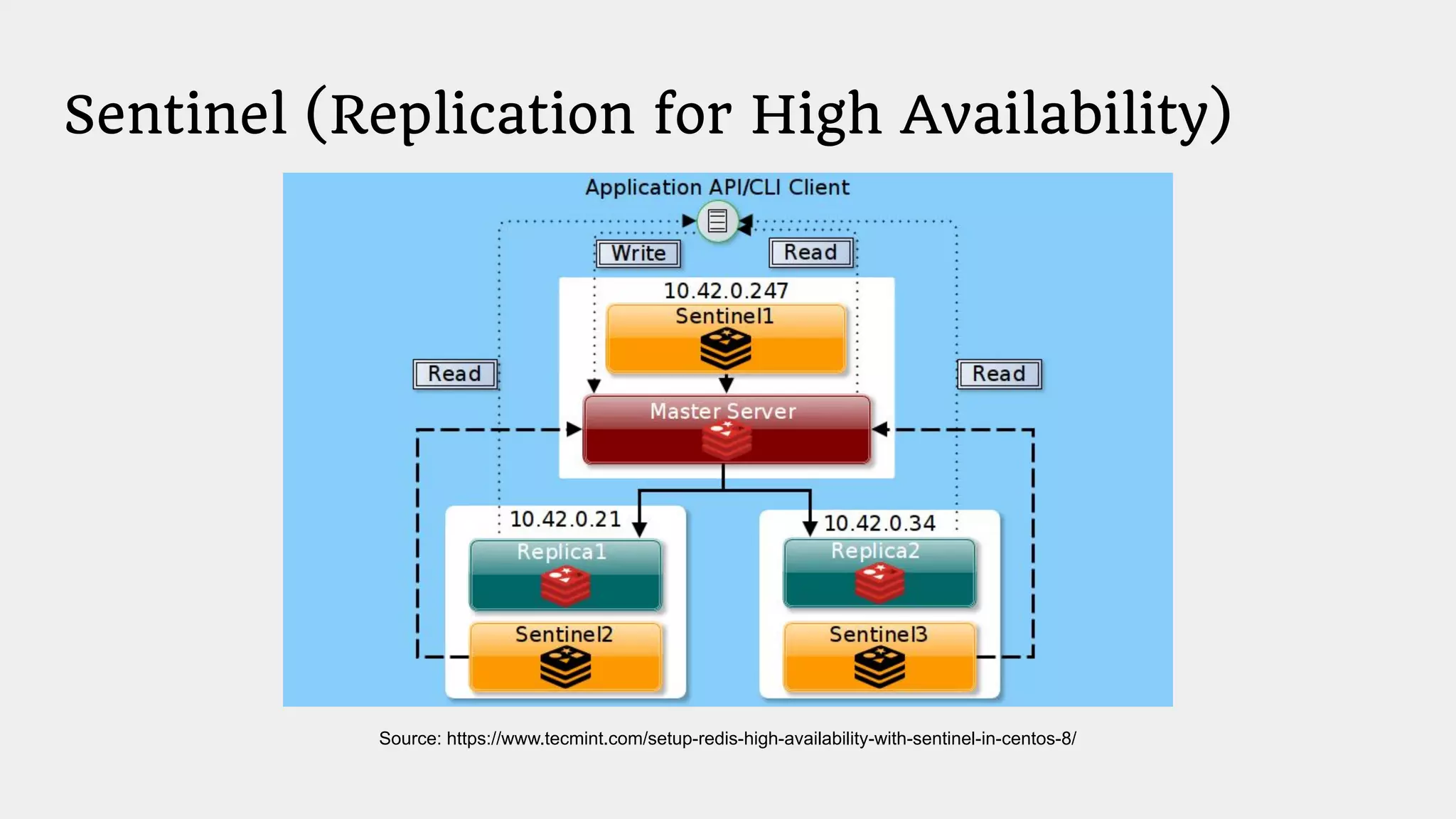

- 29. Sentinel (Replication forHigh Availability) Source: https://www.tecmint.com/setup-redis-high-availability-with-sentinel-in-centos-8/

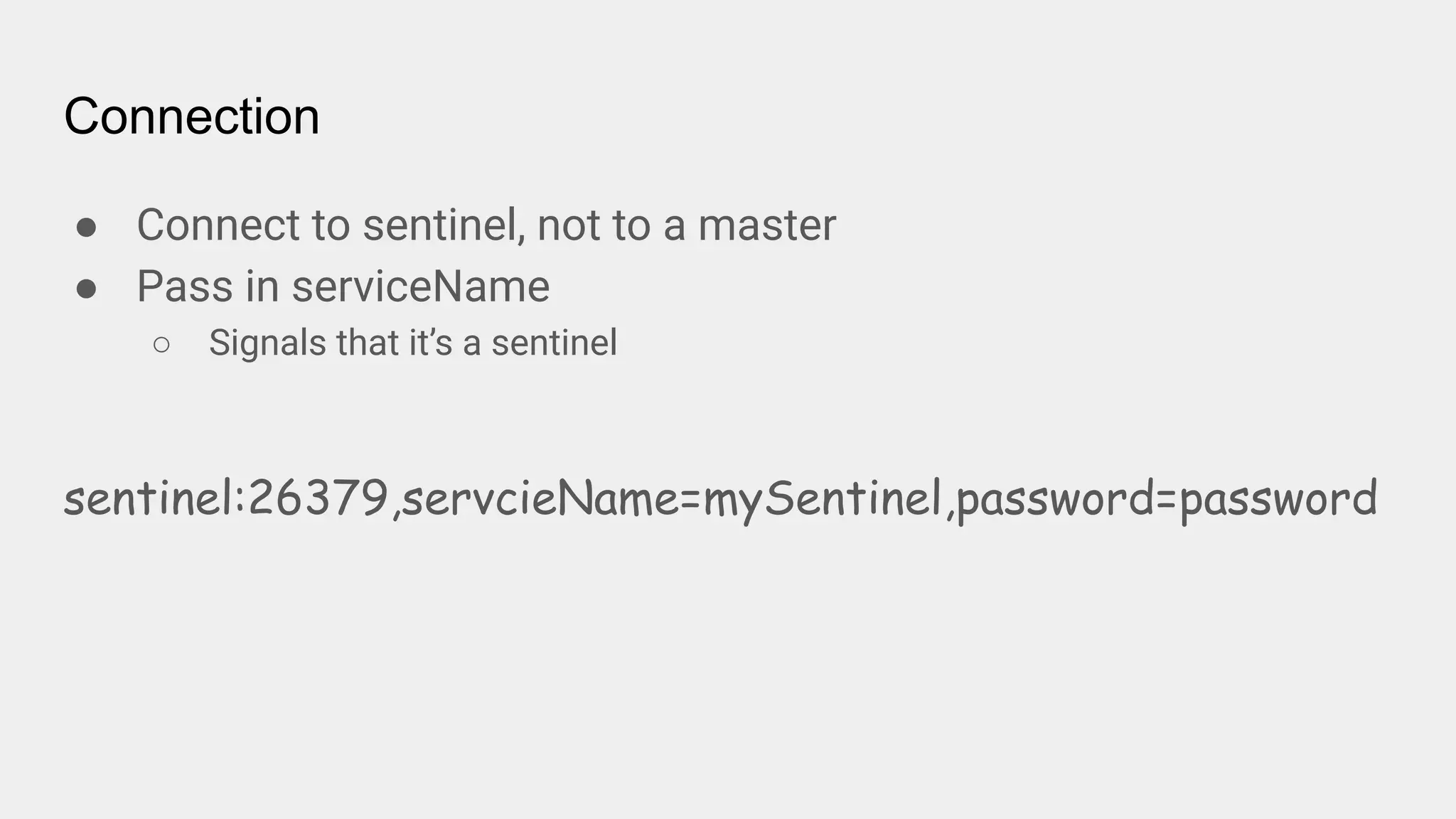

- 30. Connection ● Connect tosentinel, not to a master ● Pass in serviceName ○ Signals that it’s a sentinel sentinel:26379,servcieName=mySentinel,password=password
- 31.

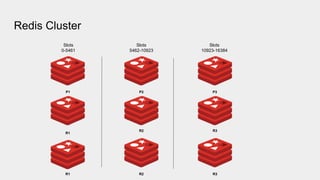

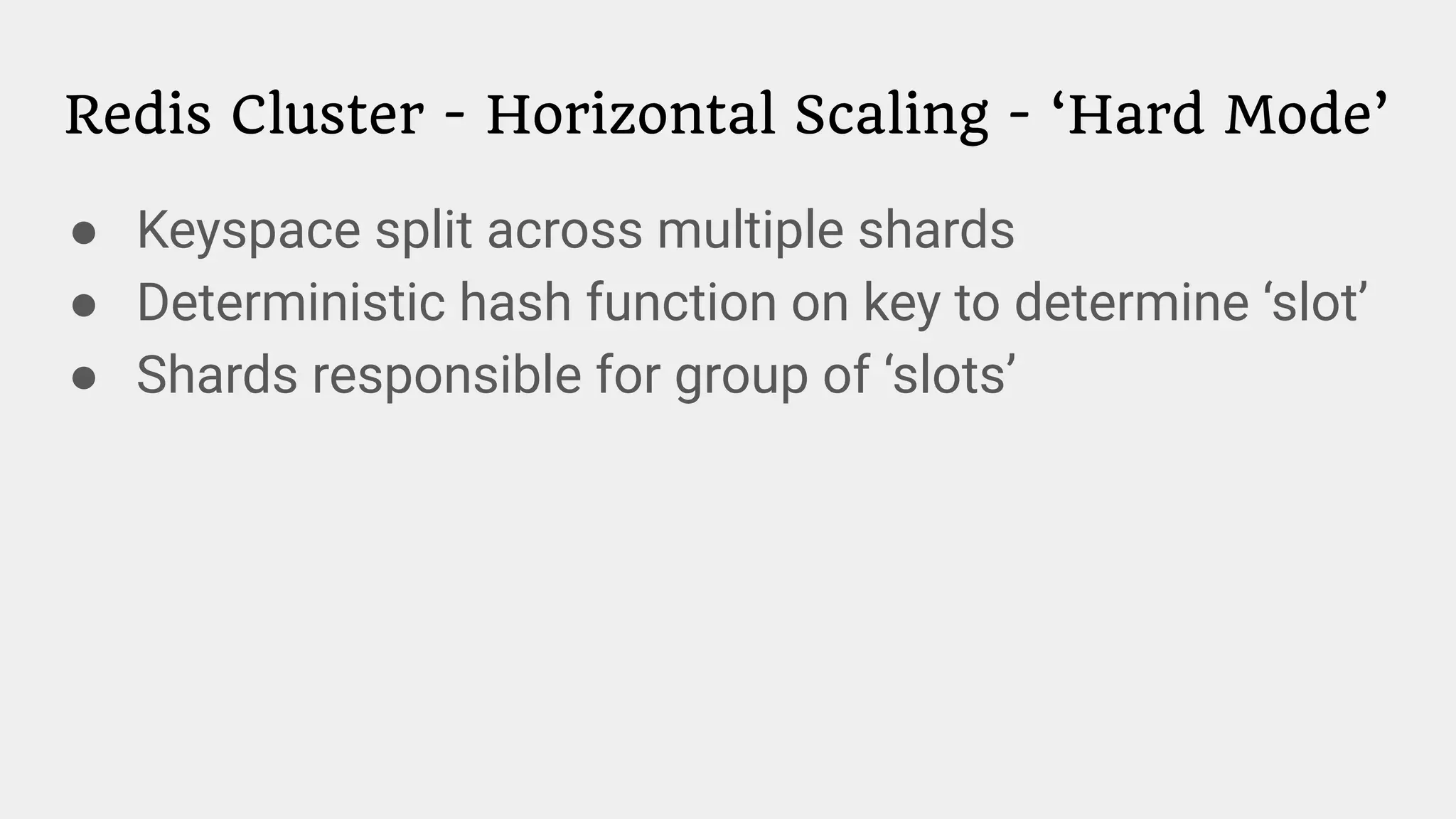

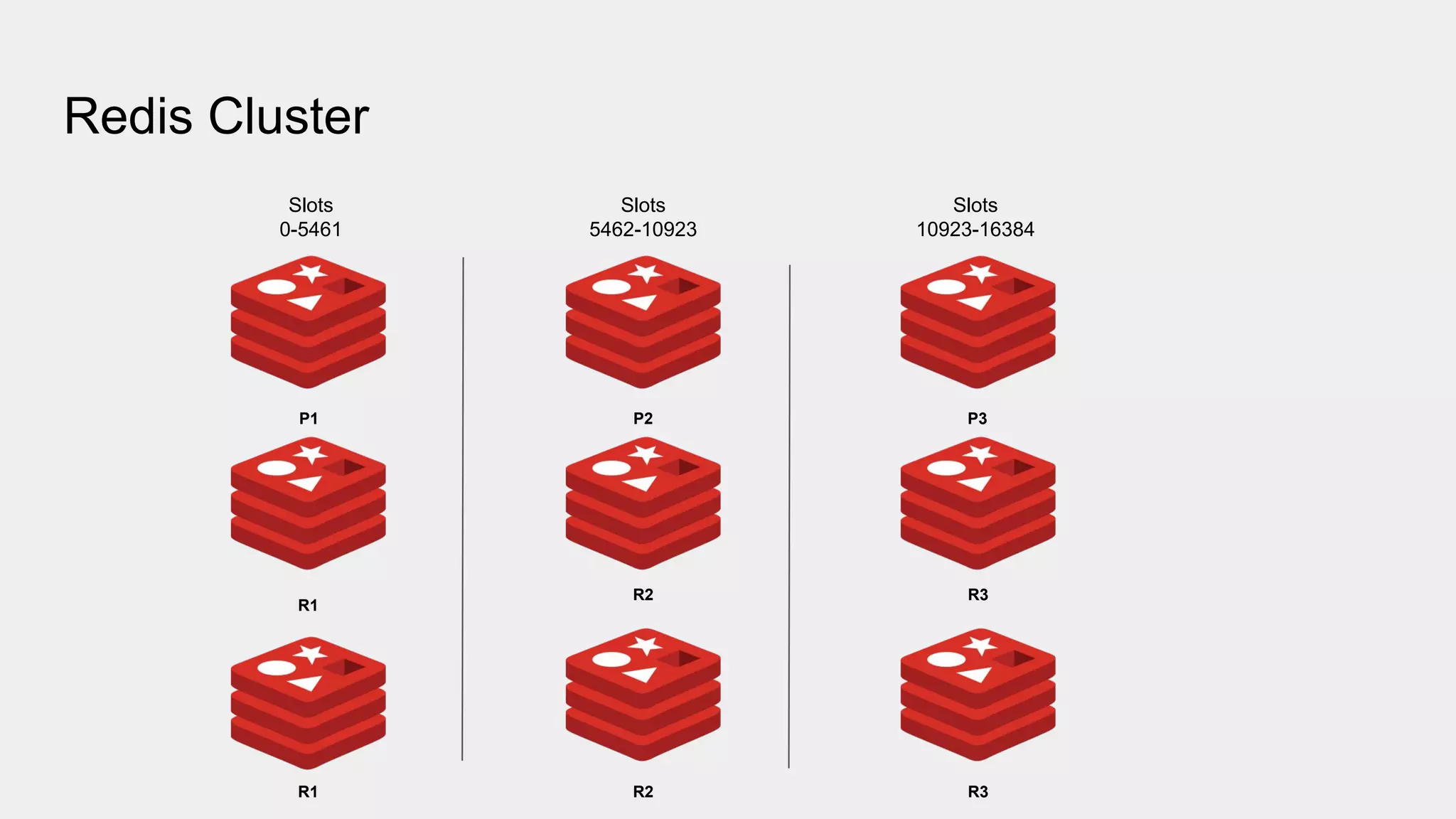

- 32. Redis Cluster -Horizontal Scaling - ‘Hard Mode’ ● Keyspace split across multiple shards ● Deterministic hash function on key to determine ‘slot’ ● Shards responsible for group of ‘slots’

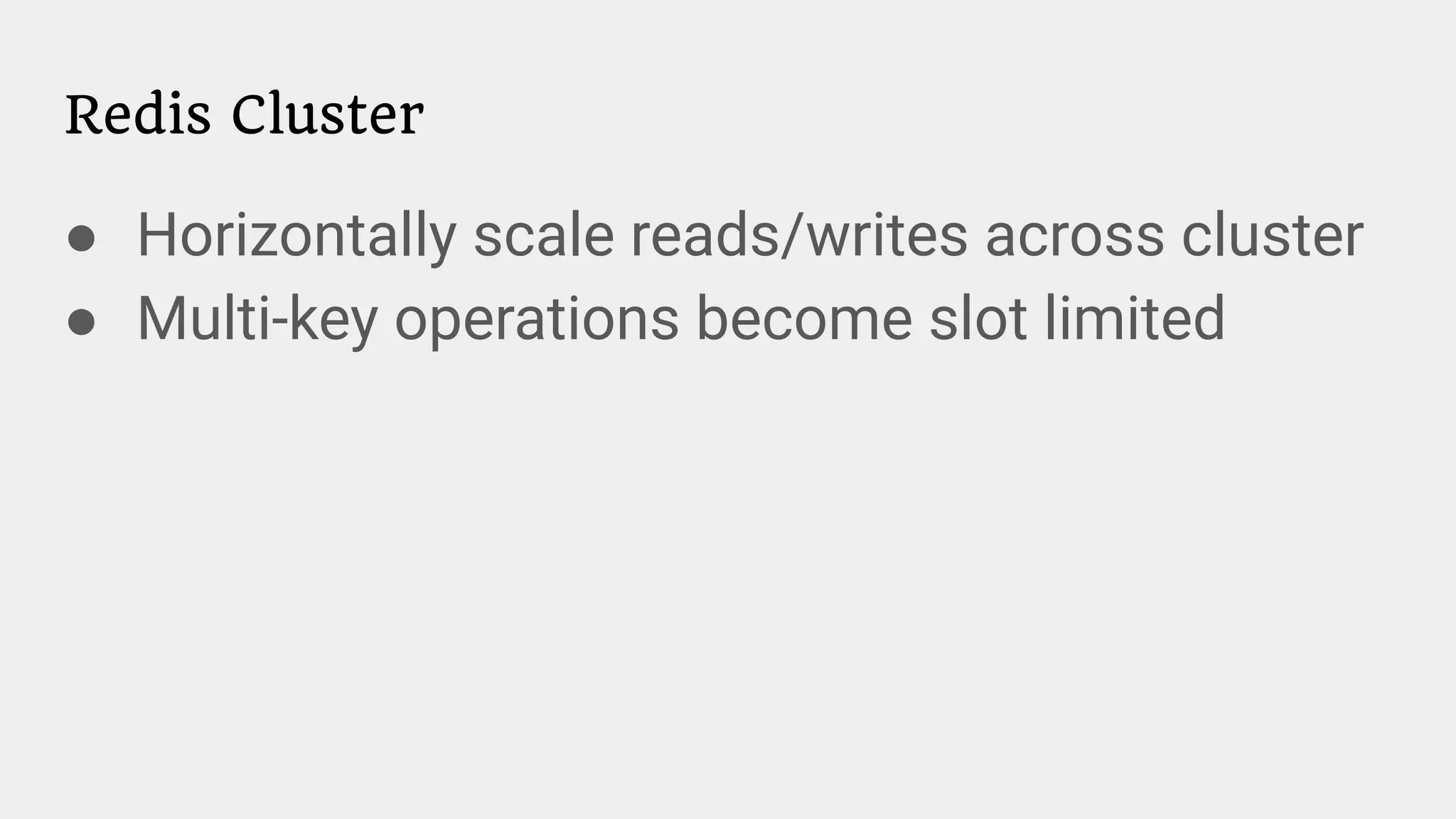

- 33. Redis Cluster ● Horizontallyscale reads/writes across cluster ● Multi-key operations become slot limited

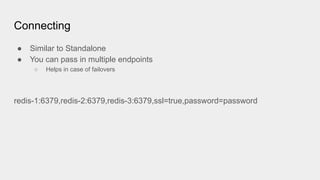

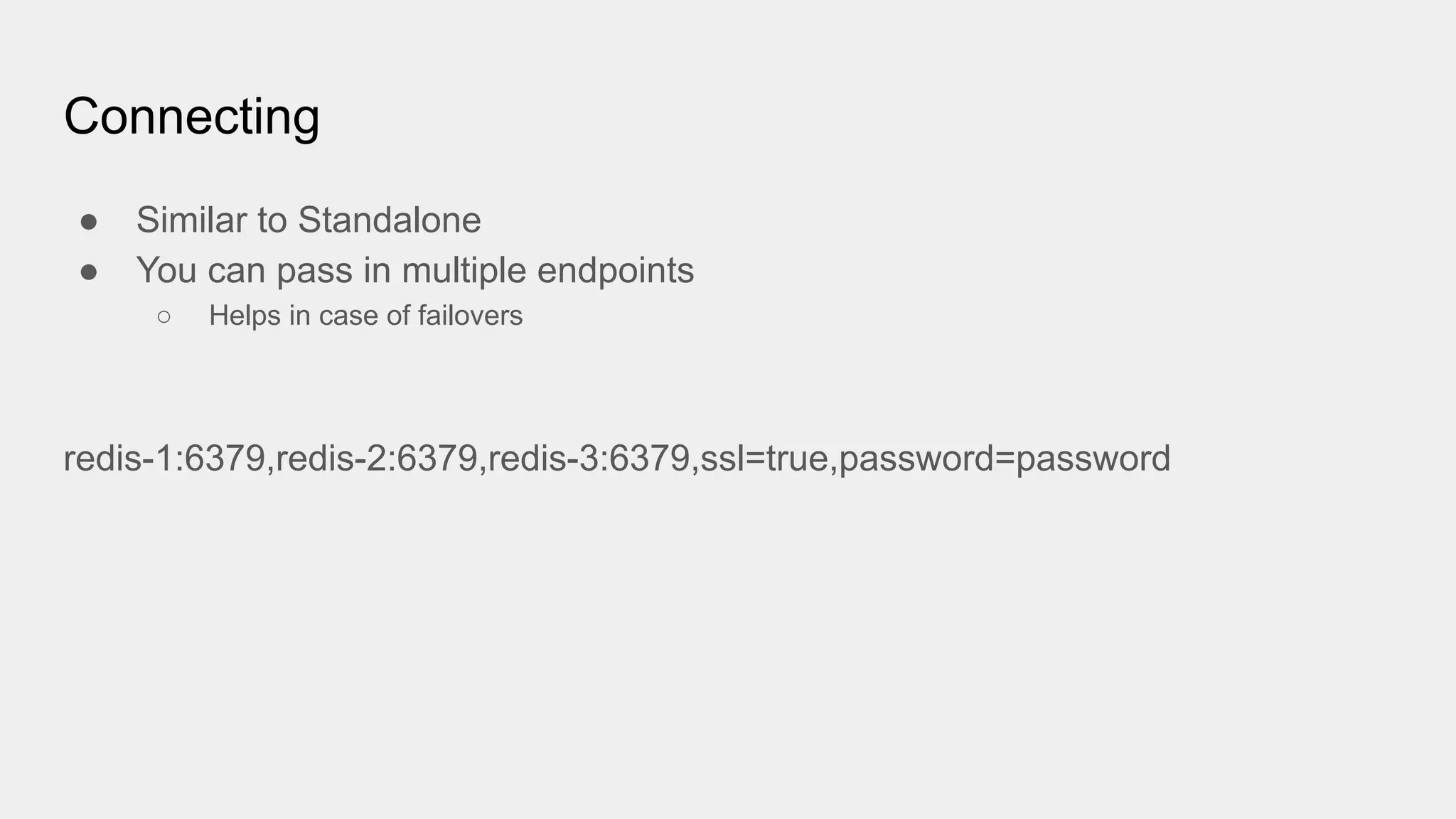

- 34. Connecting ● Similar toStandalone ● You can pass in multiple endpoints ○ Helps in case of failovers redis-1:6379,redis-2:6379,redis-3:6379,ssl=true,password=password
- 35.
- 36.

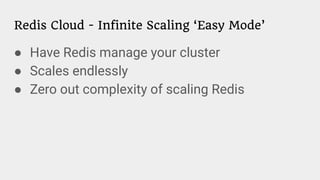

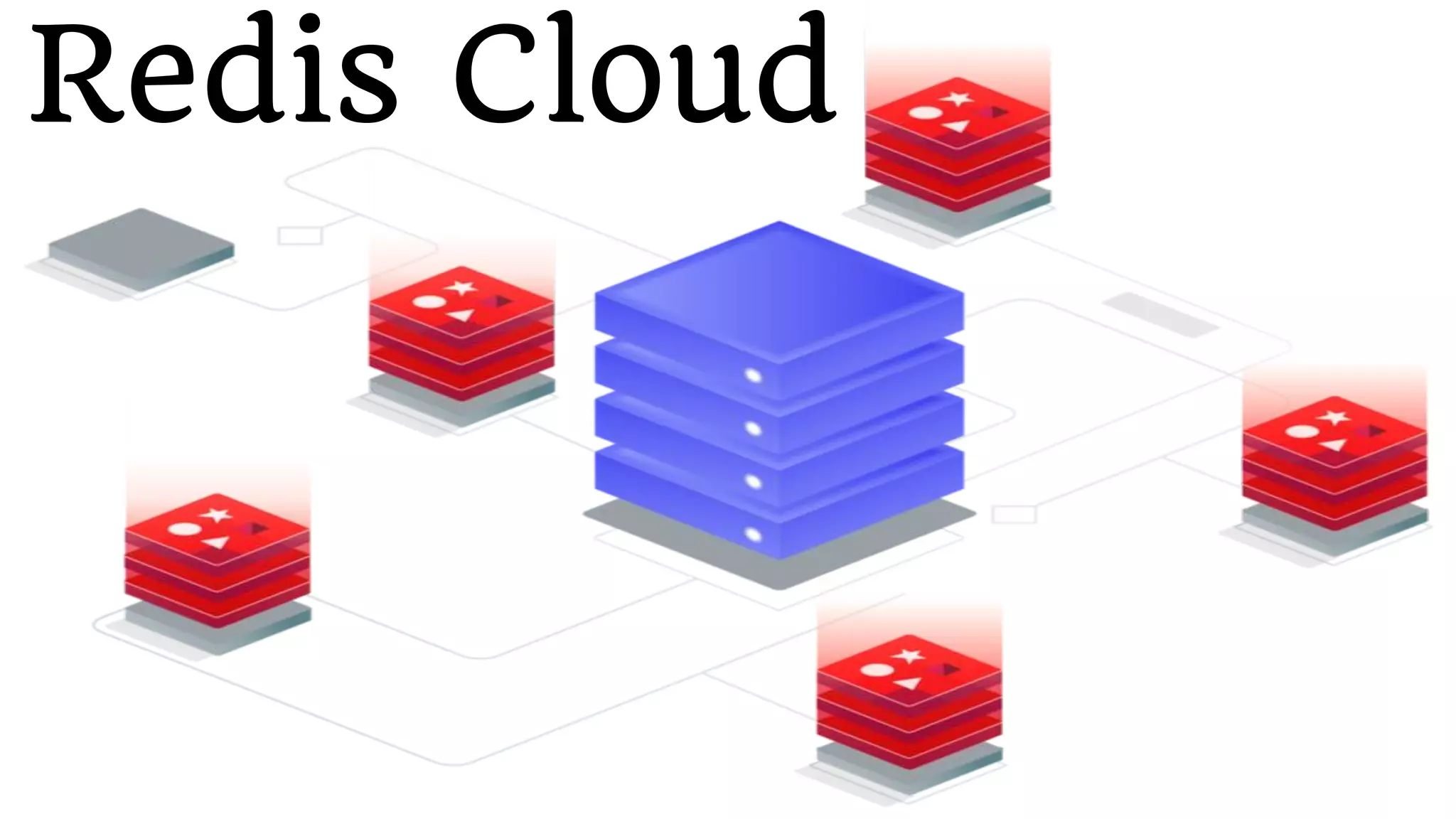

- 37. Redis Cloud -Infinite Scaling ‘Easy Mode’ ● Have Redis manage your cluster ● Scales endlessly ● Zero out complexity of scaling Redis

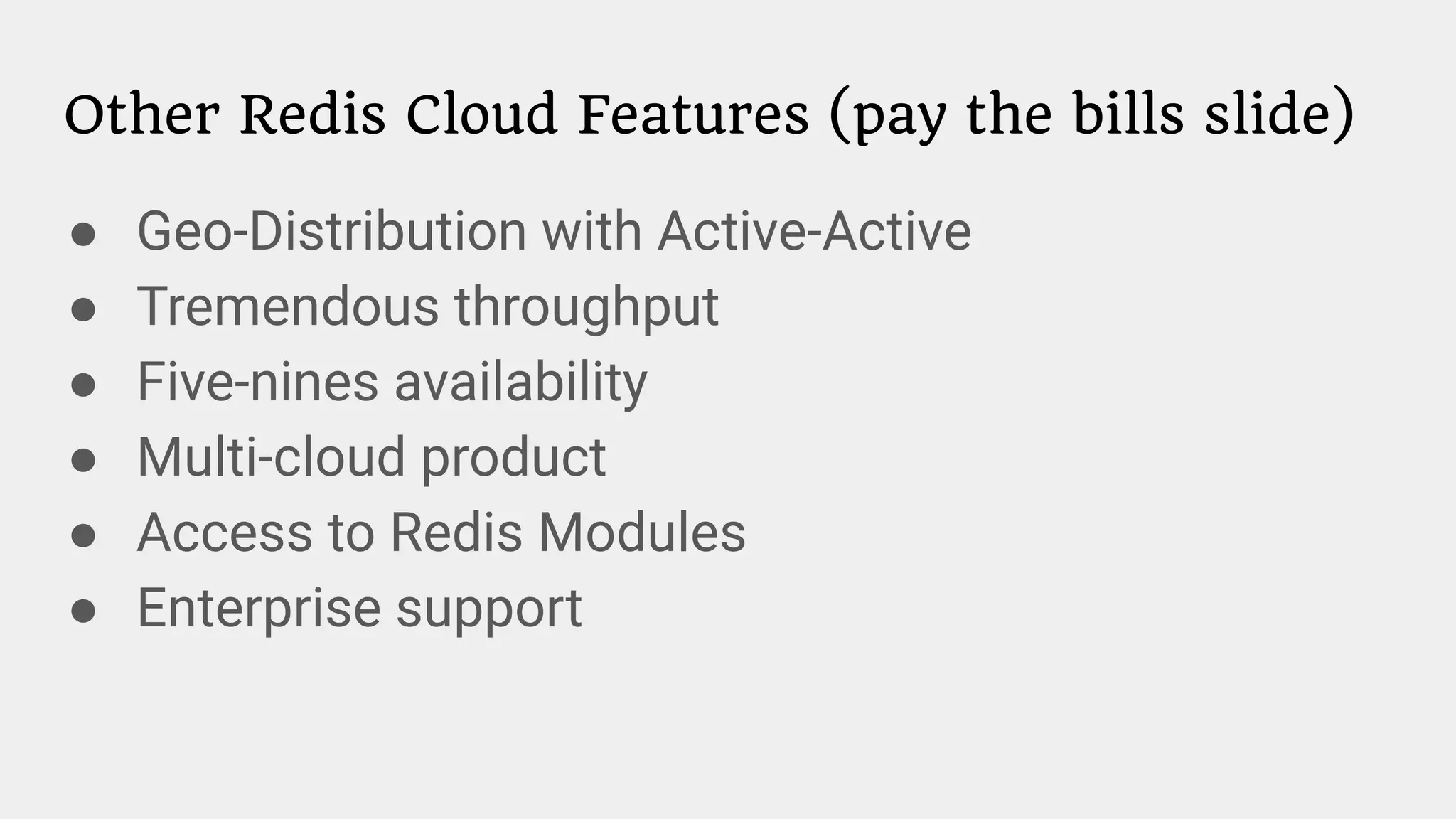

- 38. Other Redis CloudFeatures (pay the bills slide) ● Geo-Distribution with Active-Active ● Tremendous throughput ● Five-nines availability ● Multi-cloud product ● Access to Redis Modules ● Enterprise support

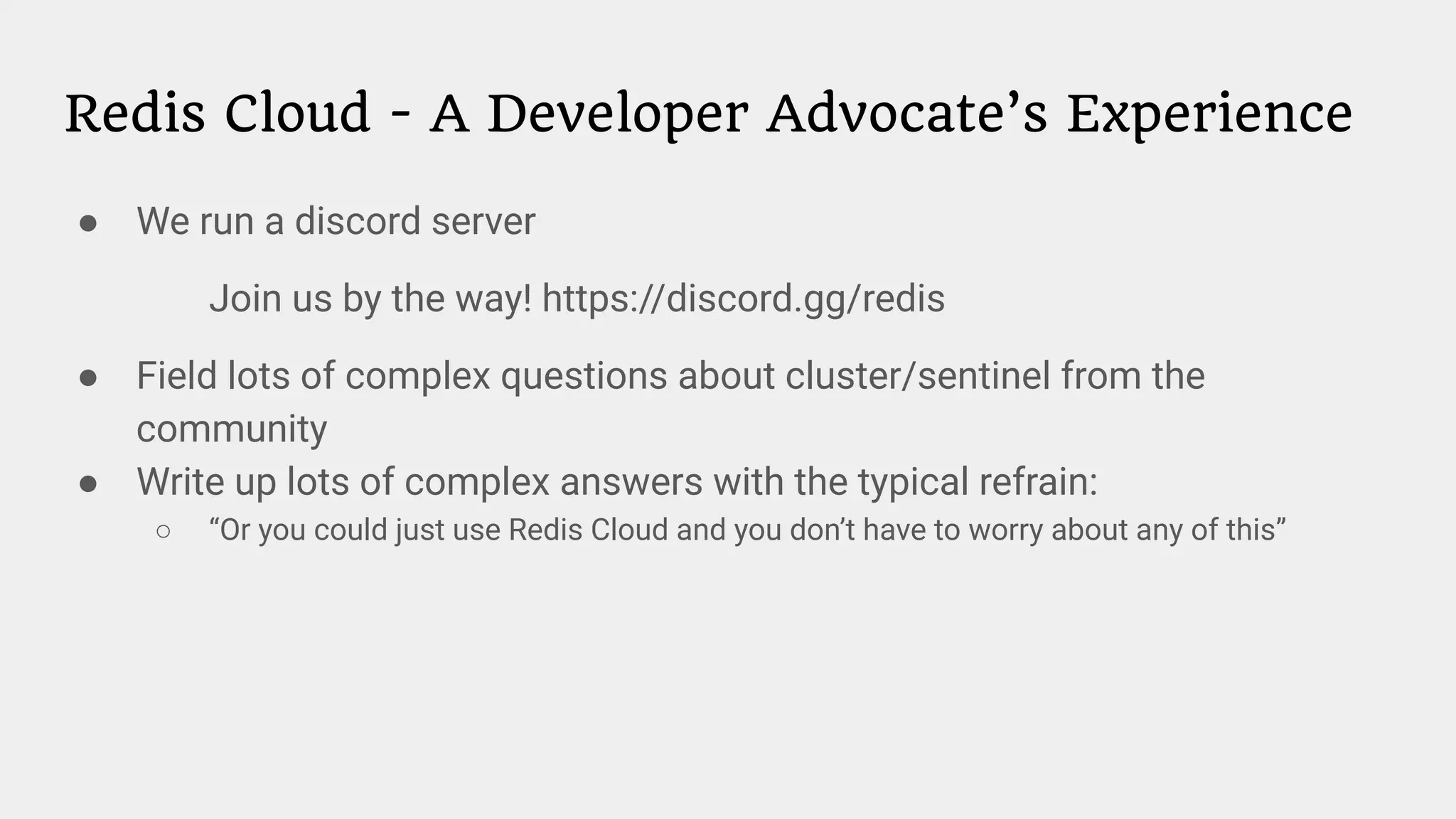

- 39. Redis Cloud -A Developer Advocate’s Experience ● We run a discord server Join us by the way! https://discord.gg/redis ● Field lots of complex questions about cluster/sentinel from the community ● Write up lots of complex answers with the typical refrain: ○ “Or you could just use Redis Cloud and you don’t have to worry about any of this”
- 40.

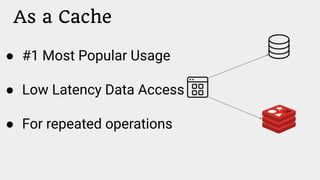

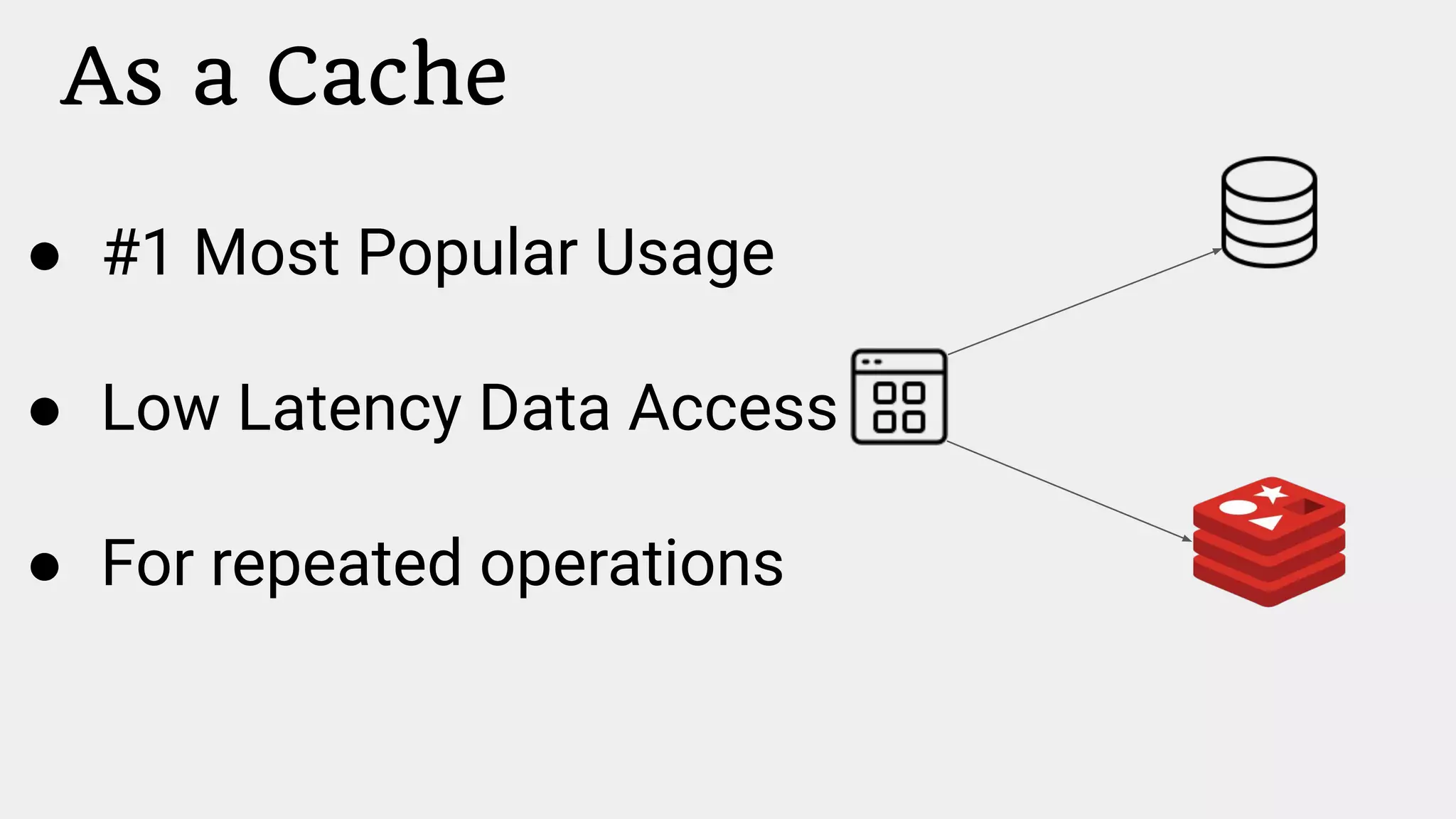

- 41. As a Cache ●#1 Most Popular Usage ● Low Latency Data Access ● For repeated operations

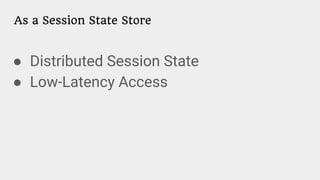

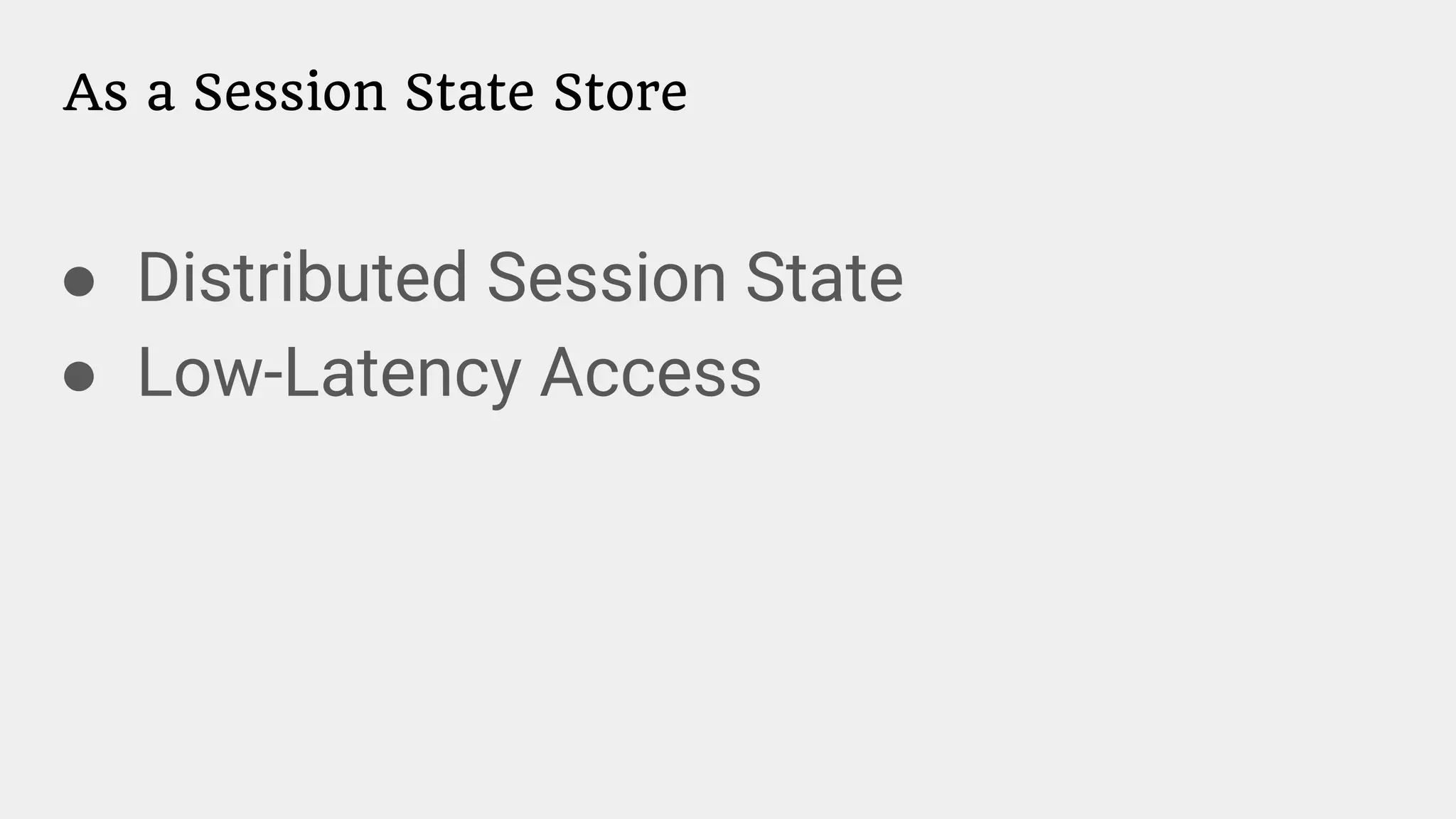

- 42. As a SessionState Store ● Distributed Session State ● Low-Latency Access

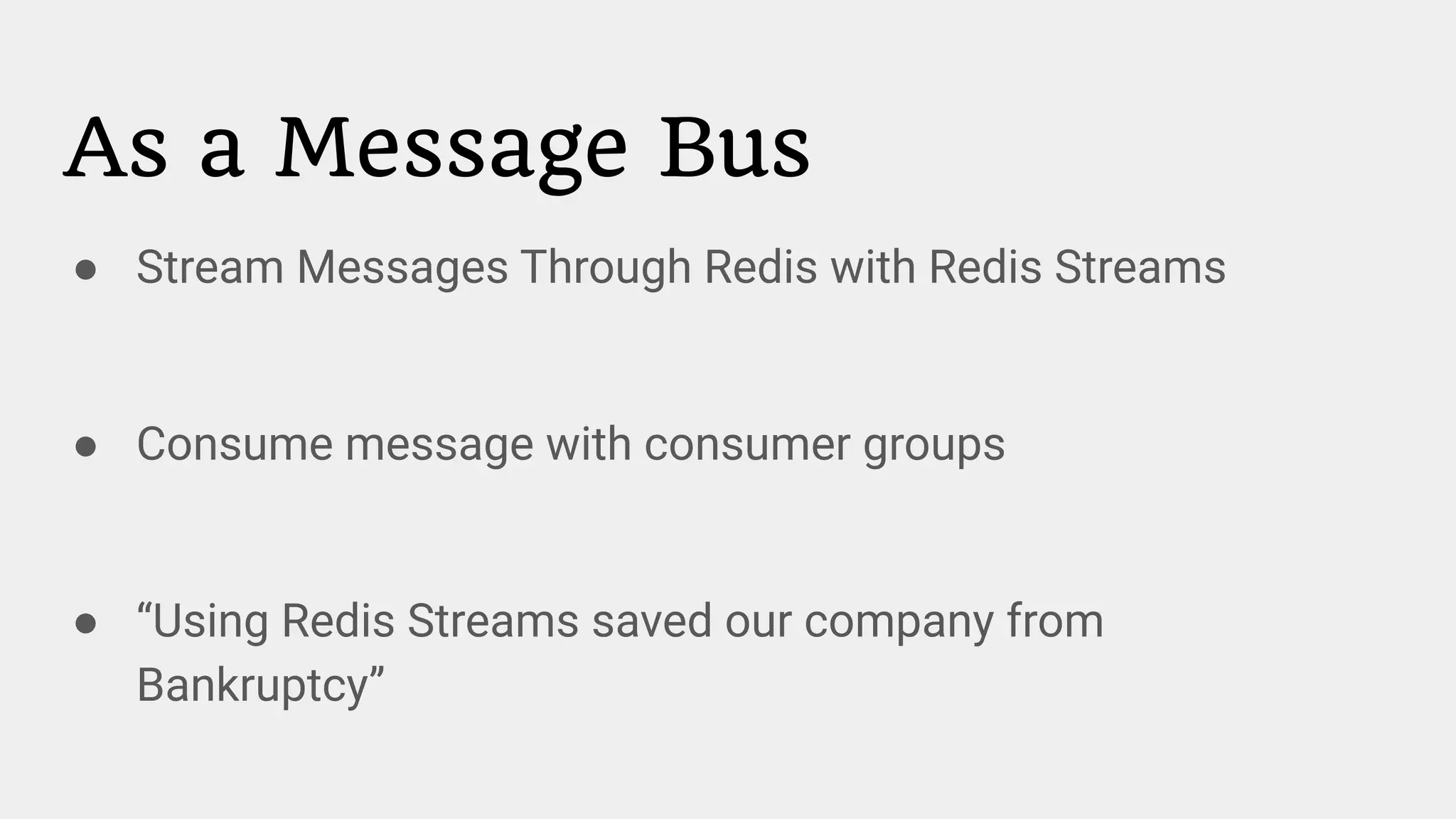

- 43. As a MessageBus ● Stream Messages Through Redis with Redis Streams ● Consume message with consumer groups ● “Using Redis Streams saved our company from Bankruptcy”

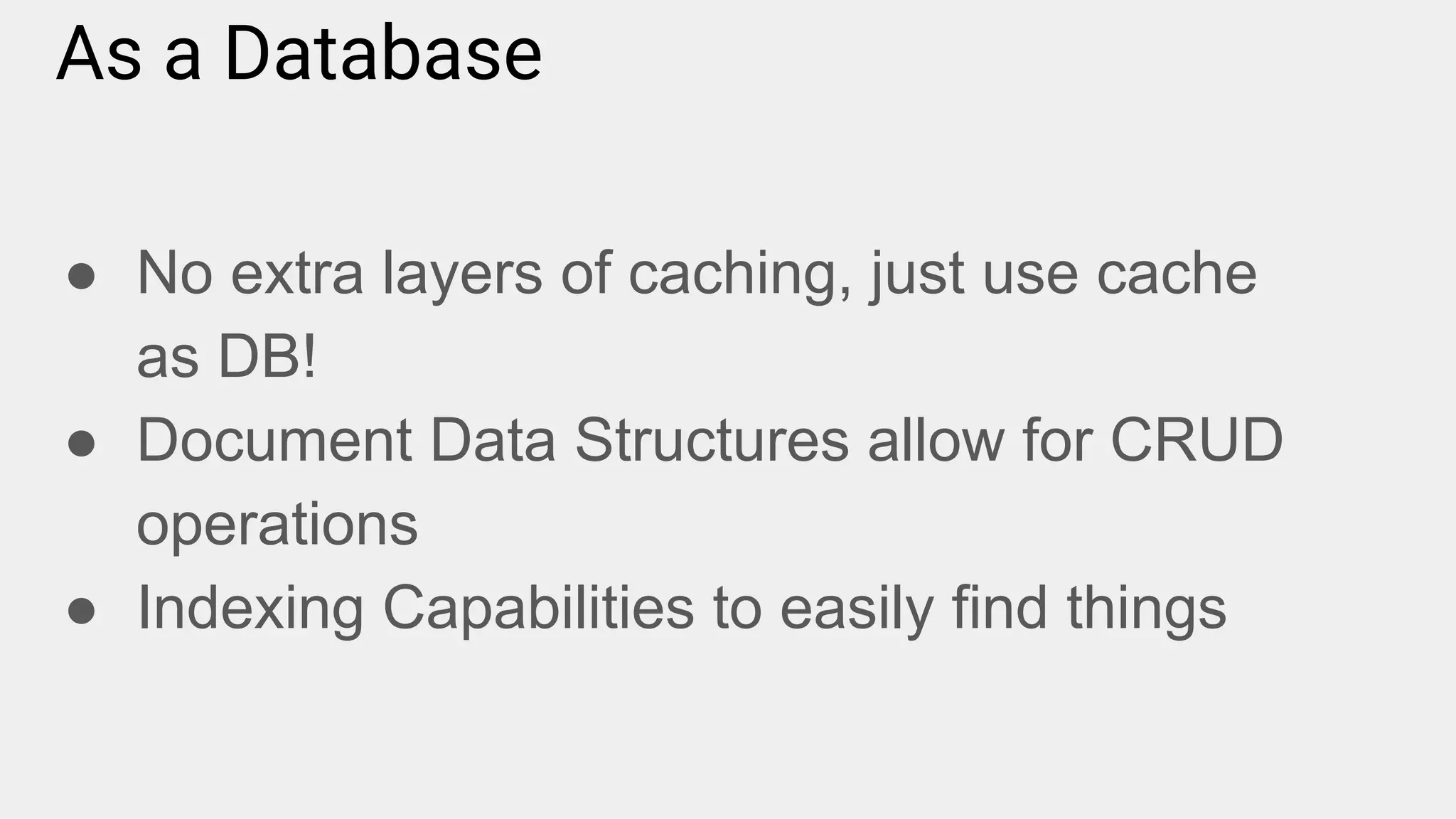

- 44. As a Database ●No extra layers of caching, just use cache as DB! ● Document Data Structures allow for CRUD operations ● Indexing Capabilities to easily find things
- 45.
- 46.

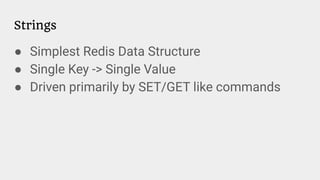

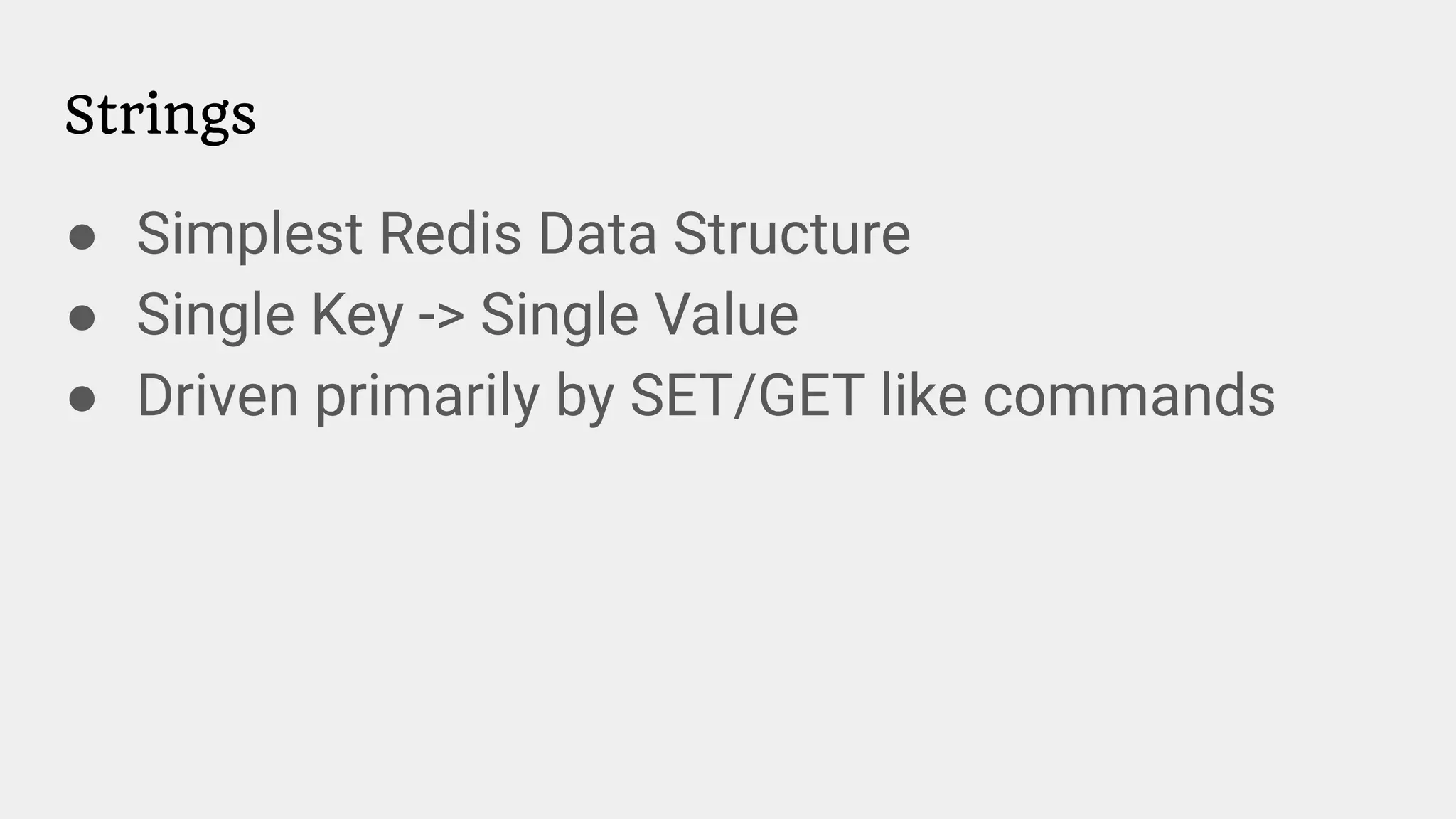

- 47. Strings ● Simplest RedisData Structure ● Single Key -> Single Value ● Driven primarily by SET/GET like commands

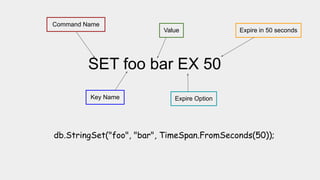

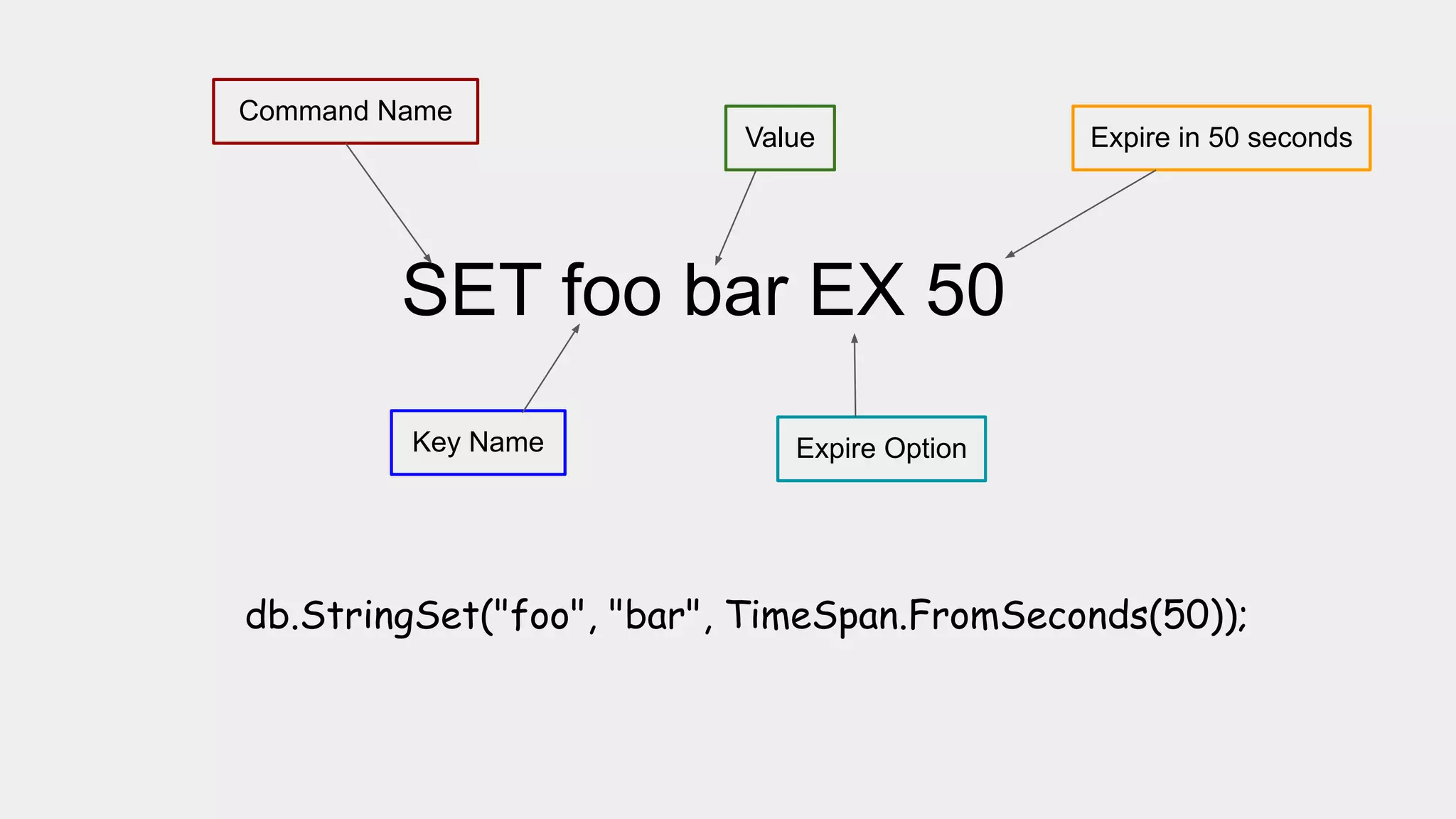

- 48. SET foo barEX 50 Command Name Key Name Value Expire Option Expire in 50 seconds db.StringSet("foo", "bar", TimeSpan.FromSeconds(50));

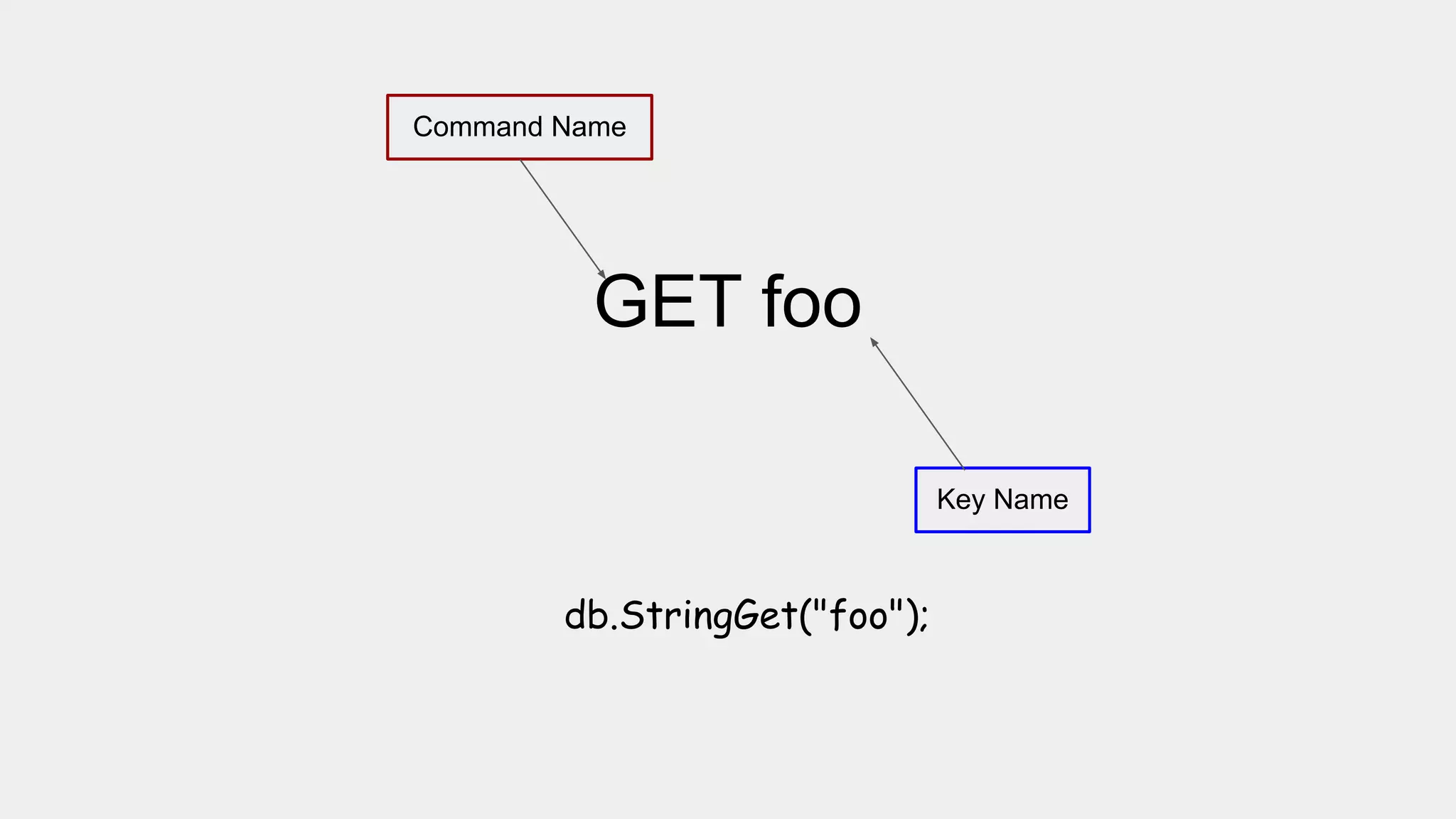

- 49. GET foo Command Name KeyName db.StringGet("foo");
- 50.

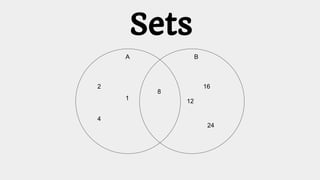

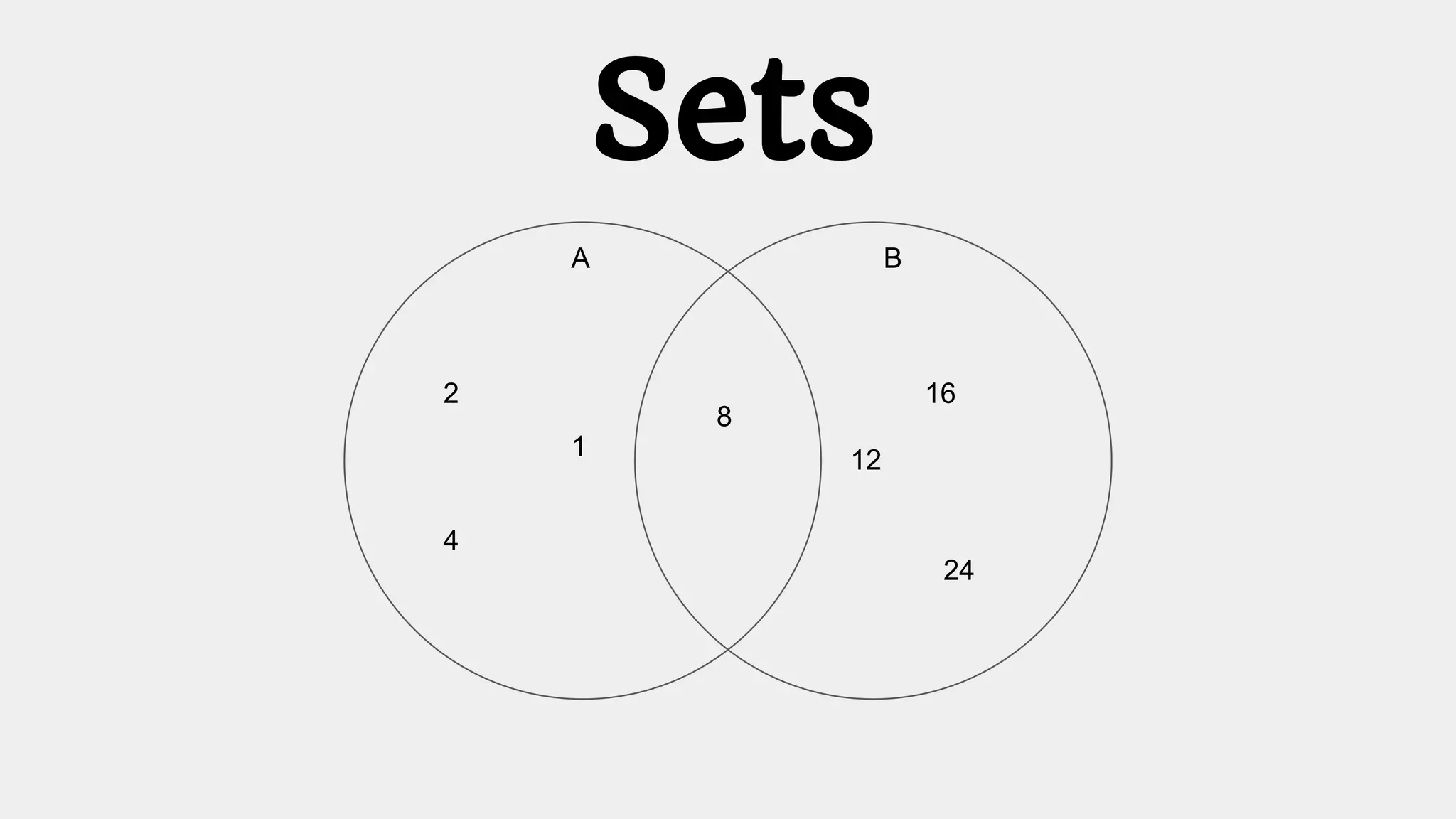

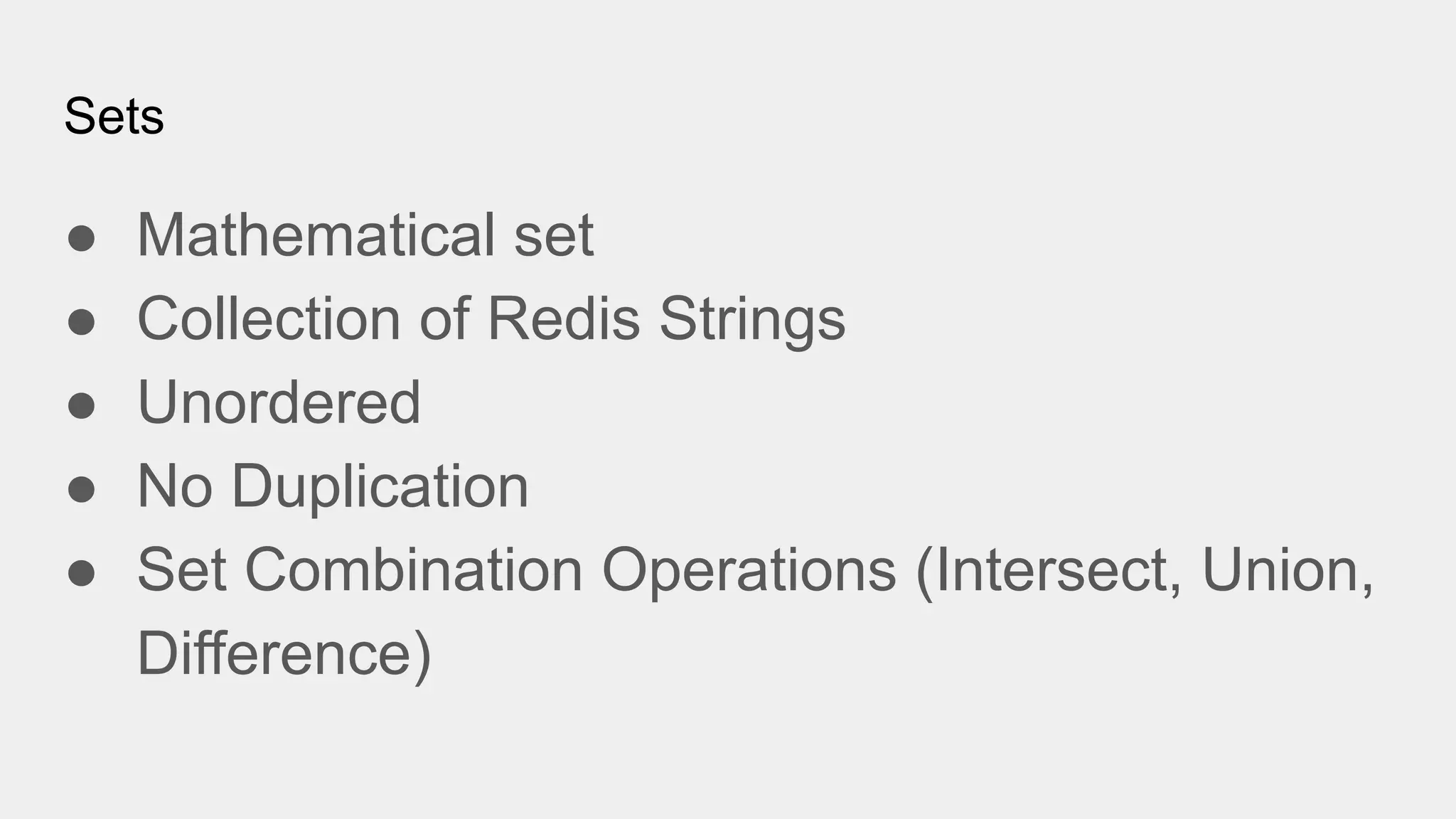

- 51. Sets ● Mathematical set ●Collection of Redis Strings ● Unordered ● No Duplication ● Set Combination Operations (Intersect, Union, Difference)

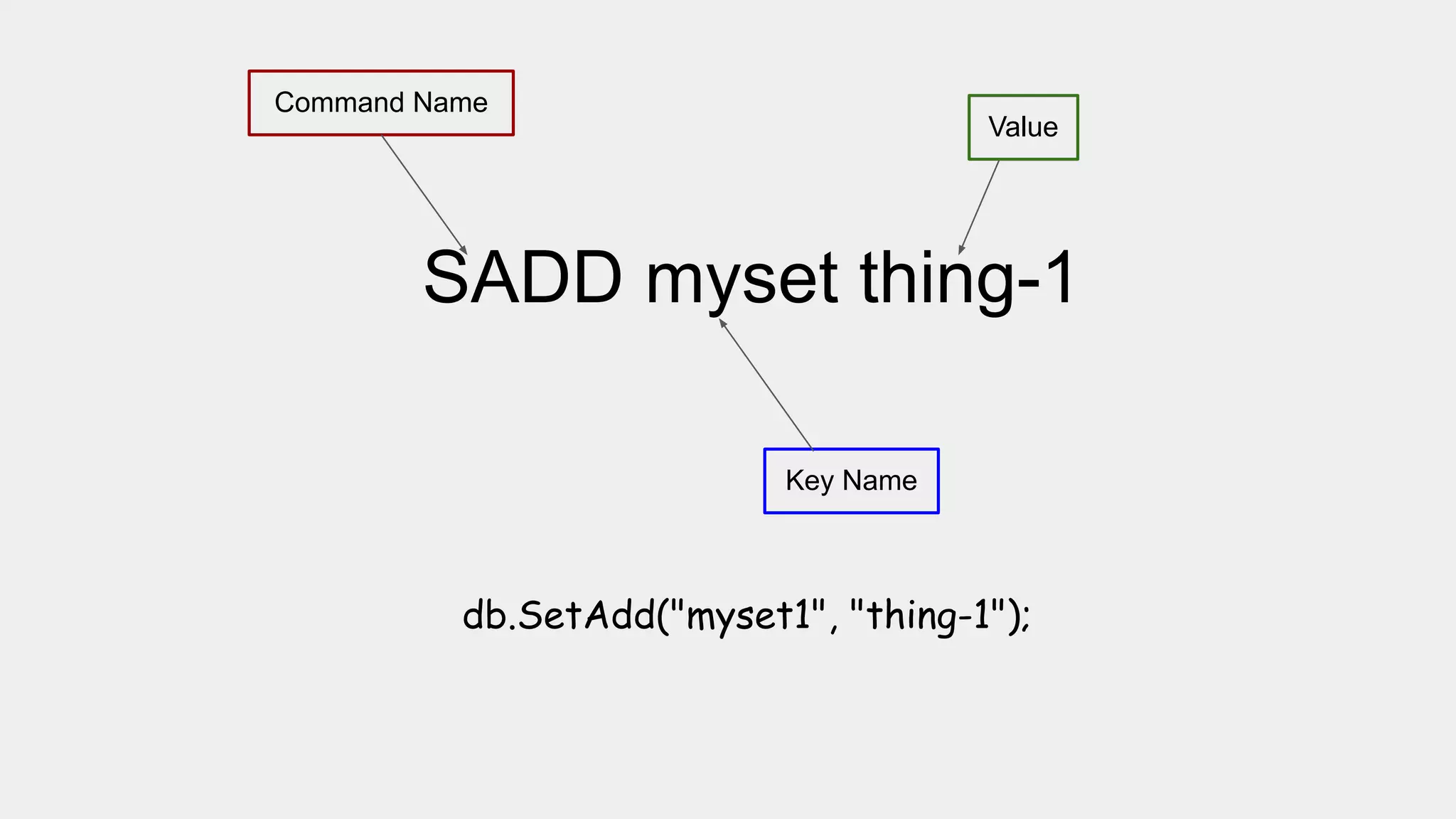

- 52. SADD myset thing-1 CommandName Key Name Value db.SetAdd("myset1", "thing-1");

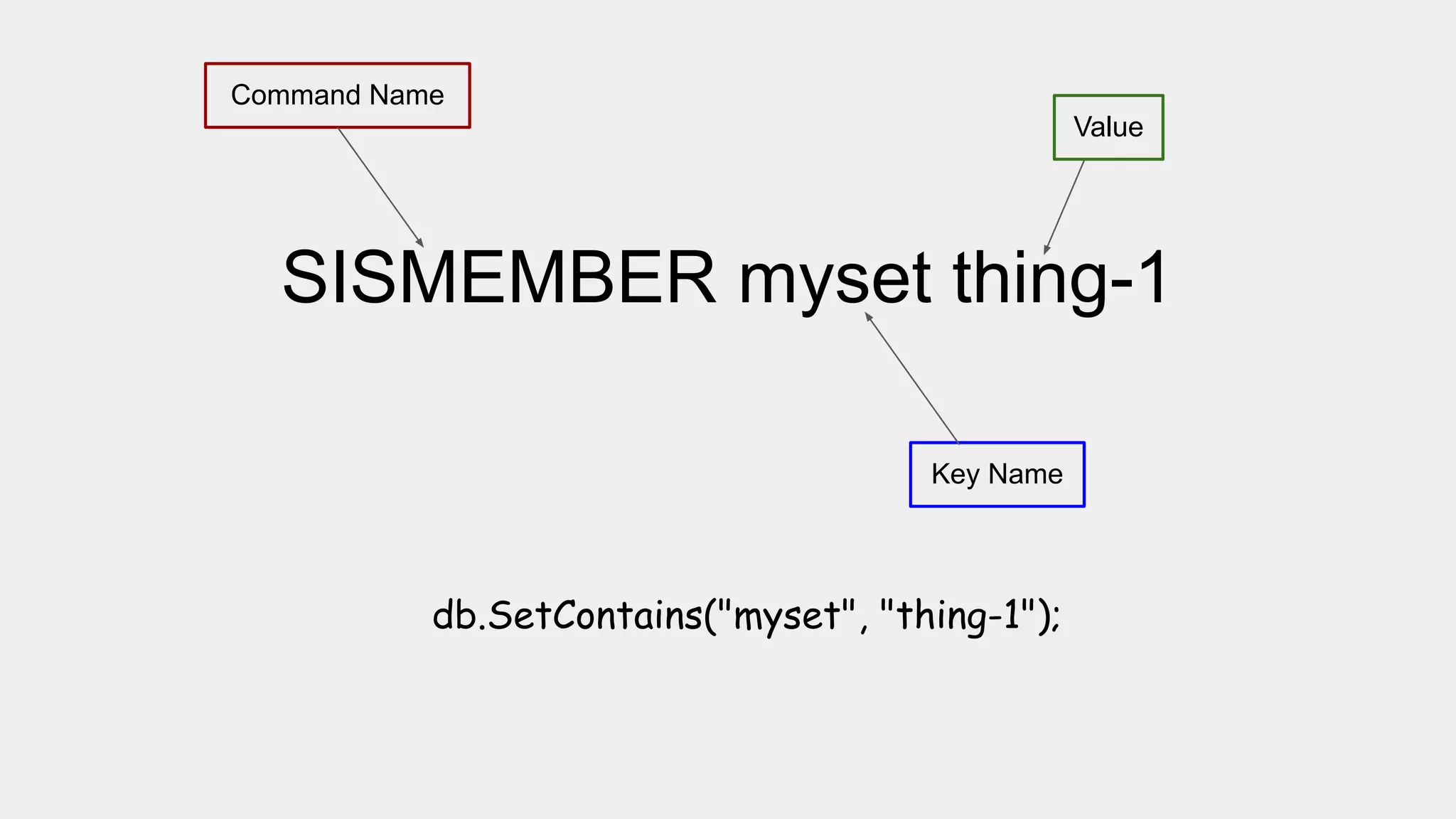

- 53. SISMEMBER myset thing-1 CommandName Key Name Value db.SetContains("myset", "thing-1");

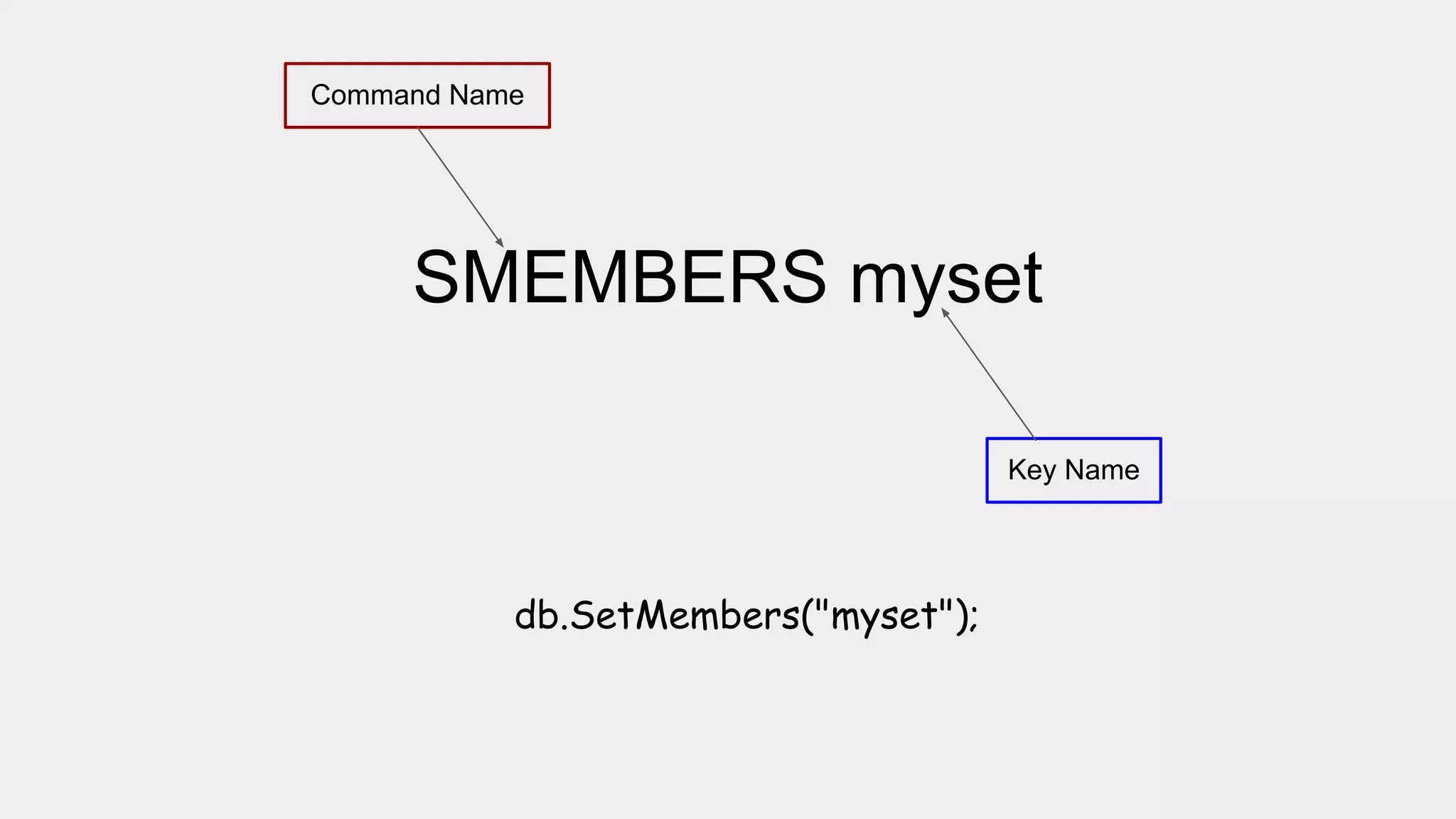

- 54. SMEMBERS myset Command Name KeyName db.SetMembers("myset");

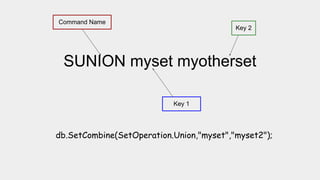

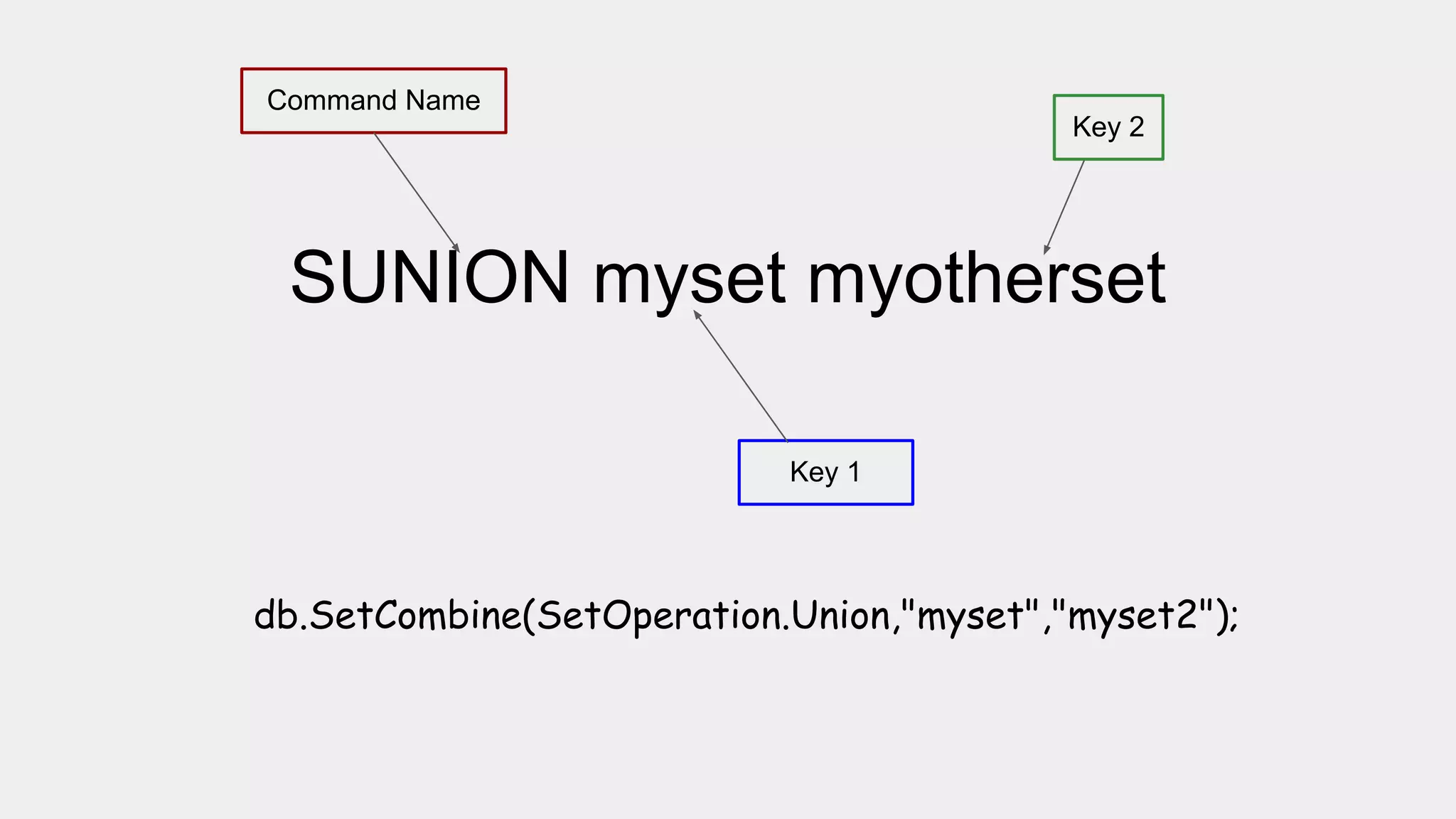

- 55. SUNION myset myotherset CommandName Key 1 Key 2 db.SetCombine(SetOperation.Union,"myset","myset2");
- 56.

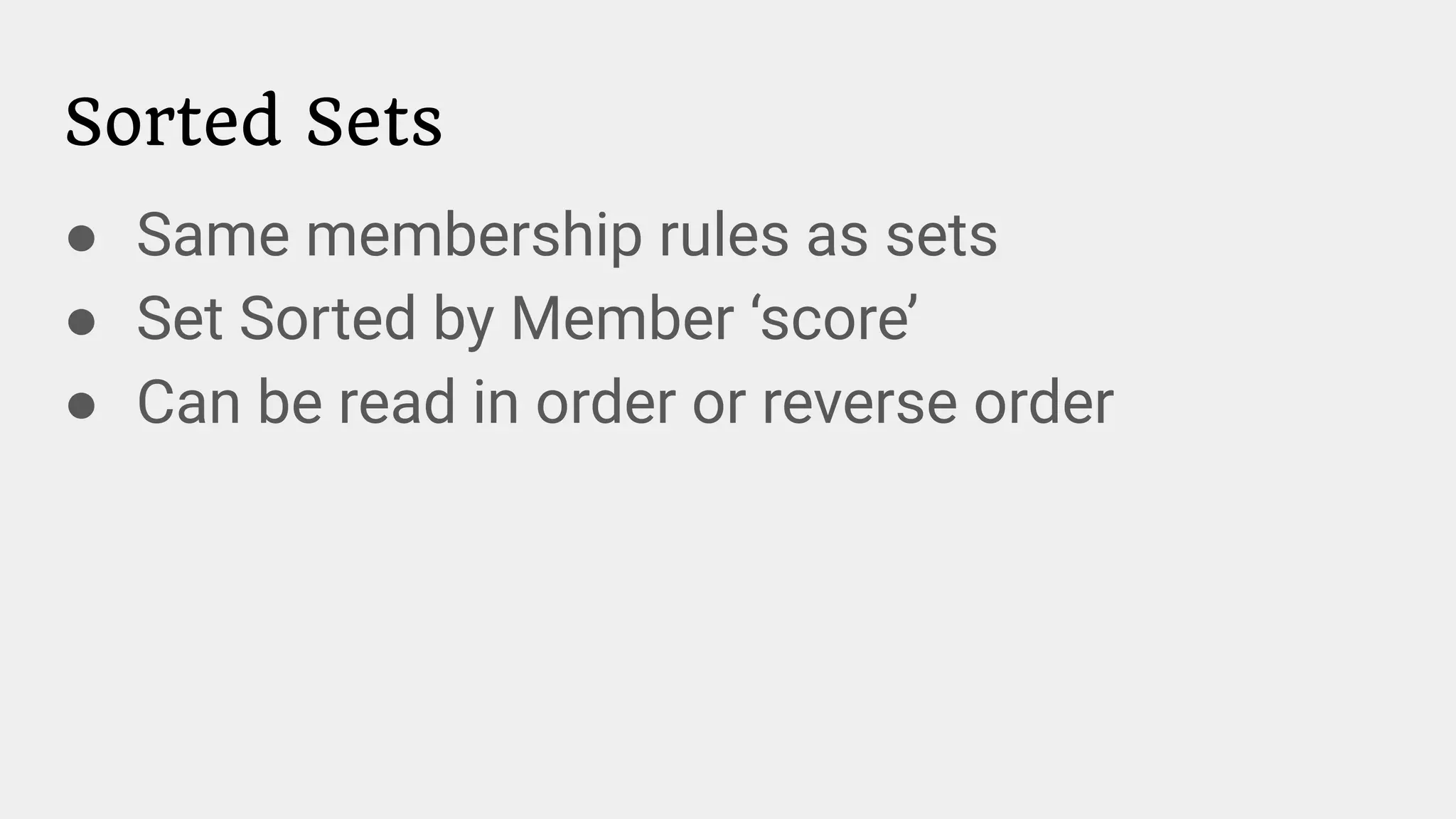

- 57. Sorted Sets ● Samemembership rules as sets ● Set Sorted by Member ‘score’ ● Can be read in order or reverse order

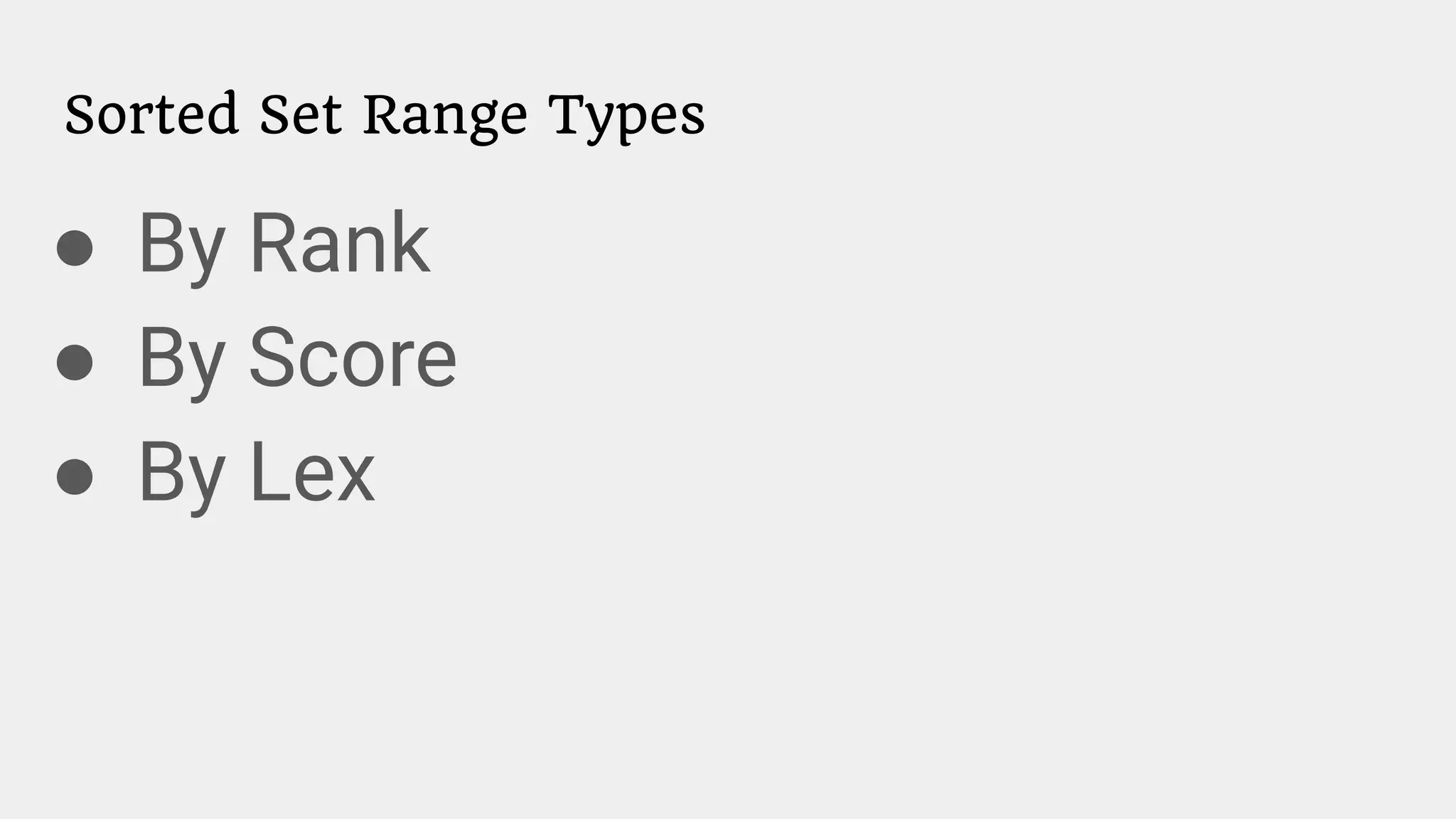

- 58. Sorted Set RangeTypes ● By Rank ● By Score ● By Lex

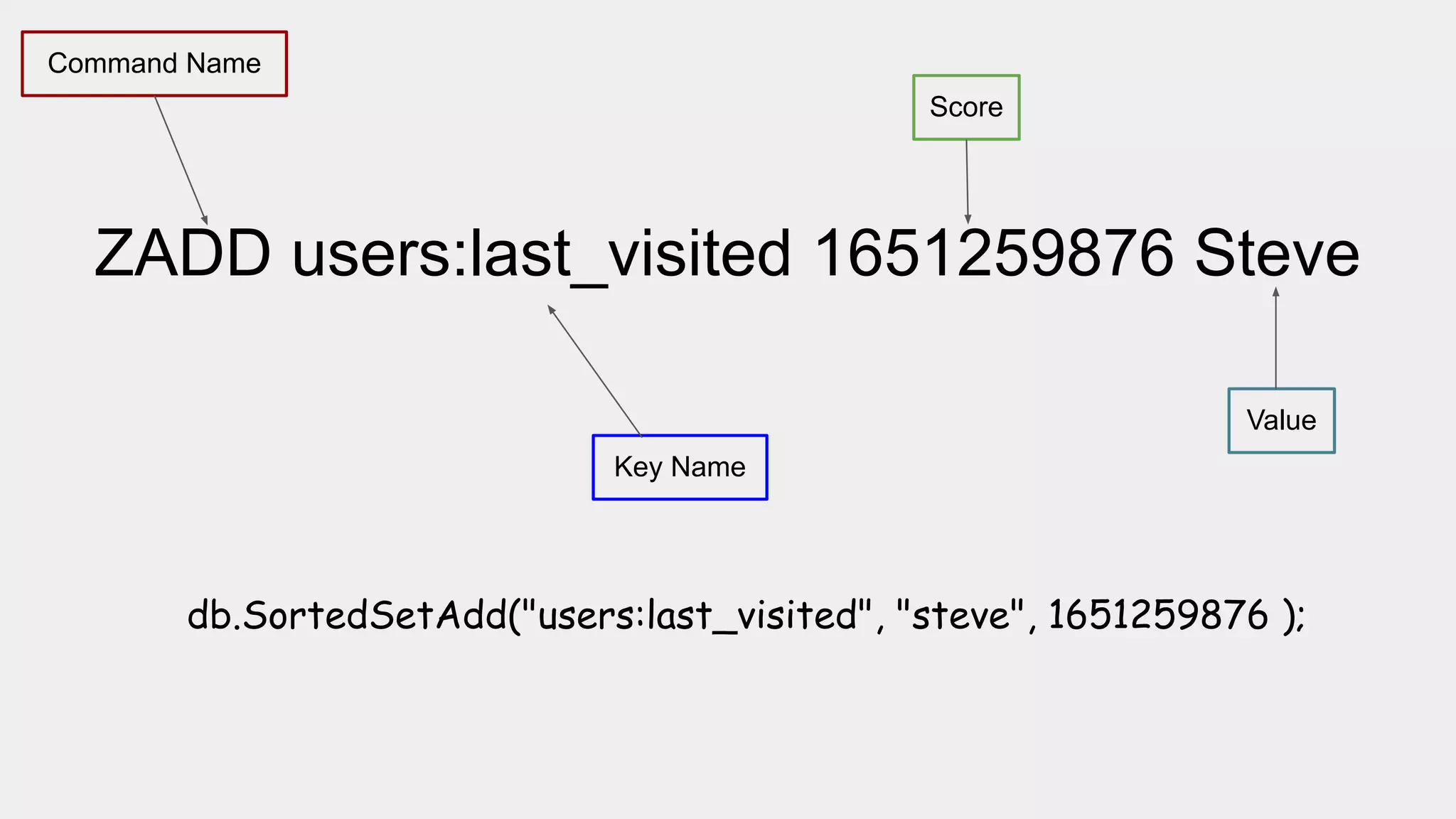

- 59. ZADD users:last_visited 1651259876Steve Command Name Key Name Score Value db.SortedSetAdd("users:last_visited", "steve", 1651259876 );

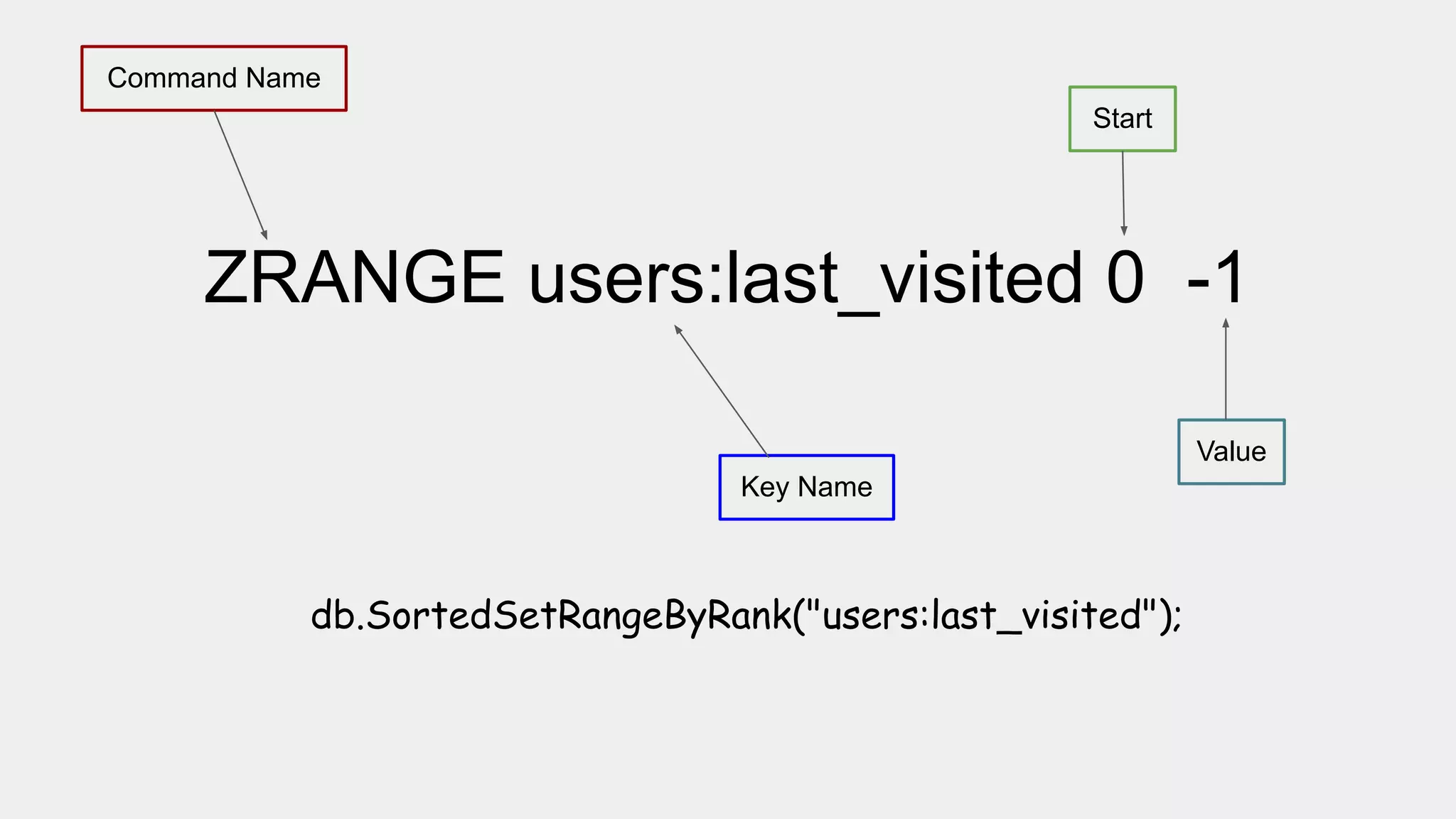

- 60. ZRANGE users:last_visited 0-1 Key Name Command Name Start Value db.SortedSetRangeByRank("users:last_visited");
- 61.

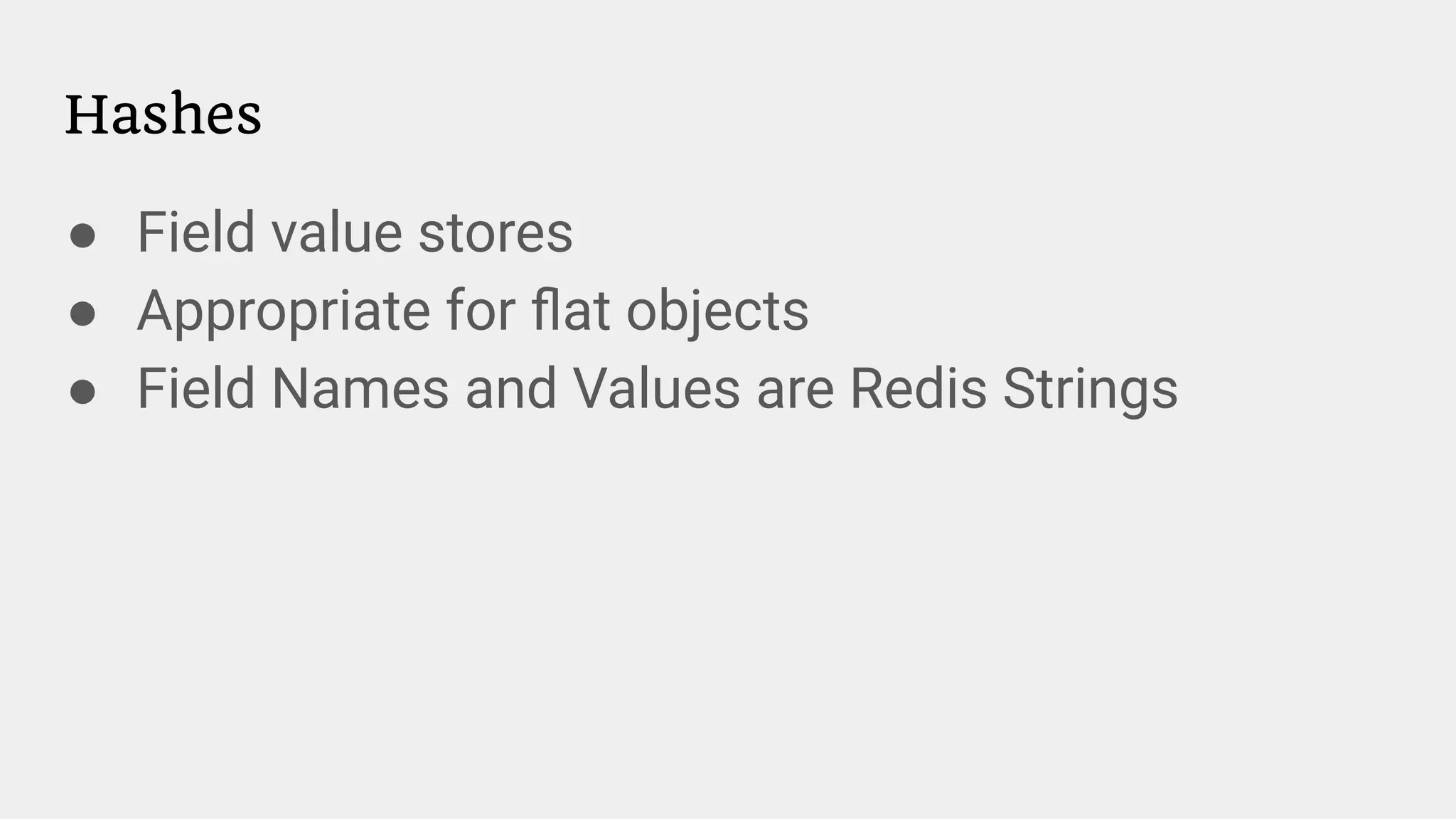

- 62. Hashes ● Field valuestores ● Appropriate for flat objects ● Field Names and Values are Redis Strings

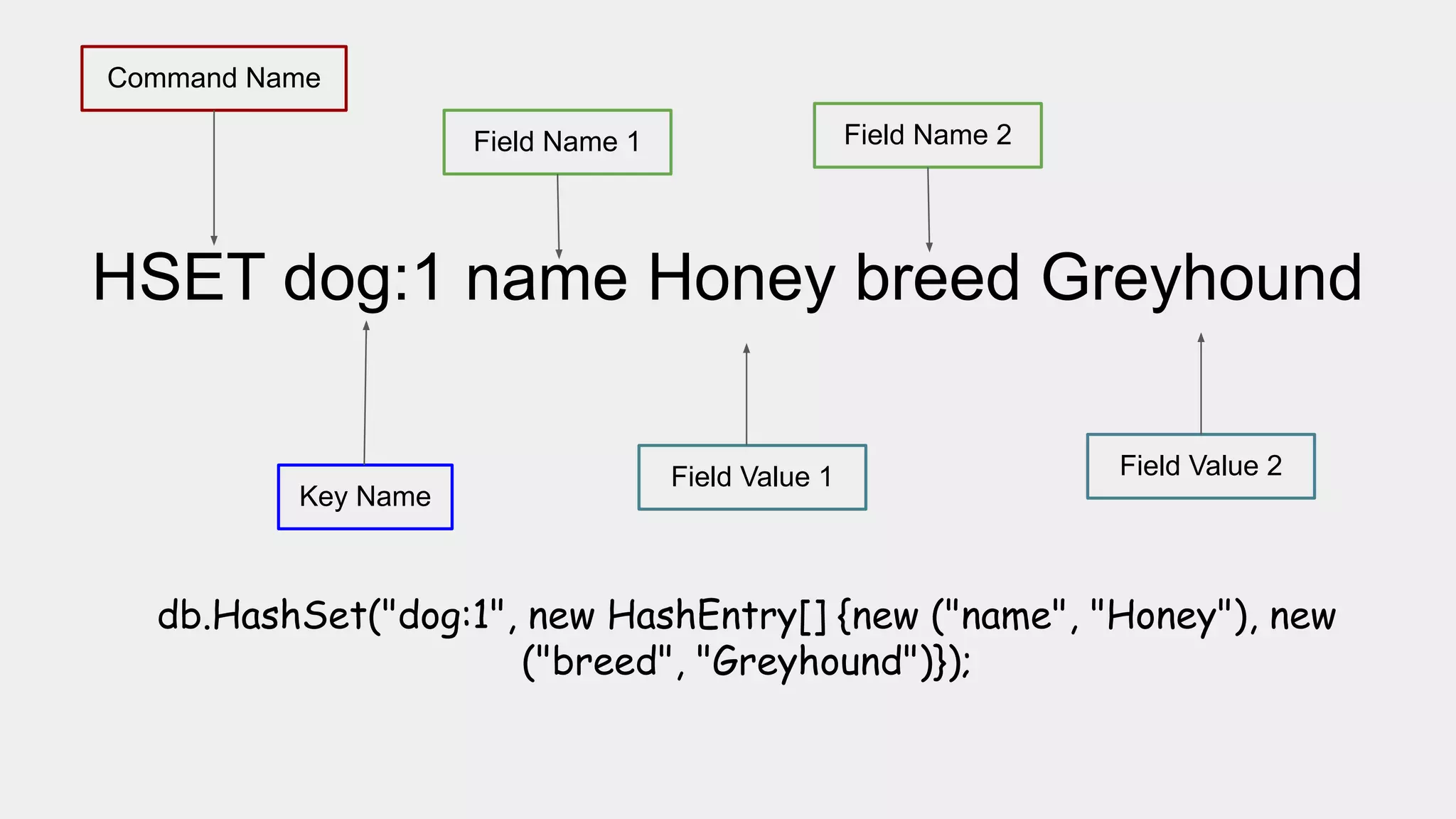

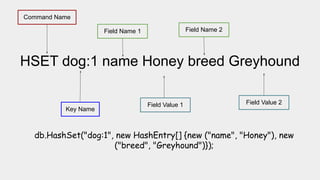

- 63. HSET dog:1 nameHoney breed Greyhound Command Name Key Name Field Name 1 Field Value 1 Field Name 2 Field Value 2 db.HashSet("dog:1", new HashEntry[] {new ("name", "Honey"), new ("breed", "Greyhound")});

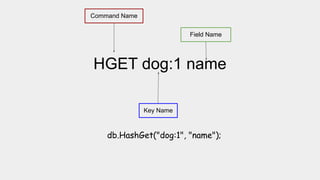

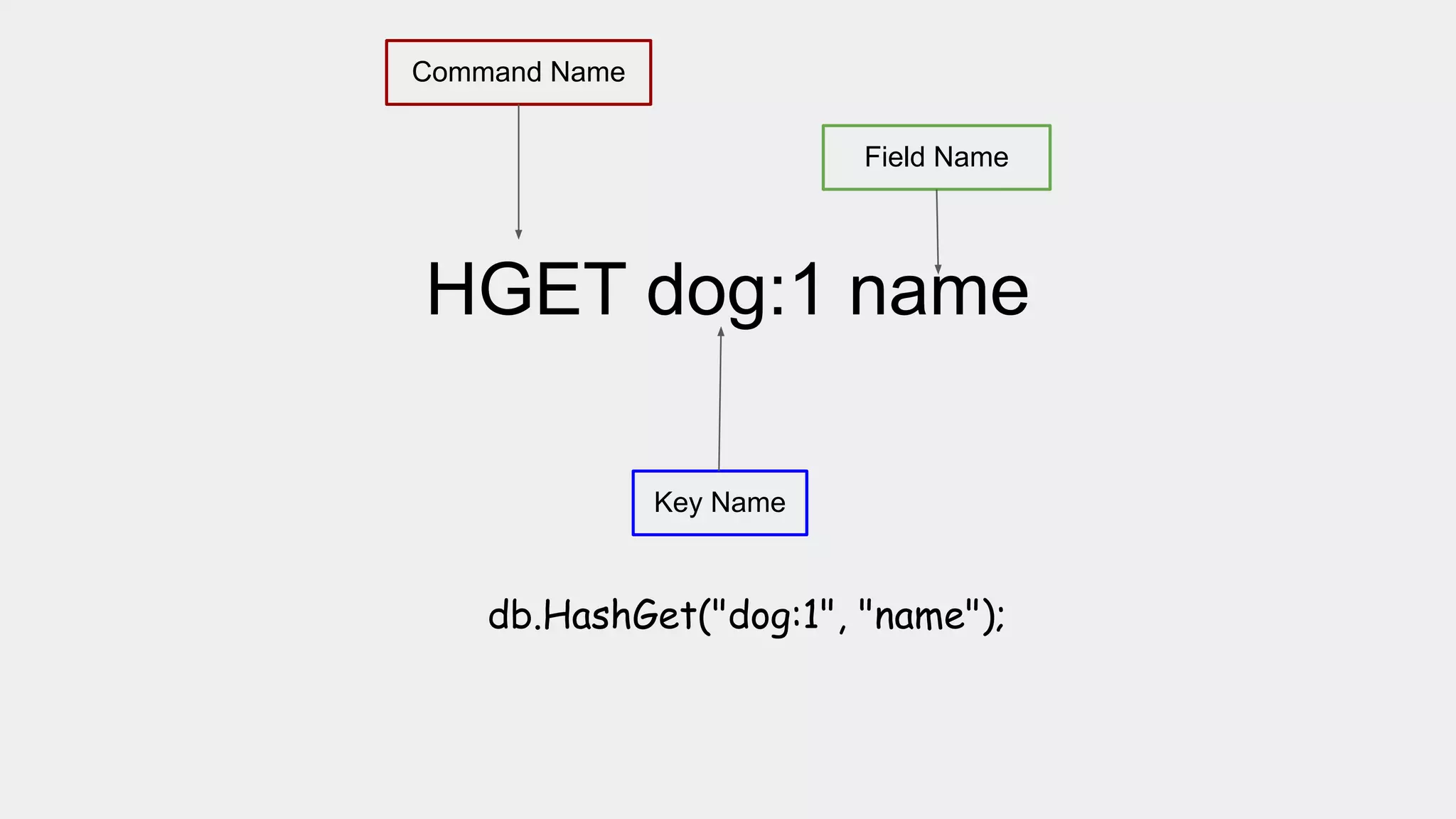

- 64. HGET dog:1 name CommandName Key Name Field Name db.HashGet("dog:1", "name");
- 65.

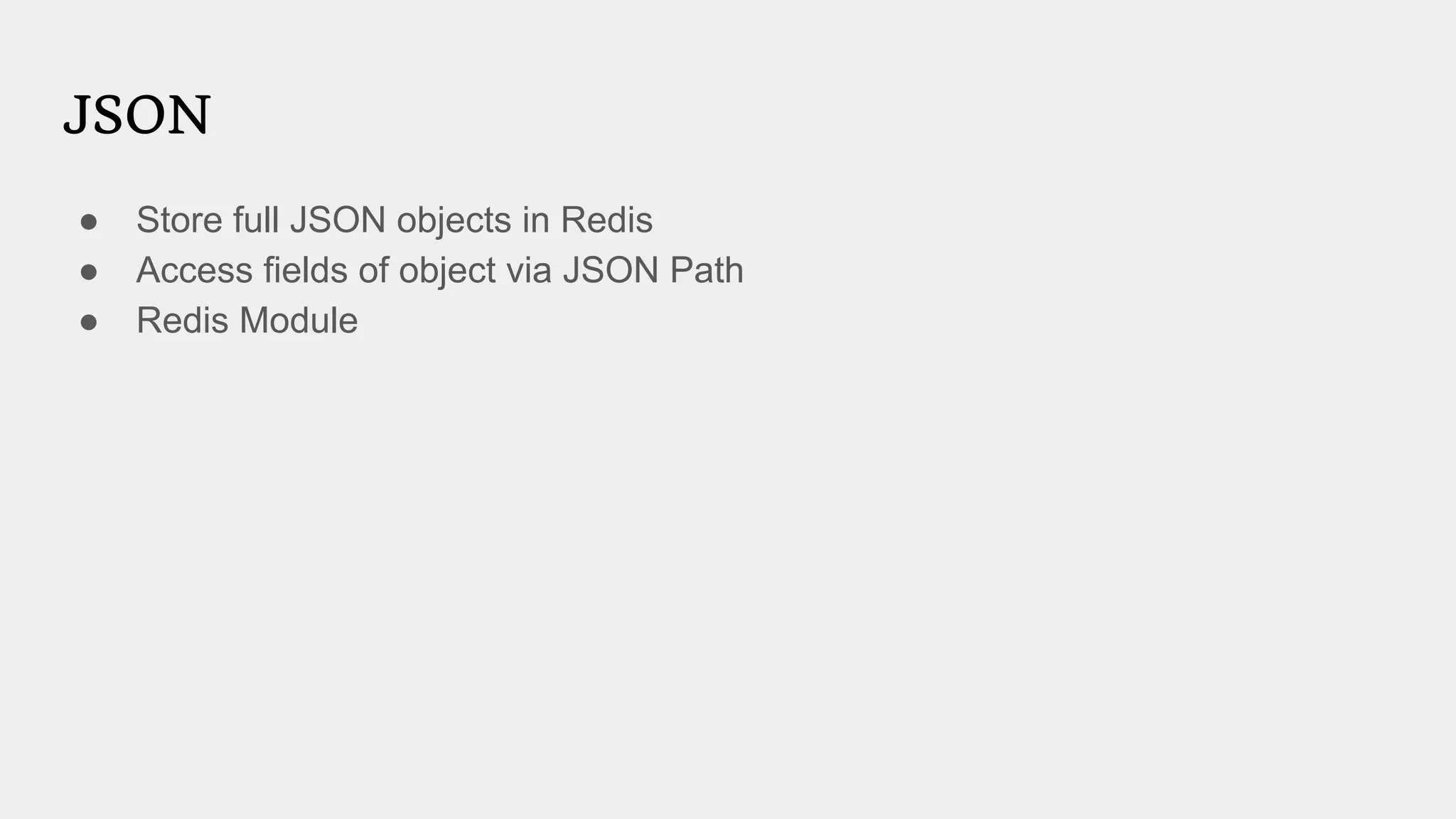

- 66. JSON ● Store fullJSON objects in Redis ● Access fields of object via JSON Path ● Redis Module

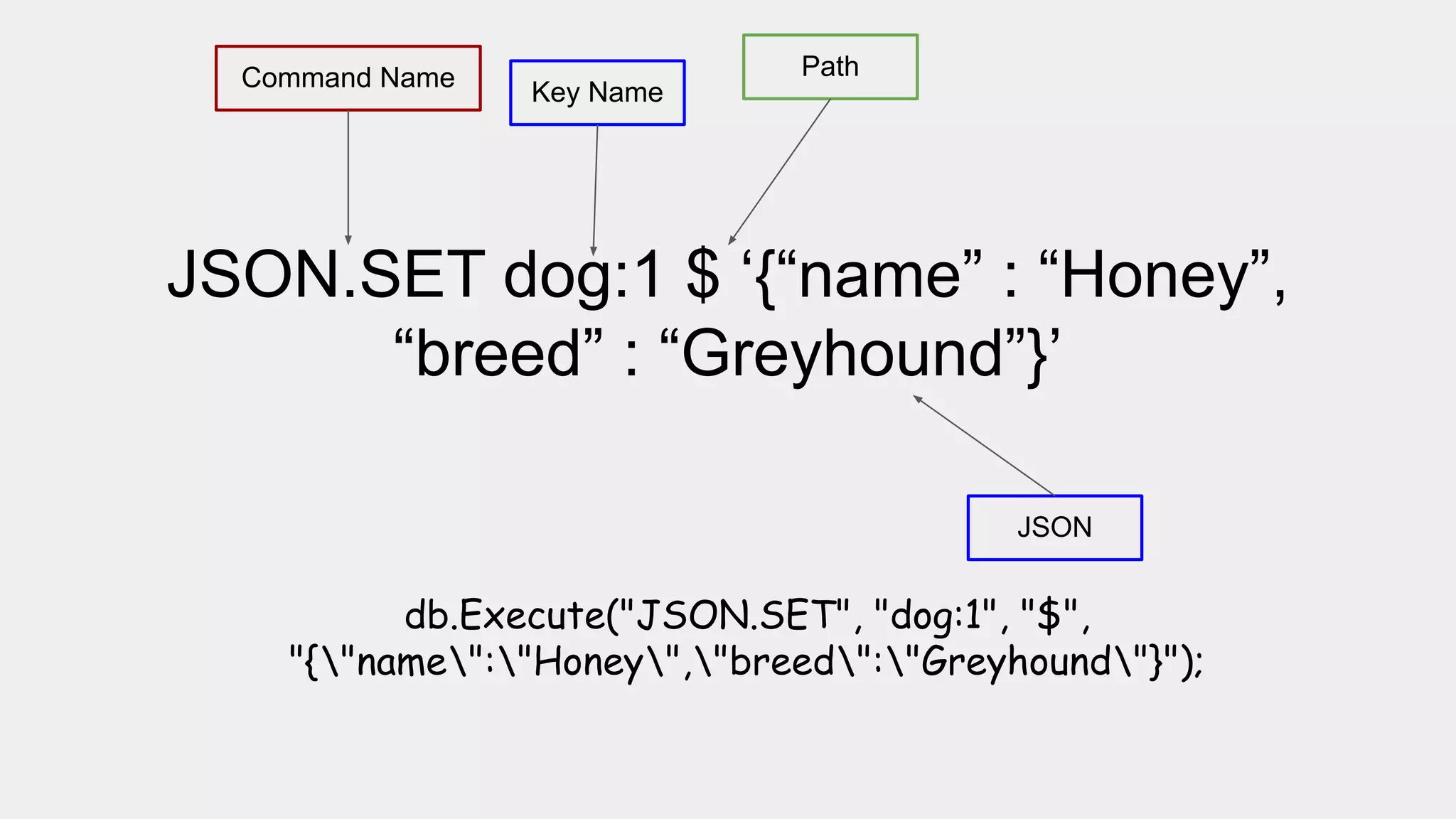

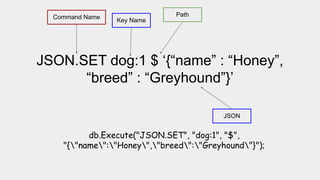

- 67. JSON.SET dog:1 $‘{“name” : “Honey”, “breed” : “Greyhound”}’ Command Name Key Name Path JSON db.Execute("JSON.SET", "dog:1", "$", "{"name":"Honey","breed":"Greyhound"}");

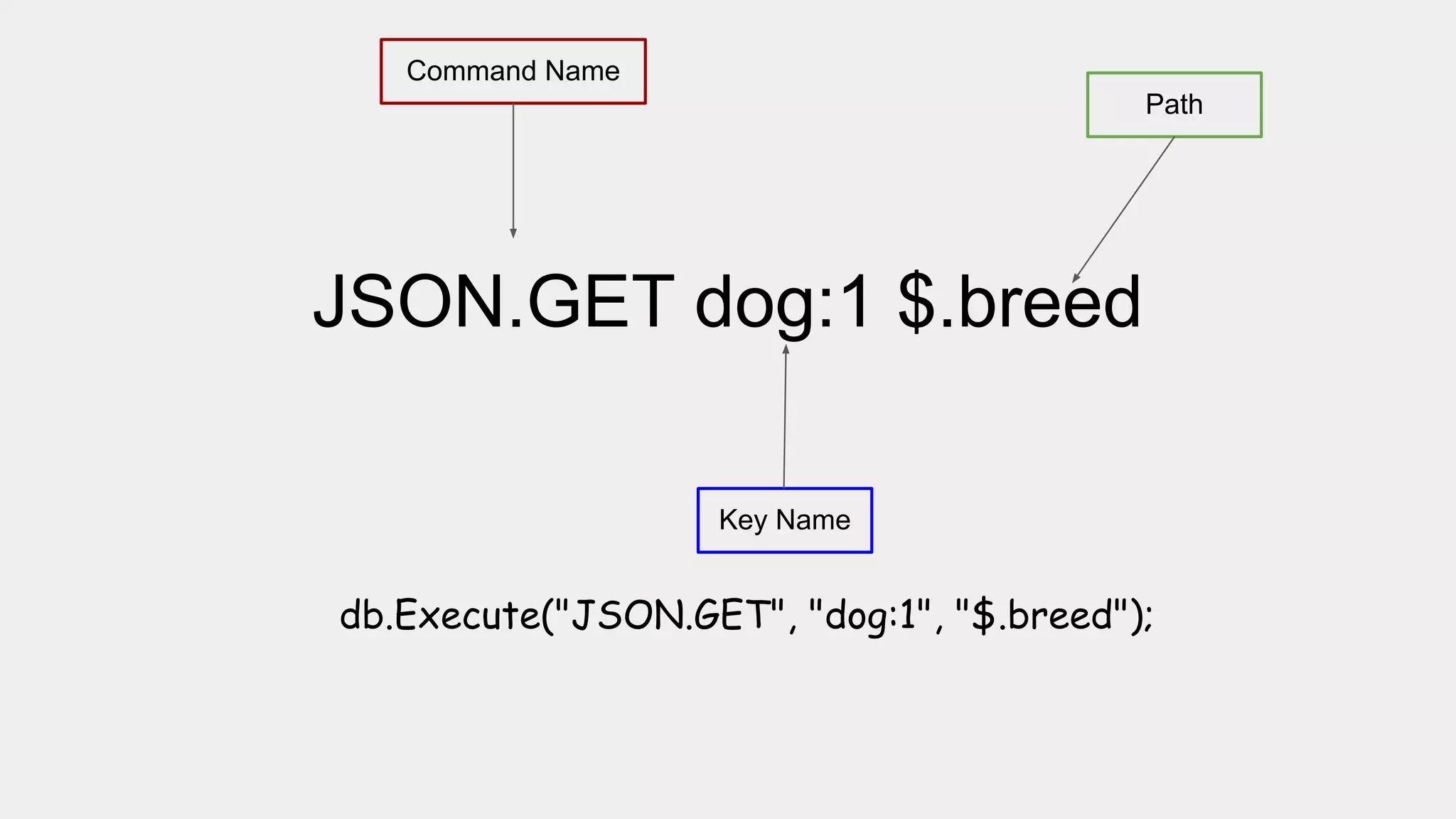

- 68. JSON.GET dog:1 $.breed CommandName Key Name Path db.Execute("JSON.GET", "dog:1", "$.breed");
- 69.

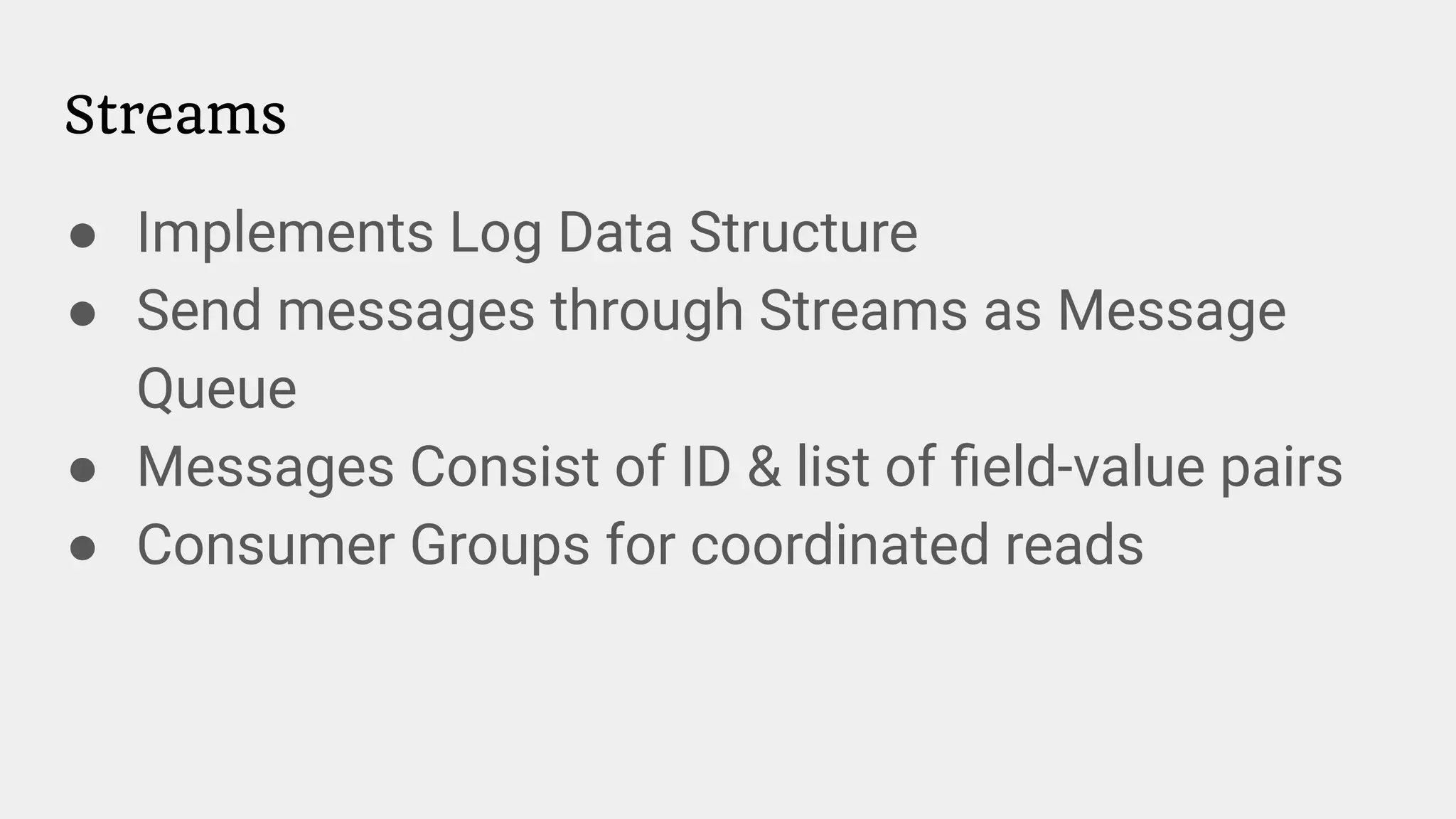

- 70. Streams ● Implements LogData Structure ● Send messages through Streams as Message Queue ● Messages Consist of ID & list of field-value pairs ● Consumer Groups for coordinated reads
- 71.

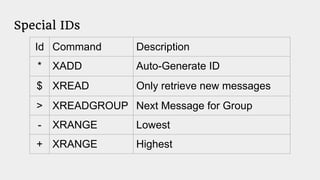

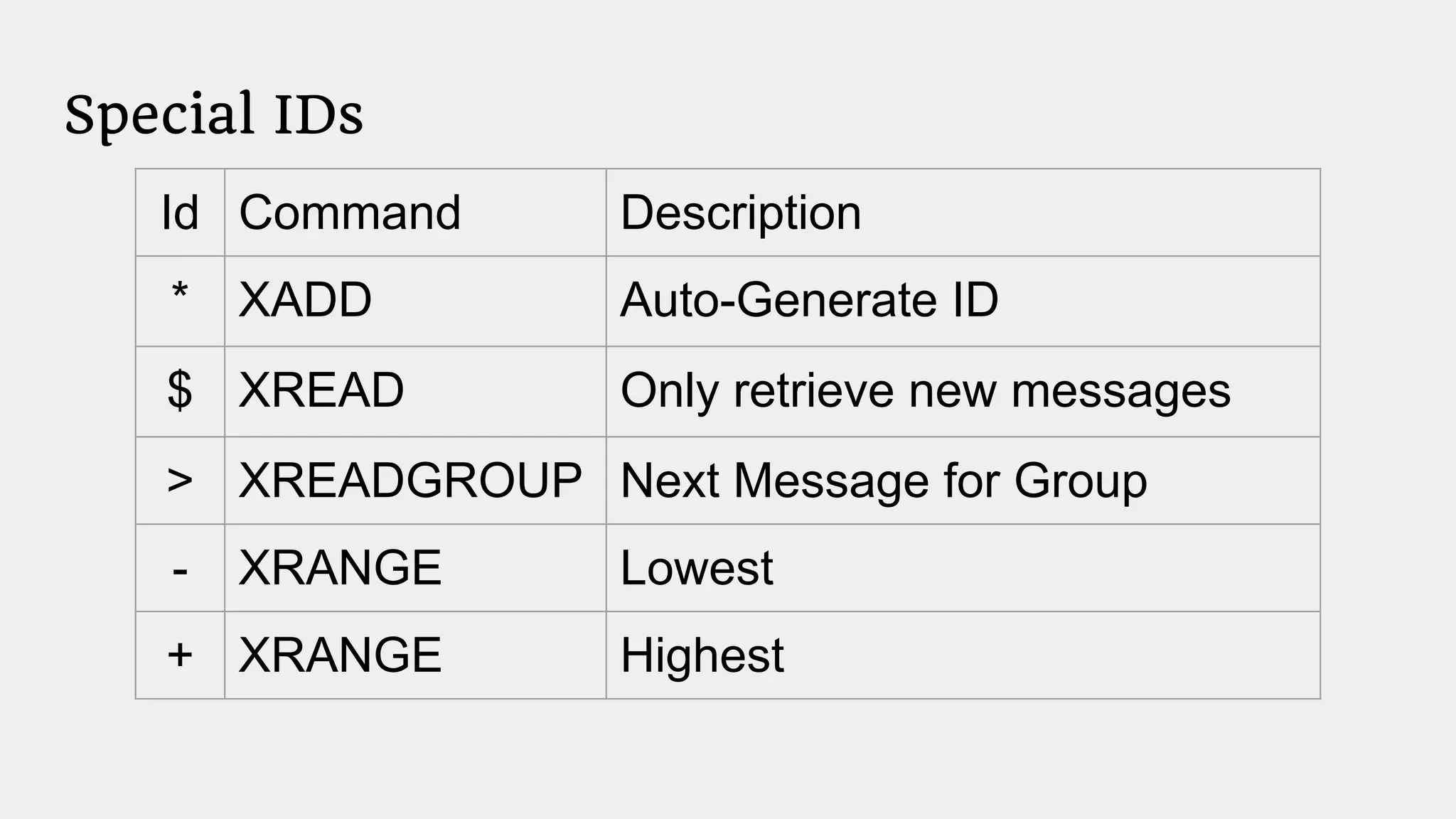

- 72. Special IDs Id CommandDescription * XADD Auto-Generate ID $ XREAD Only retrieve new messages > XREADGROUP Next Message for Group - XRANGE Lowest + XRANGE Highest

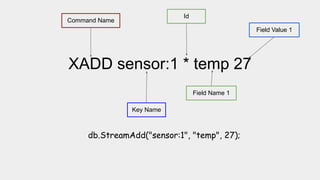

- 73. XADD sensor:1 *temp 27 Command Name Key Name Id Field Name 1 Field Value 1 db.StreamAdd("sensor:1", "temp", 27);

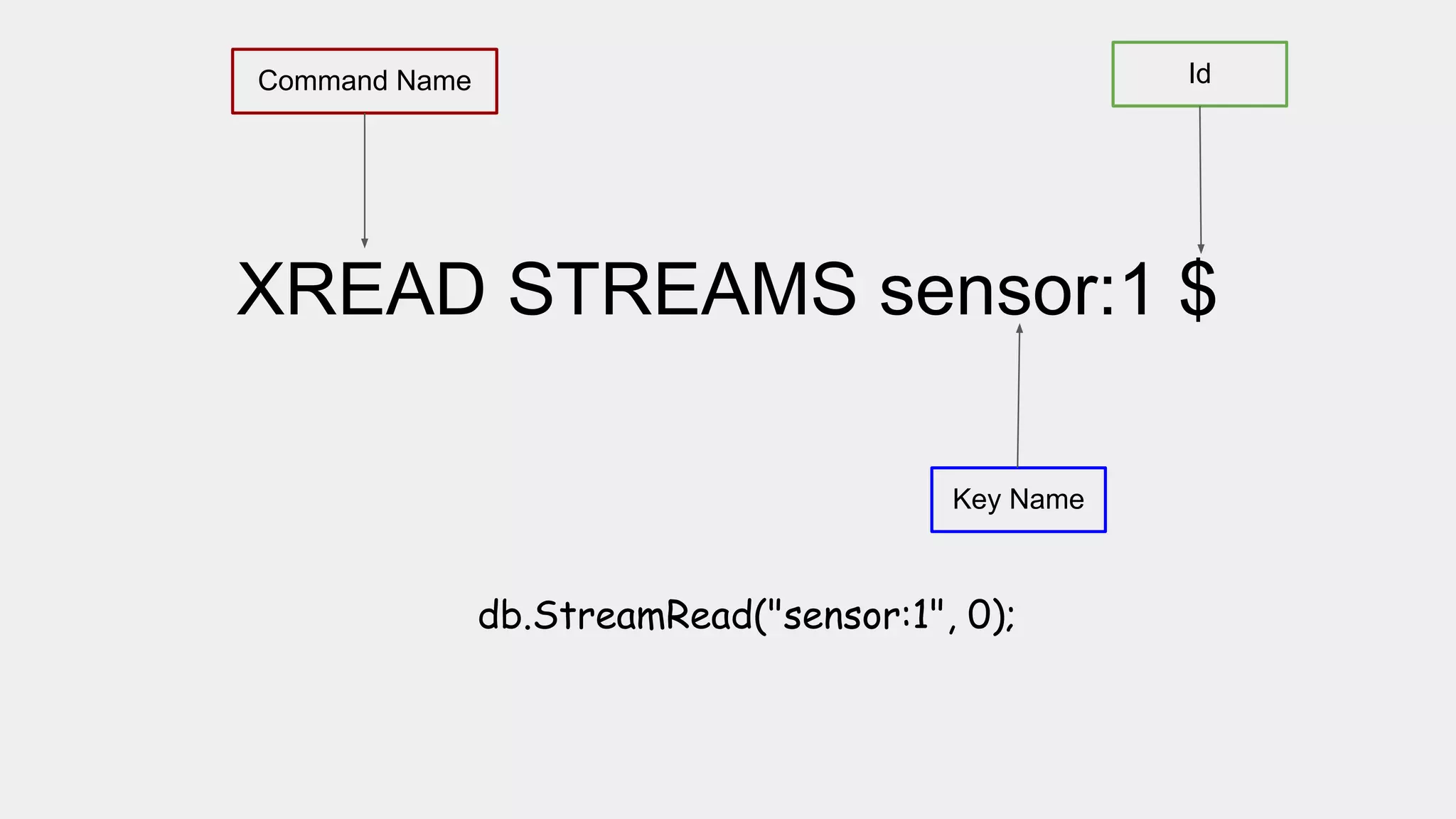

- 74. XREAD STREAMS sensor:1$ Command Name Key Name Id db.StreamRead("sensor:1", 0);

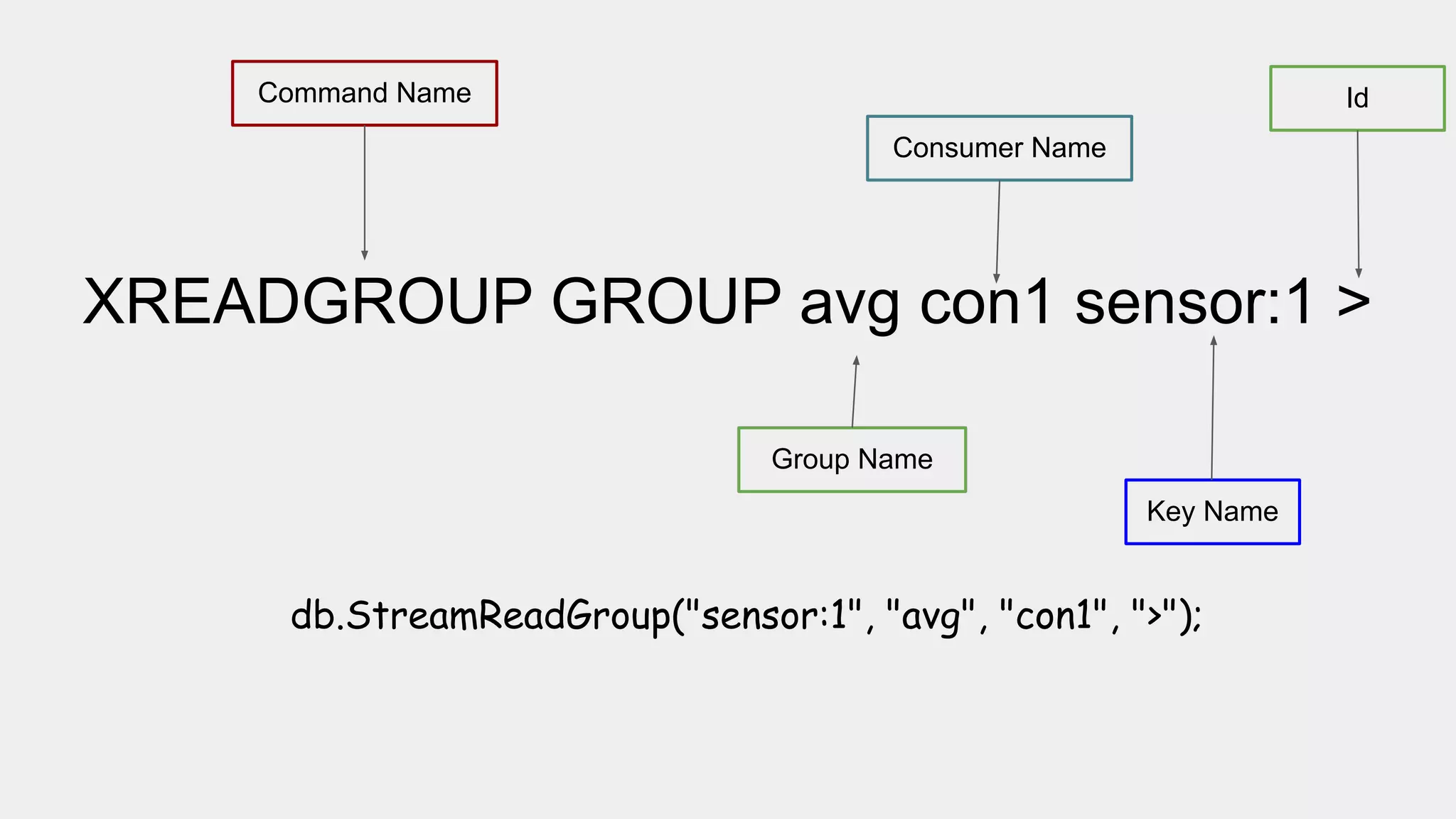

- 75. XREADGROUP GROUP avgcon1 sensor:1 > Command Name Key Name Id Group Name Consumer Name db.StreamReadGroup("sensor:1", "avg", "con1", ">");
- 76.
- 77.

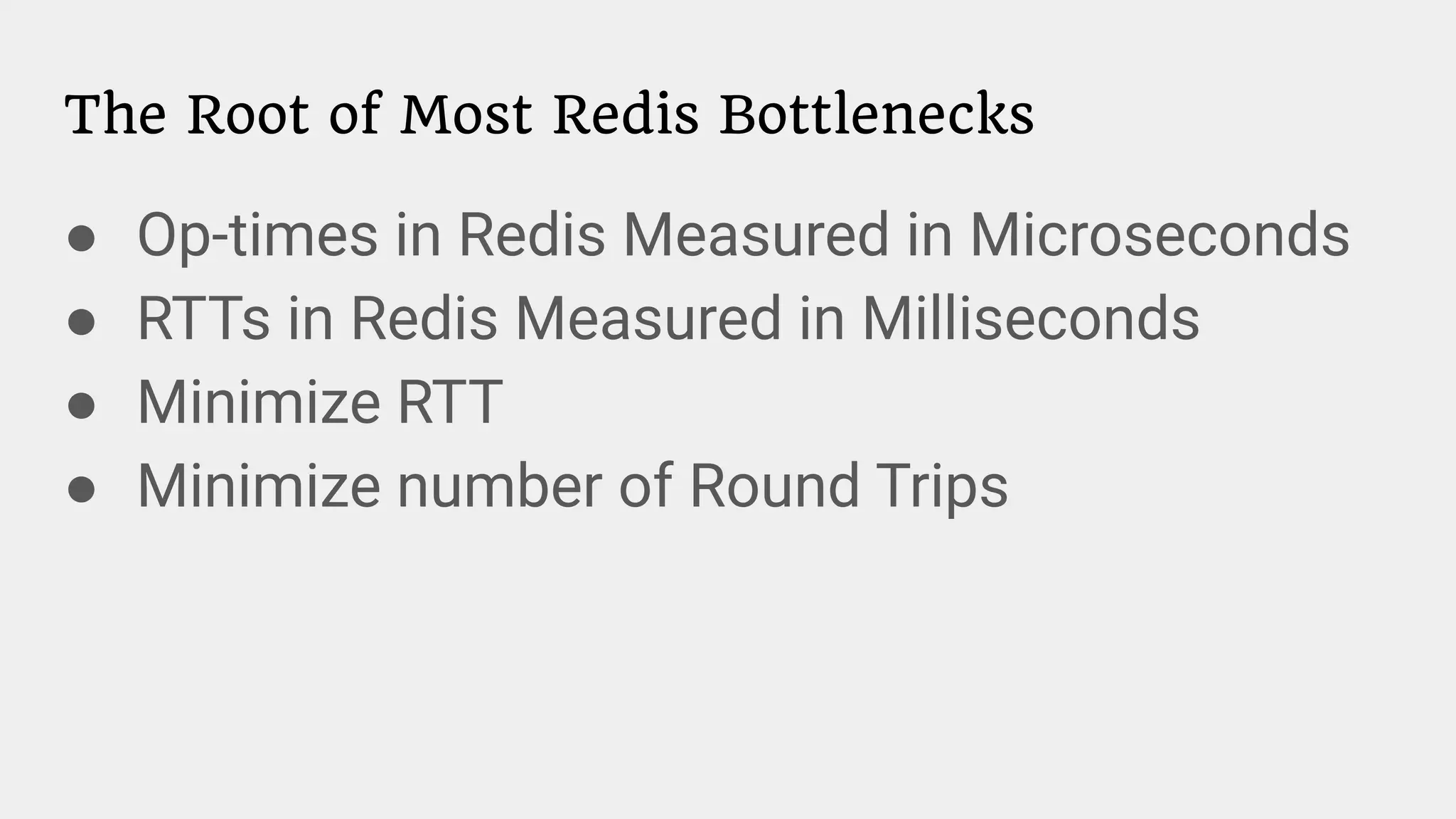

- 78. The Root ofMost Redis Bottlenecks ● Op-times in Redis Measured in Microseconds ● RTTs in Redis Measured in Milliseconds ● Minimize RTT ● Minimize number of Round Trips

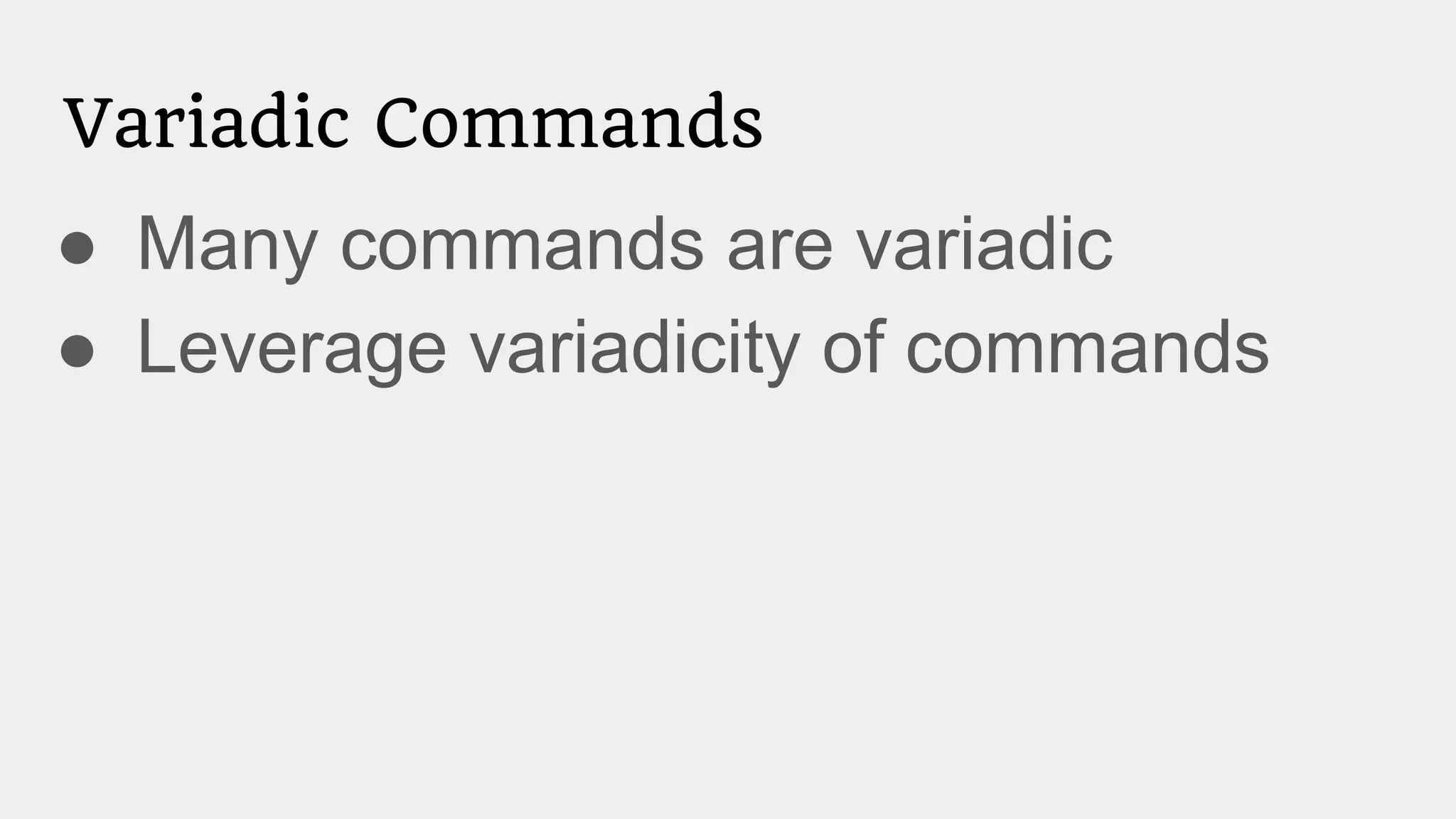

- 79. Variadic Commands ● Manycommands are variadic ● Leverage variadicity of commands

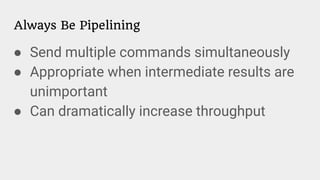

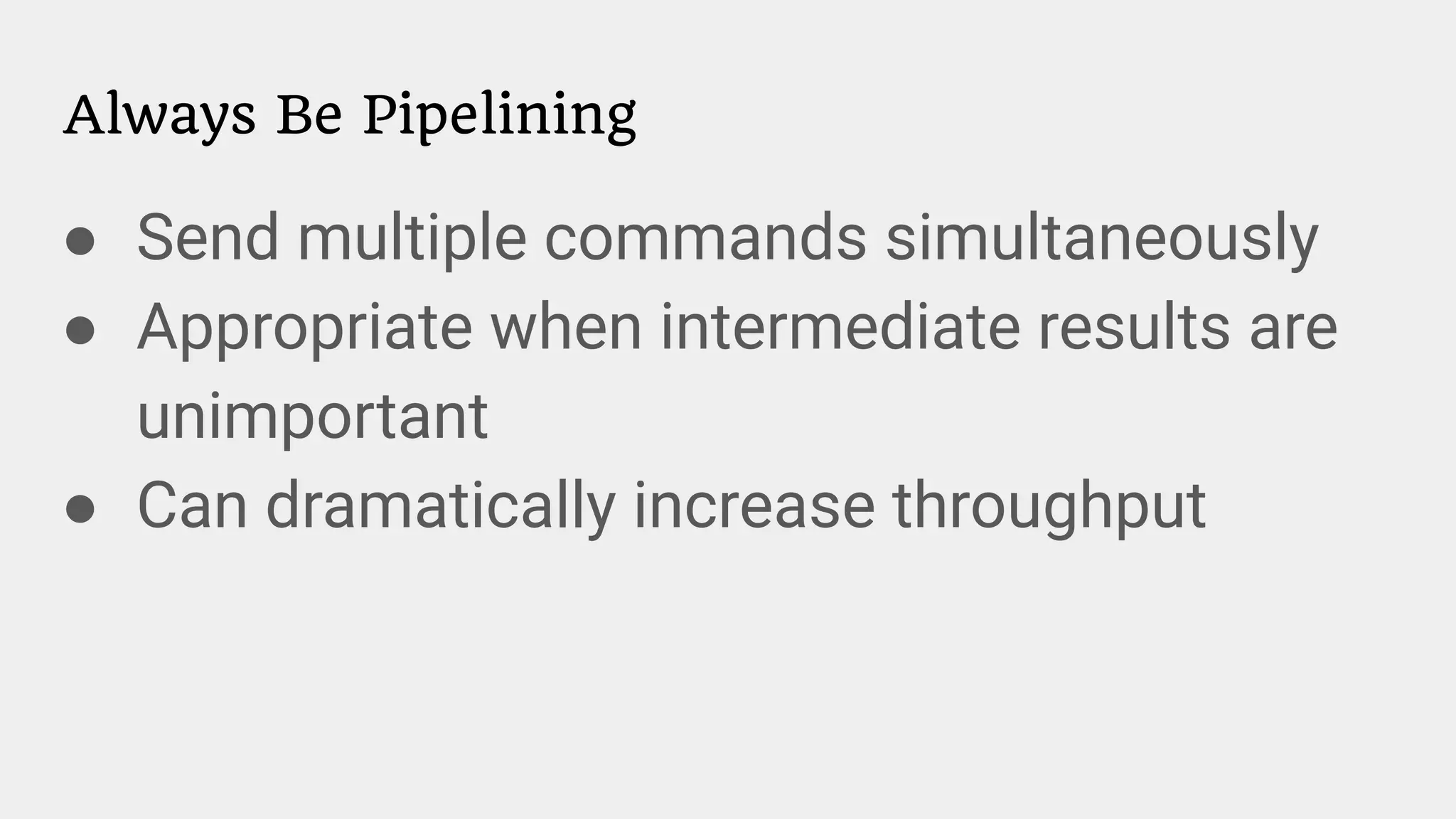

- 80. Always Be Pipelining ●Send multiple commands simultaneously ● Appropriate when intermediate results are unimportant ● Can dramatically increase throughput
- 81.

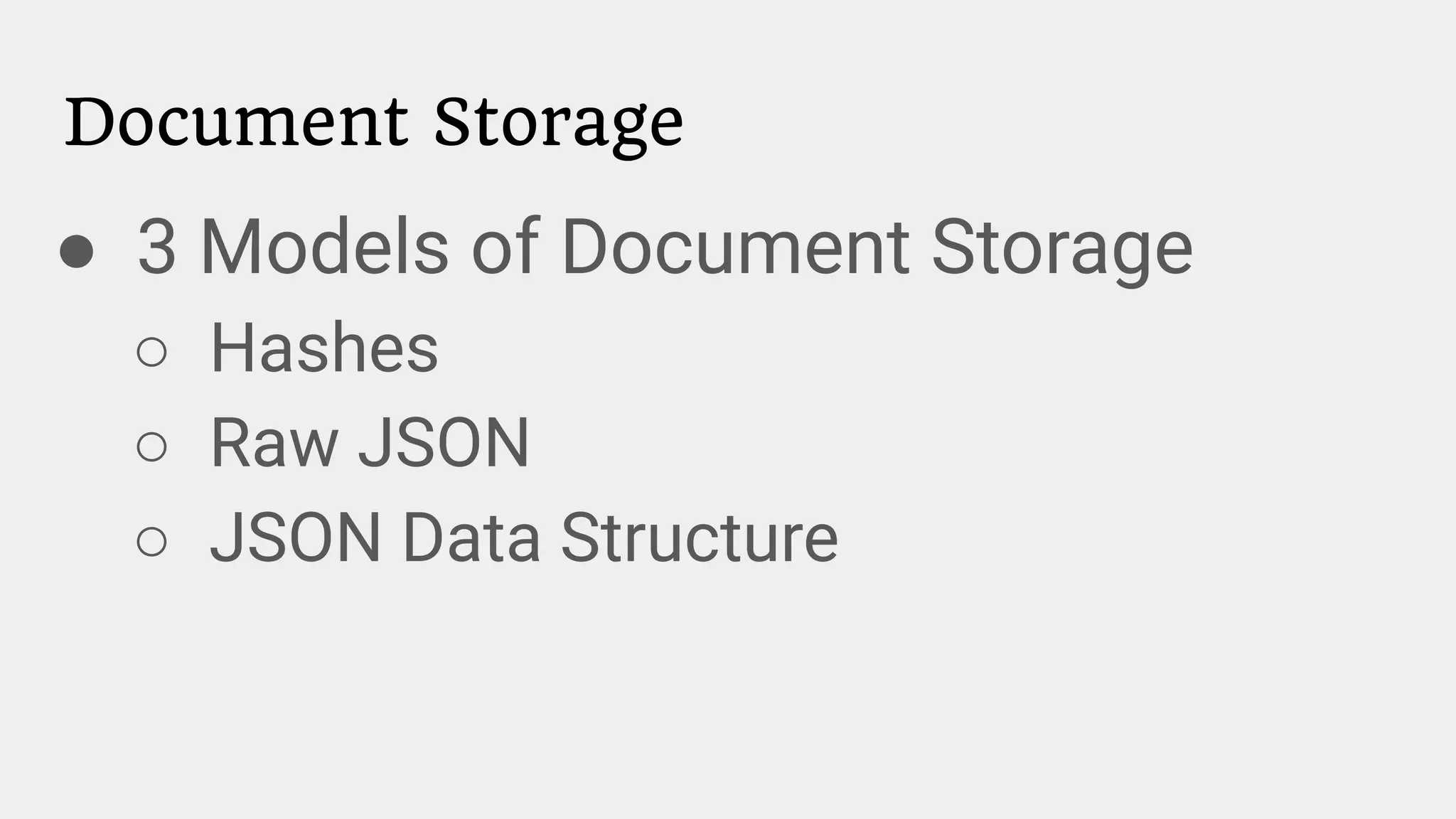

- 82. Document Storage ● 3Models of Document Storage ○ Hashes ○ Raw JSON ○ JSON Data Structure

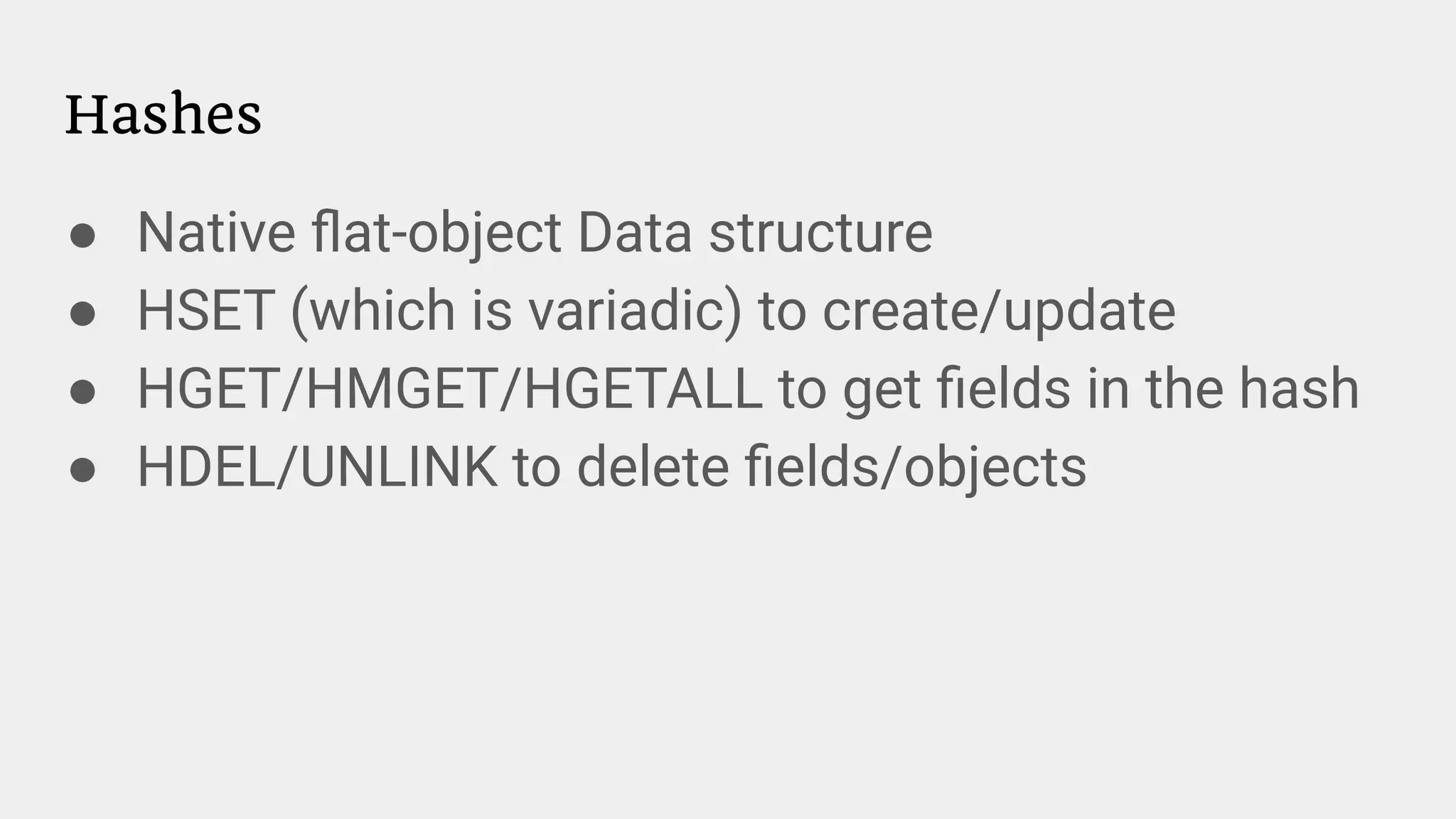

- 83. Hashes ● Native flat-objectData structure ● HSET (which is variadic) to create/update ● HGET/HMGET/HGETALL to get fields in the hash ● HDEL/UNLINK to delete fields/objects

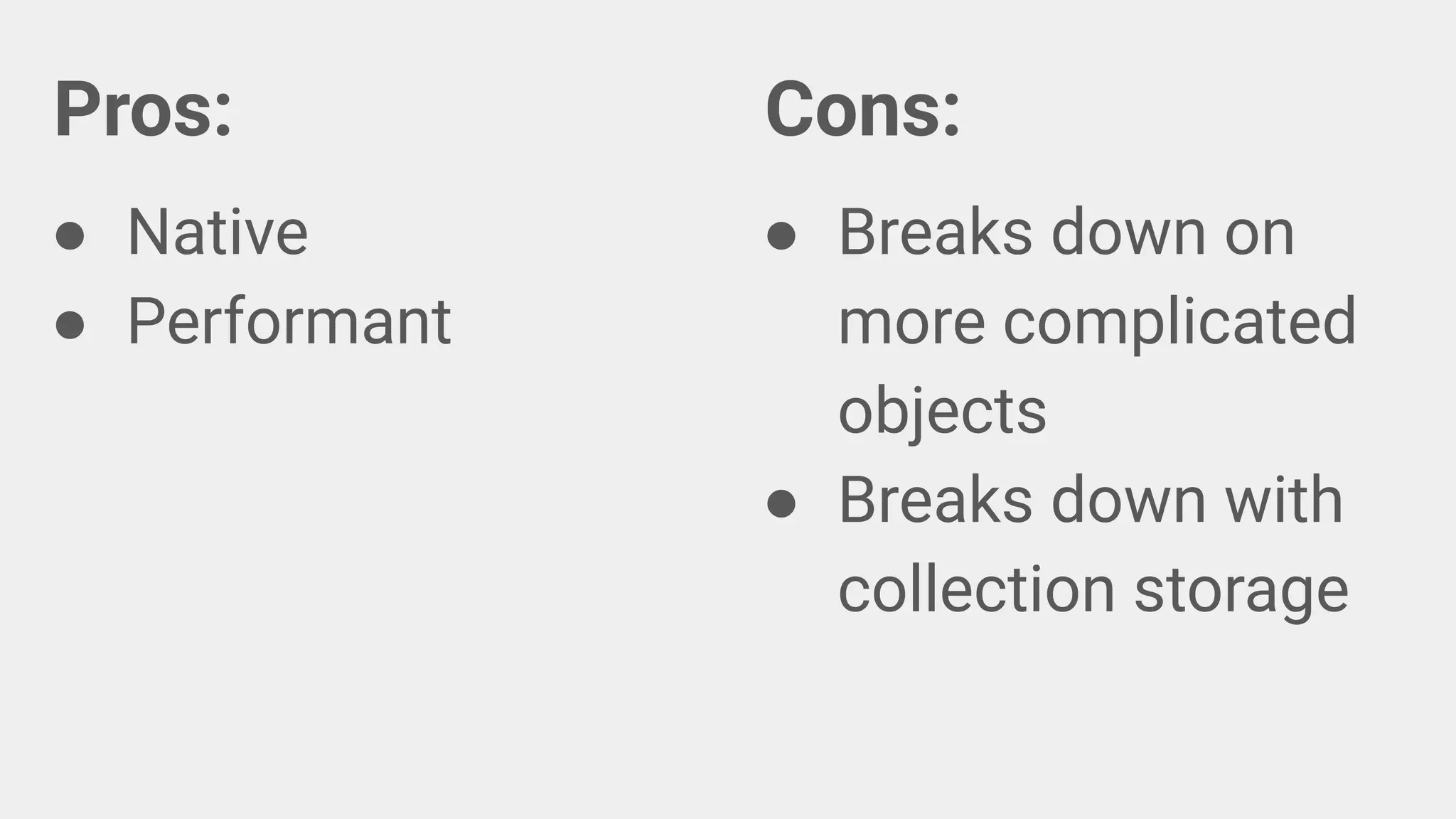

- 84. Pros: ● Native ● Performant Cons: ●Breaks down on more complicated objects ● Breaks down with collection storage

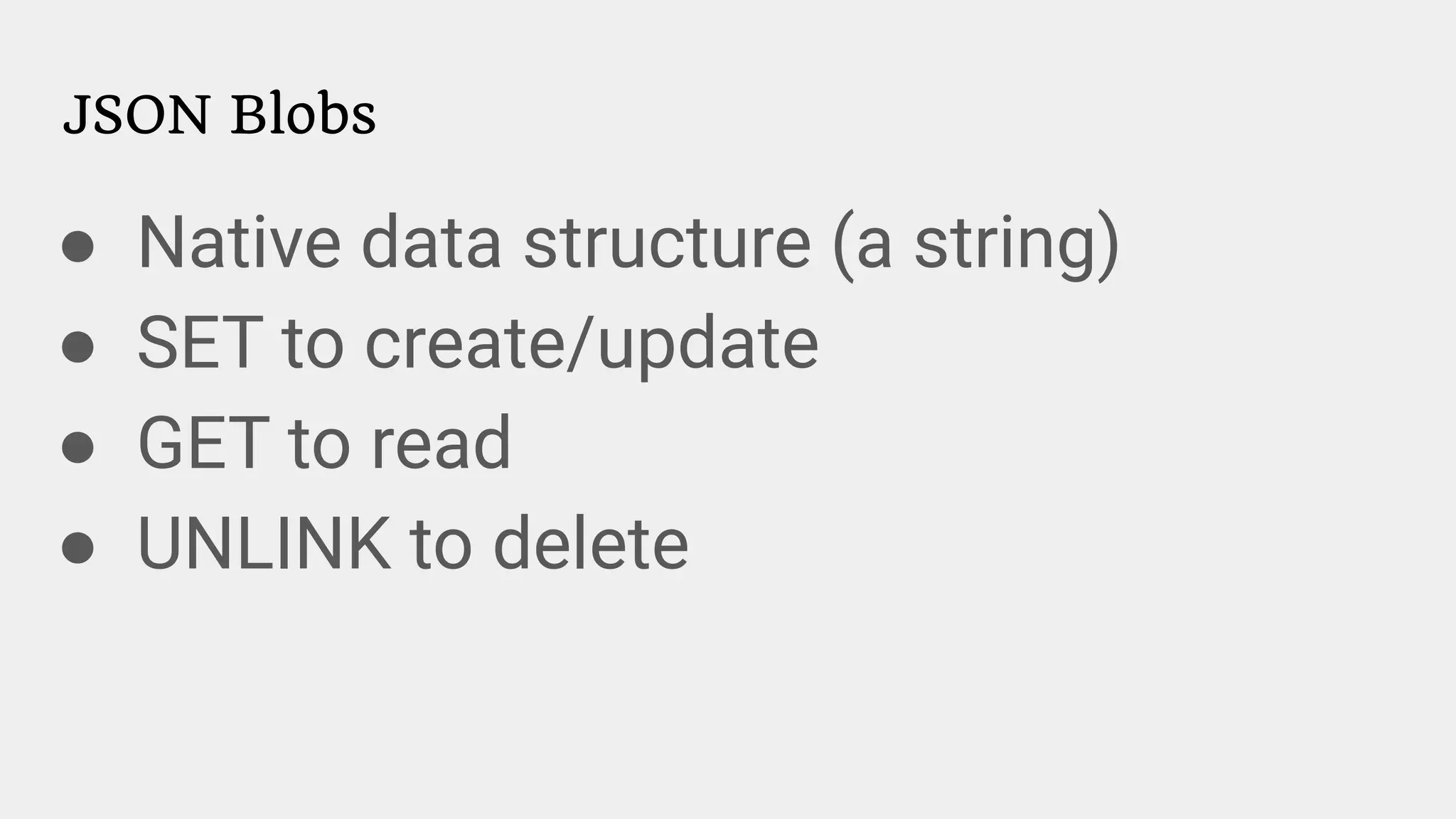

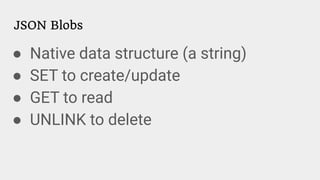

- 85. JSON Blobs ● Nativedata structure (a string) ● SET to create/update ● GET to read ● UNLINK to delete

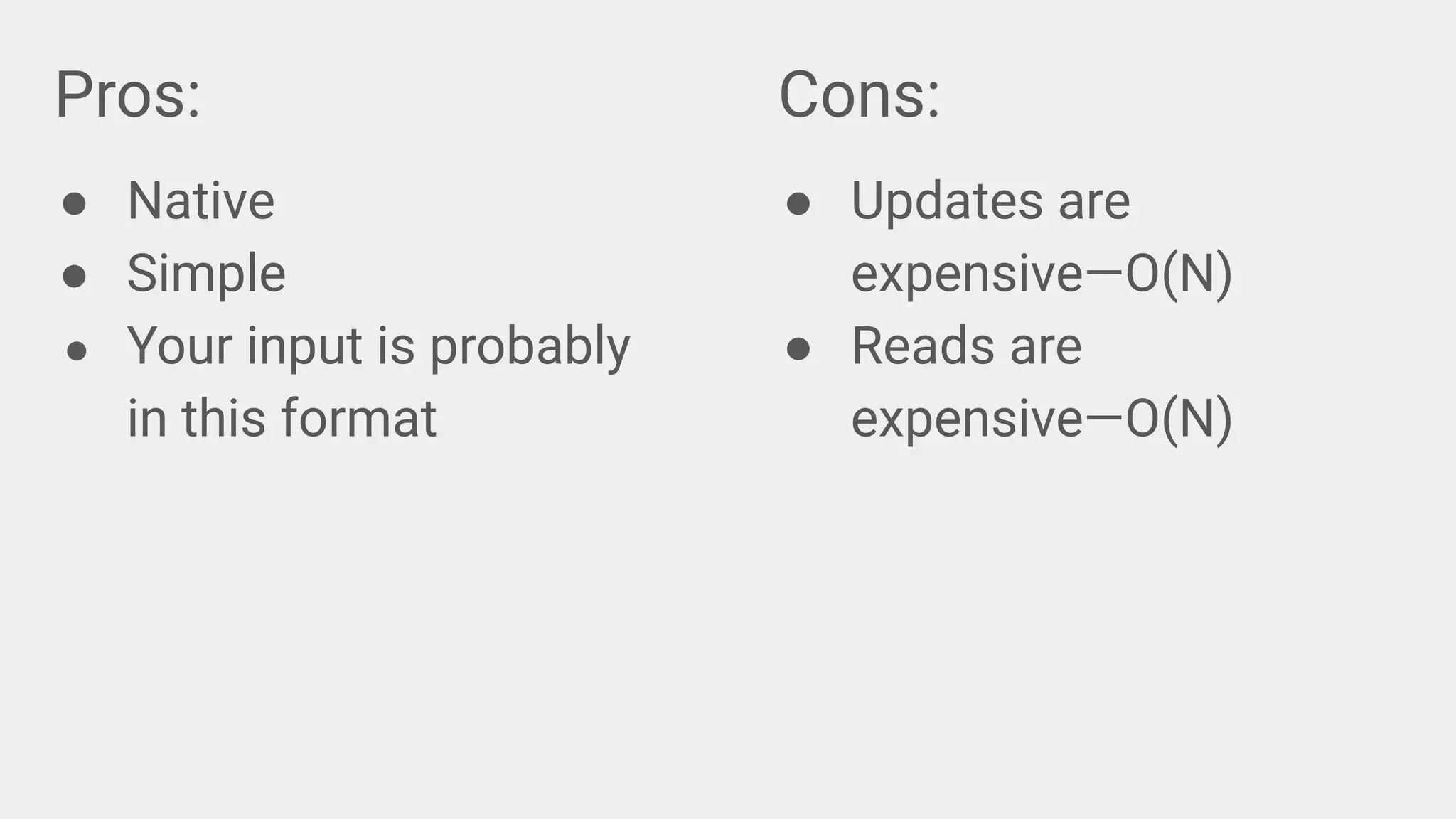

- 86. Pros: ● Native ● Simple ●Your input is probably in this format Cons: ● Updates are expensive—O(N) ● Reads are expensive—O(N)

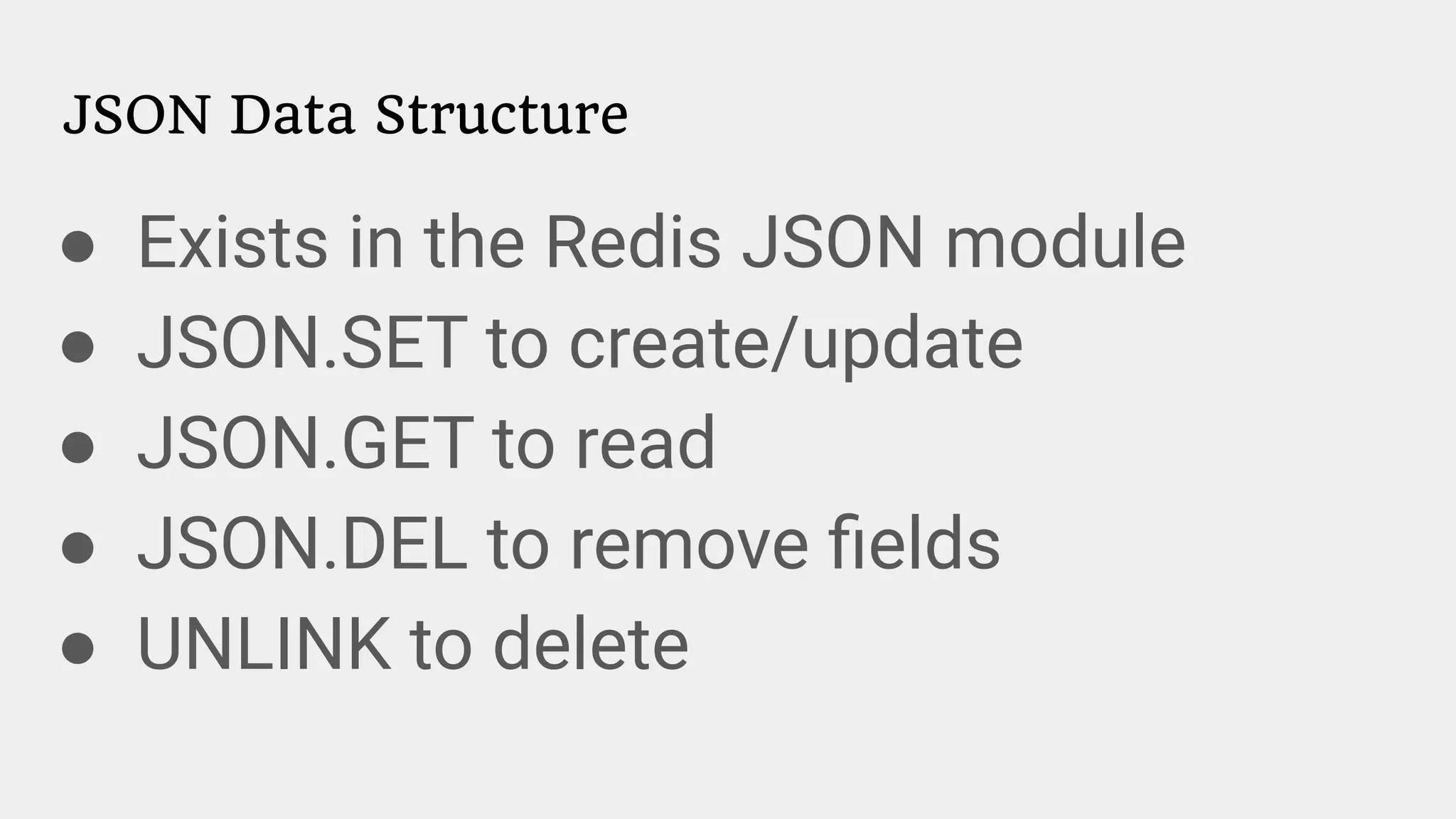

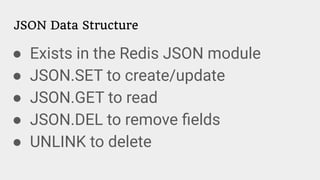

- 87. JSON Data Structure ●Exists in the Redis JSON module ● JSON.SET to create/update ● JSON.GET to read ● JSON.DEL to remove fields ● UNLINK to delete

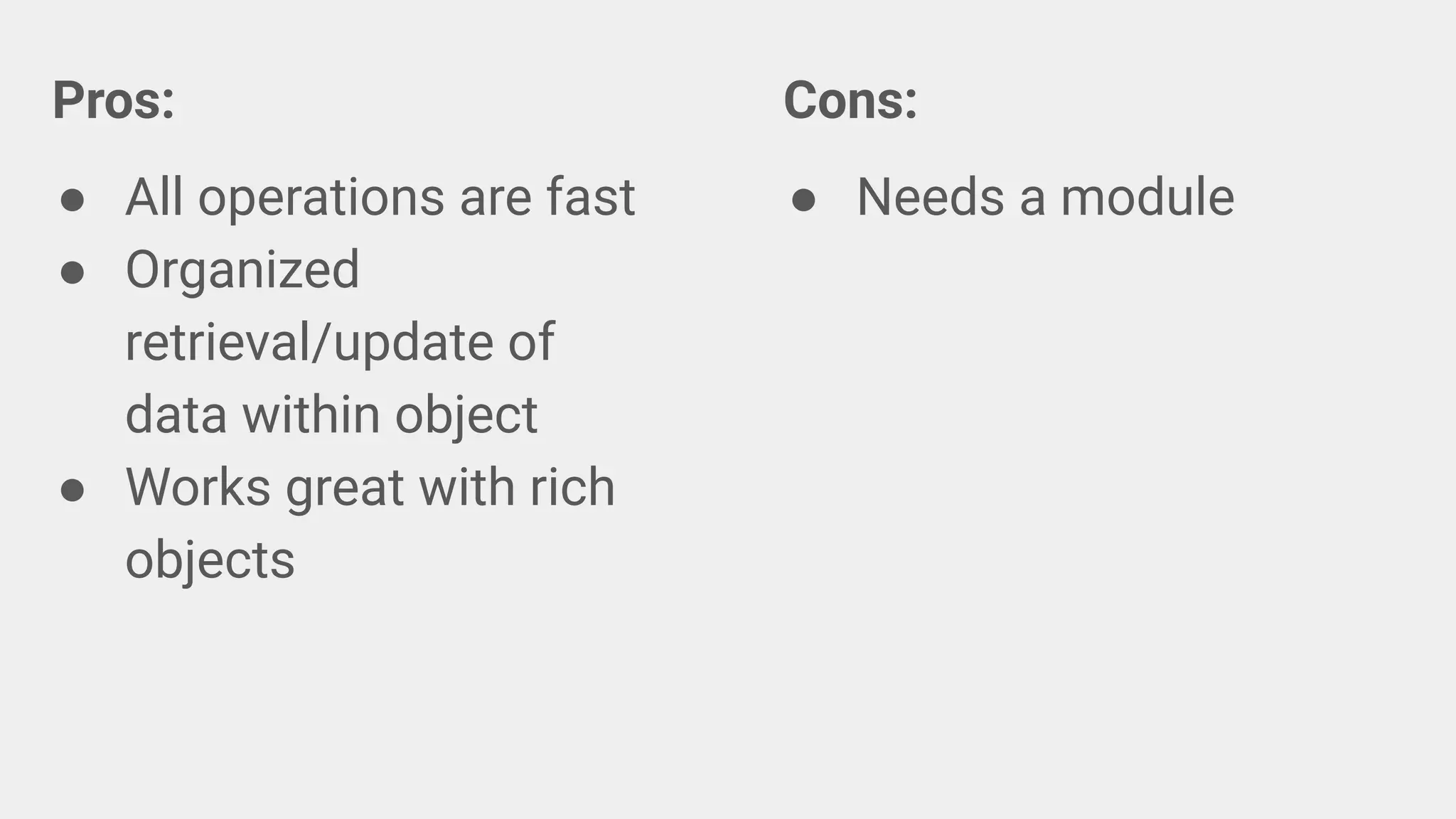

- 88. Pros: ● All operationsare fast ● Organized retrieval/update of data within object ● Works great with rich objects Cons: ● Needs a module
- 89.

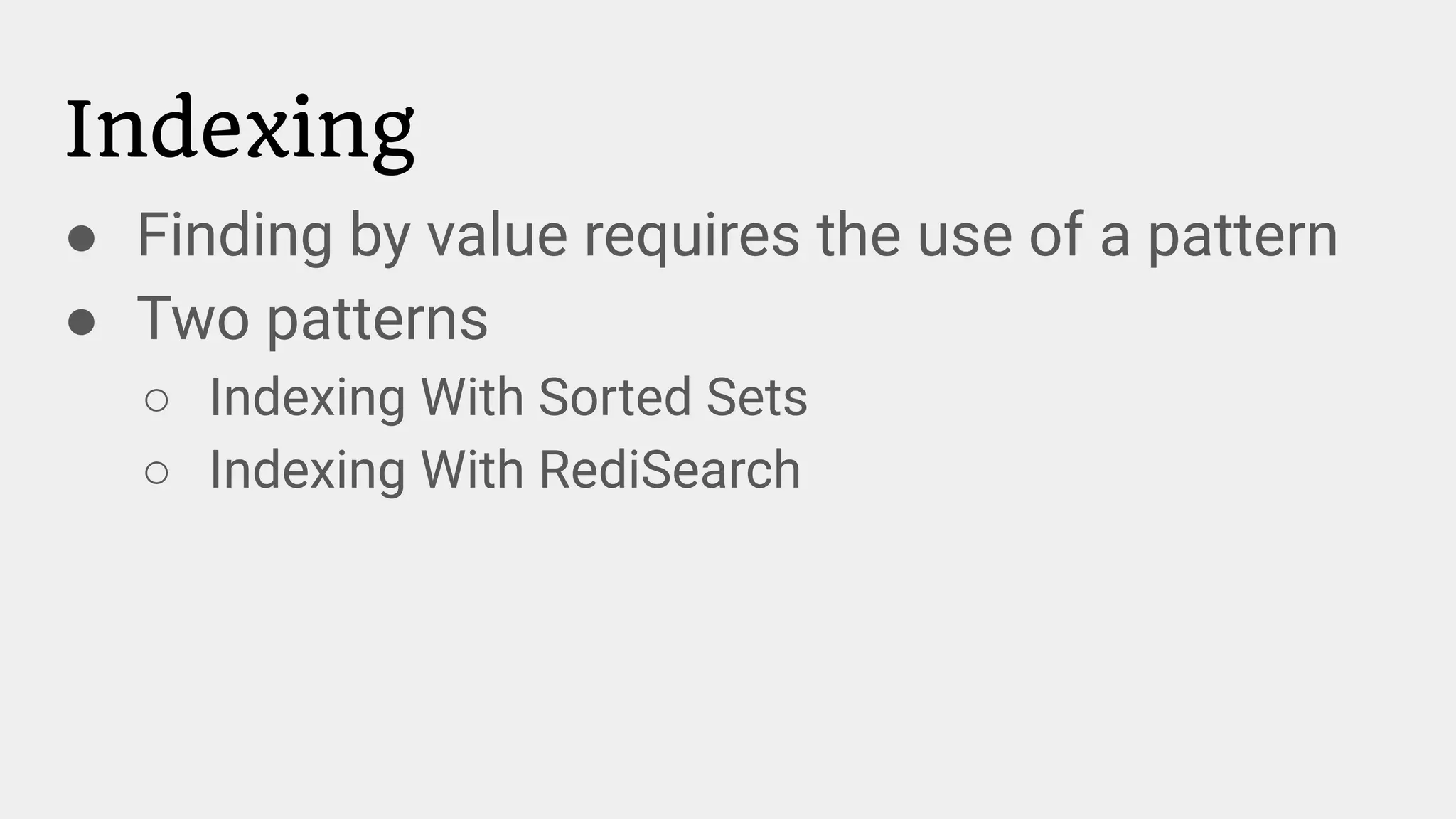

- 90. Indexing ● Finding byvalue requires the use of a pattern ● Two patterns ○ Indexing With Sorted Sets ○ Indexing With RediSearch

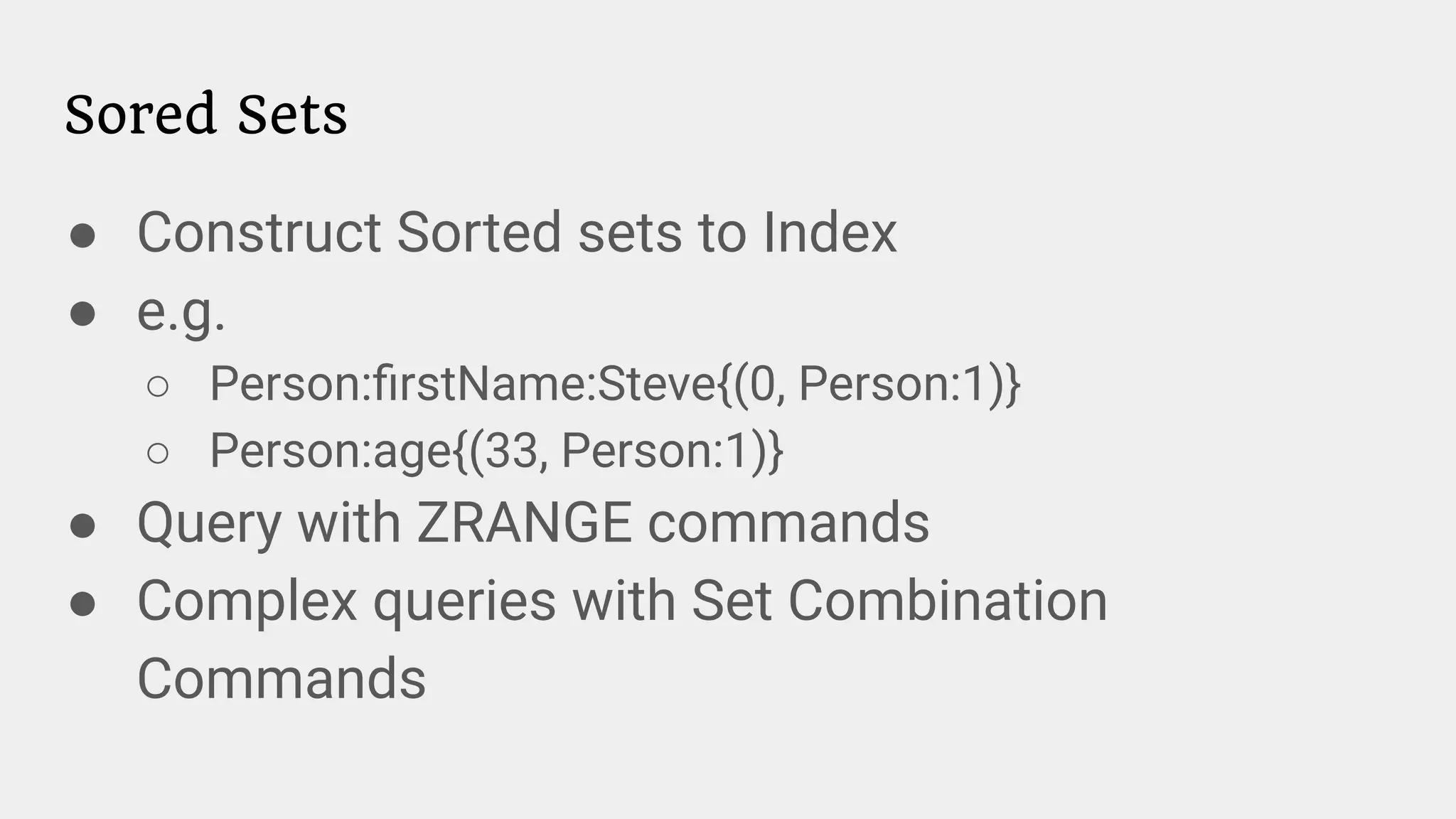

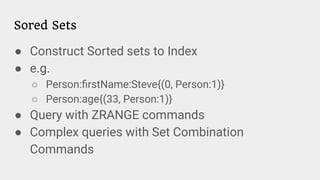

- 91. Sored Sets ● ConstructSorted sets to Index ● e.g. ○ Person:firstName:Steve{(0, Person:1)} ○ Person:age{(33, Person:1)} ● Query with ZRANGE commands ● Complex queries with Set Combination Commands

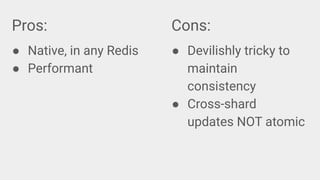

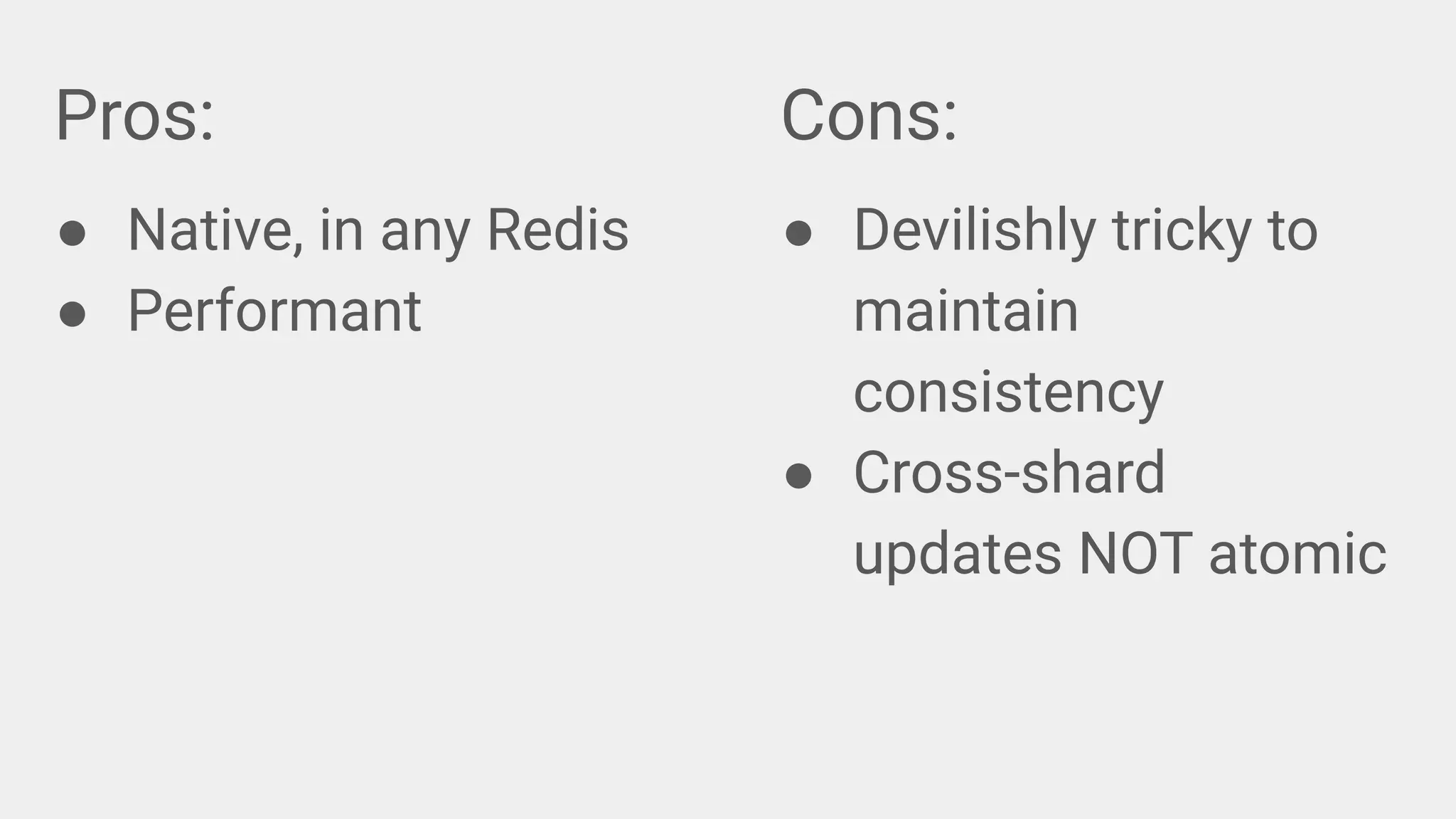

- 92. Pros: ● Native, inany Redis ● Performant Cons: ● Devilishly tricky to maintain consistency ● Cross-shard updates NOT atomic

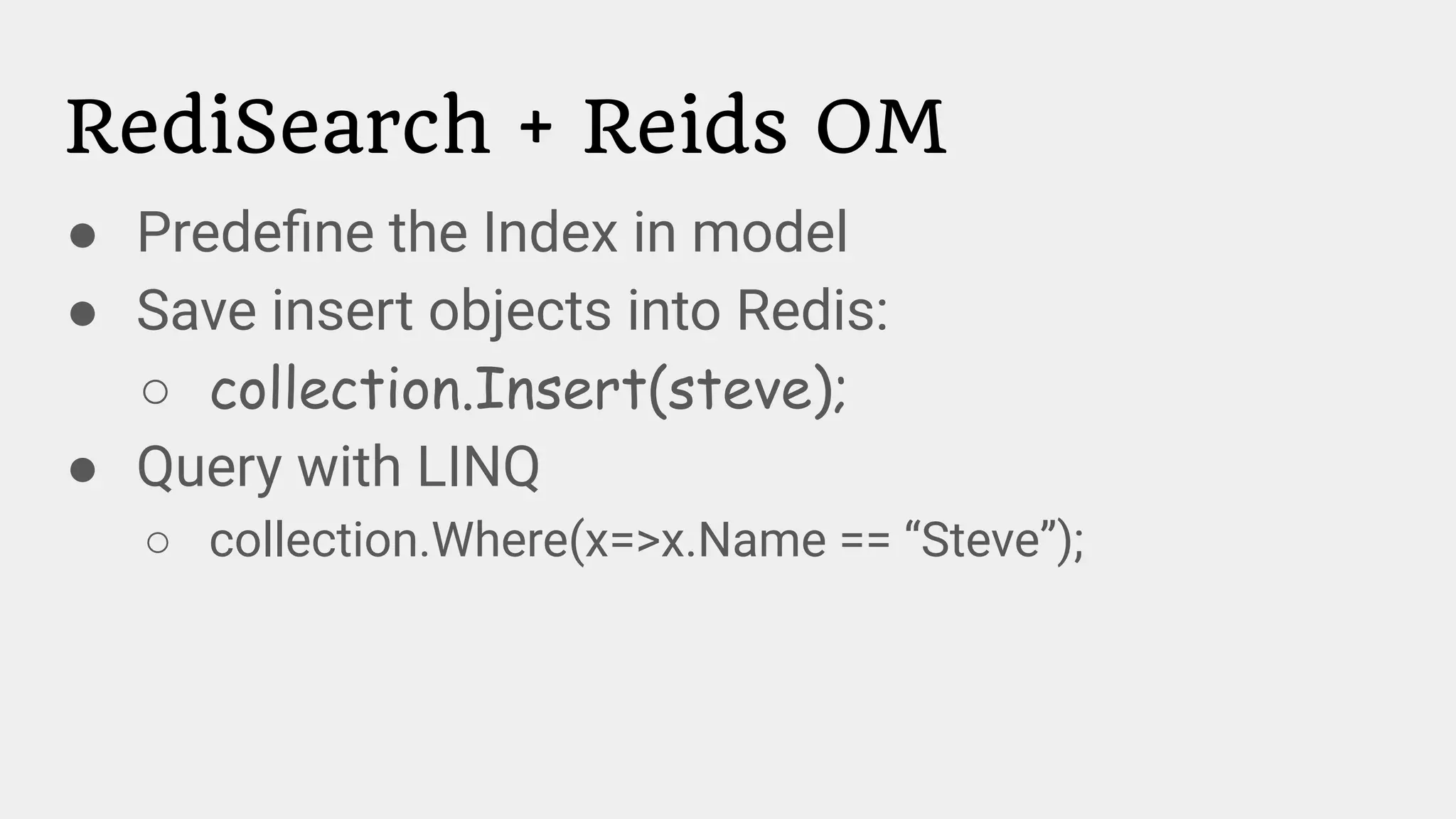

- 93. RediSearch + ReidsOM ● Predefine the Index in model ● Save insert objects into Redis: ○ collection.Insert(steve); ● Query with LINQ ○ collection.Where(x=>x.Name == “Steve”);

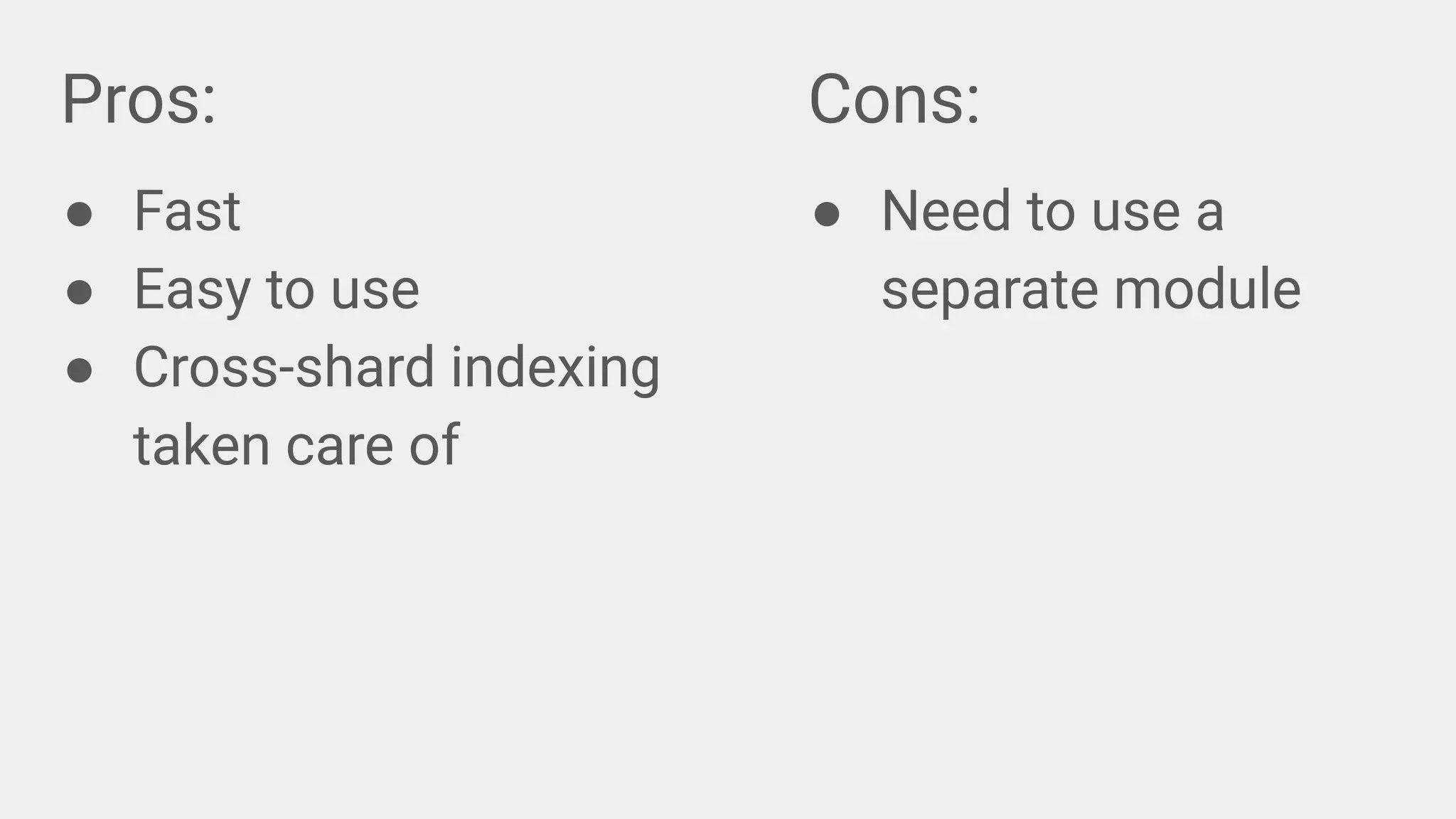

- 94. Pros: ● Fast ● Easyto use ● Cross-shard indexing taken care of Cons: ● Need to use a separate module
- 95.

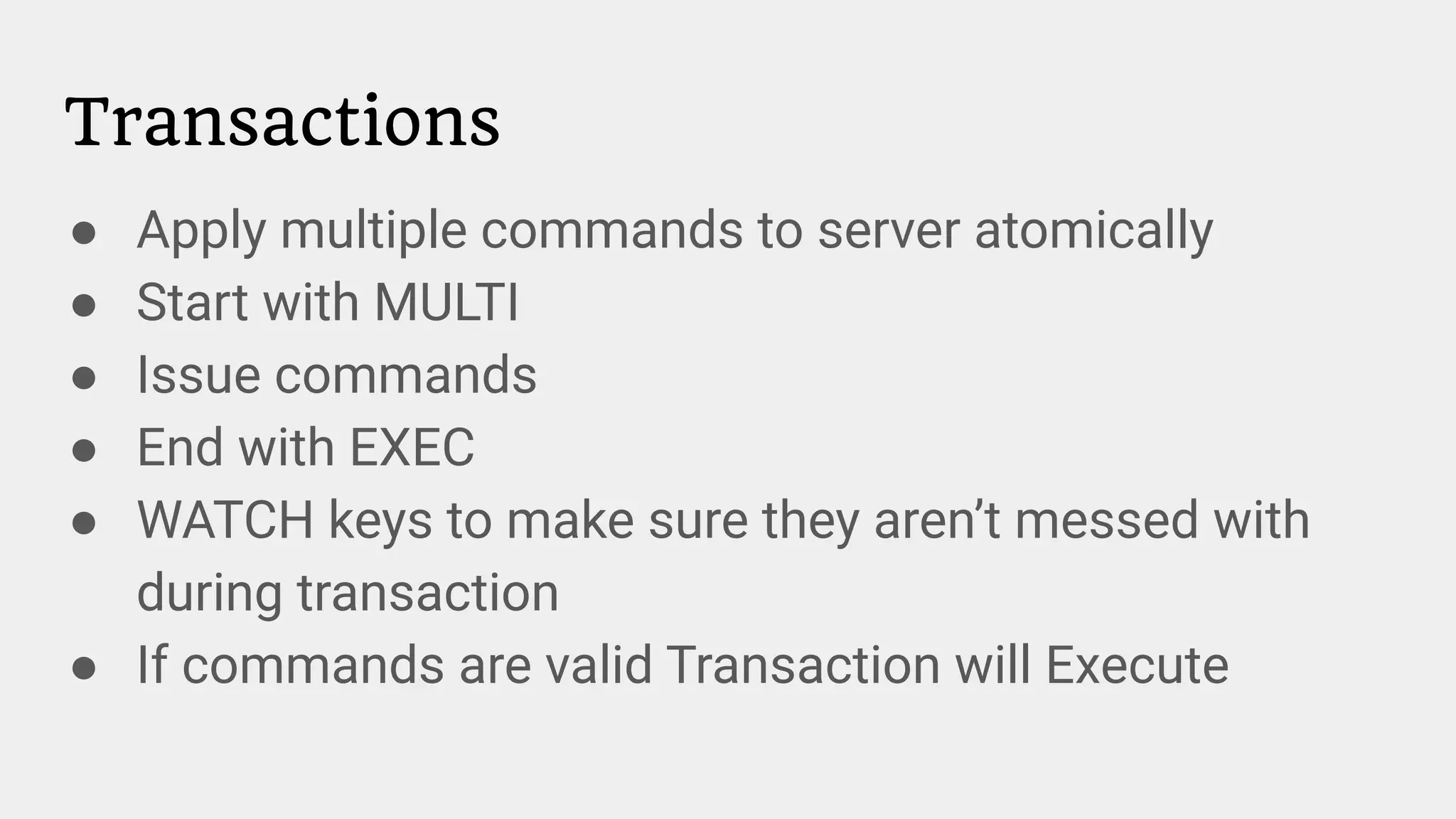

- 96. Transactions ● Apply multiplecommands to server atomically ● Start with MULTI ● Issue commands ● End with EXEC ● WATCH keys to make sure they aren’t messed with during transaction ● If commands are valid Transaction will Execute

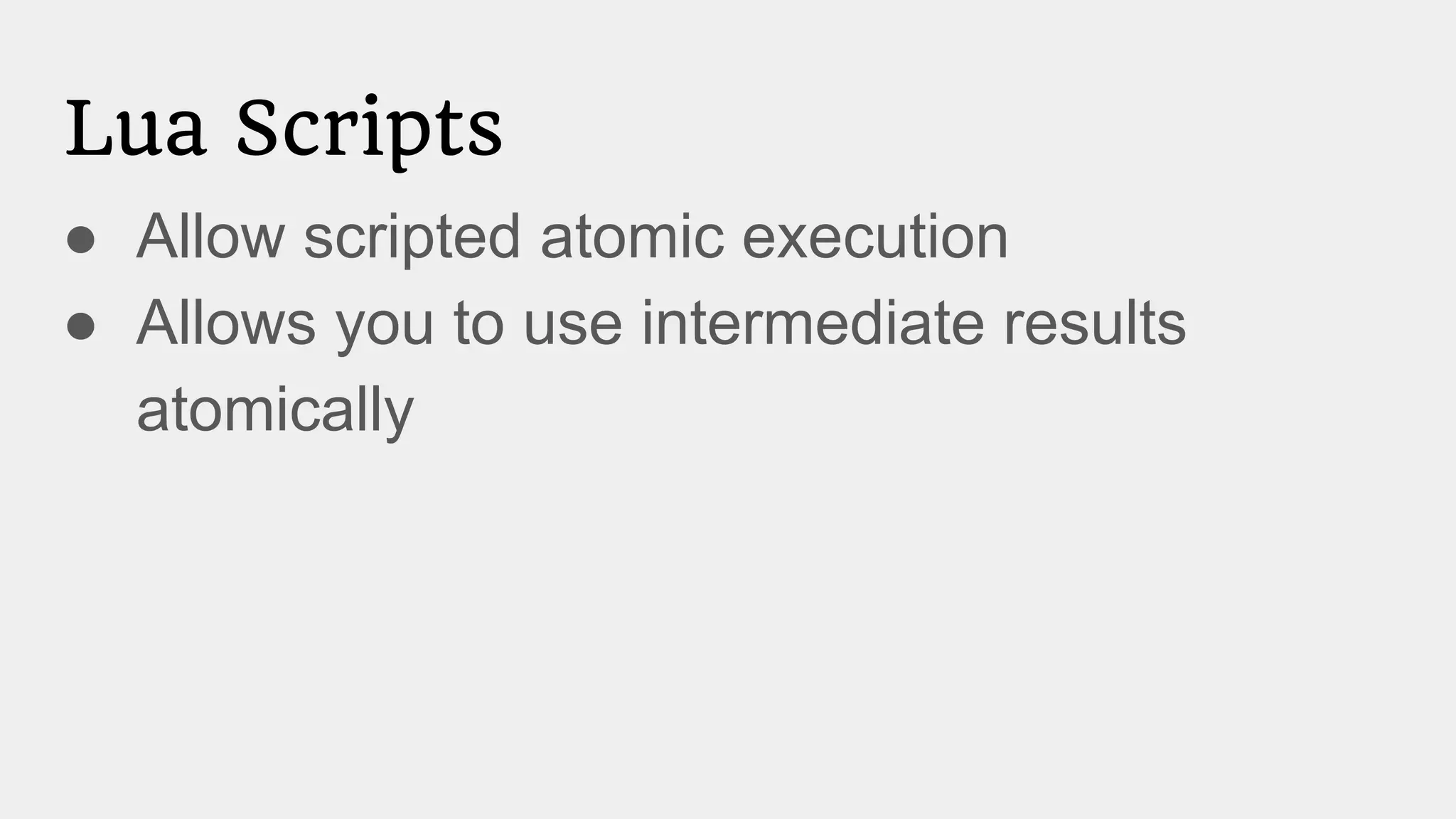

- 97. Lua Scripts ● Allowscripted atomic execution ● Allows you to use intermediate results atomically

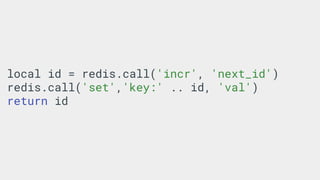

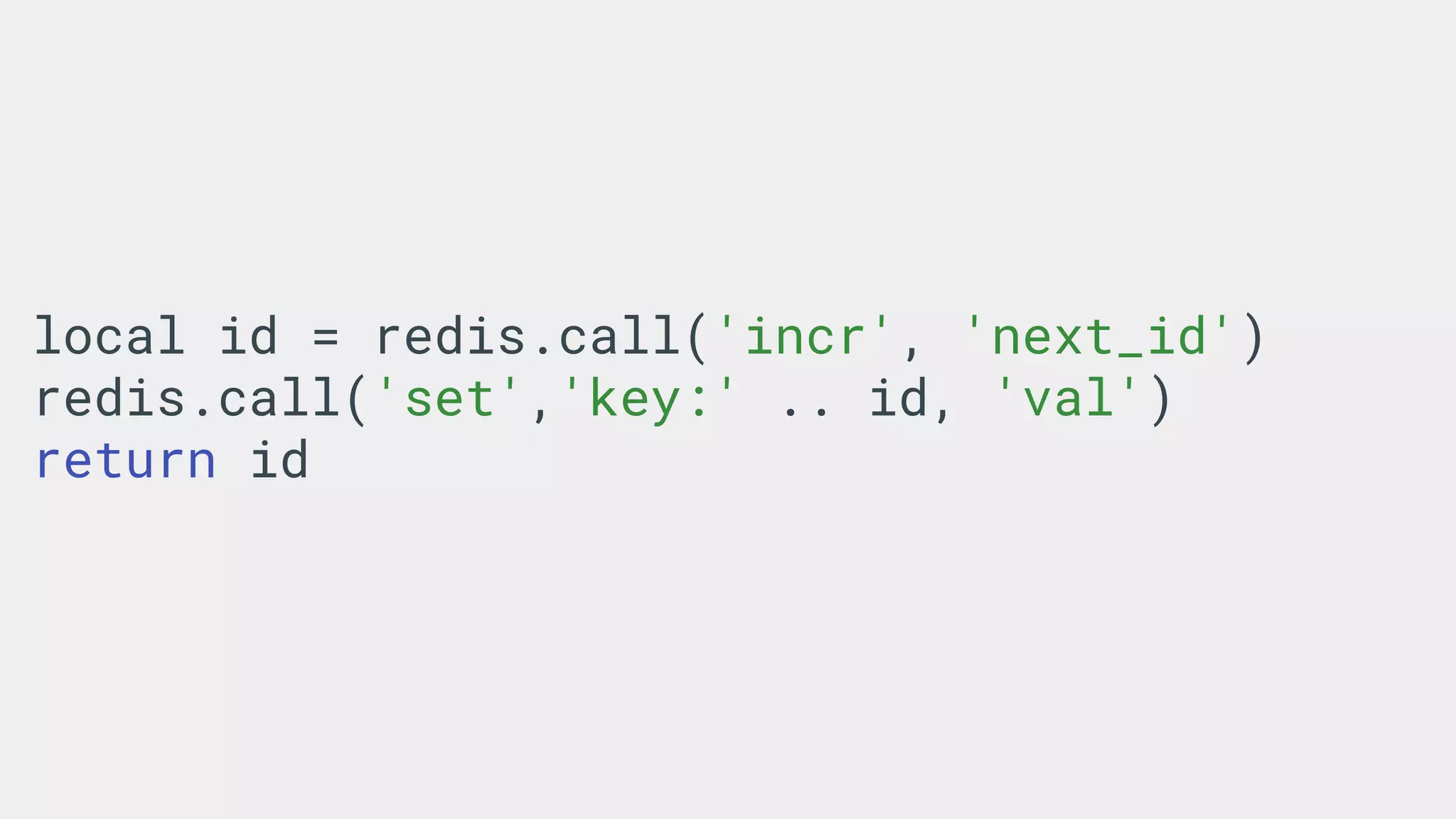

- 98. local id =redis.call('incr', 'next_id') redis.call('set','key:' .. id, 'val') return id

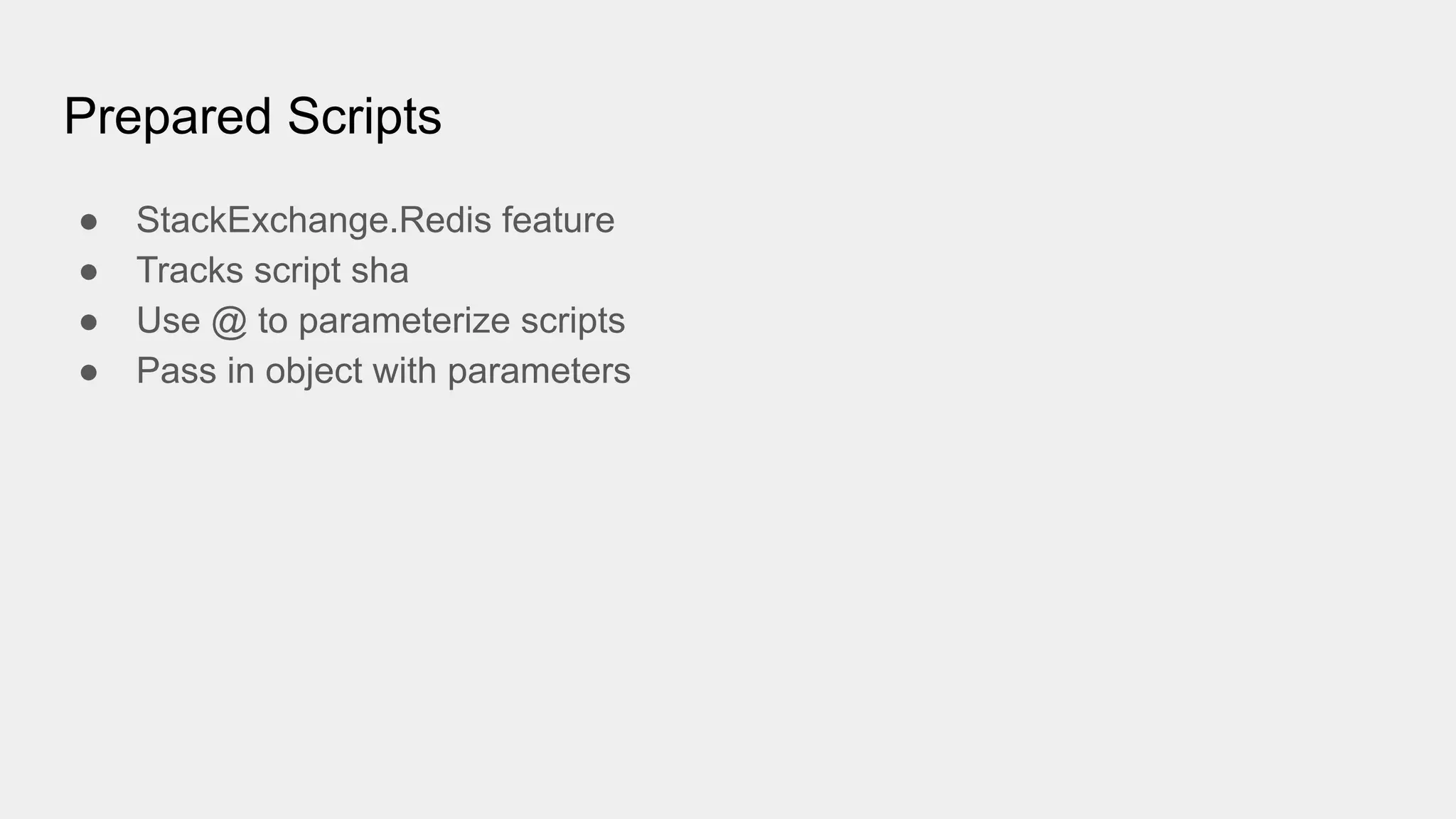

- 99. Prepared Scripts ● StackExchange.Redisfeature ● Tracks script sha ● Use @ to parameterize scripts ● Pass in object with parameters

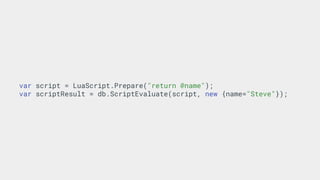

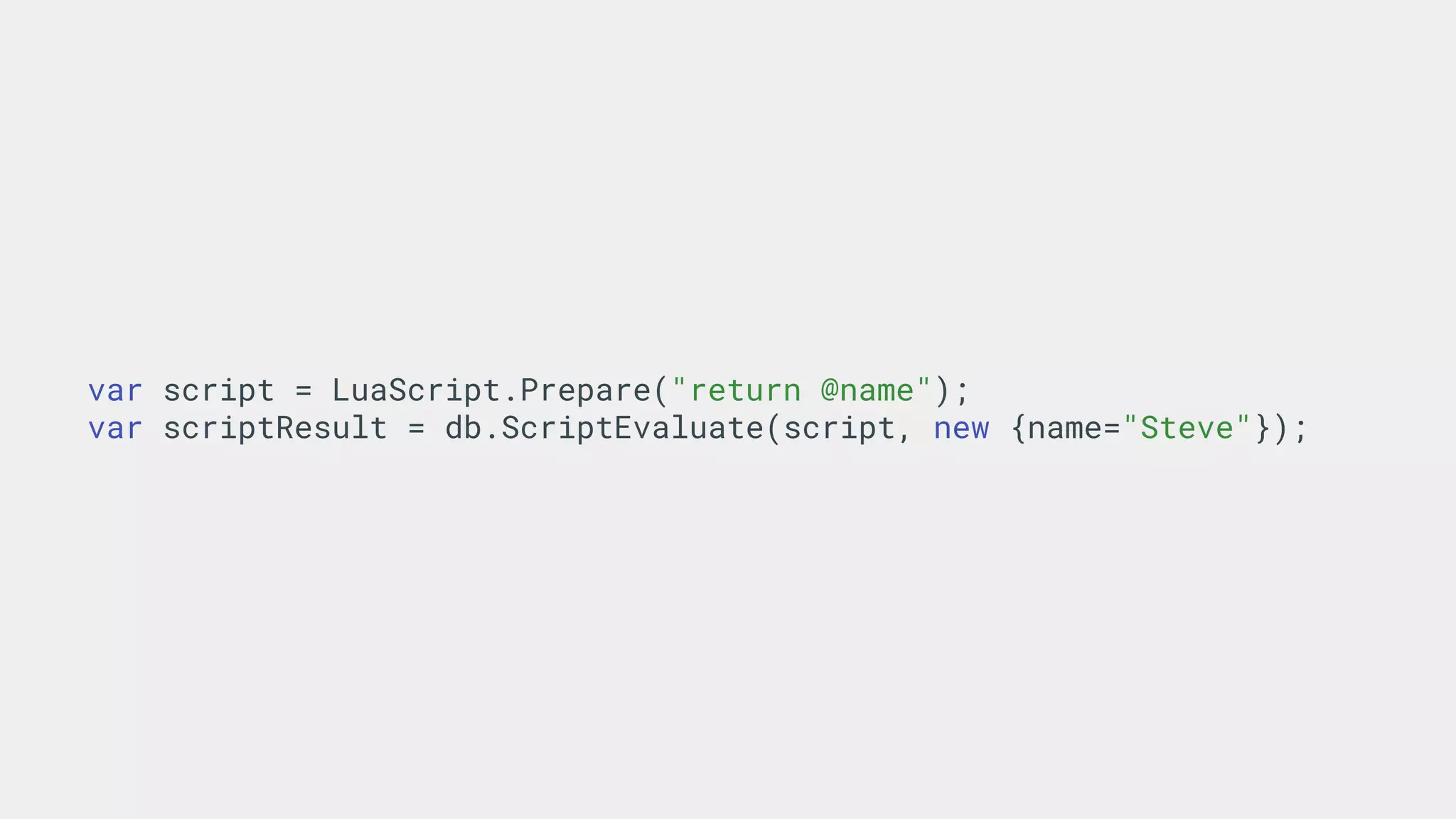

- 100. var script =LuaScript.Prepare("return @name"); var scriptResult = db.ScriptEvaluate(script, new {name="Steve"});
- 101. Redis Gotchas andAnti-Patterns

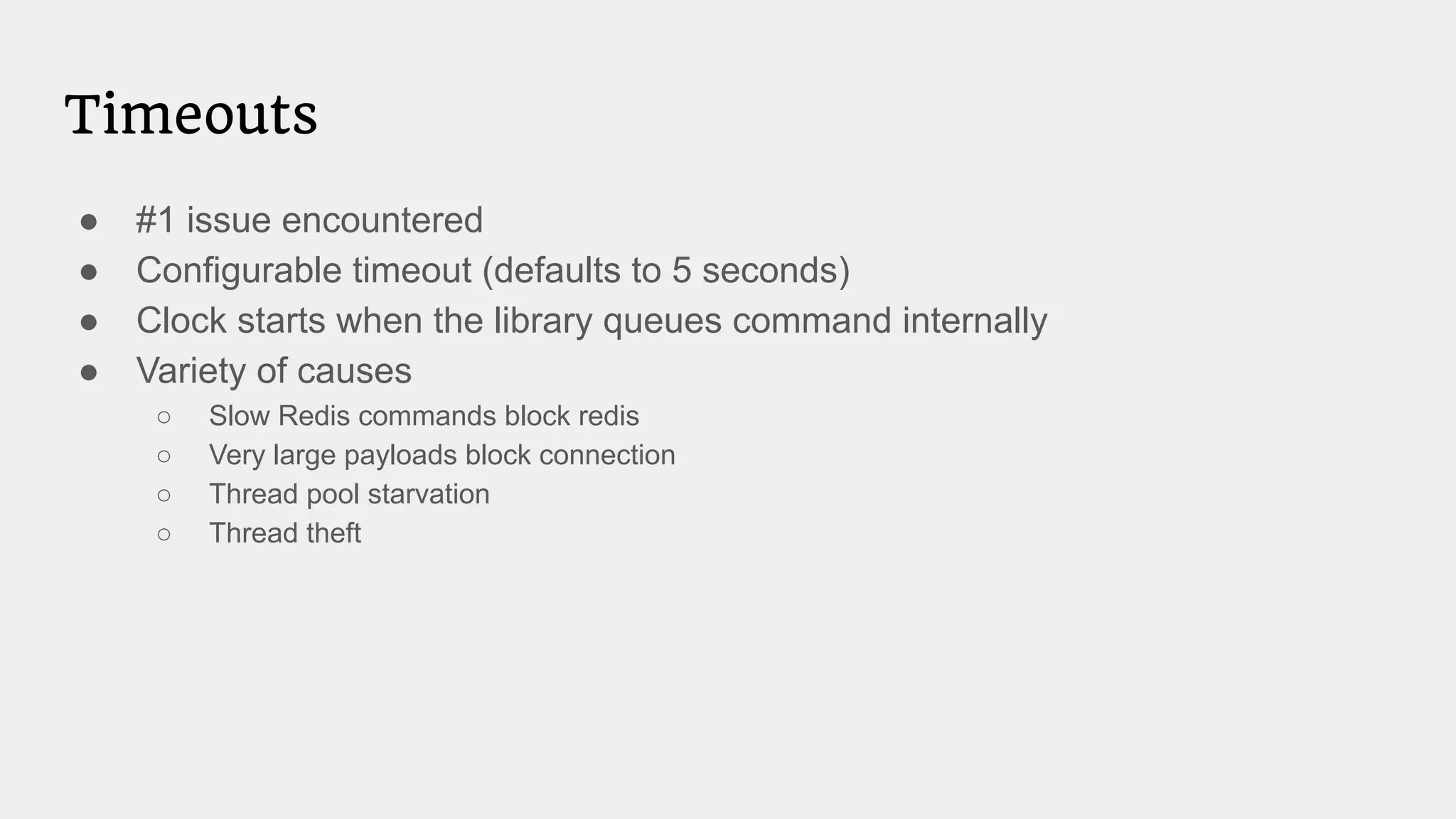

- 102. ● #1 issueencountered ● Configurable timeout (defaults to 5 seconds) ● Clock starts when the library queues command internally ● Variety of causes ○ Slow Redis commands block redis ○ Very large payloads block connection ○ Thread pool starvation ○ Thread theft Timeouts

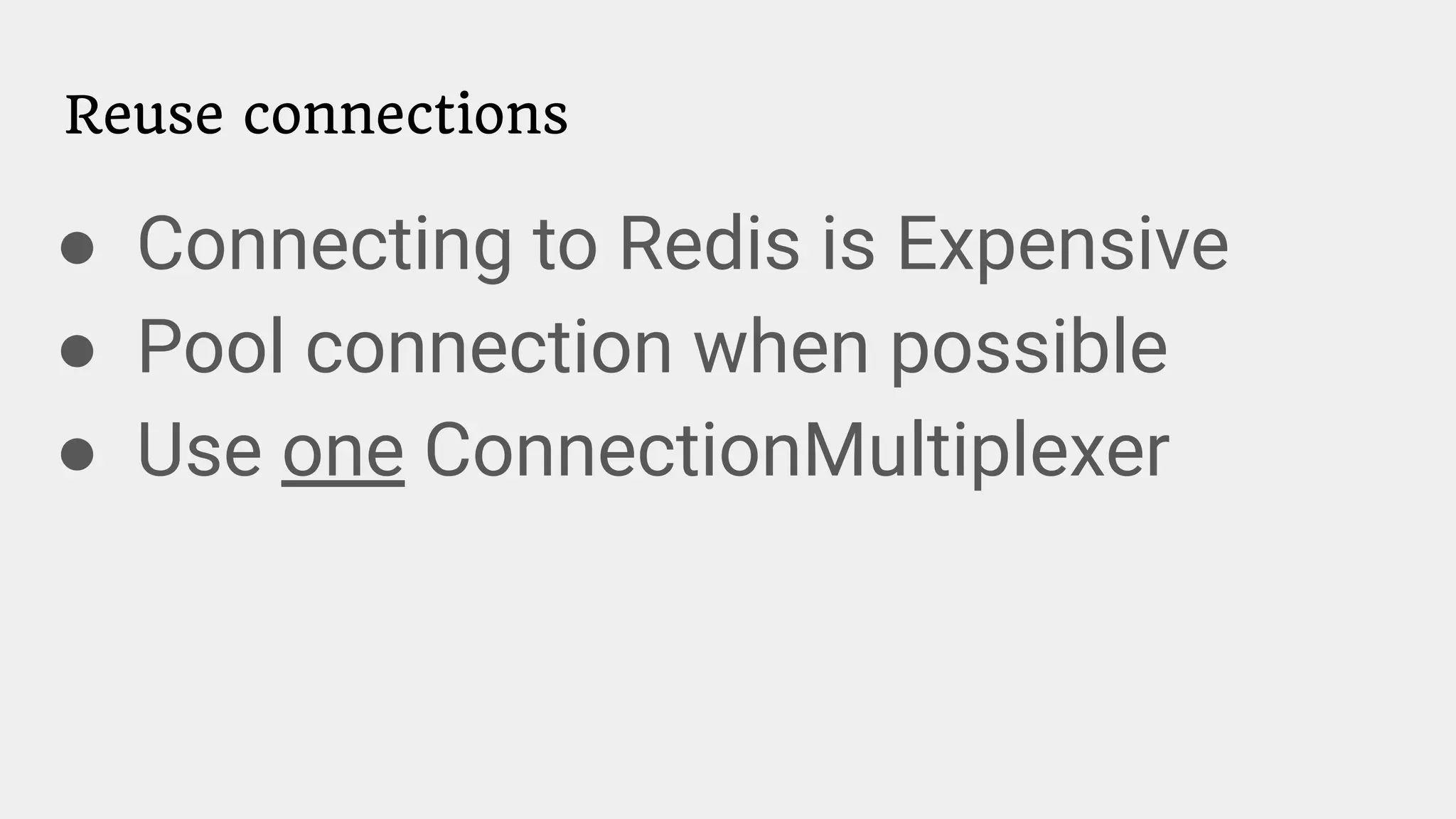

- 103. Reuse connections ● Connectingto Redis is Expensive ● Pool connection when possible ● Use one ConnectionMultiplexer

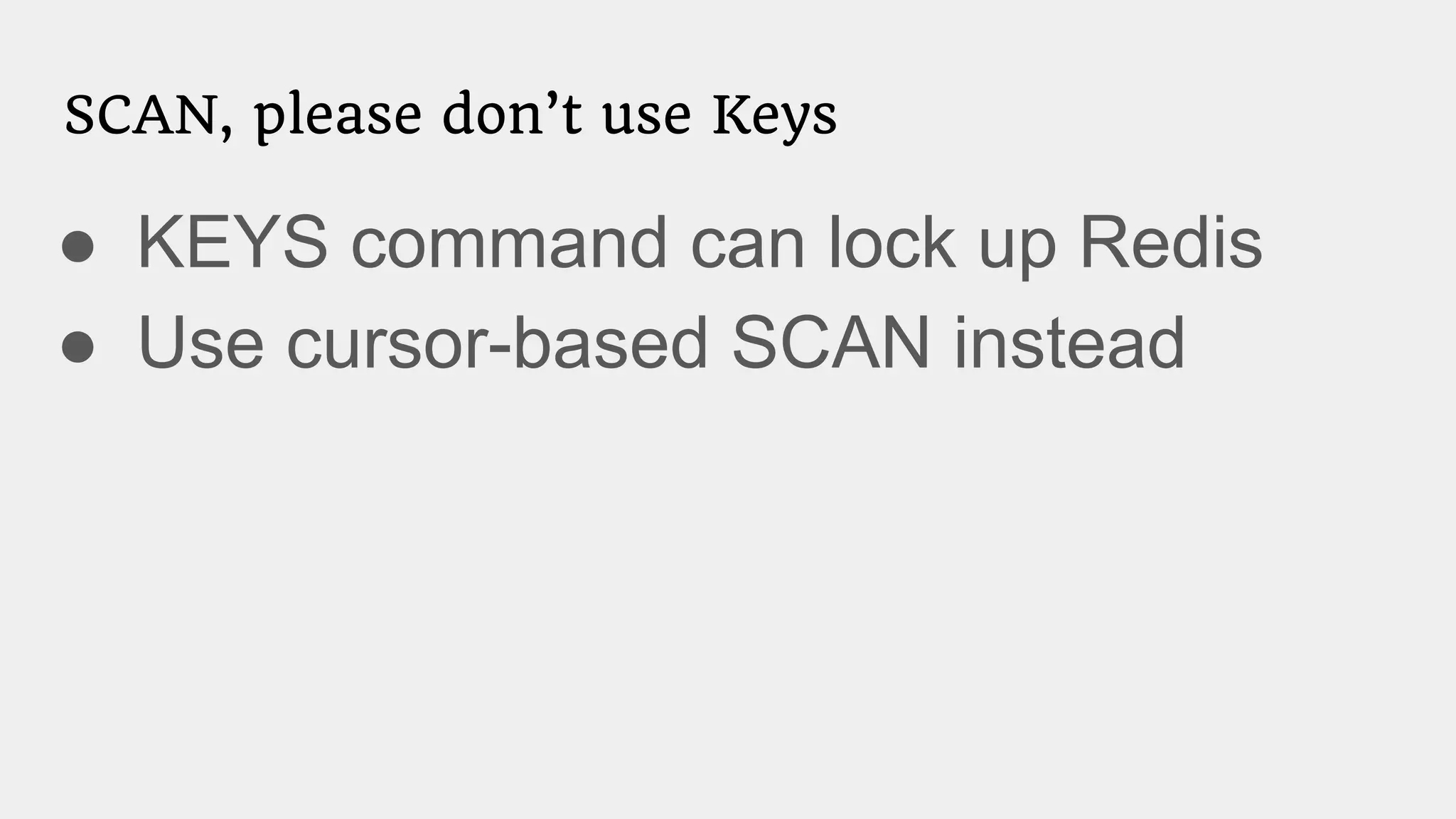

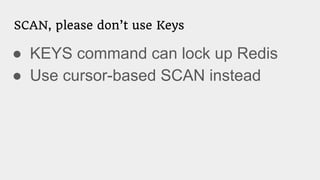

- 104. SCAN, please don’tuse Keys ● KEYS command can lock up Redis ● Use cursor-based SCAN instead

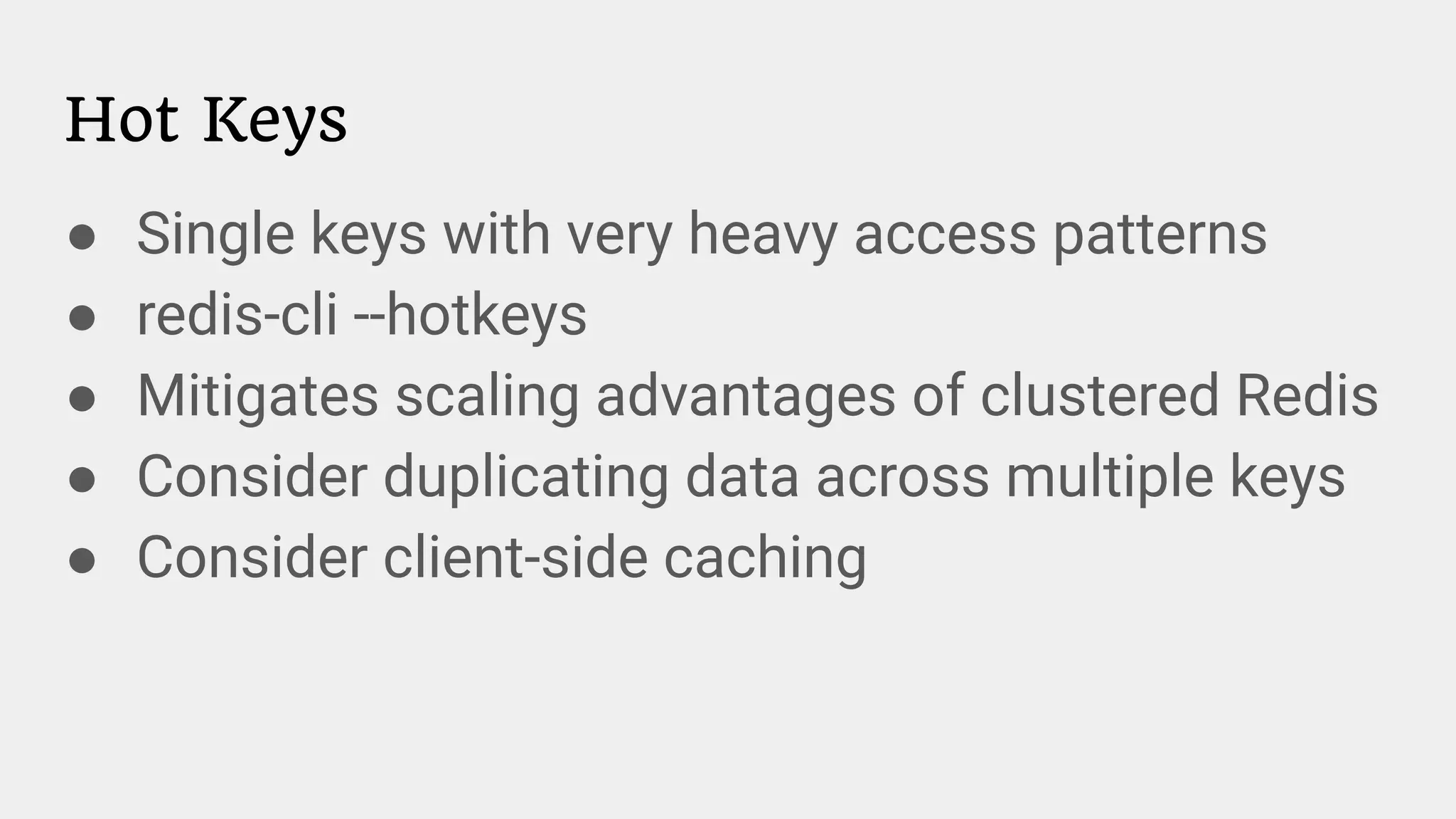

- 105. Hot Keys ● Singlekeys with very heavy access patterns ● redis-cli --hotkeys ● Mitigates scaling advantages of clustered Redis ● Consider duplicating data across multiple keys ● Consider client-side caching
- 106.

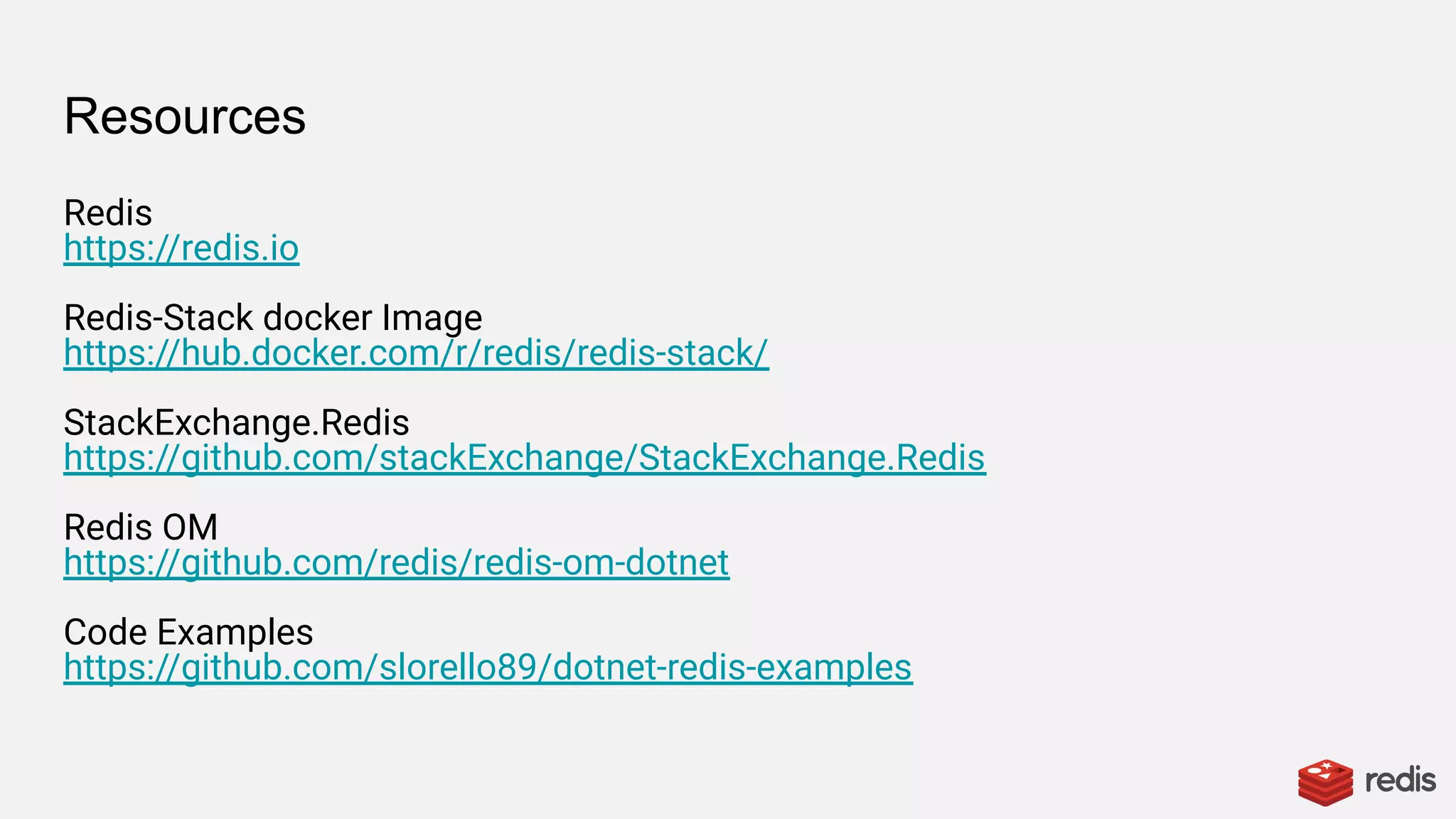

- 107. Resources Redis https://redis.io Redis-Stack docker Image https://hub.docker.com/r/redis/redis-stack/ StackExchange.Redis https://github.com/stackExchange/StackExchange.Redis RedisOM https://github.com/redis/redis-om-dotnet Code Examples https://github.com/slorello89/dotnet-redis-examples
