Android OS & SDK - Getting Started
- 1. Operating System &Software Development Kit

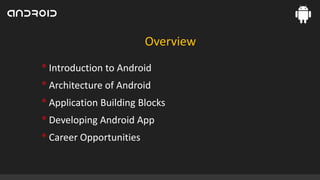

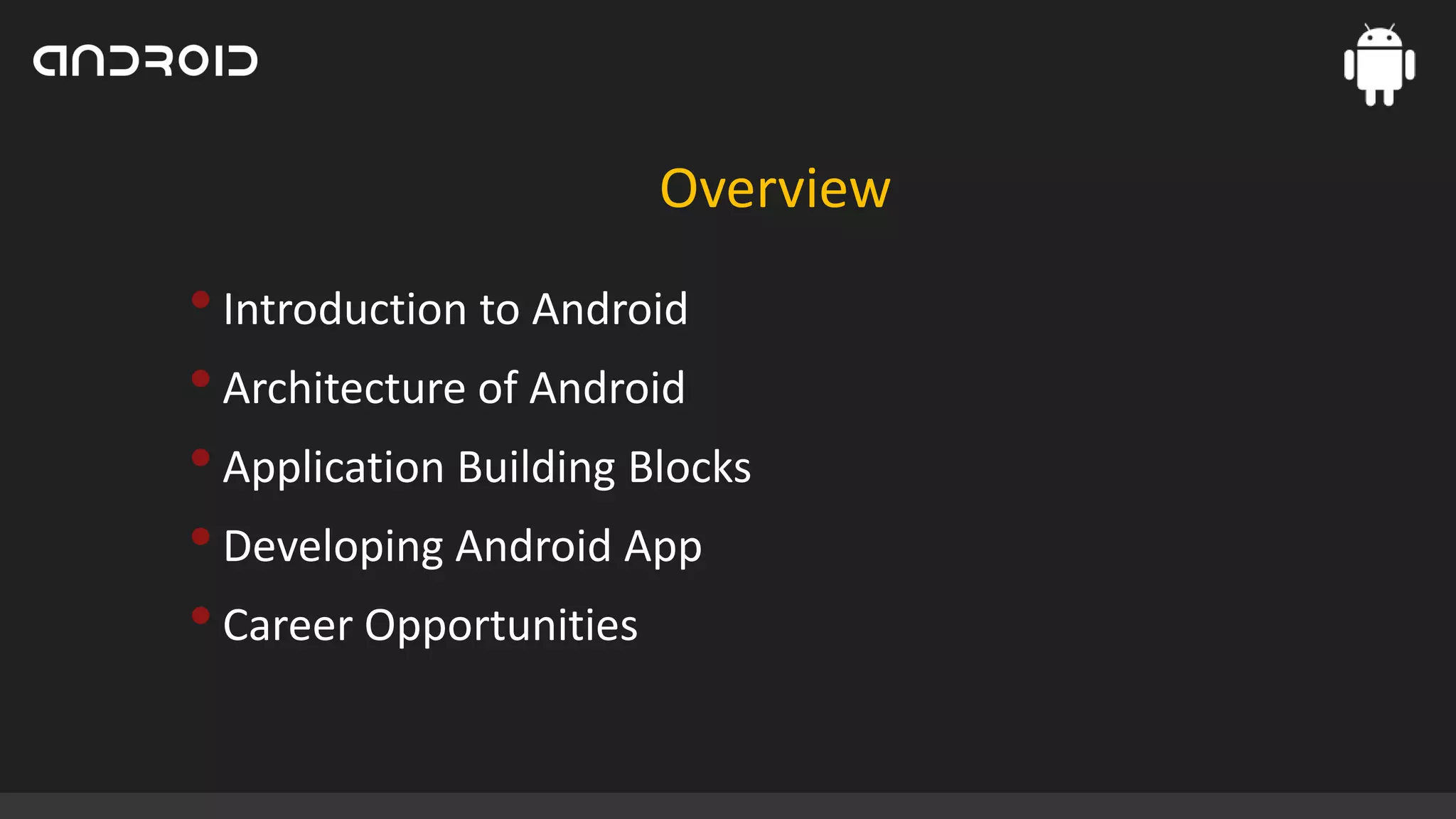

- 2. Overview • Introduction toAndroid • Architecture of Android • Application Building Blocks • Developing Android App • Career Opportunities
- 3.

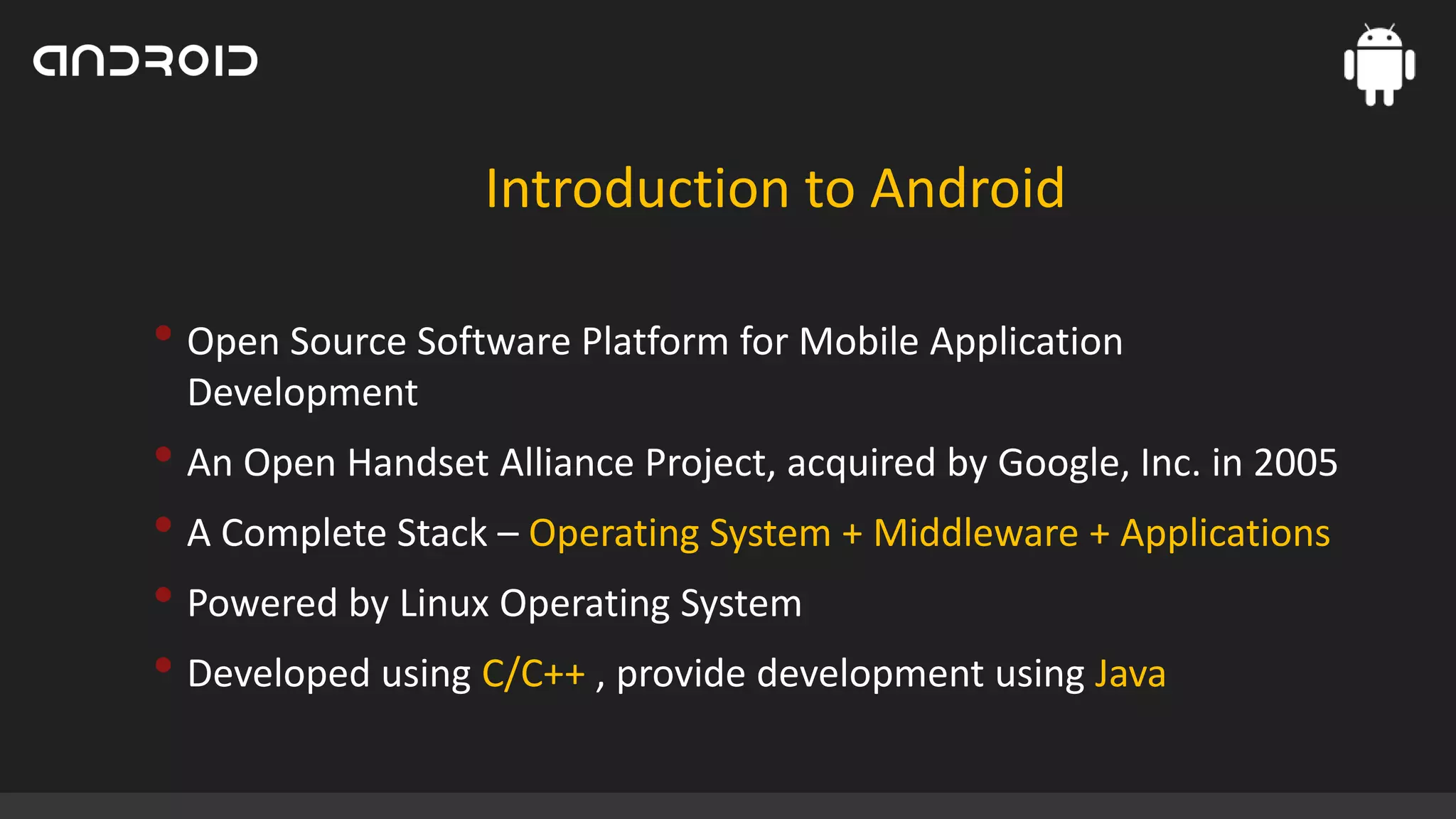

- 4. Introduction to Android •Open Source Software Platform for Mobile Application Development • An Open Handset Alliance Project, acquired by Google, Inc. in 2005 • A Complete Stack – Operating System + Middleware + Applications • Powered by Linux Operating System • Developed using C/C++ , provide development using Java

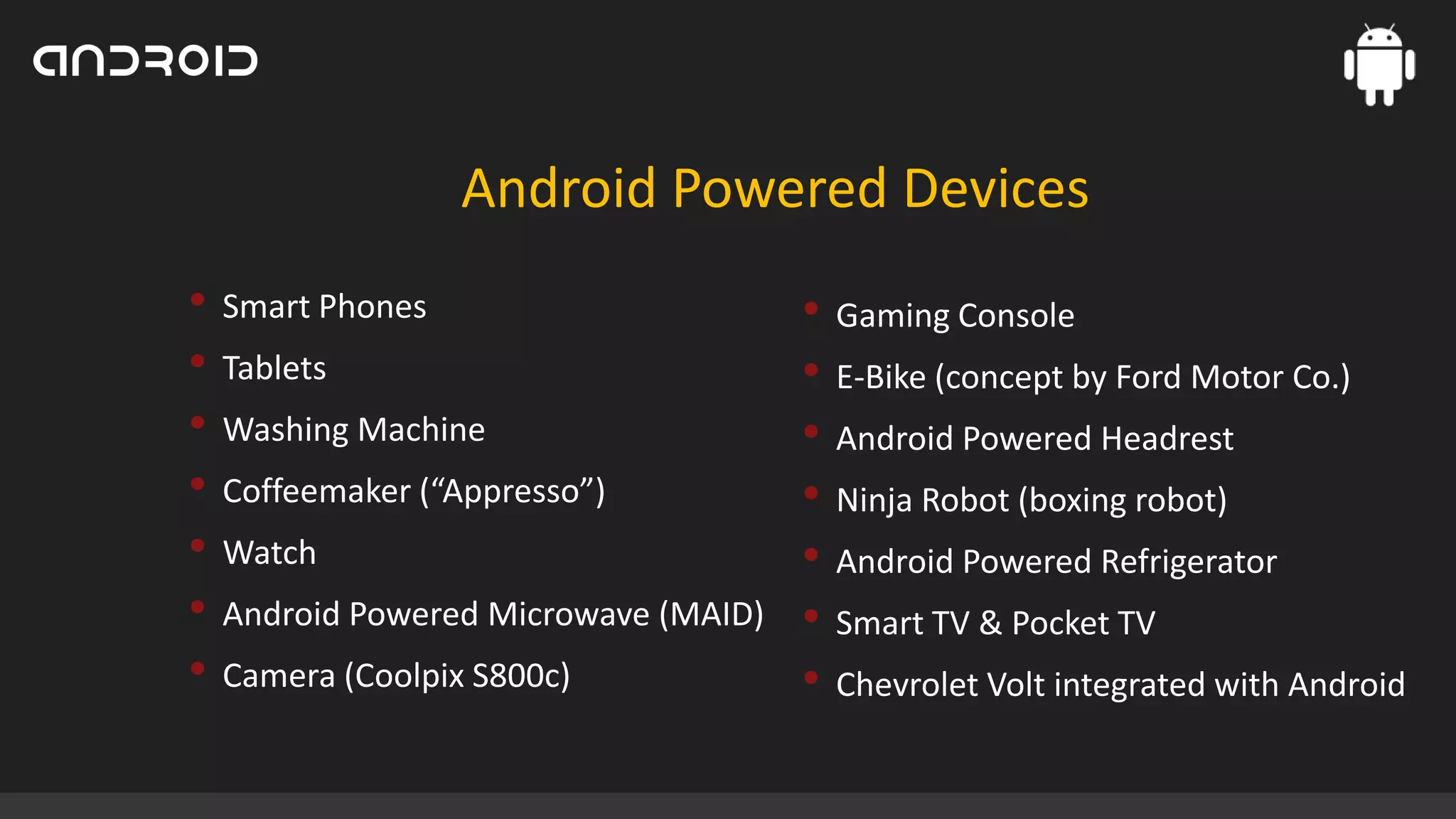

- 5. Android Powered Devices •Smart Phones • Tablets • Washing Machine • Coffeemaker (“Appresso”) • Watch • Android Powered Microwave (MAID) • Camera (Coolpix S800c) • Gaming Console • E-Bike (concept by Ford Motor Co.) • Android Powered Headrest • Ninja Robot (boxing robot) • Android Powered Refrigerator • Smart TV & Pocket TV • Chevrolet Volt integrated with Android
- 6.
- 7. Architecture of Android Applications ApplicationFramework Libraries Android Runtime Linux Kernel Android Runtime Libraries Linux Kernel • Dalvik Virtual machine Application Framework Applications C/C++ Libraries • Work asfile (Hardware Abstraction Layer) • .dex HAL • API Interface application Built in and User Interface through Java • Device Drivers Efficient • Compact and • Activity manager.apk files Can install using • Limited memory & Power Handling User Interface • memory management • Content ->Phone-> .jar ->WeChat, Web Browser, Providers Example: .class Dialer, .dex • .java • 2D/3DAndroid or others Graphics Process Management Hello • Location Manager etc • Core LibrariesBrowser Engine, SQLite Media Acces, Networking • Java Standard Edition
- 8.
- 9. Application Building Blocks •Activity • Intents • Service • Content Providers

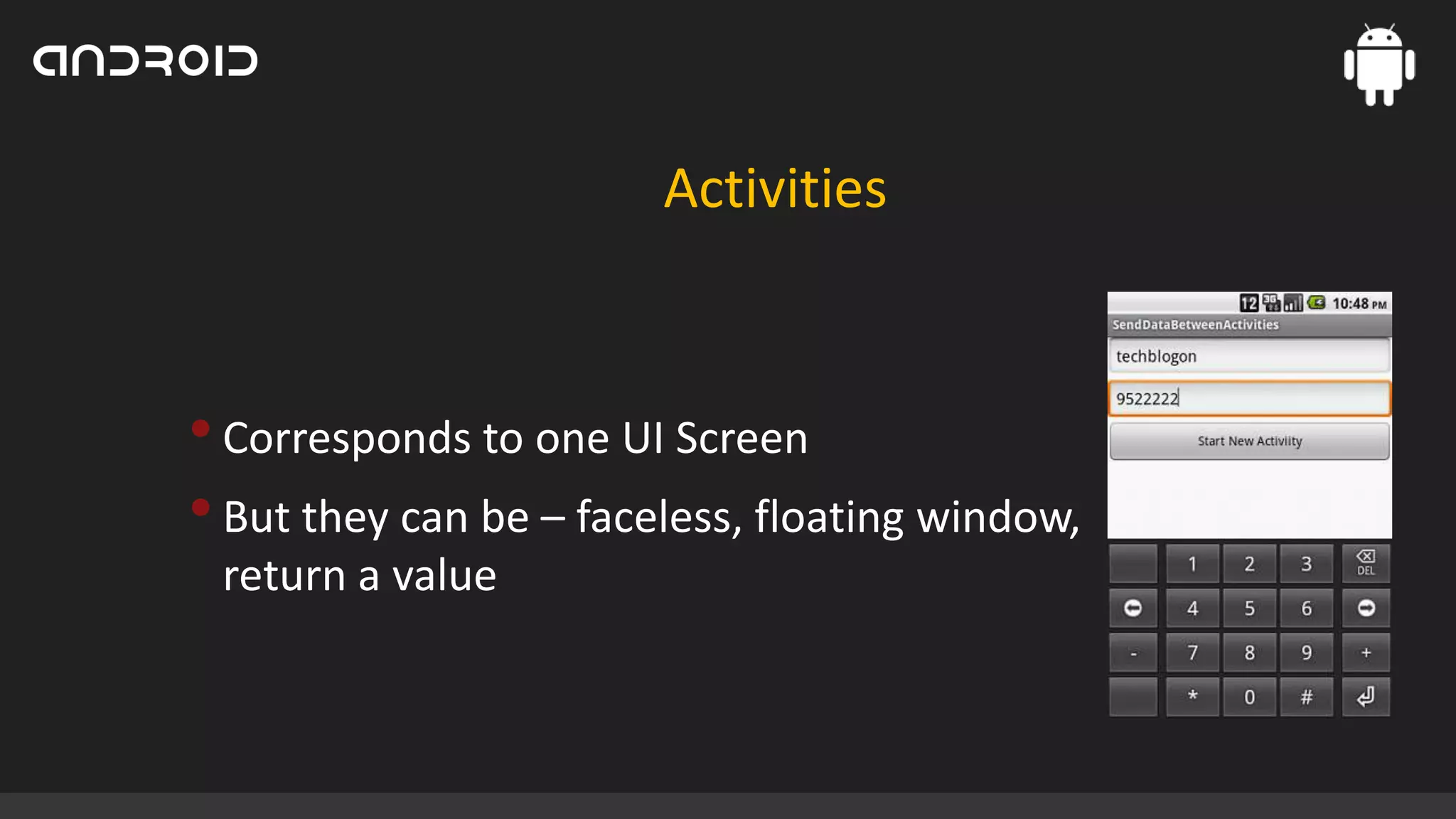

- 10. Activities • Corresponds toone UI Screen • But they can be – faceless, floating window, return a value

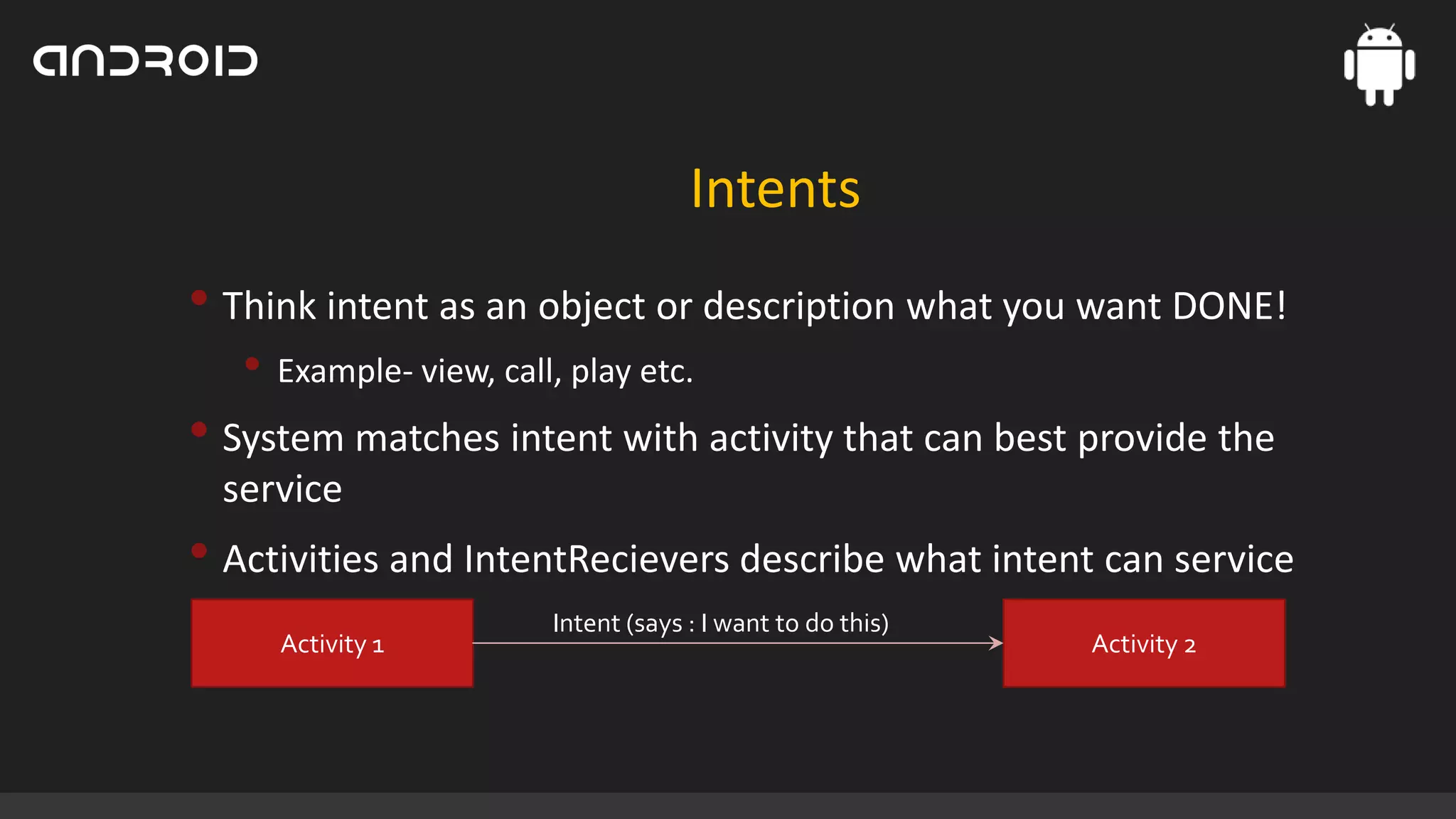

- 11. Intents • Think intentas an object or description what you want DONE! • Example- view, call, play etc. • System matches intent with activity that can best provide the service • Activities and IntentRecievers describe what intent can service Activity 1 Intent (says : I want to do this) Activity 2

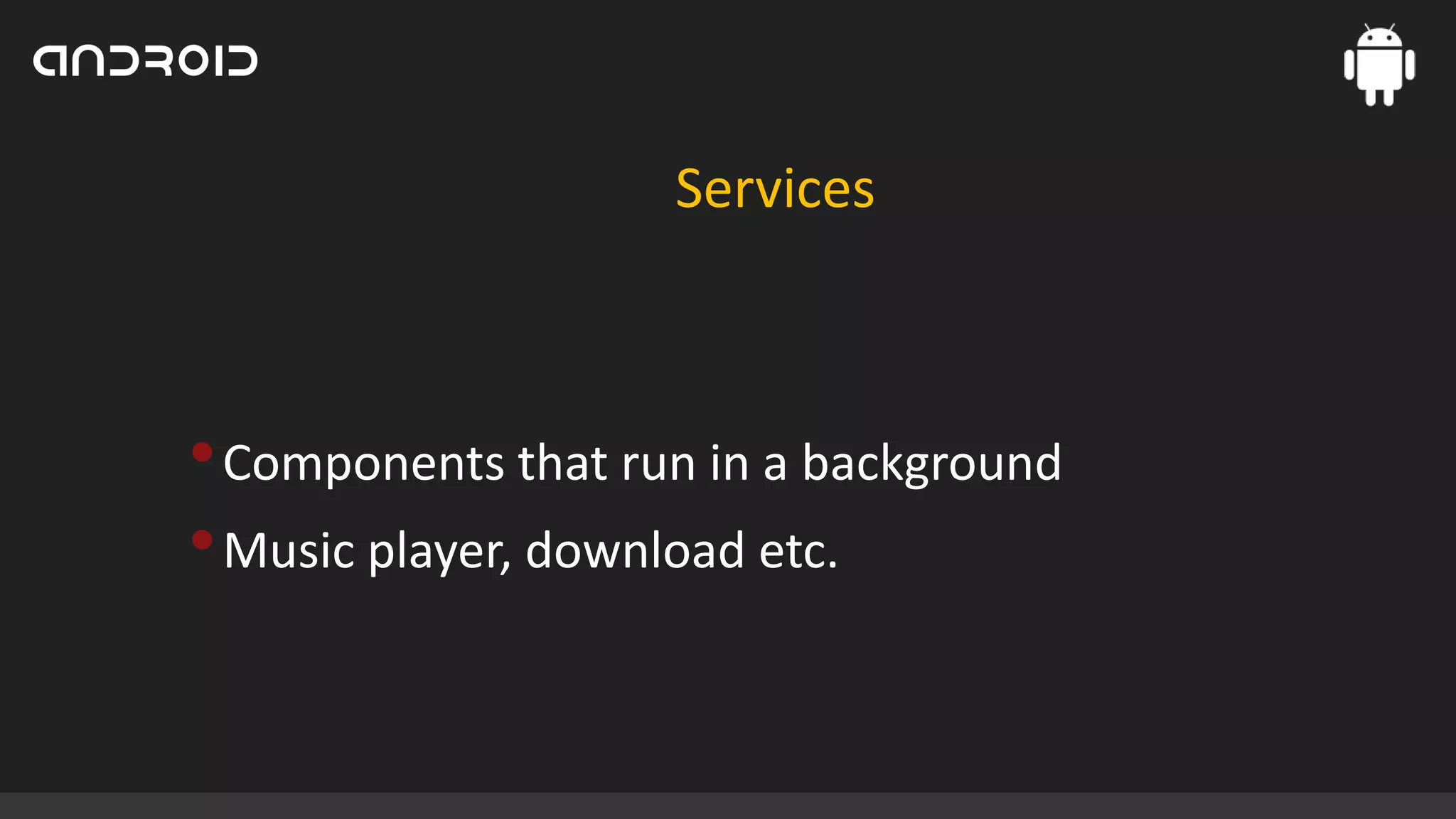

- 12. Services • Components thatrun in a background • Music player, download etc.

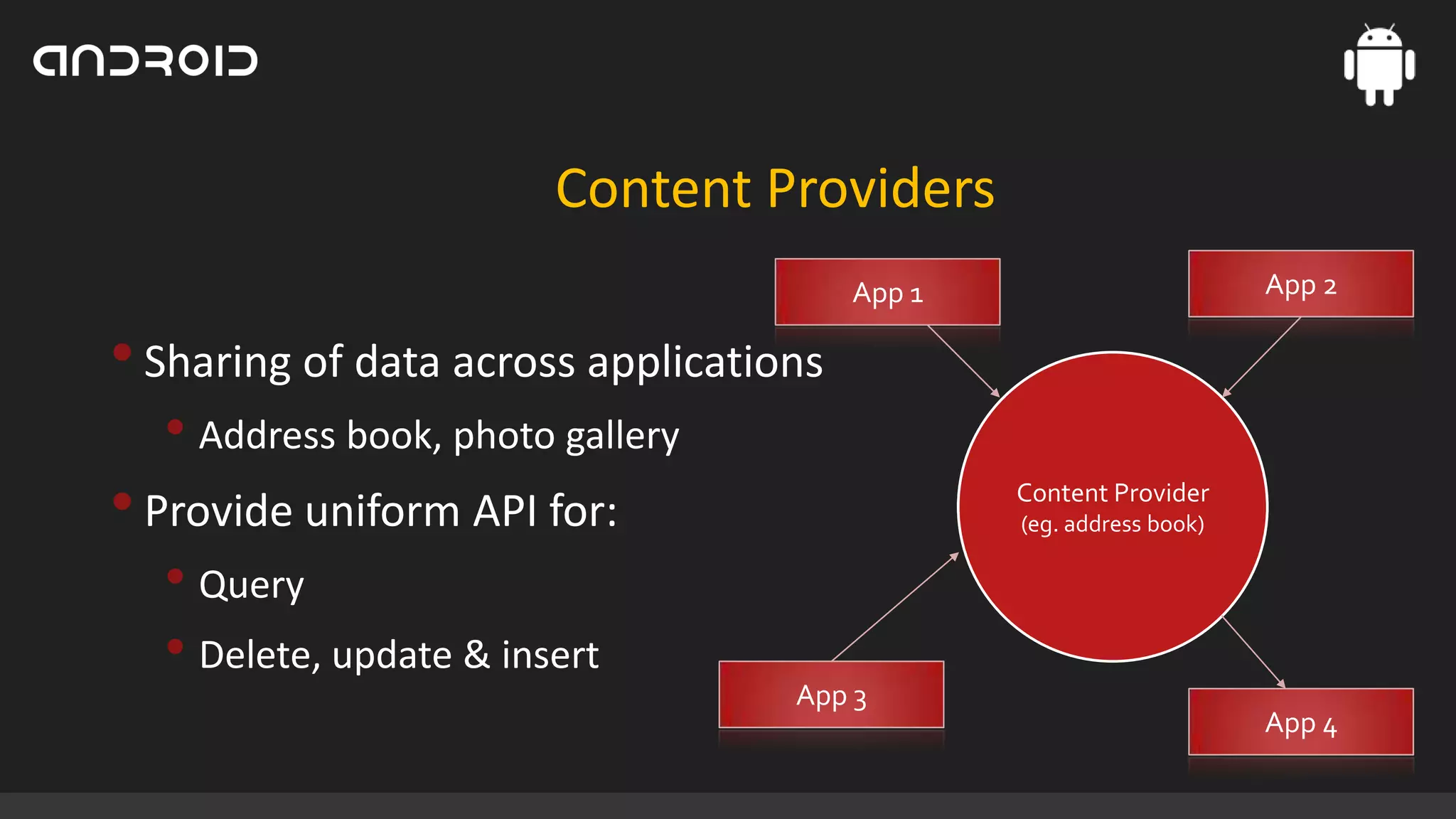

- 13. Content Providers App 2 App1 • Sharing of data across applications • Address book, photo gallery • Provide uniform API for: Content Provider (eg. address book) • Query • Delete, update & insert App 3 App 4
- 14.

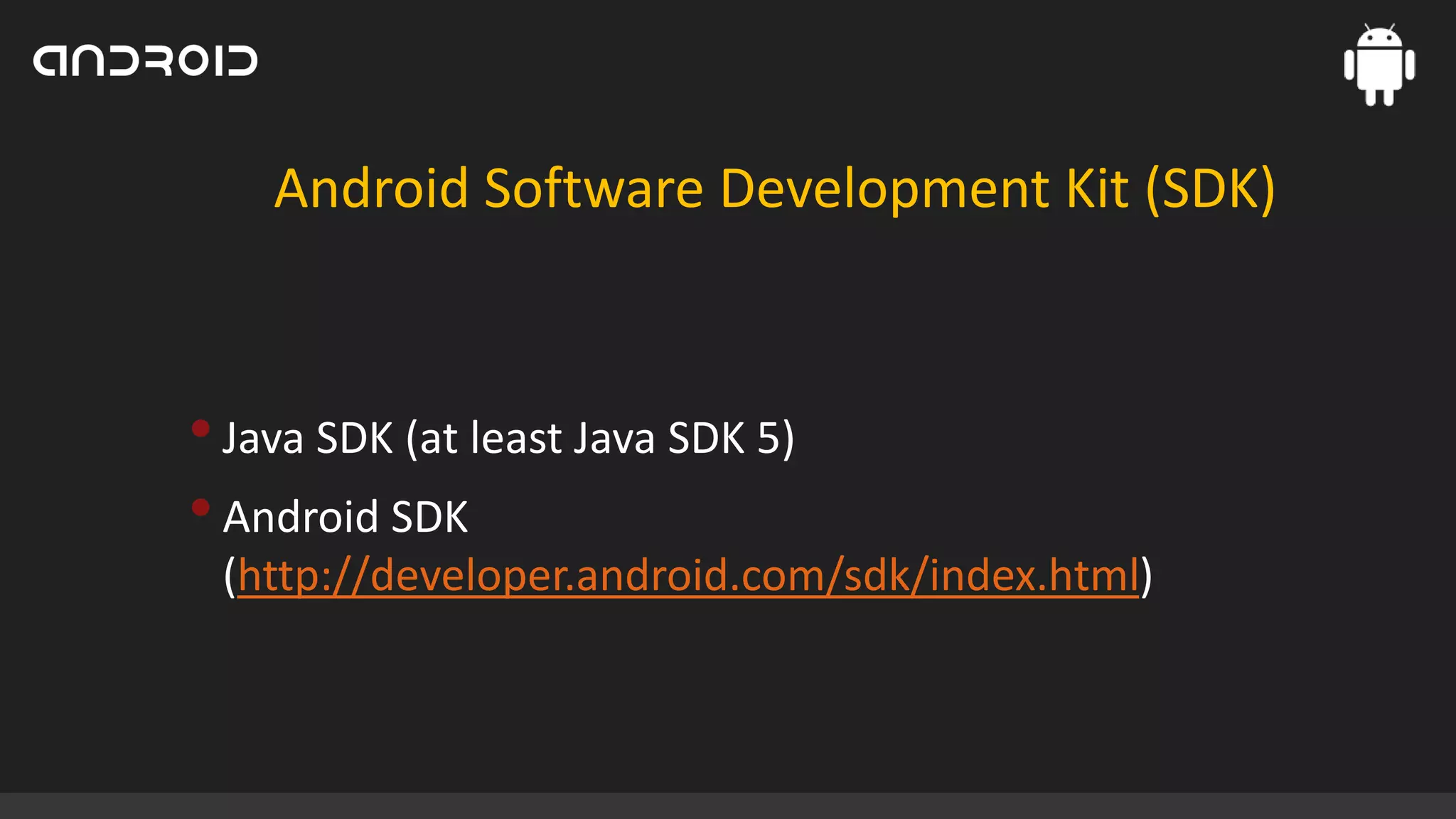

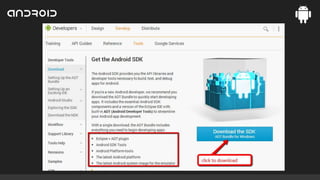

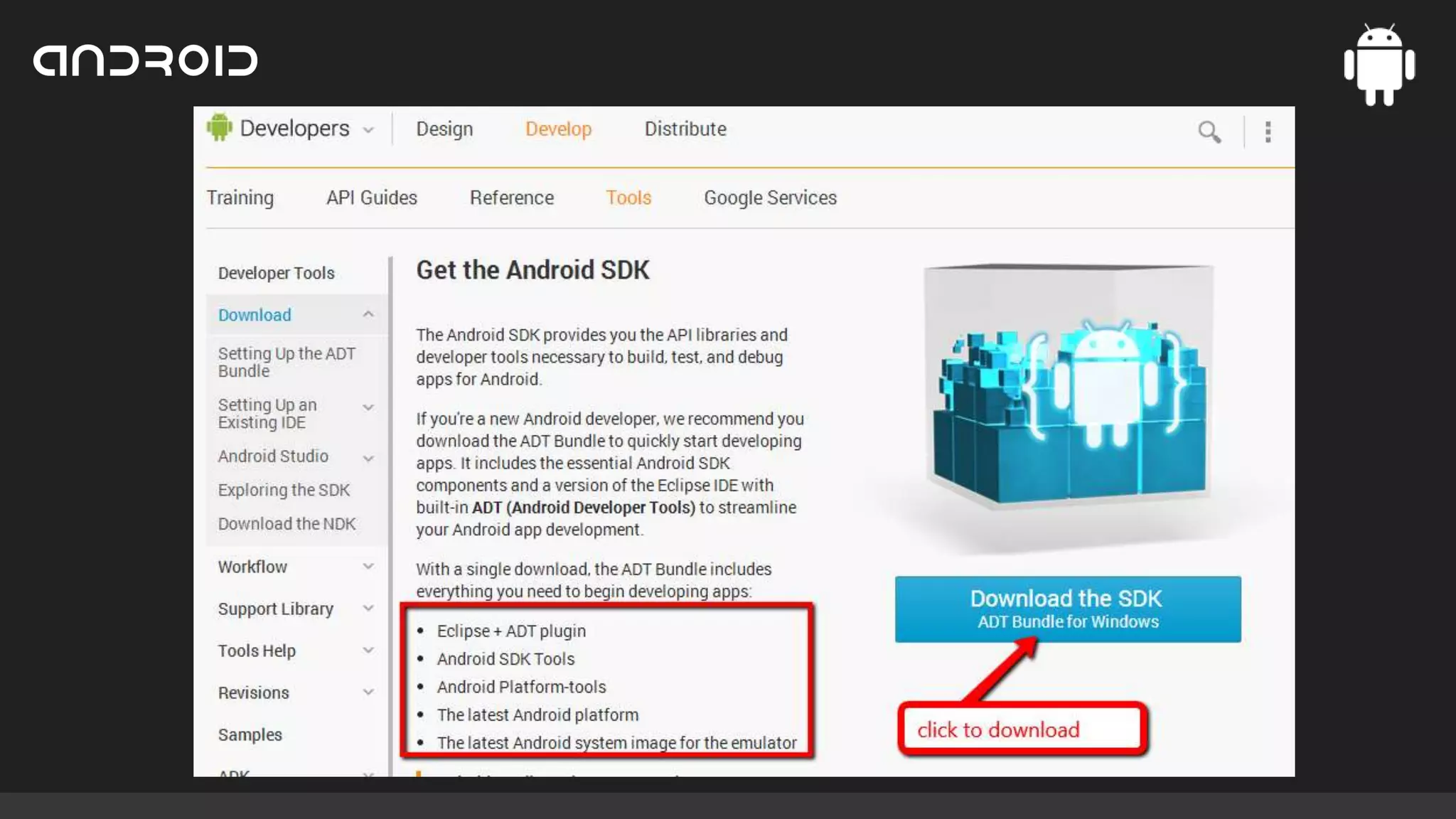

- 15. Android Software DevelopmentKit (SDK) • Java SDK (at least Java SDK 5) • Android SDK (http://developer.android.com/sdk/index.html)
- 16.

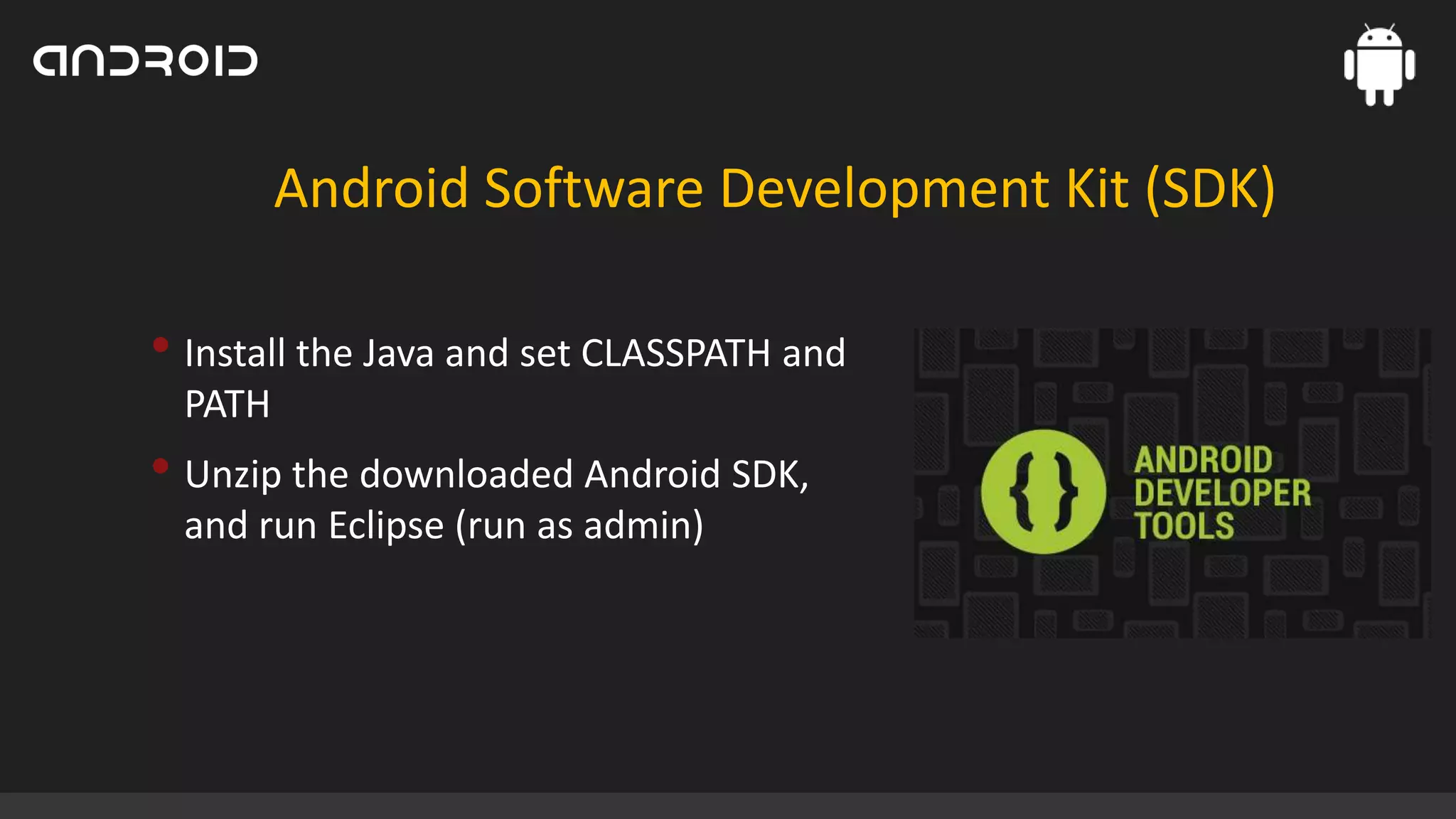

- 17. Android Software DevelopmentKit (SDK) • Install the Java and set CLASSPATH and PATH • Unzip the downloaded Android SDK, and run Eclipse (run as admin)

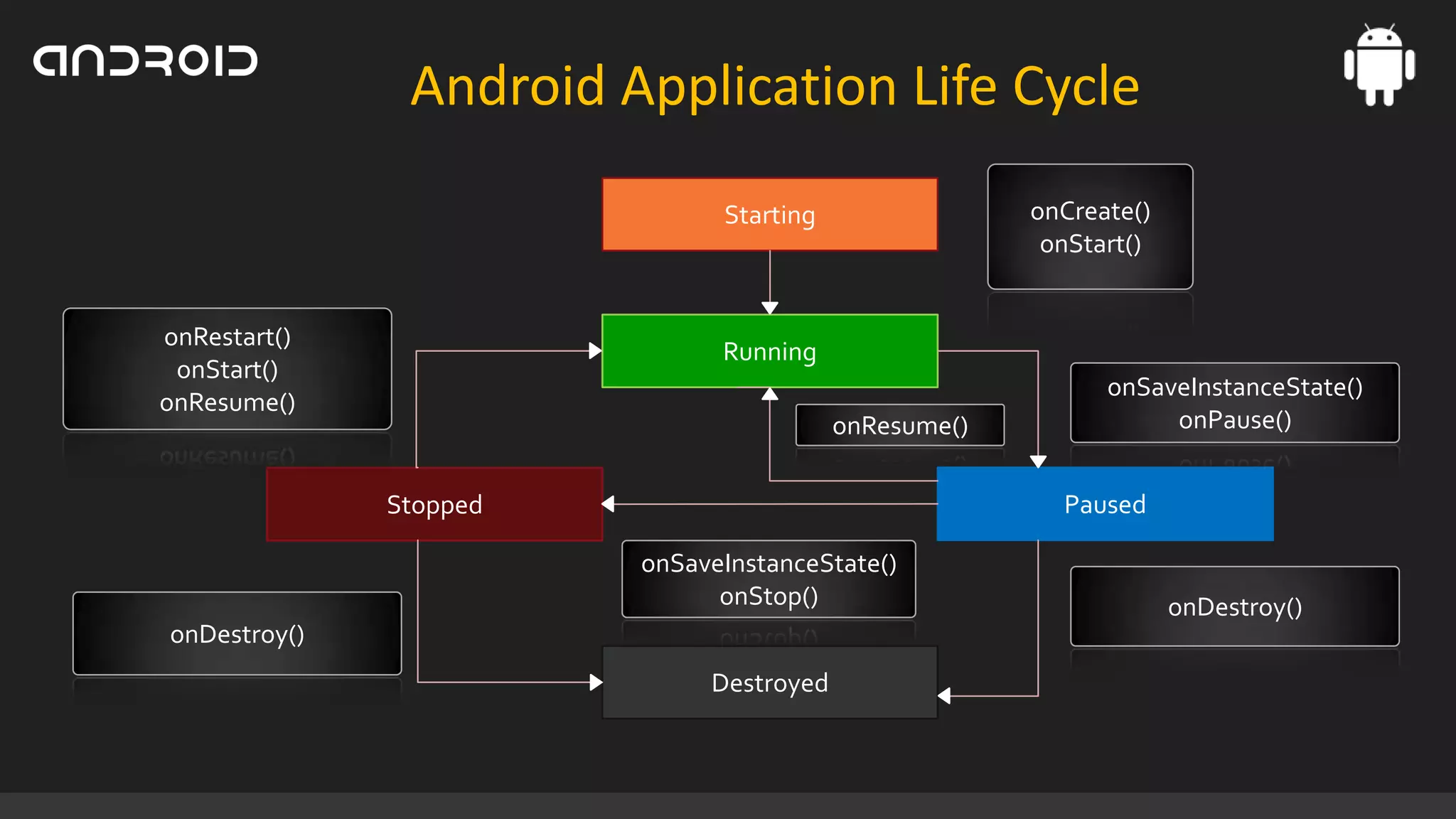

- 18. Android Application LifeCycle onCreate() onStart() Starting onRestart() onStart() onResume() Running onResume() onSaveInstanceState() onPause() Paused Stopped onSaveInstanceState() onStop() onDestroy() Destroyed onDestroy()

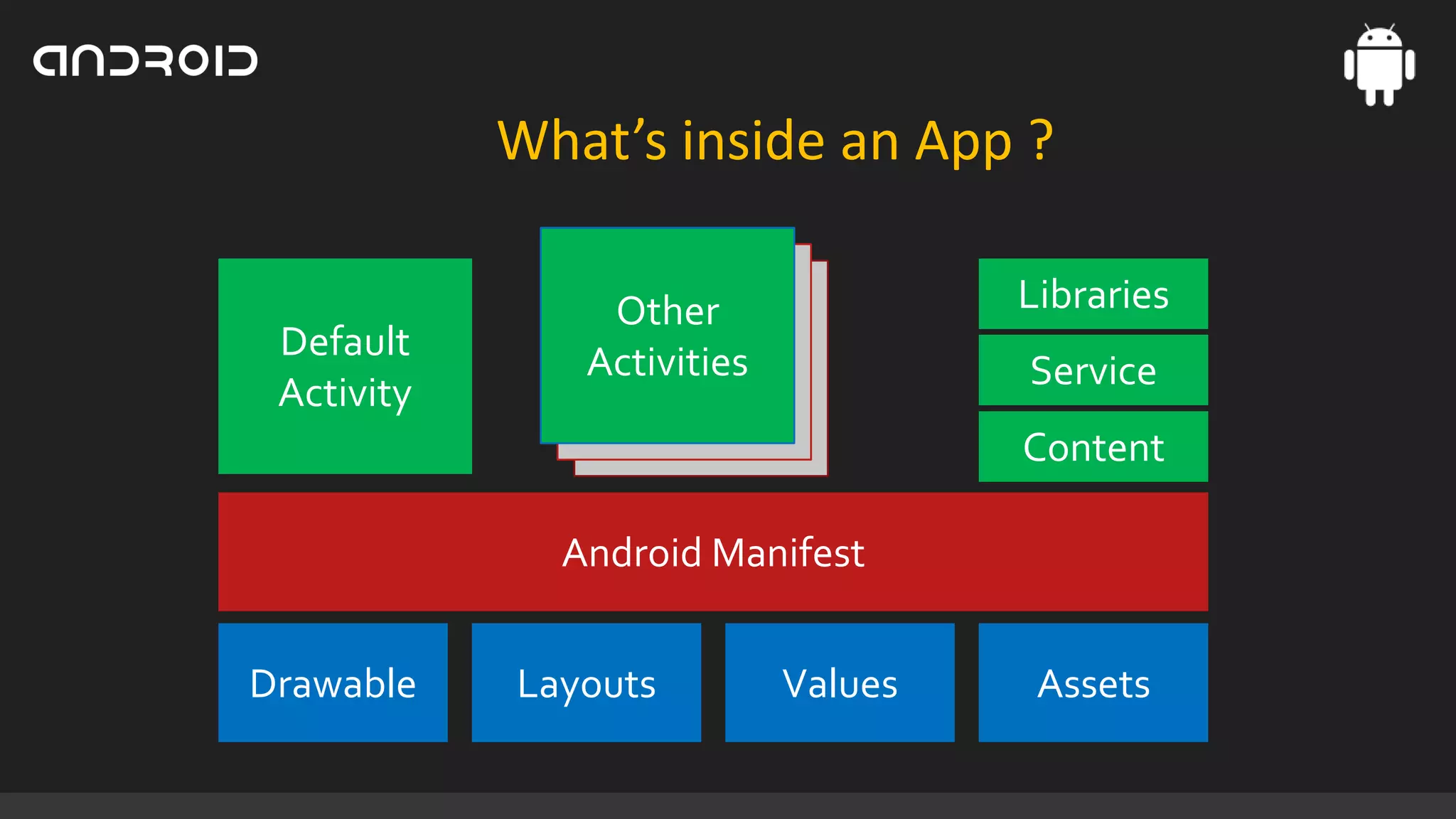

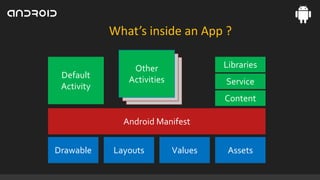

- 19. What’s inside anApp ? Default Activity Libraries Other Default Default Activities Activity Activity Service Content Android Manifest Drawable Layouts Values Assets

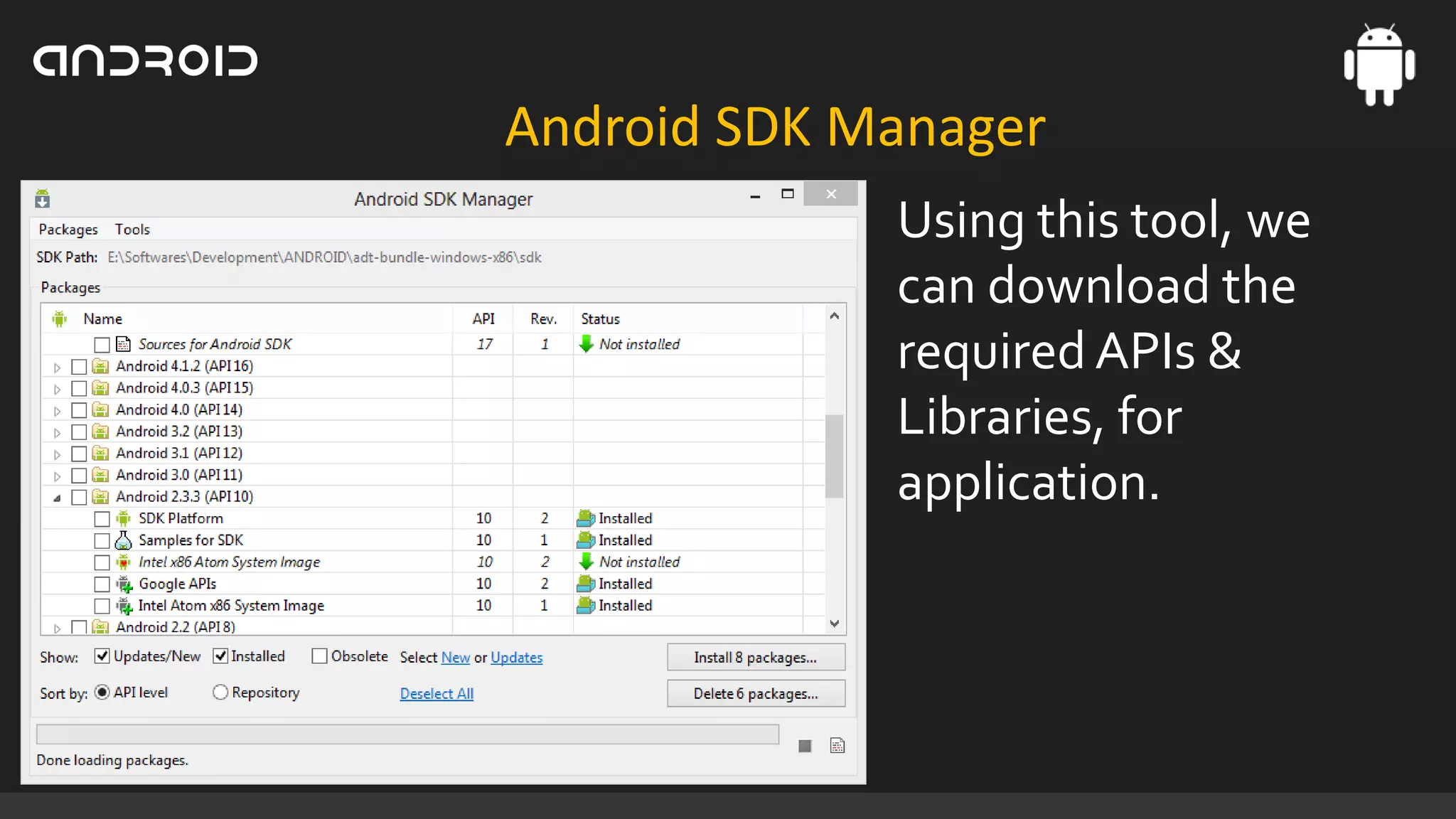

- 20. Android SDK Manager Usingthis tool, we can download the required APIs & Libraries, for application.

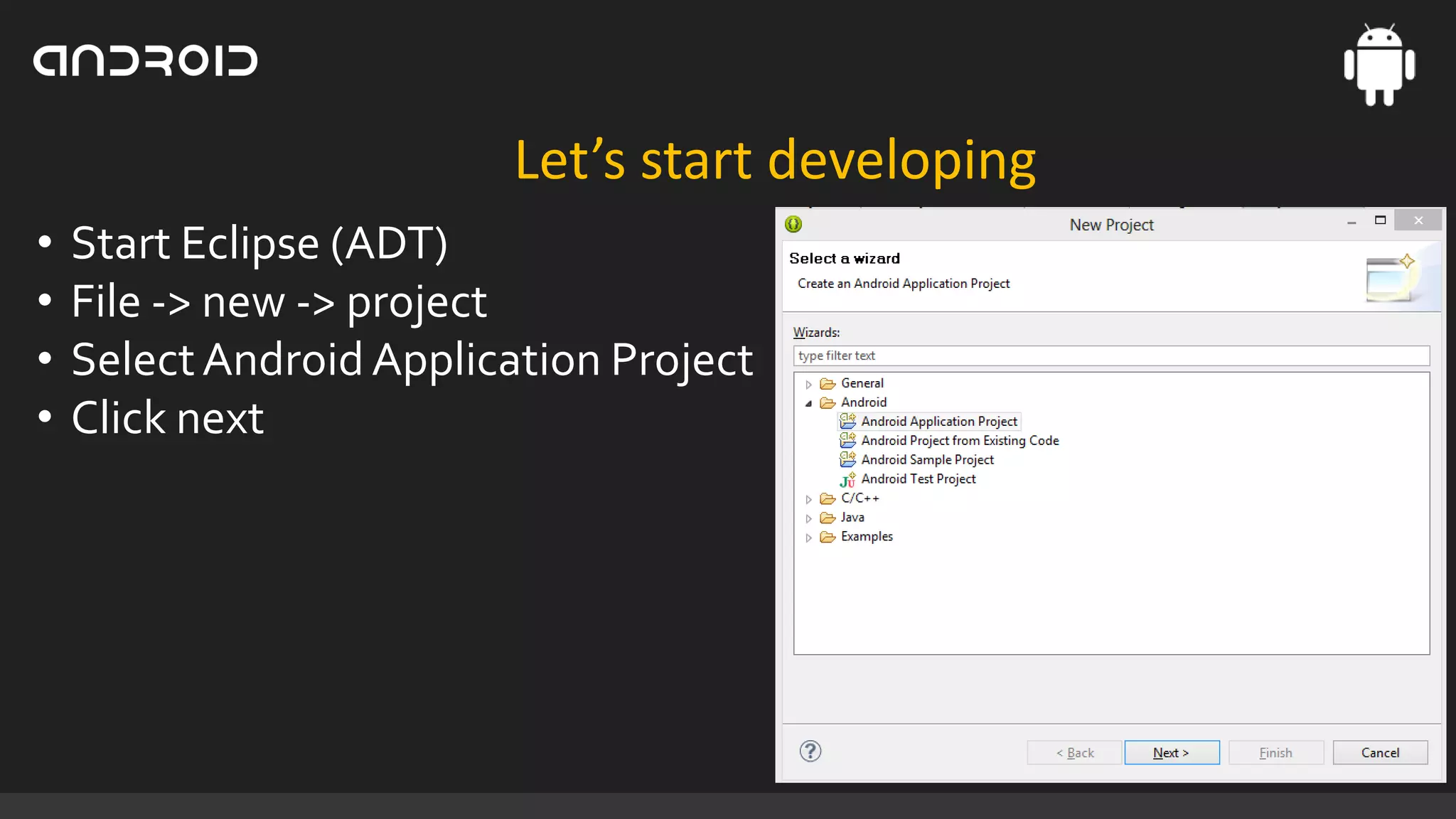

- 21. Let’s start developing • • • • StartEclipse (ADT) File -> new -> project Select Android Application Project Click next

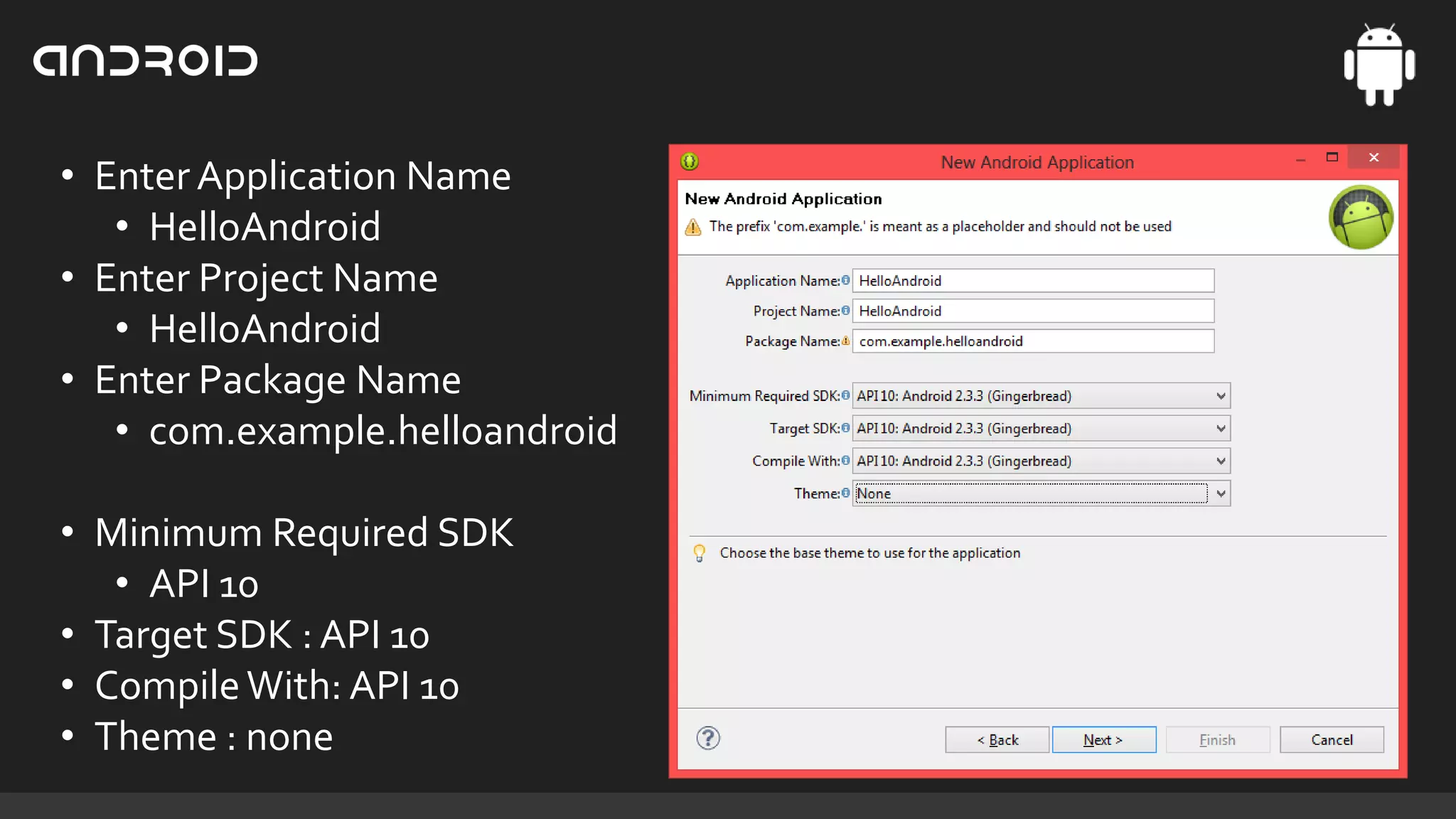

- 22. • Enter ApplicationName • HelloAndroid • Enter Project Name • HelloAndroid • Enter Package Name • com.example.helloandroid • Minimum Required SDK • API 10 • Target SDK : API 10 • Compile With: API 10 • Theme : none

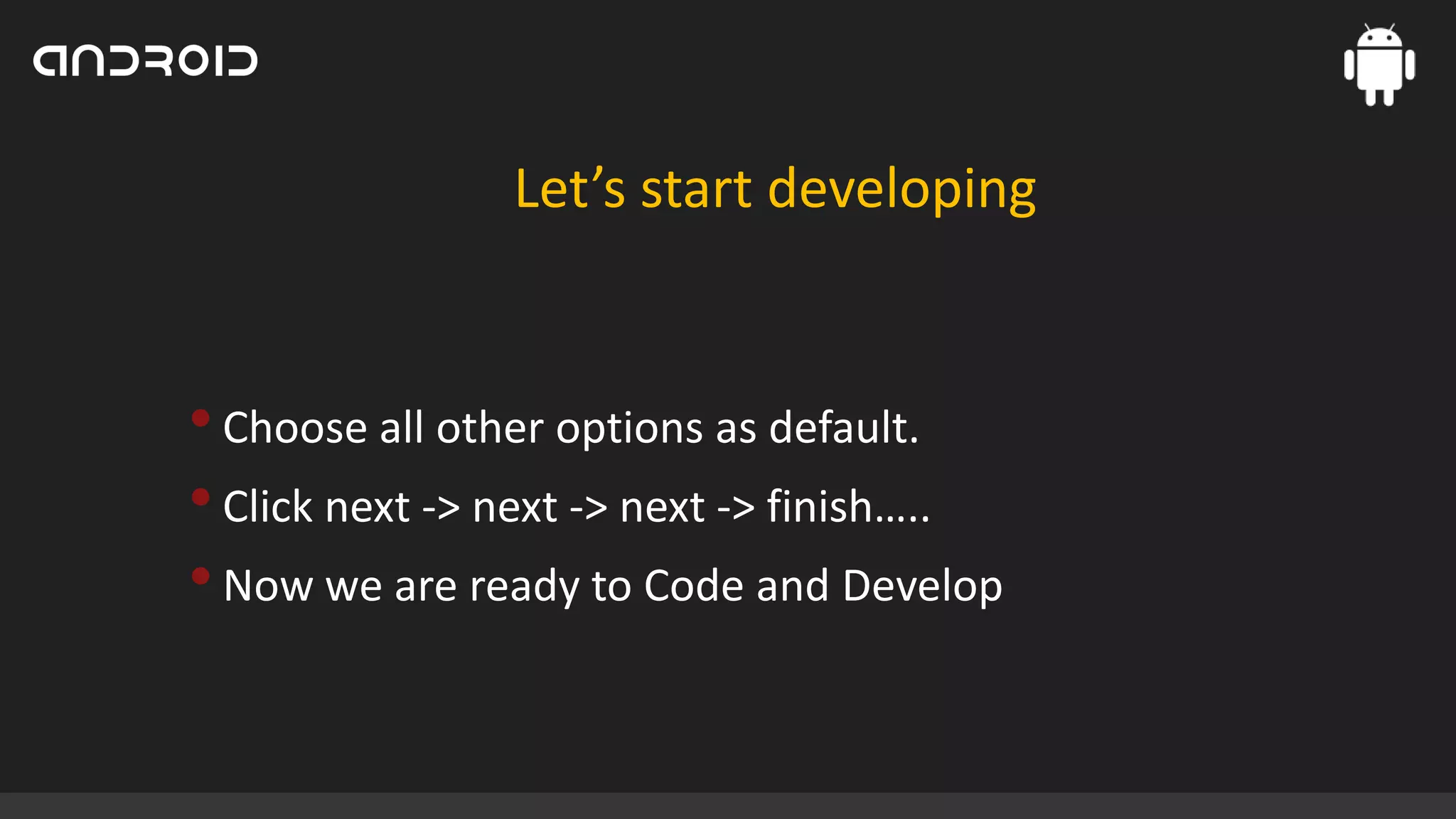

- 23. Let’s start developing •Choose all other options as default. • Click next -> next -> next -> finish….. • Now we are ready to Code and Develop

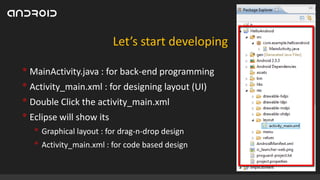

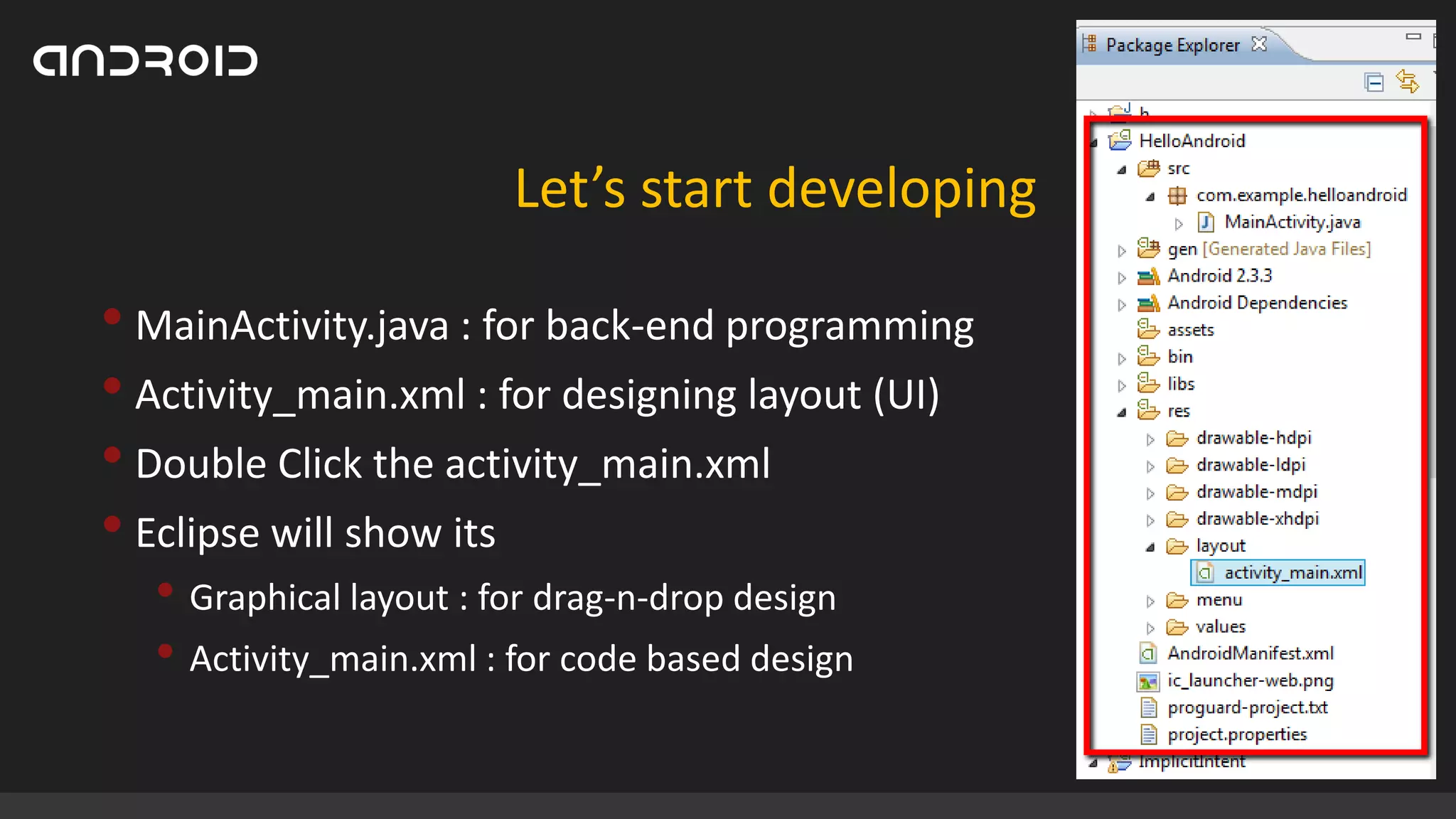

- 24. Let’s start developing •MainActivity.java : for back-end programming • Activity_main.xml : for designing layout (UI) • Double Click the activity_main.xml • Eclipse will show its • Graphical layout : for drag-n-drop design • Activity_main.xml : for code based design

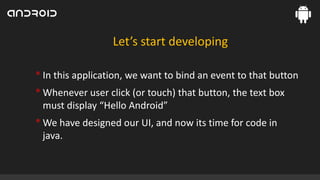

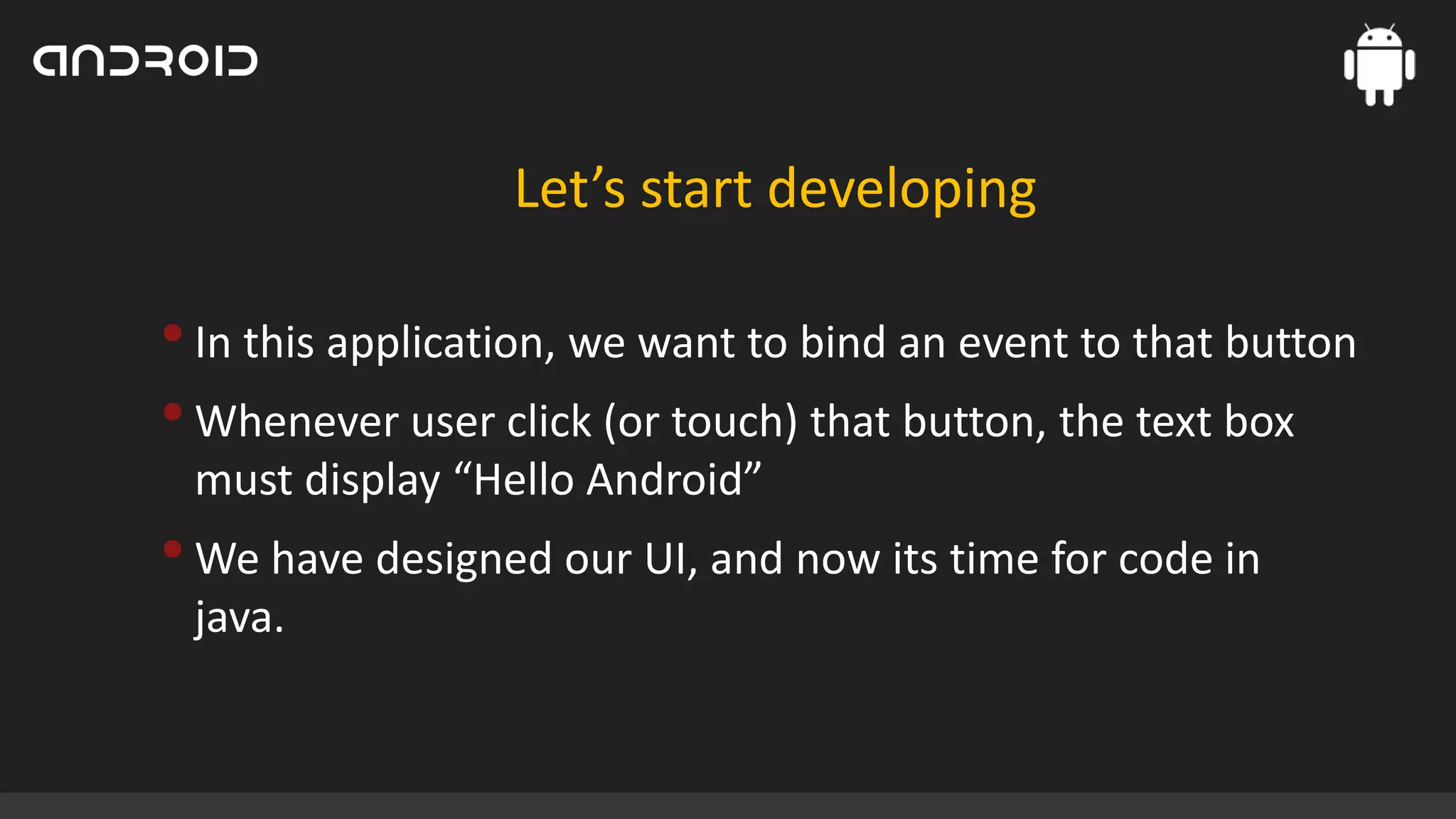

- 26. Let’s start developing •In this application, we want to bind an event to that button • Whenever user click (or touch) that button, the text box must display “Hello Android” • We have designed our UI, and now its time for code in java.

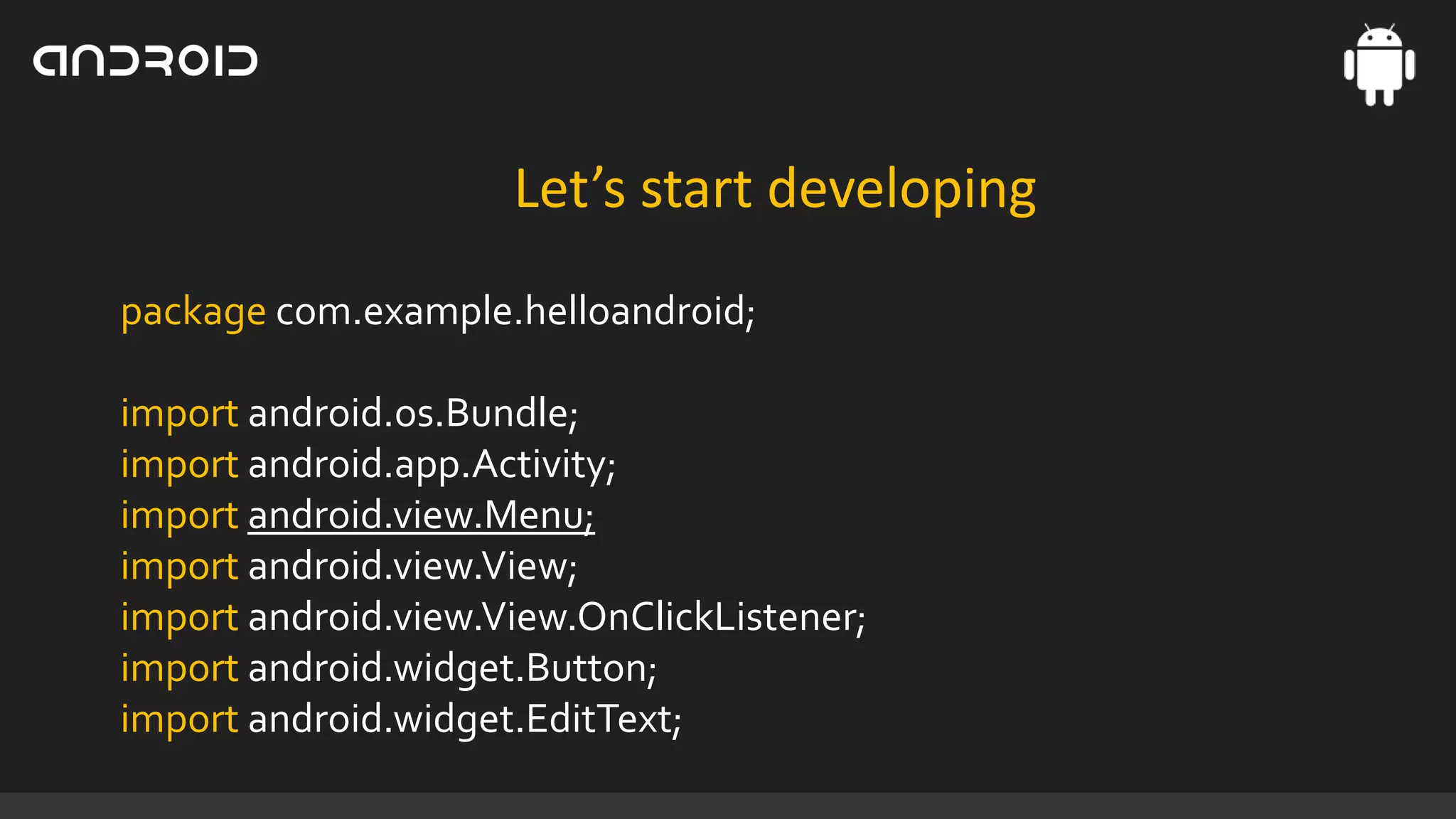

- 27. Let’s start developing packagecom.example.helloandroid; import android.os.Bundle; import android.app.Activity; import android.view.Menu; import android.view.View; import android.view.View.OnClickListener; import android.widget.Button; import android.widget.EditText;

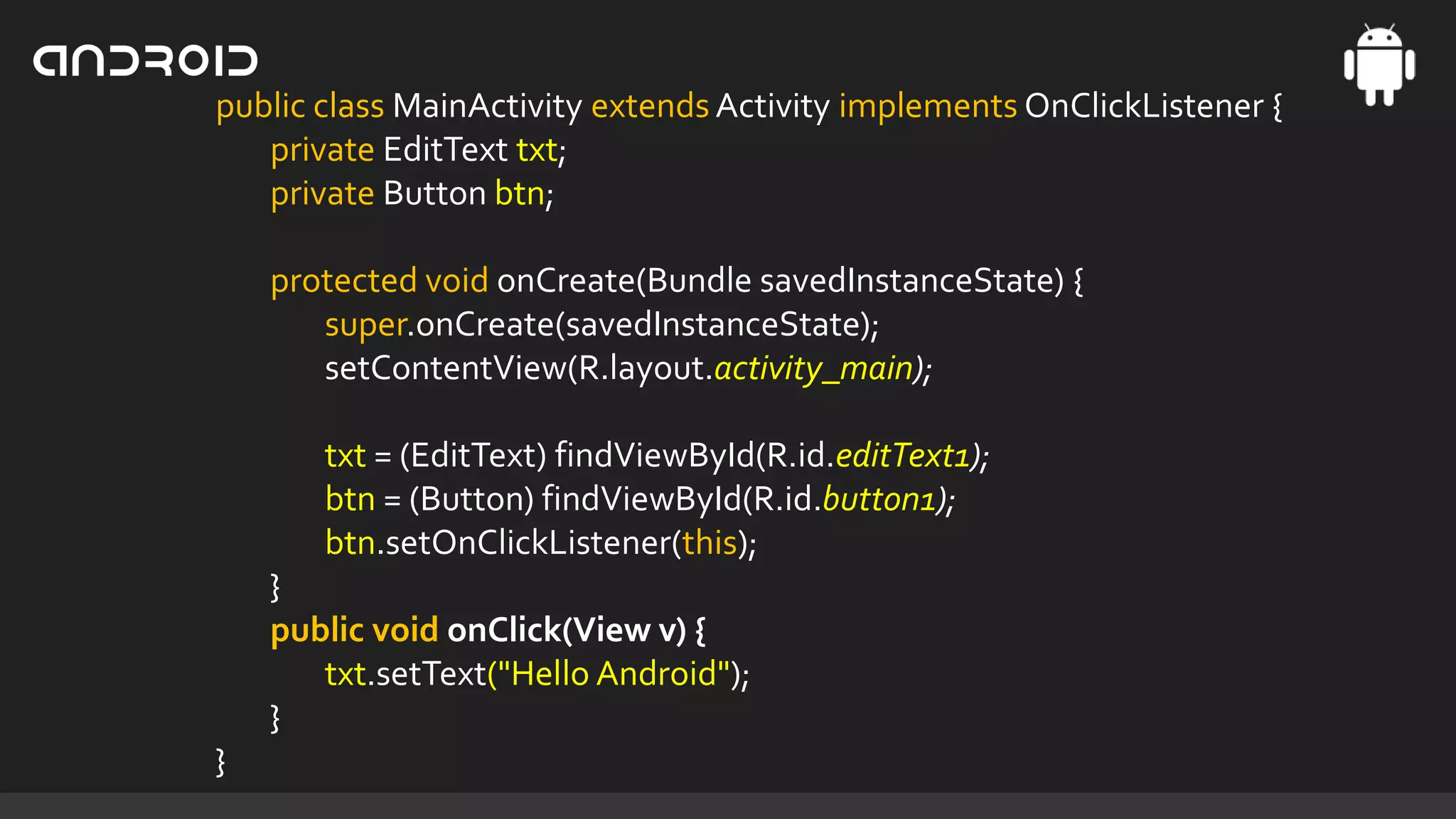

- 28. public class MainActivityextends Activity implements OnClickListener { private EditText txt; private Button btn; protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); txt = (EditText) findViewById(R.id.editText1); btn = (Button) findViewById(R.id.button1); btn.setOnClickListener(this); } public void onClick(View v) { txt.setText("Hello Android"); } }

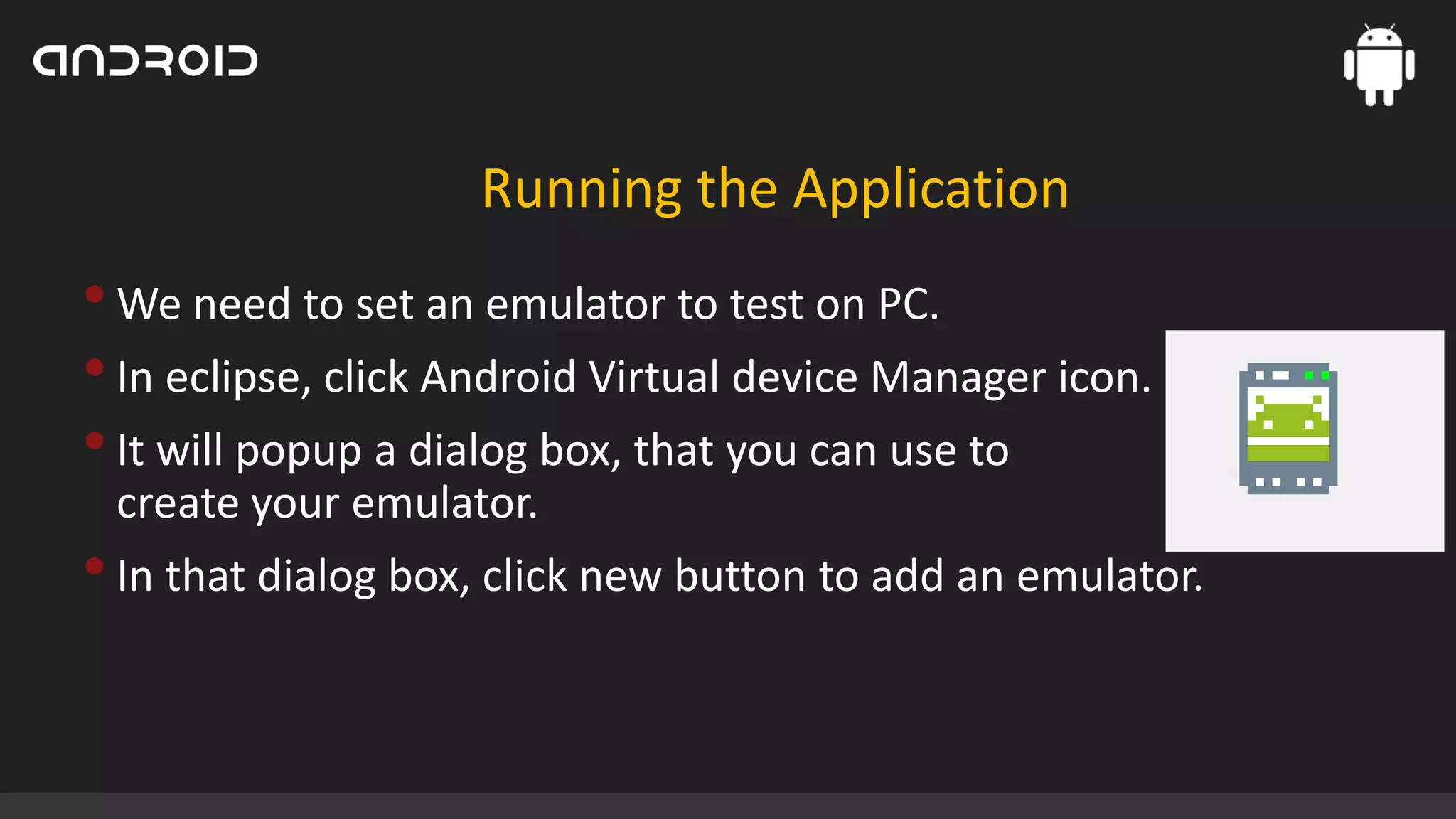

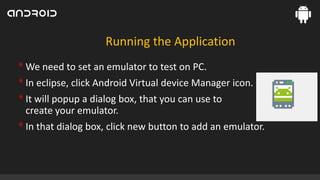

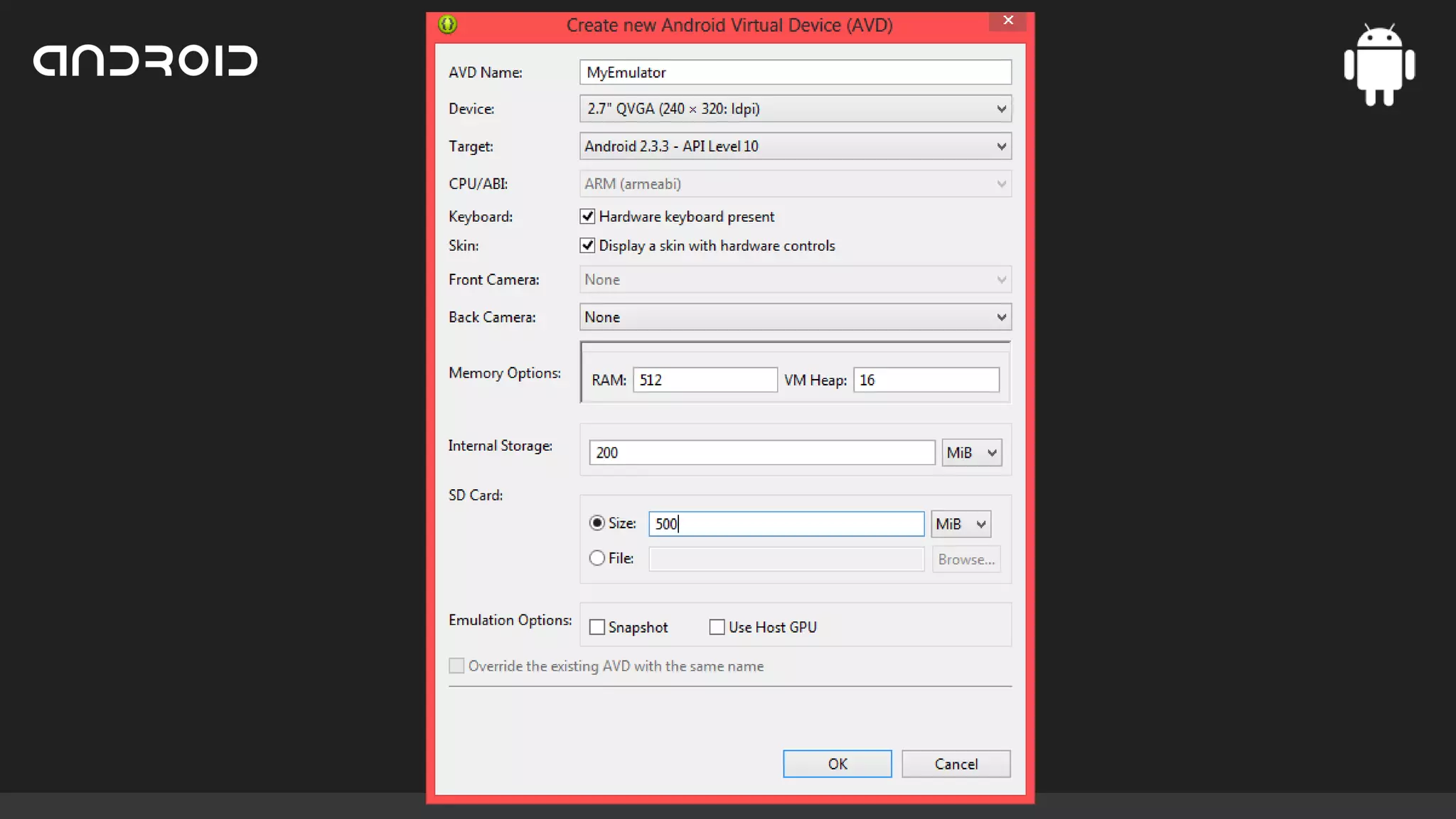

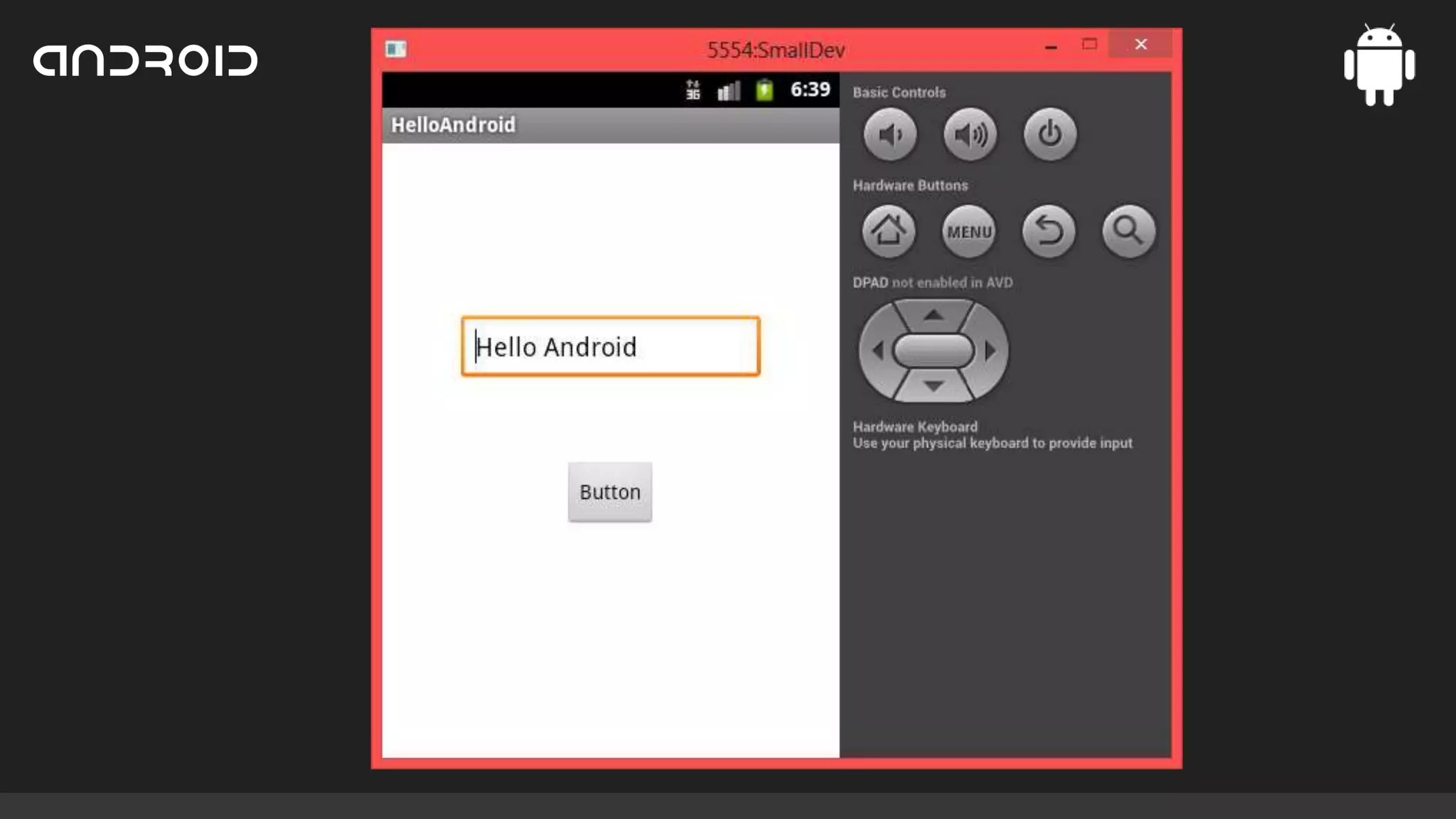

- 29. Running the Application •We need to set an emulator to test on PC. • In eclipse, click Android Virtual device Manager icon. • It will popup a dialog box, that you can use to create your emulator. • In that dialog box, click new button to add an emulator.

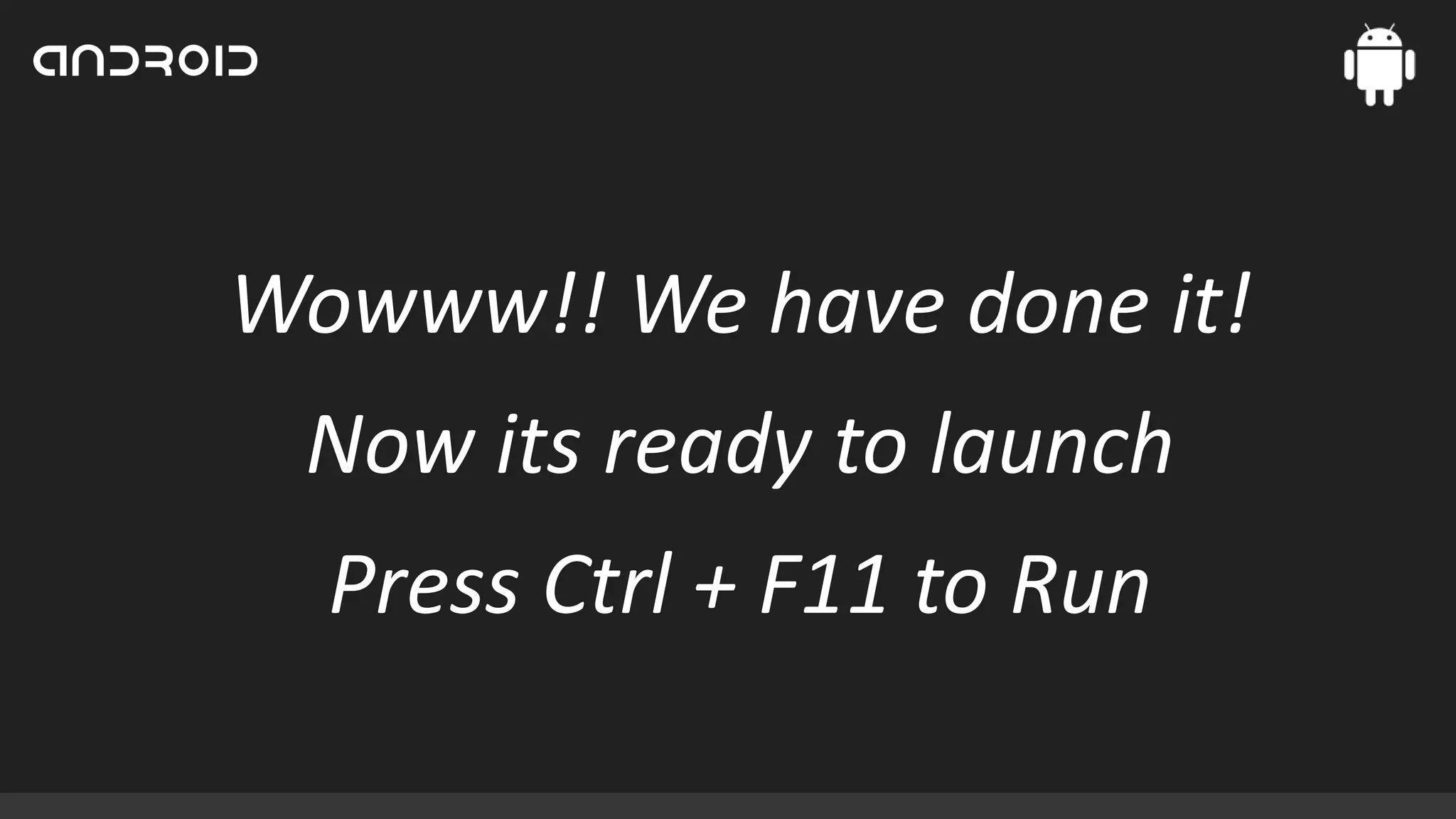

- 31. Wowww!! We havedone it! Now its ready to launch Press Ctrl + F11 to Run

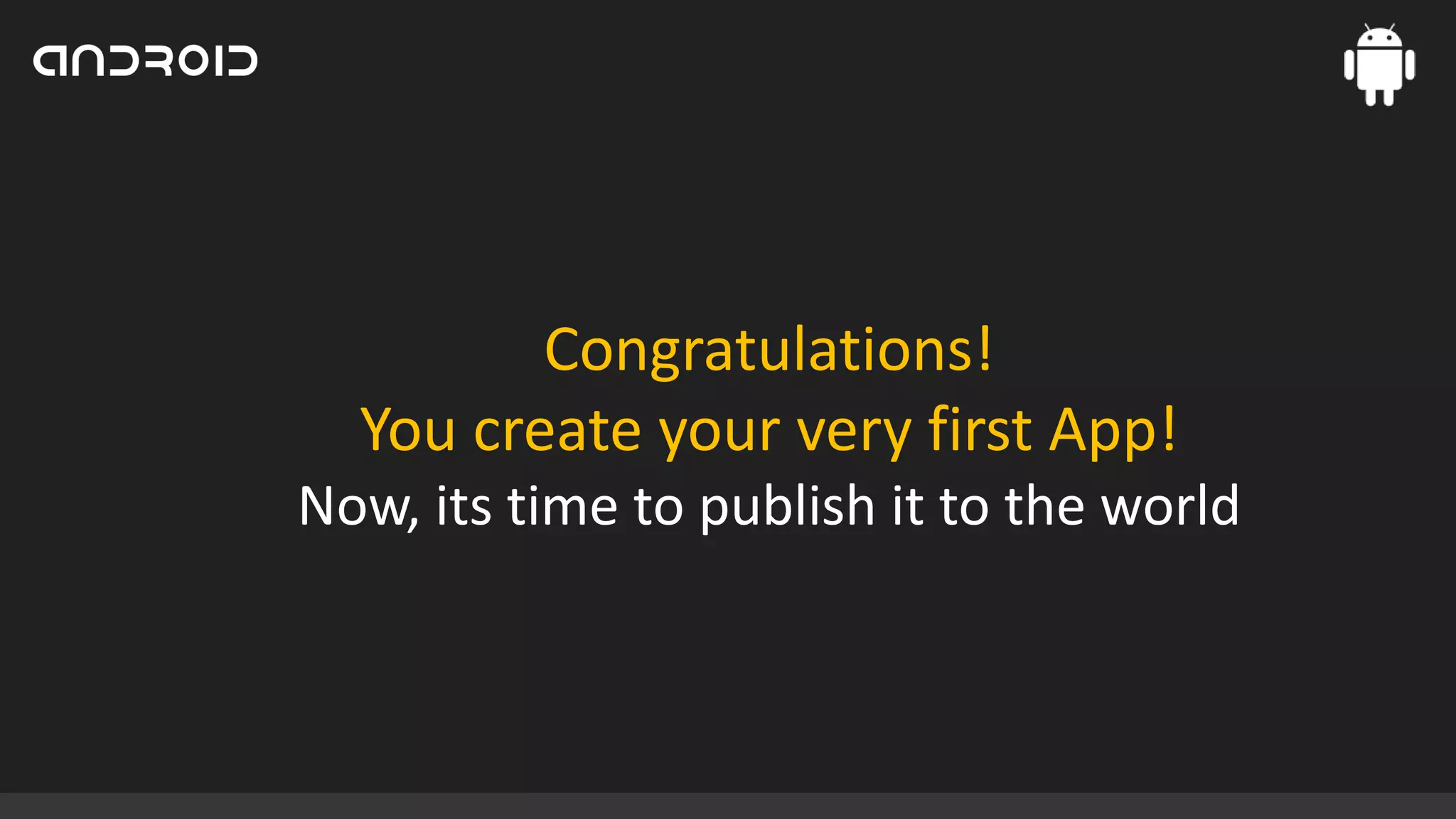

- 33. Congratulations! You create yourvery first App! Now, its time to publish it to the world

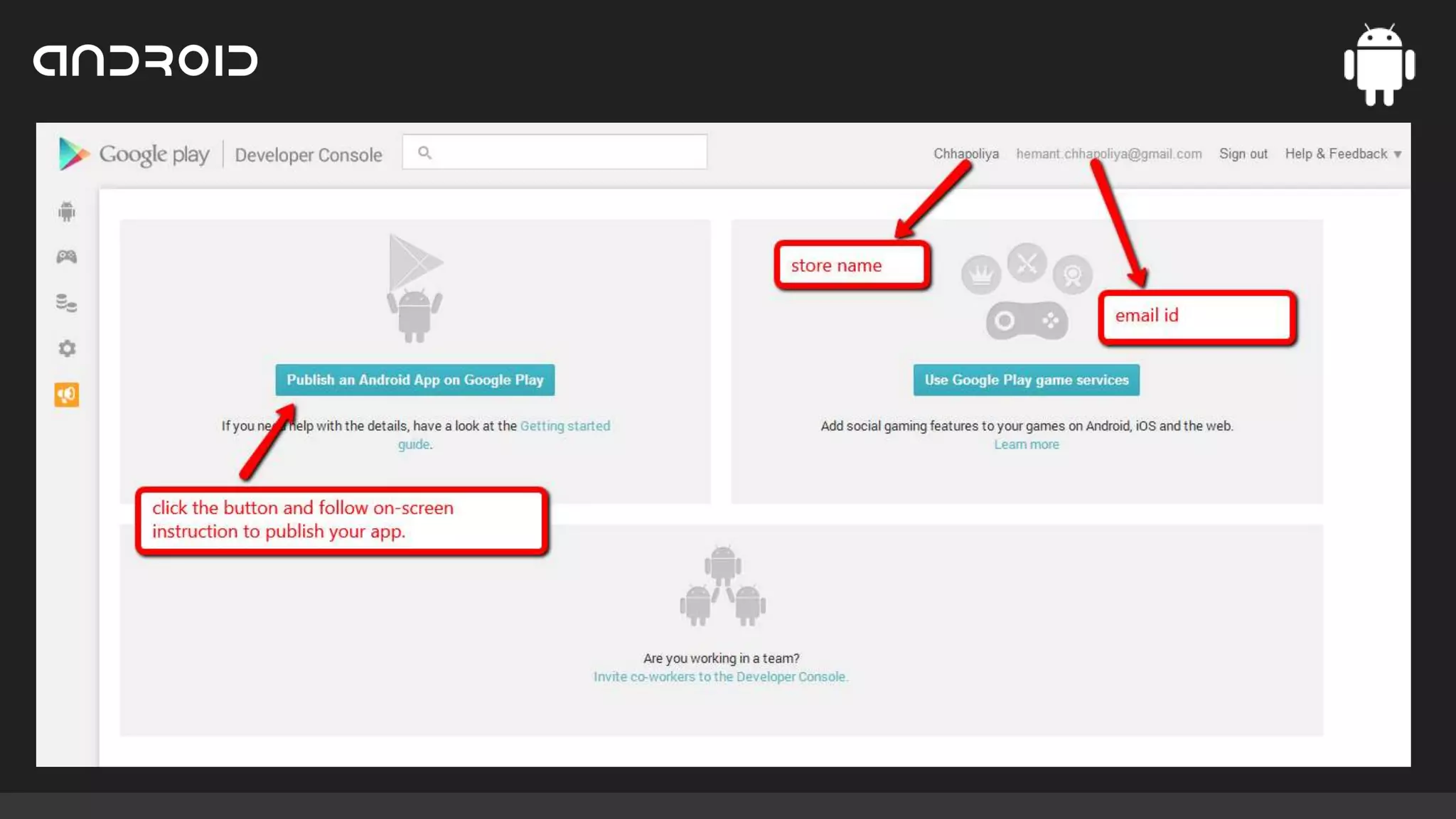

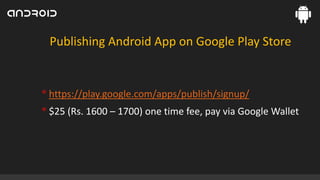

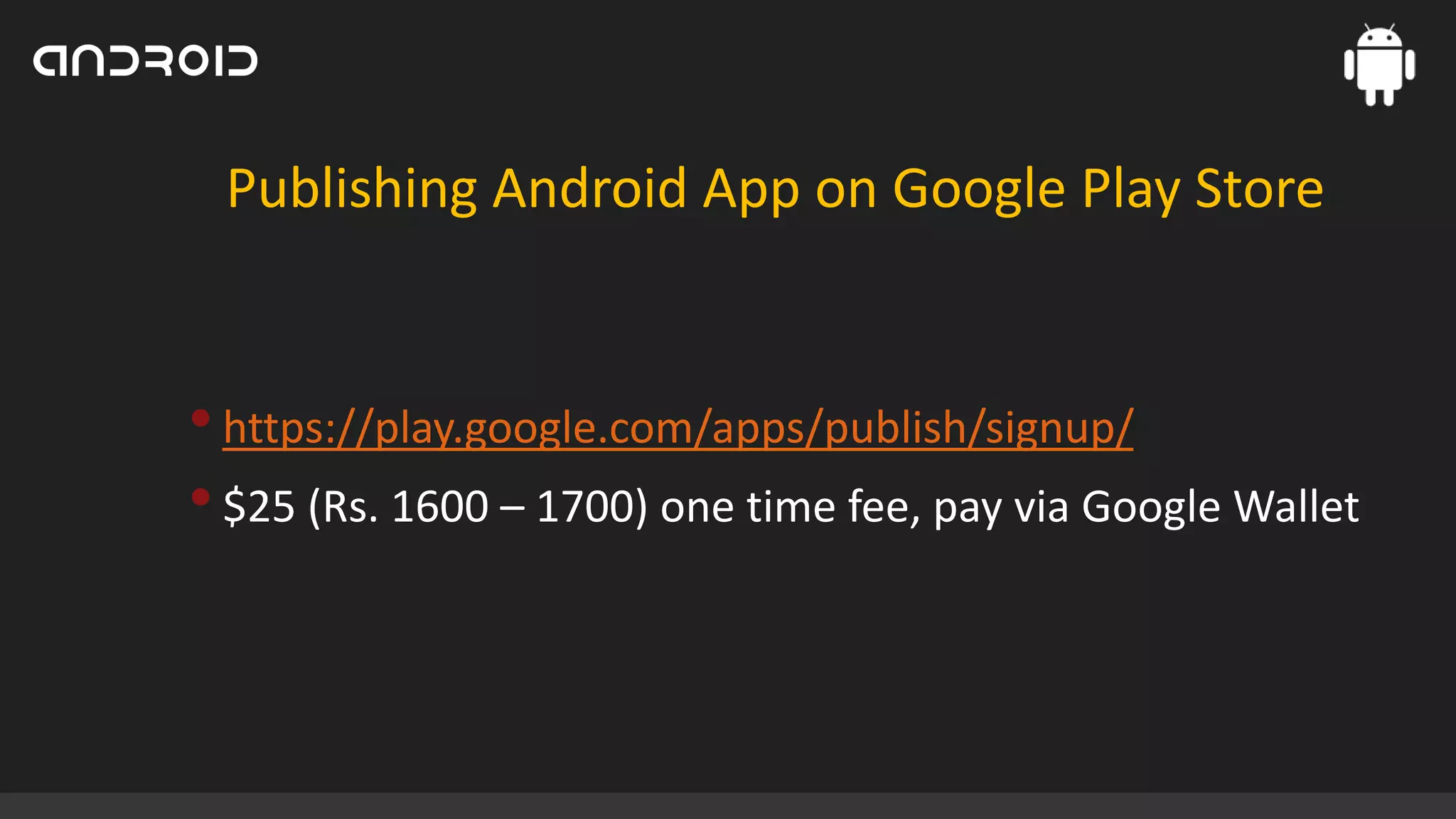

- 34. Publishing Android Appon Google Play Store • https://play.google.com/apps/publish/signup/ • $25 (Rs. 1600 – 1700) one time fee, pay via Google Wallet

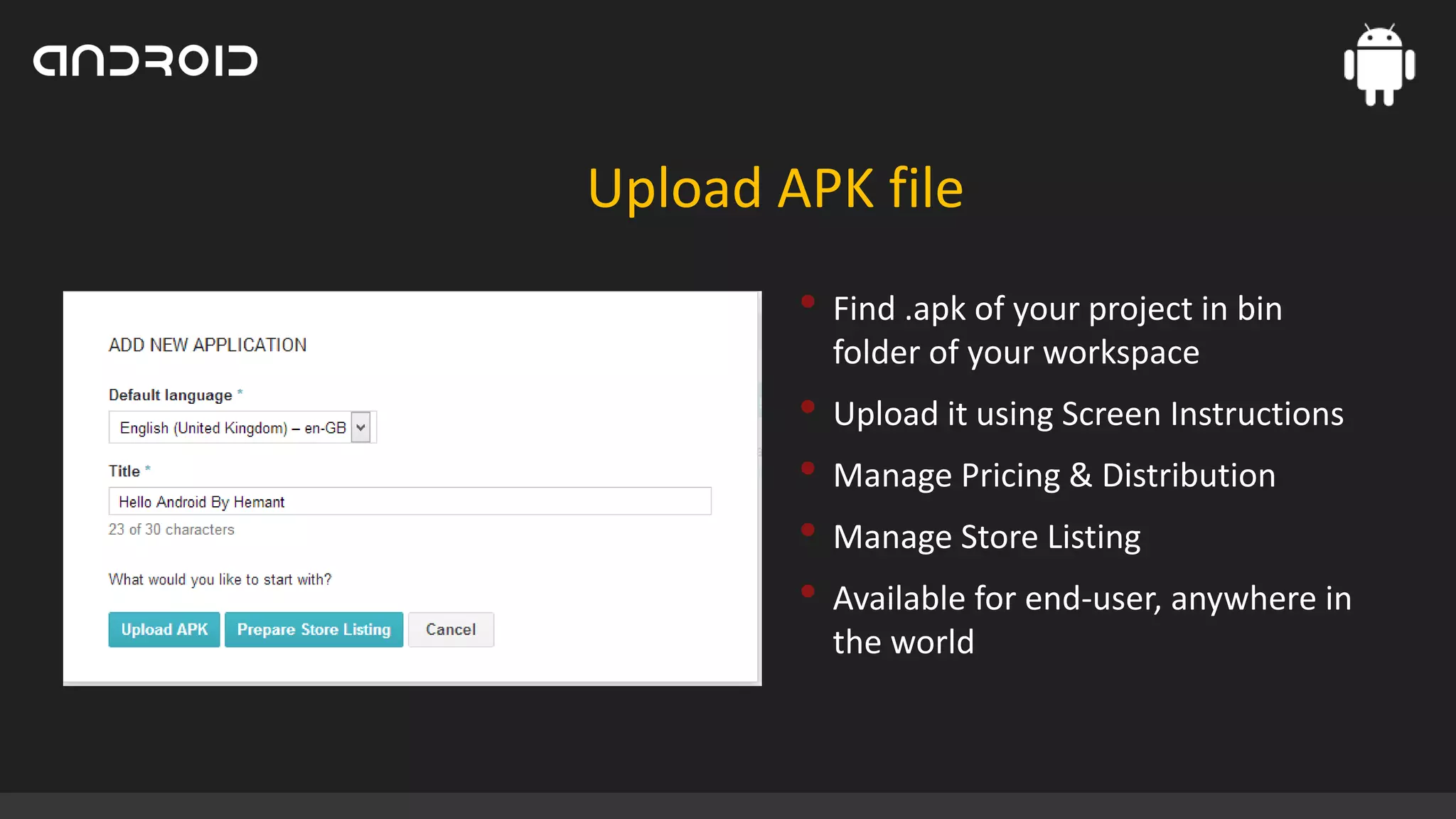

- 36. Upload APK file •Find .apk of your project in bin folder of your workspace • Upload it using Screen Instructions • Manage Pricing & Distribution • Manage Store Listing • Available for end-user, anywhere in the world
- 37.

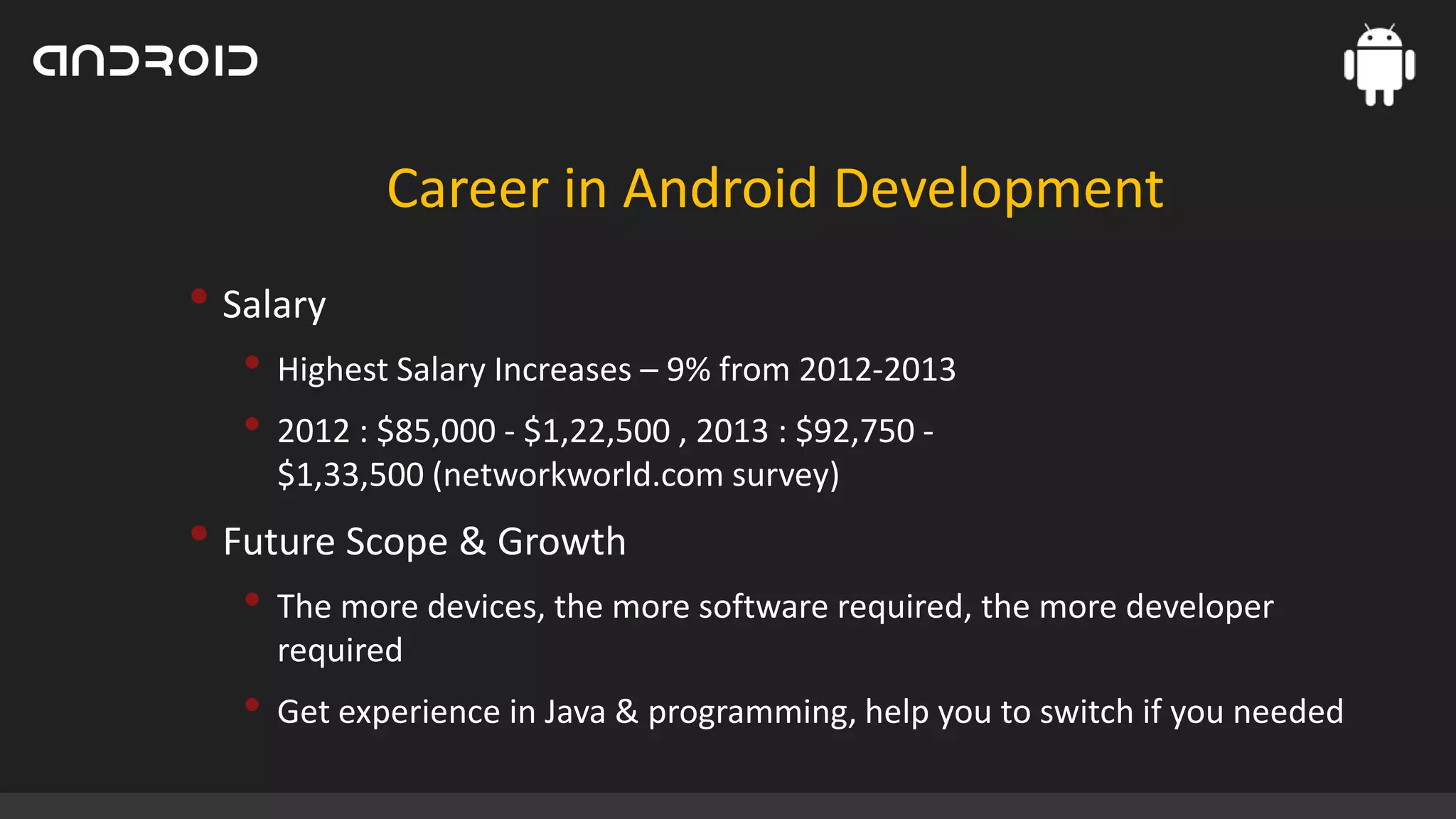

- 38. Career in AndroidDevelopment • Salary • Highest Salary Increases – 9% from 2012-2013 • 2012 : $85,000 - $1,22,500 , 2013 : $92,750 $1,33,500 (networkworld.com survey) • Future Scope & Growth • The more devices, the more software required, the more developer required • Get experience in Java & programming, help you to switch if you needed
