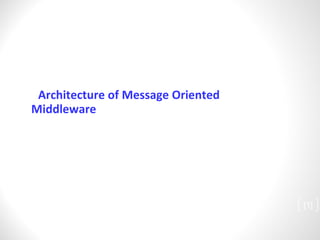

  Architecture of MessageOriented Middleware [ ]
• 2.

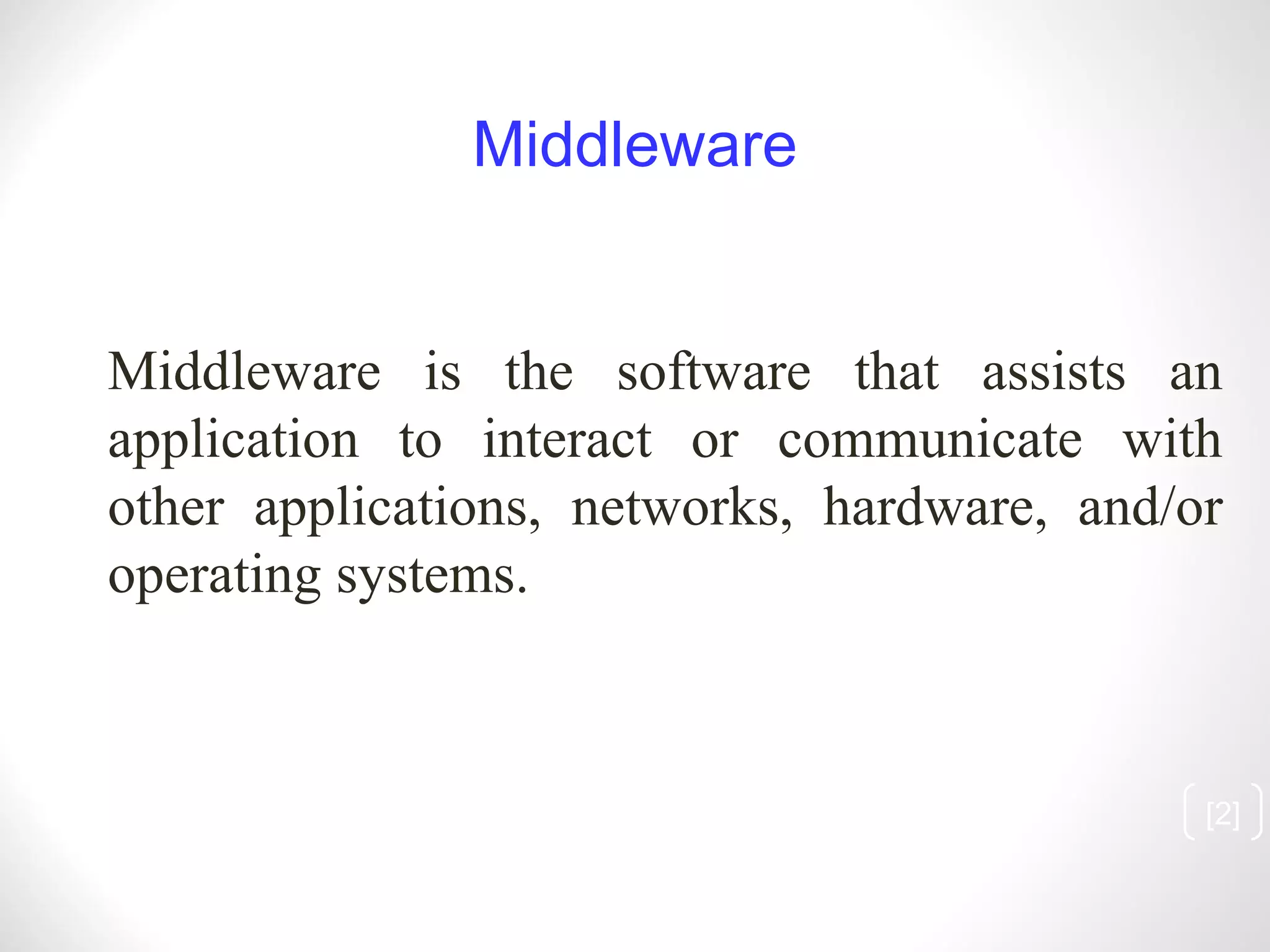

  [ ] MiddlewareMiddleware is the software that assists an application to interact or communicate with other applications, networks, hardware, and/or operating systems.
• 3.

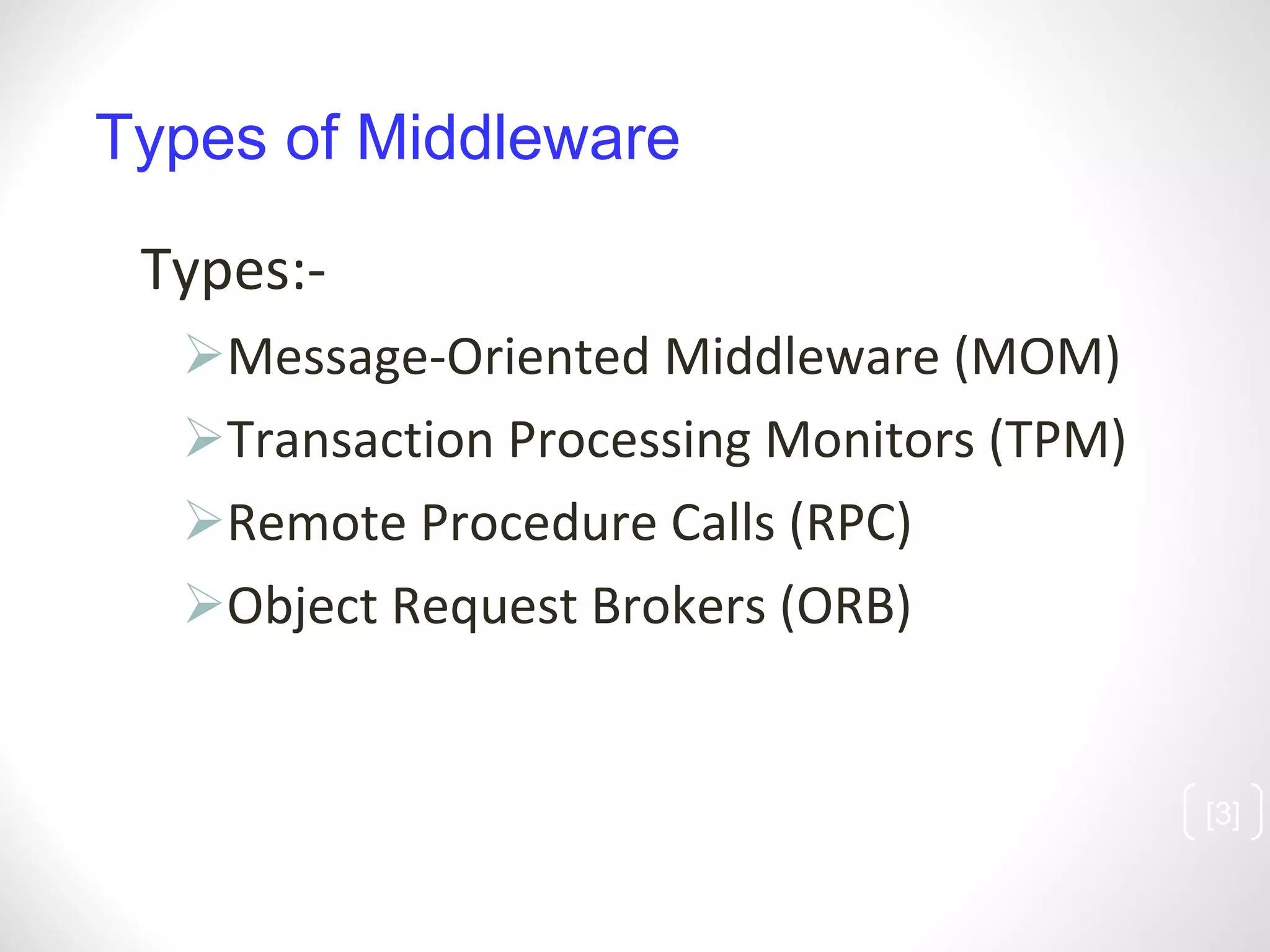

  Types of MiddlewareTypes:- Message-Oriented Middleware (MOM) Transaction Processing Monitors (TPM) Remote Procedure Calls (RPC) Object Request Brokers (ORB) [ ]
• 4.

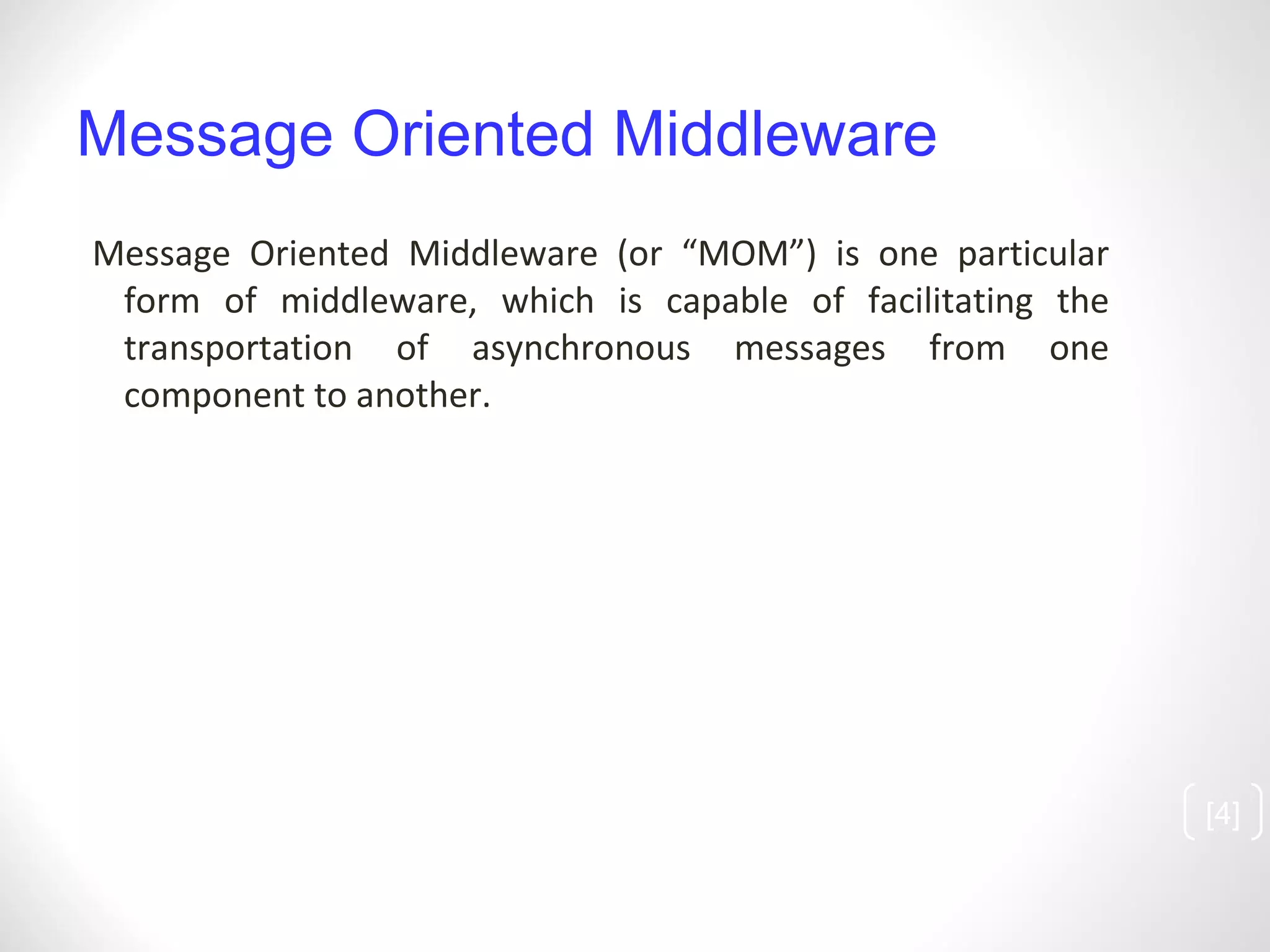

  Message Oriented MiddlewareMessage Oriented Middleware (or “MOM”) is one particular form of middleware, which is capable of facilitating the transportation of asynchronous messages from one component to another. [ ]
• 5.

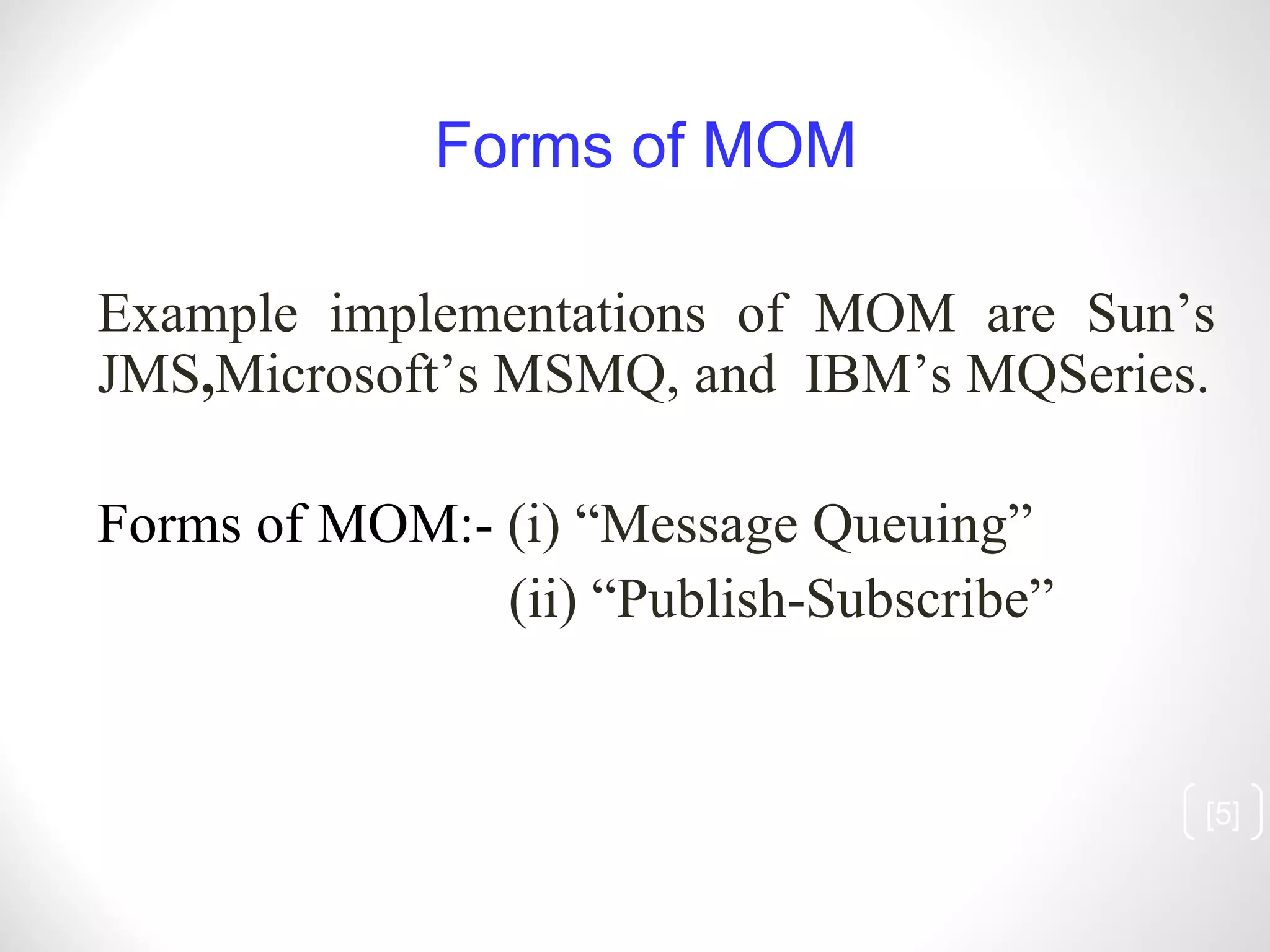

  [ ] Exampleimplementations of MOM are Sun’s JMS , Microsoft’s MSMQ, and IBM’s MQSeries. Forms of MOM:- (i) “Message Queuing” (ii) “Publish-Subscribe” Forms of MOM
• 6.

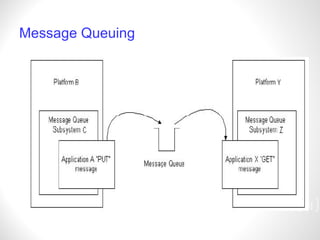

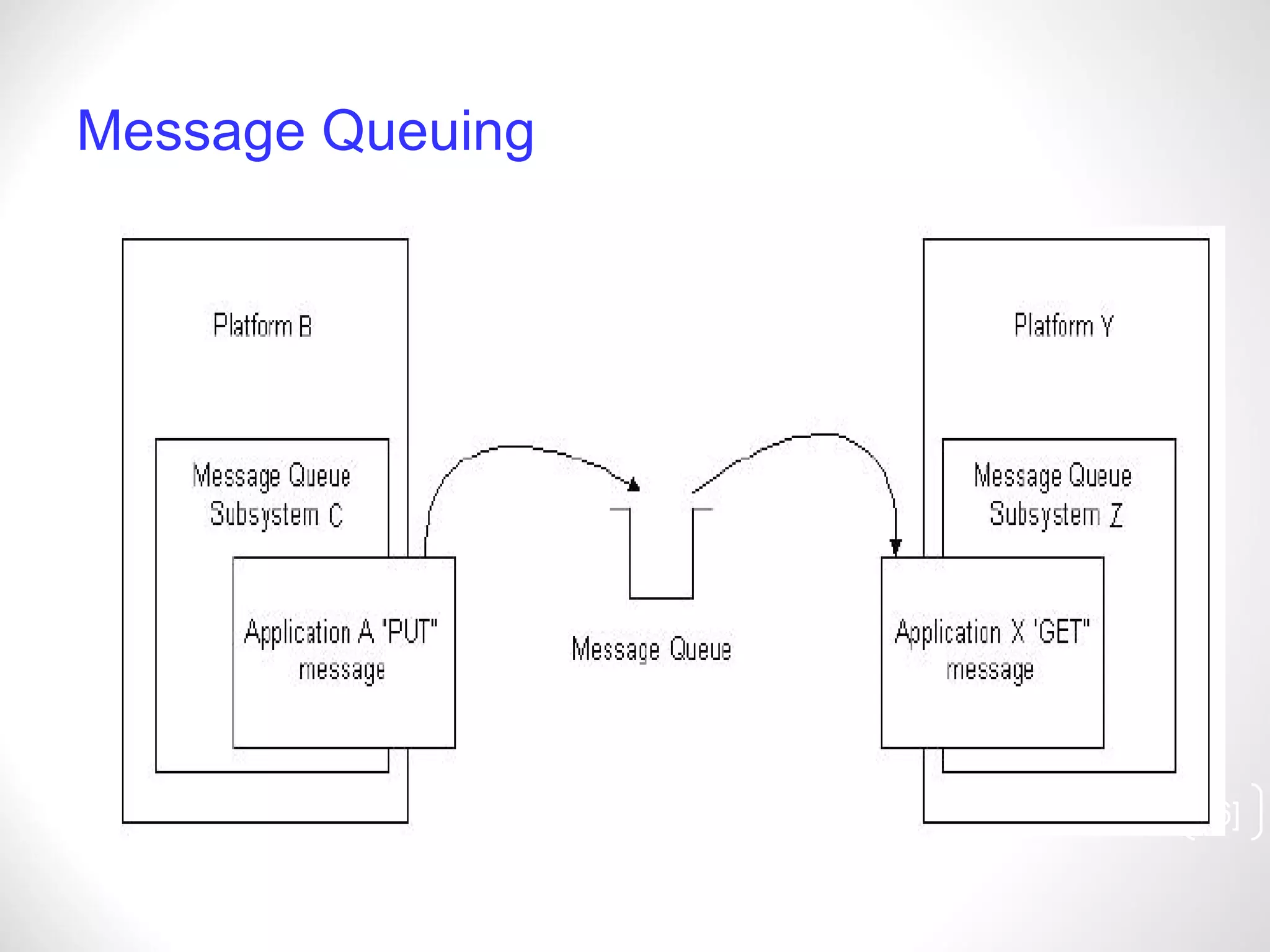

  Message Queuing []
• 7.

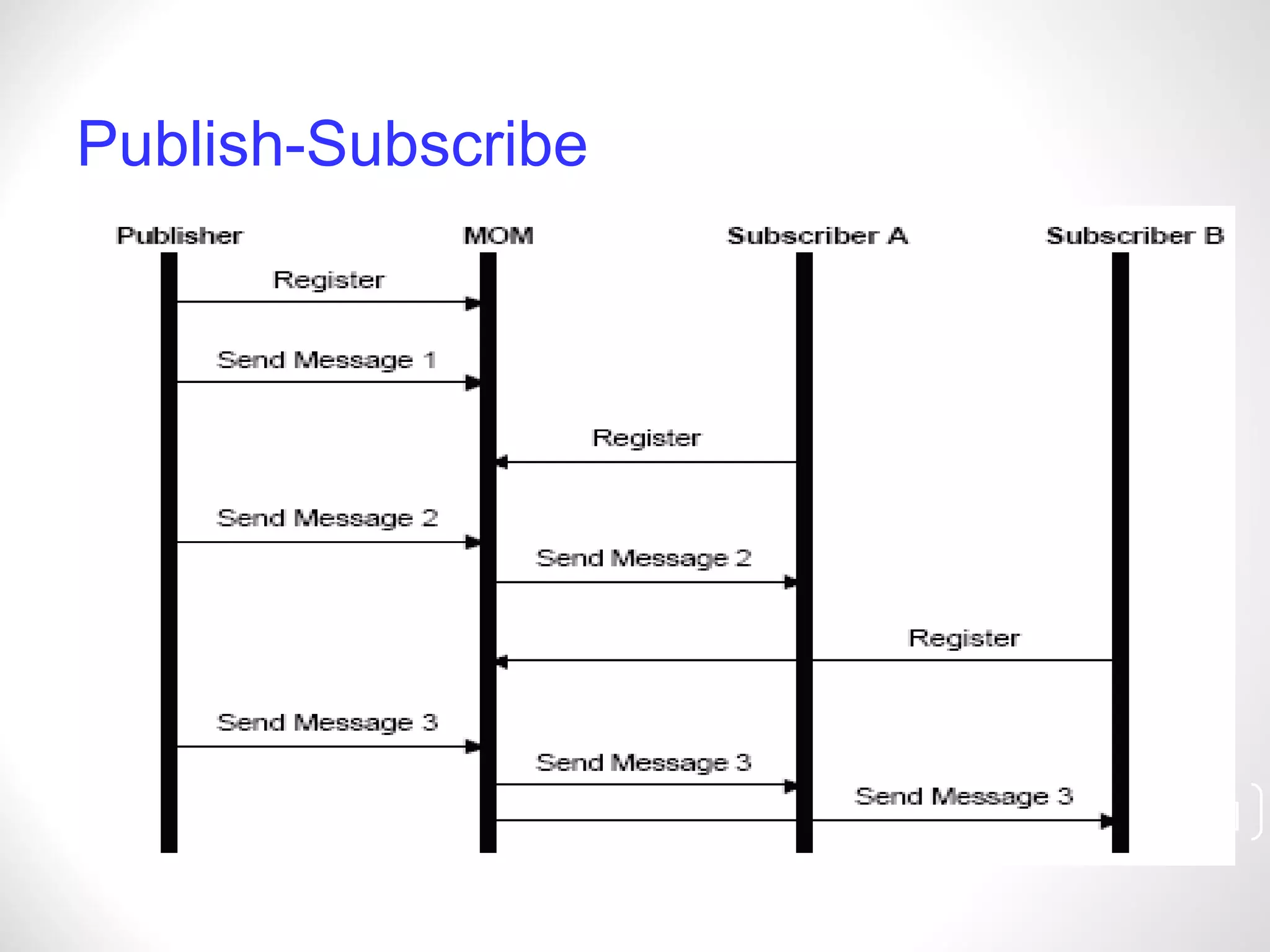

  Publish-Subscribe [ ]
• 8.

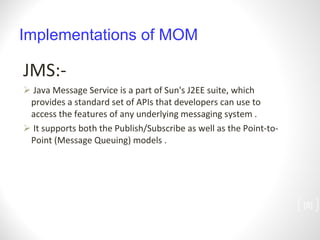

  Implementations of MOMJMS:- Java Message Service is a part of Sun's J2EE suite, which provides a standard set of APIs that developers can use to access the features of any underlying messaging system . It supports both the Publish/Subscribe as well as the Point-to-Point (Message Queuing) models . [ ]
• 9.

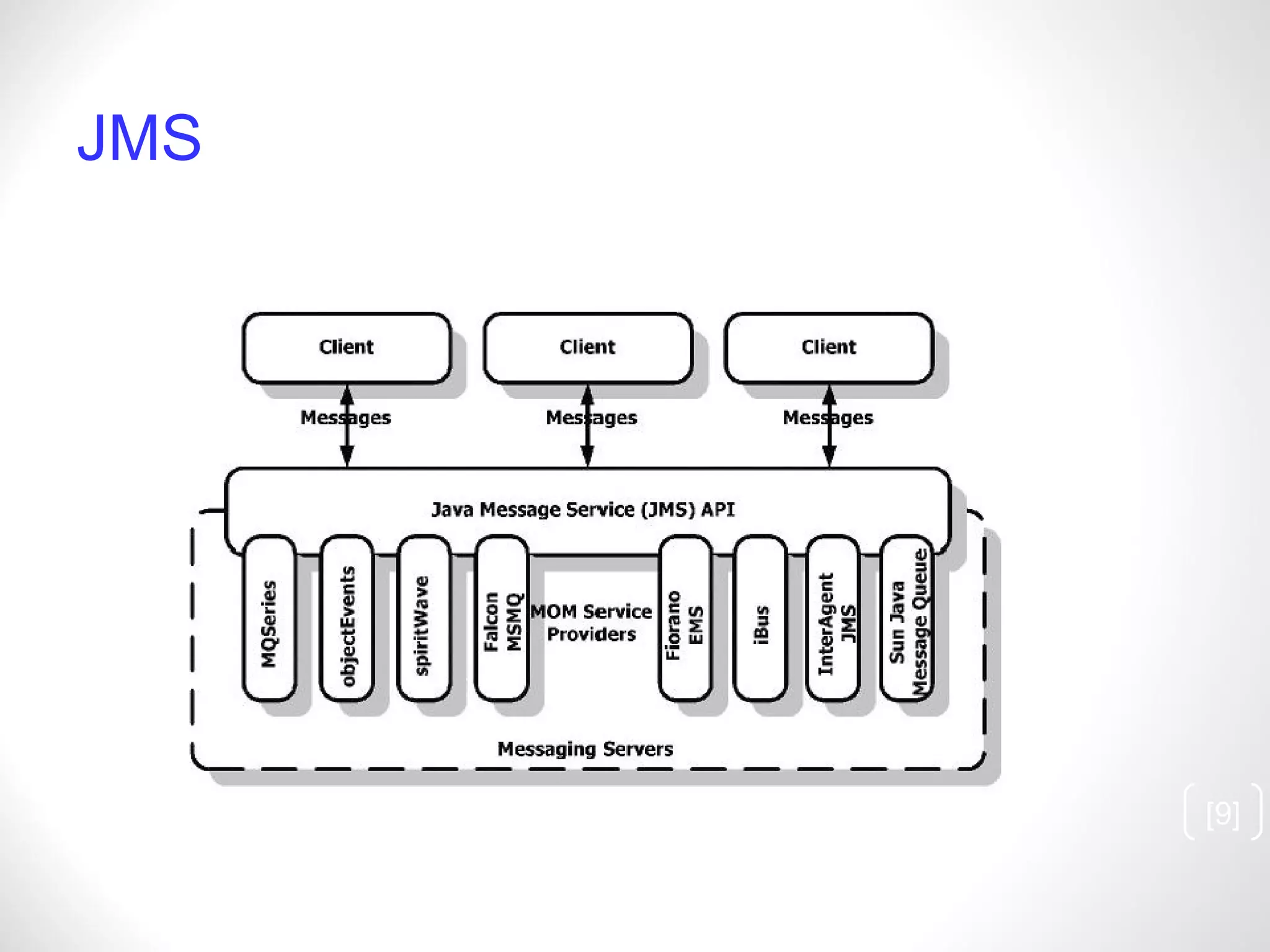

  JMS [ ]
• 10.

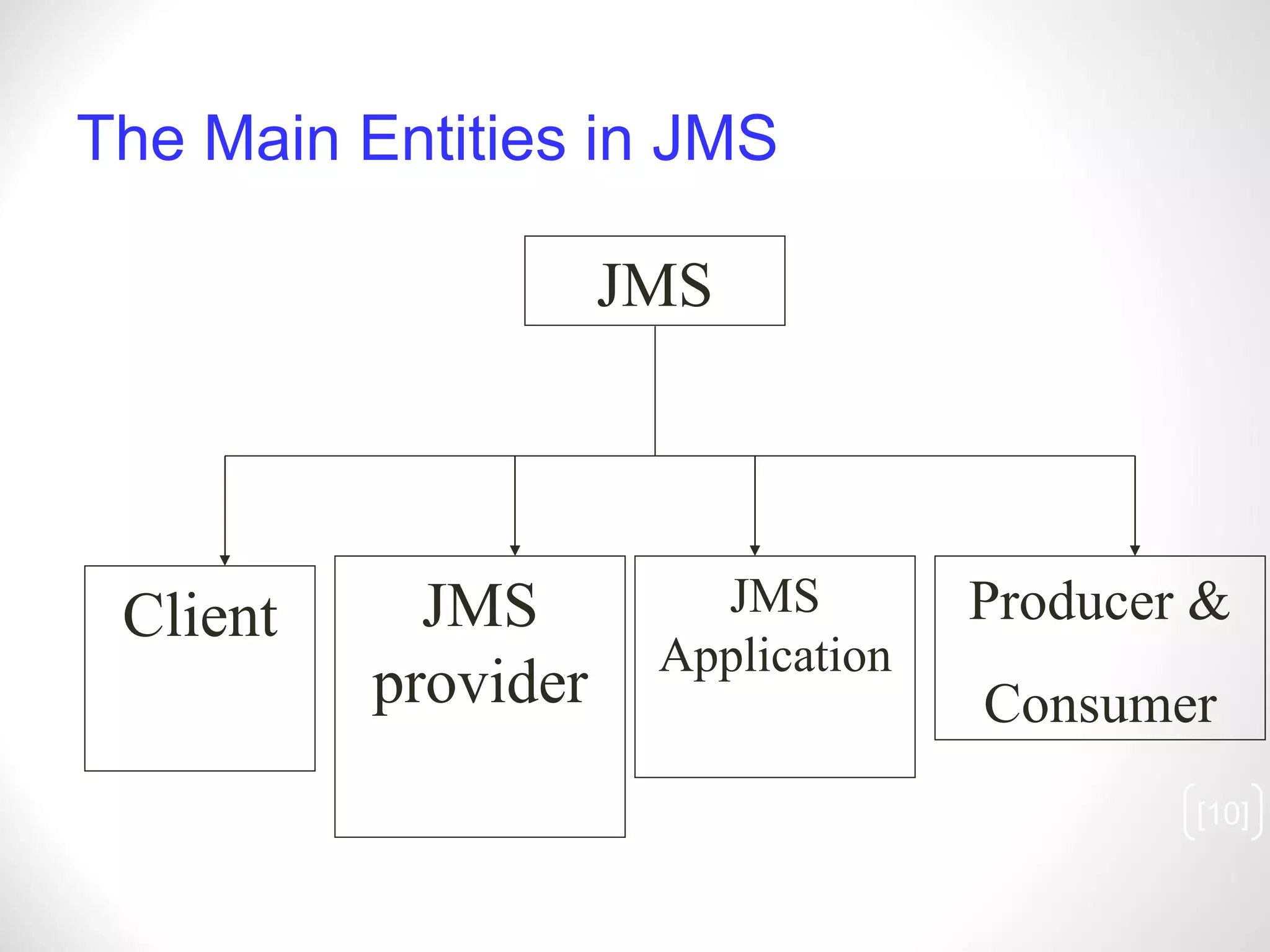

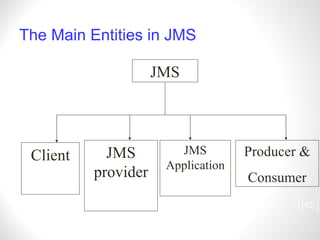

  The Main Entitiesin JMS [ ] JMS Client JMS Application JMS provider Producer & Consumer
• 11.

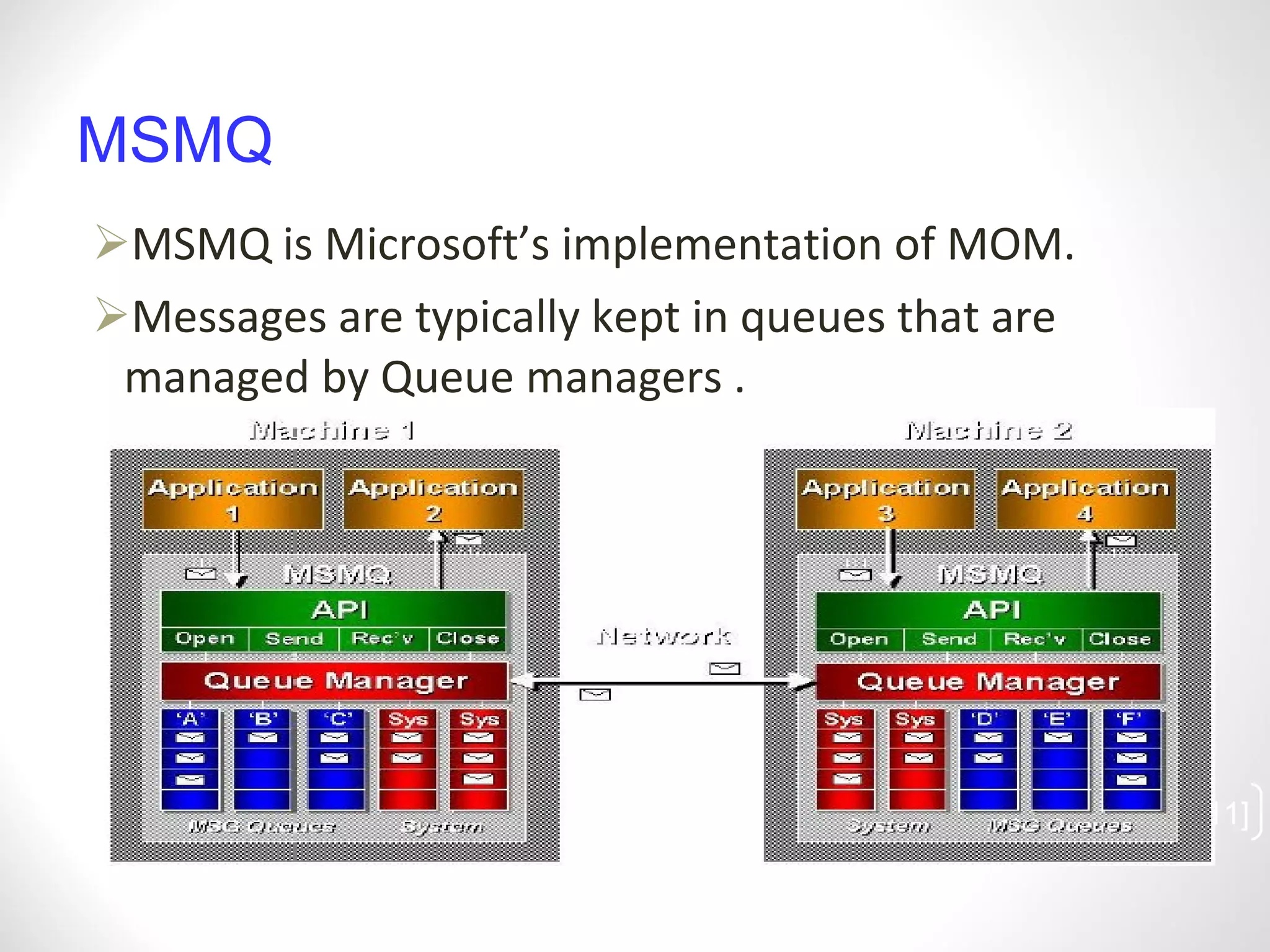

  MSMQ MSMQ isMicrosoft’s implementation of MOM. Messages are typically kept in queues that are managed by Queue managers . [ ]
• 12.

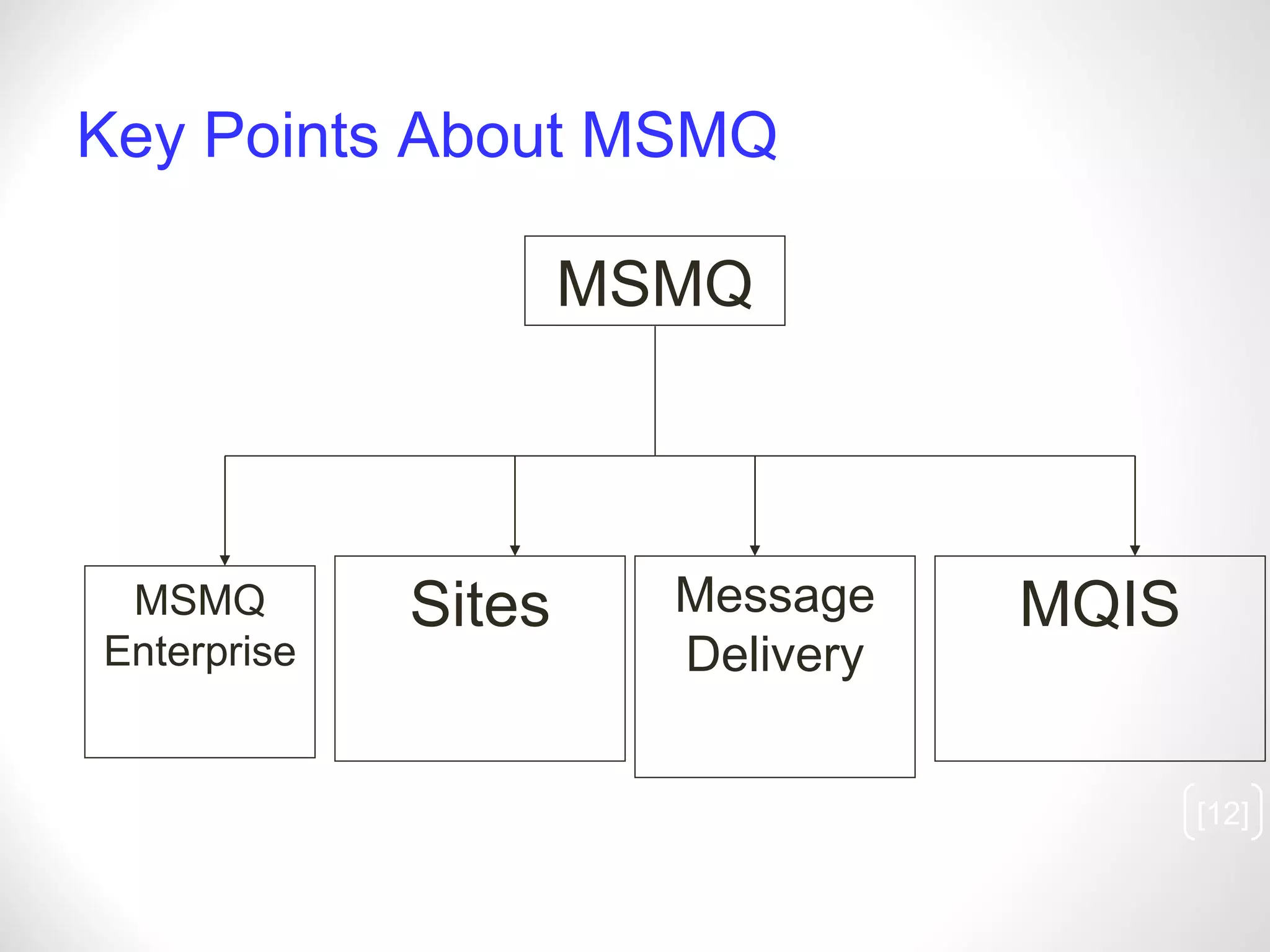

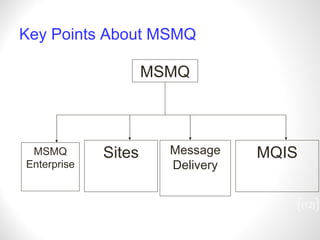

  Key Points AboutMSMQ [ ] MSMQ MSMQ Enterprise Message Delivery Sites MQIS
• 13.

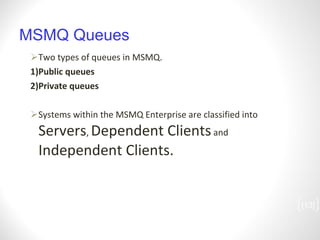

  MSMQ Queues Twotypes of queues in MSMQ. 1)Public queues 2)Private queues Systems within the MSMQ Enterprise are classified into Servers , Dependent Clients and Independent Clients. [ ]
• 14.

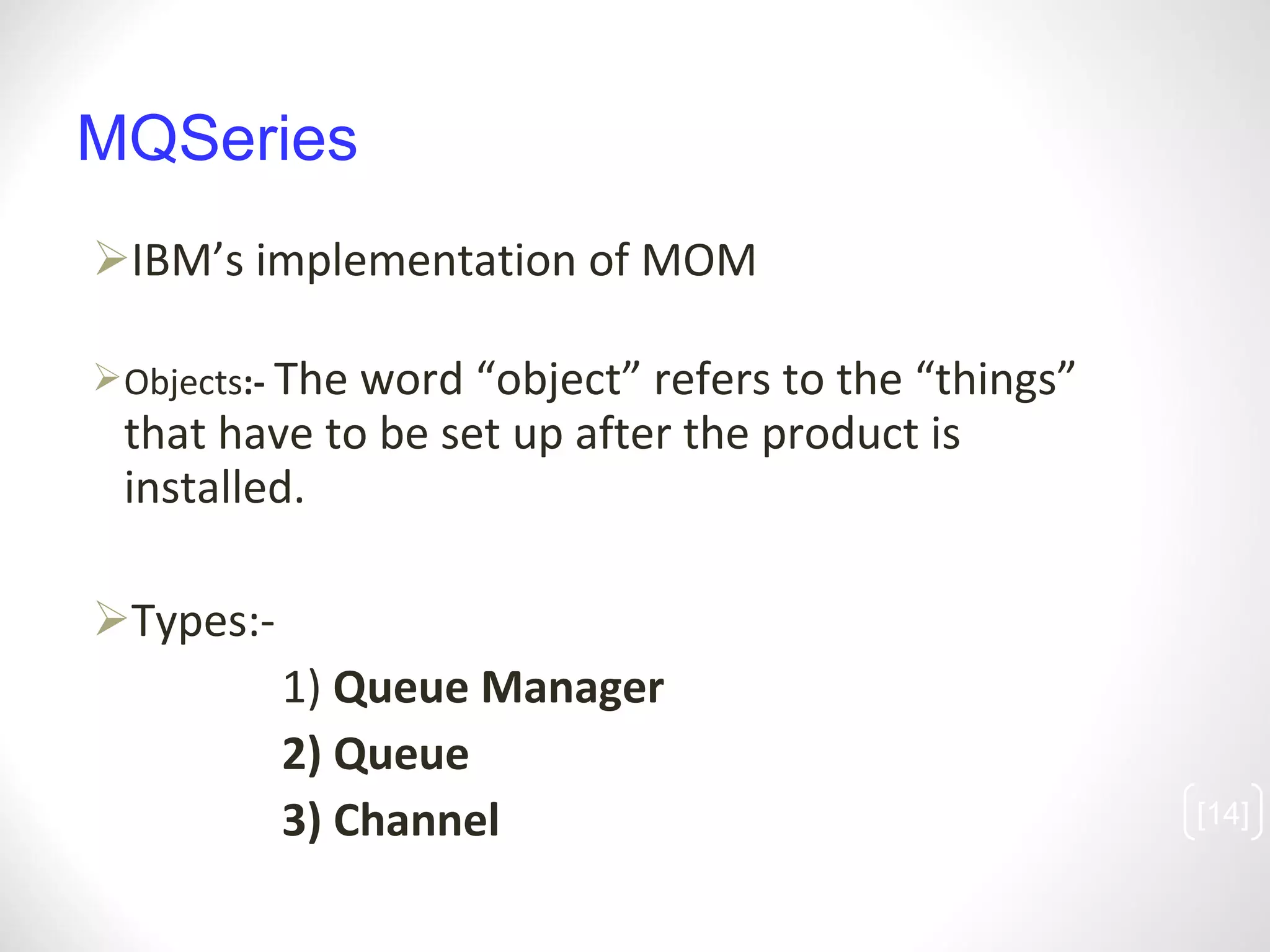

  MQSeries IBM’s implementationof MOM Objects :- The word “object” refers to the “things” that have to be set up after the product is installed. Types:- 1) Queue Manager 2) Queue 3) Channel [ ]
• 15.

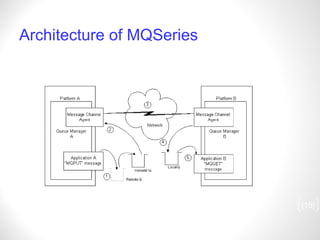

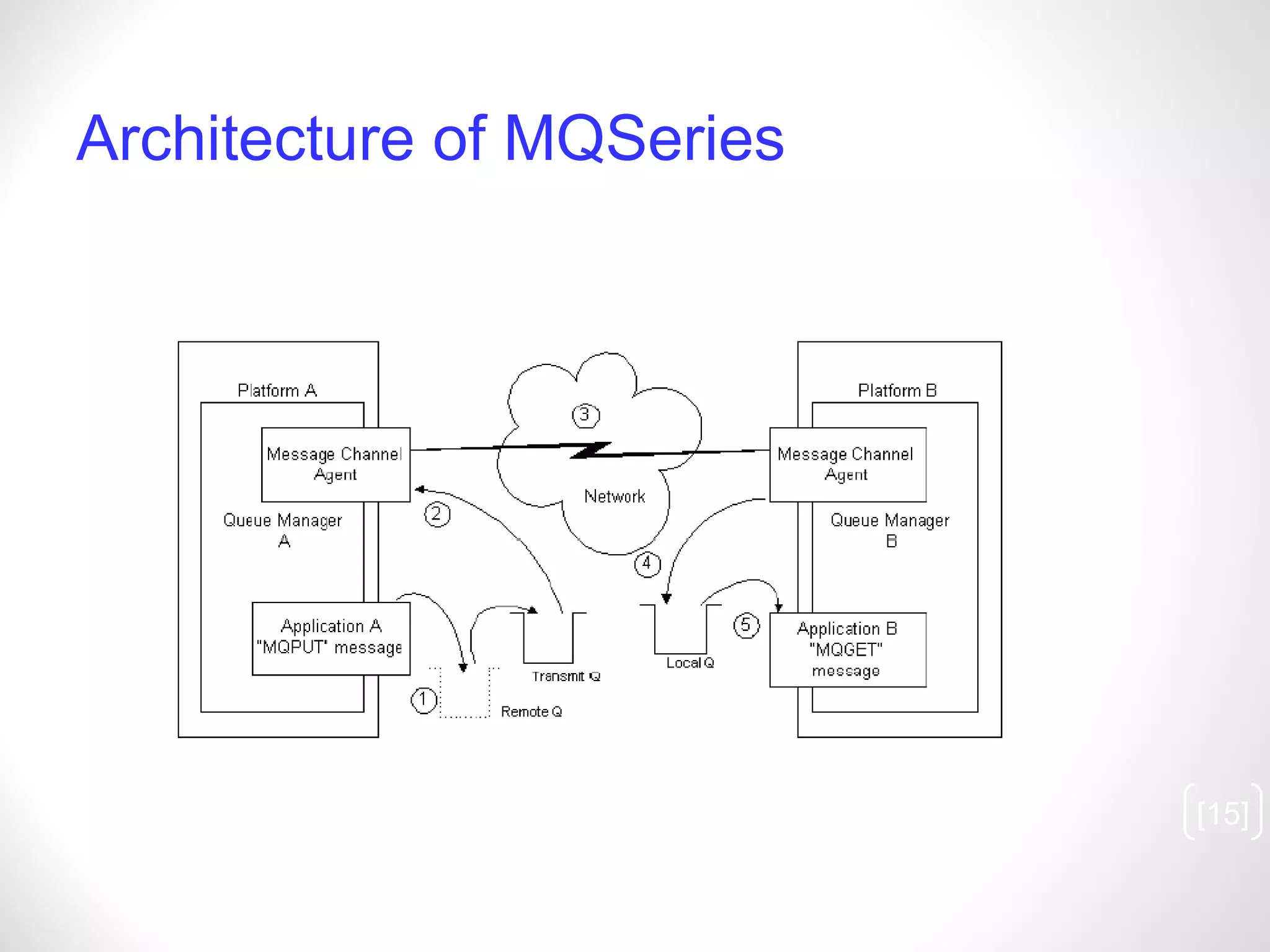

  Architecture of MQSeries[ ]
• 16.

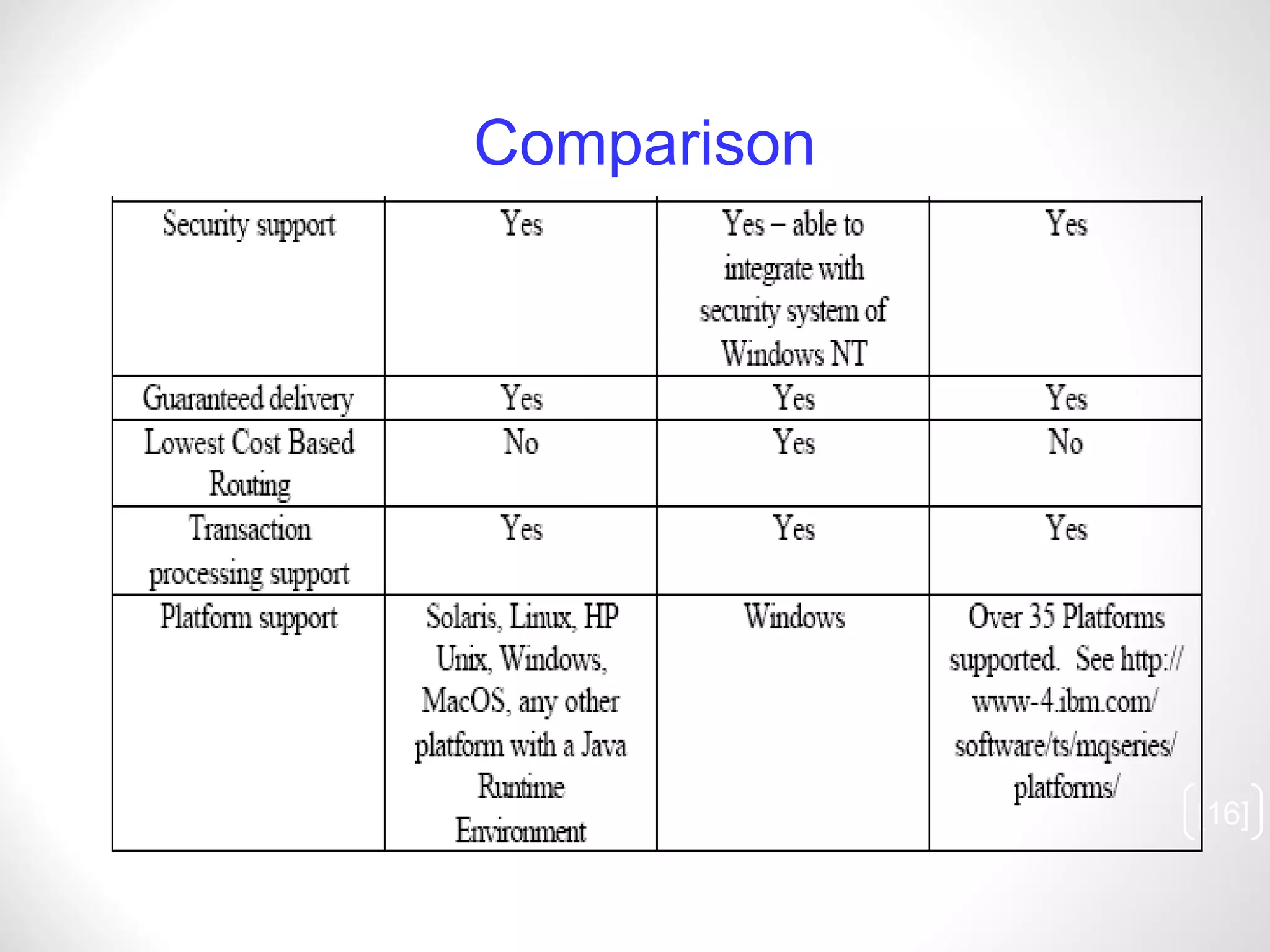

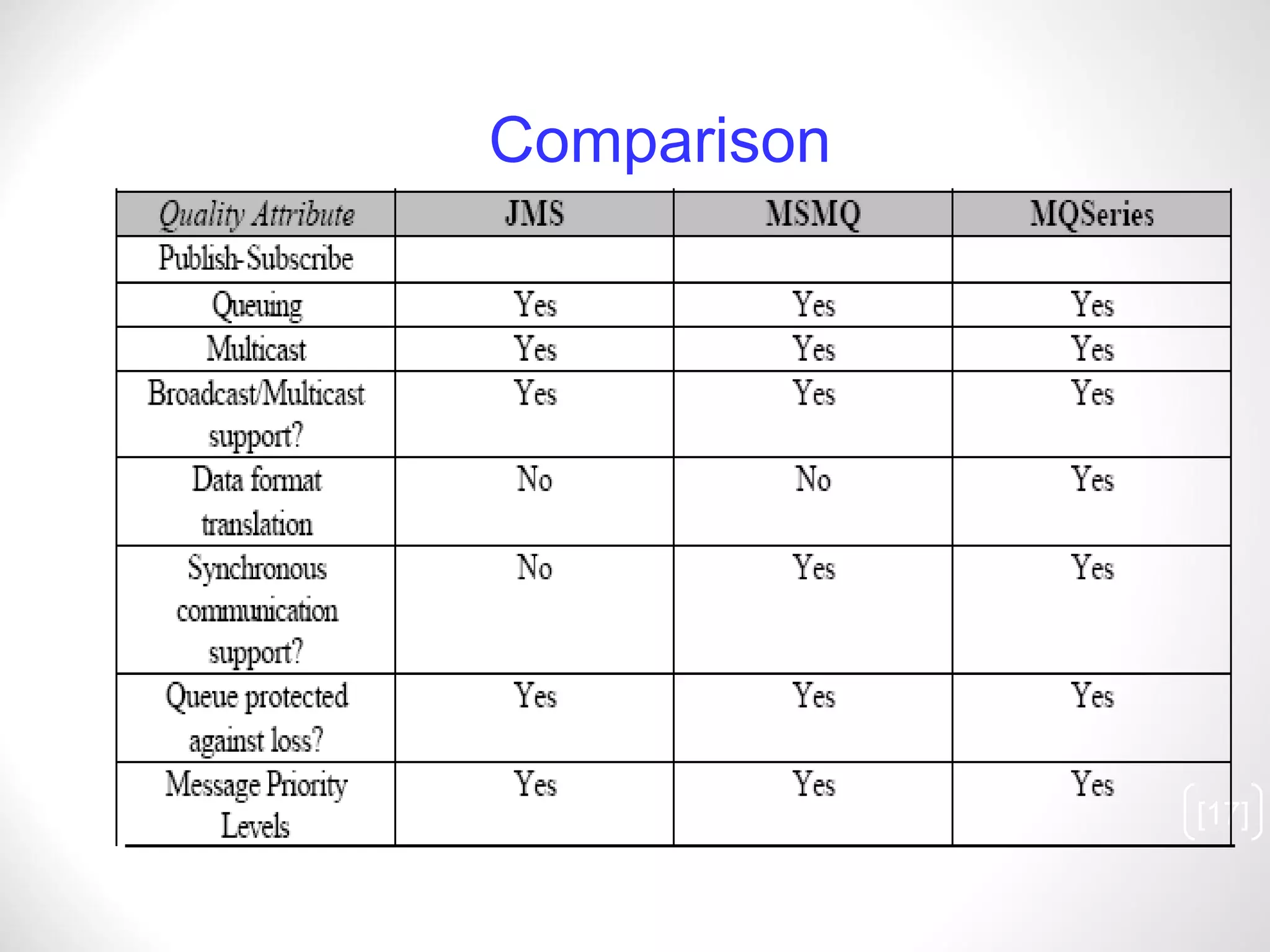

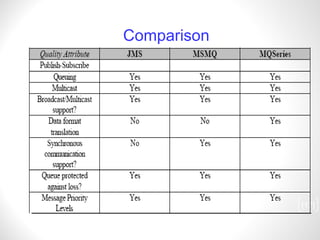

  [ ] Comparison
• 17.
  [ ] Comparison
• 18.

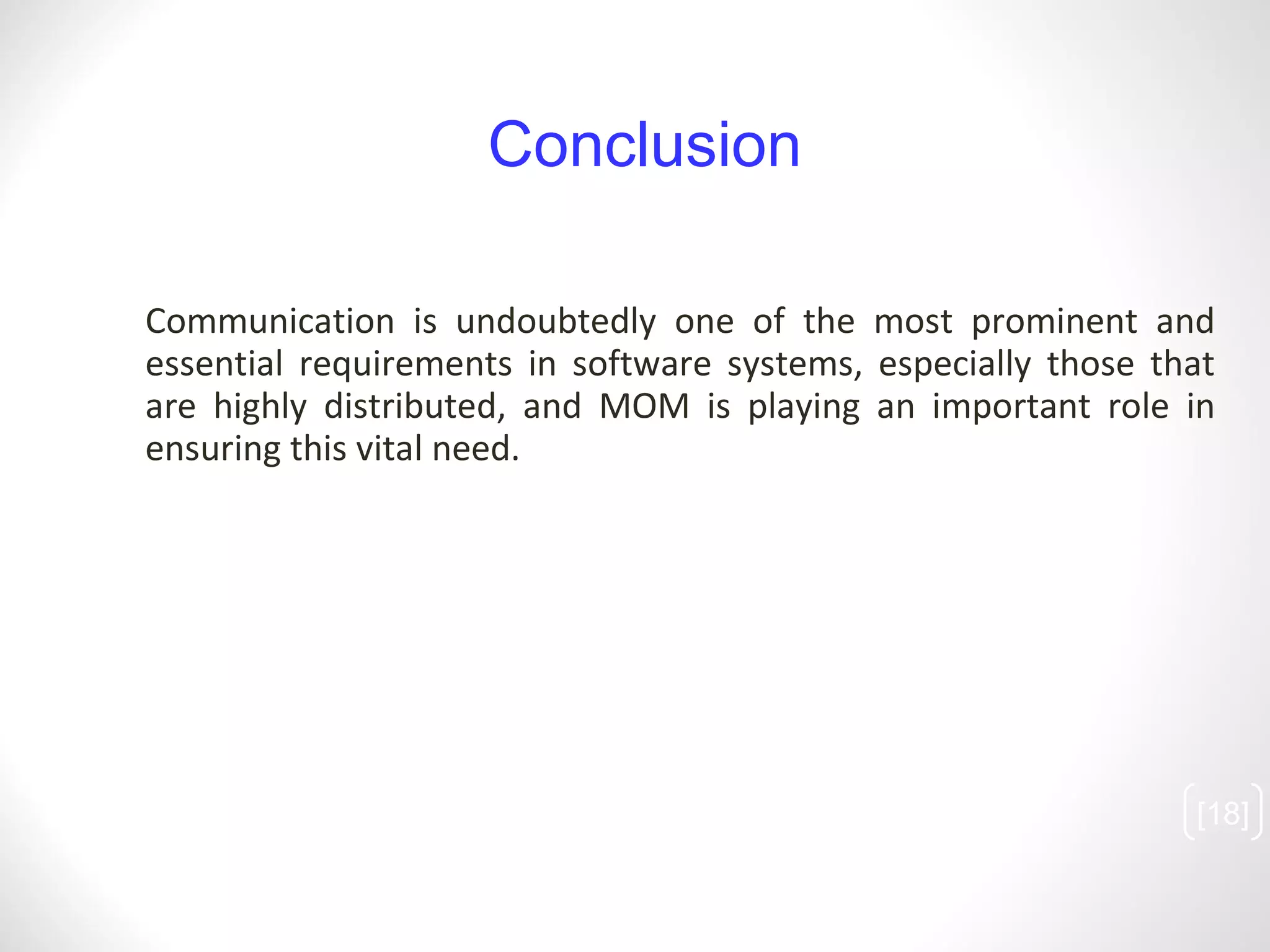

  Communication is undoubtedlyone of the most prominent and essential requirements in software systems, especially those that are highly distributed, and MOM is playing an important role in ensuring this vital need. [ ] Conclusion
• 19.

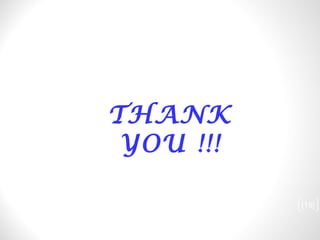

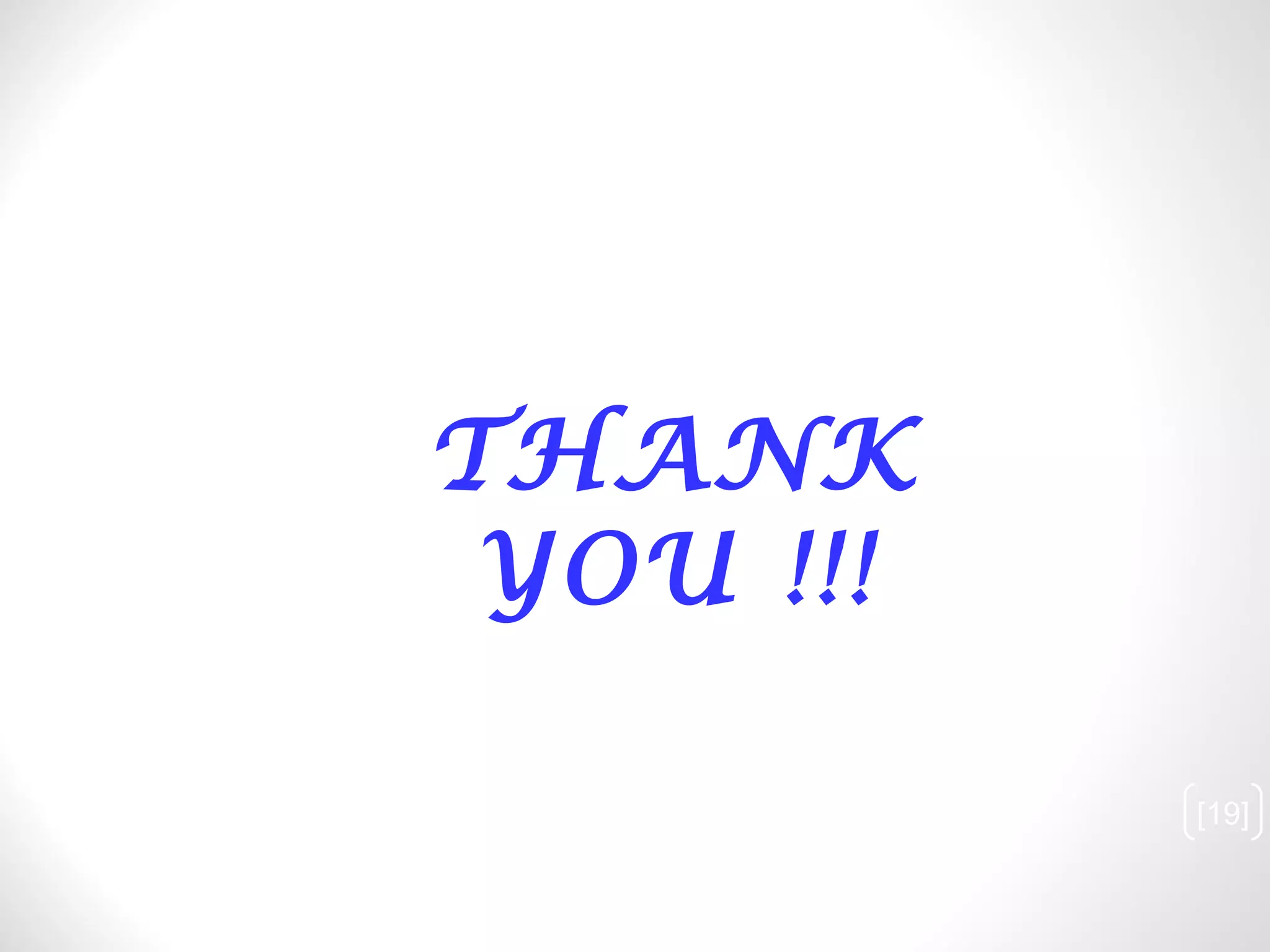

  [ ] THANKYOU !!!
