Arduino Anatomy

Arduino Anatomy

• 2.

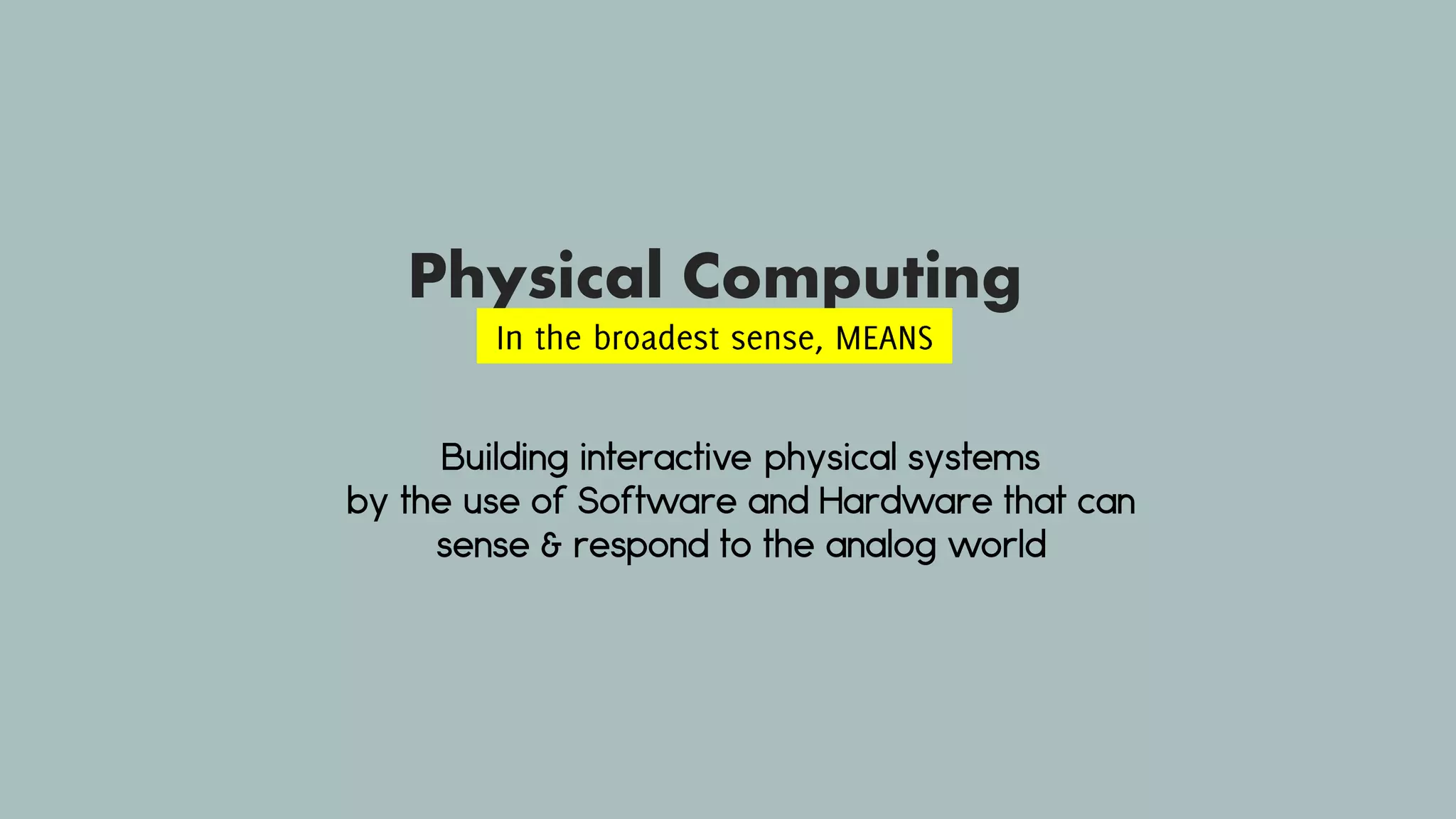

  Physical Computing Building interactivephysical systems by the use of Software and Hardware that can sense & respond to the analog world In the broadest sense, MEANS
• 3.

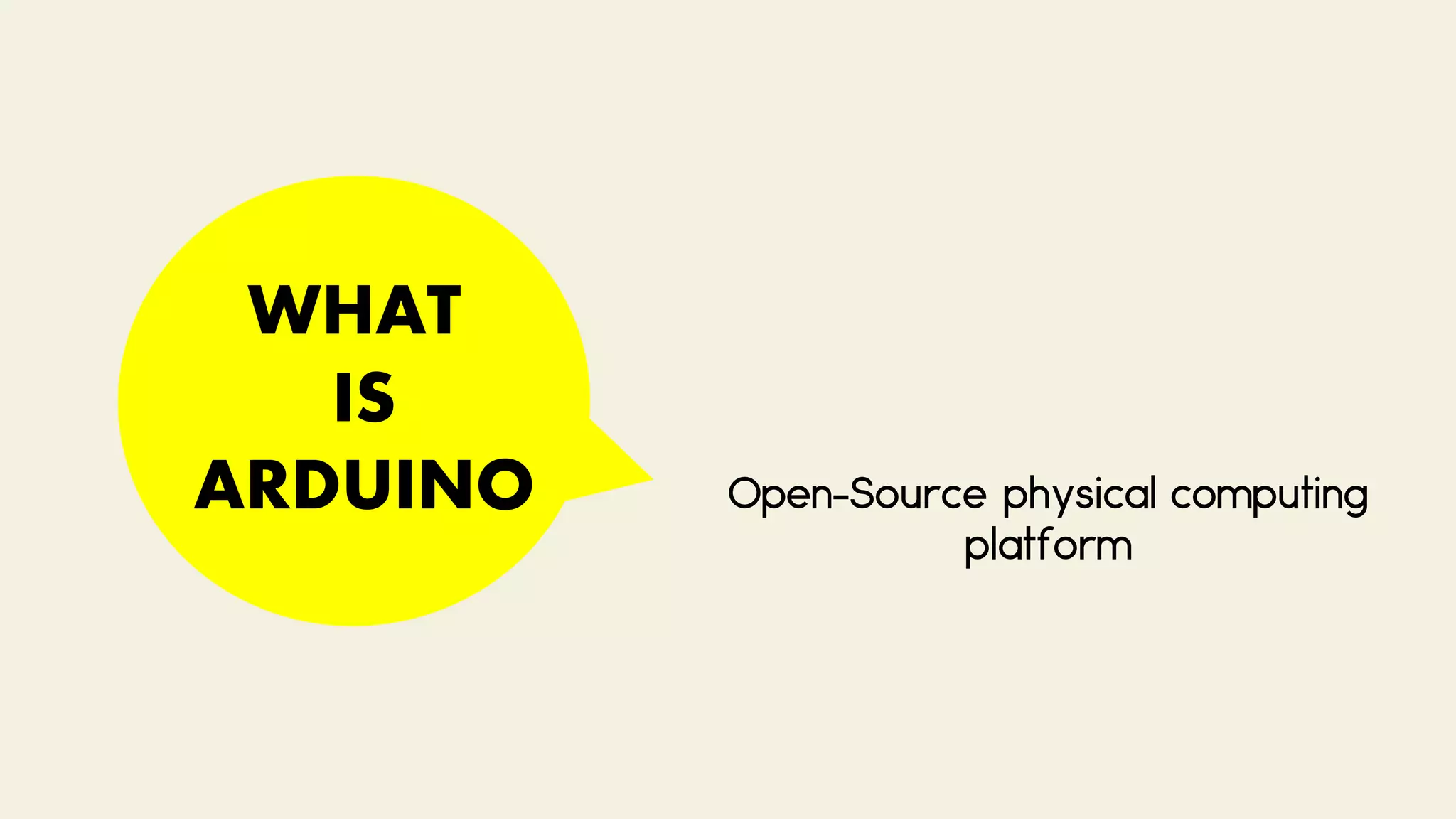

  WHAT IS ARDUINO Open-Source physicalcomputing platform
• 4.

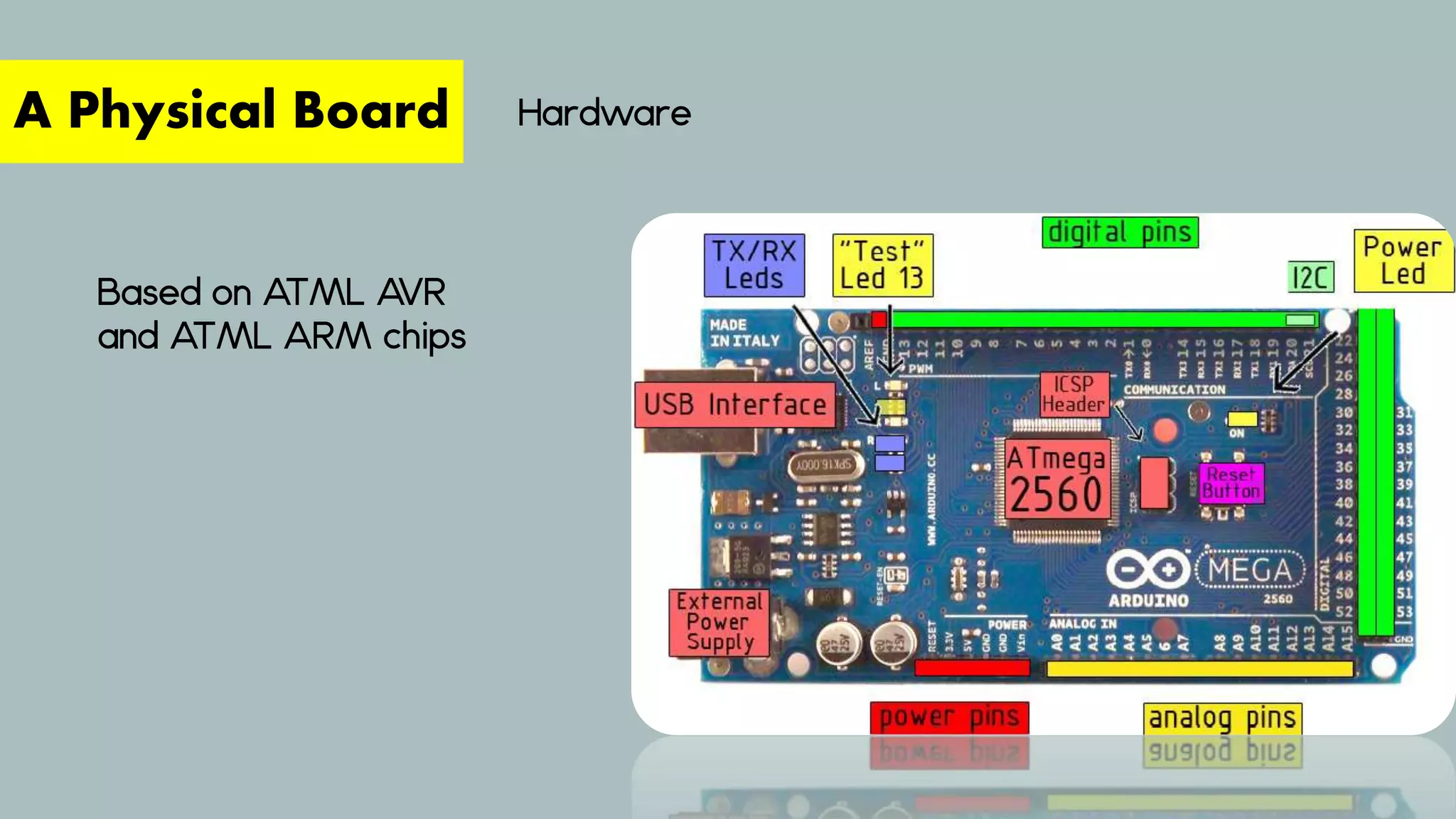

  Hardware A Physical Board Basedon ATML AVR and ATML ARM chips
• 5.

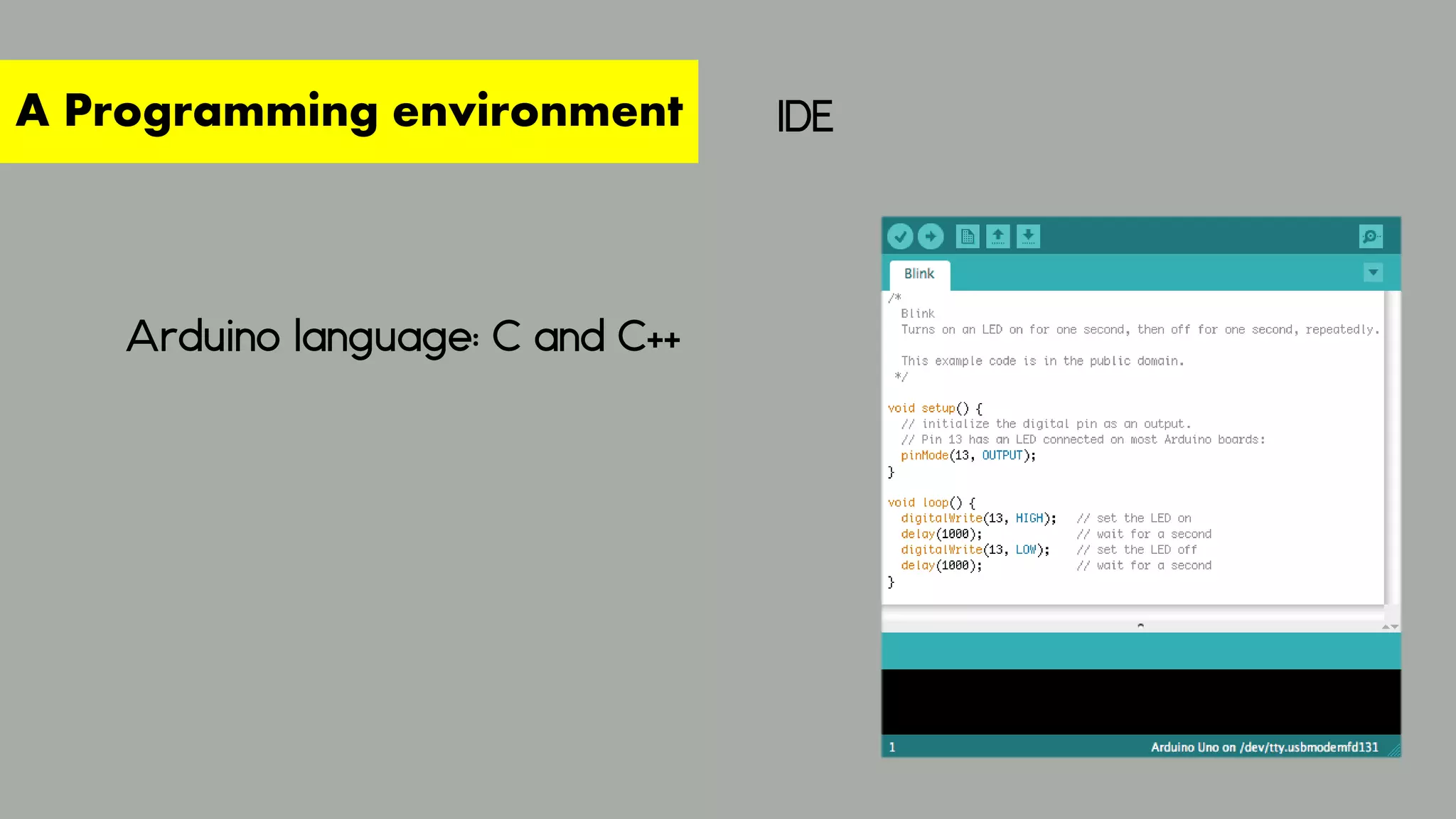

  IDE A Programming environment Arduinolanguage: C and C++
• 6.

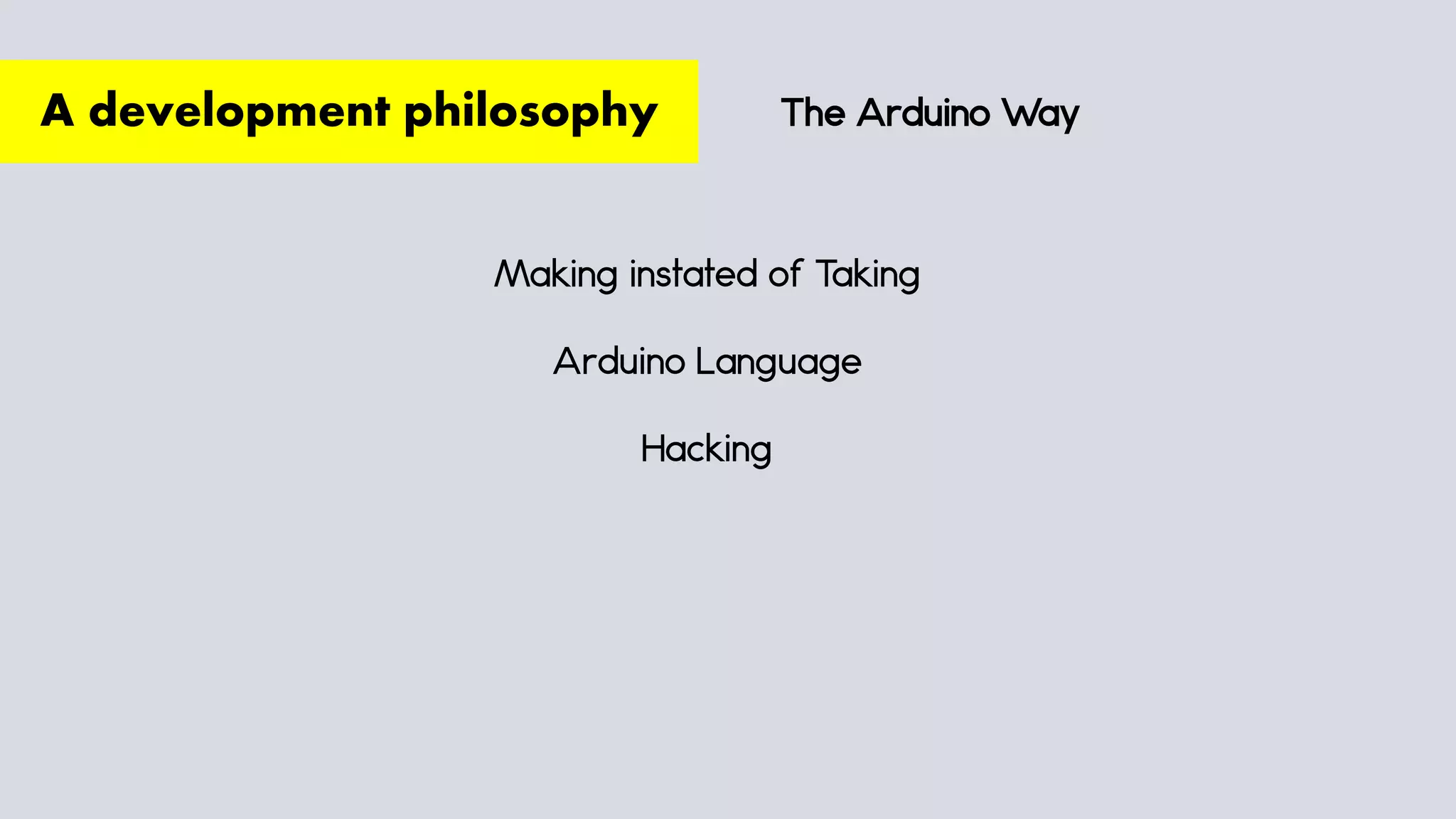

  The Arduino Way Makinginstated of Taking Arduino Language Hacking A development philosophy
• 7.

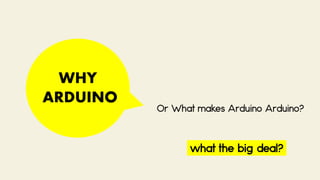

  WHY ARDUINO Or What makesArduino Arduino? what the big deal?
• 8.

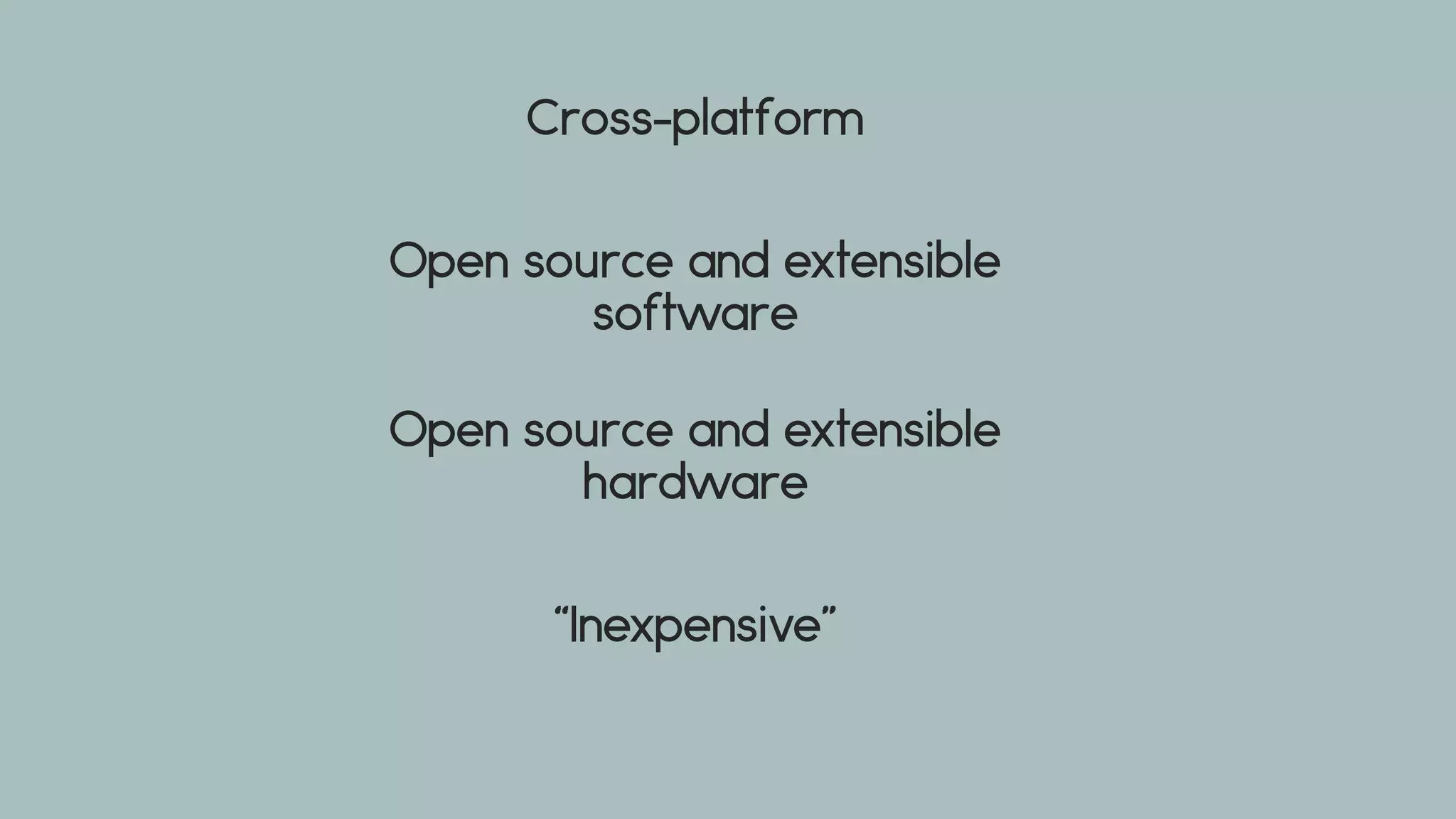

  Cross-platform Open source andextensible software Open source and extensible hardware “Inexpensive”
• 9.

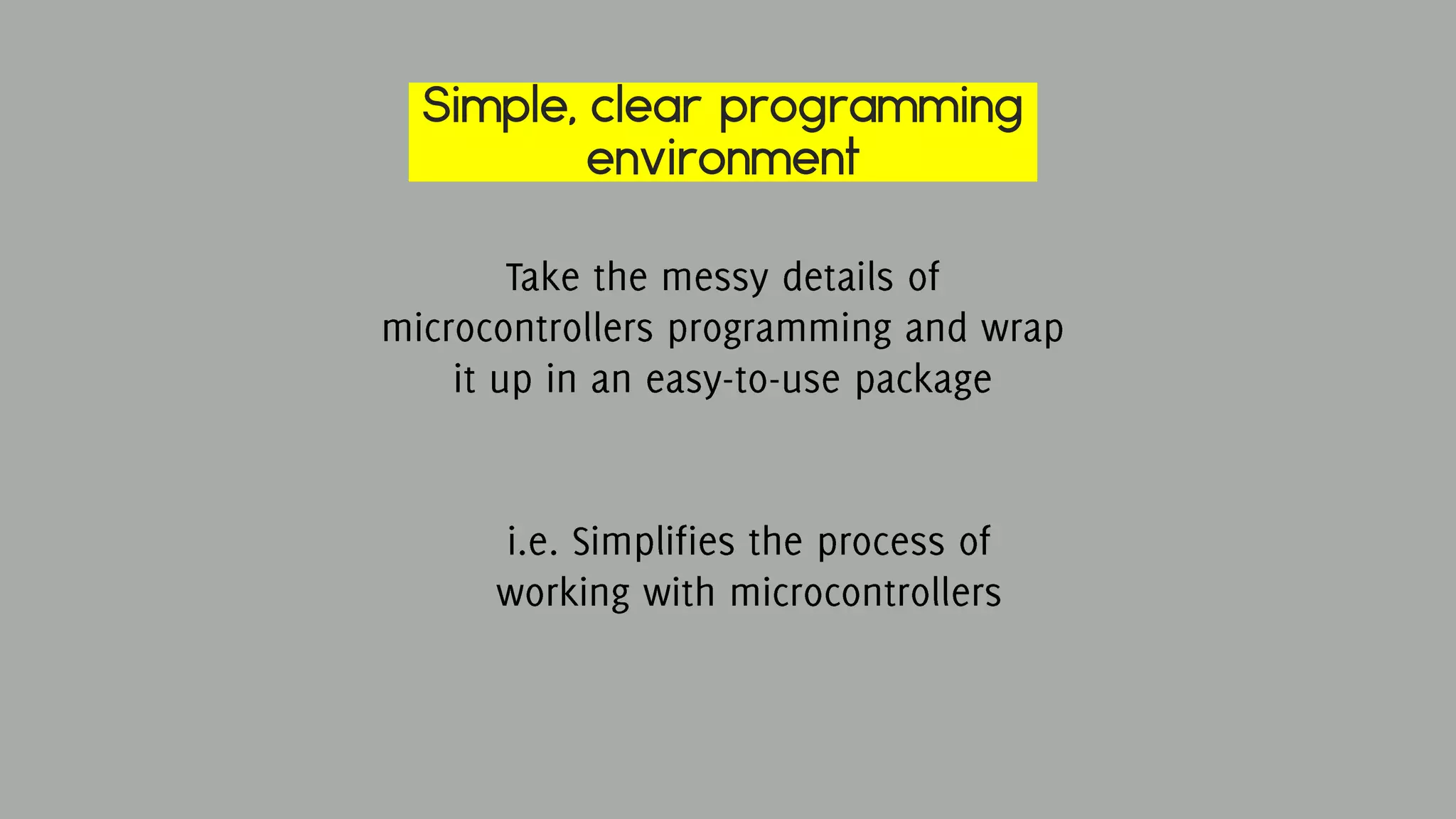

  Simple, clear programming environment Takethe messy details of microcontrollers programming and wrap it up in an easy-to-use package i.e. Simplifies the process of working with microcontrollers
• 10.

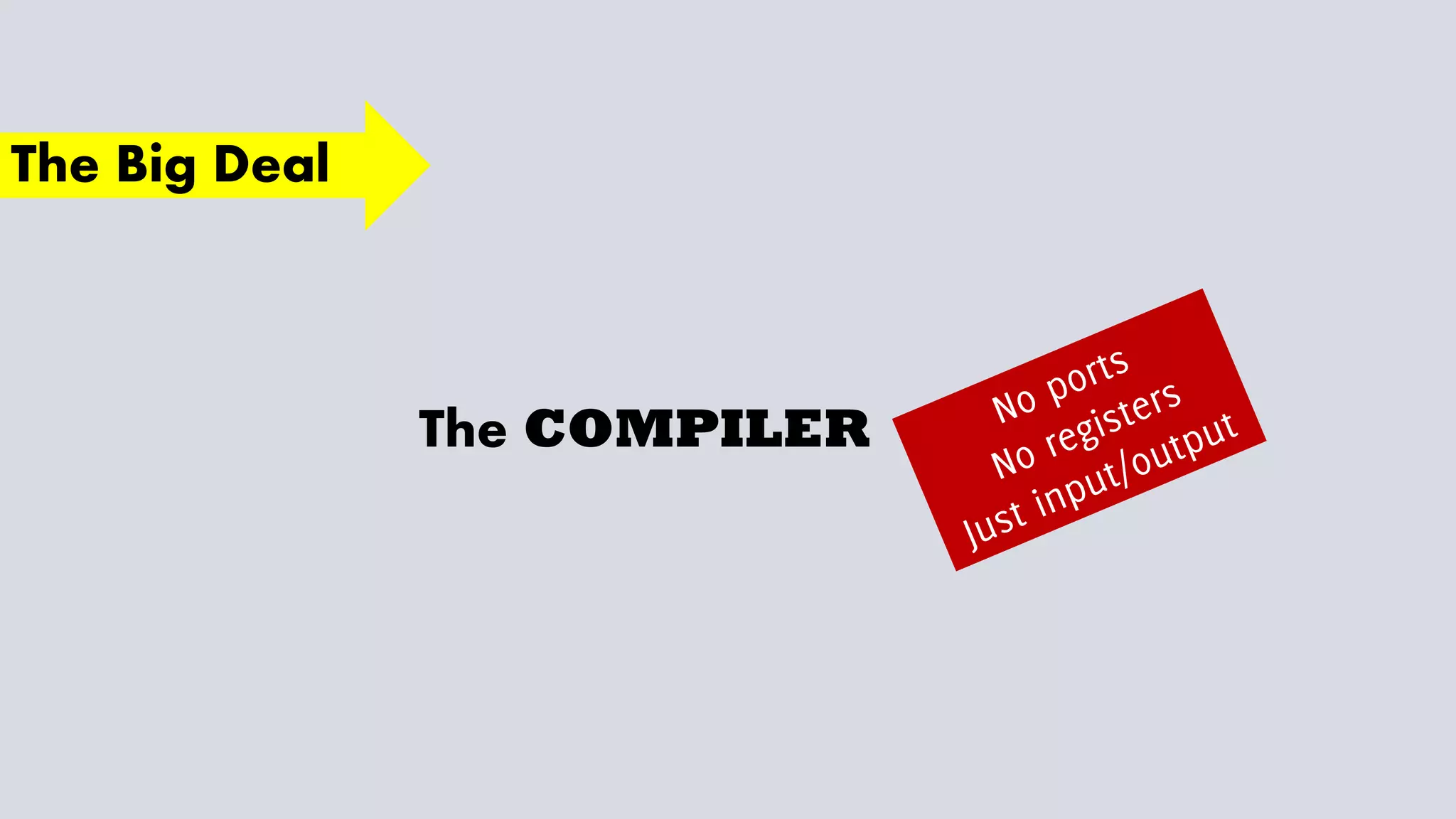

  The Big Deal TheCOMPILER
• 11.

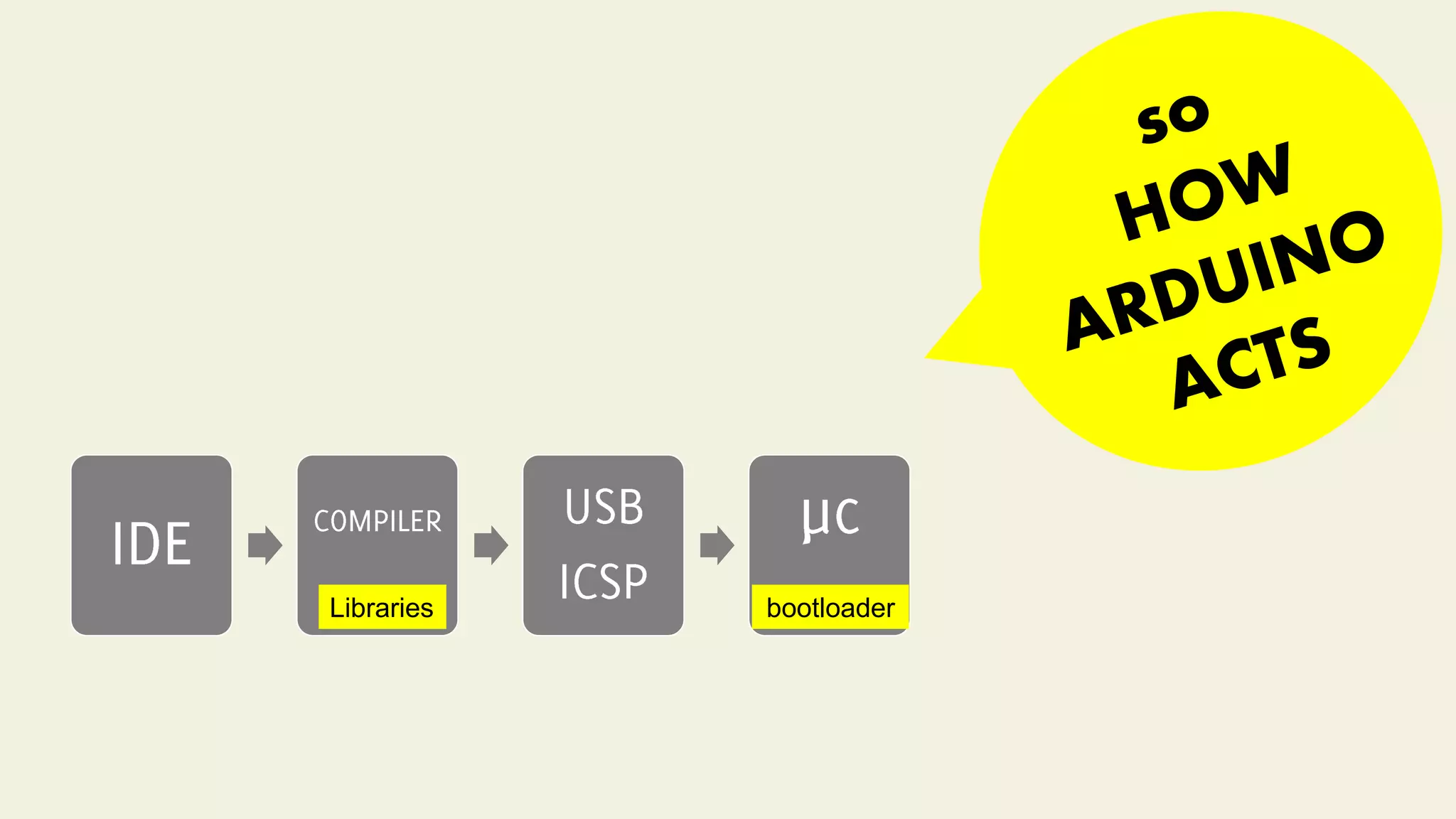

  IDE COMPILER USB ICSP µc bootloaderLibraries
• 12.

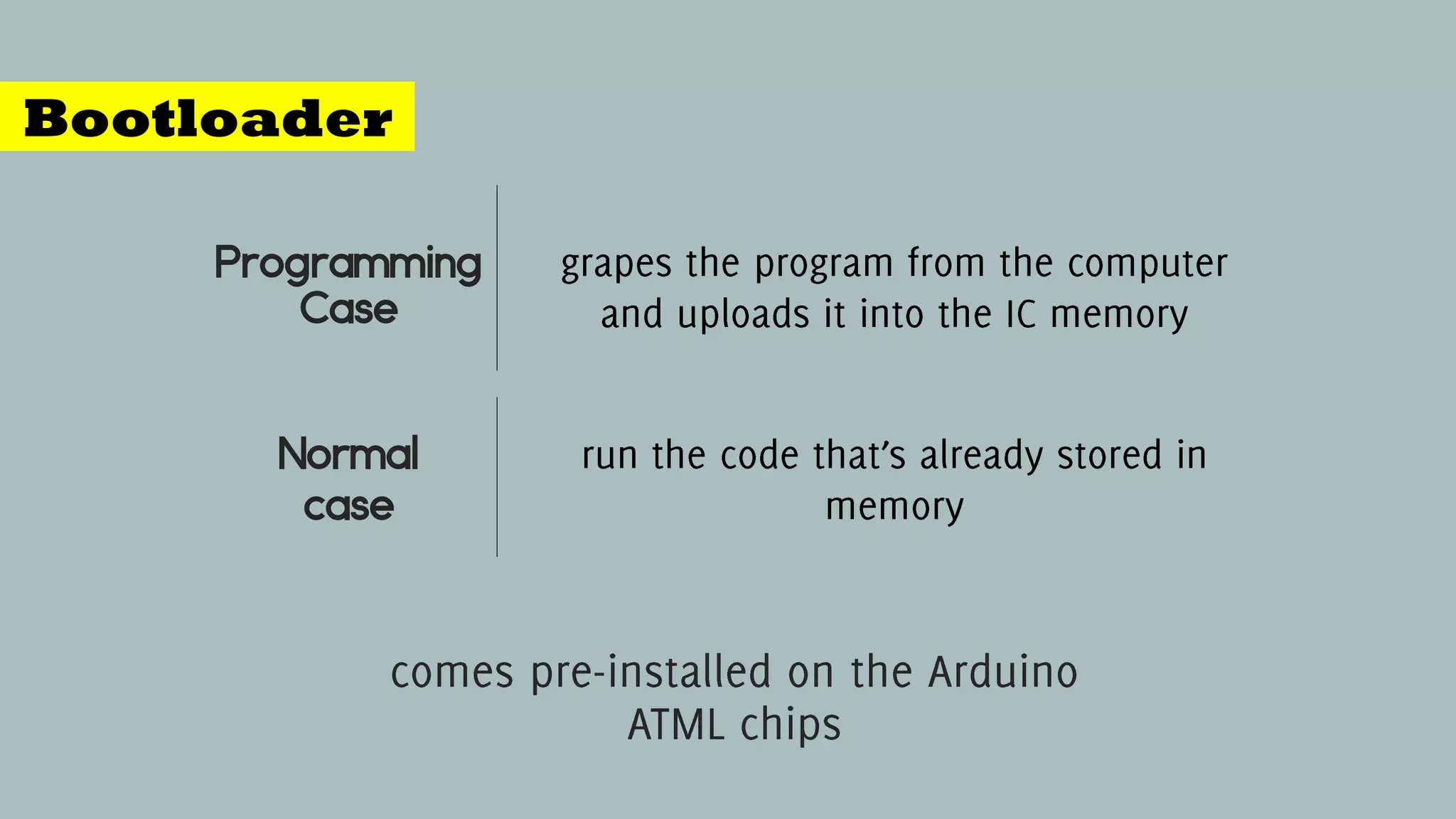

  Programming Case Bootloader comes pre-installed onthe Arduino ATML chips grapes the program from the computer and uploads it into the IC memory Normal case run the code that s already stored in memory
• 13.
  Getting involved withArduino Arduino HelloWorld
• 14.

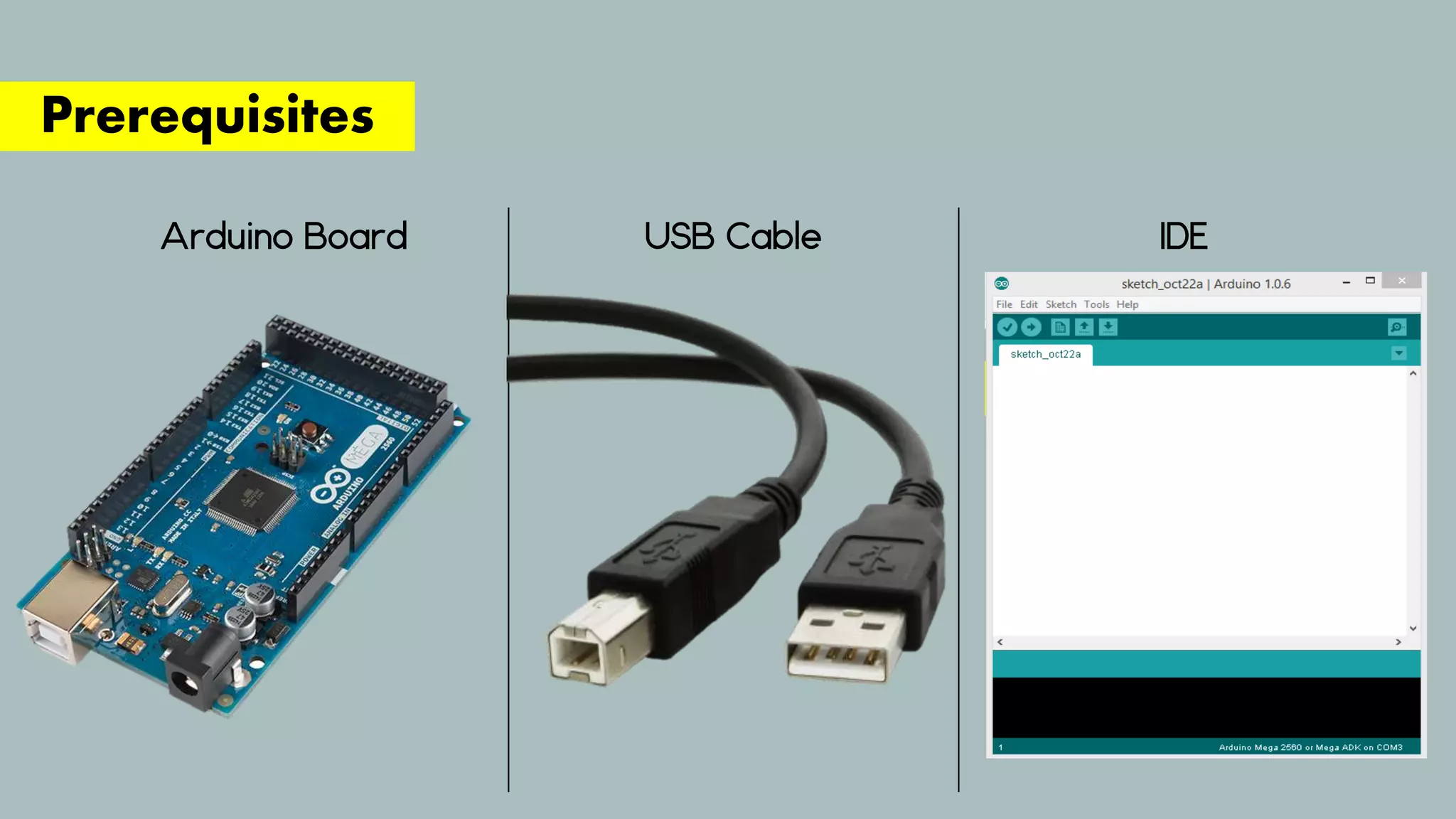

  Prerequisites Arduino Board USBCable IDE

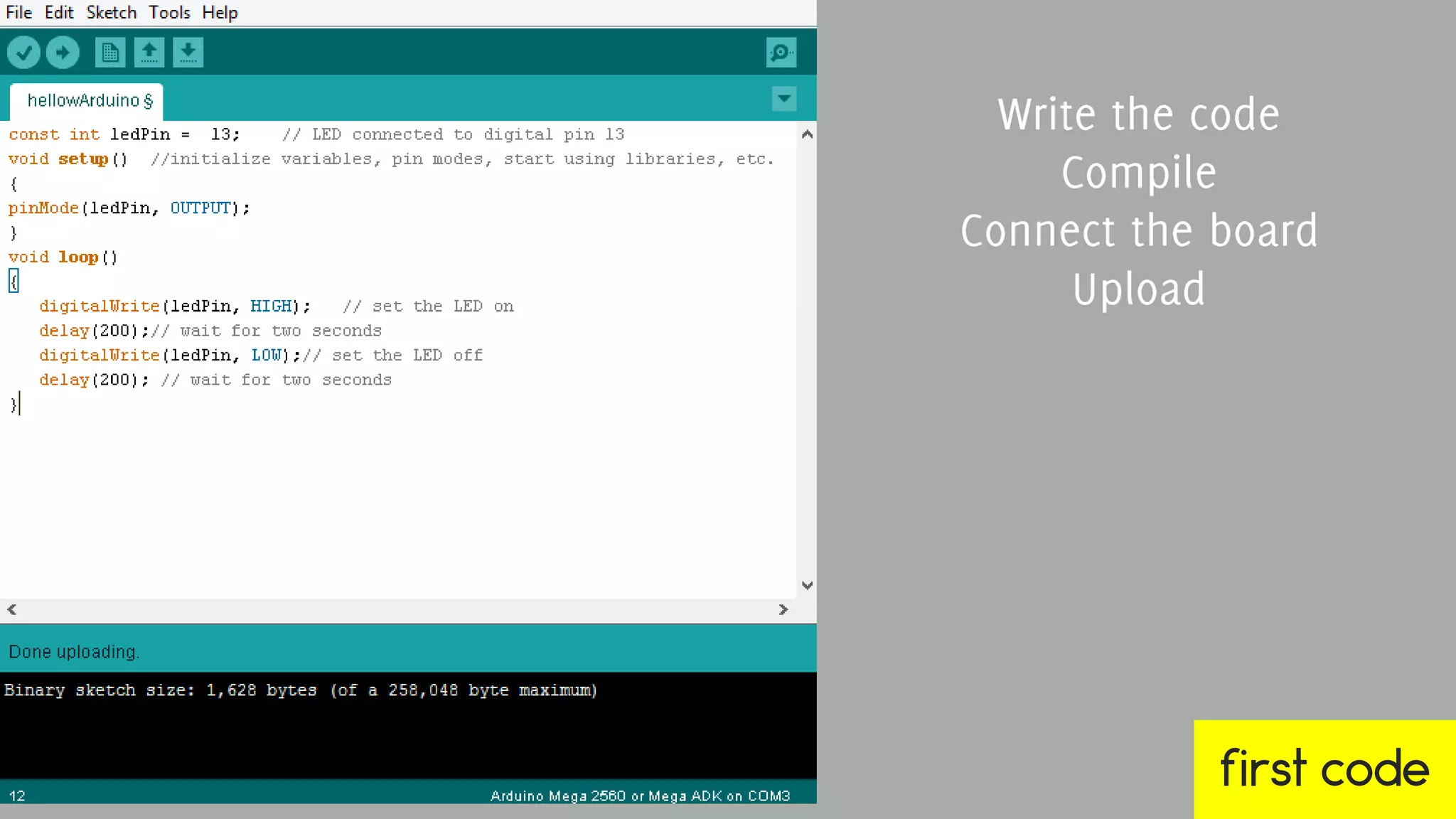

• 15.
  first code Write thecode Compile Connect the board Upload

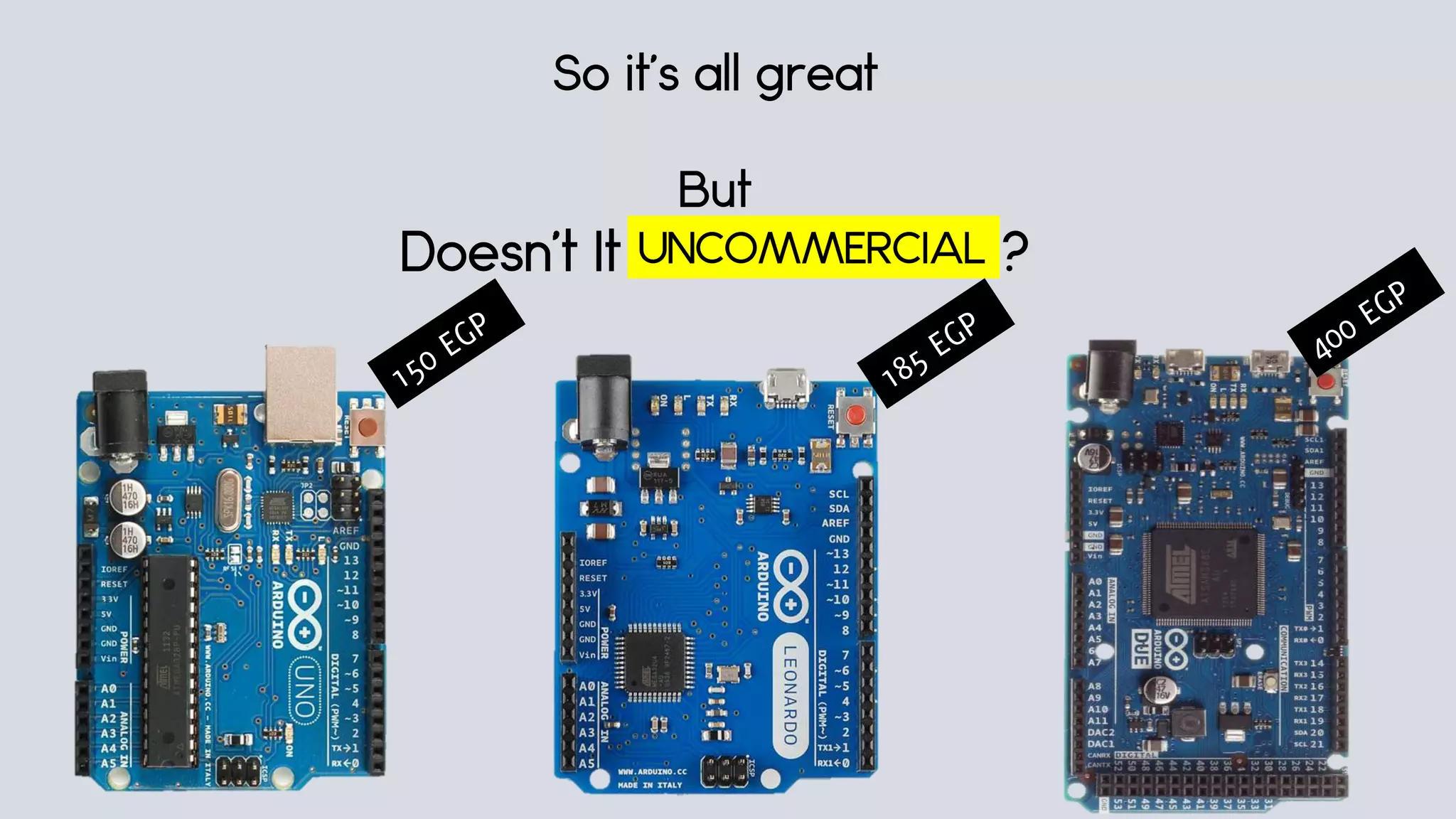

• 16.
  So it’s allgreat But for mass production Isn’t It UNCOMMERCIAL?
• 17.
  Tinkering follow these two sites http://goo.gl/BQ9yOR http://goo.gl/N7CkDK
• 18.
  What do youthink?
• 19.
  THANK YOU If you findthis presentation beneficial, give it a thumbs up
