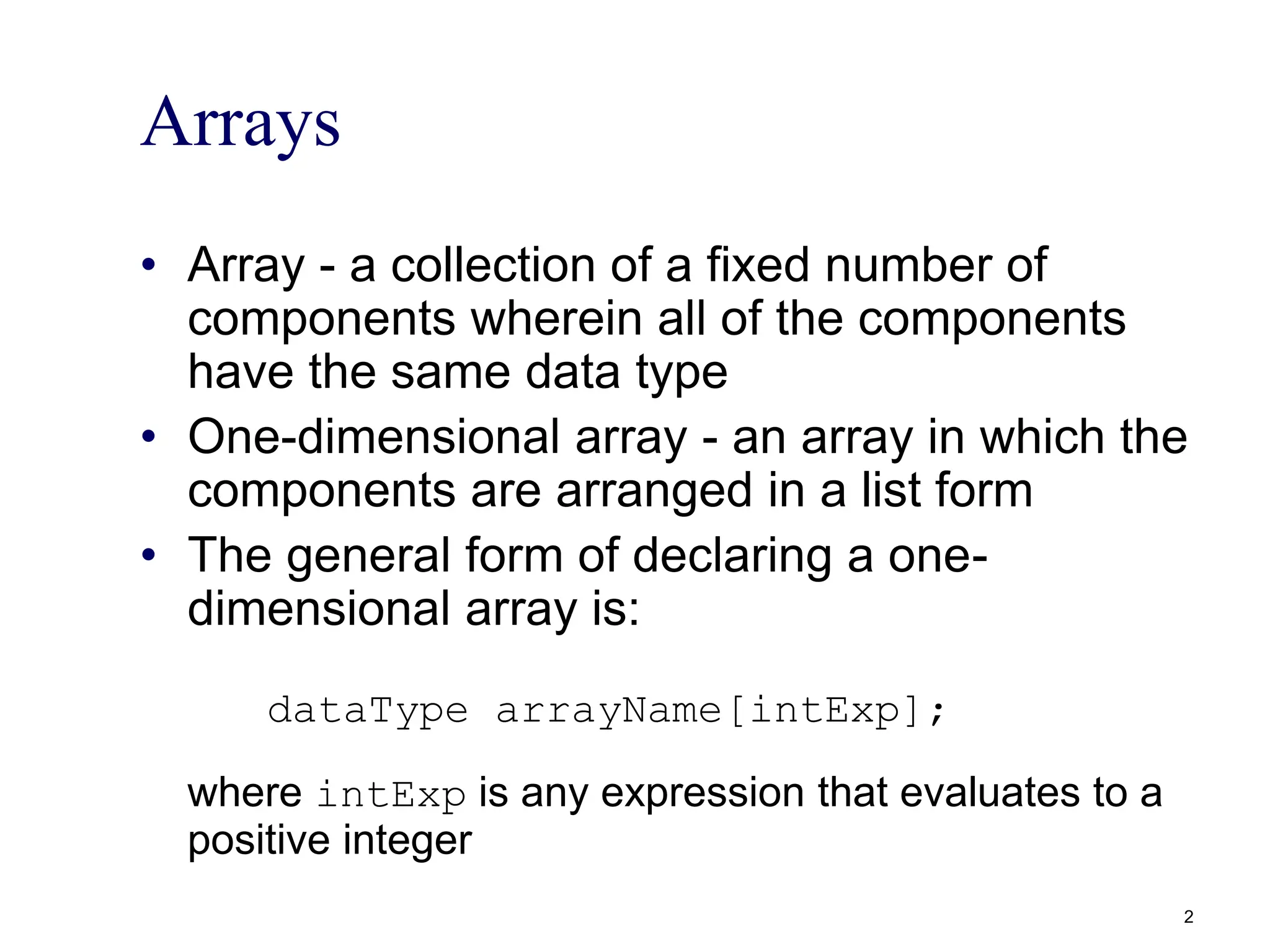

Arrays
• Array - a collection of a fixed number of
components wherein all of the components
have the same data type
• One-dimensional array - an array in which the
components are arranged in a list form
• The general form of declaring a one-
dimensional array is:
dataType arrayName[intExp];
where intExp is any expression that evaluates to a
positive integer
2

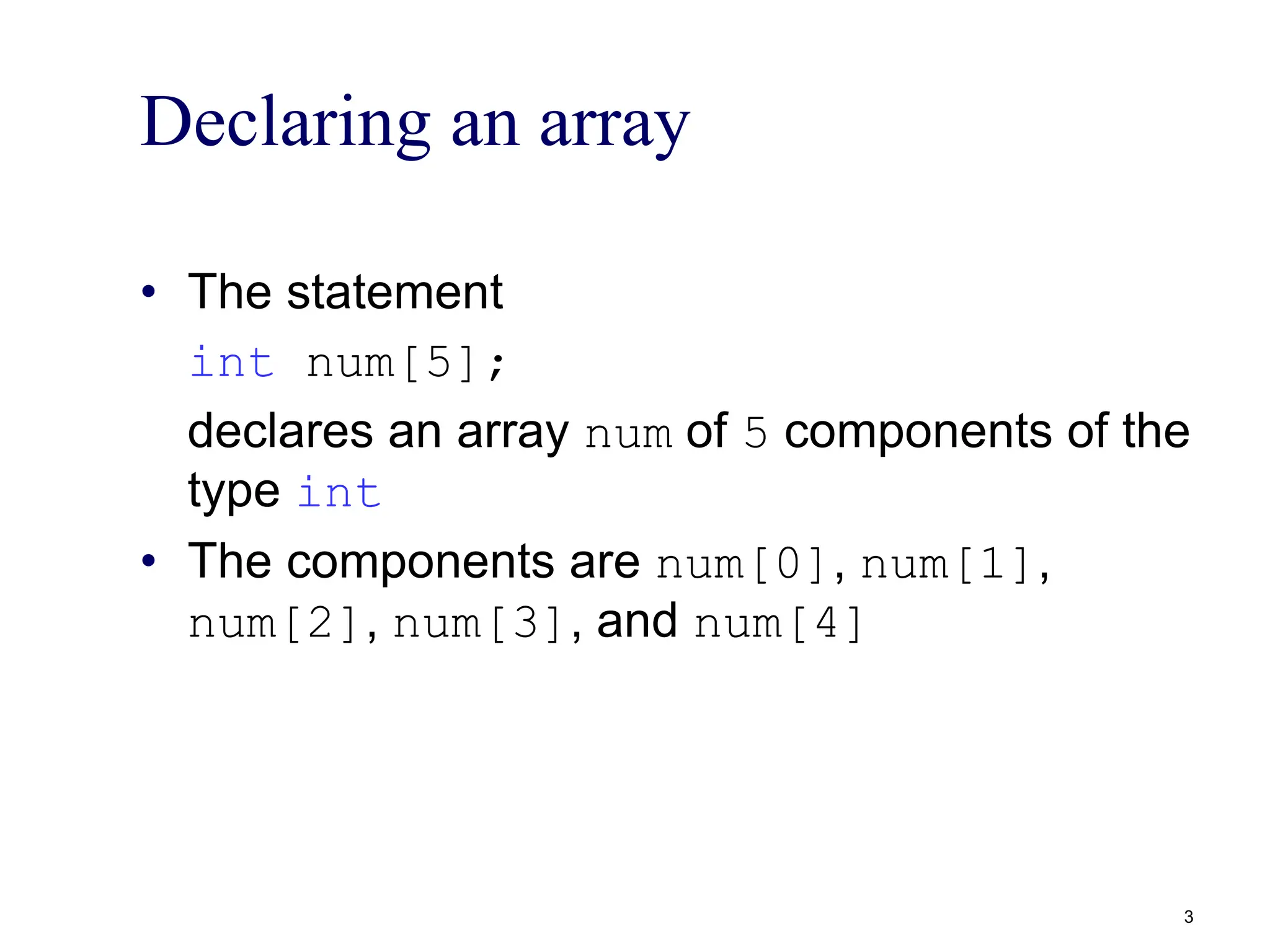

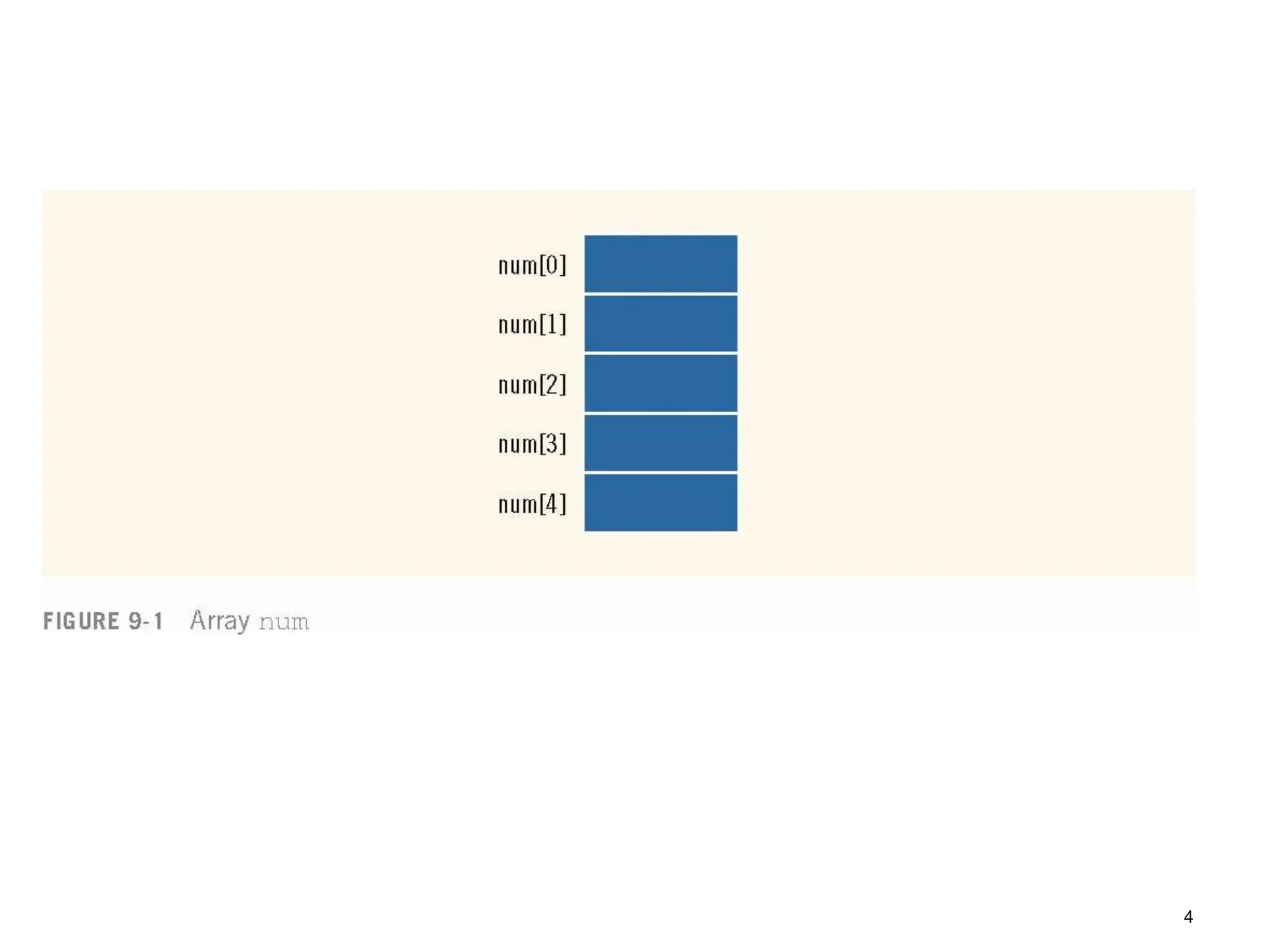

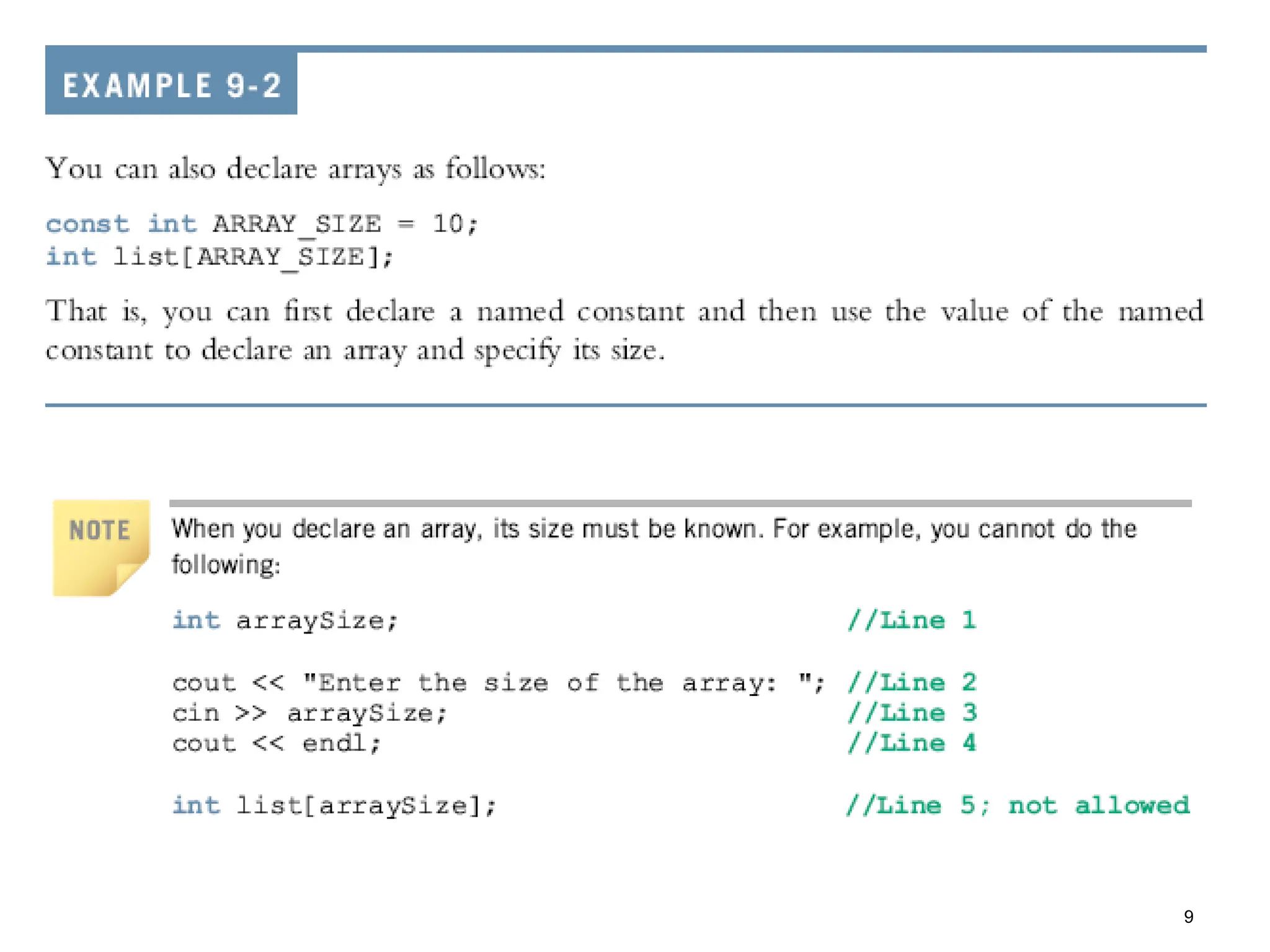

Declaring an array
• The statement
int num[5];
declares an array num of 5 components of the
type int
• The components are num[0], num[1],
num[2], num[3], and num[4]
3

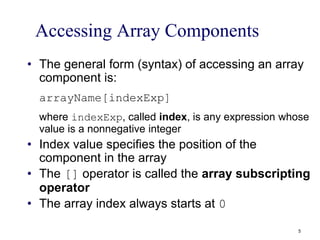

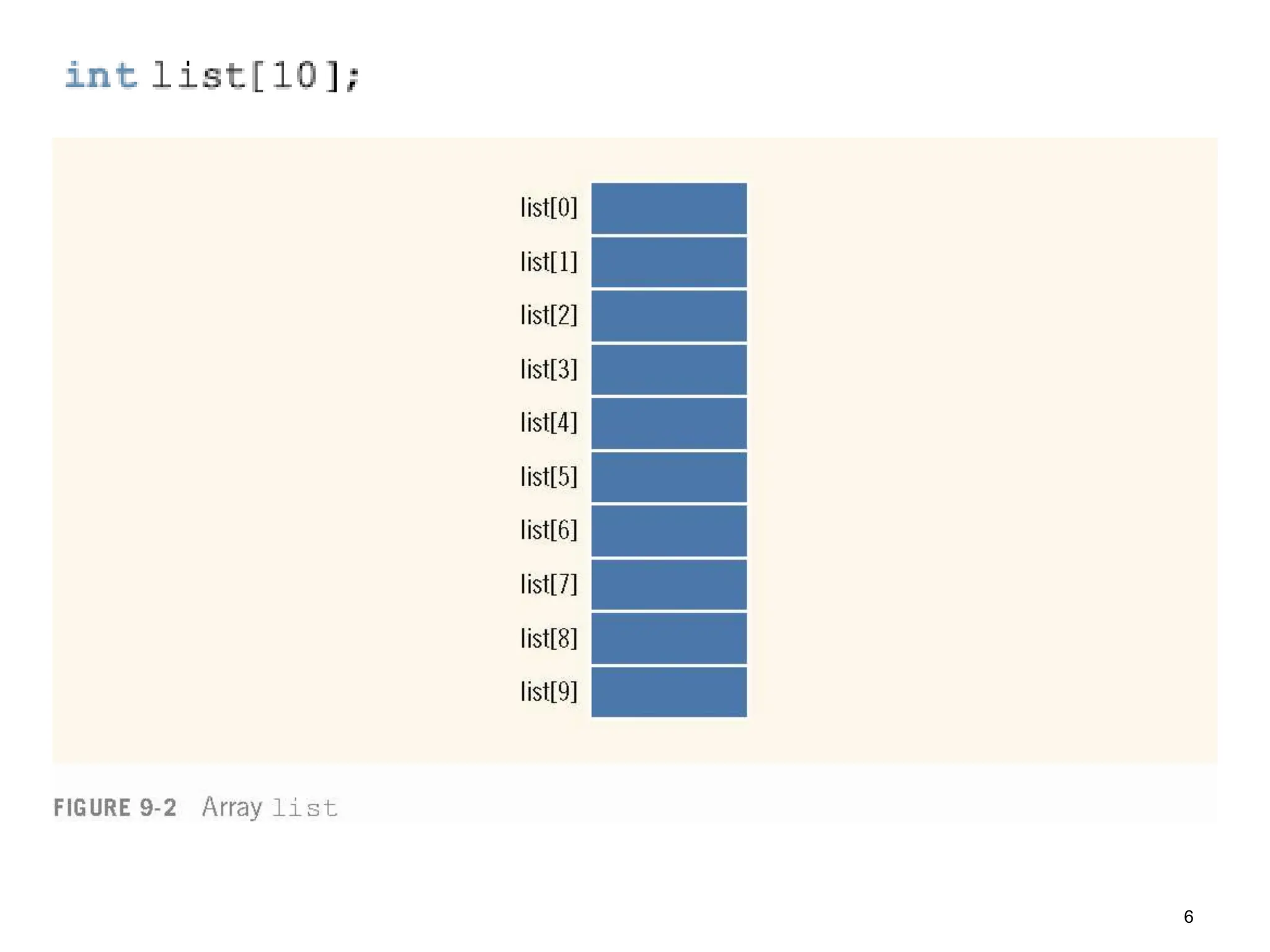

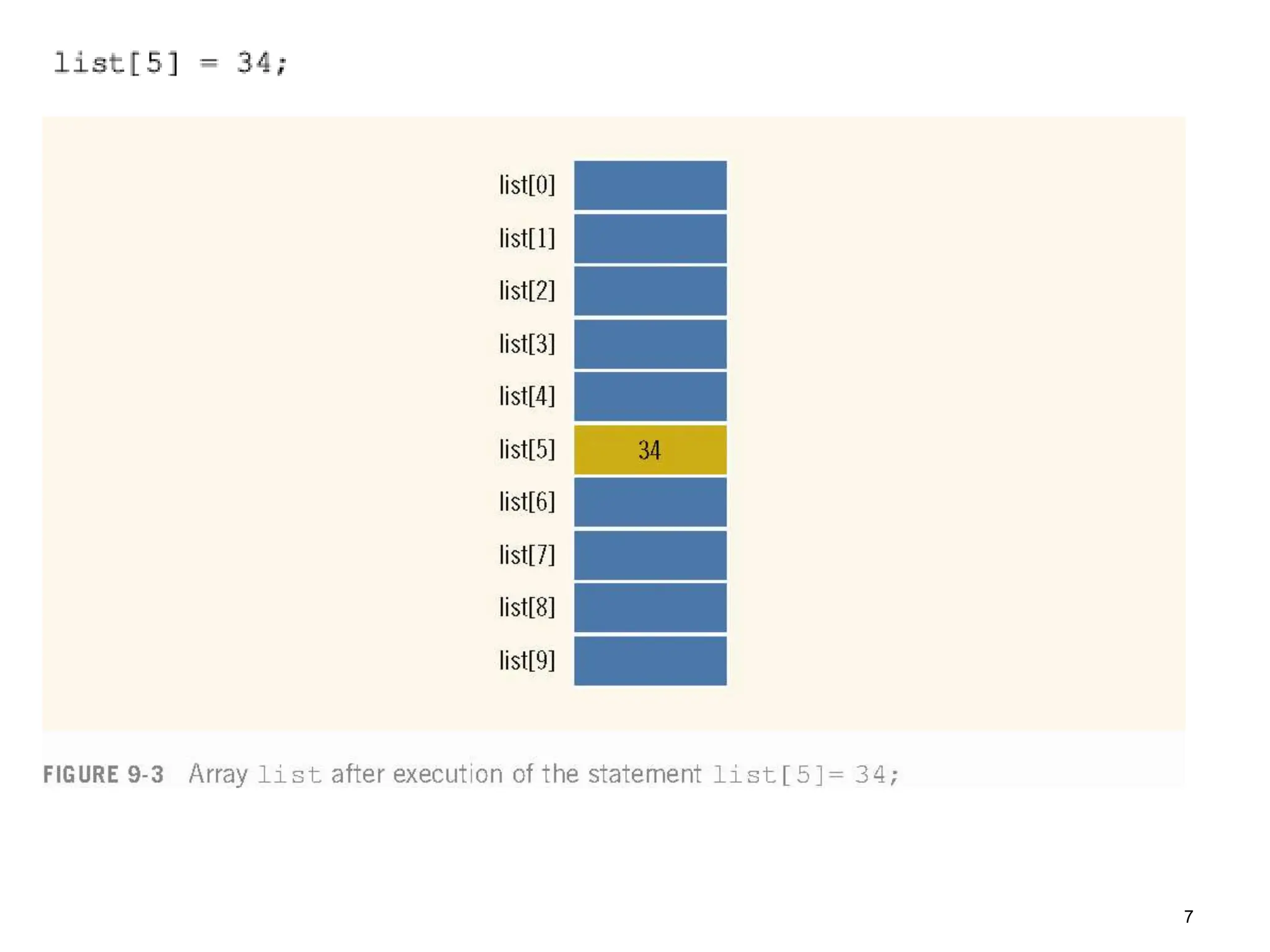

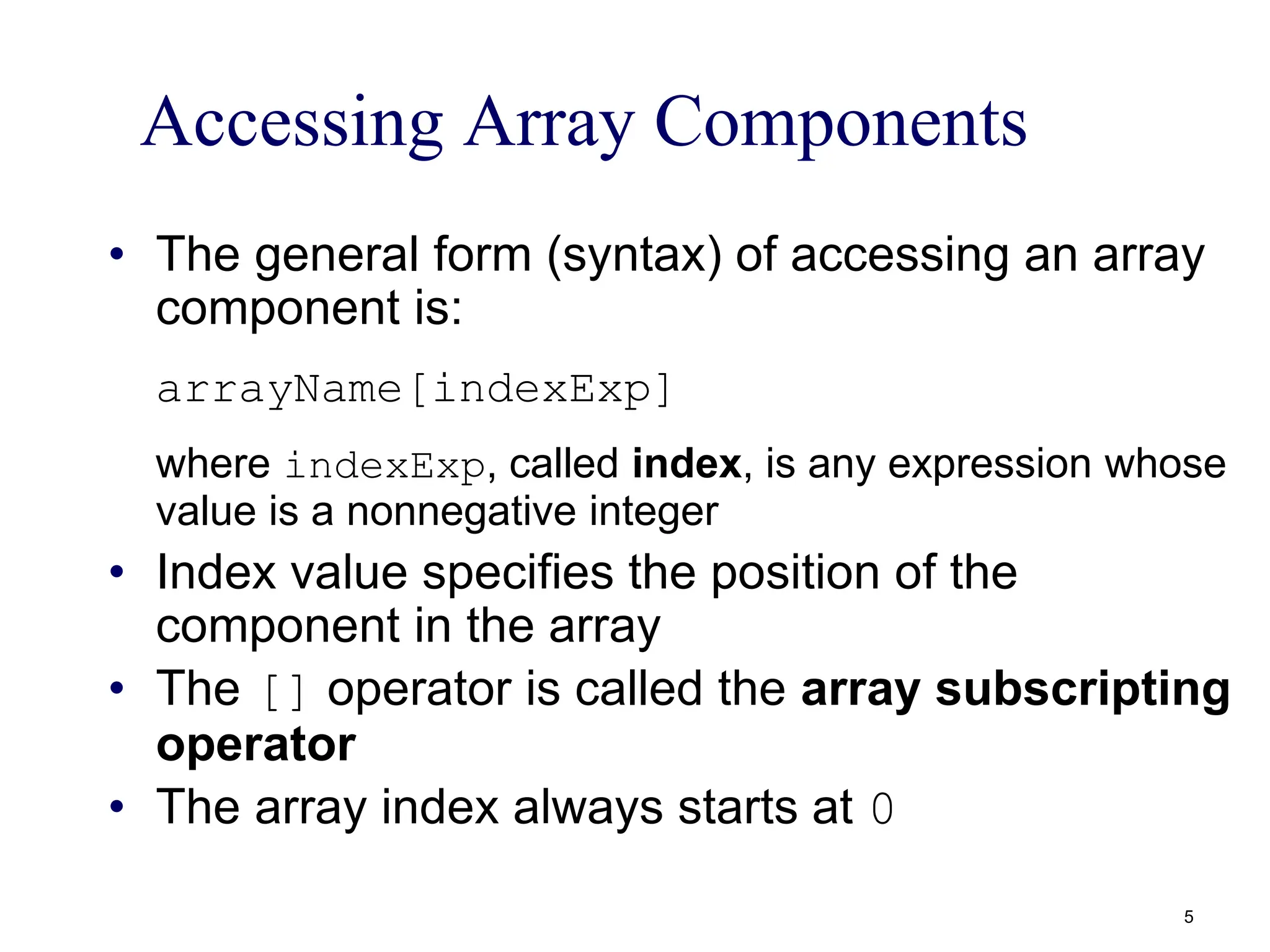

Accessing Array Components
• The general form (syntax) of accessing an array
component is:
arrayName[indexExp]
where indexExp, called index, is any expression whose
value is a nonnegative integer
• Index value specifies the position of the
component in the array
• The [] operator is called the array subscripting
operator
• The array index always starts at 0
5

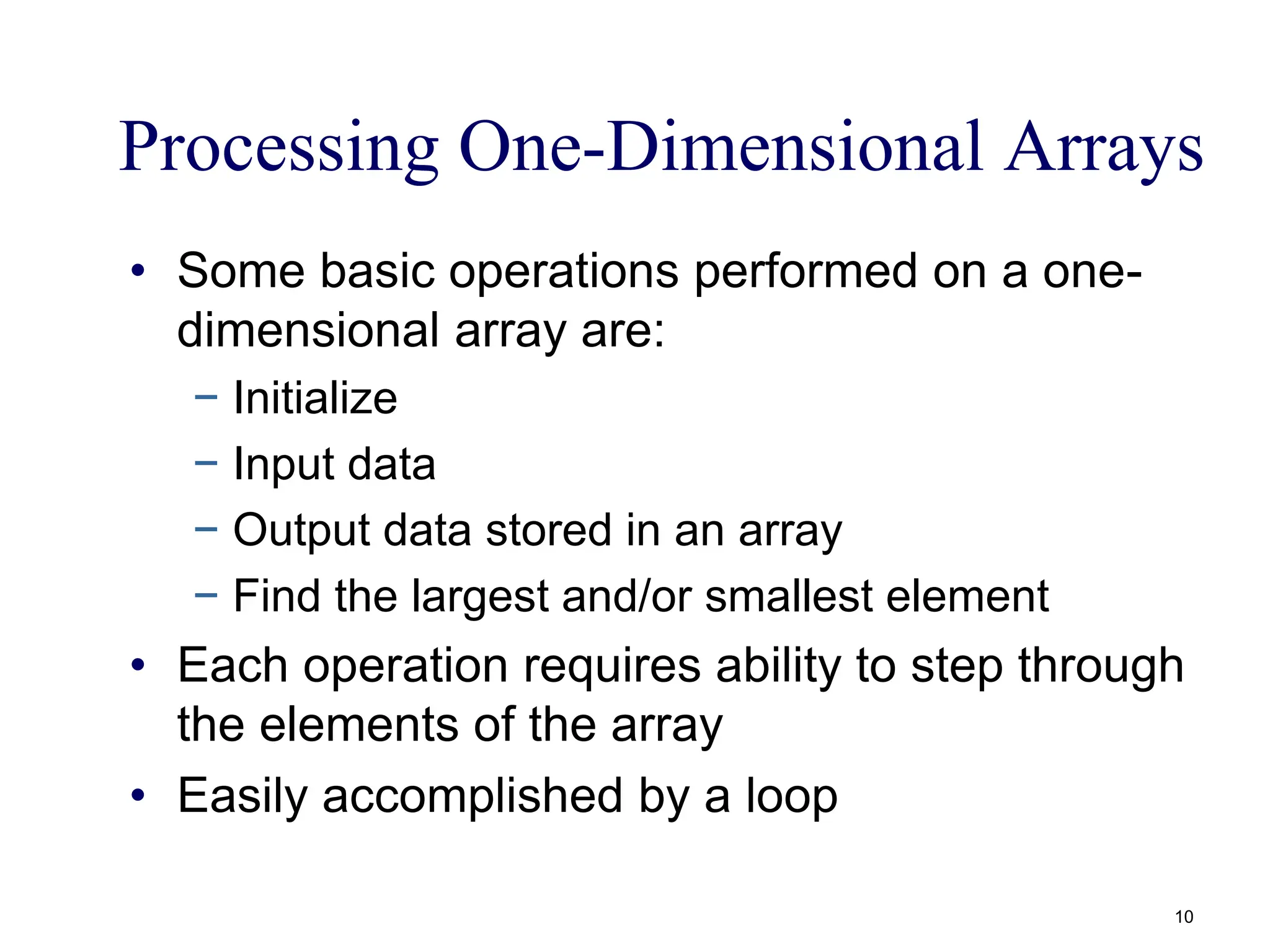

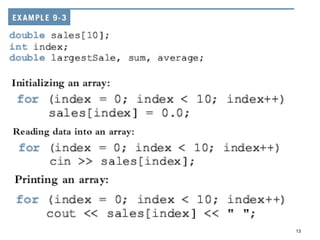

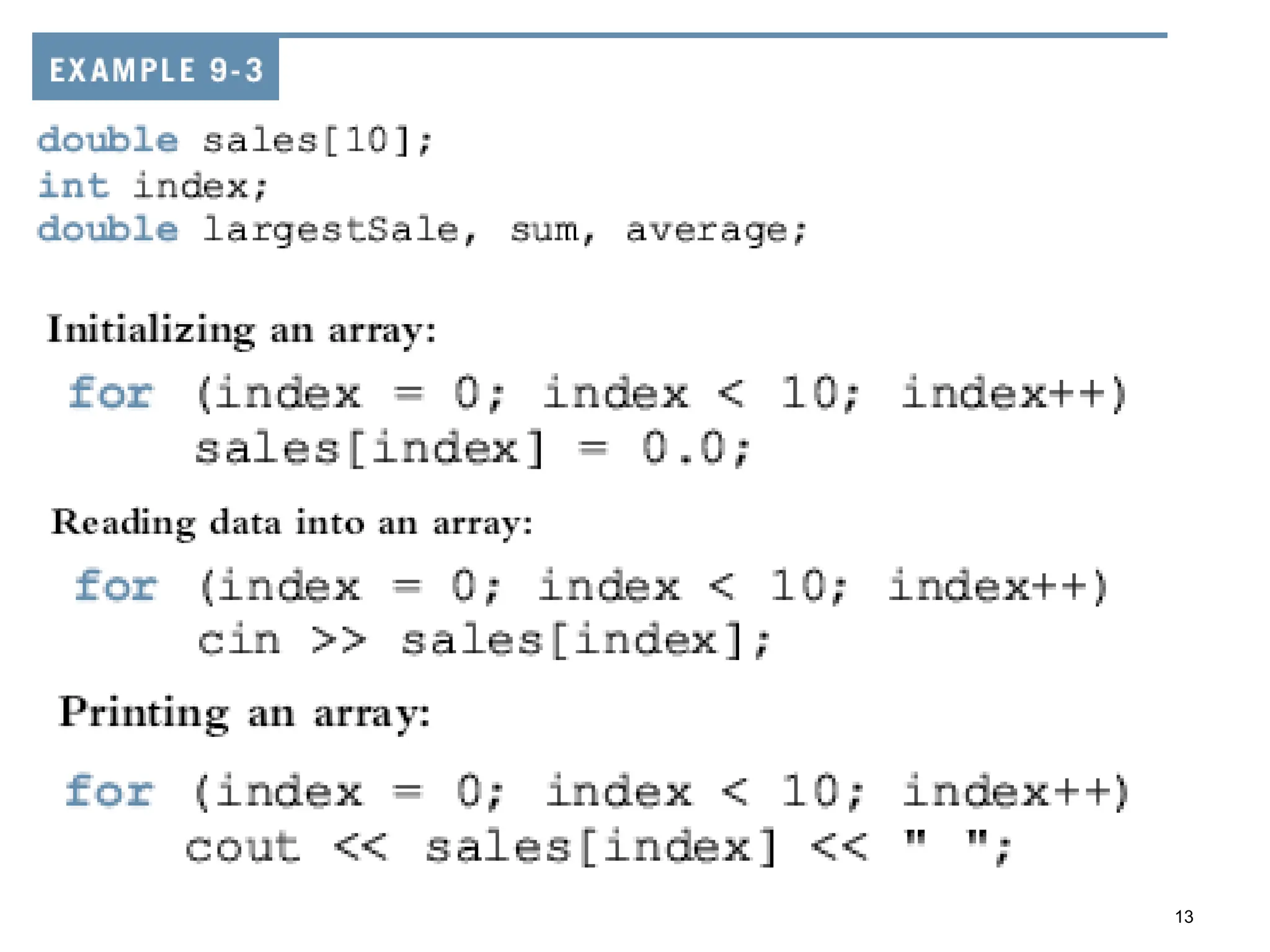

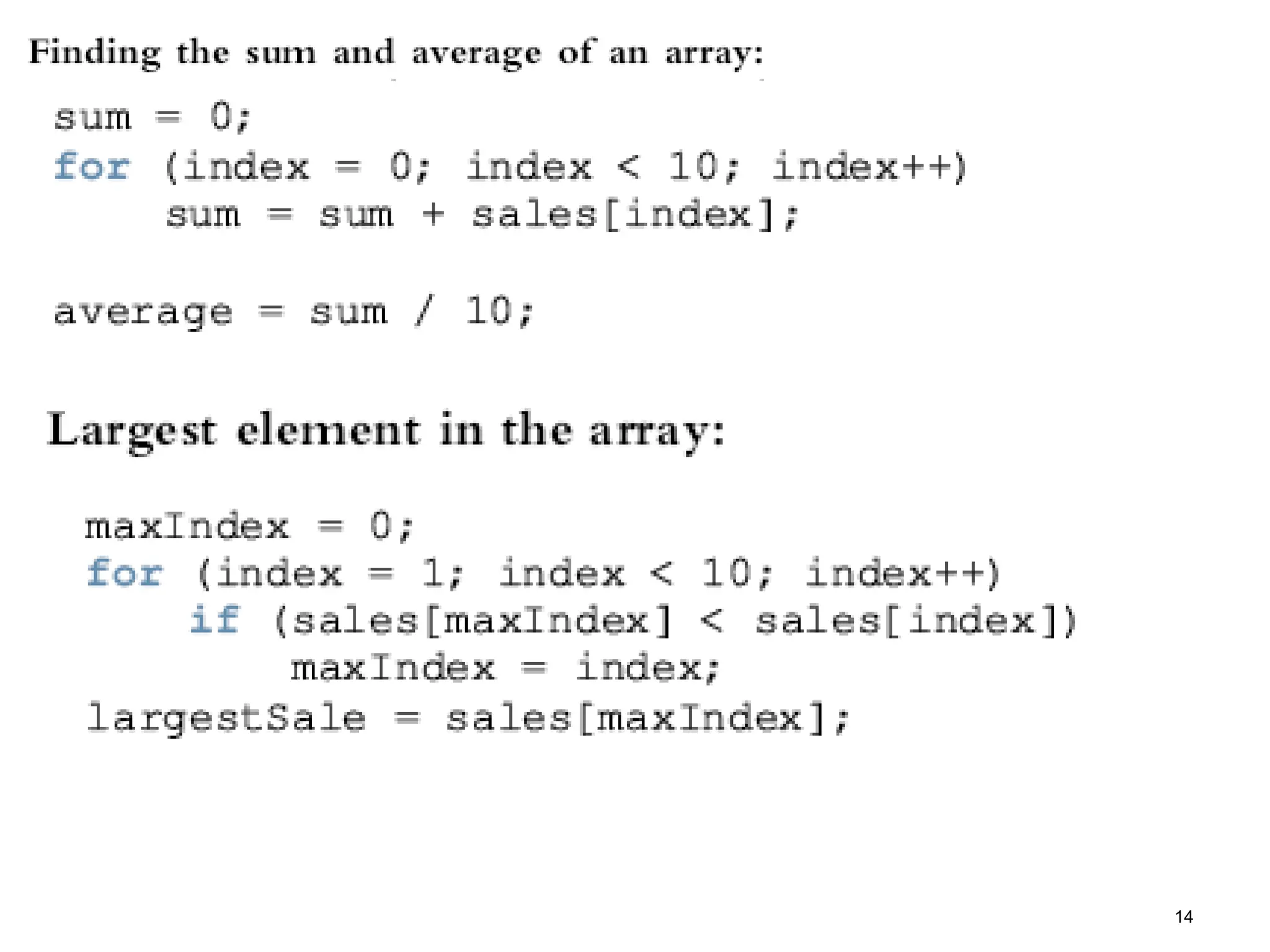

Processing One-Dimensional Arrays
• Some basic operations performed on a one-
dimensional array are:
− Initialize
− Input data
− Output data stored in an array
− Find the largest and/or smallest element
• Each operation requires ability to step through
the elements of the array
• Easily accomplished by a loop
10

(continued)

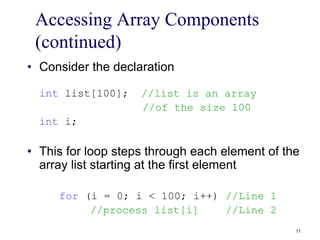

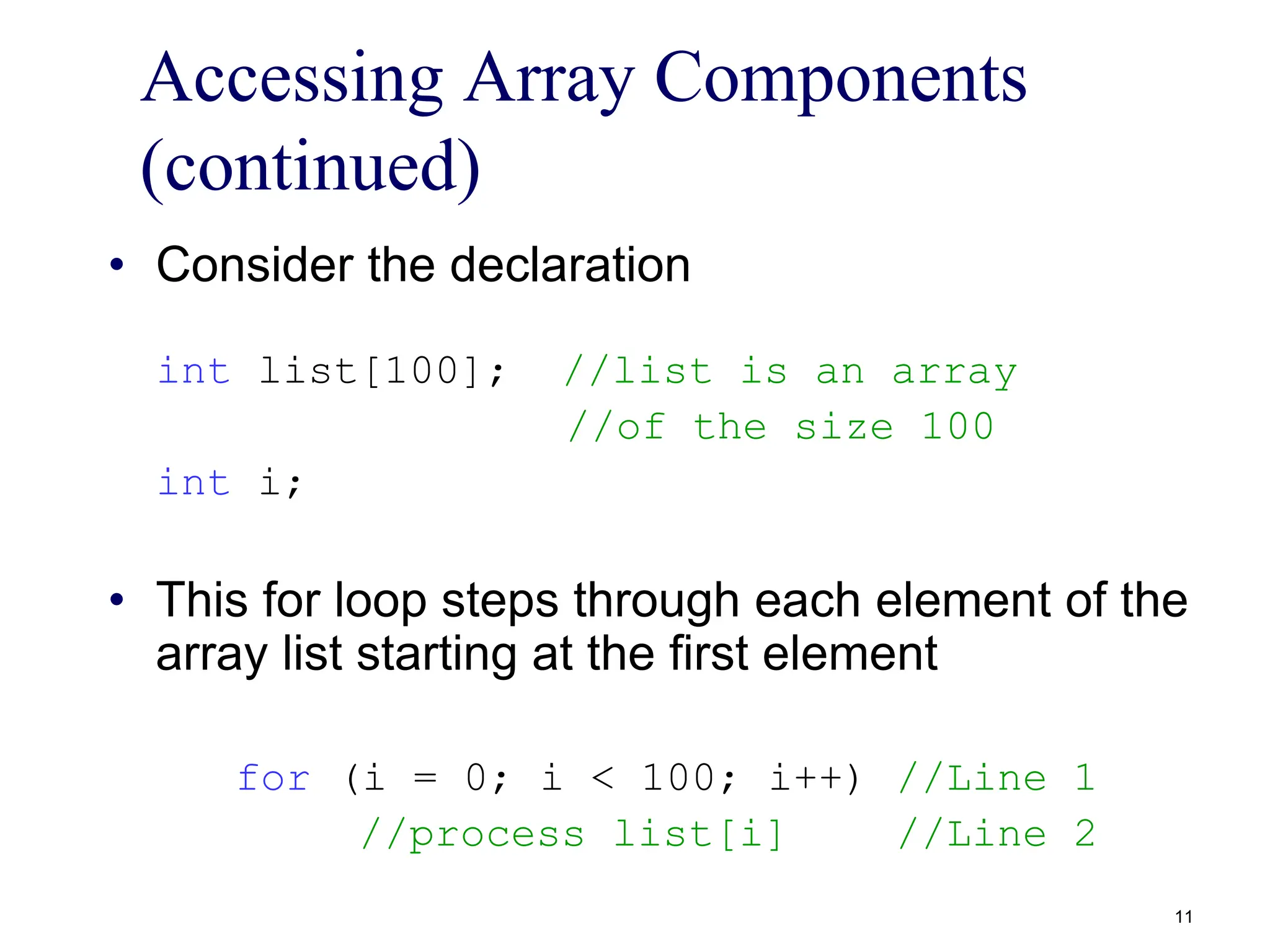

• Consider the declaration
int list[100]; //list is an array
//of the size 100
int i;
• This for loop steps through each element of the
array list starting at the first element
for (i = 0; i < 100; i++) //Line 1
//process list[i] //Line 2
11

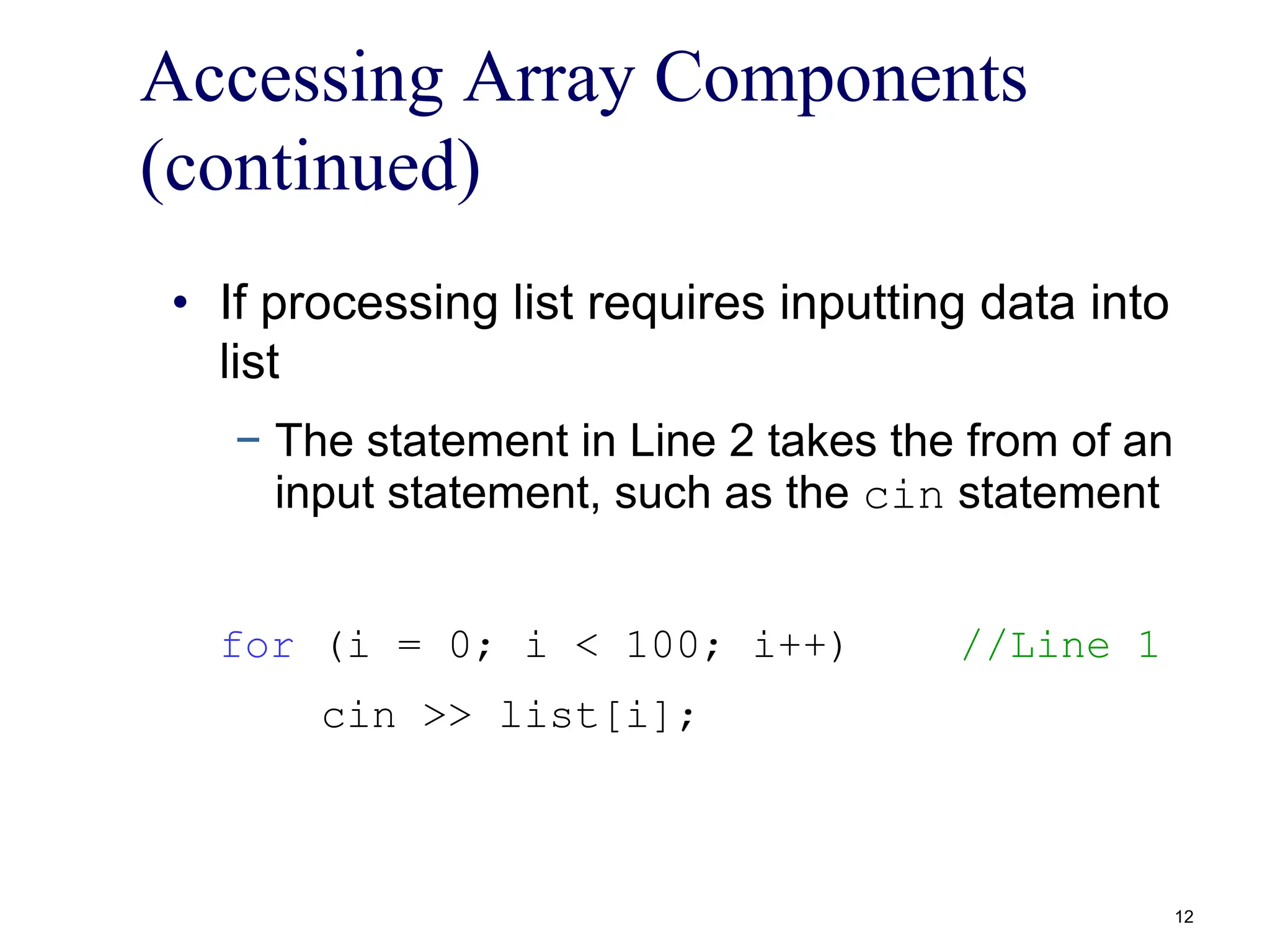

(continued)
• If processing list requires inputting data into
list
− The statement in Line 2 takes the from of an
input statement, such as the cin statement
for (i = 0; i < 100; i++) //Line 1
cin >> list[i];
12

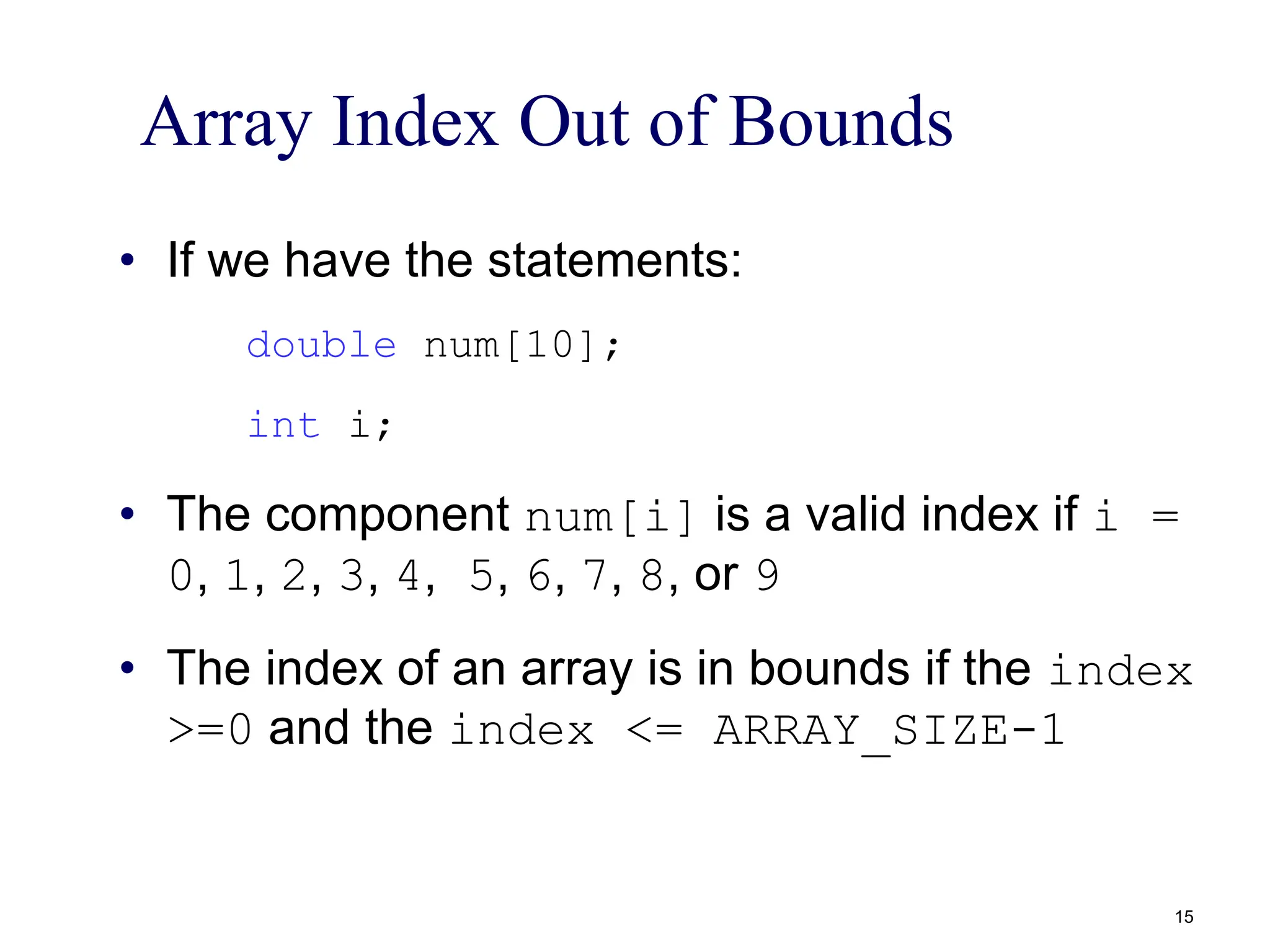

Array Index Out of Bounds
• If we have the statements:
double num[10];
int i;
• The component num[i] is a valid index if i =
0, 1, 2, 3, 4, 5, 6, 7, 8, or 9
• The index of an array is in bounds if the index
>=0 and the index <= ARRAY_SIZE-1
15

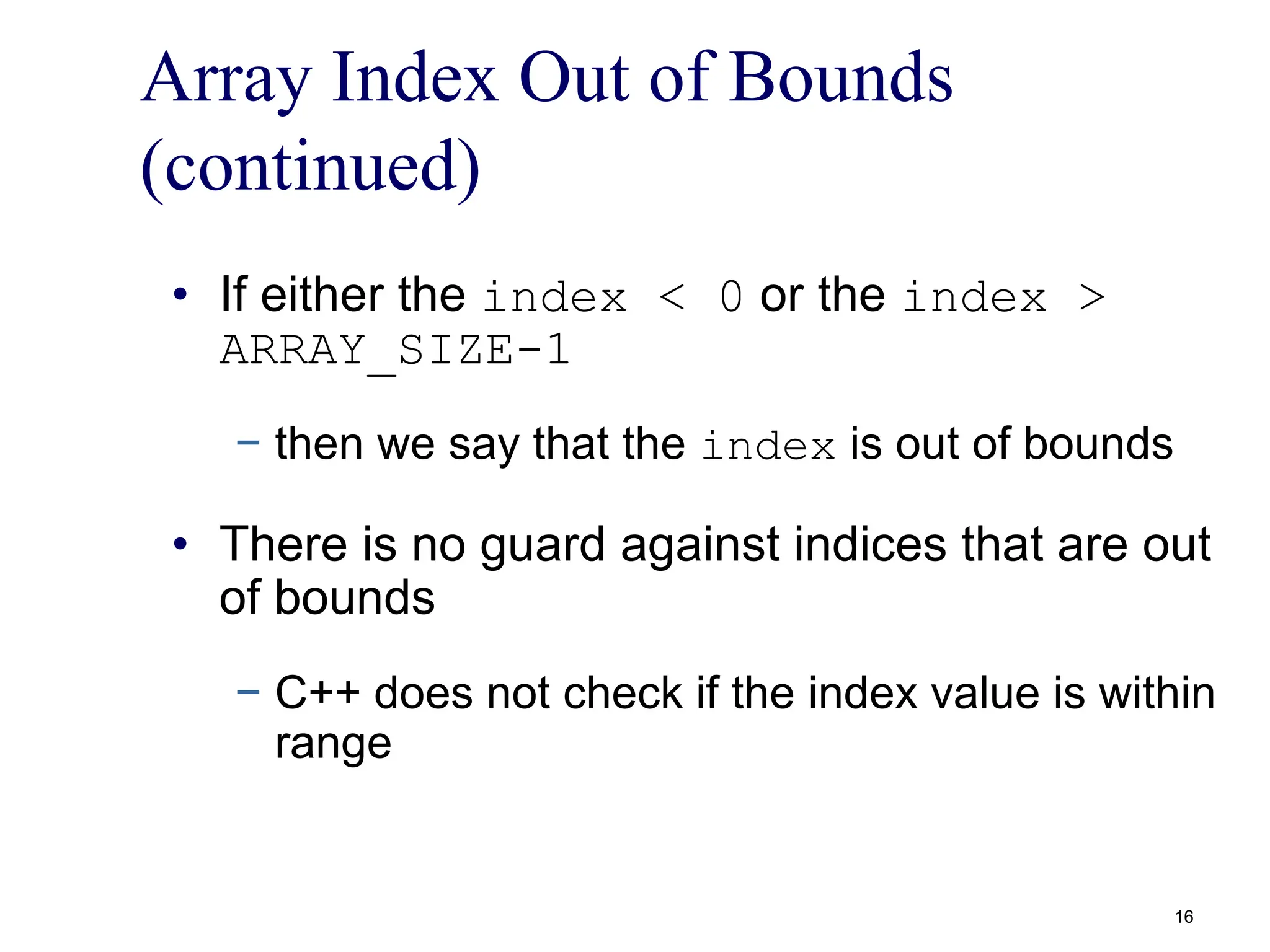

Array Index Out of Bounds
(continued)
• If either the index < 0 or the index >
ARRAY_SIZE-1
− then we say that the index is out of bounds
• There is no guard against indices that are out
of bounds
− C++ does not check if the index value is within
range
16

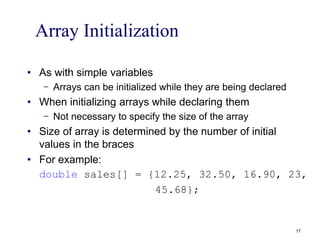

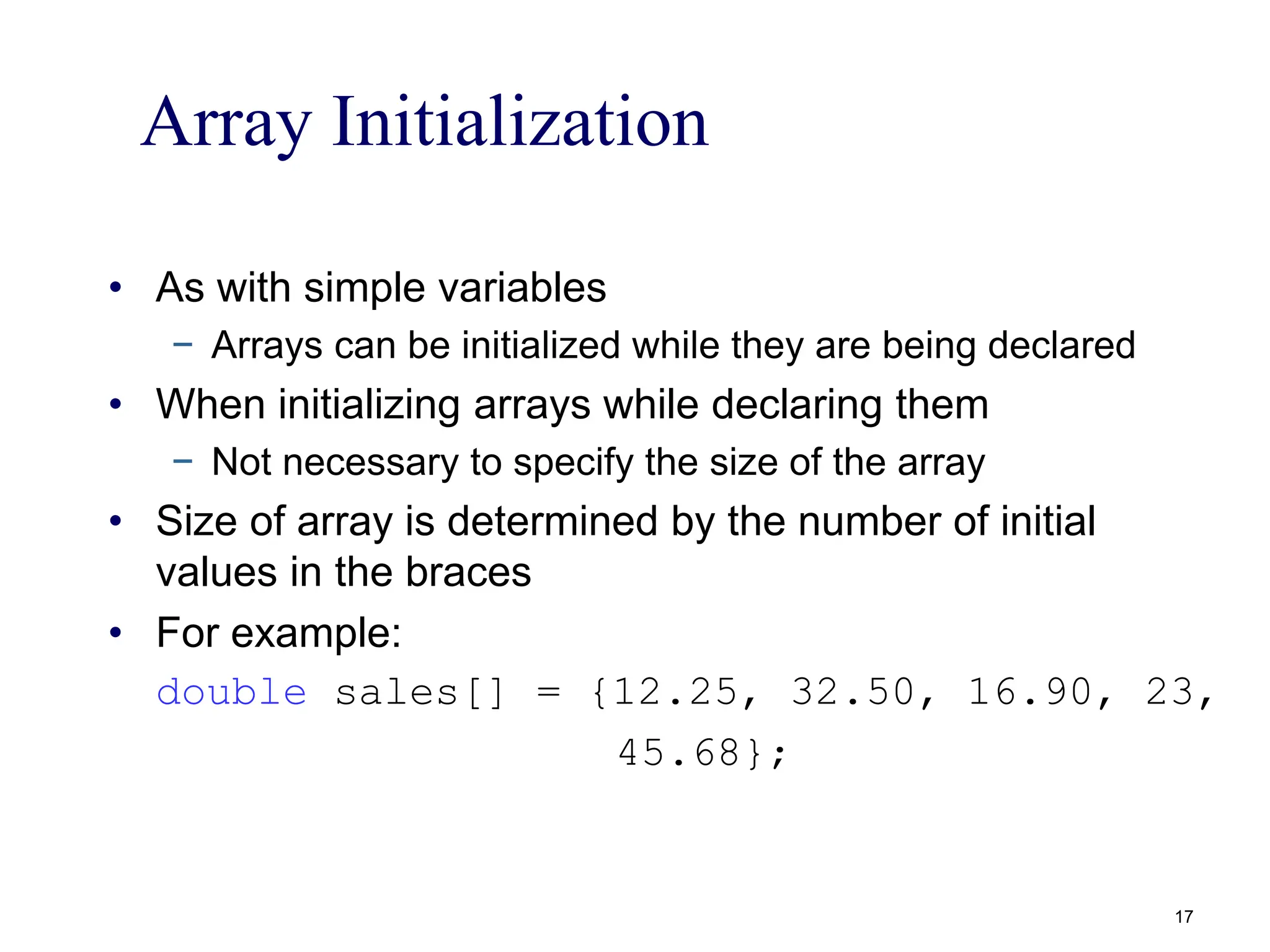

Array Initialization
• As with simple variables
− Arrays can be initialized while they are being declared
• When initializing arrays while declaring them
− Not necessary to specify the size of the array
• Size of array is determined by the number of initial
values in the braces
• For example:
double sales[] = {12.25, 32.50, 16.90, 23,
45.68};
17

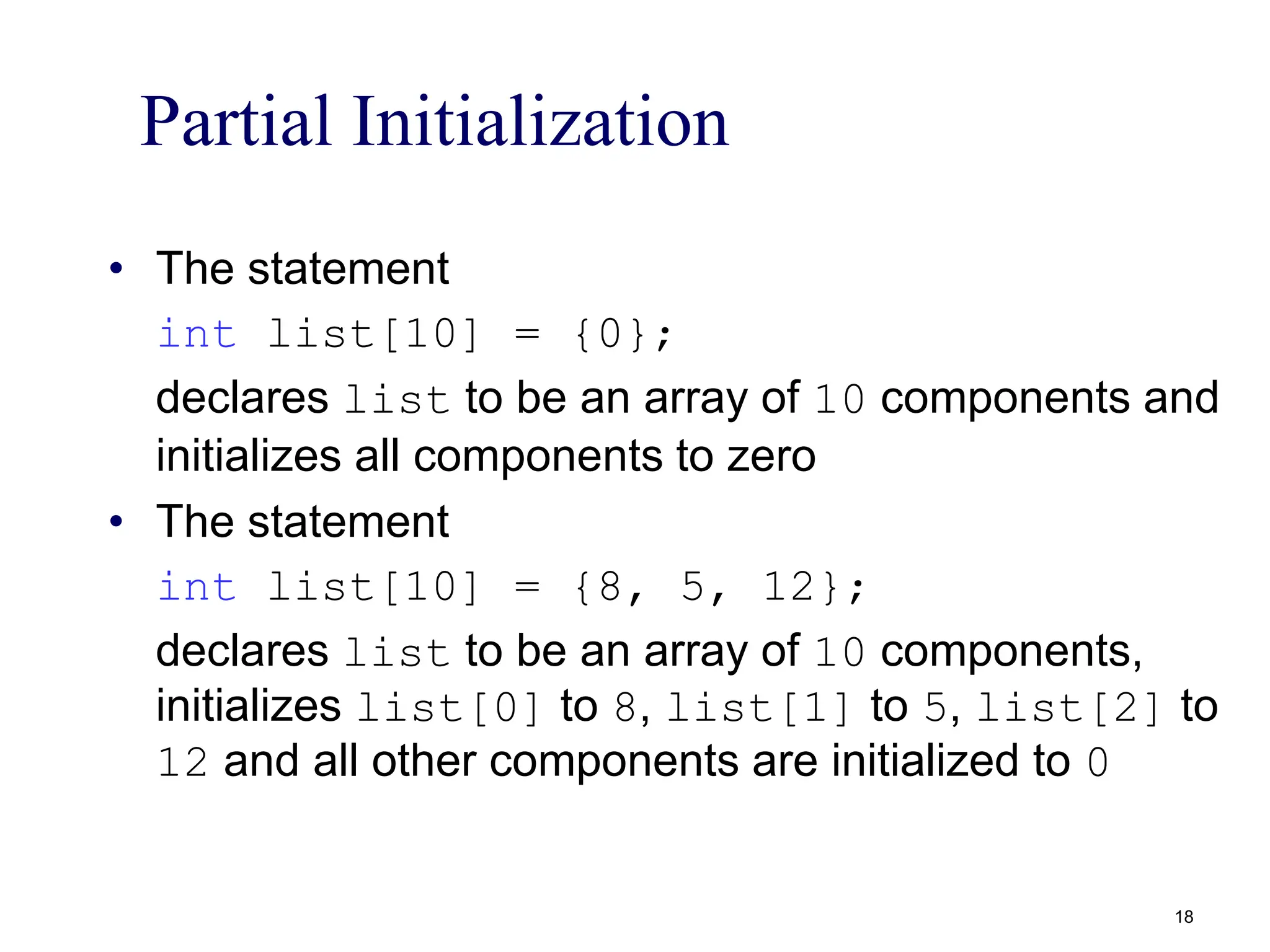

Partial Initialization
• The statement
int list[10] = {0};
declares list to be an array of 10 components and
initializes all components to zero
• The statement
int list[10] = {8, 5, 12};
declares list to be an array of 10 components,
initializes list[0] to 8, list[1] to 5, list[2] to
12 and all other components are initialized to 0
18

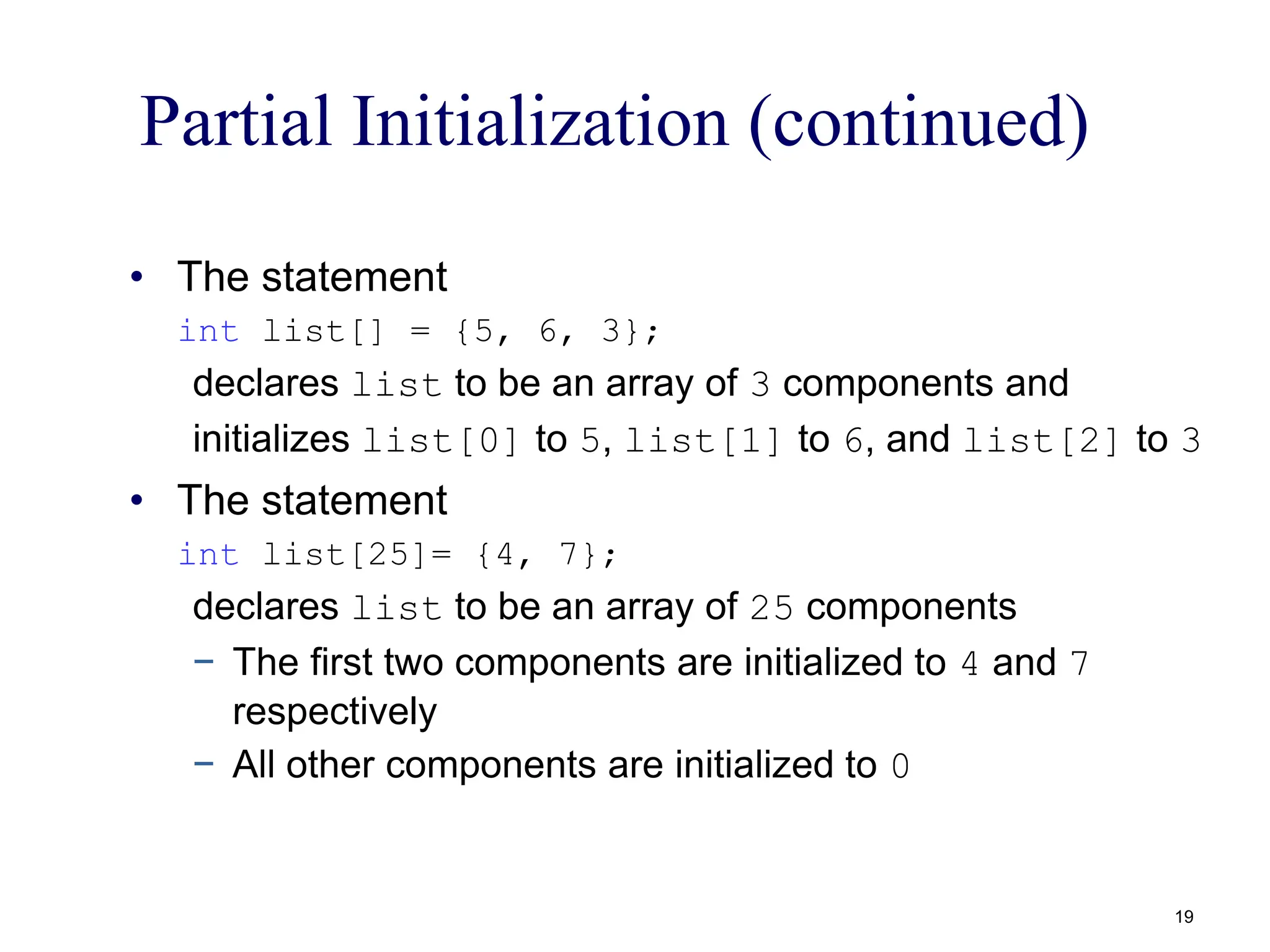

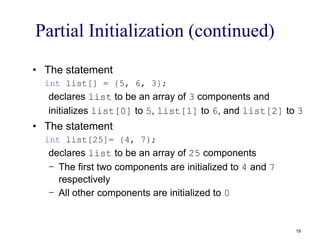

Partial Initialization (continued)
• The statement
int list[] = {5, 6, 3};
declares list to be an array of 3 components and
initializes list[0] to 5, list[1] to 6, and list[2] to 3
• The statement
int list[25]= {4, 7};
declares list to be an array of 25 components
− The first two components are initialized to 4 and 7
respectively
− All other components are initialized to 0
19

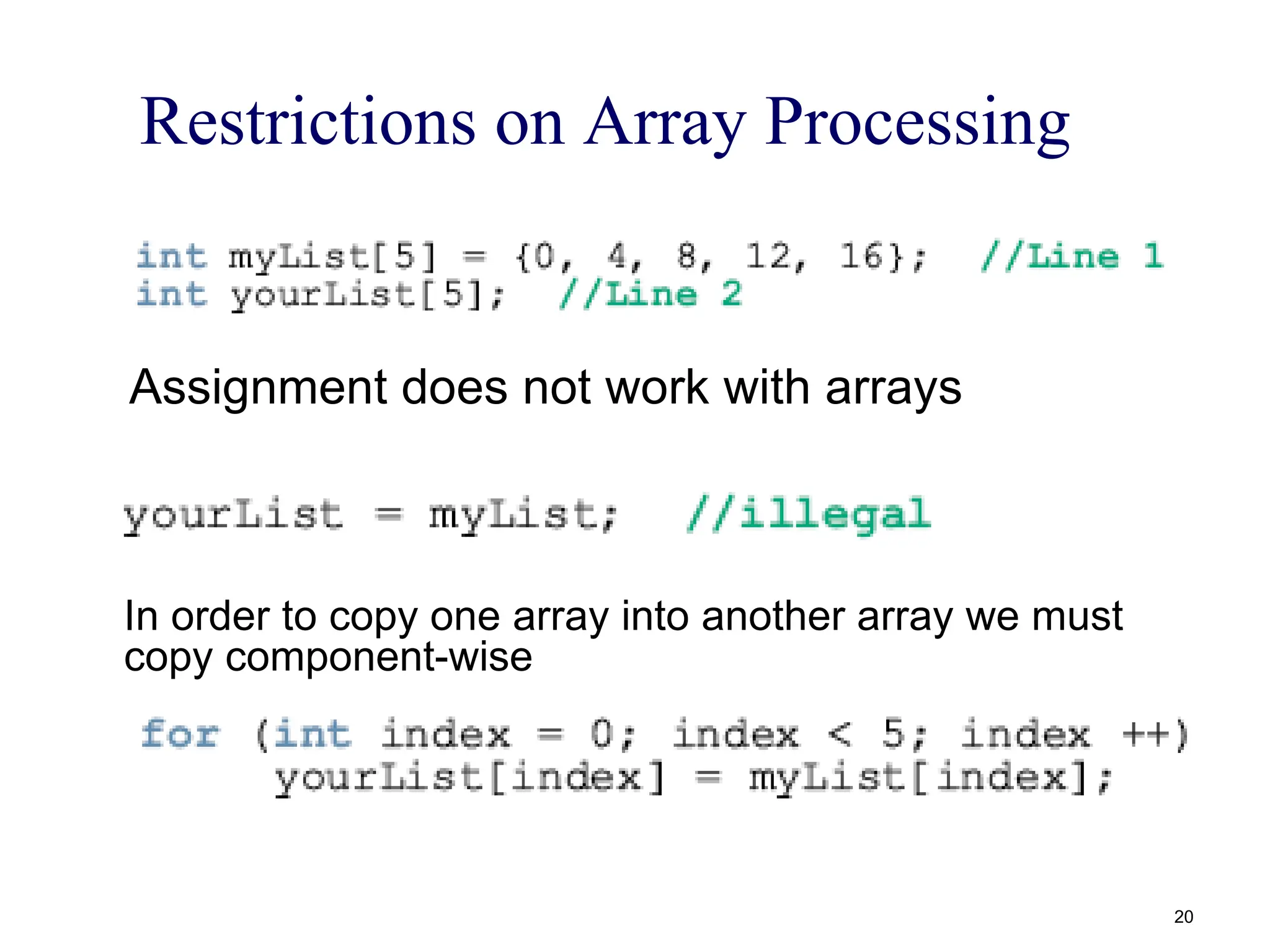

Restrictions on Array Processing
Assignment does not work with arrays
In order to copy one array into another array we must
copy component-wise
20

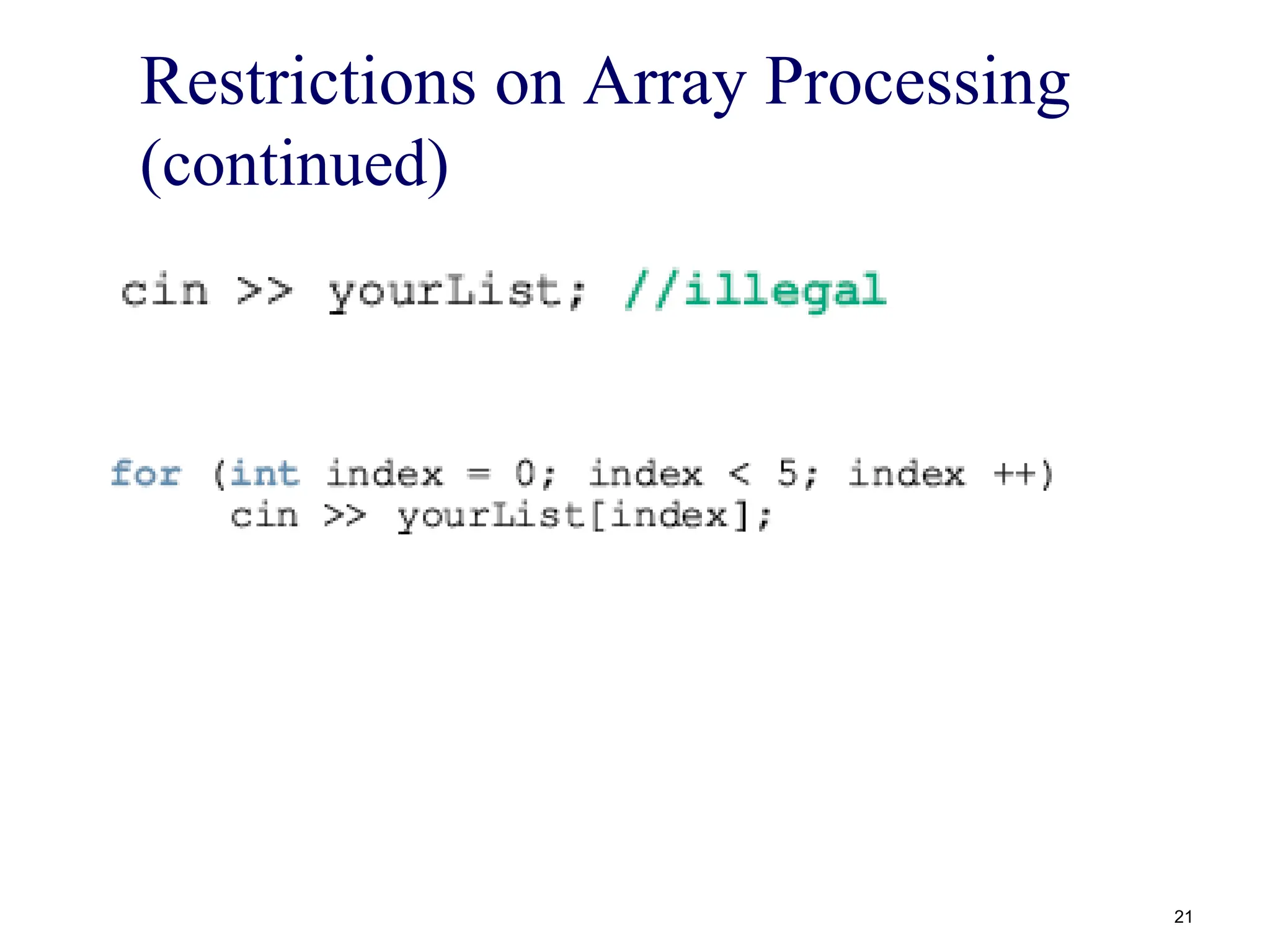

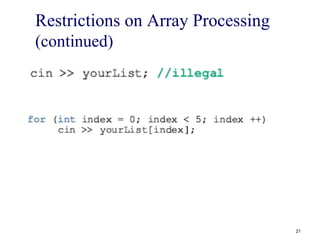

Restrictions on Array Processing
(continued)
21

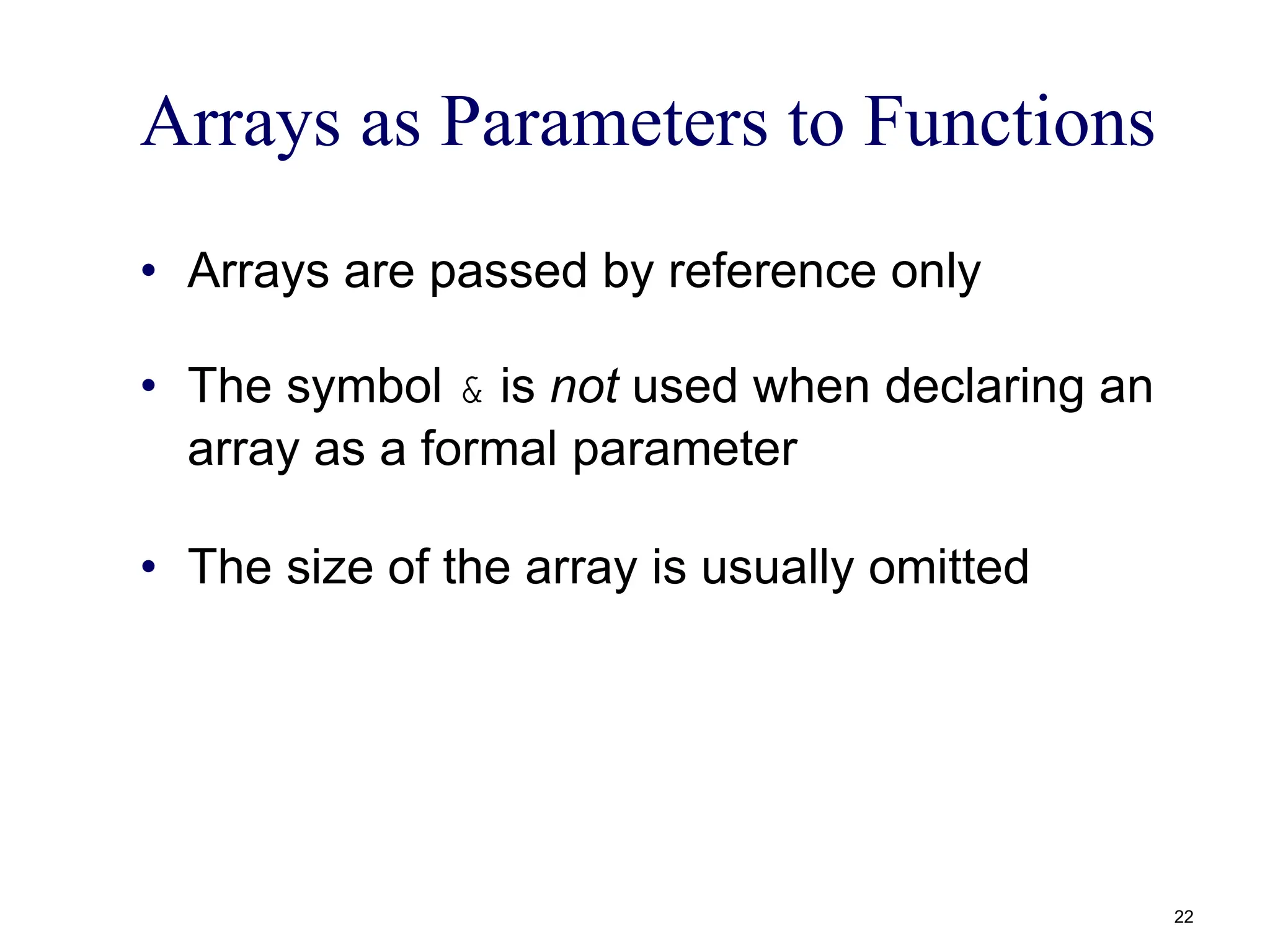

Arrays as Parameters to Functions
• Arrays are passed by reference only
• The symbol & is not used when declaring an
array as a formal parameter
• The size of the array is usually omitted
22

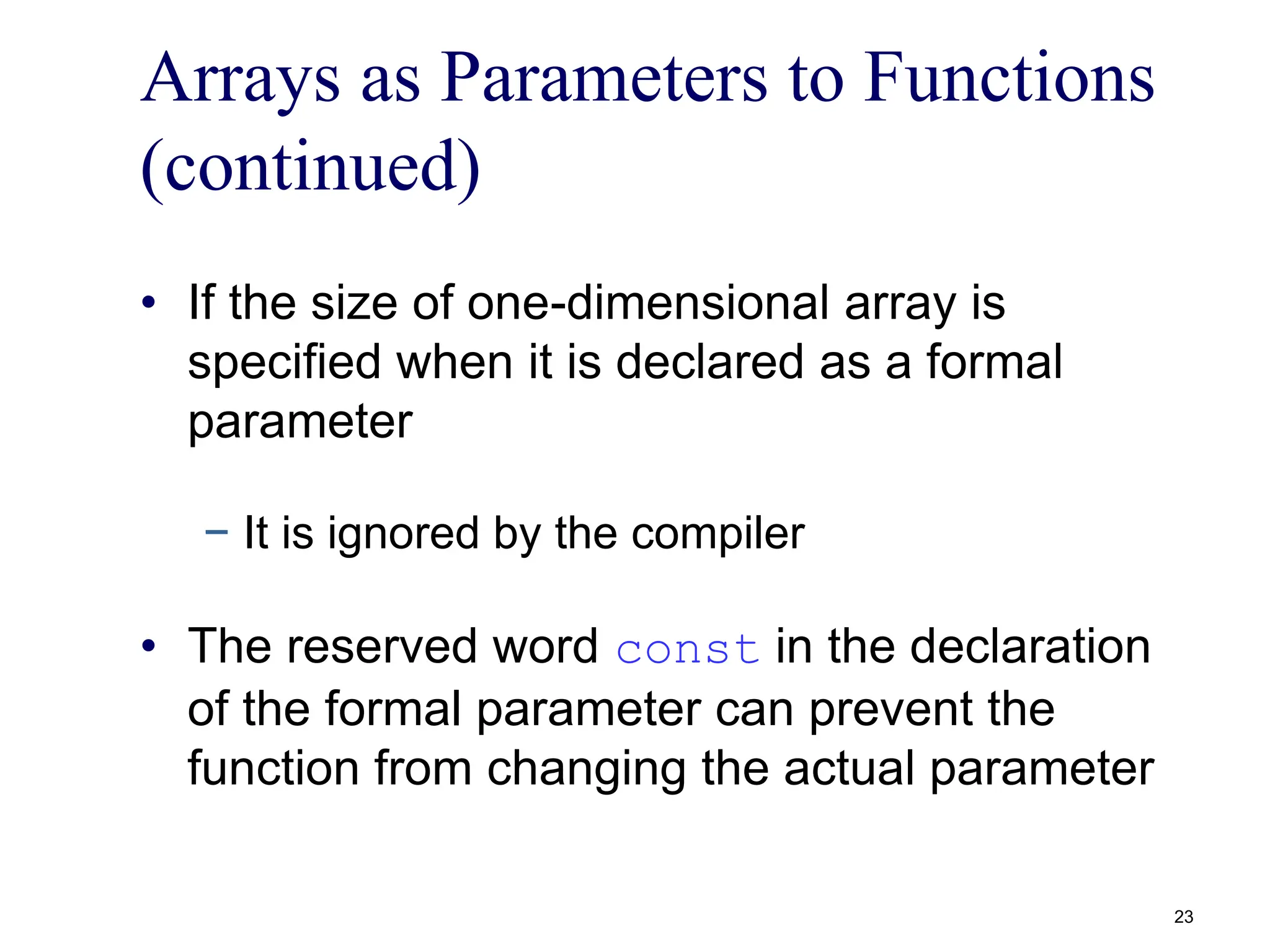

Arrays as Parameters to Functions
(continued)
• If the size of one-dimensional array is
specified when it is declared as a formal
parameter
− It is ignored by the compiler
• The reserved word const in the declaration
of the formal parameter can prevent the
function from changing the actual parameter
23

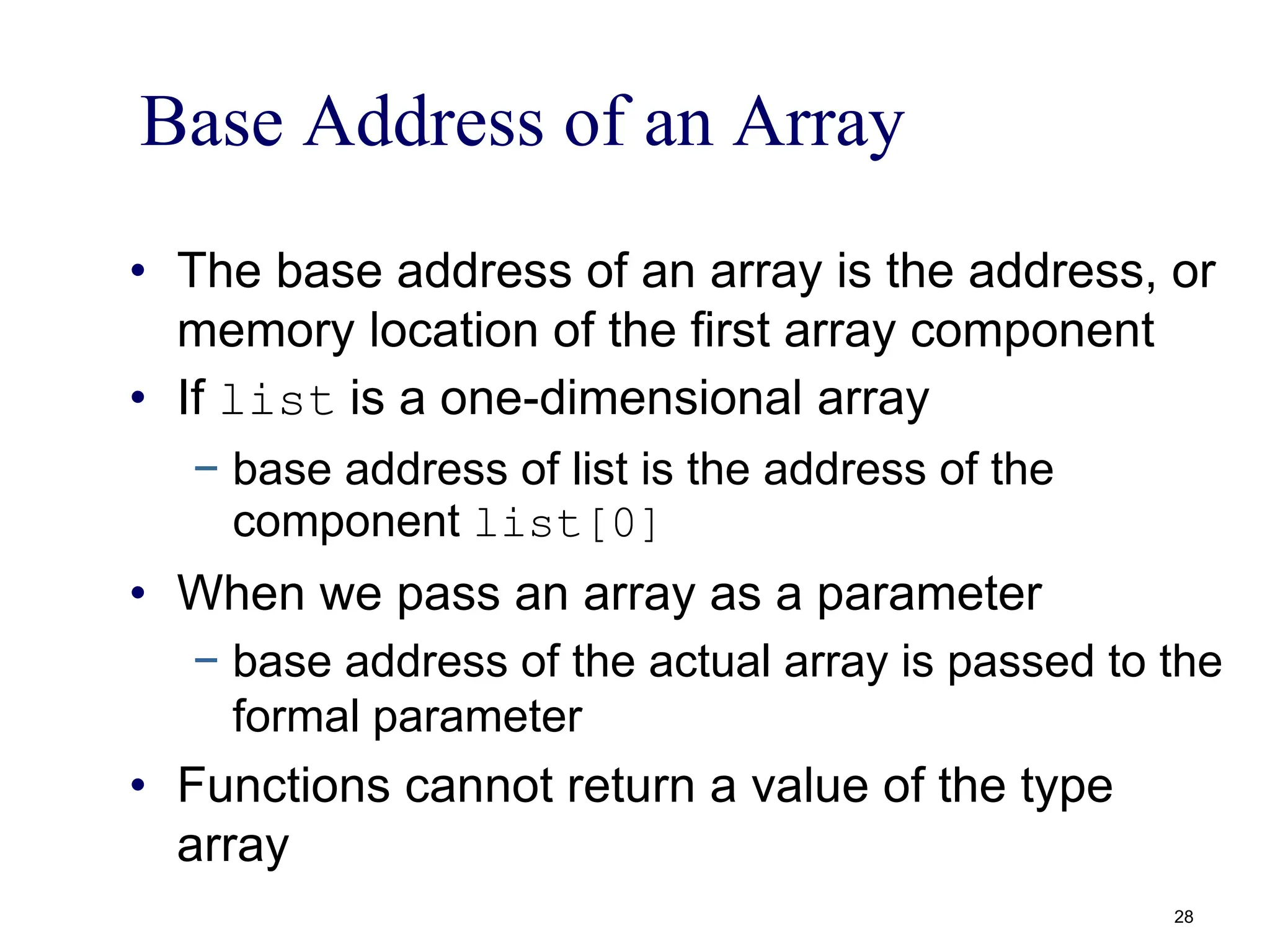

Base Address of an Array
• The base address of an array is the address, or
memory location of the first array component
• If list is a one-dimensional array
− base address of list is the address of the
component list[0]
• When we pass an array as a parameter
− base address of the actual array is passed to the
formal parameter
• Functions cannot return a value of the type
array
28

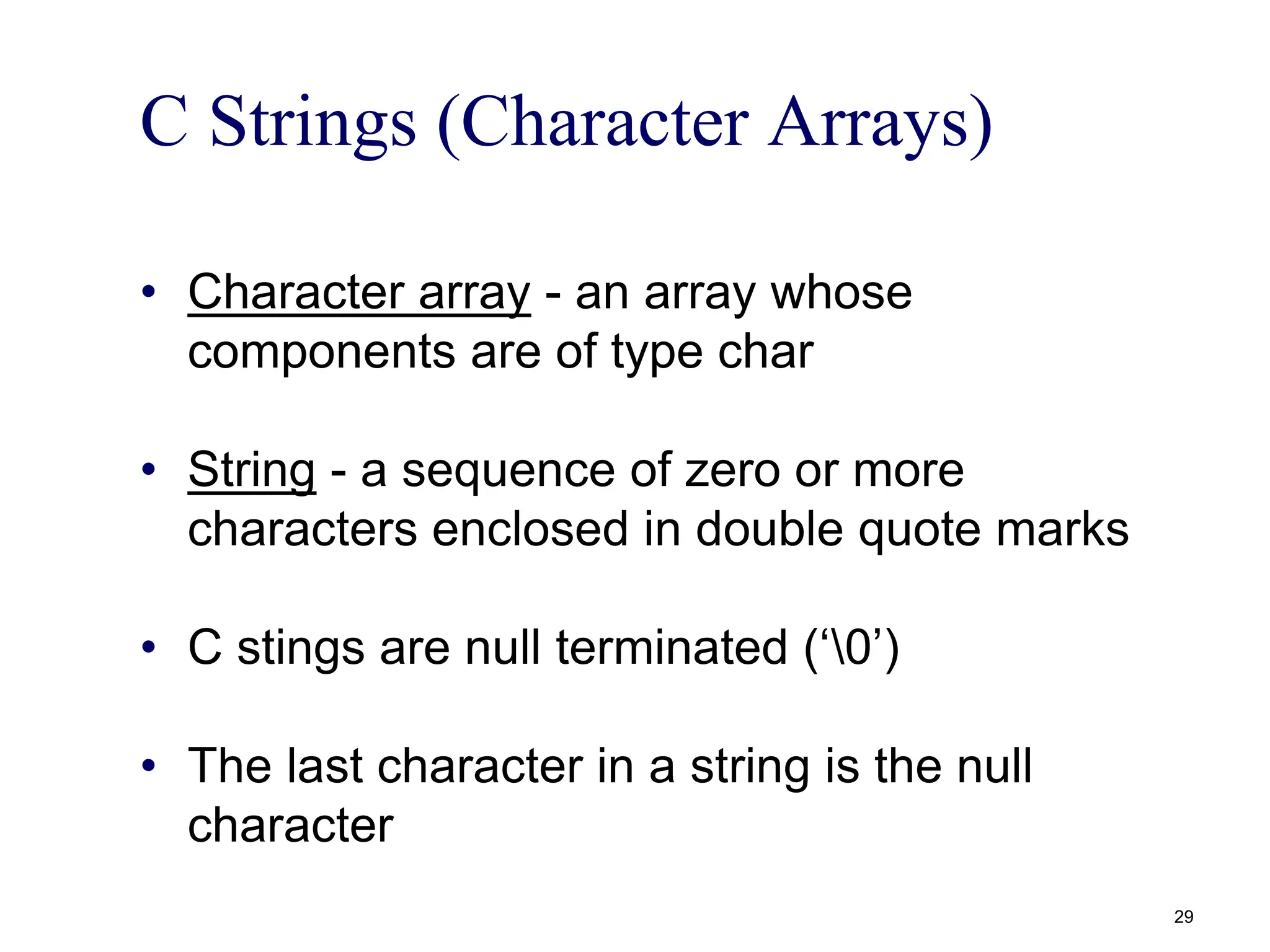

C Strings (Character Arrays)
• Character array - an array whose
components are of type char
• String - a sequence of zero or more
characters enclosed in double quote marks
• C stings are null terminated (‘0’)
• The last character in a string is the null
character
29

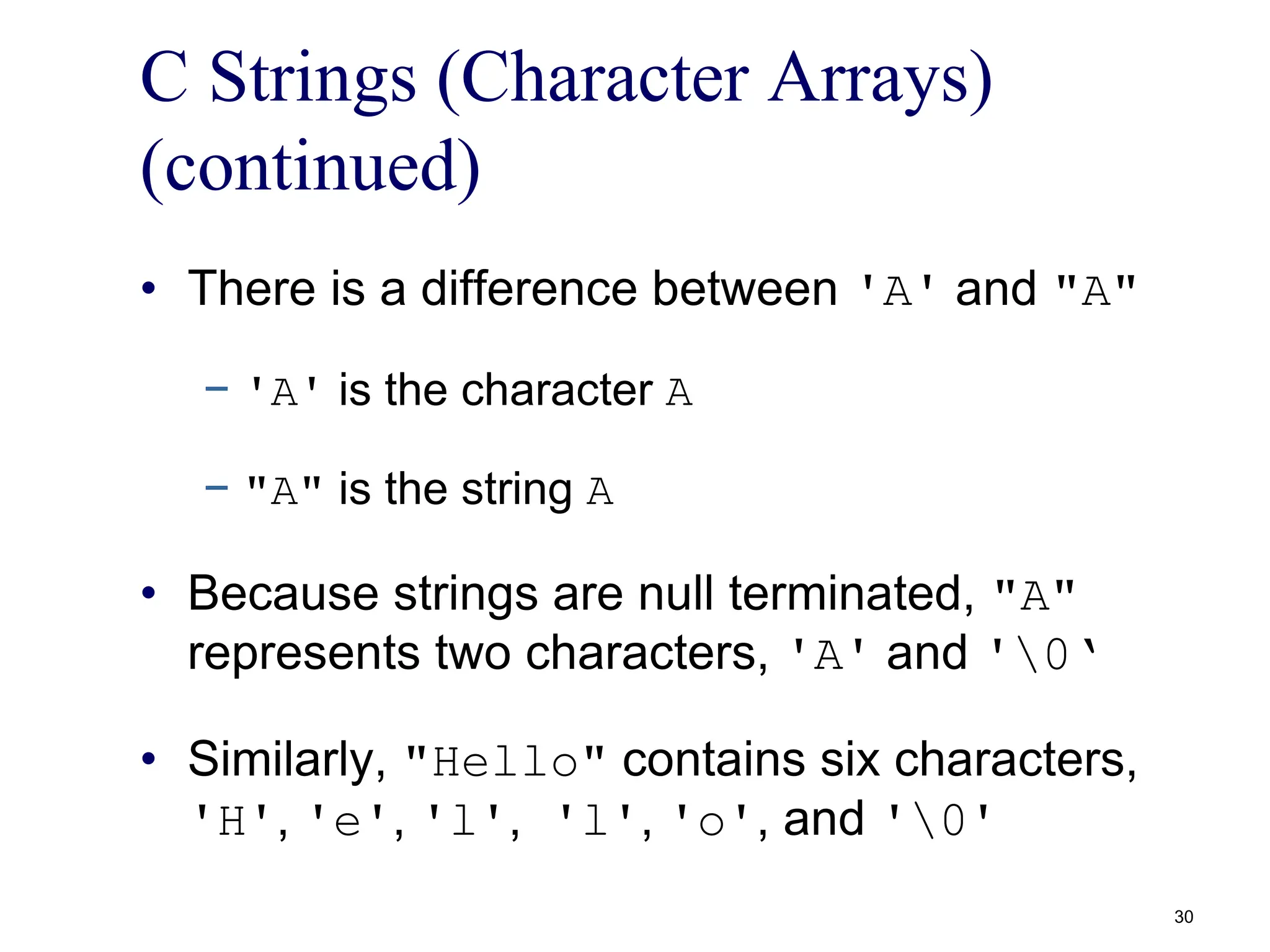

(continued)
• There is a difference between 'A' and "A"
− 'A' is the character A
− "A" is the string A
• Because strings are null terminated, "A"
represents two characters, 'A' and '0‘
• Similarly, "Hello" contains six characters,
'H', 'e', 'l', 'l', 'o', and '0'
30

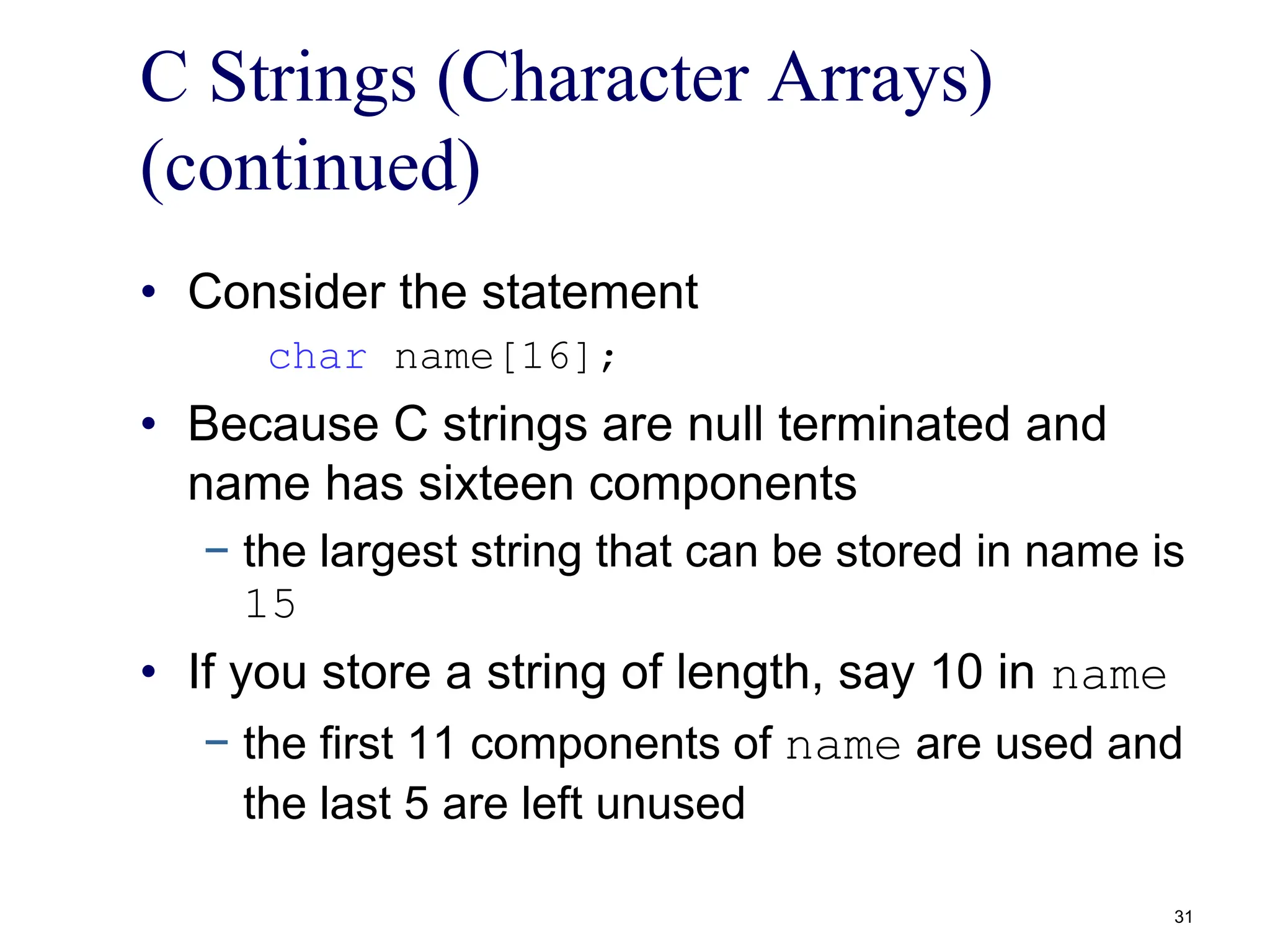

(continued)
• Consider the statement
char name[16];
• Because C strings are null terminated and
name has sixteen components
− the largest string that can be stored in name is
15
• If you store a string of length, say 10 in name
− the first 11 components of name are used and
the last 5 are left unused
31

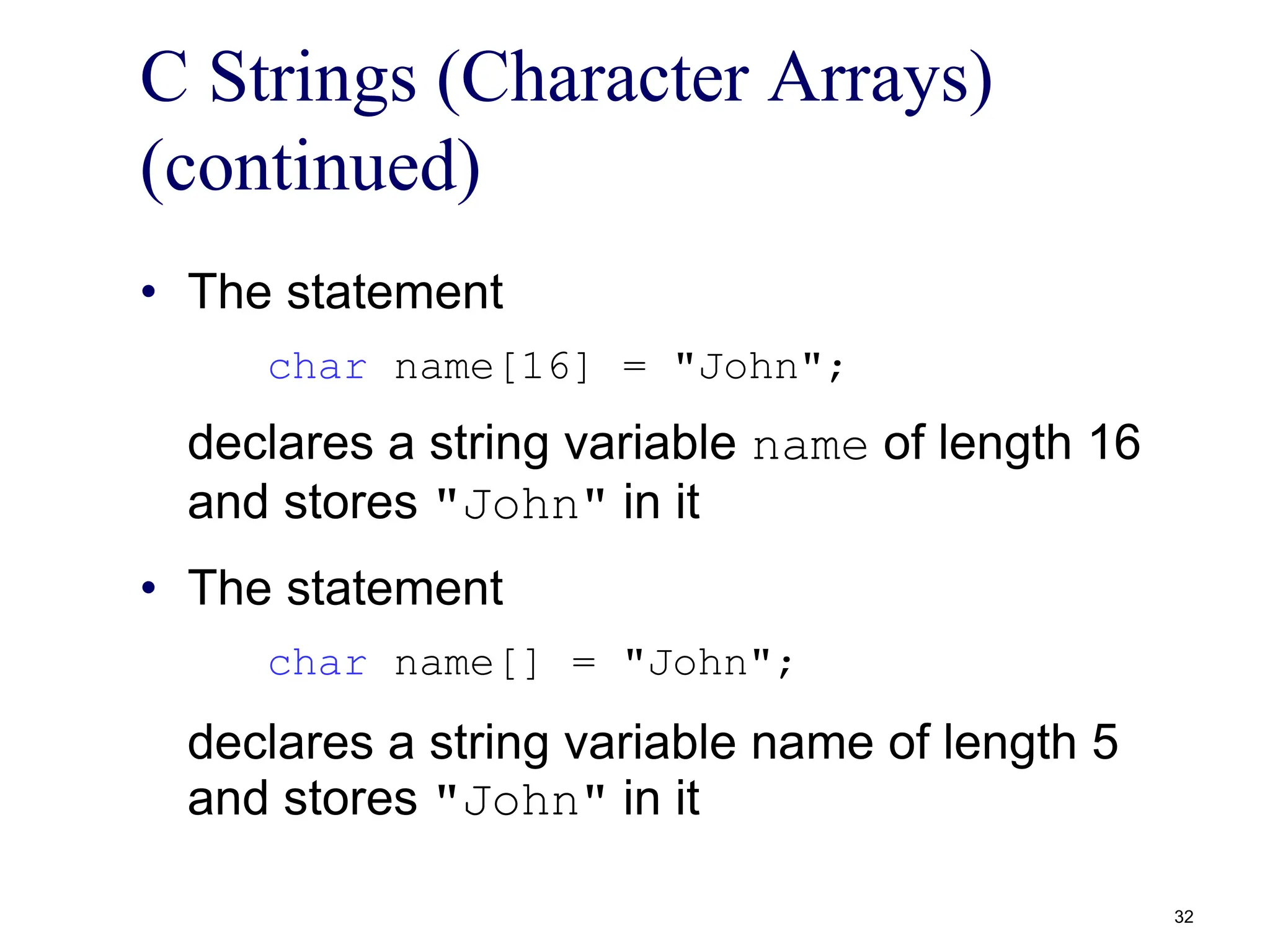

(continued)
• The statement
char name[16] = "John";
declares a string variable name of length 16
and stores "John" in it
• The statement
char name[] = "John";
declares a string variable name of length 5
and stores "John" in it
32

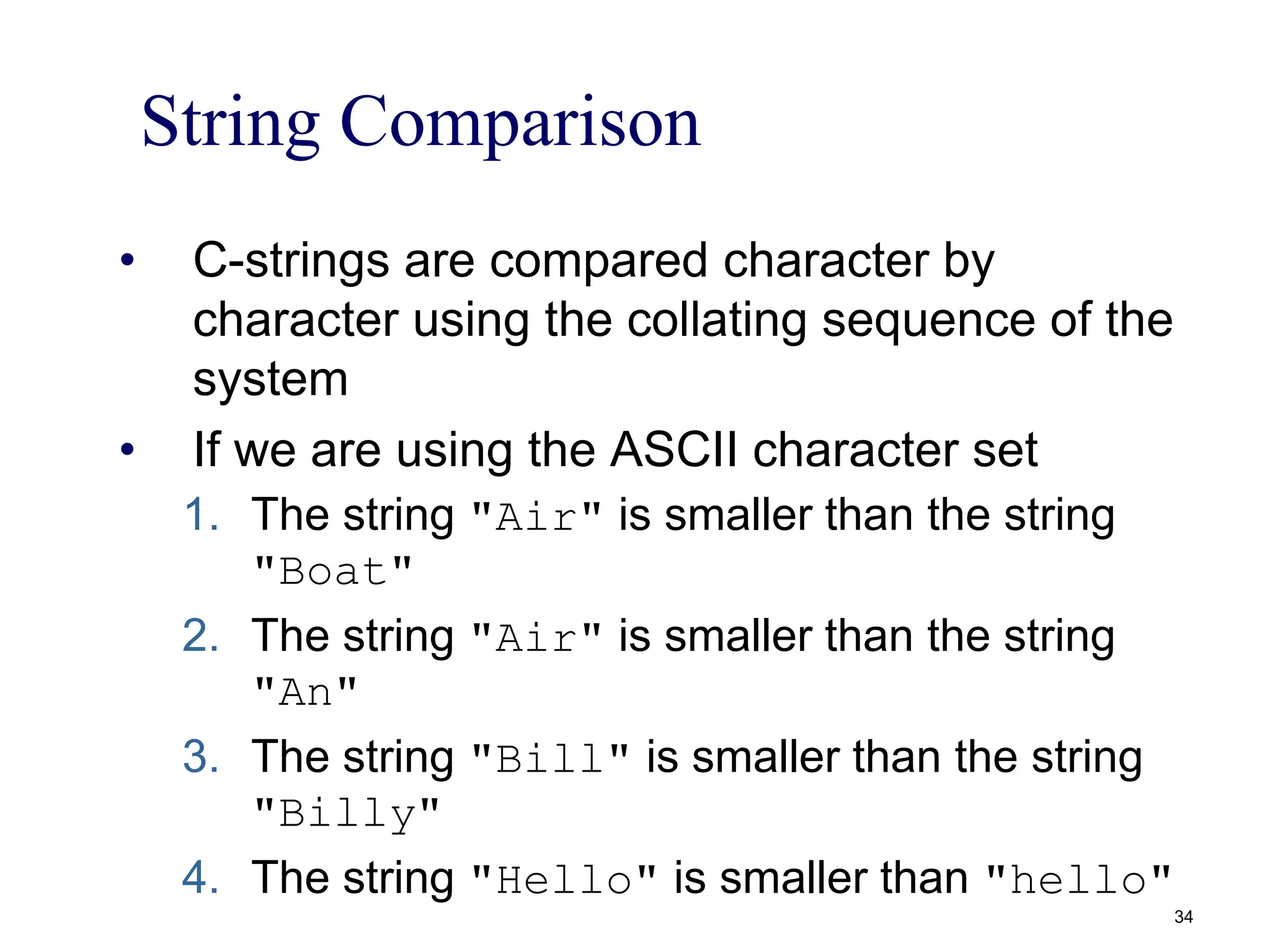

String Comparison
• C-strings are compared character by
character using the collating sequence of the
system
• If we are using the ASCII character set
1. The string "Air" is smaller than the string
"Boat"
2. The string "Air" is smaller than the string
"An"
3. The string "Bill" is smaller than the string
"Billy"
4. The string "Hello" is smaller than "hello"
34

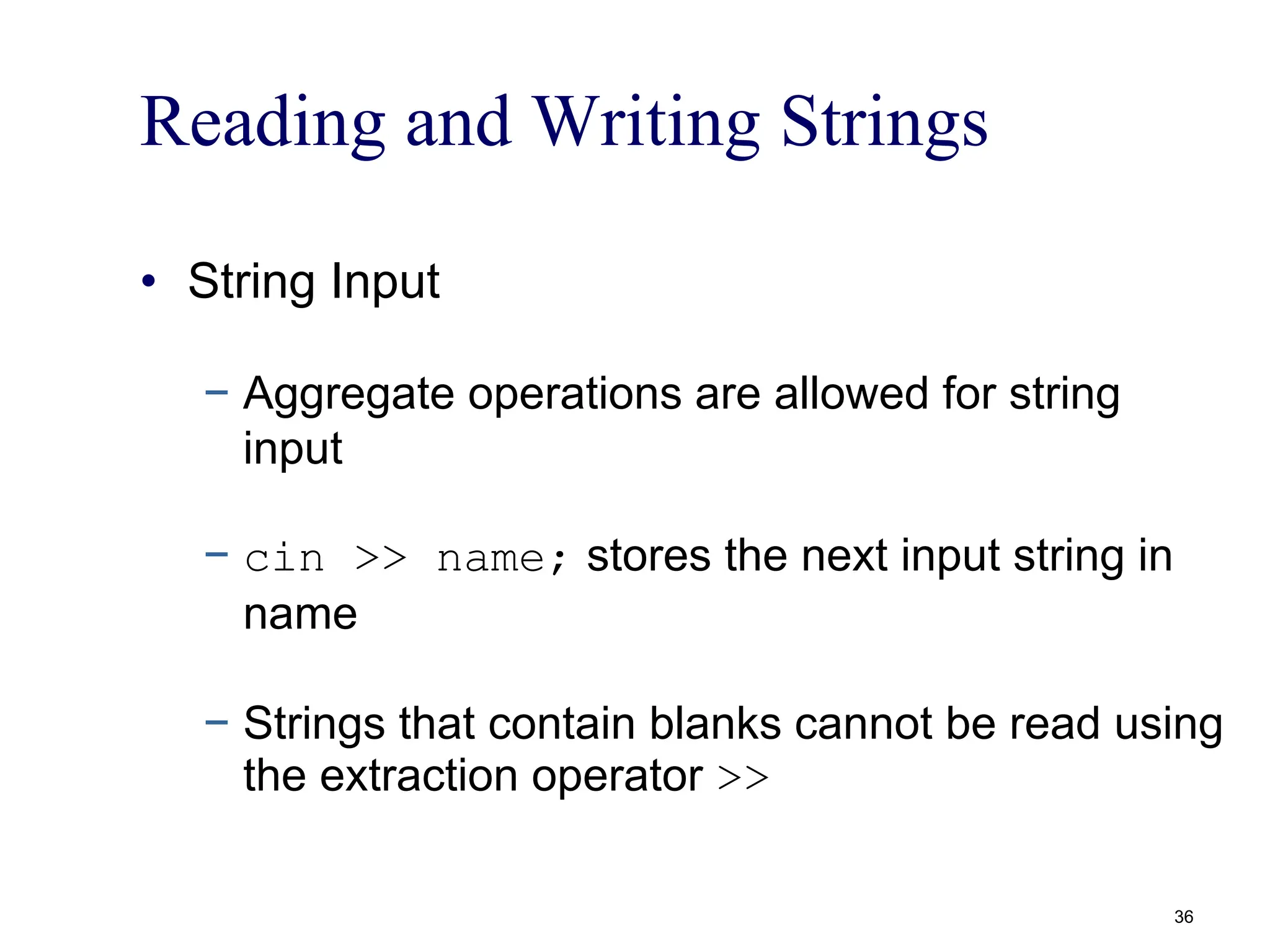

Reading and Writing Strings
• String Input
− Aggregate operations are allowed for string
input
− cin >> name; stores the next input string in
name
− Strings that contain blanks cannot be read using
the extraction operator >>
36

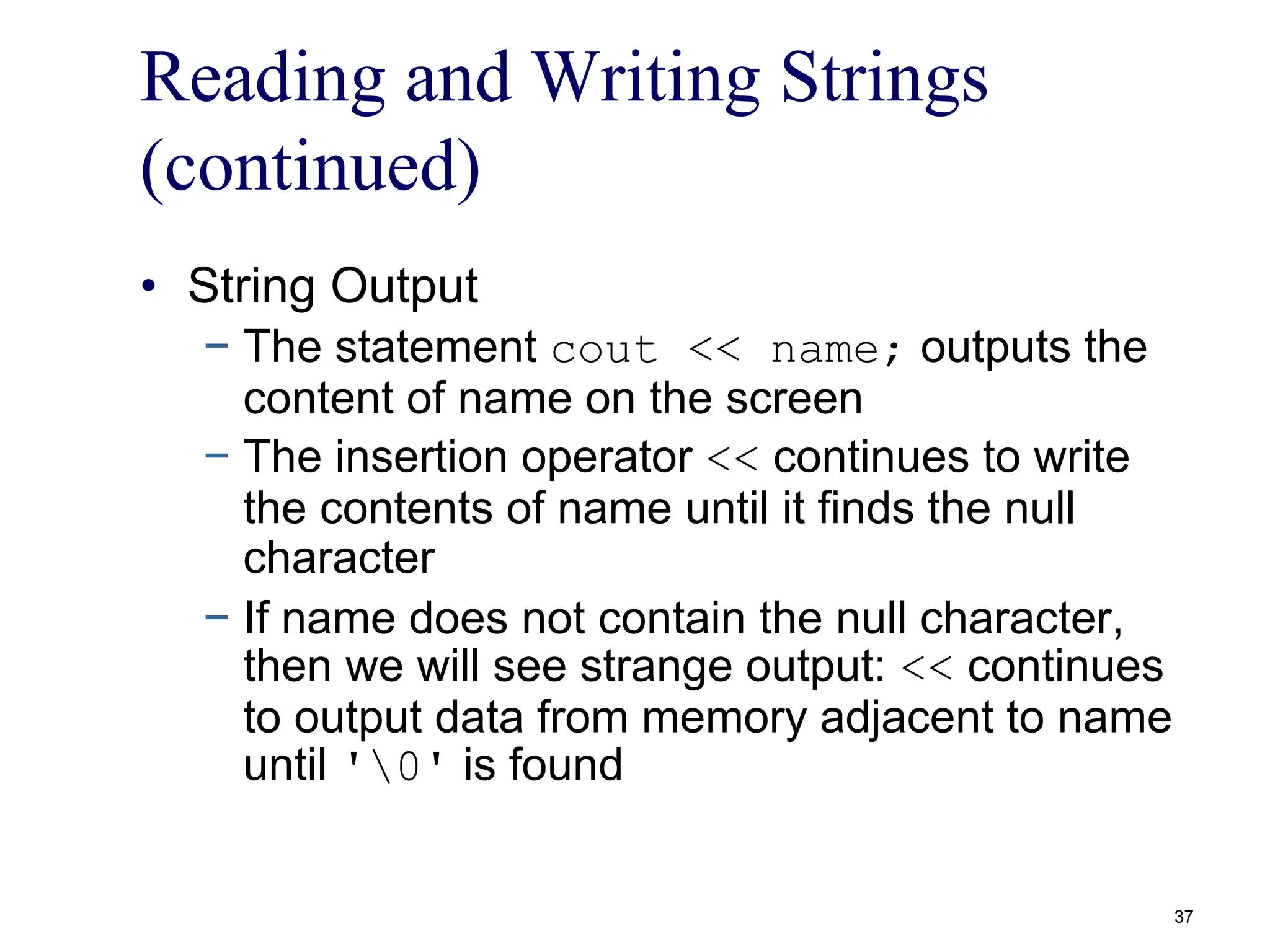

Reading and Writing Strings
(continued)
• String Output
− The statement cout << name; outputs the
content of name on the screen
− The insertion operator << continues to write
the contents of name until it finds the null
character
− If name does not contain the null character,
then we will see strange output: << continues
to output data from memory adjacent to name
until '0' is found
37

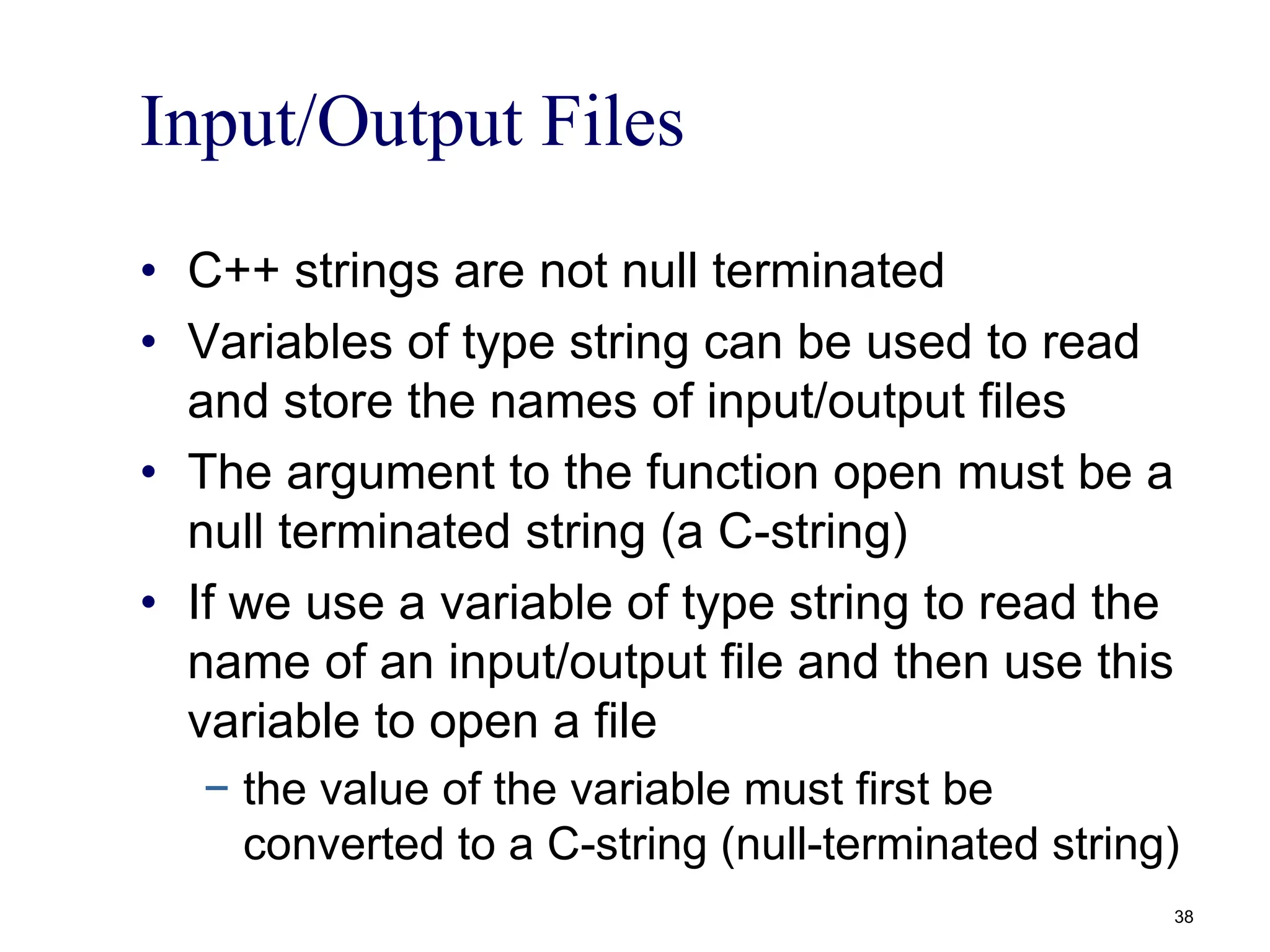

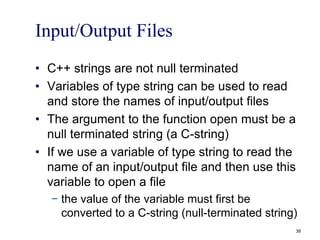

Input/Output Files
• C++ strings are not null terminated
• Variables of type string can be used to read
and store the names of input/output files
• The argument to the function open must be a
null terminated string (a C-string)
• If we use a variable of type string to read the
name of an input/output file and then use this
variable to open a file
− the value of the variable must first be
converted to a C-string (null-terminated string)
38

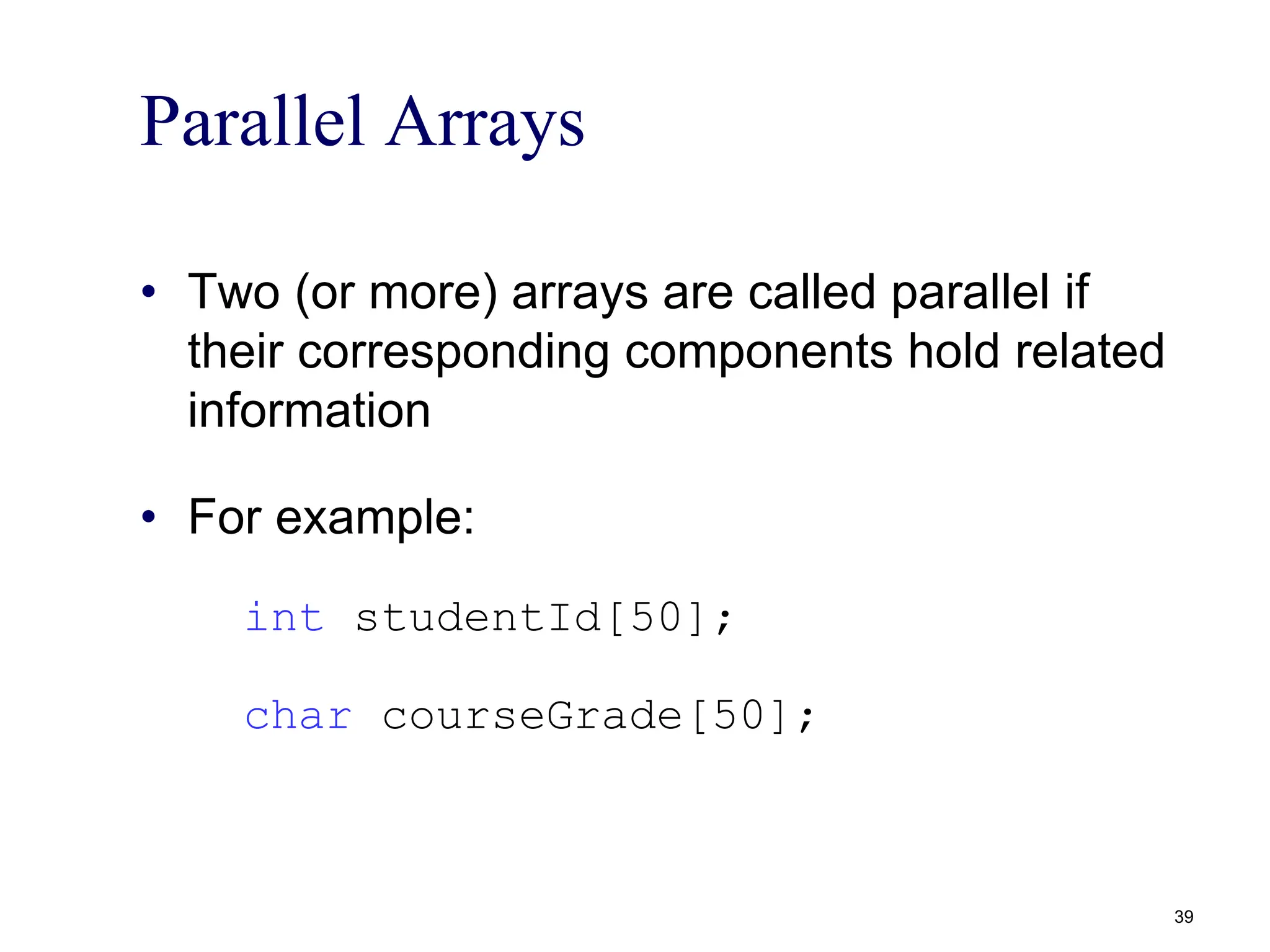

Parallel Arrays
• Two (or more) arrays are called parallel if
their corresponding components hold related
information
• For example:
int studentId[50];
char courseGrade[50];
39

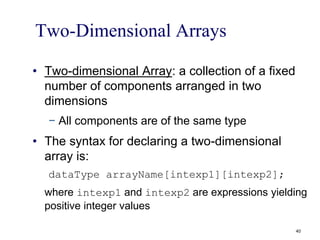

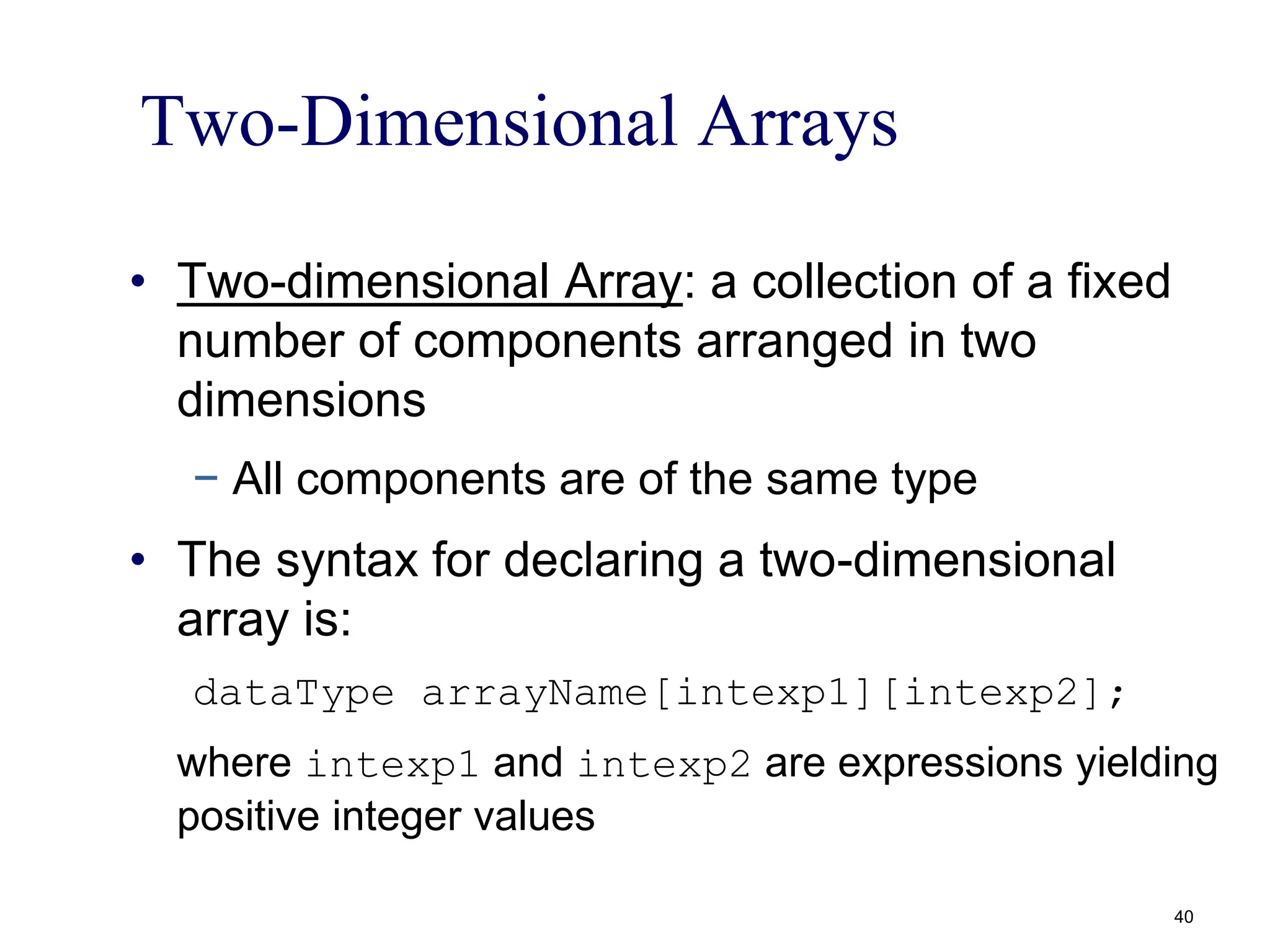

Two-Dimensional Arrays
• Two-dimensional Array: a collection of a fixed
number of components arranged in two
dimensions
− All components are of the same type
• The syntax for declaring a two-dimensional
array is:
dataType arrayName[intexp1][intexp2];
where intexp1 and intexp2 are expressions yielding
positive integer values
40

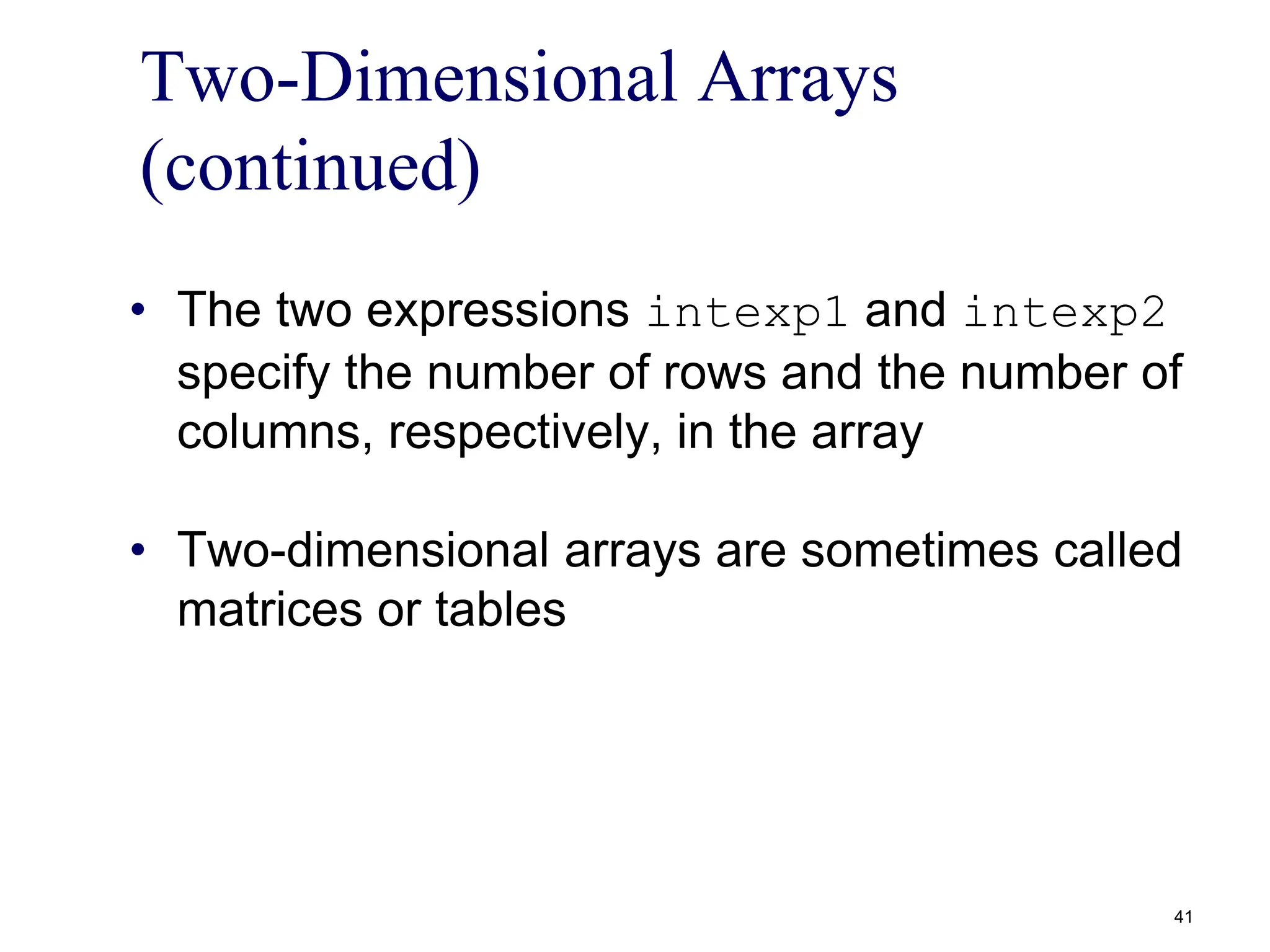

(continued)
• The two expressions intexp1 and intexp2
specify the number of rows and the number of
columns, respectively, in the array
• Two-dimensional arrays are sometimes called
matrices or tables
41

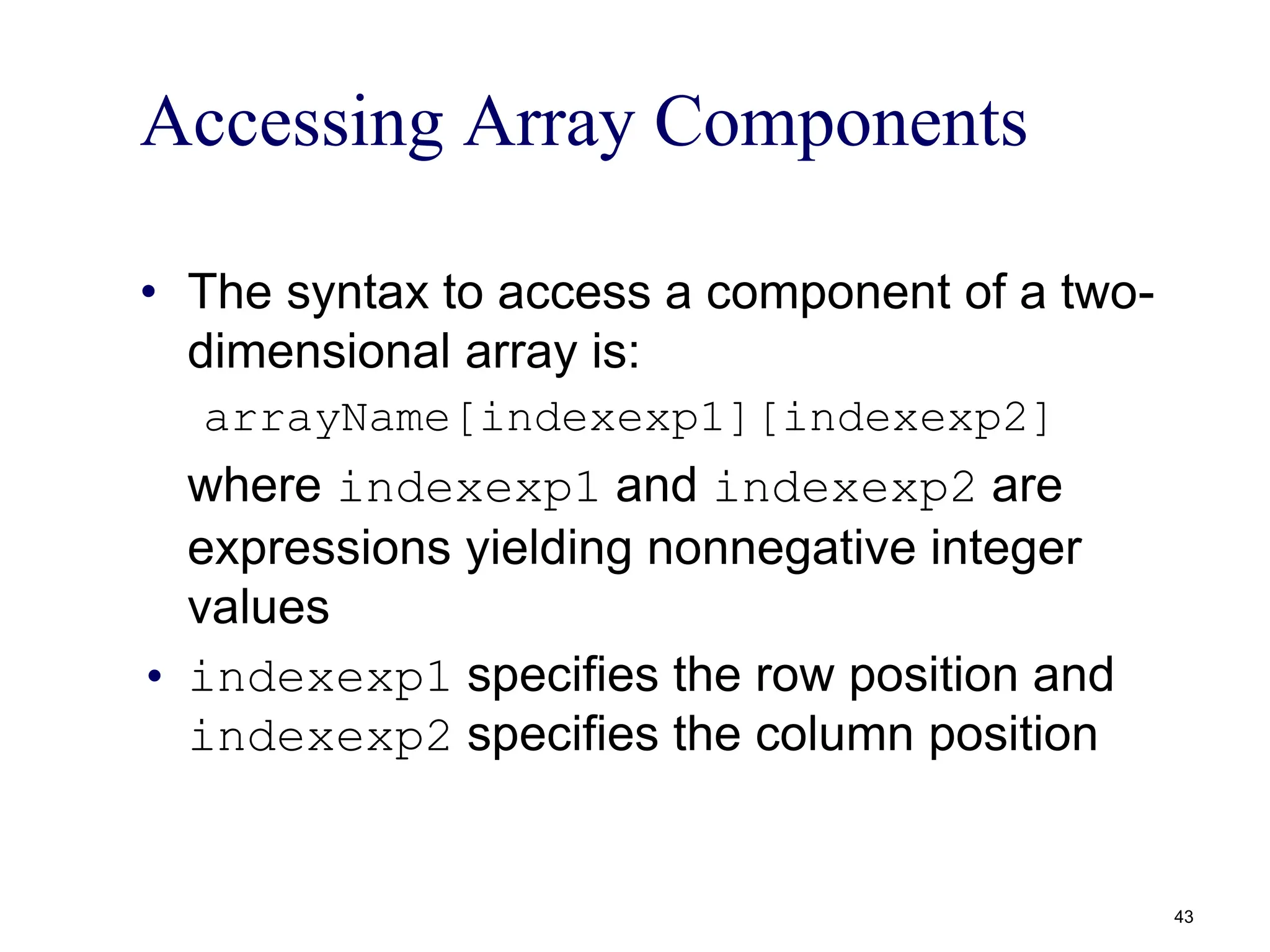

• The syntax to access a component of a two-
arrayName[indexexp1][indexexp2]
where indexexp1 and indexexp2 are
expressions yielding nonnegative integer
values
• indexexp1 specifies the row position and
indexexp2 specifies the column position
43

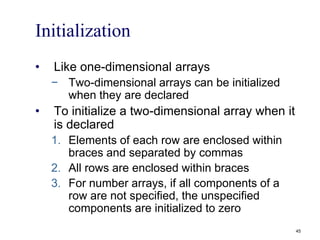

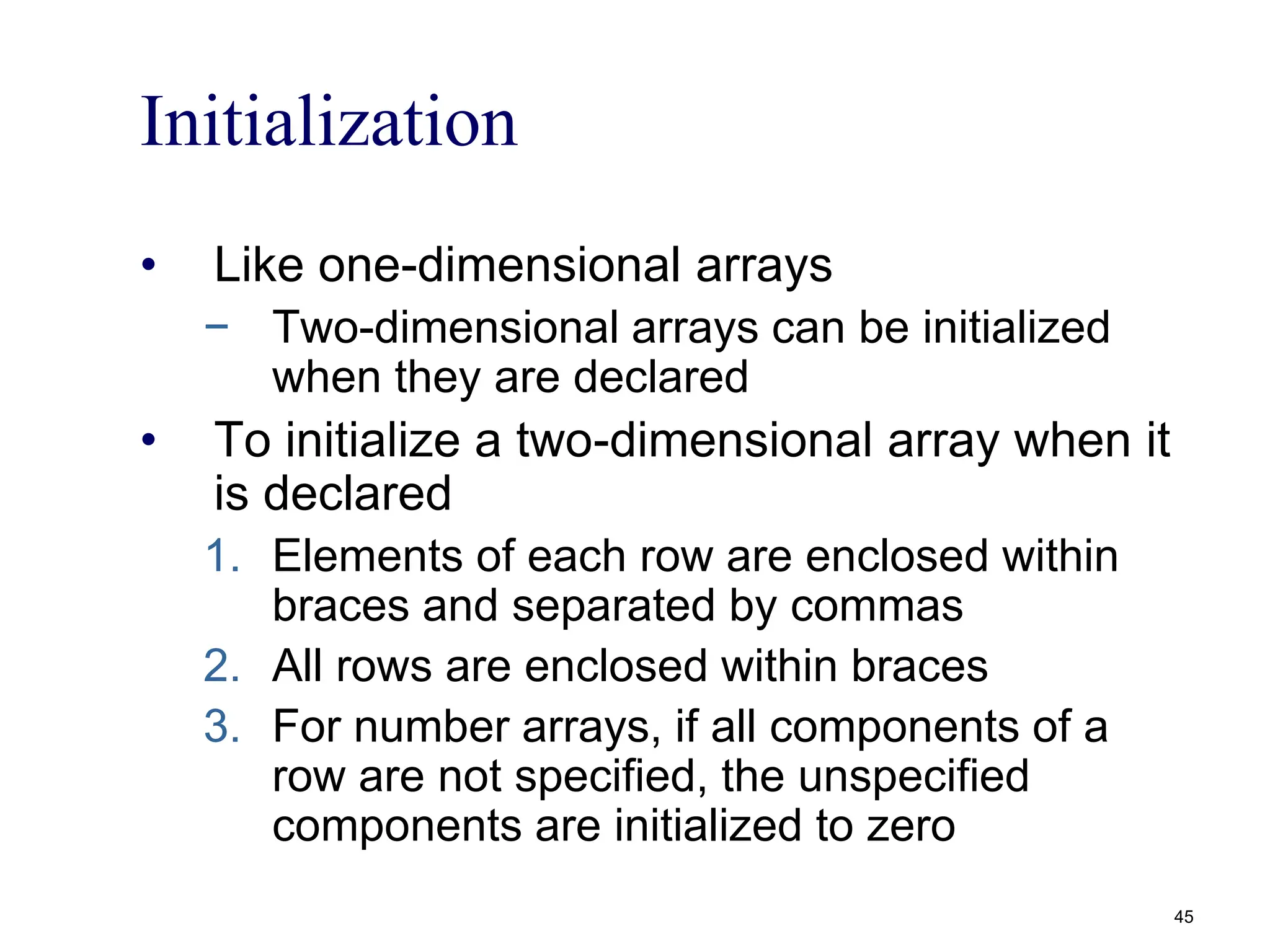

Initialization
• Like one-dimensional arrays
− Two-dimensional arrays can be initialized
when they are declared
• To initialize a two-dimensional array when it
is declared
1. Elements of each row are enclosed within
braces and separated by commas
2. All rows are enclosed within braces
3. For number arrays, if all components of a
row are not specified, the unspecified
components are initialized to zero
45

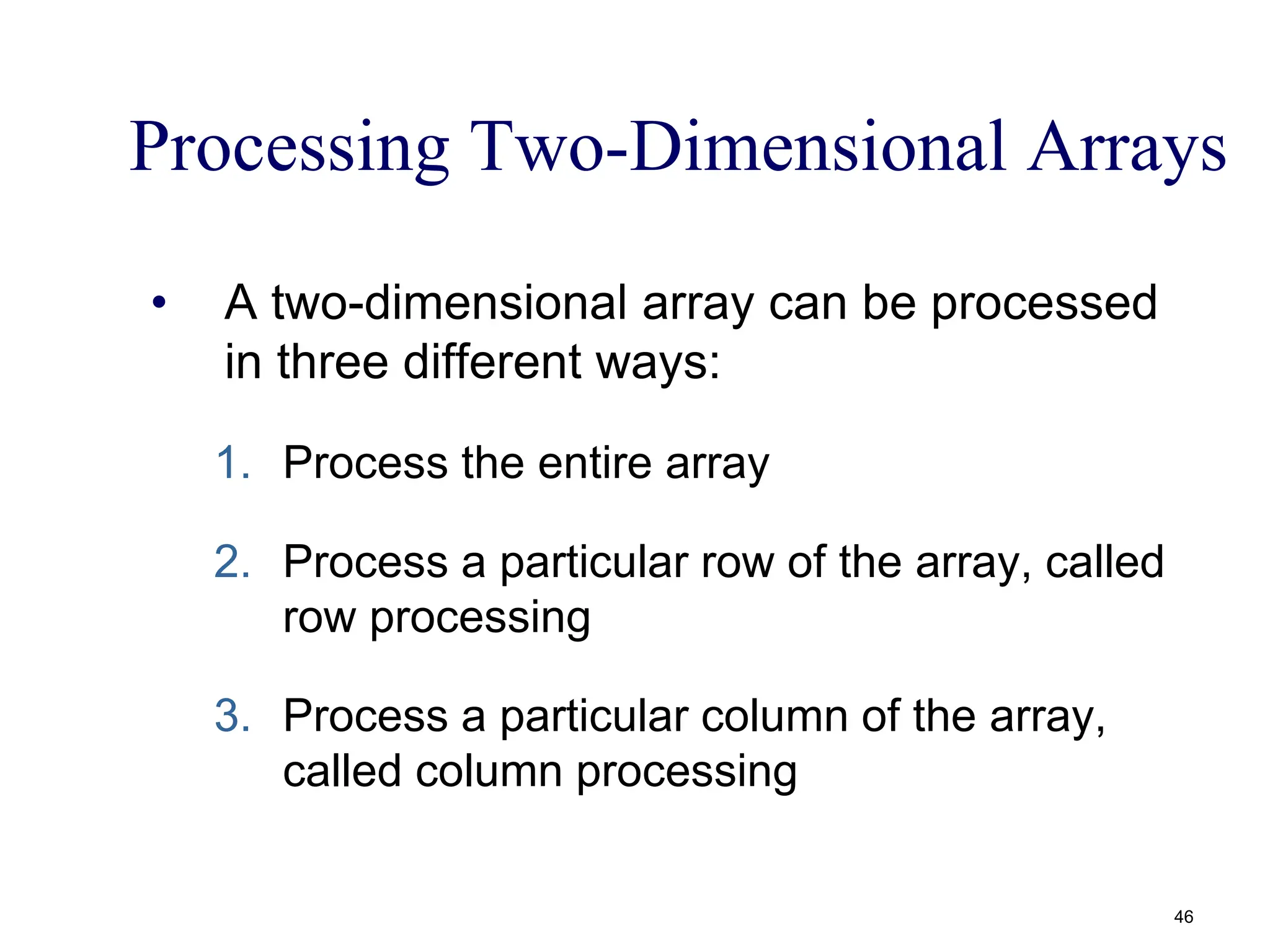

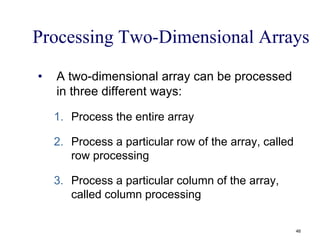

Processing Two-Dimensional Arrays
• A two-dimensional array can be processed
in three different ways:
1. Process the entire array
2. Process a particular row of the array, called
row processing
3. Process a particular column of the array,
called column processing
46

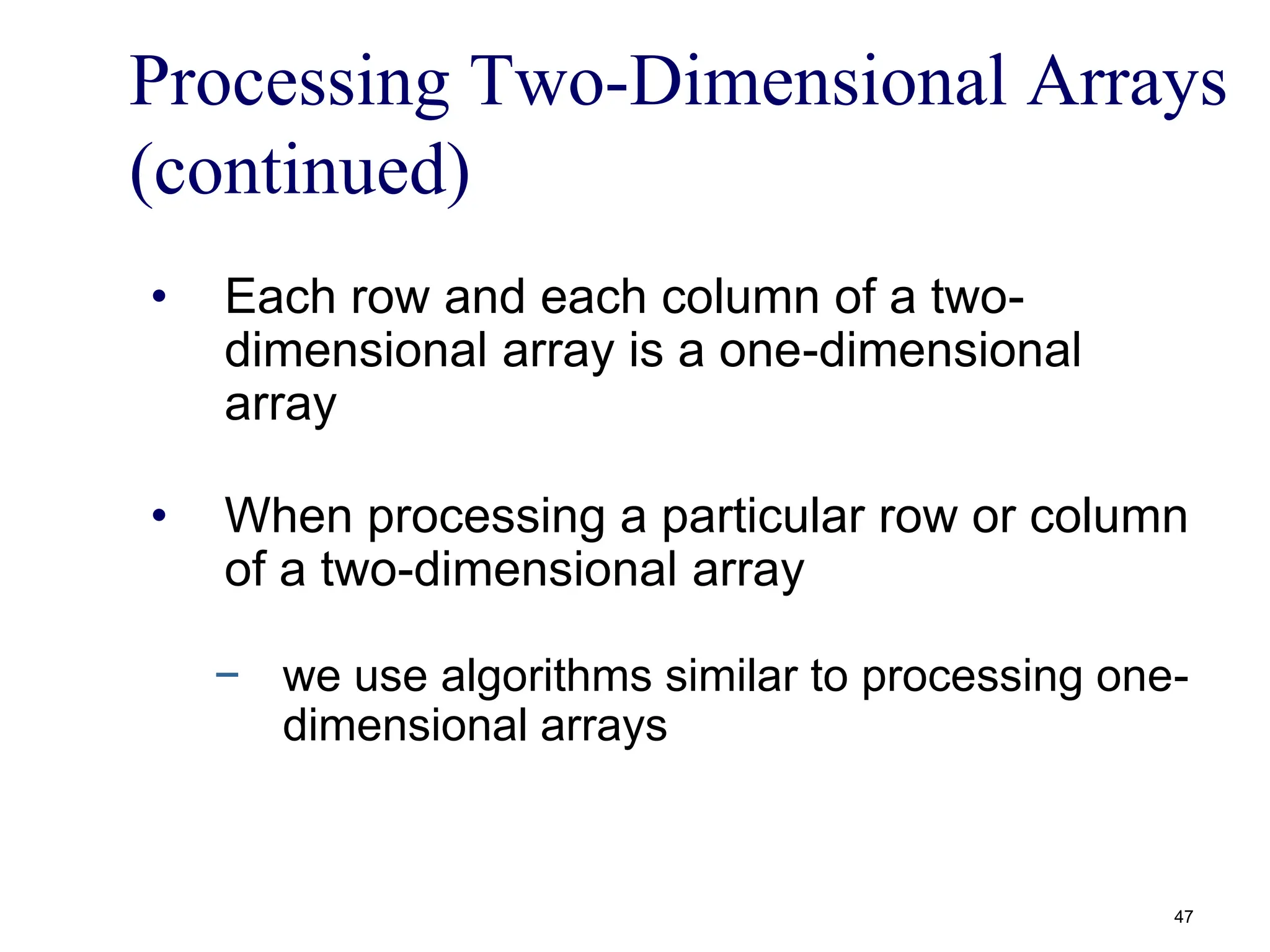

Processing Two-Dimensional Arrays
(continued)
• Each row and each column of a two-
dimensional array is a one-dimensional
array
• When processing a particular row or column
of a two-dimensional array
− we use algorithms similar to processing one-
dimensional arrays
47

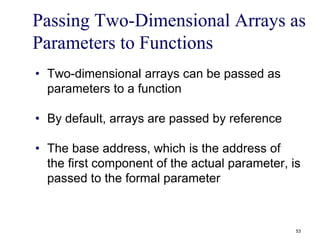

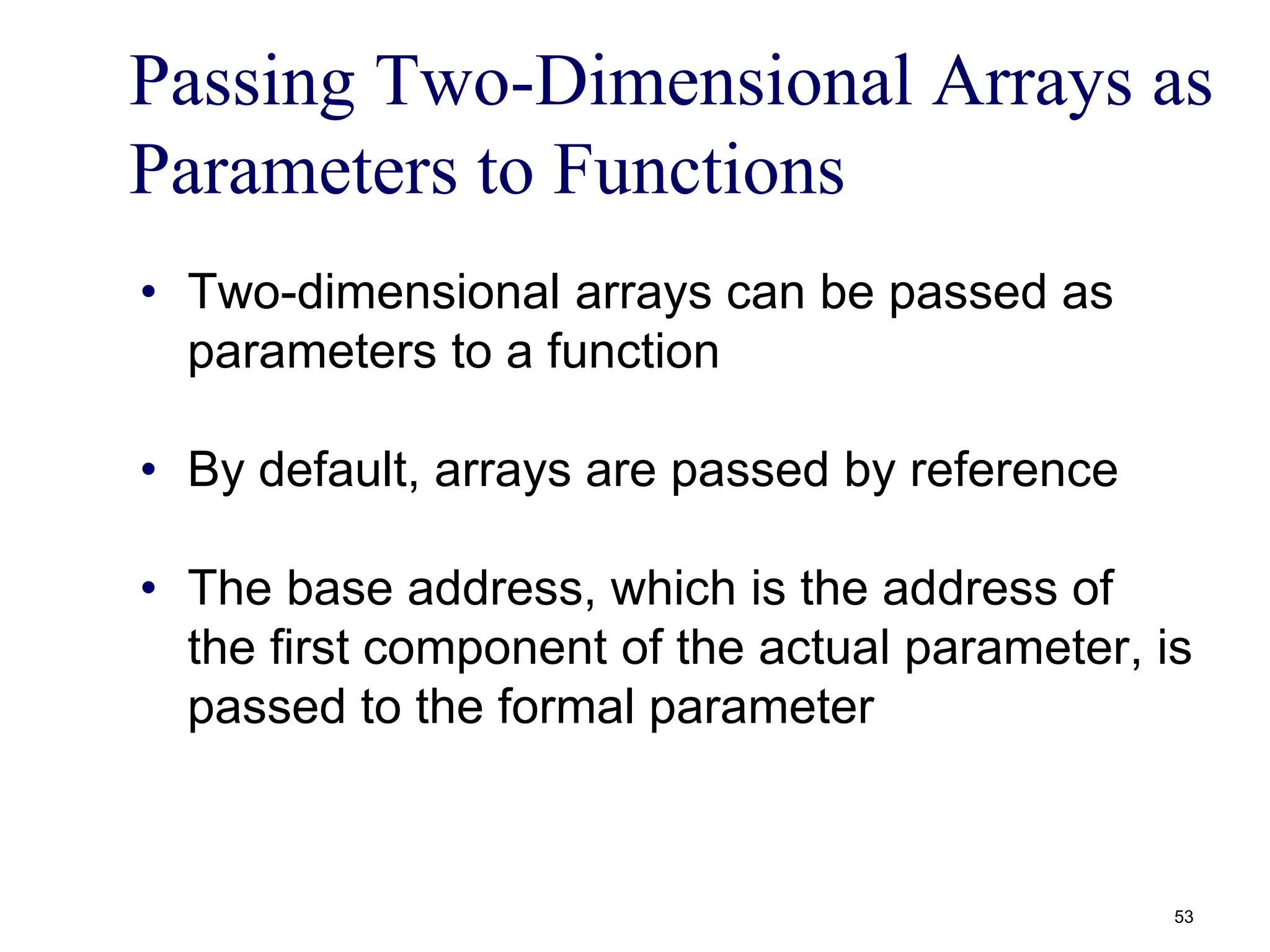

Passing Two-Dimensional Arrays as
Parameters to Functions
• Two-dimensional arrays can be passed as
parameters to a function
• By default, arrays are passed by reference
• The base address, which is the address of
the first component of the actual parameter, is
passed to the formal parameter
53

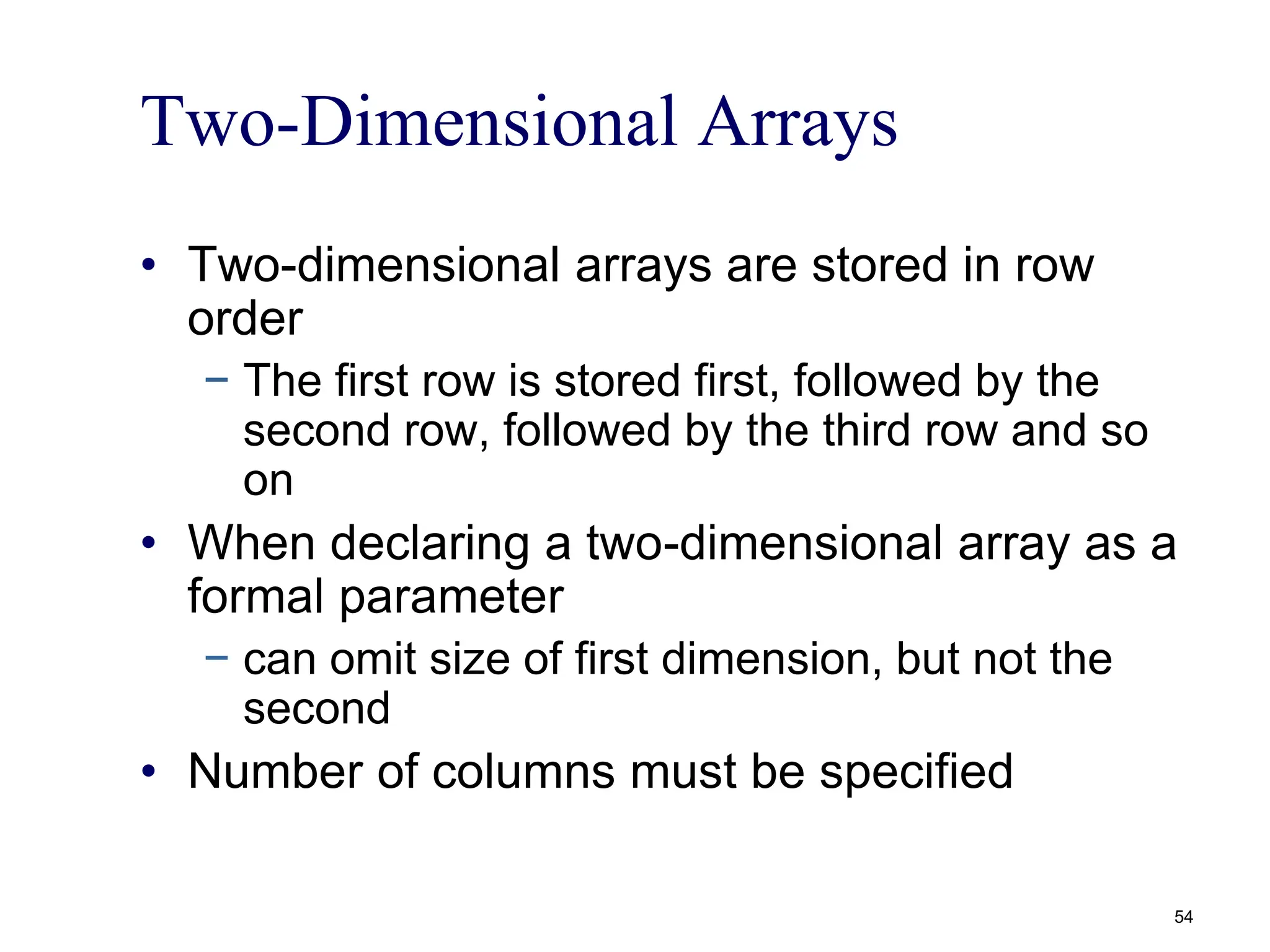

• Two-dimensional arrays are stored in row
order
− The first row is stored first, followed by the
second row, followed by the third row and so
on
• When declaring a two-dimensional array as a
formal parameter
− can omit size of first dimension, but not the
second
• Number of columns must be specified
54

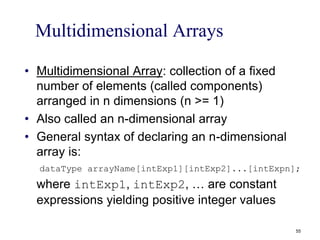

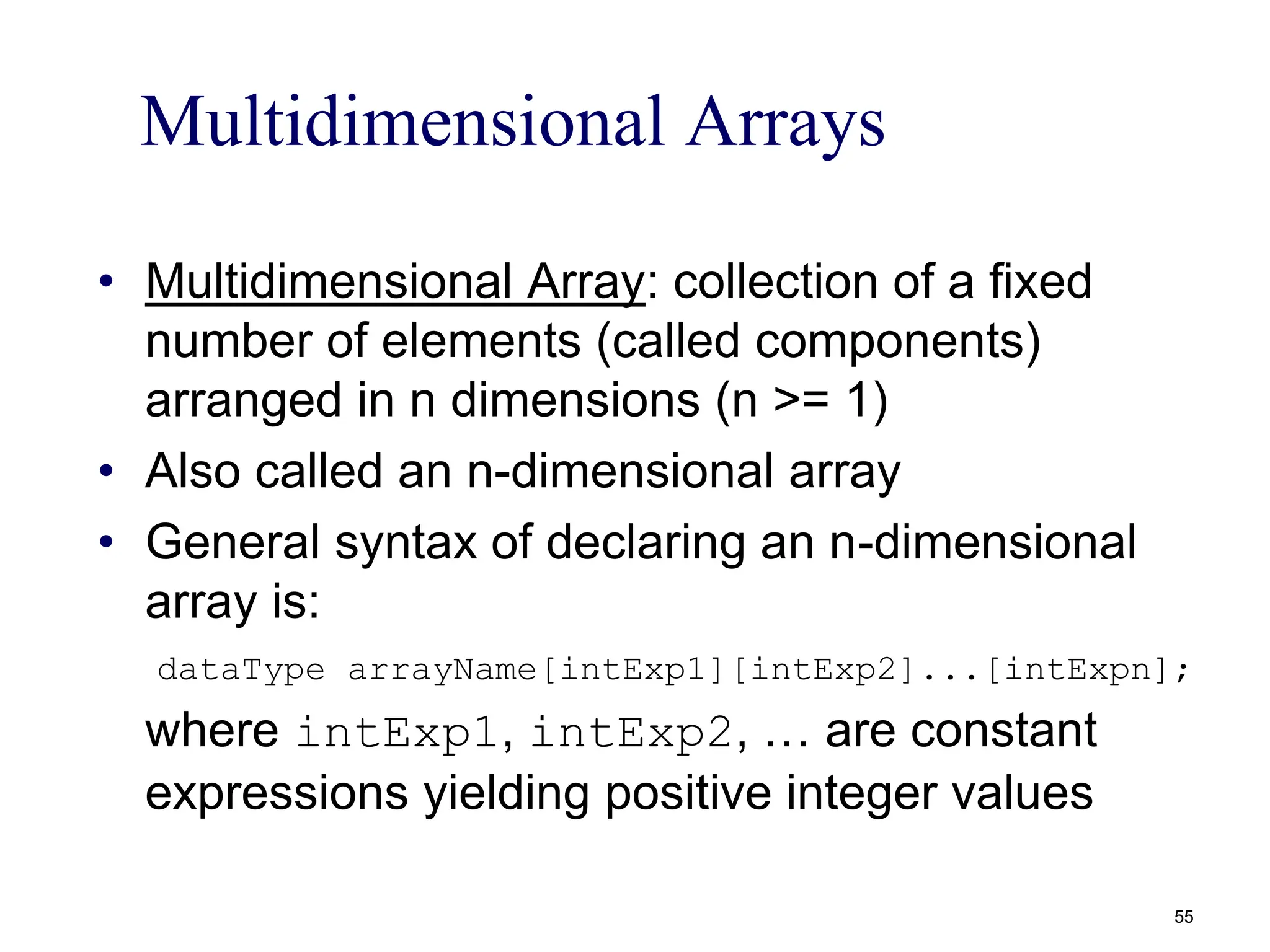

Multidimensional Arrays
• Multidimensional Array: collection of a fixed
number of elements (called components)
arranged in n dimensions (n >= 1)
• Also called an n-dimensional array
• General syntax of declaring an n-dimensional
array is:
dataType arrayName[intExp1][intExp2]...[intExpn];
where intExp1, intExp2, … are constant
expressions yielding positive integer values
55

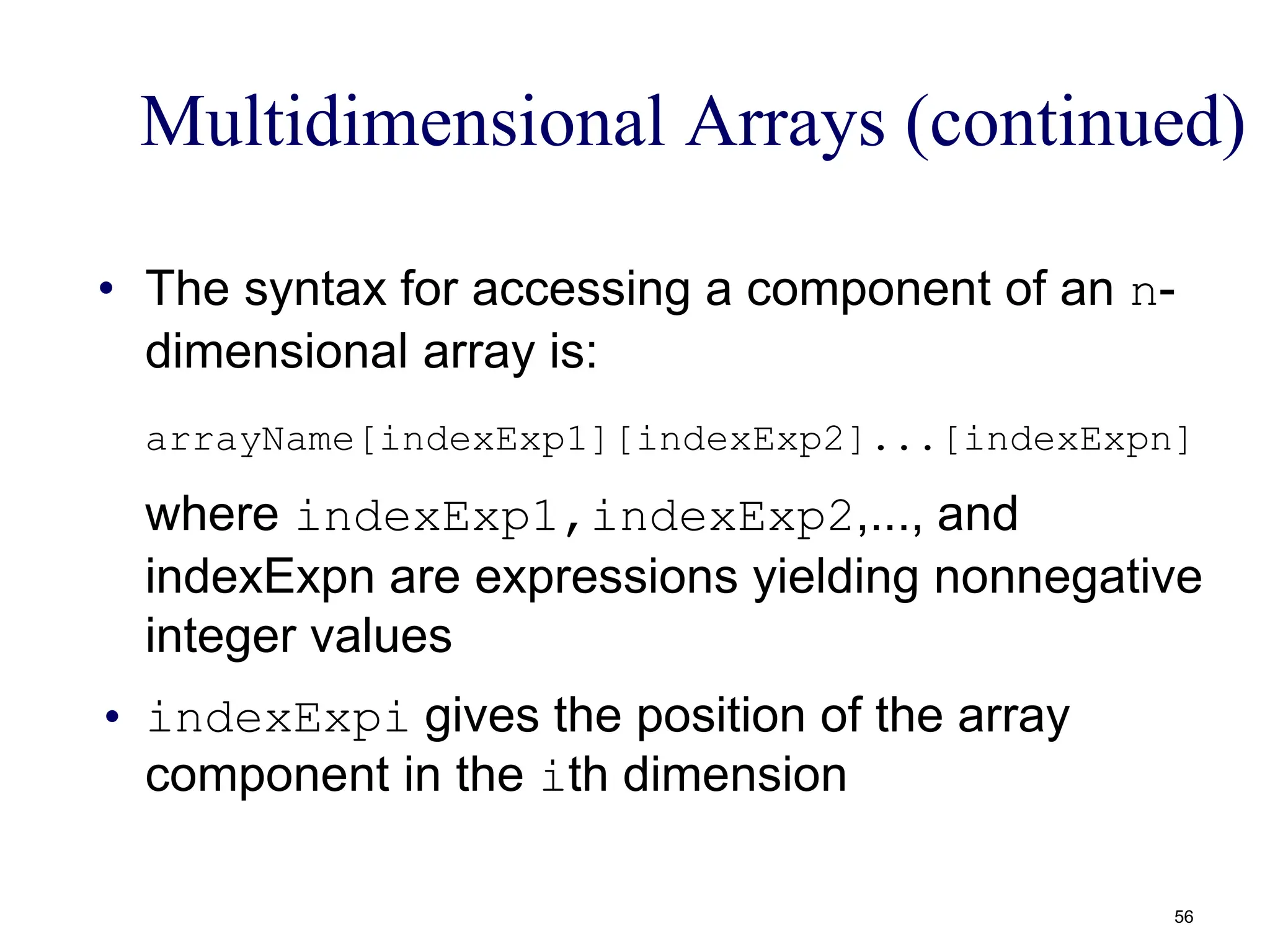

Multidimensional Arrays (continued)
• The syntax for accessing a component of an n-
arrayName[indexExp1][indexExp2]...[indexExpn]
where indexExp1,indexExp2,..., and
indexExpn are expressions yielding nonnegative
integer values
• indexExpi gives the position of the array
component in the ith dimension
56

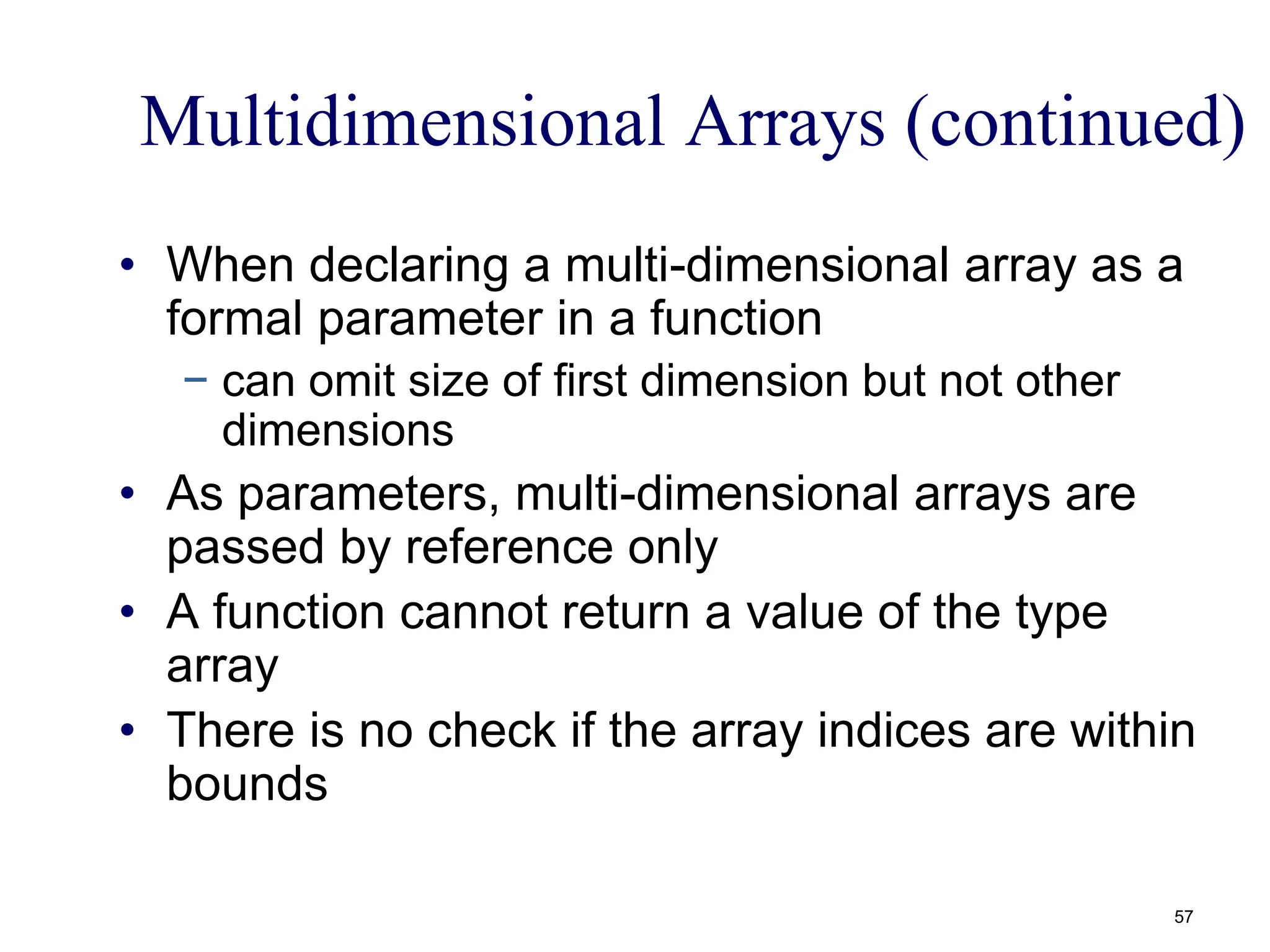

Multidimensional Arrays (continued)
• When declaring a multi-dimensional array as a
formal parameter in a function
− can omit size of first dimension but not other
dimensions
• As parameters, multi-dimensional arrays are
passed by reference only
• A function cannot return a value of the type
array
• There is no check if the array indices are within
bounds
57

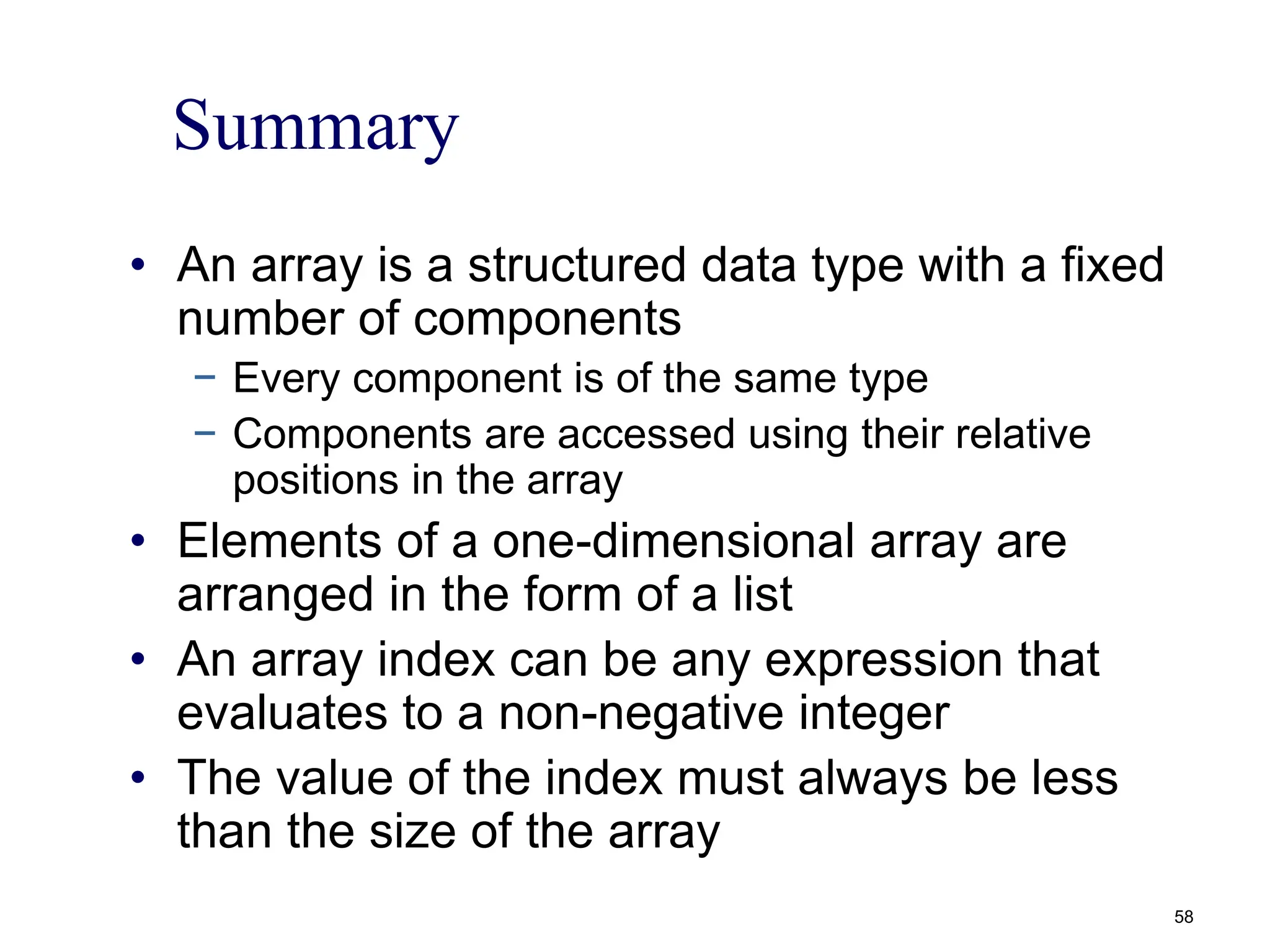

Summary
• An array is a structured data type with a fixed
number of components
− Every component is of the same type
− Components are accessed using their relative
positions in the array
• Elements of a one-dimensional array are
arranged in the form of a list
• An array index can be any expression that
evaluates to a non-negative integer
• The value of the index must always be less
than the size of the array
58

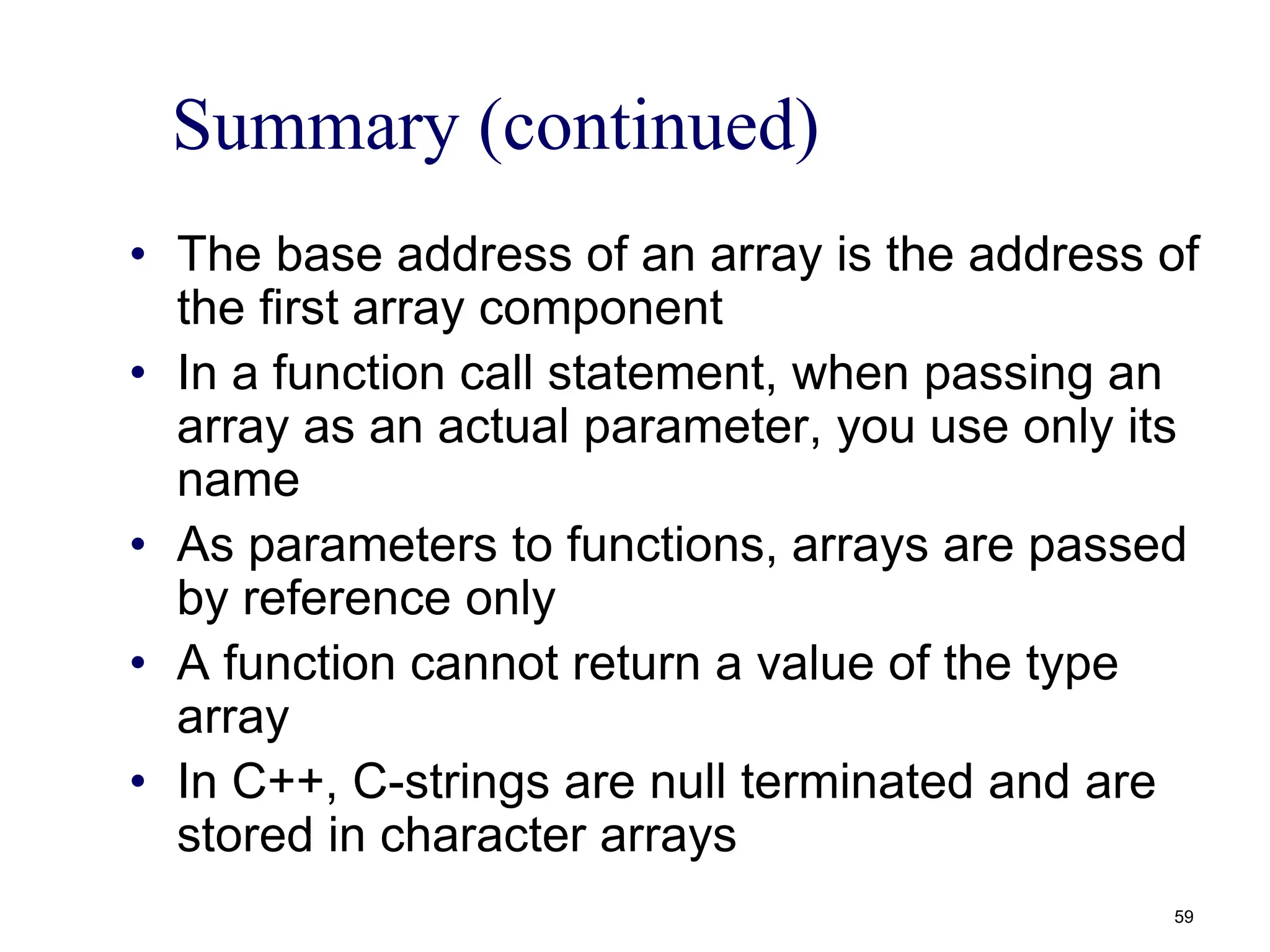

Summary (continued)
• The base address of an array is the address of
the first array component
• In a function call statement, when passing an
array as an actual parameter, you use only its
name
• As parameters to functions, arrays are passed
by reference only
• A function cannot return a value of the type
array
• In C++, C-strings are null terminated and are
stored in character arrays
59

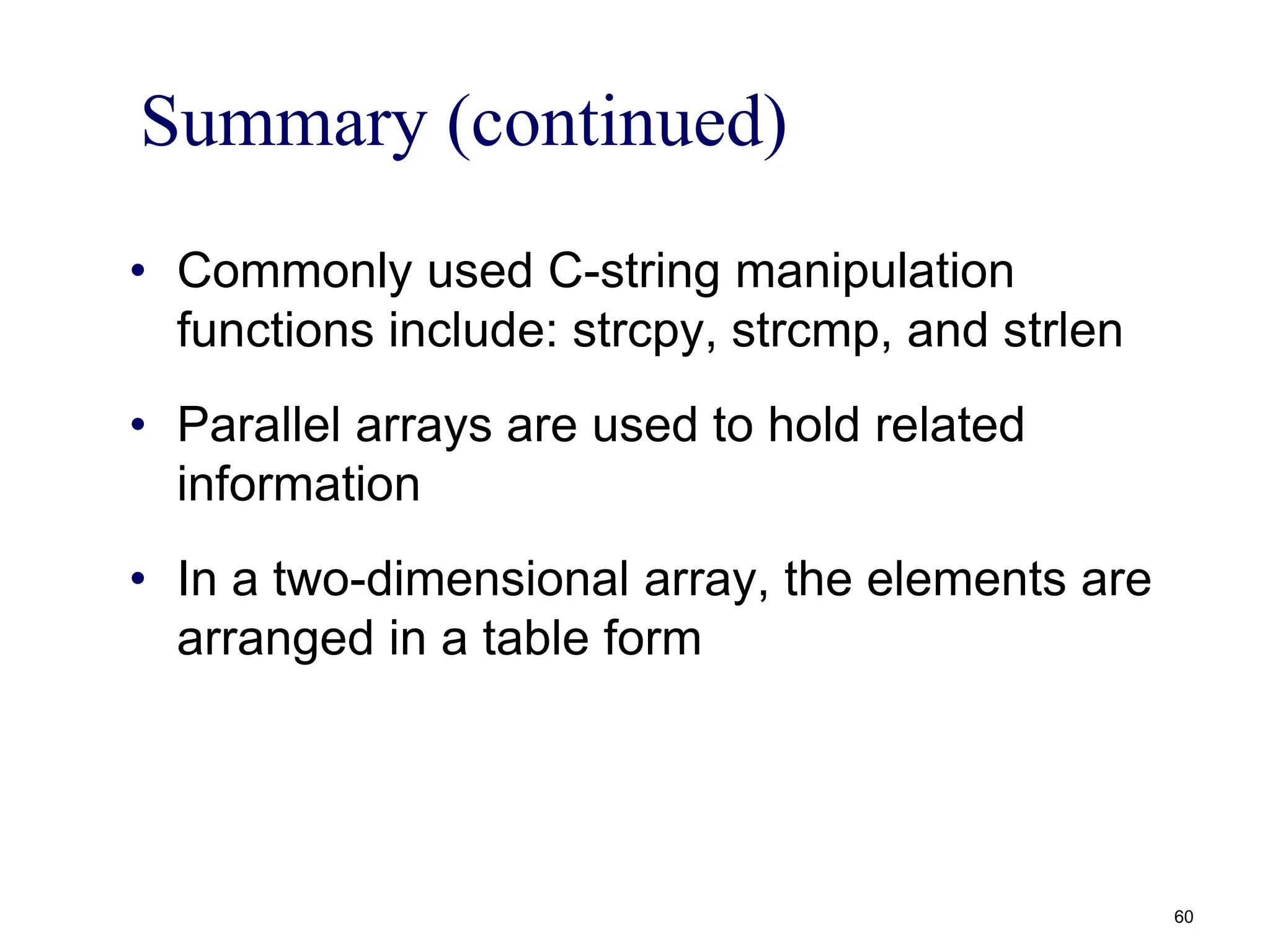

Summary (continued)

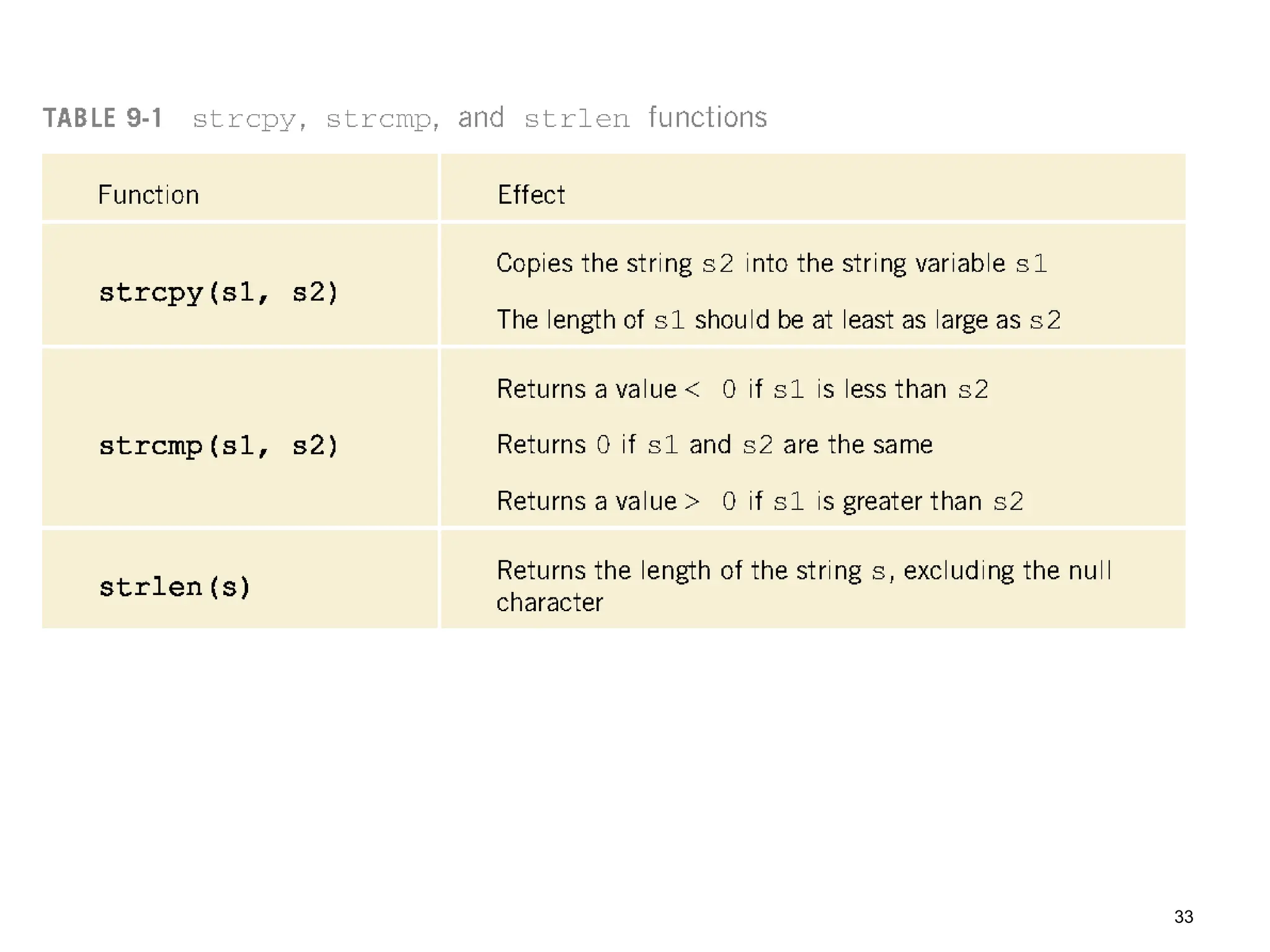

• Commonly used C-string manipulation
functions include: strcpy, strcmp, and strlen
• Parallel arrays are used to hold related
information
• In a two-dimensional array, the elements are
arranged in a table form
60

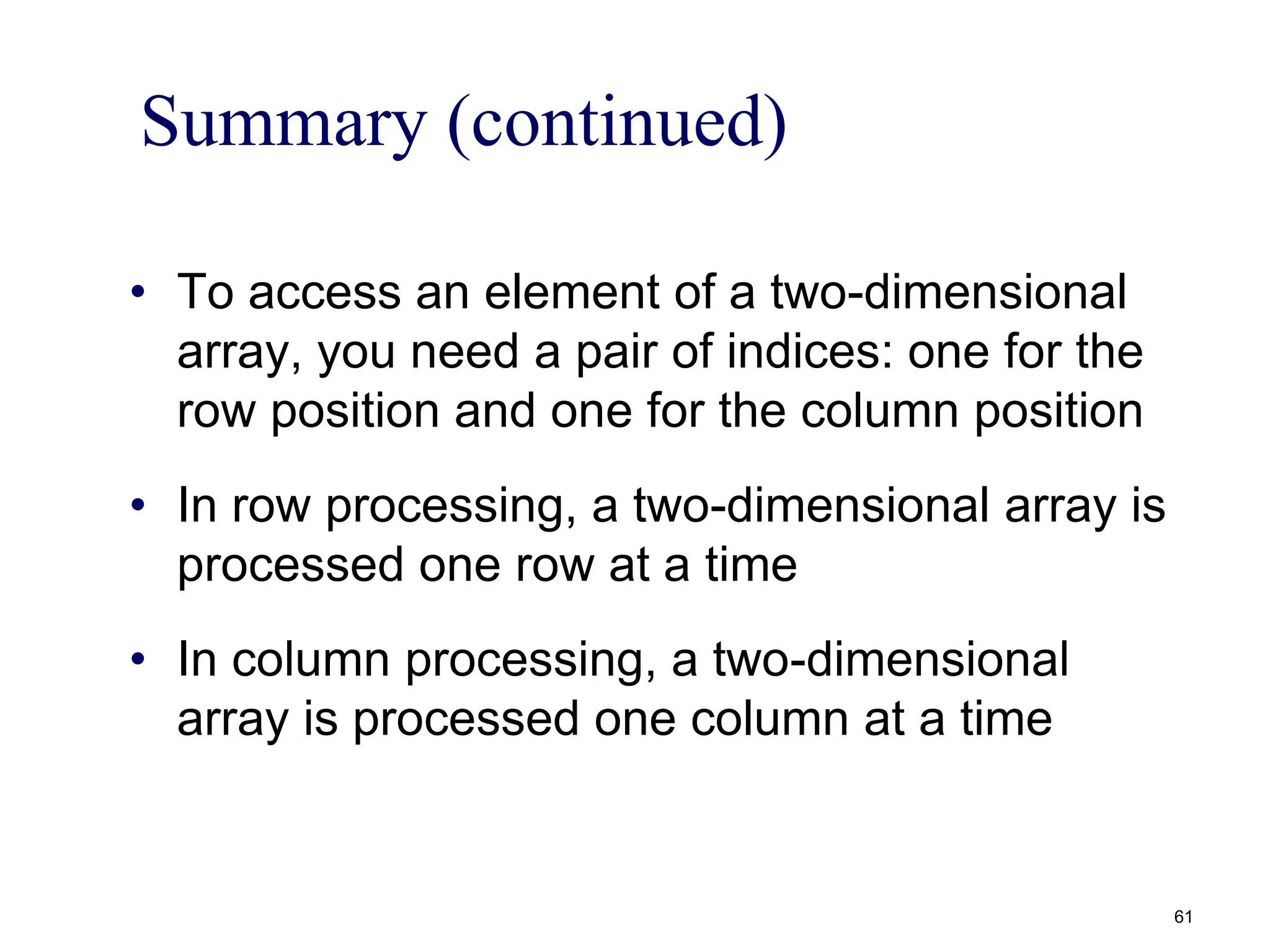

Summary (continued)
• To access an element of a two-dimensional
array, you need a pair of indices: one for the
row position and one for the column position
• In row processing, a two-dimensional array is
processed one row at a time
• In column processing, a two-dimensional
array is processed one column at a time
61

Arrays_and_Strings_in_C_Programming.pptx

More Related Content

Similar to Arrays_and_Strings_in_C_Programming.pptx

Recently uploaded

Arrays_and_Strings_in_C_Programming.pptx
