Atlassian Bamboo Feature Overview
The document provides an overview of Bamboo, a continuous integration and delivery tool, detailing supported platforms, user authentication options, databases, source repositories, build systems, and unit test frameworks. It outlines capacity tiers and pricing for remote agents, build triggers, and features for managing unit test failures and optimized development workflows. Additionally, it discusses deployment task types, incremental release versioning, and plugin development capabilities.
More Related Content
Similar to Atlassian Bamboo Feature Overview
Atlassian Bamboo Feature Overview
- 1. Jim Bethancourt @Houston JUG meeting Nov 30th 2016 All images property of Atlassian

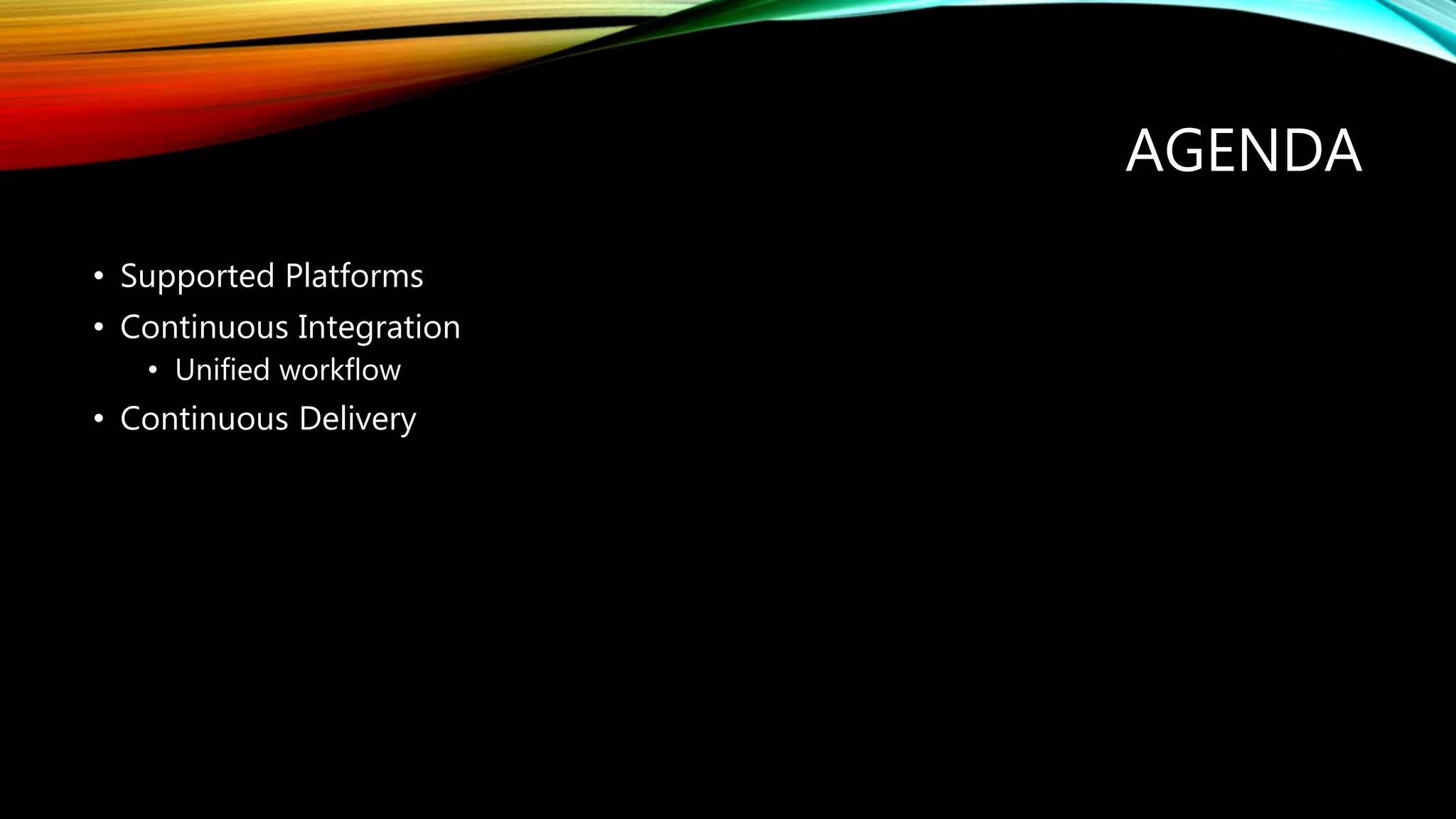

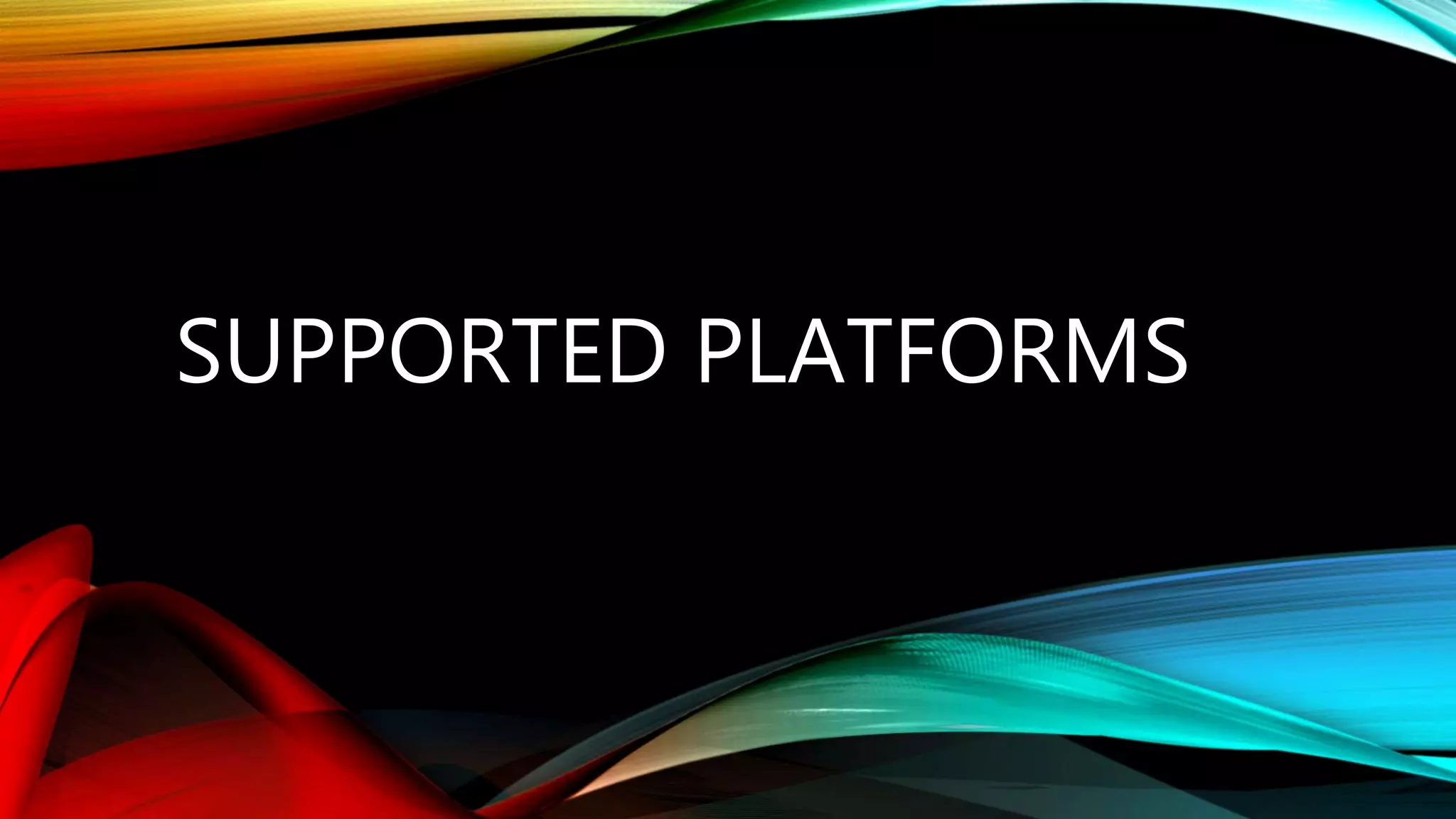

- 2. AGENDA • Supported Platforms •Continuous Integration • Unified workflow • Continuous Delivery
- 3.

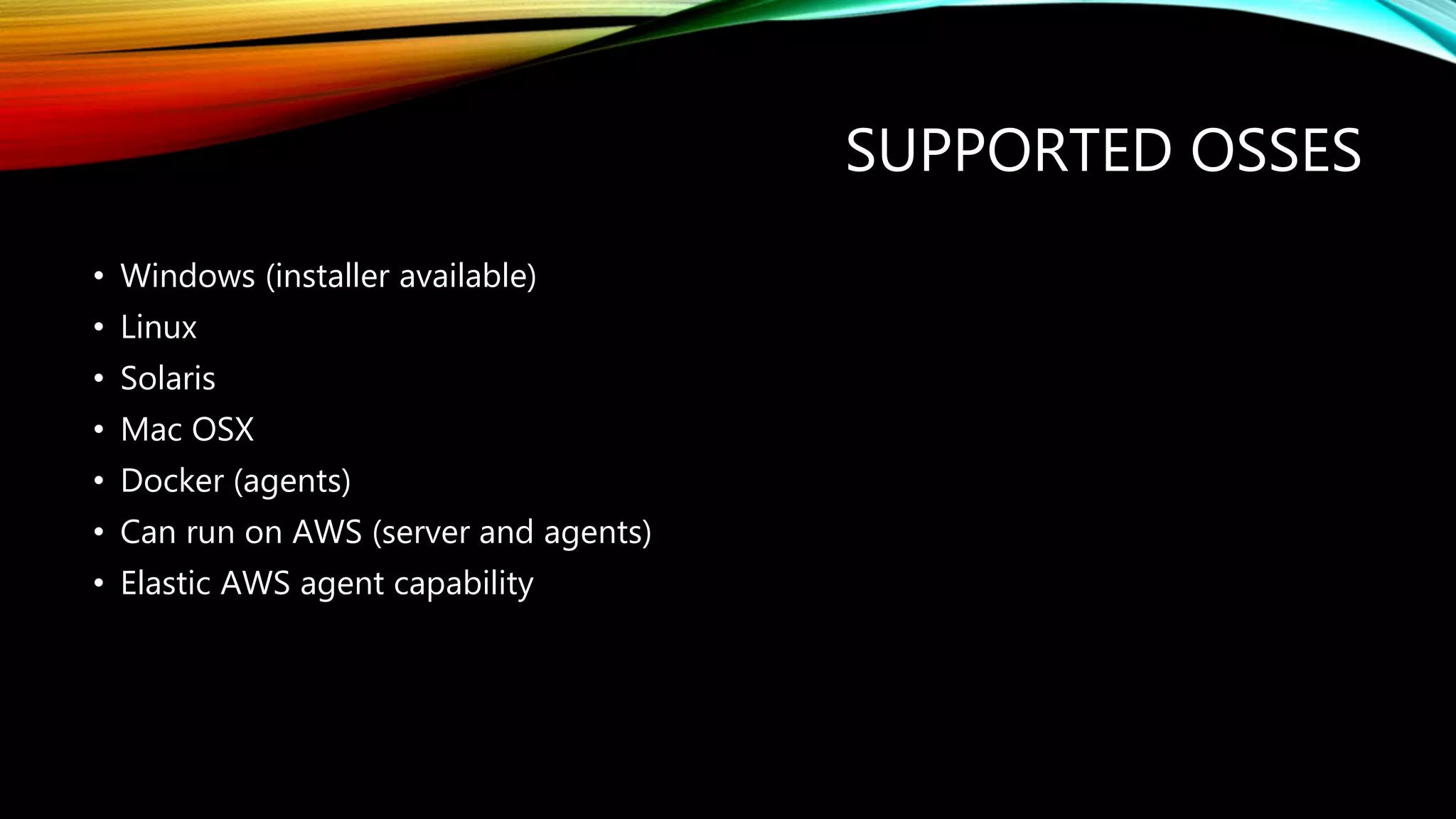

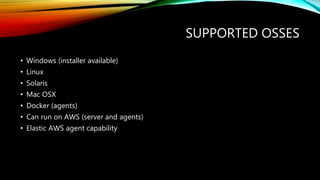

- 4. SUPPORTED OSSES • Windows(installer available) • Linux • Solaris • Mac OSX • Docker (agents) • Can run on AWS (server and agents) • Elastic AWS agent capability

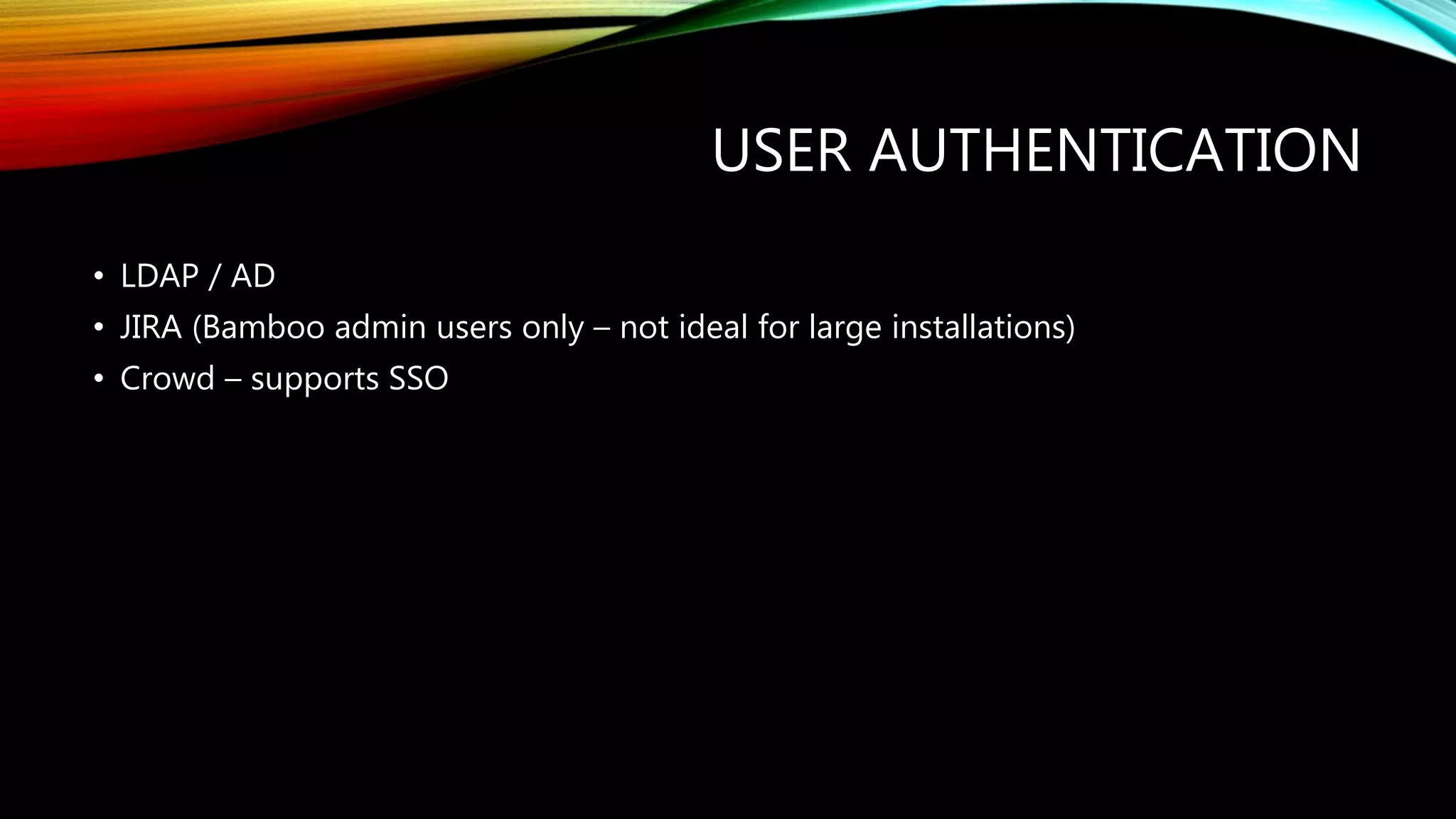

- 5. USER AUTHENTICATION • LDAP/ AD • JIRA (Bamboo admin users only – not ideal for large installations) • Crowd – supports SSO

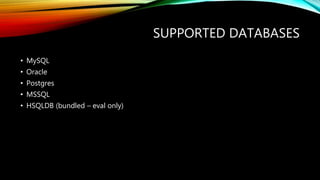

- 6. SUPPORTED DATABASES • MySQL •Oracle • Postgres • MSSQL • HSQLDB (bundled – eval only)

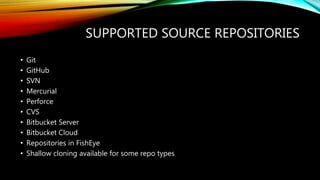

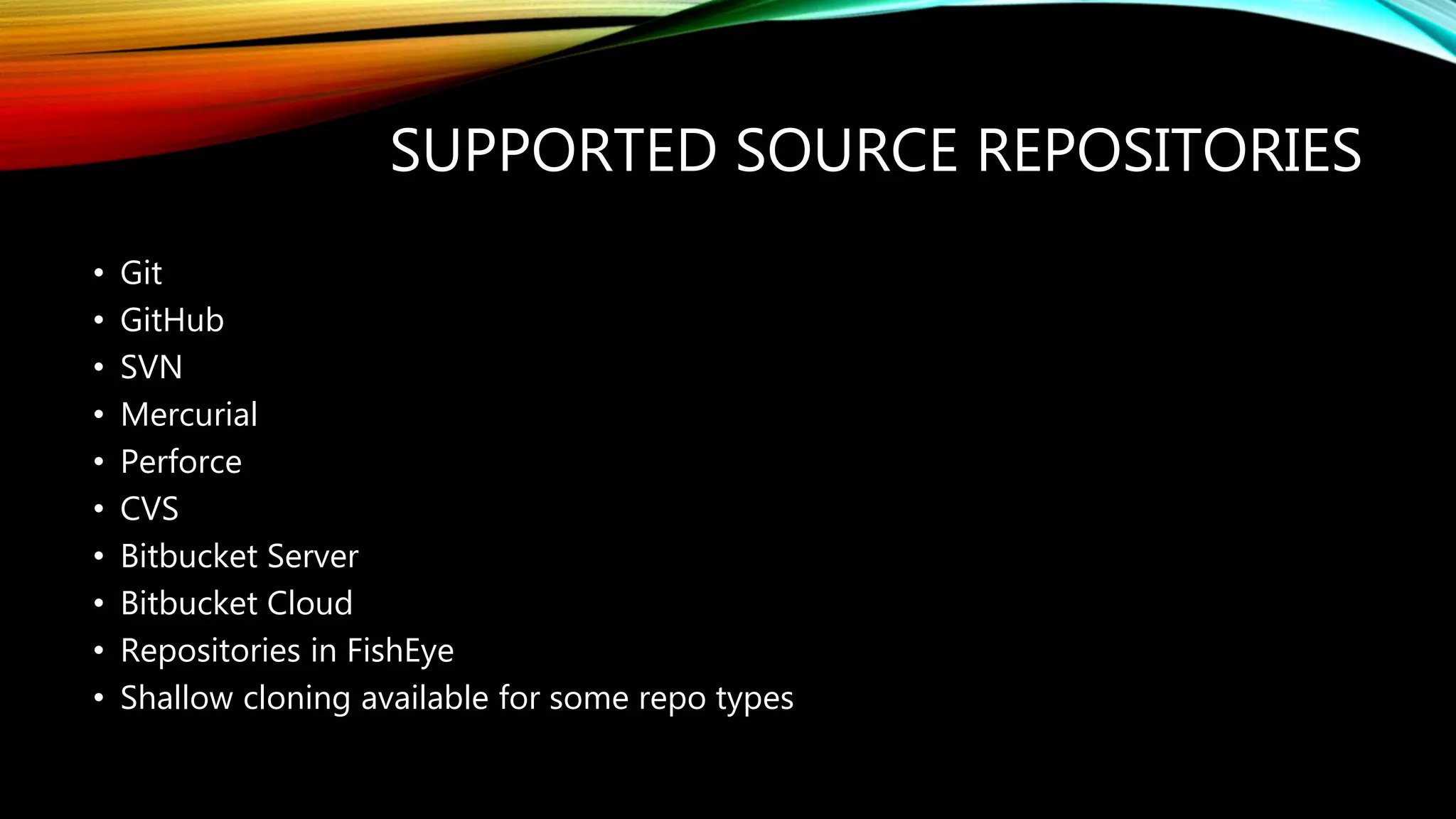

- 7. SUPPORTED SOURCE REPOSITORIES •Git • GitHub • SVN • Mercurial • Perforce • CVS • Bitbucket Server • Bitbucket Cloud • Repositories in FishEye • Shallow cloning available for some repo types

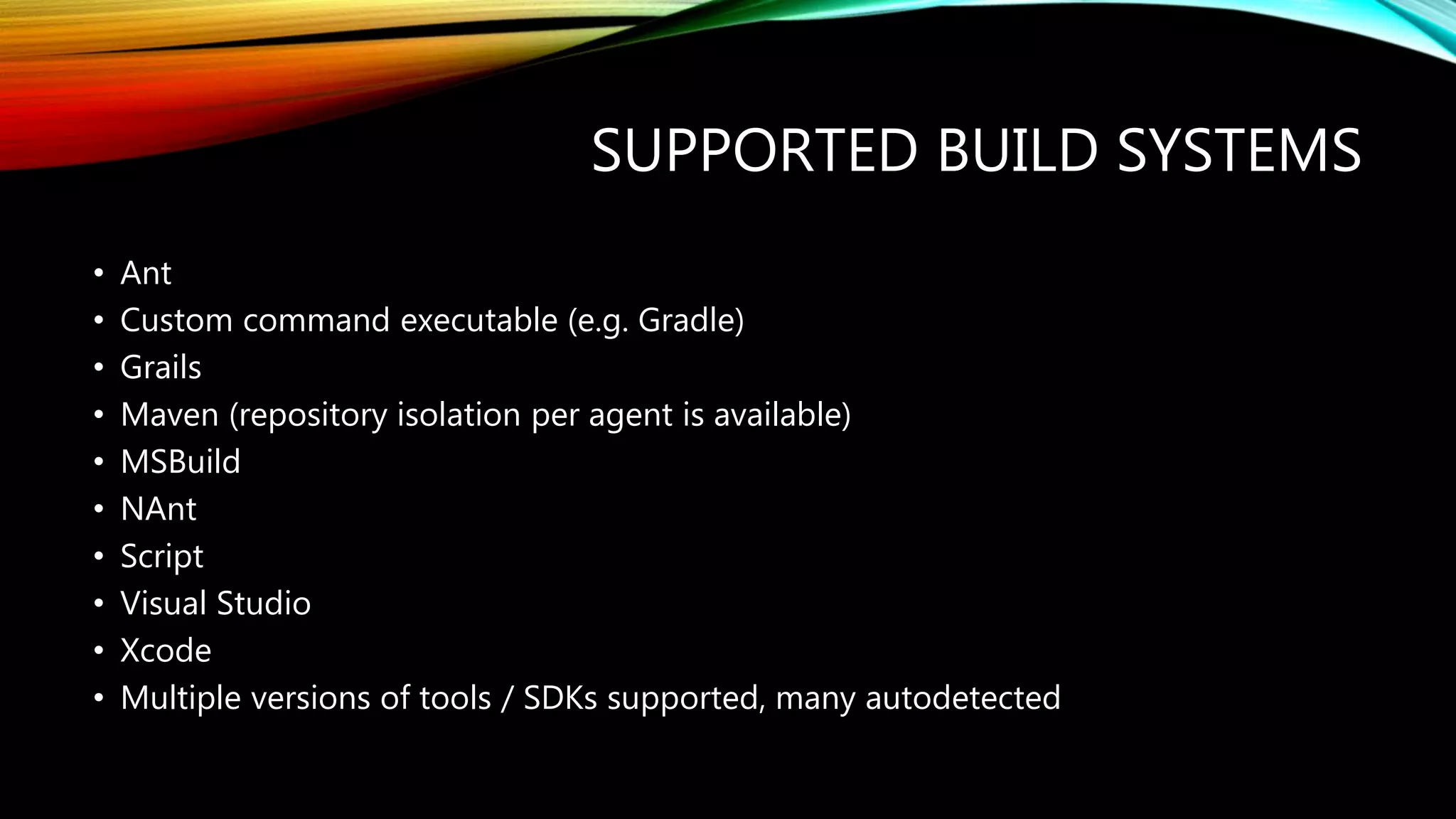

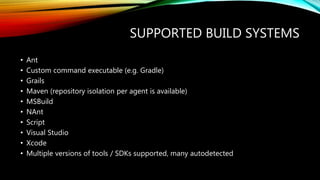

- 8. SUPPORTED BUILD SYSTEMS •Ant • Custom command executable (e.g. Gradle) • Grails • Maven (repository isolation per agent is available) • MSBuild • NAnt • Script • Visual Studio • Xcode • Multiple versions of tools / SDKs supported, many autodetected

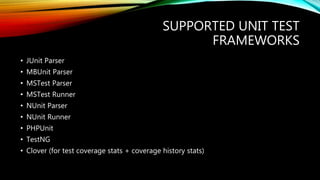

- 9. SUPPORTED UNIT TEST FRAMEWORKS •JUnit Parser • MBUnit Parser • MSTest Parser • MSTest Runner • NUnit Parser • NUnit Runner • PHPUnit • TestNG • Clover (for test coverage stats + coverage history stats)

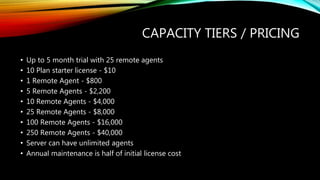

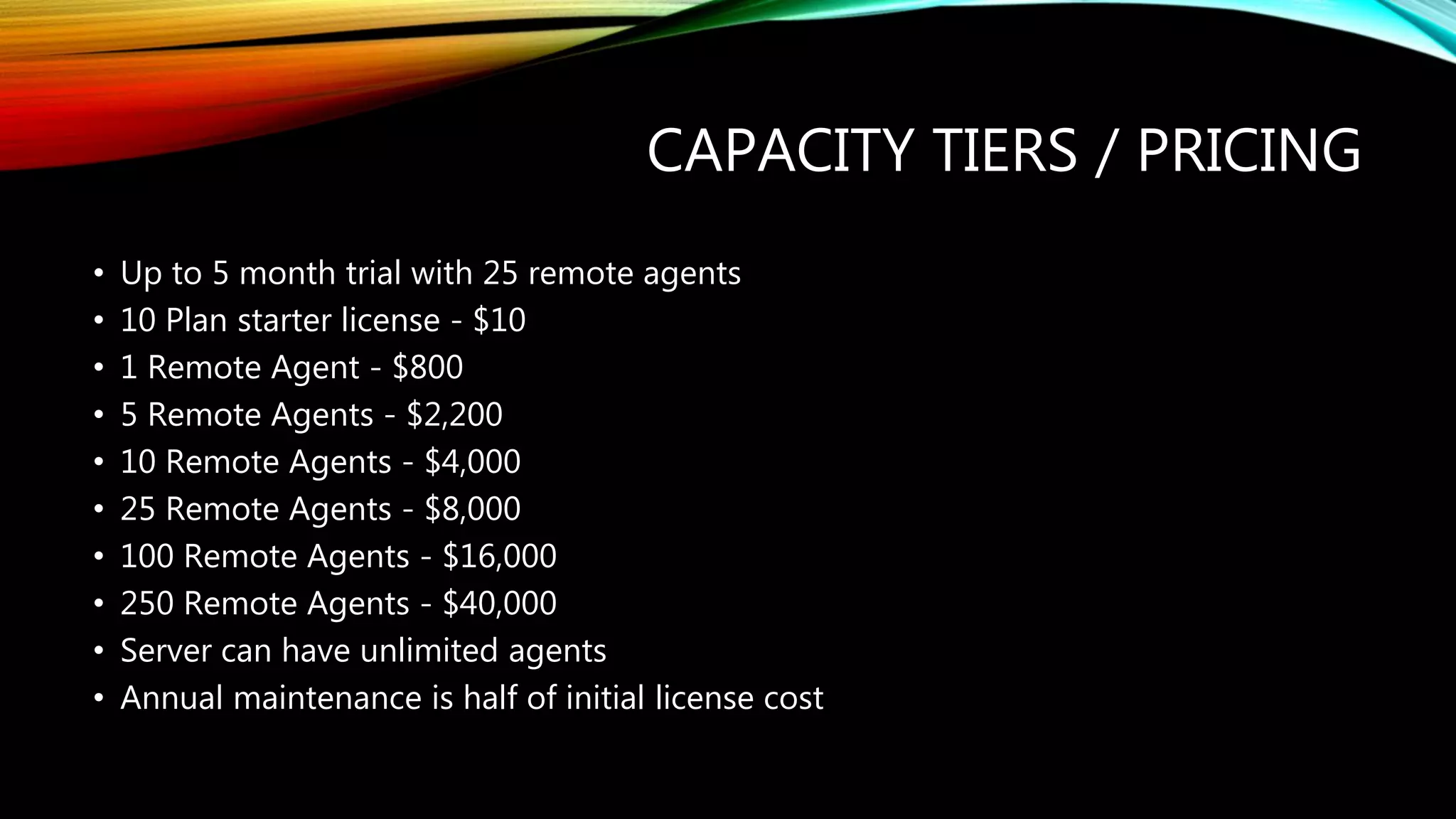

- 10. CAPACITY TIERS /PRICING • Up to 5 month trial with 25 remote agents • 10 Plan starter license - $10 • 1 Remote Agent - $800 • 5 Remote Agents - $2,200 • 10 Remote Agents - $4,000 • 25 Remote Agents - $8,000 • 100 Remote Agents - $16,000 • 250 Remote Agents - $40,000 • Server can have unlimited agents • Annual maintenance is half of initial license cost

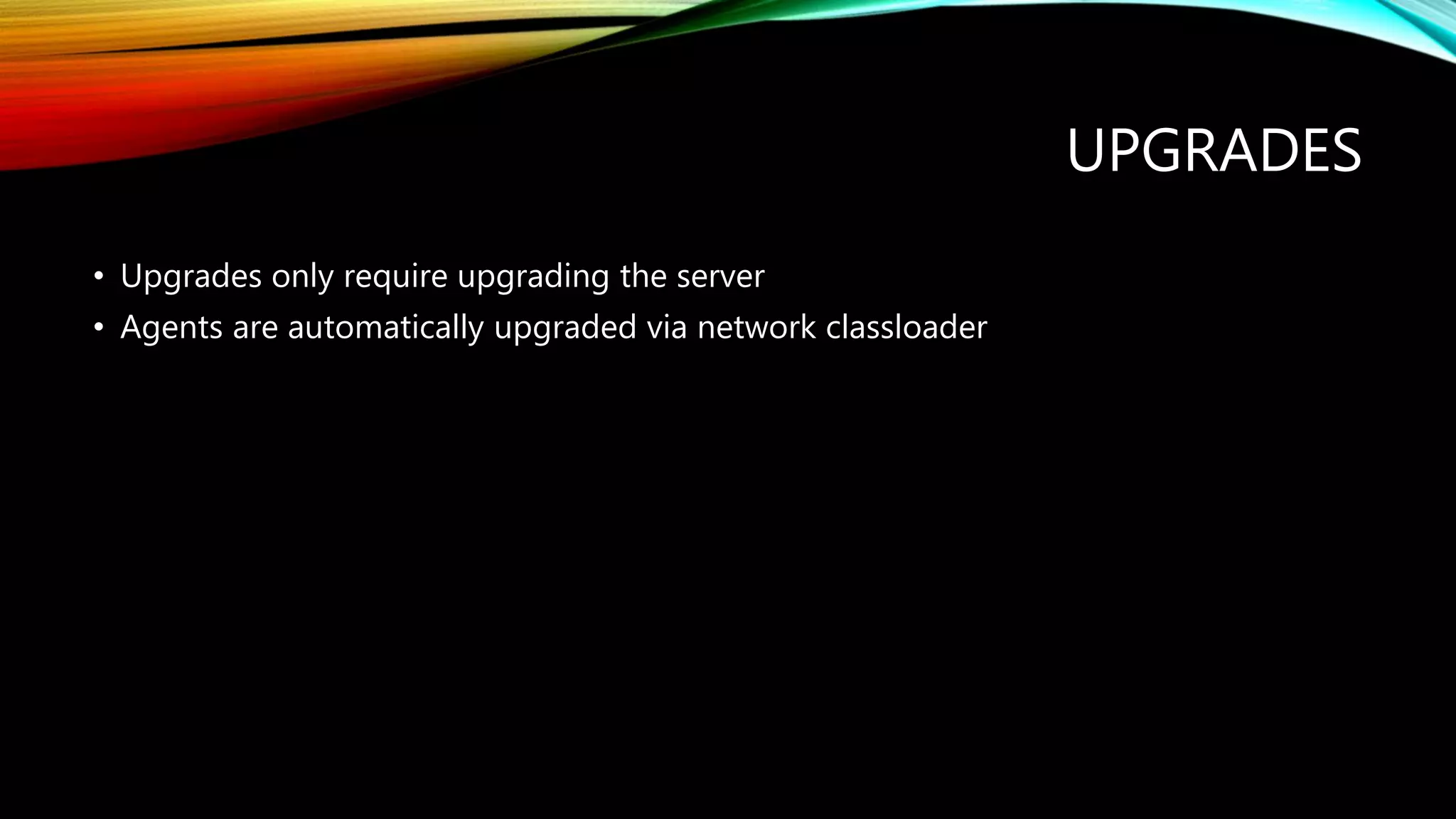

- 11. UPGRADES • Upgrades onlyrequire upgrading the server • Agents are automatically upgraded via network classloader
- 12.
- 13.

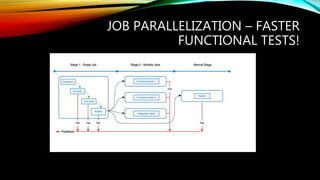

- 14. JOB PARALLELIZATION –FASTER FUNCTIONAL TESTS!

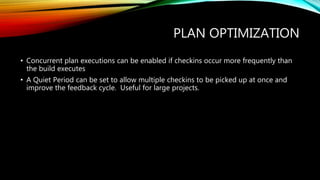

- 15. PLAN OPTIMIZATION • Concurrentplan executions can be enabled if checkins occur more frequently than the build executes • A Quiet Period can be set to allow multiple checkins to be picked up at once and improve the feedback cycle. Useful for large projects.

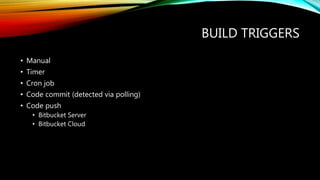

- 16. BUILD TRIGGERS • Manual •Timer • Cron job • Code commit (detected via polling) • Code push • Bitbucket Server • Bitbucket Cloud

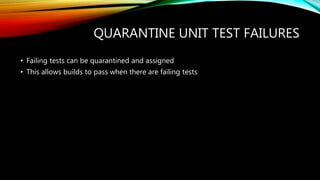

- 17. QUARANTINE UNIT TESTFAILURES • Failing tests can be quarantined and assigned • This allows builds to pass when there are failing tests
- 18.

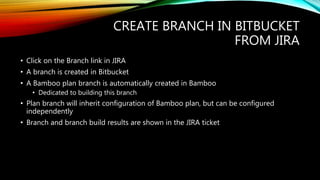

- 19. CREATE BRANCH INBITBUCKET FROM JIRA • Click on the Branch link in JIRA • A branch is created in Bitbucket • A Bamboo plan branch is automatically created in Bamboo • Dedicated to building this branch • Plan branch will inherit configuration of Bamboo plan, but can be configured independently • Branch and branch build results are shown in the JIRA ticket

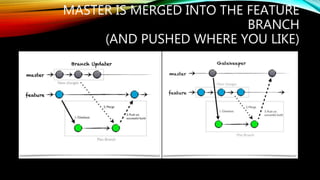

- 20. MASTER IS MERGEDINTO THE FEATURE BRANCH (AND PUSHED WHERE YOU LIKE)
- 21.
- 22.

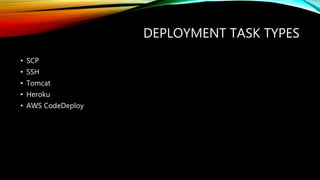

- 23. DEPLOYMENT TASK TYPES •SCP • SSH • Tomcat • Heroku • AWS CodeDeploy
- 24.

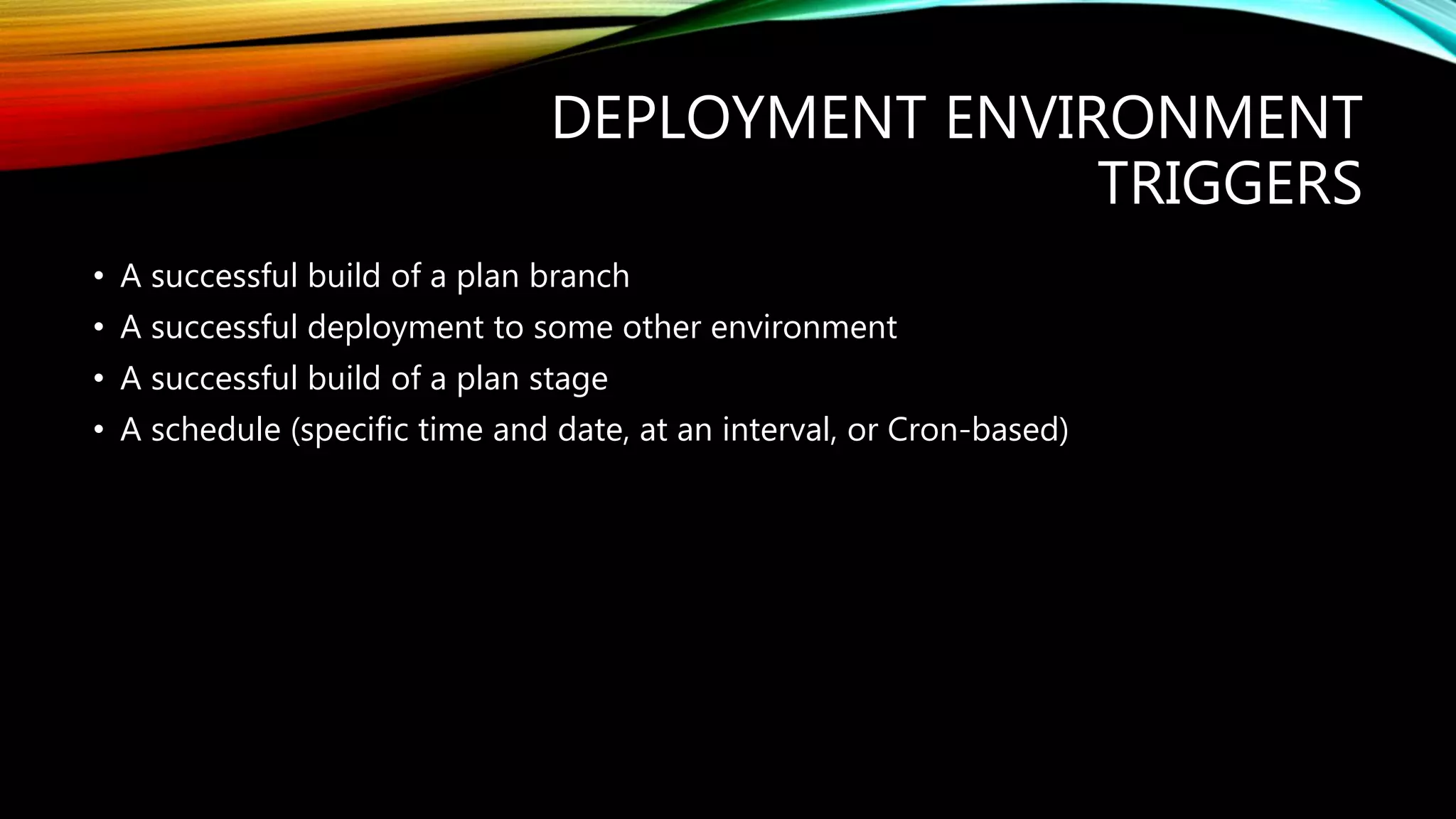

- 25. DEPLOYMENT ENVIRONMENT TRIGGERS • Asuccessful build of a plan branch • A successful deployment to some other environment • A successful build of a plan stage • A schedule (specific time and date, at an interval, or Cron-based)
- 26.

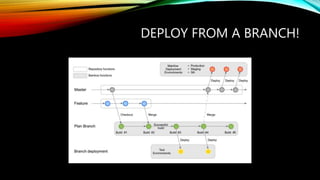

- 27. DEPLOY FROM ABRANCH!

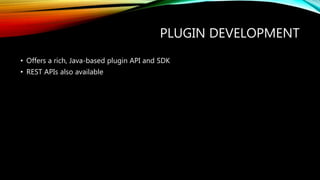

- 28. PLUGIN DEVELOPMENT • Offersa rich, Java-based plugin API and SDK • REST APIs also available
