Building and deploying PHP applications with Phing

Building and deploying PHP applications
with Phing

Michiel Rook

PHP UK Conference 2012

About me

• Freelance PHP & Java contractor / consultant

• PHP since ’99

• Phing project lead

• http://www.linkedin.com/in/michieltcs

• @michieltcs

Building and deploying PHP applications with Phing

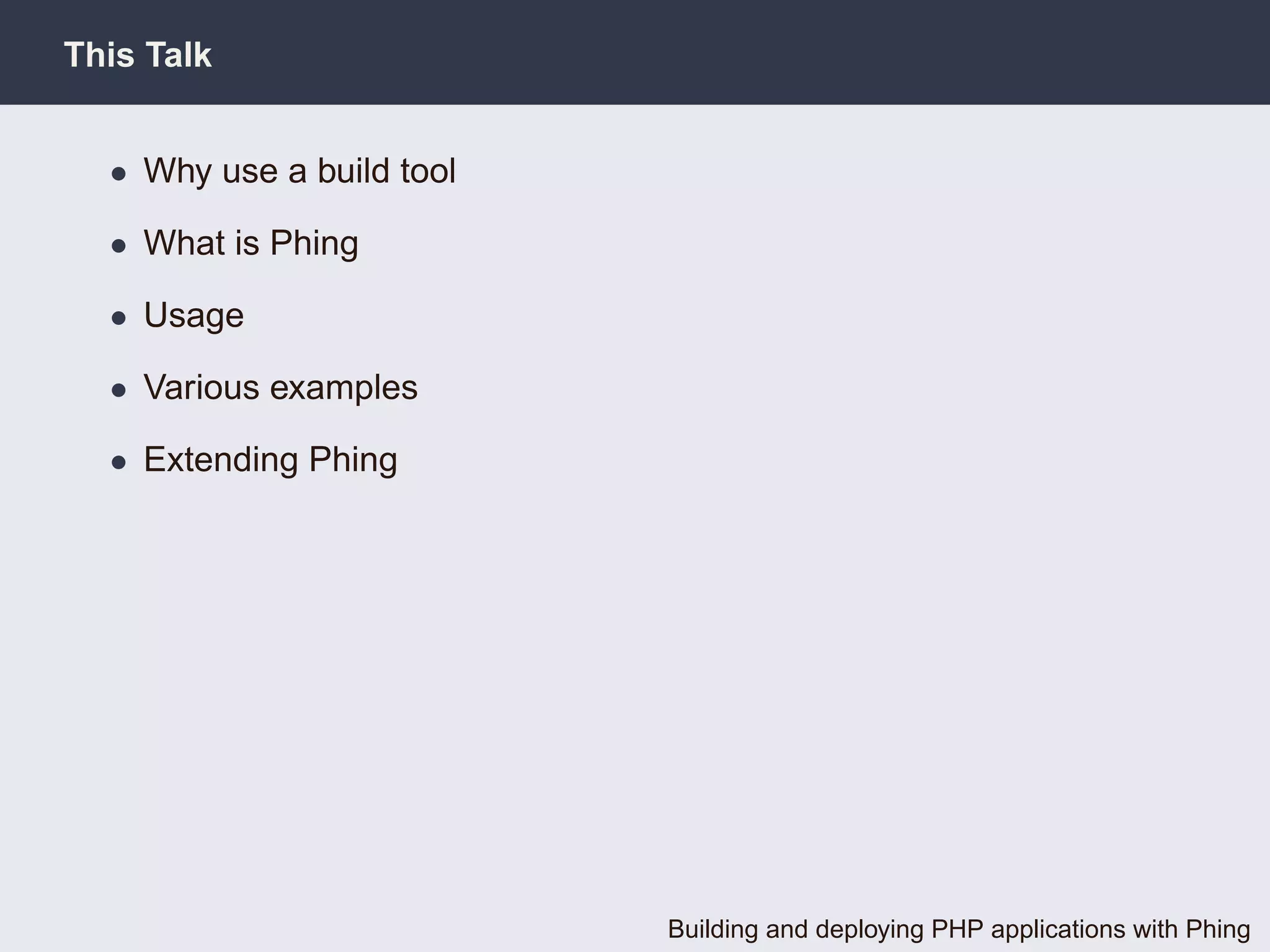

This Talk

• Why use a build tool

• What is Phing

• Usage

• Various examples

• Extending Phing

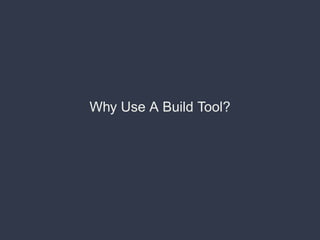

Why Use A Build Tool

Repetition
http://www.flickr.com/photos/andrewmalone/5162632817/

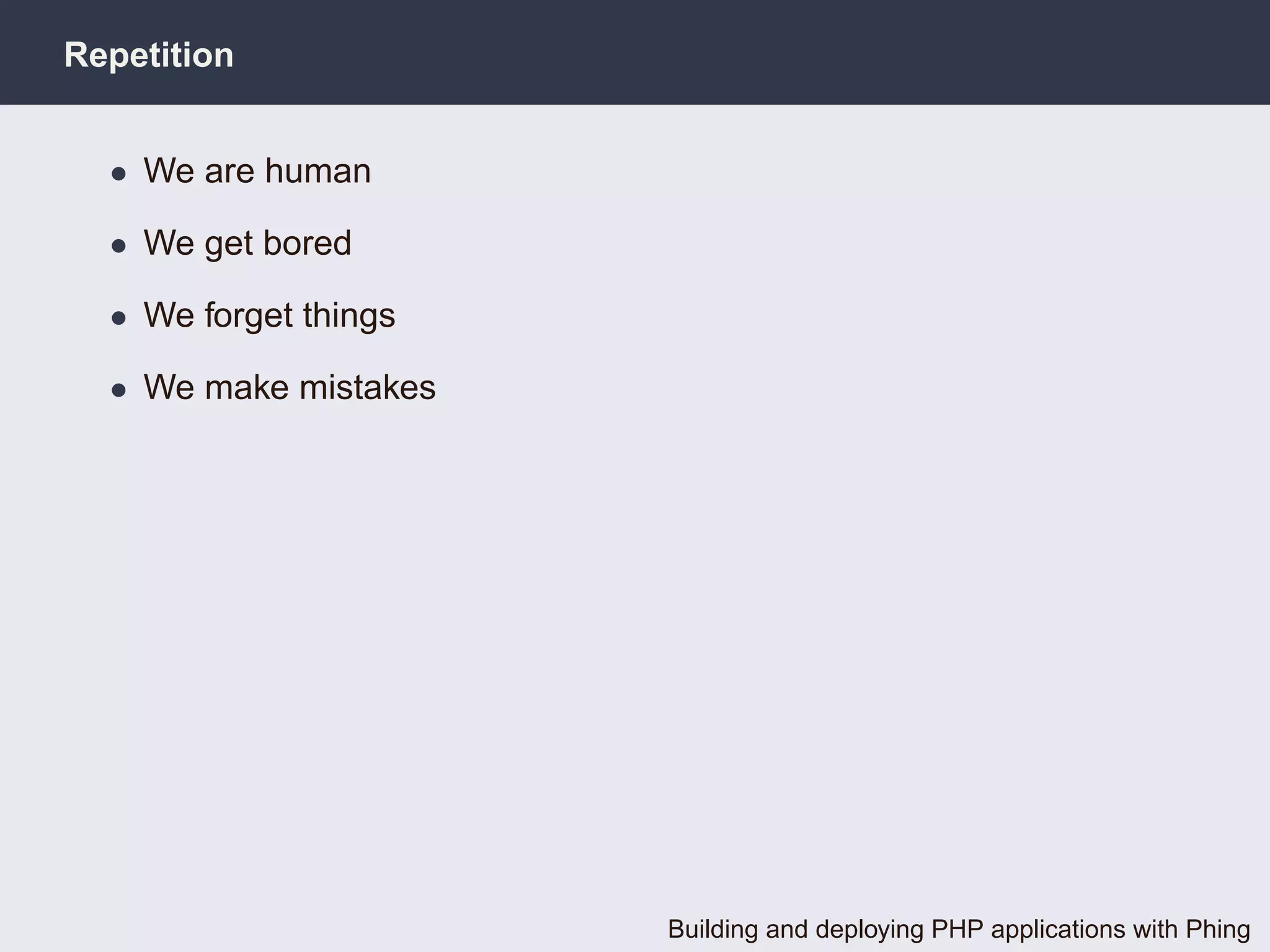

Repetition

• We are human

• We get bored

• We forget things

• We make mistakes

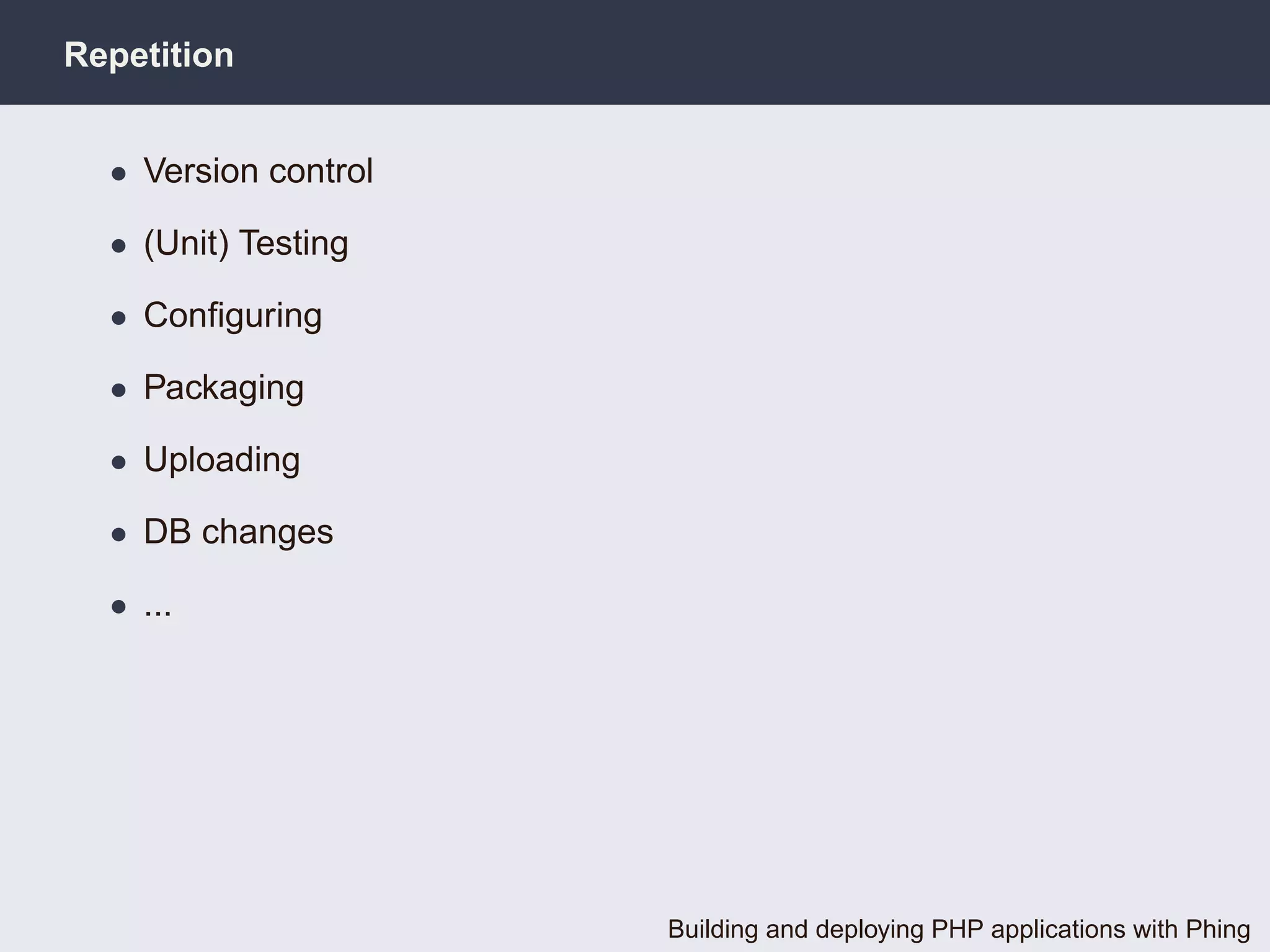

Repetition

• Version control

• (Unit) Testing

• Conﬁguring

• Packaging

• Uploading

• DB changes

• ...

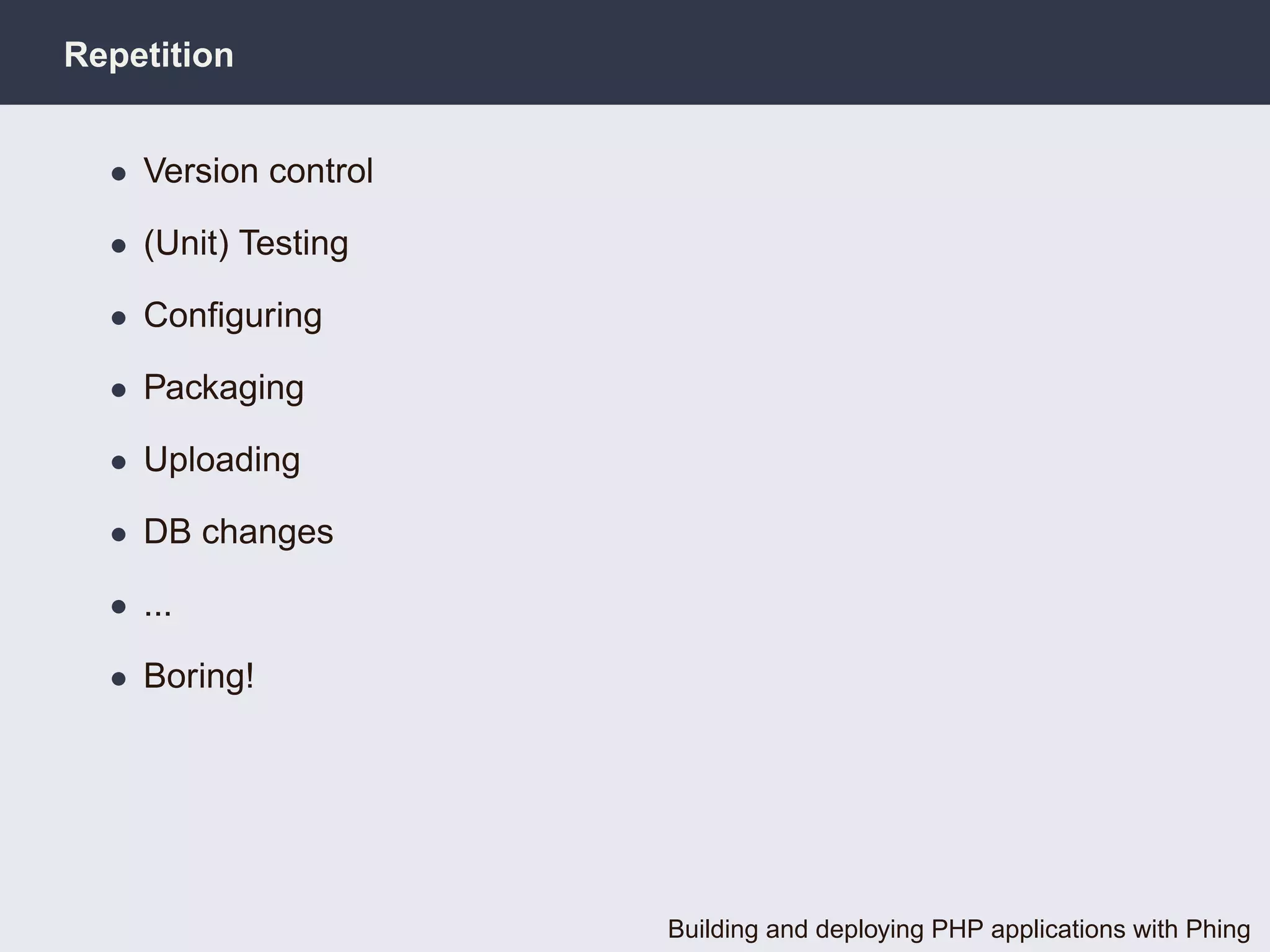

Repetition

• Version control

• (Unit) Testing

• Conﬁguring

• Packaging

• Uploading

• DB changes

• ...

• Boring!

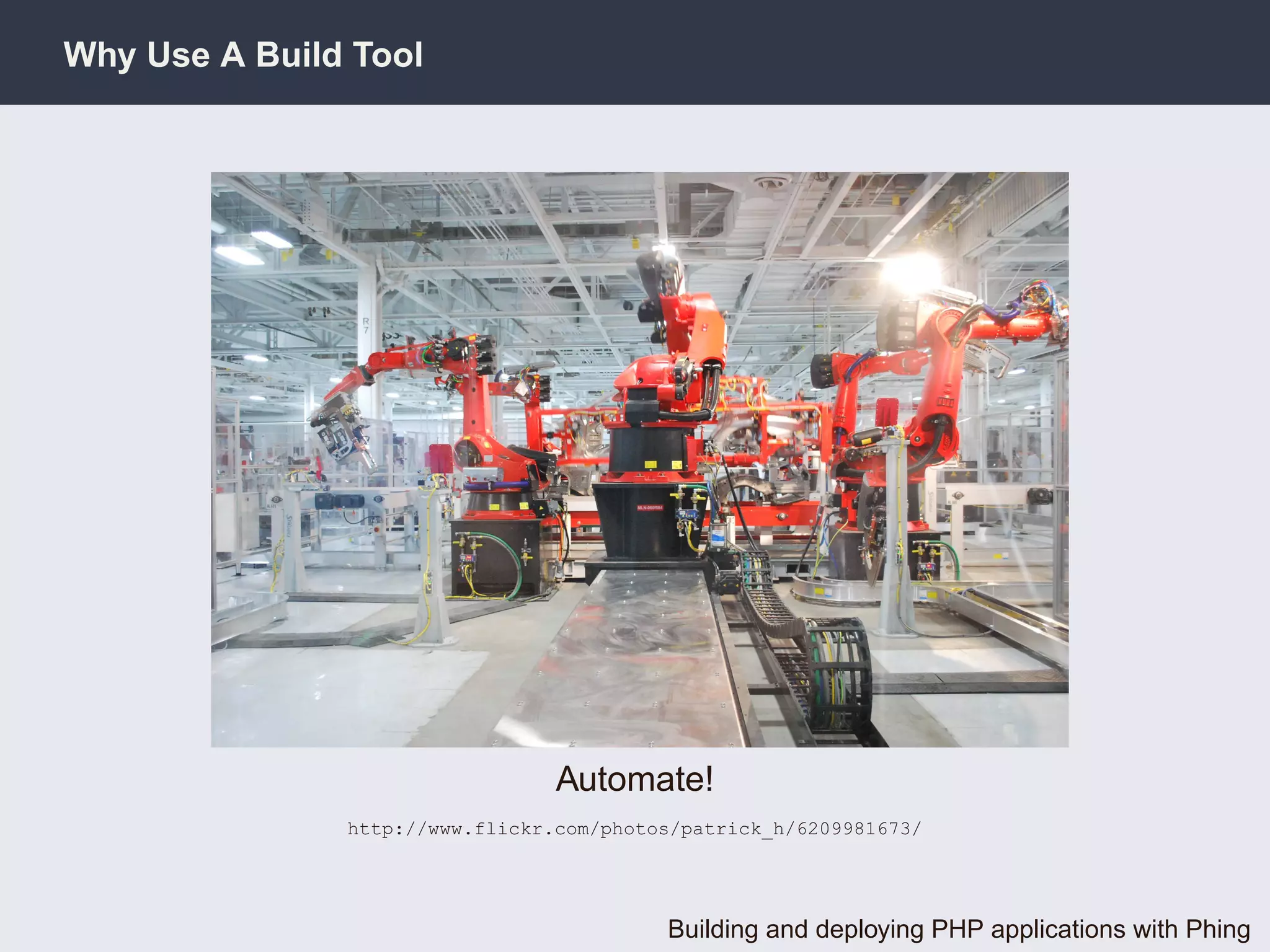

Why Use A Build Tool

Automate!
http://www.flickr.com/photos/patrick_h/6209981673/

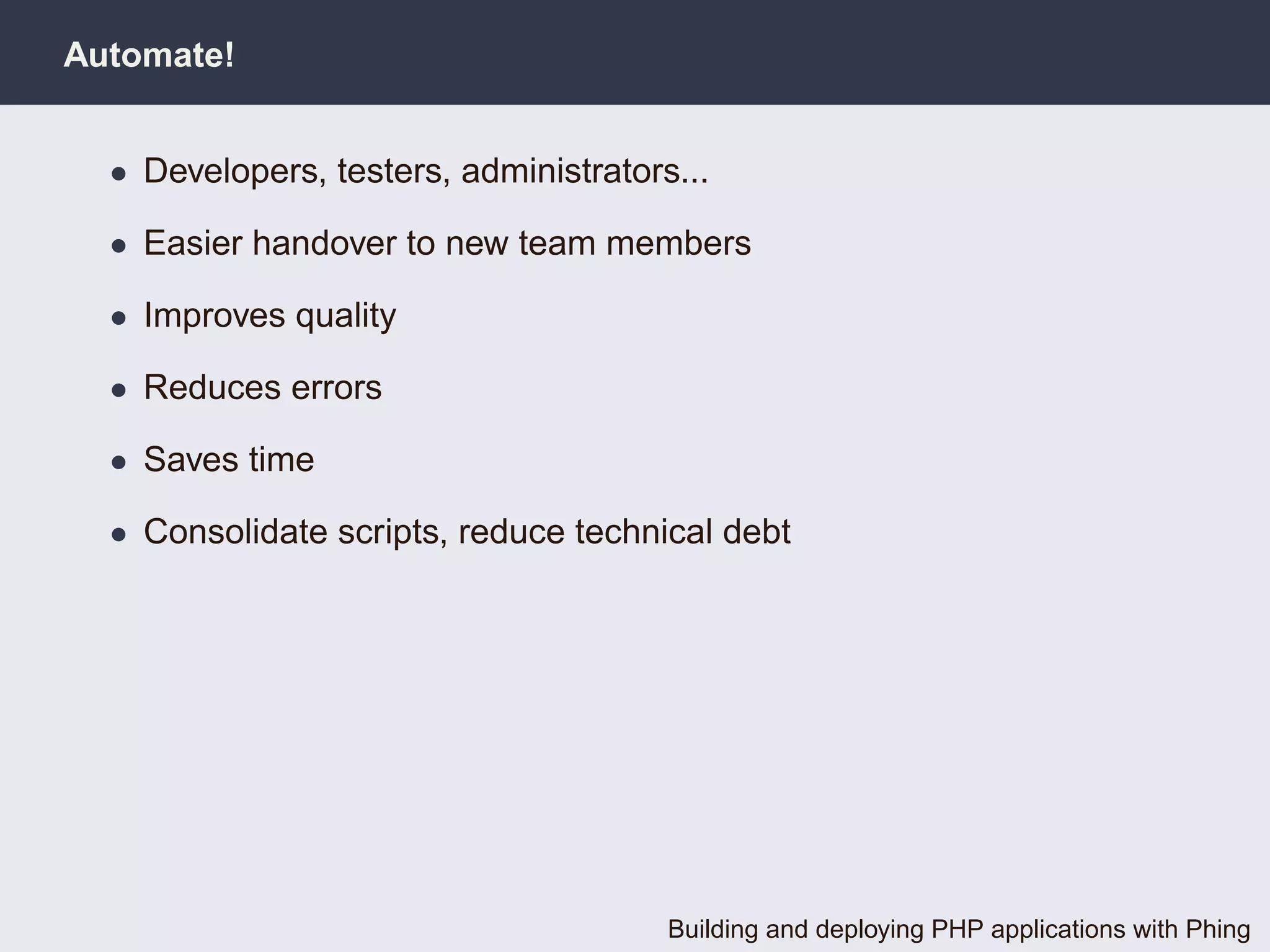

Automate!

• Developers, testers, administrators...

• Easier handover to new team members

• Improves quality

• Reduces errors

• Saves time

• Consolidate scripts, reduce technical debt


What Is Phing

http://www.flickr.com/photos/canucksfan604/5471322484/

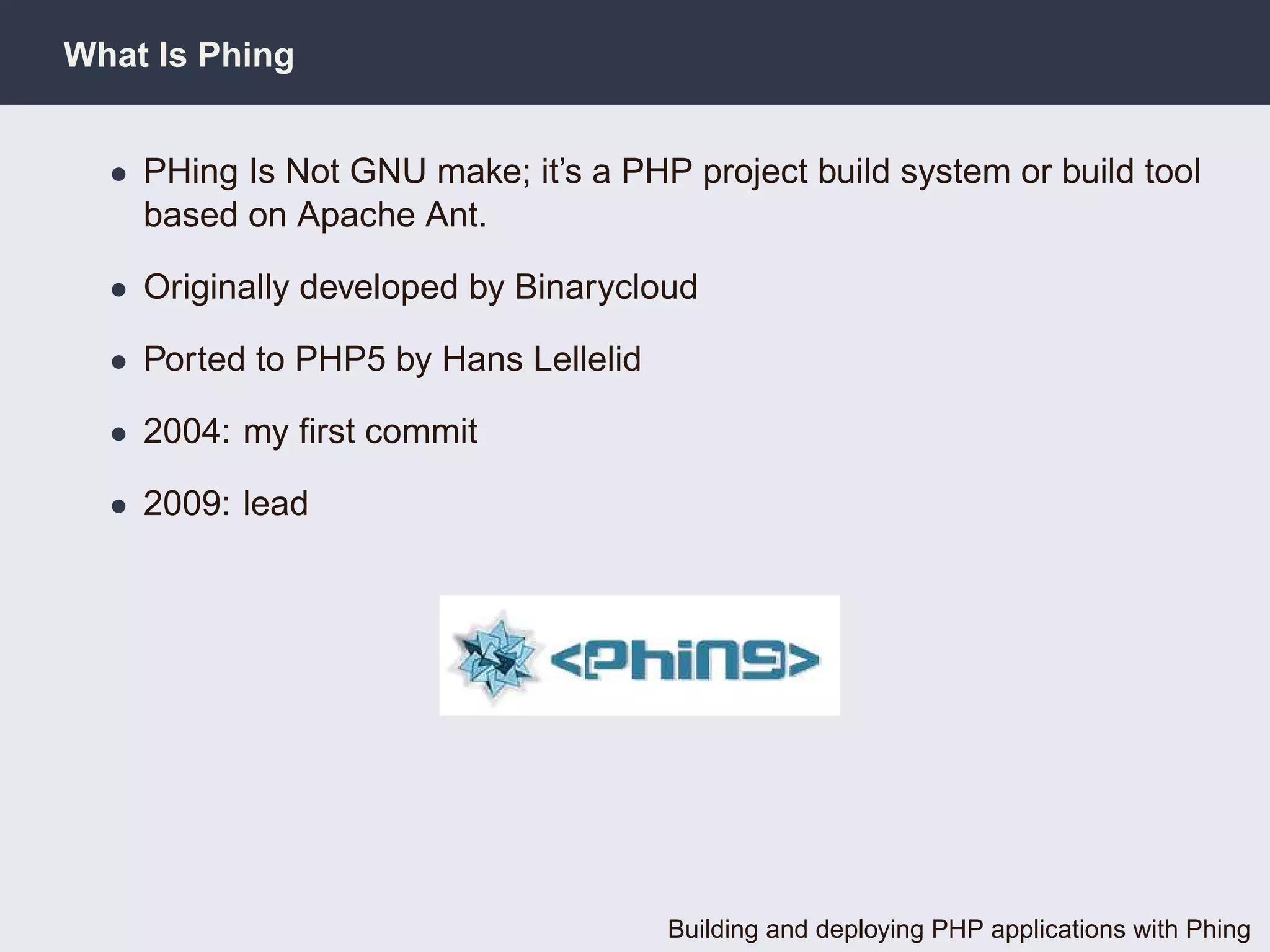

What Is Phing

• PHing Is Not GNU make; it’s a PHP project build system or build tool
based on Apache Ant.

• Originally developed by Binarycloud

• Ported to PHP5 by Hans Lellelid

• 2004: my ﬁrst commit

• 2009: lead

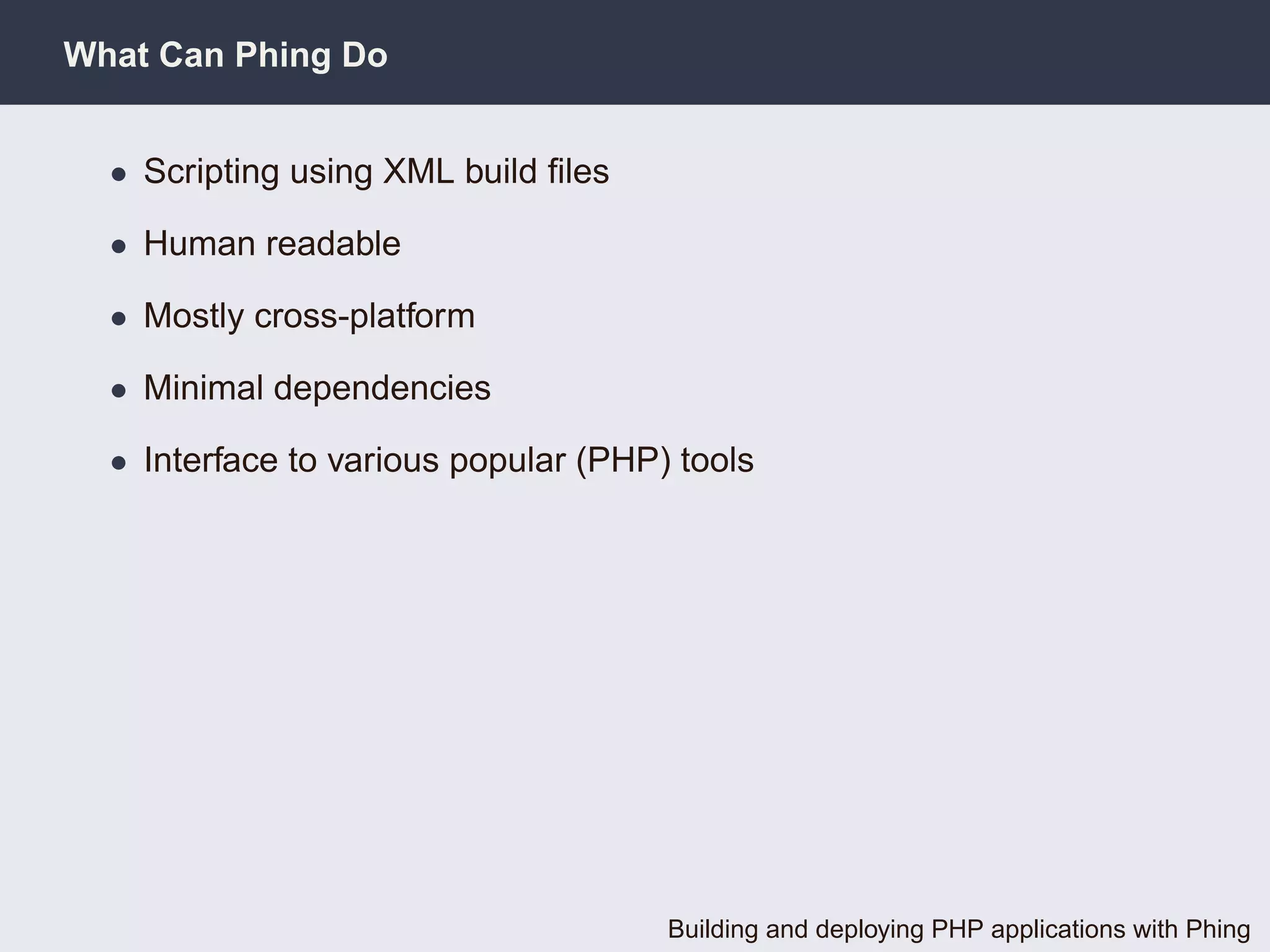

What Can Phing Do

• Scripting using XML build ﬁles

• Human readable

• Mostly cross-platform

• Minimal dependencies

• Interface to various popular (PHP) tools

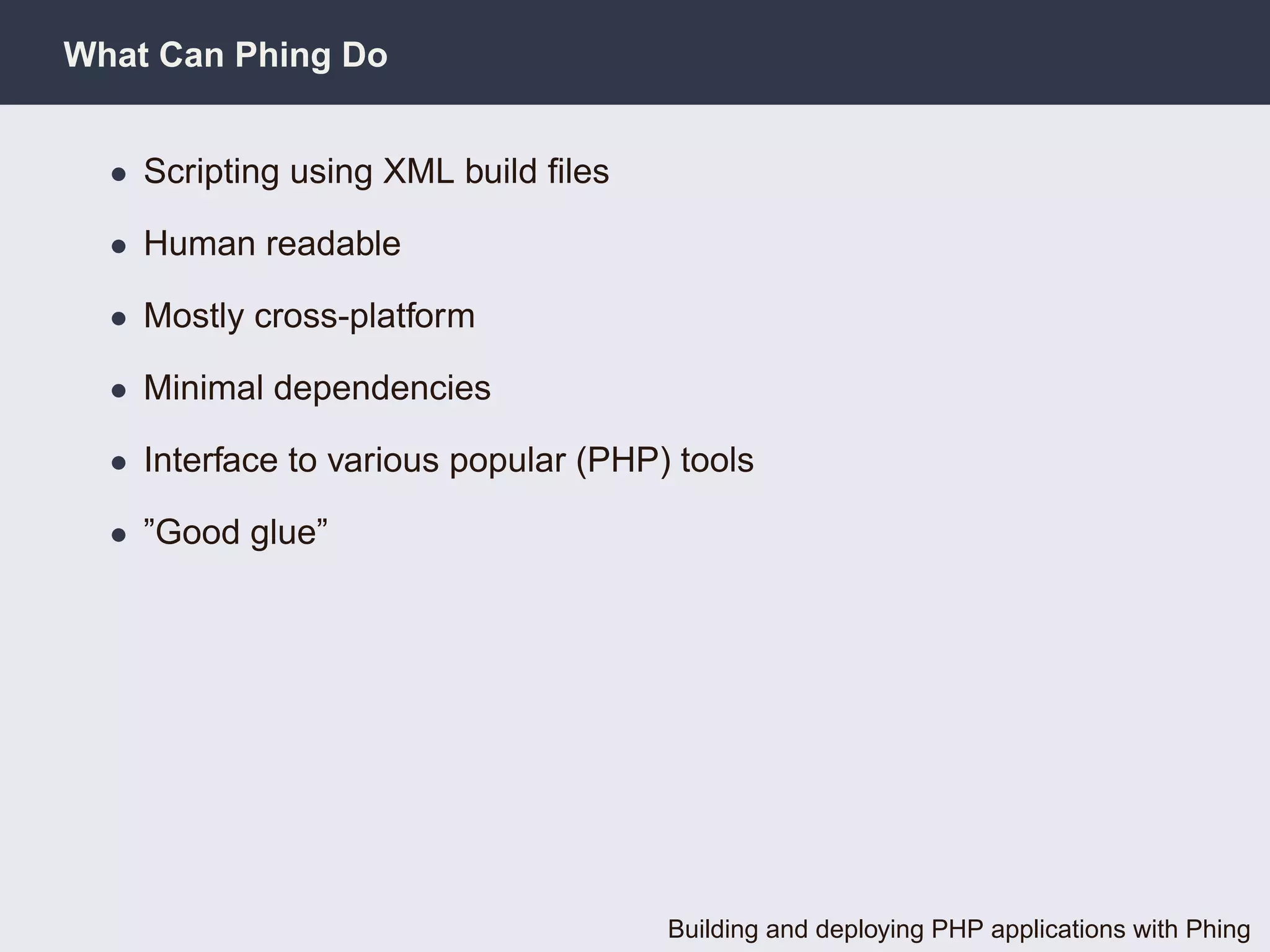

What Can Phing Do

• Scripting using XML build ﬁles

• Human readable

• Mostly cross-platform

• Minimal dependencies

• Interface to various popular (PHP) tools

• ”Good glue”

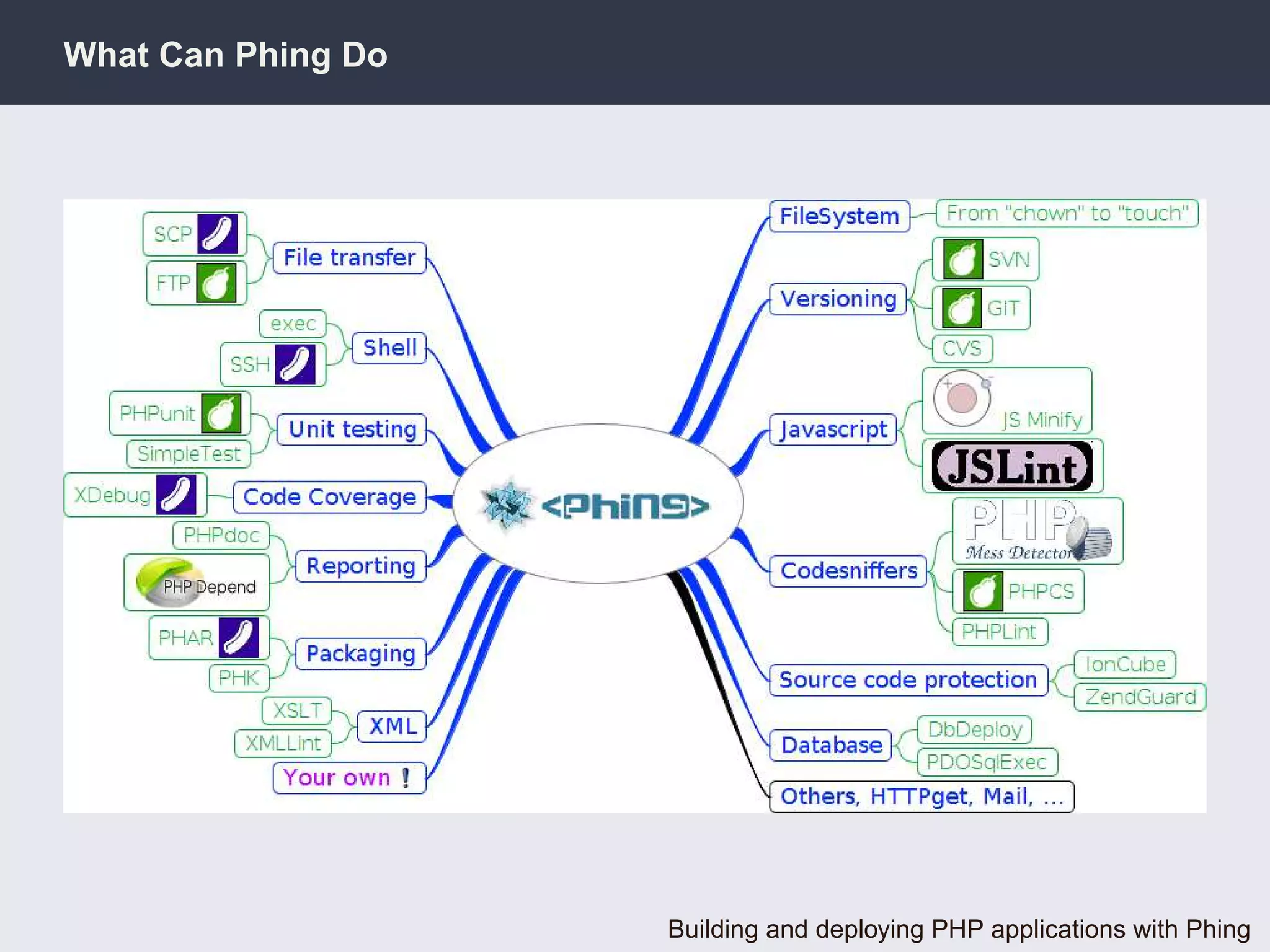

What Can Phing Do

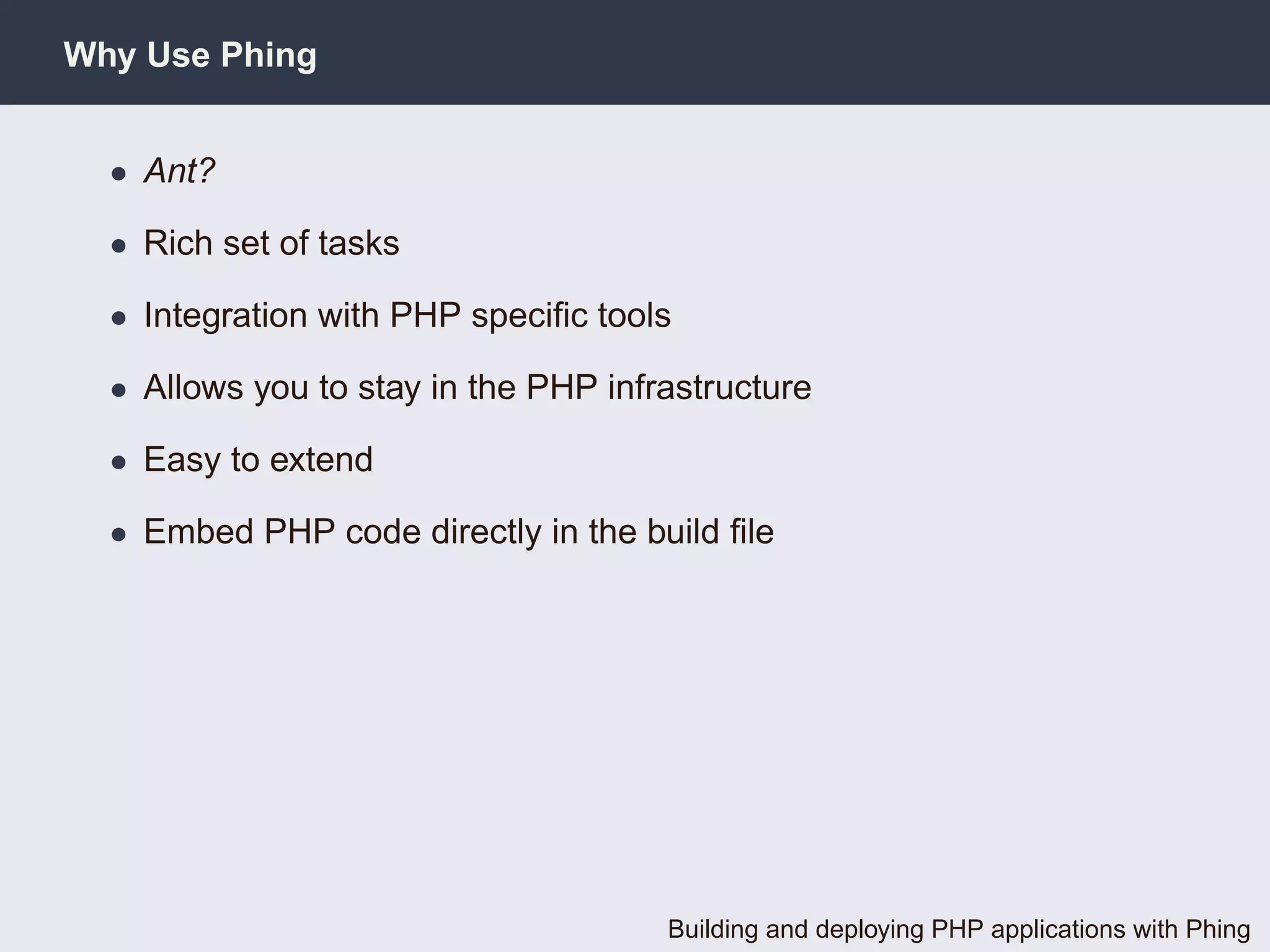

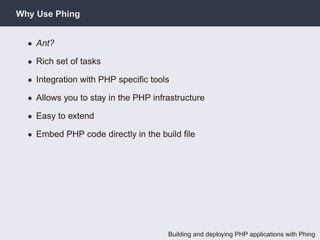

Why Use Phing

• Ant?

• Rich set of tasks

• Integration with PHP speciﬁc tools

• Allows you to stay in the PHP infrastructure

• Easy to extend

• Embed PHP code directly in the build ﬁle

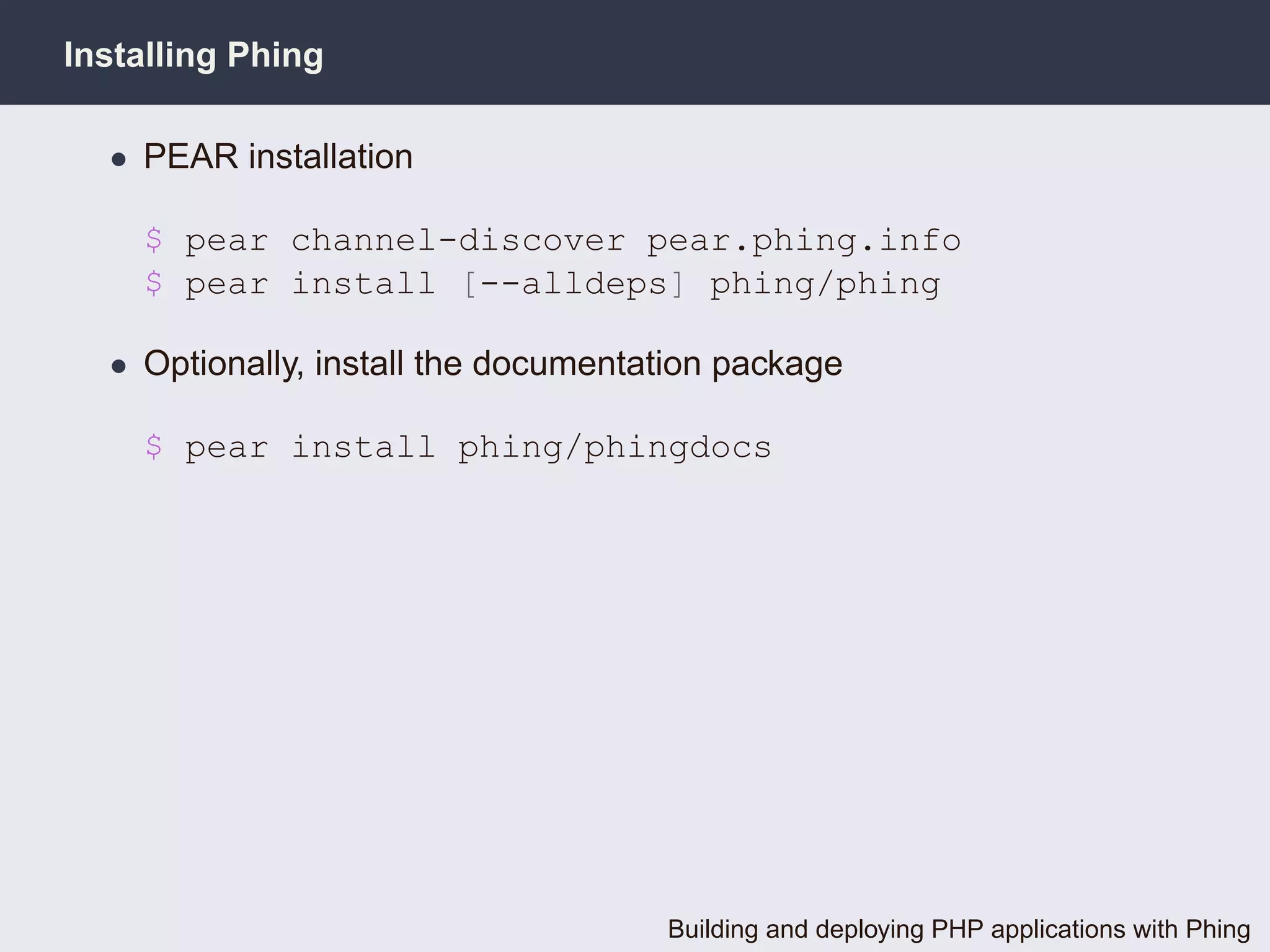

Installing Phing

• PEAR installation

$ pear channel-discover pear.phing.info
$ pear install [--alldeps] phing/phing

• Optionally, install the documentation package

$ pear install phing/phingdocs

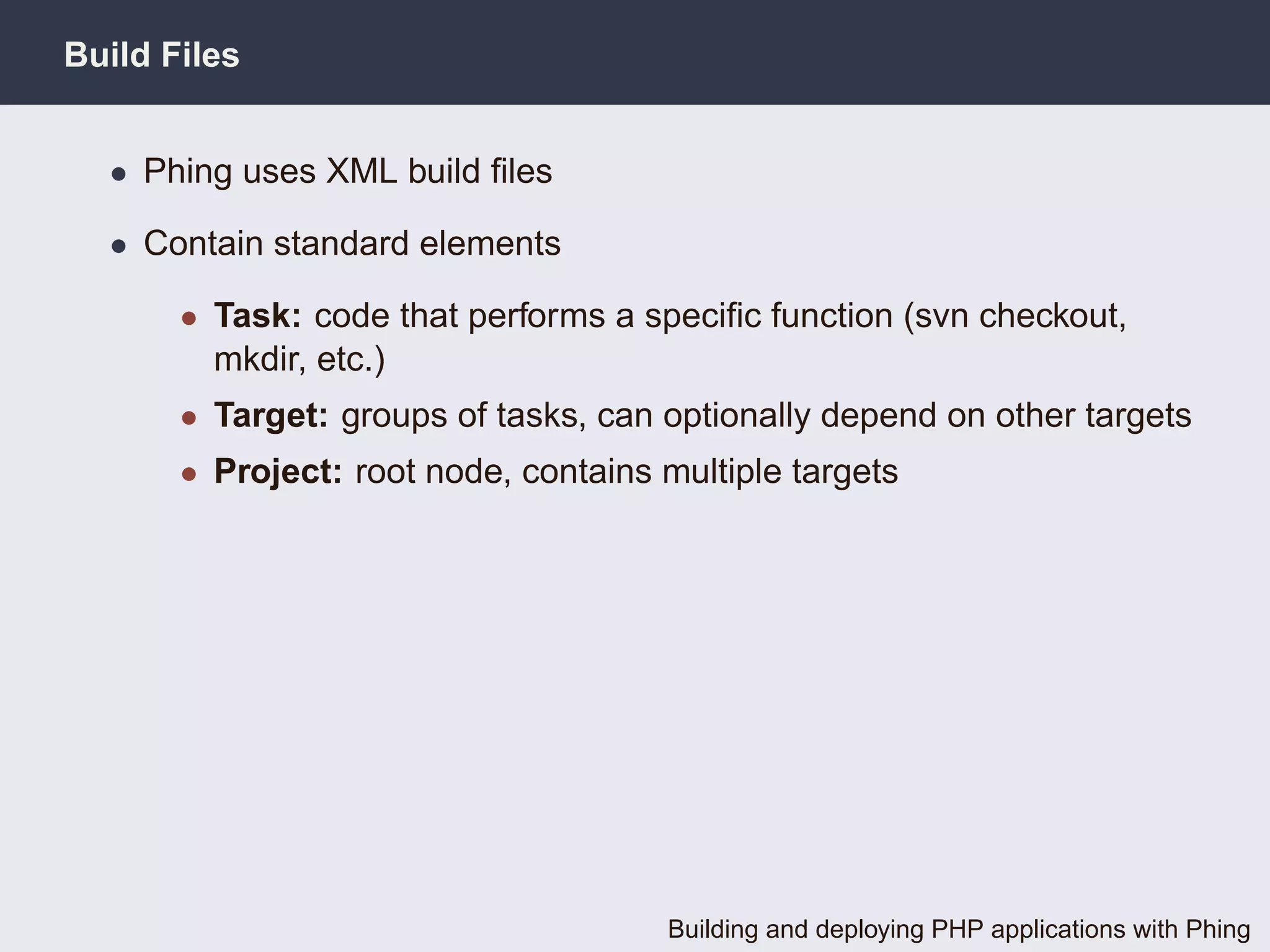

Build Files

• Phing uses XML build ﬁles

• Contain standard elements

• Task: code that performs a speciﬁc function (svn checkout,
mkdir, etc.)
• Target: groups of tasks, can optionally depend on other targets
• Project: root node, contains multiple targets

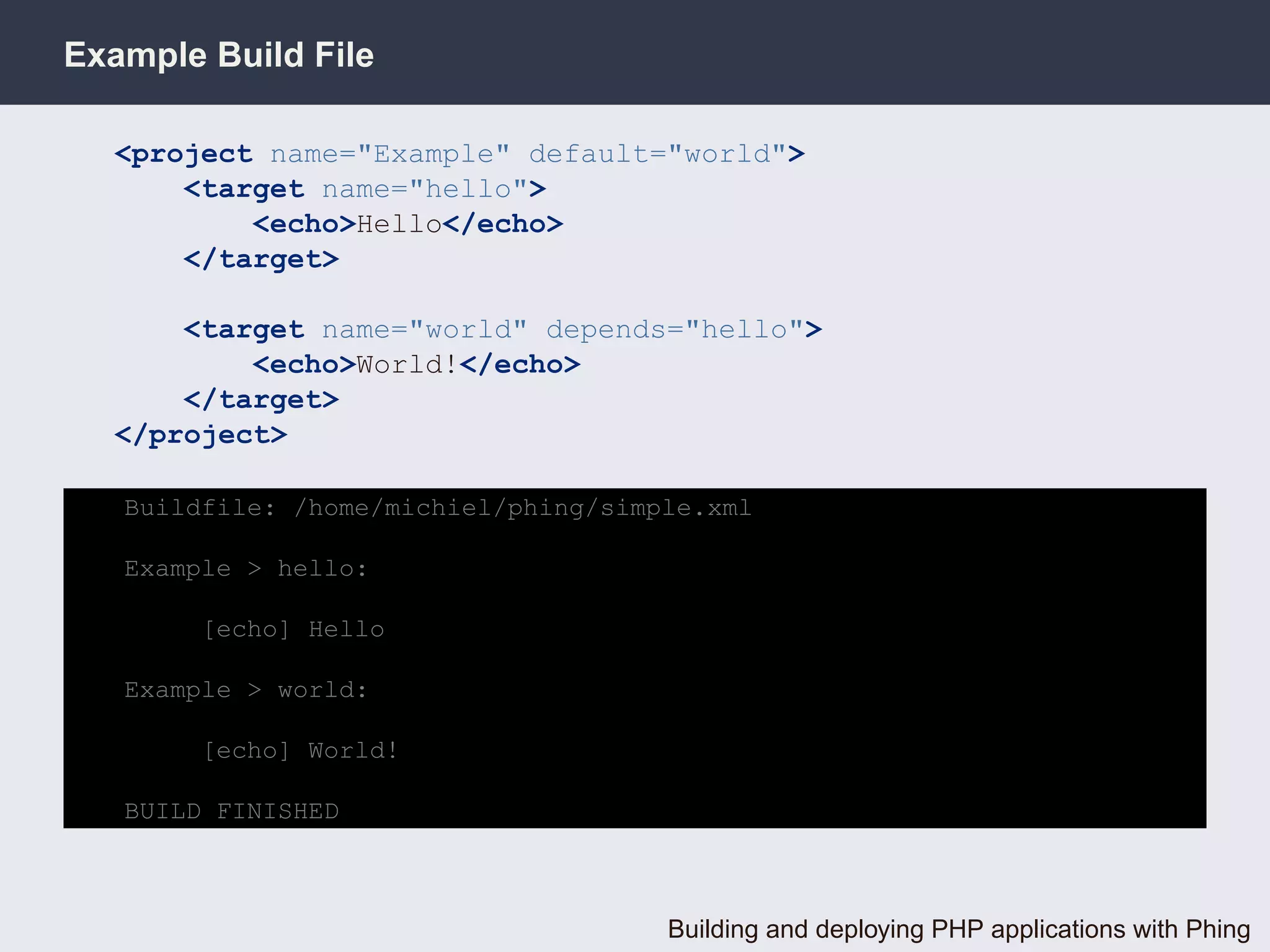

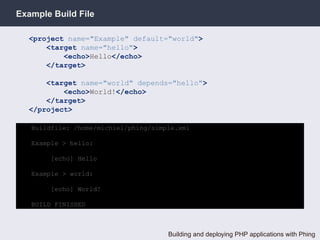

Example Build File

<project name="Example" default="world">
<target name="hello">
<echo>Hello</echo>
</target>

<target name="world" depends="hello">
<echo>World!</echo>
</target>
</project>

Buildfile: /home/michiel/phing/simple.xml

Example > hello:

[echo] Hello

Example > world:

[echo] World!

BUILD FINISHED

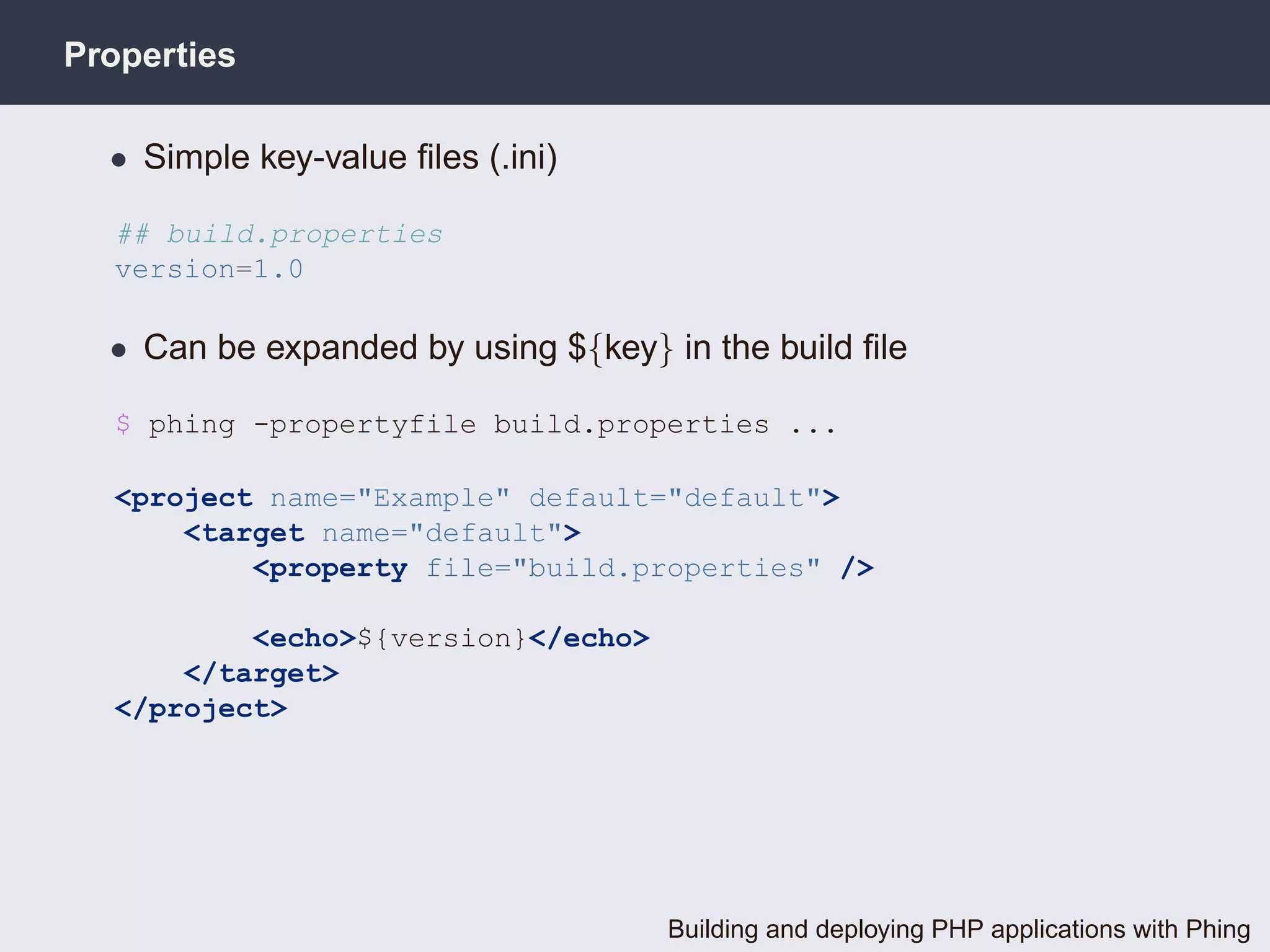

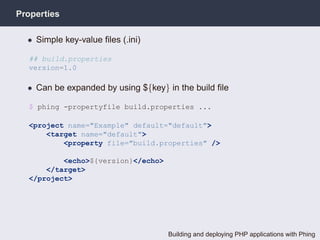

Properties

• Simple key-value ﬁles (.ini)

## build.properties
version=1.0

• Can be expanded by using ${key} in the build ﬁle

$ phing -propertyfile build.properties ...

<project name="Example" default="default">
<target name="default">
<property file="build.properties" />

<echo>${version}</echo>
</target>
</project>

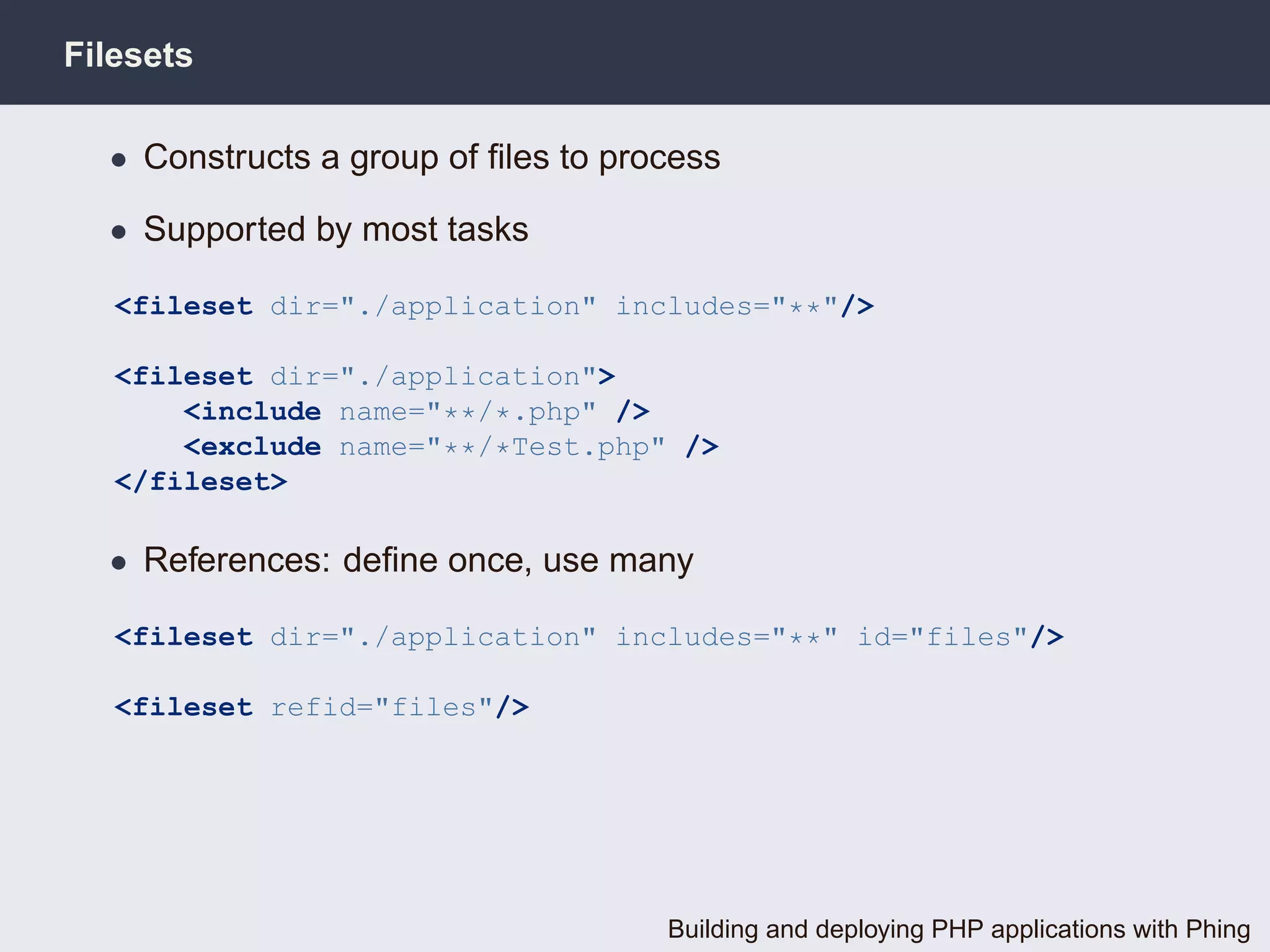

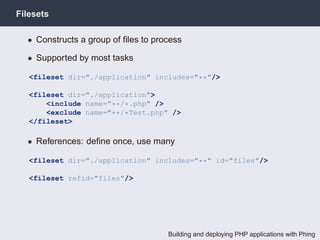

Filesets

• Constructs a group of ﬁles to process

• Supported by most tasks

<fileset dir="./application" includes="**"/>

<fileset dir="./application">
<include name="**/*.php" />
<exclude name="**/*Test.php" />
</fileset>

• References: deﬁne once, use many

<fileset dir="./application" includes="**" id="files"/>

<fileset refid="files"/>

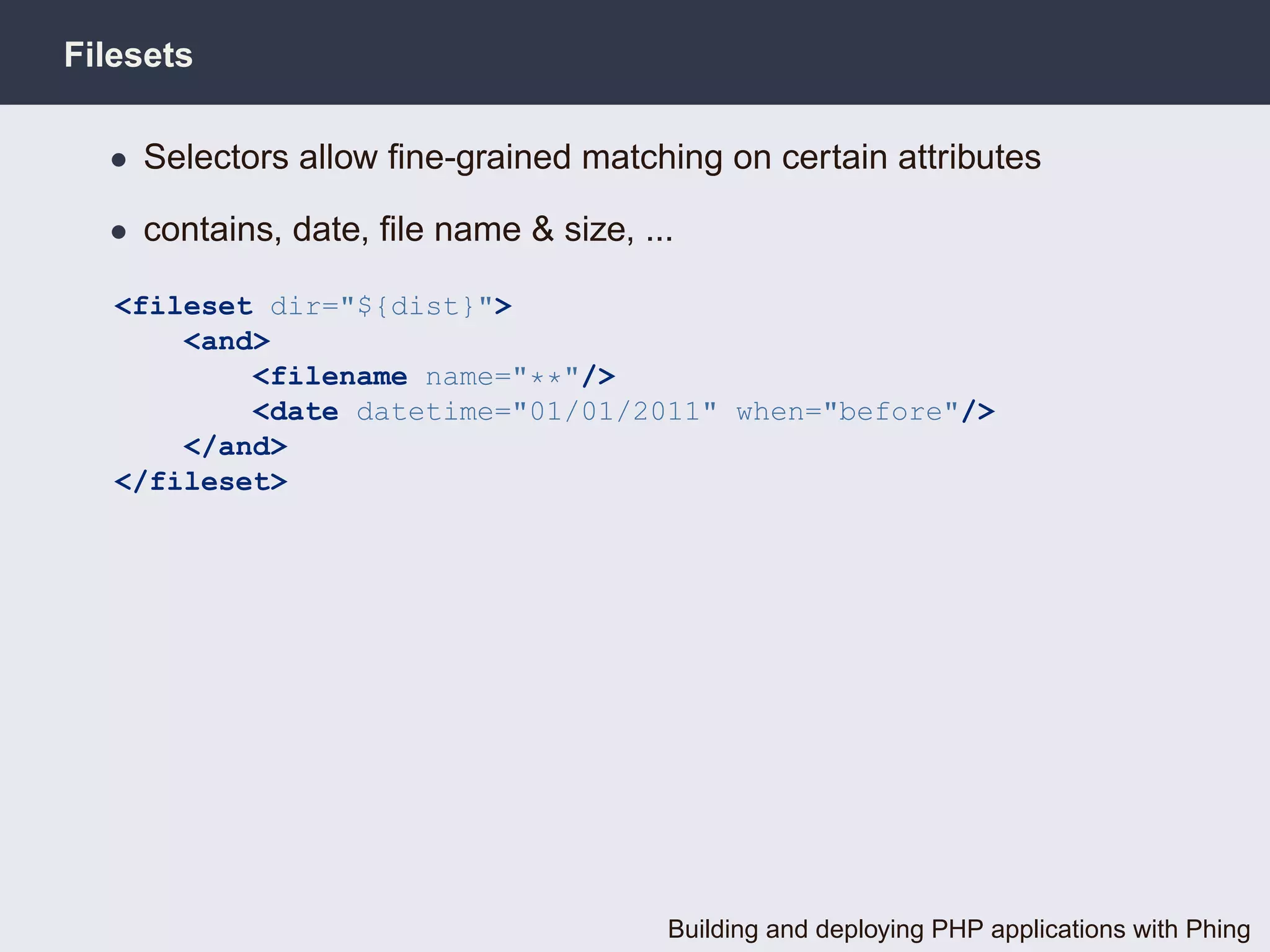

Filesets

• Selectors allow ﬁne-grained matching on certain attributes

• contains, date, ﬁle name & size, ...

<fileset dir="${dist}">
<and>
<filename name="**"/>
<date datetime="01/01/2011" when="before"/>
</and>
</fileset>

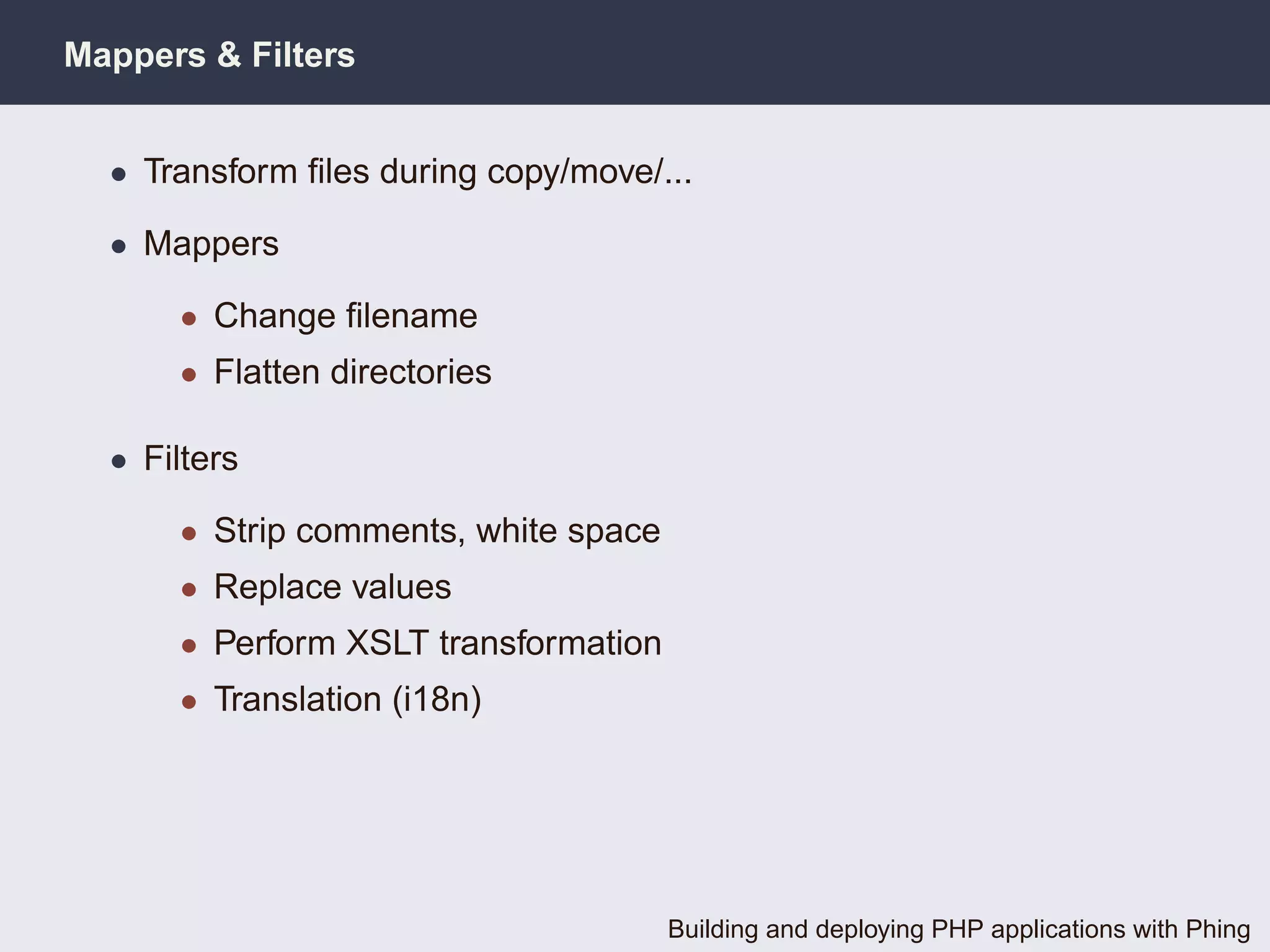

Mappers & Filters

• Transform ﬁles during copy/move/...

• Mappers

• Change ﬁlename
• Flatten directories

• Filters

• Strip comments, white space
• Replace values
• Perform XSLT transformation
• Translation (i18n)

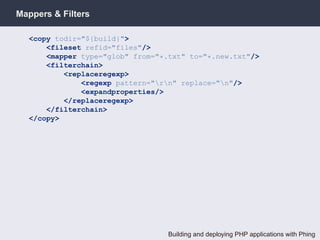

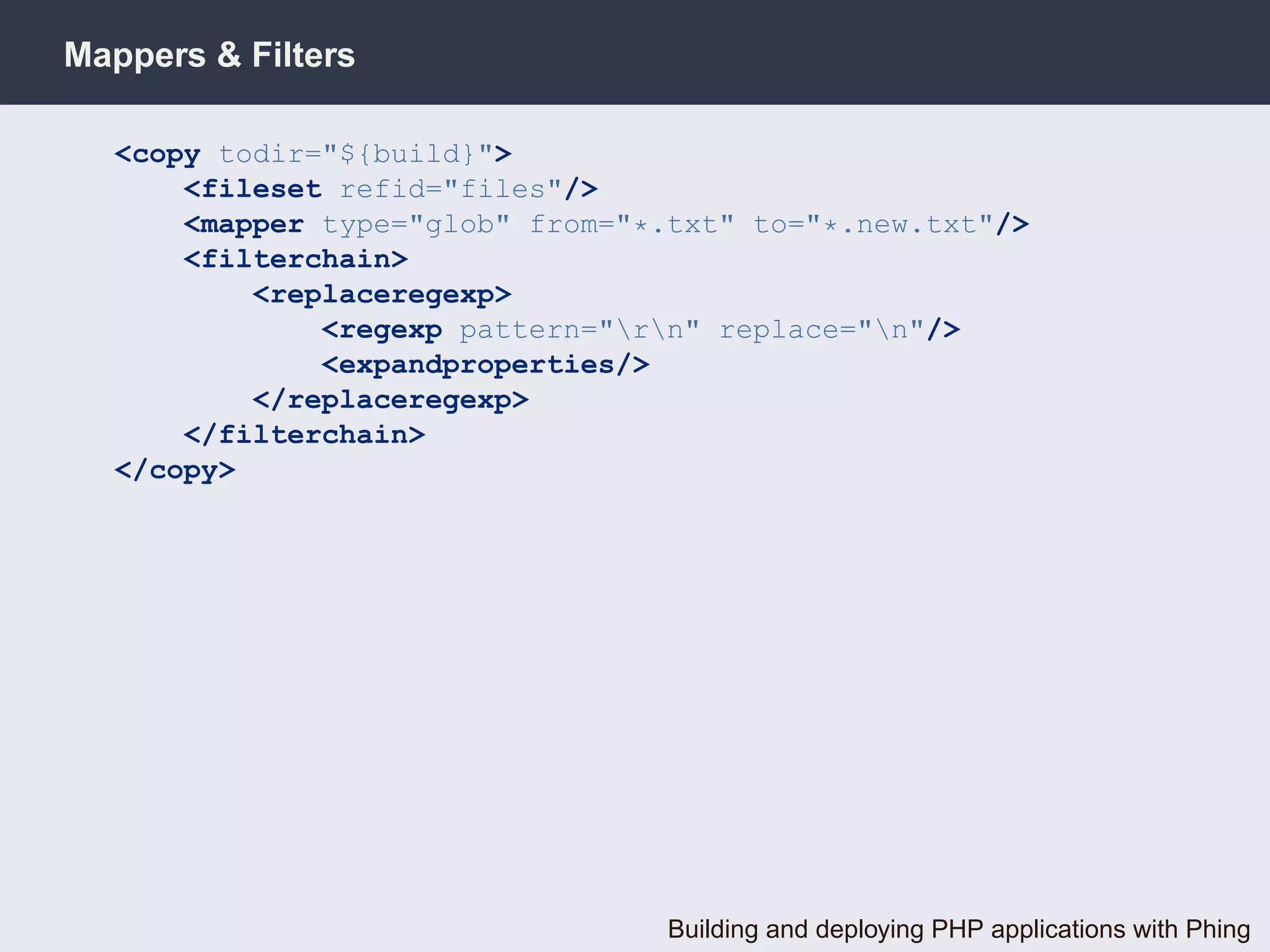

Mappers & Filters

<copy todir="${build}">
<mapper type="glob" from="*.txt" to="*.new.txt"/>
<filterchain>
<replaceregexp>
<regexp pattern="rn" replace="n"/>
<expandproperties/>
</replaceregexp>
</filterchain>
</copy>

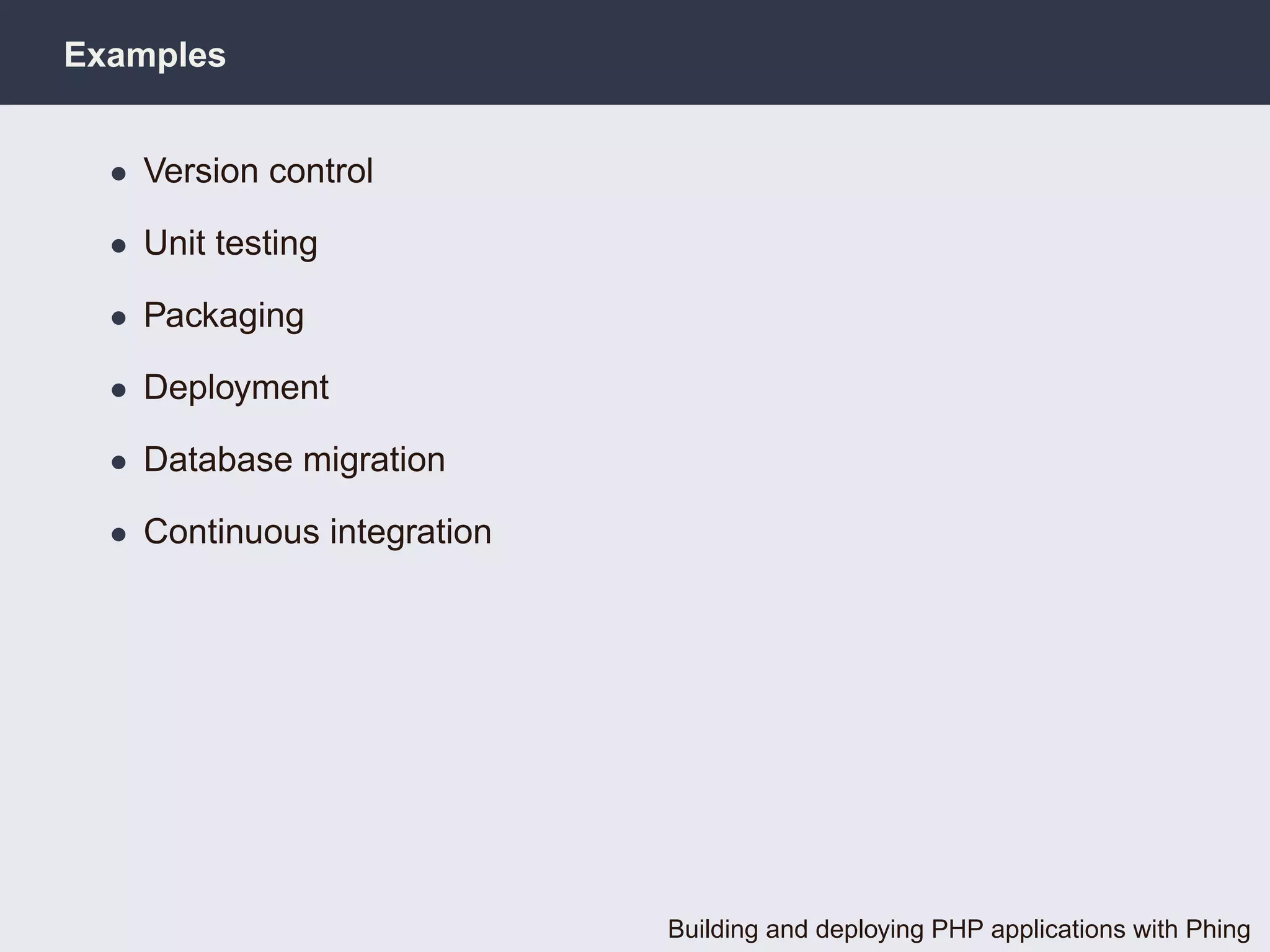

Examples

• Version control

• Unit testing

• Packaging

• Deployment

• Database migration

• Continuous integration

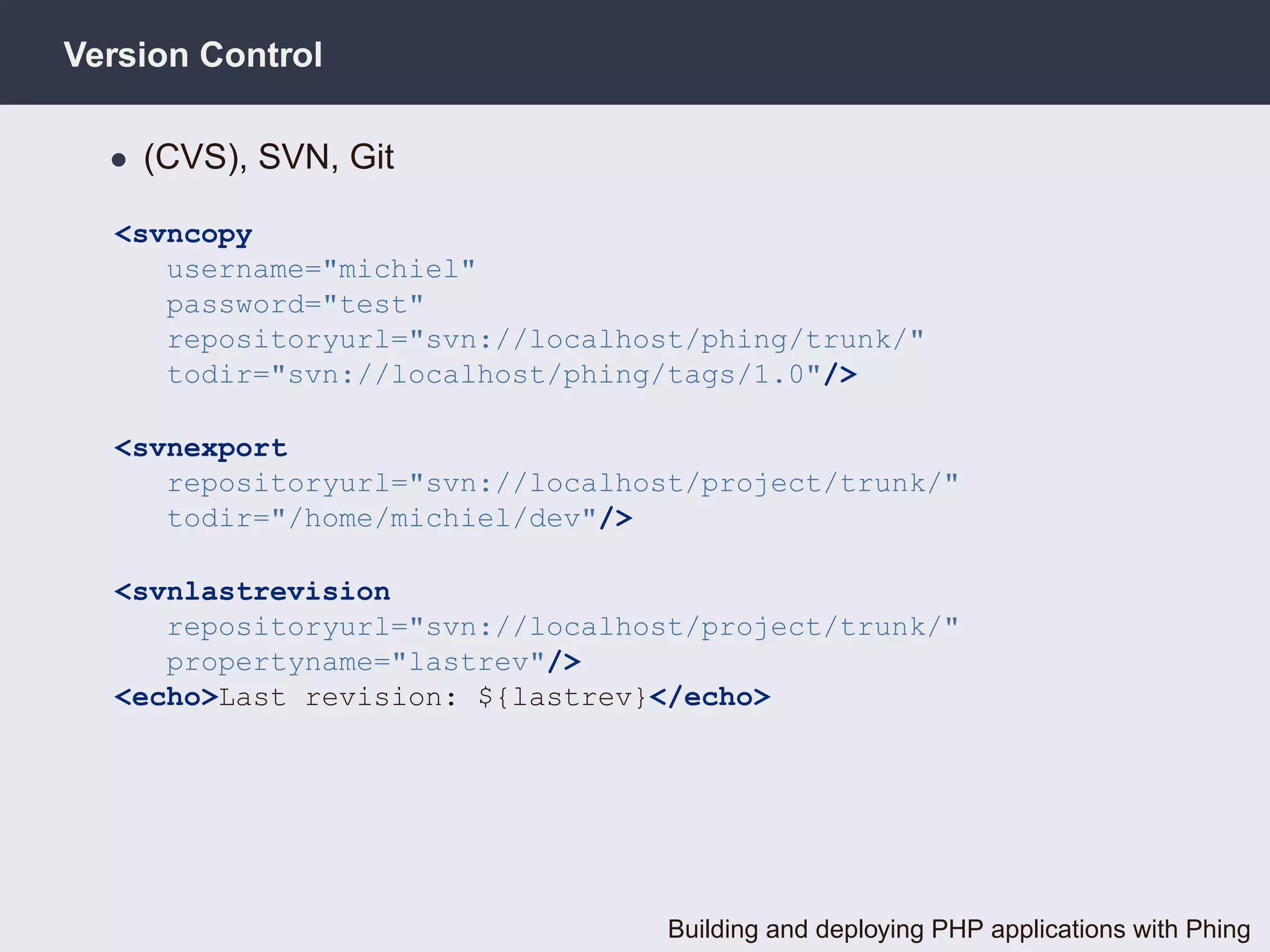

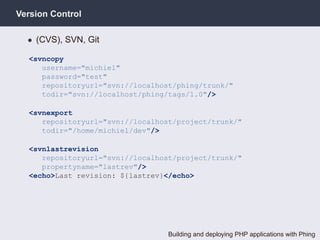

Version Control

• (CVS), SVN, Git

<svncopy
username="michiel"
password="test"
repositoryurl="svn://localhost/phing/trunk/"
todir="svn://localhost/phing/tags/1.0"/>

<svnexport
repositoryurl="svn://localhost/project/trunk/"
todir="/home/michiel/dev"/>

<svnlastrevision
repositoryurl="svn://localhost/project/trunk/"
propertyname="lastrev"/>
<echo>Last revision: ${lastrev}</echo>

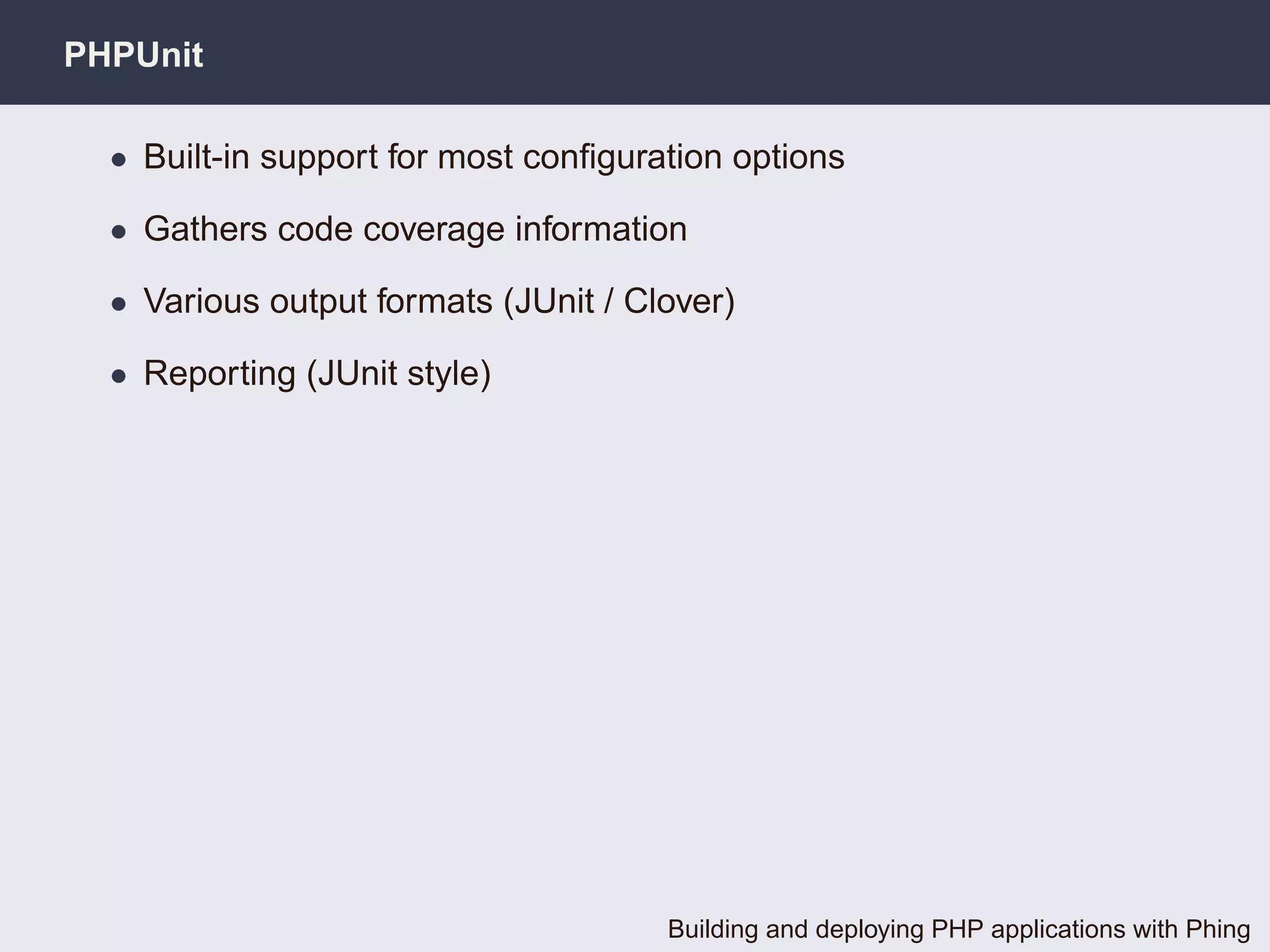

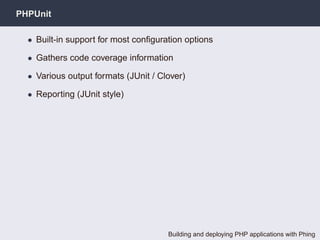

PHPUnit

• Built-in support for most conﬁguration options

• Gathers code coverage information

• Various output formats (JUnit / Clover)

• Reporting (JUnit style)

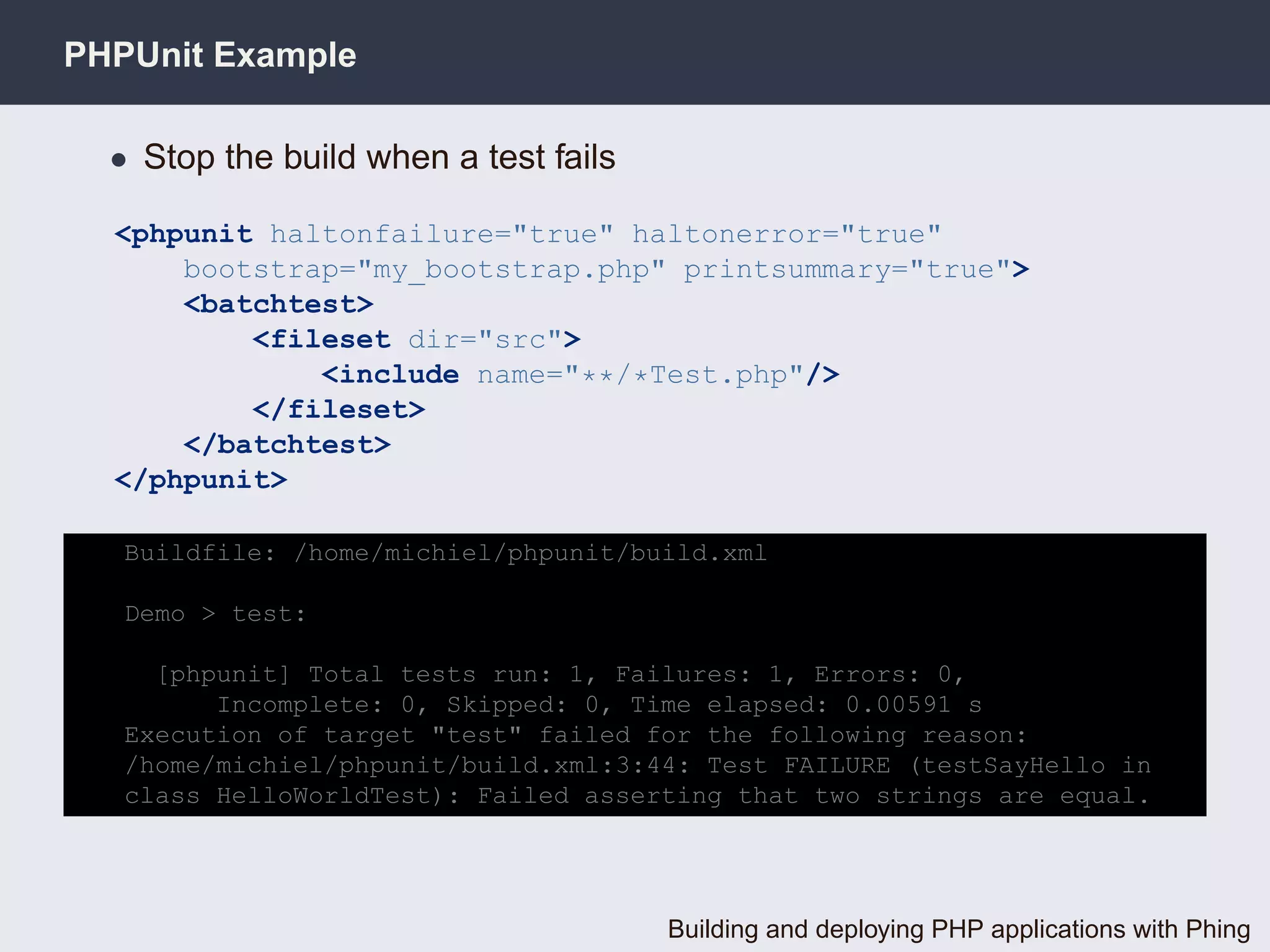

PHPUnit Example

• Stop the build when a test fails

<phpunit haltonfailure="true" haltonerror="true"
bootstrap="my_bootstrap.php" printsummary="true">
<batchtest>
<fileset dir="src">
<include name="**/*Test.php"/>
</fileset>
</batchtest>
</phpunit>

Buildfile: /home/michiel/phpunit/build.xml

Demo > test:

[phpunit] Total tests run: 1, Failures: 1, Errors: 0,
Incomplete: 0, Skipped: 0, Time elapsed: 0.00591 s
Execution of target "test" failed for the following reason:
/home/michiel/phpunit/build.xml:3:44: Test FAILURE (testSayHello in
class HelloWorldTest): Failed asserting that two strings are equal.

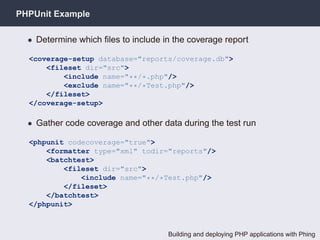

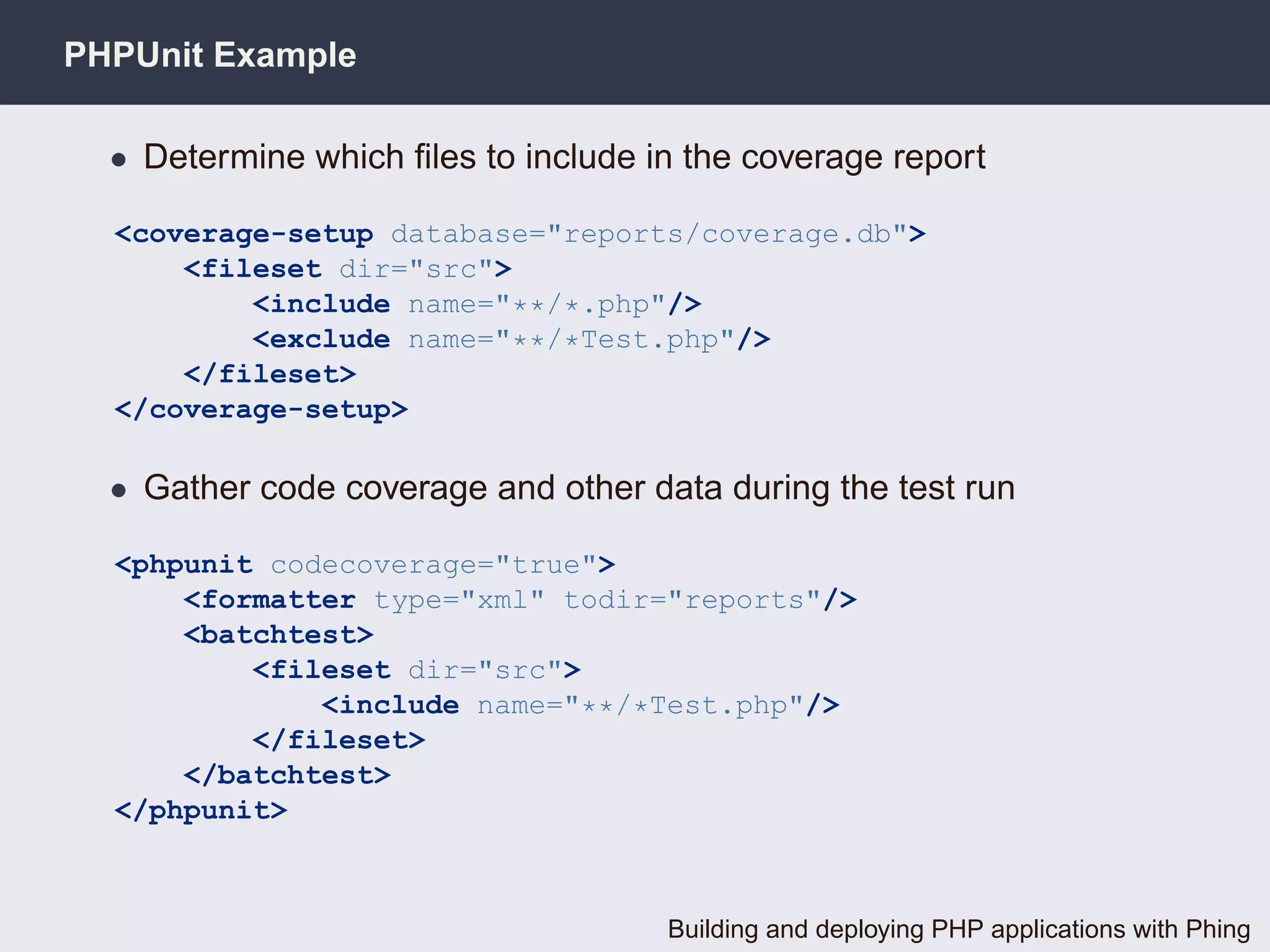

PHPUnit Example

• Determine which ﬁles to include in the coverage report

<coverage-setup database="reports/coverage.db">
<fileset dir="src">
<include name="**/*.php"/>
<exclude name="**/*Test.php"/>
</fileset>
</coverage-setup>

• Gather code coverage and other data during the test run

<phpunit codecoverage="true">
<formatter type="xml" todir="reports"/>
<batchtest>
<fileset dir="src">
<include name="**/*Test.php"/>
</fileset>
</batchtest>
</phpunit>

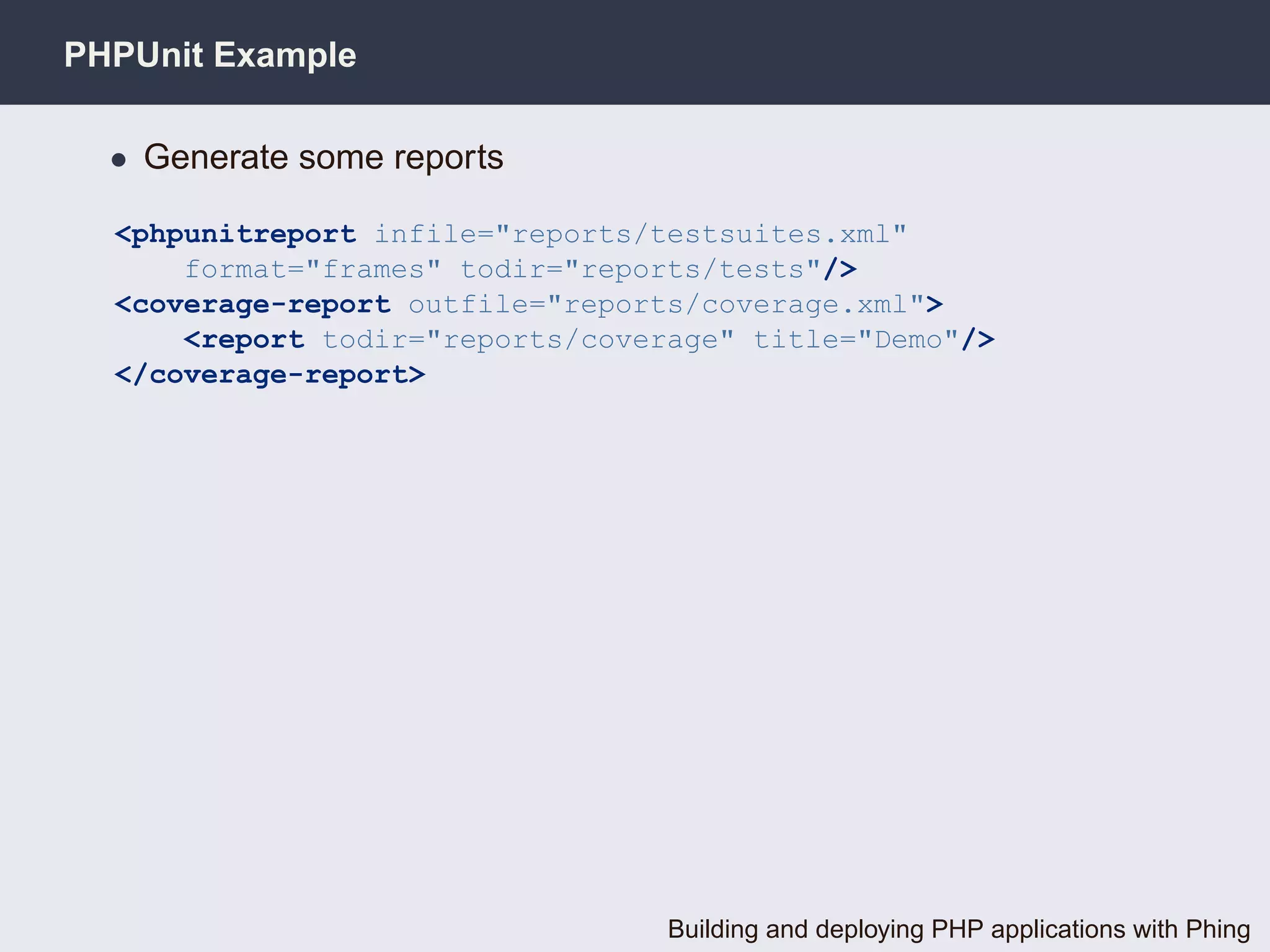

PHPUnit Example

• Generate some reports

<phpunitreport infile="reports/testsuites.xml"
format="frames" todir="reports/tests"/>
<coverage-report outfile="reports/coverage.xml">
<report todir="reports/coverage" title="Demo"/>
</coverage-report>

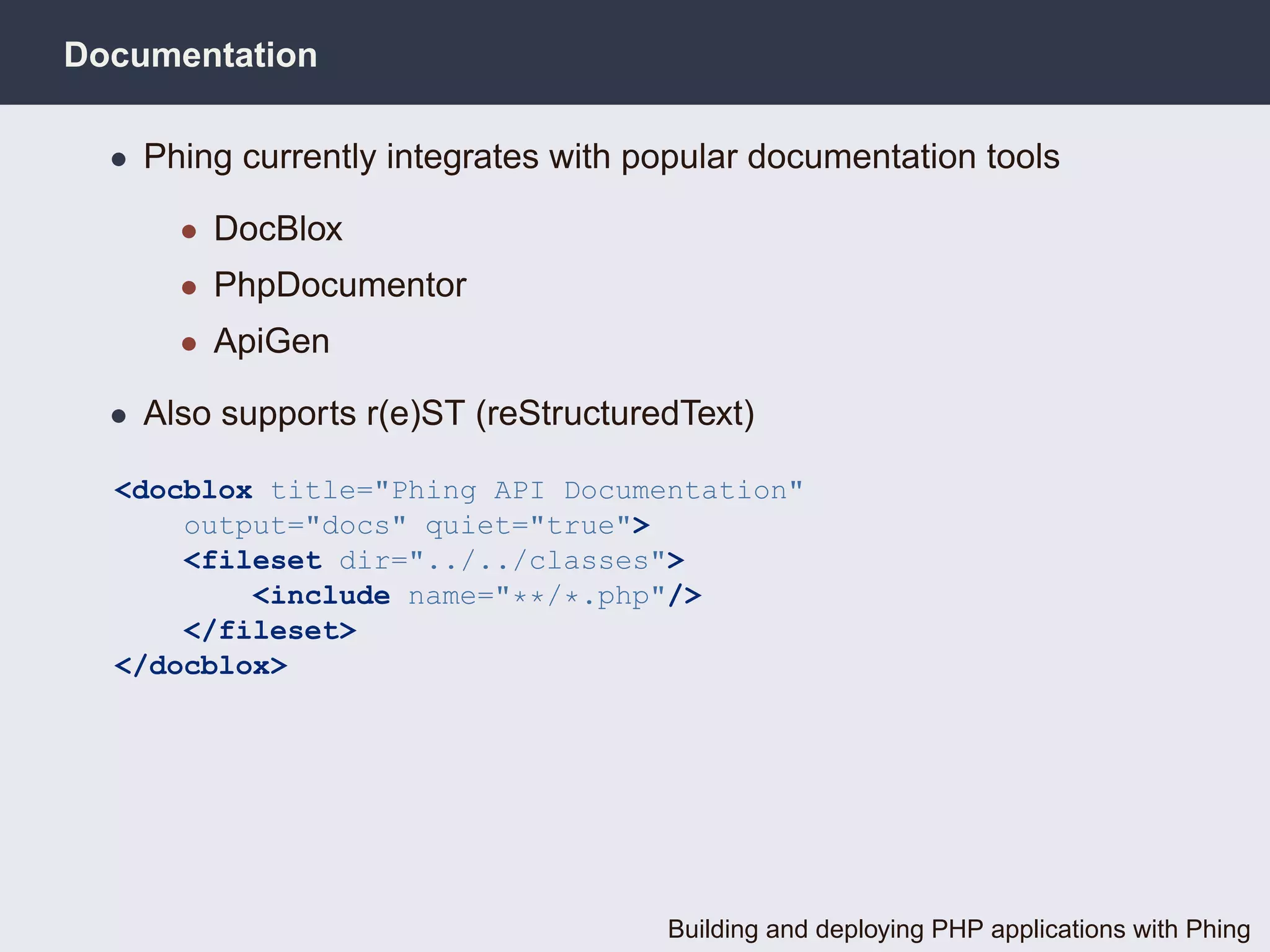

Documentation

• Phing currently integrates with popular documentation tools

• DocBlox
• PhpDocumentor
• ApiGen

• Also supports r(e)ST (reStructuredText)

<docblox title="Phing API Documentation"
output="docs" quiet="true">
<fileset dir="../../classes">
<include name="**/*.php"/>
</fileset>
</docblox>

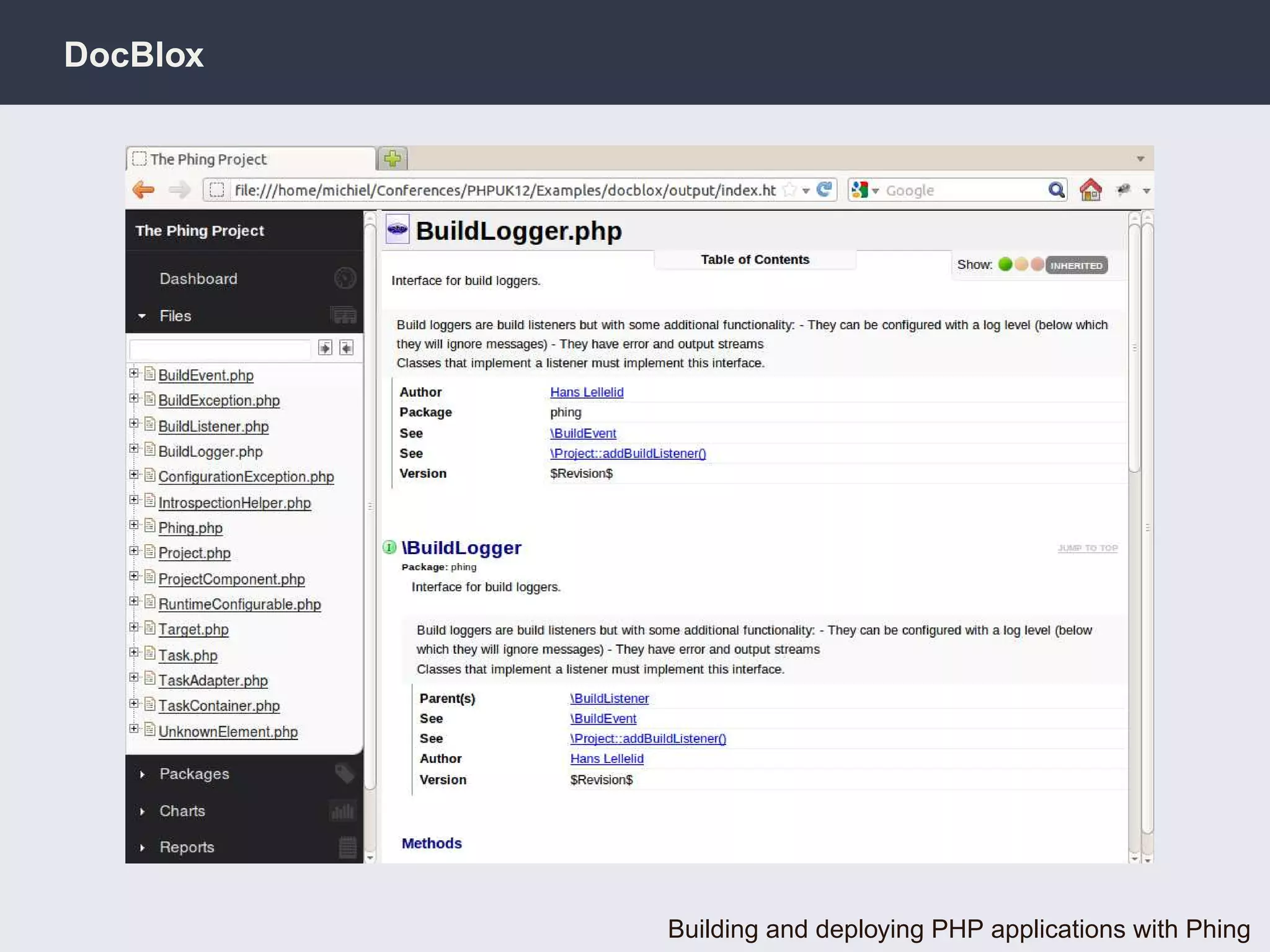

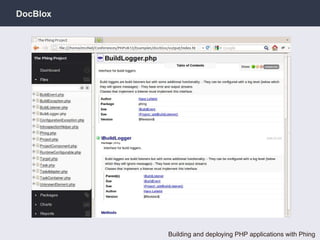

DocBlox

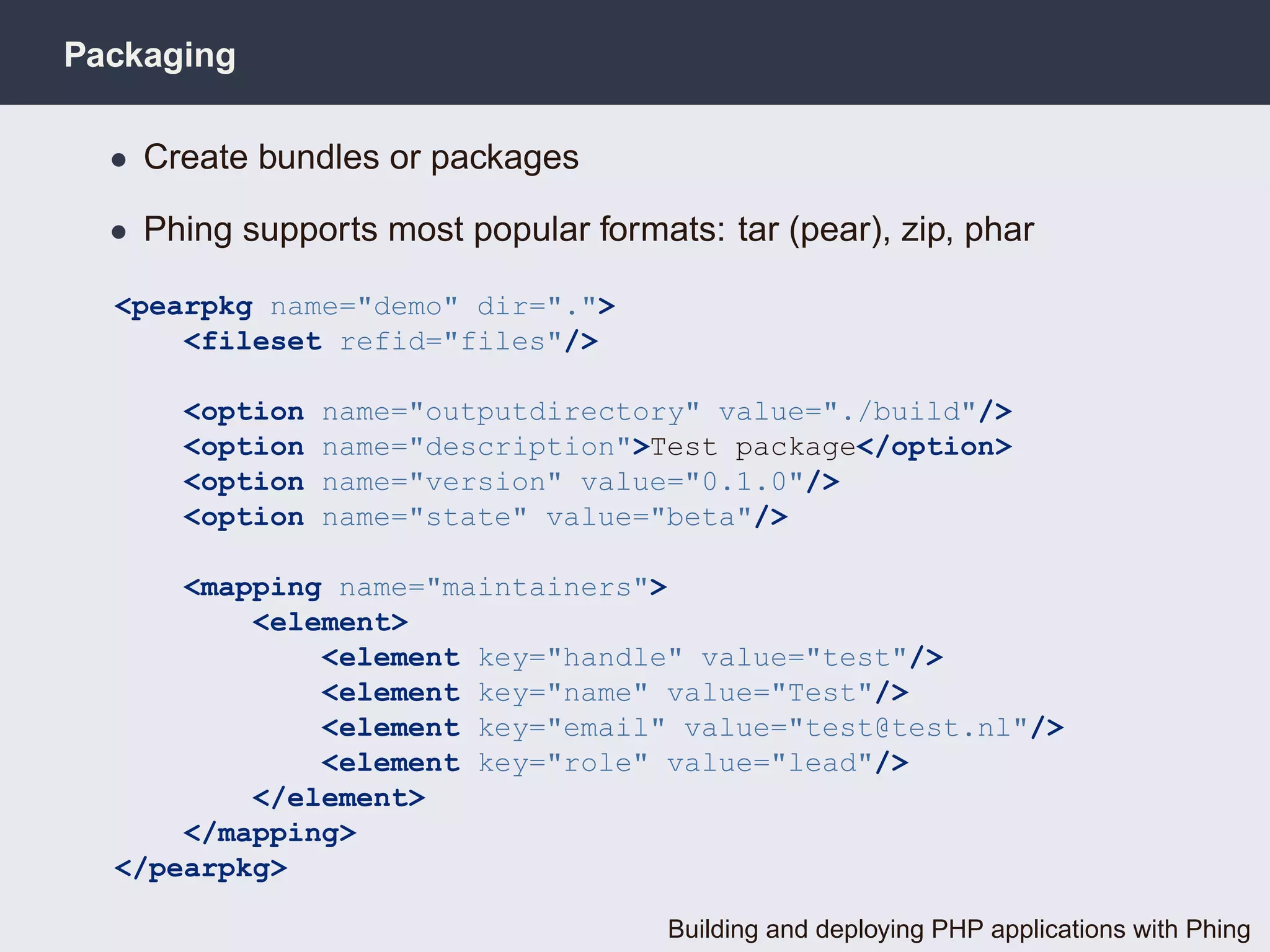

Packaging

• Create bundles or packages

• Phing supports most popular formats: tar (pear), zip, phar

<pearpkg name="demo" dir=".">

<option name="outputdirectory" value="./build"/>
<option name="description">Test package</option>
<option name="version" value="0.1.0"/>
<option name="state" value="beta"/>

<mapping name="maintainers">
<element>
<element key="handle" value="test"/>
<element key="name" value="Test"/>
<element key="email" value="test@test.nl"/>
<element key="role" value="lead"/>
</element>
</mapping>
</pearpkg>

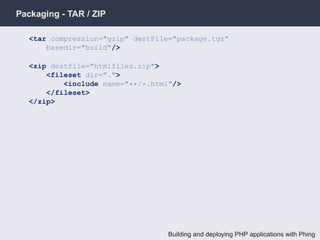

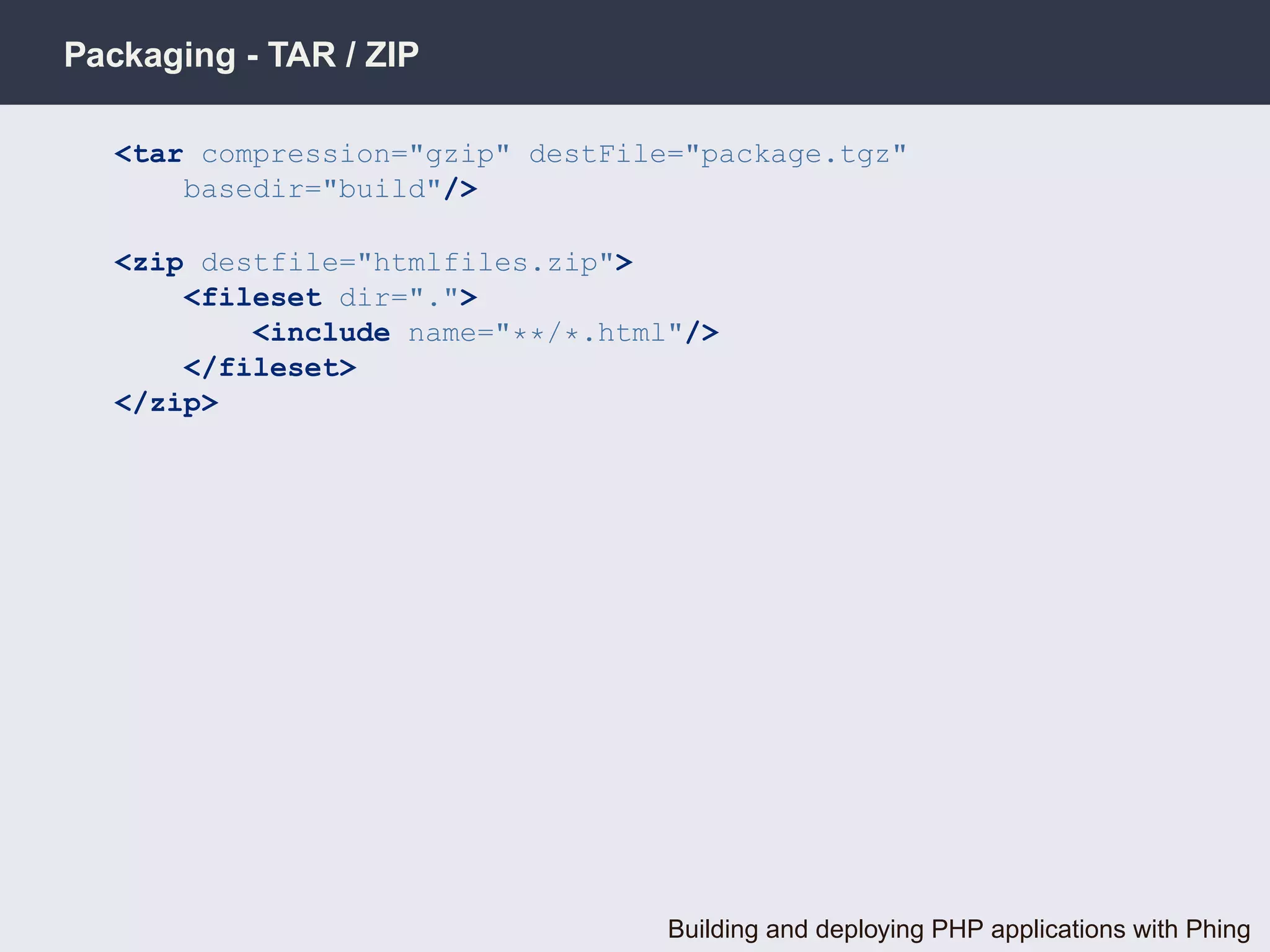

Packaging - TAR / ZIP

<tar compression="gzip" destFile="package.tgz"
basedir="build"/>

<zip destfile="htmlfiles.zip">
<fileset dir=".">
<include name="**/*.html"/>
</fileset>
</zip>

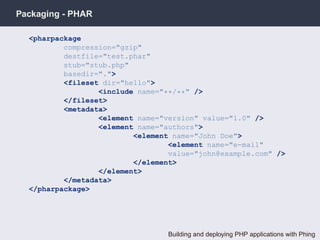

Packaging - PHAR

<pharpackage
compression="gzip"
destfile="test.phar"
stub="stub.php"
basedir=".">
<fileset dir="hello">
<include name="**/**" />
</fileset>
<metadata>
<element name="version" value="1.0" />
<element name="authors">
<element name="John Doe">
<element name="e-mail"
value="john@example.com" />
</element>
</element>
</metadata>
</pharpackage>


Putting it all together - deployments

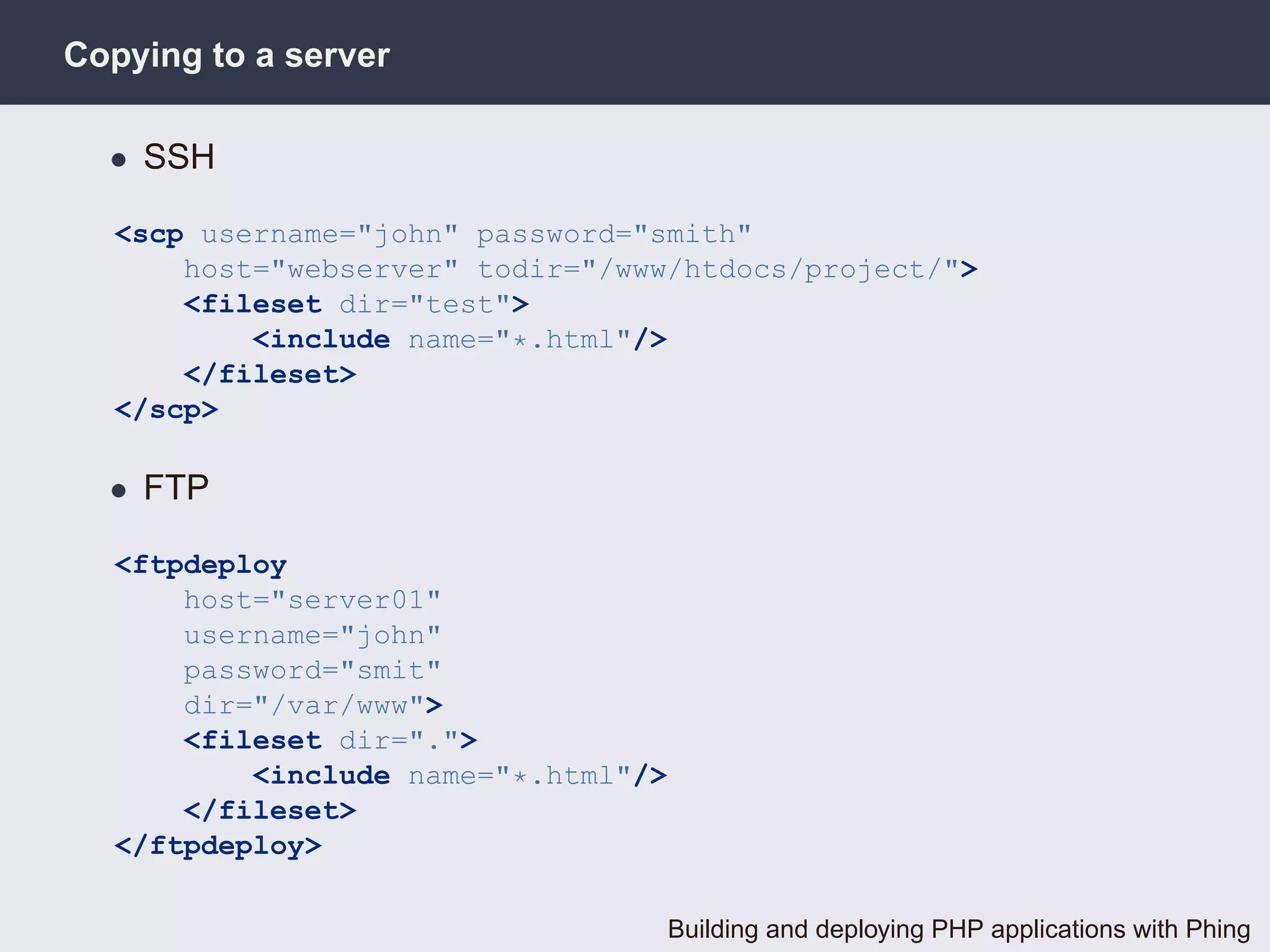

Copying to a server

• SSH

<scp username="john" password="smith"
host="webserver" todir="/www/htdocs/project/">
<fileset dir="test">
<include name="*.html"/>
</fileset>
</scp>

• FTP

<ftpdeploy
host="server01"
username="john"
password="smit"
dir="/var/www">
<fileset dir=".">
<include name="*.html"/>
</fileset>
</ftpdeploy>

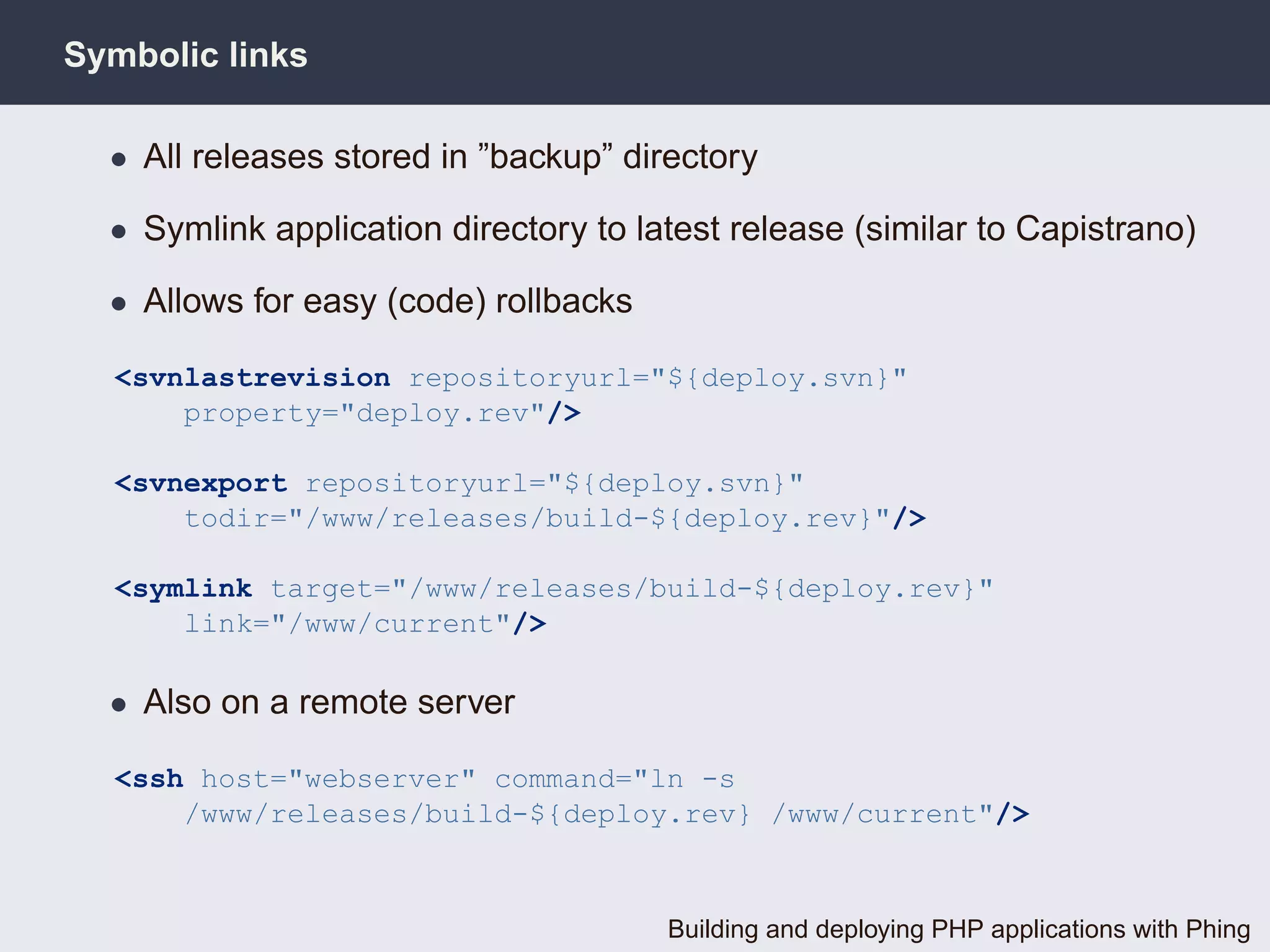

Symbolic links

• All releases stored in ”backup” directory

• Symlink application directory to latest release (similar to Capistrano)

• Allows for easy (code) rollbacks

<svnlastrevision repositoryurl="${deploy.svn}"
property="deploy.rev"/>

<svnexport repositoryurl="${deploy.svn}"
todir="/www/releases/build-${deploy.rev}"/>

<symlink target="/www/releases/build-${deploy.rev}"
link="/www/current"/>

• Also on a remote server

<ssh host="webserver" command="ln -s
/www/releases/build-${deploy.rev} /www/current"/>

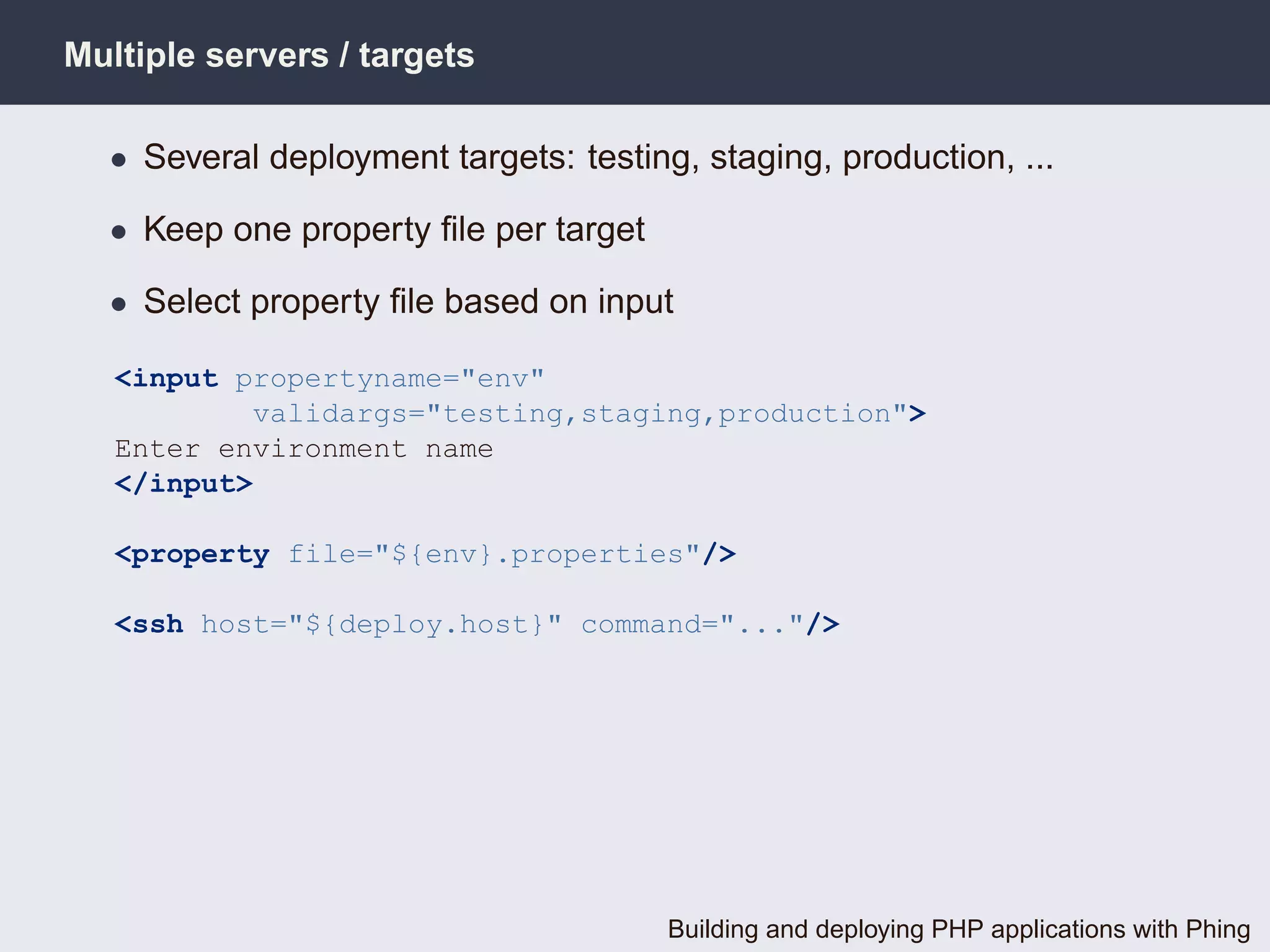

Multiple servers / targets

• Several deployment targets: testing, staging, production, ...

• Keep one property ﬁle per target

• Select property ﬁle based on input

<input propertyname="env"
validargs="testing,staging,production">
Enter environment name
</input>

<property file="${env}.properties"/>

<ssh host="${deploy.host}" command="..."/>

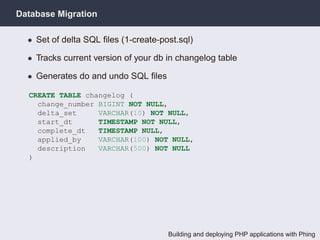

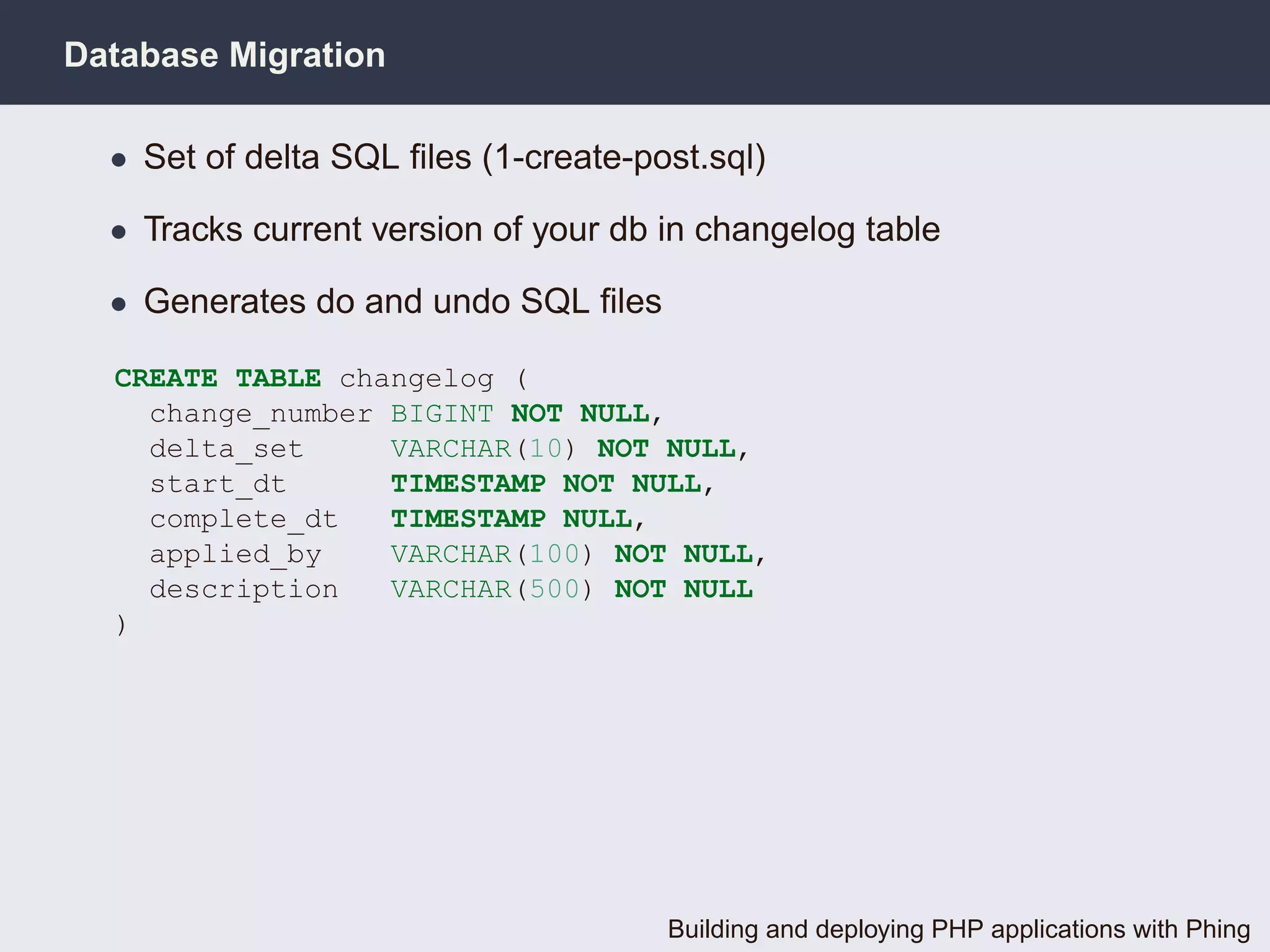

Database Migration

• Set of delta SQL ﬁles (1-create-post.sql)

• Tracks current version of your db in changelog table

• Generates do and undo SQL ﬁles

CREATE TABLE changelog (
change_number BIGINT NOT NULL,
delta_set VARCHAR(10) NOT NULL,
start_dt TIMESTAMP NOT NULL,
complete_dt TIMESTAMP NULL,
applied_by VARCHAR(100) NOT NULL,
description VARCHAR(500) NOT NULL
)

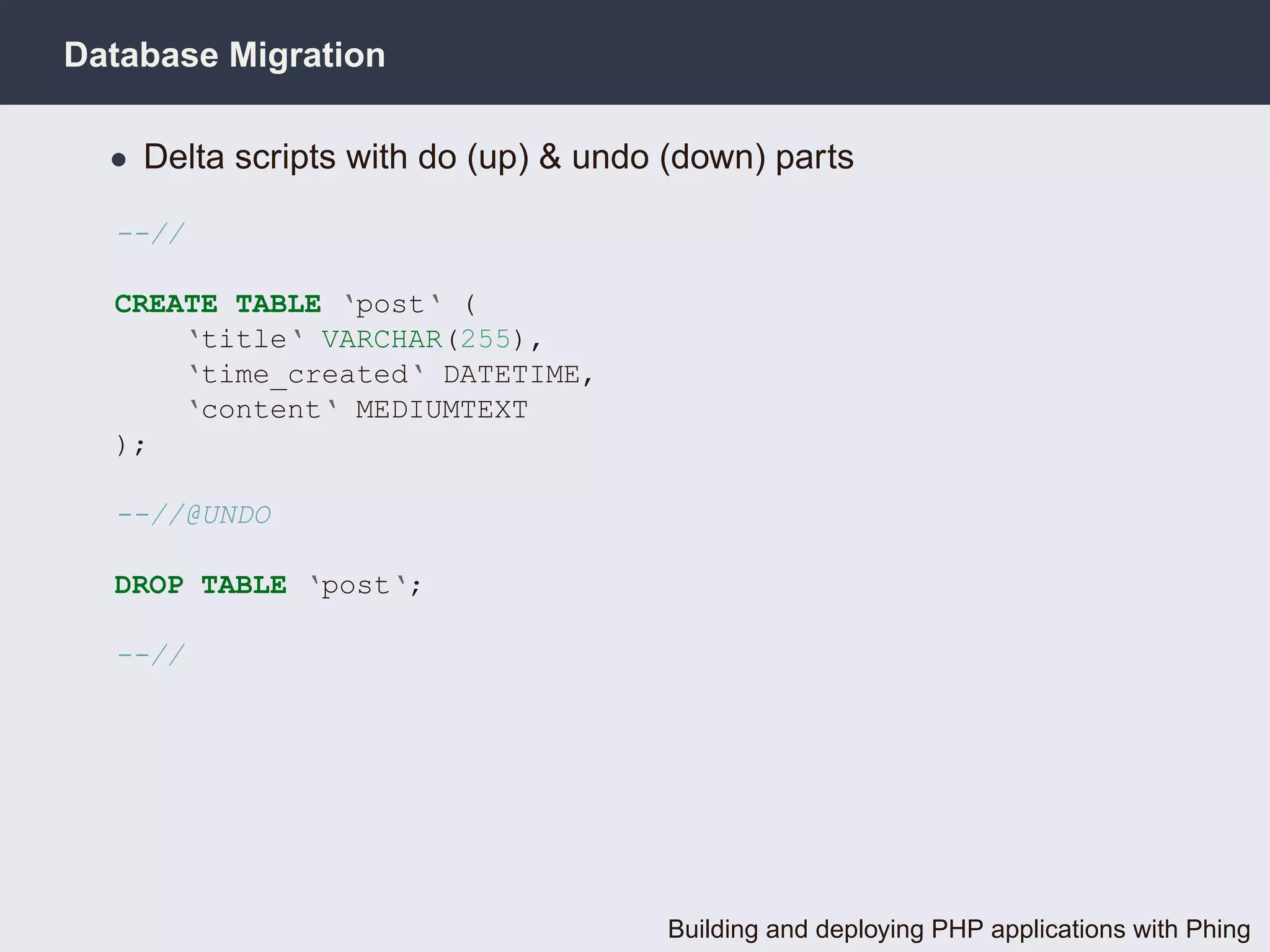

Database Migration

• Delta scripts with do (up) & undo (down) parts

--//

CREATE TABLE ‘post‘ (
‘title‘ VARCHAR(255),
‘time_created‘ DATETIME,
‘content‘ MEDIUMTEXT
);

--//@UNDO

DROP TABLE ‘post‘;

--//

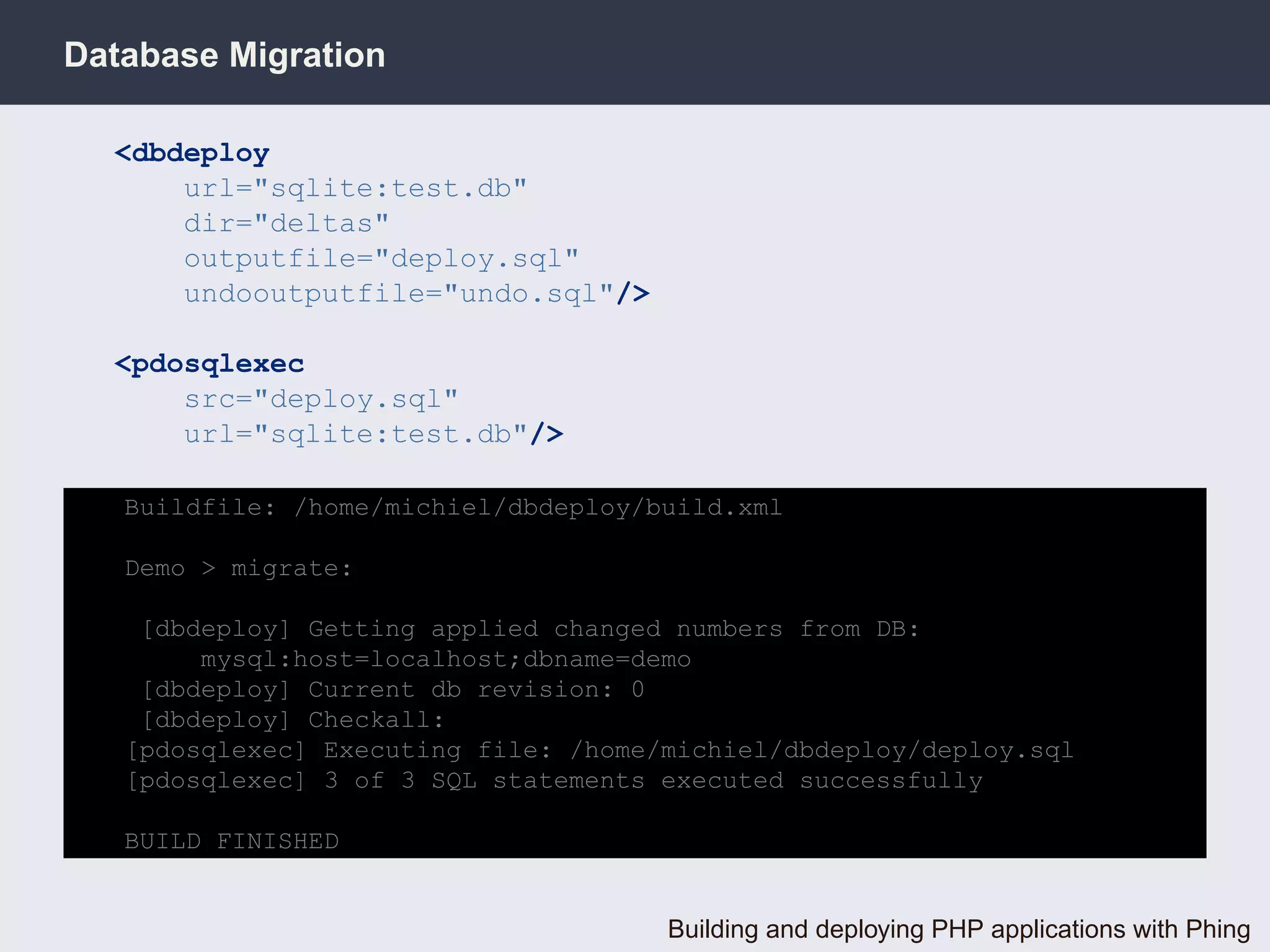

Database Migration

<dbdeploy
url="sqlite:test.db"
dir="deltas"
outputfile="deploy.sql"
undooutputfile="undo.sql"/>

<pdosqlexec
src="deploy.sql"
url="sqlite:test.db"/>

Buildfile: /home/michiel/dbdeploy/build.xml

Demo > migrate:

[dbdeploy] Getting applied changed numbers from DB:
mysql:host=localhost;dbname=demo
[dbdeploy] Current db revision: 0
[dbdeploy] Checkall:
[pdosqlexec] Executing file: /home/michiel/dbdeploy/deploy.sql
[pdosqlexec] 3 of 3 SQL statements executed successfully

BUILD FINISHED

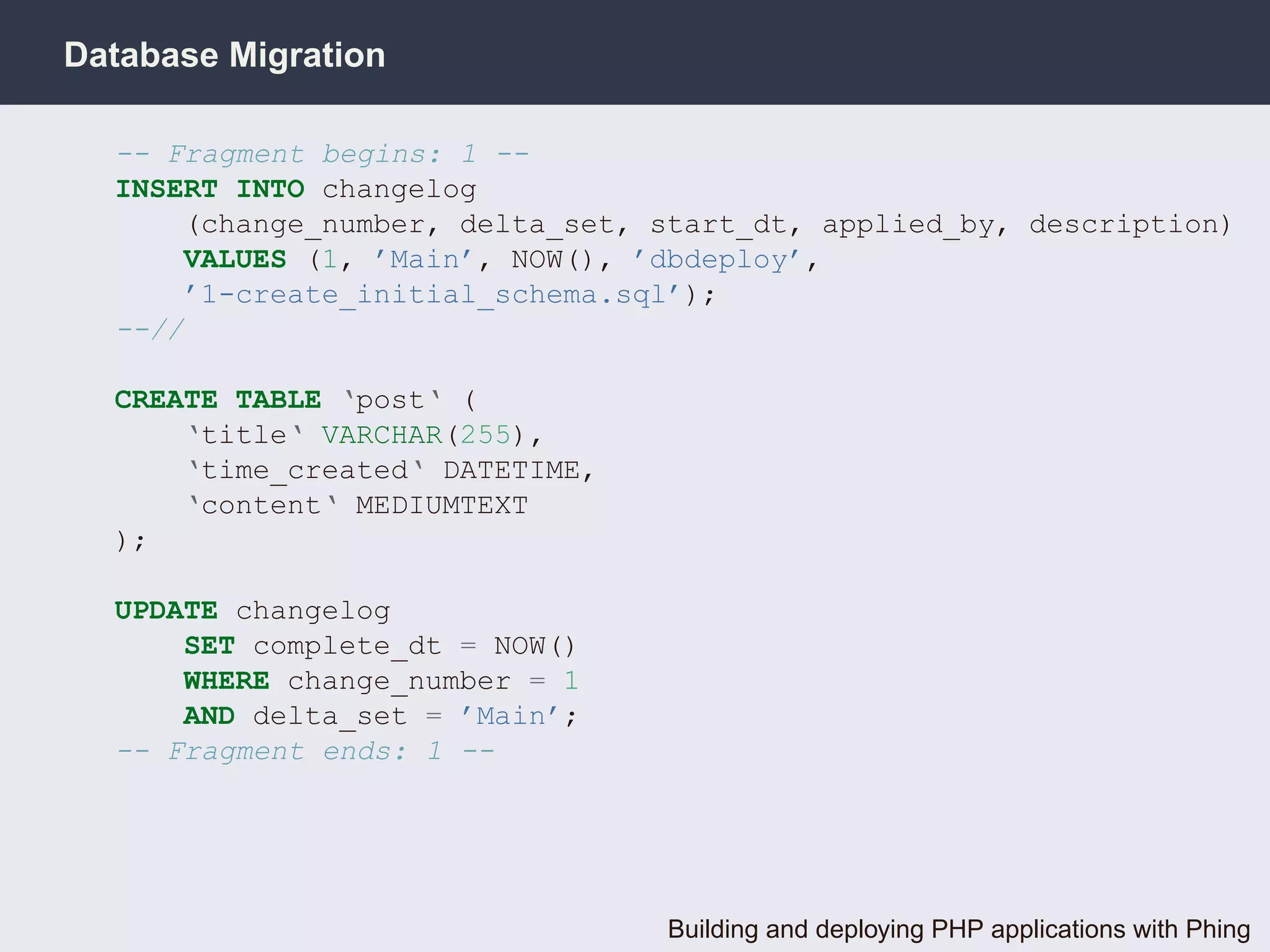

Database Migration

-- Fragment begins: 1 --
INSERT INTO changelog
(change_number, delta_set, start_dt, applied_by, description)
VALUES (1, ’Main’, NOW(), ’dbdeploy’,
’1-create_initial_schema.sql’);
--//

CREATE TABLE ‘post‘ (
‘title‘ VARCHAR(255),
‘time_created‘ DATETIME,
‘content‘ MEDIUMTEXT
);

UPDATE changelog
SET complete_dt = NOW()
WHERE change_number = 1
AND delta_set = ’Main’;
-- Fragment ends: 1 --

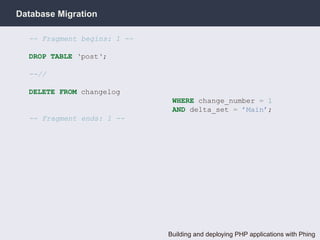

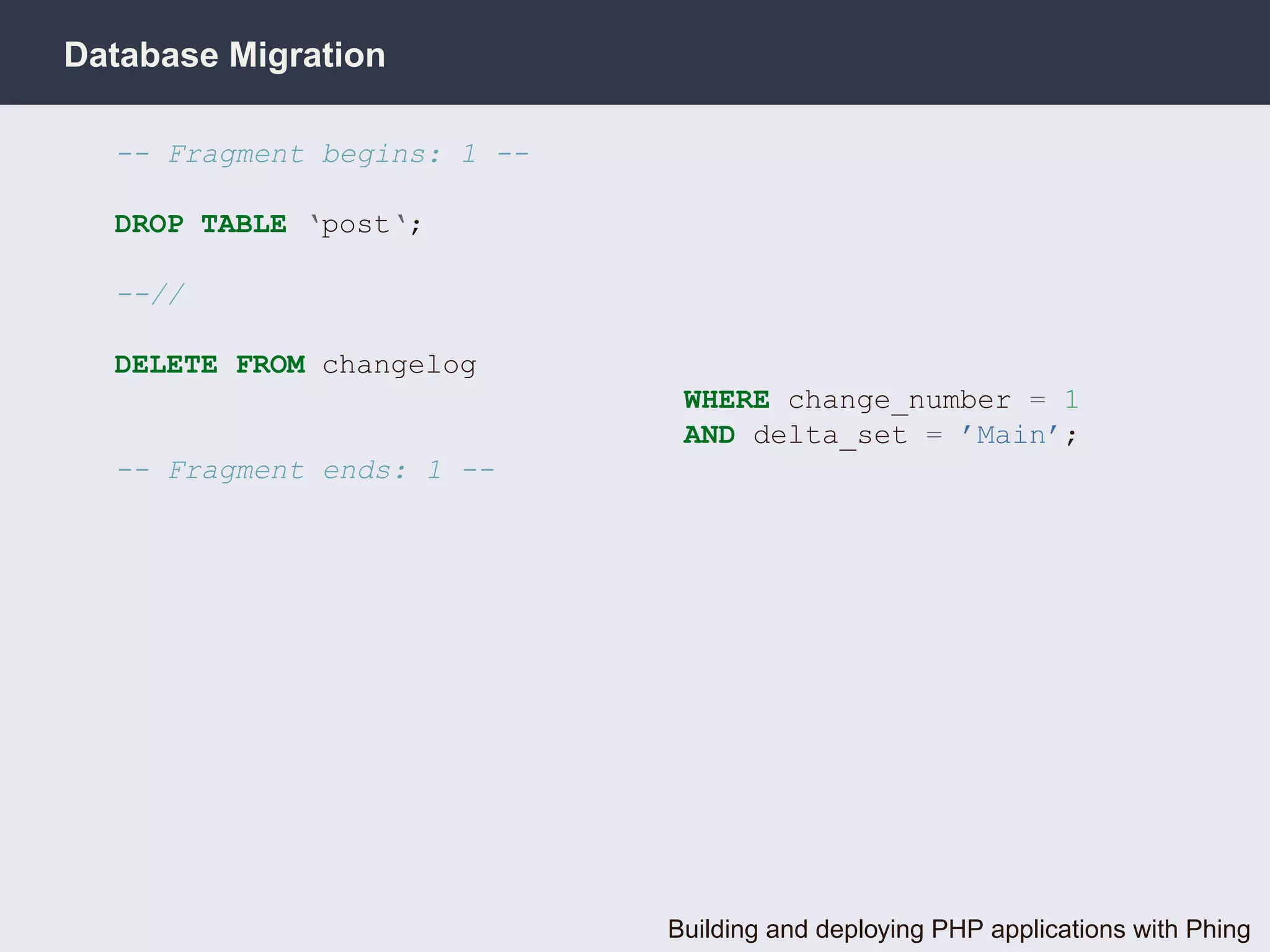

Database Migration

-- Fragment begins: 1 --

DROP TABLE ‘post‘;

--//

DELETE FROM changelog
WHERE change_number = 1
AND delta_set = ’Main’;
-- Fragment ends: 1 --

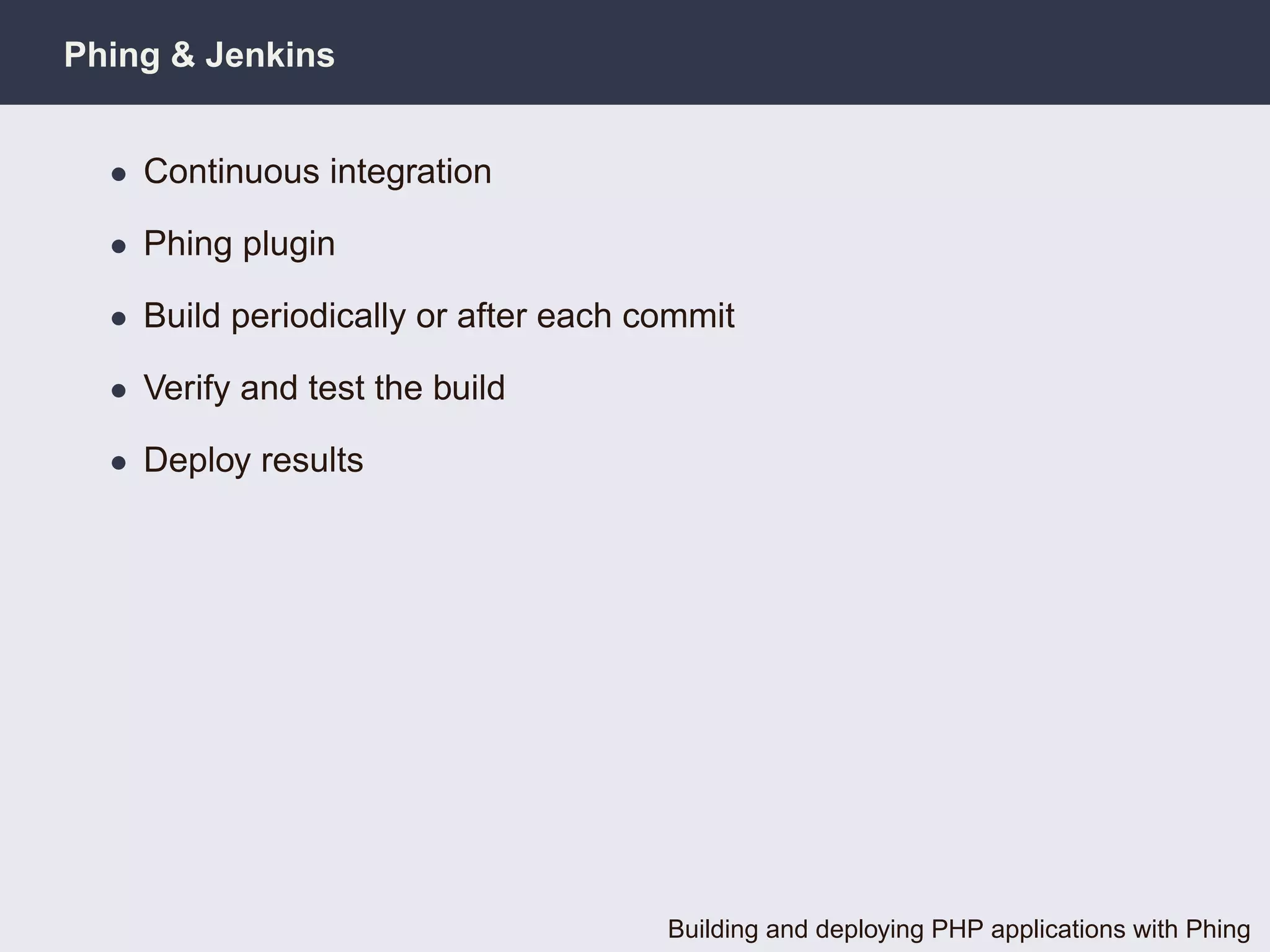

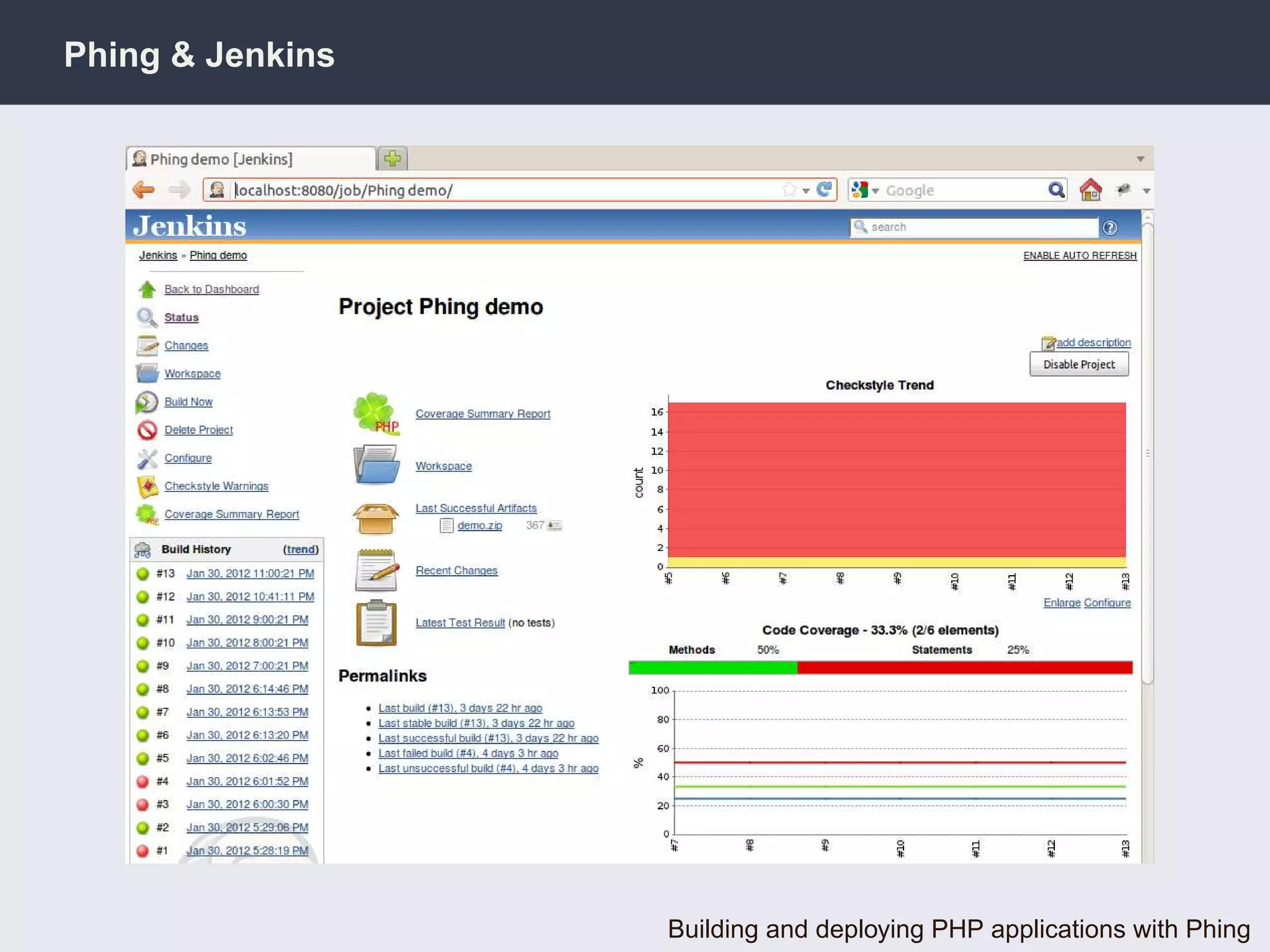

Phing & Jenkins

• Continuous integration

• Phing plugin

• Build periodically or after each commit

• Verify and test the build

• Deploy results

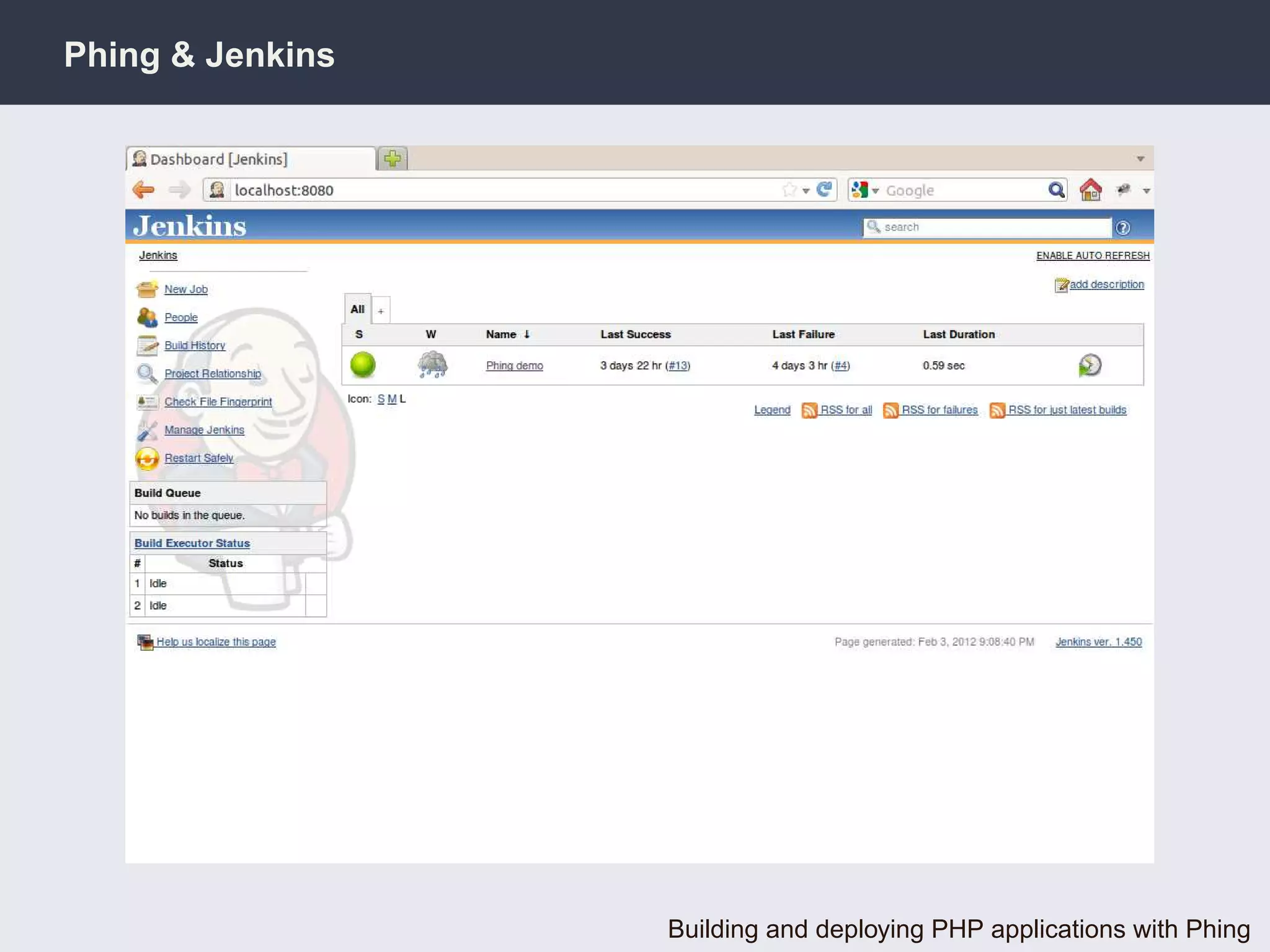

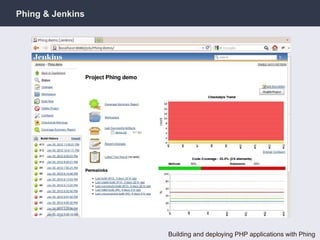

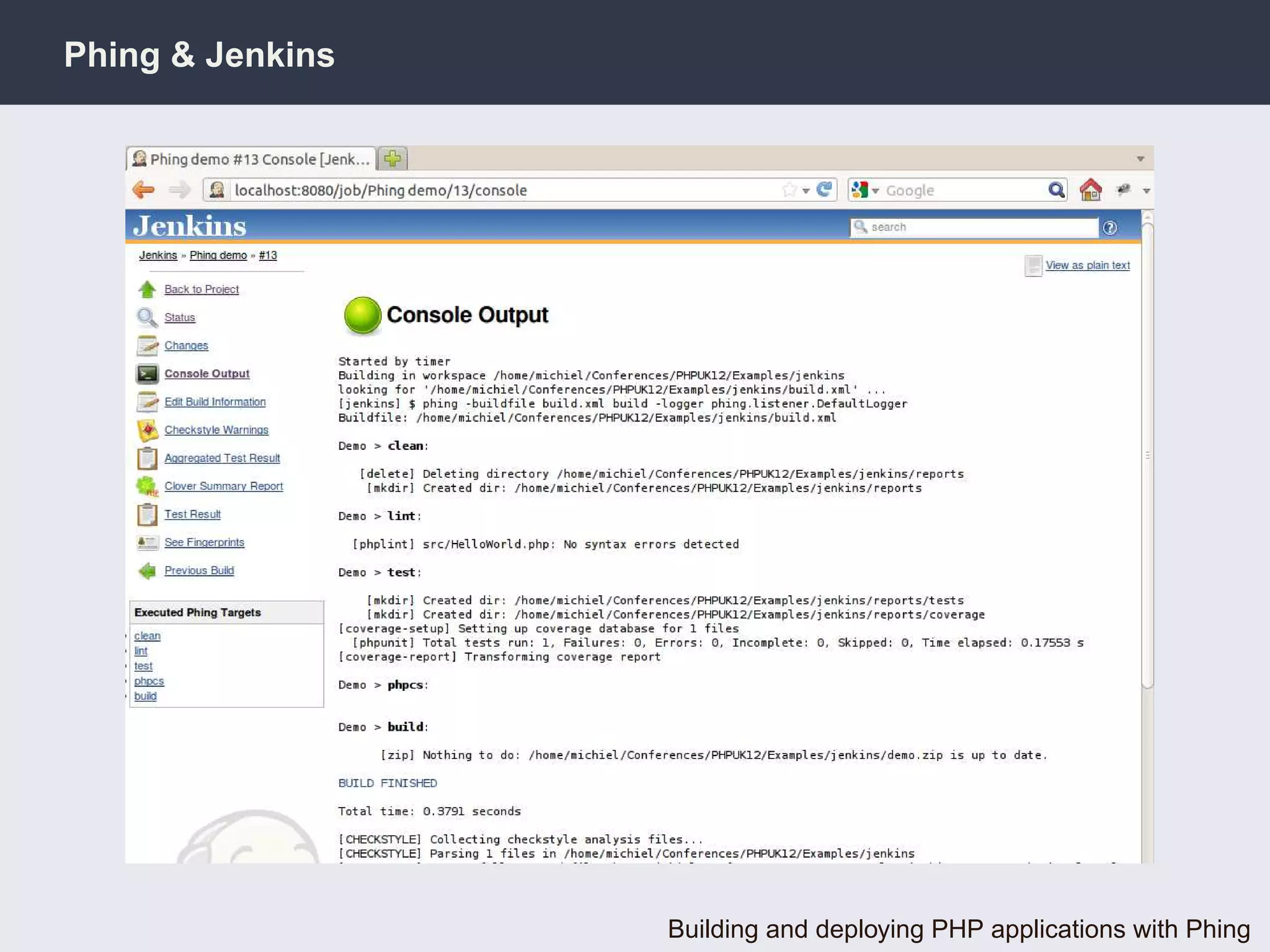

Phing & Jenkins

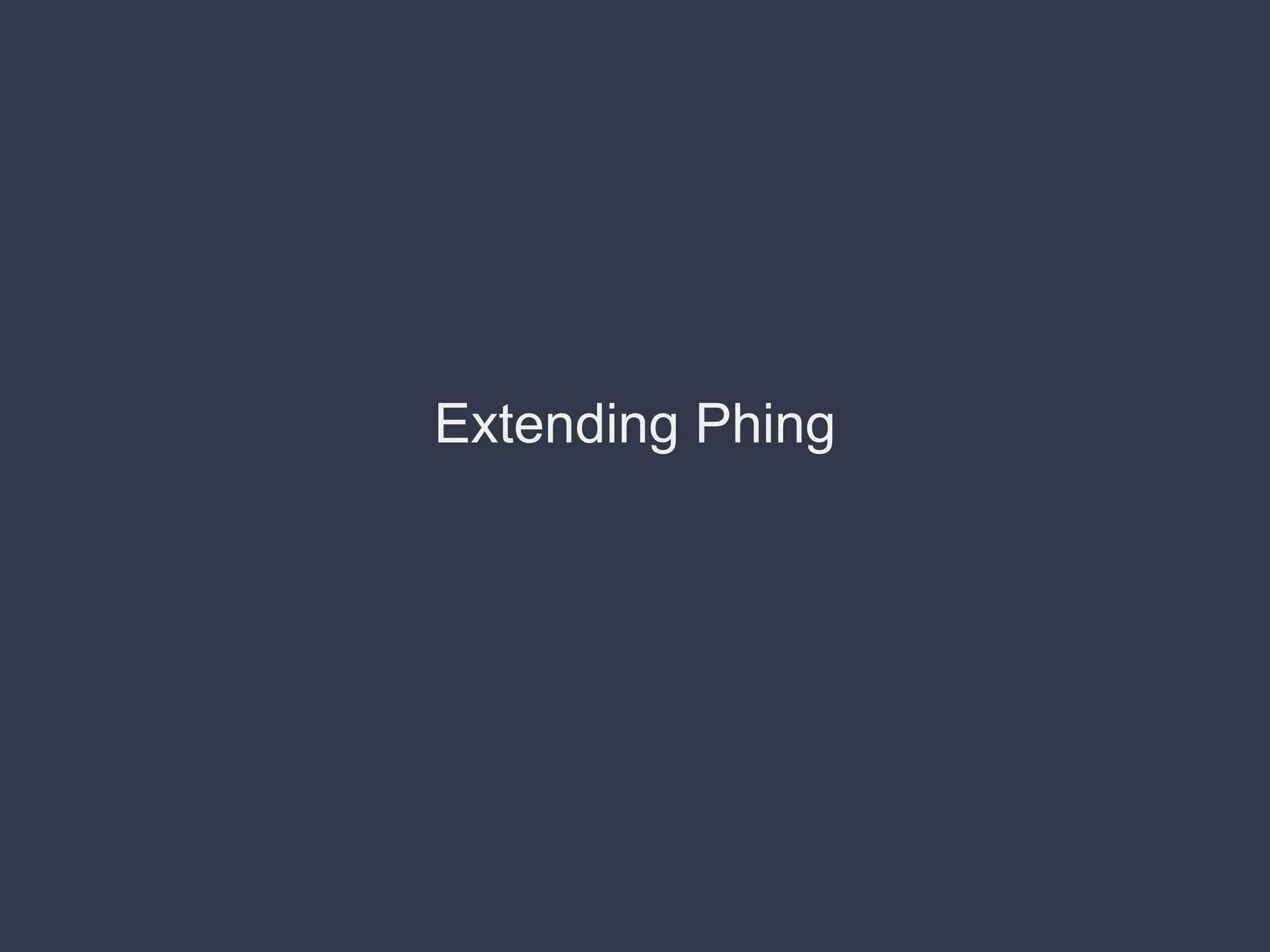

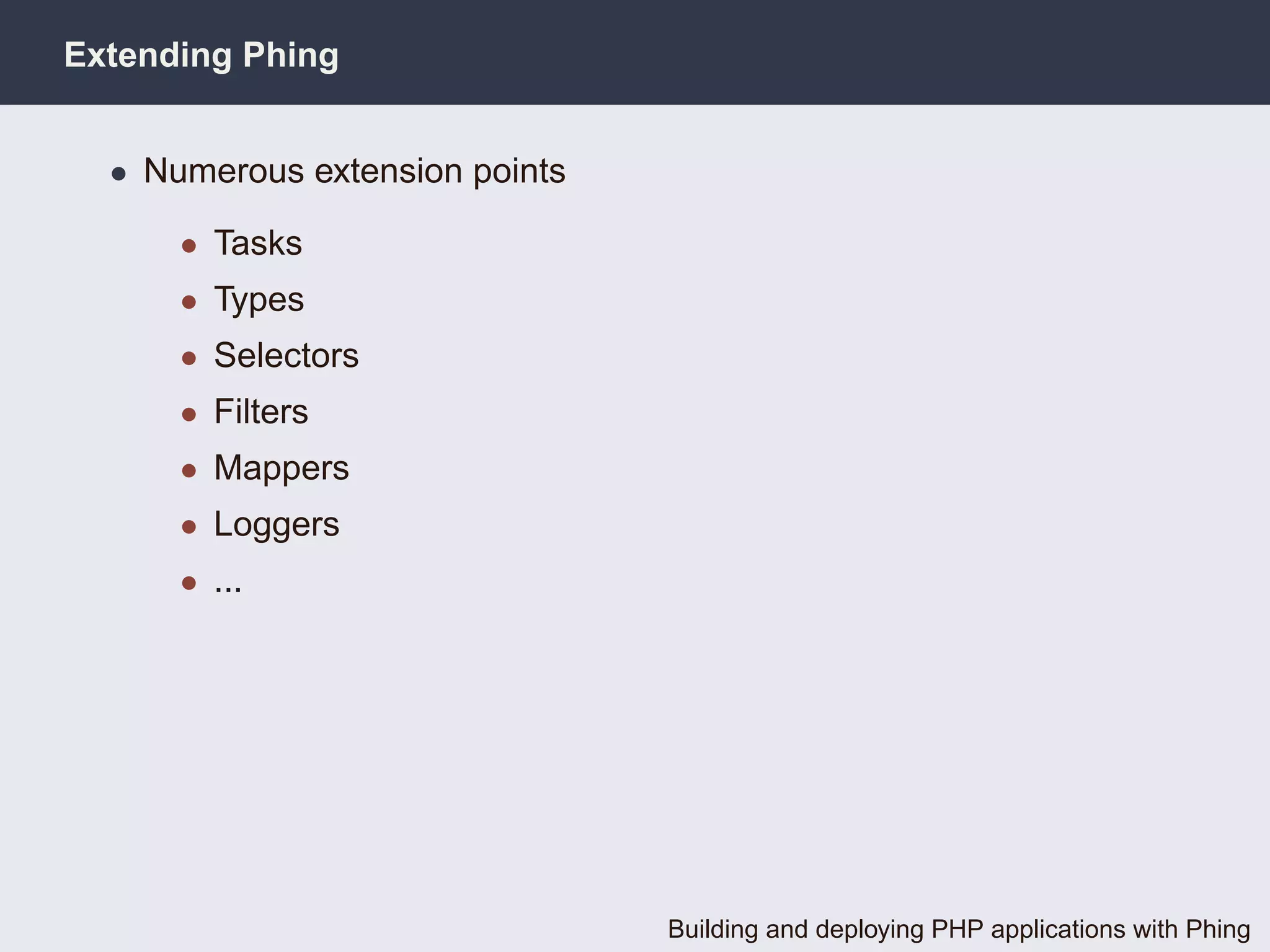

Extending Phing

• Numerous extension points

• Tasks
• Types
• Selectors
• Filters
• Mappers
• Loggers
• ...

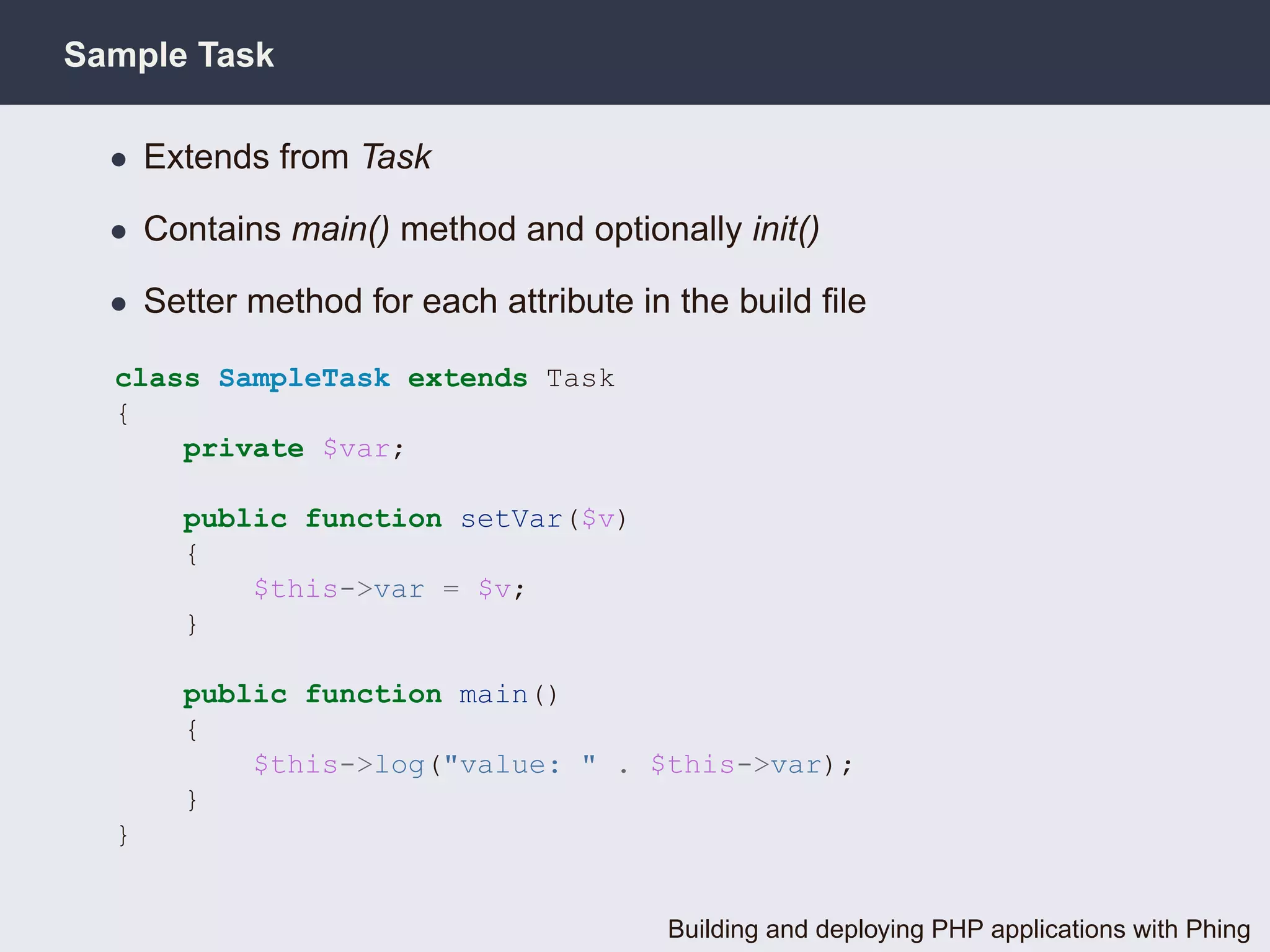

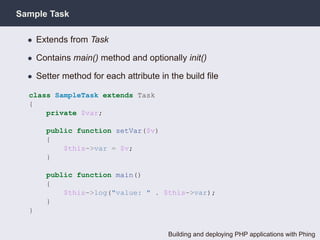

Sample Task

• Extends from Task

• Contains main() method and optionally init()

• Setter method for each attribute in the build ﬁle

class SampleTask extends Task
{
private $var;

public function setVar($v)
{
$this->var = $v;
}

public function main()
{
$this->log("value: " . $this->var);
}
}


Sample Task

• Use taskdef to make Phing aware of your new task

<project name="Example" default="default">
<taskdef name="sample"
classpath="/dev/src"
classname="tasks.my.SampleTask" />

<target name="default">
<sample var="Hello World" />
</target>
</project>

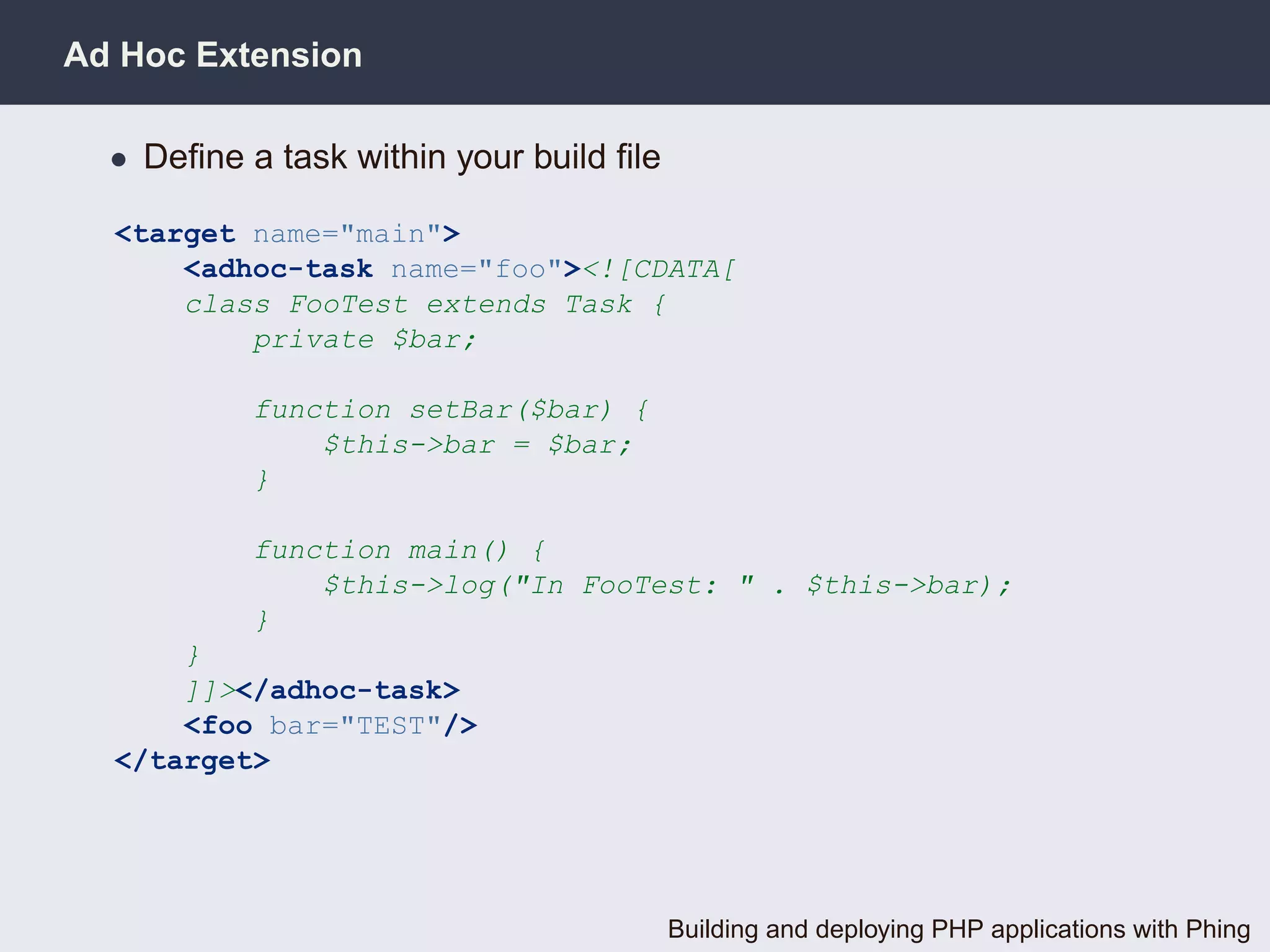

Ad Hoc Extension

• Deﬁne a task within your build ﬁle

<target name="main">
<adhoc-task name="foo"><![CDATA[
class FooTest extends Task {
private $bar;

function setBar($bar) {
$this->bar = $bar;
}

function main() {
$this->log("In FooTest: " . $this->bar);
}
}
]]></adhoc-task>
<foo bar="TEST"/>
</target>

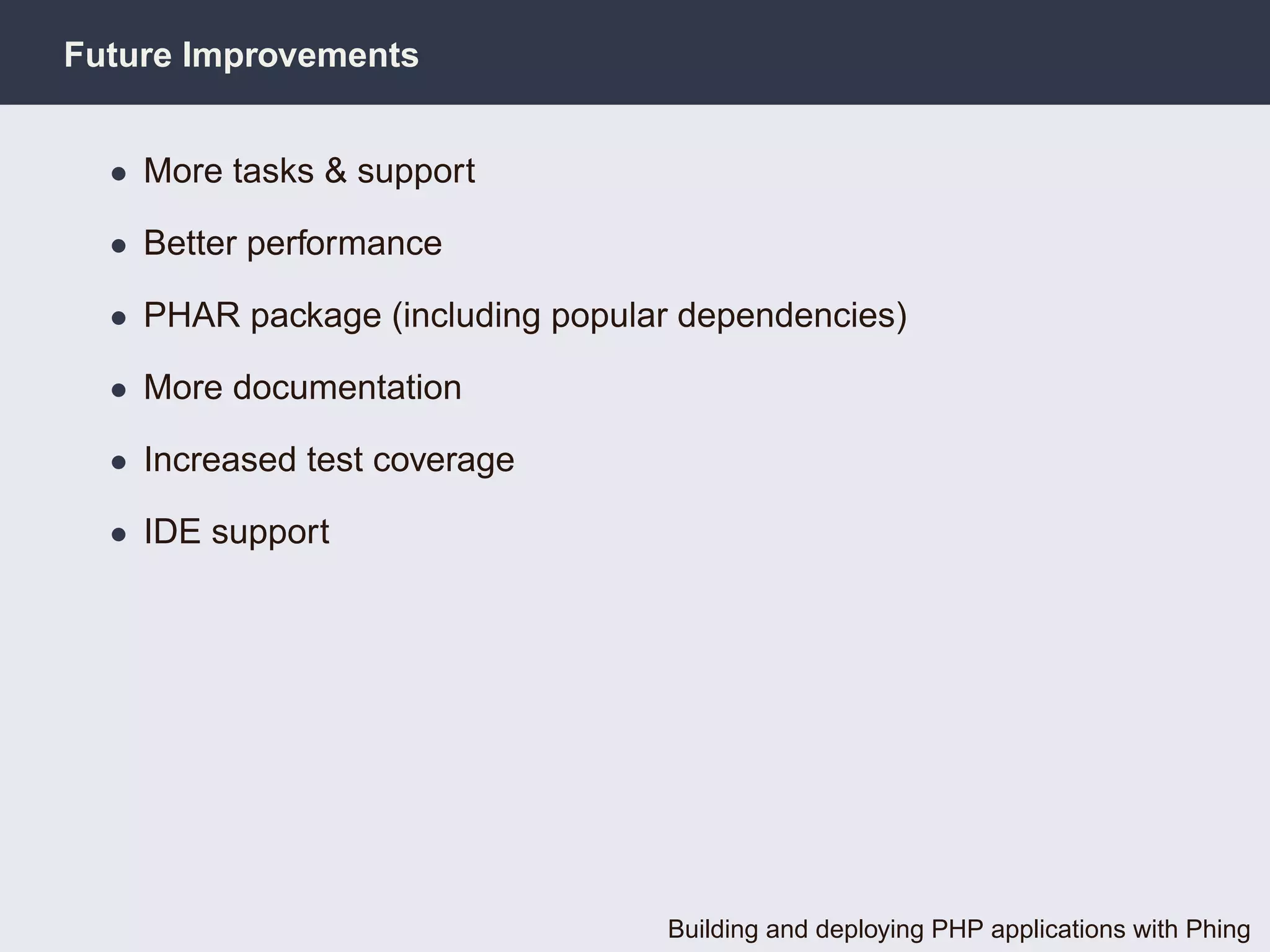

Future Improvements

• More tasks & support

• Better performance

• PHAR package (including popular dependencies)

• More documentation

• Increased test coverage

• IDE support

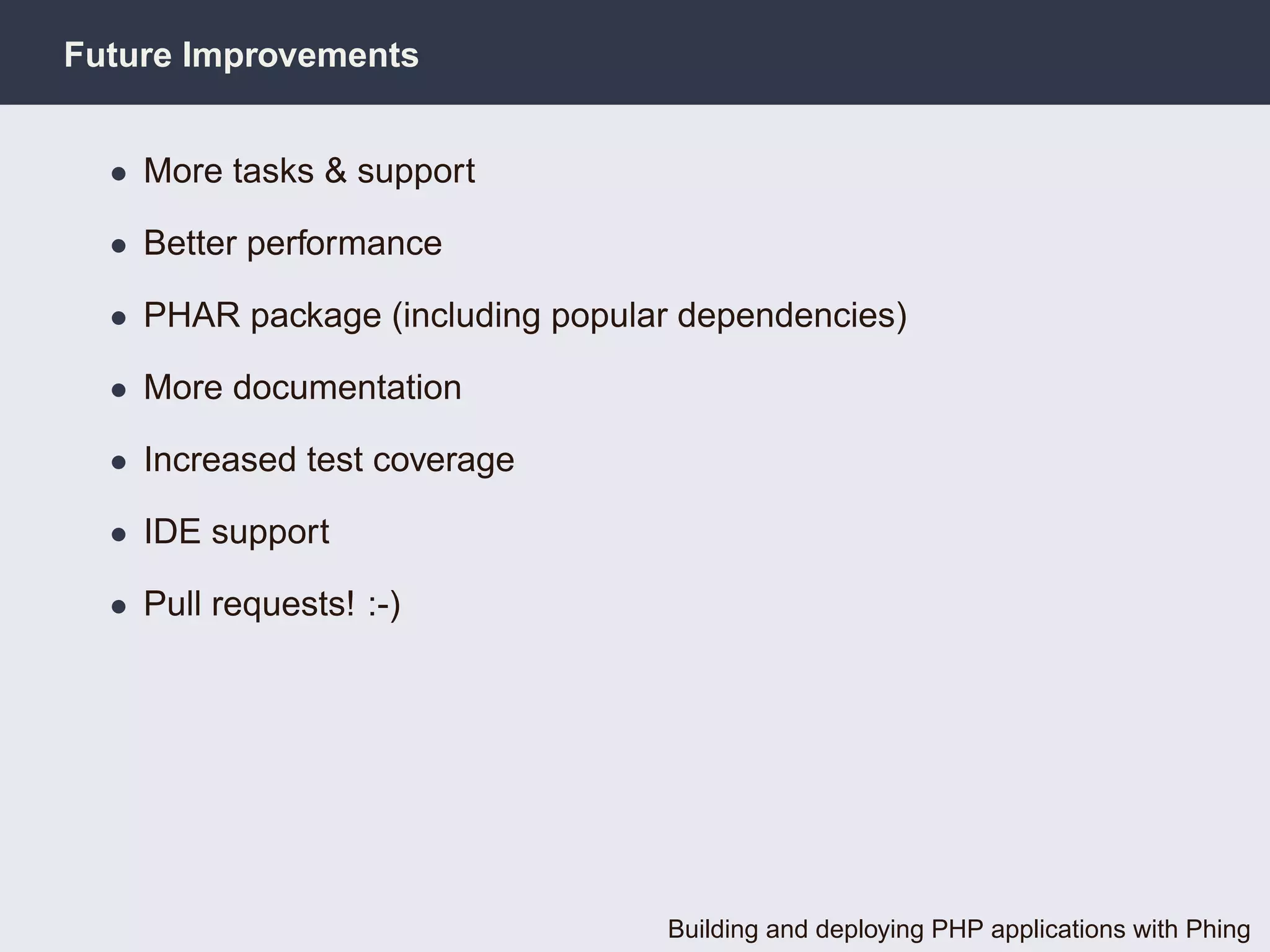

Future Improvements

• More tasks & support

• Better performance

• PHAR package (including popular dependencies)

• More documentation

• Increased test coverage

• IDE support

• Pull requests! :-)

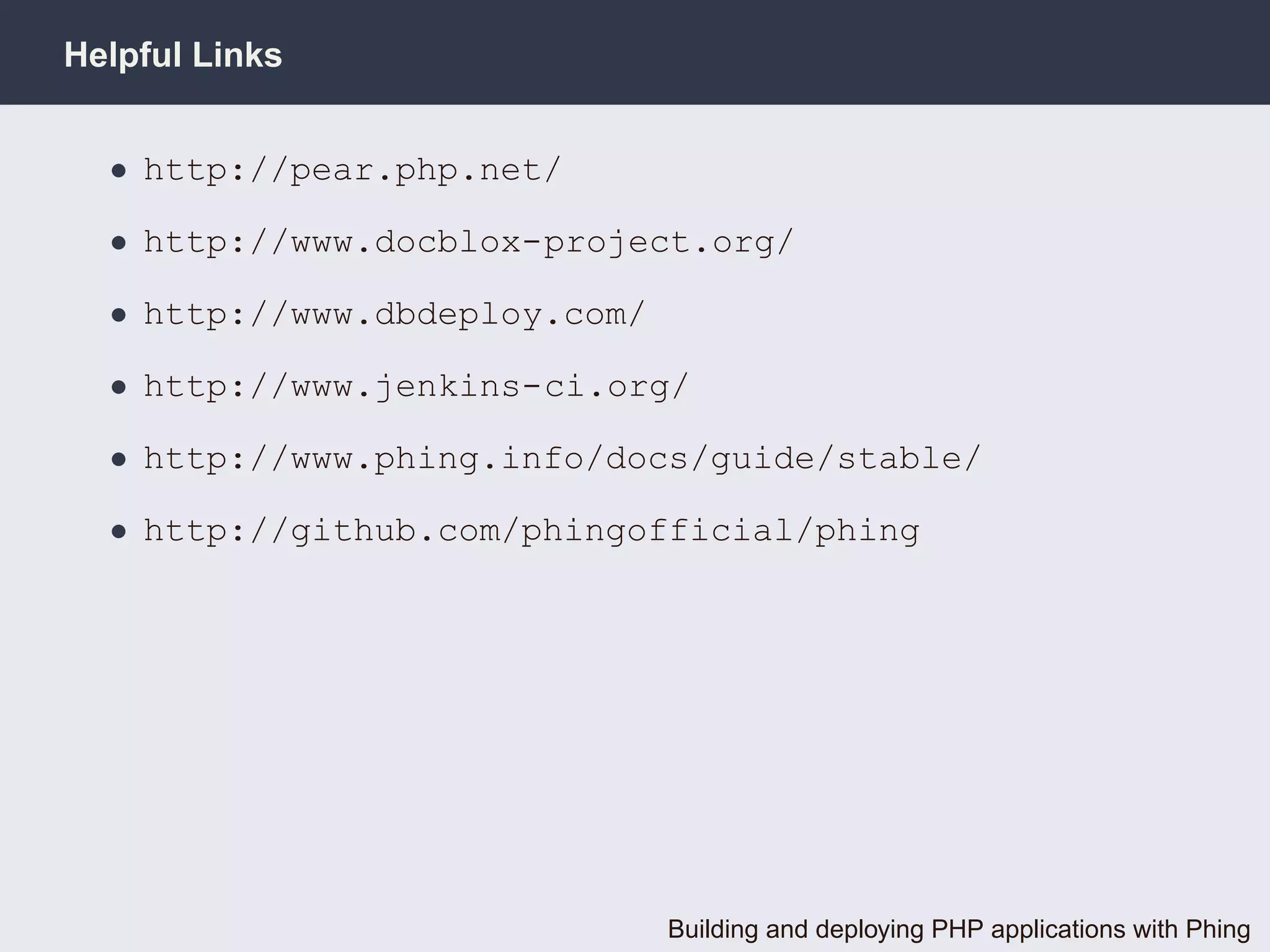

Helpful Links

• http://pear.php.net/

• http://www.docblox-project.org/

• http://www.dbdeploy.com/

• http://www.jenkins-ci.org/

• http://www.phing.info/docs/guide/stable/

• http://github.com/phingofficial/phing

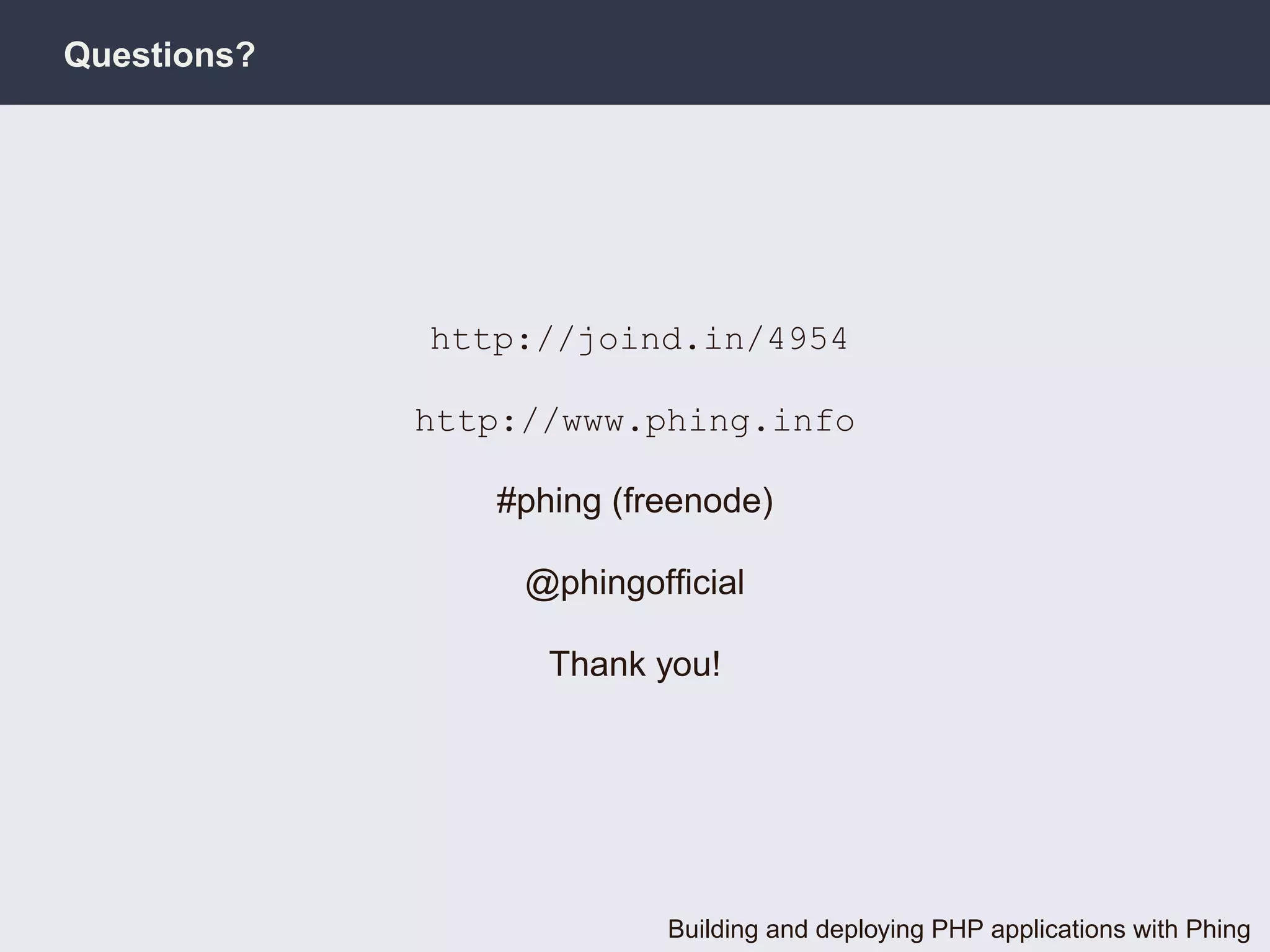

Questions?

http://joind.in/4954

http://www.phing.info

#phing (freenode)

@phingofﬁcial

Thank you!


Building and deploying PHP applications with Phing

In this document

More Related Content

Similar to Building and deploying PHP applications with Phing

Recently uploaded

Building and deploying PHP applications with Phing
