Building Event-Driven Systems with Apache Kafka

BUILDING
EVENT-DRIVEN SYSTEMS
WITH APACHE KAFKA
BRIAN RITCHIE
CTO, XEOHEALTH
2016
@brian_ritchie
brian.ritchie@gmail.com
http://www.dotnetpowered.com

BUILDING EVENT-DRIVEN SYSTEMS WITH APACHE KAFKA

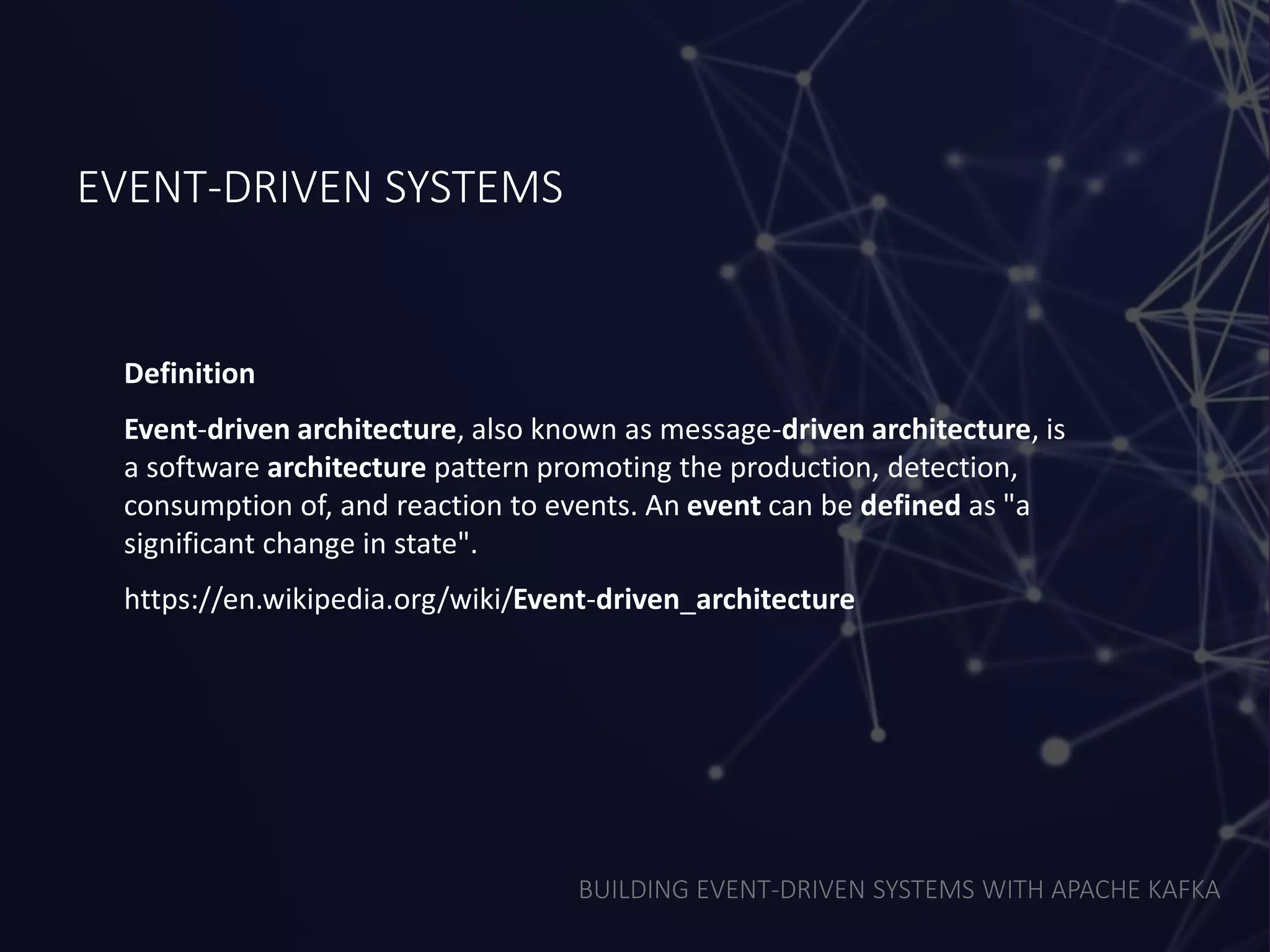

EVENT-DRIVEN SYSTEMS
Definition
Event-driven architecture, also known as message-driven architecture, is
a software architecture pattern promoting the production, detection,
consumption of, and reaction to events. An event can be defined as "a
significant change in state".
https://en.wikipedia.org/wiki/Event-driven_architecture

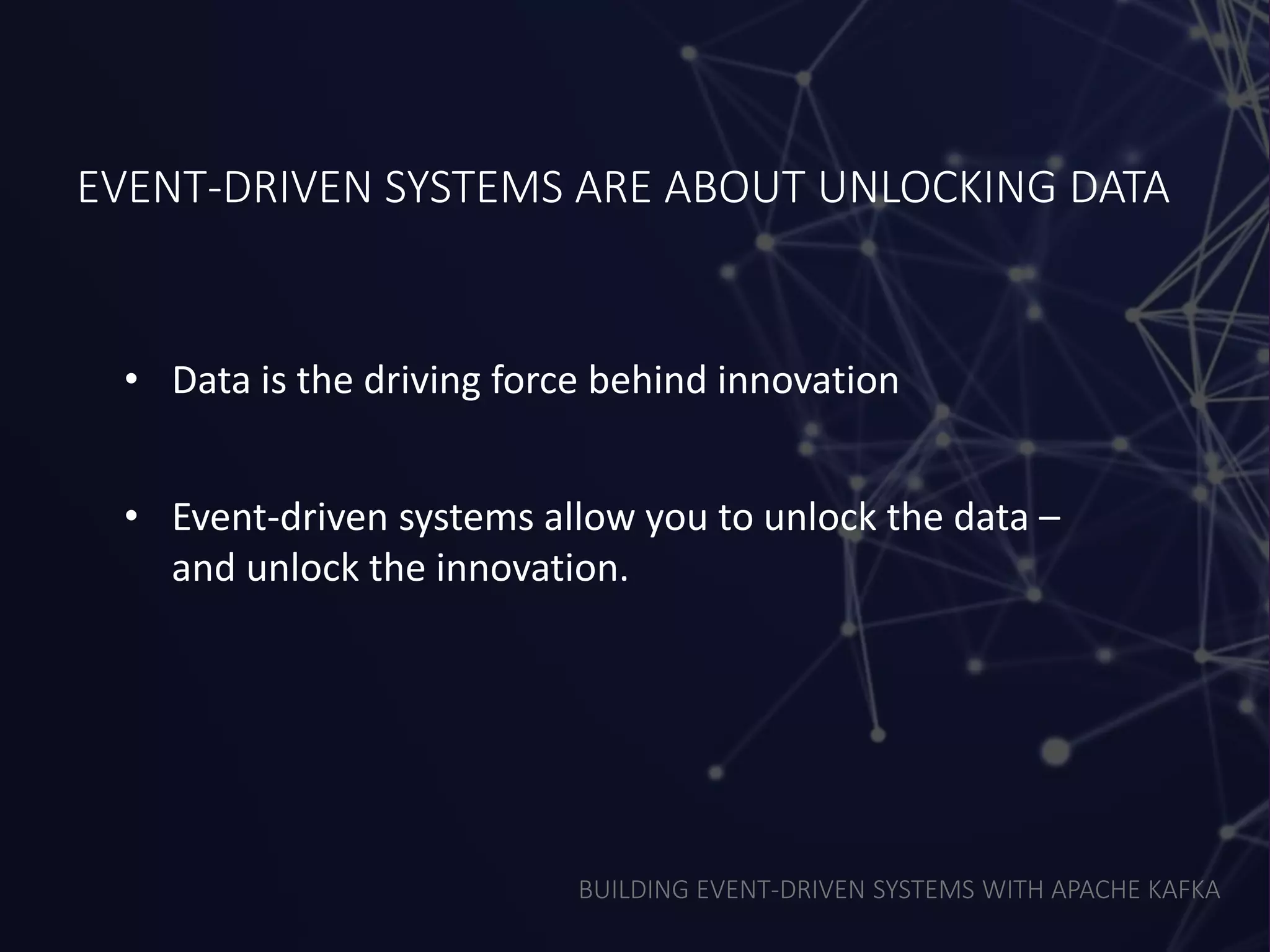

EVENT-DRIVEN SYSTEMS ARE ABOUT UNLOCKING DATA
• Data is the driving force behind innovation
• Event-driven systems allow you to unlock the data –
and unlock the innovation.

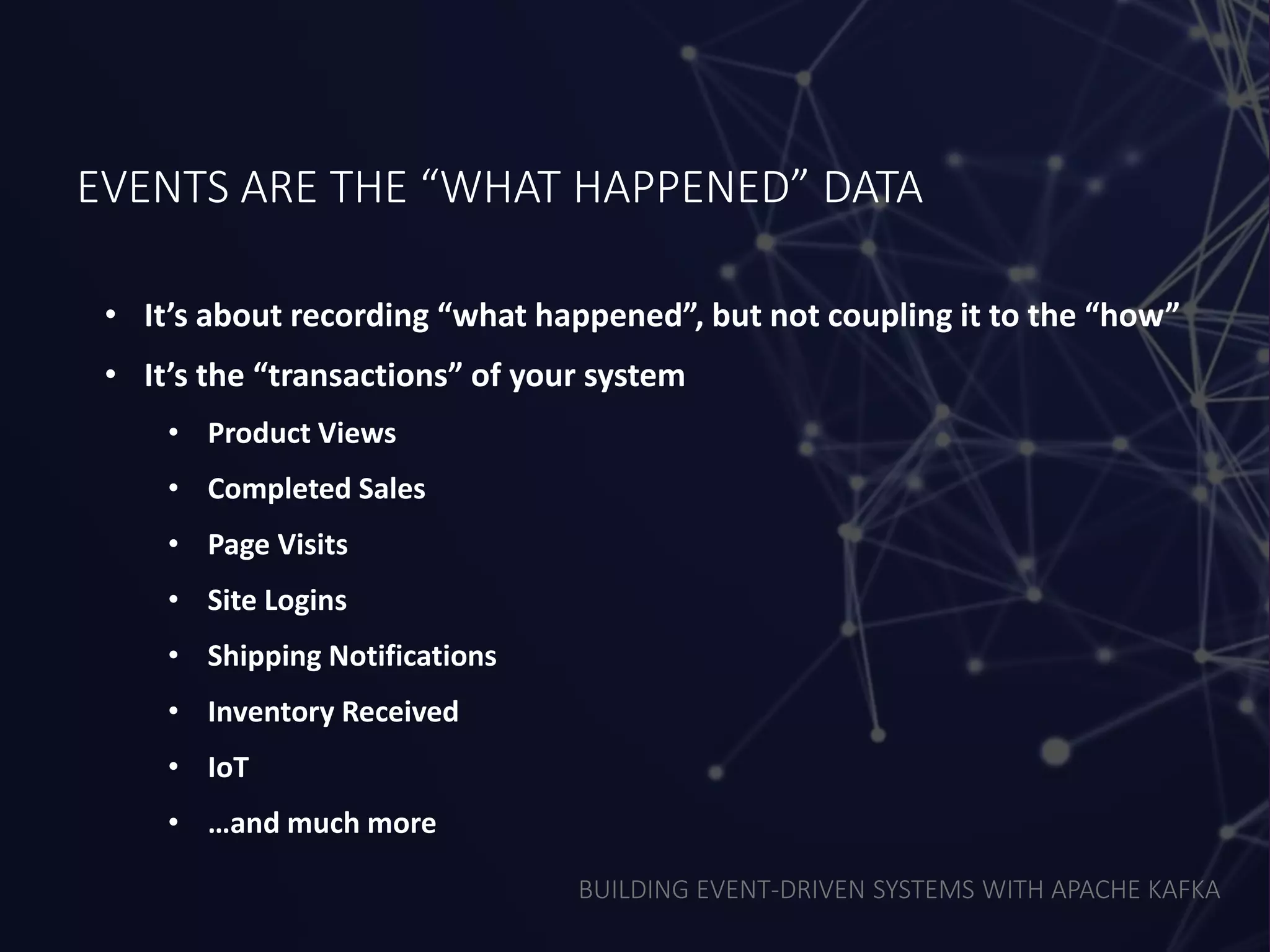

EVENTS ARE THE “WHAT HAPPENED” DATA
• It’s about recording “what happened”, but not coupling it to the “how”
• It’s the “transactions” of your system
• Product Views
• Completed Sales
• Page Visits
• Site Logins
• Shipping Notifications
• Inventory Received
• IoT
• …and much more

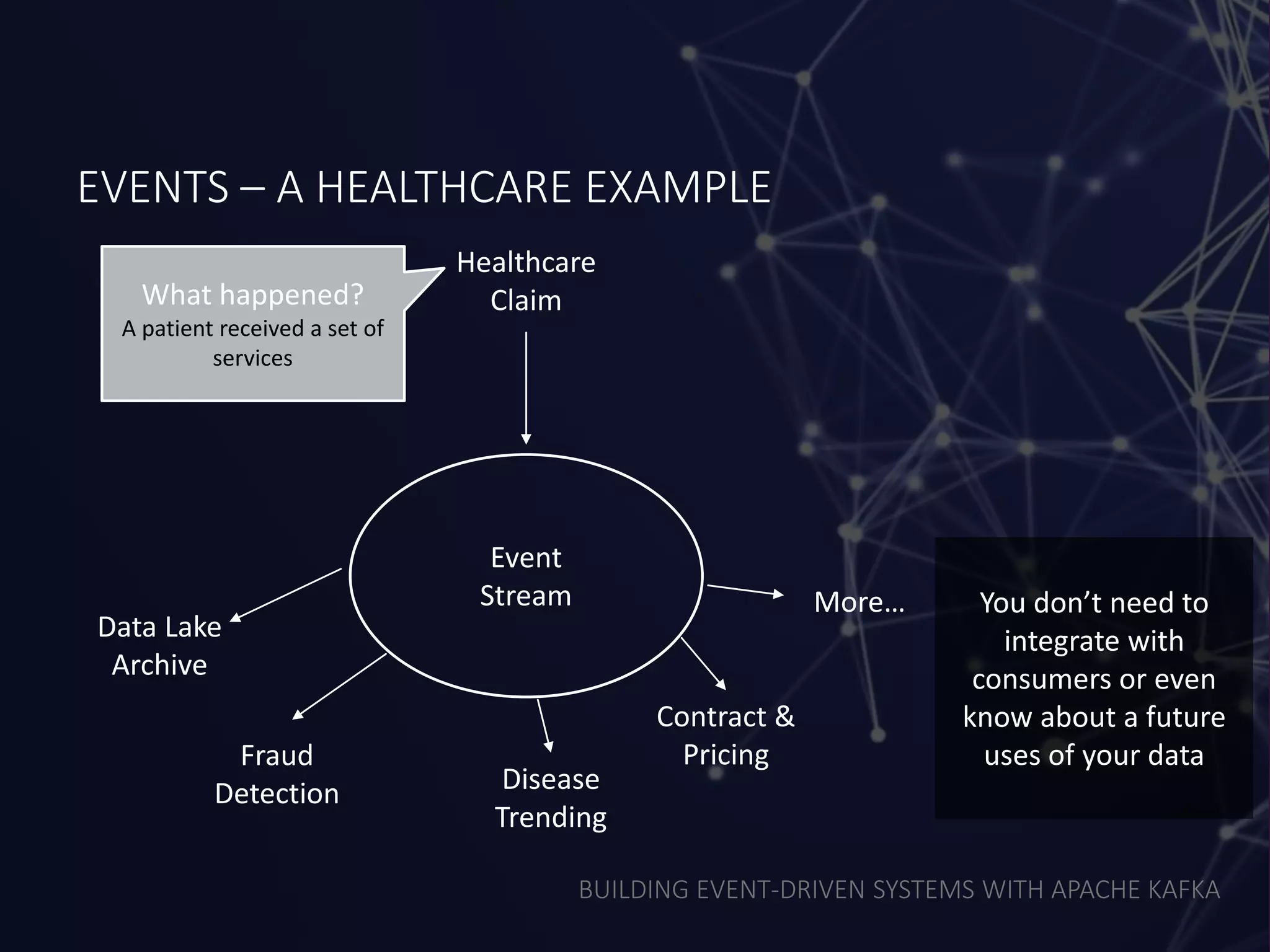

EVENTS – A HEALTHCARE EXAMPLE
Event
Stream
Healthcare
Claim
Fraud
Detection
Data Lake
Archive
Disease
Trending
Contract &
Pricing
More… You don’t need to
integrate with
consumers or even
know about a future
uses of your data
What happened?
A patient received a set of
services

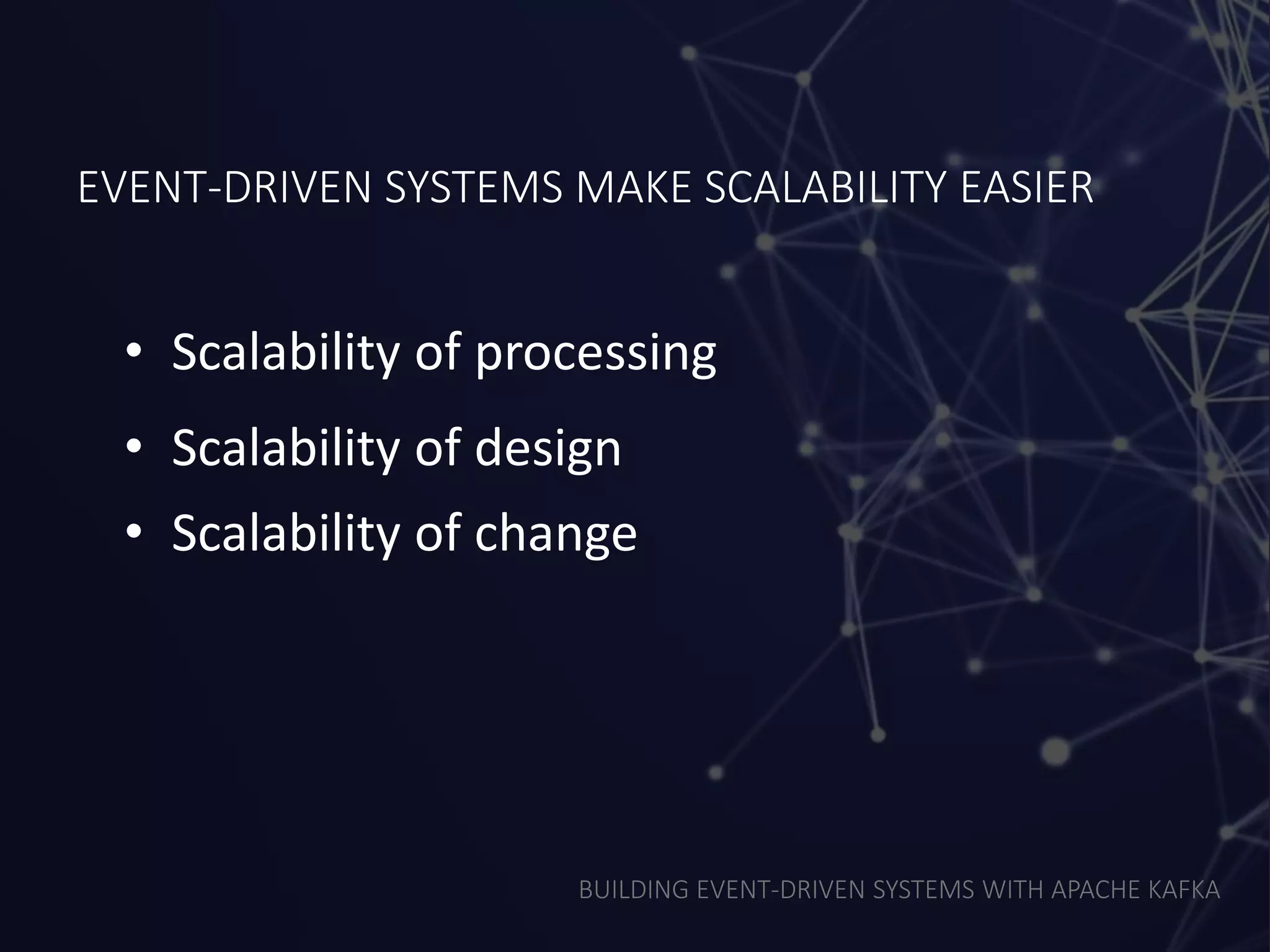

EVENT-DRIVEN SYSTEMS MAKE SCALABILITY EASIER
• Scalability of processing
• Scalability of design
• Scalability of change

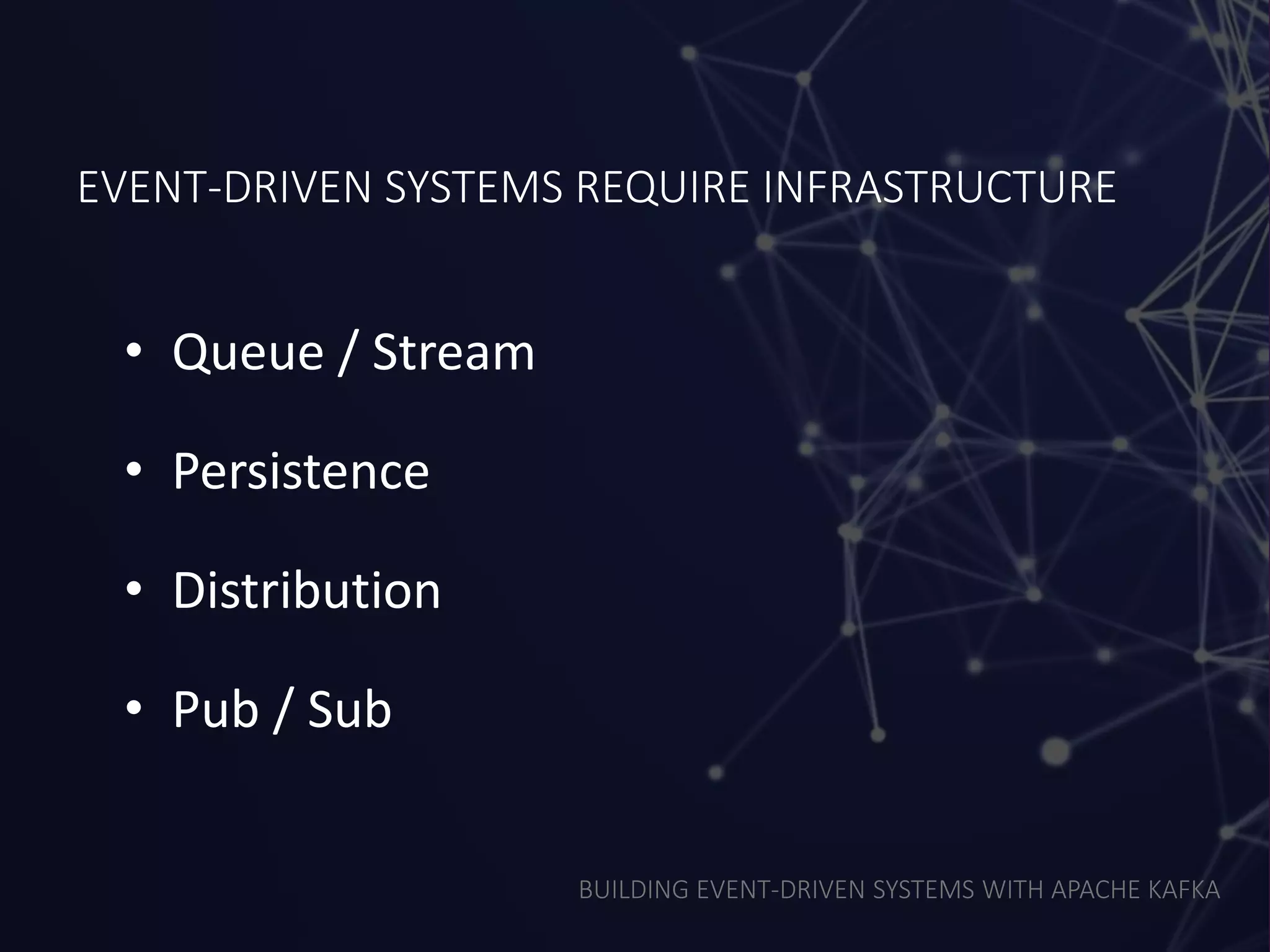

EVENT-DRIVEN SYSTEMS REQUIRE INFRASTRUCTURE
• Queue / Stream
• Persistence
• Distribution
• Pub / Sub

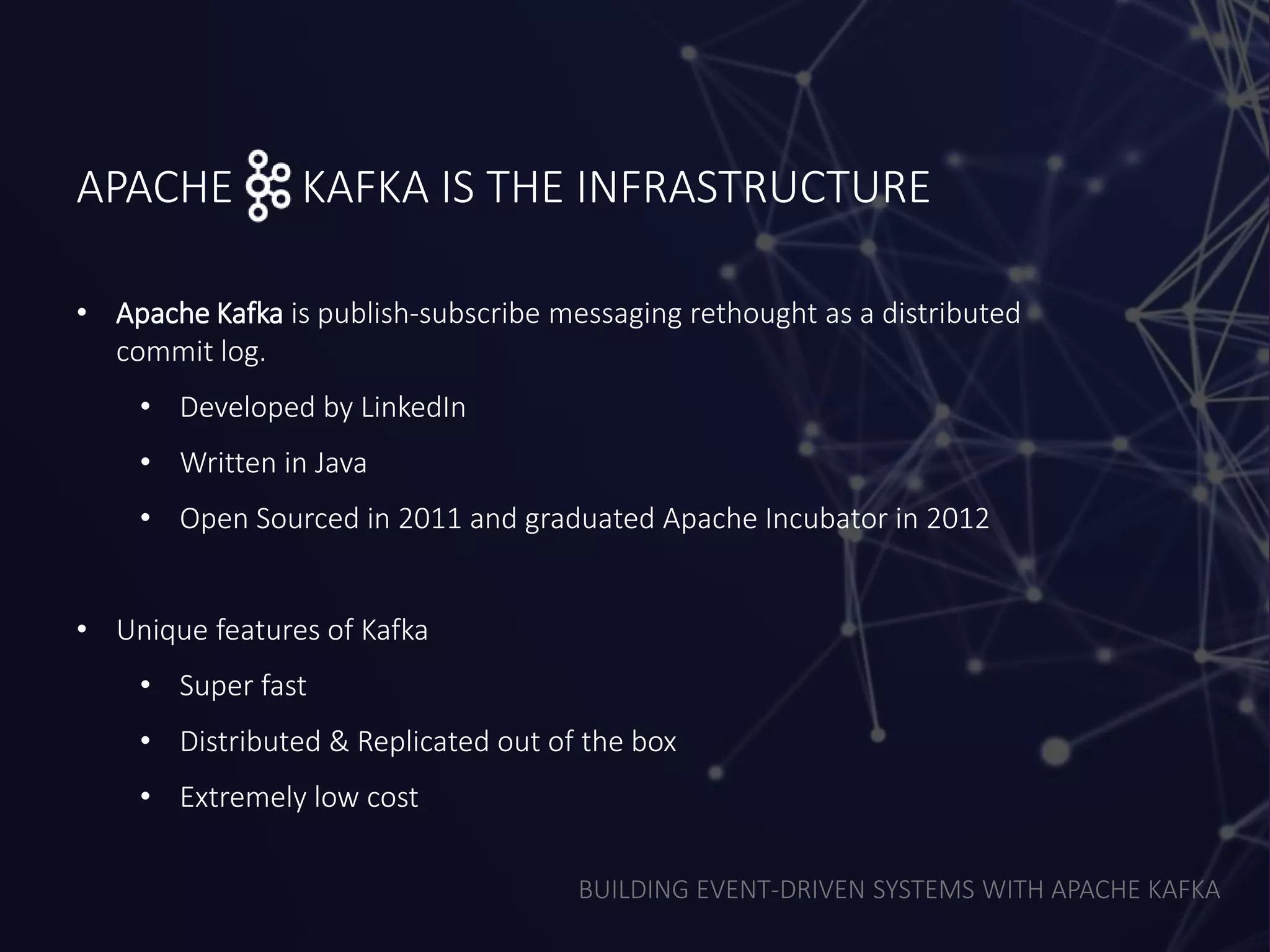

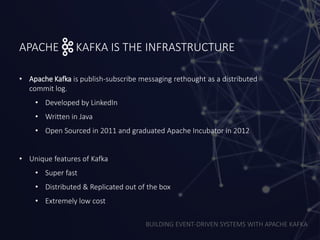

APACHE KAFKA IS THE INFRASTRUCTURE
• Apache Kafka is publish-subscribe messaging rethought as a distributed
commit log.
• Developed by LinkedIn
• Written in Java
• Open Sourced in 2011 and graduated Apache Incubator in 2012
• Unique features of Kafka
• Super fast
• Distributed & Replicated out of the box
• Extremely low cost

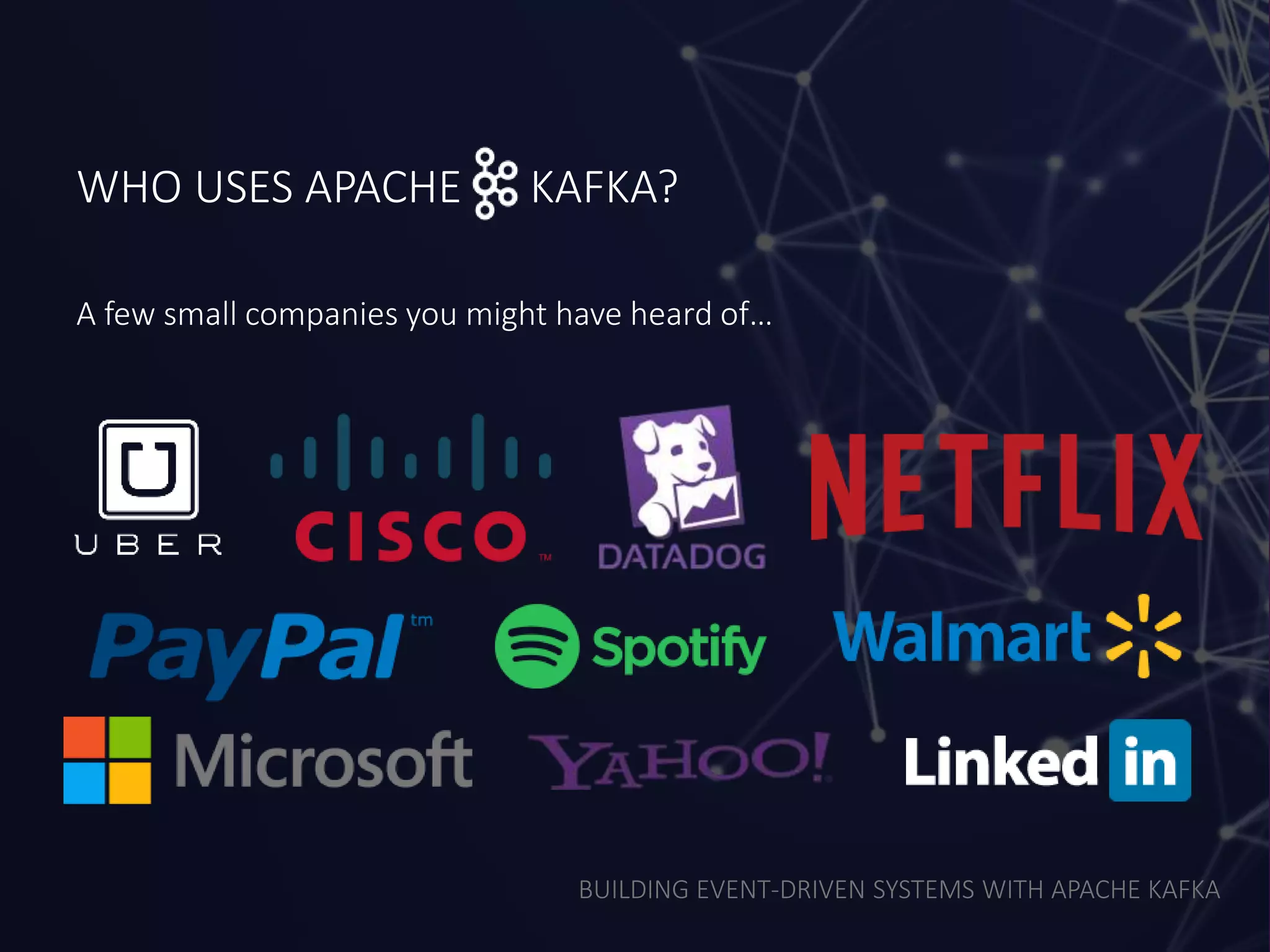

WHO USES APACHE KAFKA?
A few small companies you might have heard of…

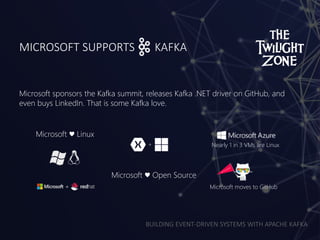

MICROSOFT SUPPORTS KAFKA
Microsoft ♥ Linux
Microsoft ♥ Open Source
Nearly 1 in 3 VMs are Linux
Microsoft moves to GitHub
Microsoft sponsors the Kafka summit, releases Kafka .NET driver on GitHub, and
even buys LinkedIn. That is some Kafka love.

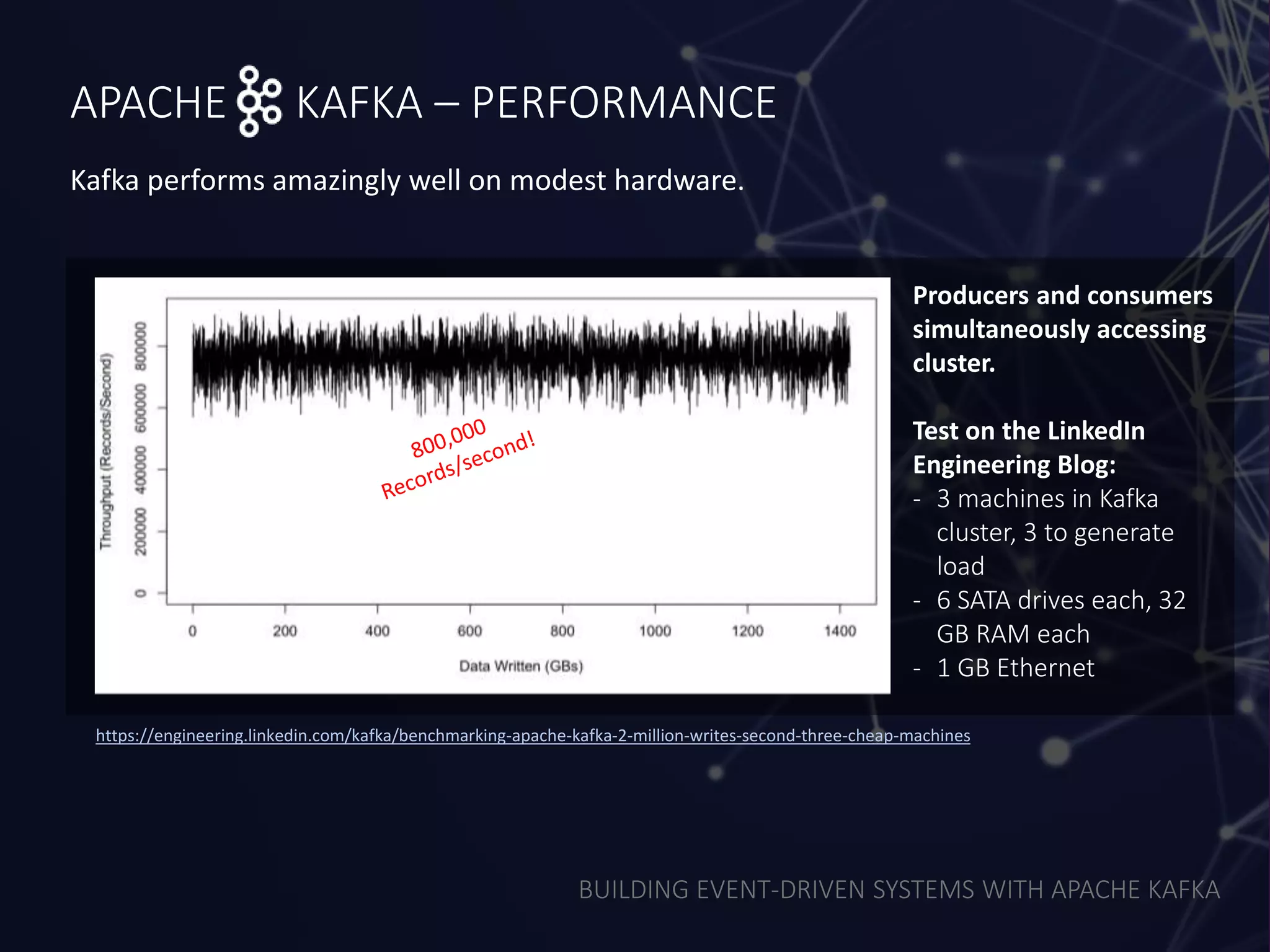

APACHE KAFKA – PERFORMANCE
Kafka performs amazingly well on modest hardware.
https://engineering.linkedin.com/kafka/benchmarking-apache-kafka-2-million-writes-second-three-cheap-machines
Producers and consumers
simultaneously accessing
cluster.
Test on the LinkedIn
Engineering Blog:
- 3 machines in Kafka
cluster, 3 to generate
load
- 6 SATA drives each, 32
GB RAM each
- 1 GB Ethernet

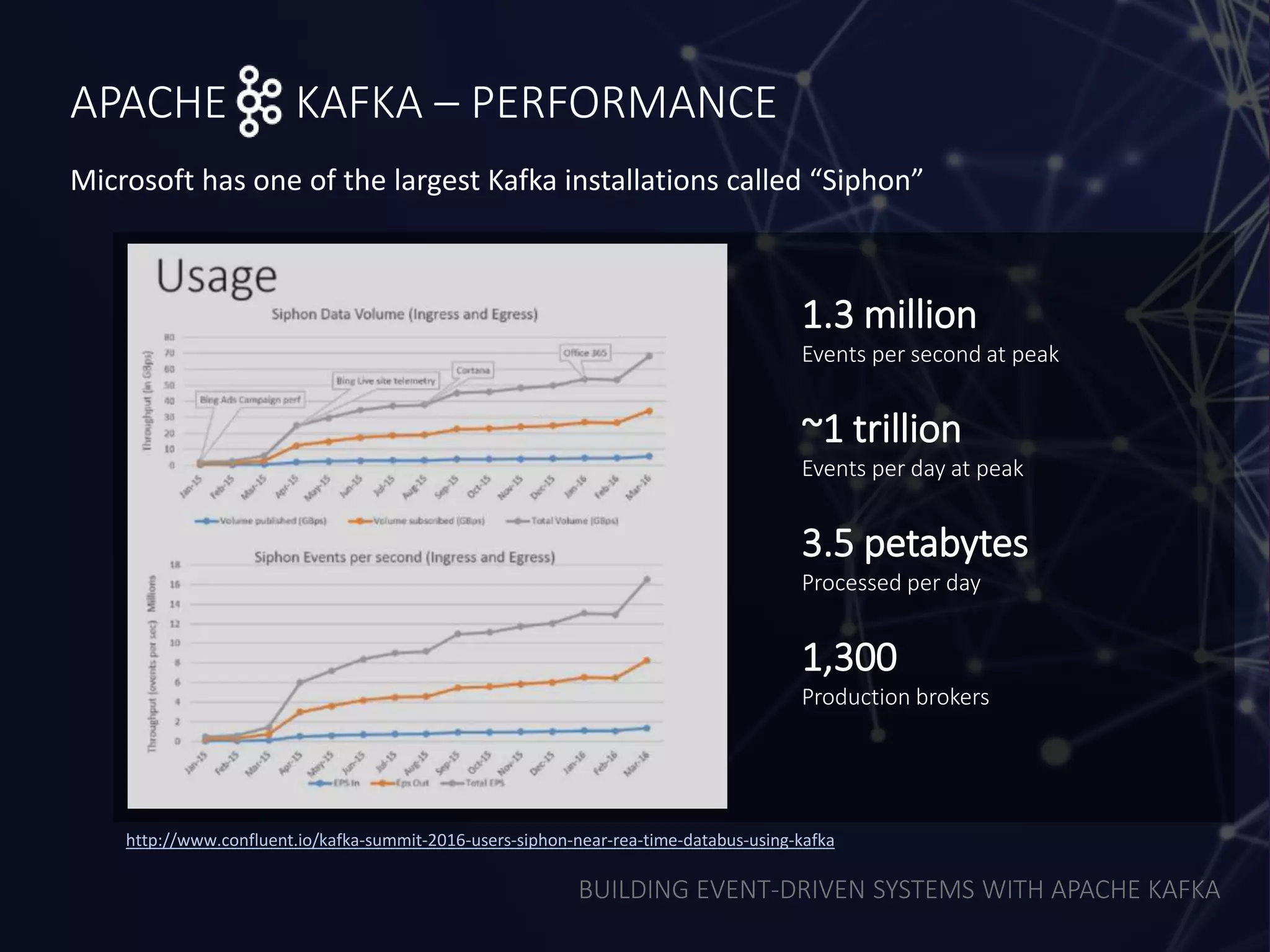

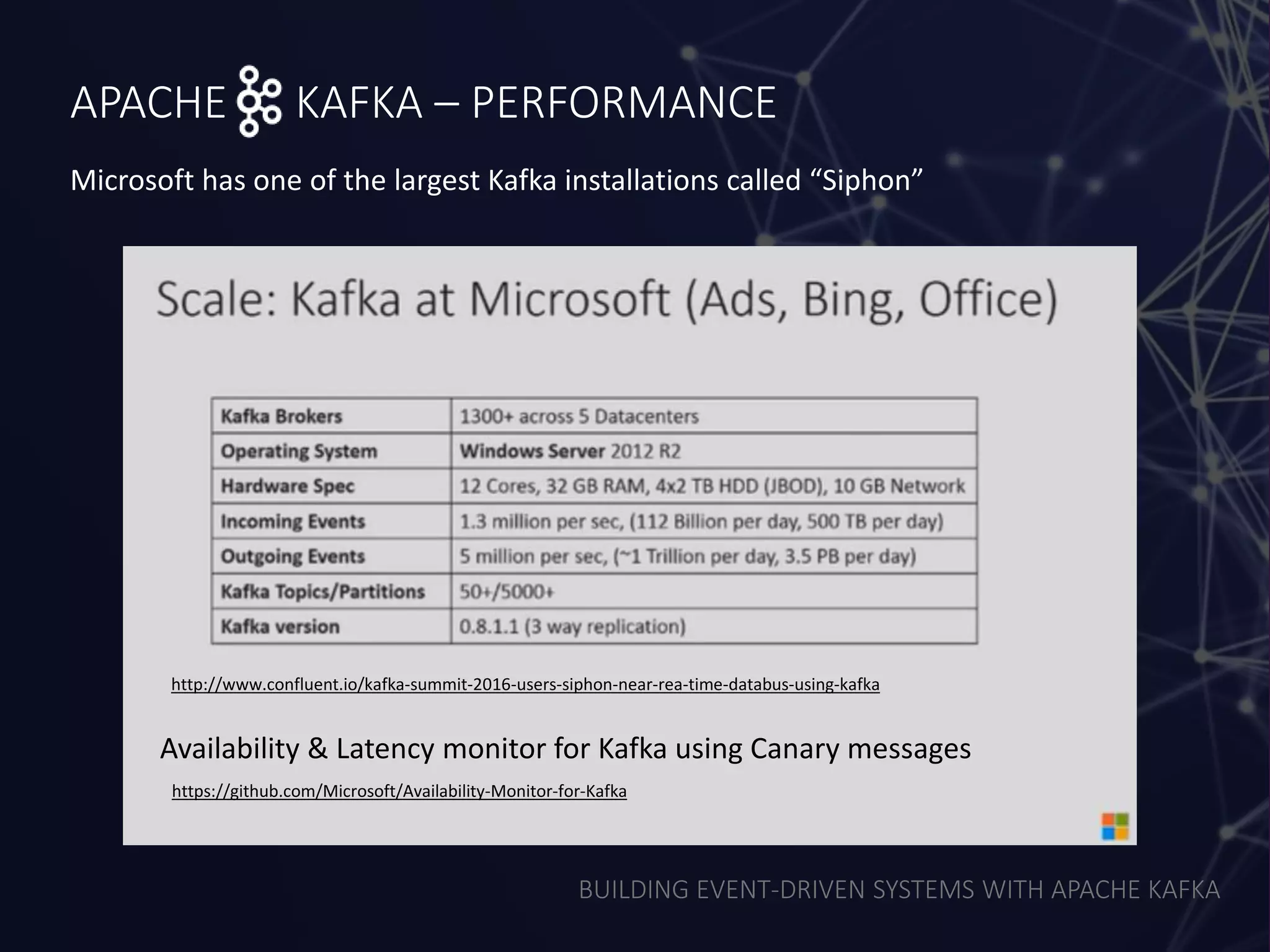

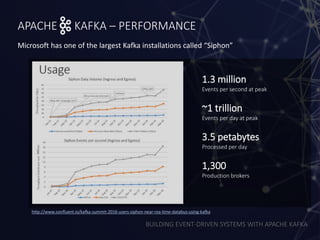

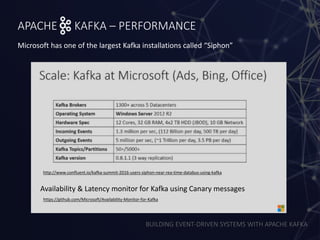

Microsoft has one of the largest Kafka installations called “Siphon”
http://www.confluent.io/kafka-summit-2016-users-siphon-near-rea-time-databus-using-kafka
1.3 million
Events per second at peak
~1 trillion
Events per day at peak
3.5 petabytes
Processed per day
1,300
Production brokers

Microsoft has one of the largest Kafka installations called “Siphon”
http://www.confluent.io/kafka-summit-2016-users-siphon-near-rea-time-databus-using-kafka
https://github.com/Microsoft/Availability-Monitor-for-Kafka
Availability & Latency monitor for Kafka using Canary messages

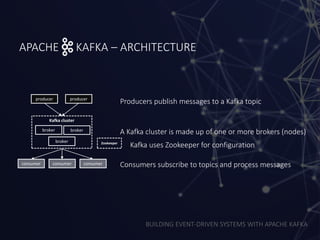

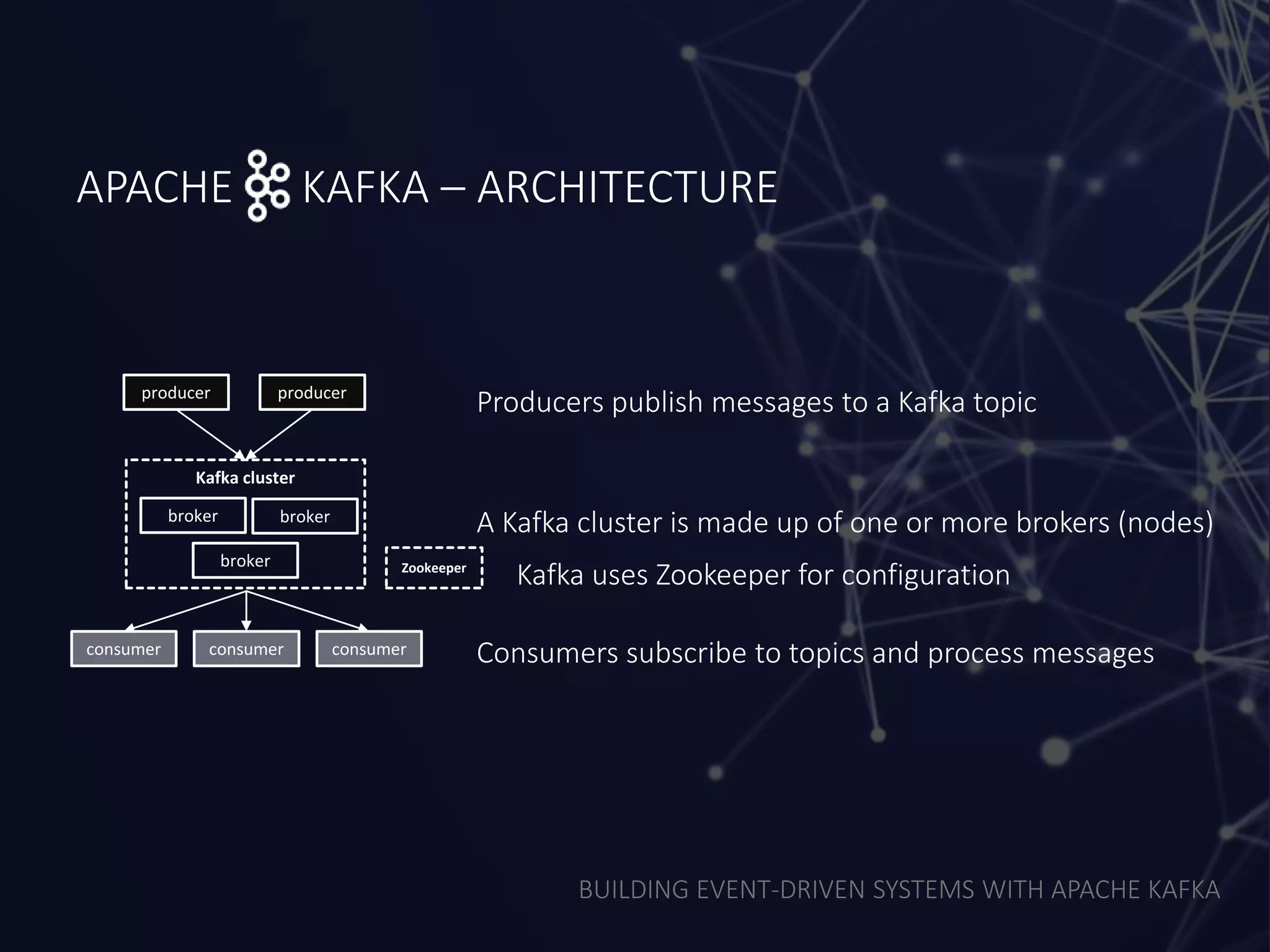

APACHE KAFKA – ARCHITECTURE
producer producer
consumer consumer consumer
Producers publish messages to a Kafka topic
Consumers subscribe to topics and process messages
Kafka cluster
broker
broker
broker
A Kafka cluster is made up of one or more brokers (nodes)
Zookeeper
Kafka uses Zookeeper for configuration

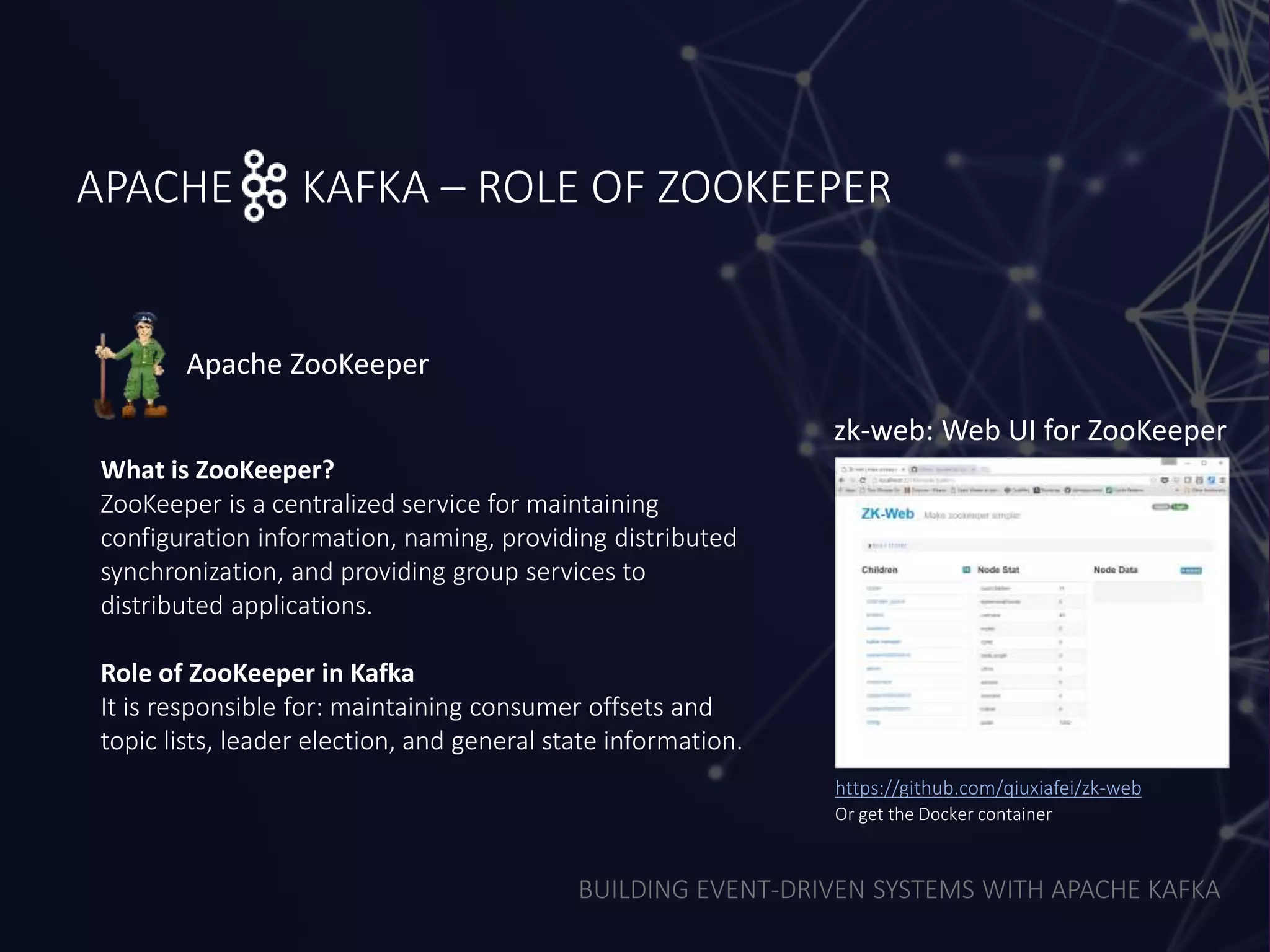

APACHE KAFKA – ROLE OF ZOOKEEPER
What is ZooKeeper?
ZooKeeper is a centralized service for maintaining
configuration information, naming, providing distributed
synchronization, and providing group services to
distributed applications.
Role of ZooKeeper in Kafka
It is responsible for: maintaining consumer offsets and
topic lists, leader election, and general state information.
Apache ZooKeeper
zk-web: Web UI for ZooKeeper
https://github.com/qiuxiafei/zk-web
Or get the Docker container

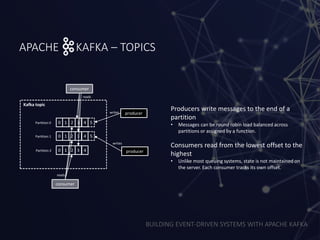

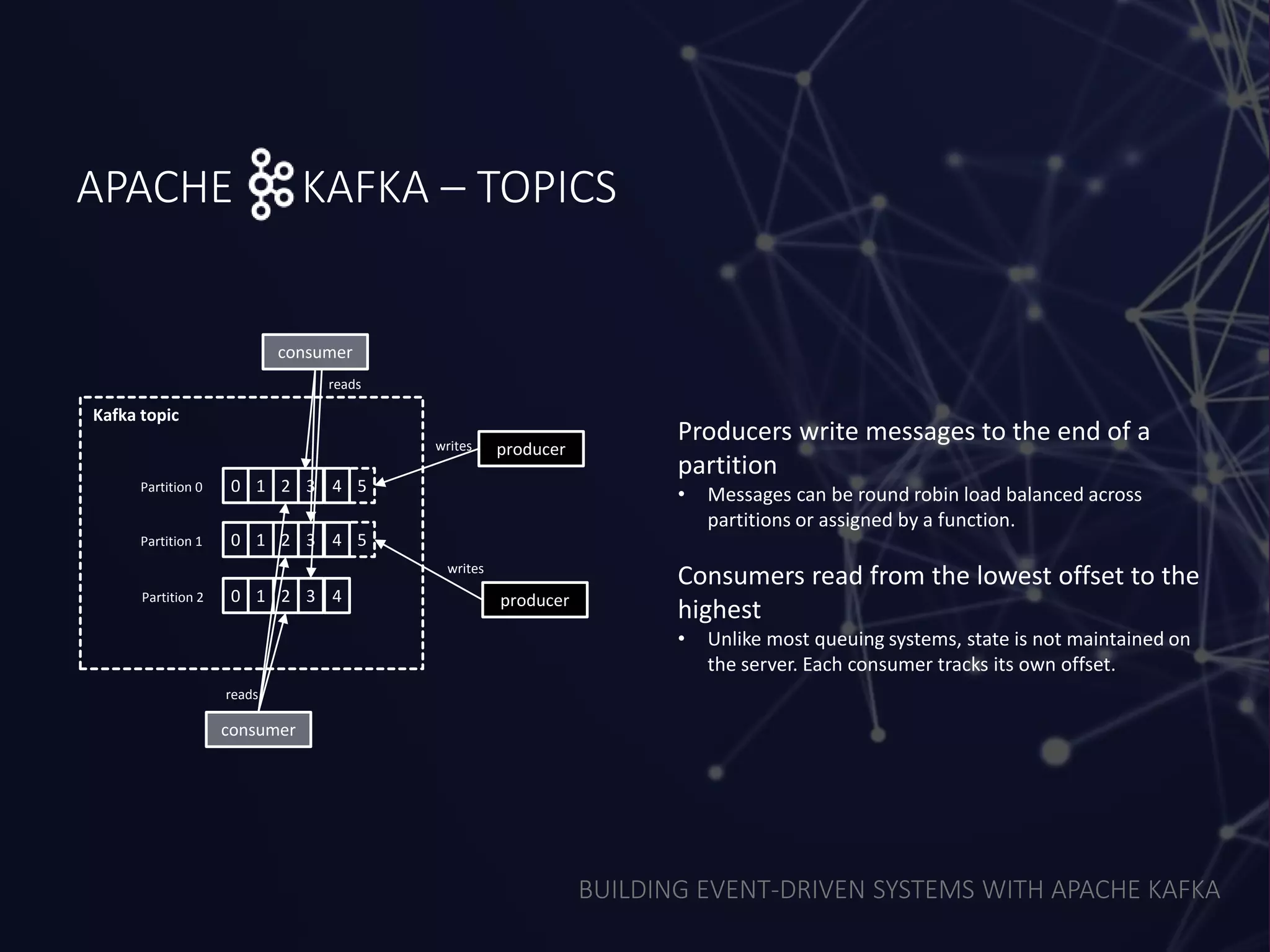

APACHE KAFKA – TOPICS
Kafka topic
producer
producer
0 1 2 3 4 5
writes
0 1 2 3 4
0 1 2 3 4
5
writes
consumer
consumer
reads
reads
Partition 0
Partition 1
Partition 2
Producers write messages to the end of a
partition
• Messages can be round robin load balanced across
partitions or assigned by a function.
Consumers read from the lowest offset to the
highest
• Unlike most queuing systems, state is not maintained on
the server. Each consumer tracks its own offset.

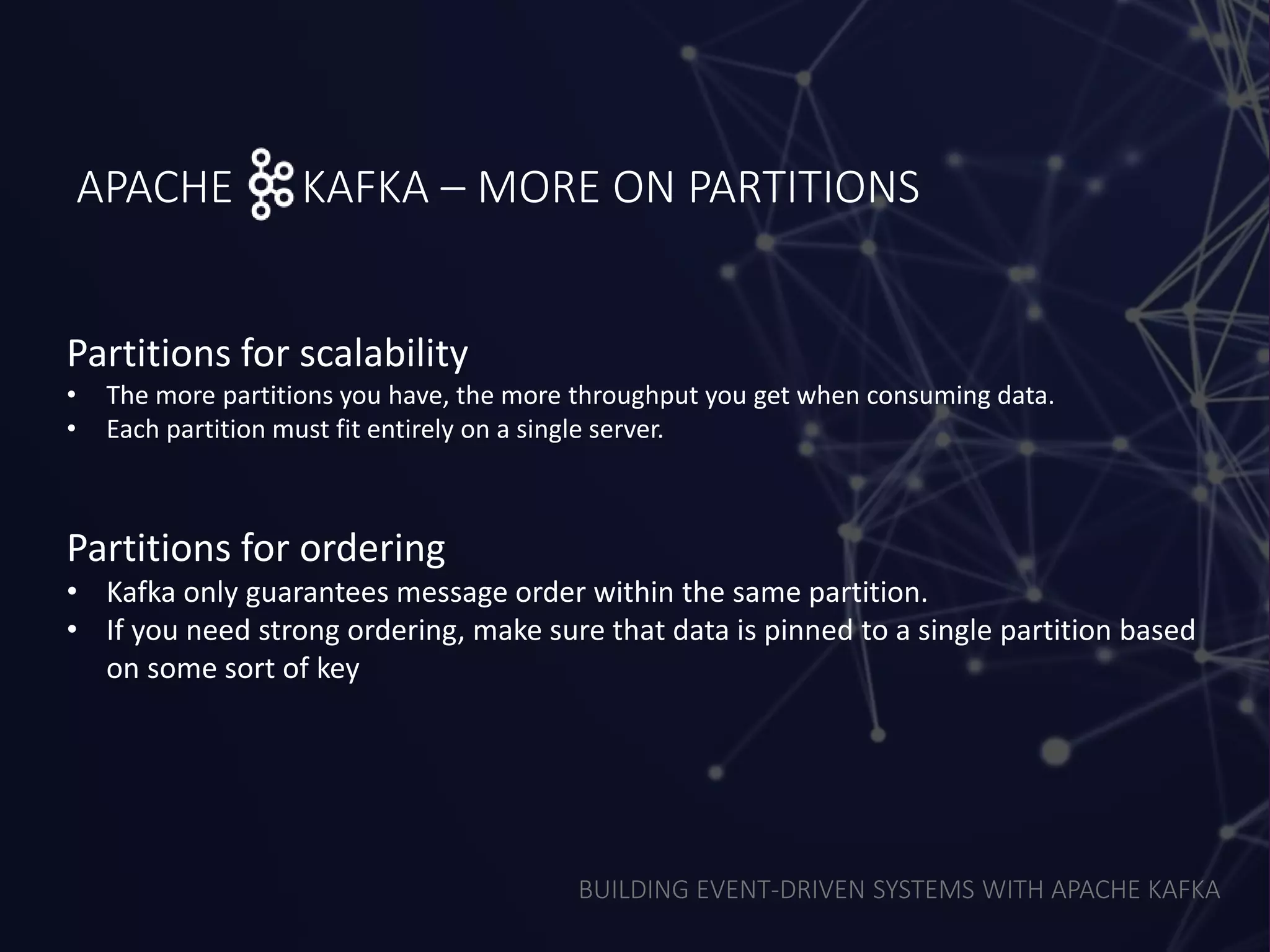

APACHE KAFKA – MORE ON PARTITIONS
Partitions for scalability
• The more partitions you have, the more throughput you get when consuming data.
• Each partition must fit entirely on a single server.
Partitions for ordering
• Kafka only guarantees message order within the same partition.
• If you need strong ordering, make sure that data is pinned to a single partition based
on some sort of key

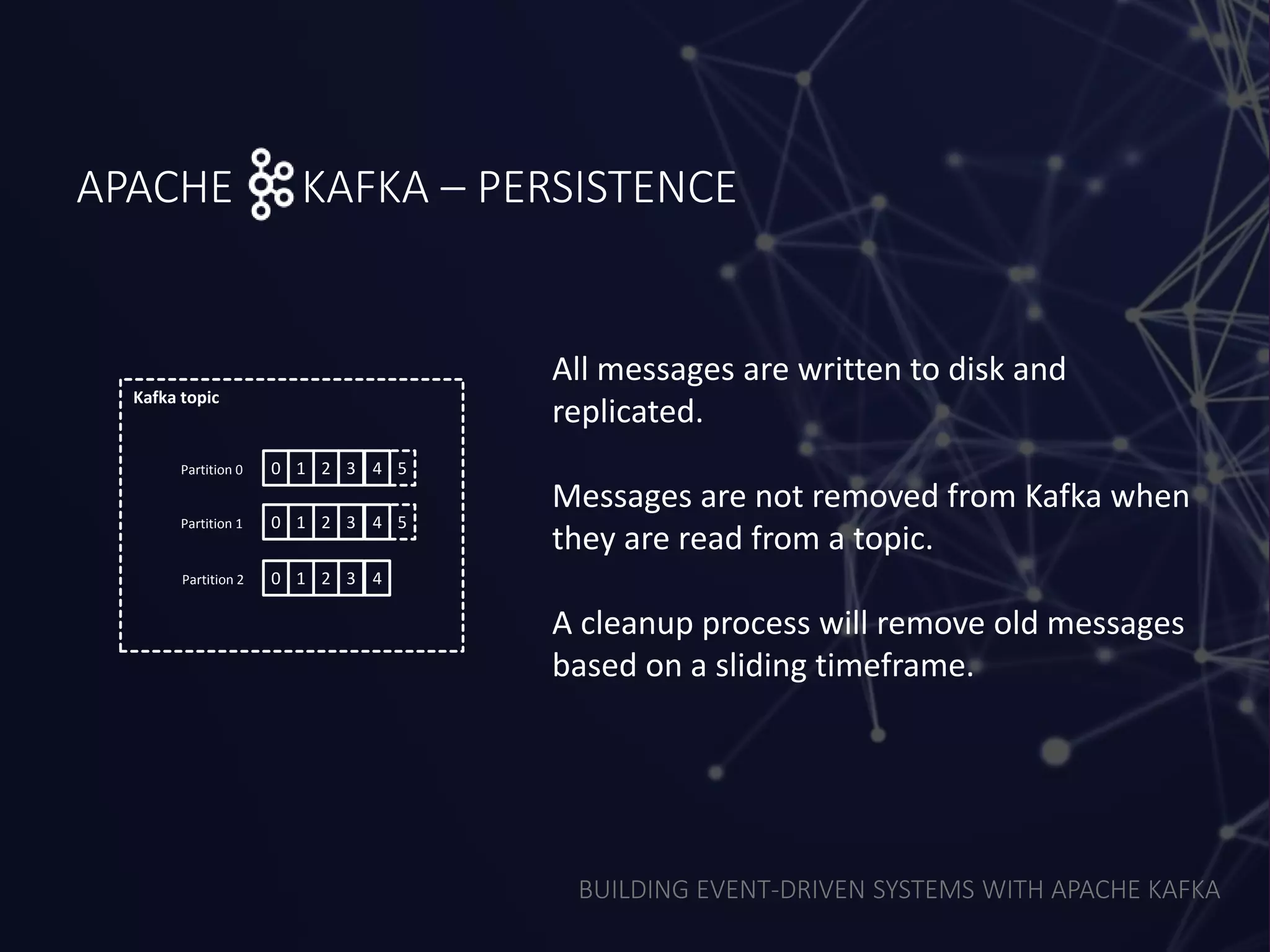

APACHE KAFKA – PERSISTENCE
Kafka topic
0 1 2 3 4 5
0 1 2 3 4
0 1 2 3 4
5
Partition 0
Partition 1
Partition 2
All messages are written to disk and
replicated.
Messages are not removed from Kafka when
they are read from a topic.
A cleanup process will remove old messages
based on a sliding timeframe.

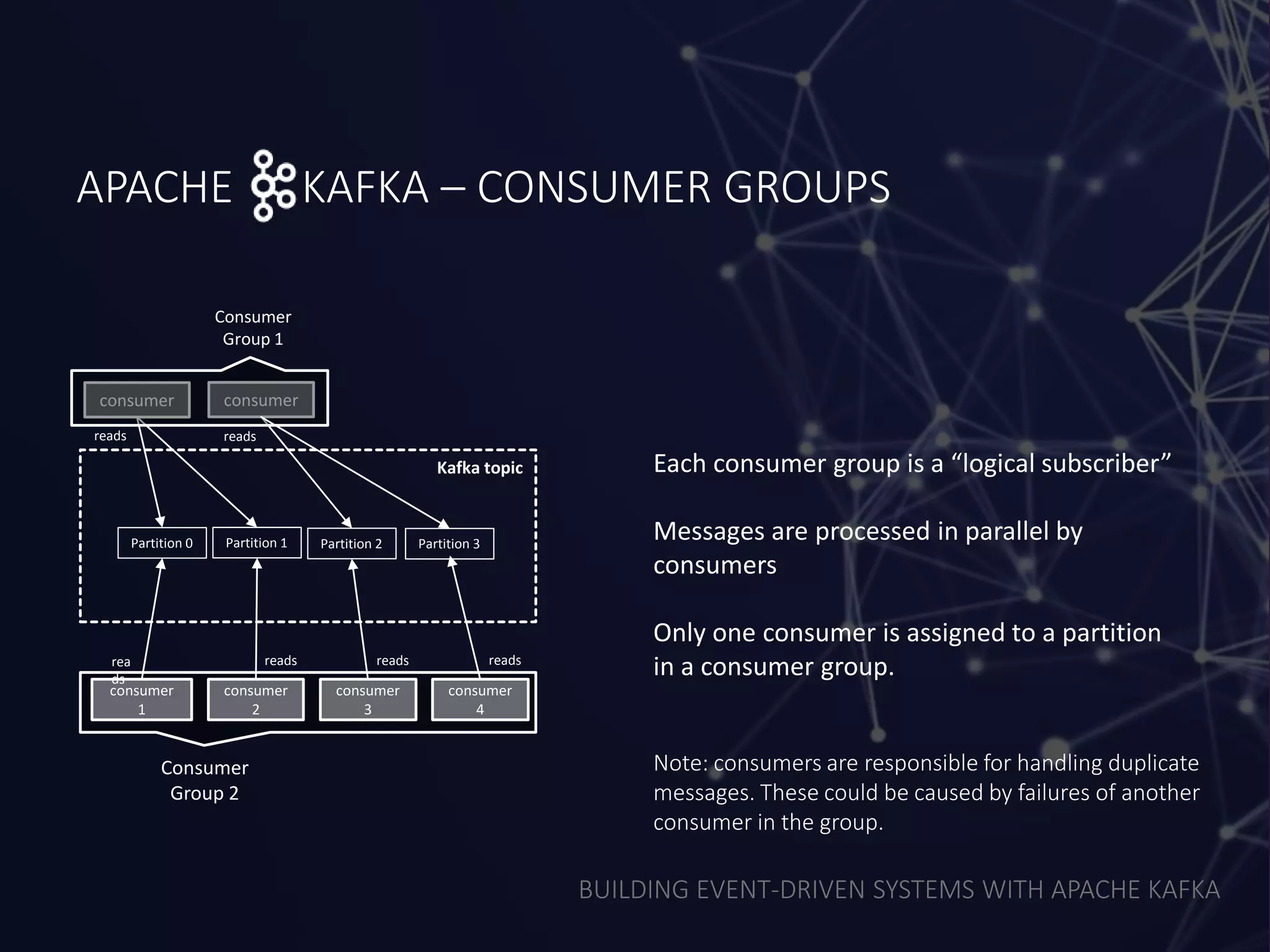

APACHE KAFKA – CONSUMER GROUPS
Kafka topic
consumer
1
consumer
2
consumer
reads
rea
ds
reads
Partition 0 Partition 1 Partition 2
Each consumer group is a “logical subscriber”
Messages are processed in parallel by
consumers
Only one consumer is assigned to a partition
in a consumer group.
consumer
3
reads
Consumer
Group 2
consumer
reads
Consumer
Group 1
Partition 3
consumer
4
reads
Note: consumers are responsible for handling duplicate
messages. These could be caused by failures of another
consumer in the group.

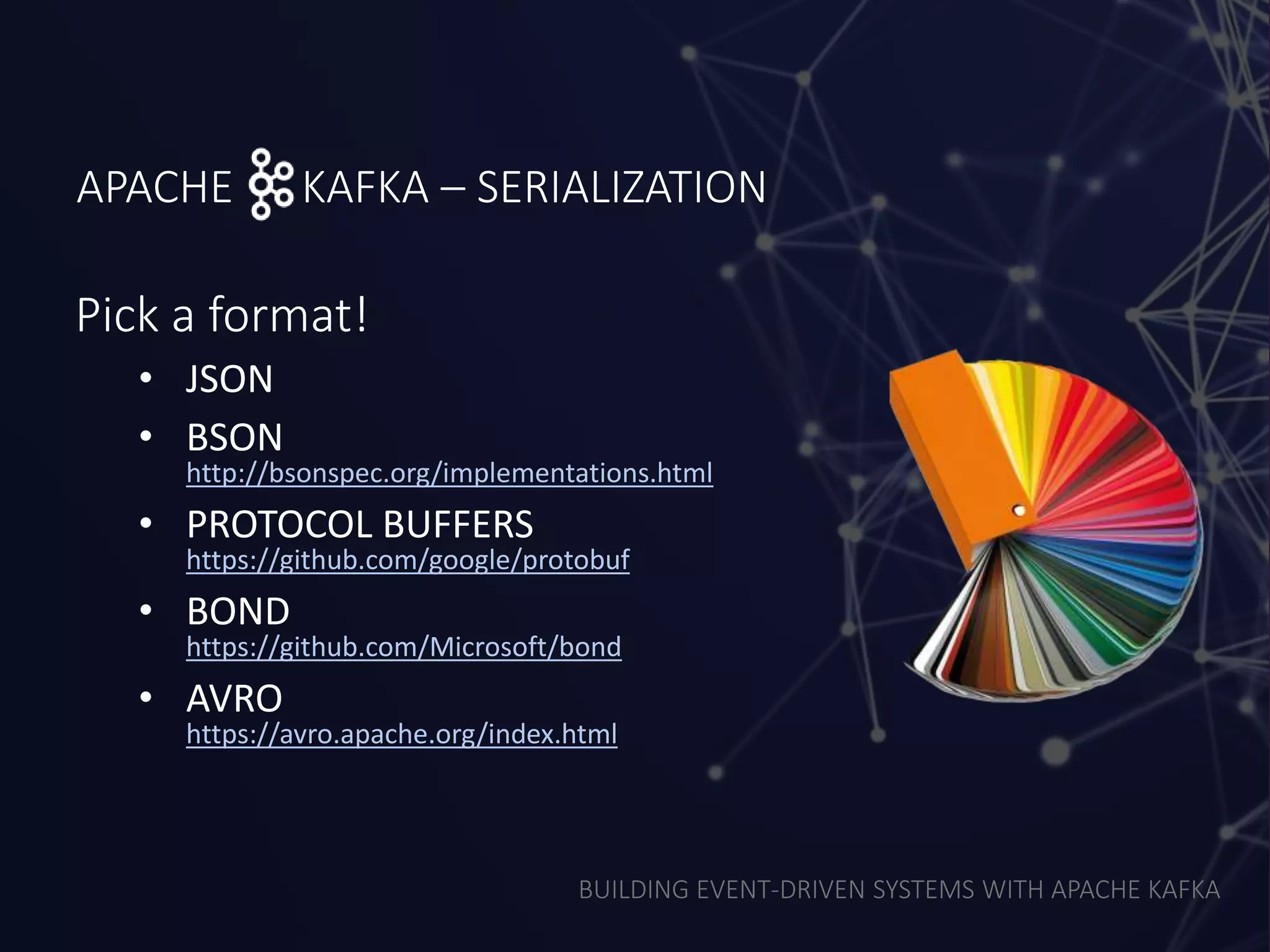

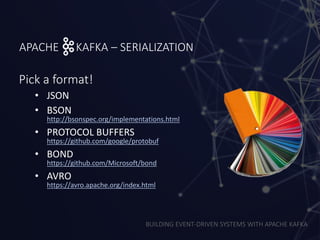

APACHE KAFKA – SERIALIZATION
Pick a format!
• JSON
• BSON
http://bsonspec.org/implementations.html
• PROTOCOL BUFFERS
https://github.com/google/protobuf
• BOND
https://github.com/Microsoft/bond
• AVRO
https://avro.apache.org/index.html

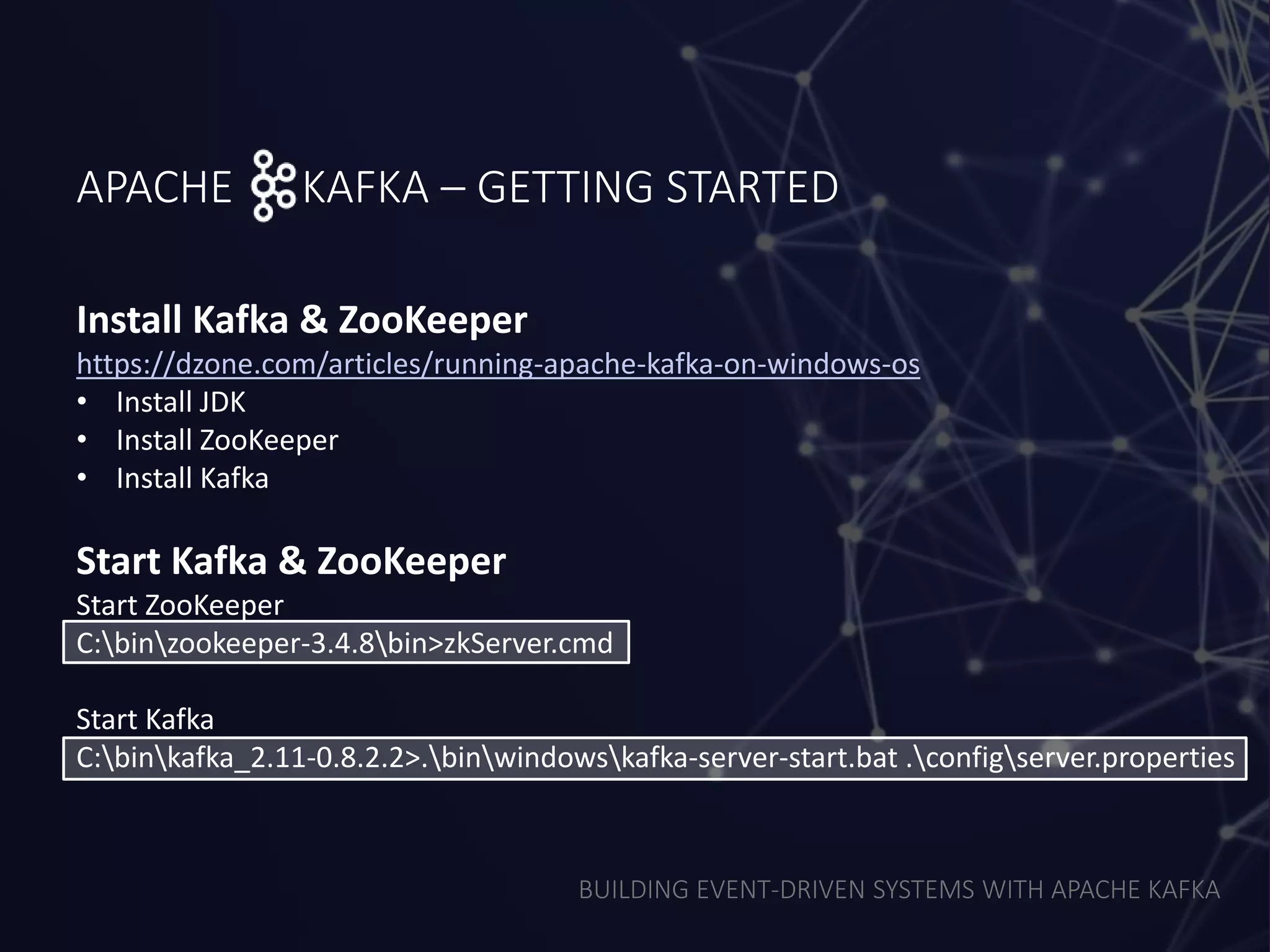

APACHE KAFKA – GETTING STARTED
Install Kafka & ZooKeeper
https://dzone.com/articles/running-apache-kafka-on-windows-os
• Install JDK
• Install ZooKeeper
• Install Kafka
Start Kafka & ZooKeeper
Start ZooKeeper
C:binzookeeper-3.4.8bin>zkServer.cmd
Start Kafka
C:binkafka_2.11-0.8.2.2>.binwindowskafka-server-start.bat .configserver.properties

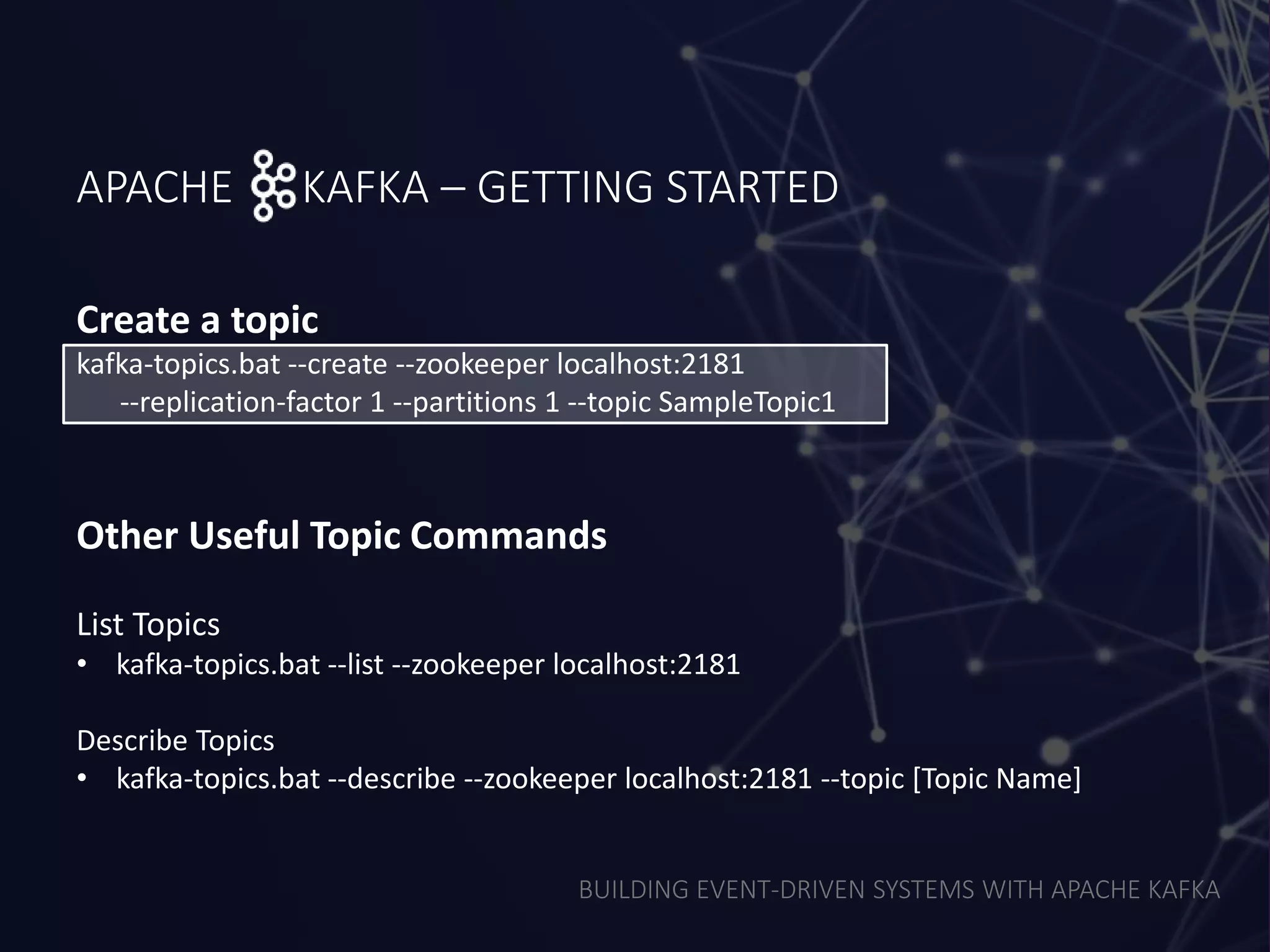

APACHE KAFKA – GETTING STARTED

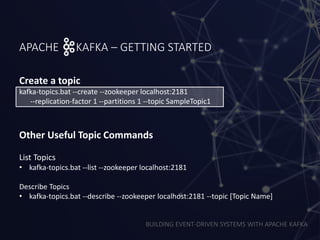

Create a topic
kafka-topics.bat --create --zookeeper localhost:2181
--replication-factor 1 --partitions 1 --topic SampleTopic1
Other Useful Topic Commands
List Topics
• kafka-topics.bat --list --zookeeper localhost:2181
Describe Topics
• kafka-topics.bat --describe --zookeeper localhost:2181 --topic [Topic Name]

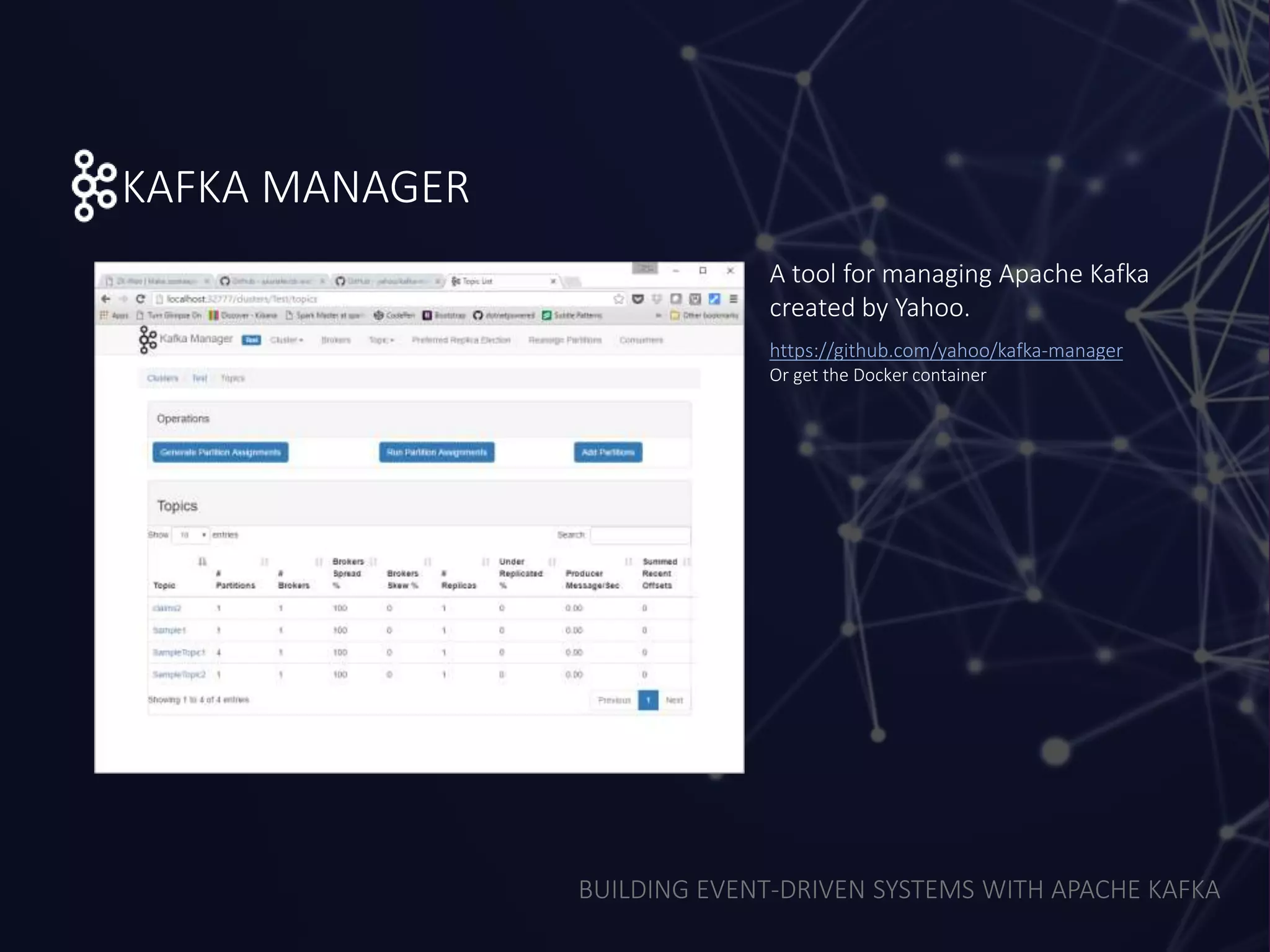

KAFKA MANAGER
https://github.com/yahoo/kafka-manager
A tool for managing Apache Kafka
created by Yahoo.
Or get the Docker container

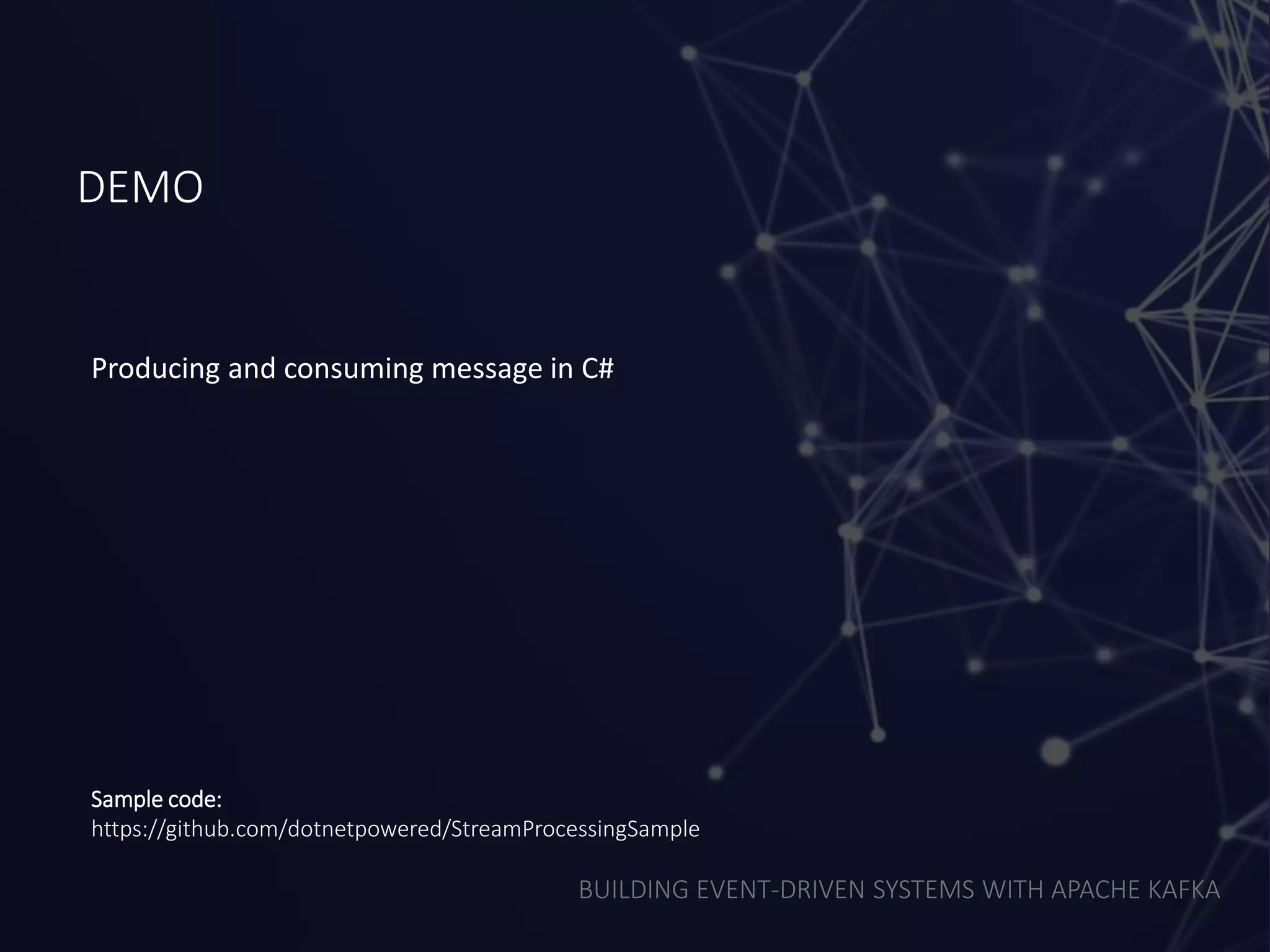

DEMO
Producing and consuming message in C#
Sample code:
https://github.com/dotnetpowered/StreamProcessingSample

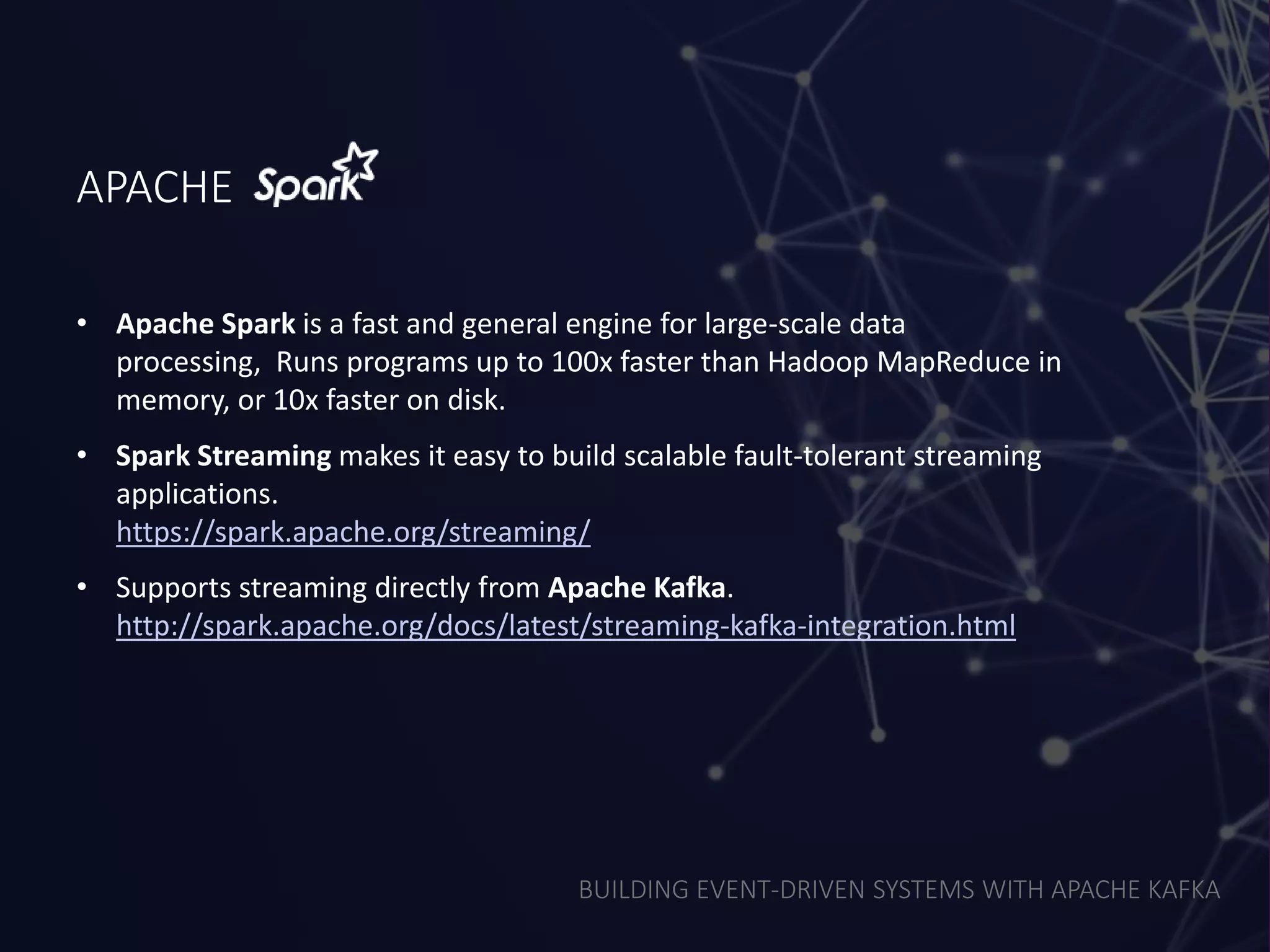

APACHE
• Apache Spark is a fast and general engine for large-scale data
processing, Runs programs up to 100x faster than Hadoop MapReduce in
memory, or 10x faster on disk.
• Spark Streaming makes it easy to build scalable fault-tolerant streaming
applications.
https://spark.apache.org/streaming/
• Supports streaming directly from Apache Kafka.
http://spark.apache.org/docs/latest/streaming-kafka-integration.html

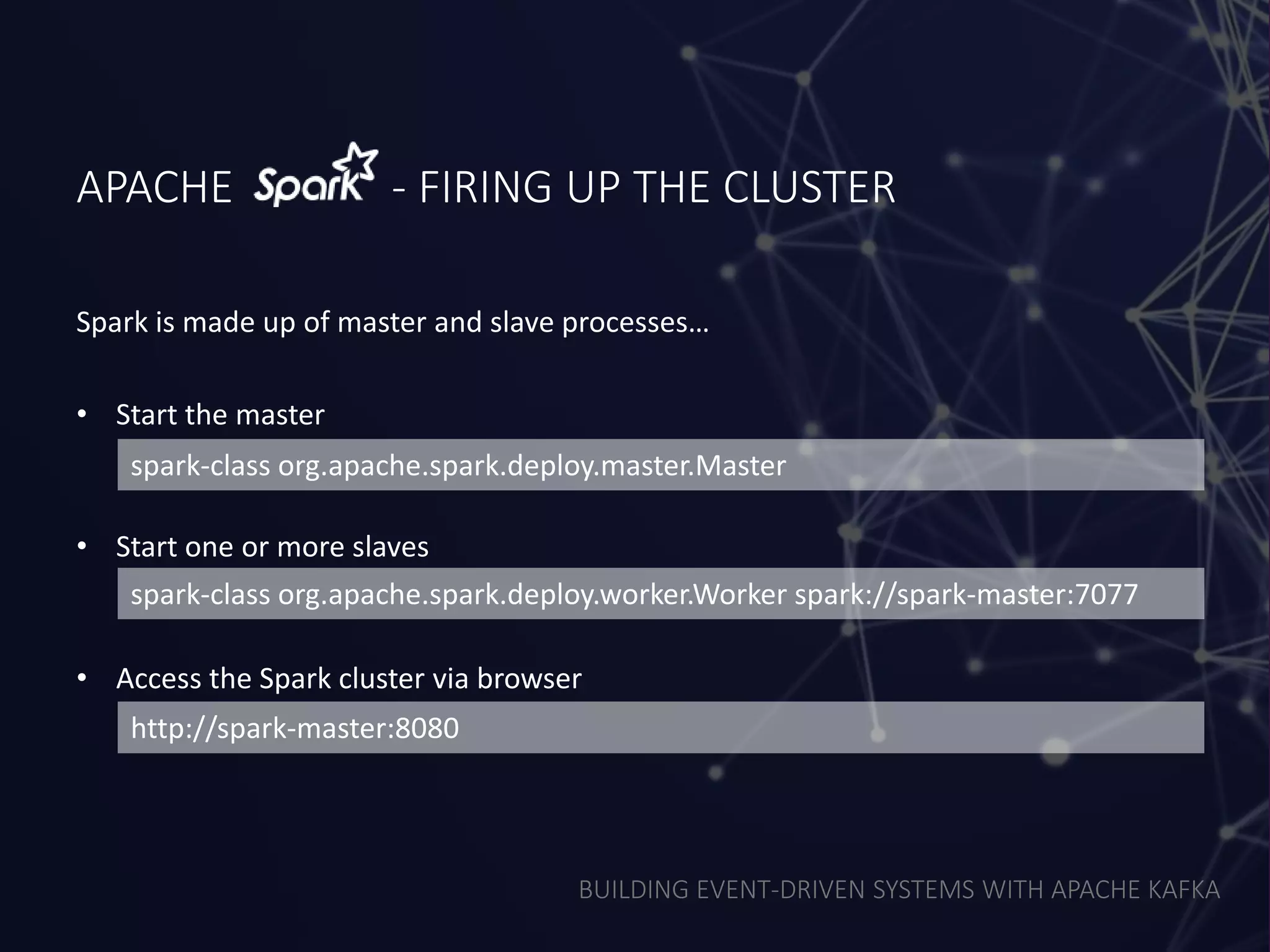

APACHE - FIRING UP THE CLUSTER
• Start the master
• Start one or more slaves
• Access the Spark cluster via browser
spark-class org.apache.spark.deploy.master.Master
spark-class org.apache.spark.deploy.worker.Worker spark://spark-master:7077
http://spark-master:8080
Spark is made up of master and slave processes…

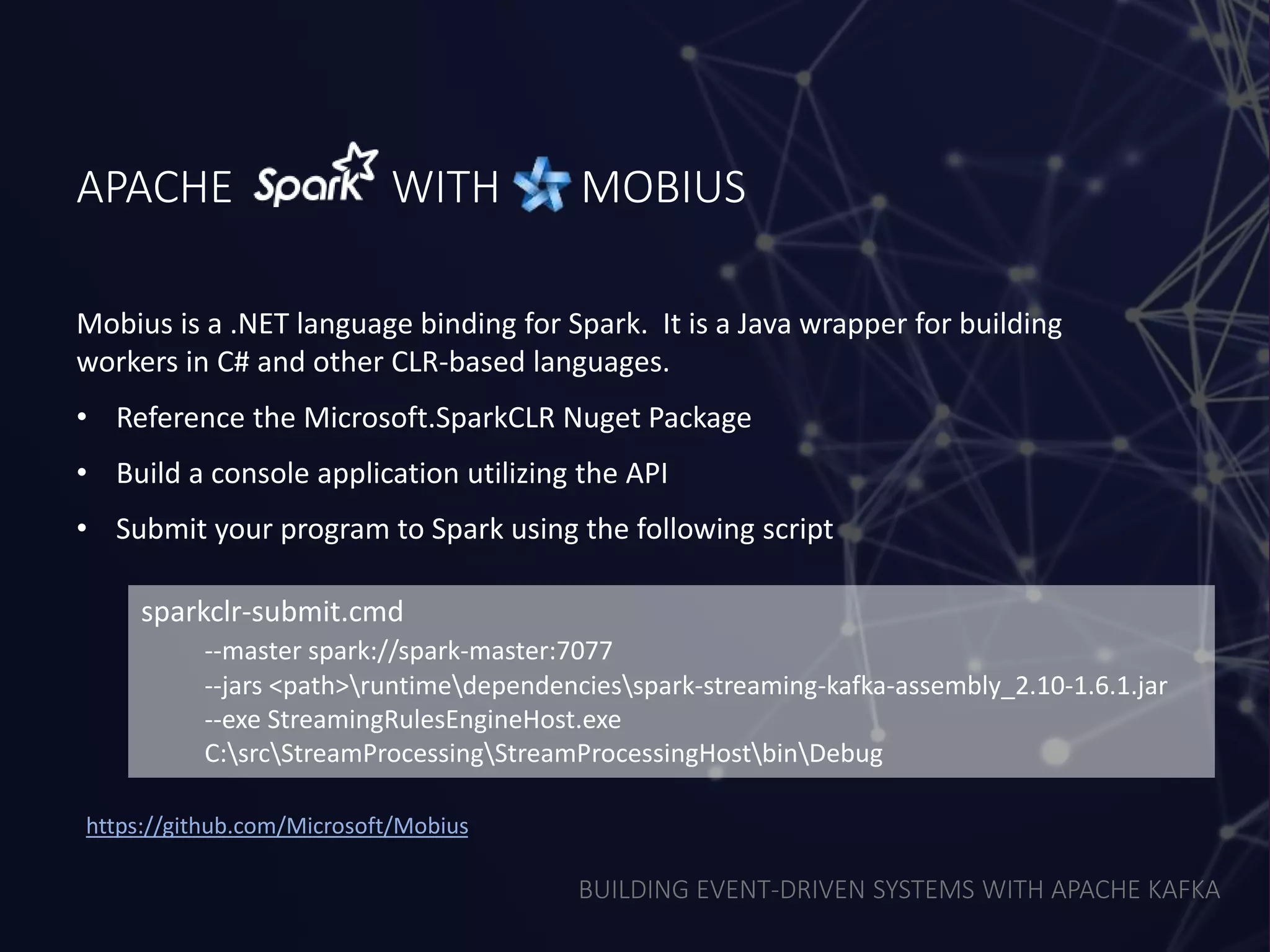

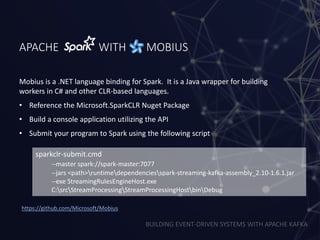

APACHE WITH MOBIUS
Mobius is a .NET language binding for Spark. It is a Java wrapper for building
workers in C# and other CLR-based languages.
• Reference the Microsoft.SparkCLR Nuget Package
• Build a console application utilizing the API
• Submit your program to Spark using the following script
sparkclr-submit.cmd
--master spark://spark-master:7077
--jars <path>runtimedependenciesspark-streaming-kafka-assembly_2.10-1.6.1.jar
--exe StreamingRulesEngineHost.exe
C:srcStreamProcessingStreamProcessingHostbinDebug
https://github.com/Microsoft/Mobius

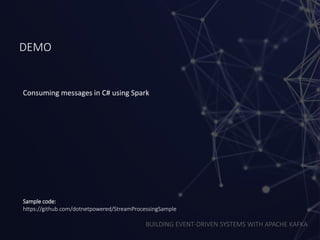

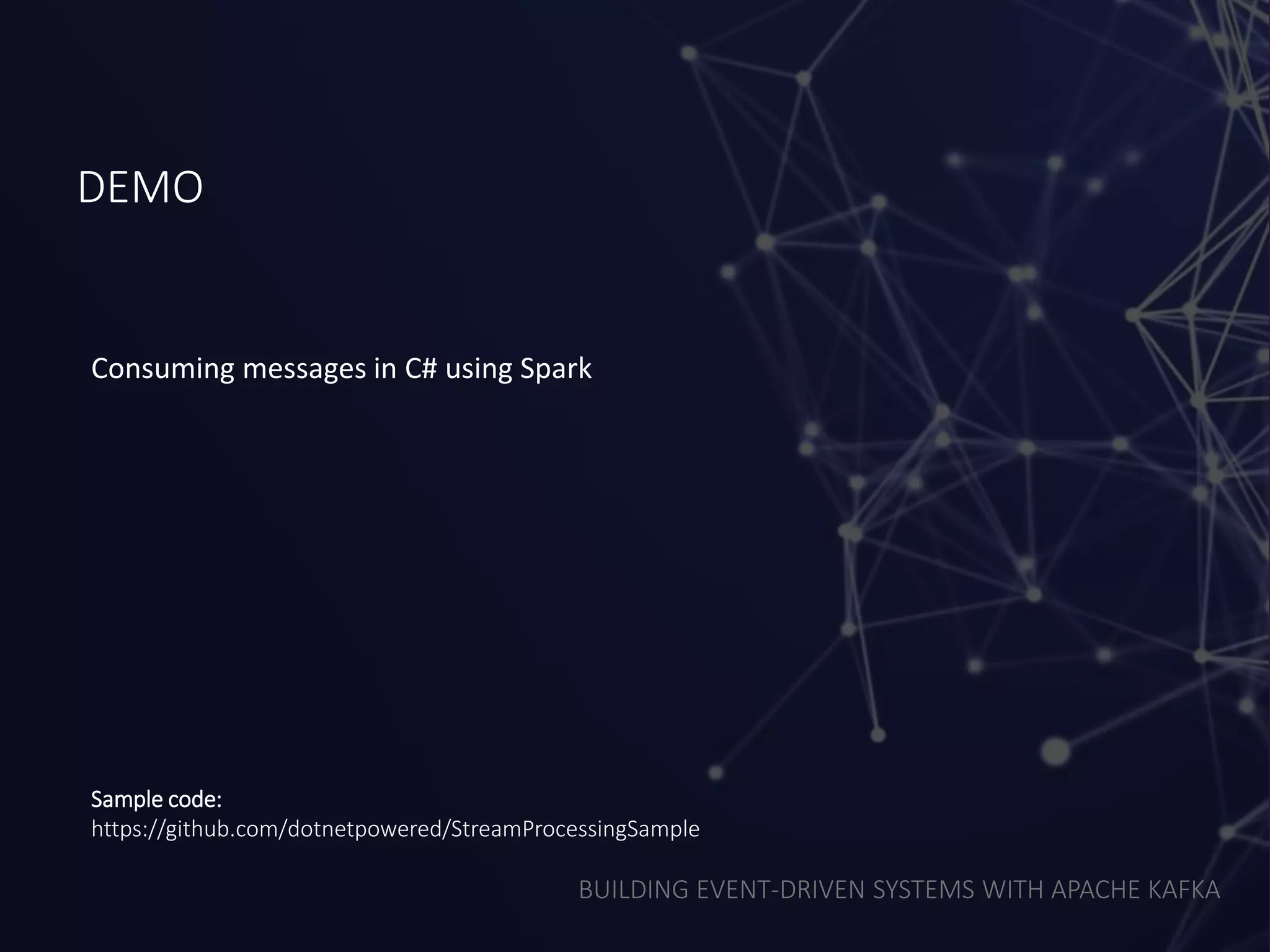

DEMO
Consuming messages in C# using Spark
Sample code:

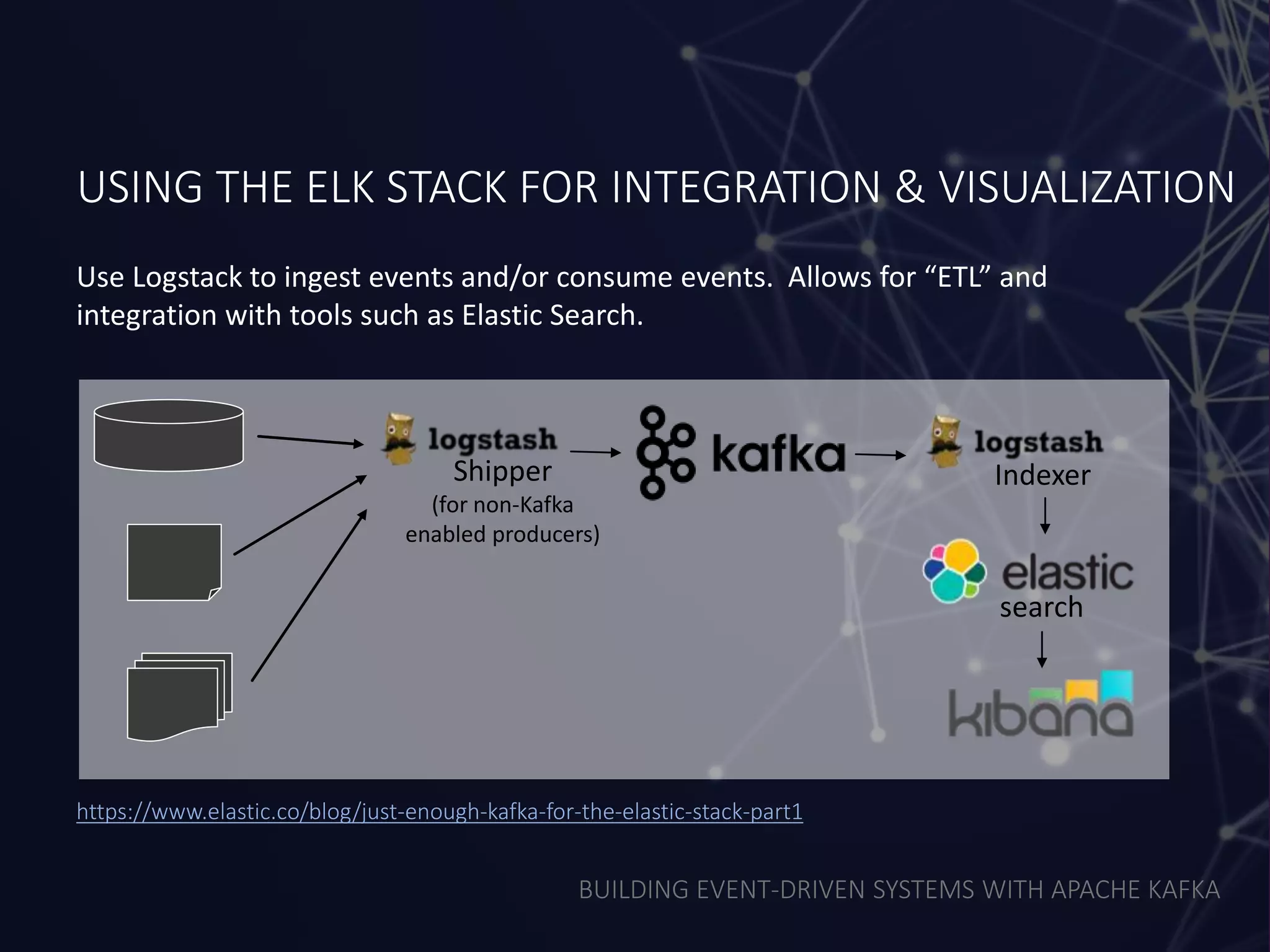

USING THE ELK STACK FOR INTEGRATION & VISUALIZATION
Use Logstack to ingest events and/or consume events. Allows for “ETL” and
integration with tools such as Elastic Search.
Shipper
(for non-Kafka
enabled producers)
Indexer
search
https://www.elastic.co/blog/just-enough-kafka-for-the-elastic-stack-part1

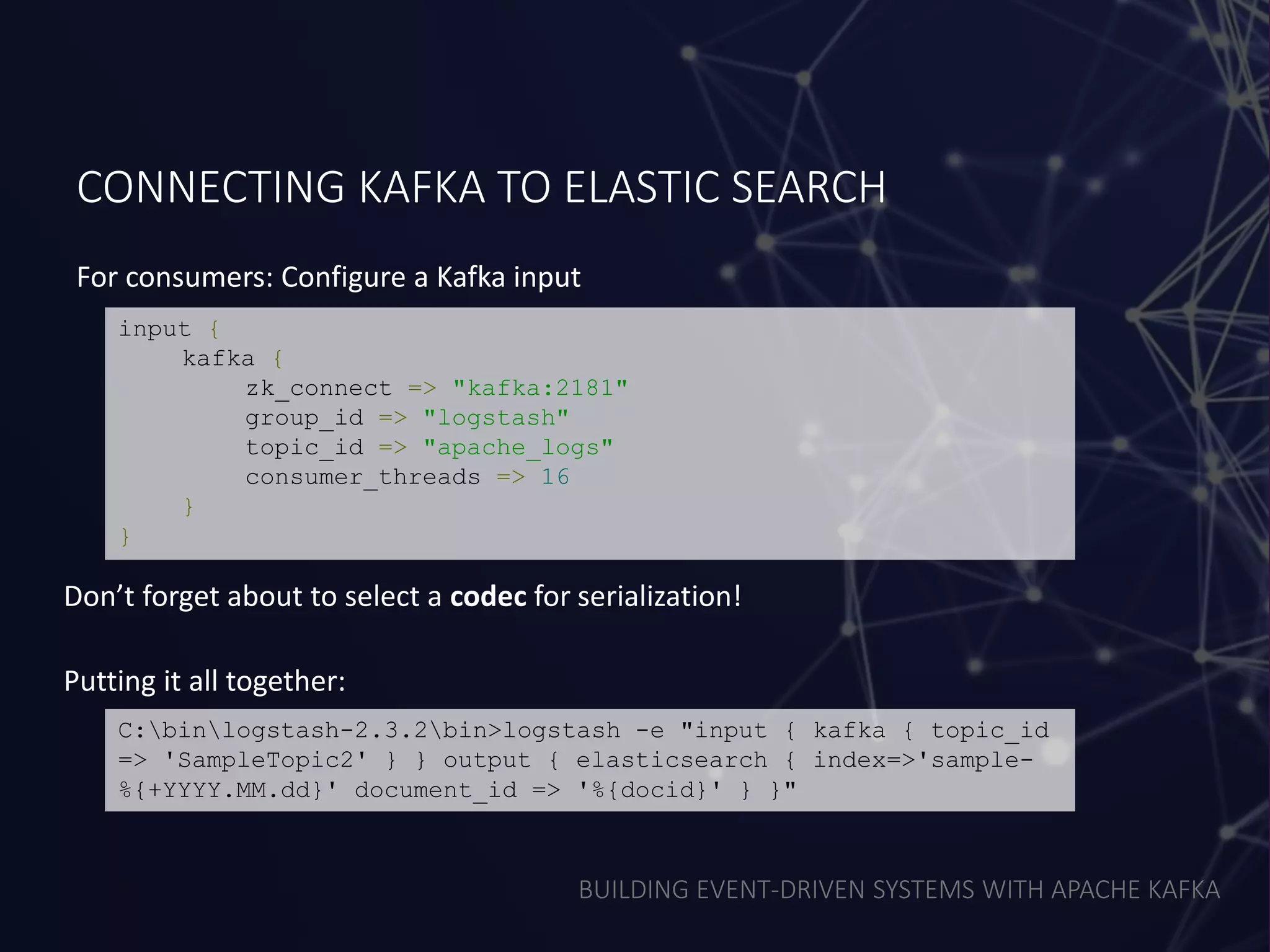

CONNECTING KAFKA TO ELASTIC SEARCH
For consumers: Configure a Kafka input
input {
kafka {
zk_connect => "kafka:2181"
group_id => "logstash"
topic_id => "apache_logs"
consumer_threads => 16
}
}
Don’t forget about to select a codec for serialization!
C:binlogstash-2.3.2bin>logstash -e "input { kafka { topic_id
=> 'SampleTopic2' } } output { elasticsearch { index=>'sample-
%{+YYYY.MM.dd}' document_id => '%{docid}' } }"
Putting it all together:

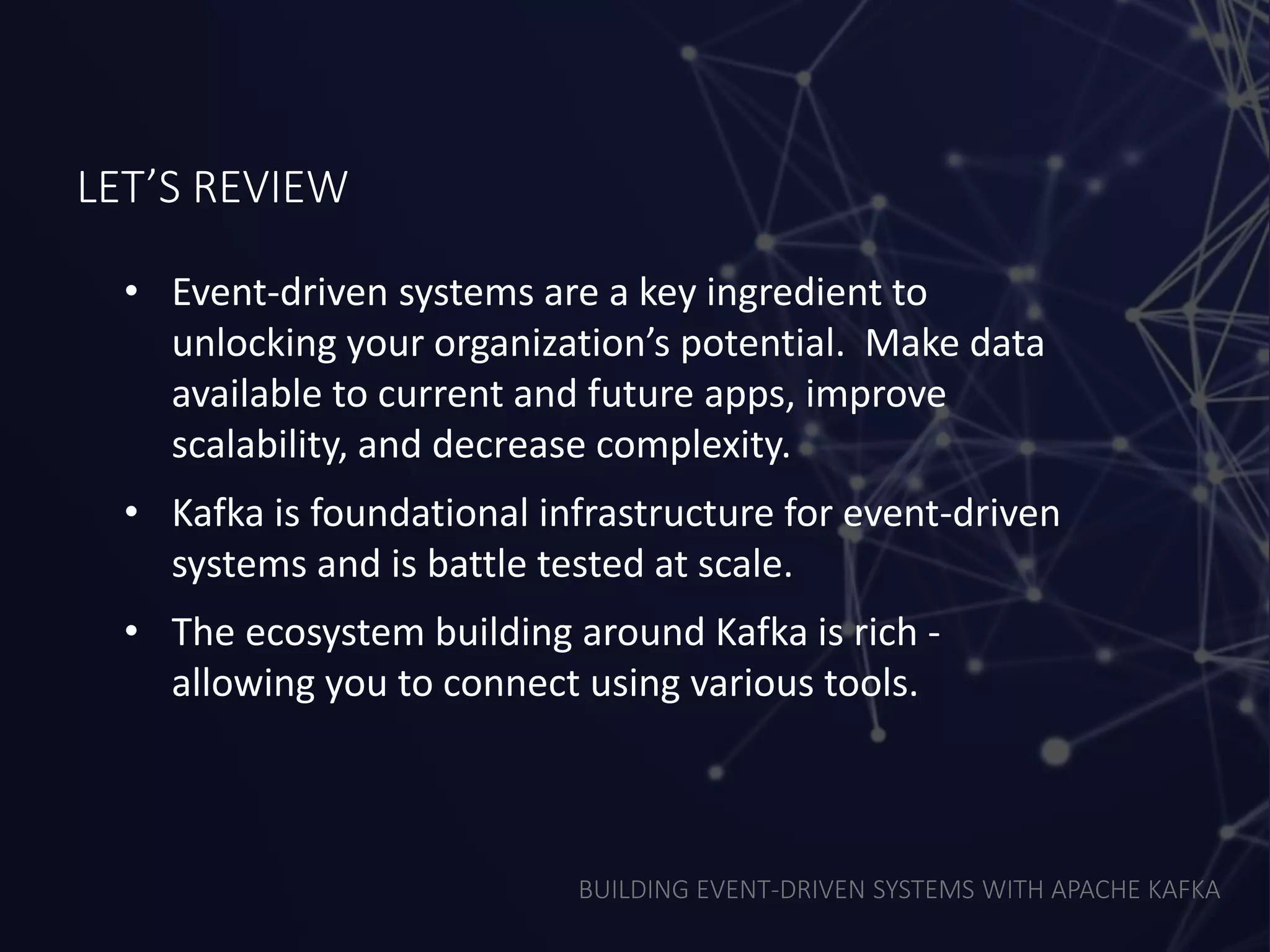

LET’S REVIEW
• Event-driven systems are a key ingredient to
unlocking your organization’s potential. Make data
available to current and future apps, improve
scalability, and decrease complexity.
• Kafka is foundational infrastructure for event-driven
systems and is battle tested at scale.
• The ecosystem building around Kafka is rich -
allowing you to connect using various tools.

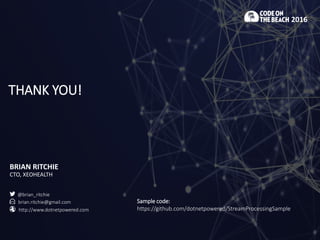

QUESTIONS?

THANK YOU!
