Chapter # 5 Access Control on networking

Copyright © 2015 Pearson Education, Inc.
Chapter 5

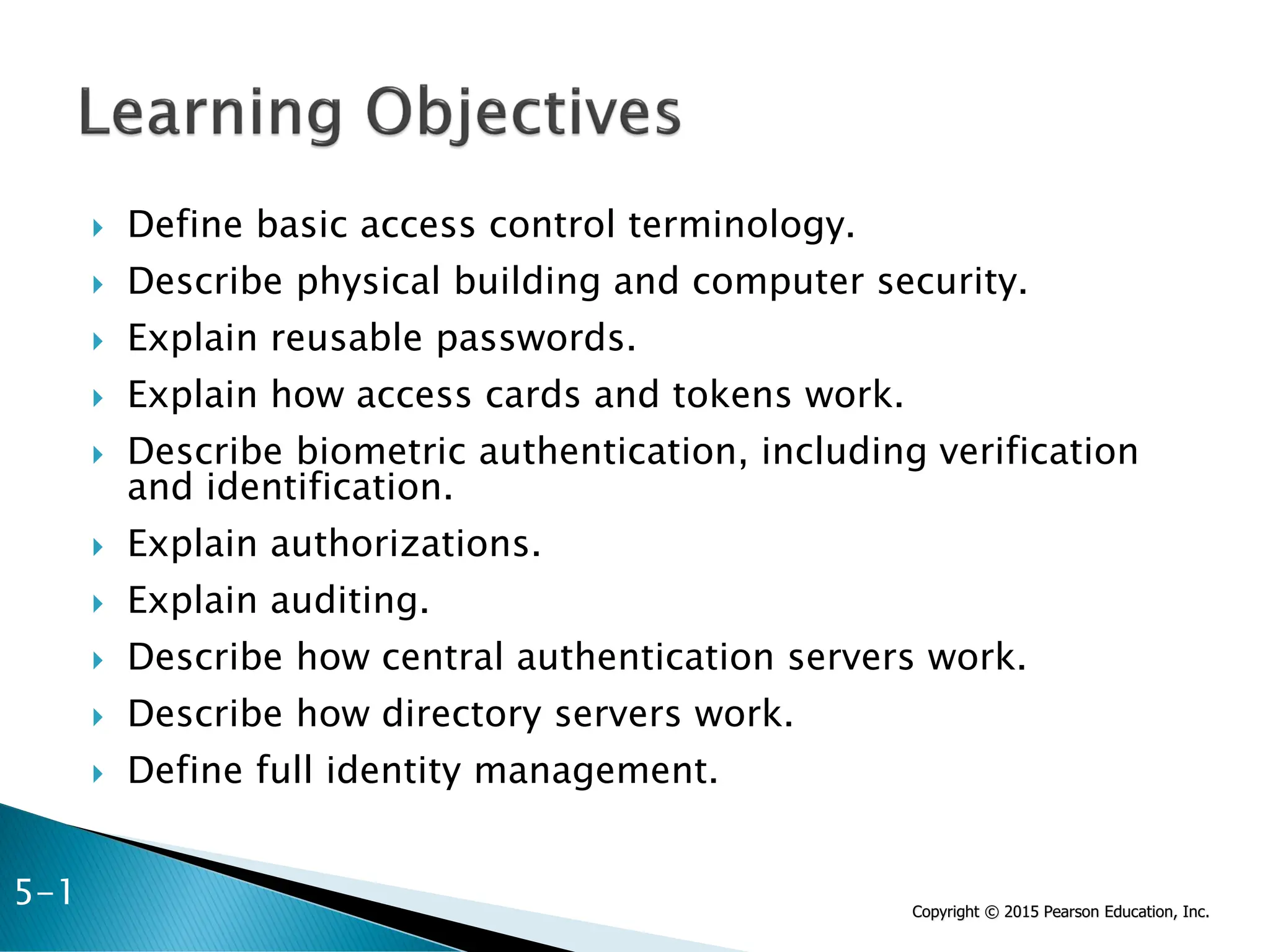

 Define basic access control terminology.
 Describe physical building and computer security.
 Explain reusable passwords.
 Explain how access cards and tokens work.

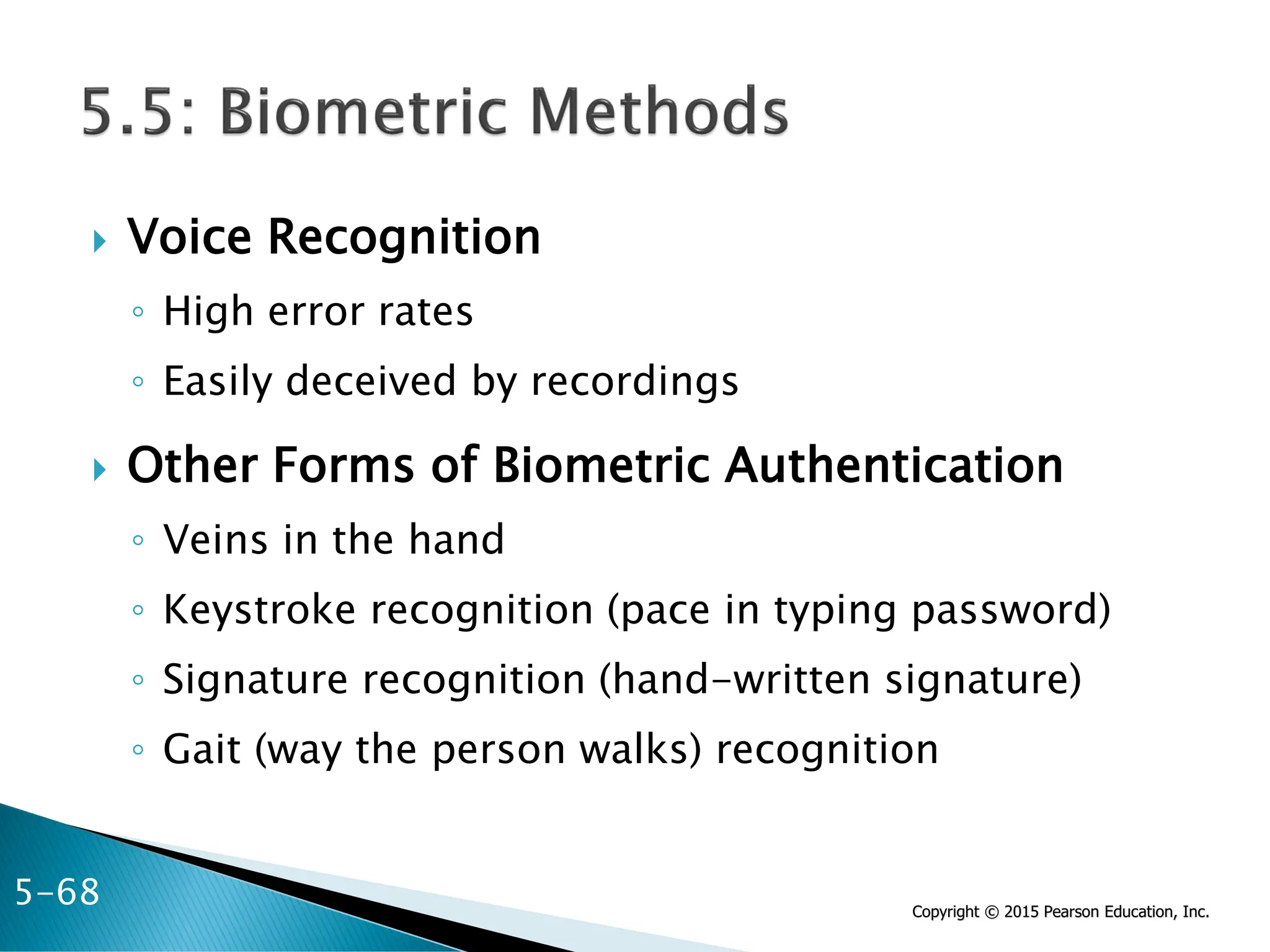

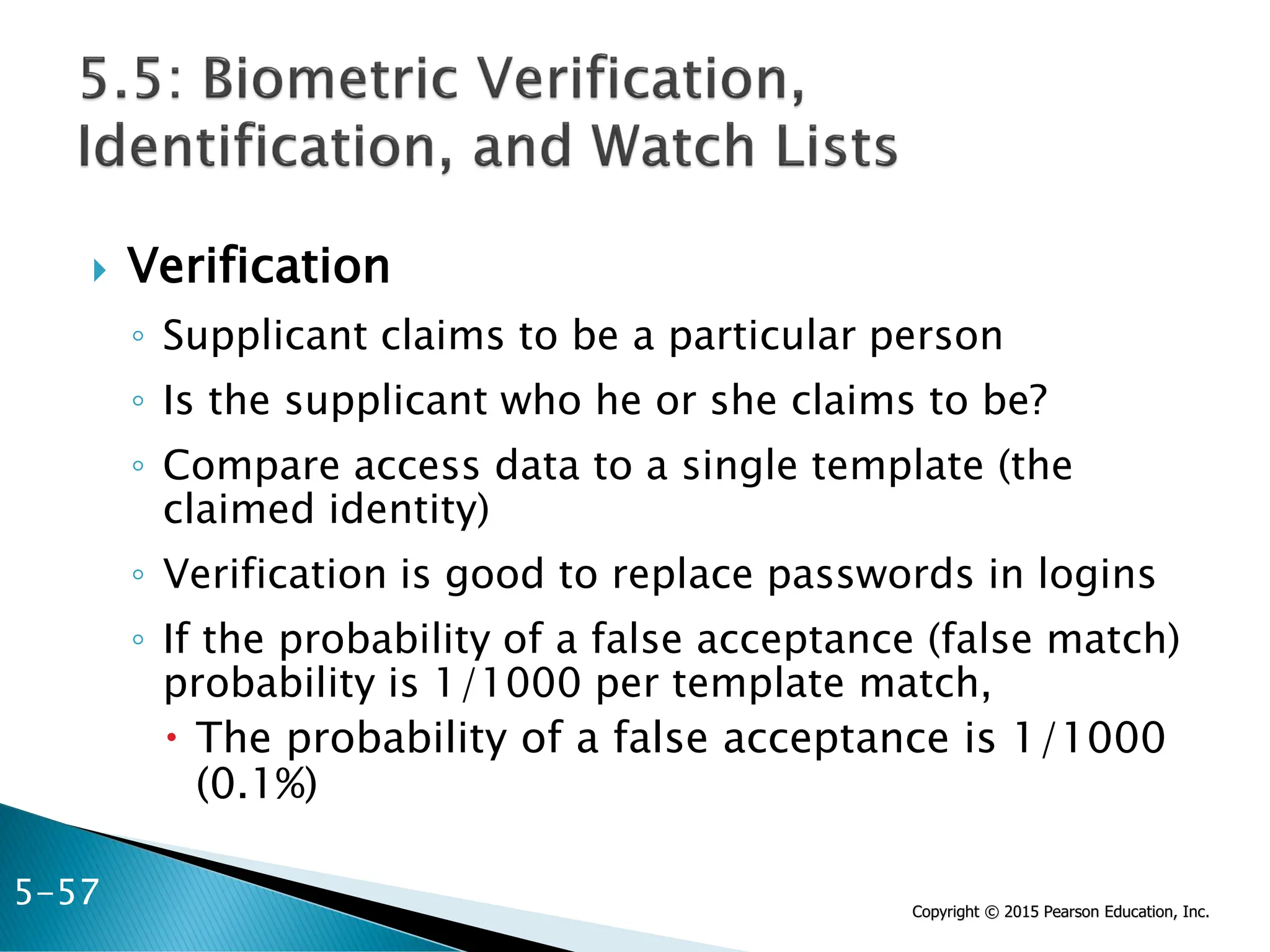

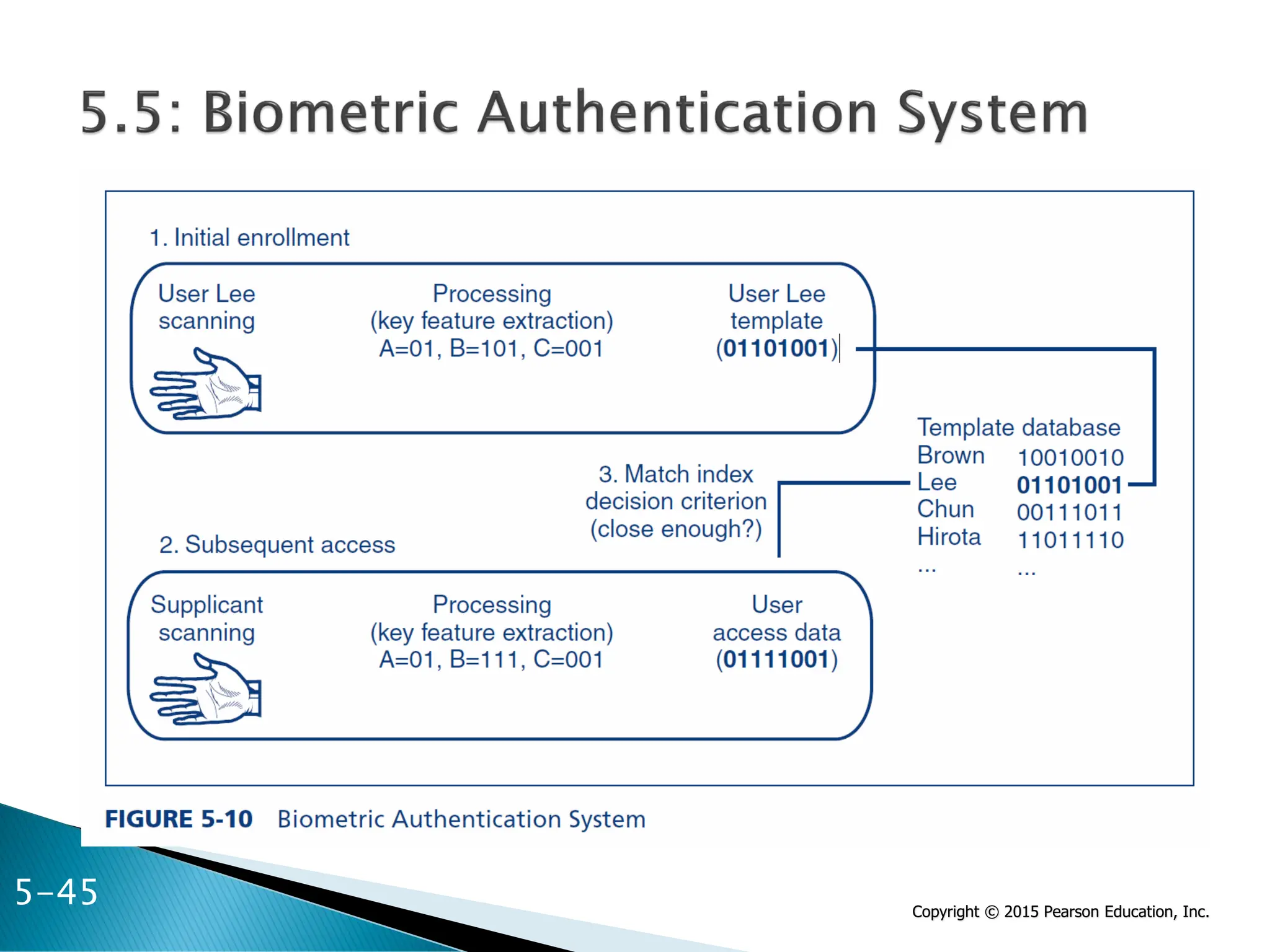

 Describe biometric authentication, including verification
and identification.
 Explain authorizations.
 Explain auditing.

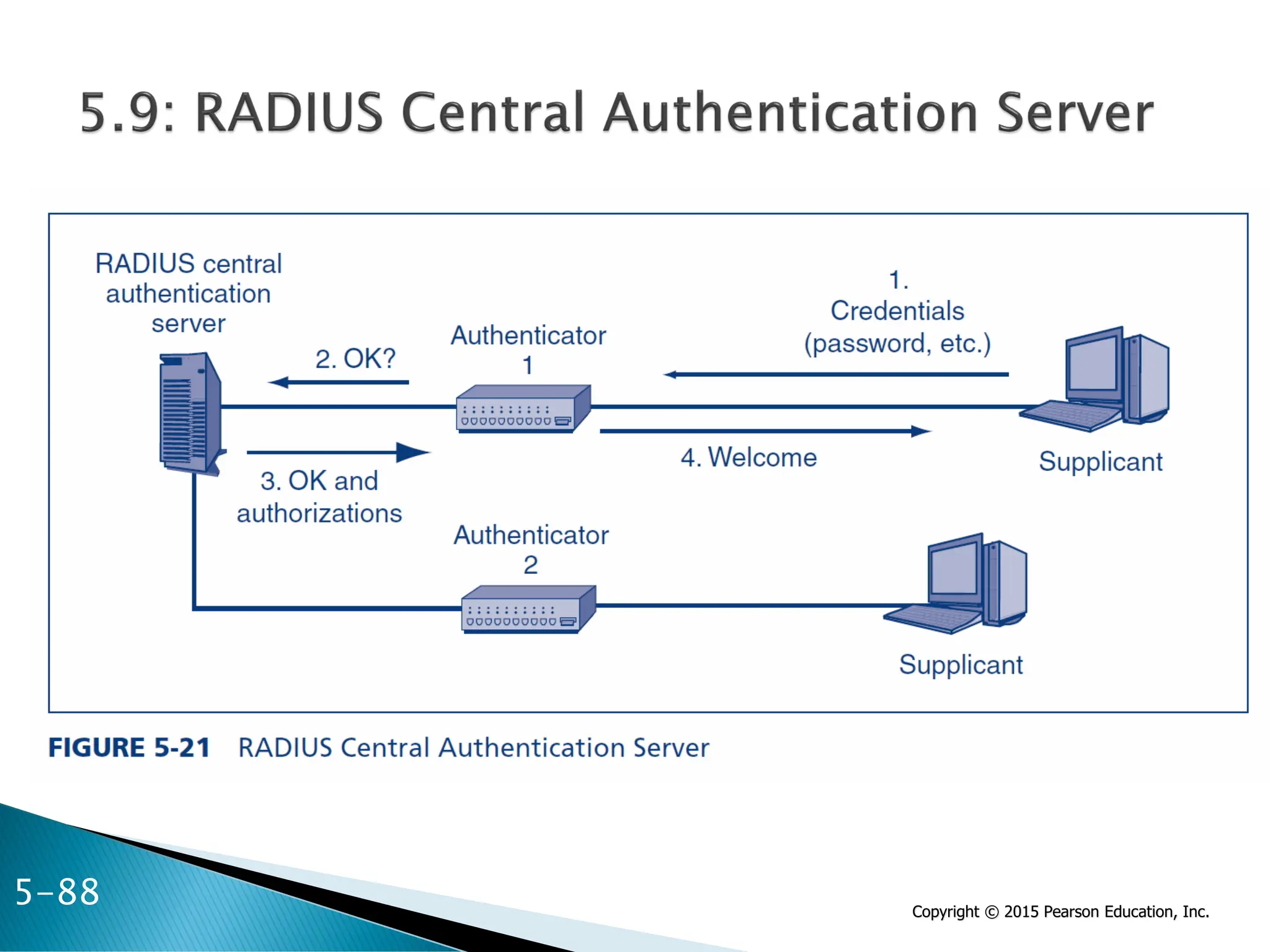

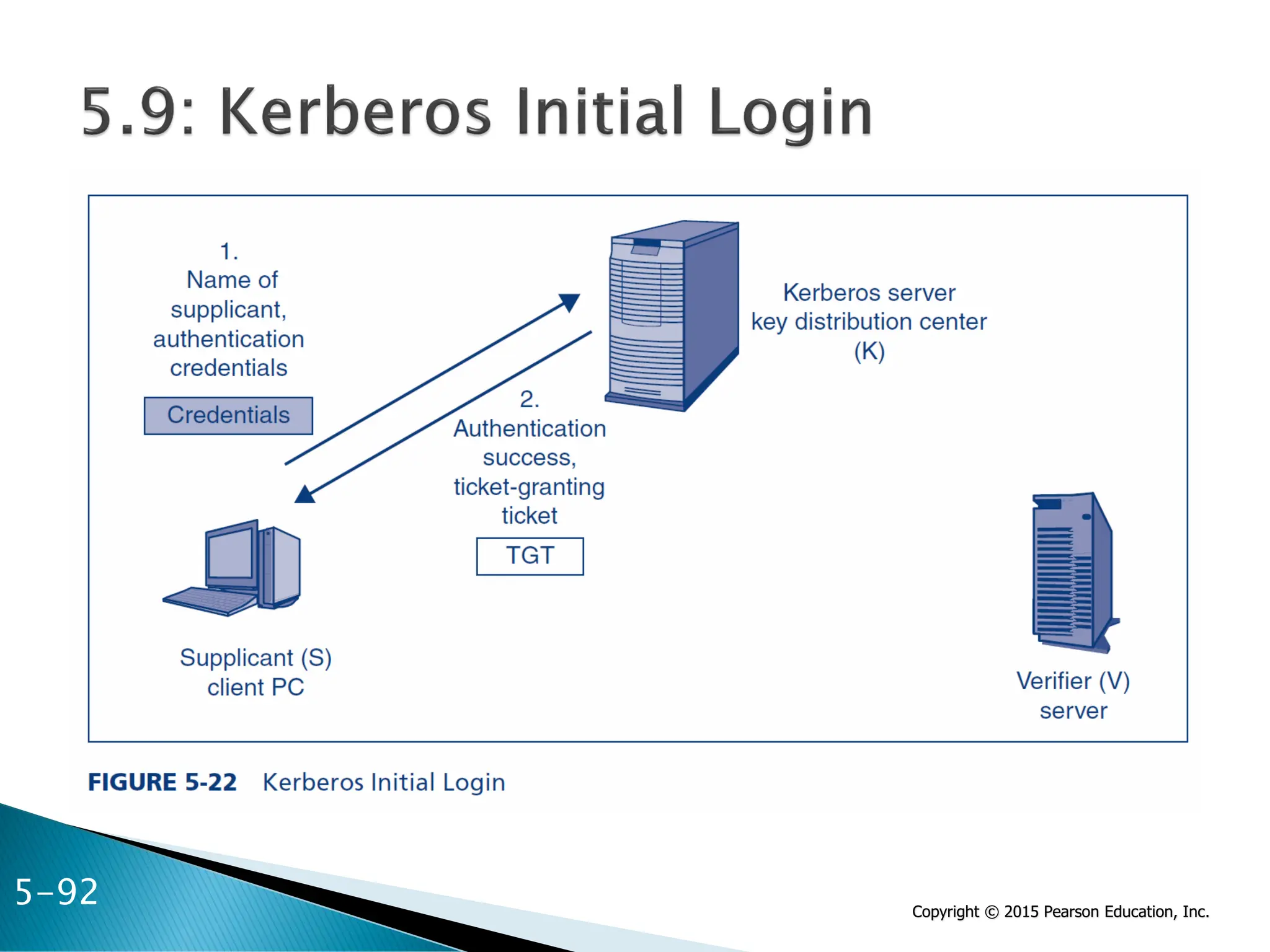

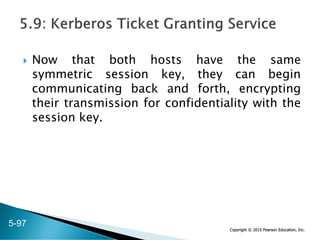

 Describe how central authentication servers work.

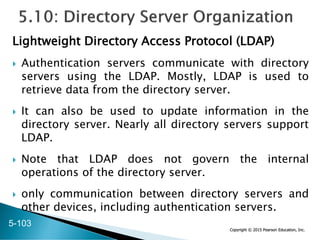

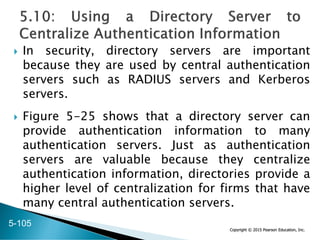

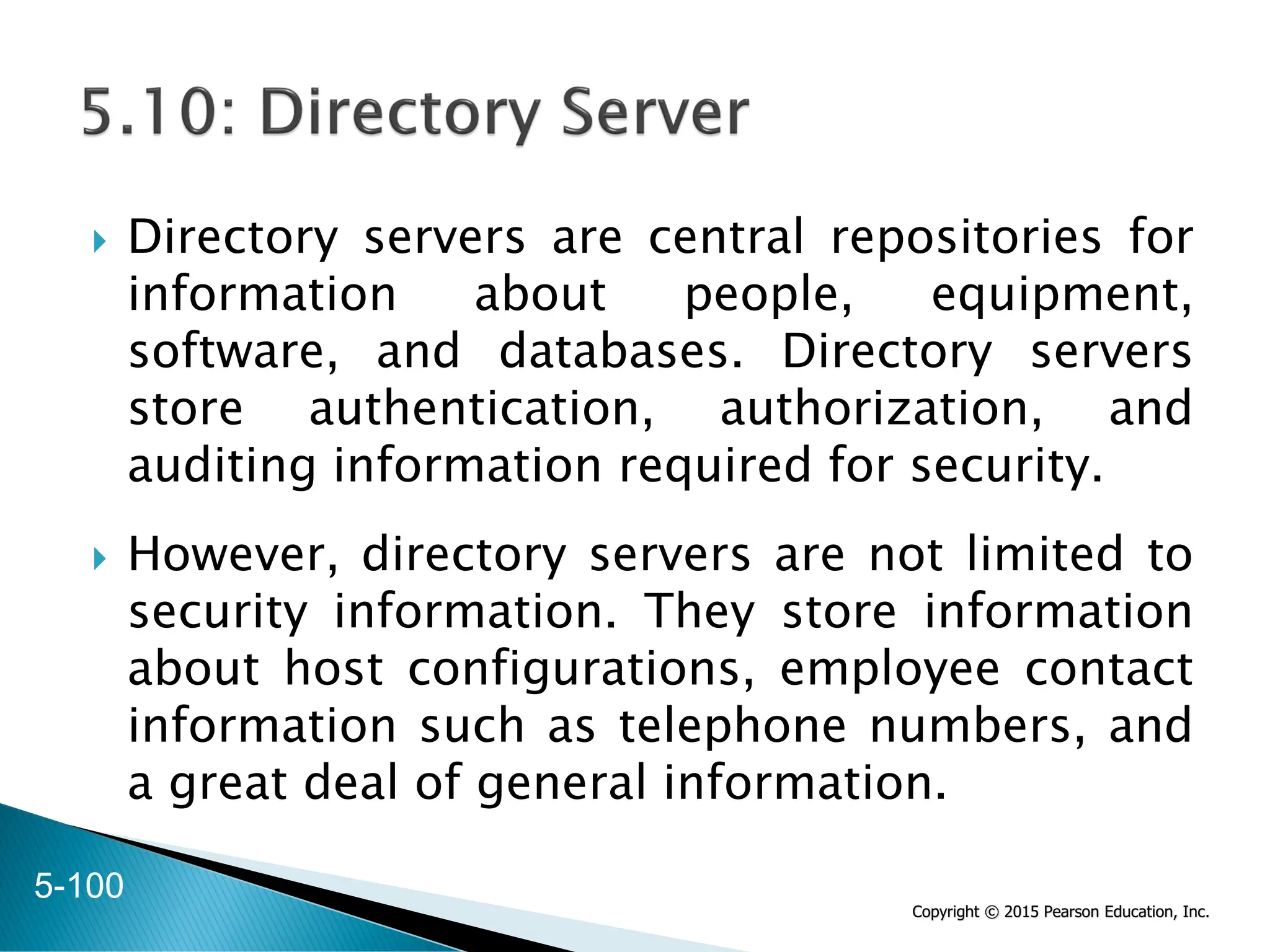

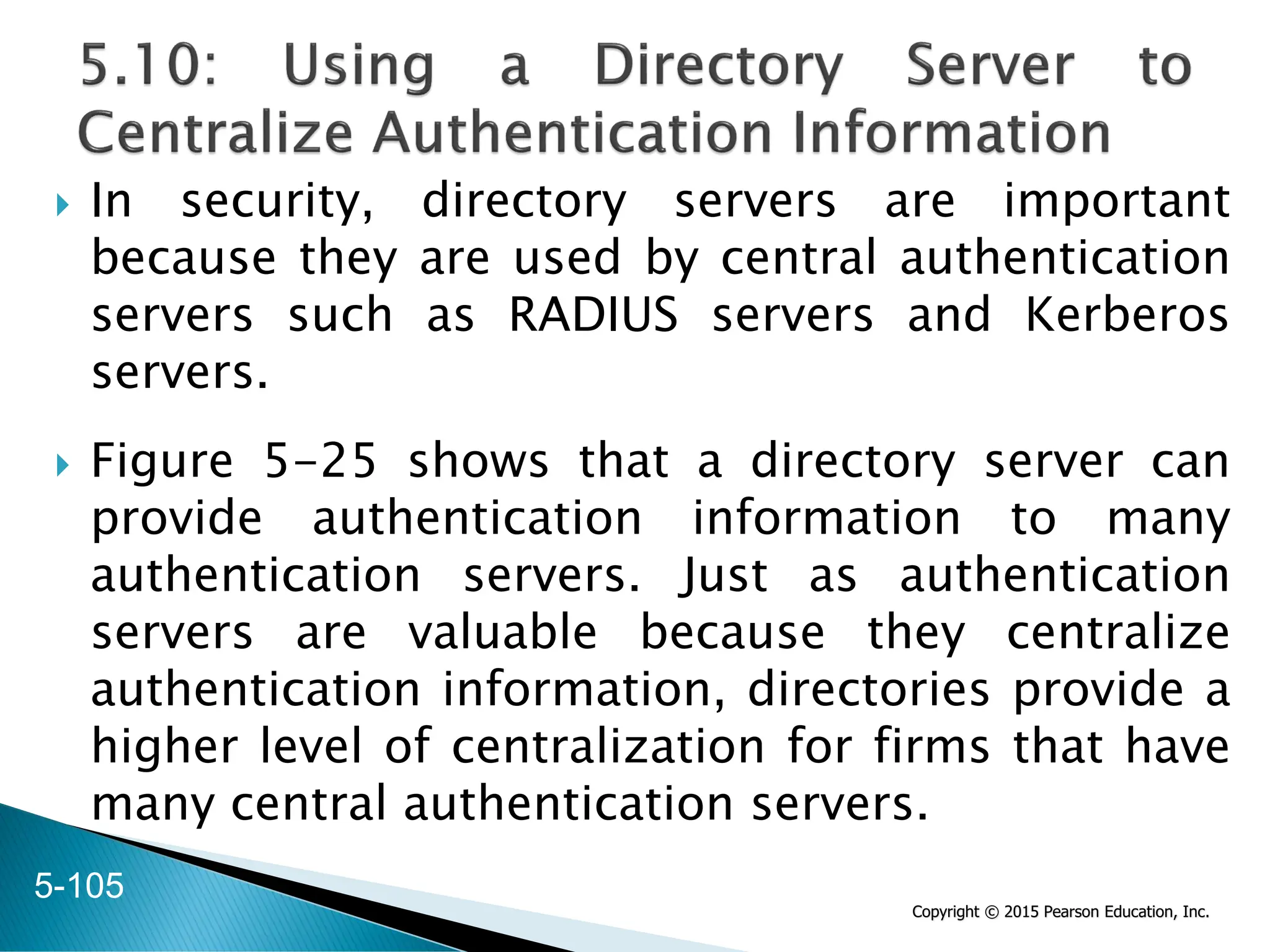

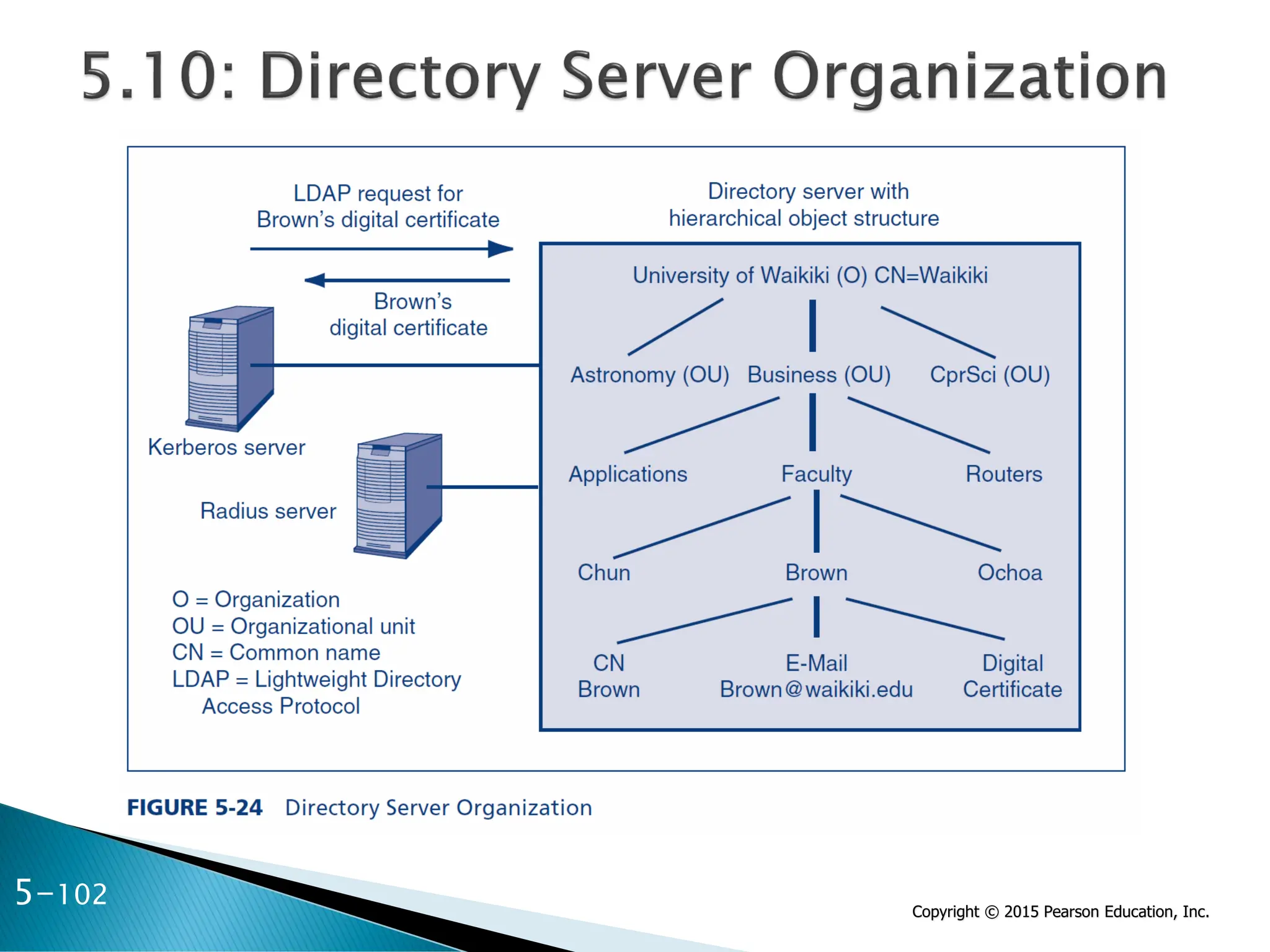

 Describe how directory servers work.

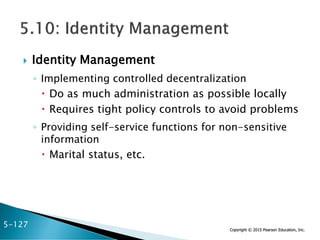

 Define full identity management.
5-1

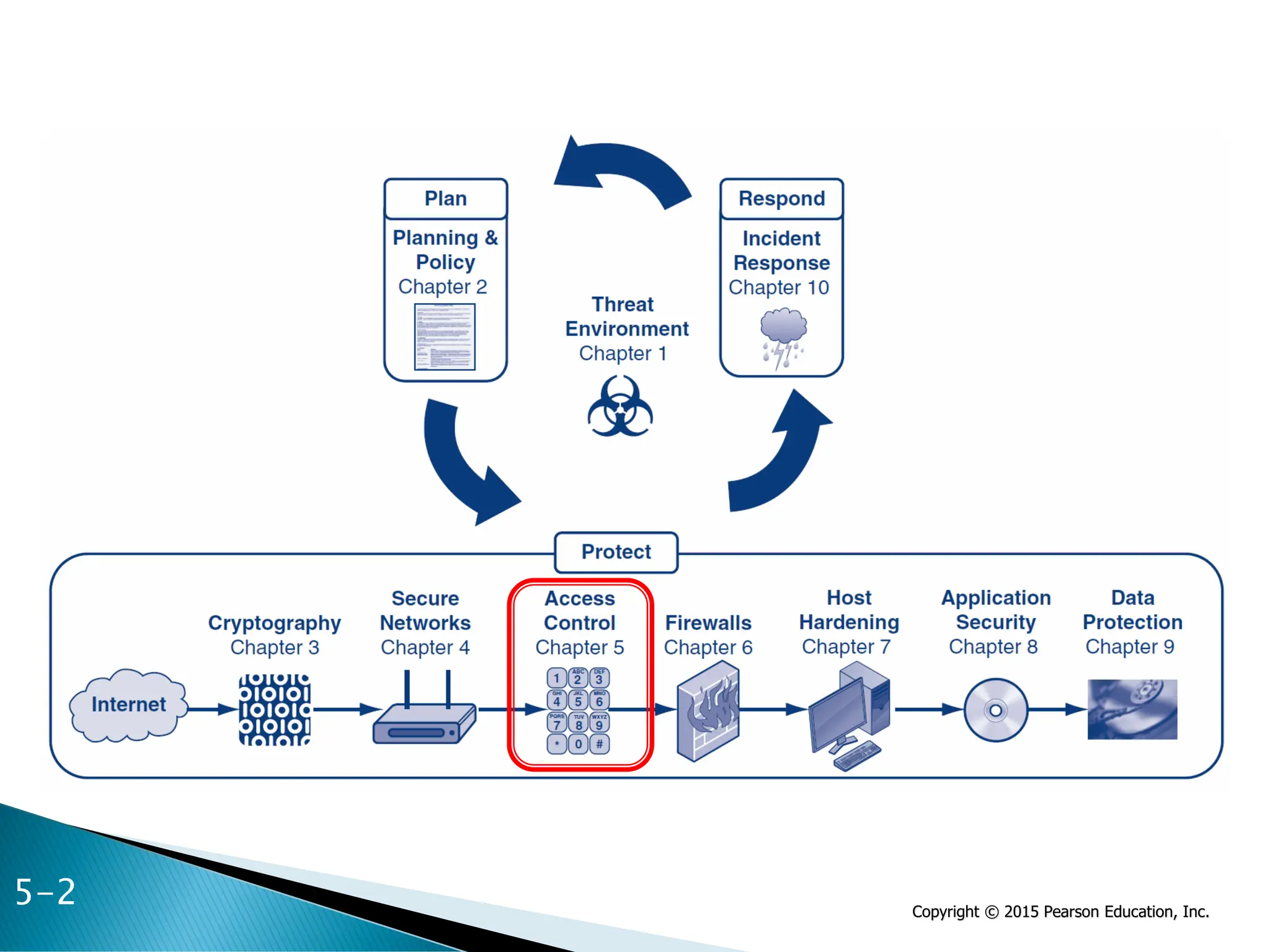

5-2

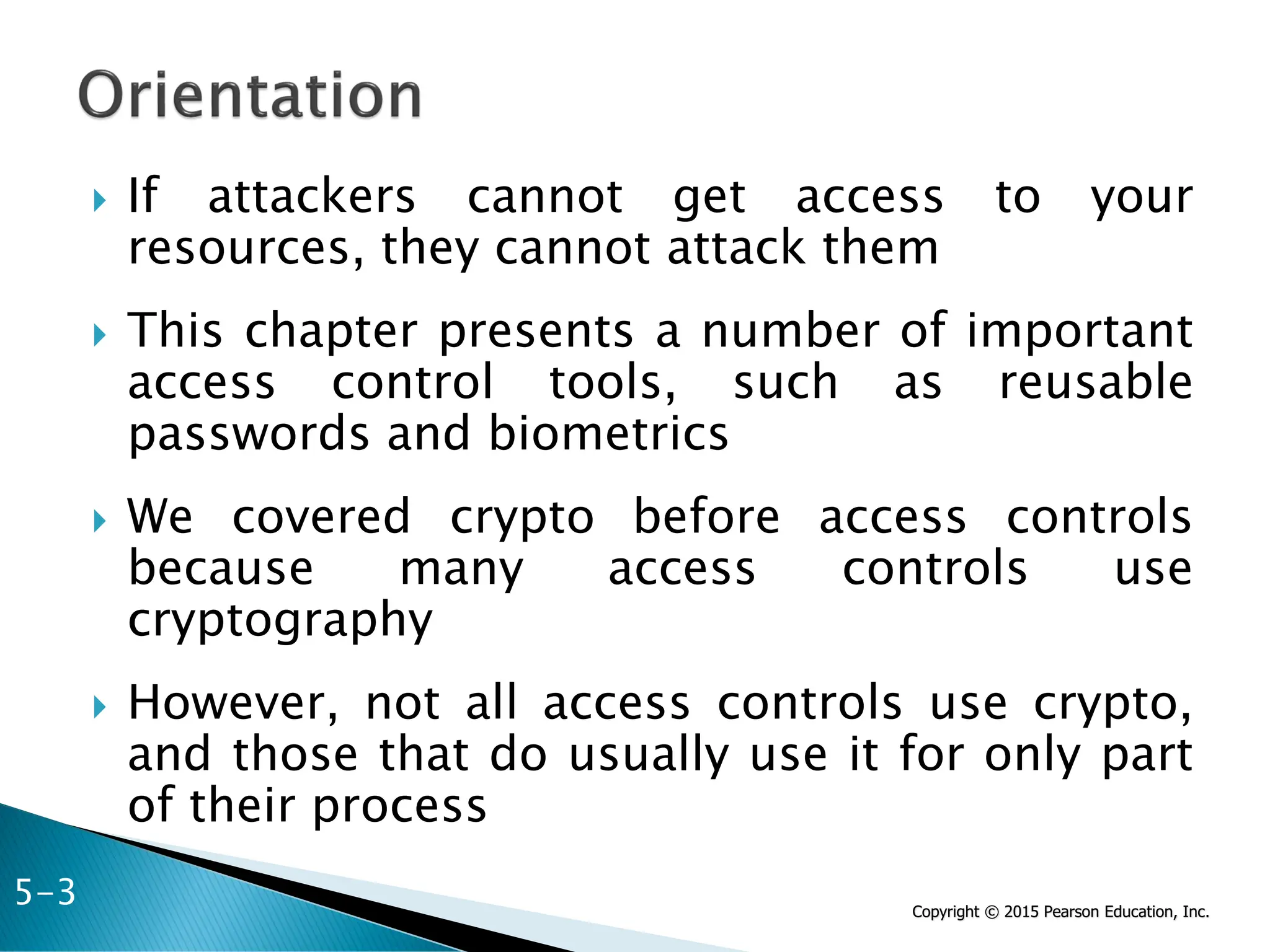

 If attackers cannot get access to your
resources, they cannot attack them
 This chapter presents a number of important
access control tools, such as reusable
passwords and biometrics
 We covered crypto before access controls
because many access controls use
cryptography
 However, not all access controls use crypto,
and those that do usually use it for only part
of their process
5-3

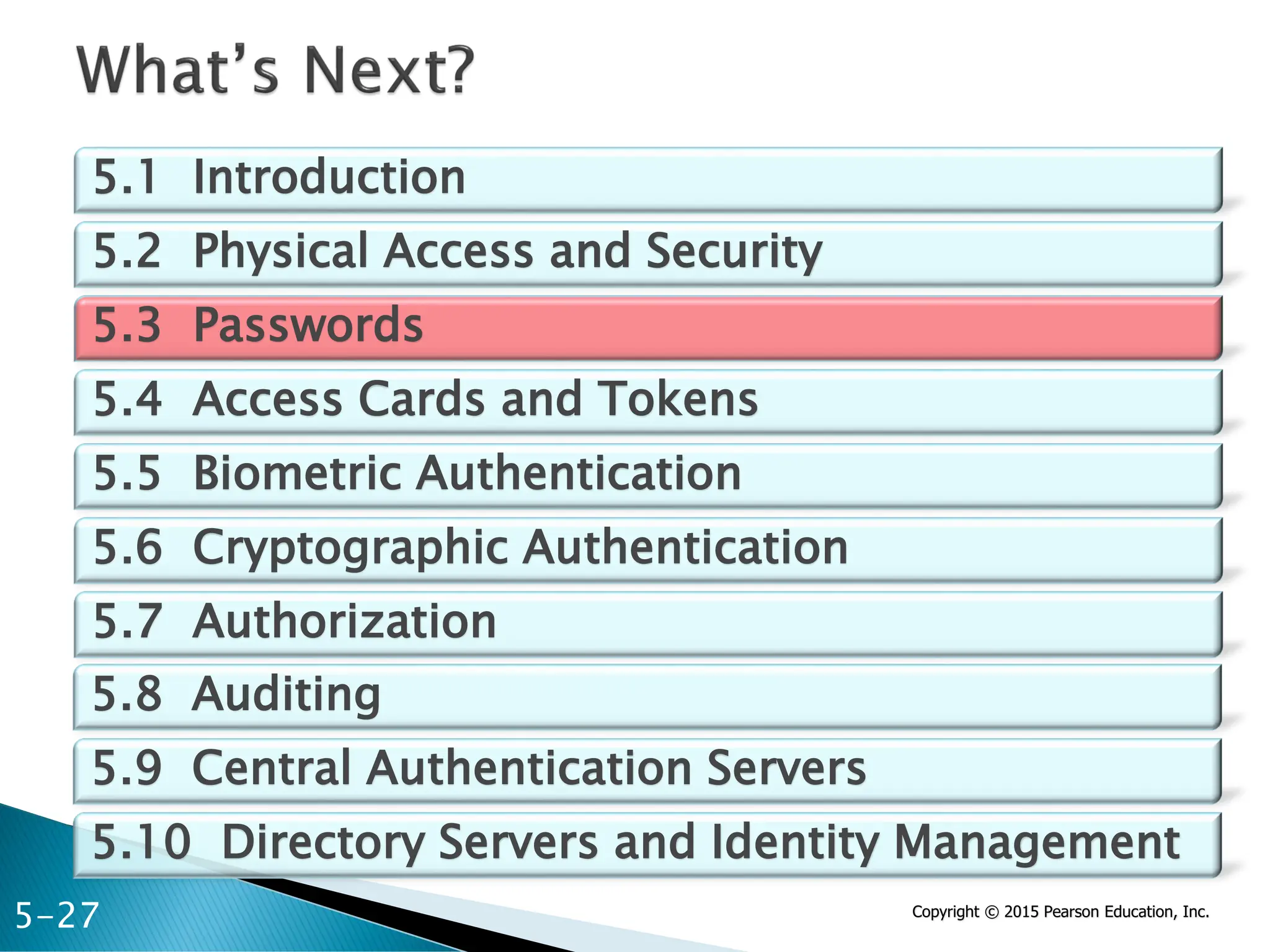

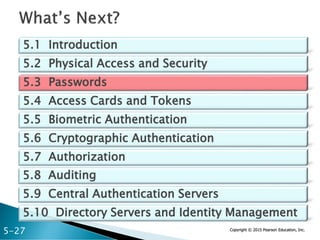

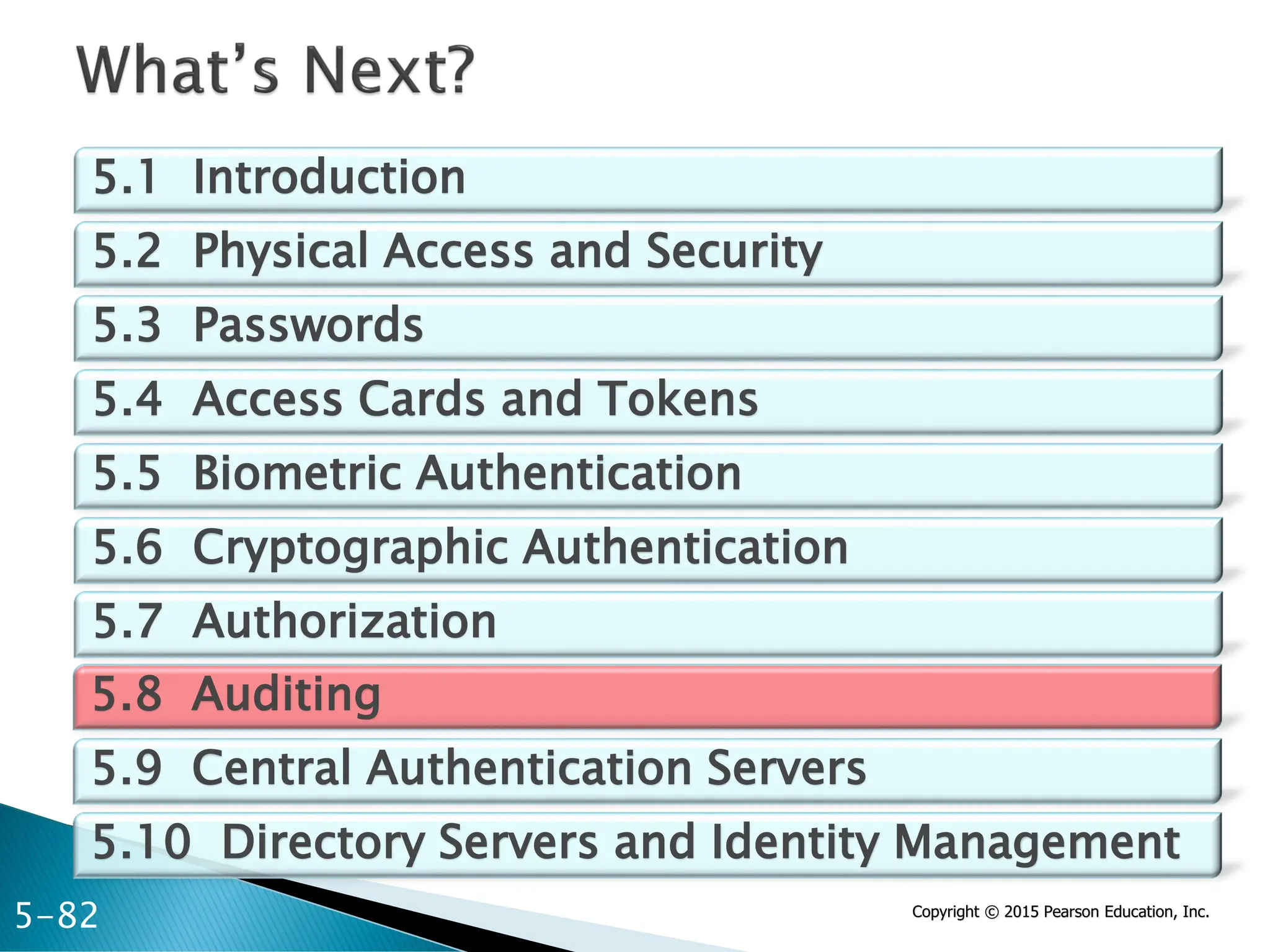

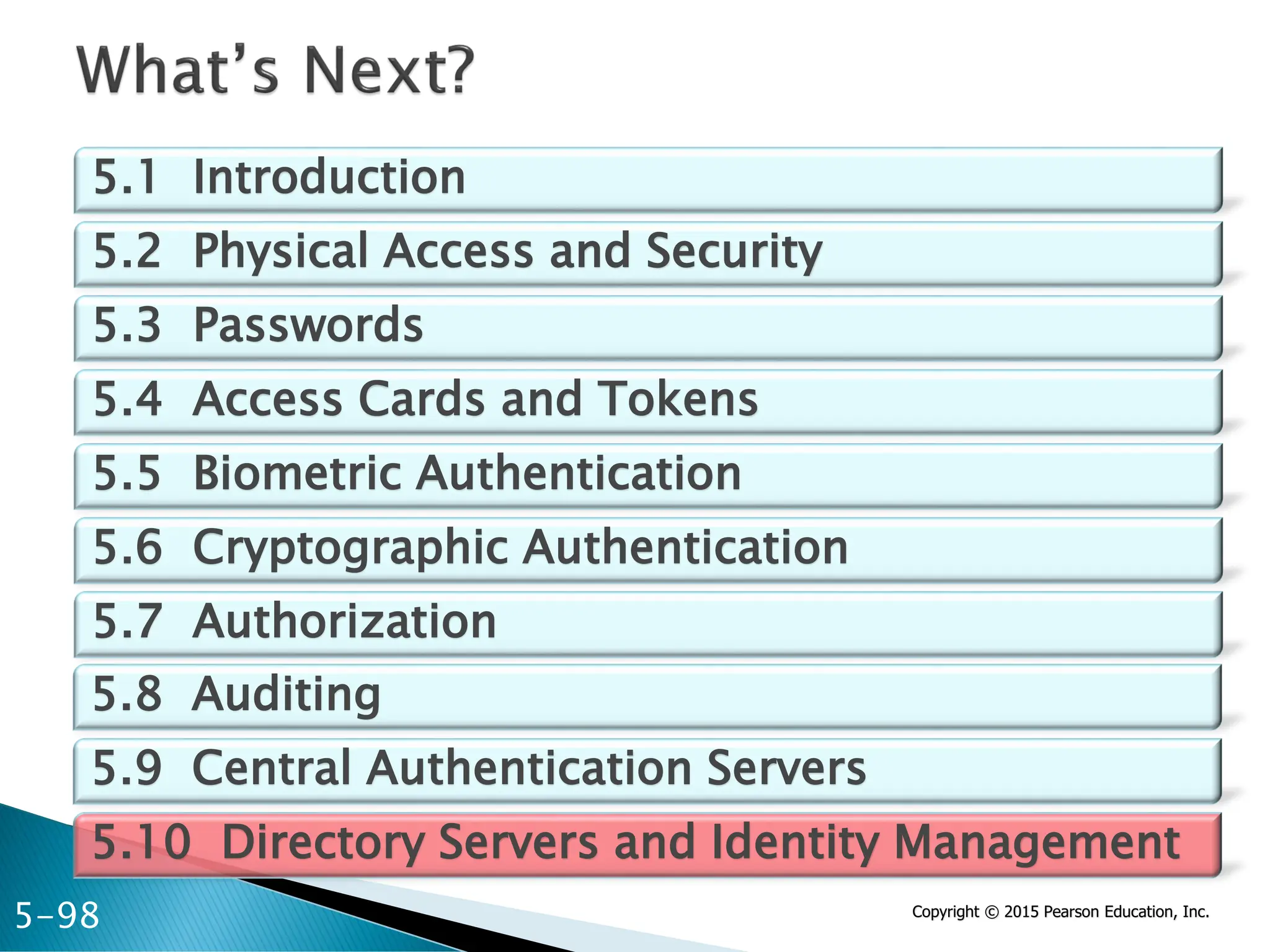

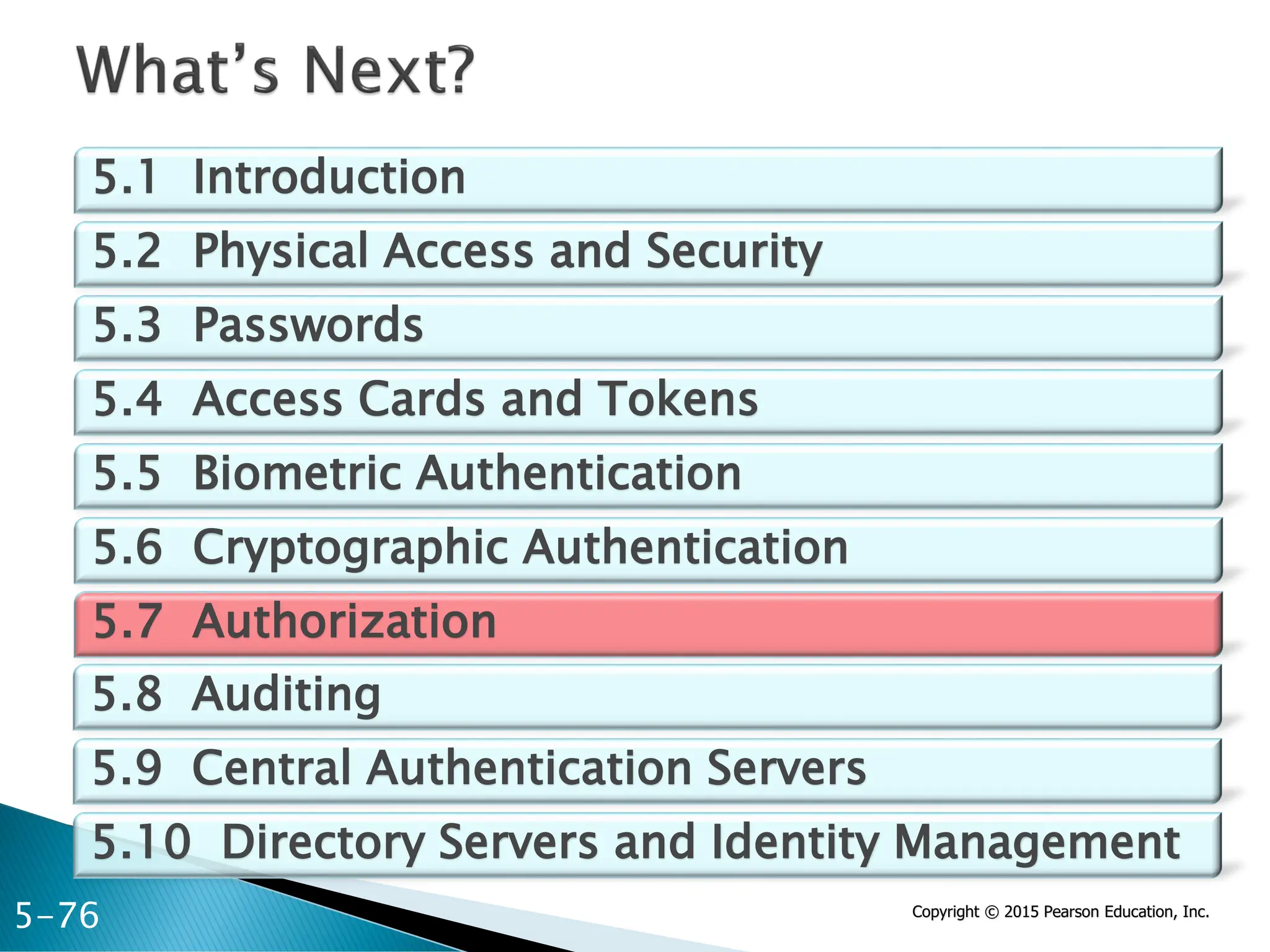

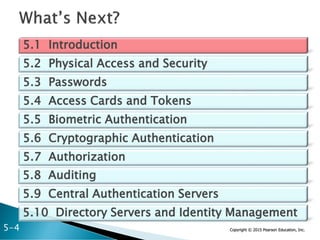

5.1 Introduction
5.2 Physical Access and Security
5.3 Passwords
5.4 Access Cards and Tokens

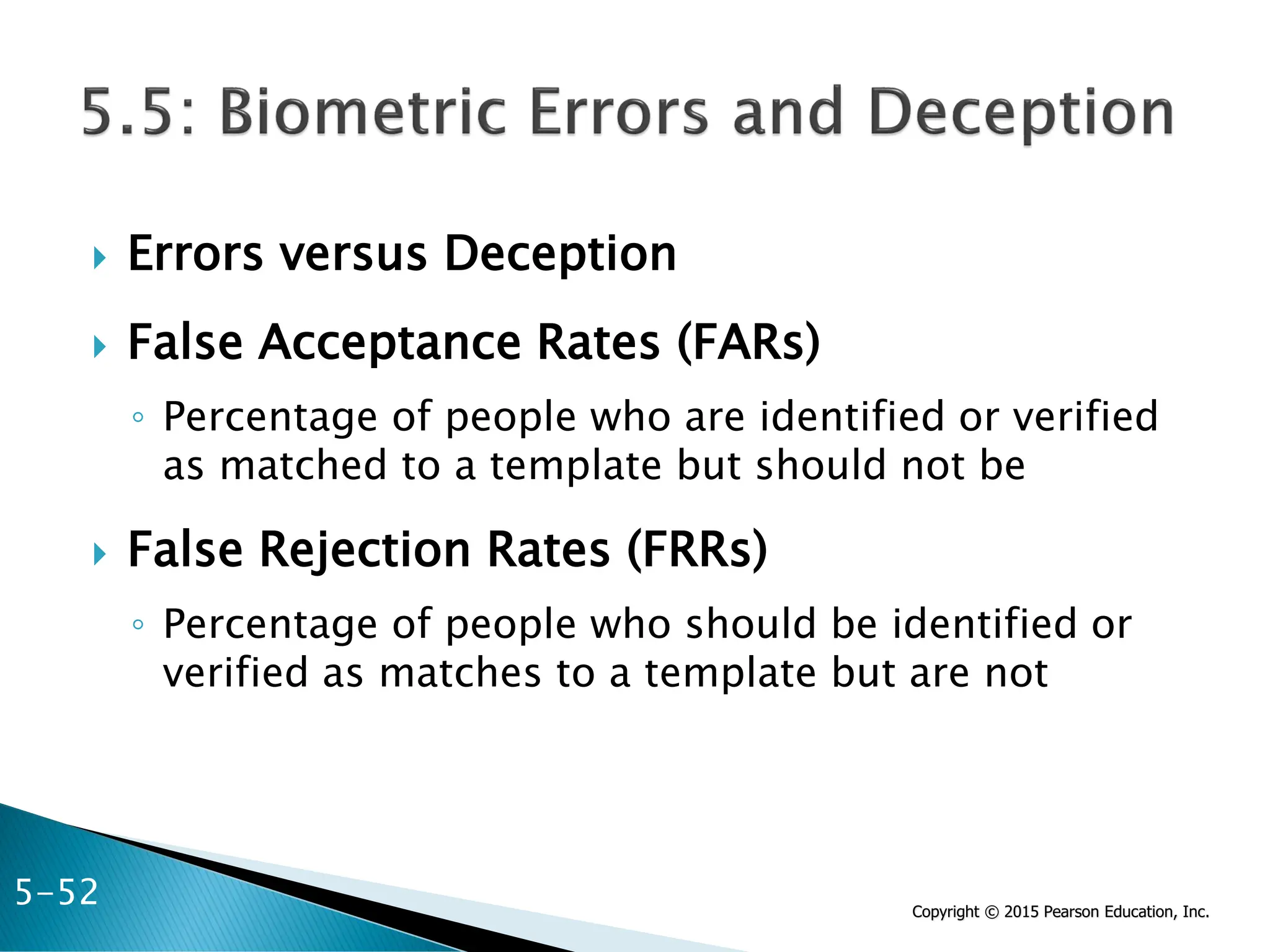

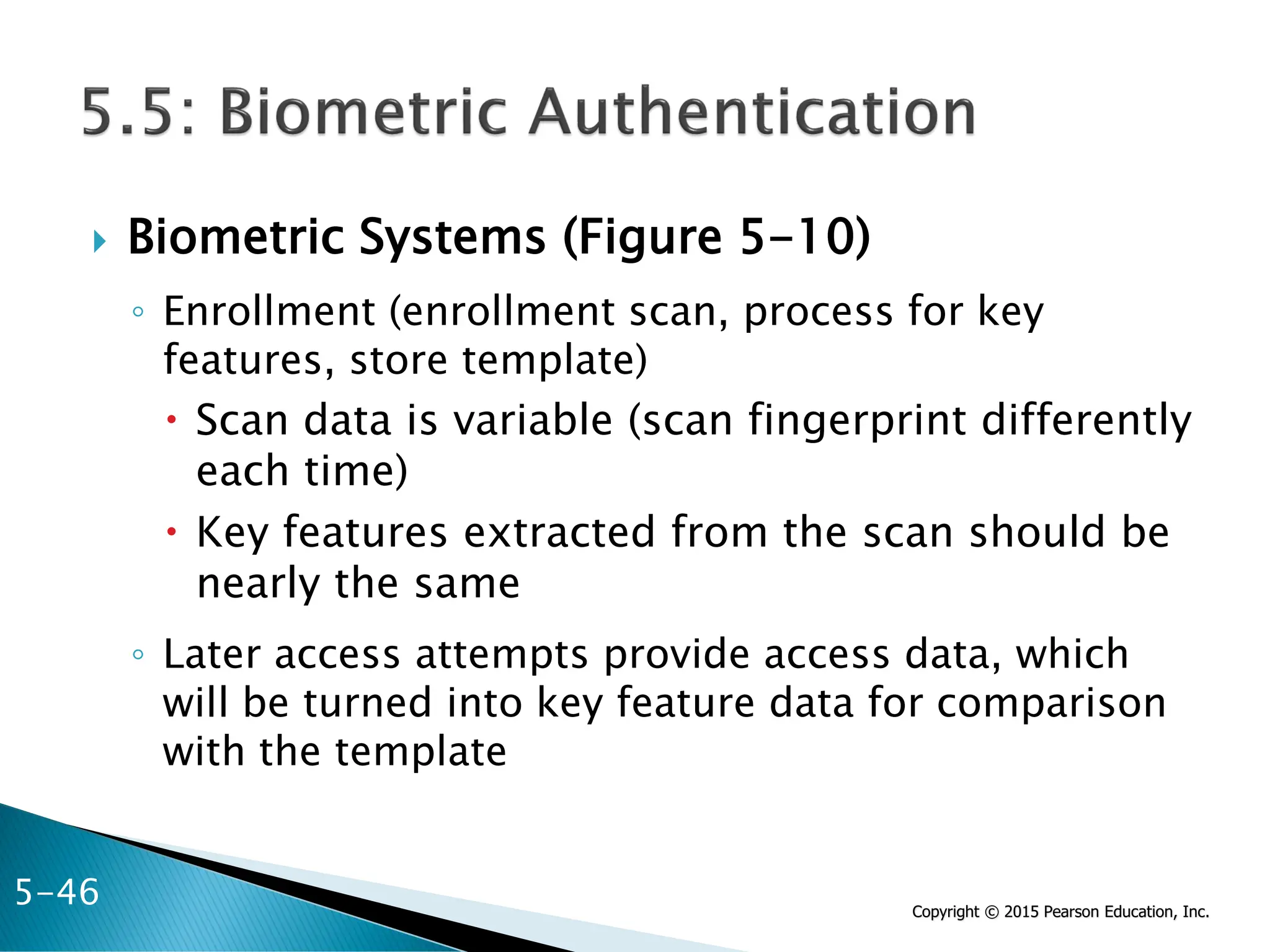

5.5 Biometric Authentication

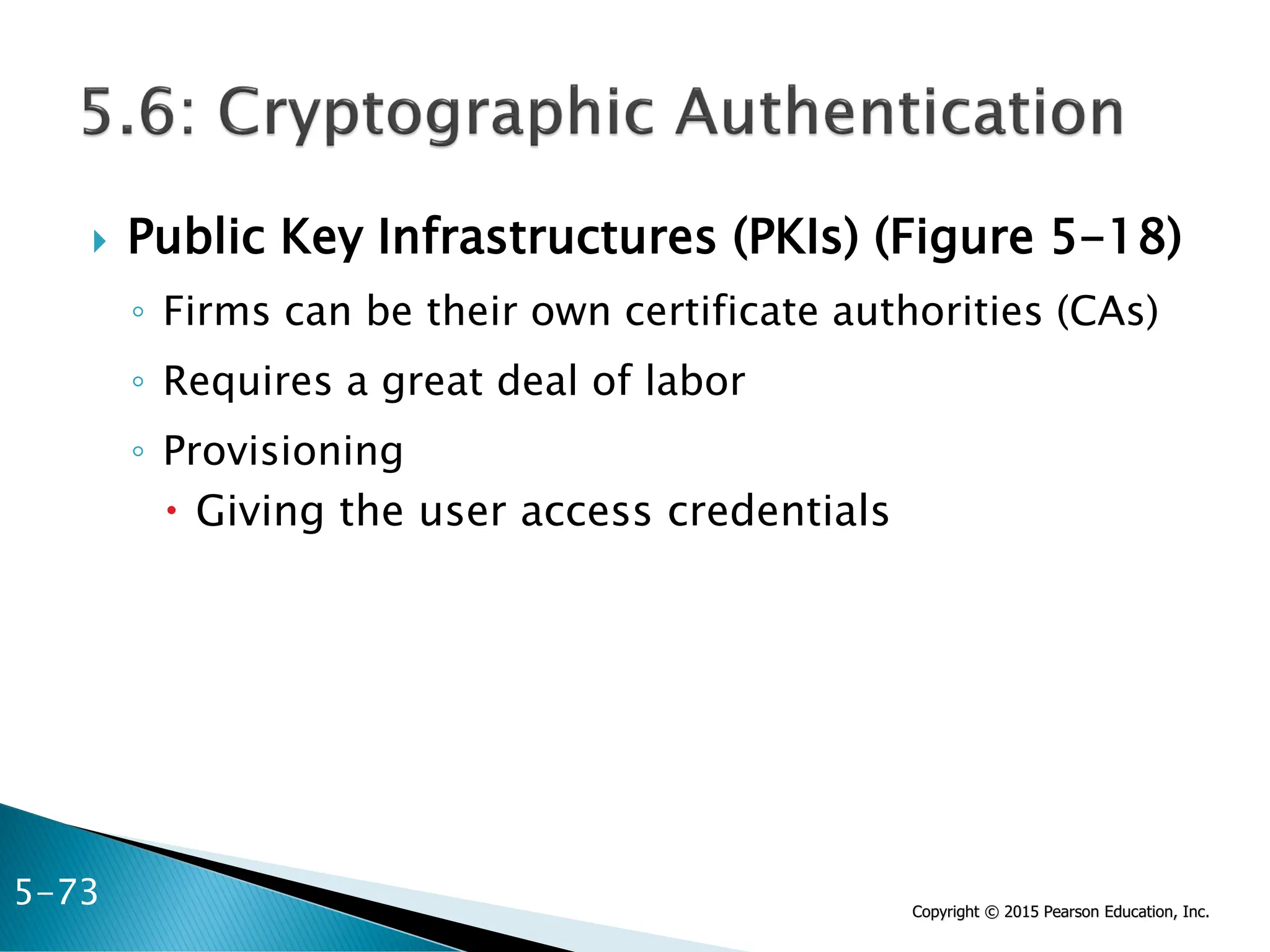

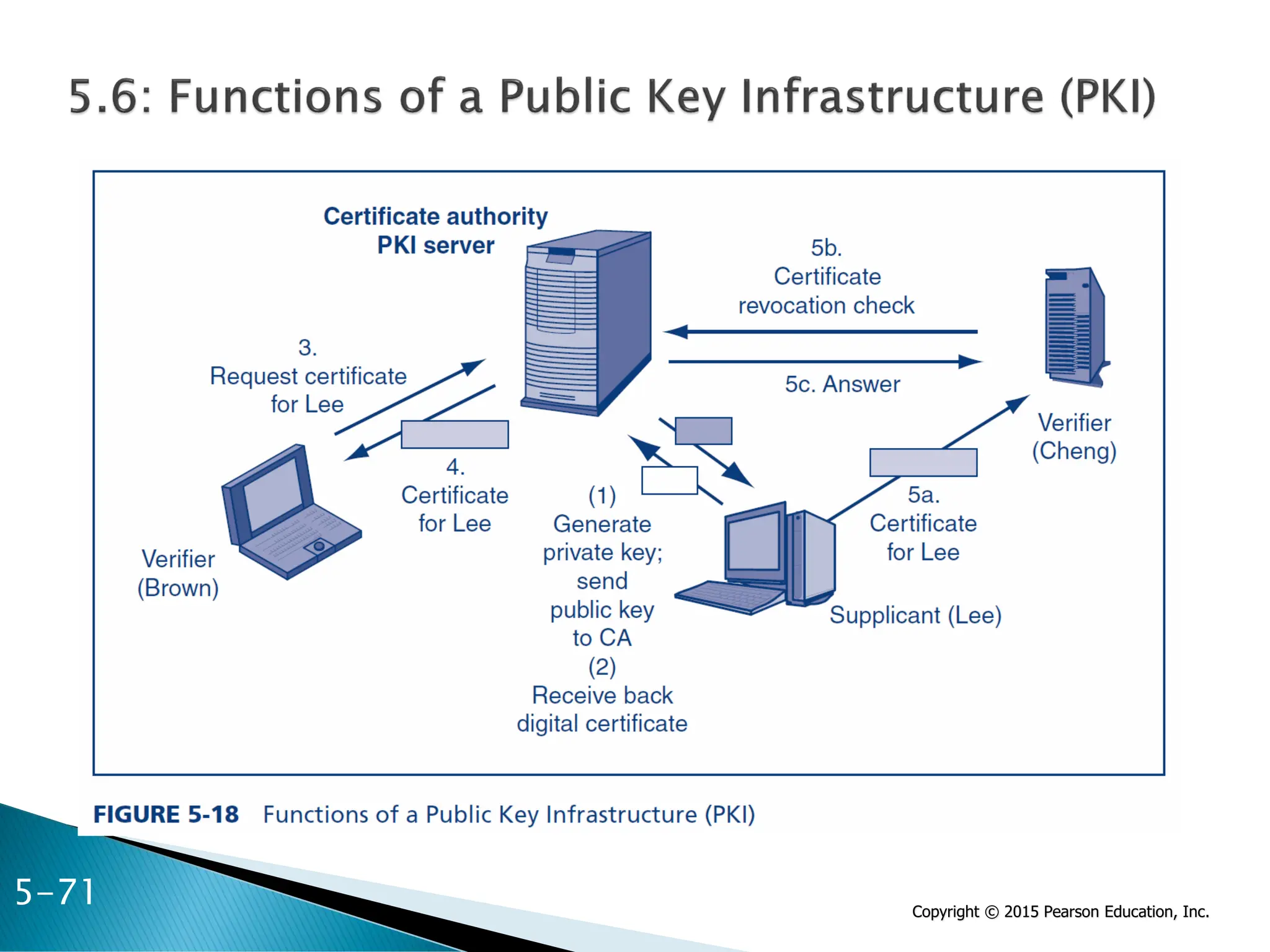

5.6 Cryptographic Authentication
5.7 Authorization
5.8 Auditing

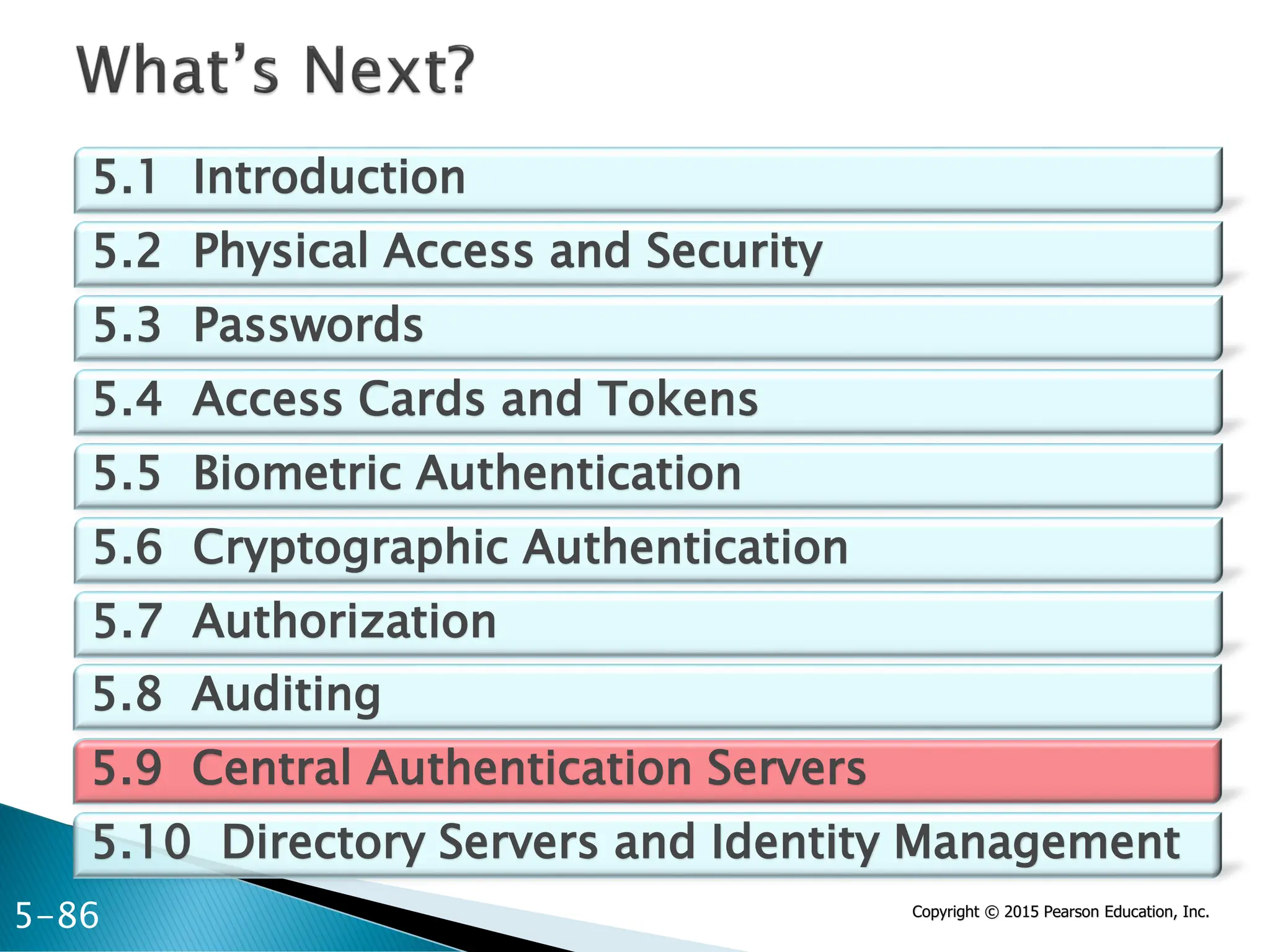

5.9 Central Authentication Servers

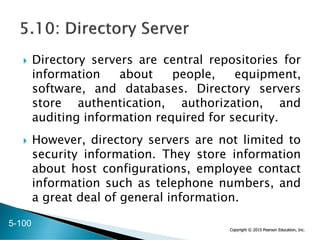

5.10 Directory Servers and Identity Management
5-4

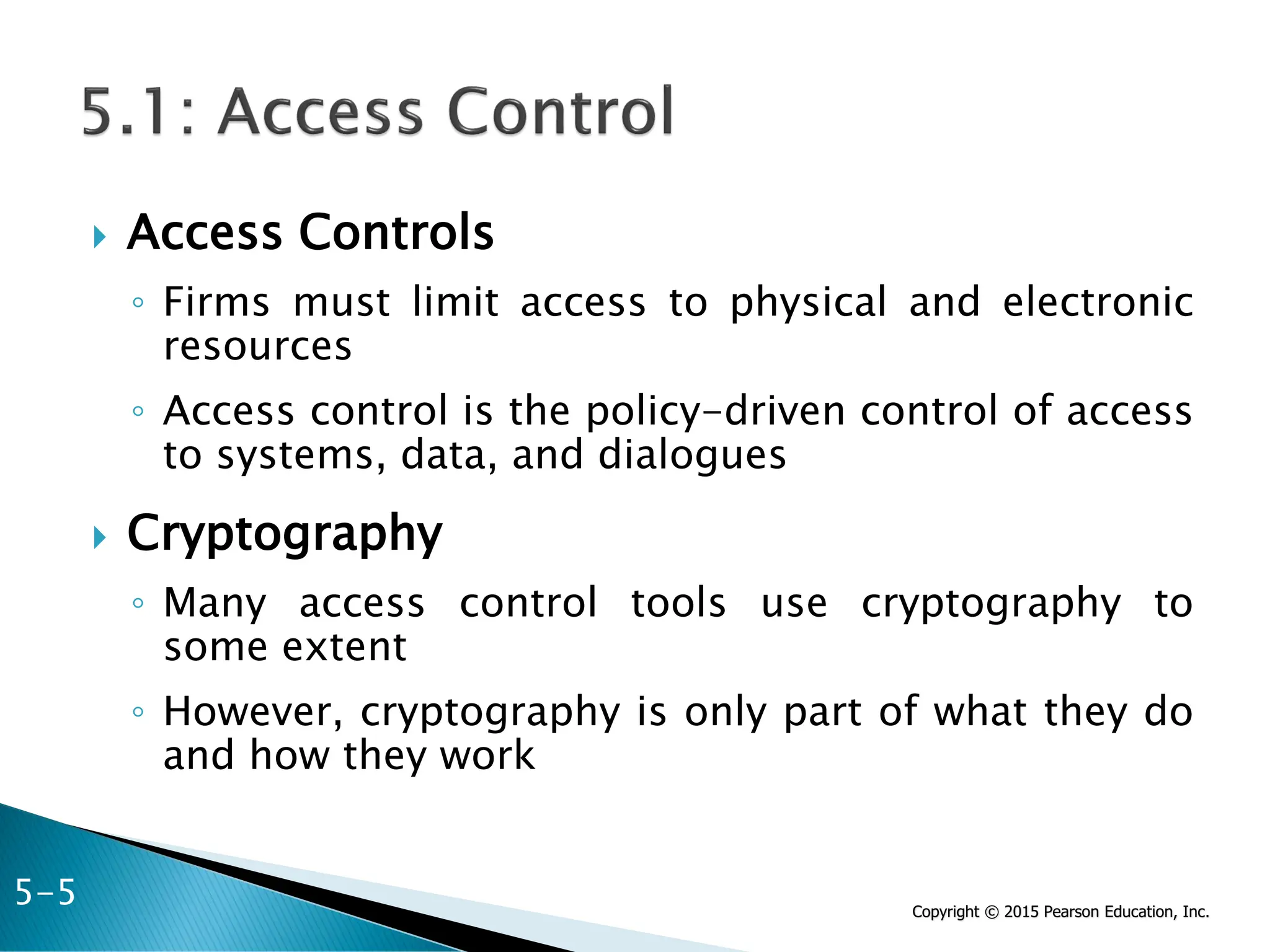

 Access Controls
◦ Firms must limit access to physical and electronic
resources
◦ Access control is the policy-driven control of access
to systems, data, and dialogues
 Cryptography
◦ Many access control tools use cryptography to
some extent
◦ However, cryptography is only part of what they do
and how they work
5-5

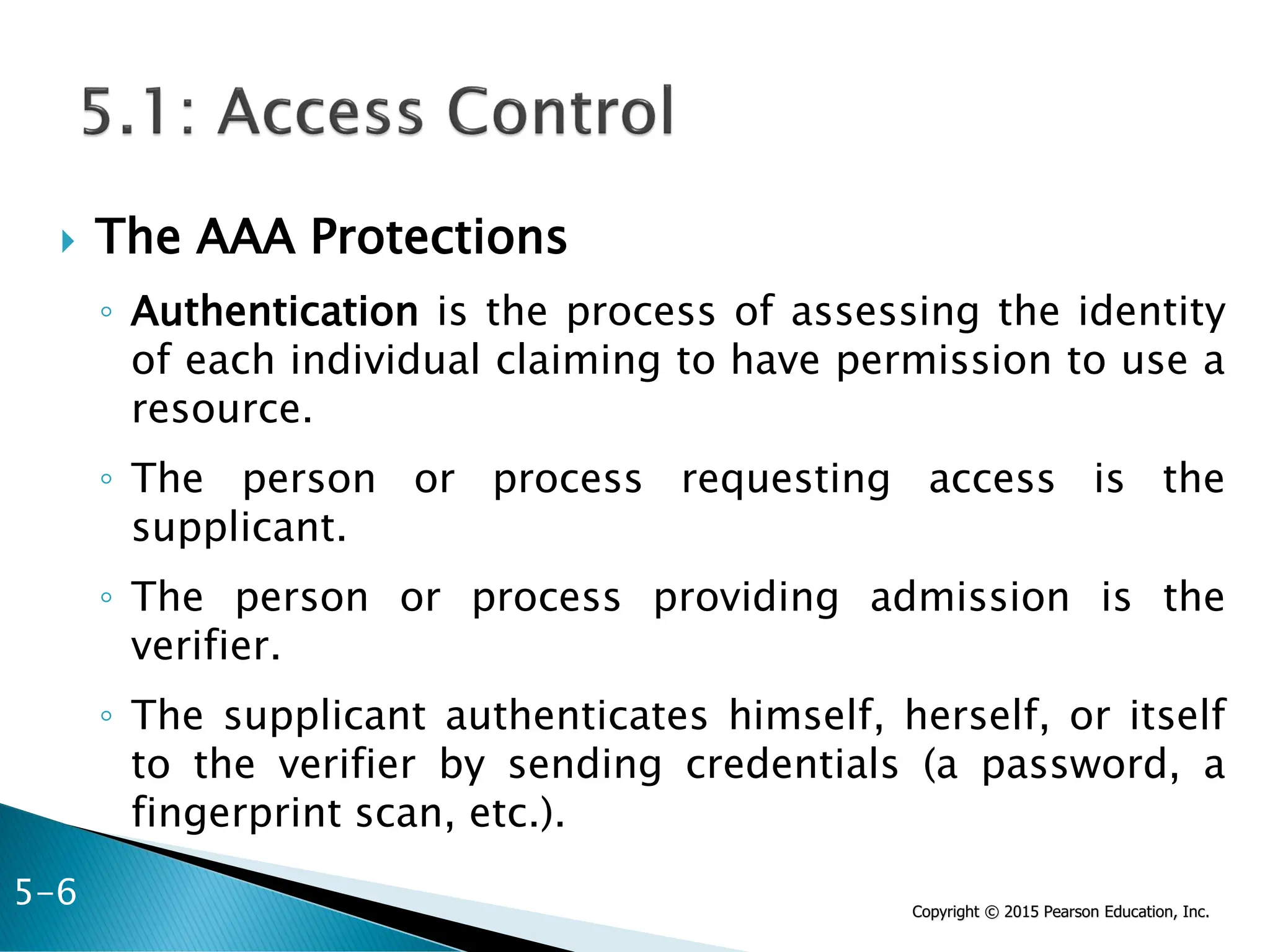

 The AAA Protections
◦ Authentication is the process of assessing the identity
of each individual claiming to have permission to use a
resource.
◦ The person or process requesting access is the
supplicant.
◦ The person or process providing admission is the
verifier.
◦ The supplicant authenticates himself, herself, or itself
to the verifier by sending credentials (a password, a
fingerprint scan, etc.).
5-6

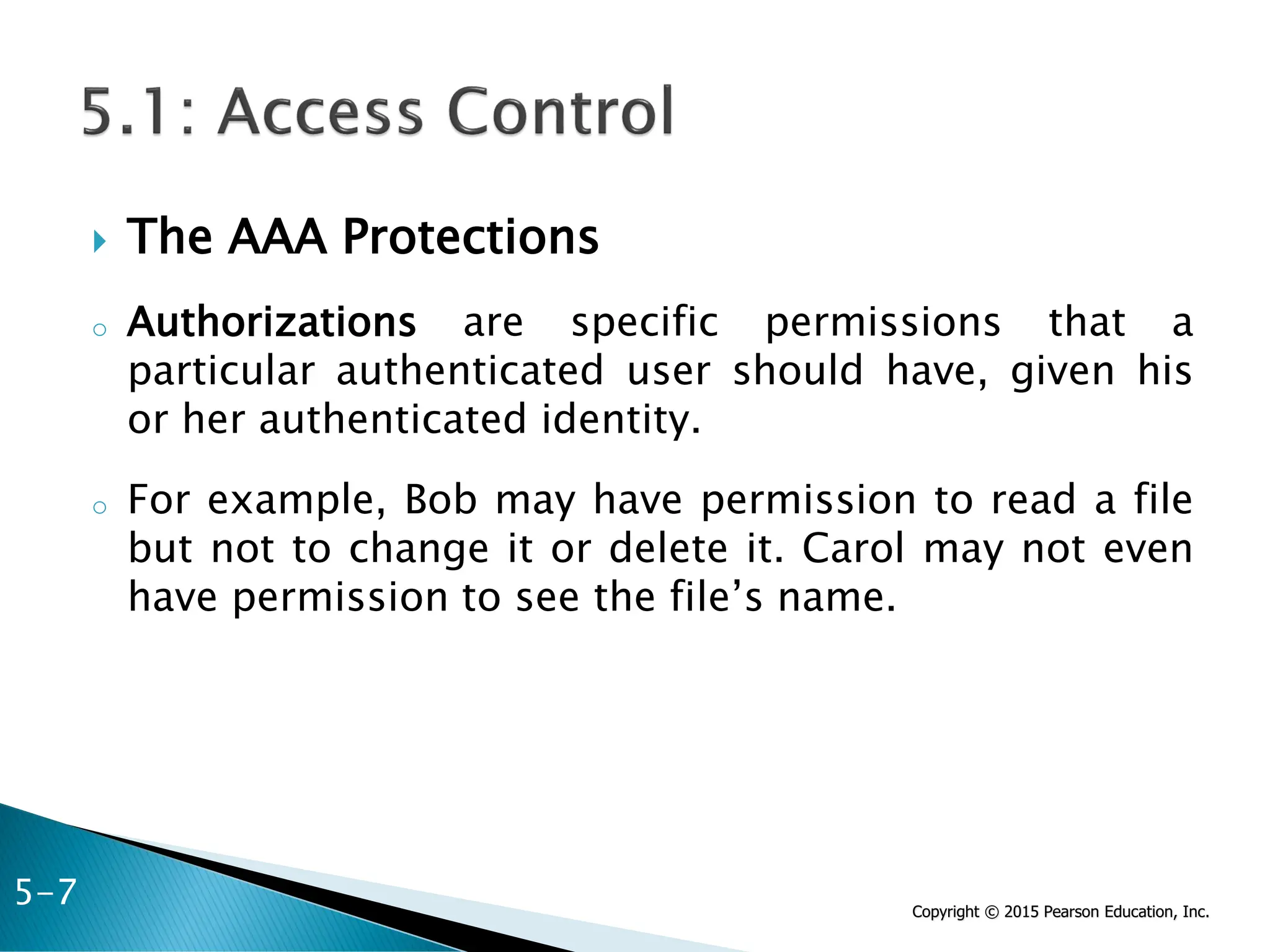

o Authorizations are specific permissions that a
particular authenticated user should have, given his
or her authenticated identity.
o For example, Bob may have permission to read a file
but not to change it or delete it. Carol may not even
have permission to see the file’s name.
5-7

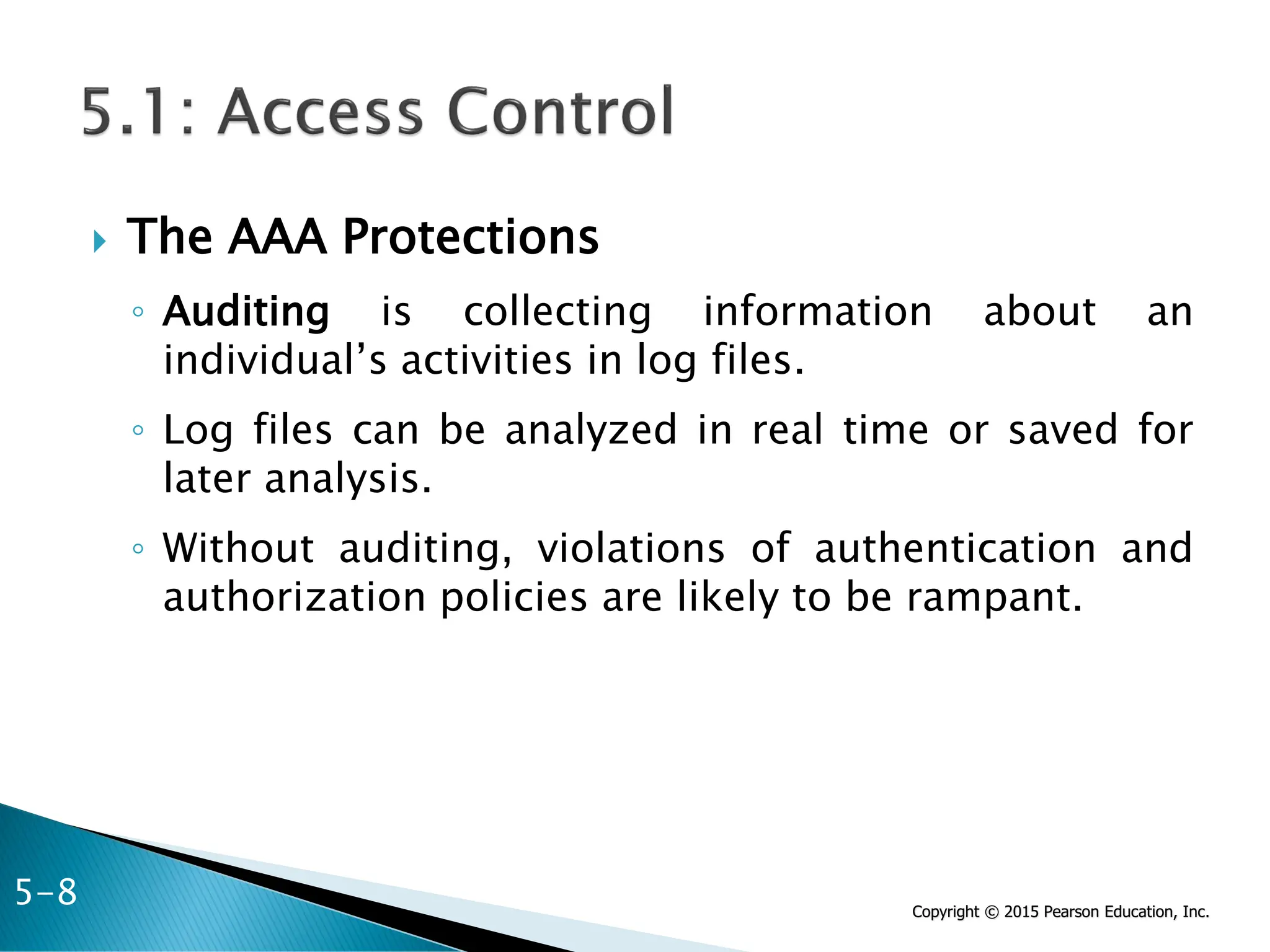

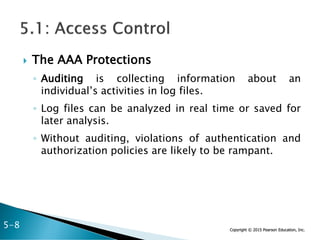

◦ Auditing is collecting information about an
individual’s activities in log files.
◦ Log files can be analyzed in real time or saved for
later analysis.
◦ Without auditing, violations of authentication and
authorization policies are likely to be rampant.
5-8

 Credentials Are Based On
◦ What you know (a password or a private key),
◦ What you have (a physical key or a smart card),
◦ Who you are (your fingerprint), or
◦ What you do (how you specifically pronounce a
passphrase).
5-9

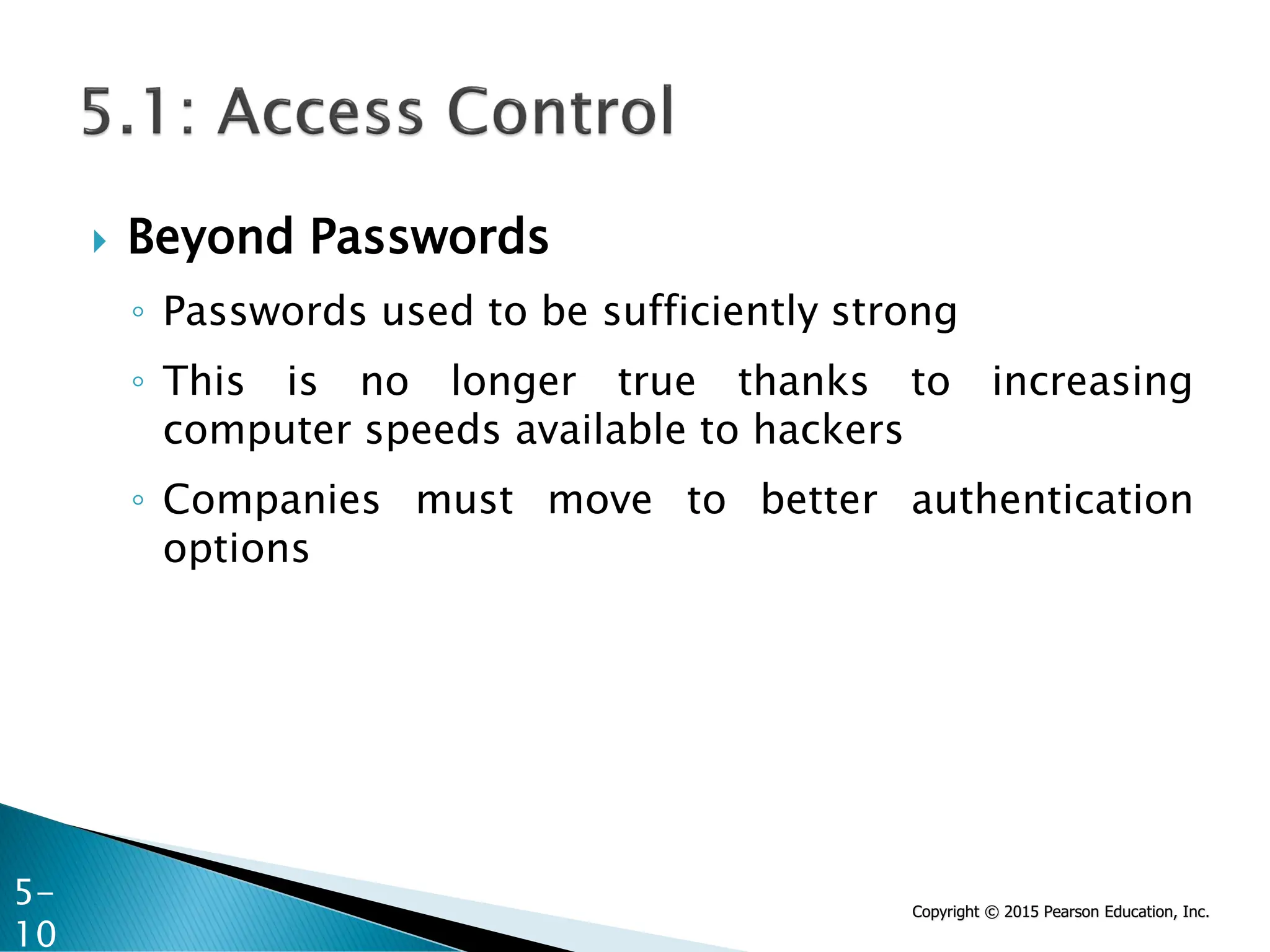

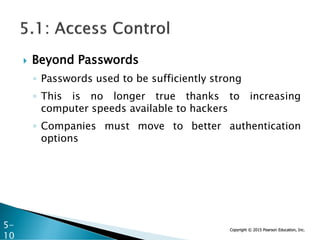

 Beyond Passwords
◦ Passwords used to be sufficiently strong
◦ This is no longer true thanks to increasing
computer speeds available to hackers
◦ Companies must move to better authentication
options
5-
10

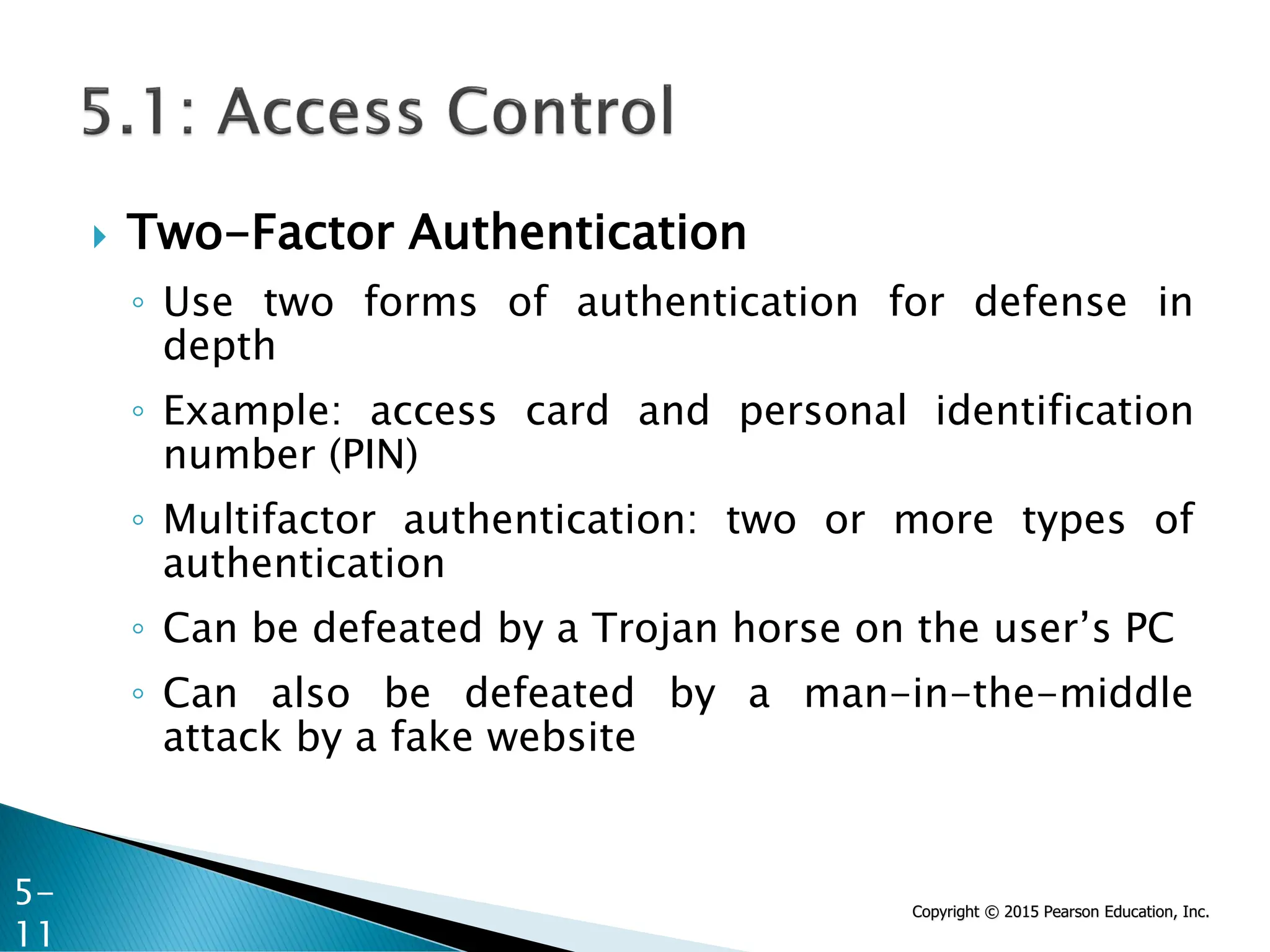

 Two-Factor Authentication
◦ Use two forms of authentication for defense in
depth
◦ Example: access card and personal identification
number (PIN)
◦ Multifactor authentication: two or more types of
authentication
◦ Can be defeated by a Trojan horse on the user’s PC
◦ Can also be defeated by a man-in-the-middle
attack by a fake website
5-
11

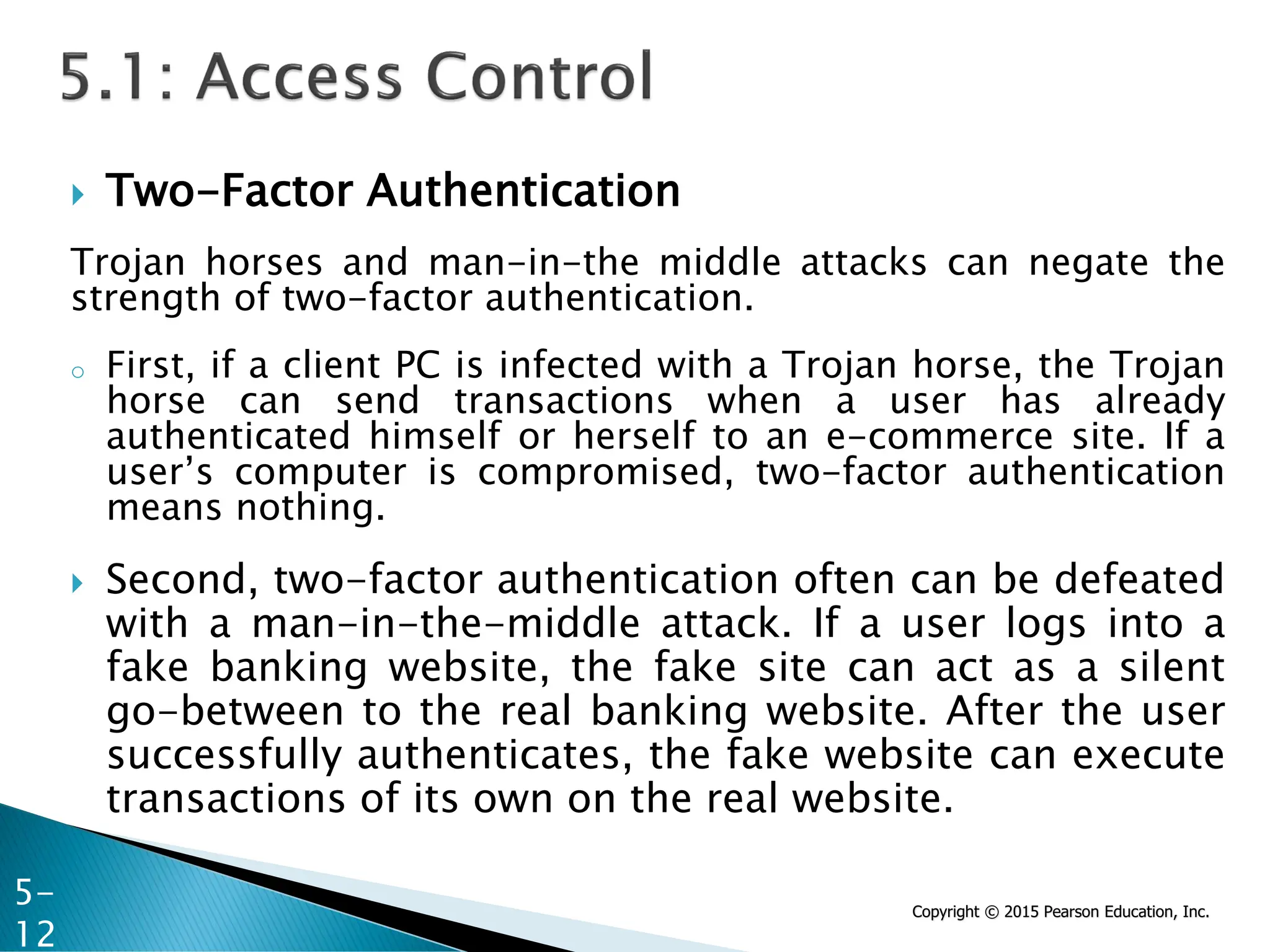

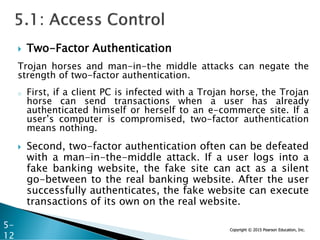

 Two-Factor Authentication
Trojan horses and man-in-the middle attacks can negate the
strength of two-factor authentication.
o First, if a client PC is infected with a Trojan horse, the Trojan
horse can send transactions when a user has already
authenticated himself or herself to an e-commerce site. If a
user’s computer is compromised, two-factor authentication
means nothing.
 Second, two-factor authentication often can be defeated
with a man-in-the-middle attack. If a user logs into a
fake banking website, the fake site can act as a silent
go-between to the real banking website. After the user
successfully authenticates, the fake website can execute
transactions of its own on the real website.
5-
12

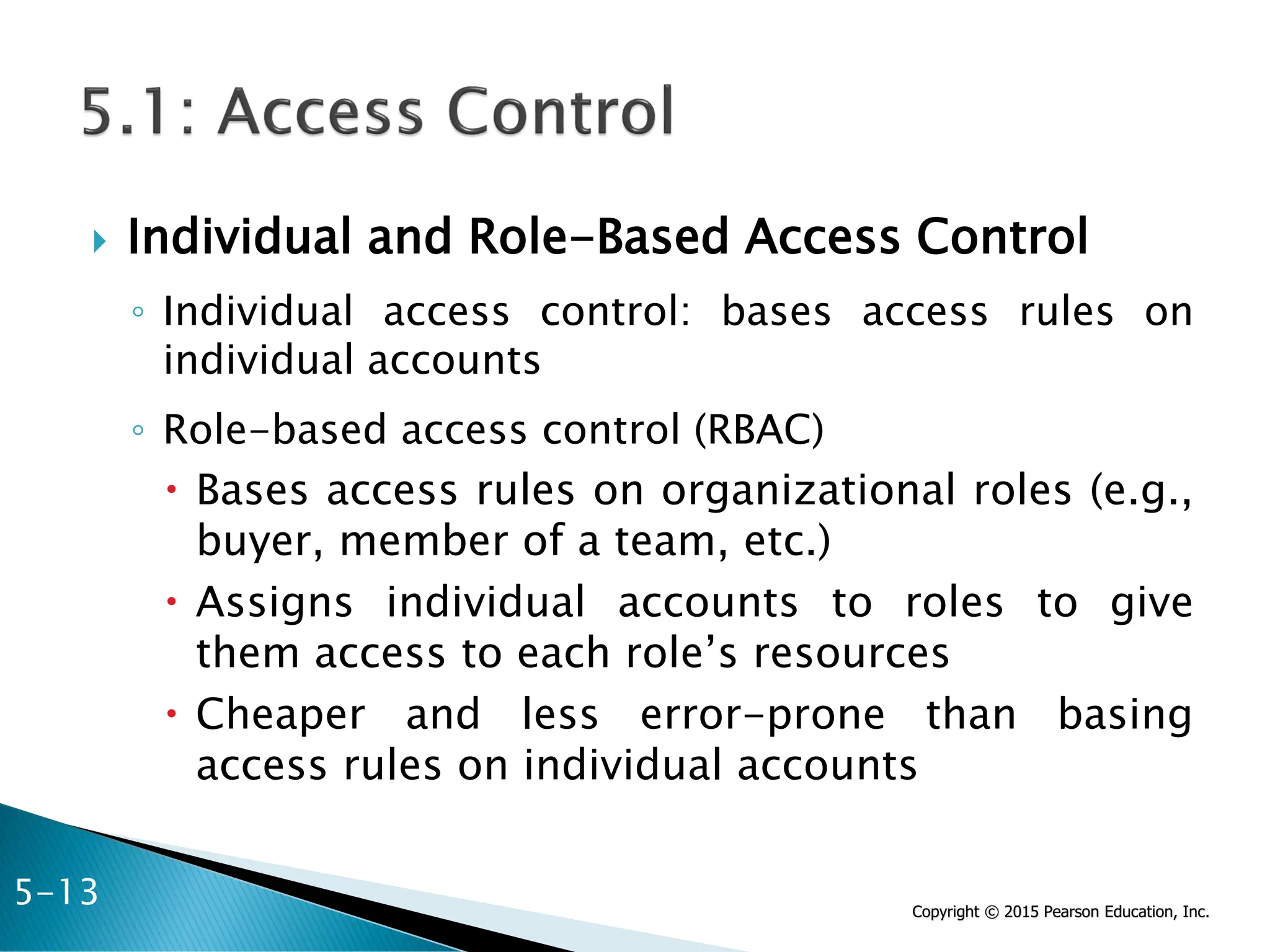

 Individual and Role-Based Access Control
◦ Individual access control: bases access rules on
individual accounts
◦ Role-based access control (RBAC)
 Bases access rules on organizational roles (e.g.,
buyer, member of a team, etc.)
 Assigns individual accounts to roles to give
them access to each role’s resources
 Cheaper and less error-prone than basing
access rules on individual accounts
5-13

 Human and Organizational Controls
◦ People and organizational forces may circumvent
access protections
5-14

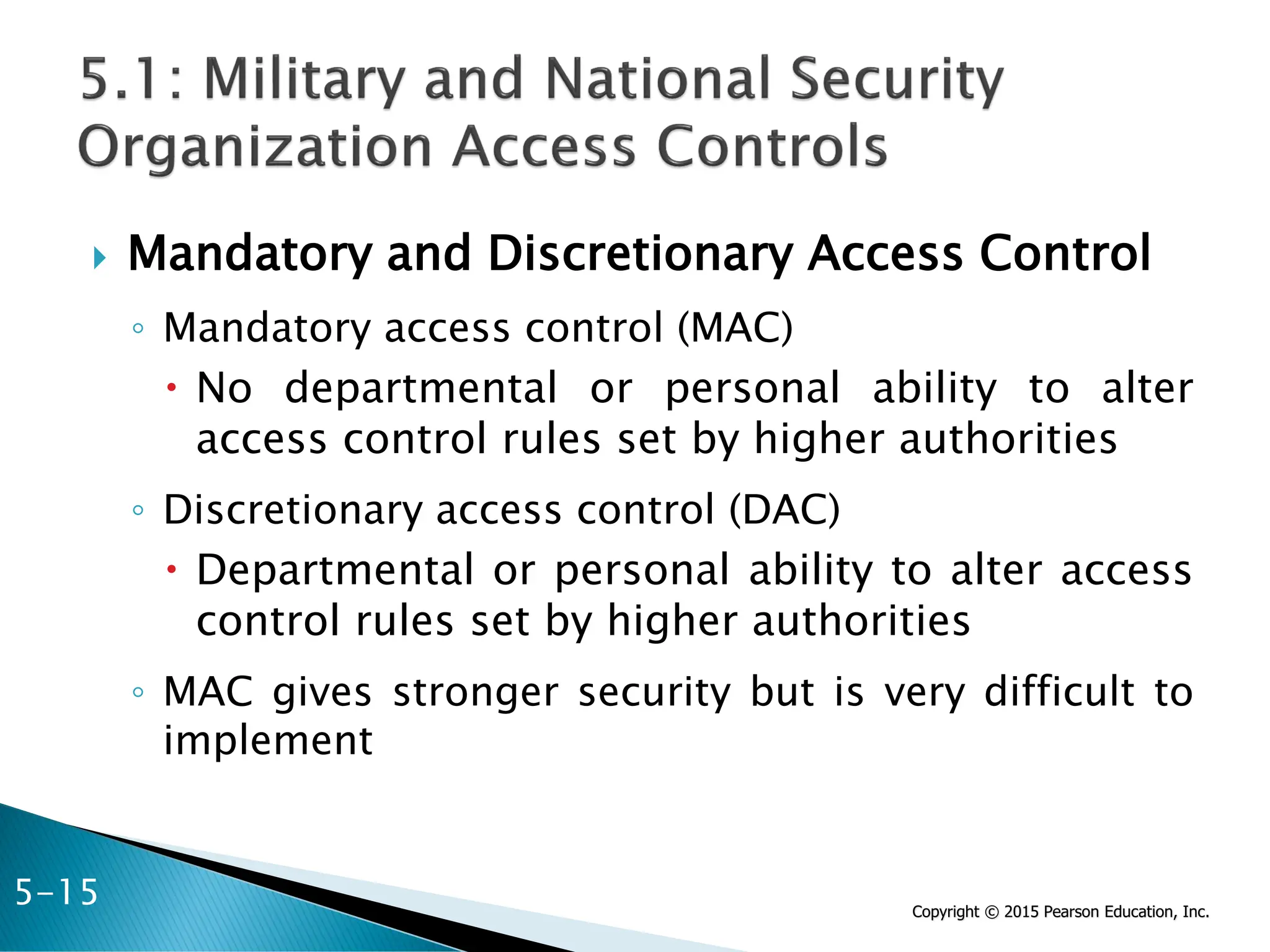

 Mandatory and Discretionary Access Control
◦ Mandatory access control (MAC)
 No departmental or personal ability to alter
access control rules set by higher authorities
◦ Discretionary access control (DAC)
 Departmental or personal ability to alter access
control rules set by higher authorities
◦ MAC gives stronger security but is very difficult to
implement
5-15

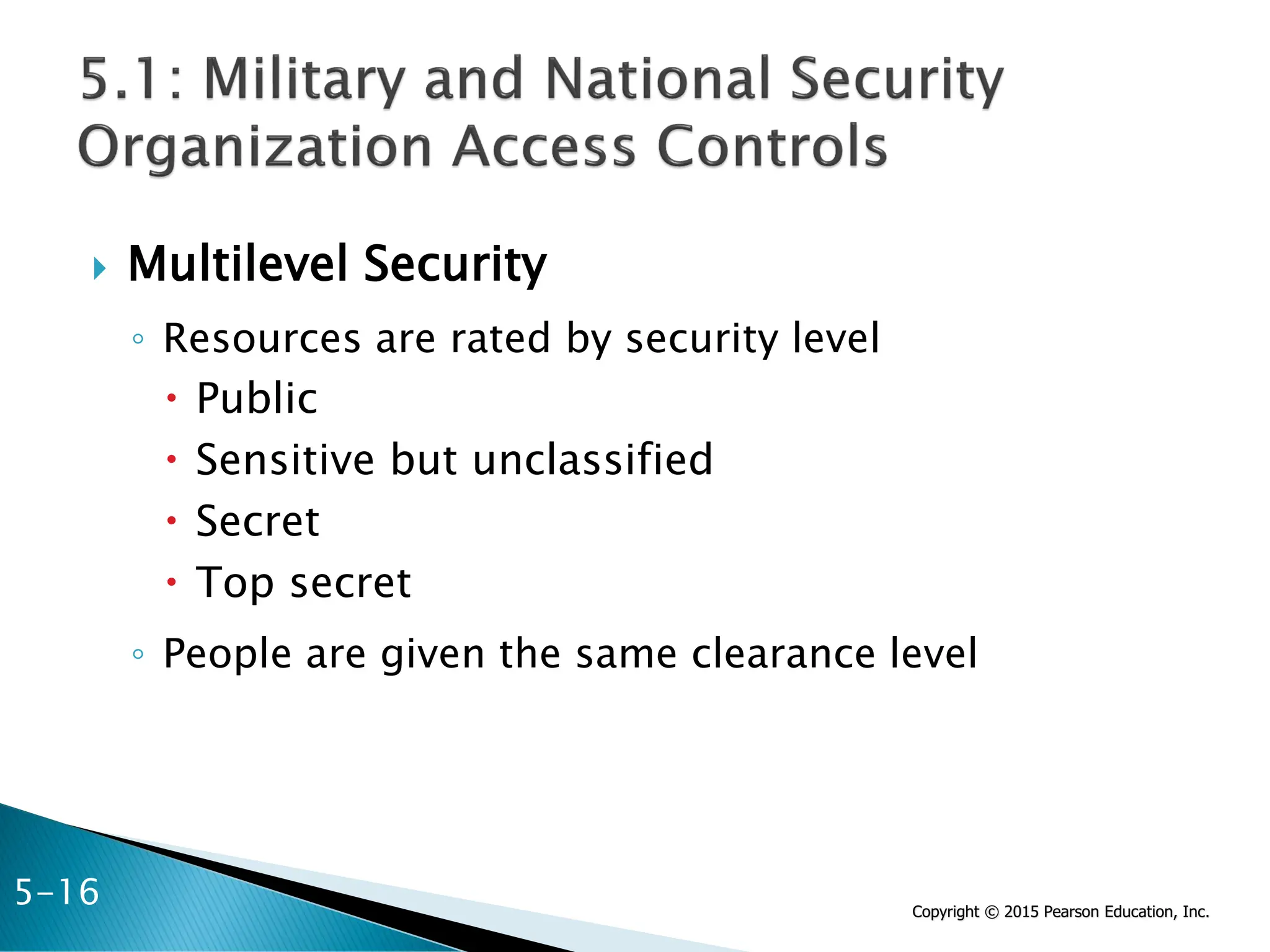

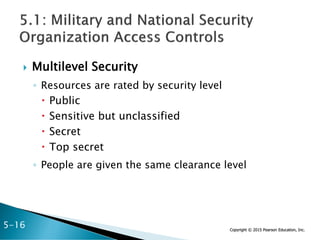

 Multilevel Security
◦ Resources are rated by security level
 Public
 Sensitive but unclassified
 Secret
 Top secret
◦ People are given the same clearance level
5-16

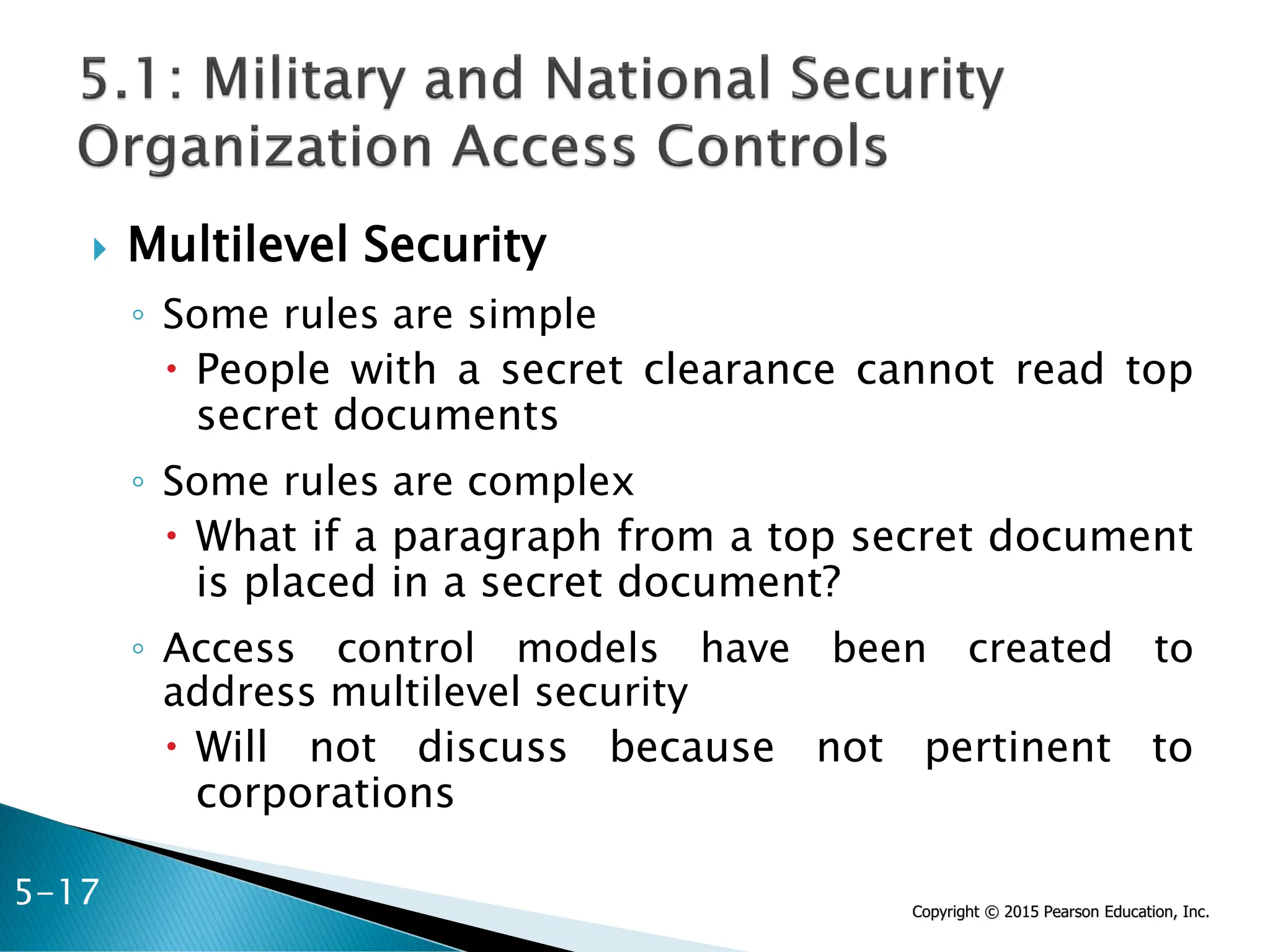

 Multilevel Security
◦ Some rules are simple
 People with a secret clearance cannot read top
secret documents
◦ Some rules are complex
 What if a paragraph from a top secret document
is placed in a secret document?
◦ Access control models have been created to
address multilevel security
 Will not discuss because not pertinent to
corporations
5-17

5.1 Introduction
5.3 Passwords
5.7 Authorization
5.8 Auditing
5-18

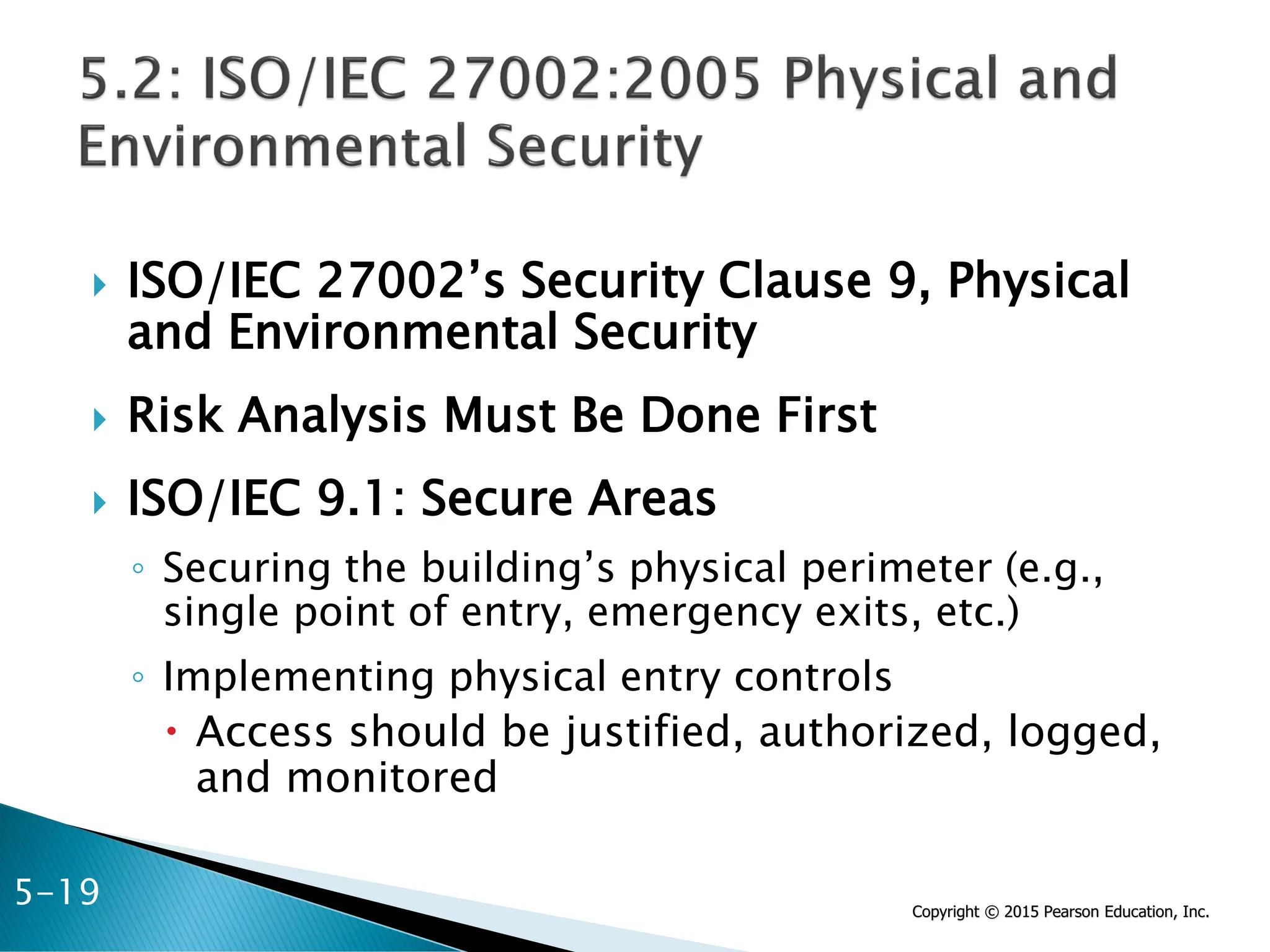

 ISO/IEC 27002’s Security Clause 9, Physical
and Environmental Security
 Risk Analysis Must Be Done First
 ISO/IEC 9.1: Secure Areas
◦ Securing the building’s physical perimeter (e.g.,
single point of entry, emergency exits, etc.)
◦ Implementing physical entry controls
 Access should be justified, authorized, logged,
and monitored
5-19

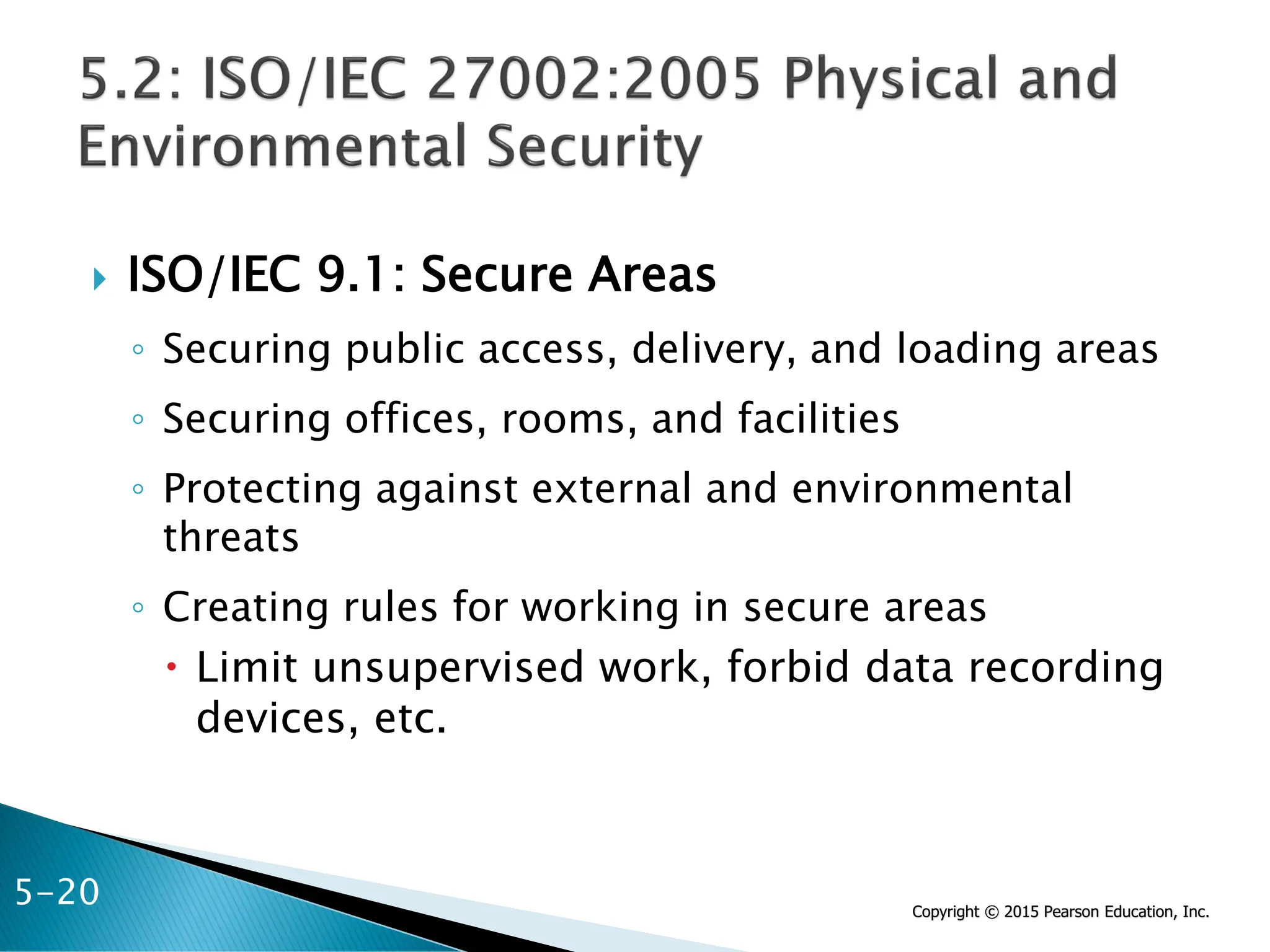

 ISO/IEC 9.1: Secure Areas
◦ Securing public access, delivery, and loading areas
◦ Securing offices, rooms, and facilities
◦ Protecting against external and environmental
threats
◦ Creating rules for working in secure areas
 Limit unsupervised work, forbid data recording
devices, etc.
5-20

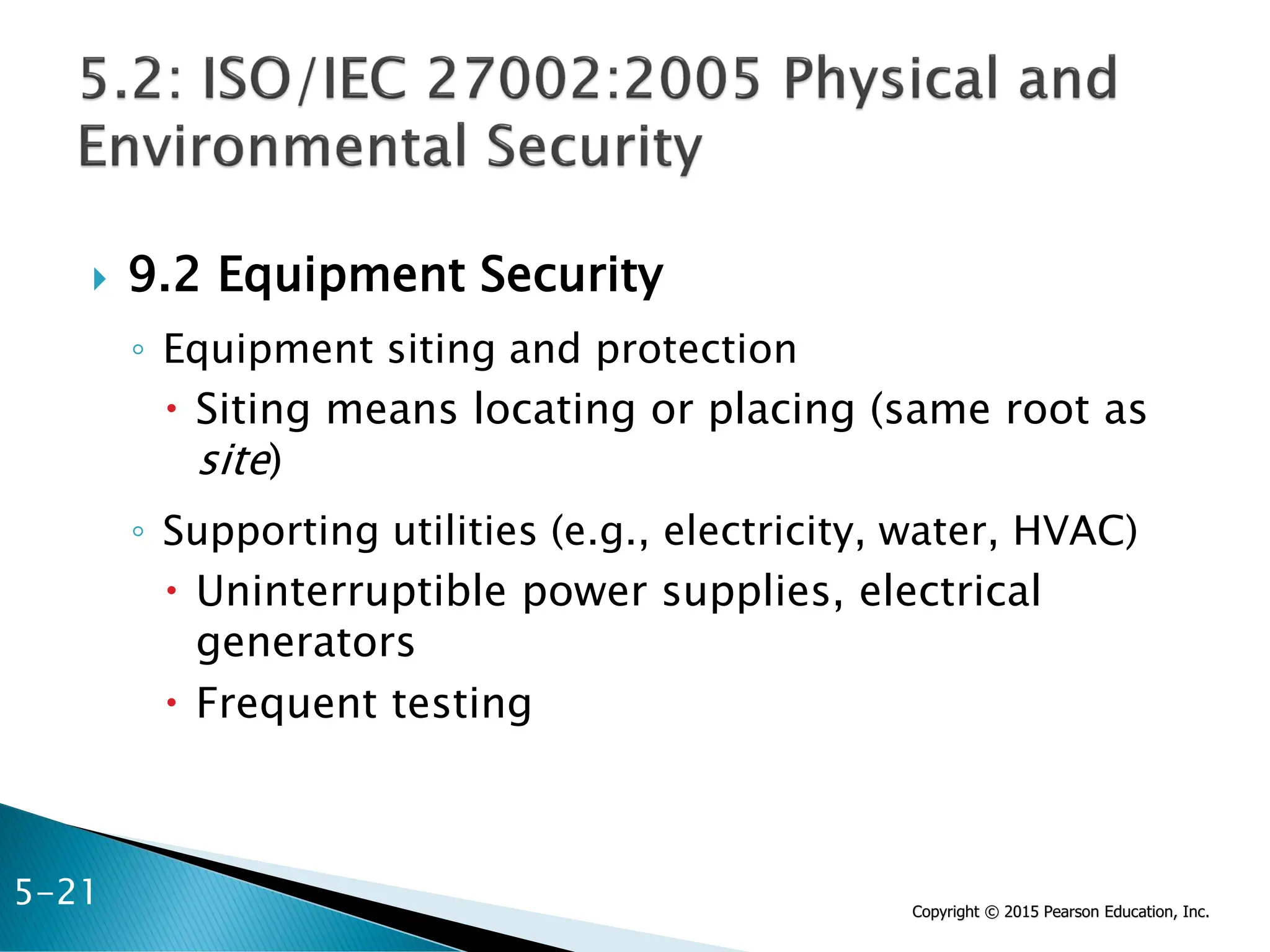

 9.2 Equipment Security
◦ Equipment siting and protection
 Siting means locating or placing (same root as
site)
◦ Supporting utilities (e.g., electricity, water, HVAC)
 Uninterruptible power supplies, electrical
generators
 Frequent testing
5-21

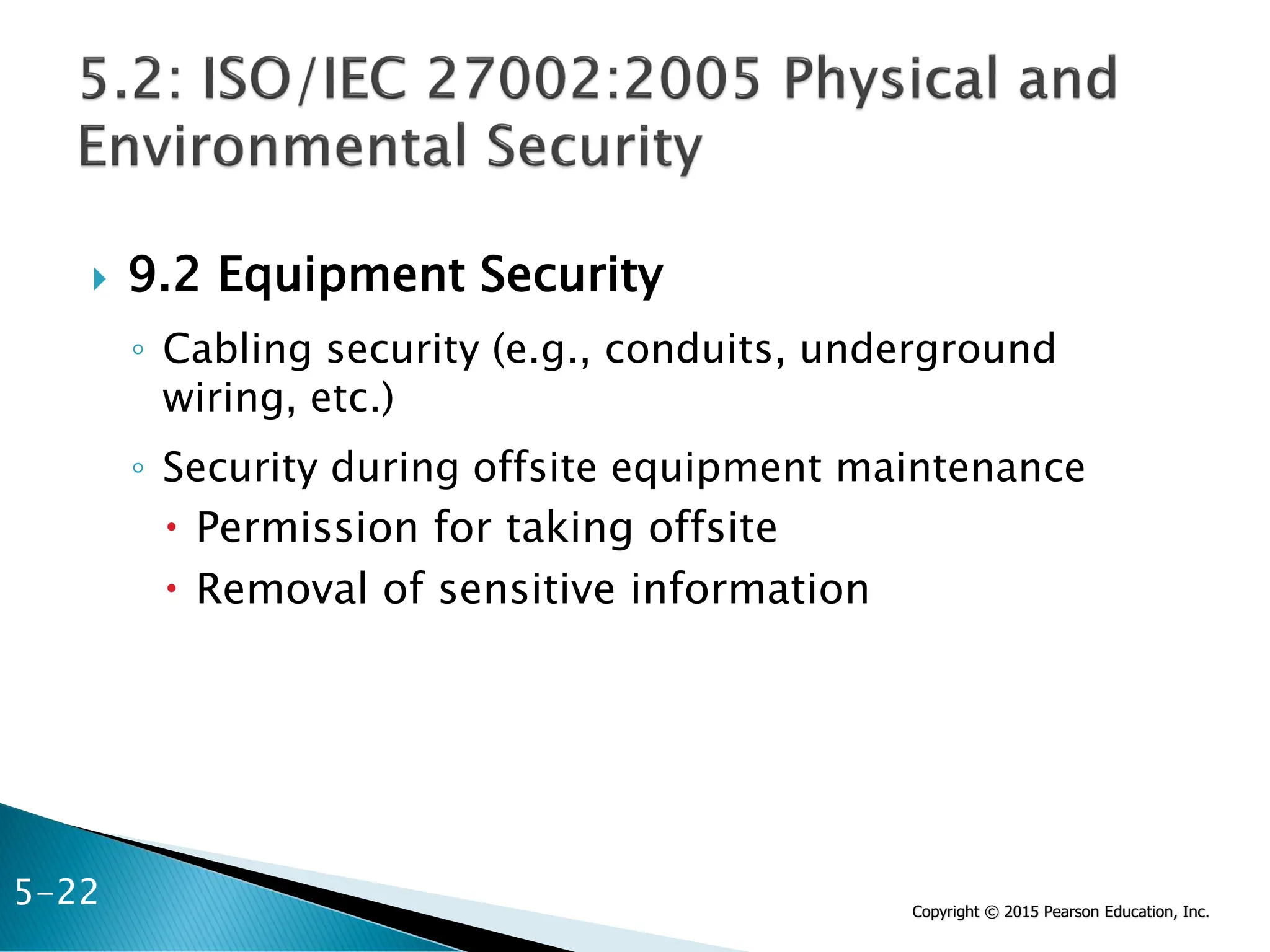

◦ Cabling security (e.g., conduits, underground
wiring, etc.)
◦ Security during offsite equipment maintenance
 Permission for taking offsite
 Removal of sensitive information
5-22

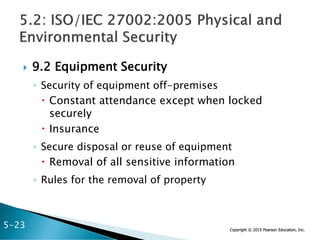

◦ Security of equipment off-premises
 Constant attendance except when locked
securely
 Insurance
◦ Secure disposal or reuse of equipment
 Removal of all sensitive information
◦ Rules for the removal of property
5-23

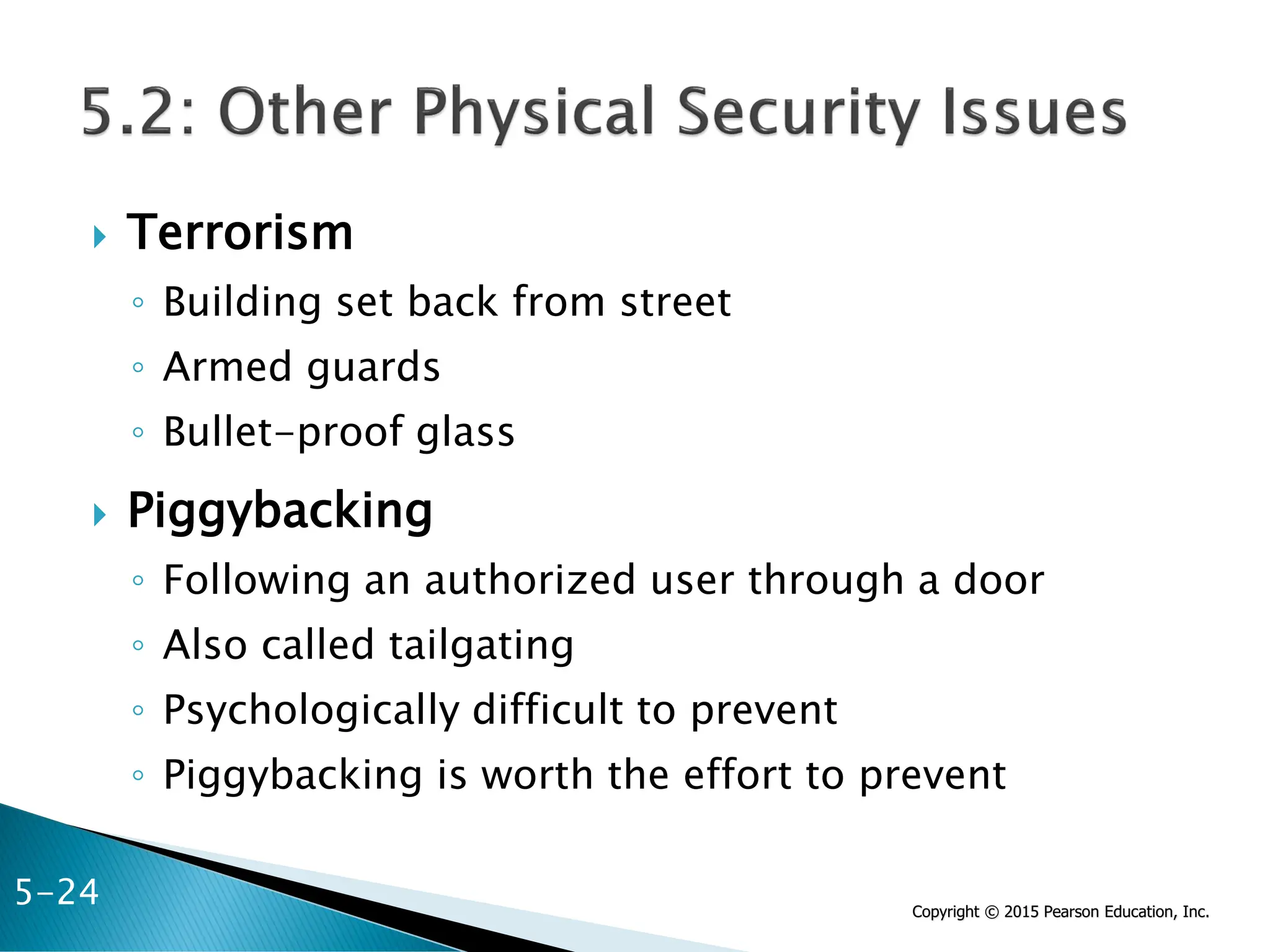

 Terrorism
◦ Building set back from street
◦ Armed guards
◦ Bullet-proof glass
 Piggybacking
◦ Following an authorized user through a door
◦ Also called tailgating
◦ Psychologically difficult to prevent
◦ Piggybacking is worth the effort to prevent
5-24

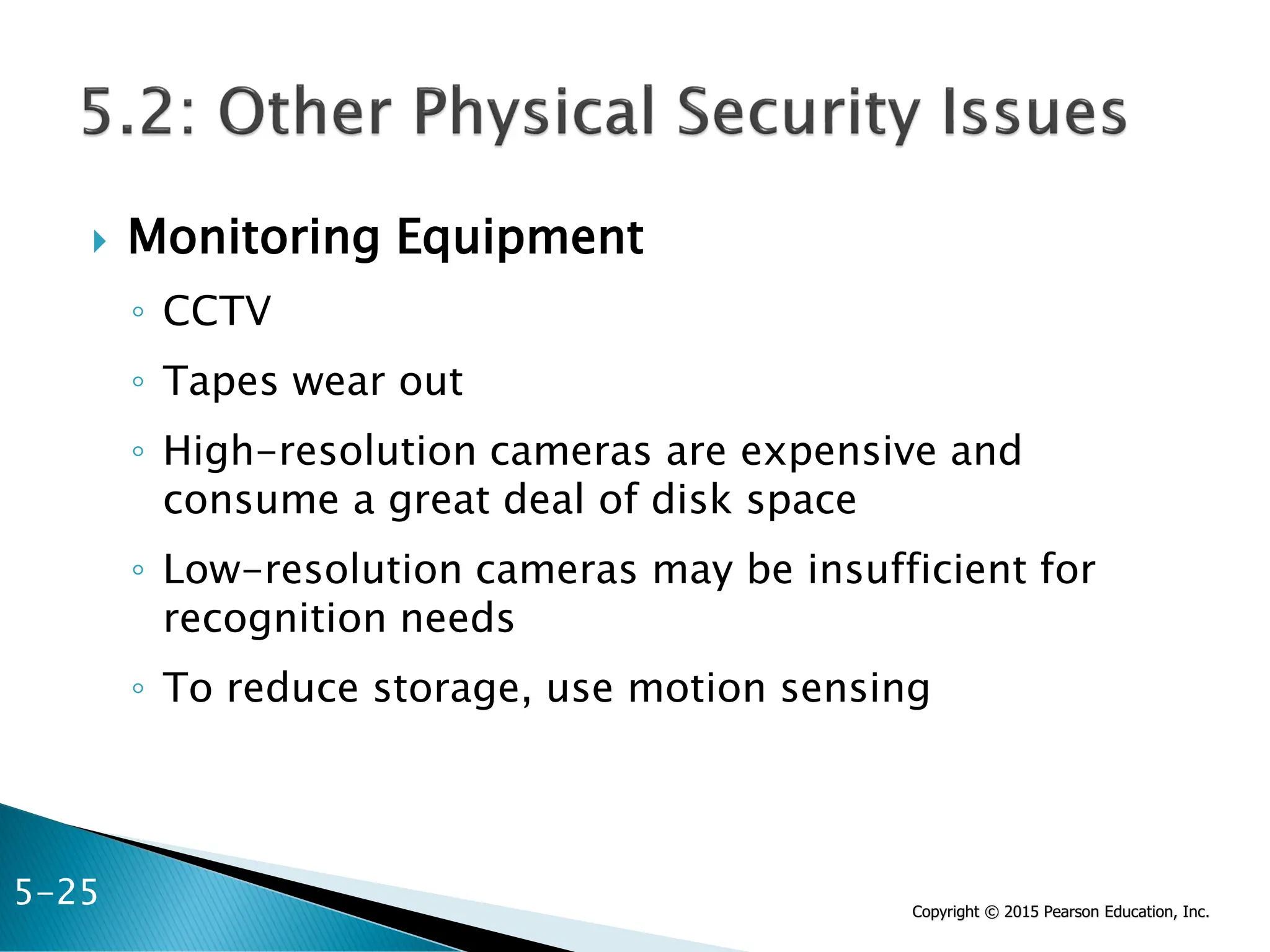

 Monitoring Equipment
◦ CCTV
◦ Tapes wear out
◦ High-resolution cameras are expensive and
consume a great deal of disk space
◦ Low-resolution cameras may be insufficient for
recognition needs
◦ To reduce storage, use motion sensing
5-25

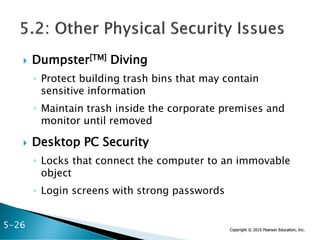

 Dumpster[TM] Diving
◦ Protect building trash bins that may contain
sensitive information
◦ Maintain trash inside the corporate premises and
monitor until removed
 Desktop PC Security
◦ Locks that connect the computer to an immovable
object
◦ Login screens with strong passwords
5-26

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-27
5.8 Auditing

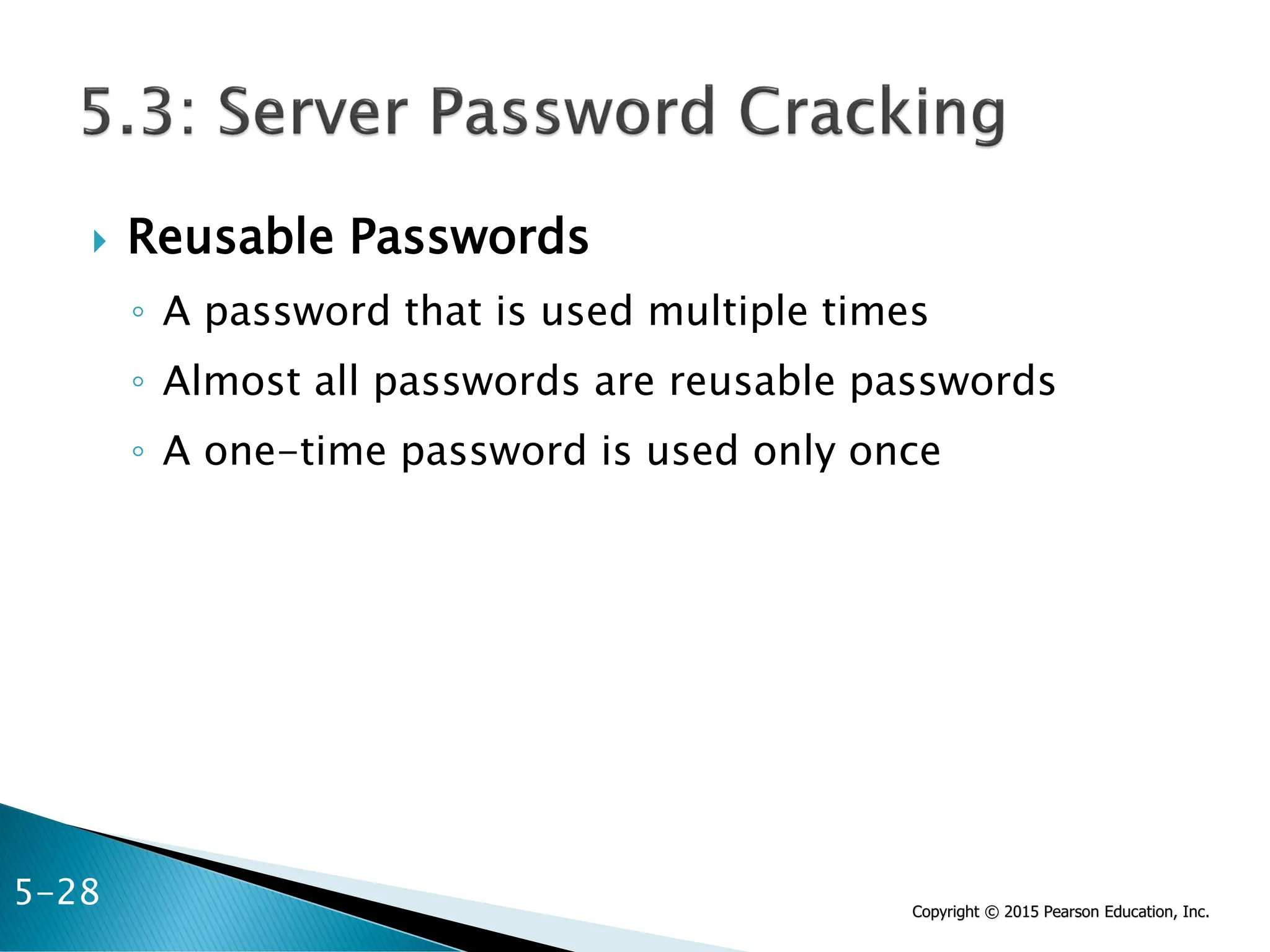

 Reusable Passwords
◦ A password that is used multiple times
◦ Almost all passwords are reusable passwords
◦ A one-time password is used only once
5-28

 Difficulty of Cracking Passwords by Guessing
Remotely
◦ Account is usually locked after a few login failures
 Password-Cracking Programs
◦ Password-cracking programs exist
 Run on a computer to crack its passwords or
 Run on a downloaded password file
5-29

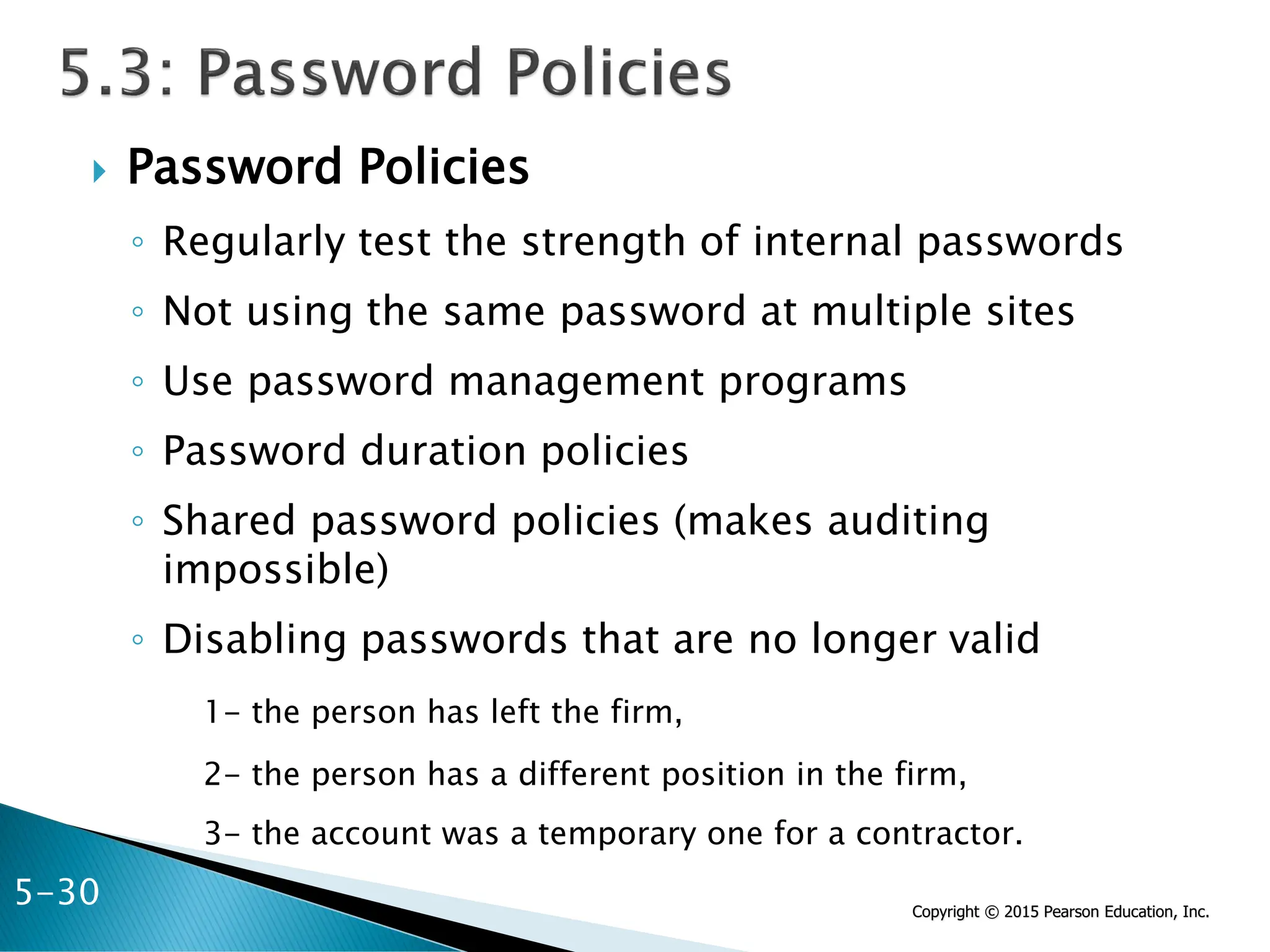

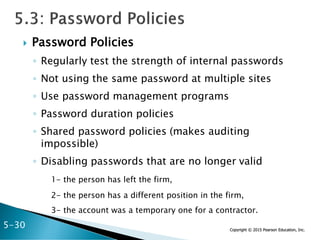

 Password Policies
◦ Regularly test the strength of internal passwords
◦ Not using the same password at multiple sites
◦ Use password management programs
◦ Password duration policies
◦ Shared password policies (makes auditing
impossible)
◦ Disabling passwords that are no longer valid
1- the person has left the firm,
2- the person has a different position in the firm,
3- the account was a temporary one for a contractor.
5-30

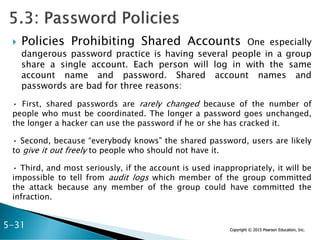

 Policies Prohibiting Shared Accounts One especially
dangerous password practice is having several people in a group
share a single account. Each person will log in with the same
account name and password. Shared account names and
passwords are bad for three reasons:
• First, shared passwords are rarely changed because of the number of
people who must be coordinated. The longer a password goes unchanged,
the longer a hacker can use the password if he or she has cracked it.
• Second, because “everybody knows” the shared password, users are likely
to give it out freely to people who should not have it.
• Third, and most seriously, if the account is used inappropriately, it will be
impossible to tell from audit logs which member of the group committed
the attack because any member of the group could have committed the
infraction.
5-31

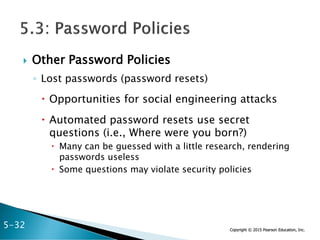

 Other Password Policies
◦ Lost passwords (password resets)
 Opportunities for social engineering attacks
 Automated password resets use secret
questions (i.e., Where were you born?)
 Many can be guessed with a little research, rendering
passwords useless
 Some questions may violate security policies
5-32

 Password Strength Policies
◦ Password policies must be long and complex
 At least 8 characters long
 Change of case, not at beginning
 Digit (0 through 9), not at end
 Other keyboard character, not at end
 Example: tri6#Vial
◦ Completely random passwords are best but usually
are written down
5-33

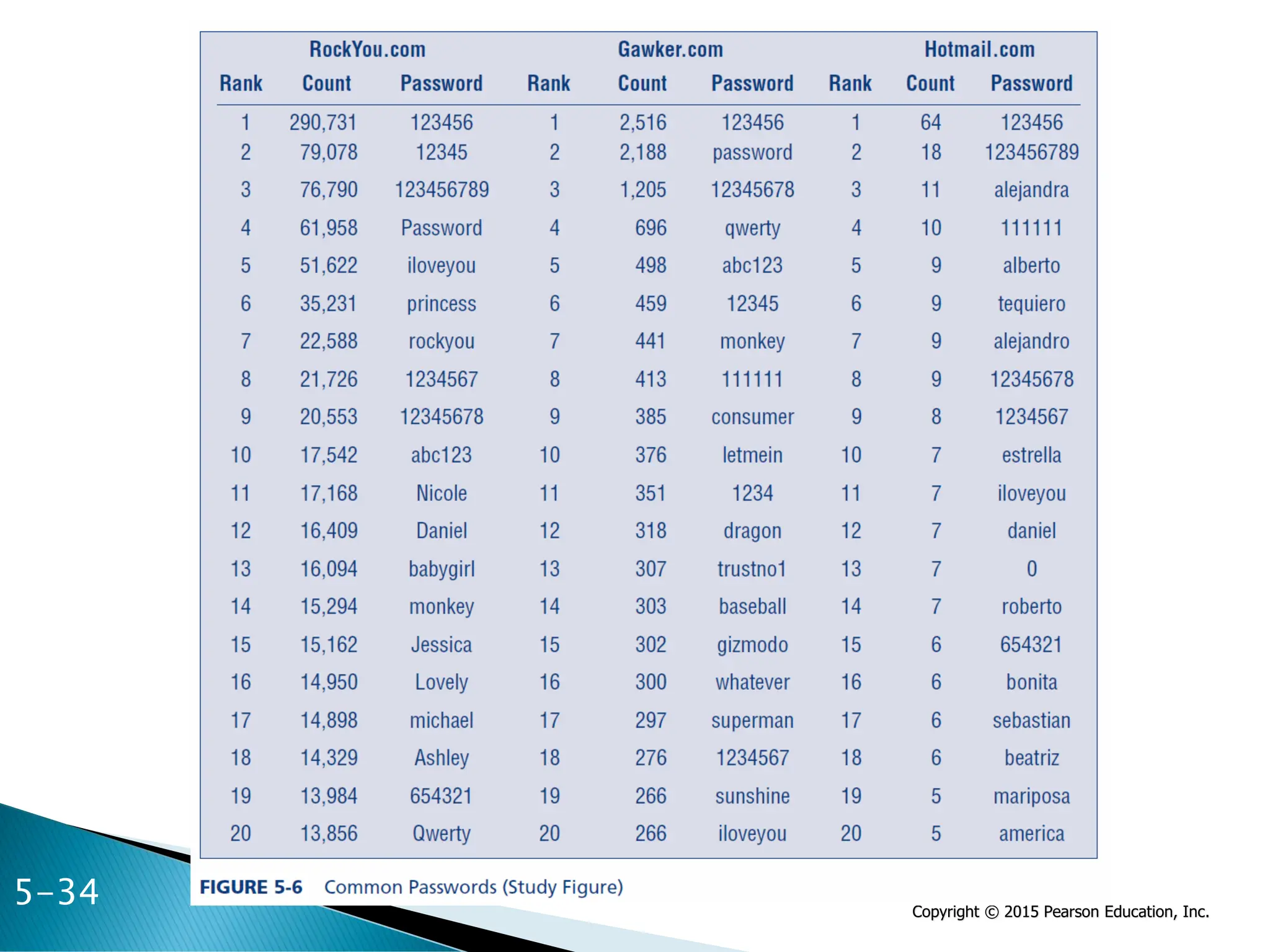

5-34

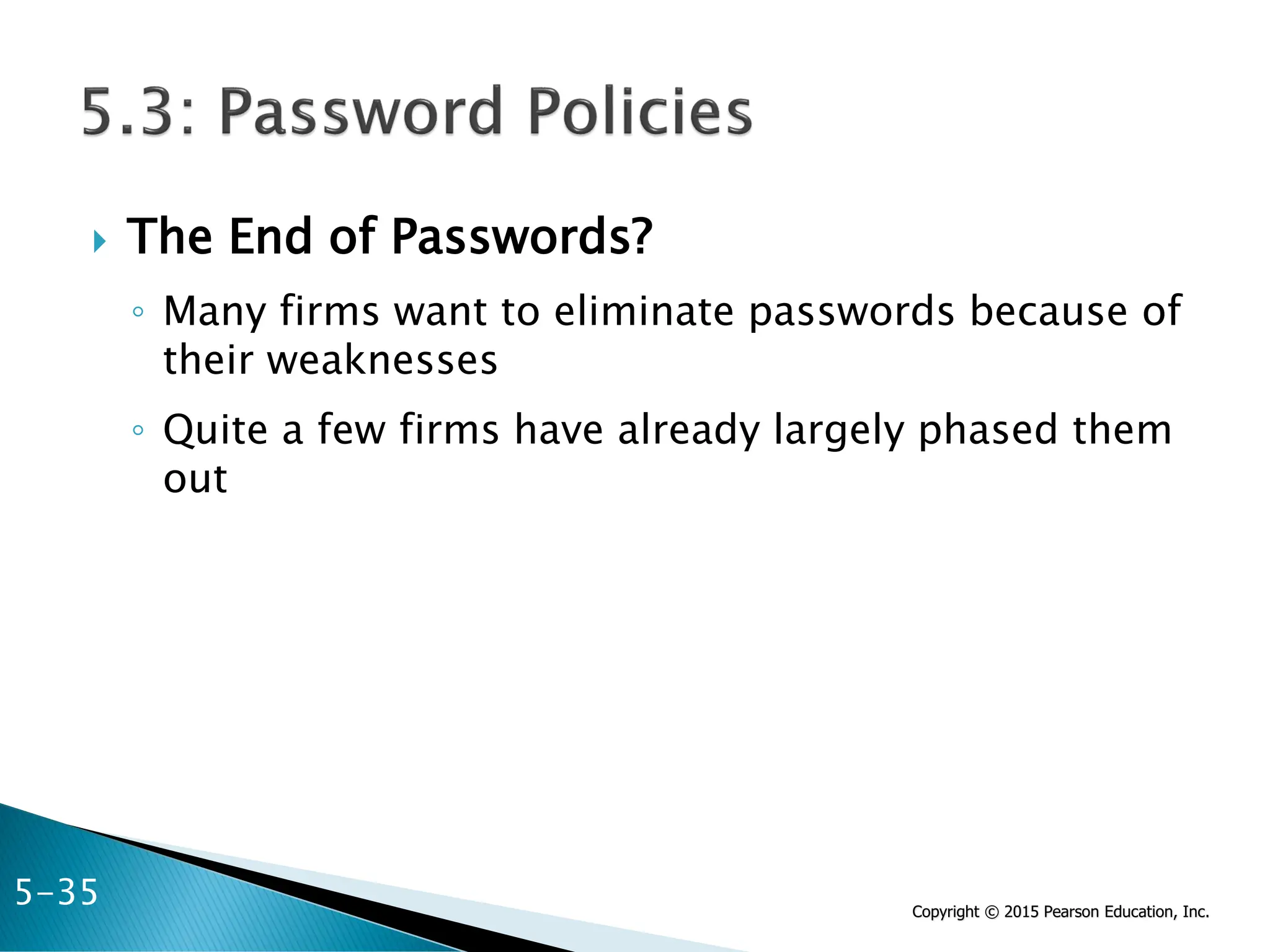

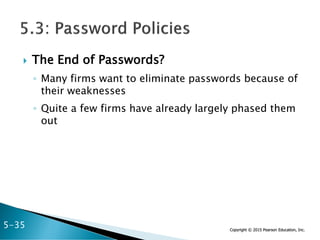

 The End of Passwords?
◦ Many firms want to eliminate passwords because of
their weaknesses
◦ Quite a few firms have already largely phased them
out
5-35

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-36
5.8 Auditing

5-37

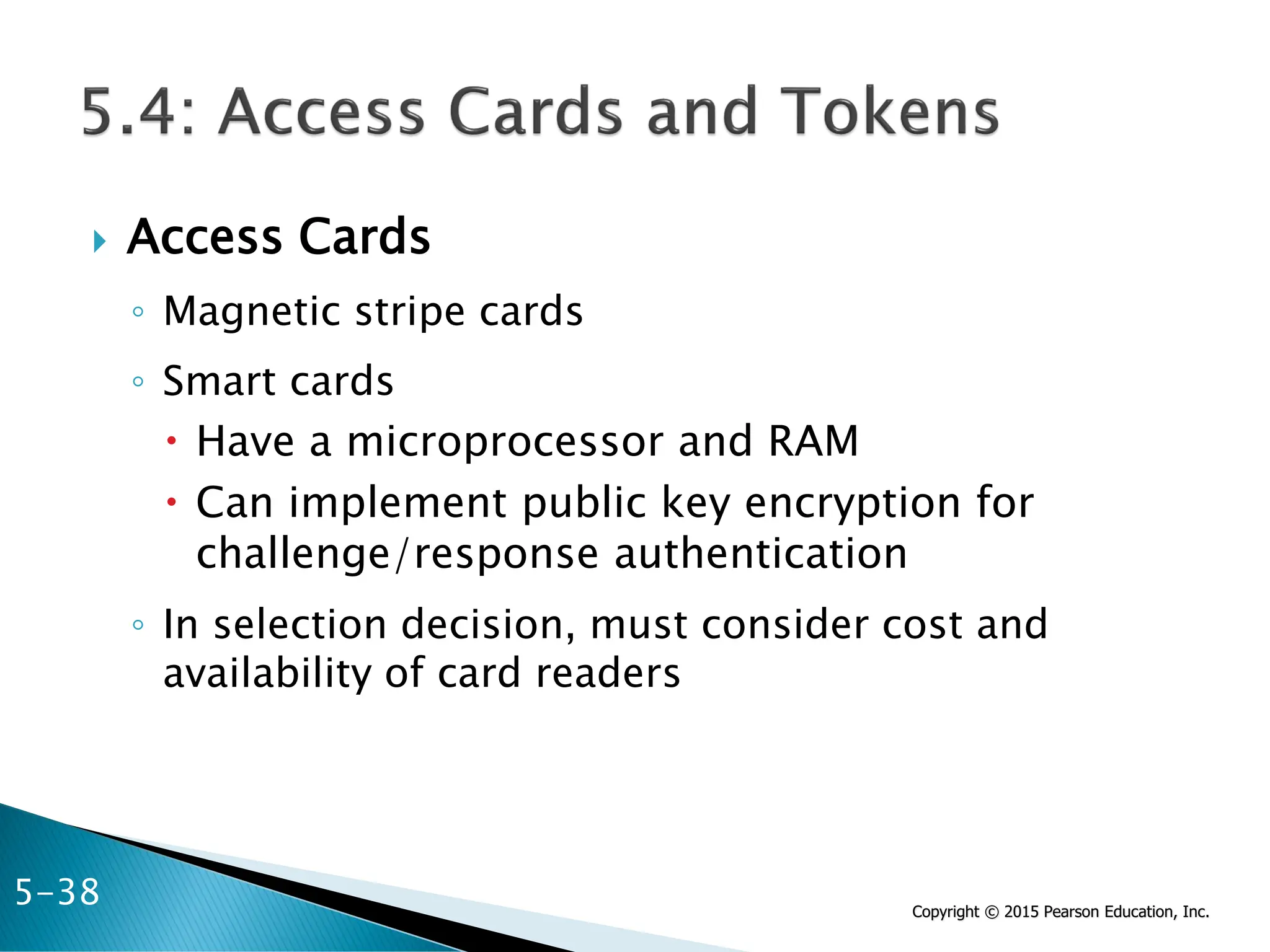

 Access Cards
◦ Magnetic stripe cards
◦ Smart cards
 Have a microprocessor and RAM
 Can implement public key encryption for
challenge/response authentication
◦ In selection decision, must consider cost and
availability of card readers
5-38

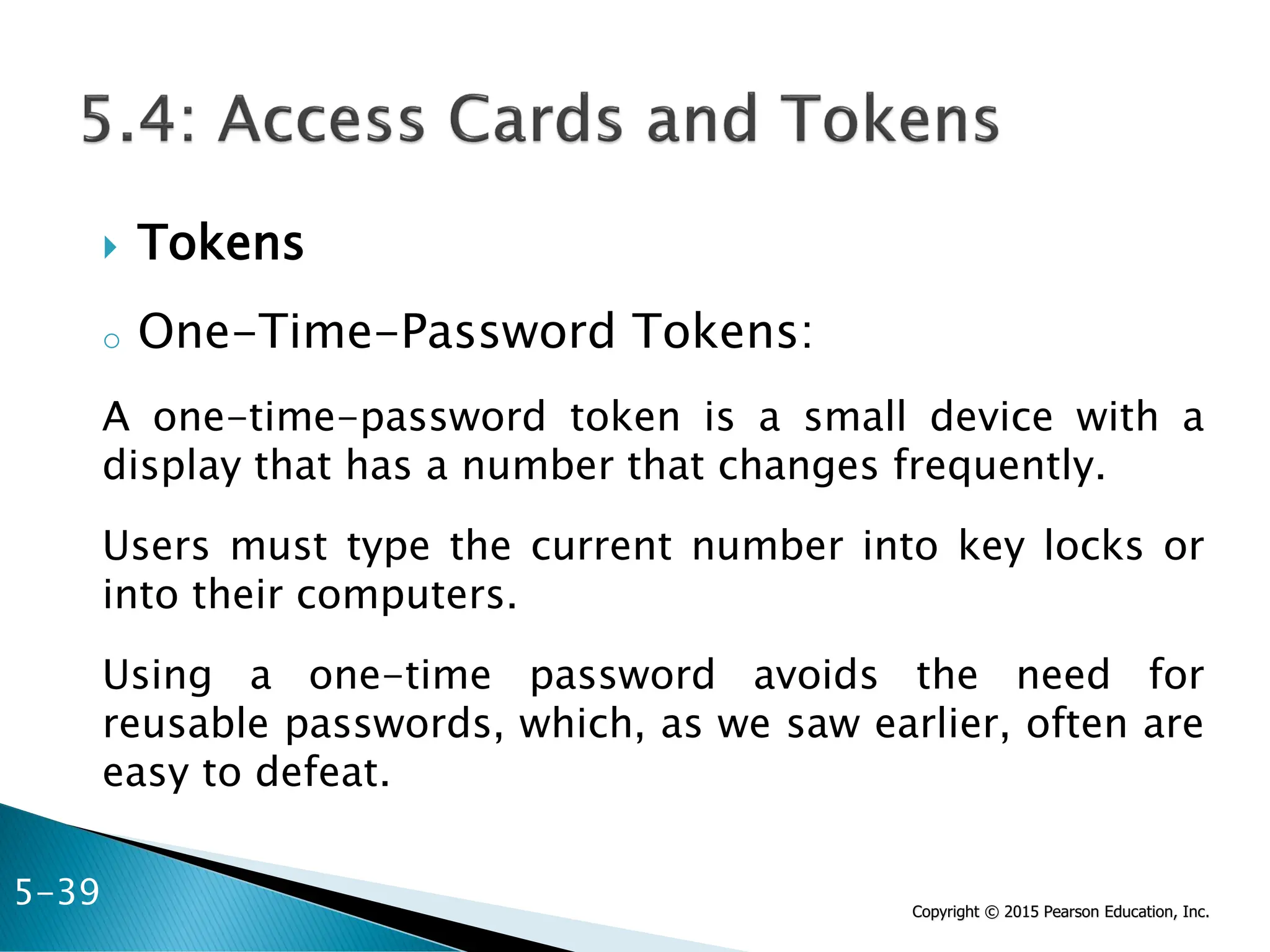

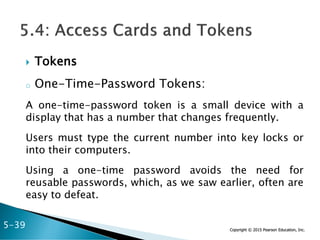

 Tokens
o One-Time-Password Tokens:
A one-time-password token is a small device with a
display that has a number that changes frequently.
Users must type the current number into key locks or
into their computers.
Using a one-time password avoids the need for
reusable passwords, which, as we saw earlier, often are
easy to defeat.
5-39

 Tokens
o USB tokens
A USB token is simply a small device that plugs into a
computer’s USB port to identify the owner.
USB tokens give many of the protections of smart cards
without requiring the cost of installing a smart card
reader on each PC.
5-40

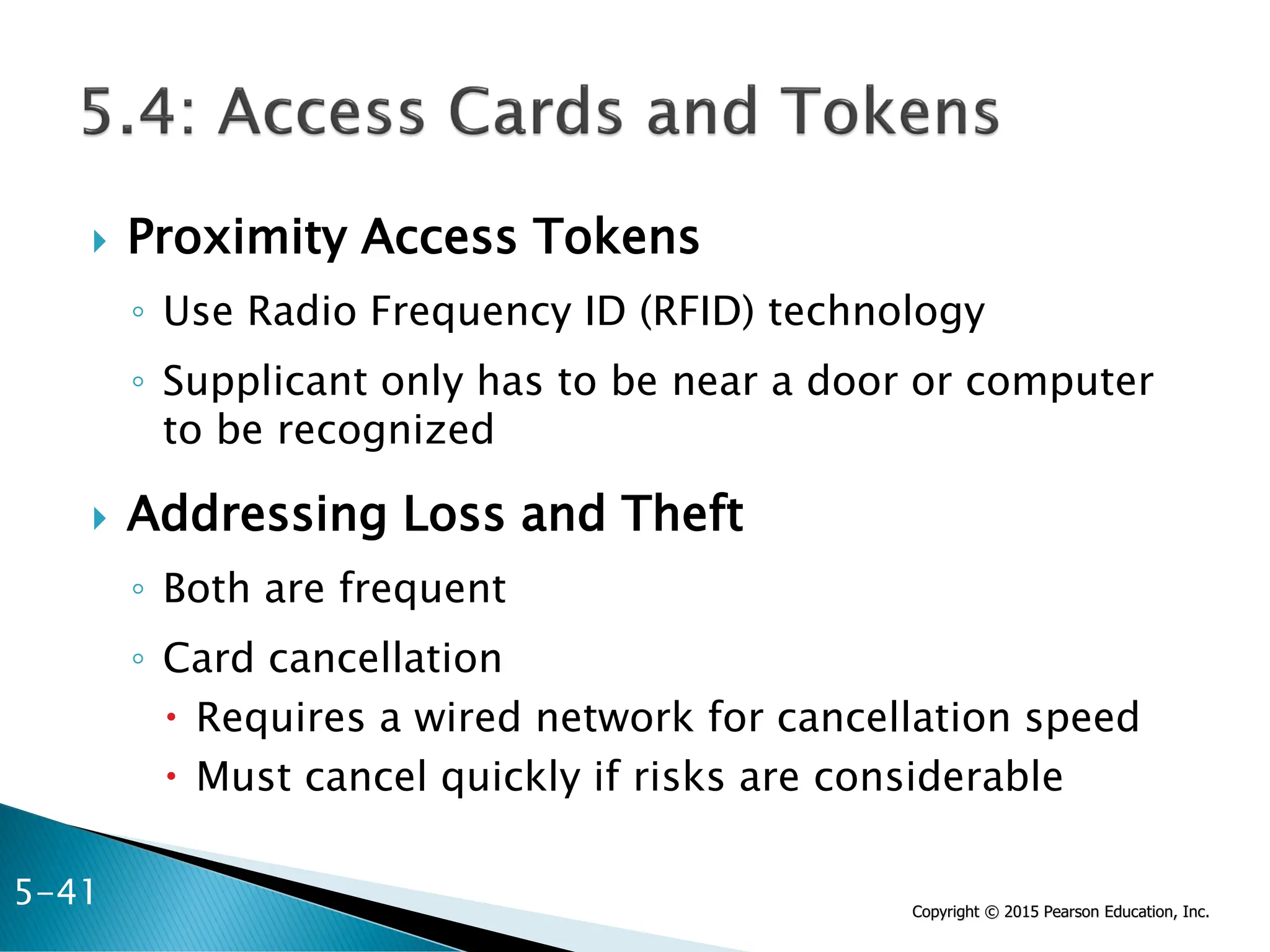

 Proximity Access Tokens
◦ Use Radio Frequency ID (RFID) technology
◦ Supplicant only has to be near a door or computer
to be recognized
 Addressing Loss and Theft
◦ Both are frequent
◦ Card cancellation
 Requires a wired network for cancellation speed
 Must cancel quickly if risks are considerable
5-41

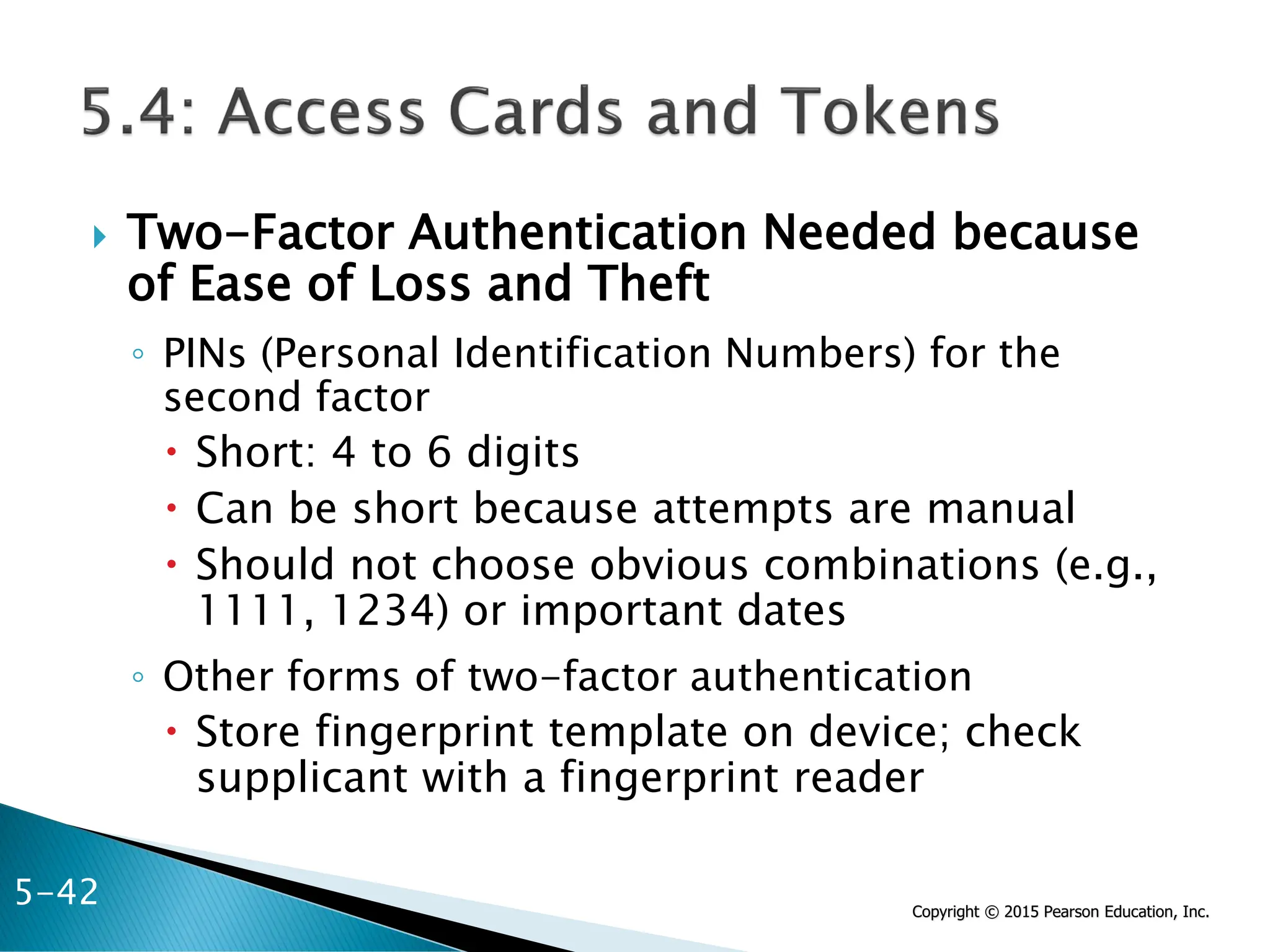

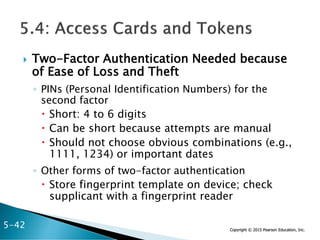

 Two-Factor Authentication Needed because
of Ease of Loss and Theft
◦ PINs (Personal Identification Numbers) for the
second factor
 Short: 4 to 6 digits
 Can be short because attempts are manual
 Should not choose obvious combinations (e.g.,
1111, 1234) or important dates
◦ Other forms of two-factor authentication
 Store fingerprint template on device; check
supplicant with a fingerprint reader
5-42

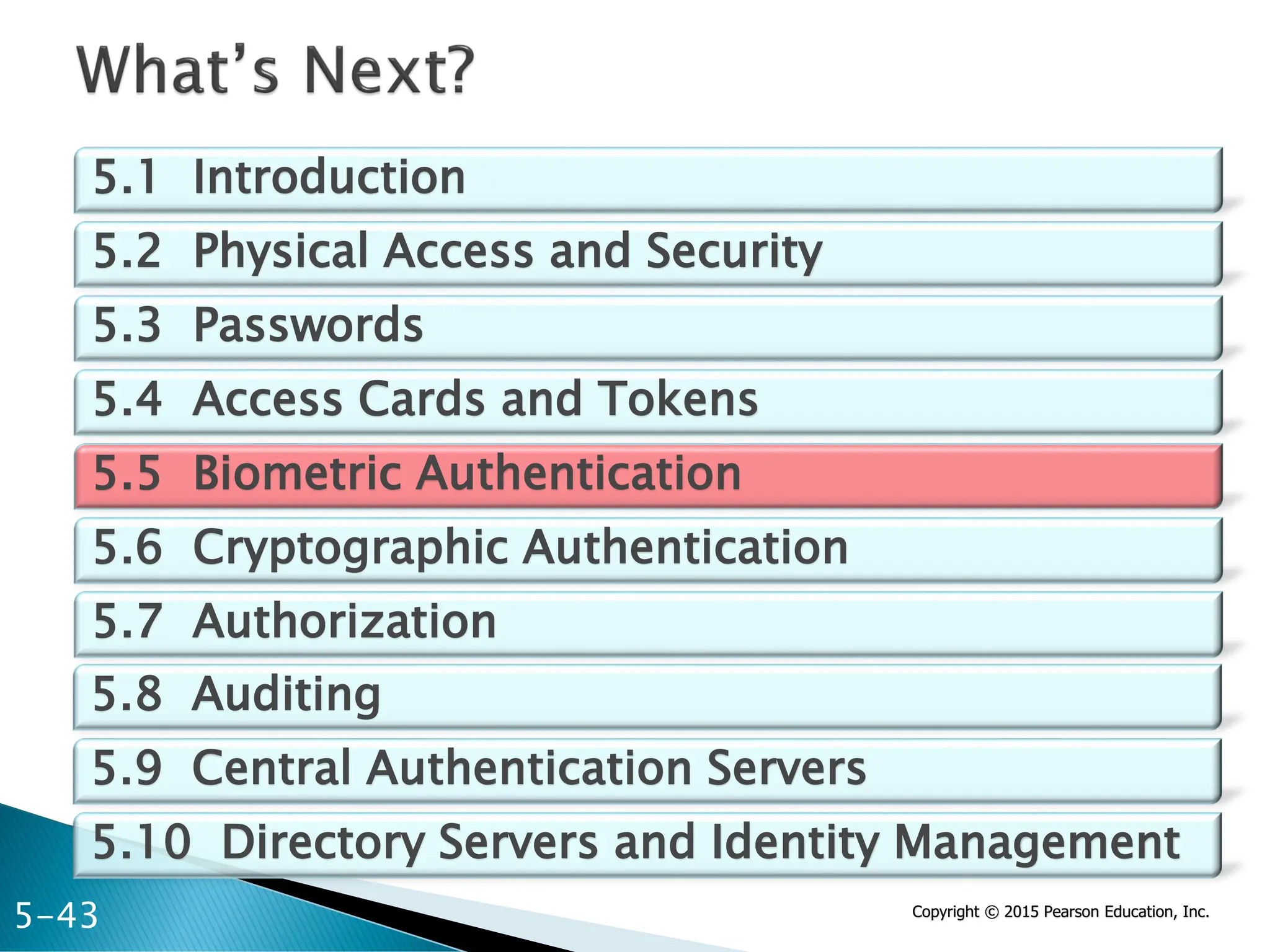

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-43
5.8 Auditing

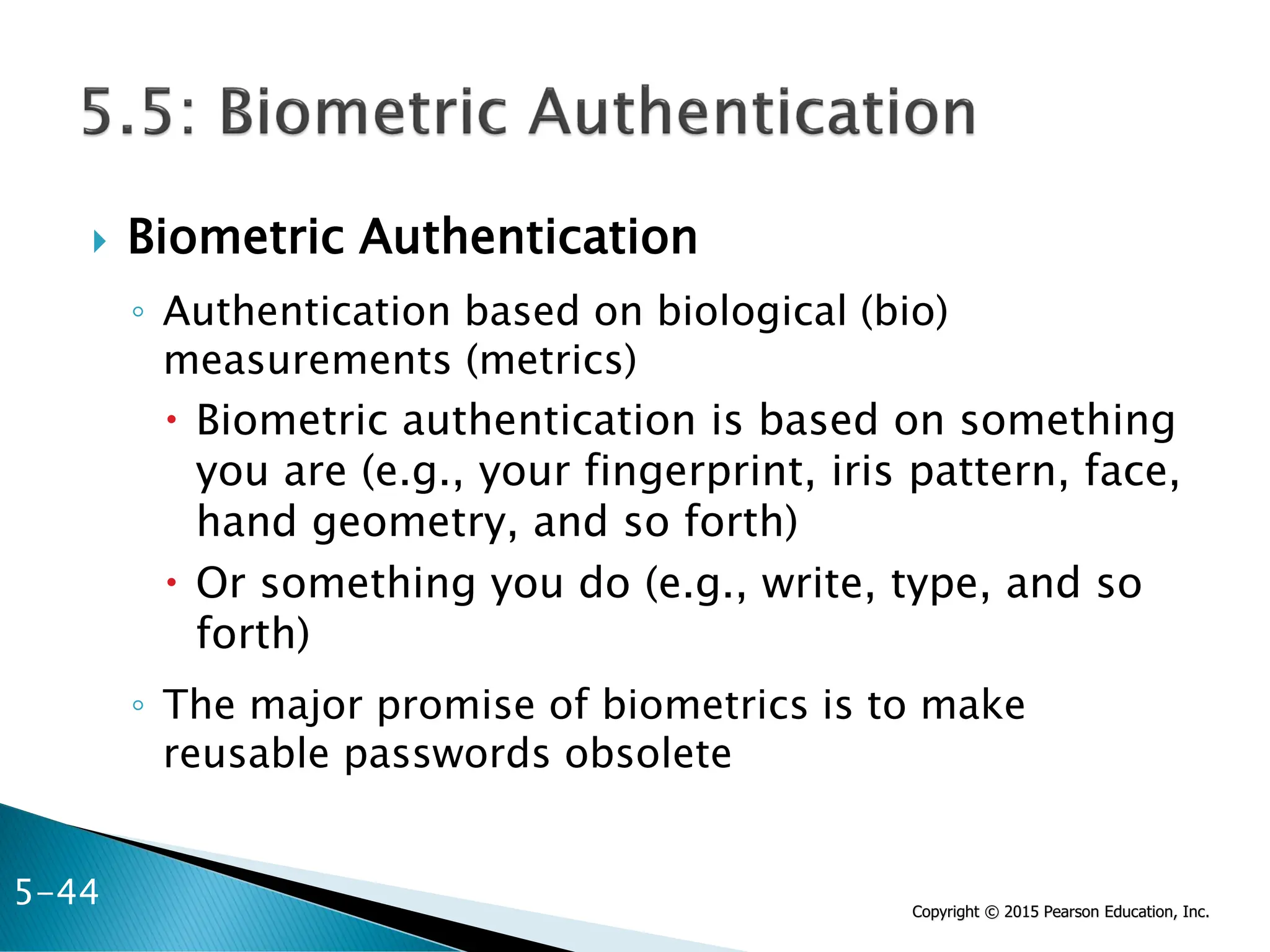

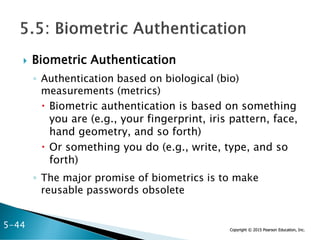

 Biometric Authentication
◦ Authentication based on biological (bio)
measurements (metrics)
 Biometric authentication is based on something
you are (e.g., your fingerprint, iris pattern, face,
hand geometry, and so forth)
 Or something you do (e.g., write, type, and so
forth)
◦ The major promise of biometrics is to make
reusable passwords obsolete
5-44

5-45

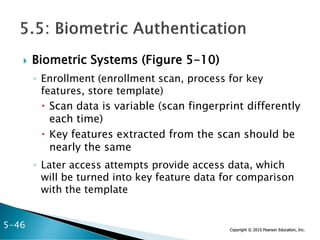

 Biometric Systems (Figure 5-10)
◦ Enrollment (enrollment scan, process for key
features, store template)
 Scan data is variable (scan fingerprint differently
each time)
 Key features extracted from the scan should be
nearly the same
◦ Later access attempts provide access data, which
will be turned into key feature data for comparison
with the template
5-46

 Why not use entire scans instead of key features?
 The problem is that entire scans are not very useful in
raw form. If a person swipes his or her finger at
different angles, raw scan files will be very different,
but key features such as the relative locations of
loops, arches, and whorls in fingerprints will be the
same or almost the same no matter how a finger is
scanned.
5-47

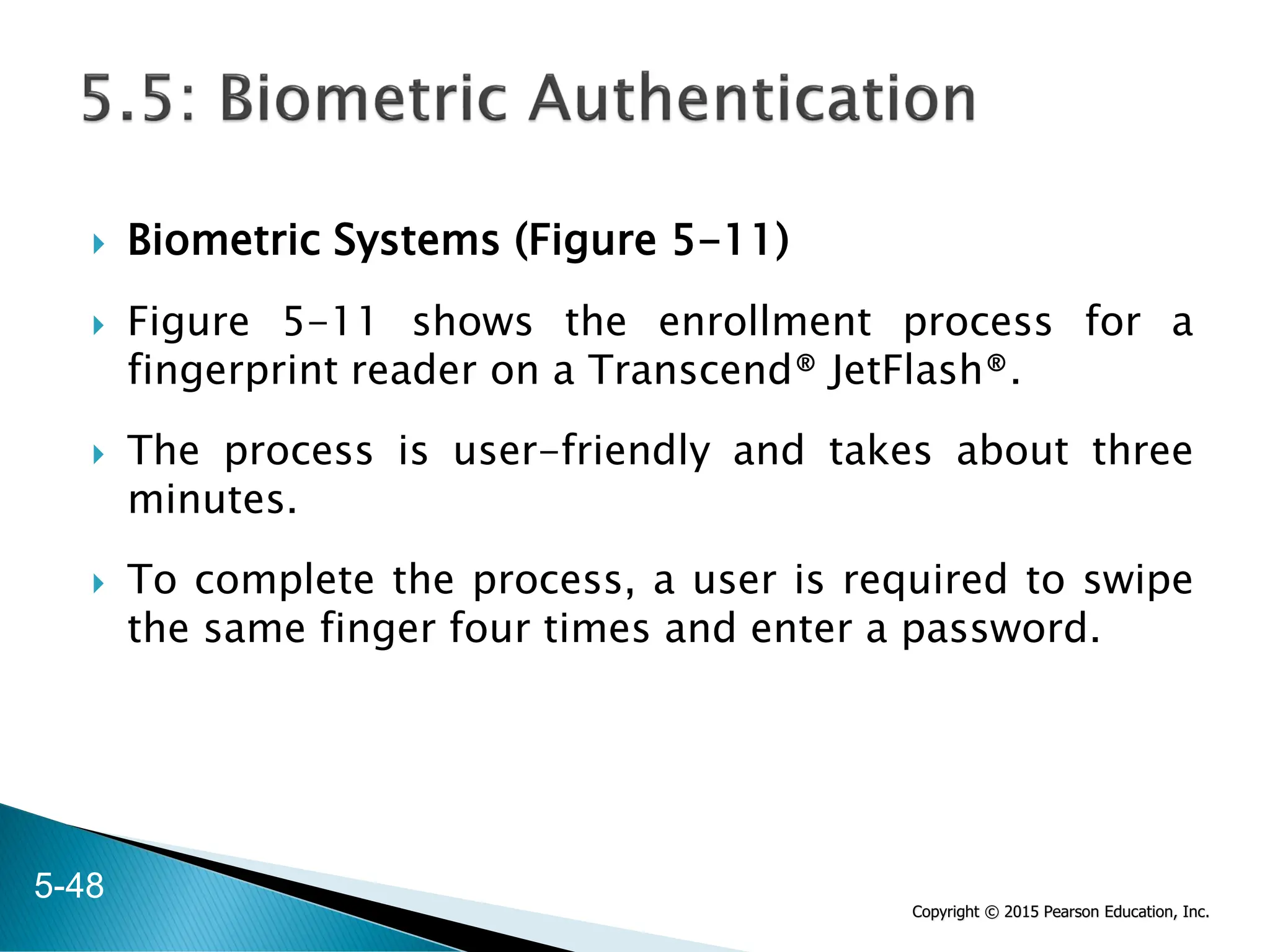

 Figure 5-11 shows the enrollment process for a
fingerprint reader on a Transcend® JetFlash®.
 The process is user-friendly and takes about three
minutes.
 To complete the process, a user is required to swipe
the same finger four times and enter a password.
5-48

◦ Biometric access key features will never be exactly
the same as the template
◦ There must be configurable decision criteria for
deciding how close a match to require (match
index)
 Requiring an overly exact match index will
cause many false rejections
 Requiring too loose a match index will cause
more false acceptances
5-49

5-50

5-51

 Errors versus Deception
 False Acceptance Rates (FARs)
◦ Percentage of people who are identified or verified
as matched to a template but should not be
 False Rejection Rates (FRRs)
◦ Percentage of people who should be identified or
verified as matches to a template but are not
5-52

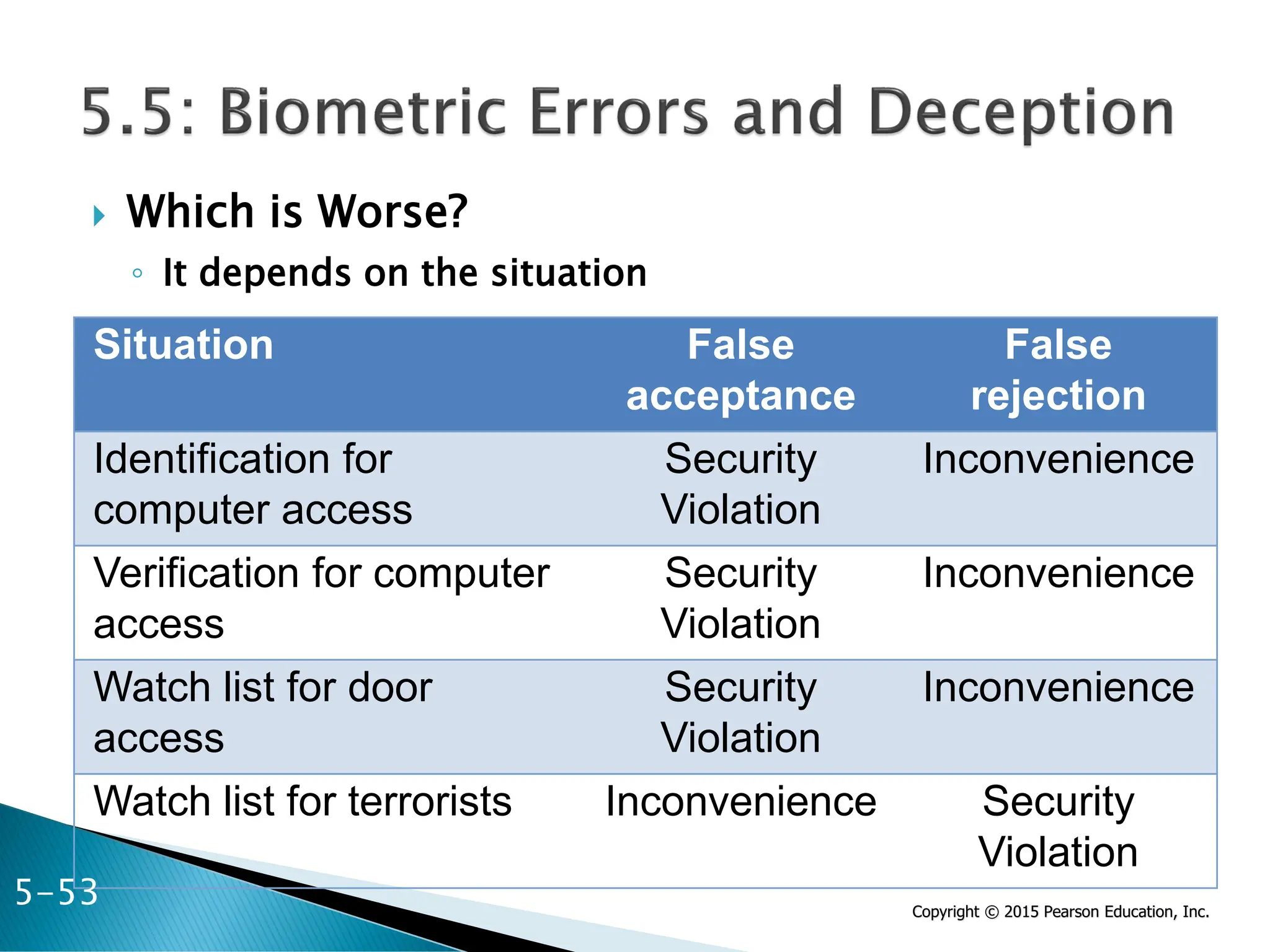

 Which is Worse?
◦ It depends on the situation
Situation False
acceptance
False
rejection
Identification for
computer access
Security
Violation
Inconvenience
Verification for computer
access
Security
Violation
Inconvenience
Watch list for door
access
Security
Violation
Inconvenience
Watch list for terrorists Inconvenience Security
Violation
5-53

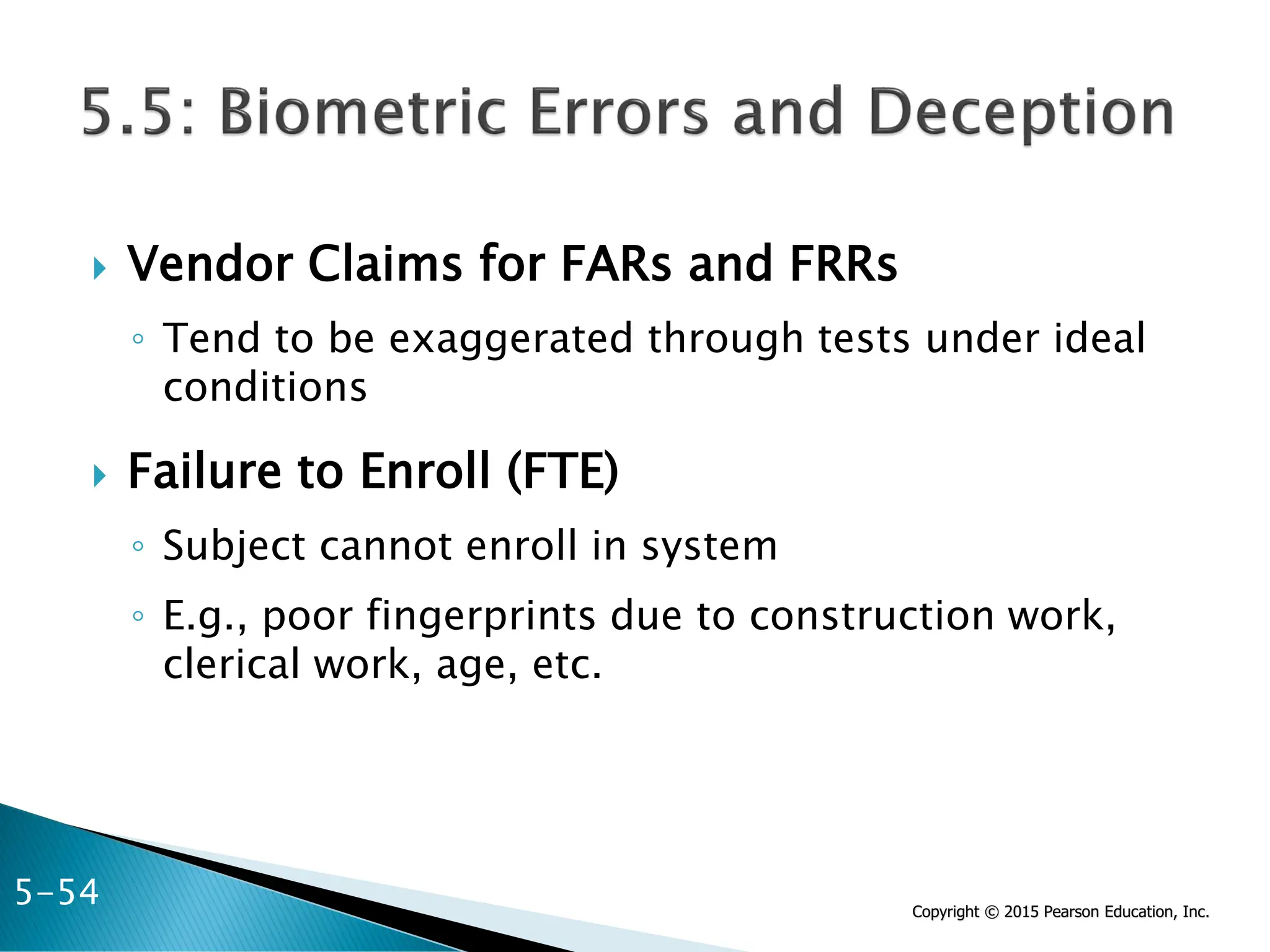

 Vendor Claims for FARs and FRRs
◦ Tend to be exaggerated through tests under ideal
conditions
 Failure to Enroll (FTE)
◦ Subject cannot enroll in system
◦ E.g., poor fingerprints due to construction work,
clerical work, age, etc.
5-54

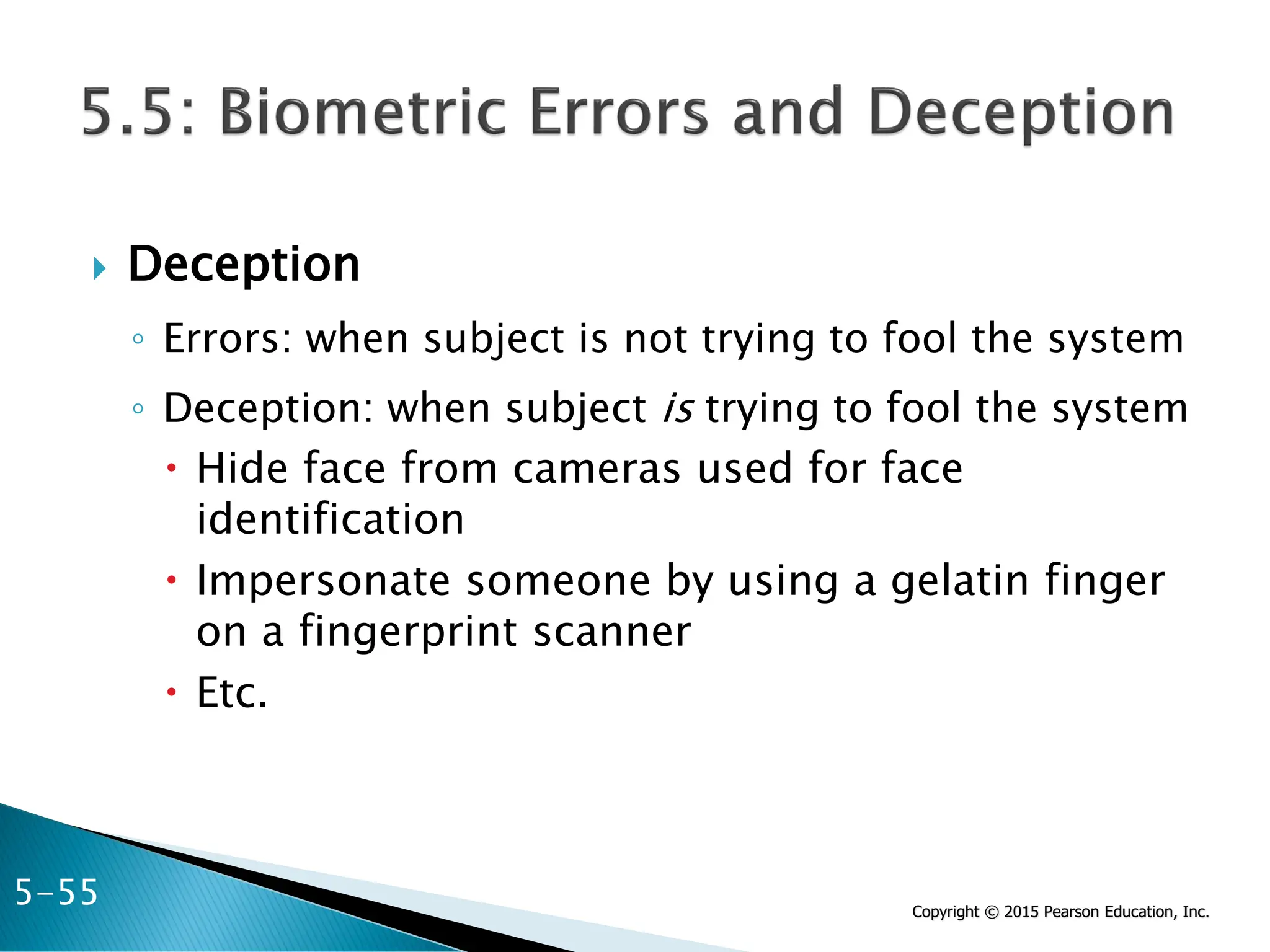

 Deception
◦ Errors: when subject is not trying to fool the system
◦ Deception: when subject is trying to fool the system
 Hide face from cameras used for face
identification
 Impersonate someone by using a gelatin finger
on a fingerprint scanner
 Etc.
5-55

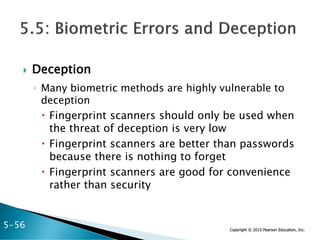

 Deception
◦ Many biometric methods are highly vulnerable to
deception
 Fingerprint scanners should only be used when
the threat of deception is very low
 Fingerprint scanners are better than passwords
because there is nothing to forget
 Fingerprint scanners are good for convenience
rather than security
5-56

 Verification
◦ Supplicant claims to be a particular person
◦ Is the supplicant who he or she claims to be?
◦ Compare access data to a single template (the
claimed identity)
◦ Verification is good to replace passwords in logins
◦ If the probability of a false acceptance (false match)
probability is 1/1000 per template match,
 The probability of a false acceptance is 1/1000
(0.1%)
5-57

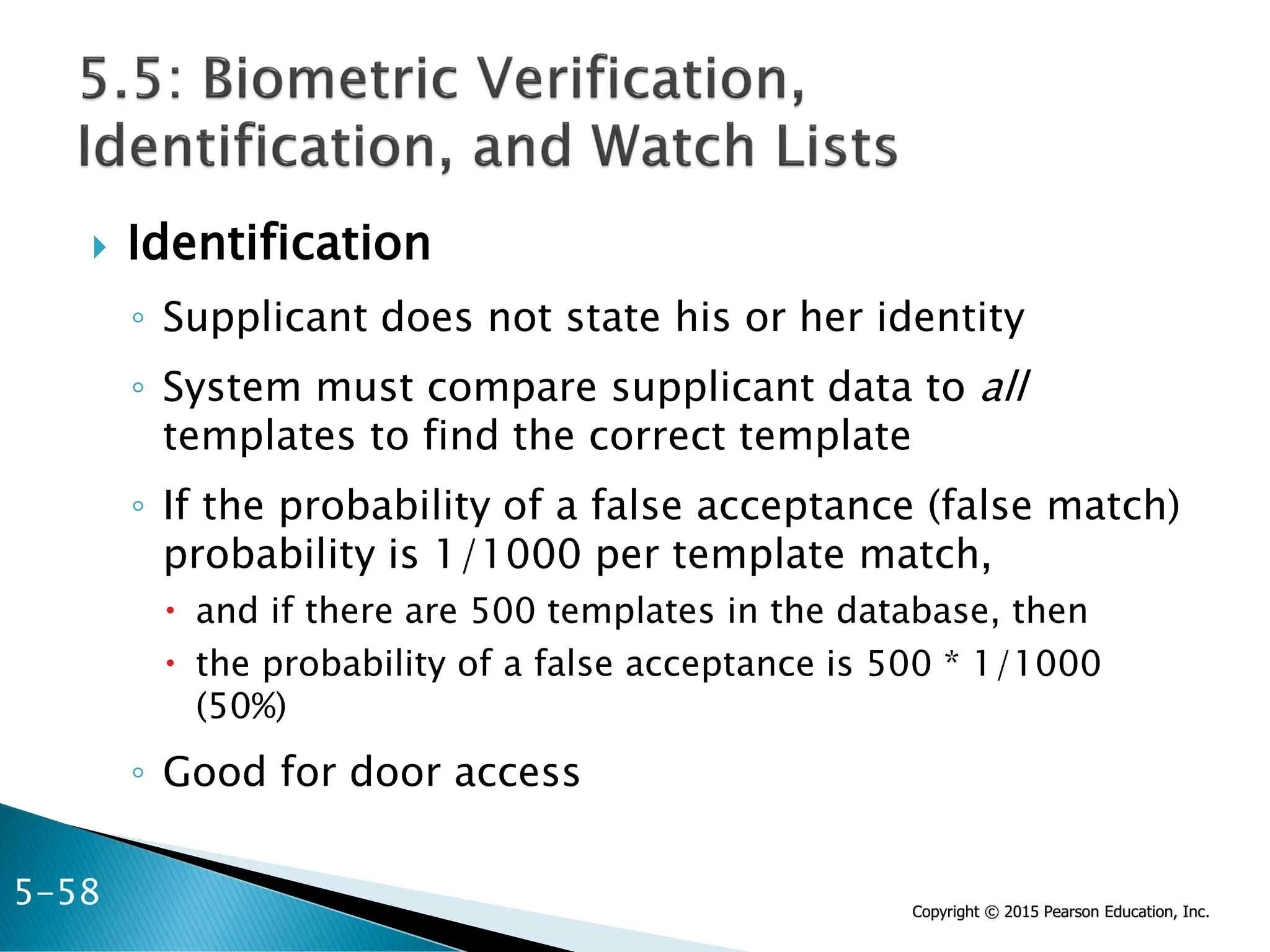

 Identification
◦ Supplicant does not state his or her identity
◦ System must compare supplicant data to all
templates to find the correct template
 and if there are 500 templates in the database, then
 the probability of a false acceptance is 500 * 1/1000
(50%)
◦ Good for door access
5-58

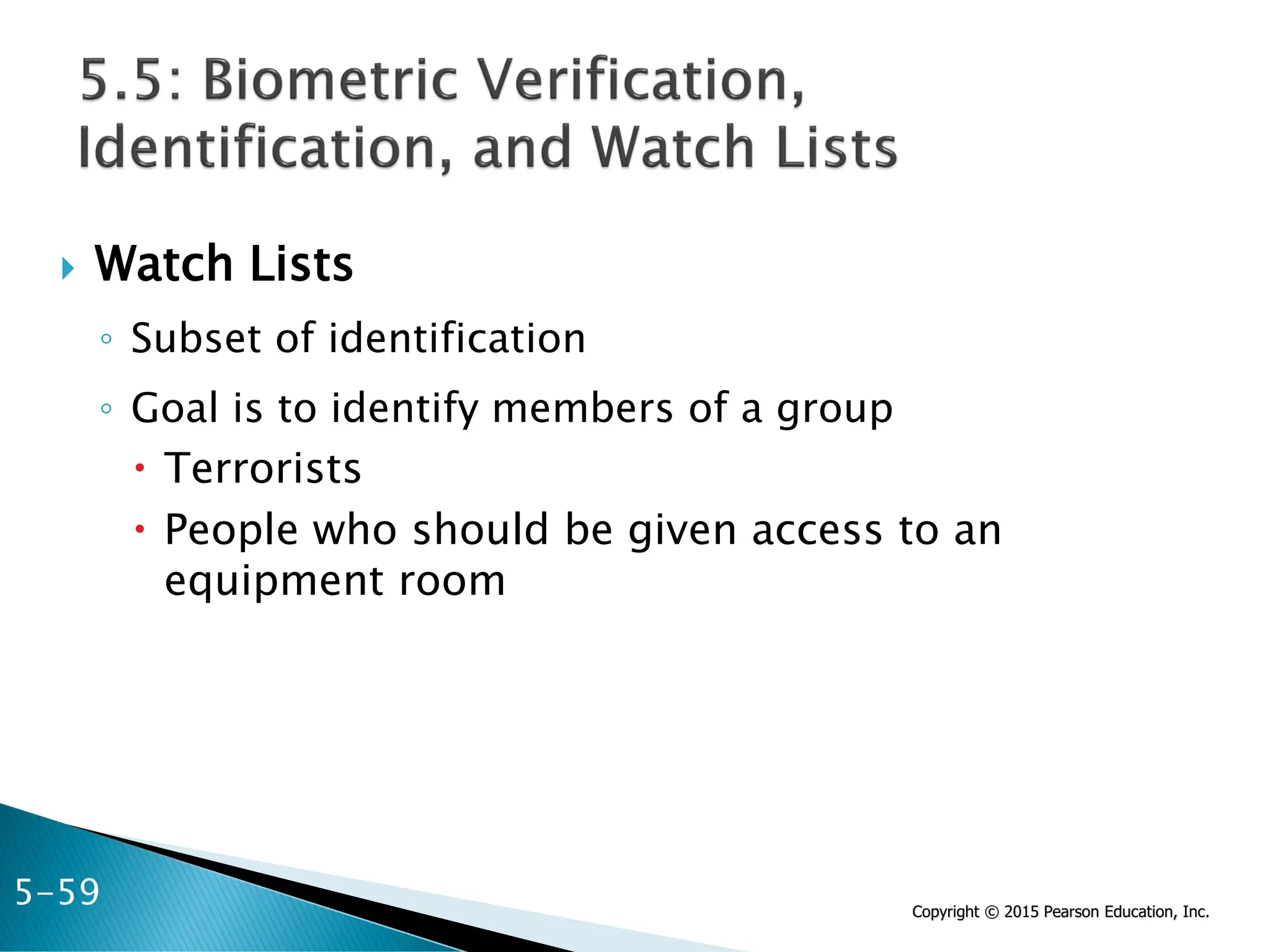

 Watch Lists
◦ Subset of identification
◦ Goal is to identify members of a group
 Terrorists
 People who should be given access to an
equipment room
5-59

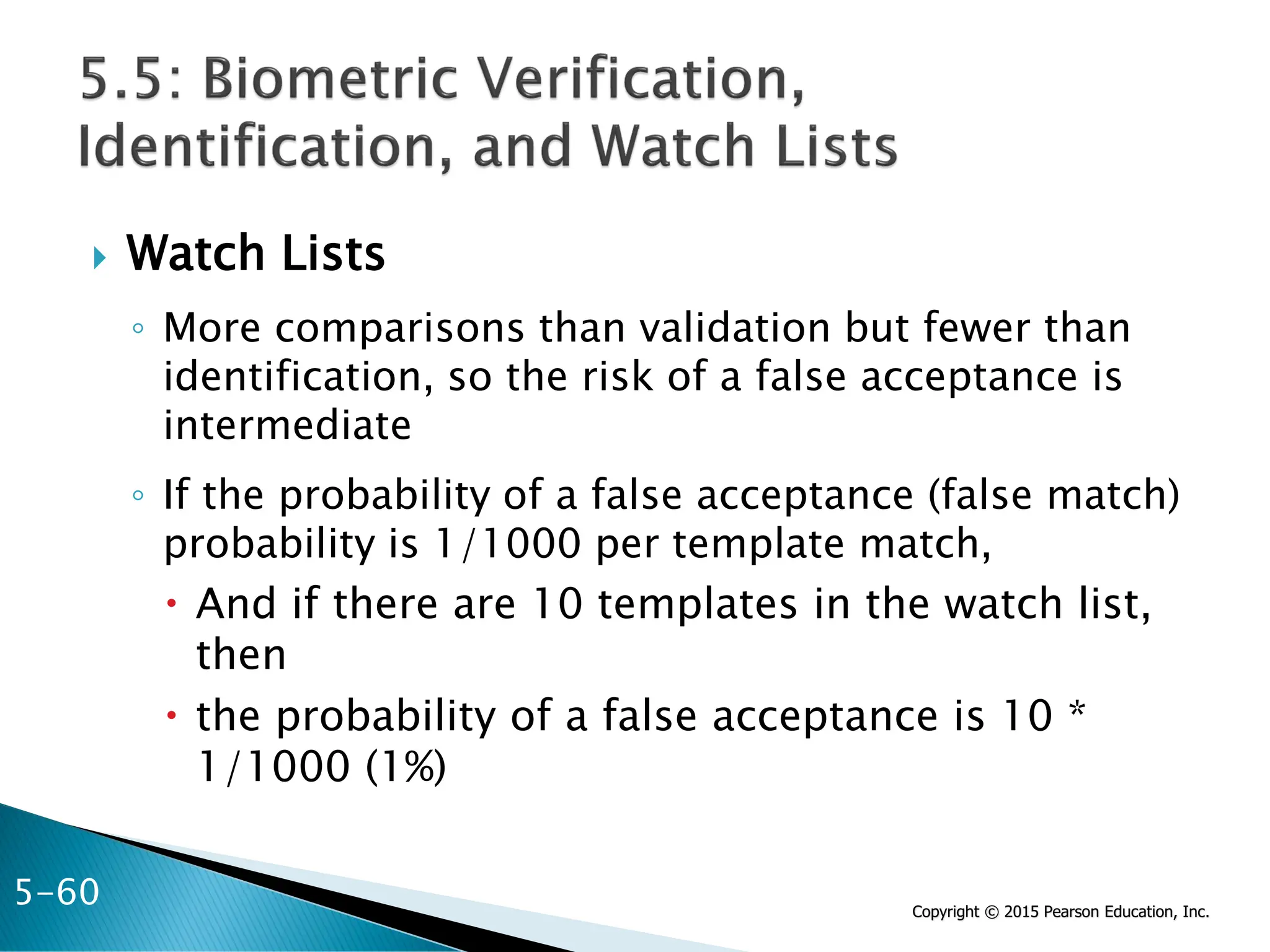

 Watch Lists
◦ More comparisons than validation but fewer than
identification, so the risk of a false acceptance is
intermediate
 And if there are 10 templates in the watch list,
then
 the probability of a false acceptance is 10 *
1/1000 (1%)
5-60

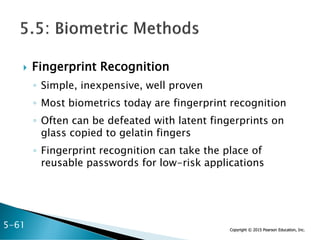

 Fingerprint Recognition
◦ Simple, inexpensive, well proven
◦ Most biometrics today are fingerprint recognition
◦ Often can be defeated with latent fingerprints on
glass copied to gelatin fingers
◦ Fingerprint recognition can take the place of
reusable passwords for low-risk applications
5-61

5-62

5-63

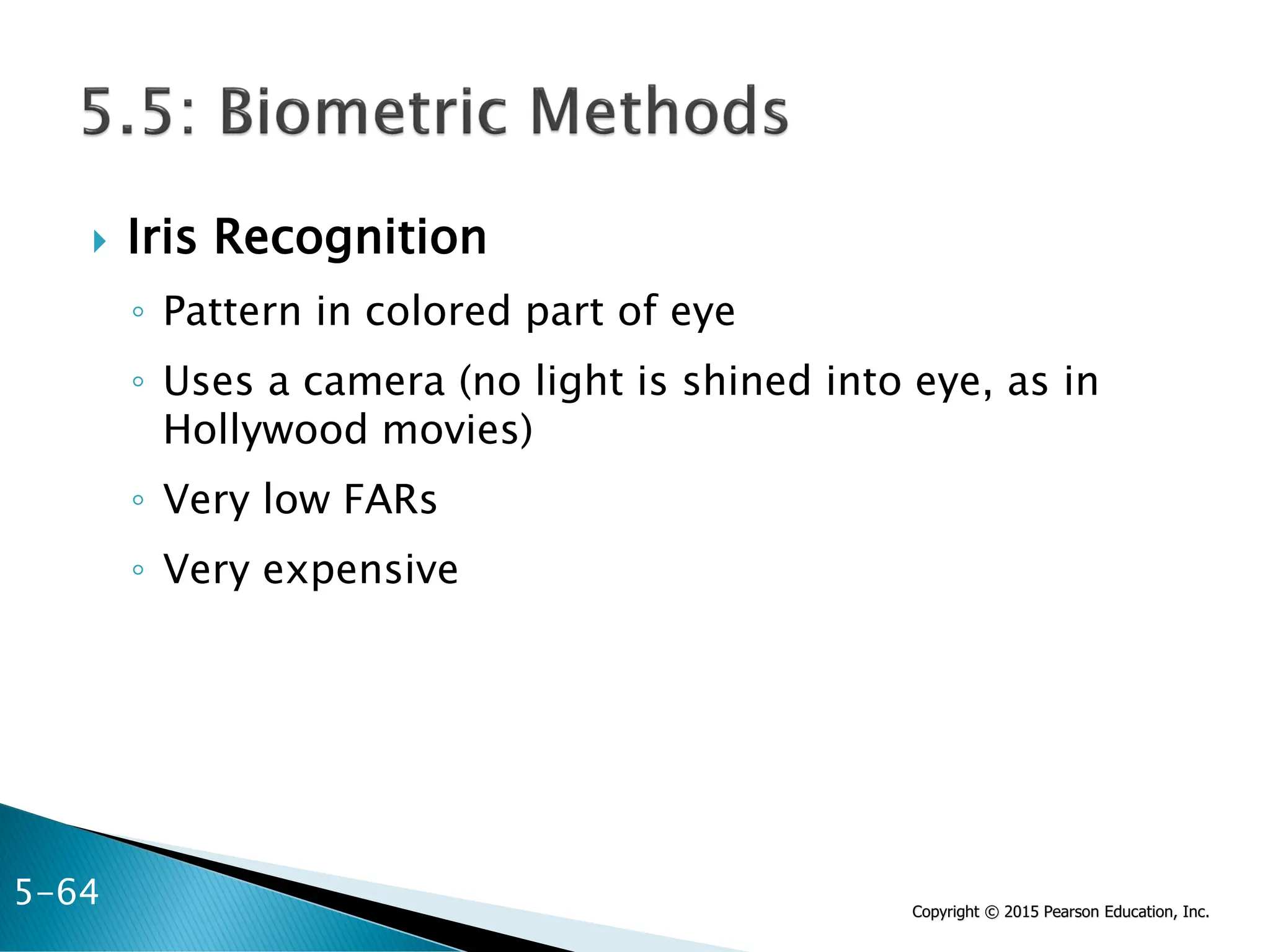

 Iris Recognition
◦ Pattern in colored part of eye
◦ Uses a camera (no light is shined into eye, as in
Hollywood movies)
◦ Very low FARs
◦ Very expensive
5-64

5-65

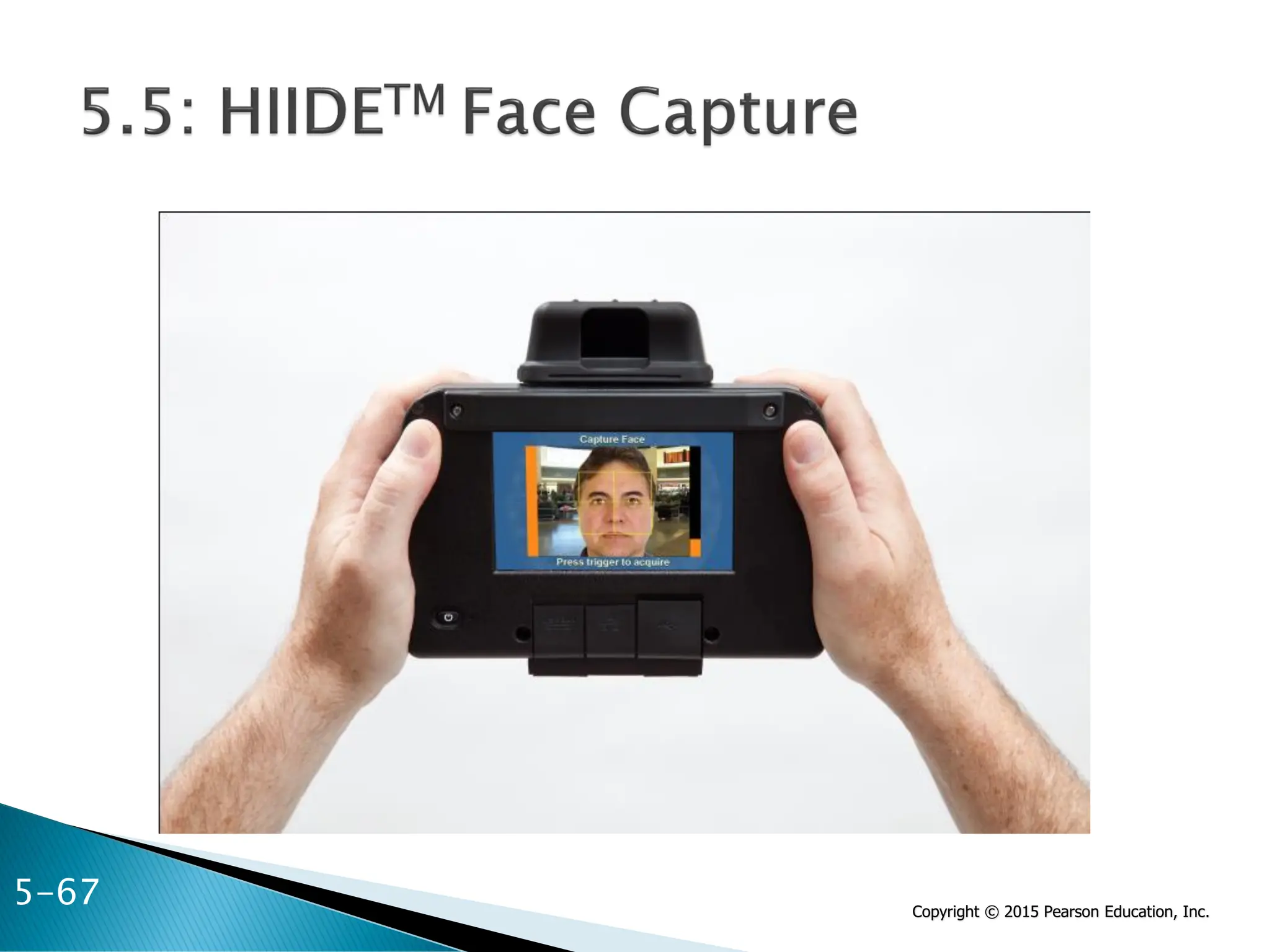

 Face Recognition
◦ Surreptitious identification is possible (in airports,
etc.)
◦ Surreptitious means without the subject’s
knowledge
◦ High error rates, even without deception
 Hand Geometry for Door Access
◦ Shape of hand
◦ Reader is very large, so usually used for door access
5-66

5-67

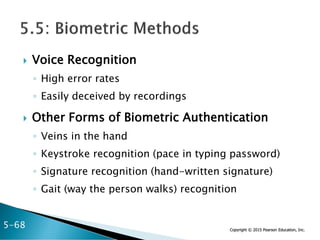

 Voice Recognition
◦ High error rates
◦ Easily deceived by recordings
 Other Forms of Biometric Authentication
◦ Veins in the hand
◦ Keystroke recognition (pace in typing password)
◦ Signature recognition (hand-written signature)
◦ Gait (way the person walks) recognition
5-68

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-69
5.8 Auditing

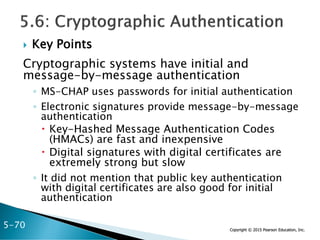

 Key Points
Cryptographic systems have initial and
message-by-message authentication
◦ MS-CHAP uses passwords for initial authentication
◦ Electronic signatures provide message-by-message
authentication
 Key-Hashed Message Authentication Codes
(HMACs) are fast and inexpensive
 Digital signatures with digital certificates are
extremely strong but slow
◦ It did not mention that public key authentication
with digital certificates are also good for initial
authentication
5-70

5-71

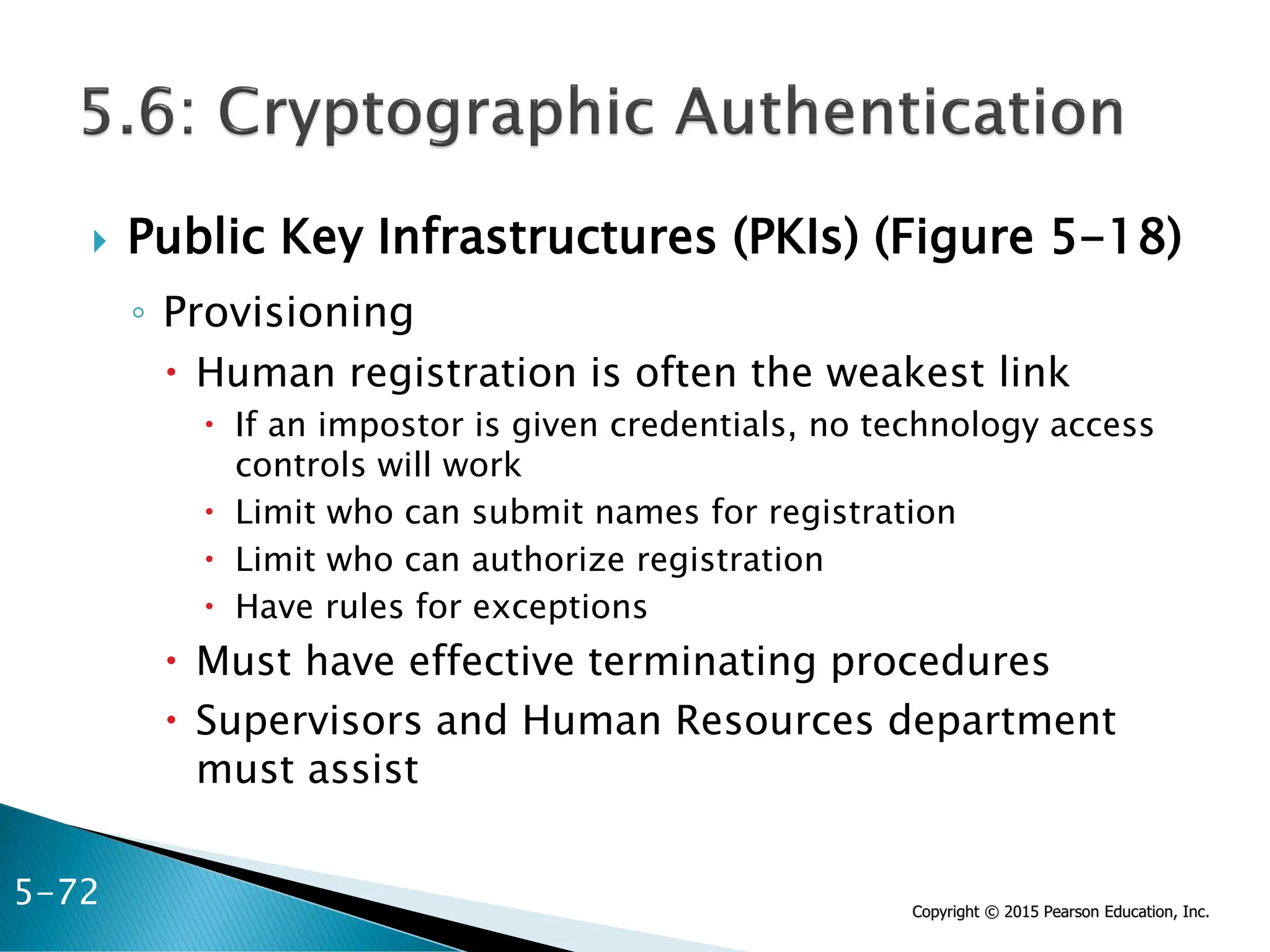

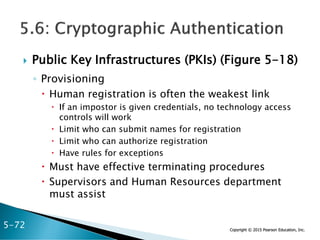

 Public Key Infrastructures (PKIs) (Figure 5-18)
◦ Provisioning
 Human registration is often the weakest link
 If an impostor is given credentials, no technology access
controls will work
 Limit who can submit names for registration
 Limit who can authorize registration
 Have rules for exceptions
 Must have effective terminating procedures
 Supervisors and Human Resources department
must assist
5-72

 Public Key Infrastructures (PKIs) (Figure 5-18)
◦ Firms can be their own certificate authorities (CAs)
◦ Requires a great deal of labor
◦ Provisioning
 Giving the user access credentials
5-73

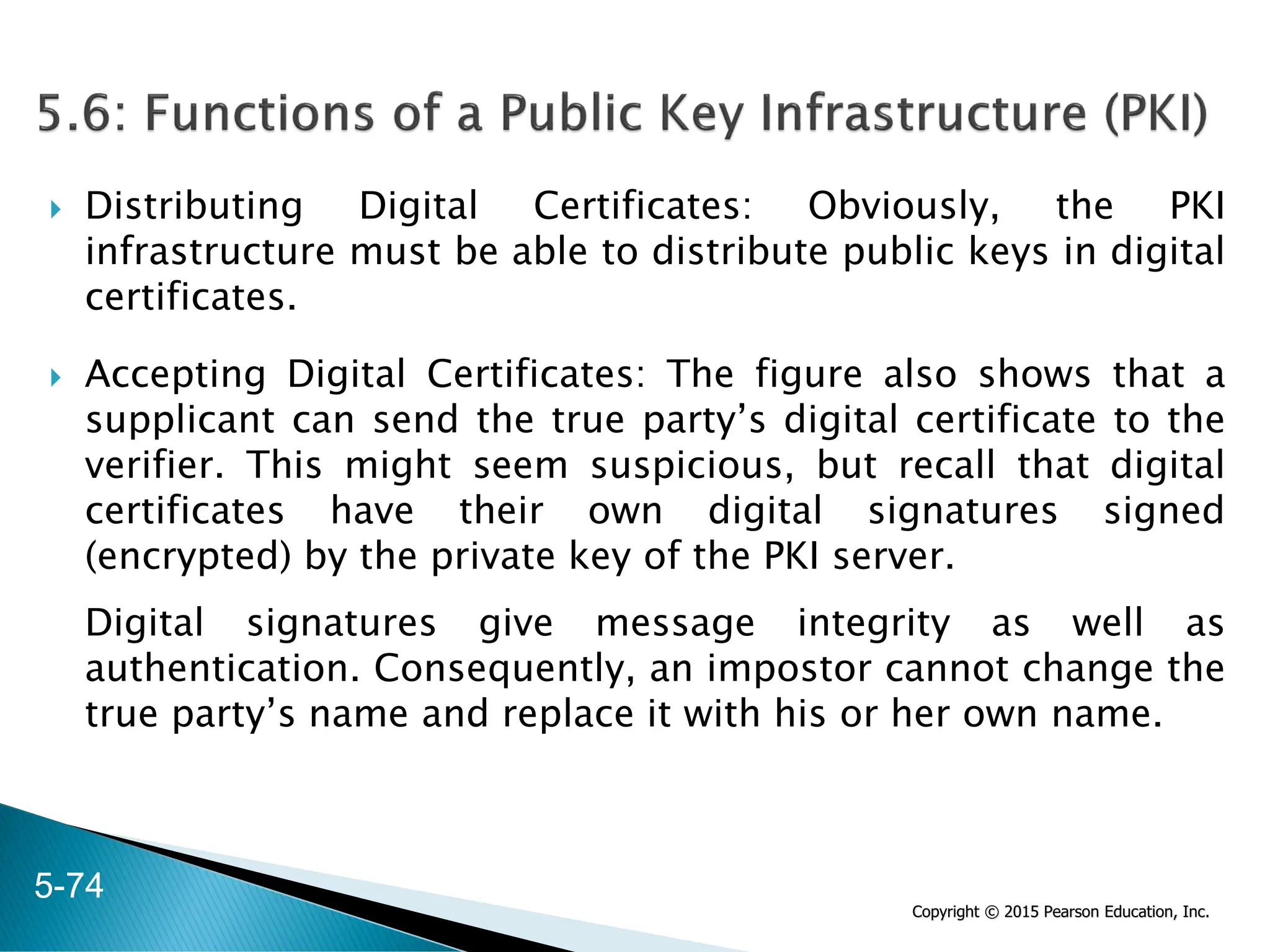

 Distributing Digital Certificates: Obviously, the PKI
infrastructure must be able to distribute public keys in digital
certificates.
 Accepting Digital Certificates: The figure also shows that a
supplicant can send the true party’s digital certificate to the
verifier. This might seem suspicious, but recall that digital
certificates have their own digital signatures signed
(encrypted) by the private key of the PKI server.
Digital signatures give message integrity as well as
authentication. Consequently, an impostor cannot change the
true party’s name and replace it with his or her own name.
5-74

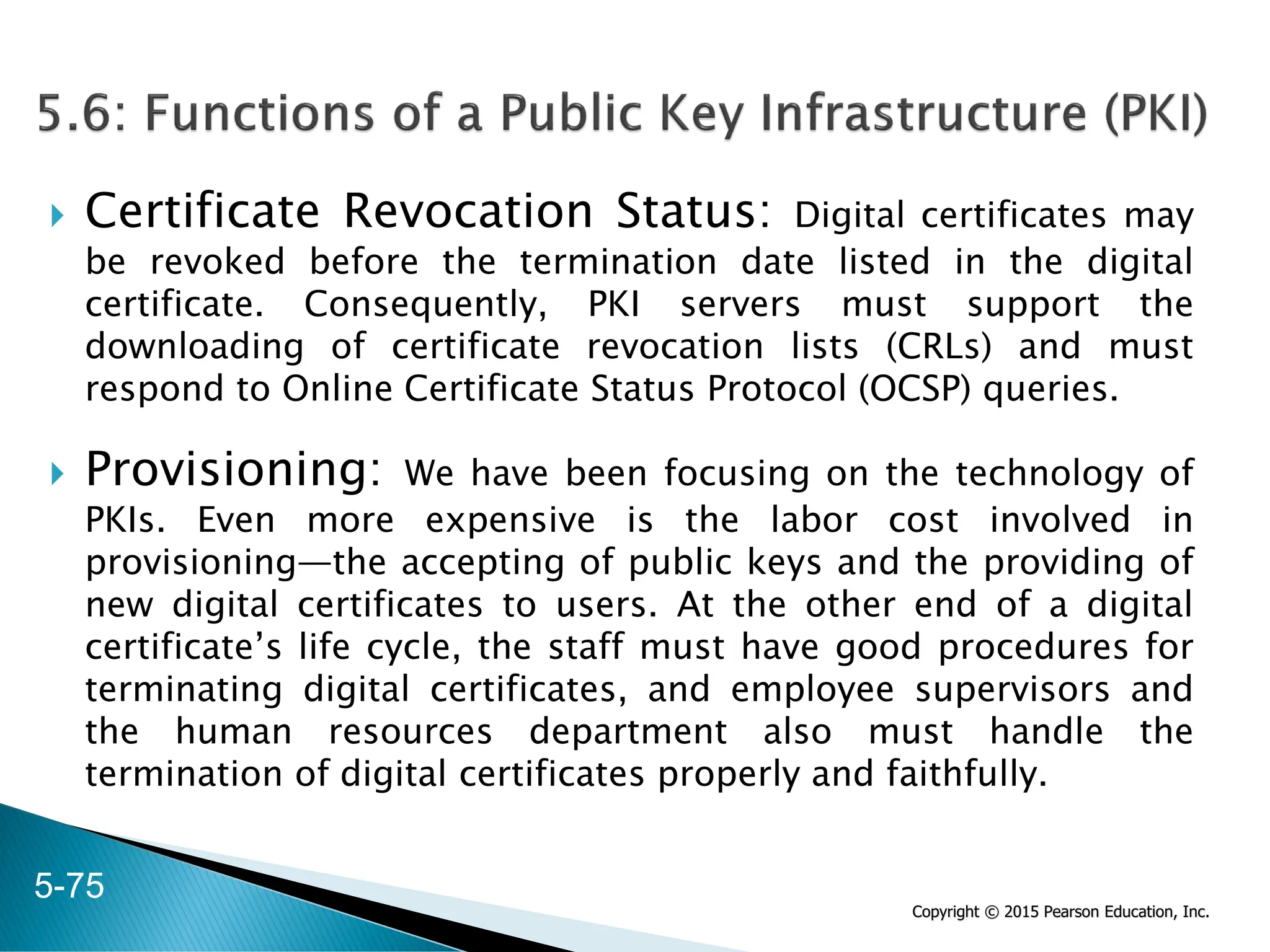

 Certificate Revocation Status: Digital certificates may
be revoked before the termination date listed in the digital
certificate. Consequently, PKI servers must support the
downloading of certificate revocation lists (CRLs) and must
respond to Online Certificate Status Protocol (OCSP) queries.
 Provisioning: We have been focusing on the technology of
PKIs. Even more expensive is the labor cost involved in
provisioning—the accepting of public keys and the providing of
new digital certificates to users. At the other end of a digital
certificate’s life cycle, the staff must have good procedures for
terminating digital certificates, and employee supervisors and
the human resources department also must handle the
termination of digital certificates properly and faithfully.
5-75

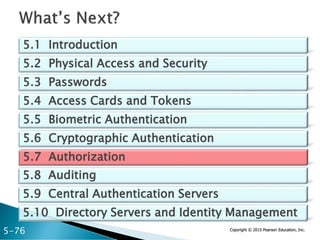

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-76
5.8 Auditing

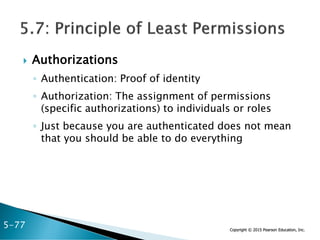

 Authorizations
◦ Authentication: Proof of identity
◦ Authorization: The assignment of permissions
(specific authorizations) to individuals or roles
◦ Just because you are authenticated does not mean
that you should be able to do everything
5-77

 Principle of Least Permissions
◦ Initially give people only the permissions a person
absolutely needs to do his or her job
◦ If assignment is too narrow, additional permissions
may be given
 If assignment is too narrow, the system fails
safely
5-78

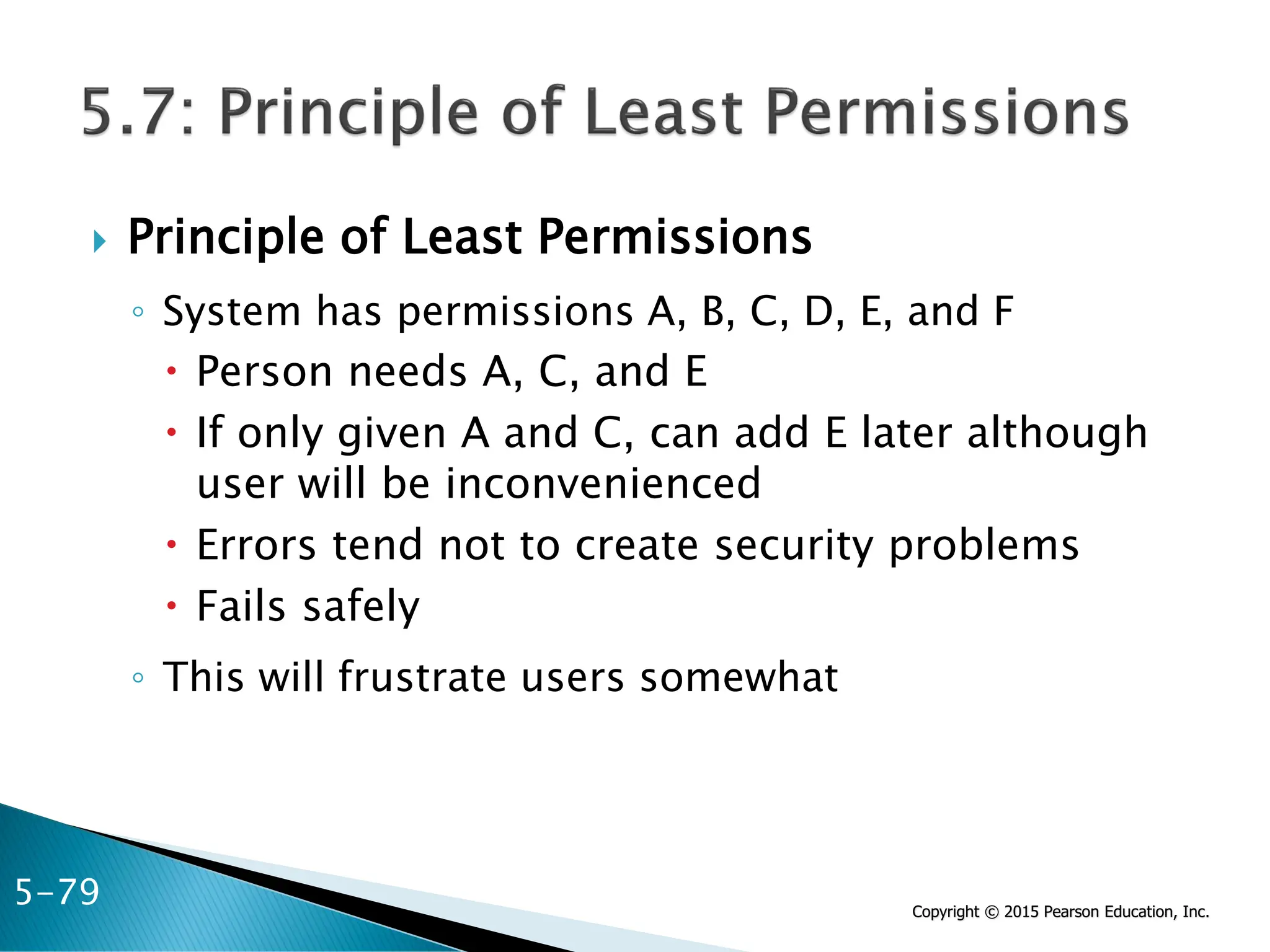

 Principle of Least Permissions
◦ System has permissions A, B, C, D, E, and F
 Person needs A, C, and E
 If only given A and C, can add E later although
user will be inconvenienced
 Errors tend not to create security problems
 Fails safely
◦ This will frustrate users somewhat
5-79

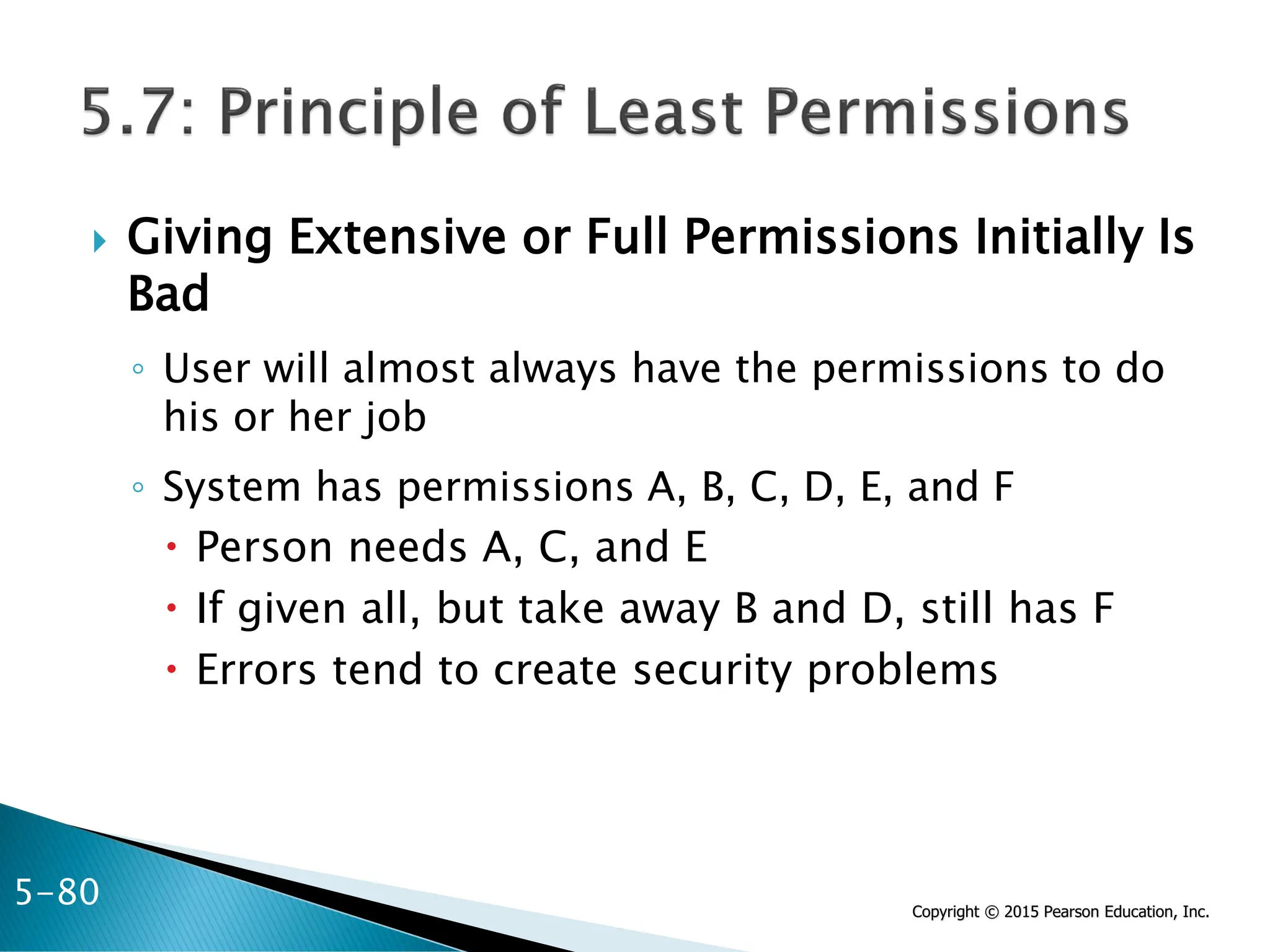

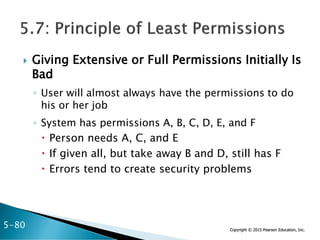

 Giving Extensive or Full Permissions Initially Is
Bad
◦ User will almost always have the permissions to do
his or her job
◦ System has permissions A, B, C, D, E, and F
 Person needs A, C, and E
 If given all, but take away B and D, still has F
 Errors tend to create security problems
5-80

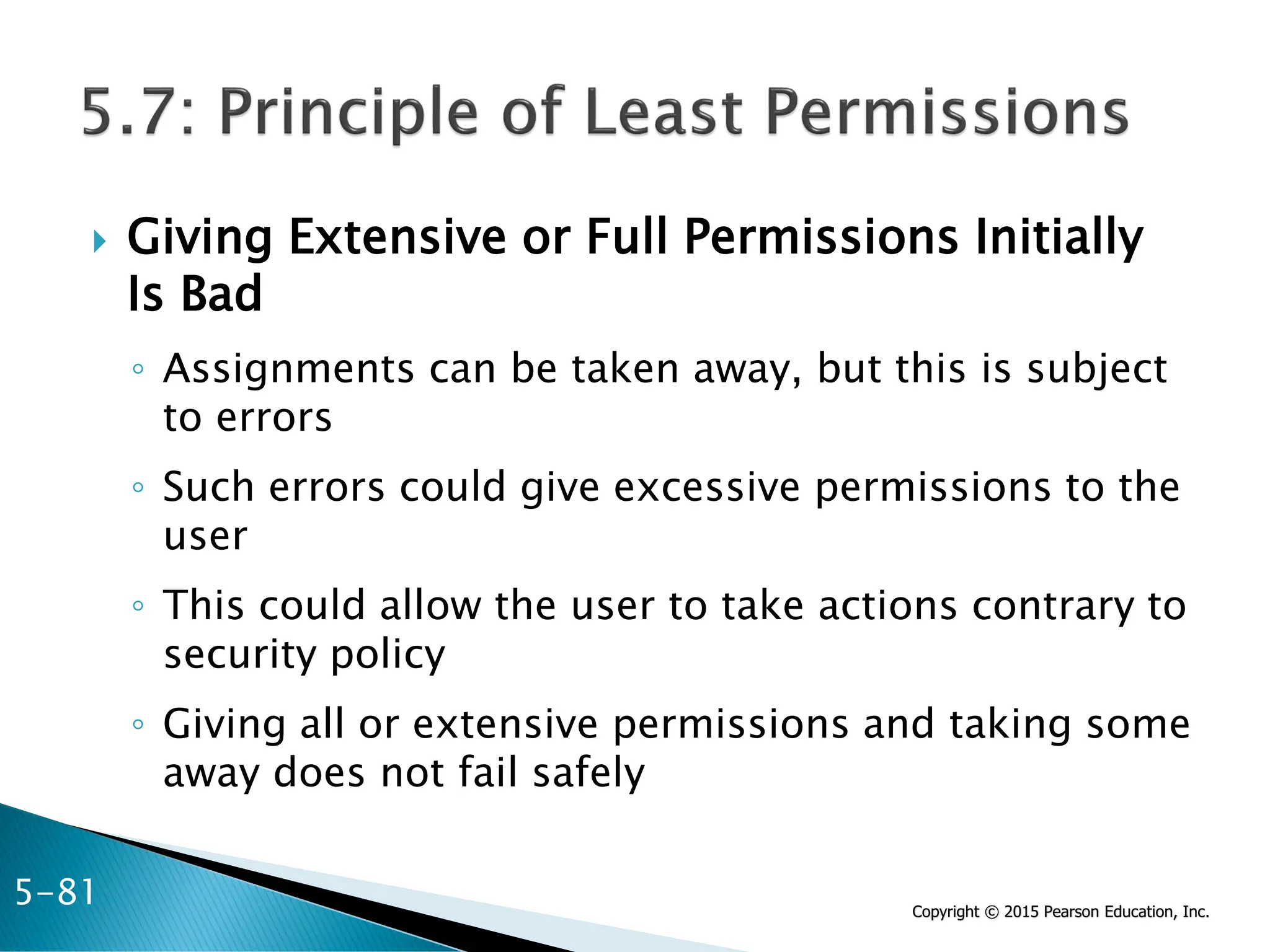

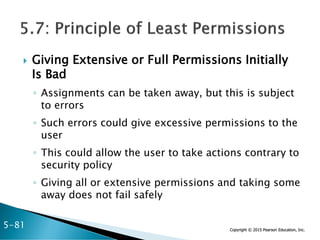

 Giving Extensive or Full Permissions Initially
Is Bad
◦ Assignments can be taken away, but this is subject
to errors
◦ Such errors could give excessive permissions to the
user
◦ This could allow the user to take actions contrary to
security policy
◦ Giving all or extensive permissions and taking some
away does not fail safely
5-81

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-82
5.8 Auditing

 Auditing
◦ Authentication: Who a person is
◦ Authorization: What a person may do with a
resource
◦ Auditing: What the person actually did
5-83

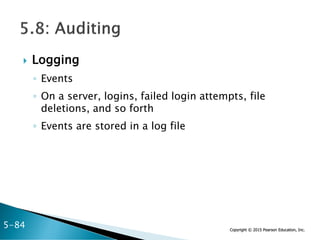

 Logging
◦ Events
◦ On a server, logins, failed login attempts, file
deletions, and so forth
◦ Events are stored in a log file
5-84

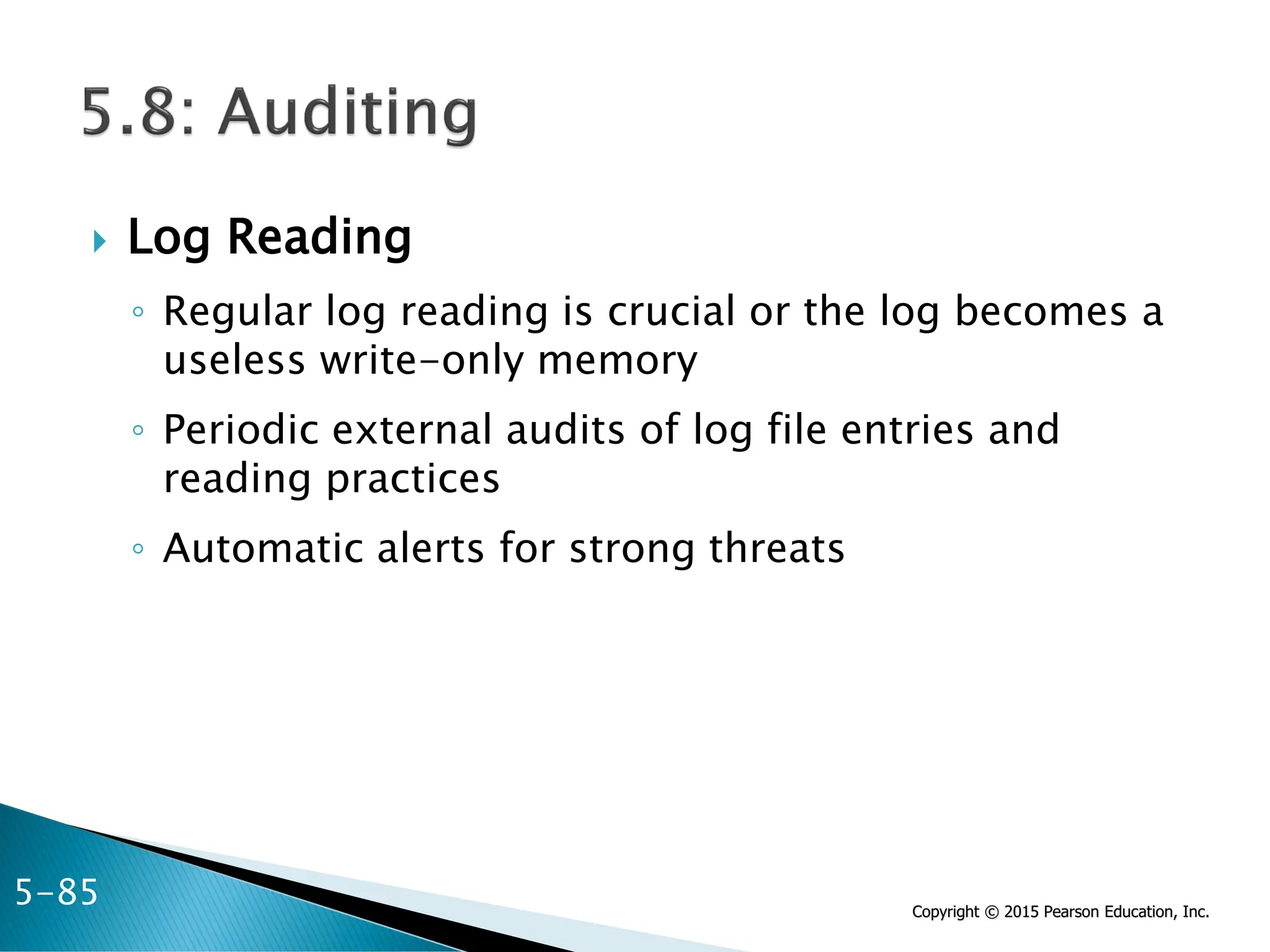

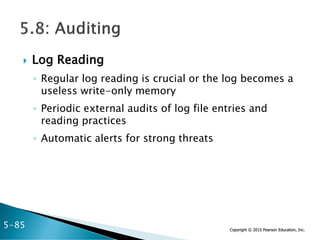

 Log Reading
◦ Regular log reading is crucial or the log becomes a
useless write-only memory
◦ Periodic external audits of log file entries and
reading practices
◦ Automatic alerts for strong threats
5-85

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-86
5.8 Auditing

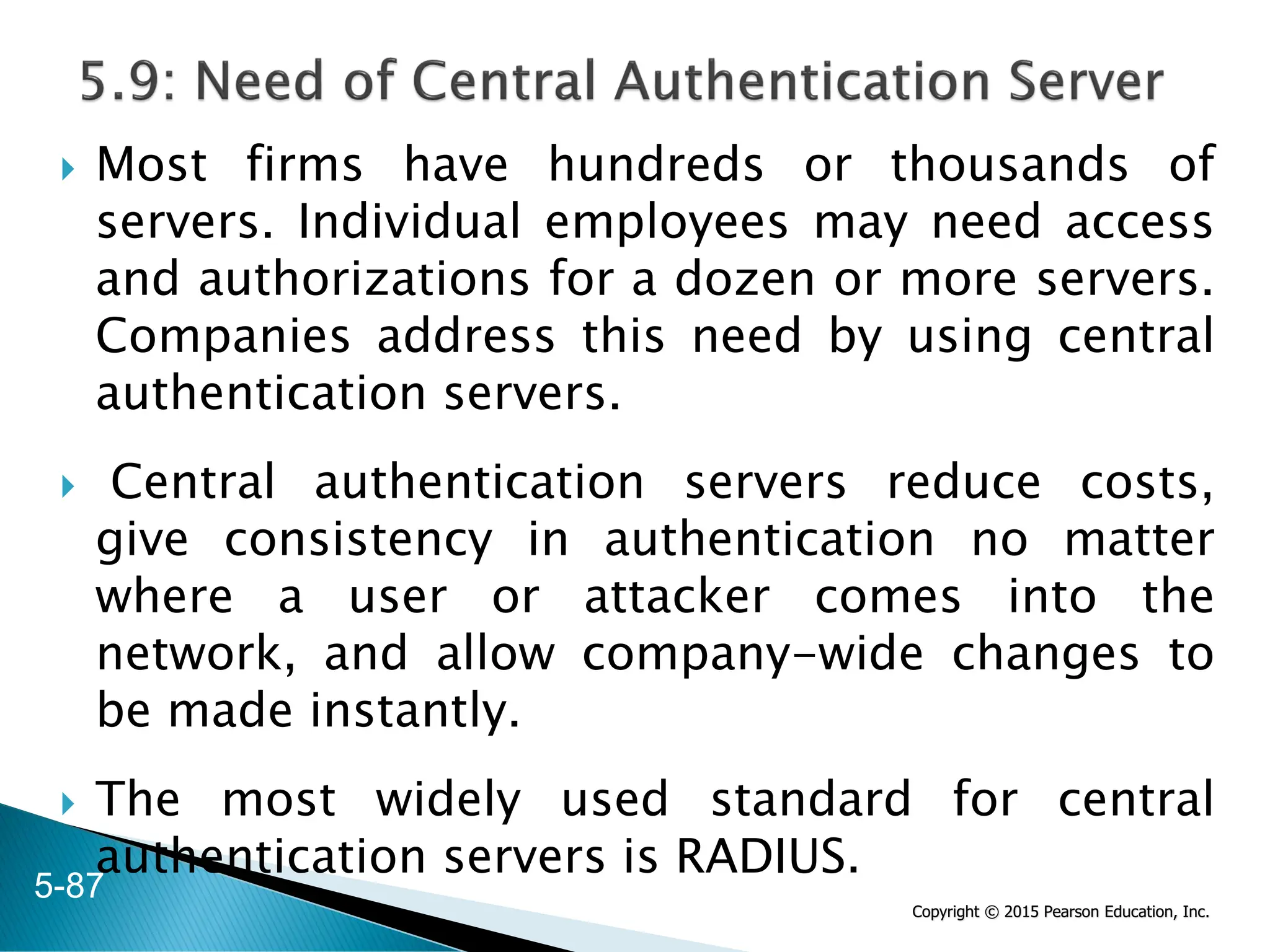

 Most firms have hundreds or thousands of
servers. Individual employees may need access
and authorizations for a dozen or more servers.
Companies address this need by using central
authentication servers.
 Central authentication servers reduce costs,
give consistency in authentication no matter
where a user or attacker comes into the
network, and allow company-wide changes to
be made instantly.
 The most widely used standard for central
authentication servers is RADIUS.
5-87

5-88

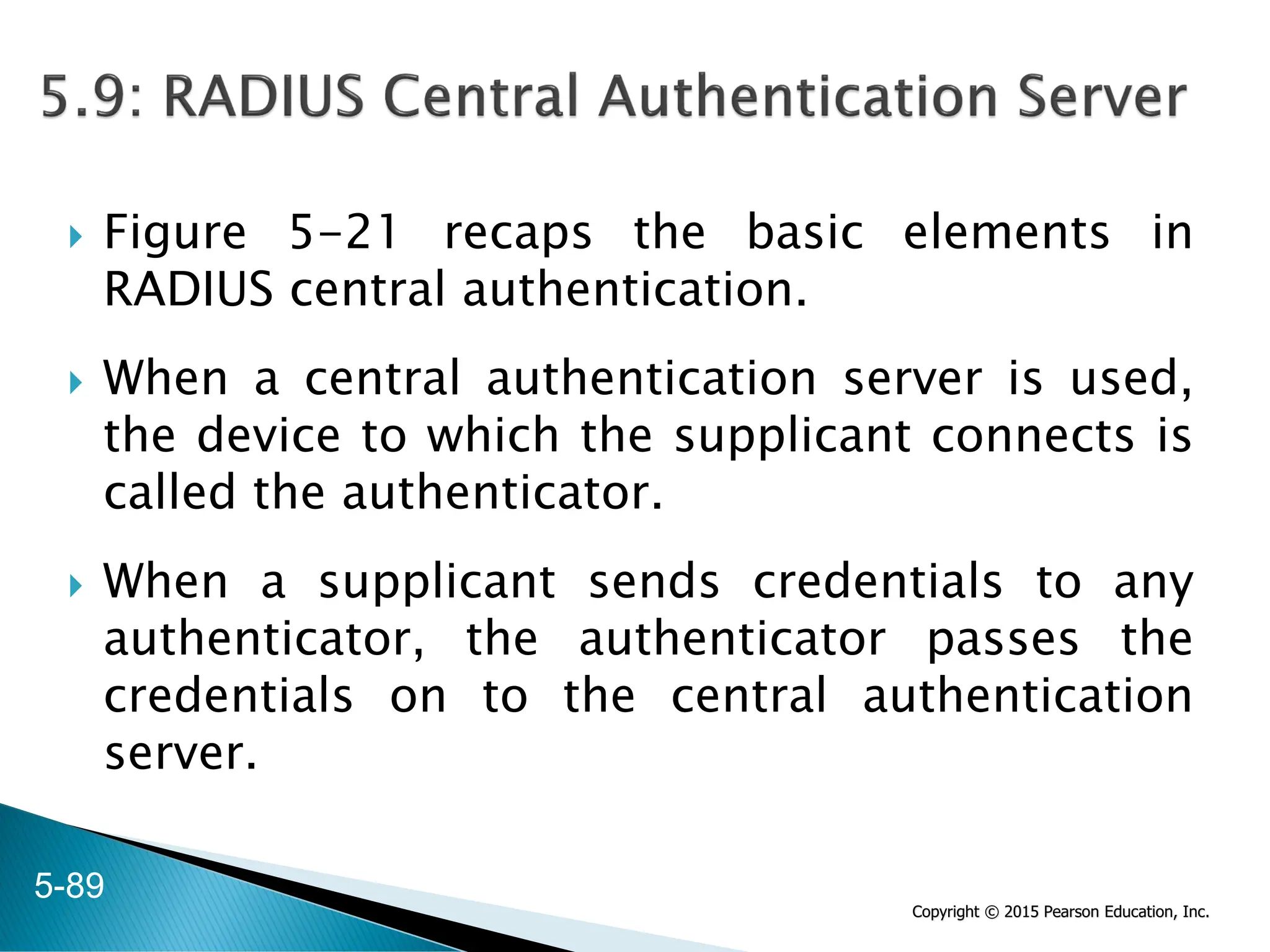

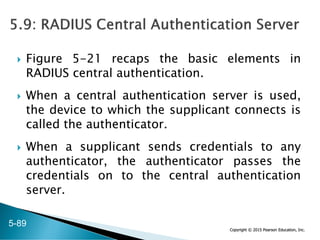

 Figure 5-21 recaps the basic elements in
RADIUS central authentication.
 When a central authentication server is used,
the device to which the supplicant connects is
called the authenticator.
 When a supplicant sends credentials to any
authenticator, the authenticator passes the
credentials on to the central authentication
server.
5-89

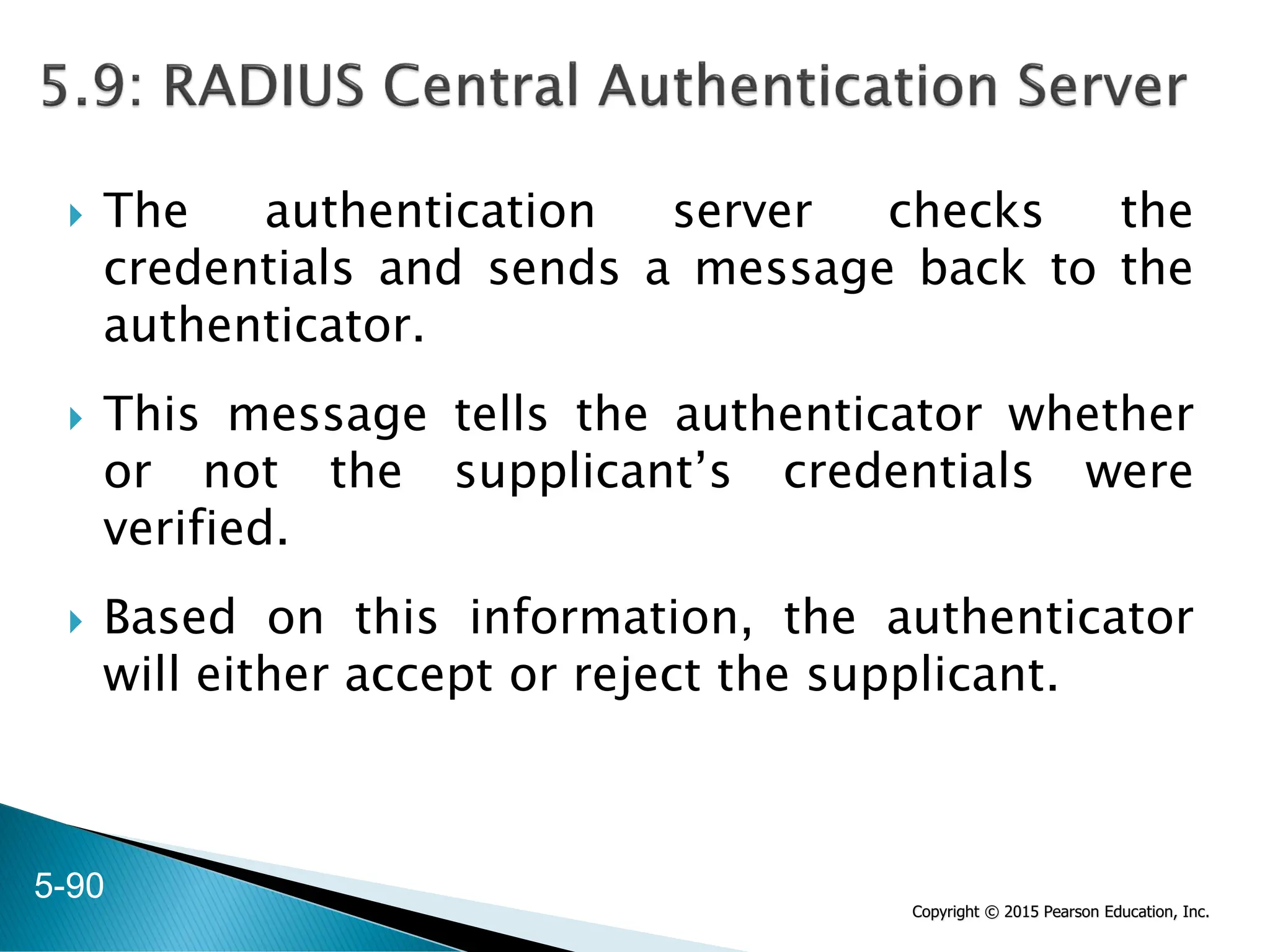

 The authentication server checks the
credentials and sends a message back to the
authenticator.
 This message tells the authenticator whether
or not the supplicant’s credentials were
verified.
 Based on this information, the authenticator
will either accept or reject the supplicant.
5-90

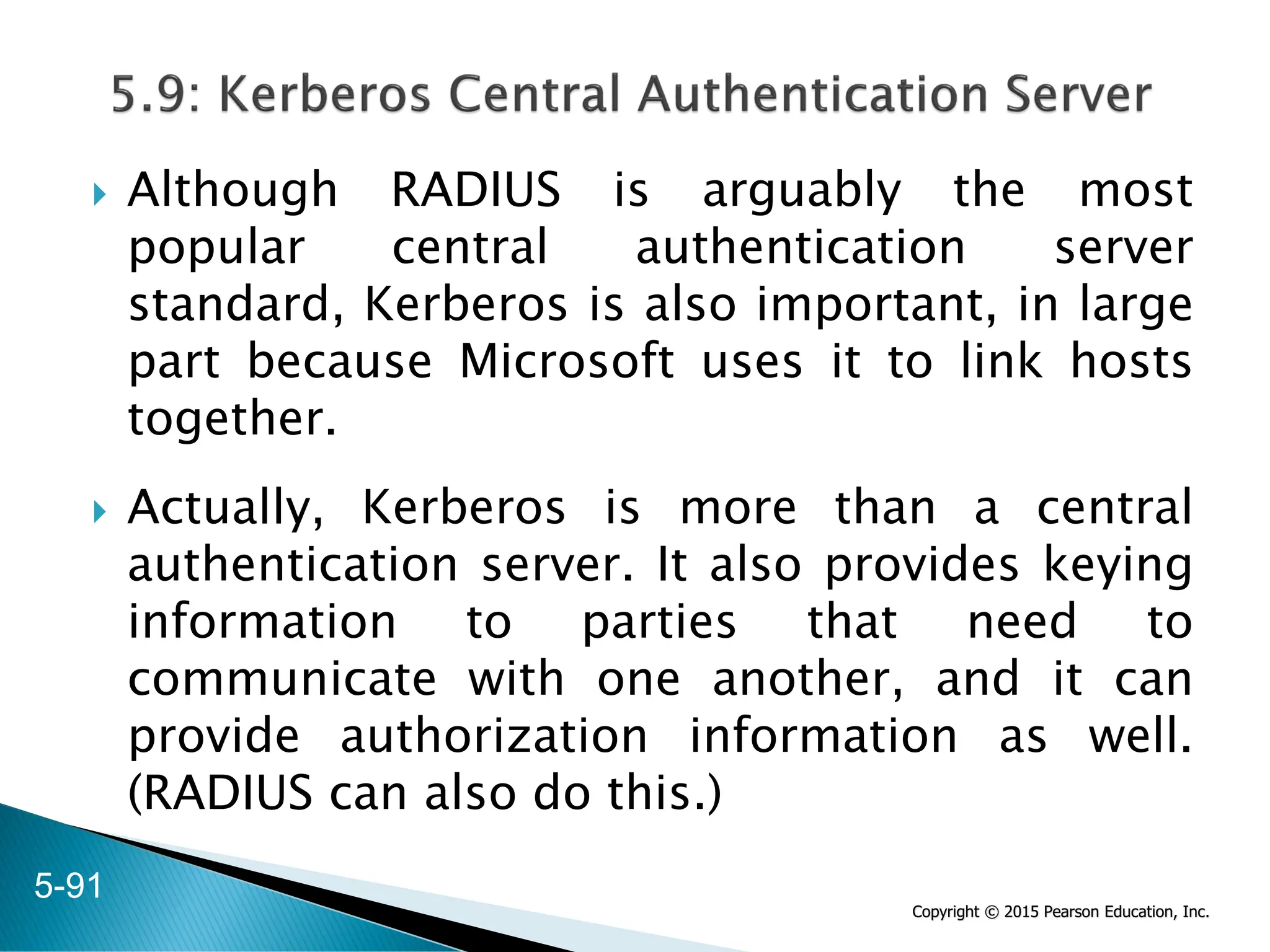

 Although RADIUS is arguably the most
popular central authentication server
standard, Kerberos is also important, in large
part because Microsoft uses it to link hosts
together.
 Actually, Kerberos is more than a central
authentication server. It also provides keying
information to parties that need to
communicate with one another, and it can
provide authorization information as well.
(RADIUS can also do this.)
5-91

5-92

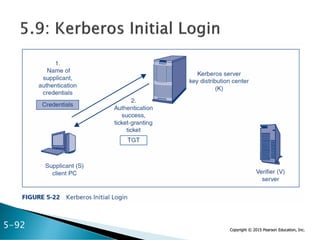

 Figure 5-22 shows that when a host wishes
to connect to another host, it first logs into a
Kerberos server. If it succeeds in logging in, it
gets a ticket granting ticket (TGT).
 This is like getting a wrist bracelet when you
enter a concert or sports event. It gets you
back in later without having to show your
original authentication credentials.
5-93

5-94

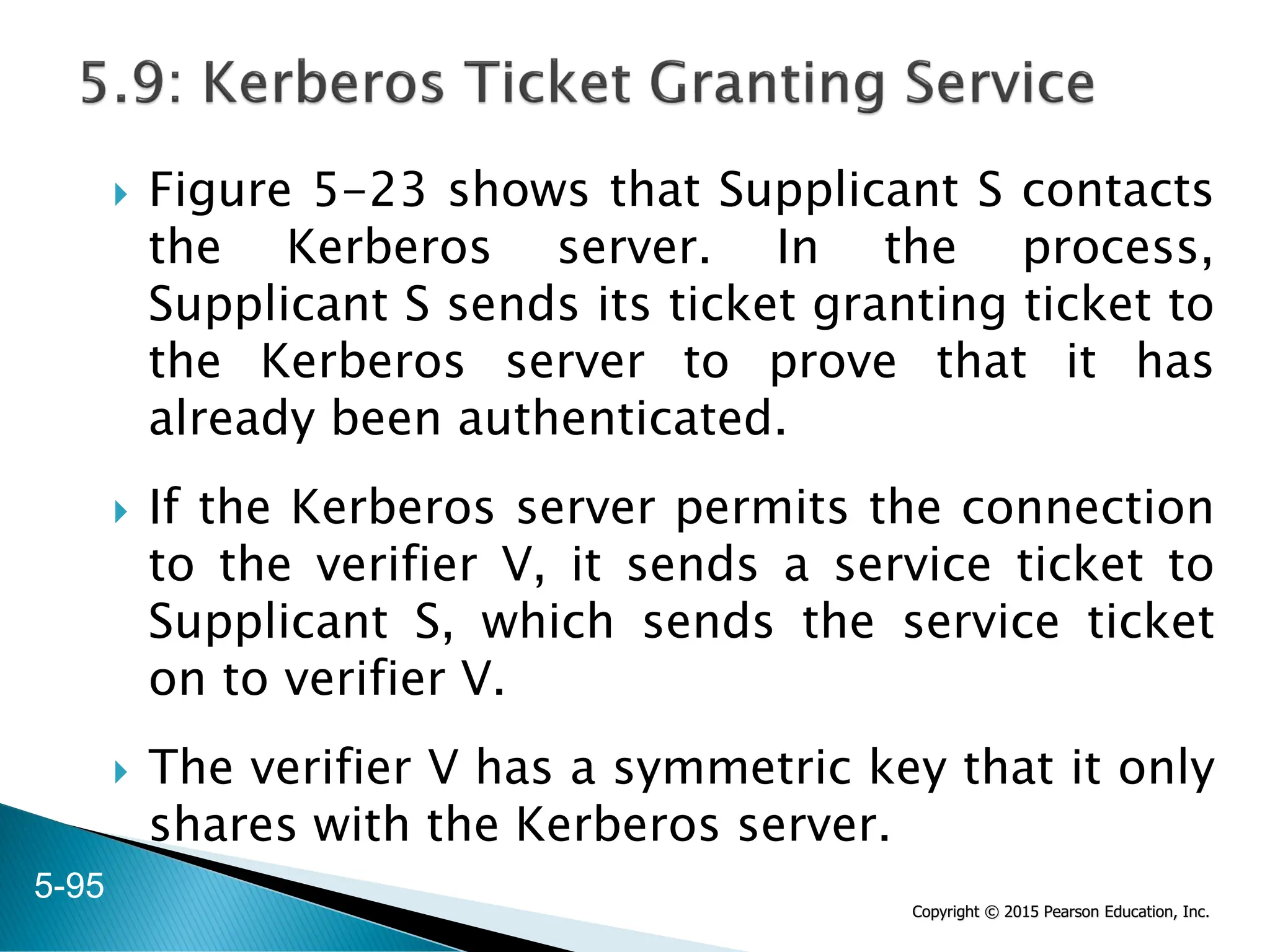

 Figure 5-23 shows that Supplicant S contacts
the Kerberos server. In the process,
Supplicant S sends its ticket granting ticket to
the Kerberos server to prove that it has
already been authenticated.
 If the Kerberos server permits the connection
to the verifier V, it sends a service ticket to
Supplicant S, which sends the service ticket
on to verifier V.
 The verifier V has a symmetric key that it only
shares with the Kerberos server.
5-95

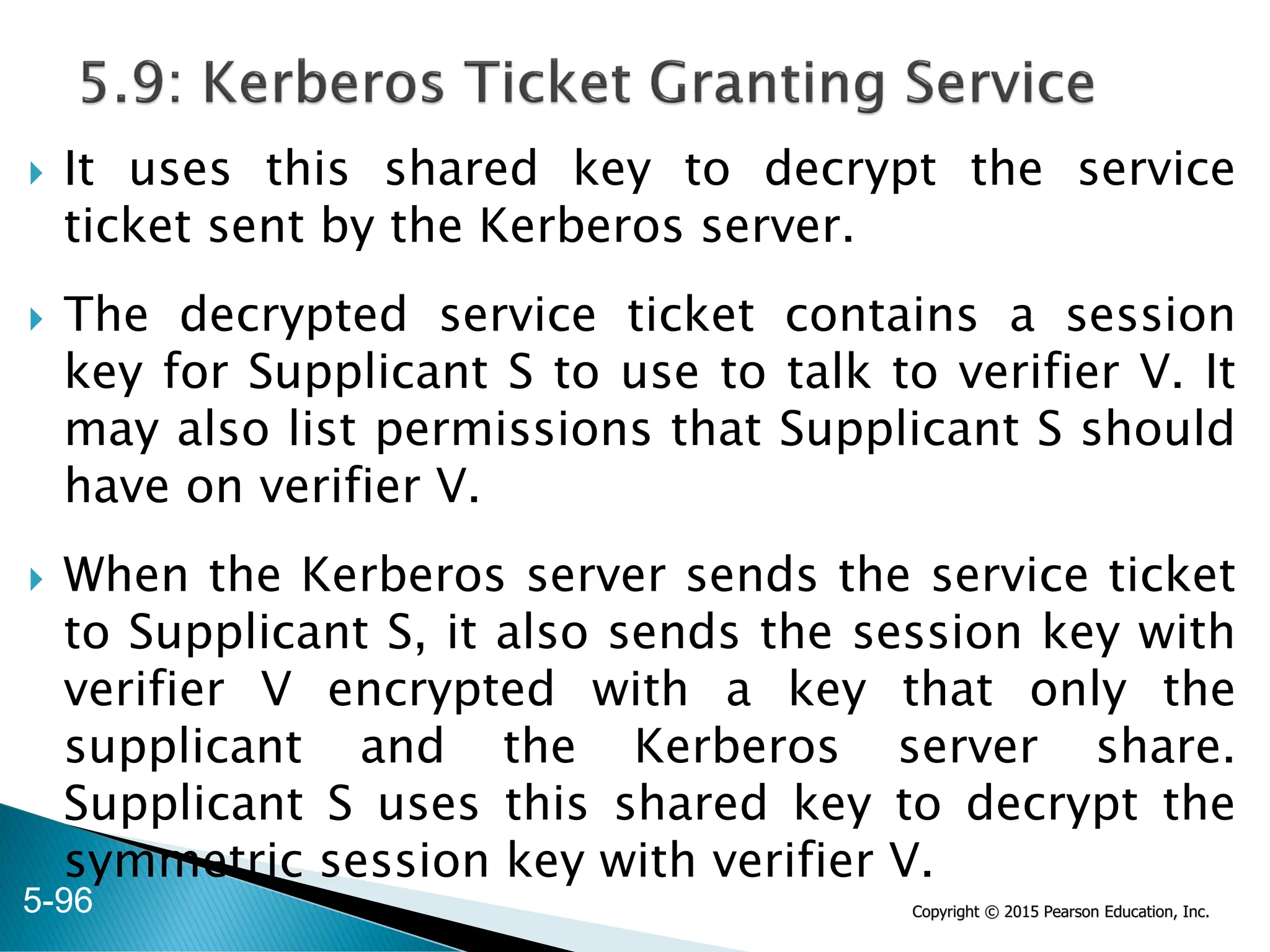

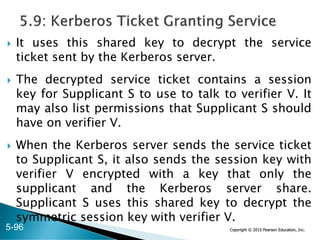

 It uses this shared key to decrypt the service
ticket sent by the Kerberos server.
 The decrypted service ticket contains a session
key for Supplicant S to use to talk to verifier V. It
may also list permissions that Supplicant S should
have on verifier V.
 When the Kerberos server sends the service ticket
to Supplicant S, it also sends the session key with
verifier V encrypted with a key that only the
supplicant and the Kerberos server share.
Supplicant S uses this shared key to decrypt the
symmetric session key with verifier V.
5-96

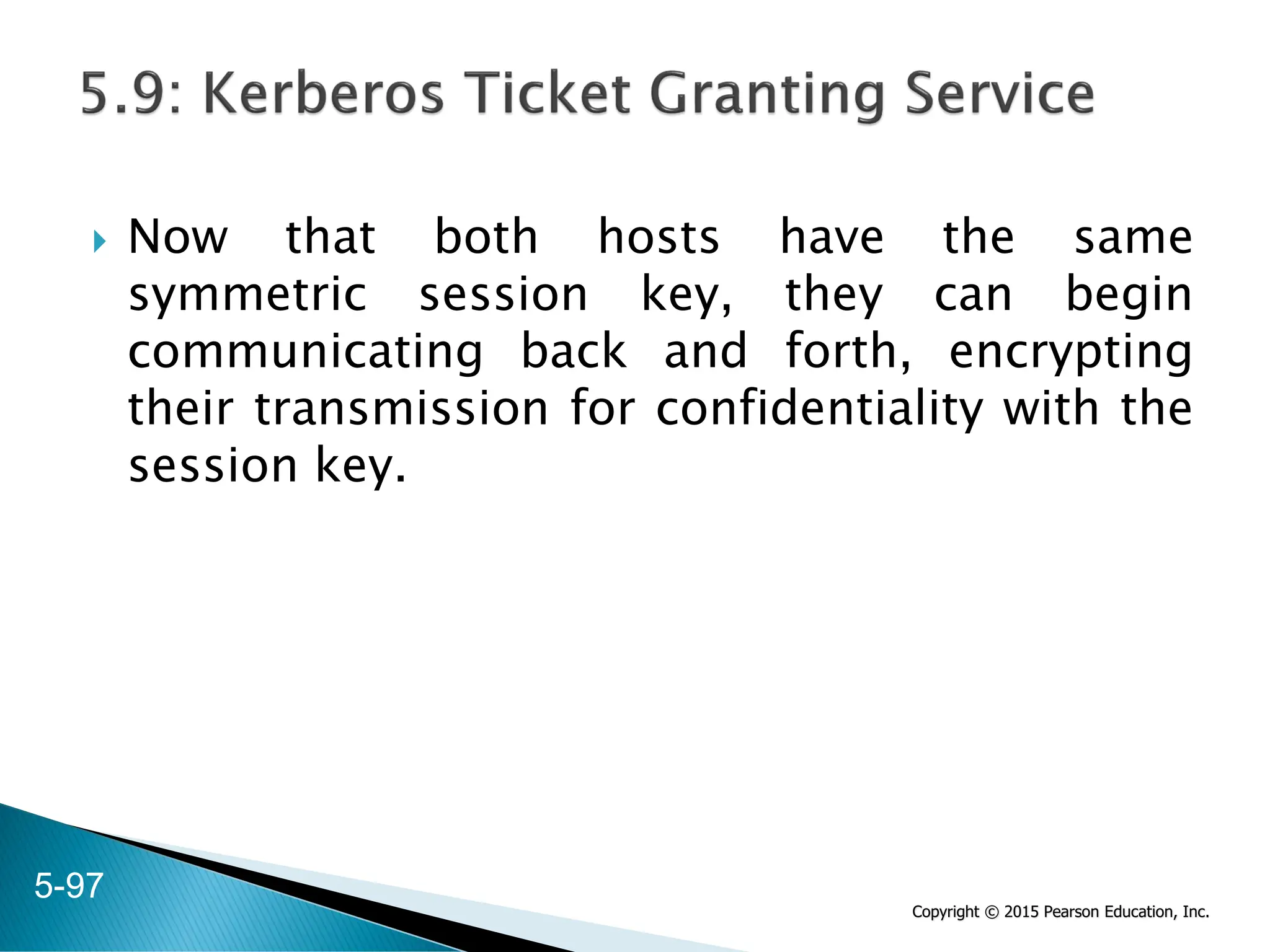

 Now that both hosts have the same
symmetric session key, they can begin
communicating back and forth, encrypting
their transmission for confidentiality with the
session key.
5-97

5.1 Introduction
5.3 Passwords
5.7 Authorization
5-98
5.8 Auditing

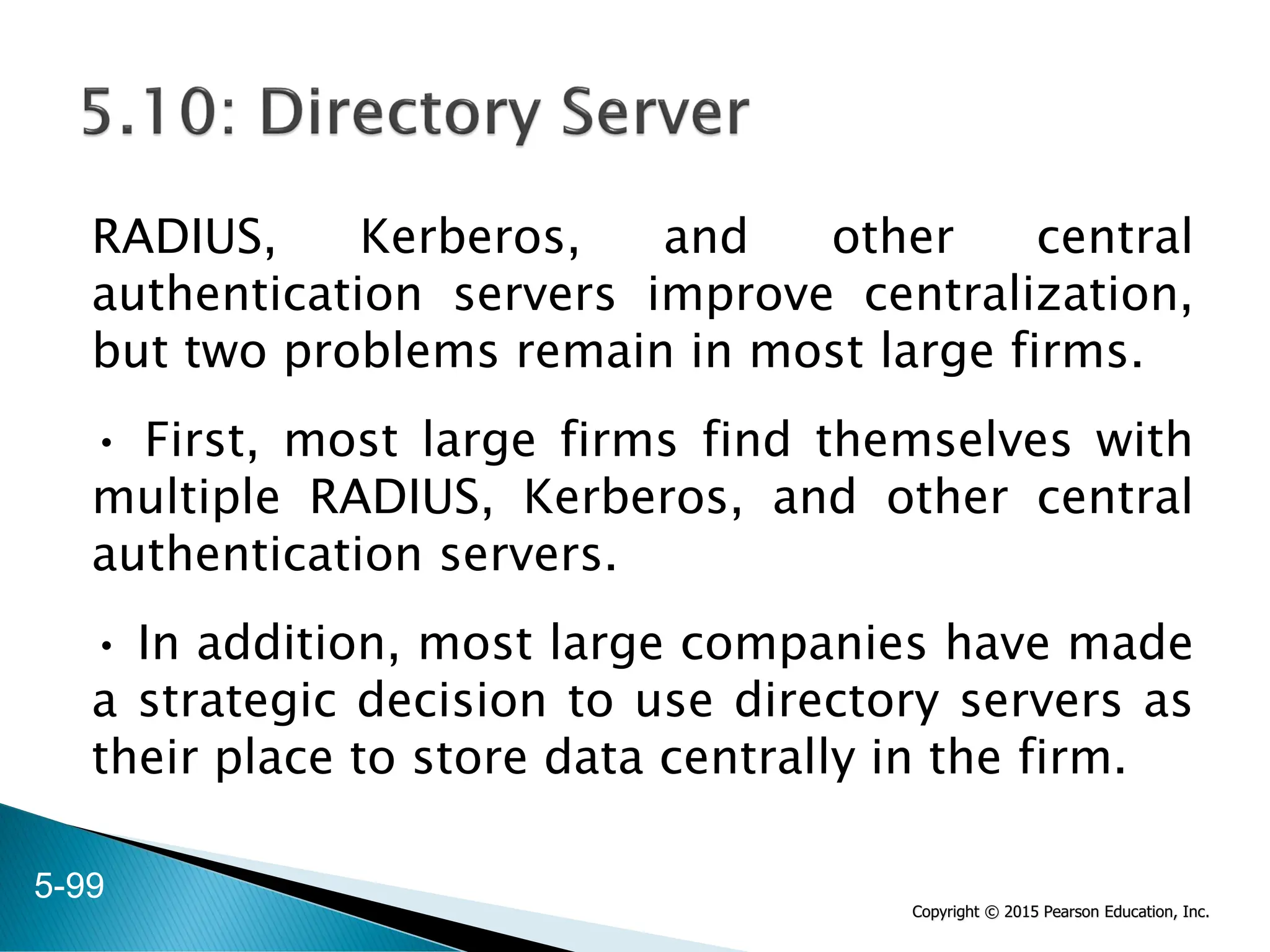

RADIUS, Kerberos, and other central
authentication servers improve centralization,
but two problems remain in most large firms.
• First, most large firms find themselves with
multiple RADIUS, Kerberos, and other central
authentication servers.
• In addition, most large companies have made
a strategic decision to use directory servers as
their place to store data centrally in the firm.
5-99

 Directory servers are central repositories for
information about people, equipment,
software, and databases. Directory servers
store authentication, authorization, and
auditing information required for security.
 However, directory servers are not limited to
security information. They store information
about host configurations, employee contact
information such as telephone numbers, and
a great deal of general information.
5-100

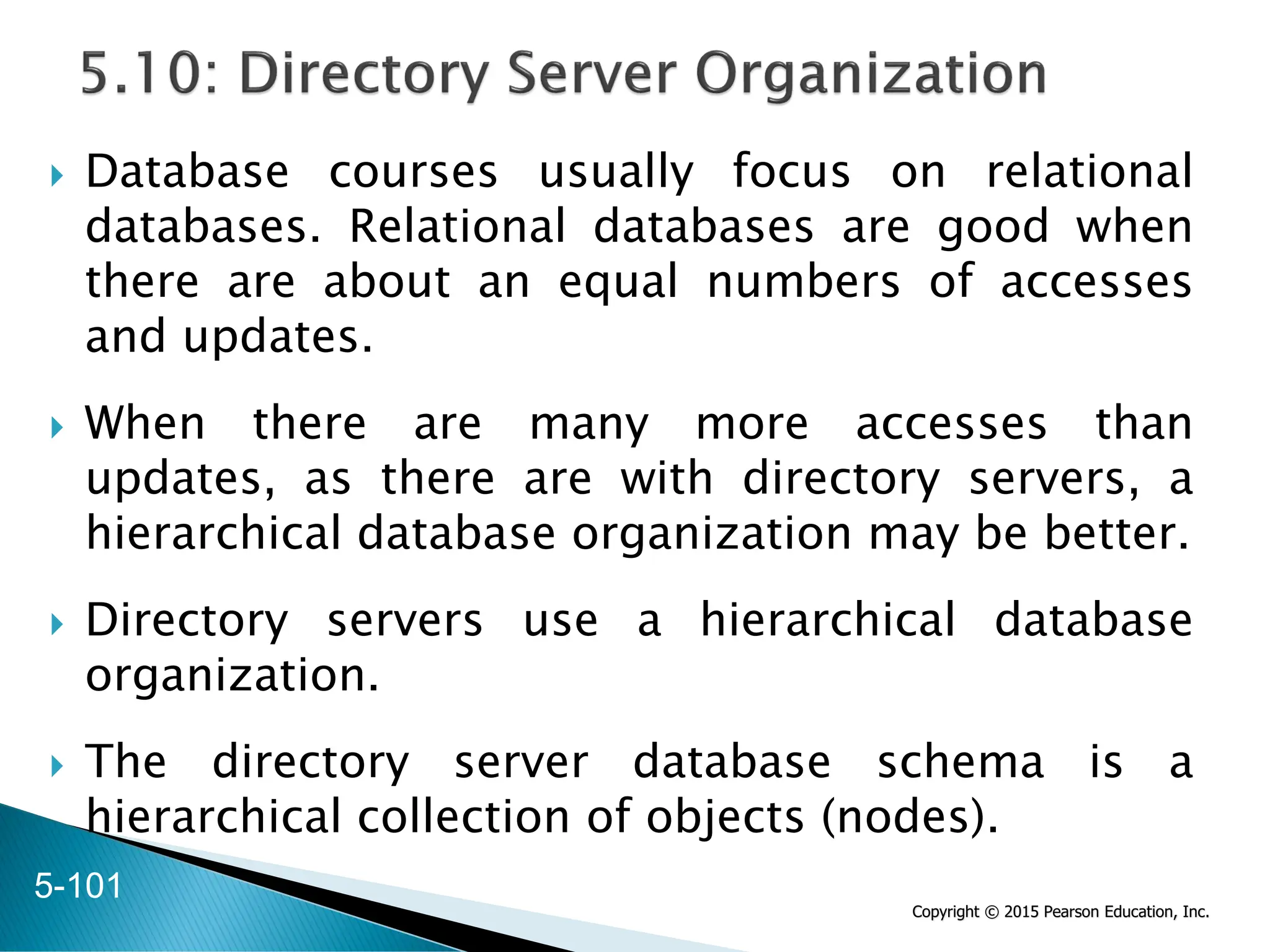

 Database courses usually focus on relational
databases. Relational databases are good when
there are about an equal numbers of accesses
and updates.
 When there are many more accesses than
updates, as there are with directory servers, a
hierarchical database organization may be better.

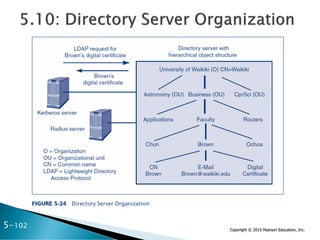

 Directory servers use a hierarchical database
organization.
 The directory server database schema is a
hierarchical collection of objects (nodes).
5-101

5-102

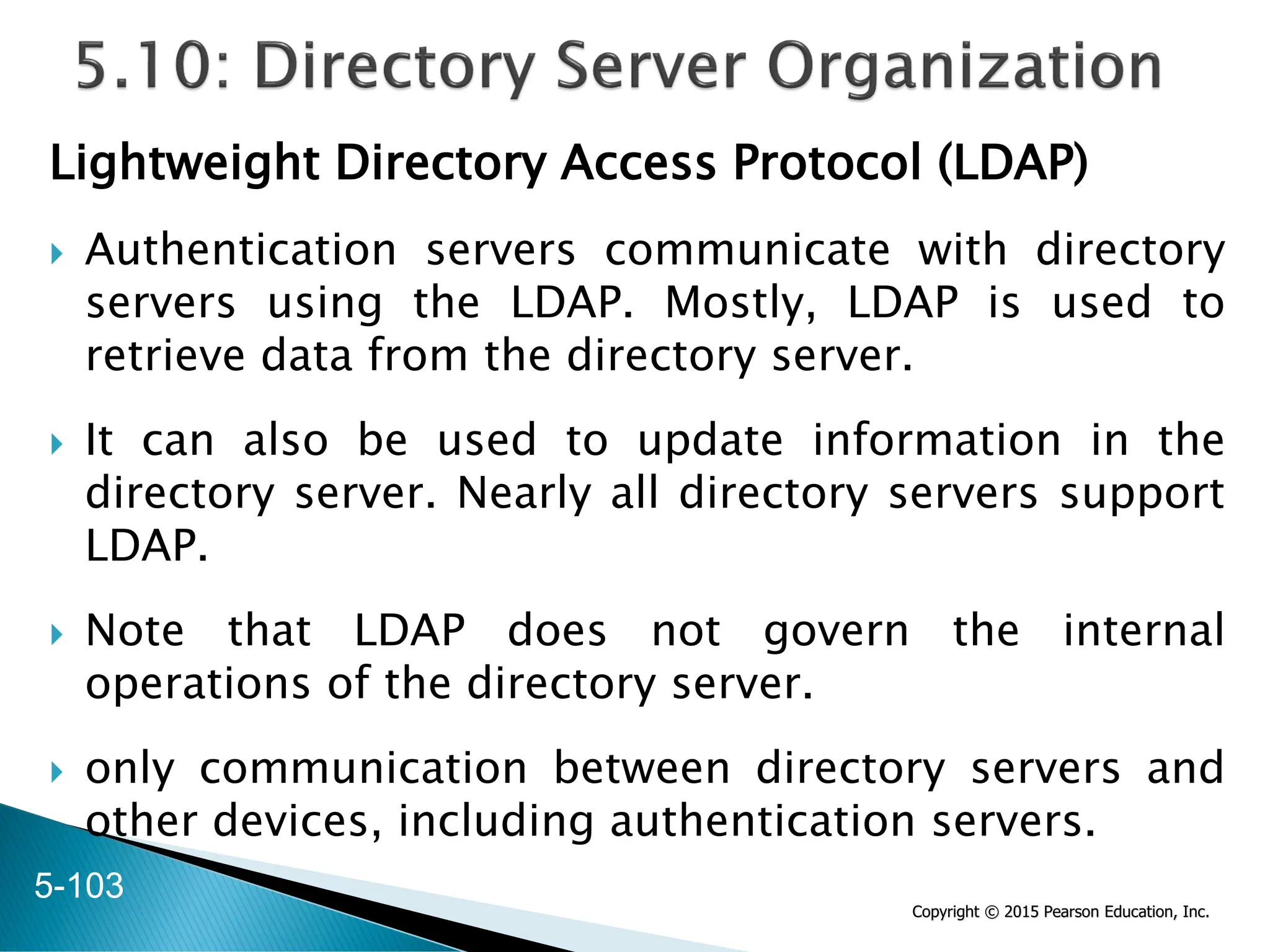

Lightweight Directory Access Protocol (LDAP)
 Authentication servers communicate with directory
servers using the LDAP. Mostly, LDAP is used to
retrieve data from the directory server.
 It can also be used to update information in the
directory server. Nearly all directory servers support
LDAP.
 Note that LDAP does not govern the internal
operations of the directory server.
 only communication between directory servers and
other devices, including authentication servers.
5-103

5-104

 In security, directory servers are important
because they are used by central authentication
servers such as RADIUS servers and Kerberos
servers.

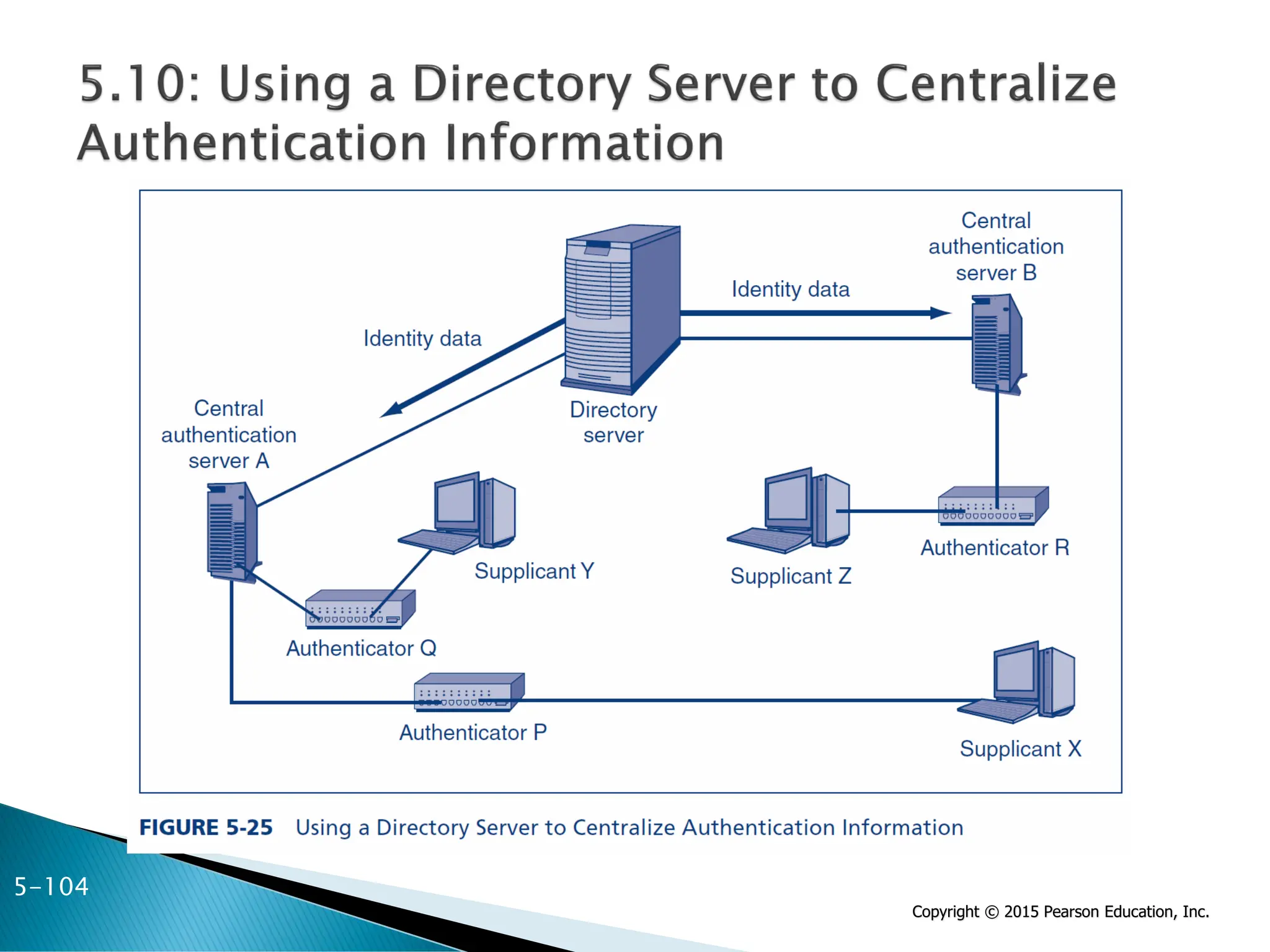

 Figure 5-25 shows that a directory server can
provide authentication information to many
authentication servers. Just as authentication
servers are valuable because they centralize
authentication information, directories provide a
higher level of centralization for firms that have
many central authentication servers.
5-105

 Microsoft’s directory server product is called
active directory (AD). Given the widespread use
of Microsoft products in corporations, security
professionals should understand AD.
 Figure 5-26 shows a firm with several active
directory servers. Companies usually divide their
resources into multiple active directory
domains. AD domains usually are organizational
units.
5-106

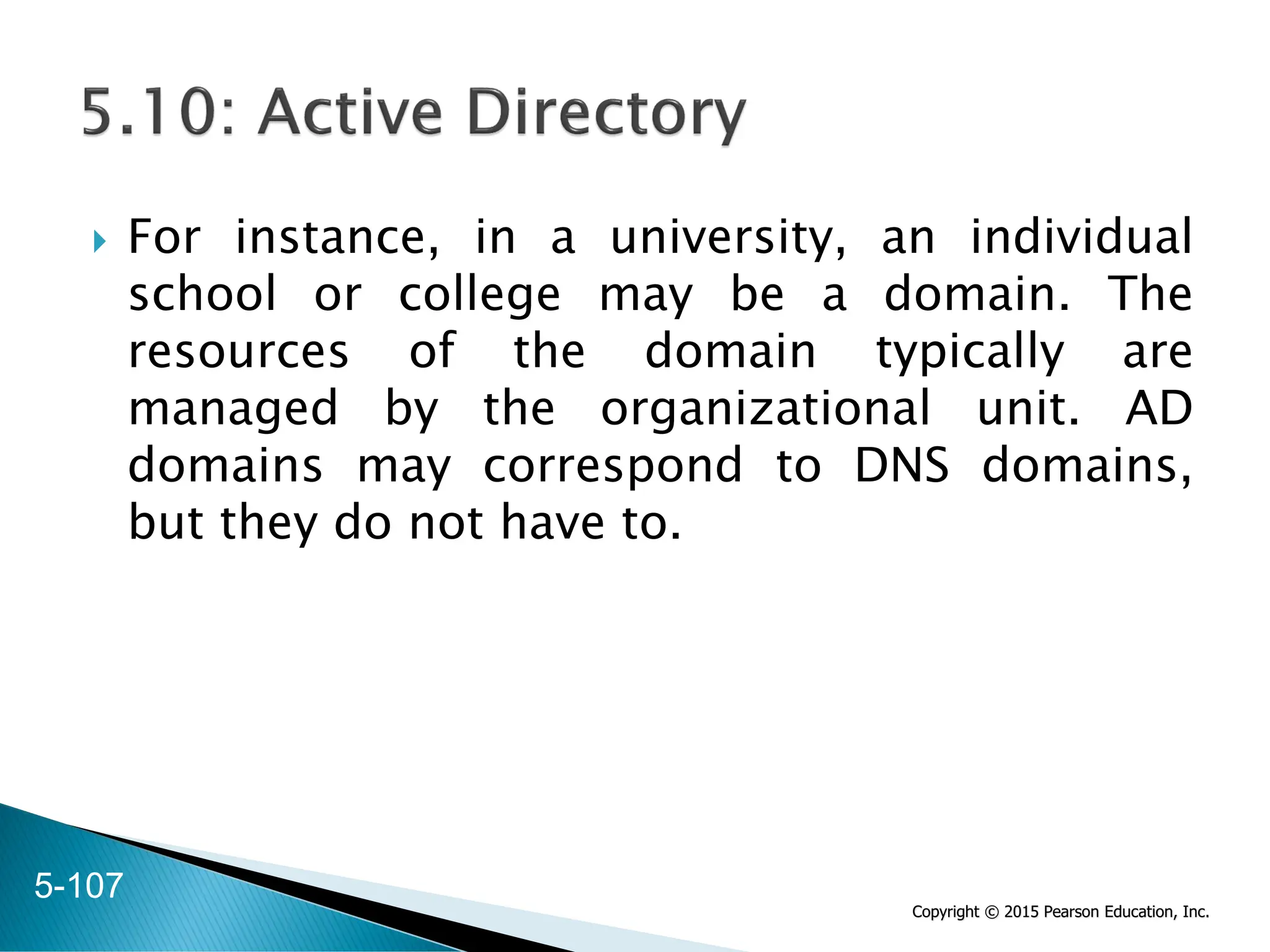

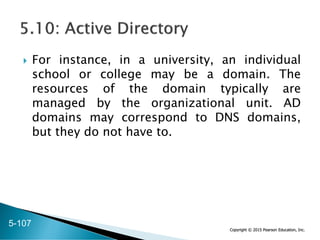

 For instance, in a university, an individual
school or college may be a domain. The
resources of the domain typically are
managed by the organizational unit. AD
domains may correspond to DNS domains,
but they do not have to.
5-107

Domains are controlled
by domain controllers
The corporation is
divided into
Microsoft domains
Each domain controller
runs Kerberos and AD
A domain can have
multiple domain controllers
5-108 Figure 5-26: Active Directory Domains and Tree

Not shown:
There can be a forest
of trees
There can be a
tree of domains
Domain controllers in
parent and child domains
do partial replication
Domain controllers in a
domain do total replication
5-109
Figure 5-26: Active Directory Domains and Tree

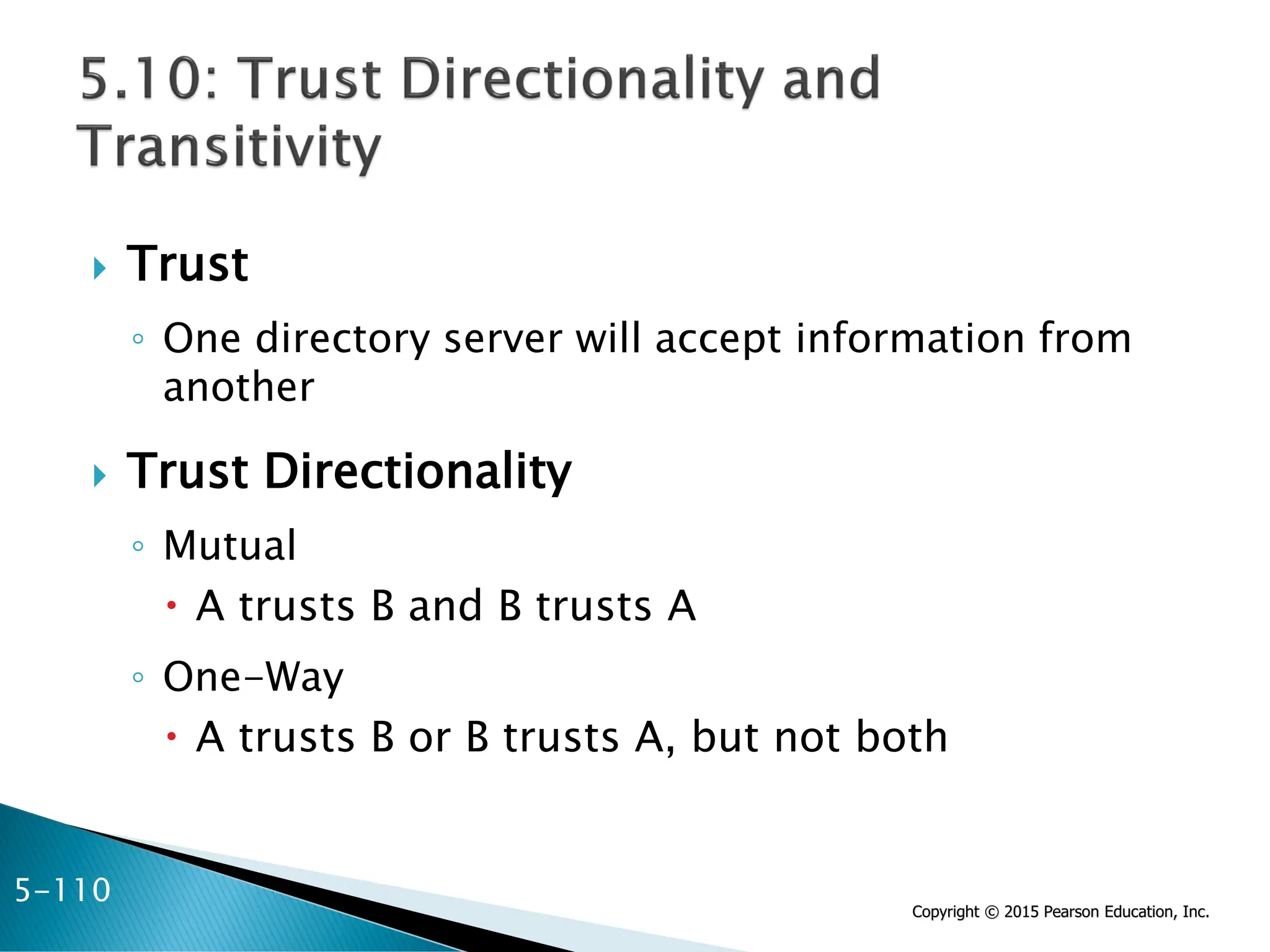

 Trust
◦ One directory server will accept information from
another
 Trust Directionality
◦ Mutual
 A trusts B and B trusts A
◦ One-Way
 A trusts B or B trusts A, but not both
5-110

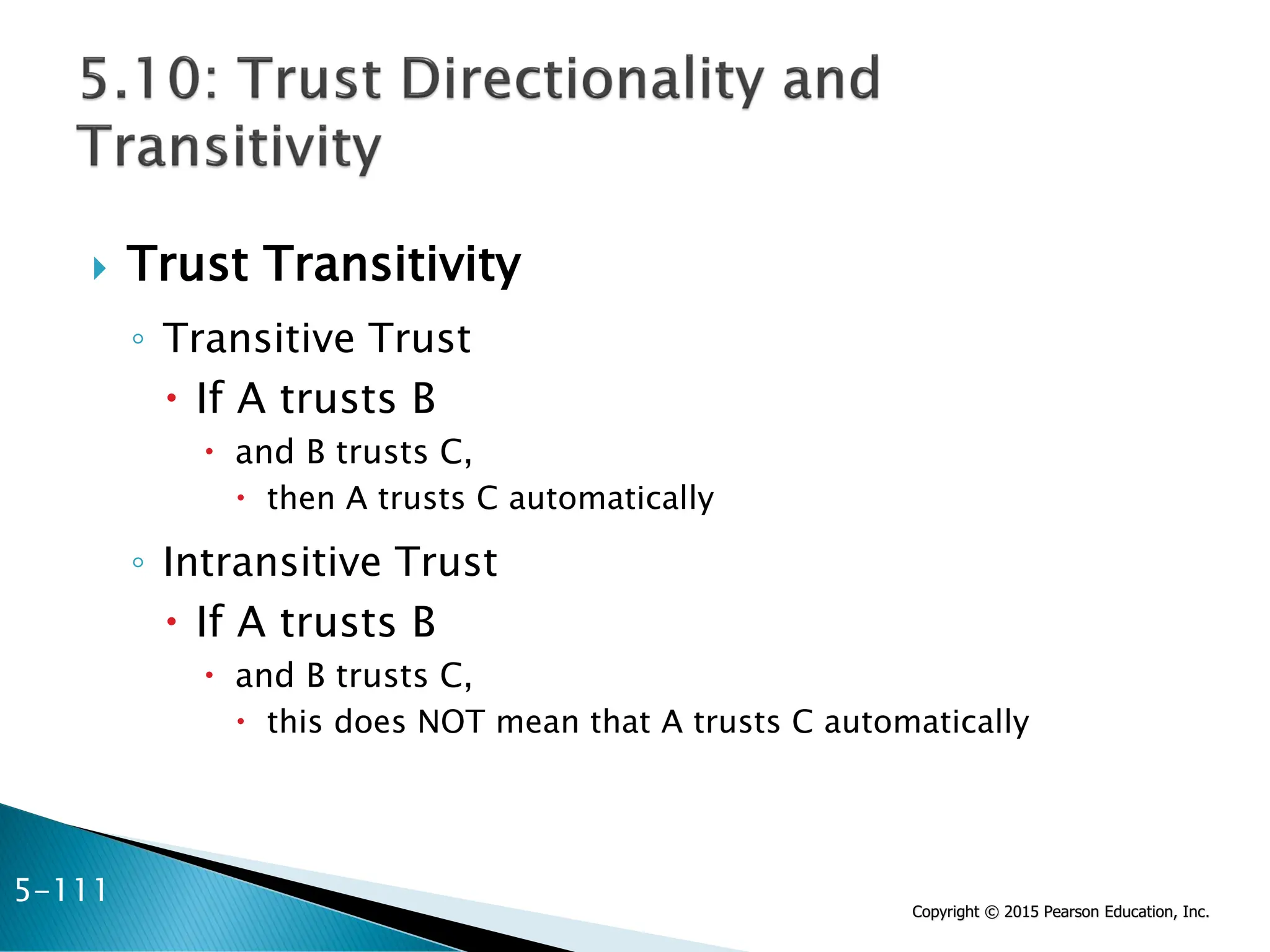

 Trust Transitivity
◦ Transitive Trust
 If A trusts B
 and B trusts C,
 then A trusts C automatically
◦ Intransitive Trust
 If A trusts B
 and B trusts C,
 this does NOT mean that A trusts C automatically
5-111

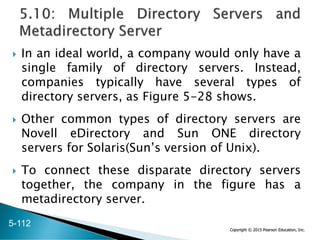

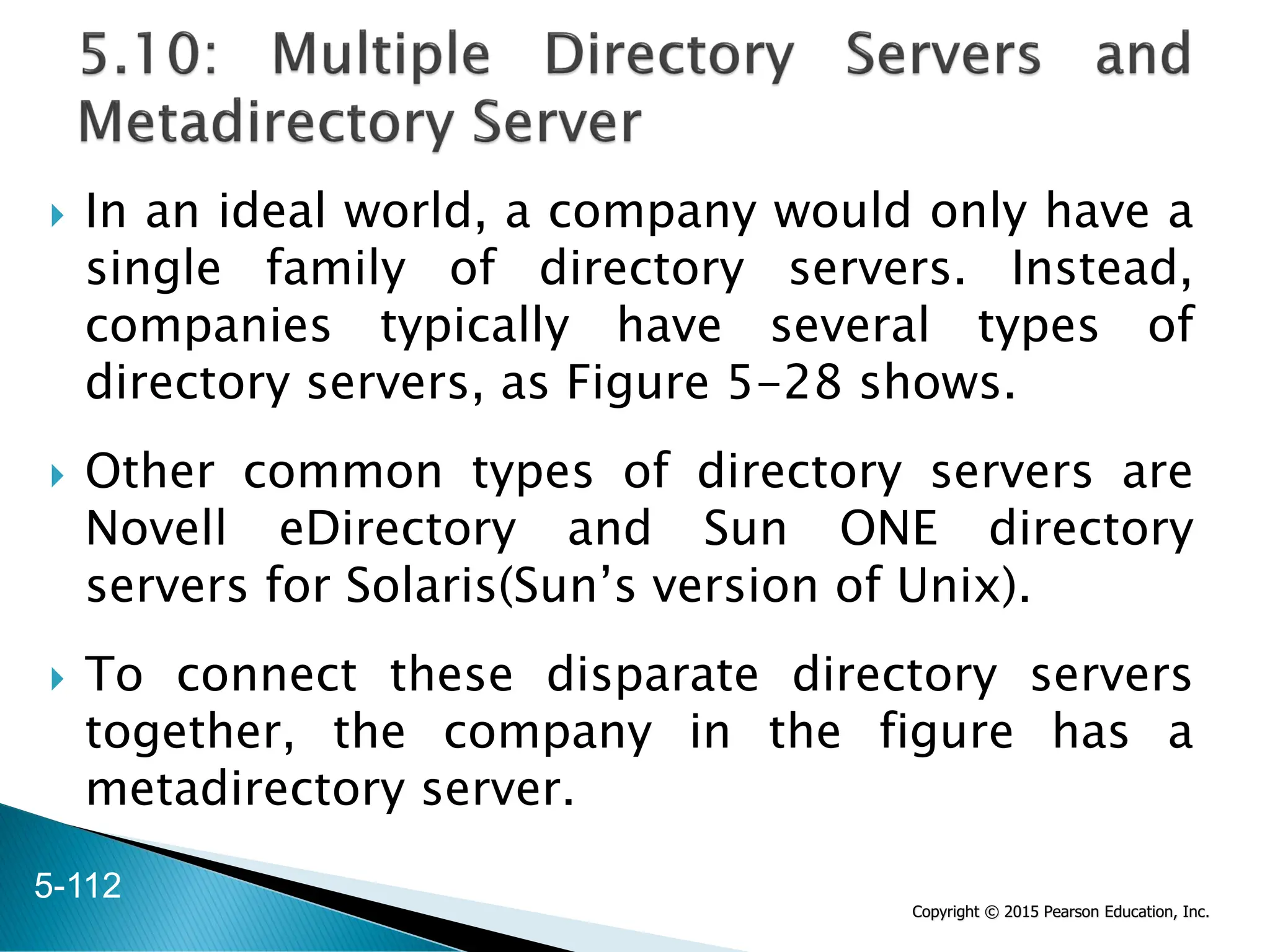

 In an ideal world, a company would only have a
single family of directory servers. Instead,
companies typically have several types of
directory servers, as Figure 5-28 shows.
 Other common types of directory servers are
Novell eDirectory and Sun ONE directory
servers for Solaris(Sun’s version of Unix).
 To connect these disparate directory servers
together, the company in the figure has a
metadirectory server.
5-112

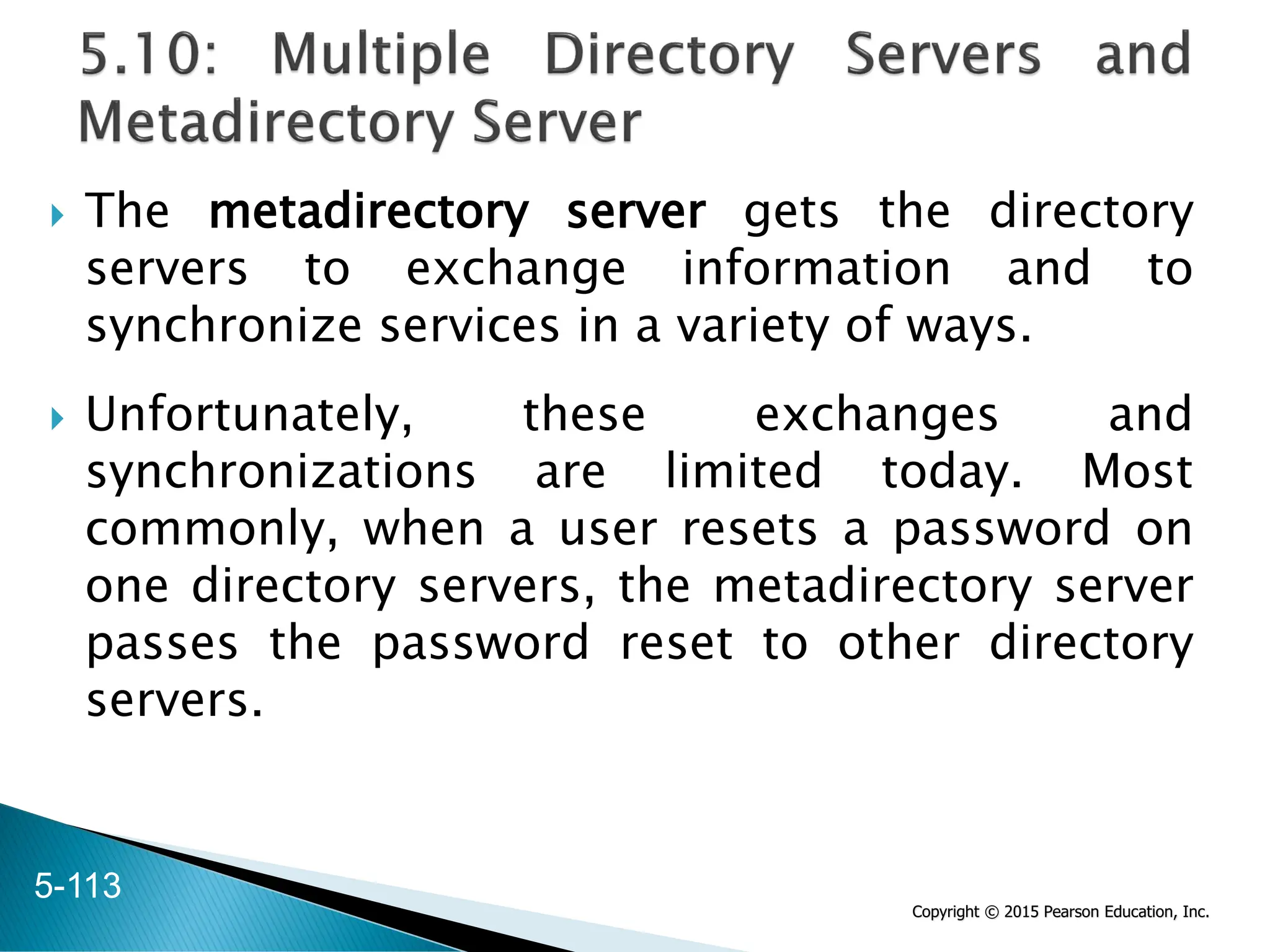

 The metadirectory server gets the directory
servers to exchange information and to
synchronize services in a variety of ways.
 Unfortunately, these exchanges and
synchronizations are limited today. Most
commonly, when a user resets a password on
one directory servers, the metadirectory server
passes the password reset to other directory
servers.
5-113

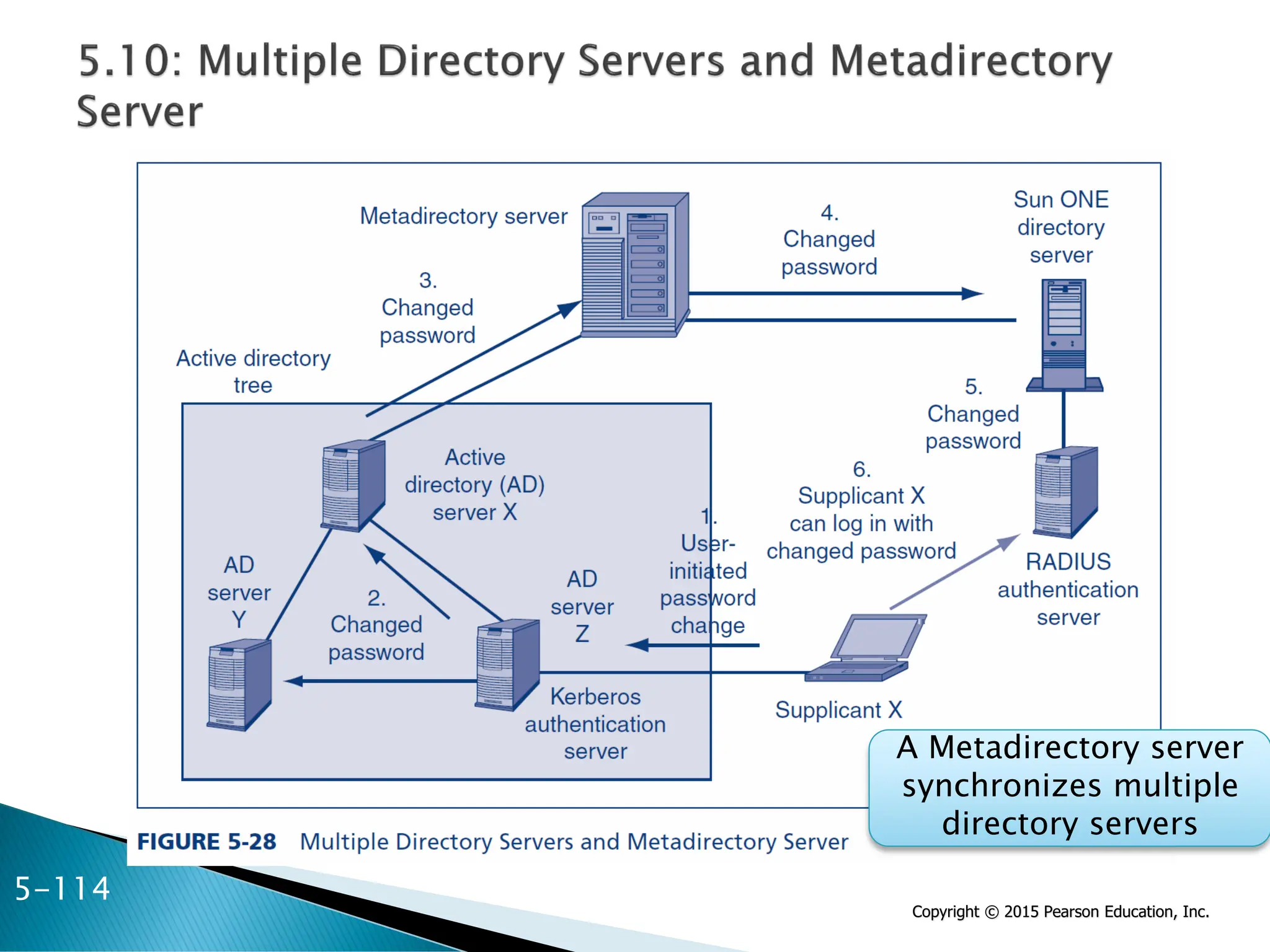

A Metadirectory server
synchronizes multiple
directory servers
5-114

 Within companies, trust is complex. The
situation is even more complex between
companies.
 Between companies, we talk about federated
authentication, authorization, and auditing or,
more commonly, federated identity
management.
 In federated identity management, business
partners do not access each other’s databases.
Instead, they send assertions about a person.
The receiver trusts the assertions.
5-115

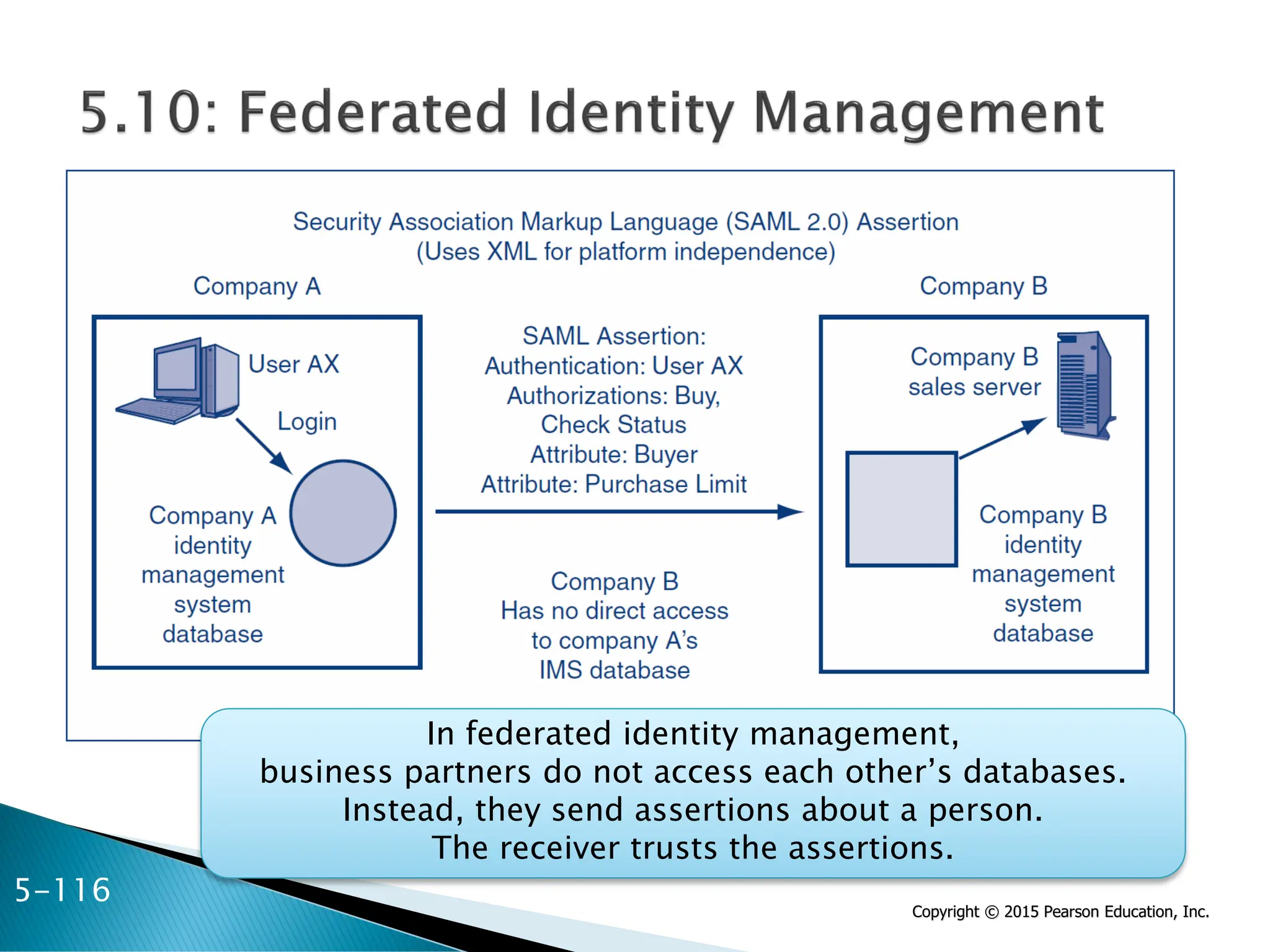

In federated identity management,
business partners do not access each other’s databases.
Instead, they send assertions about a person.
The receiver trusts the assertions.
5-116

Types of Assertions:
Authentication, Authorizations, Attributes
Assertions are standardized by SAML.
SAML uses XML for platform independence.
5-117

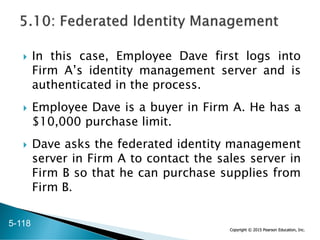

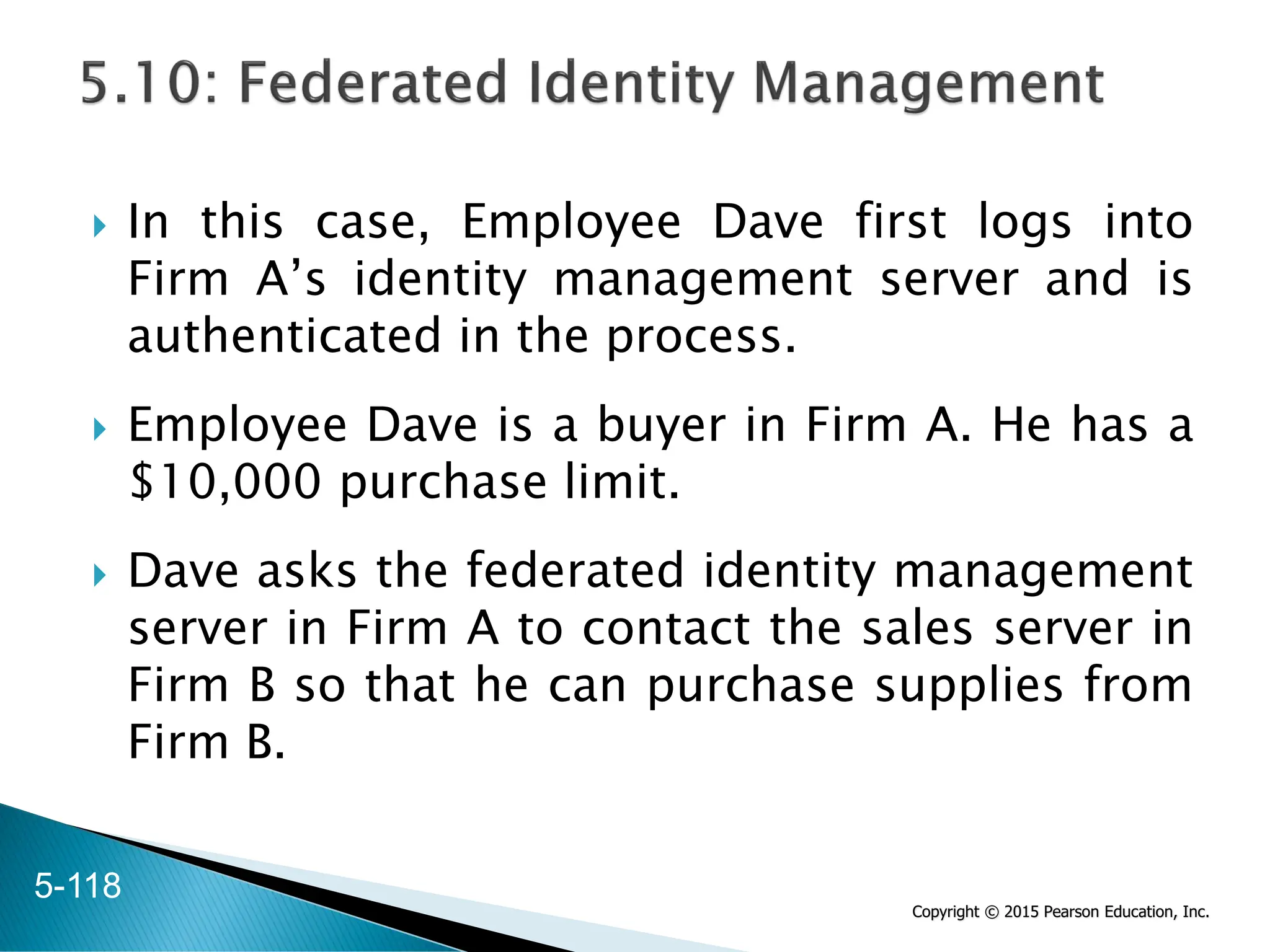

 In this case, Employee Dave first logs into
Firm A’s identity management server and is
authenticated in the process.
 Employee Dave is a buyer in Firm A. He has a
$10,000 purchase limit.
 Dave asks the federated identity management
server in Firm A to contact the sales server in
Firm B so that he can purchase supplies from
Firm B.
5-118

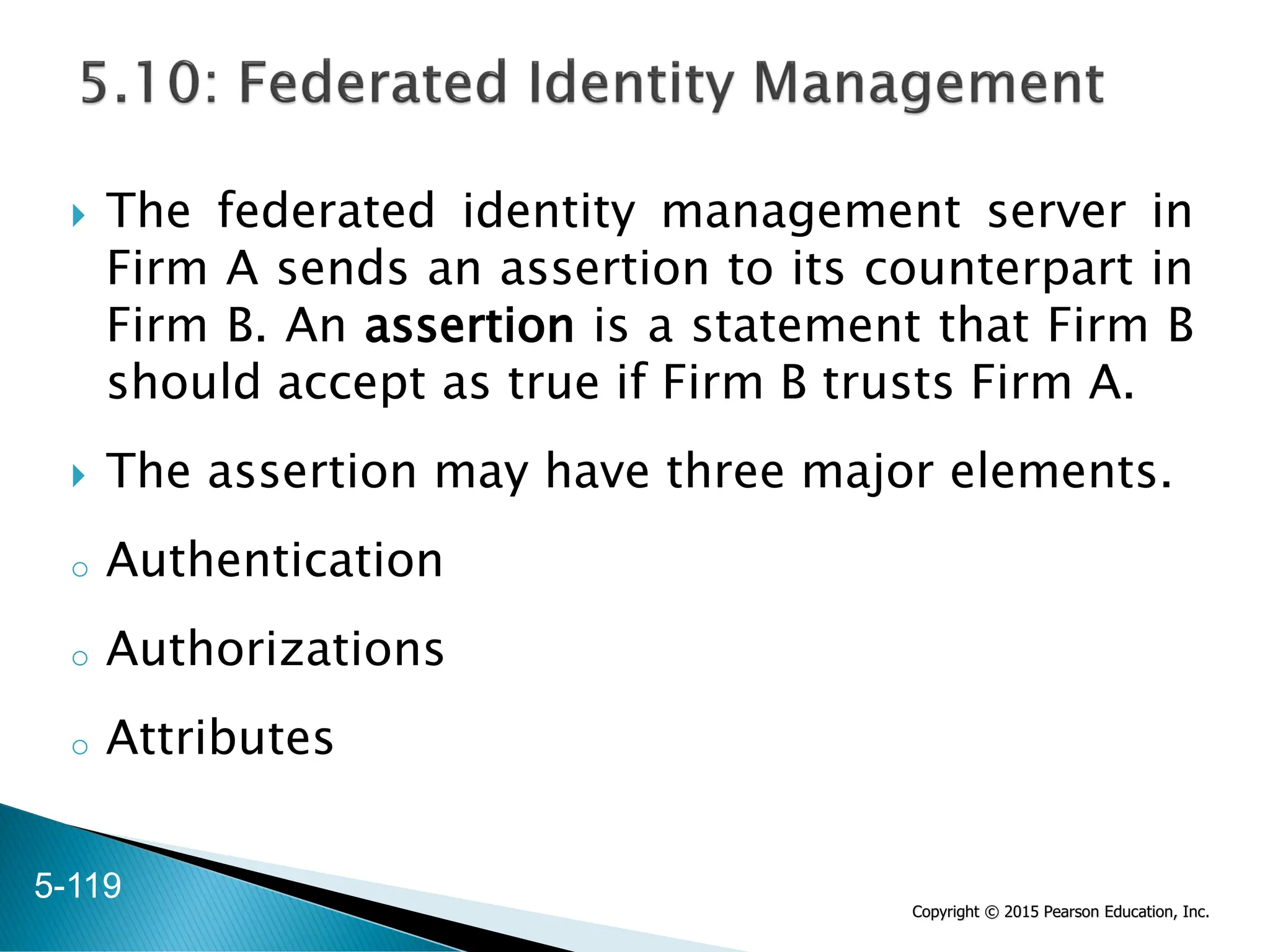

 The federated identity management server in
Firm A sends an assertion to its counterpart in
Firm B. An assertion is a statement that Firm B
should accept as true if Firm B trusts Firm A.
 The assertion may have three major elements.
o Authentication
o Authorizations
o Attributes
5-119

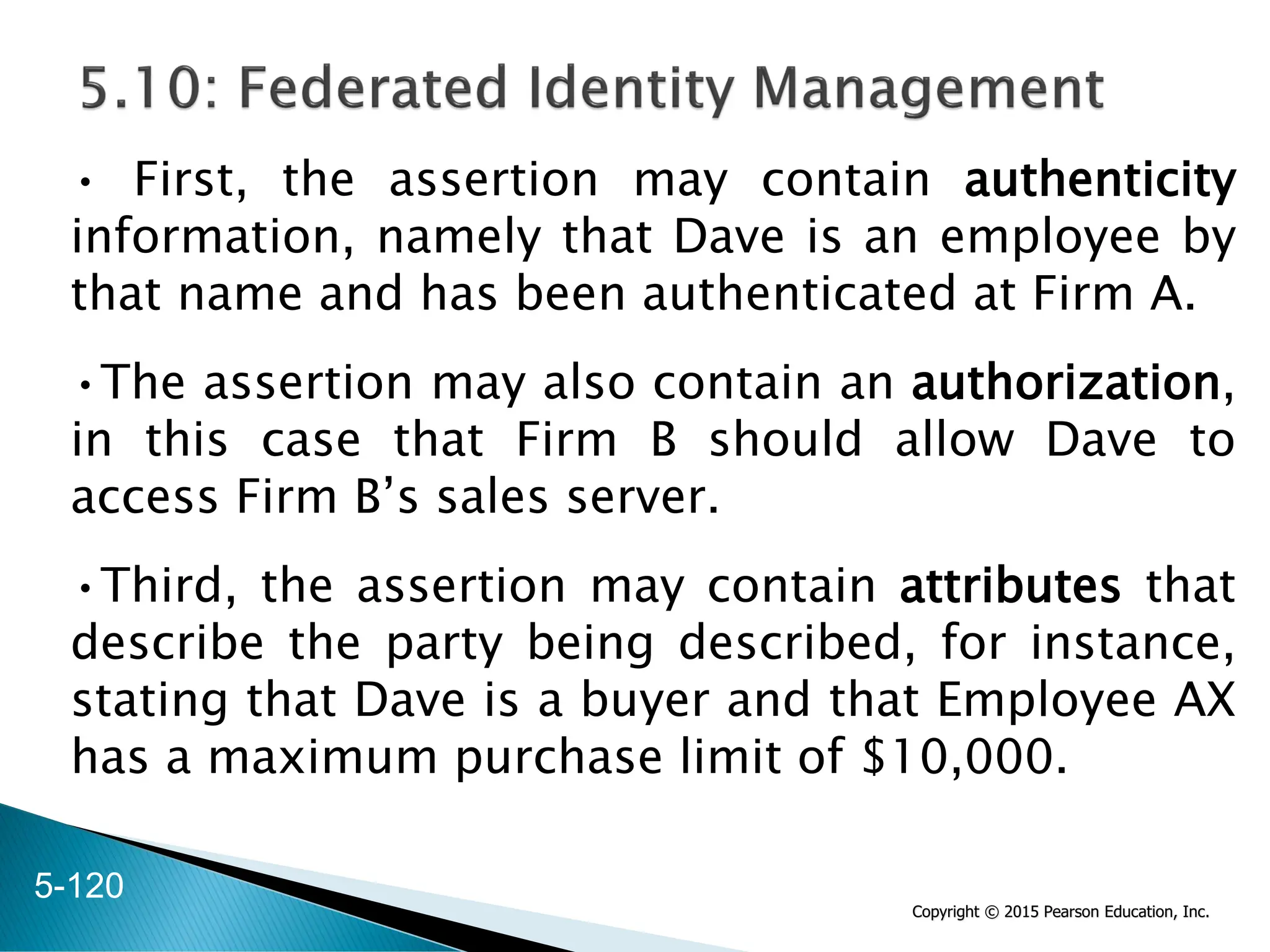

• First, the assertion may contain authenticity
information, namely that Dave is an employee by
that name and has been authenticated at Firm A.
•The assertion may also contain an authorization,
in this case that Firm B should allow Dave to
access Firm B’s sales server.
•Third, the assertion may contain attributes that
describe the party being described, for instance,
stating that Dave is a buyer and that Employee AX
has a maximum purchase limit of $10,000.
5-120

The Security Assertion Markup Language
 The dominant standard for sending security
assertions today is the Security Assertion
Markup Language (SAML).
 This standard uses XML to structure
messages. Consequently, the interacting
identity management systems do not have to
use the same software technology.
5-121

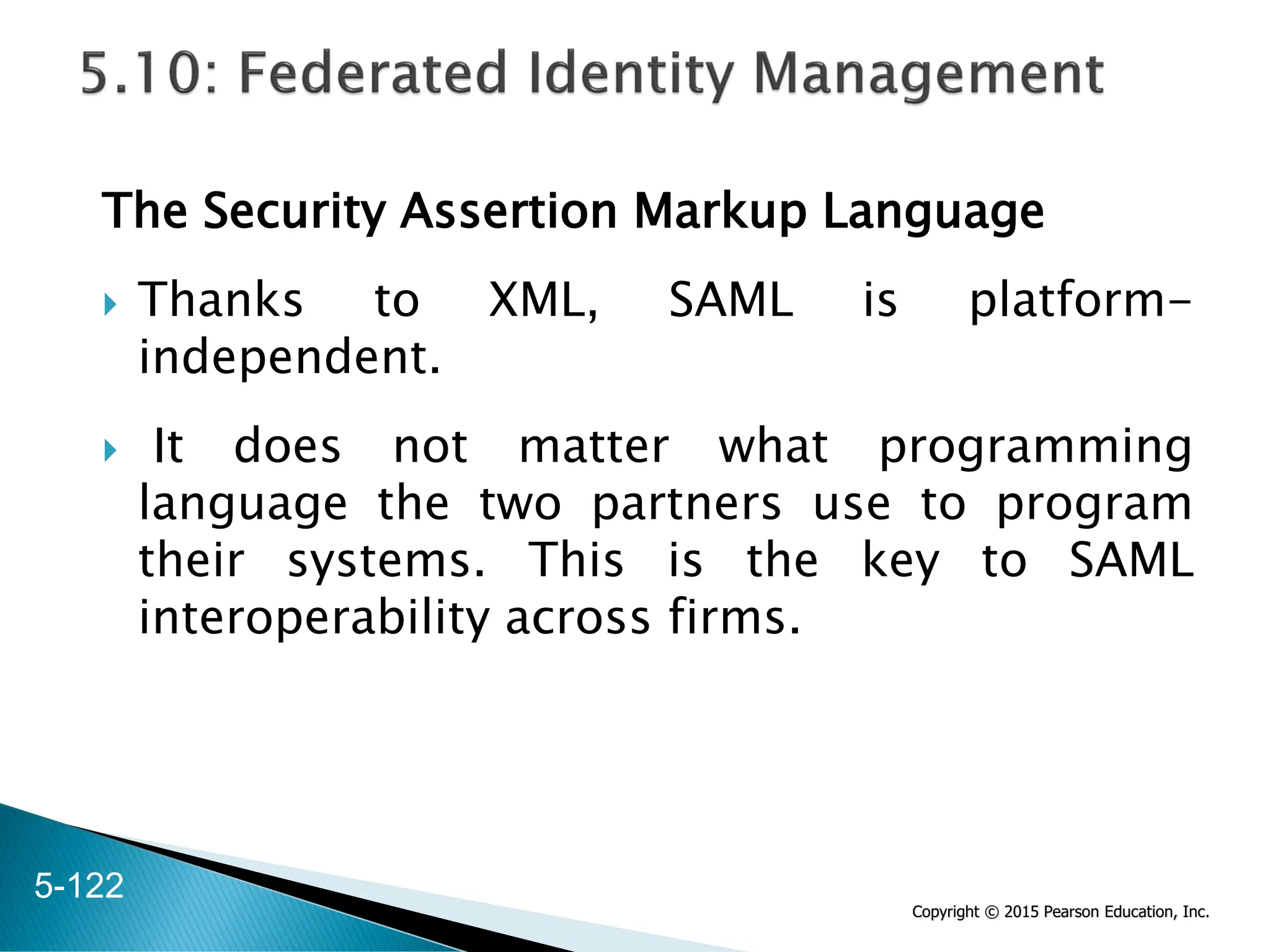

The Security Assertion Markup Language
 Thanks to XML, SAML is platform-
independent.
 It does not matter what programming
language the two partners use to program
their systems. This is the key to SAML
interoperability across firms.
5-122

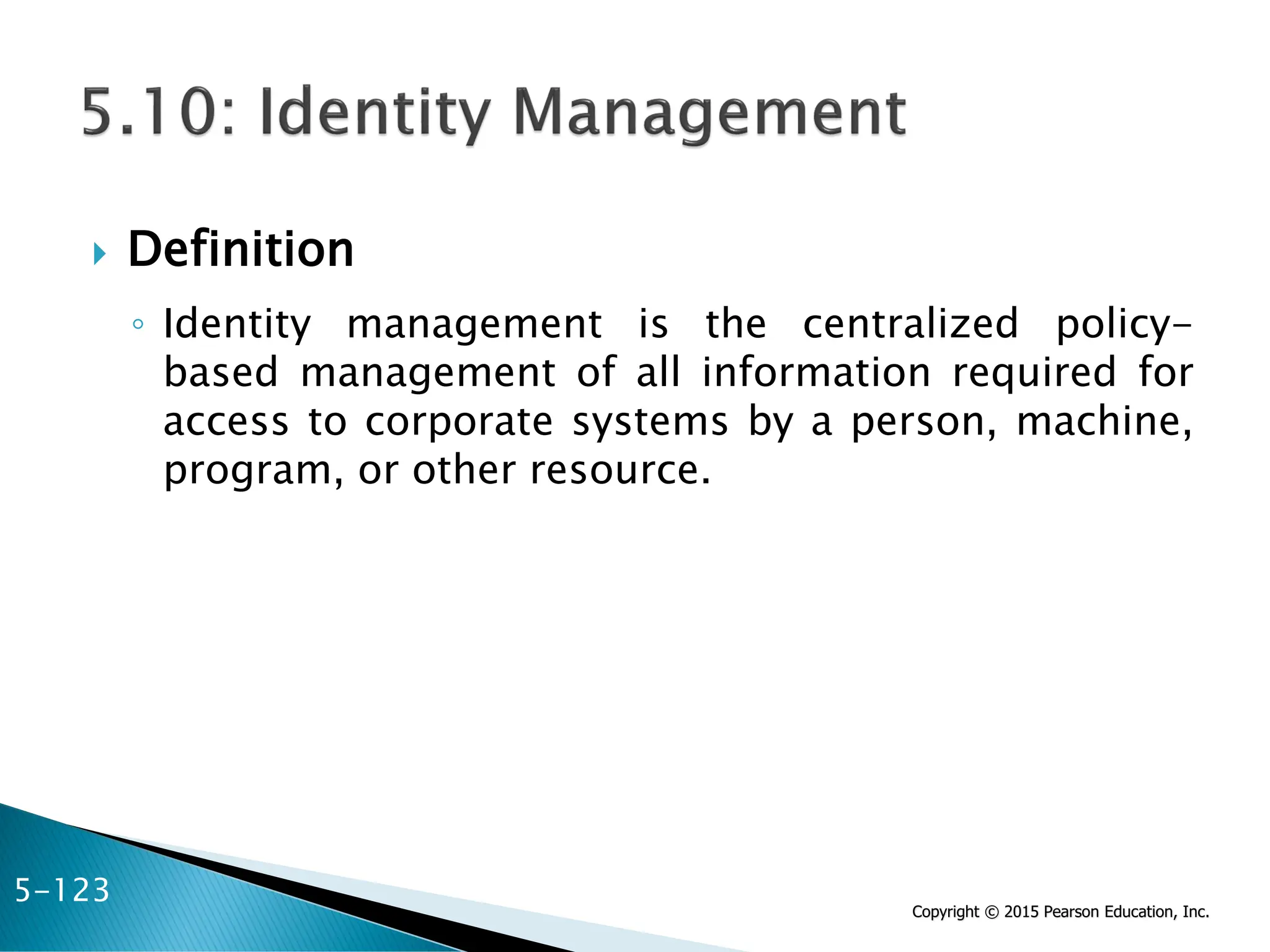

 Definition
◦ Identity management is the centralized policy-
based management of all information required for
access to corporate systems by a person, machine,
program, or other resource.
5-123

 Benefits of Identity Management
◦ Reduction in the redundant work needed to manage
identity information
◦ Consistency in information
◦ Rapid changes
◦ Central auditing
◦ Single sign-on
◦ Increasingly required to meet compliance requirements
◦ At least reduced sign-on when SSO is impossible
5-124

 Identity
◦ The set of attributes about a person or nonhuman
resource that must be revealed in a particular
context
 Subordinate to a particular person
 Manager of a department
 Buyer dealing with another company
 Manager responsible for a database
◦ Principle of minimum identity data: only reveal the
information necessary in a particular context
5-125

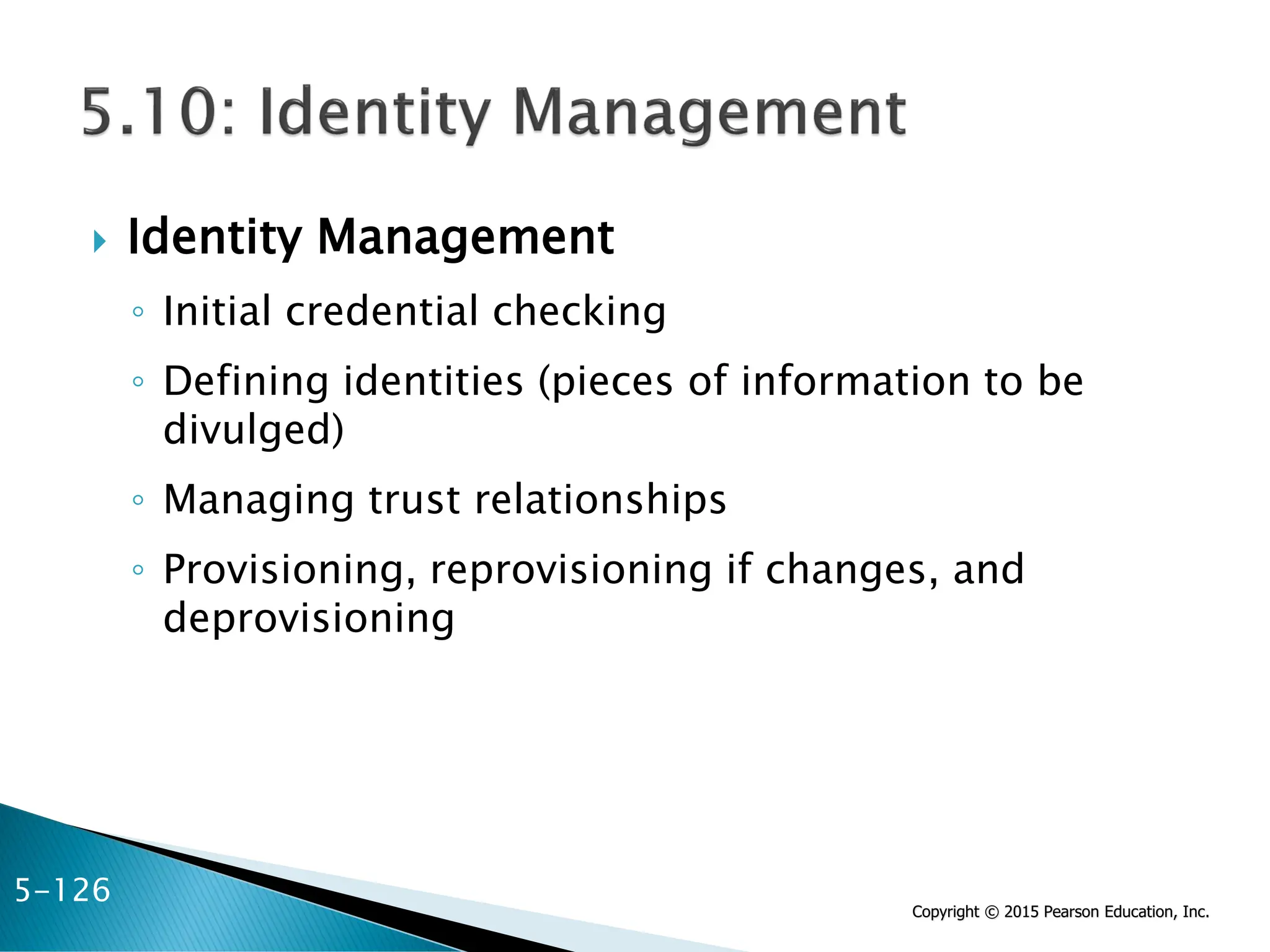

 Identity Management
◦ Initial credential checking
◦ Defining identities (pieces of information to be
divulged)
◦ Managing trust relationships
◦ Provisioning, reprovisioning if changes, and
deprovisioning
5-126

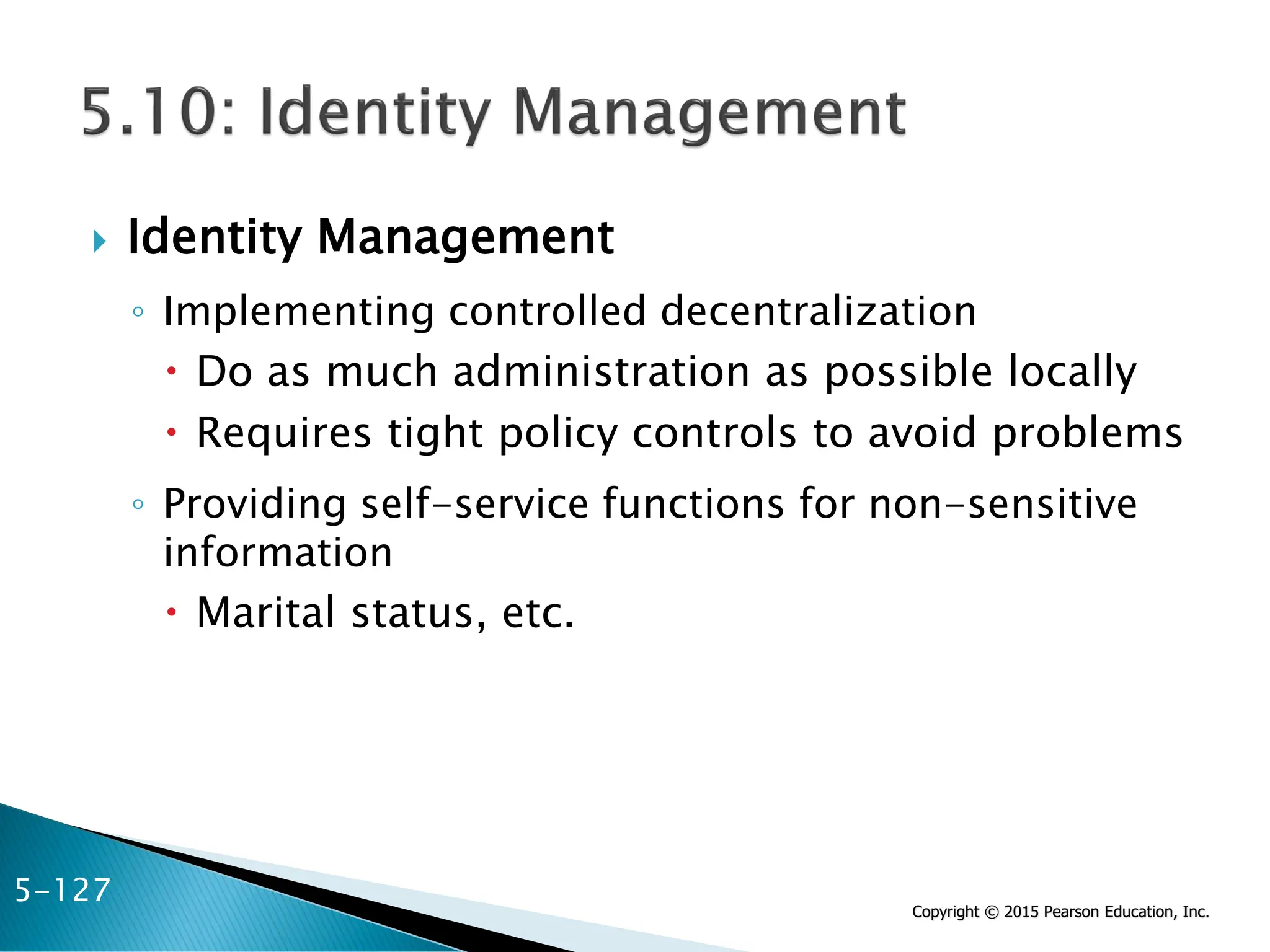

 Identity Management
◦ Implementing controlled decentralization
 Do as much administration as possible locally
 Requires tight policy controls to avoid problems
◦ Providing self-service functions for non-sensitive
information
 Marital status, etc.
5-127

Chapter # 5 Access Control on networking

Chapter # 5 Access Control on networking

More Related Content

Similar to Chapter # 5 Access Control on networking

Recently uploaded

Chapter # 5 Access Control on networking
