SEOUL | Oct.7, 2016 Jeongkyu Shin Lablup Inc. CHAT BOT MAKING PROCESS USING PYTHON 3 & TENSORFLOW Illustration * © Idol M@ster / Bandai Namco Games. All rights reserved.
2 I’M Humble business man Lablup Inc. : Coding education platform / technology Open-source devotee Textcube maintainer / KOSS Lab. Play with some (open||hidden) projects / companies Physicist / Neuroscientist Adjunct Professor / Hanyang Univ. (Computer Science) Studied information processing procedure in Brain / social systems Ph.D in Statistical Physics (complex system) Major in Physics / Computer science 신정규 / Jeongkyu Shin / @inureyes

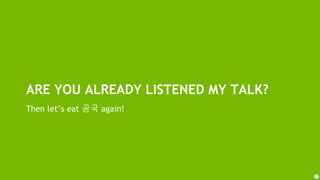

3 ARE YOU ALREADY LISTENED MY TALK? Then let’s eat 곰국 again!
4 > RUNME –-LOOP=4 Became the first man to get 2 official presenter shirts in PyCON APAC 2016! 8.13.2016 (in Korean) 8.14.2016 (in English) And at Google Developer Community 8.31.2016 And now. Are you ready? (I’m not ready)* *Parody of something. Never mind.
5 WELCOME TO MY GARAGE! Tons of garbage here!
–Bryce Courtenay's The Power of One “First with the head, then with the heart.”
7 TODAY’S ENTREE: CHAT BOT Python 3 Twitter Korean Analyzer / Komoran with KoNLPy / pandas TensorFlow 0.8 -> 0.9 -> 0.10RC0 And special sauce! Special data with unique order Special python program to organize / use the data! Clipart* (c) thetomatos.com

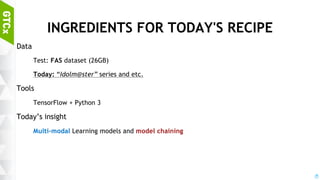

8 INGREDIENTS FOR TODAY'S RECIPE Data Test: FAS dataset (26GB) Today: “Idolm@ster” series and etc. Tools TensorFlow + Python 3 Today’s insight Multi-modal Learning models and model chaining
9 I’m not sure but I’ll try to explain the whole process I did (in 30 minutes?) Game screenshot* (c) CAVE Forkcrane* (c) Iconix
10 I’m not sure but I’ll try to explain the whole process I did (in 30 minutes?) Game screenshot* (c) CAVE Forkcrane* (c) Iconix
11 And I assume that you already have experience / knowledge about machine learning and TensorFlow Illustration *(c) marioandluigi97.deviantart.com

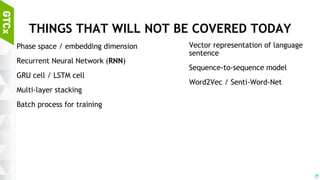

12 THINGS THAT WILL NOT BE COVERED TODAY Phase space / embedding dimension Recurrent Neural Network (RNN) GRU cell / LSTM cell Multi-layer stacking Batch process for training Vector representation of language sentence Sequence-to-sequence model Word2Vec / Senti-Word-Net Clip * © Idol M@ster the animation / Bandai Namco Games All rights reserved.
13 NEED TO LEARN? codeonweb.com https://www.codeonweb.com/course/@deep-learning-with-tensorflow-tutorials
14
15
16
17 ONE DAY IN SEOUL ITAEWON, 2013 All started with dinner talks of neuroscientists...

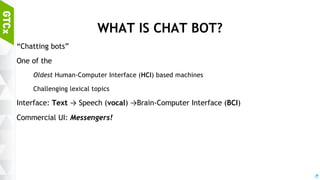

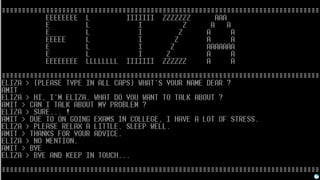

18 WHAT IS CHAT BOT? “Chatting bots” One of the Oldest Human-Computer Interface (HCI) based machines Challenging lexical topics Interface: Text → Speech (vocal) →Brain-Computer Interface (BCI) Commercial UI: Messengers!

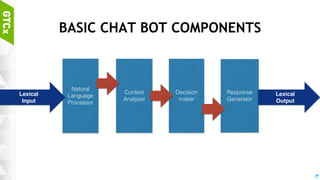

20 BASIC CHAT BOT COMPONENTS Context Analyzer Natural Language Processor Response Generator Decision maker Lexical Input Lexical Output

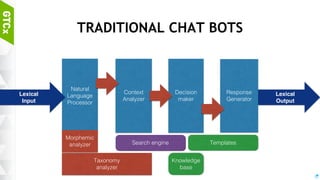

21 Lexical Output TRADITIONAL CHAT BOTS Context Analyzer Natural Language Processor Response Generator Templates Knowledge base Decision maker Search engine Lexical Input Morphemic analyzer Taxonomy analyzer

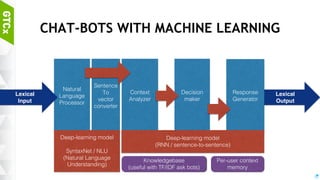

22 Lexical Output CHAT-BOTS WITH MACHINE LEARNING Context Analyzer Natural Language Processor Response Generator Decision maker Sentence To vector converter Deep-learning model (RNN / sentence-to-sentence) Knowledgebase (useful with TF/IDF ask bots) Per-user context memory Lexical Input Deep-learning model SyntaxNet / NLU (Natural Language Understanding)

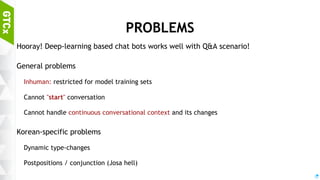

23 PROBLEMS Hooray! Deep-learning based chat bots works well with Q&A scenario! General problems Inhuman: restricted for model training sets Cannot "start" conversation Cannot handle continuous conversational context and its changes Korean-specific problems Dynamic type-changes Postpositions / conjunction (Josa hell)
헬조사 Hell Josa The great wall of Korean ML+NLP Like ActiveX+N*+F* In Korean Web =
We expect these but... Clip art *Lego ©
We got these. Photo * © amazon.com ...How can I assemble them?

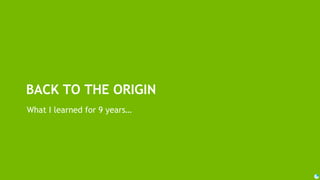

27 BACK TO THE ORIGIN What I learned for 9 years…

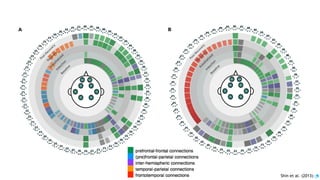

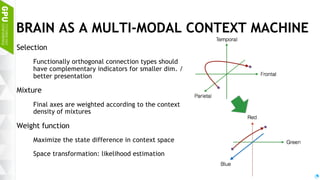

28 BRAIN AS A MULTI-MODAL CONTEXT MACHINE Selection Functionally orthogonal connection types should have complementary indicators for smaller dim. / better presentation Mixture Final axes are weighted according to the context density of mixtures Weight function Maximize the state difference in context space Space transformation: likelihood estimation
One liner: “divide and conquer”

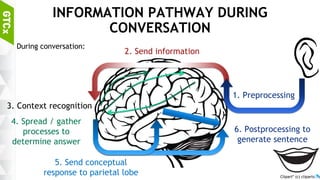

30 INFORMATION PATHWAY DURING CONVERSATION During conversation: 3. Context recognition 1. Preprocessing 2. Send information 4. Spread / gather processes to determine answer 5. Send conceptual response to parietal lobe 6. Postprocessing to generate sentence Clipart* (c) cliparts.co

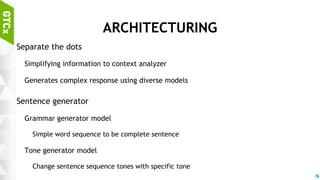

31 ARCHITECTURING Separate the dots Simplifying information to context analyzer Generates complex response using diverse models Sentence generator Grammar generator model Simple word sequence to be complete sentence Tone generator model Change sentence sequence tones with specific tone

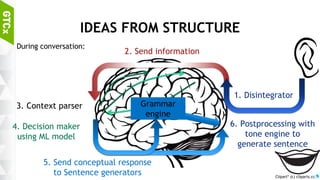

32 IDEAS FROM STRUCTURE During conversation: 3. Context parser 1. Disintegrator 2. Send information 4. Decision maker using ML model 5. Send conceptual response to Sentence generators 6. Postprocessing with tone engine to generate sentence Grammar engine Clipart* (c) cliparts.co

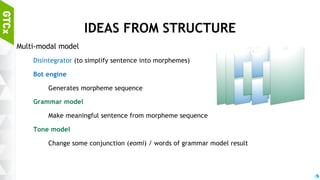

33 IDEAS FROM STRUCTURE Multi-modal model Disintegrator (to simplify sentence into morphemes) Bot engine Generates morpheme sequence Grammar model Make meaningful sentence from morpheme sequence Tone model Change some conjunction (eomi) / words of grammar model result
34 Lexical Output Sentence generatorDeep-learning model (sentence-to-sentence + context-aware word generator) FINAL STRUCTURE Grammar generator Context memory Knowledge engine Emotion engine Context parser Tone generator Disintegrator Response generatorNLP + StV Context analyzer+Decision maker Lexical Input
35 MAKING MODELS The importance of Prototyping

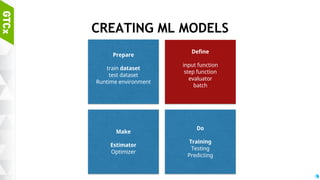

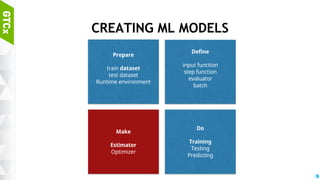

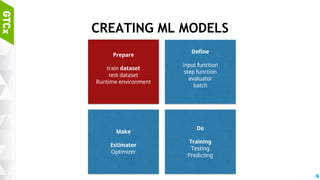

36 CREATING ML MODELS Define input function step function evaluator batch Prepare train dataset test dataset Runtime environment Make Estimator Optimizer Do Training Testing Predicting

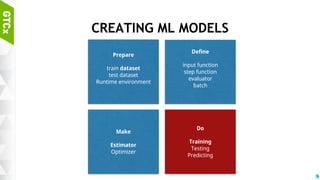

37 CREATING ML MODELS Define input function step function evaluator batch Prepare train dataset test dataset Runtime environment Make Estimator Optimizer Do Training Testing Predicting
38 CREATING ML MODELS Define input function step function evaluator batch Prepare train dataset test dataset Runtime environment Make Estimator Optimizer Do Training Testing Predicting
39 CREATING ML MODELS Define input function step function evaluator batch Prepare train dataset test dataset Runtime environment Make Estimator Optimizer Do Training Testing Predicting

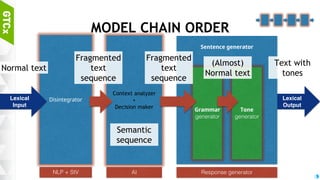

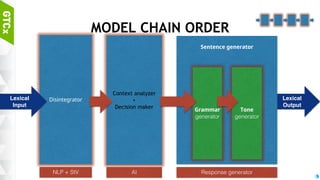

40 Lexical Output Sentence generator Context analyzer + Decision maker MODEL CHAIN ORDER Grammar generator Tone generator Disintegrator Response generatorNLP + StV AI Lexical Input
41 Lexical Output Sentence generator Context analyzer + Decision maker MODEL CHAIN ORDER Grammar generator Tone generator Disintegrator Response generatorNLP + StV AI Lexical Input Fragmented text sequence Fragmented text sequence (Almost) Normal text Text with tones Normal text Semantic sequence
42 DISINTEGRATOR a.k.a. morpheme analyzer for speech / talk analysis Input Text as conversation Output Ordered word fragments
43 DISINTEGRATOR Rouzeta (https://shleekr.github.io/) Finite State-based Korean morphological analyzer (2 month ago!) Great and fast / with Python wrapper! (Just 3 days ago!) Twitter Korean analyzer Compact and very fast / Can be easily adopted with KoNLP package Komoran can be a good alternative (with enough time) Komoran with ko_restoration package (https://github.com/lynn-hong/ko_restoration) Increases both model training accuracy / speed However, it is soooooooo slow... ( > 100 times longer execution time)

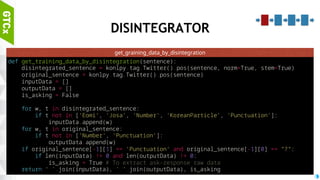

44 DISINTEGRATOR def get_training_data_by_disintegration(sentence): disintegrated_sentence = konlpy.tag.Twitter().pos(sentence, norm=True, stem=True) original_sentence = konlpy.tag.Twitter().pos(sentence) inputData = [] outputData = [] is_asking = False for w, t in disintegrated_sentence: if t not in ['Eomi', 'Josa', 'Number', 'KoreanParticle', 'Punctuation']: inputData.append(w+’/’+t) for w, t in original_sentence: if t not in ['Number', 'Punctuation']: outputData.append(w) if original_sentence[-1][1] == 'Punctuation' and original_sentence[-1][0] == "?": if len(inputData) != 0 and len(outputData) != 0: is_asking = True # To extract ask-response raw data return ' '.join(inputData), ' '.join(outputData), is_asking get_graining_data_by_disintegration

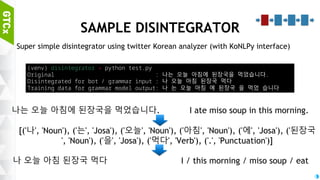

45 SAMPLE DISINTEGRATOR Super simple disintegrator using twitter Korean analyzer (with KoNLPy interface) 나는 오늘 아침에 된장국을 먹었습니다. [('나', 'Noun'), ('는', 'Josa'), ('오늘', 'Noun'), ('아침', 'Noun'), ('에', 'Josa'), ('된장국 ', 'Noun'), ('을', 'Josa'), ('먹다', 'Verb'), ('.', 'Punctuation')] 나 오늘 아침 된장국 먹다 (venv) disintegrator » python test.py Original : 나는 오늘 아침에 된장국을 먹었습니다. Disintegrated for bot / grammar input : 나 오늘 아침 된장국 먹다 Training data for grammar model output: 나 는 오늘 아침 에 된장국 을 먹었 습니다 I ate miso soup in this morning. I / this morning / miso soup / eat

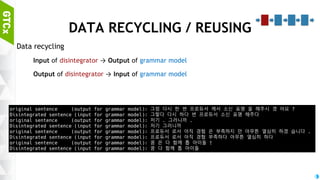

46 DATA RECYCLING / REUSING Data recycling Input of disintegrator → Output of grammar model Output of disintegrator → Input of grammar model original sentence (output for grammar model): 그럼 다시 한 번 프로듀서 께서 소신 표명 을 해주시 겠 어요 ? Disintegrated sentence (input for grammar model): 그렇다 다시 하다 번 프로듀서 소신 표명 해주다 original sentence (output for grammar model): 저기 . 그러니까 . Disintegrated sentence (input for grammar model): 저기 그러니까 original sentence (output for grammar model): 프로듀서 로서 아직 경험 은 부족하지 만 아무튼 열심히 하겠 습니다 . Disintegrated sentence (input for grammar model): 프로듀서 로서 아직 경험 부족하다 아무튼 열심히 하다 original sentence (output for grammar model): 꿈 은 다 함께 톱 아이돌 ! Disintegrated sentence (input for grammar model): 꿈 다 함께 톱 아이돌

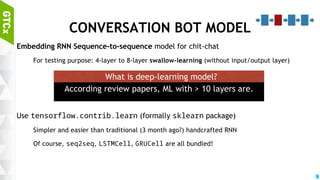

47 CONVERSATION BOT MODEL Embedding RNN Sequence-to-sequence model for chit-chat For testing purpose: 4-layer to 8-layer swallow-learning (without input/output layer) Use tensorflow.contrib.learn (formally sklearn package) Simpler and easier than traditional (3 month ago?) handcrafted RNN Of course, seq2seq, LSTMCell, GRUCell are all bundled! According review papers, ML with > 10 layers are. And it’s changing now... it became buzz word.. What is deep-learning model?

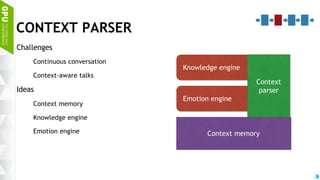

48 CONTEXT PARSER Challenges Continuous conversation Context-aware talks Ideas Context memory Knowledge engine Emotion engine Context memory Knowledge engine Emotion engine Context parser

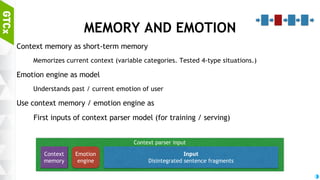

49 Context parser input MEMORY AND EMOTION Context memory as short-term memory Memorizes current context (variable categories. Tested 4-type situations.) Emotion engine as model Understands past / current emotion of user Use context memory / emotion engine as First inputs of context parser model (for training / serving) Context memory Emotion engine Input Disintegrated sentence fragments

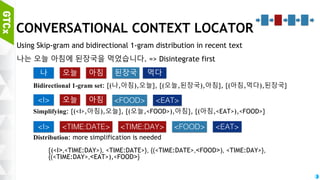

50 CONVERSATIONAL CONTEXT LOCATOR Using Skip-gram and bidirectional 1-gram distribution in recent text 나는 오늘 아침에 된장국을 먹었습니다. => Disintegrate first Bidirectional 1-gram set: {(나,아침),오늘}, {(오늘,된장국),아침}, {(아침,먹다),된장국} Simplifying: {(<I>,아침),오늘}, {(오늘,<FOOD>),아침}, {(아침,<EAT>),<FOOD>} Distribution: more simplification is needed {(<I>,<TIME:DAY>), <TIME:DATE>}, {(<TIME:DATE>,<FOOD>), <TIME:DAY>}, {(<TIME:DAY>,<EAT>),<FOOD>} 나 오늘 아침 된장국 먹다 <I> 오늘 아침 <FOOD> <EAT> <I> <TIME:DATE> <TIME:DAY> <FOOD> <EAT>
51 CONVERSATIONAL CONTEXT LOCATOR Training context space Context-marked sentences (>20000) Context: LIFE / CHITCHAT / SCIENCE / TASK Prepare Generated 1-gram sets with context bit Train RNN with 1-gram-2-vec Matching context space Input bd 1-gram sequence to context space Take the dominator axis

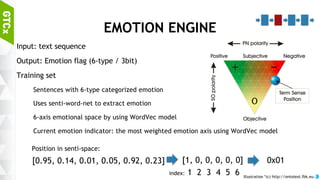

52 EMOTION ENGINE Input: text sequence Output: Emotion flag (6-type / 3bit) Training set Sentences with 6-type categorized emotion Uses senti-word-net to extract emotion 6-axis emotional space by using WordVec model Current emotion indicator: the most weighted emotion axis using WordVec model Illustration *(c) http://ontotext.fbk.eu/ [0.95, 0.14, 0.01, 0.05, 0.92, 0.23] [1, 0, 0, 0, 0, 0] 0x01 index: 1 2 3 4 5 6 Position in senti-space:

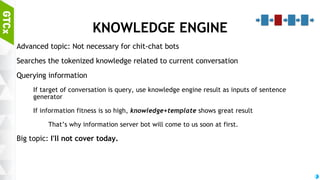

53 KNOWLEDGE ENGINE Advanced topic: Not necessary for chit-chat bots Searches the tokenized knowledge related to current conversation Querying information If target of conversation is query, use knowledge engine result as inputs of sentence generator If information fitness is so high, knowledge+template shows great result That’s why information server bot will come to us soon at first. Big topic: I'll not cover today.

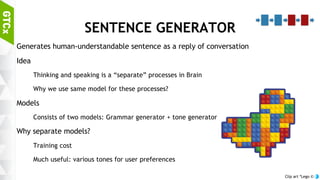

54 SENTENCE GENERATOR Generates human-understandable sentence as a reply of conversation Idea Thinking and speaking is a “separate” processes in Brain Why we use same model for these processes? Models Consists of two models: Grammar generator + tone generator Why separate models? Training cost Much useful: various tones for user preferences Clip art *Lego ©

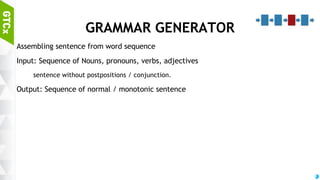

55 GRAMMAR GENERATOR Assembling sentence from word sequence Input: Sequence of Nouns, pronouns, verbs, adjectives sentence without postpositions / conjunction. Output: Sequence of normal / monotonic sentence

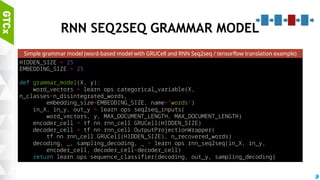

56 RNN SEQ2SEQ GRAMMAR MODEL HIDDEN_SIZE = 25 EMBEDDING_SIZE = 25 def grammar_model(X, y): word_vectors = learn.ops.categorical_variable(X, n_classes=n_disintegrated_words, embedding_size=EMBEDDING_SIZE, name='words') in_X, in_y, out_y = learn.ops.seq2seq_inputs( word_vectors, y, MAX_DOCUMENT_LENGTH, MAX_DOCUMENT_LENGTH) encoder_cell = tf.nn.rnn_cell.GRUCell(HIDDEN_SIZE) decoder_cell = tf.nn.rnn_cell.OutputProjectionWrapper( tf.nn.rnn_cell.GRUCell(HIDDEN_SIZE), n_recovered_words) decoding, _, sampling_decoding, _ = learn.ops.rnn_seq2seq(in_X, in_y, encoder_cell, decoder_cell=decoder_cell) return learn.ops.sequence_classifier(decoding, out_y, sampling_decoding) Simple grammar model (word-based model with GRUCell and RNN Seq2seq / tensorflow translation example)

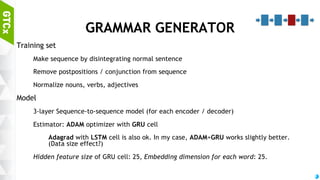

57 GRAMMAR GENERATOR Training set Make sequence by disintegrating normal sentence Remove postpositions / conjunction from sequence Normalize nouns, verbs, adjectives Model 3-layer Sequence-to-sequence model (for each encoder / decoder) Estimator: ADAM optimizer with GRU cell Adagrad with LSTM cell is also ok. In my case, ADAM+GRU works slightly better. (Data size effect?) Hidden feature size of GRU cell: 25, Embedding dimension for each word: 25.

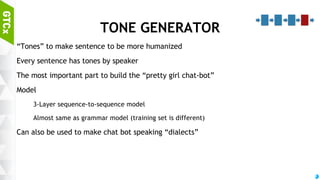

58 TONE GENERATOR “Tones” to make sentence to be more humanized Every sentence has tones by speaker The most important part to build the “pretty girl chat-bot” Model 3-Layer sequence-to-sequence model Almost same as grammar model (training set is different) Can also be used to make chat bot speaking “dialects”

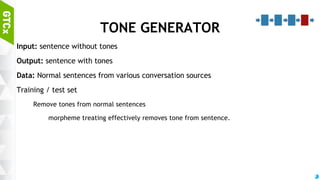

59 TONE GENERATOR Input: sentence without tones Output: sentence with tones Data: Normal sentences from various conversation sources Training / test set Remove tones from normal sentences morpheme treating effectively removes tone from sentence.

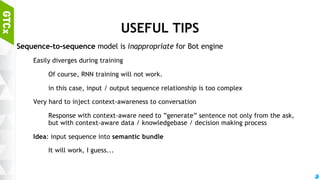

60 USEFUL TIPS Sequence-to-sequence model is inappropriate for Bot engine Easily diverges during training Of course, RNN training will not work. in this case, input / output sequence relationship is too complex Very hard to inject context-awareness to conversation Response with context-aware need to ”generate” sentence not only from the ask, but with context-aware data / knowledgebase / decision making process Idea: input sequence into semantic bundle It will work, I guess...

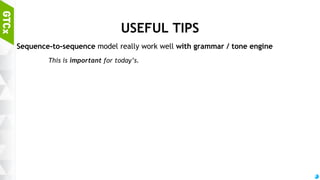

61 USEFUL TIPS Sequence-to-sequence model really work well with grammar / tone engine This is important for today’s.

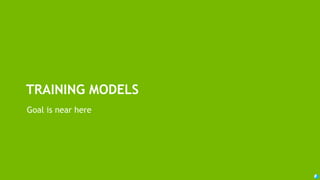

62 TRAINING MODELS Goal is near here

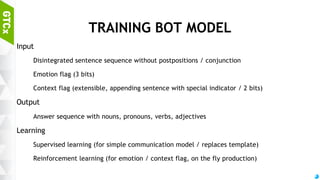

63 TRAINING BOT MODEL Input Disintegrated sentence sequence without postpositions / conjunction Emotion flag (3 bits) Context flag (extensible, appending sentence with special indicator / 2 bits) Output Answer sequence with nouns, pronouns, verbs, adjectives Learning Supervised learning (for simple communication model / replaces template) Reinforcement learning (for emotion / context flag, on the fly production)

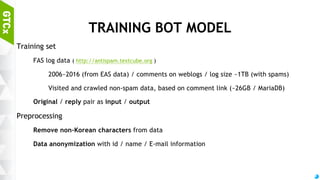

64 TRAINING BOT MODEL Training set FAS log data ( http://antispam.textcube.org ) 2006~2016 (from EAS data) / comments on weblogs / log size ~1TB (with spams) Visited and crawled non-spam data, based on comment link (~26GB / MariaDB) Original / reply pair as input / output Preprocessing Remove non-Korean characters from data Data anonymization with id / name / E-mail information

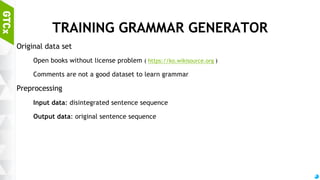

65 TRAINING GRAMMAR GENERATOR Original data set Open books without license problem ( https://ko.wikisource.org ) Comments are not a good dataset to learn grammar Preprocessing Input data: disintegrated sentence sequence Output data: original sentence sequence

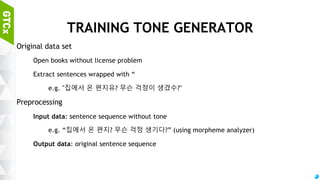

66 TRAINING TONE GENERATOR Original data set Open books without license problem Extract sentences wrapped with “ e.g. "집에서 온 편지유? 무슨 걱정이 생겼수?" Preprocessing Input data: sentence sequence without tone e.g. “집에서 온 편지? 무슨 걱정 생기다?” (using morpheme analyzer) Output data: original sentence sequence

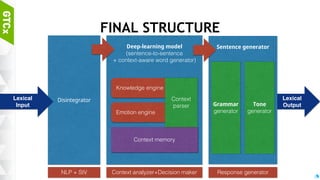

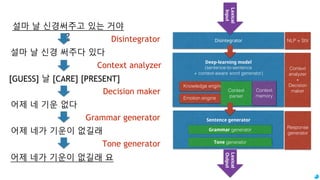

67 ONE PAGE SUMMARY The simplest is the best
Lexical Output Sentence generator Deep-learning model (sentence-to-sentence + context-aware word generator) Grammar generator Context memory Knowledge engine Emotion engine Context parser Tone generator Disintegrator Response generator NLP + StV Context analyzer + Decision maker Lexical Input 설마 날 신경써주고 있는 거야 ? 설마 날 신경 써주다 있다 어제 네 기운 없다 어제 네가 기운이 없길래 어제 네가 기운이 없길래 요 [GUESS] 날 [CARE] [PRESENT] Disintegrator Context analyzer Decision maker Grammar generator Tone generator
69 MAKING 미소녀BOT Let’s make anime character bot (as I promised)!

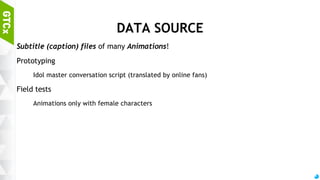

70 DATA SOURCE Subtitle (caption) files of many Animations! Prototyping Idol master conversation script (translated by online fans) Field tests Animations only with female characters New data! Communication script from Idol master 2 / OFA Script from Idol master PS
71

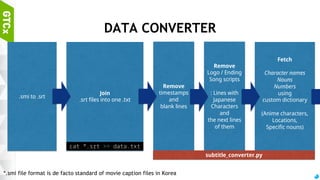

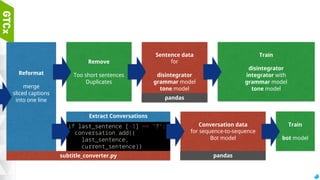

72 DATA CONVERTER .smi to .srt Join .srt files into one .txt Remove timestamps and blank lines Remove Logo / Ending Song scripts : Lines with Japanese Characters and the next lines of them Fetch Character names Nouns Numbers using custom dictionary (Anime characters, Locations, Specific nouns) cat *.srt >> data.txt subtitle_converter.py *.smi file format is de facto standard of movie caption files in Korea
73 Extract Conversations Conversation data for sequence-to-sequence Bot model Reformat merge sliced captions into one line if last_sentence [-1] == '?': conversation.add(( last_sentence, current_sentence)) Remove Too short sentences Duplicates Sentence data for disintegrator grammar model tone model Train disintegrator integrator with grammar model tone model Train bot model subtitle_converter.py pandas pandas

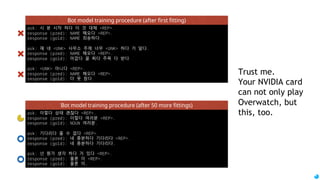

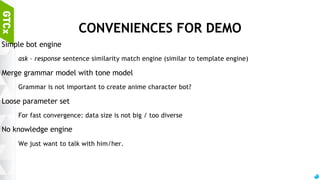

74 CONVENIENCES FOR DEMO Simple bot engine ask – response sentence similarity match engine (similar to template engine) Merge grammar model with tone model Grammar is not important to create anime character bot? Loose parameter set For fast convergence: data size is not big / too diverse No knowledge engine We just want to talk with him/her.

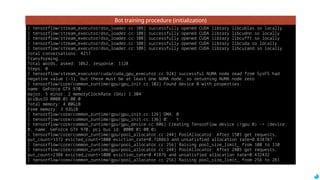

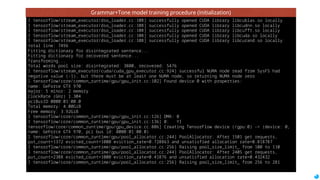

I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcublas.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcudnn.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcufft.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcuda.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcurand.so locally total conversations: 4217 Transforming... Total words, asked: 1062, response: 1128 Steps: 0 I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:924] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero I tensorflow/core/common_runtime/gpu/gpu_init.cc:102] Found device 0 with properties: name: GeForce GTX 970 major: 5 minor: 2 memoryClockRate (GHz) 1.304 pciBusID 0000:01:00.0 Total memory: 4.00GiB Free memory: 3.92GiB I tensorflow/core/common_runtime/gpu/gpu_init.cc:126] DMA: 0 I tensorflow/core/common_runtime/gpu/gpu_init.cc:136] 0: Y I tensorflow/core/common_runtime/gpu/gpu_device.cc:806] Creating TensorFlow device (/gpu:0) -> (device: 0, name: GeForce GTX 970, pci bus id: 0000:01:00.0) I tensorflow/core/common_runtime/gpu/pool_allocator.cc:244] PoolAllocator: After 1501 get requests, put_count=1372 evicted_count=1000 eviction_rate=0.728863 and unsatisfied allocation rate=0.818787 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:256] Raising pool_size_limit_ from 100 to 110 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:244] PoolAllocator: After 2405 get requests, put_count=2388 evicted_count=1000 eviction_rate=0.41876 and unsatisfied allocation rate=0.432432 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:256] Raising pool_size_limit_ from 256 to 281 Bot training procedure (initialization)
ask: 시 분 시작 하다 이 것 대체 <REP>. response (pred): NAME 해오다 <REP>. response (gold): NAME 죄송하다. ask: 쟤 네 <UNK> 사무소 주제 너무 <UNK> 하다 거 알다. response (pred): NAME 해오다 <REP>. response (gold): 아깝다 꼴 찌다 주목 다 받다 ask: <UNK> 아니다 <REP>. response (pred): NAME 해오다 <REP>. response (gold): 더 못 참다 ask: 이렇다 상태 괜찮다 <REP>. response (pred): 이렇다 여러분 <REP>. response (gold): NOUN 여러분. ask: 기다리다 줄 수 없다 <REP>. response (pred): 네 충분하다 기다리다 <REP>. response (gold): 네 충분하다 기다리다. ask: 넌 뭔가 생각 하다 거 있다 <REP>. response (pred): 물론 이 <REP>. response (gold): 물론 이. Bot model training procedure (after first fitting) Bot model training procedure (after 50 more fittings) Trust me. Your NVIDIA card can not only play Overwatch, but this, too.
I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcublas.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcudnn.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcufft.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcuda.so locally I tensorflow/stream_executor/dso_loader.cc:108] successfully opened CUDA library libcurand.so locally total line: 7496 Fitting dictionary for disintegrated sentence... Fitting dictionary for recovered sentence... Transforming... Total words pool size: disintegrated: 3800, recovered: 5476 I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:924] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero I tensorflow/core/common_runtime/gpu/gpu_init.cc:102] Found device 0 with properties: name: GeForce GTX 970 major: 5 minor: 2 memory ClockRate (GHz) 1.304 pciBusID 0000:01:00.0 Total memory: 4.00GiB Free memory: 3.92GiB I tensorflow/core/common_runtime/gpu/gpu_init.cc:126] DMA: 0 I tensorflow/core/common_runtime/gpu/gpu_init.cc:136] 0: YI tensorflow/core/common_runtime/gpu/gpu_device.cc:806] Creating TensorFlow device (/gpu:0) -> (device: 0, name: GeForce GTX 970, pci bus id: 0000:01:00.0) I tensorflow/core/common_runtime/gpu/pool_allocator.cc:244] PoolAllocator: After 1501 get requests, put_count=1372 evicted_count=1000 eviction_rate=0.728863 and unsatisfied allocation rate=0.818787 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:256] Raising pool_size_limit_ from 100 to 110 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:244] PoolAllocator: After 2405 get requests, put_count=2388 evicted_count=1000 eviction_rate=0.41876 and unsatisfied allocation rate=0.432432 I tensorflow/core/common_runtime/gpu/pool_allocator.cc:256] Raising pool_size_limit_ from 256 to 281 Grammar+Tone model training procedure (initialization)
disintegrated: 올해 우리 프로덕션 NOUN 의 활약 섭외 들어오다 <REP>. recovered (pred): 그래서 저기 들 나요 <REP>. recovered (gold): 올해 는 우리 프로덕션 도 NOUN 의 활약 으로 섭외 가 들어왔 답 니다. disintegrated: 둘 다 왜 그렇다 <REP>. recovered (pred): 어머 어머 아 <REP>. recovered (gold): 둘 다 왜 그래. disintegrated: 정말 우승 하다 것 같다 <UNK> . recovered (pred): 정말 를 <REP>. recovered (gold): 정말 우승할 것 같네 요. disintegrated: 아 진짜 <REP>. recovered (pred): 아 아 을까 <REP>. recovered (gold): 아 진짜. disintegrated: 호흡 딱 딱 맞다 <REP>. recovered (pred): 무슨 을 <REP>. recovered (gold): 호흡 이 딱 딱 맞 습니다. disintegrated: 무슨 소리 NAME <REP>. recovered (pred): 무슨 소리 음 <REP>. recovered (gold): 무슨 소리 야 NAME. disintegrated: 너 맞추다 또 넘어지다 거 잖다 <UNK> <UNK> <UNK> <UNK>. recovered (pred): 너 겹친 또 넘어질 거 <REP>. recovered (gold): 너 한테 맞춰 주 면 또 넘어질 거 잖아. disintegrated: 중계 나름 신경 써주다 <REP>. recovered (pred): 무대 에서도 을 신경 <REP>. recovered (gold): 중계 에서도 나름 대로 신경 을 써줘. Grammar+Tone model training procedure (after first fitting) Grammar+Tone model training procedure (after 10 more fitting) Grammar model converges fast. With GPU, it converges much faster.

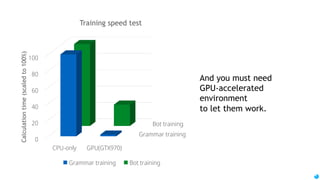

Grammar training Bot training 0 20 40 60 80 100 CPU-only GPU(GTX970) Calculationtime(scaledto100%) Training speed test Grammar training Bot training And you must need GPU-accelerated environment to let them work.
80 That’s why we are prototyping Handheld Machine Learning devices using Nvidia GTX 1070 & SkyLake With Sorna Framework and Nublar webGUI Sorna: Our Open-source distributed code running platform (https://github.com/lablup/sorna)
And also Personal Machine Learning device
82 …with support from backbone machine via internet through sorna API.
83 Of course, Your NVIDIA card can also play Overwatch.

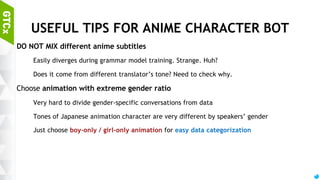

84 USEFUL TIPS FOR ANIME CHARACTER BOT DO NOT MIX different anime subtitles Easily diverges during grammar model training. Strange. Huh? Does it come from different translator’s tone? Need to check why. Choose animation with extreme gender ratio Very hard to divide gender-specific conversations from data Tones of Japanese animation character are very different by speakers’ gender Just choose boy-only / girl-only animation for easy data categorization

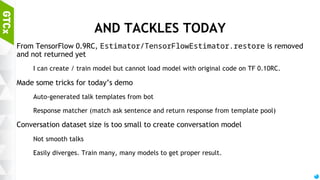

85 AND TACKLES TODAY From TensorFlow 0.9RC, Estimator/TensorFlowEstimator.restore is removed and not returned yet I can create / train model but cannot load model with original code on TF 0.10RC. Made some tricks for today’s demo Auto-generated talk templates from bot Response matcher (match ask sentence and return response from template pool) Conversation dataset size is too small to create conversation model Not smooth talks Easily diverges. Train many, many models to get proper result.
86 SERVING Like peasant in Warcraft (OR workleft?)

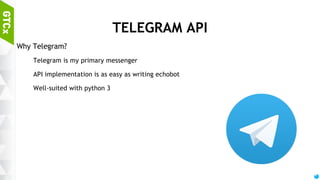

87 TELEGRAM API Why Telegram? Telegram is my primary messenger API implementation is as easy as writing echobot Well-suited with python 3

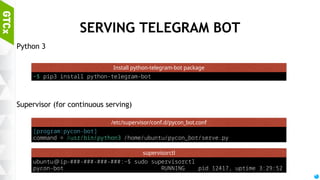

88 SERVING TELEGRAM BOT Python 3 Supervisor (for continuous serving) [program:pycon-bot] command = /usr/bin/python3 /home/ubuntu/pycon_bot/serve.py /etc/supervisor/conf.d/pycon_bot.conf ~$ pip3 install python-telegram-bot Install python-telegram-bot package ubuntu@ip-###-###-###-###:~$ sudo supervisorctl pycon-bot RUNNING pid 12417, uptime 3:29:52 supervisorctl

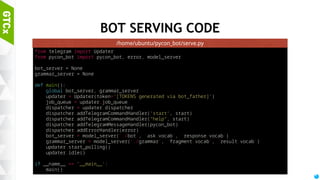

89 BOT SERVING CODE from telegram import Updater from pycon_bot import pycon_bot, error, model_server bot_server = None grammar_server = None def main(): global bot_server, grammar_server updater = Updater(token=’[TOKENS generated via bot_father]') job_queue = updater.job_queue dispatcher = updater.dispatcher dispatcher.addTelegramCommandHandler('start', start) dispatcher.addTelegramCommandHandler("help", start) dispatcher.addTelegramMessageHandler(pycon_bot) dispatcher.addErrorHandler(error) bot_server = model_server(‘./bot’, ‘ask.vocab’, ‘response.vocab’) grammar_server = model_server(‘./grammar’, ‘fragment.vocab’, ‘result.vocab’) updater.start_polling() updater.idle() if __name__ == '__main__': main() /home/ubuntu/pycon_bot/serve.py

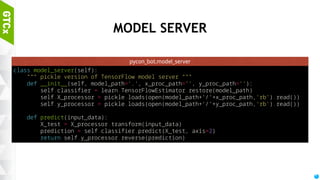

90 MODEL SERVER class model_server(self): """ pickle version of TensorFlow model server """ def __init__(self, model_path='.', x_proc_path='', y_proc_path=''): self.classifier = learn.TensorFlowEstimator.restore(model_path) self.X_processor = pickle.loads(open(model_path+'/'+x_proc_path,'rb').read()) self.y_processor = pickle.loads(open(model_path+'/'+y_proc_path,'rb').read()) def predict(input_data): X_test = X_processor.transform(input_data) prediction = self.classifier.predict(X_test, axis=2) return self.y_processor.reverse(prediction) pycon_bot.model_server
91 BOT ENGINE CODE def pycon_bot(bot, update): msg = disintegrate(update.message.text) raw_response = bot_server.predict(msg) response = grammar_server.predict(raw_answer) bot.sendMessage(chat_id=update.message.chat_id, text=’ '.join(response)) def disintegrate(sentence): disintegrated_sentence = konlpy.tag.Twitter().pos(sentence, norm=True, stem=True) result = [] for w, t in disintegrated_sentence: if t not in ['Eomi', 'Josa', 'Number', 'KoreanParticle', 'Punctuation']: result.append(w) return ' '.join(result) pycon_bot.pycon_bot pycon_bot.disintegrate

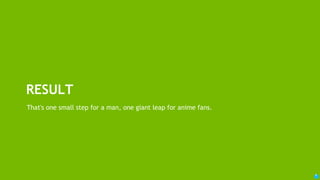

92 RESULT That's one small step for a man, one giant leap for anime fans.

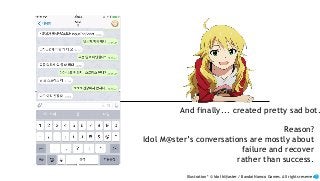

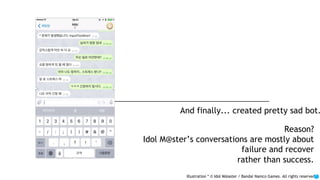

And finally... created pretty sad bot. Reason? Idol M@ster’s conversations are mostly about failure and recover rather than success. Illustration * © Idol M@aster / Bandai Namco Games. All rights reserved.

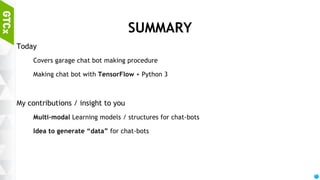

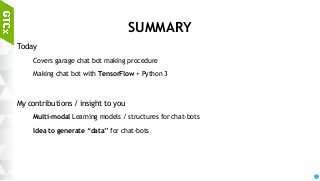

94 SUMMARY Today Covers garage chat bot making procedure Making chat bot with TensorFlow + Python 3 My contributions / insight to you Multi-modal Learning models / structures for chat-bots Idea to generate “data” for chat-bots

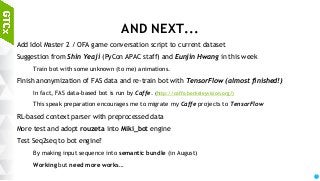

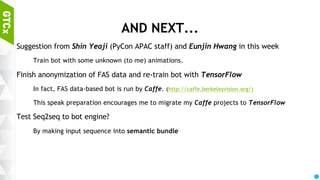

95 AND NEXT... Add Idol Master 2 / OFA game conversation script to current dataset Suggestion from Shin Yeaji (PyCon APAC staff) and Eunjin Hwang in this week Train bot with some unknown (to me) animations. Finish anonymization of FAS data and re-train bot with TensorFlow (almost finished!) In fact, FAS data-based bot is run by Caffe. (http://caffe.berkeleyvision.org/) This speak preparation encourages me to migrate my Caffe projects to TensorFlow RL-based context parser with preprocessed data More test and adopt rouzeta into Miki_bot engine Test Seq2seq to bot engine? By making input sequence into semantic bundle (in August) Working but need more works…

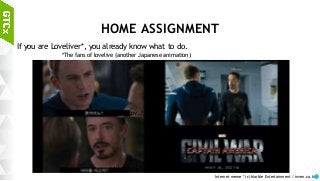

96 HOME ASSIGNMENT If you are Loveliver*, you already know what to do. Internet meme * (c) Marble Entertainment / inven.co.kr Are you Lov..? Idol M@ster? *The fans of lovelive (another Japanese animation)
–Bryce Courtenay's The Power of One “First with the head, then with the heart.”
98 THANK YOU FOR LISTENING :) @inureyes github.com/inureyes

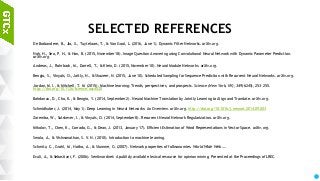

99 SELECTED REFERENCES De Brabandere, B., Jia, X., Tuytelaars, T., & Van Gool, L. (2016, June 1). Dynamic Filter Networks. arXiv.org. Noh, H., Seo, P. H., & Han, B. (2015, November 18). Image Question Answering using Convolutional Neural Network with Dynamic Parameter Prediction. arXiv.org. Andreas, J., Rohrbach, M., Darrell, T., & Klein, D. (2015, November 10). Neural Module Networks. arXiv.org. Bengio, S., Vinyals, O., Jaitly, N., & Shazeer, N. (2015, June 10). Scheduled Sampling for Sequence Prediction with Recurrent Neural Networks. arXiv.org. Jordan, M. I., & Mitchell, T. M. (2015). Machine learning: Trends, perspectives, and prospects. Science (New York, NY), 349(6245), 253–255. http://doi.org/10.1126/science.aac4520 Bahdanau, D., Cho, K., & Bengio, Y. (2014, September 2). Neural Machine Translation by Jointly Learning to Align and Translate. arXiv.org. Schmidhuber, J. (2014, May 1). Deep Learning in Neural Networks: An Overview. arXiv.org. http://doi.org/10.1016/j.neunet.2014.09.003 Zaremba, W., Sutskever, I., & Vinyals, O. (2014, September 8). Recurrent Neural Network Regularization. arXiv.org. Mikolov, T., Chen, K., Corrado, G., & Dean, J. (2013, January 17). Efficient Estimation of Word Representations in Vector Space. arXiv.org. Smola, A., & Vishwanathan, S. V. N. (2010). Introduction to machine learning. Schmitz, C., Grahl, M., Hotho, A., & Stumme, G. (2007). Network properties of folksonomies. World Wide Web …. Esuli, A., & Sebastiani, F. (2006). Sentiwordnet: A publicly available lexical resource for opinion mining. Presented at the Proceedings of LREC.
