CLASSES AND OBJECTS
GAYATHRI
BCA

In C++, classes and objects
are the basic building block
that leads to
Object-Oriented
programming in C++

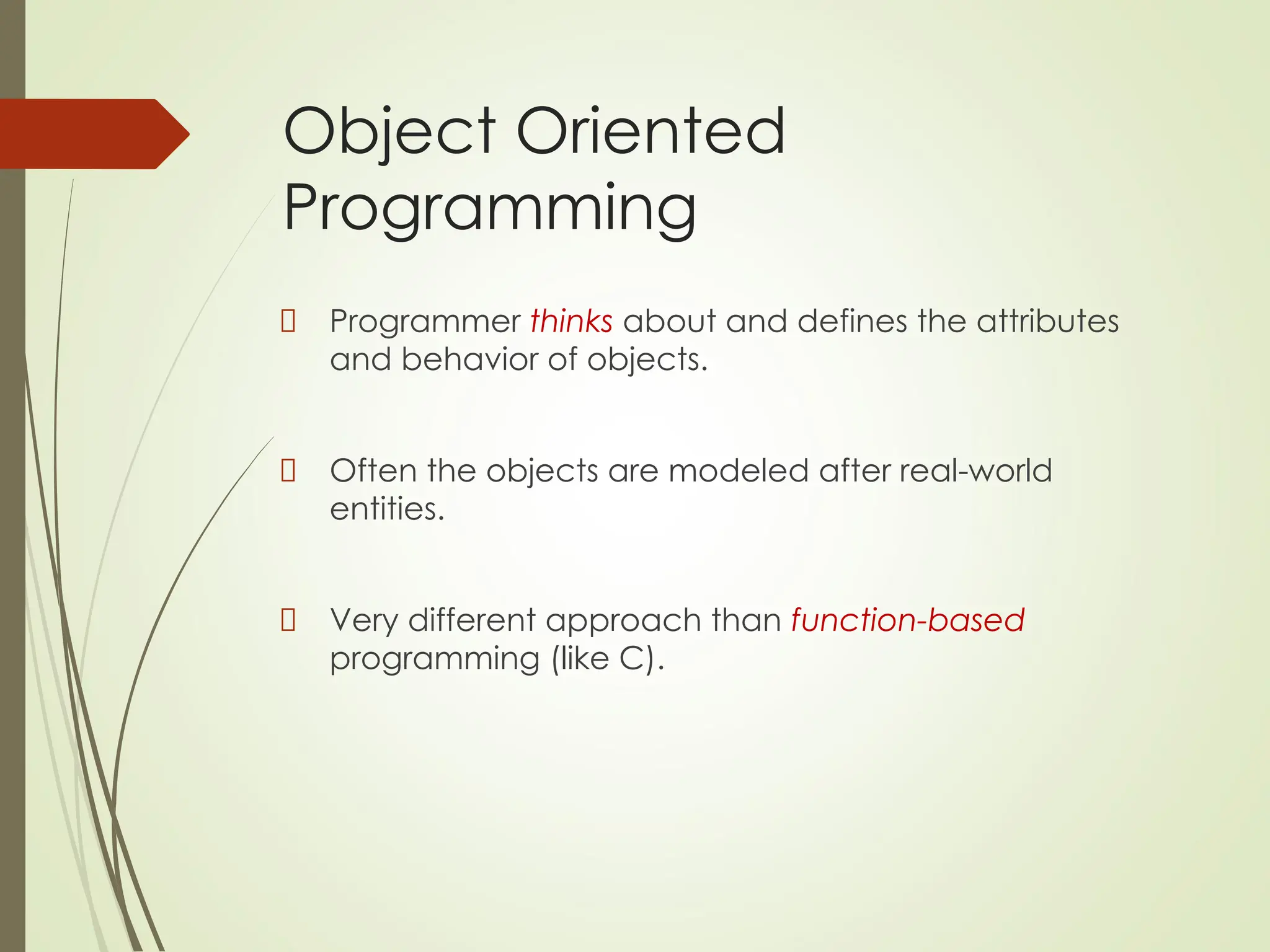

Object Oriented
Programming
Programmer thinks about and defines the attributes
and behavior of objects.
Often the objects are modeled after real-world
entities.
Very different approach than function-based
programming (like C).

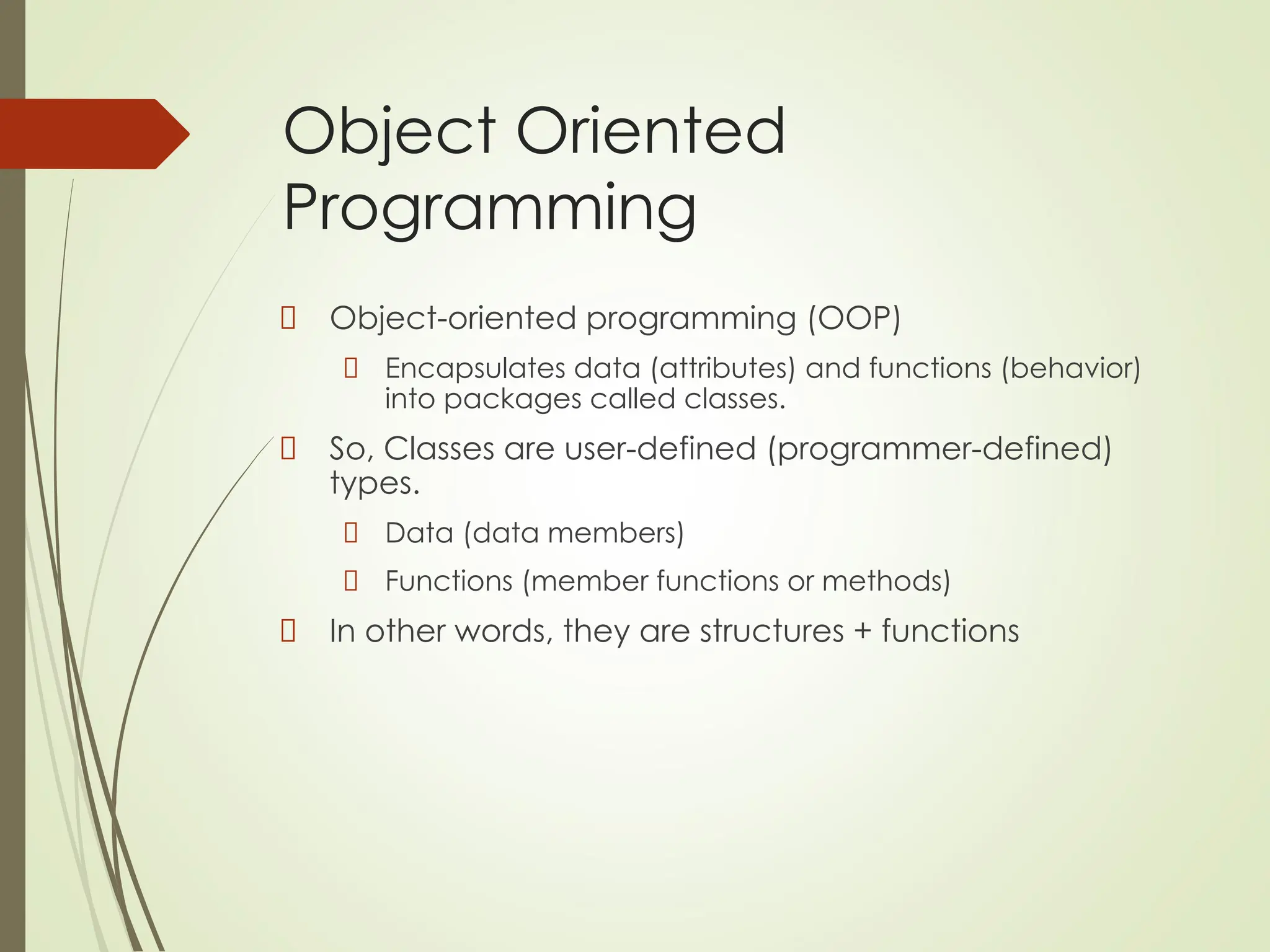

Object Oriented
Programming
Object-oriented programming (OOP)
Encapsulates data (attributes) and functions (behavior)
into packages called classes.
So, Classes are user-defined (programmer-defined)
types.
Data (data members)
Functions (member functions or methods)
In other words, they are structures + functions

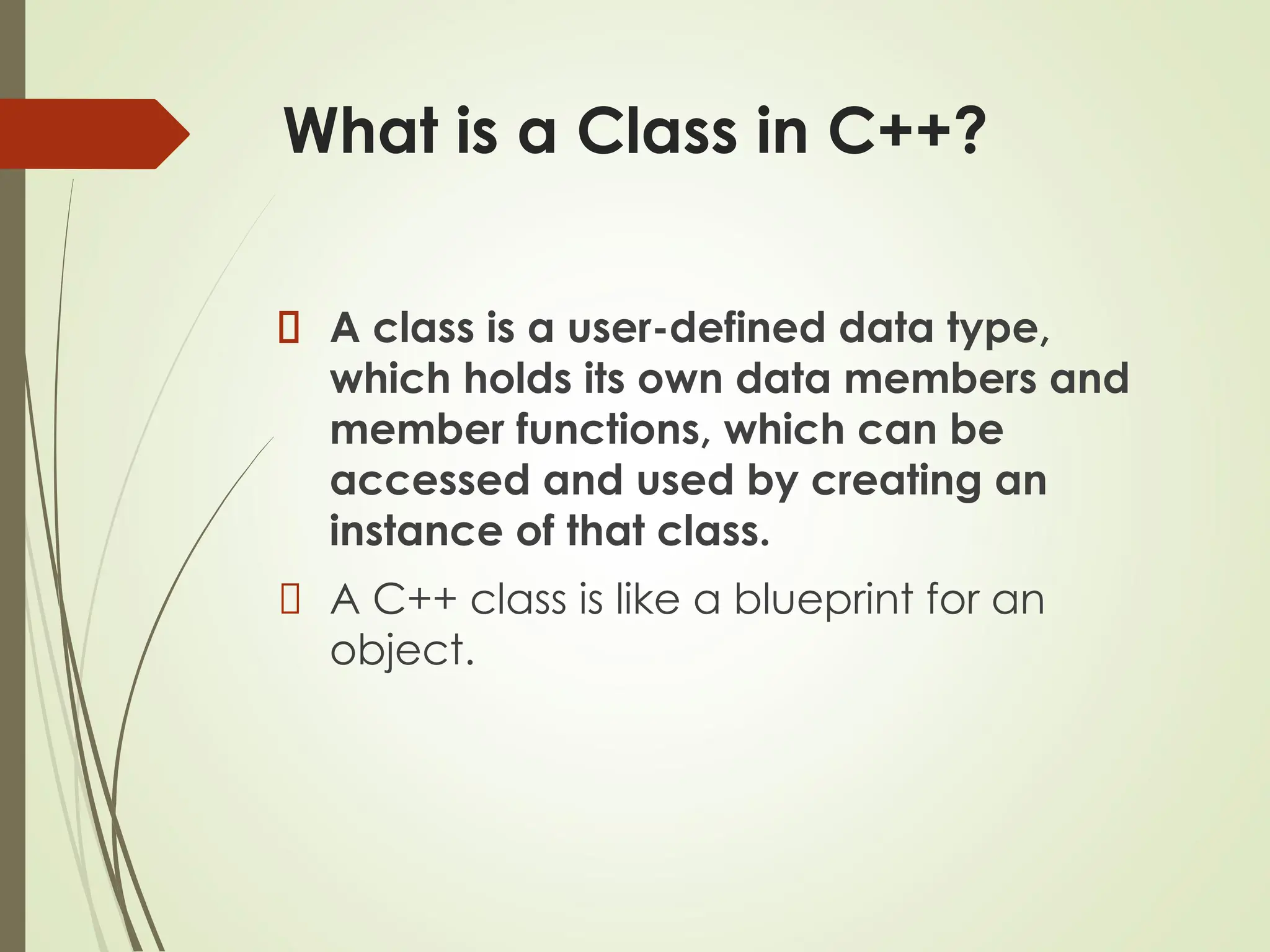

What is a Class in C++?
A class is a user-defined data type,
which holds its own data members and
member functions, which can be
accessed and used by creating an
instance of that class.
A C++ class is like a blueprint for an
object.

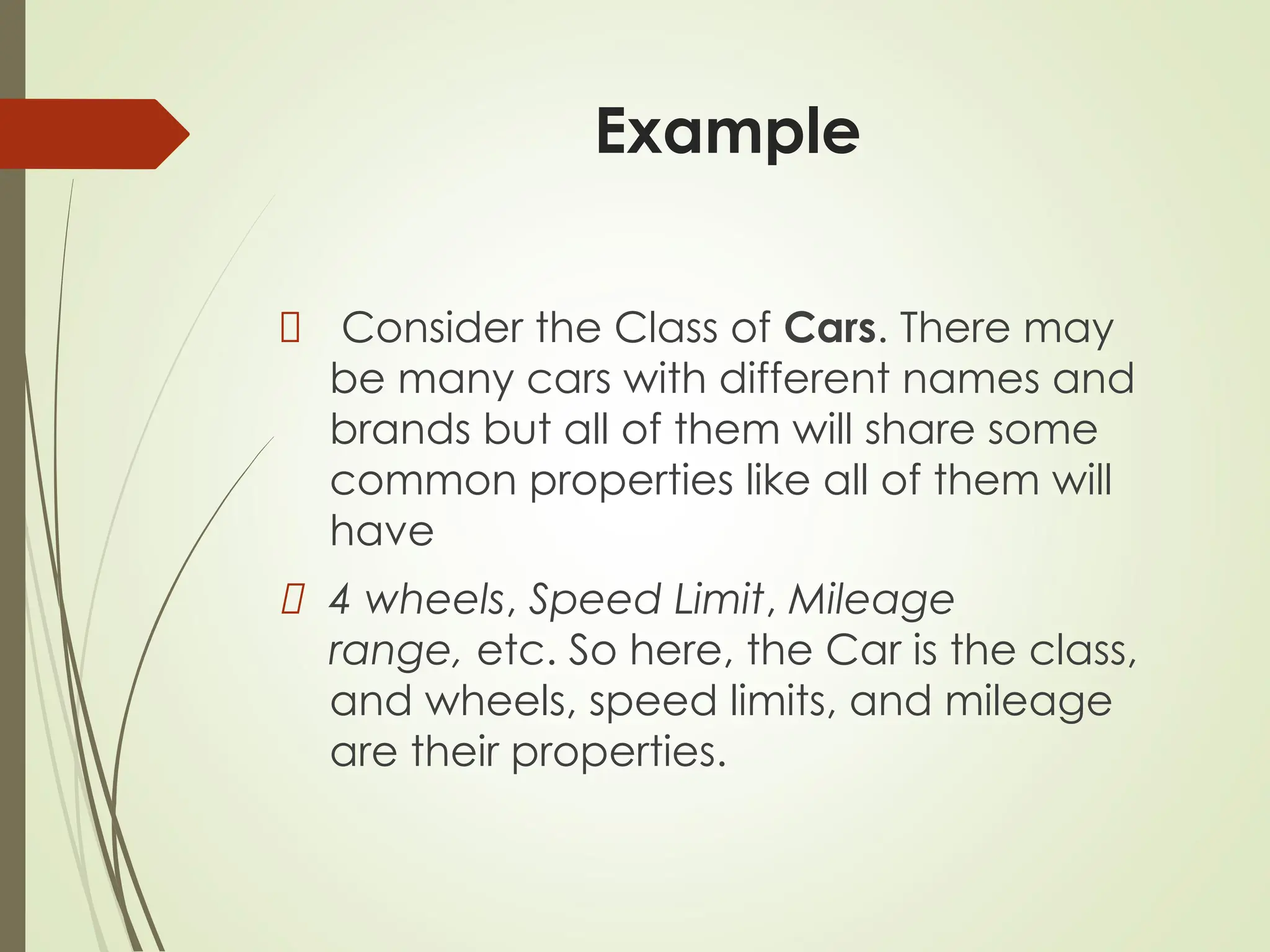

Example
Consider the Class of Cars. There may
be many cars with different names and
brands but all of them will share some
common properties like all of them will
have
4 wheels, Speed Limit, Mileage
range, etc. So here, the Car is the class,
and wheels, speed limits, and mileage
are their properties.

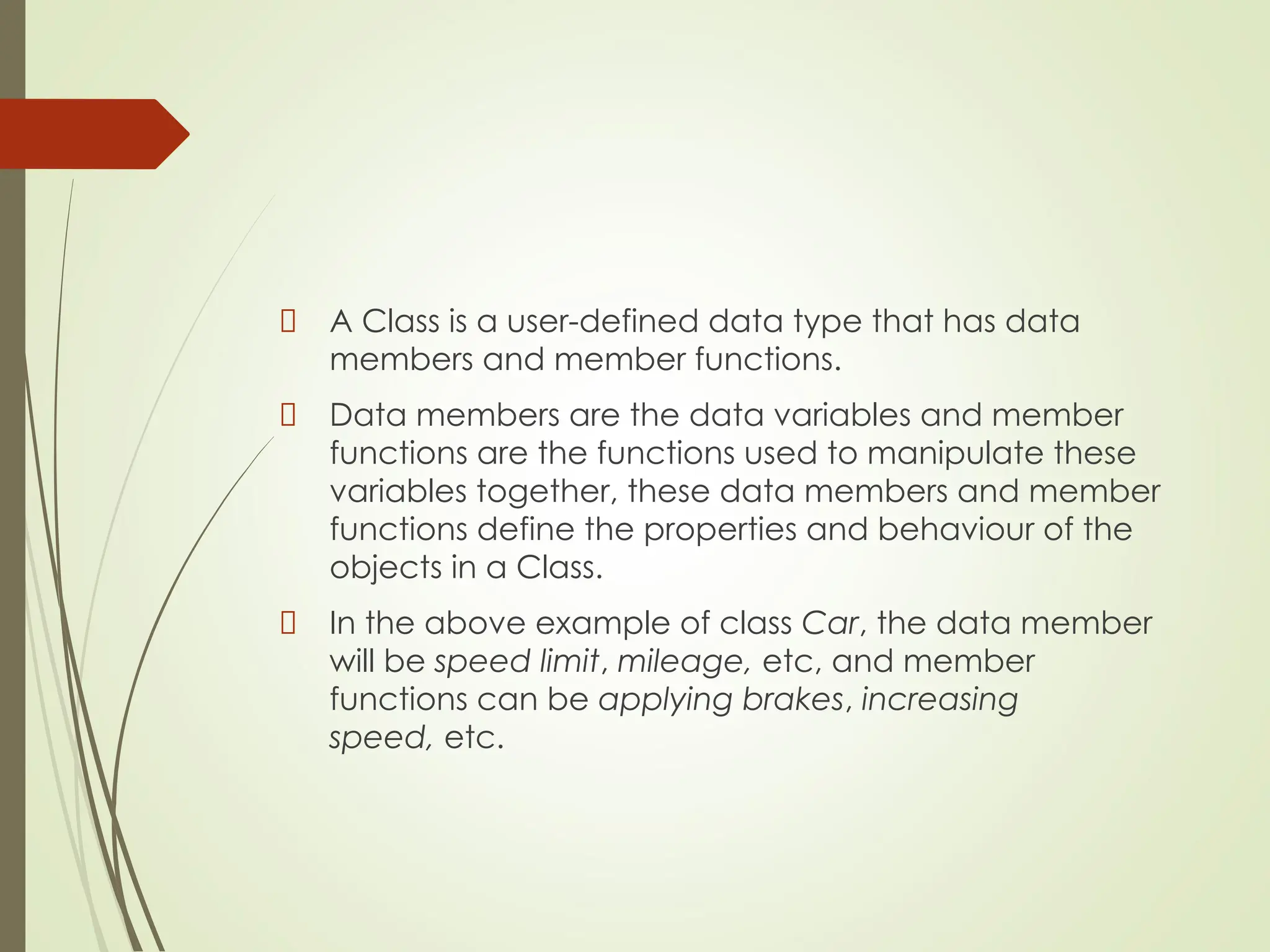

A Class is a user-defined data type that has data
members and member functions.
Data members are the data variables and member
functions are the functions used to manipulate these
variables together, these data members and member
functions define the properties and behaviour of the
objects in a Class.
In the above example of class Car, the data member
will be speed limit, mileage, etc, and member
functions can be applying brakes, increasing
speed, etc.

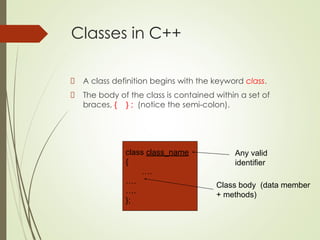

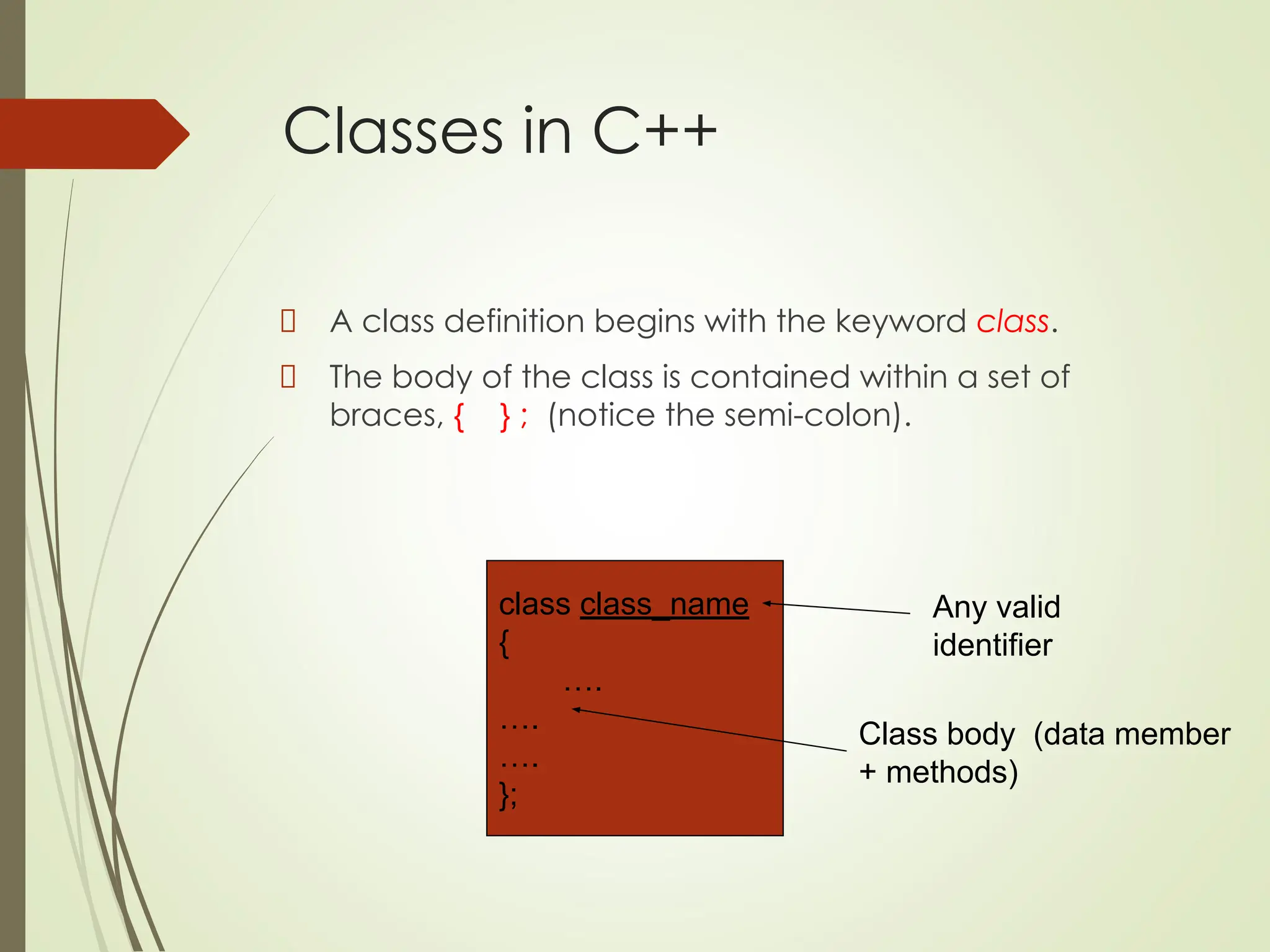

Classes in C++
A class definition begins with the keyword class.
The body of the class is contained within a set of
braces, { } ; (notice the semi-colon).
class class_name
{
….
….
….
};
Class body (data member
+ methods)
Any valid
identifier

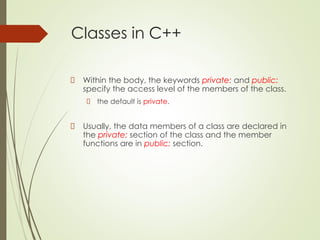

Classes in C++
Within the body, the keywords private: and public:
specify the access level of the members of the class.
the default is private.
Usually, the data members of a class are declared in
the private: section of the class and the member
functions are in public: section.

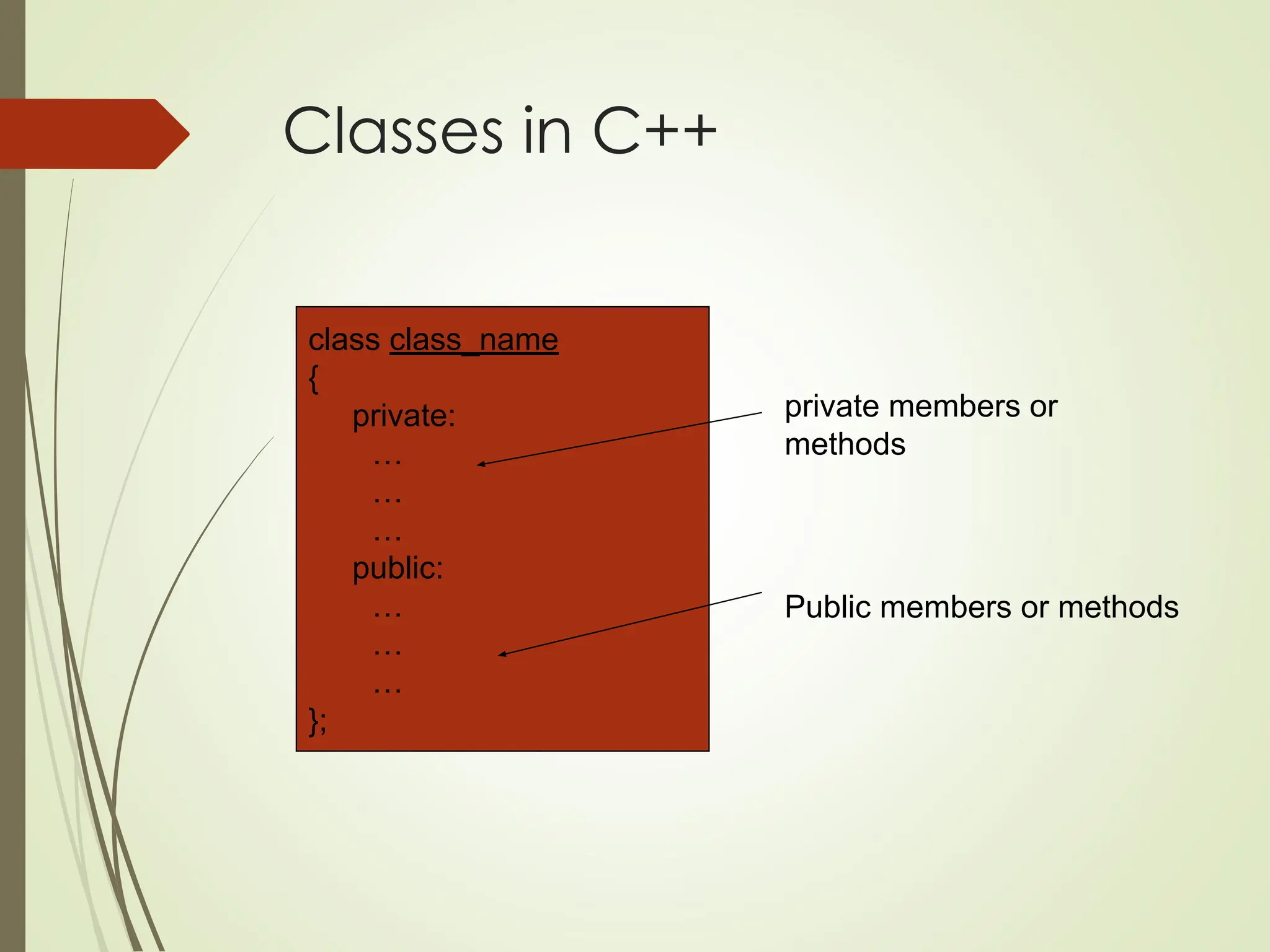

Classes in C++
class class_name
{
private:
…
…
…
public:
…
…
…
};
Public members or methods
private members or
methods

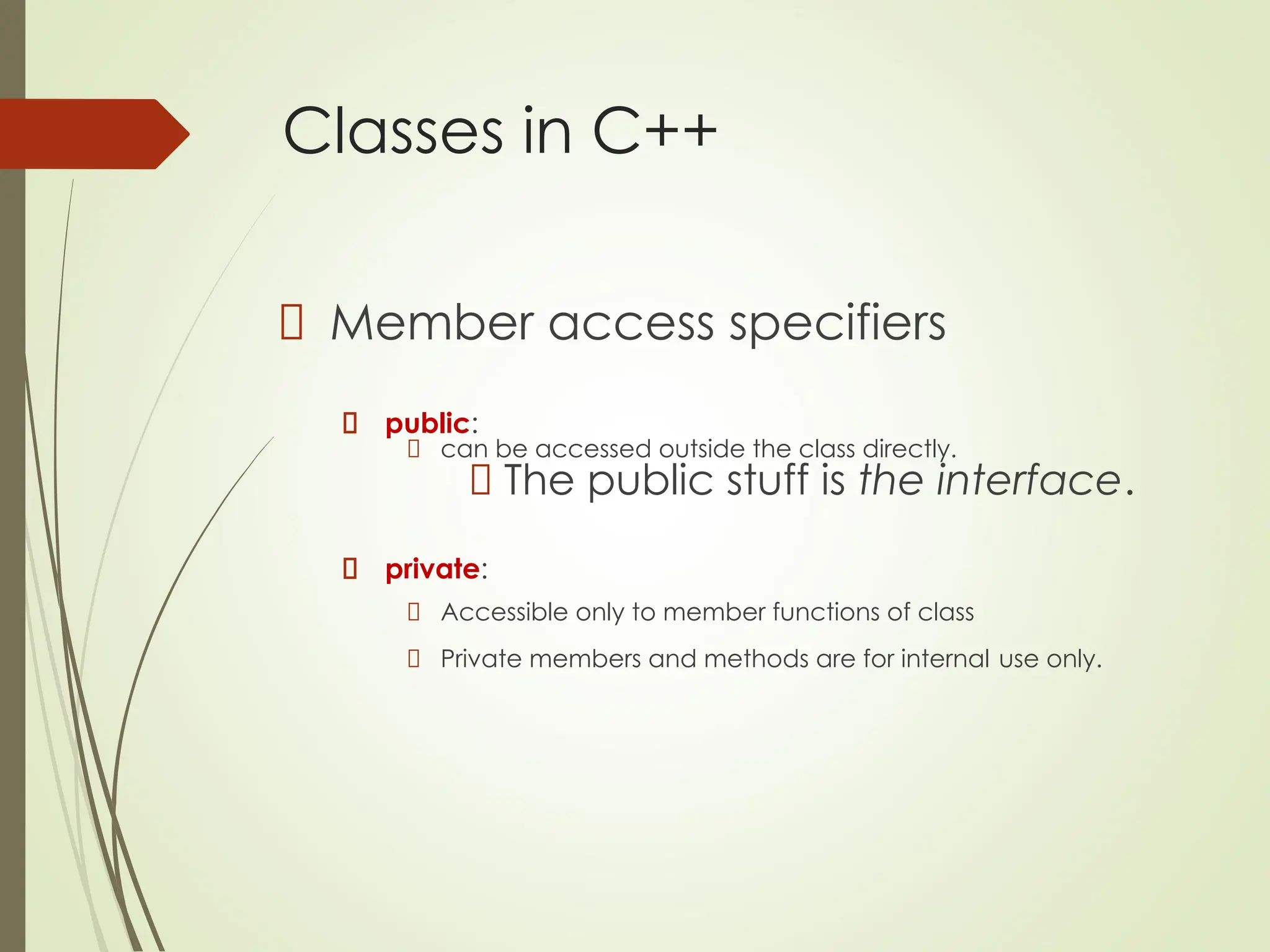

Classes in C++
Member access specifiers
public:
can be accessed outside the class directly.
The public stuff is the interface.
private:
Accessible only to member functions of class
Private members and methods are for internal use only.

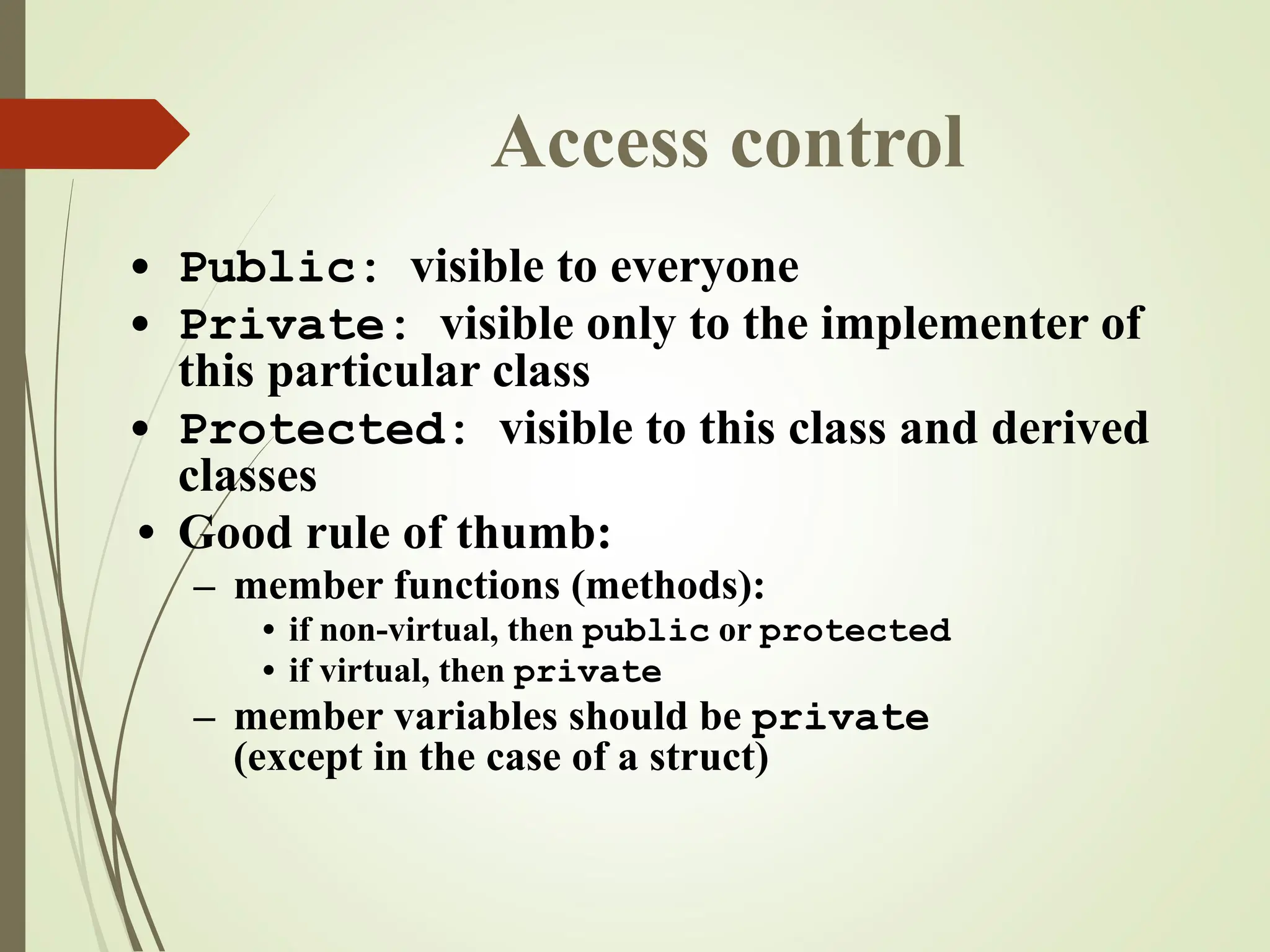

Access control
• Public: visible to everyone
• Private: visible only to the implementer of
this particular class
• Protected: visible to this class and derived
classes
• Good rule of thumb:
– member functions (methods):
• if non-virtual, then public or protected
• if virtual, then private
– member variables should be private
(except in the case of a struct)

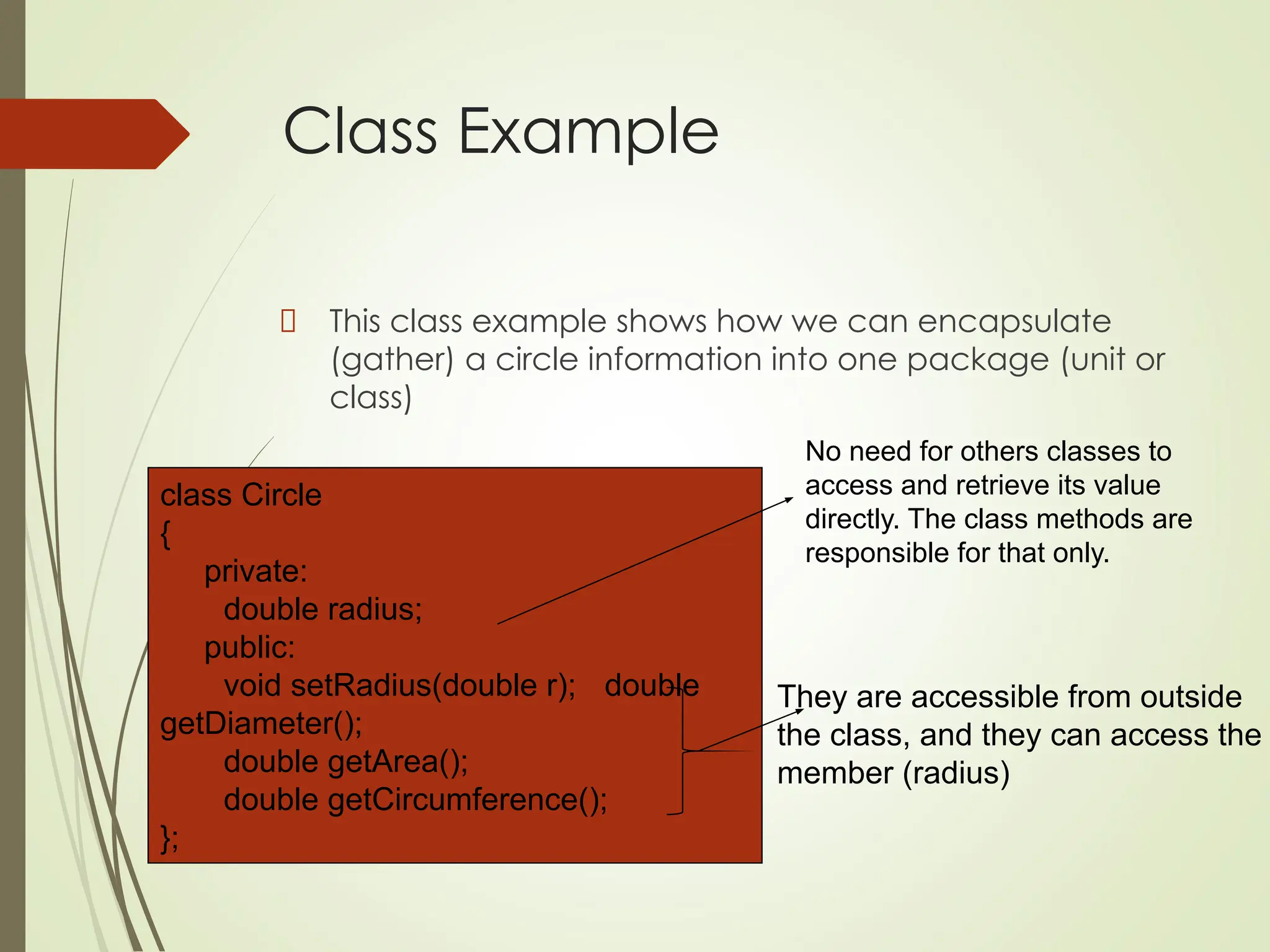

Class Example
This class example shows how we can encapsulate
(gather) a circle information into one package (unit or
class)
class Circle
{
private:
double radius;
public:
void setRadius(double r); double
getDiameter();
double getArea();
double getCircumference();
};
No need for others classes to
access and retrieve its value
directly. The class methods are
responsible for that only.
They are accessible from outside
the class, and they can access the
member (radius)

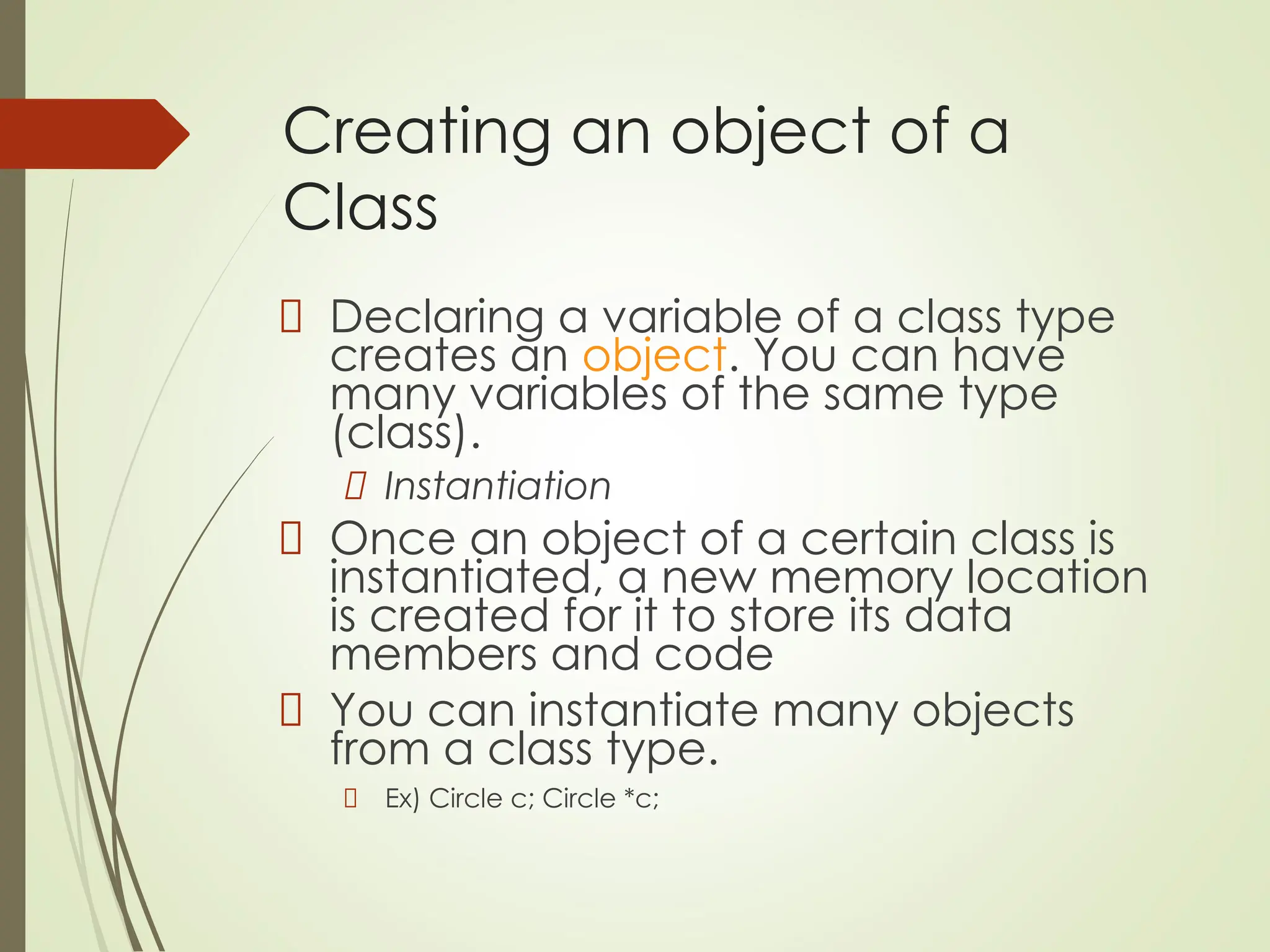

Creating an object of a
Class
Declaring a variable of a class type
creates an object. You can have
many variables of the same type
(class).
Instantiation
Once an object of a certain class is
instantiated, a new memory location
is created for it to store its data
members and code
You can instantiate many objects
from a class type.
Ex) Circle c; Circle *c;

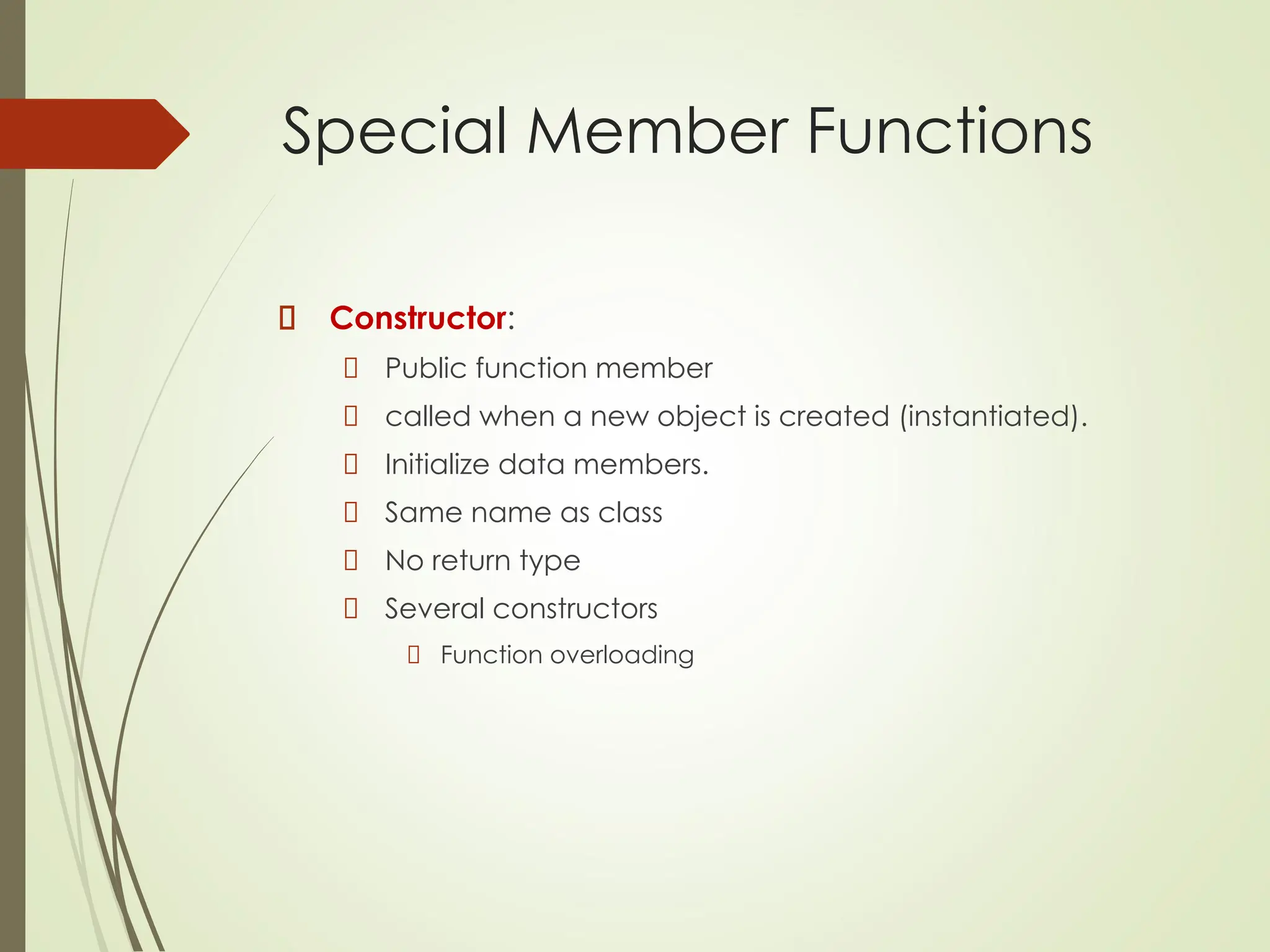

Special Member Functions
Constructor:
Public function member
called when a new object is created (instantiated).
Initialize data members.
Same name as class
No return type
Several constructors
Function overloading

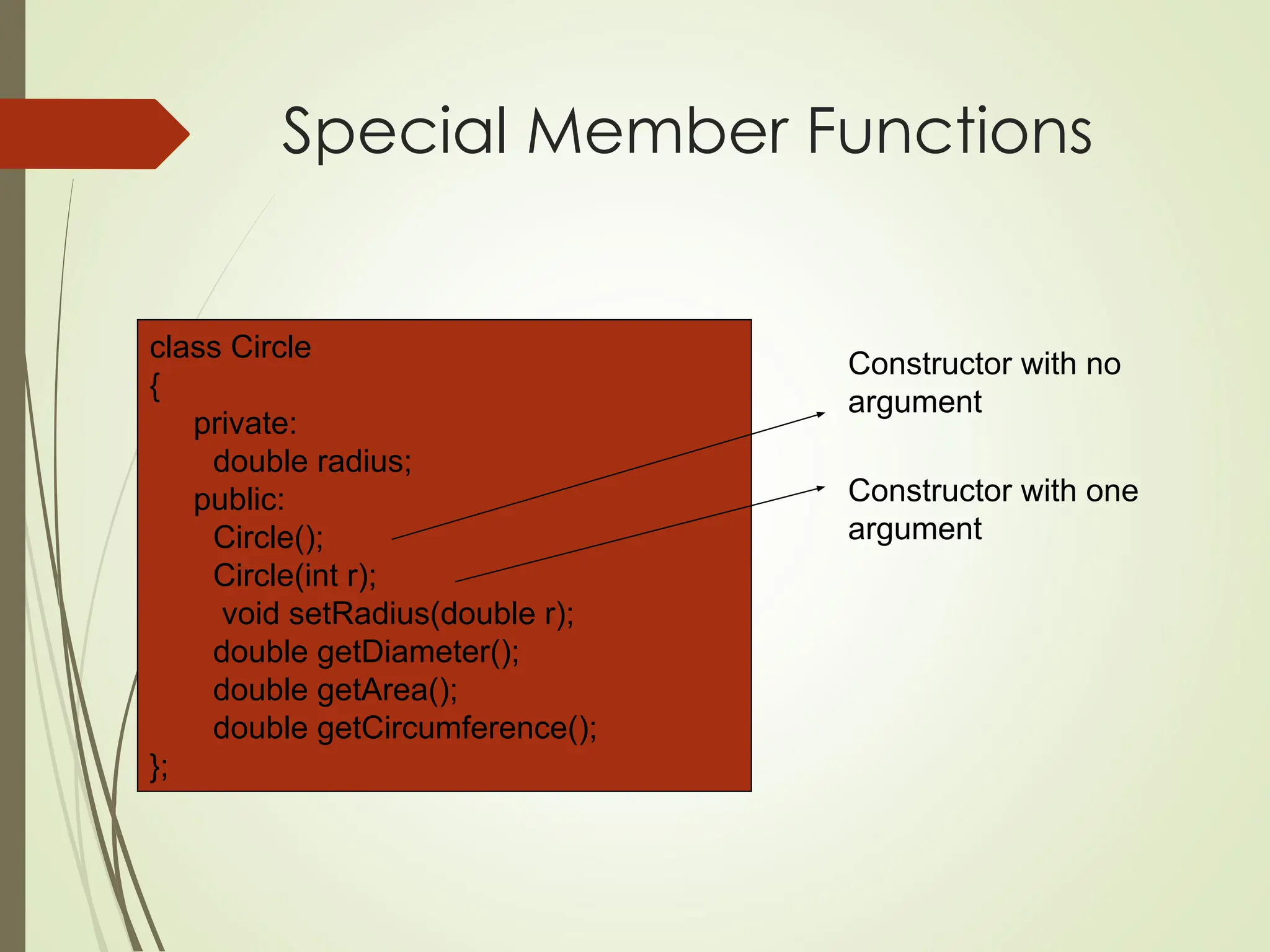

Special Member Functions
class Circle
{
private:
double radius;
public:
Circle();
Circle(int r);
void setRadius(double r);
double getDiameter();
double getArea();
};
Constructor with no
argument
Constructor with one
argument

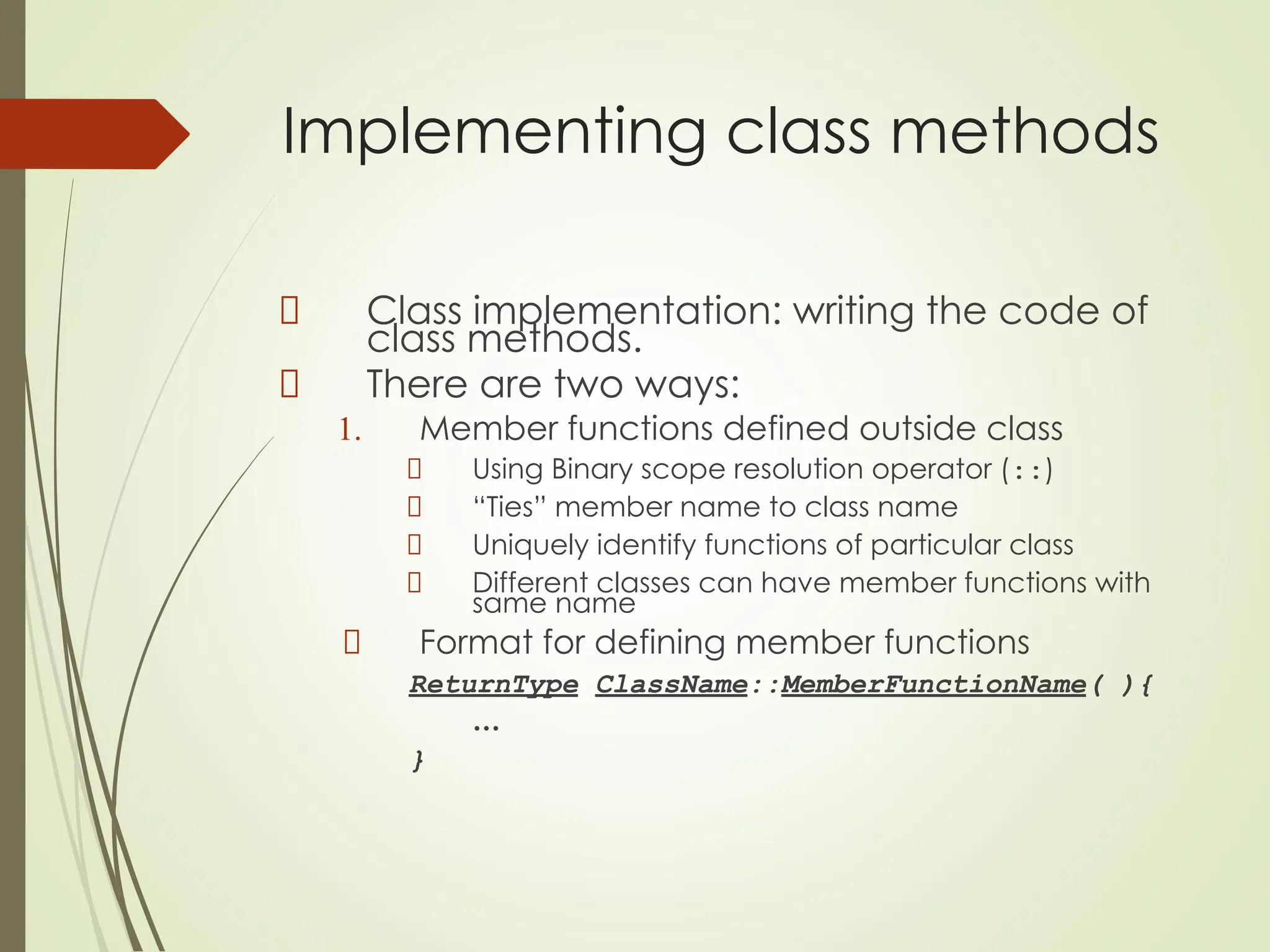

Implementing class methods
Class implementation: writing the code of
class methods.
There are two ways:
1. Member functions defined outside class
Using Binary scope resolution operator (::)
“Ties” member name to class name
Uniquely identify functions of particular class
Different classes can have member functions with
same name
Format for defining member functions
ReturnType ClassName::MemberFunctionName( ){
…
}

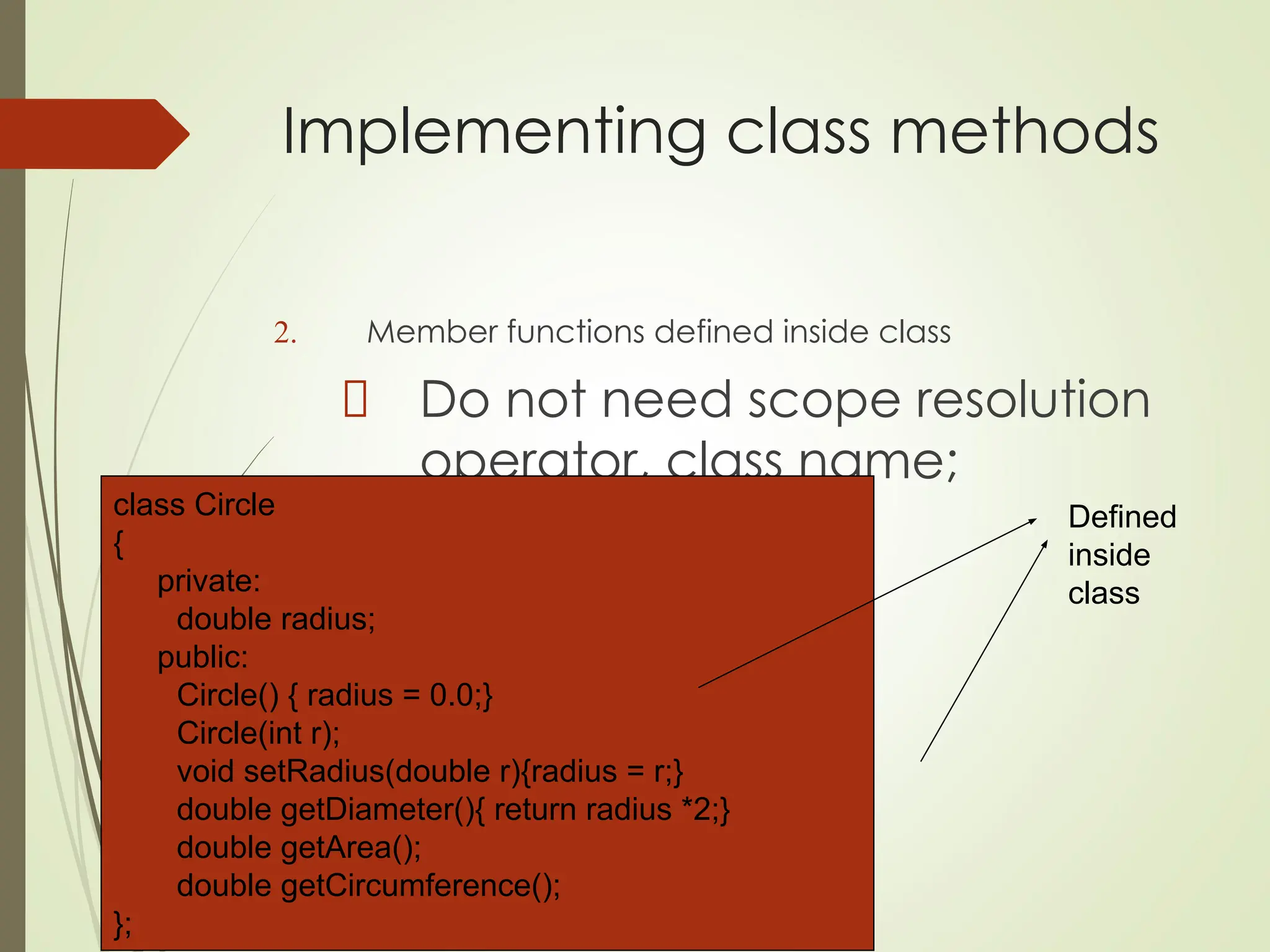

Implementing class methods
2. Member functions defined inside class
Do not need scope resolution
operator, class name;
class Circle
{
private:
double radius;
public:
Circle() { radius = 0.0;}
Circle(int r);
void setRadius(double r){radius = r;}
double getDiameter(){ return radius *2;}
double getArea();
};
Defined
inside
class

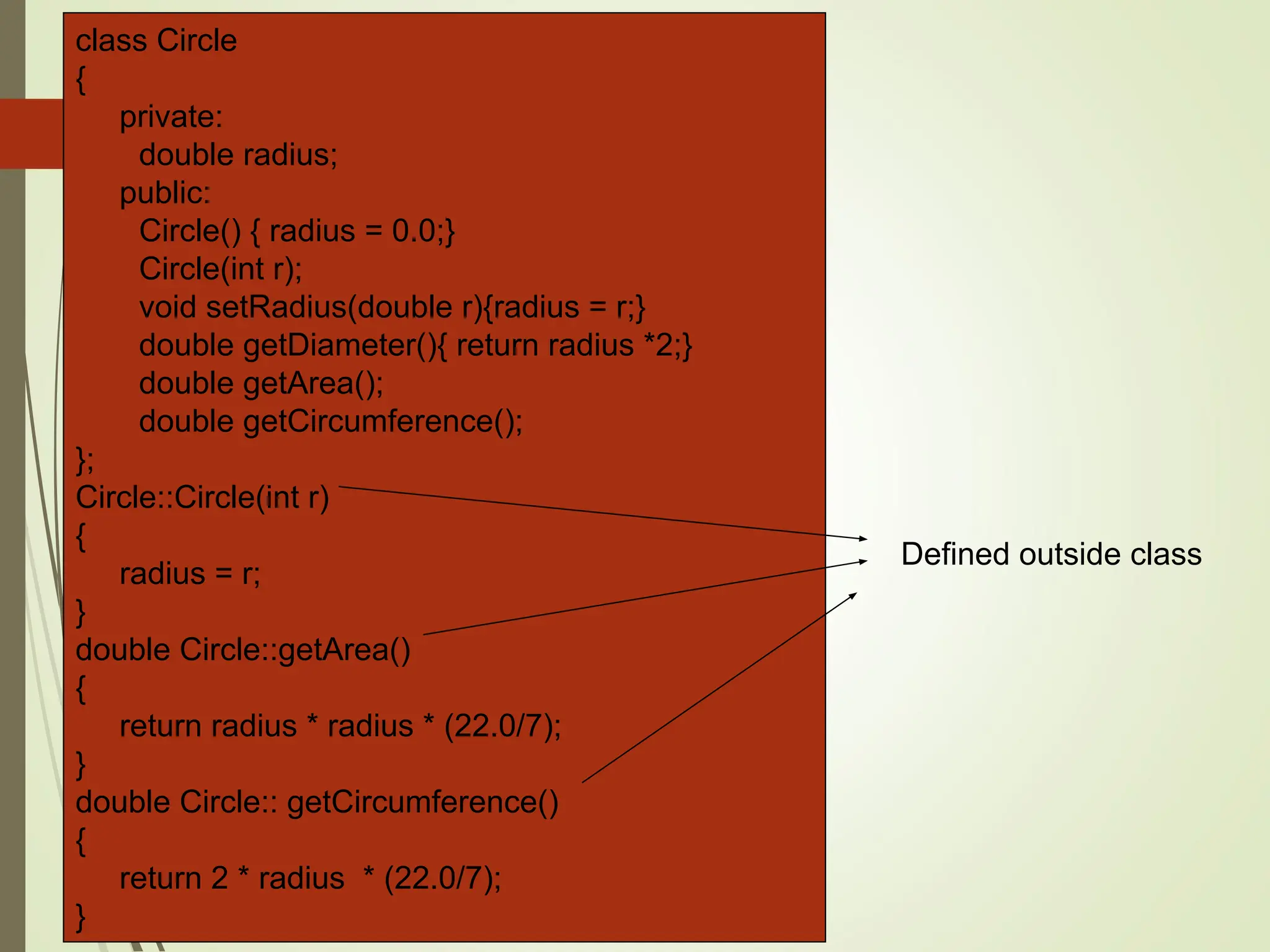

class Circle
{
private:
double radius;
public:
Circle(int r);
double getArea();
};
Circle::Circle(int r)
{
radius = r;
}
double Circle::getArea()
{
return radius * radius * (22.0/7);
}
double Circle:: getCircumference()
{
return 2 * radius * (22.0/7);
}
Defined outside class

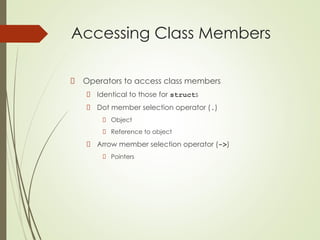

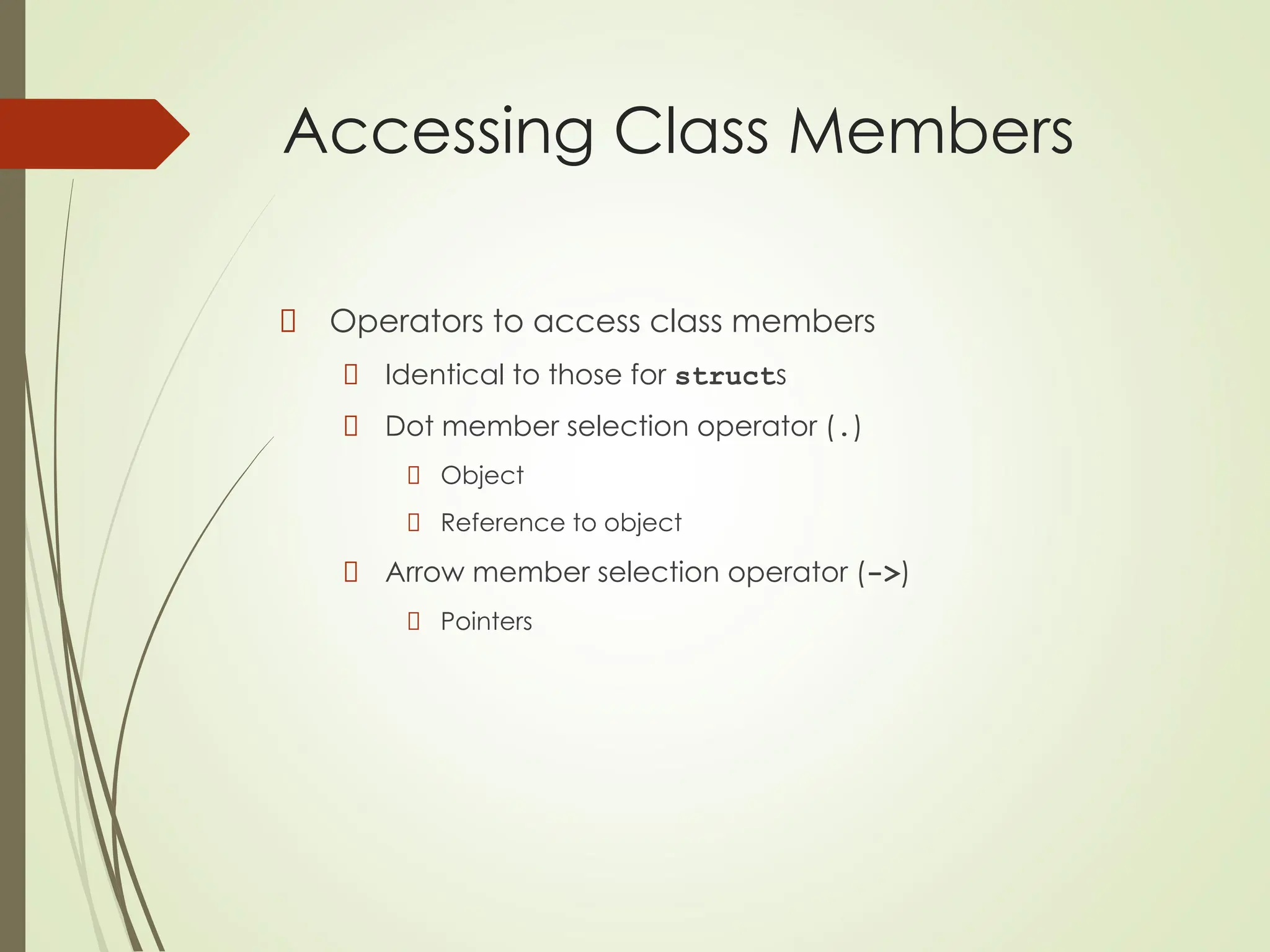

Accessing Class Members
Operators to access class members
Identical to those for structs
Dot member selection operator (.)
Object
Reference to object
Arrow member selection operator (->)
Pointers

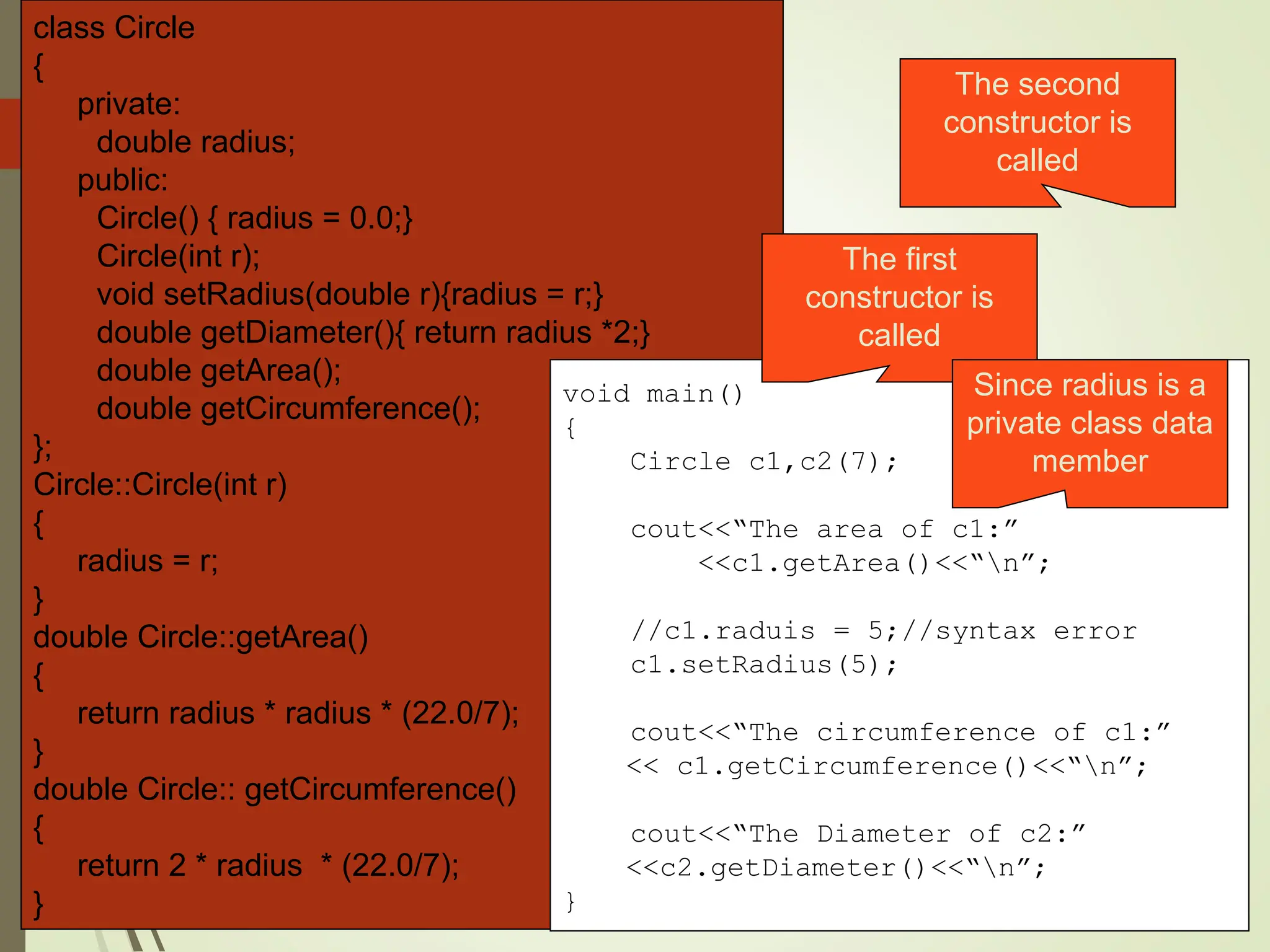

class Circle
{
private:
double radius;
public:
Circle(int r);
double getArea();
};
{
radius = r;
}
{
}
{
}
void main()
{
Circle c1,c2(7);
cout<<“The area of c1:”
<<c1.getArea()<<“n”;
//c1.raduis = 5;//syntax error
c1.setRadius(5);
cout<<“The circumference of c1:”
<< c1.getCircumference()<<“n”;
cout<<“The Diameter of c2:”
<<c2.getDiameter()<<“n”;
}
The first
constructor is
called
The second
constructor is
called
Since radius is a
private class data
member

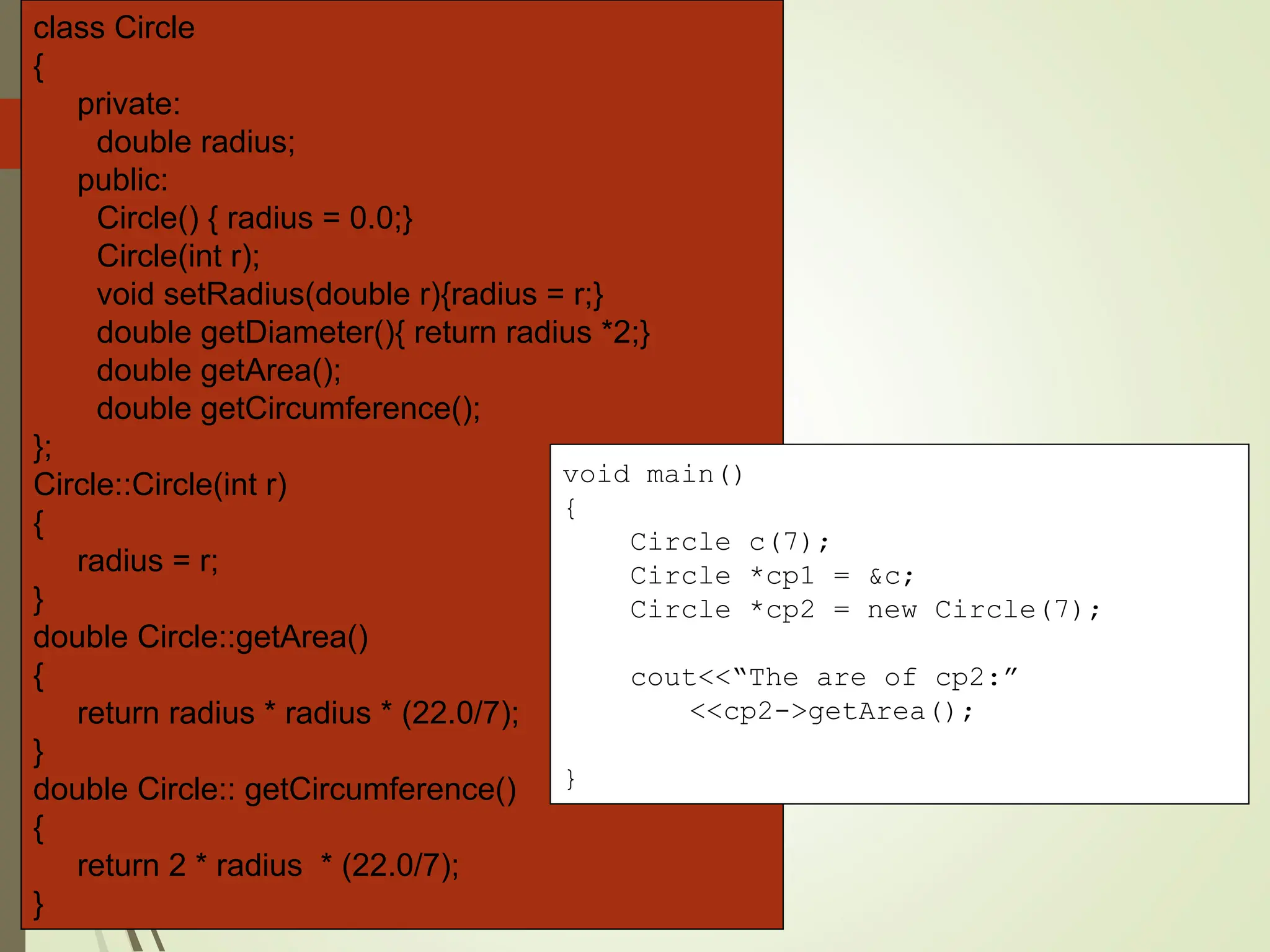

class Circle
{
private:
double radius;
public:
Circle(int r);
double getArea();
};
{
radius = r;
}
{
}
{
}
void main()
{
Circle c(7);
Circle *cp1 = &c;
Circle *cp2 = new Circle(7);
cout<<“The are of cp2:”
<<cp2->getArea();
}

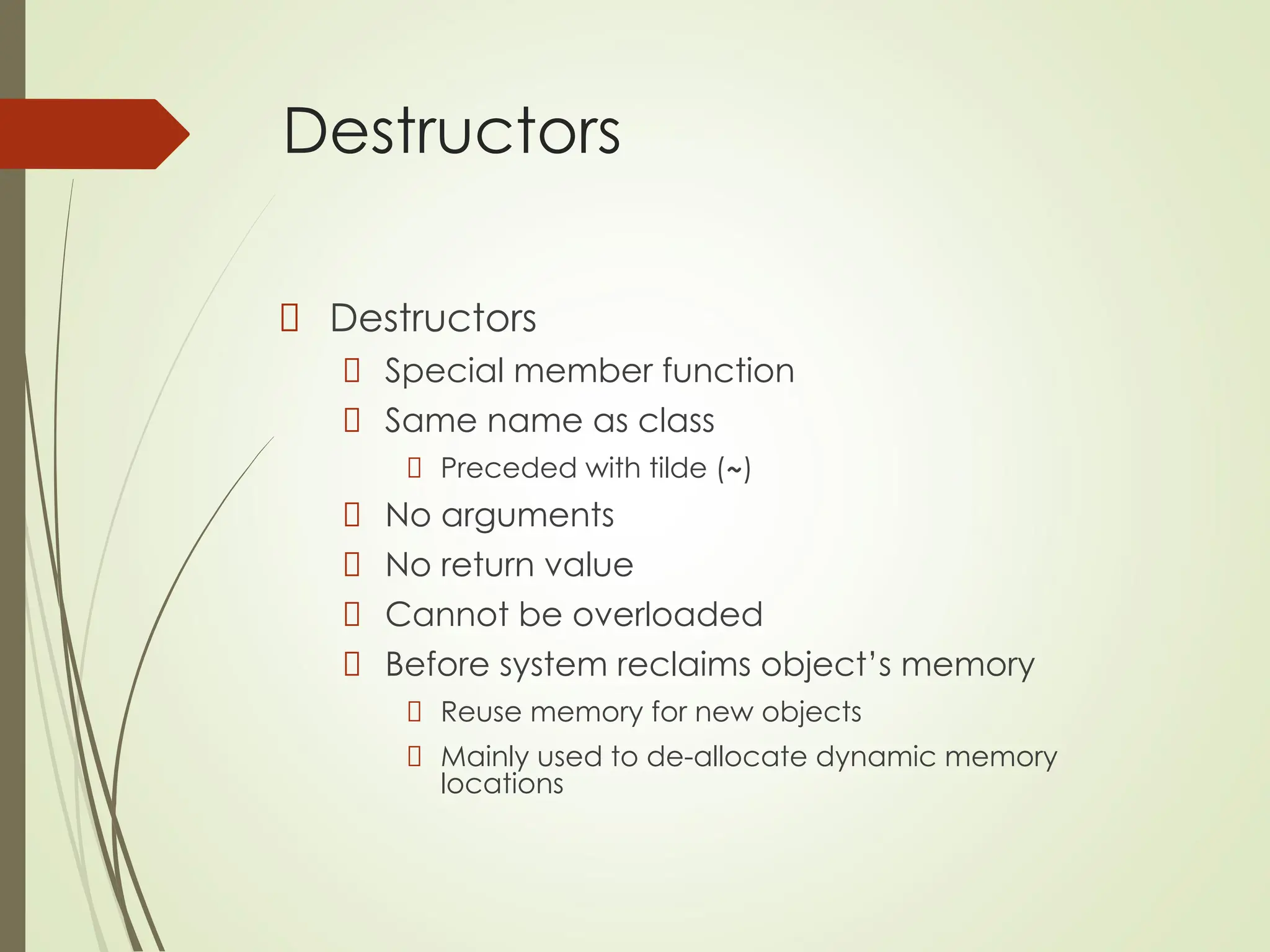

Destructors
Destructors
Special member function
Same name as class
Preceded with tilde (~)
No arguments
No return value
Cannot be overloaded
Before system reclaims object’s memory
Reuse memory for new objects
Mainly used to de-allocate dynamic memory
locations

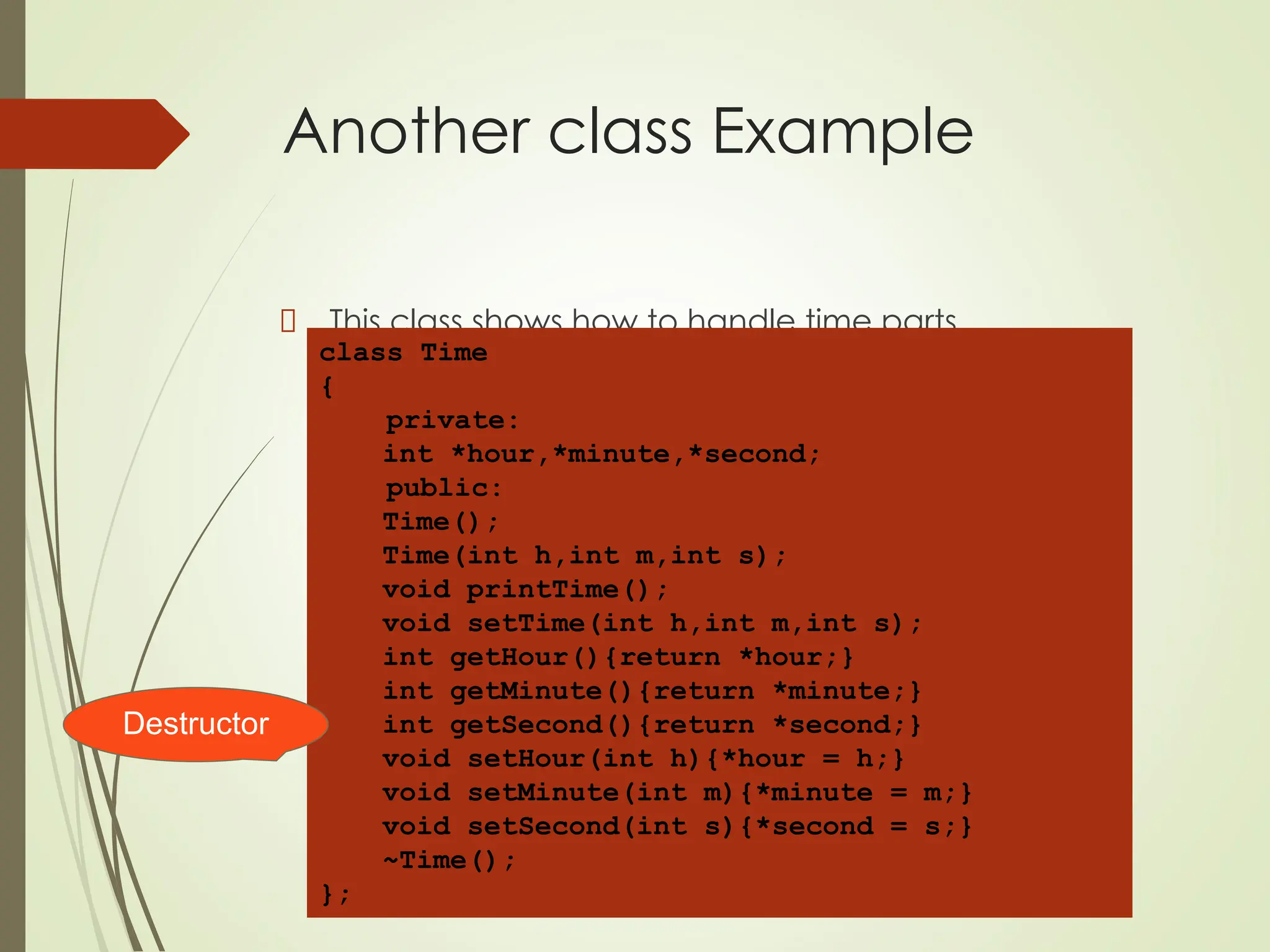

Another class Example
This class shows how to handle time parts.
class Time
{
private:
int *hour,*minute,*second;
public:
Time();
Time(int h,int m,int s);
void printTime();
void setTime(int h,int m,int s);
int getHour(){return *hour;}
int getMinute(){return *minute;}
int getSecond(){return *second;}
void setHour(int h){*hour = h;}
void setMinute(int m){*minute = m;}
void setSecond(int s){*second = s;}
~Time();
};
Destructor

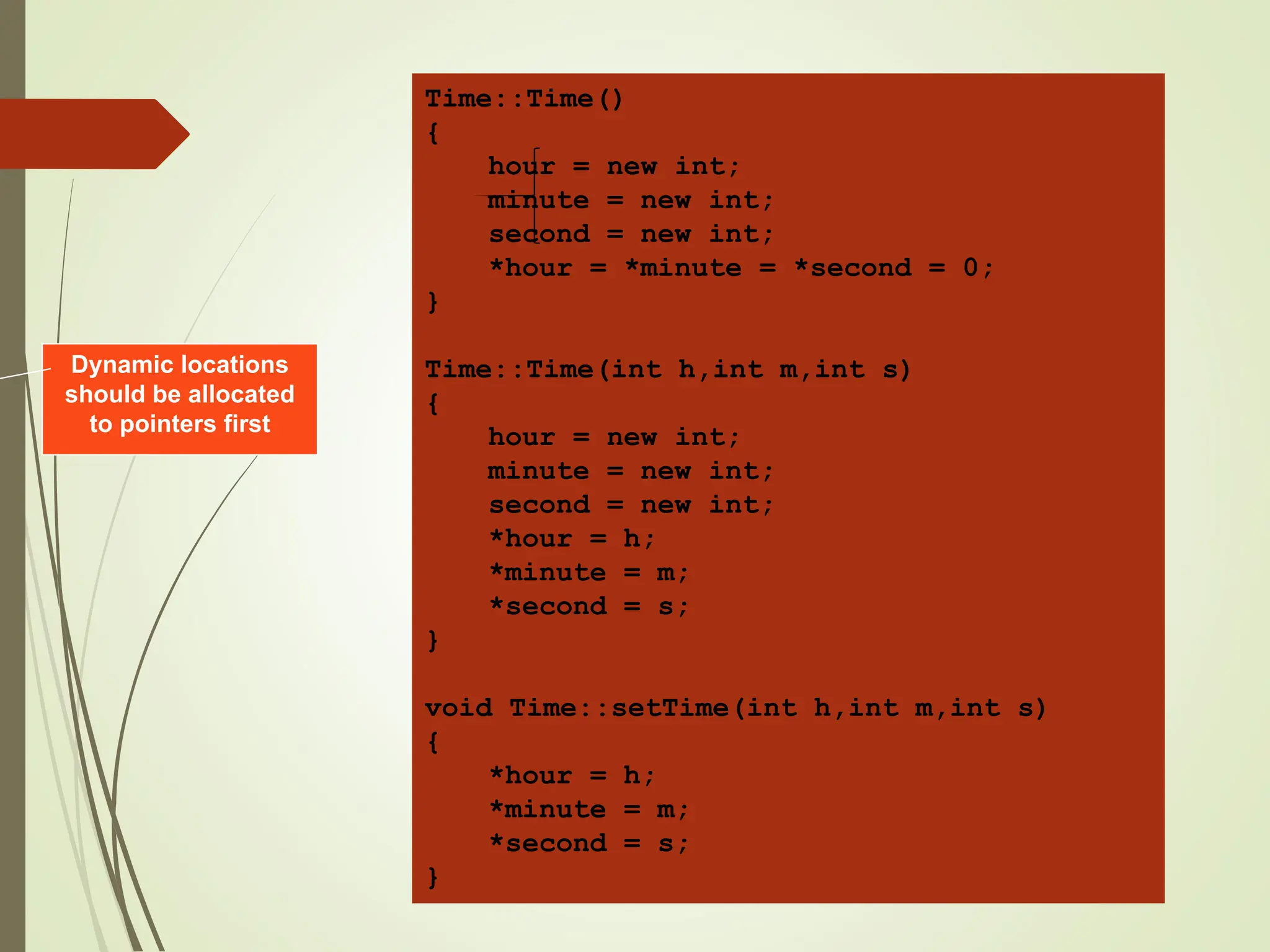

Time::Time()
{
hour = new int;
minute = new int;
second = new int;
*hour = *minute = *second = 0;
}
Time::Time(int h,int m,int s)
{
hour = new int;
minute = new int;
second = new int;
*hour = h;
*minute = m;
*second = s;
}
void Time::setTime(int h,int m,int s)
{
*hour = h;
*minute = m;
*second = s;
}
Dynamic locations
should be allocated
to pointers first

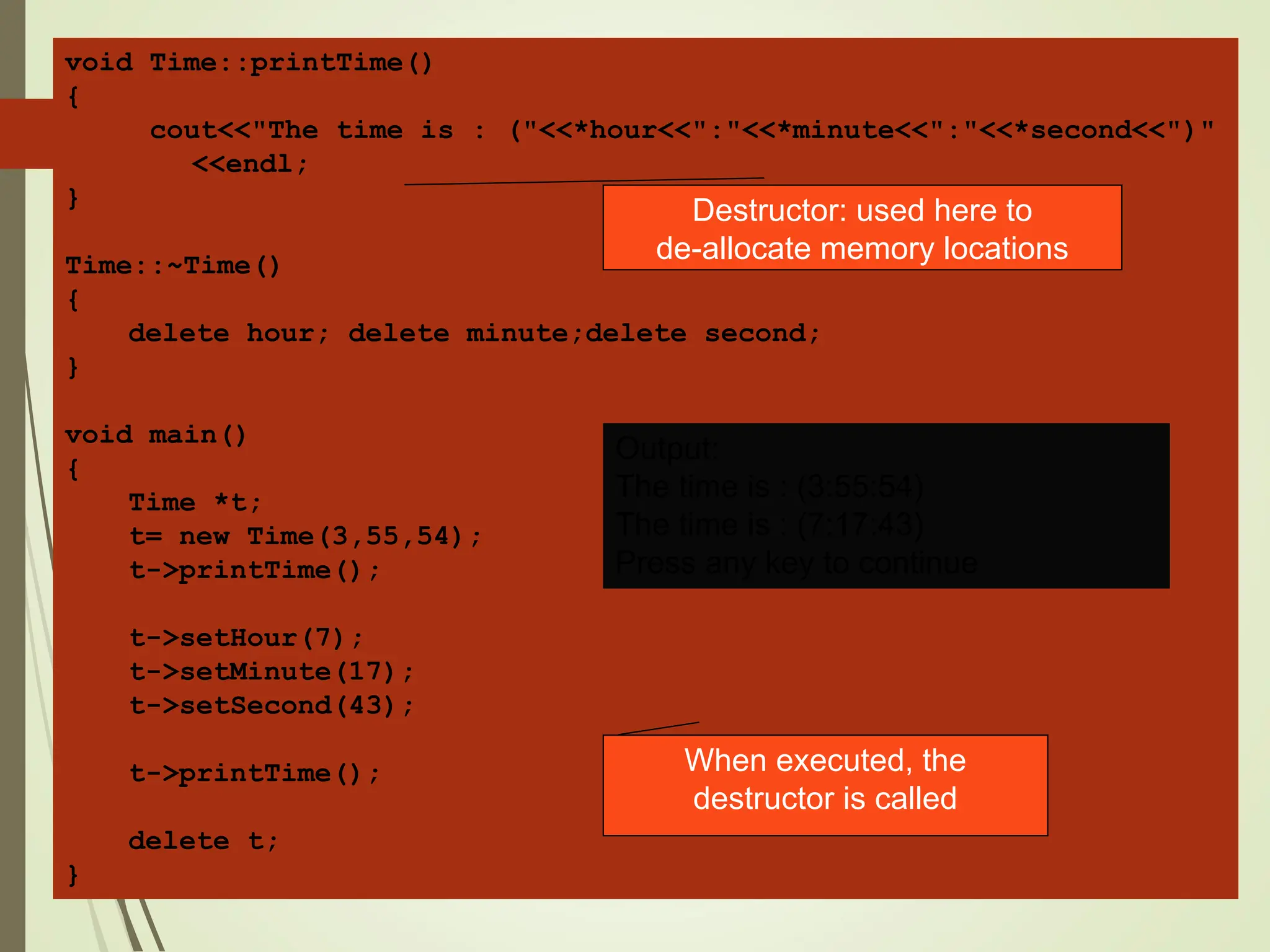

void Time::printTime()
{
cout<<"The time is : ("<<*hour<<":"<<*minute<<":"<<*second<<")"
<<endl;
}
Time::~Time()
{
delete hour; delete minute;delete second;
}
void main()
{
Time *t;
t= new Time(3,55,54);
t->printTime();
t->setHour(7);
t->setMinute(17);
t->setSecond(43);
t->printTime();
delete t;
}
Output:
The time is : (3:55:54)
The time is : (7:17:43)
Press any key to continue
Destructor: used here to
de-allocate memory locations
When executed, the
destructor is called

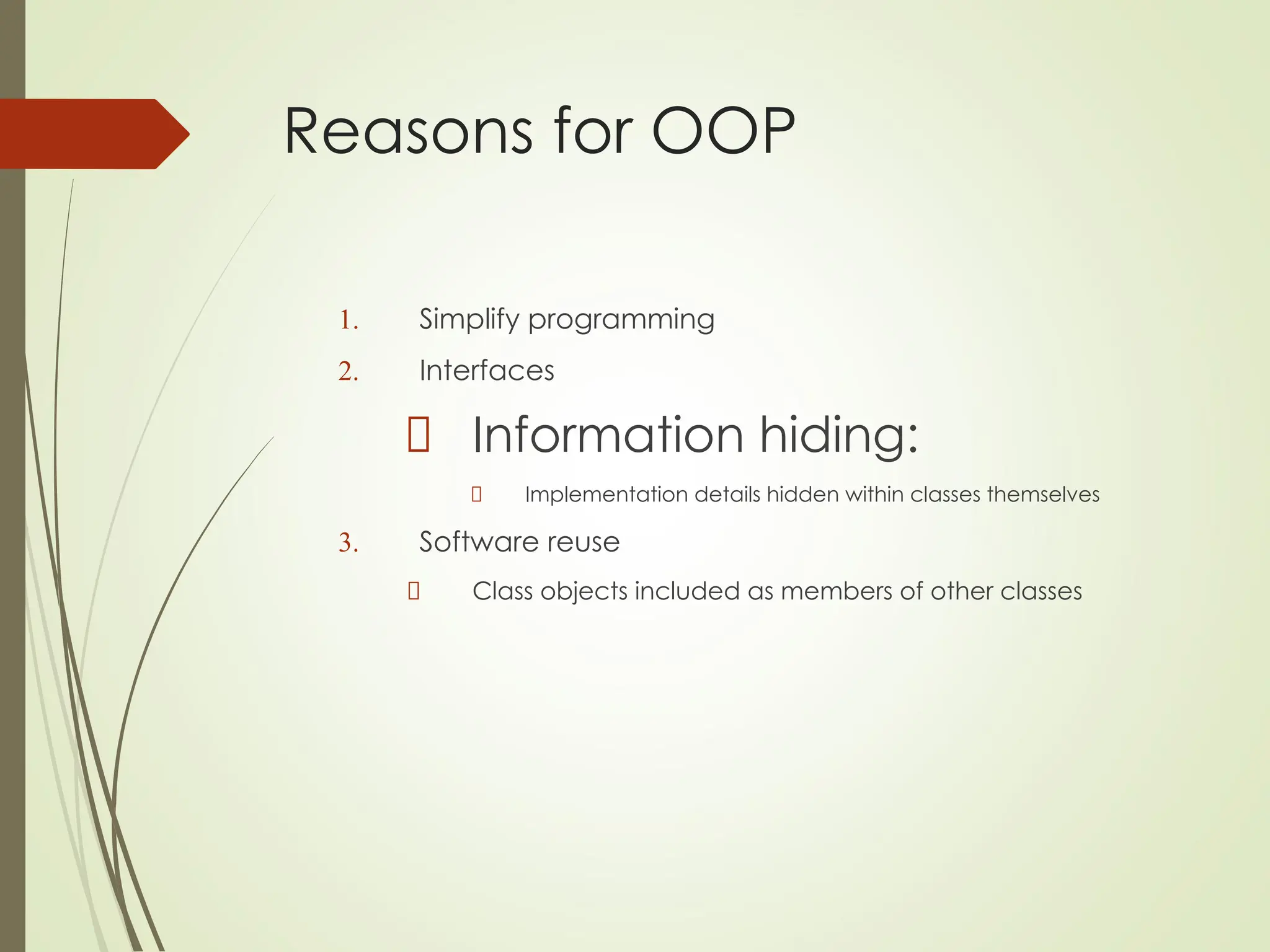

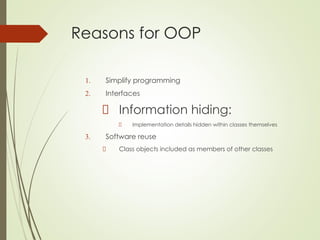

Reasons for OOP
1. Simplify programming
2. Interfaces
Information hiding:
Implementation details hidden within classes themselves
3. Software reuse
Class objects included as members of other classes
