Introduction to the SharePoint Client Object Model and REST API

Introduction to the SharePoint 2013 Client Object
Model and REST API
Rob Windsor
rob@robwindsor.com
@robwindsor

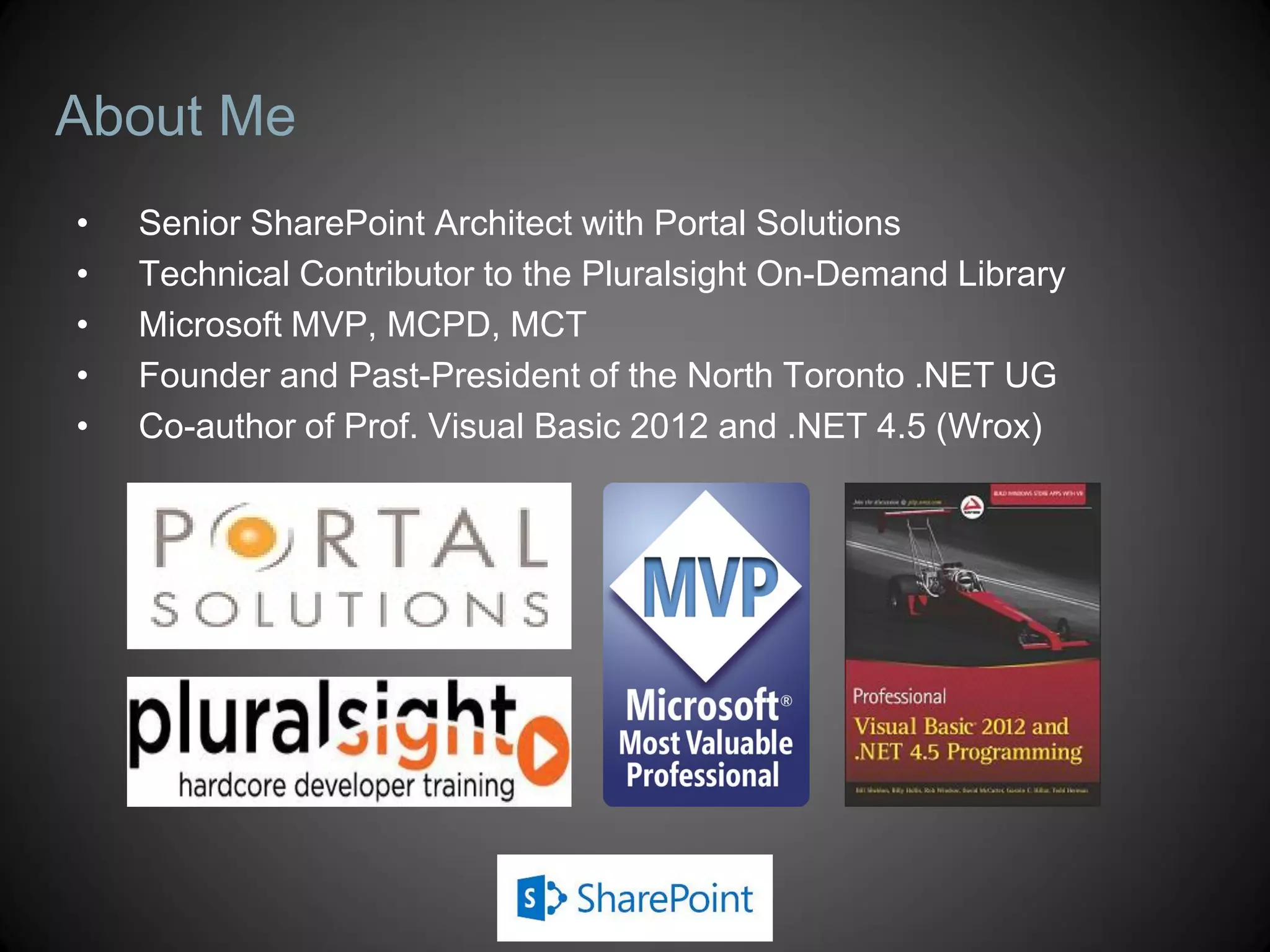

About Me
 Senior SharePoint Consultant
 Technical Contributor to the Pluralsight On-Demand Library
 Microsoft MVP, MCPD, MCT
 Founder and Past-President of the North Toronto .NET UG
 Co-author of Prof. Visual Basic 2012 and .NET 4.5 (Wrox)

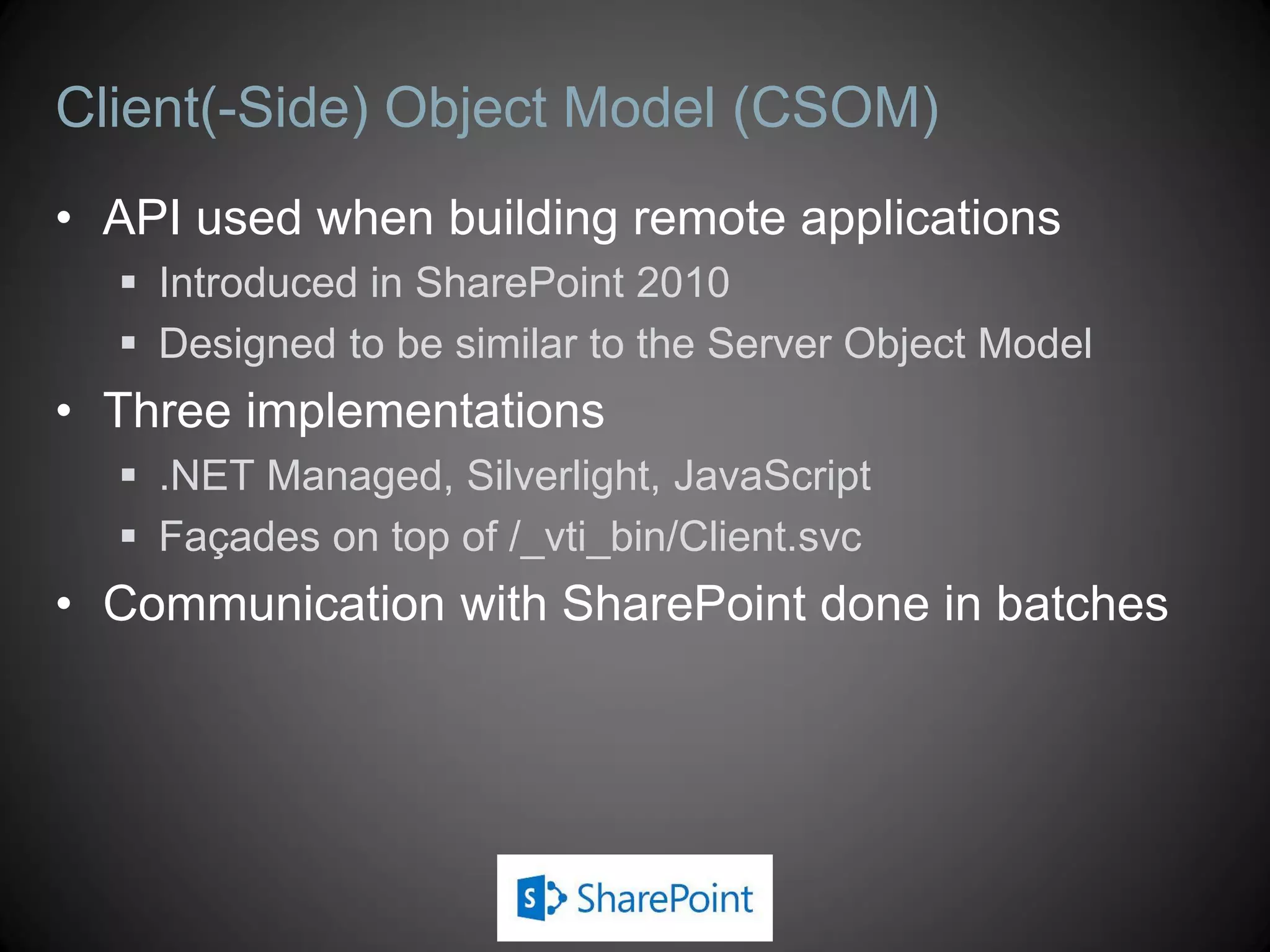

Client Object Model (CSOM)
 API used when building remote applications
 Designed to be similar to the Server Object Model
 Introduced in SharePoint 2010, expanded in SharePoint 2013
 Slightly different versions for SP 2013 on-premises and SP Online
 Three implementations
 .NET Managed, Silverlight (plus Mobile), JavaScript
 Façades on top of /_vti_bin/Client.svc
 Managed implementation has two versions
 Version 15 is for use against an on-premises farm
 Version 16 is for use against SharePoint Online
 Communication with SharePoint done in batches

Client Object Model Coverage
 Sites, Webs, Features, Event Receivers
 Lists, List Items, Fields, Content Types, Views, Forms
 Files, Folders
 Users, Roles, Groups, User Profiles, Feeds
 Web Parts
 Search
 Taxonomy
 Workflow
 IRM
 E-Discovery
 Analytics
 Business Data

Communicating with SharePoint
 All CRUD operations are automatically batched
 Requests for resources batched using Load and LoadQuery methods
 Batches are executed using ExecuteQuery or ExecuteQueryAsync
 This triggers a POST request to Client.svc/ProcessQuery
 Message body contains XML document with batched request information
 Response contains requested resources in JSON format

Client Object Model Authentication
 .NET Managed
 Windows credentials passed by default
 ClientContext.AuthenticationMode
 Default
 Anonymous
 FormsAuthentication
 ClientContext.Credentials
 Expects System.Net.ICredentials
 NetworkCredential, SharePointOnlineCredentials, …
 ClientContext.FormsAuthenticationLoginInfo
 Silverlight and JavaScript
 Credentials of the hosting Web application are always used

Retrieving Resources Using Load
var context = new ClientContext(siteUrl)
var web = context.Web;
context.Load(web);
context.Load(web.Lists);
context.ExecuteQuery();
ResultsListBox.Items.Add(web.Title);
ResultsListBox.Items.Add(web.Lists.Count);
 Indicates object data should be included in next batch retrieval
 Not all property values are retrieved
 Example: collections of associated objects
var context = SP.ClientContext.get_current();
var web = context.get_web();
var lists = web.get_lists();
context.load(web);
context.load(lists);
context.executeQueryAsync(success, fail);
function success() {
var div = jQuery("#message");
div.text(web.get_title());
div.append("<br />");
div.append(lists.get_count());
}
Managed: JavaScript:

Retrieving Resources Using LoadQuery
(Managed Code)
var query = from list in web.Lists
where list.Hidden == false &&
list.ItemCount > 0
select list;
var lists = context.LoadQuery(query);
Console.WriteLine(lists.Count());
 Indicates result of query should be included in next batch
retrieval
 Query executed on server
 Result returned from call
 Not loaded in-place as with Load

Retrieving Resources Using loadQuery
(JavaScript)
var lists = context.get_web().get_lists();
context.load(lists);
div.text(lists.get_count());
}
 No LINQ in JavaScript
 loadQuery very similar to load
 Returns new object
 Returns array for collections
var lists = context.get_web().get_lists();
var myLists = context.loadQuery(lists);
div.text(myLists.length);
}
load: loadQuery:

Selecting Fields to Retrieve
context.Load(web, w => w.Title, w => w.Description);
var query = from list in web.Lists.Include(l => l.Title)
where list.Hidden == false &&
list.ItemCount > 0
select list;
var lists = context.LoadQuery(query);
 Limit fields returned to reduce network traffic
 Use parameter array in Load and LoadQuery
 Use Include for collections
var lists = web.get_lists();
context.load(web, "Title", "Description");
context.load(lists, "Include(Title)");

Retrieving List Items
 Somewhat different than Server OM
 Set of items accessed by List.GetItems method
 Forces use of CAML query to encourage reduced result sets
 Selecting fields to be returned
 Can use ViewFields in query
 Can use Include with Load or LoadQuery
 CSOM does not support cross-list CAML queries
 Can use KeywordQuery with Search API for similar results
Task Server OM Managed Client OM
Get list web.Lists[“Products”] web.Lists.GetByTitle(“Products”)
Get items list.Items list.GetItems(query)
Get item title item.Title item[“Title”]
Query type SPQuery CamlQuery

Using CAML Queries
var list = web.Lists.GetByTitle("Products");
var query = new CamlQuery();
query.ViewXml = "<View>" +
"<Query>" +
"<Where><Eq>" +
"<FieldRef Name='Category' " +
"LookupId='True' />" +
"<Value Type='Lookup'>1</Value>" +
"</Eq></Where>" +
"</Query>" +
"</View>";
var items = list.GetItems(query);
context.Load(items,
c => c.Include(li => li["ID"], li => li["Title"]));
var list = web.get_lists().getByTitle("Products");
var query = new SP.CamlQuery();
query.set_viewXml("<View>" +
"<Query>" +
"<Where><Eq>" +
"<FieldRef Name='Category' " +
"LookupId='True' />" +
"</Eq></Where>" +
"</Query>" +
"<RowLimit>5</RowLimit>" +
"</View>");
var items = list.getItems(query);
context.load(web, "Title");
context.load(items, "Include(ID, Title)");

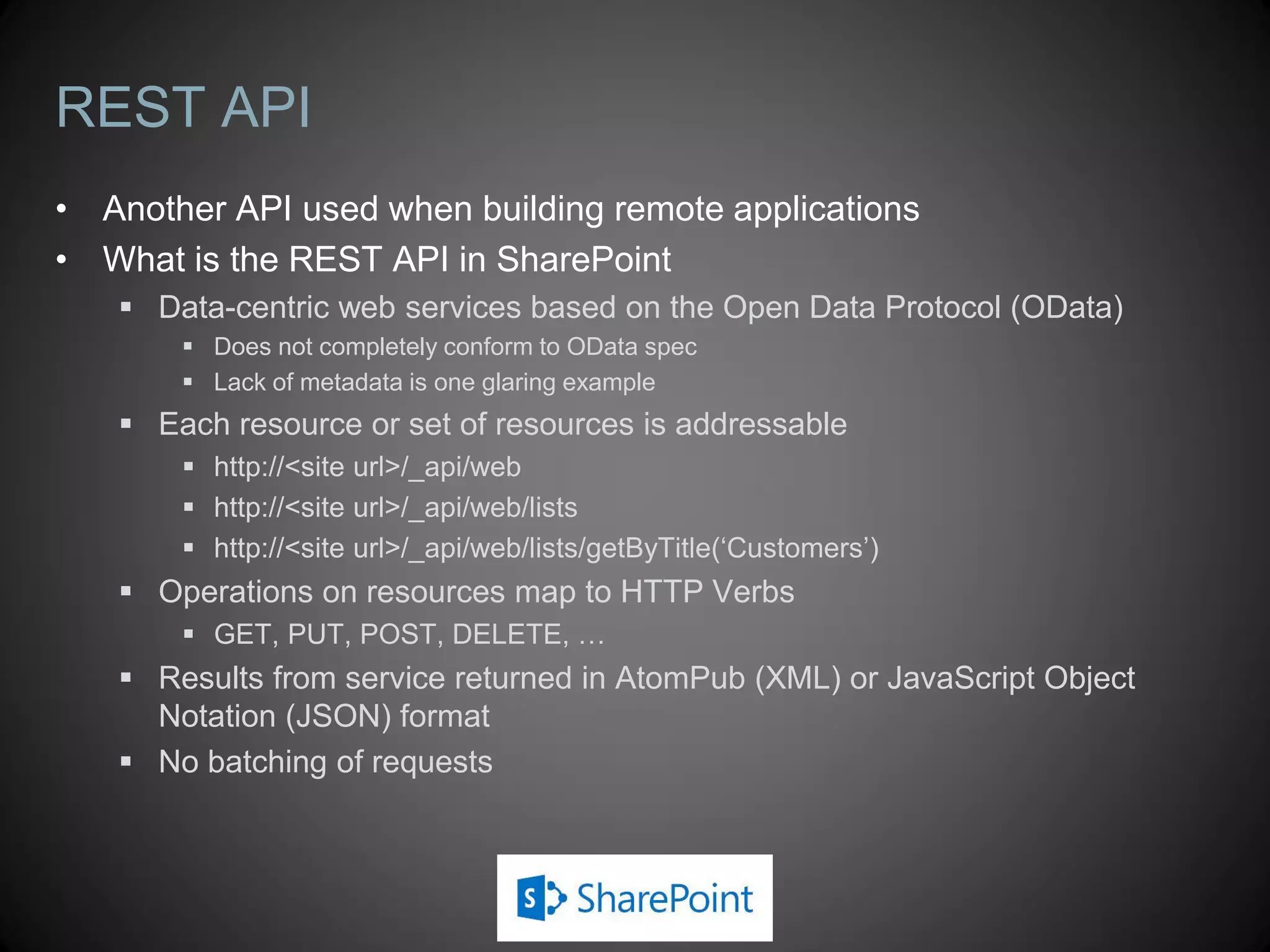

REST API
 API used when building remote applications
 What is the REST API in SharePoint
 Data-centric web services based on the Open Data Protocol (OData)
 Each resource or set of resources is addressable
 http://<site url>/_api/web
 http://<site url>/_api/web/lists
 http://<site url>/_api/web/lists/getByTitle(‘Customers’)
 http://<site url>/_api/web/lists/getByTitle(‘Customers’)/items
 Operations on resources map to HTTP Verbs
 GET, PUT, POST, DELETE, …
 Results from service returned in AtomPub (XML) or JavaScript Object
Notation (JSON) format

REST API History
 SharePoint 2010
 Initial REST API added
 /_vti_bin/ListData.svc
 Exposed CRUD operations on list data

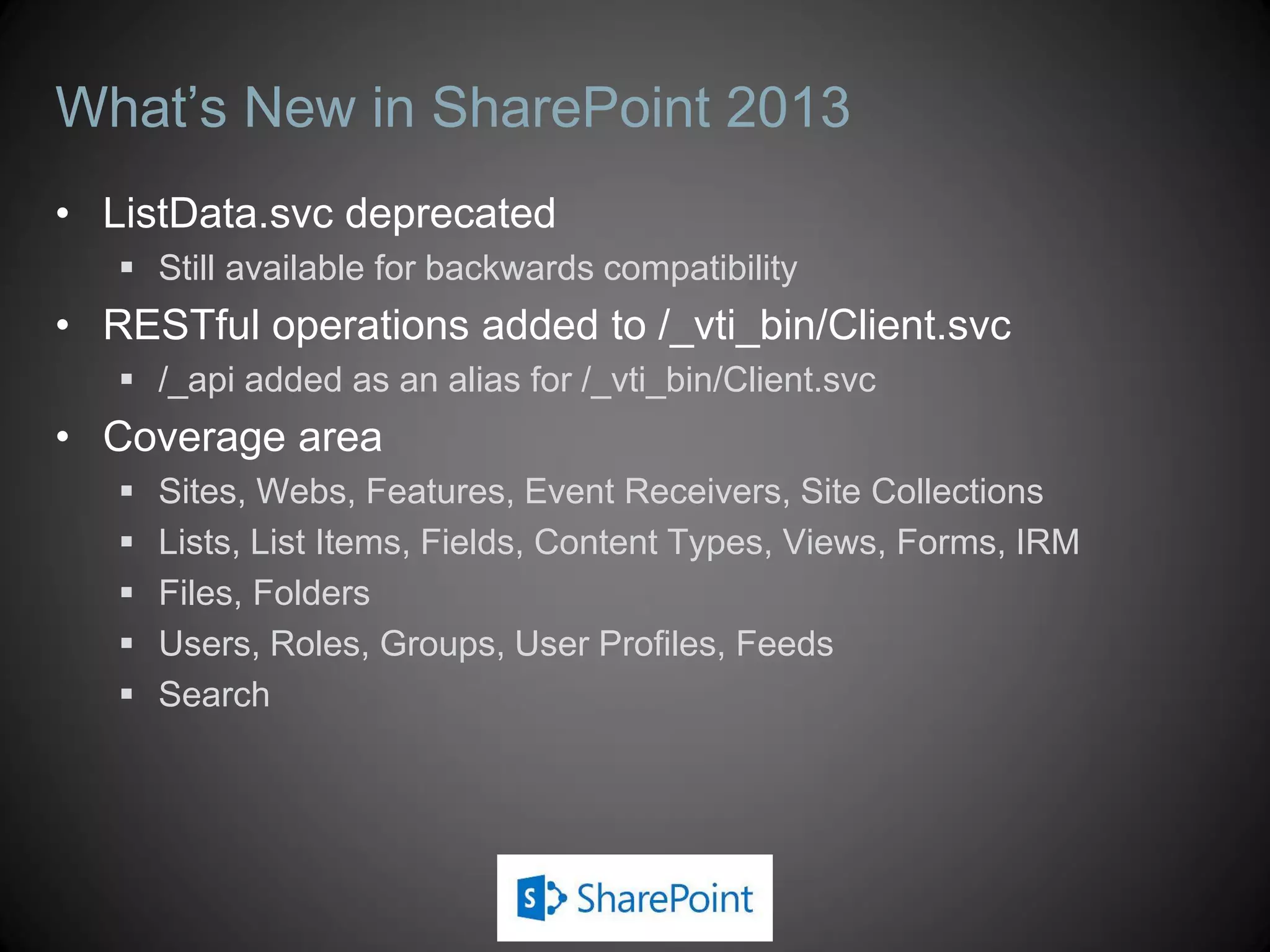

 SharePoint 2013
 REST API expands and evolves
 ListData.svc deprecated
 Still available for backwards compatibility
 RESTful operations added to /_vti_bin/Client.svc
 /_api added as an alias for /_vti_bin/Client.svc

REST API Coverage
 Sites, Webs, Features, Event Receivers
 Lists, List Items, Fields, Content Types, Views, Forms, IRM
 Files, Folders
 Users, Roles, Groups, User Profiles, Feeds
 Search
 No support for Managed Metadata
 Term Store or Managed Metadata Fields
 No support for Workflow

Retrieving Data (Managed)
 Service metadata for /_api was added around April 2013
 You can add a service reference in Visual Studio
 Tooling to add a service reference for SharePoint Online does not work
 Service proxy contains two context classes
 SP.Data.ListData – access to list data
 SP.ApiData – access to everything else
 Generated proxy classes do not natively support updates
 SharePoint REST API works differently than OData
 Need to use POST tunneling and client hooks to get updates to work
 Too much work – better off using CSOM
 For more detail see white paper by Paul Schaelein
 SharePoint 2013 REST and WCF Data Services
 http://www.schaeflein.net/Pages/SharePoint-2013-REST-and-WCF-
Data-Services.aspx
 Still have the option of using the 2010 version of REST API

var svcUri = new Uri(siteUrl + "/_api");
var context = new SP2013Proxy.SP.ApiData(svcUri);
context.Credentials = System.Net.CredentialCache.DefaultCredentials;
var resourceUri = new Uri("/web", UriKind.Relative);
var webs = context.Execute<SP2013Proxy.SP.Web>(resourceUri);
var web = webs.First();
ResultsListBox.Items.Add(web.Title);

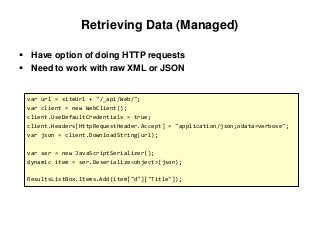

 Have option of doing HTTP requests
 Need to work with raw XML or JSON
var url = siteUrl + "/_api/Web/";
var client = new WebClient();
client.UseDefaultCredentials = true;
client.Headers[HttpRequestHeader.Accept] = "application/json;odata=verbose";
var json = client.DownloadString(url);
var ser = new JavaScriptSerializer();
dynamic item = ser.Deserialize<object>(json);
ResultsListBox.Items.Add(item["d"]["Title"]);

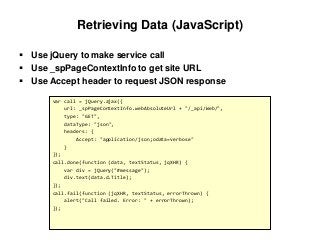

Retrieving Data (JavaScript)
 Use jQuery to make service call
 Use _spPageContextInfo to get site URL
 Use Accept header to request JSON response
var call = jQuery.ajax({
url: _spPageContextInfo.webAbsoluteUrl + "/_api/Web/",
type: "GET",
dataType: "json",
headers: {
Accept: "application/json;odata=verbose"
}
});
call.done(function (data, textStatus, jqXHR) {
div.text(data.d.Title);
});
call.fail(function (jqXHR, textStatus, errorThrown) {
alert("Call failed. Error: " + errorThrown);
});

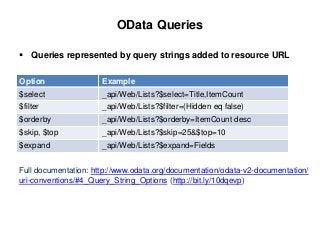

OData Queries
 Queries represented by query strings added to resource URL
Option Example
$select _api/Web/Lists?$select=Title,ItemCount
$filter _api/Web/Lists?$filter=(Hidden eq false)
$orderby _api/Web/Lists?$orderby=ItemCount desc
$skip, $top _api/Web/Lists?$skip=25&$top=10
$expand _api/Web/Lists?$expand=Fields
Full documentation: http://www.odata.org/documentation/odata-v2-documentation/
uri-conventions/#4_Query_String_Options (http://bit.ly/10dqevp)

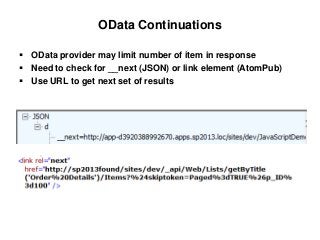

OData Continuations
 OData provider may limit number of item in response
 Need to check for __next (JSON) or link element (AtomPub)
 Use URL to get next set of results

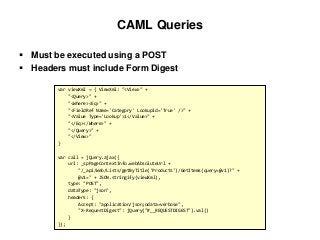

CAML Queries
 Must be executed using a POST
 Headers must include Form Digest
var viewXml = { ViewXml: "<View>" +
"<Query>" +
"<Where><Eq>" +
"<FieldRef Name='Category' LookupId='True' />" +
"</Eq></Where>" +
"</Query>" +
"</View>"
}
url: _spPageContextInfo.webAbsoluteUrl +
"/_api/Web/Lists/getByTitle('Products')/GetItems(query=@v1)?" +
@v1=" + JSON.stringify(viewXml),
type: "POST",
dataType: "json",
headers: {
Accept: "application/json;odata=verbose",
"X-RequestDigest": jQuery("#__REQUESTDIGEST").val()
}
});

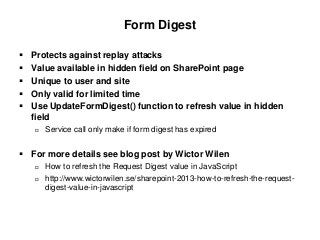

Form Digest
 Protects against replay attacks
 Value available in hidden field on SharePoint page
 Unique to user and site
 Only valid for limited time
 Use UpdateFormDigest() function to refresh value in hidden
field
 Service call only make if form digest has expired
 For more details see blog post by Wictor Wilen
 How to refresh the Request Digest value in JavaScript
 http://www.wictorwilen.se/sharepoint-2013-how-to-refresh-the-request-
digest-value-in-javascript

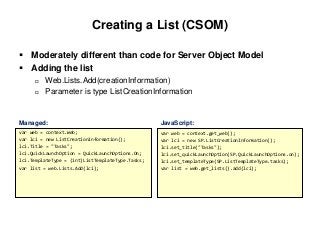

Creating a List (CSOM)
 Moderately different than code for Server Object Model
 Adding the list
 Web.Lists.Add(creationInformation)
 Parameter is type ListCreationInformation
var lci = new ListCreationInformation();
lci.Title = "Tasks";
lci.QuickLaunchOption = QuickLaunchOptions.On;
lci.TemplateType = (int)ListTemplateType.Tasks;
var list = web.Lists.Add(lci);
var lci = new SP.ListCreationInformation();
lci.set_title("Tasks");
lci.set_quickLaunchOption(SP.QuickLaunchOptions.on);
lci.set_templateType(SP.ListTemplateType.tasks);
var list = web.get_lists().add(lci);

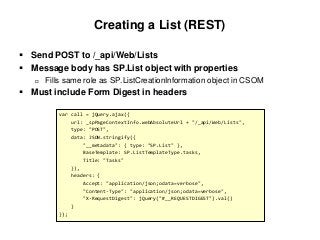

Creating a List (REST)
 Send POST to /_api/Web/Lists
 Message body has SP.List object with properties
 Fills same role as SP.ListCreationInformation object in CSOM
 Must include Form Digest in headers
url: _spPageContextInfo.webAbsoluteUrl + "/_api/Web/Lists",
type: "POST",
data: JSON.stringify({
"__metadata": { type: "SP.List" },
BaseTemplate: SP.ListTemplateType.tasks,
Title: "Tasks"
}),
headers: {
"Content-Type": "application/json;odata=verbose",
}
});

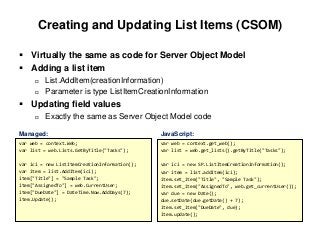

Creating and Updating List Items (CSOM)
 Virtually the same as code for Server Object Model
 Adding a list item
 List.AddItem(creationInformation)
 Parameter is type ListItemCreationInformation
 Updating field values
 Exactly the same as Server Object Model code
var list = web.Lists.GetByTitle("Tasks");
var ici = new ListItemCreationInformation();
var item = list.AddItem(ici);
item["Title"] = "Sample Task";
item["AssignedTo"] = web.CurrentUser;
item["DueDate"] = DateTime.Now.AddDays(7);
item.Update();
var list = web.get_lists().getByTitle("Tasks");
var ici = new SP.ListItemCreationInformation();
var item = list.addItem(ici);
item.set_item("Title", "Sample Task");
item.set_item("AssignedTo", web.get_currentUser());
var due = new Date();
due.setDate(due.getDate() + 7);
item.set_item("DueDate", due);
item.update();

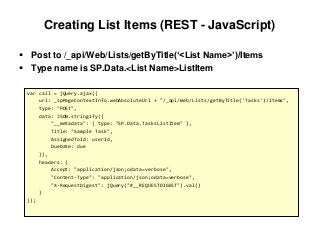

Creating List Items (REST - JavaScript)
 Post to /_api/Web/Lists/getByTitle(‘<List Name>’)/Items
 Type name is SP.Data.<List Name>ListItem
url: _spPageContextInfo.webAbsoluteUrl + "/_api/Web/Lists/getByTitle('Tasks')/Items",
type: "POST",
"__metadata": { type: "SP.Data.TasksListItem" },
Title: "Sample Task",
AssignedToId: userId,
DueDate: due
}),
headers: {
}
});

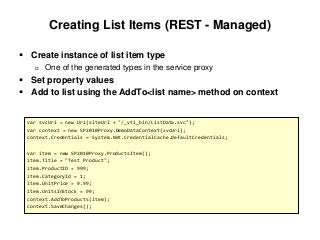

Creating List Items (REST - Managed)
 Create instance of list item type
 One of the generated types in the service proxy
 Set property values
 Add to list using the AddTo<list name> method on context
var svcUri = new Uri(siteUrl + "/_vti_bin/ListData.svc");
var context = new SP2010Proxy.DemoDataContext(svcUri);
var item = new SP2010Proxy.ProductsItem();
item.Title = "Test Product";
item.ProductID = 999;
item.CategoryId = 1;
item.UnitPrice = 9.99;
item.UnitsInStock = 99;
context.AddToProducts(item);
context.SaveChanges();

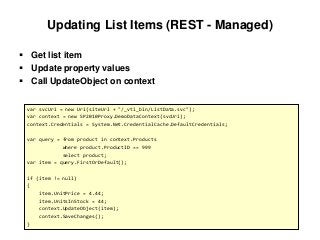

Updating List Items (REST - Managed)
 Get list item
 Update property values
 Call UpdateObject on context
var svcUri = new Uri(siteUrl + "/_vti_bin/ListData.svc");
var context = new SP2010Proxy.DemoDataContext(svcUri);
var query = from product in context.Products
where product.ProductID == 999
select product;
var item = query.FirstOrDefault();
if (item != null)
{
item.UnitPrice = 4.44;
item.UnitsInStock = 44;
context.UpdateObject(item);
context.SaveChanges();
}

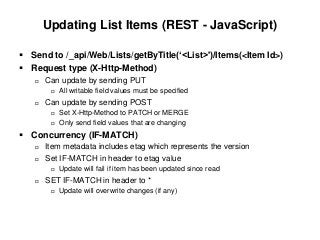

Updating List Items (REST - JavaScript)
 Send to /_api/Web/Lists/getByTitle(‘<List>')/Items(<Item Id>)
 Request type (X-Http-Method)
 Can update by sending PUT
 All writable field values must be specified
 Can update by sending POST
 Set X-Http-Method to PATCH or MERGE
 Only send field values that are changing
 Concurrency (IF-MATCH)
 Item metadata includes etag which represents the version
 Set IF-MATCH in header to etag value
 Update will fail if item has been updated since read
 SET IF-MATCH in header to *
 Update will overwrite changes (if any)

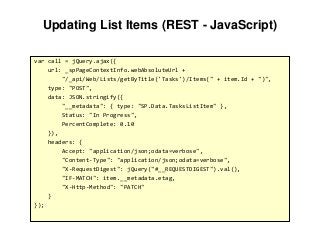

Updating List Items (REST - JavaScript)
url: _spPageContextInfo.webAbsoluteUrl +
"/_api/Web/Lists/getByTitle('Tasks')/Items(" + item.Id + ")",
type: "POST",
"__metadata": { type: "SP.Data.TasksListItem" },
Status: "In Progress",
PercentComplete: 0.10
}),
headers: {
"X-RequestDigest": jQuery("#__REQUESTDIGEST").val(),
"IF-MATCH": item.__metadata.etag,
"X-Http-Method": "PATCH"
}
});

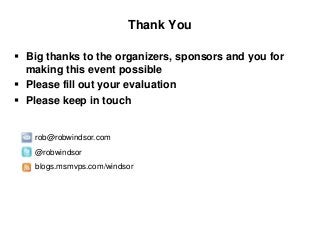

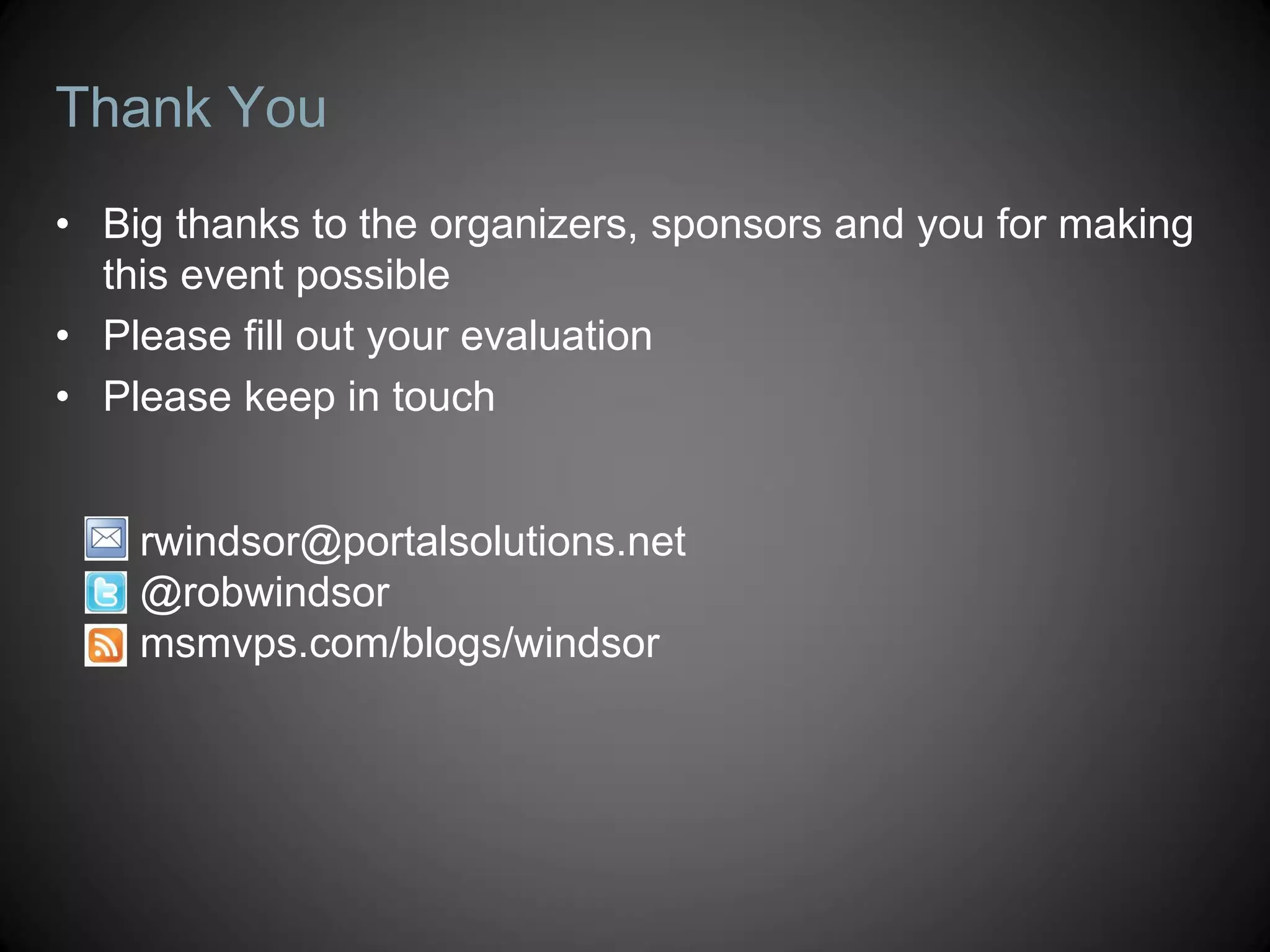

Thank You
 Big thanks to the organizers, sponsors and you for
making this event possible
 Please fill out your evaluation
 Please keep in touch
rob@robwindsor.com
@robwindsor
blogs.msmvps.com/windsor

Introduction to the SharePoint Client Object Model and REST API

More Related Content

What's hot

Viewers also liked

Similar to Introduction to the SharePoint Client Object Model and REST API

Recently uploaded

Introduction to the SharePoint Client Object Model and REST API

Editor's Notes
