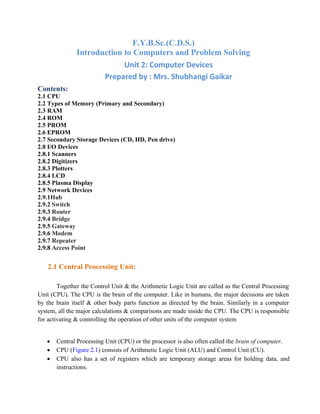

F.Y.B.Sc.(C.D.S.)
Introduction to Computers and Problem Solving
Unit 2: Computer Devices
Prepared by : Mrs. Shubhangi Gaikar
Contents:
2.1 CPU
2.2 Types of Memory (Primary and Secondary)
2.3 RAM
2.4 ROM

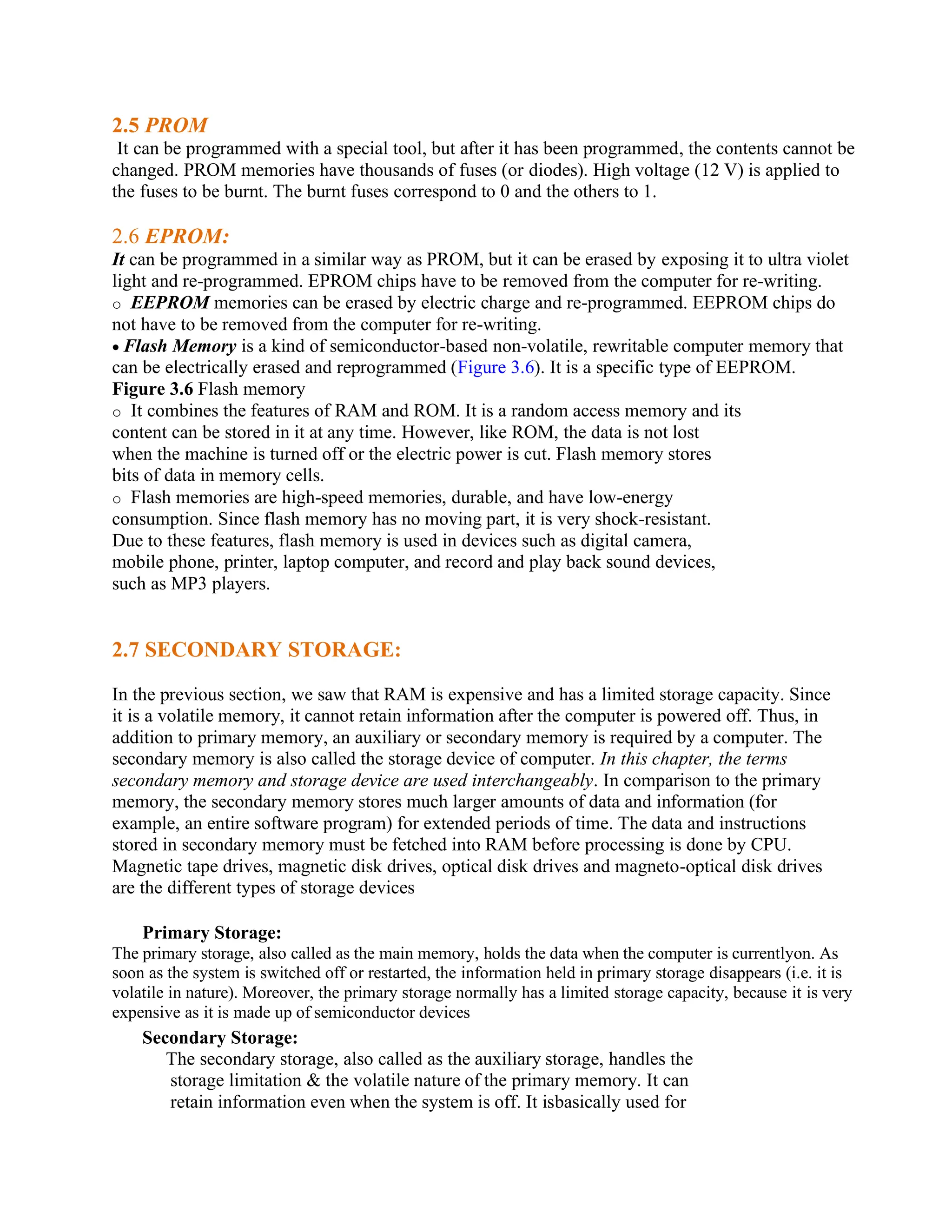

2.5 PROM
2.6 EPROM

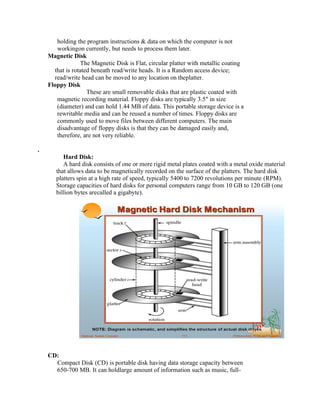

2.7 Secondary Storage Devices (CD, HD, Pen drive)
2.8 I/O Devices
2.8.1 Scanners
2.8.2 Digitizers

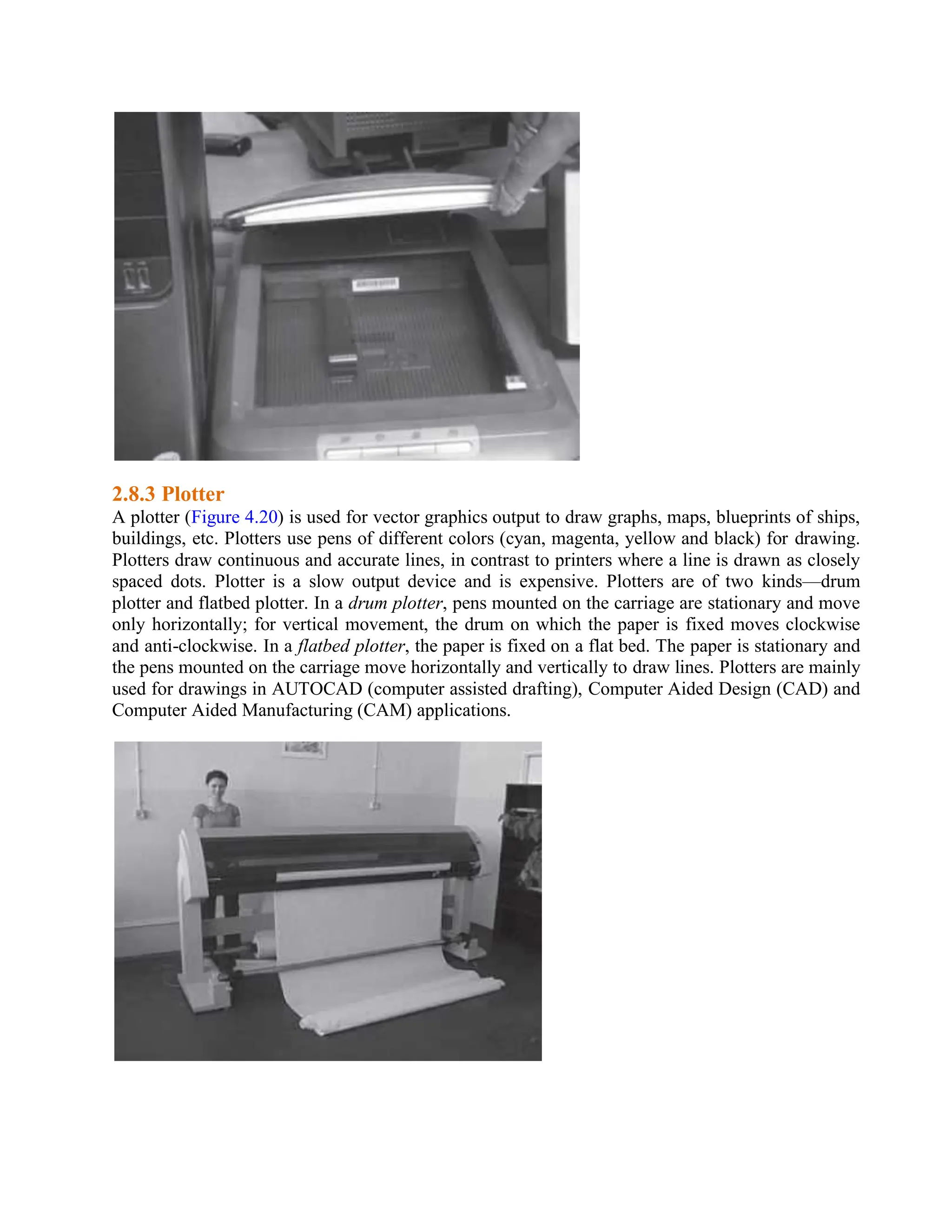

2.8.3 Plotters
2.8.4 LCD
2.8.5 Plasma Display
2.9 Network Devices
2.9.1Hub
2.9.2 Switch
2.9.3 Router
2.9.4 Bridge
2.9.5 Gateway
2.9.6 Modem
2.9.7 Repeater
2.9.8 Access Point

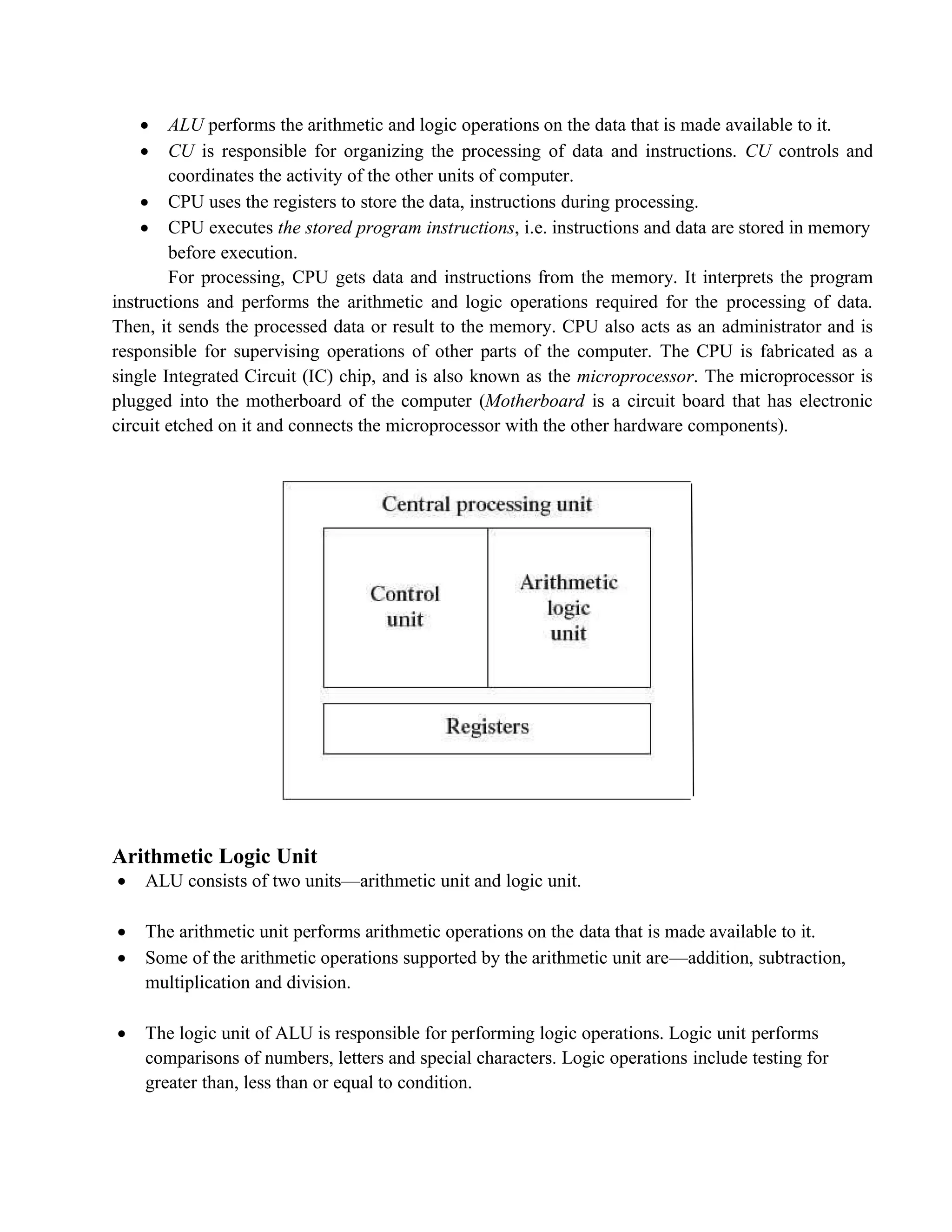

2.1 Central Processing Unit:
Together the Control Unit & the Arithmetic Logic Unit are called as the Central Processing
Unit (CPU). The CPU is the brain of the computer. Like in humans, the major decisions are taken
by the brain itself & other body parts function as directed by the brain. Similarly in a computer
system, all the major calculations & comparisons are made inside the CPU. The CPU is responsible
for activating & controlling the operation of other units of the computer system
• Central Processing Unit (CPU) or the processor is also often called the brain of computer.
• CPU (Figure 2.1) consists of Arithmetic Logic Unit (ALU) and Control Unit (CU).
• CPU also has a set of registers which are temporary storage areas for holding data, and
instructions.

• ALU performs the arithmetic and logic operations on the data that is made available to it.
• CU is responsible for organizing the processing of data and instructions. CU controls and
coordinates the activity of the other units of computer.
• CPU uses the registers to store the data, instructions during processing.
• CPU executes the stored program instructions, i.e. instructions and data are stored in memory
before execution.
For processing, CPU gets data and instructions from the memory. It interprets the program
instructions and performs the arithmetic and logic operations required for the processing of data.
Then, it sends the processed data or result to the memory. CPU also acts as an administrator and is
responsible for supervising operations of other parts of the computer. The CPU is fabricated as a
single Integrated Circuit (IC) chip, and is also known as the microprocessor. The microprocessor is
plugged into the motherboard of the computer (Motherboard is a circuit board that has electronic
circuit etched on it and connects the microprocessor with the other hardware components).
Arithmetic Logic Unit
• ALU consists of two units—arithmetic unit and logic unit.
• The arithmetic unit performs arithmetic operations on the data that is made available to it.
• Some of the arithmetic operations supported by the arithmetic unit are—addition, subtraction,
multiplication and division.
• The logic unit of ALU is responsible for performing logic operations. Logic unit performs
comparisons of numbers, letters and special characters. Logic operations include testing for
greater than, less than or equal to condition.

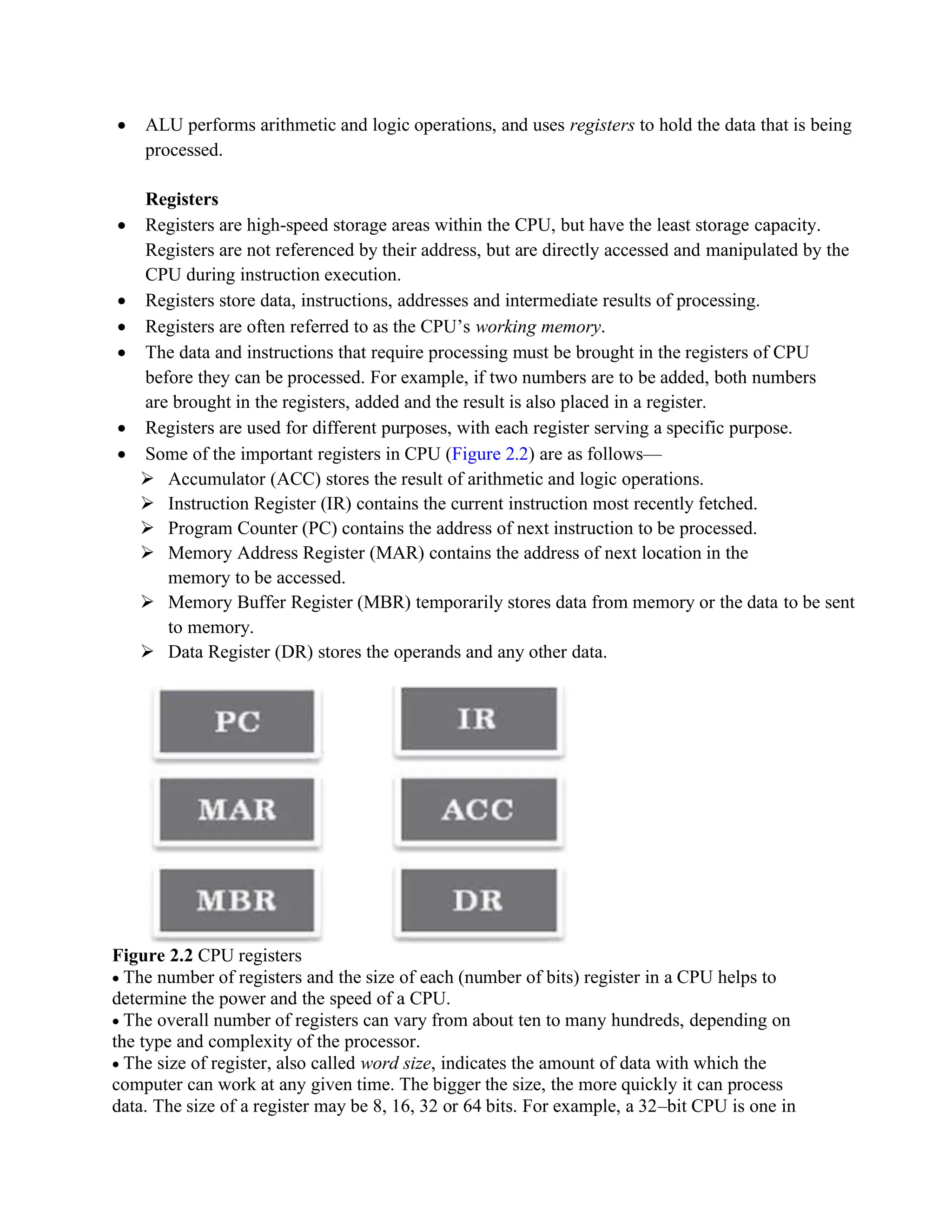

• ALU performs arithmetic and logic operations, and uses registers to hold the data that is being
processed.
Registers
• Registers are high-speed storage areas within the CPU, but have the least storage capacity.
Registers are not referenced by their address, but are directly accessed and manipulated by the
CPU during instruction execution.
• Registers store data, instructions, addresses and intermediate results of processing.
• Registers are often referred to as the CPU’s working memory.
• The data and instructions that require processing must be brought in the registers of CPU
before they can be processed. For example, if two numbers are to be added, both numbers
are brought in the registers, added and the result is also placed in a register.
• Registers are used for different purposes, with each register serving a specific purpose.
• Some of the important registers in CPU (Figure 2.2) are as follows—
➢ Accumulator (ACC) stores the result of arithmetic and logic operations.
➢ Instruction Register (IR) contains the current instruction most recently fetched.
➢ Program Counter (PC) contains the address of next instruction to be processed.
➢ Memory Address Register (MAR) contains the address of next location in the
memory to be accessed.
➢ Memory Buffer Register (MBR) temporarily stores data from memory or the data to be sent
to memory.
➢ Data Register (DR) stores the operands and any other data.
Figure 2.2 CPU registers
• The number of registers and the size of each (number of bits) register in a CPU helps to
determine the power and the speed of a CPU.
• The overall number of registers can vary from about ten to many hundreds, depending on
the type and complexity of the processor.
• The size of register, also called word size, indicates the amount of data with which the
computer can work at any given time. The bigger the size, the more quickly it can process
data. The size of a register may be 8, 16, 32 or 64 bits. For example, a 32–bit CPU is one in

which each register is 32 bits wide and its CPU can manipulate 32 bits of data at a
time. Nowadays, PCs have 32–bit or 64–bit registers.
• 32-bit processor and 64-bit processor are the terms used to refer to the size of the
registers. Other factors remaining the same, a 64-bit processor can process the data twice
as fast as one with 32-bit processor.
Control Unit
• The control unit of a computer does not do any actual processing of data. It organizes the
processing of data and instructions. It acts as a supervisor and, controls and coordinates
the activity of the other units of computer.
• CU coordinates the input and output devices of a computer. It directs the computer to
carry out stored program instructions by communicating with the ALU and the registers.
CU uses the instructions in the Instruction Register (IR) to decide which circuit needs to
be activated. It also instructs the ALU to perform the arithmetic or logic operations.
When a program is run, the Program Counter (PC) register keeps track of the program
instruction to be executed next.
• CU tells when to fetch the data and instructions, what to do, where to store the results, the
sequencing of events during processing etc.
• CU also holds the CPU’s Instruction Set, which is a list of all operations that the CPU can
perform.
The function of a (CU) can be considered synonymous with that of a conductor of an orchestra.
The conductor in an orchestra does not perform any work by itself but manages the orchestra and
ensures that the members of orchestra work in proper coordination.
2.2 Types of Memory
Memory Organization in Computer
A memory unit is the collection of storage units or devices together. The memory
unit stores thebinary information in the form of bits. Generally, memory/storage is
classified into 2 categories:
• Volatile Memory: This loses its data, when power is switched off.
• Non-Volatile Memory: This is a permanent storage and does not lose any data
when poweris switched off.
Memory Hierarchy

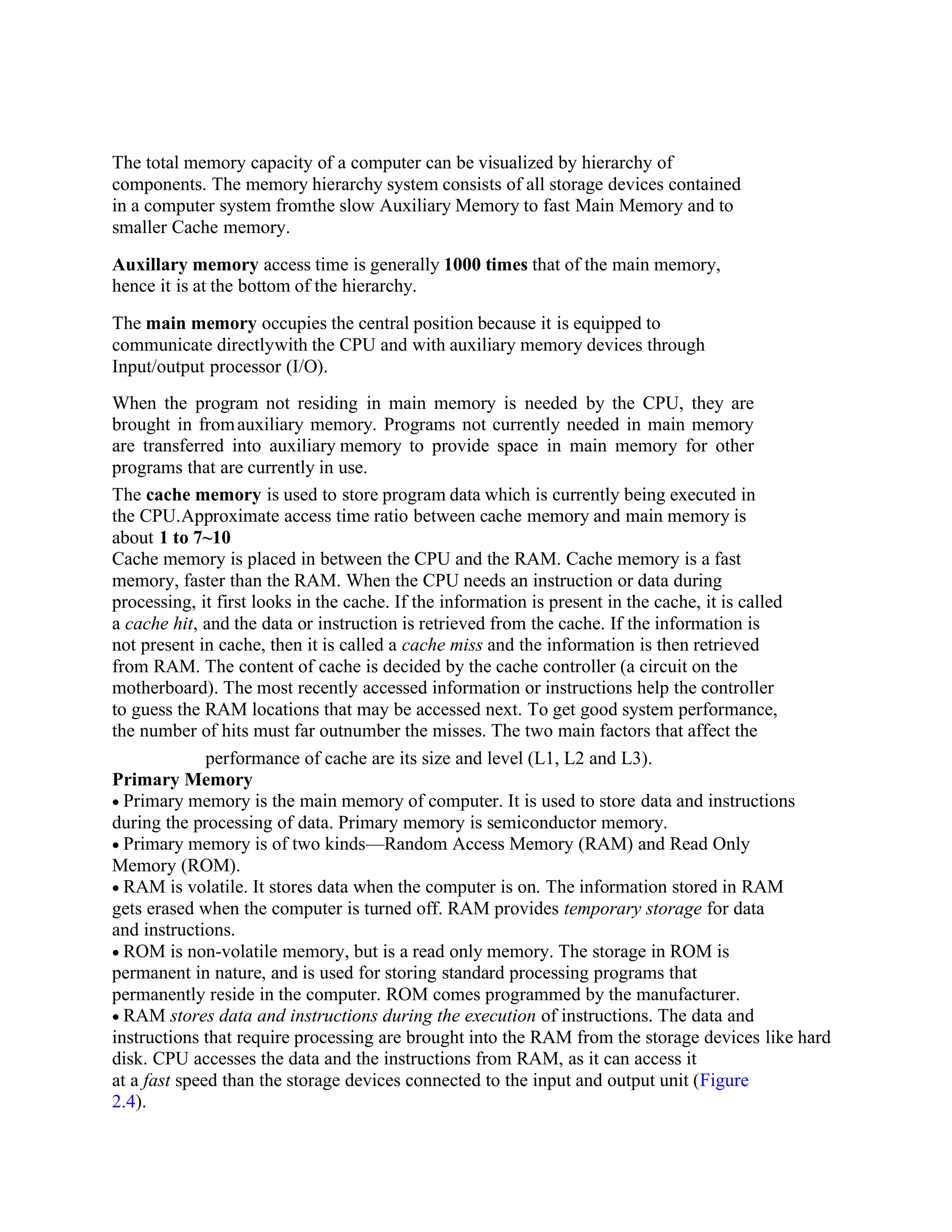

The total memory capacity of a computer can be visualized by hierarchy of
components. The memory hierarchy system consists of all storage devices contained
in a computer system fromthe slow Auxiliary Memory to fast Main Memory and to
smaller Cache memory.
Auxillary memory access time is generally 1000 times that of the main memory,
hence it is at the bottom of the hierarchy.
The main memory occupies the central position because it is equipped to
communicate directlywith the CPU and with auxiliary memory devices through
Input/output processor (I/O).
When the program not residing in main memory is needed by the CPU, they are
brought in fromauxiliary memory. Programs not currently needed in main memory
are transferred into auxiliary memory to provide space in main memory for other
programs that are currently in use.
The cache memory is used to store program data which is currently being executed in
the CPU.Approximate access time ratio between cache memory and main memory is
about 1 to 7~10
Cache memory is placed in between the CPU and the RAM. Cache memory is a fast
memory, faster than the RAM. When the CPU needs an instruction or data during
processing, it first looks in the cache. If the information is present in the cache, it is called
a cache hit, and the data or instruction is retrieved from the cache. If the information is
not present in cache, then it is called a cache miss and the information is then retrieved
from RAM. The content of cache is decided by the cache controller (a circuit on the
motherboard). The most recently accessed information or instructions help the controller
to guess the RAM locations that may be accessed next. To get good system performance,
the number of hits must far outnumber the misses. The two main factors that affect the
performance of cache are its size and level (L1, L2 and L3).
Primary Memory
• Primary memory is the main memory of computer. It is used to store data and instructions
during the processing of data. Primary memory is semiconductor memory.
• Primary memory is of two kinds—Random Access Memory (RAM) and Read Only
Memory (ROM).
• RAM is volatile. It stores data when the computer is on. The information stored in RAM
gets erased when the computer is turned off. RAM provides temporary storage for data
and instructions.
• ROM is non-volatile memory, but is a read only memory. The storage in ROM is
permanent in nature, and is used for storing standard processing programs that
permanently reside in the computer. ROM comes programmed by the manufacturer.
• RAM stores data and instructions during the execution of instructions. The data and
instructions that require processing are brought into the RAM from the storage devices like hard
disk. CPU accesses the data and the instructions from RAM, as it can access it
at a fast speed than the storage devices connected to the input and output unit (Figure
2.4).

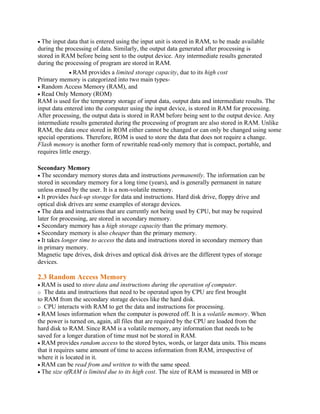

• The input data that is entered using the input unit is stored in RAM, to be made available
during the processing of data. Similarly, the output data generated after processing is
stored in RAM before being sent to the output device. Any intermediate results generated
during the processing of program are stored in RAM.
• RAM provides a limited storage capacity, due to its high cost
Primary memory is categorized into two main types-
• Random Access Memory (RAM), and
• Read Only Memory (ROM)
RAM is used for the temporary storage of input data, output data and intermediate results. The
input data entered into the computer using the input device, is stored in RAM for processing.
After processing, the output data is stored in RAM before being sent to the output device. Any
intermediate results generated during the processing of program are also stored in RAM. Unlike
RAM, the data once stored in ROM either cannot be changed or can only be changed using some
special operations. Therefore, ROM is used to store the data that does not require a change.
Flash memory is another form of rewritable read-only memory that is compact, portable, and
requires little energy.
Secondary Memory
• The secondary memory stores data and instructions permanently. The information can be
stored in secondary memory for a long time (years), and is generally permanent in nature
unless erased by the user. It is a non-volatile memory.
• It provides back-up storage for data and instructions. Hard disk drive, floppy drive and
optical disk drives are some examples of storage devices.
• The data and instructions that are currently not being used by CPU, but may be required
later for processing, are stored in secondary memory.
• Secondary memory has a high storage capacity than the primary memory.
• Secondary memory is also cheaper than the primary memory.
• It takes longer time to access the data and instructions stored in secondary memory than
in primary memory.
Magnetic tape drives, disk drives and optical disk drives are the different types of storage
devices.
2.3 Random Access Memory
• RAM is used to store data and instructions during the operation of computer.
o The data and instructions that need to be operated upon by CPU are first brought
to RAM from the secondary storage devices like the hard disk.
o CPU interacts with RAM to get the data and instructions for processing.
• RAM loses information when the computer is powered off. It is a volatile memory. When
the power is turned on, again, all files that are required by the CPU are loaded from the
hard disk to RAM. Since RAM is a volatile memory, any information that needs to be
saved for a longer duration of time must not be stored in RAM.
• RAM provides random access to the stored bytes, words, or larger data units. This means
that it requires same amount of time to access information from RAM, irrespective of
where it is located in it.
• RAM can be read from and written to with the same speed.

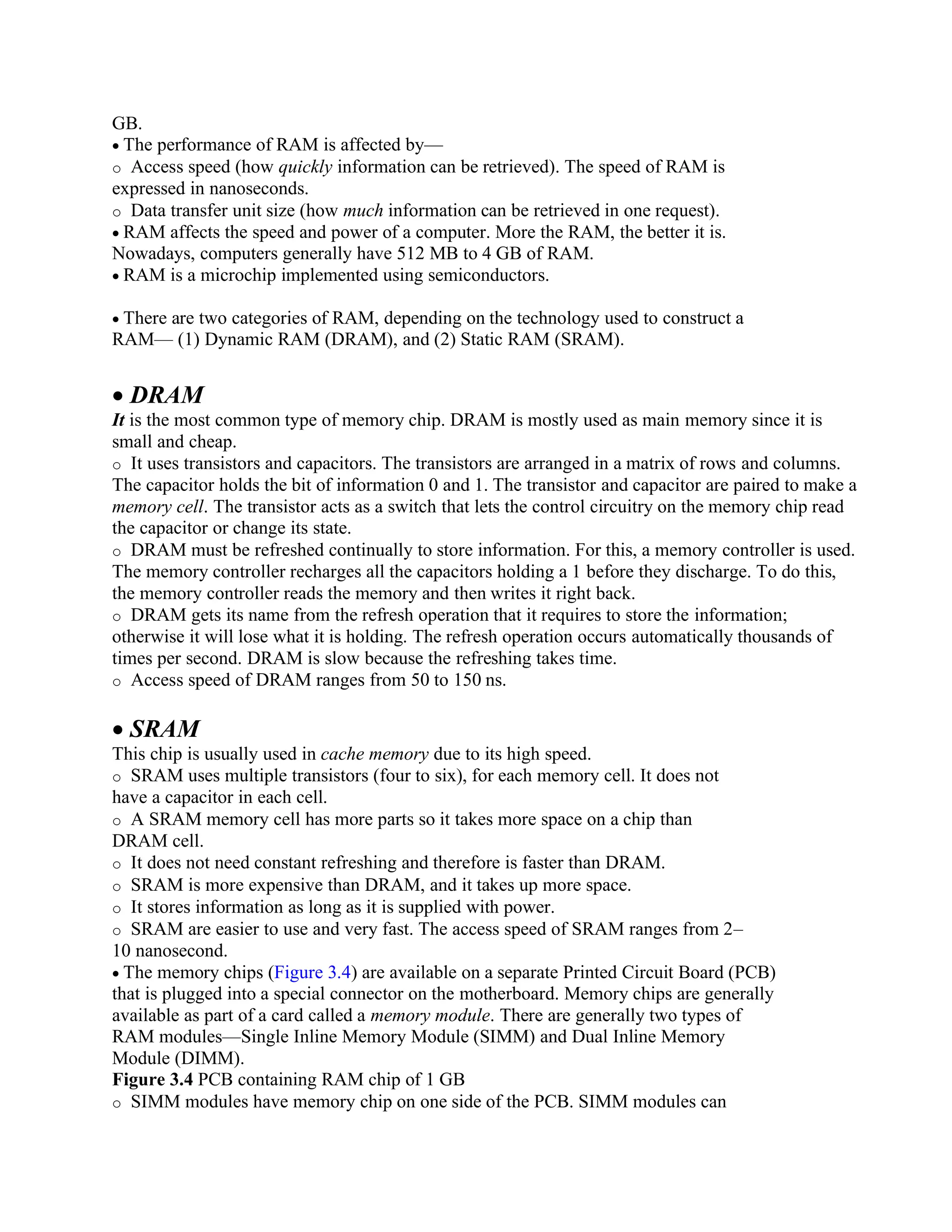

• The size ofRAM is limited due to its high cost. The size of RAM is measured in MB or

GB.
• The performance of RAM is affected by—
o Access speed (how quickly information can be retrieved). The speed of RAM is
expressed in nanoseconds.
o Data transfer unit size (how much information can be retrieved in one request).
• RAM affects the speed and power of a computer. More the RAM, the better it is.
Nowadays, computers generally have 512 MB to 4 GB of RAM.
• RAM is a microchip implemented using semiconductors.
• There are two categories of RAM, depending on the technology used to construct a
RAM— (1) Dynamic RAM (DRAM), and (2) Static RAM (SRAM).
• DRAM
It is the most common type of memory chip. DRAM is mostly used as main memory since it is
small and cheap.
o It uses transistors and capacitors. The transistors are arranged in a matrix of rows and columns.
The capacitor holds the bit of information 0 and 1. The transistor and capacitor are paired to make a
memory cell. The transistor acts as a switch that lets the control circuitry on the memory chip read
the capacitor or change its state.
o DRAM must be refreshed continually to store information. For this, a memory controller is used.
The memory controller recharges all the capacitors holding a 1 before they discharge. To do this,
the memory controller reads the memory and then writes it right back.
o DRAM gets its name from the refresh operation that it requires to store the information;
otherwise it will lose what it is holding. The refresh operation occurs automatically thousands of
times per second. DRAM is slow because the refreshing takes time.
o Access speed of DRAM ranges from 50 to 150 ns.
• SRAM
This chip is usually used in cache memory due to its high speed.
o SRAM uses multiple transistors (four to six), for each memory cell. It does not
have a capacitor in each cell.
o A SRAM memory cell has more parts so it takes more space on a chip than
DRAM cell.
o It does not need constant refreshing and therefore is faster than DRAM.
o SRAM is more expensive than DRAM, and it takes up more space.
o It stores information as long as it is supplied with power.
o SRAM are easier to use and very fast. The access speed of SRAM ranges from 2–
10 nanosecond.
• The memory chips (Figure 3.4) are available on a separate Printed Circuit Board (PCB)
that is plugged into a special connector on the motherboard. Memory chips are generally
available as part of a card called a memory module. There are generally two types of
RAM modules—Single Inline Memory Module (SIMM) and Dual Inline Memory
Module (DIMM).
Figure 3.4 PCB containing RAM chip of 1 GB
o SIMM modules have memory chip on one side of the PCB. SIMM modules can

store 8 bits to 32 bits of data simultaneously.
o DIMM modules have memory chips on both sides of the PCB. DIMM format are
64–bit memories. Smaller modules known as Small Outline DIMM (SO DIMM)
are designed for portable computers. SO DIMM modules have 32–bit memory.
2.4 Read Only Memory (ROM)
ROM is a non-volatile primary memory. It does not lose its content when the power is
switched off. The features of ROM are described as follows—
• ROM, as the name implies, has only read capability and no write capability. After the information
is stored in ROM, it is permanent and cannot be corrected.
• ROM comes programmed by the manufacturer. It stores standard processing programs that
permanently reside in the computer. ROM stores the data needed for the start up of the computer.
The instructions that are required for initializing the devices attached to a computer are stored in
ROM.
• The ROM memory chip (Figure 3.5) stores the Basic Input Output System (BIOS). BIOS provides
the processor with the information required to boot the system. It provides the system with the
settings and resources that are available on the system. BIOS is a permanent part of the computer. It
does not load from disk but instead is stored in a ROM memory chip. The program code in the
BIOS differs from ordinary software since it acts as an integral part of the computer. When the
computer is turned on, the BIOS does the following things—
Figure 3.5 ROM BIOS and CMOS battery on a motherboard
o Power On Self Test (POST) is a program that runs automatically when the system is booted.
BIOS performs the power-on self-test. It checks that the major hardware components are working
properly.
o BIOS setup program, which is a built-in utility in BIOS, lets the user set the many functions that
control how the computer works. BIOS displays the system settings and finds the bootable devices.
It loads the interrupt handlers and device drivers. It also initializes the registers.
o Bootstrap Loader is a program whose purpose is to start the computer software
for operation when the power is turned on. It loads the operating system into
RAM and launches it. It generally seeks the operating system on the hard disk.
The bootstrap loader resides in the ROM. The BIOS initiates the bootstrap
sequence.
• ROMs are of different kinds. They have evolved from the fixed read only memory to the
ones that can be programmed and re-programmed. They vary in the number of re-writes
and the method used for the re-writing. Programmable ROM (PROM), Erasable
Programmable ROM (EPROM) and Electrically Erasable Programmable ROM
(EEPROM) are some of the ROMs. All the different kinds of ROM retain their content
when the power is turned off.

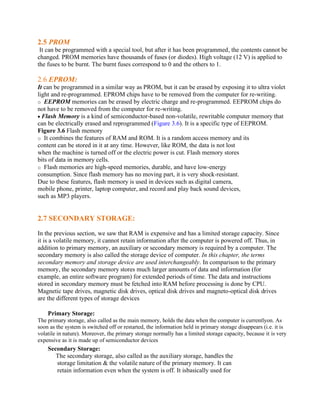

2.5 PROM
It can be programmed with a special tool, but after it has been programmed, the contents cannot be
changed. PROM memories have thousands of fuses (or diodes). High voltage (12 V) is applied to
the fuses to be burnt. The burnt fuses correspond to 0 and the others to 1.
2.6 EPROM:
It can be programmed in a similar way as PROM, but it can be erased by exposing it to ultra violet
light and re-programmed. EPROM chips have to be removed from the computer for re-writing.
o EEPROM memories can be erased by electric charge and re-programmed. EEPROM chips do
not have to be removed from the computer for re-writing.
• Flash Memory is a kind of semiconductor-based non-volatile, rewritable computer memory that
can be electrically erased and reprogrammed (Figure 3.6). It is a specific type of EEPROM.
Figure 3.6 Flash memory
o It combines the features of RAM and ROM. It is a random access memory and its
content can be stored in it at any time. However, like ROM, the data is not lost
when the machine is turned off or the electric power is cut. Flash memory stores
bits of data in memory cells.
o Flash memories are high-speed memories, durable, and have low-energy
consumption. Since flash memory has no moving part, it is very shock-resistant.
Due to these features, flash memory is used in devices such as digital camera,
mobile phone, printer, laptop computer, and record and play back sound devices,
such as MP3 players.
2.7 SECONDARY STORAGE:
In the previous section, we saw that RAM is expensive and has a limited storage capacity. Since
it is a volatile memory, it cannot retain information after the computer is powered off. Thus, in
addition to primary memory, an auxiliary or secondary memory is required by a computer. The
secondary memory is also called the storage device of computer. In this chapter, the terms
secondary memory and storage device are used interchangeably. In comparison to the primary
memory, the secondary memory stores much larger amounts of data and information (for
example, an entire software program) for extended periods of time. The data and instructions
stored in secondary memory must be fetched into RAM before processing is done by CPU.
Magnetic tape drives, magnetic disk drives, optical disk drives and magneto-optical disk drives
are the different types of storage devices
Primary Storage:
The primary storage, also called as the main memory, holds the data when the computer is currentlyon. As
soon as the system is switched off or restarted, the information held in primary storage disappears (i.e. it is
volatile in nature). Moreover, the primary storage normally has a limited storage capacity, because it is very
expensive as it is made up of semiconductor devices
Secondary Storage:
The secondary storage, also called as the auxiliary storage, handles the
storage limitation & the volatile nature of the primary memory. It can
retain information even when the system is off. It isbasically used for

holding the program instructions & data on which the computer is not
workingon currently, but needs to process them later.
Magnetic Disk
The Magnetic Disk is Flat, circular platter with metallic coating
that is rotated beneath read/write heads. It is a Random access device;
read/write head can be moved to any location on theplatter.
Floppy Disk
These are small removable disks that are plastic coated with
magnetic recording material. Floppy disks are typically 3.5″ in size
(diameter) and can hold 1.44 MB of data. This portable storage device is a
rewritable media and can be reused a number of times. Floppy disks are
commonly used to move files between different computers. The main
disadvantage of floppy disks is that they can be damaged easily and,
therefore, are not very reliable.
.

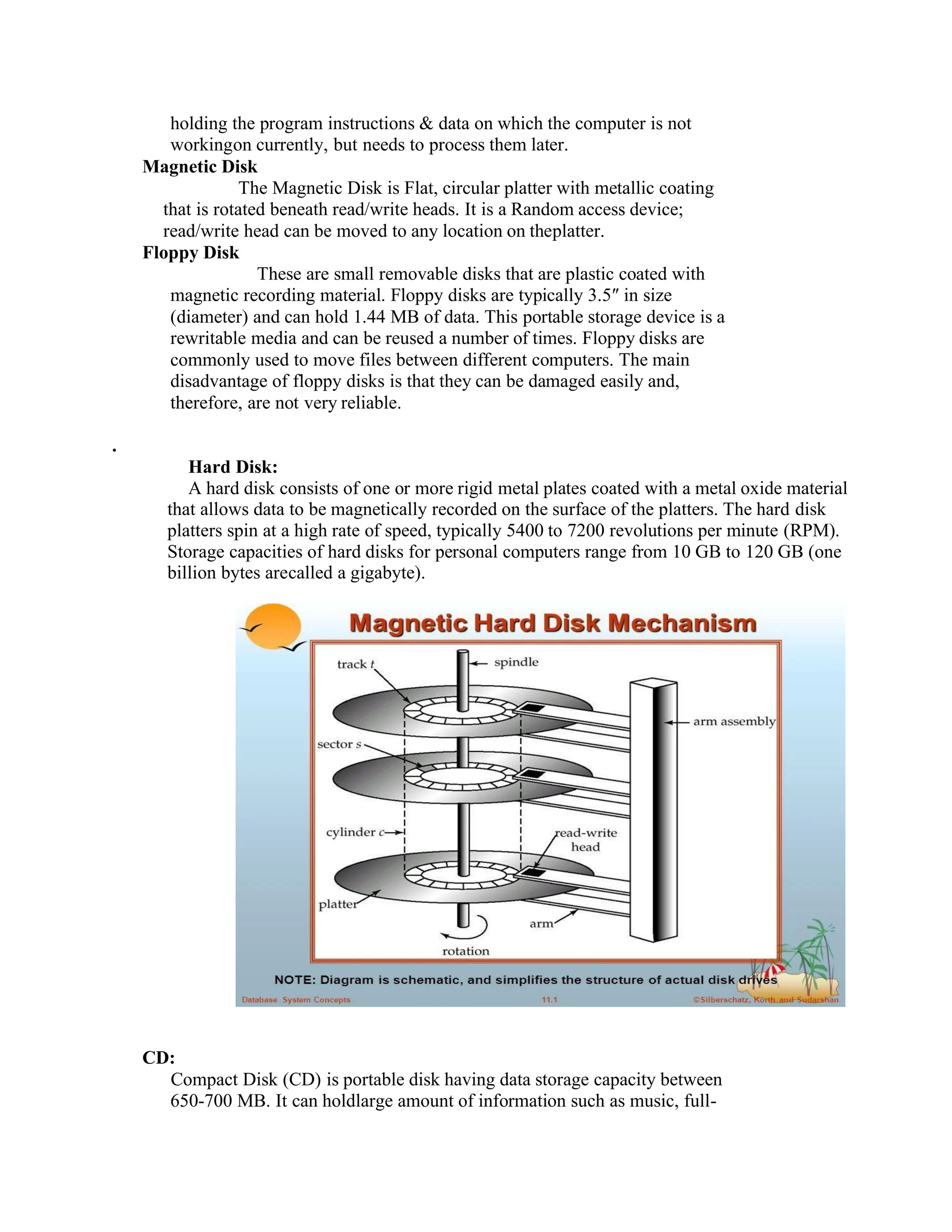

Hard Disk:
A hard disk consists of one or more rigid metal plates coated with a metal oxide material
that allows data to be magnetically recorded on the surface of the platters. The hard disk
platters spin at a high rate of speed, typically 5400 to 7200 revolutions per minute (RPM).
Storage capacities of hard disks for personal computers range from 10 GB to 120 GB (one
billion bytes arecalled a gigabyte).

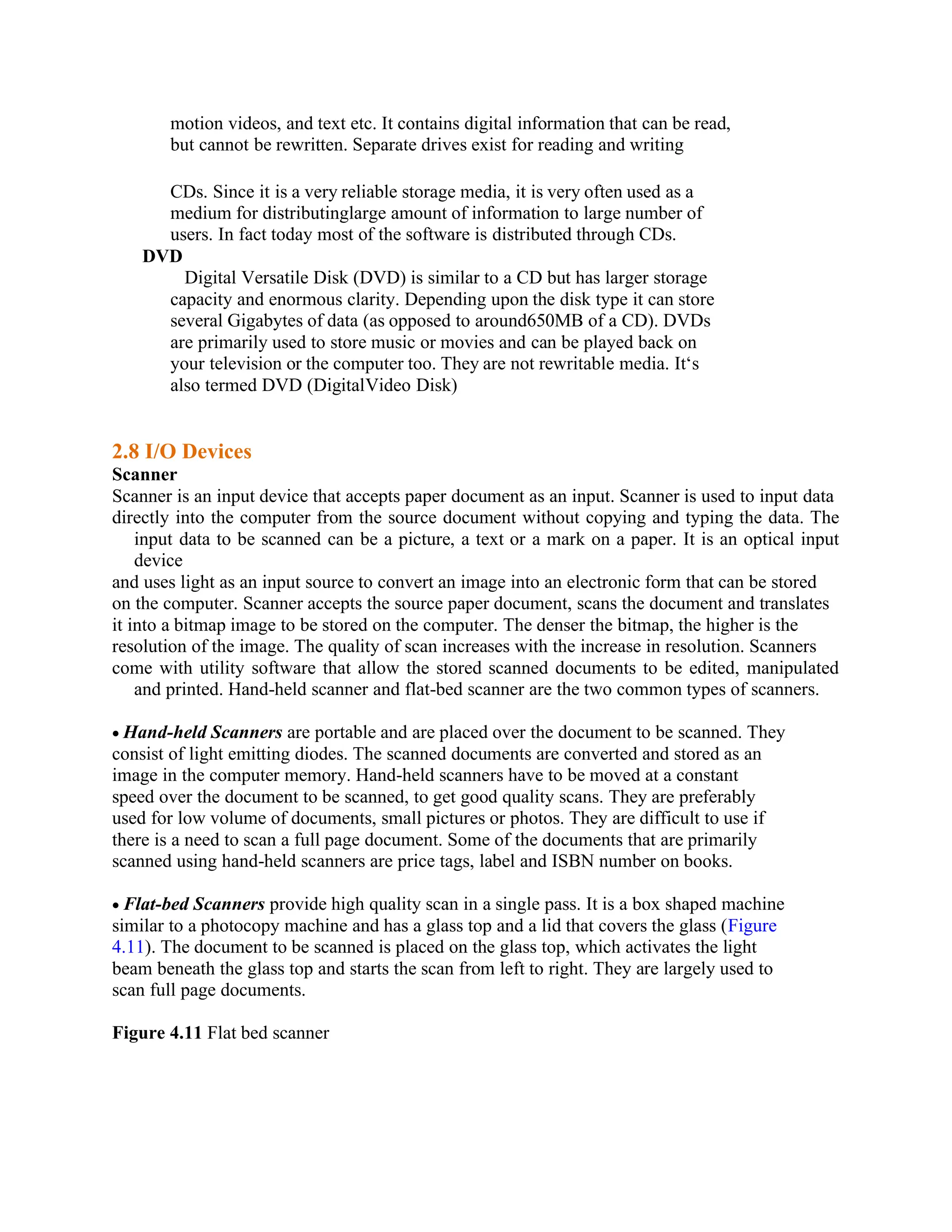

CD:
Compact Disk (CD) is portable disk having data storage capacity between
650-700 MB. It can holdlarge amount of information such as music, full-

motion videos, and text etc. It contains digital information that can be read,
but cannot be rewritten. Separate drives exist for reading and writing
CDs. Since it is a very reliable storage media, it is very often used as a
medium for distributinglarge amount of information to large number of
users. In fact today most of the software is distributed through CDs.
DVD
Digital Versatile Disk (DVD) is similar to a CD but has larger storage
capacity and enormous clarity. Depending upon the disk type it can store
several Gigabytes of data (as opposed to around650MB of a CD). DVDs
are primarily used to store music or movies and can be played back on
your television or the computer too. They are not rewritable media. It‘s
also termed DVD (DigitalVideo Disk)
2.8 I/O Devices
Scanner
Scanner is an input device that accepts paper document as an input. Scanner is used to input data
directly into the computer from the source document without copying and typing the data. The
input data to be scanned can be a picture, a text or a mark on a paper. It is an optical input
device
and uses light as an input source to convert an image into an electronic form that can be stored
on the computer. Scanner accepts the source paper document, scans the document and translates
it into a bitmap image to be stored on the computer. The denser the bitmap, the higher is the
resolution of the image. The quality of scan increases with the increase in resolution. Scanners
come with utility software that allow the stored scanned documents to be edited, manipulated
and printed. Hand-held scanner and flat-bed scanner are the two common types of scanners.
• Hand-held Scanners are portable and are placed over the document to be scanned. They
consist of light emitting diodes. The scanned documents are converted and stored as an
image in the computer memory. Hand-held scanners have to be moved at a constant
speed over the document to be scanned, to get good quality scans. They are preferably
used for low volume of documents, small pictures or photos. They are difficult to use if
there is a need to scan a full page document. Some of the documents that are primarily
scanned using hand-held scanners are price tags, label and ISBN number on books.
• Flat-bed Scanners provide high quality scan in a single pass. It is a box shaped machine
similar to a photocopy machine and has a glass top and a lid that covers the glass (Figure
4.11). The document to be scanned is placed on the glass top, which activates the light
beam beneath the glass top and starts the scan from left to right. They are largely used to
scan full page documents.
Figure 4.11 Flat bed scanner

2.8.3 Plotter
A plotter (Figure 4.20) is used for vector graphics output to draw graphs, maps, blueprints of ships,
buildings, etc. Plotters use pens of different colors (cyan, magenta, yellow and black) for drawing.
Plotters draw continuous and accurate lines, in contrast to printers where a line is drawn as closely
spaced dots. Plotter is a slow output device and is expensive. Plotters are of two kinds—drum
plotter and flatbed plotter. In a drum plotter, pens mounted on the carriage are stationary and move
only horizontally; for vertical movement, the drum on which the paper is fixed moves clockwise
and anti-clockwise. In a flatbed plotter, the paper is fixed on a flat bed. The paper is stationary and
the pens mounted on the carriage move horizontally and vertically to draw lines. Plotters are mainly
used for drawings in AUTOCAD (computer assisted drafting), Computer Aided Design (CAD) and
Computer Aided Manufacturing (CAM) applications.

computer devices and memory unit 2 notes.pdf

More Related Content

Similar to computer devices and memory unit 2 notes.pdf

More from shubhangisonawane6

Recently uploaded

computer devices and memory unit 2 notes.pdf
