concepts-of-computer and computer application

1
BASIC
COMPUTER
CONCEPTS
Updated 8/27/04

2

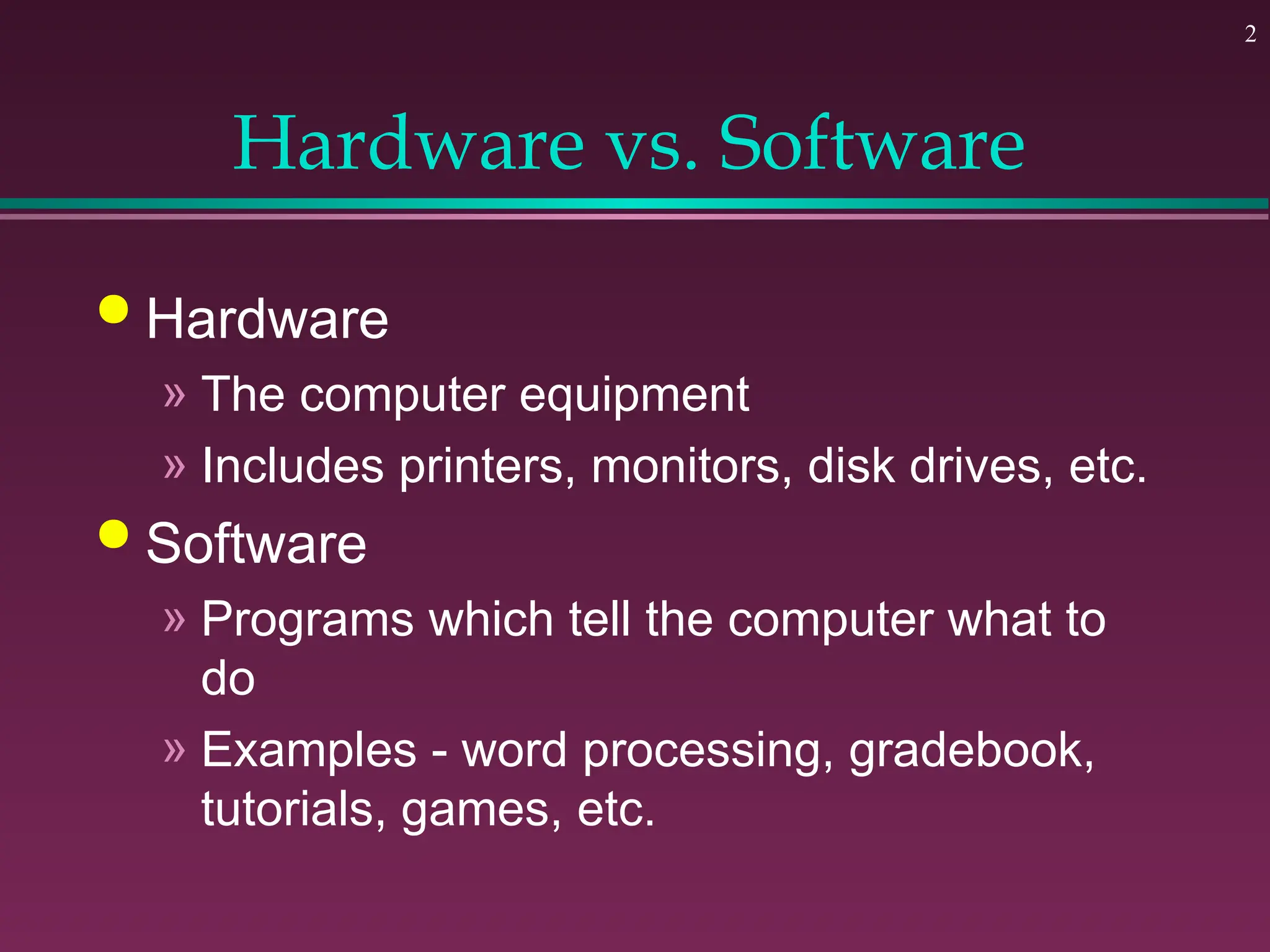

Hardware vs. Software
 Hardware
» The computer equipment
» Includes printers, monitors, disk drives, etc.
 Software
» Programs which tell the computer what to
do
» Examples - word processing, gradebook,
tutorials, games, etc.

4

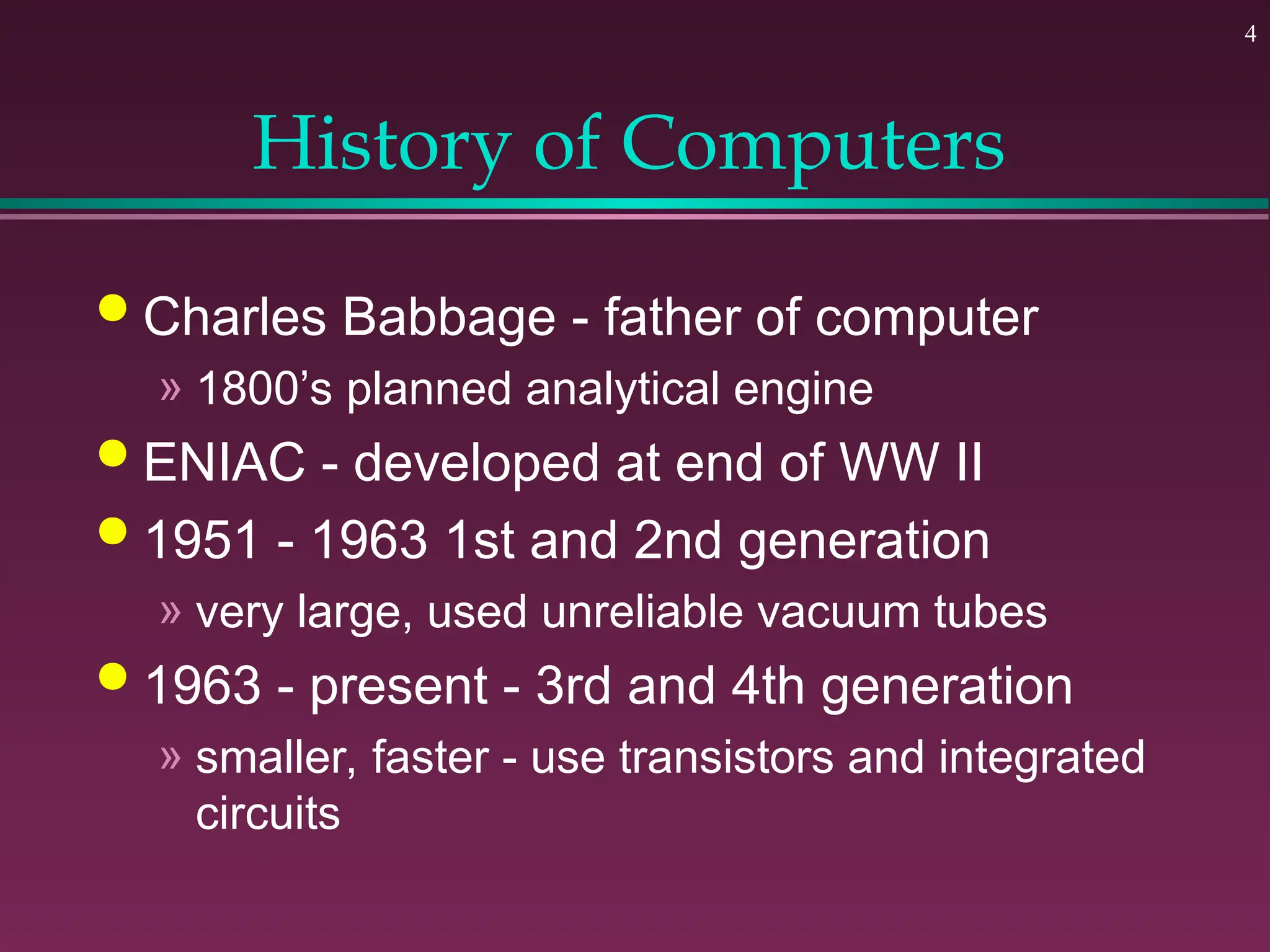

History of Computers
 Charles Babbage - father of computer
» 1800’s planned analytical engine
 ENIAC - developed at end of WW II
 1951 - 1963 1st and 2nd generation
» very large, used unreliable vacuum tubes
 1963 - present - 3rd and 4th generation
» smaller, faster - use transistors and integrated
circuits

5

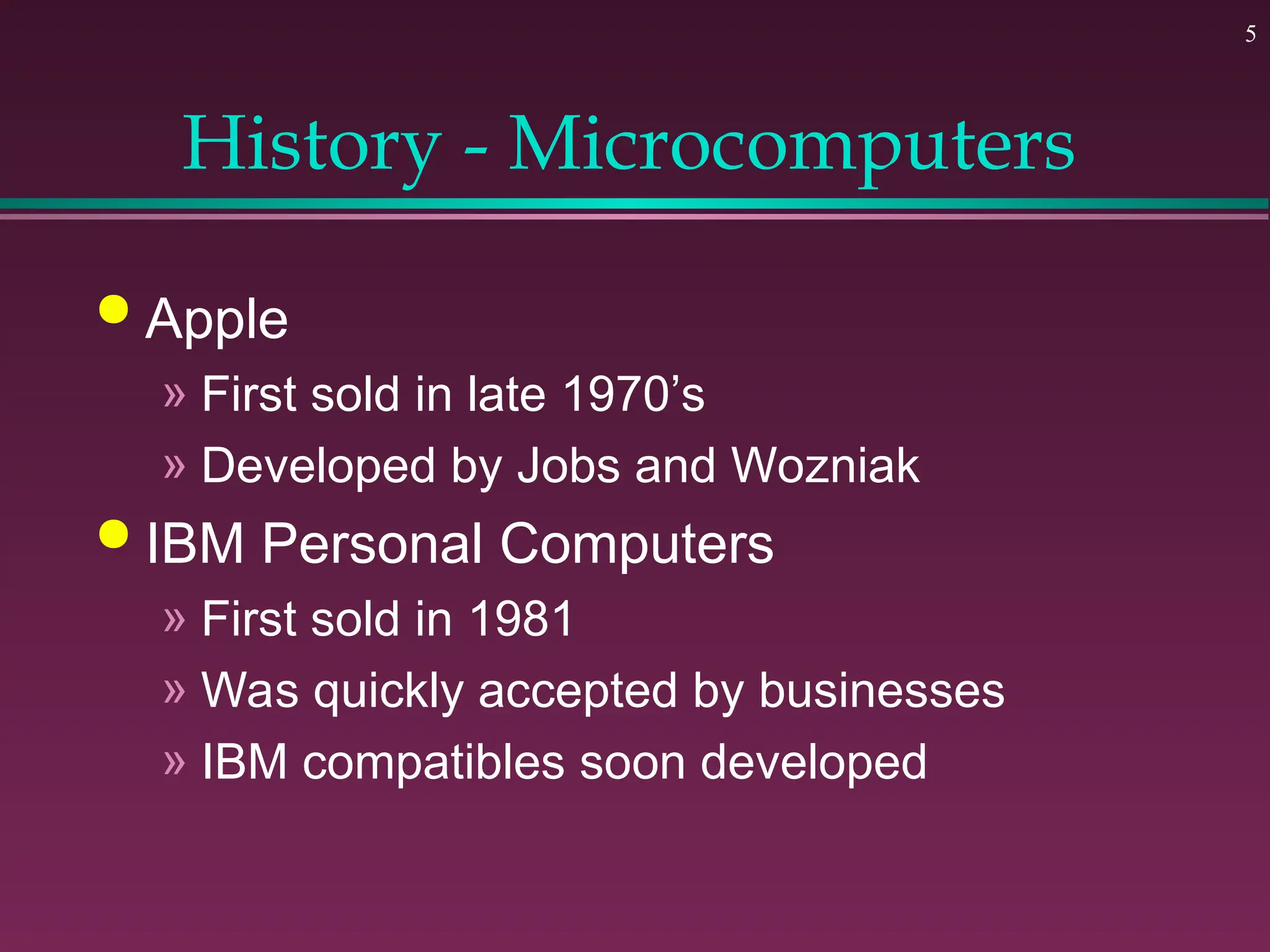

History - Microcomputers
 Apple
» First sold in late 1970’s
» Developed by Jobs and Wozniak
 IBM Personal Computers
» First sold in 1981
» Was quickly accepted by businesses
» IBM compatibles soon developed

6

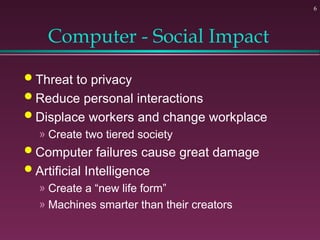

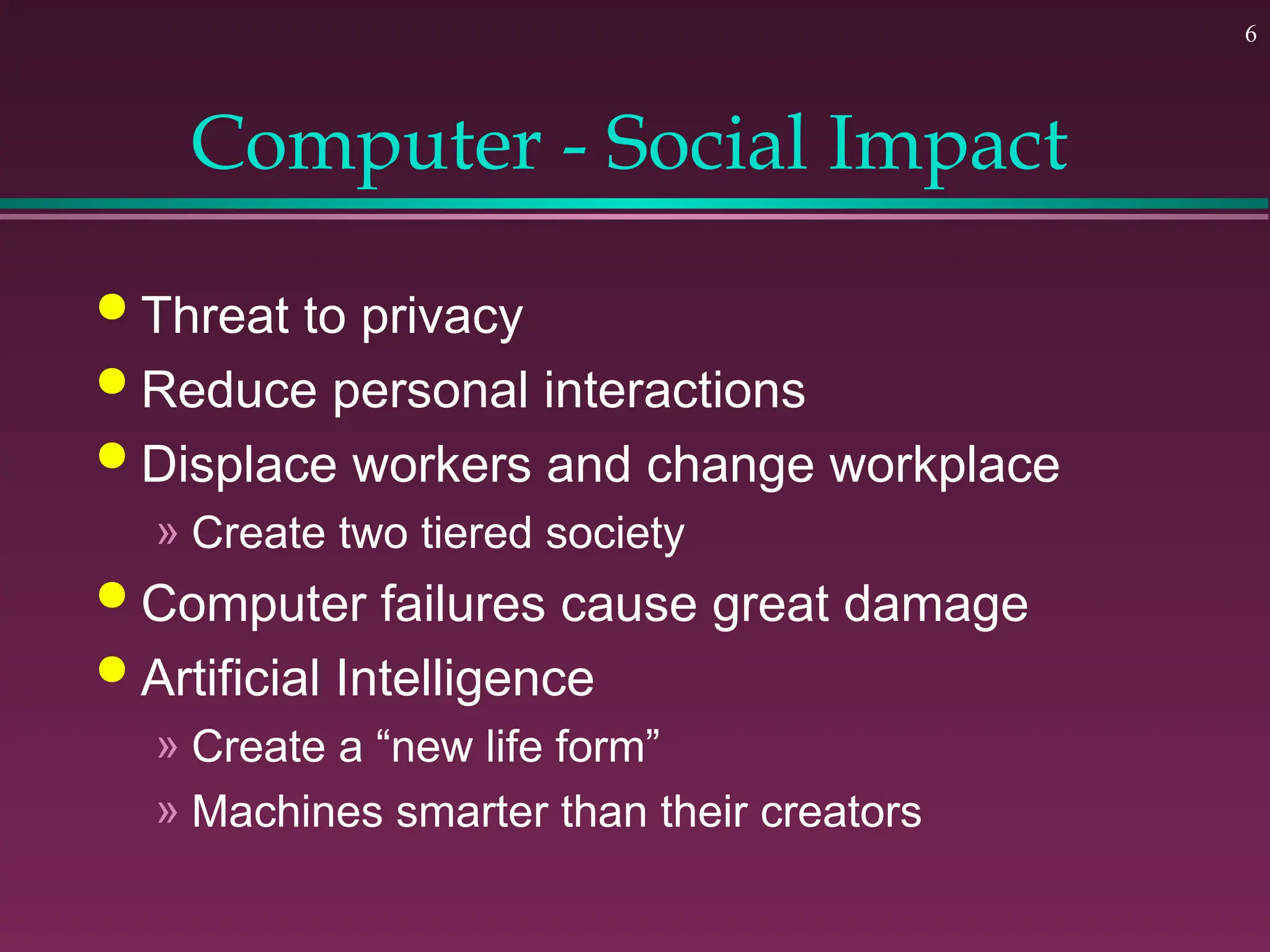

Computer - Social Impact
 Threat to privacy
 Reduce personal interactions
 Displace workers and change workplace
» Create two tiered society
 Computer failures cause great damage
 Artificial Intelligence
» Create a “new life form”
» Machines smarter than their creators

7

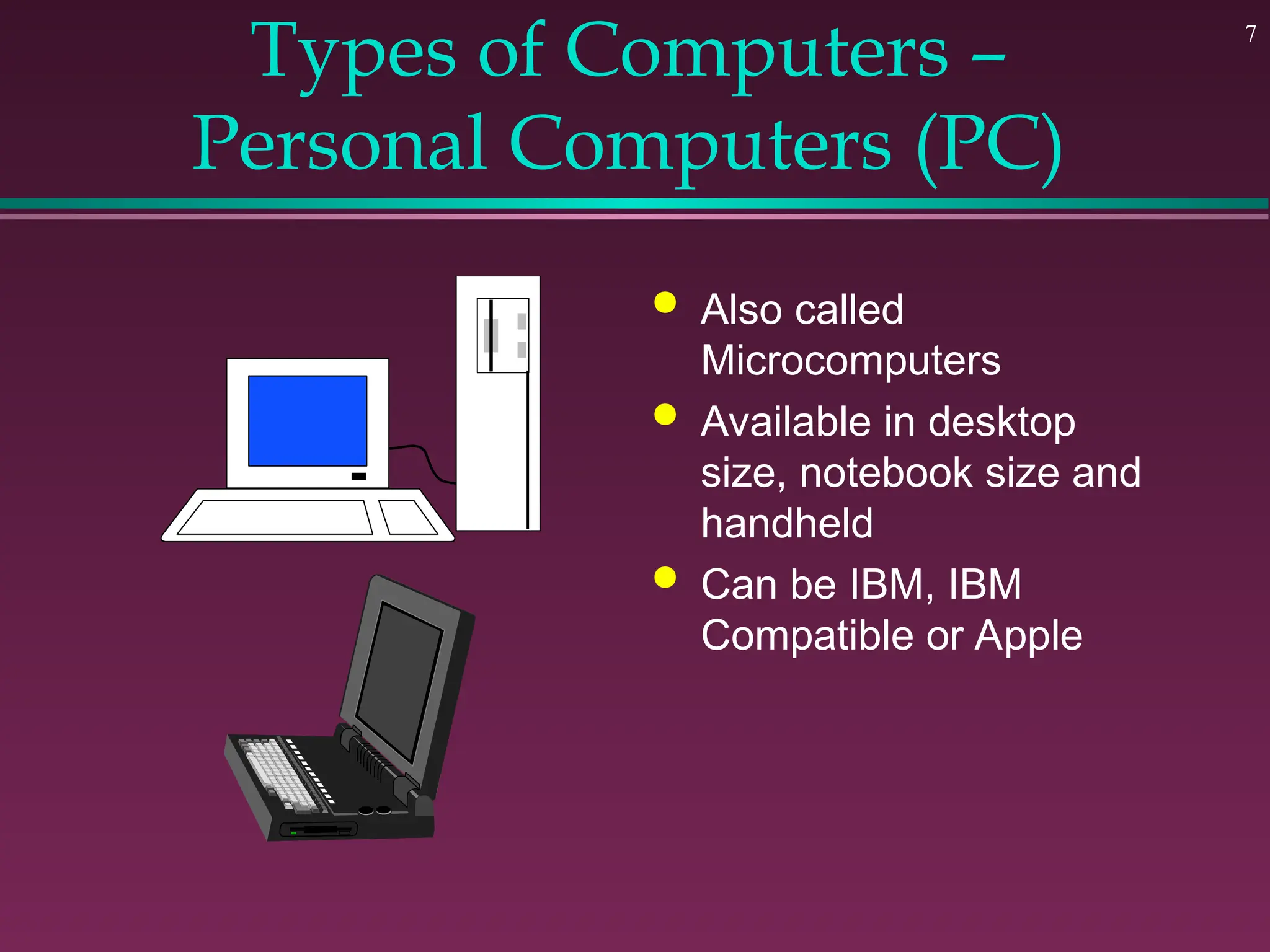

Types of Computers –
Personal Computers (PC)
 Also called
Microcomputers
 Available in desktop
size, notebook size and
handheld
 Can be IBM, IBM
Compatible or Apple

8

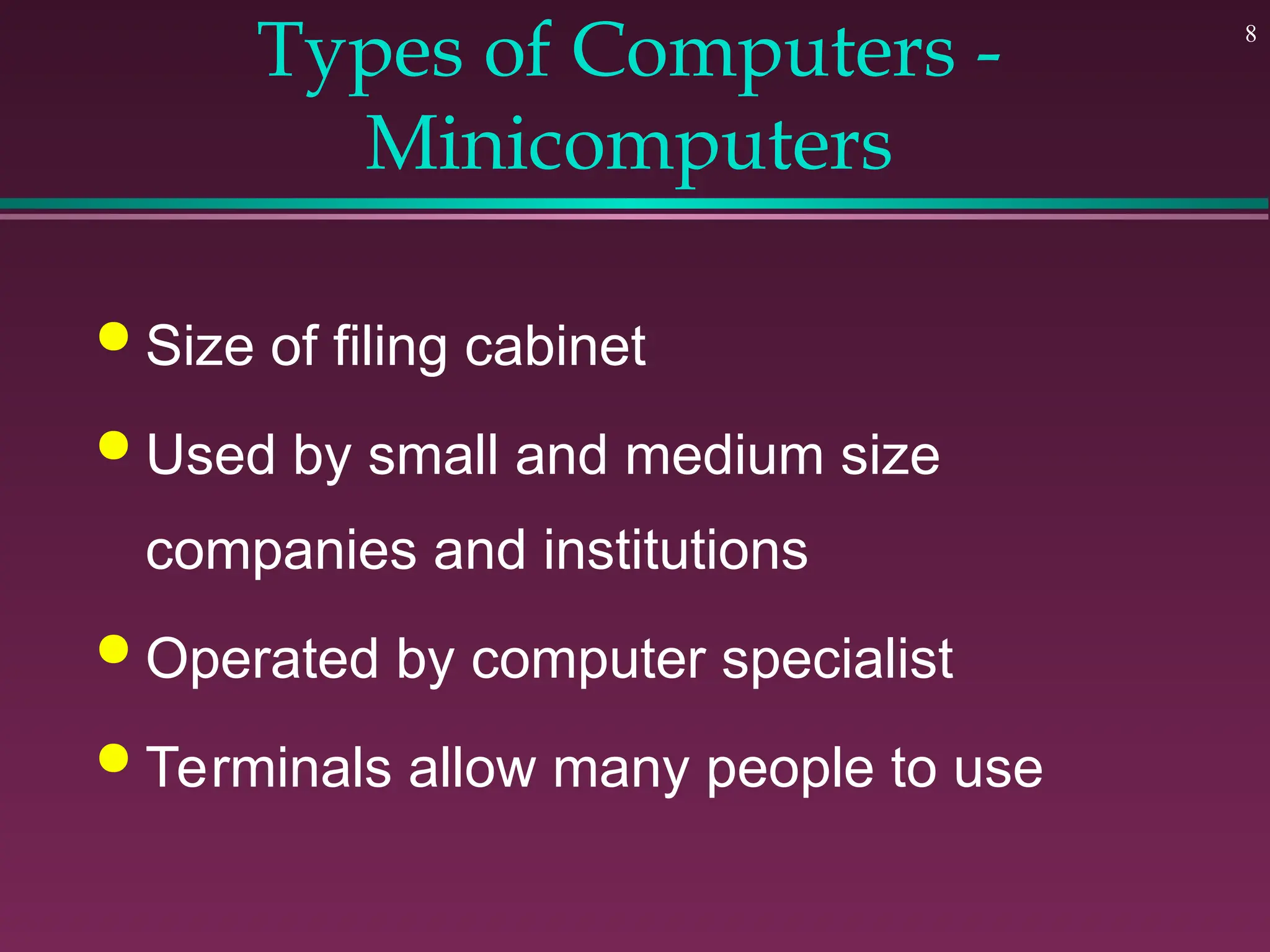

Types of Computers -
Minicomputers
 Size of filing cabinet
 Used by small and medium size
companies and institutions
 Operated by computer specialist
 Terminals allow many people to use

9

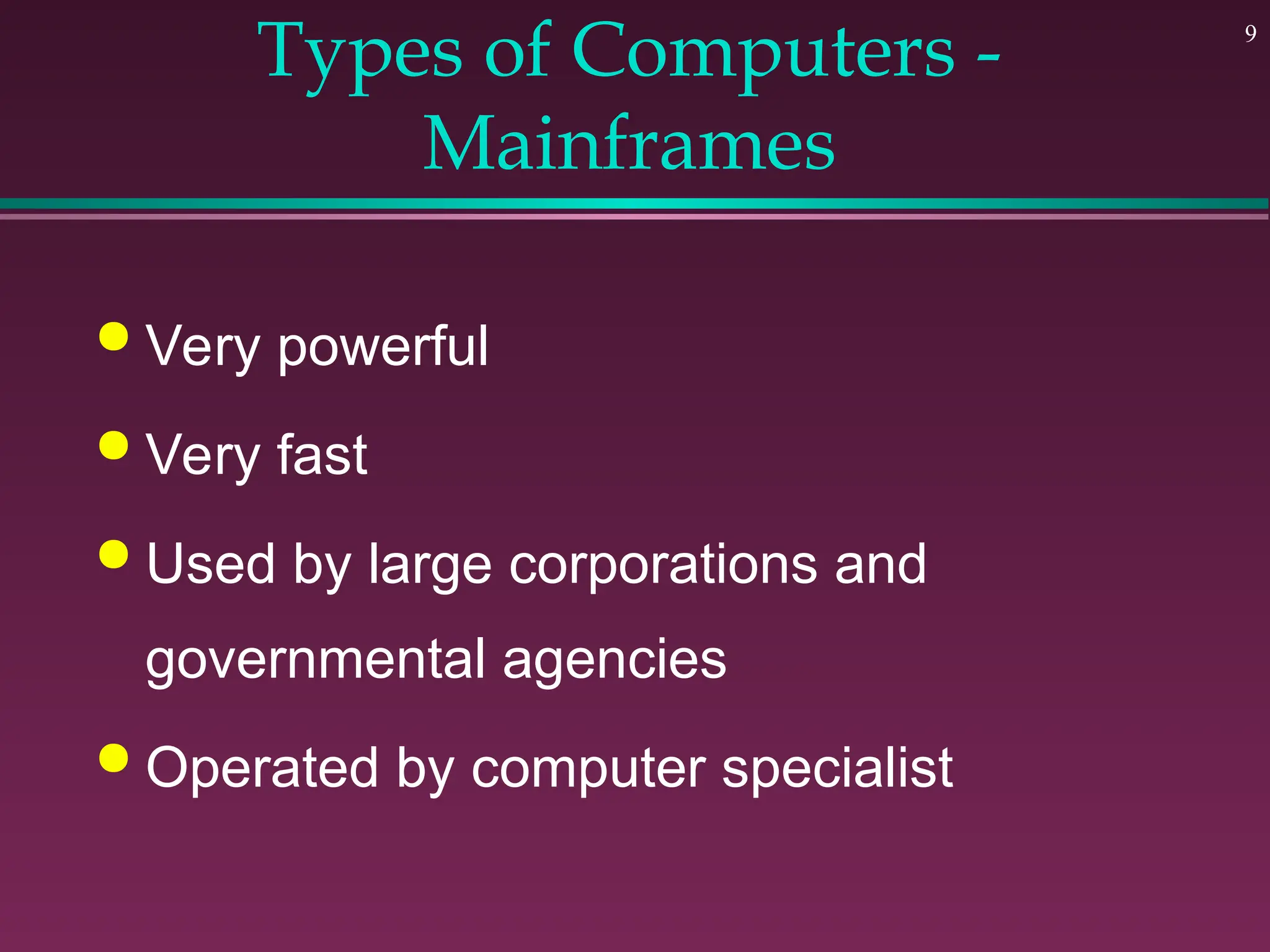

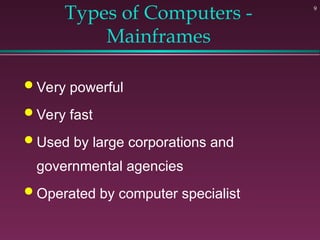

Types of Computers -
Mainframes
 Very powerful
 Very fast
 Used by large corporations and
governmental agencies
 Operated by computer specialist

10

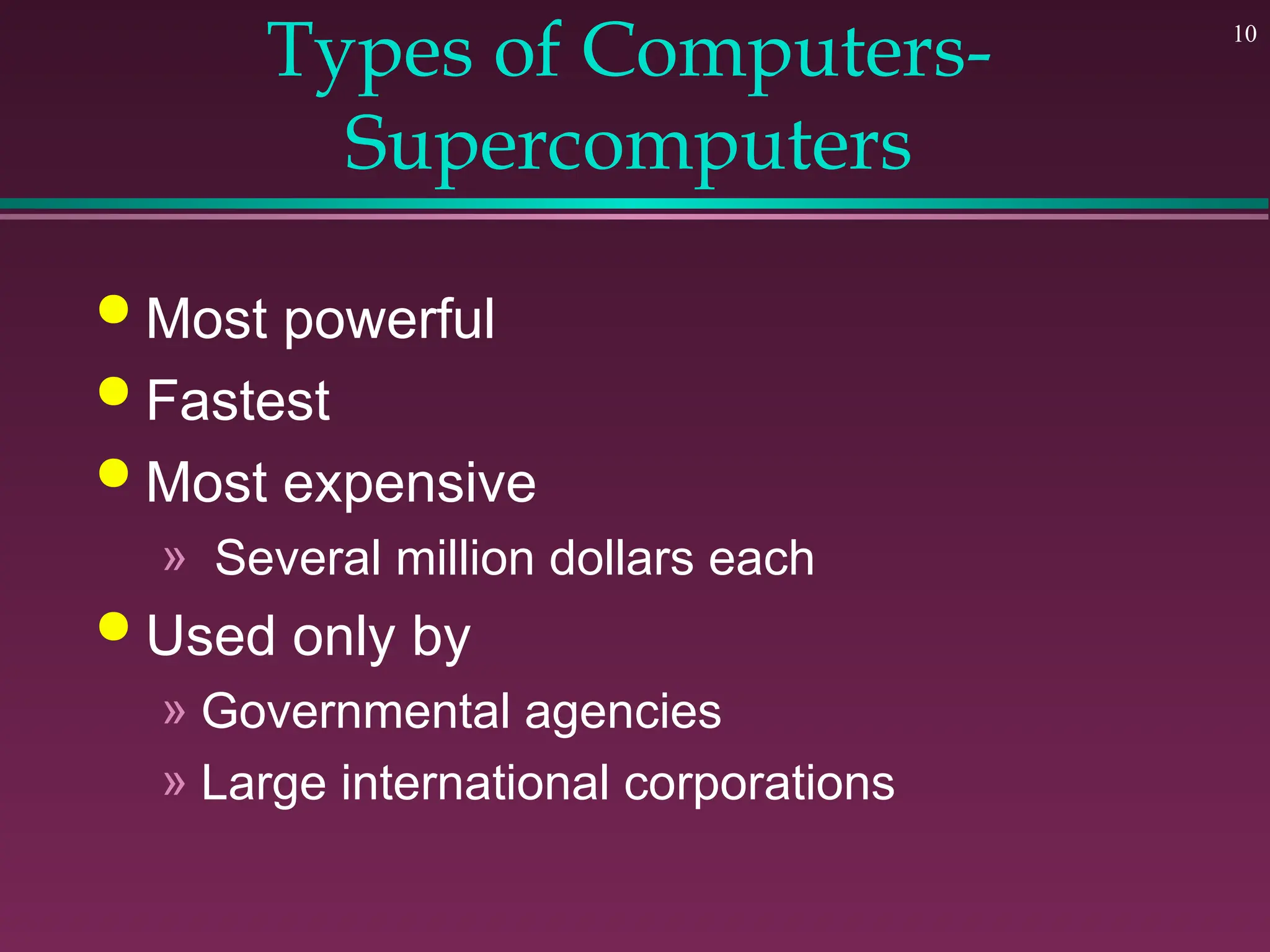

Types of Computers-
Supercomputers
 Most powerful
 Fastest
 Most expensive
» Several million dollars each
 Used only by
» Governmental agencies
» Large international corporations

11

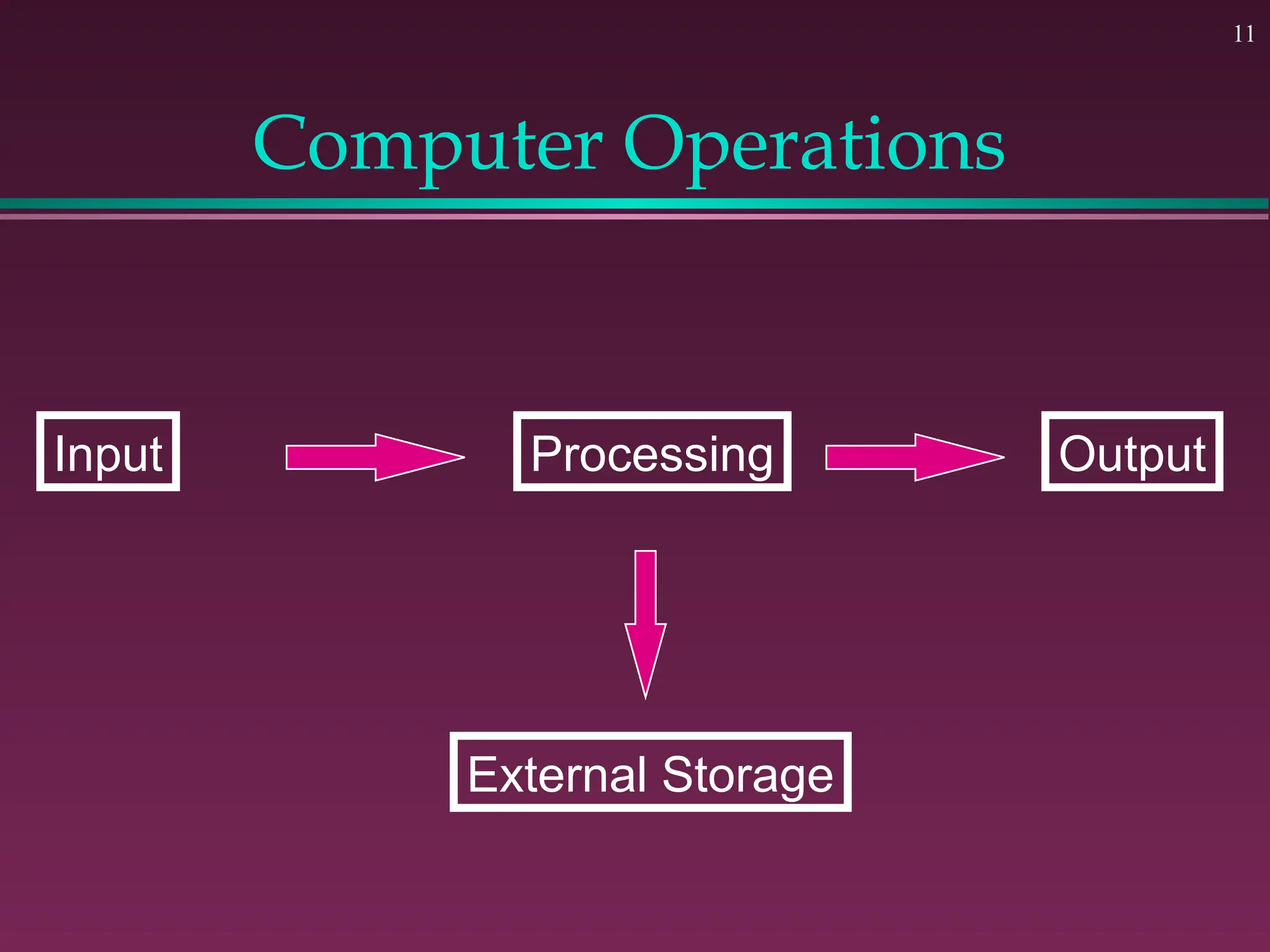

Computer Operations
Input Processing Output
External Storage

12

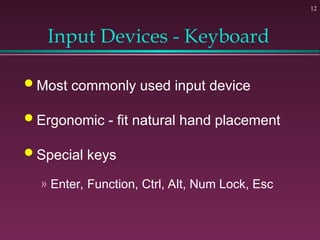

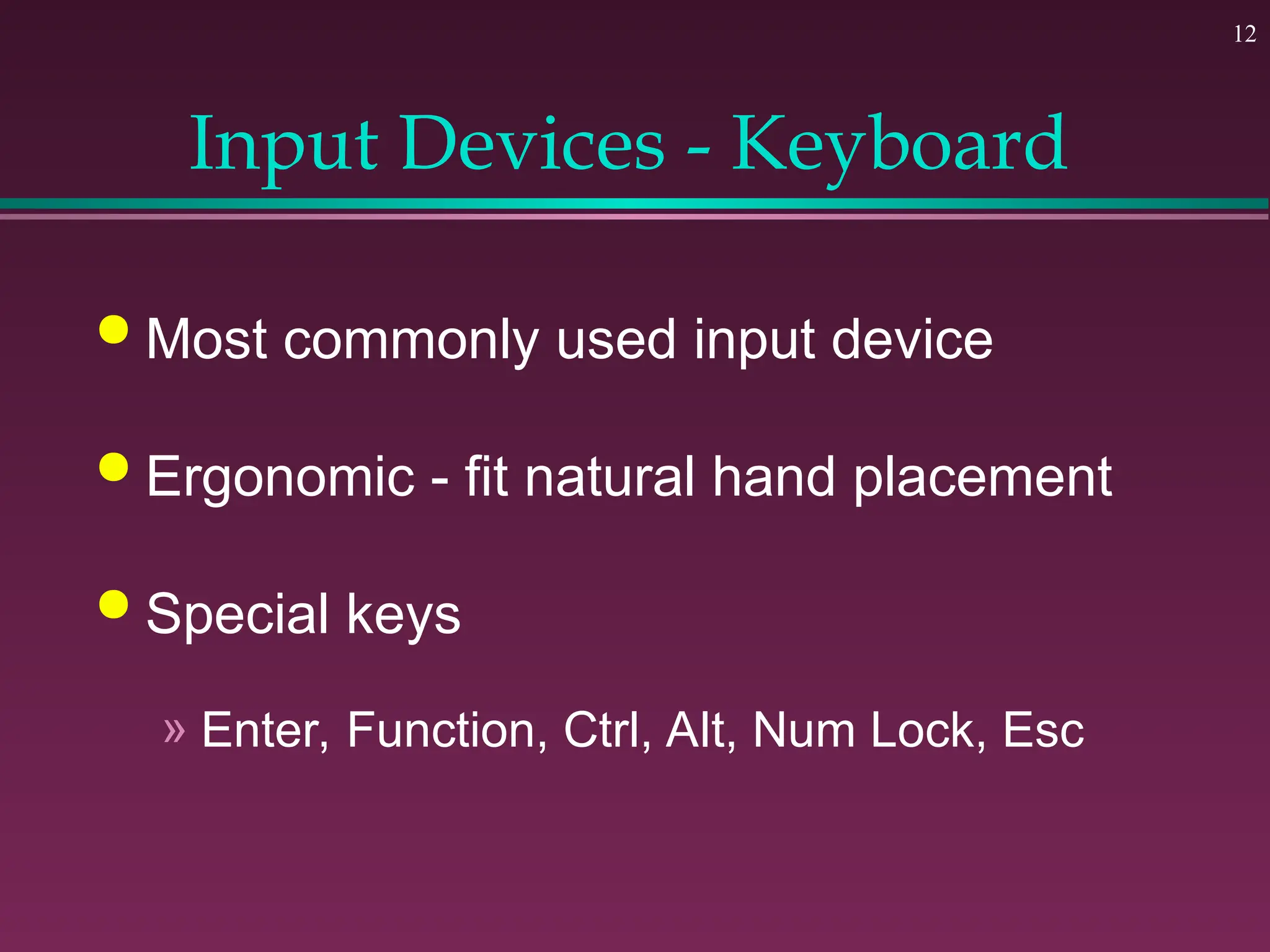

Input Devices - Keyboard
 Most commonly used input device
 Ergonomic - fit natural hand placement
 Special keys
» Enter, Function, Ctrl, Alt, Num Lock, Esc

13

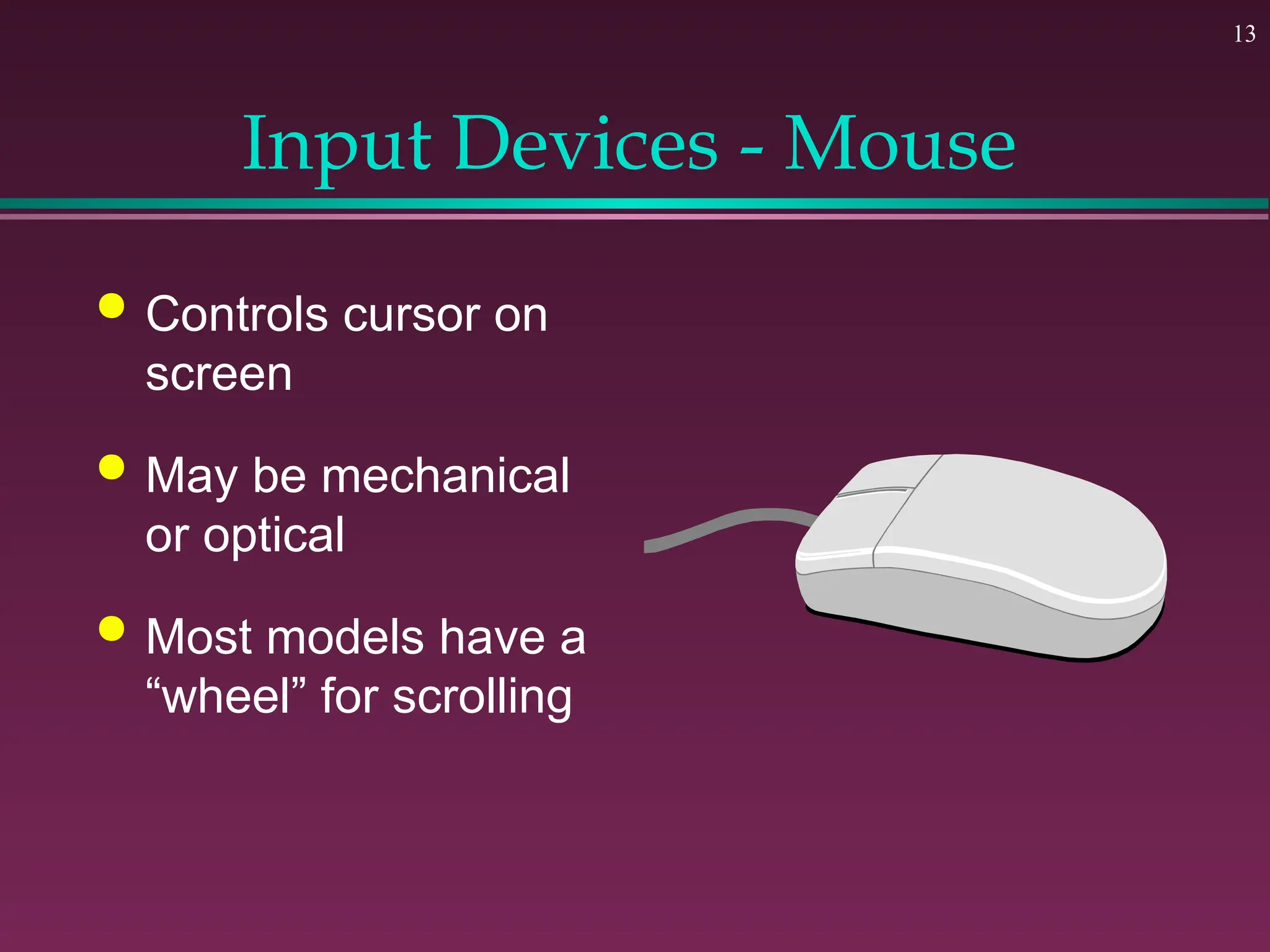

Input Devices - Mouse
 Controls cursor on
screen
 May be mechanical
or optical
 Most models have a
“wheel” for scrolling

14

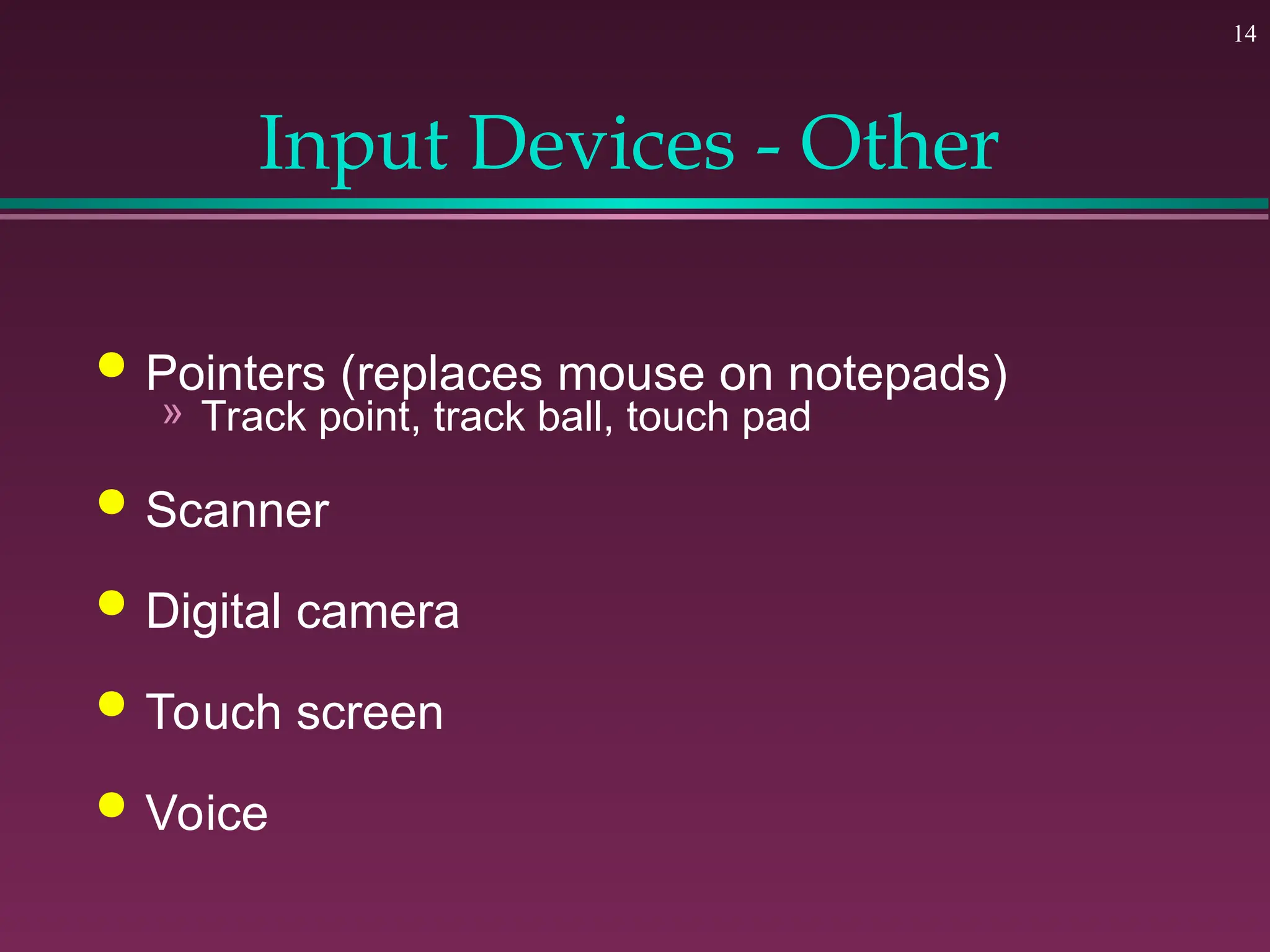

Input Devices - Other
 Pointers (replaces mouse on notepads)
» Track point, track ball, touch pad
 Scanner
 Digital camera
 Touch screen
 Voice

15

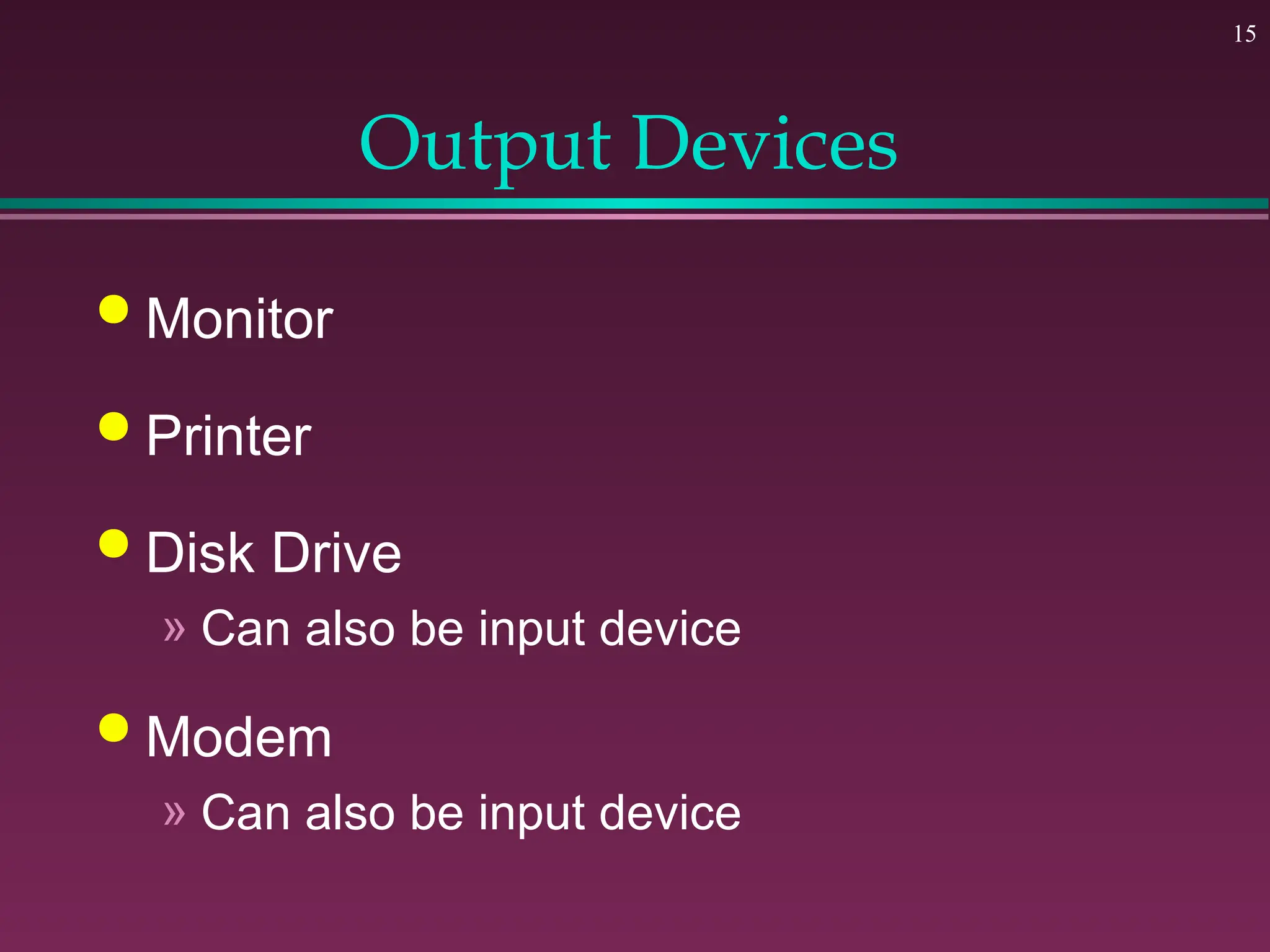

Output Devices
 Monitor
 Printer
 Disk Drive
» Can also be input device
 Modem
» Can also be input device

16

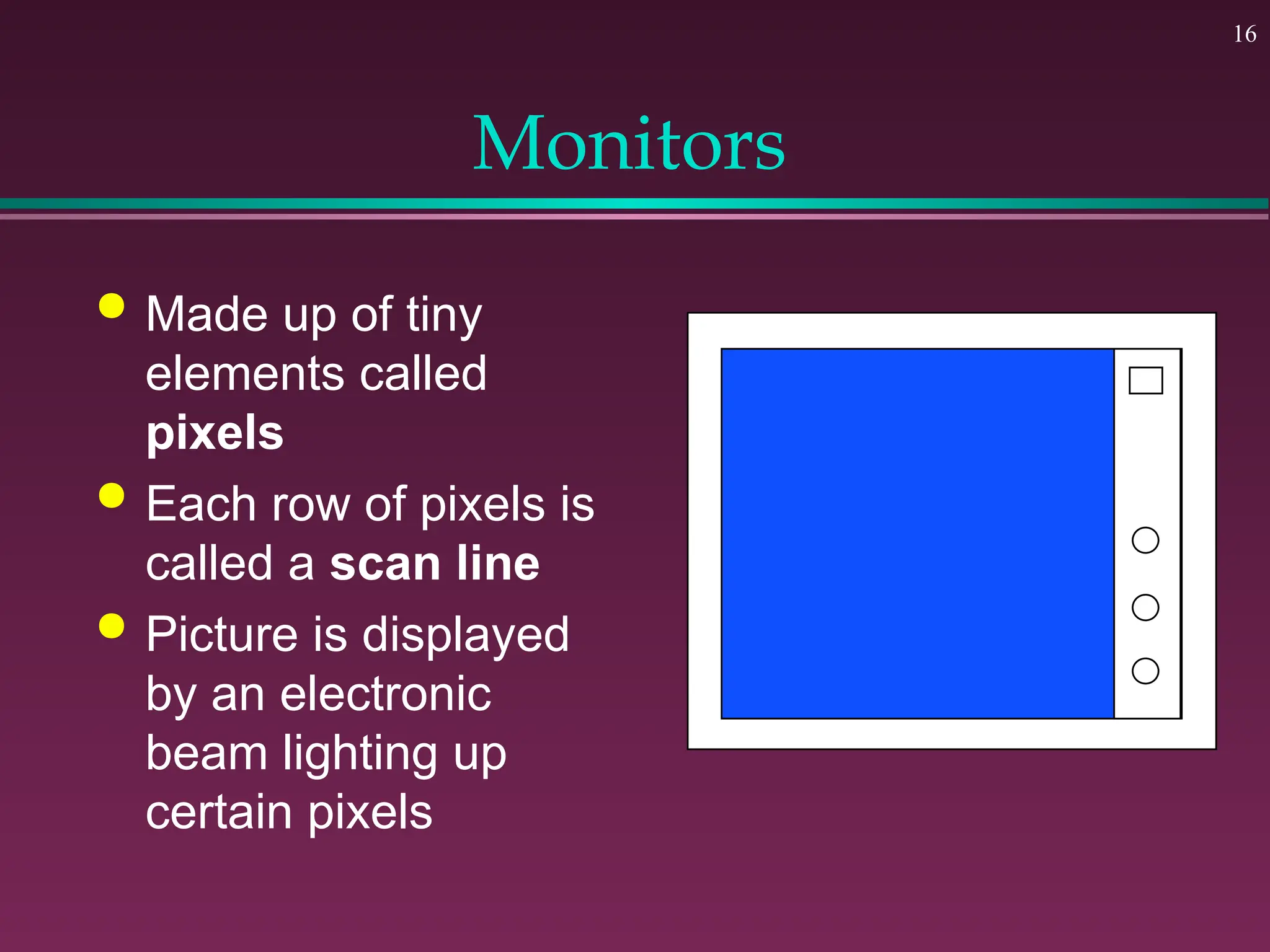

Monitors
 Made up of tiny
elements called
pixels
 Each row of pixels is
called a scan line
 Picture is displayed
by an electronic
beam lighting up
certain pixels

17

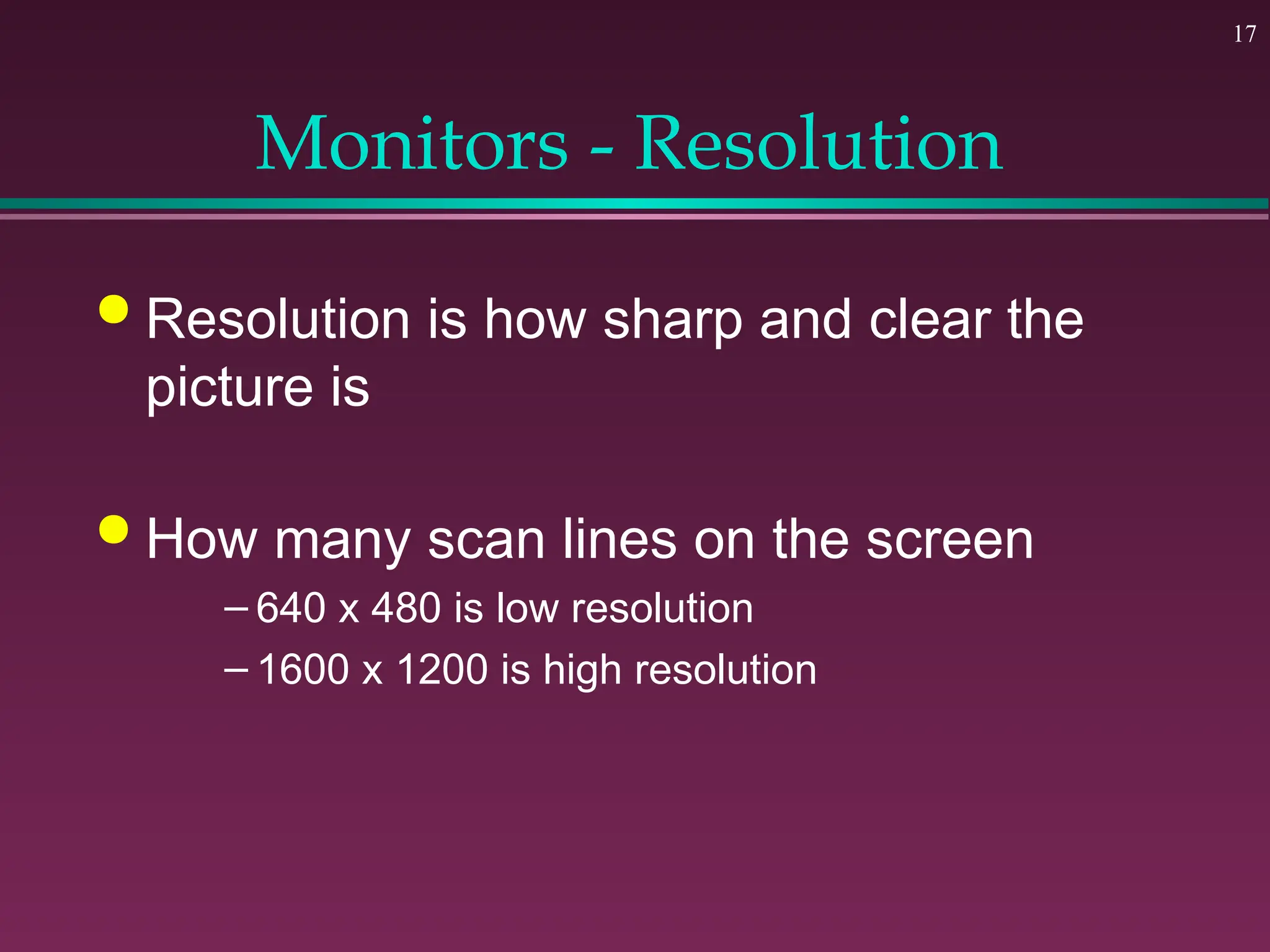

Monitors - Resolution
 Resolution is how sharp and clear the
picture is
 How many scan lines on the screen
– 640 x 480 is low resolution
– 1600 x 1200 is high resolution

18

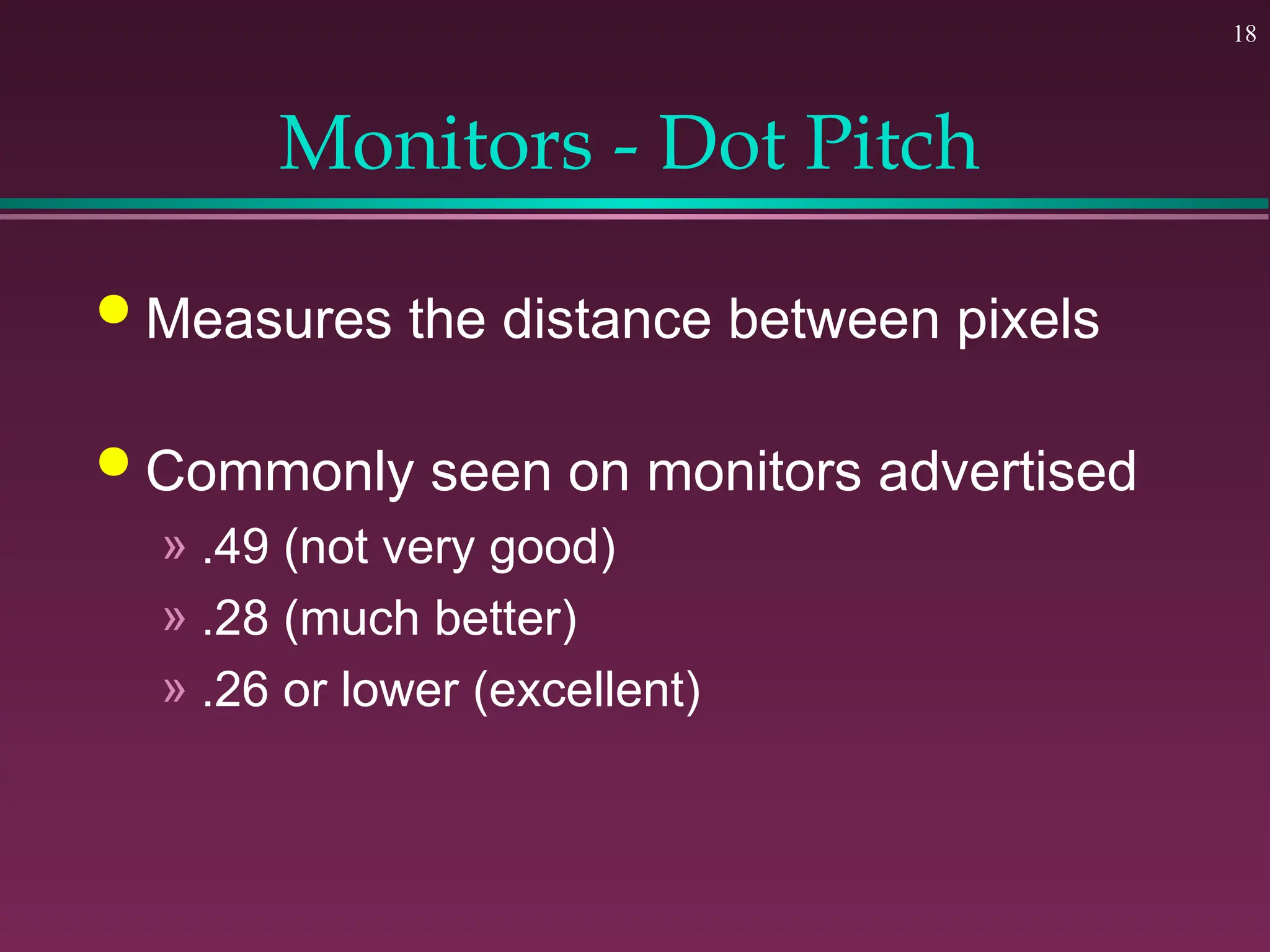

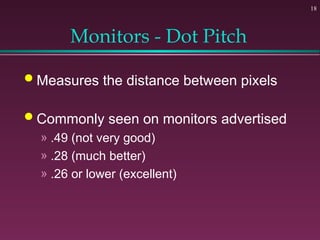

Monitors - Dot Pitch
 Measures the distance between pixels
 Commonly seen on monitors advertised
» .49 (not very good)
» .28 (much better)
» .26 or lower (excellent)

19

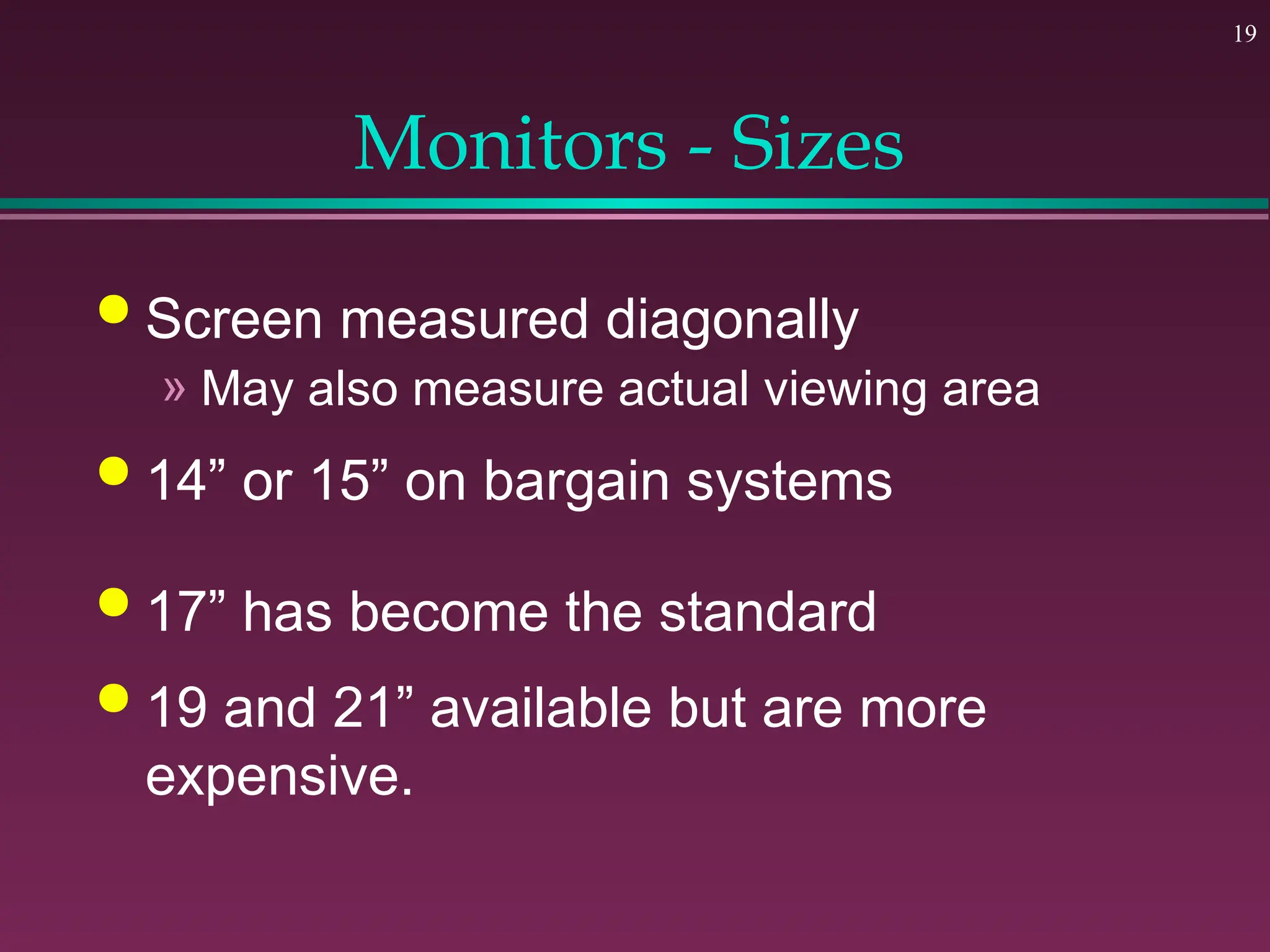

Monitors - Sizes
 Screen measured diagonally
» May also measure actual viewing area
 14” or 15” on bargain systems
 17” has become the standard
 19 and 21” available but are more
expensive.

20

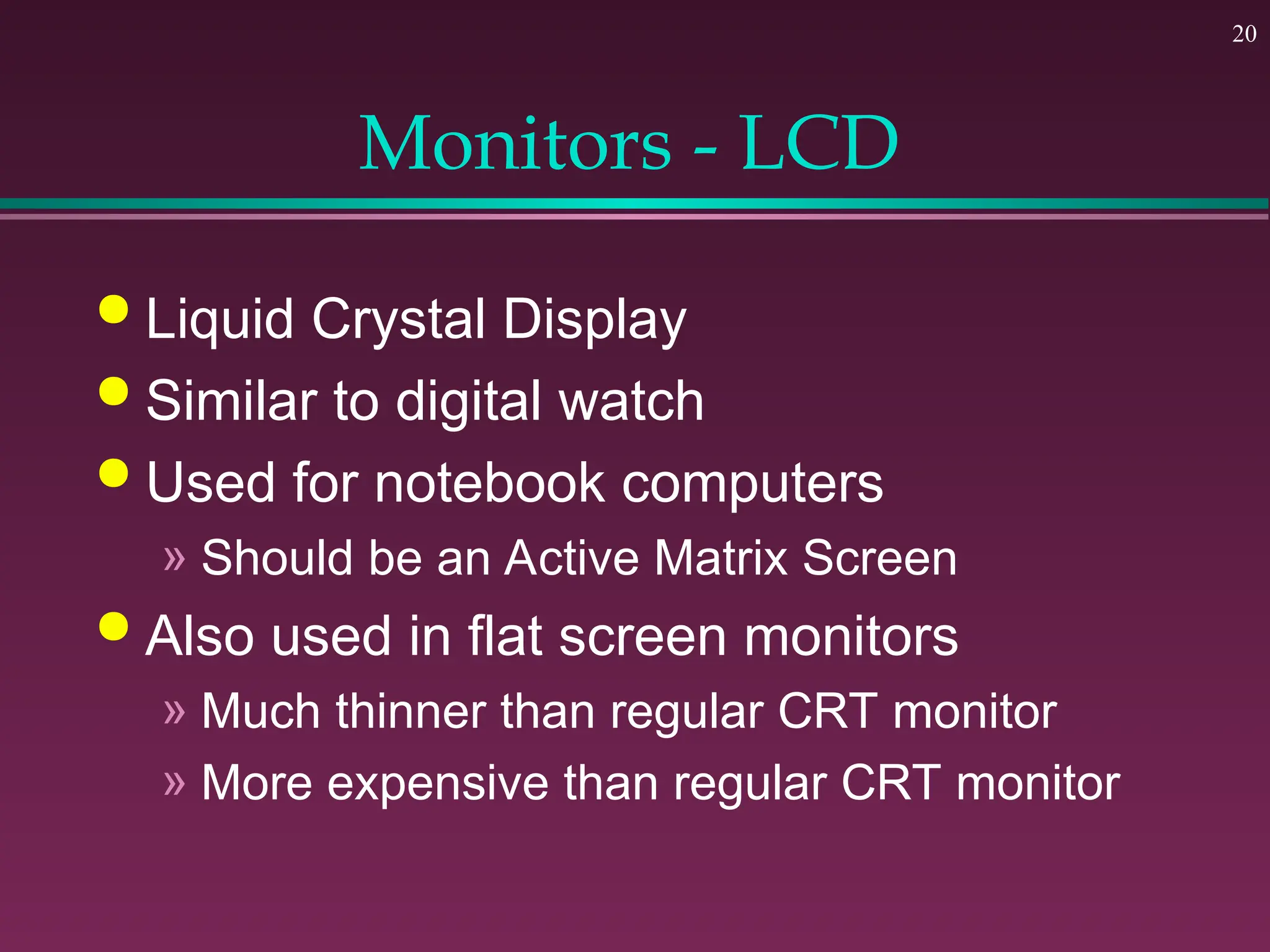

Monitors - LCD
 Liquid Crystal Display
 Similar to digital watch
 Used for notebook computers
» Should be an Active Matrix Screen
 Also used in flat screen monitors
» Much thinner than regular CRT monitor
» More expensive than regular CRT monitor

21

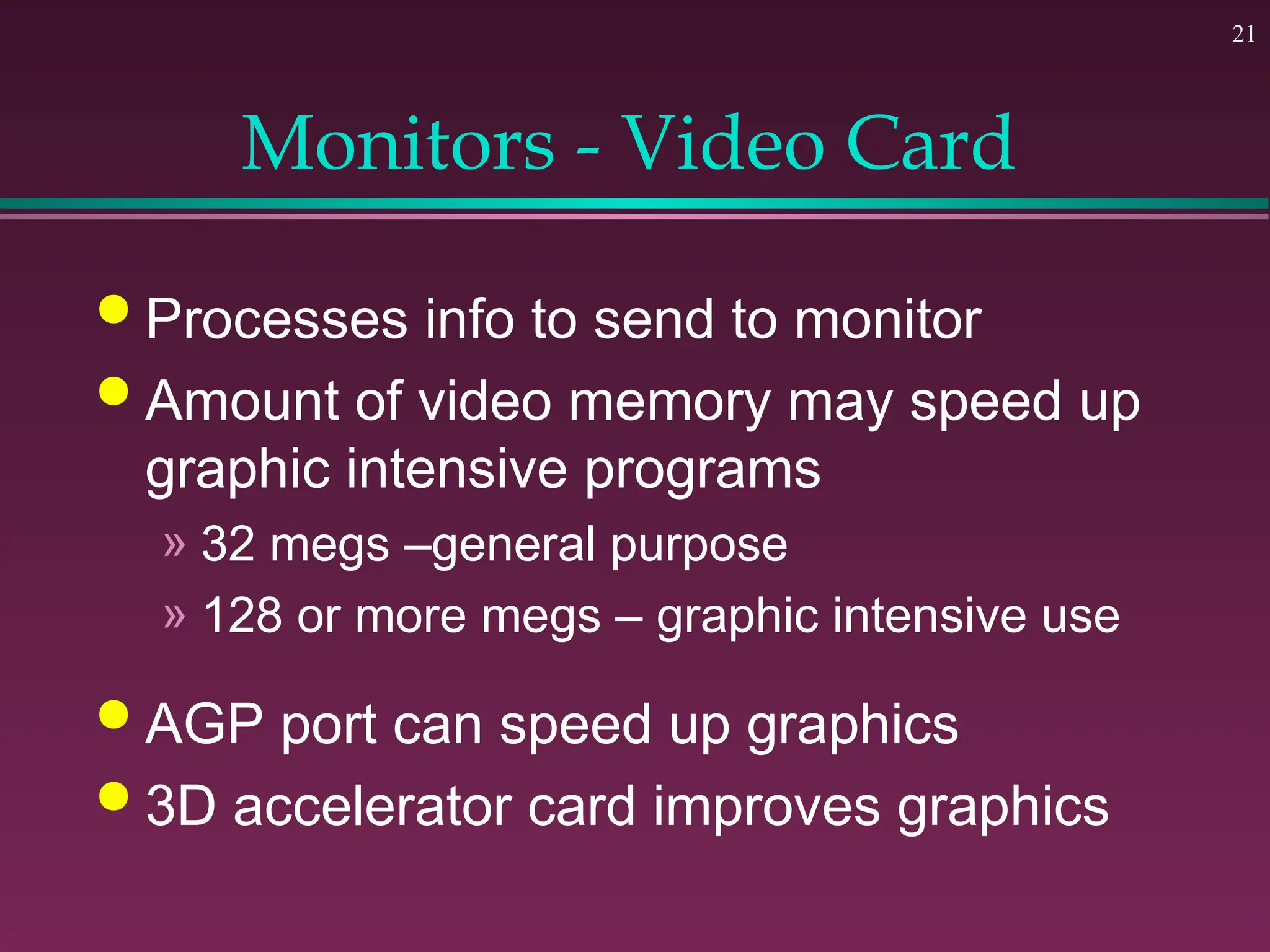

Monitors - Video Card
 Processes info to send to monitor
 Amount of video memory may speed up
graphic intensive programs
» 32 megs –general purpose
» 128 or more megs – graphic intensive use
 AGP port can speed up graphics
 3D accelerator card improves graphics

22

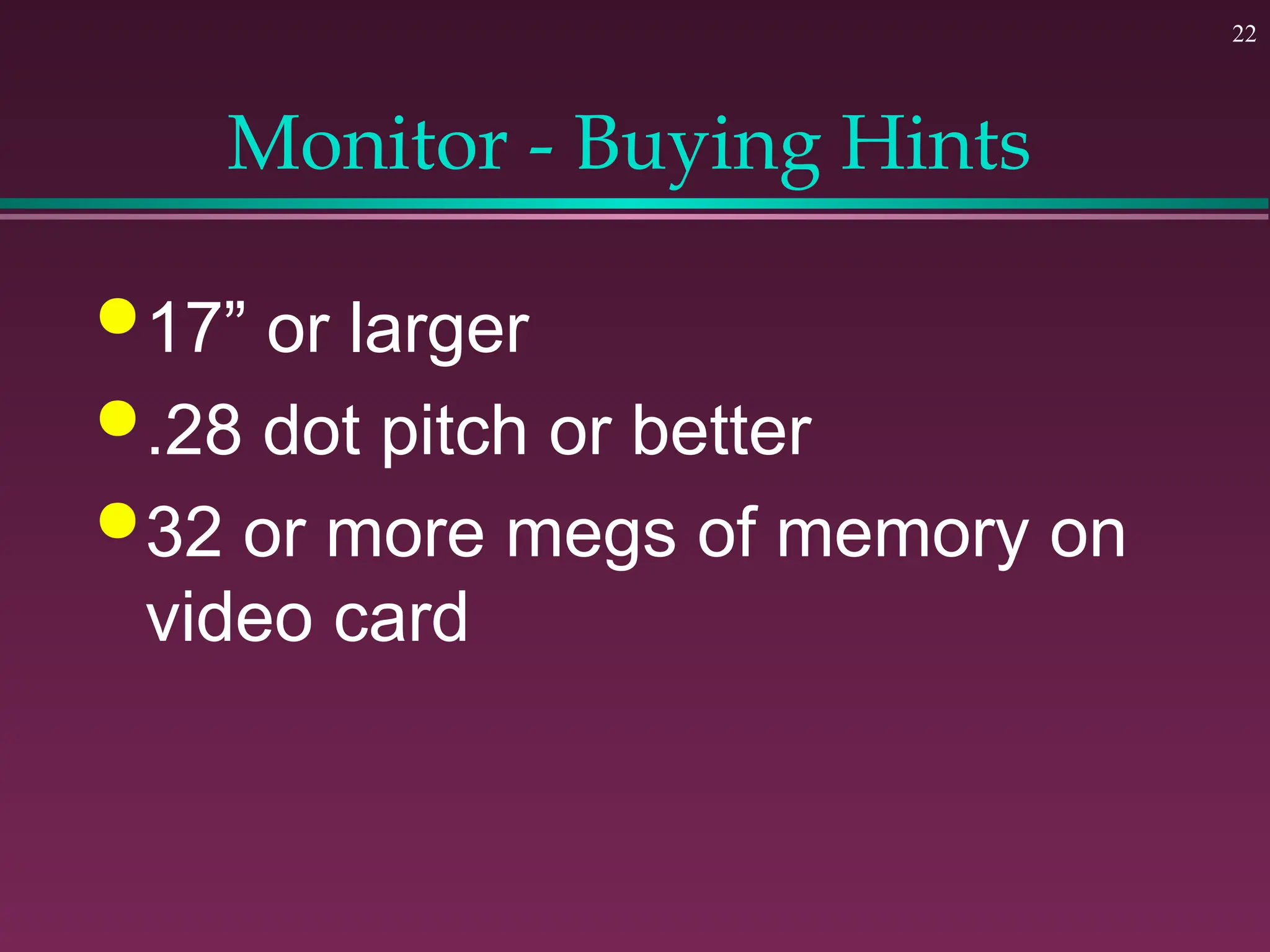

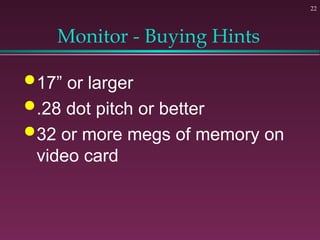

Monitor - Buying Hints
17” or larger
.28 dot pitch or better
32 or more megs of memory on
video card

23

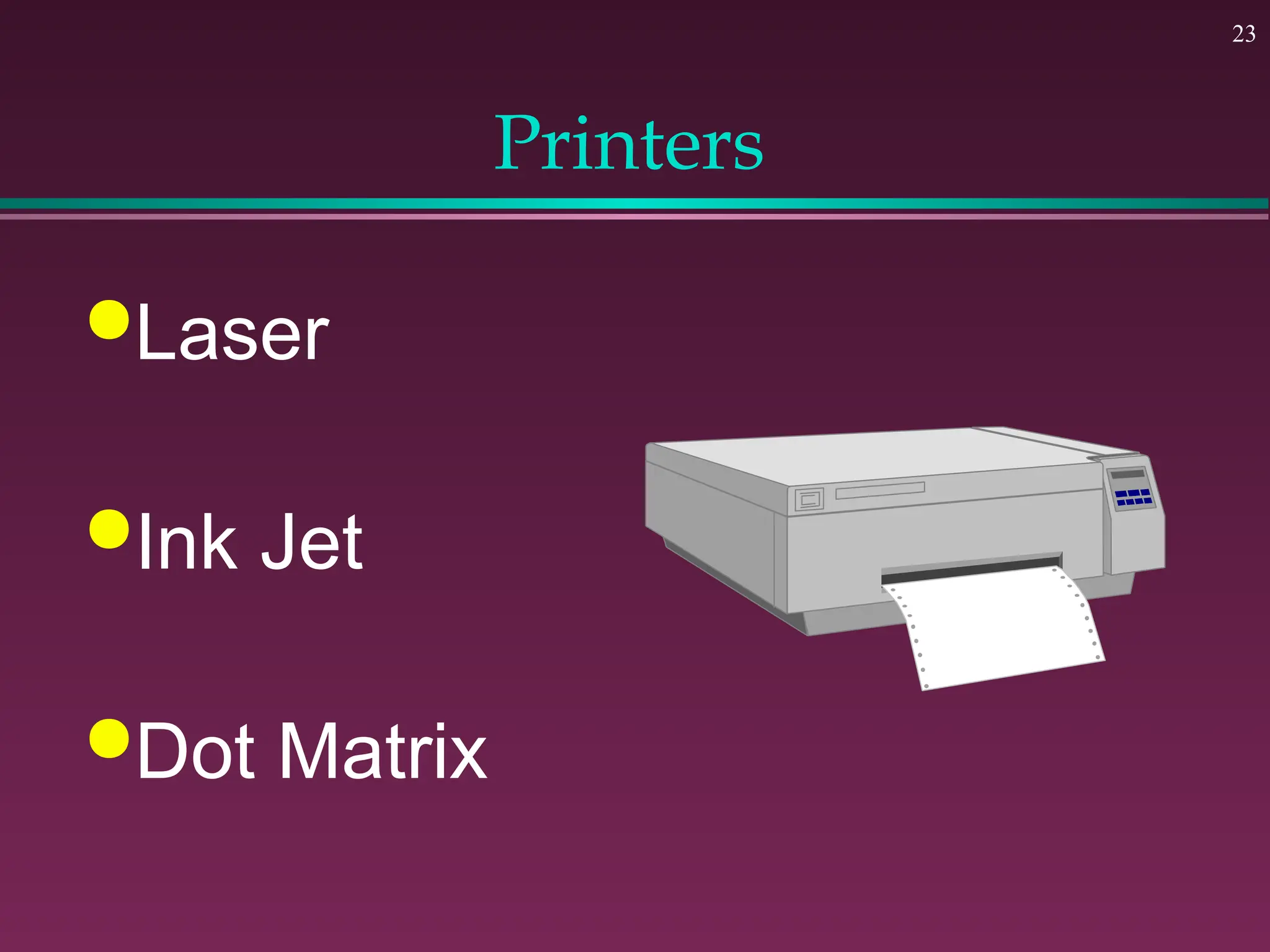

Printers
Laser
Ink Jet
Dot Matrix

24

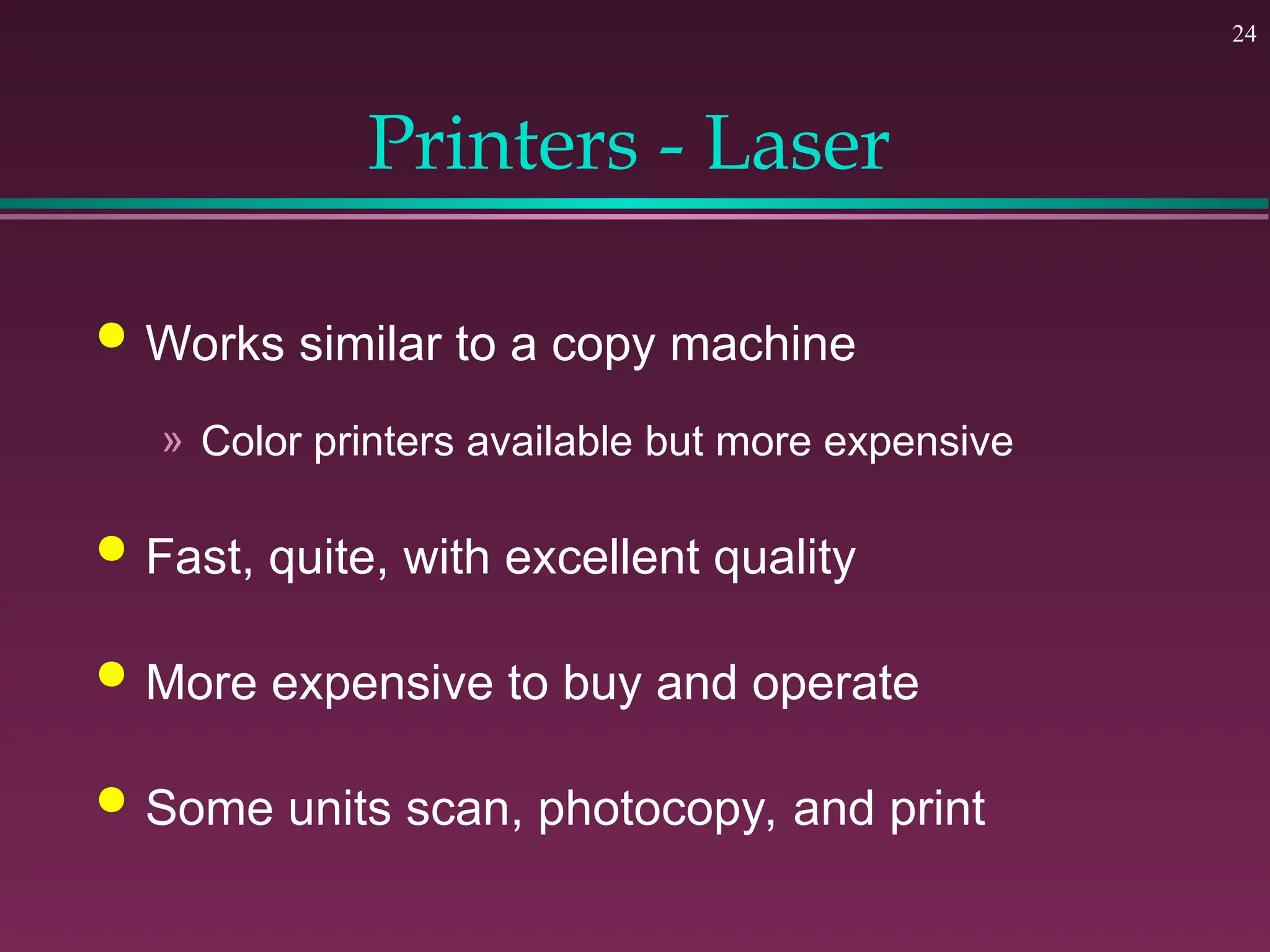

Printers - Laser
 Works similar to a copy machine
» Color printers available but more expensive
 Fast, quite, with excellent quality
 More expensive to buy and operate
 Some units scan, photocopy, and print

25

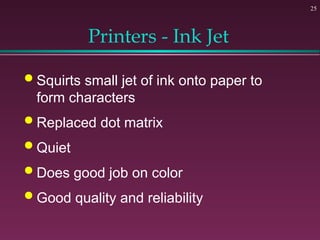

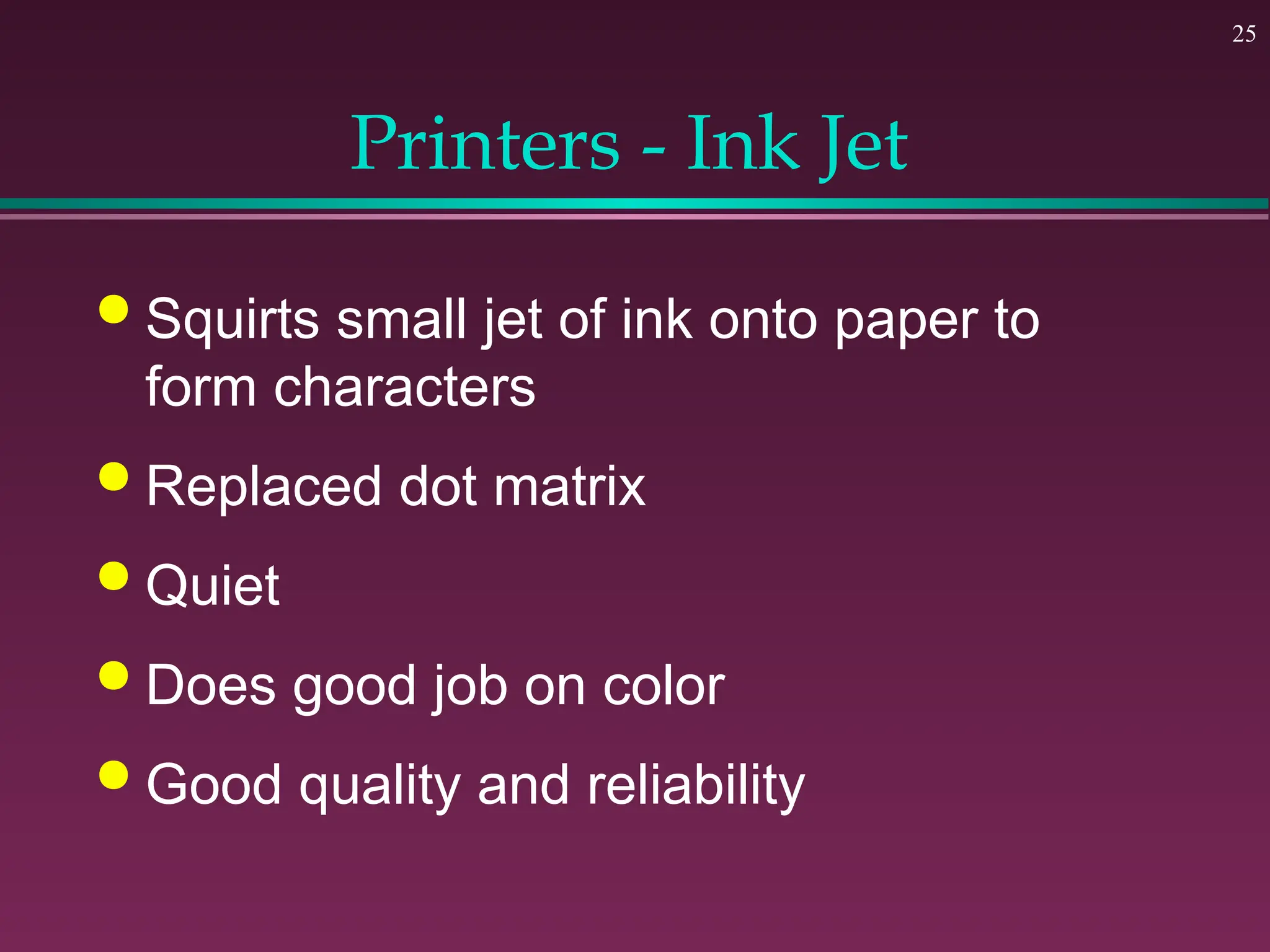

Printers - Ink Jet
 Squirts small jet of ink onto paper to
form characters
 Replaced dot matrix
 Quiet
 Does good job on color
 Good quality and reliability

26

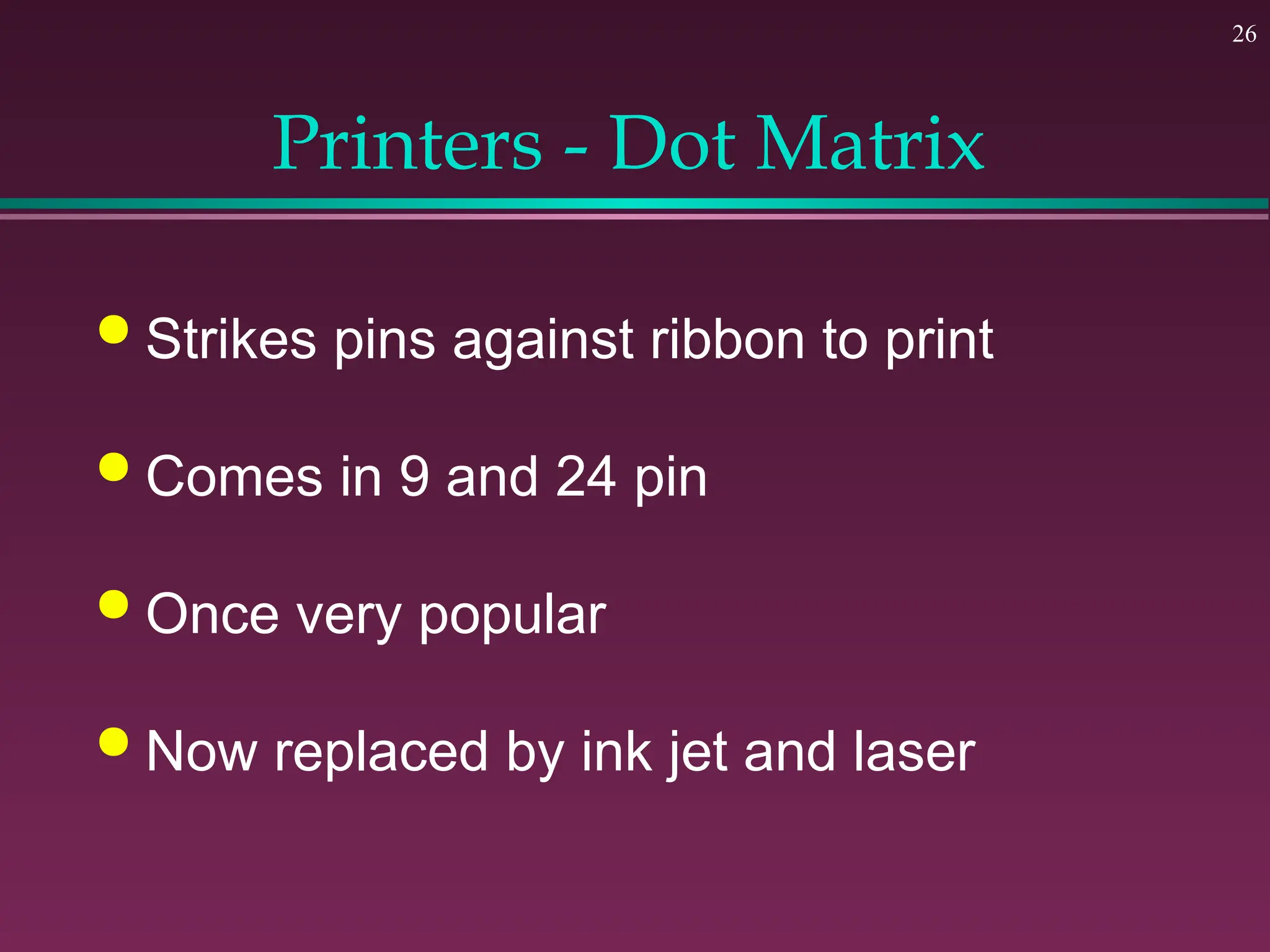

Printers - Dot Matrix
 Strikes pins against ribbon to print
 Comes in 9 and 24 pin
 Once very popular
 Now replaced by ink jet and laser

27

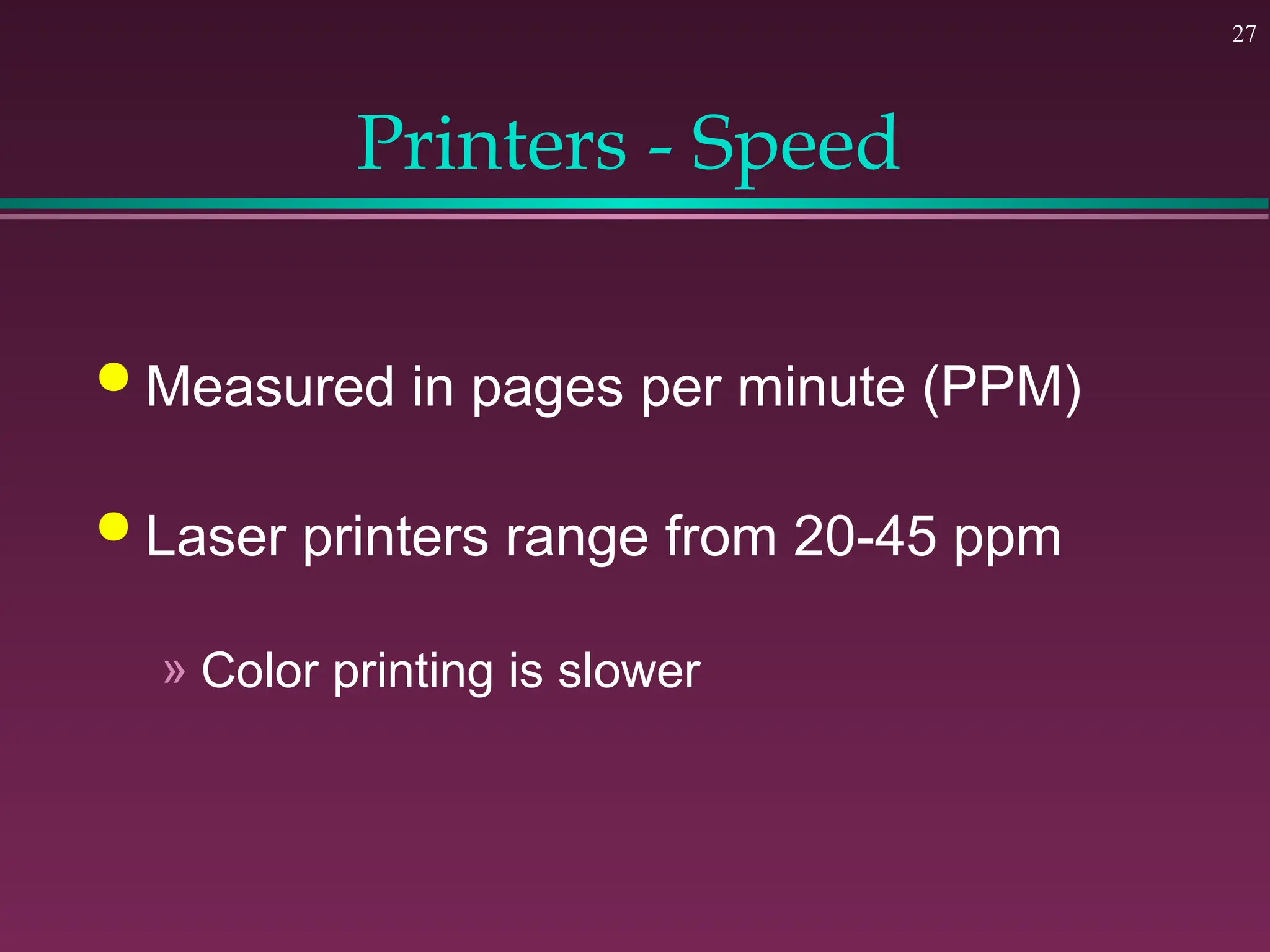

Printers - Speed
 Measured in pages per minute (PPM)
 Laser printers range from 20-45 ppm
» Color printing is slower

28

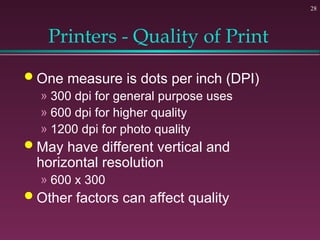

Printers - Quality of Print
 One measure is dots per inch (DPI)
» 300 dpi for general purpose uses
» 600 dpi for higher quality
» 1200 dpi for photo quality
 May have different vertical and
horizontal resolution
» 600 x 300
 Other factors can affect quality

29

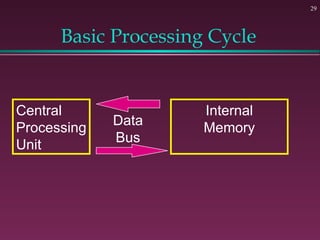

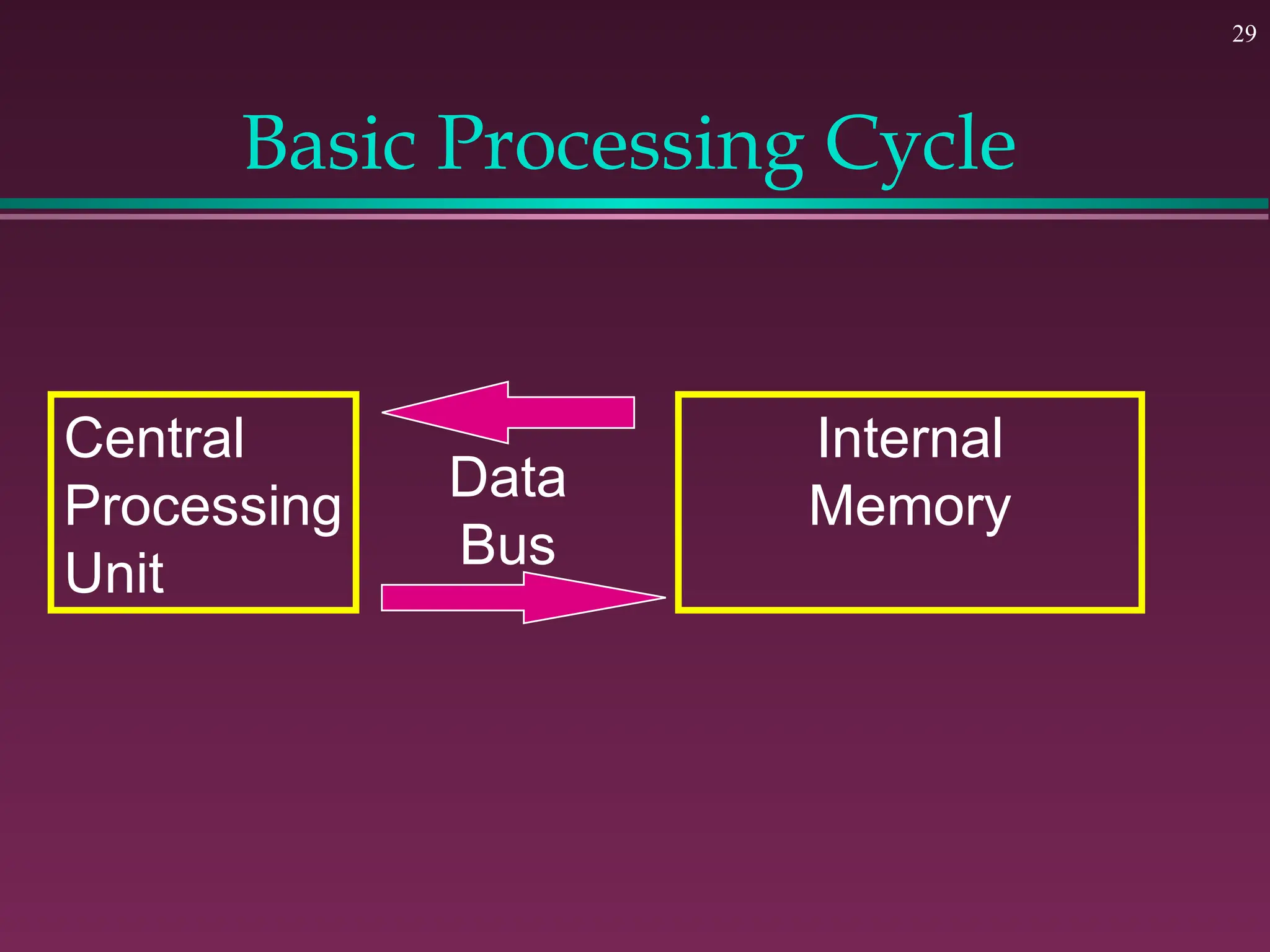

Basic Processing Cycle
Central
Processing
Unit
Internal
Memory
Data
Bus

30

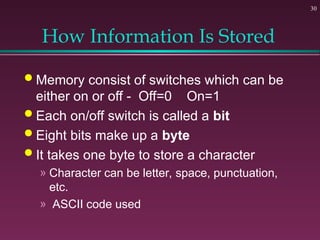

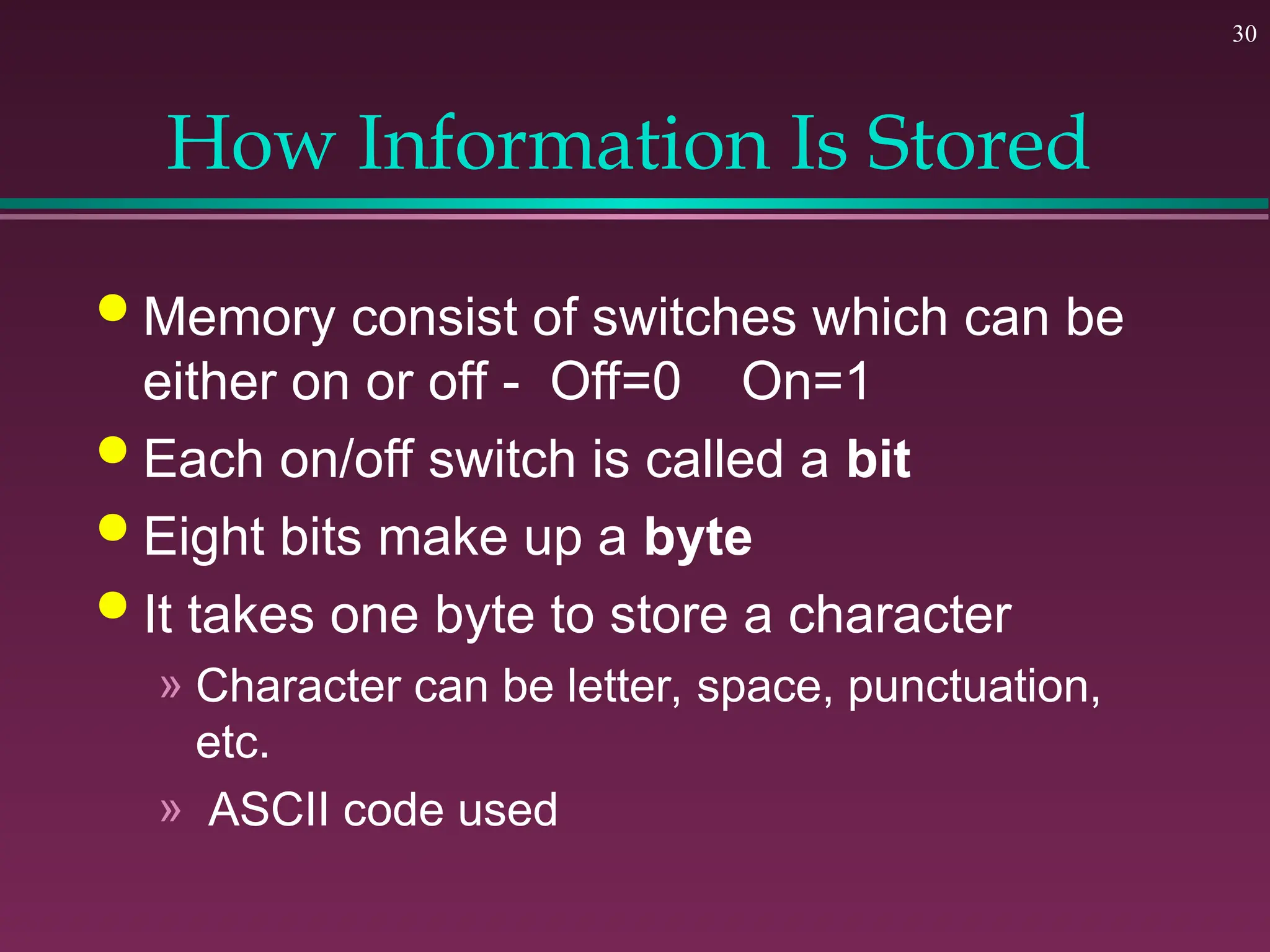

How Information Is Stored
 Memory consist of switches which can be
either on or off - Off=0 On=1
 Each on/off switch is called a bit
 Eight bits make up a byte
 It takes one byte to store a character
» Character can be letter, space, punctuation,
etc.
» ASCII code used

31

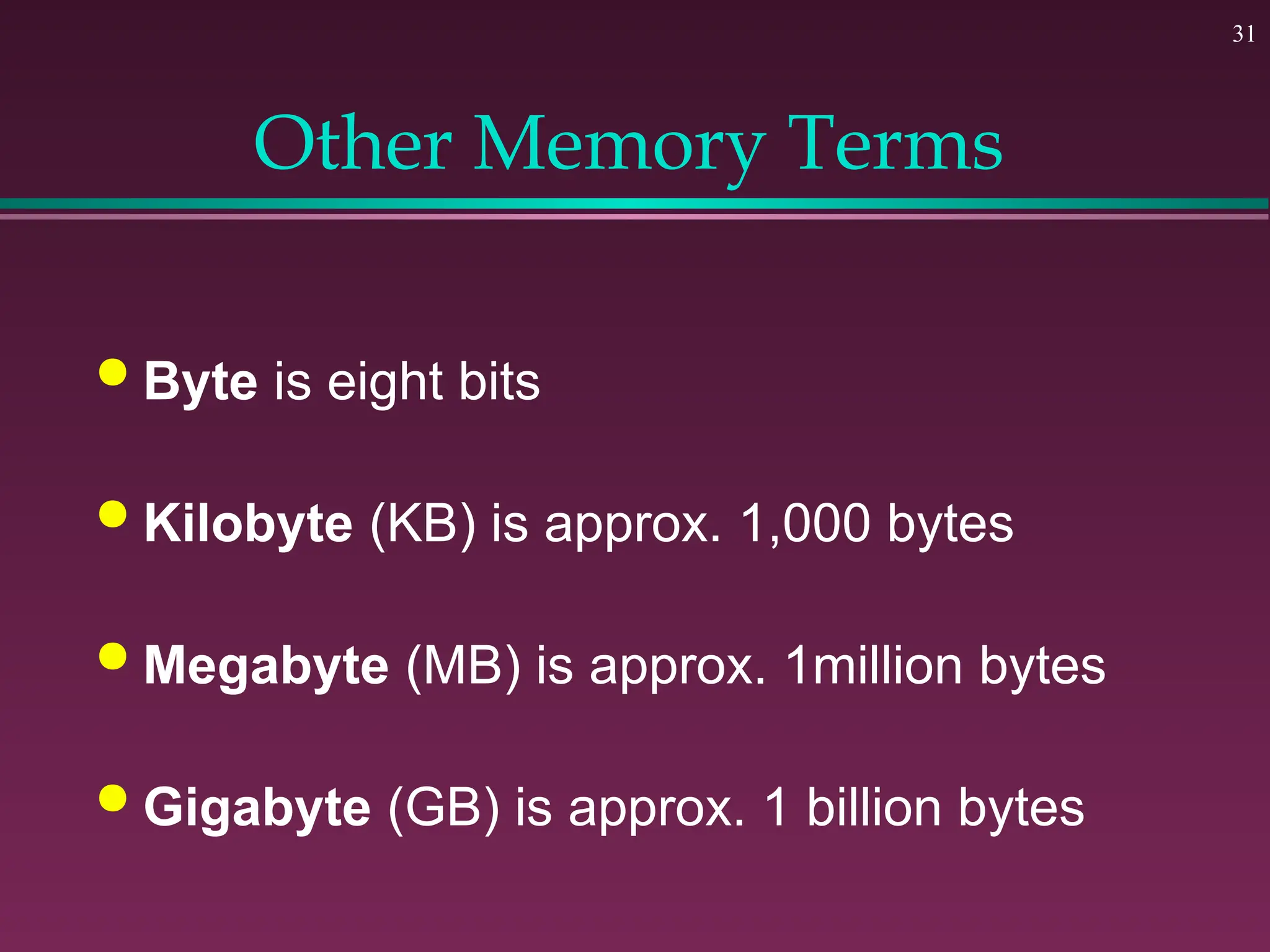

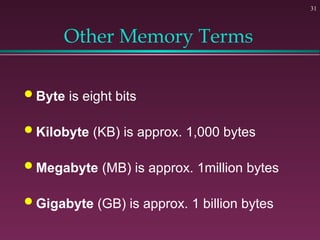

Other Memory Terms
 Byte is eight bits
 Kilobyte (KB) is approx. 1,000 bytes
 Megabyte (MB) is approx. 1million bytes
 Gigabyte (GB) is approx. 1 billion bytes

32

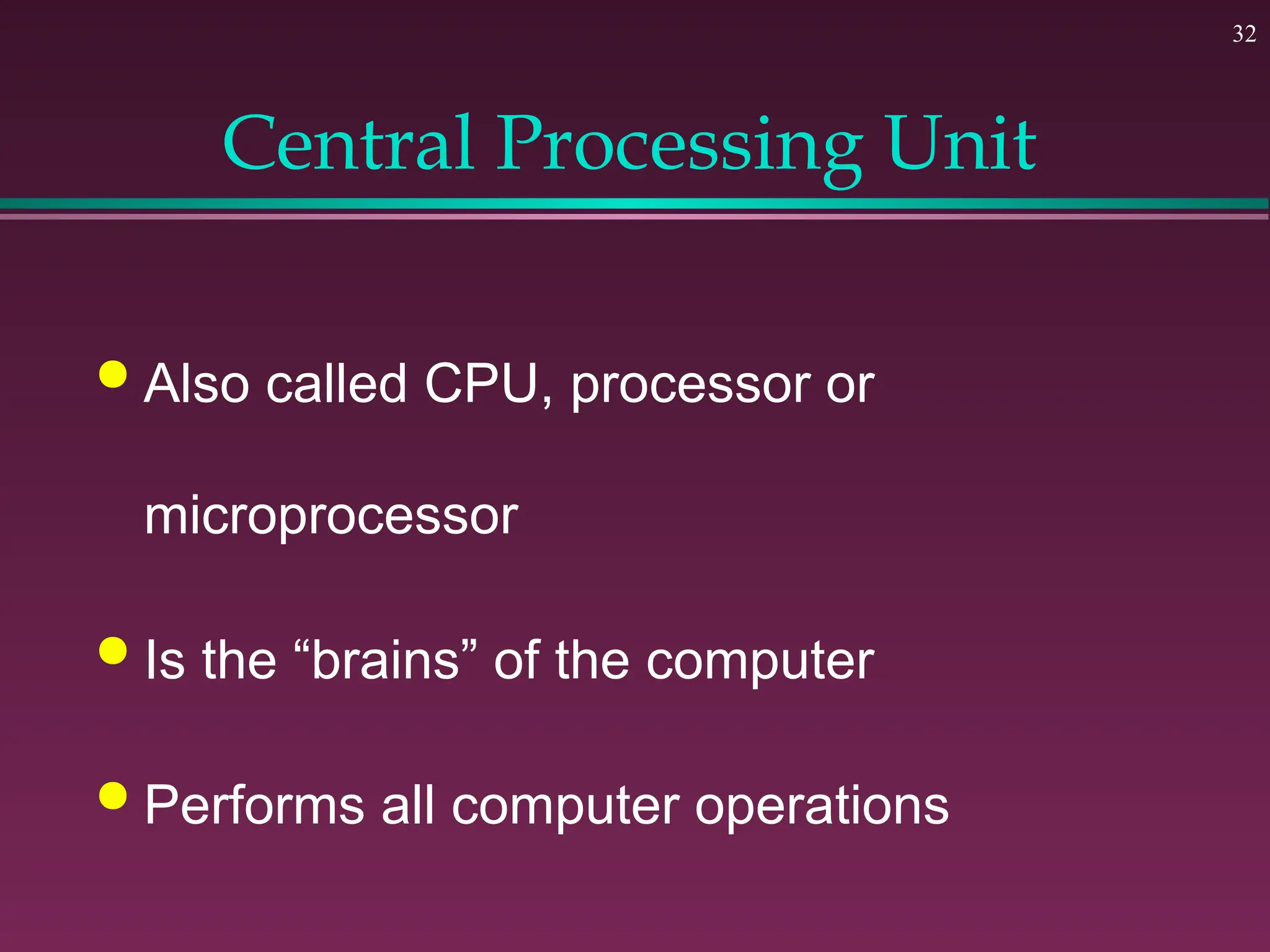

Central Processing Unit
 Also called CPU, processor or
microprocessor
 Is the “brains” of the computer
 Performs all computer operations

33

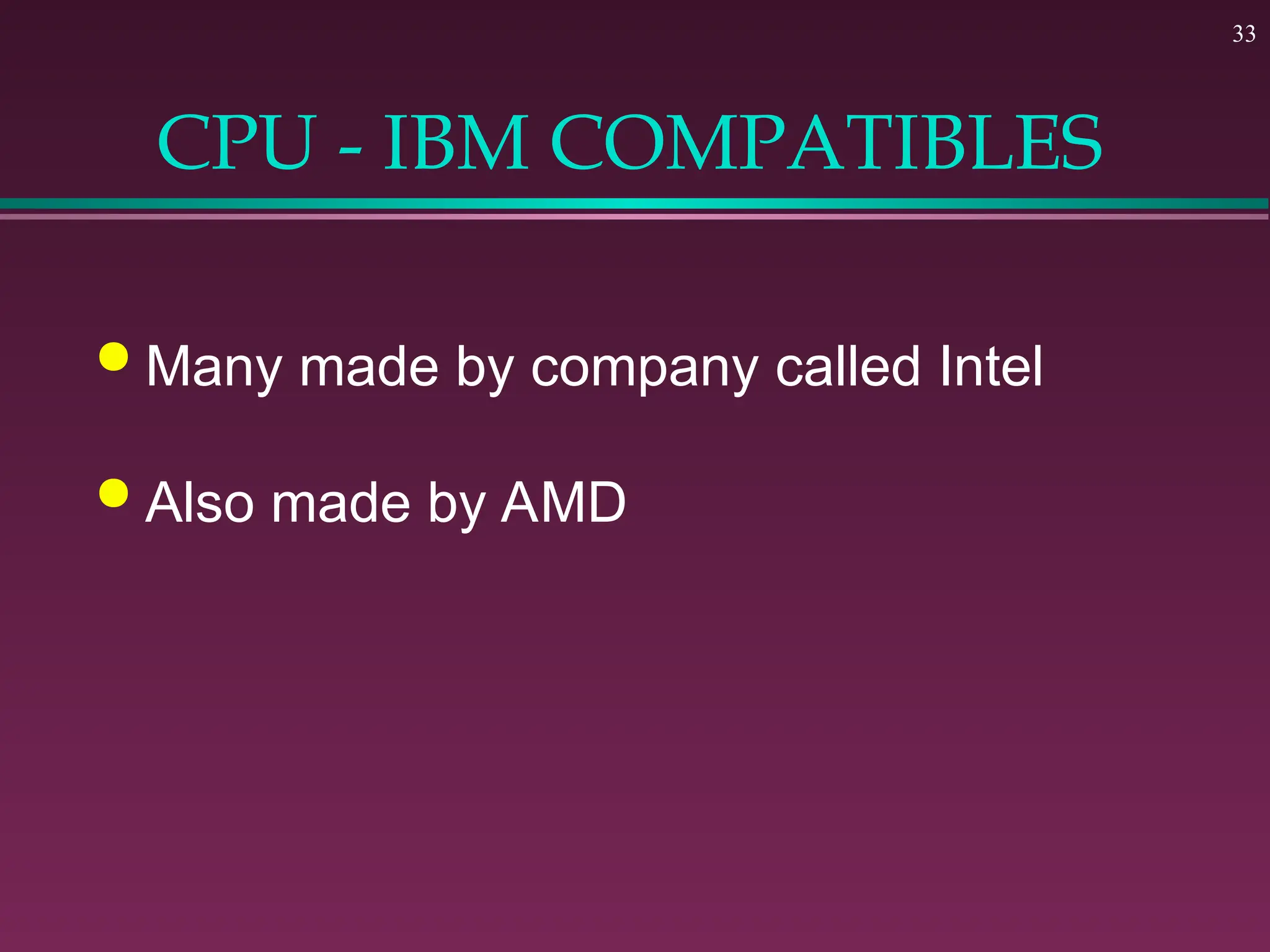

CPU - IBM COMPATIBLES
 Many made by company called Intel
 Also made by AMD

34

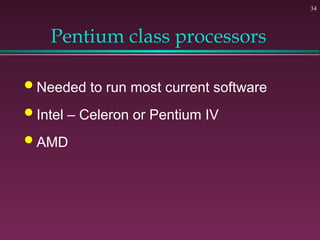

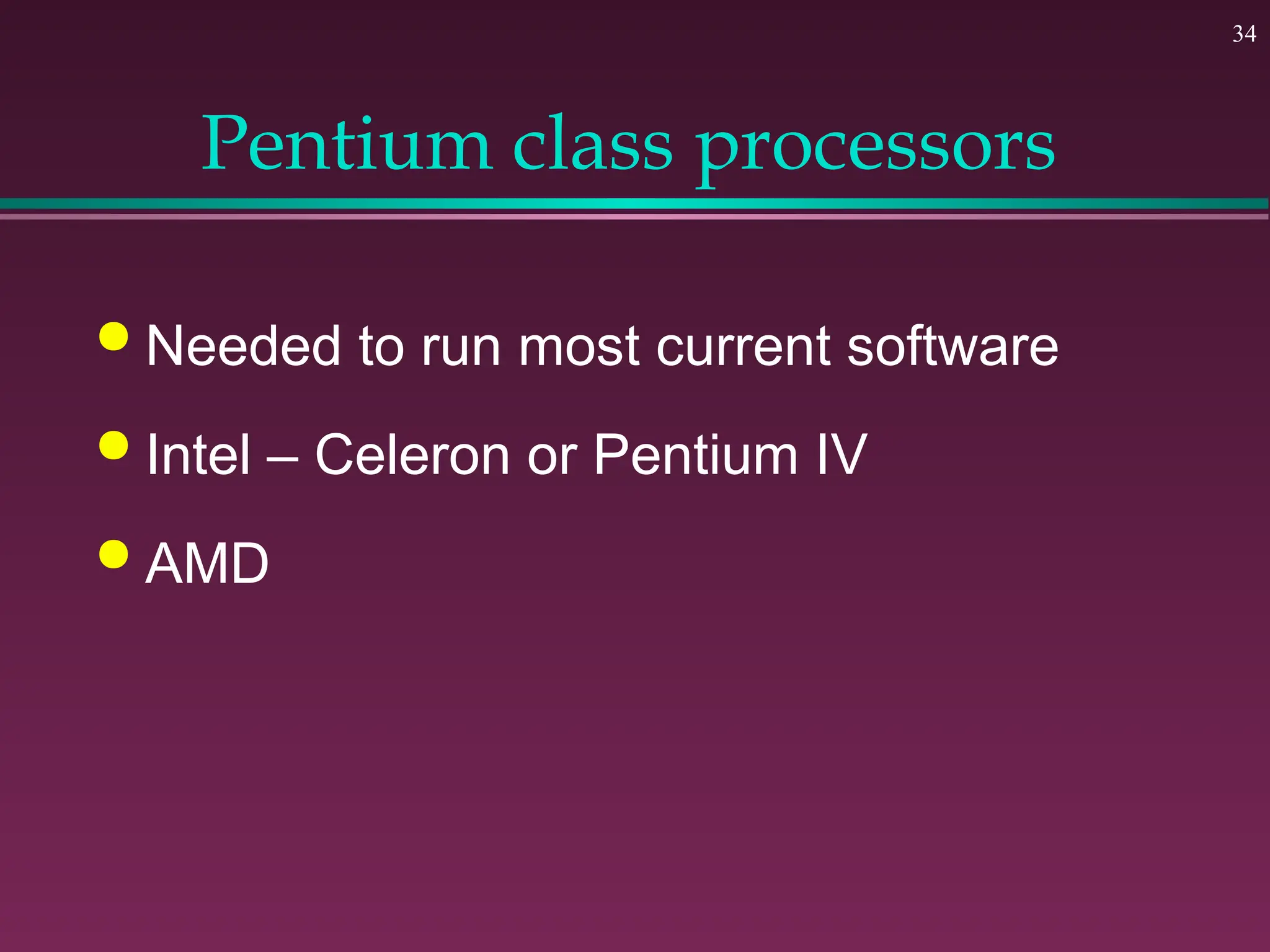

Pentium class processors
 Needed to run most current software
 Intel – Celeron or Pentium IV
 AMD

35

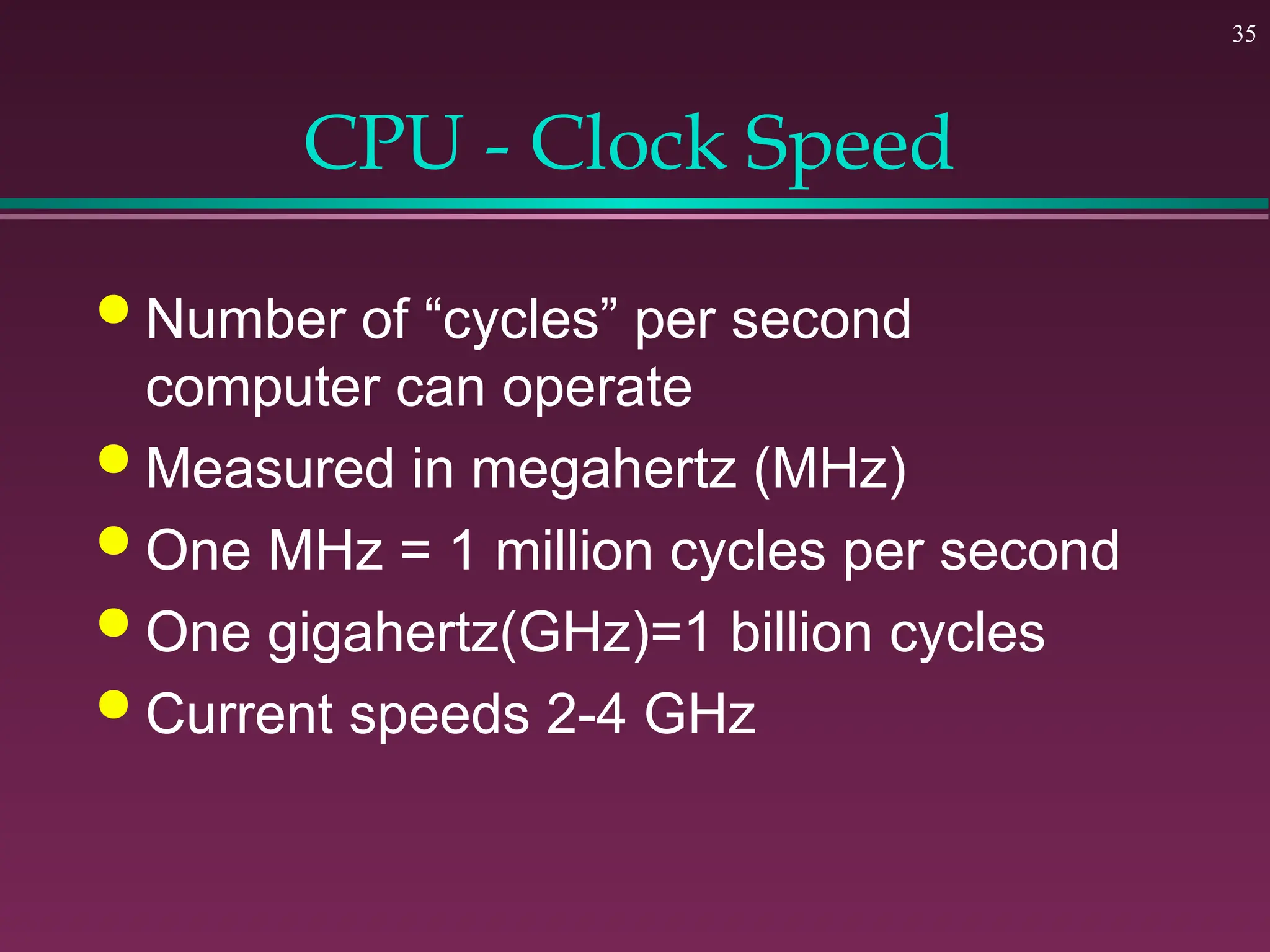

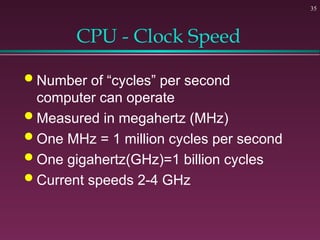

CPU - Clock Speed
 Number of “cycles” per second
computer can operate
 Measured in megahertz (MHz)
 One MHz = 1 million cycles per second
 One gigahertz(GHz)=1 billion cycles
 Current speeds 2-4 GHz

36

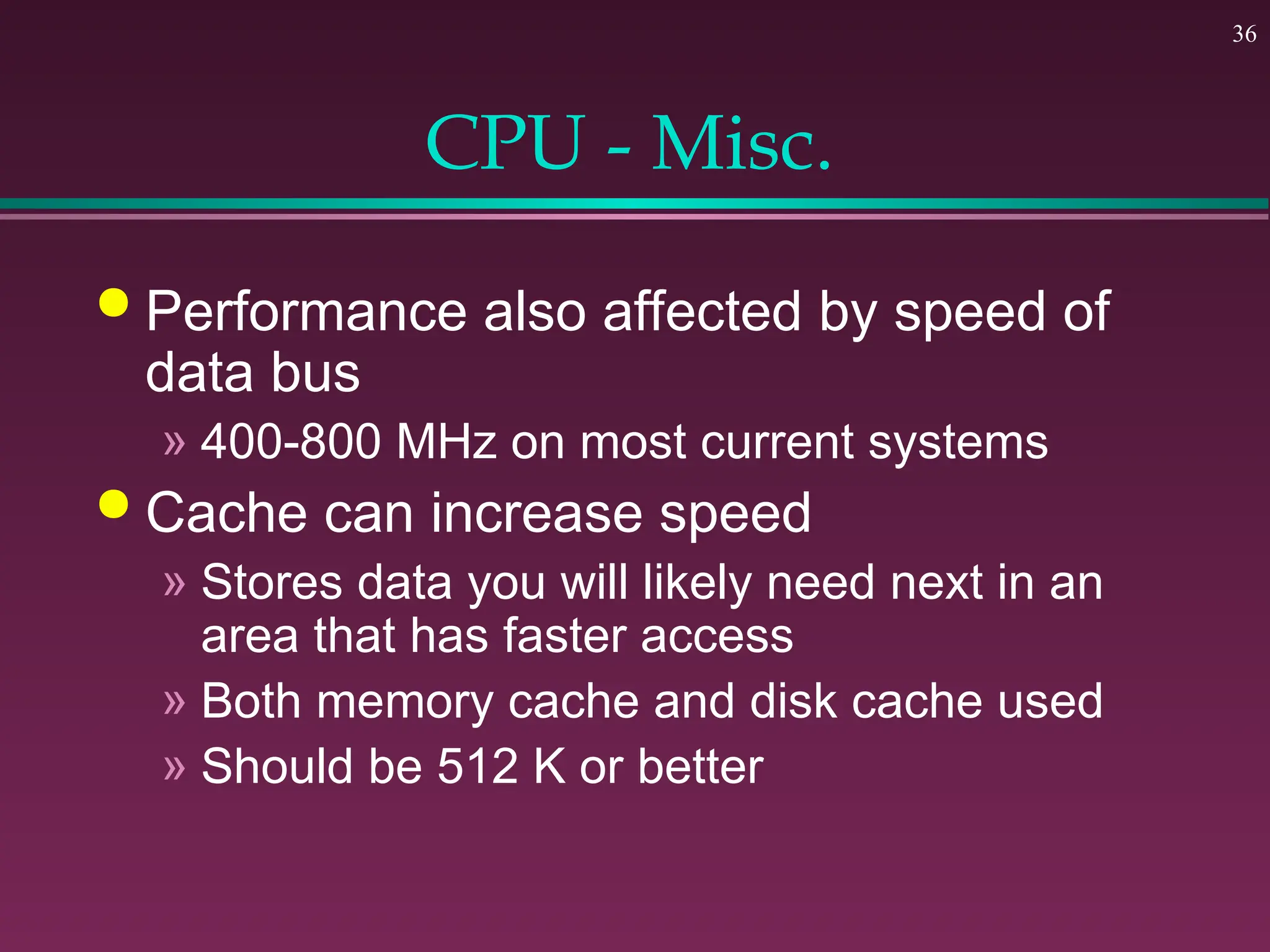

CPU - Misc.
 Performance also affected by speed of
data bus
» 400-800 MHz on most current systems
 Cache can increase speed
» Stores data you will likely need next in an
area that has faster access
» Both memory cache and disk cache used
» Should be 512 K or better

37

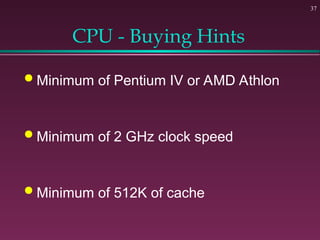

CPU - Buying Hints
 Minimum of Pentium IV or AMD Athlon
 Minimum of 2 GHz clock speed
 Minimum of 512K of cache

38

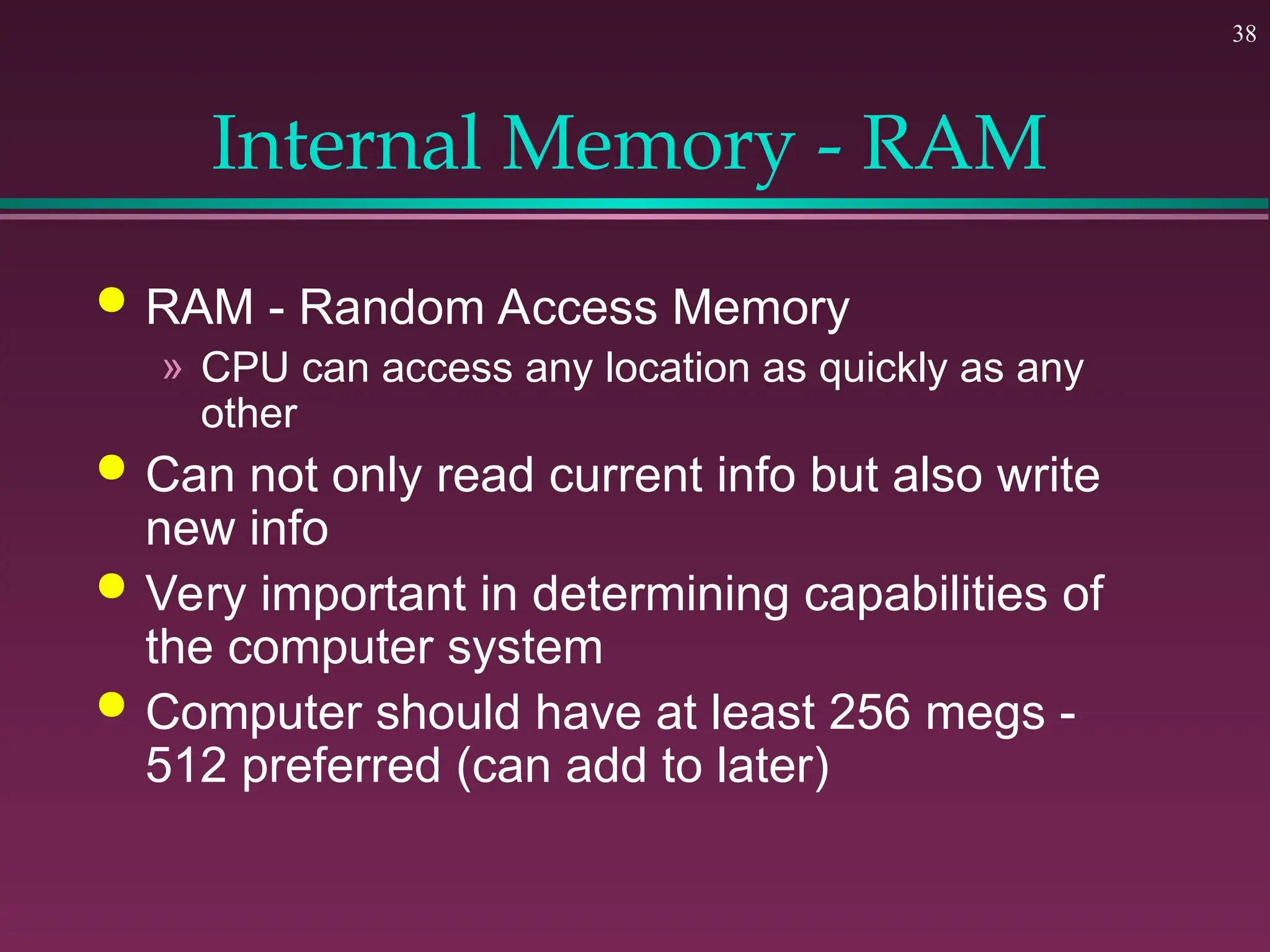

Internal Memory - RAM
 RAM - Random Access Memory
» CPU can access any location as quickly as any
other
 Can not only read current info but also write
new info
 Very important in determining capabilities of
the computer system
 Computer should have at least 256 megs -
512 preferred (can add to later)

39

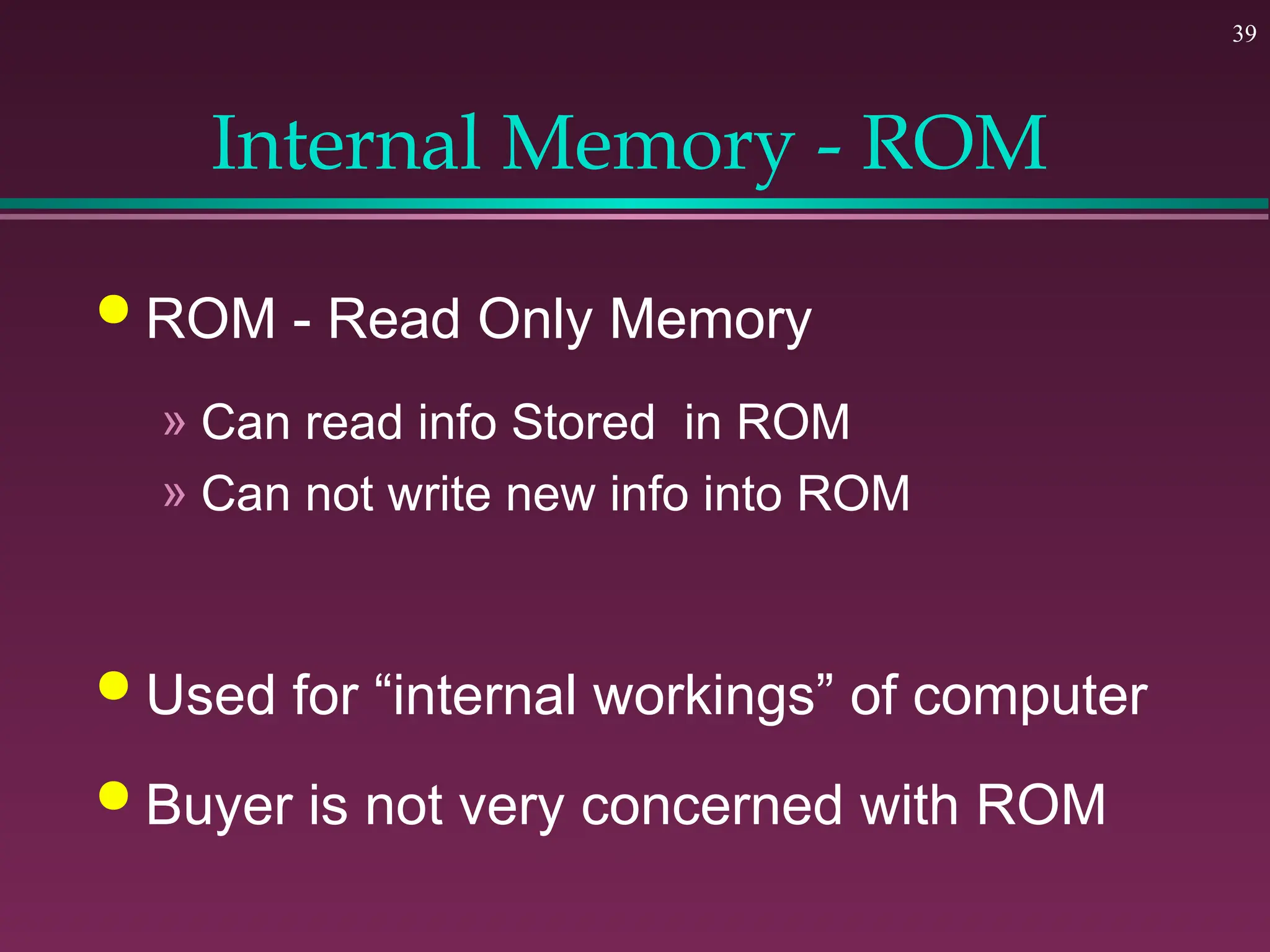

Internal Memory - ROM
 ROM - Read Only Memory
» Can read info Stored in ROM
» Can not write new info into ROM
 Used for “internal workings” of computer
 Buyer is not very concerned with ROM

41

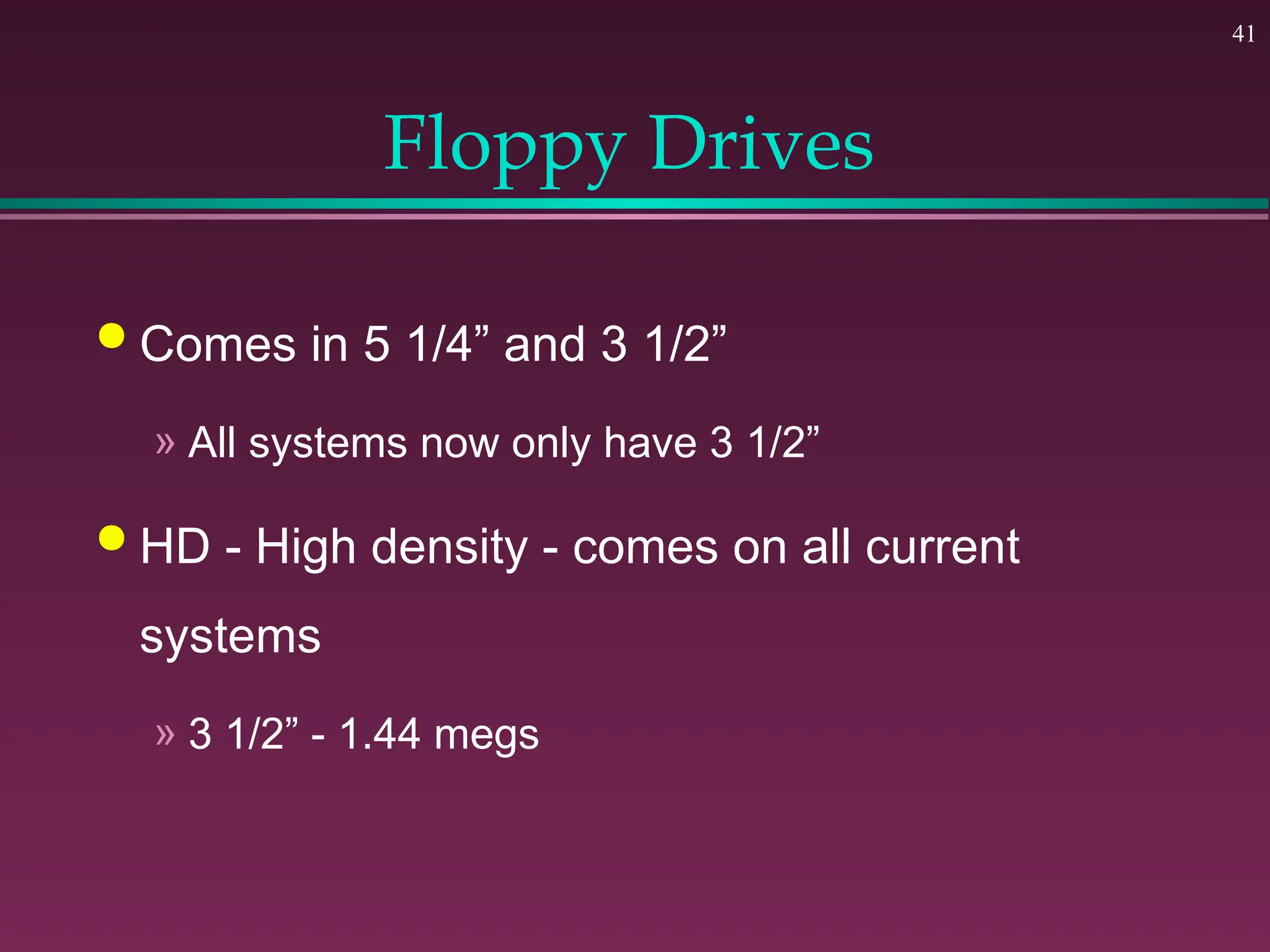

Floppy Drives
 Comes in 5 1/4” and 3 1/2”
» All systems now only have 3 1/2”
 HD - High density - comes on all current
systems
» 3 1/2” - 1.44 megs

42

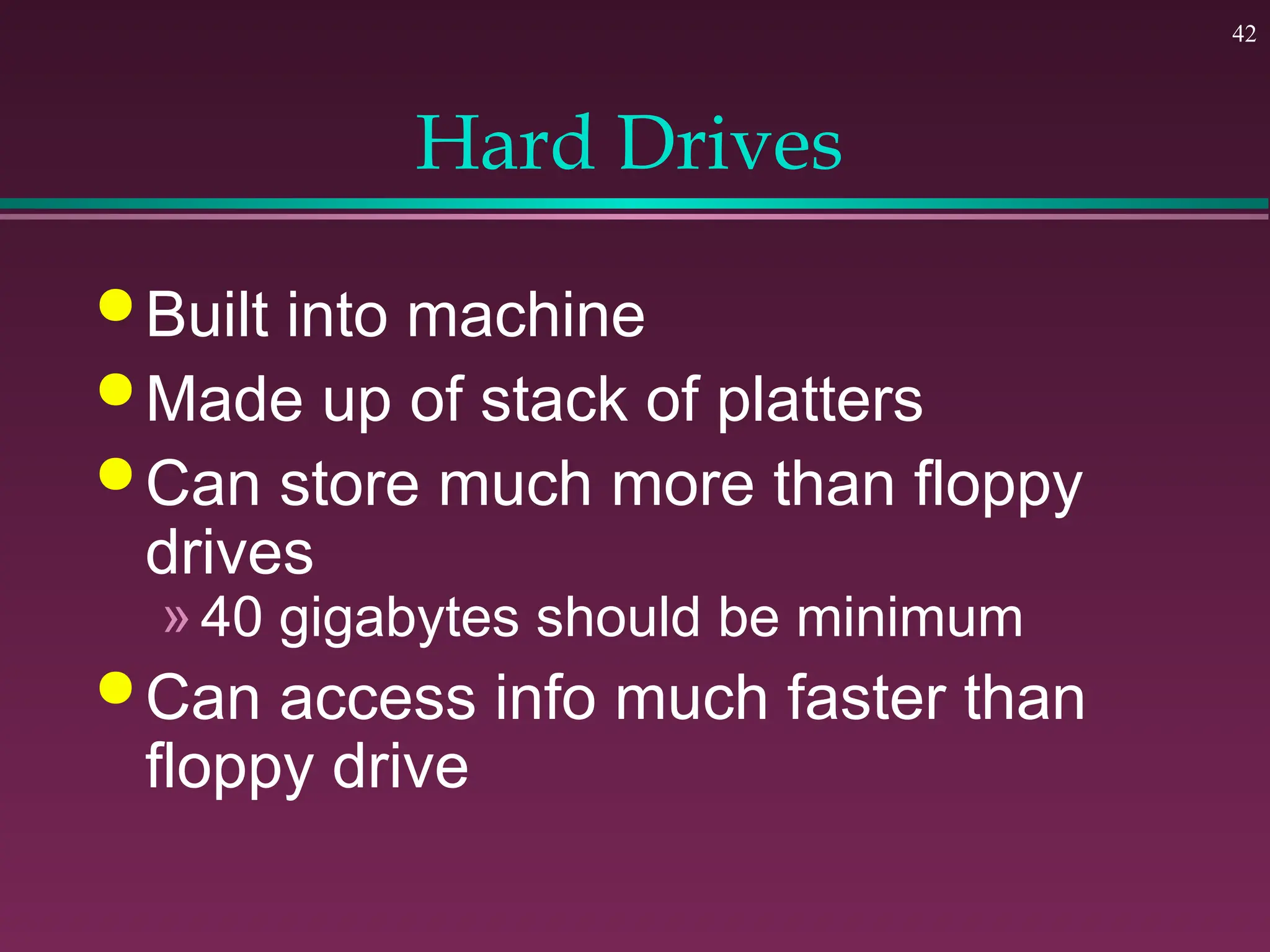

Hard Drives
 Built into machine
 Made up of stack of platters
 Can store much more than floppy
drives
» 40 gigabytes should be minimum
 Can access info much faster than
floppy drive

43

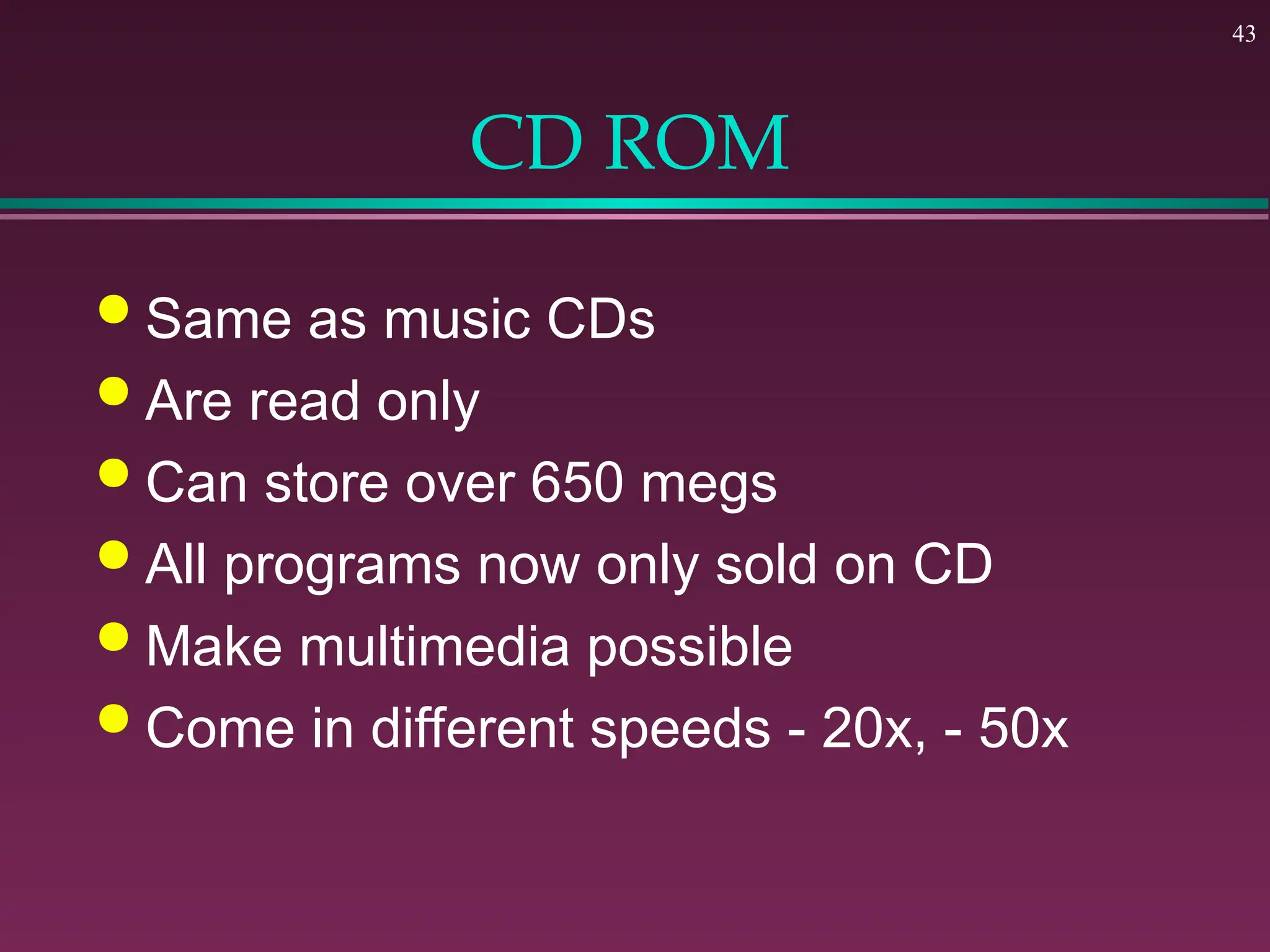

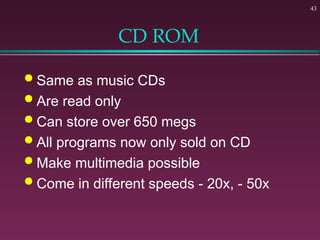

CD ROM
 Same as music CDs
 Are read only
 Can store over 650 megs
 All programs now only sold on CD
 Make multimedia possible
 Come in different speeds - 20x, - 50x

44

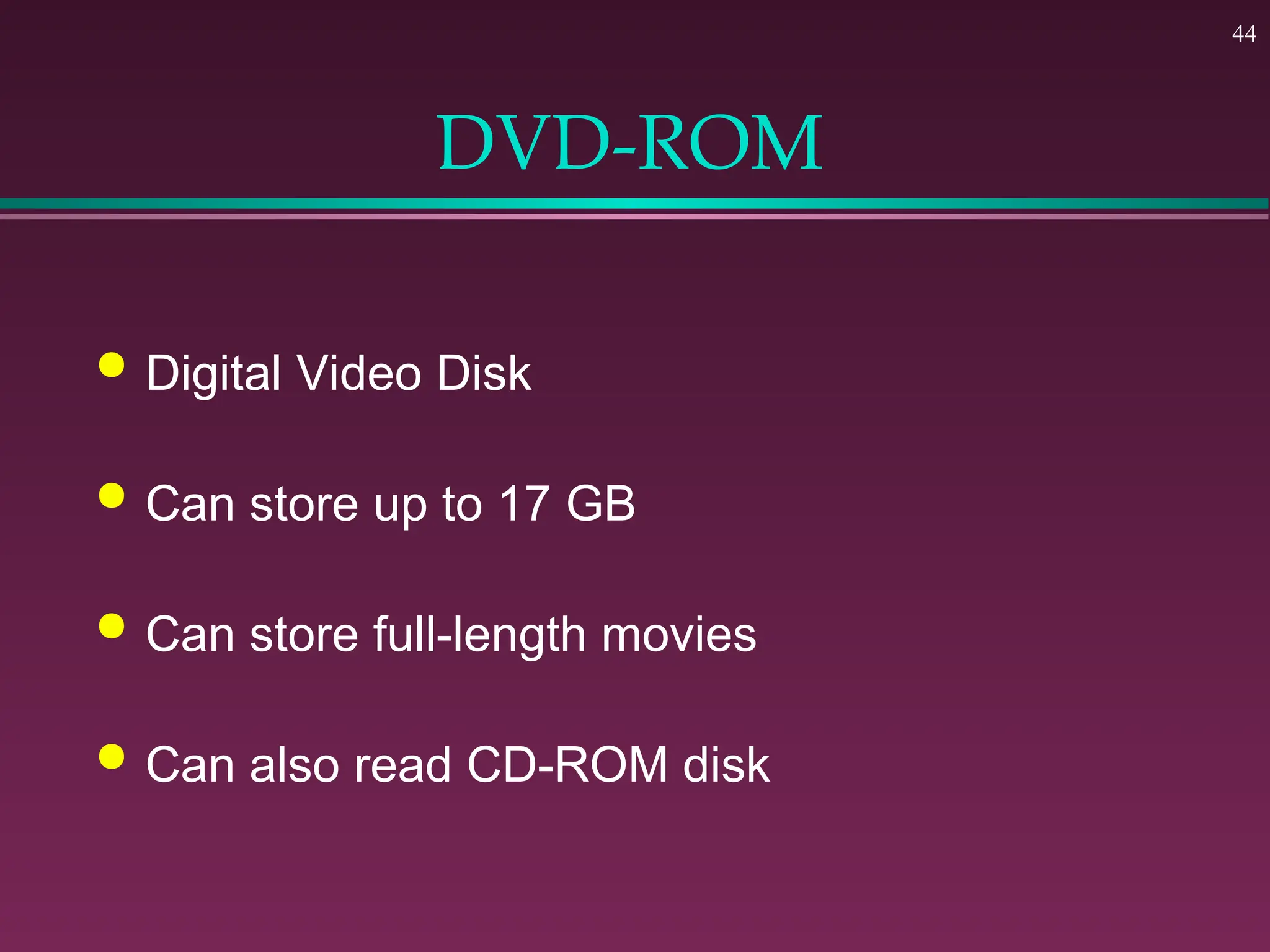

DVD-ROM
 Digital Video Disk
 Can store up to 17 GB
 Can store full-length movies
 Can also read CD-ROM disk

45

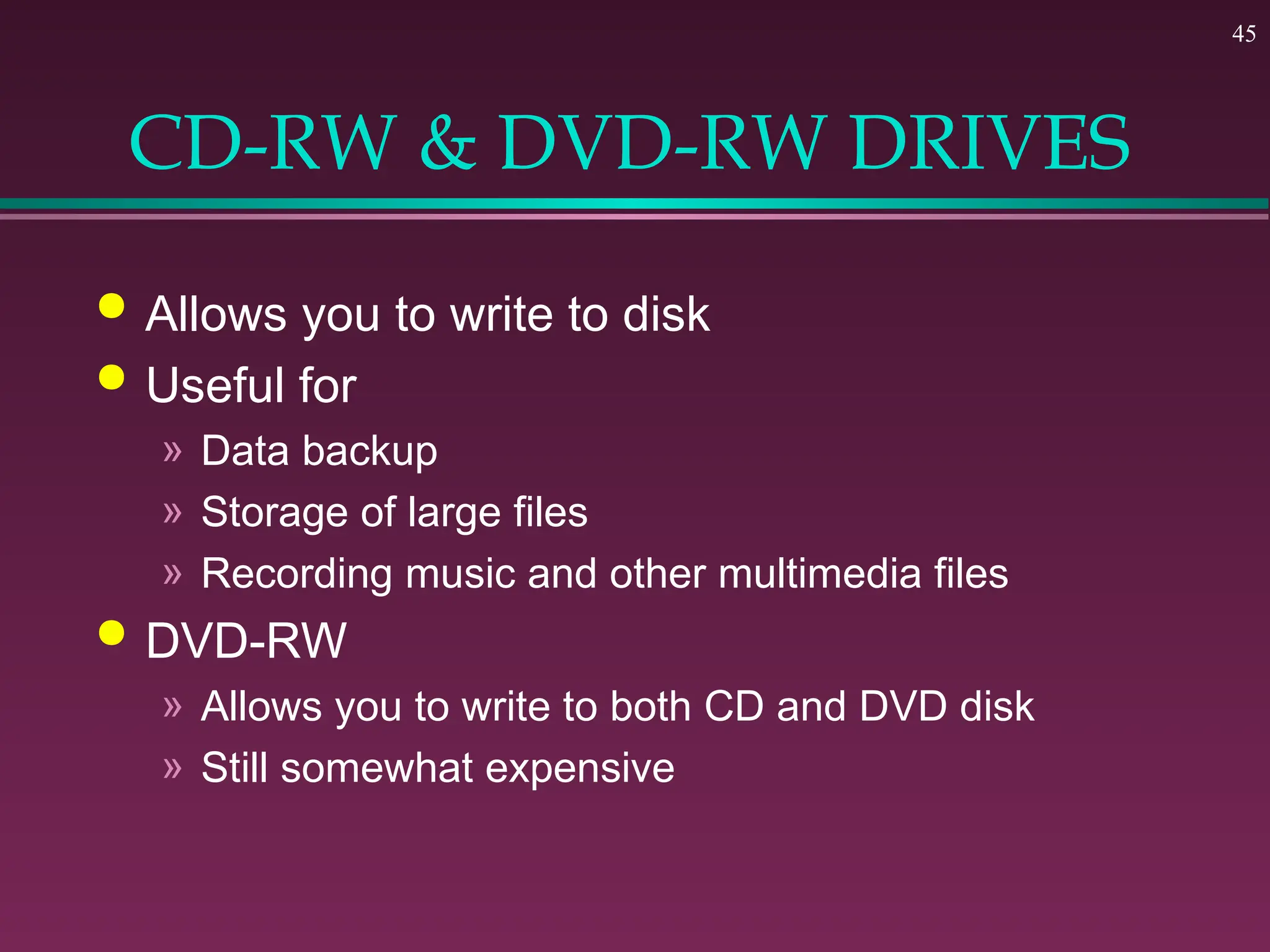

CD-RW & DVD-RW DRIVES
 Allows you to write to disk
 Useful for
» Data backup
» Storage of large files
» Recording music and other multimedia files
 DVD-RW
» Allows you to write to both CD and DVD disk
» Still somewhat expensive

46

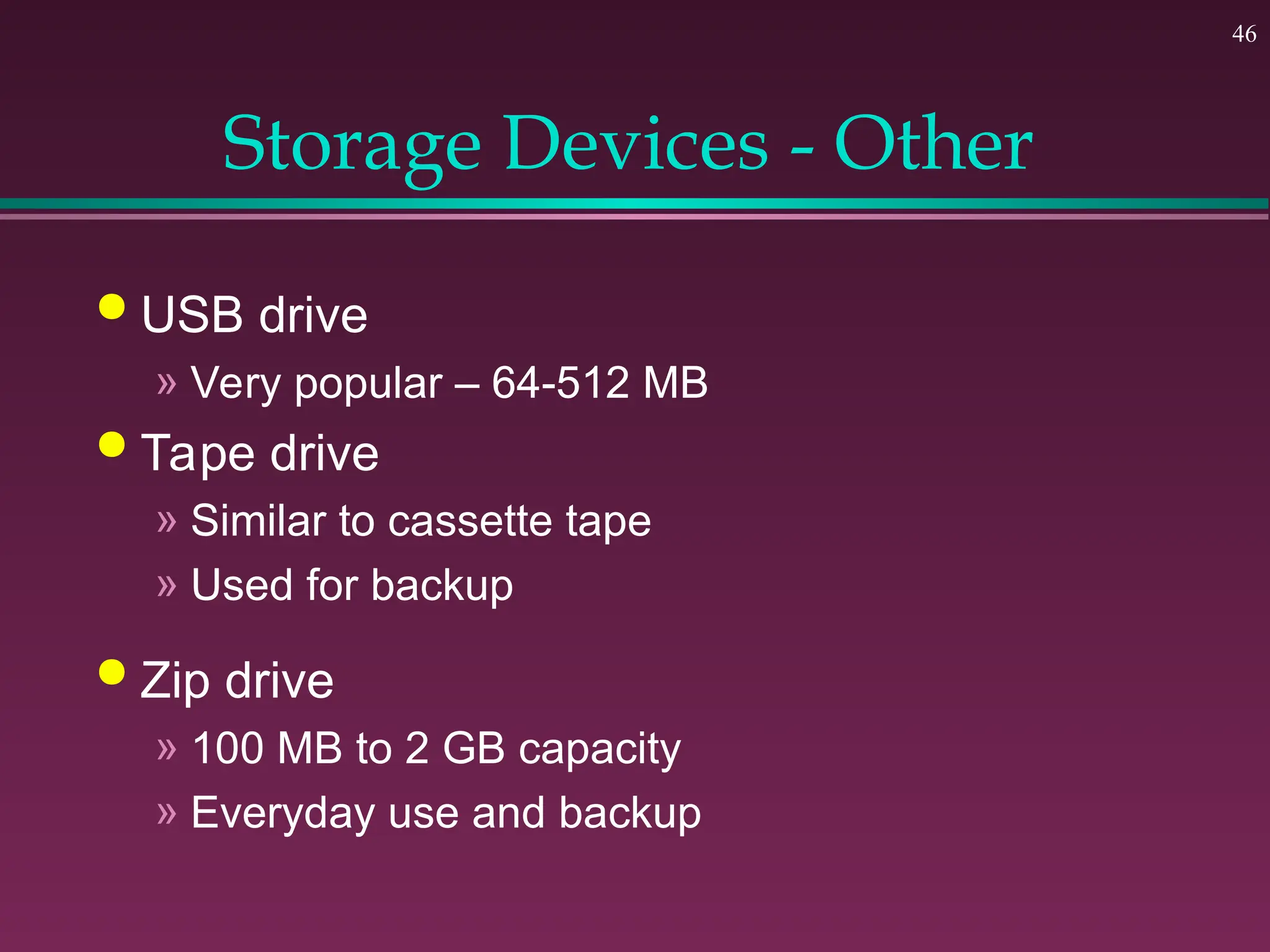

Storage Devices - Other
 USB drive
» Very popular – 64-512 MB
 Tape drive
» Similar to cassette tape
» Used for backup
 Zip drive
» 100 MB to 2 GB capacity
» Everyday use and backup

47

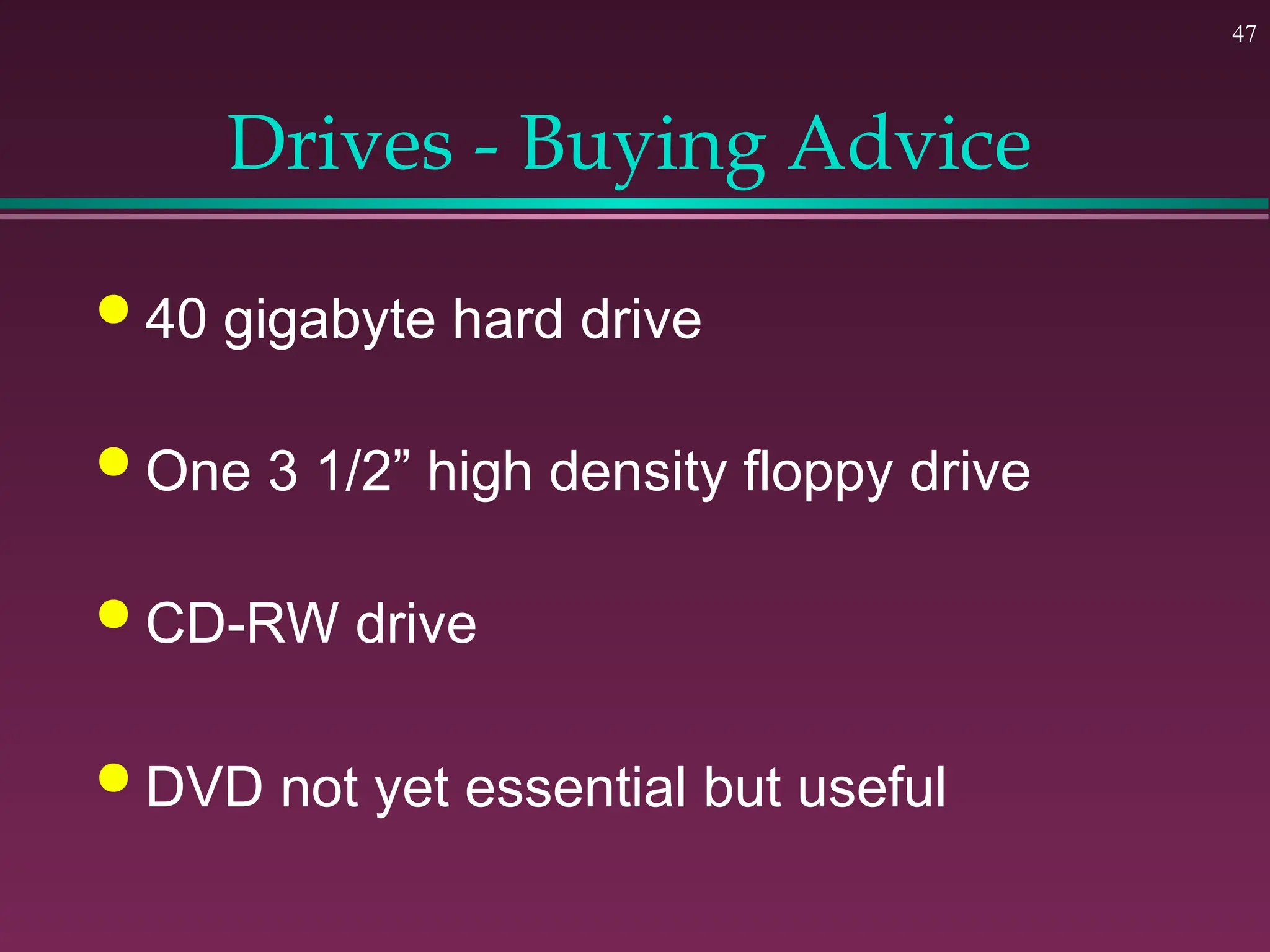

Drives - Buying Advice
 40 gigabyte hard drive
 One 3 1/2” high density floppy drive
 CD-RW drive
 DVD not yet essential but useful

48

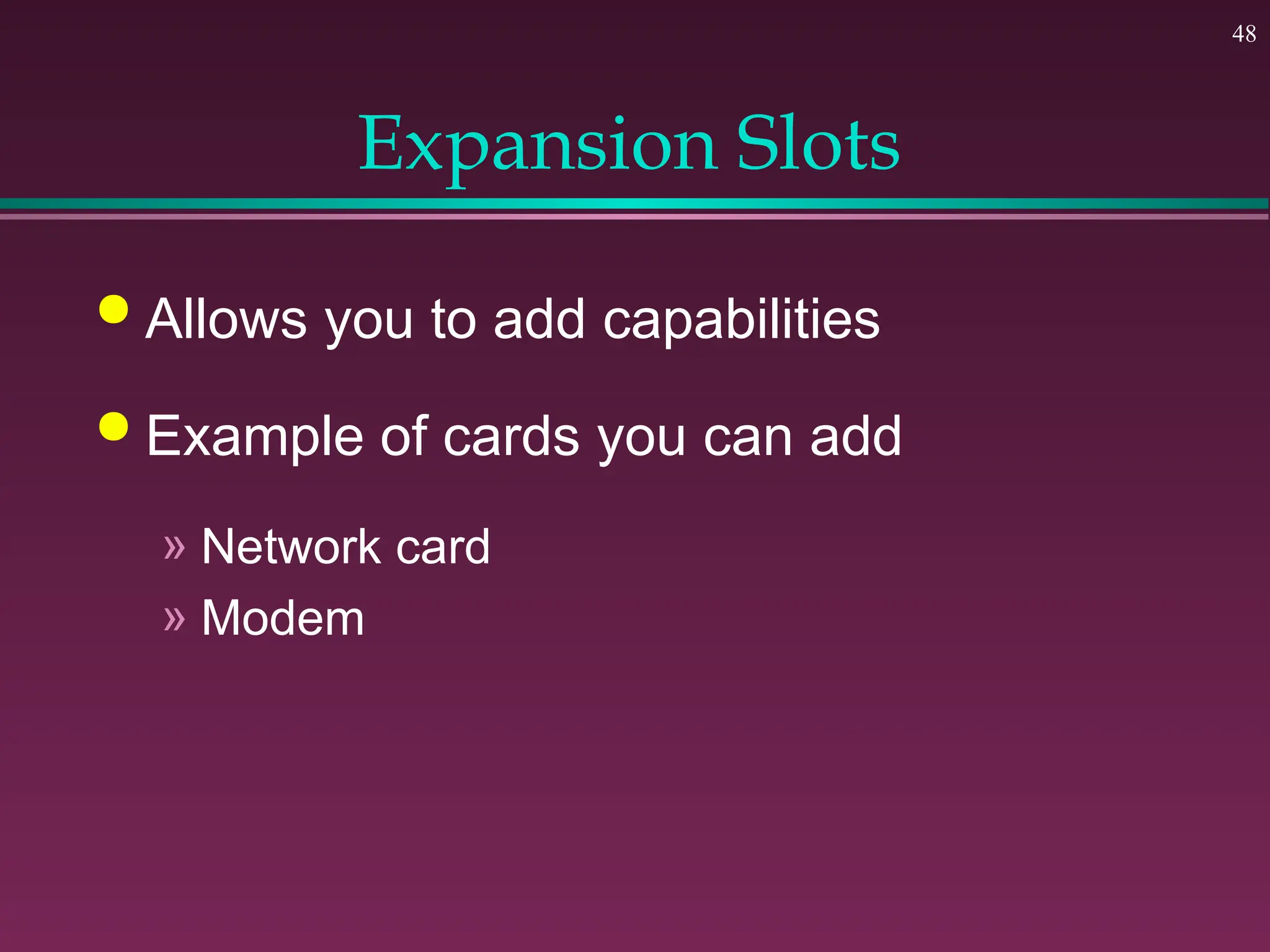

Expansion Slots
 Allows you to add capabilities
 Example of cards you can add
» Network card
» Modem

49

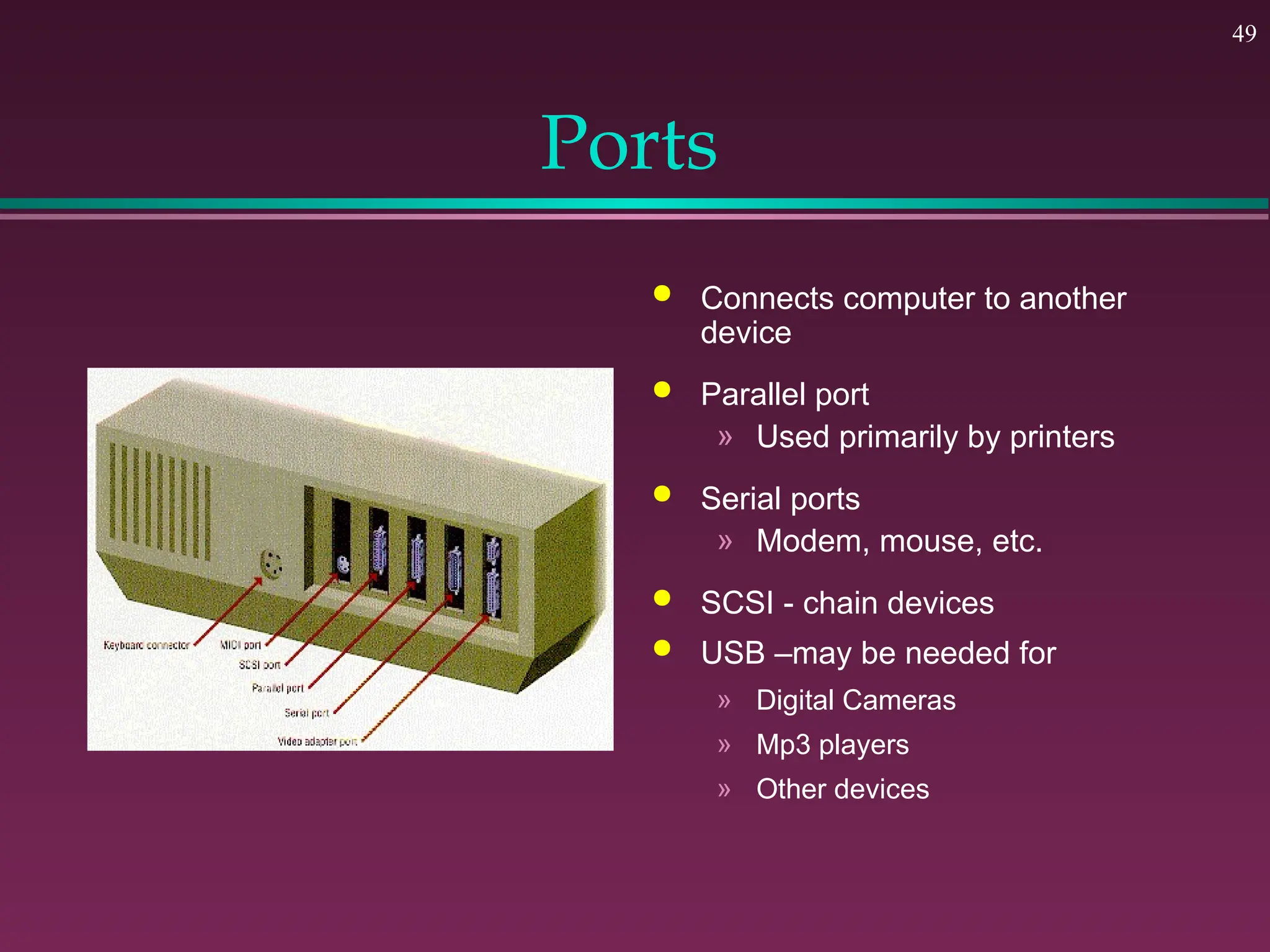

Ports
 Connects computer to another
device
 Parallel port
» Used primarily by printers
 Serial ports
» Modem, mouse, etc.
 SCSI - chain devices
 USB –may be needed for
» Digital Cameras
» Mp3 players
» Other devices

50

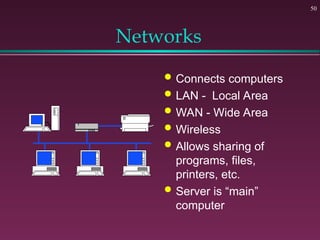

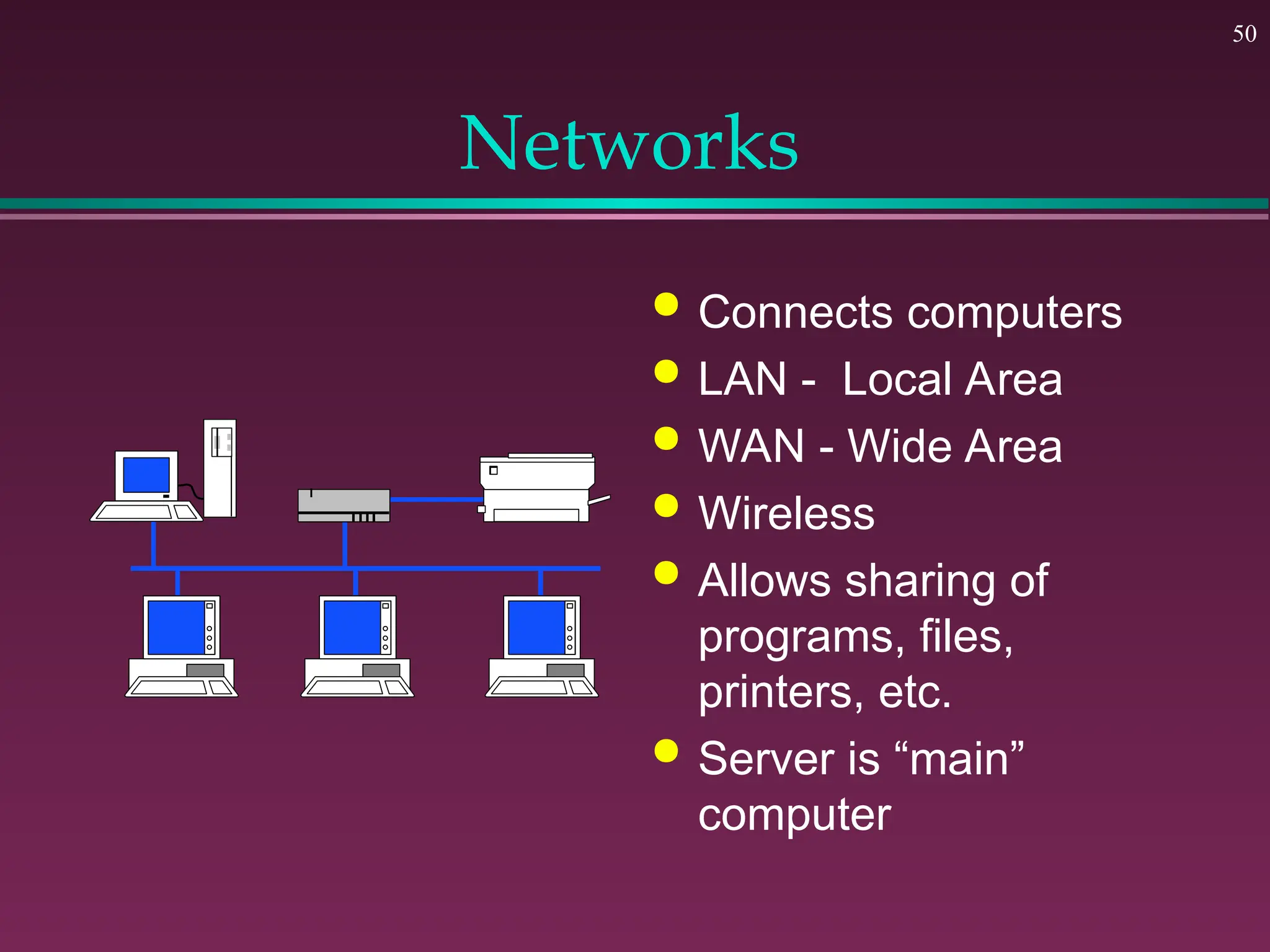

Networks
 Connects computers
 LAN - Local Area
 WAN - Wide Area
 Wireless
 Allows sharing of
programs, files,
printers, etc.
 Server is “main”
computer

51

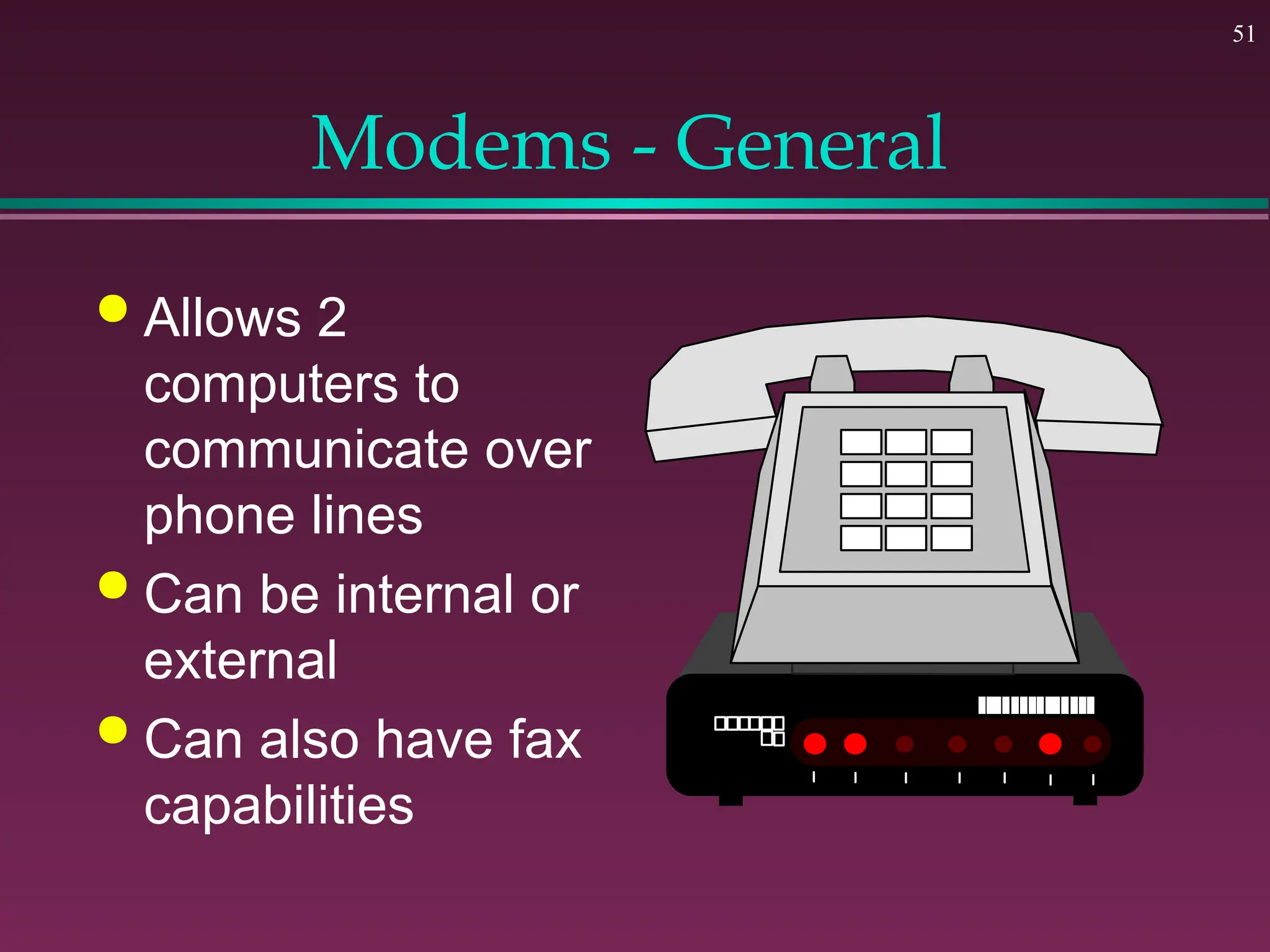

Modems - General
 Allows 2
computers to
communicate over
phone lines
 Can be internal or
external
 Can also have fax
capabilities

52

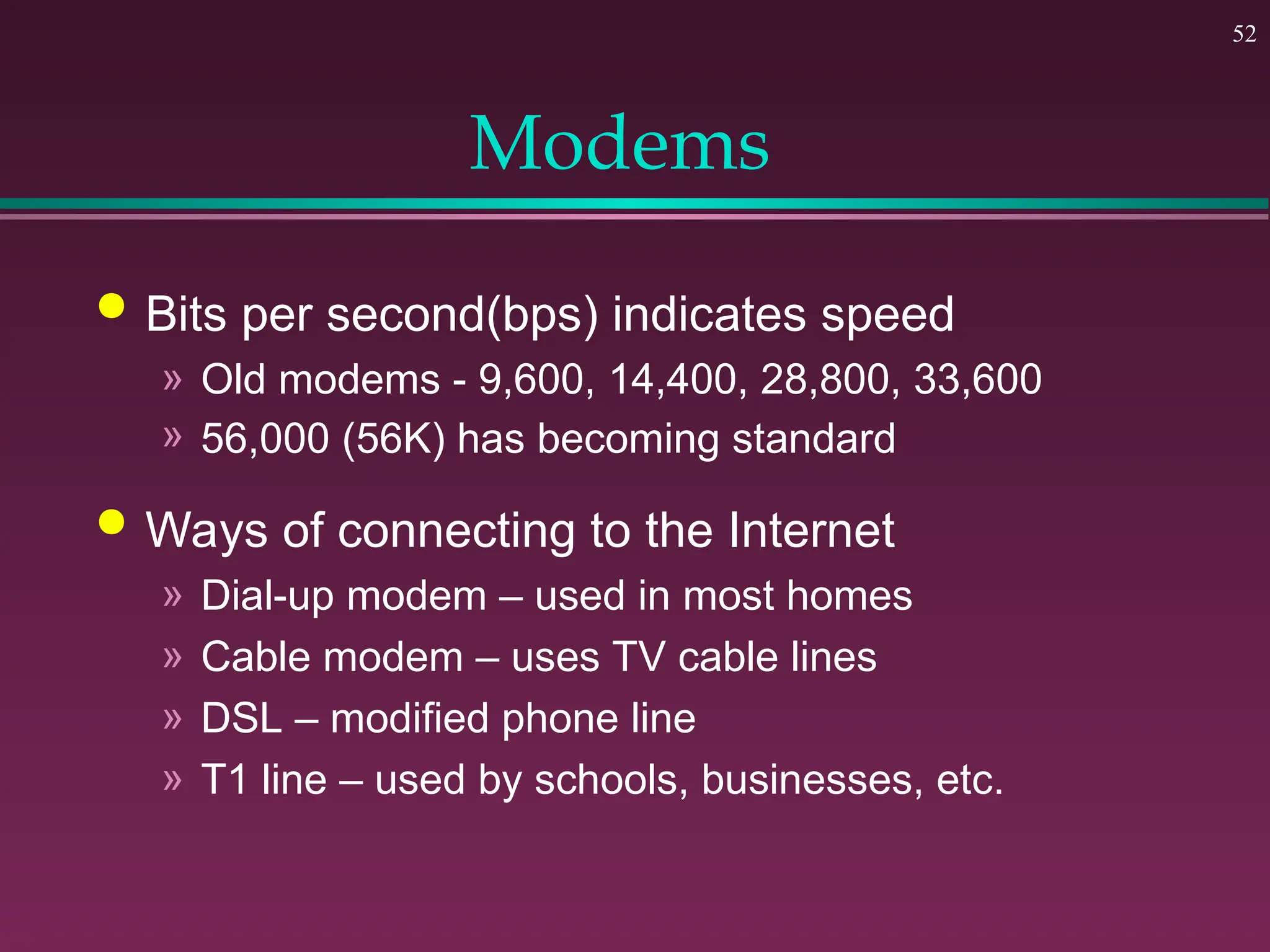

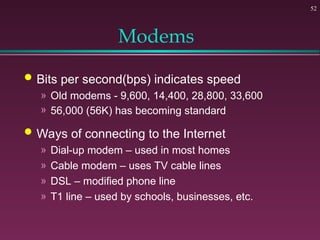

Modems
 Bits per second(bps) indicates speed
» Old modems - 9,600, 14,400, 28,800, 33,600
» 56,000 (56K) has becoming standard
 Ways of connecting to the Internet
» Dial-up modem – used in most homes
» Cable modem – uses TV cable lines
» DSL – modified phone line
» T1 line – used by schools, businesses, etc.

53

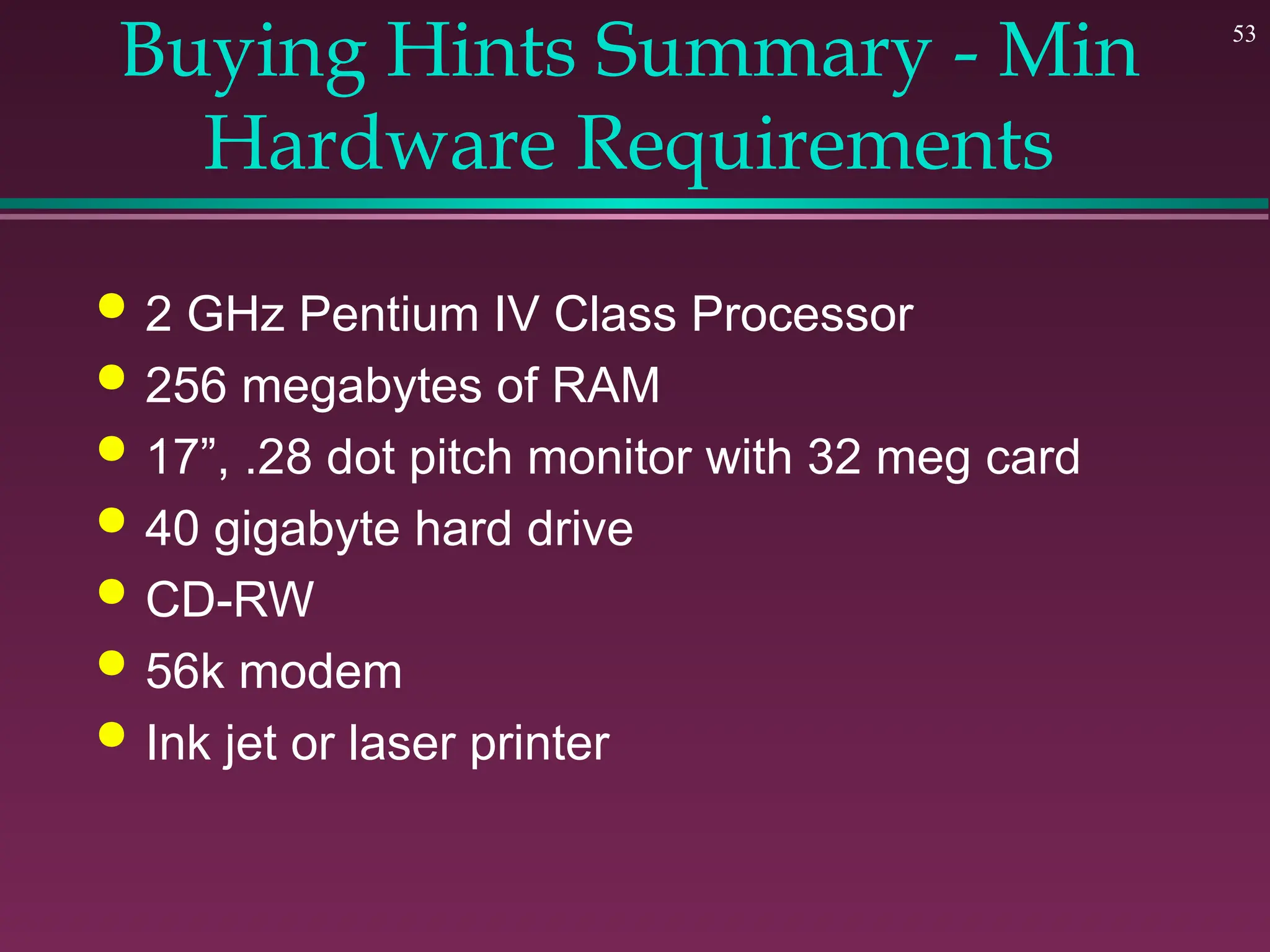

Buying Hints Summary - Min
Hardware Requirements
 2 GHz Pentium IV Class Processor
 256 megabytes of RAM
 17”, .28 dot pitch monitor with 32 meg card
 40 gigabyte hard drive
 CD-RW
 56k modem
 Ink jet or laser printer

54

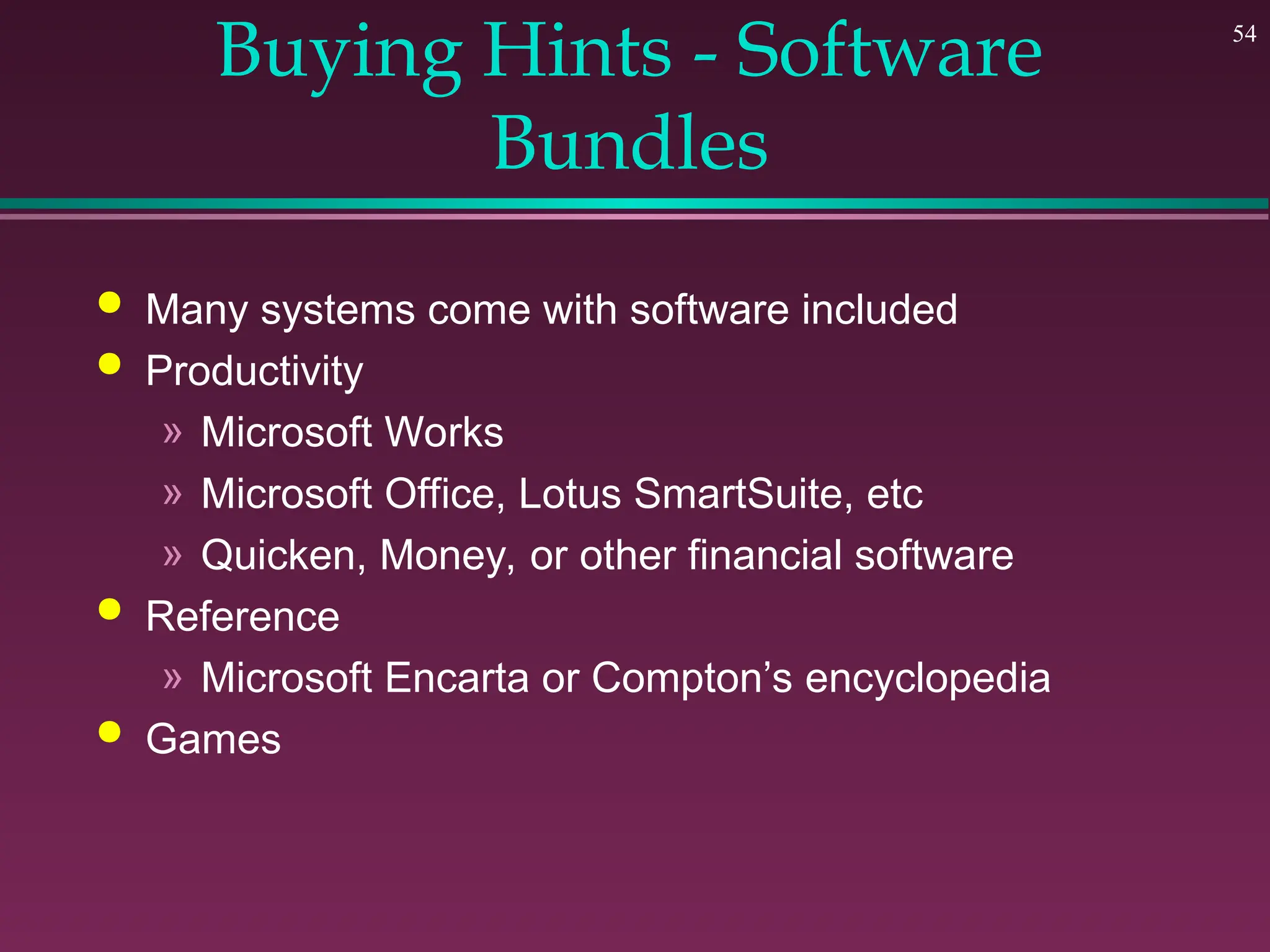

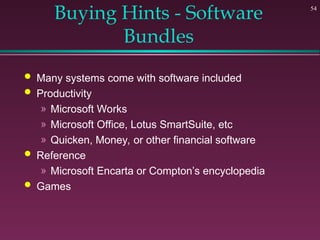

Buying Hints - Software
Bundles
 Many systems come with software included
 Productivity
» Microsoft Works
» Microsoft Office, Lotus SmartSuite, etc
» Quicken, Money, or other financial software
 Reference
» Microsoft Encarta or Compton’s encyclopedia
 Games

55

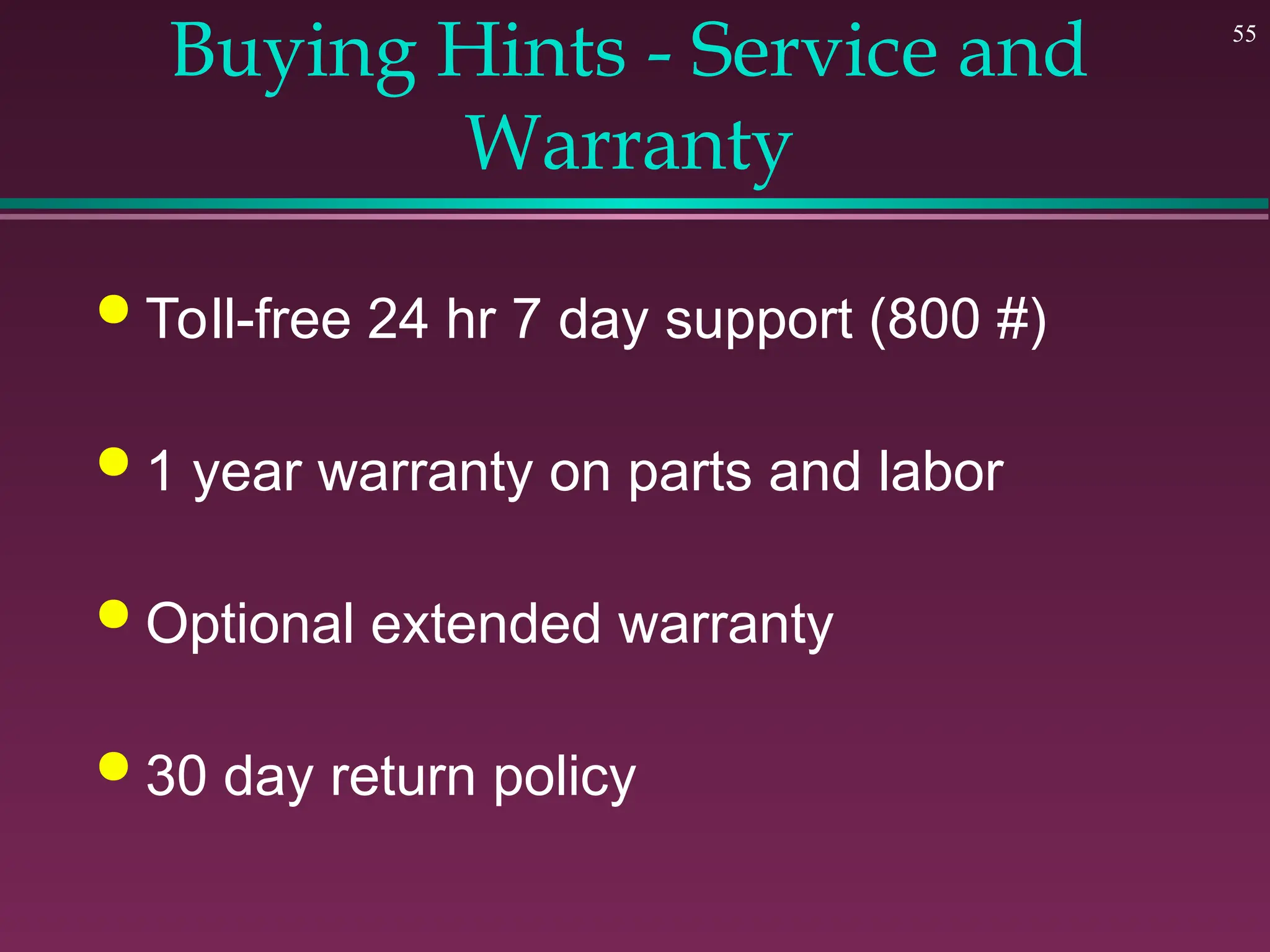

Buying Hints - Service and
Warranty
 Toll-free 24 hr 7 day support (800 #)
 1 year warranty on parts and labor
 Optional extended warranty
 30 day return policy

56

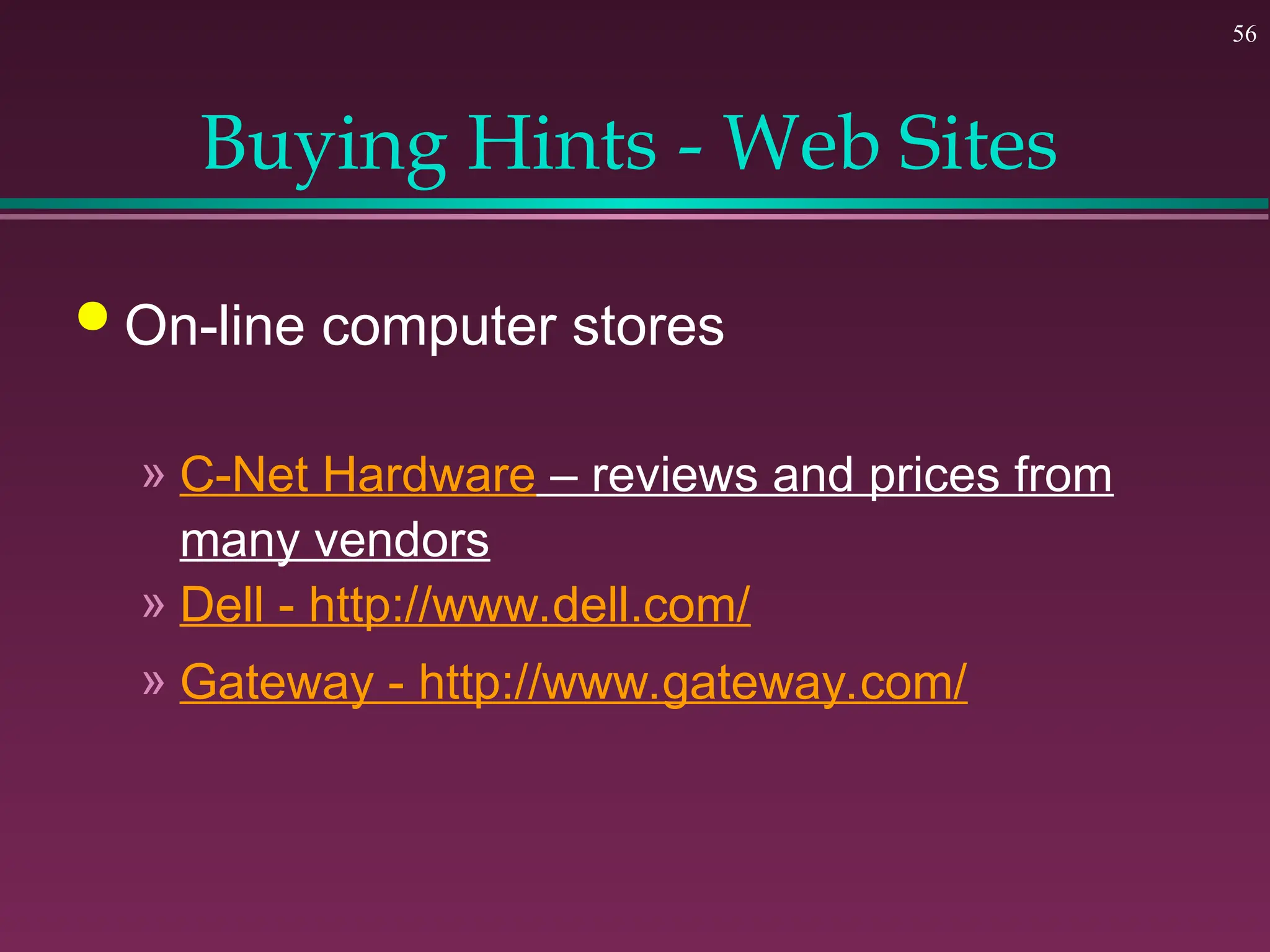

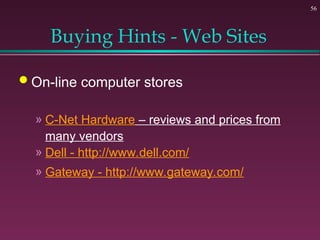

Buying Hints - Web Sites
 On-line computer stores
» C-Net Hardware – reviews and prices from
many vendors
» Dell - http://www.dell.com/
» Gateway - http://www.gateway.com/

58

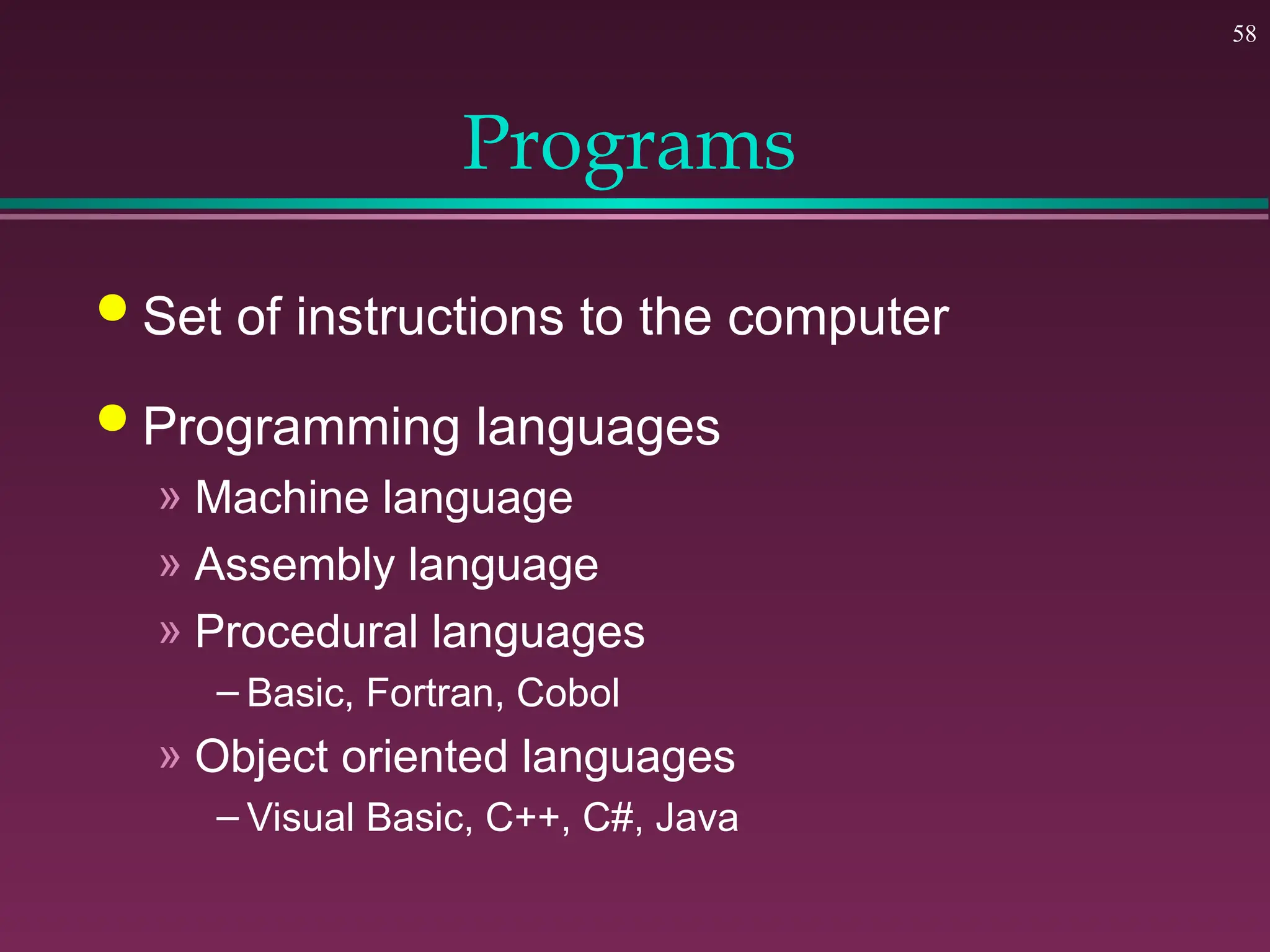

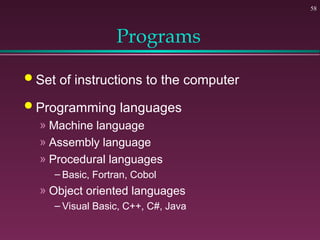

Programs
 Set of instructions to the computer
 Programming languages
» Machine language
» Assembly language
» Procedural languages
– Basic, Fortran, Cobol
» Object oriented languages
– Visual Basic, C++, C#, Java

59

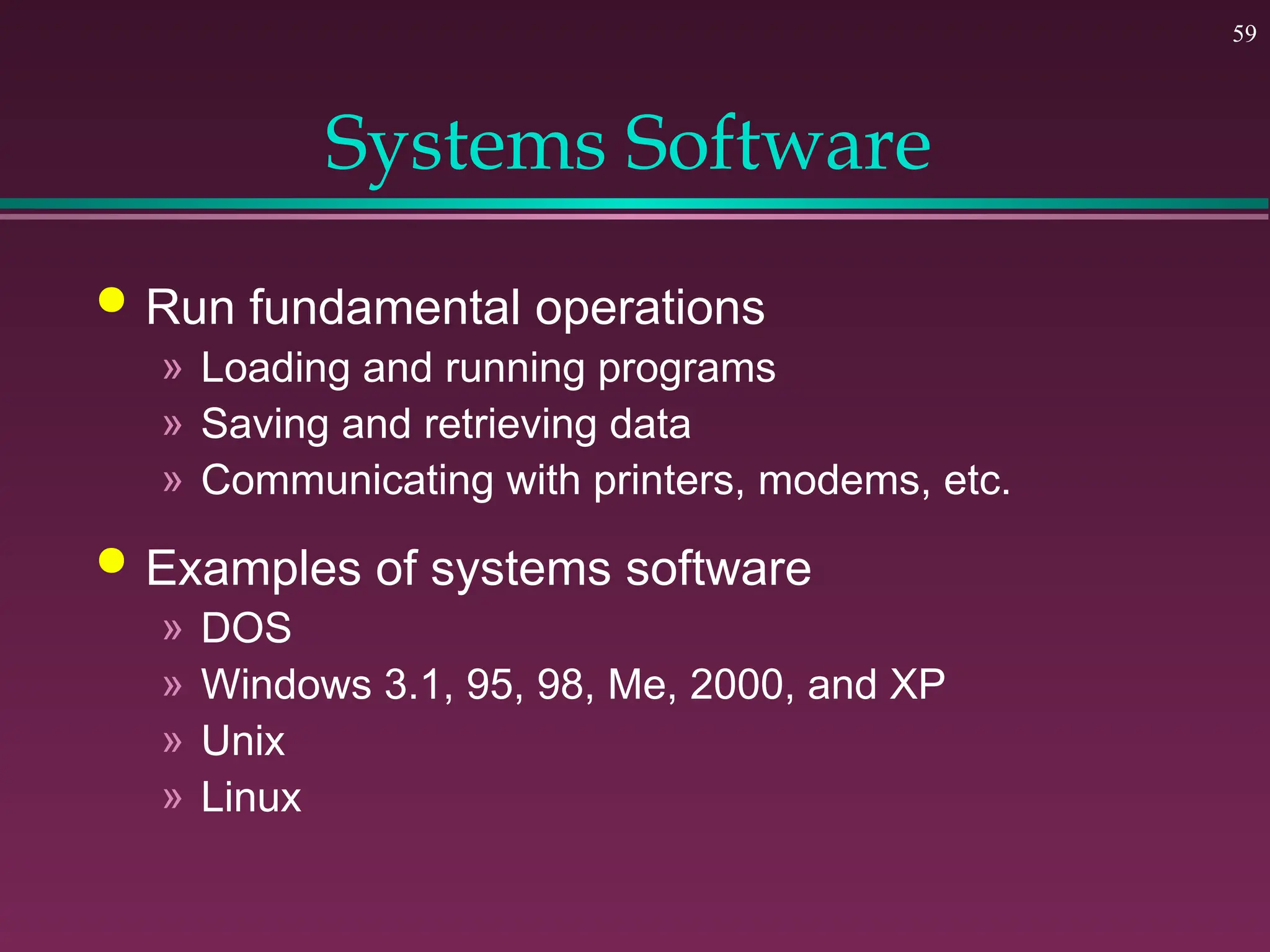

Systems Software
 Run fundamental operations
» Loading and running programs
» Saving and retrieving data
» Communicating with printers, modems, etc.
 Examples of systems software
» DOS
» Windows 3.1, 95, 98, Me, 2000, and XP
» Unix
» Linux

60

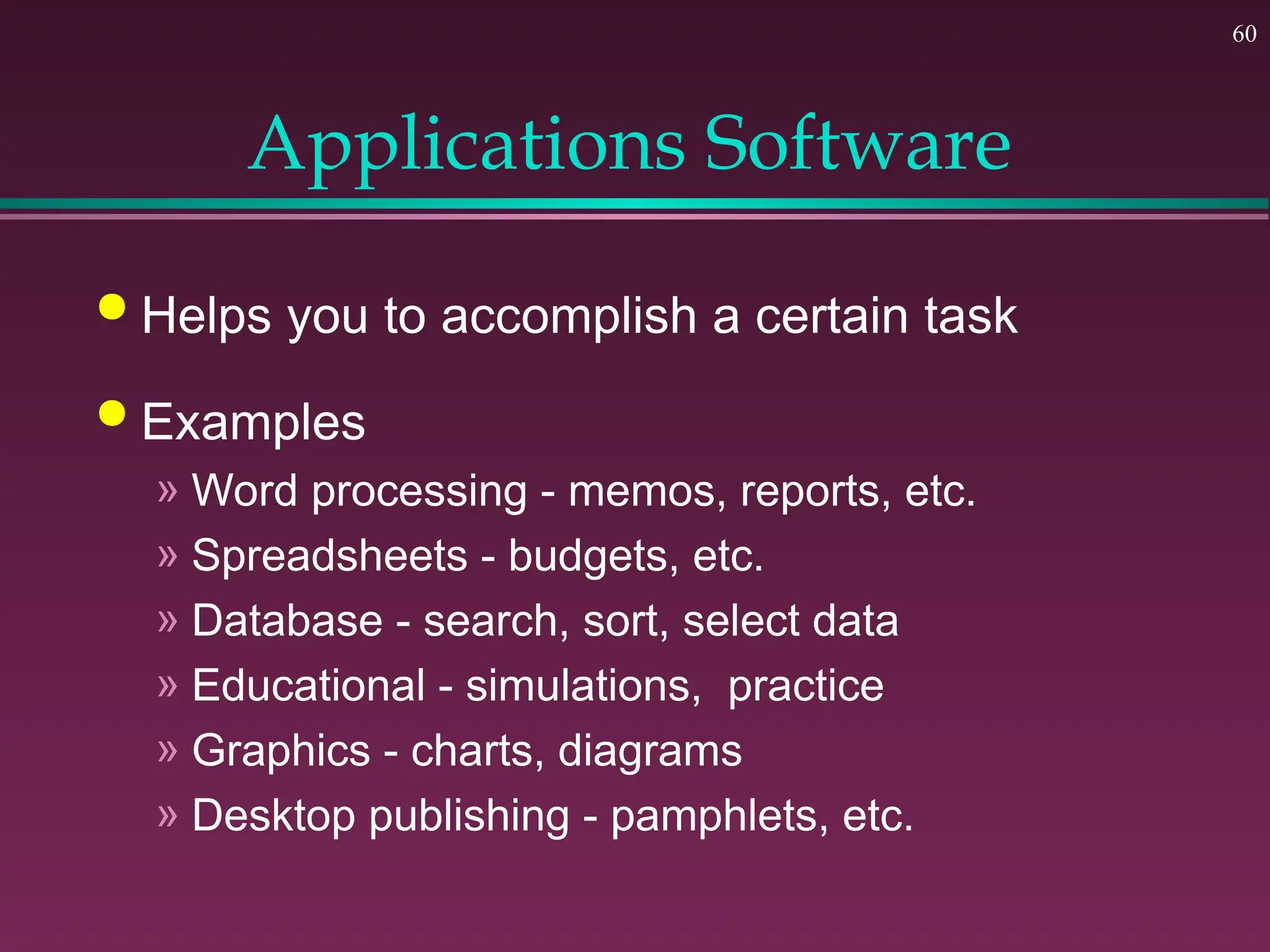

Applications Software
 Helps you to accomplish a certain task
 Examples
» Word processing - memos, reports, etc.
» Spreadsheets - budgets, etc.
» Database - search, sort, select data
» Educational - simulations, practice
» Graphics - charts, diagrams
» Desktop publishing - pamphlets, etc.

61

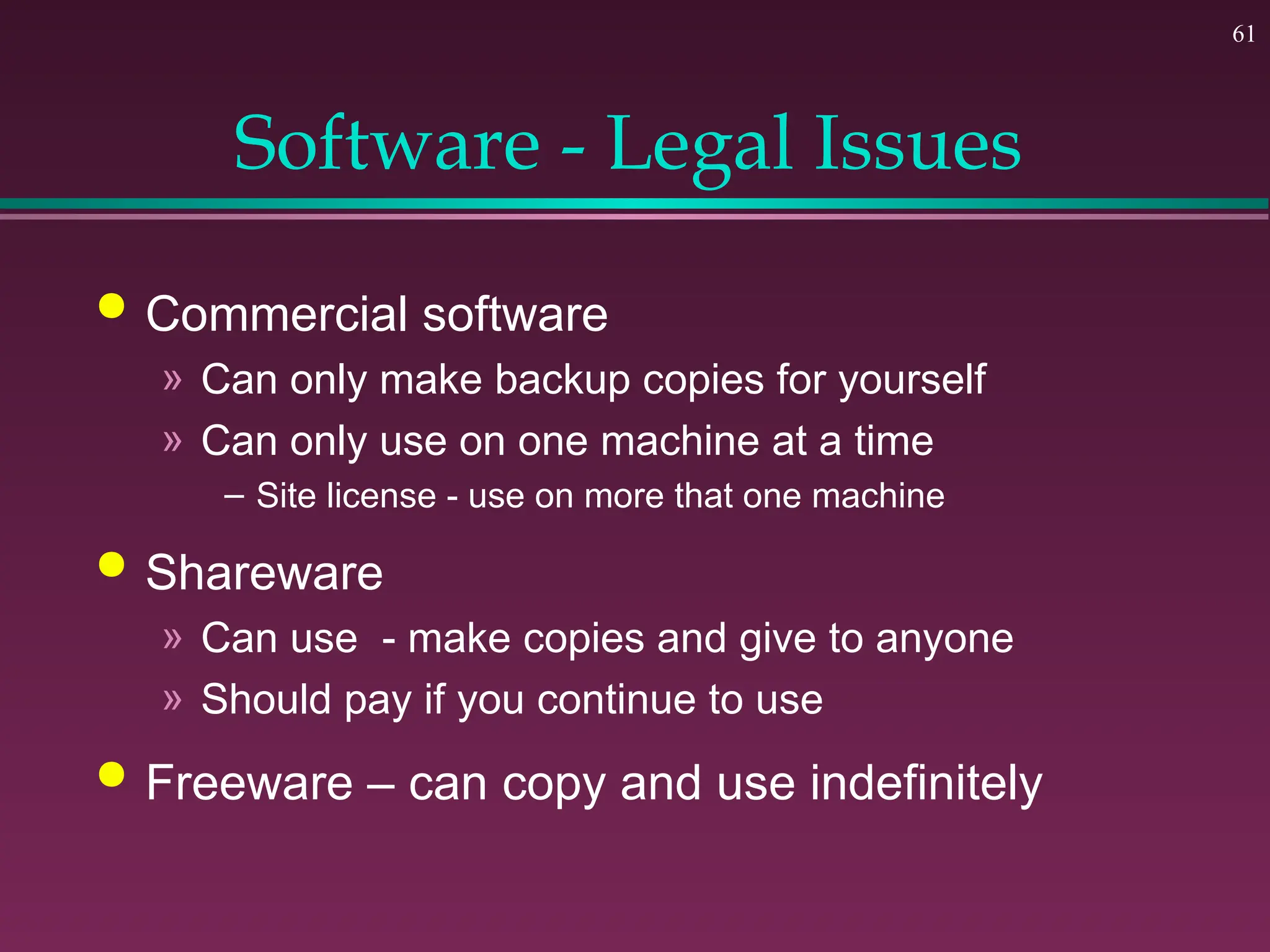

Software - Legal Issues
 Commercial software
» Can only make backup copies for yourself
» Can only use on one machine at a time
– Site license - use on more that one machine
 Shareware
» Can use - make copies and give to anyone
» Should pay if you continue to use
 Freeware – can copy and use indefinitely

62

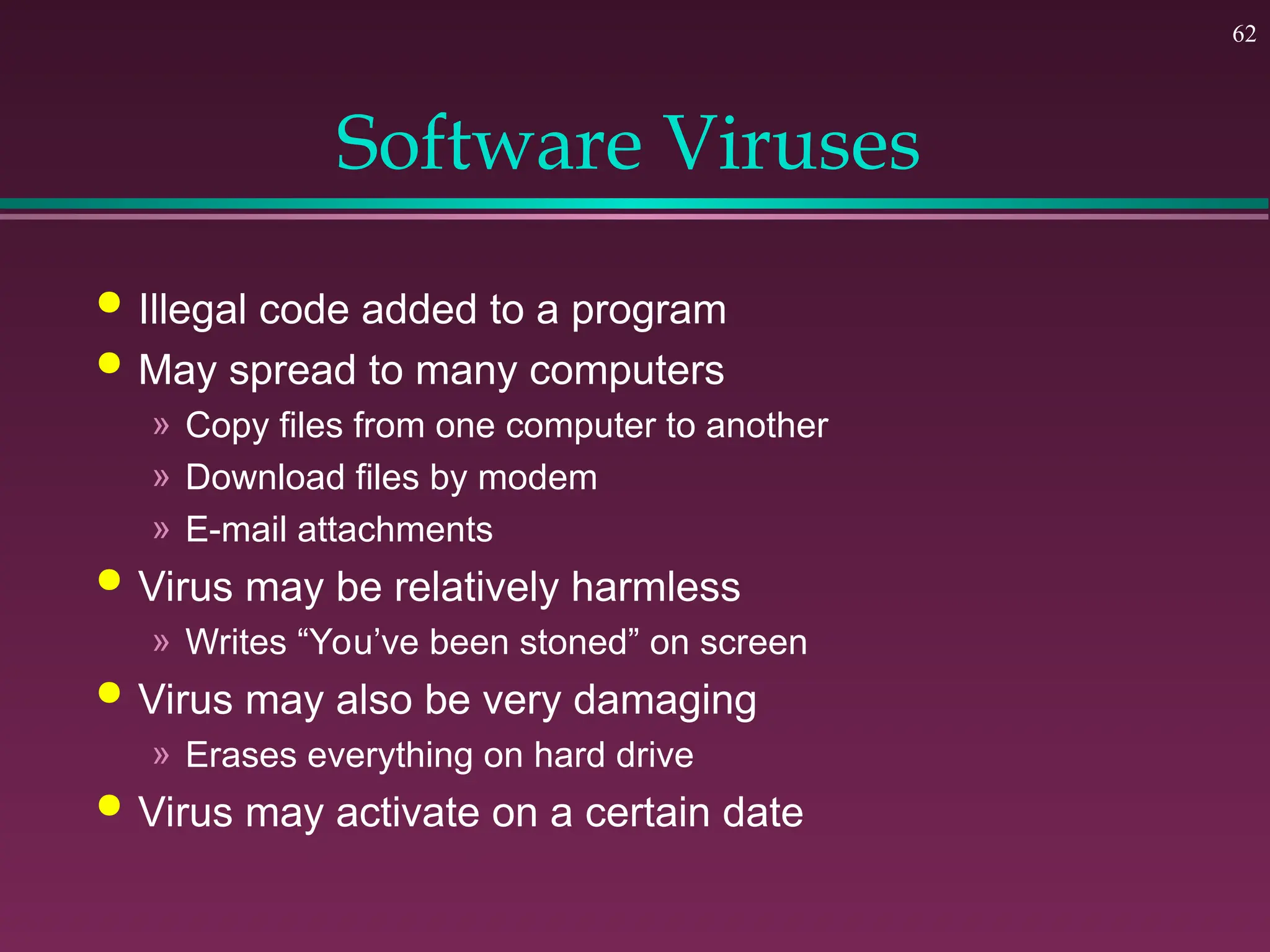

Software Viruses
 Illegal code added to a program
 May spread to many computers
» Copy files from one computer to another
» Download files by modem
» E-mail attachments
 Virus may be relatively harmless
» Writes “You’ve been stoned” on screen
 Virus may also be very damaging
» Erases everything on hard drive
 Virus may activate on a certain date

63

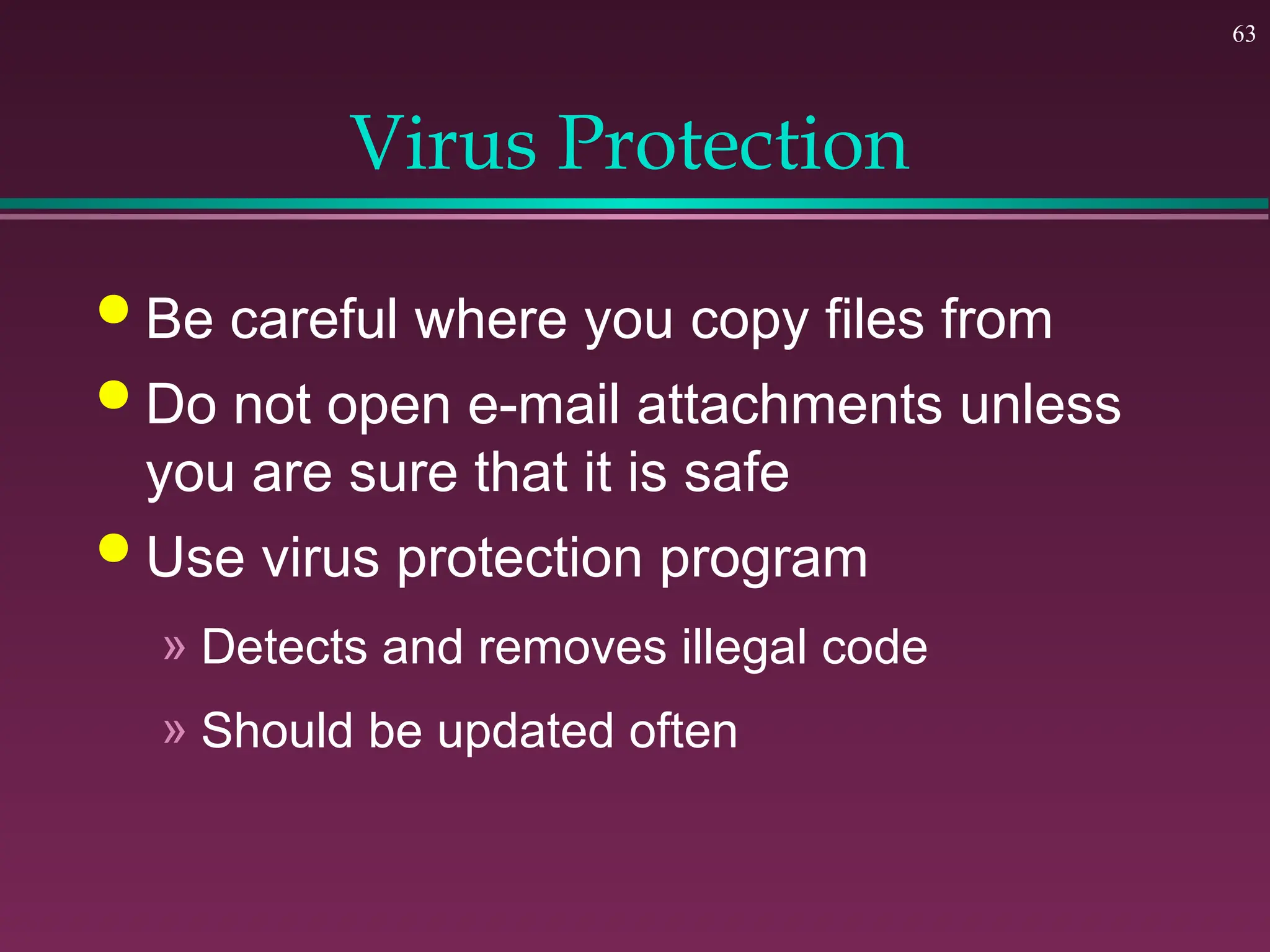

Virus Protection
 Be careful where you copy files from
 Do not open e-mail attachments unless
you are sure that it is safe
 Use virus protection program
» Detects and removes illegal code
» Should be updated often

BASIC COMPUTER
CONCEPTS
End of Slide Show

concepts-of-computer and computer application

More Related Content

Similar to concepts-of-computer and computer application

More from garedew32

Recently uploaded

concepts-of-computer and computer application
