Crash Course in Open Source Cloud Computing
The document provides an overview of open source tools for building and managing cloud computing infrastructure. It discusses popular open source cloud computing platforms like OpenStack, CloudStack, and Eucalyptus. It also summarizes open source virtualization technologies, virtual machine formats, public cloud services, cloud storage options, APIs for cloud portability, and automation and management tools. The document is intended to help readers get a crash course in using open source for cloud computing.
More Related Content
Similar to Crash Course in Open Source Cloud Computing
Crash Course in Open Source Cloud Computing
- 1. Crash Course inOpen Source Cloud Computing Build and manage clouds with free and open source tools Mark R. Hinkle VP of Community Cloud.com mrhinkle@cloud.com mrhinkle@gmail.com Twitter: @mrhinkle

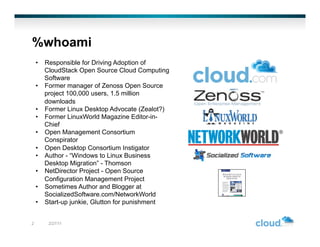

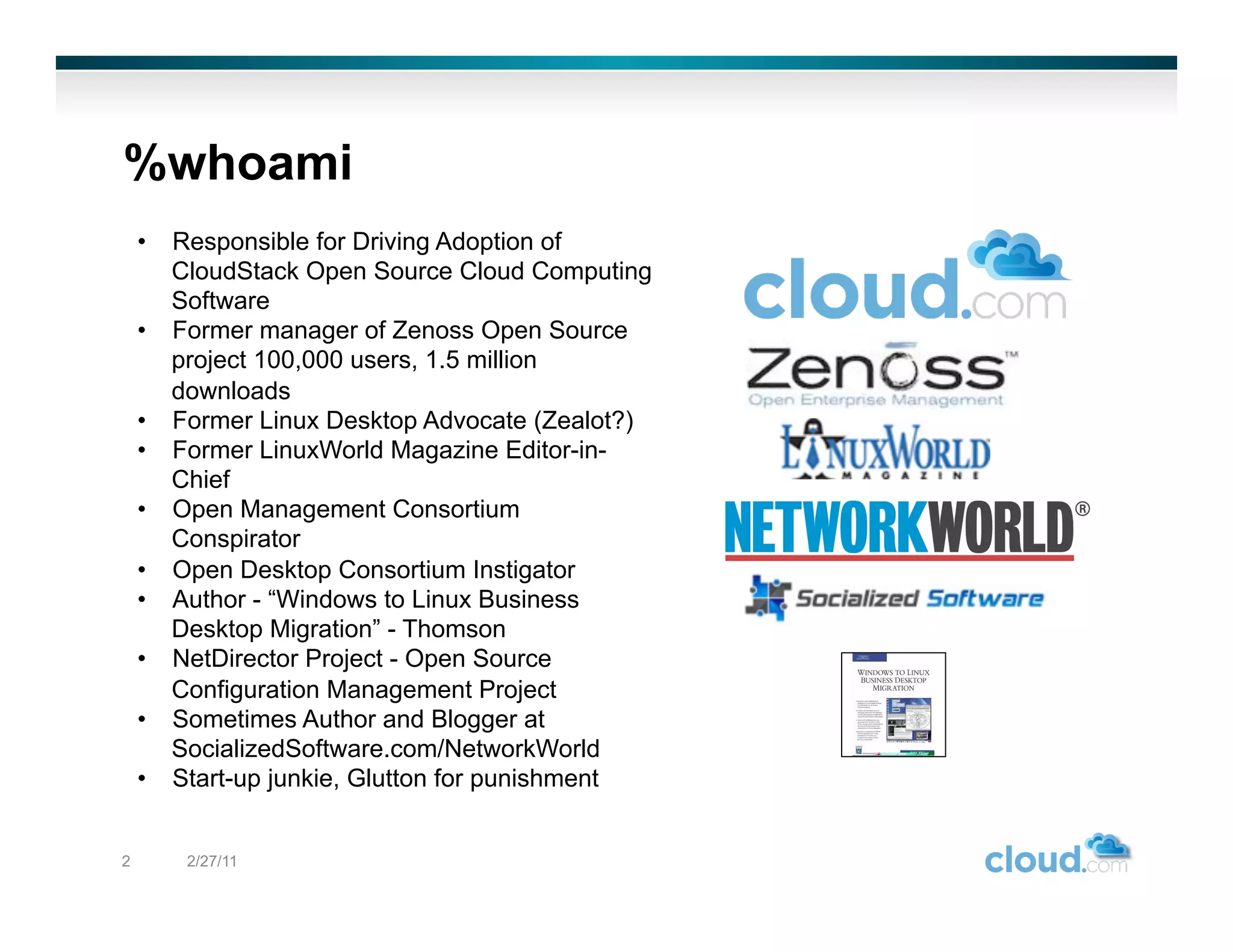

- 2. %whoami • Responsible for Driving Adoption of CloudStack Open Source Cloud Computing Software • Former manager of Zenoss Open Source project 100,000 users, 1.5 million downloads • Former Linux Desktop Advocate (Zealot?) • Former LinuxWorld Magazine Editor-in- Chief • Open Management Consortium Conspirator • Open Desktop Consortium Instigator • Author - “Windows to Linux Business Desktop Migration” - Thomson • NetDirector Project - Open Source Configuration Management Project • Sometimes Author and Blogger at SocializedSoftware.com/NetworkWorld • Start-up junkie, Glutton for punishment 2 2/27/11

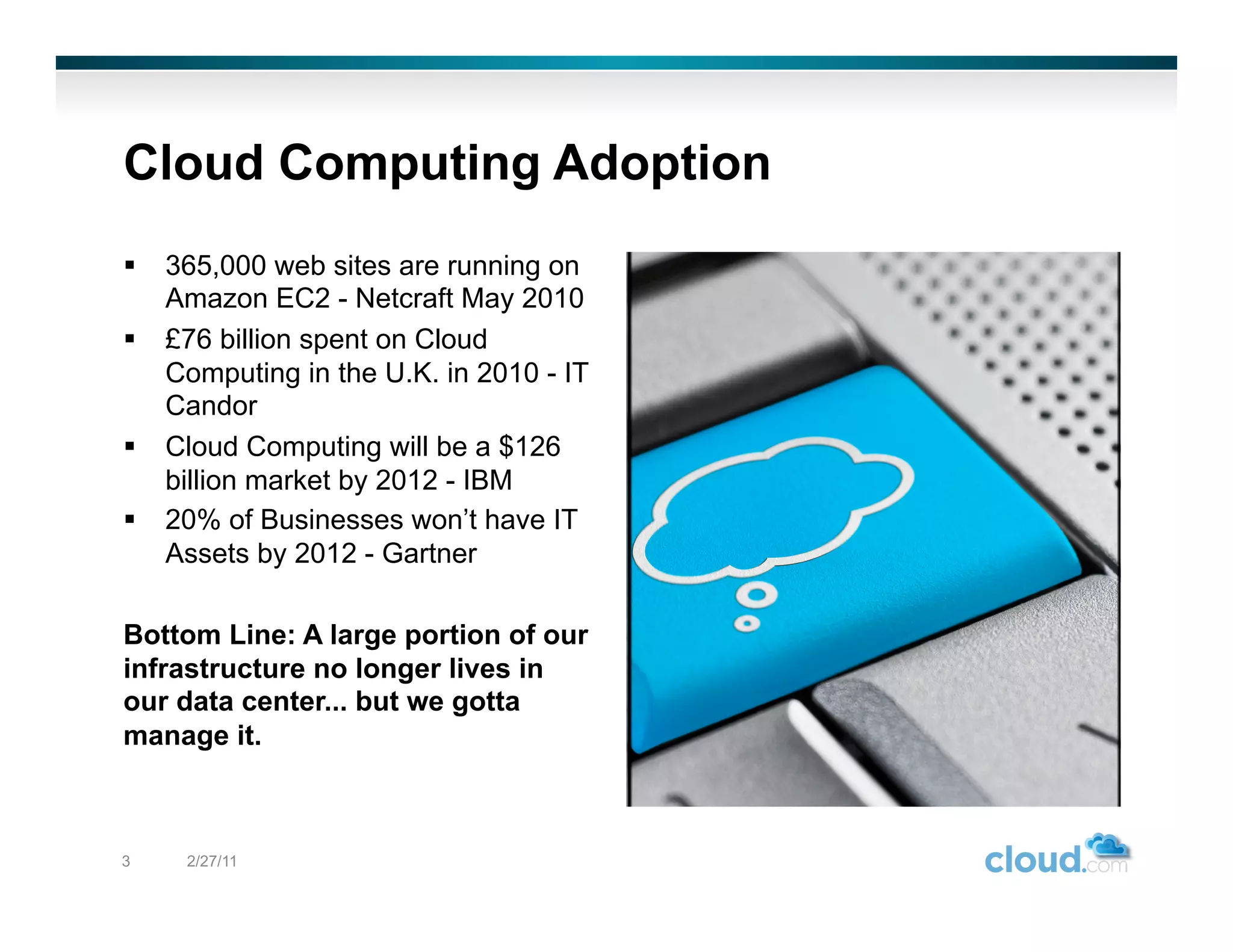

- 3. Cloud Computing Adoption 365,000 web sites are running on Amazon EC2 - Netcraft May 2010 £76 billion spent on Cloud Computing in the U.K. in 2010 - IT Candor Cloud Computing will be a $126 billion market by 2012 - IBM 20% of Businesses won’t have IT Assets by 2012 - Gartner Bottom Line: A large portion of our infrastructure no longer lives in our data center... but we gotta manage it. 3 2/27/11

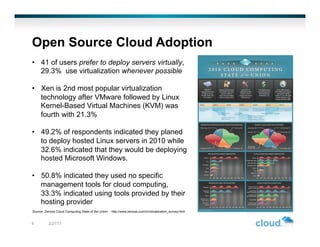

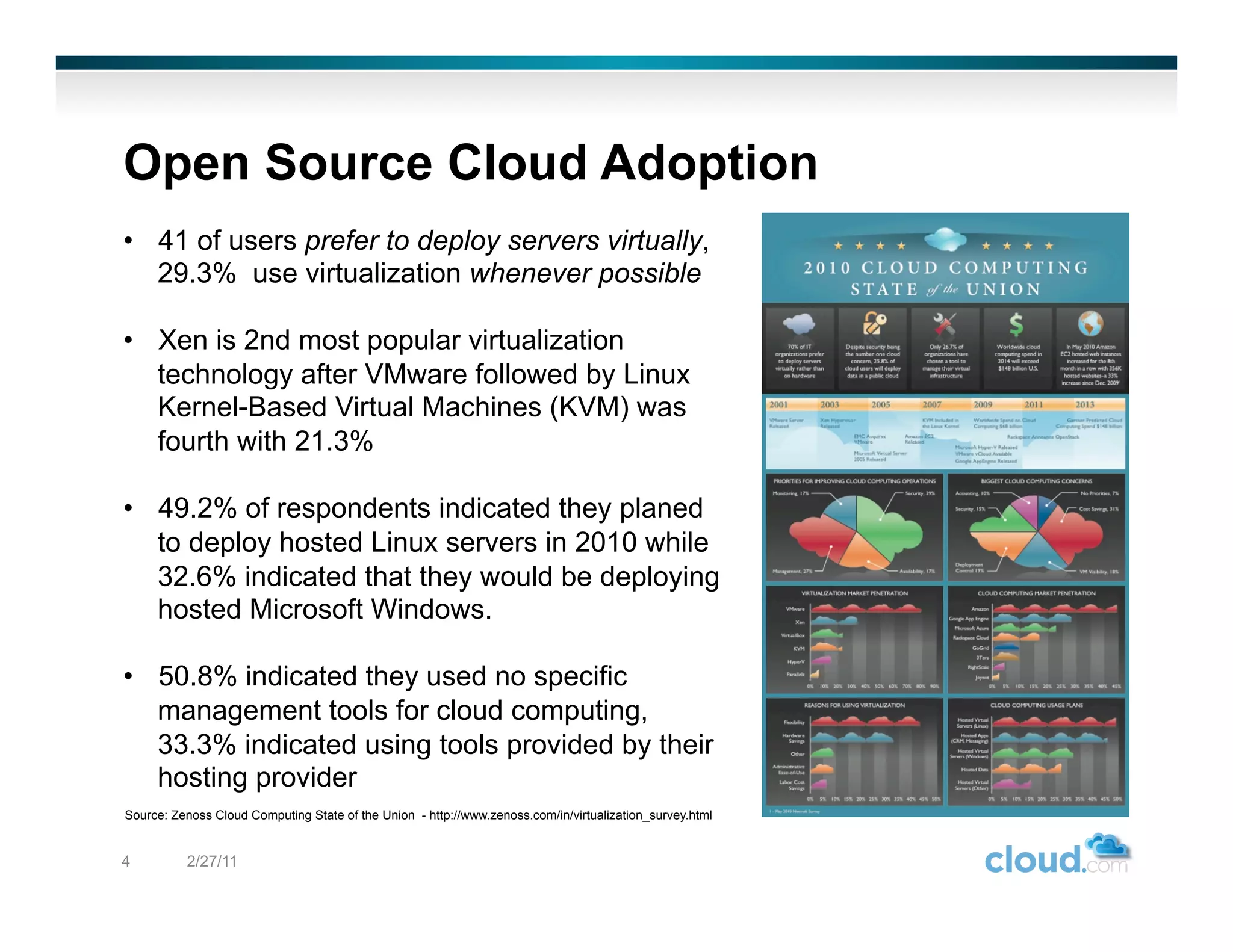

- 4. Open Source CloudAdoption • 41 of users prefer to deploy servers virtually, 29.3% use virtualization whenever possible • Xen is 2nd most popular virtualization technology after VMware followed by Linux Kernel-Based Virtual Machines (KVM) was fourth with 21.3% • 49.2% of respondents indicated they planed to deploy hosted Linux servers in 2010 while 32.6% indicated that they would be deploying hosted Microsoft Windows. • 50.8% indicated they used no specific management tools for cloud computing, 33.3% indicated using tools provided by their hosting provider Source: Zenoss Cloud Computing State of the Union - http://www.zenoss.com/in/virtualization_survey.html 4 2/27/11

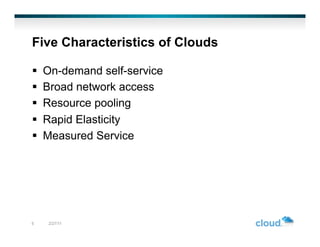

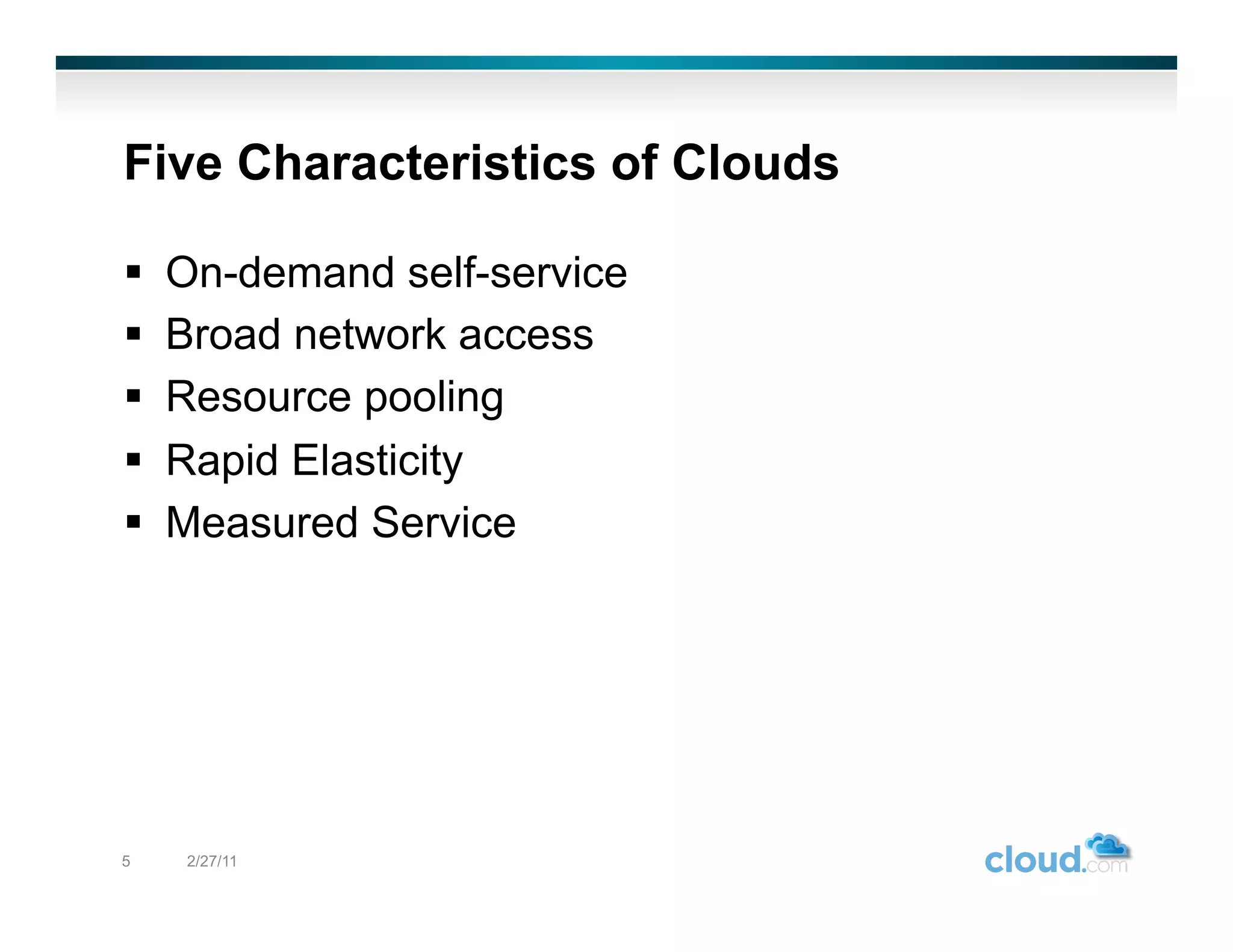

- 5. Five Characteristics ofClouds On-demand self-service Broad network access Resource pooling Rapid Elasticity Measured Service 5 2/27/11

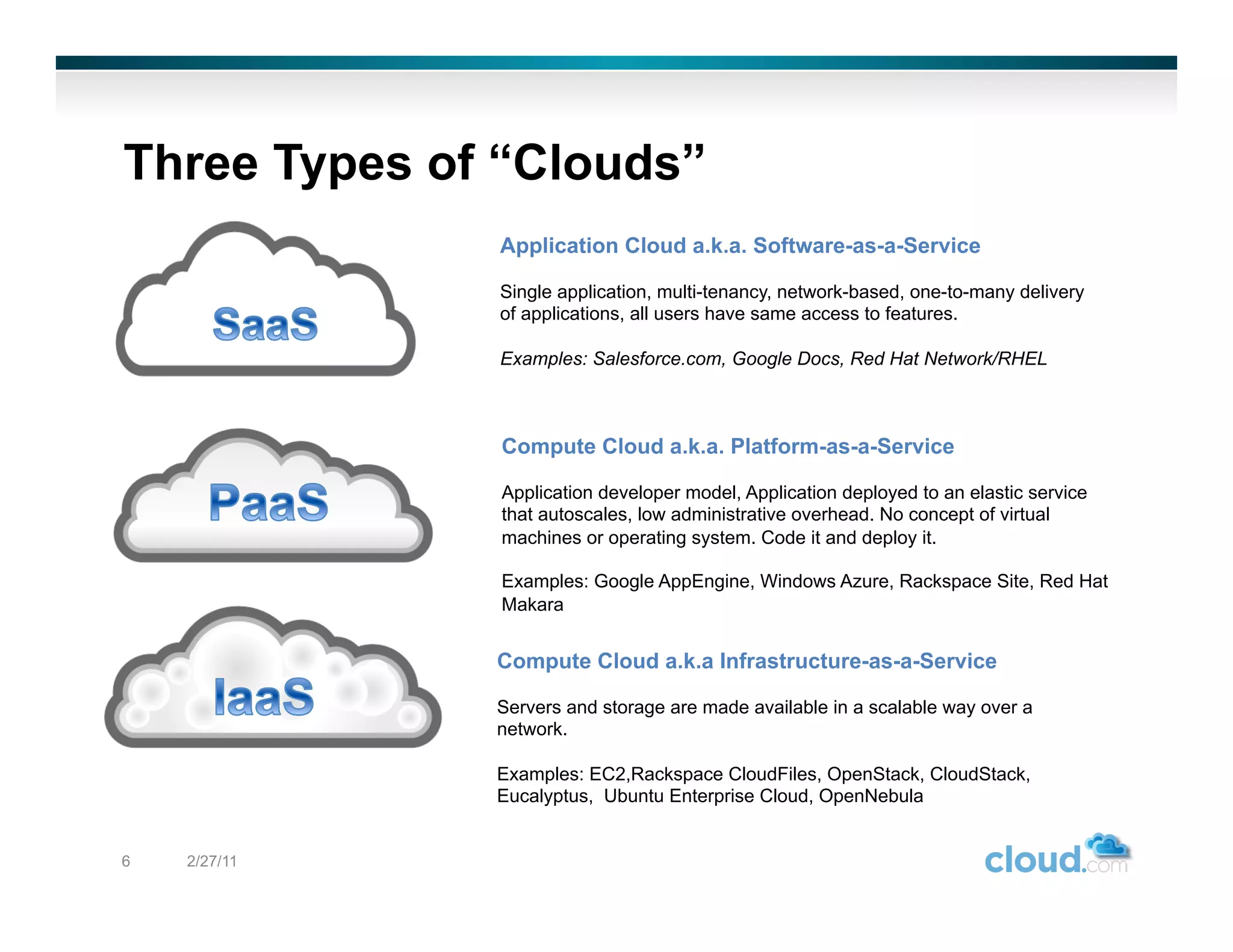

- 6. Three Types of“Clouds” Application Cloud a.k.a. Software-as-a-Service Single application, multi-tenancy, network-based, one-to-many delivery of applications, all users have same access to features. Examples: Salesforce.com, Google Docs, Red Hat Network/RHEL Compute Cloud a.k.a. Platform-as-a-Service Application developer model, Application deployed to an elastic service that autoscales, low administrative overhead. No concept of virtual machines or operating system. Code it and deploy it. Examples: Google AppEngine, Windows Azure, Rackspace Site, Red Hat Makara Compute Cloud a.k.a Infrastructure-as-a-Service Servers and storage are made available in a scalable way over a network. Examples: EC2,Rackspace CloudFiles, OpenStack, CloudStack, Eucalyptus, Ubuntu Enterprise Cloud, OpenNebula 6 2/27/11

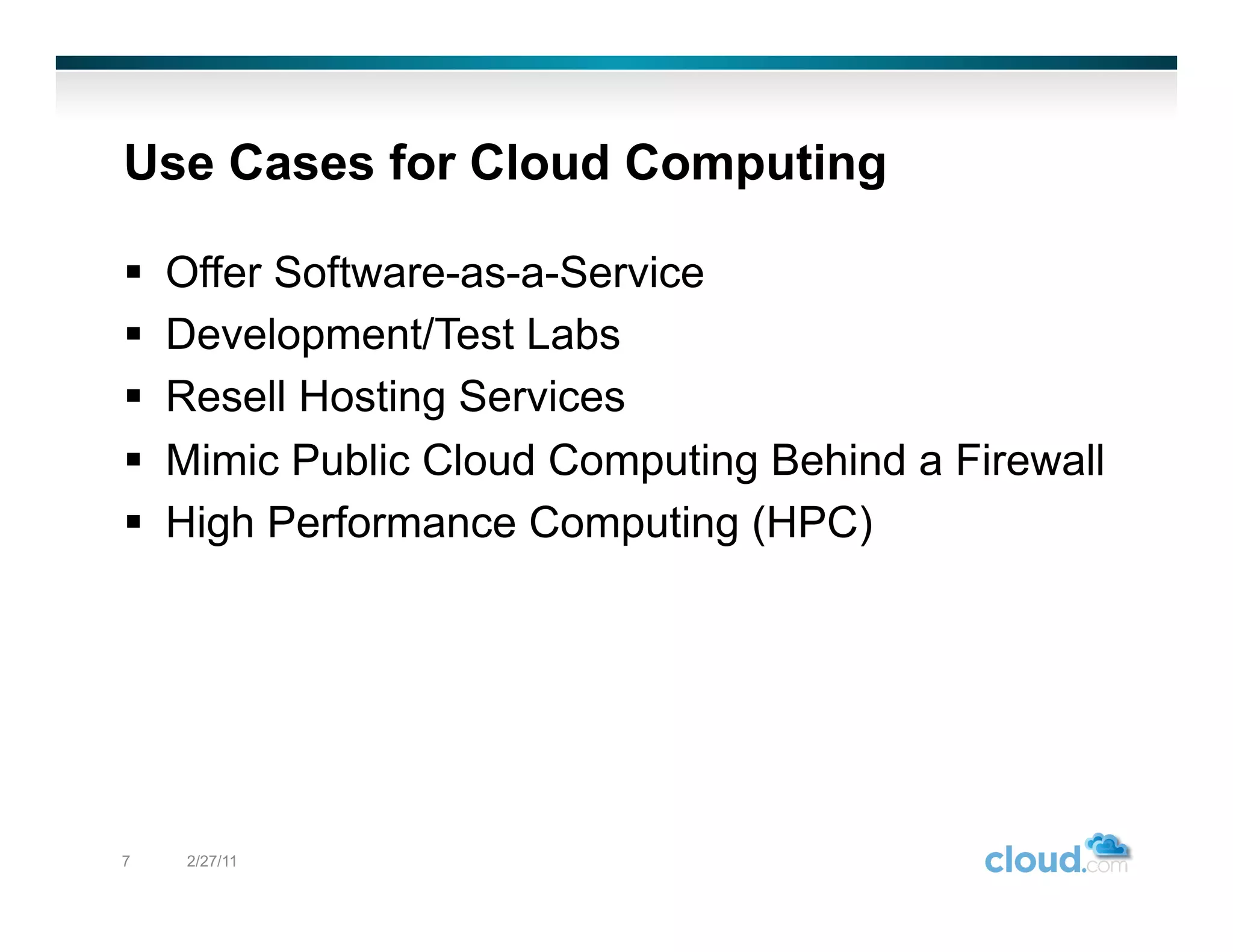

- 7. Use Cases forCloud Computing Offer Software-as-a-Service Development/Test Labs Resell Hosting Services Mimic Public Cloud Computing Behind a Firewall High Performance Computing (HPC) 7 2/27/11

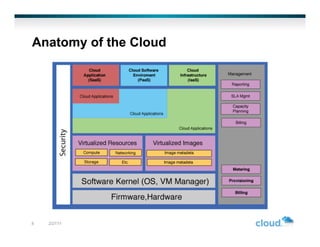

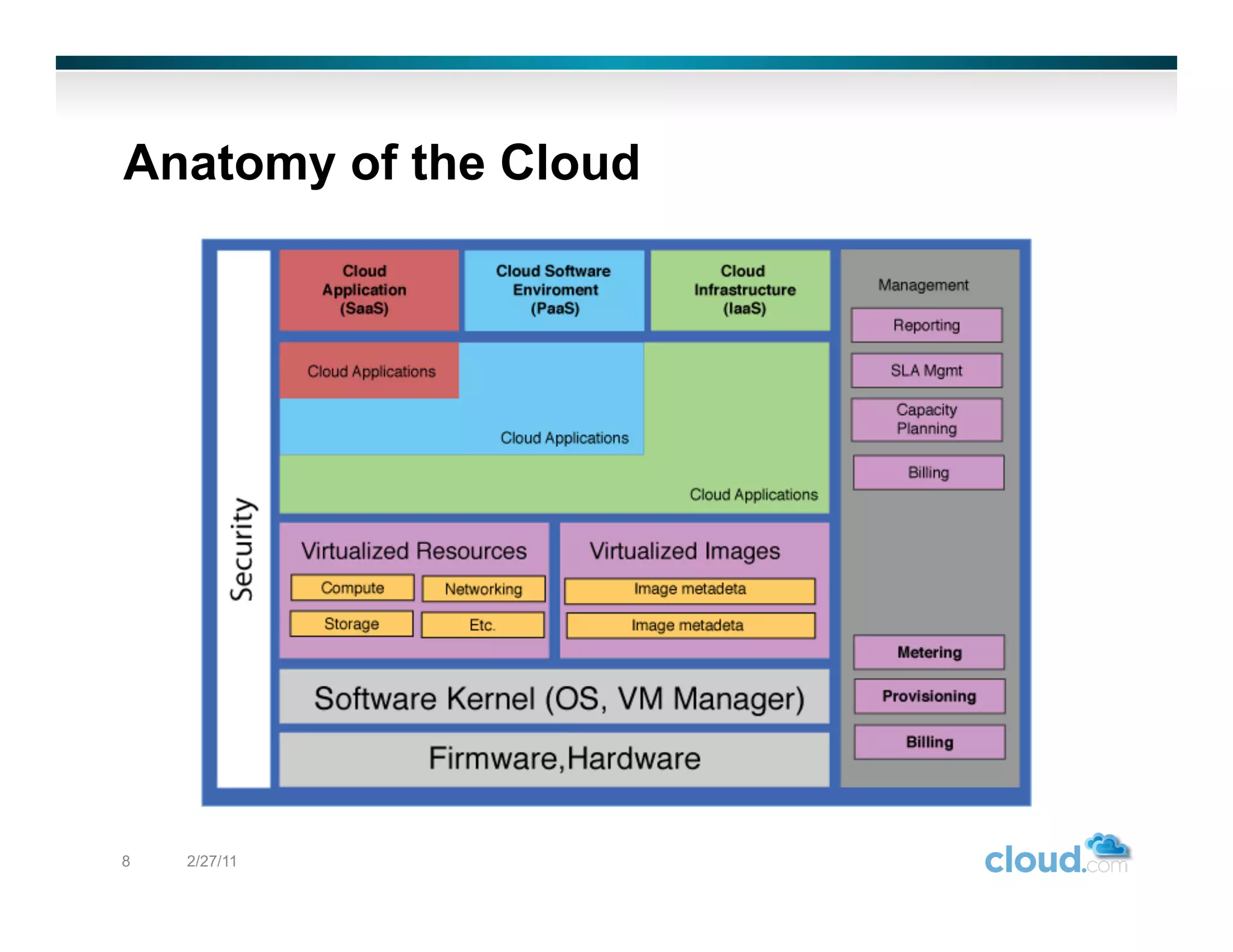

- 8. Anatomy of theCloud 8 2/27/11

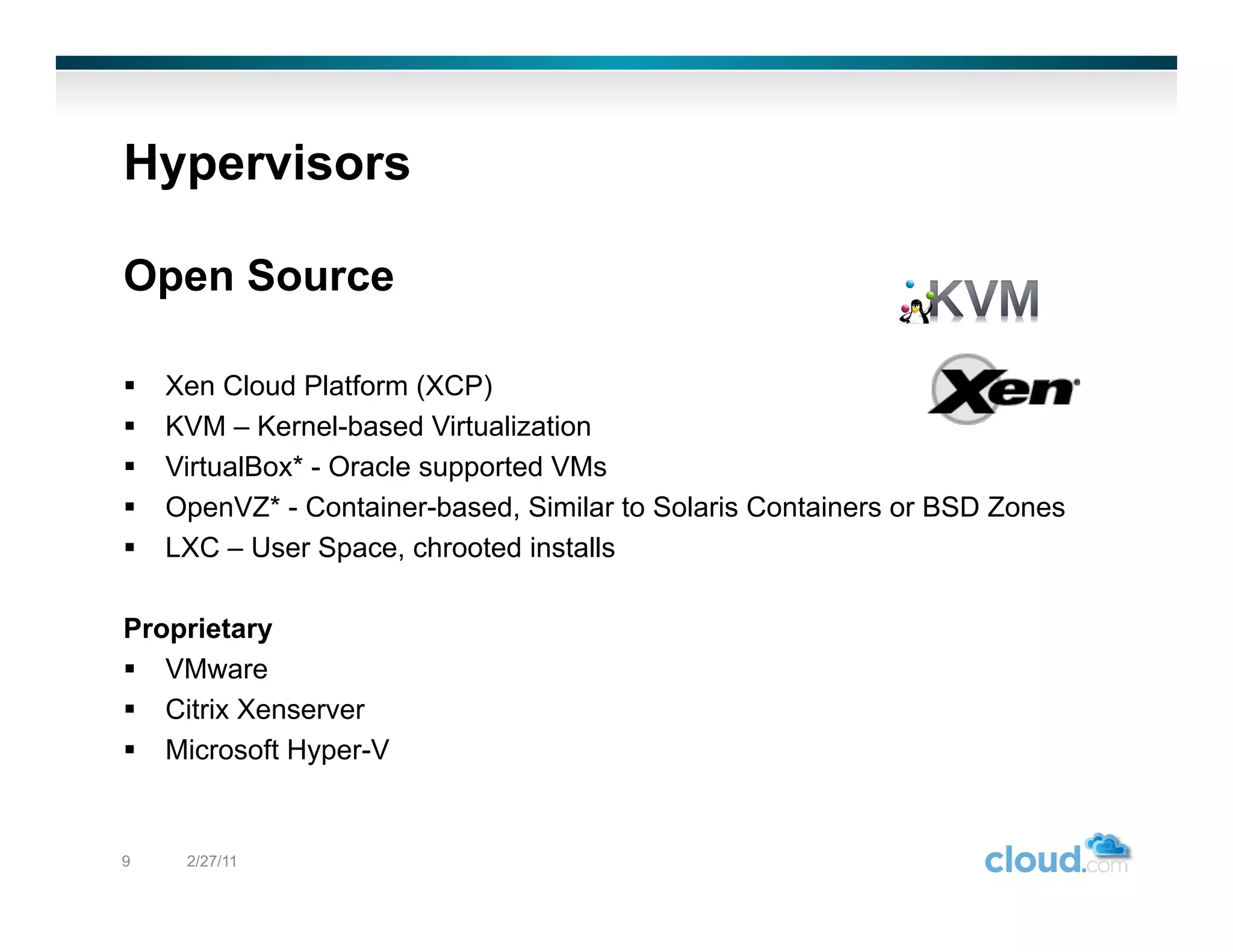

- 9. Hypervisors Open Source Xen Cloud Platform (XCP) KVM – Kernel-based Virtualization VirtualBox* - Oracle supported VMs OpenVZ* - Container-based, Similar to Solaris Containers or BSD Zones LXC – User Space, chrooted installs Proprietary VMware Citrix Xenserver Microsoft Hyper-V 9 2/27/11

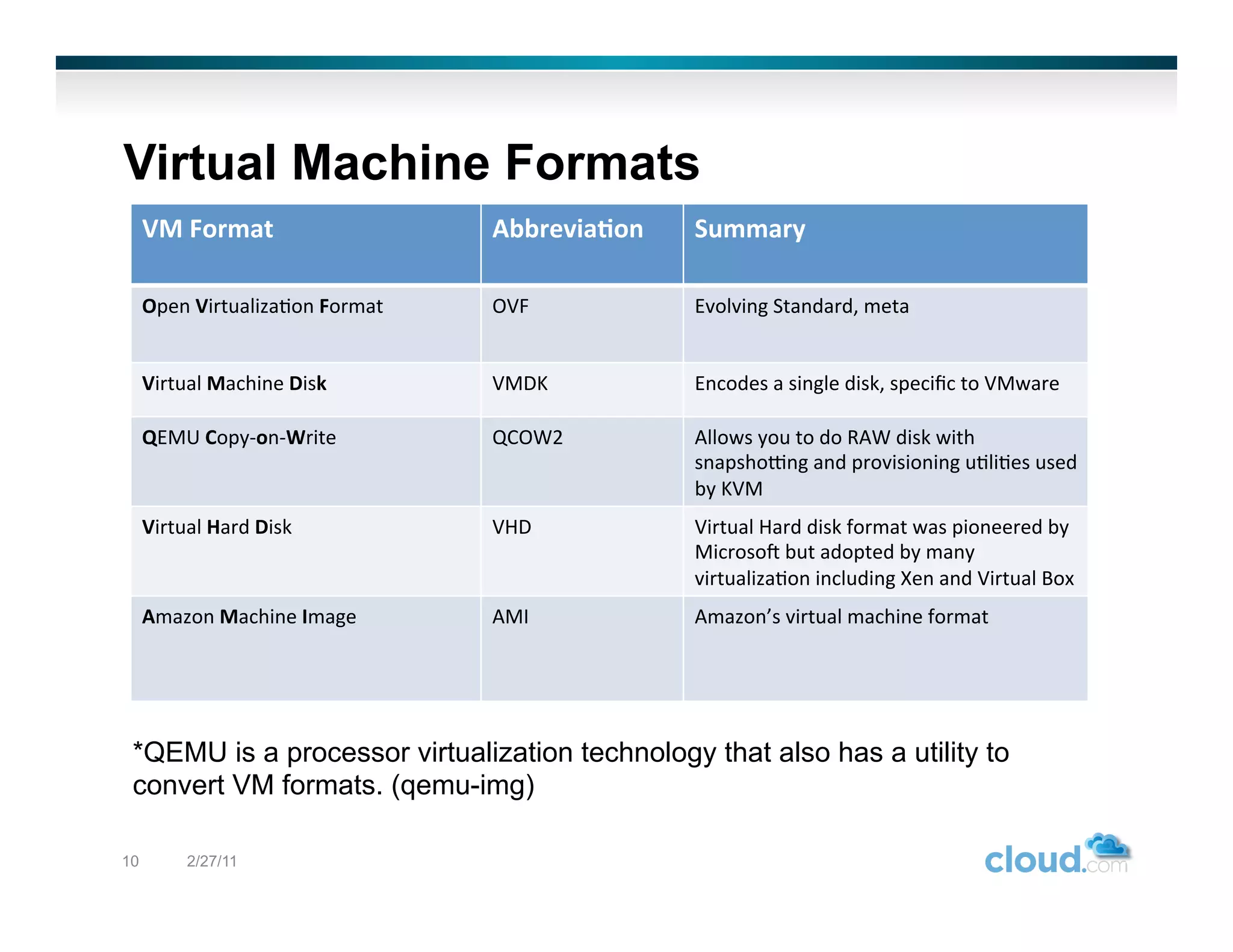

- 10. Virtual Machine Formats VM Format Abbrevia/on Summary Open Virtualiza,on Format OVF Evolving Standard, meta Virtual Machine Disk VMDK Encodes a single disk, specific to VMware QEMU Copy-‐on-‐Write QCOW2 Allows you to do RAW disk with snapshoJng and provisioning u,li,es used by KVM Virtual Hard Disk VHD Virtual Hard disk format was pioneered by MicrosoN but adopted by many virtualiza,on including Xen and Virtual Box Amazon Machine Image AMI Amazon’s virtual machine format *QEMU is a processor virtualization technology that also has a utility to convert VM formats. (qemu-img) 10 2/27/11

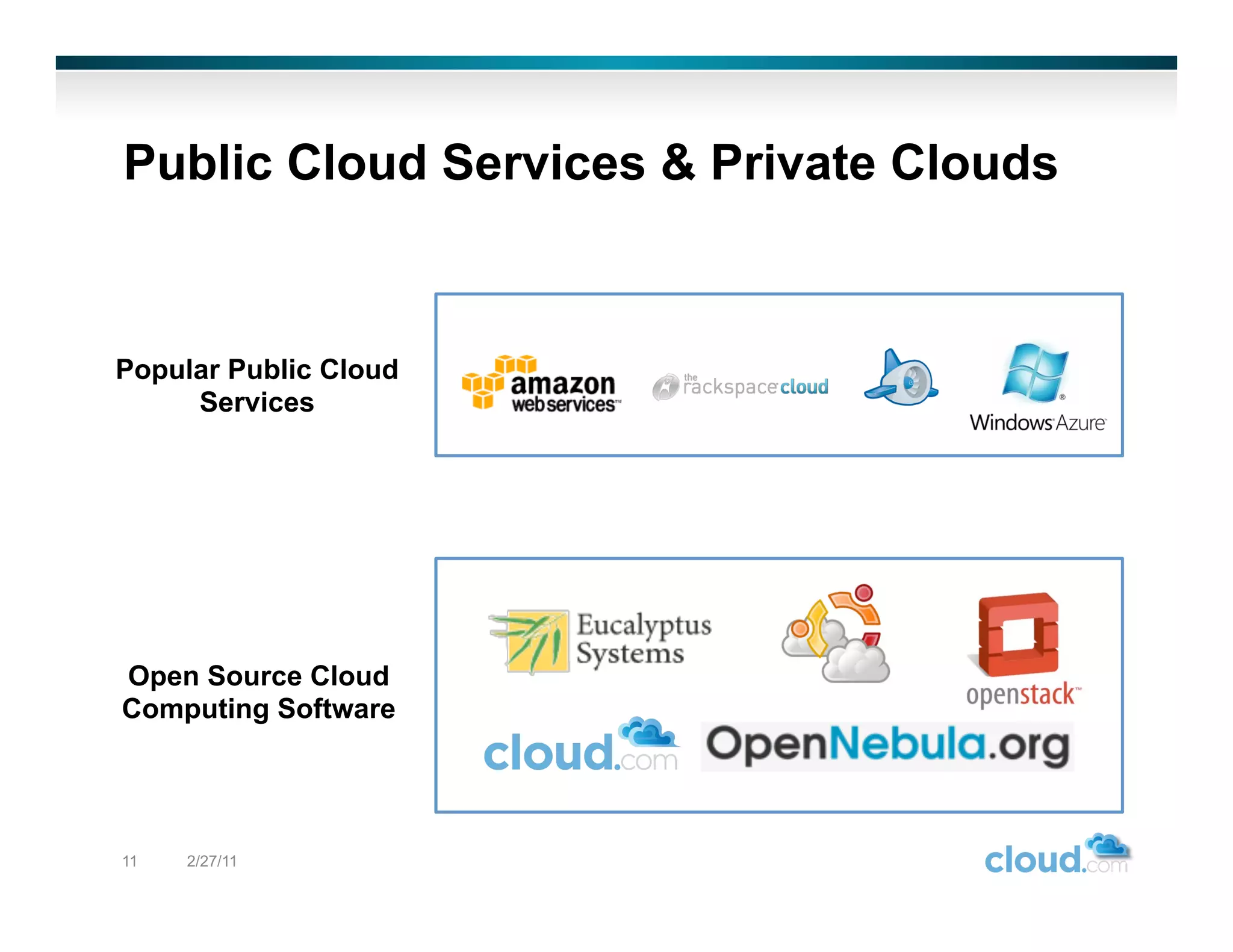

- 11. Public Cloud Services& Private Clouds Popular Public Cloud Services Open Source Cloud Computing Software 11 2/27/11

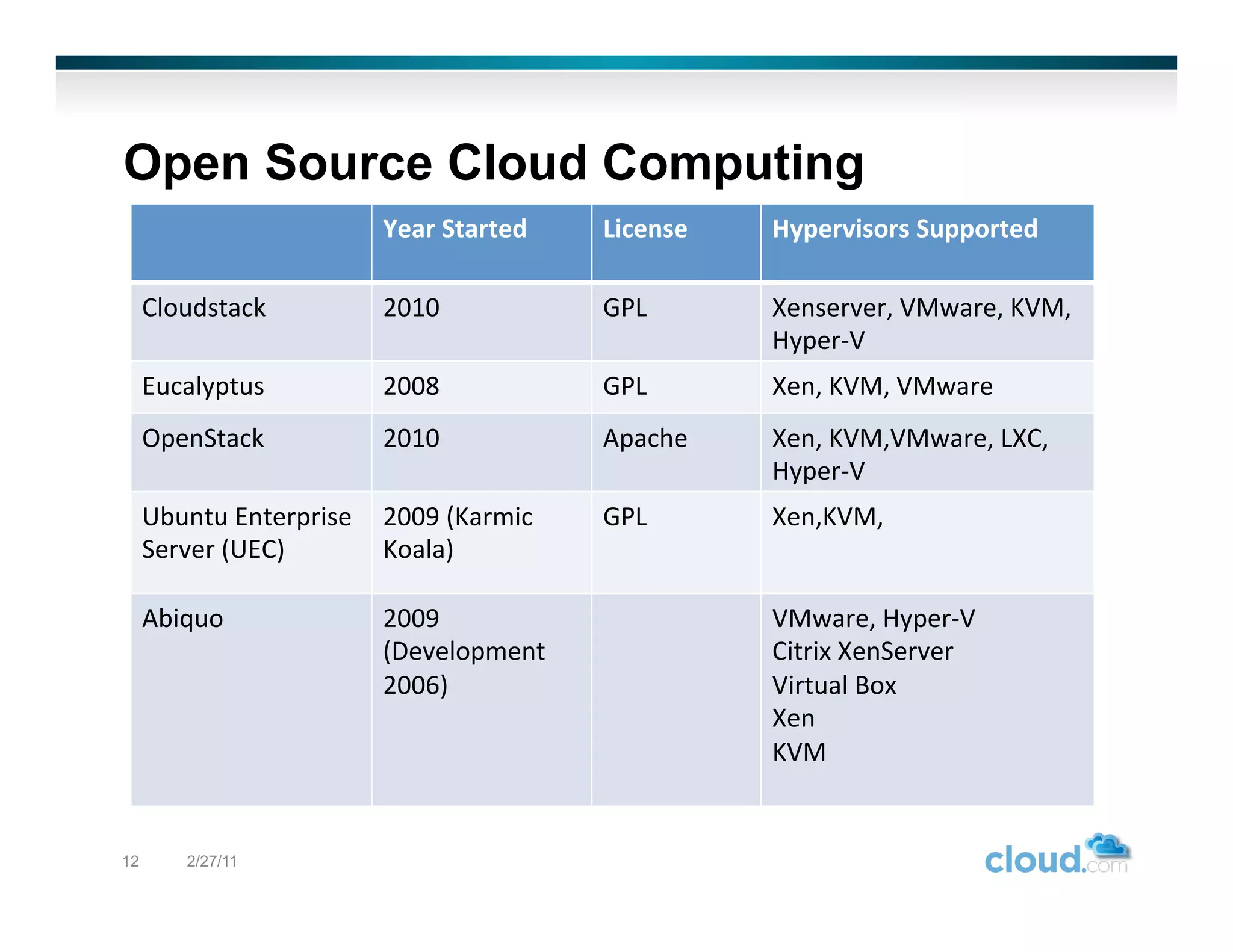

- 12. Open Source CloudComputing Year Started License Hypervisors Supported Cloudstack 2010 GPL Xenserver, VMware, KVM, Hyper-‐V Eucalyptus 2008 GPL Xen, KVM, VMware OpenStack 2010 Apache Xen, KVM,VMware, LXC, Hyper-‐V Ubuntu Enterprise 2009 (Karmic GPL Xen,KVM, Server (UEC) Koala) Abiquo 2009 VMware, Hyper-‐V (Development Citrix XenServer 2006) Virtual Box Xen KVM 12 2/27/11

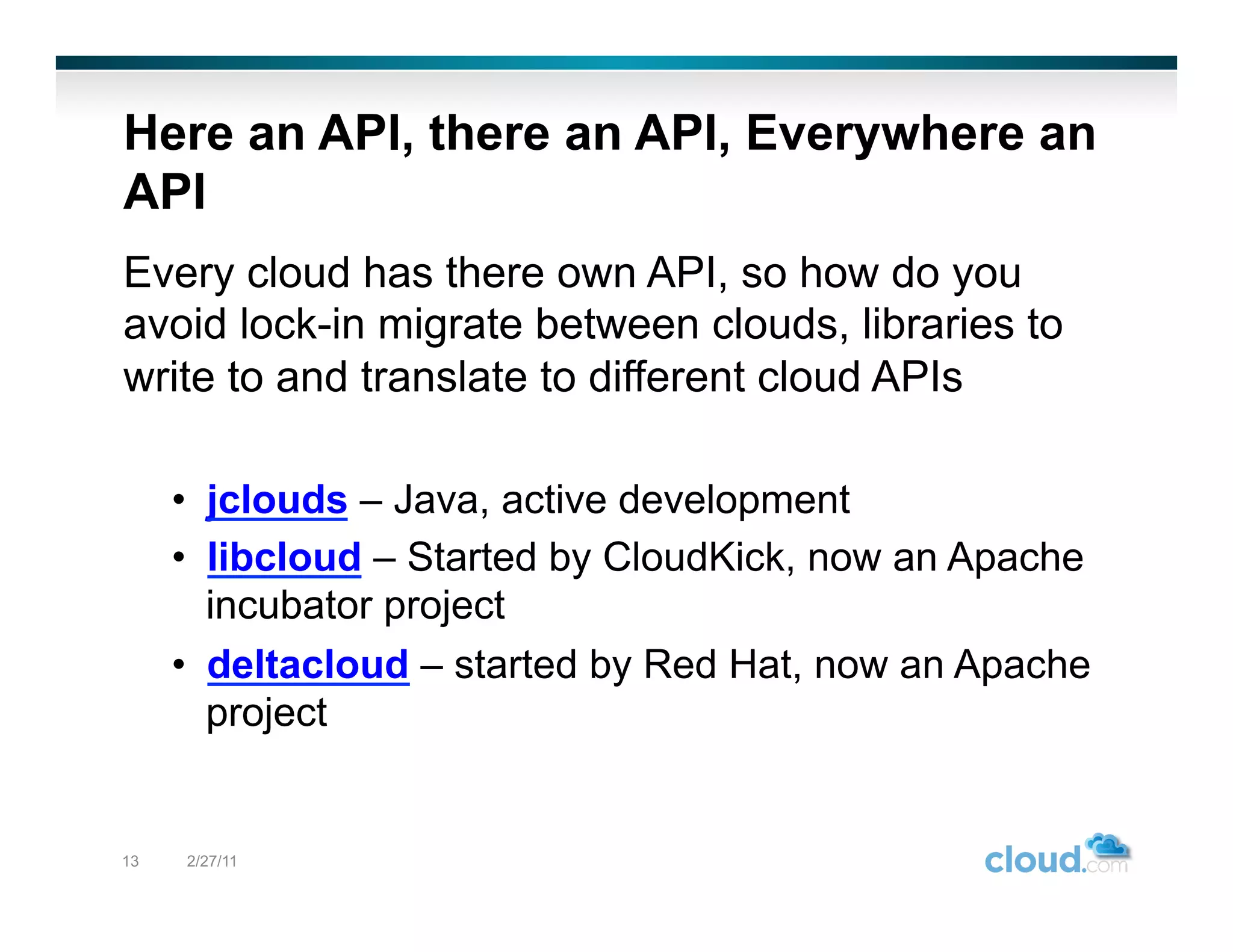

- 13. Here an API,there an API, Everywhere an API Every cloud has there own API, so how do you avoid lock-in migrate between clouds, libraries to write to and translate to different cloud APIs • jclouds – Java, active development • libcloud – Started by CloudKick, now an Apache incubator project • deltacloud – started by Red Hat, now an Apache project 13 2/27/11

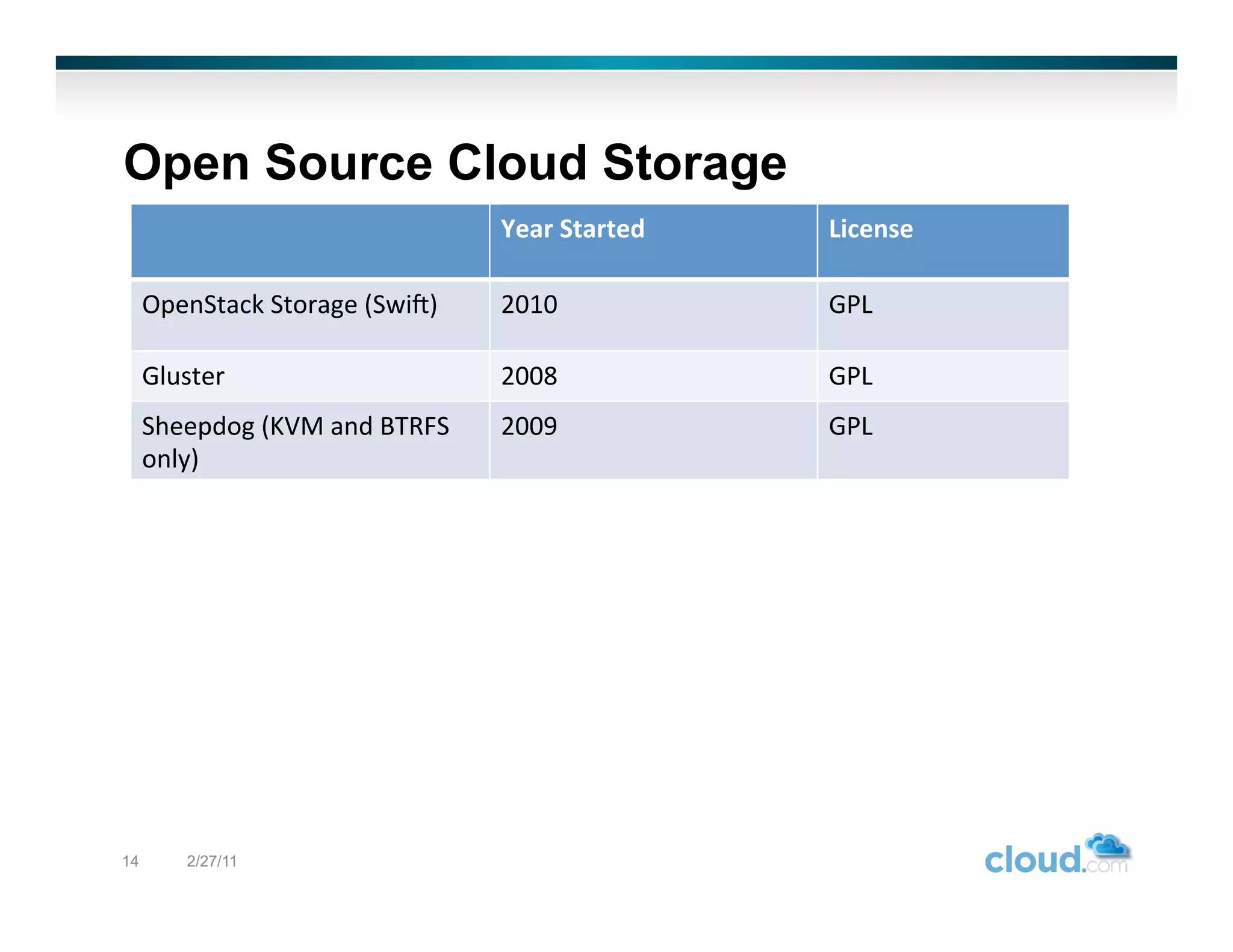

- 14. Open Source CloudStorage Year Started License OpenStack Storage (SwiN) 2010 GPL Gluster 2008 GPL Sheepdog (KVM and BTRFS 2009 GPL only) 14 2/27/11

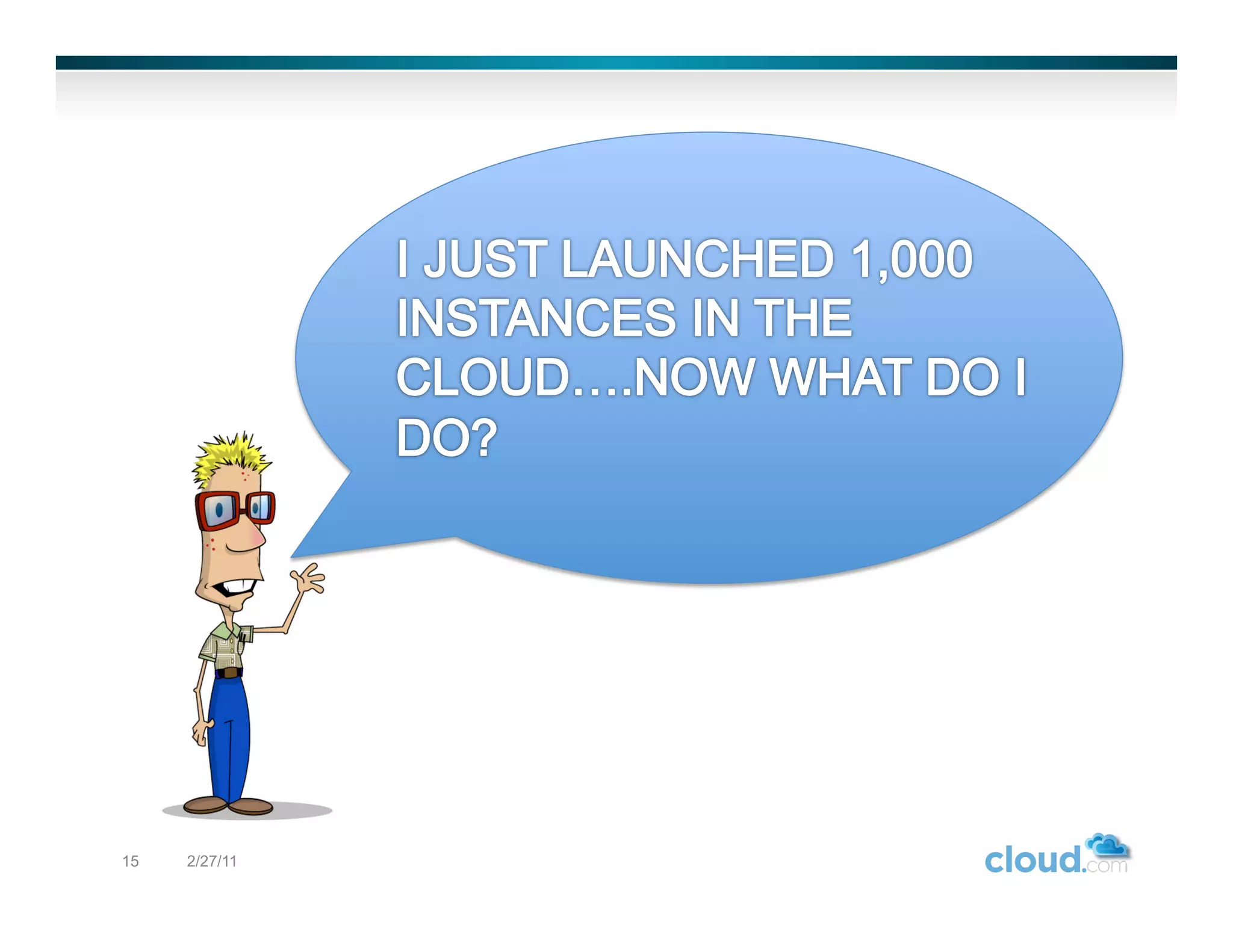

- 15. 15 2/27/11

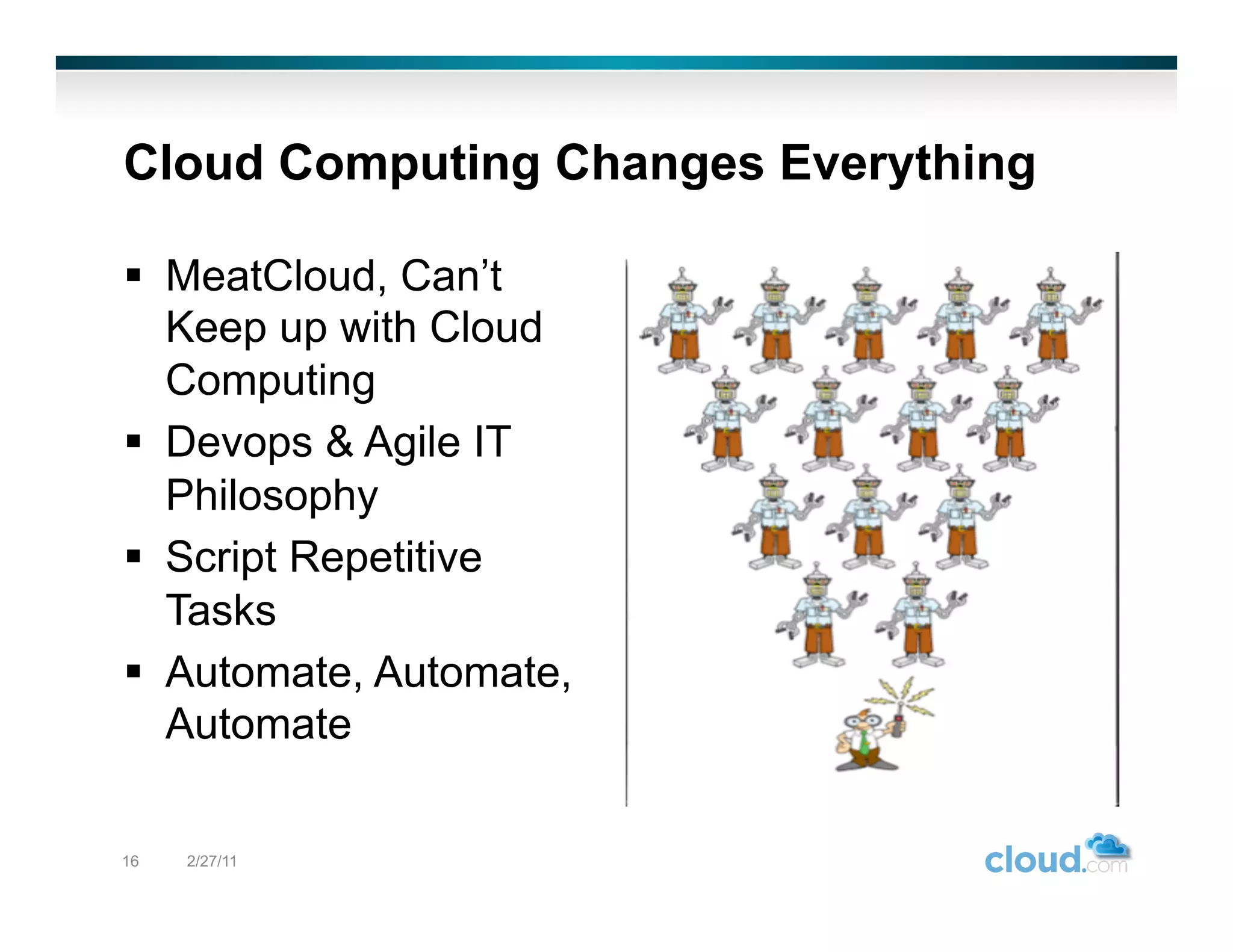

- 16. Cloud Computing ChangesEverything MeatCloud, Can’t Keep up with Cloud Computing Devops & Agile IT Philosophy Script Repetitive Tasks Automate, Automate, Automate 16 2/27/11
- 17. This Guy doesn’tAutomate 17 2/27/11

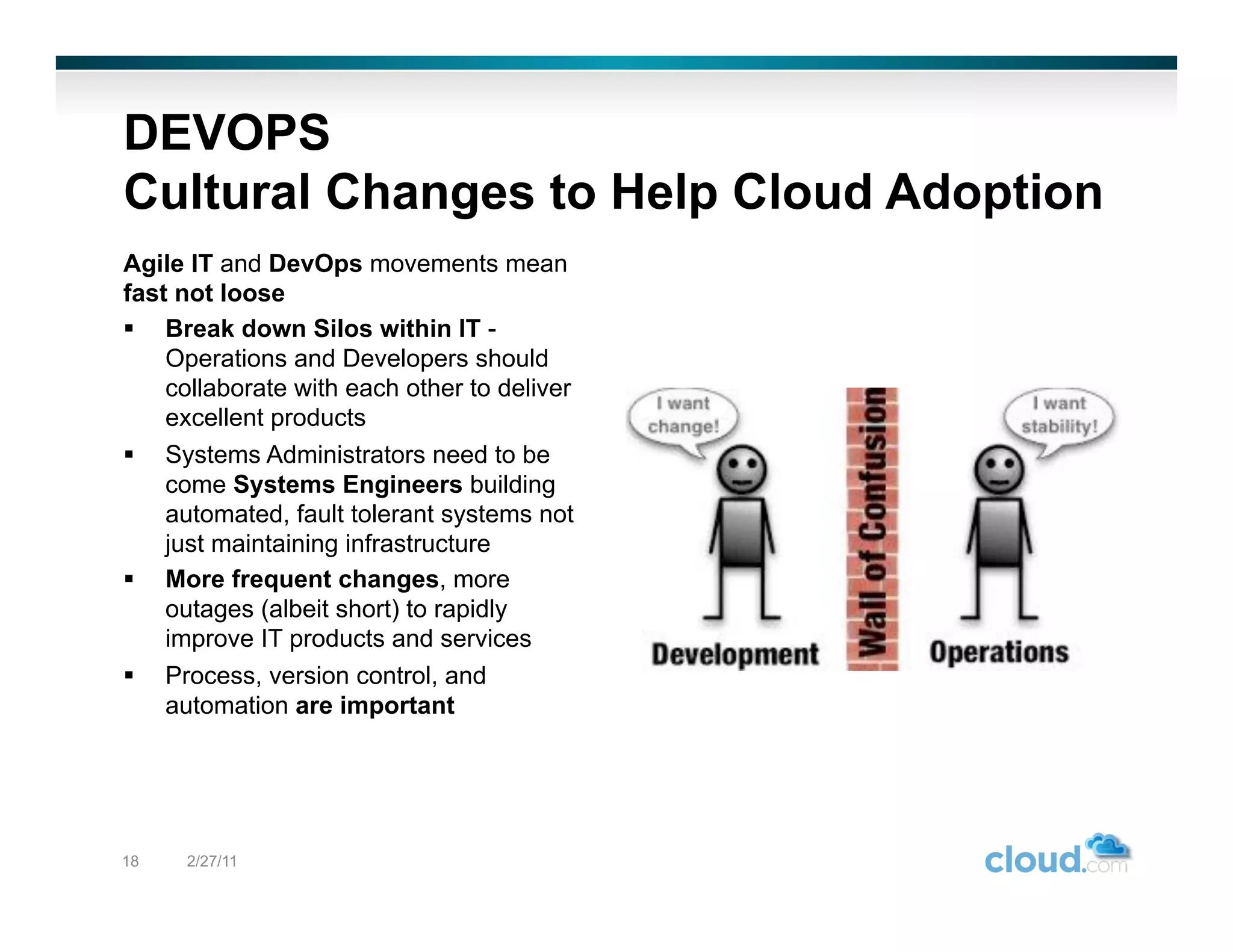

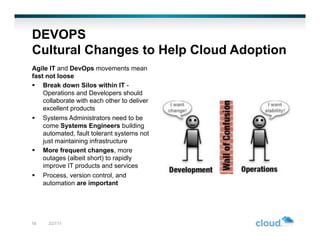

- 18. DEVOPS Cultural Changes toHelp Cloud Adoption Agile IT and DevOps movements mean fast not loose Break down Silos within IT - Operations and Developers should collaborate with each other to deliver excellent products Systems Administrators need to be come Systems Engineers building automated, fault tolerant systems not just maintaining infrastructure More frequent changes, more outages (albeit short) to rapidly improve IT products and services Process, version control, and automation are important 18 2/27/11

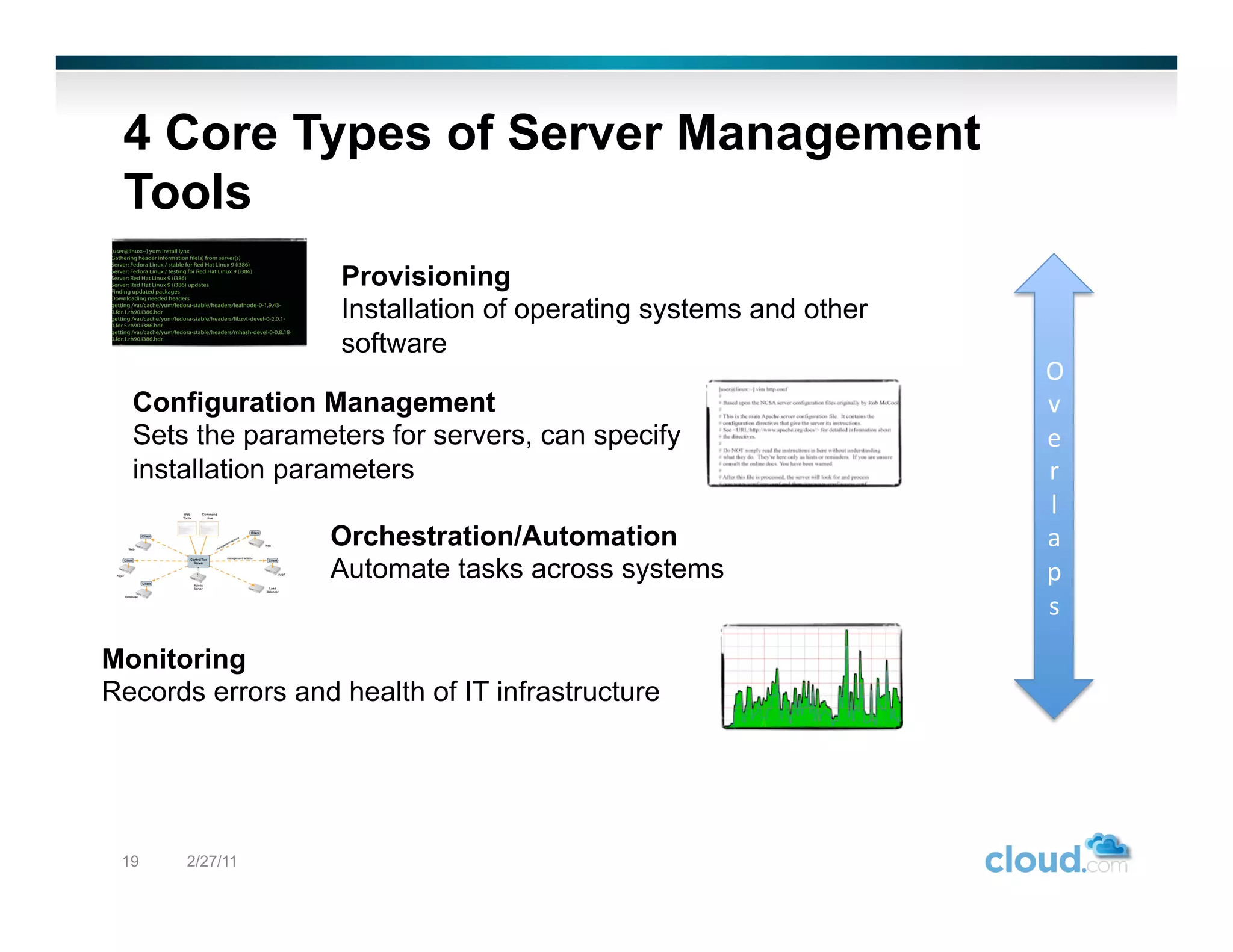

- 19. 4 Core Typesof Server Management Tools Provisioning Installation of operating systems and other software O Configuration Management v Sets the parameters for servers, can specify e installation parameters r l Orchestration/Automation a Automate tasks across systems p s Monitoring Records errors and health of IT infrastructure 19 2/27/11

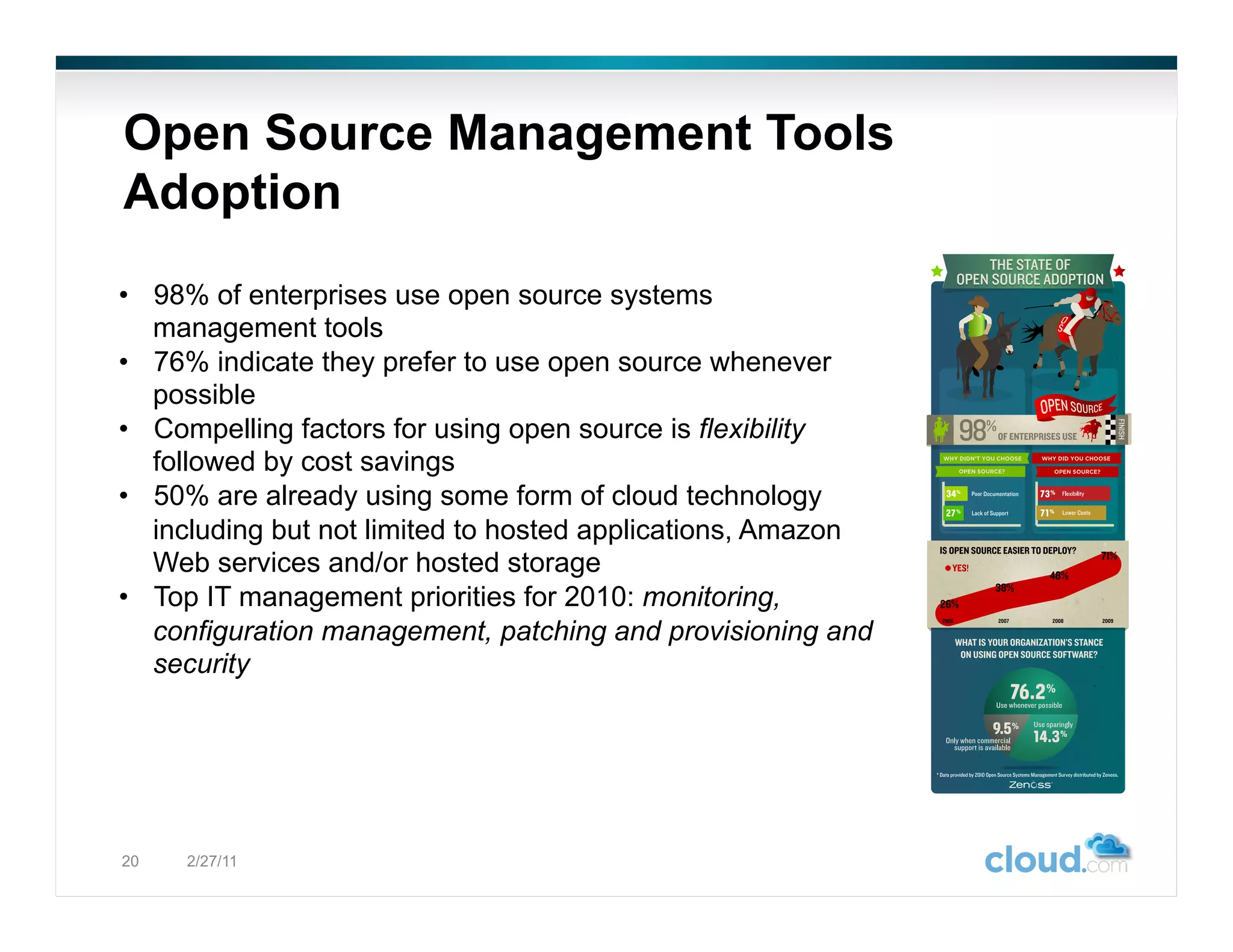

- 20. Open Source ManagementTools Adoption • 98% of enterprises use open source systems management tools • 76% indicate they prefer to use open source whenever possible • Compelling factors for using open source is flexibility followed by cost savings • 50% are already using some form of cloud technology including but not limited to hosted applications, Amazon Web services and/or hosted storage • Top IT management priorities for 2010: monitoring, configuration management, patching and provisioning and security 20 2/27/11

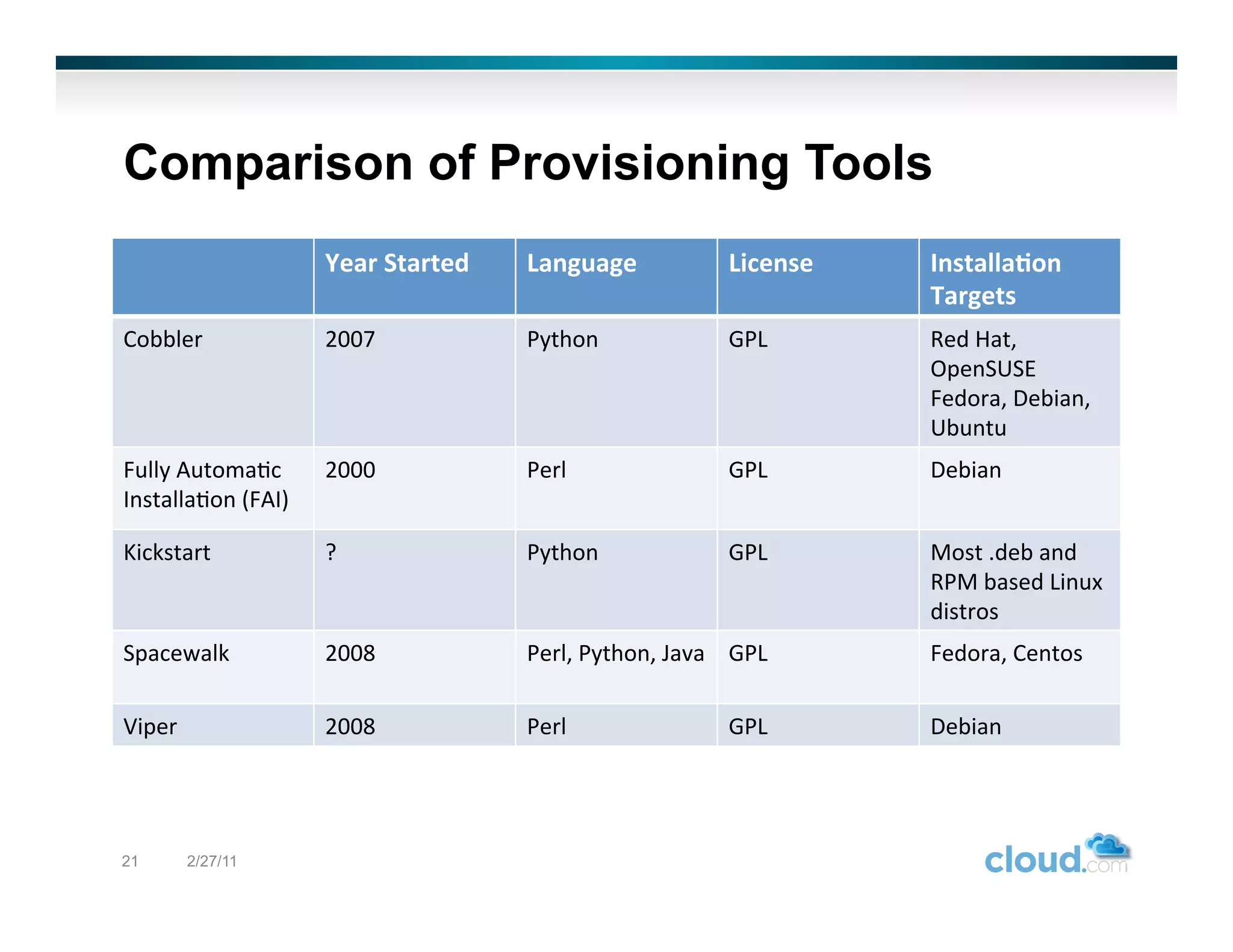

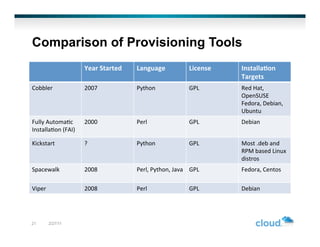

- 21. Comparison of ProvisioningTools Year Started Language License Installa/on Targets Cobbler 2007 Python GPL Red Hat, OpenSUSE Fedora, Debian, Ubuntu Fully Automa,c 2000 Perl GPL Debian Installa,on (FAI) Kickstart ? Python GPL Most .deb and RPM based Linux distros Spacewalk 2008 Perl, Python, Java GPL Fedora, Centos Viper 2008 Perl GPL Debian 21 2/27/11

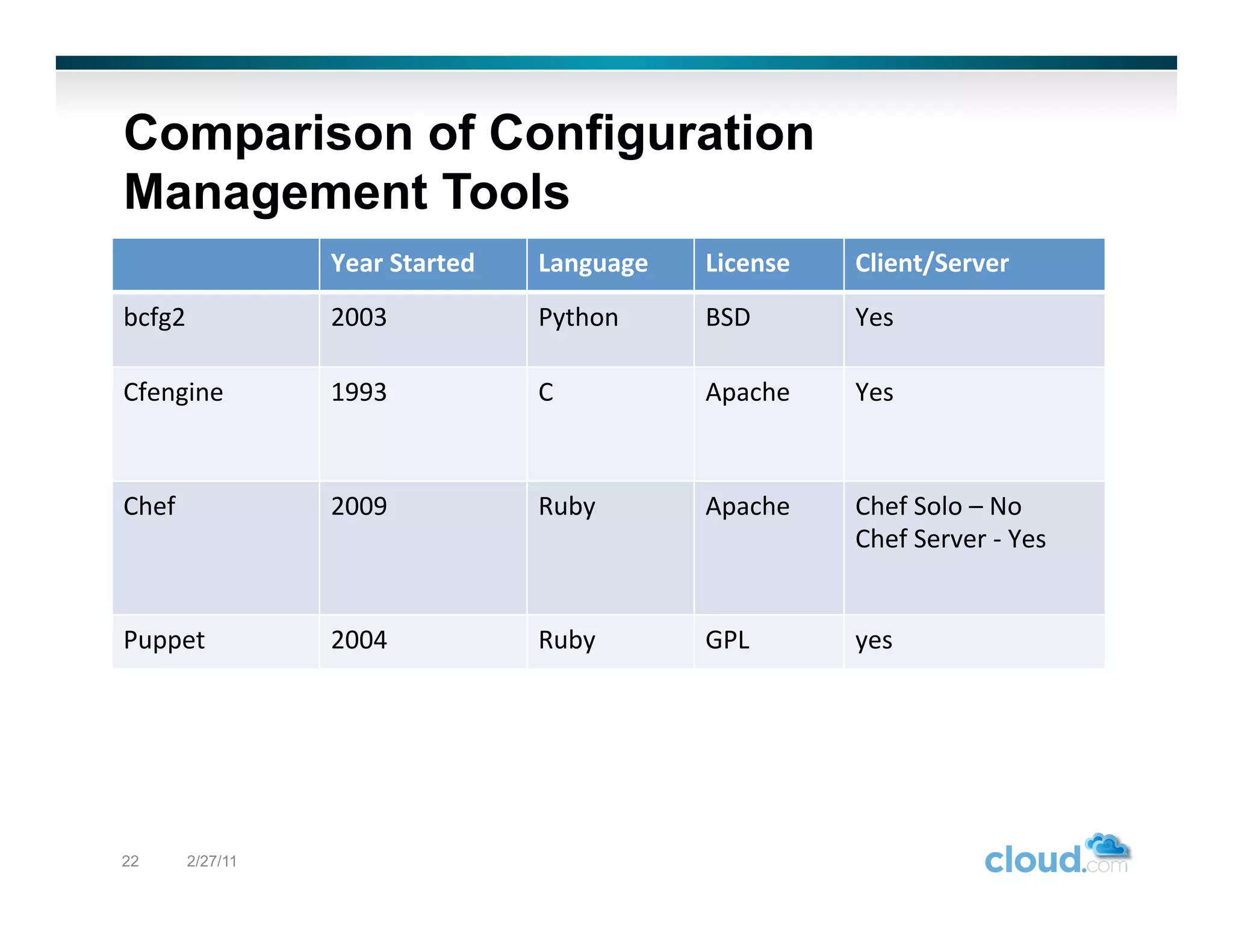

- 22. Comparison of Configuration ManagementTools Year Started Language License Client/Server bcfg2 2003 Python BSD Yes Cfengine 1993 C Apache Yes Chef 2009 Ruby Apache Chef Solo – No Chef Server -‐ Yes Puppet 2004 Ruby GPL yes 22 2/27/11

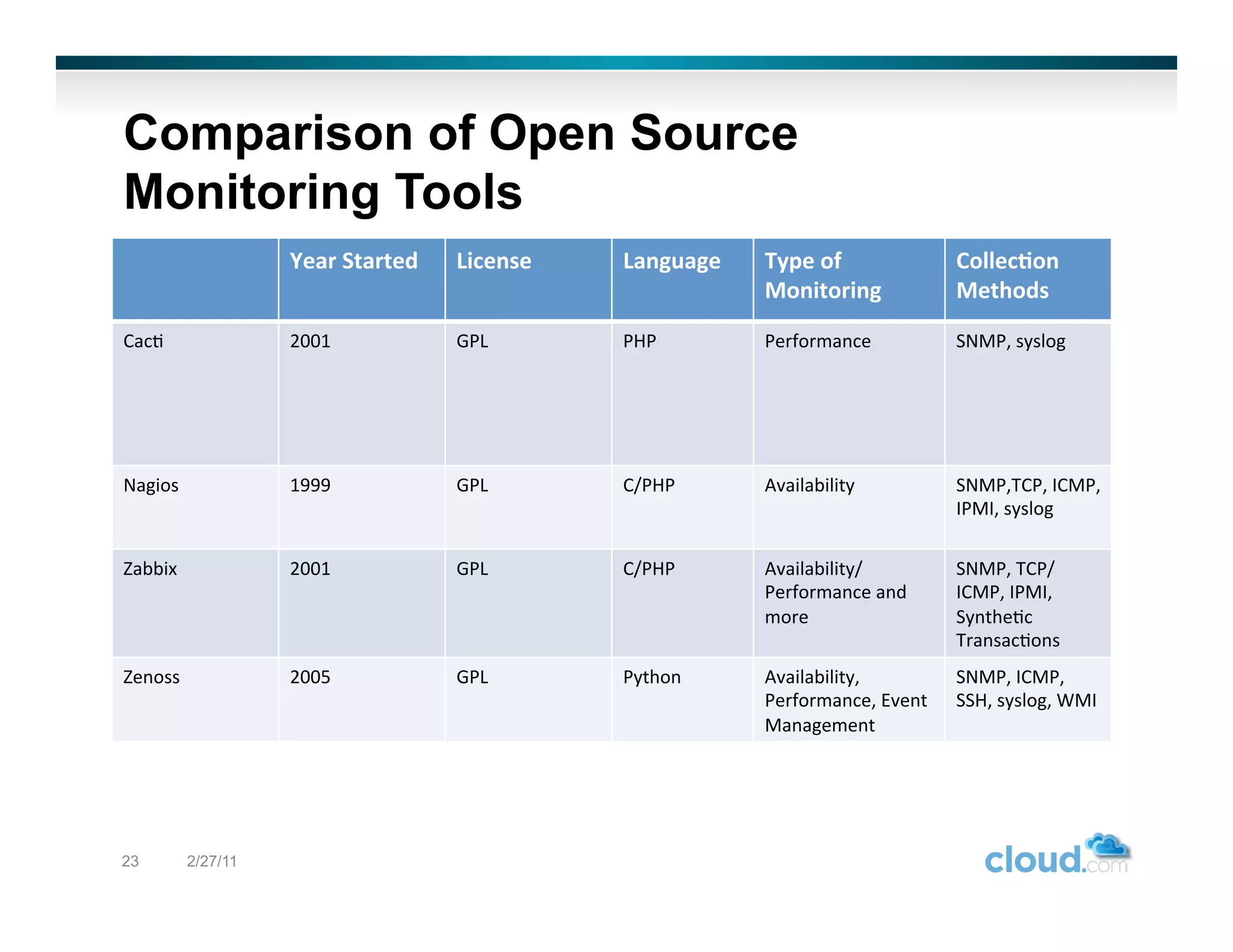

- 23. Comparison of OpenSource Monitoring Tools Year Started License Language Type of Collec/on Monitoring Methods Cac, 2001 GPL PHP Performance SNMP, syslog Nagios 1999 GPL C/PHP Availability SNMP,TCP, ICMP, IPMI, syslog Zabbix 2001 GPL C/PHP Availability/ SNMP, TCP/ Performance and ICMP, IPMI, more Synthe,c Transac,ons Zenoss 2005 GPL Python Availability, SNMP, ICMP, Performance, Event SSH, syslog, WMI Management 23 2/27/11

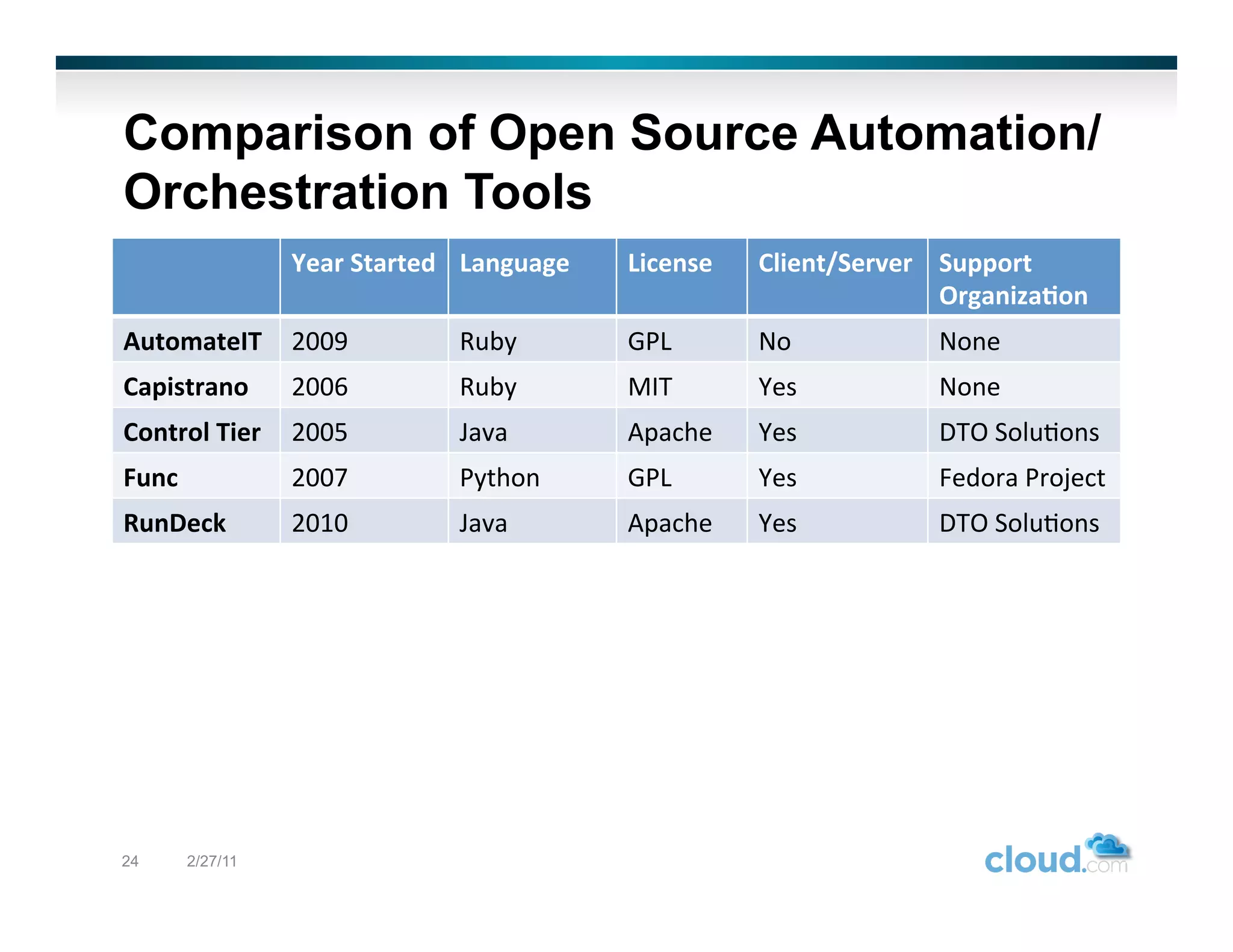

- 24. Comparison of OpenSource Automation/ Orchestration Tools Year Started Language License Client/Server Support Organiza/on AutomateIT 2009 Ruby GPL No None Capistrano 2006 Ruby MIT Yes None Control Tier 2005 Java Apache Yes DTO Solu,ons Func 2007 Python GPL Yes Fedora Project RunDeck 2010 Java Apache Yes DTO Solu,ons 24 2/27/11
