Downloaded 166 times
![static void Main(string[] args) {
// Get input
string input = Console.ReadLine().ToUpper();
// "Encrypt" it
Rot13 encryptionAlgorithm = new Rot13();
string output = encryptionAlgorithm.Encrypt(input);
// Write output
Console.WriteLine(output);
}
public class Rot13 {
public string Encrypt(string input)
{
string output = "";
foreach (char c in input)
{
output += (char)(c < 78 ? c + 13 : c - 13);
}
return output;
}
}](https://image.slidesharecdn.com/creatingaplug-inarchitecture-131129225346-phpapp02/85/Creating-a-Plug-In-Architecture-15-320.jpg)
![static void Main(string[] args) {
// Get input
string input = Console.ReadLine().ToUpper();
// "Encrypt" it
IEncryptionAlgorithm encryptionAlgorithm = new Rot13();
string output = encryptionAlgorithm.Encrypt(input);
// Write output
Console.WriteLine(output);
}
public class Rot13 : IEncryptionAlgorithm {
public string Encrypt(string input)
{
string output = "";
foreach (char c in input)
{
output += (char)(c < 78 ? c + 13 : c - 13);
}
return output;
}
}
public interface IEncryptionAlgorithm
{
string Encrypt(string input);
}](https://image.slidesharecdn.com/creatingaplug-inarchitecture-131129225346-phpapp02/85/Creating-a-Plug-In-Architecture-16-320.jpg)
![static void Main(string[] args) {
// Get input
string input = Console.ReadLine().ToUpper();
// "Encrypt" it
Rot13 encryptionAlgorithm = new Rot13();
string output = encryptionAlgorithm.Encrypt(input);
// Write output
Console.WriteLine(output);
}
public class Rot13 {
public string Encrypt(string input)
{
string output = "";
foreach (char c in input)
{
output += (char)(c < 78 ? c + 13 : c - 13);
}
return output;
}
}](https://image.slidesharecdn.com/creatingaplug-inarchitecture-131129225346-phpapp02/75/Creating-a-Plug-In-Architecture-15-2048.jpg)
![static void Main(string[] args) {
// Get input
string input = Console.ReadLine().ToUpper();
// "Encrypt" it
IEncryptionAlgorithm encryptionAlgorithm = new Rot13();
string output = encryptionAlgorithm.Encrypt(input);
// Write output
Console.WriteLine(output);
}
public class Rot13 : IEncryptionAlgorithm {
public string Encrypt(string input)
{
string output = "";
foreach (char c in input)
{
output += (char)(c < 78 ? c + 13 : c - 13);
}
return output;
}
}
public interface IEncryptionAlgorithm
{
string Encrypt(string input);
}](https://image.slidesharecdn.com/creatingaplug-inarchitecture-131129225346-phpapp02/75/Creating-a-Plug-In-Architecture-16-2048.jpg)
More Related Content
Similar to Creating a Plug-In Architecture
Creating a Plug-In Architecture

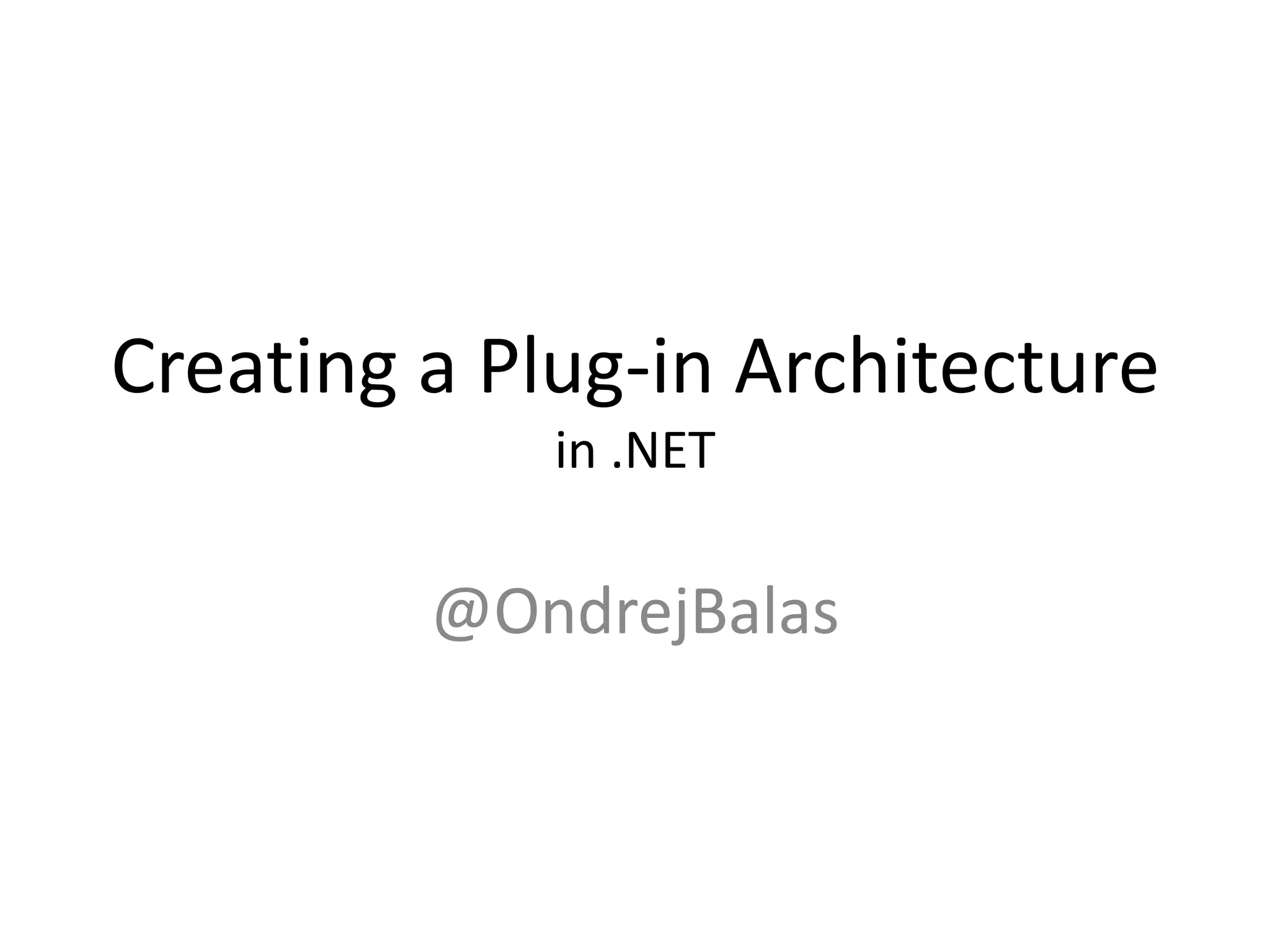

- 1. Creating a Plug-in Architecture in.NET ONDREJ BALAS @ONDREJBALAS WWW.ONDREJBALAS.COM ONDREJ@ONDREJBALAS.COM

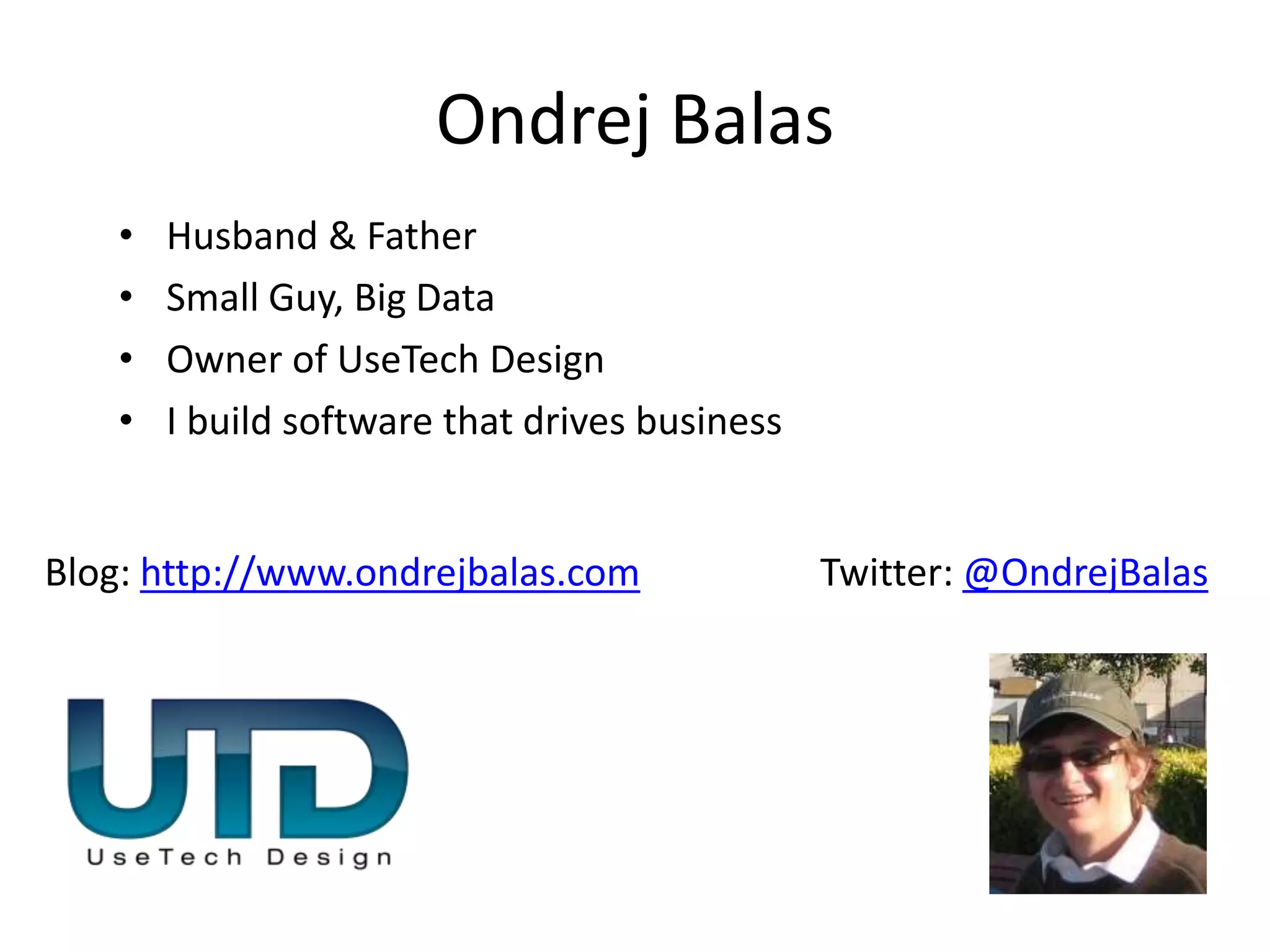

- 2. ONDREJ BALAS Microsoft MVPin .NET Writer for Visual Studio Magazine Owner of UseTech Design (est. 2001) Building software that drives business W W W.OND REJBALAS.COM OND REJ@OND REJBALA S.COM @ OND REJBALAS

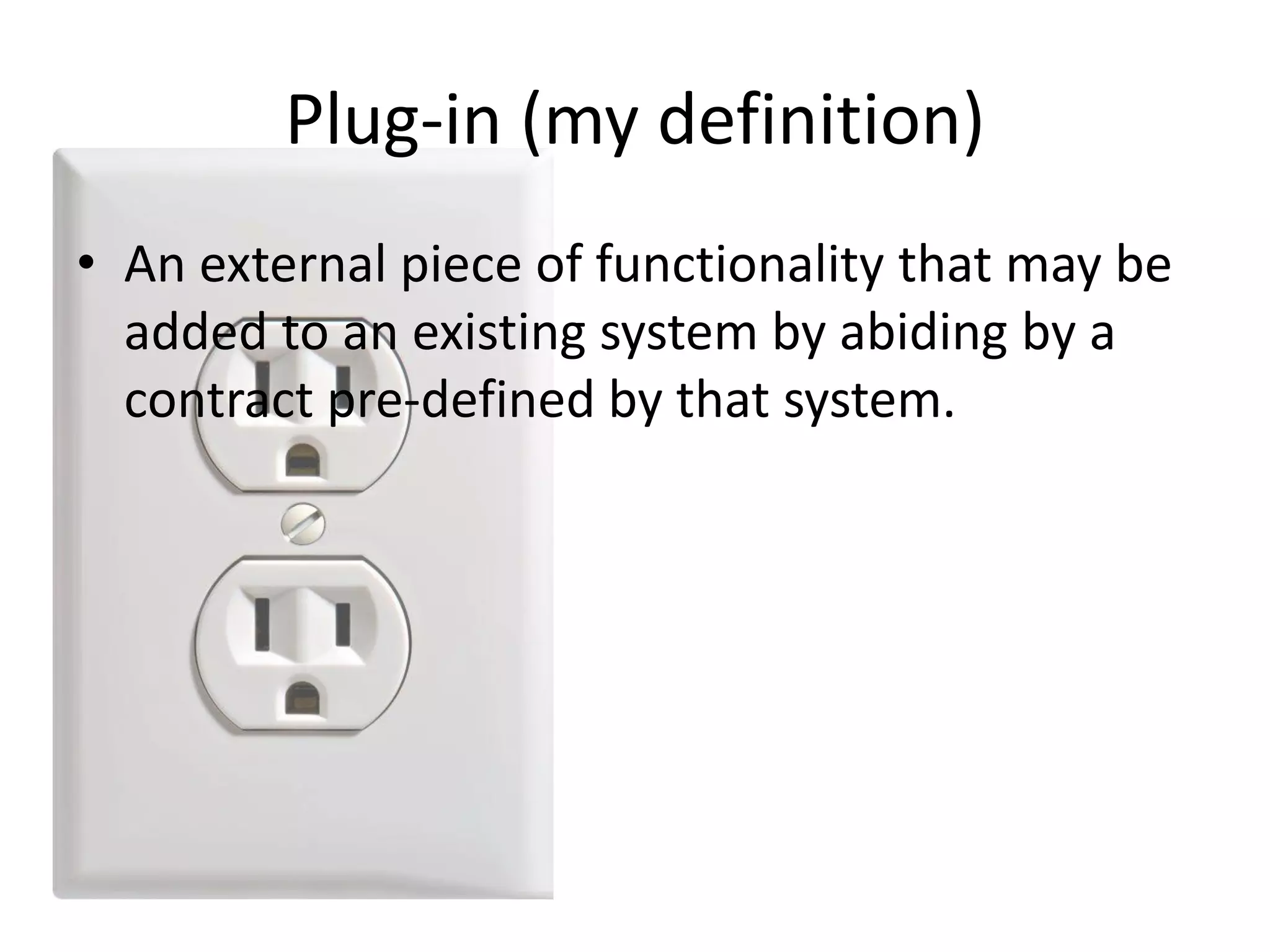

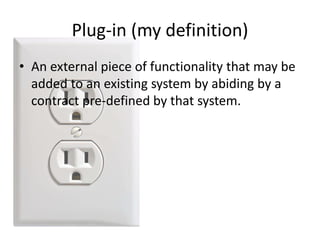

- 4. • An externalpiece of functionality that may be added to an existing system by abiding by a contract pre-defined by that system. Plug-in (my definition)

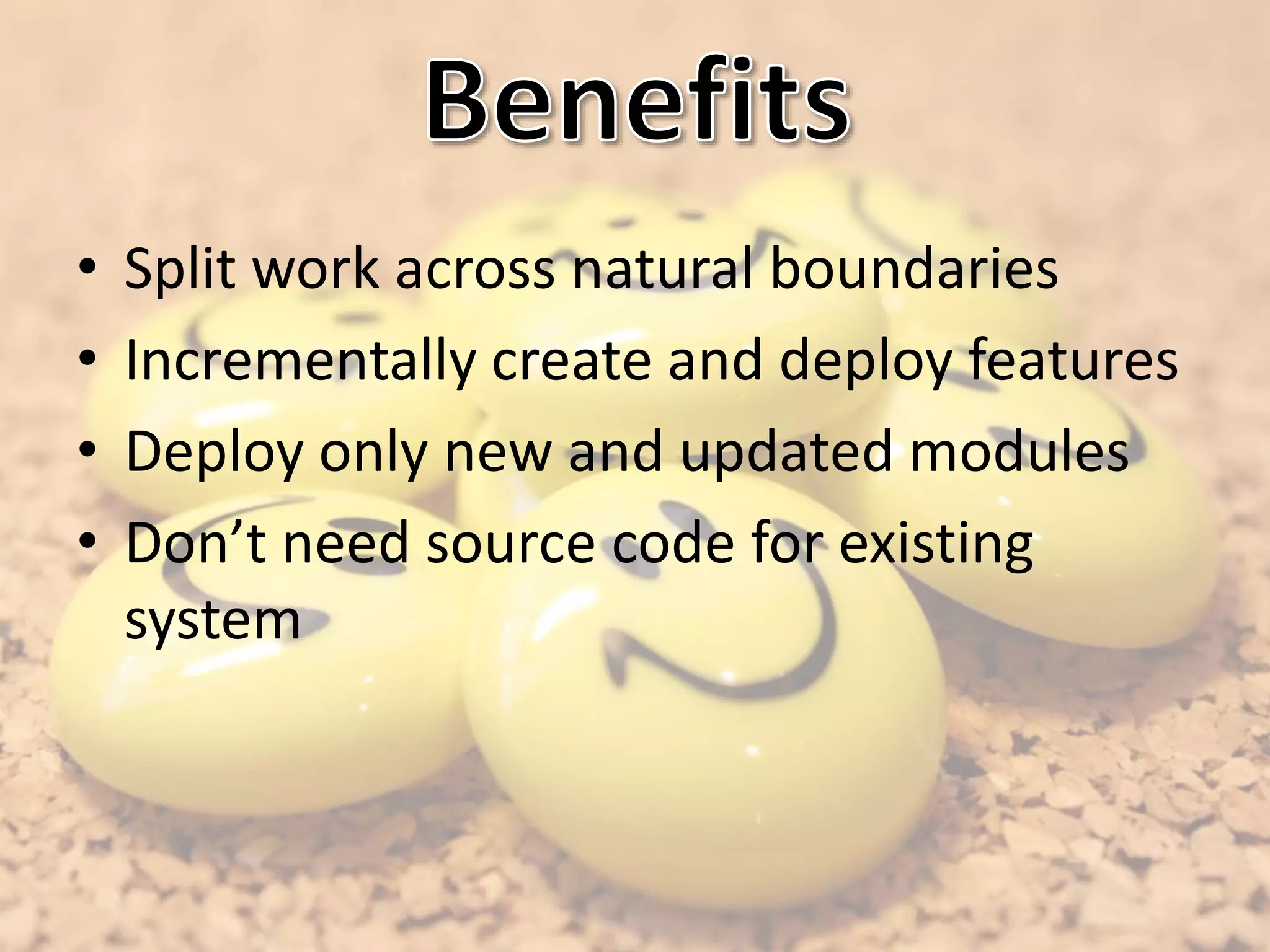

- 8. • Split workacross natural boundaries • Incrementally create and deploy features • Deploy only new and updated modules • Don’t need source code for existing system

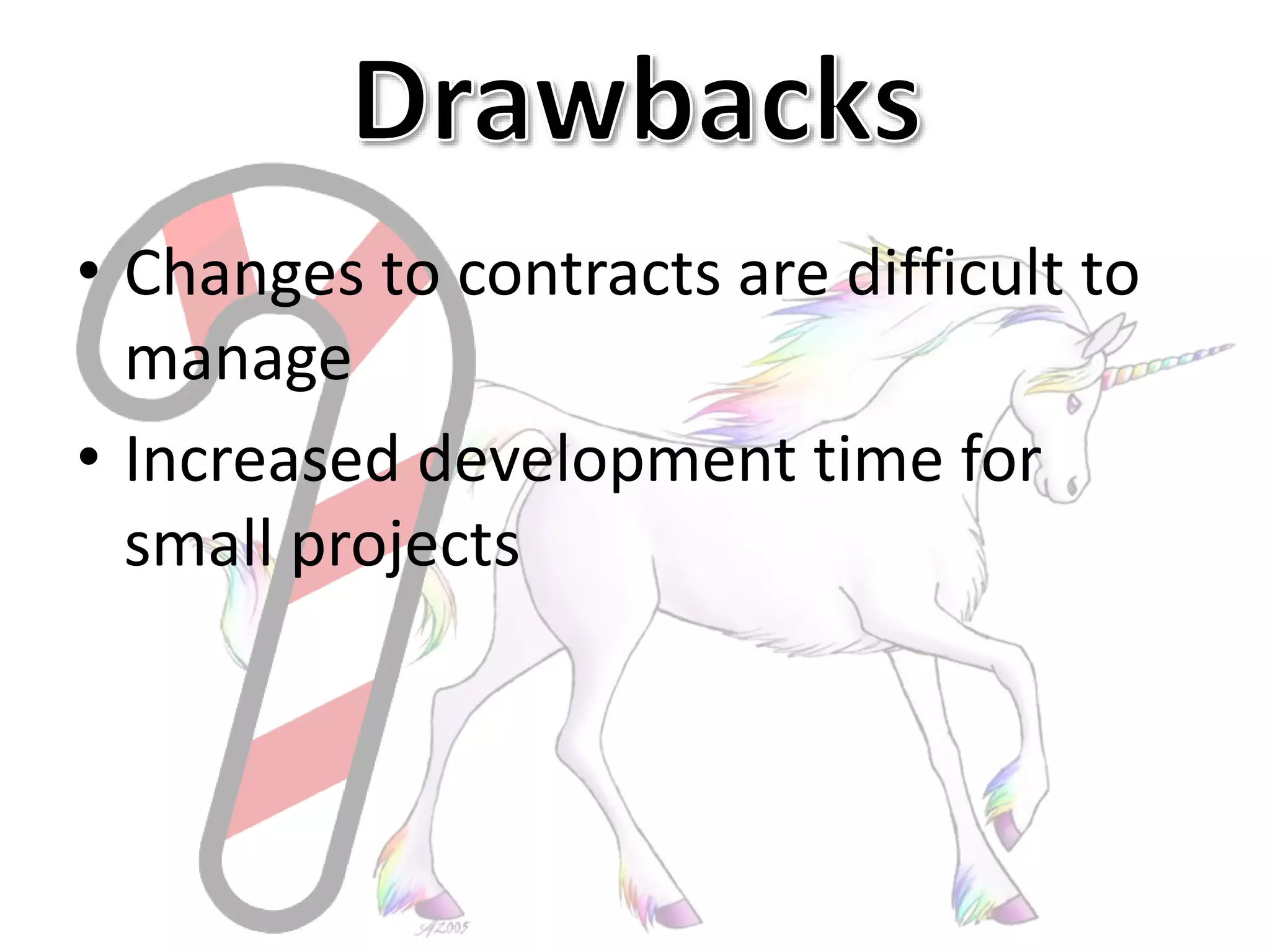

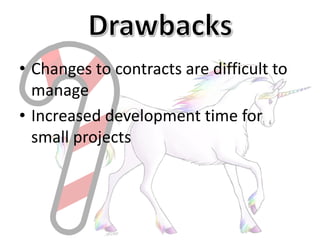

- 11. • Changes tocontracts are difficult to manage • Increased development time for small projects

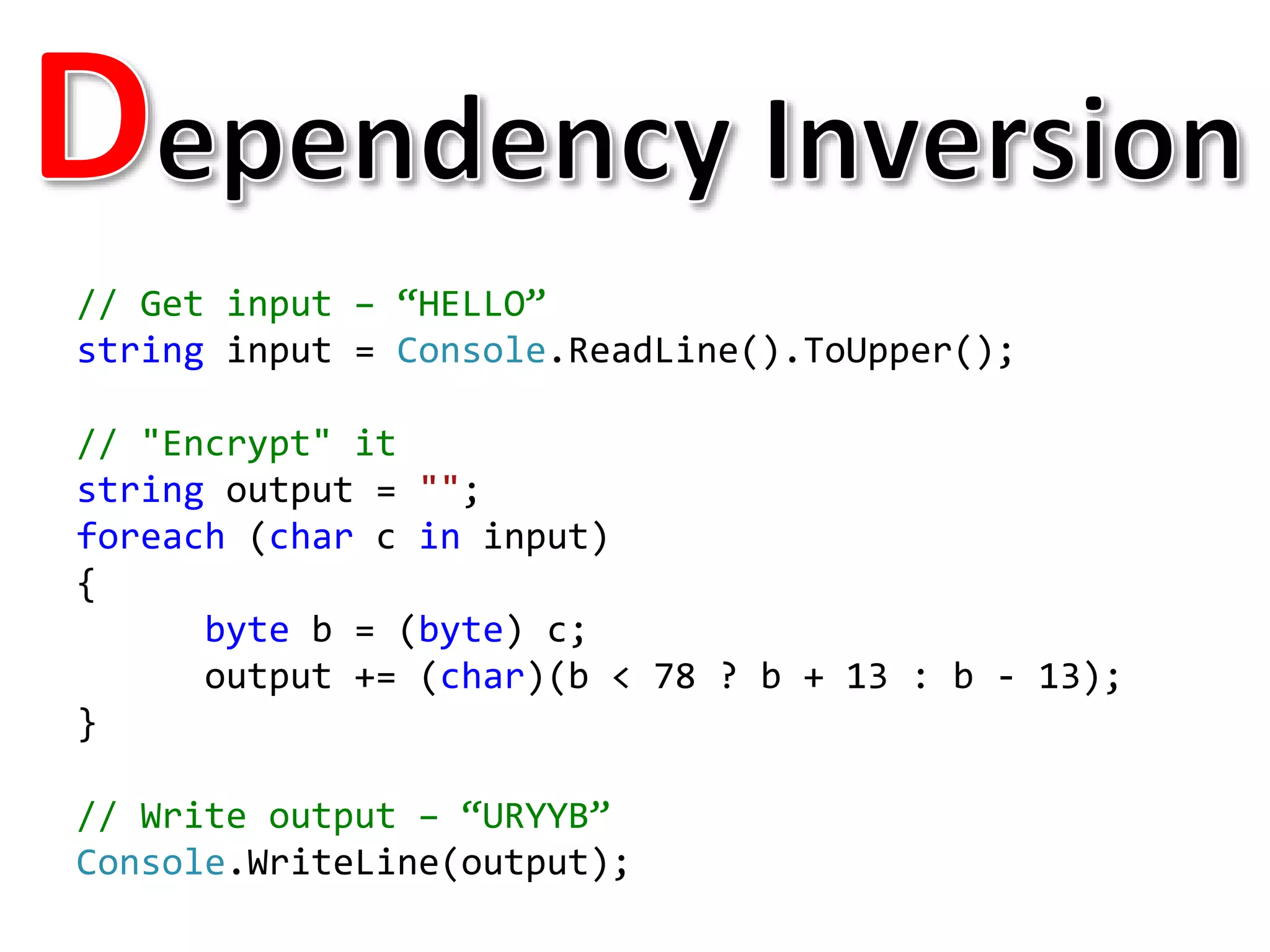

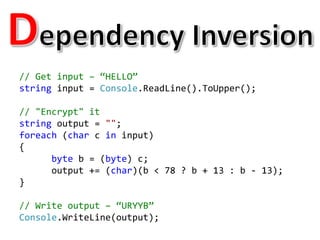

- 13. // Get input– “HELLO” string input = Console.ReadLine().ToUpper(); // "Encrypt" it string output = ""; foreach (char c in input) { byte b = (byte) c; output += (char)(b < 78 ? b + 13 : b - 13); } // Write output – “URYYB” Console.WriteLine(output);
- 14.

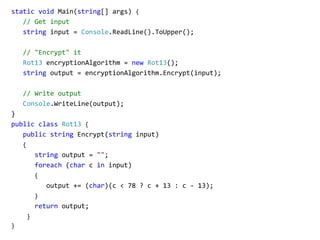

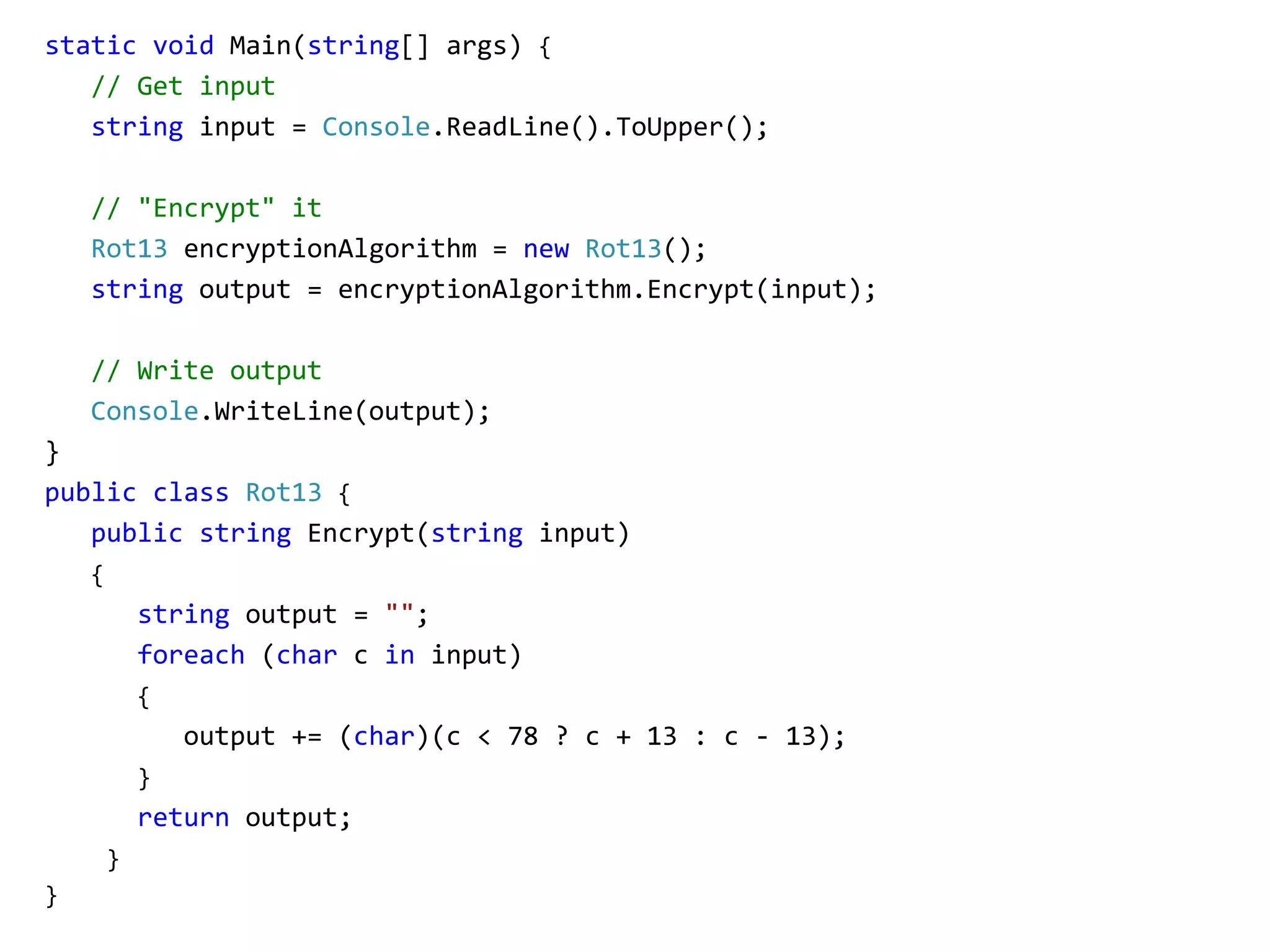

- 15. static void Main(string[]args) { // Get input string input = Console.ReadLine().ToUpper(); // "Encrypt" it Rot13 encryptionAlgorithm = new Rot13(); string output = encryptionAlgorithm.Encrypt(input); // Write output Console.WriteLine(output); } public class Rot13 { public string Encrypt(string input) { string output = ""; foreach (char c in input) { output += (char)(c < 78 ? c + 13 : c - 13); } return output; } }

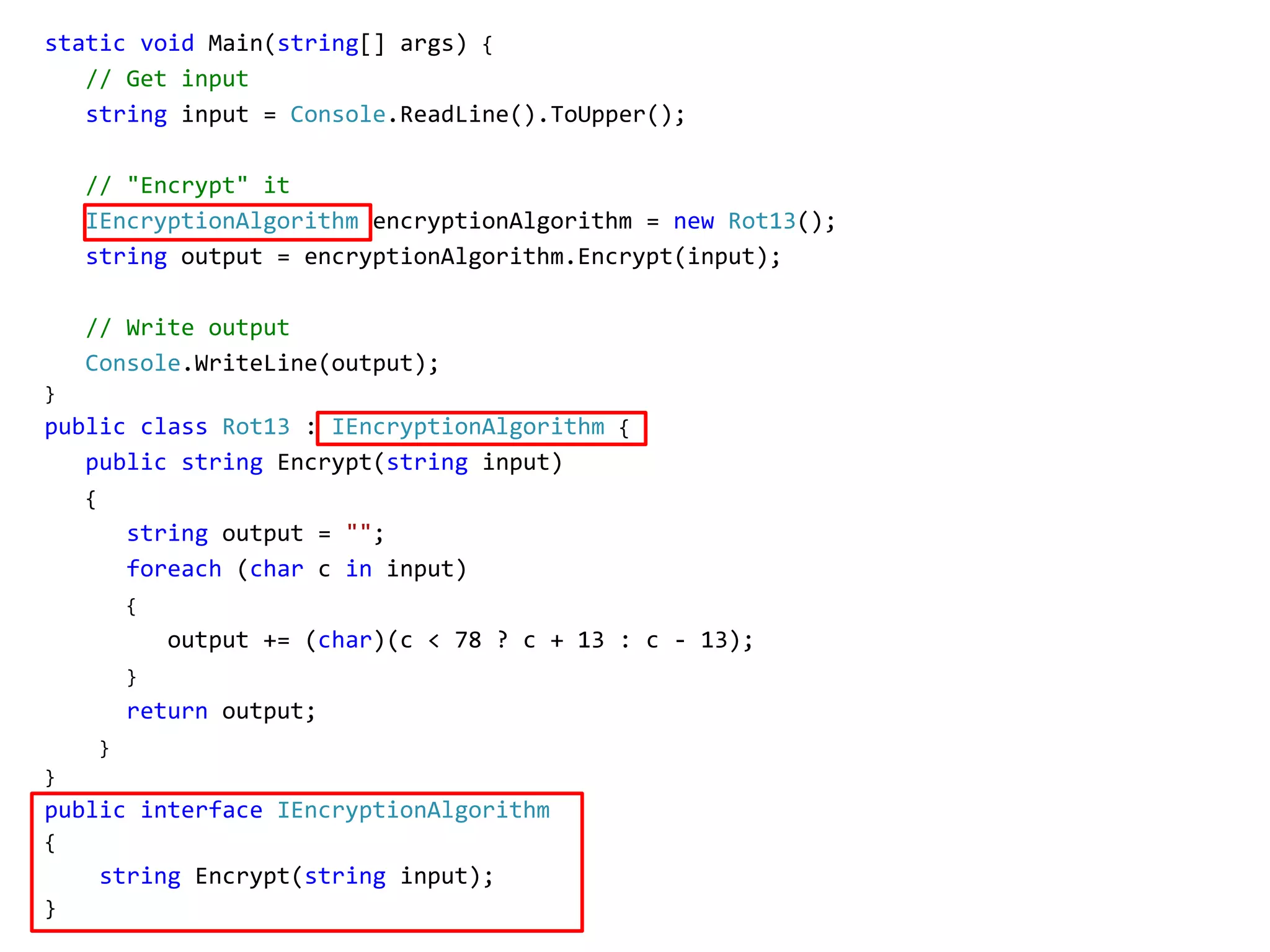

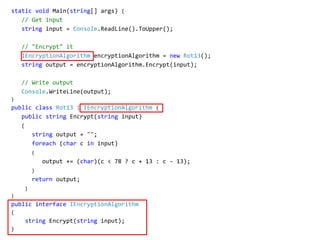

- 16. static void Main(string[]args) { // Get input string input = Console.ReadLine().ToUpper(); // "Encrypt" it IEncryptionAlgorithm encryptionAlgorithm = new Rot13(); string output = encryptionAlgorithm.Encrypt(input); // Write output Console.WriteLine(output); } public class Rot13 : IEncryptionAlgorithm { public string Encrypt(string input) { string output = ""; foreach (char c in input) { output += (char)(c < 78 ? c + 13 : c - 13); } return output; } } public interface IEncryptionAlgorithm { string Encrypt(string input); }
- 17.

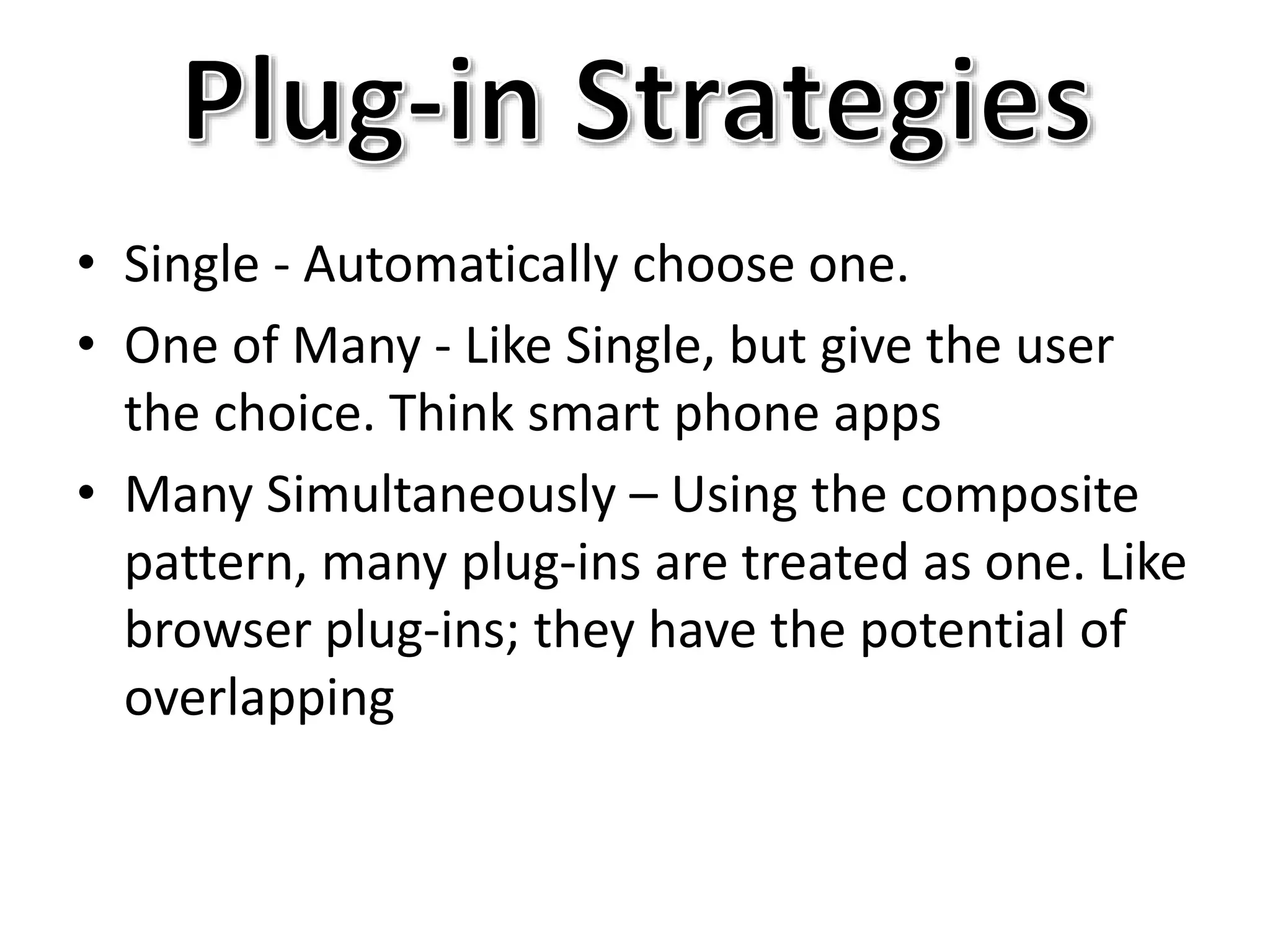

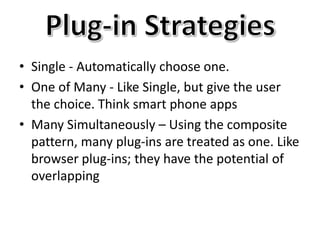

- 25. • Single -Automatically choose one. • One of Many - Like Single, but give the user the choice. Think smart phone apps • Many Simultaneously – Using the composite pattern, many plug-ins are treated as one. Like browser plug-ins; they have the potential of overlapping

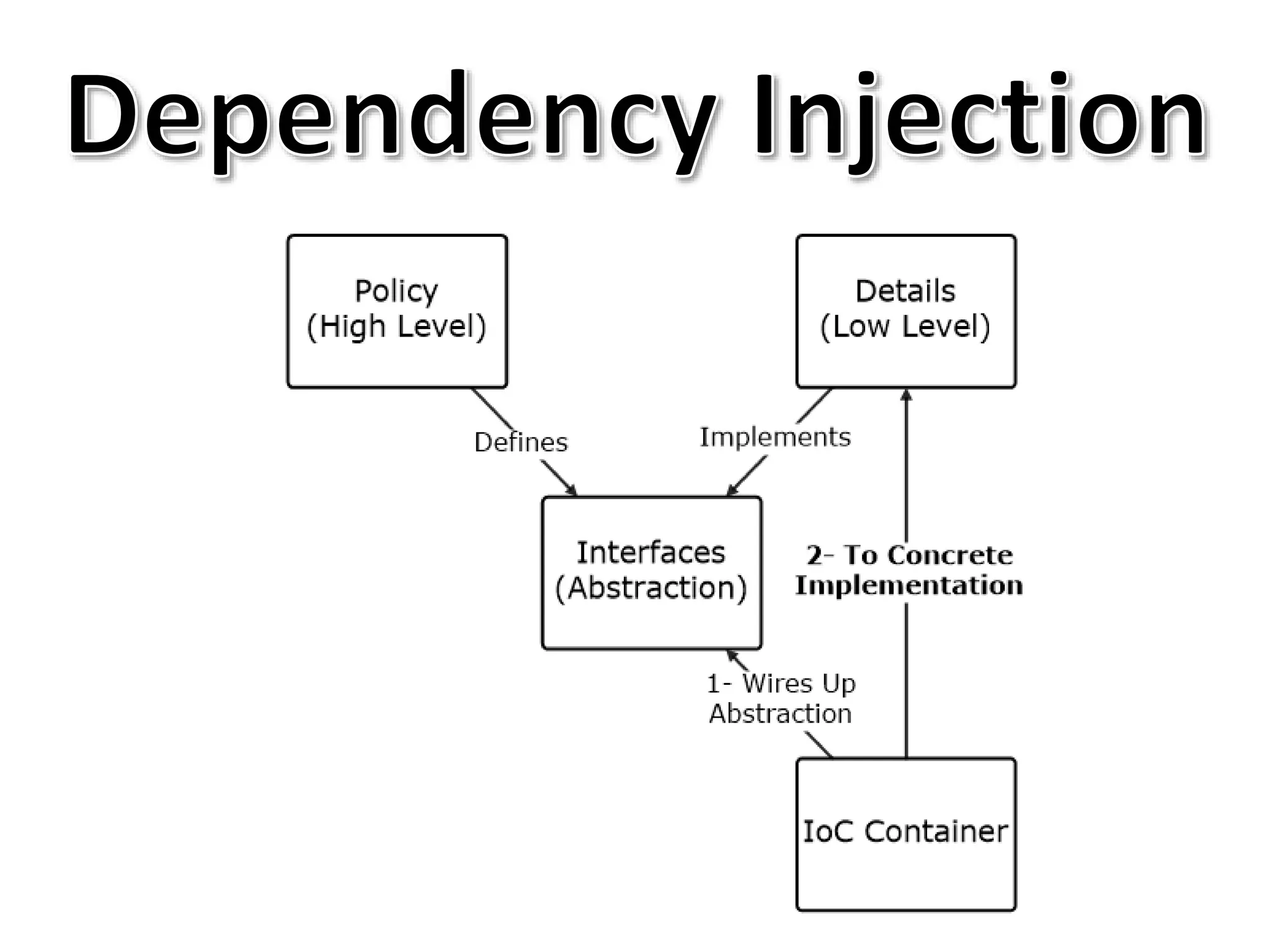

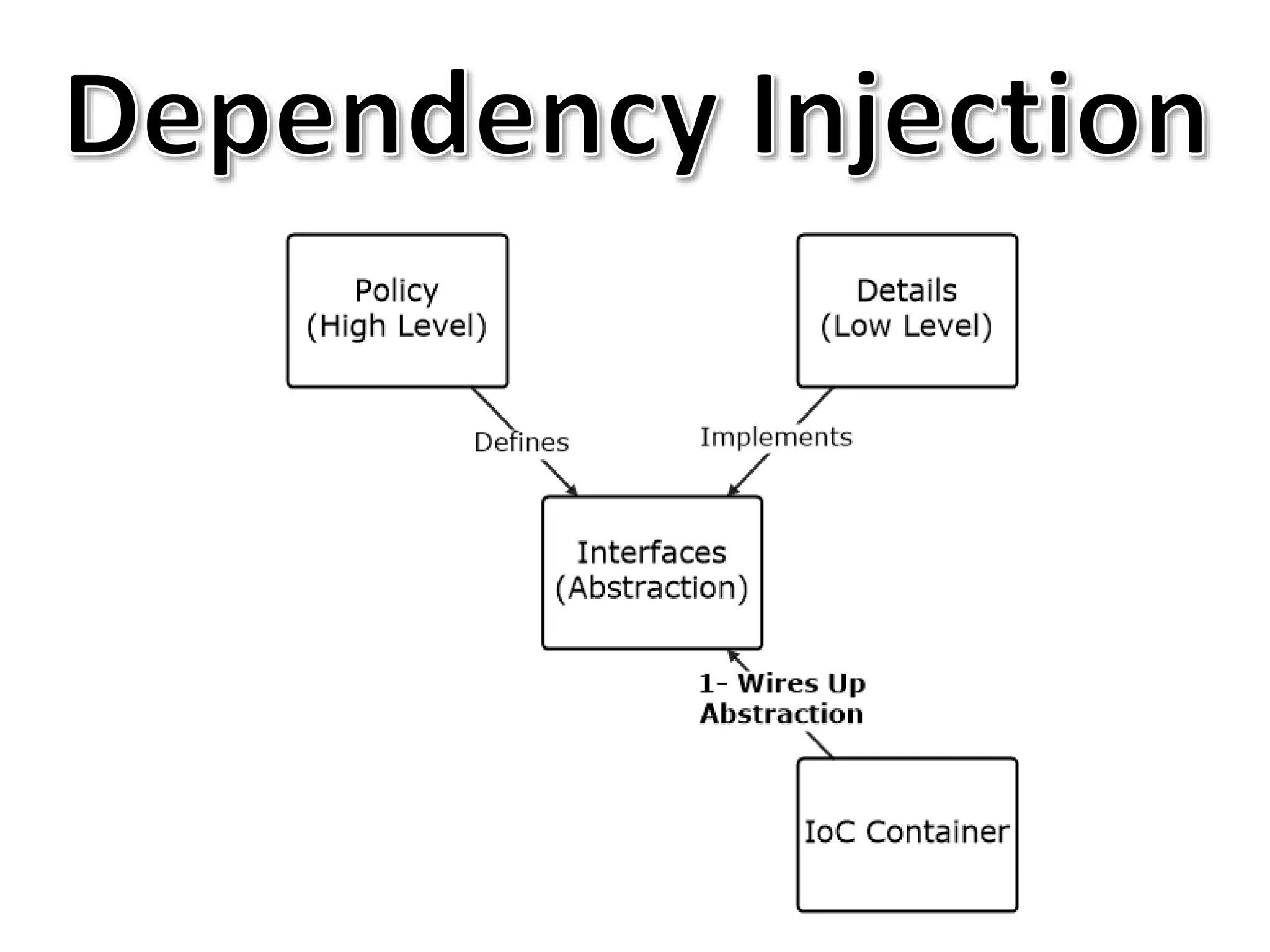

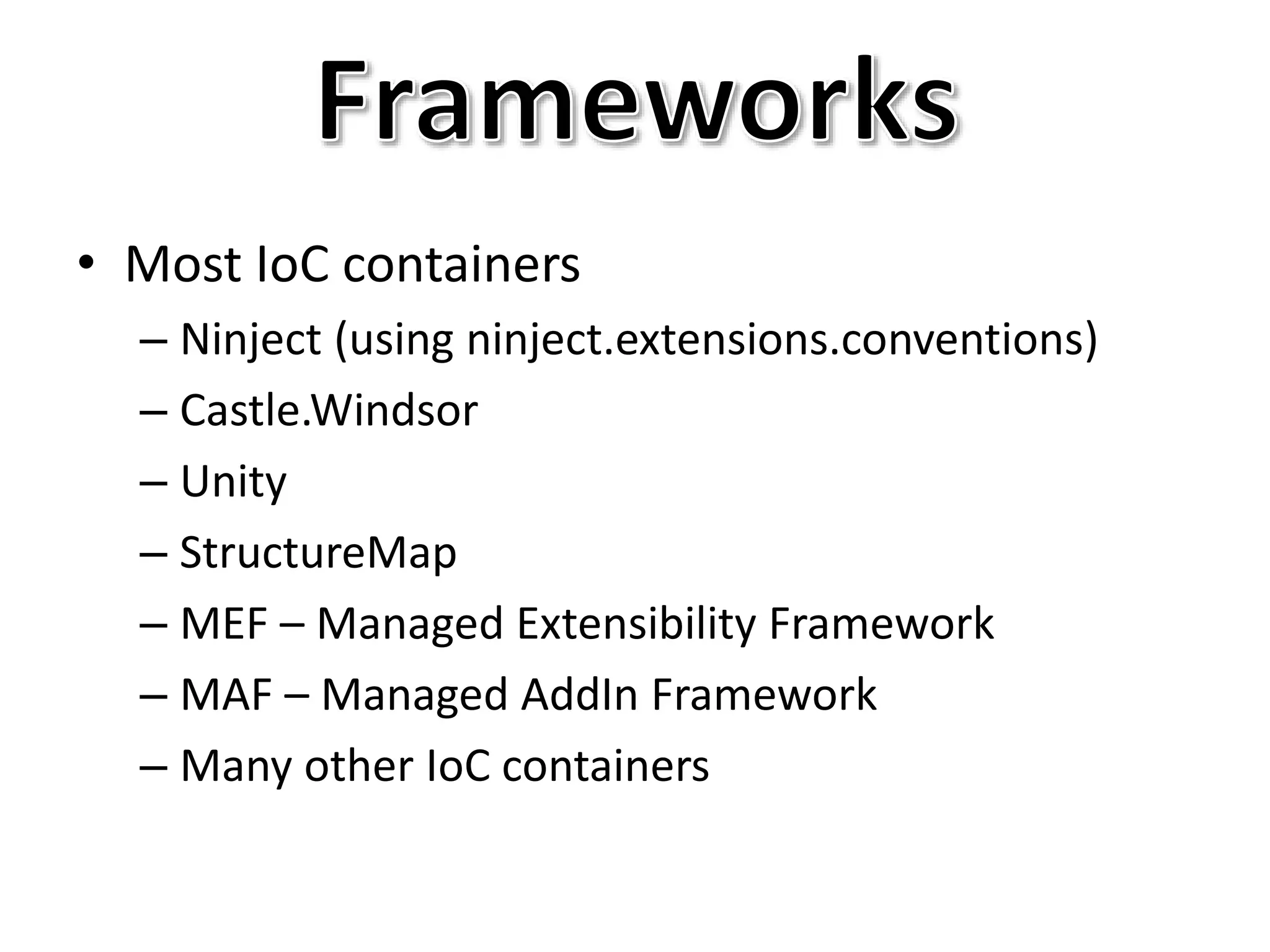

- 26. • Most IoCcontainers – Ninject (using ninject.extensions.conventions) – Castle.Windsor – Unity – StructureMap – MEF – Managed Extensibility Framework – MAF – Managed AddIn Framework – Many other IoC containers

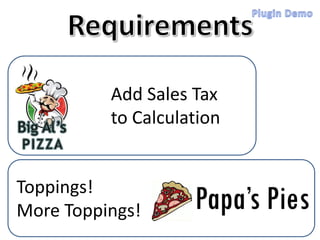

- 28. Add Sales Tax toCalculation Toppings! More Toppings!

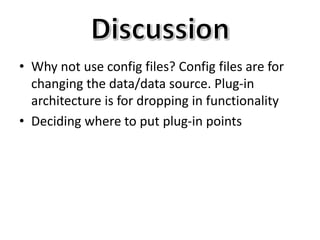

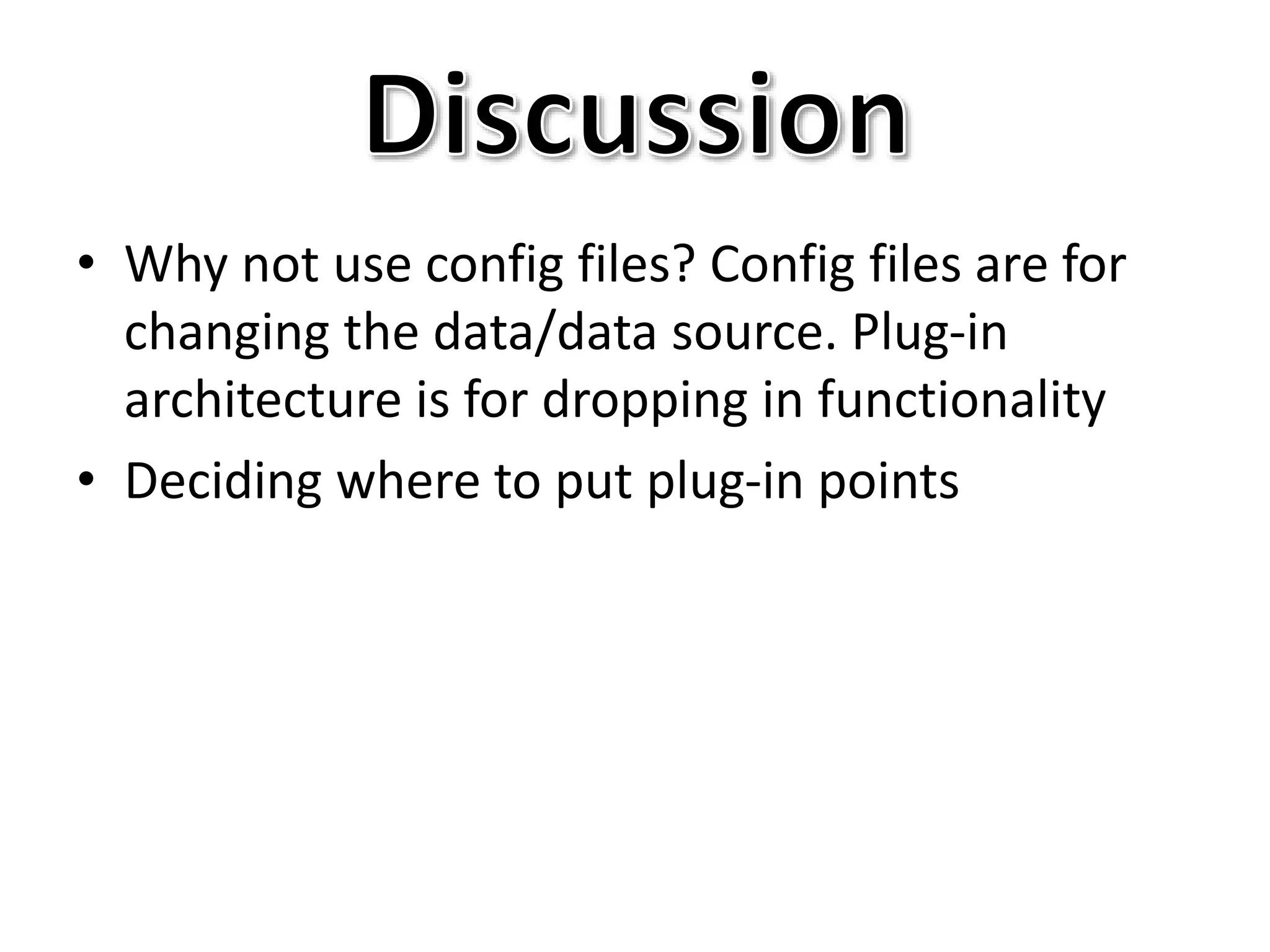

- 32. • Why notuse config files? Config files are for changing the data/data source. Plug-in architecture is for dropping in functionality • Deciding where to put plug-in points
- 33. • Recovering fromplug-in crashes • Dynamic loading and unloading at run time • Updating an application while it’s running

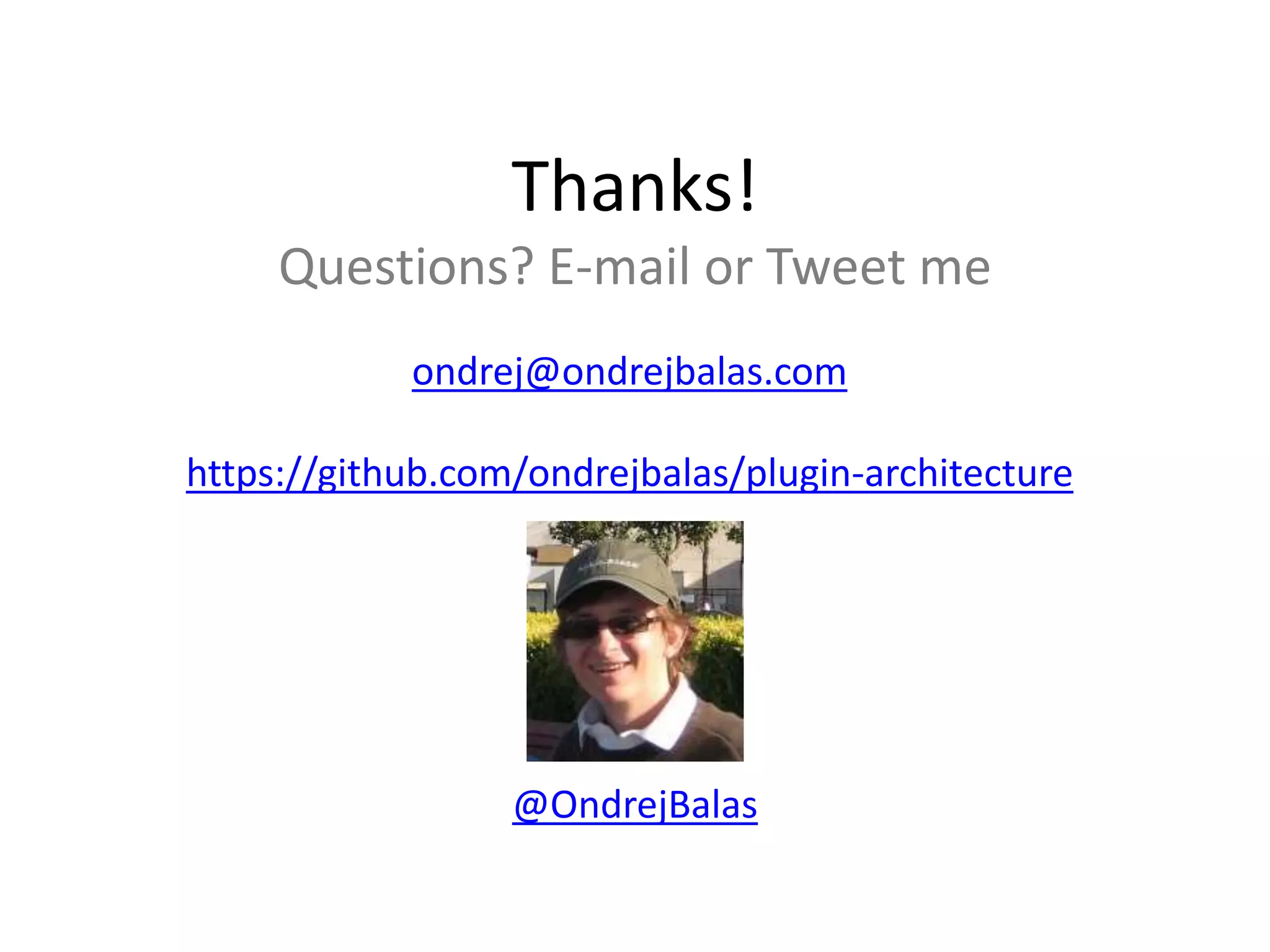

- 34.
Editor's Notes
- #2 The icons use FontAwesome. If they appear to be missing, try installing the font from here: http://fortawesome.github.io/Font-Awesome/ As you may have guessed, this talk is about plug-in architectures in .NET.
- #4 Whenever you talk about plugin architectures, the canonical example is this: our electrical system. It’s a great example because you can plug things into it without affecting other devices plugged into the same system. It also represents a common standard that vendors can comply with.
- #5 My definition. Read it.

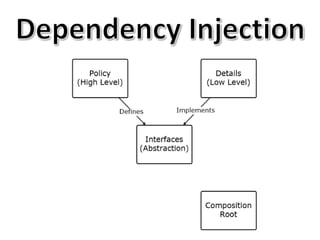

- #18 After this slide, jump into example 4-ConsoleEncrypter

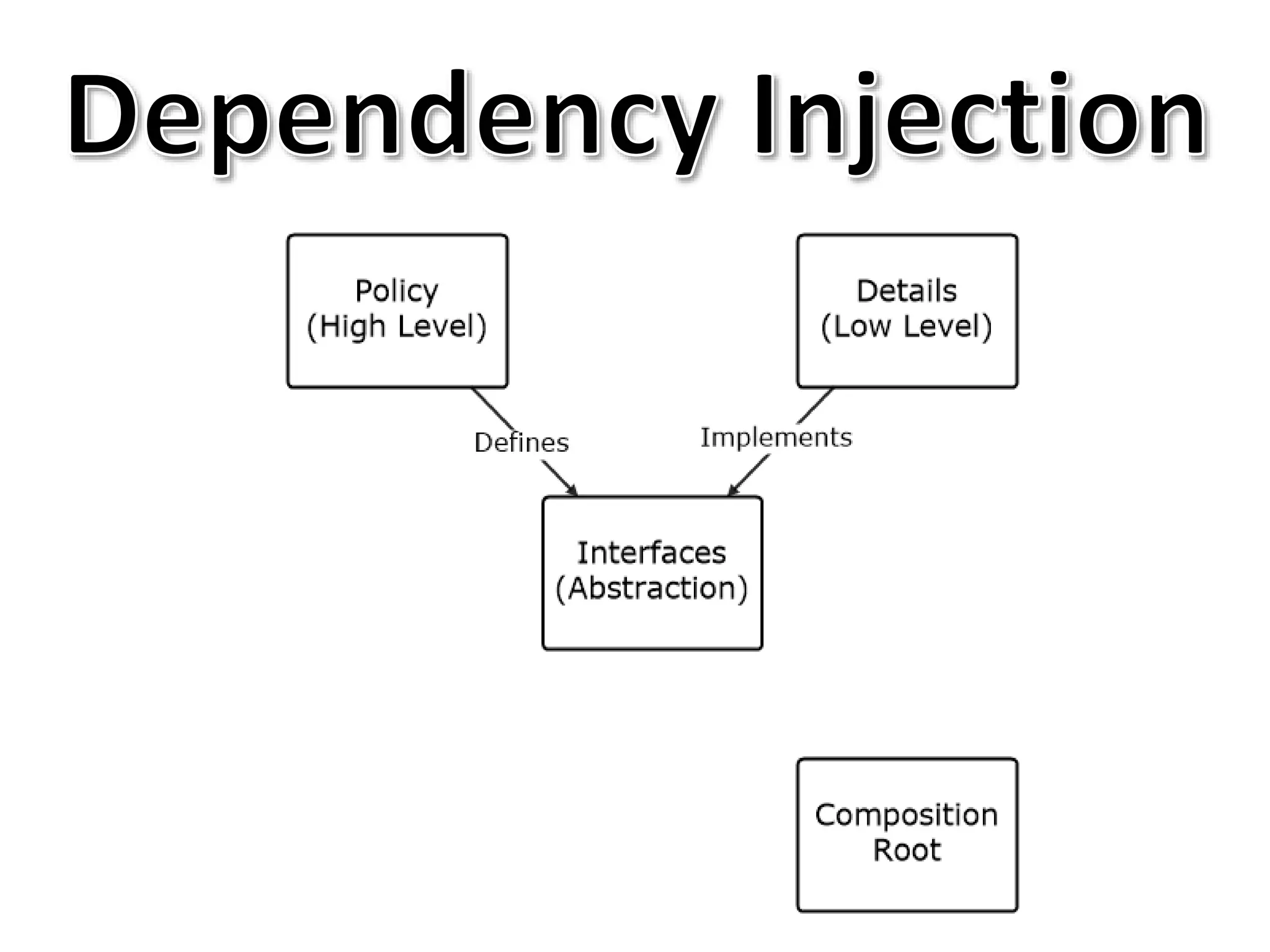

- #23 After this slide, jump into example 5-CompositionRoot and 6-IoCContainer
- #34 Mention the real application that I put into production based on this sample code
