Custom gutenberg block development in react

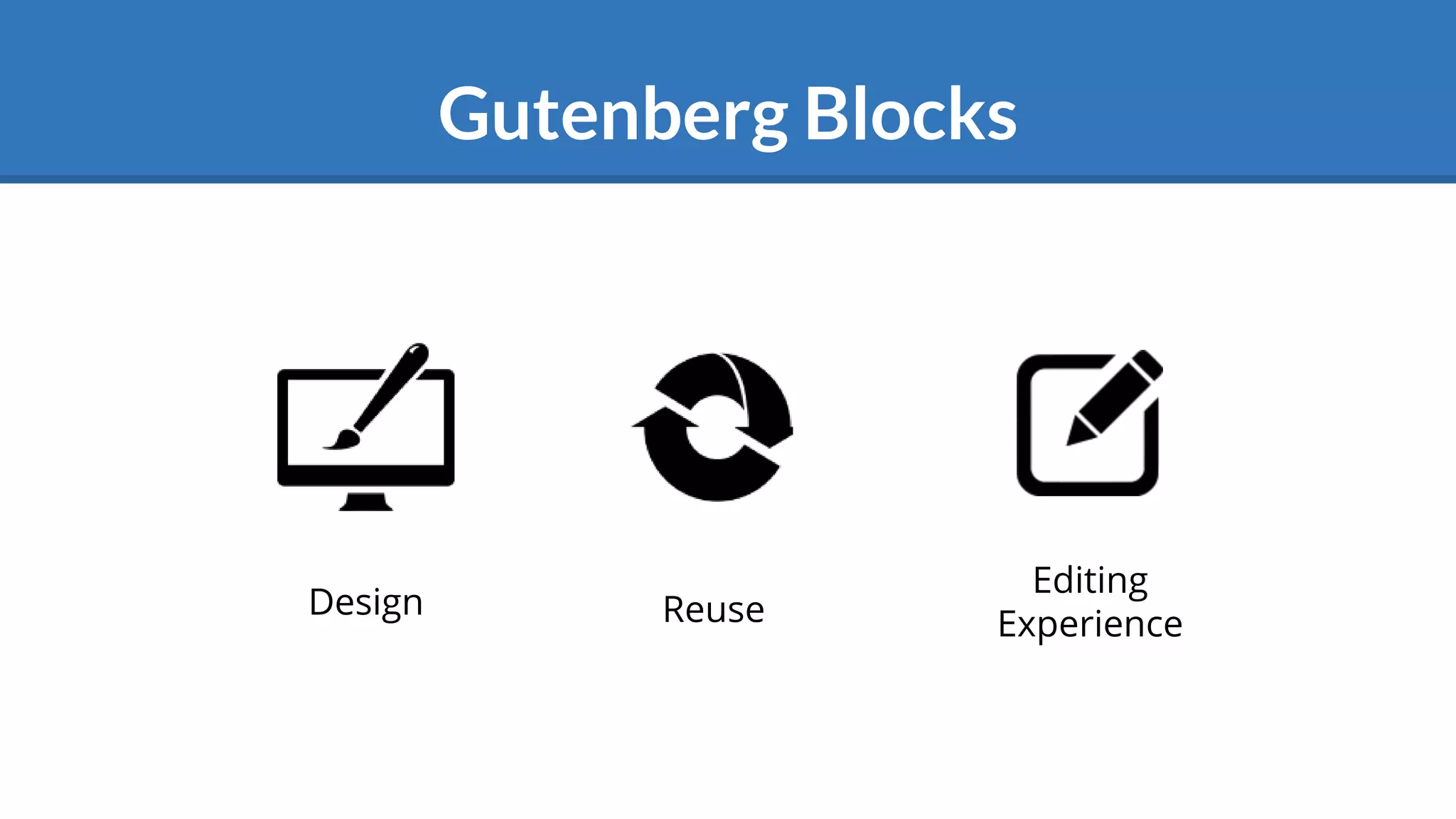

Gutenberg Blocks
Design Reuse
Editing
Experience

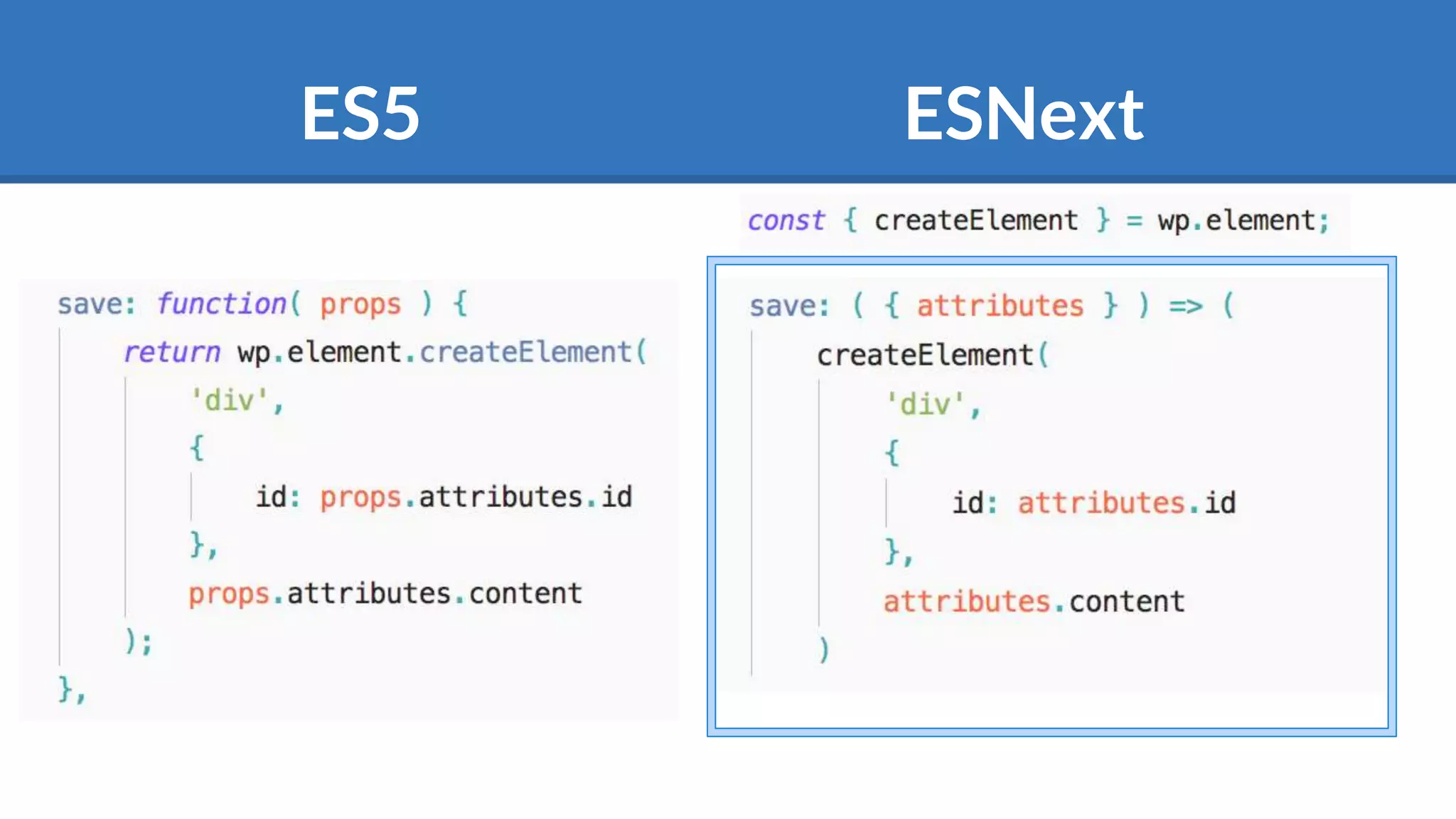

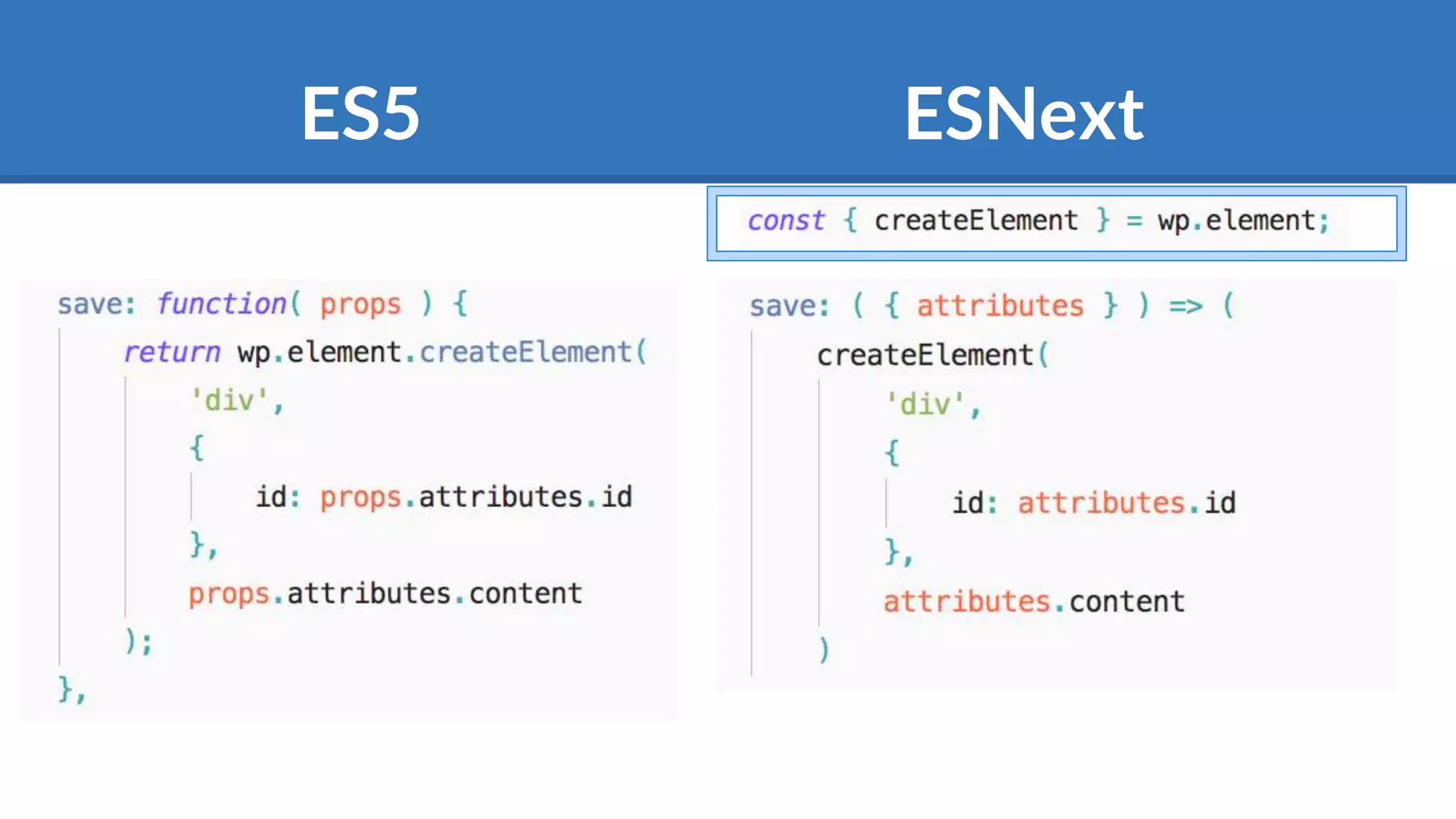

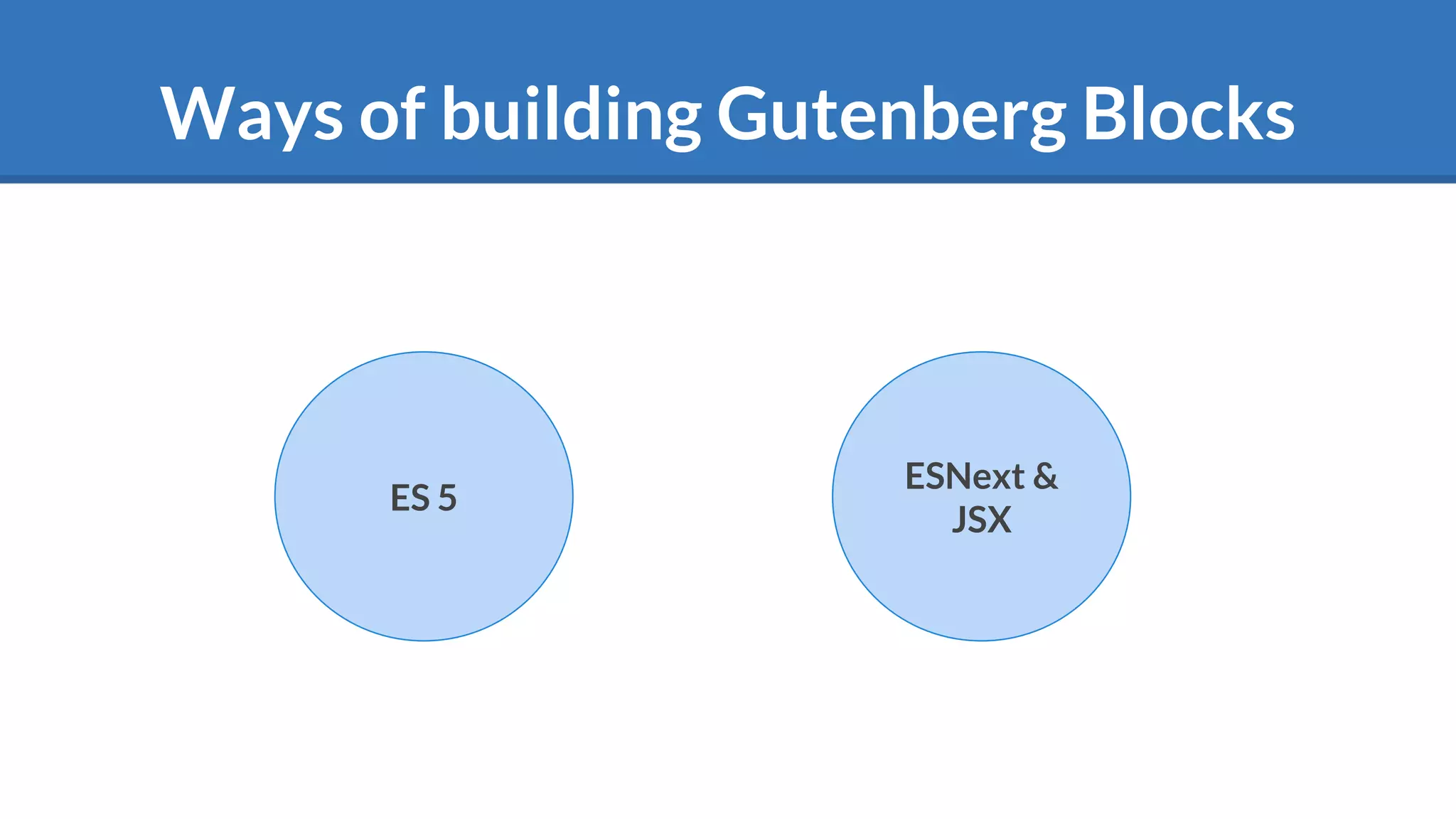

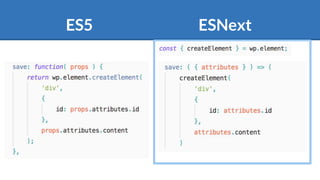

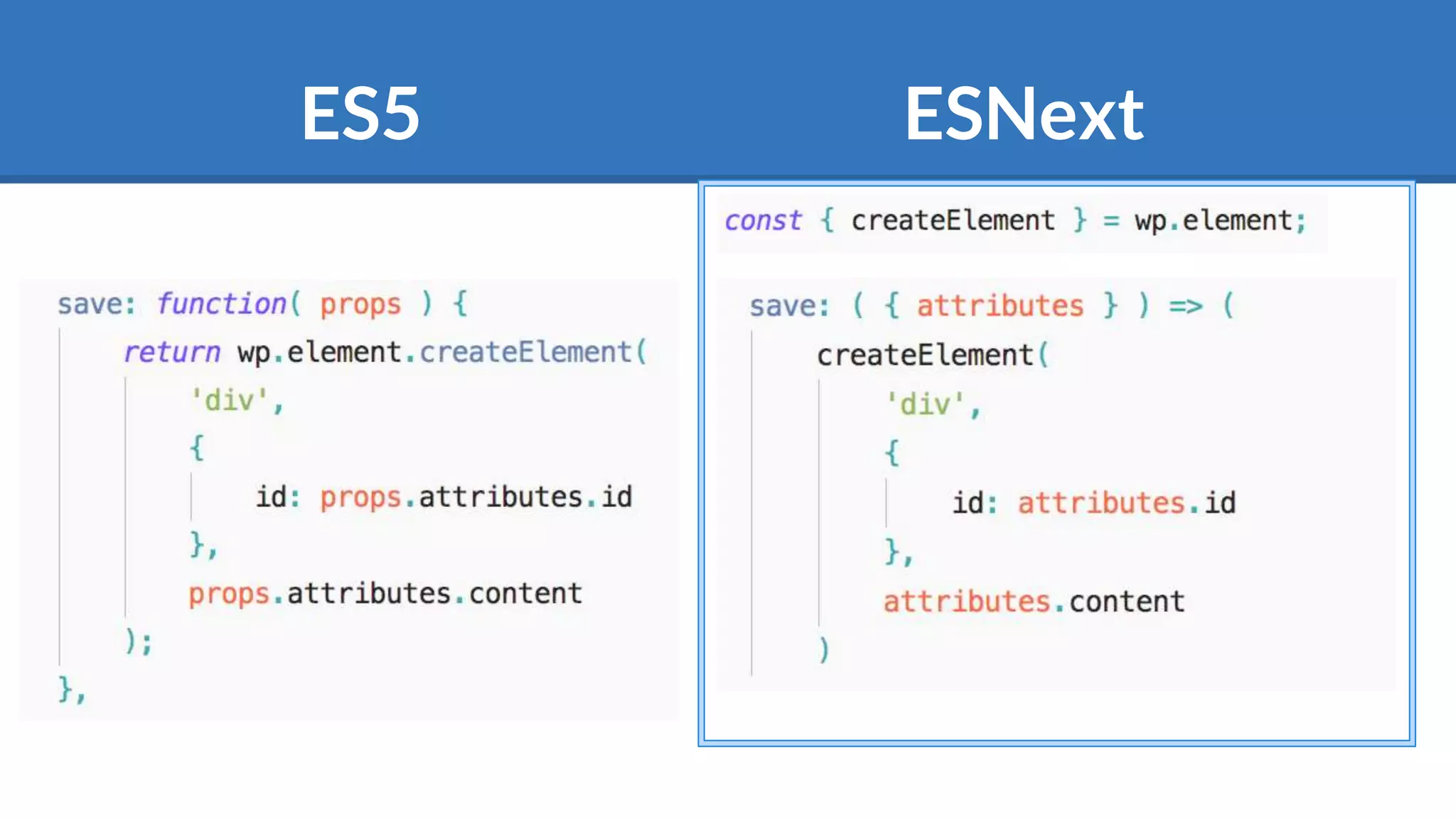

Ways of building Gutenberg Blocks

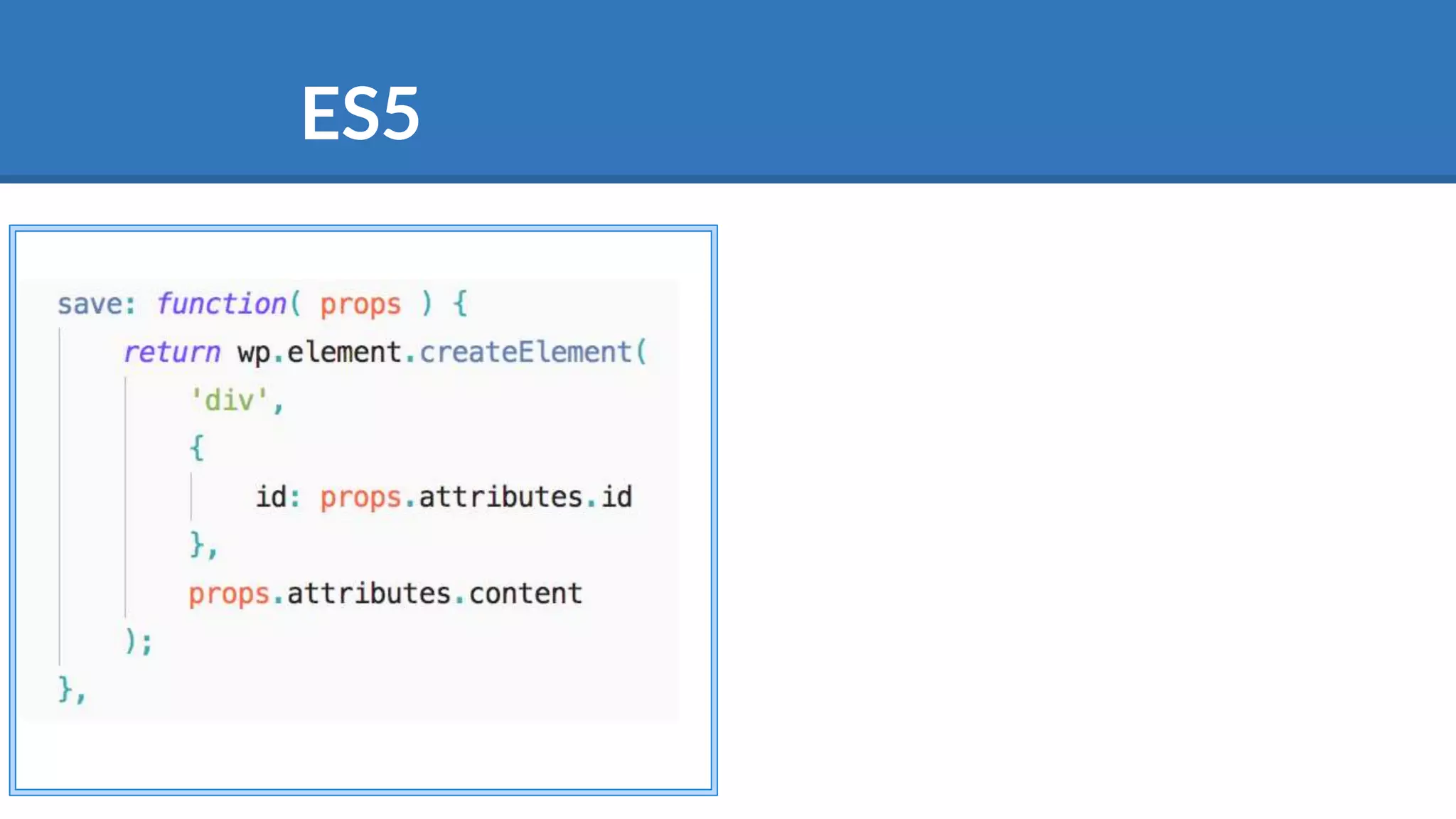

ES 5
ESNext &
JSX

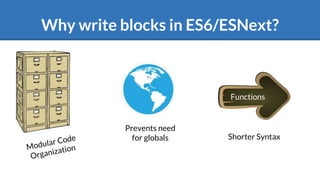

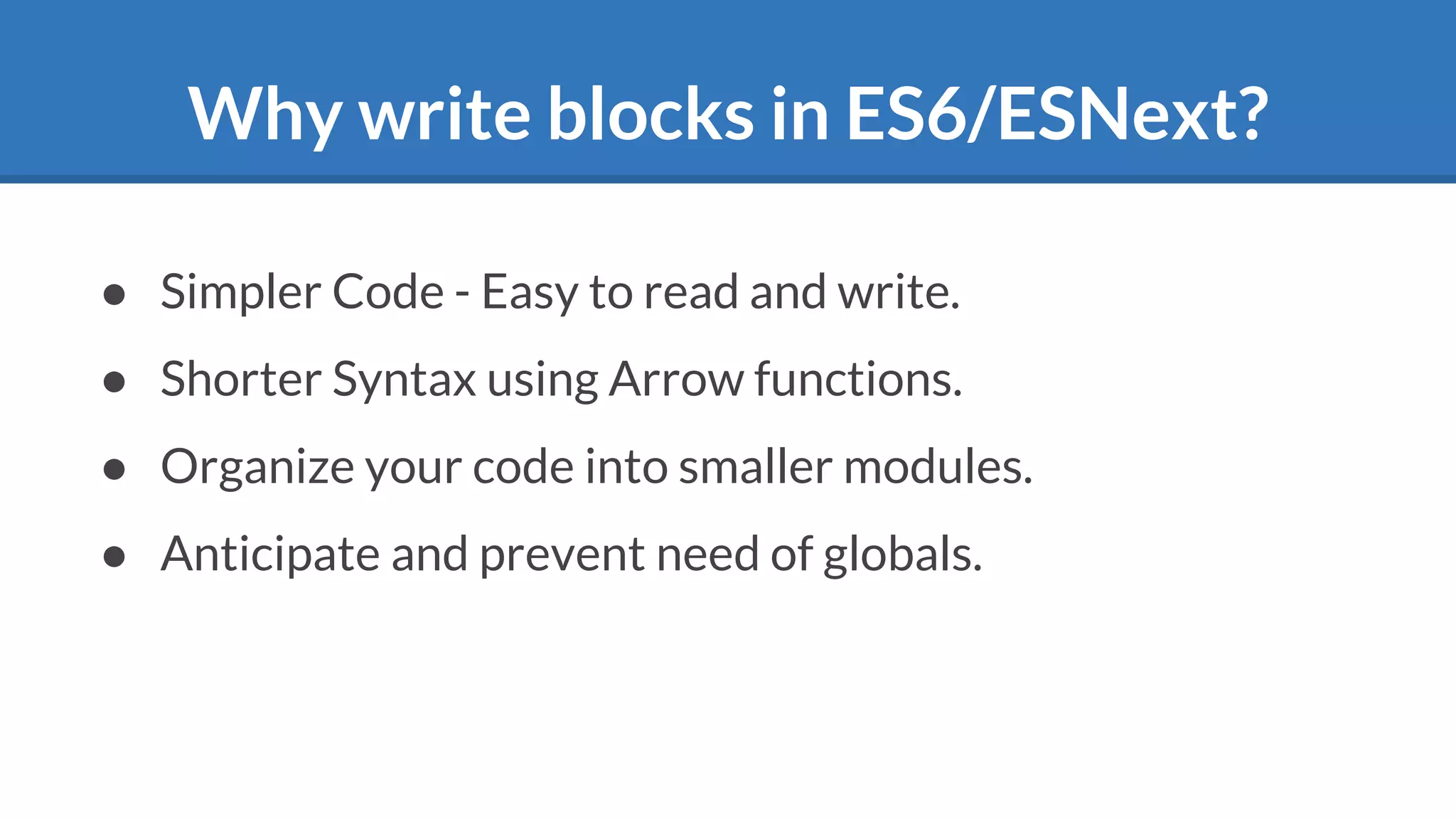

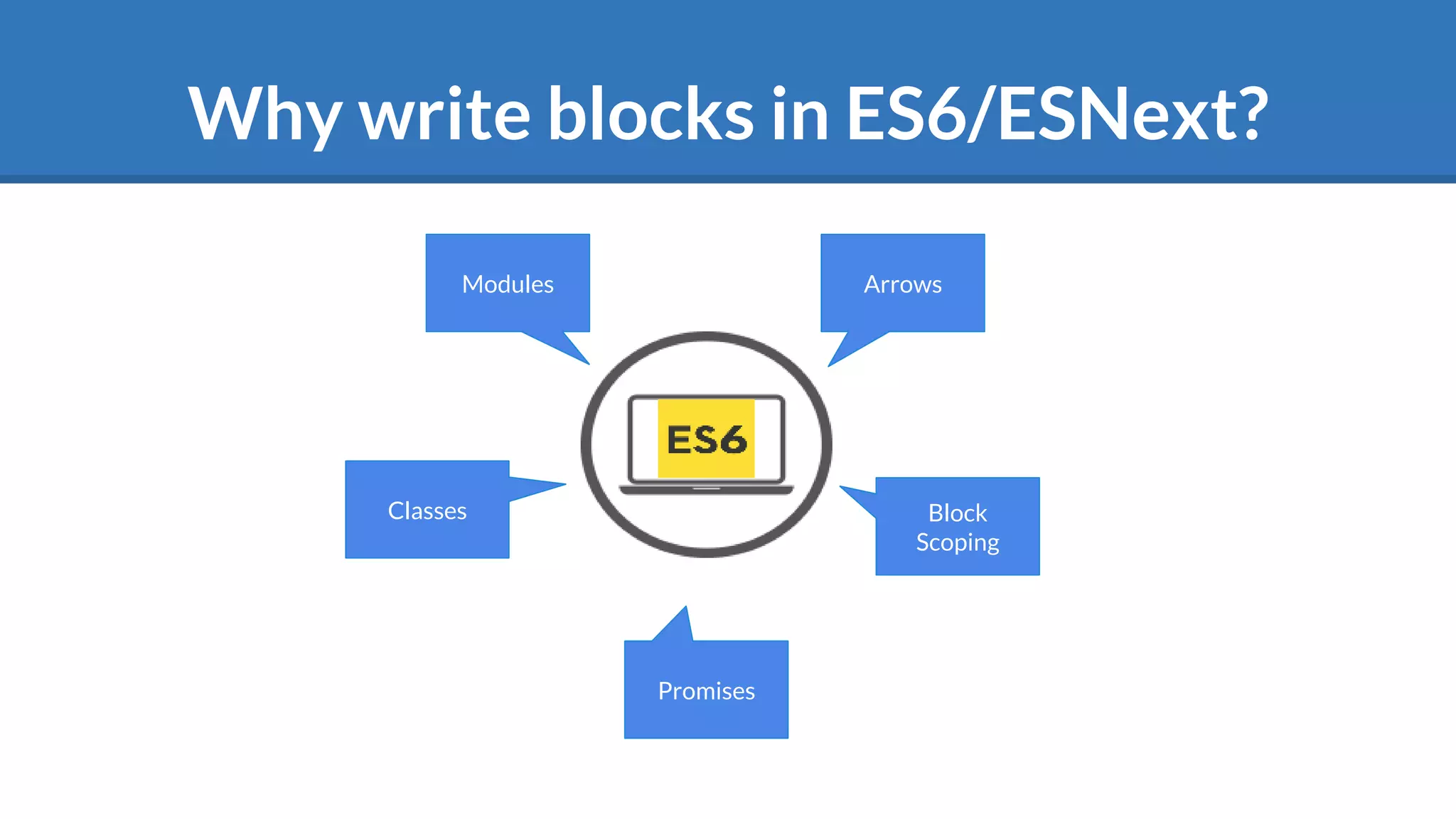

Why write blocks in ES6/ESNext?
Arrows
Block
Scoping
Modules
Classes
Promises

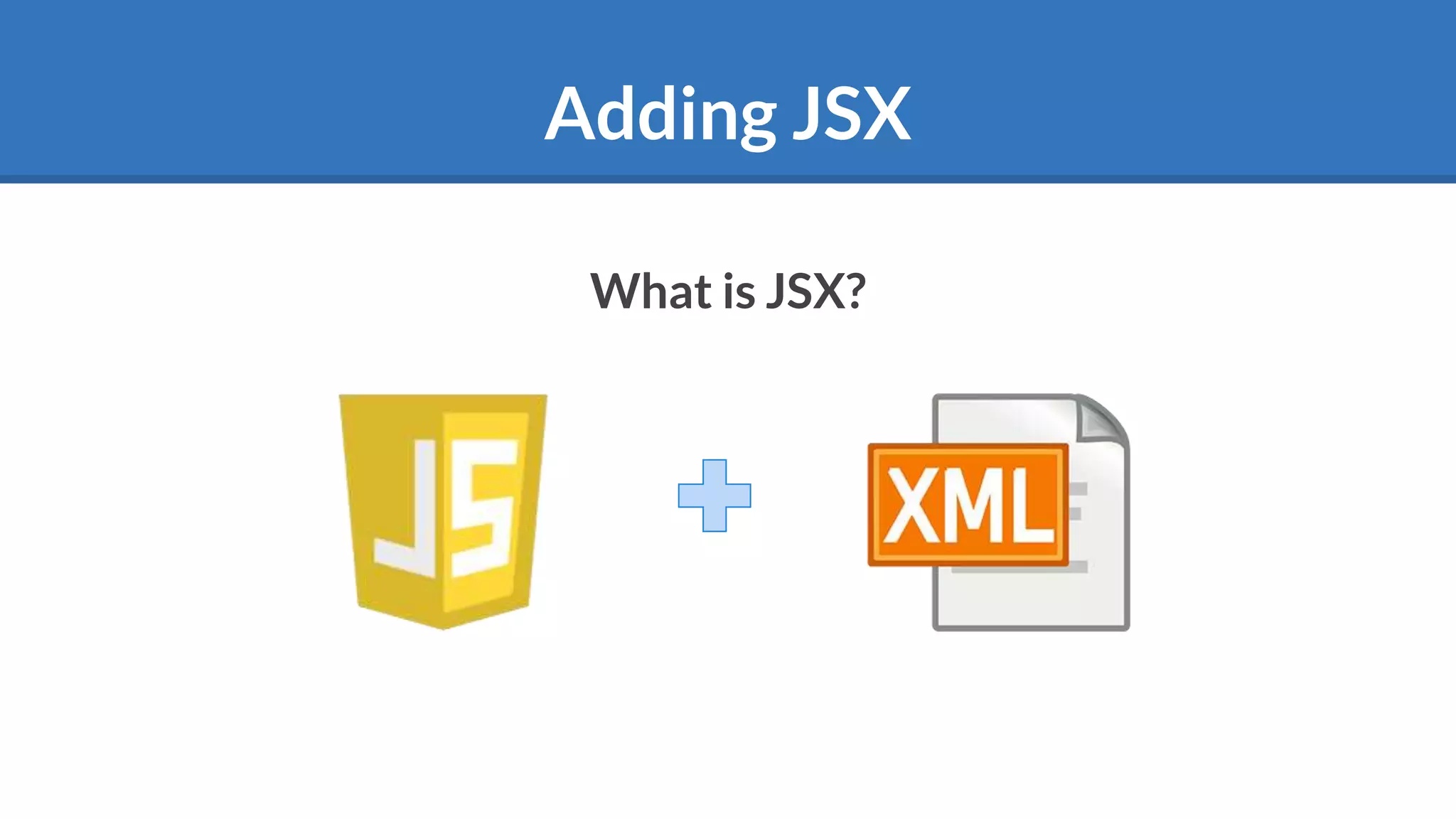

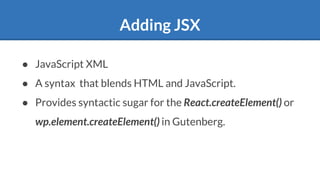

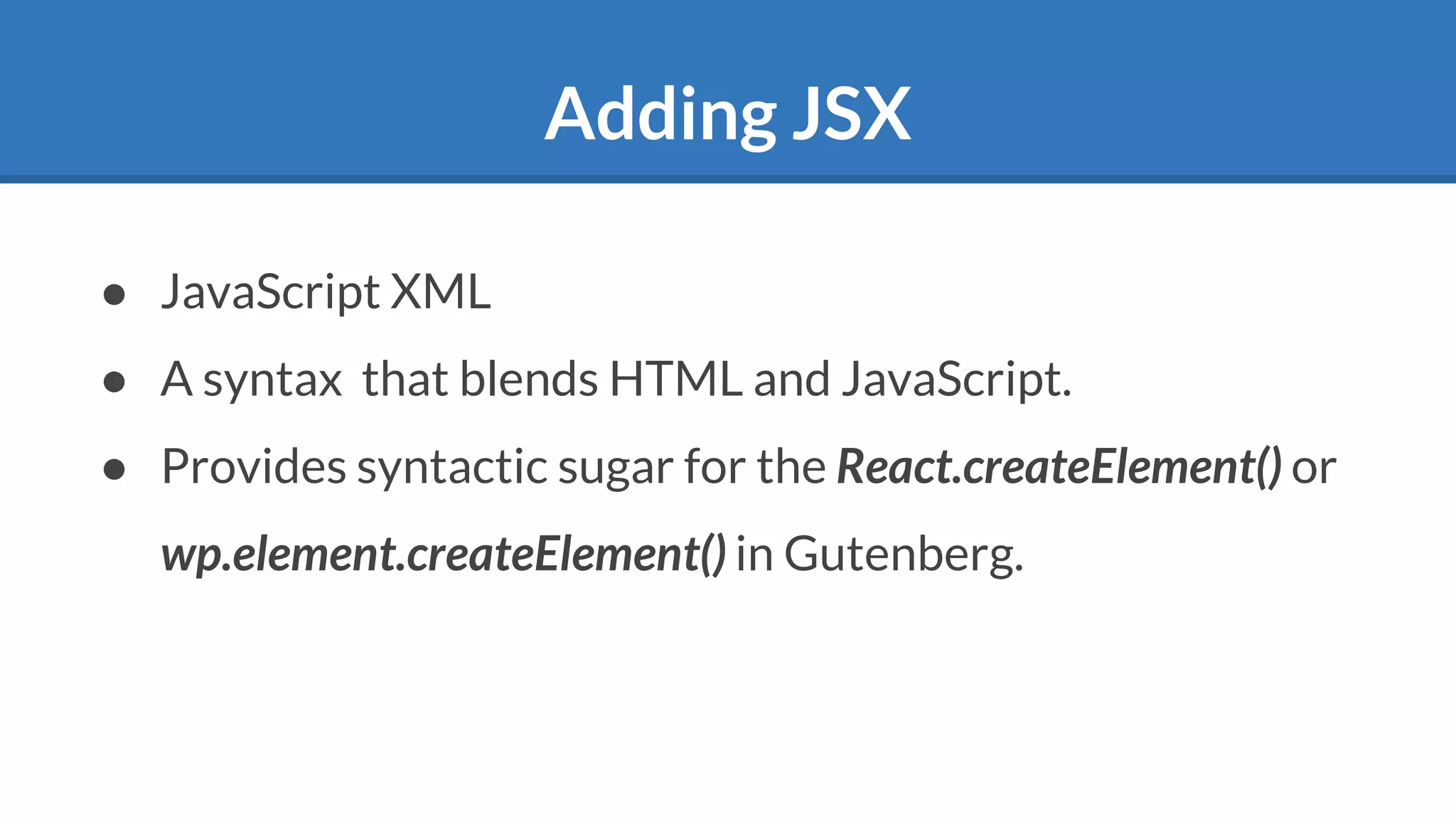

Adding JSX
● JavaScript XML
● A syntax that blends HTML and JavaScript.
● Provides syntactic sugar for the React.createElement() or
wp.element.createElement() in Gutenberg.

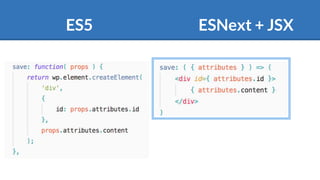

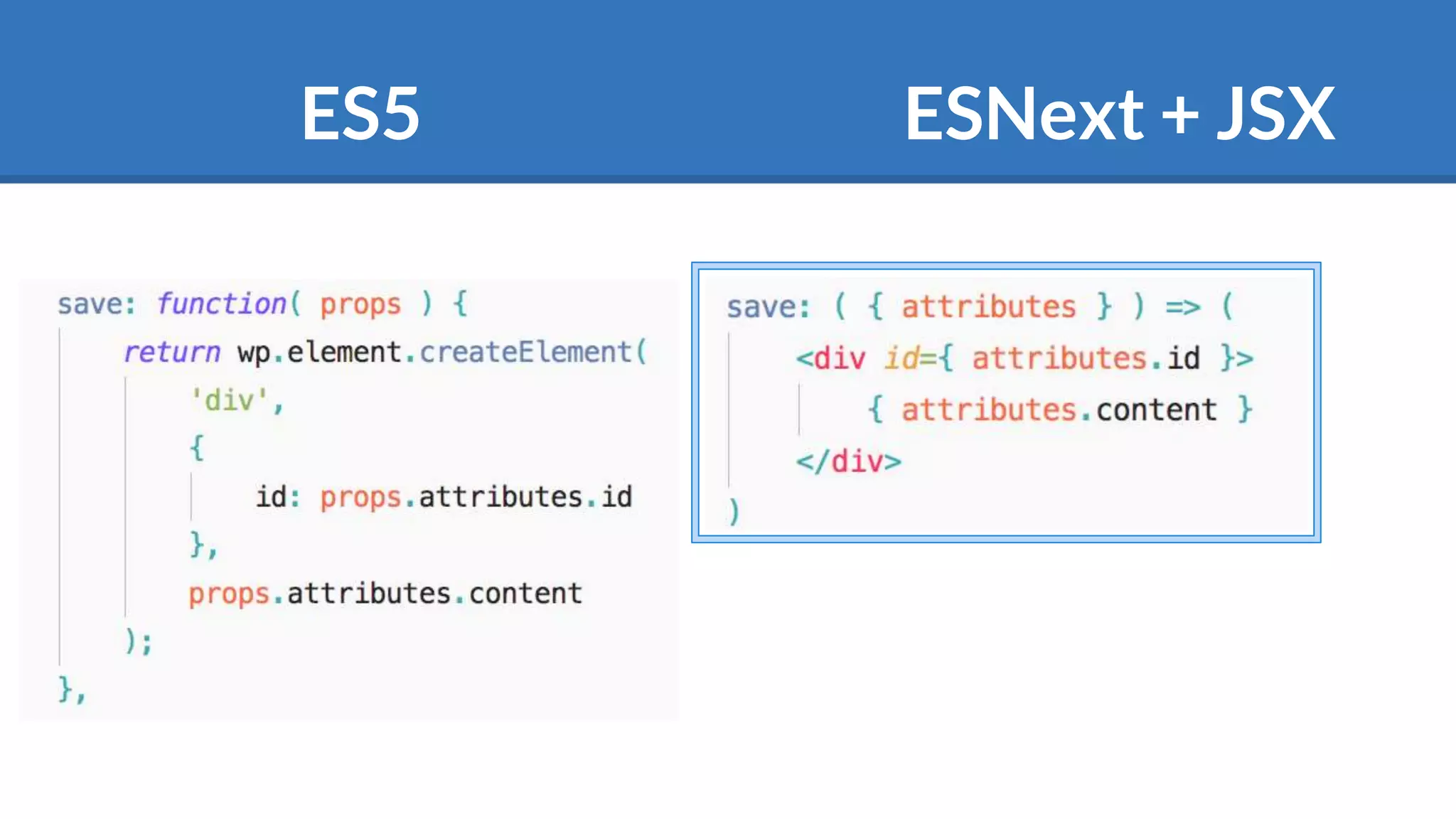

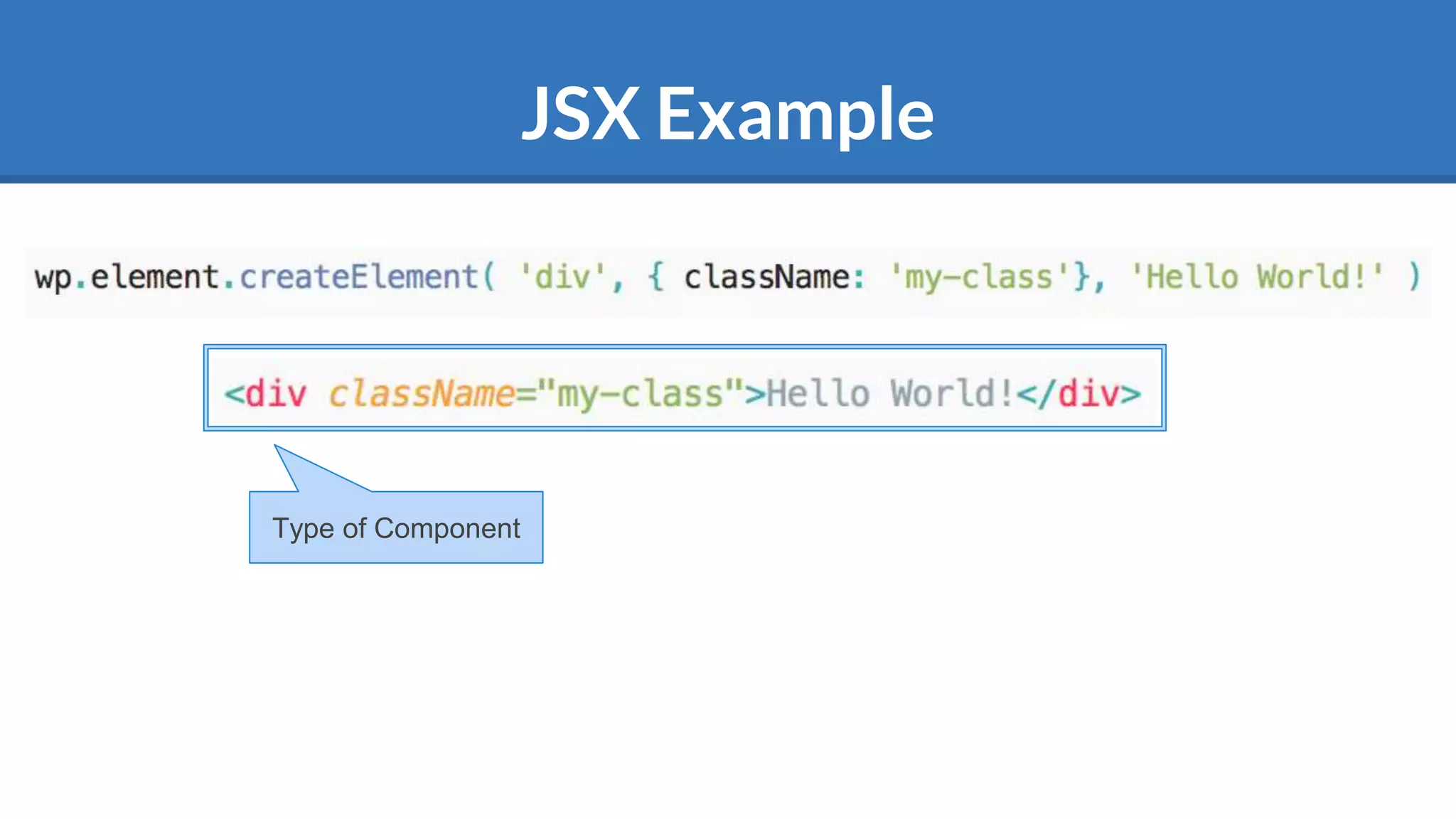

JSX Example
Type of Component
Lowercase letter: Built in component
Capitalized: React Component

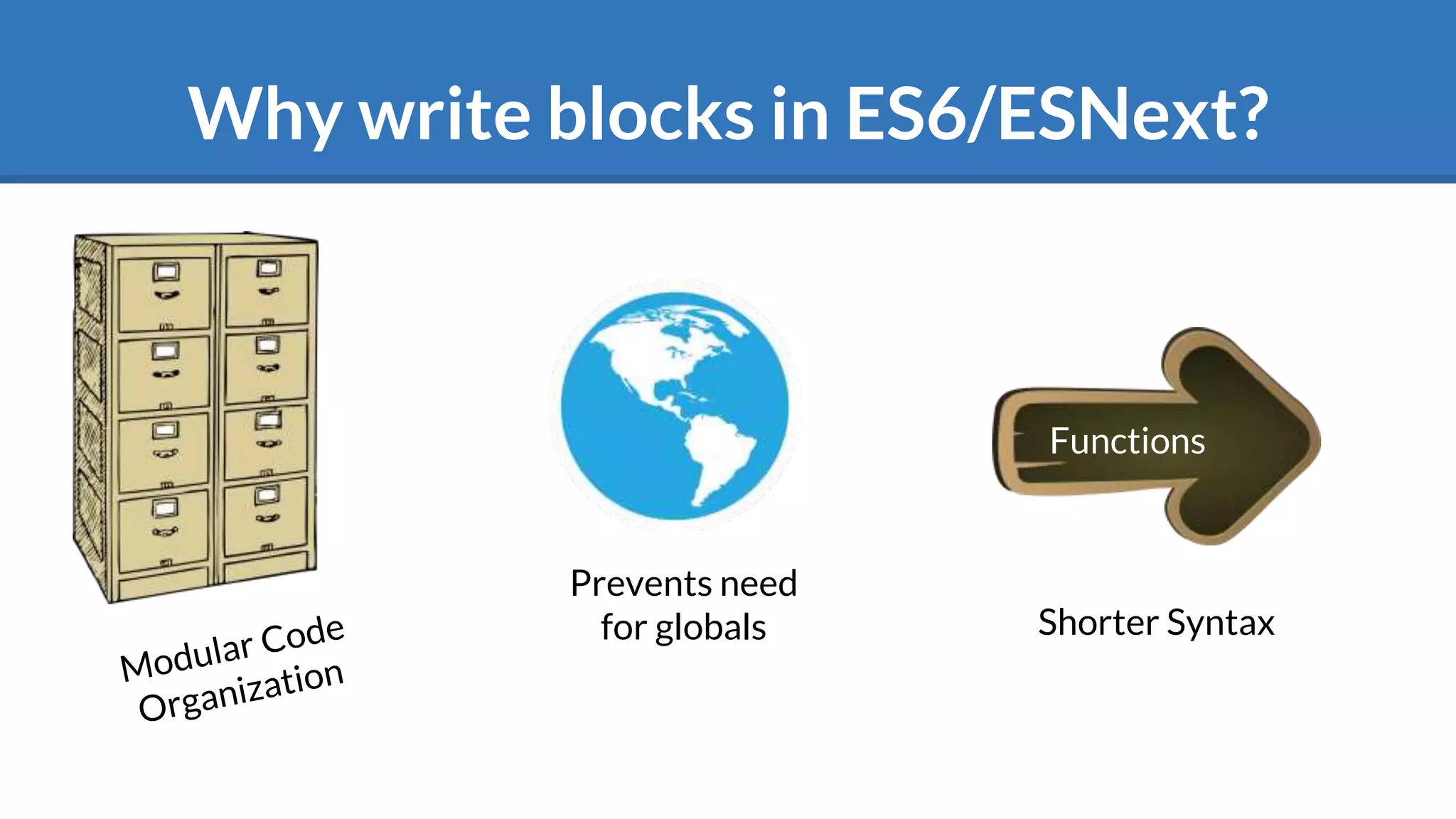

Easy to Read & Write Code

Prevents need
for globals Shorter Syntax
Functions

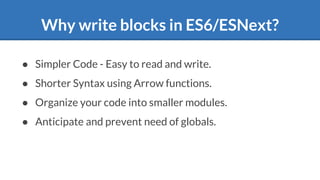

● Simpler Code - Easy to read and write.
● Shorter Syntax using Arrow functions.
● Organize your code into smaller modules.
● Anticipate and prevent need of globals.

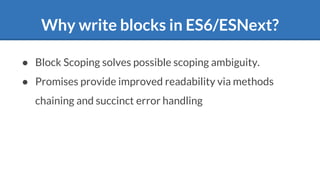

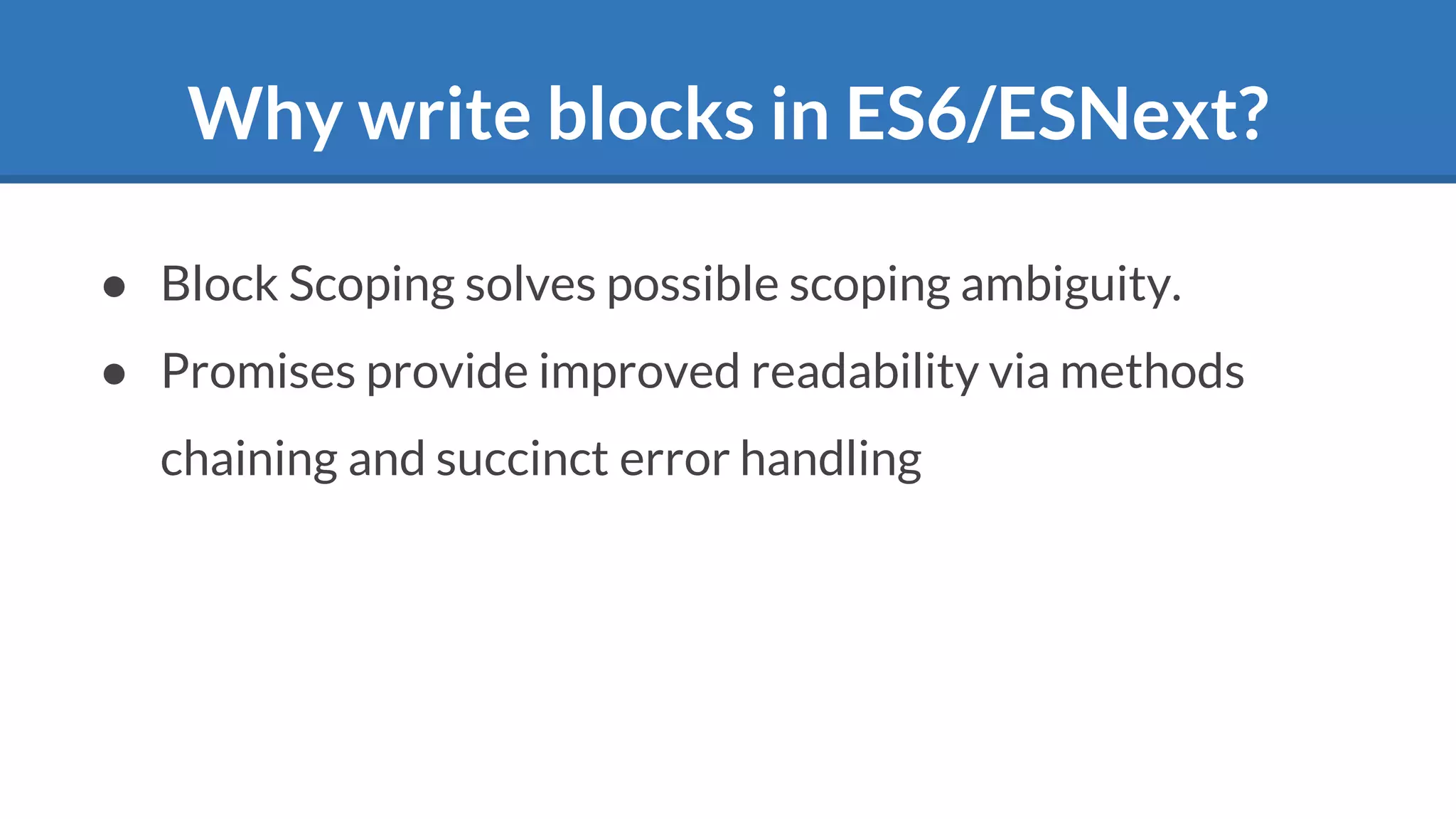

● Block Scoping solves possible scoping ambiguity.
● Promises provide improved readability via methods
chaining and succinct error handling

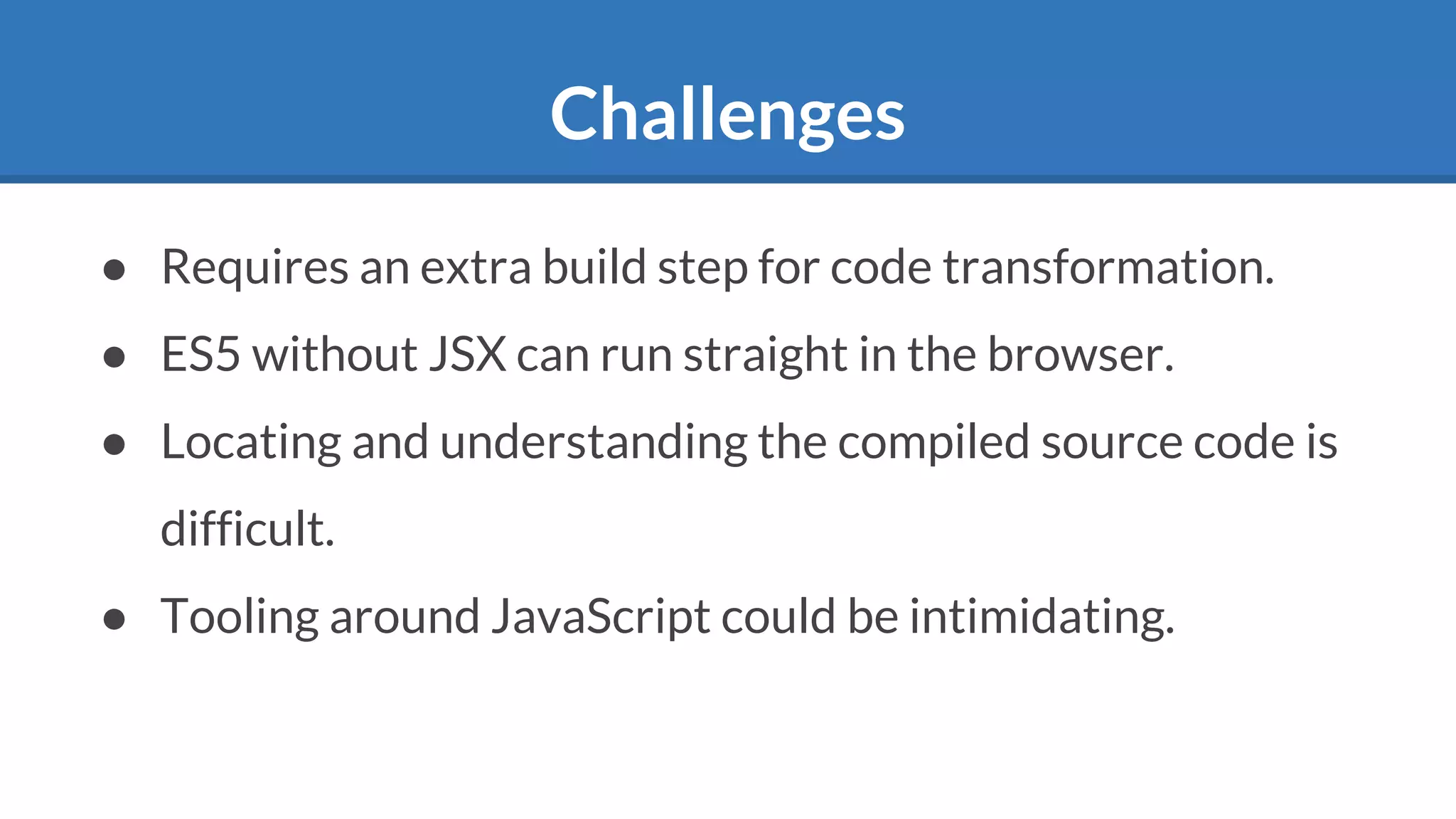

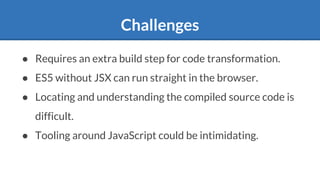

Challenges
● Requires an extra build step for code transformation.
● ES5 without JSX can run straight in the browser.
● Locating and understanding the compiled source code is
difficult.
● Tooling around JavaScript could be intimidating.

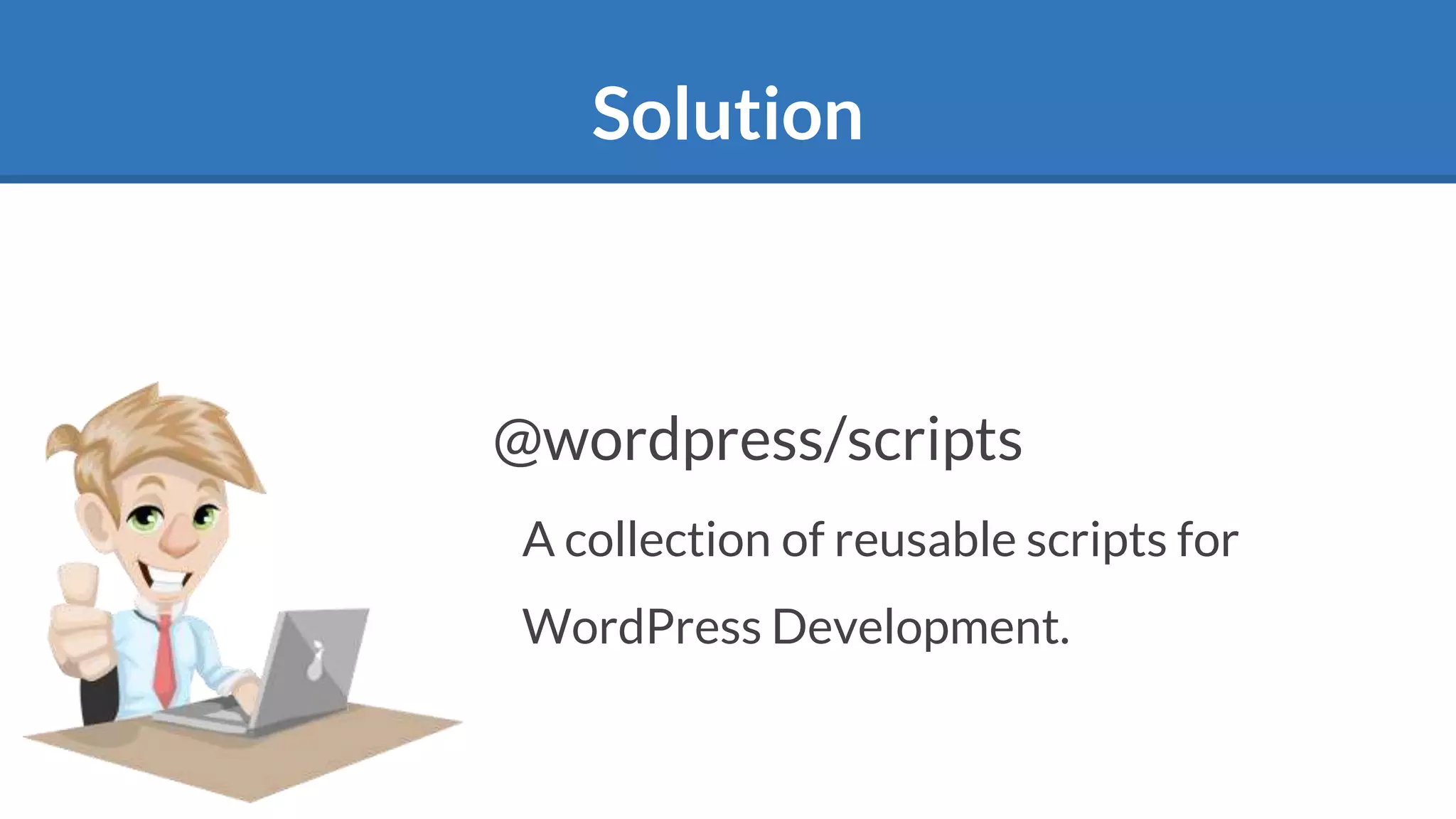

Solution
@wordpress/scripts
A collection of reusable scripts for
WordPress Development.

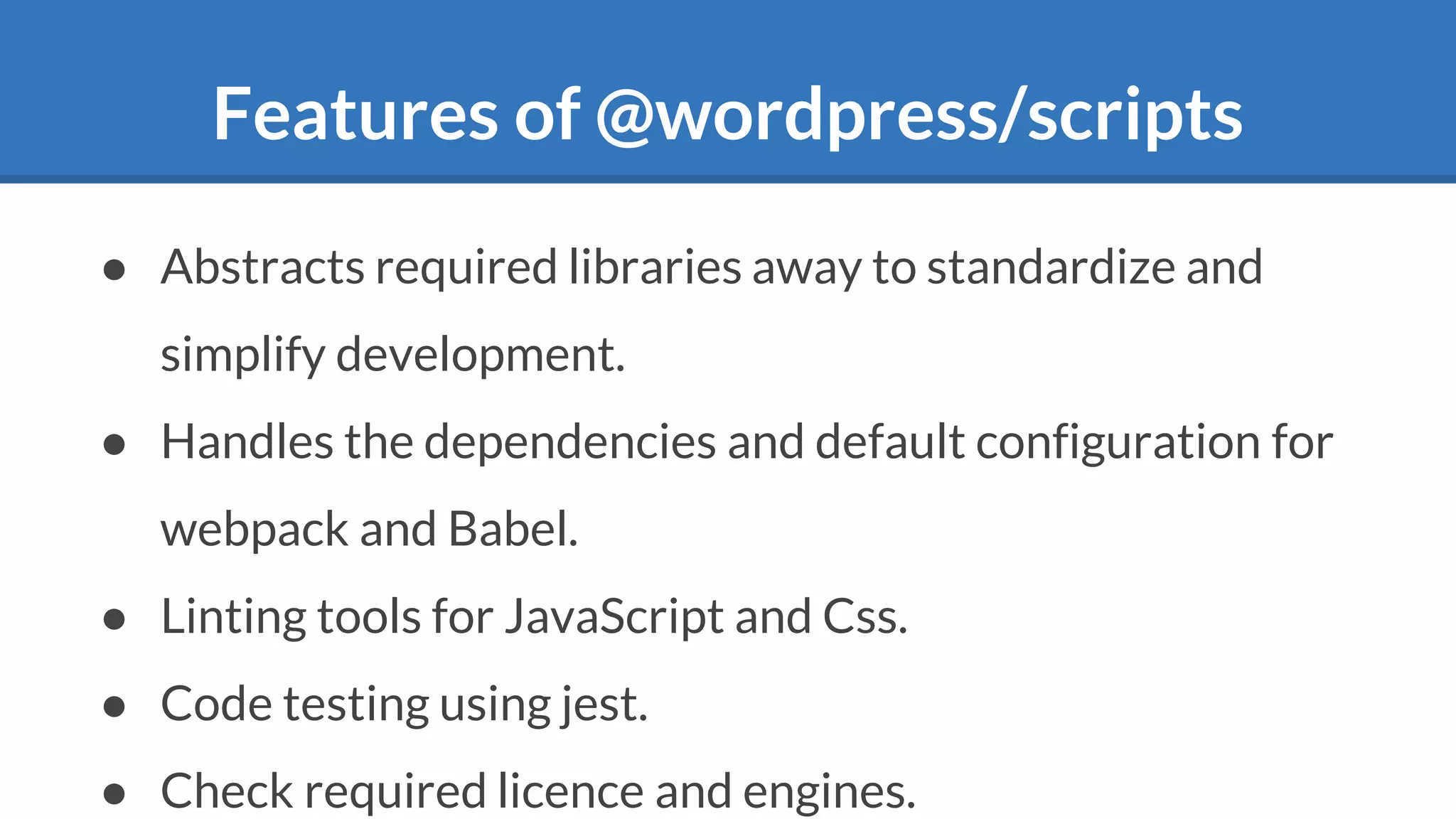

Features of @wordpress/scripts
● Abstracts required libraries away to standardize and
simplify development.
● Handles the dependencies and default configuration for
webpack and Babel.
● Linting tools for JavaScript and Css.
● Code testing using jest.
● Check required licence and engines.

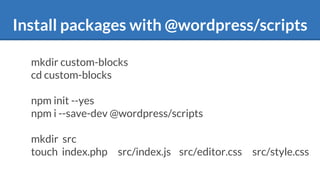

Install packages with @wordpress/scripts
mkdir custom-blocks
cd custom-blocks
npm init --yes
npm i --save-dev @wordpress/scripts
mkdir src
touch index.php src/index.js src/editor.css src/style.css

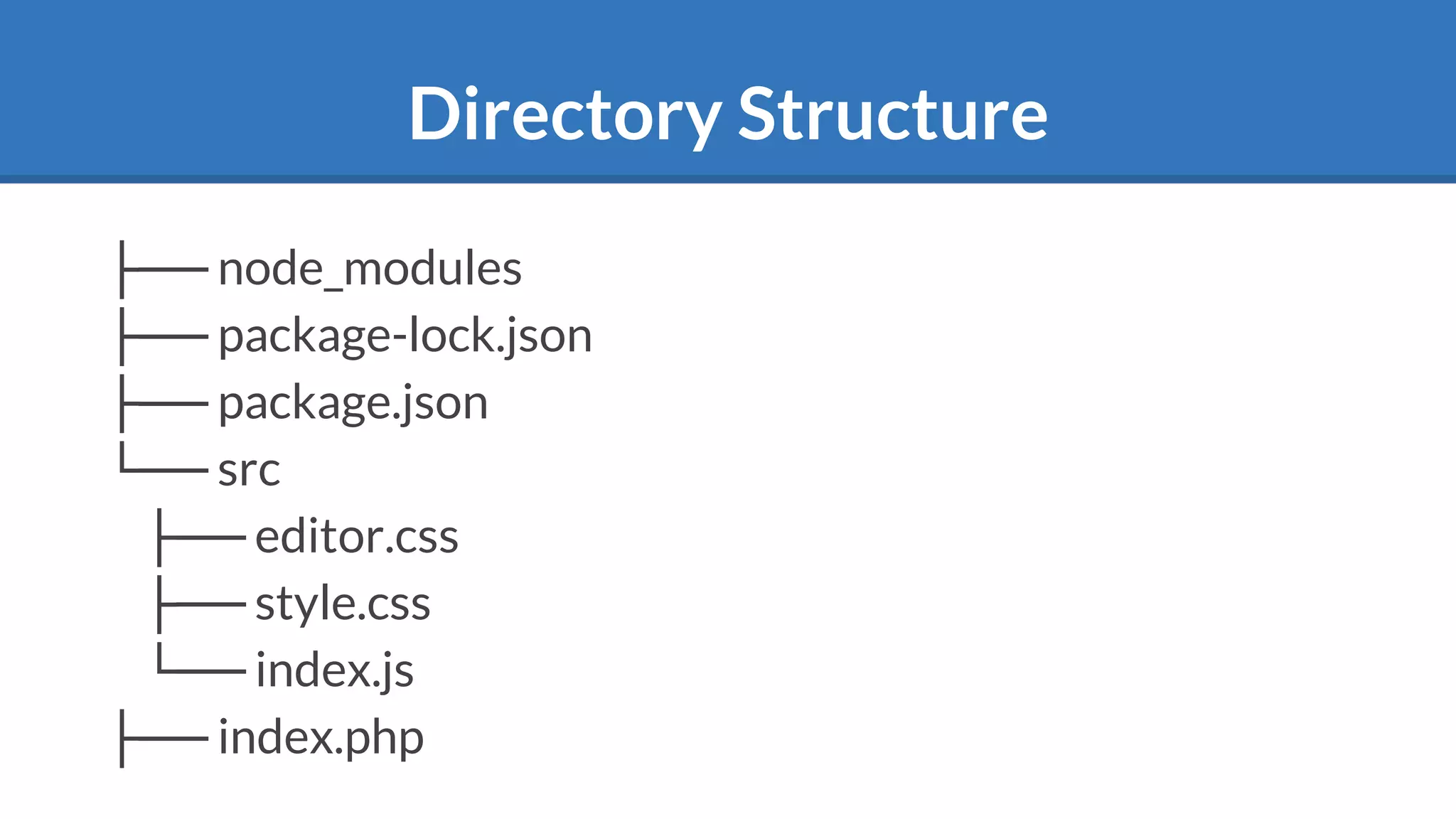

Directory Structure
├── node_modules
├── package-lock.json
├── package.json
└── src
├── editor.css
├── style.css
└── index.js
├── index.php

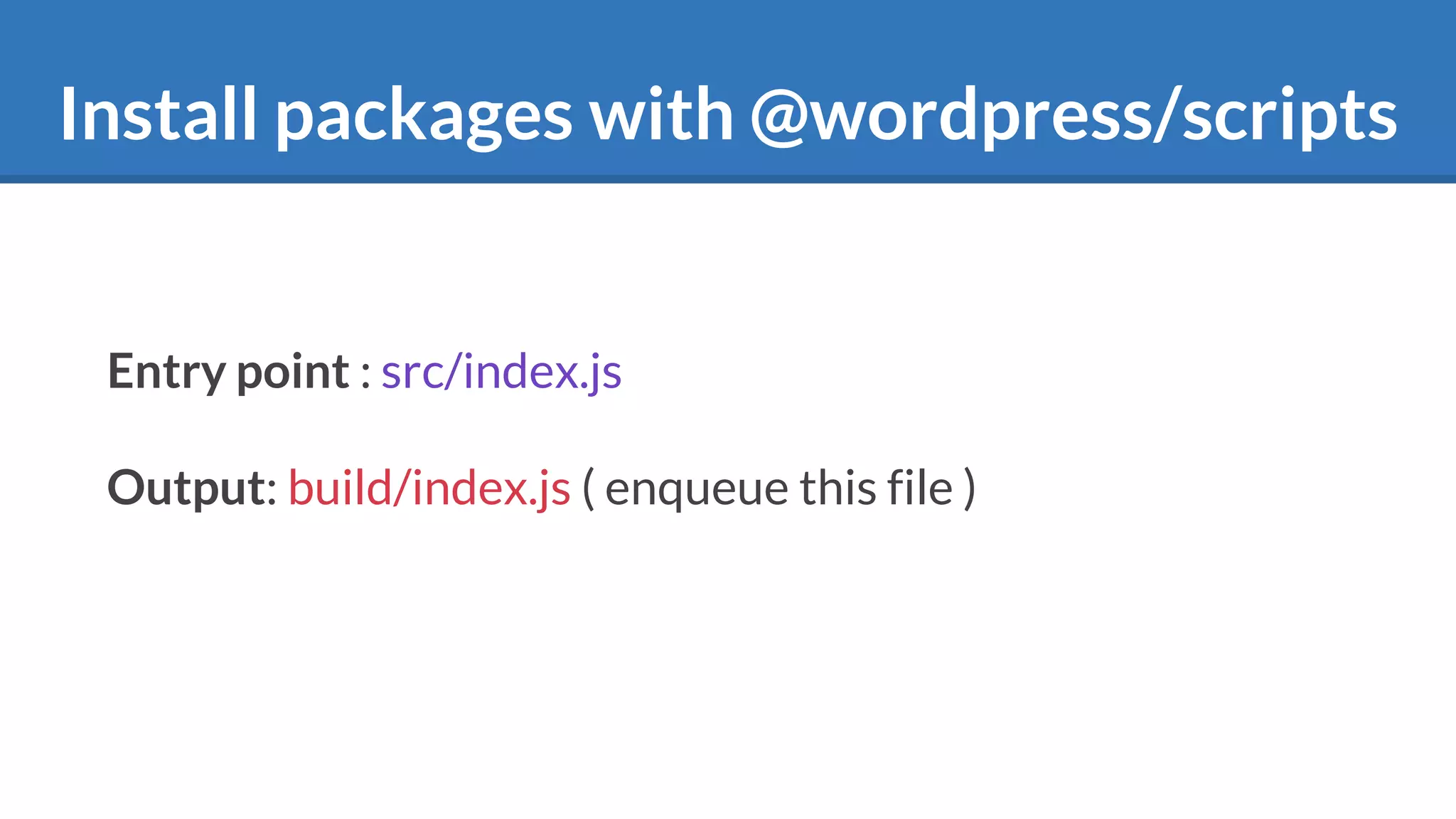

Install packages with @wordpress/scripts

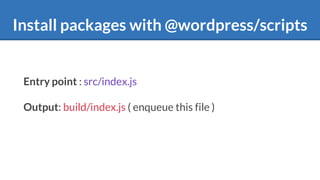

Entry point : src/index.js
Output: build/index.js ( enqueue this file )

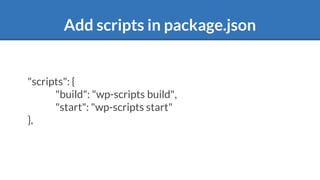

Add scripts in package.json
"scripts": {
"build": "wp-scripts build",
"start": "wp-scripts start"
},

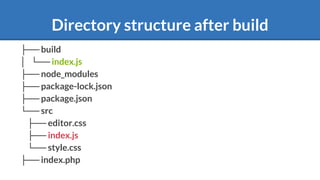

Directory structure after build
├── build
│ └── index.js
└── src
├── index.js
└── style.css
├── index.php

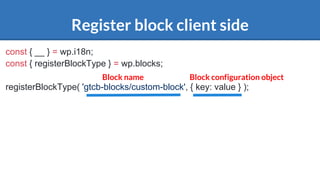

Register block client side
const { __ } = wp.i18n;
const { registerBlockType } = wp.blocks;
registerBlockType( 'gtcb-blocks/custom-block', { key: value } );
Block name Block configuration object

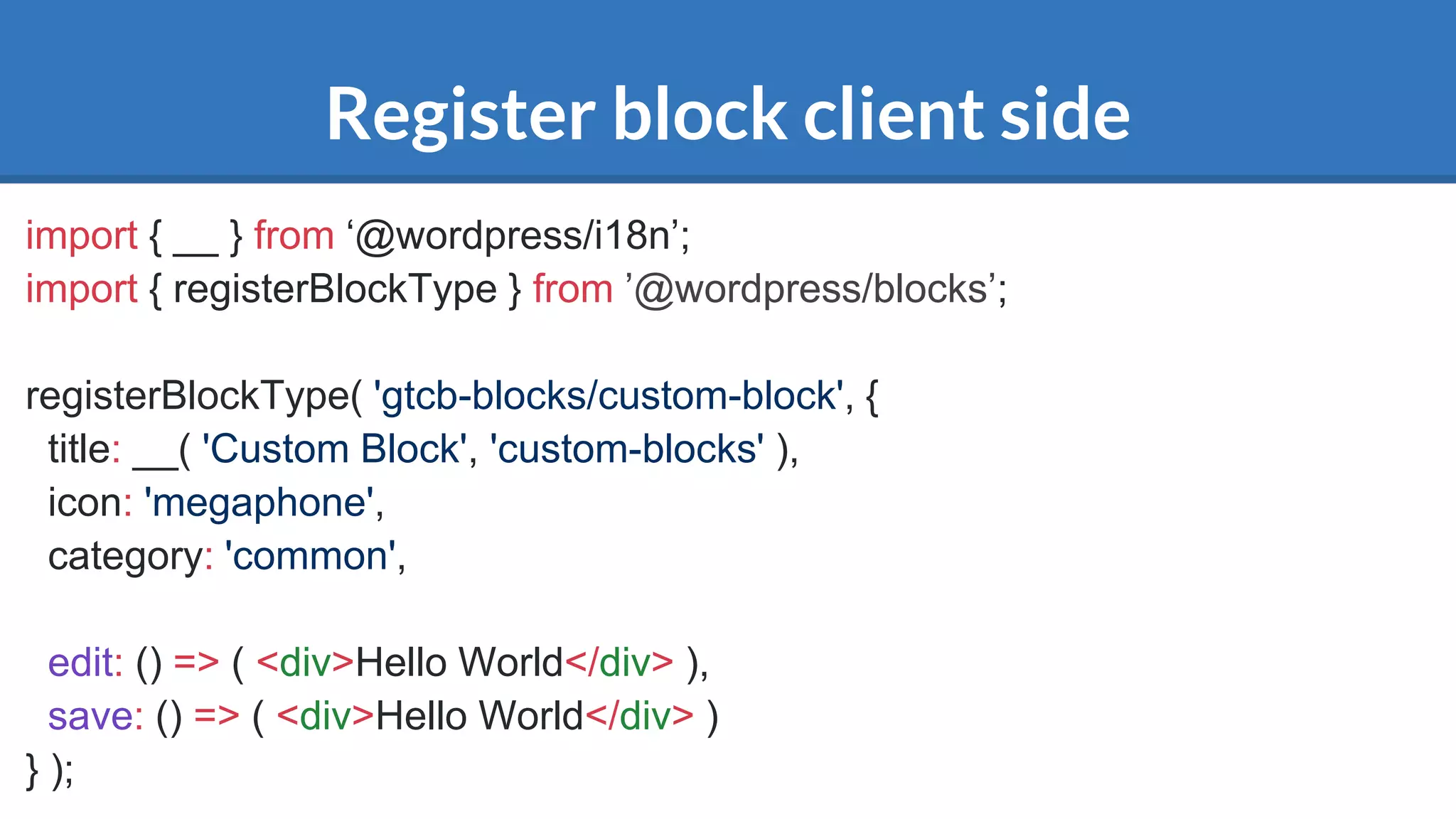

Register block client side
import { __ } from ‘@wordpress/i18n’;
import { registerBlockType } from ’@wordpress/blocks’;
registerBlockType( 'gtcb-blocks/custom-block', {
title: __( 'Custom Block', 'custom-blocks' ),
icon: 'megaphone',
category: 'common',
edit: () => ( <div>Hello World</div> ),
save: () => ( <div>Hello World</div> )
} );

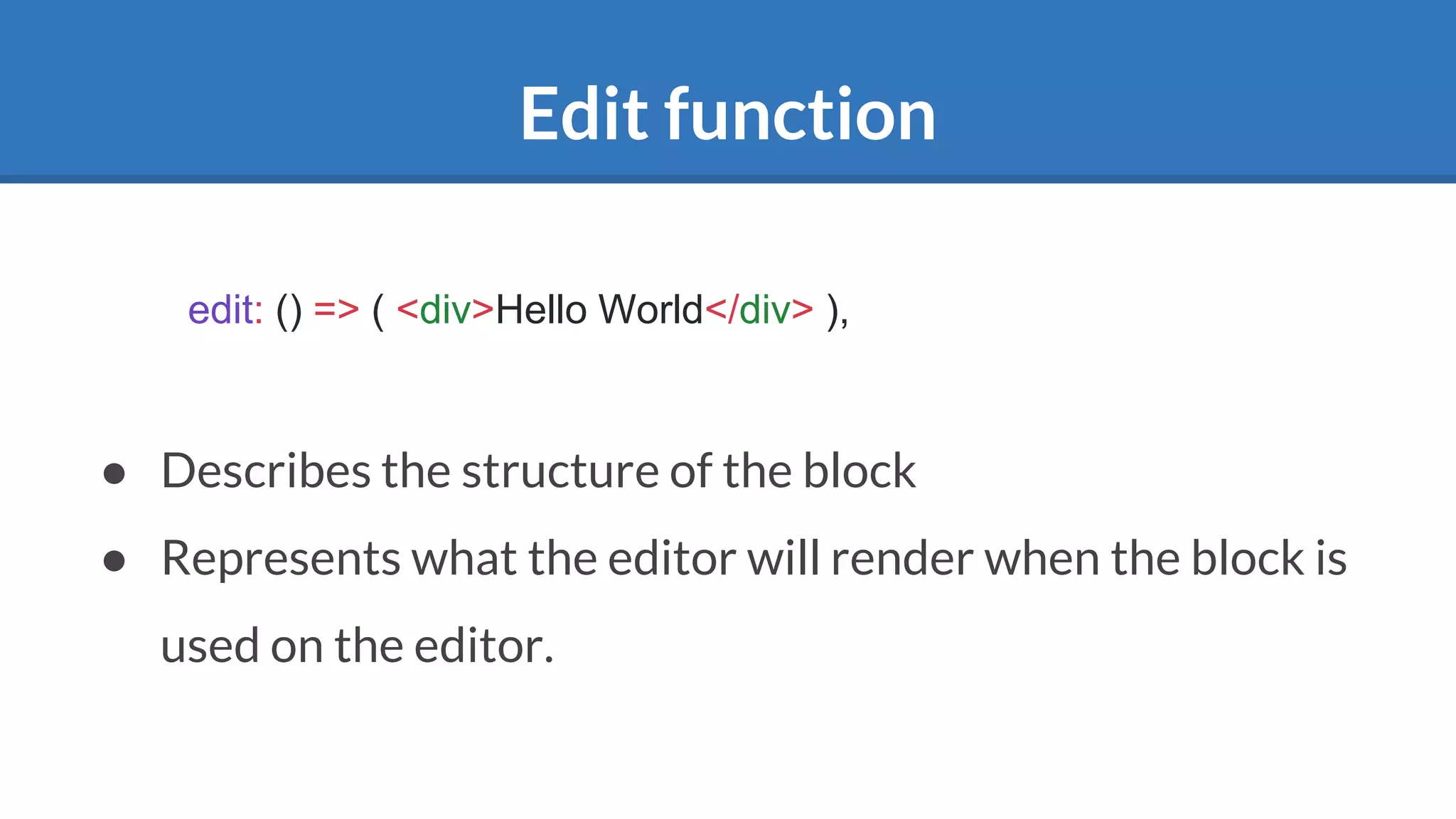

Edit function
● Describes the structure of the block
● Represents what the editor will render when the block is
used on the editor.
edit: () => ( <div>Hello World</div> ),

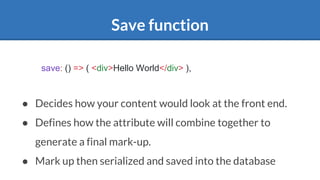

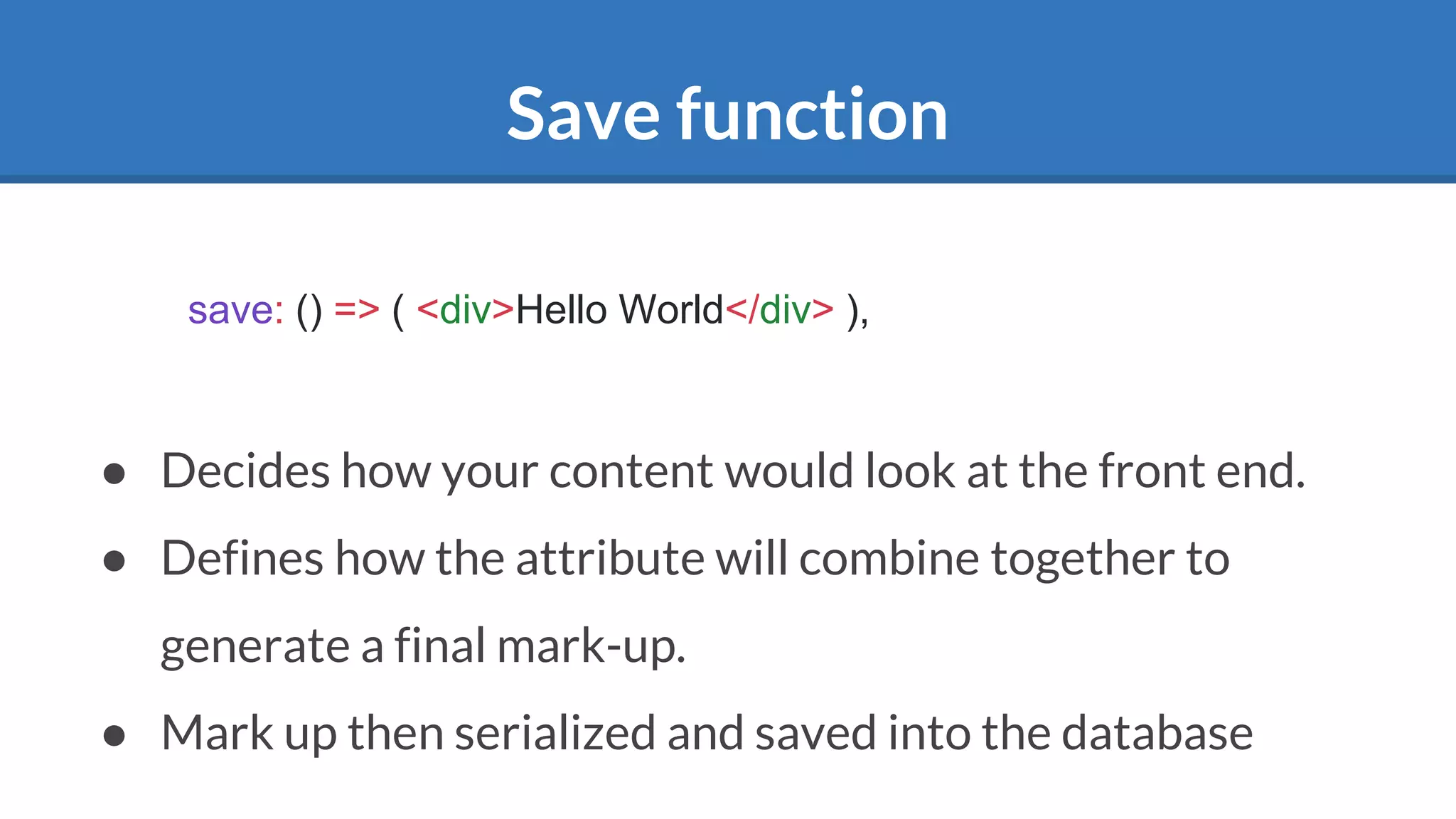

Save function
● Decides how your content would look at the front end.
● Defines how the attribute will combine together to
generate a final mark-up.
● Mark up then serialized and saved into the database
save: () => ( <div>Hello World</div> ),

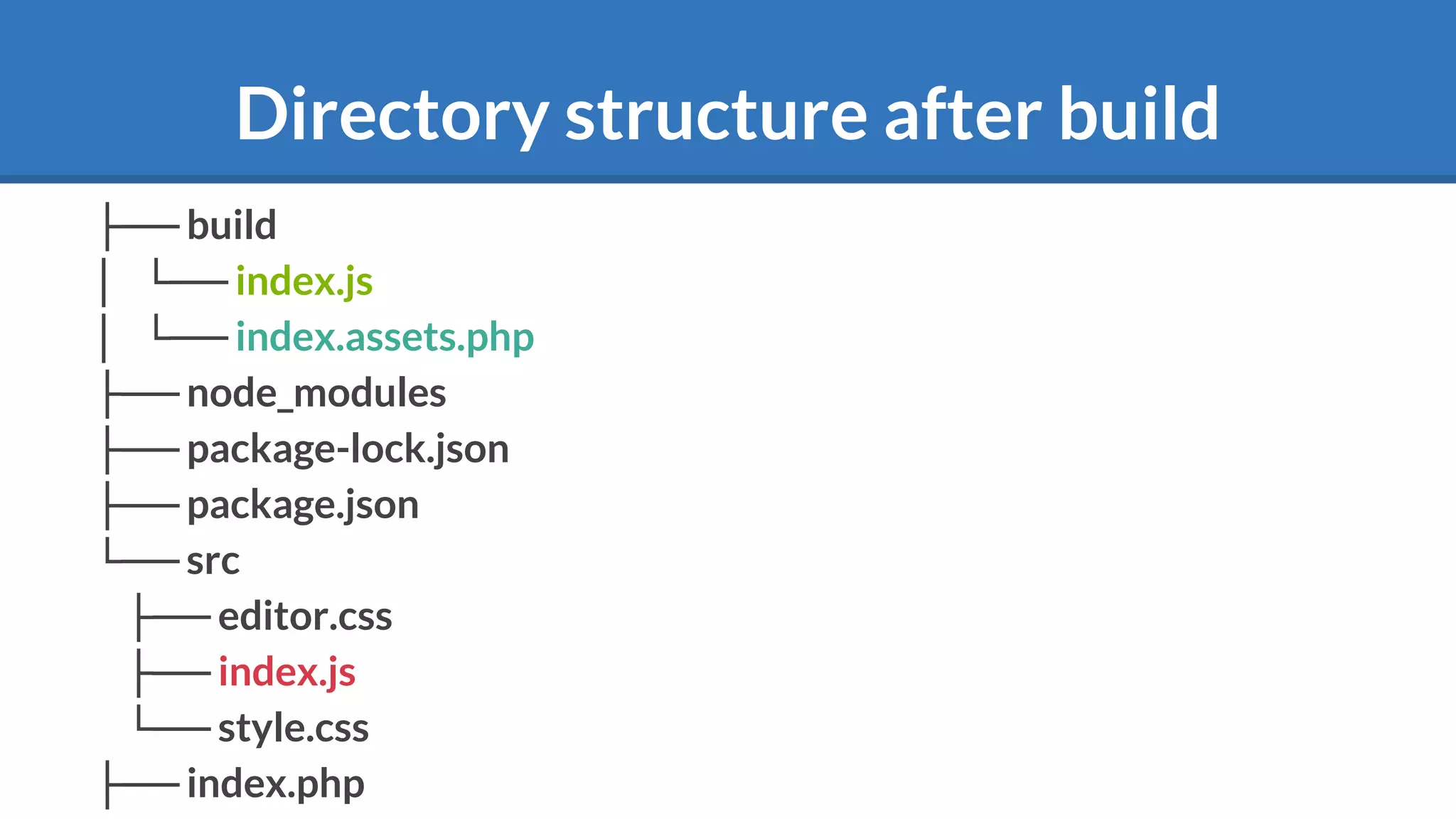

Directory structure after build
├── build
│ └── index.js
│ └── index.assets.php
└── src
├── index.js
└── style.css
├── index.php

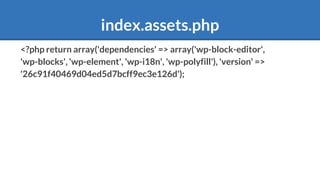

index.assets.php
<?php return array('dependencies' => array('wp-block-editor',
'wp-blocks', 'wp-element', 'wp-i18n', 'wp-polyfill'), 'version' =>
'26c91f40469d04ed5d7bcff9ec3e126d');

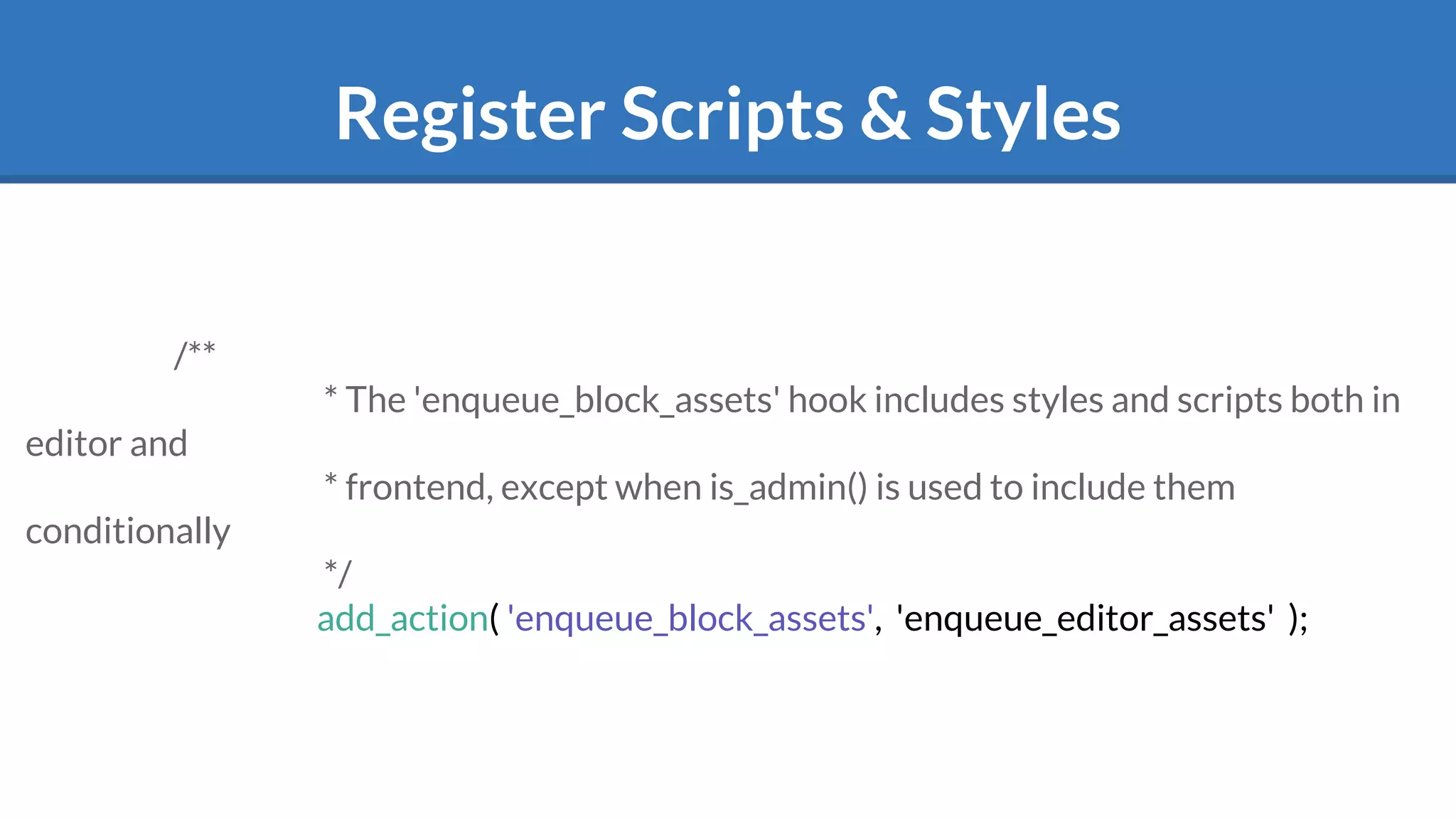

Register Scripts & Styles
/**
* The 'enqueue_block_assets' hook includes styles and scripts both in
editor and
* frontend, except when is_admin() is used to include them
conditionally
*/
add_action( 'enqueue_block_assets', 'enqueue_editor_assets' );

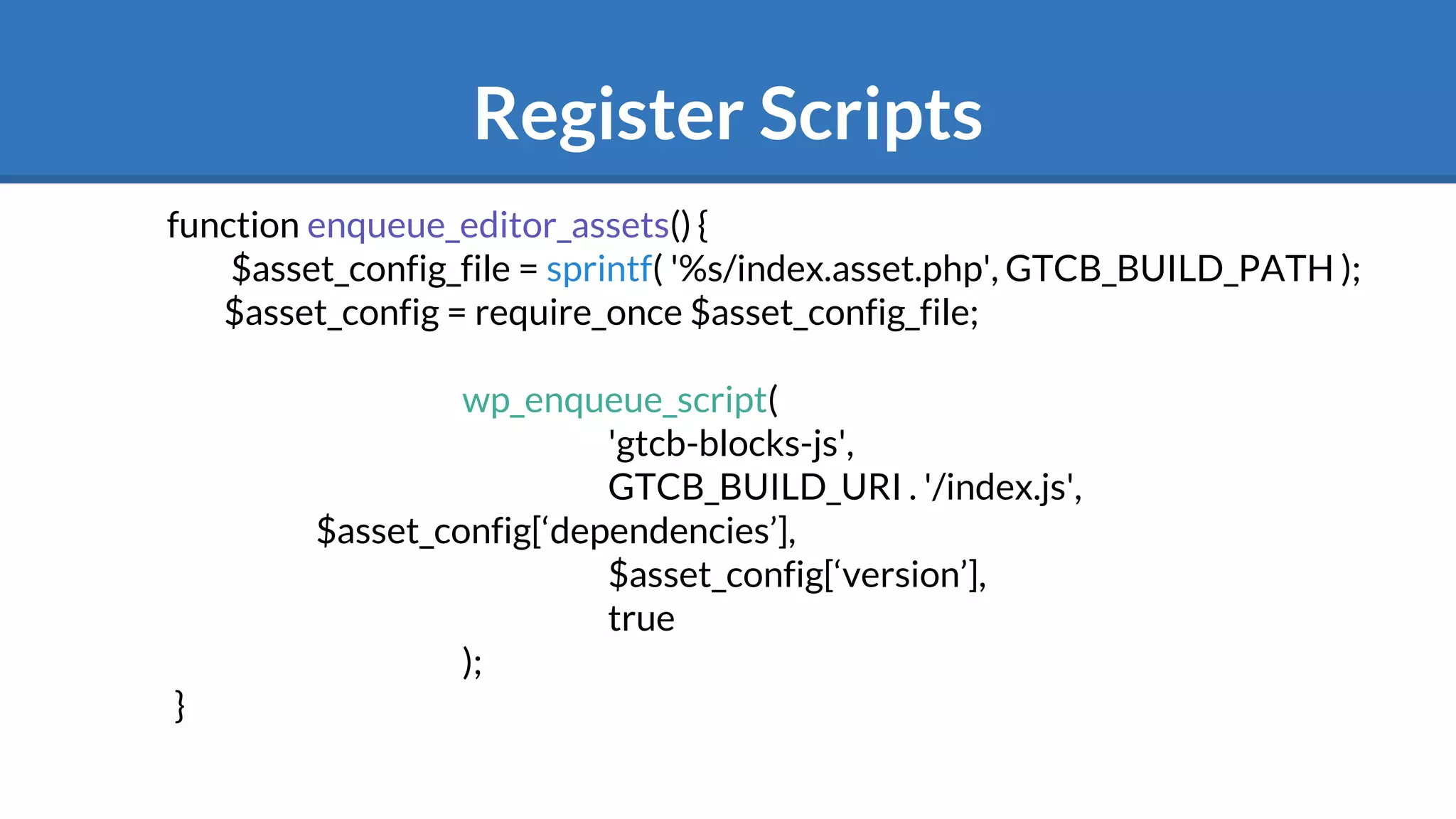

Register Scripts
function enqueue_editor_assets() {
$asset_config_file = sprintf( '%s/index.asset.php', GTCB_BUILD_PATH );
$asset_config = require_once $asset_config_file;
wp_enqueue_script(
'gtcb-blocks-js',
GTCB_BUILD_URI . '/index.js',
$asset_config[‘dependencies’],
$asset_config[‘version’],
true
);
}

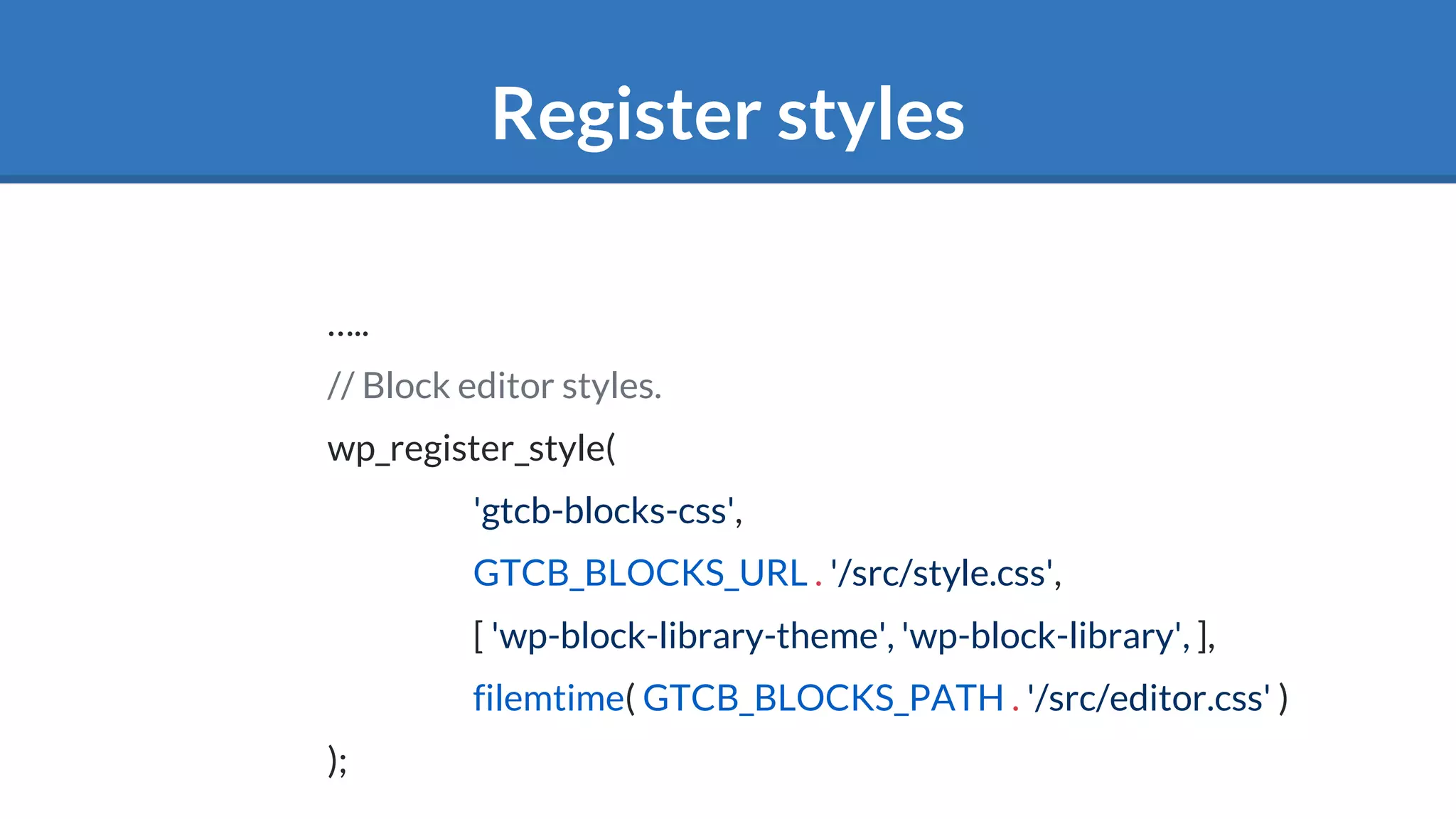

Register styles
…..
// Block editor styles.
wp_register_style(
'gtcb-blocks-css',
GTCB_BLOCKS_URL . '/src/style.css',
[ 'wp-block-library-theme', 'wp-block-library', ],
filemtime( GTCB_BLOCKS_PATH . '/src/editor.css' )
);

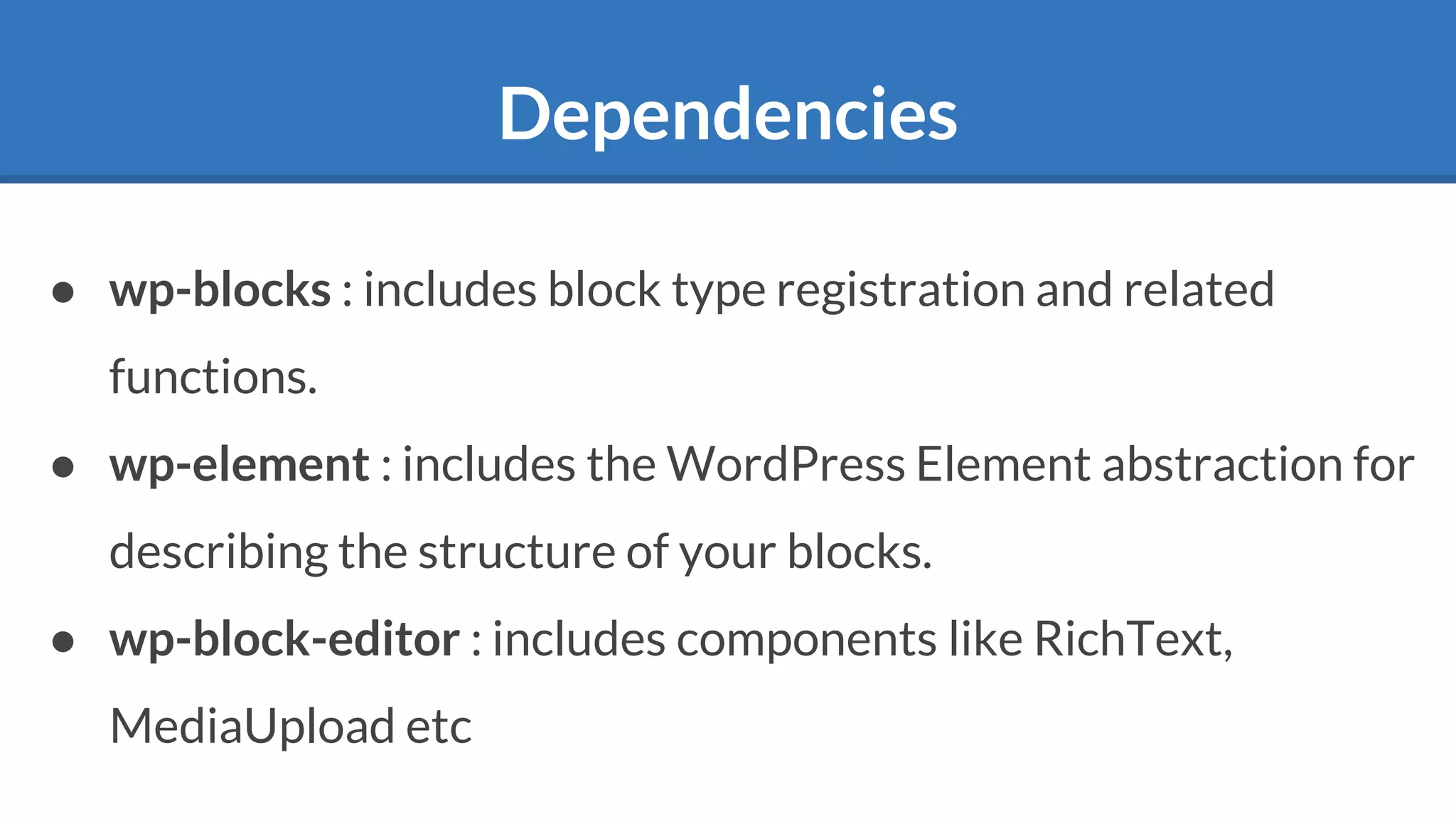

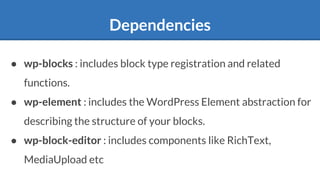

Dependencies
● wp-blocks : includes block type registration and related
functions.
● wp-element : includes the WordPress Element abstraction for
describing the structure of your blocks.
● wp-block-editor : includes components like RichText,
MediaUpload etc

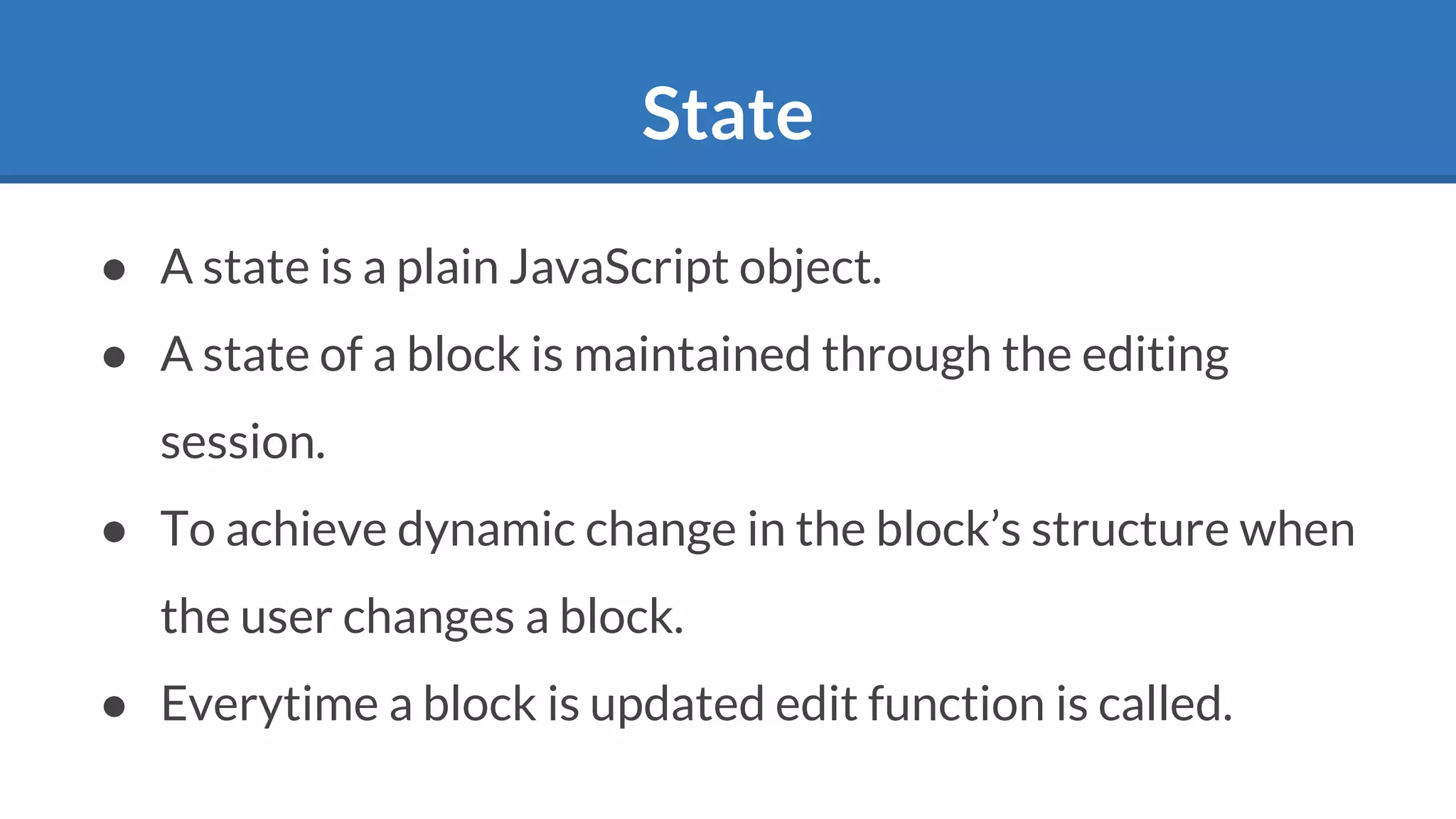

State
● A state is a plain JavaScript object.
● A state of a block is maintained through the editing
session.
● To achieve dynamic change in the block’s structure when
the user changes a block.
● Everytime a block is updated edit function is called.

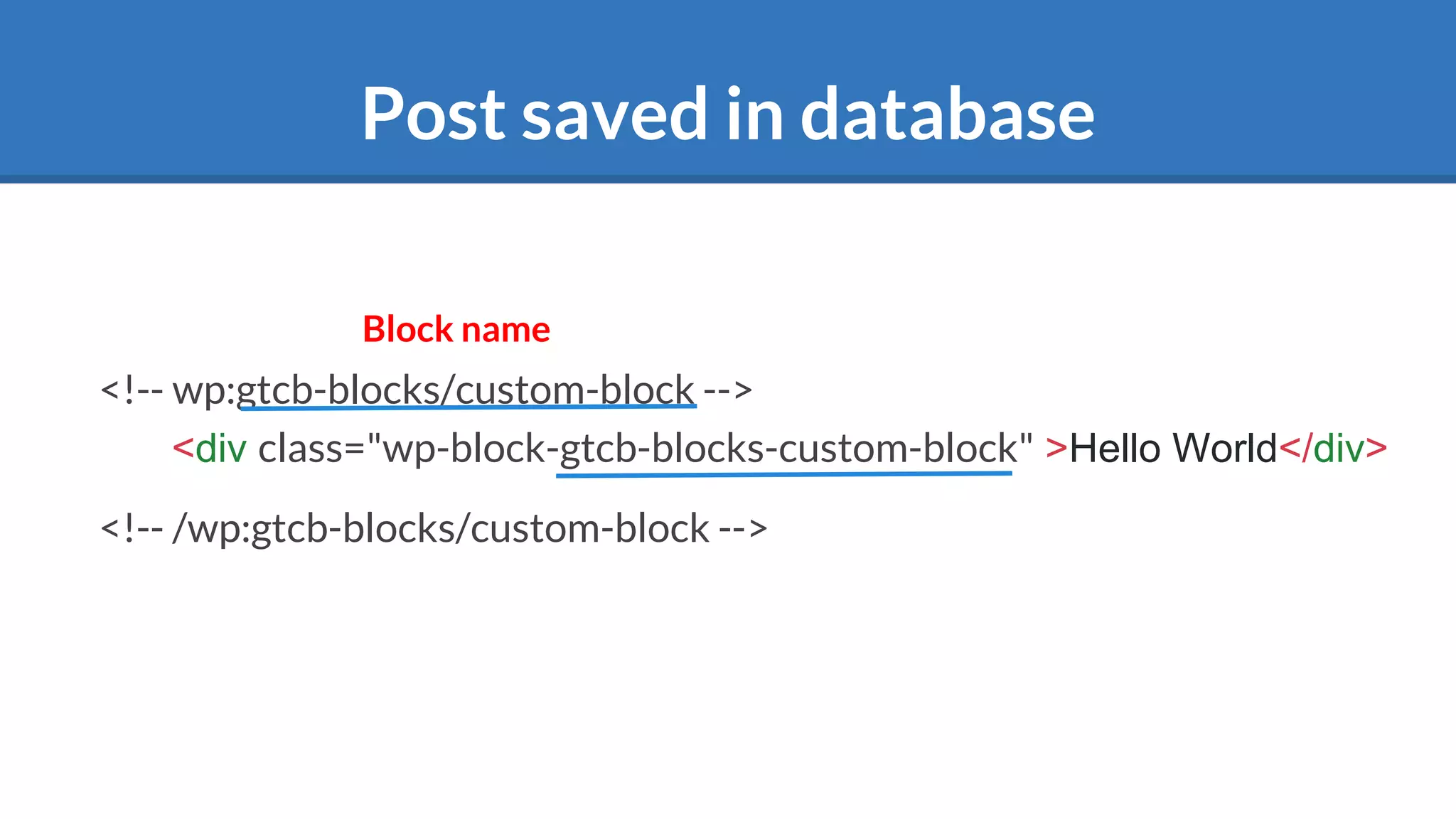

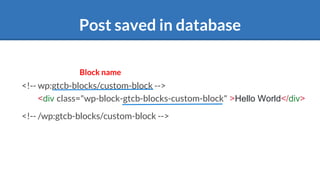

Post saved in database

<div class="wp-block-gtcb-blocks-custom-block" >Hello World</div>

Block name

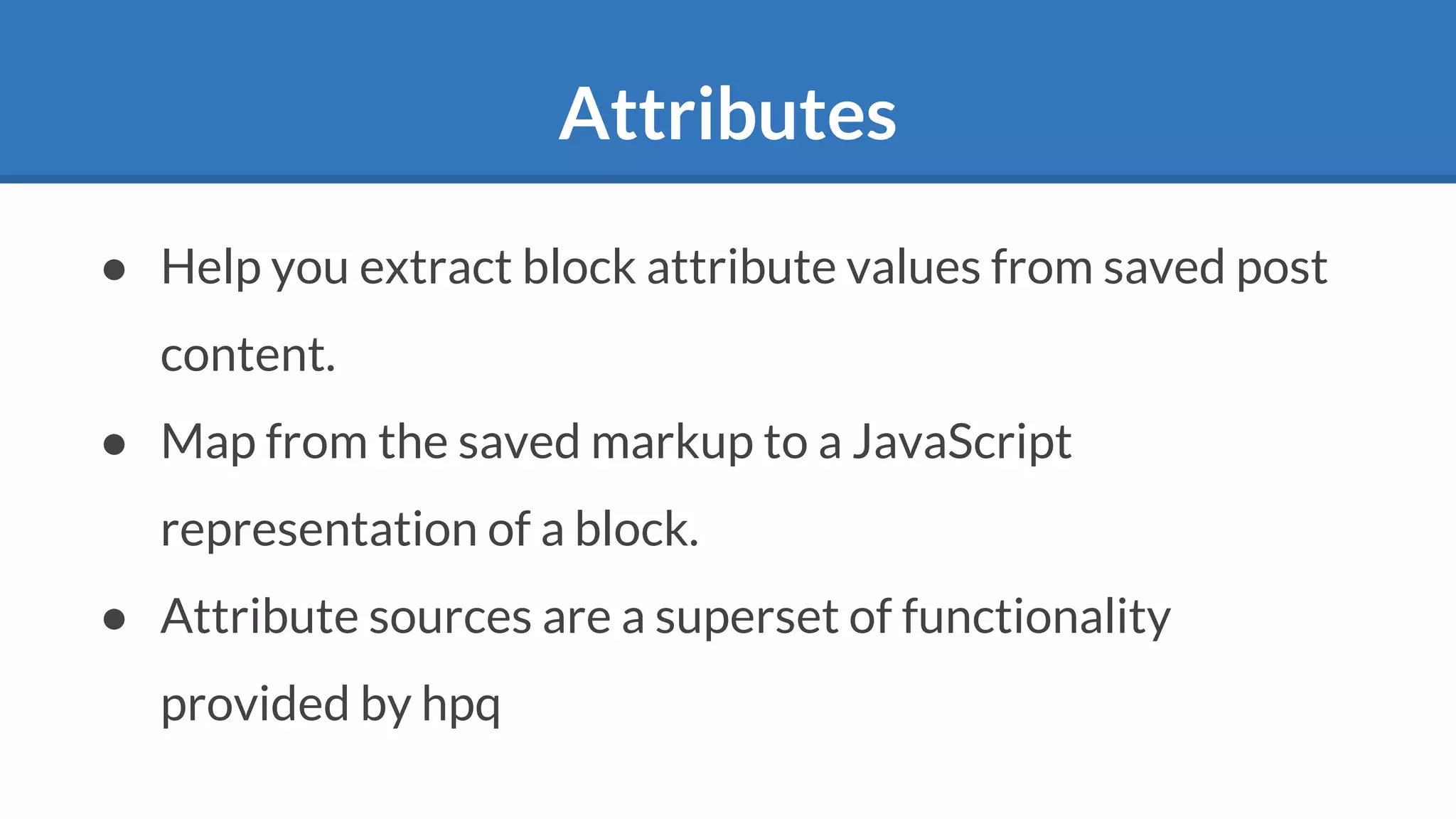

Attributes
● Help you extract block attribute values from saved post
content.
● Map from the saved markup to a JavaScript
representation of a block.
● Attribute sources are a superset of functionality
provided by hpq

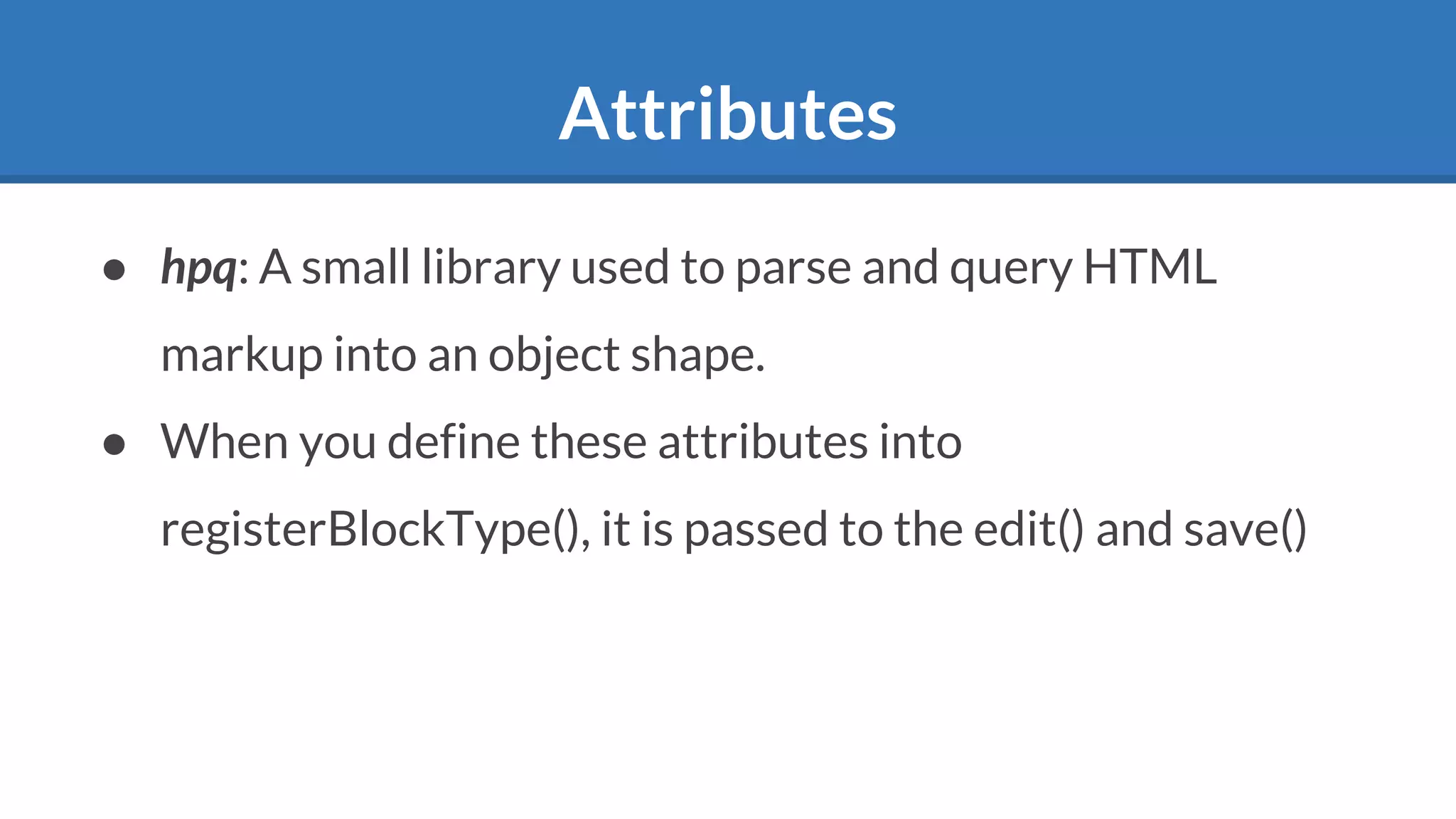

Attributes
● hpq: A small library used to parse and query HTML
markup into an object shape.
● When you define these attributes into
registerBlockType(), it is passed to the edit() and save()

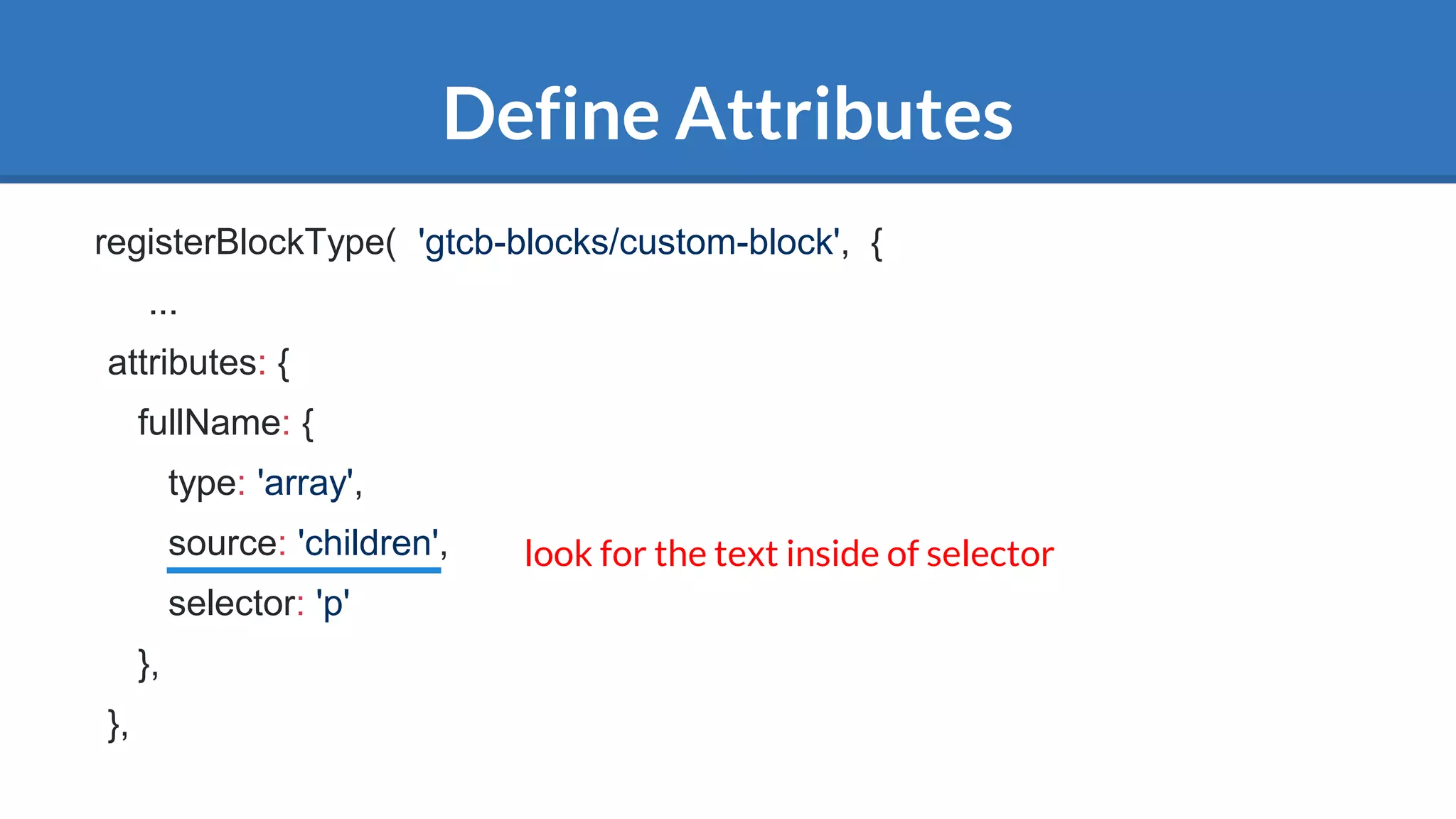

Define Attributes
...
attributes: {
fullName: {
type: 'array',
source: 'children',
selector: 'p'
},
},
look for the text inside of selector

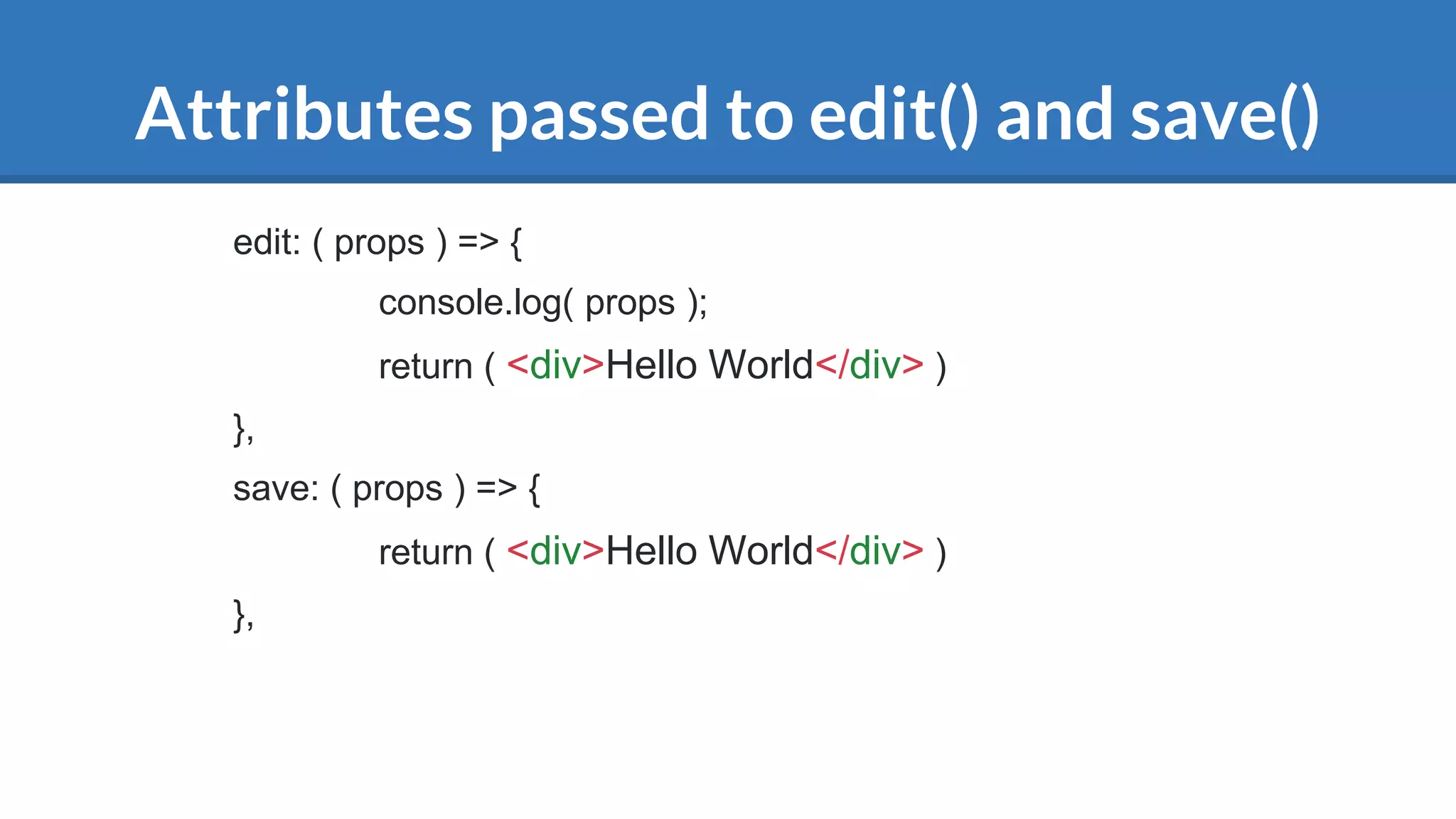

Attributes passed to edit() and save()
edit: ( props ) => {
console.log( props );
return ( <div>Hello World</div> )
},
save: ( props ) => {
return ( <div>Hello World</div> )
},

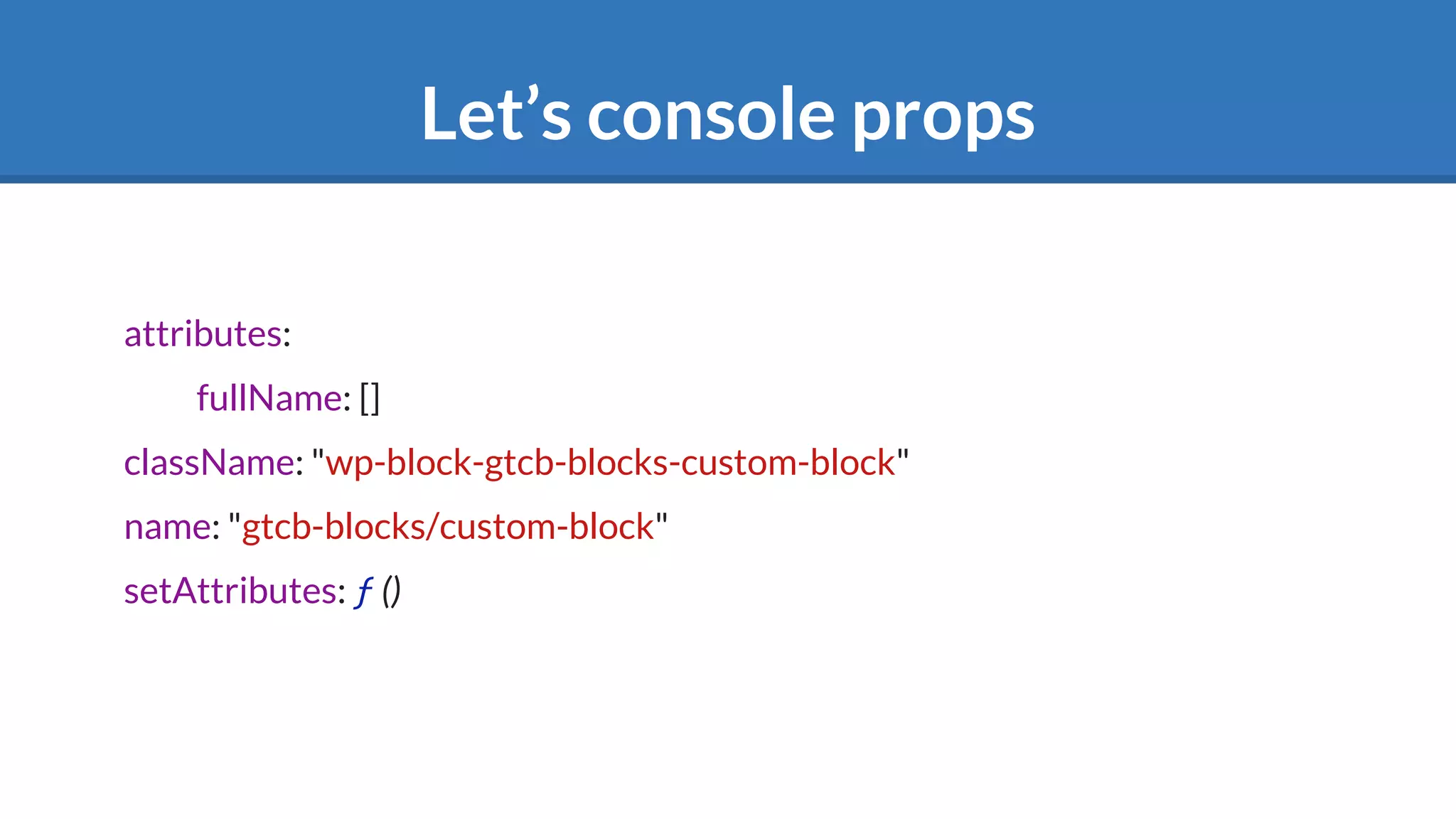

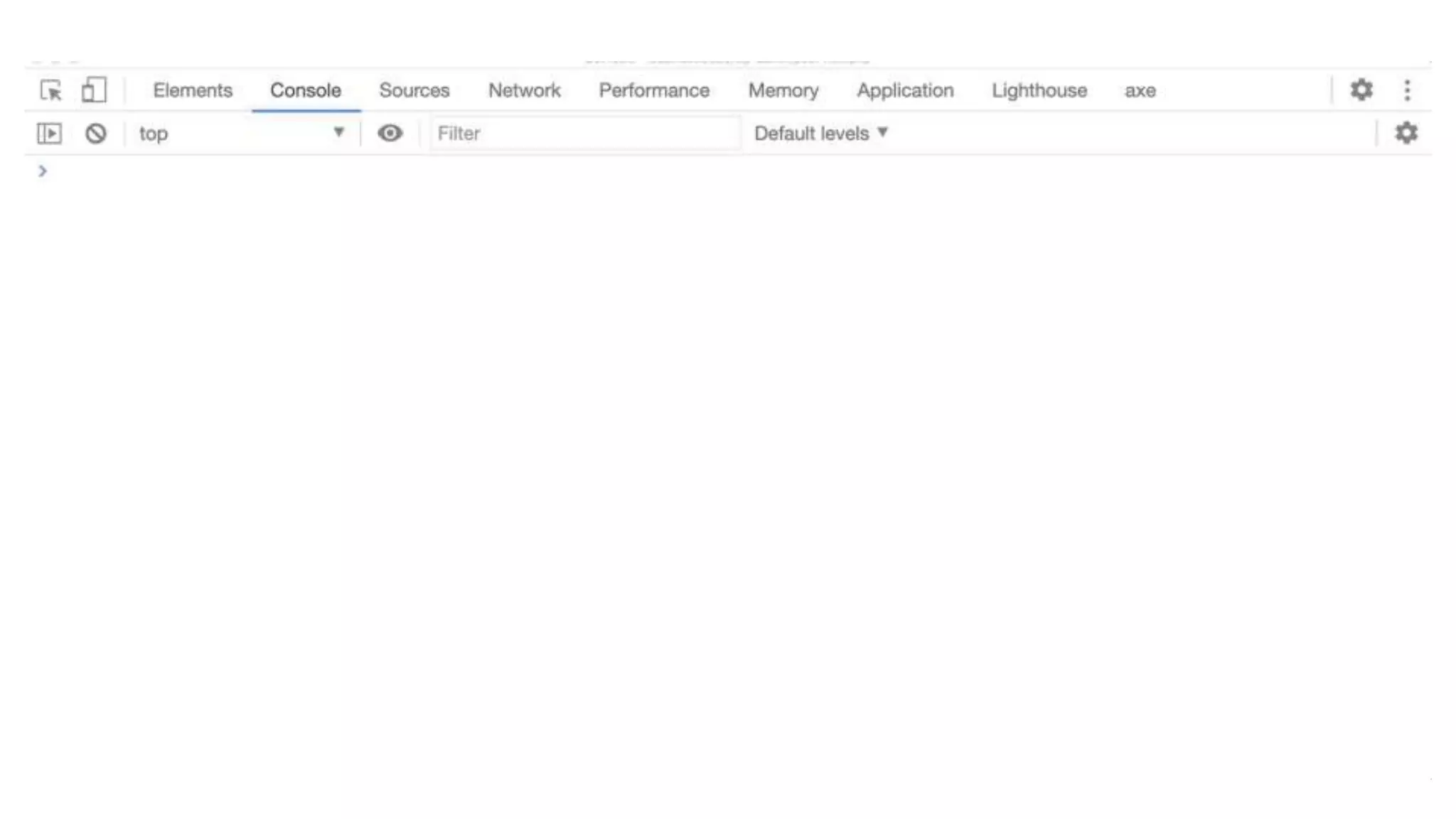

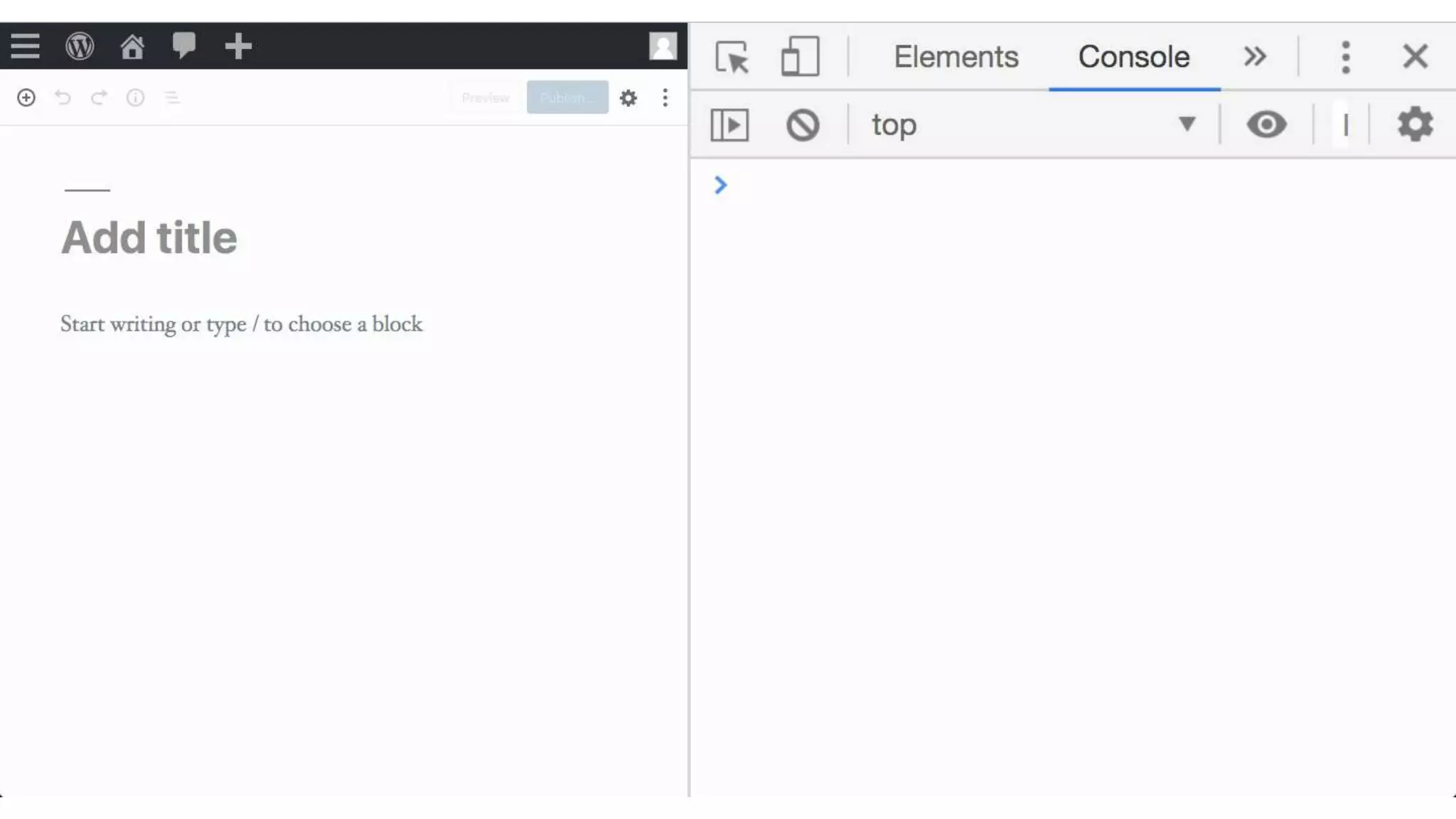

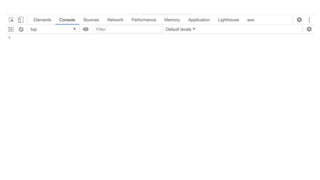

Let’s console props
attributes:
fullName: []
className: "wp-block-gtcb-blocks-custom-block"
name: "gtcb-blocks/custom-block"
setAttributes: ƒ ()

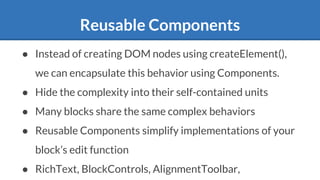

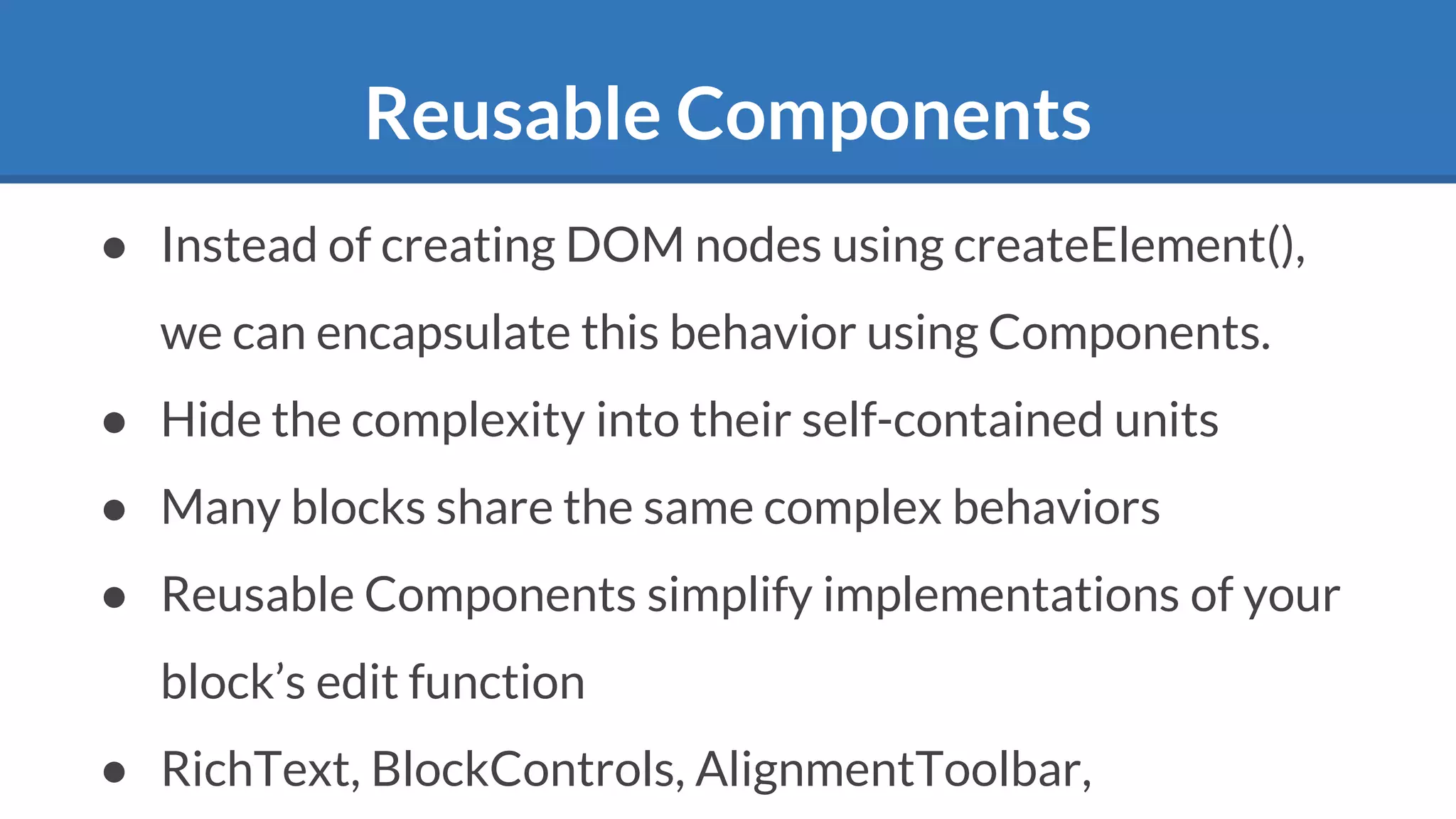

Reusable Components
● Instead of creating DOM nodes using createElement(),
we can encapsulate this behavior using Components.
● Hide the complexity into their self-contained units
● Many blocks share the same complex behaviors
● Reusable Components simplify implementations of your
block’s edit function
● RichText, BlockControls, AlignmentToolbar,

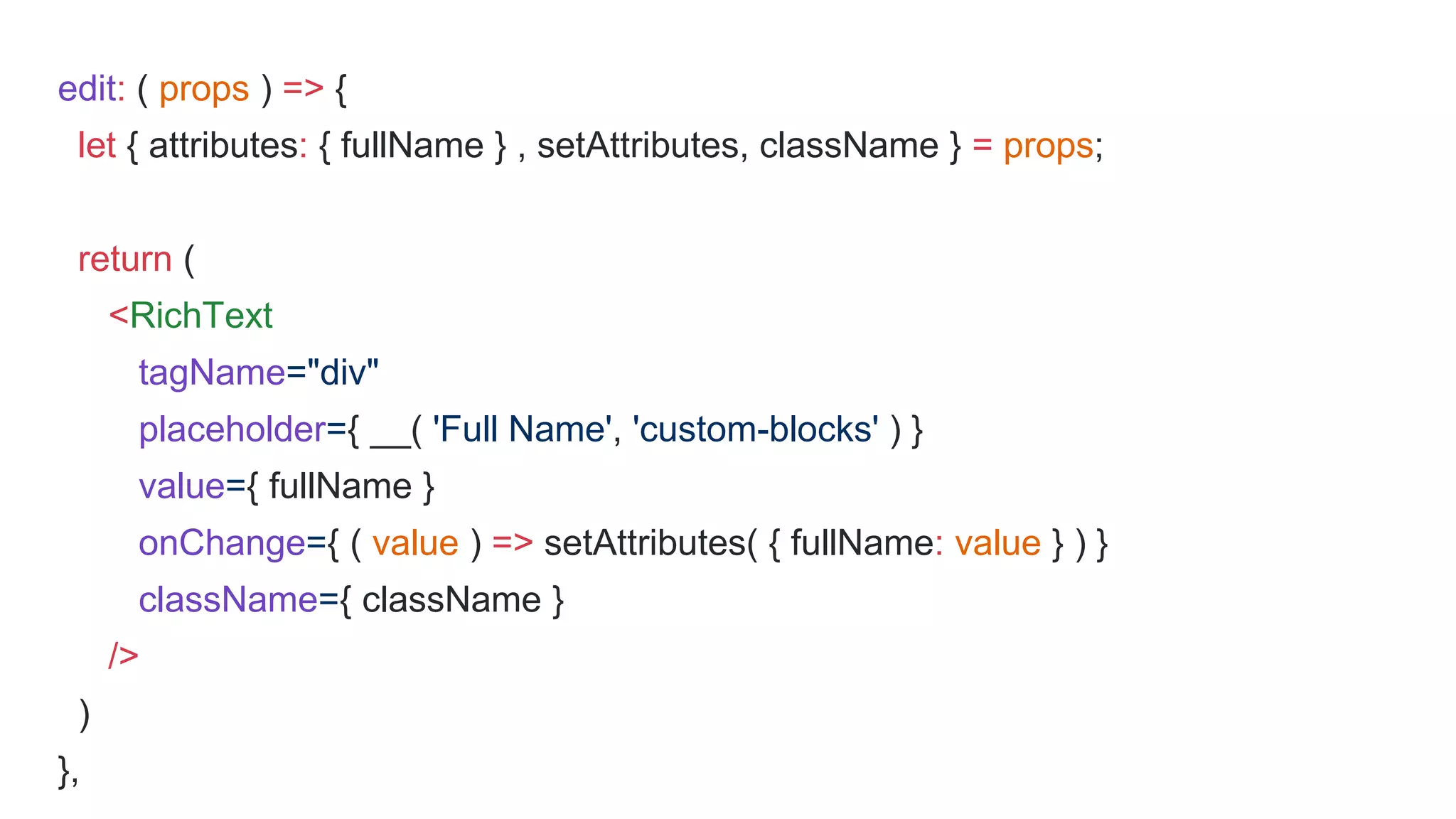

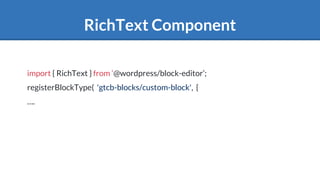

RichText Component
import { RichText } from ‘@wordpress/block-editor’;
….

let { attributes: { fullName } , setAttributes, className } = props;
return (
<RichText
tagName="div"
placeholder={ __( 'Full Name', 'custom-blocks' ) }
value={ fullName }
onChange={ ( value ) => setAttributes( { fullName: value } ) }
className={ className }
/>
)
},

let { attributes: { fullName } , className } = props;
return (
<RichText.Content
tagName="div"
value={ fullName }
/>
)
},

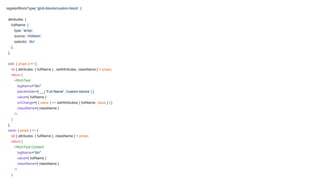

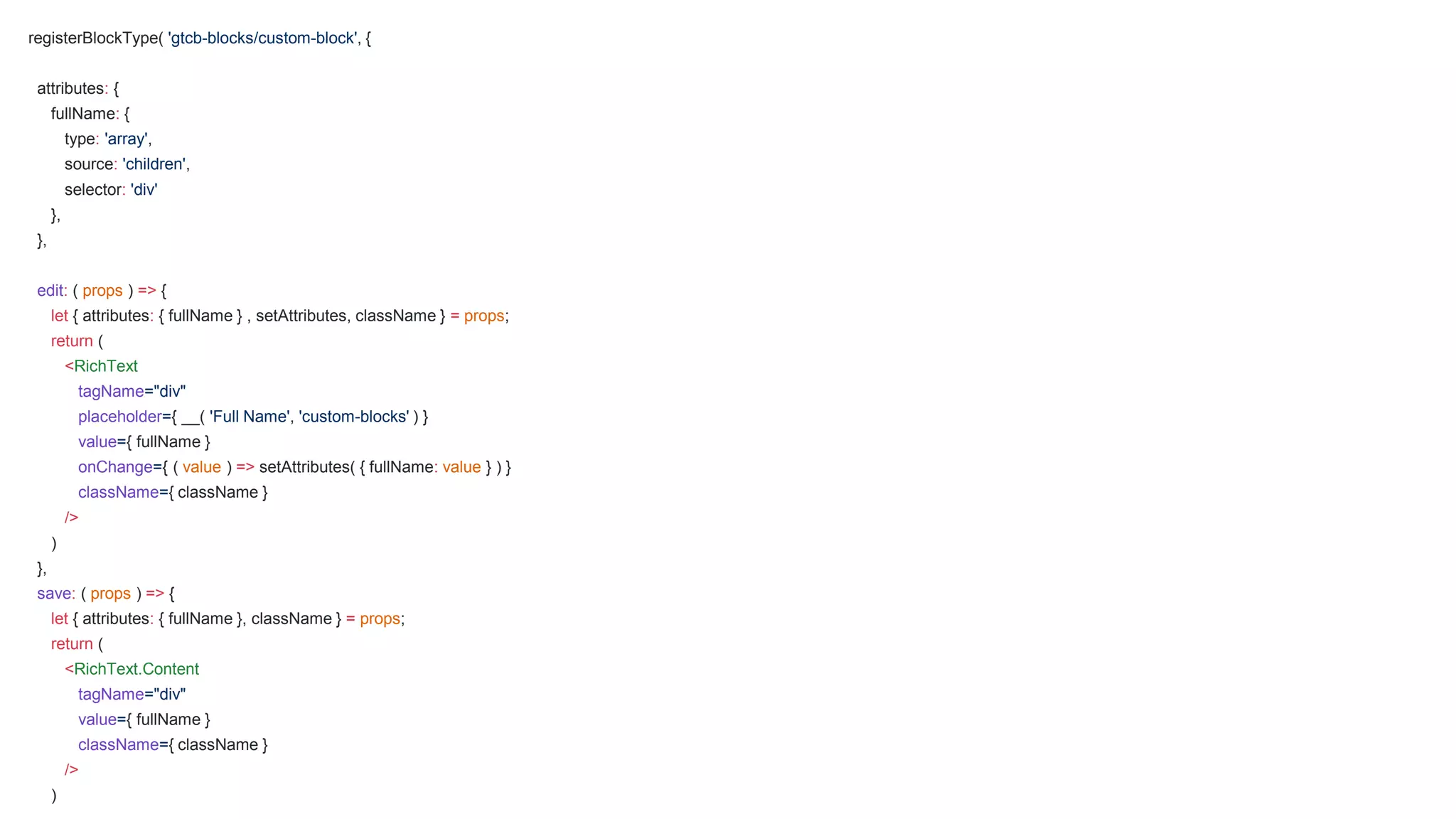

attributes: {
fullName: {
type: 'array',
source: 'children',
selector: 'div'
},
},
let { attributes: { fullName } , setAttributes, className } = props;
return (
<RichText
tagName="div"
placeholder={ __( 'Full Name', 'custom-blocks' ) }
value={ fullName }
onChange={ ( value ) => setAttributes( { fullName: value } ) }
/>
)
},

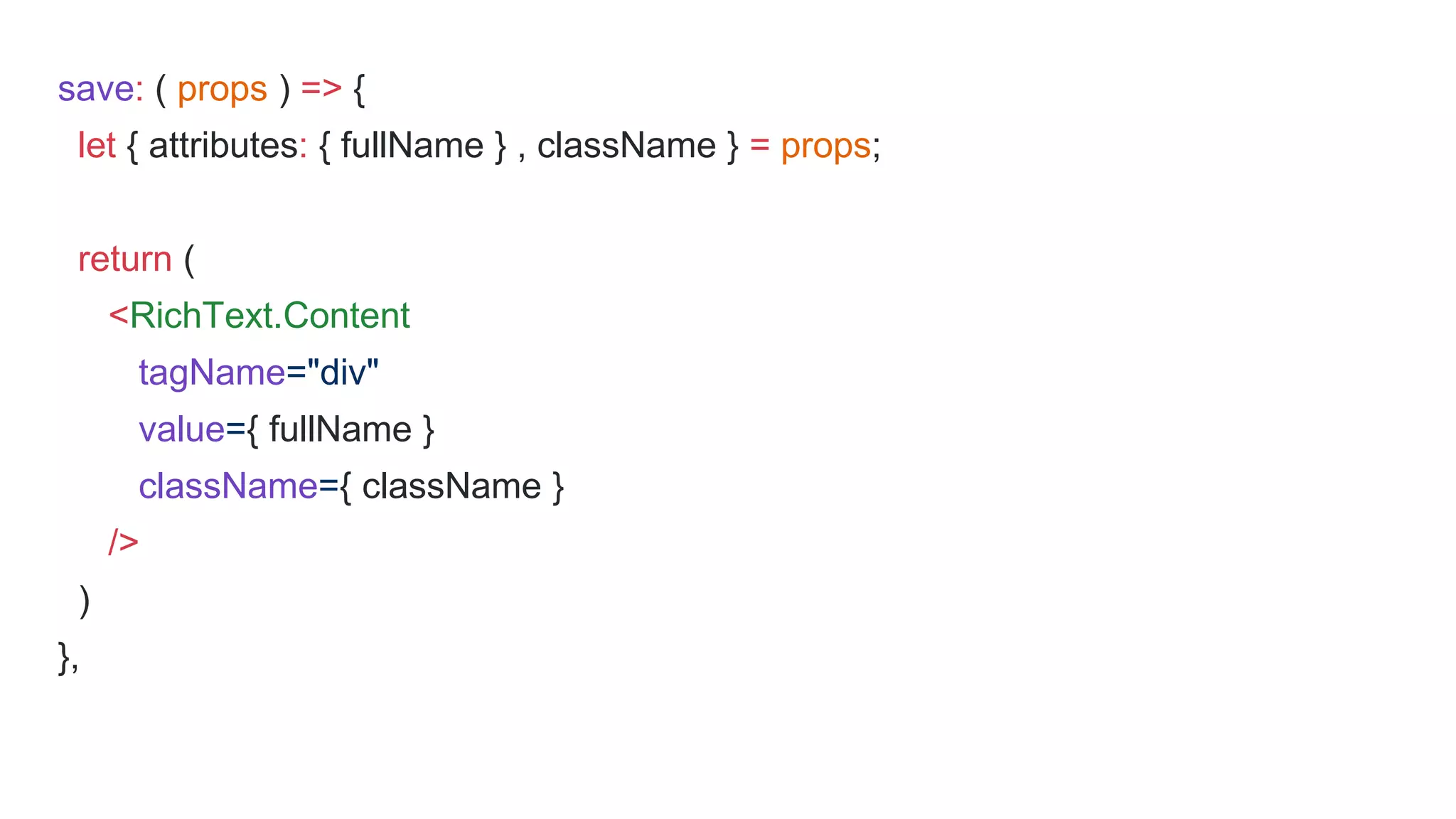

let { attributes: { fullName }, className } = props;
return (
<RichText.Content
tagName="div"
value={ fullName }
/>
)

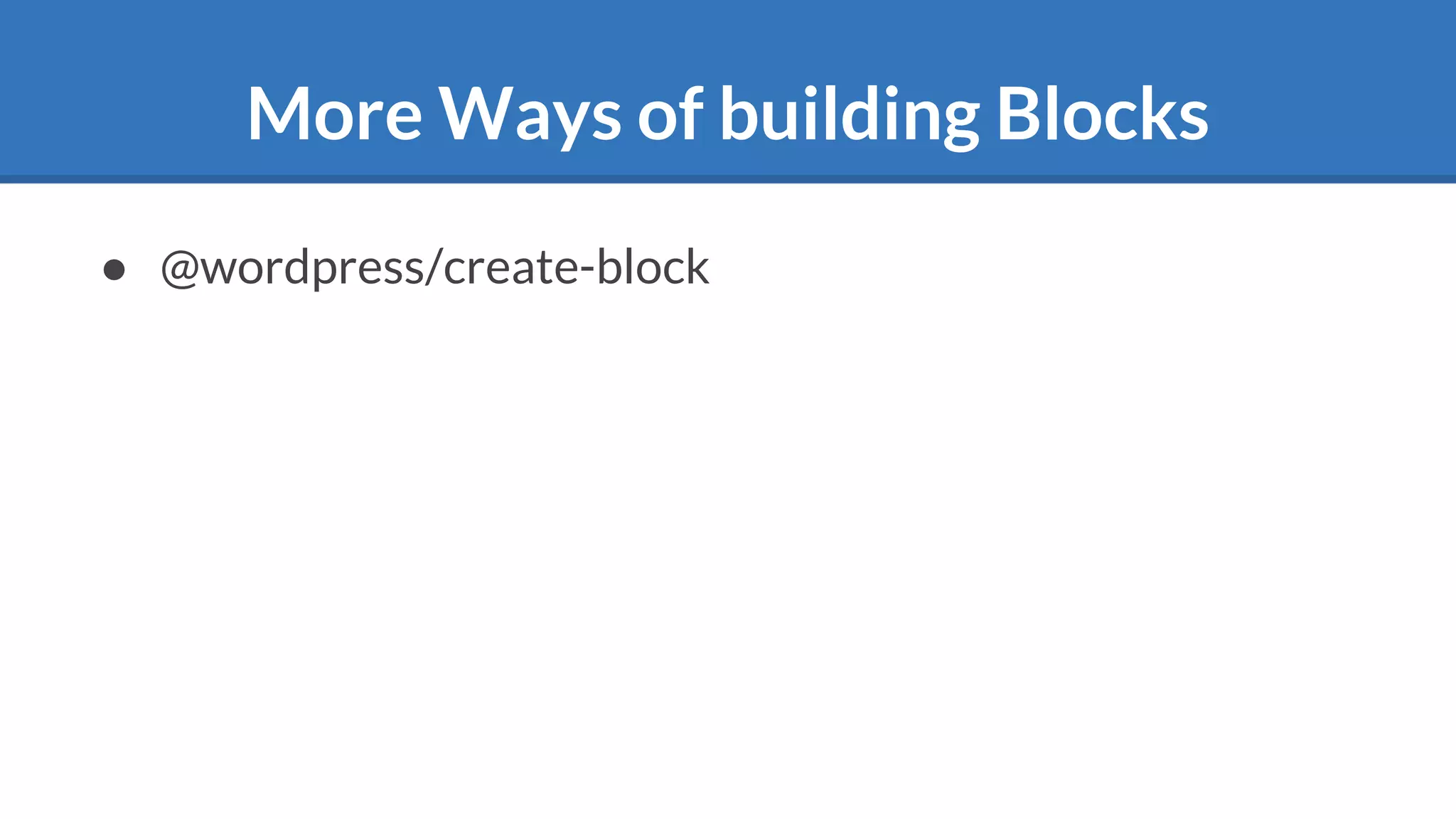

More Ways of building Blocks
● @wordpress/create-block

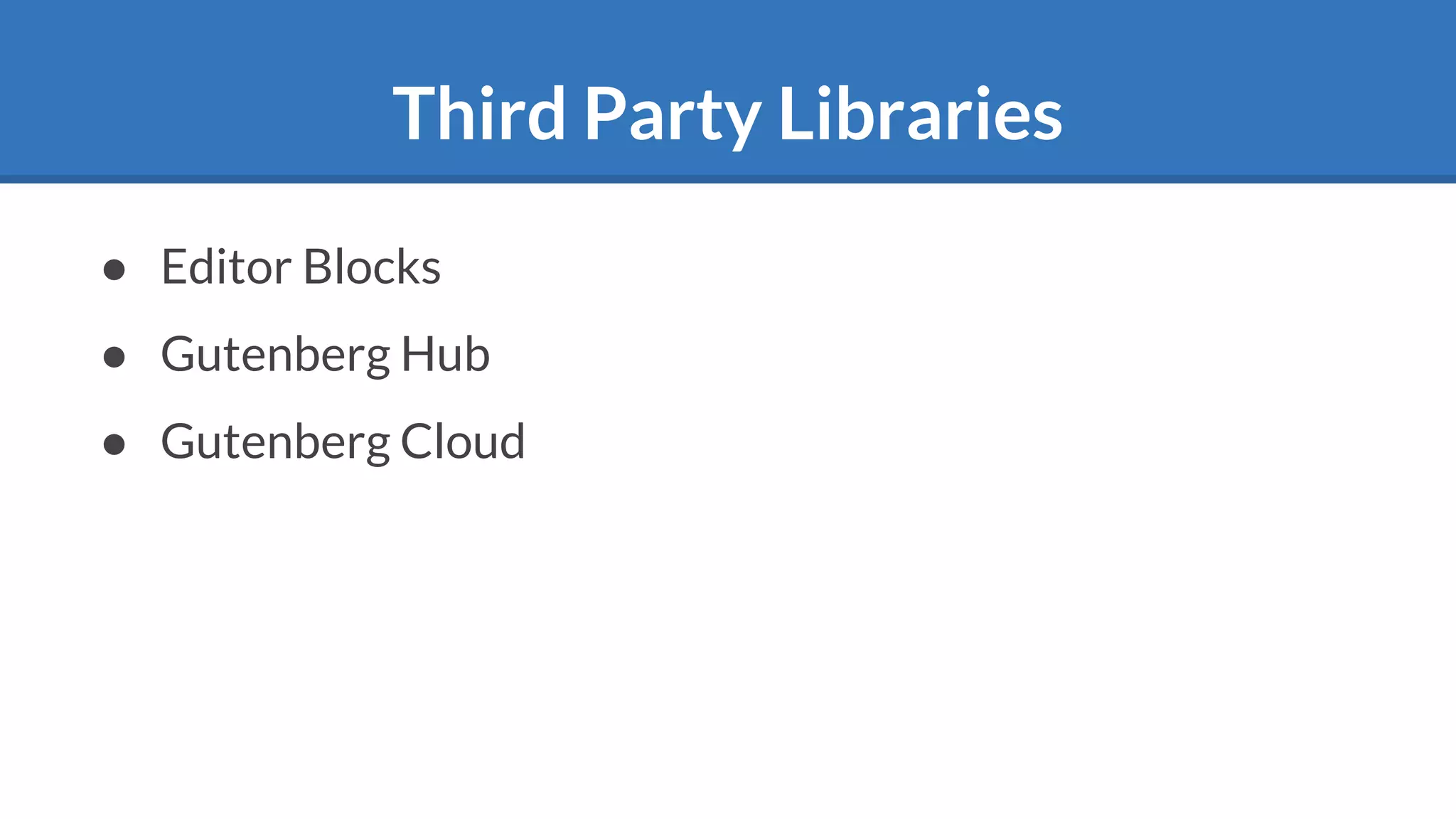

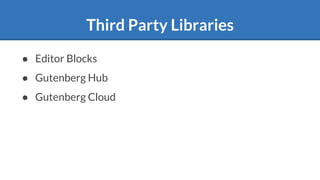

Third Party Libraries
● Editor Blocks
● Gutenberg Hub
● Gutenberg Cloud

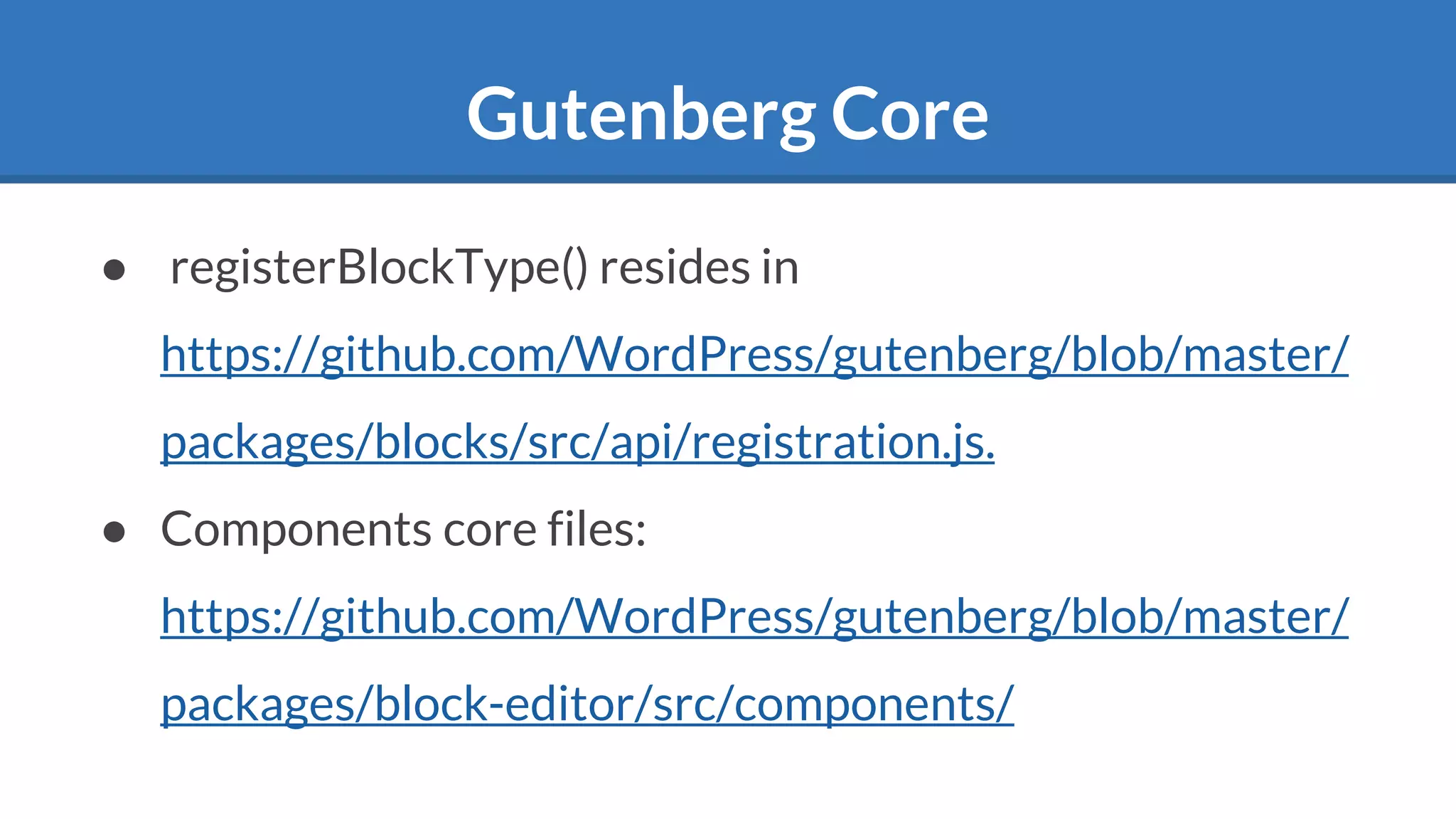

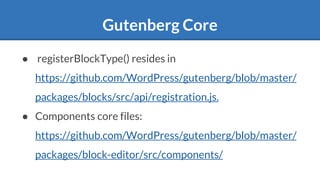

Gutenberg Core
● registerBlockType() resides in
https://github.com/WordPress/gutenberg/blob/master/
packages/blocks/src/api/registration.js.
● Components core files:
https://github.com/WordPress/gutenberg/blob/master/
packages/block-editor/src/components/

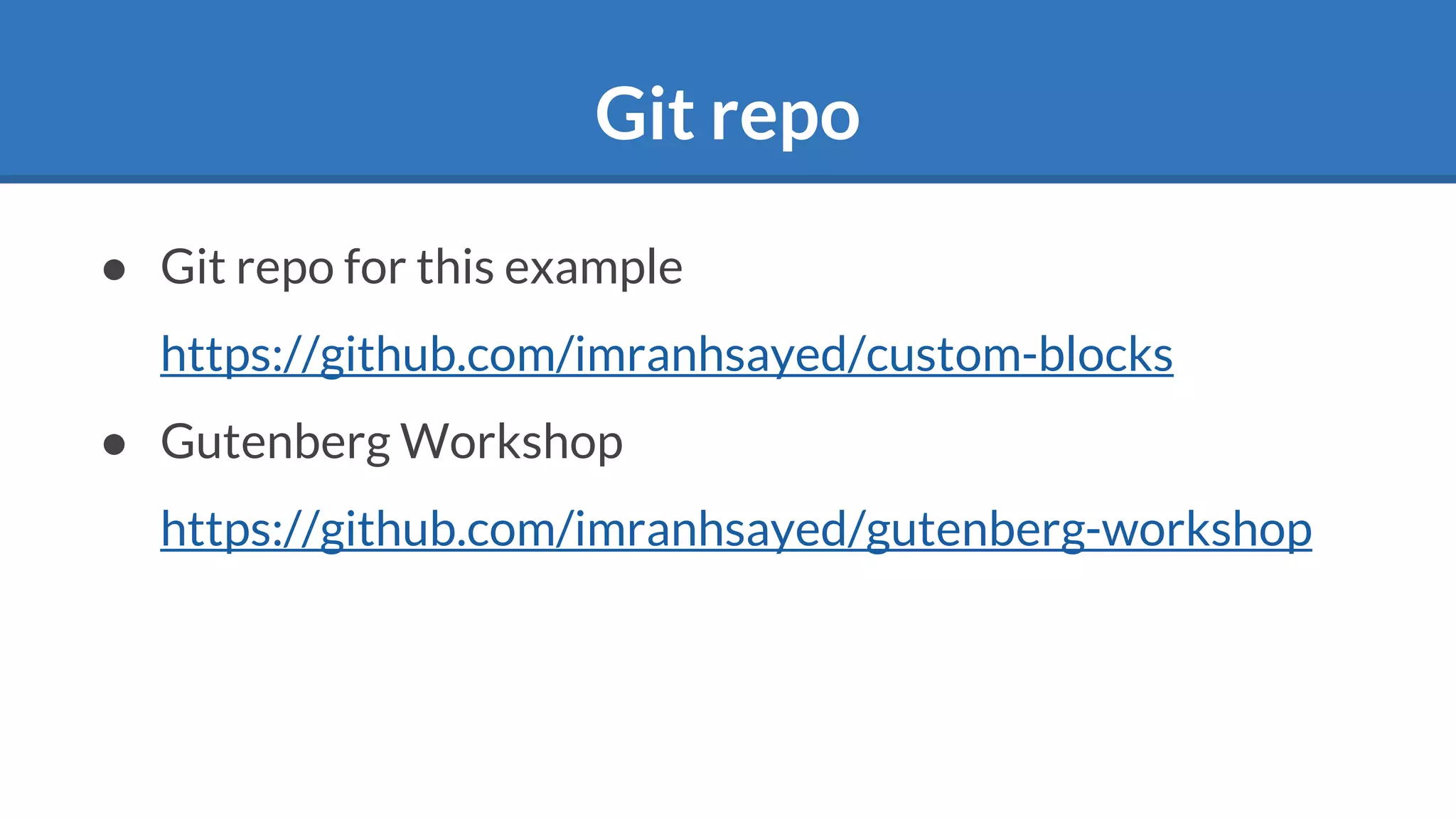

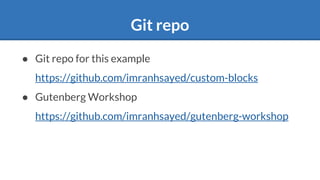

Git repo
● Git repo for this example
https://github.com/imranhsayed/custom-blocks
● Gutenberg Workshop
https://github.com/imranhsayed/gutenberg-workshop

Questions?
Imran Sayed
@imranhsayed
