Da package usersguide

VisiTECH Data Acquisition Package User’s Guide
________________________________________________________________________

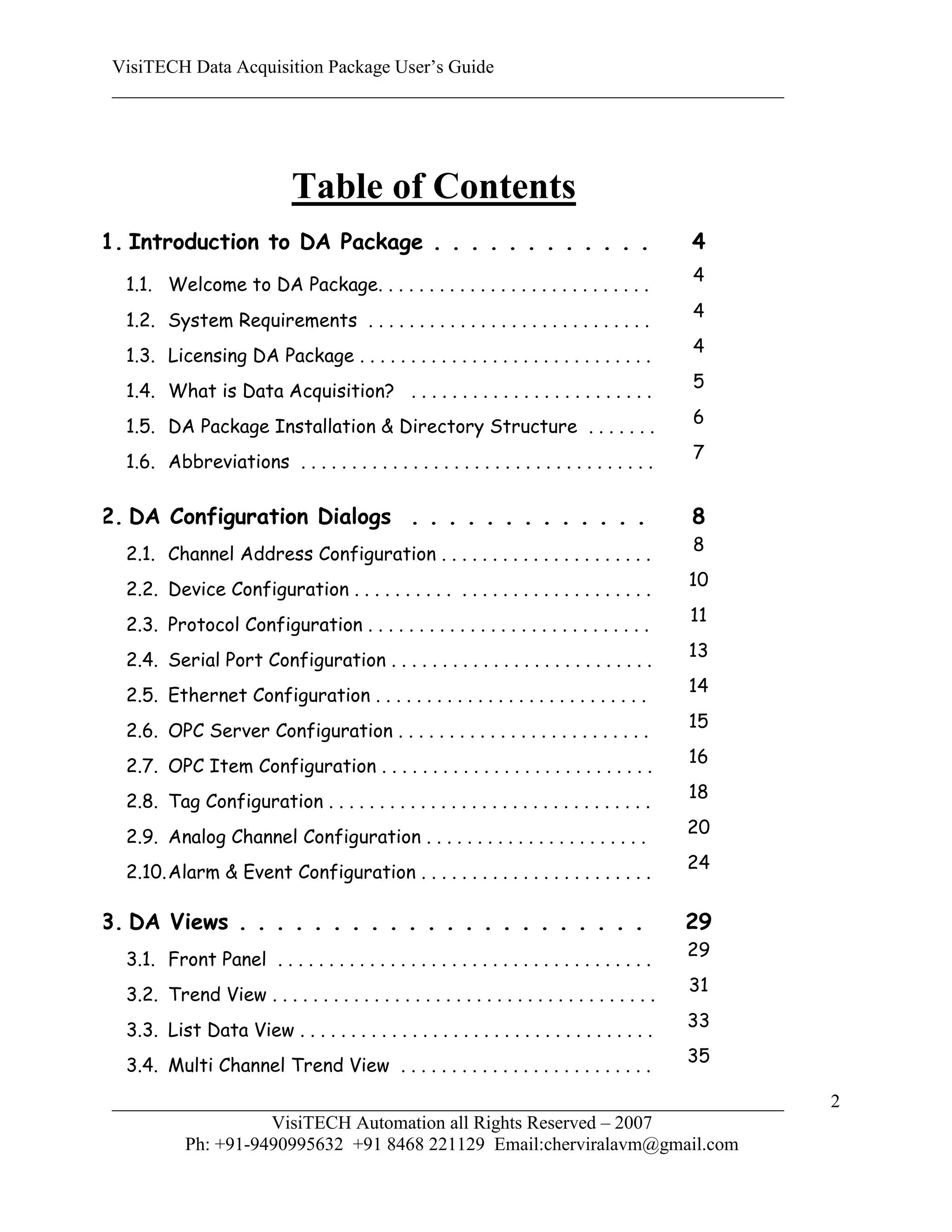

Table of Contents
1. Introduction to DA Package . . . . . . . . . . . . 4
4
1.1. Welcome to DA Package. . . . . . . . . . . . . . . . . . . . . . . . . . .
4
1.2. System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
1.3. Licensing DA Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
1.4. What is Data Acquisition? . . . . . . . . . . . . . . . . . . . . . . . .
6
1.5. DA Package Installation & Directory Structure . . . . . . .
7
1.6. Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2. DA Configuration Dialogs . . . . . . . . . . . . . 8
8
2.1. Channel Address Configuration . . . . . . . . . . . . . . . . . . . . .
10
2.2. Device Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
2.3. Protocol Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13

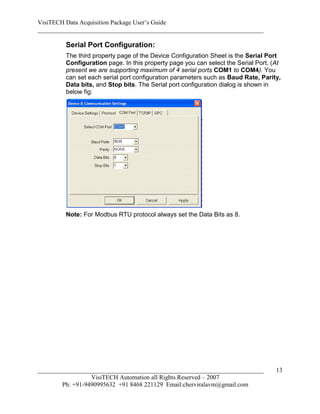

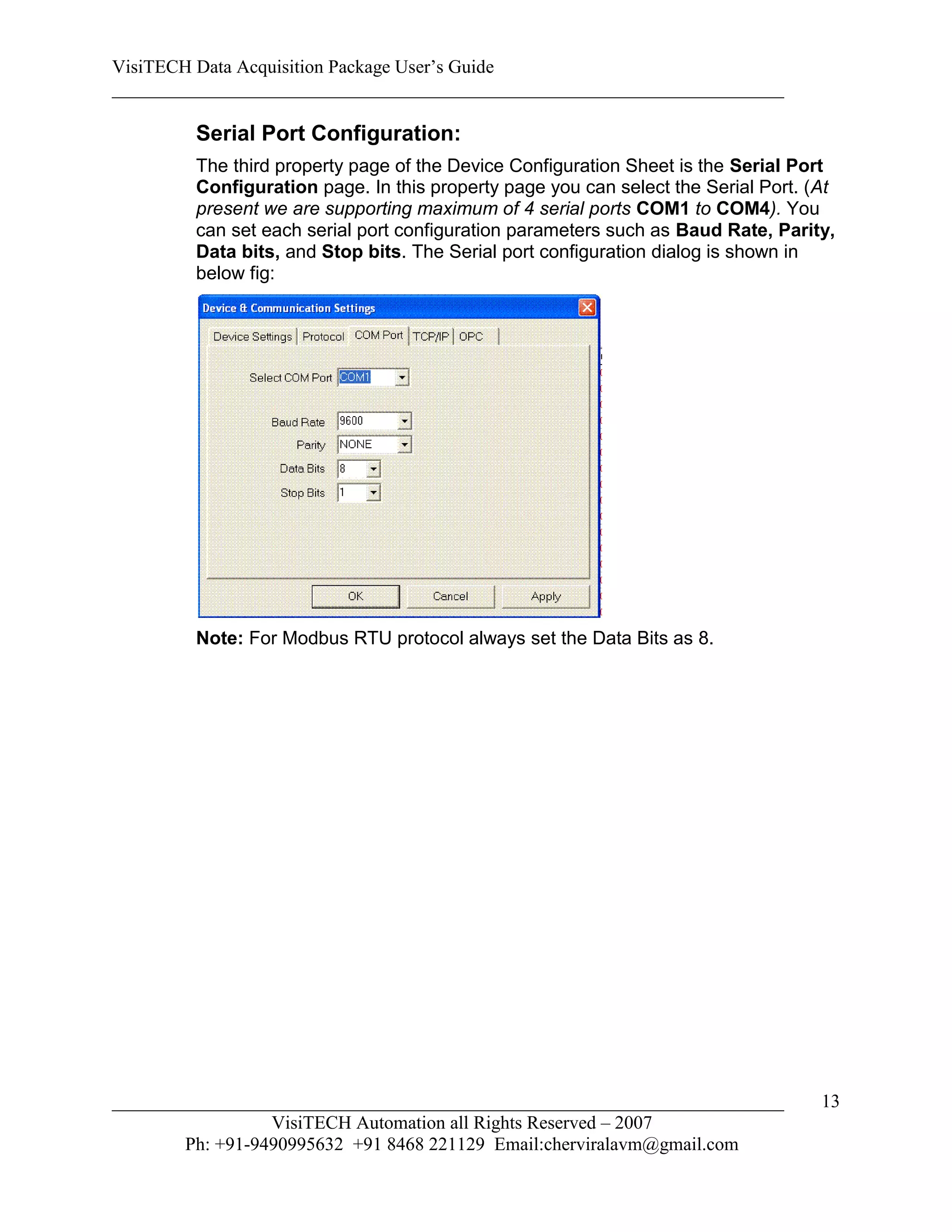

2.4. Serial Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .
14

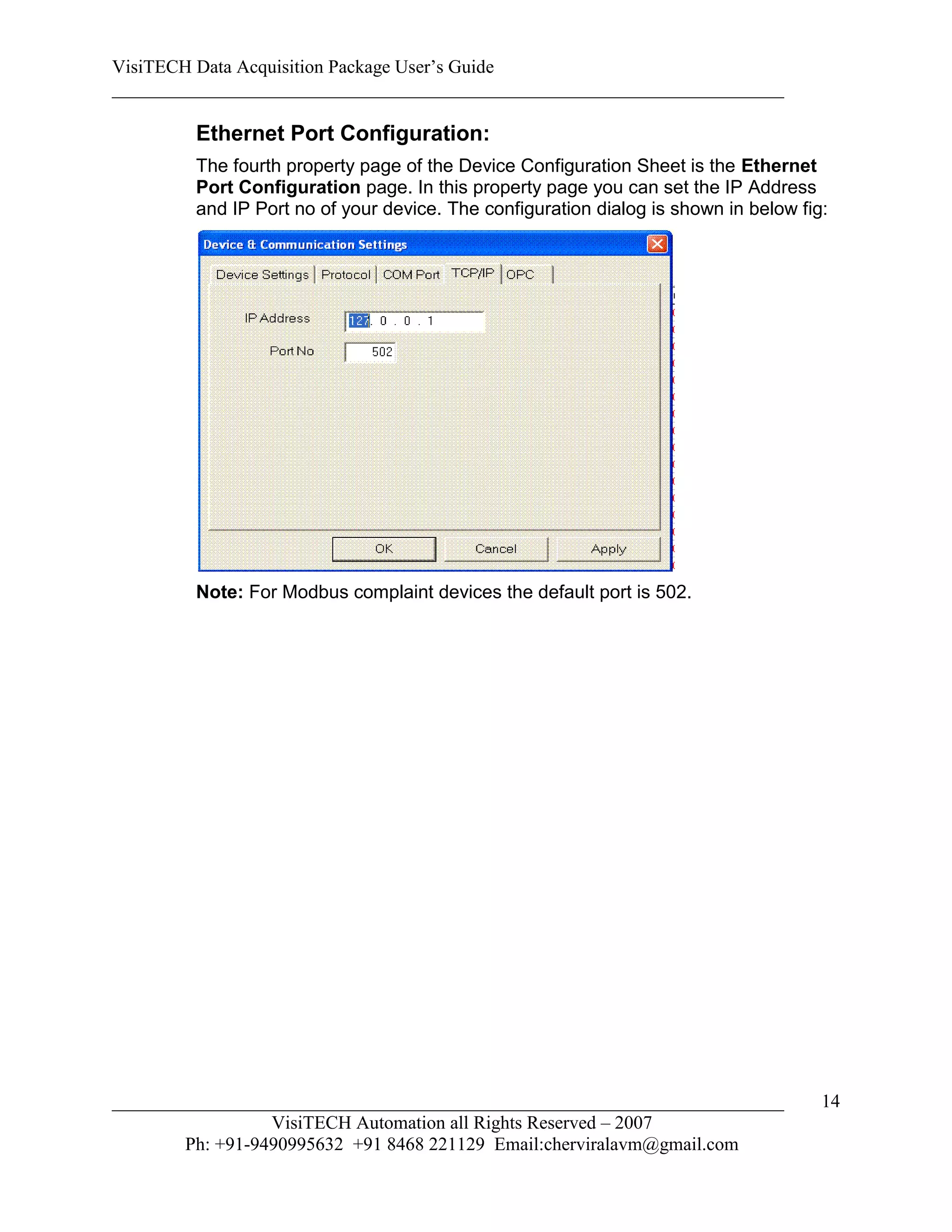

2.5. Ethernet Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .
15

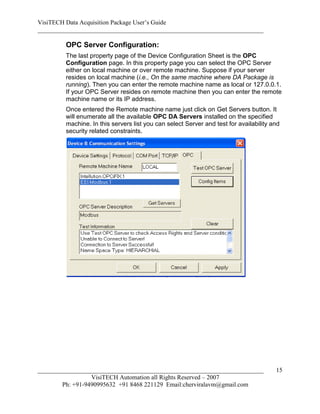

2.6. OPC Server Configuration . . . . . . . . . . . . . . . . . . . . . . . . .
16

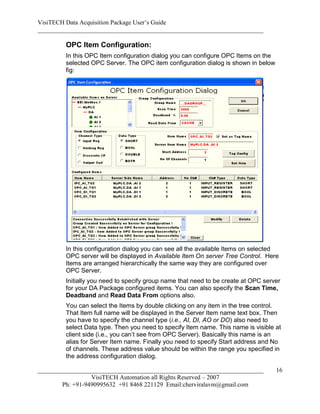

2.7. OPC Item Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
2.8. Tag Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20

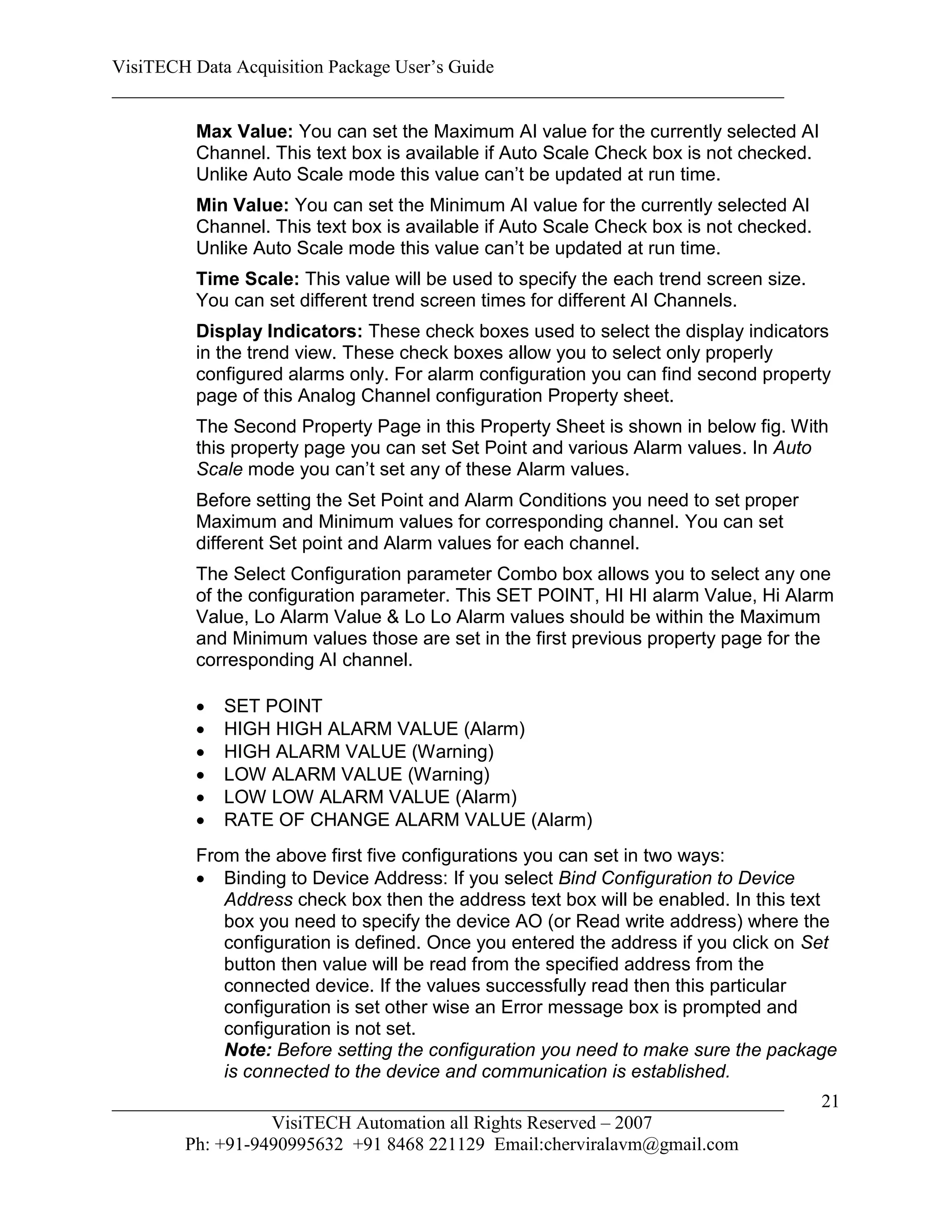

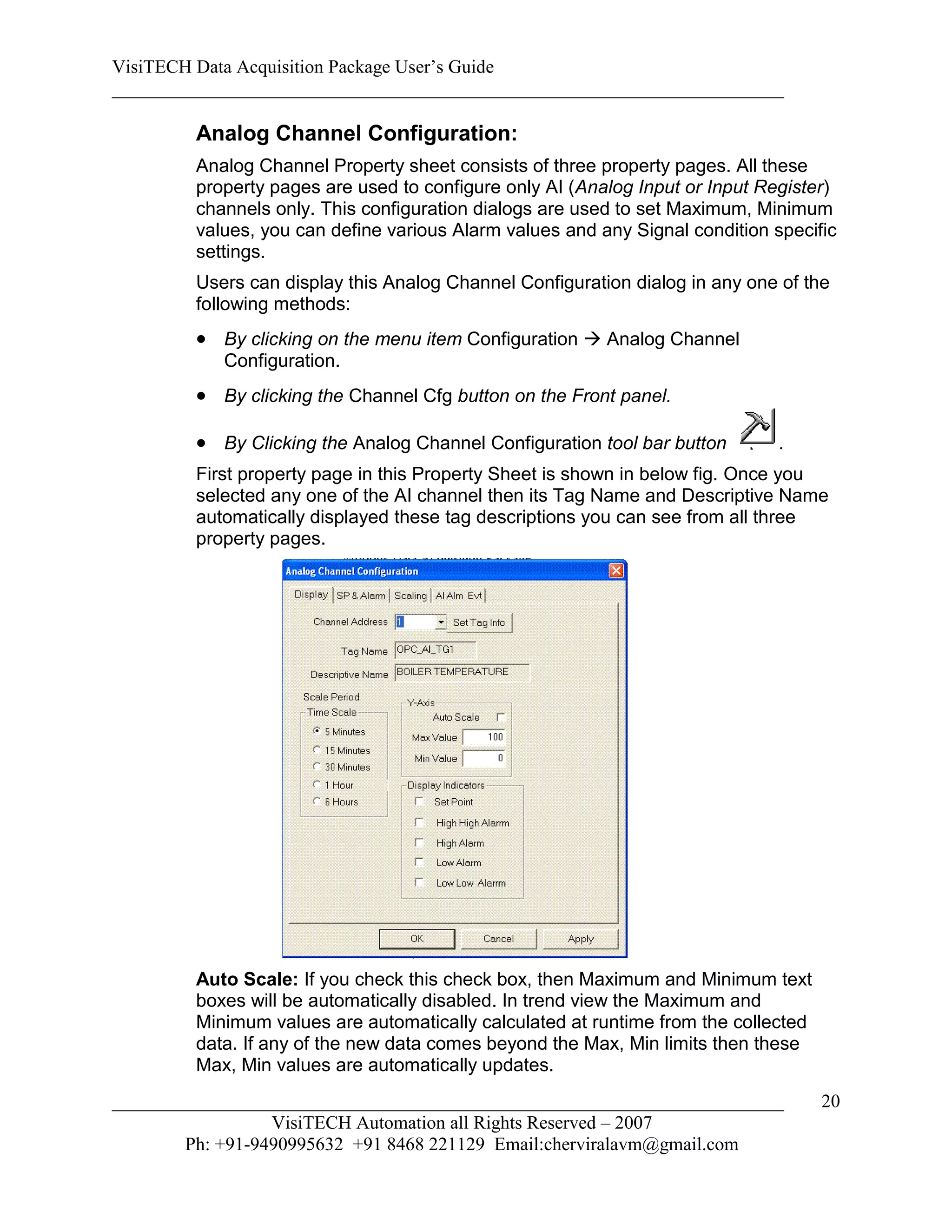

2.9. Analog Channel Configuration . . . . . . . . . . . . . . . . . . . . . .
24

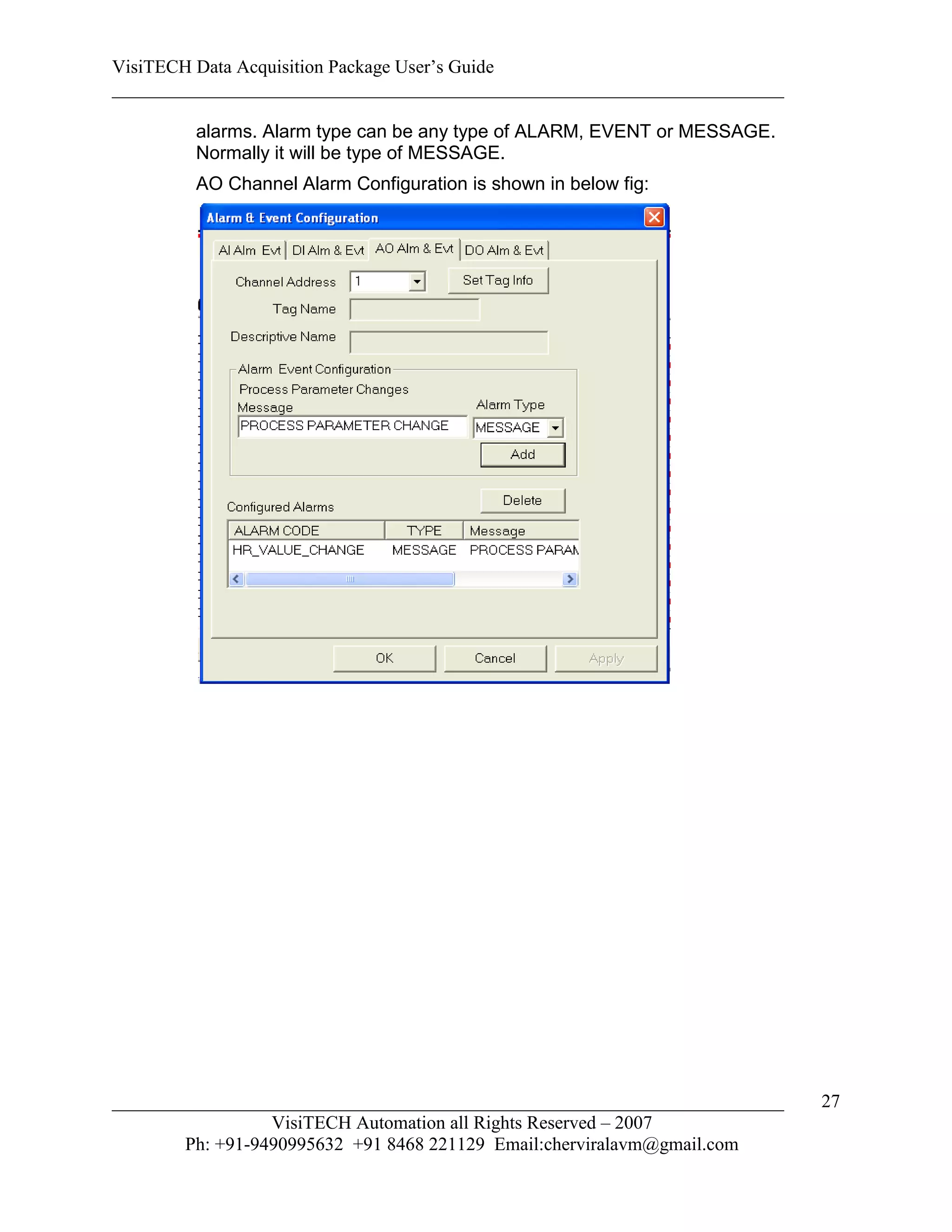

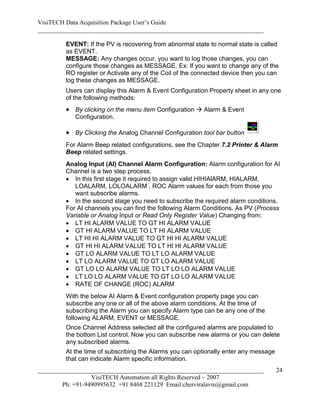

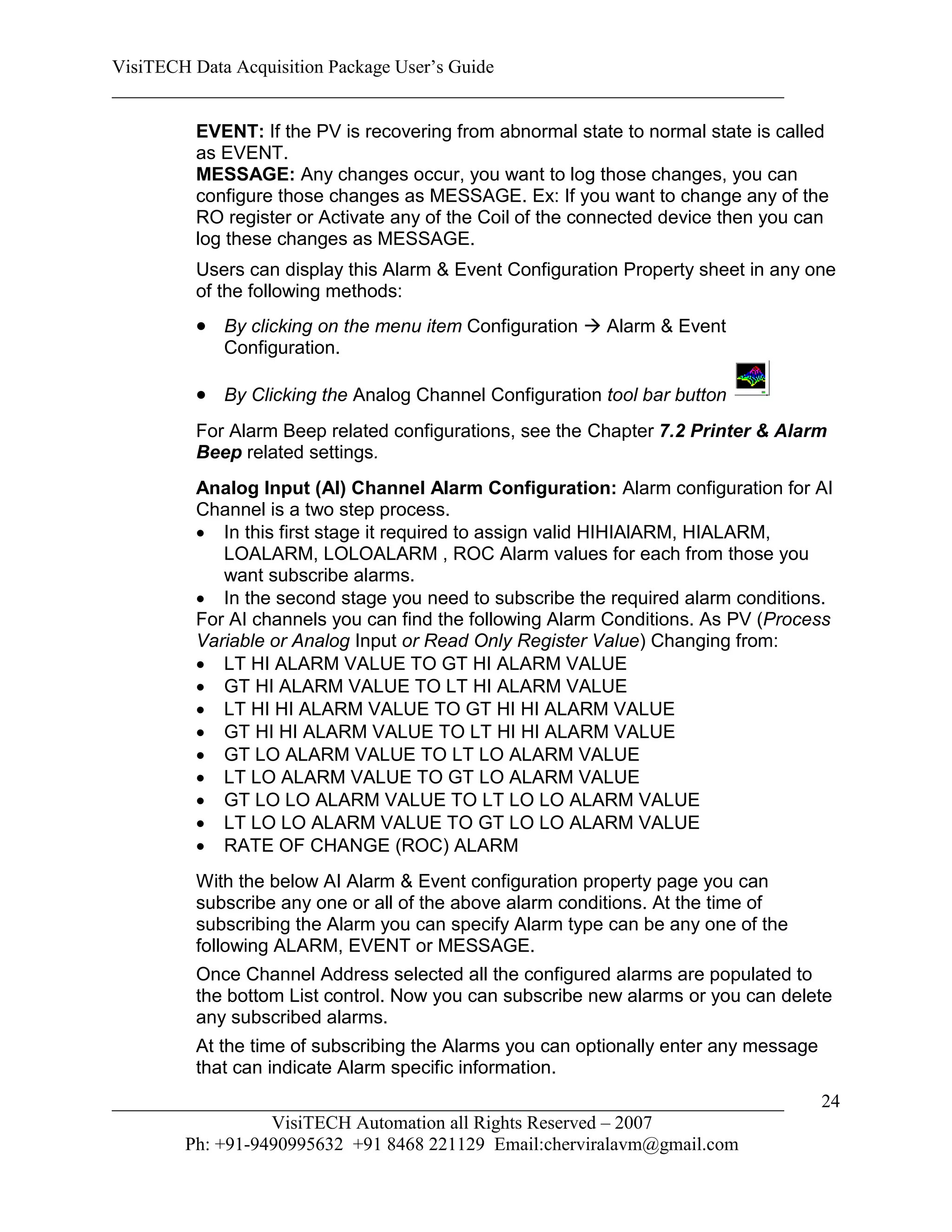

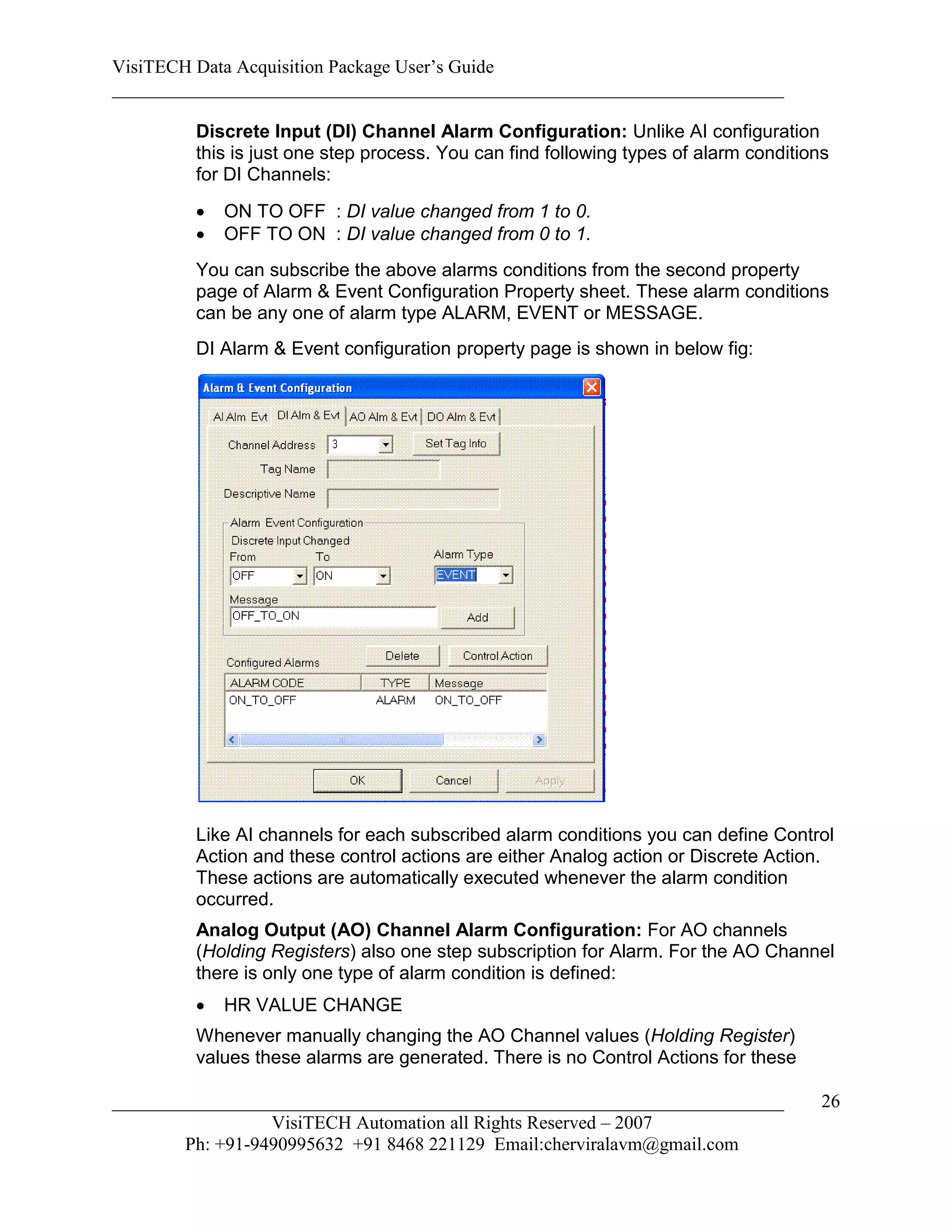

2.10. Alarm & Event Configuration . . . . . . . . . . . . . . . . . . . . . . .

3. DA Views . . . . . . . . . . . . . . . . . . . . . . 29
29
3.1. Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31

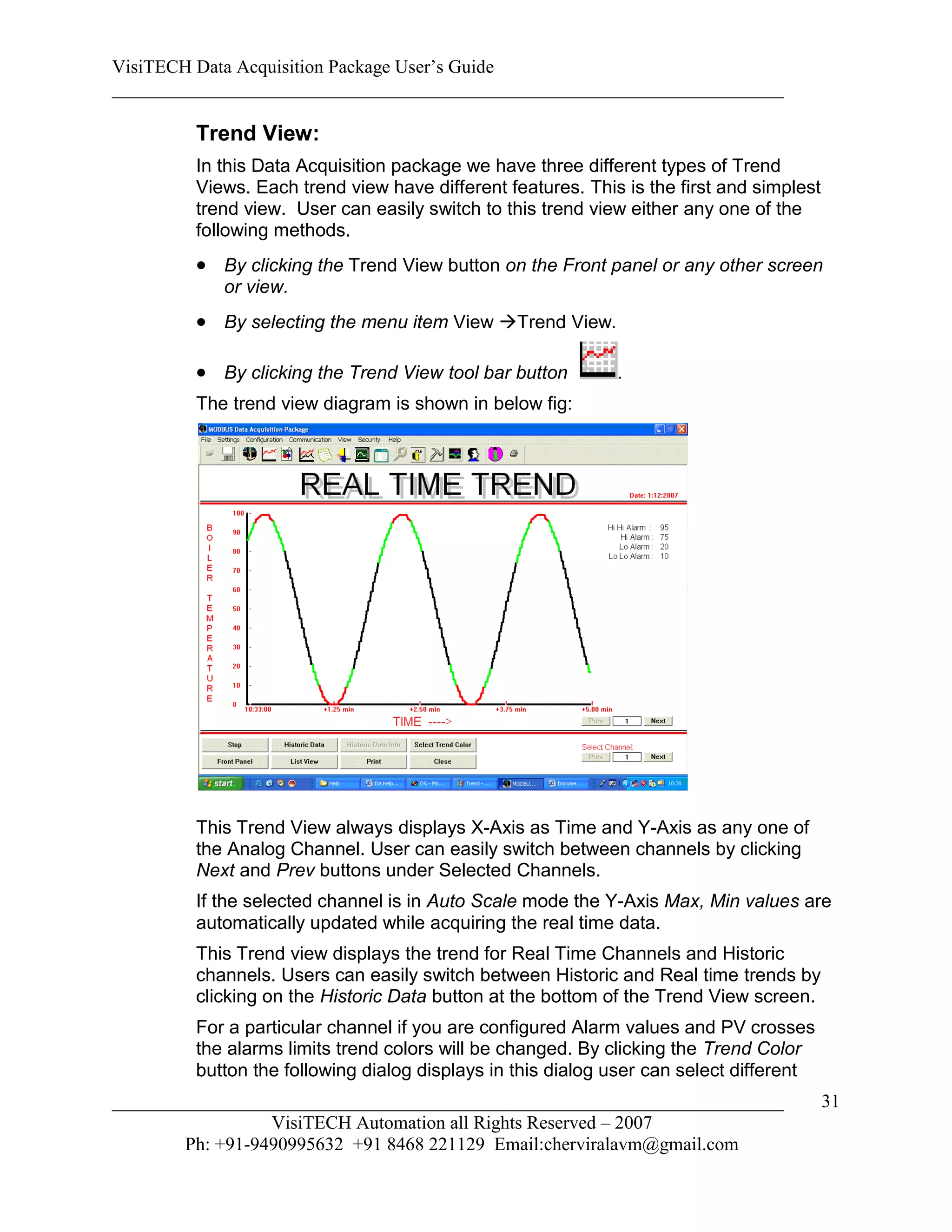

3.2. Trend View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33

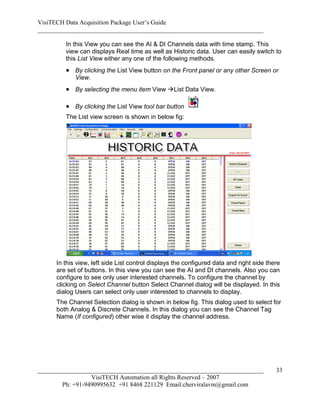

3.3. List Data View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35

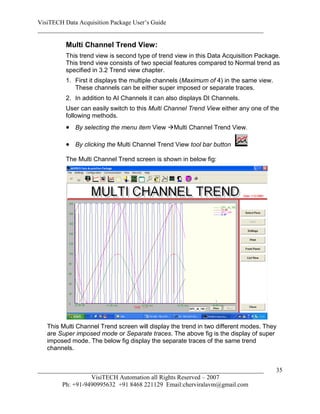

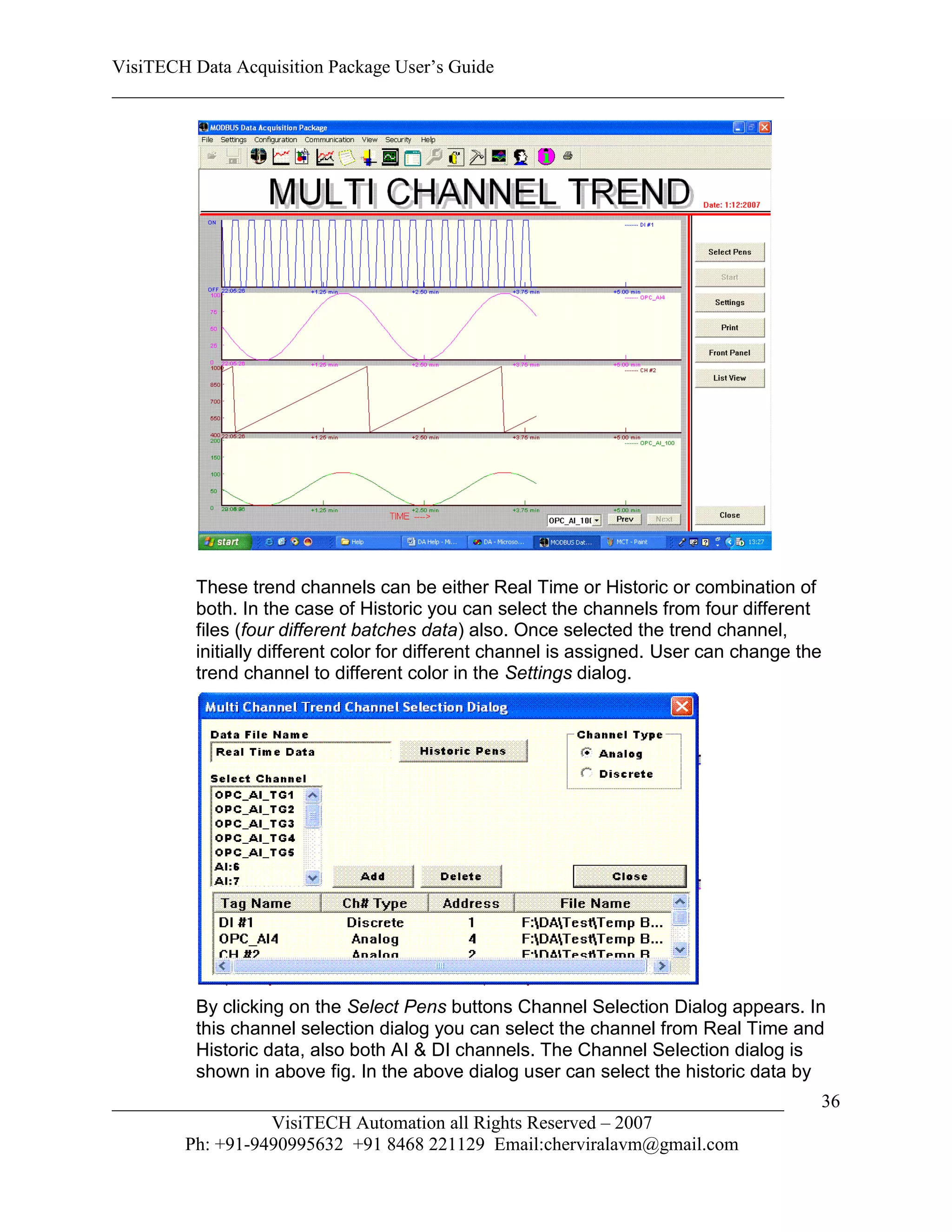

3.4. Multi Channel Trend View . . . . . . . . . . . . . . . . . . . . . . . . .
________________________________________________________________________ 2
VisiTECH Automation all Rights Reserved – 2007
Ph: +91-9490995632 +91 8468 221129 Email:cherviralavm@gmail.com

________________________________________________________________________

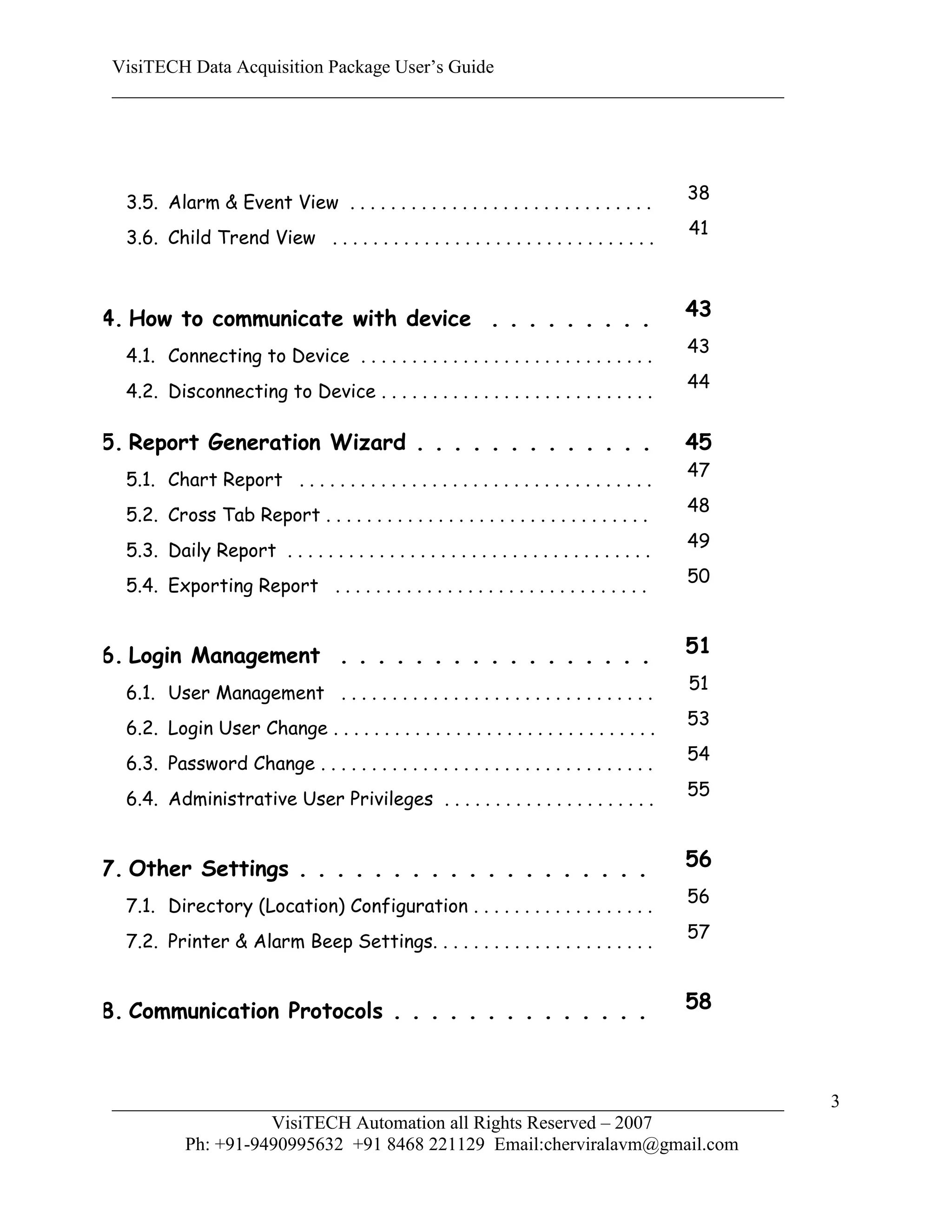

38

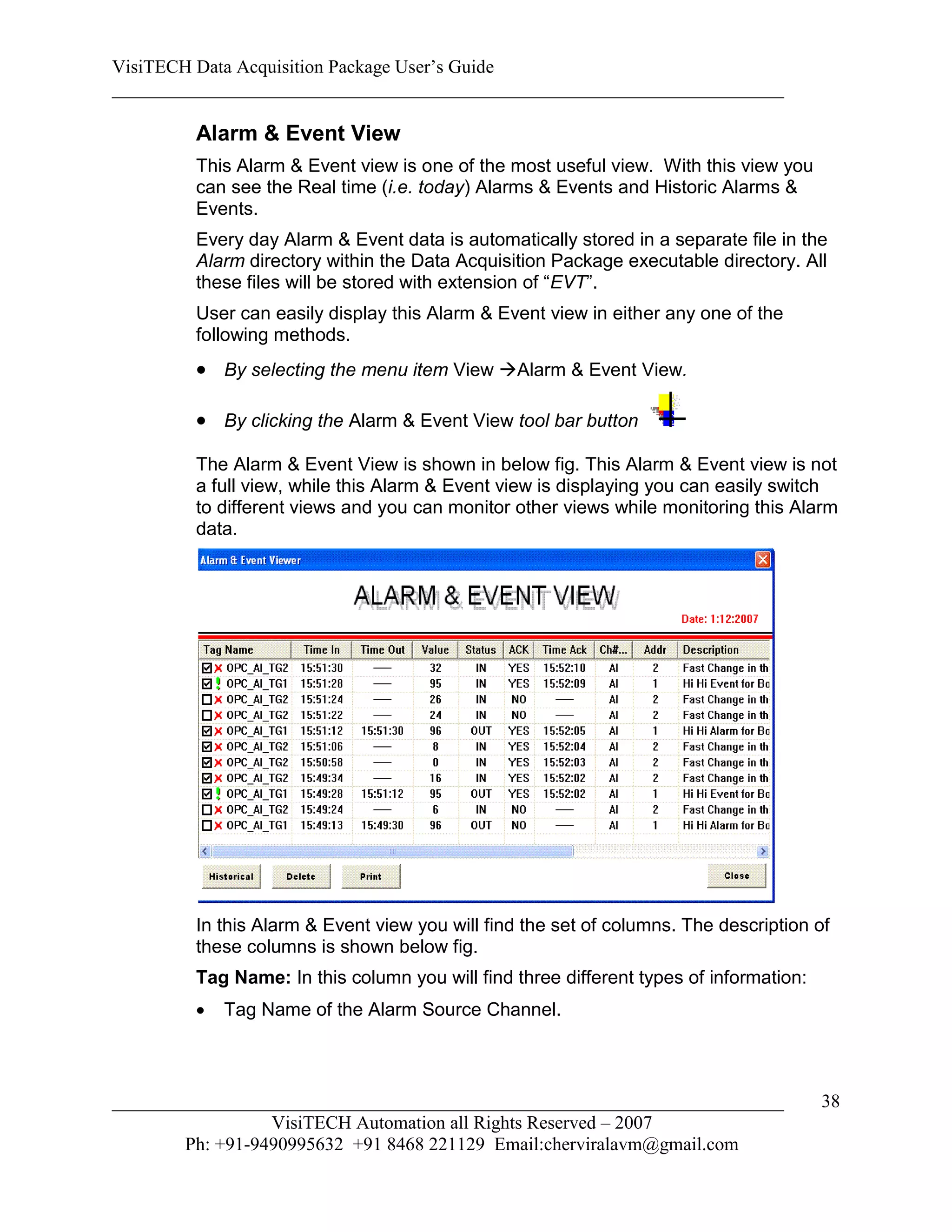

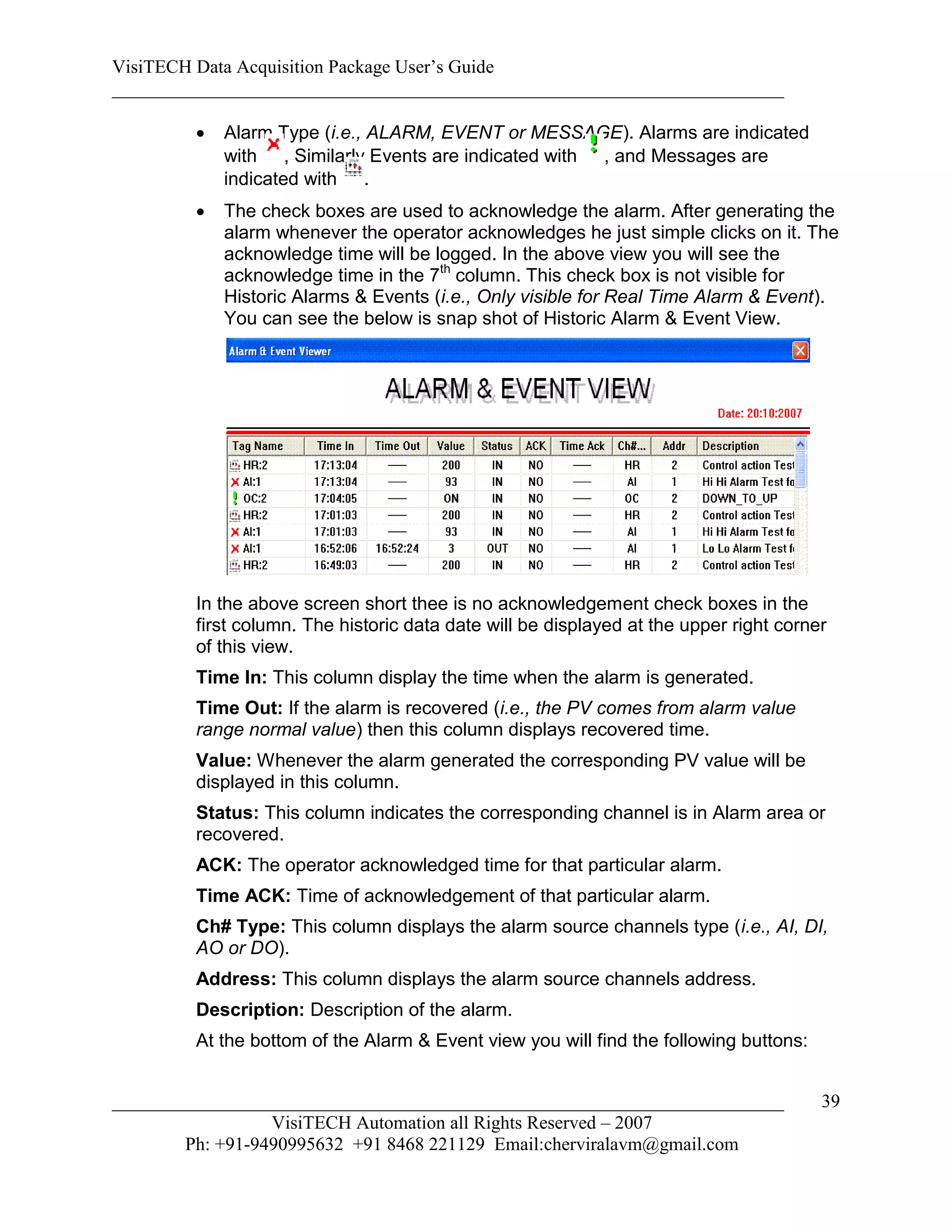

3.5. Alarm & Event View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
3.6. Child Trend View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

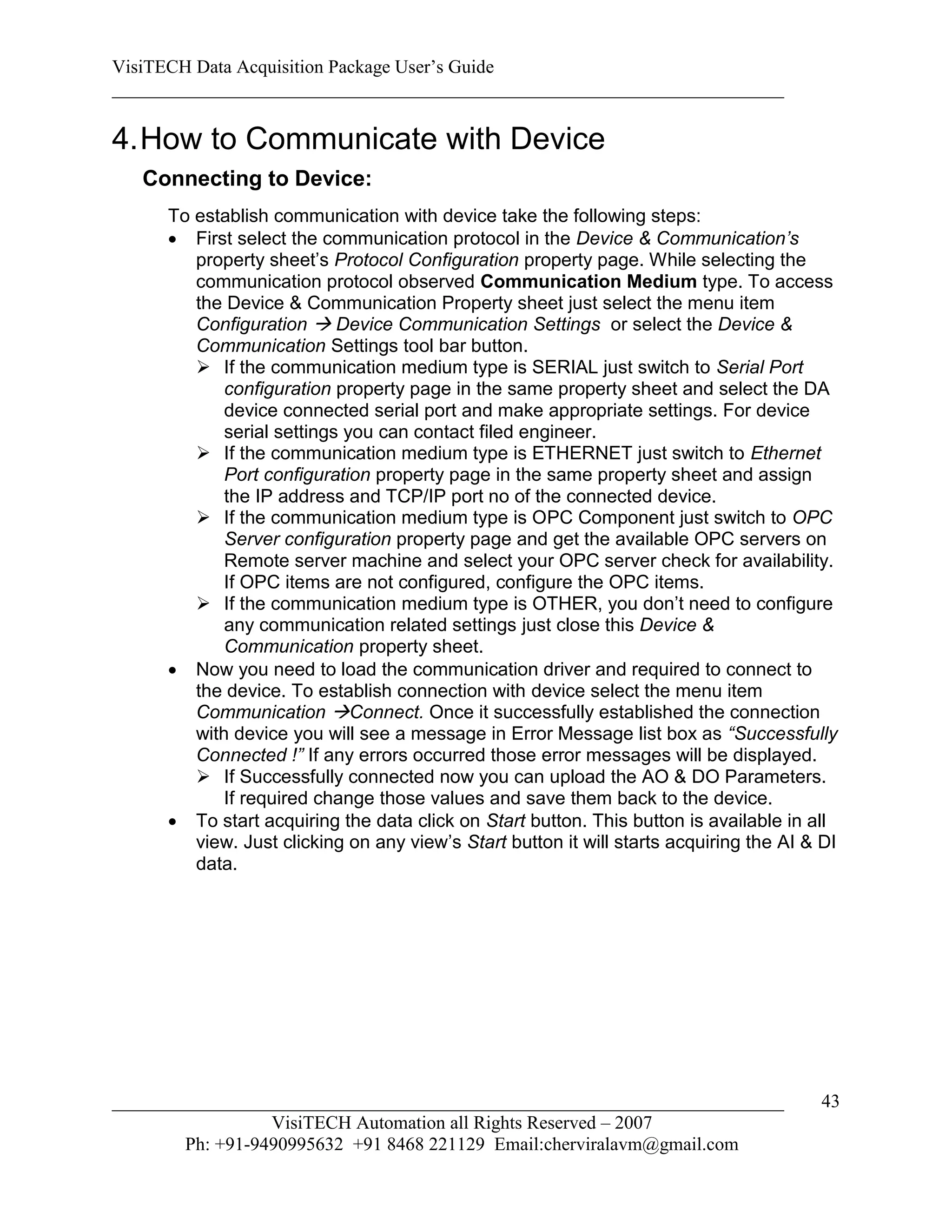

4. How to communicate with device . . . . . . . . . 43
43
4.1. Connecting to Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44

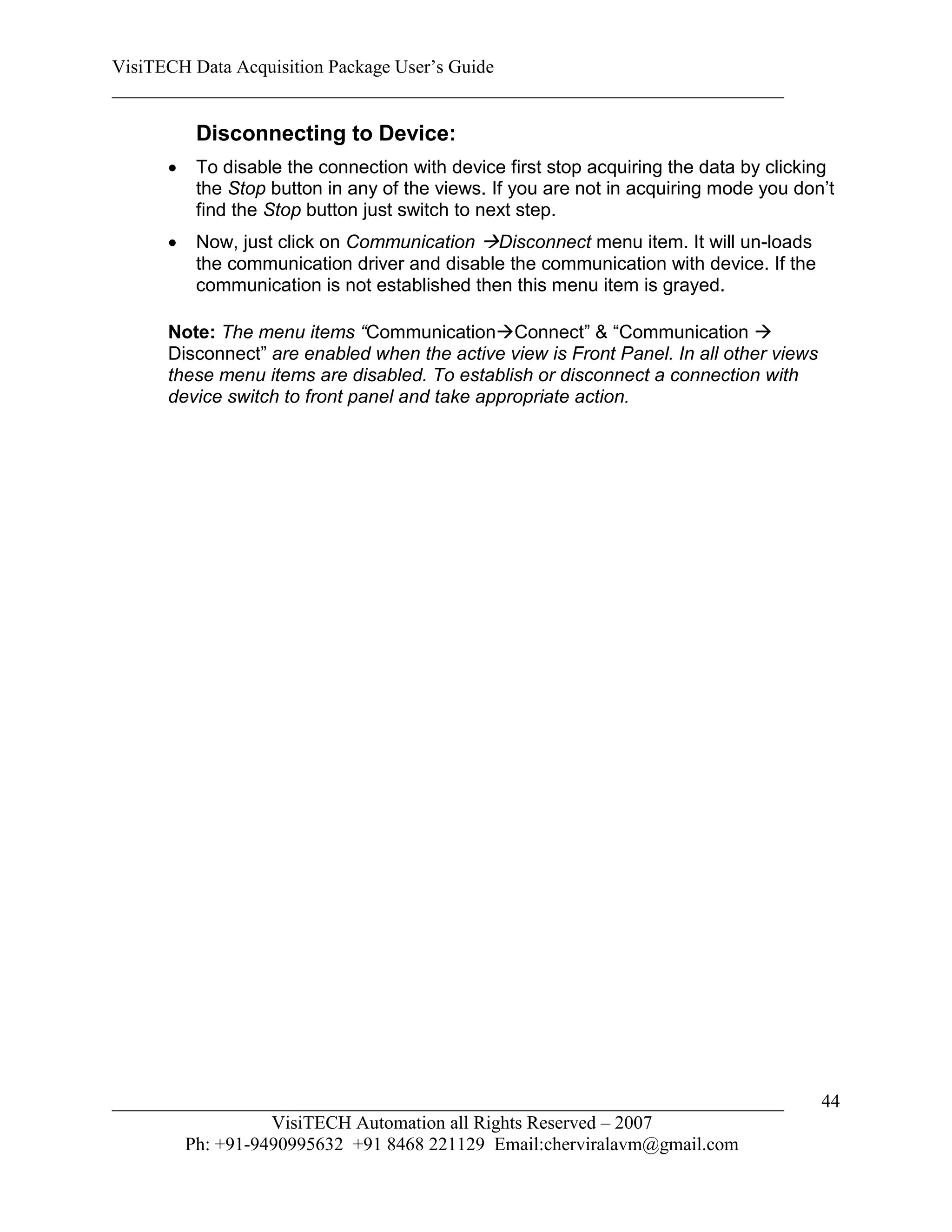

4.2. Disconnecting to Device . . . . . . . . . . . . . . . . . . . . . . . . . . .

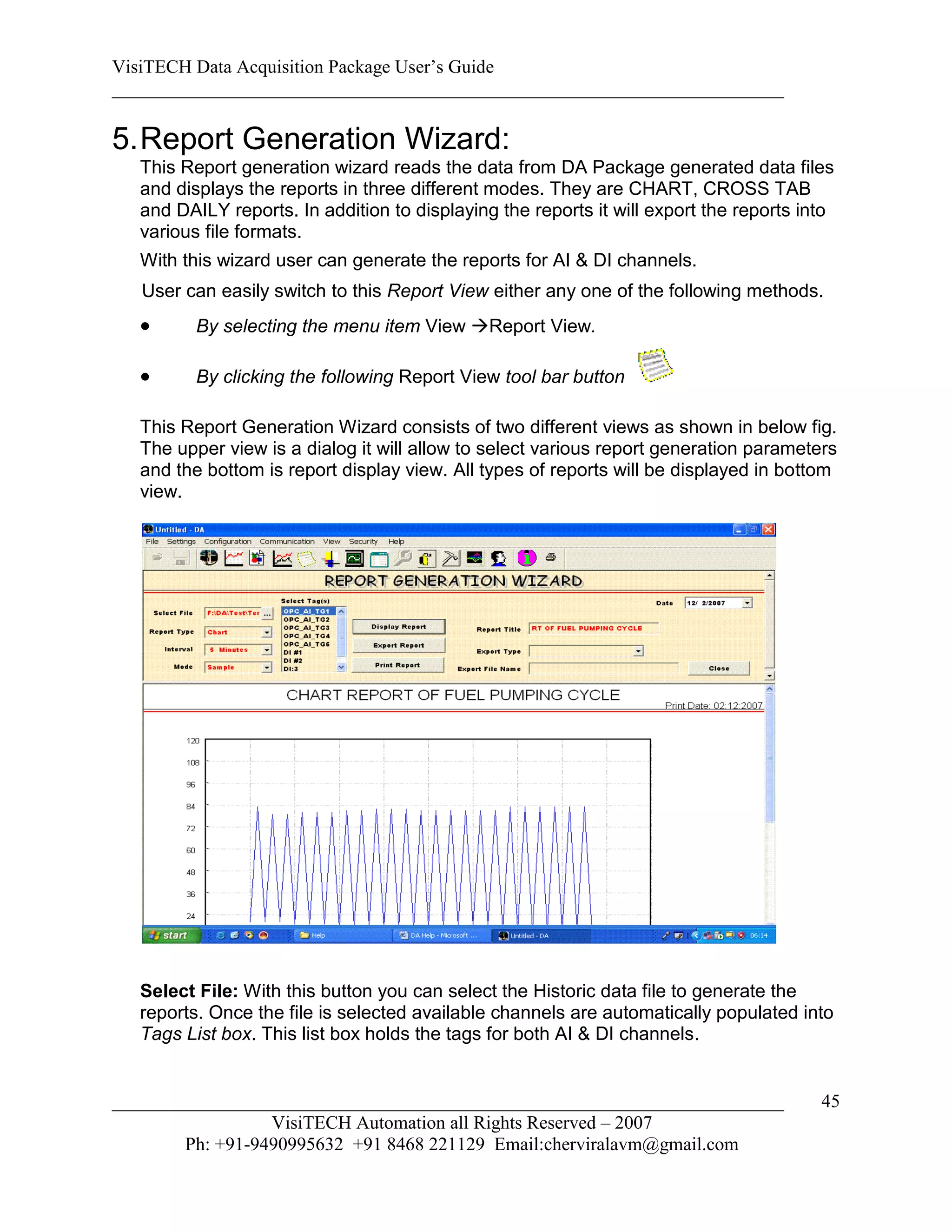

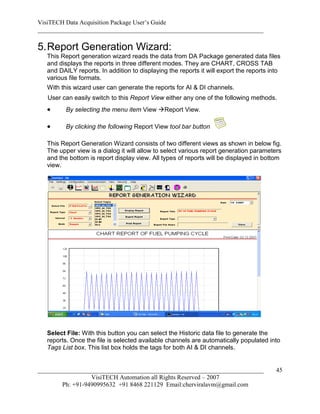

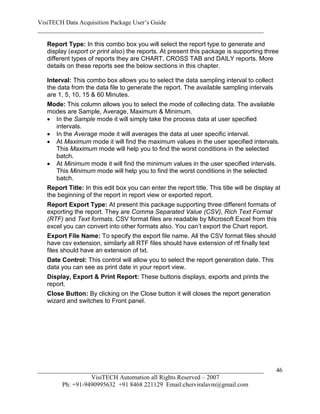

5. Report Generation Wizard . . . . . . . . . . . . . 45
47

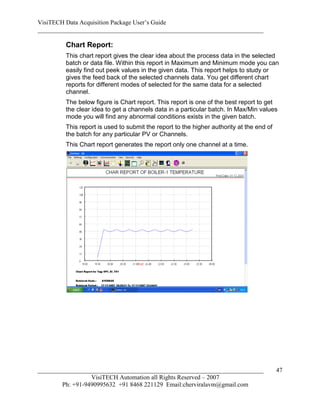

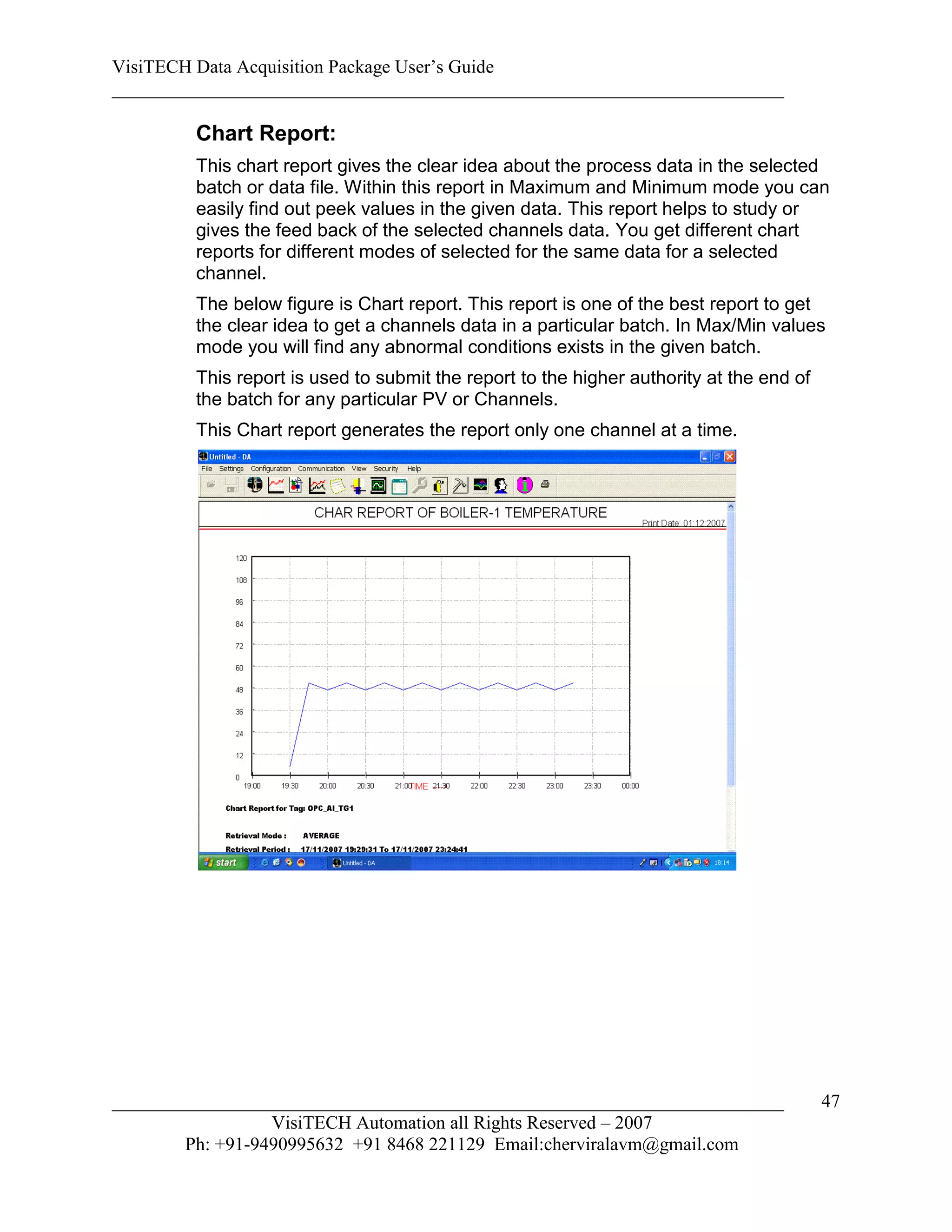

5.1. Chart Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
48

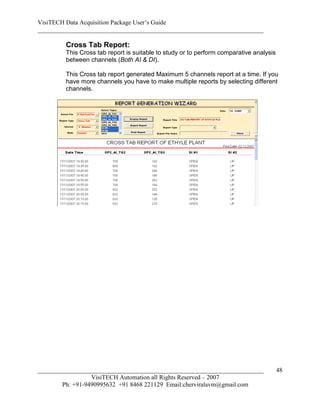

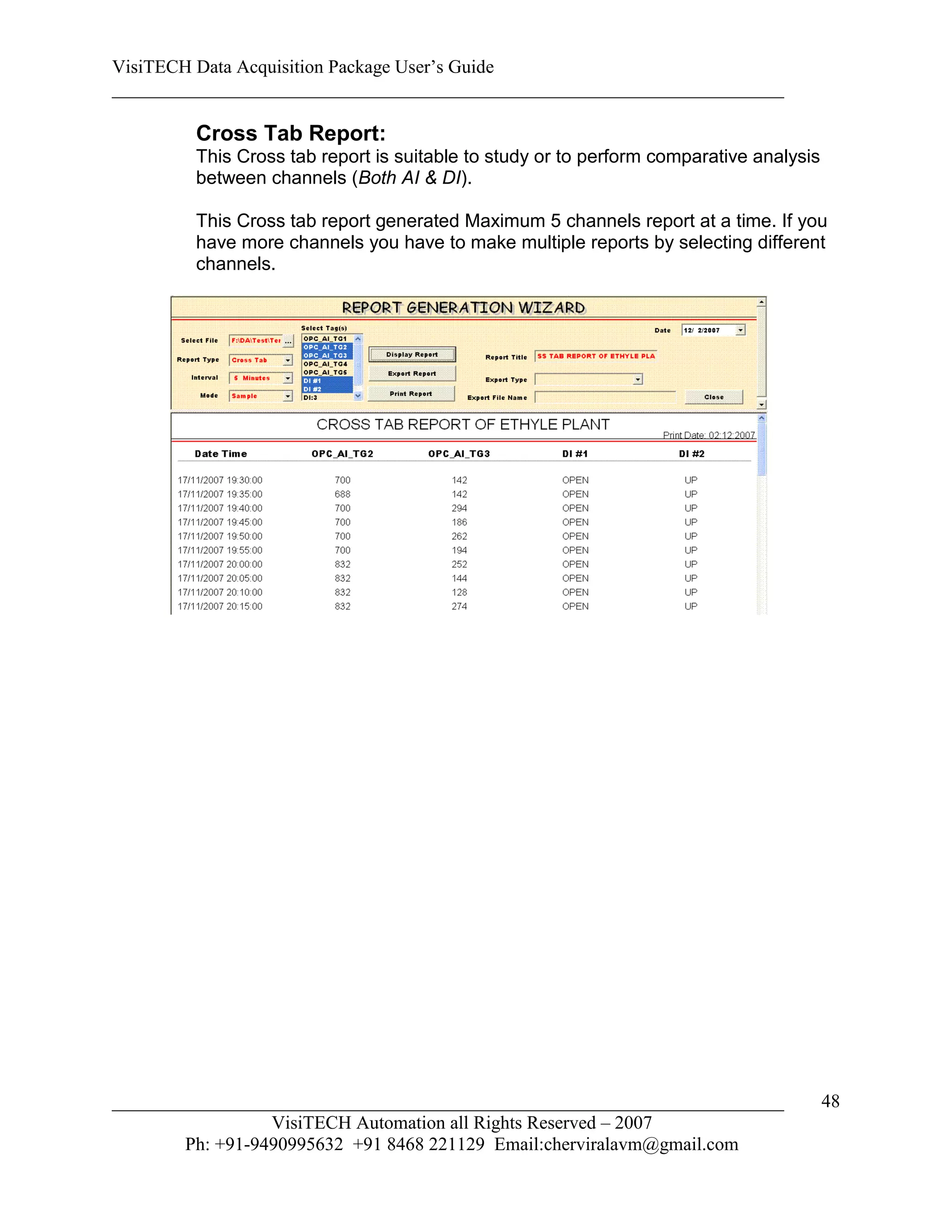

5.2. Cross Tab Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49

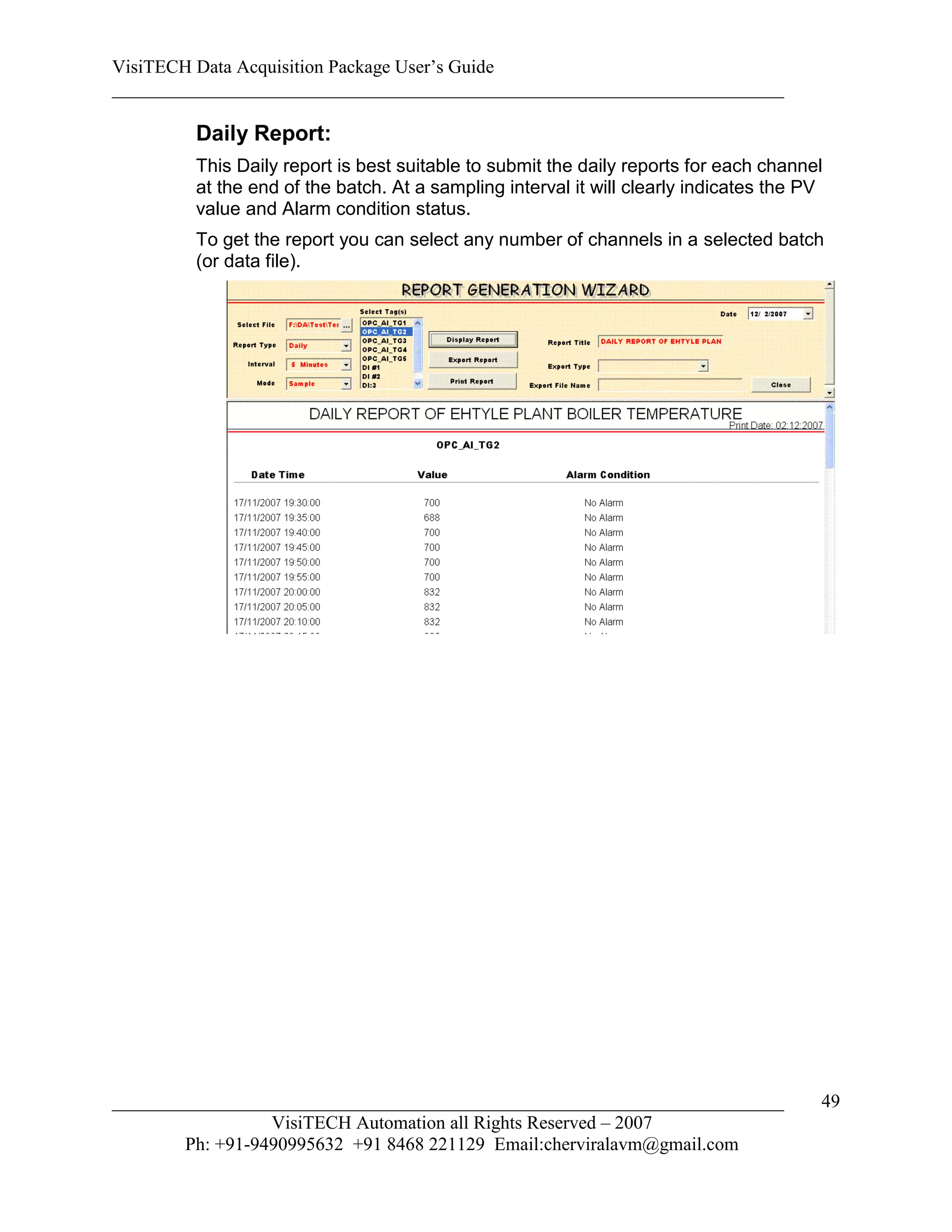

5.3. Daily Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
50
5.4. Exporting Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6. Login Management . . . . . . . . . . . . . . . . . 51
51

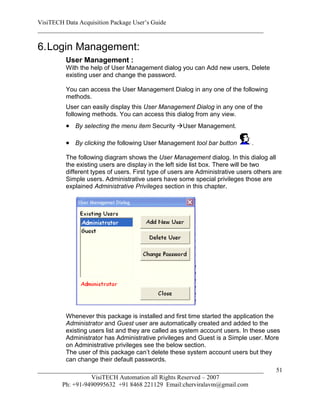

6.1. User Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
53

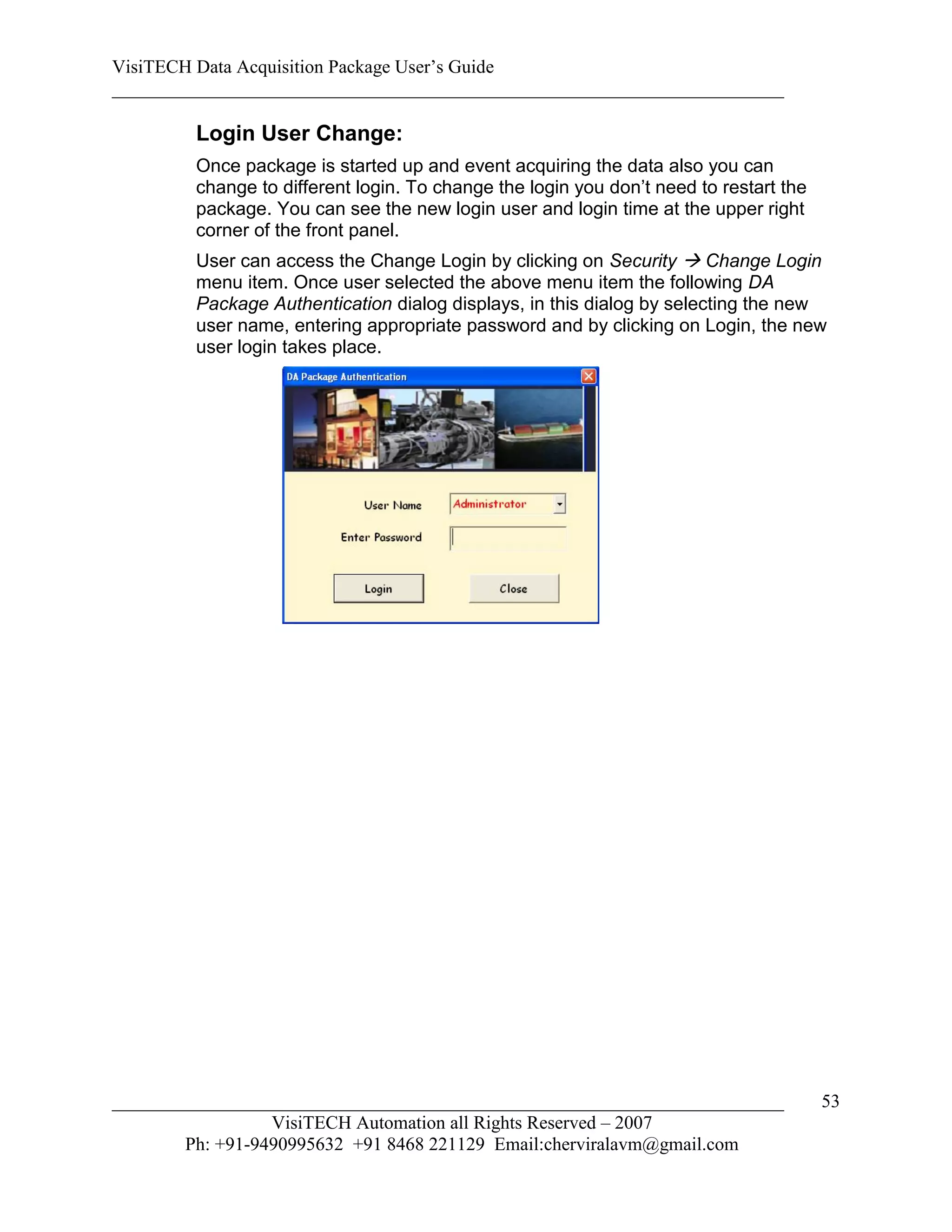

6.2. Login User Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
54

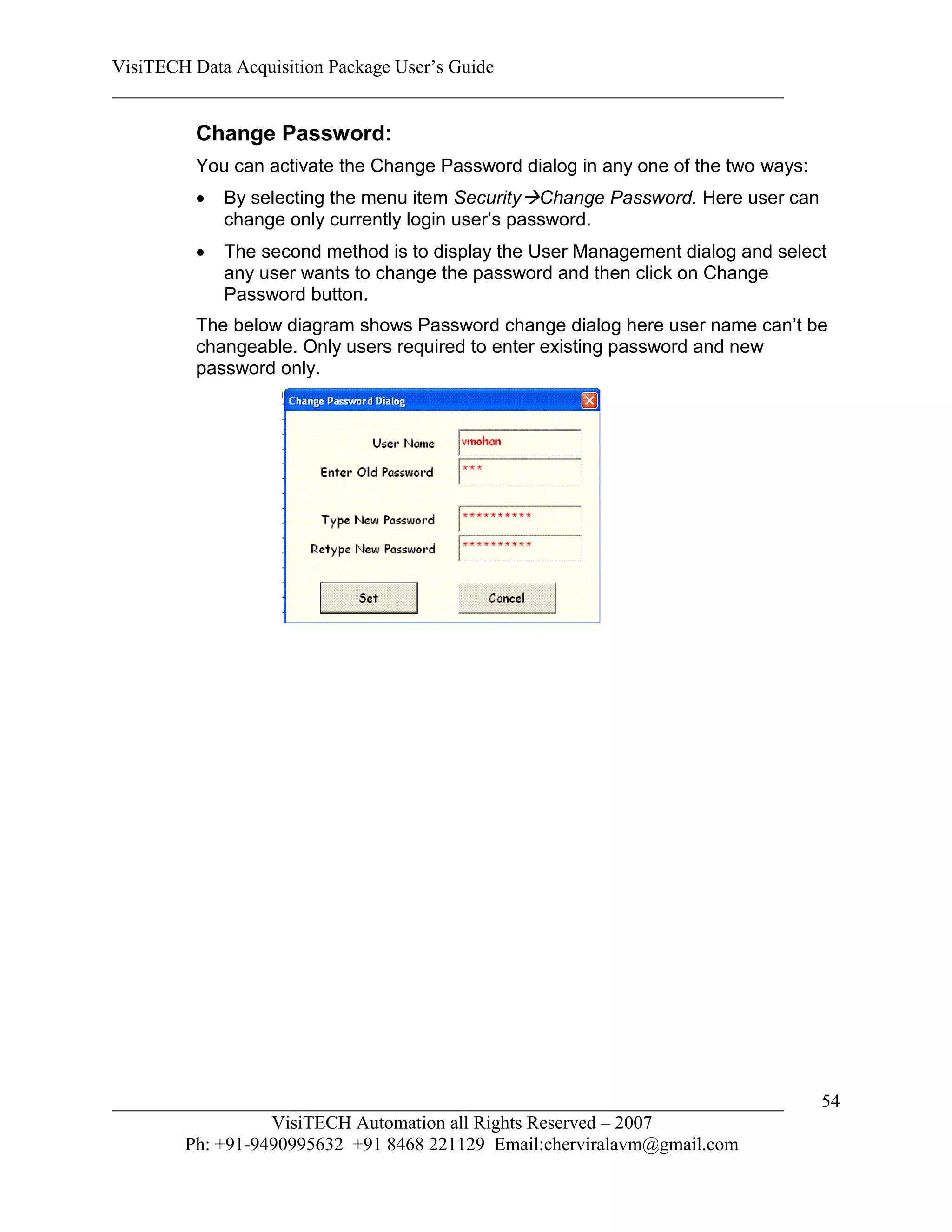

6.3. Password Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

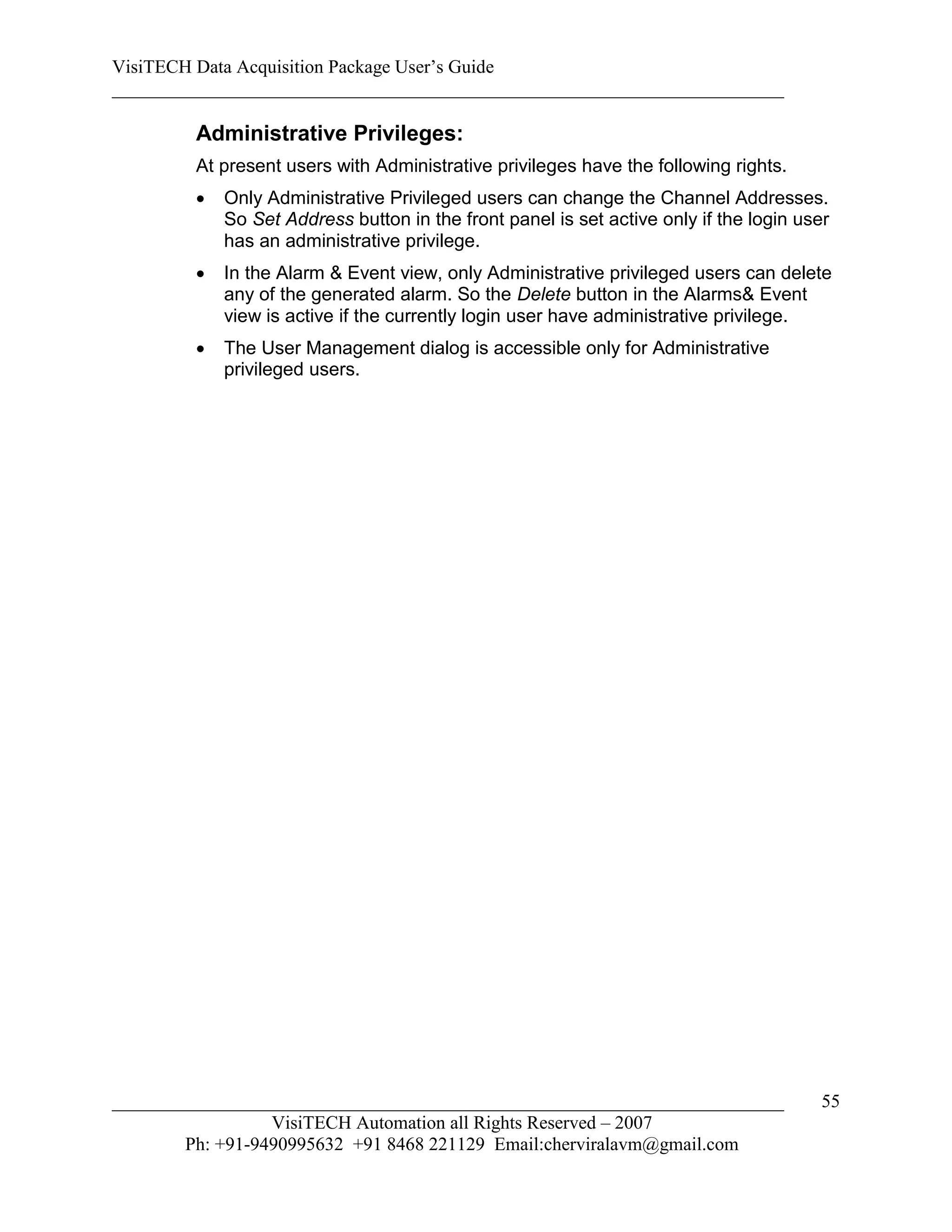

6.4. Administrative User Privileges . . . . . . . . . . . . . . . . . . . . . 55

7. Other Settings . . . . . . . . . . . . . . . . . . . 56
56
7.1. Directory (Location) Configuration . . . . . . . . . . . . . . . . . .
57

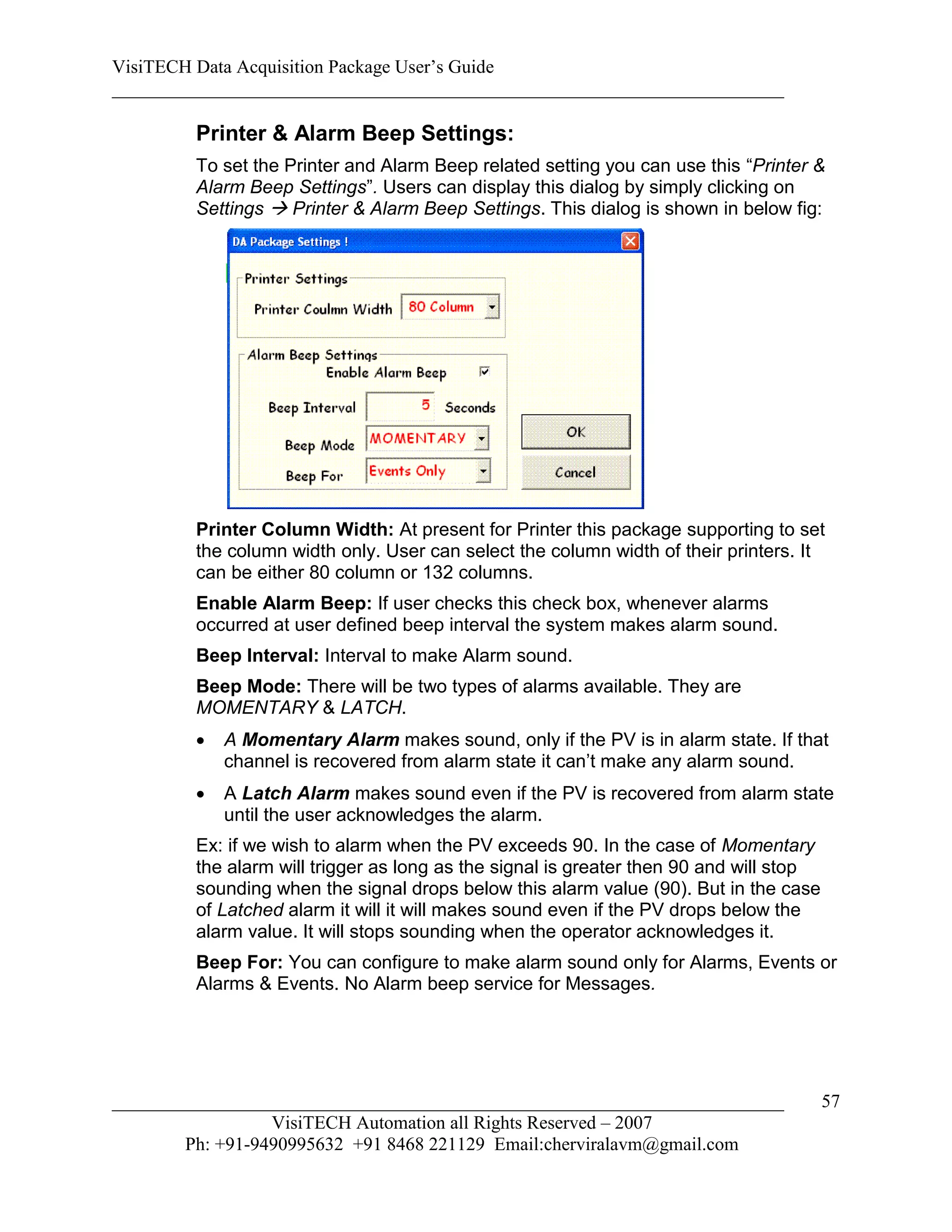

7.2. Printer & Alarm Beep Settings. . . . . . . . . . . . . . . . . . . . . .

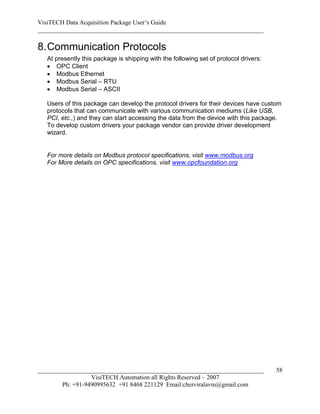

8. Communication Protocols . . . . . . . . . . . . . . 58

________________________________________________________________________ 3

________________________________________________________________________

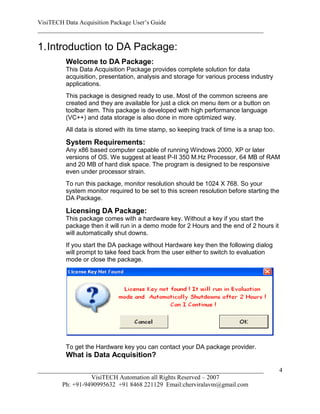

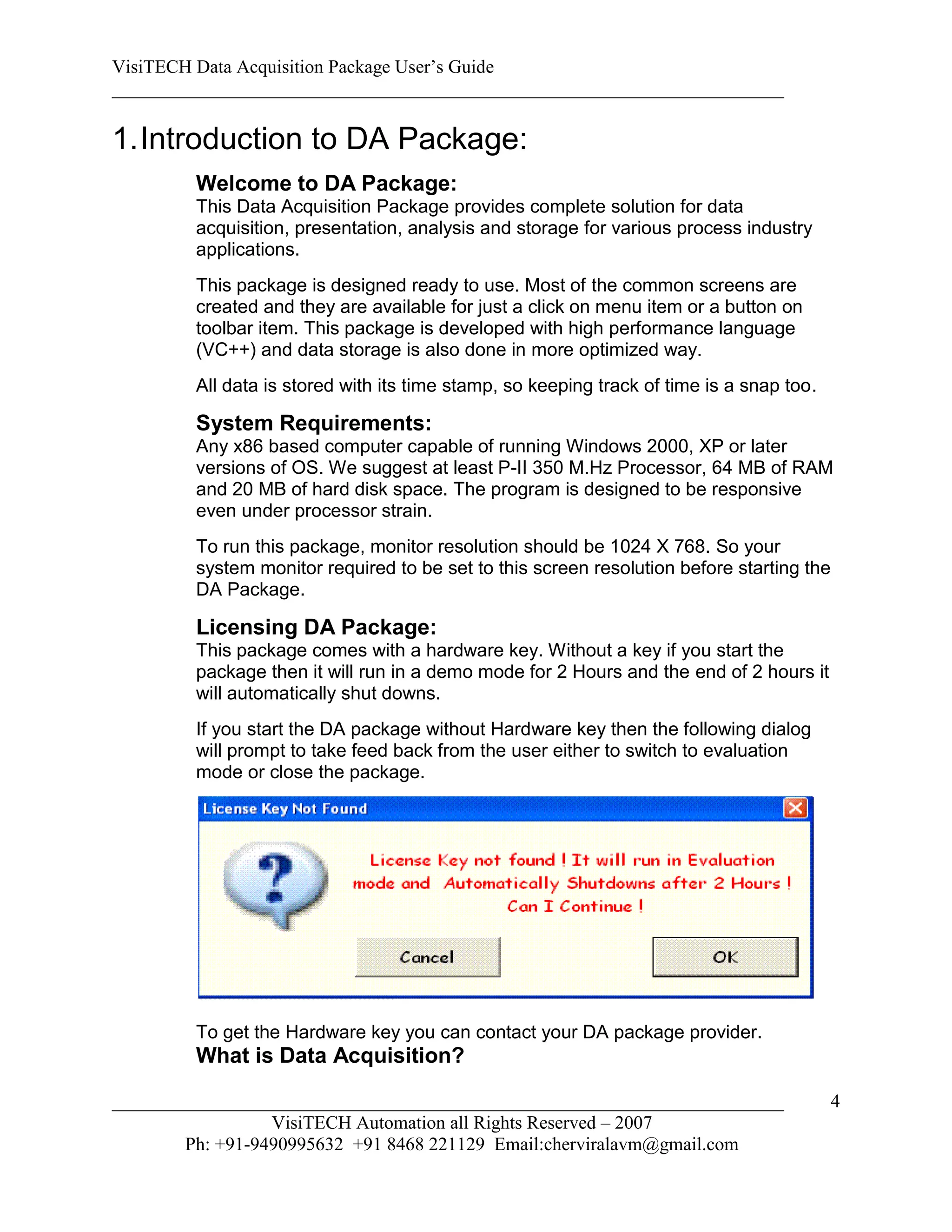

1. Introduction to DA Package:
Welcome to DA Package:
This Data Acquisition Package provides complete solution for data
acquisition, presentation, analysis and storage for various process industry
applications.
This package is designed ready to use. Most of the common screens are
created and they are available for just a click on menu item or a button on
toolbar item. This package is developed with high performance language
(VC++) and data storage is also done in more optimized way.
All data is stored with its time stamp, so keeping track of time is a snap too.

System Requirements:
Any x86 based computer capable of running Windows 2000, XP or later
versions of OS. We suggest at least P-II 350 M.Hz Processor, 64 MB of RAM
and 20 MB of hard disk space. The program is designed to be responsive
even under processor strain.
To run this package, monitor resolution should be 1024 X 768. So your
system monitor required to be set to this screen resolution before starting the
DA Package.

Licensing DA Package:
This package comes with a hardware key. Without a key if you start the
package then it will run in a demo mode for 2 Hours and the end of 2 hours it
will automatically shut downs.
If you start the DA package without Hardware key then the following dialog
will prompt to take feed back from the user either to switch to evaluation
mode or close the package.

To get the Hardware key you can contact your DA package provider.
What is Data Acquisition?

________________________________________________________________________ 4

________________________________________________________________________

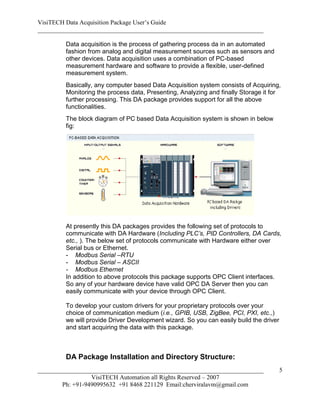

Data acquisition is the process of gathering process da in an automated
fashion from analog and digital measurement sources such as sensors and
other devices. Data acquisition uses a combination of PC-based
measurement hardware and software to provide a flexible, user-defined
measurement system.
Basically, any computer based Data Acquisition system consists of Acquiring,
Monitoring the process data, Presenting, Analyzing and finally Storage it for
further processing. This DA package provides support for all the above
functionalities.

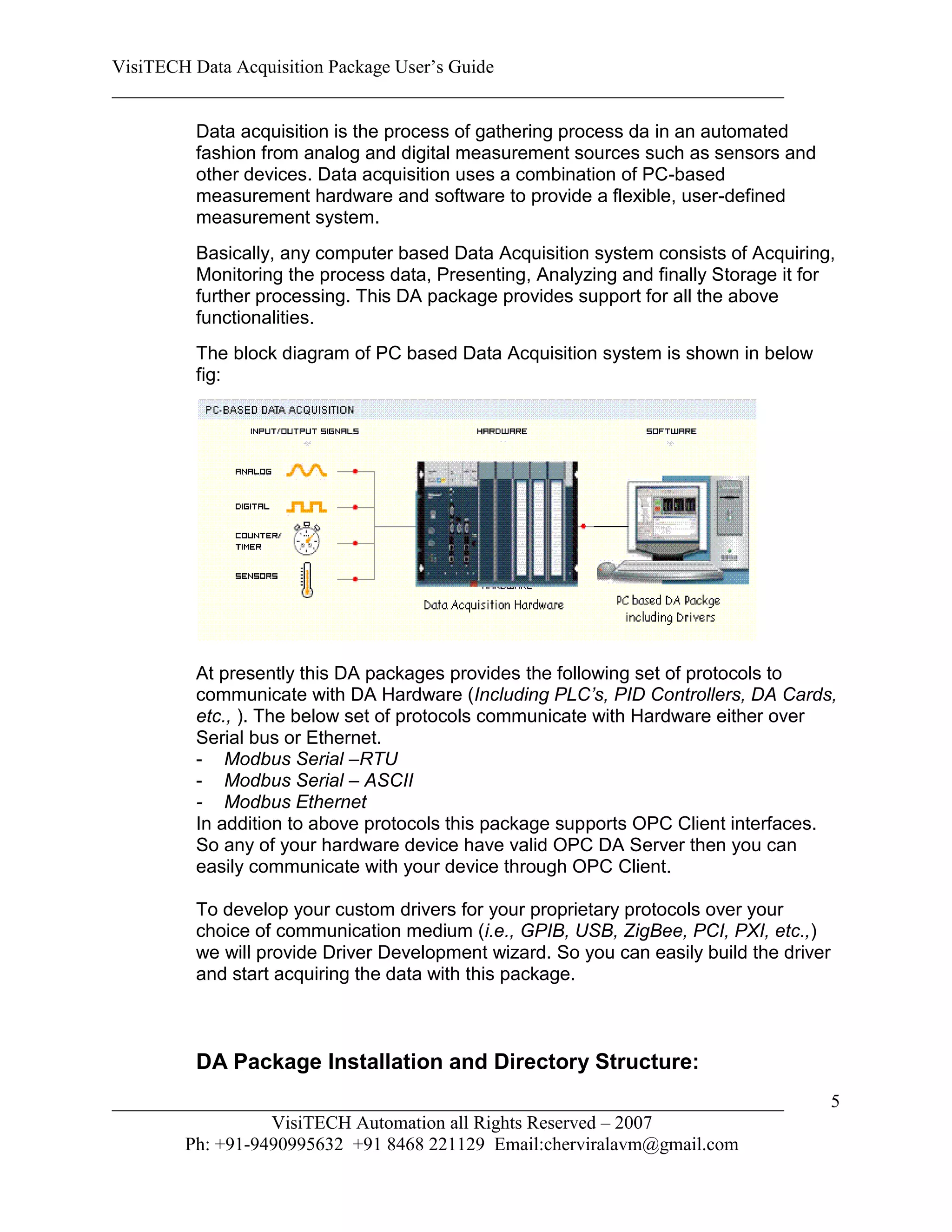

The block diagram of PC based Data Acquisition system is shown in below
fig:

At presently this DA packages provides the following set of protocols to
communicate with DA Hardware (Including PLC’s, PID Controllers, DA Cards,
etc., ). The below set of protocols communicate with Hardware either over
Serial bus or Ethernet.
- Modbus Serial –RTU
- Modbus Serial – ASCII
- Modbus Ethernet
In addition to above protocols this package supports OPC Client interfaces.
So any of your hardware device have valid OPC DA Server then you can
easily communicate with your device through OPC Client.

To develop your custom drivers for your proprietary protocols over your
choice of communication medium (i.e., GPIB, USB, ZigBee, PCI, PXI, etc.,)
we will provide Driver Development wizard. So you can easily build the driver
and start acquiring the data with this package.

DA Package Installation and Directory Structure:
________________________________________________________________________ 5

________________________________________________________________________

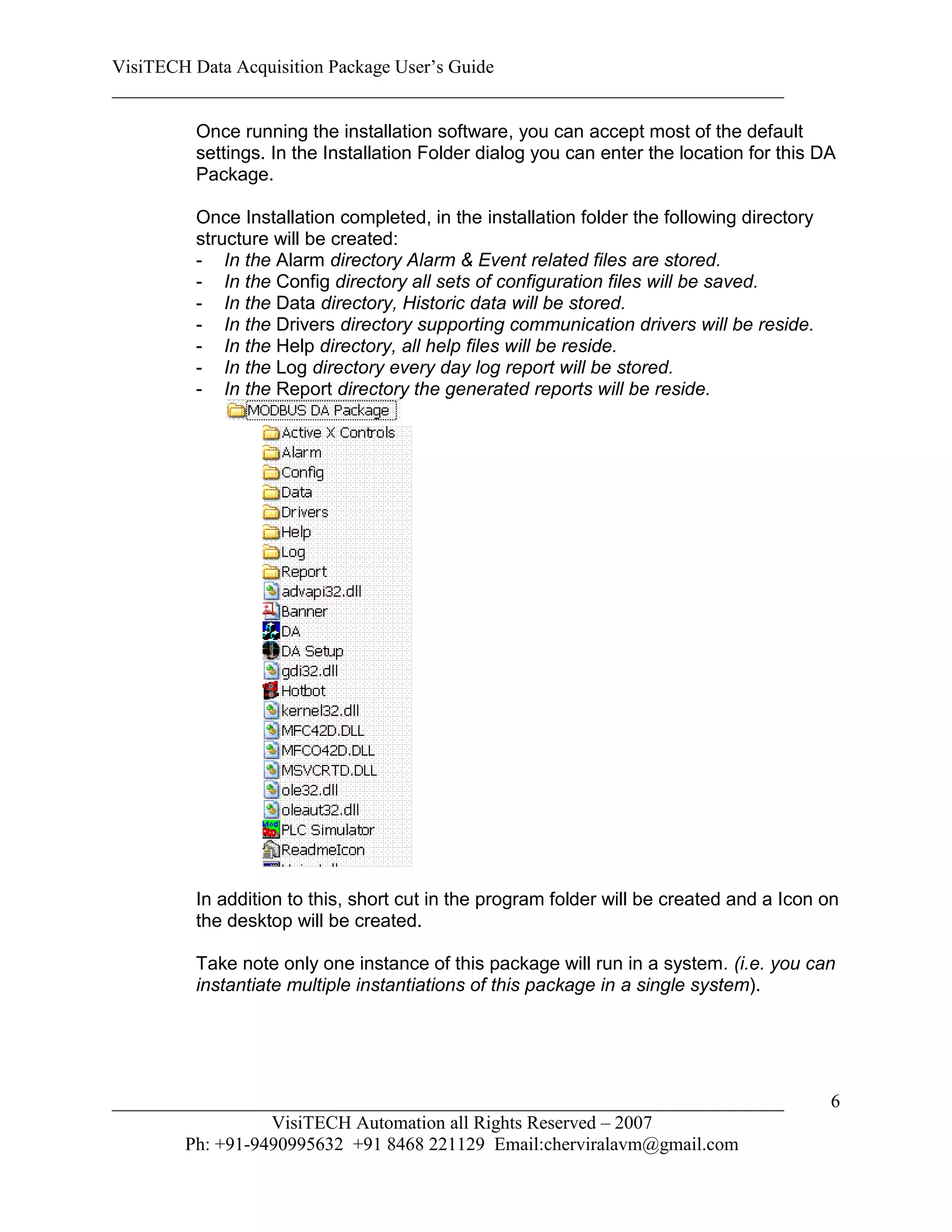

Once running the installation software, you can accept most of the default
settings. In the Installation Folder dialog you can enter the location for this DA
Package.

Once Installation completed, in the installation folder the following directory
structure will be created:
- In the Alarm directory Alarm & Event related files are stored.
- In the Config directory all sets of configuration files will be saved.
- In the Data directory, Historic data will be stored.
- In the Drivers directory supporting communication drivers will be reside.
- In the Help directory, all help files will be reside.
- In the Log directory every day log report will be stored.
- In the Report directory the generated reports will be reside.

In addition to this, short cut in the program folder will be created and a Icon on
the desktop will be created.

Take note only one instance of this package will run in a system. (i.e. you can
instantiate multiple instantiations of this package in a single system).

________________________________________________________________________ 6

________________________________________________________________________

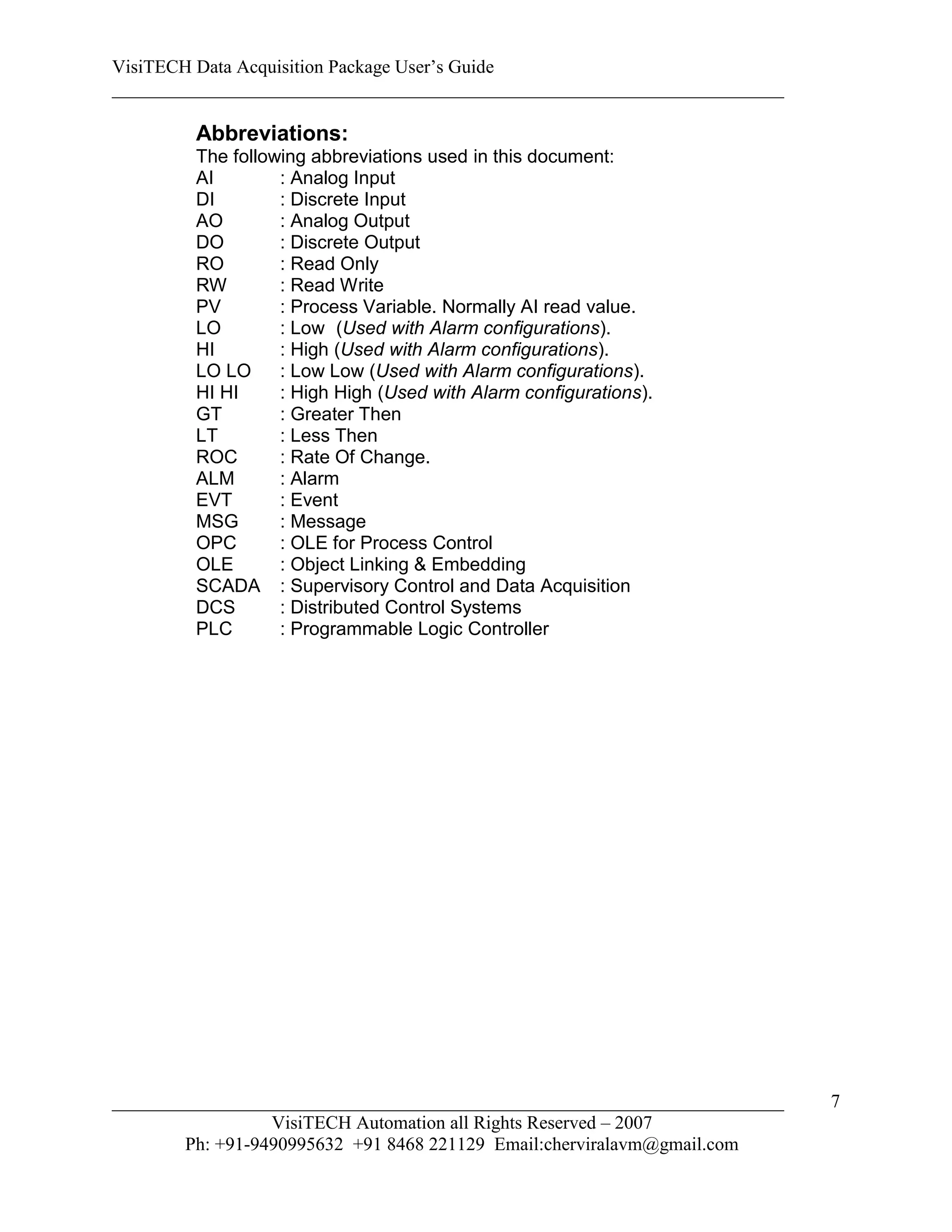

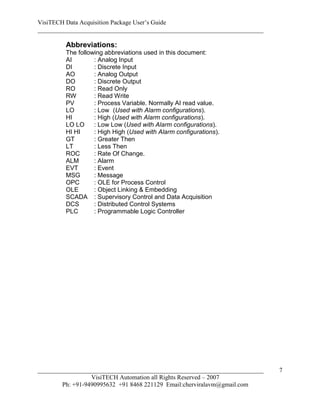

Abbreviations:
The following abbreviations used in this document:
AI : Analog Input
DI : Discrete Input
AO : Analog Output
DO : Discrete Output
RO : Read Only
RW : Read Write
PV : Process Variable. Normally AI read value.
LO : Low (Used with Alarm configurations).
HI : High (Used with Alarm configurations).
LO LO : Low Low (Used with Alarm configurations).
HI HI : High High (Used with Alarm configurations).
GT : Greater Then
LT : Less Then
ROC : Rate Of Change.
ALM : Alarm
EVT : Event
MSG : Message
OPC : OLE for Process Control
OLE : Object Linking & Embedding
SCADA : Supervisory Control and Data Acquisition
DCS : Distributed Control Systems
PLC : Programmable Logic Controller

________________________________________________________________________ 7

________________________________________________________________________

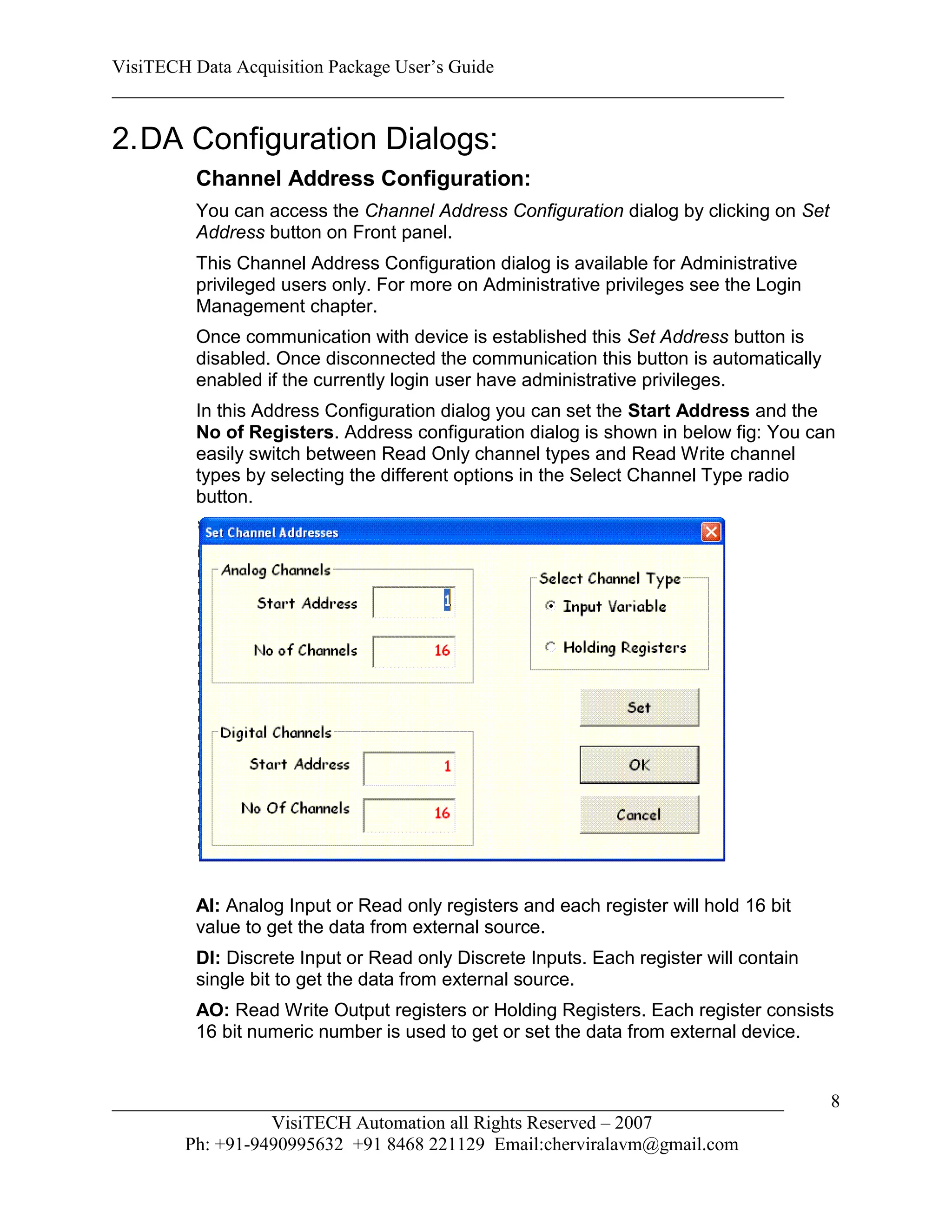

2. DA Configuration Dialogs:
Channel Address Configuration:
You can access the Channel Address Configuration dialog by clicking on Set
Address button on Front panel.
This Channel Address Configuration dialog is available for Administrative
privileged users only. For more on Administrative privileges see the Login
Management chapter.
Once communication with device is established this Set Address button is
disabled. Once disconnected the communication this button is automatically
enabled if the currently login user have administrative privileges.
In this Address Configuration dialog you can set the Start Address and the
No of Registers. Address configuration dialog is shown in below fig: You can
easily switch between Read Only channel types and Read Write channel
types by selecting the different options in the Select Channel Type radio
button.

AI: Analog Input or Read only registers and each register will hold 16 bit
value to get the data from external source.
DI: Discrete Input or Read only Discrete Inputs. Each register will contain
single bit to get the data from external source.
AO: Read Write Output registers or Holding Registers. Each register consists
16 bit numeric number is used to get or set the data from external device.

________________________________________________________________________ 8

________________________________________________________________________

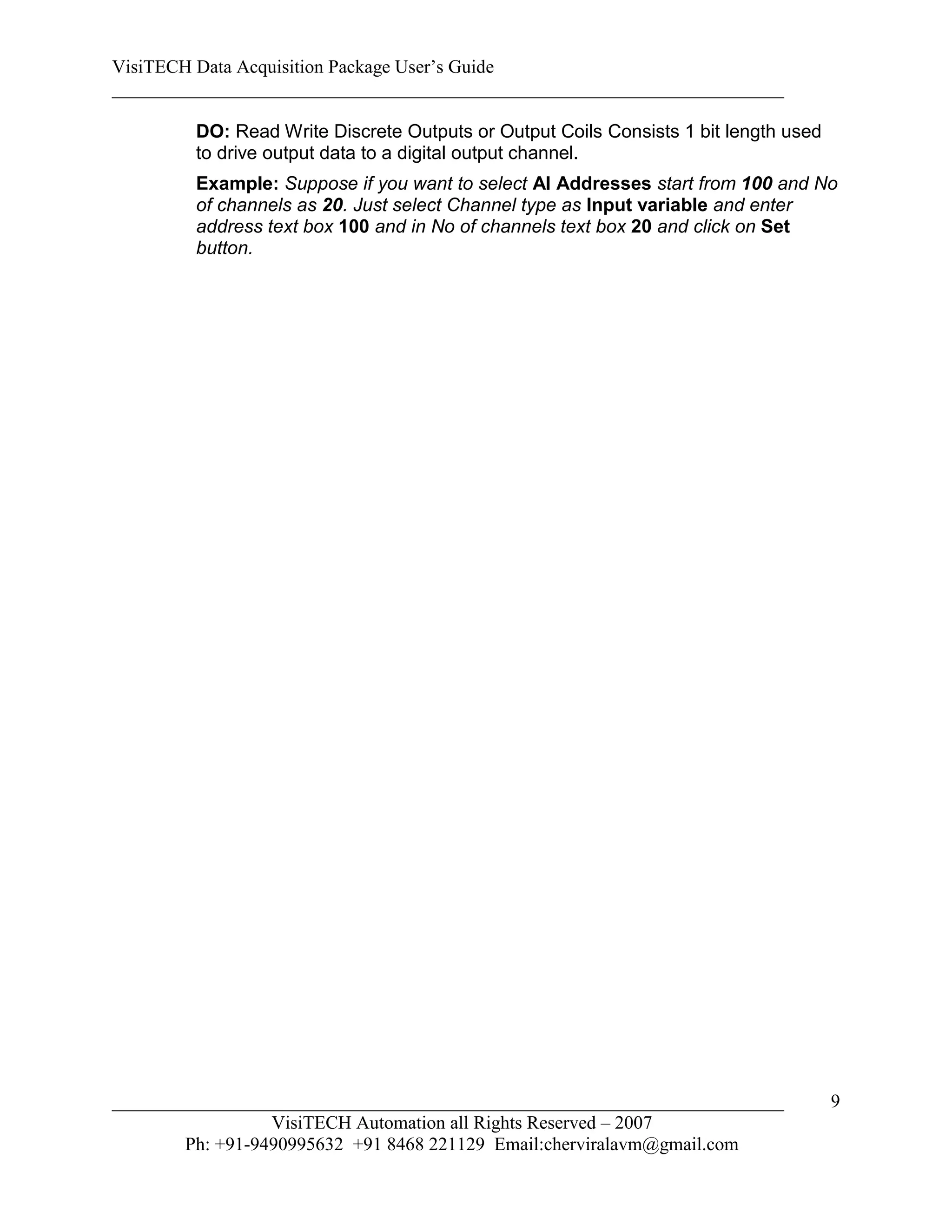

DO: Read Write Discrete Outputs or Output Coils Consists 1 bit length used
to drive output data to a digital output channel.
Example: Suppose if you want to select AI Addresses start from 100 and No
of channels as 20. Just select Channel type as Input variable and enter
address text box 100 and in No of channels text box 20 and click on Set
button.

________________________________________________________________________ 9

________________________________________________________________________

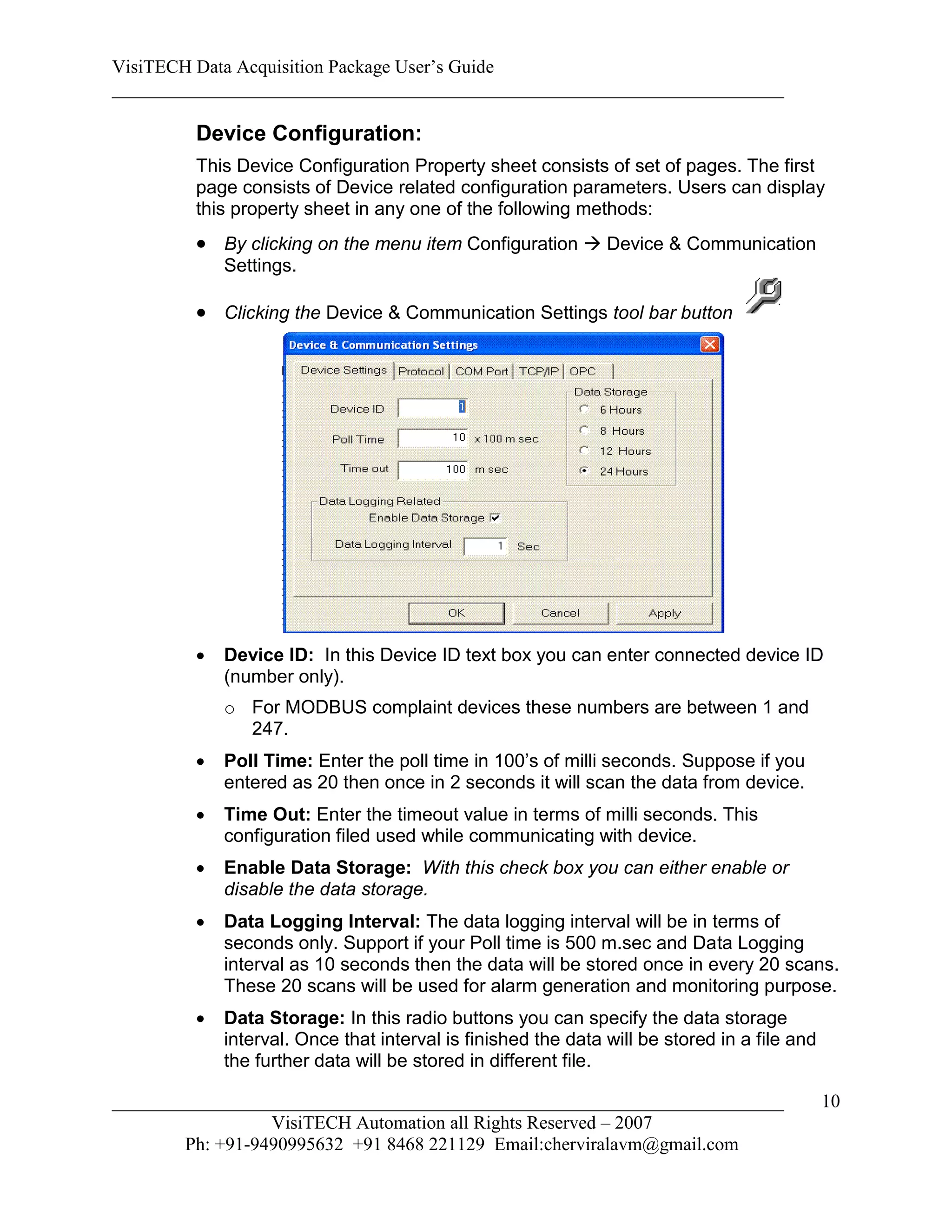

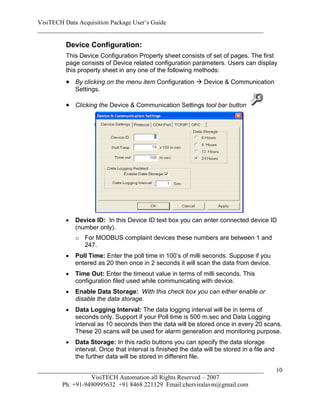

Device Configuration:
This Device Configuration Property sheet consists of set of pages. The first
page consists of Device related configuration parameters. Users can display
this property sheet in any one of the following methods:
 By clicking on the menu item Configuration  Device & Communication
Settings.

 Clicking the Device & Communication Settings tool bar button

 Device ID: In this Device ID text box you can enter connected device ID
(number only).
o For MODBUS complaint devices these numbers are between 1 and
247.
 Poll Time: Enter the poll time in 100’s of milli seconds. Suppose if you
entered as 20 then once in 2 seconds it will scan the data from device.
 Time Out: Enter the timeout value in terms of milli seconds. This
configuration filed used while communicating with device.
 Enable Data Storage: With this check box you can either enable or
disable the data storage.
 Data Logging Interval: The data logging interval will be in terms of
seconds only. Support if your Poll time is 500 m.sec and Data Logging
interval as 10 seconds then the data will be stored once in every 20 scans.
These 20 scans will be used for alarm generation and monitoring purpose.
 Data Storage: In this radio buttons you can specify the data storage
interval. Once that interval is finished the data will be stored in a file and
the further data will be stored in different file.

________________________________________________________________________ 10

________________________________________________________________________

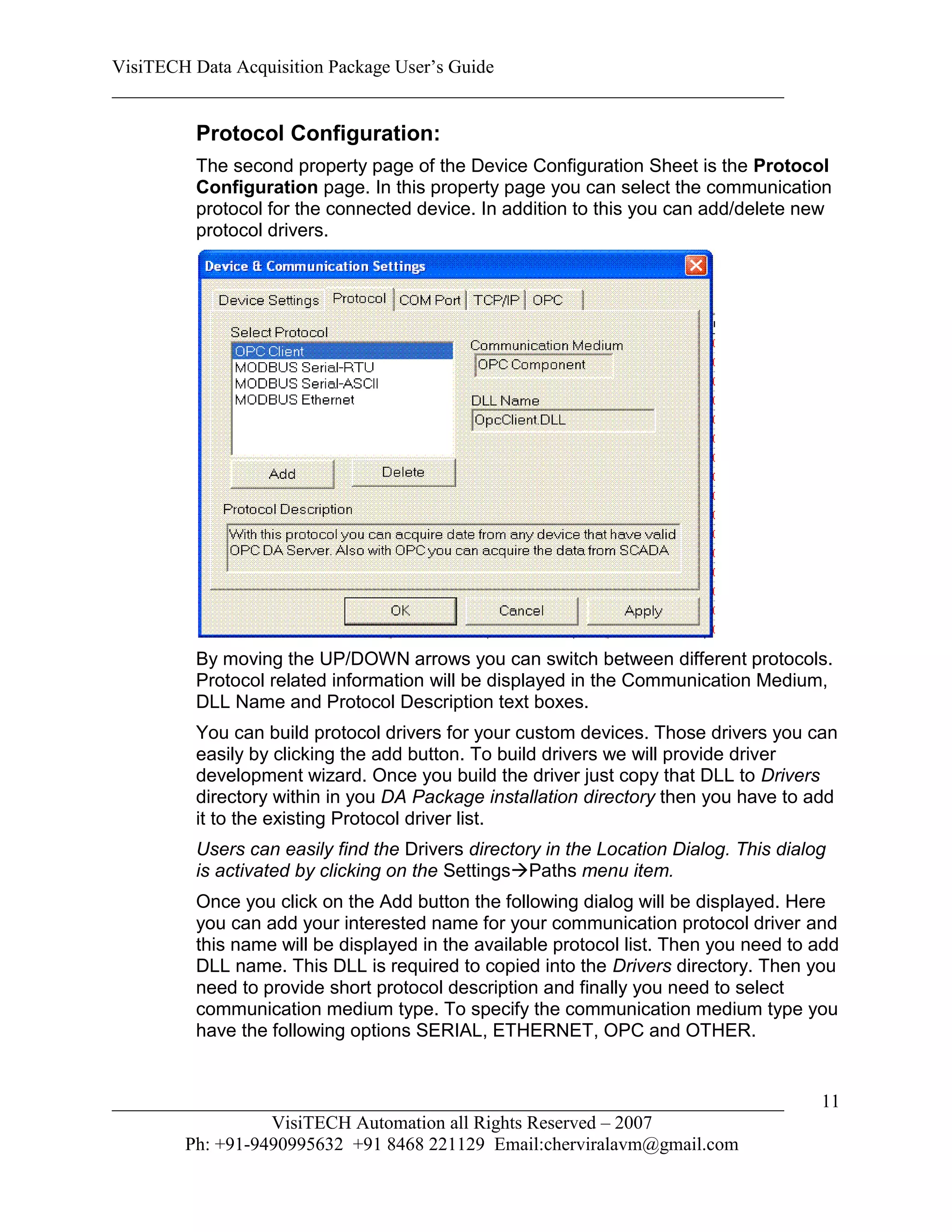

Protocol Configuration:
The second property page of the Device Configuration Sheet is the Protocol
Configuration page. In this property page you can select the communication
protocol for the connected device. In addition to this you can add/delete new
protocol drivers.

By moving the UP/DOWN arrows you can switch between different protocols.
Protocol related information will be displayed in the Communication Medium,
DLL Name and Protocol Description text boxes.
You can build protocol drivers for your custom devices. Those drivers you can
easily by clicking the add button. To build drivers we will provide driver
development wizard. Once you build the driver just copy that DLL to Drivers
directory within in you DA Package installation directory then you have to add
it to the existing Protocol driver list.
Users can easily find the Drivers directory in the Location Dialog. This dialog
is activated by clicking on the SettingsPaths menu item.

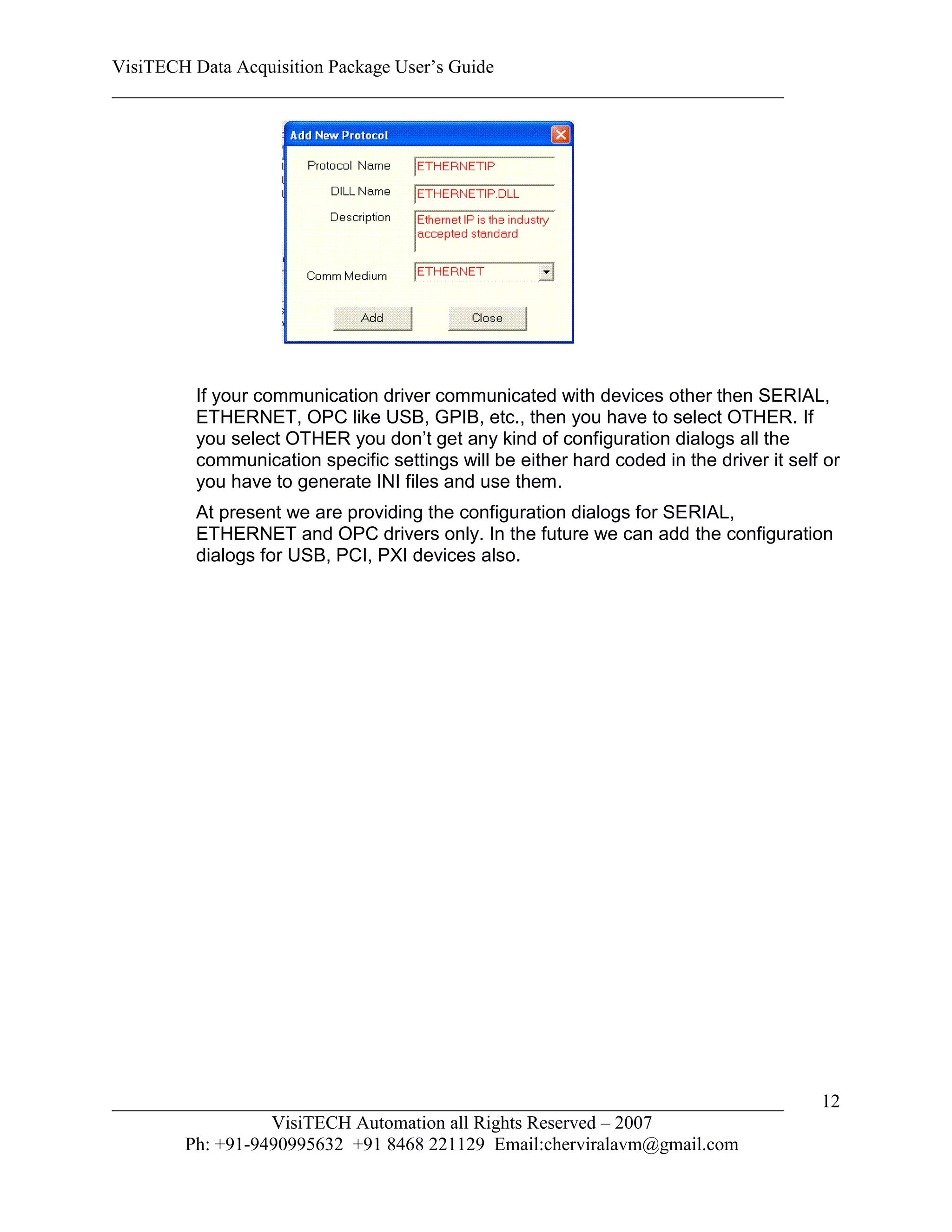

Once you click on the Add button the following dialog will be displayed. Here
you can add your interested name for your communication protocol driver and
this name will be displayed in the available protocol list. Then you need to add
DLL name. This DLL is required to copied into the Drivers directory. Then you
need to provide short protocol description and finally you need to select
communication medium type. To specify the communication medium type you
have the following options SERIAL, ETHERNET, OPC and OTHER.

________________________________________________________________________ 11

________________________________________________________________________

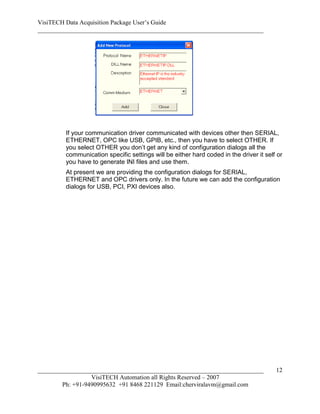

If your communication driver communicated with devices other then SERIAL,
ETHERNET, OPC like USB, GPIB, etc., then you have to select OTHER. If
you select OTHER you don’t get any kind of configuration dialogs all the
communication specific settings will be either hard coded in the driver it self or
you have to generate INI files and use them.
At present we are providing the configuration dialogs for SERIAL,
ETHERNET and OPC drivers only. In the future we can add the configuration
dialogs for USB, PCI, PXI devices also.

________________________________________________________________________ 12

________________________________________________________________________

Serial Port Configuration:
The third property page of the Device Configuration Sheet is the Serial Port
Configuration page. In this property page you can select the Serial Port. (At
present we are supporting maximum of 4 serial ports COM1 to COM4). You
can set each serial port configuration parameters such as Baud Rate, Parity,
Data bits, and Stop bits. The Serial port configuration dialog is shown in
below fig:

Note: For Modbus RTU protocol always set the Data Bits as 8.

________________________________________________________________________ 13

________________________________________________________________________

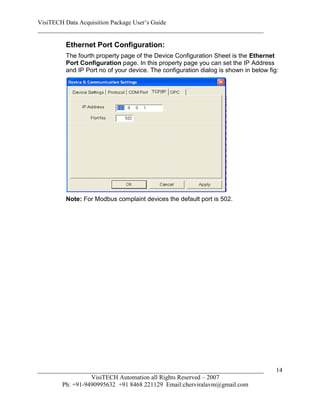

Ethernet Port Configuration:
The fourth property page of the Device Configuration Sheet is the Ethernet
Port Configuration page. In this property page you can set the IP Address
and IP Port no of your device. The configuration dialog is shown in below fig:

Note: For Modbus complaint devices the default port is 502.

________________________________________________________________________ 14

________________________________________________________________________

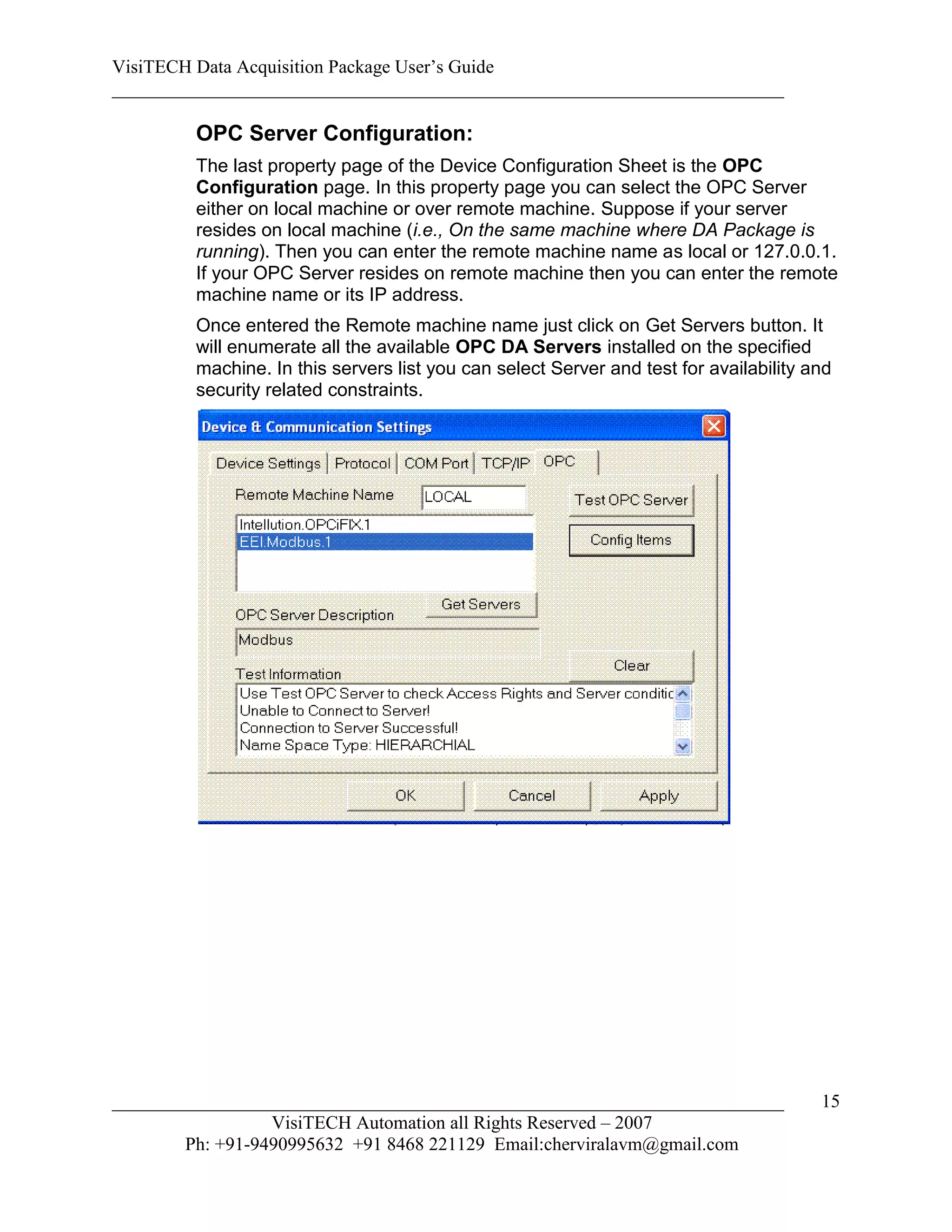

OPC Server Configuration:
The last property page of the Device Configuration Sheet is the OPC
Configuration page. In this property page you can select the OPC Server
either on local machine or over remote machine. Suppose if your server
resides on local machine (i.e., On the same machine where DA Package is
running). Then you can enter the remote machine name as local or 127.0.0.1.
If your OPC Server resides on remote machine then you can enter the remote
machine name or its IP address.
Once entered the Remote machine name just click on Get Servers button. It
will enumerate all the available OPC DA Servers installed on the specified
machine. In this servers list you can select Server and test for availability and
security related constraints.

________________________________________________________________________ 15

________________________________________________________________________

OPC Item Configuration:
In this OPC Item configuration dialog you can configure OPC Items on the
selected OPC Server. The OPC item configuration dialog is shown in below
fig:

In this configuration dialog you can see all the available Items on selected
OPC server will be displayed in Available Item On server Tree Control. Here
Items are arranged hierarchically the same way they are configured over
OPC Server.
Initially you need to specify group name that need to be create at OPC server
for your DA Package configured items. You can also specify the Scan Time,
Deadband and Read Data From options also.
You can select the Items by double clicking on any item in the tree control.
That Item full name will be displayed in the Server Item name text box. Then
you have to specify the channel type (i.e., AI, DI, AO or DO) also need to
select Data type. Then you need to specify Item name. This name is visible at
client side (i.e., you can’t see from OPC Server). Basically this name is an
alias for Server Item name. Finally you need to specify Start address and No
of channels. These address value should be within the range you specified in
the address configuration dialog.

________________________________________________________________________ 16

________________________________________________________________________

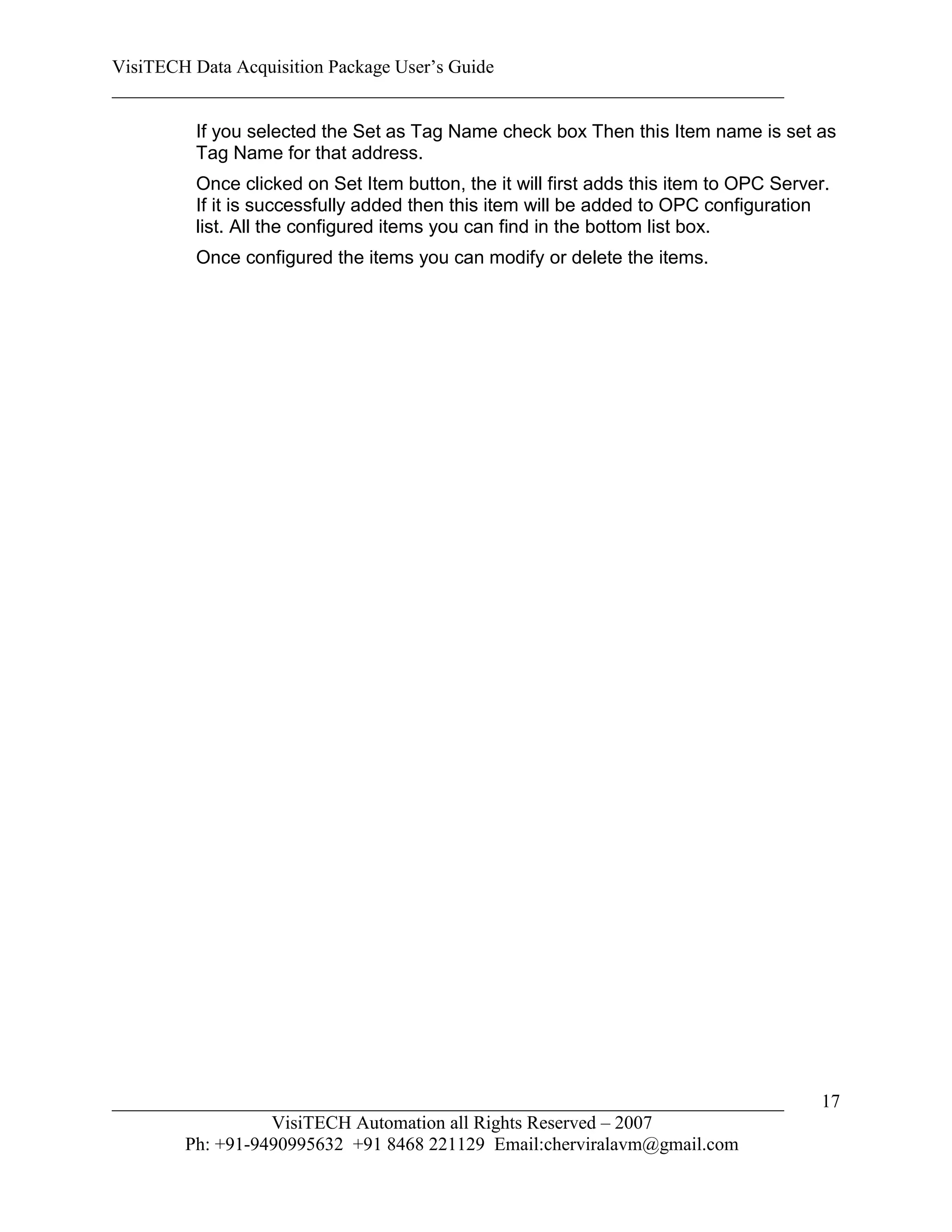

If you selected the Set as Tag Name check box Then this Item name is set as
Tag Name for that address.
Once clicked on Set Item button, the it will first adds this item to OPC Server.
If it is successfully added then this item will be added to OPC configuration
list. All the configured items you can find in the bottom list box.
Once configured the items you can modify or delete the items.

________________________________________________________________________ 17

________________________________________________________________________

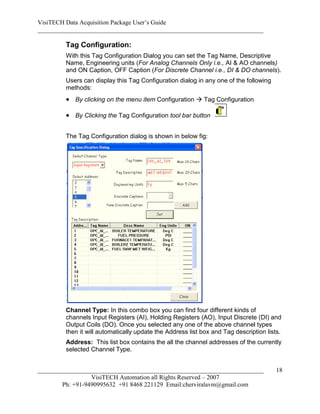

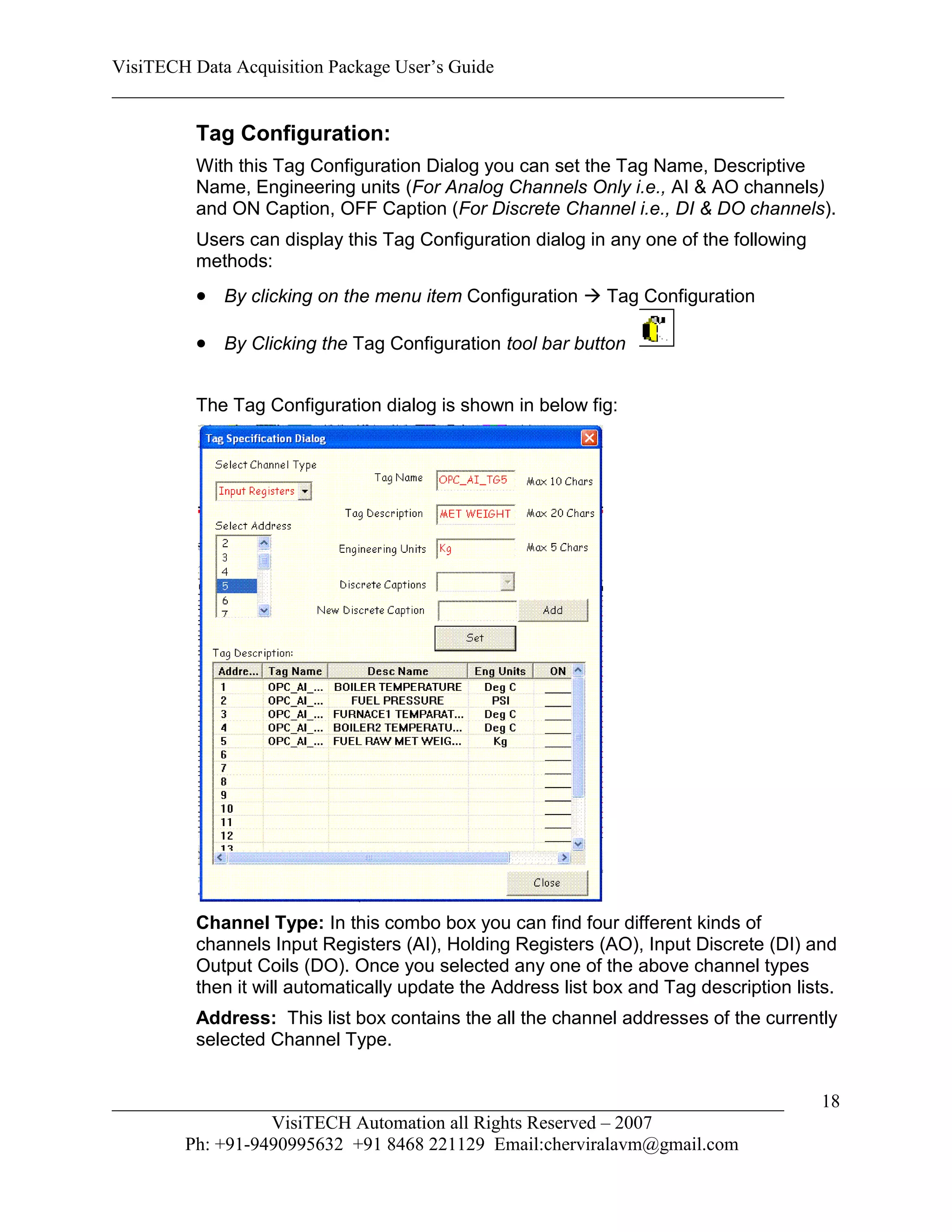

Tag Configuration:
With this Tag Configuration Dialog you can set the Tag Name, Descriptive
Name, Engineering units (For Analog Channels Only i.e., AI & AO channels)
and ON Caption, OFF Caption (For Discrete Channel i.e., DI & DO channels).
Users can display this Tag Configuration dialog in any one of the following
methods:
 By clicking on the menu item Configuration  Tag Configuration

 By Clicking the Tag Configuration tool bar button

The Tag Configuration dialog is shown in below fig:

Channel Type: In this combo box you can find four different kinds of
channels Input Registers (AI), Holding Registers (AO), Input Discrete (DI) and
Output Coils (DO). Once you selected any one of the above channel types
then it will automatically update the Address list box and Tag description lists.
Address: This list box contains the all the channel addresses of the currently
selected Channel Type.

________________________________________________________________________ 18

________________________________________________________________________

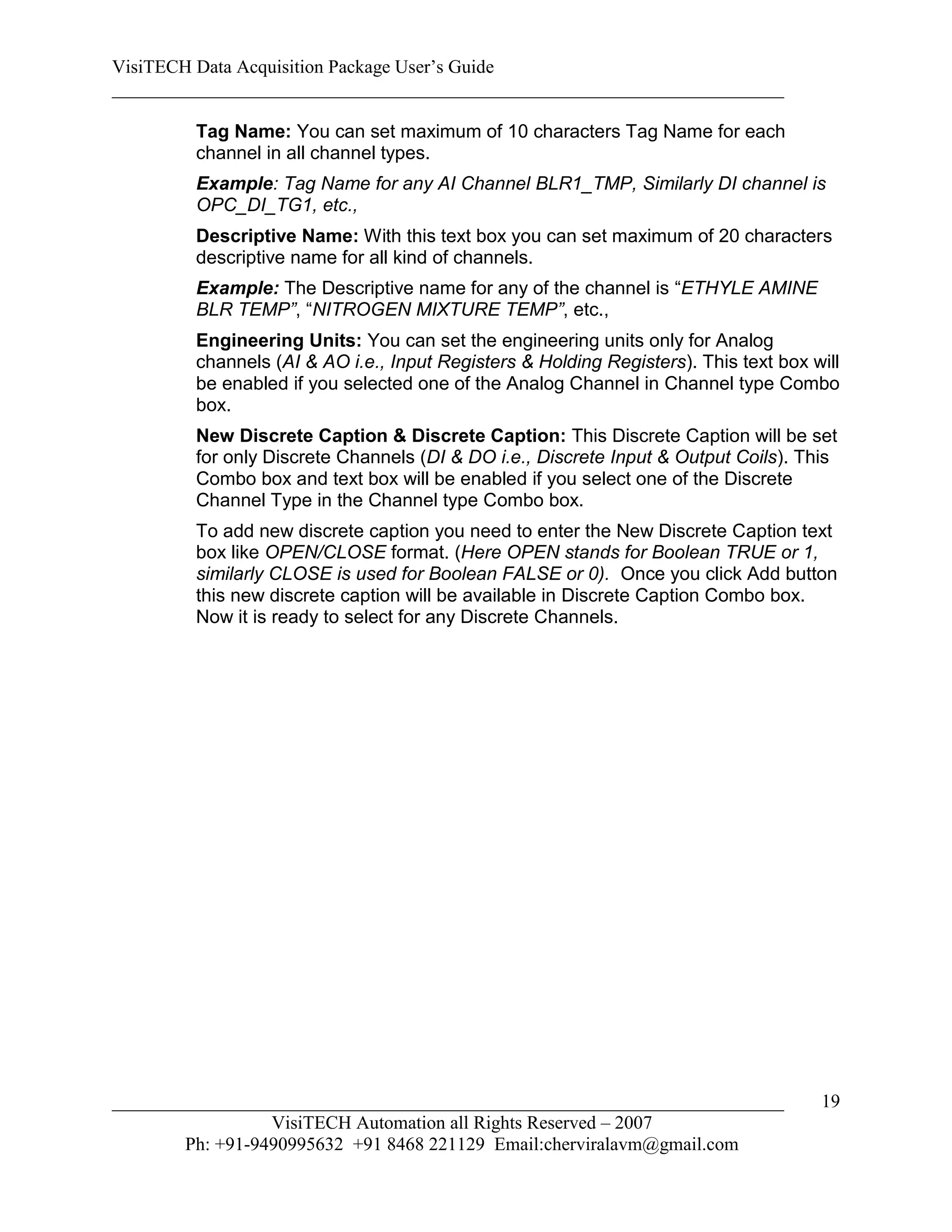

Tag Name: You can set maximum of 10 characters Tag Name for each
channel in all channel types.
Example: Tag Name for any AI Channel BLR1_TMP, Similarly DI channel is
OPC_DI_TG1, etc.,
Descriptive Name: With this text box you can set maximum of 20 characters
descriptive name for all kind of channels.
Example: The Descriptive name for any of the channel is “ETHYLE AMINE
BLR TEMP”, “NITROGEN MIXTURE TEMP”, etc.,
Engineering Units: You can set the engineering units only for Analog
channels (AI & AO i.e., Input Registers & Holding Registers). This text box will
be enabled if you selected one of the Analog Channel in Channel type Combo
box.
New Discrete Caption & Discrete Caption: This Discrete Caption will be set
for only Discrete Channels (DI & DO i.e., Discrete Input & Output Coils). This
Combo box and text box will be enabled if you select one of the Discrete
Channel Type in the Channel type Combo box.
To add new discrete caption you need to enter the New Discrete Caption text
box like OPEN/CLOSE format. (Here OPEN stands for Boolean TRUE or 1,
similarly CLOSE is used for Boolean FALSE or 0). Once you click Add button
this new discrete caption will be available in Discrete Caption Combo box.
Now it is ready to select for any Discrete Channels.

________________________________________________________________________ 19

________________________________________________________________________

Analog Channel Configuration:
Analog Channel Property sheet consists of three property pages. All these
property pages are used to configure only AI (Analog Input or Input Register)
channels only. This configuration dialogs are used to set Maximum, Minimum
values, you can define various Alarm values and any Signal condition specific
settings.
Users can display this Analog Channel Configuration dialog in any one of the
following methods:
 By clicking on the menu item Configuration  Analog Channel
Configuration.
 By clicking the Channel Cfg button on the Front panel.

 By Clicking the Analog Channel Configuration tool bar button .
First property page in this Property Sheet is shown in below fig. Once you
selected any one of the AI channel then its Tag Name and Descriptive Name
automatically displayed these tag descriptions you can see from all three
property pages.

Auto Scale: If you check this check box, then Maximum and Minimum text
boxes will be automatically disabled. In trend view the Maximum and
Minimum values are automatically calculated at runtime from the collected
data. If any of the new data comes beyond the Max, Min limits then these
Max, Min values are automatically updates.
________________________________________________________________________ 20

________________________________________________________________________

Max Value: You can set the Maximum AI value for the currently selected AI
Channel. This text box is available if Auto Scale Check box is not checked.
Unlike Auto Scale mode this value can’t be updated at run time.
Min Value: You can set the Minimum AI value for the currently selected AI
Channel. This text box is available if Auto Scale Check box is not checked.
Unlike Auto Scale mode this value can’t be updated at run time.
Time Scale: This value will be used to specify the each trend screen size.
You can set different trend screen times for different AI Channels.
Display Indicators: These check boxes used to select the display indicators
in the trend view. These check boxes allow you to select only properly
configured alarms only. For alarm configuration you can find second property
page of this Analog Channel configuration Property sheet.
The Second Property Page in this Property Sheet is shown in below fig. With
this property page you can set Set Point and various Alarm values. In Auto
Scale mode you can’t set any of these Alarm values.
Before setting the Set Point and Alarm Conditions you need to set proper
Maximum and Minimum values for corresponding channel. You can set
different Set point and Alarm values for each channel.
The Select Configuration parameter Combo box allows you to select any one
of the configuration parameter. This SET POINT, HI HI alarm Value, Hi Alarm
Value, Lo Alarm Value & Lo Lo Alarm values should be within the Maximum
and Minimum values those are set in the first previous property page for the
corresponding AI channel.

 SET POINT
 HIGH HIGH ALARM VALUE (Alarm)
 HIGH ALARM VALUE (Warning)
 LOW ALARM VALUE (Warning)
 LOW LOW ALARM VALUE (Alarm)
 RATE OF CHANGE ALARM VALUE (Alarm)
From the above first five configurations you can set in two ways:
 Binding to Device Address: If you select Bind Configuration to Device
Address check box then the address text box will be enabled. In this text
box you need to specify the device AO (or Read write address) where the
configuration is defined. Once you entered the address if you click on Set
button then value will be read from the specified address from the
connected device. If the values successfully read then this particular
configuration is set other wise an Error message box is prompted and
configuration is not set.
Note: Before setting the configuration you need to make sure the package
is connected to the device and communication is established.
________________________________________________________________________ 21

________________________________________________________________________

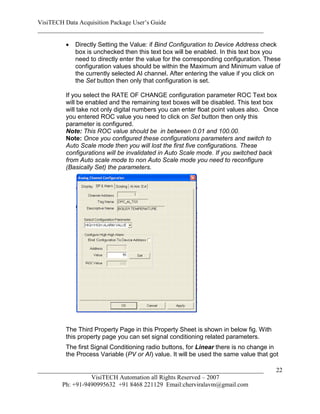

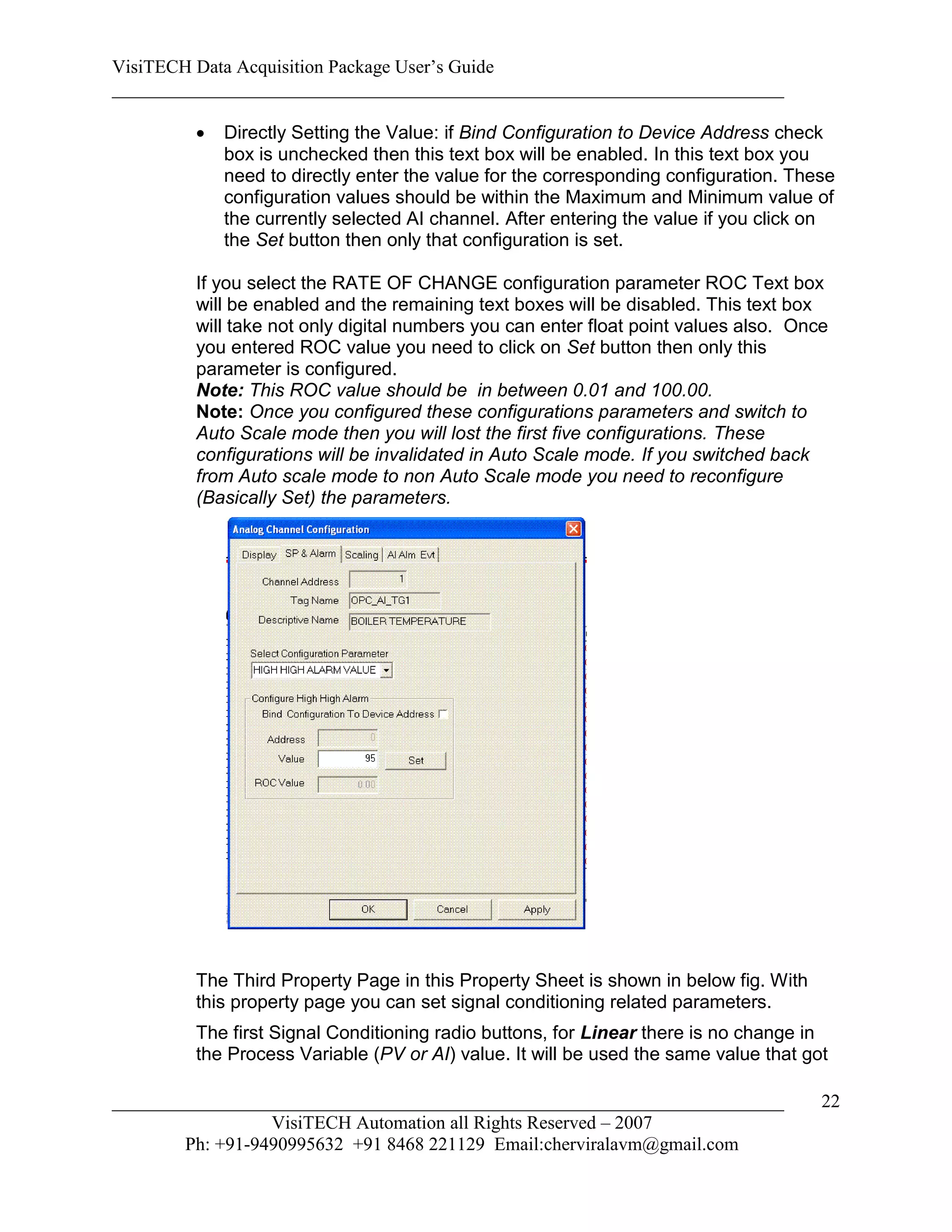

 Directly Setting the Value: if Bind Configuration to Device Address check
box is unchecked then this text box will be enabled. In this text box you
need to directly enter the value for the corresponding configuration. These
configuration values should be within the Maximum and Minimum value of
the currently selected AI channel. After entering the value if you click on
the Set button then only that configuration is set.

If you select the RATE OF CHANGE configuration parameter ROC Text box
will be enabled and the remaining text boxes will be disabled. This text box
will take not only digital numbers you can enter float point values also. Once
you entered ROC value you need to click on Set button then only this
parameter is configured.
Note: This ROC value should be in between 0.01 and 100.00.
Note: Once you configured these configurations parameters and switch to
Auto Scale mode then you will lost the first five configurations. These
configurations will be invalidated in Auto Scale mode. If you switched back
from Auto scale mode to non Auto Scale mode you need to reconfigure
(Basically Set) the parameters.

The Third Property Page in this Property Sheet is shown in below fig. With
this property page you can set signal conditioning related parameters.
The first Signal Conditioning radio buttons, for Linear there is no change in
the Process Variable (PV or AI) value. It will be used the same value that got

________________________________________________________________________ 22

________________________________________________________________________

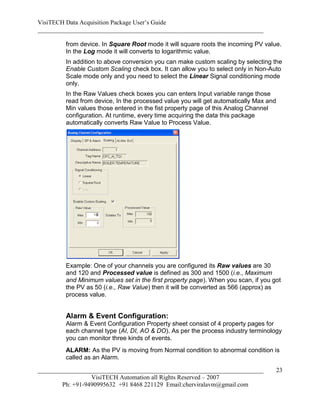

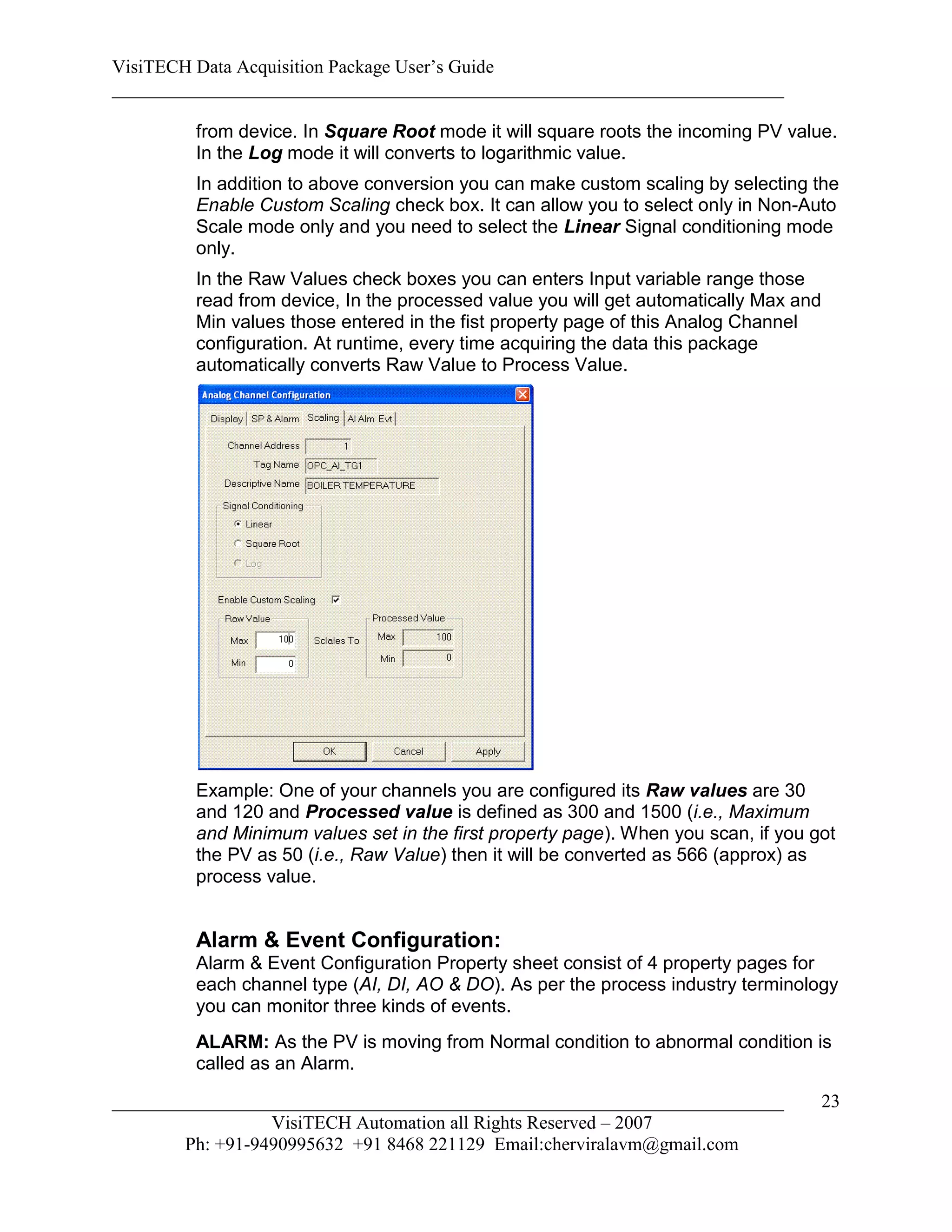

from device. In Square Root mode it will square roots the incoming PV value.
In the Log mode it will converts to logarithmic value.
In addition to above conversion you can make custom scaling by selecting the
Enable Custom Scaling check box. It can allow you to select only in Non-Auto
Scale mode only and you need to select the Linear Signal conditioning mode
only.
In the Raw Values check boxes you can enters Input variable range those
read from device, In the processed value you will get automatically Max and
Min values those entered in the fist property page of this Analog Channel
configuration. At runtime, every time acquiring the data this package
automatically converts Raw Value to Process Value.

Example: One of your channels you are configured its Raw values are 30
and 120 and Processed value is defined as 300 and 1500 (i.e., Maximum
and Minimum values set in the first property page). When you scan, if you got
the PV as 50 (i.e., Raw Value) then it will be converted as 566 (approx) as
process value.

Alarm & Event Configuration:
Alarm & Event Configuration Property sheet consist of 4 property pages for
each channel type (AI, DI, AO & DO). As per the process industry terminology
you can monitor three kinds of events.
ALARM: As the PV is moving from Normal condition to abnormal condition is
called as an Alarm.

________________________________________________________________________ 23

________________________________________________________________________

EVENT: If the PV is recovering from abnormal state to normal state is called
as EVENT.
MESSAGE: Any changes occur, you want to log those changes, you can
configure those changes as MESSAGE. Ex: If you want to change any of the
RO register or Activate any of the Coil of the connected device then you can
log these changes as MESSAGE.
Users can display this Alarm & Event Configuration Property sheet in any one
of the following methods:
 By clicking on the menu item Configuration  Alarm & Event
Configuration.

 By Clicking the Analog Channel Configuration tool bar button
For Alarm Beep related configurations, see the Chapter 7.2 Printer & Alarm
Beep related settings.
Analog Input (AI) Channel Alarm Configuration: Alarm configuration for AI
Channel is a two step process.
 In this first stage it required to assign valid HIHIAlARM, HIALARM,
LOALARM, LOLOALARM , ROC Alarm values for each from those you
want subscribe alarms.
 In the second stage you need to subscribe the required alarm conditions.
For AI channels you can find the following Alarm Conditions. As PV (Process
Variable or Analog Input or Read Only Register Value) Changing from:
 LT HI ALARM VALUE TO GT HI ALARM VALUE
 GT HI ALARM VALUE TO LT HI ALARM VALUE
 LT HI HI ALARM VALUE TO GT HI HI ALARM VALUE
 GT HI HI ALARM VALUE TO LT HI HI ALARM VALUE
 GT LO ALARM VALUE TO LT LO ALARM VALUE
 LT LO ALARM VALUE TO GT LO ALARM VALUE
 GT LO LO ALARM VALUE TO LT LO LO ALARM VALUE
 LT LO LO ALARM VALUE TO GT LO LO ALARM VALUE
 RATE OF CHANGE (ROC) ALARM
With the below AI Alarm & Event configuration property page you can
subscribe any one or all of the above alarm conditions. At the time of
subscribing the Alarm you can specify Alarm type can be any one of the
following ALARM, EVENT or MESSAGE.
Once Channel Address selected all the configured alarms are populated to
the bottom List control. Now you can subscribe new alarms or you can delete
any subscribed alarms.
At the time of subscribing the Alarms you can optionally enter any message
that can indicate Alarm specific information.
________________________________________________________________________ 24

________________________________________________________________________

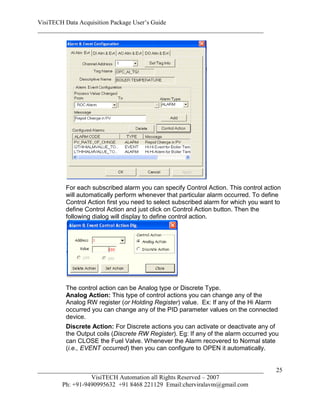

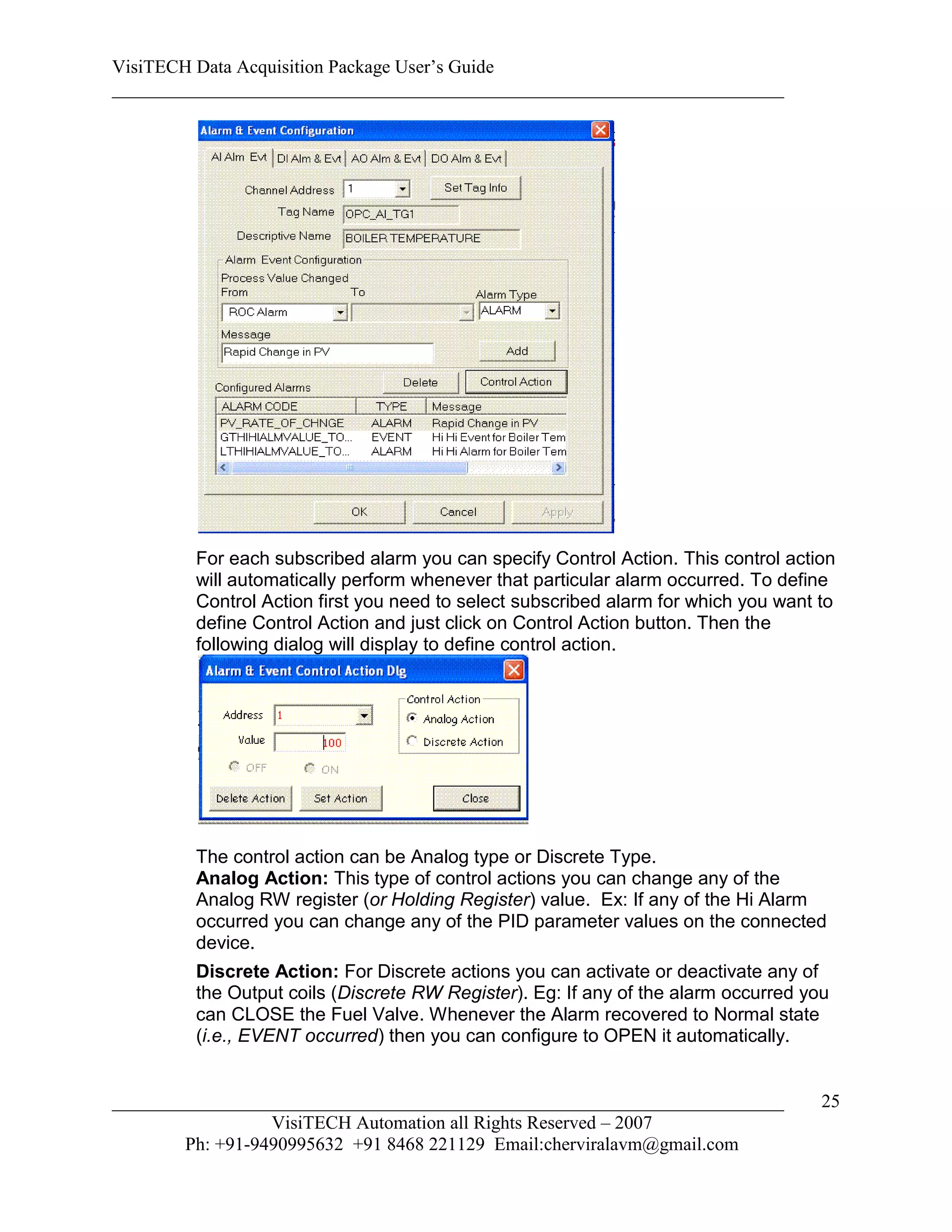

For each subscribed alarm you can specify Control Action. This control action
will automatically perform whenever that particular alarm occurred. To define
Control Action first you need to select subscribed alarm for which you want to
define Control Action and just click on Control Action button. Then the
following dialog will display to define control action.

The control action can be Analog type or Discrete Type.
Analog Action: This type of control actions you can change any of the
Analog RW register (or Holding Register) value. Ex: If any of the Hi Alarm
occurred you can change any of the PID parameter values on the connected
device.
Discrete Action: For Discrete actions you can activate or deactivate any of
the Output coils (Discrete RW Register). Eg: If any of the alarm occurred you
can CLOSE the Fuel Valve. Whenever the Alarm recovered to Normal state
(i.e., EVENT occurred) then you can configure to OPEN it automatically.

________________________________________________________________________ 25

________________________________________________________________________

Discrete Input (DI) Channel Alarm Configuration: Unlike AI configuration
this is just one step process. You can find following types of alarm conditions
for DI Channels:
 ON TO OFF : DI value changed from 1 to 0.
 OFF TO ON : DI value changed from 0 to 1.
You can subscribe the above alarms conditions from the second property
page of Alarm & Event Configuration Property sheet. These alarm conditions
can be any one of alarm type ALARM, EVENT or MESSAGE.
DI Alarm & Event configuration property page is shown in below fig:

Like AI channels for each subscribed alarm conditions you can define Control
Action and these control actions are either Analog action or Discrete Action.
These actions are automatically executed whenever the alarm condition
occurred.
Analog Output (AO) Channel Alarm Configuration: For AO channels
(Holding Registers) also one step subscription for Alarm. For the AO Channel
there is only one type of alarm condition is defined:
 HR VALUE CHANGE
Whenever manually changing the AO Channel values (Holding Register)
values these alarms are generated. There is no Control Actions for these

________________________________________________________________________ 26

________________________________________________________________________

alarms. Alarm type can be any type of ALARM, EVENT or MESSAGE.
Normally it will be type of MESSAGE.
AO Channel Alarm Configuration is shown in below fig:

________________________________________________________________________ 27

________________________________________________________________________

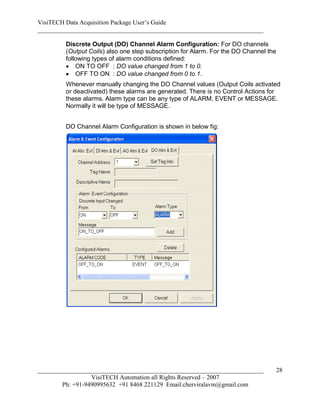

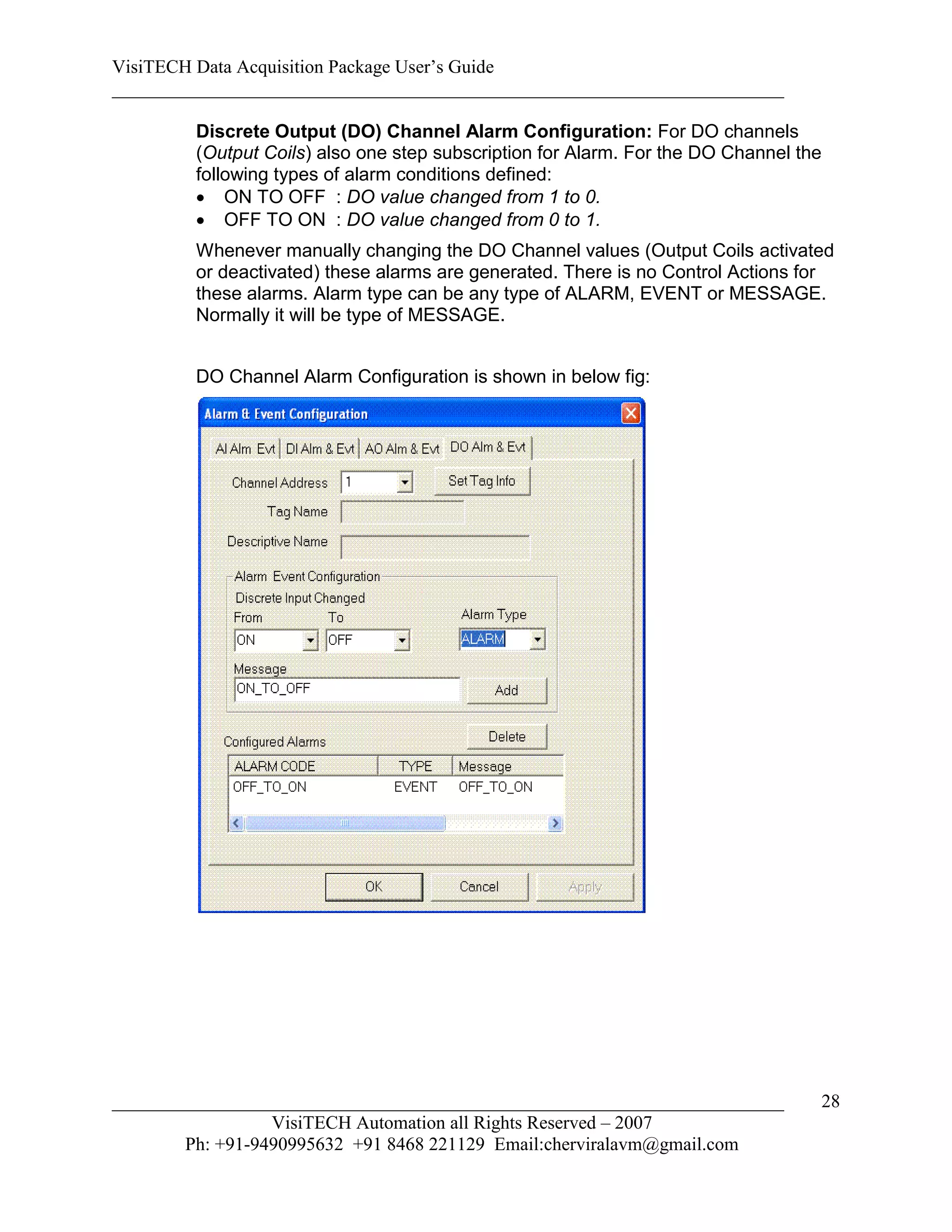

Discrete Output (DO) Channel Alarm Configuration: For DO channels
(Output Coils) also one step subscription for Alarm. For the DO Channel the
following types of alarm conditions defined:
 ON TO OFF : DO value changed from 1 to 0.
 OFF TO ON : DO value changed from 0 to 1.
Whenever manually changing the DO Channel values (Output Coils activated
or deactivated) these alarms are generated. There is no Control Actions for
these alarms. Alarm type can be any type of ALARM, EVENT or MESSAGE.
Normally it will be type of MESSAGE.

DO Channel Alarm Configuration is shown in below fig:

________________________________________________________________________ 28

________________________________________________________________________

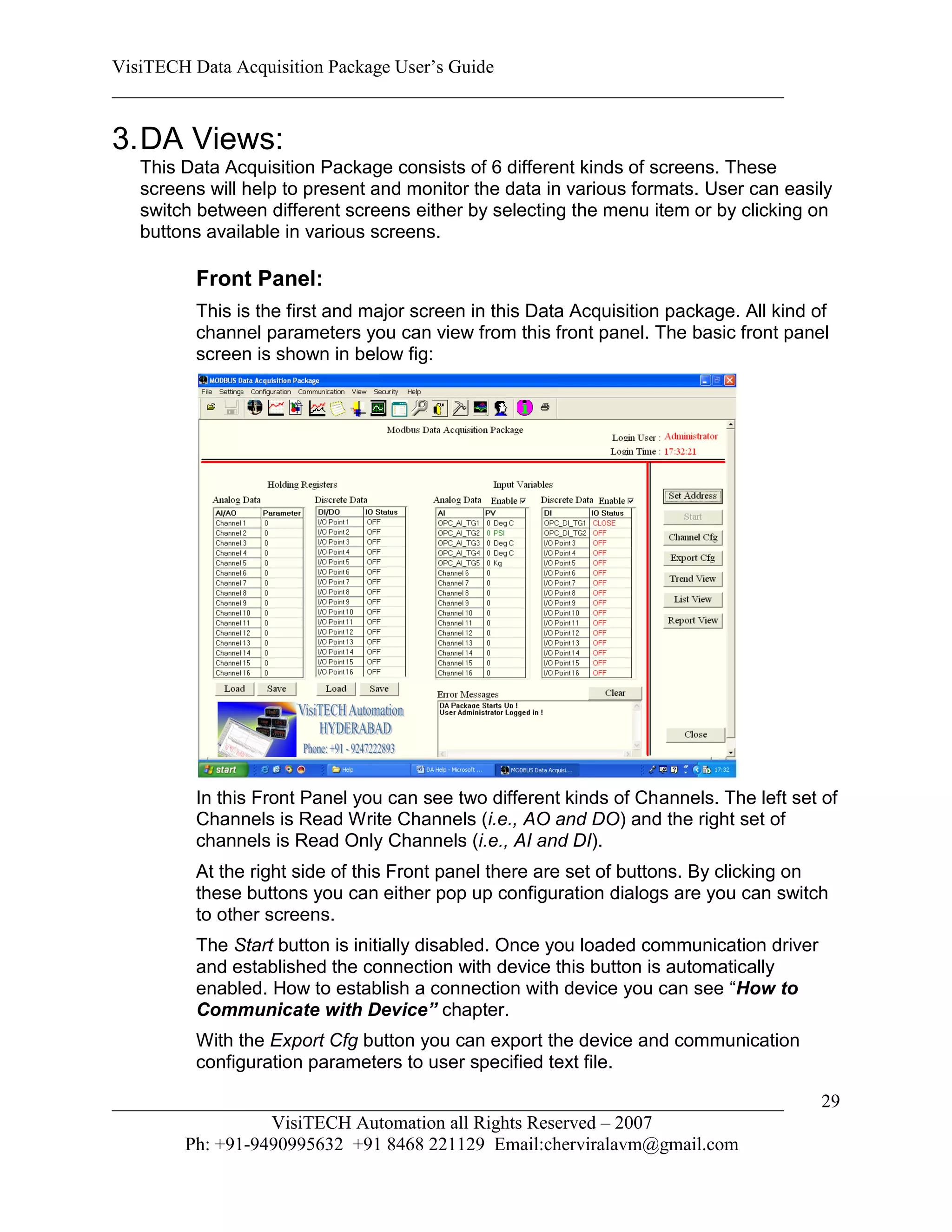

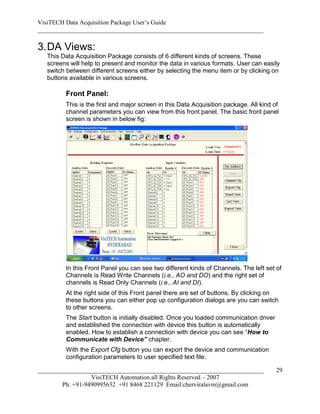

3. DA Views:
This Data Acquisition Package consists of 6 different kinds of screens. These
screens will help to present and monitor the data in various formats. User can easily
switch between different screens either by selecting the menu item or by clicking on
buttons available in various screens.

Front Panel:
This is the first and major screen in this Data Acquisition package. All kind of
channel parameters you can view from this front panel. The basic front panel
screen is shown in below fig:

In this Front Panel you can see two different kinds of Channels. The left set of
Channels is Read Write Channels (i.e., AO and DO) and the right set of
channels is Read Only Channels (i.e., AI and DI).
At the right side of this Front panel there are set of buttons. By clicking on
these buttons you can either pop up configuration dialogs are you can switch
to other screens.
The Start button is initially disabled. Once you loaded communication driver
and established the connection with device this button is automatically
enabled. How to establish a connection with device you can see “How to
Communicate with Device” chapter.
With the Export Cfg button you can export the device and communication
configuration parameters to user specified text file.

________________________________________________________________________ 29

________________________________________________________________________

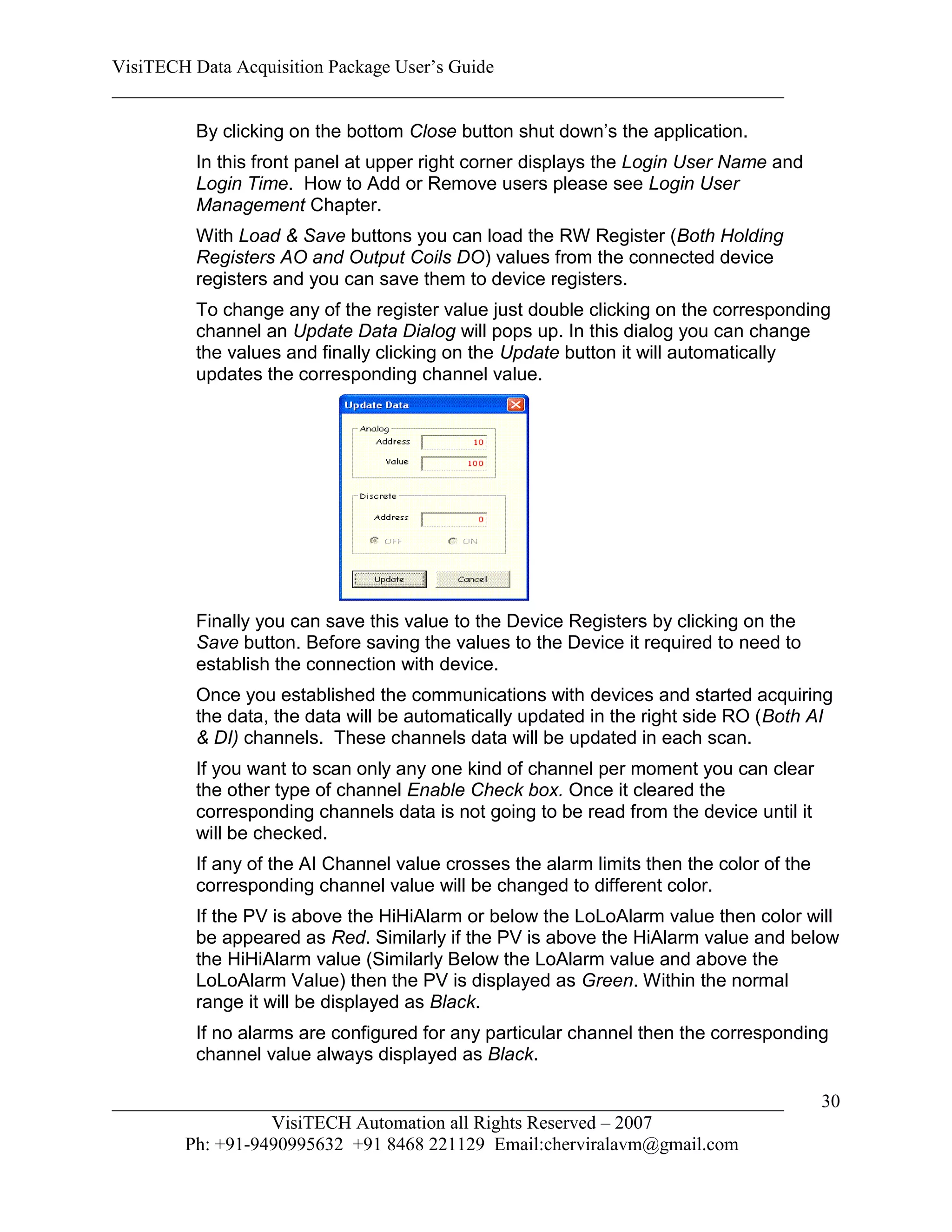

By clicking on the bottom Close button shut down’s the application.
In this front panel at upper right corner displays the Login User Name and
Login Time. How to Add or Remove users please see Login User
Management Chapter.
With Load & Save buttons you can load the RW Register (Both Holding
Registers AO and Output Coils DO) values from the connected device
registers and you can save them to device registers.
To change any of the register value just double clicking on the corresponding
channel an Update Data Dialog will pops up. In this dialog you can change
the values and finally clicking on the Update button it will automatically
updates the corresponding channel value.

Finally you can save this value to the Device Registers by clicking on the
Save button. Before saving the values to the Device it required to need to
establish the connection with device.
Once you established the communications with devices and started acquiring
the data, the data will be automatically updated in the right side RO (Both AI
& DI) channels. These channels data will be updated in each scan.
If you want to scan only any one kind of channel per moment you can clear
the other type of channel Enable Check box. Once it cleared the
corresponding channels data is not going to be read from the device until it
will be checked.
If any of the AI Channel value crosses the alarm limits then the color of the
corresponding channel value will be changed to different color.
If the PV is above the HiHiAlarm or below the LoLoAlarm value then color will
be appeared as Red. Similarly if the PV is above the HiAlarm value and below
the HiHiAlarm value (Similarly Below the LoAlarm value and above the
LoLoAlarm Value) then the PV is displayed as Green. Within the normal
range it will be displayed as Black.
If no alarms are configured for any particular channel then the corresponding
channel value always displayed as Black.

________________________________________________________________________ 30

________________________________________________________________________

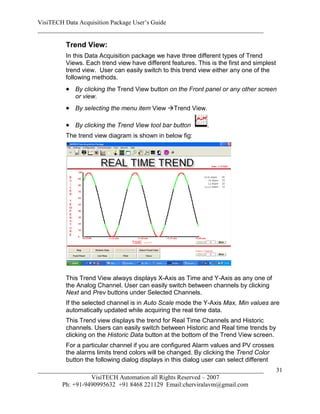

Trend View:
In this Data Acquisition package we have three different types of Trend
Views. Each trend view have different features. This is the first and simplest
trend view. User can easily switch to this trend view either any one of the
following methods.
 By clicking the Trend View button on the Front panel or any other screen
or view.
 By selecting the menu item View Trend View.

 By clicking the Trend View tool bar button .
The trend view diagram is shown in below fig:

This Trend View always displays X-Axis as Time and Y-Axis as any one of
the Analog Channel. User can easily switch between channels by clicking
Next and Prev buttons under Selected Channels.
If the selected channel is in Auto Scale mode the Y-Axis Max, Min values are
automatically updated while acquiring the real time data.
This Trend view displays the trend for Real Time Channels and Historic
channels. Users can easily switch between Historic and Real time trends by
clicking on the Historic Data button at the bottom of the Trend View screen.
For a particular channel if you are configured Alarm values and PV crosses
the alarms limits trend colors will be changed. By clicking the Trend Color
button the following dialog displays in this dialog user can select different
________________________________________________________________________ 31

________________________________________________________________________

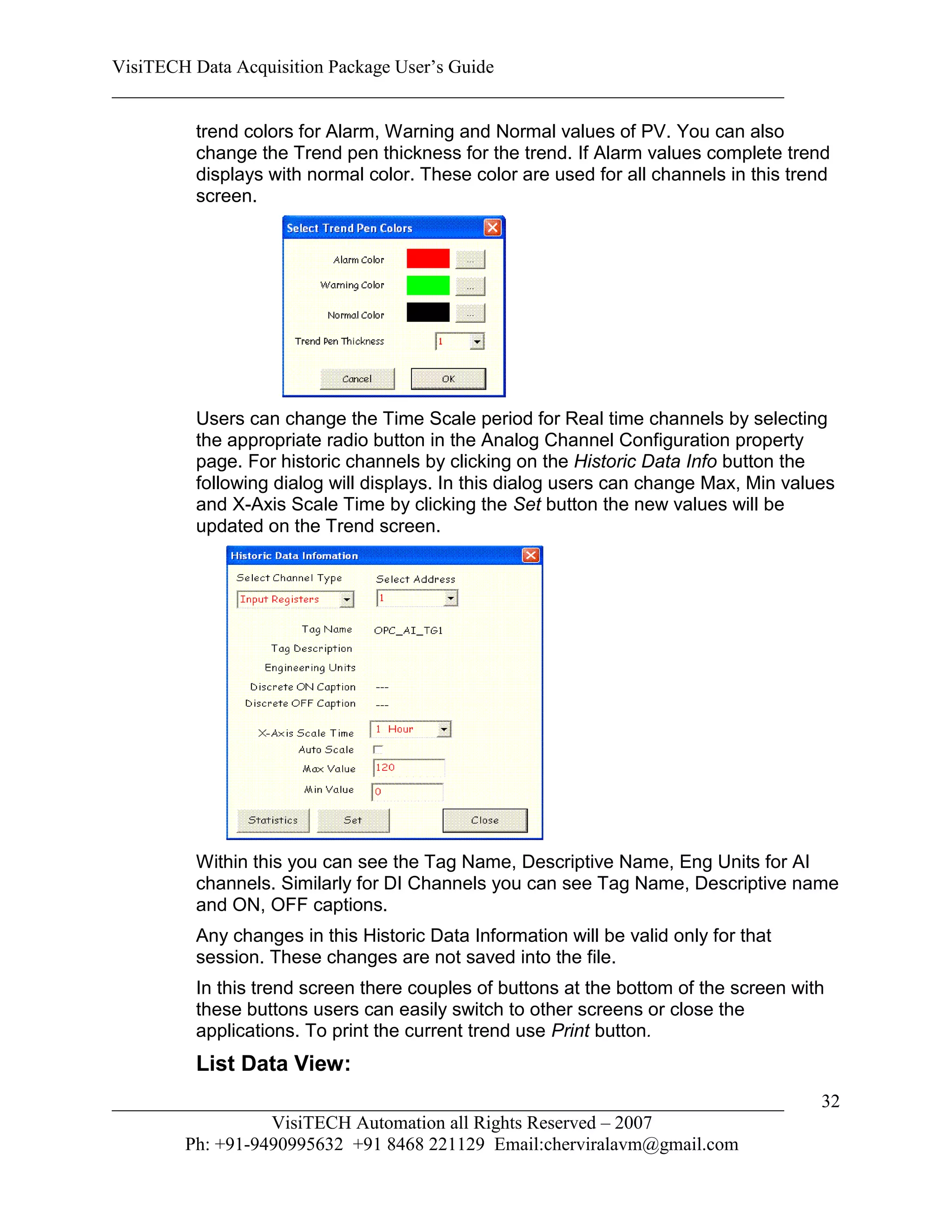

trend colors for Alarm, Warning and Normal values of PV. You can also
change the Trend pen thickness for the trend. If Alarm values complete trend
displays with normal color. These color are used for all channels in this trend
screen.

Users can change the Time Scale period for Real time channels by selecting
the appropriate radio button in the Analog Channel Configuration property
page. For historic channels by clicking on the Historic Data Info button the
following dialog will displays. In this dialog users can change Max, Min values
and X-Axis Scale Time by clicking the Set button the new values will be
updated on the Trend screen.

Within this you can see the Tag Name, Descriptive Name, Eng Units for AI
channels. Similarly for DI Channels you can see Tag Name, Descriptive name
and ON, OFF captions.
Any changes in this Historic Data Information will be valid only for that
session. These changes are not saved into the file.
In this trend screen there couples of buttons at the bottom of the screen with
these buttons users can easily switch to other screens or close the
applications. To print the current trend use Print button.
List Data View:
________________________________________________________________________ 32

________________________________________________________________________

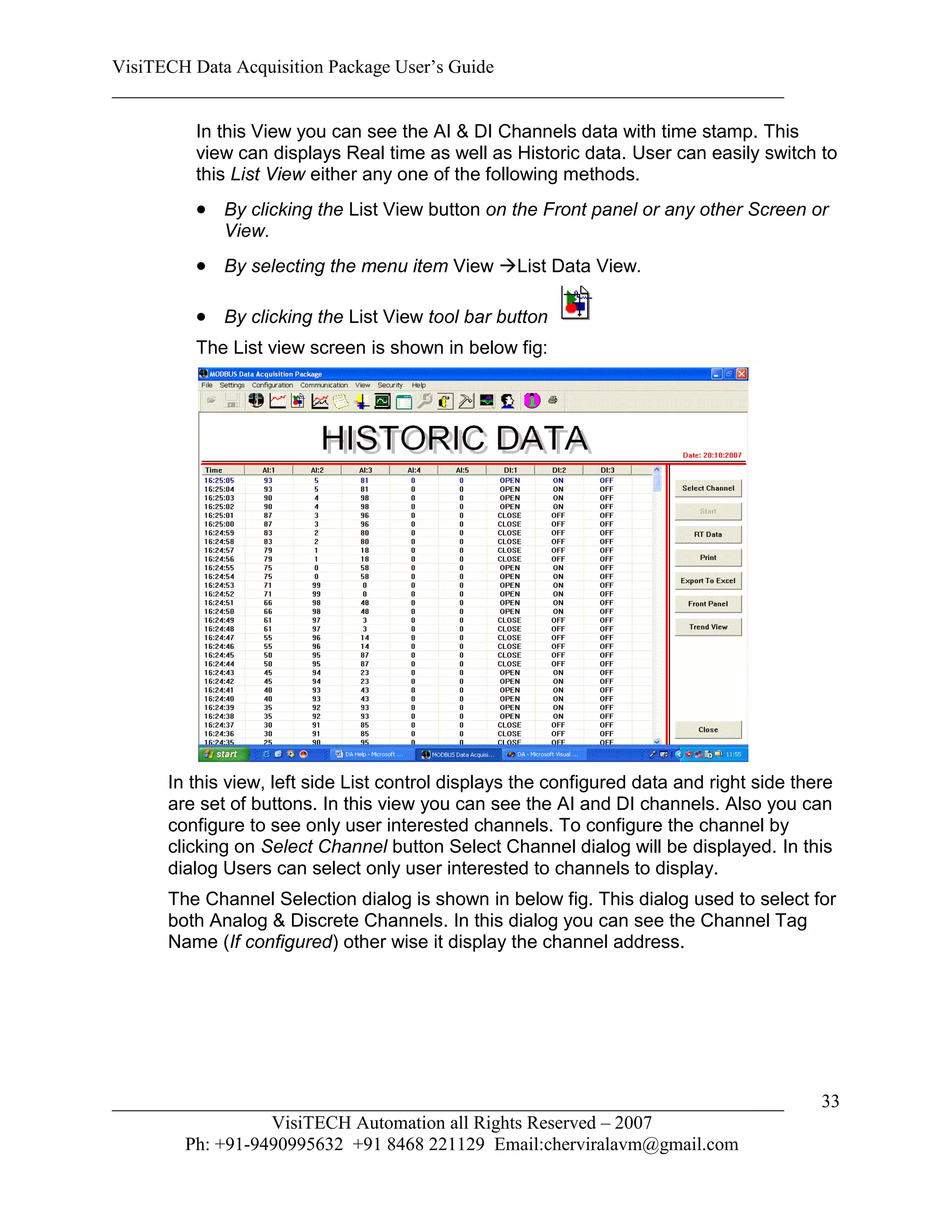

In this View you can see the AI & DI Channels data with time stamp. This
view can displays Real time as well as Historic data. User can easily switch to
this List View either any one of the following methods.
 By clicking the List View button on the Front panel or any other Screen or
View.
 By selecting the menu item View List Data View.

 By clicking the List View tool bar button
The List view screen is shown in below fig:

In this view, left side List control displays the configured data and right side there
are set of buttons. In this view you can see the AI and DI channels. Also you can
configure to see only user interested channels. To configure the channel by
clicking on Select Channel button Select Channel dialog will be displayed. In this
dialog Users can select only user interested to channels to display.
The Channel Selection dialog is shown in below fig. This dialog used to select for
both Analog & Discrete Channels. In this dialog you can see the Channel Tag
Name (If configured) other wise it display the channel address.

________________________________________________________________________ 33

________________________________________________________________________

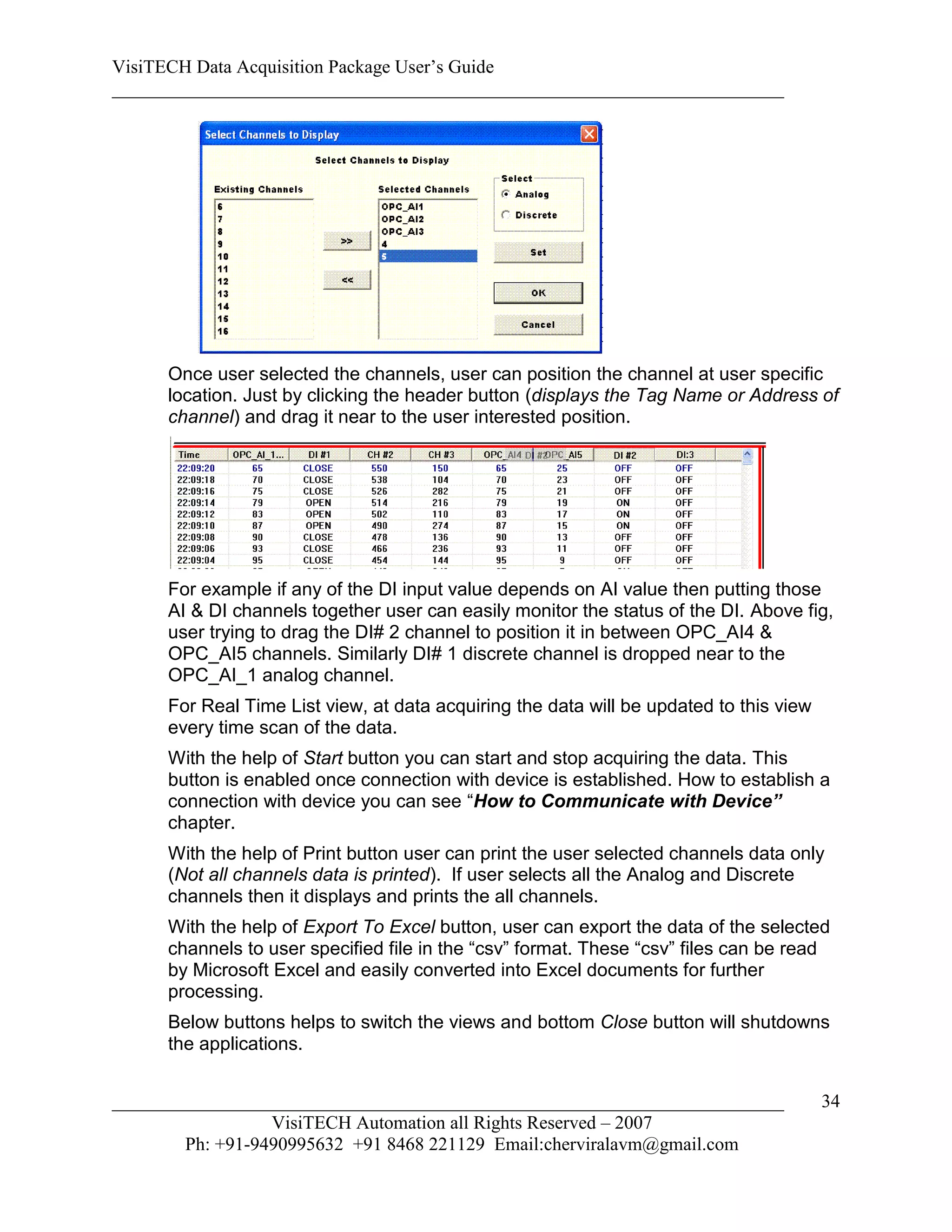

Once user selected the channels, user can position the channel at user specific
location. Just by clicking the header button (displays the Tag Name or Address of
channel) and drag it near to the user interested position.

For example if any of the DI input value depends on AI value then putting those
AI & DI channels together user can easily monitor the status of the DI. Above fig,
user trying to drag the DI# 2 channel to position it in between OPC_AI4 &
OPC_AI5 channels. Similarly DI# 1 discrete channel is dropped near to the
OPC_AI_1 analog channel.
For Real Time List view, at data acquiring the data will be updated to this view
every time scan of the data.
With the help of Start button you can start and stop acquiring the data. This
button is enabled once connection with device is established. How to establish a
connection with device you can see “How to Communicate with Device”
chapter.
With the help of Print button user can print the user selected channels data only
(Not all channels data is printed). If user selects all the Analog and Discrete
channels then it displays and prints the all channels.
With the help of Export To Excel button, user can export the data of the selected
channels to user specified file in the “csv” format. These “csv” files can be read
by Microsoft Excel and easily converted into Excel documents for further
processing.
Below buttons helps to switch the views and bottom Close button will shutdowns
the applications.

________________________________________________________________________ 34

________________________________________________________________________

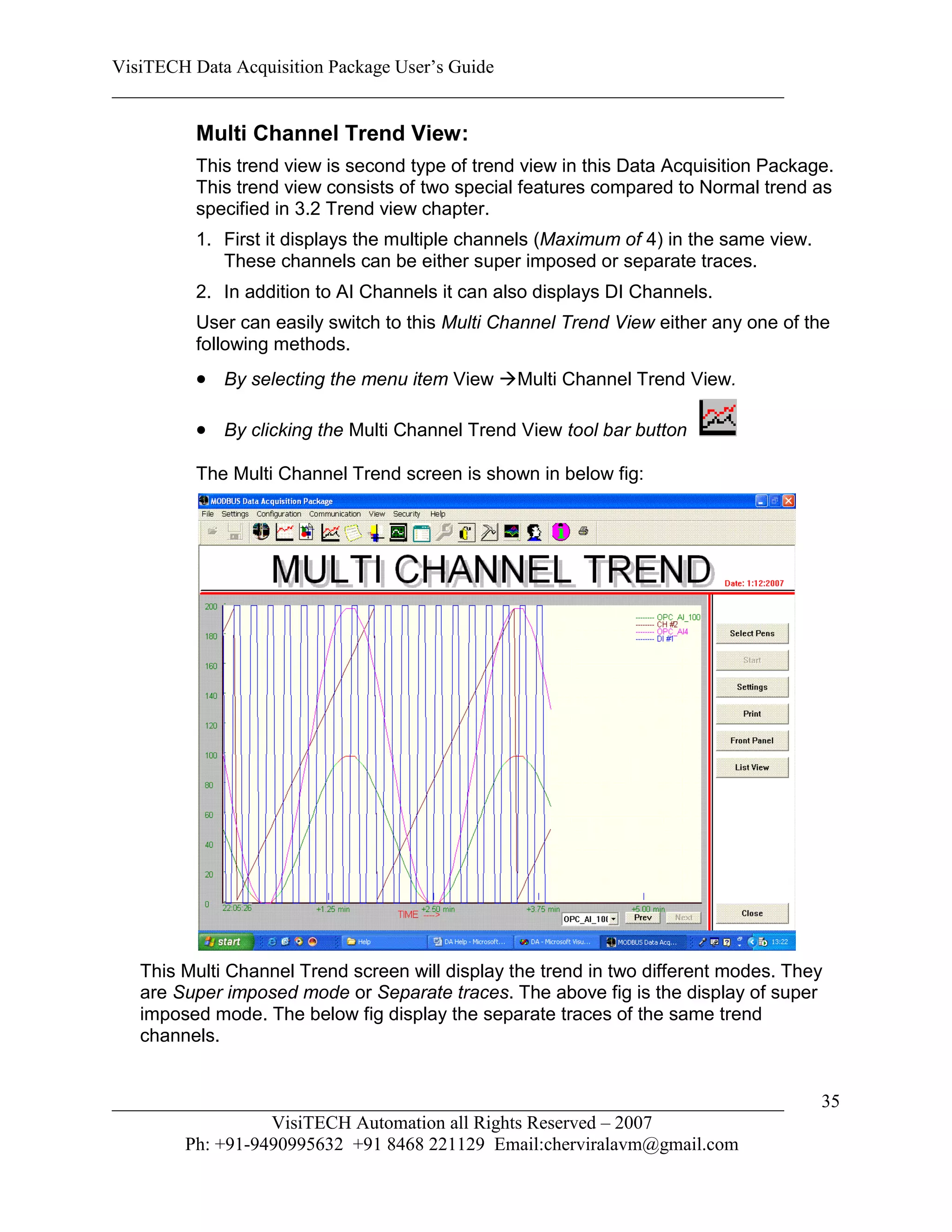

Multi Channel Trend View:
This trend view is second type of trend view in this Data Acquisition Package.
This trend view consists of two special features compared to Normal trend as
specified in 3.2 Trend view chapter.
1. First it displays the multiple channels (Maximum of 4) in the same view.
These channels can be either super imposed or separate traces.
2. In addition to AI Channels it can also displays DI Channels.
User can easily switch to this Multi Channel Trend View either any one of the
following methods.
 By selecting the menu item View Multi Channel Trend View.

 By clicking the Multi Channel Trend View tool bar button
The Multi Channel Trend screen is shown in below fig:

This Multi Channel Trend screen will display the trend in two different modes. They
are Super imposed mode or Separate traces. The above fig is the display of super
imposed mode. The below fig display the separate traces of the same trend
channels.

________________________________________________________________________ 35

________________________________________________________________________

These trend channels can be either Real Time or Historic or combination of
both. In the case of Historic you can select the channels from four different
files (four different batches data) also. Once selected the trend channel,
initially different color for different channel is assigned. User can change the
trend channel to different color in the Settings dialog.

By clicking on the Select Pens buttons Channel Selection Dialog appears. In
this channel selection dialog you can select the channel from Real Time and
Historic data, also both AI & DI channels. The Channel Selection dialog is
shown in above fig. In the above dialog user can select the historic data by
________________________________________________________________________ 36

________________________________________________________________________

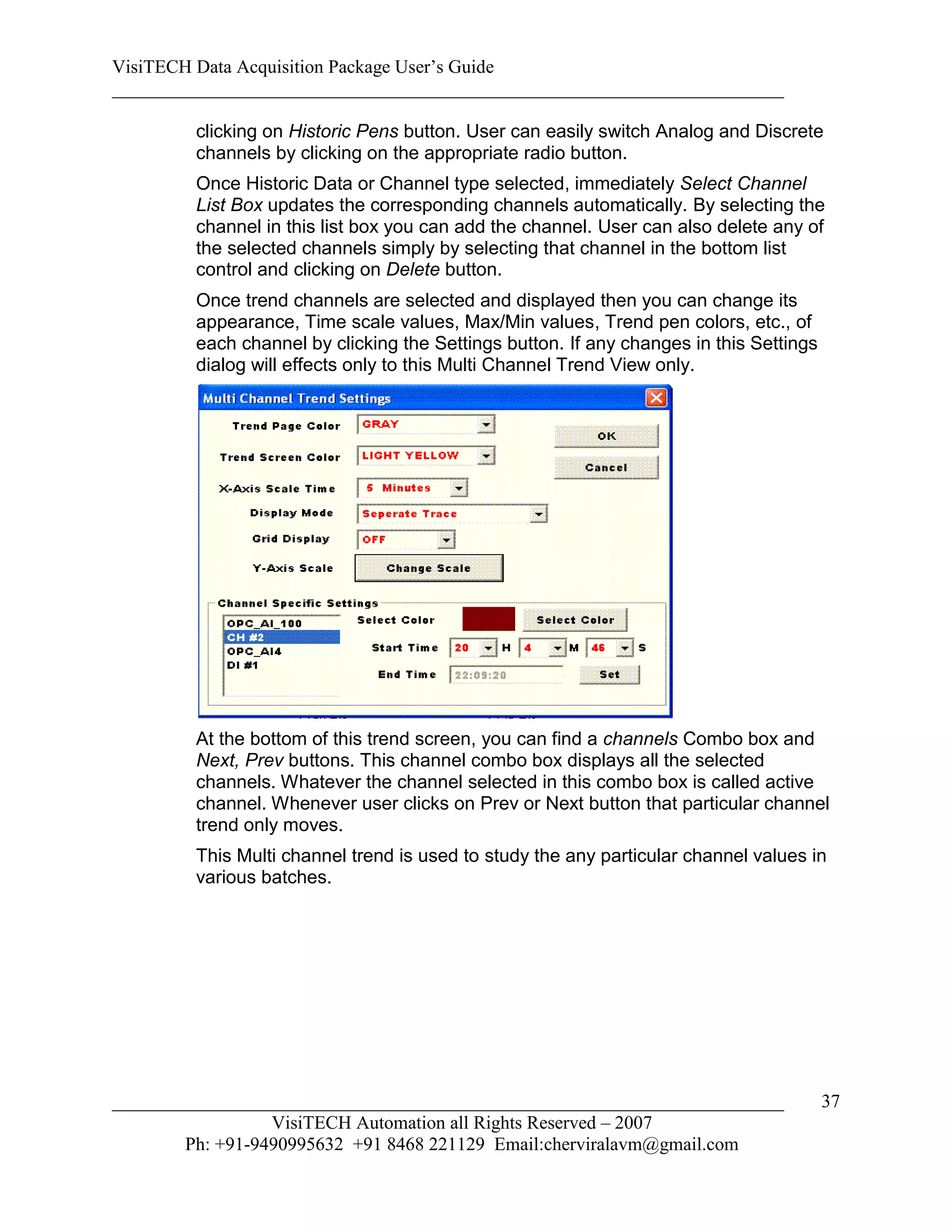

clicking on Historic Pens button. User can easily switch Analog and Discrete
channels by clicking on the appropriate radio button.
Once Historic Data or Channel type selected, immediately Select Channel
List Box updates the corresponding channels automatically. By selecting the
channel in this list box you can add the channel. User can also delete any of
the selected channels simply by selecting that channel in the bottom list
control and clicking on Delete button.
Once trend channels are selected and displayed then you can change its
appearance, Time scale values, Max/Min values, Trend pen colors, etc., of
each channel by clicking the Settings button. If any changes in this Settings
dialog will effects only to this Multi Channel Trend View only.

At the bottom of this trend screen, you can find a channels Combo box and
Next, Prev buttons. This channel combo box displays all the selected
channels. Whatever the channel selected in this combo box is called active
channel. Whenever user clicks on Prev or Next button that particular channel
trend only moves.
This Multi channel trend is used to study the any particular channel values in
various batches.

________________________________________________________________________ 37

________________________________________________________________________

Alarm & Event View
This Alarm & Event view is one of the most useful view. With this view you
can see the Real time (i.e. today) Alarms & Events and Historic Alarms &
Events.
Every day Alarm & Event data is automatically stored in a separate file in the
Alarm directory within the Data Acquisition Package executable directory. All
these files will be stored with extension of “EVT”.
User can easily display this Alarm & Event view in either any one of the
following methods.
 By selecting the menu item View Alarm & Event View.

 By clicking the Alarm & Event View tool bar button
The Alarm & Event View is shown in below fig. This Alarm & Event view is not
a full view, while this Alarm & Event view is displaying you can easily switch
to different views and you can monitor other views while monitoring this Alarm
data.

In this Alarm & Event view you will find the set of columns. The description of
these columns is shown below fig.
Tag Name: In this column you will find three different types of information:
 Tag Name of the Alarm Source Channel.

________________________________________________________________________ 38

________________________________________________________________________

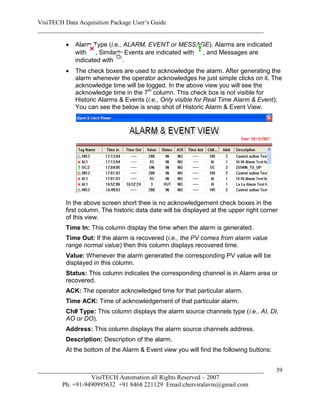

 Alarm Type (i.e., ALARM, EVENT or MESSAGE). Alarms are indicated
with , Similarly Events are indicated with , and Messages are
indicated with .
 The check boxes are used to acknowledge the alarm. After generating the
alarm whenever the operator acknowledges he just simple clicks on it. The
acknowledge time will be logged. In the above view you will see the
acknowledge time in the 7th column. This check box is not visible for
Historic Alarms & Events (i.e., Only visible for Real Time Alarm & Event).
You can see the below is snap shot of Historic Alarm & Event View.

In the above screen short thee is no acknowledgement check boxes in the
first column. The historic data date will be displayed at the upper right corner
of this view.
Time In: This column display the time when the alarm is generated.
Time Out: If the alarm is recovered (i.e., the PV comes from alarm value
range normal value) then this column displays recovered time.
Value: Whenever the alarm generated the corresponding PV value will be
displayed in this column.
Status: This column indicates the corresponding channel is in Alarm area or
recovered.
ACK: The operator acknowledged time for that particular alarm.
Time ACK: Time of acknowledgement of that particular alarm.
Ch# Type: This column displays the alarm source channels type (i.e., AI, DI,
AO or DO).
Address: This column displays the alarm source channels address.
Description: Description of the alarm.
At the bottom of the Alarm & Event view you will find the following buttons:

________________________________________________________________________ 39

________________________________________________________________________

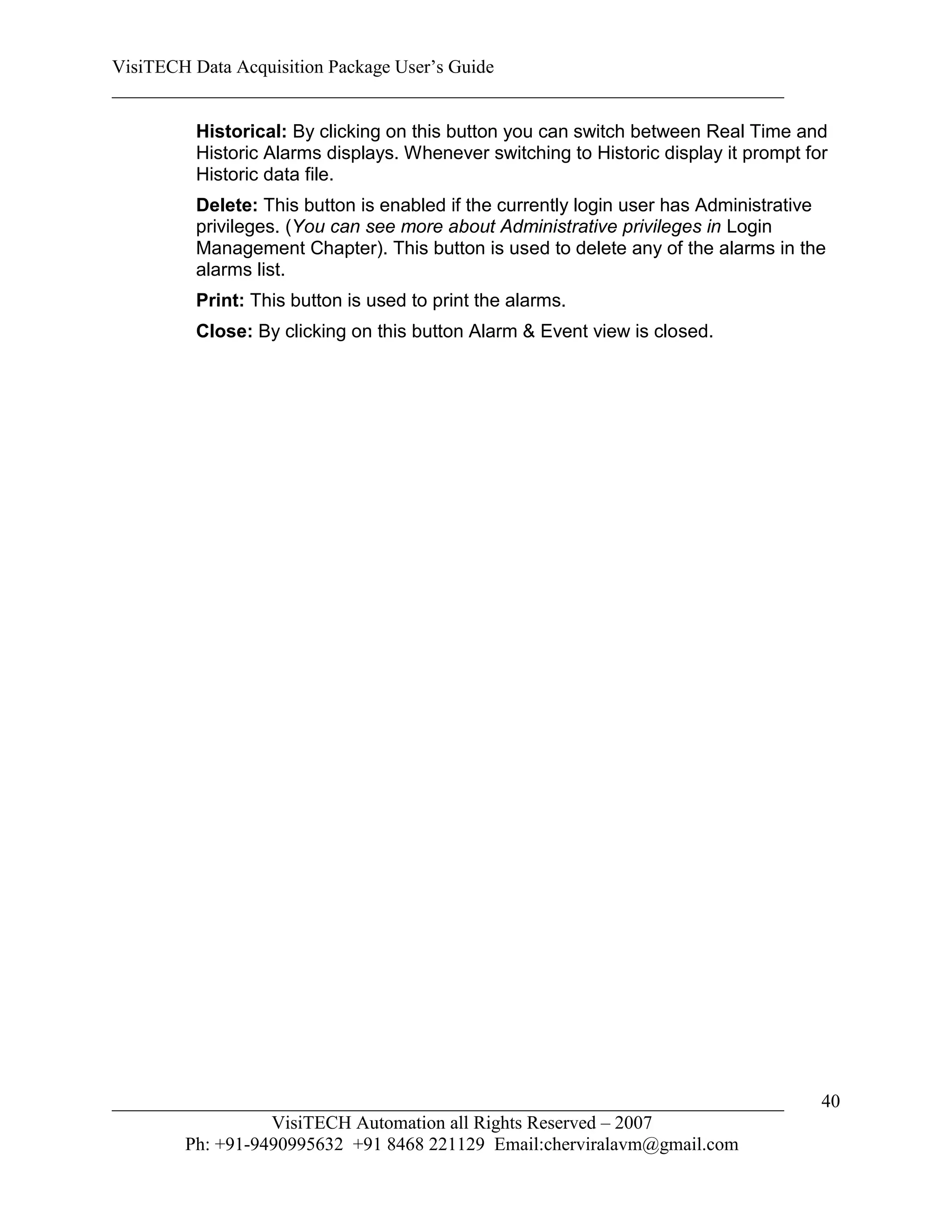

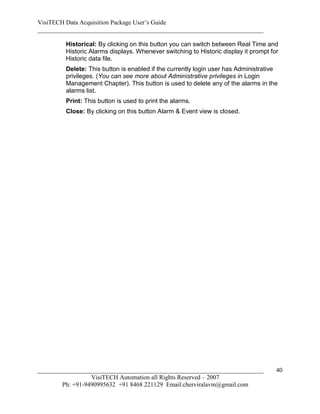

Historical: By clicking on this button you can switch between Real Time and
Historic Alarms displays. Whenever switching to Historic display it prompt for
Historic data file.
Delete: This button is enabled if the currently login user has Administrative
privileges. (You can see more about Administrative privileges in Login
Management Chapter). This button is used to delete any of the alarms in the
alarms list.
Print: This button is used to print the alarms.
Close: By clicking on this button Alarm & Event view is closed.

________________________________________________________________________ 40

________________________________________________________________________

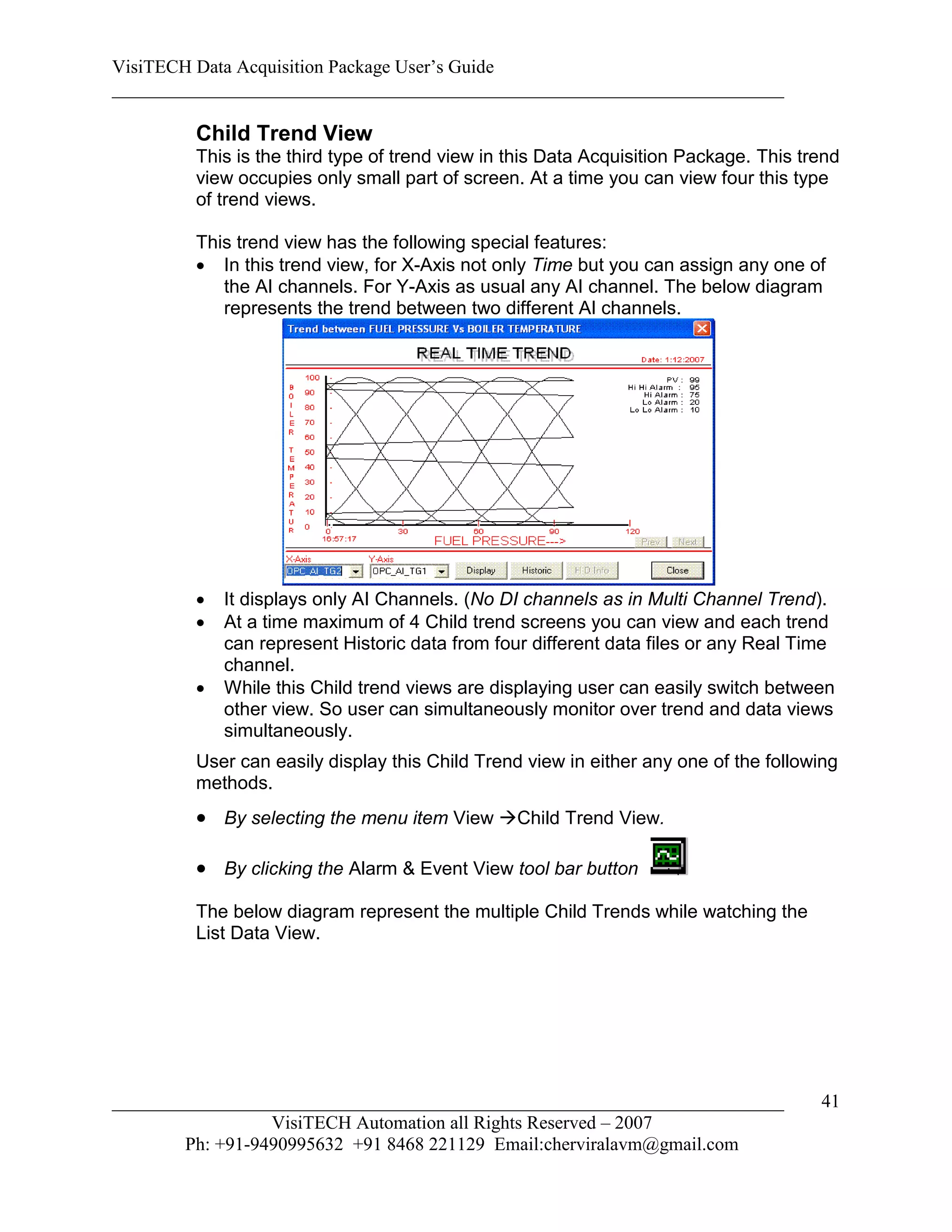

Child Trend View
This is the third type of trend view in this Data Acquisition Package. This trend
view occupies only small part of screen. At a time you can view four this type
of trend views.

This trend view has the following special features:
 In this trend view, for X-Axis not only Time but you can assign any one of
the AI channels. For Y-Axis as usual any AI channel. The below diagram
represents the trend between two different AI channels.

 It displays only AI Channels. (No DI channels as in Multi Channel Trend).
 At a time maximum of 4 Child trend screens you can view and each trend
can represent Historic data from four different data files or any Real Time
channel.
 While this Child trend views are displaying user can easily switch between
other view. So user can simultaneously monitor over trend and data views
simultaneously.
User can easily display this Child Trend view in either any one of the following
methods.
 By selecting the menu item View Child Trend View.

 By clicking the Alarm & Event View tool bar button

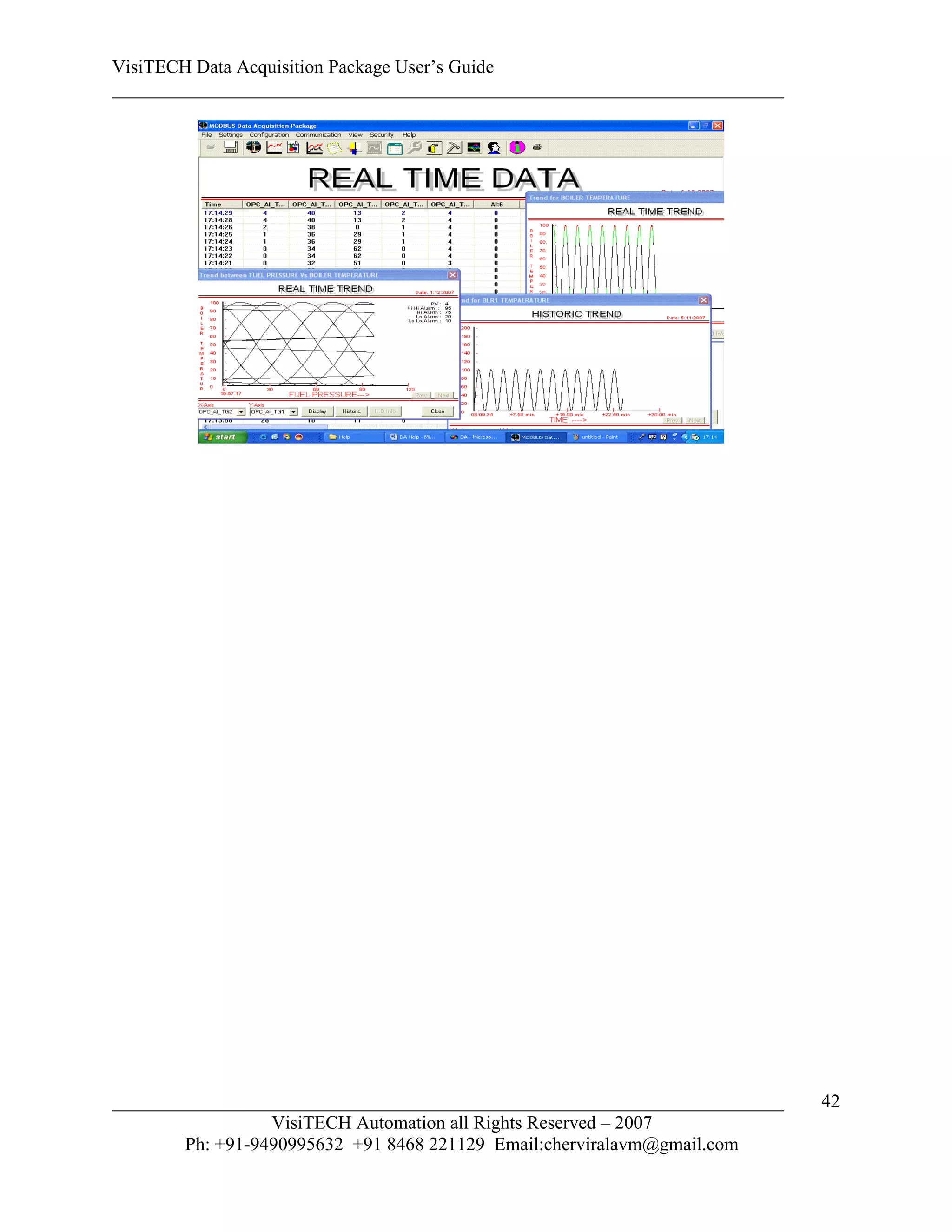

The below diagram represent the multiple Child Trends while watching the
List Data View.

________________________________________________________________________ 41

________________________________________________________________________

________________________________________________________________________ 42

________________________________________________________________________

4. How to Communicate with Device
Connecting to Device:
To establish communication with device take the following steps:
 First select the communication protocol in the Device & Communication’s
property sheet’s Protocol Configuration property page. While selecting the
communication protocol observed Communication Medium type. To access
the Device & Communication Property sheet just select the menu item
Configuration  Device Communication Settings or select the Device &
Communication Settings tool bar button.
 If the communication medium type is SERIAL just switch to Serial Port
configuration property page in the same property sheet and select the DA
device connected serial port and make appropriate settings. For device
serial settings you can contact filed engineer.
 If the communication medium type is ETHERNET just switch to Ethernet
Port configuration property page in the same property sheet and assign
the IP address and TCP/IP port no of the connected device.
 If the communication medium type is OPC Component just switch to OPC
Server configuration property page and get the available OPC servers on
Remote server machine and select your OPC server check for availability.
If OPC items are not configured, configure the OPC items.
 If the communication medium type is OTHER, you don’t need to configure
any communication related settings just close this Device &
Communication property sheet.
 Now you need to load the communication driver and required to connect to
the device. To establish connection with device select the menu item
Communication Connect. Once it successfully established the connection
with device you will see a message in Error Message list box as “Successfully
Connected !” If any errors occurred those error messages will be displayed.
 If Successfully connected now you can upload the AO & DO Parameters.
If required change those values and save them back to the device.
 To start acquiring the data click on Start button. This button is available in all
view. Just clicking on any view’s Start button it will starts acquiring the AI & DI
data.

________________________________________________________________________ 43

________________________________________________________________________

Disconnecting to Device:
 To disable the connection with device first stop acquiring the data by clicking
the Stop button in any of the views. If you are not in acquiring mode you don’t
find the Stop button just switch to next step.
 Now, just click on Communication Disconnect menu item. It will un-loads
the communication driver and disable the communication with device. If the
communication is not established then this menu item is grayed.

Note: The menu items “CommunicationConnect” & “Communication 
Disconnect” are enabled when the active view is Front Panel. In all other views
these menu items are disabled. To establish or disconnect a connection with
device switch to front panel and take appropriate action.

________________________________________________________________________ 44

________________________________________________________________________

5. Report Generation Wizard:
This Report generation wizard reads the data from DA Package generated data files
and displays the reports in three different modes. They are CHART, CROSS TAB
and DAILY reports. In addition to displaying the reports it will export the reports into
various file formats.
With this wizard user can generate the reports for AI & DI channels.
User can easily switch to this Report View either any one of the following methods.
 By selecting the menu item View Report View.

 By clicking the following Report View tool bar button

This Report Generation Wizard consists of two different views as shown in below fig.
The upper view is a dialog it will allow to select various report generation parameters
and the bottom is report display view. All types of reports will be displayed in bottom
view.

Select File: With this button you can select the Historic data file to generate the
reports. Once the file is selected available channels are automatically populated into
Tags List box. This list box holds the tags for both AI & DI channels.

________________________________________________________________________ 45

________________________________________________________________________

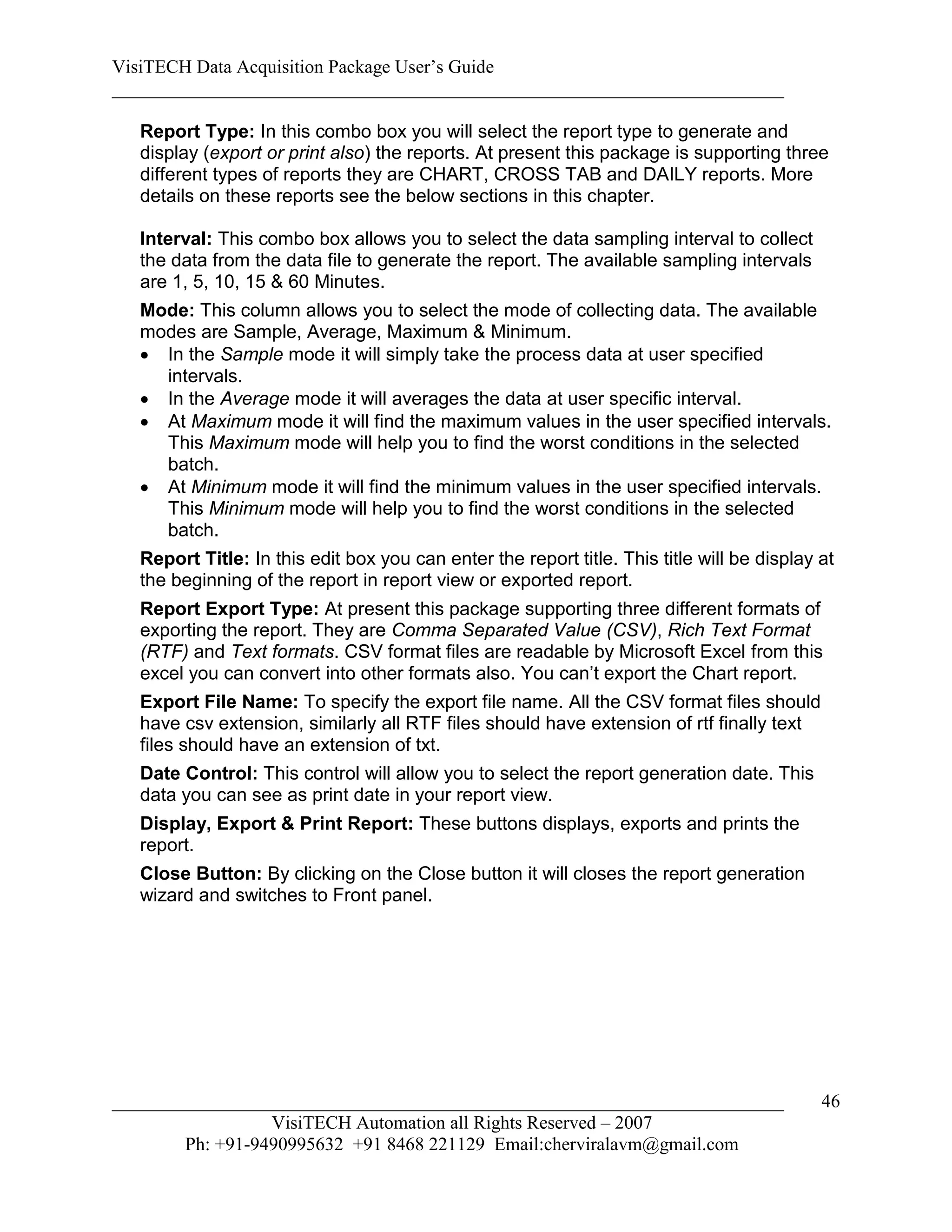

Report Type: In this combo box you will select the report type to generate and
display (export or print also) the reports. At present this package is supporting three
different types of reports they are CHART, CROSS TAB and DAILY reports. More
details on these reports see the below sections in this chapter.

Interval: This combo box allows you to select the data sampling interval to collect
the data from the data file to generate the report. The available sampling intervals
are 1, 5, 10, 15 & 60 Minutes.
Mode: This column allows you to select the mode of collecting data. The available
modes are Sample, Average, Maximum & Minimum.
 In the Sample mode it will simply take the process data at user specified
intervals.
 In the Average mode it will averages the data at user specific interval.
 At Maximum mode it will find the maximum values in the user specified intervals.
This Maximum mode will help you to find the worst conditions in the selected
batch.
 At Minimum mode it will find the minimum values in the user specified intervals.
This Minimum mode will help you to find the worst conditions in the selected
batch.
Report Title: In this edit box you can enter the report title. This title will be display at
the beginning of the report in report view or exported report.
Report Export Type: At present this package supporting three different formats of
exporting the report. They are Comma Separated Value (CSV), Rich Text Format
(RTF) and Text formats. CSV format files are readable by Microsoft Excel from this
excel you can convert into other formats also. You can’t export the Chart report.
Export File Name: To specify the export file name. All the CSV format files should
have csv extension, similarly all RTF files should have extension of rtf finally text
files should have an extension of txt.
Date Control: This control will allow you to select the report generation date. This
data you can see as print date in your report view.
Display, Export & Print Report: These buttons displays, exports and prints the
report.
Close Button: By clicking on the Close button it will closes the report generation
wizard and switches to Front panel.

________________________________________________________________________ 46

________________________________________________________________________

Chart Report:
This chart report gives the clear idea about the process data in the selected
batch or data file. Within this report in Maximum and Minimum mode you can
easily find out peek values in the given data. This report helps to study or
gives the feed back of the selected channels data. You get different chart
reports for different modes of selected for the same data for a selected
channel.
The below figure is Chart report. This report is one of the best report to get
the clear idea to get a channels data in a particular batch. In Max/Min values
mode you will find any abnormal conditions exists in the given batch.
This report is used to submit the report to the higher authority at the end of
the batch for any particular PV or Channels.
This Chart report generates the report only one channel at a time.

________________________________________________________________________ 47

________________________________________________________________________

Cross Tab Report:
This Cross tab report is suitable to study or to perform comparative analysis
between channels (Both AI & DI).

This Cross tab report generated Maximum 5 channels report at a time. If you
have more channels you have to make multiple reports by selecting different
channels.

________________________________________________________________________ 48

________________________________________________________________________

Daily Report:
This Daily report is best suitable to submit the daily reports for each channel
at the end of the batch. At a sampling interval it will clearly indicates the PV
value and Alarm condition status.
To get the report you can select any number of channels in a selected batch
(or data file).

________________________________________________________________________ 49

________________________________________________________________________

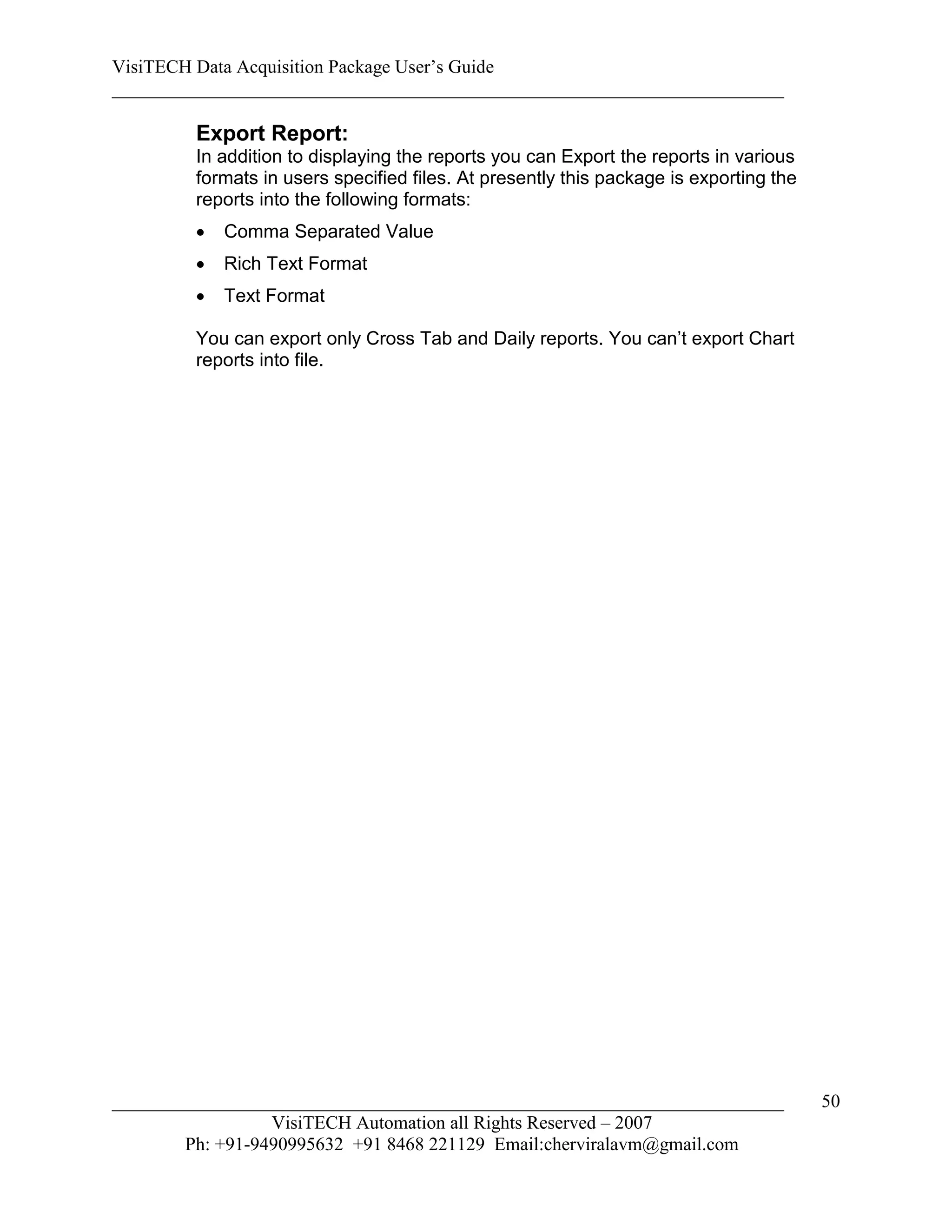

Export Report:
In addition to displaying the reports you can Export the reports in various
formats in users specified files. At presently this package is exporting the
reports into the following formats:
 Comma Separated Value
 Rich Text Format
 Text Format

You can export only Cross Tab and Daily reports. You can’t export Chart
reports into file.

________________________________________________________________________ 50

________________________________________________________________________

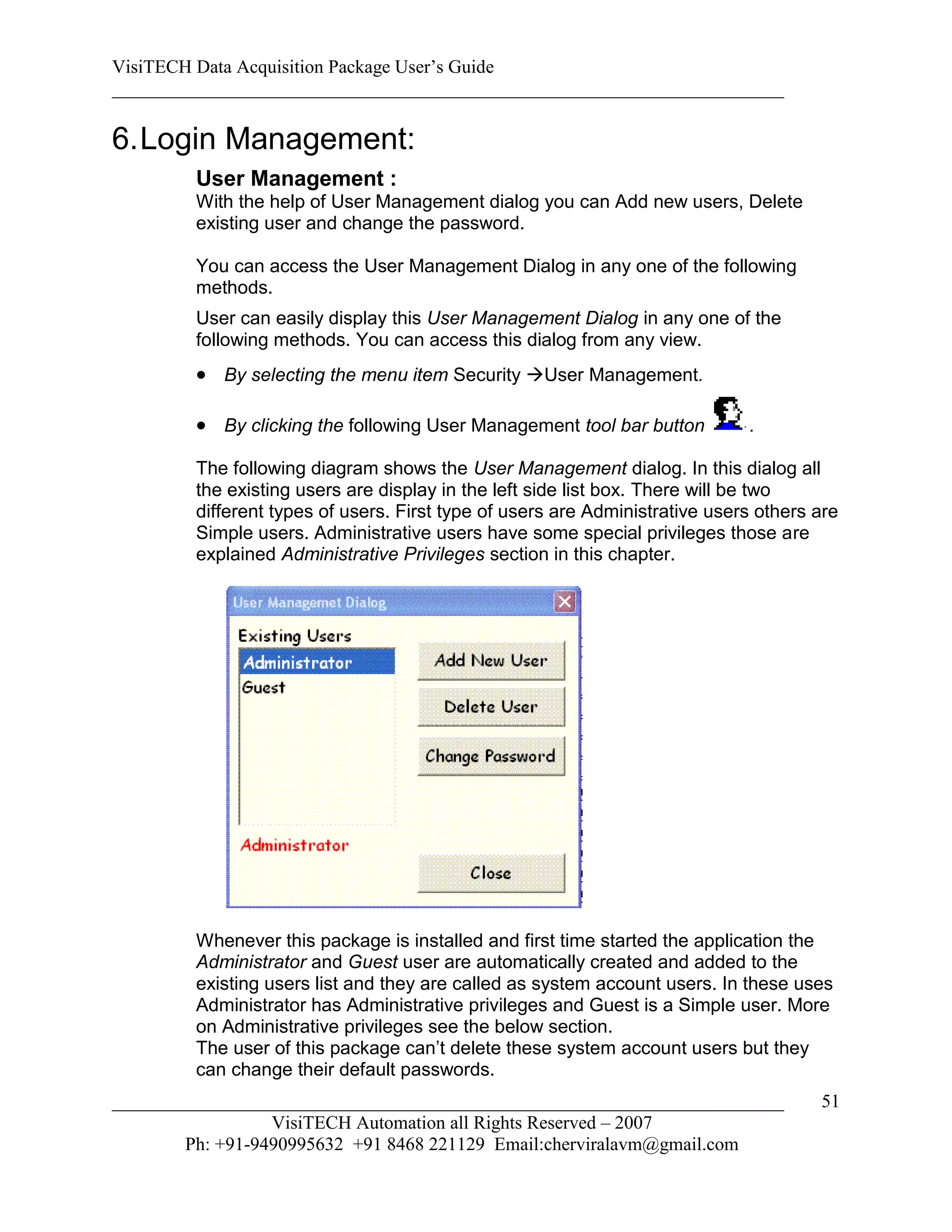

6. Login Management:
User Management :
With the help of User Management dialog you can Add new users, Delete
existing user and change the password.

You can access the User Management Dialog in any one of the following
methods.
User can easily display this User Management Dialog in any one of the
following methods. You can access this dialog from any view.
 By selecting the menu item Security User Management.

 By clicking the following User Management tool bar button .

The following diagram shows the User Management dialog. In this dialog all
the existing users are display in the left side list box. There will be two
different types of users. First type of users are Administrative users others are
Simple users. Administrative users have some special privileges those are
explained Administrative Privileges section in this chapter.

Whenever this package is installed and first time started the application the
Administrator and Guest user are automatically created and added to the
existing users list and they are called as system account users. In these uses
Administrator has Administrative privileges and Guest is a Simple user. More
on Administrative privileges see the below section.
The user of this package can’t delete these system account users but they
can change their default passwords.
________________________________________________________________________ 51

________________________________________________________________________

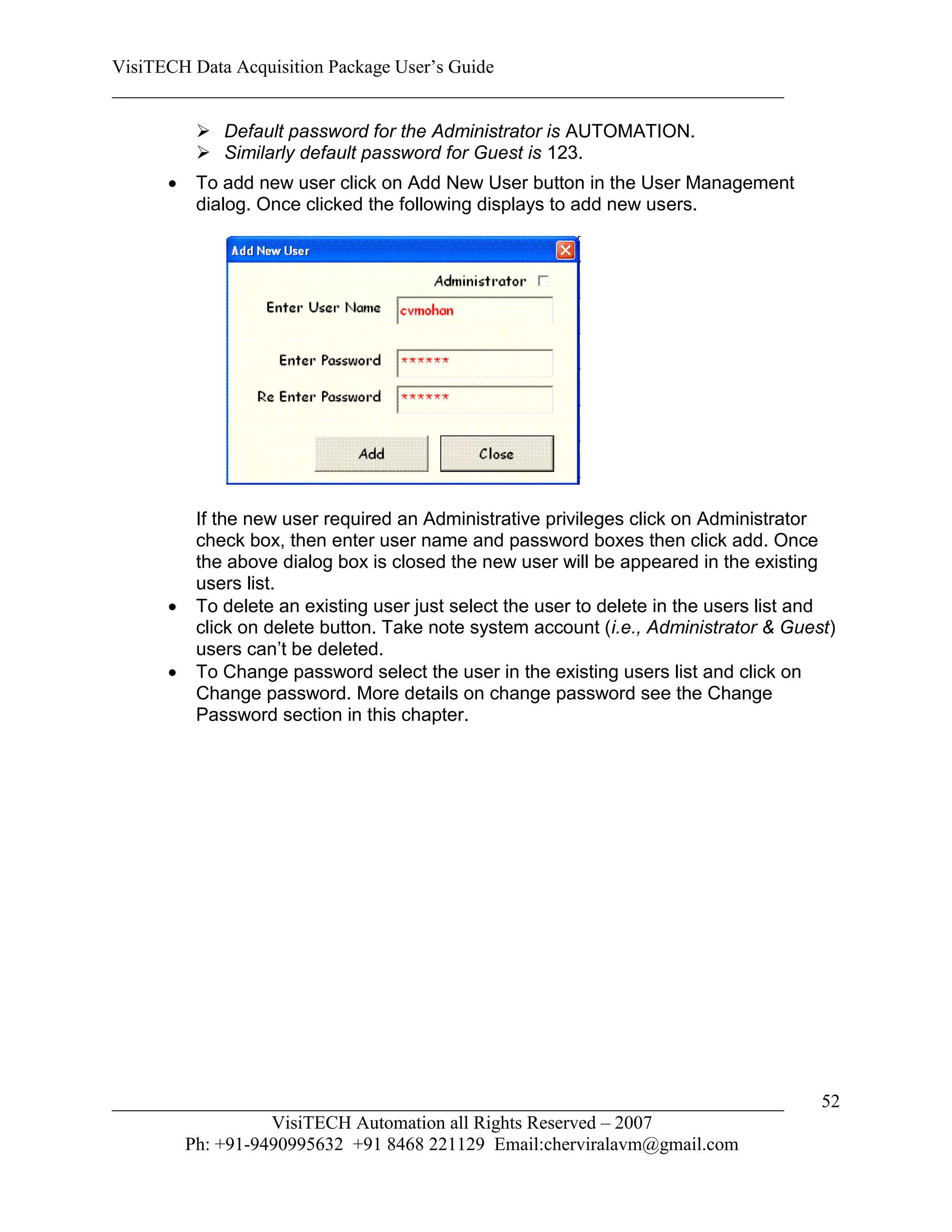

 Default password for the Administrator is AUTOMATION.
 Similarly default password for Guest is 123.
 To add new user click on Add New User button in the User Management
dialog. Once clicked the following displays to add new users.

If the new user required an Administrative privileges click on Administrator
check box, then enter user name and password boxes then click add. Once
the above dialog box is closed the new user will be appeared in the existing
users list.
 To delete an existing user just select the user to delete in the users list and
click on delete button. Take note system account (i.e., Administrator & Guest)
users can’t be deleted.
 To Change password select the user in the existing users list and click on
Change password. More details on change password see the Change
Password section in this chapter.

________________________________________________________________________ 52

________________________________________________________________________

Login User Change:
Once package is started up and event acquiring the data also you can
change to different login. To change the login you don’t need to restart the
package. You can see the new login user and login time at the upper right
corner of the front panel.
User can access the Change Login by clicking on Security  Change Login
menu item. Once user selected the above menu item the following DA
Package Authentication dialog displays, in this dialog by selecting the new
user name, entering appropriate password and by clicking on Login, the new
user login takes place.

________________________________________________________________________ 53

________________________________________________________________________

Change Password:
You can activate the Change Password dialog in any one of the two ways:
 By selecting the menu item SecurityChange Password. Here user can
change only currently login user’s password.
 The second method is to display the User Management dialog and select
any user wants to change the password and then click on Change
Password button.
The below diagram shows Password change dialog here user name can’t be
changeable. Only users required to enter existing password and new
password only.

________________________________________________________________________ 54

________________________________________________________________________

Administrative Privileges:
At present users with Administrative privileges have the following rights.
 Only Administrative Privileged users can change the Channel Addresses.
So Set Address button in the front panel is set active only if the login user
has an administrative privilege.
 In the Alarm & Event view, only Administrative privileged users can delete
any of the generated alarm. So the Delete button in the Alarms& Event
view is active if the currently login user have administrative privilege.
 The User Management dialog is accessible only for Administrative
privileged users.

________________________________________________________________________ 55

________________________________________________________________________

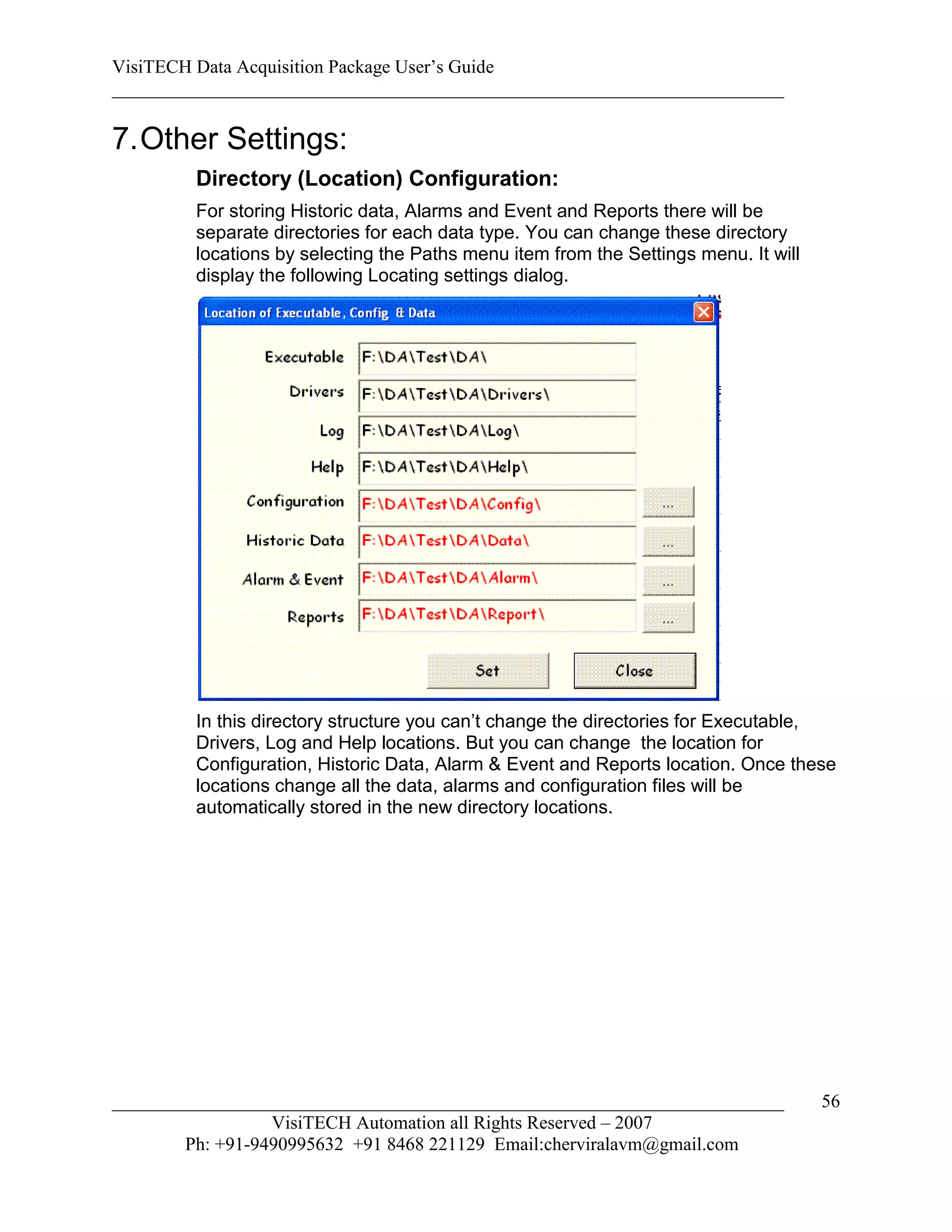

7. Other Settings:
Directory (Location) Configuration:
For storing Historic data, Alarms and Event and Reports there will be
separate directories for each data type. You can change these directory
locations by selecting the Paths menu item from the Settings menu. It will
display the following Locating settings dialog.

In this directory structure you can’t change the directories for Executable,
Drivers, Log and Help locations. But you can change the location for
Configuration, Historic Data, Alarm & Event and Reports location. Once these
locations change all the data, alarms and configuration files will be
automatically stored in the new directory locations.

________________________________________________________________________ 56

________________________________________________________________________

Printer & Alarm Beep Settings:
To set the Printer and Alarm Beep related setting you can use this “Printer &
Alarm Beep Settings”. Users can display this dialog by simply clicking on
Settings  Printer & Alarm Beep Settings. This dialog is shown in below fig:

Printer Column Width: At present for Printer this package supporting to set
the column width only. User can select the column width of their printers. It
can be either 80 column or 132 columns.
Enable Alarm Beep: If user checks this check box, whenever alarms
occurred at user defined beep interval the system makes alarm sound.
Beep Interval: Interval to make Alarm sound.
Beep Mode: There will be two types of alarms available. They are
MOMENTARY & LATCH.
 A Momentary Alarm makes sound, only if the PV is in alarm state. If that
channel is recovered from alarm state it can’t make any alarm sound.
 A Latch Alarm makes sound even if the PV is recovered from alarm state
until the user acknowledges the alarm.
Ex: if we wish to alarm when the PV exceeds 90. In the case of Momentary
the alarm will trigger as long as the signal is greater then 90 and will stop
sounding when the signal drops below this alarm value (90). But in the case
of Latched alarm it will it will makes sound even if the PV drops below the
alarm value. It will stops sounding when the operator acknowledges it.
Beep For: You can configure to make alarm sound only for Alarms, Events or
Alarms & Events. No Alarm beep service for Messages.

________________________________________________________________________ 57

________________________________________________________________________

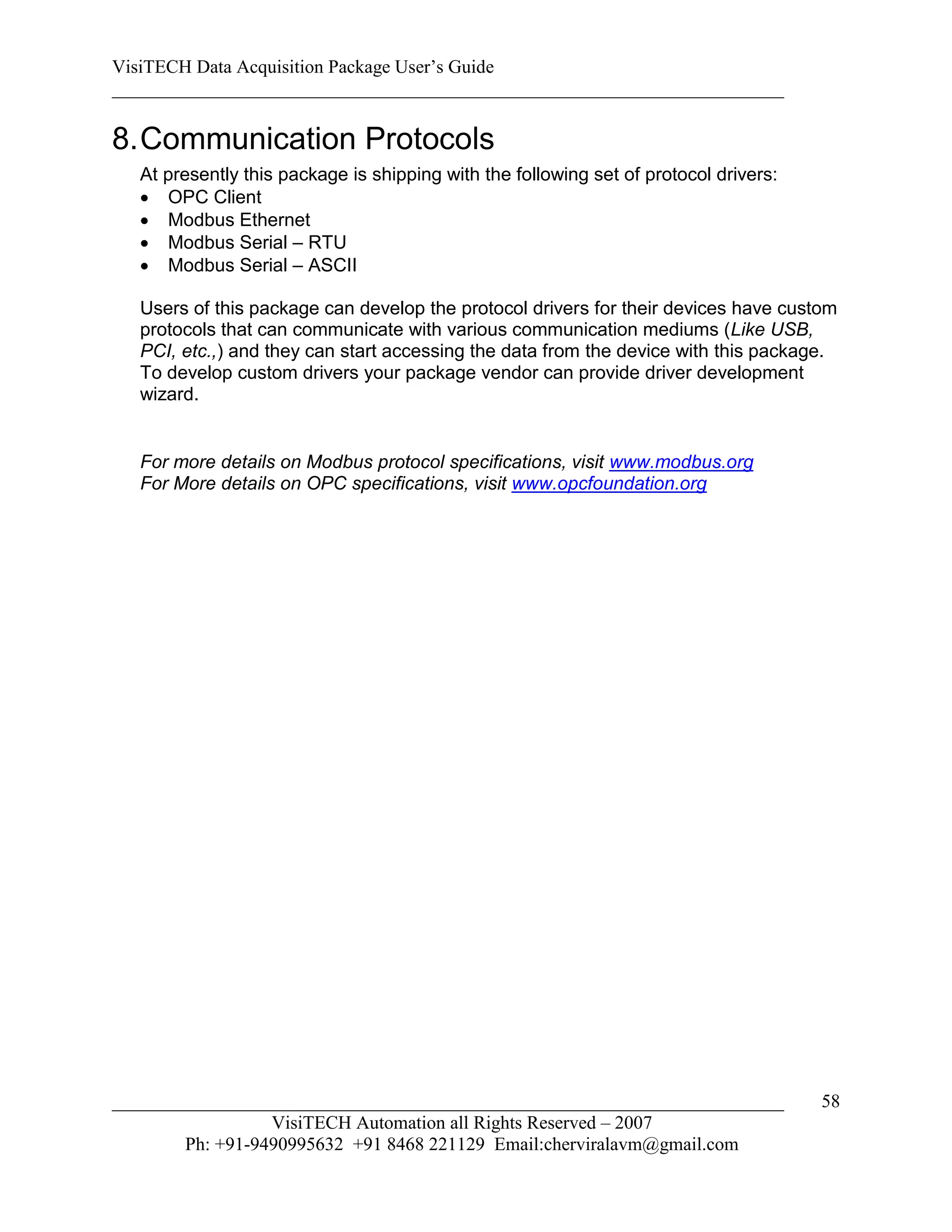

8. Communication Protocols
At presently this package is shipping with the following set of protocol drivers:
 OPC Client
 Modbus Ethernet
 Modbus Serial – RTU
 Modbus Serial – ASCII

Users of this package can develop the protocol drivers for their devices have custom
protocols that can communicate with various communication mediums (Like USB,
PCI, etc.,) and they can start accessing the data from the device with this package.
To develop custom drivers your package vendor can provide driver development
wizard.

For more details on Modbus protocol specifications, visit www.modbus.org
For More details on OPC specifications, visit www.opcfoundation.org

________________________________________________________________________ 58

Da package usersguide

More Related Content

What's hot

Viewers also liked

Similar to Da package usersguide

More from Vishwa Mohan

Recently uploaded

Da package usersguide
