Dagger & rxjava & retrofit
Dagger is a dependency injection framework that allows injecting collaborators into objects without requiring manual passing of dependencies. RxJava implements reactive programming, allowing observable streams to be manipulated through operators like map and filter. Retrofit makes REST API calls simply by defining an interface and allows results to be easily converted to Java objects. Together these libraries help create testable Android applications by decoupling classes and managing dependencies and asynchronous processes in a declarative way.
More Related Content
Dagger & rxjava & retrofit
- 1. Dagger & RxJava& Retrofit Ted

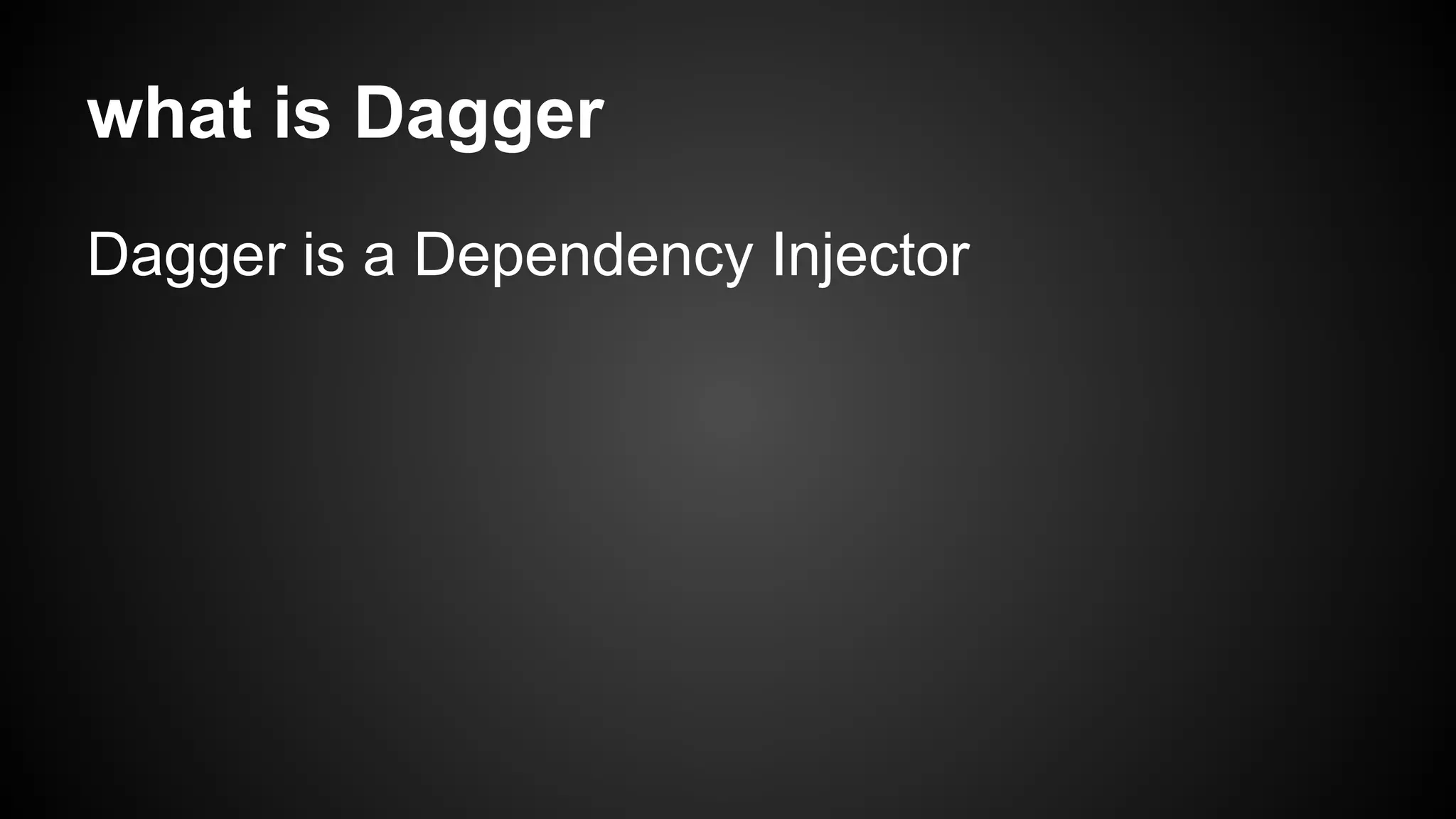

- 2. what is Dagger Dagger is a Dependency Injector

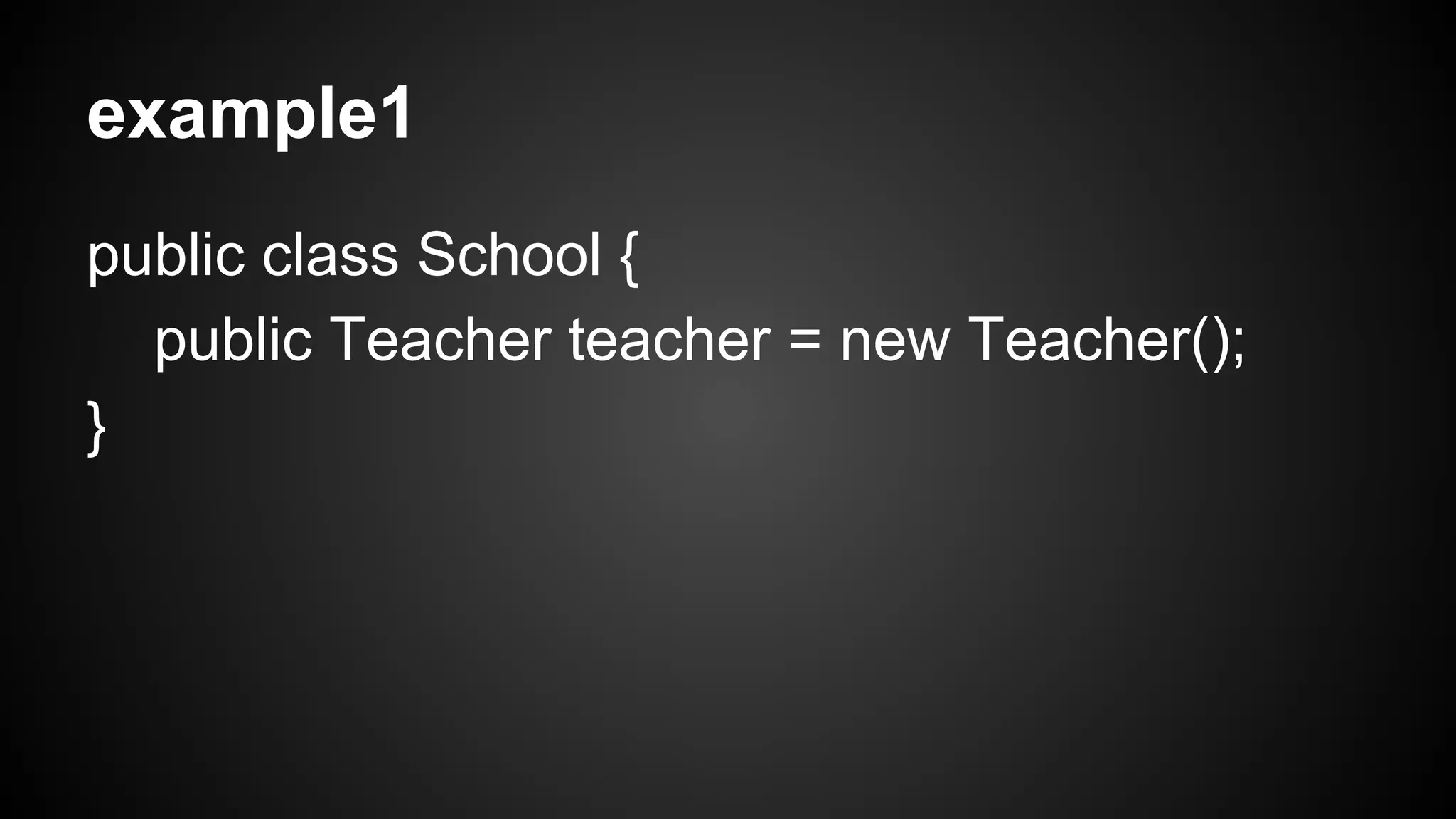

- 3. example1 public classSchool { public Teacher teacher = new Teacher(); }

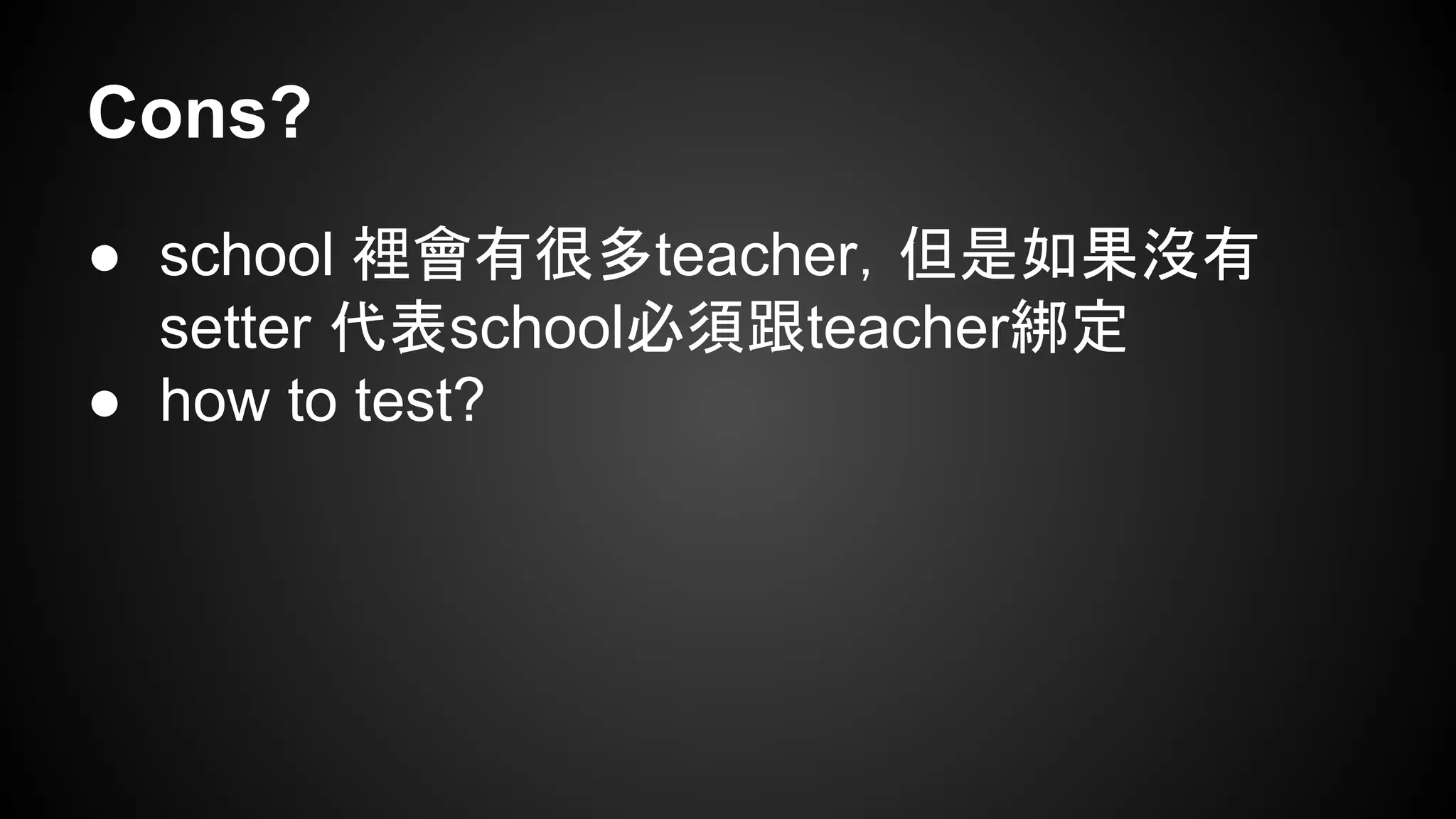

- 4. Cons? ● school裡會有很多teacher，但是如果沒有 setter 代表school必須跟teacher綁定 ● how to test?

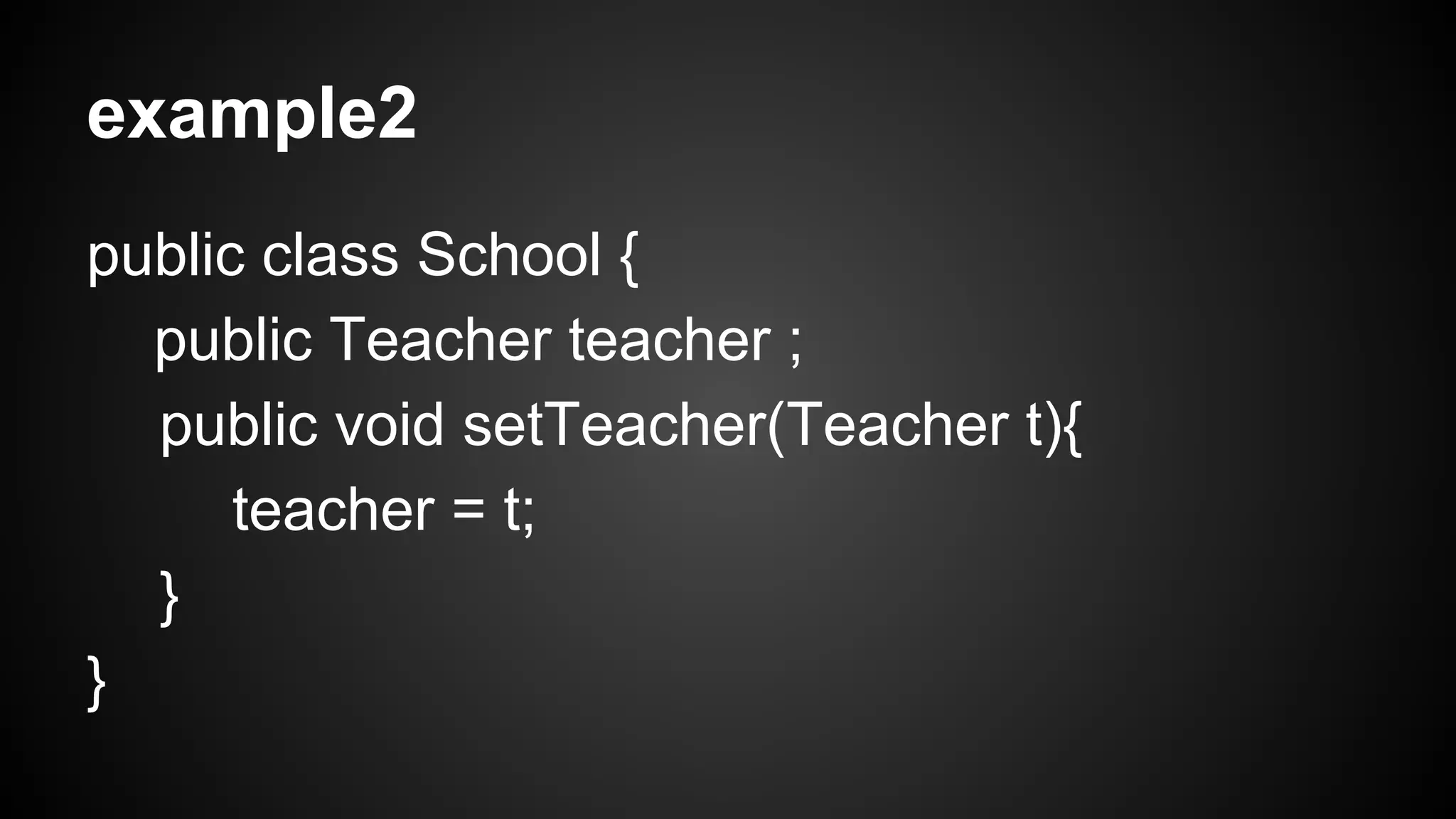

- 5. example2 public classSchool { public Teacher teacher ; public void setTeacher(Teacher t){ teacher = t; } }

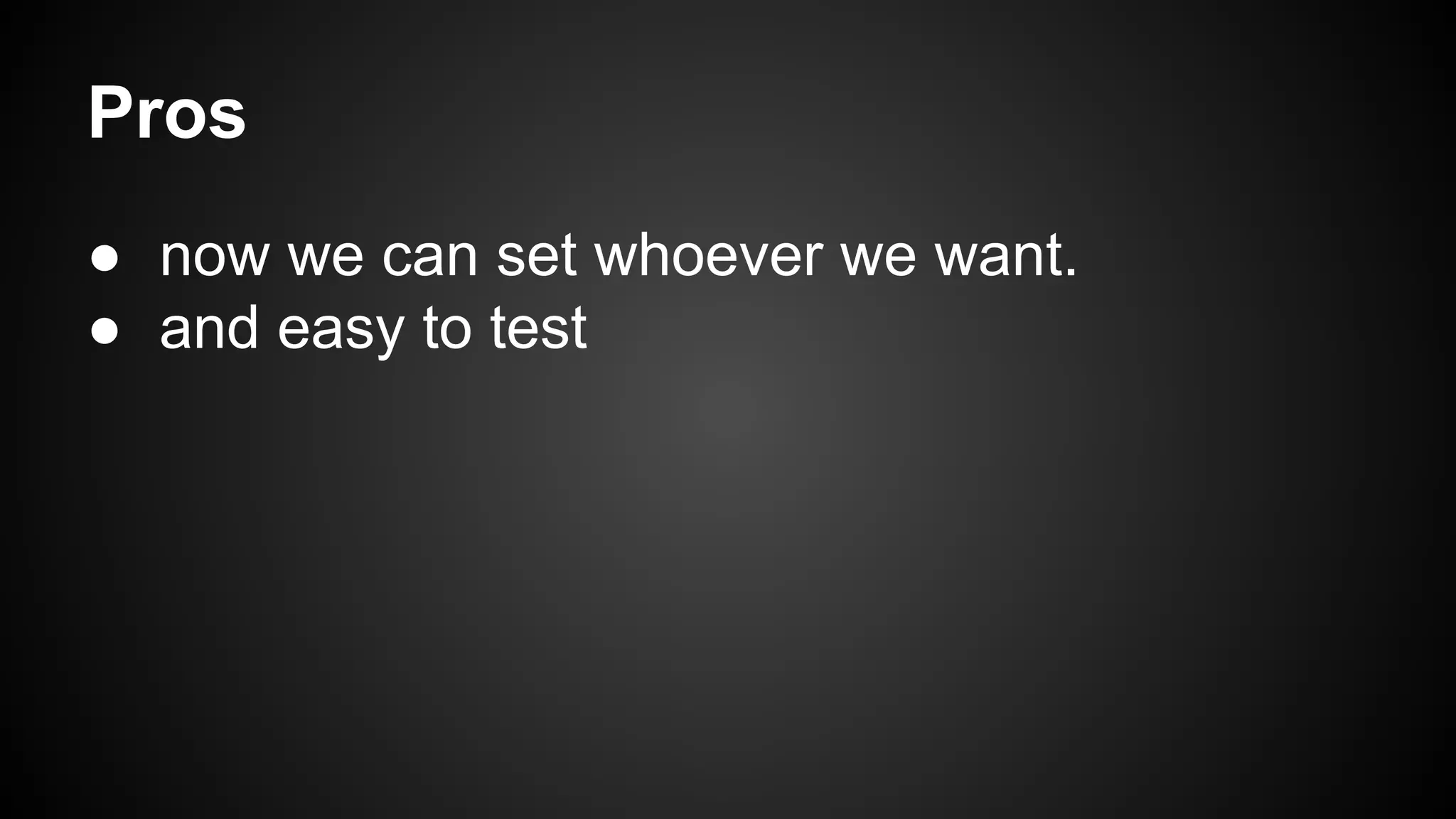

- 6. Pros ● nowwe can set whoever we want. ● and easy to test

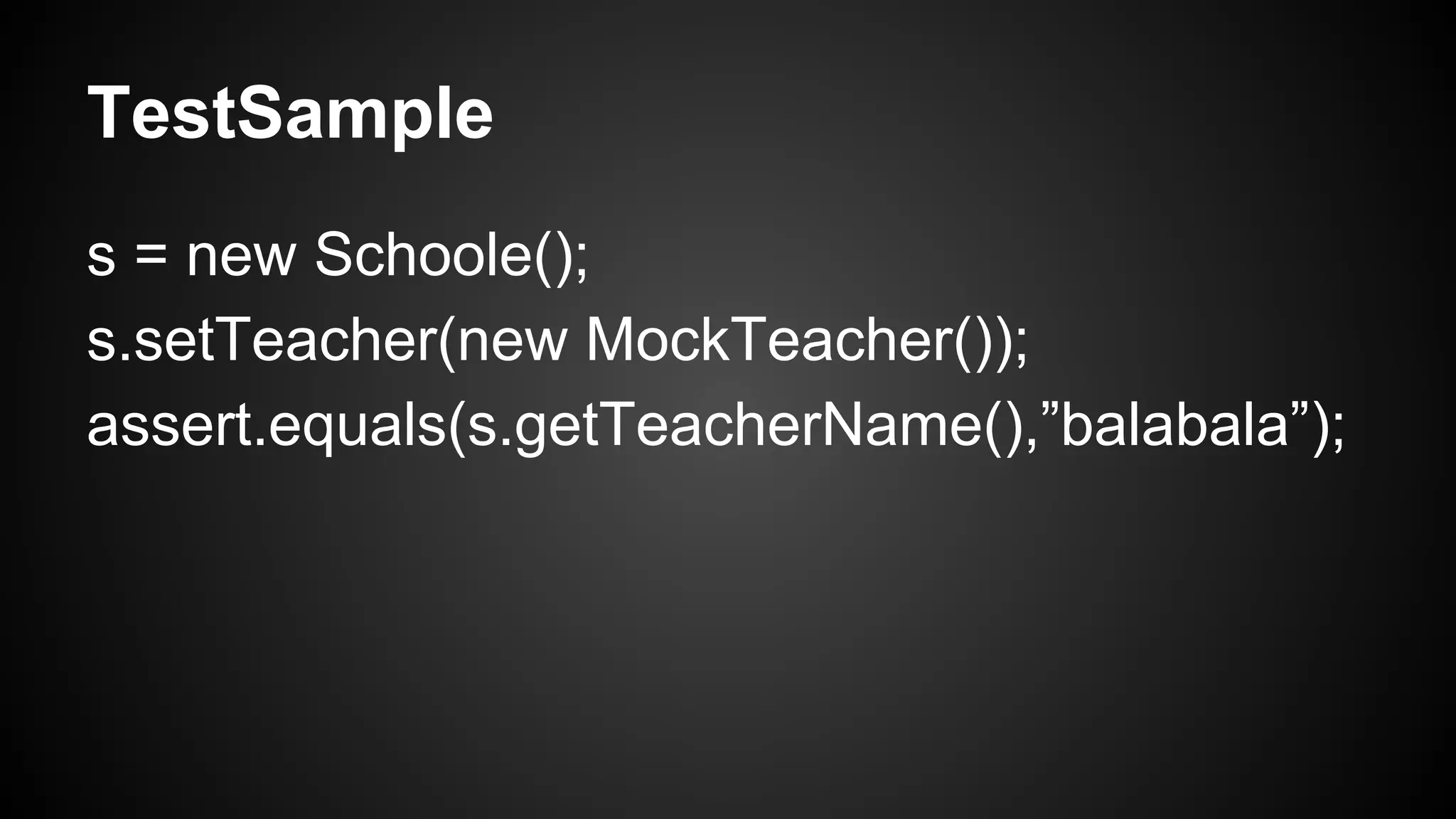

- 7. TestSample s =new Schoole(); s.setTeacher(new MockTeacher()); assert.equals(s.getTeacherName(),”balabala”);

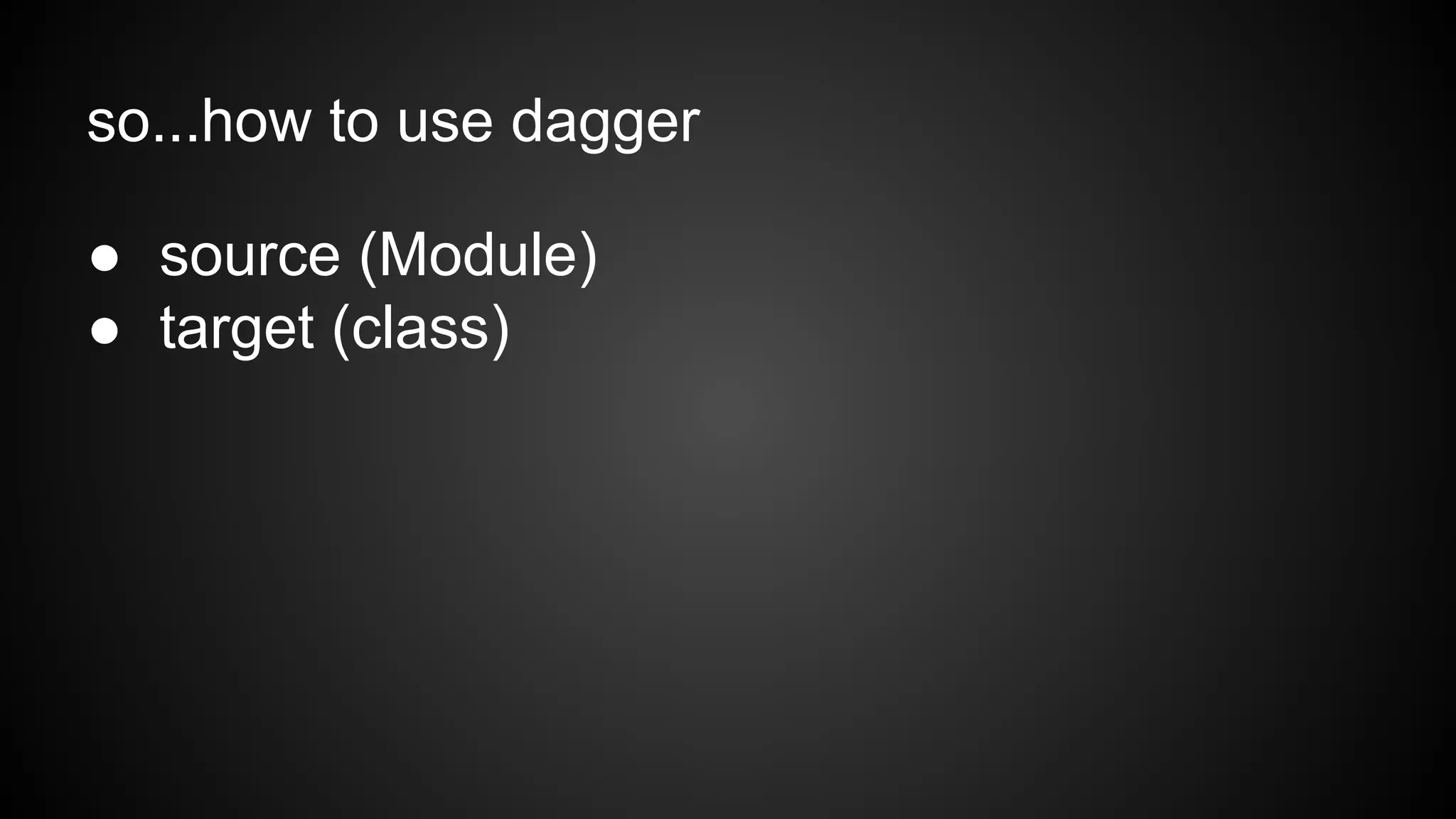

- 8. so...how to usedagger ● source (Module) ● target (class)

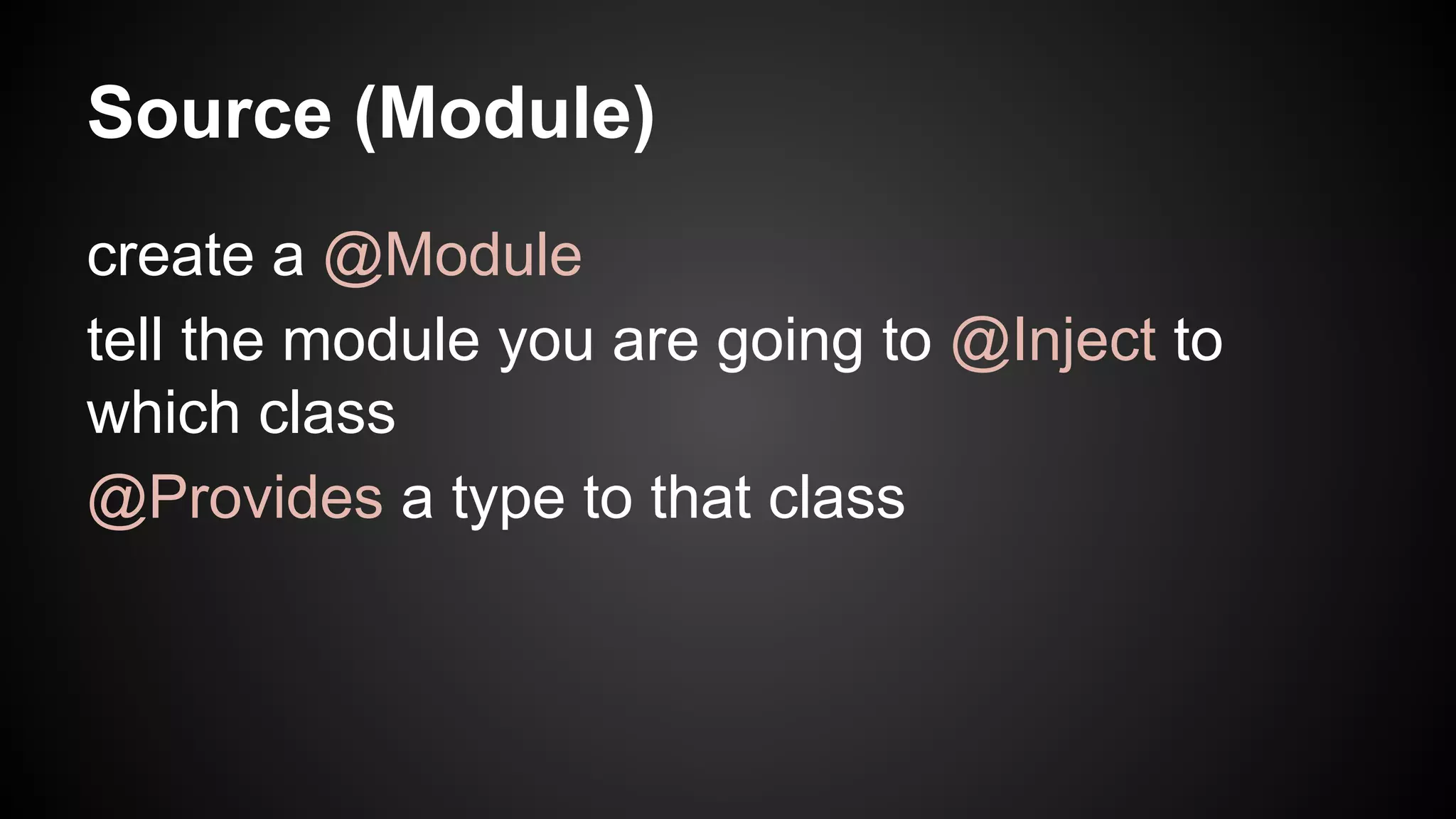

- 9. Source (Module) createa @Module tell the module you are going to @Inject to which class @Provides a type to that class

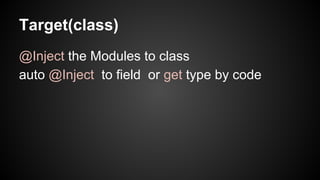

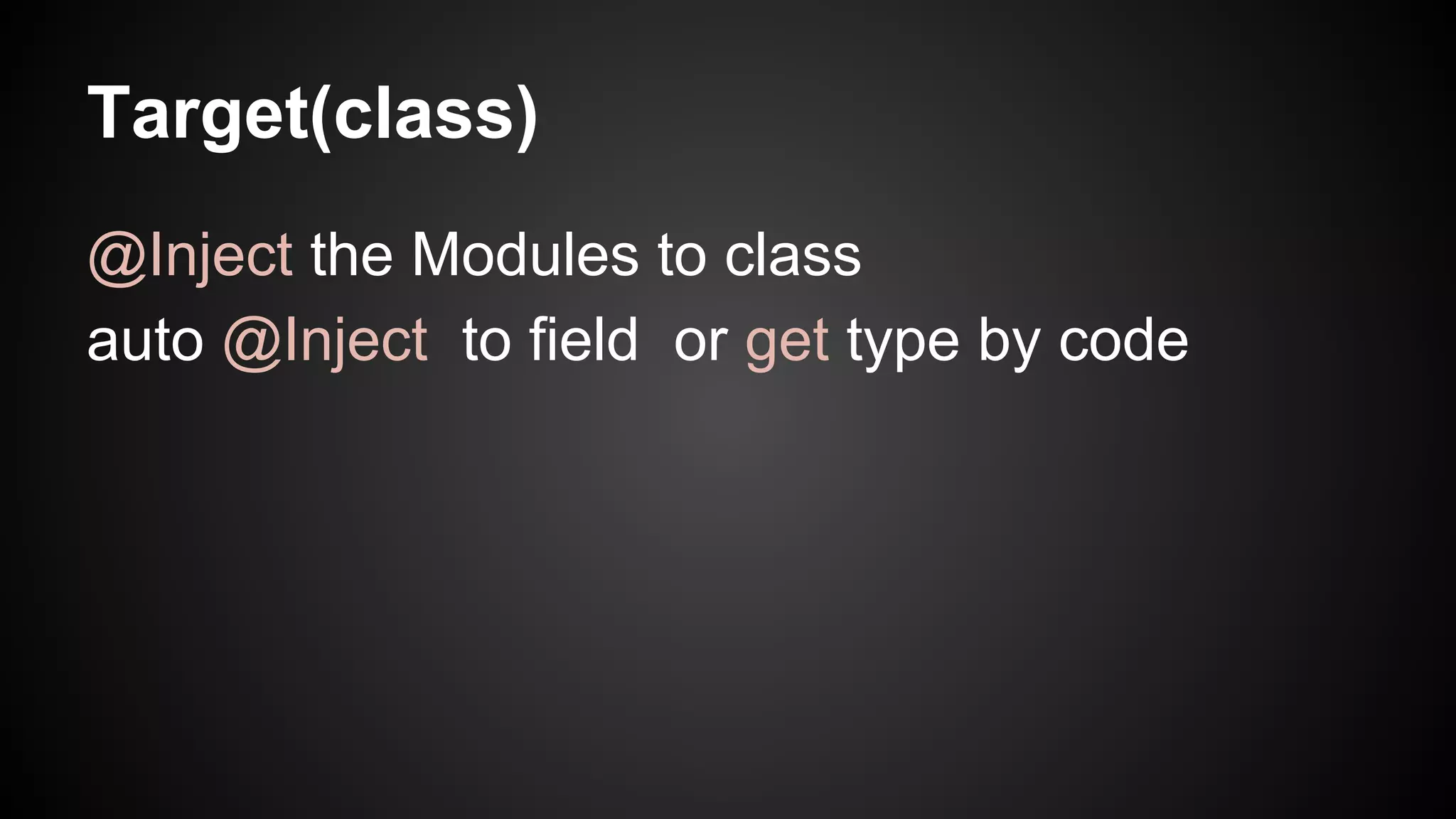

- 10. Target(class) @Inject theModules to class auto @Inject to field or get type by code

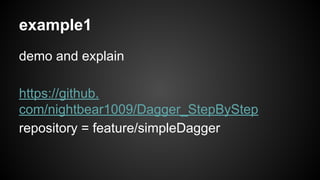

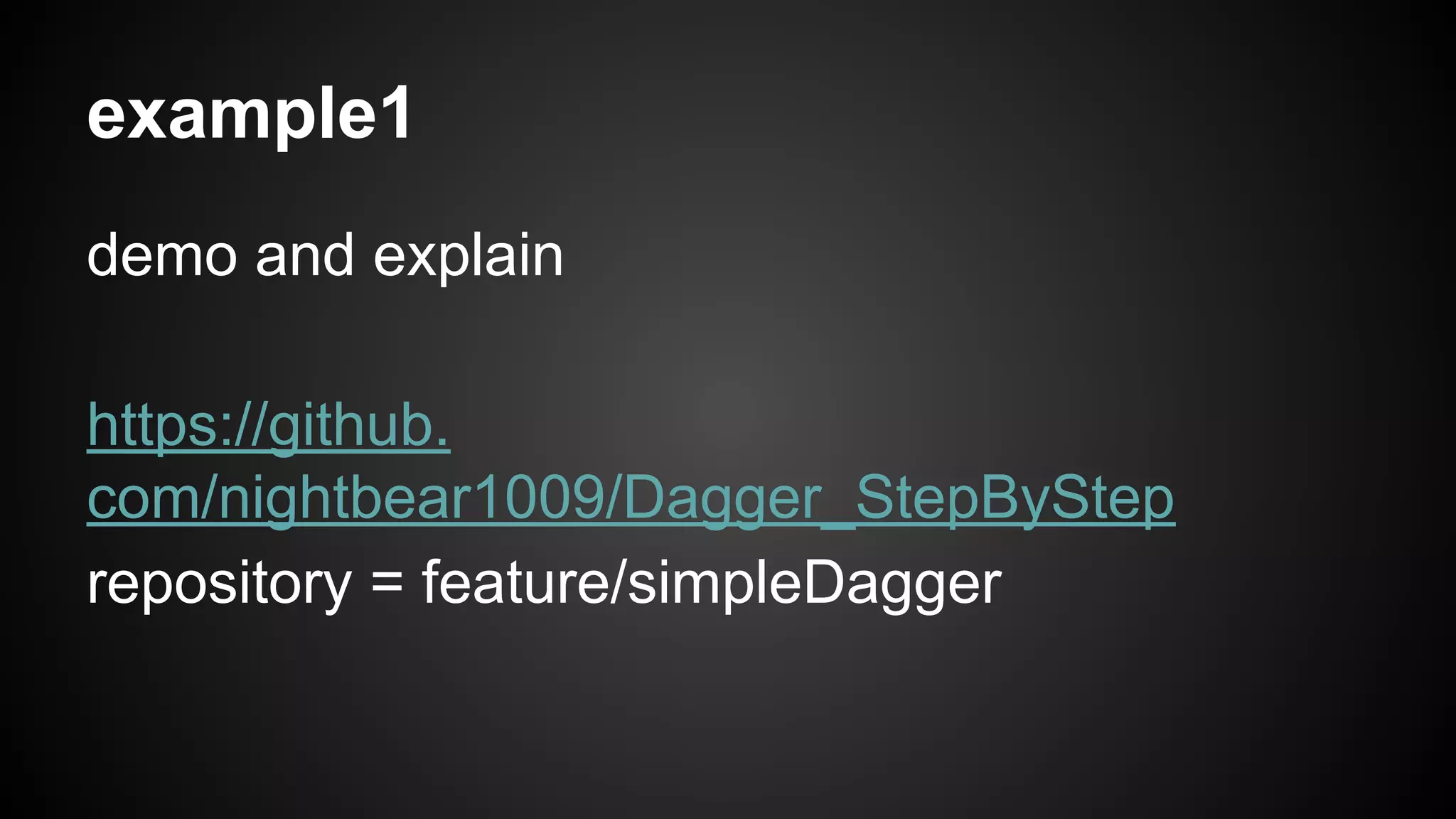

- 11. example1 demo andexplain https://github. com/nightbear1009/Dagger_StepByStep repository = feature/simpleDagger

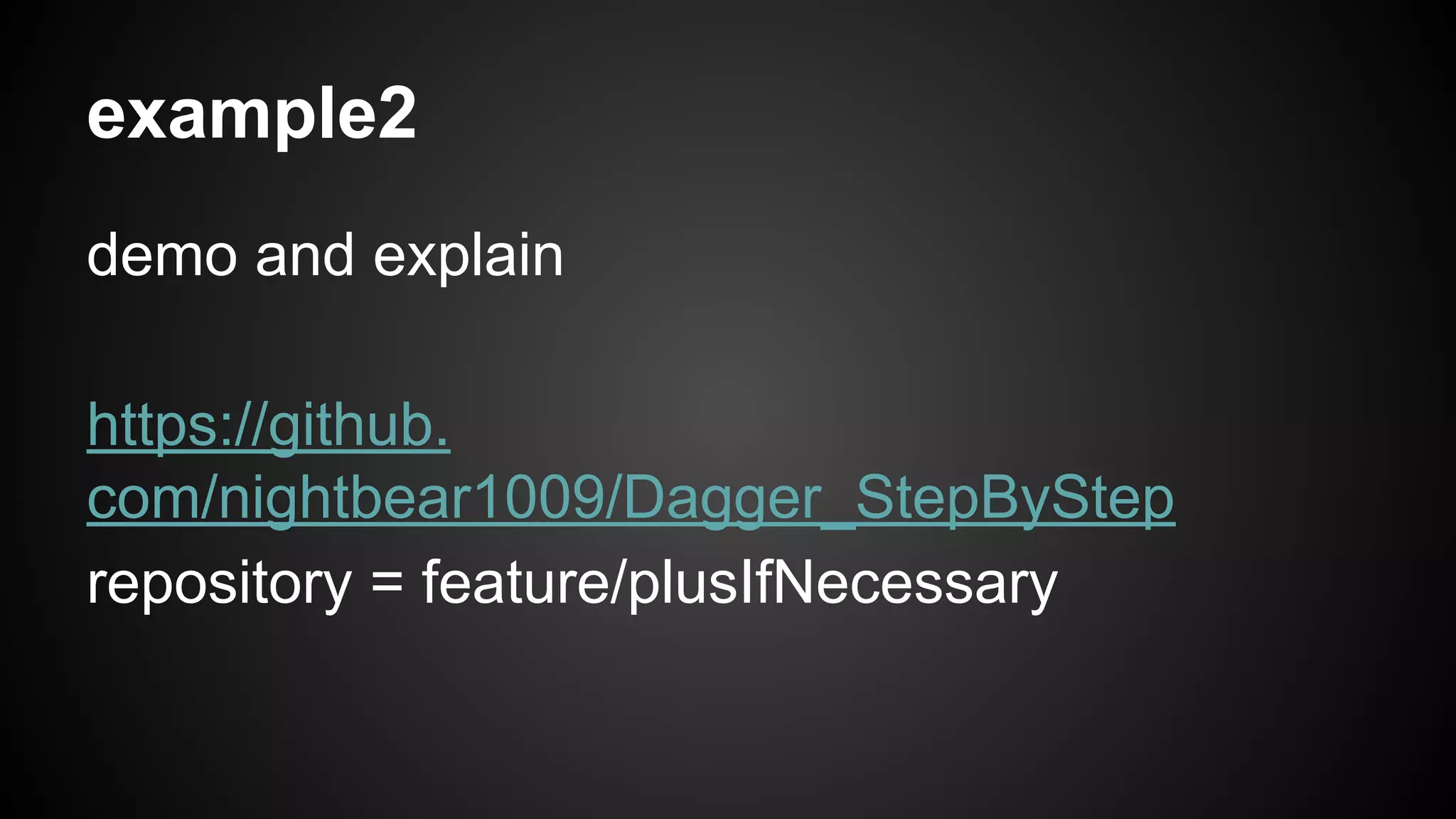

- 12. example2 demo andexplain https://github. com/nightbear1009/Dagger_StepByStep repository = feature/plusIfNecessary

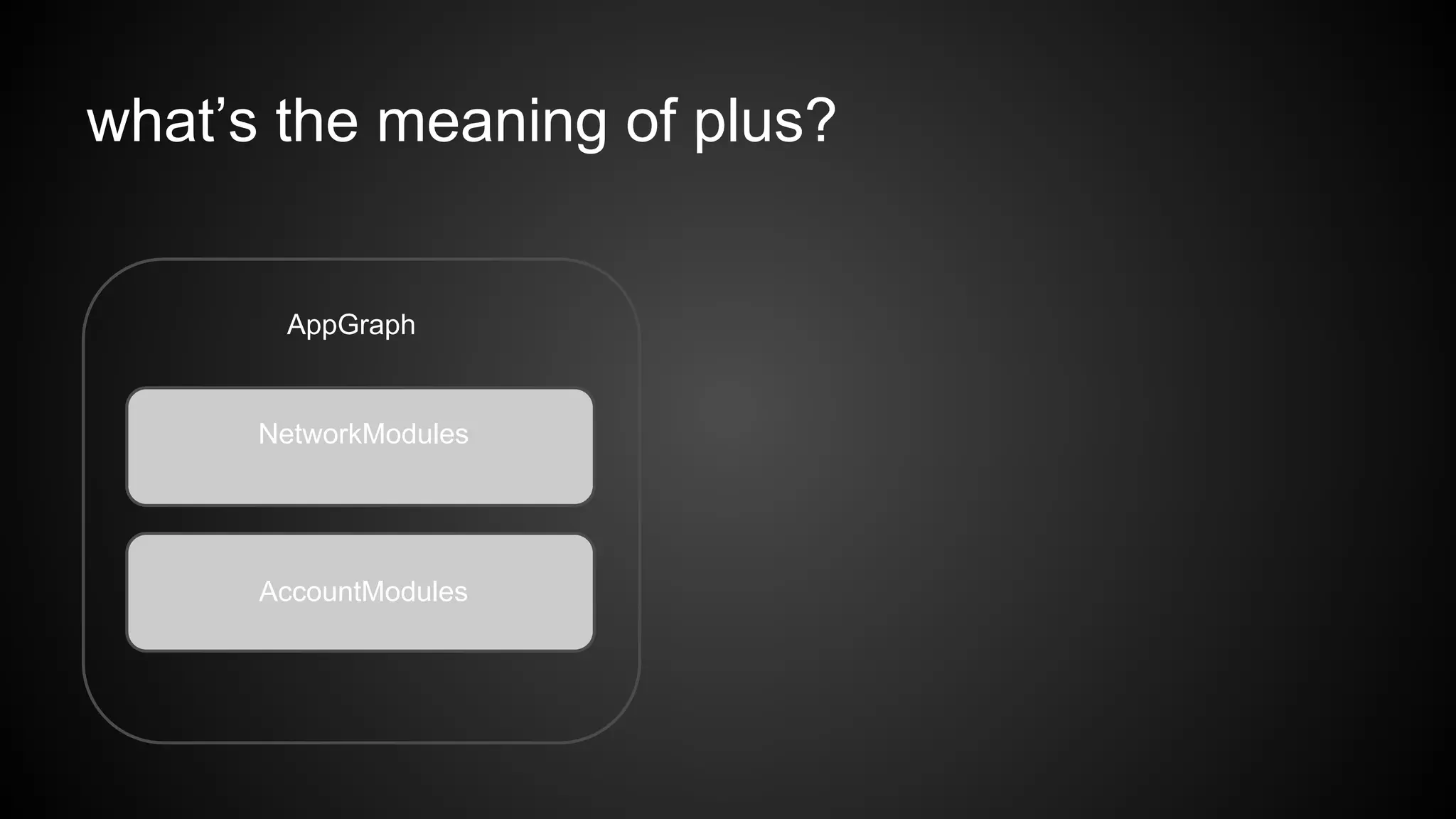

- 13. what’s the meaningof plus? AppGraph NetworkModules AccountModules

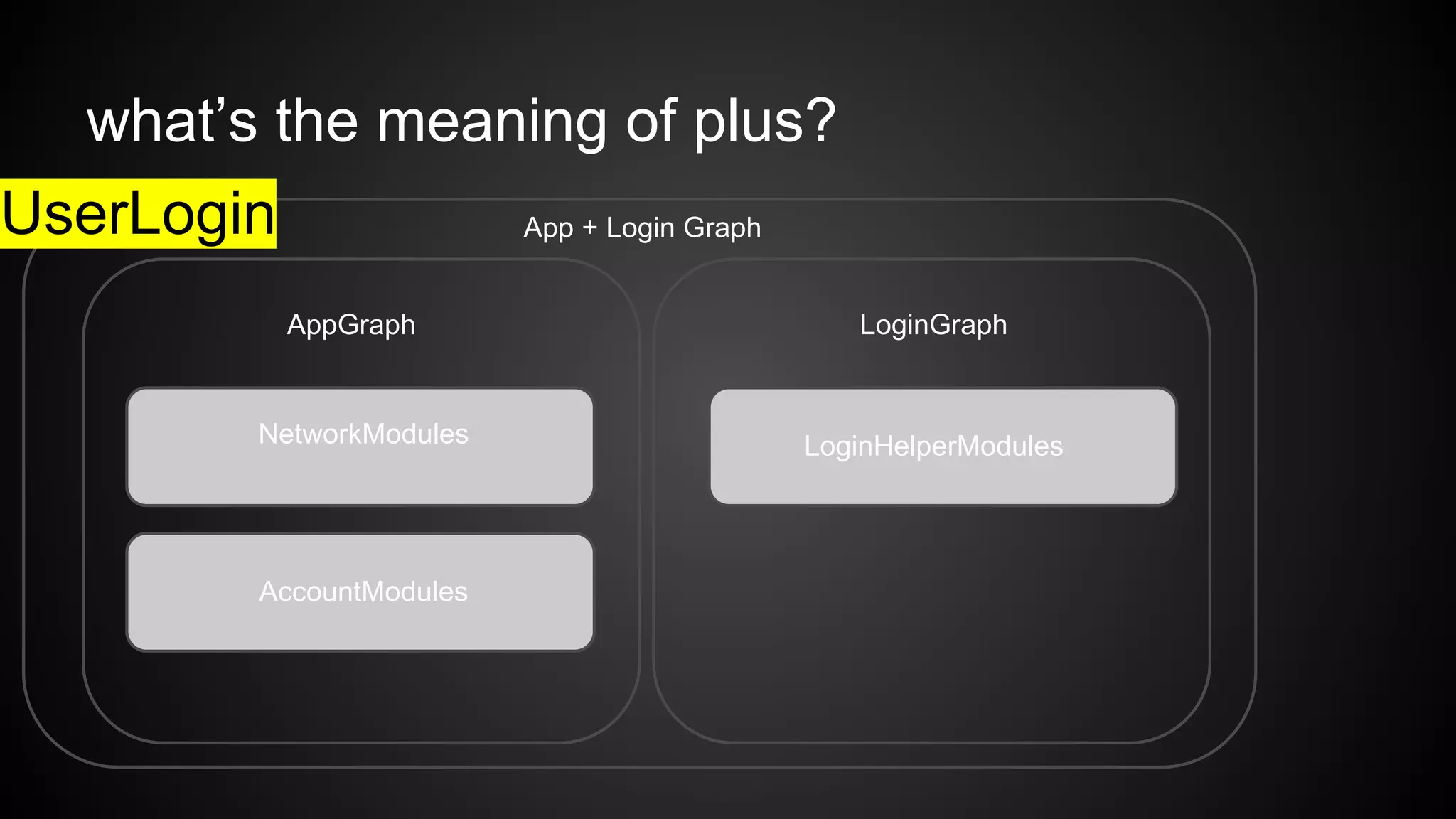

- 14. what’s the meaningof plus? AppGraph NetworkModules AccountModules LoginGraph LoginHelperModules UserLogin App + Login Graph

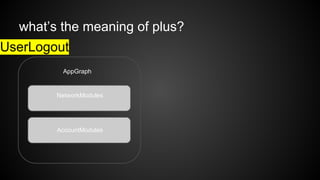

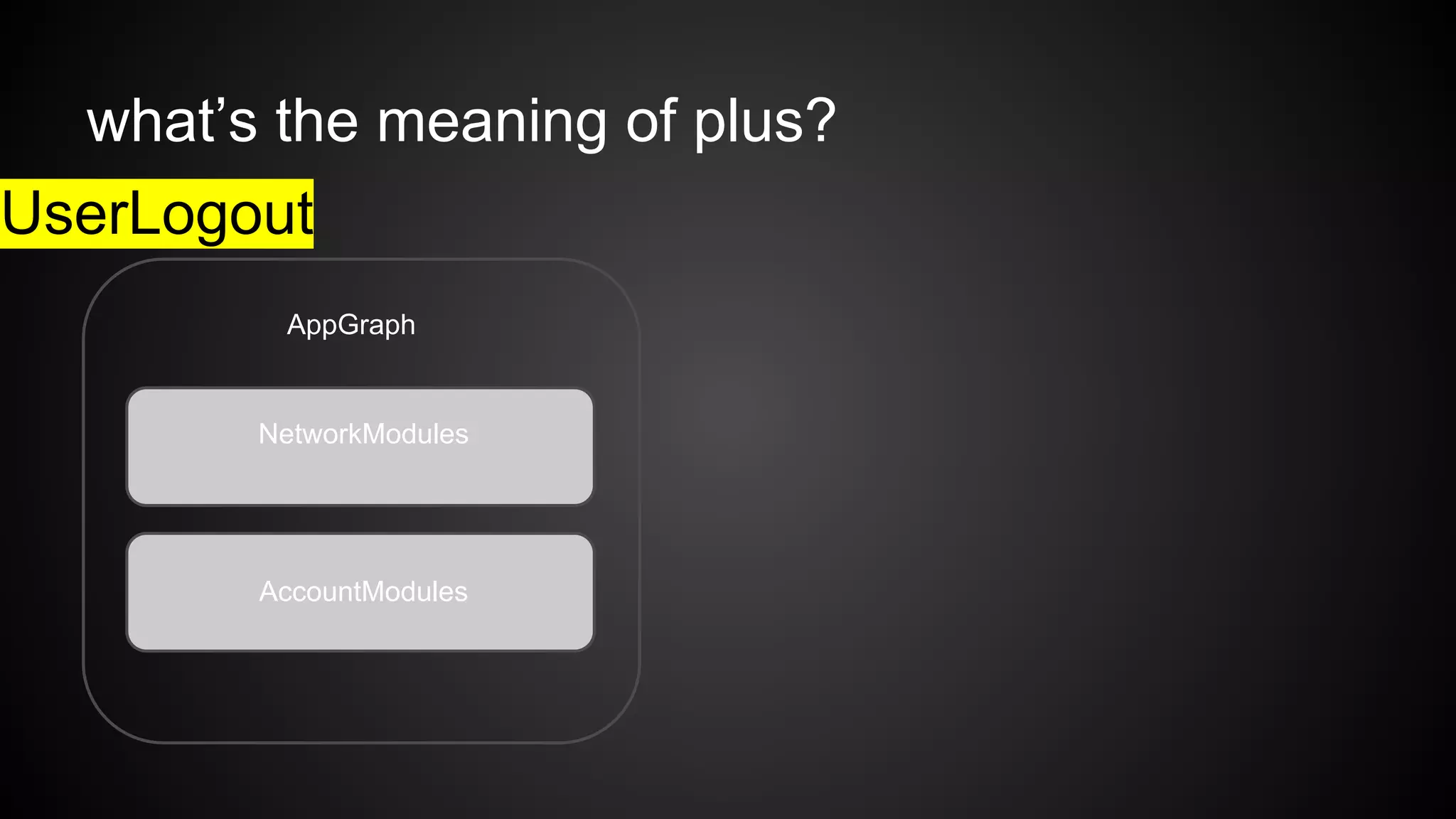

- 15. what’s the meaningof plus? UserLogout AppGraph NetworkModules AccountModules

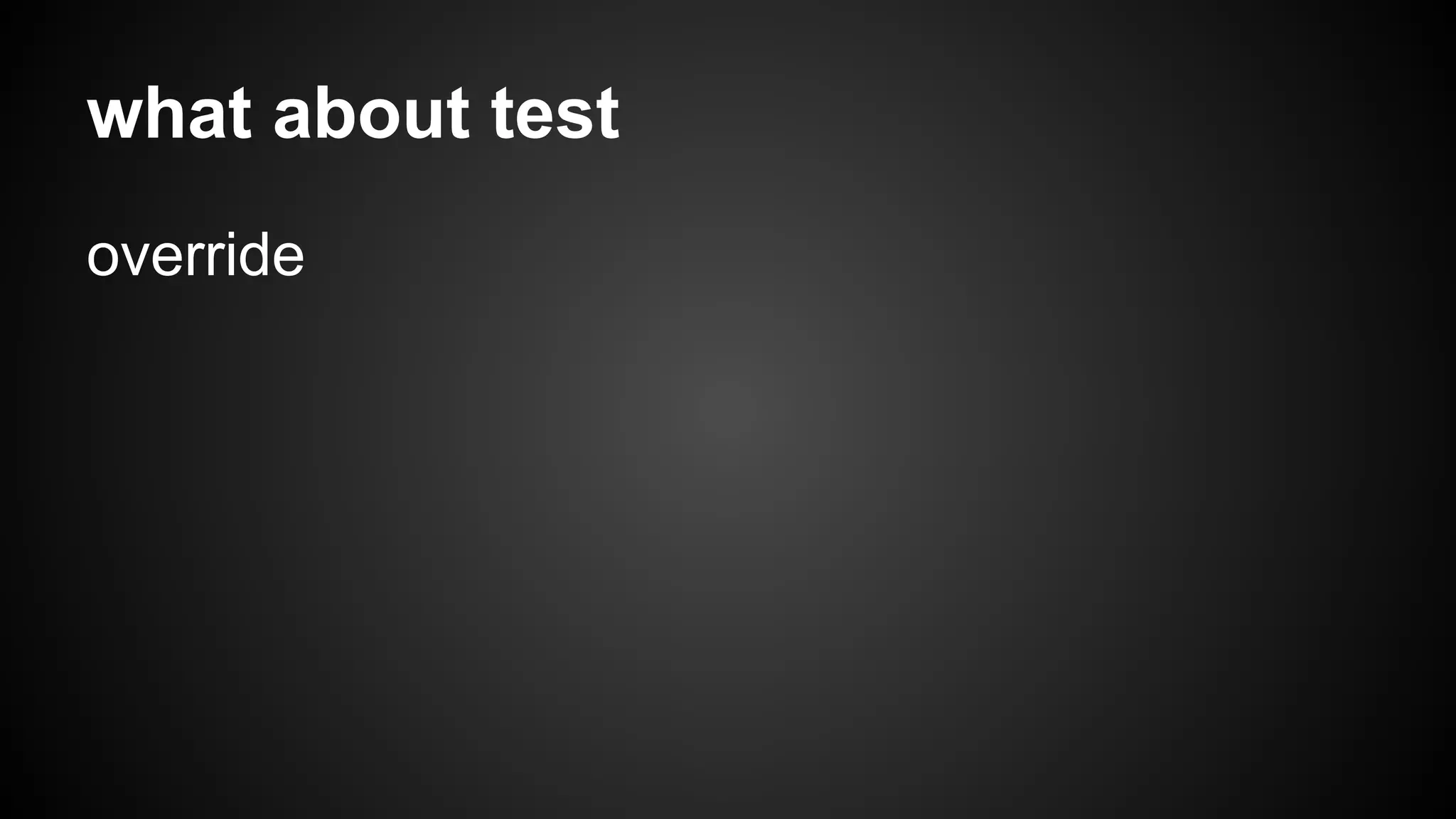

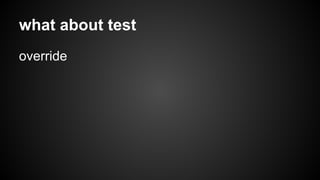

- 16. what about test override

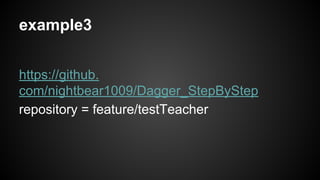

- 17. example3 https://github. com/nightbear1009/Dagger_StepByStep repository = feature/testTeacher

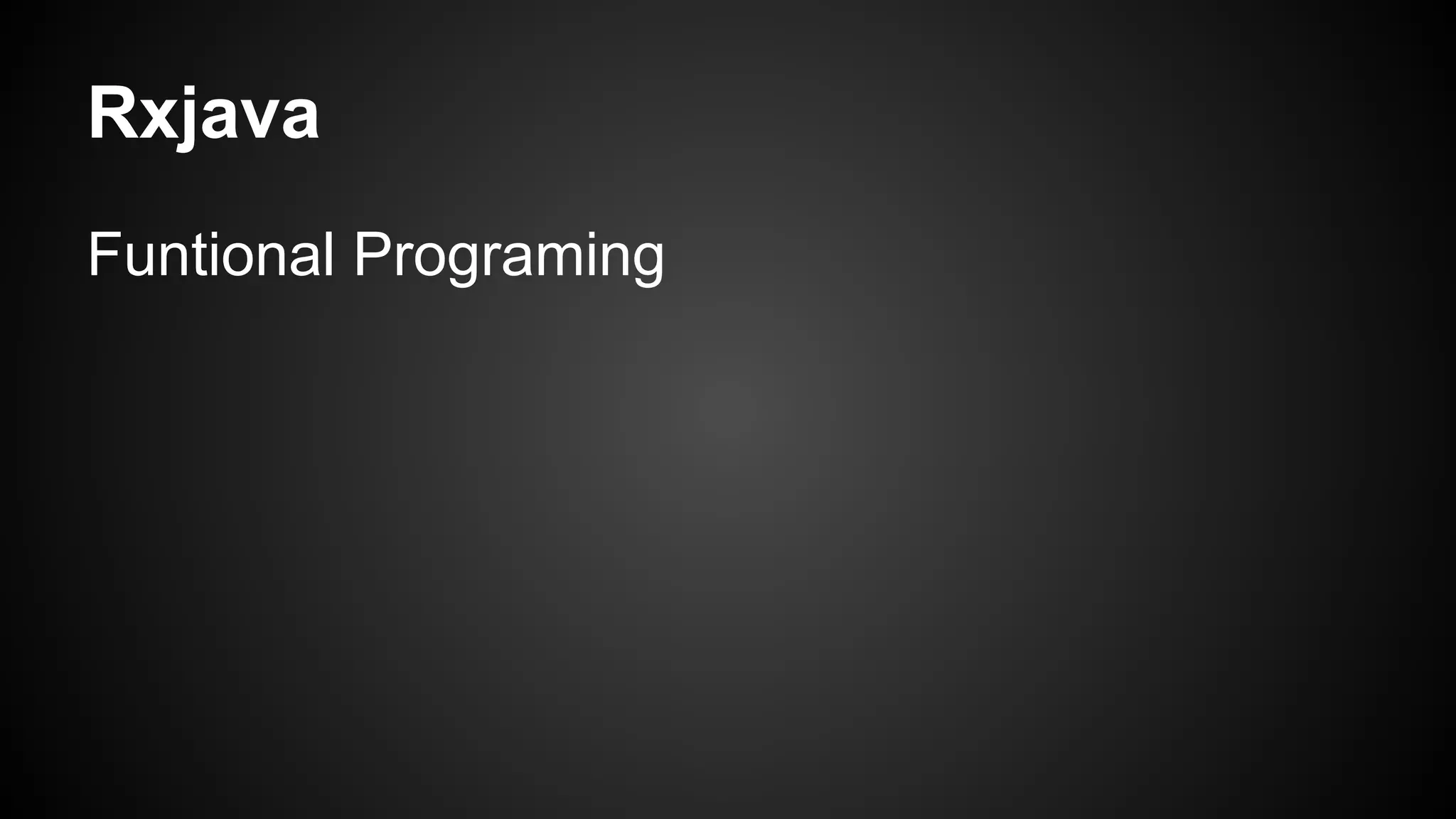

- 18.

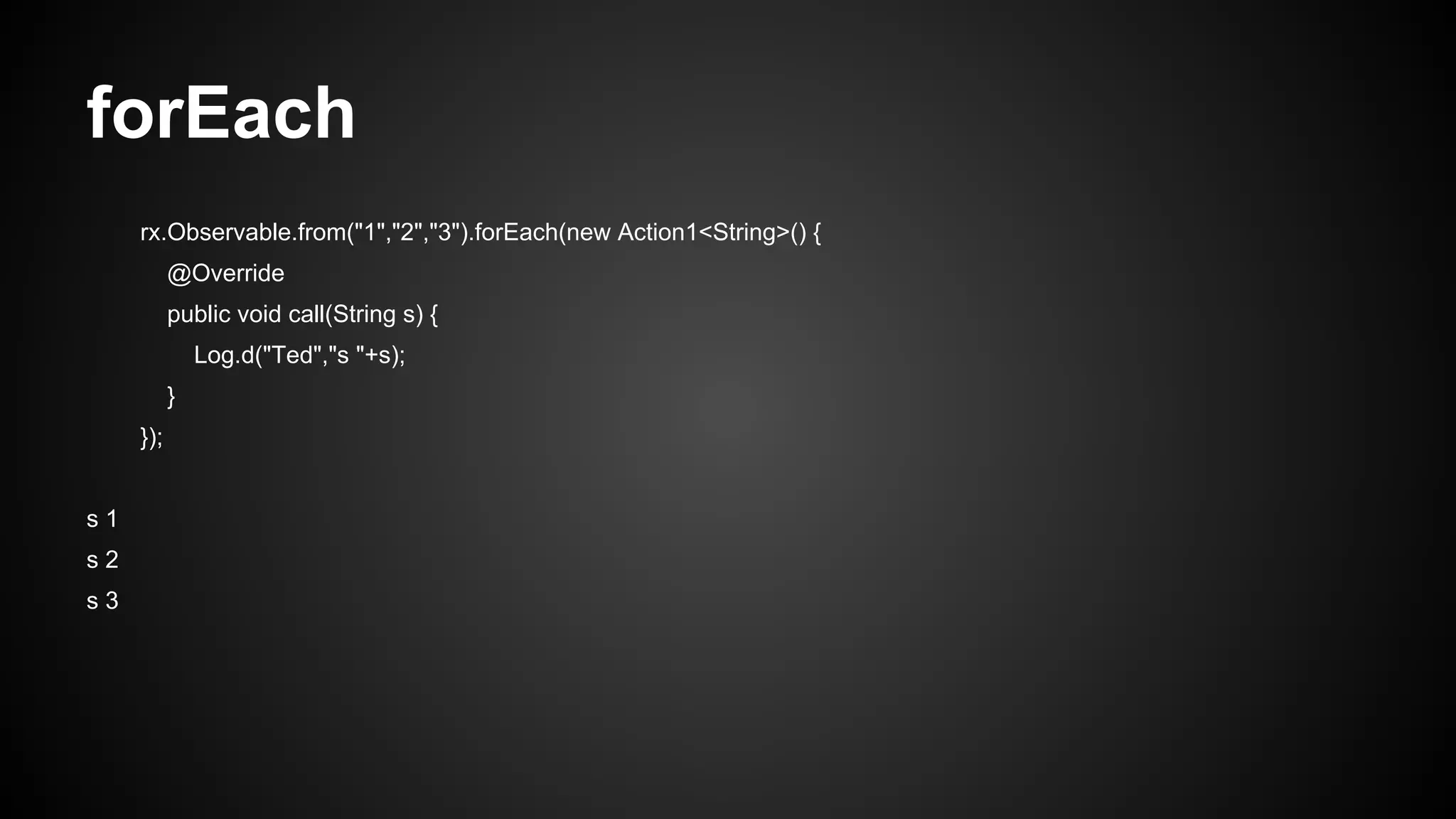

- 19. forEach rx.Observable.from("1","2","3").forEach(new Action1<String>(){ @Override public void call(String s) { Log.d("Ted","s "+s); } }); s 1 s 2 s 3

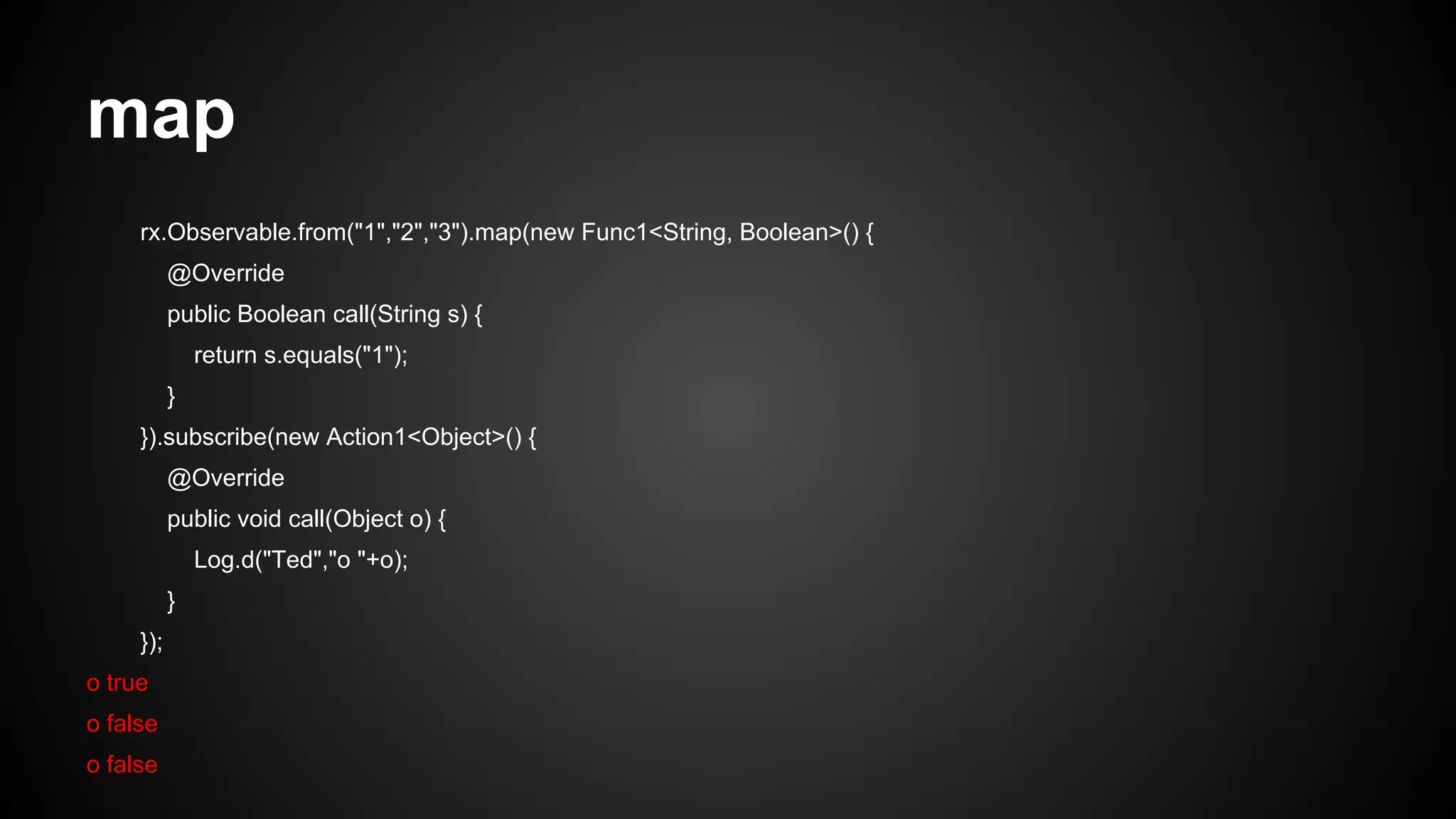

- 20. map rx.Observable.from("1","2","3").map(new Func1<String,Boolean>() { @Override public Boolean call(String s) { return s.equals("1"); } }).subscribe(new Action1<Object>() { @Override public void call(Object o) { Log.d("Ted","o "+o); } }); o true o false o false

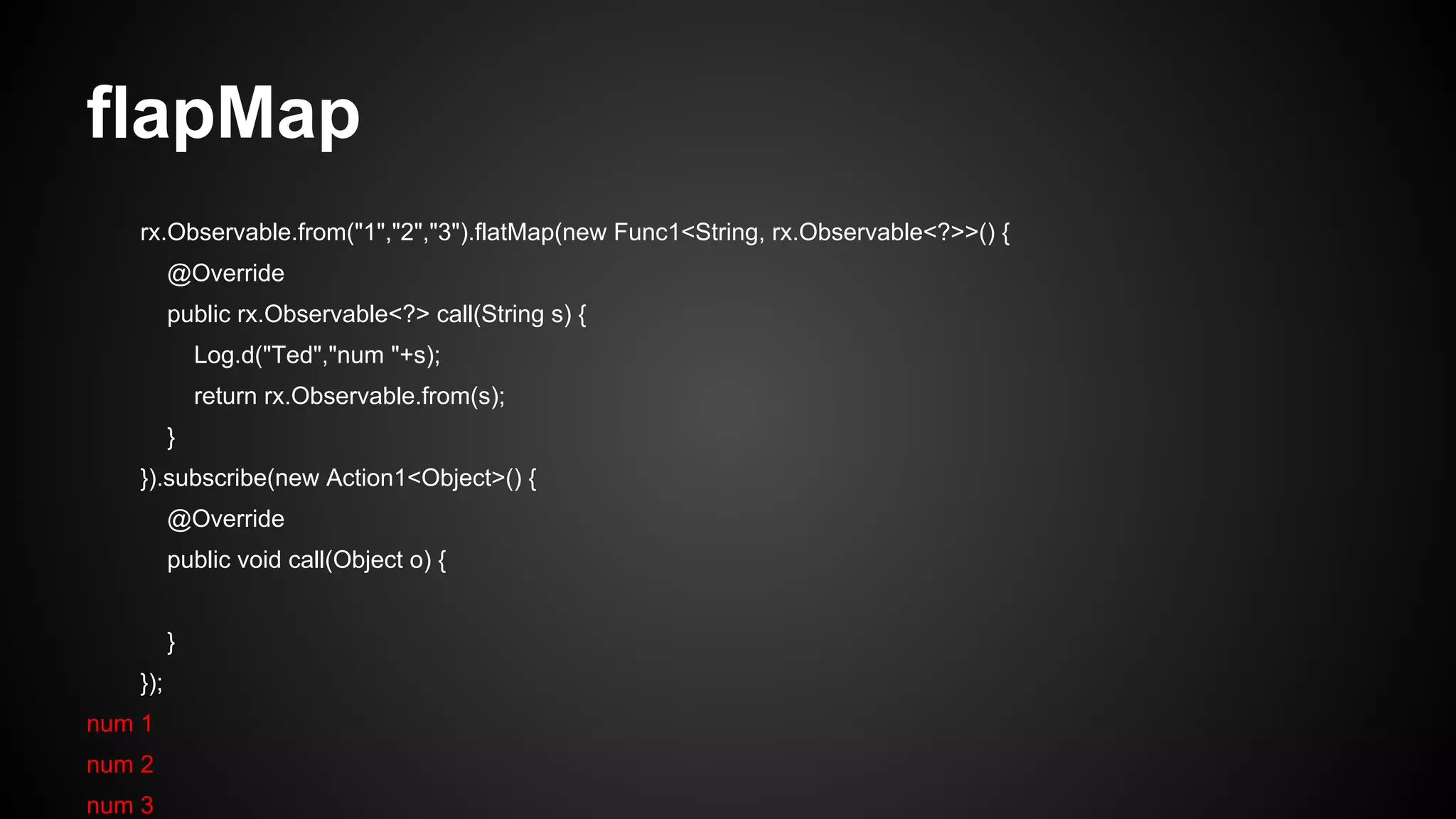

- 21. flapMap rx.Observable.from("1","2","3").flatMap(new Func1<String,rx.Observable<?>>() { @Override public rx.Observable<?> call(String s) { Log.d("Ted","num "+s); return rx.Observable.from(s); } }).subscribe(new Action1<Object>() { @Override public void call(Object o) { } }); num 1 num 2 num 3

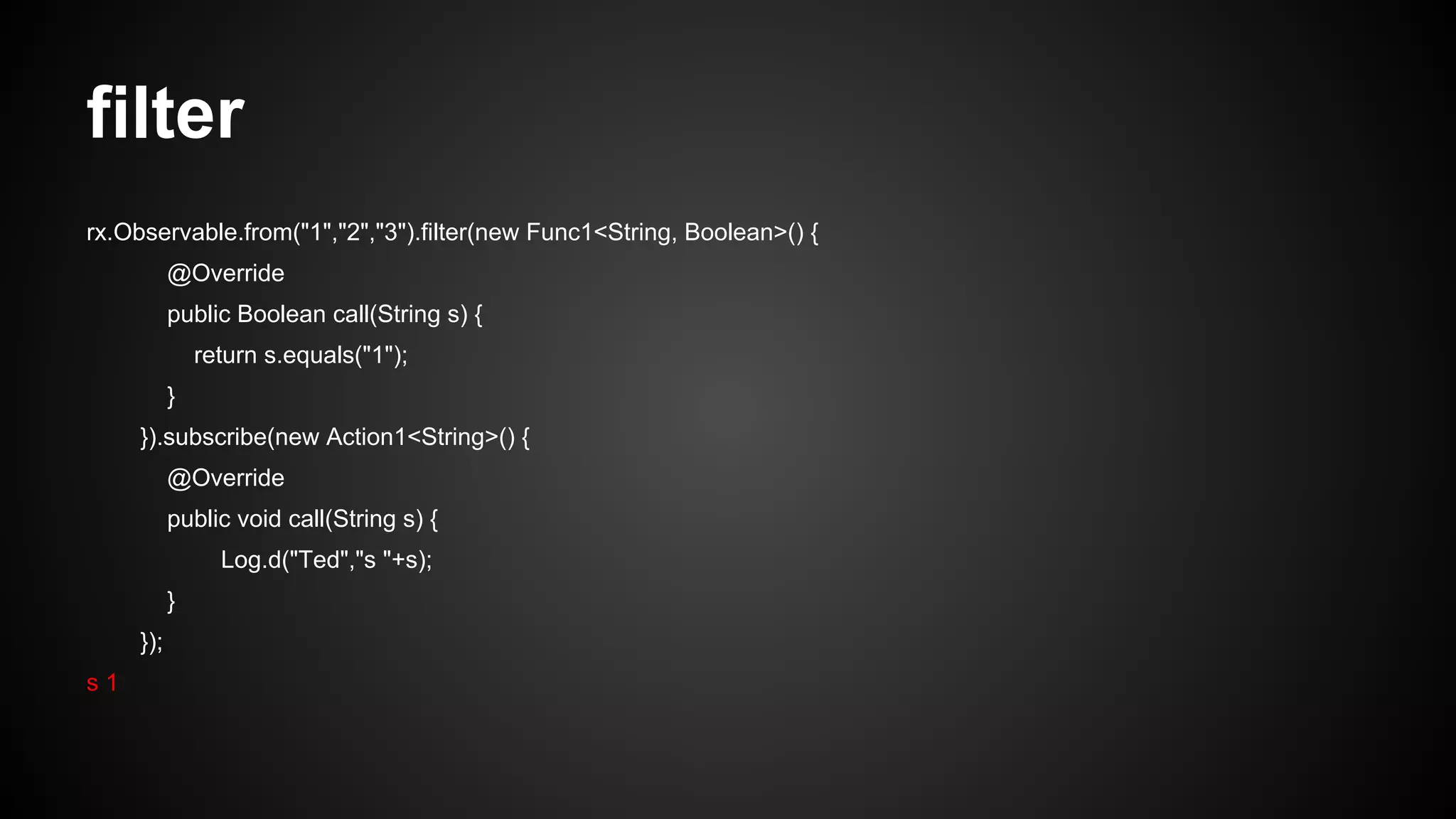

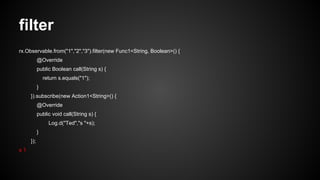

- 22. filter rx.Observable.from("1","2","3").filter(new Func1<String,Boolean>() { @Override public Boolean call(String s) { return s.equals("1"); } }).subscribe(new Action1<String>() { @Override public void call(String s) { Log.d("Ted","s "+s); } }); s 1

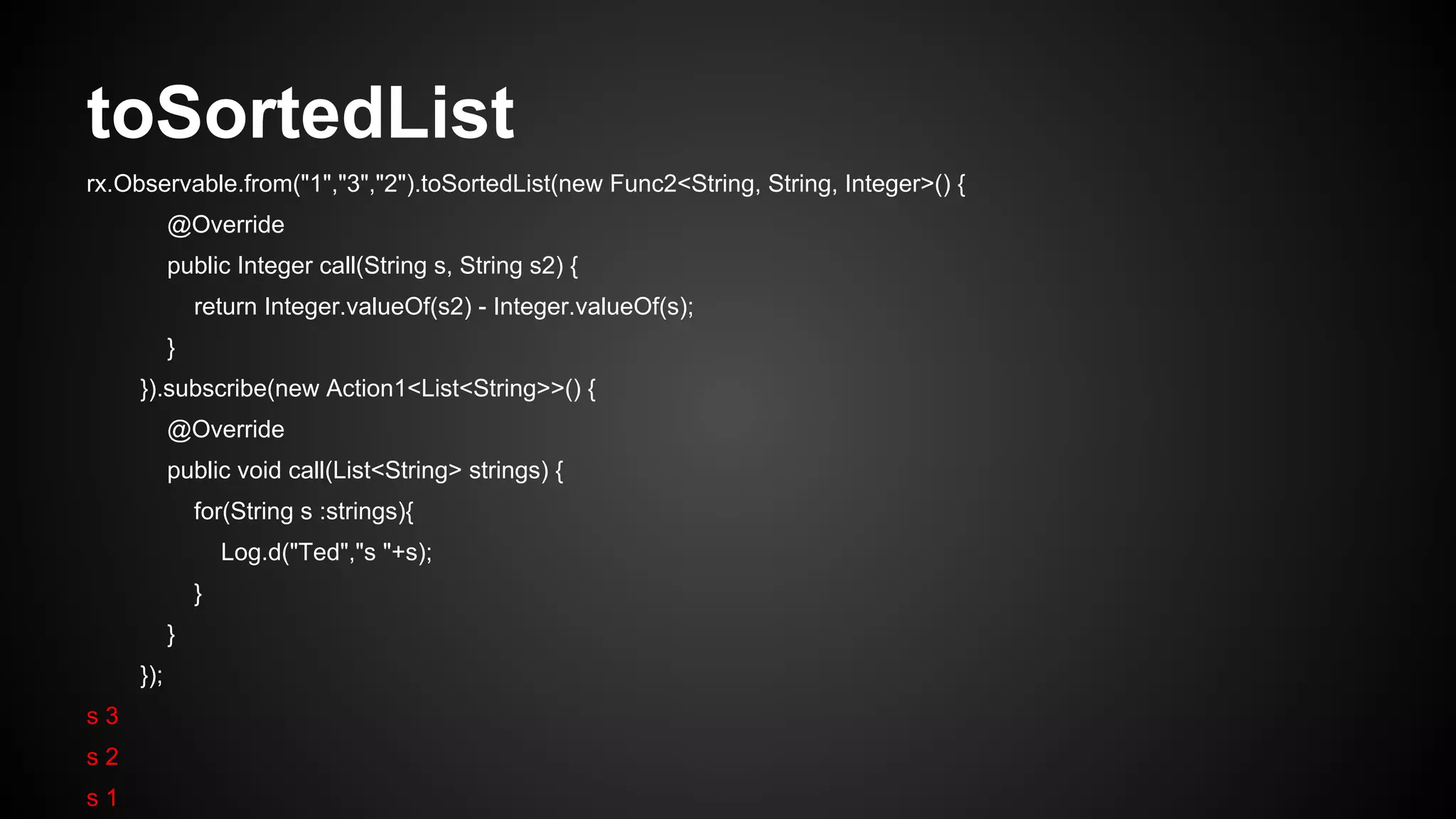

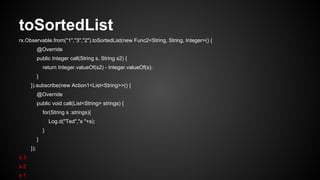

- 23. toSortedList rx.Observable.from("1","3","2").toSortedList(new Func2<String,String, Integer>() { @Override public Integer call(String s, String s2) { return Integer.valueOf(s2) - Integer.valueOf(s); } }).subscribe(new Action1<List<String>>() { @Override public void call(List<String> strings) { for(String s :strings){ Log.d("Ted","s "+s); } } }); s 3 s 2 s 1

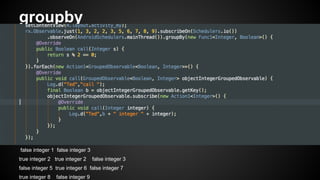

- 24. groupby false integer1 false integer 3 true integer 2 true integer 2 false integer 3 false integer 5 true integer 6 false integer 7 true integer 8 false integer 9

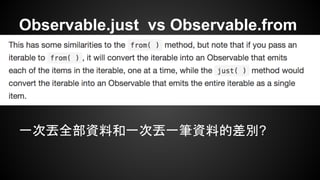

- 25. Observable.just vs Observable.from 一次丟全部資料和一次丟一筆資料的差別?

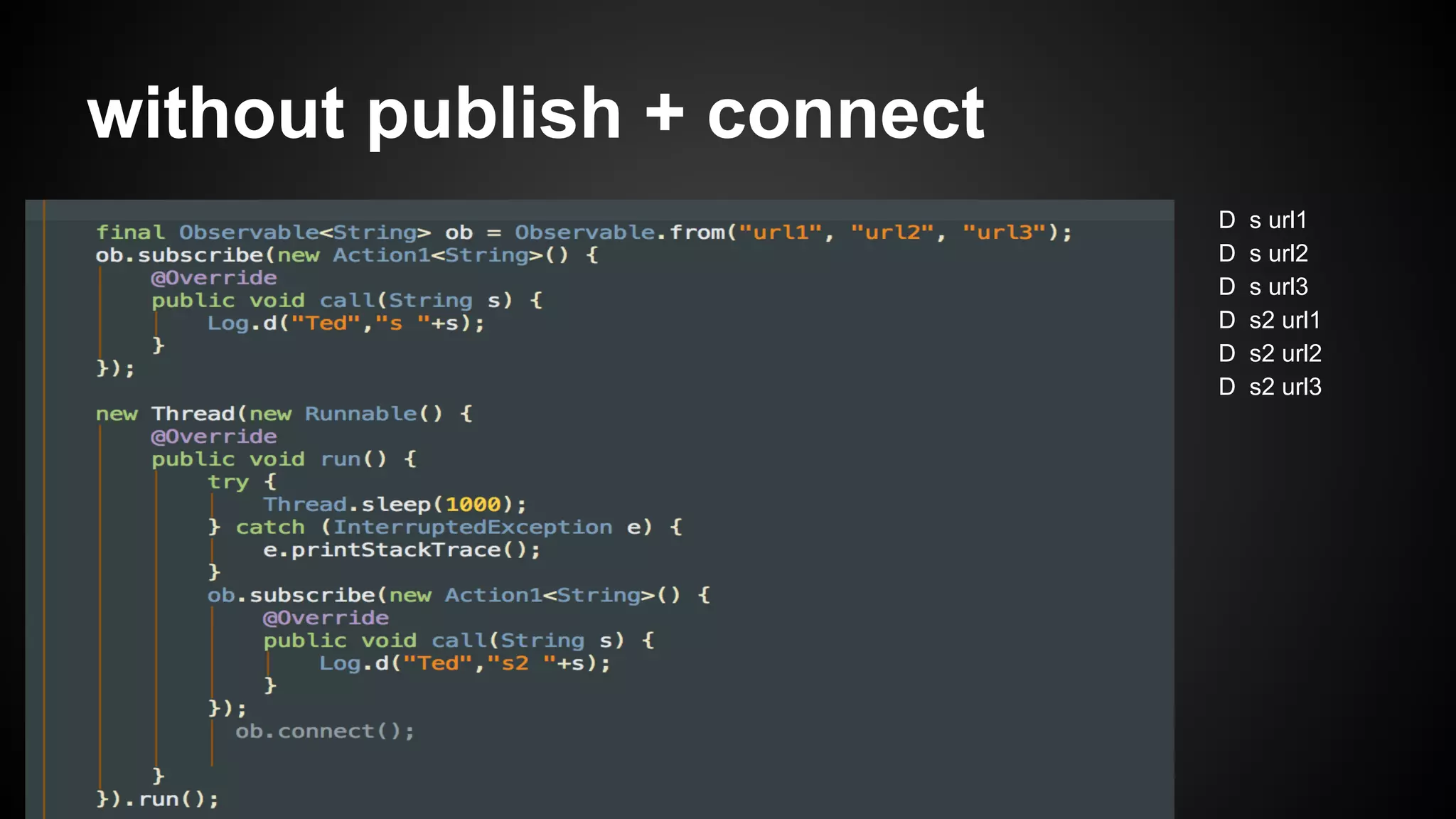

- 26. without publish +connect D s url1 D s url2 D s url3 D s2 url1 D s2 url2 D s2 url3

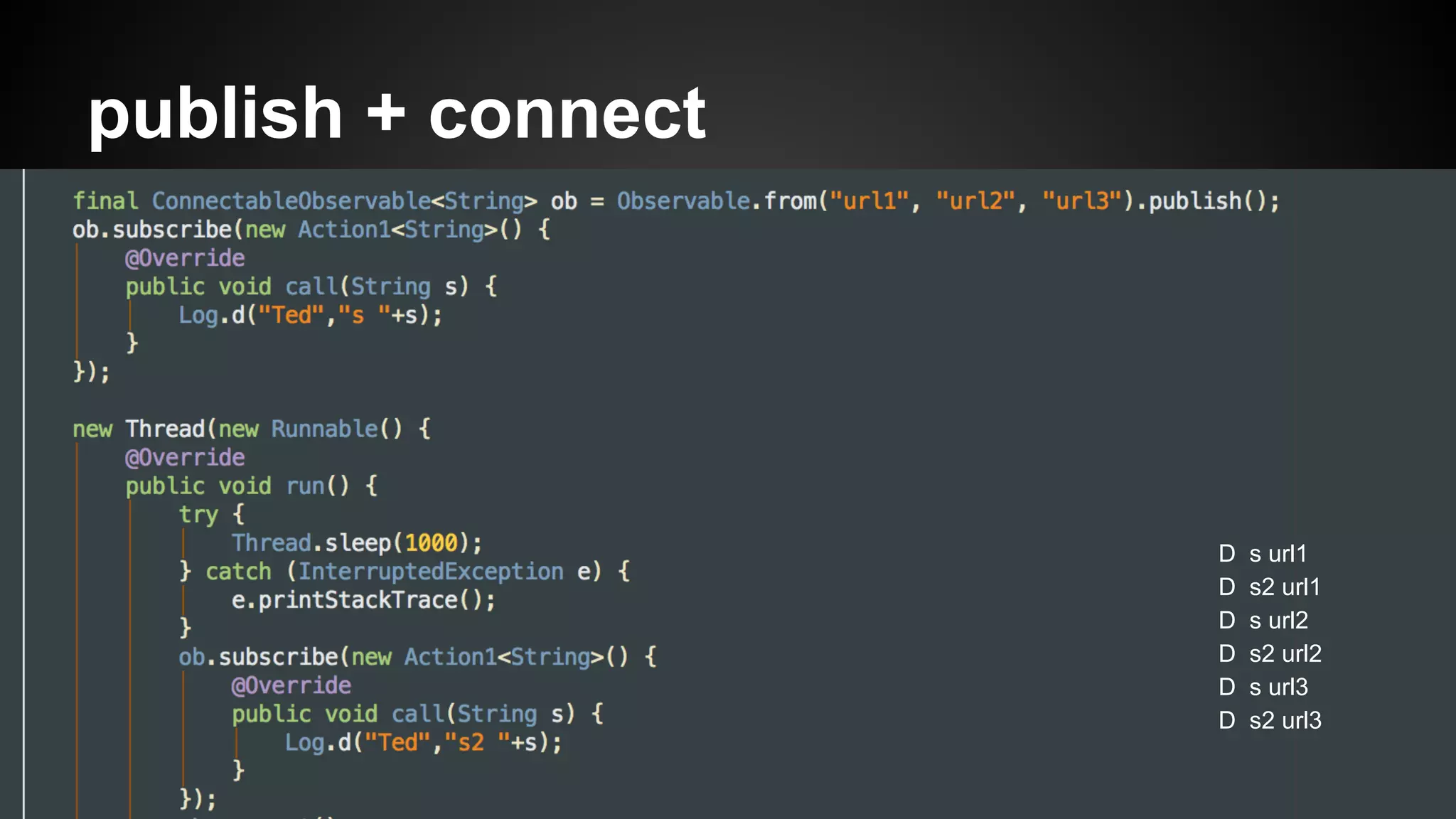

- 27. publish + connect D s url1 D s2 url1 D s url2 D s2 url2 D s url3 D s2 url3
- 28.

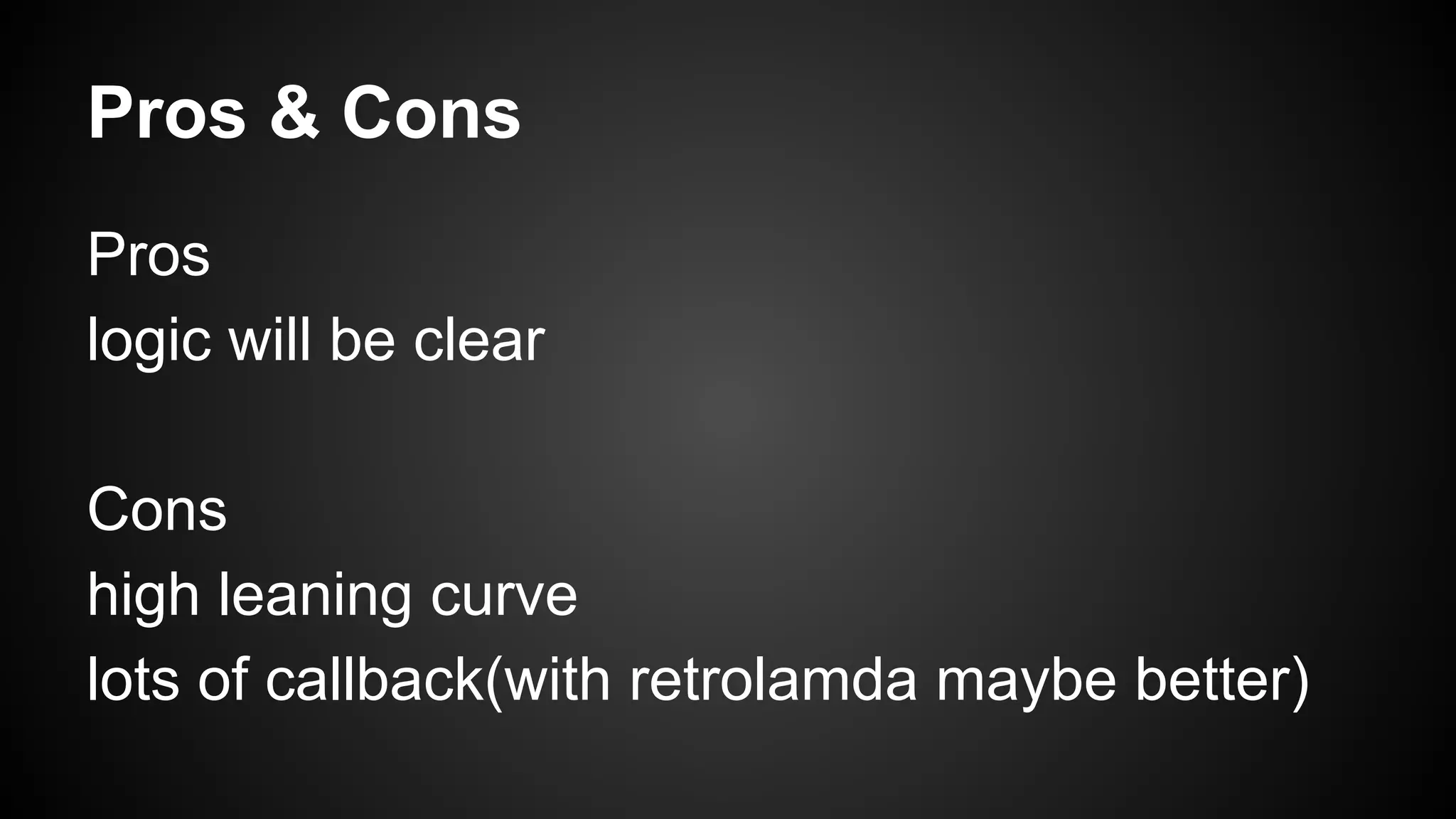

- 29. Pros & Cons Pros logic will be clear Cons high leaning curve lots of callback(with retrolamda maybe better)

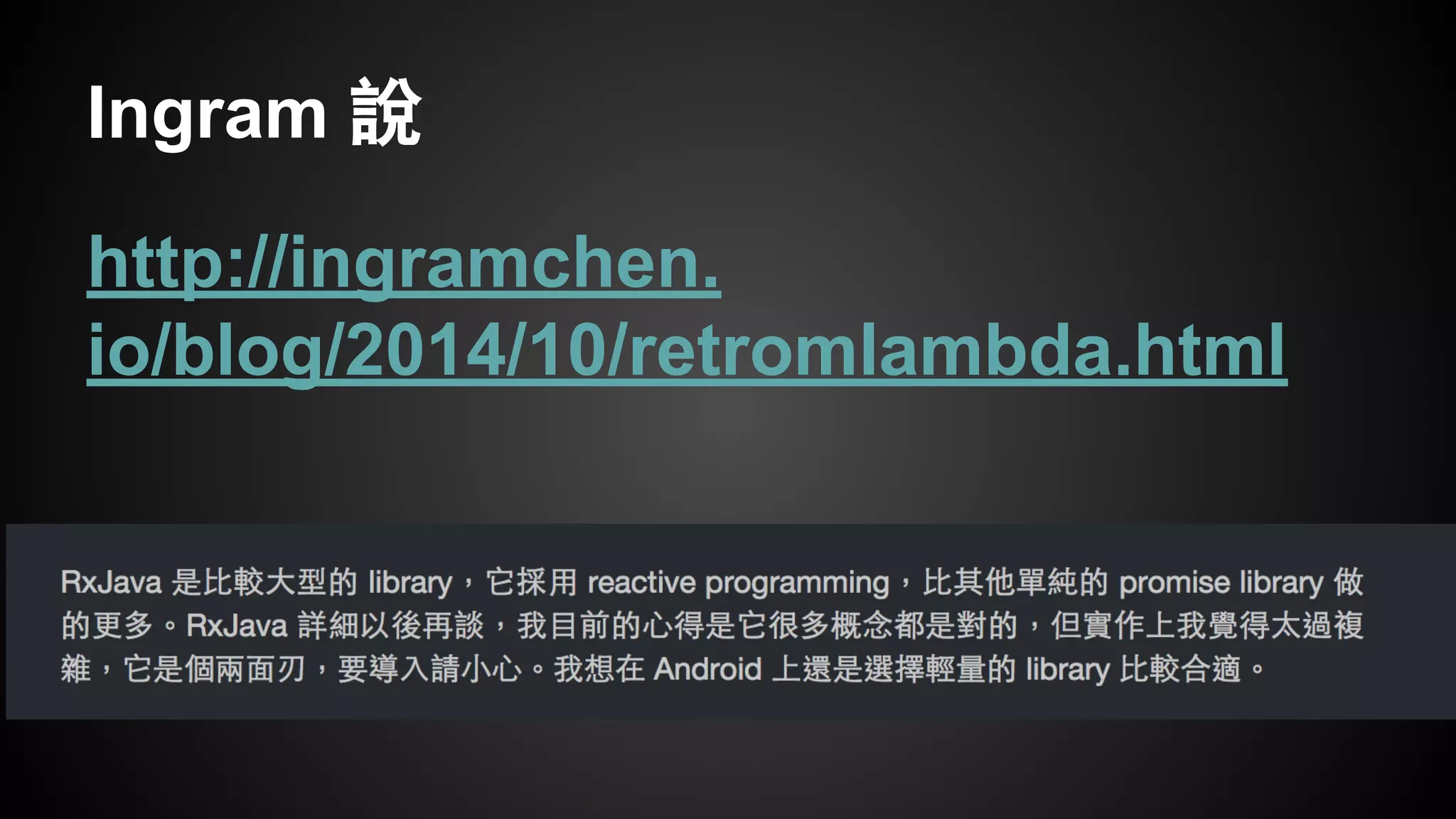

- 30. Ingram 說 http://ingramchen. io/blog/2014/10/retromlambda.html

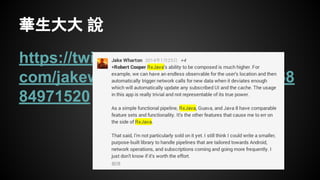

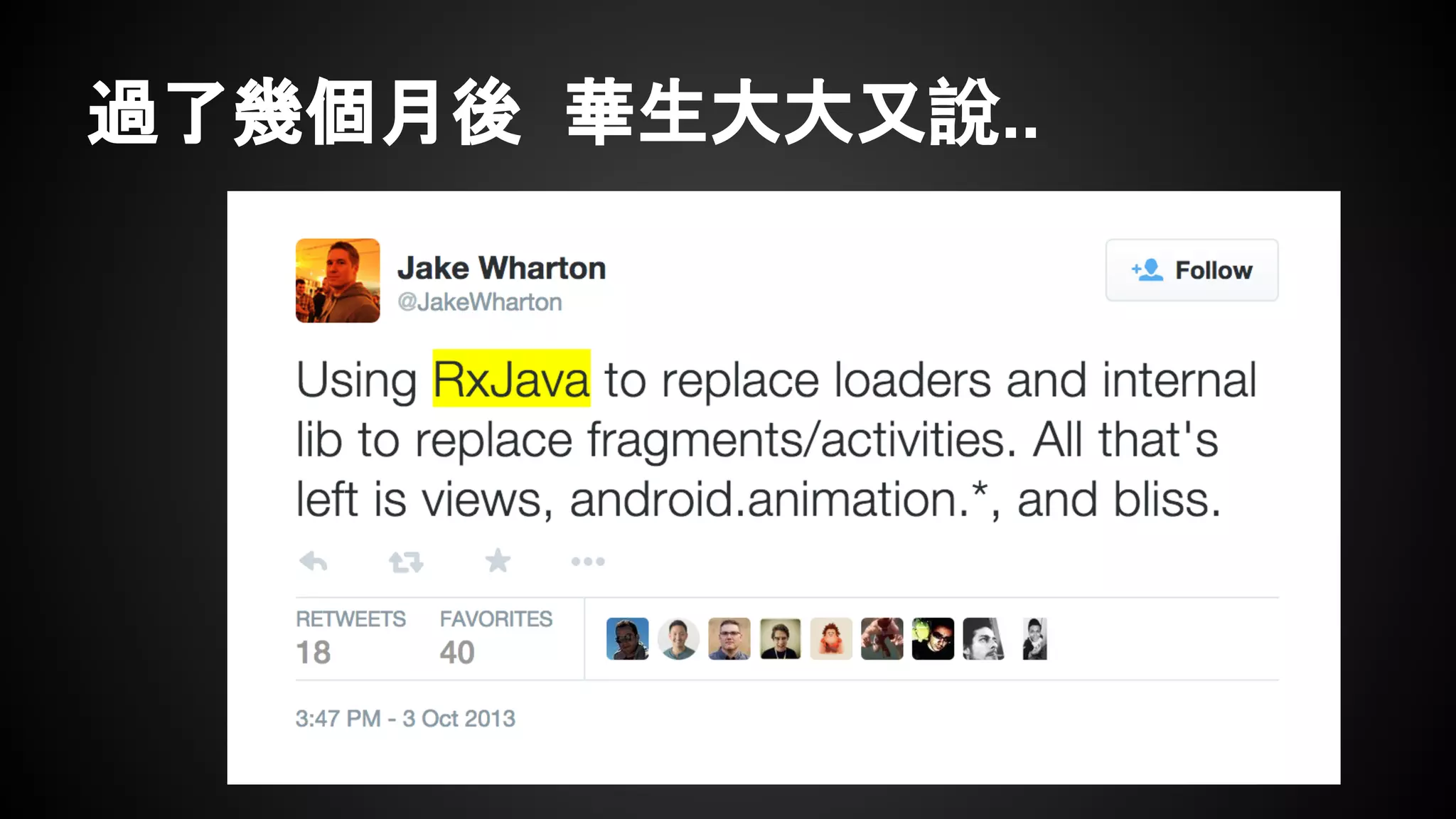

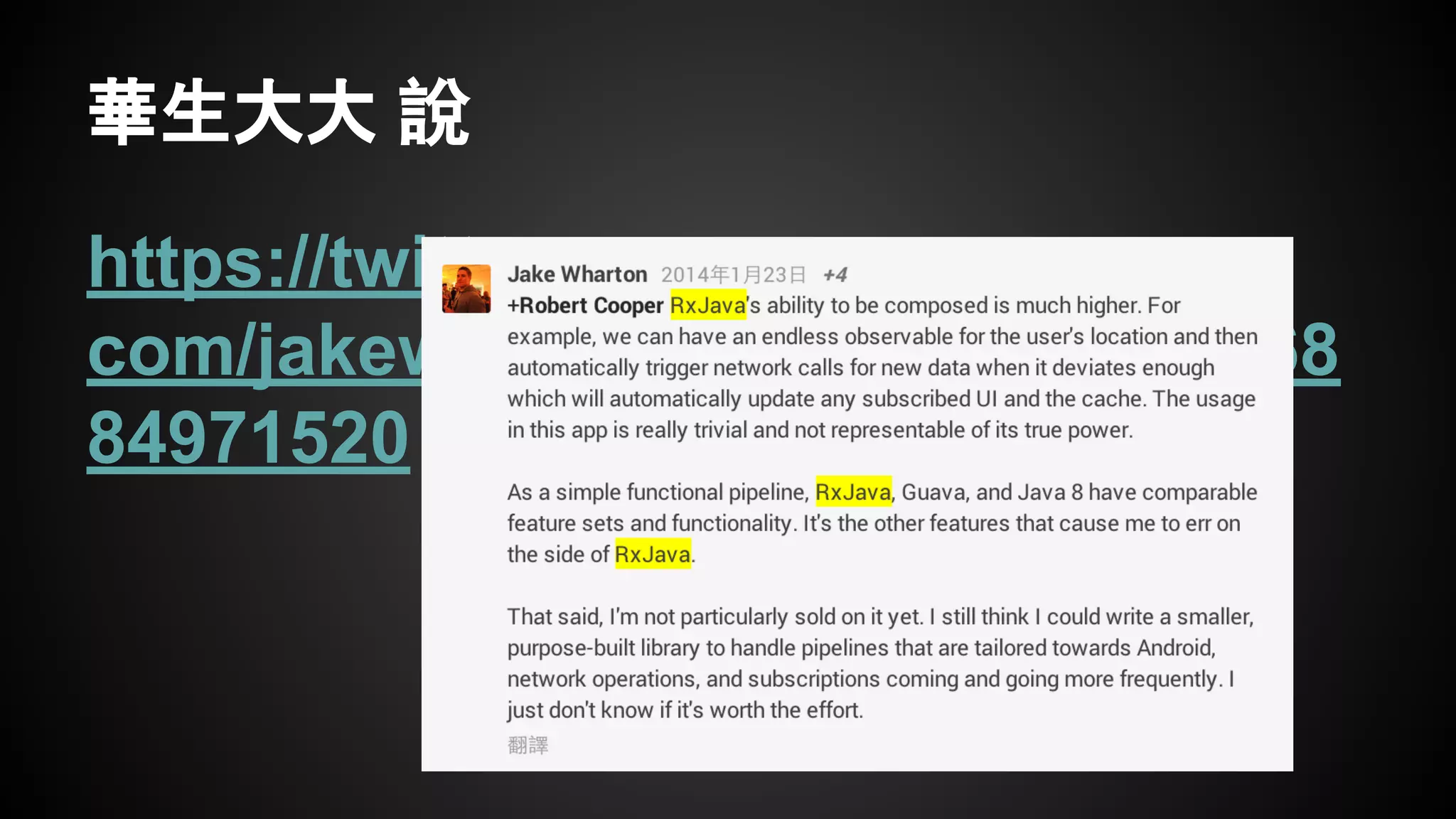

- 31. 華生大大 說 https://twitter. com/jakewharton/status/3858989968 84971520
- 32.

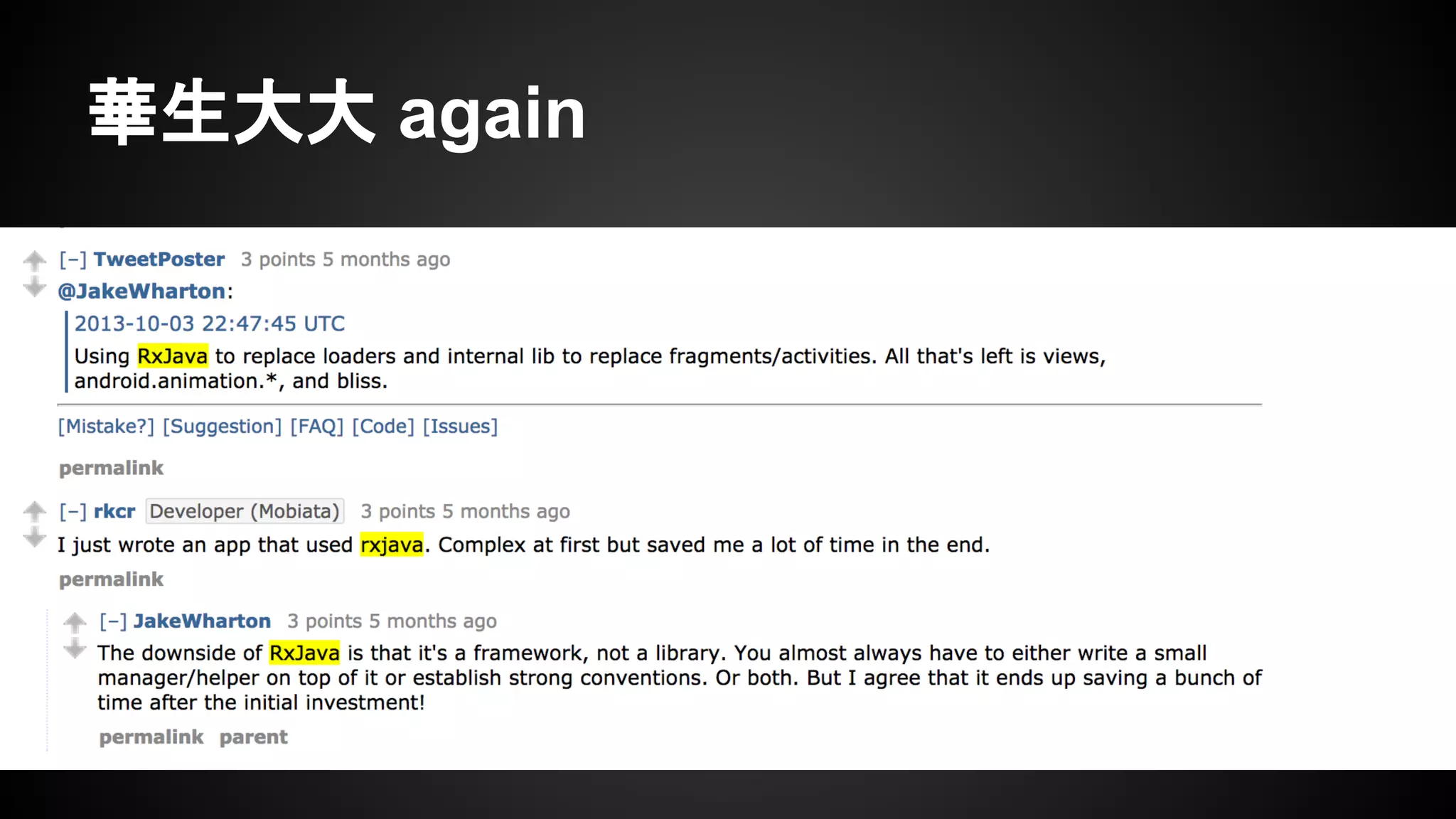

- 33.

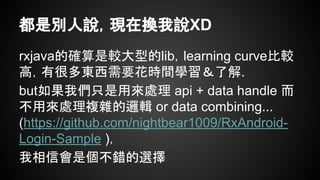

- 34. 都是別人說，現在換我說XD rxjava的確算是較大型的lib，learning curve比較 高，有很多東西需要花時間學習＆了解. but如果我們只是用來處理 api + data handle 而 不用來處理複雜的邏輯 or data combining... (https://github.com/nightbear1009/RxAndroid- Login-Sample )， 我相信會是個不錯的選擇

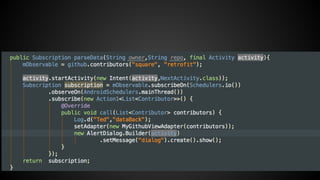

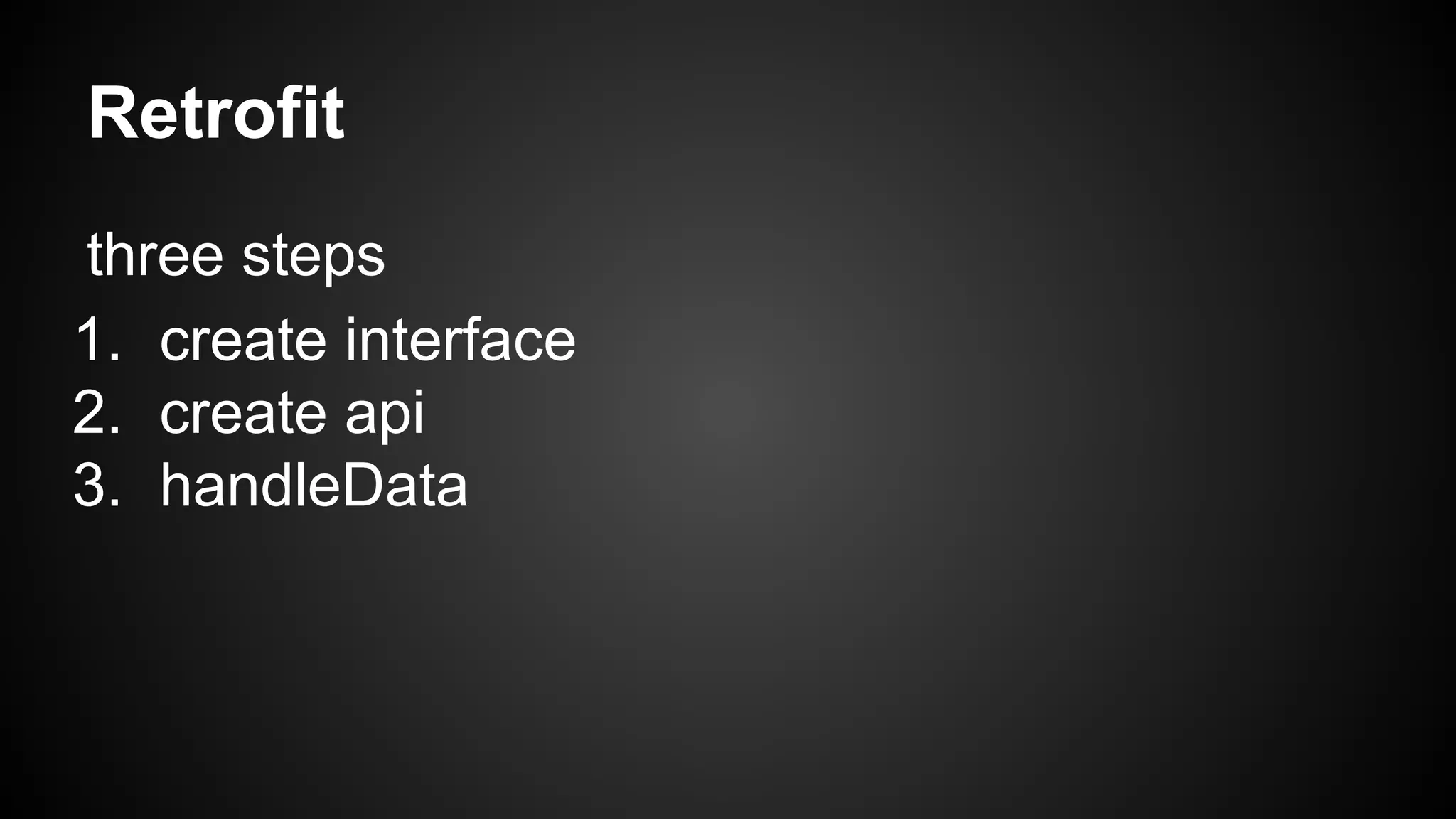

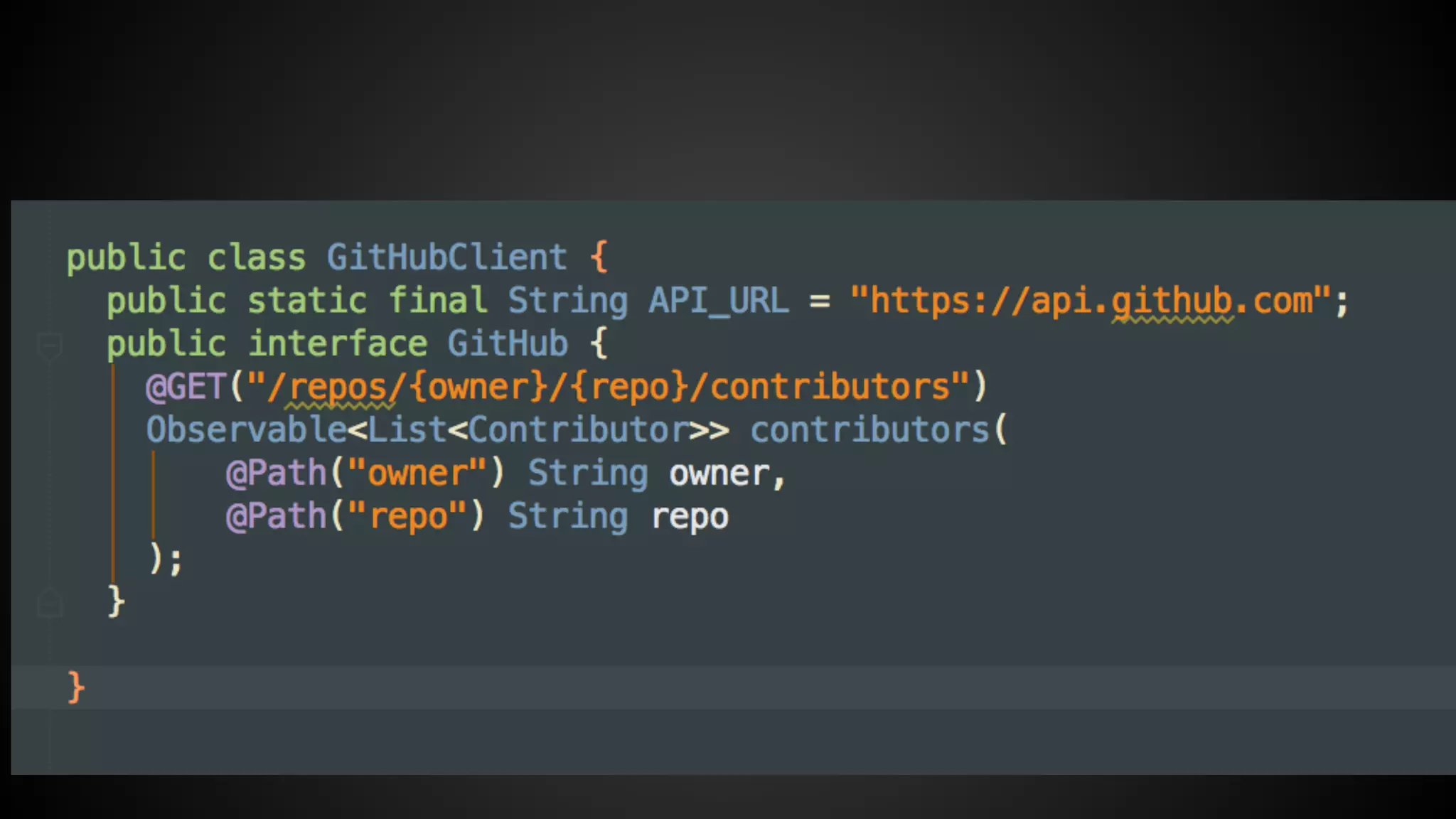

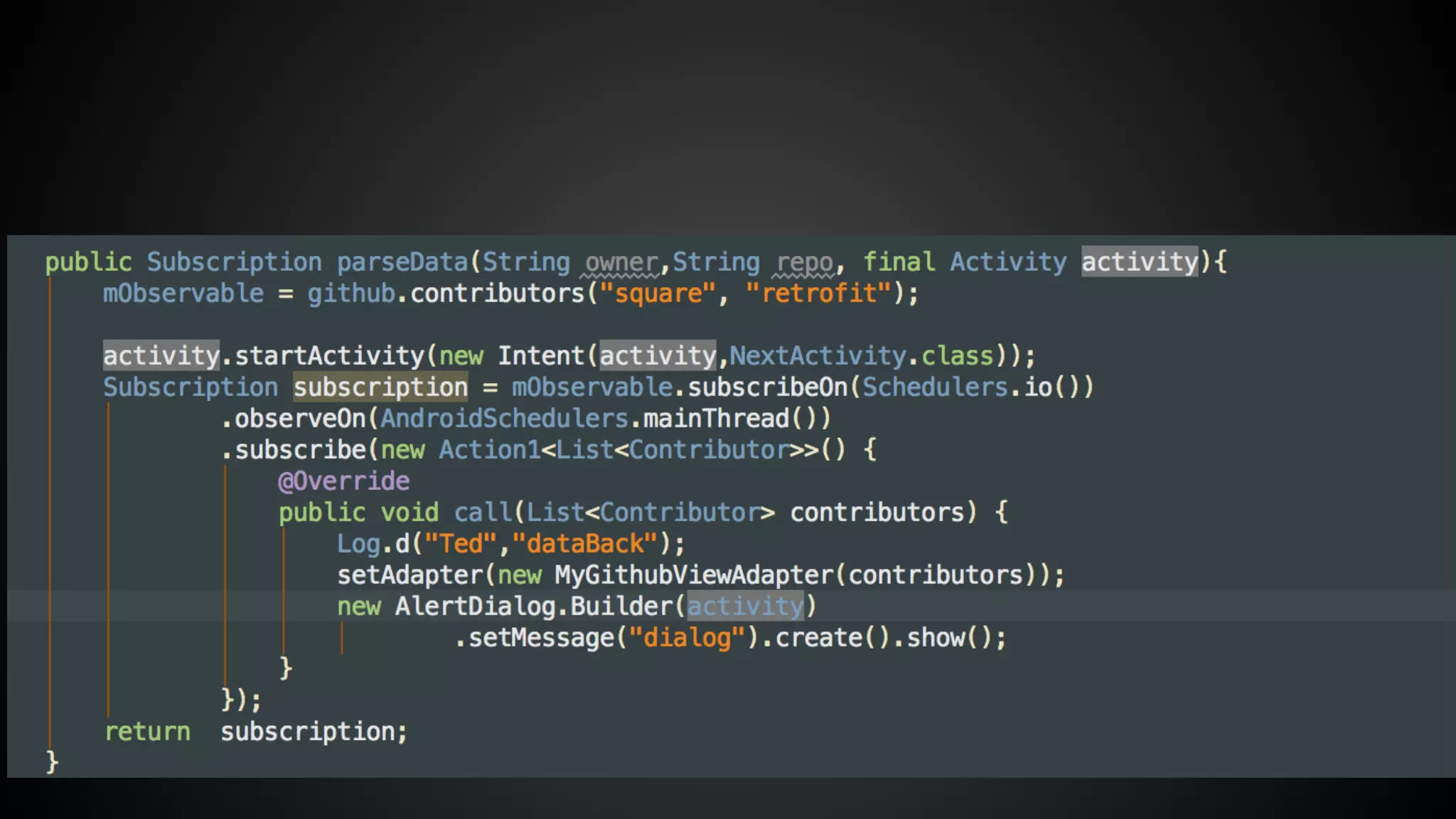

- 35. Retrofit three steps 1. create interface 2. create api 3. handleData

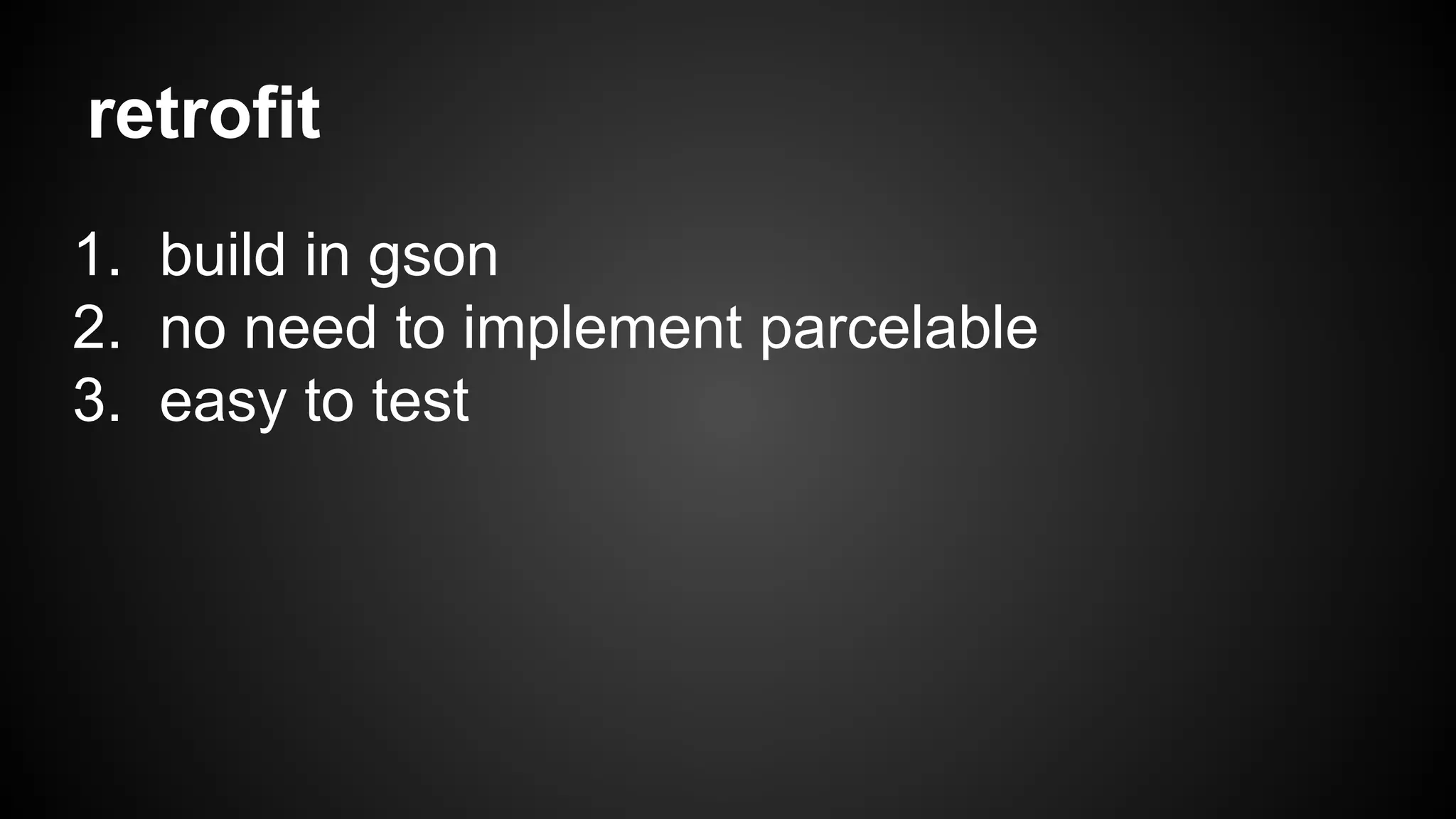

- 39. retrofit 1. buildin gson 2. no need to implement parcelable 3. easy to test

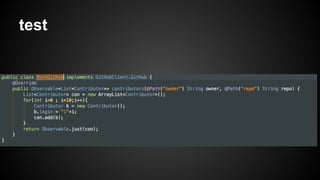

- 40.

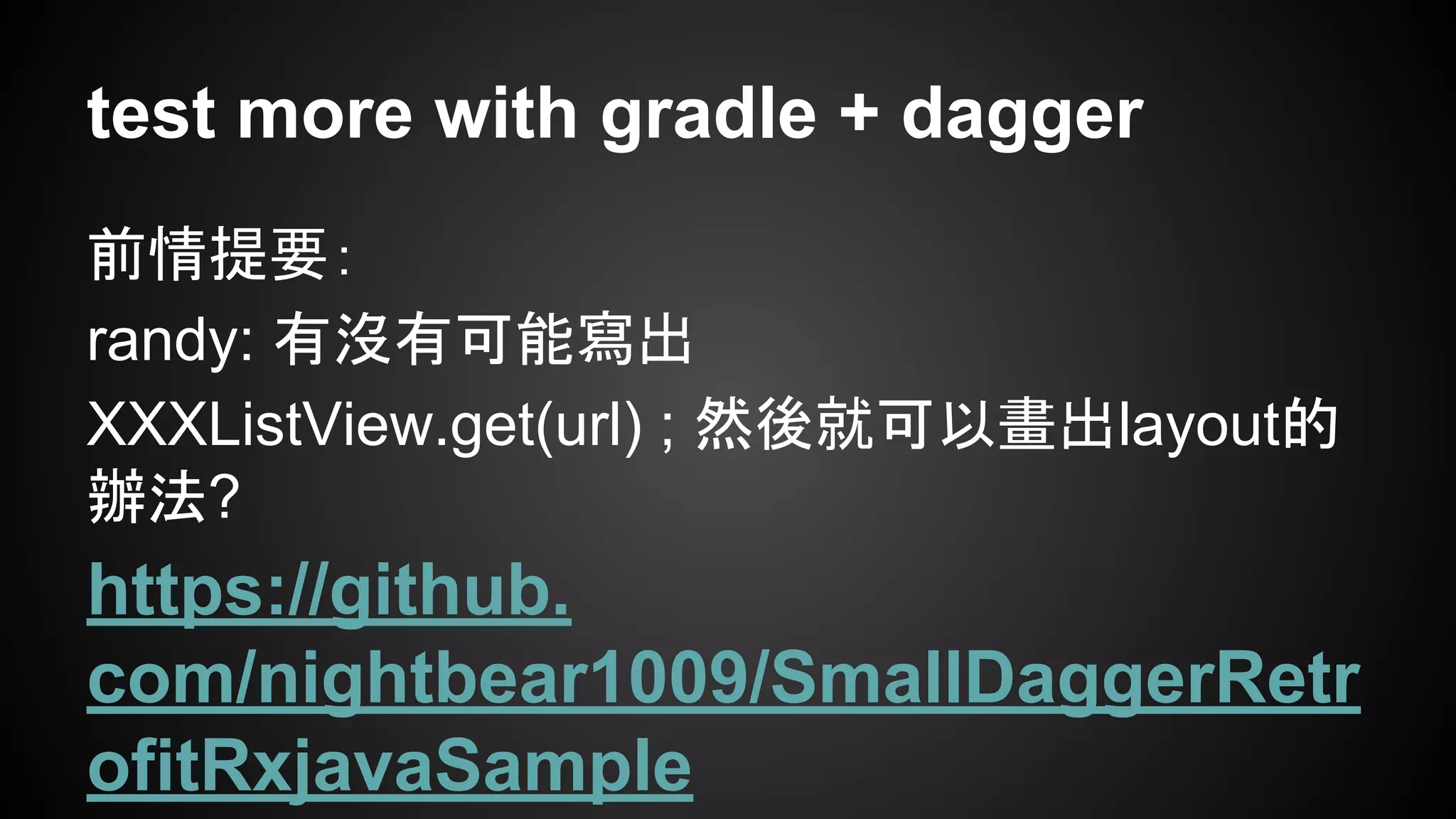

- 41. test more withgradle + dagger 前情提要： randy: 有沒有可能寫出 XXXListView.get(url) ; 然後就可以畫出layout的 辦法? https://github. com/nightbear1009/SmallDaggerRetr ofitRxjavaSample

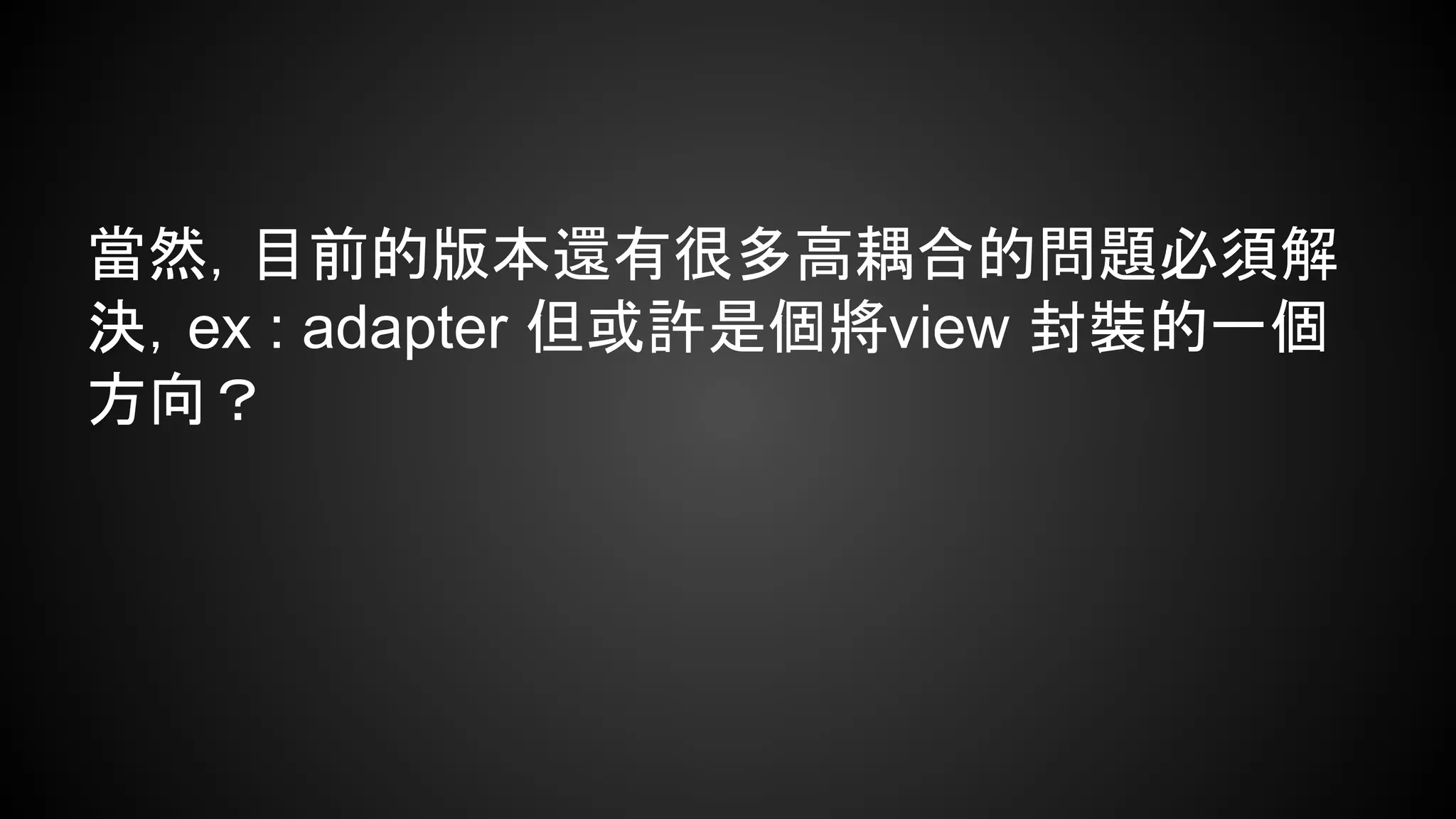

- 42. 當然，目前的版本還有很多高耦合的問題必須解 決，ex :adapter 但或許是個將view 封裝的一個 方向？
- 43. so… what canwe do with these lib Demo Time again

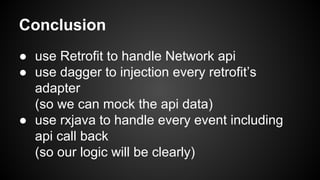

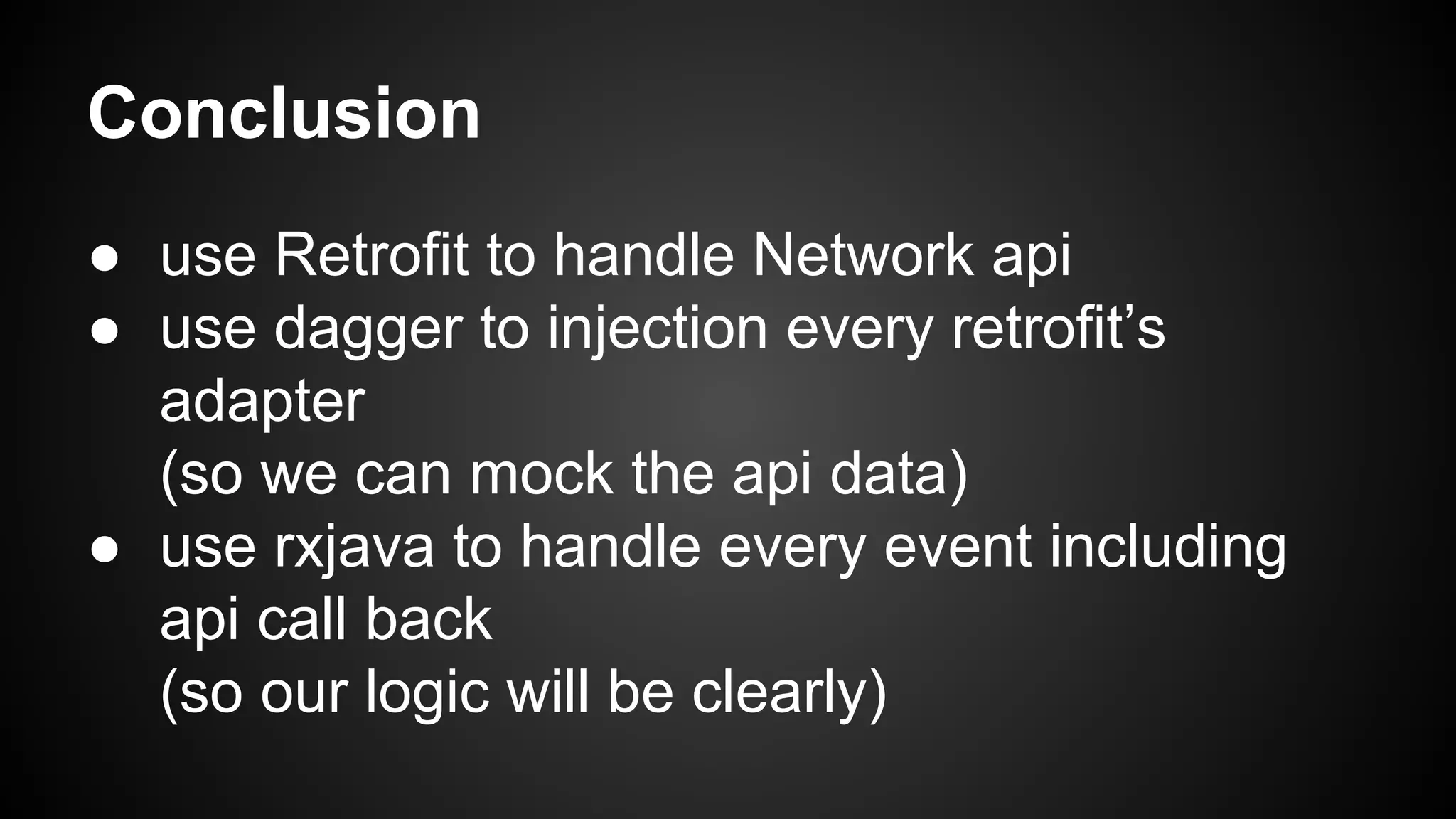

- 44. Conclusion ● useRetrofit to handle Network api ● use dagger to injection every retrofit’s adapter (so we can mock the api data) ● use rxjava to handle every event including api call back (so our logic will be clearly)
