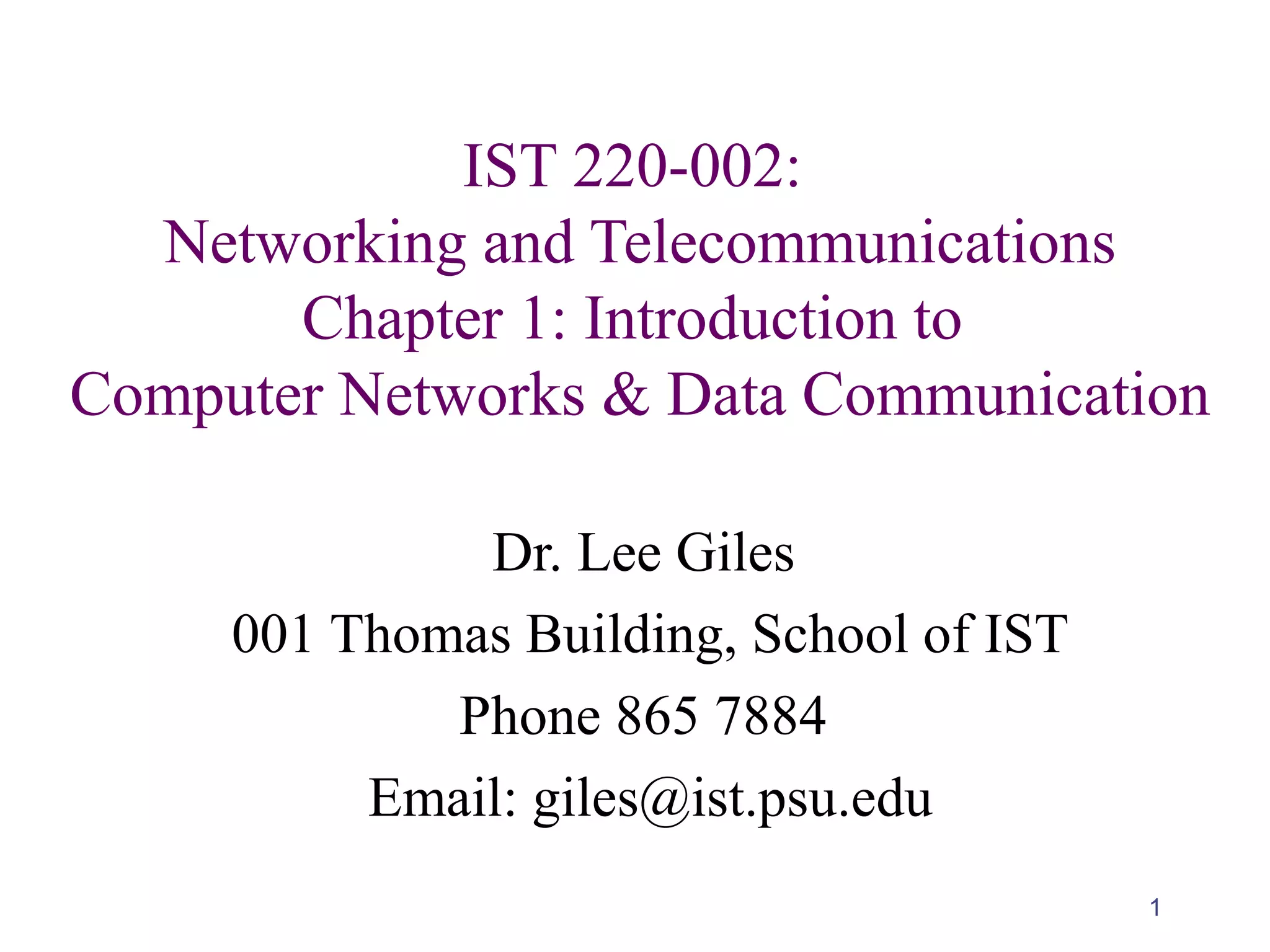

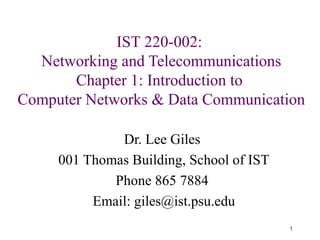

IST 220-002:
Networking and Telecommunications
Chapter 1: Introduction to
Computer Networks & Data Communication
Dr. Lee Giles
001 Thomas Building, School of IST
Phone 865 7884
Email: giles@ist.psu.edu

2

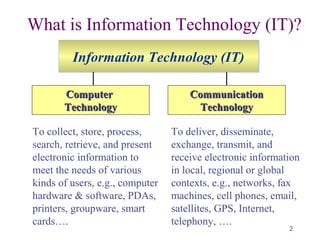

Information Technology (IT)Information Technology (IT)
CommunicationCommunication
TechnologyTechnology
ComputerComputer
TechnologyTechnology
To collect, store, process,
search, retrieve, and present
electronic information to
meet the needs of various
kinds of users, e.g., computer
hardware & software, PDAs,
printers, groupware, smart
cards….

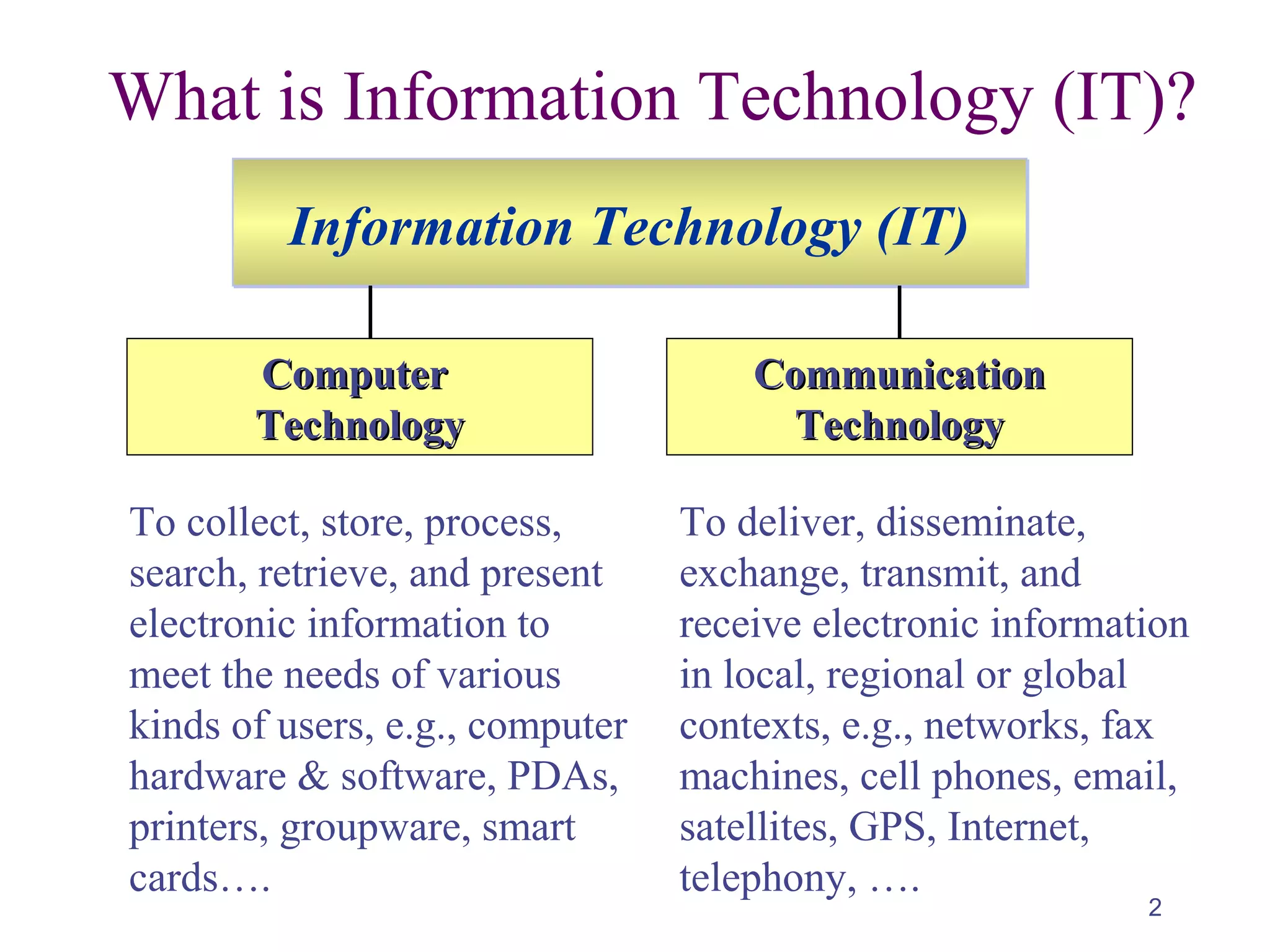

What is Information Technology (IT)?
To deliver, disseminate,
exchange, transmit, and
receive electronic information
in local, regional or global
contexts, e.g., networks, fax
machines, cell phones, email,
satellites, GPS, Internet,
telephony, ….

3

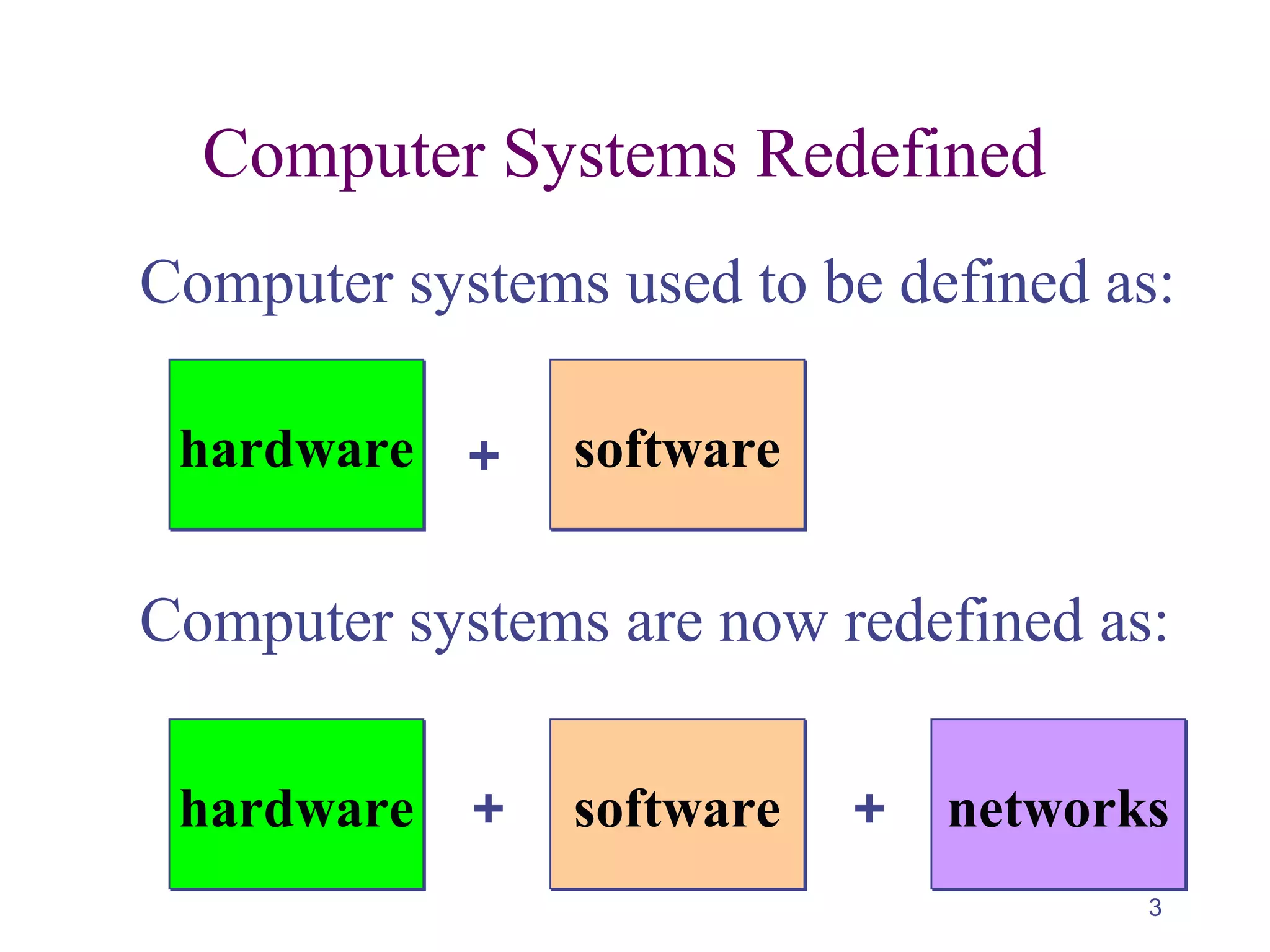

Computer Systems Redefined
Computer systems used to be defined as:
Computer systems are now redefined as:
hardwarehardware
networksnetworkssoftwaresoftwarehardwarehardware
softwaresoftware+
+ +

4

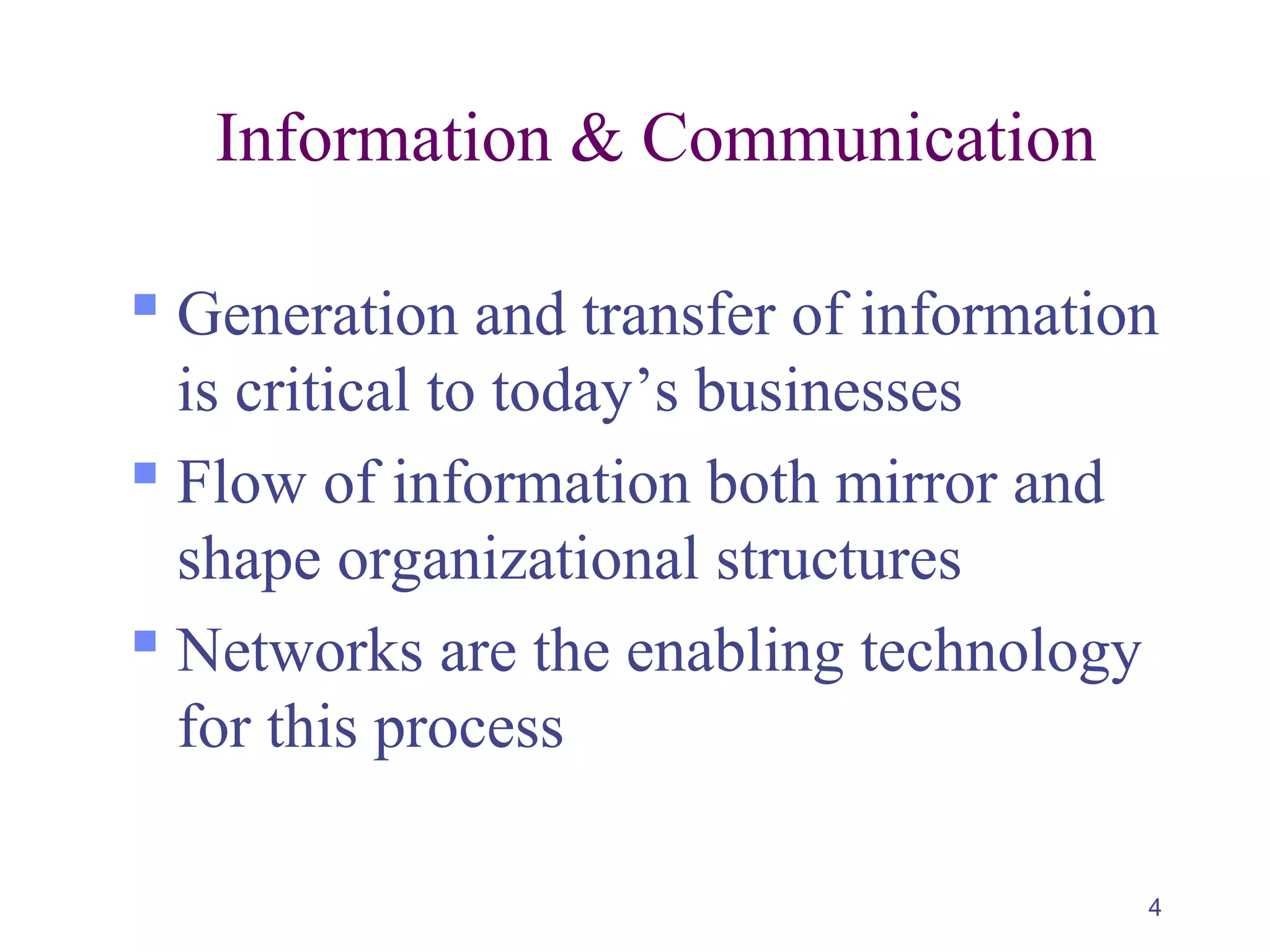

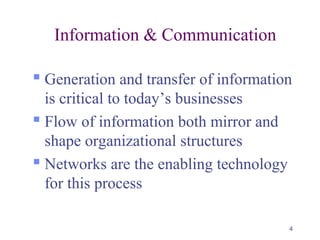

Information & Communication
 Generation and transfer of information
is critical to today’s businesses
 Flow of information both mirror and
shape organizational structures
 Networks are the enabling technology
for this process

5
The “Manager’s Dilemma”
 Technology is necessary for
competitiveness
 Cost of technology has decreased
 Reliance on technology has increased
 Number of choices have increased
 Choices are both more difficult and
more important

6

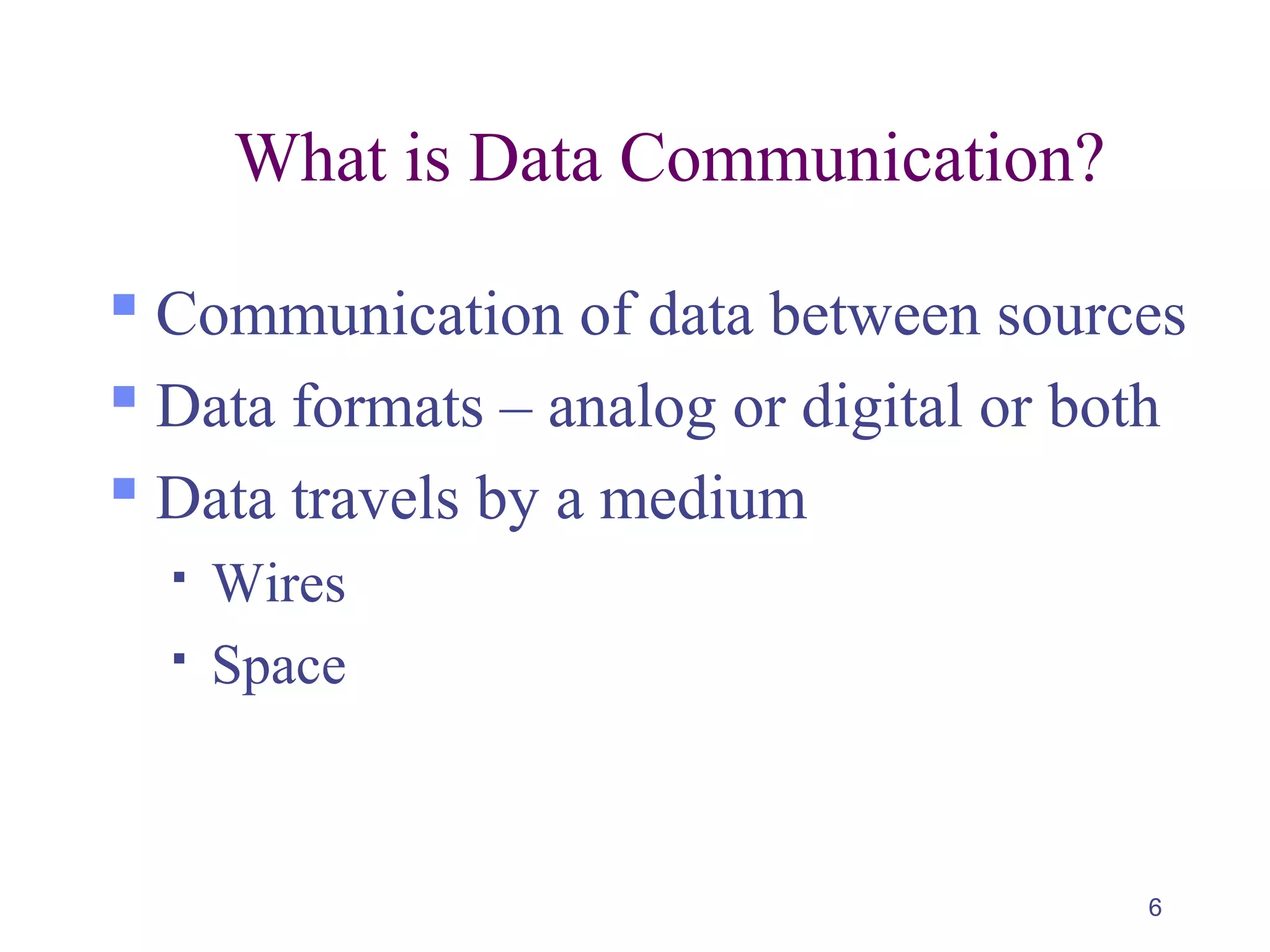

What is Data Communication?
 Communication of data between sources
 Data formats – analog or digital or both
 Data travels by a medium
 Wires
 Space

7

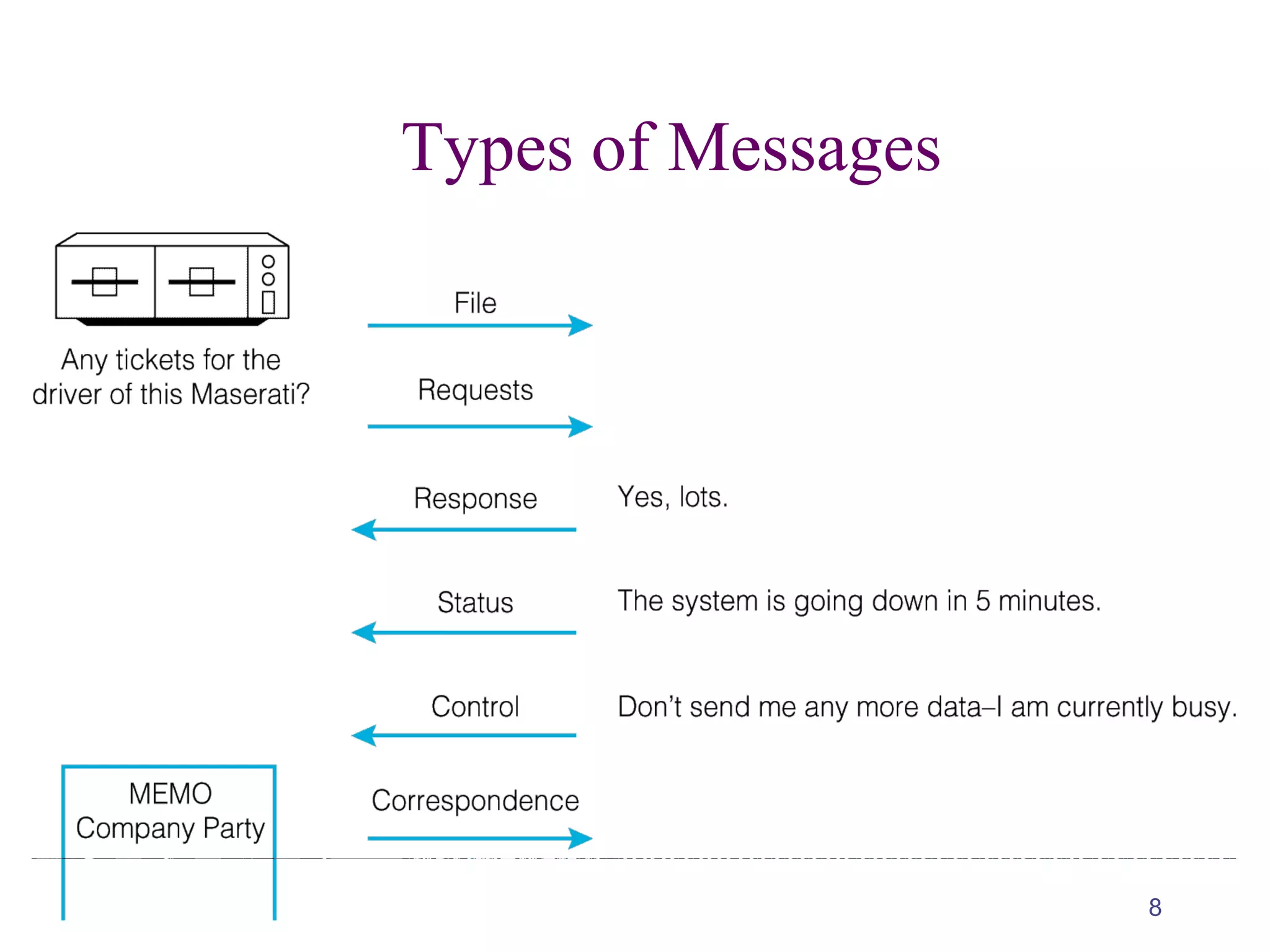

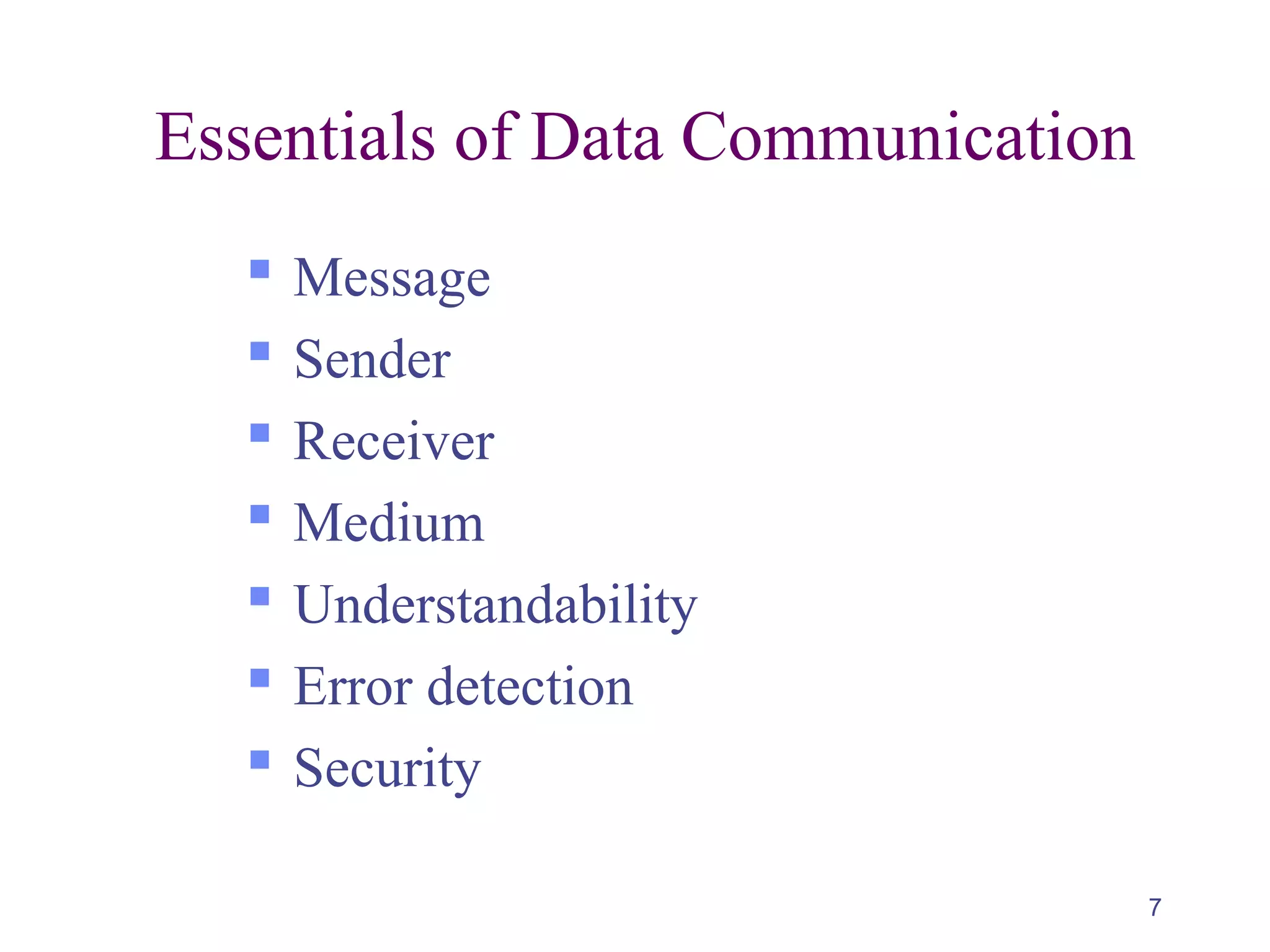

Essentials of Data Communication
 Message
 Sender
 Receiver
 Medium
 Understandability
 Error detection
 Security

9

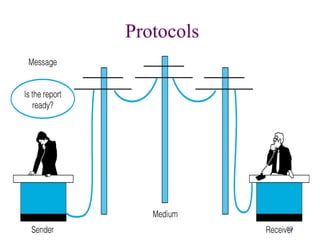

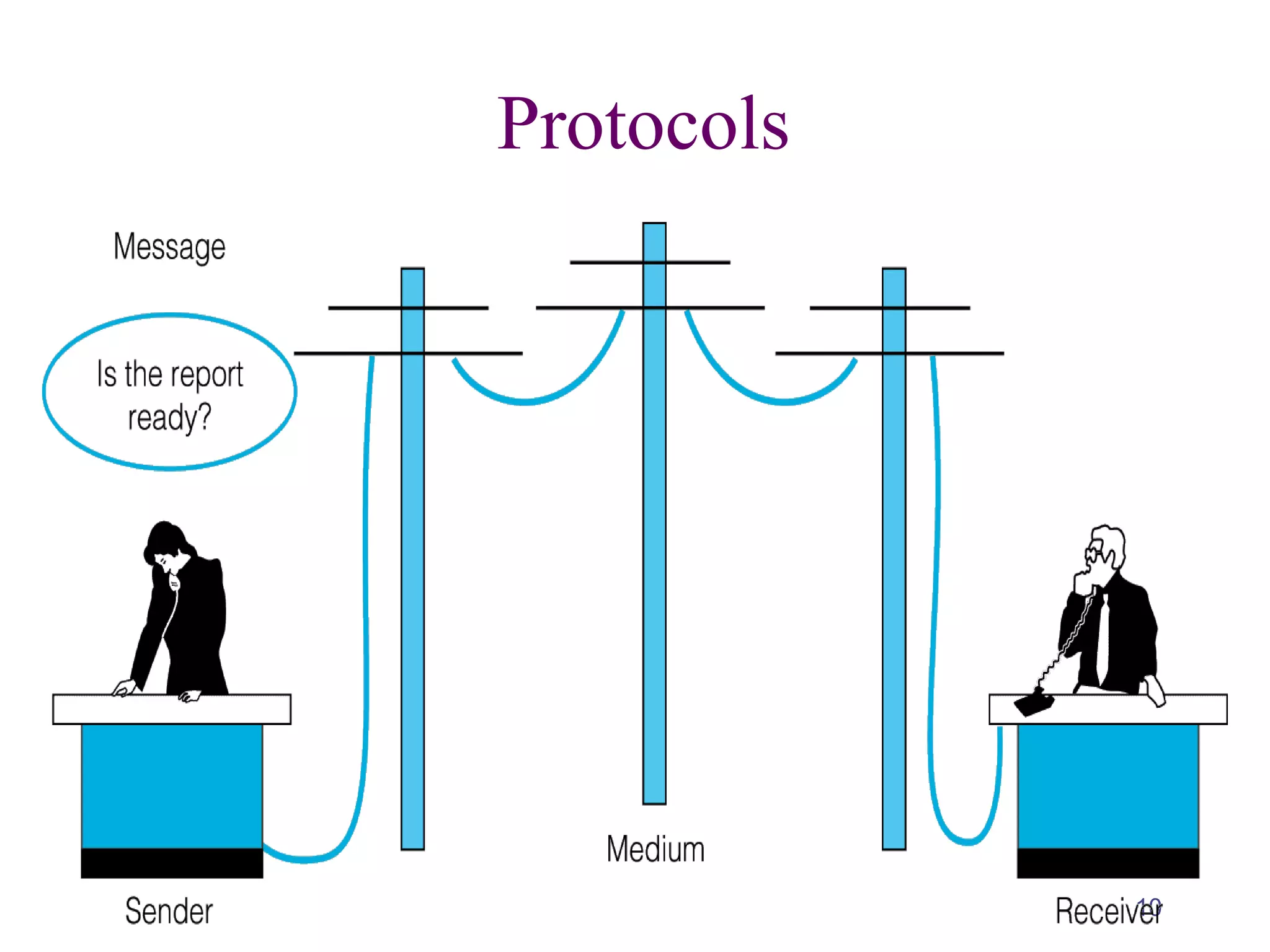

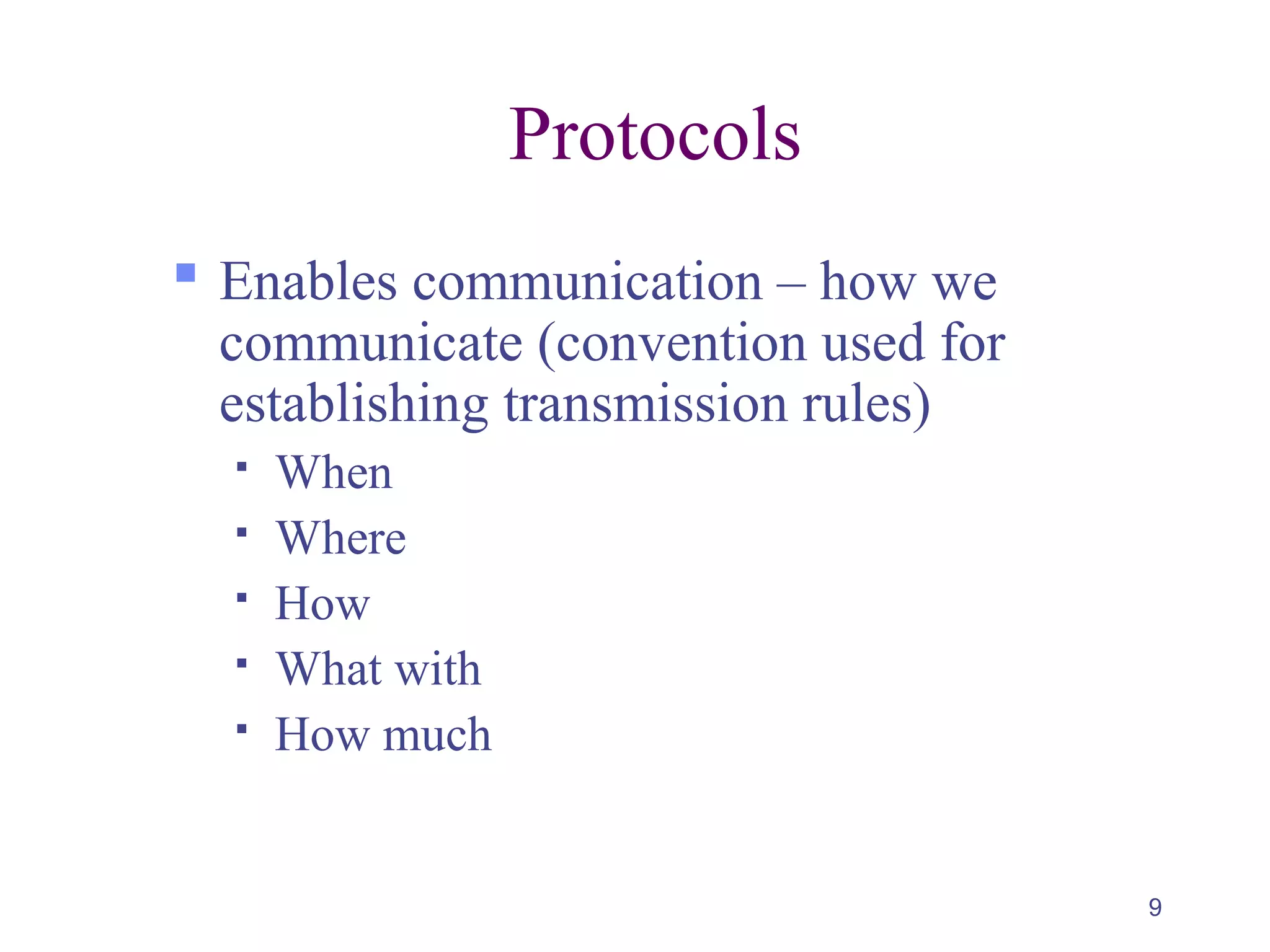

Protocols
 Enables communication – how we
communicate (convention used for
establishing transmission rules)
 When
 Where
 How
 What with
 How much

11

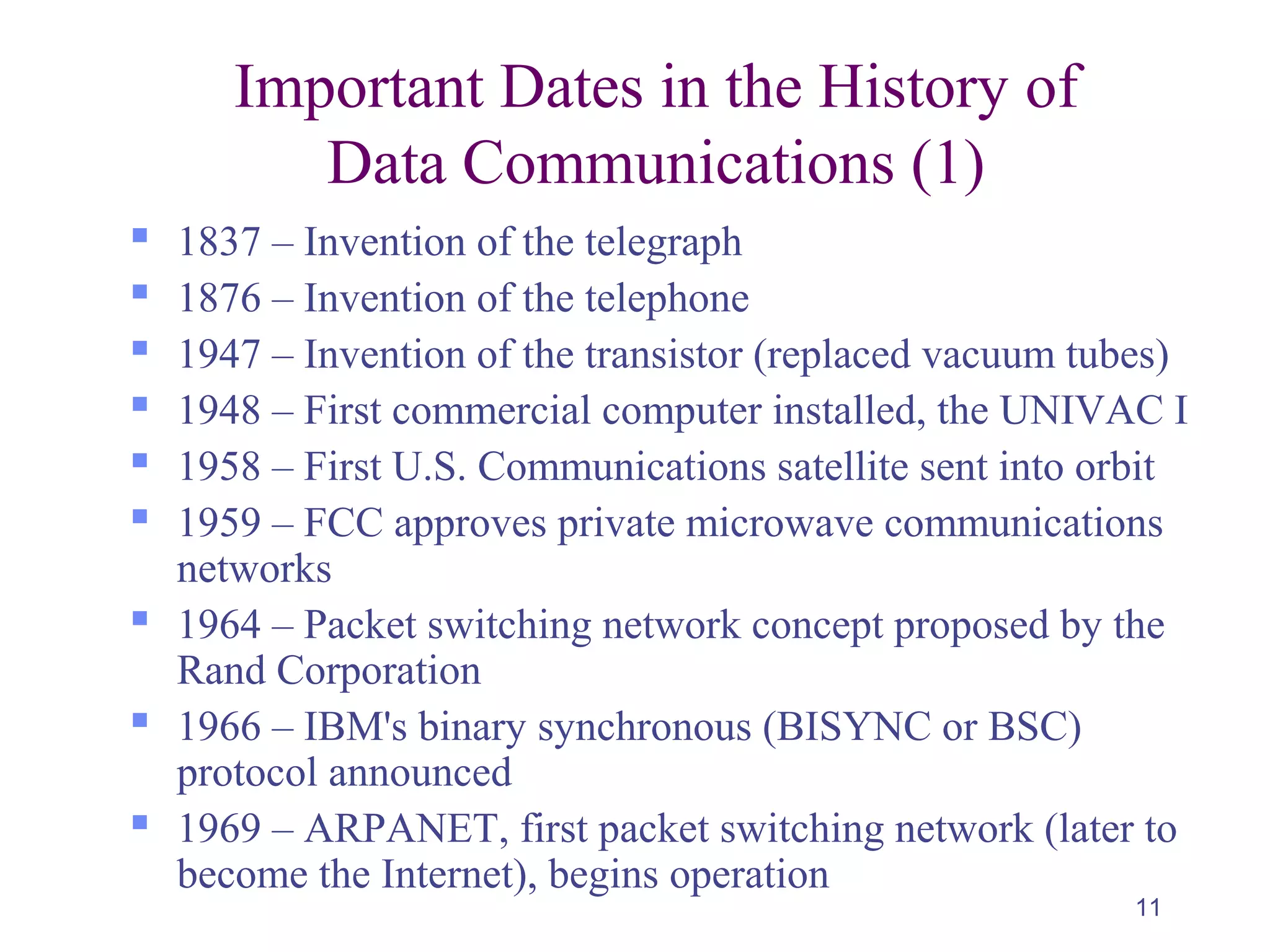

Important Dates in the History of
Data Communications (1)
 1837 – Invention of the telegraph
 1876 – Invention of the telephone
 1947 – Invention of the transistor (replaced vacuum tubes)
 1948 – First commercial computer installed, the UNIVAC I
 1958 – First U.S. Communications satellite sent into orbit
 1959 – FCC approves private microwave communications
networks
 1964 – Packet switching network concept proposed by the
Rand Corporation
 1966 – IBM's binary synchronous (BISYNC or BSC)
protocol announced
 1969 – ARPANET, first packet switching network (later to
become the Internet), begins operation

12

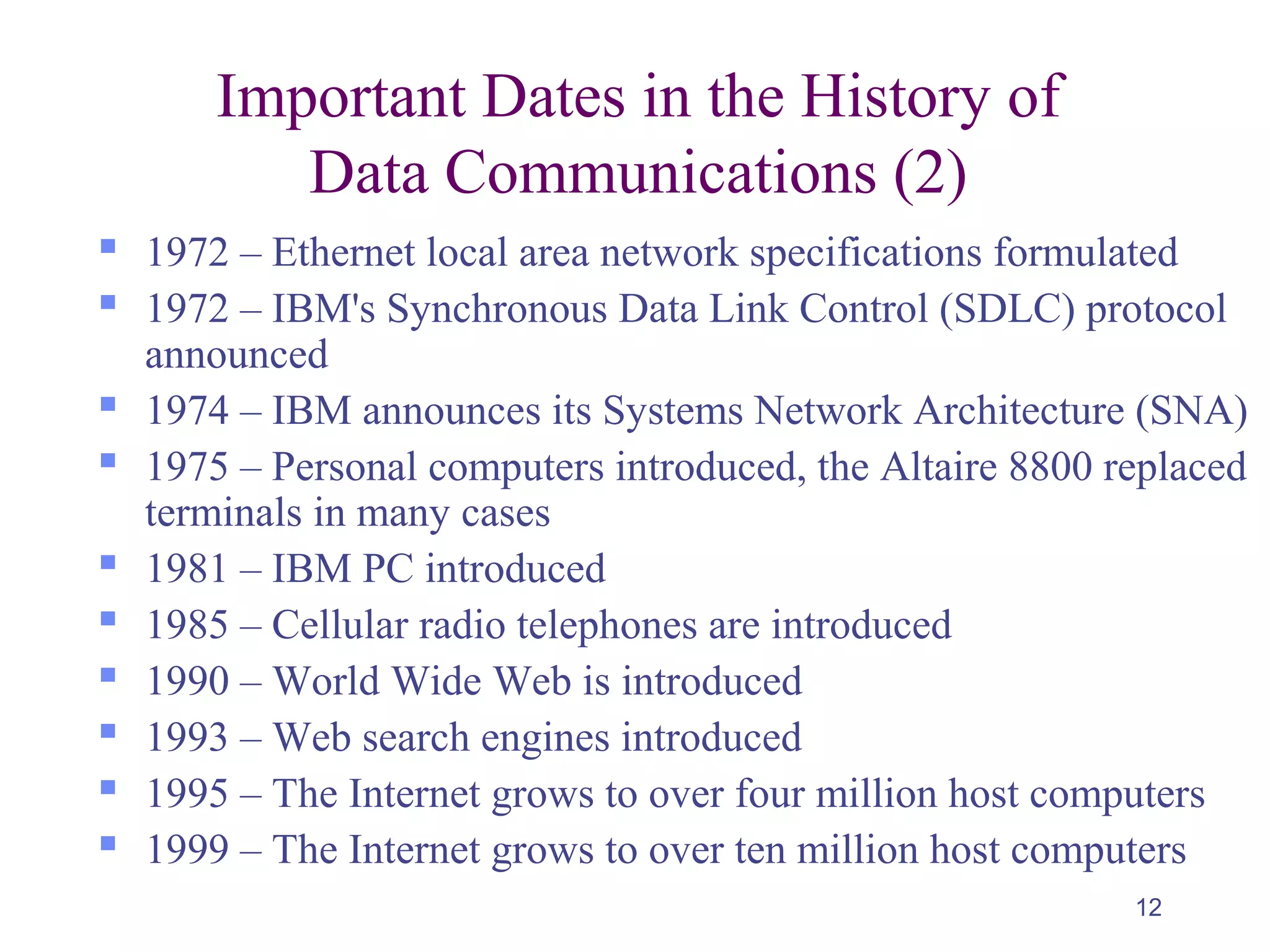

Important Dates in the History of
Data Communications (2)
 1972 – Ethernet local area network specifications formulated
 1972 – IBM's Synchronous Data Link Control (SDLC) protocol
announced
 1974 – IBM announces its Systems Network Architecture (SNA)
 1975 – Personal computers introduced, the Altaire 8800 replaced
terminals in many cases
 1981 – IBM PC introduced
 1985 – Cellular radio telephones are introduced
 1990 – World Wide Web is introduced
 1993 – Web search engines introduced
 1995 – The Internet grows to over four million host computers
 1999 – The Internet grows to over ten million host computers

13

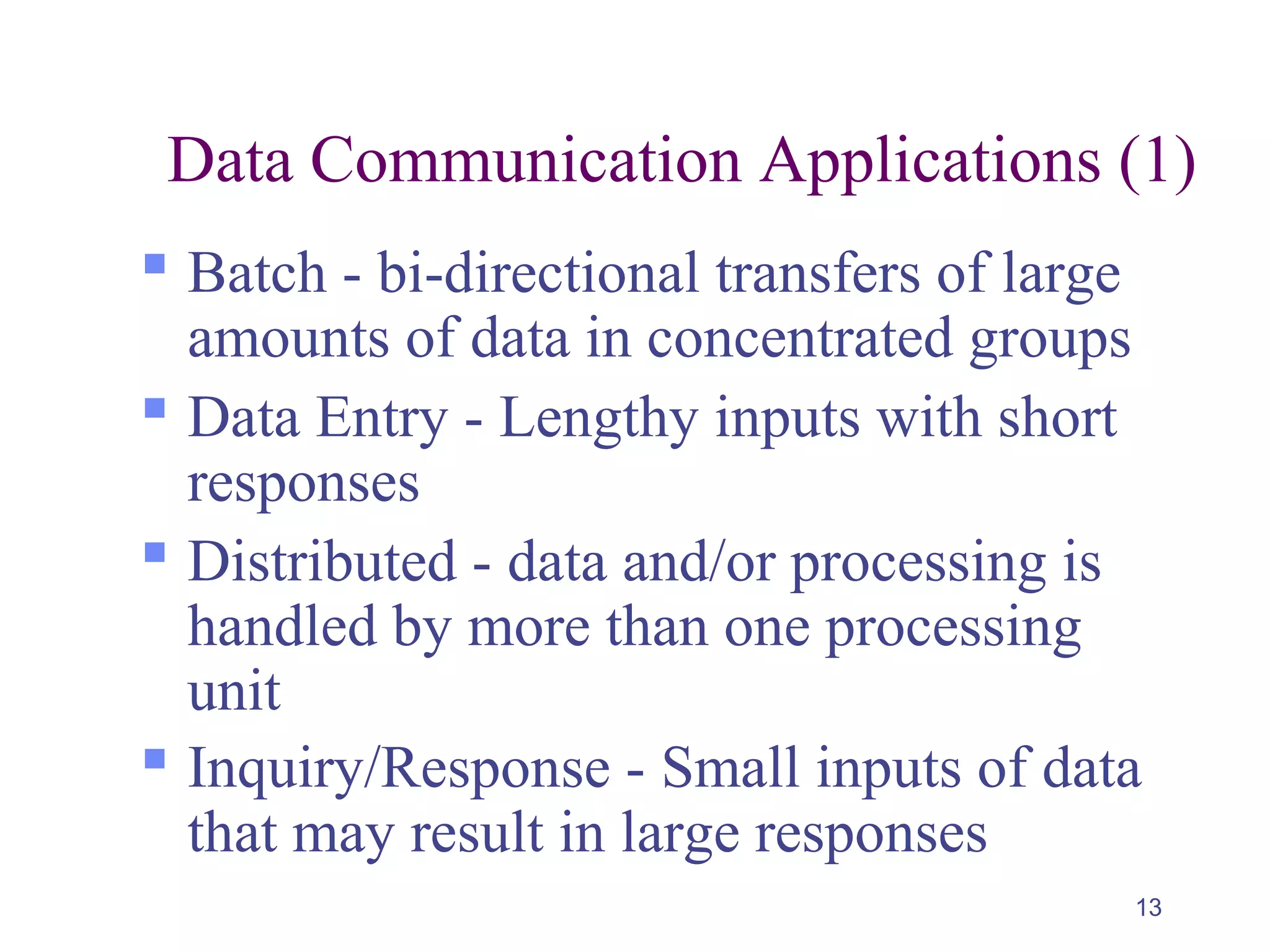

Data Communication Applications (1)
 Batch - bi-directional transfers of large
amounts of data in concentrated groups
 Data Entry - Lengthy inputs with short
responses
 Distributed - data and/or processing is
handled by more than one processing
unit
 Inquiry/Response - Small inputs of data
that may result in large responses

14

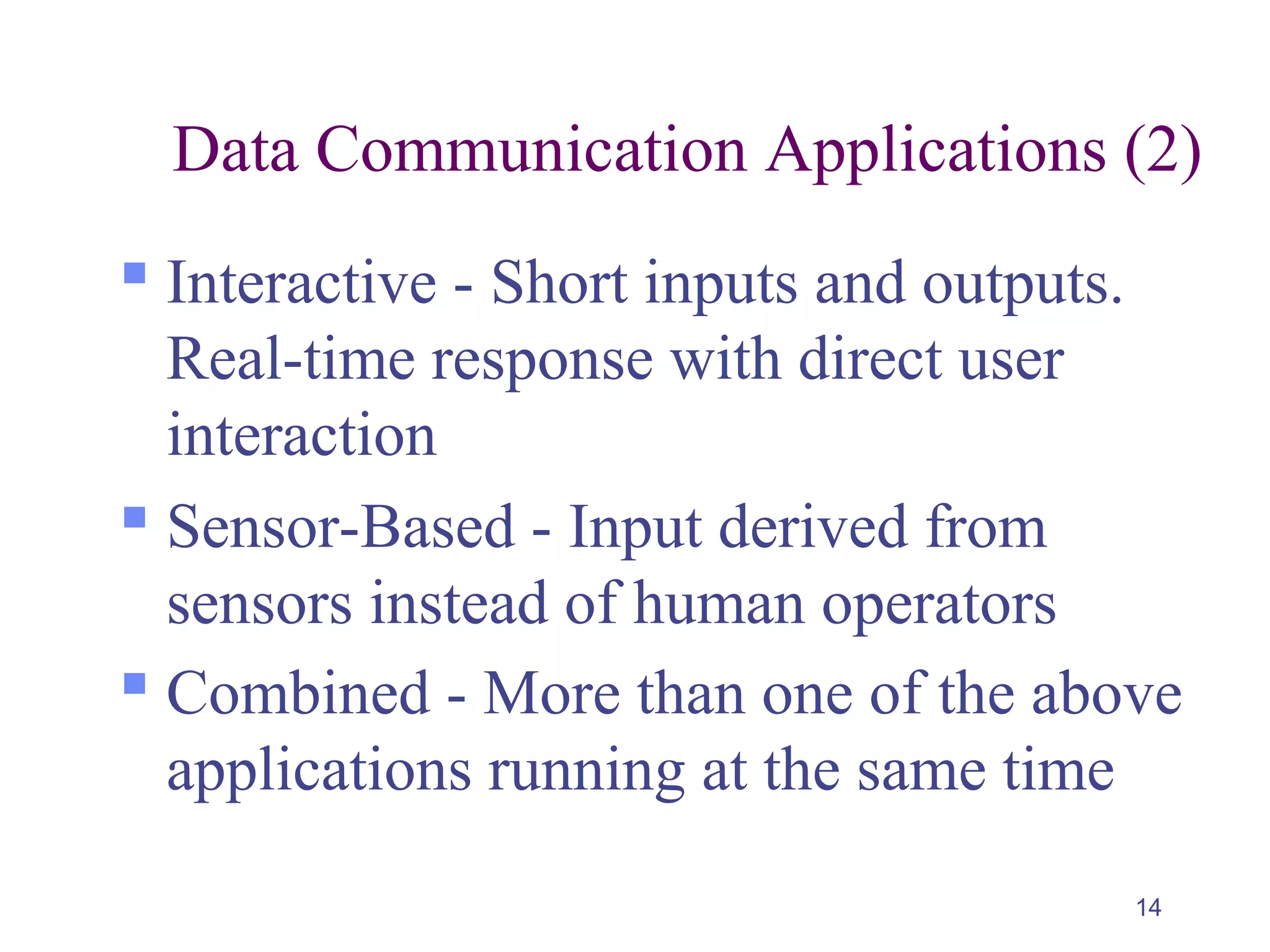

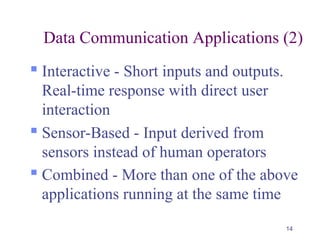

Data Communication Applications (2)
 Interactive - Short inputs and outputs.
Real-time response with direct user
interaction
 Sensor-Based - Input derived from
sensors instead of human operators
 Combined - More than one of the above
applications running at the same time

15

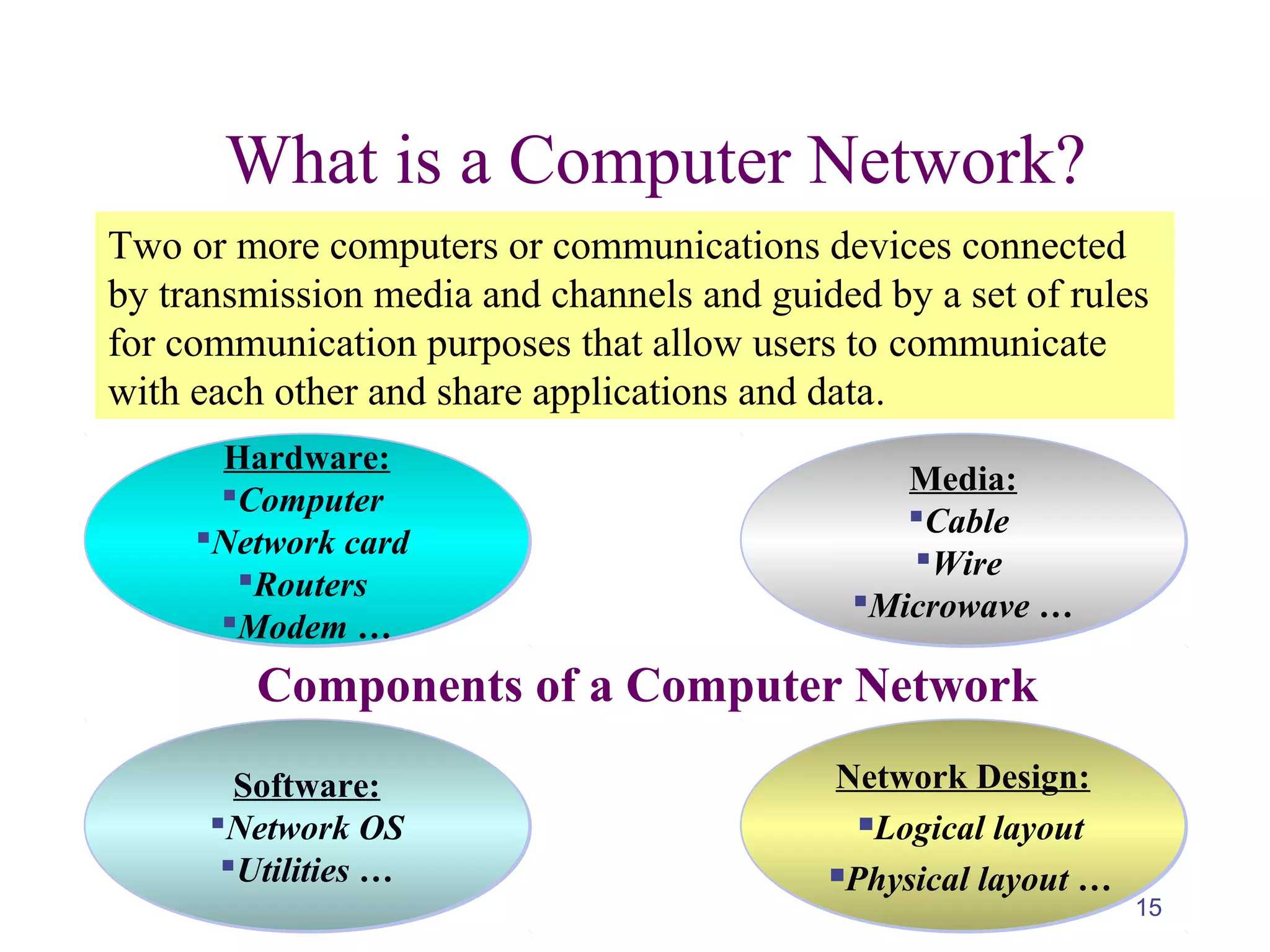

What is a Computer Network?
Two or more computers or communications devices connected
by transmission media and channels and guided by a set of rules
for communication purposes that allow users to communicate
with each other and share applications and data.
Hardware:
Computer
Network card
Routers
Modem …
Hardware:
Computer
Network card
Routers
Modem …
Media:
Cable
Wire
Microwave …
Media:
Cable
Wire
Microwave …
Software:
Network OS
Utilities …
Software:
Network OS
Utilities …
Network Design:
Logical layout
Physical layout …
Network Design:
Logical layout
Physical layout …
Components of a Computer Network

16

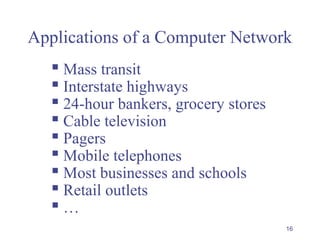

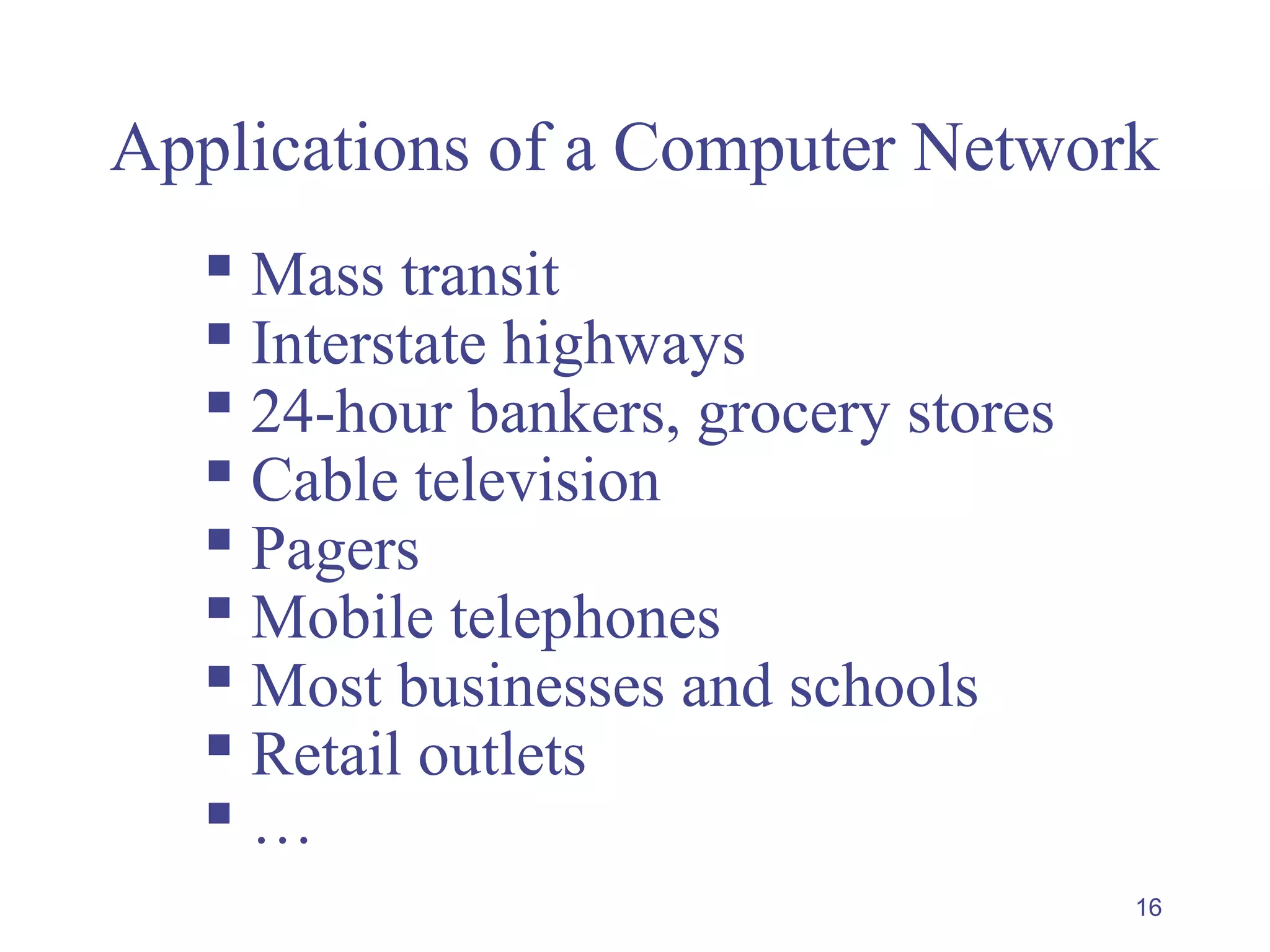

Applications of a Computer Network
 Mass transit
 Interstate highways
 24-hour bankers, grocery stores
 Cable television
 Pagers
 Mobile telephones
 Most businesses and schools
 Retail outlets
 …

17
Technologies
•Ethernet
•Token Ring
•Transmission Control
Protocol/Internet
Protocol (TCP/IP)
•Wireless Application
Protocol (WAP)
Network OS
•Bus Topology
•Ring Topology
•Star Topology
•Local Area Network
(LAN)
•Metropolitan Area
Network (MAN)
•Wide Area Network
(WAN)
•Client/Server
•Peer-to-Peer
Models
Topologies
Types

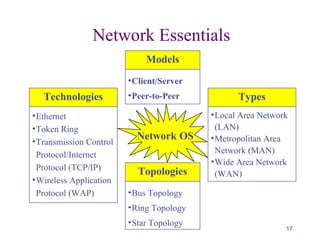

Network Essentials

18

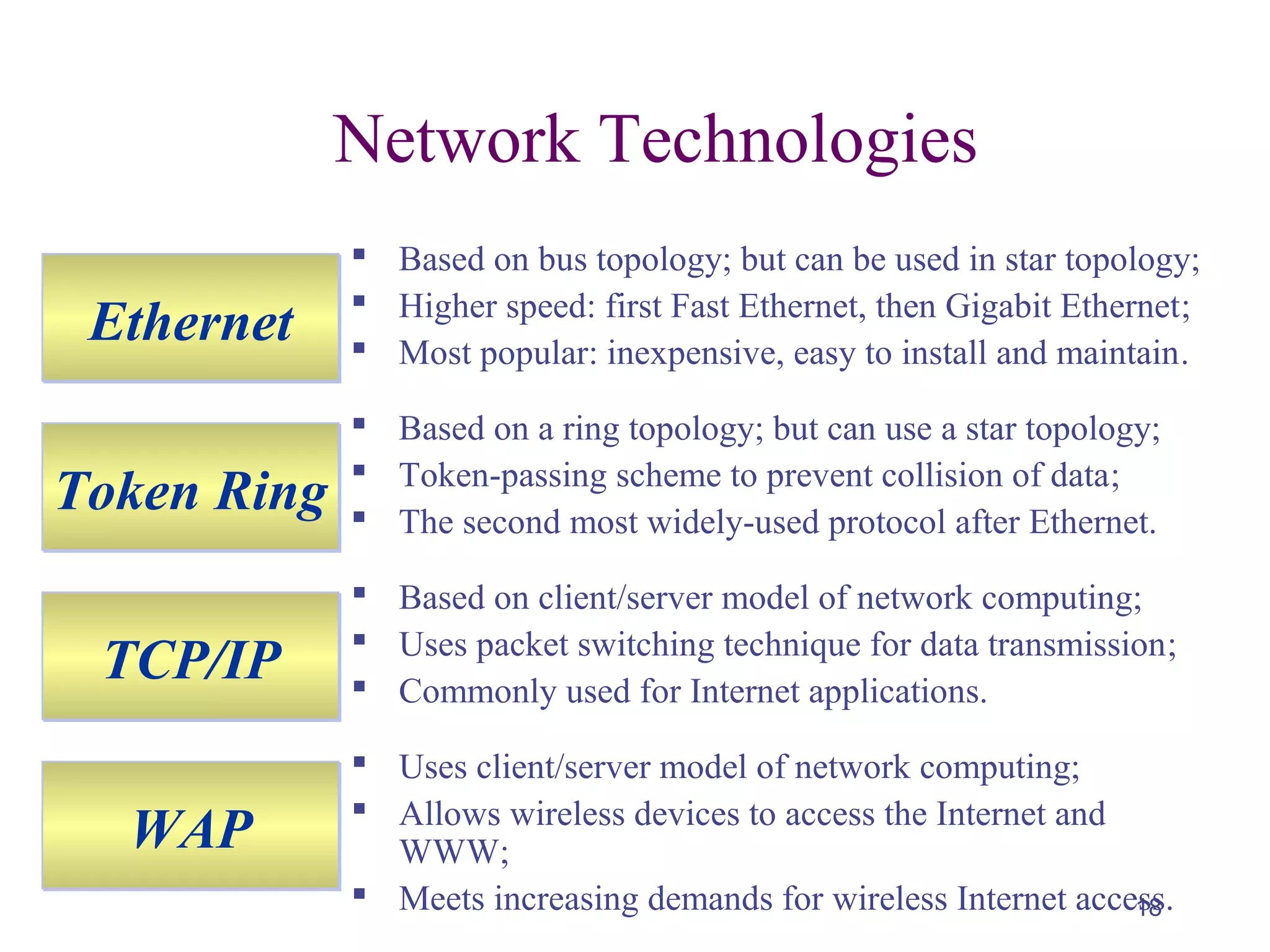

Network Technologies
 Based on bus topology; but can be used in star topology;
 Higher speed: first Fast Ethernet, then Gigabit Ethernet;
 Most popular: inexpensive, easy to install and maintain.
EthernetEthernet
Token RingToken Ring
TCP/IPTCP/IP
WAPWAP
 Based on a ring topology; but can use a star topology;
 Token-passing scheme to prevent collision of data;
 The second most widely-used protocol after Ethernet.
 Based on client/server model of network computing;
 Uses packet switching technique for data transmission;
 Commonly used for Internet applications.
 Uses client/server model of network computing;
 Allows wireless devices to access the Internet and
WWW;
 Meets increasing demands for wireless Internet access.

19

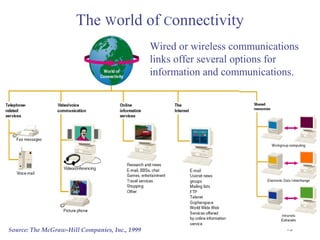

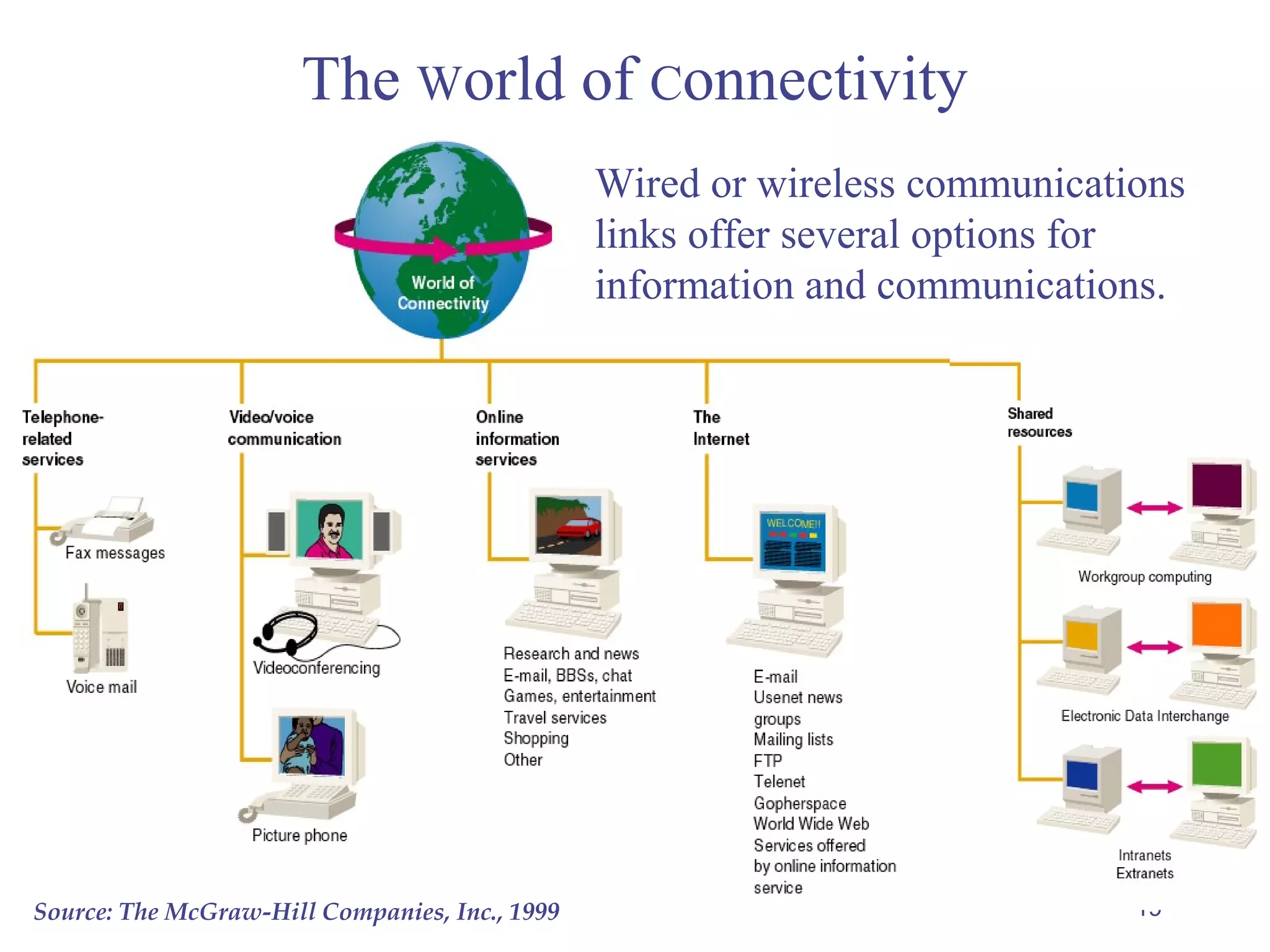

The World of Connectivity
Wired or wireless communications
links offer several options for
information and communications.
Source: The McGraw-Hill Companies, Inc., 1999

20

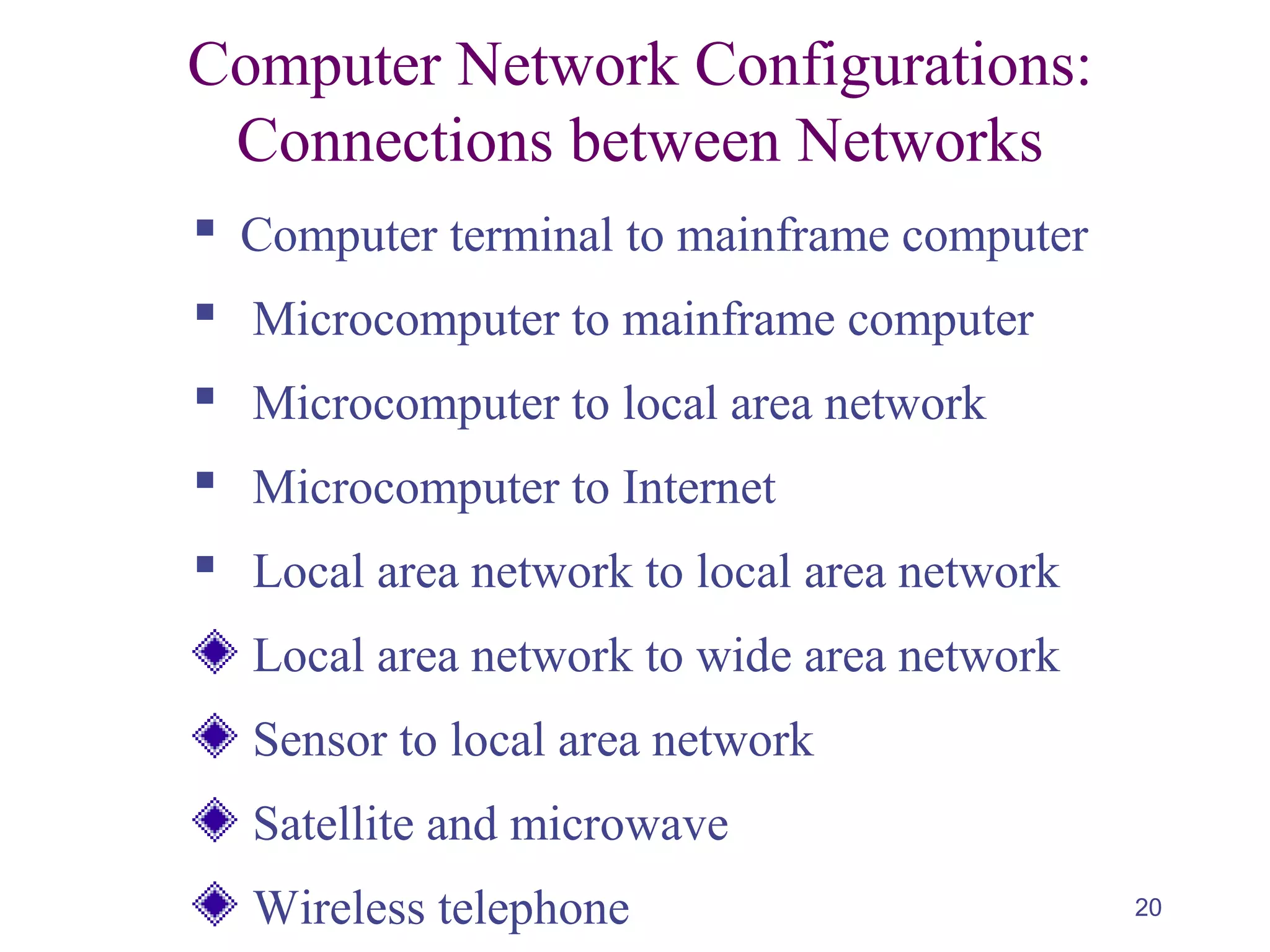

Computer Network Configurations:
Connections between Networks
 Computer terminal to mainframe computer
 Microcomputer to mainframe computer
 Microcomputer to local area network
 Microcomputer to Internet
 Local area network to local area network
Local area network to wide area network
Sensor to local area network
Satellite and microwave
Wireless telephone

21

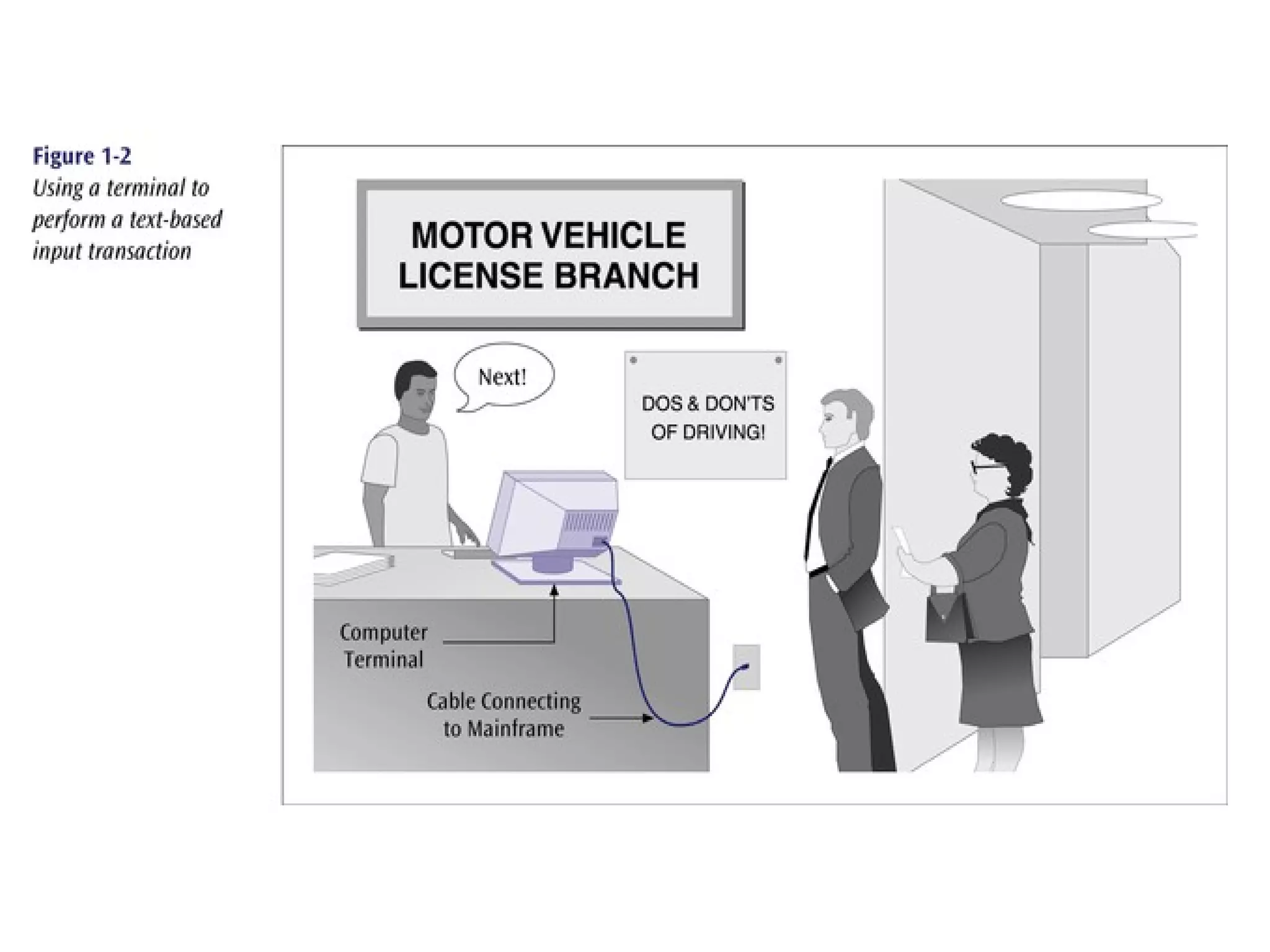

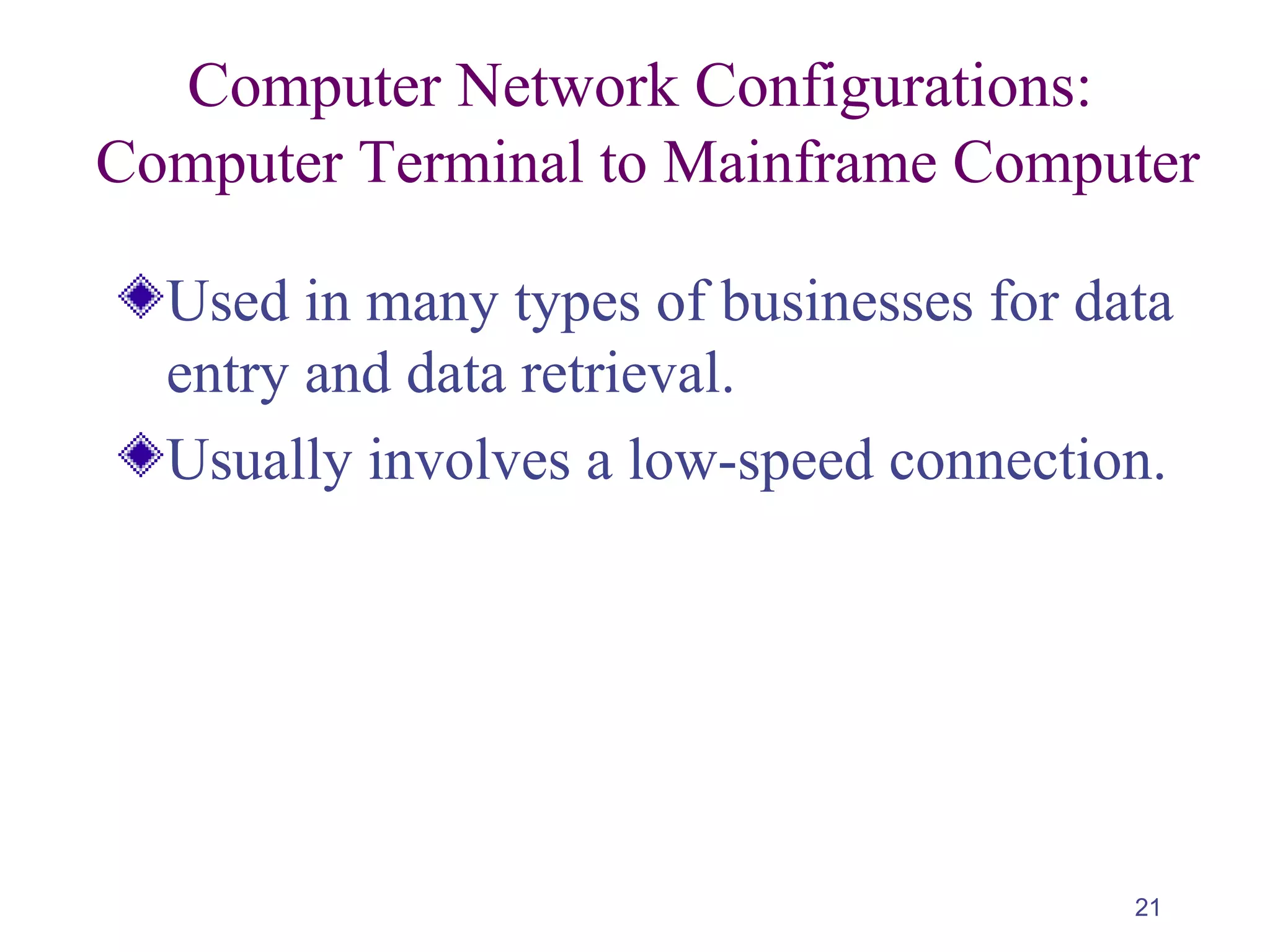

Computer Terminal to Mainframe Computer
Used in many types of businesses for data
entry and data retrieval.
Usually involves a low-speed connection.

23

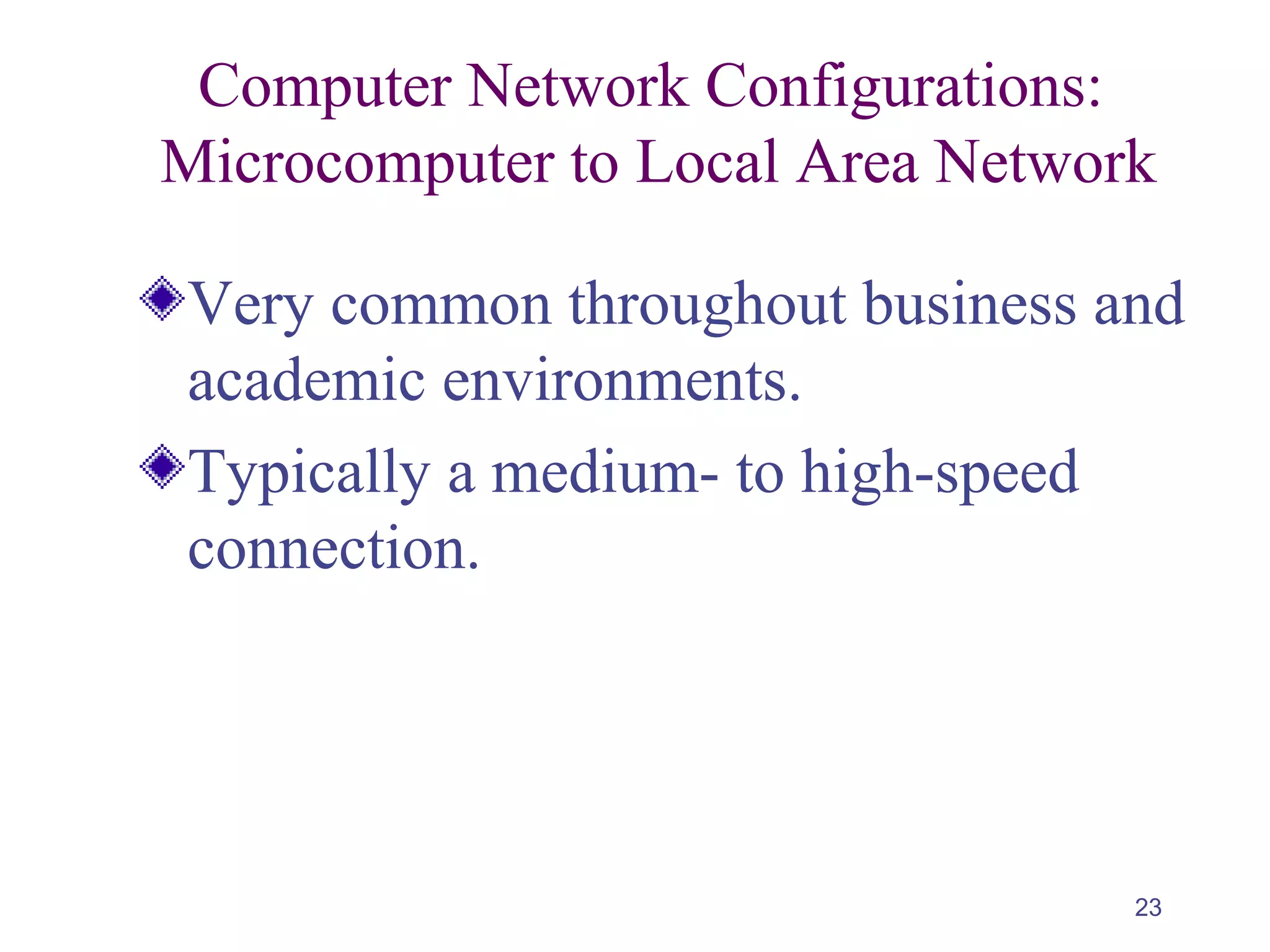

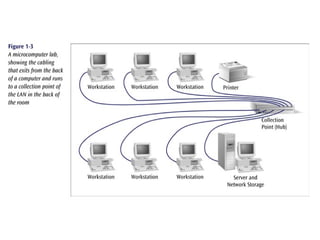

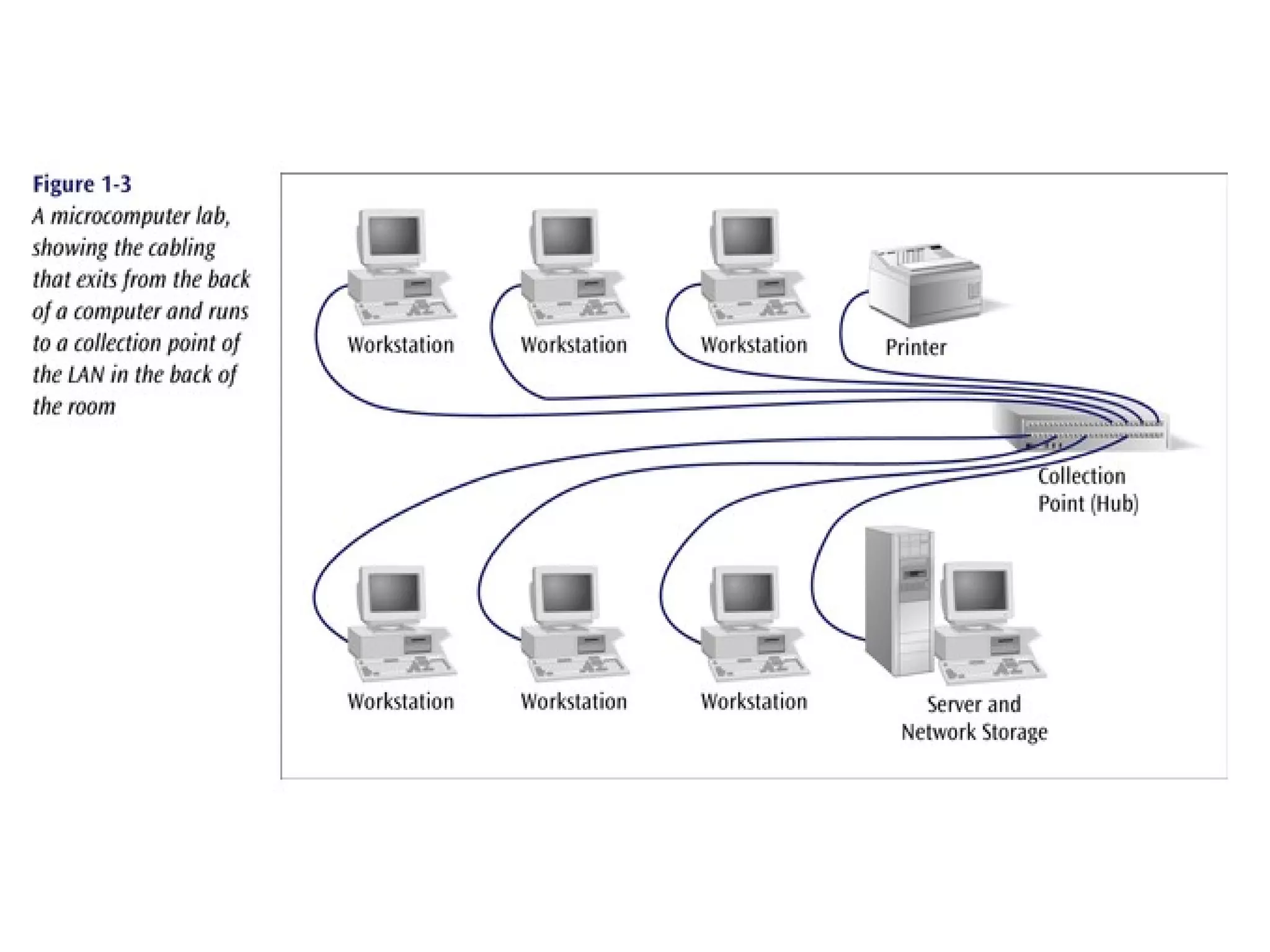

Microcomputer to Local Area Network
Very common throughout business and
academic environments.
Typically a medium- to high-speed
connection.

25

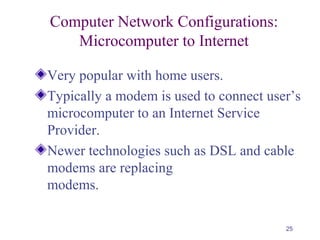

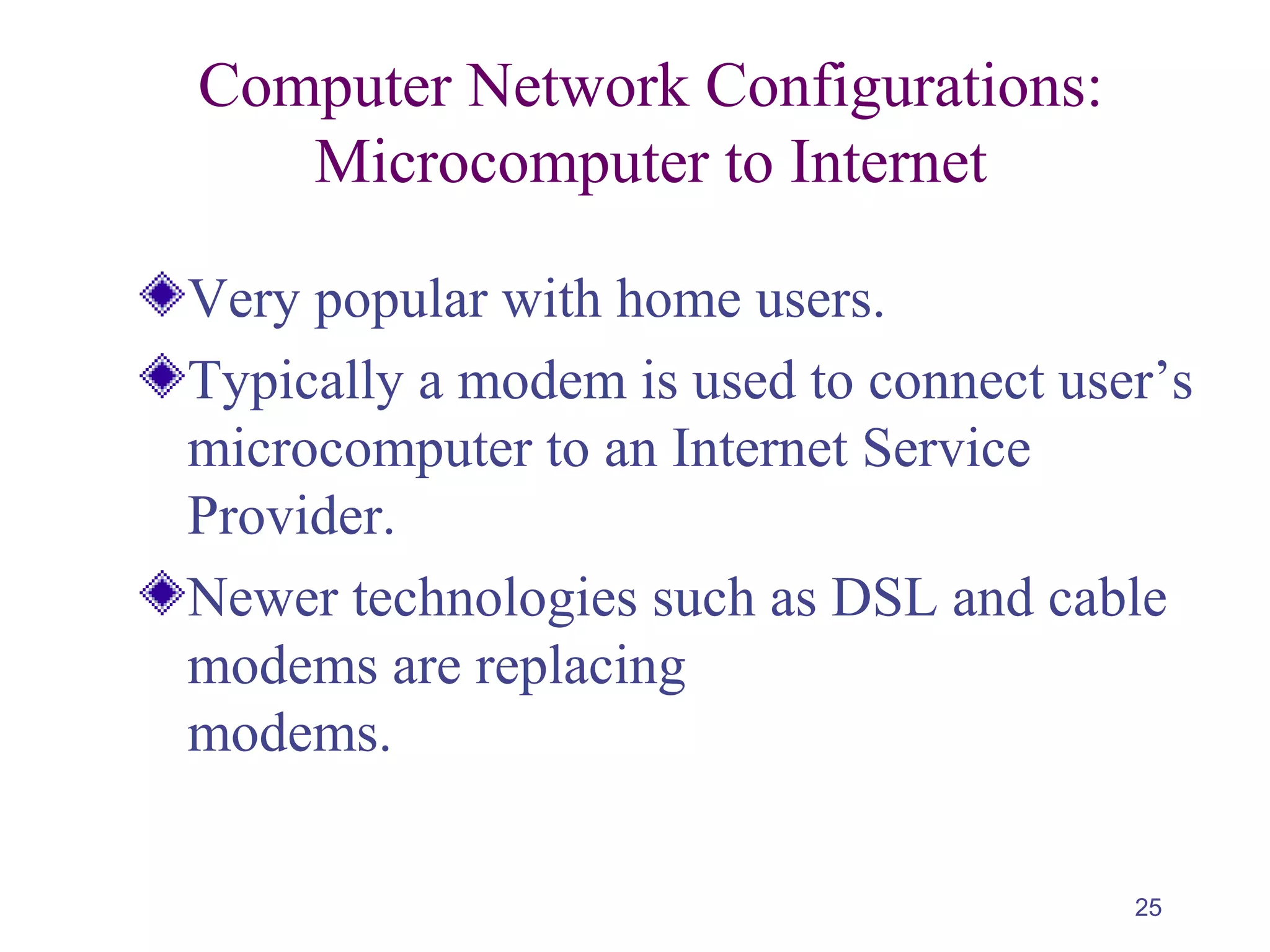

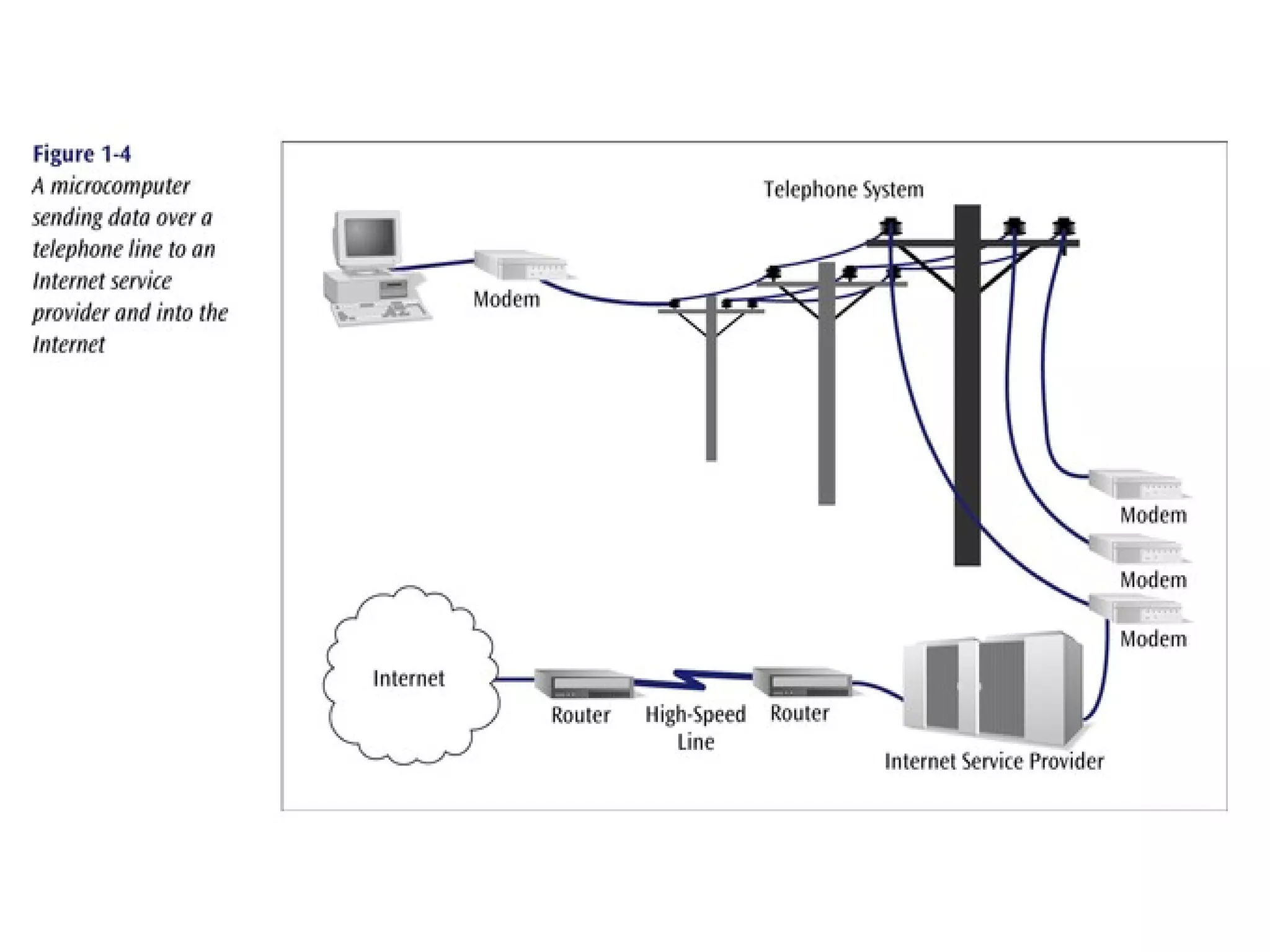

Microcomputer to Internet
Very popular with home users.
Typically a modem is used to connect user’s
microcomputer to an Internet Service
Provider.
Newer technologies such as DSL and cable
modems are replacing
modems.

27

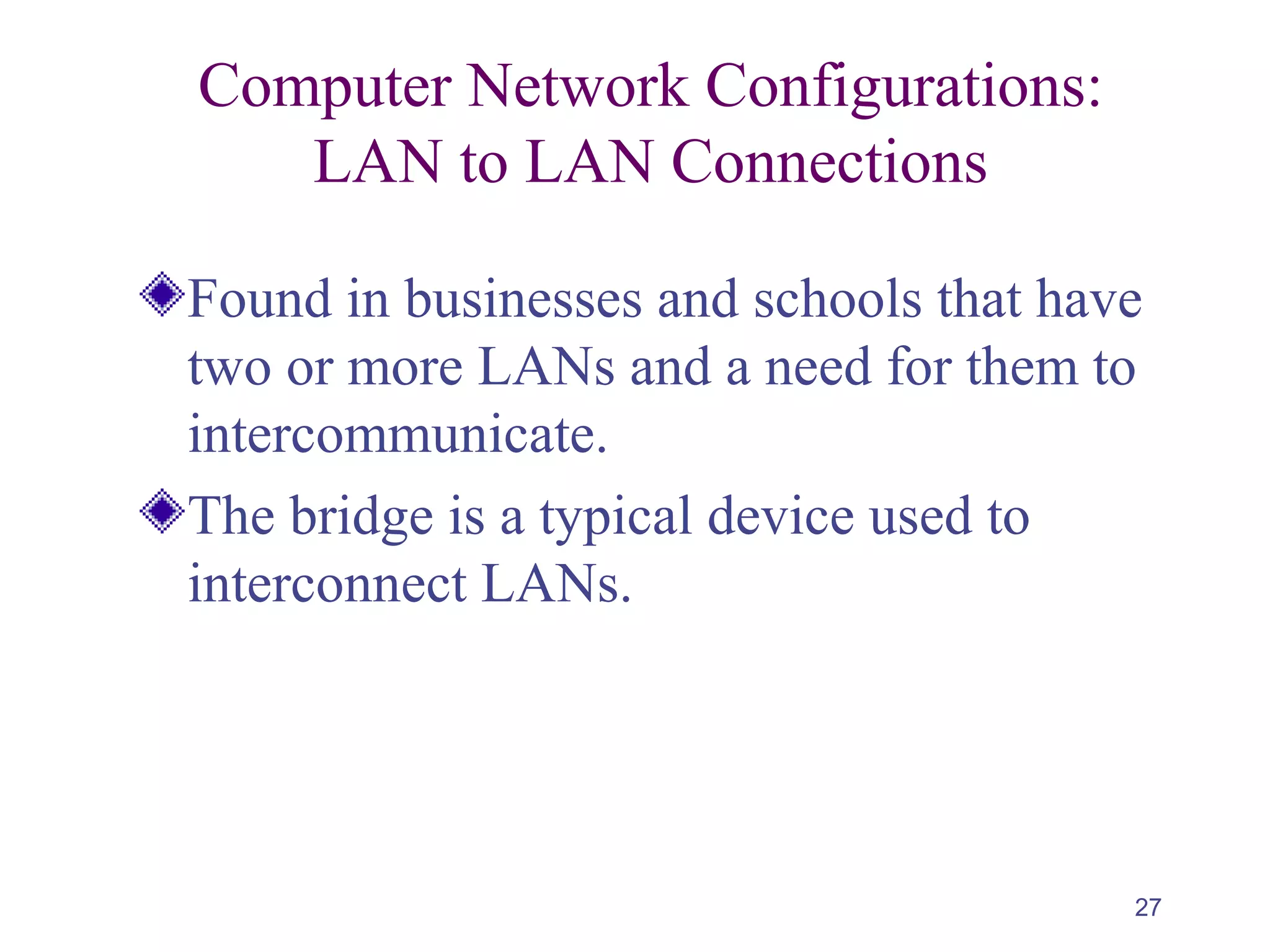

LAN to LAN Connections
Found in businesses and schools that have
two or more LANs and a need for them to
intercommunicate.

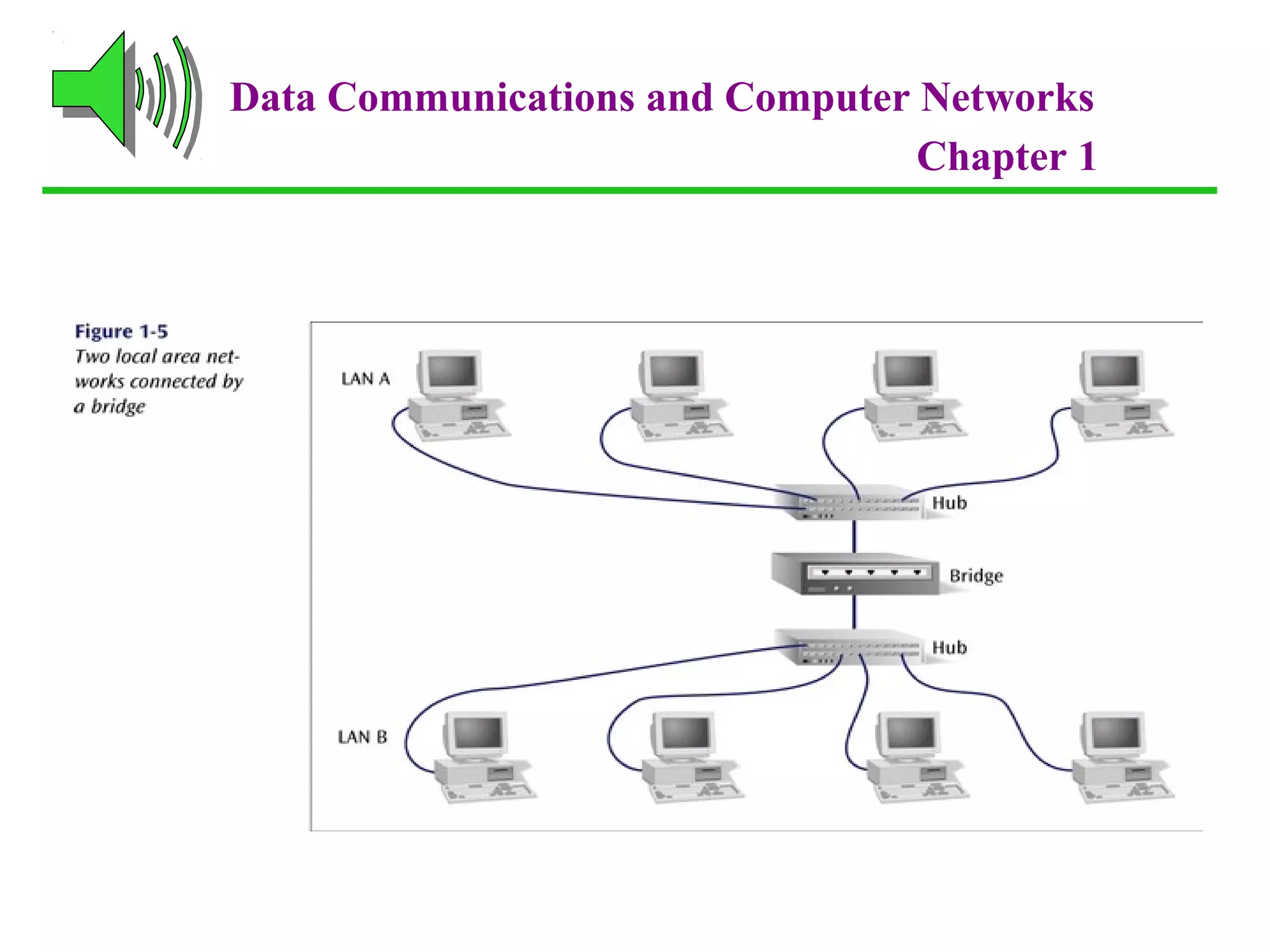

The bridge is a typical device used to
interconnect LANs.

28
Data Communications and Computer Networks
Chapter 1

29

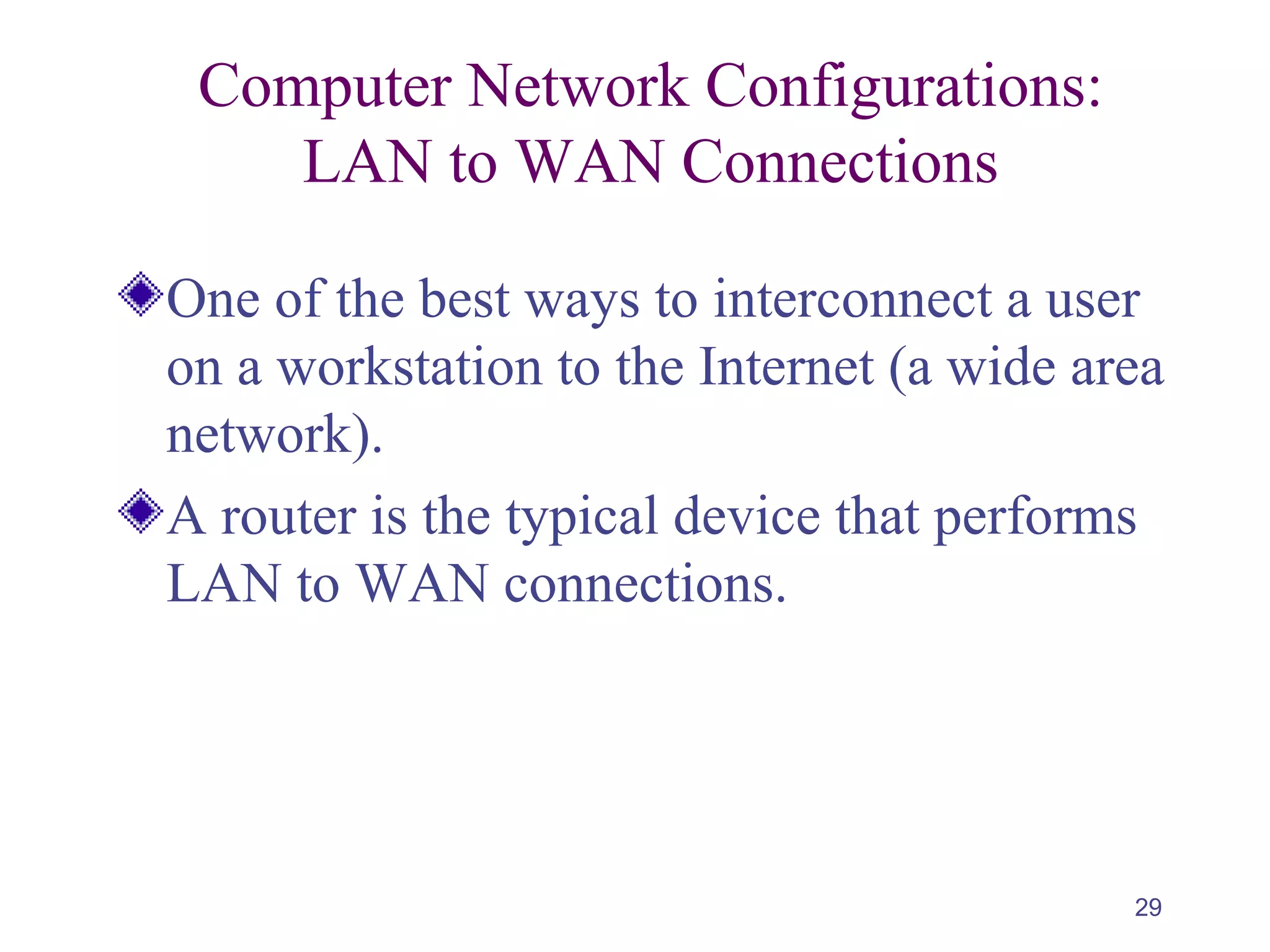

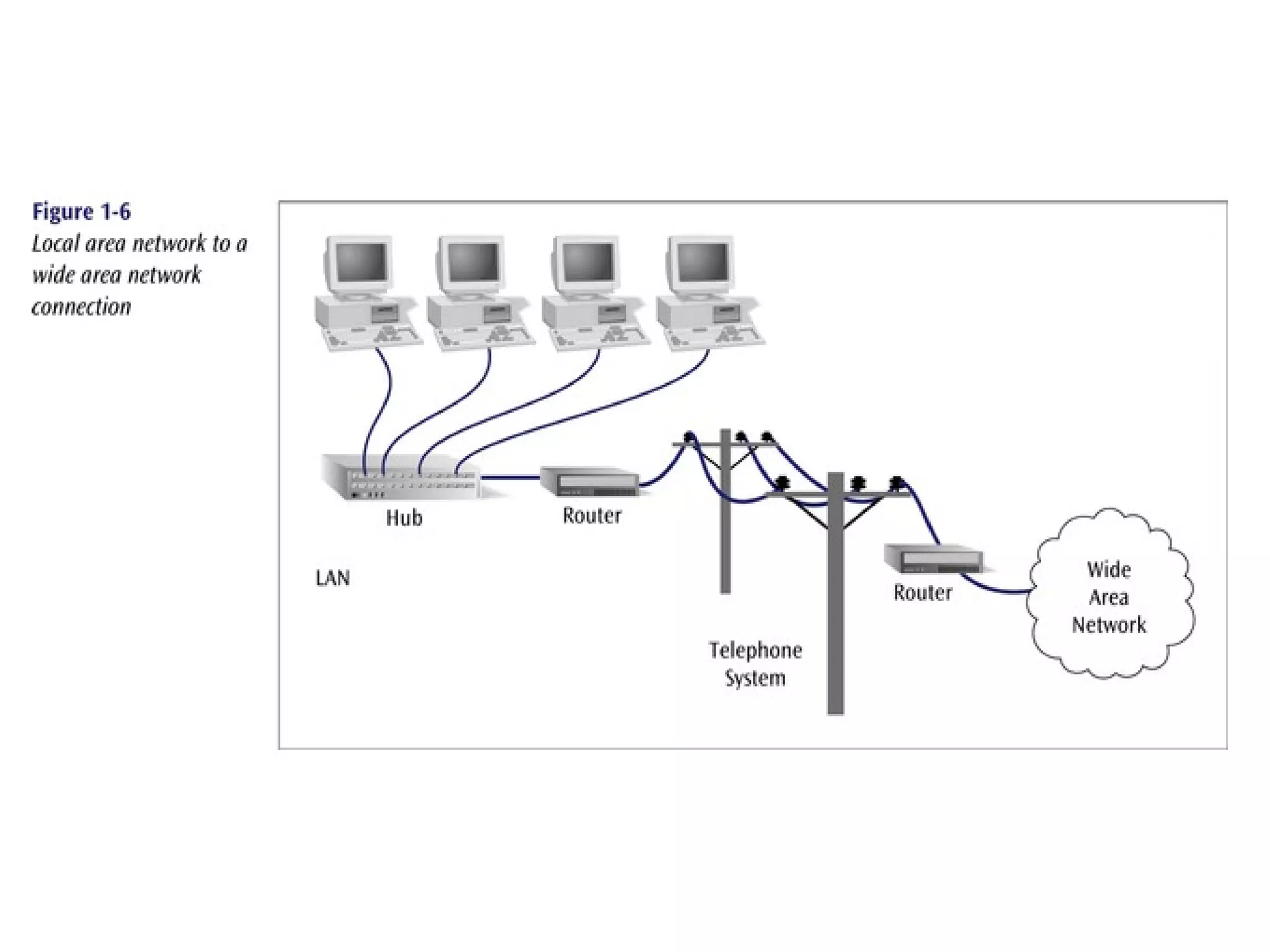

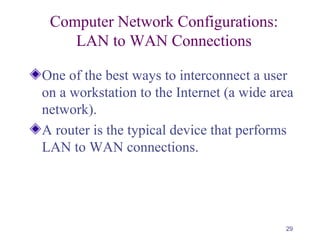

LAN to WAN Connections
One of the best ways to interconnect a user
on a workstation to the Internet (a wide area
network).
A router is the typical device that performs
LAN to WAN connections.

31

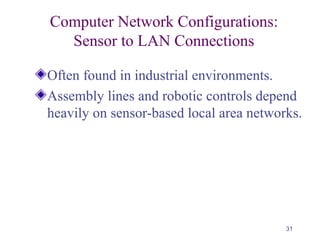

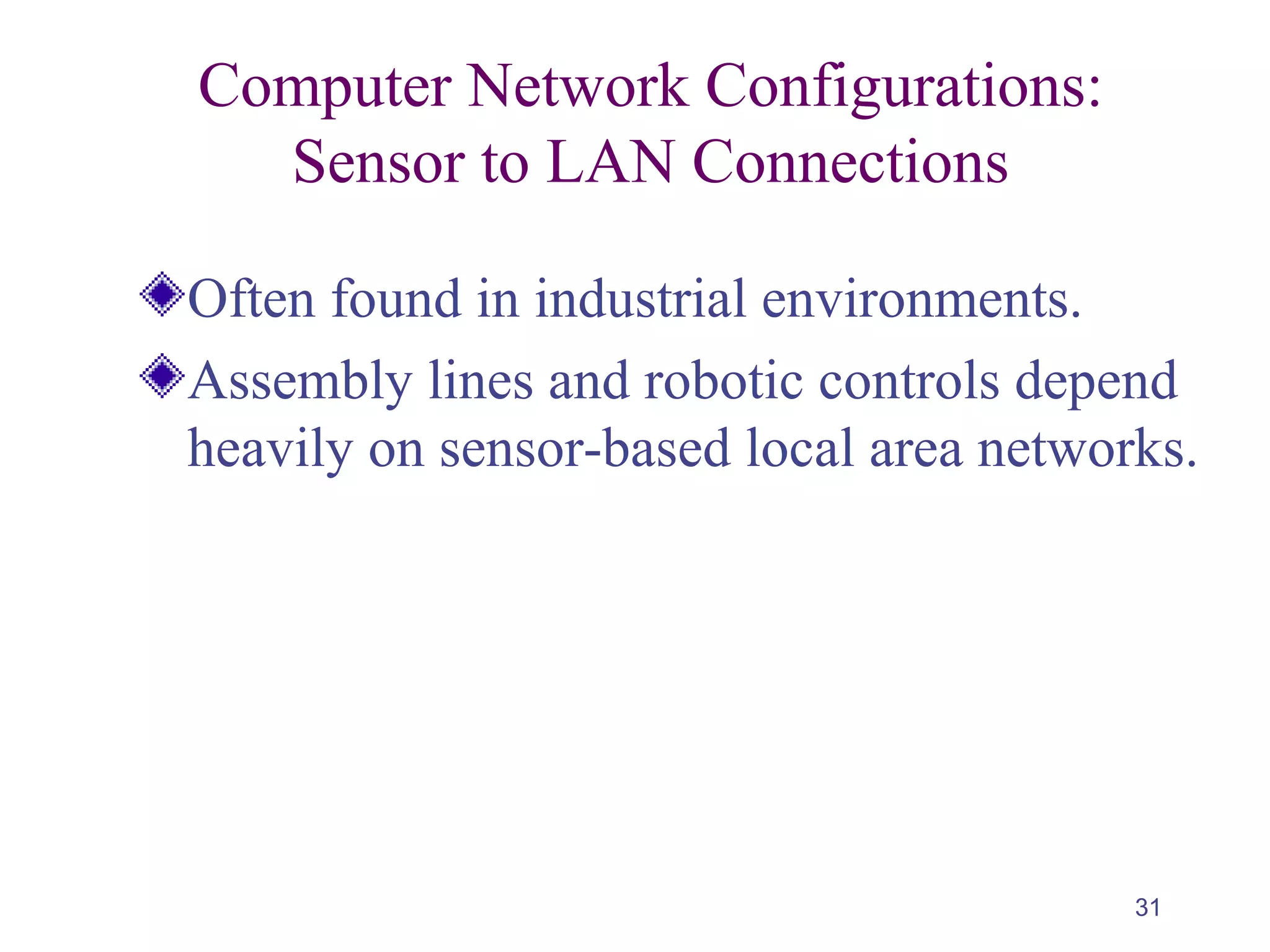

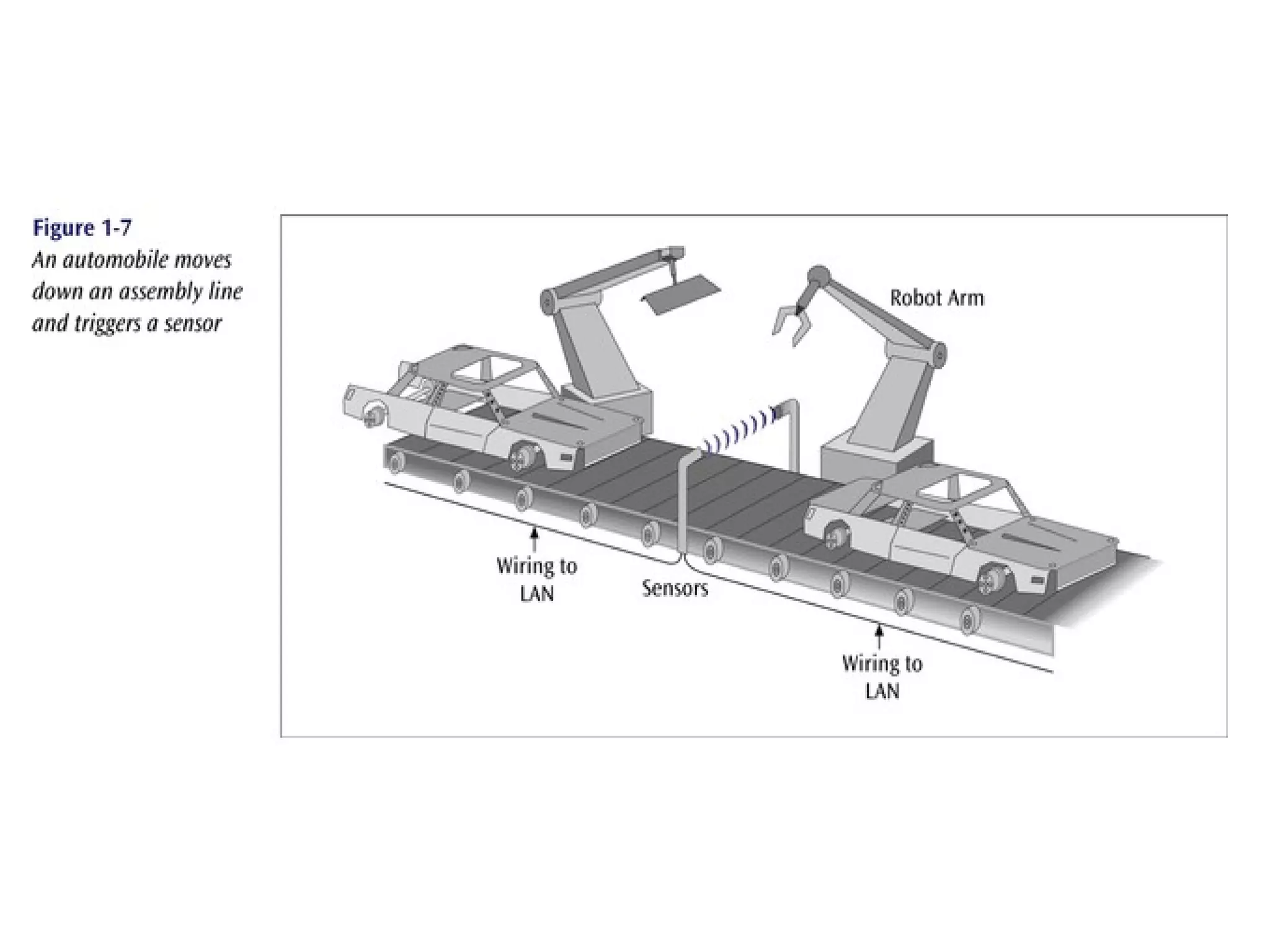

Sensor to LAN Connections
Often found in industrial environments.
Assembly lines and robotic controls depend
heavily on sensor-based local area networks.

33

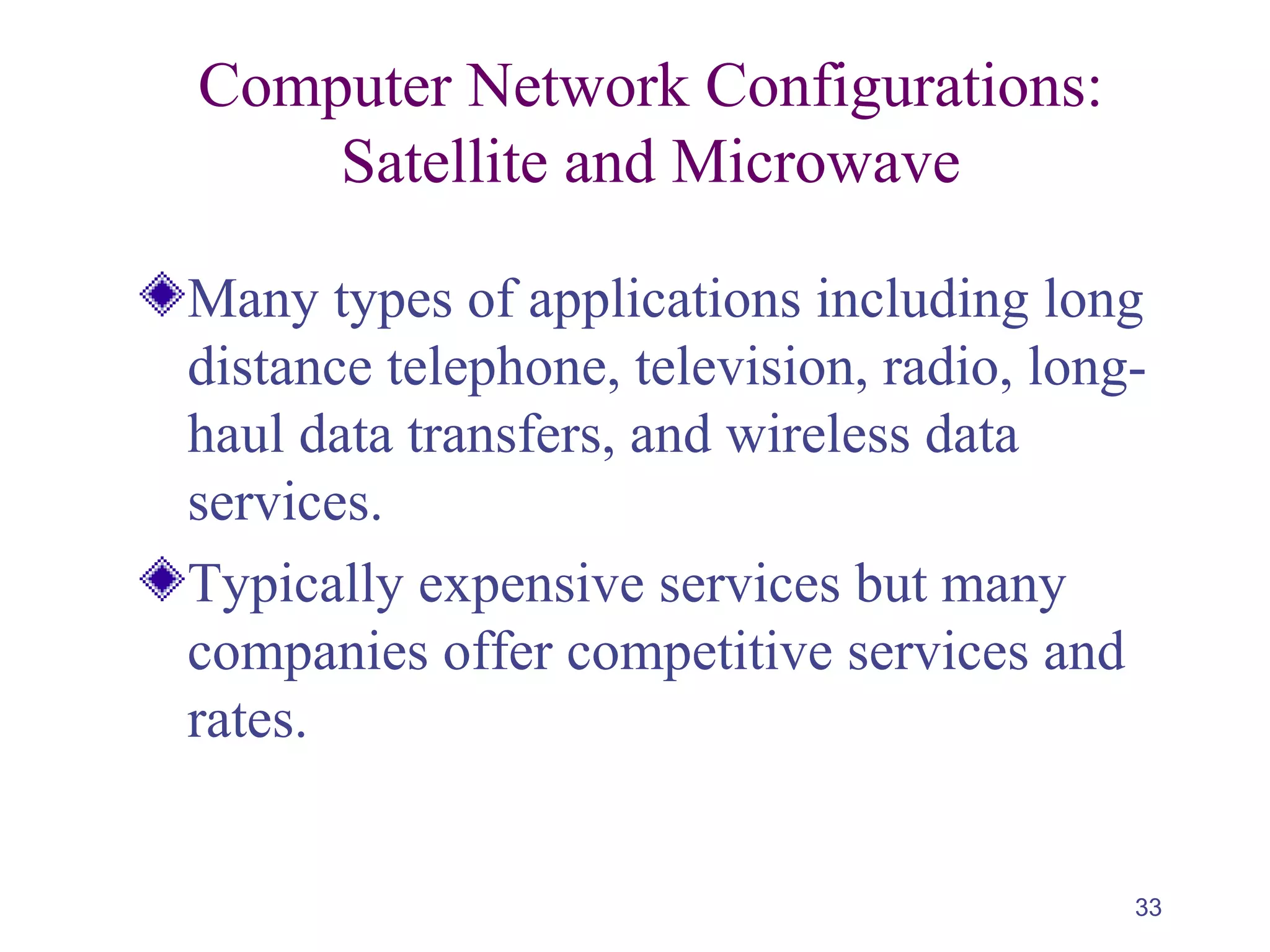

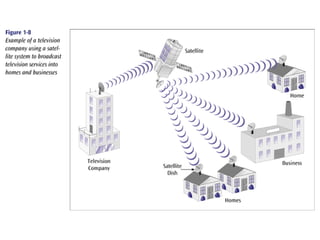

Satellite and Microwave
Many types of applications including long
distance telephone, television, radio, long-
haul data transfers, and wireless data
services.
Typically expensive services but many
companies offer competitive services and
rates.

35

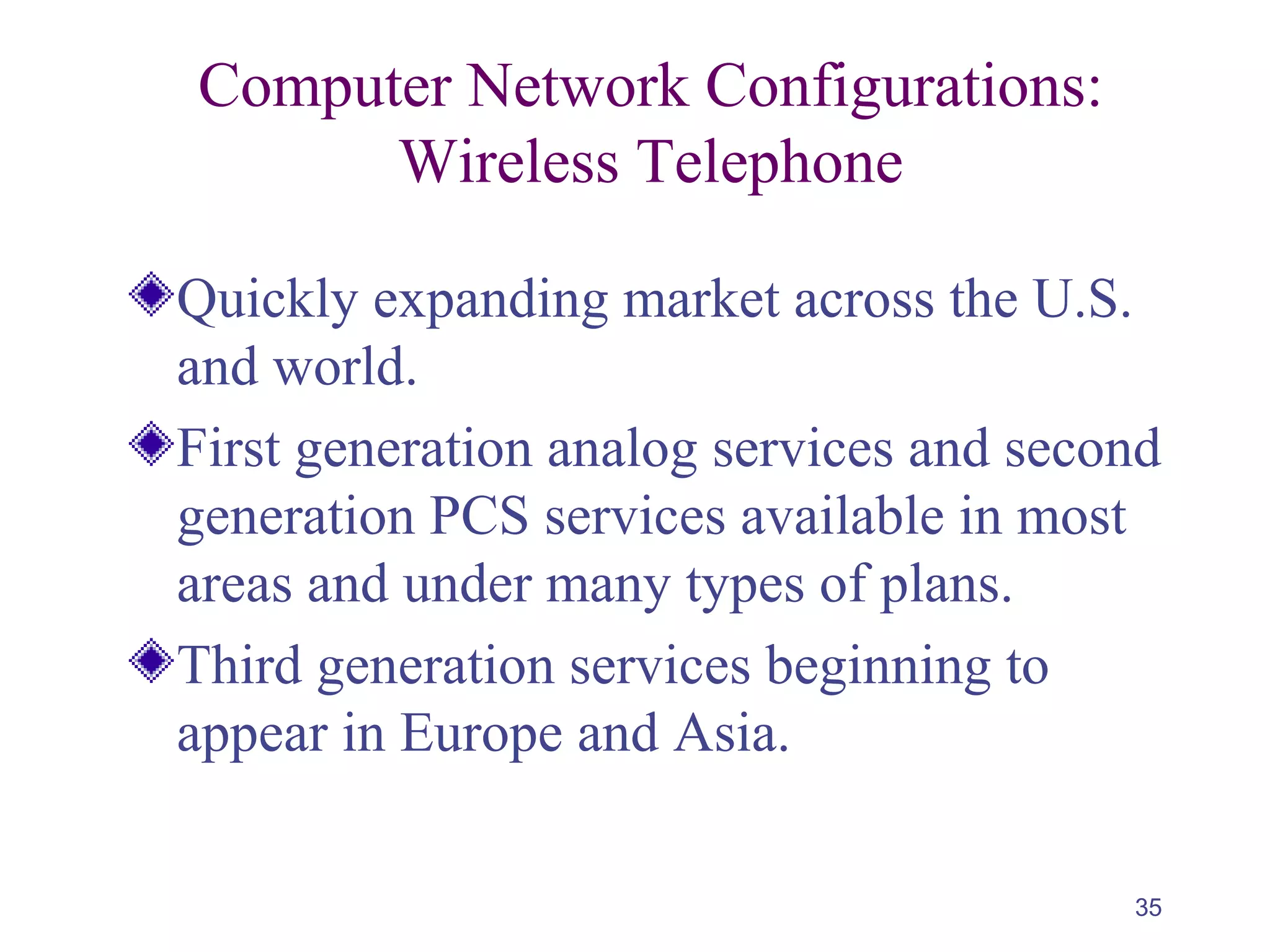

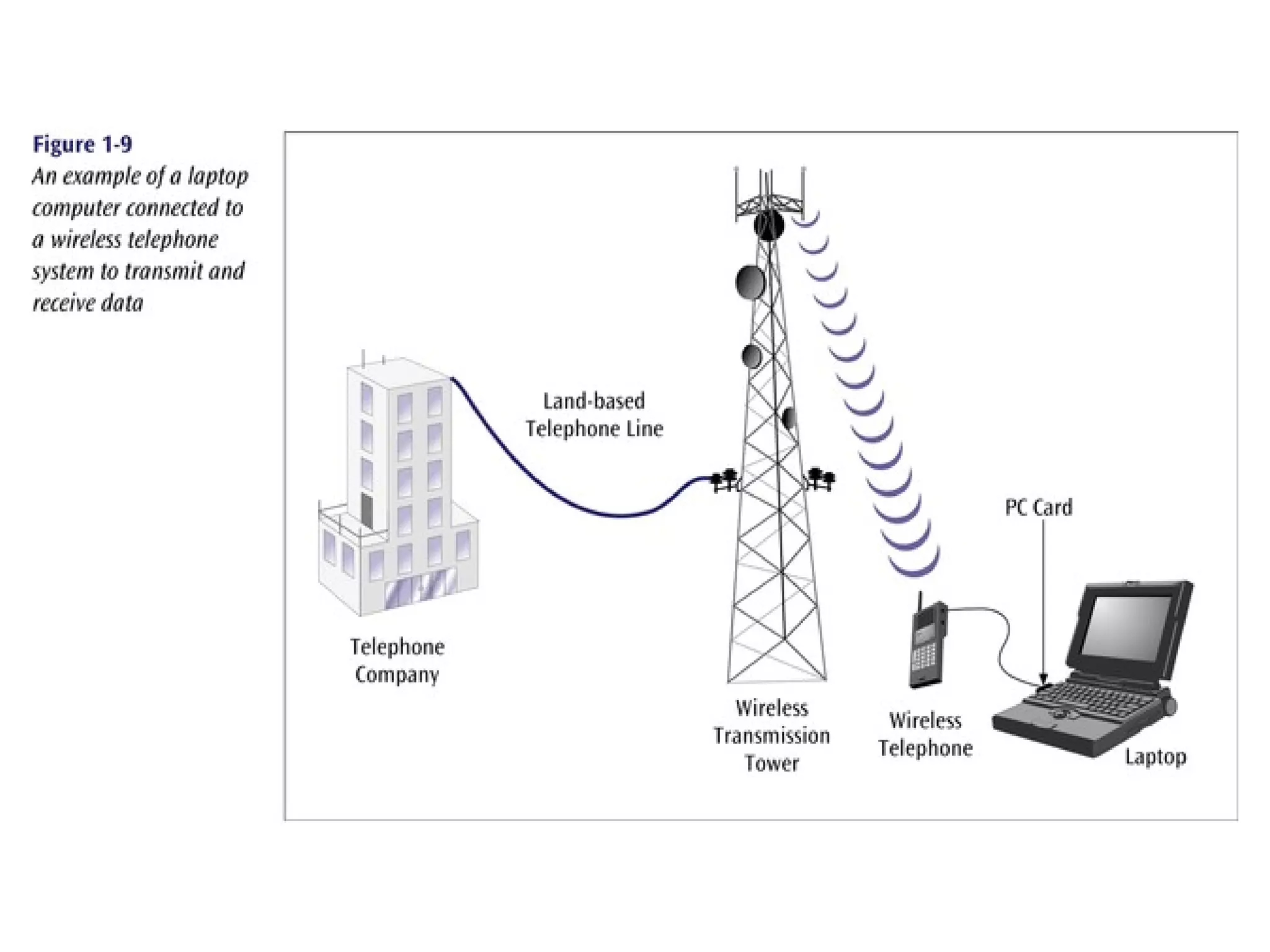

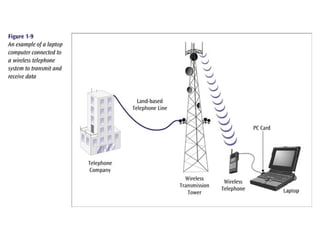

Wireless Telephone
Quickly expanding market across the U.S.
and world.
First generation analog services and second
generation PCS services available in most
areas and under many types of plans.
Third generation services beginning to
appear in Europe and Asia.

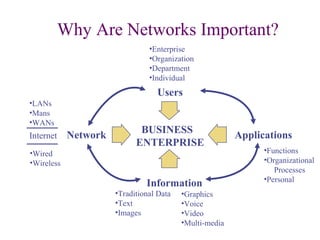

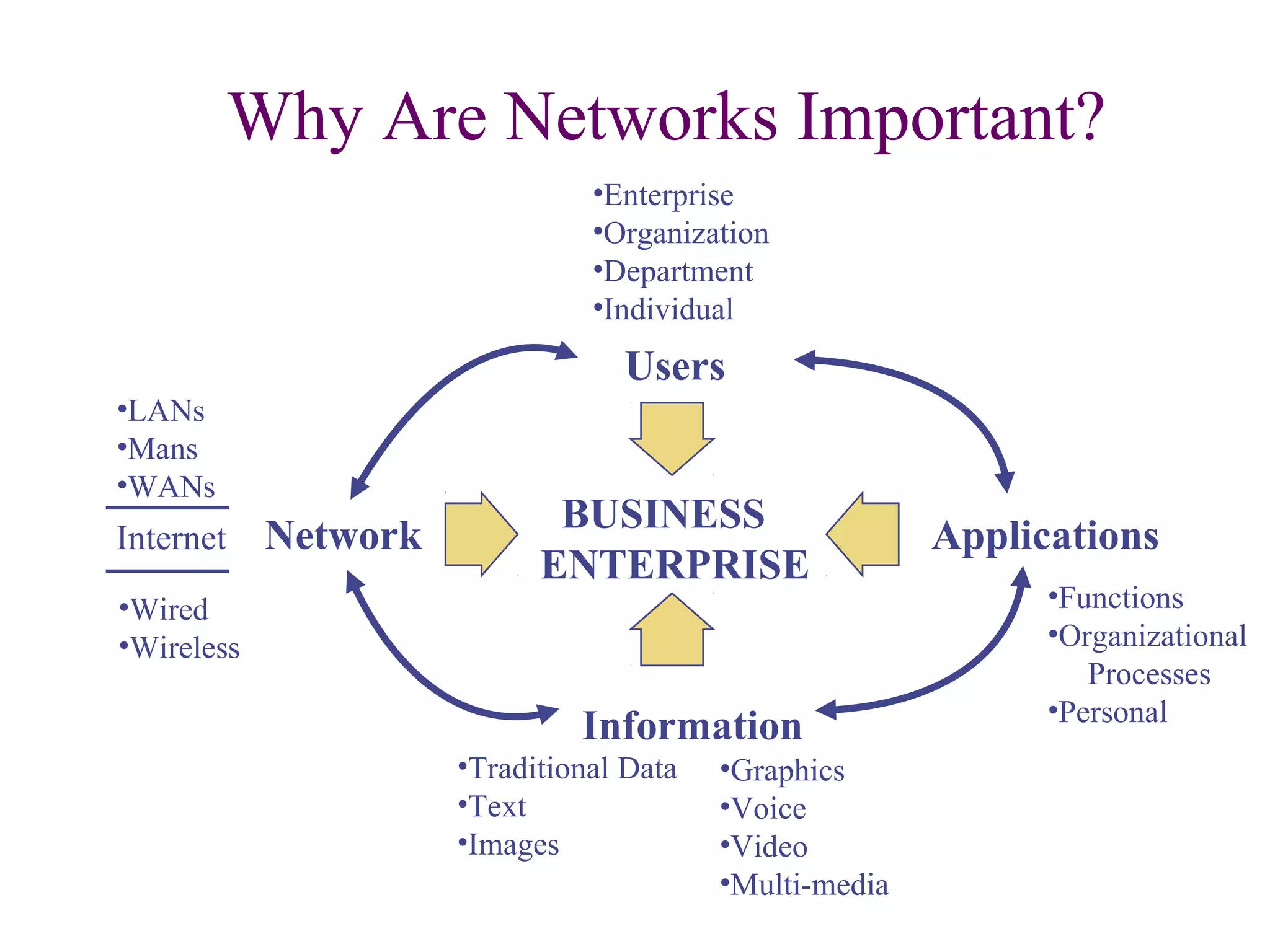

Why Are Networks Important?
BUSINESS
ENTERPRISE
•Traditional Data
•Text
•Images
Information
•Graphics
•Voice
•Video
•Multi-media
Applications
•Functions
•Organizational
Processes
•Personal
Users
•Enterprise
•Organization
•Department
•Individual
Network
•LANs
•Mans
•WANs
Internet
•Wired
•Wireless

38

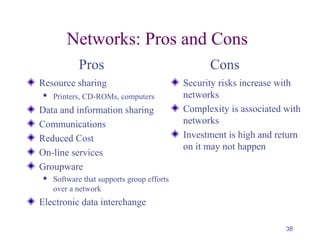

Networks: Pros and Cons
Resource sharing
 Printers, CD-ROMs, computers
Data and information sharing
Communications
Reduced Cost
On-line services
Groupware
 Software that supports group efforts
over a network
Electronic data interchange
Security risks increase with
networks
Complexity is associated with
networks
Investment is high and return
on it may not happen
Pros Cons

39

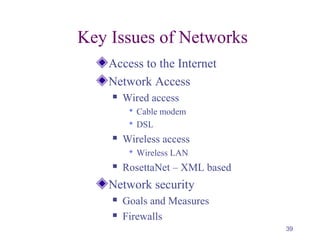

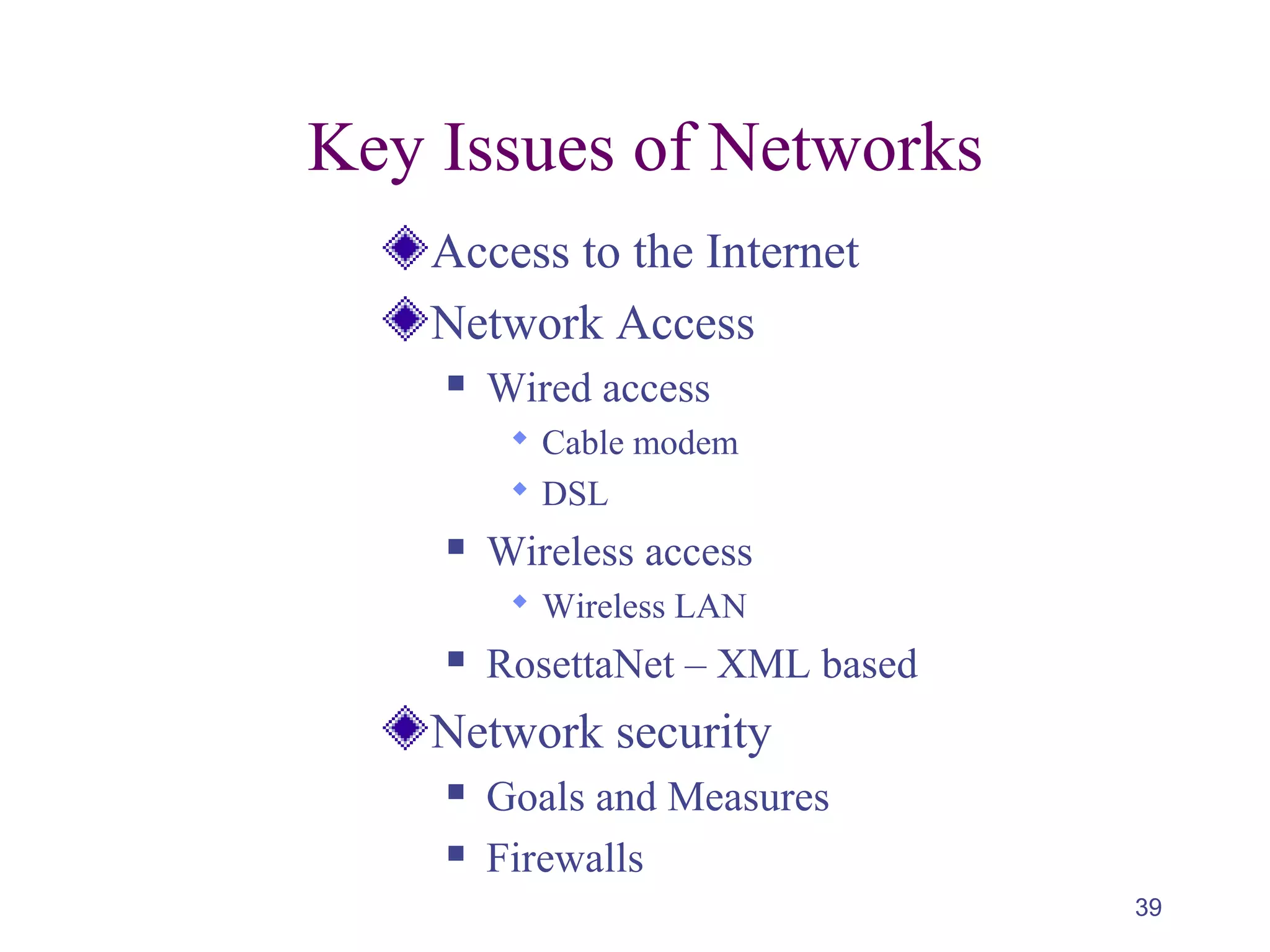

Key Issues of Networks
Access to the Internet
Network Access
 Wired access
 Cable modem
 DSL
 Wireless access
 Wireless LAN
 RosettaNet – XML based
Network security
 Goals and Measures
 Firewalls

40

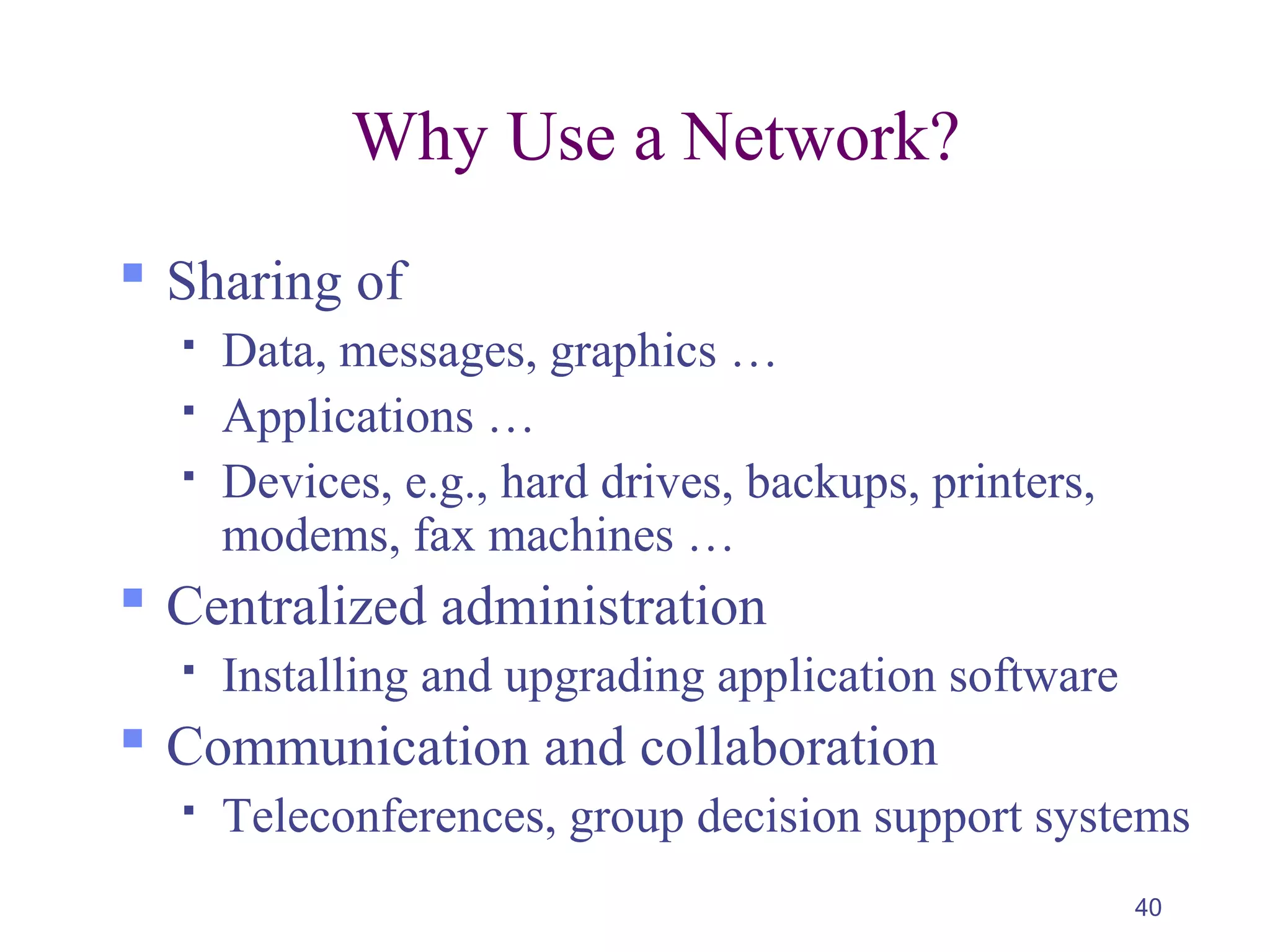

Why Use a Network?
 Sharing of
 Data, messages, graphics …
 Applications …
 Devices, e.g., hard drives, backups, printers,
modems, fax machines …
 Centralized administration
 Installing and upgrading application software
 Communication and collaboration
 Teleconferences, group decision support systems

41

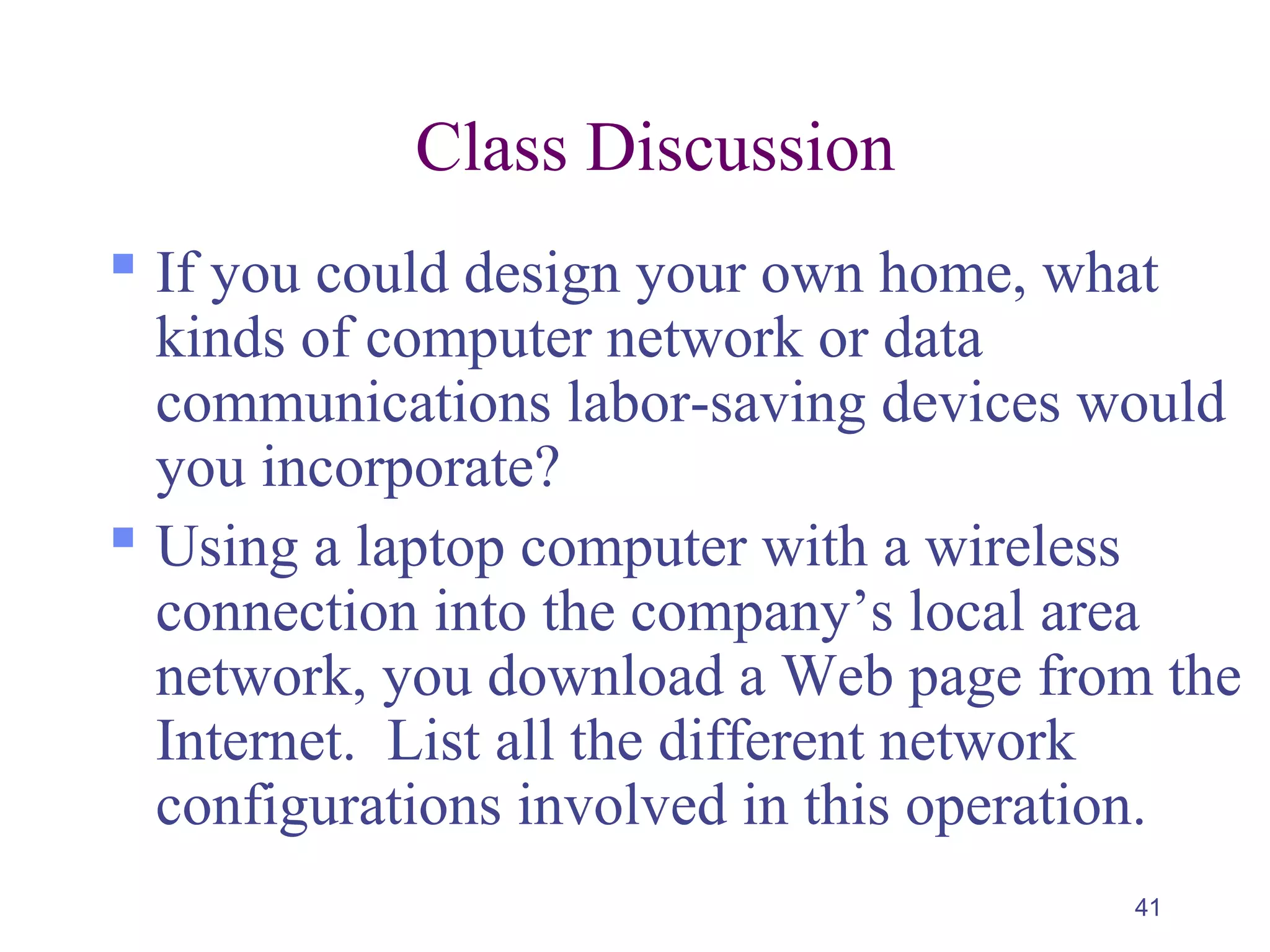

Class Discussion
 If you could design your own home, what
kinds of computer network or data
communications labor-saving devices would
you incorporate?
 Using a laptop computer with a wireless
connection into the company’s local area
network, you download a Web page from the
Internet. List all the different network
configurations involved in this operation.

42
Language of Computer Networks
 Important terms and concepts.

43

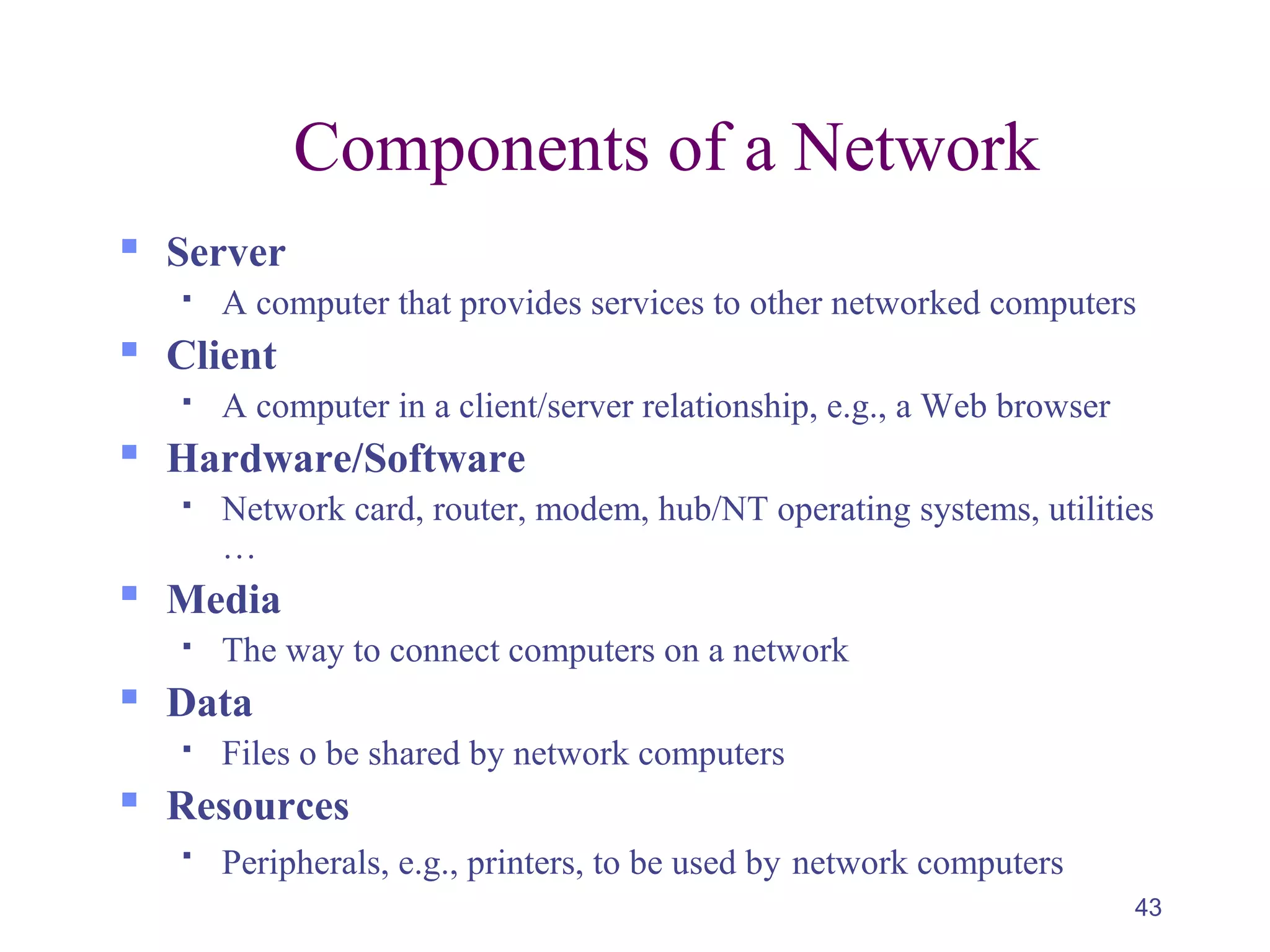

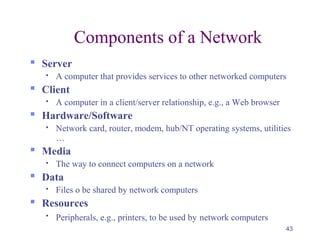

Components of a Network
 Server
 A computer that provides services to other networked computers
 Client
 A computer in a client/server relationship, e.g., a Web browser
 Hardware/Software
 Network card, router, modem, hub/NT operating systems, utilities
…
 Media
 The way to connect computers on a network
 Data
 Files o be shared by network computers
 Resources

Peripherals, e.g., printers, to be used by network computers

44

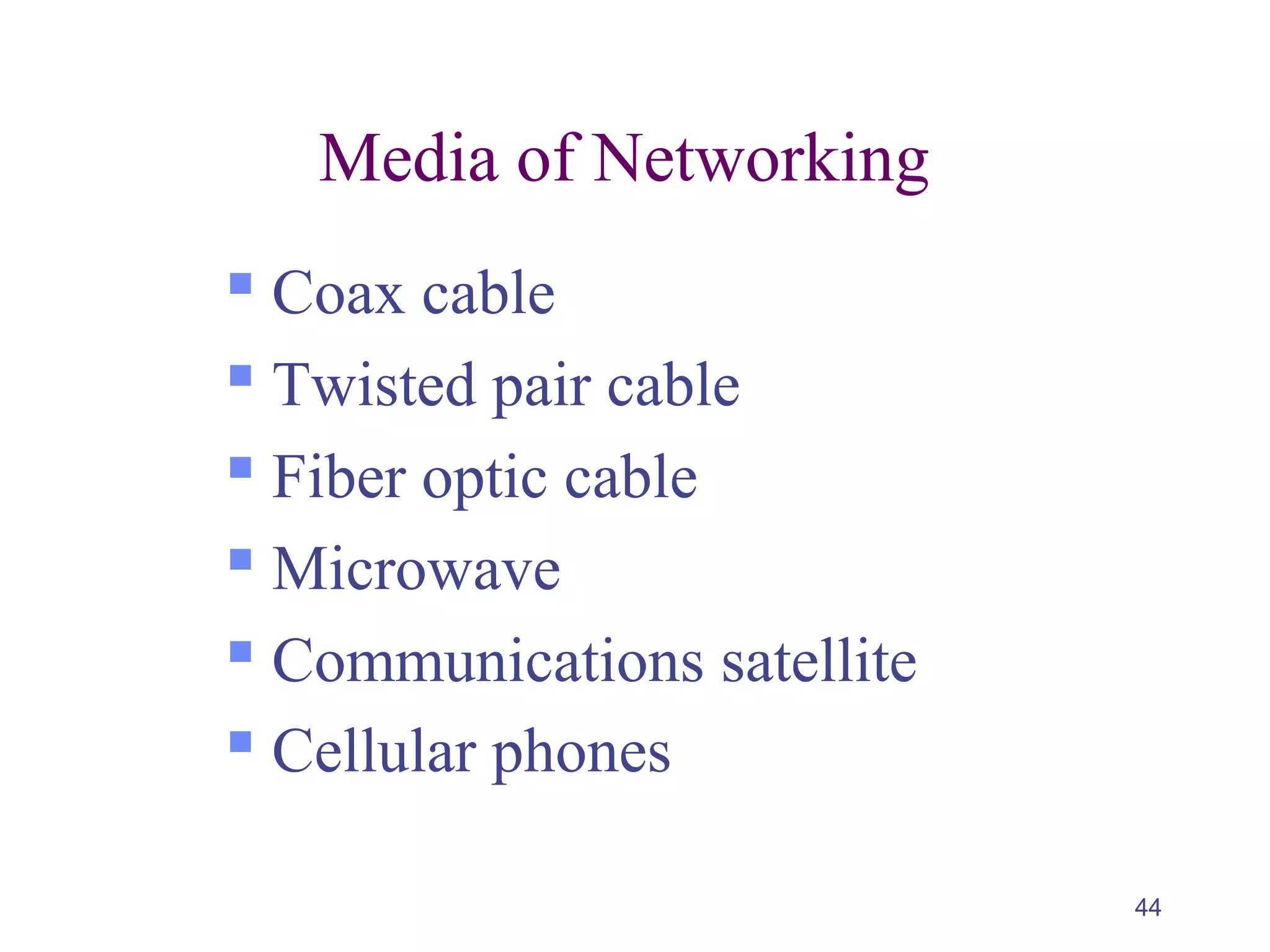

Media of Networking
 Coax cable
 Twisted pair cable
 Fiber optic cable
 Microwave
 Communications satellite
 Cellular phones

45

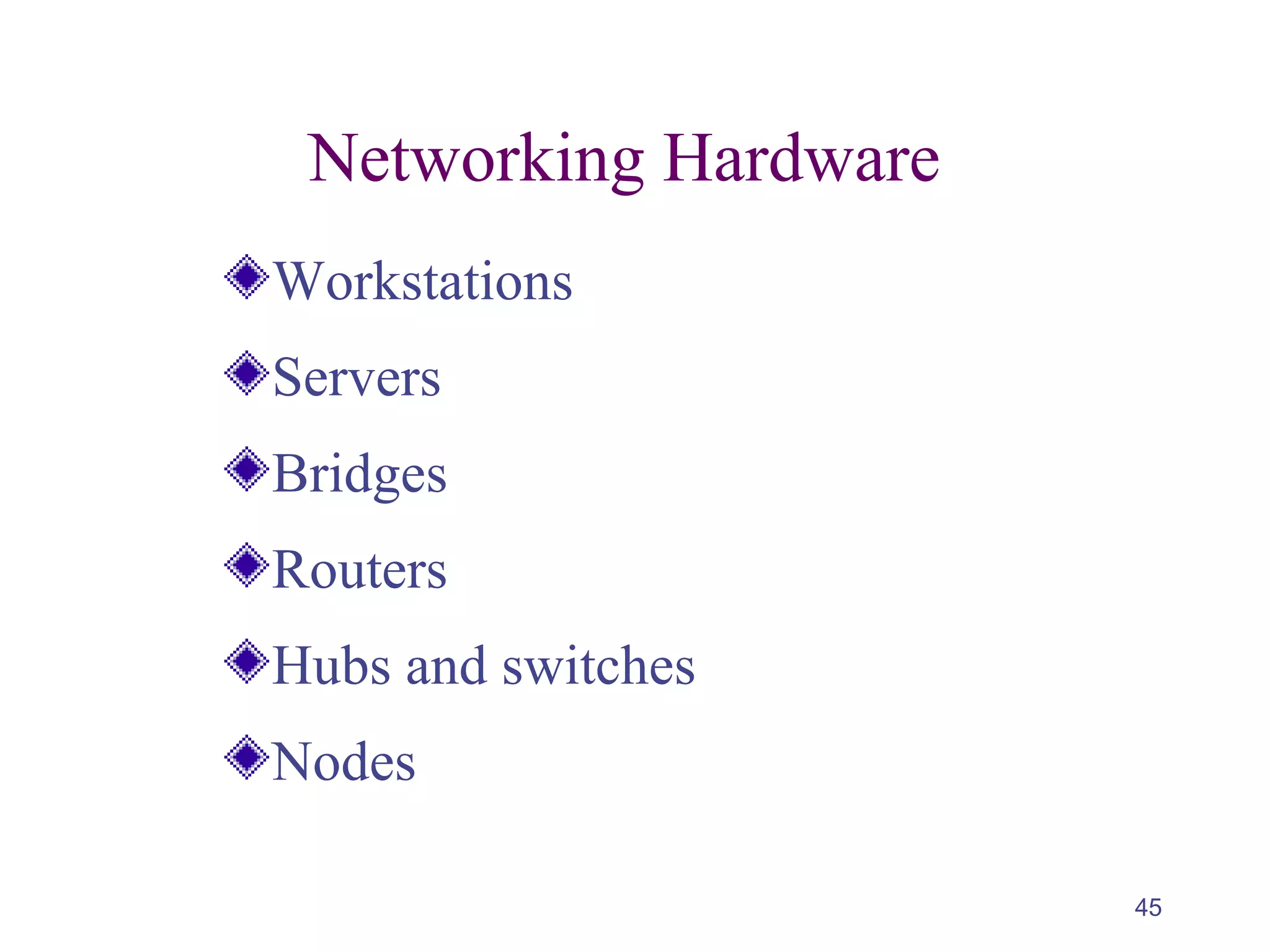

Networking Hardware
Workstations
Servers
Bridges
Routers
Hubs and switches
Nodes

46

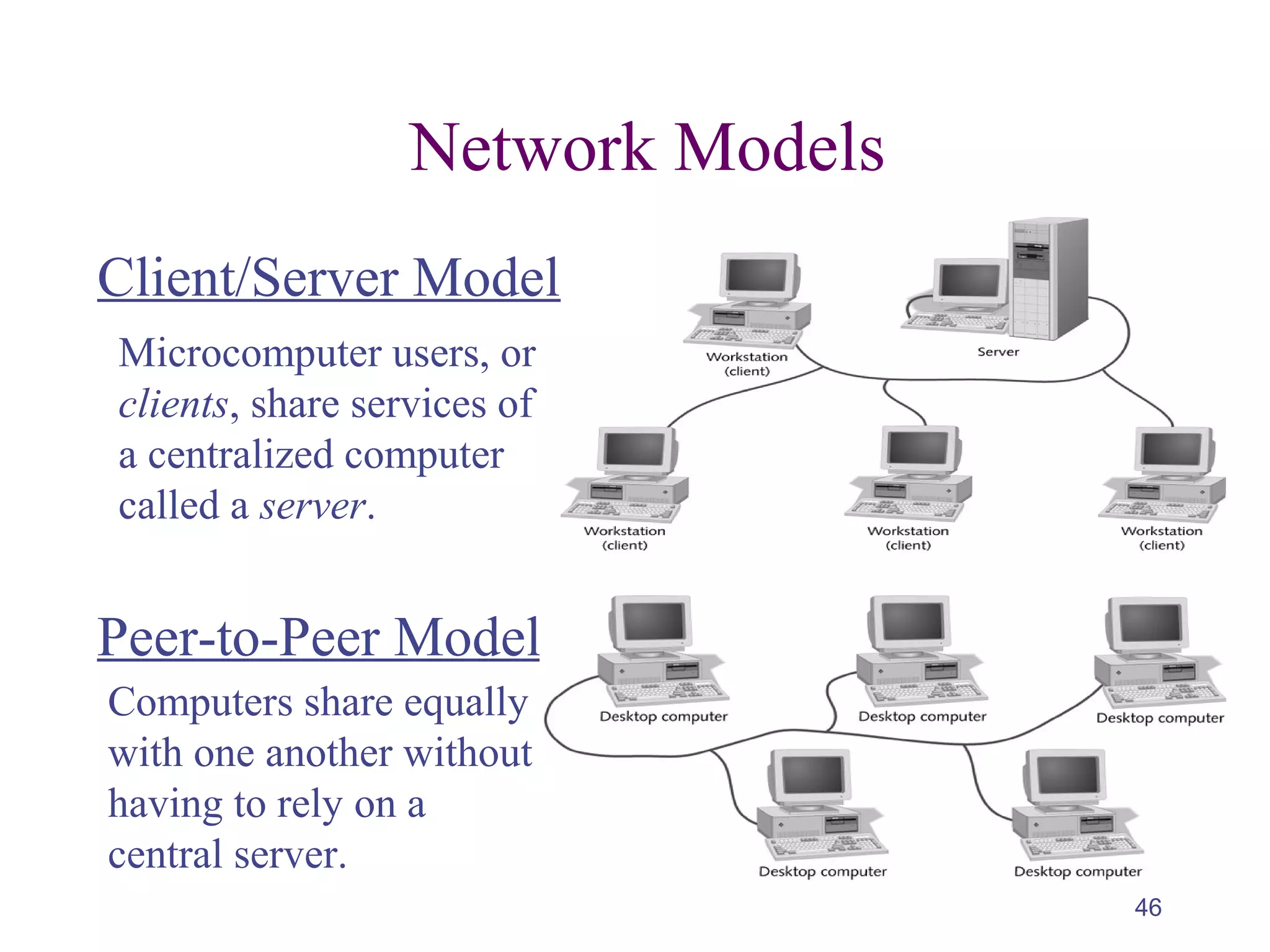

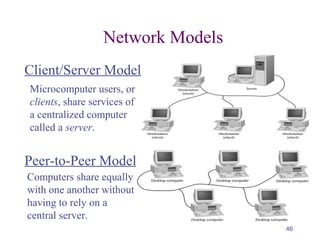

Network Models
Microcomputer users, or
clients, share services of
a centralized computer
called a server.
Computers share equally
with one another without
having to rely on a
central server.
Client/Server Model
Peer-to-Peer Model

47

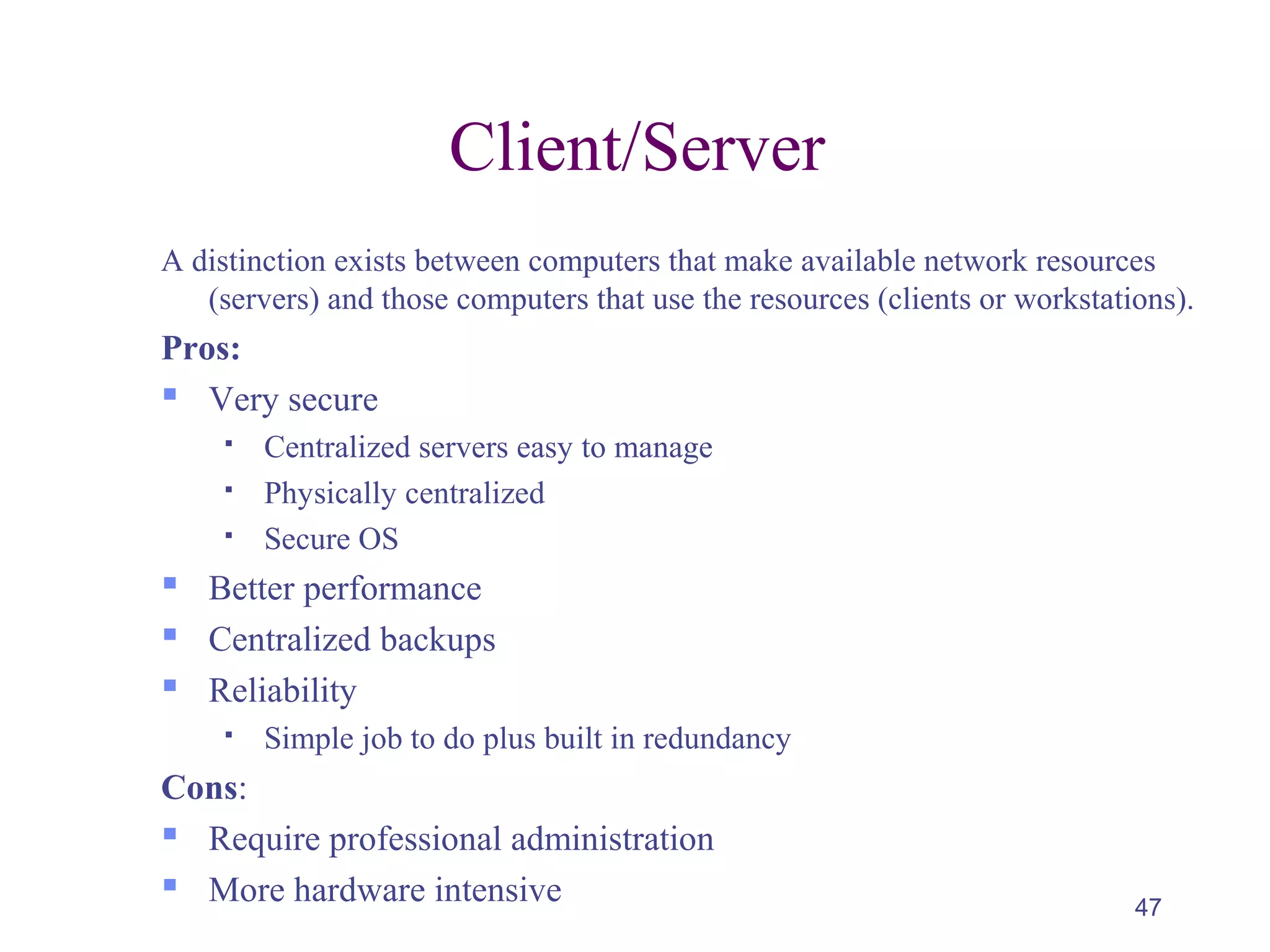

Client/Server
A distinction exists between computers that make available network resources
(servers) and those computers that use the resources (clients or workstations).
Pros:
 Very secure
 Centralized servers easy to manage
 Physically centralized
 Secure OS
 Better performance
 Centralized backups
 Reliability
 Simple job to do plus built in redundancy
Cons:
 Require professional administration
 More hardware intensive

48

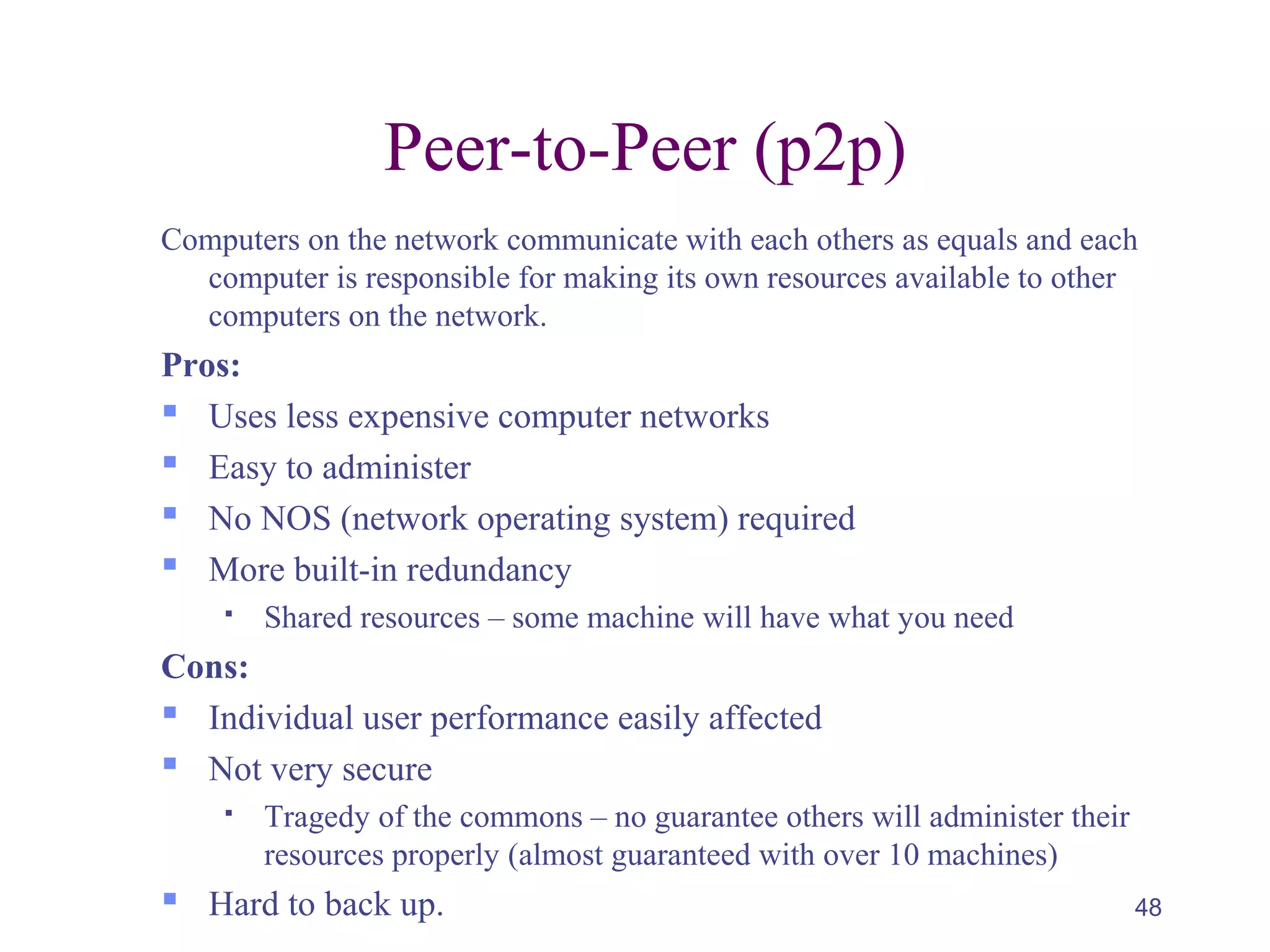

Peer-to-Peer (p2p)
Computers on the network communicate with each others as equals and each
computer is responsible for making its own resources available to other
computers on the network.
Pros:
 Uses less expensive computer networks
 Easy to administer
 No NOS (network operating system) required
 More built-in redundancy
 Shared resources – some machine will have what you need
Cons:
 Individual user performance easily affected
 Not very secure
 Tragedy of the commons – no guarantee others will administer their
resources properly (almost guaranteed with over 10 machines)
 Hard to back up.

49

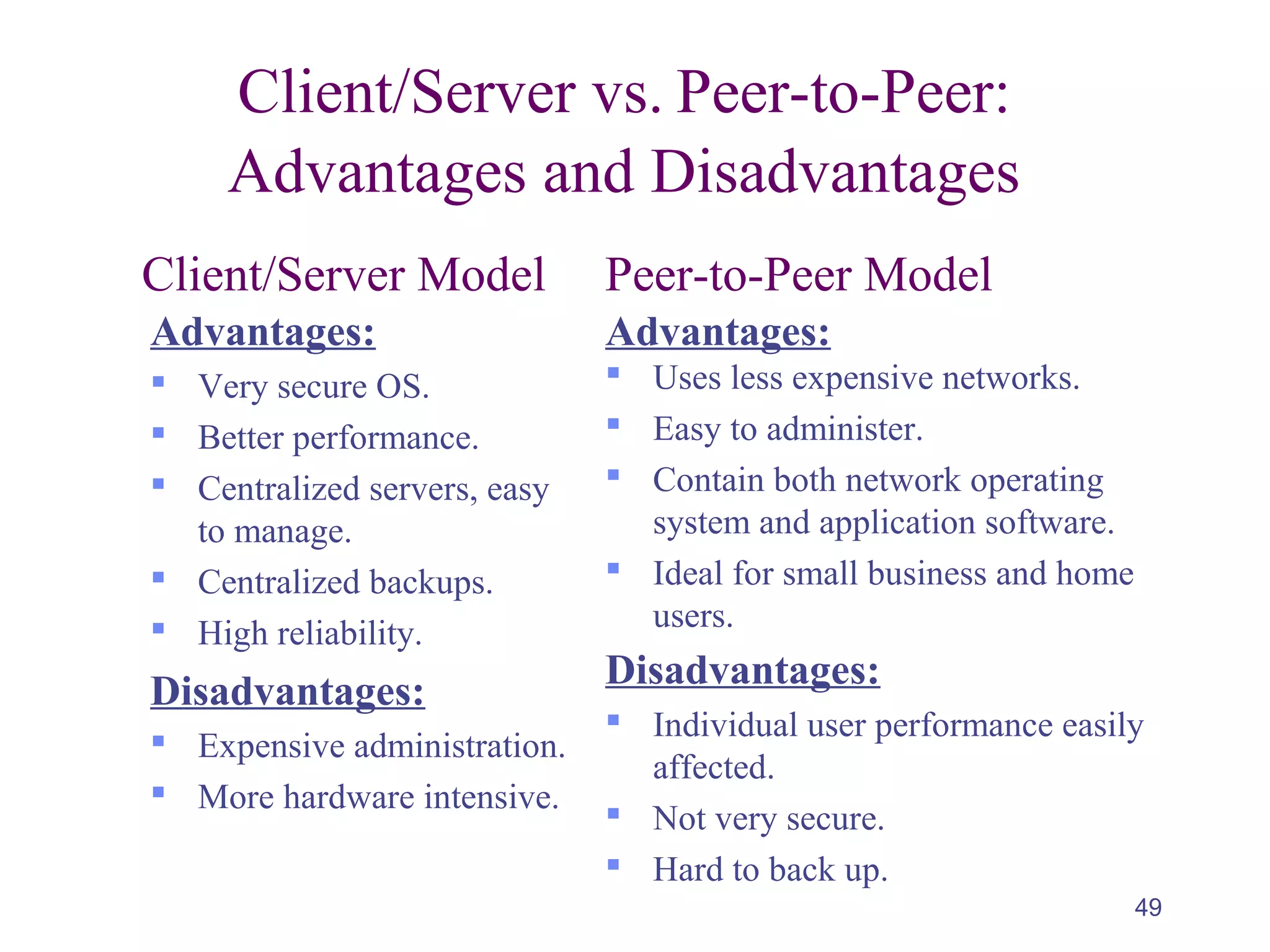

Client/Server vs. Peer-to-Peer:
Advantages and Disadvantages
Advantages:
 Very secure OS.
 Better performance.
 Centralized servers, easy
to manage.
 Centralized backups.
 High reliability.
Peer-to-Peer ModelClient/Server Model
Disadvantages:
 Expensive administration.
 More hardware intensive.
Advantages:
 Uses less expensive networks.
 Easy to administer.
 Contain both network operating
system and application software.
 Ideal for small business and home
users.
Disadvantages:
 Individual user performance easily
affected.
 Not very secure.
 Hard to back up.

50

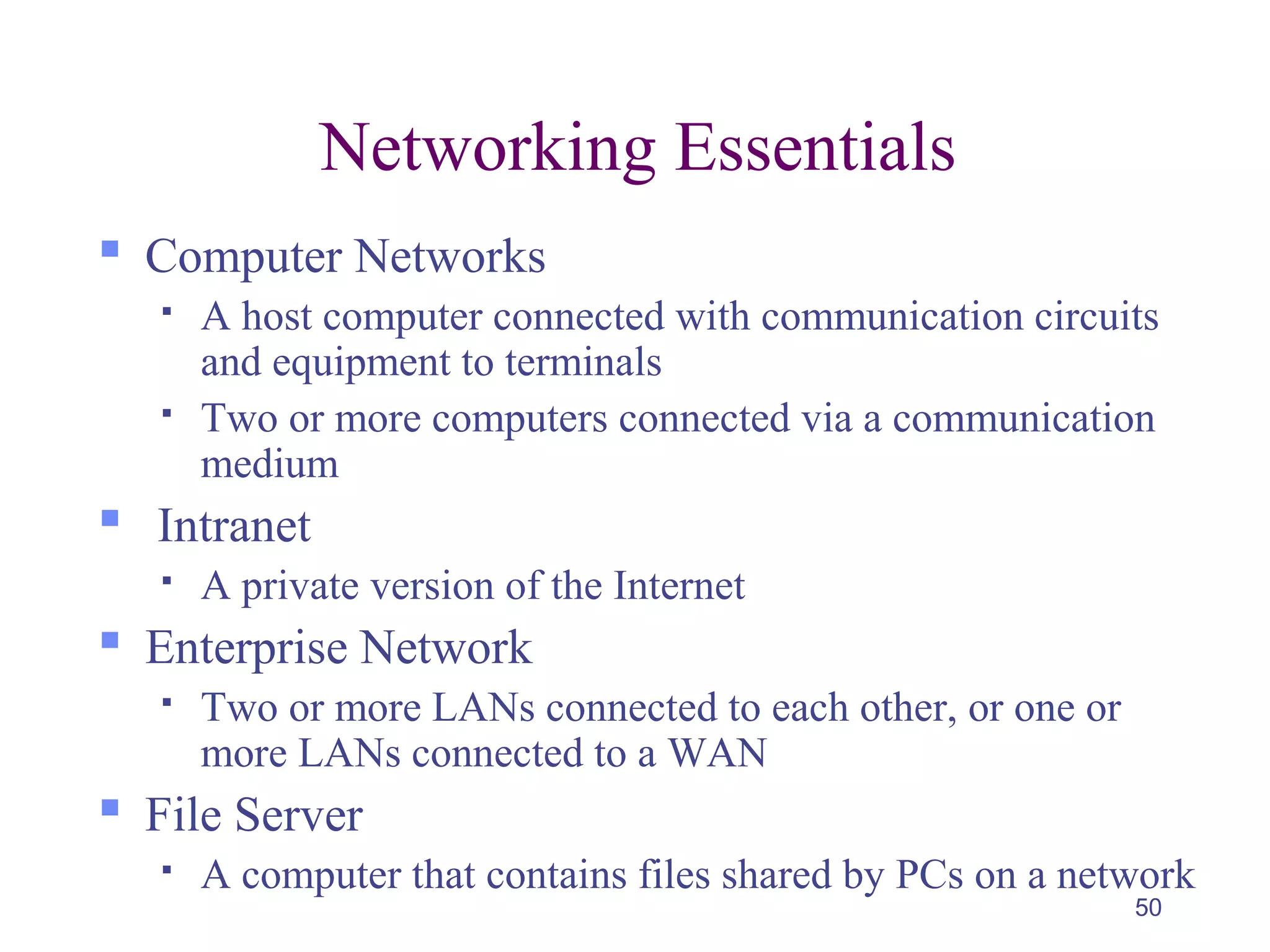

Networking Essentials
 Computer Networks
 A host computer connected with communication circuits
and equipment to terminals
 Two or more computers connected via a communication
medium
 Intranet
 A private version of the Internet
 Enterprise Network
 Two or more LANs connected to each other, or one or
more LANs connected to a WAN
 File Server
 A computer that contains files shared by PCs on a network

51

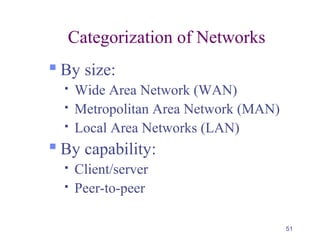

Categorization of Networks
 By size:
 Wide Area Network (WAN)
 Metropolitan Area Network (MAN)
 Local Area Networks (LAN)
 By capability:
 Client/server
 Peer-to-peer

52

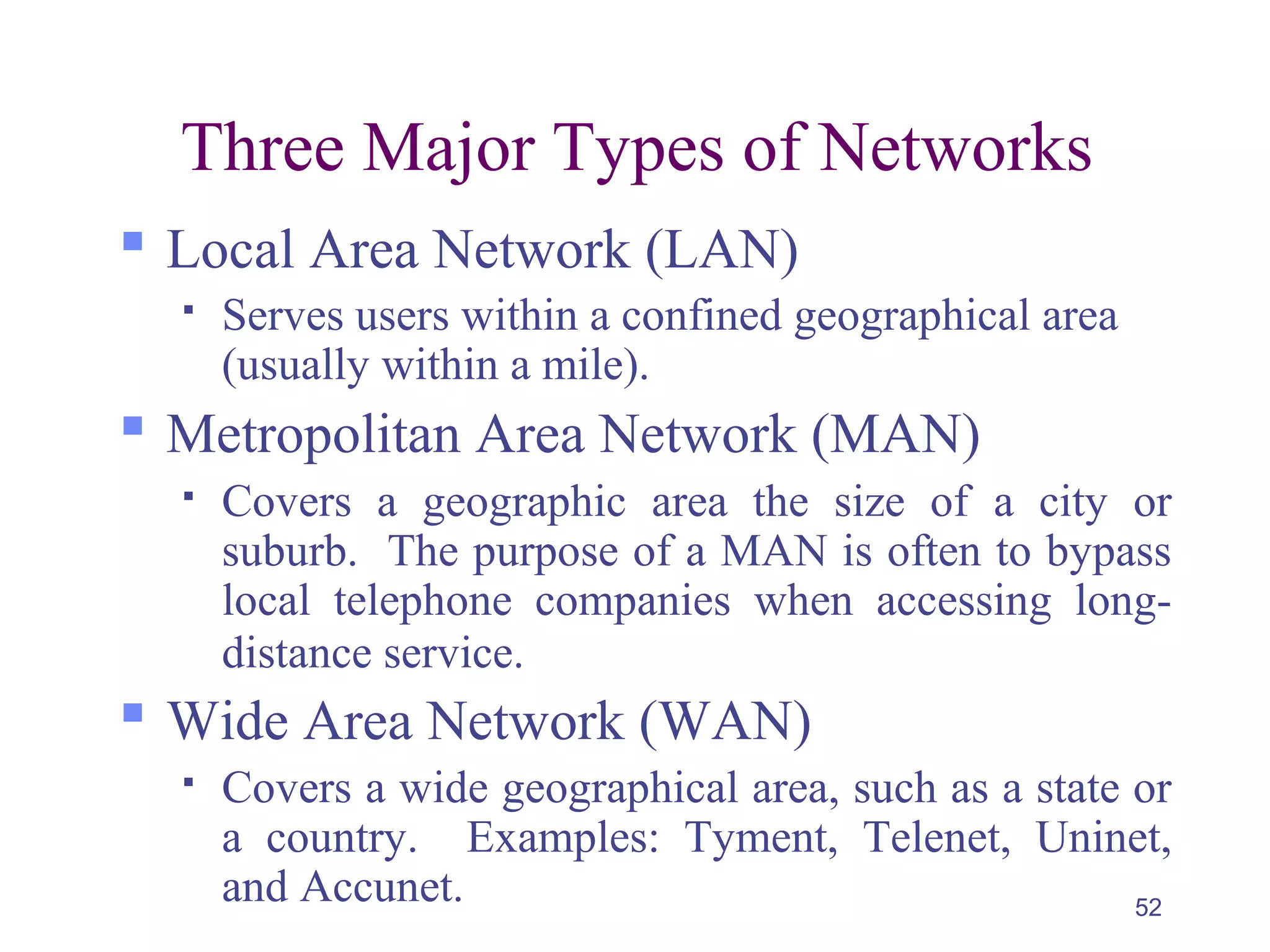

Three Major Types of Networks
 Local Area Network (LAN)
 Serves users within a confined geographical area
(usually within a mile).
 Metropolitan Area Network (MAN)
 Covers a geographic area the size of a city or
suburb. The purpose of a MAN is often to bypass
local telephone companies when accessing long-
distance service.
 Wide Area Network (WAN)
 Covers a wide geographical area, such as a state or
a country. Examples: Tyment, Telenet, Uninet,
and Accunet.

53

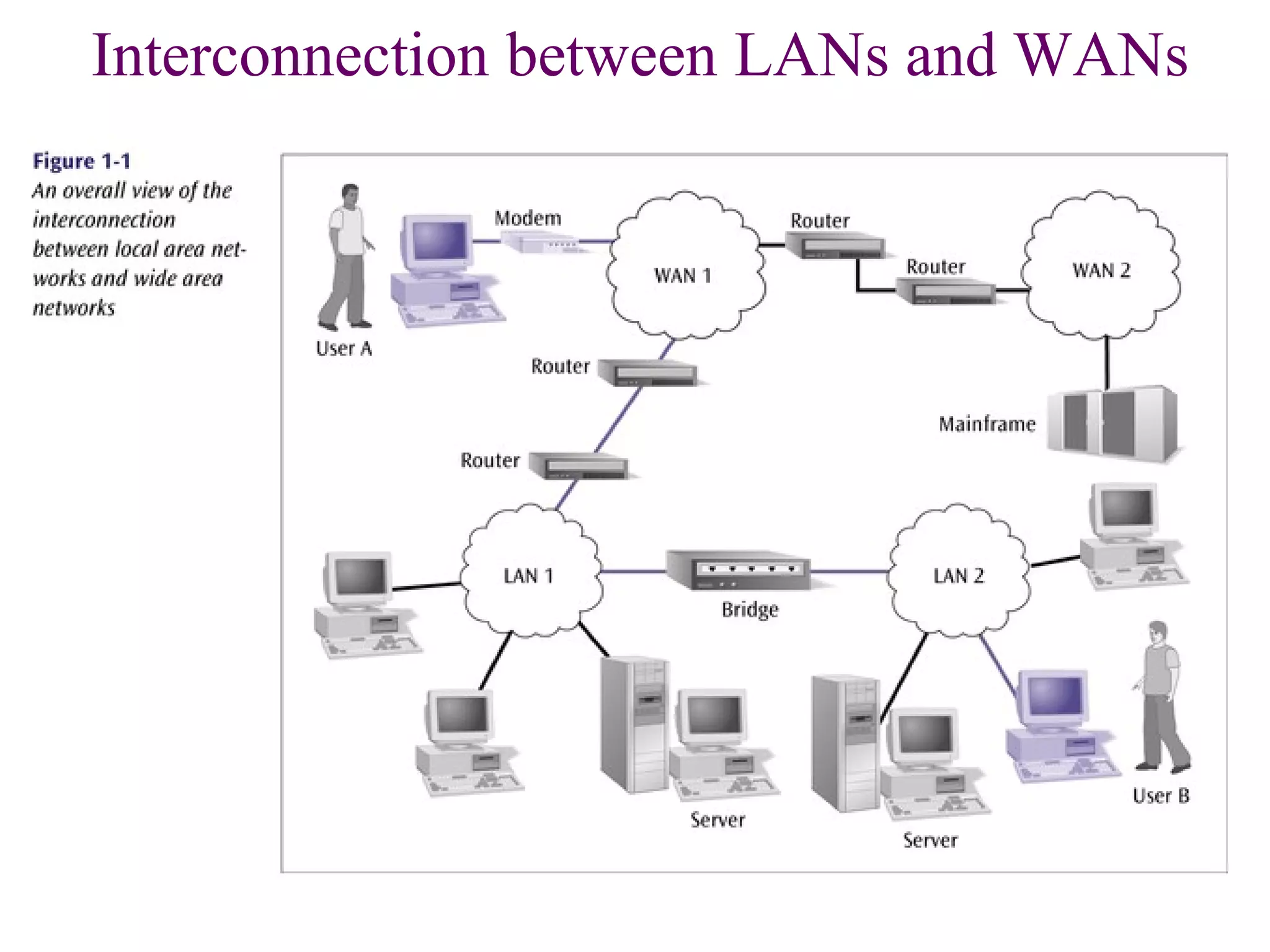

Interconnection between LANs and WANs

54

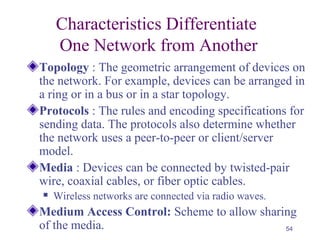

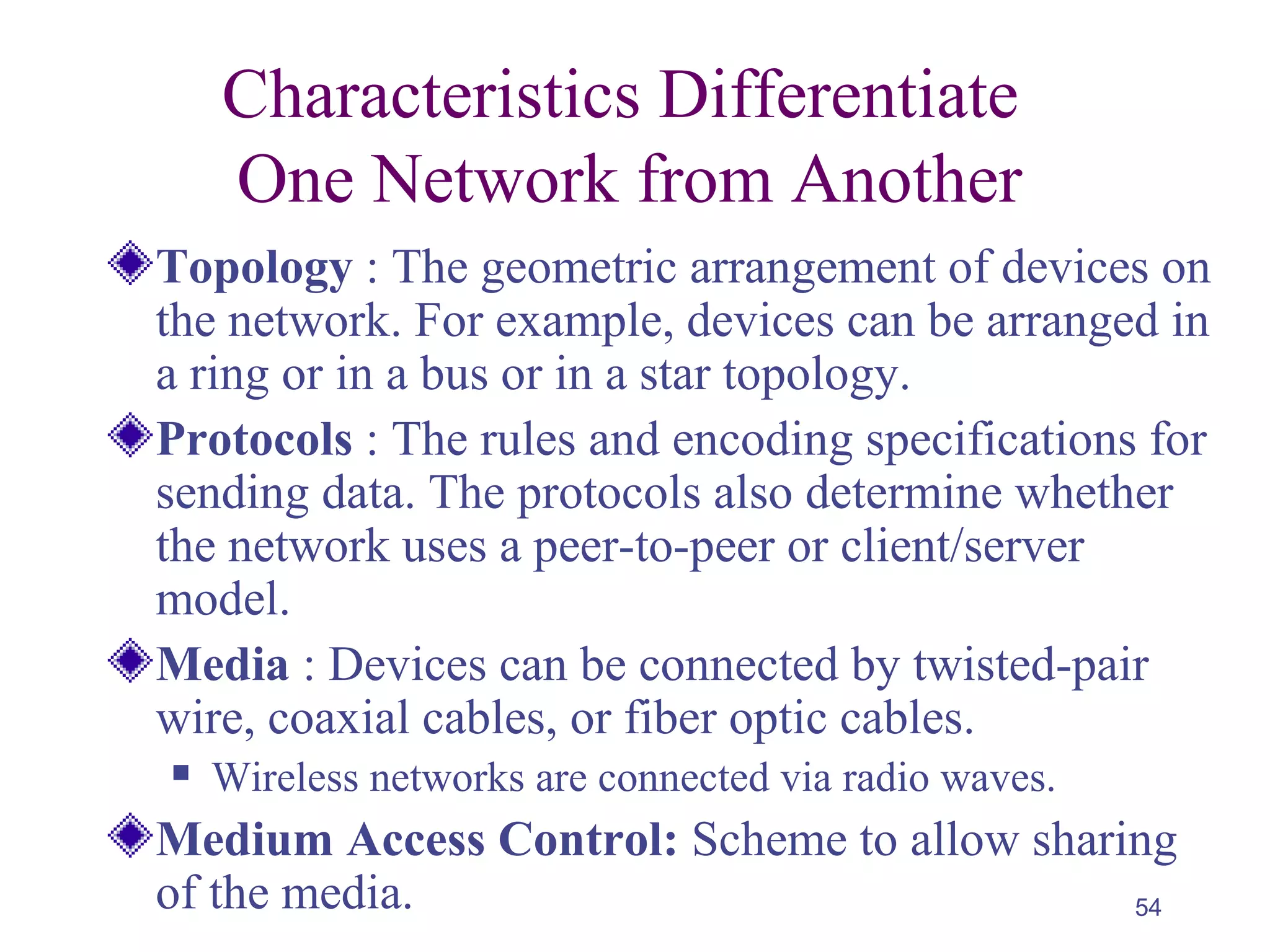

Characteristics Differentiate
One Network from Another
Topology : The geometric arrangement of devices on
the network. For example, devices can be arranged in
a ring or in a bus or in a star topology.
Protocols : The rules and encoding specifications for
sending data. The protocols also determine whether
the network uses a peer-to-peer or client/server
model.
Media : Devices can be connected by twisted-pair
wire, coaxial cables, or fiber optic cables.
 Wireless networks are connected via radio waves.
Medium Access Control: Scheme to allow sharing
of the media.

55

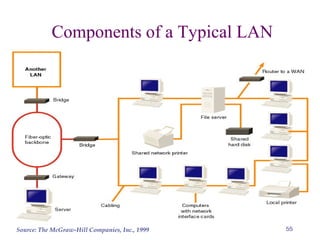

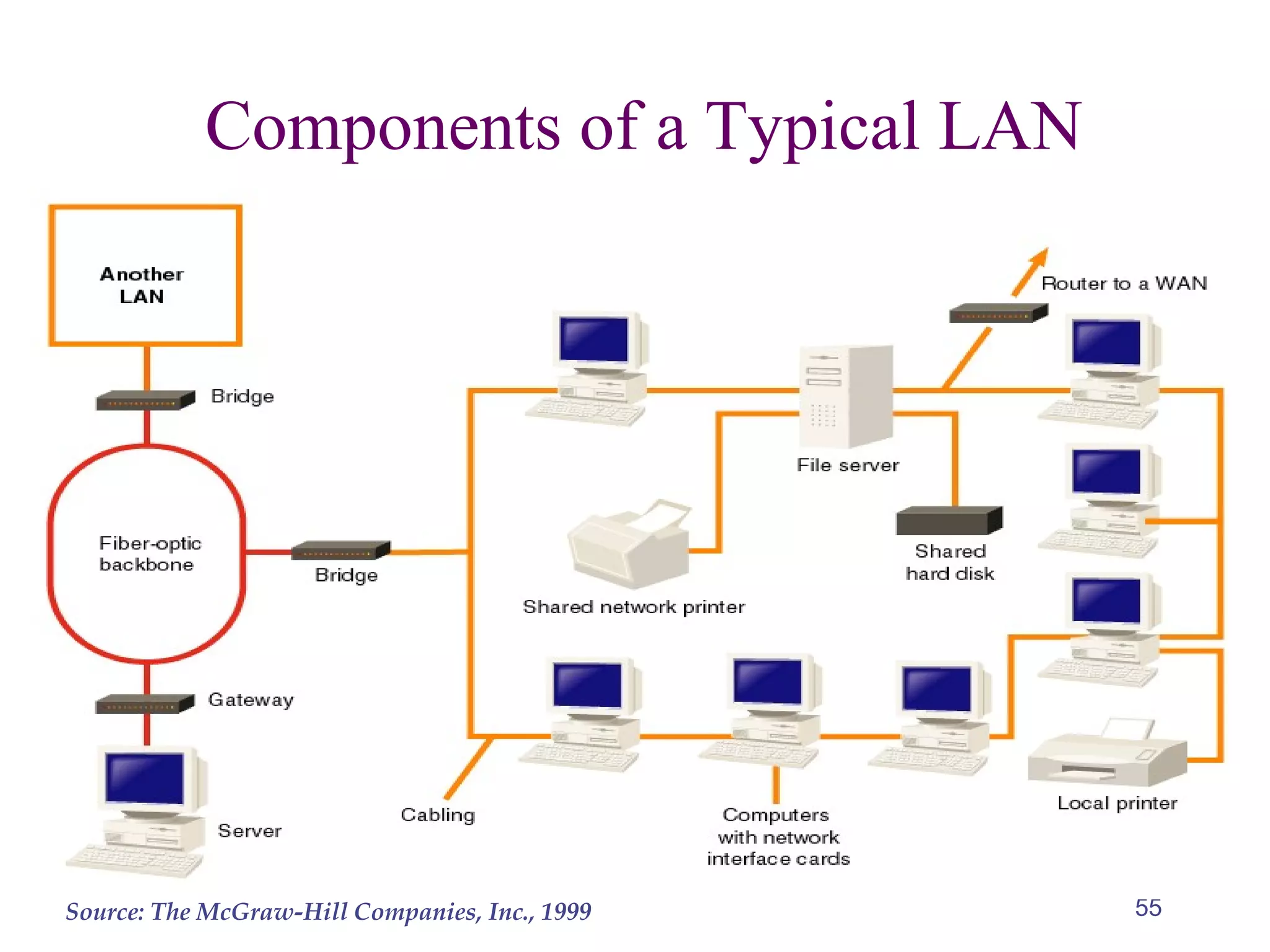

Components of a Typical LAN

56

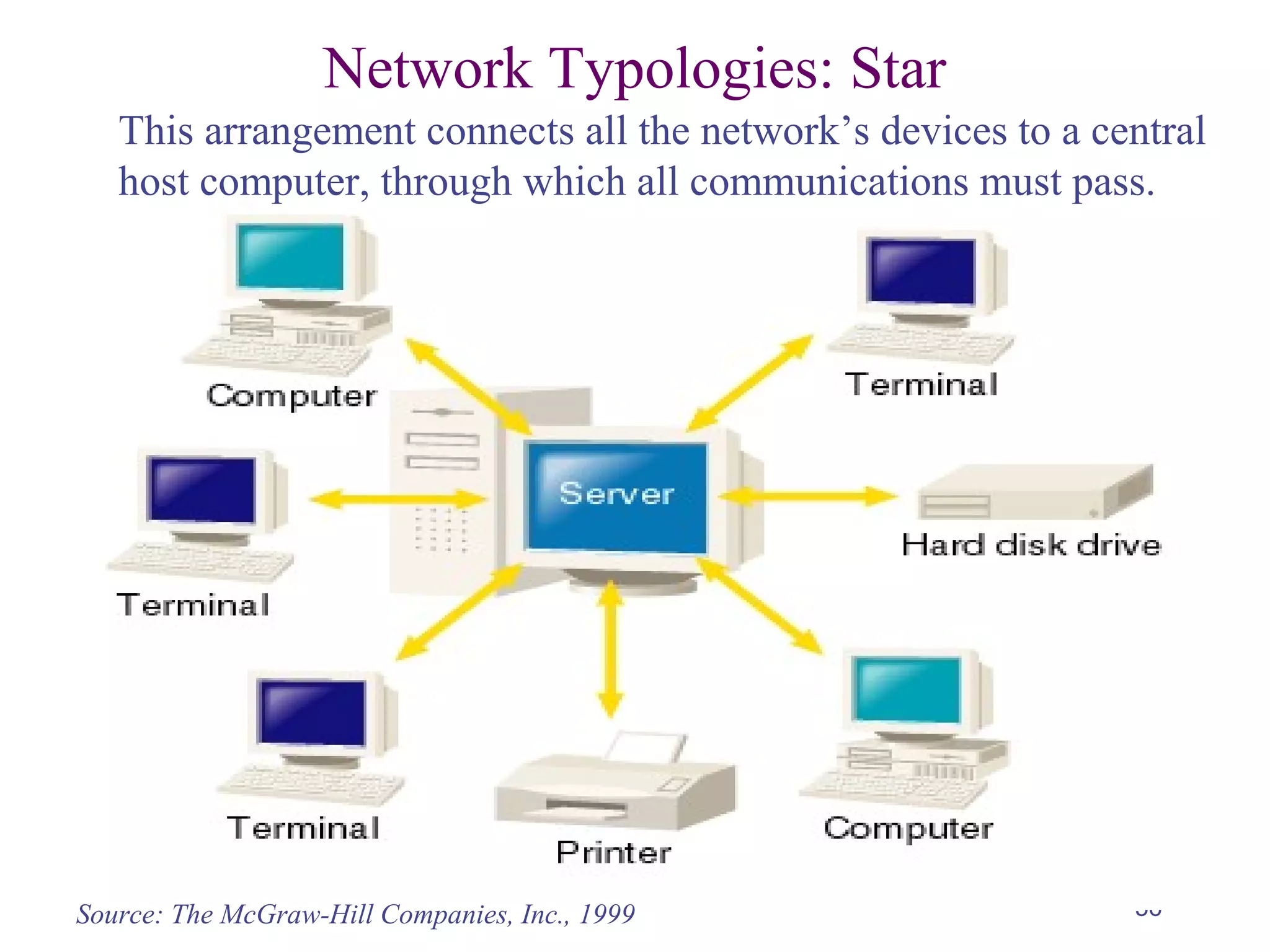

Network Typologies: Star
This arrangement connects all the network’s devices to a central
host computer, through which all communications must pass.

57

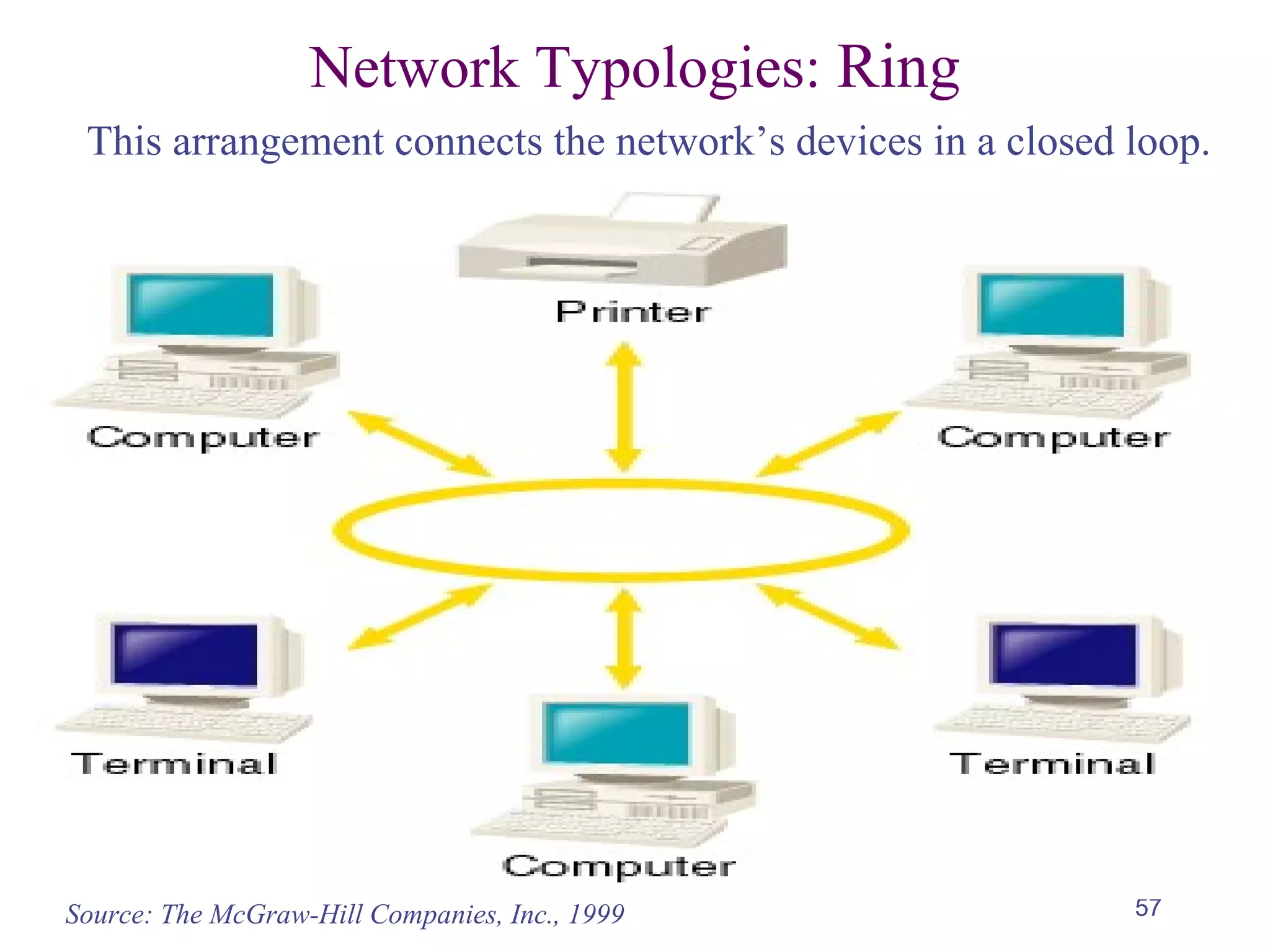

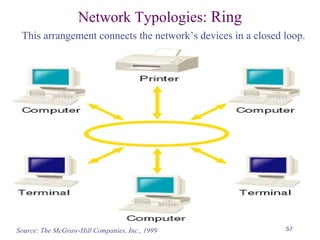

Network Typologies: Ring
This arrangement connects the network’s devices in a closed loop.

58

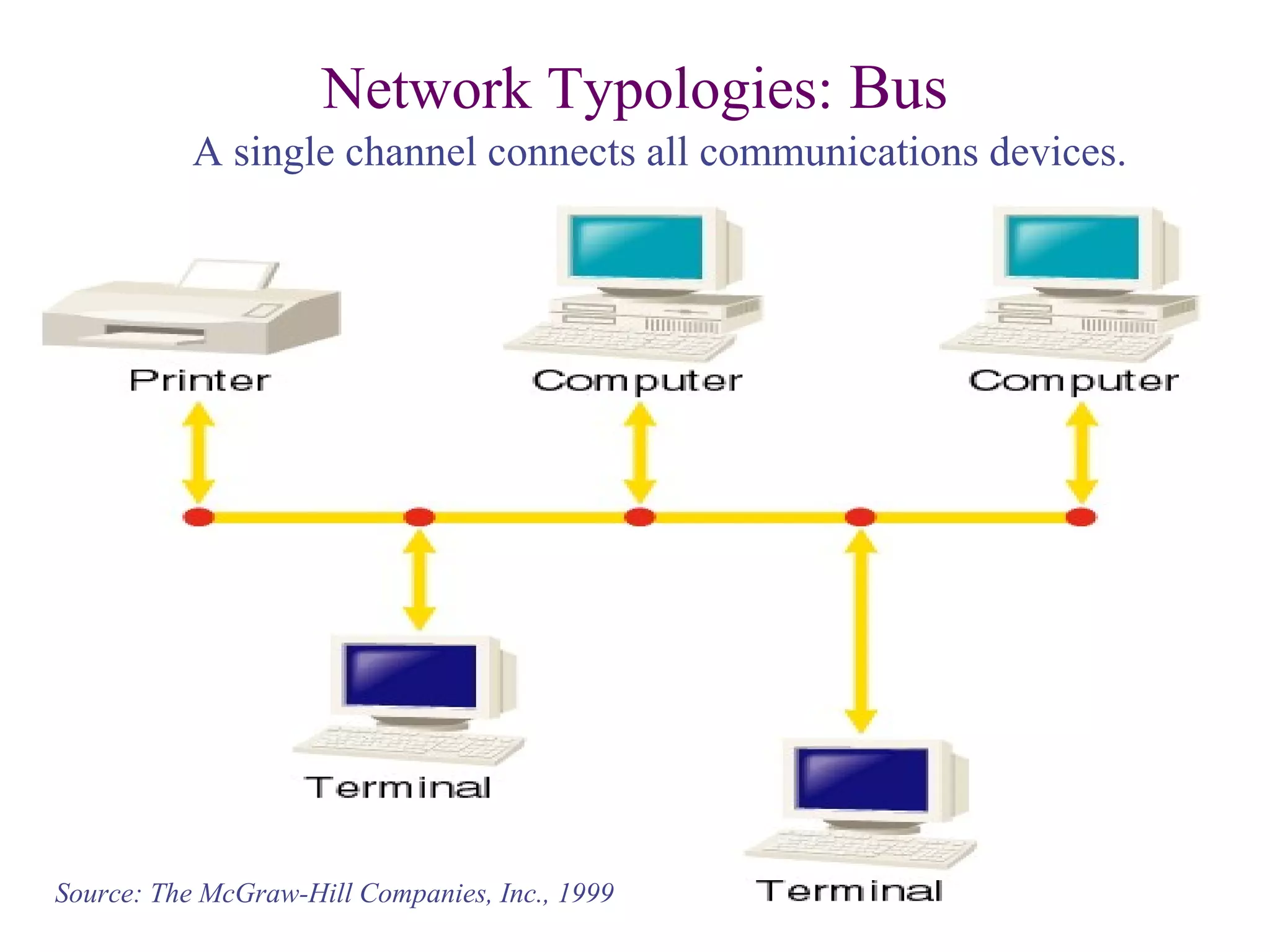

Network Typologies: Bus
A single channel connects all communications devices.

59

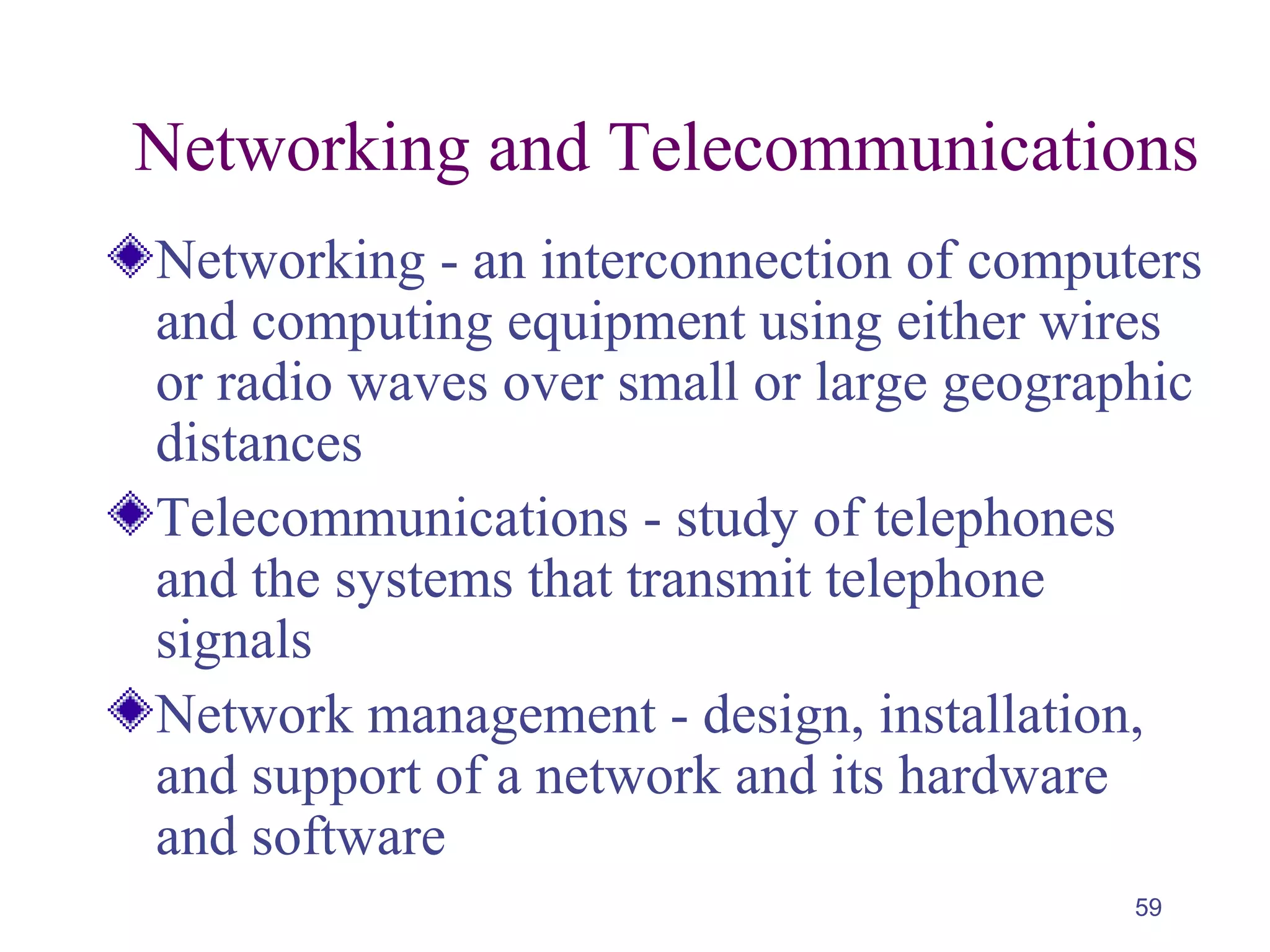

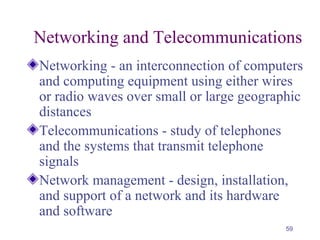

Networking and Telecommunications
Networking - an interconnection of computers
and computing equipment using either wires
or radio waves over small or large geographic
distances
Telecommunications - study of telephones
and the systems that transmit telephone
signals
Network management - design, installation,
and support of a network and its hardware
and software

60

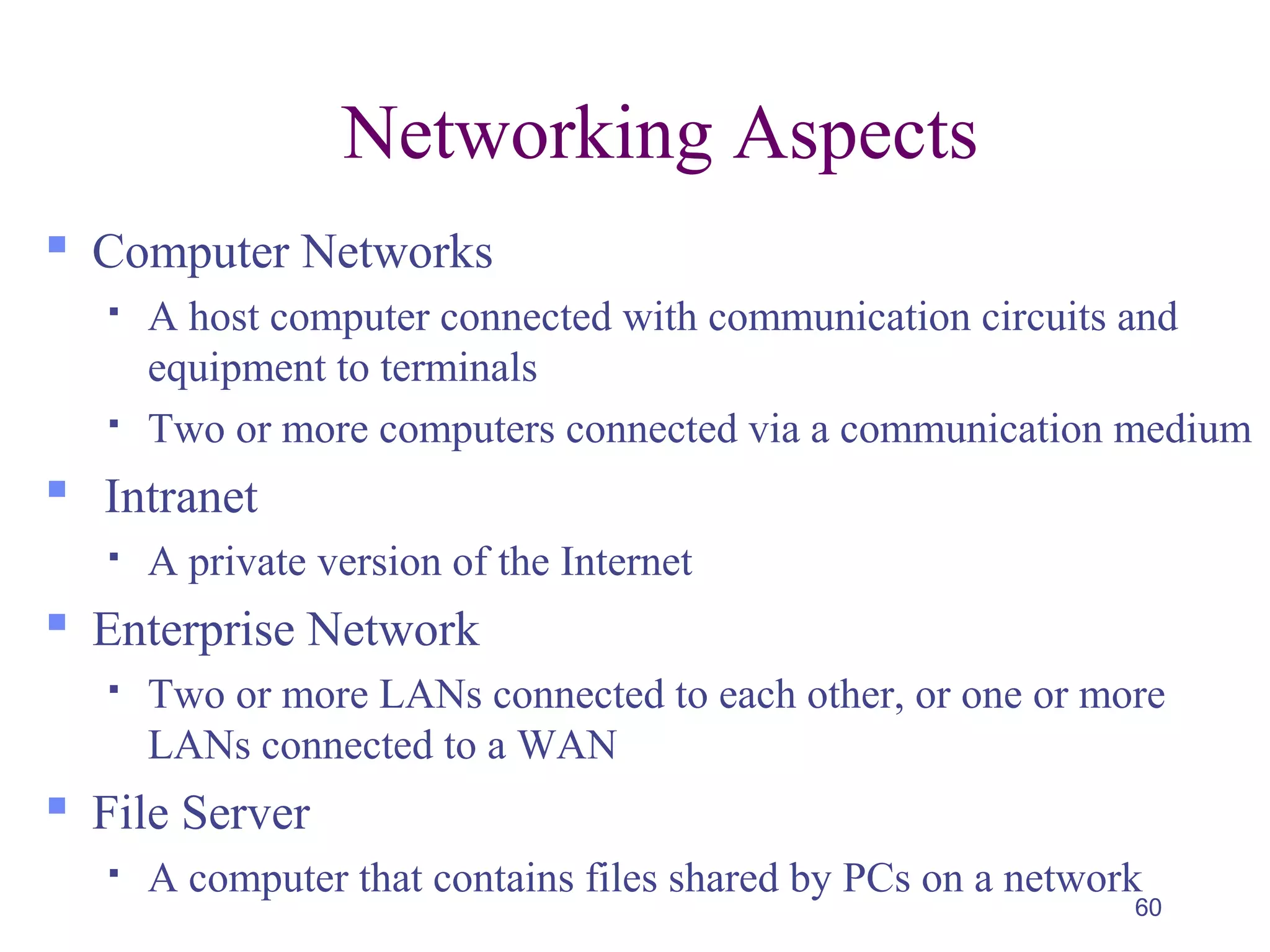

Networking Aspects
 Computer Networks
 A host computer connected with communication circuits and
equipment to terminals
 Two or more computers connected via a communication medium
 Intranet
 A private version of the Internet
 Enterprise Network
 Two or more LANs connected to each other, or one or more
LANs connected to a WAN
 File Server
 A computer that contains files shared by PCs on a network

61

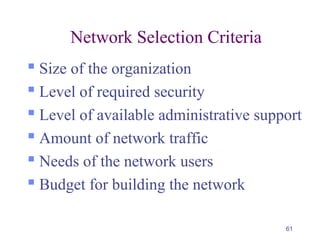

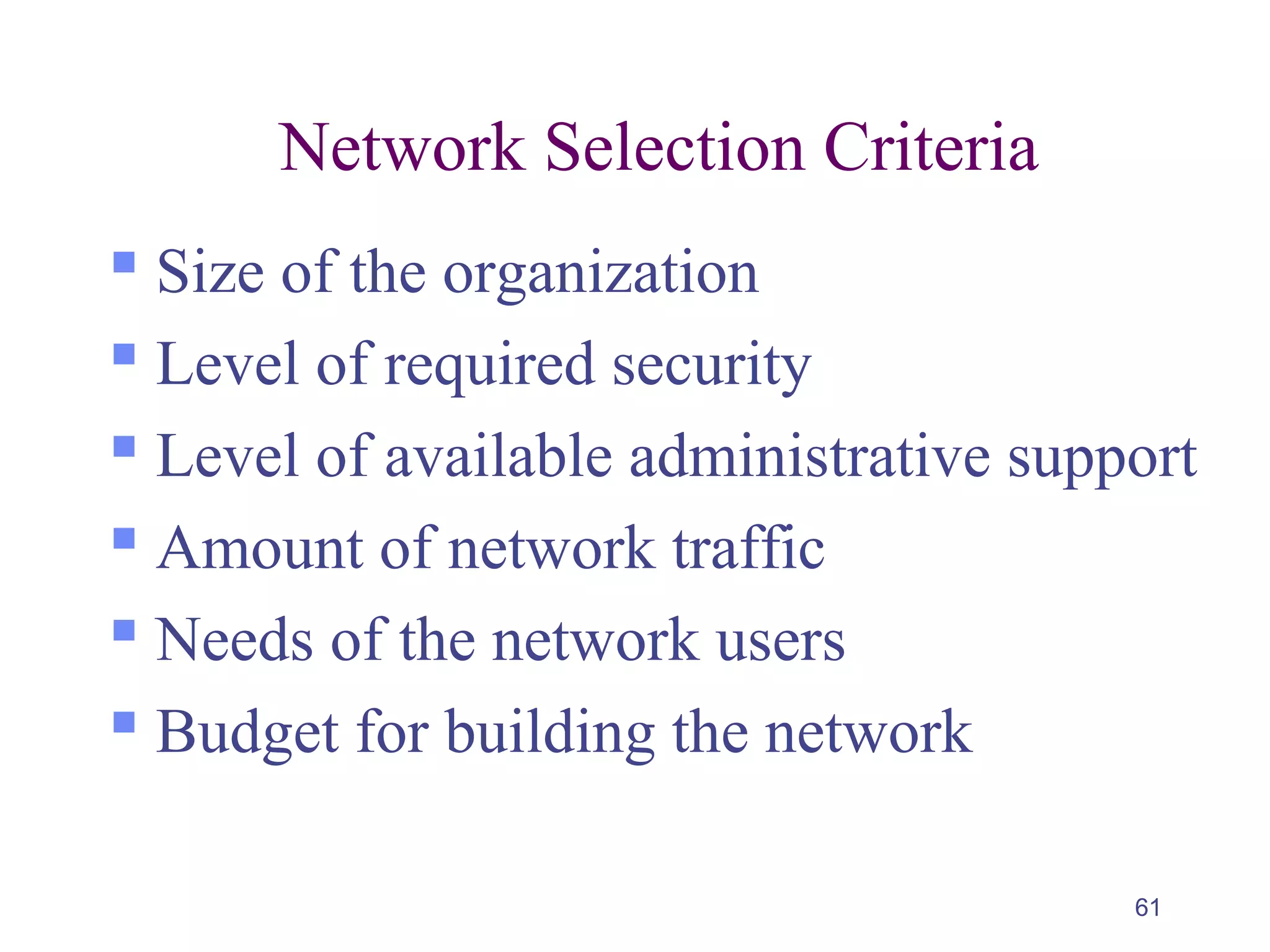

Network Selection Criteria
 Size of the organization
 Level of required security
 Level of available administrative support
 Amount of network traffic
 Needs of the network users
 Budget for building the network

62

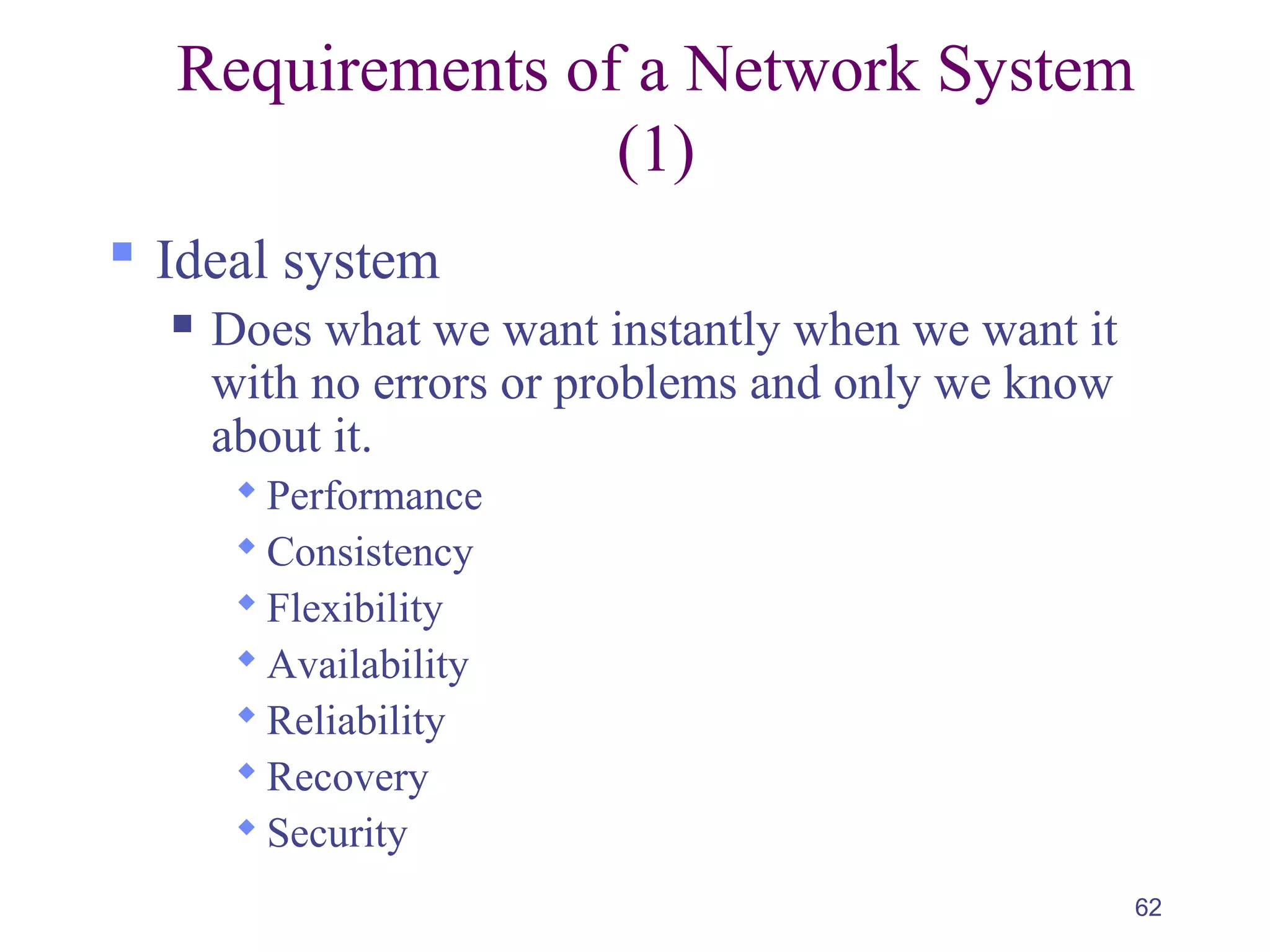

Requirements of a Network System
(1)
 Ideal system
 Does what we want instantly when we want it
with no errors or problems and only we know
about it.
 Performance
 Consistency
 Flexibility
 Availability
 Reliability
 Recovery
 Security

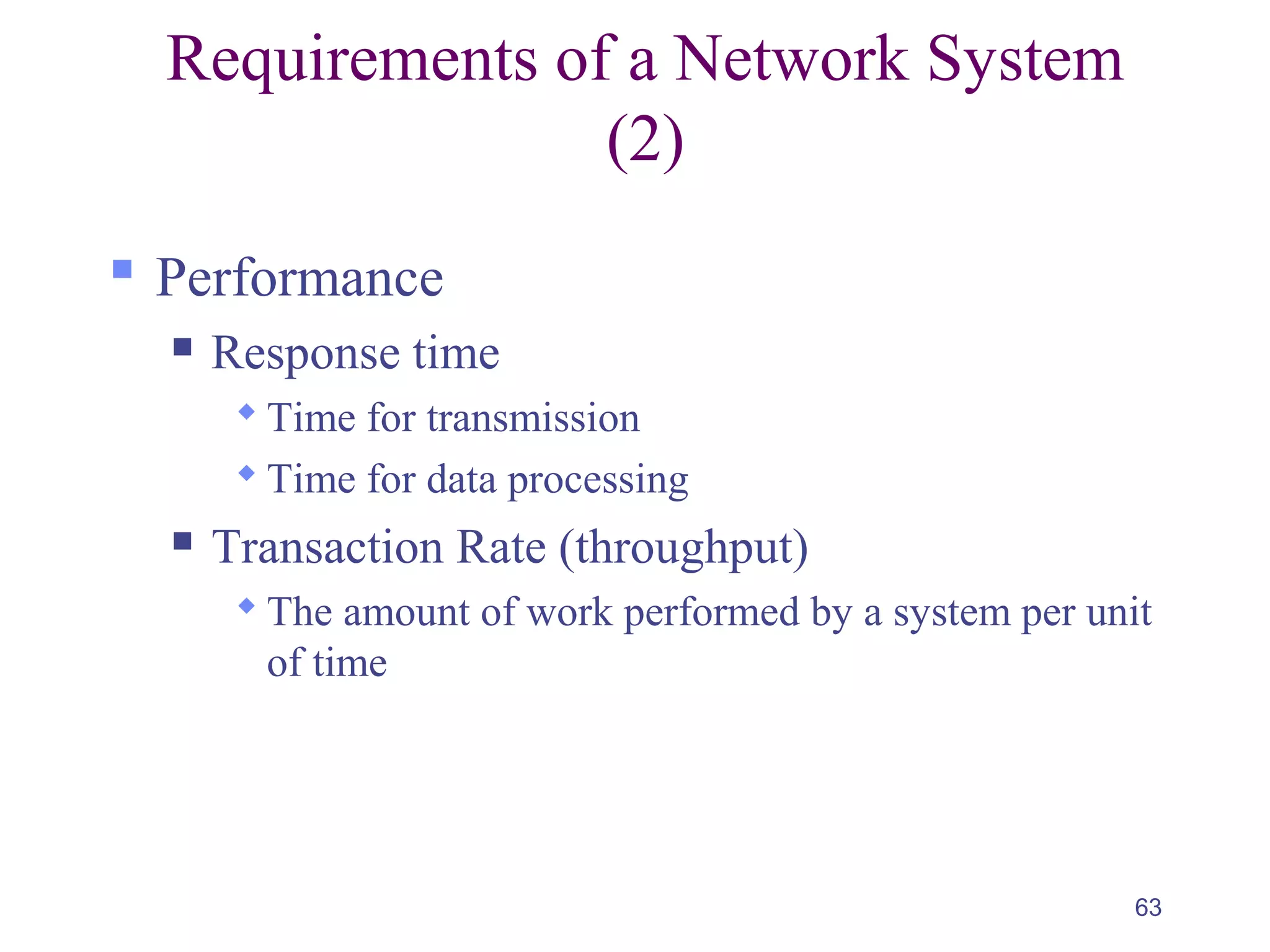

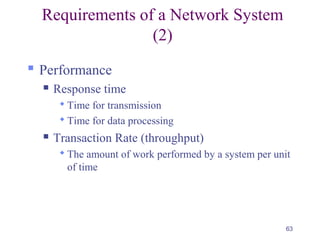

63
(2)
 Performance
 Response time
 Time for transmission
 Time for data processing
 Transaction Rate (throughput)
 The amount of work performed by a system per unit
of time

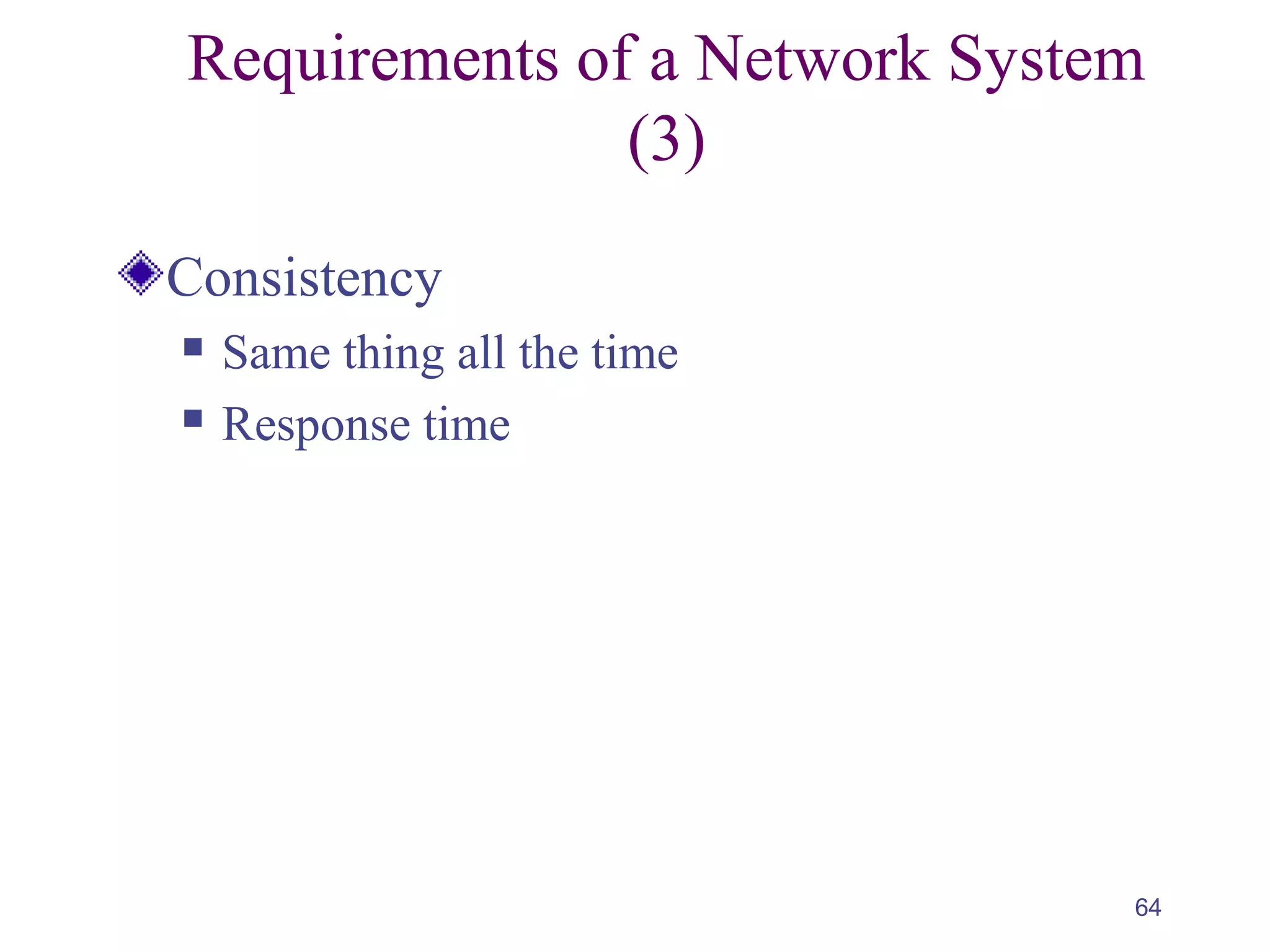

64

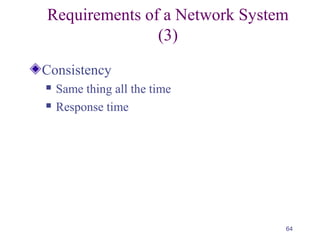

(3)
Consistency
 Same thing all the time
 Response time

65

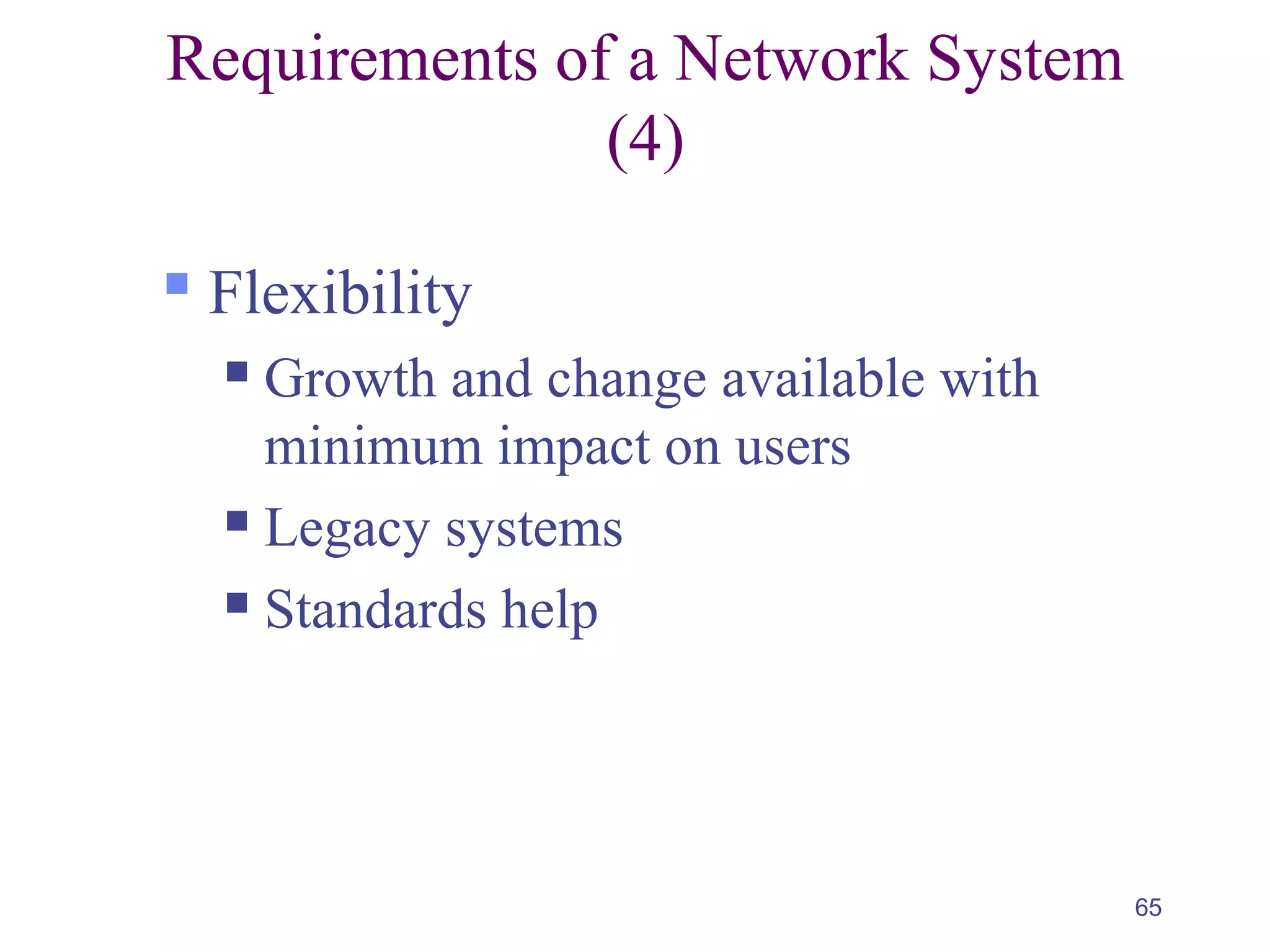

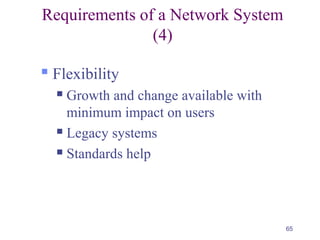

(4)
 Flexibility
 Growth and change available with
minimum impact on users
 Legacy systems
 Standards help

66

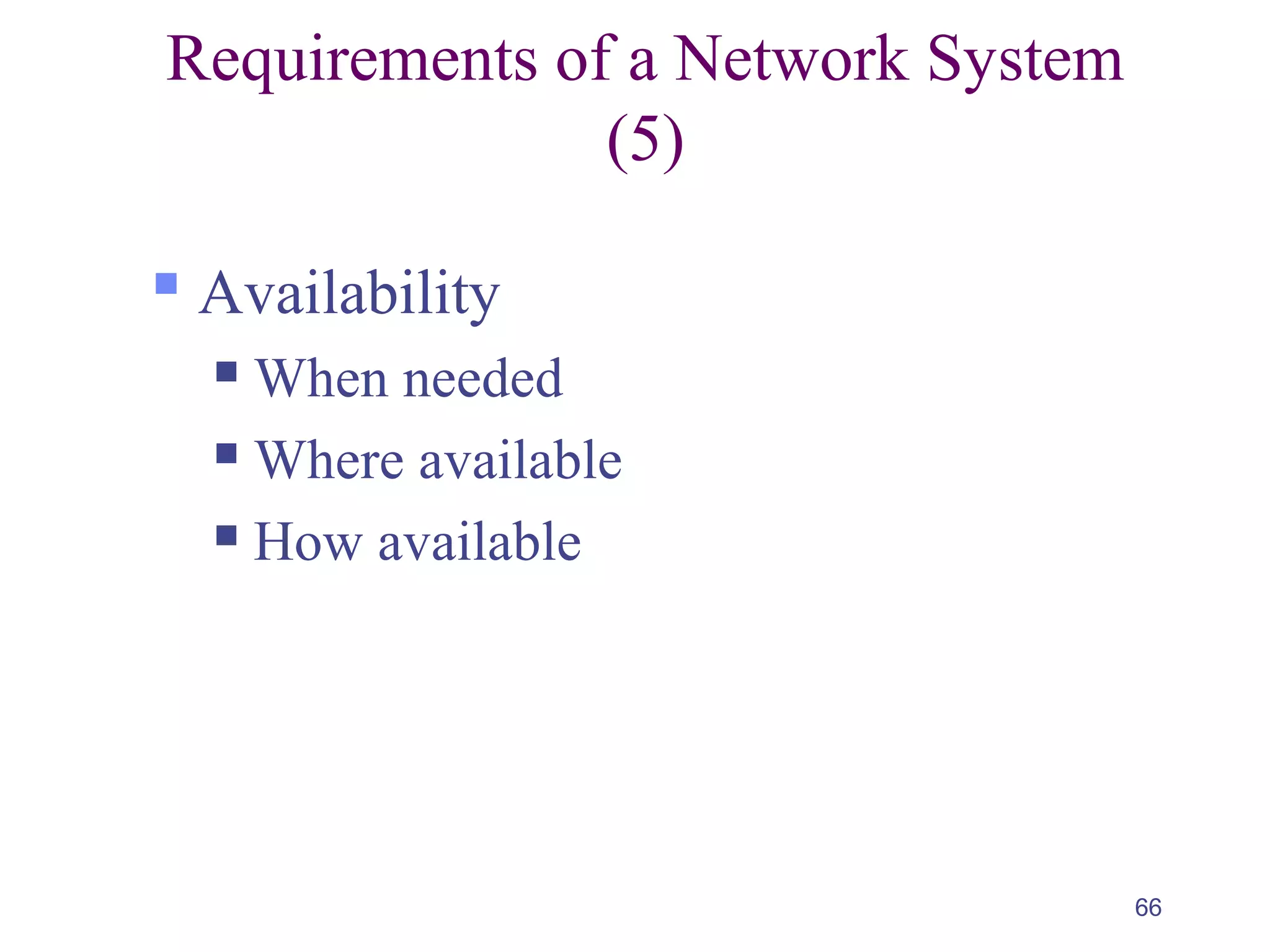

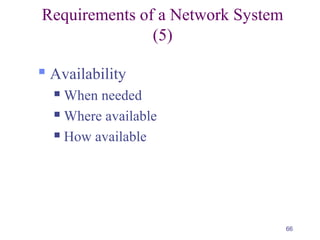

(5)
 Availability
 When needed
 Where available
 How available

67

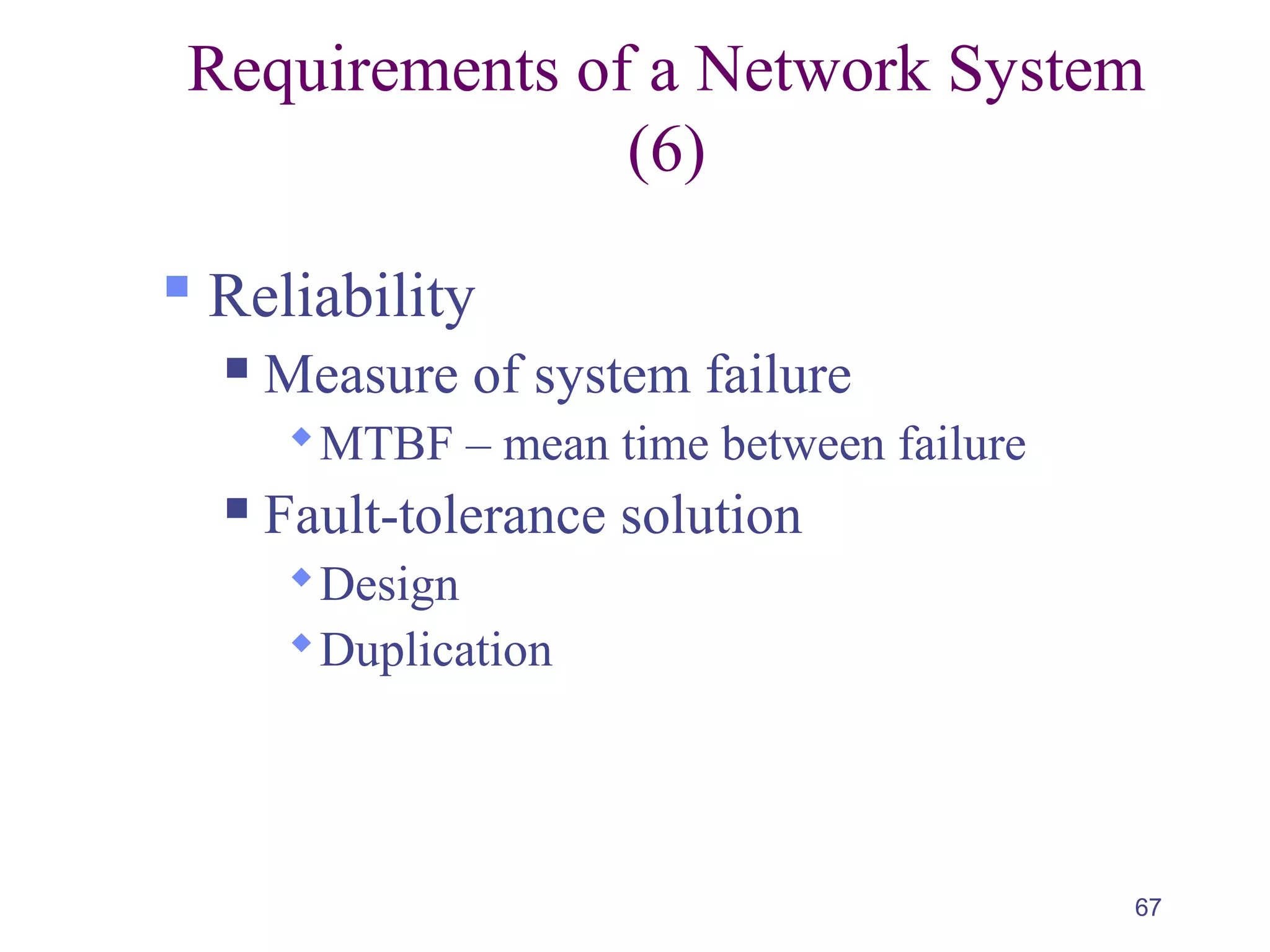

(6)
 Reliability
 Measure of system failure
MTBF – mean time between failure
 Fault-tolerance solution
Design
Duplication

68

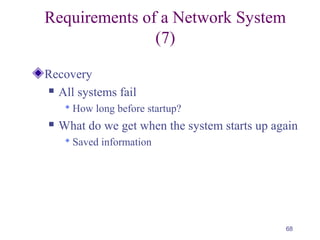

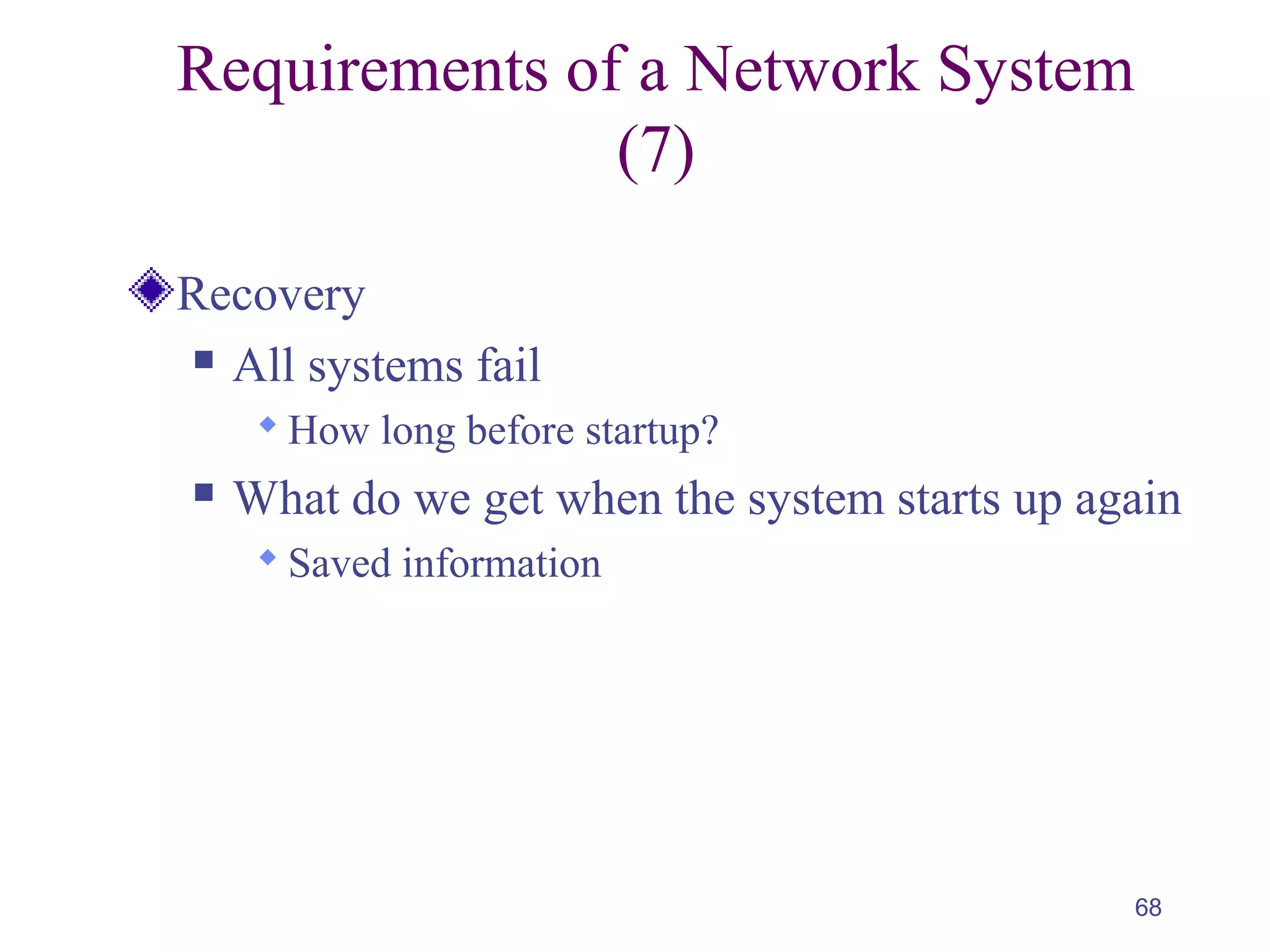

(7)
Recovery
 All systems fail
 How long before startup?
 What do we get when the system starts up again
 Saved information

69

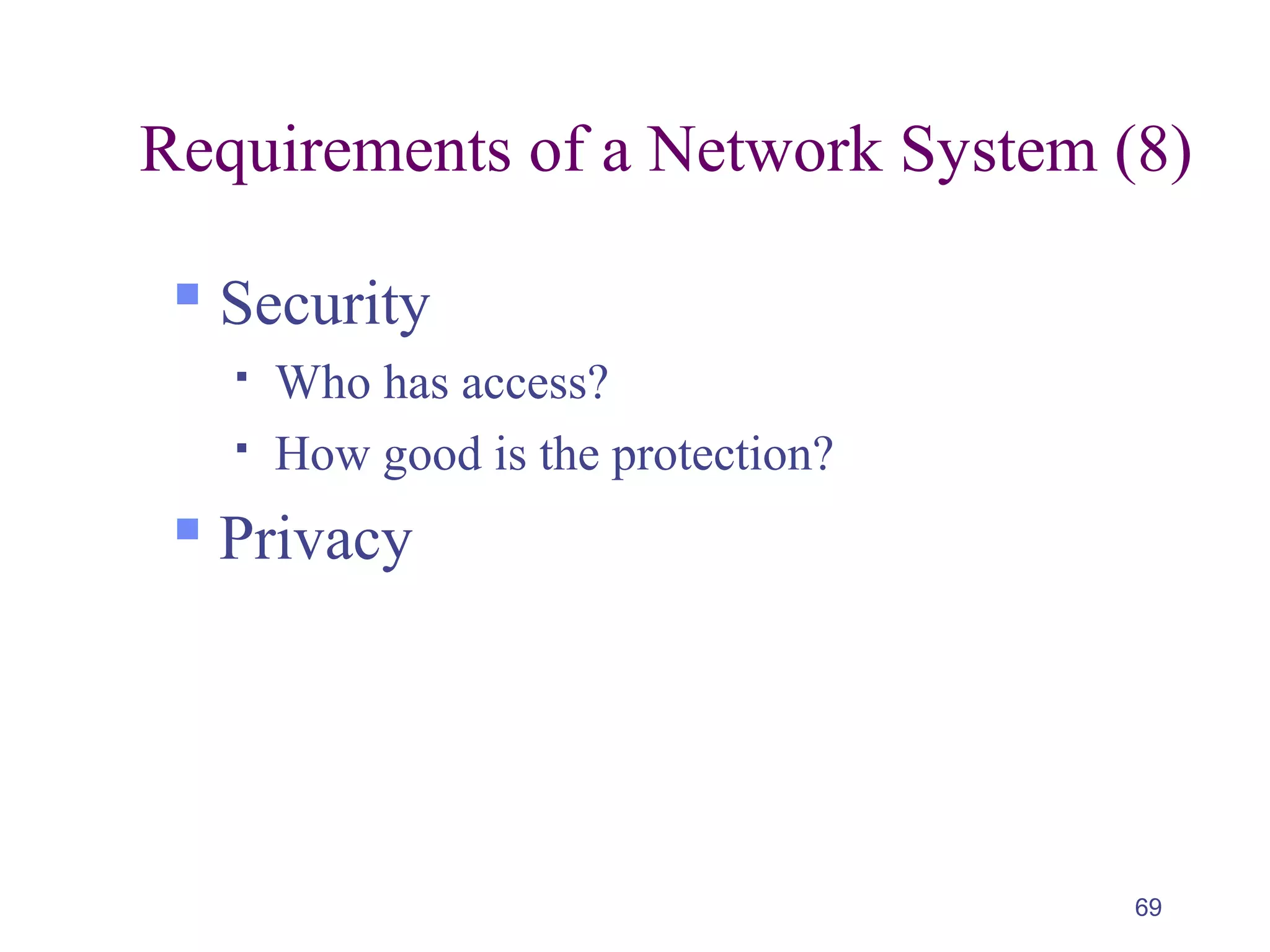

Requirements of a Network System (8)
 Security
 Who has access?
 How good is the protection?
 Privacy

70

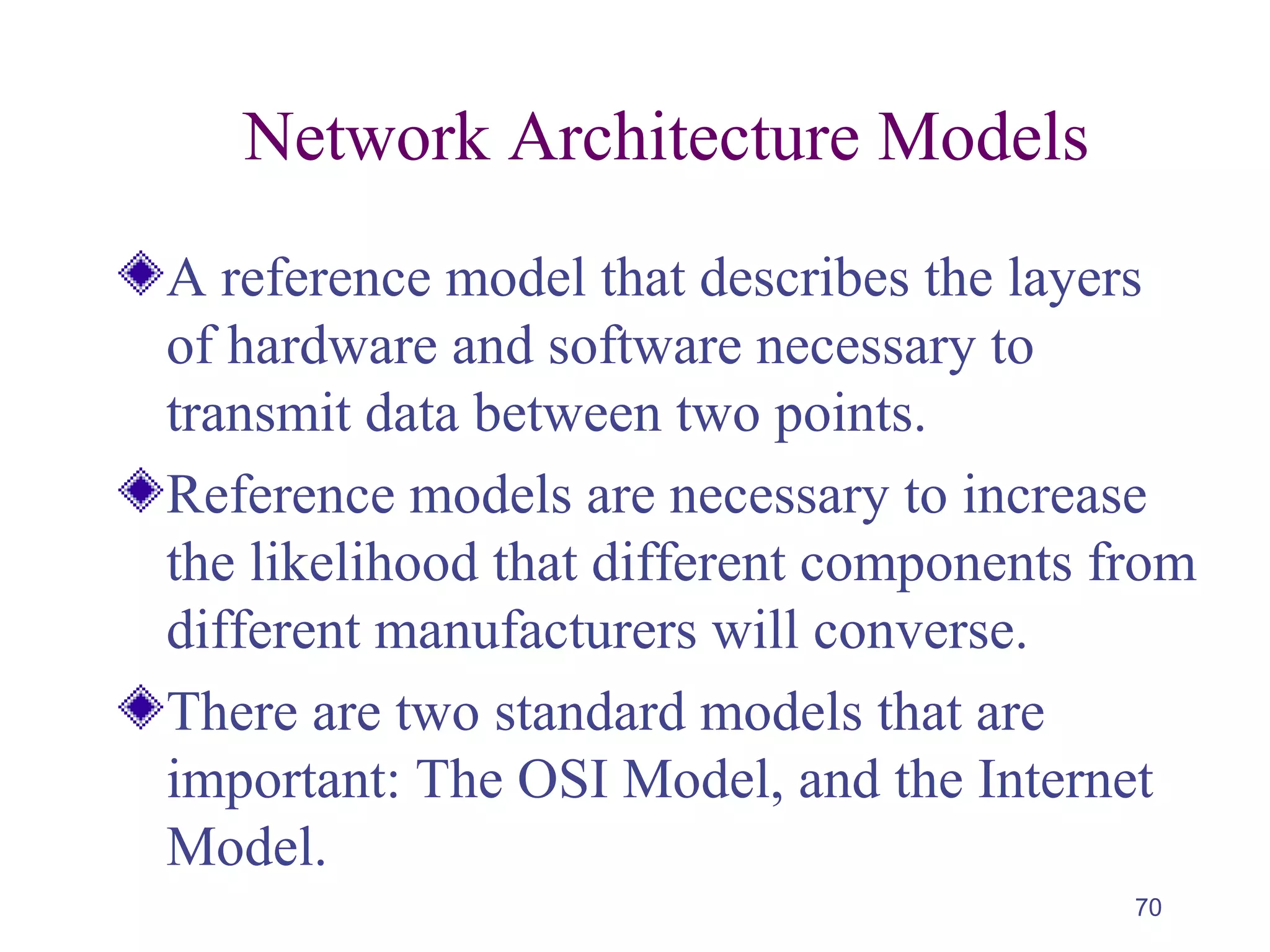

Network Architecture Models
A reference model that describes the layers
of hardware and software necessary to
transmit data between two points.
Reference models are necessary to increase
the likelihood that different components from
different manufacturers will converse.
There are two standard models that are
important: The OSI Model, and the Internet
Model.

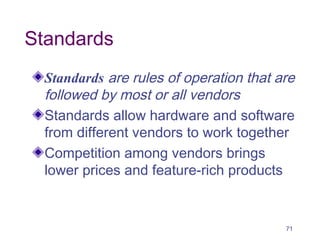

71

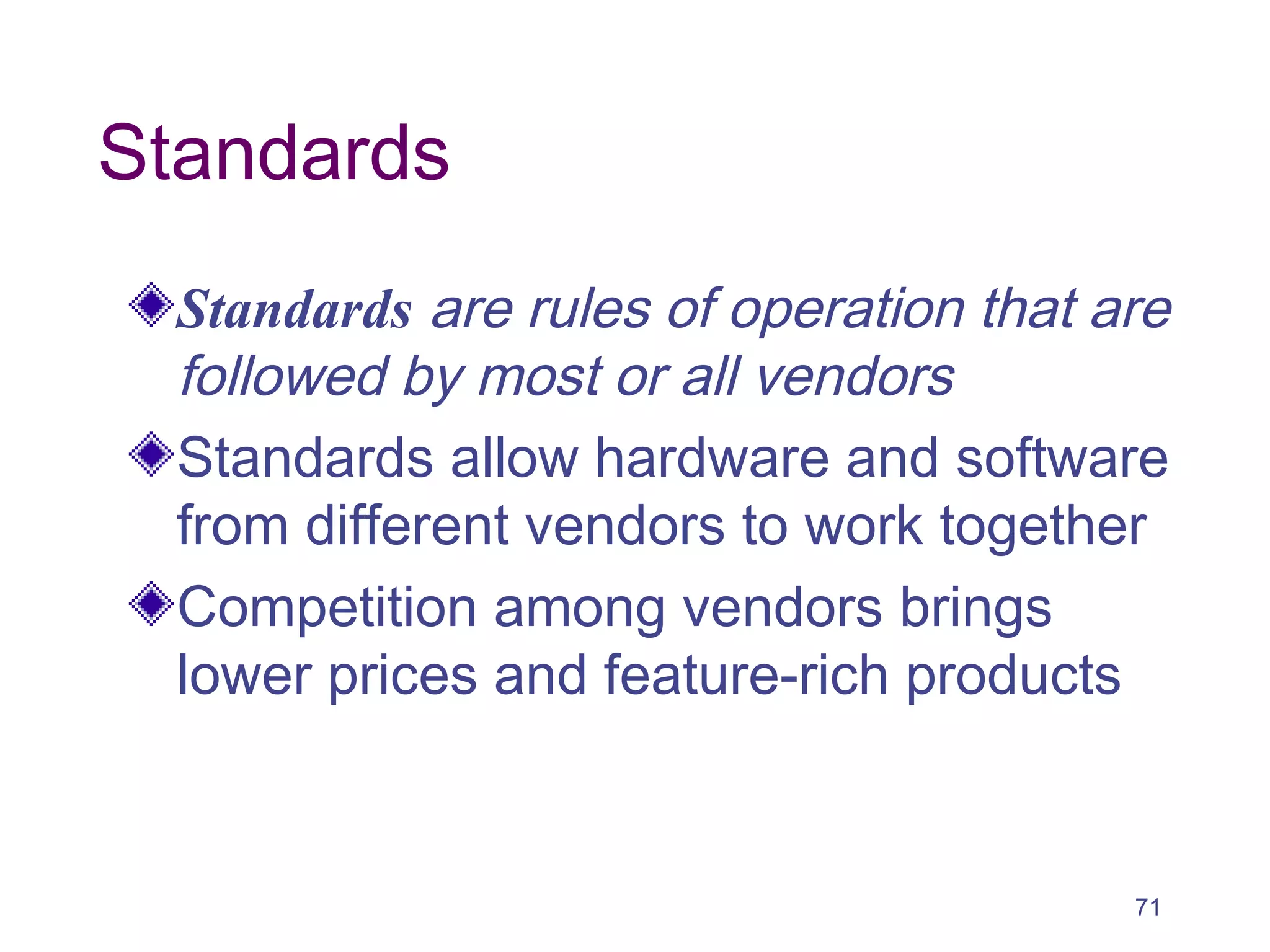

Standards
Standards are rules of operation that are
followed by most or all vendors
Standards allow hardware and software
from different vendors to work together
Competition among vendors brings
lower prices and feature-rich products

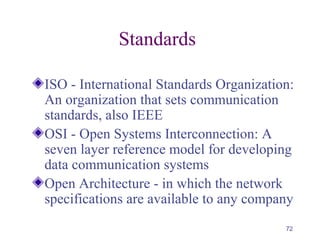

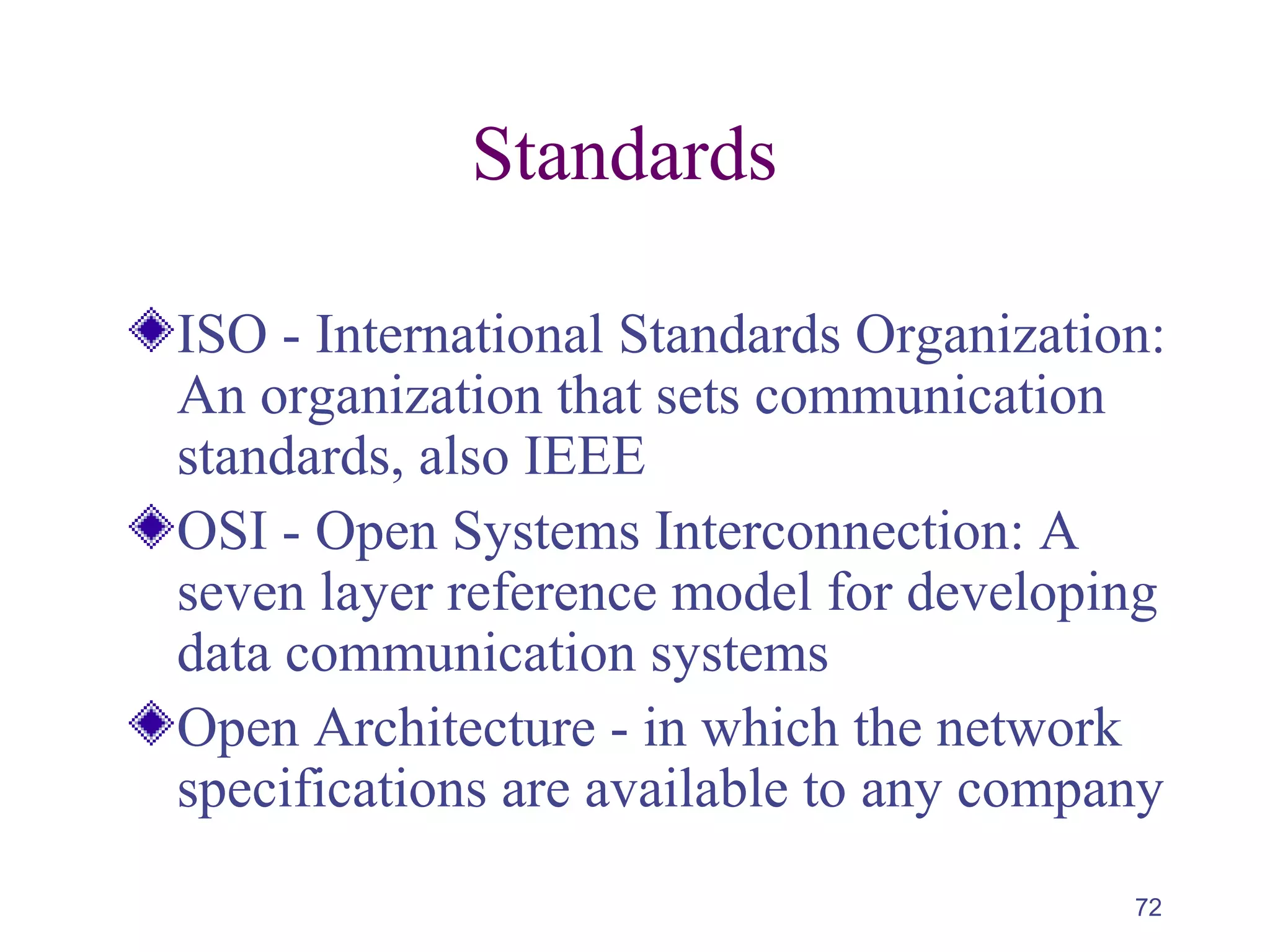

72
Standards
ISO - International Standards Organization:
An organization that sets communication
standards, also IEEE
OSI - Open Systems Interconnection: A
seven layer reference model for developing
data communication systems
Open Architecture - in which the network
specifications are available to any company

73
OSI Layers of Communication

74

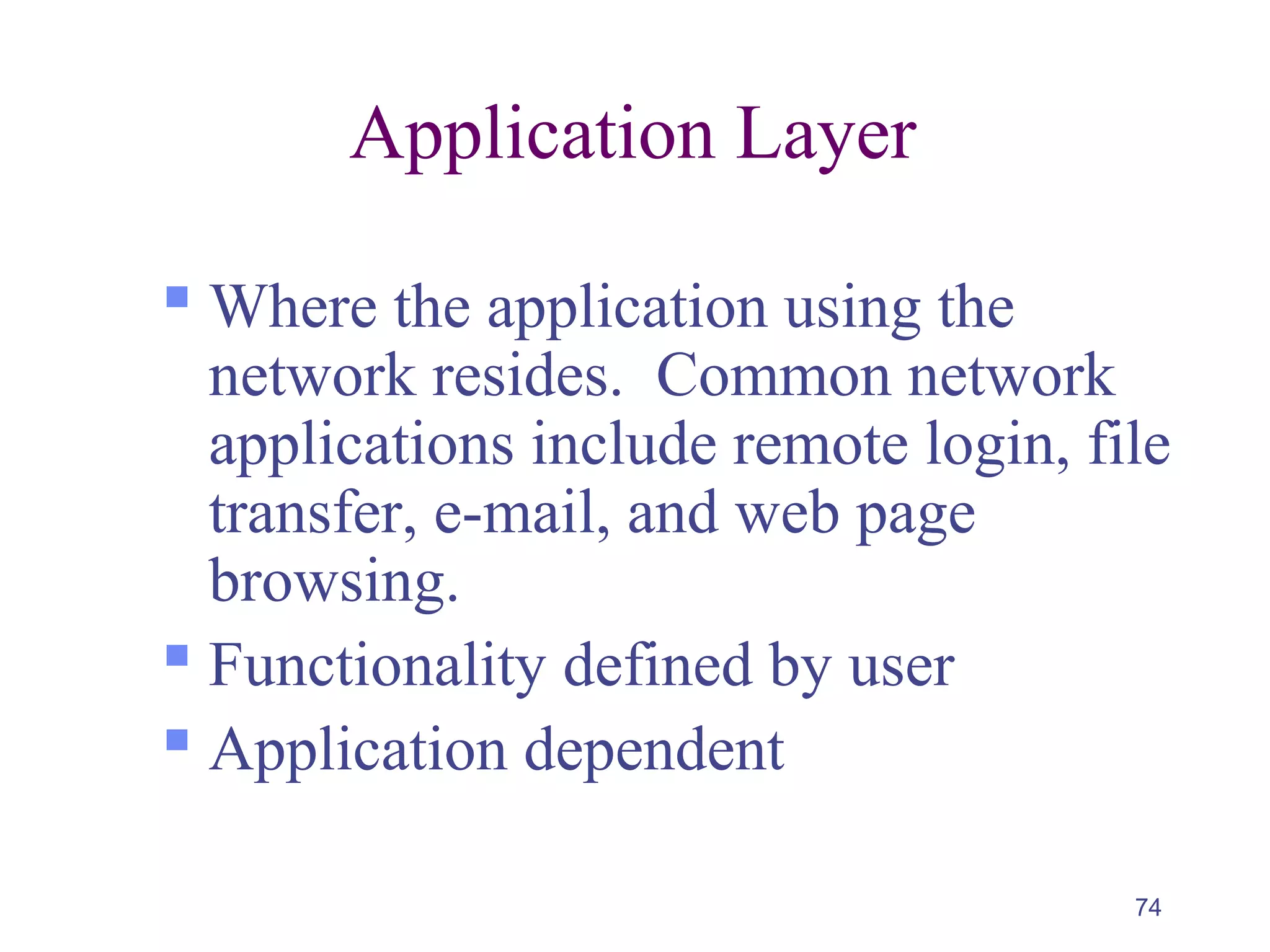

Application Layer
 Where the application using the
network resides. Common network
applications include remote login, file
transfer, e-mail, and web page
browsing.
 Functionality defined by user
 Application dependent

75

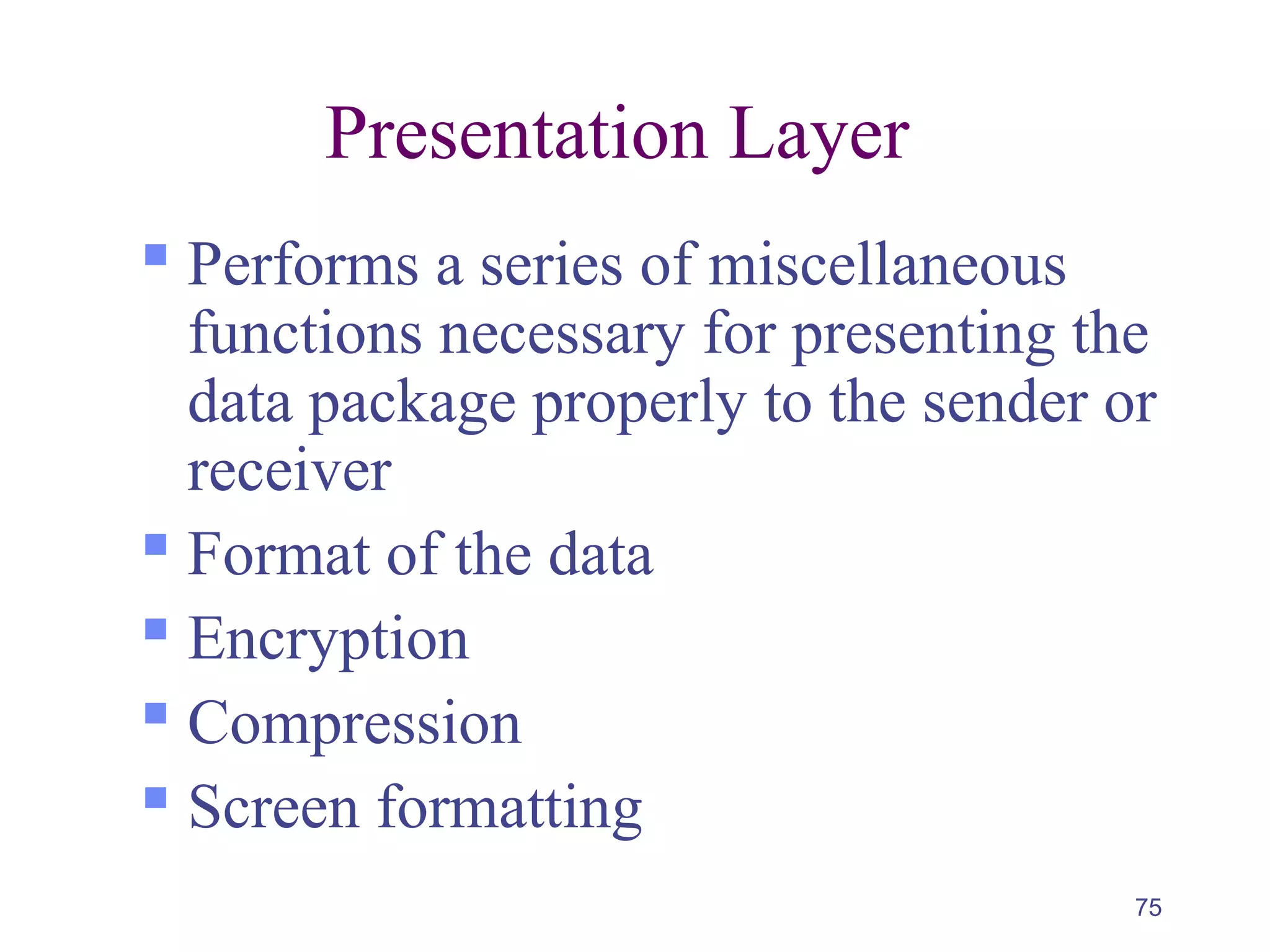

Presentation Layer
 Performs a series of miscellaneous
functions necessary for presenting the
data package properly to the sender or
receiver
 Format of the data
 Encryption
 Compression
 Screen formatting

76

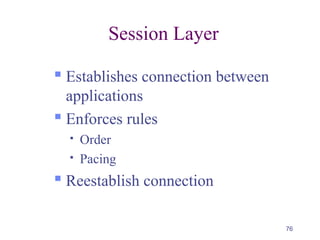

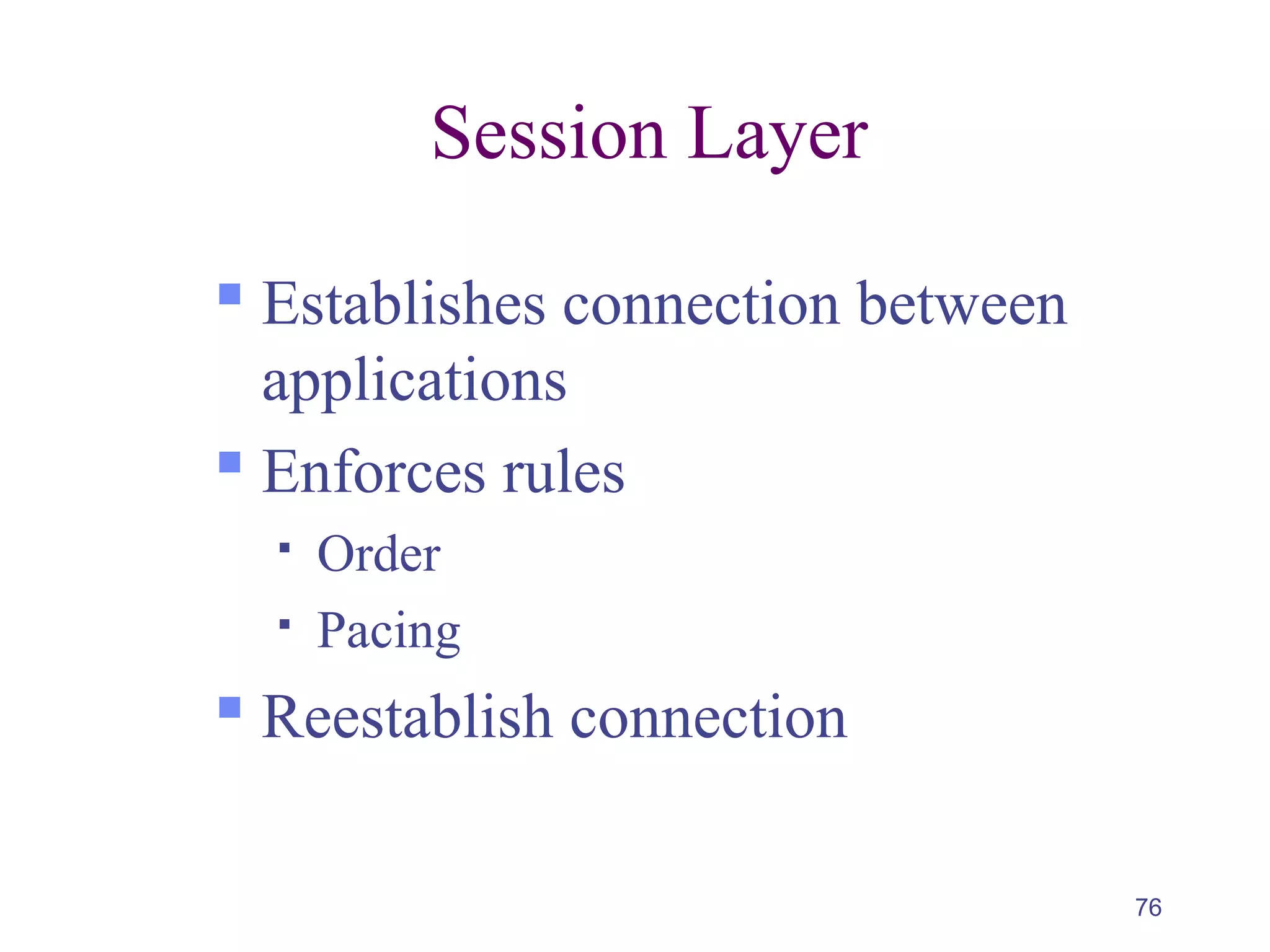

Session Layer
 Establishes connection between
applications
 Enforces rules
 Order
 Pacing
 Reestablish connection

77

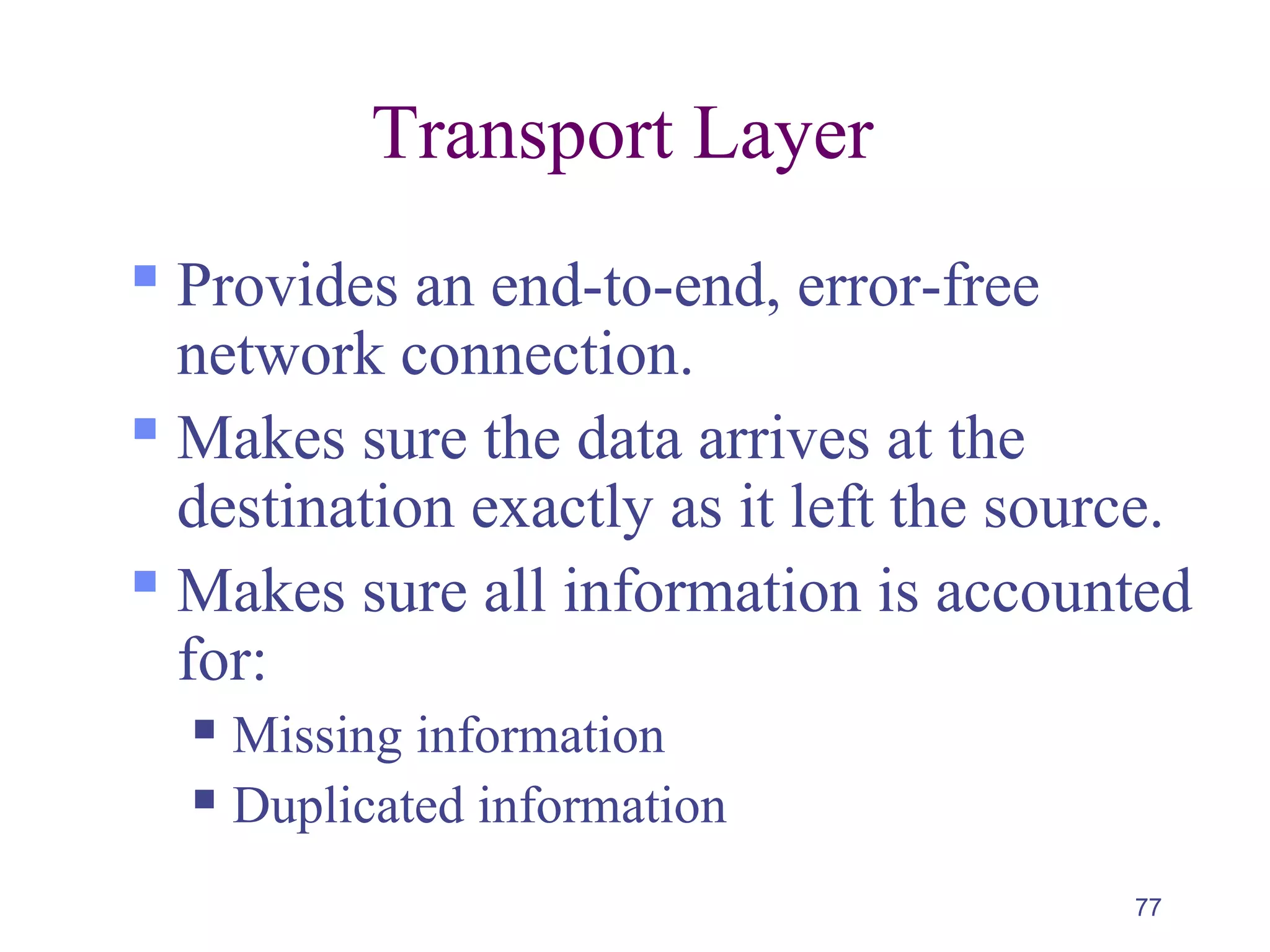

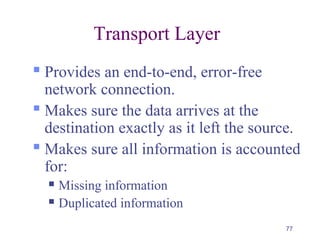

Transport Layer
 Provides an end-to-end, error-free
network connection.
 Makes sure the data arrives at the
destination exactly as it left the source.
 Makes sure all information is accounted
for:
 Missing information
 Duplicated information

78

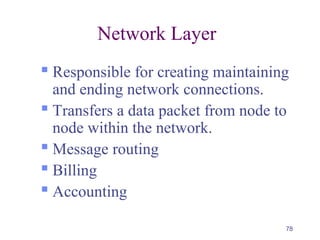

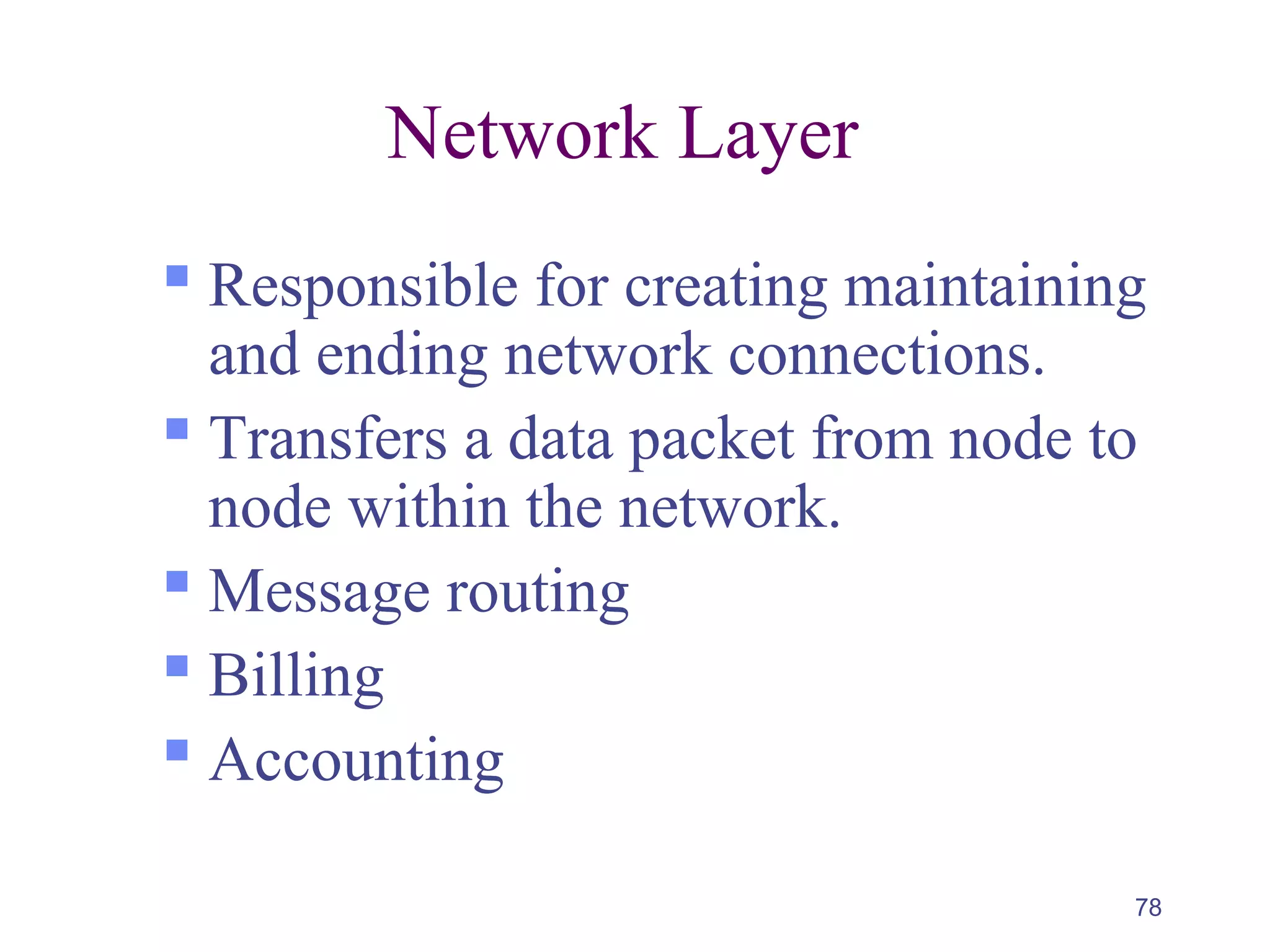

Network Layer
 Responsible for creating maintaining
and ending network connections.
 Transfers a data packet from node to
node within the network.
 Message routing
 Billing
 Accounting

79

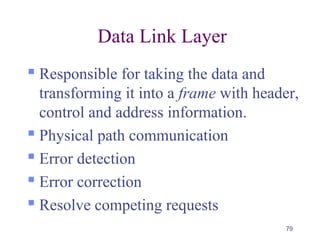

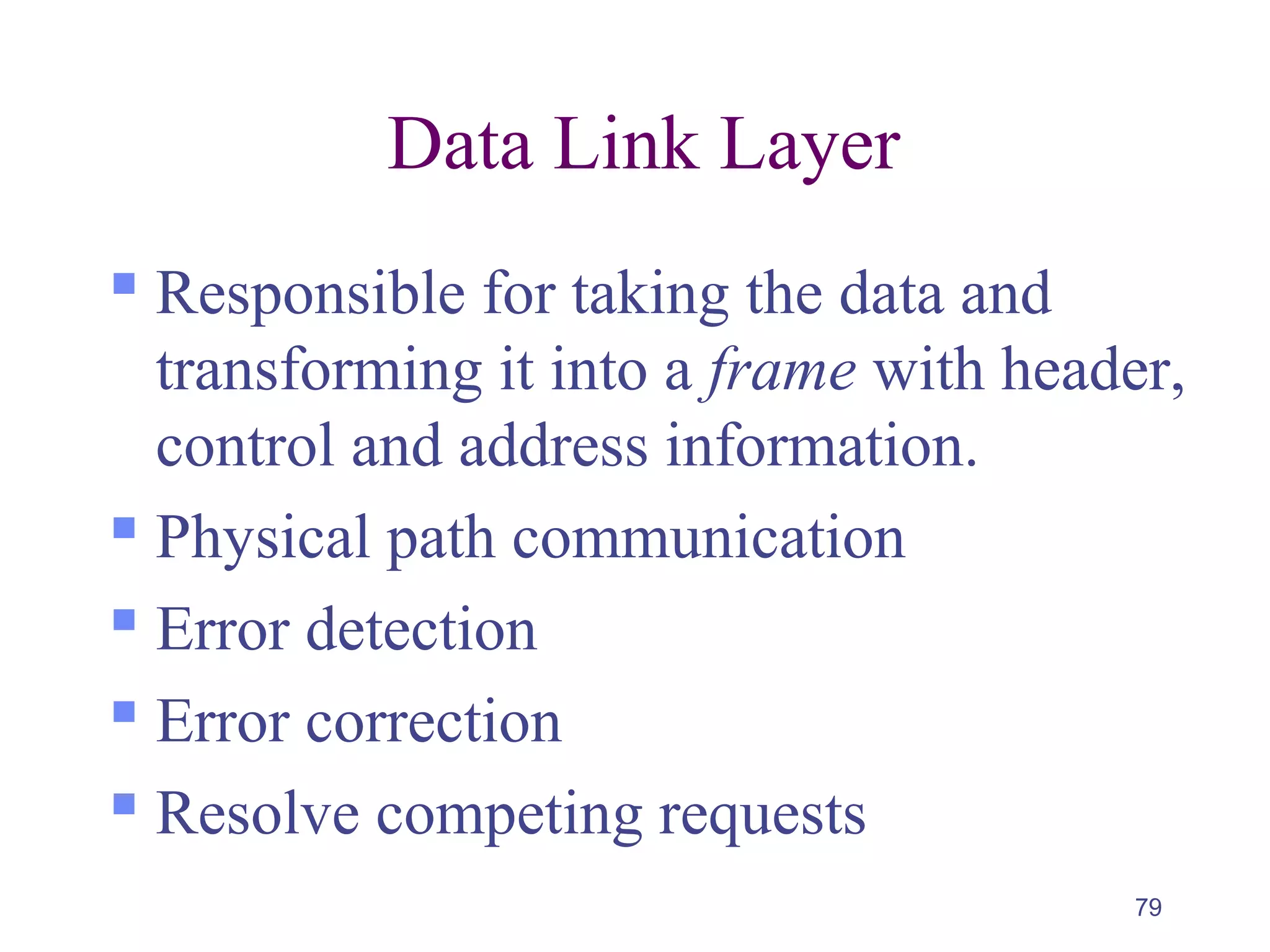

Data Link Layer
 Responsible for taking the data and
transforming it into a frame with header,
control and address information.
 Physical path communication
 Error detection
 Error correction
 Resolve competing requests

80

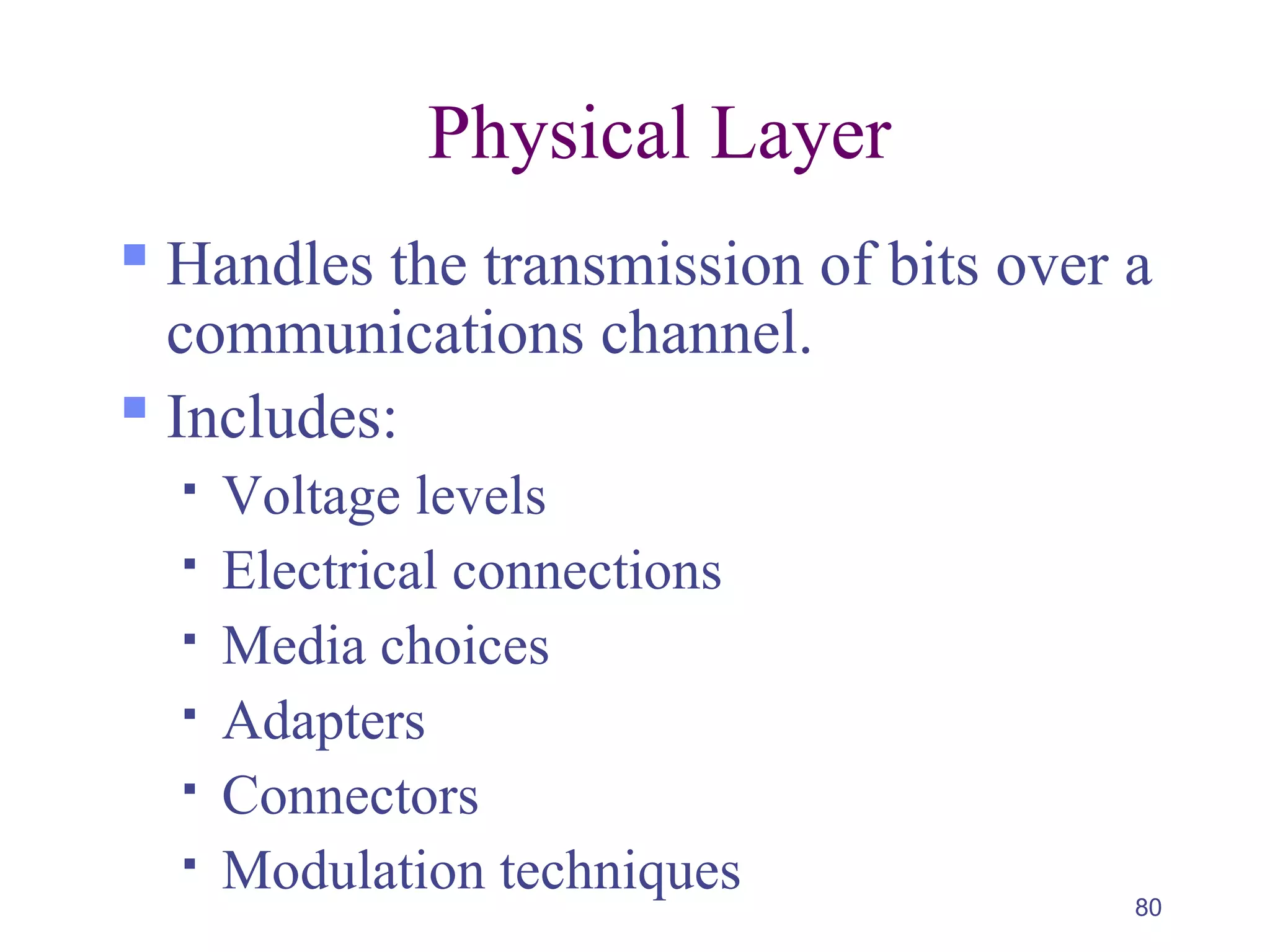

Physical Layer
 Handles the transmission of bits over a
communications channel.
 Includes:
 Voltage levels
 Electrical connections
 Media choices
 Adapters
 Connectors
 Modulation techniques

82

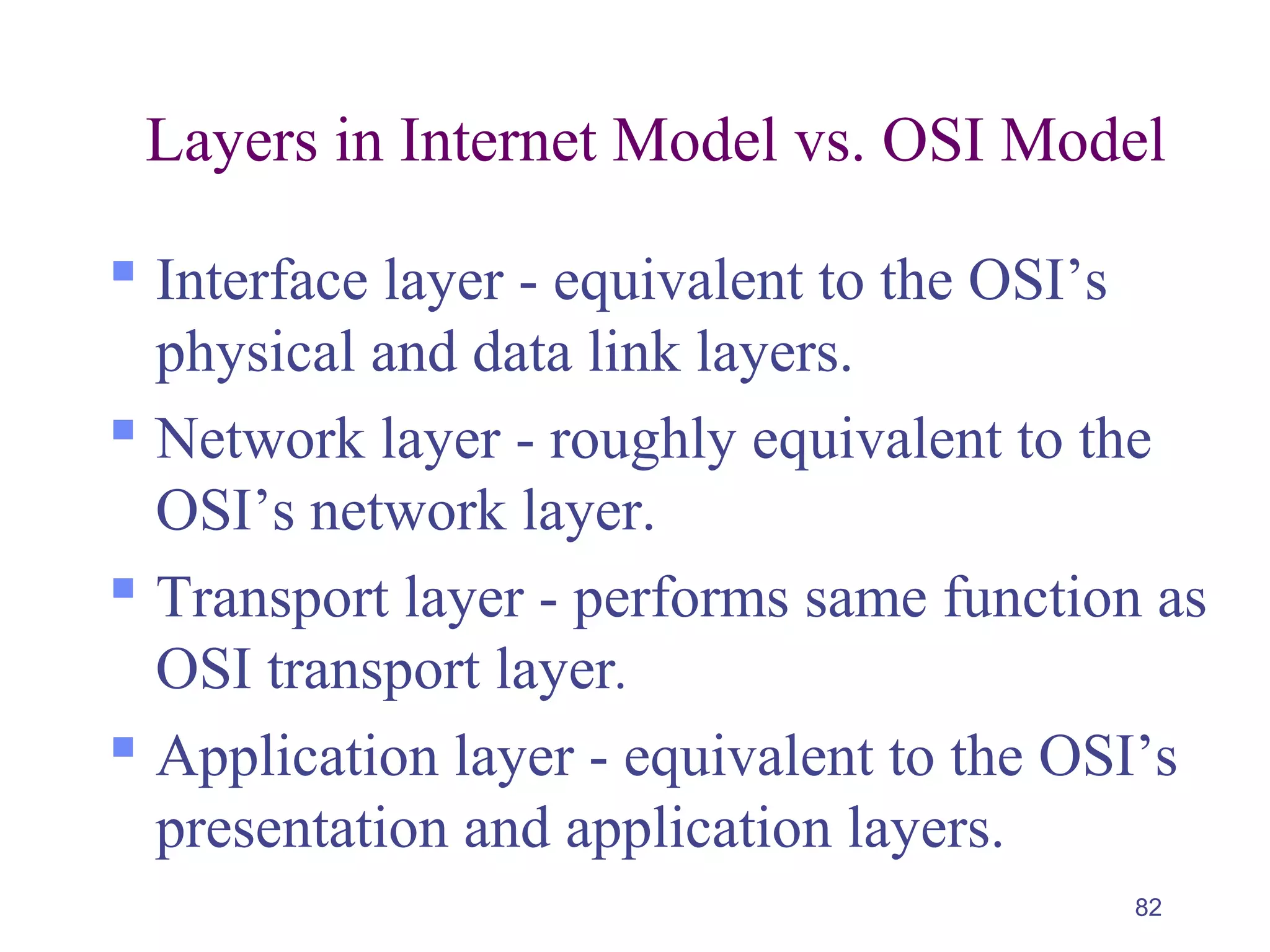

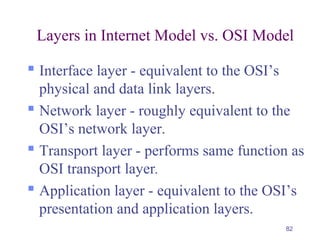

Layers in Internet Model vs. OSI Model
 Interface layer - equivalent to the OSI’s
physical and data link layers.
 Network layer - roughly equivalent to the
OSI’s network layer.
 Transport layer - performs same function as
OSI transport layer.
 Application layer - equivalent to the OSI’s
presentation and application layers.

83

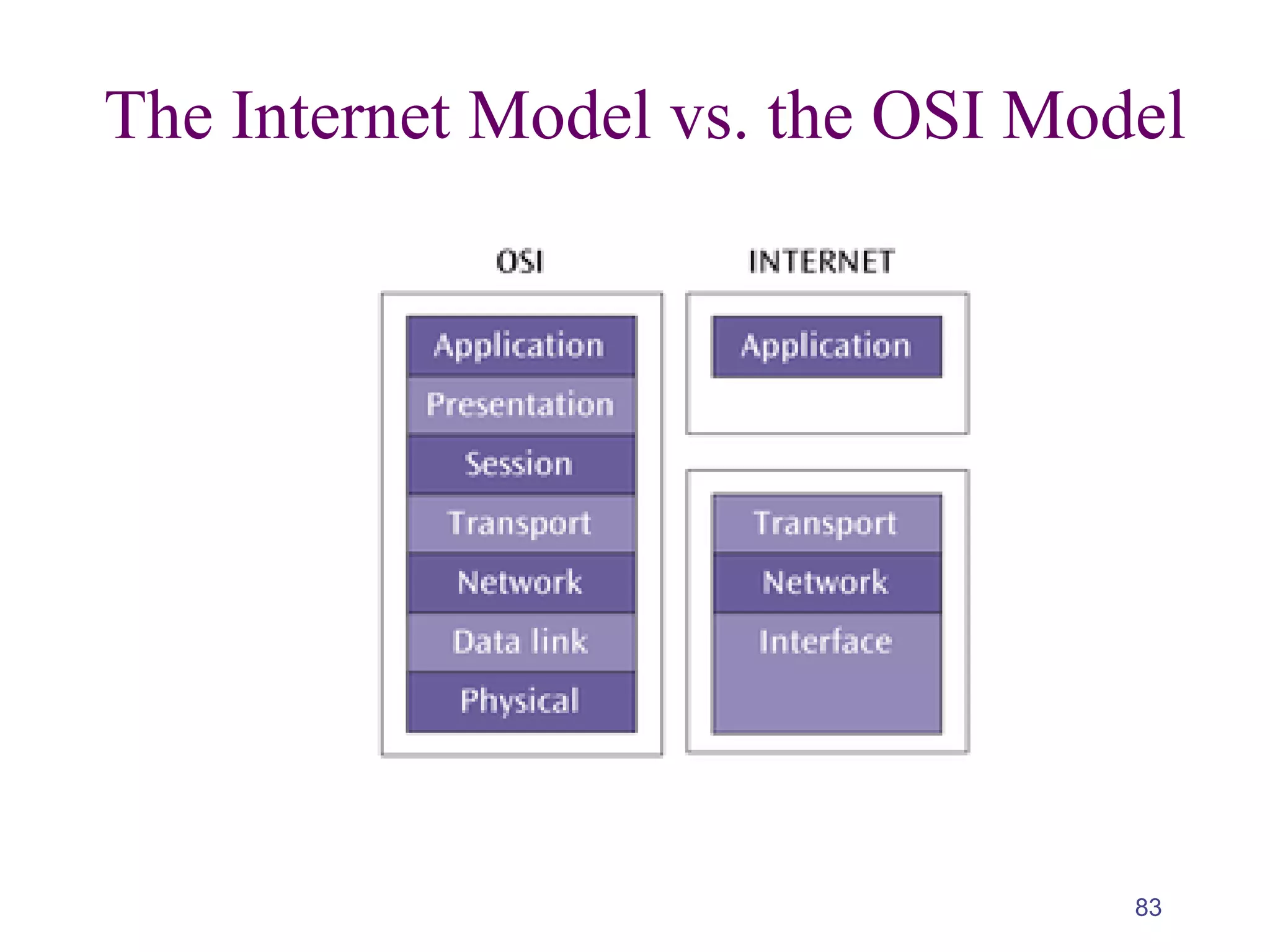

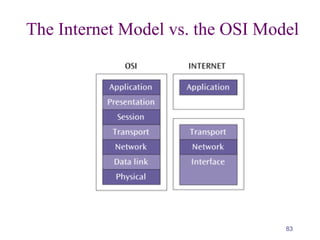

The Internet Model vs. the OSI Model

84

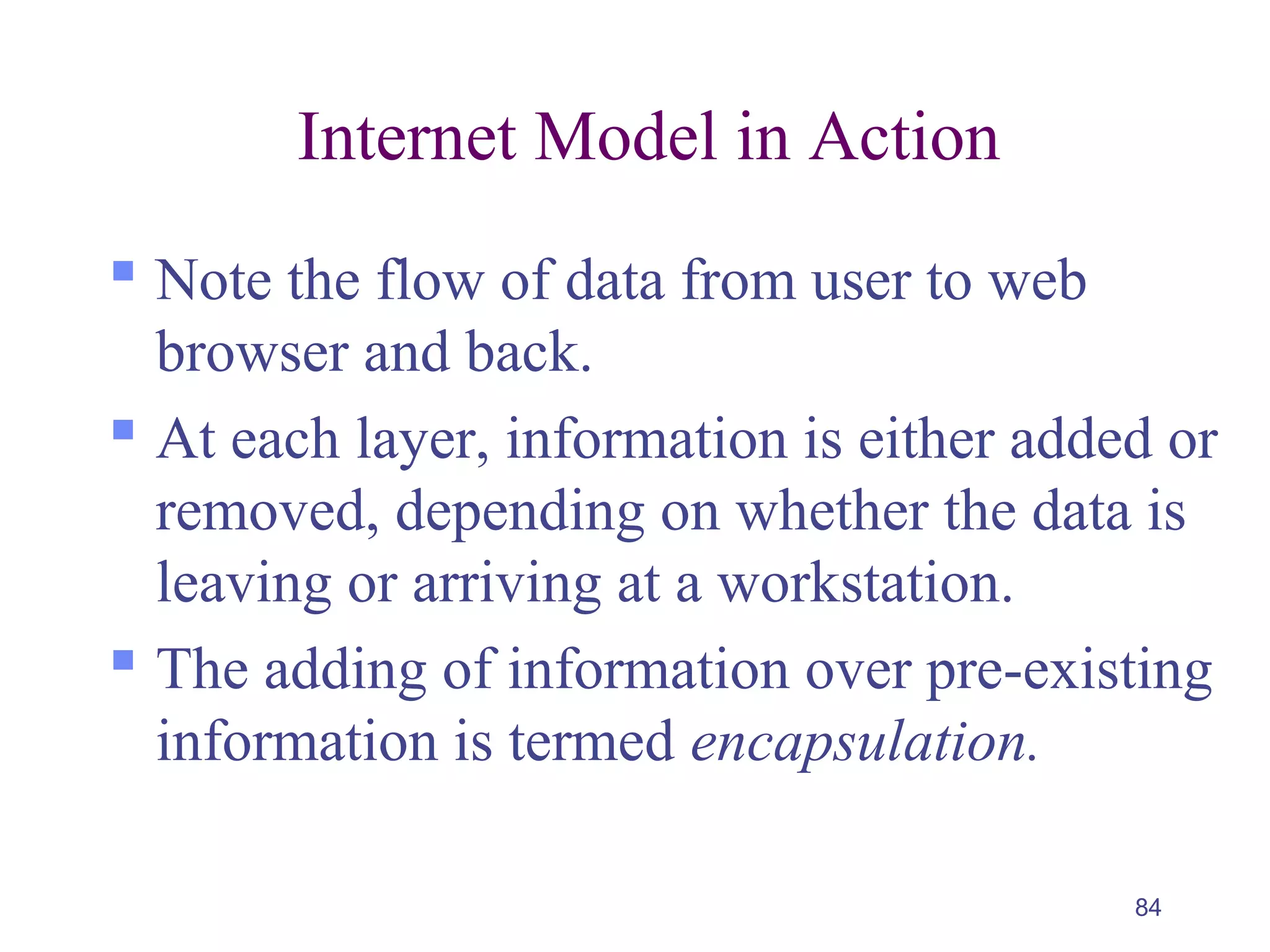

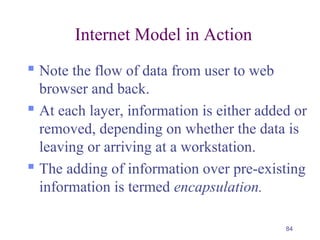

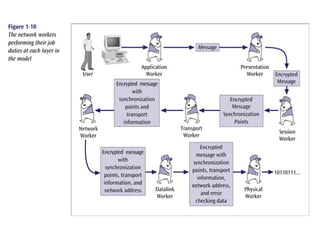

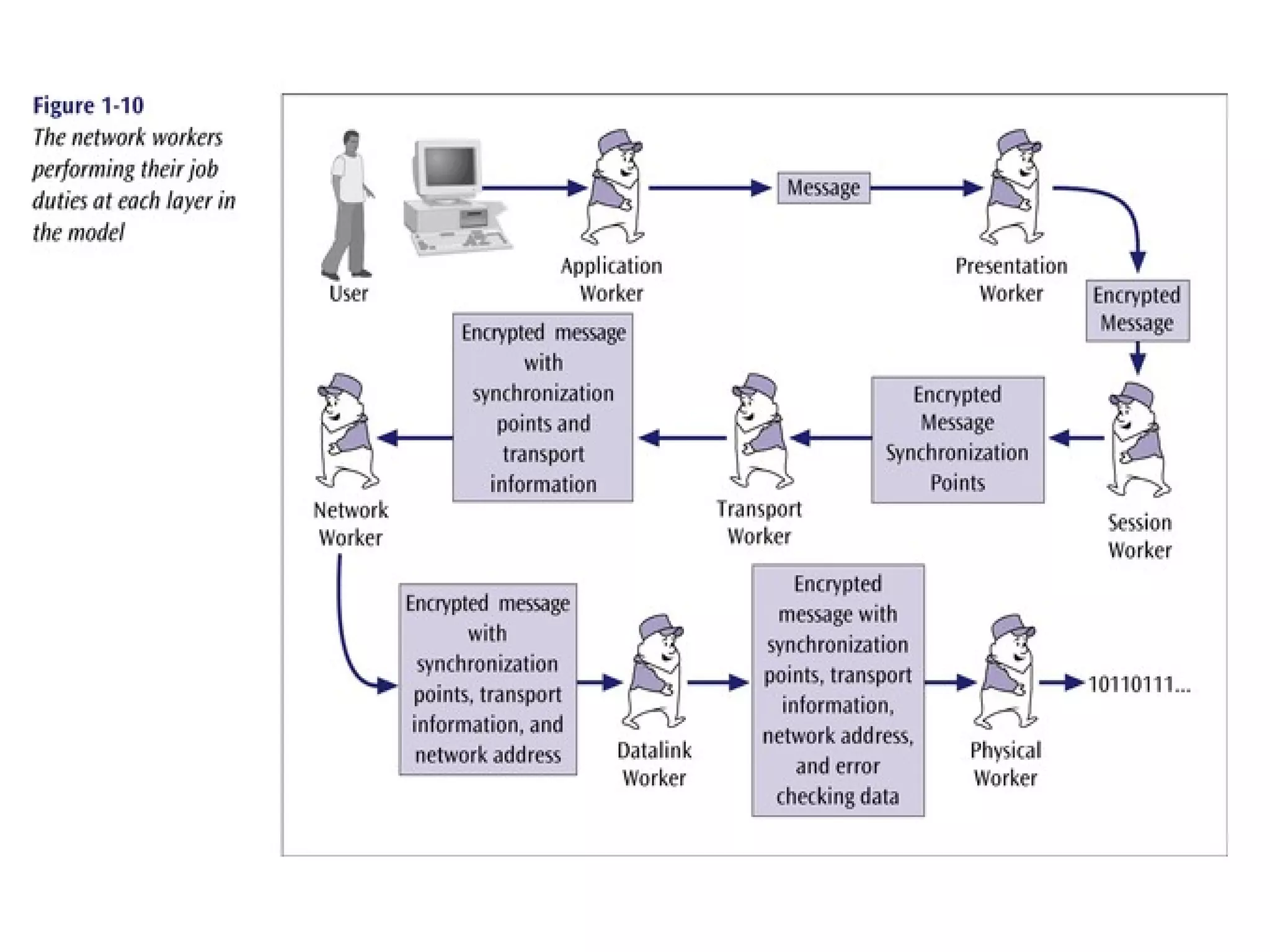

Internet Model in Action
 Note the flow of data from user to web
browser and back.
 At each layer, information is either added or
removed, depending on whether the data is
leaving or arriving at a workstation.
 The adding of information over pre-existing
information is termed encapsulation.

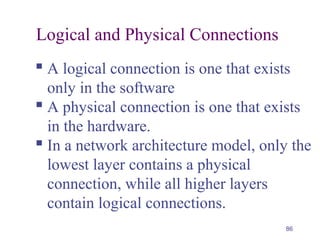

86

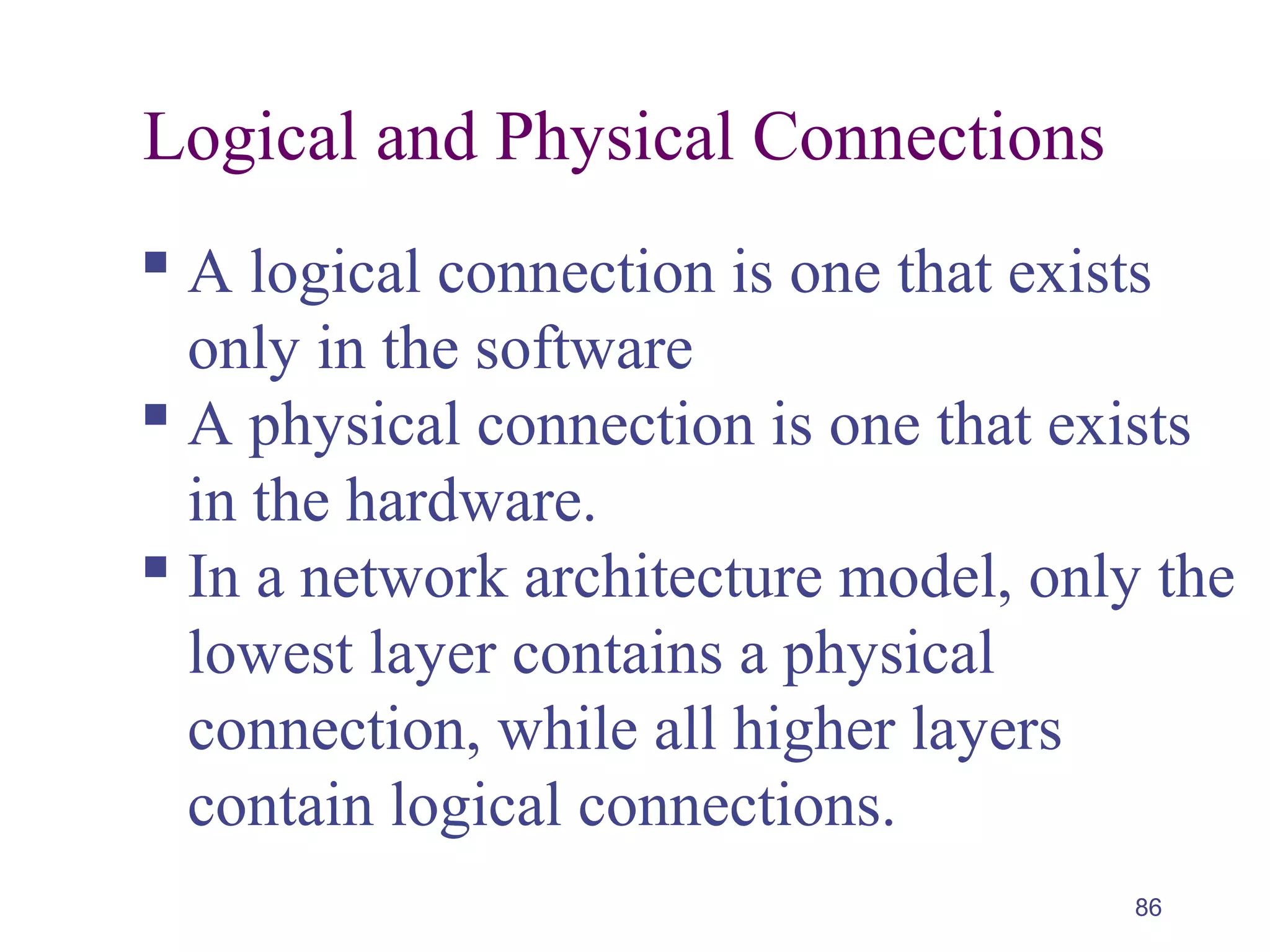

Logical and Physical Connections
 A logical connection is one that exists
only in the software
 A physical connection is one that exists
in the hardware.
 In a network architecture model, only the
lowest layer contains a physical
connection, while all higher layers
contain logical connections.

87

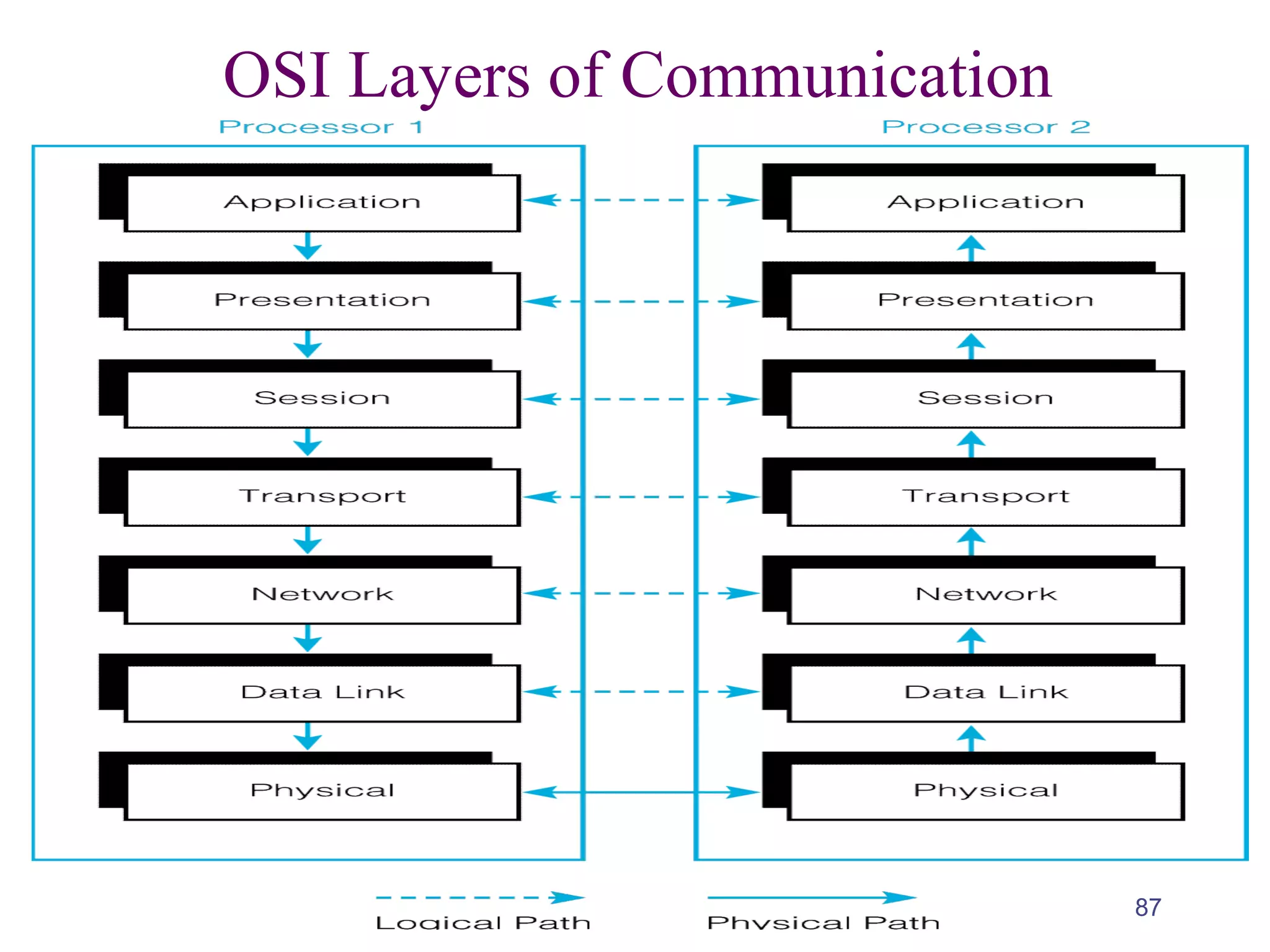

OSI Layers of Communication

88

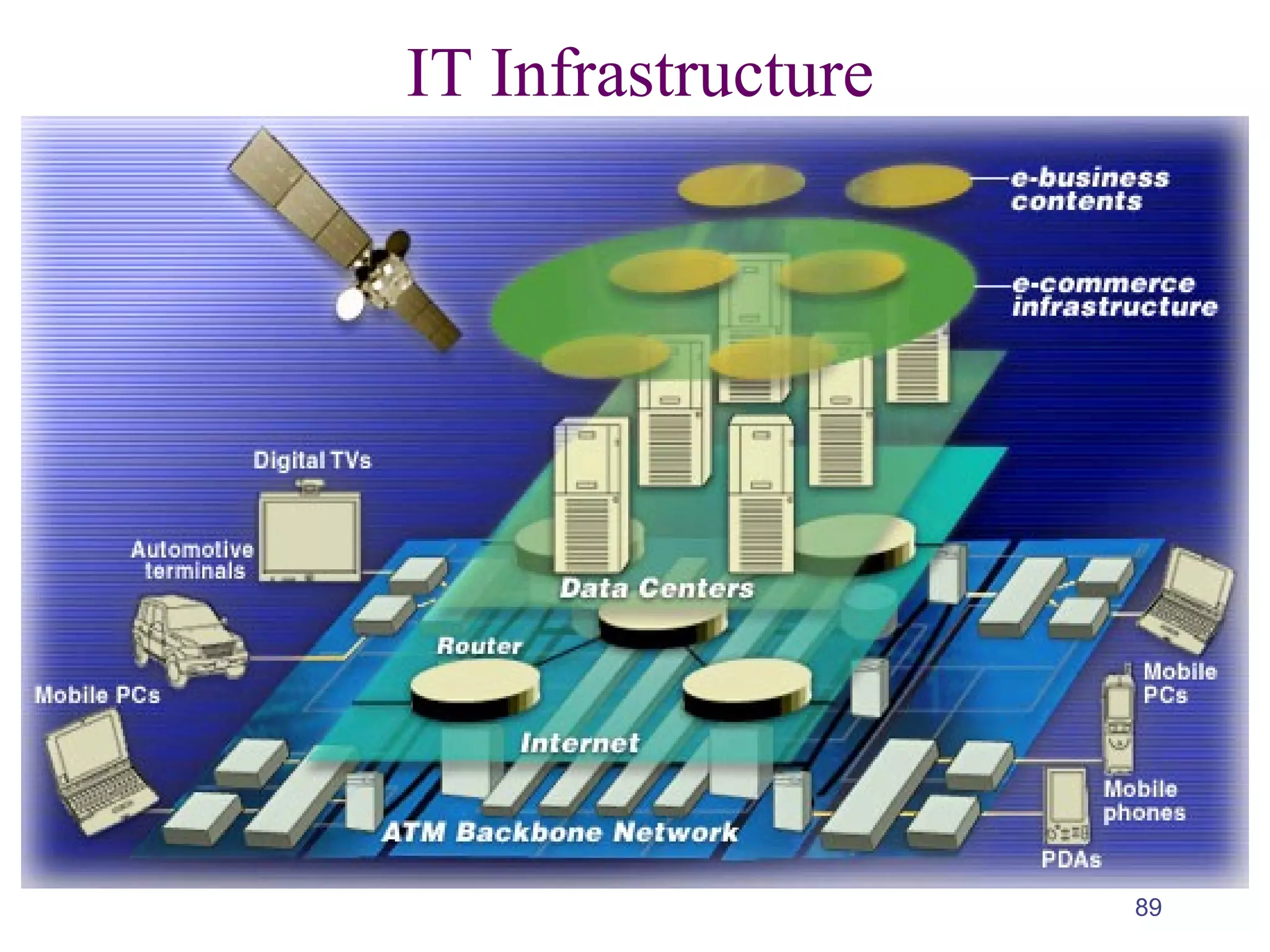

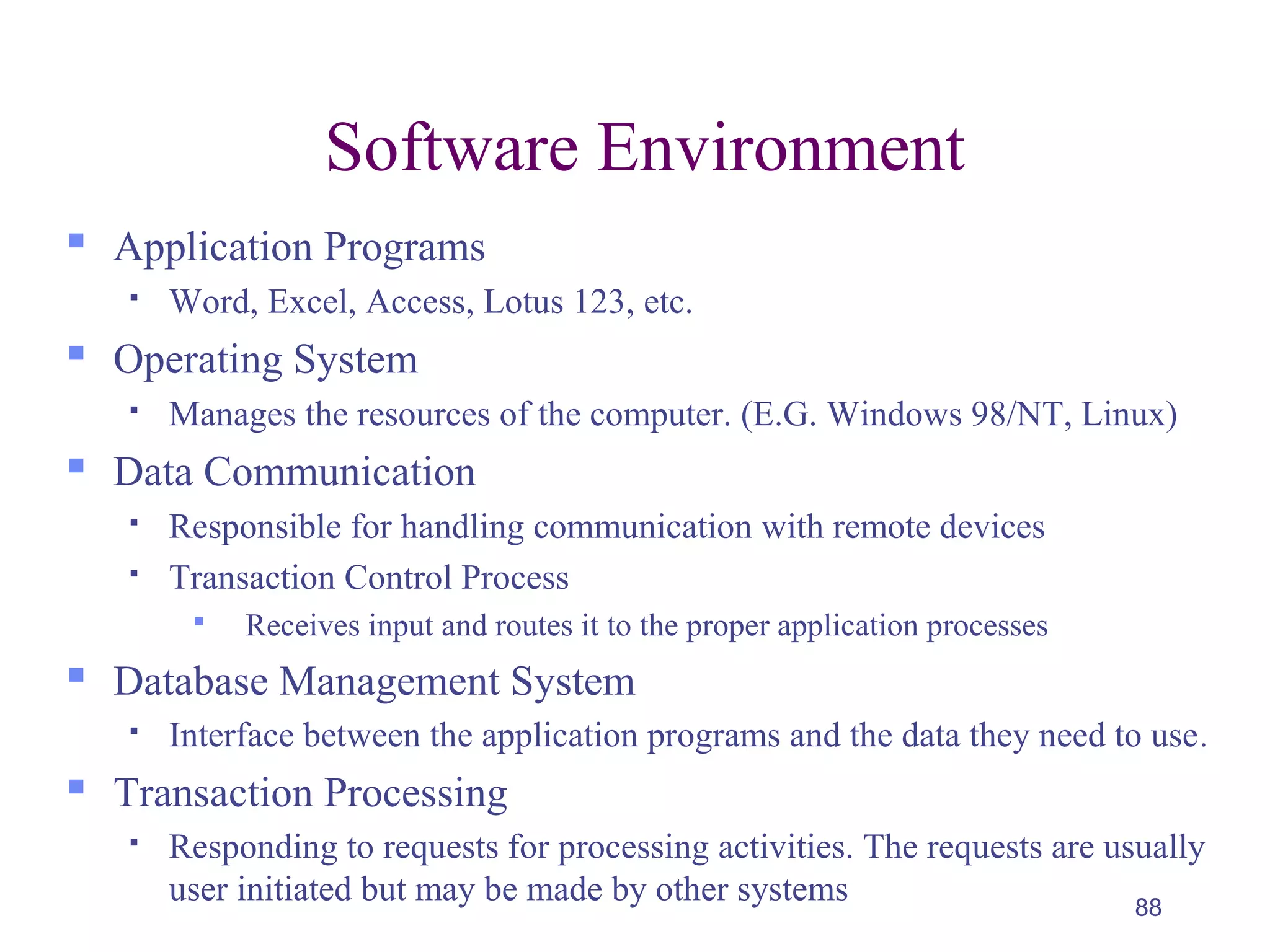

Software Environment
 Application Programs
 Word, Excel, Access, Lotus 123, etc.
 Operating System
 Manages the resources of the computer. (E.G. Windows 98/NT, Linux)
 Data Communication
 Responsible for handling communication with remote devices
 Transaction Control Process
 Receives input and routes it to the proper application processes
 Database Management System
 Interface between the application programs and the data they need to use.
 Transaction Processing
 Responding to requests for processing activities. The requests are usually
user initiated but may be made by other systems

90
Class Discussion
 How have you used a network today.
 Discuss an example of a business that incorporates
layers of management and show how the work
progresses through the layers.
 Are there any network configurations that have not
been addressed in the chapter? What are their
applications?
 Are there any other examples in business where
one particular technology or method has won out
over the competition? What were the reasons that
lead to this particular technology winning?

Joining Professional
Associations
Benefits can include:
Connecting with people who have
similar interests
Providing new opportunities for learning
Allowing access to specialized
information
Giving tangible assets such as free
goods

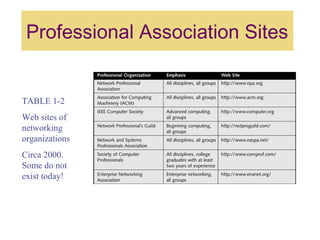

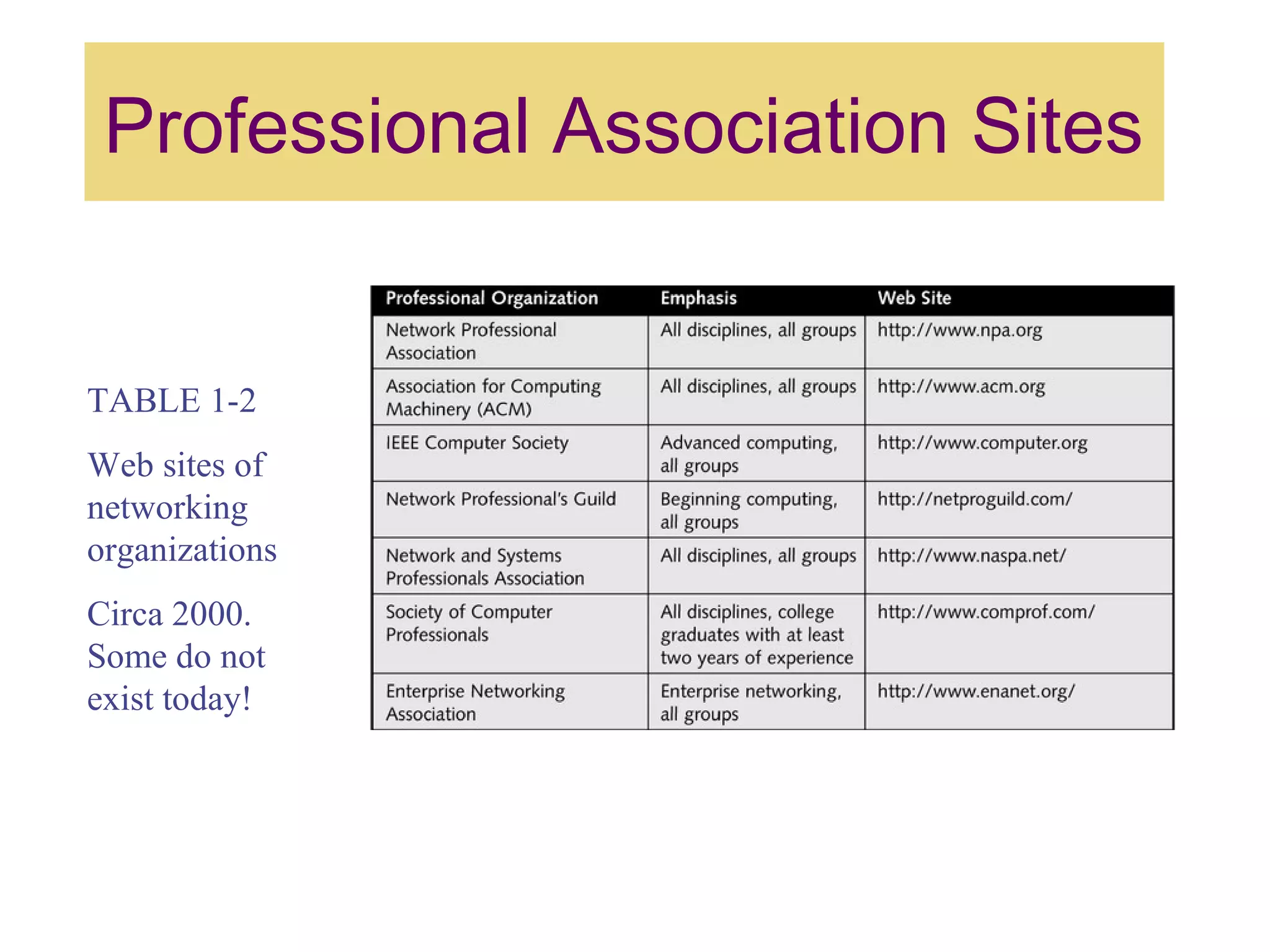

Professional Association Sites
TABLE 1-2
Web sites of
networking
organizations
Circa 2000.
Some do not
exist today!

niceData com.

More Related Content

What's hot

Viewers also liked

Similar to niceData com.

Recently uploaded

niceData com.

Editor's Notes
