DBMS 4 | MySQL - DDL & DML Commands

Page | 1 Mohammad Imam Hossain, Email: imambuet11@gmail.com

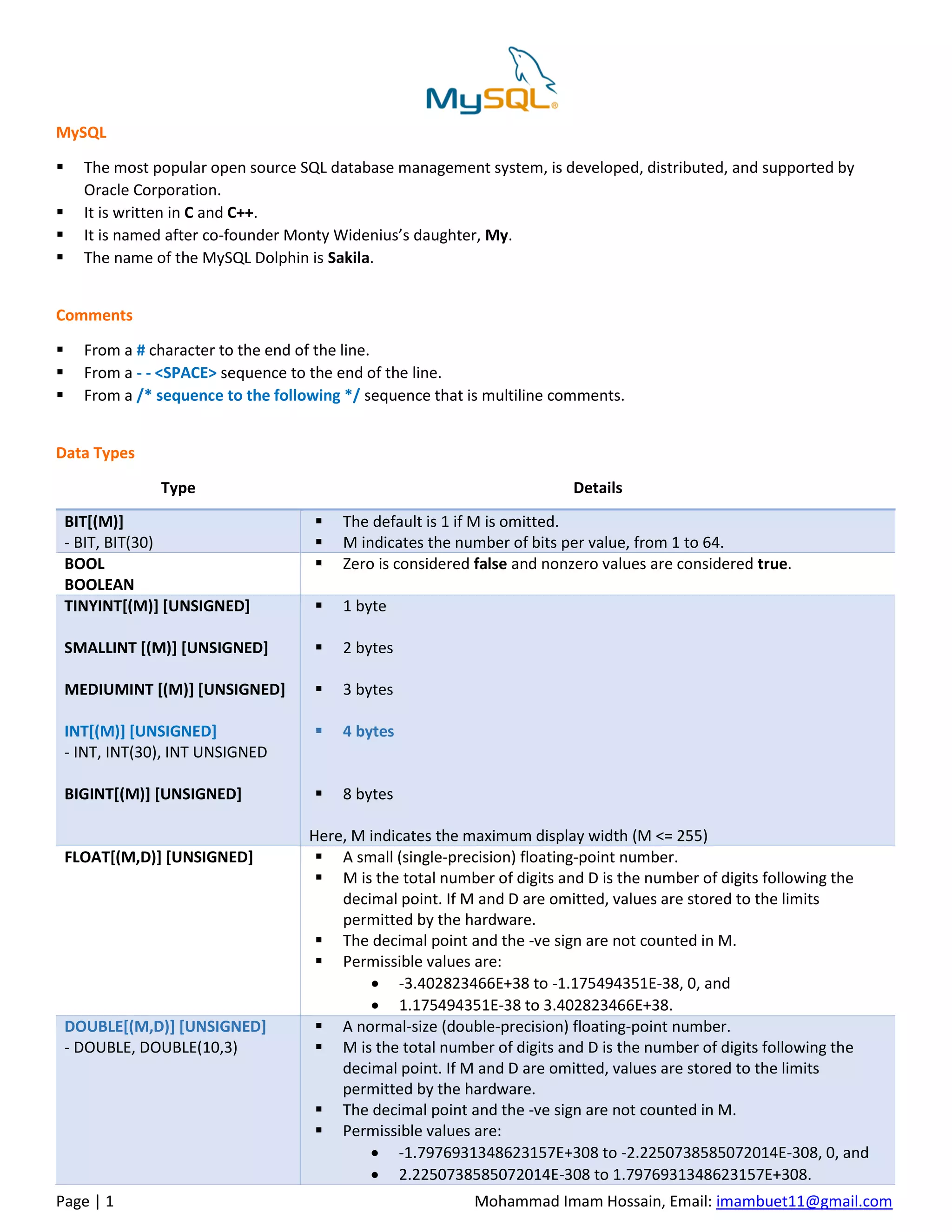

MySQL
▪ The most popular open source SQL database management system, is developed, distributed, and supported by
Oracle Corporation.
▪ It is written in C and C++.
▪ It is named after co-founder Monty Widenius’s daughter, My.
▪ The name of the MySQL Dolphin is Sakila.
Comments
▪ From a # character to the end of the line.
▪ From a - - <SPACE> sequence to the end of the line.
▪ From a /* sequence to the following */ sequence that is multiline comments.
Data Types
Type Details
BIT[(M)]
- BIT, BIT(30)
▪ The default is 1 if M is omitted.
▪ M indicates the number of bits per value, from 1 to 64.
BOOL
BOOLEAN
▪ Zero is considered false and nonzero values are considered true.
TINYINT[(M)] [UNSIGNED]
SMALLINT [(M)] [UNSIGNED]
MEDIUMINT [(M)] [UNSIGNED]
INT[(M)] [UNSIGNED]
- INT, INT(30), INT UNSIGNED
BIGINT[(M)] [UNSIGNED]
▪ 1 byte
▪ 2 bytes
▪ 3 bytes
▪ 4 bytes
▪ 8 bytes
Here, M indicates the maximum display width (M <= 255)
FLOAT[(M,D)] [UNSIGNED] ▪ A small (single-precision) floating-point number.
▪ M is the total number of digits and D is the number of digits following the
decimal point. If M and D are omitted, values are stored to the limits
permitted by the hardware.
▪ The decimal point and the -ve sign are not counted in M.
▪ Permissible values are:
• -3.402823466E+38 to -1.175494351E-38, 0, and
• 1.175494351E-38 to 3.402823466E+38.
DOUBLE[(M,D)] [UNSIGNED]
- DOUBLE, DOUBLE(10,3)
▪ A normal-size (double-precision) floating-point number.
▪ M is the total number of digits and D is the number of digits following the
decimal point. If M and D are omitted, values are stored to the limits
permitted by the hardware.
▪ The decimal point and the -ve sign are not counted in M.
▪ Permissible values are:
• -1.7976931348623157E+308 to -2.2250738585072014E-308, 0, and
• 2.2250738585072014E-308 to 1.7976931348623157E+308.

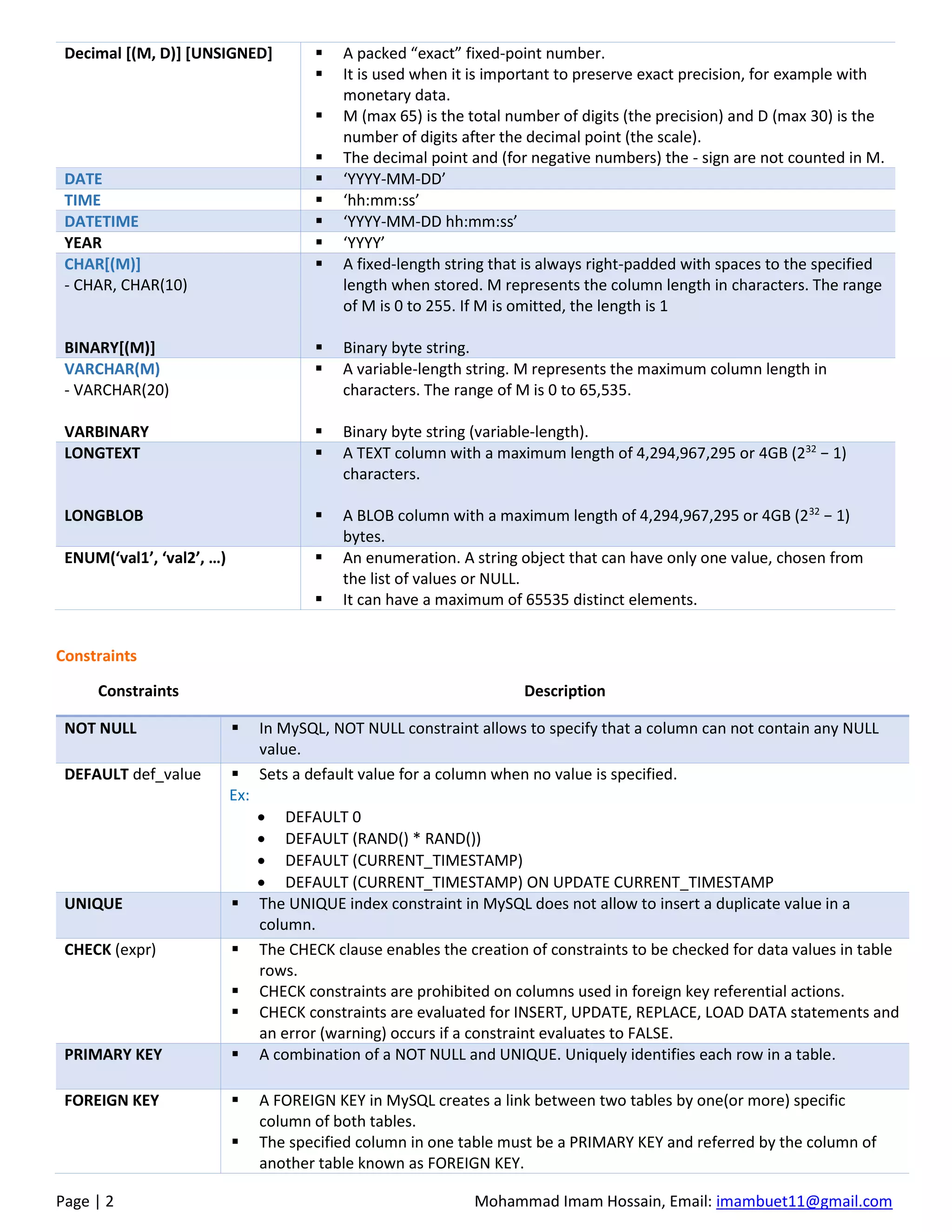

Decimal [(M, D)] [UNSIGNED] ▪ A packed “exact” fixed-point number.
▪ It is used when it is important to preserve exact precision, for example with
monetary data.
▪ M (max 65) is the total number of digits (the precision) and D (max 30) is the
number of digits after the decimal point (the scale).
▪ The decimal point and (for negative numbers) the - sign are not counted in M.
DATE ▪ ‘YYYY-MM-DD’
TIME ▪ ‘hh:mm:ss’
DATETIME ▪ ‘YYYY-MM-DD hh:mm:ss’
YEAR ▪ ‘YYYY’
CHAR[(M)]
- CHAR, CHAR(10)
BINARY[(M)]
▪ A fixed-length string that is always right-padded with spaces to the specified
length when stored. M represents the column length in characters. The range
of M is 0 to 255. If M is omitted, the length is 1
▪ Binary byte string.
VARCHAR(M)
- VARCHAR(20)
VARBINARY
▪ A variable-length string. M represents the maximum column length in
characters. The range of M is 0 to 65,535.
▪ Binary byte string (variable-length).
LONGTEXT
LONGBLOB
▪ A TEXT column with a maximum length of 4,294,967,295 or 4GB (232
− 1)
characters.
▪ A BLOB column with a maximum length of 4,294,967,295 or 4GB (232
− 1)
bytes.
ENUM(‘val1’, ‘val2’, …) ▪ An enumeration. A string object that can have only one value, chosen from
the list of values or NULL.
▪ It can have a maximum of 65535 distinct elements.
Constraints
Constraints Description
NOT NULL ▪ In MySQL, NOT NULL constraint allows to specify that a column can not contain any NULL
value.
DEFAULT def_value ▪ Sets a default value for a column when no value is specified.
Ex:
• DEFAULT 0
• DEFAULT (RAND() * RAND())
• DEFAULT (CURRENT_TIMESTAMP)
• DEFAULT (CURRENT_TIMESTAMP) ON UPDATE CURRENT_TIMESTAMP
UNIQUE ▪ The UNIQUE index constraint in MySQL does not allow to insert a duplicate value in a
column.
CHECK (expr) ▪ The CHECK clause enables the creation of constraints to be checked for data values in table
rows.
▪ CHECK constraints are prohibited on columns used in foreign key referential actions.
▪ CHECK constraints are evaluated for INSERT, UPDATE, REPLACE, LOAD DATA statements and
an error (warning) occurs if a constraint evaluates to FALSE.
PRIMARY KEY ▪ A combination of a NOT NULL and UNIQUE. Uniquely identifies each row in a table.
FOREIGN KEY ▪ A FOREIGN KEY in MySQL creates a link between two tables by one(or more) specific
column of both tables.
▪ The specified column in one table must be a PRIMARY KEY and referred by the column of
another table known as FOREIGN KEY.

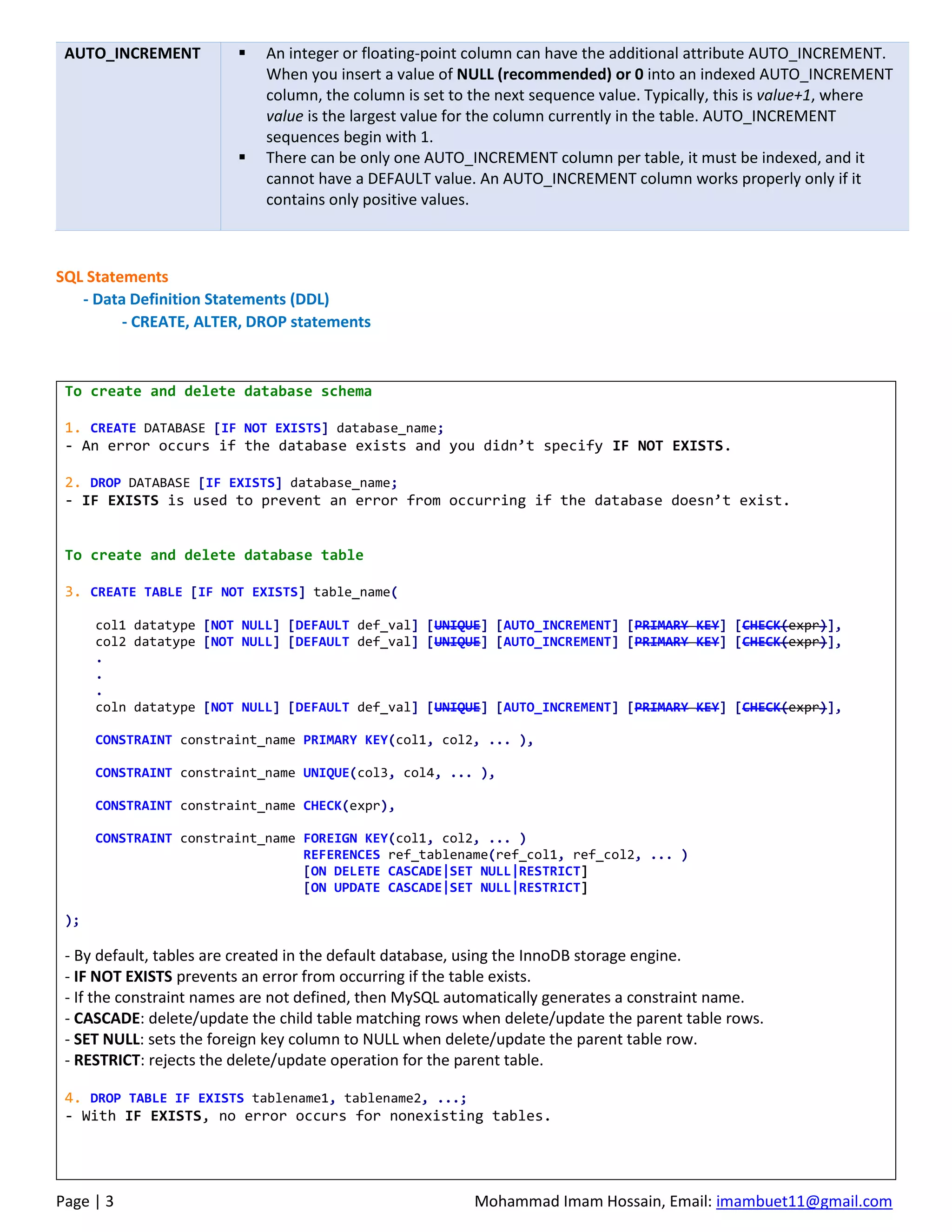

AUTO_INCREMENT ▪ An integer or floating-point column can have the additional attribute AUTO_INCREMENT.
When you insert a value of NULL (recommended) or 0 into an indexed AUTO_INCREMENT
column, the column is set to the next sequence value. Typically, this is value+1, where
value is the largest value for the column currently in the table. AUTO_INCREMENT
sequences begin with 1.
▪ There can be only one AUTO_INCREMENT column per table, it must be indexed, and it
cannot have a DEFAULT value. An AUTO_INCREMENT column works properly only if it
contains only positive values.
SQL Statements
- Data Definition Statements (DDL)
- CREATE, ALTER, DROP statements
To create and delete database schema
1. CREATE DATABASE [IF NOT EXISTS] database_name;
- An error occurs if the database exists and you didn’t specify IF NOT EXISTS.
2. DROP DATABASE [IF EXISTS] database_name;
- IF EXISTS is used to prevent an error from occurring if the database doesn’t exist.
To create and delete database table
3. CREATE TABLE [IF NOT EXISTS] table_name(
col1 datatype [NOT NULL] [DEFAULT def_val] [UNIQUE] [AUTO_INCREMENT] [PRIMARY KEY] [CHECK(expr)],
col2 datatype [NOT NULL] [DEFAULT def_val] [UNIQUE] [AUTO_INCREMENT] [PRIMARY KEY] [CHECK(expr)],
.
.
.
coln datatype [NOT NULL] [DEFAULT def_val] [UNIQUE] [AUTO_INCREMENT] [PRIMARY KEY] [CHECK(expr)],
CONSTRAINT constraint_name PRIMARY KEY(col1, col2, ... ),
CONSTRAINT constraint_name UNIQUE(col3, col4, ... ),
CONSTRAINT constraint_name CHECK(expr),
CONSTRAINT constraint_name FOREIGN KEY(col1, col2, ... )
REFERENCES ref_tablename(ref_col1, ref_col2, ... )
[ON DELETE CASCADE|SET NULL|RESTRICT]
[ON UPDATE CASCADE|SET NULL|RESTRICT]
);
- By default, tables are created in the default database, using the InnoDB storage engine.
- IF NOT EXISTS prevents an error from occurring if the table exists.
- If the constraint names are not defined, then MySQL automatically generates a constraint name.
- CASCADE: delete/update the child table matching rows when delete/update the parent table rows.
- SET NULL: sets the foreign key column to NULL when delete/update the parent table row.
- RESTRICT: rejects the delete/update operation for the parent table.
4. DROP TABLE IF EXISTS tablename1, tablename2, ...;
- With IF EXISTS, no error occurs for nonexisting tables.

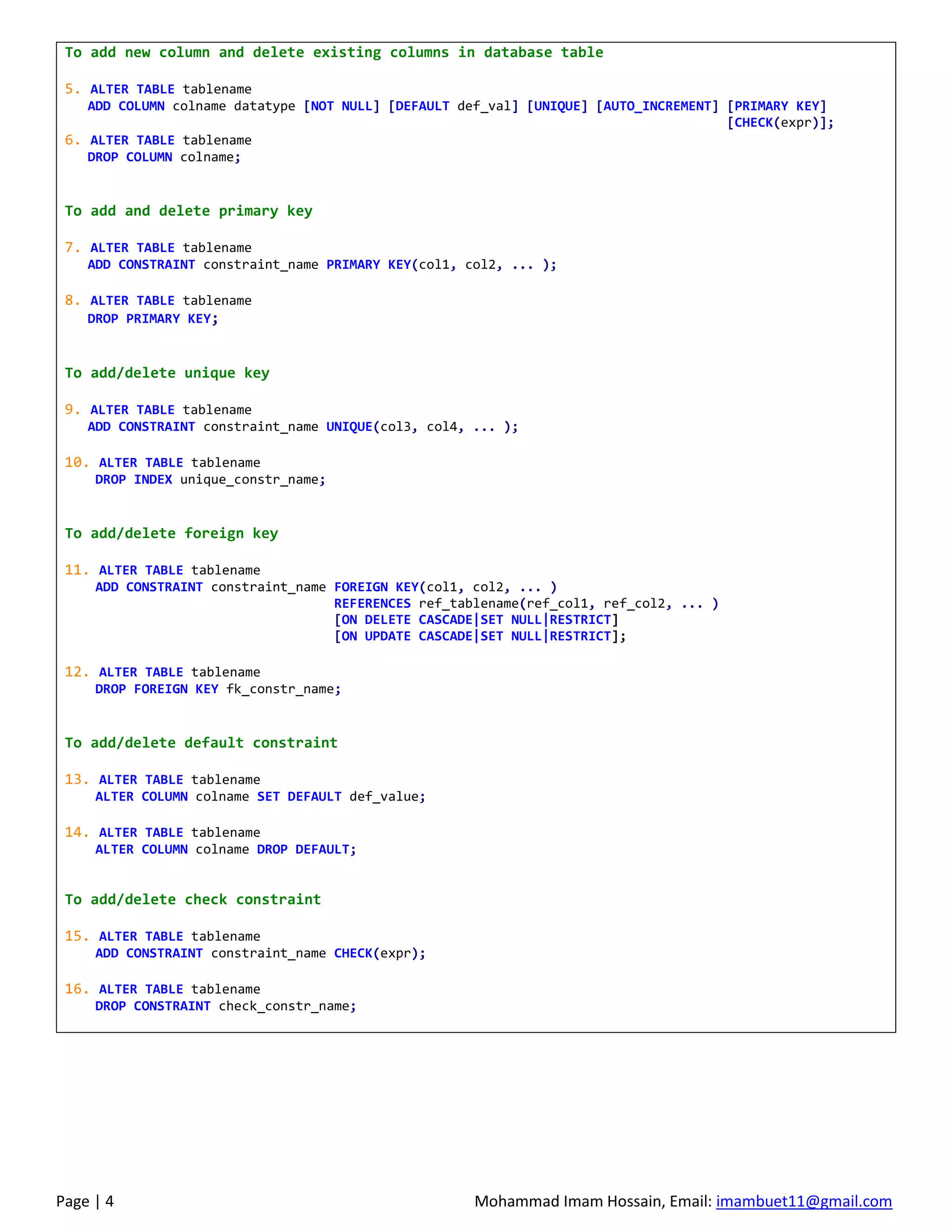

To add new column and delete existing columns in database table
5. ALTER TABLE tablename
ADD COLUMN colname datatype [NOT NULL] [DEFAULT def_val] [UNIQUE] [AUTO_INCREMENT] [PRIMARY KEY]
[CHECK(expr)];
DROP COLUMN colname;
To add and delete primary key
ADD CONSTRAINT constraint_name PRIMARY KEY(col1, col2, ... );
DROP PRIMARY KEY;
To add/delete unique key
ADD CONSTRAINT constraint_name UNIQUE(col3, col4, ... );
DROP INDEX unique_constr_name;
To add/delete foreign key
ADD CONSTRAINT constraint_name FOREIGN KEY(col1, col2, ... )
REFERENCES ref_tablename(ref_col1, ref_col2, ... )
[ON DELETE CASCADE|SET NULL|RESTRICT]
[ON UPDATE CASCADE|SET NULL|RESTRICT];
DROP FOREIGN KEY fk_constr_name;
To add/delete default constraint
ALTER COLUMN colname SET DEFAULT def_value;
ALTER COLUMN colname DROP DEFAULT;
To add/delete check constraint
ADD CONSTRAINT constraint_name CHECK(expr);
DROP CONSTRAINT check_constr_name;

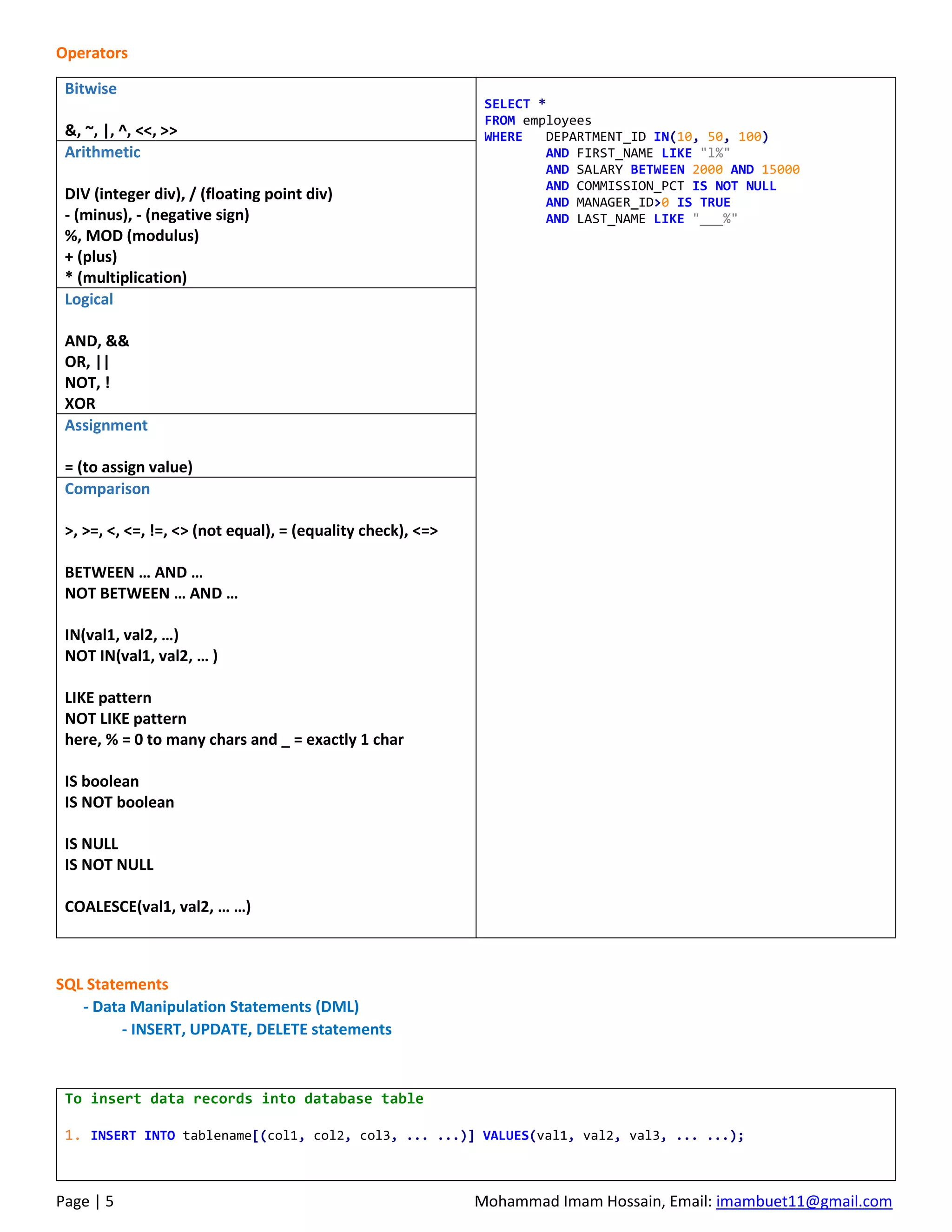

Operators
Bitwise
&, ~, |, ^, <<, >>
SELECT *
FROM employees
WHERE DEPARTMENT_ID IN(10, 50, 100)
AND FIRST_NAME LIKE "l%"
AND SALARY BETWEEN 2000 AND 15000
AND COMMISSION_PCT IS NOT NULL
AND MANAGER_ID>0 IS TRUE
AND LAST_NAME LIKE "___%"
Arithmetic
DIV (integer div), / (floating point div)
- (minus), - (negative sign)
%, MOD (modulus)
+ (plus)
* (multiplication)
Logical
AND, &&
OR, ||
NOT, !
XOR
Assignment
= (to assign value)
Comparison
>, >=, <, <=, !=, <> (not equal), = (equality check), <=>
BETWEEN … AND …
NOT BETWEEN … AND …
IN(val1, val2, …)
NOT IN(val1, val2, … )
LIKE pattern
NOT LIKE pattern
here, % = 0 to many chars and _ = exactly 1 char
IS boolean
IS NOT boolean
IS NULL
IS NOT NULL
COALESCE(val1, val2, … …)
SQL Statements
- Data Manipulation Statements (DML)
- INSERT, UPDATE, DELETE statements
To insert data records into database table
1. INSERT INTO tablename[(col1, col2, col3, ... ...)] VALUES(val1, val2, val3, ... ...);

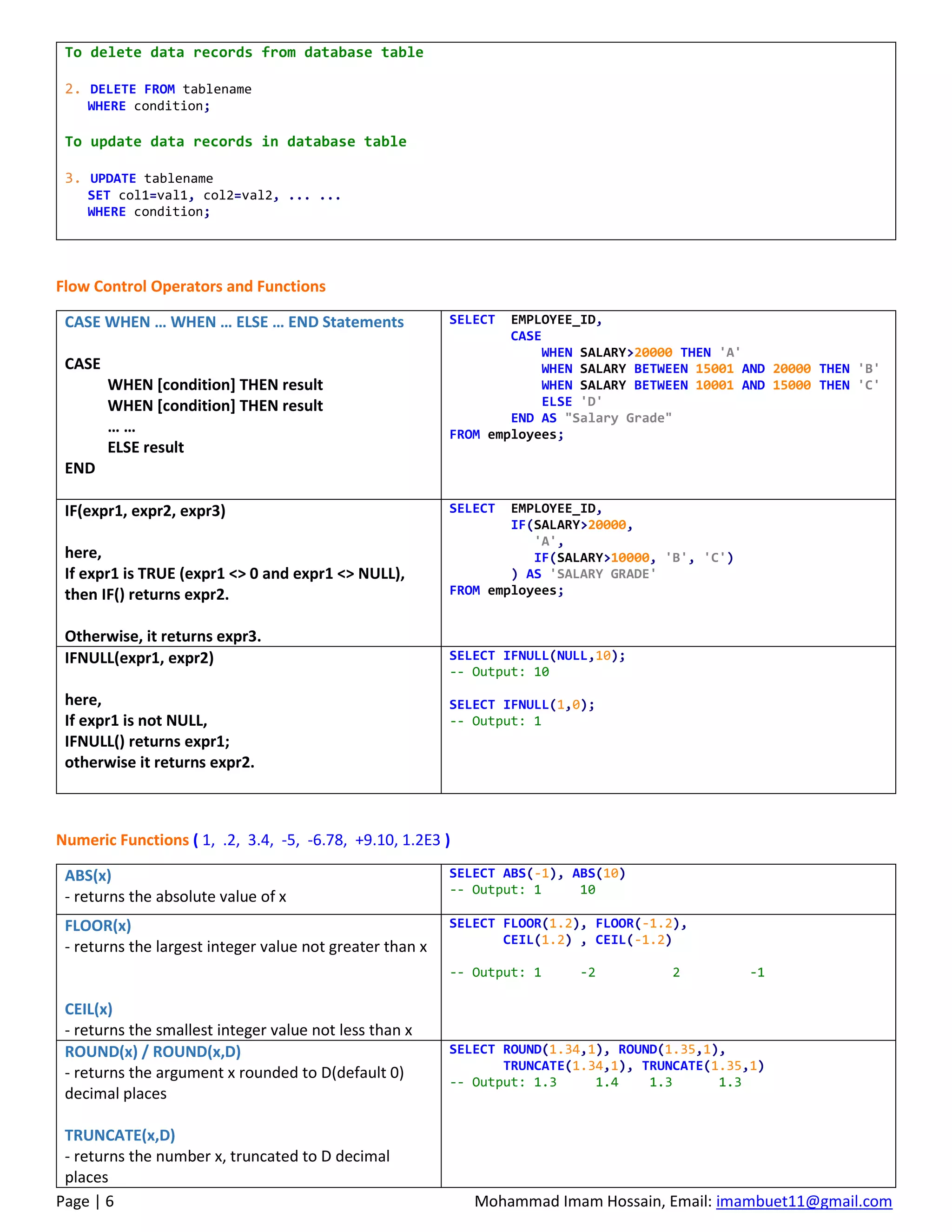

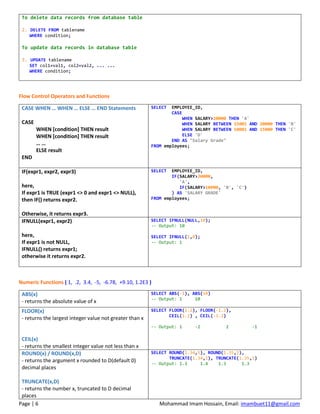

To delete data records from database table
2. DELETE FROM tablename
WHERE condition;
To update data records in database table
3. UPDATE tablename
SET col1=val1, col2=val2, ... ...
WHERE condition;
Flow Control Operators and Functions
CASE WHEN … WHEN … ELSE … END Statements
CASE
WHEN [condition] THEN result
WHEN [condition] THEN result
… …
ELSE result
END
SELECT EMPLOYEE_ID,
CASE
WHEN SALARY>20000 THEN 'A'
WHEN SALARY BETWEEN 15001 AND 20000 THEN 'B'
WHEN SALARY BETWEEN 10001 AND 15000 THEN 'C'
ELSE 'D'
END AS "Salary Grade"
FROM employees;
IF(expr1, expr2, expr3)
here,
If expr1 is TRUE (expr1 <> 0 and expr1 <> NULL),
then IF() returns expr2.
Otherwise, it returns expr3.
SELECT EMPLOYEE_ID,
IF(SALARY>20000,
'A',
IF(SALARY>10000, 'B', 'C')
) AS 'SALARY GRADE'
FROM employees;
IFNULL(expr1, expr2)
here,
If expr1 is not NULL,
IFNULL() returns expr1;
otherwise it returns expr2.
SELECT IFNULL(NULL,10);
-- Output: 10
SELECT IFNULL(1,0);
-- Output: 1
Numeric Functions ( 1, .2, 3.4, -5, -6.78, +9.10, 1.2E3 )
ABS(x)
- returns the absolute value of x
SELECT ABS(-1), ABS(10)
-- Output: 1 10
FLOOR(x)
- returns the largest integer value not greater than x
CEIL(x)
- returns the smallest integer value not less than x
SELECT FLOOR(1.2), FLOOR(-1.2),
CEIL(1.2) , CEIL(-1.2)
-- Output: 1 -2 2 -1
ROUND(x) / ROUND(x,D)
- returns the argument x rounded to D(default 0)
decimal places
TRUNCATE(x,D)
- returns the number x, truncated to D decimal
places
SELECT ROUND(1.34,1), ROUND(1.35,1),
TRUNCATE(1.34,1), TRUNCATE(1.35,1)
-- Output: 1.3 1.4 1.3 1.3

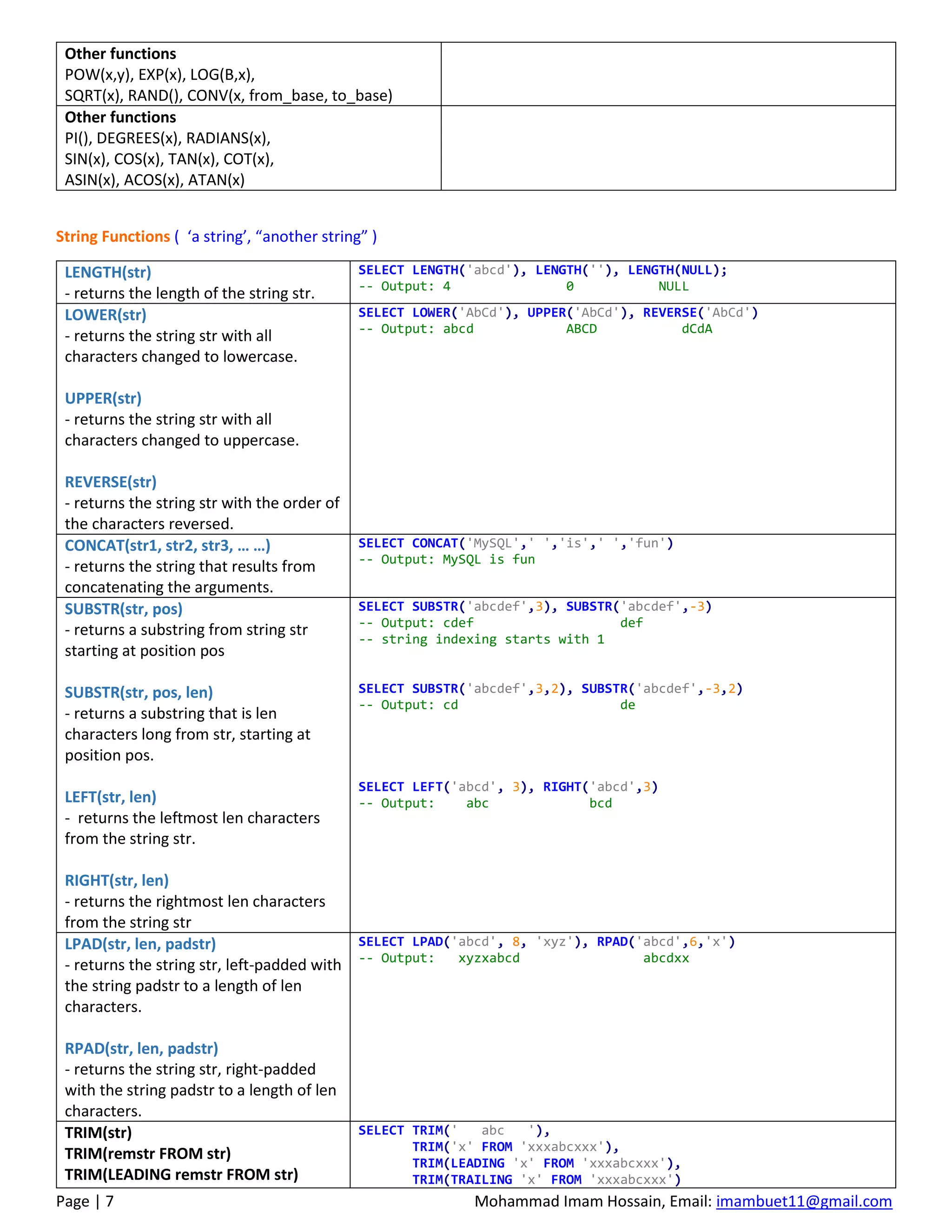

Other functions
POW(x,y), EXP(x), LOG(B,x),
SQRT(x), RAND(), CONV(x, from_base, to_base)
Other functions
PI(), DEGREES(x), RADIANS(x),
SIN(x), COS(x), TAN(x), COT(x),
ASIN(x), ACOS(x), ATAN(x)
String Functions ( ‘a string’, “another string” )
LENGTH(str)
- returns the length of the string str.
SELECT LENGTH('abcd'), LENGTH(''), LENGTH(NULL);
-- Output: 4 0 NULL
LOWER(str)
- returns the string str with all
characters changed to lowercase.
UPPER(str)
characters changed to uppercase.
REVERSE(str)
- returns the string str with the order of
the characters reversed.
SELECT LOWER('AbCd'), UPPER('AbCd'), REVERSE('AbCd')
-- Output: abcd ABCD dCdA
CONCAT(str1, str2, str3, … …)
- returns the string that results from
concatenating the arguments.
SELECT CONCAT('MySQL',' ','is',' ','fun')
-- Output: MySQL is fun
SUBSTR(str, pos)
- returns a substring from string str
starting at position pos
SUBSTR(str, pos, len)
- returns a substring that is len
characters long from str, starting at
position pos.
LEFT(str, len)
- returns the leftmost len characters
from the string str.
RIGHT(str, len)
- returns the rightmost len characters
from the string str
SELECT SUBSTR('abcdef',3), SUBSTR('abcdef',-3)
-- Output: cdef def
-- string indexing starts with 1
SELECT SUBSTR('abcdef',3,2), SUBSTR('abcdef',-3,2)
-- Output: cd de
SELECT LEFT('abcd', 3), RIGHT('abcd',3)
-- Output: abc bcd
LPAD(str, len, padstr)
- returns the string str, left-padded with
the string padstr to a length of len
characters.
RPAD(str, len, padstr)
- returns the string str, right-padded
with the string padstr to a length of len
characters.
SELECT LPAD('abcd', 8, 'xyz'), RPAD('abcd',6,'x')
-- Output: xyzxabcd abcdxx
TRIM(str)
TRIM(remstr FROM str)
TRIM(LEADING remstr FROM str)
SELECT TRIM(' abc '),
TRIM('x' FROM 'xxxabcxxx'),
TRIM(LEADING 'x' FROM 'xxxabcxxx'),
TRIM(TRAILING 'x' FROM 'xxxabcxxx')

TRIM(TRAILING remstr FROM str)
remstr(default space) prefixes or
suffixes or both(default) removed.
-- Output: abc abc abcxxx xxxabc
INSERT(str, pos, len, newstr) - replaces the substring(pos to pos+len-1) with newstr
LOCATE(substr, str [, pos] ) - returns the position of the first occurrence of substring substr within str
REPLACE(str, from_str, to_str) - replaces all occurrences of from_str with to_str

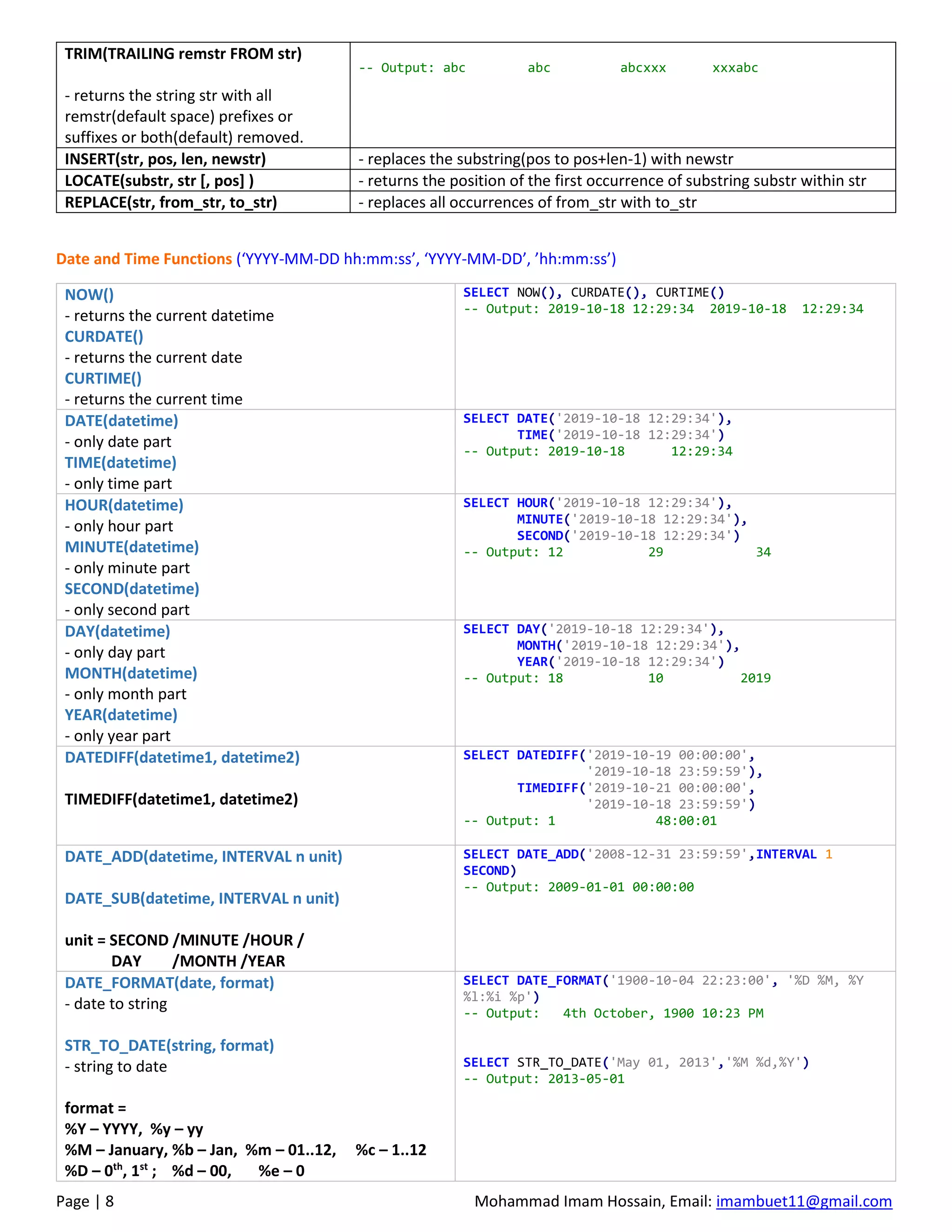

Date and Time Functions (‘YYYY-MM-DD hh:mm:ss’, ‘YYYY-MM-DD’, ’hh:mm:ss’)
NOW()
- returns the current datetime
CURDATE()
- returns the current date
CURTIME()
- returns the current time
SELECT NOW(), CURDATE(), CURTIME()
-- Output: 2019-10-18 12:29:34 2019-10-18 12:29:34
DATE(datetime)
- only date part
TIME(datetime)
- only time part
SELECT DATE('2019-10-18 12:29:34'),
TIME('2019-10-18 12:29:34')
-- Output: 2019-10-18 12:29:34
HOUR(datetime)
- only hour part
MINUTE(datetime)
- only minute part
SECOND(datetime)
- only second part
SELECT HOUR('2019-10-18 12:29:34'),
MINUTE('2019-10-18 12:29:34'),
SECOND('2019-10-18 12:29:34')
-- Output: 12 29 34
DAY(datetime)
- only day part
MONTH(datetime)
- only month part
YEAR(datetime)
- only year part
SELECT DAY('2019-10-18 12:29:34'),
MONTH('2019-10-18 12:29:34'),
YEAR('2019-10-18 12:29:34')
-- Output: 18 10 2019
DATEDIFF(datetime1, datetime2)
TIMEDIFF(datetime1, datetime2)
SELECT DATEDIFF('2019-10-19 00:00:00',
'2019-10-18 23:59:59'),
TIMEDIFF('2019-10-21 00:00:00',
'2019-10-18 23:59:59')
-- Output: 1 48:00:01
DATE_ADD(datetime, INTERVAL n unit)
DATE_SUB(datetime, INTERVAL n unit)
unit = SECOND /MINUTE /HOUR /
DAY /MONTH /YEAR
SELECT DATE_ADD('2008-12-31 23:59:59',INTERVAL 1
SECOND)
-- Output: 2009-01-01 00:00:00
DATE_FORMAT(date, format)
- date to string
STR_TO_DATE(string, format)
- string to date
format =
%Y – YYYY, %y – yy
%M – January, %b – Jan, %m – 01..12, %c – 1..12
%D – 0th
, 1st
; %d – 00, %e – 0
SELECT DATE_FORMAT('1900-10-04 22:23:00', '%D %M, %Y
%l:%i %p')
-- Output: 4th October, 1900 10:23 PM
SELECT STR_TO_DATE('May 01, 2013','%M %d,%Y')
-- Output: 2013-05-01

%H – 00..23, %k – 0..23, %h – 01 .. 12, %l – 1..12
%i – 00..59,
%s – 00..59
%p – ‘AM’, ‘PM’, %a – ‘Sun’ , %W – ‘Sunday’
LAST_DAY(date) – returns the last date of that month SELECT LAST_DAY('2019-12-01')
-- output: 2019-12-31

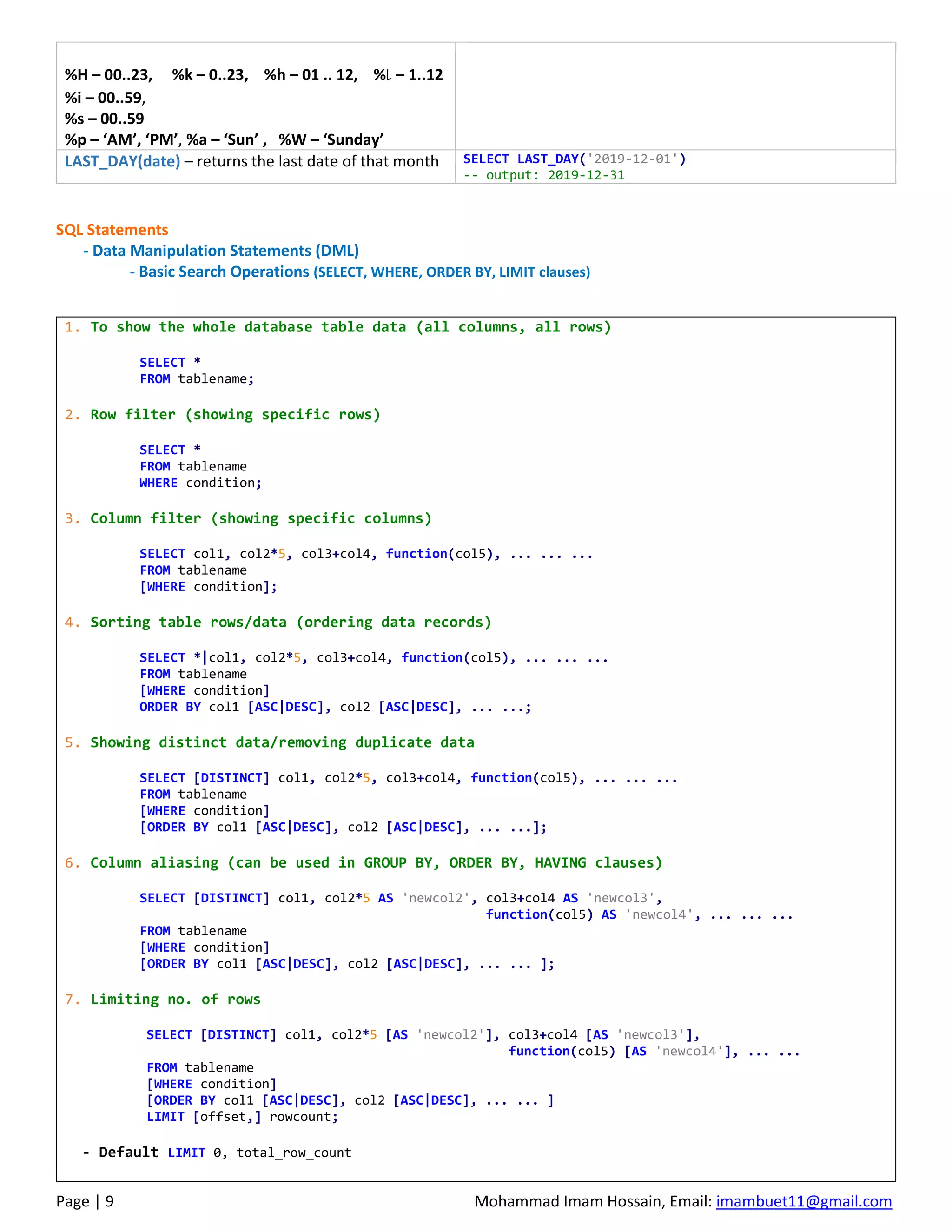

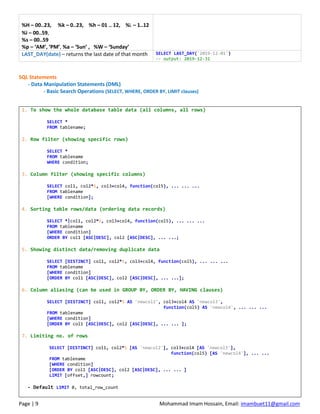

SQL Statements
- Basic Search Operations (SELECT, WHERE, ORDER BY, LIMIT clauses)
1. To show the whole database table data (all columns, all rows)
SELECT *
FROM tablename;
2. Row filter (showing specific rows)
SELECT *
FROM tablename
WHERE condition;
3. Column filter (showing specific columns)
SELECT col1, col2*5, col3+col4, function(col5), ... ... ...
FROM tablename
[WHERE condition];
4. Sorting table rows/data (ordering data records)
SELECT *|col1, col2*5, col3+col4, function(col5), ... ... ...
FROM tablename
[WHERE condition]
ORDER BY col1 [ASC|DESC], col2 [ASC|DESC], ... ...;
5. Showing distinct data/removing duplicate data
SELECT [DISTINCT] col1, col2*5, col3+col4, function(col5), ... ... ...
FROM tablename
[WHERE condition]
[ORDER BY col1 [ASC|DESC], col2 [ASC|DESC], ... ...];
6. Column aliasing (can be used in GROUP BY, ORDER BY, HAVING clauses)
SELECT [DISTINCT] col1, col2*5 AS 'newcol2', col3+col4 AS 'newcol3',
function(col5) AS 'newcol4', ... ... ...
FROM tablename
[WHERE condition]
[ORDER BY col1 [ASC|DESC], col2 [ASC|DESC], ... ... ];
7. Limiting no. of rows
SELECT [DISTINCT] col1, col2*5 [AS 'newcol2'], col3+col4 [AS 'newcol3'],
function(col5) [AS 'newcol4'], ... ...
FROM tablename
[WHERE condition]
[ORDER BY col1 [ASC|DESC], col2 [ASC|DESC], ... ... ]
LIMIT [offset,] rowcount;
- Default LIMIT 0, total_row_count

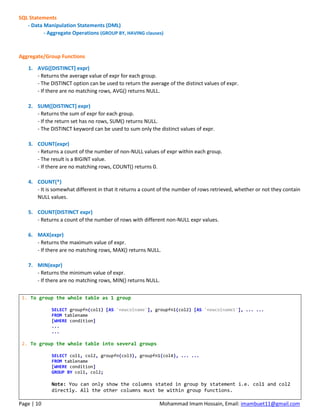

SQL Statements
- Aggregate Operations (GROUP BY, HAVING clauses)
Aggregate/Group Functions
1. AVG([DISTINCT] expr)
- Returns the average value of expr for each group.
- The DISTINCT option can be used to return the average of the distinct values of expr.
- If there are no matching rows, AVG() returns NULL.
2. SUM([DISTINCT] expr)
- Returns the sum of expr for each group.
- If the return set has no rows, SUM() returns NULL.
- The DISTINCT keyword can be used to sum only the distinct values of expr.
3. COUNT(expr)
- Returns a count of the number of non-NULL values of expr within each group.
- The result is a BIGINT value.
- If there are no matching rows, COUNT() returns 0.
4. COUNT(*)
- It is somewhat different in that it returns a count of the number of rows retrieved, whether or not they contain
NULL values.
5. COUNT(DISTINCT expr)
- Returns a count of the number of rows with different non-NULL expr values.
6. MAX(expr)
- Returns the maximum value of expr.
- If there are no matching rows, MAX() returns NULL.
7. MIN(expr)
- Returns the minimum value of expr.
- If there are no matching rows, MIN() returns NULL.
1. To group the whole table as 1 group
SELECT groupfn(col1) [AS 'newcolname'], groupfn1(col2) [AS 'newcolname1'], ... ...
FROM tablename
[WHERE condition]
...
...
2. To group the whole table into several groups
SELECT col1, col2, groupfn(col3), groupfn1(col4), ... ...
FROM tablename
[WHERE condition]
GROUP BY col1, col2;
Note: You can only show the columns stated in group by statement i.e. col1 and col2
directly. All the other columns must be within group functions.

or,
SELECT expression, groupfn(col2), groupfn1(col3), ... ...
FROM tablename
[WHERE condition]
GROUP BY expression;
Note: You can also use expression as group by criteria.
3. Group filtering (to show specific groups)
SELECT col1, col2, groupfn(col3), groupfn1(col4), ... ...
FROM tablename
[WHERE condition]
GROUP BY col1, col2
HAVING condition
[ORDER BY col1 [ASC|DESC], col2 [ASC|DESC], ... ...]
[LIMIT [offset,] rowcount];
Note: Having condition may involve only col1 or, col2 and any other conditions that
use aggregate functions.

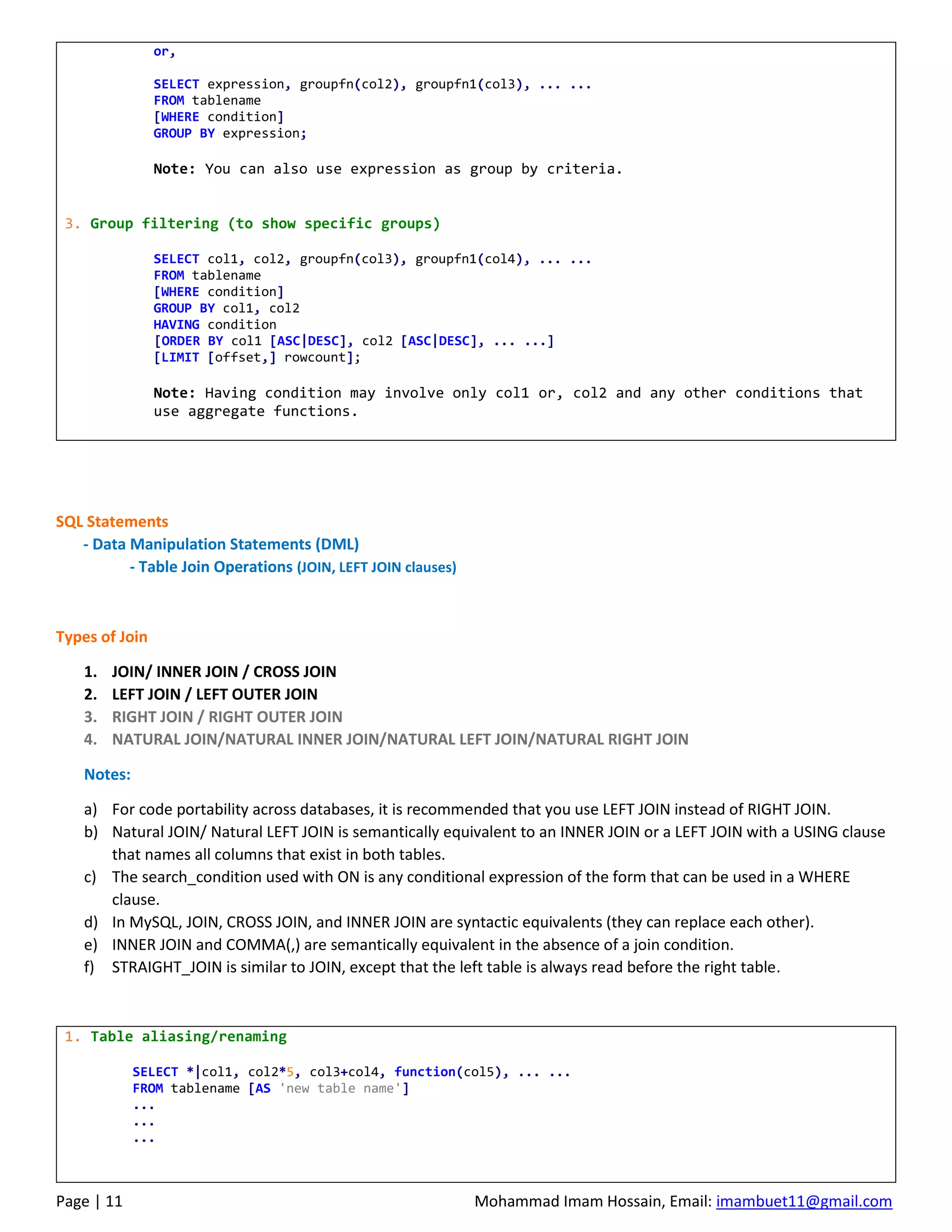

SQL Statements
- Table Join Operations (JOIN, LEFT JOIN clauses)
Types of Join
1. JOIN/ INNER JOIN / CROSS JOIN
2. LEFT JOIN / LEFT OUTER JOIN
3. RIGHT JOIN / RIGHT OUTER JOIN
4. NATURAL JOIN/NATURAL INNER JOIN/NATURAL LEFT JOIN/NATURAL RIGHT JOIN
Notes:
a) For code portability across databases, it is recommended that you use LEFT JOIN instead of RIGHT JOIN.
b) Natural JOIN/ Natural LEFT JOIN is semantically equivalent to an INNER JOIN or a LEFT JOIN with a USING clause
that names all columns that exist in both tables.
c) The search_condition used with ON is any conditional expression of the form that can be used in a WHERE
clause.
d) In MySQL, JOIN, CROSS JOIN, and INNER JOIN are syntactic equivalents (they can replace each other).
e) INNER JOIN and COMMA(,) are semantically equivalent in the absence of a join condition.
f) STRAIGHT_JOIN is similar to JOIN, except that the left table is always read before the right table.
1. Table aliasing/renaming
SELECT *|col1, col2*5, col3+col4, function(col5), ... ...
FROM tablename [AS 'new table name']
...
...
...

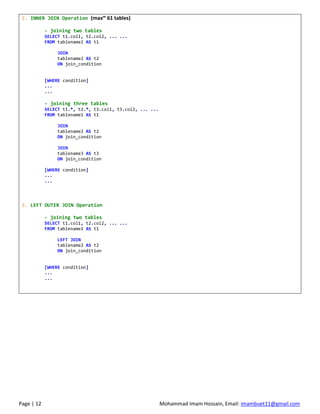

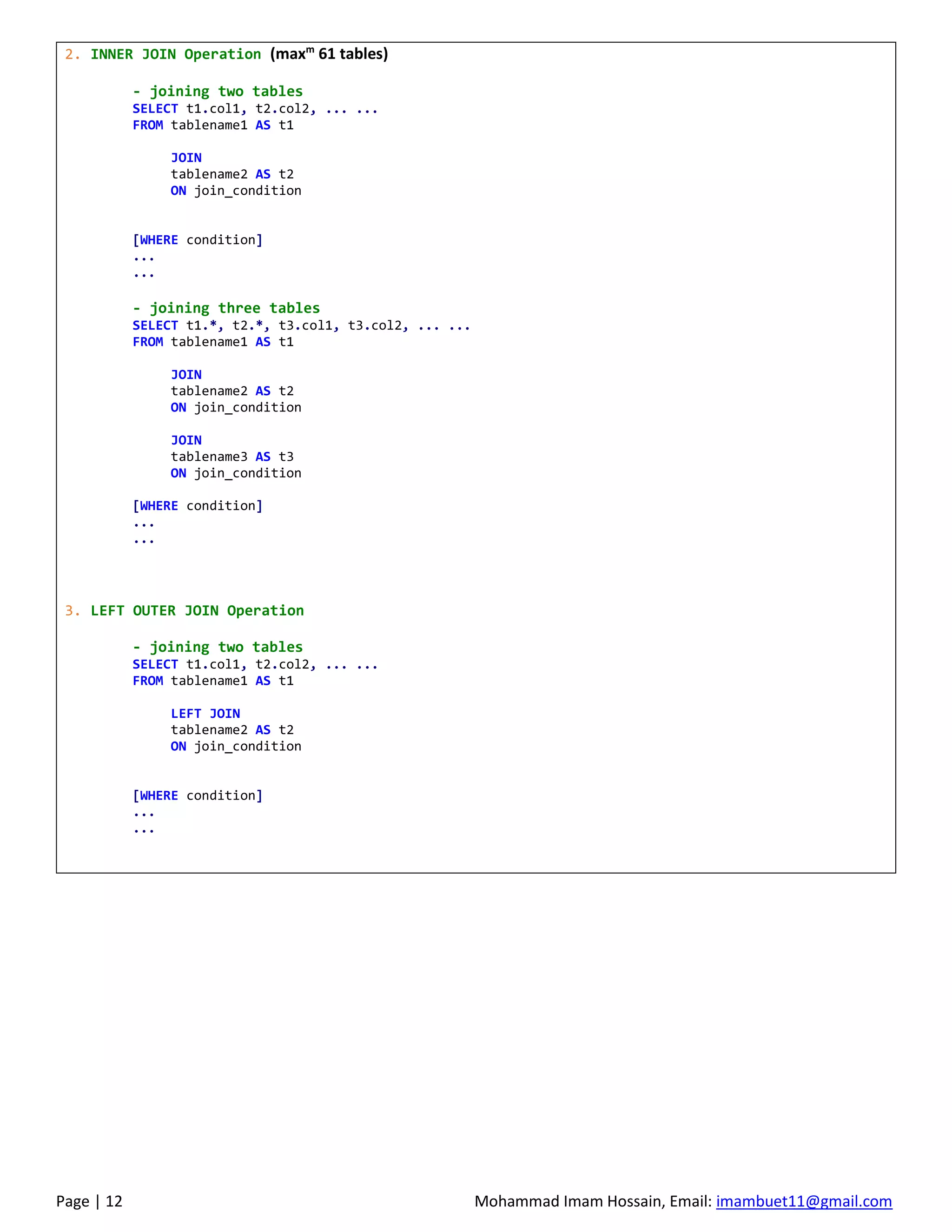

2. INNER JOIN Operation (maxm
61 tables)
- joining two tables
SELECT t1.col1, t2.col2, ... ...
FROM tablename1 AS t1
JOIN
tablename2 AS t2
ON join_condition
[WHERE condition]
...
...
- joining three tables
SELECT t1.*, t2.*, t3.col1, t3.col2, ... ...
JOIN
tablename2 AS t2
ON join_condition
JOIN
tablename3 AS t3
ON join_condition
[WHERE condition]
...
...
3. LEFT OUTER JOIN Operation
- joining two tables
SELECT t1.col1, t2.col2, ... ...
LEFT JOIN
tablename2 AS t2
ON join_condition
[WHERE condition]
...
...

SQL Statements
- Subquery Operations (Scalar Subquery, Column Subquery, Row Subquery, Correlated Subquery, Derived table)
Subquery: A subquery is a SELECT statement within another statement.
Example:
DELETE FROM t1
WHERE s11 > ANY
(SELECT COUNT(*)
FROM t2
WHERE NOT EXISTS
(SELECT *
FROM t3
WHERE ROW(5*t2.s1,77)=
(SELECT 50,11*s1
FROM t4
UNION
SELECT 50,77
FROM (
SELECT *
FROM t5
) AS t5
)
)
);
a) A subquery can return a scalar (a single value), a single row (multi-column), a single column (multi-row), or multi-row
multi-column (derived table).
b) A subquery can contain many of the keywords that an ordinary SELECT can contain:
DISTINCT, GROUP BY, ORDER BY, LIMIT, joins, UNION constructs, comments, functions, and so on.
c) A subquery's outer statement can be any one of: SELECT, INSERT, UPDATE, DELETE, SET, or DO.
d) A subquery must always appear within parentheses.
Reference:
▪ https://dev.mysql.com/doc/refman/8.0/en/subqueries.html
1. Scalar Subquery:
▪ A subquery is a scalar subquery that returns a single value.
▪ A scalar subquery is a simple operand, and you can use it almost anywhere a single column value or literal is
legal.
▪ If the subquery result is empty, the result is NULL.
Example 1: Show the employee id, salary for only those employees having greater salary than the employee id 150.
Also show the salary of employee id 150 with each employee record.
SELECT EMPLOYEE_ID,
SALARY,
( SELECT SALARY
FROM employees
WHERE EMPLOYEE_ID=150
) AS "150 id's salary"
FROM employees
WHERE SALARY > ( SELECT SALARY
FROM employees
)

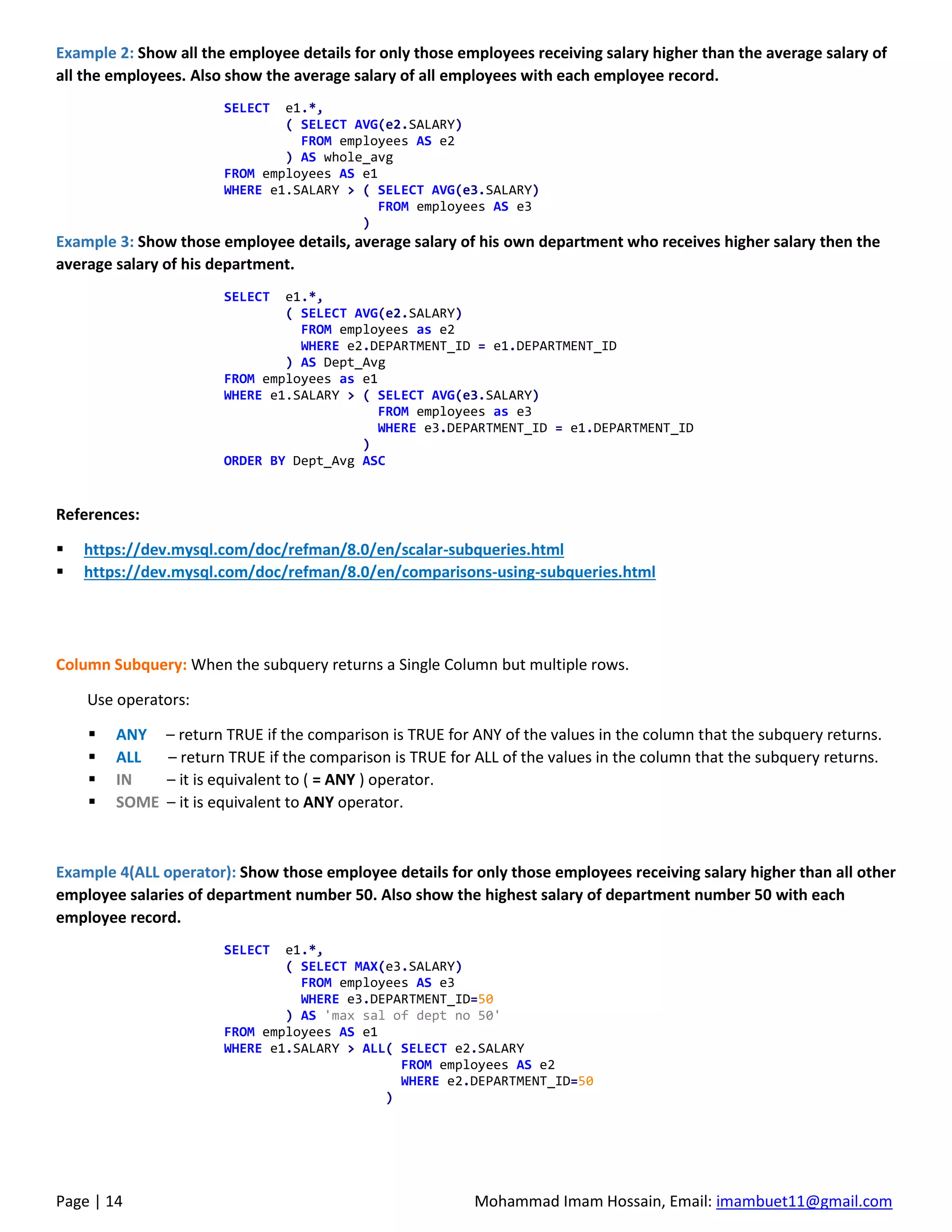

Example 2: Show all the employee details for only those employees receiving salary higher than the average salary of
all the employees. Also show the average salary of all employees with each employee record.
SELECT e1.*,
( SELECT AVG(e2.SALARY)
FROM employees AS e2
) AS whole_avg
WHERE e1.SALARY > ( SELECT AVG(e3.SALARY)
)
Example 3: Show those employee details, average salary of his own department who receives higher salary then the
average salary of his department.
SELECT e1.*,
( SELECT AVG(e2.SALARY)
FROM employees as e2
WHERE e2.DEPARTMENT_ID = e1.DEPARTMENT_ID
) AS Dept_Avg
WHERE e1.SALARY > ( SELECT AVG(e3.SALARY)
WHERE e3.DEPARTMENT_ID = e1.DEPARTMENT_ID
)
ORDER BY Dept_Avg ASC
References:
▪ https://dev.mysql.com/doc/refman/8.0/en/scalar-subqueries.html
▪ https://dev.mysql.com/doc/refman/8.0/en/comparisons-using-subqueries.html
Column Subquery: When the subquery returns a Single Column but multiple rows.
Use operators:
▪ ANY – return TRUE if the comparison is TRUE for ANY of the values in the column that the subquery returns.
▪ ALL – return TRUE if the comparison is TRUE for ALL of the values in the column that the subquery returns.
▪ IN – it is equivalent to ( = ANY ) operator.
▪ SOME – it is equivalent to ANY operator.
Example 4(ALL operator): Show those employee details for only those employees receiving salary higher than all other
employee salaries of department number 50. Also show the highest salary of department number 50 with each
employee record.
SELECT e1.*,
( SELECT MAX(e3.SALARY)
WHERE e3.DEPARTMENT_ID=50
) AS 'max sal of dept no 50'
WHERE e1.SALARY > ALL( SELECT e2.SALARY
)

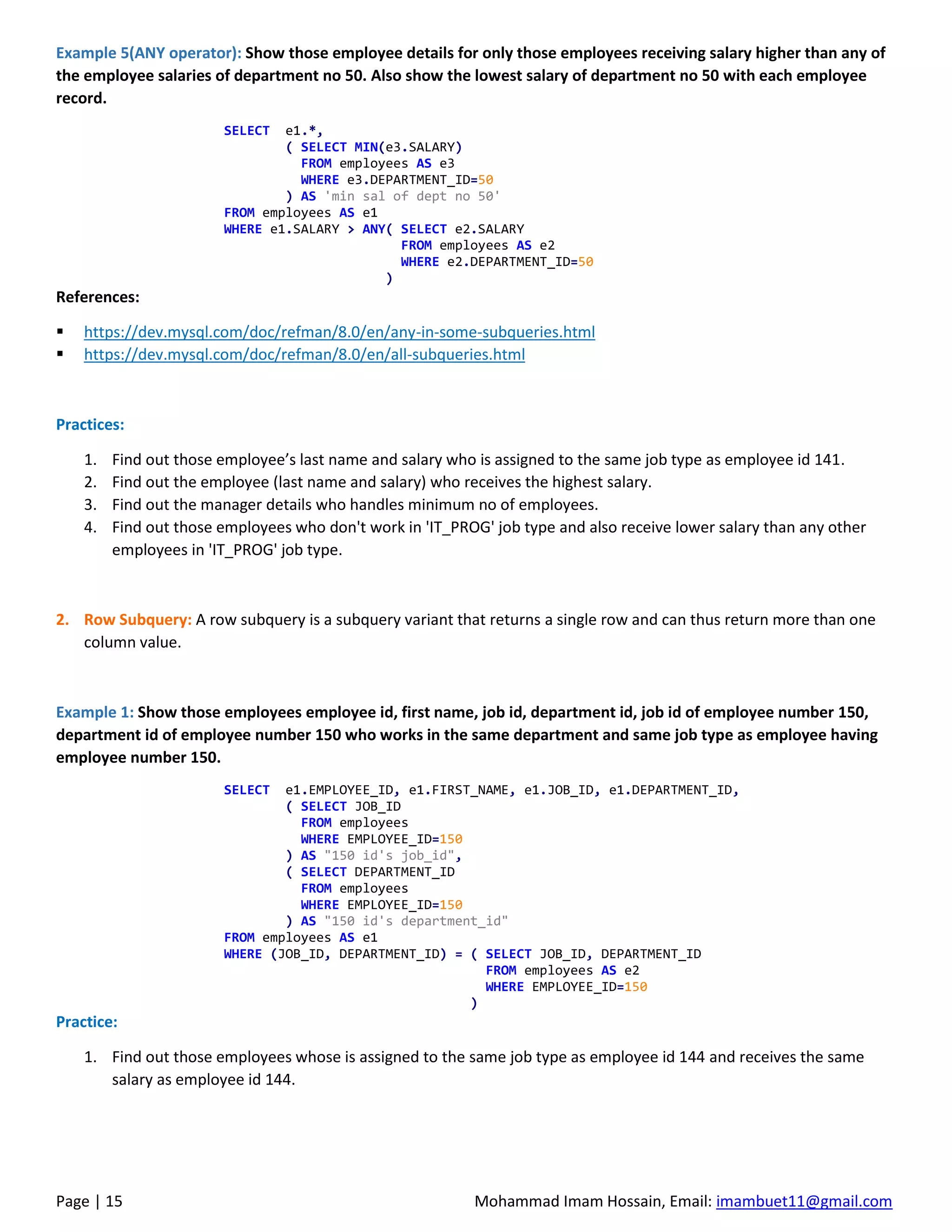

Example 5(ANY operator): Show those employee details for only those employees receiving salary higher than any of
the employee salaries of department no 50. Also show the lowest salary of department no 50 with each employee
record.
SELECT e1.*,
( SELECT MIN(e3.SALARY)
) AS 'min sal of dept no 50'
WHERE e1.SALARY > ANY( SELECT e2.SALARY
)
References:
▪ https://dev.mysql.com/doc/refman/8.0/en/any-in-some-subqueries.html
▪ https://dev.mysql.com/doc/refman/8.0/en/all-subqueries.html
Practices:
1. Find out those employee’s last name and salary who is assigned to the same job type as employee id 141.
2. Find out the employee (last name and salary) who receives the highest salary.
3. Find out the manager details who handles minimum no of employees.
4. Find out those employees who don't work in 'IT_PROG' job type and also receive lower salary than any other
employees in 'IT_PROG' job type.
2. Row Subquery: A row subquery is a subquery variant that returns a single row and can thus return more than one
column value.
Example 1: Show those employees employee id, first name, job id, department id, job id of employee number 150,
department id of employee number 150 who works in the same department and same job type as employee having
employee number 150.
SELECT e1.EMPLOYEE_ID, e1.FIRST_NAME, e1.JOB_ID, e1.DEPARTMENT_ID,
( SELECT JOB_ID
FROM employees
) AS "150 id's job_id",
( SELECT DEPARTMENT_ID
FROM employees
) AS "150 id's department_id"
WHERE (JOB_ID, DEPARTMENT_ID) = ( SELECT JOB_ID, DEPARTMENT_ID
)
Practice:
1. Find out those employees whose is assigned to the same job type as employee id 144 and receives the same
salary as employee id 144.

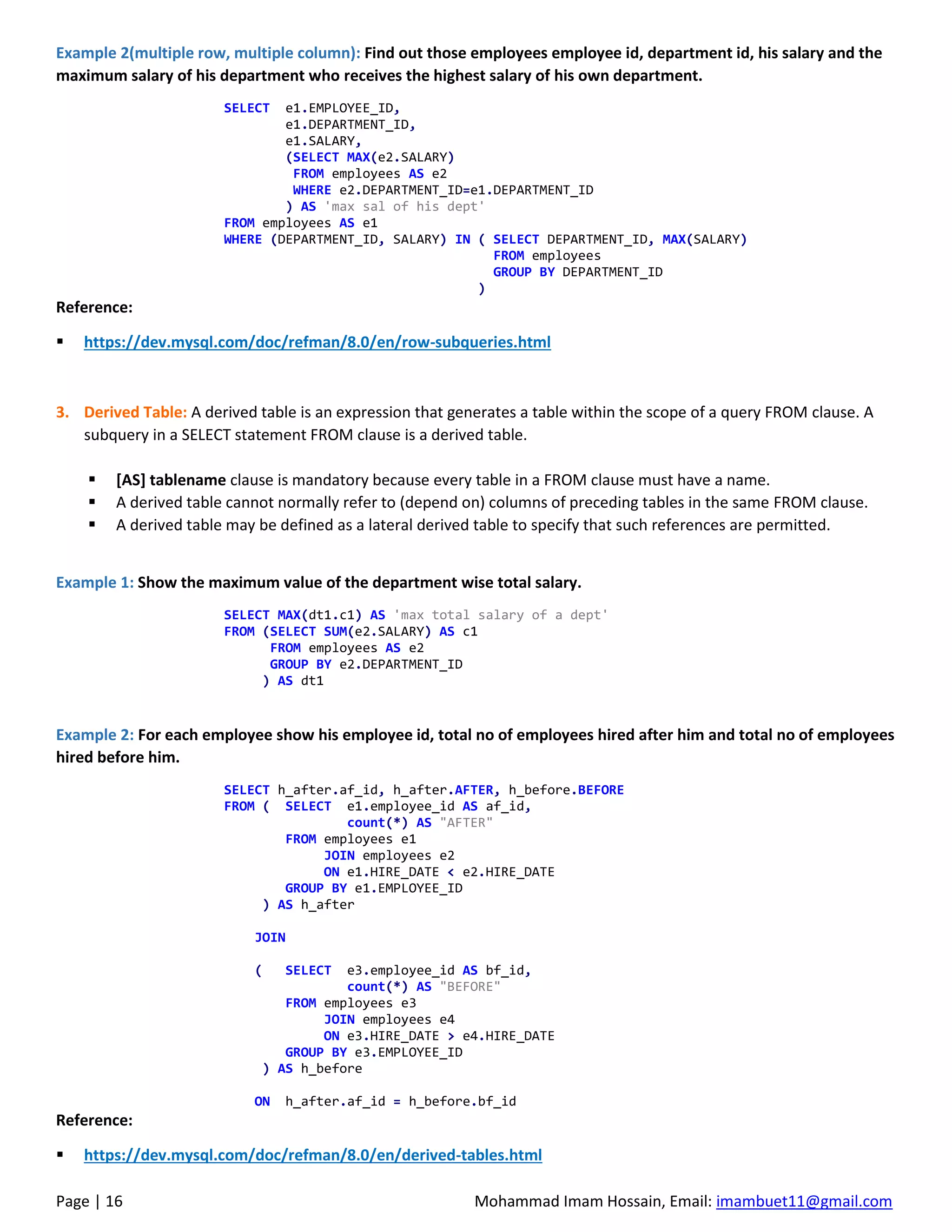

Example 2(multiple row, multiple column): Find out those employees employee id, department id, his salary and the
maximum salary of his department who receives the highest salary of his own department.
SELECT e1.EMPLOYEE_ID,
e1.DEPARTMENT_ID,
e1.SALARY,
(SELECT MAX(e2.SALARY)
WHERE e2.DEPARTMENT_ID=e1.DEPARTMENT_ID
) AS 'max sal of his dept'
WHERE (DEPARTMENT_ID, SALARY) IN ( SELECT DEPARTMENT_ID, MAX(SALARY)
FROM employees
GROUP BY DEPARTMENT_ID
)
Reference:
▪ https://dev.mysql.com/doc/refman/8.0/en/row-subqueries.html
3. Derived Table: A derived table is an expression that generates a table within the scope of a query FROM clause. A
subquery in a SELECT statement FROM clause is a derived table.
▪ [AS] tablename clause is mandatory because every table in a FROM clause must have a name.
▪ A derived table cannot normally refer to (depend on) columns of preceding tables in the same FROM clause.
▪ A derived table may be defined as a lateral derived table to specify that such references are permitted.
Example 1: Show the maximum value of the department wise total salary.
SELECT MAX(dt1.c1) AS 'max total salary of a dept'
FROM (SELECT SUM(e2.SALARY) AS c1
GROUP BY e2.DEPARTMENT_ID
) AS dt1
Example 2: For each employee show his employee id, total no of employees hired after him and total no of employees
hired before him.
SELECT h_after.af_id, h_after.AFTER, h_before.BEFORE
FROM ( SELECT e1.employee_id AS af_id,
count(*) AS "AFTER"
FROM employees e1
JOIN employees e2
ON e1.HIRE_DATE < e2.HIRE_DATE
GROUP BY e1.EMPLOYEE_ID
) AS h_after
JOIN
( SELECT e3.employee_id AS bf_id,
count(*) AS "BEFORE"
FROM employees e3
JOIN employees e4
ON e3.HIRE_DATE > e4.HIRE_DATE
GROUP BY e3.EMPLOYEE_ID
) AS h_before
ON h_after.af_id = h_before.bf_id
Reference:
▪ https://dev.mysql.com/doc/refman/8.0/en/derived-tables.html

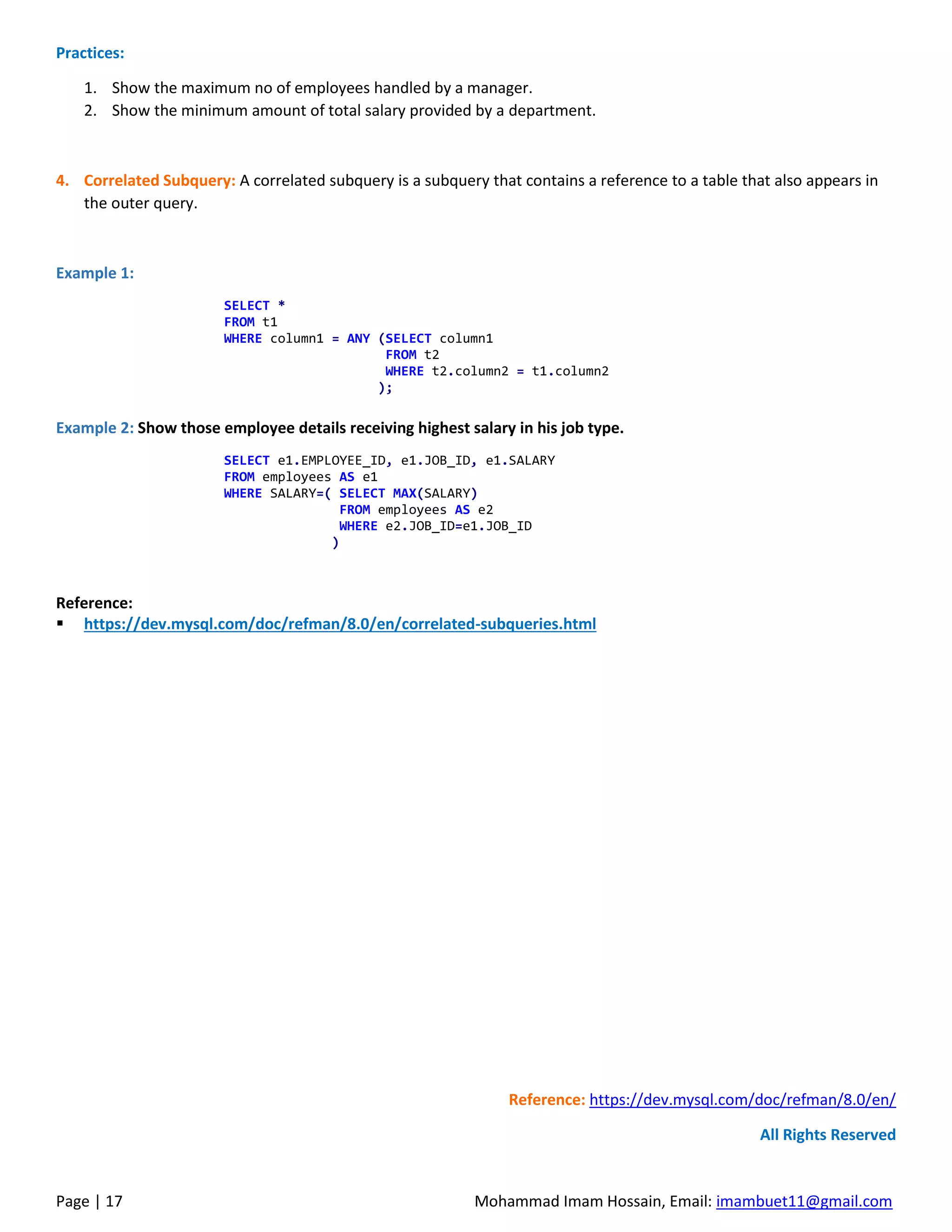

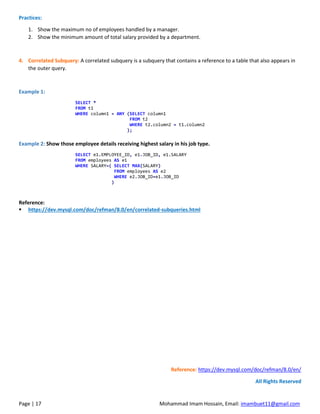

Practices:
1. Show the maximum no of employees handled by a manager.
2. Show the minimum amount of total salary provided by a department.
4. Correlated Subquery: A correlated subquery is a subquery that contains a reference to a table that also appears in
the outer query.
Example 1:
SELECT *
FROM t1
WHERE column1 = ANY (SELECT column1
FROM t2
WHERE t2.column2 = t1.column2
);
Example 2: Show those employee details receiving highest salary in his job type.
SELECT e1.EMPLOYEE_ID, e1.JOB_ID, e1.SALARY
WHERE SALARY=( SELECT MAX(SALARY)
WHERE e2.JOB_ID=e1.JOB_ID
)
Reference:
▪ https://dev.mysql.com/doc/refman/8.0/en/correlated-subqueries.html
Reference: https://dev.mysql.com/doc/refman/8.0/en/
All Rights Reserved

DBMS 4 | MySQL - DDL & DML Commands

More Related Content

What's hot

Similar to DBMS 4 | MySQL - DDL & DML Commands

More from Mohammad Imam Hossain

Recently uploaded

In this document

DBMS 4 | MySQL - DDL & DML Commands
