Design patterns - Proxy & Composite
The document discusses the composite and proxy design patterns. The composite pattern allows grouping objects into tree structures to represent part-whole hierarchies. It defines behaviors for primitive elements and composite elements that can have children. The proxy pattern provides a surrogate for another object to control access to it. A proxy acts as an interface to the real object and can perform additional tasks like access control and caching.
More Related Content
Similar to Design patterns - Proxy & Composite
Design patterns - Proxy & Composite
- 1. Design Patterns Proxy &Composite @sarat, architect Experion Technologies
- 2.
- 3. is a structuralpattern
- 4. Structural design patternsease the design by identifying a simple way to realize relationships between entities

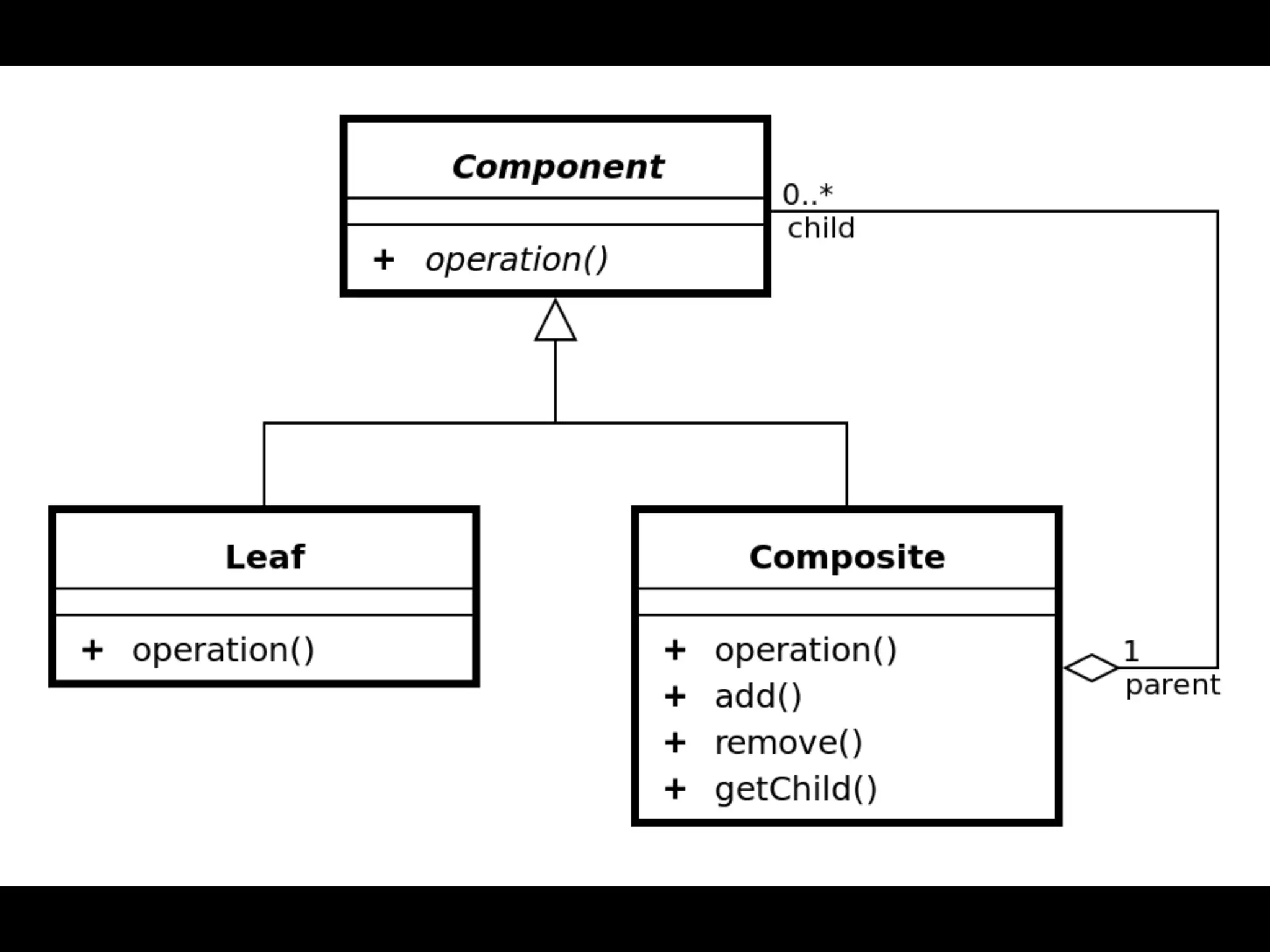

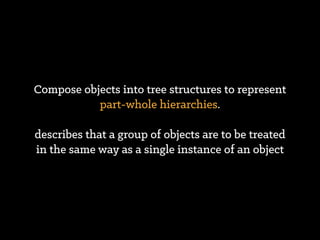

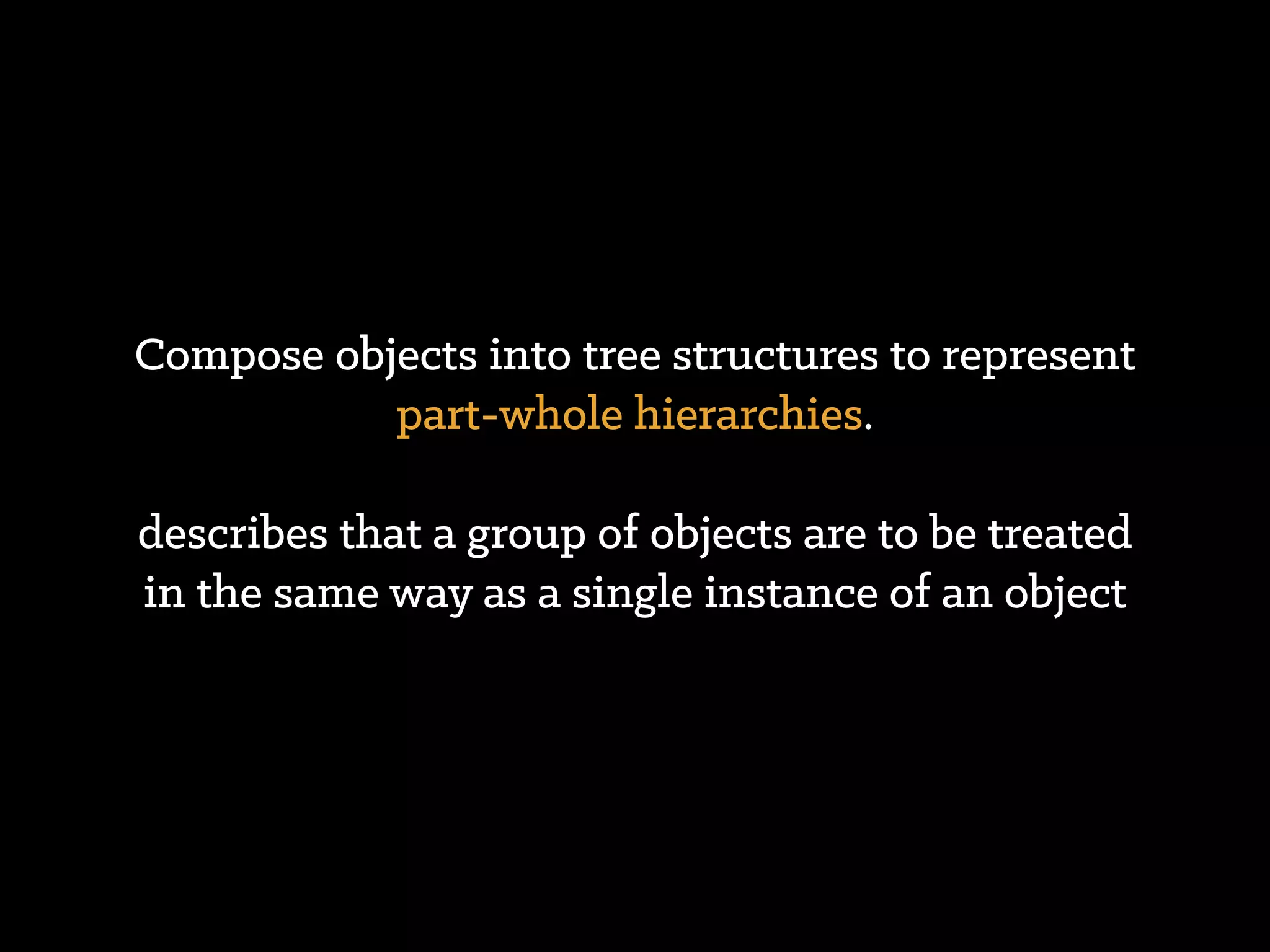

- 5. Compose objects intotree structures to represent part-whole hierarchies. ! describes that a group of objects are to be treated in the same way as a single instance of an object

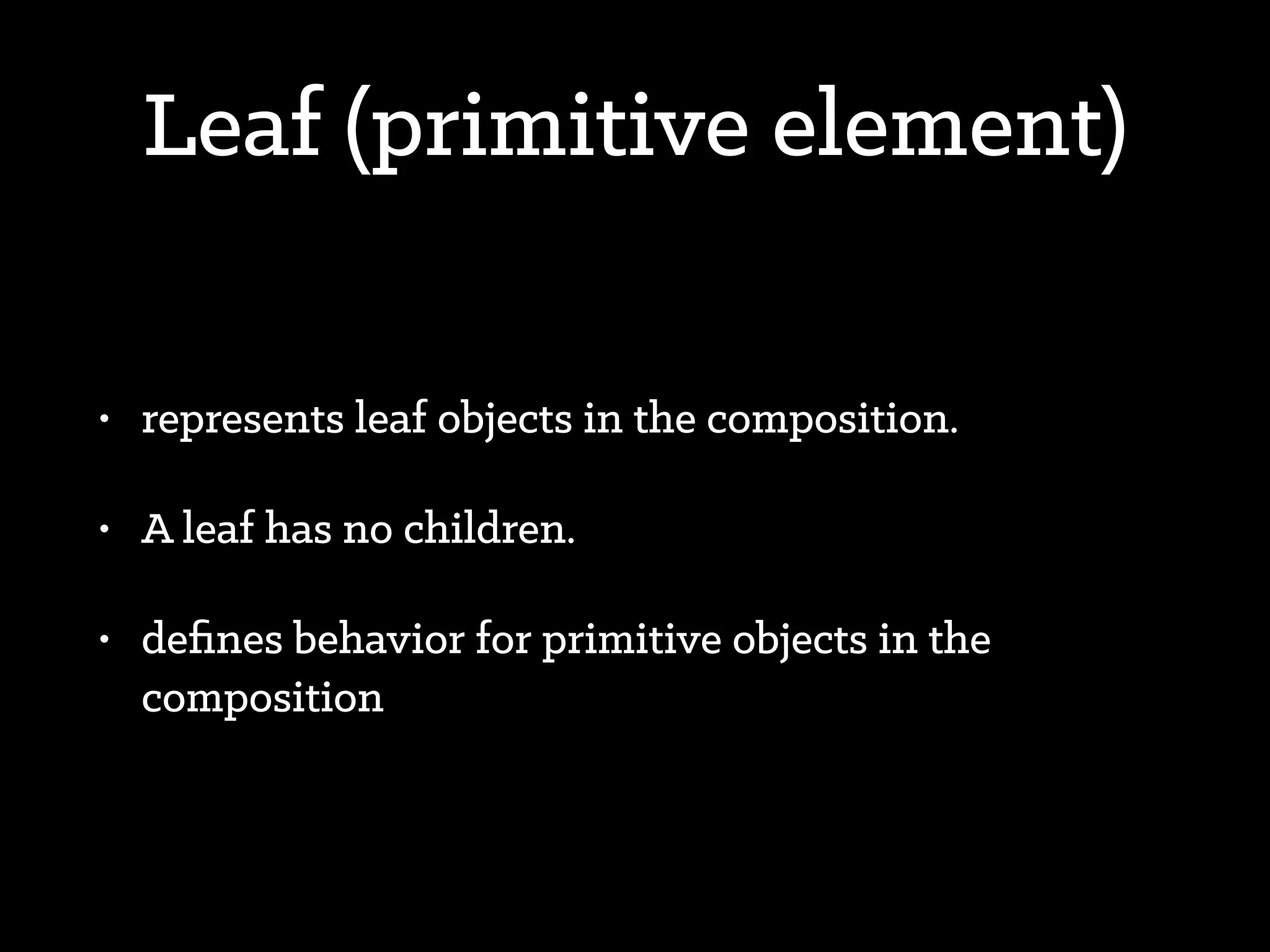

- 6. Leaf (primitive element) •represents leaf objects in the composition. • A leaf has no children. • defines behavior for primitive objects in the composition

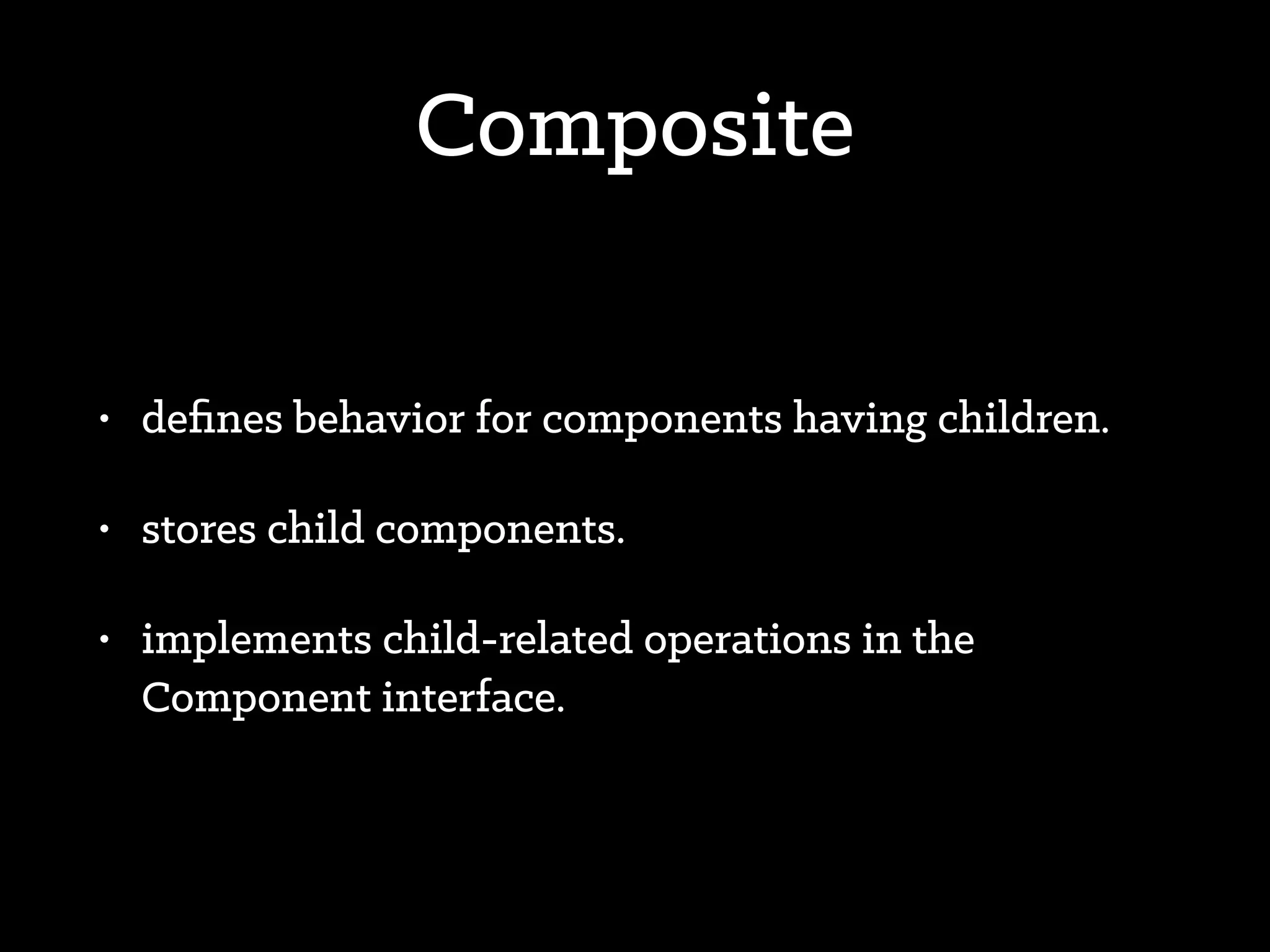

- 7. Composite • defines behaviorfor components having children. • stores child components. • implements child-related operations in the Component interface.

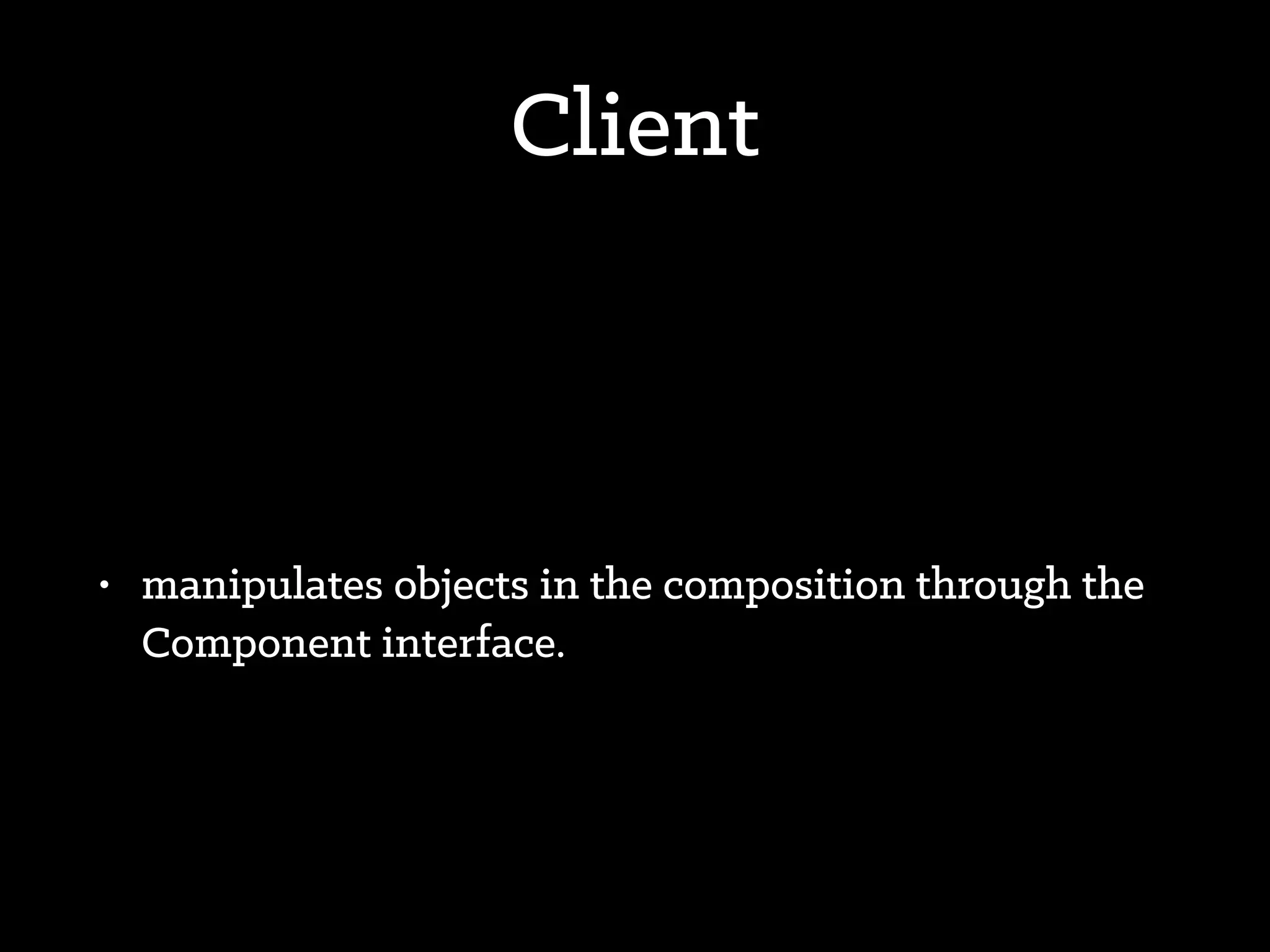

- 8. Client ! • manipulates objectsin the composition through the Component interface.

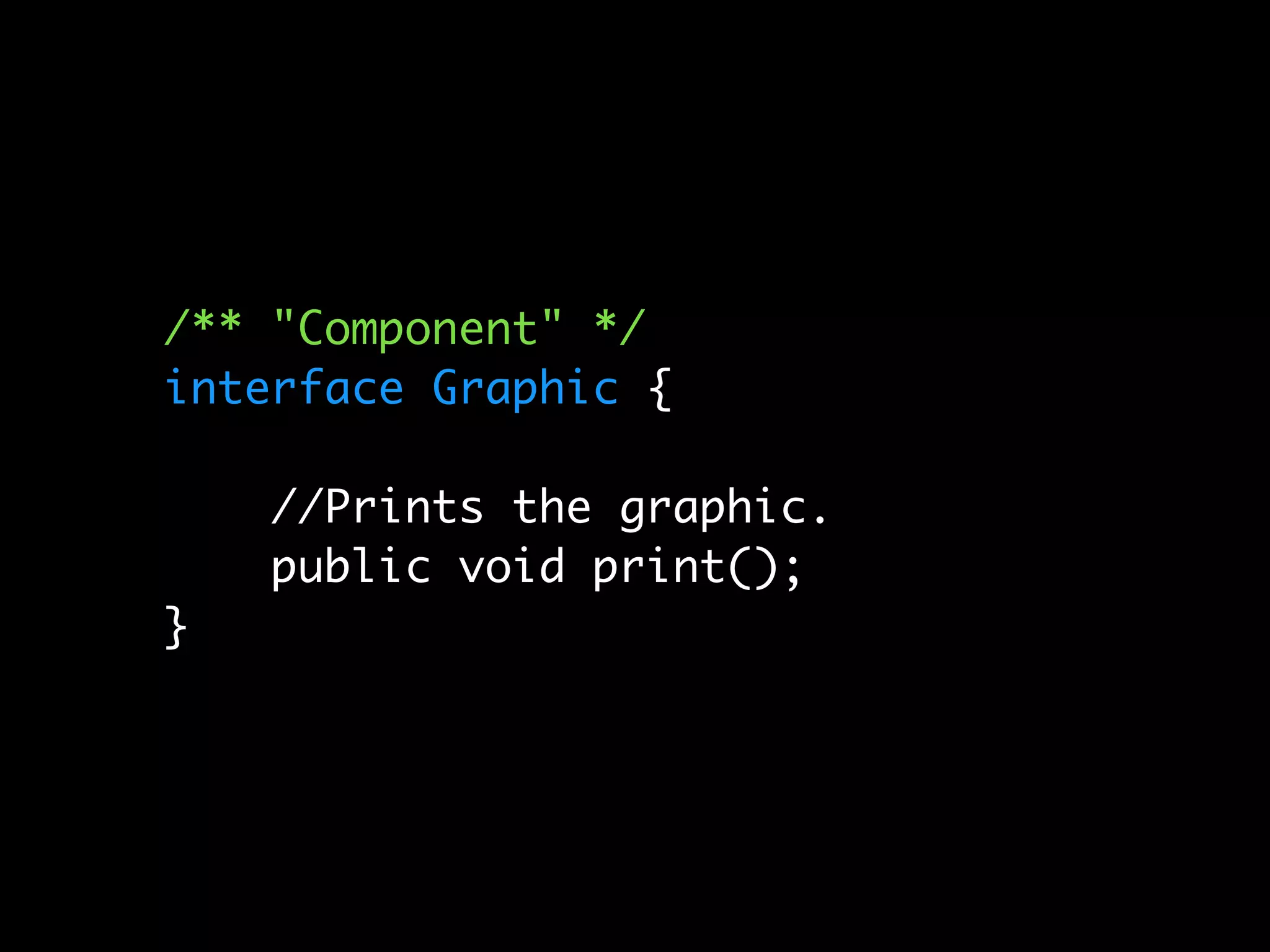

- 10. /** "Component" */ interfaceGraphic { //Prints the graphic. public void print(); }

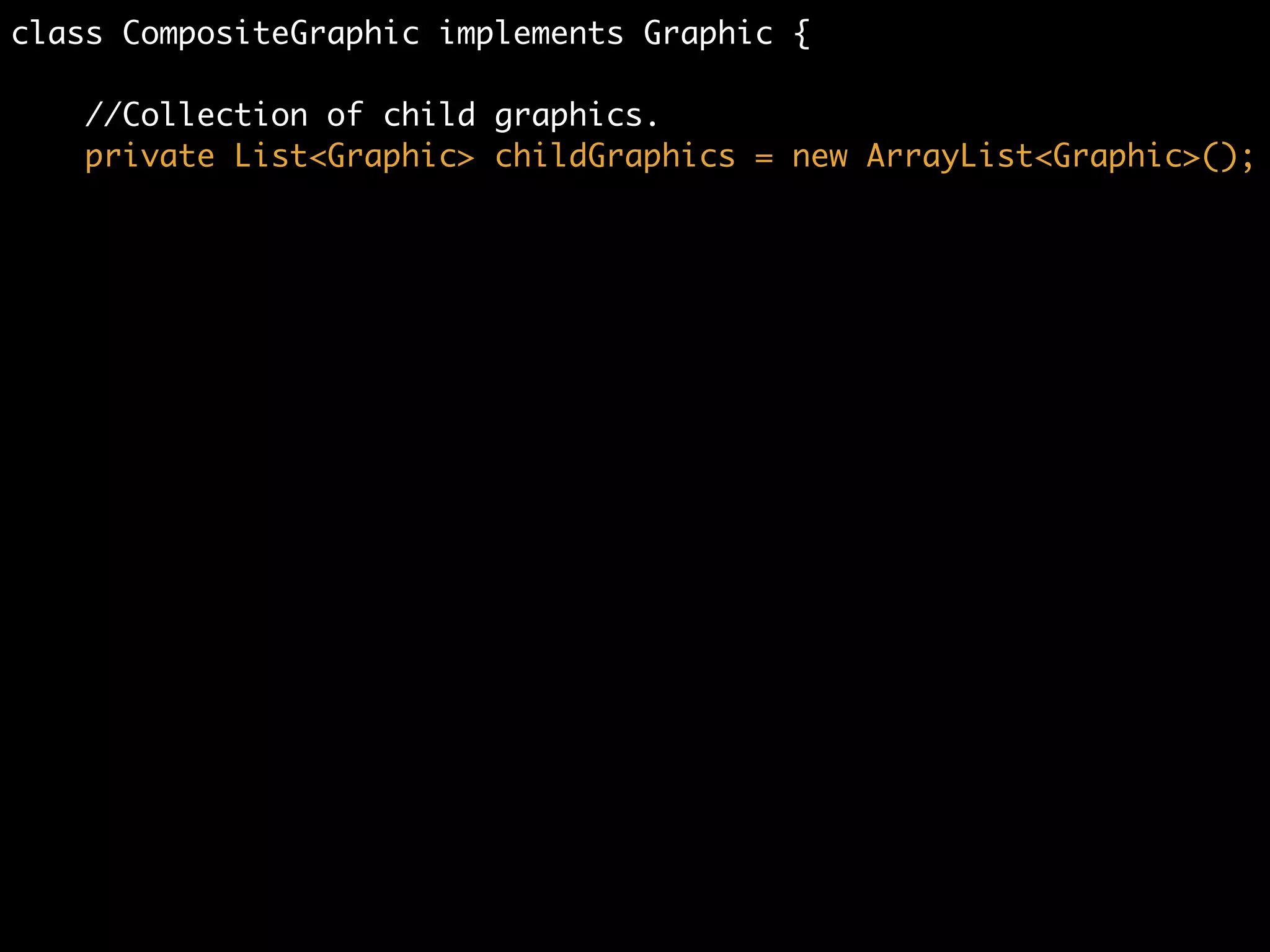

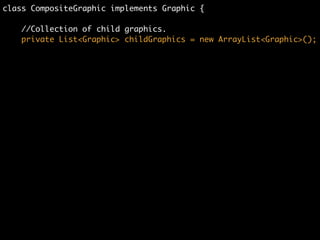

- 11. class CompositeGraphic implementsGraphic { //Collection of child graphics. private List<Graphic> childGraphics = new ArrayList<Graphic>();

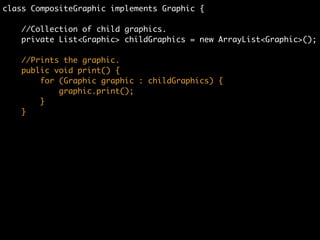

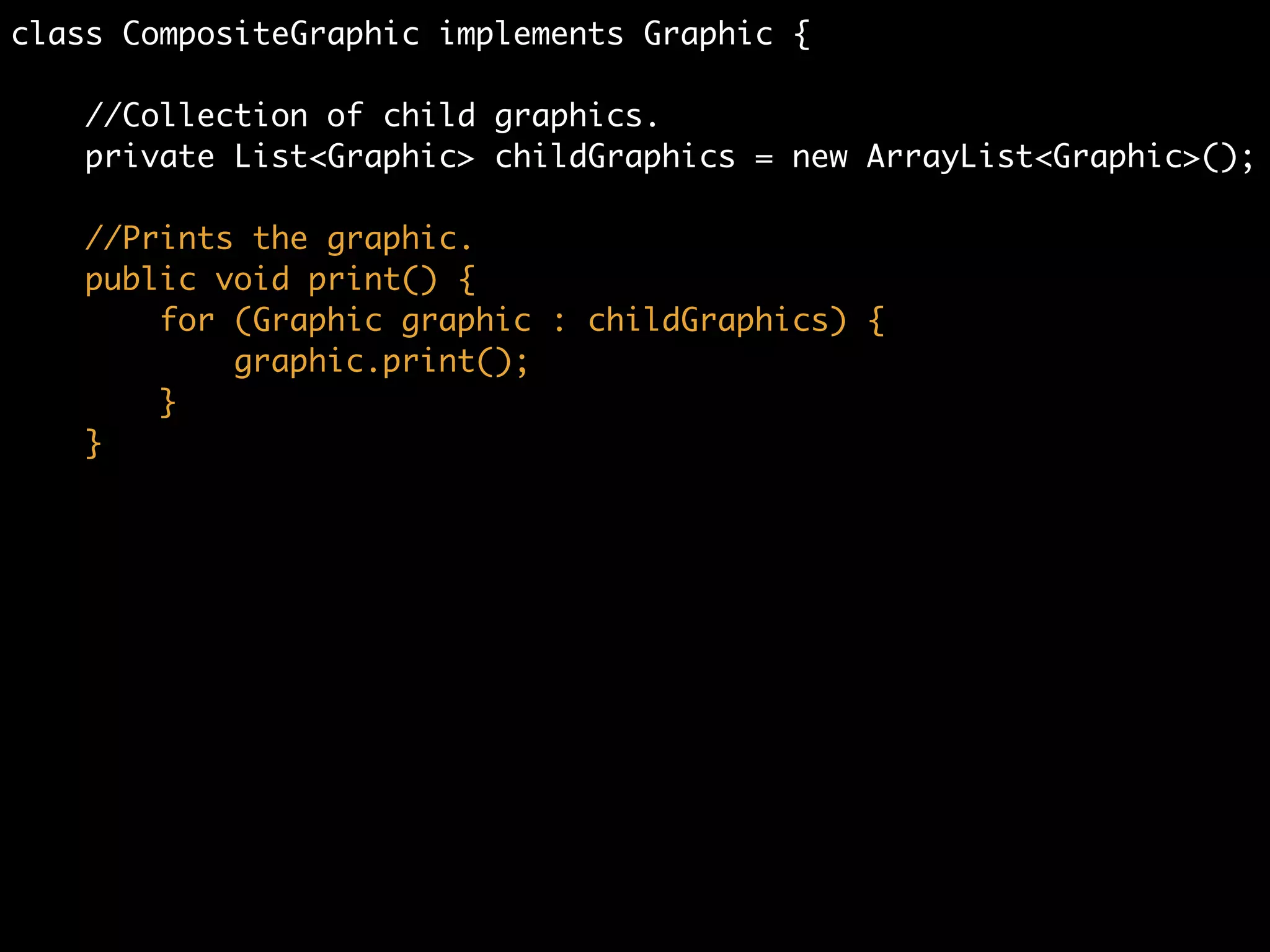

- 12. class CompositeGraphic implementsGraphic { //Collection of child graphics. private List<Graphic> childGraphics = new ArrayList<Graphic>(); ! //Prints the graphic. public void print() { for (Graphic graphic : childGraphics) { graphic.print(); } }

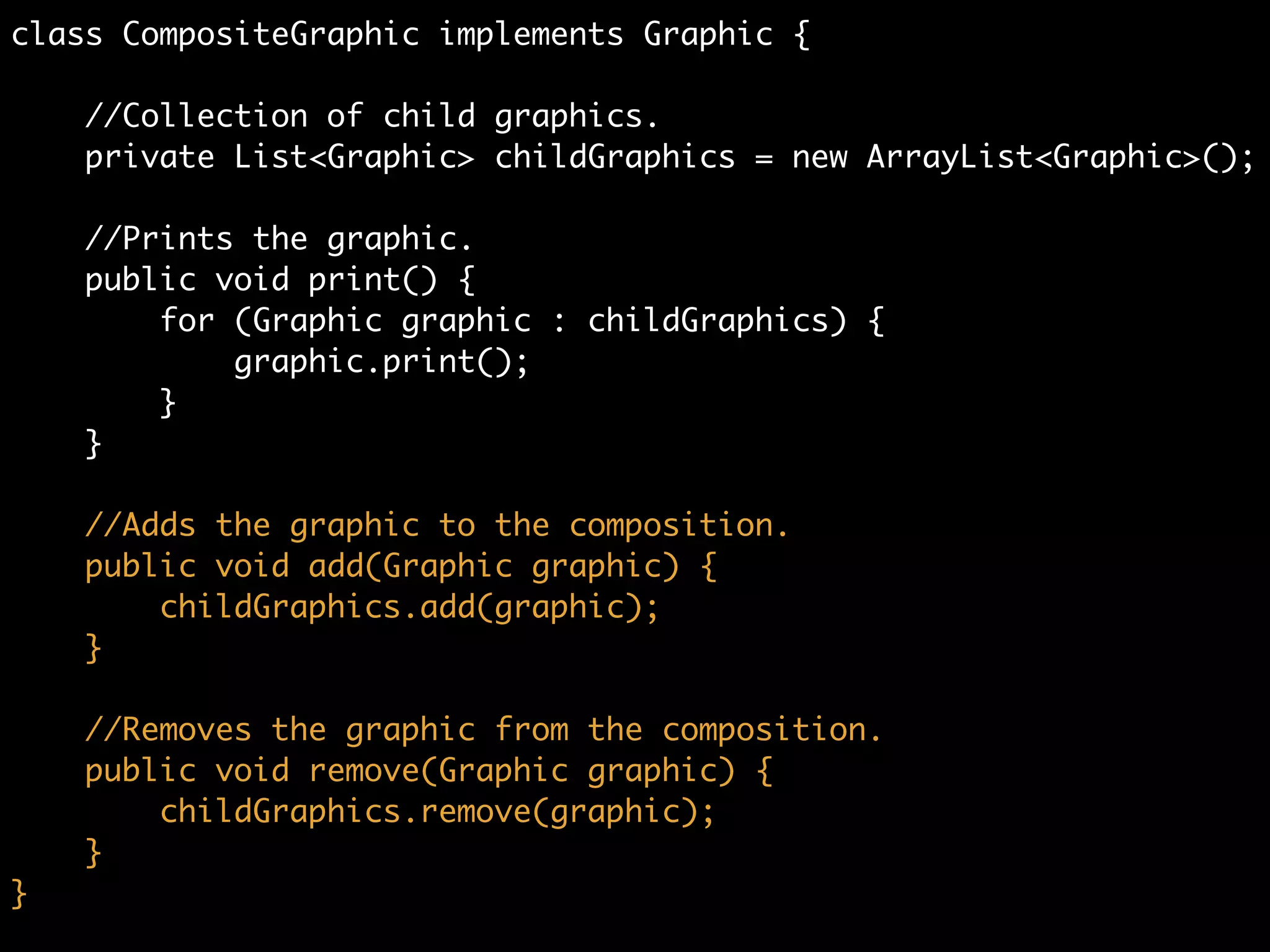

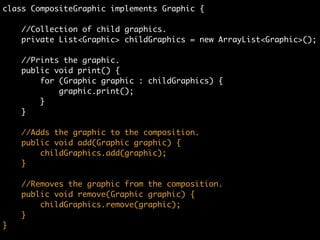

- 13. class CompositeGraphic implementsGraphic { //Collection of child graphics. private List<Graphic> childGraphics = new ArrayList<Graphic>(); ! //Prints the graphic. public void print() { for (Graphic graphic : childGraphics) { graphic.print(); } } ! //Adds the graphic to the composition. public void add(Graphic graphic) { childGraphics.add(graphic); } //Removes the graphic from the composition. public void remove(Graphic graphic) { childGraphics.remove(graphic); } }

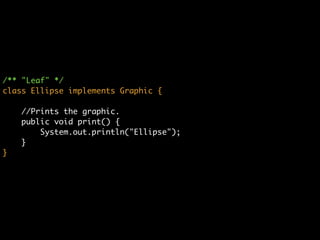

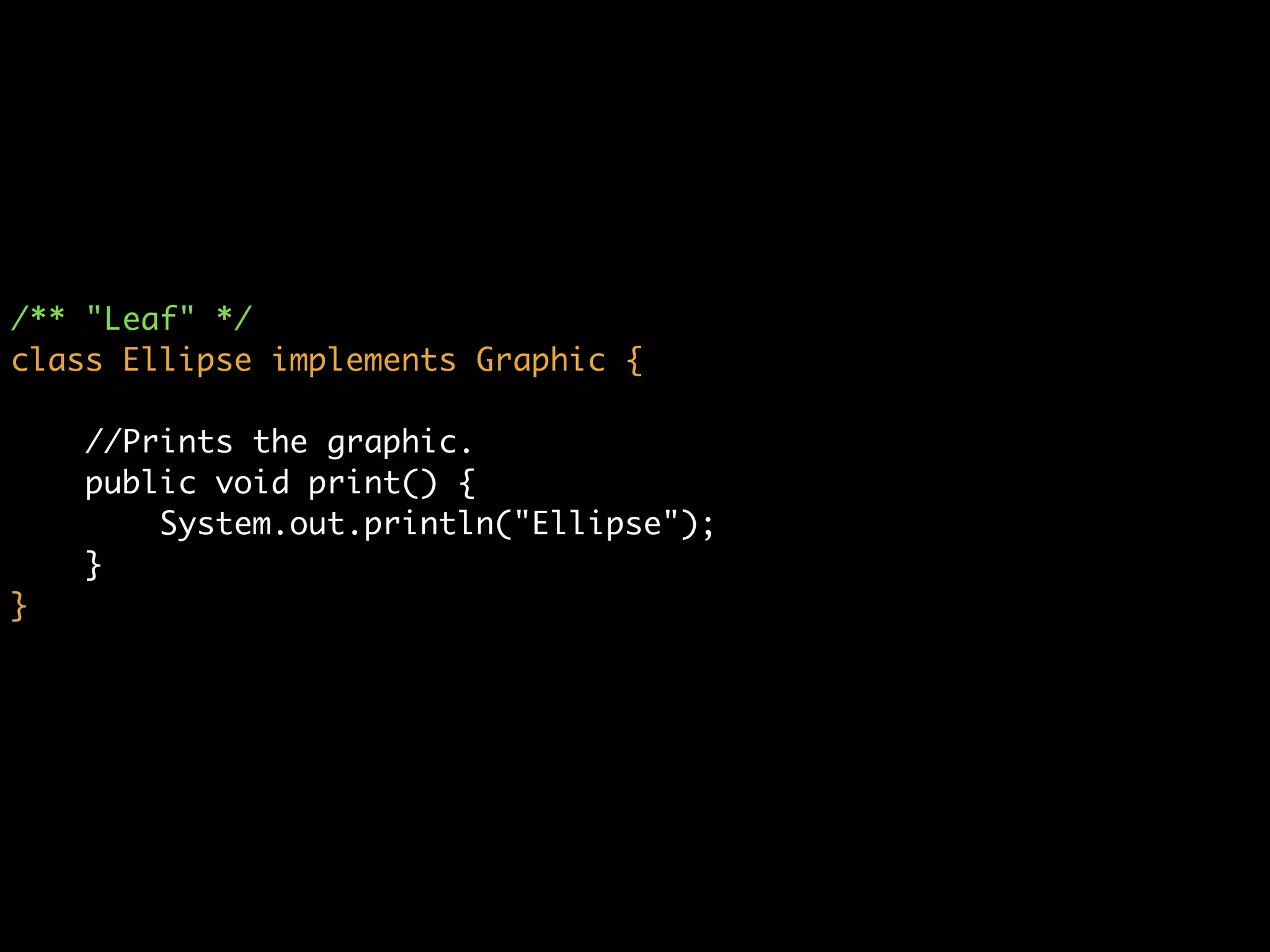

- 14. /** "Leaf" */ classEllipse implements Graphic { //Prints the graphic. public void print() { System.out.println("Ellipse"); } }

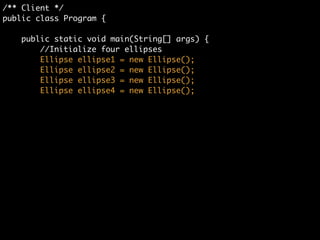

- 15. /** Client */ publicclass Program { public static void main(String[] args) { //Initialize four ellipses Ellipse ellipse1 = new Ellipse(); Ellipse ellipse2 = new Ellipse(); Ellipse ellipse3 = new Ellipse(); Ellipse ellipse4 = new Ellipse();

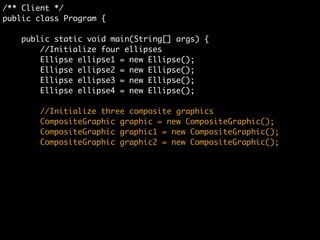

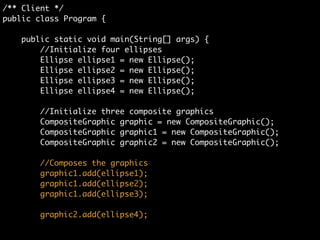

- 16. /** Client */ publicclass Program { public static void main(String[] args) { //Initialize four ellipses Ellipse ellipse1 = new Ellipse(); Ellipse ellipse2 = new Ellipse(); Ellipse ellipse3 = new Ellipse(); Ellipse ellipse4 = new Ellipse(); ! //Initialize three composite graphics CompositeGraphic graphic = new CompositeGraphic(); CompositeGraphic graphic1 = new CompositeGraphic(); CompositeGraphic graphic2 = new CompositeGraphic();

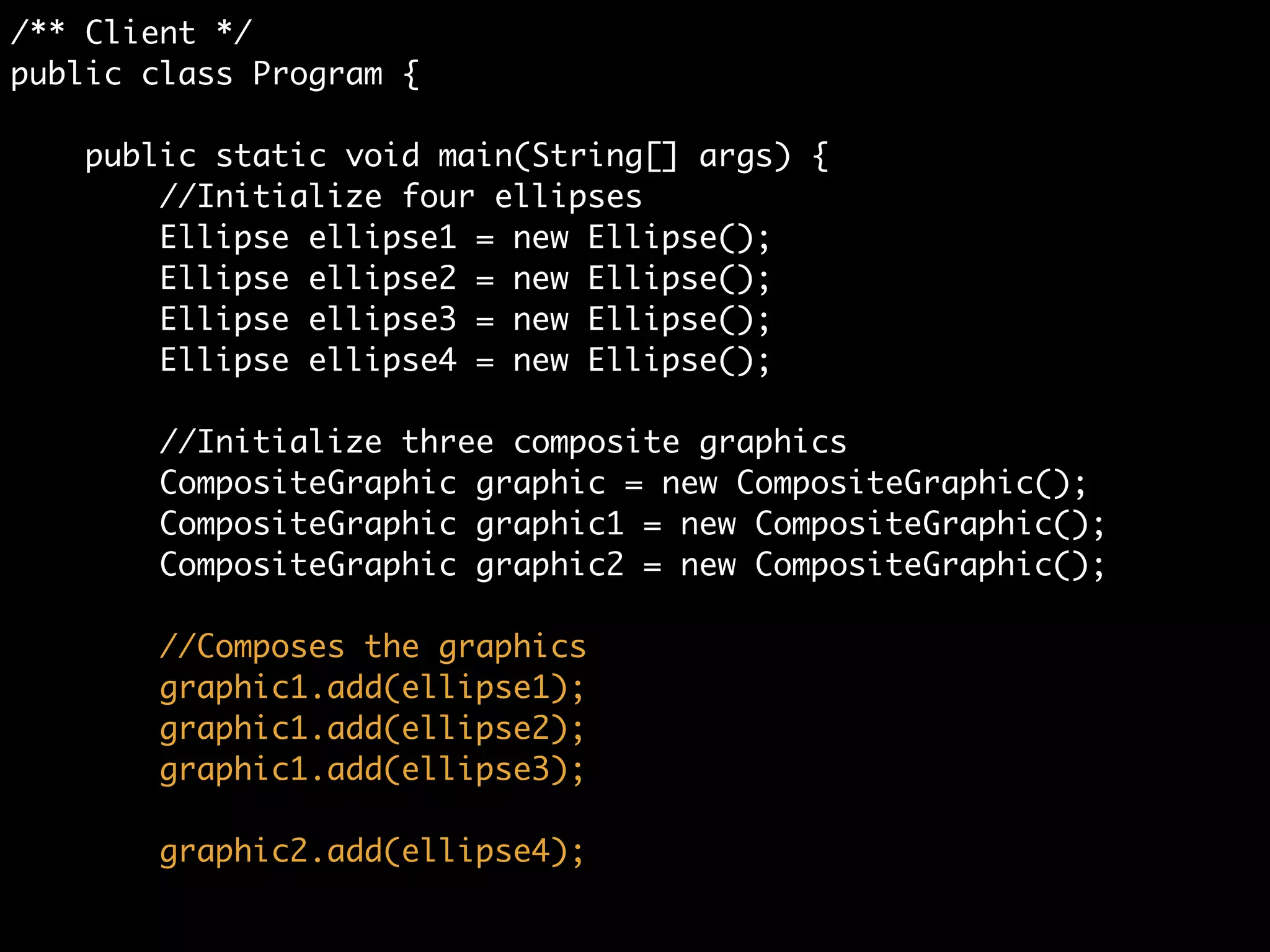

- 17. /** Client */ publicclass Program { public static void main(String[] args) { //Initialize four ellipses Ellipse ellipse1 = new Ellipse(); Ellipse ellipse2 = new Ellipse(); Ellipse ellipse3 = new Ellipse(); Ellipse ellipse4 = new Ellipse(); ! //Initialize three composite graphics CompositeGraphic graphic = new CompositeGraphic(); CompositeGraphic graphic1 = new CompositeGraphic(); CompositeGraphic graphic2 = new CompositeGraphic(); ! //Composes the graphics graphic1.add(ellipse1); graphic1.add(ellipse2); graphic1.add(ellipse3); graphic2.add(ellipse4);

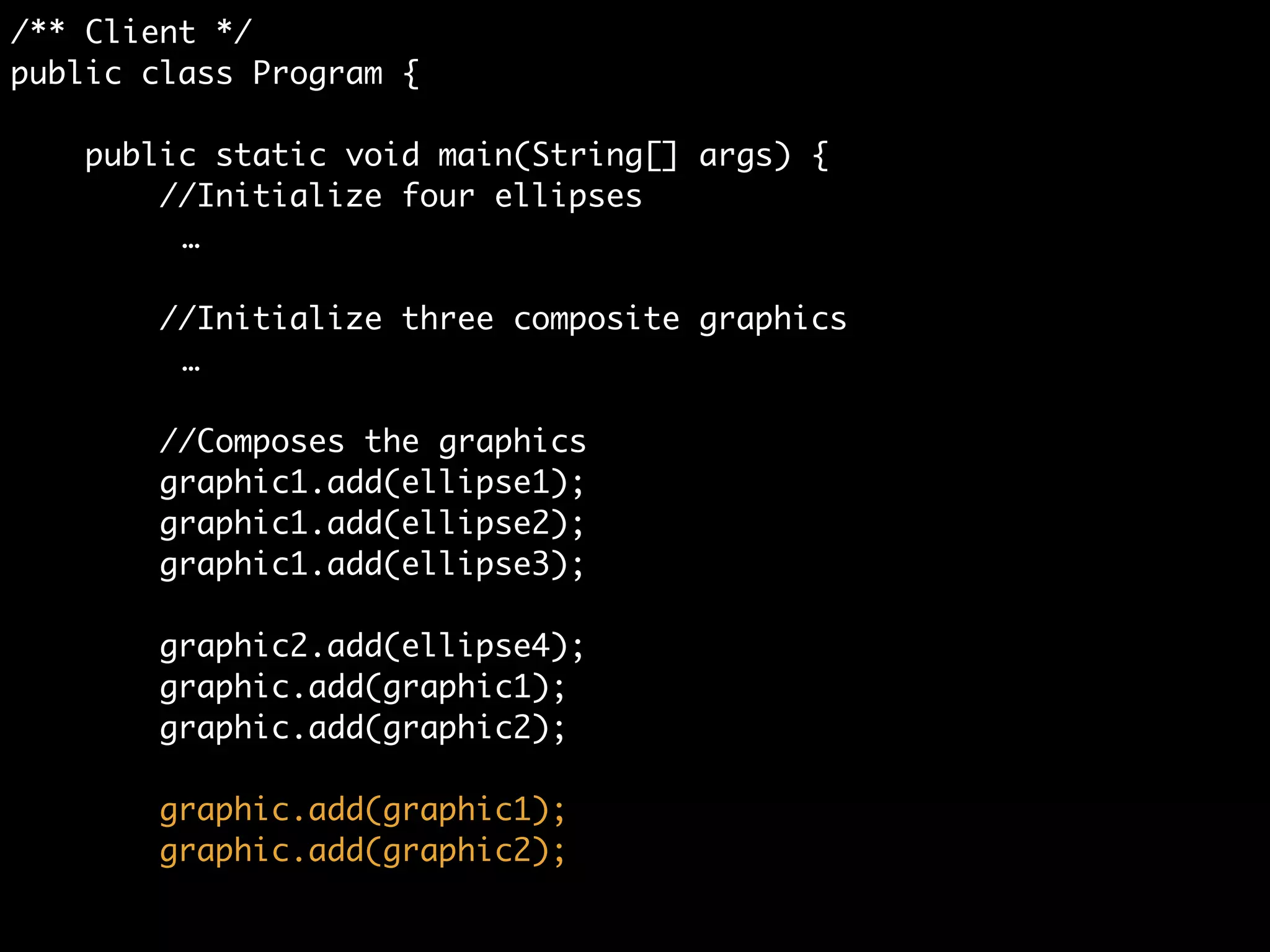

- 18. /** Client */ publicclass Program { public static void main(String[] args) { //Initialize four ellipses … ! //Initialize three composite graphics … ! //Composes the graphics graphic1.add(ellipse1); graphic1.add(ellipse2); graphic1.add(ellipse3); graphic2.add(ellipse4); graphic.add(graphic1); graphic.add(graphic2); ! graphic.add(graphic1); graphic.add(graphic2);

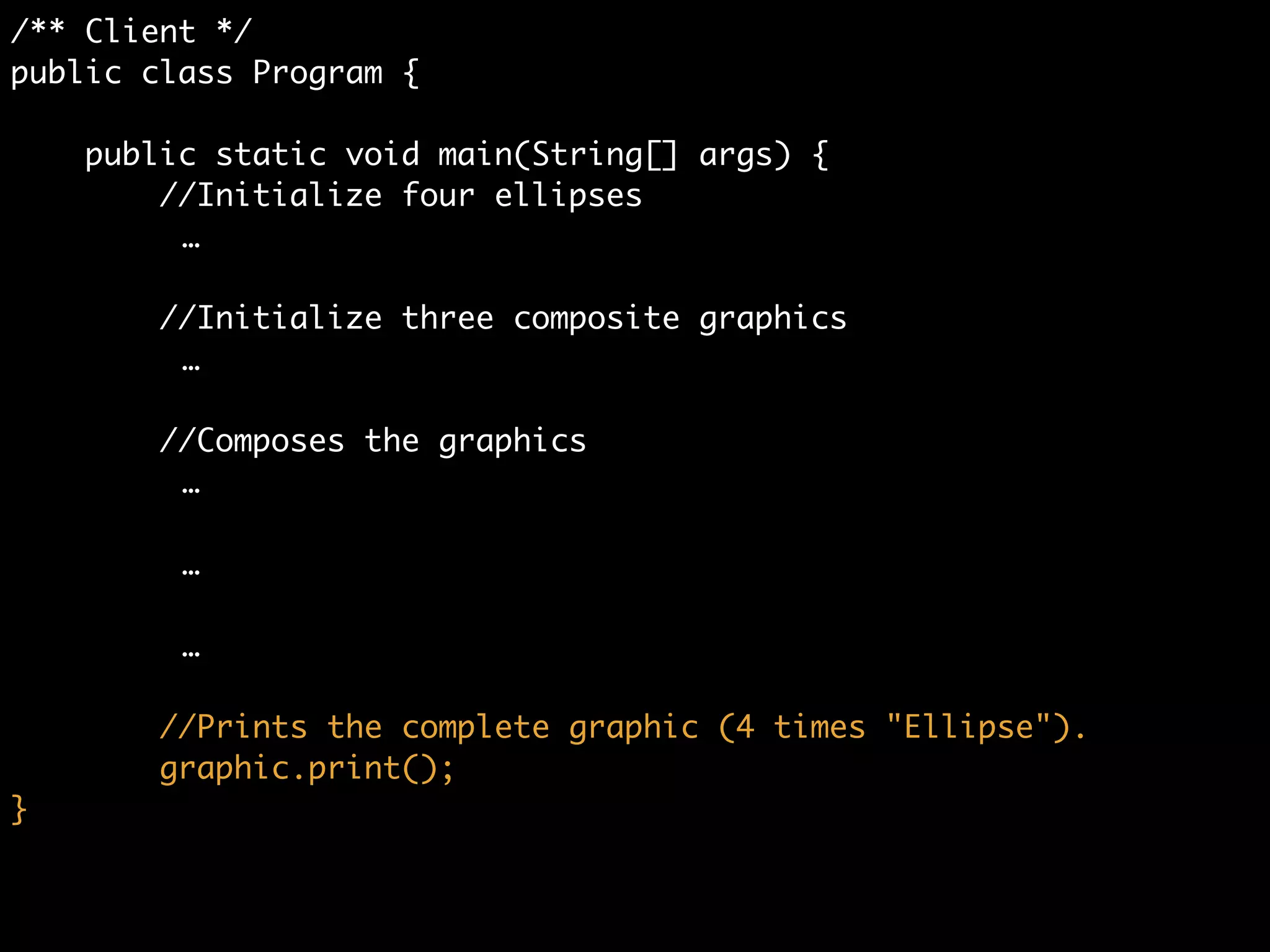

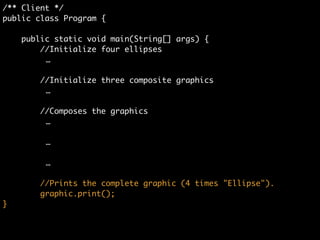

- 19. /** Client */ publicclass Program { public static void main(String[] args) { //Initialize four ellipses … ! //Initialize three composite graphics … ! //Composes the graphics … … ! … ! //Prints the complete graphic (4 times "Ellipse"). graphic.print(); }
- 20.
- 21.

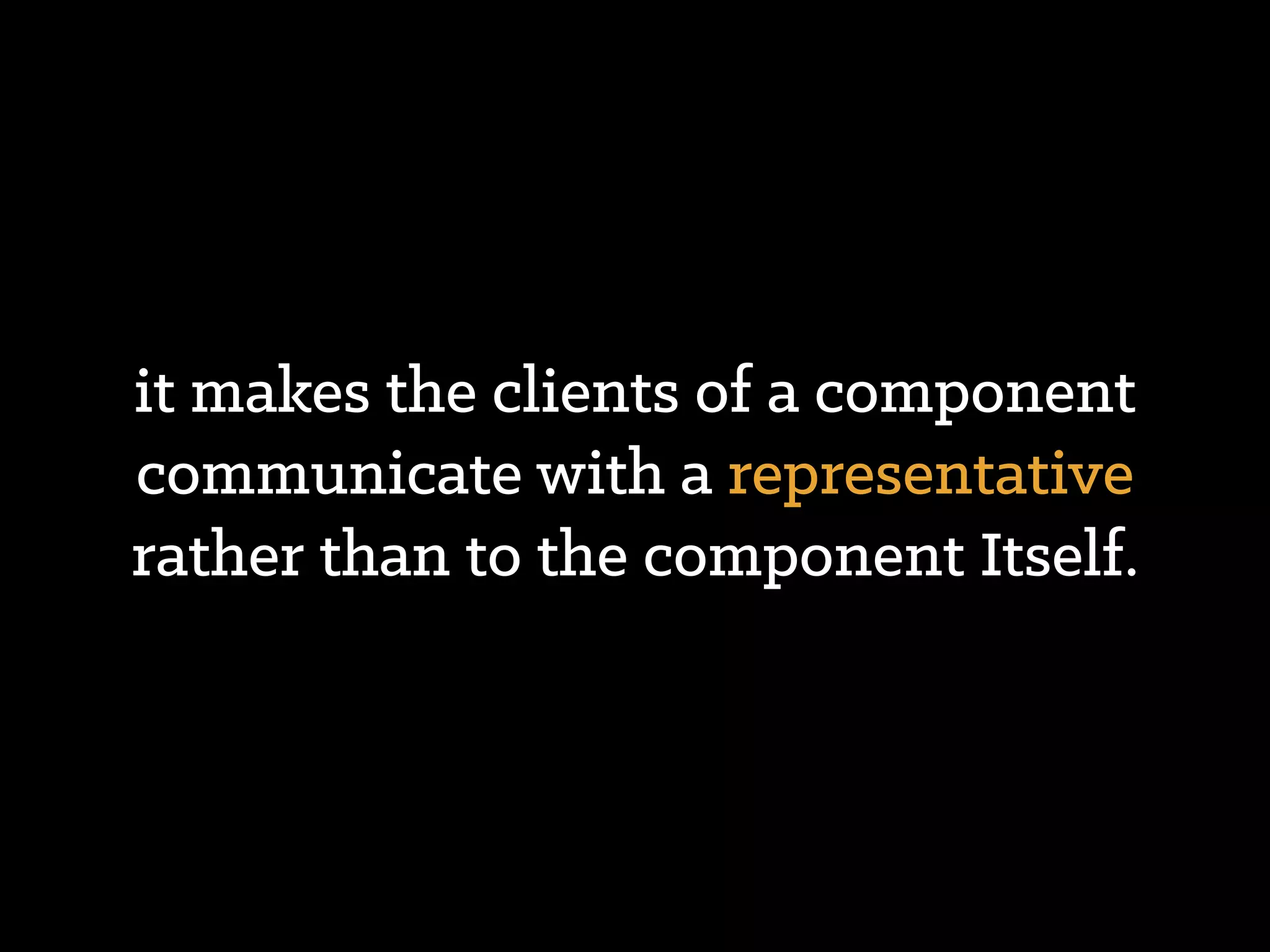

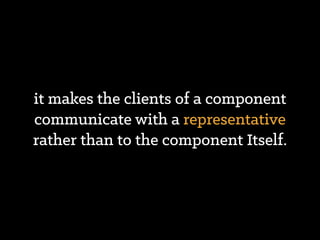

- 22. it makes theclients of a component communicate with a representative rather than to the component Itself.
- 23. enables enhanced efficiency, easieraccess and protection from unauthorized access.
- 24.
- 25.

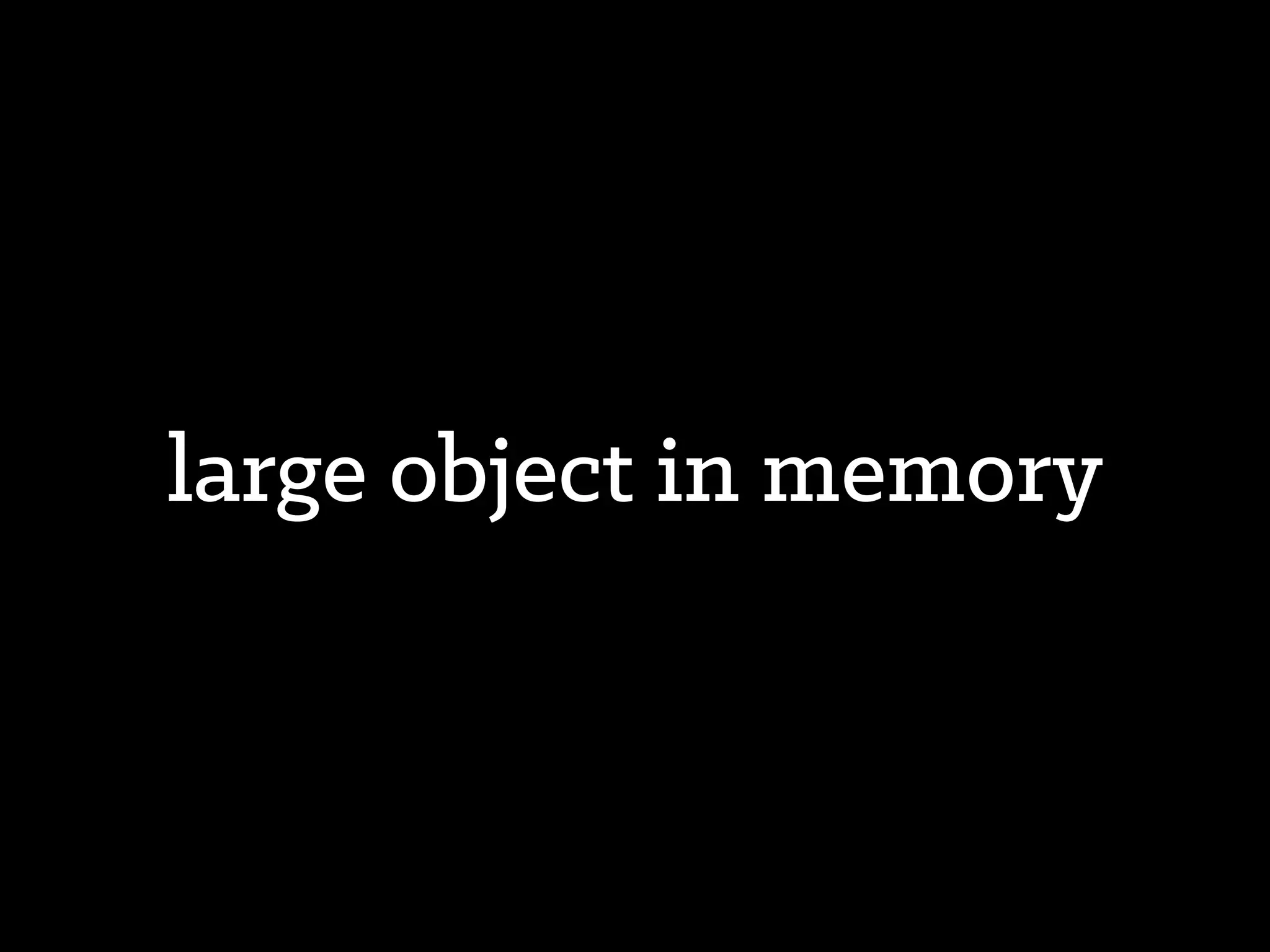

- 26. large object inmemory
- 27.

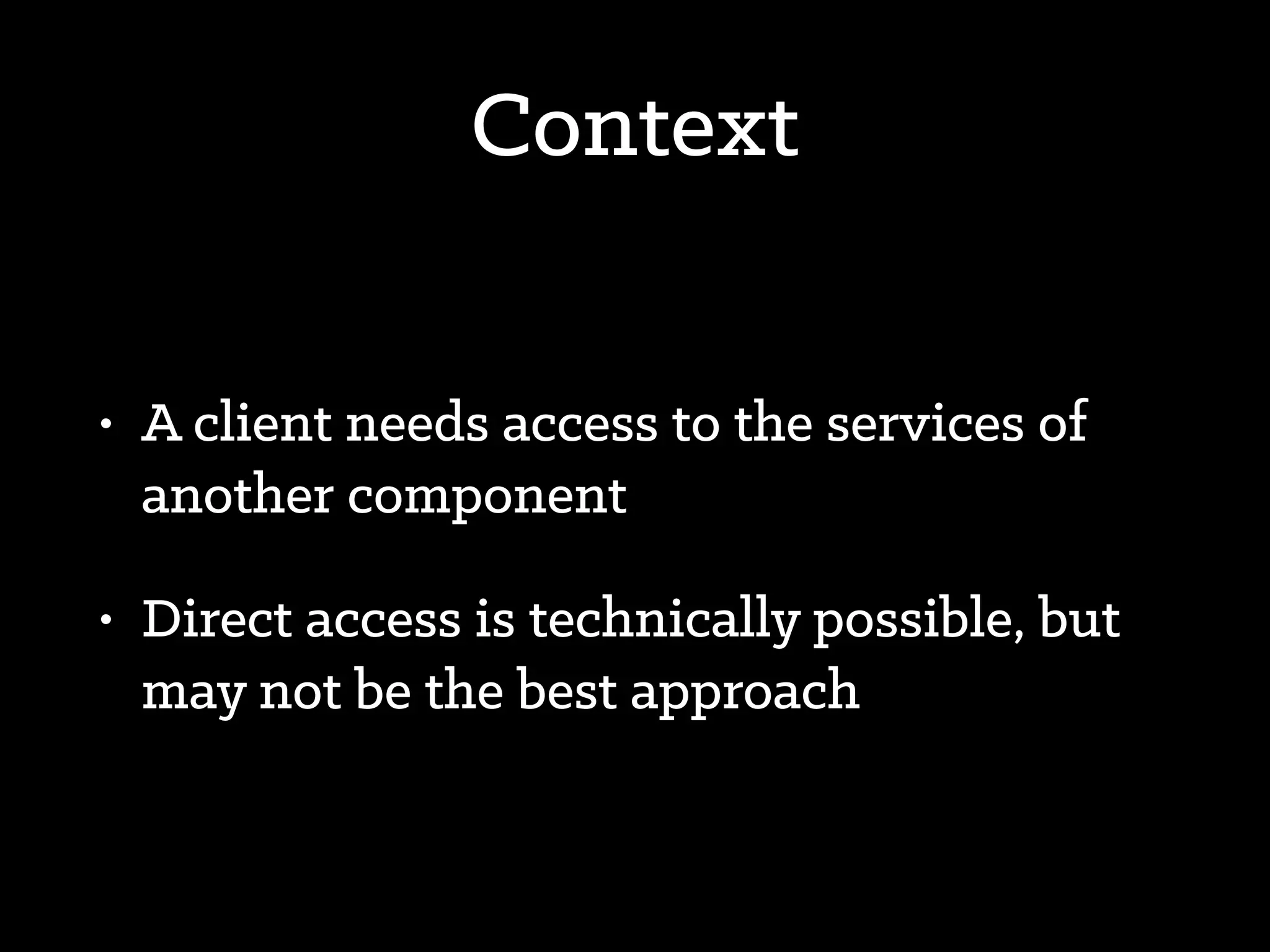

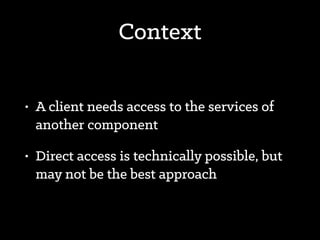

- 28. Context • A clientneeds access to the services of another component • Direct access is technically possible, but may not be the best approach

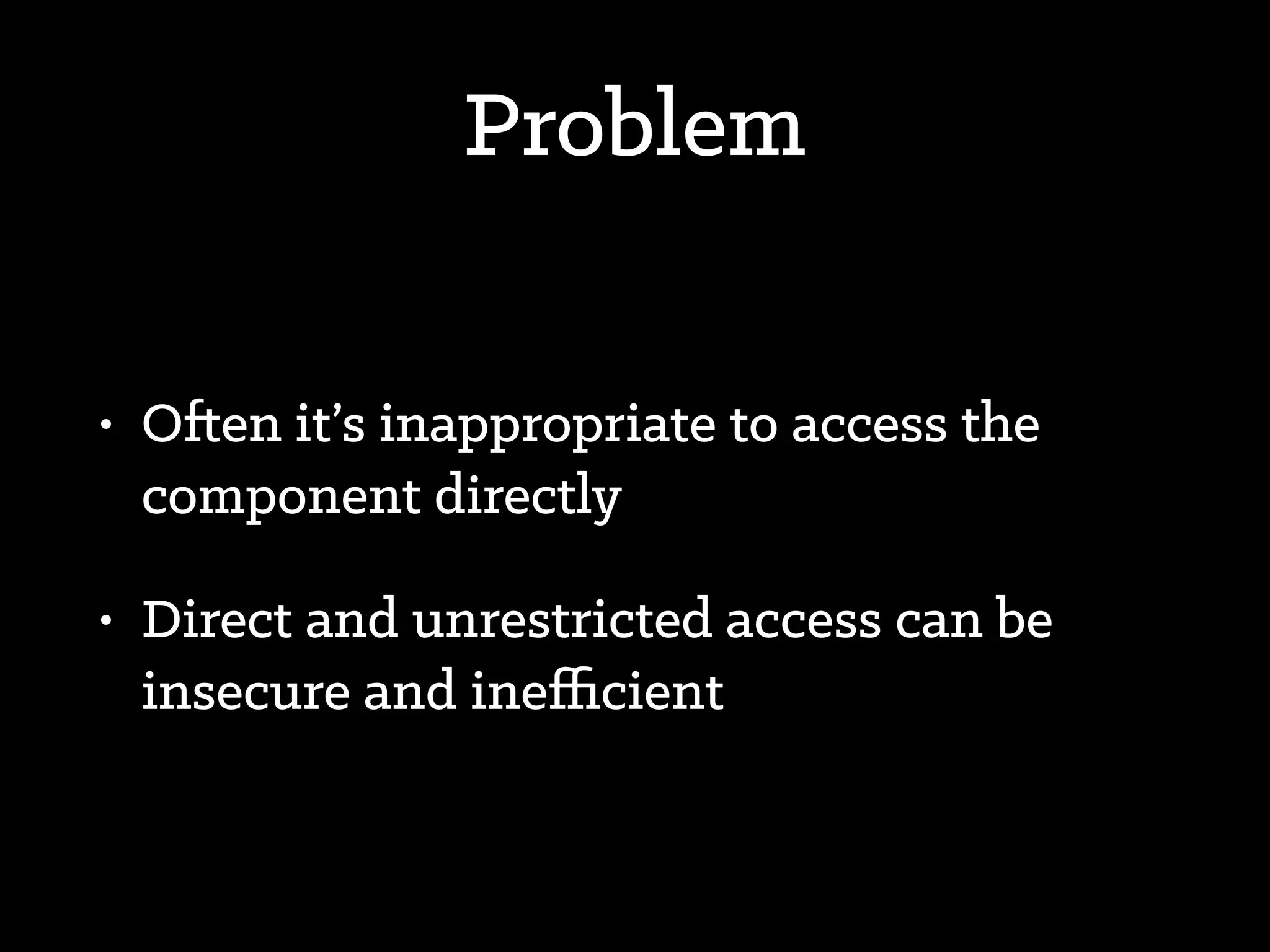

- 29. Problem • Often it’sinappropriate to access the component directly • Direct and unrestricted access can be insecure and inefficient
- 30.
- 31.
- 32.

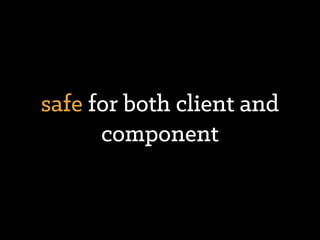

- 33. safe for bothclient and component
- 34.

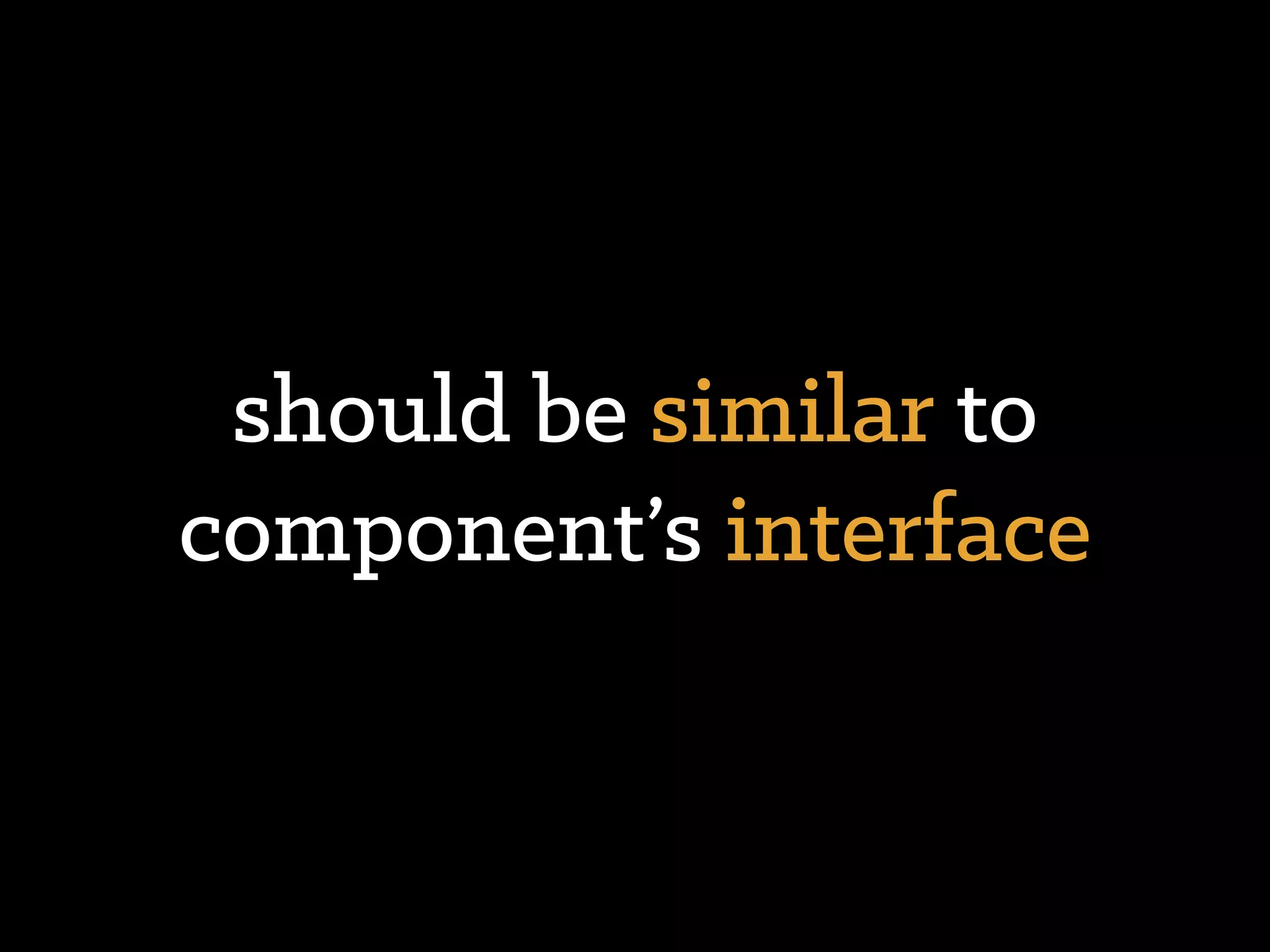

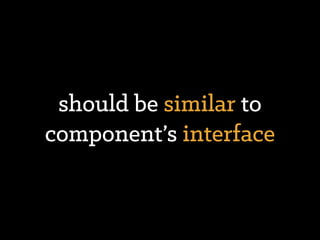

- 35. should be similarto component’s interface

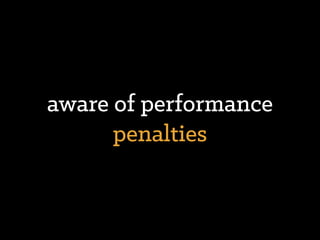

- 36.
- 37.
- 38.

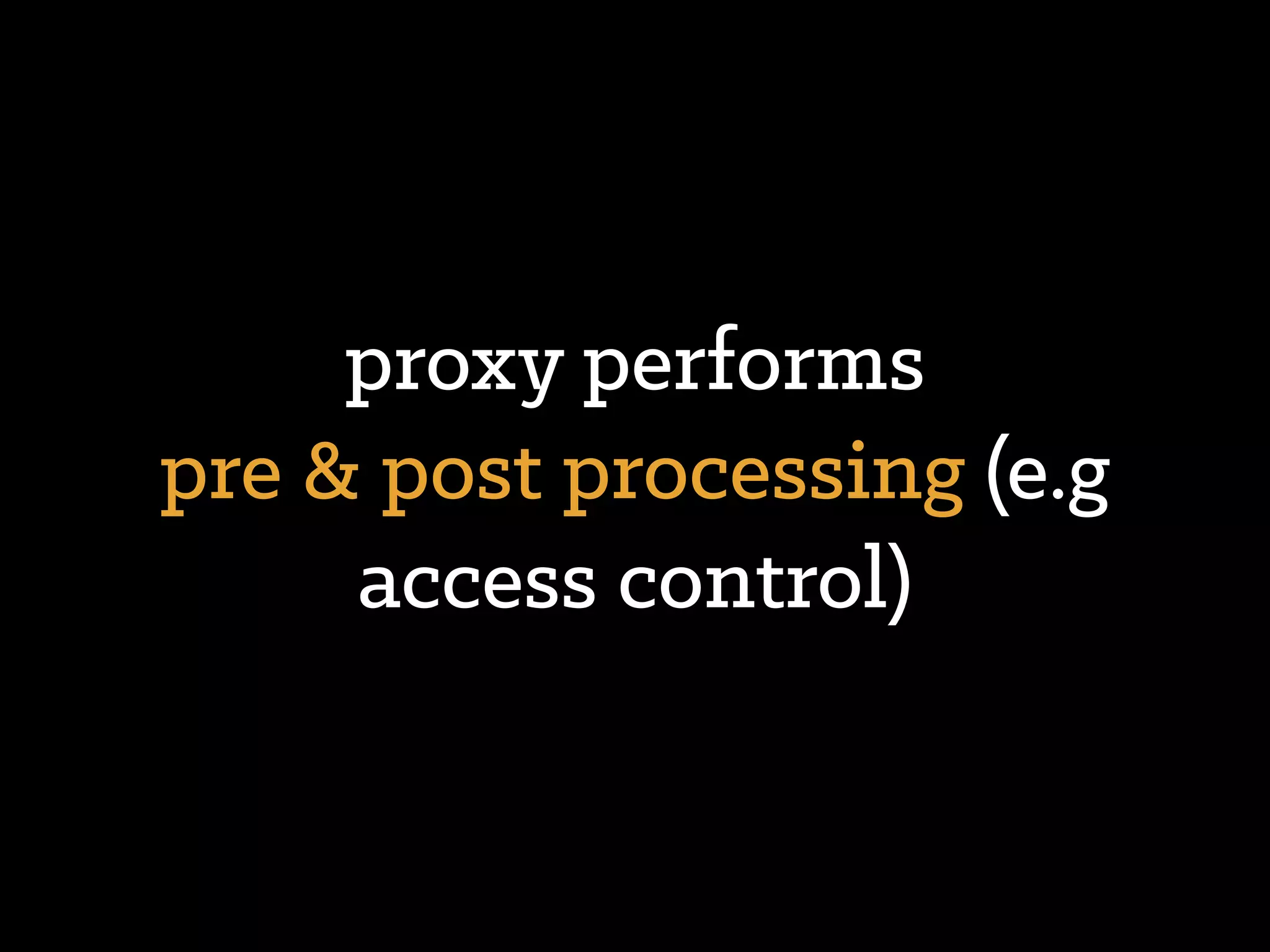

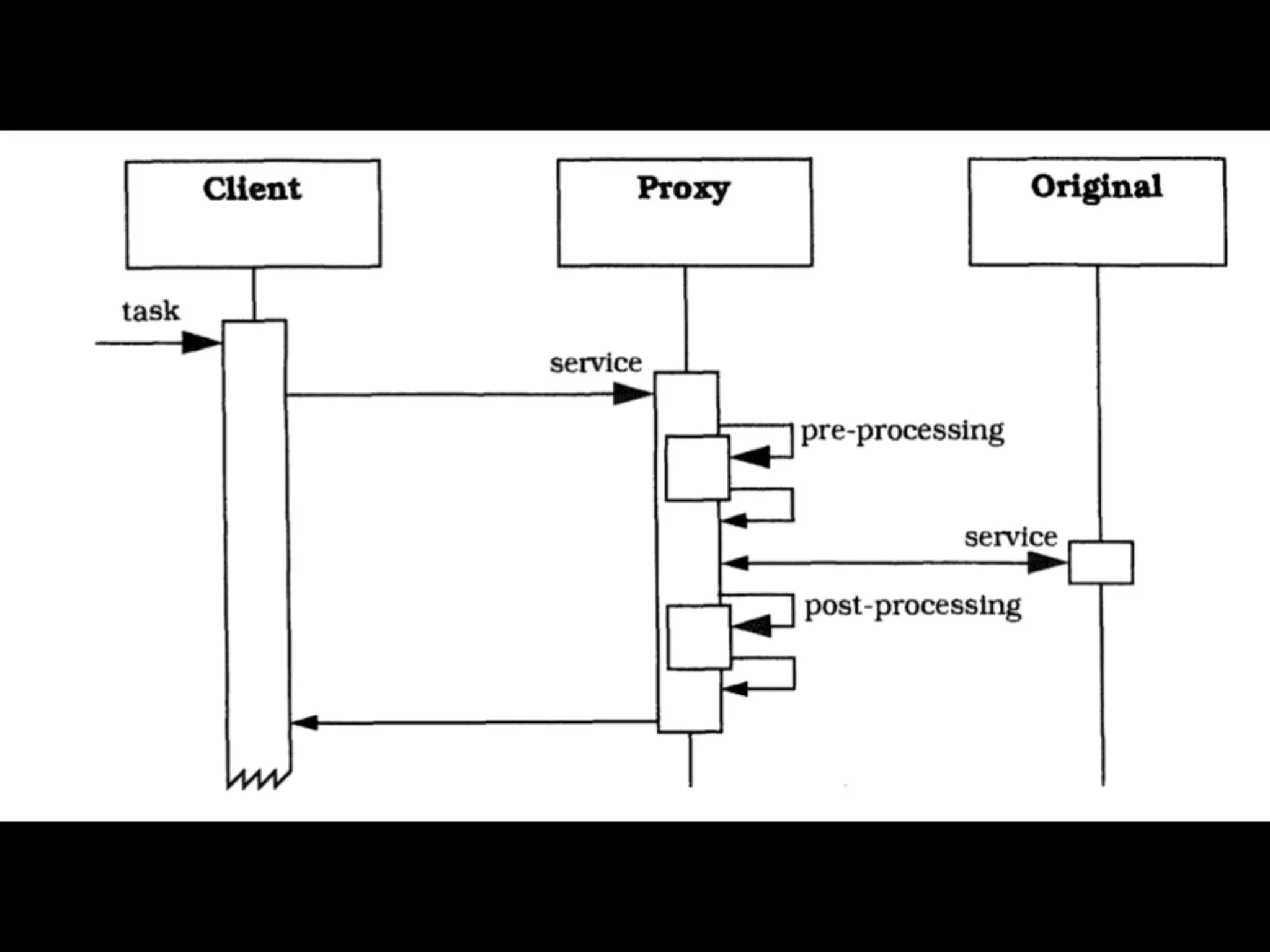

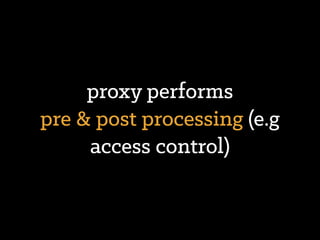

- 39. proxy performs pre &post processing (e.g access control)
- 40.

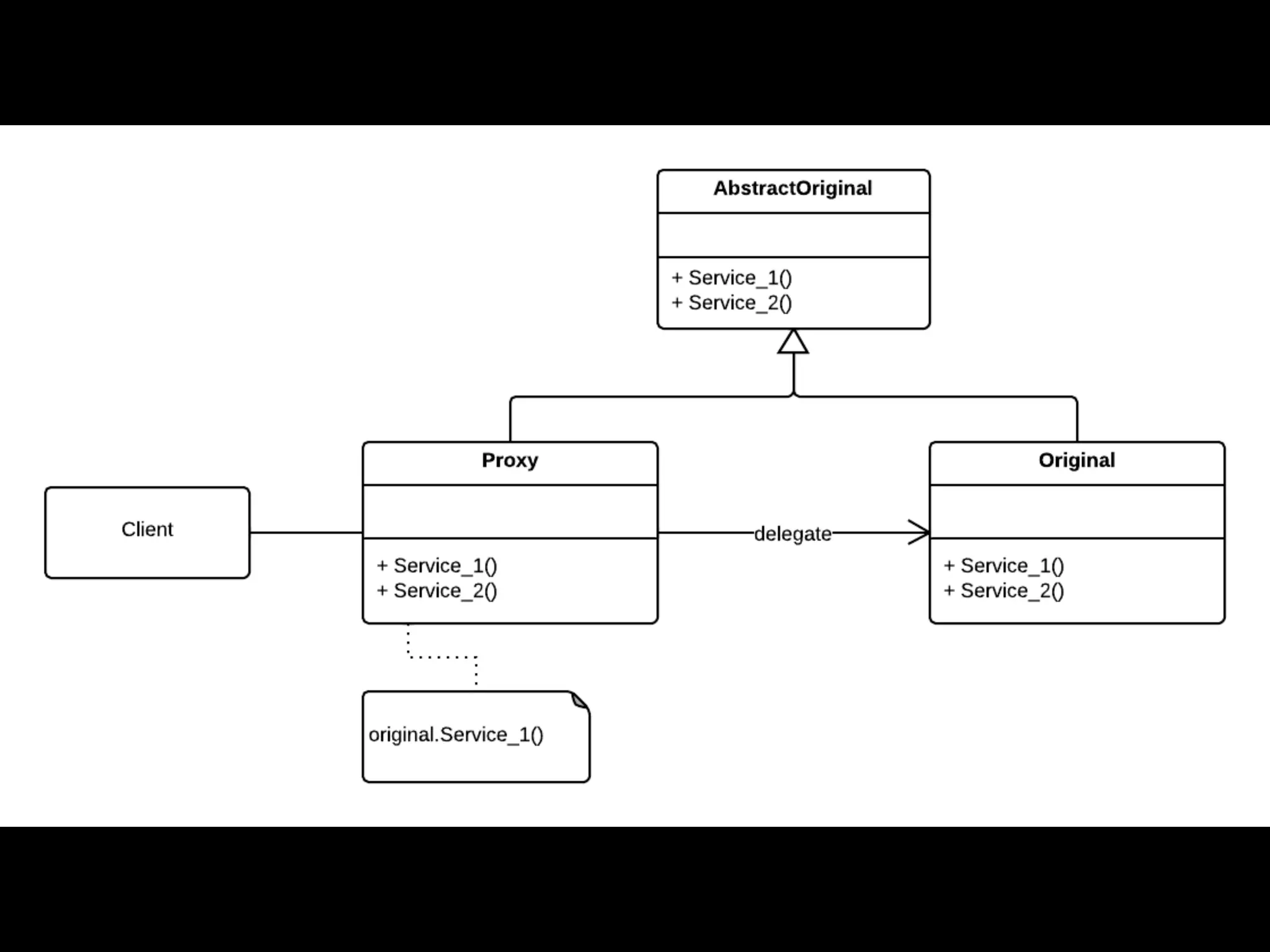

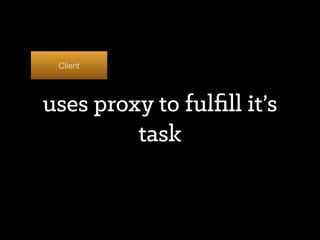

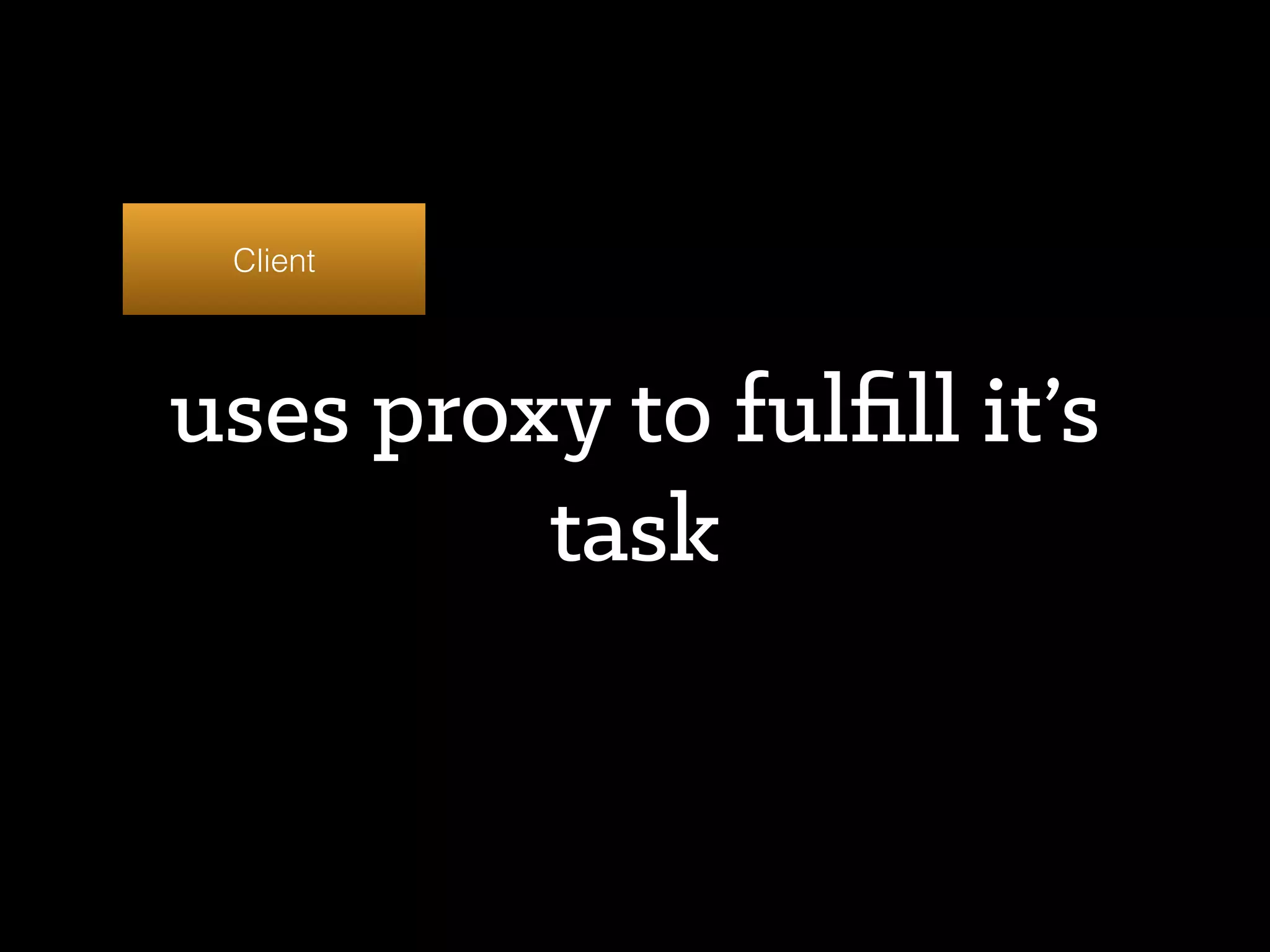

- 41. uses proxy tofulfill it’s task Client

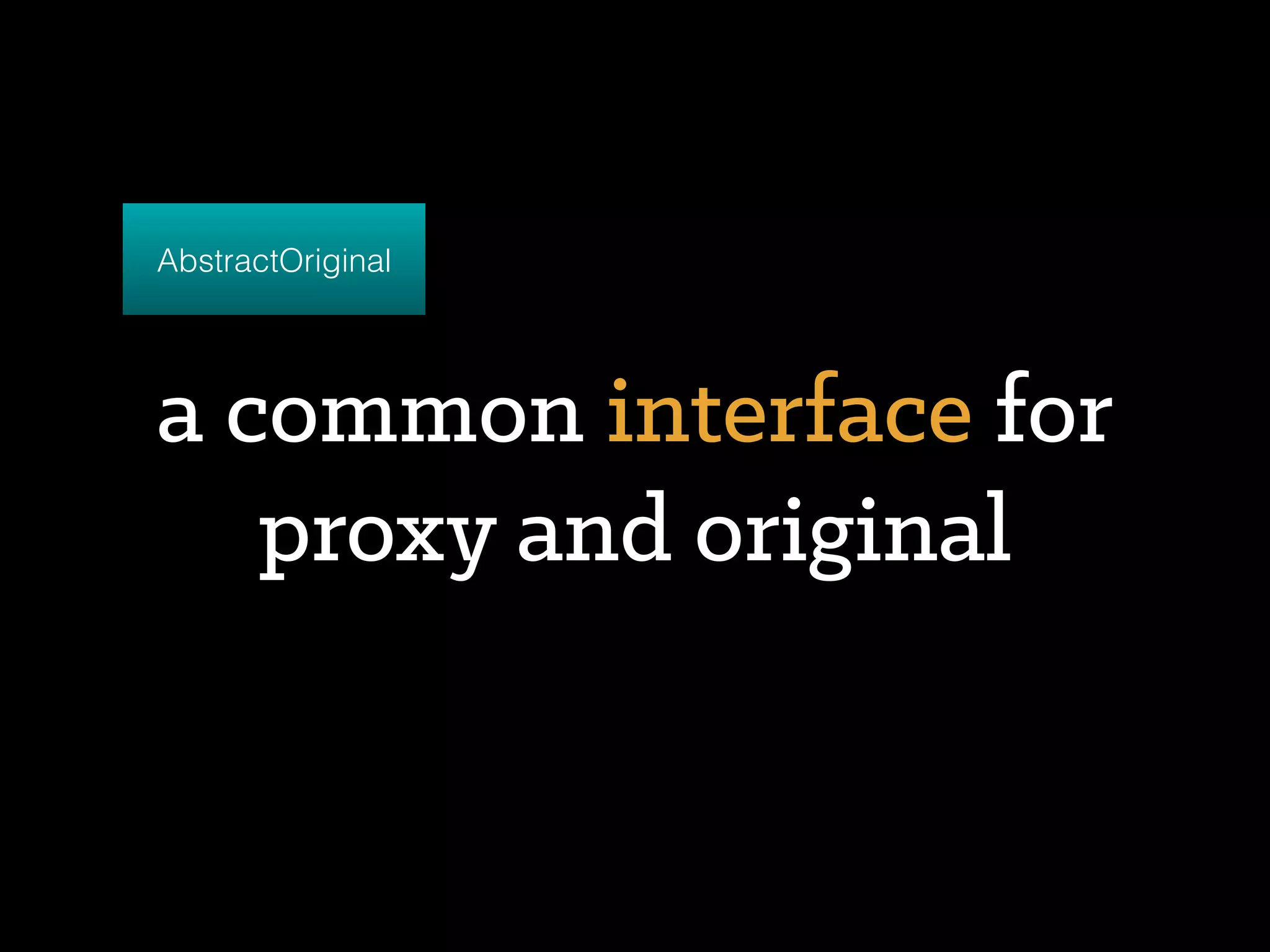

- 42. a common interfacefor proxy and original AbstractOriginal

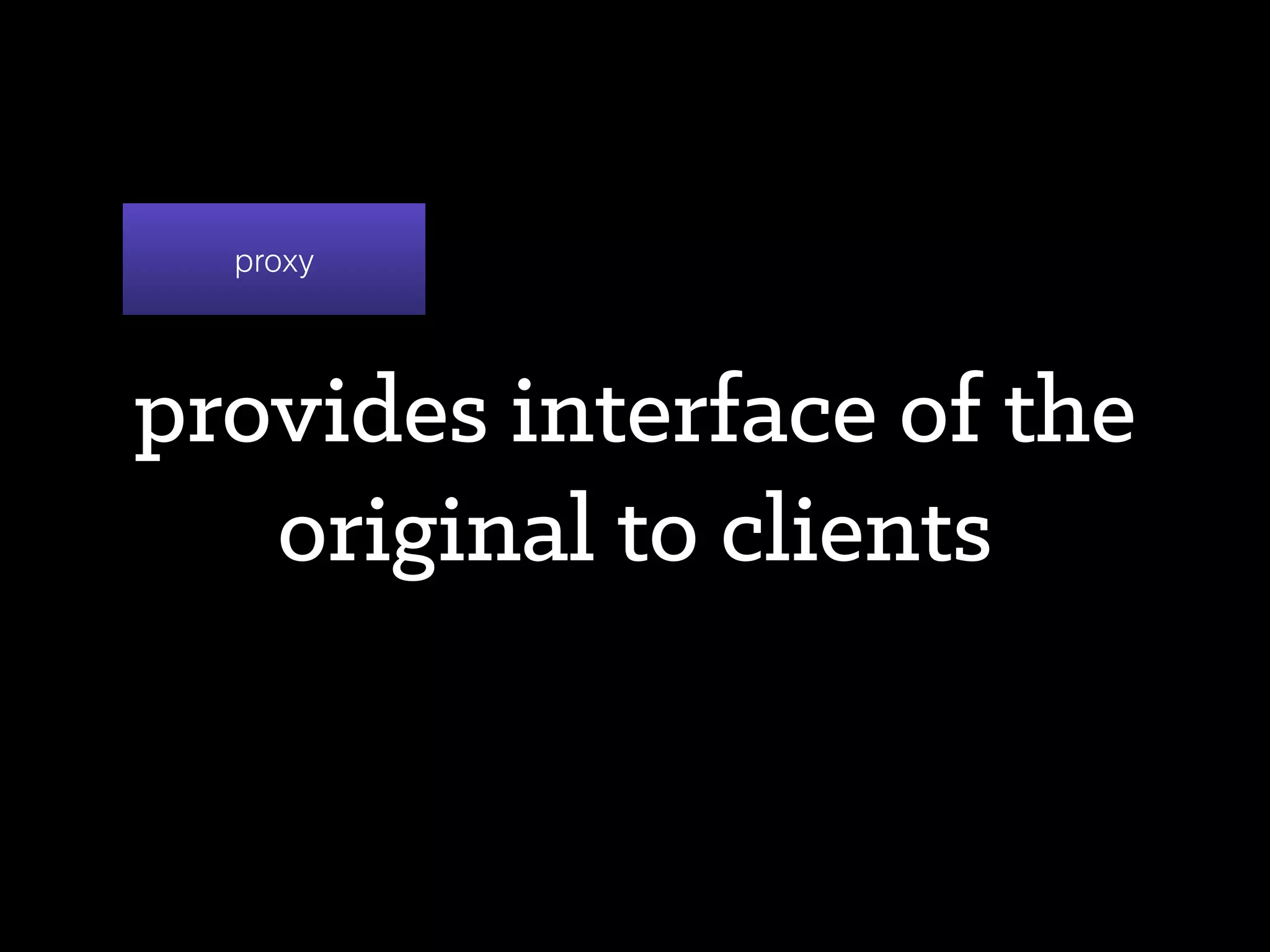

- 43. provides interface ofthe original to clients proxy

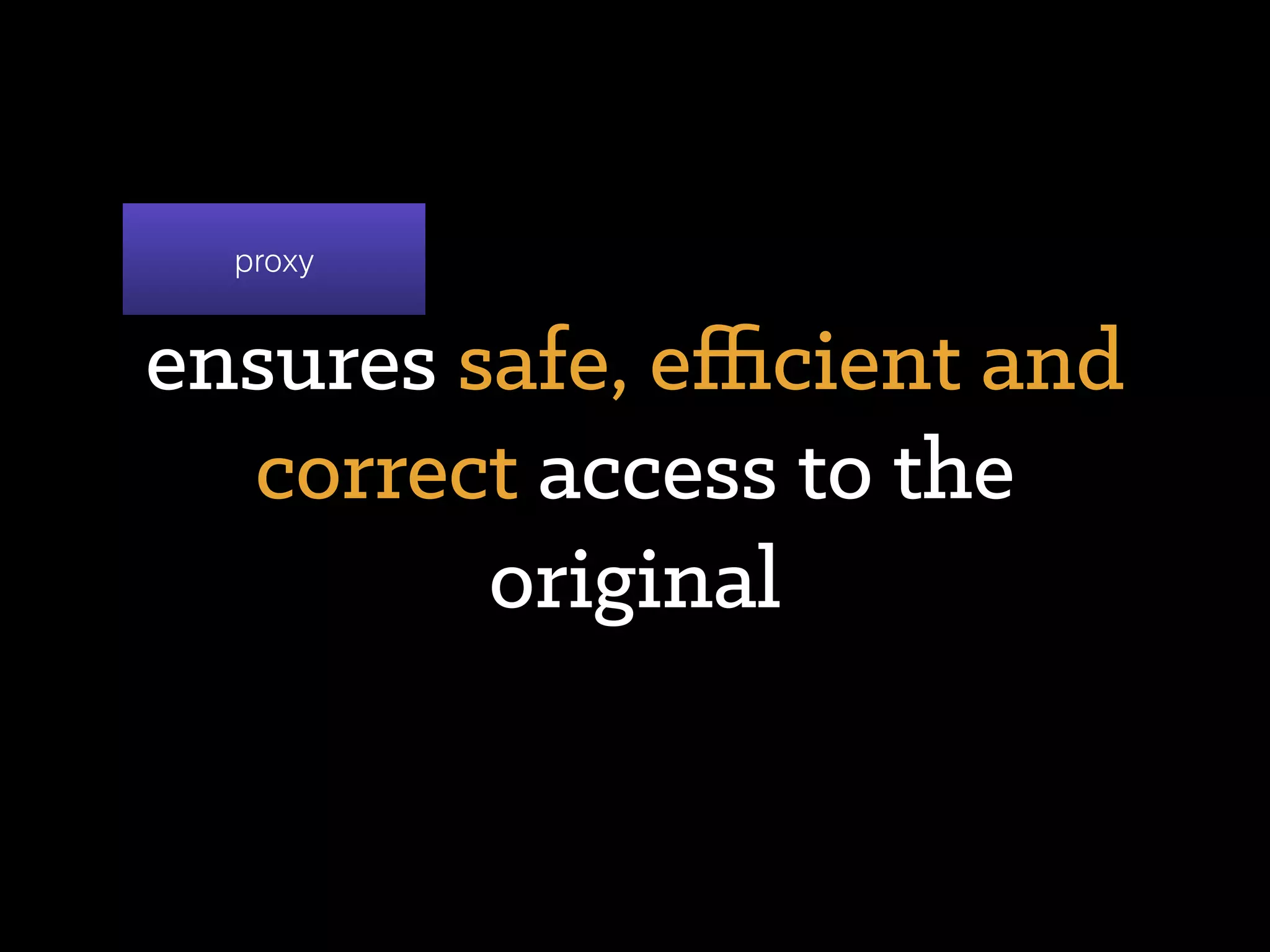

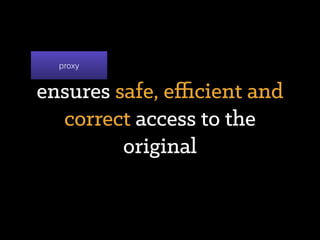

- 44. ensures safe, efficientand correct access to the original proxy

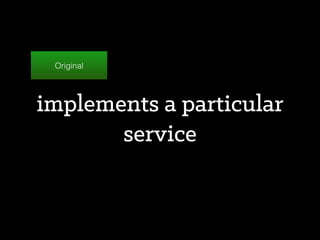

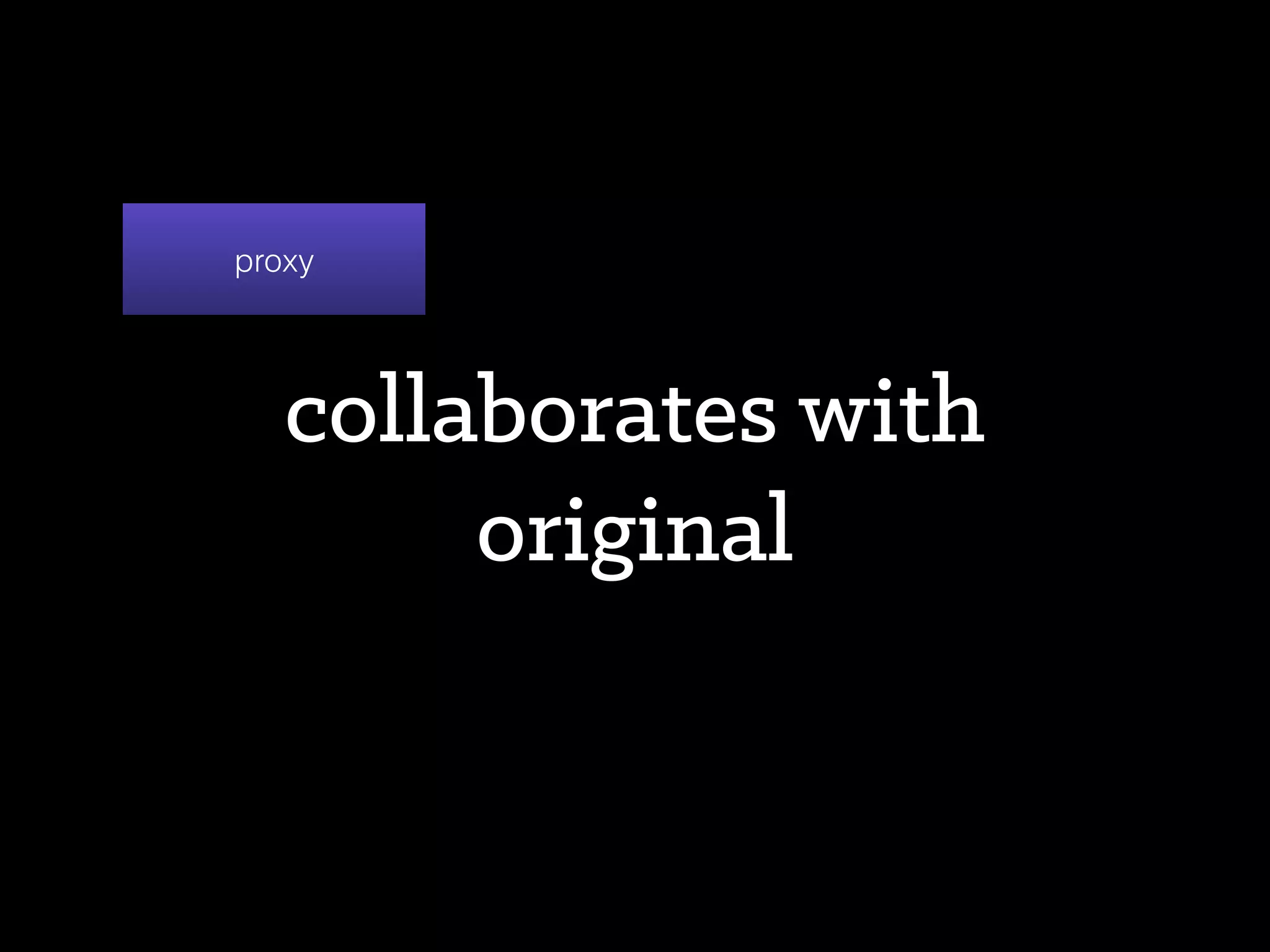

- 45.

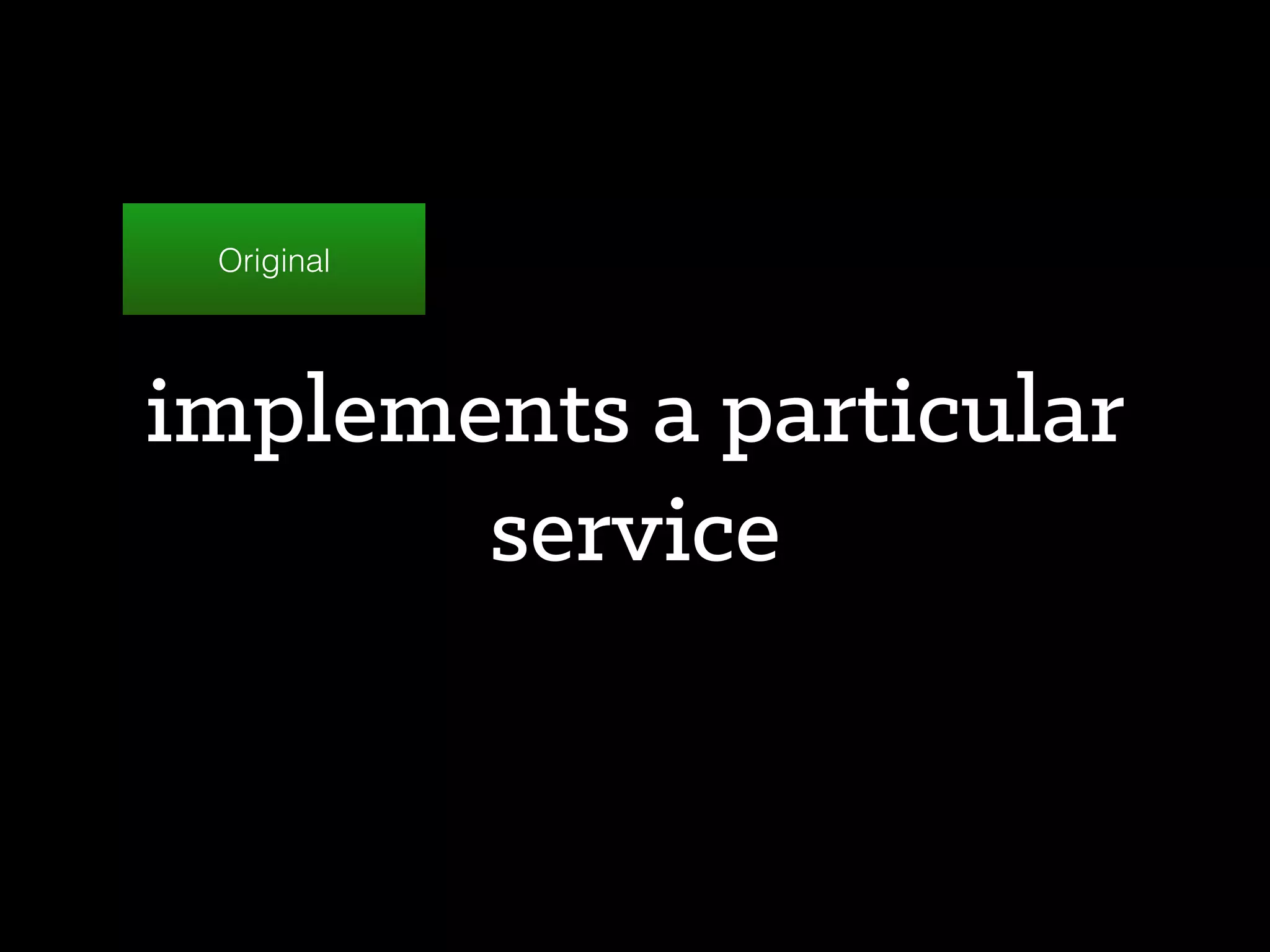

- 46.
- 48.

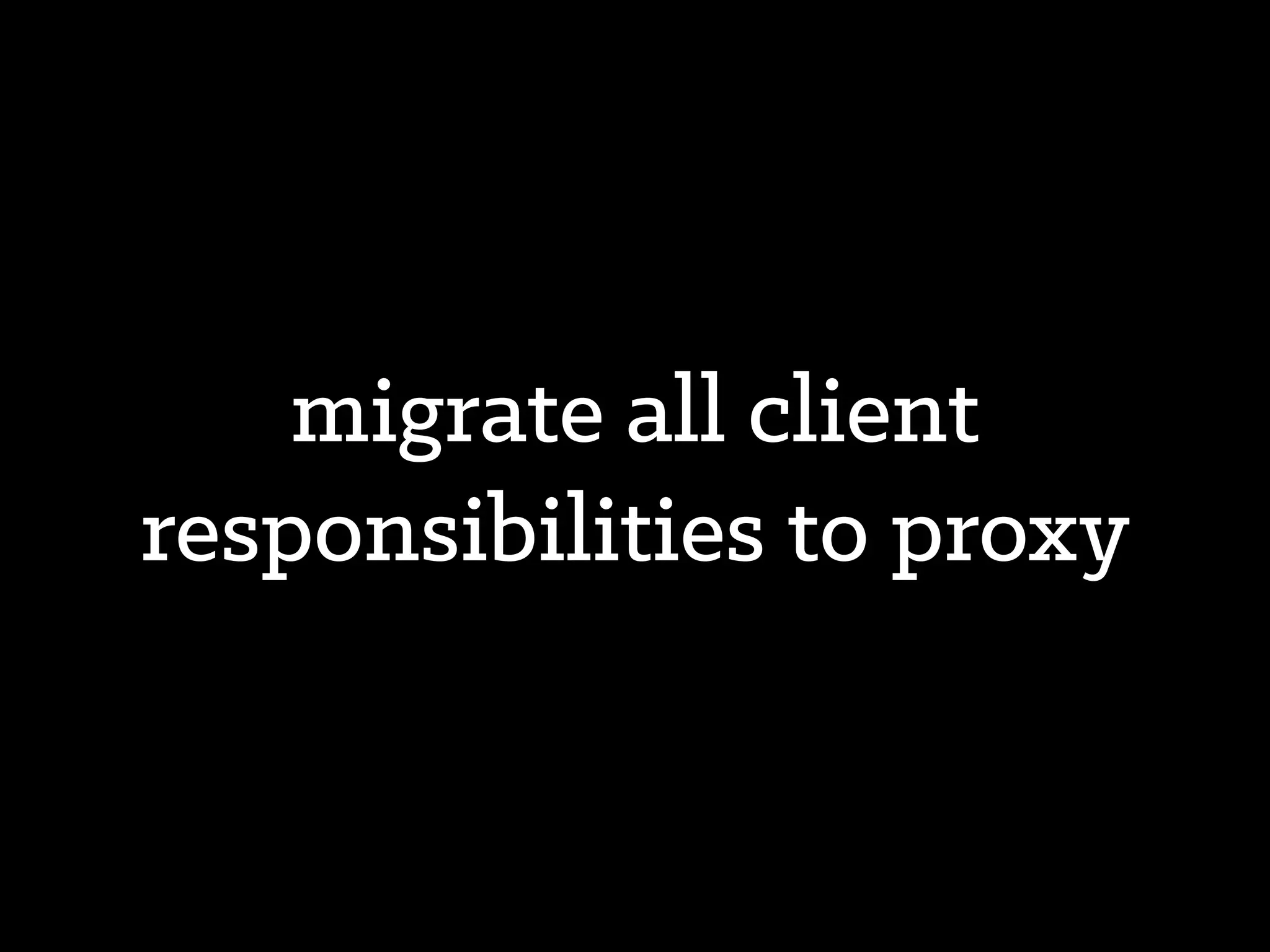

- 50.
- 51.

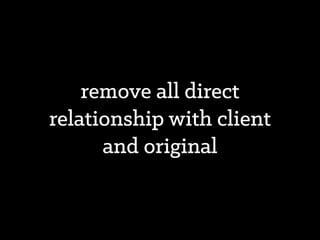

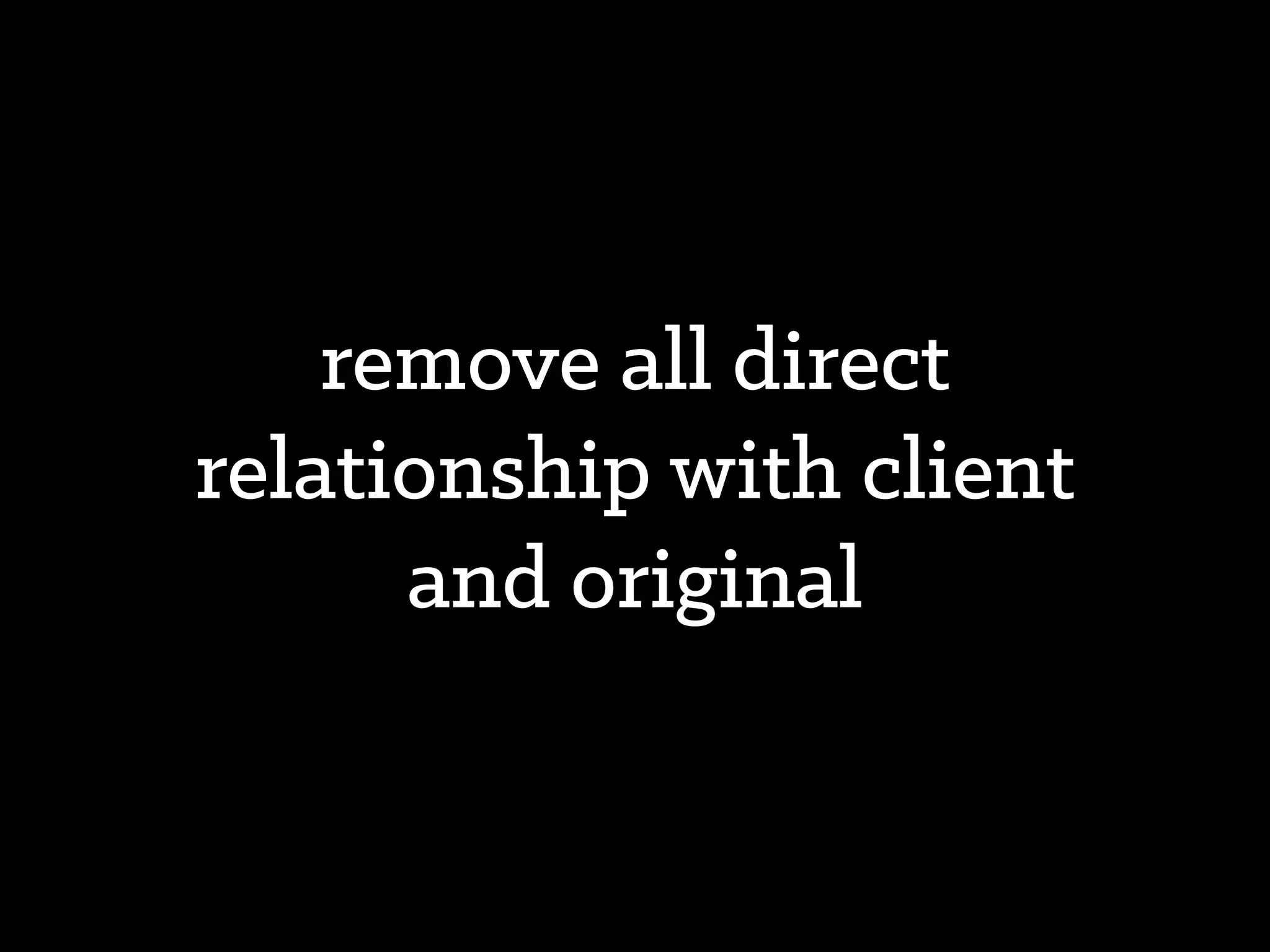

- 52. remove all direct relationshipwith client and original
- 53.

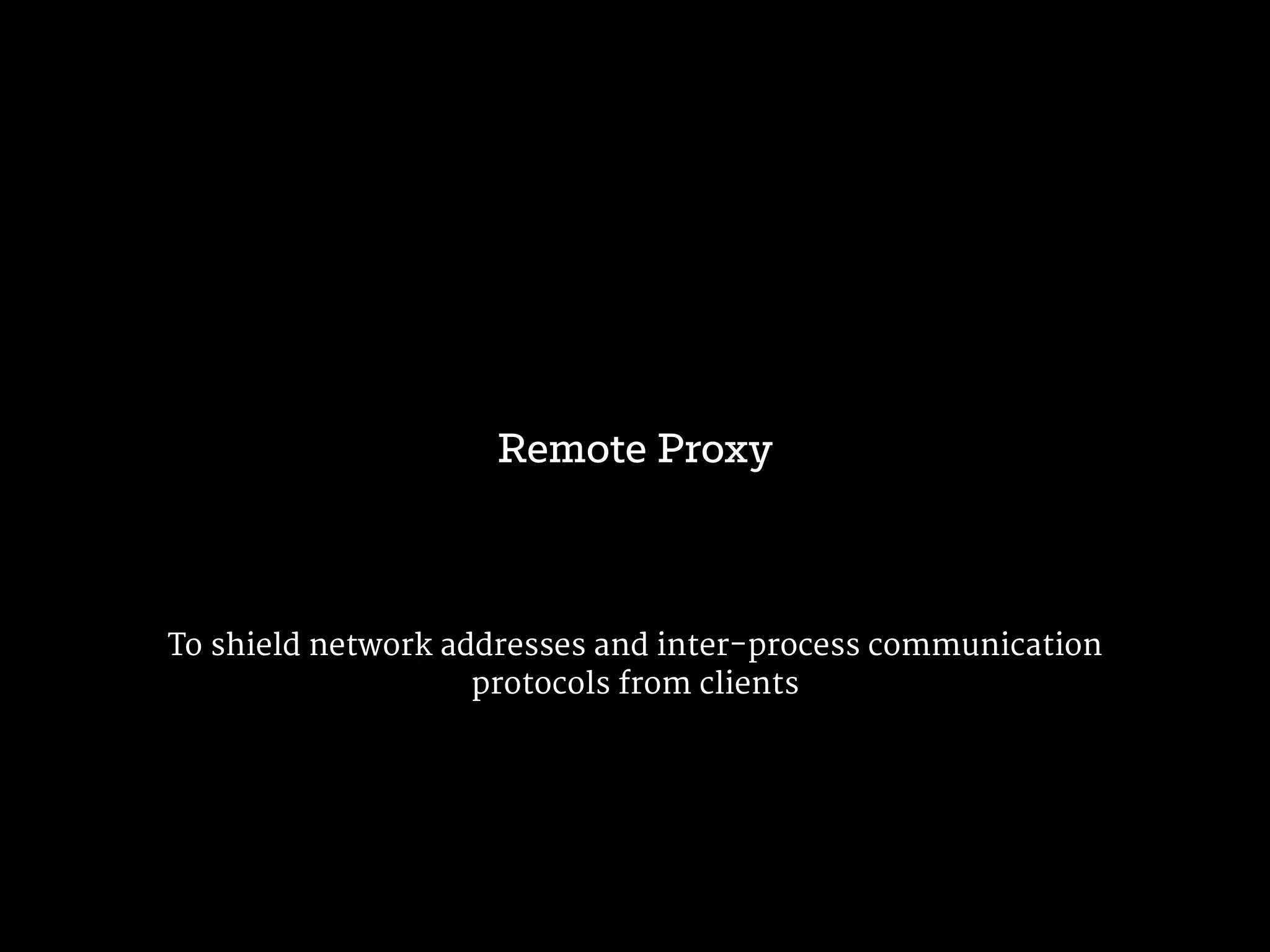

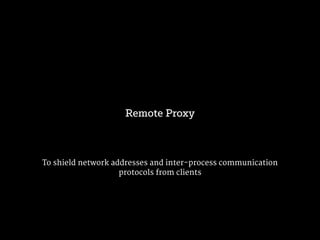

- 54. To shield networkaddresses and inter-process communication protocols from clients Remote Proxy

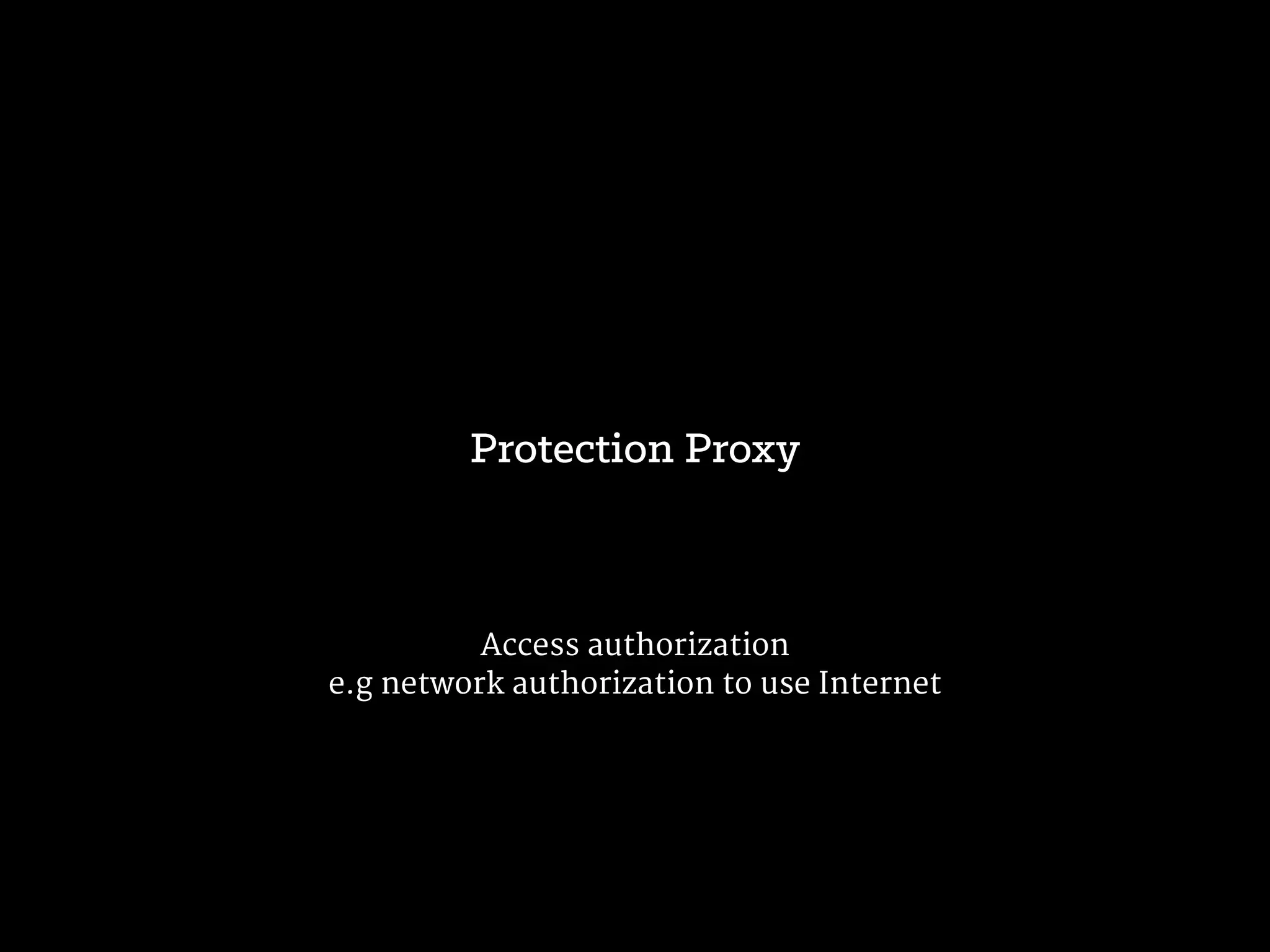

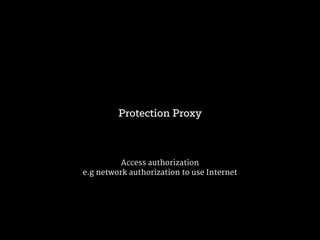

- 55. Access authorization e.gnetwork authorization to use Internet Protection Proxy

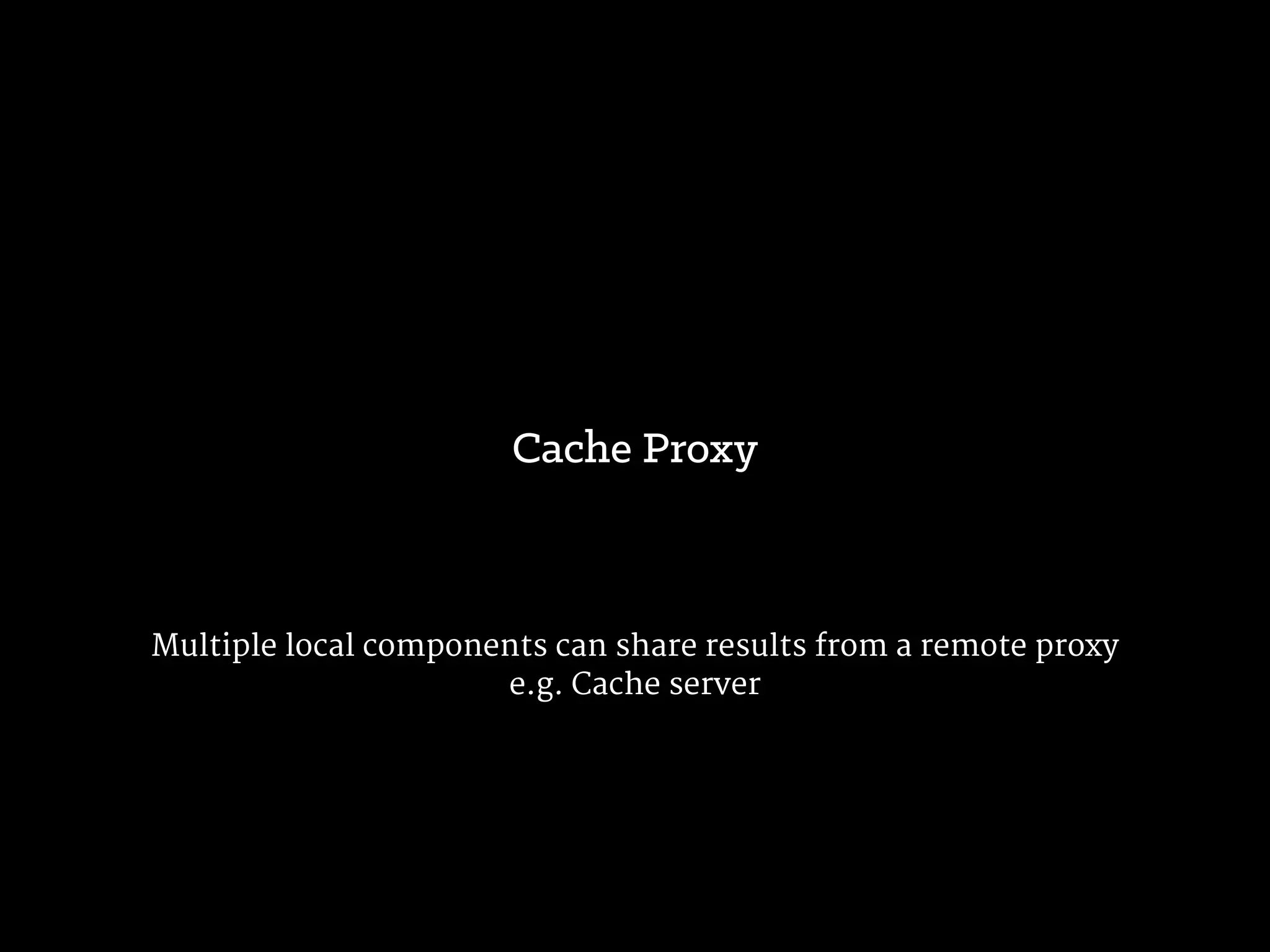

- 56. Multiple local componentscan share results from a remote proxy e.g. Cache server Cache Proxy

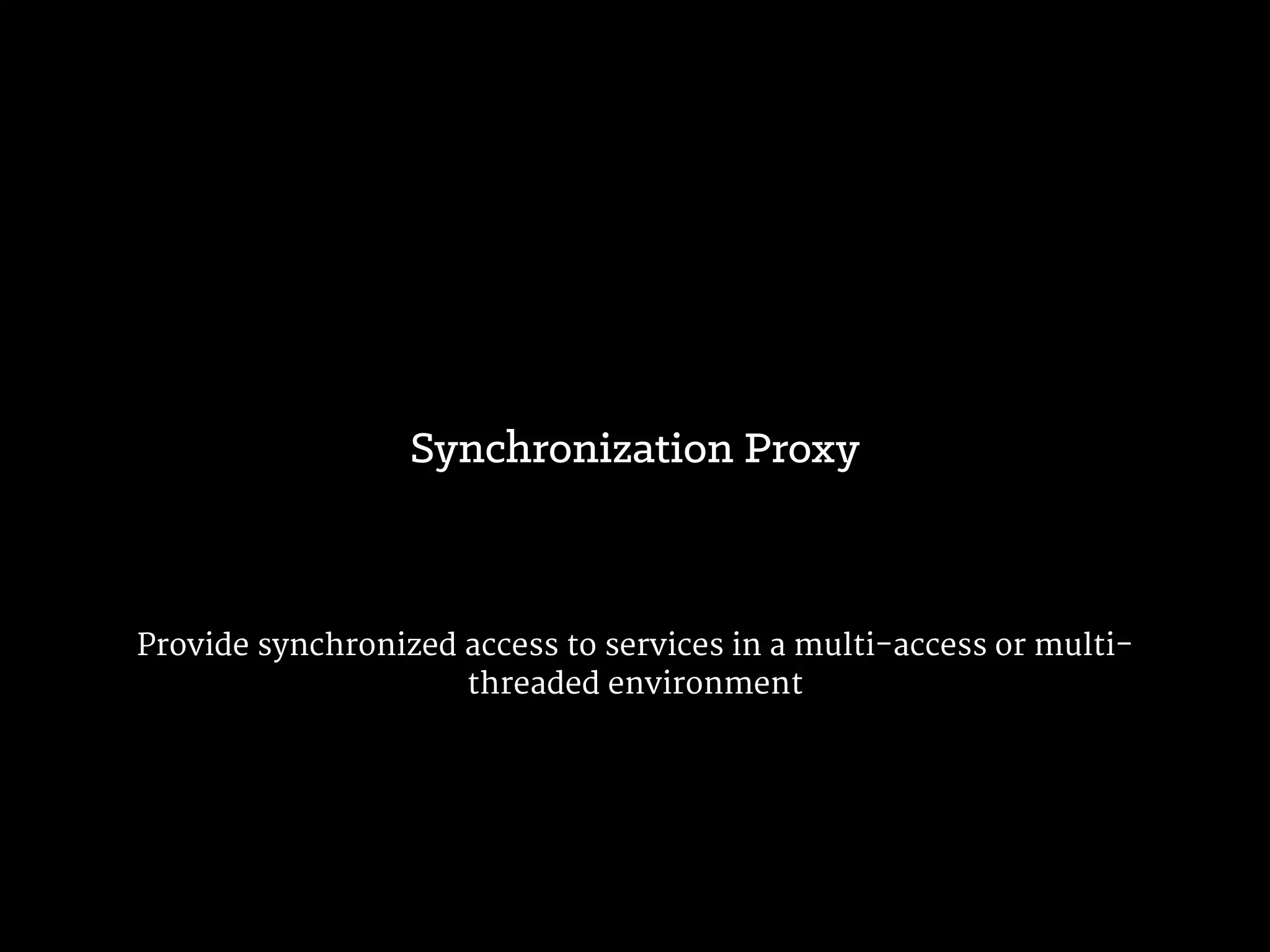

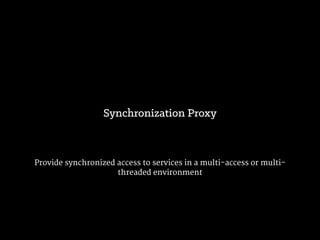

- 57. Provide synchronized accessto services in a multi-access or multi- threaded environment Synchronization Proxy

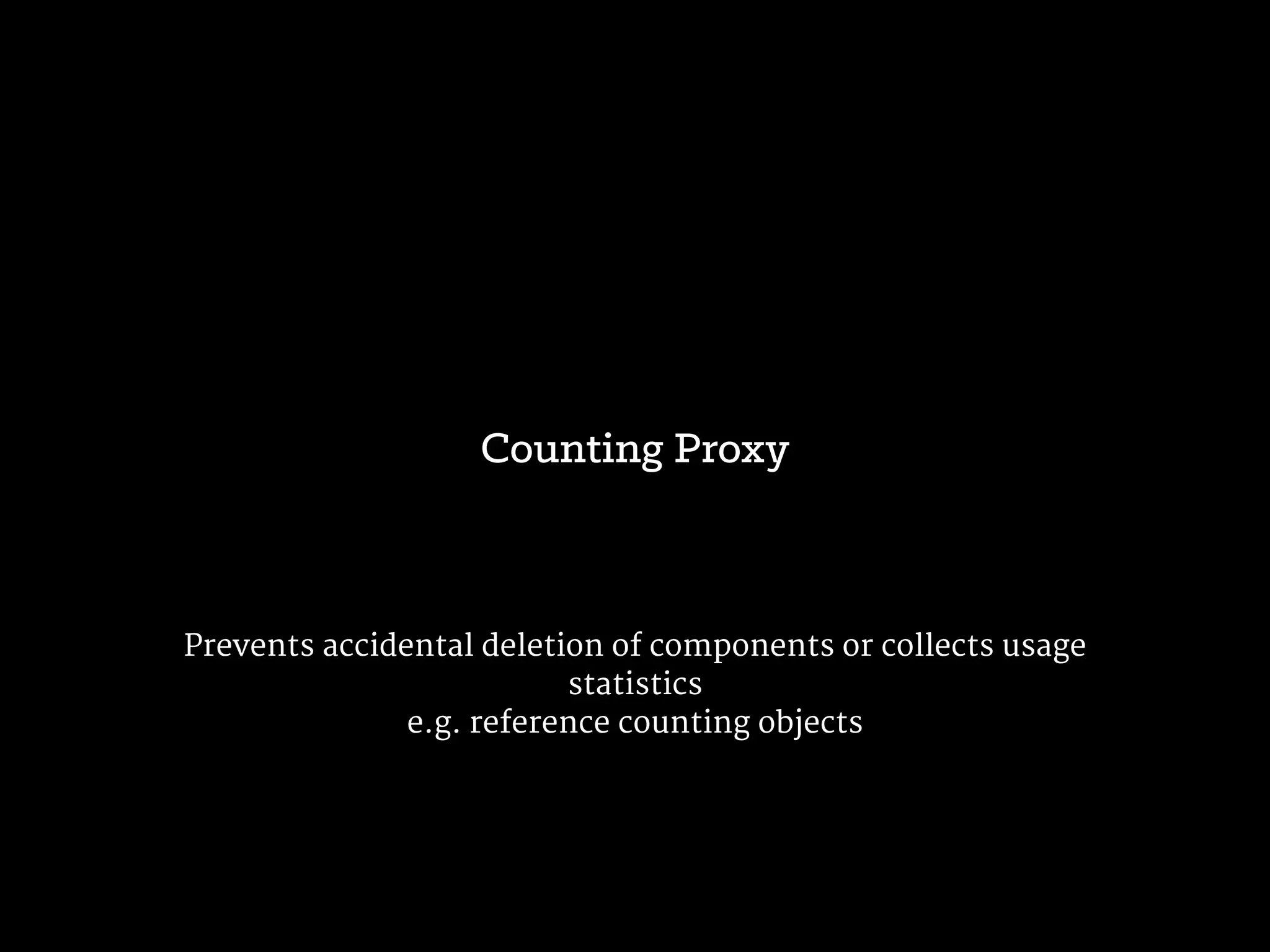

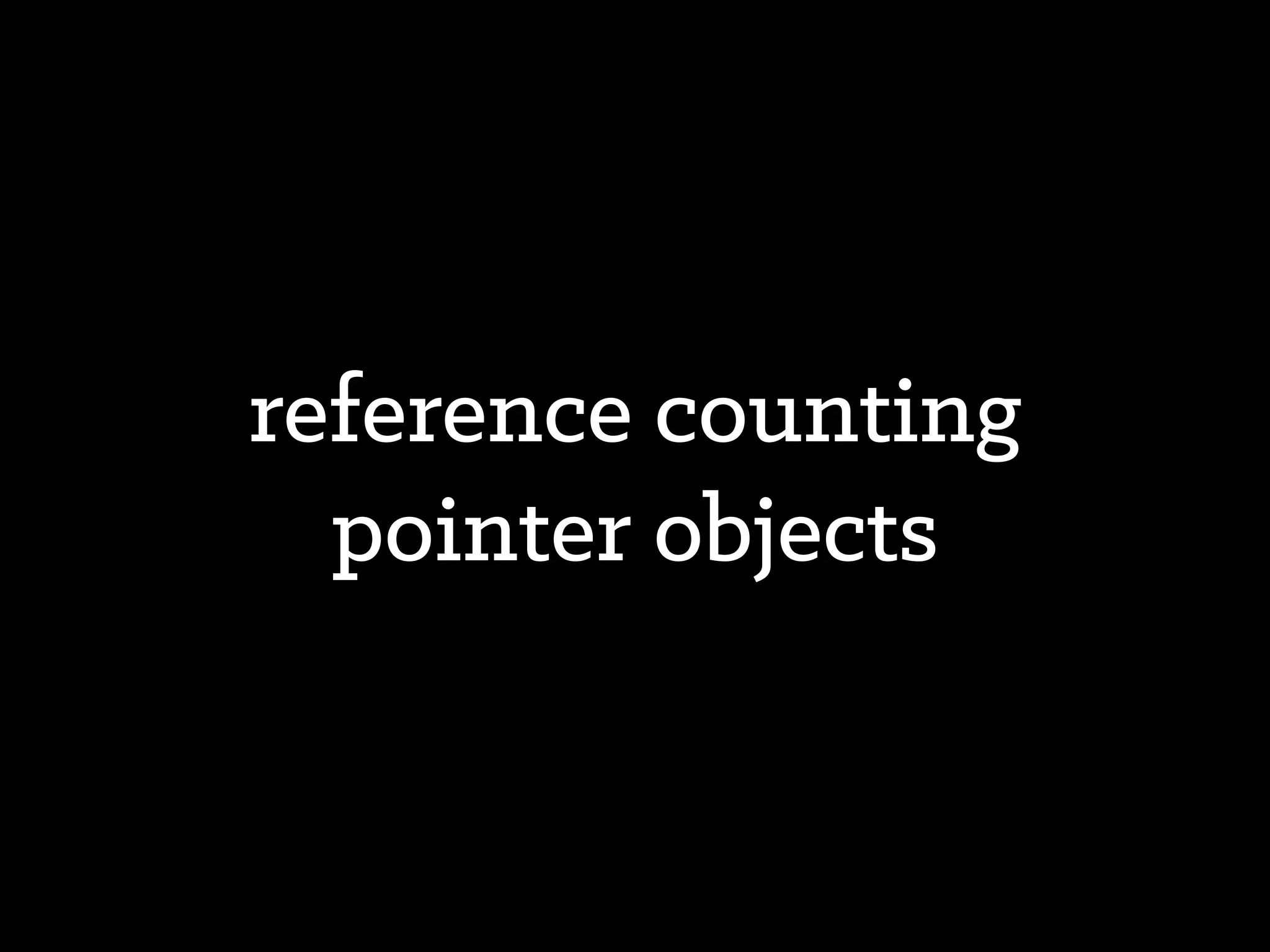

- 58. Prevents accidental deletionof components or collects usage statistics e.g. reference counting objects Counting Proxy

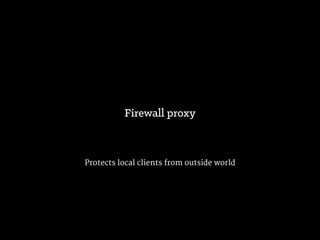

- 59. Protects local clientsfrom outside world Firewall proxy
- 60.

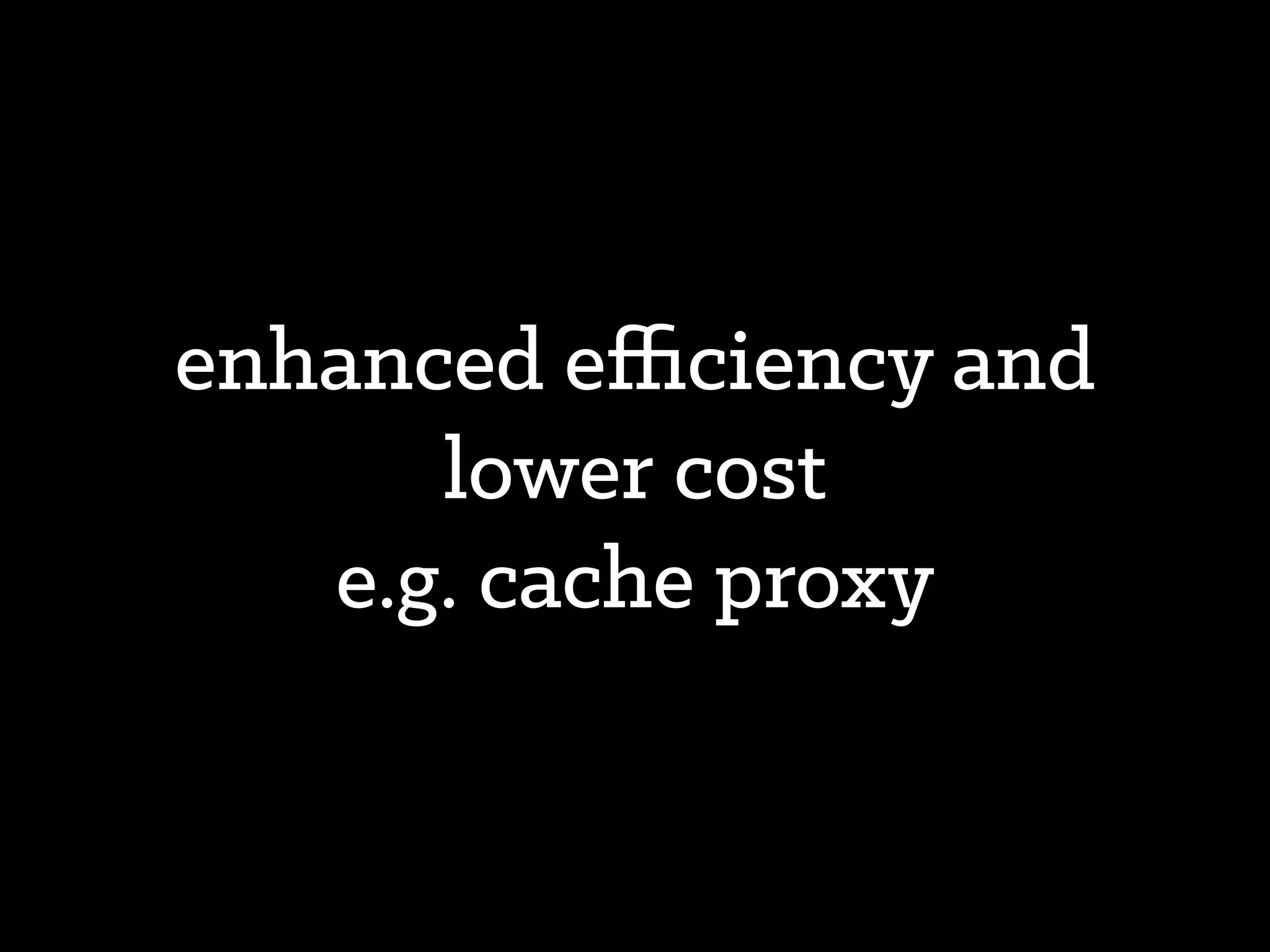

- 61. enhanced efficiency and lowercost e.g. cache proxy

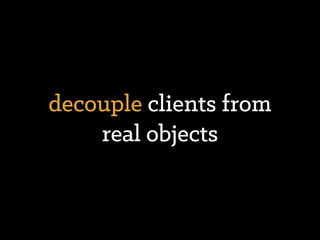

- 62. decouple clients from realobjects

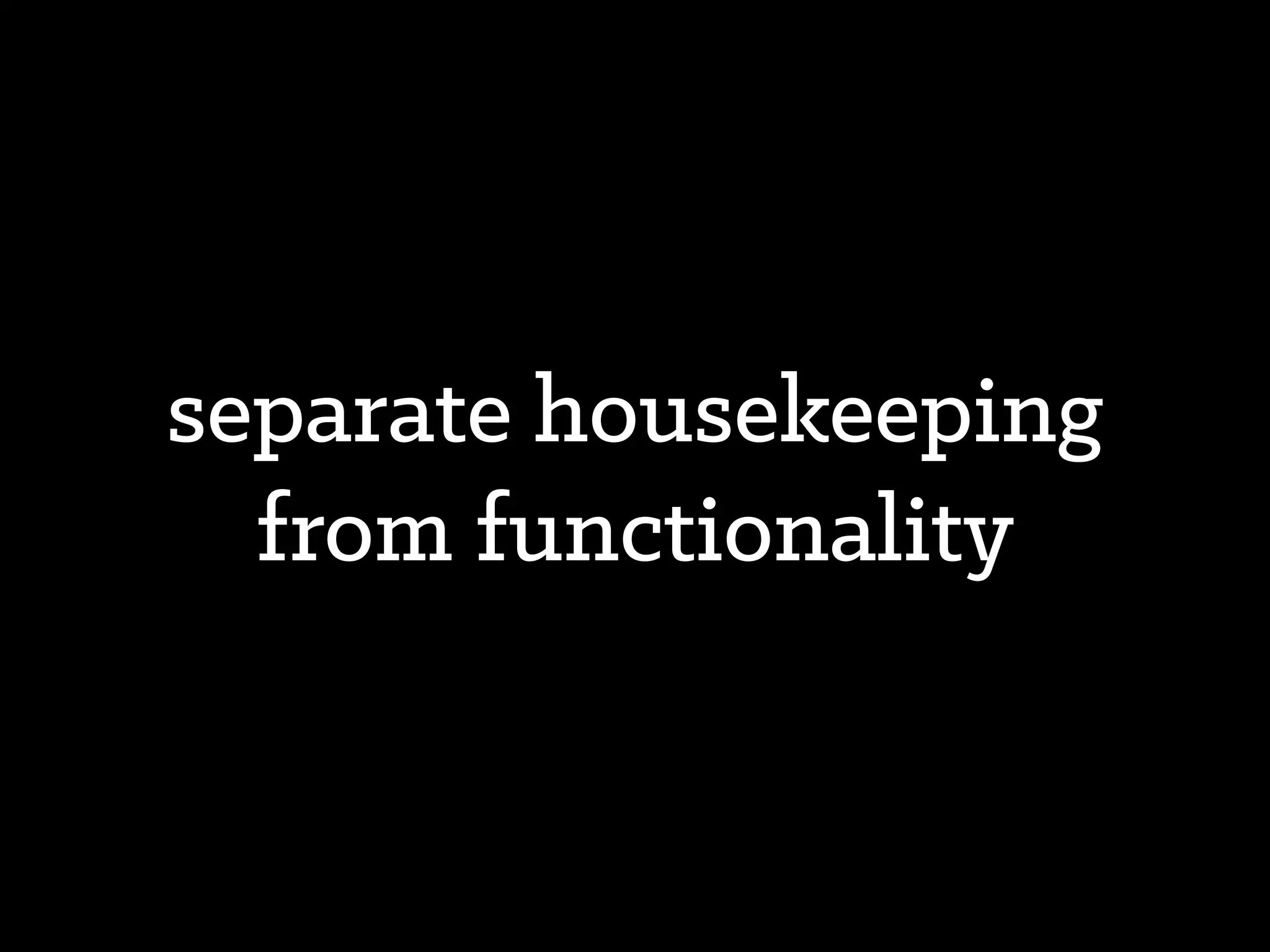

- 63.
- 64.

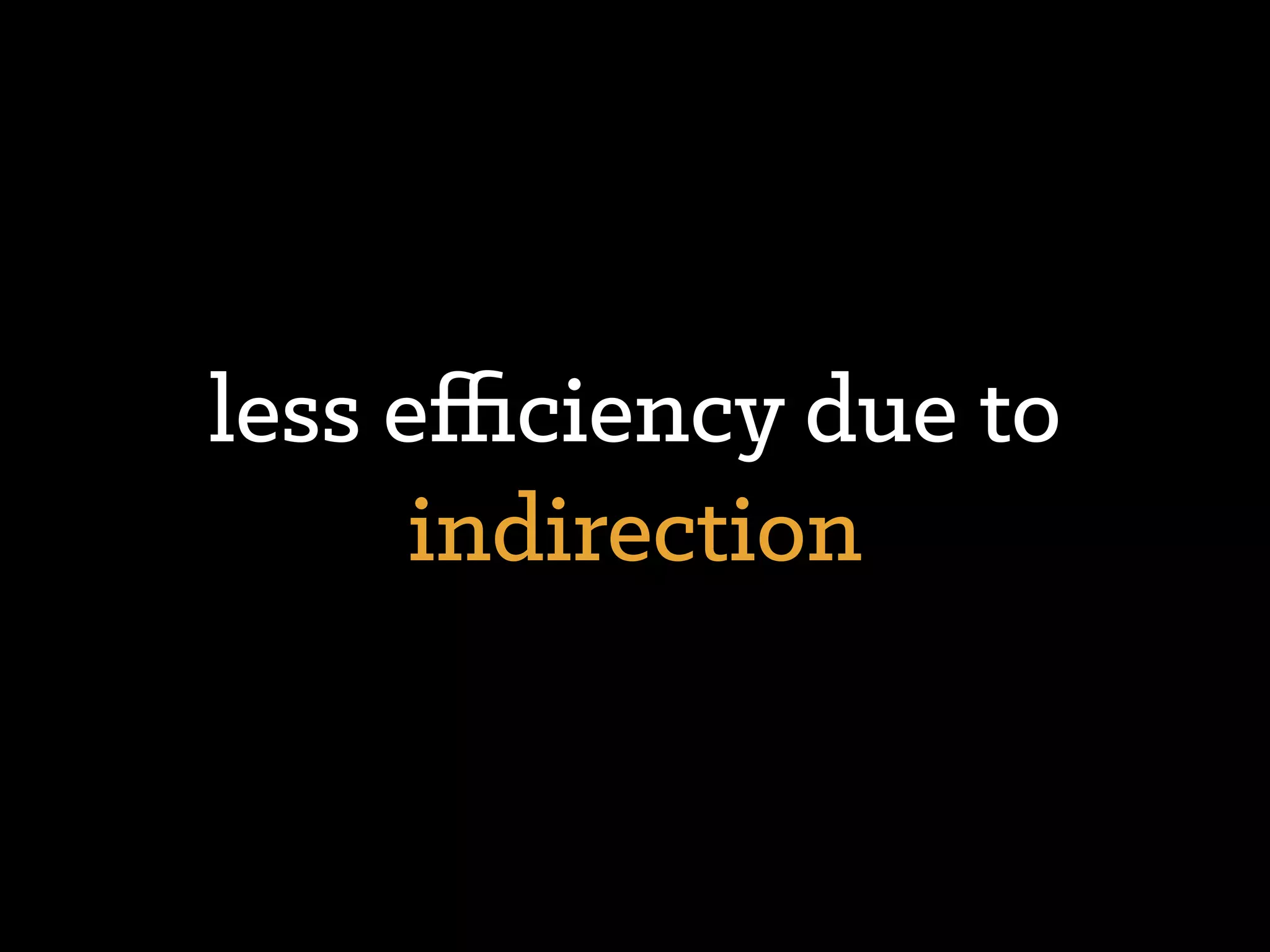

- 65. less efficiency dueto indirection

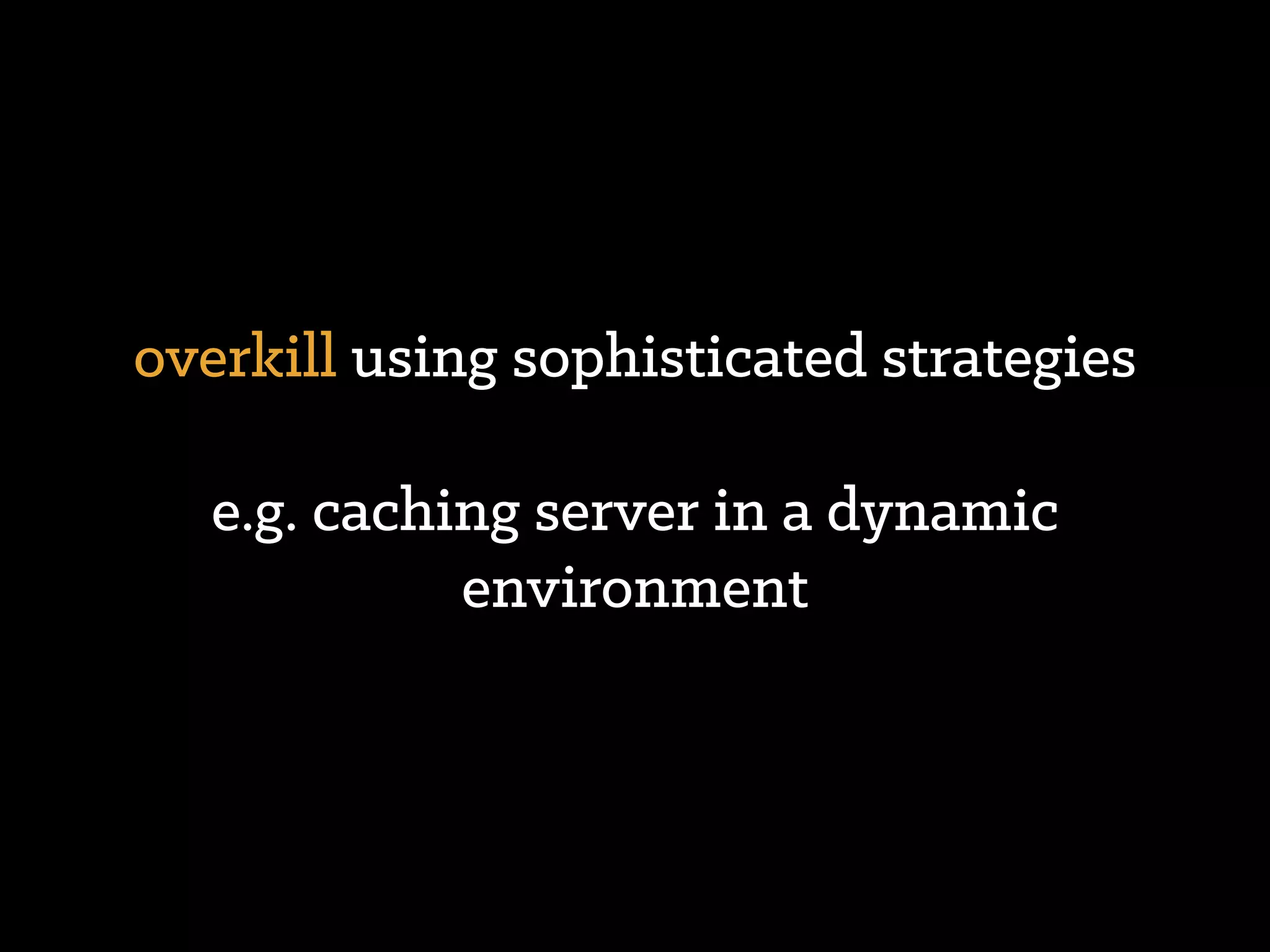

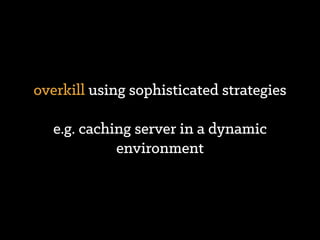

- 66. overkill using sophisticatedstrategies ! e.g. caching server in a dynamic environment
- 67.
