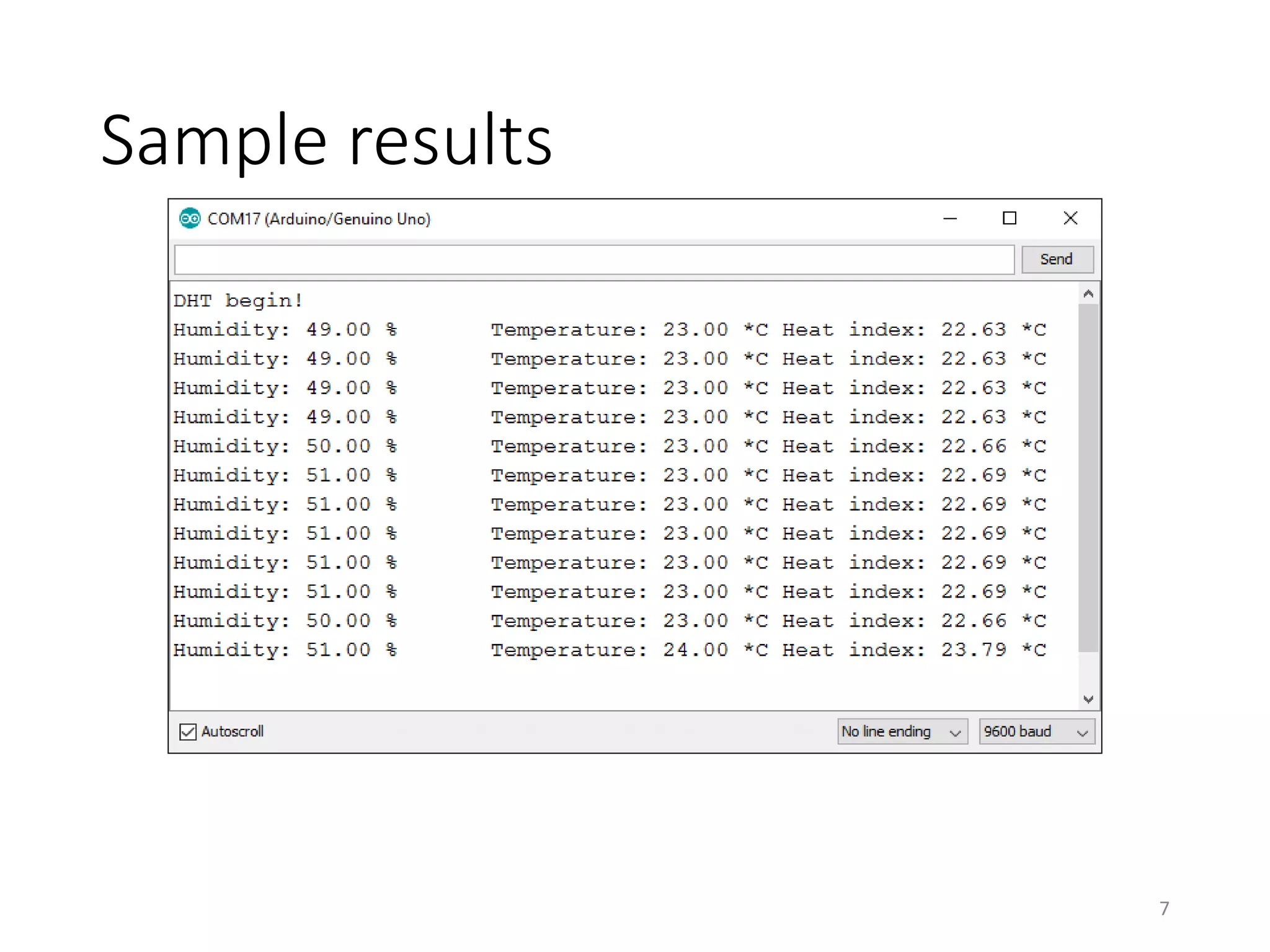

Demonstration of possible results obtained from readings by the DHT11 sensor.
DHT11 with Arduino

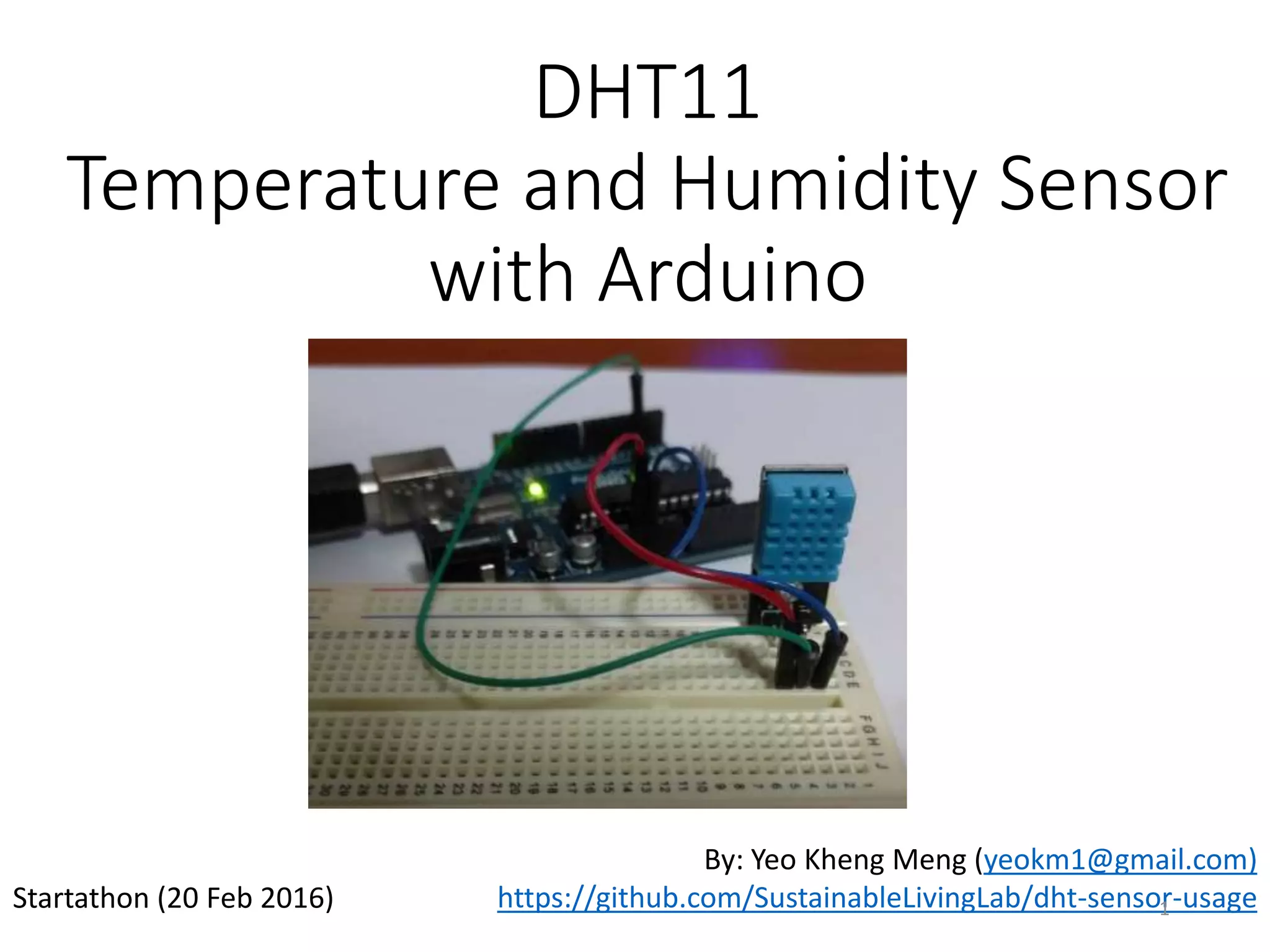

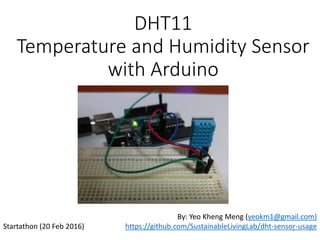

- 1. DHT11 Temperature and HumiditySensor with Arduino By: Yeo Kheng Meng (yeokm1@gmail.com) https://github.com/SustainableLivingLab/dht-sensor-usageStartathon (20 Feb 2016) 1

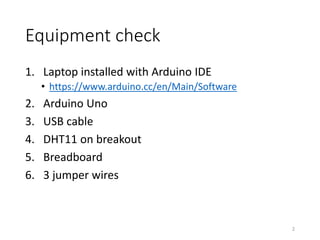

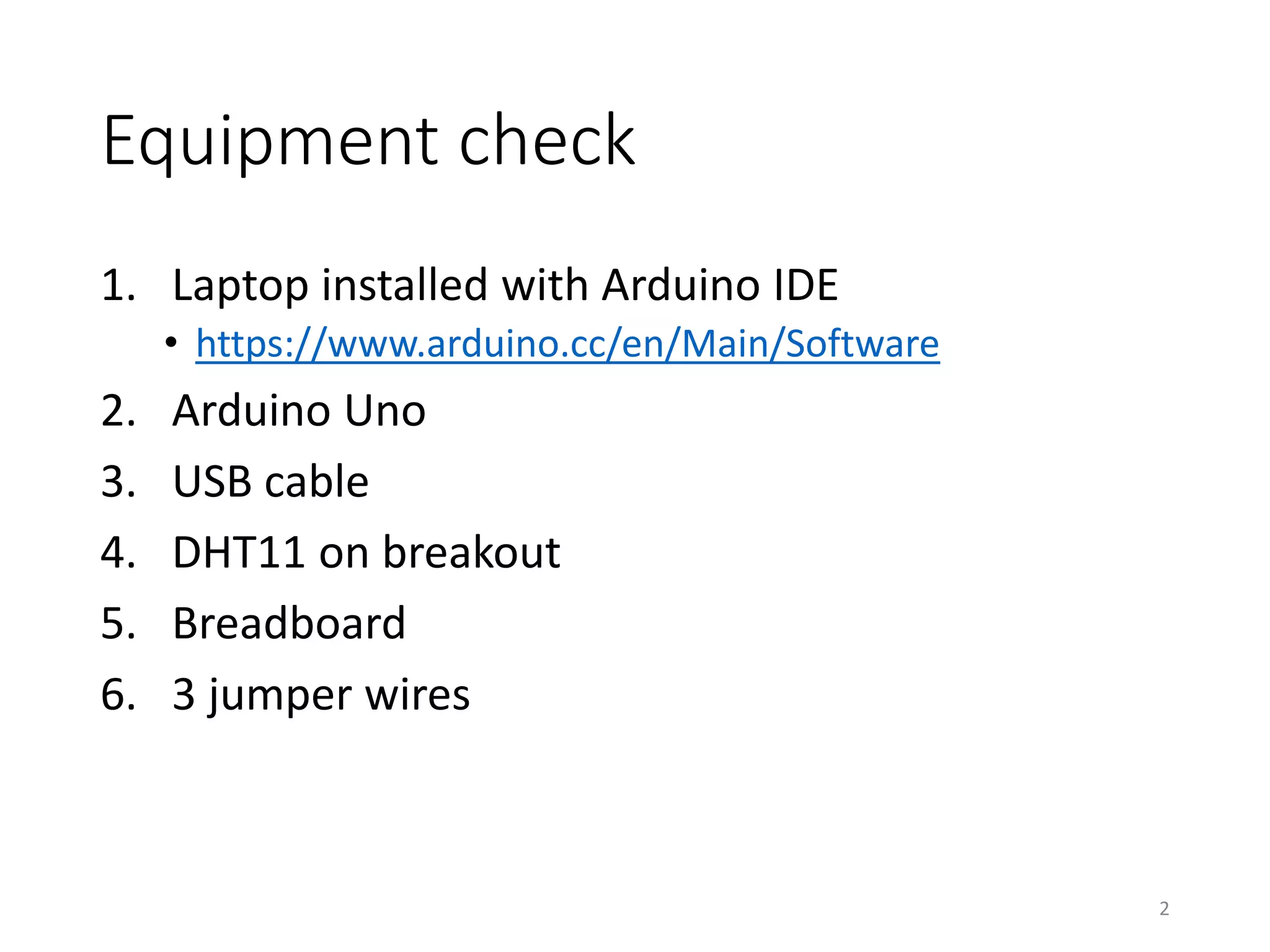

- 2. Equipment check 1. Laptopinstalled with Arduino IDE • https://www.arduino.cc/en/Main/Software 2. Arduino Uno 3. USB cable 4. DHT11 on breakout 5. Breadboard 6. 3 jumper wires 2

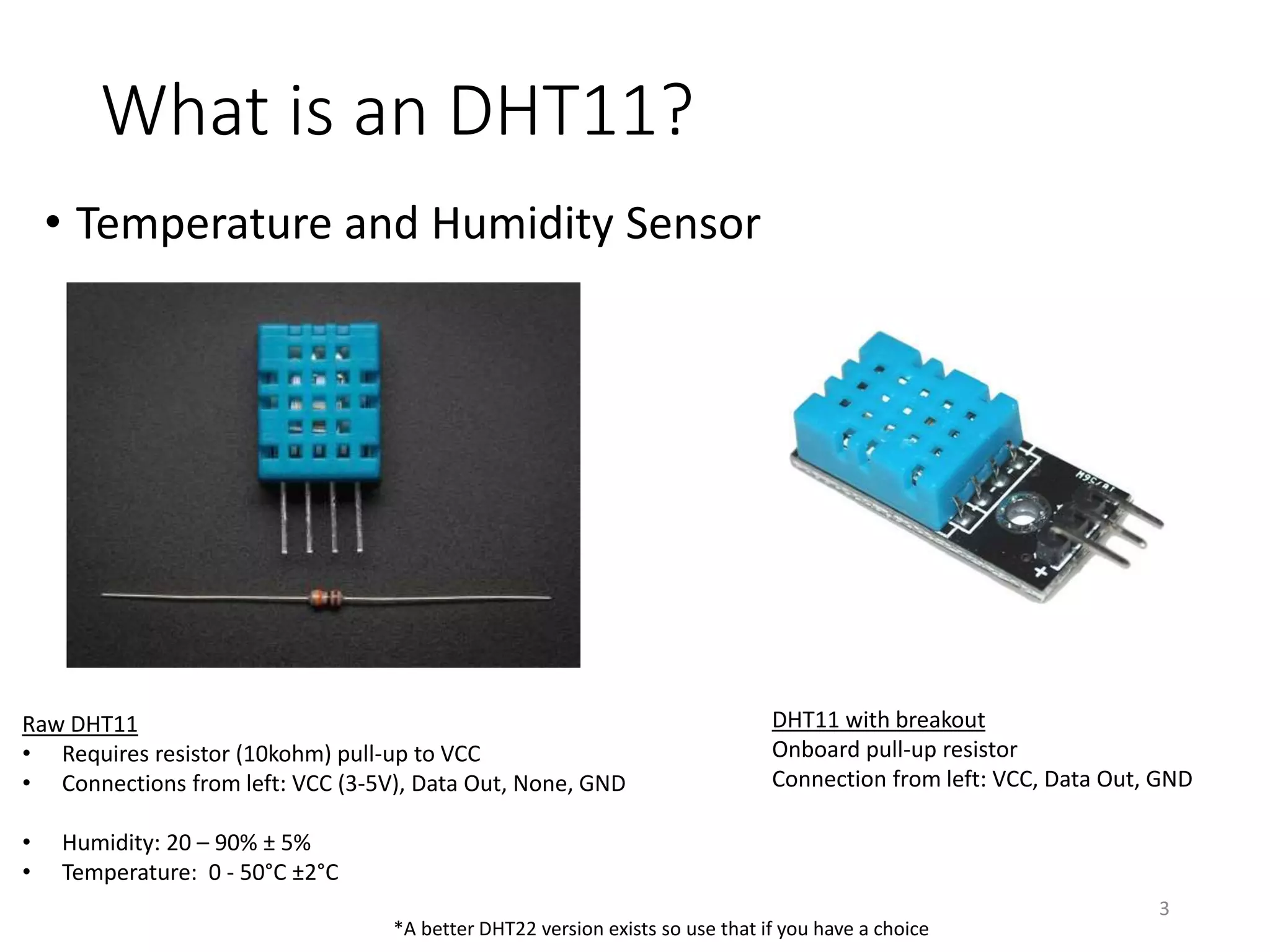

- 3. What is anDHT11? • Temperature and Humidity Sensor 3 Raw DHT11 • Requires resistor (10kohm) pull-up to VCC • Connections from left: VCC (3-5V), Data Out, None, GND • Humidity: 20 – 90% ± 5% • Temperature: 0 - 50°C ±2°C DHT11 with breakout Onboard pull-up resistor Connection from left: VCC, Data Out, GND *A better DHT22 version exists so use that if you have a choice

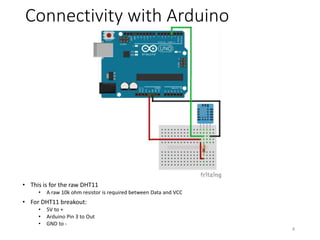

- 4. Connectivity with Arduino 4 •This is for the raw DHT11 • A raw 10k ohm resistor is required between Data and VCC • For DHT11 breakout: • 5V to + • Arduino Pin 3 to Out • GND to -

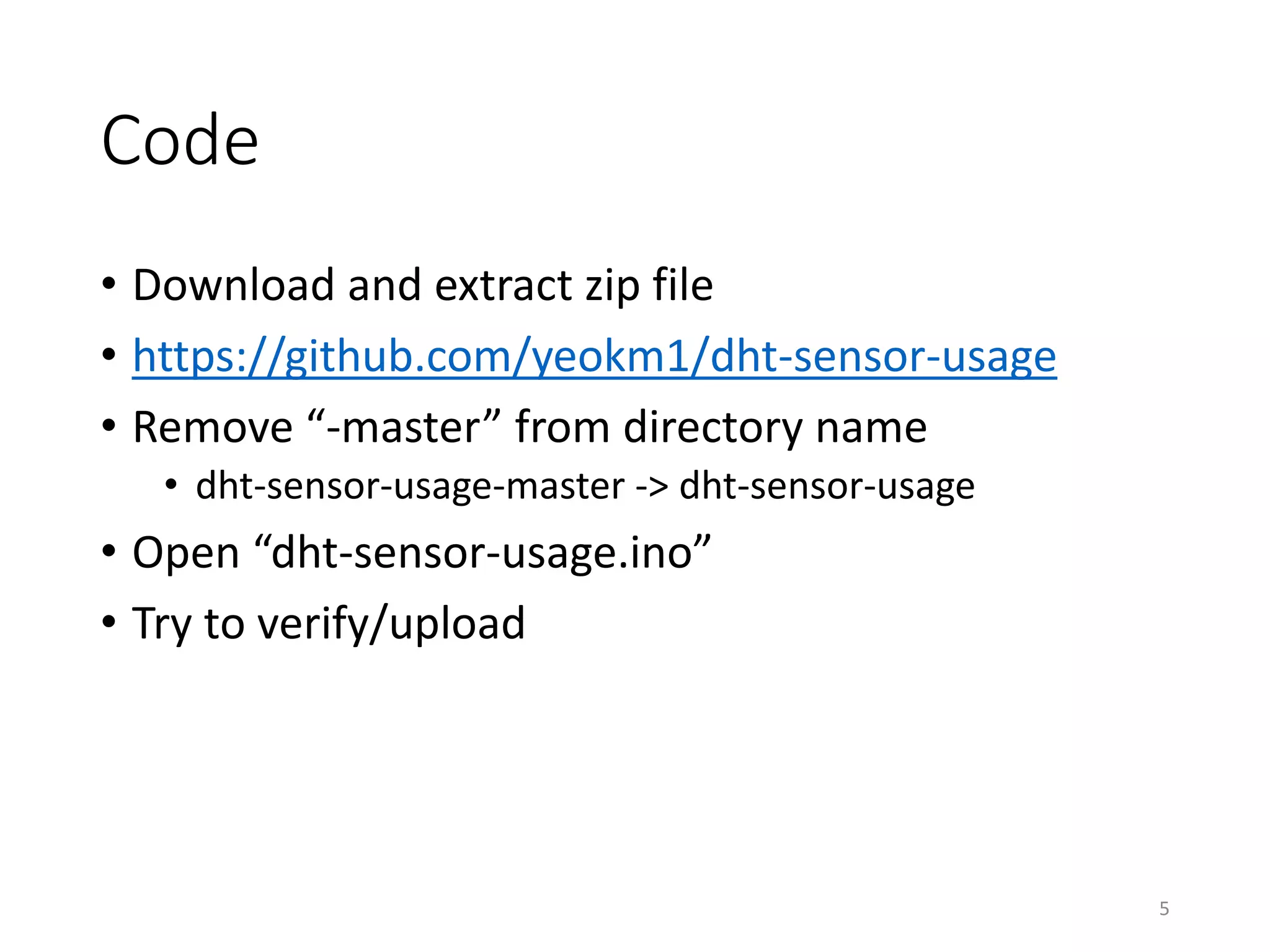

- 5. Code • Download andextract zip file • https://github.com/yeokm1/dht-sensor-usage • Remove “-master” from directory name • dht-sensor-usage-master -> dht-sensor-usage • Open “dht-sensor-usage.ino” • Try to verify/upload 5

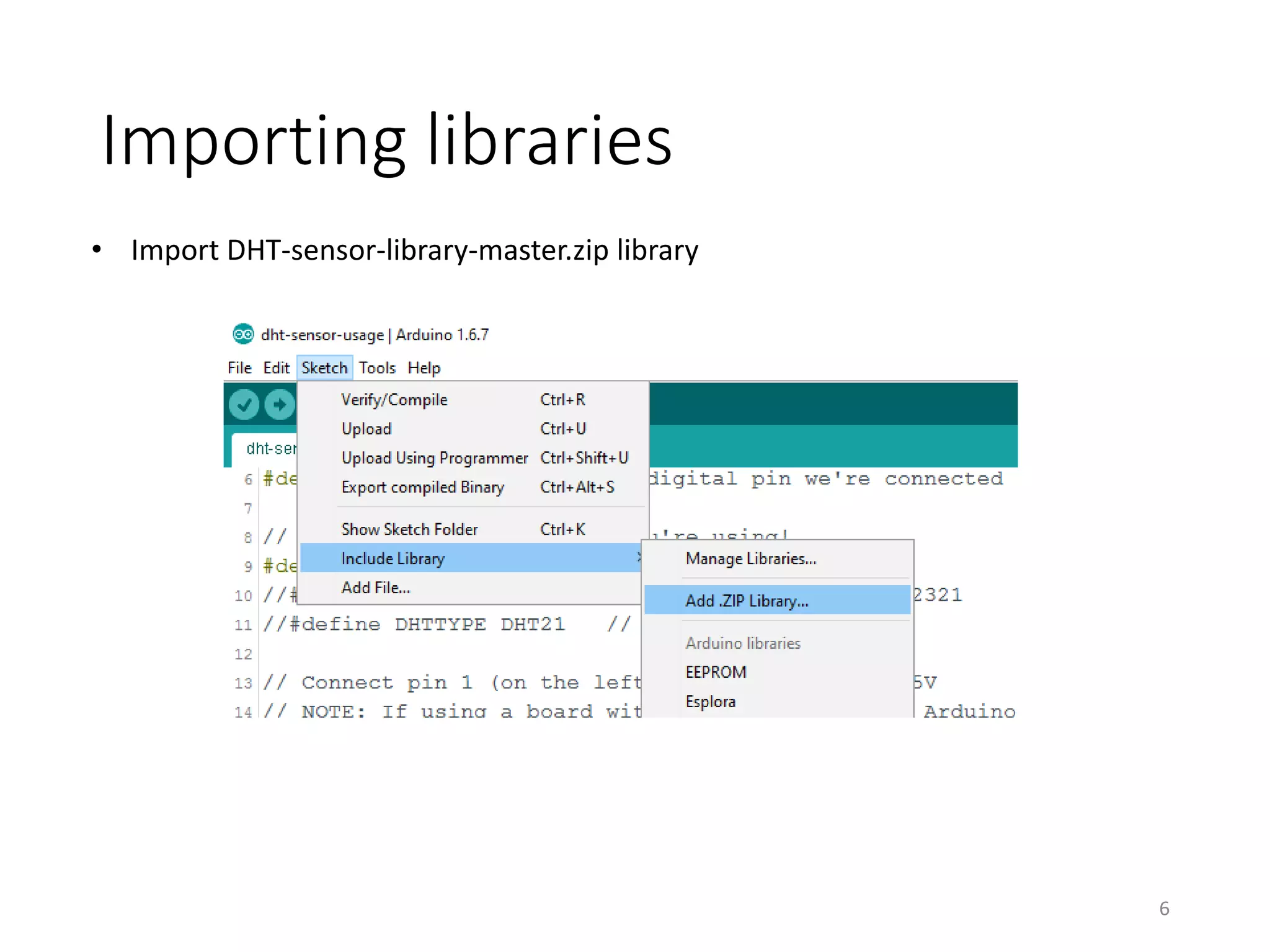

- 6. Importing libraries 6 • ImportDHT-sensor-library-master.zip library
- 7.
