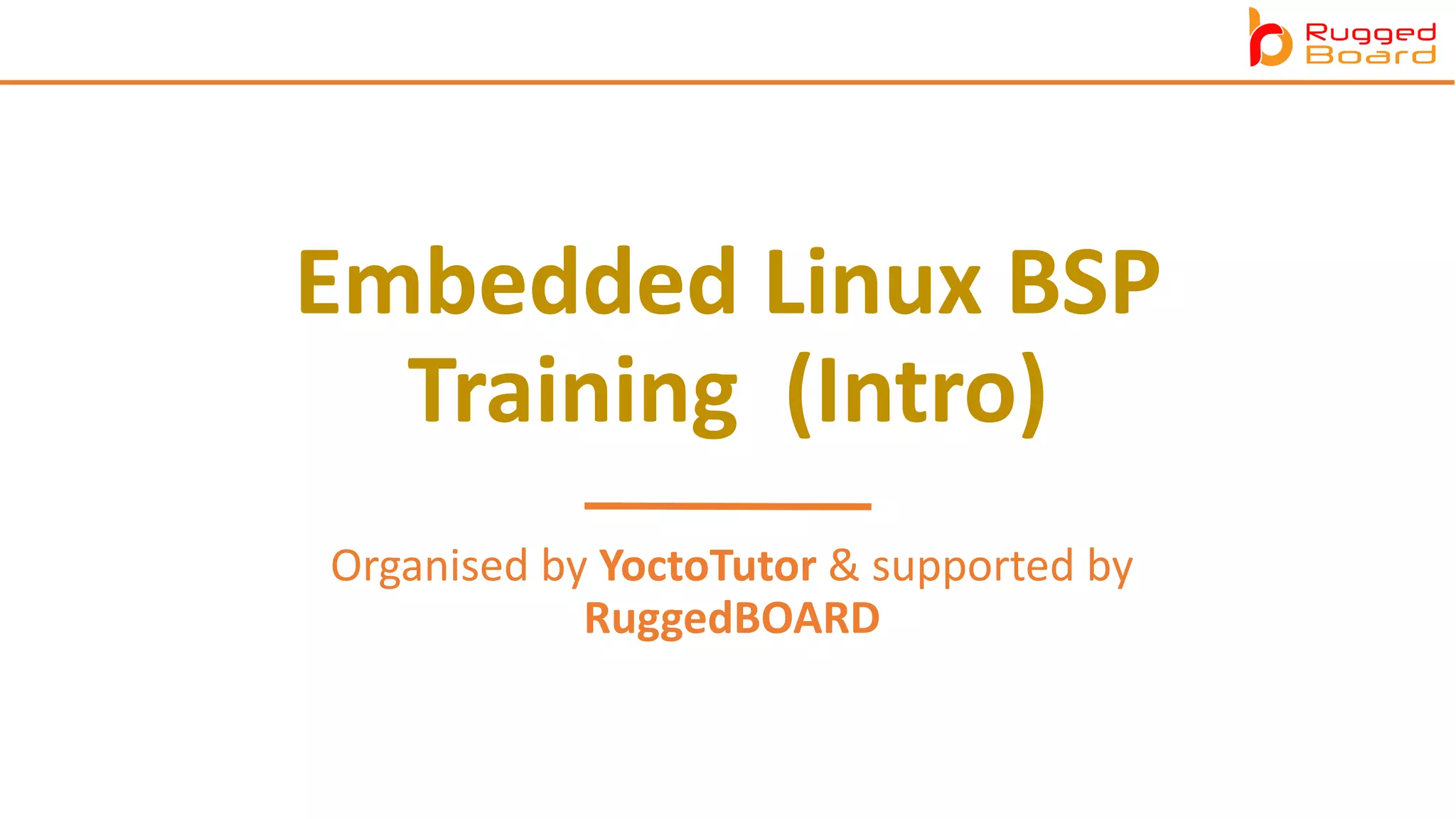

Embedded Linux BSP Training (Intro)

Embedded Linux BSP
Training (Intro)
Organised by YoctoTutor & supported by
RuggedBOARD

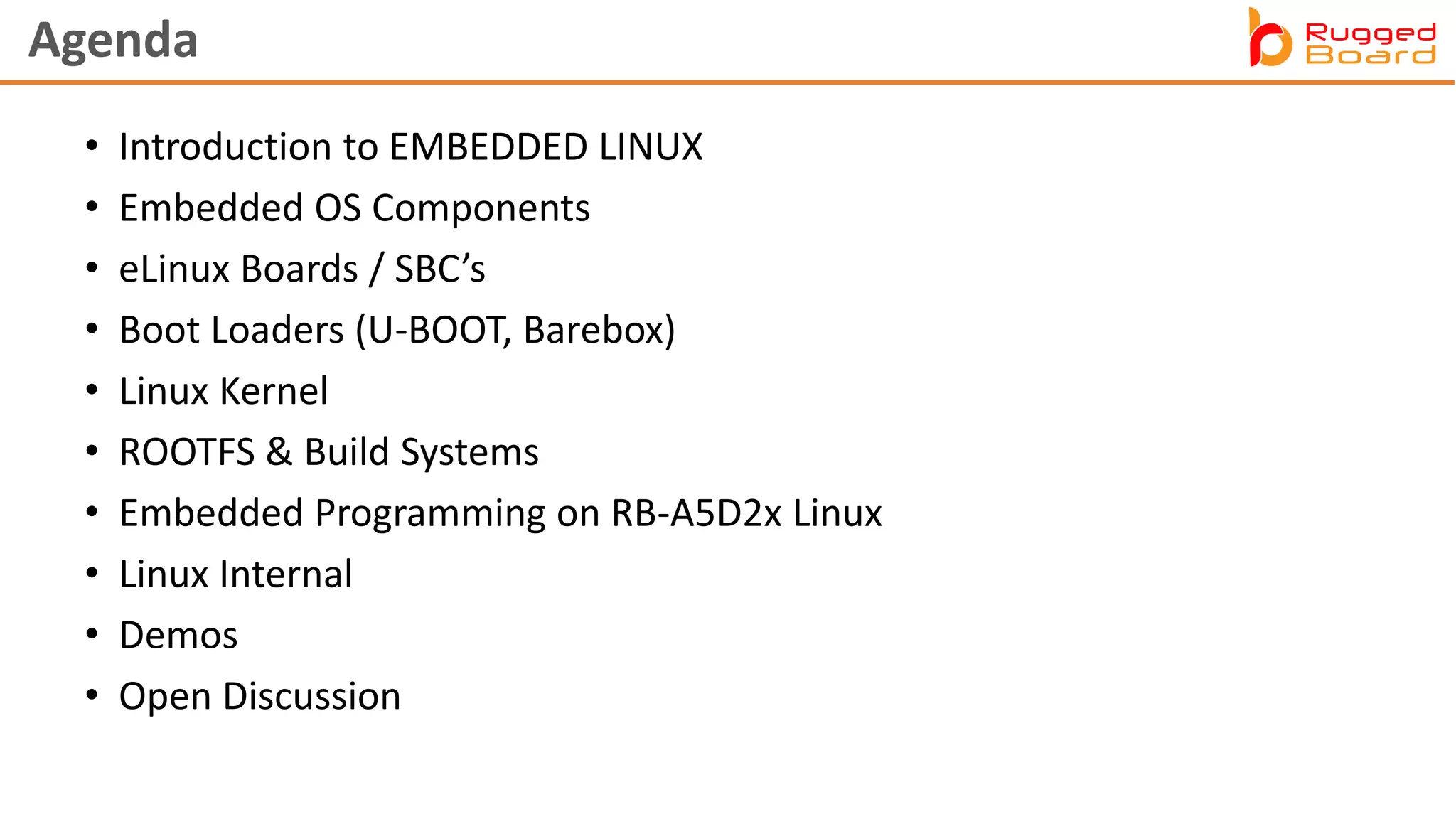

Agenda
• Introduction to EMBEDDED LINUX
• Embedded OS Components
• eLinux Boards / SBC’s
• Boot Loaders (U-BOOT, Barebox)
• Linux Kernel
• ROOTFS & Build Systems
• Embedded Programming on RB-A5D2x Linux
• Linux Internal
• Demos
• Open Discussion

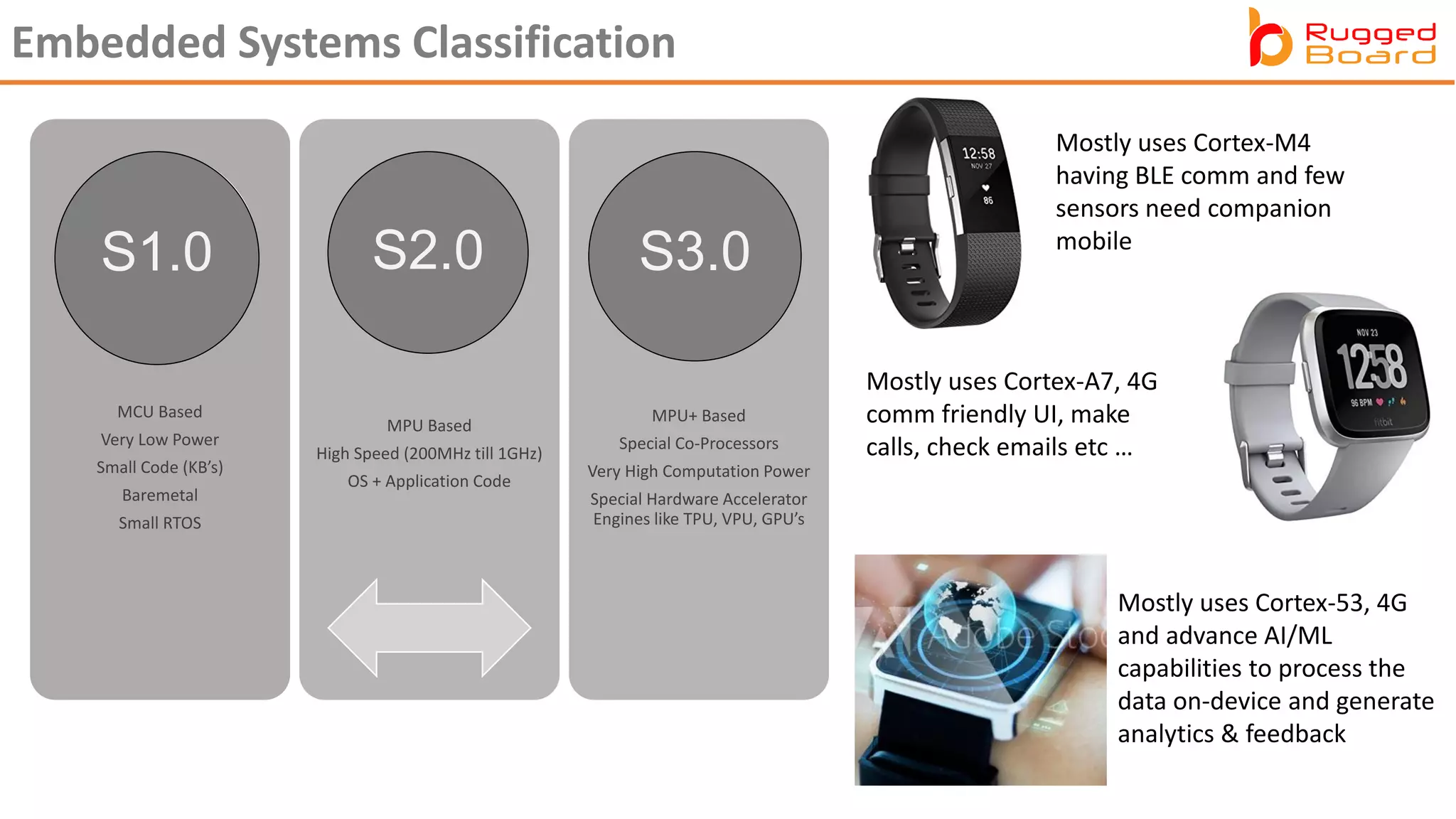

Embedded Systems Classification
MCU Based
Very Low Power
Small Code (KB’s)
Baremetal
Small RTOS
MPU Based
High Speed (200MHz till 1GHz)
OS + Application Code
MPU+ Based
Special Co-Processors
Very High Computation Power
Special Hardware Accelerator
Engines like TPU, VPU, GPU’s
S1.0 S2.0 S3.0
Mostly uses Cortex-M4
having BLE comm and few
sensors need companion
mobile
Mostly uses Cortex-A7, 4G
comm friendly UI, make
calls, check emails etc …
Mostly uses Cortex-53, 4G
and advance AI/ML
capabilities to process the
data on-device and generate
analytics & feedback

RootFS
Toolchain
eLinux System ARCH

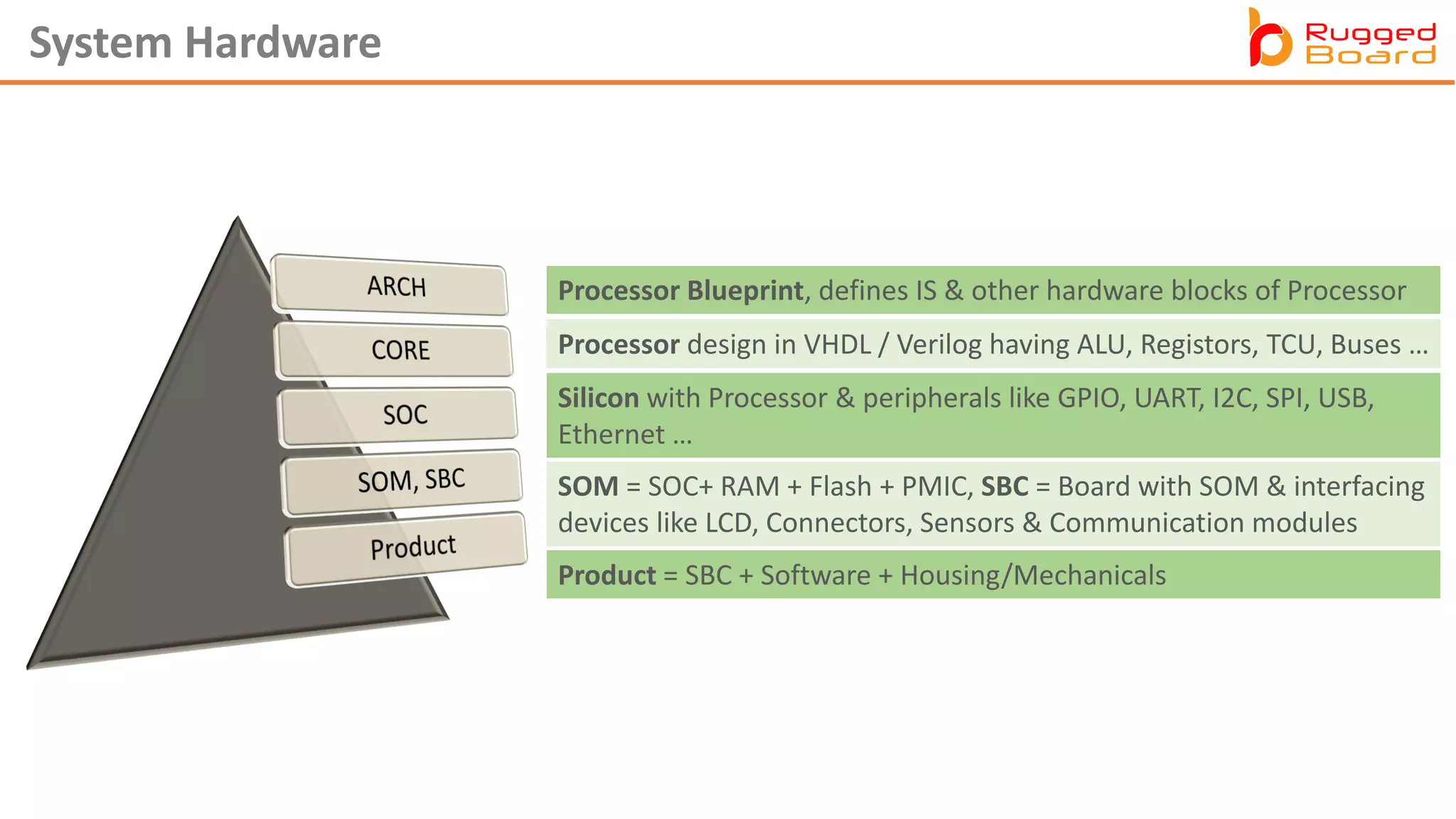

System Hardware
Processor Blueprint, defines IS & other hardware blocks of Processor
Processor design in VHDL / Verilog having ALU, Registors, TCU, Buses …
Product = SBC + Software + Housing/Mechanicals
Silicon with Processor & peripherals like GPIO, UART, I2C, SPI, USB,
Ethernet …
SOM = SOC+ RAM + Flash + PMIC, SBC = Board with SOM & interfacing
devices like LCD, Connectors, Sensors & Communication modules

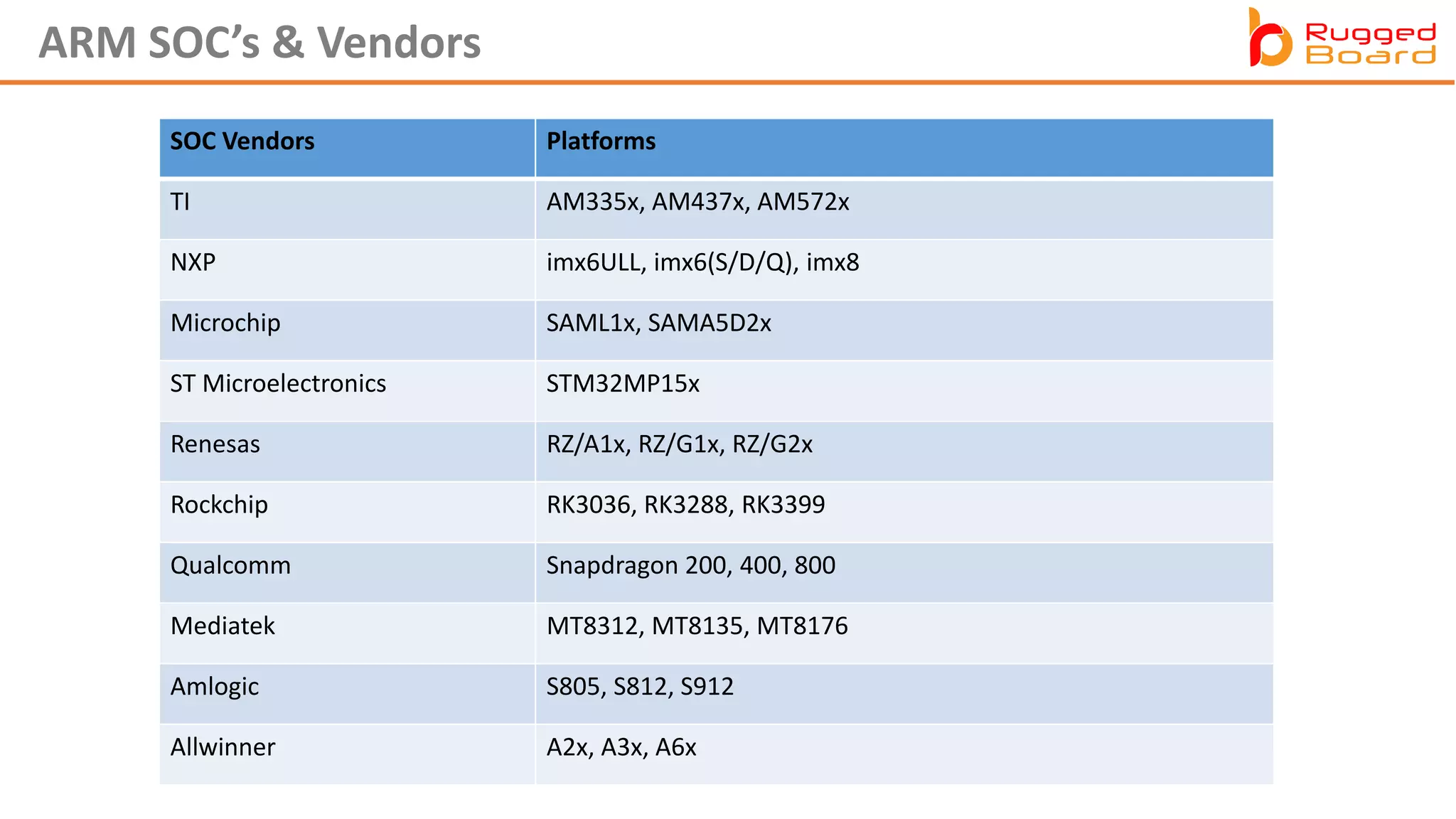

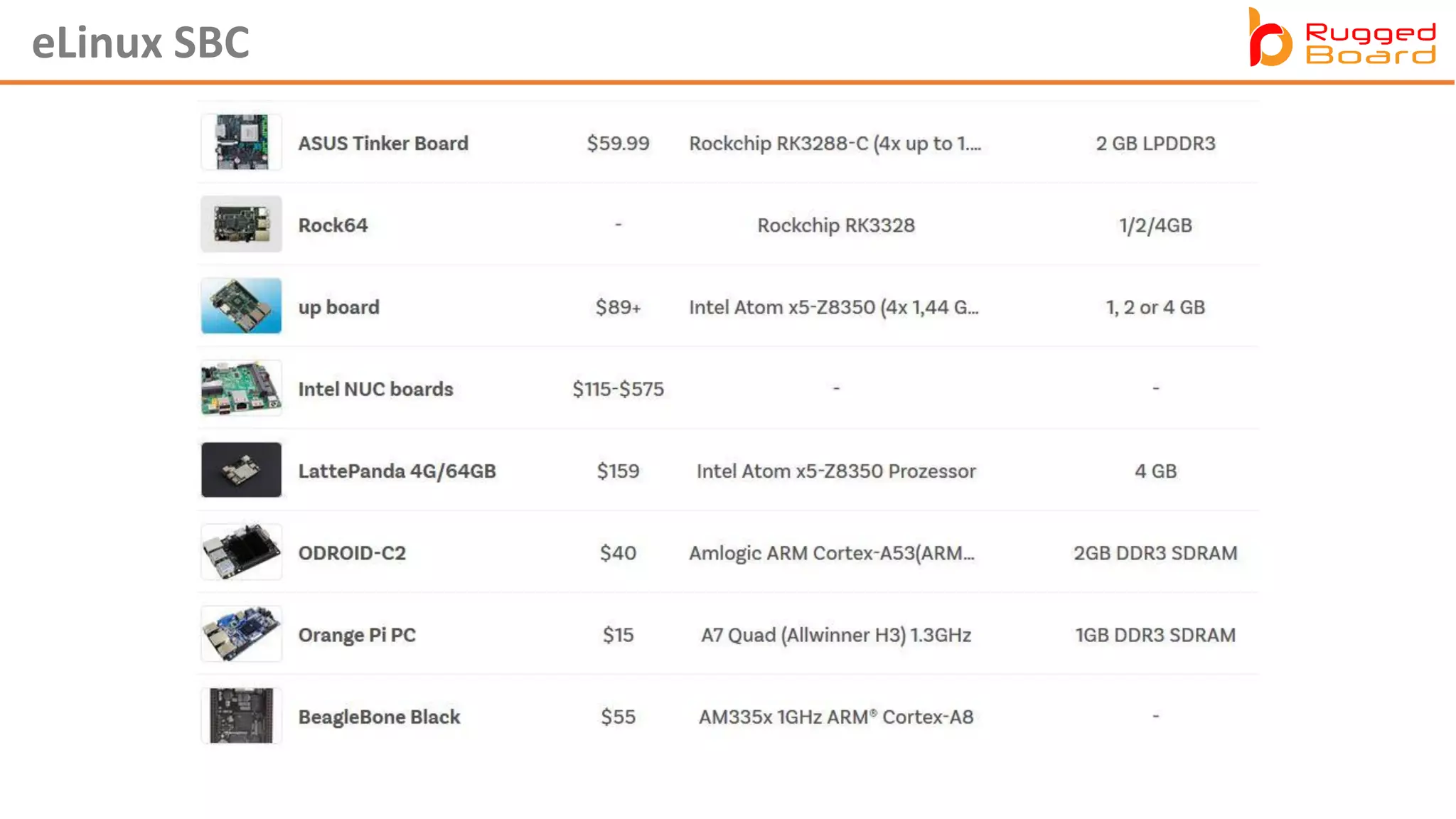

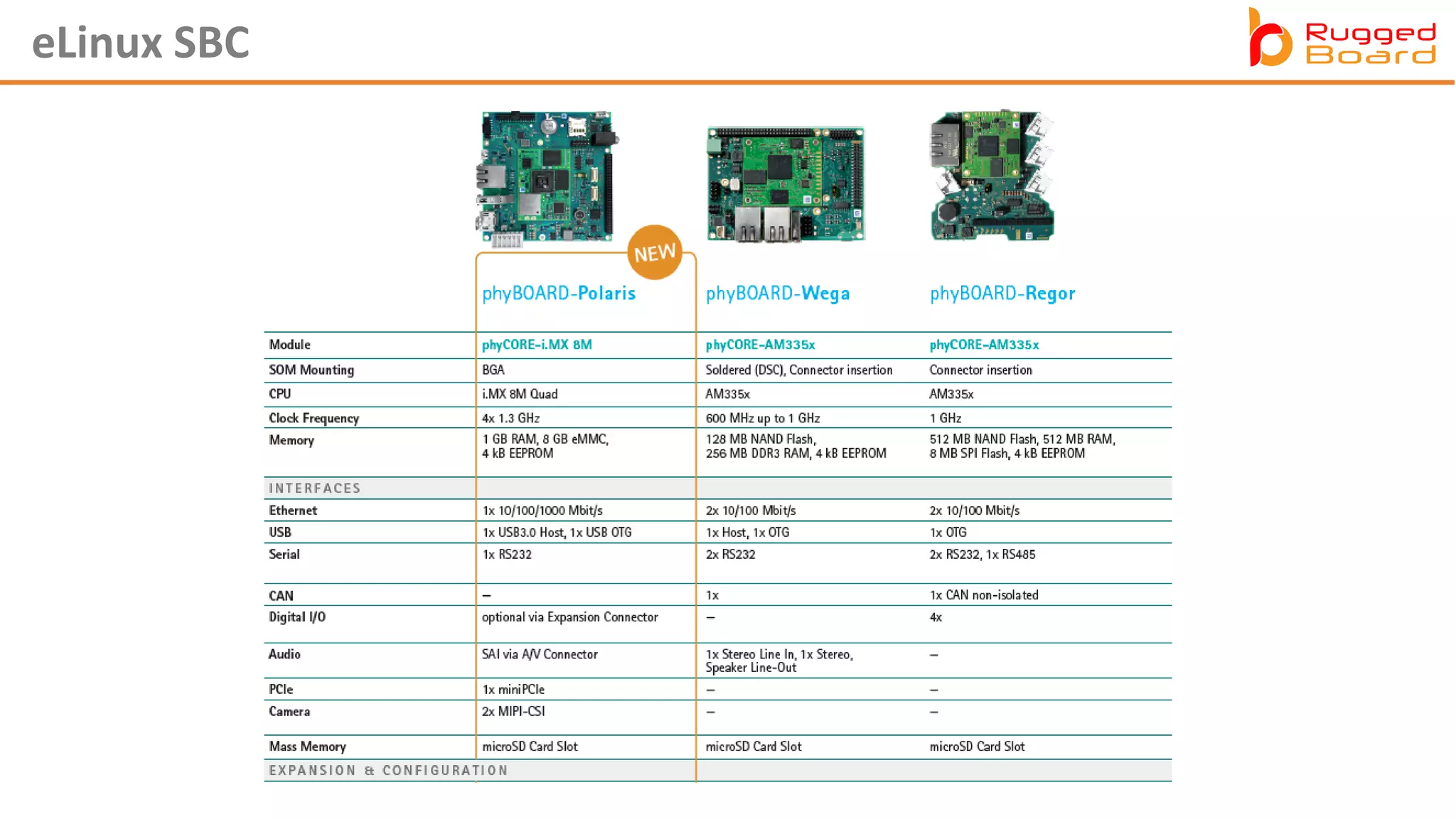

SOC Vendors Platforms
TI AM335x, AM437x, AM572x
NXP imx6ULL, imx6(S/D/Q), imx8
Microchip SAML1x, SAMA5D2x
ST Microelectronics STM32MP15x
Renesas RZ/A1x, RZ/G1x, RZ/G2x
Rockchip RK3036, RK3288, RK3399
Qualcomm Snapdragon 200, 400, 800
Mediatek MT8312, MT8135, MT8176
Amlogic S805, S812, S912
Allwinner A2x, A3x, A6x
ARM SOC’s & Vendors

Toolchain

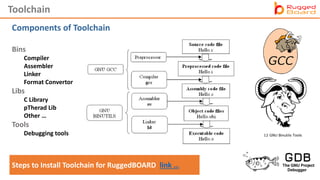

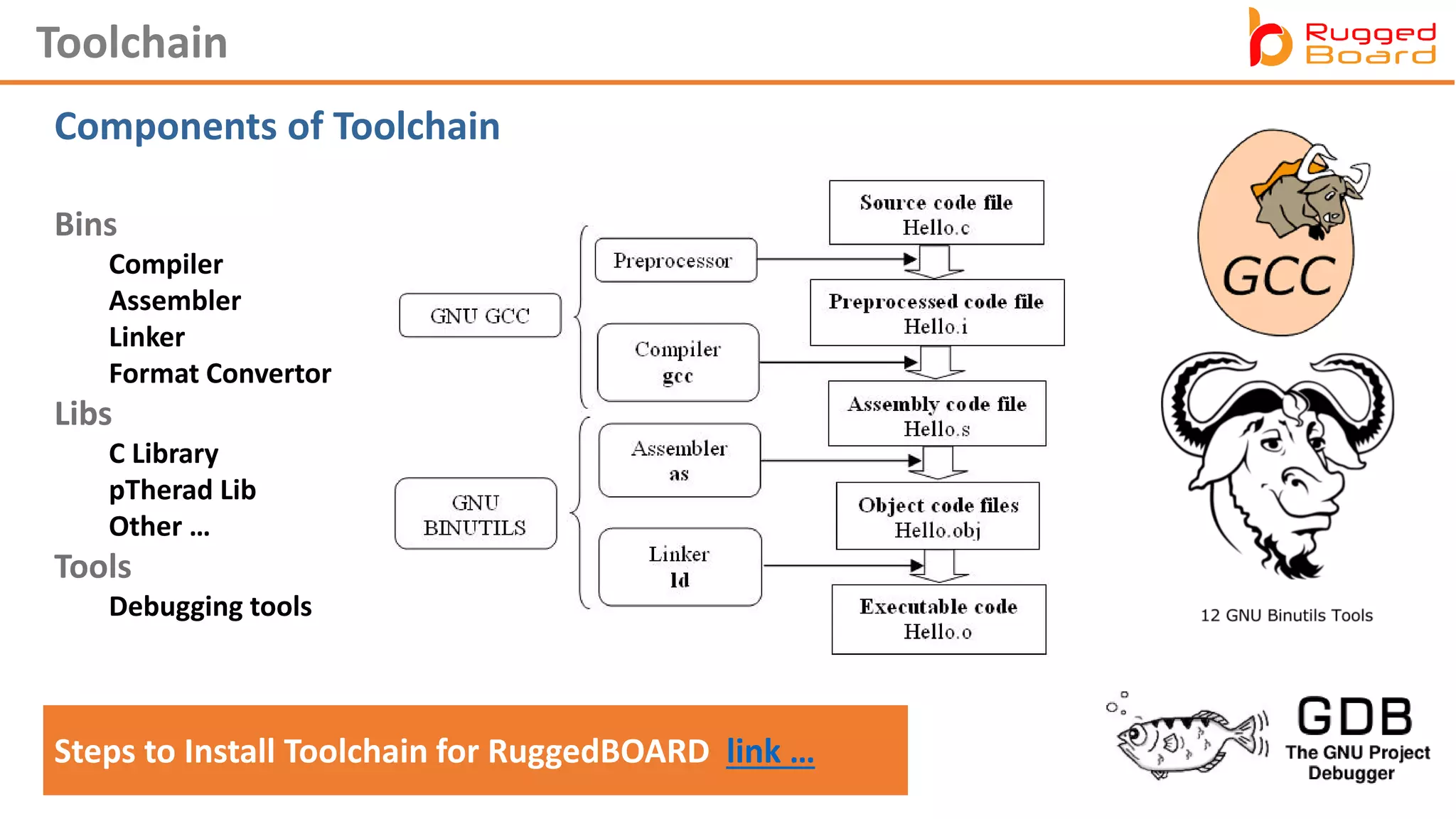

Components of Toolchain
Bins
Compiler
Assembler
Linker
Format Convertor
Libs
C Library
pTherad Lib
Other …
Tools
Debugging tools
Steps to Install Toolchain for RuggedBOARD link …

Bootloader

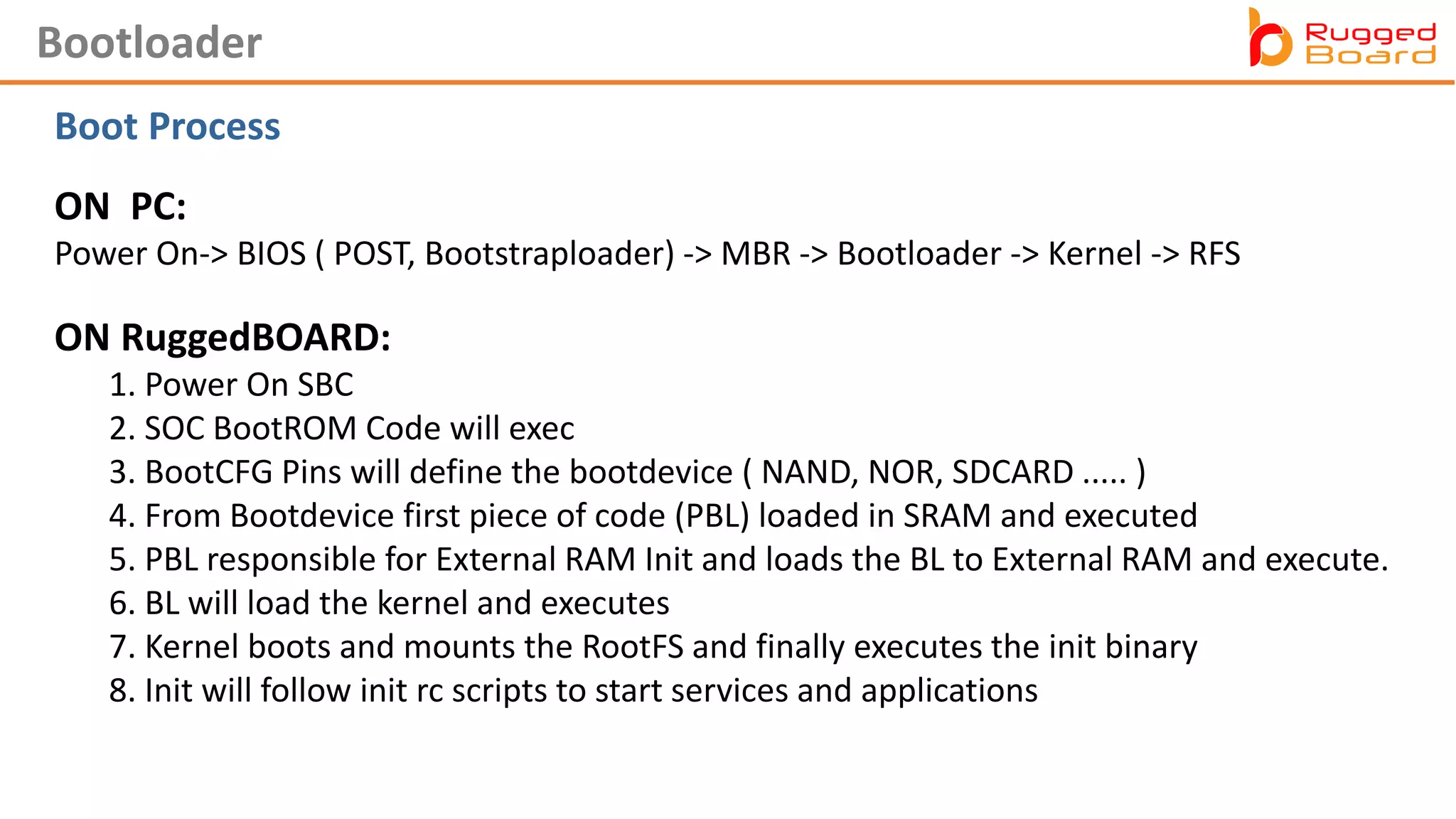

Boot Process
ON PC:
Power On-> BIOS ( POST, Bootstraploader) -> MBR -> Bootloader -> Kernel -> RFS
ON RuggedBOARD:
1. Power On SBC
2. SOC BootROM Code will exec
3. BootCFG Pins will define the bootdevice ( NAND, NOR, SDCARD ..... )
4. From Bootdevice first piece of code (PBL) loaded in SRAM and executed
5. PBL responsible for External RAM Init and loads the BL to External RAM and execute.
6. BL will load the kernel and executes
7. Kernel boots and mounts the RootFS and finally executes the init binary
8. Init will follow init rc scripts to start services and applications

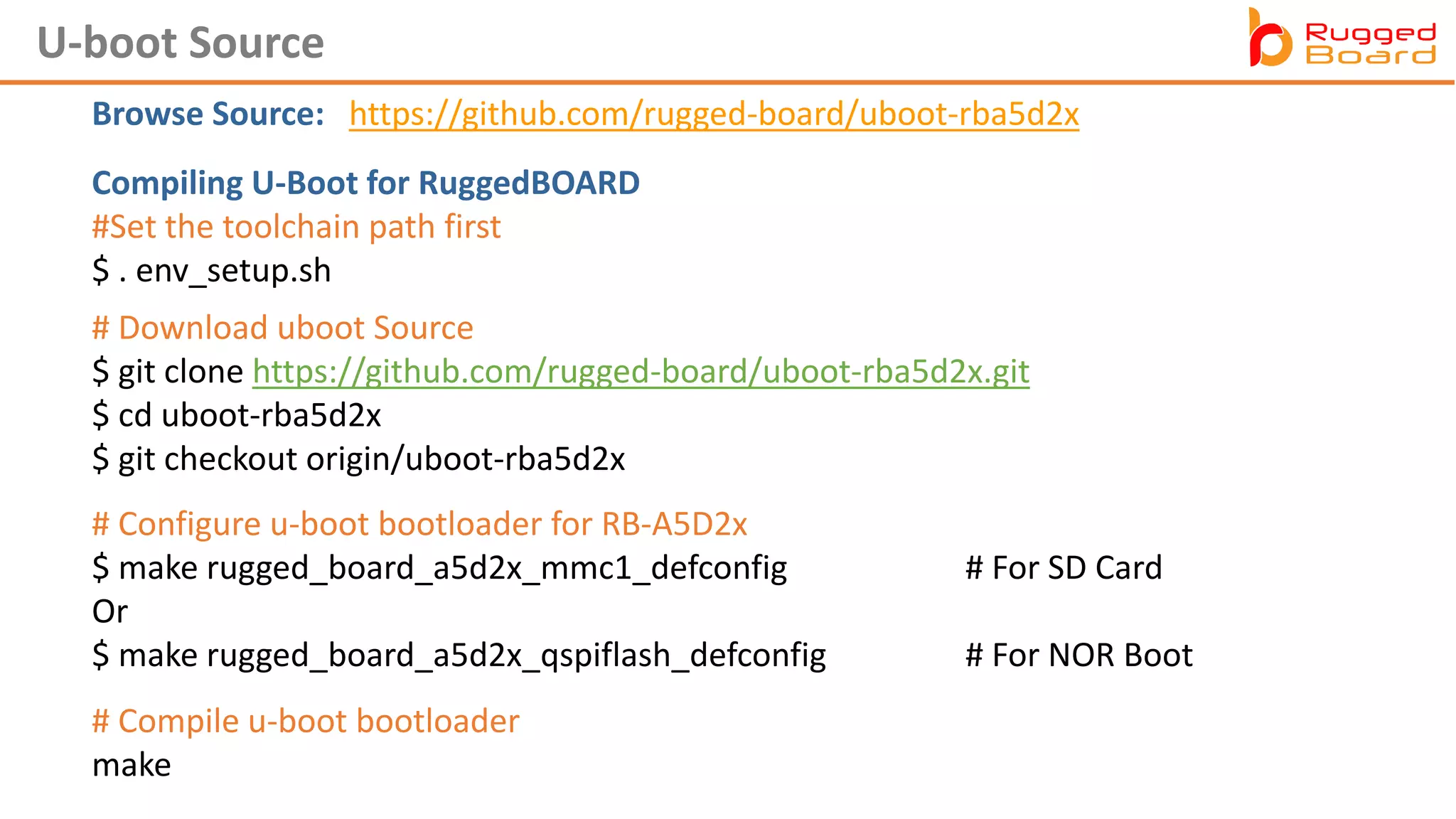

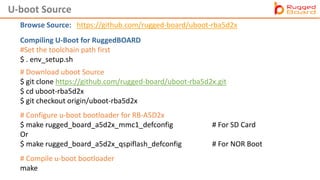

U-boot Source
Browse Source: https://github.com/rugged-board/uboot-rba5d2x
Compiling U-Boot for RuggedBOARD
#Set the toolchain path first
$ . env_setup.sh
# Download uboot Source
$ git clone https://github.com/rugged-board/uboot-rba5d2x.git
$ cd uboot-rba5d2x
$ git checkout origin/uboot-rba5d2x
# Compile u-boot bootloader
make
# Configure u-boot bootloader for RB-A5D2x
$ make rugged_board_a5d2x_mmc1_defconfig # For SD Card
Or
$ make rugged_board_a5d2x_qspiflash_defconfig # For NOR Boot

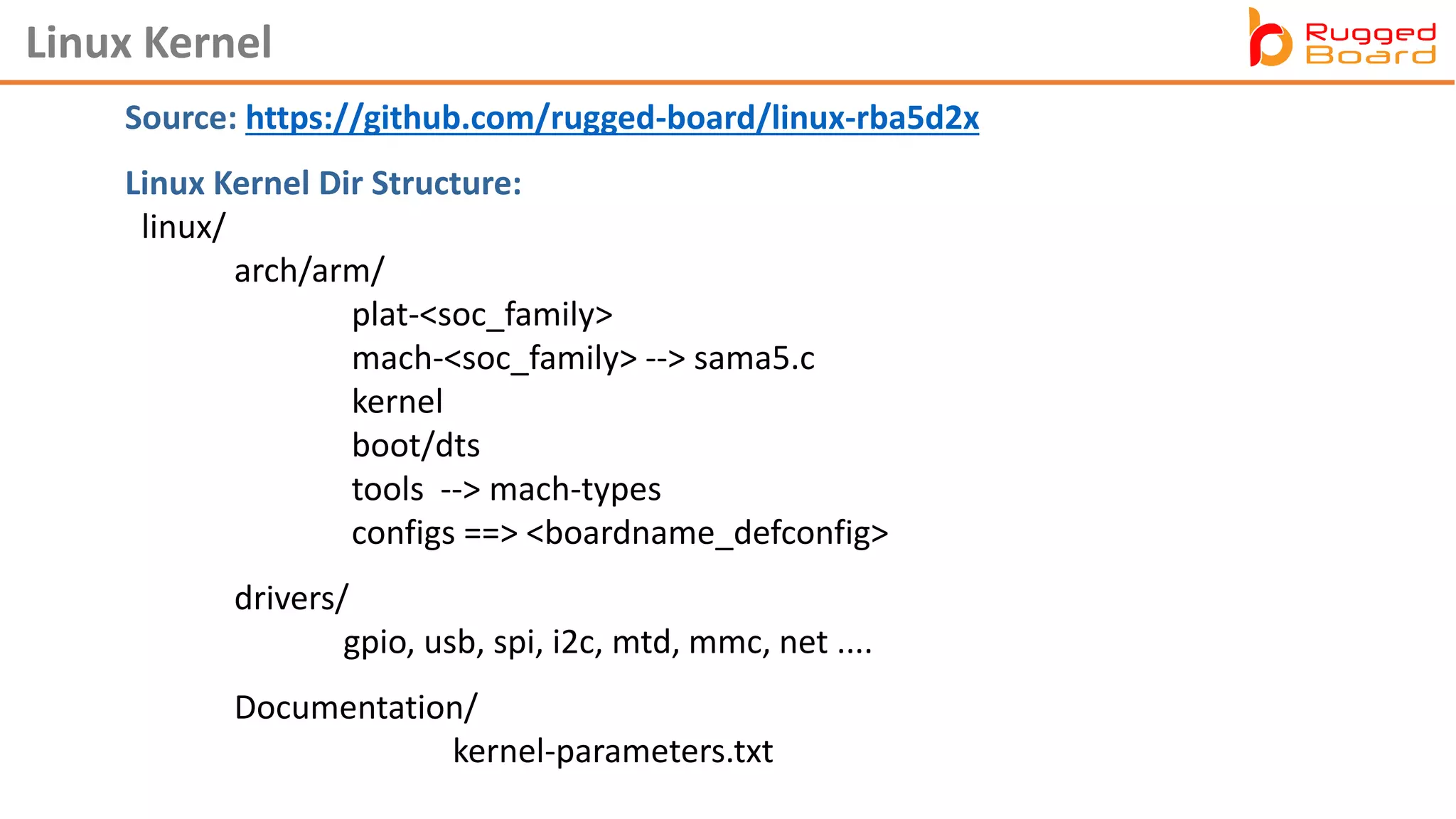

Linux Kernel
Source: https://github.com/rugged-board/linux-rba5d2x
Linux Kernel Dir Structure:
linux/
arch/arm/
plat-<soc_family>
mach-<soc_family> --> sama5.c
kernel
boot/dts
tools --> mach-types
configs ==> <boardname_defconfig>
drivers/
gpio, usb, spi, i2c, mtd, mmc, net ....
Documentation/
kernel-parameters.txt

#Set the toolchain path first
$ . env_setup.sh

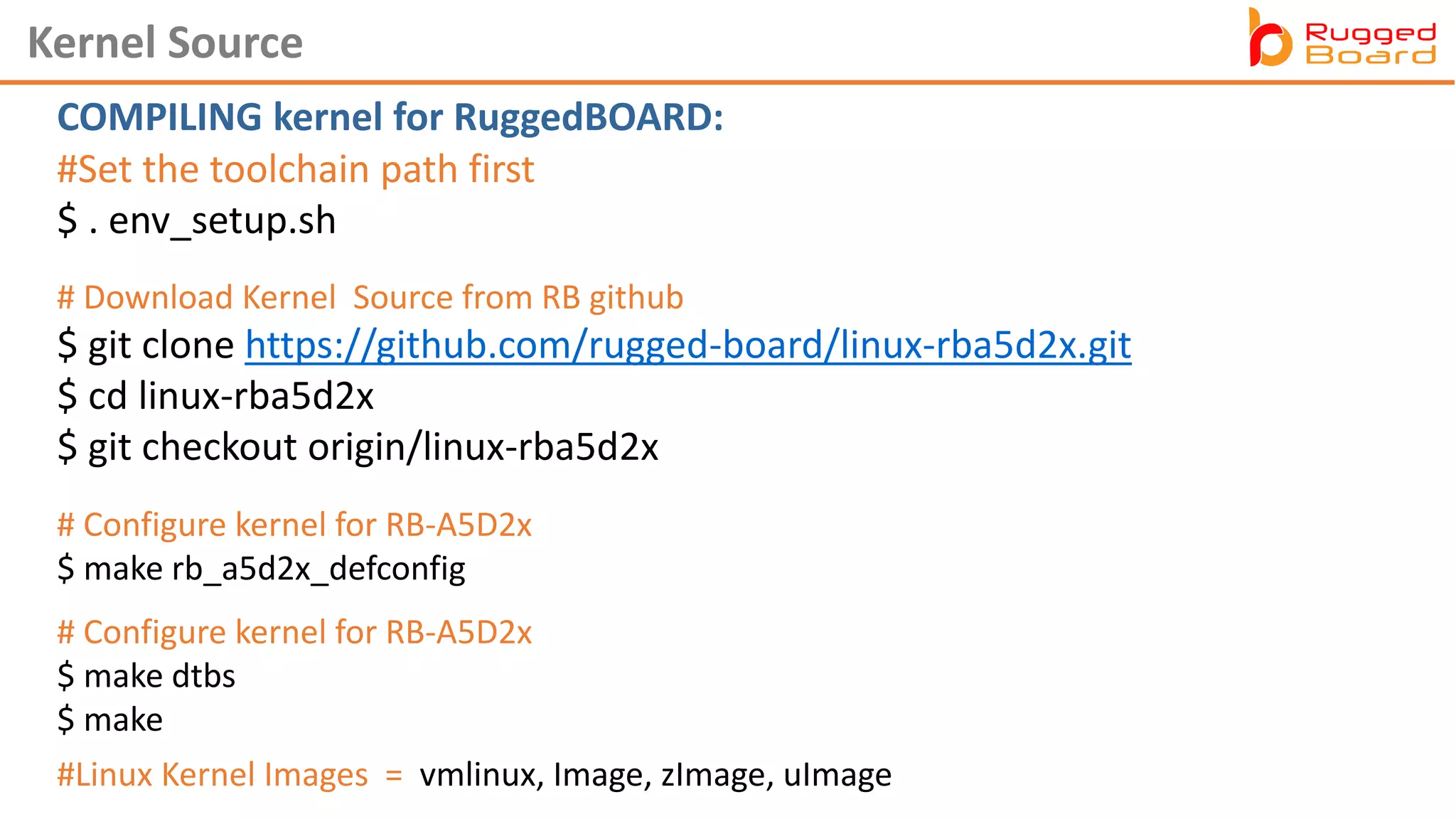

Kernel Source
#Linux Kernel Images = vmlinux, Image, zImage, uImage
# Configure kernel for RB-A5D2x
$ make dtbs
$ make
# Download Kernel Source from RB github
$ git clone https://github.com/rugged-board/linux-rba5d2x.git
$ cd linux-rba5d2x
$ git checkout origin/linux-rba5d2x
# Configure kernel for RB-A5D2x
$ make rb_a5d2x_defconfig
COMPILING kernel for RuggedBOARD:

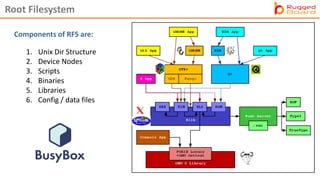

Root Filesystem

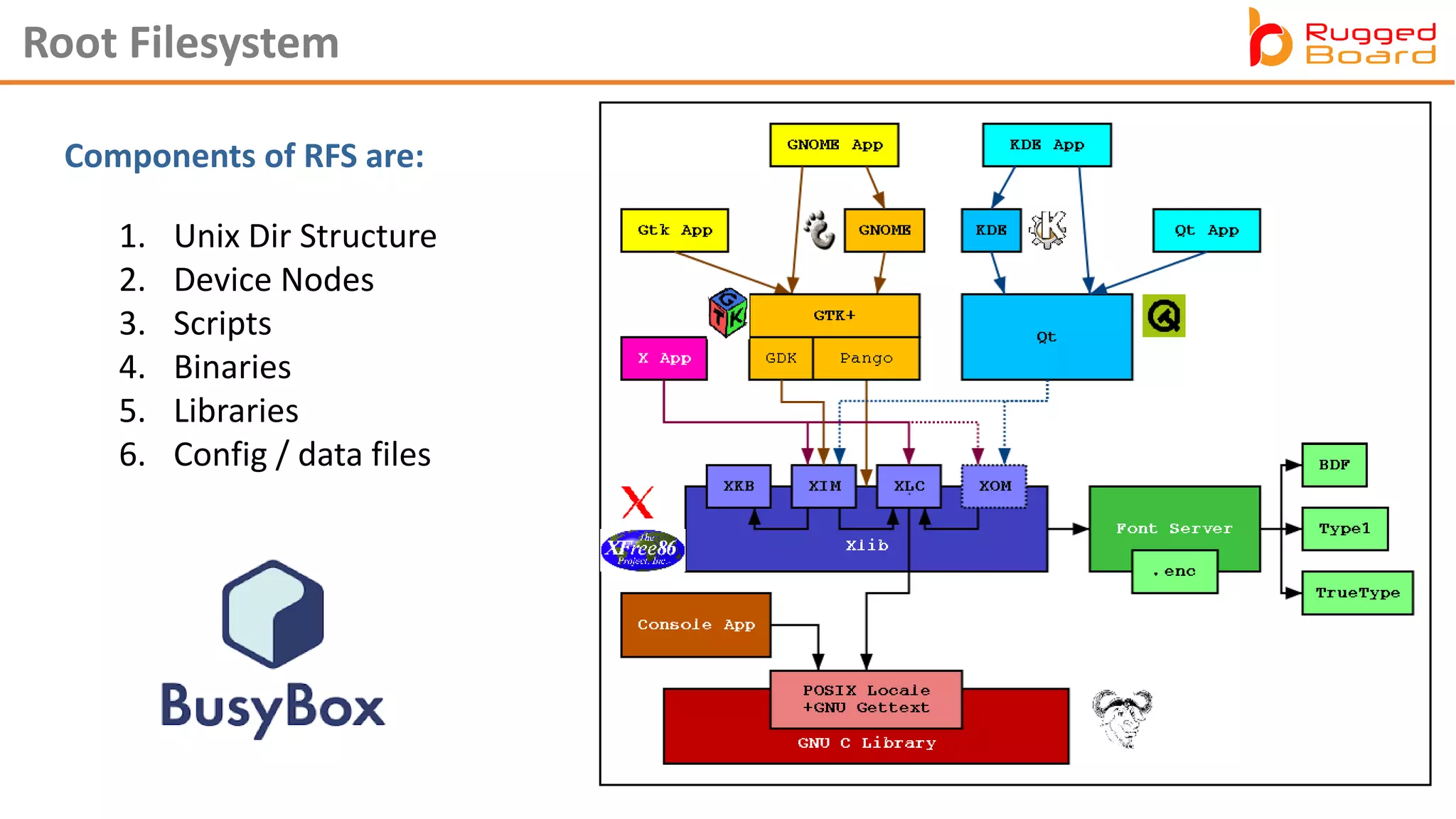

Components of RFS are:
1. Unix Dir Structure
2. Device Nodes
3. Scripts
4. Binaries
5. Libraries
6. Config / data files

Build System Functions

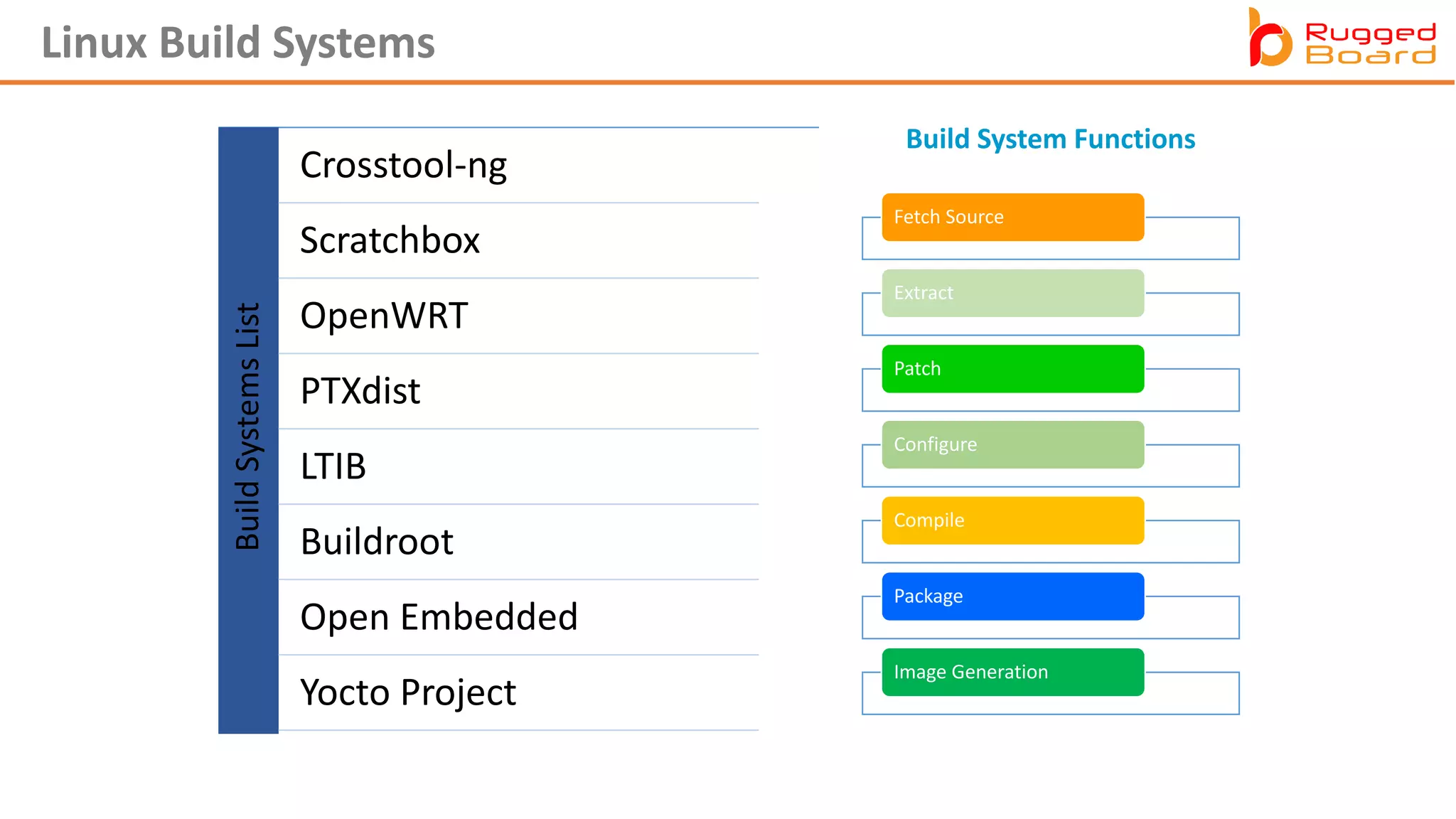

Linux Build Systems
BuildSystemsList
Crosstool-ng
Scratchbox
OpenWRT
PTXdist
LTIB
Buildroot
Open Embedded
Yocto Project
Fetch Source
Extract
Patch
Configure
Compile
Package
Image Generation

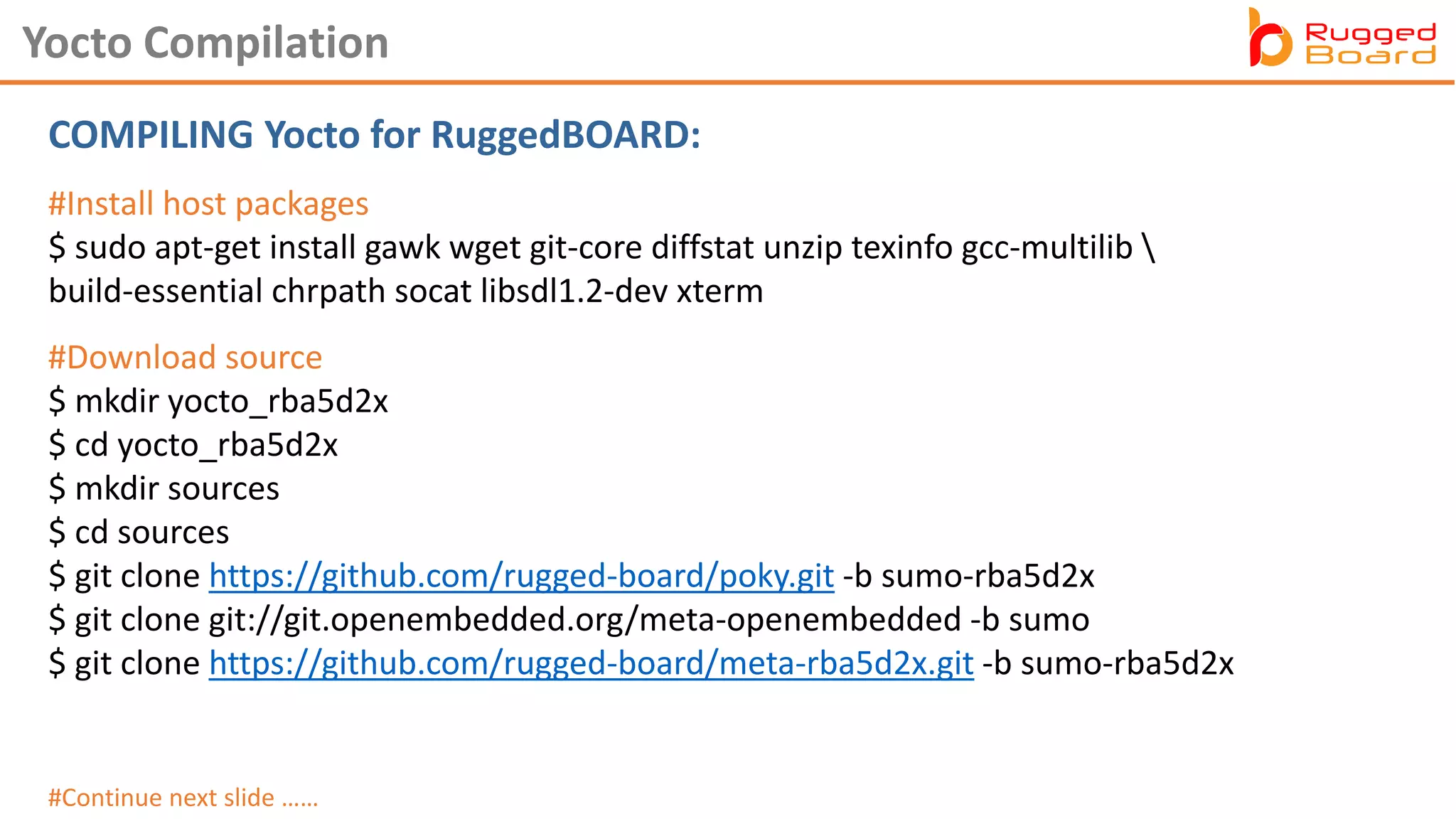

COMPILING Yocto for RuggedBOARD:
Yocto Compilation
#Download source
$ mkdir yocto_rba5d2x
$ cd yocto_rba5d2x
$ mkdir sources
$ cd sources
$ git clone https://github.com/rugged-board/poky.git -b sumo-rba5d2x
$ git clone git://git.openembedded.org/meta-openembedded -b sumo
$ git clone https://github.com/rugged-board/meta-rba5d2x.git -b sumo-rba5d2x
#Continue next slide ……
#Install host packages
$ sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib
build-essential chrpath socat libsdl1.2-dev xterm

#Configure for RuggedBOARD-A5D2x
$ source sources/poky/oe-init-build-env
$ vi conf/local.conf
# Edit MACHINE ?= "rugged-board-a5d2x-sd1“
Yocto Compilation
#Compile
$ bitbake rb-sd-core-image-minimal # For SD Card Images
Or
$ bitbake rb-nor-core-image-minimal # For NOR Flash Images
#Images for SD Card
$ cd tmp/deploy/images/rugged-board-a5d2x-sd1/
#Follow Boot from SD Card Tutorial..
#Images for NOR
$ cd tmp/deploy/images/rugged-board-a5d2x/
#Follow NOR Flashing Tutorial..

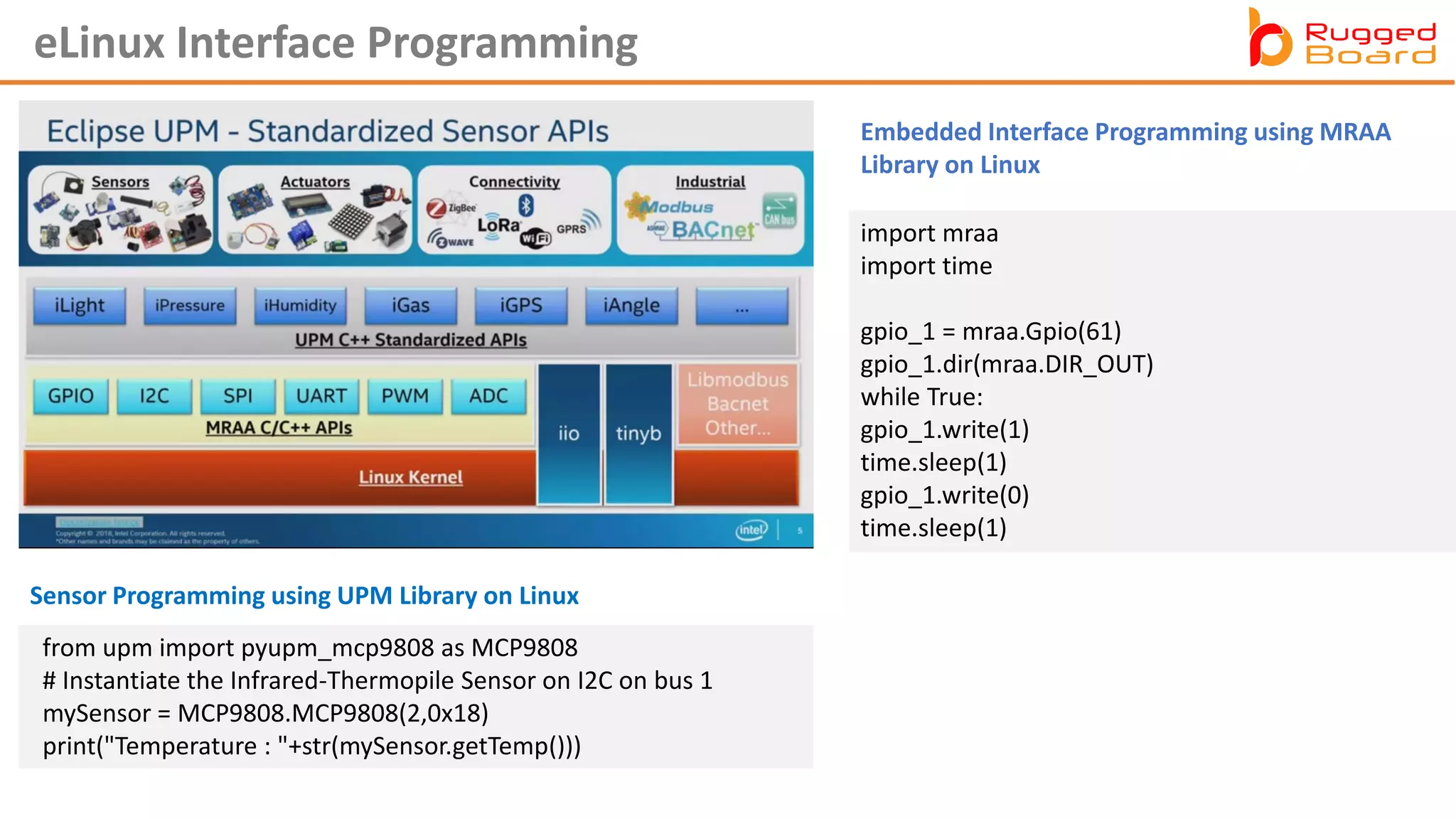

eLinux Interface Programming
import mraa
import time
gpio_1 = mraa.Gpio(61)
gpio_1.dir(mraa.DIR_OUT)
while True:
gpio_1.write(1)
time.sleep(1)
gpio_1.write(0)
time.sleep(1)
Sensor Programming using UPM Library on Linux
Embedded Interface Programming using MRAA
Library on Linux
from upm import pyupm_mcp9808 as MCP9808
# Instantiate the Infrared-Thermopile Sensor on I2C on bus 1
mySensor = MCP9808.MCP9808(2,0x18)
print("Temperature : "+str(mySensor.getTemp()))

Linux Internals
1. Linux Shell commands
2. Linux Shell Scripting
3. Process ( fork, exec, clone )
4. Threads
5. IPC ( Inter Process Communication)
Pipe, FiFO, MsgQ, SharedMemory, Semaphores , Socket
6. Socket Programming
7. Concepts ( Scheduler, Memory Mgmt, FileSystem )

RuggedBOARD
Industrial Grade Hardware for IIoT
https://Community.ruggedboard.com

Boot Process
Flash Memory
Main Memory / DDR
SRAM in SOC
AT91 Bootstrap
U-Boot
Kernel
Mounts on
/
Kernel
U-Boot
AT91 Bootstrap
Device Tree Bin(DTB)Device Tree Bin(DTB)
Root FS

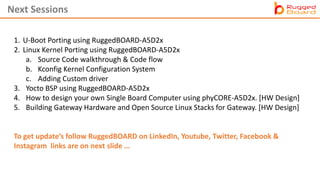

Next Sessions
1. U-Boot Porting using RuggedBOARD-A5D2x
2. Linux Kernel Porting using RuggedBOARD-A5D2x
a. Source Code walkthrough & Code flow
b. Kconfig Kernel Configuration System
c. Adding Custom driver
3. Yocto BSP using RuggedBOARD-A5D2x
4. How to design your own Single Board Computer using phyCORE-A5D2x. [HW Design]
5. Building Gateway Hardware and Open Source Linux Stacks for Gateway. [HW Design]
To get update’s follow RuggedBOARD on LinkedIn, Youtube, Twitter, Facebook &
Instagram links are on next slide …

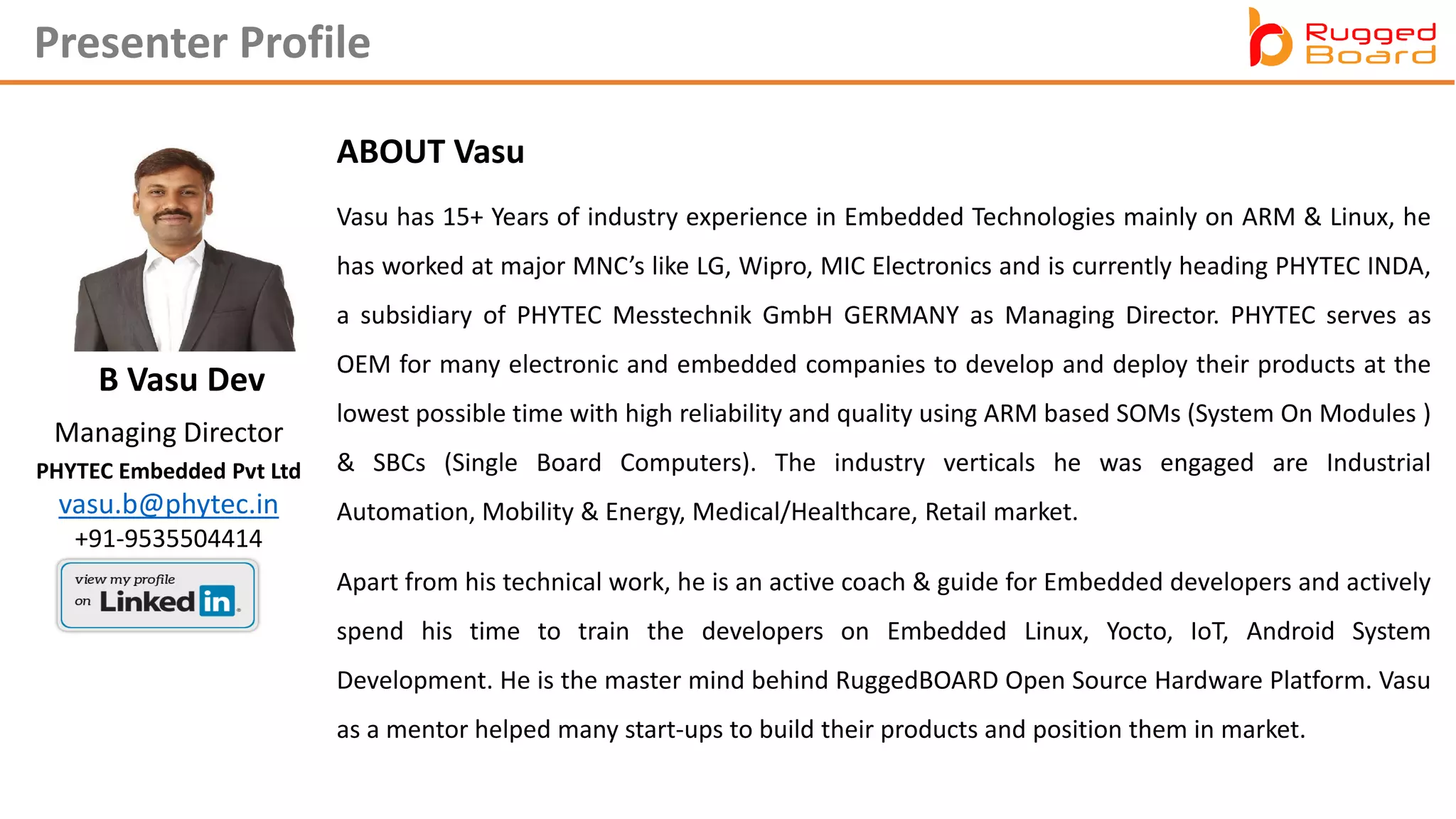

B Vasu Dev
