- 1. From CoreOS To Kubernetes DenisIzmaylov Feb 16, 2017
- 2. Denis Izmaylov 1. Over17 years of Software and Web development experience 2. The last 7 years focused exclusively on Front-end and Web: 15+ projects, including React.js, SPA and high-load 3. Open Source contributor 4. Talks: HighLoad++ 2015, AgileDays 2016, DevConf 2016, React Amsterdam, etc 5. Regular speaker on MoscowJS 6. Few popular articles and interviews on Medium and Habrahabr 7. Events: Moscow Node.js Meetup, React Moscow Meetup and this one
- 3. Web and Mobiledevelopment services

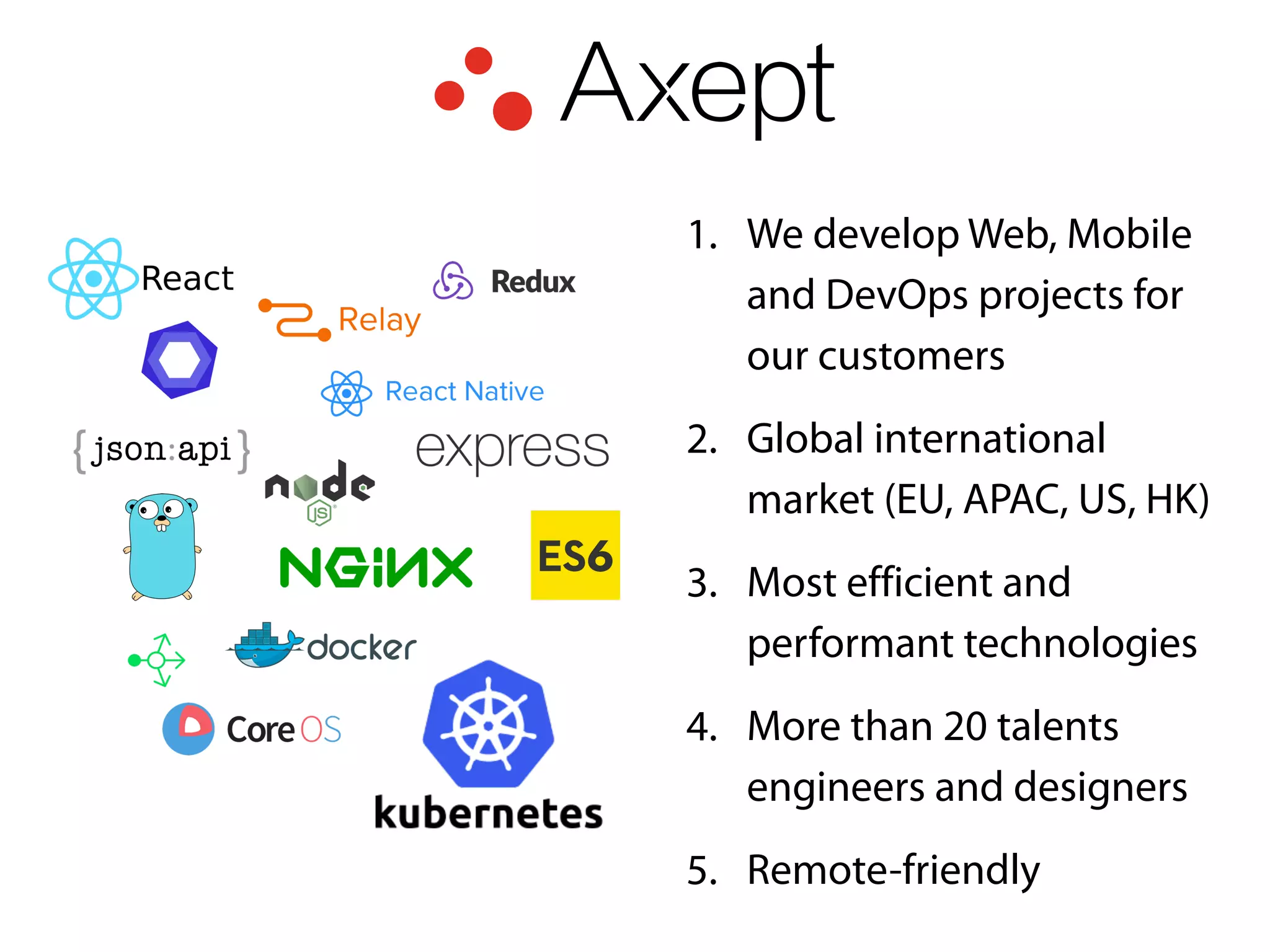

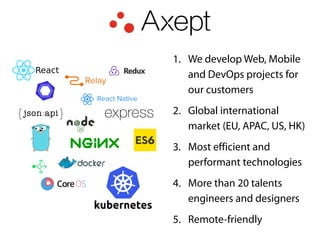

- 4. 1. We developWeb, Mobile and DevOps projects for our customers 2. Global international market (EU, APAC, US, HK) 3. Most efficient and performant technologies 4. More than 20 talents engineers and designers 5. Remote-friendly

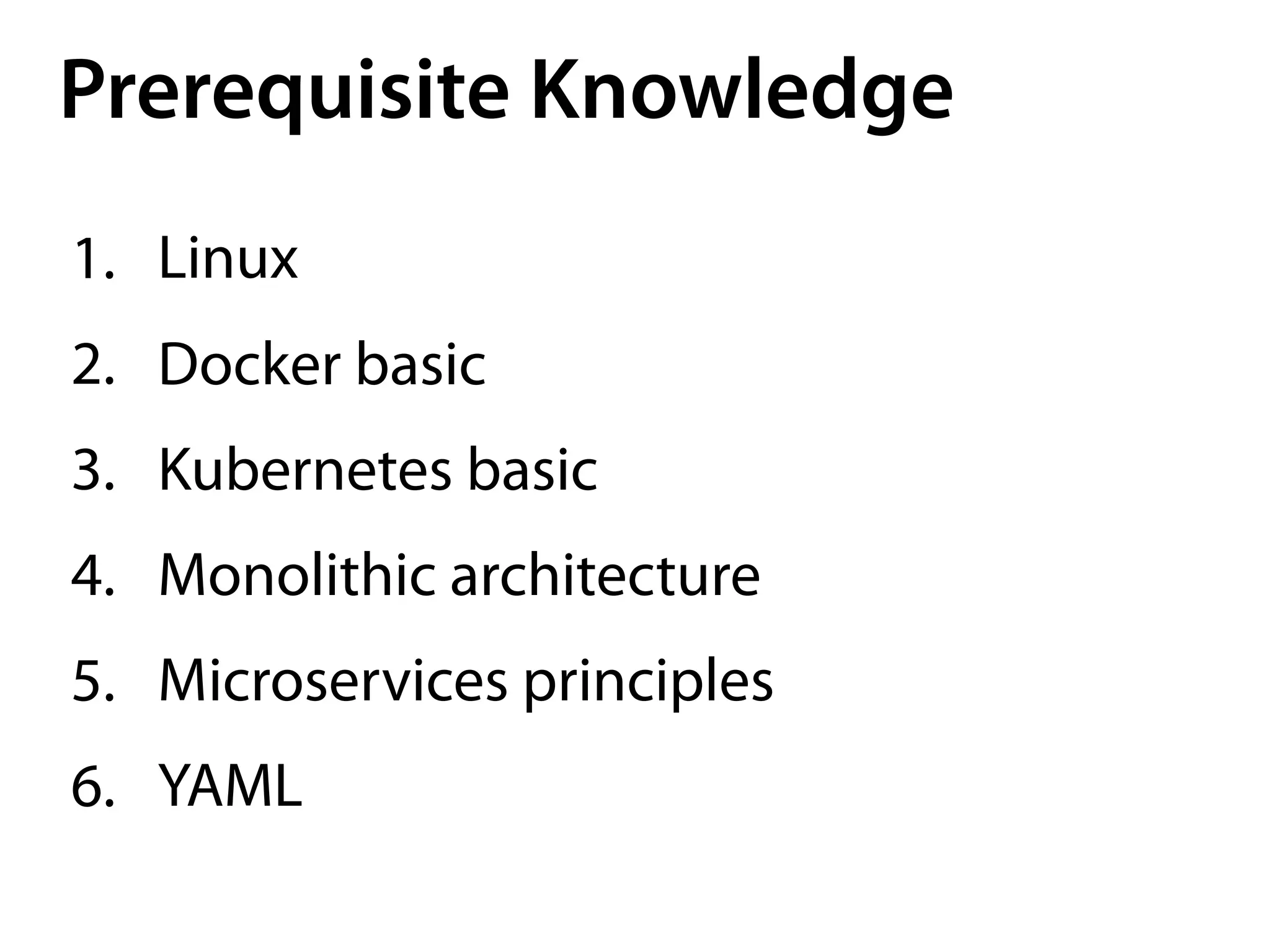

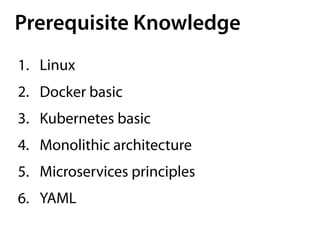

- 5. Prerequisite Knowledge 1. Linux 2.Docker basic 3. Kubernetes basic 4. Monolithic architecture 5. Microservices principles 6. YAML
- 6.

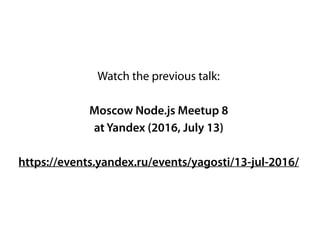

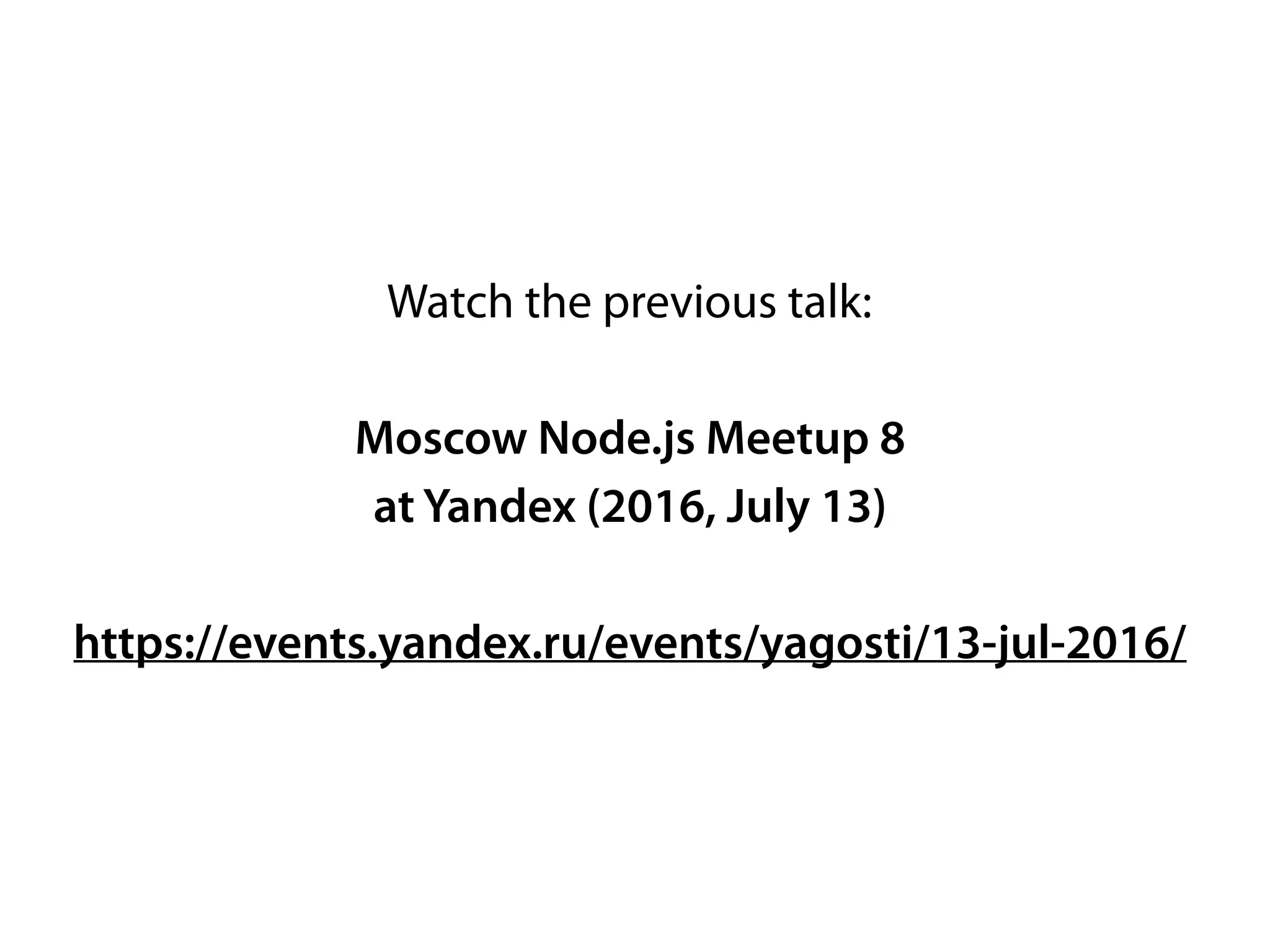

- 7. Watch the previoustalk: Moscow Node.js Meetup 8 at Yandex (2016, July 13) https://events.yandex.ru/events/yagosti/13-jul-2016/
- 8. What problems canyou get with CoreOS?

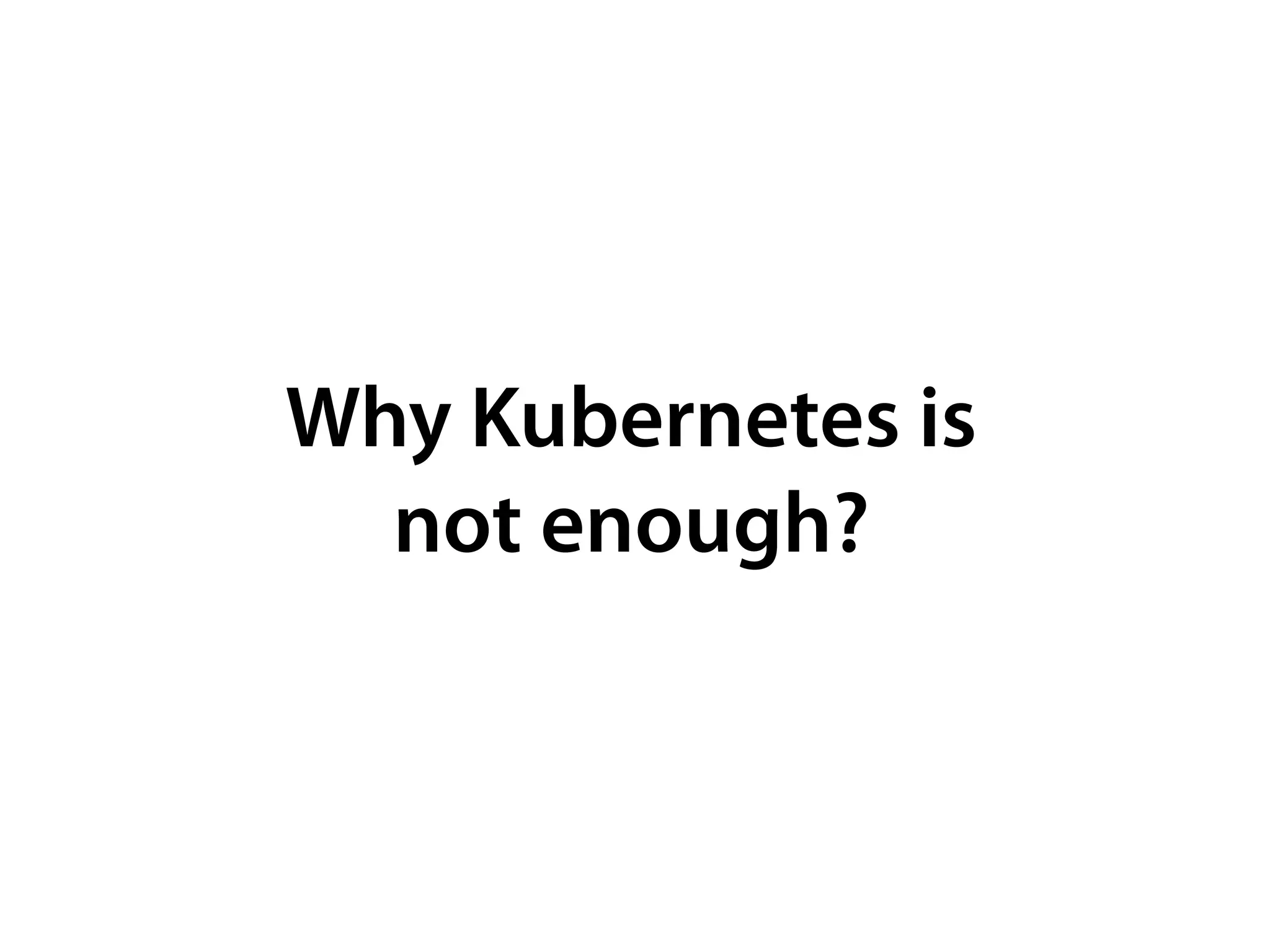

- 9. Why Kubernetes is notenough?
- 10. How to scalefast and effortless?

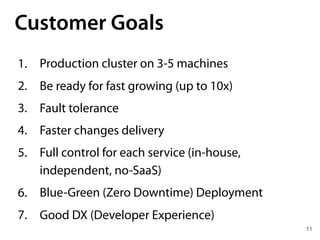

- 11. 11 Customer Goals 1. Productioncluster on 3-5 machines 2. Be ready for fast growing (up to 10x) 3. Fault tolerance 4. Faster changes delivery 5. Full control for each service (in-house, independent, no-SaaS) 6. Blue-Green (Zero Downtime) Deployment 7. Good DX (Developer Experience)

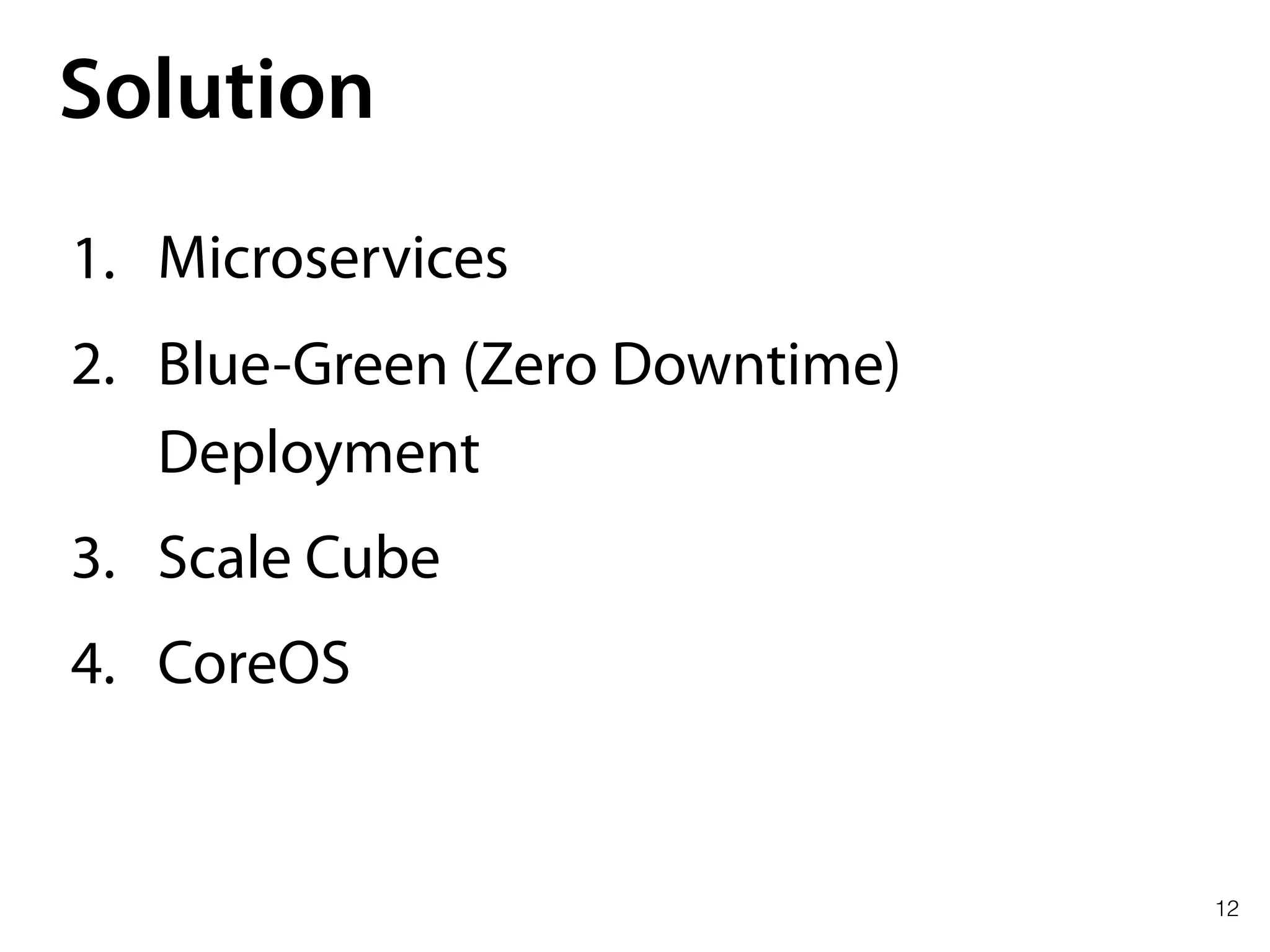

- 12. 12 Solution 1. Microservices 2. Blue-Green(Zero Downtime) Deployment 3. Scale Cube 4. CoreOS
- 13.
- 14.

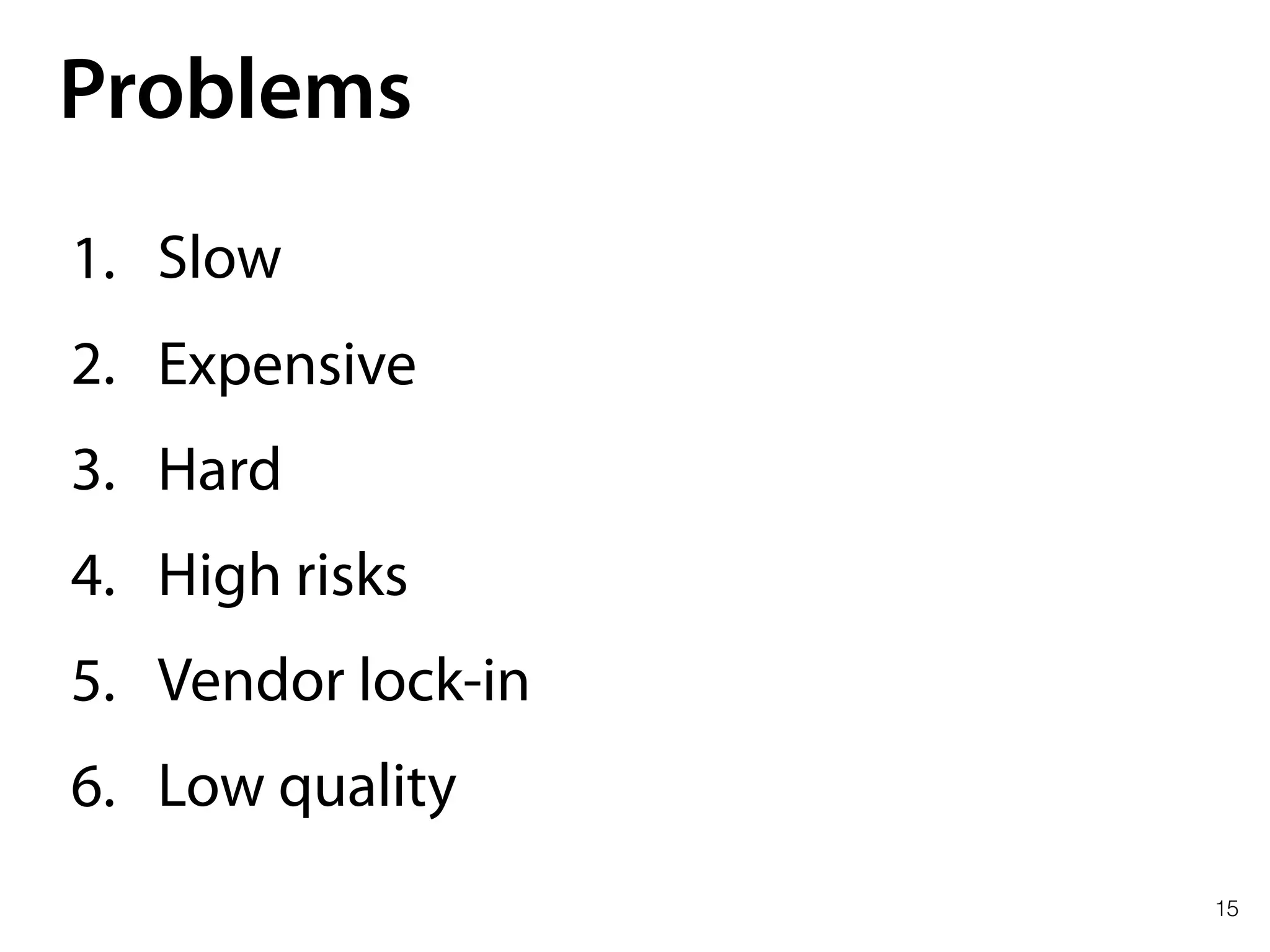

- 15. 15 Problems 1. Slow 2. Expensive 3.Hard 4. High risks 5. Vendor lock-in 6. Low quality
- 16.

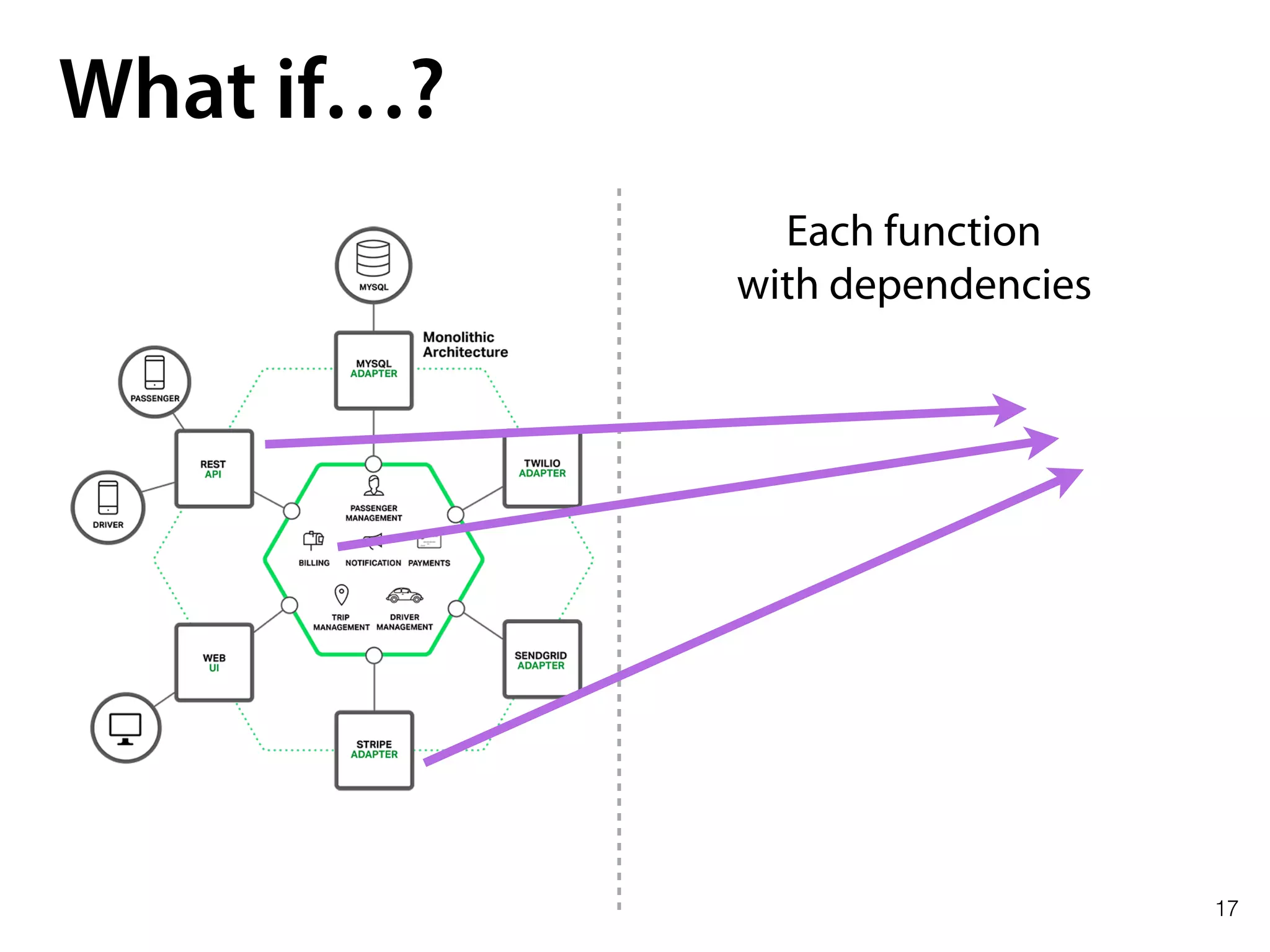

- 17. 17 What if…? Each function withdependencies

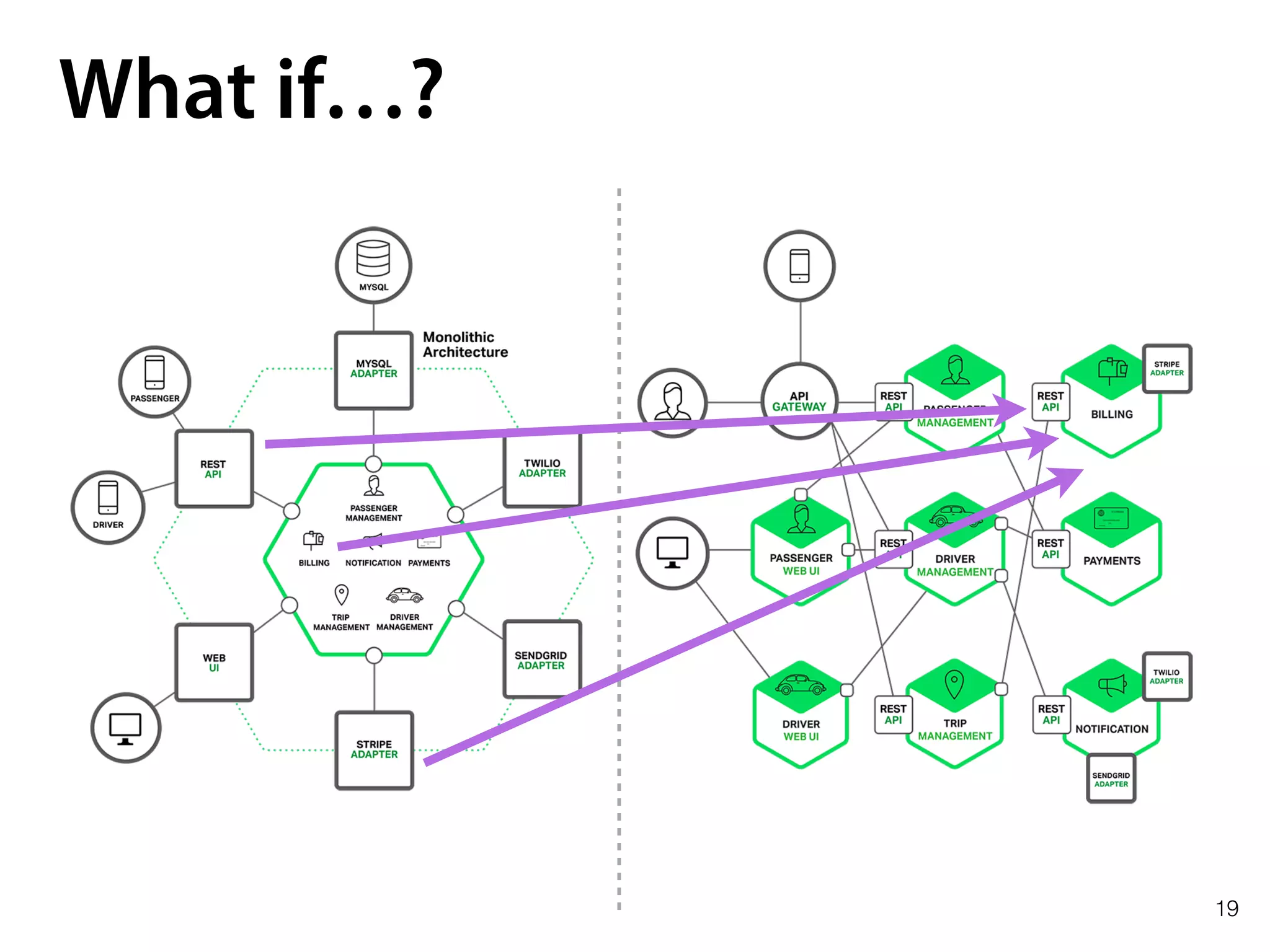

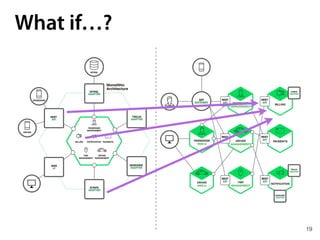

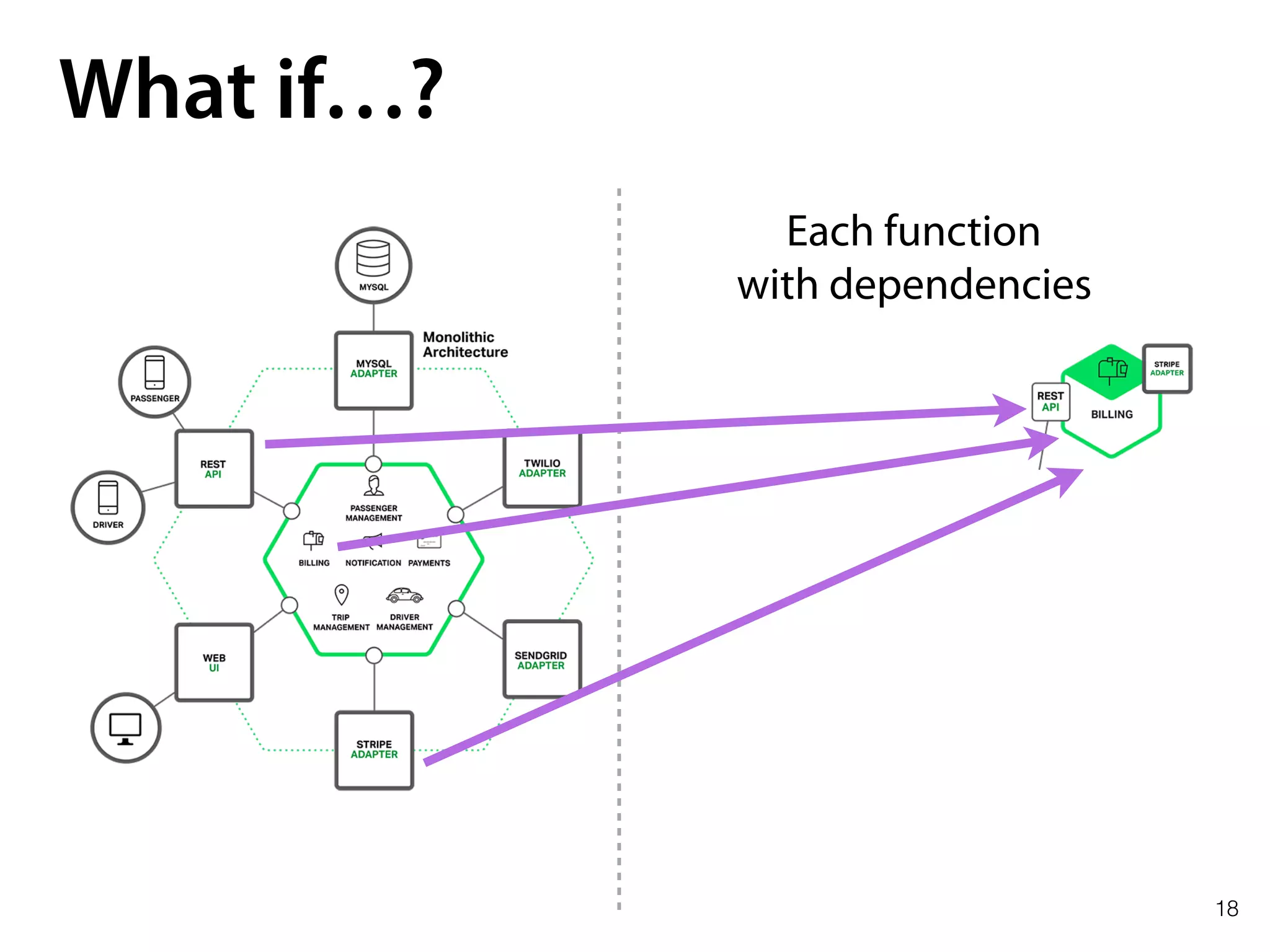

- 18. 18 What if…? Each function withdependencies
- 19.

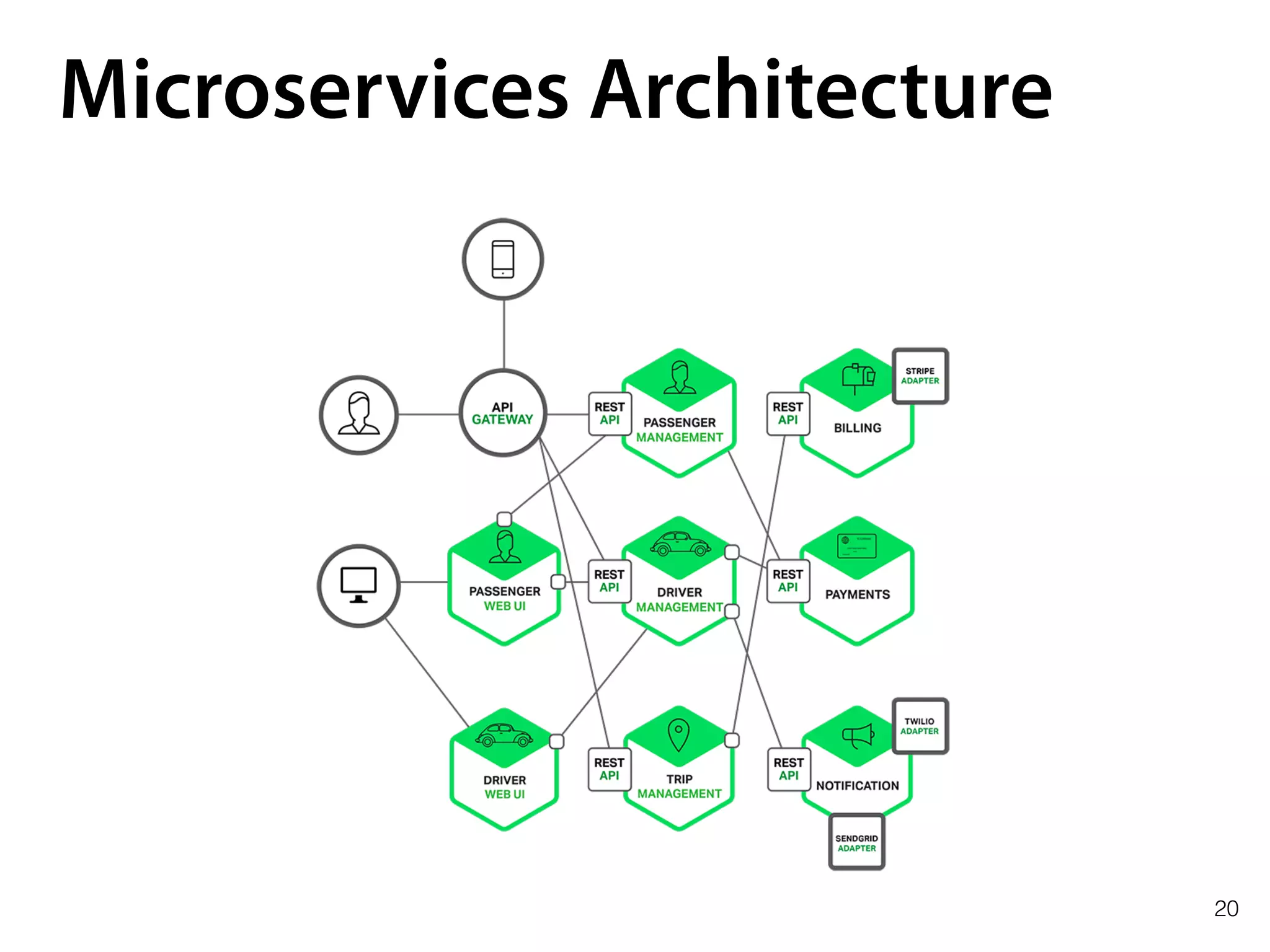

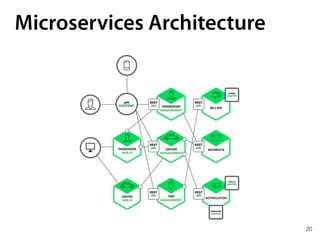

- 20.

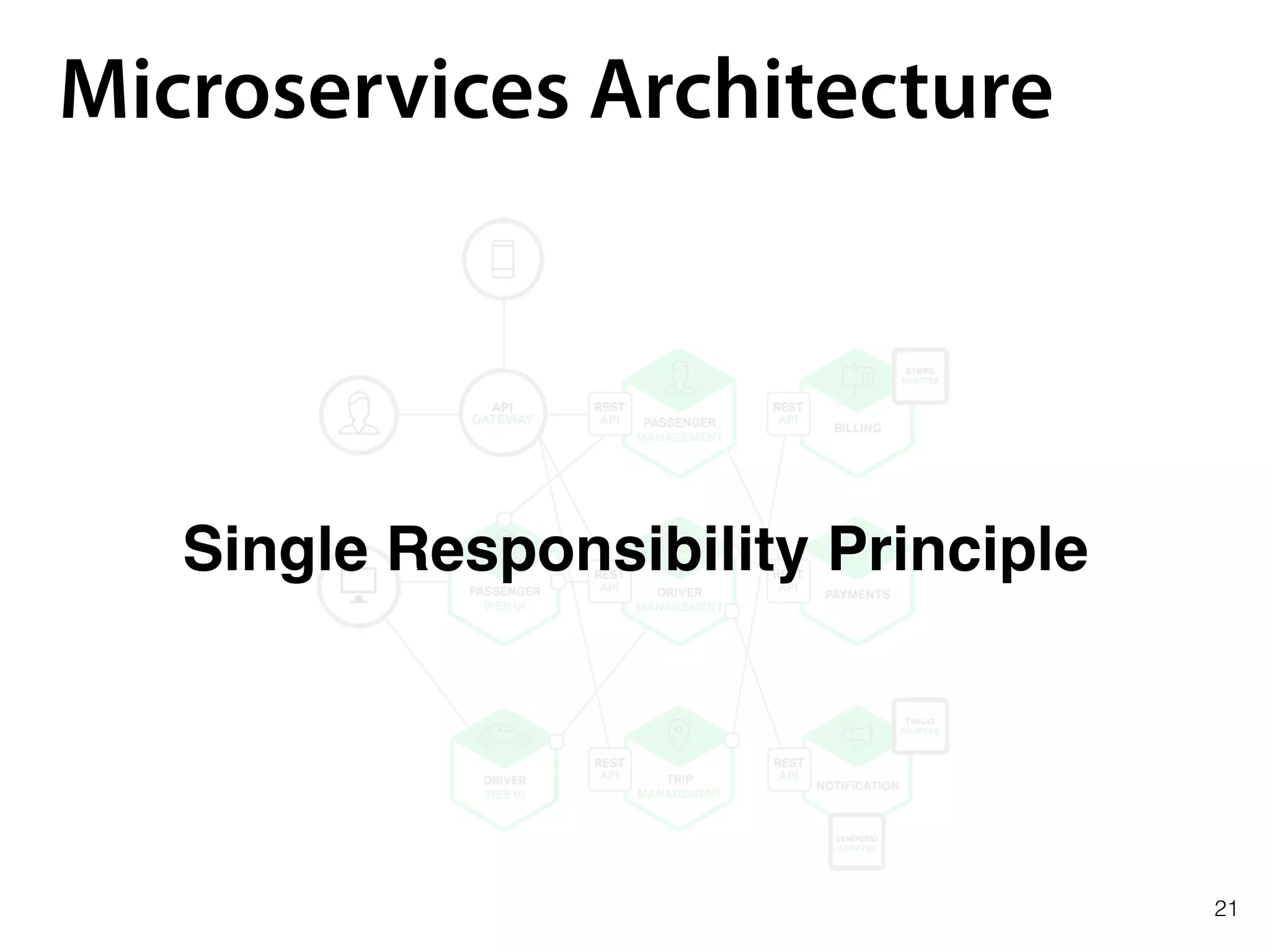

- 21. Microservices Architecture Single ResponsibilityPrinciple 21

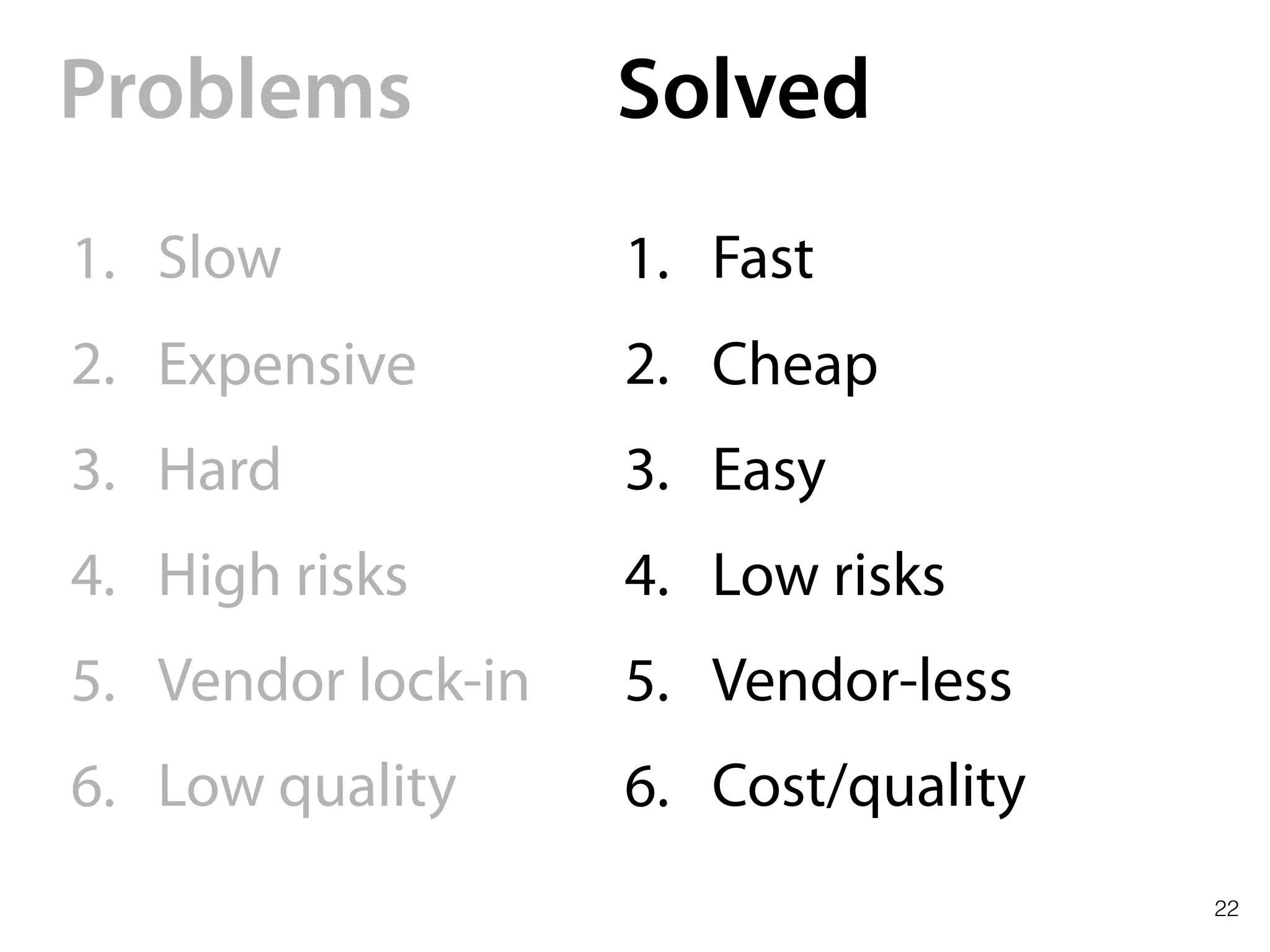

- 22. 22 Problems 1. Slow 2. Expensive 3.Hard 4. High risks 5. Vendor lock-in 6. Low quality 1. Fast 2. Cheap 3. Easy 4. Low risks 5. Vendor-less 6. Cost/quality Solved
- 23. 23 Effects 1. Resistance • Fail-over •Isolated failures 2. Delivery speed 3. Changes are simple 4. Freedom 5. Security
- 24.
- 25. 25 “Microservices allow engineeringteams to move quickly to grow a product… assuming they don’t get bogged down by the complexity of operating a distributed system”

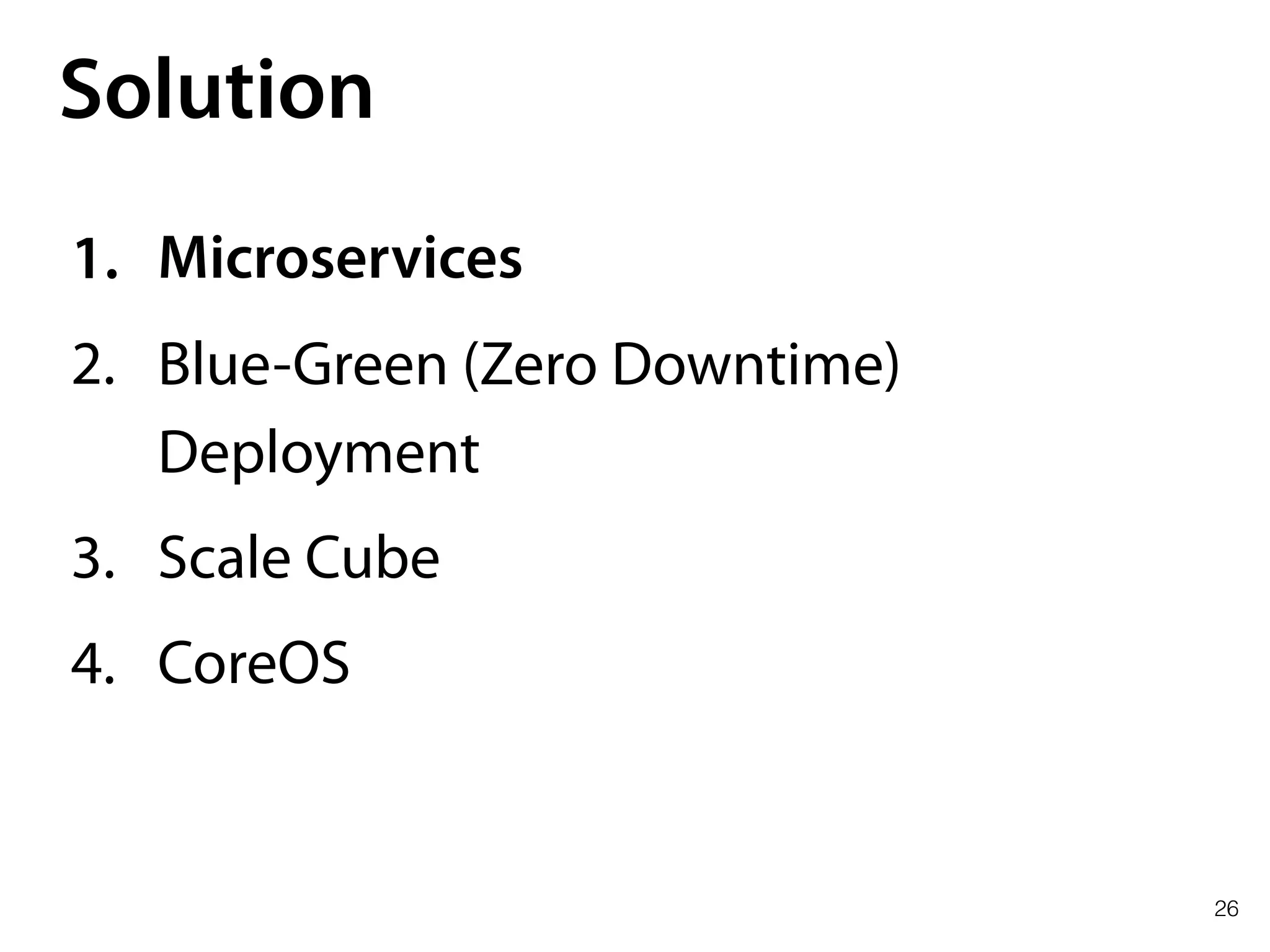

- 26. 26 Solution 1. Microservices 2. Blue-Green(Zero Downtime) Deployment 3. Scale Cube 4. CoreOS

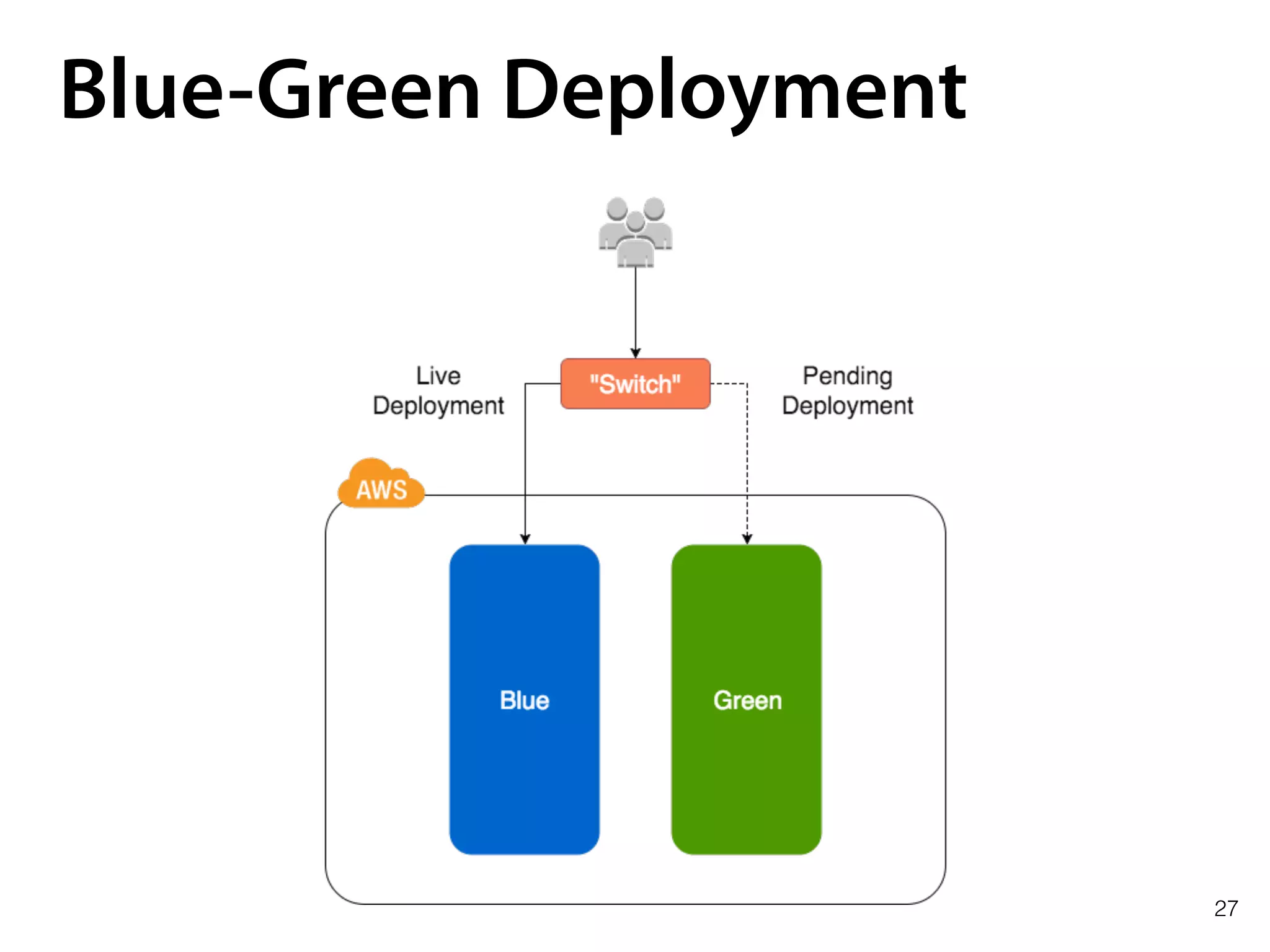

- 27.
- 28. 28 Solution 1. Microservices 2. Blue-Green(Zero Downtime) Deployment 3. Scale Cube 4. CoreOS
- 29.

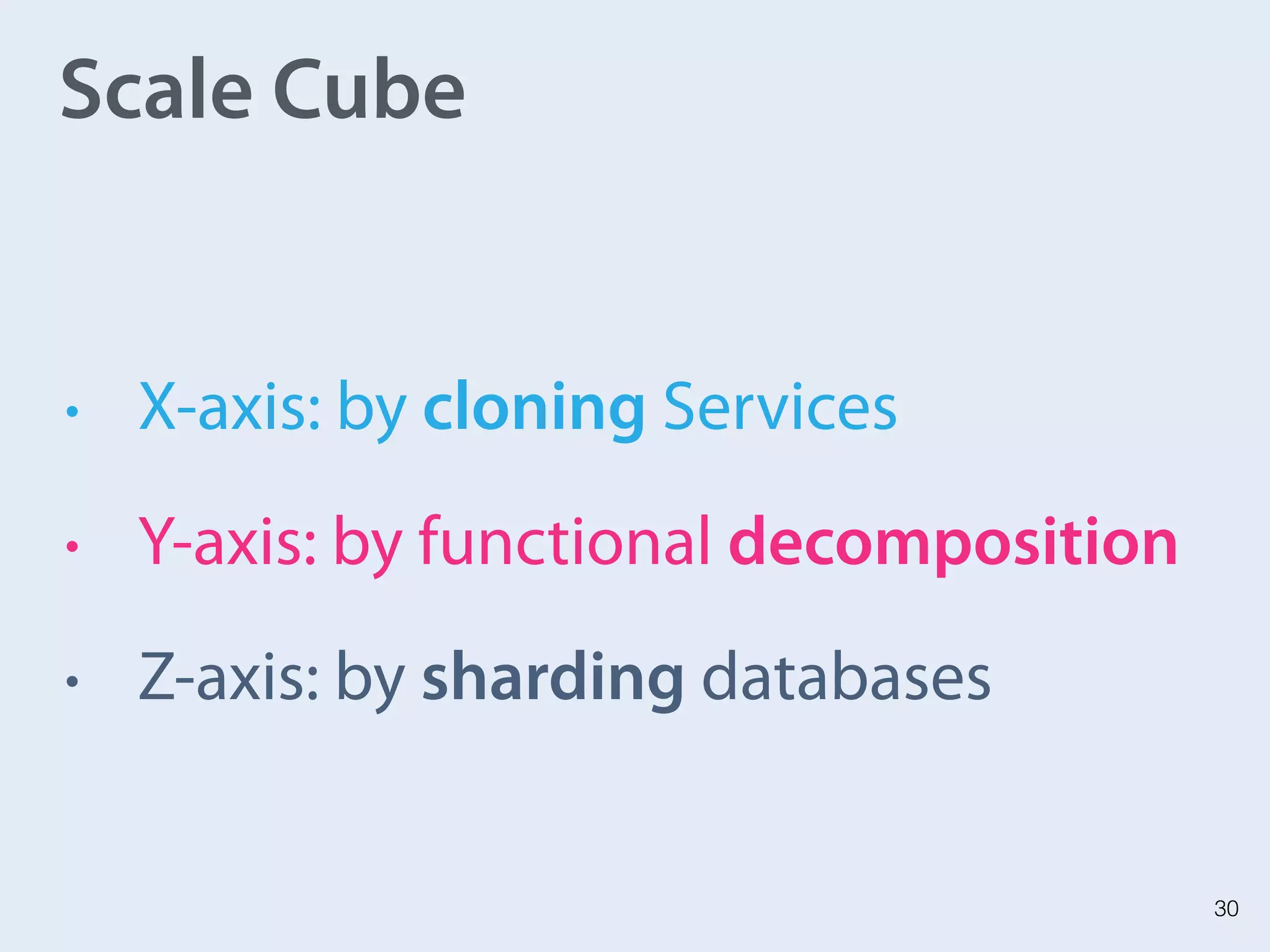

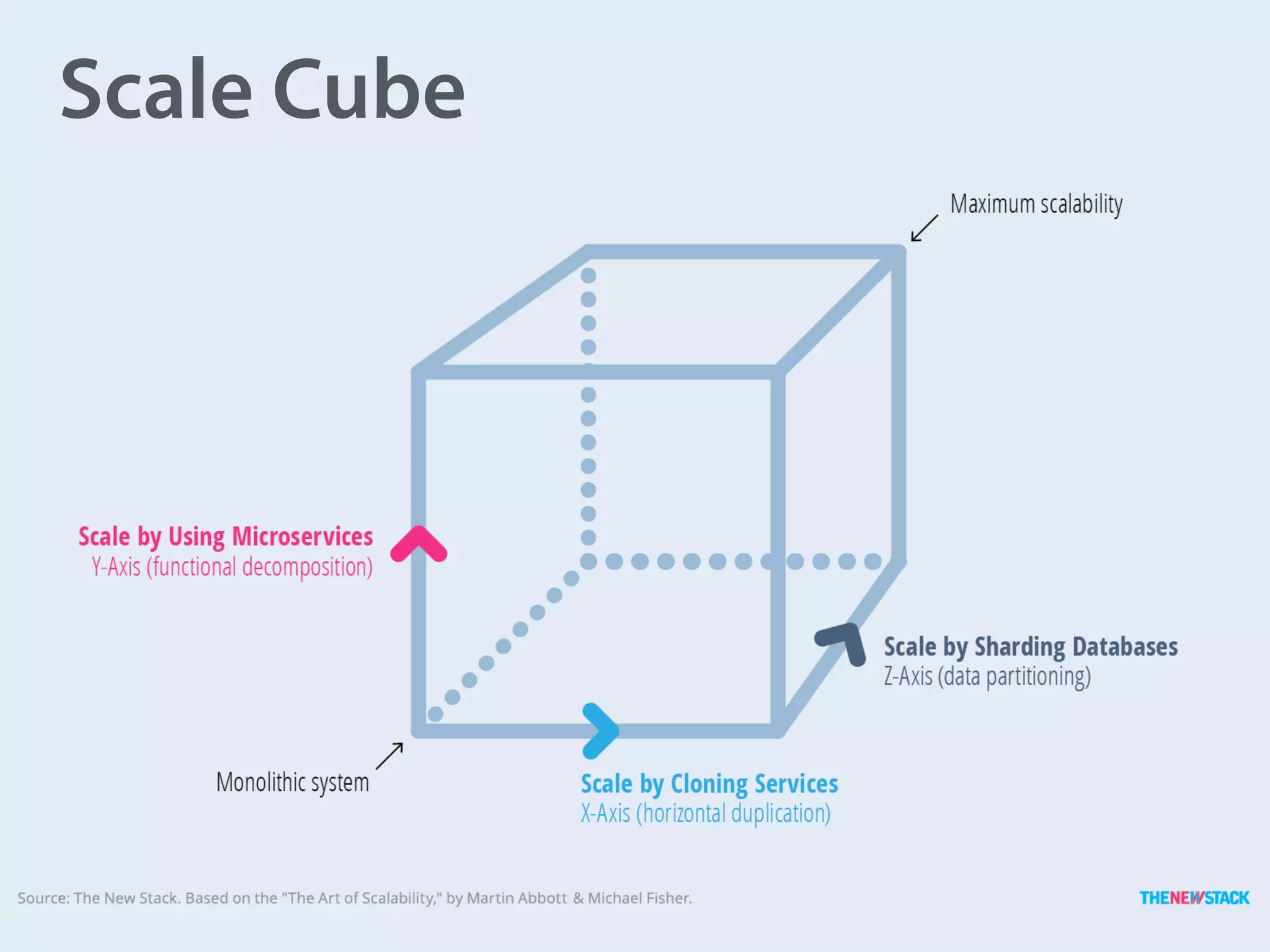

- 30. 30 Scale Cube • X-axis:by cloning Services • Y-axis: by functional decomposition • Z-axis: by sharding databases
- 31. 31 Solution 1. Microservices 2. Blue-Green(Zero Downtime) Deployment 3. Scale Cube 4. CoreOS
- 32.
- 33. 33 1. First Container-optimizedOS: 3+ years, since July 2013 2. Mini OS: based on ChromeOS, small and fast 3. Security-focused: by using auto-updates (like browsers) 4. No package manager: each application is running as a Container on top of OS 5. Built-in support: Containers, Container networking, Service discovery 6. Services: runs through systemd 7. Configuration: one Cloud Config file

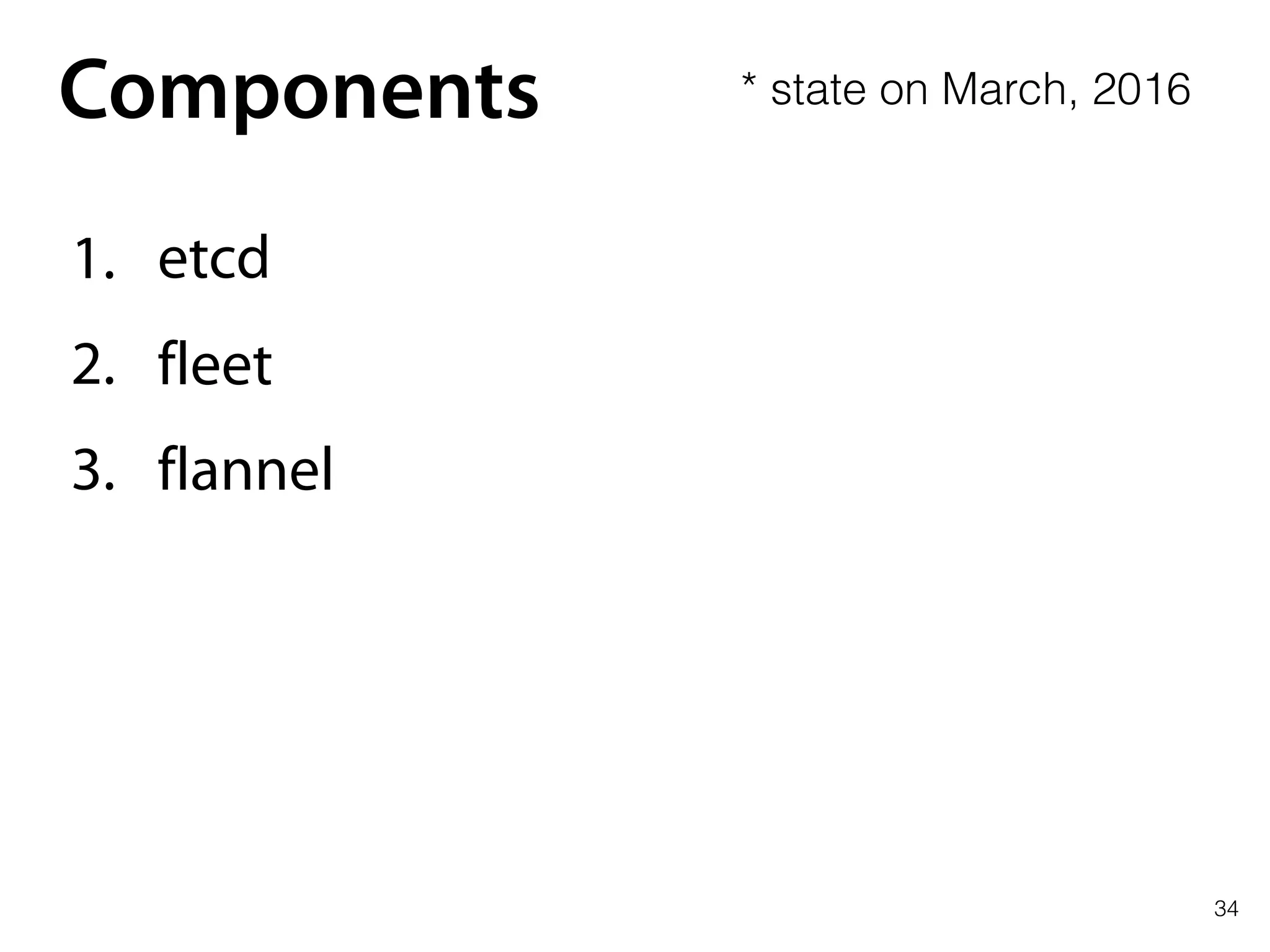

- 34. 34 Components 1. etcd 2. fleet 3.flannel * state on March, 2016

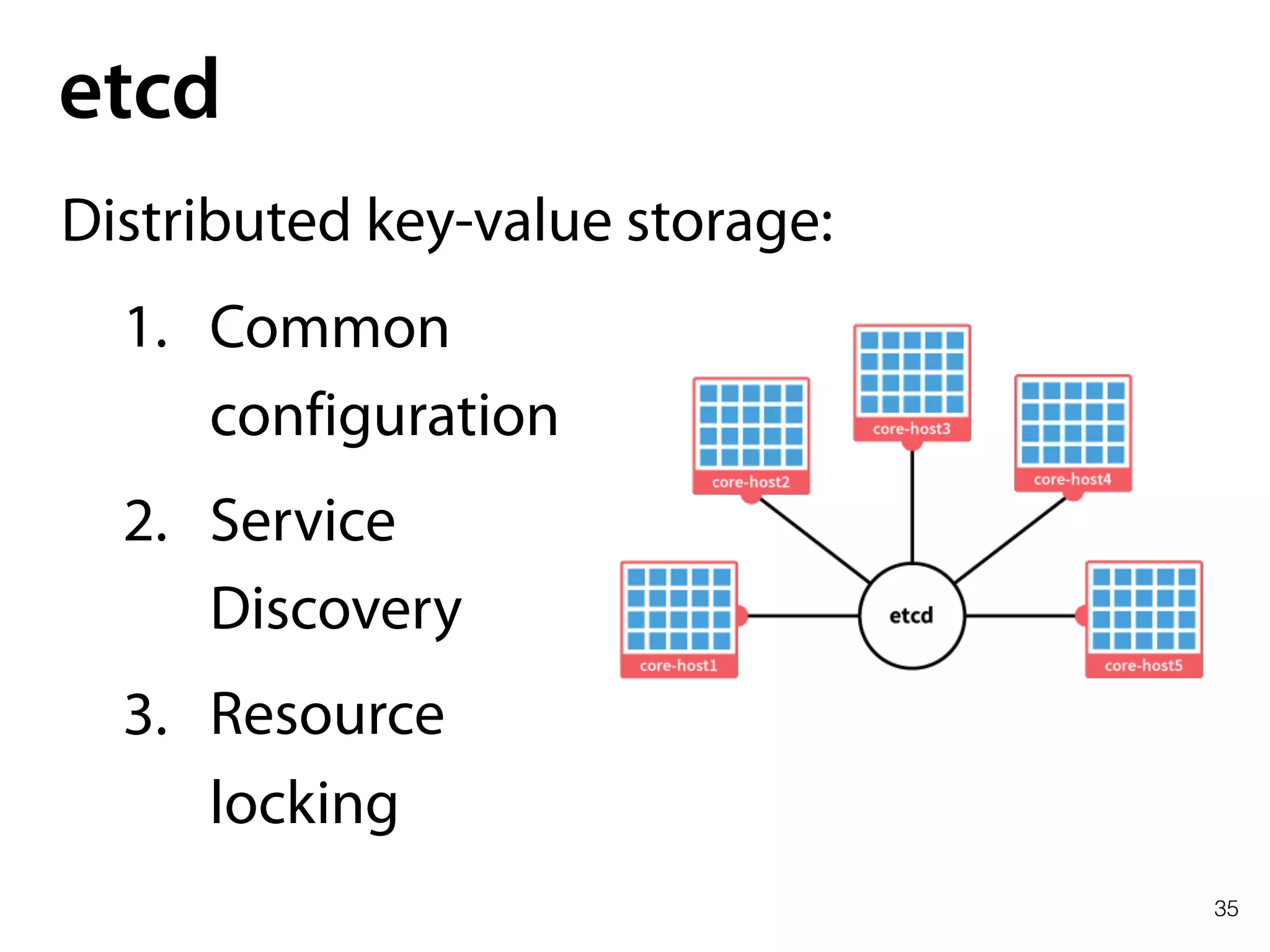

- 35. 35 etcd Distributed key-value storage: 1.Common configuration 2. Service Discovery 3. Resource locking

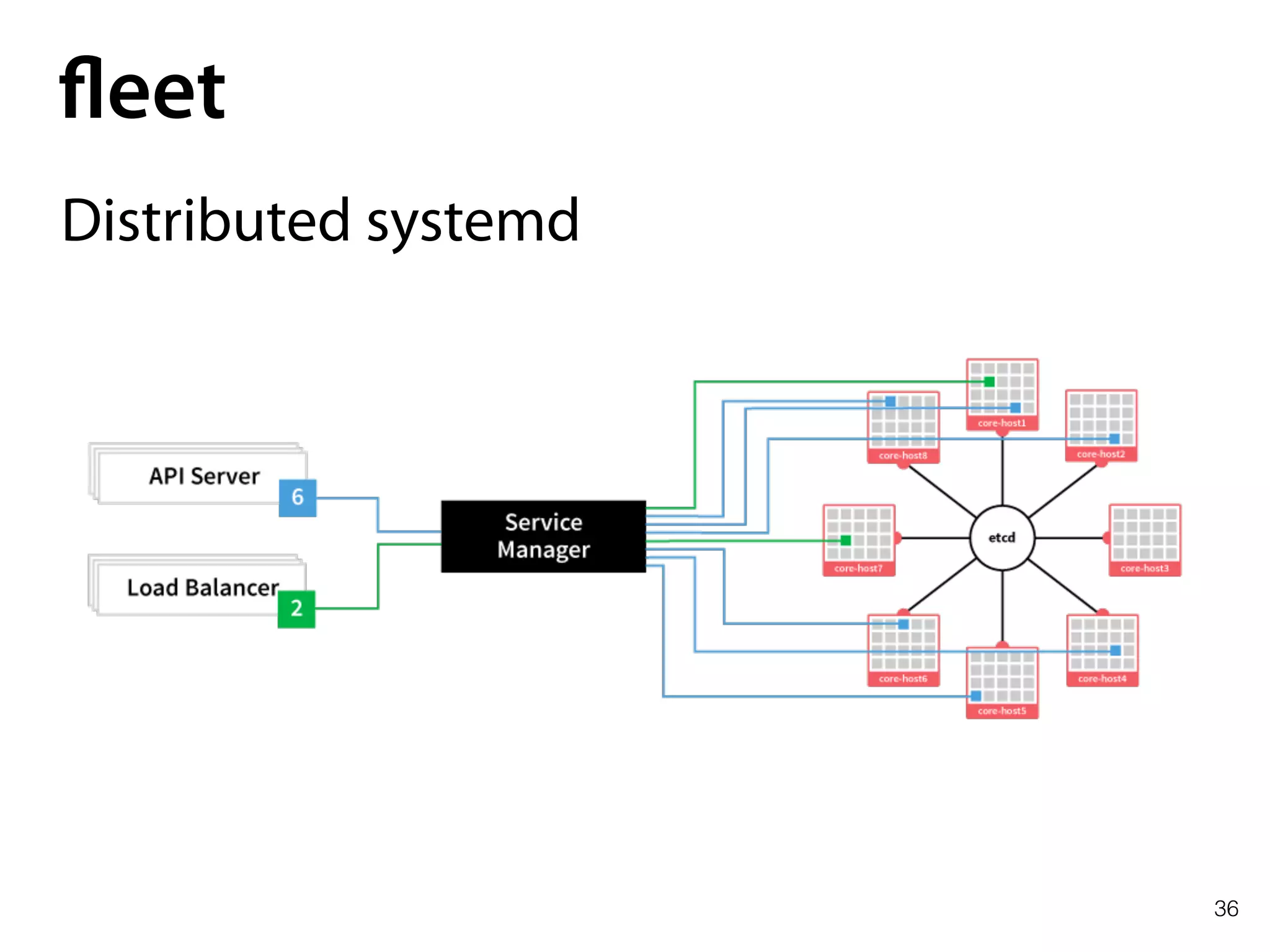

- 36.

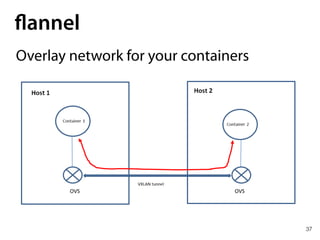

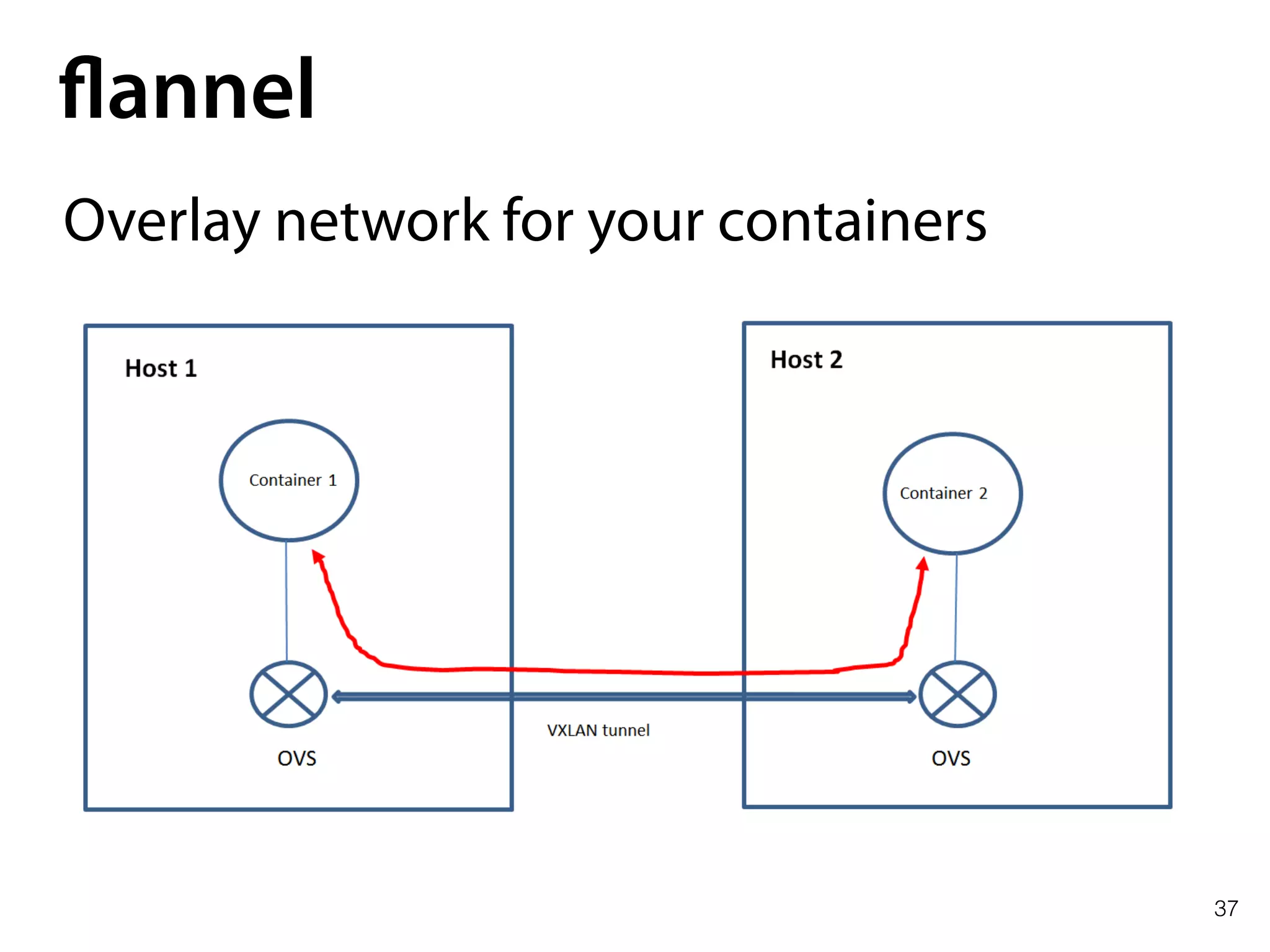

- 37. 37 flannel Overlay network foryour containers
- 38.
- 39.
- 40.
- 41.

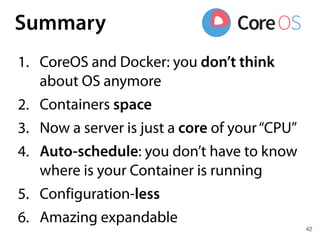

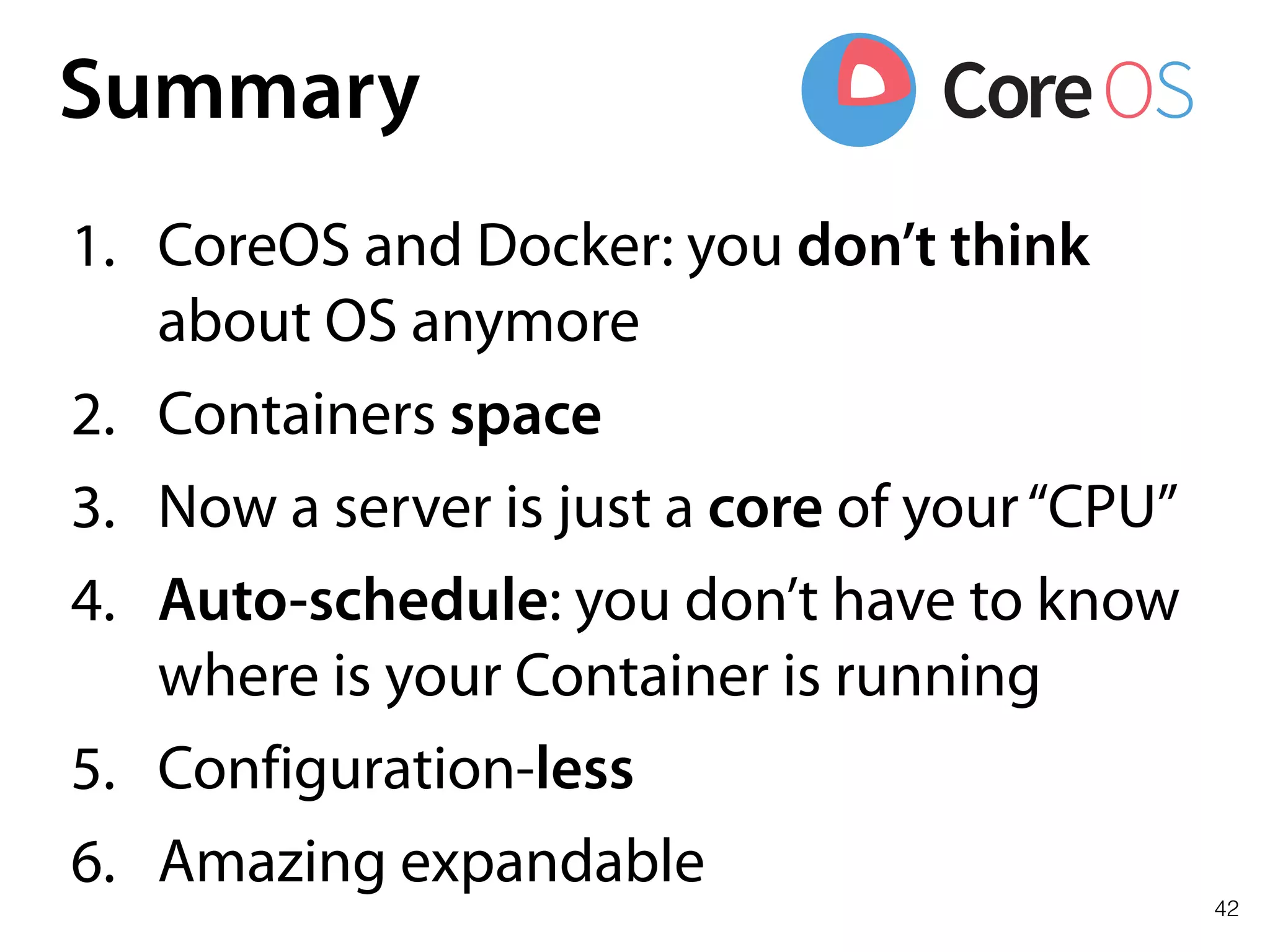

- 42. 42 Summary 1. CoreOS andDocker: you don’t think about OS anymore 2. Containers space 3. Now a server is just a core of your“CPU” 4. Auto-schedule: you don’t have to know where is your Container is running 5. Configuration-less 6. Amazing expandable
- 43.

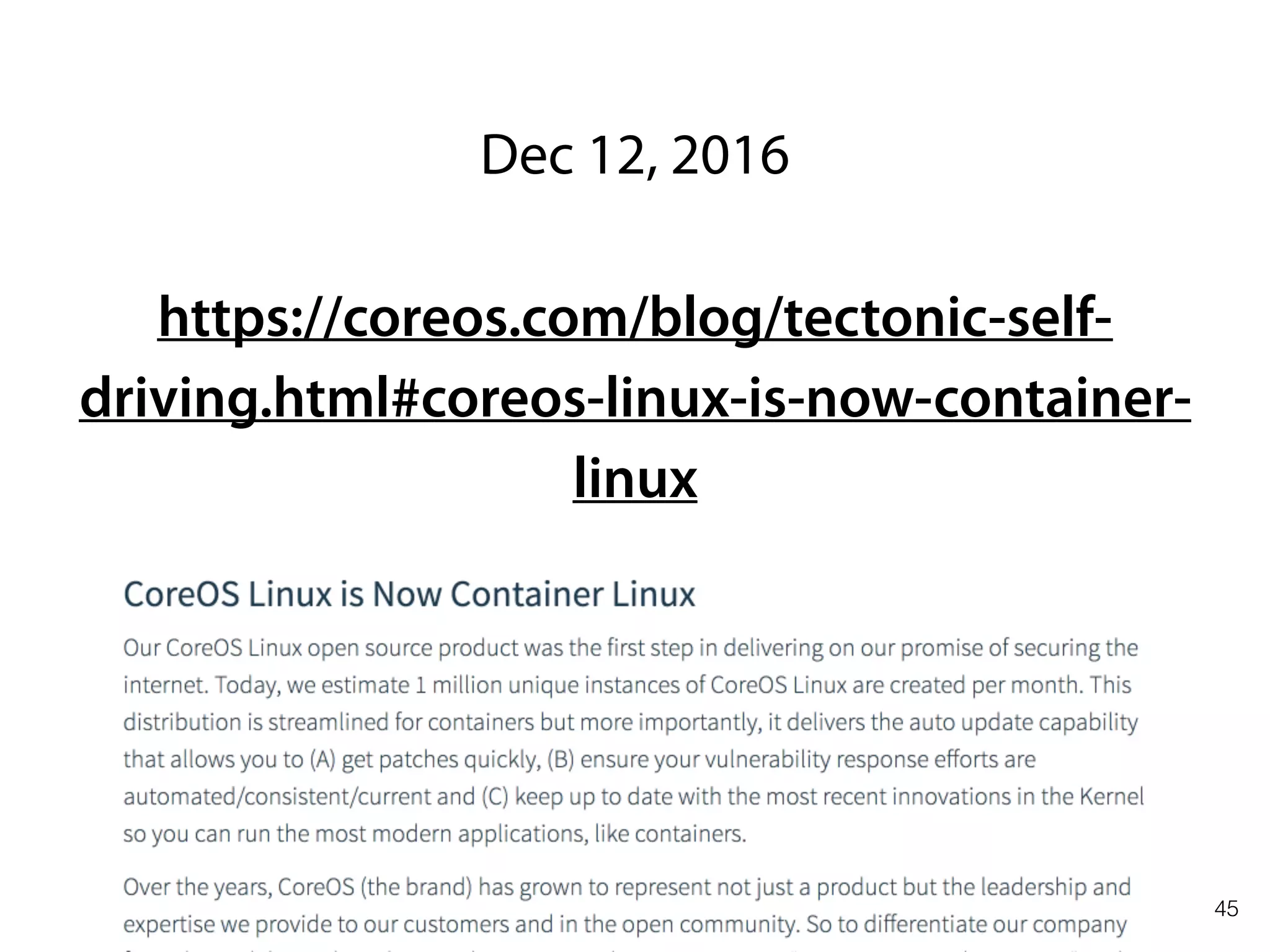

- 45.

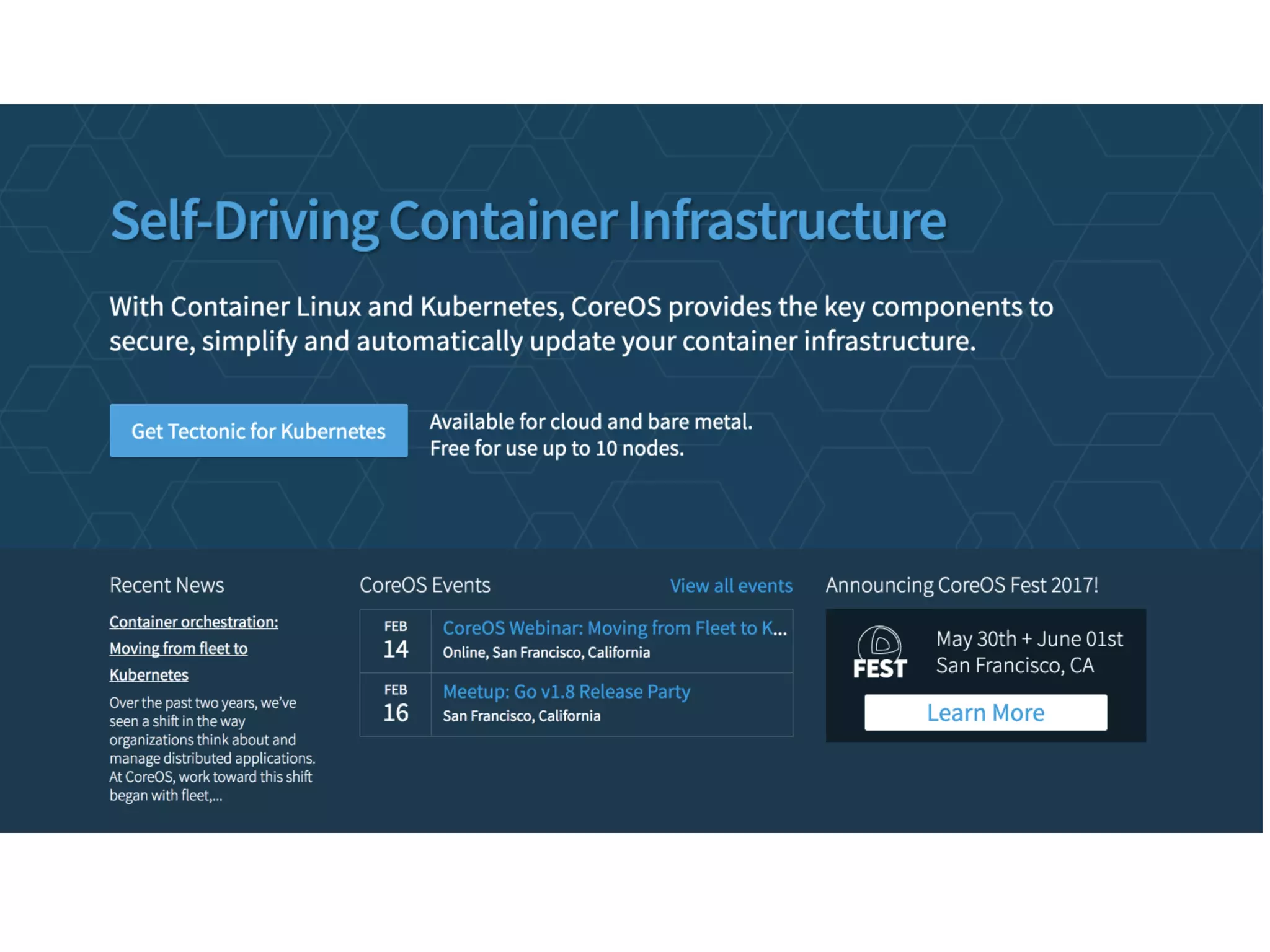

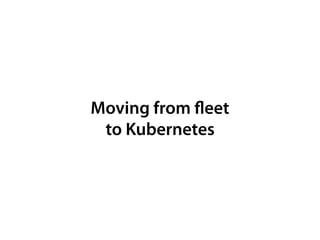

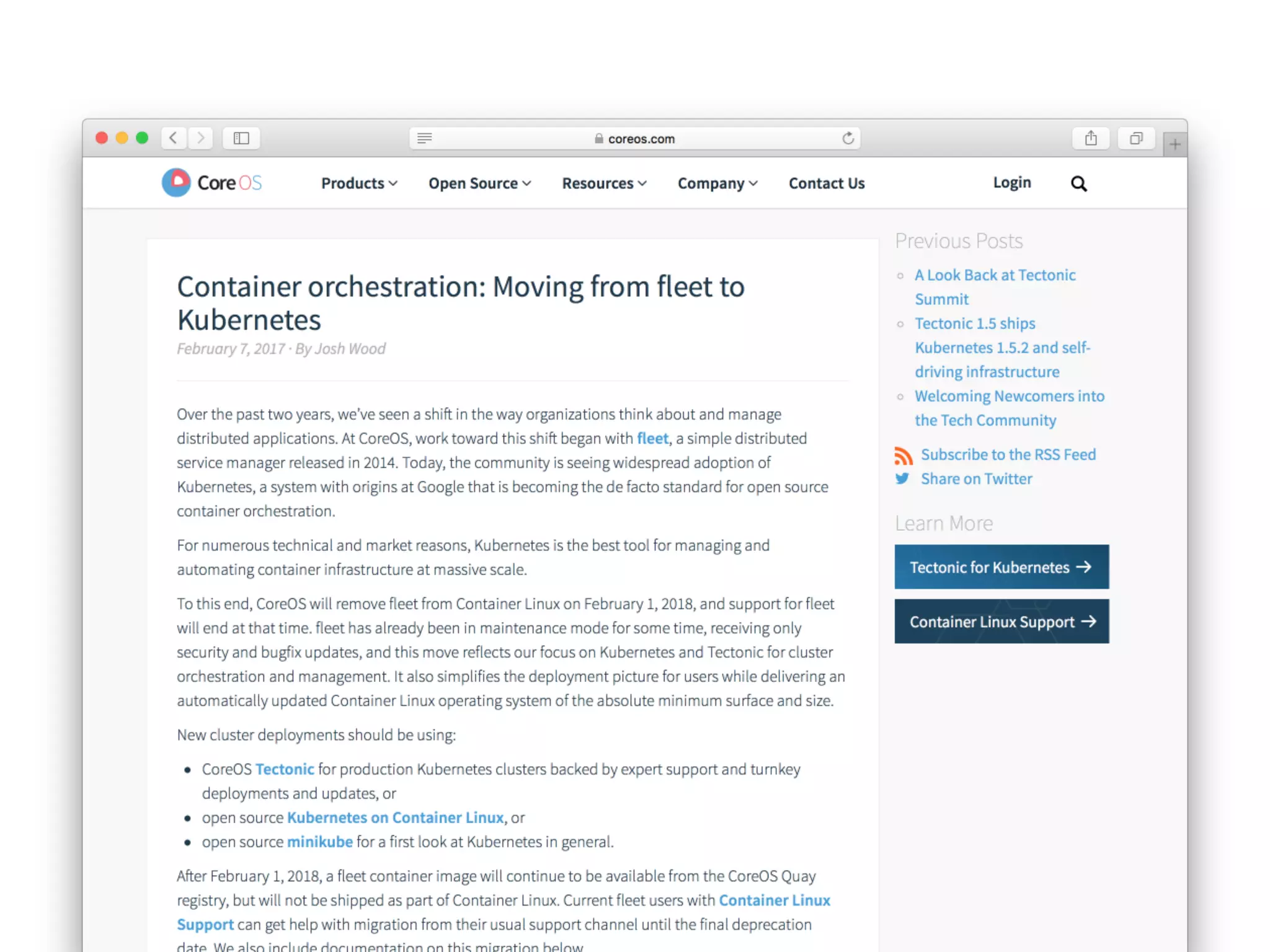

- 46. Moving from fleet toKubernetes
- 48.
- 51. 51 Solution 1. Microservices 2. Blue-Green(Zero Downtime) Deployment 3. Scale Cube 4. CoreOS

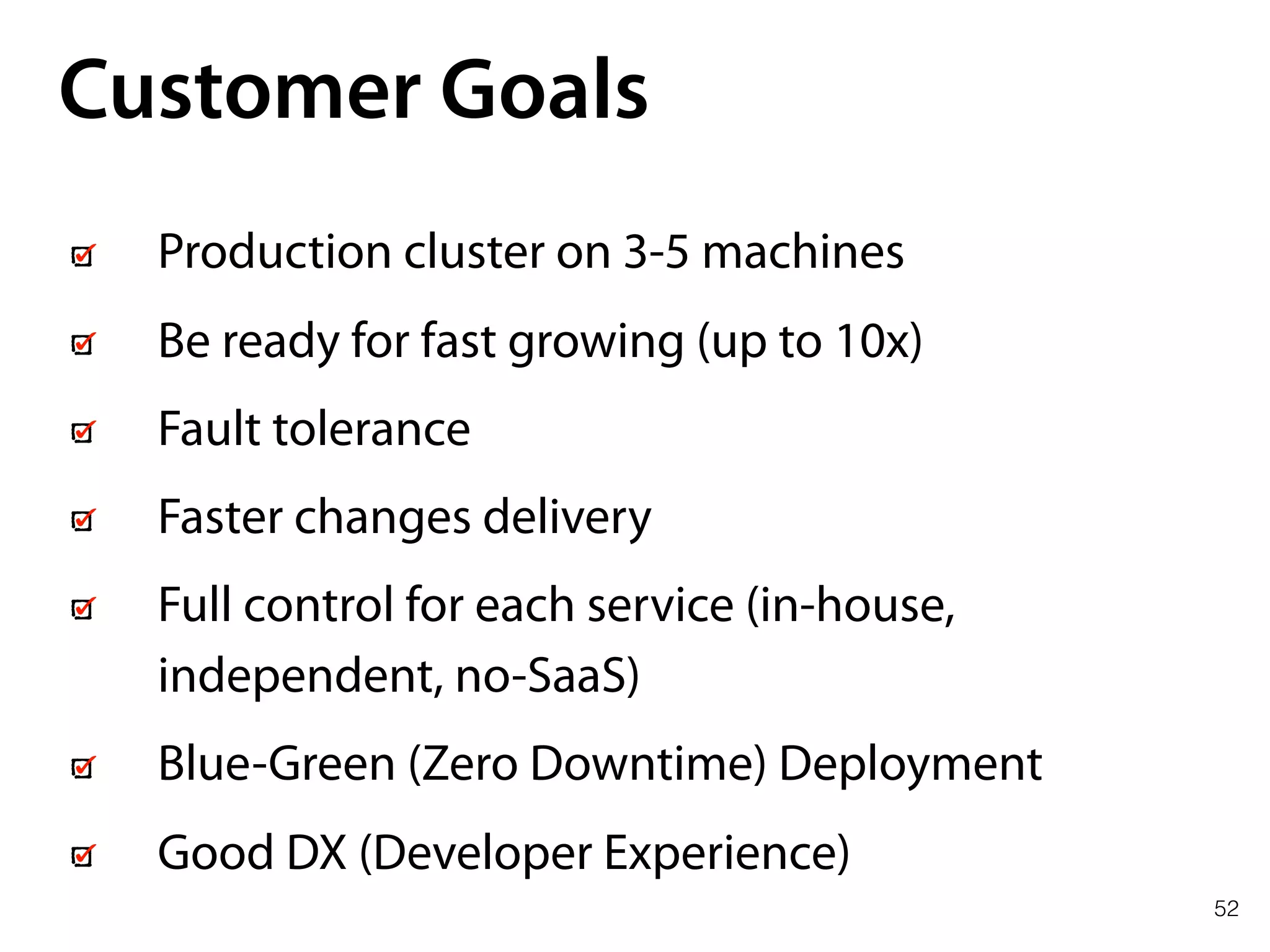

- 52. 52 Customer Goals Production clusteron 3-5 machines Be ready for fast growing (up to 10x) Fault tolerance Faster changes delivery Full control for each service (in-house, independent, no-SaaS) Blue-Green (Zero Downtime) Deployment Good DX (Developer Experience)
- 54.

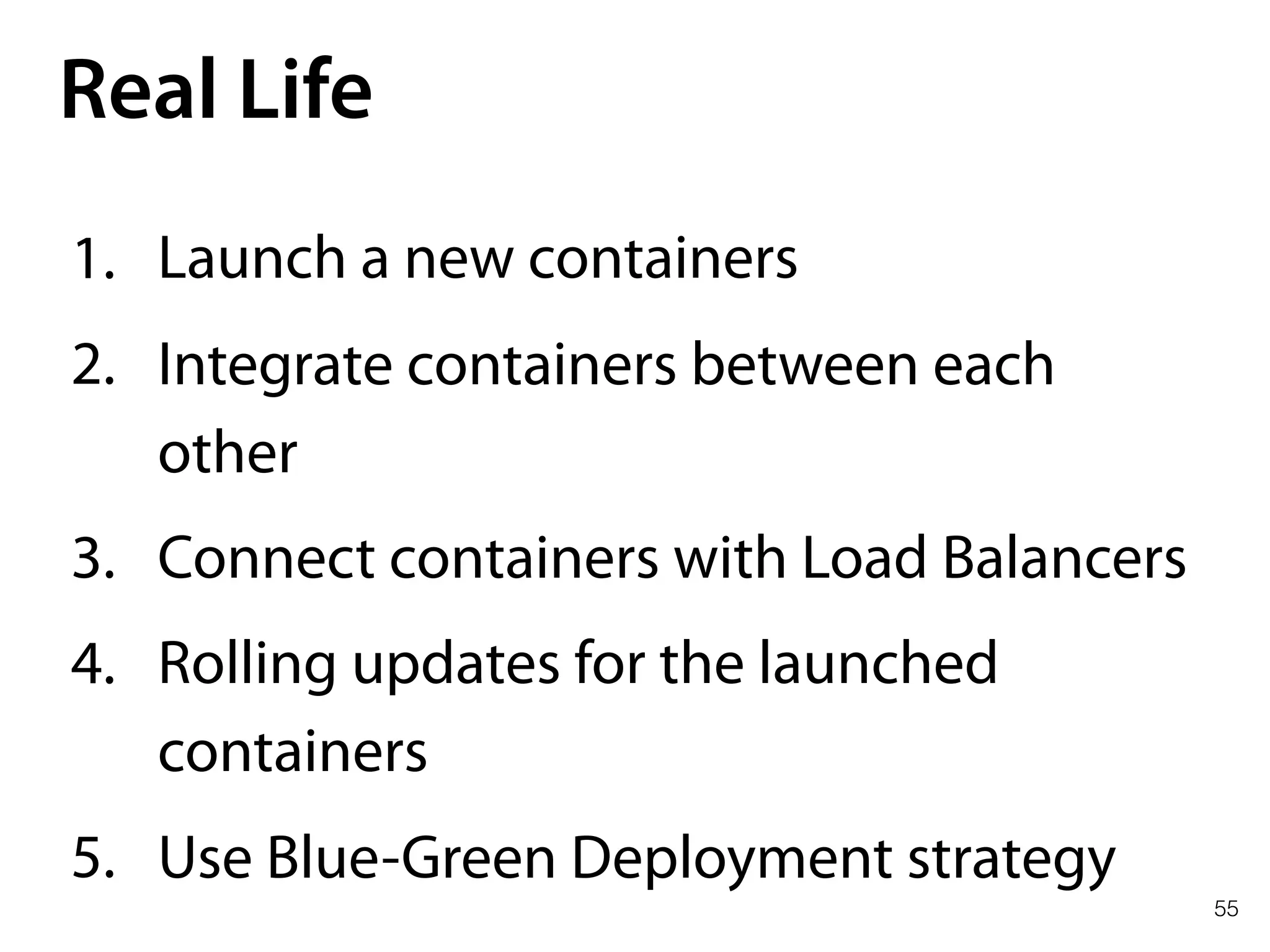

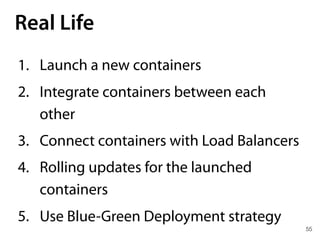

- 55. 55 Real Life 1. Launcha new containers 2. Integrate containers between each other 3. Connect containers with Load Balancers 4. Rolling updates for the launched containers 5. Use Blue-Green Deployment strategy

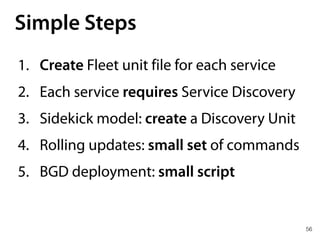

- 56. 56 Simple Steps 1. CreateFleet unit file for each service 2. Each service requires Service Discovery 3. Sidekick model: create a Discovery Unit 4. Rolling updates: small set of commands 5. BGD deployment: small script
- 57.

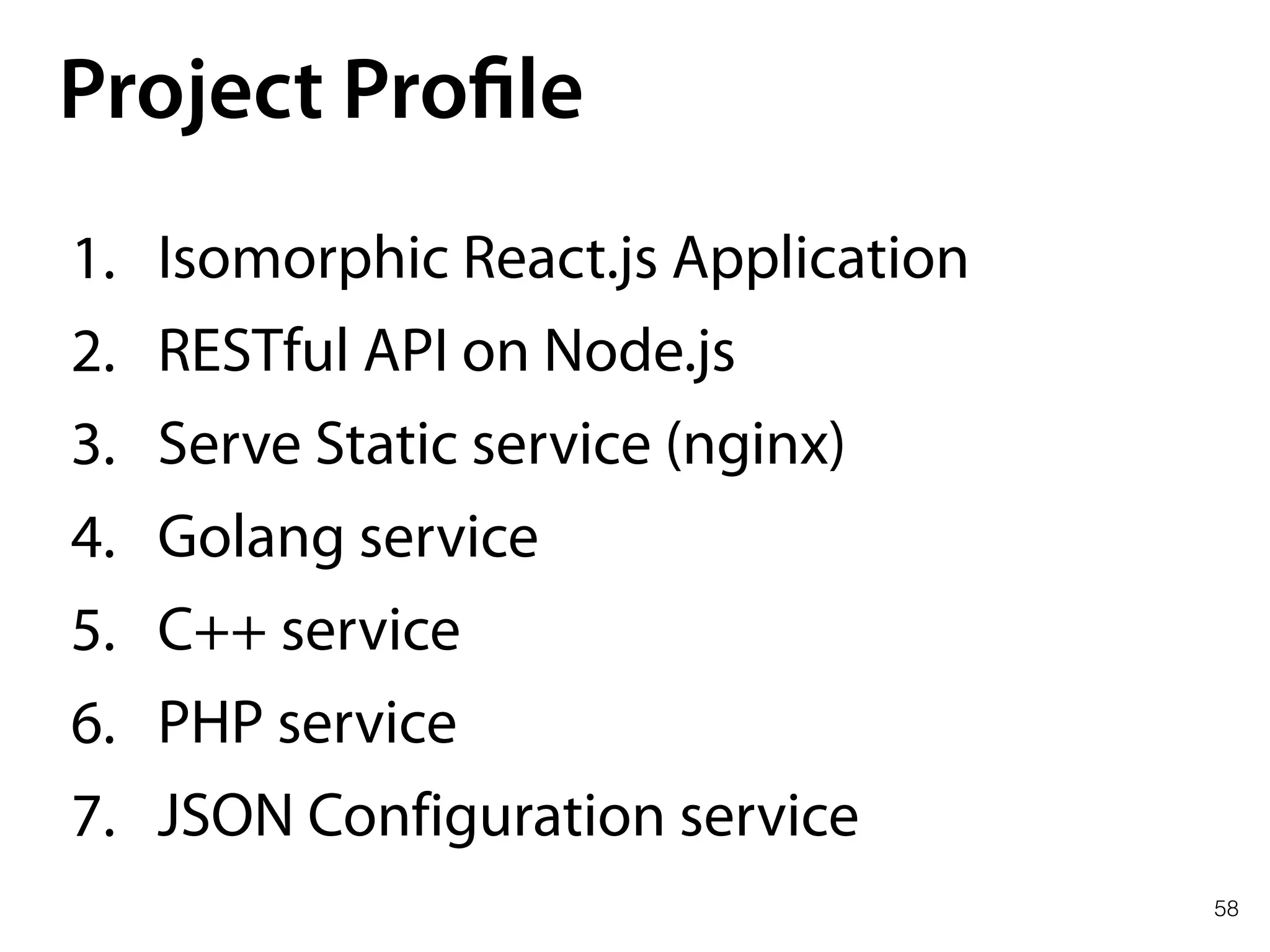

- 58. 58 Project Profile 1. IsomorphicReact.js Application 2. RESTful API on Node.js 3. Serve Static service (nginx) 4. Golang service 5. C++ service 6. PHP service 7. JSON Configuration service

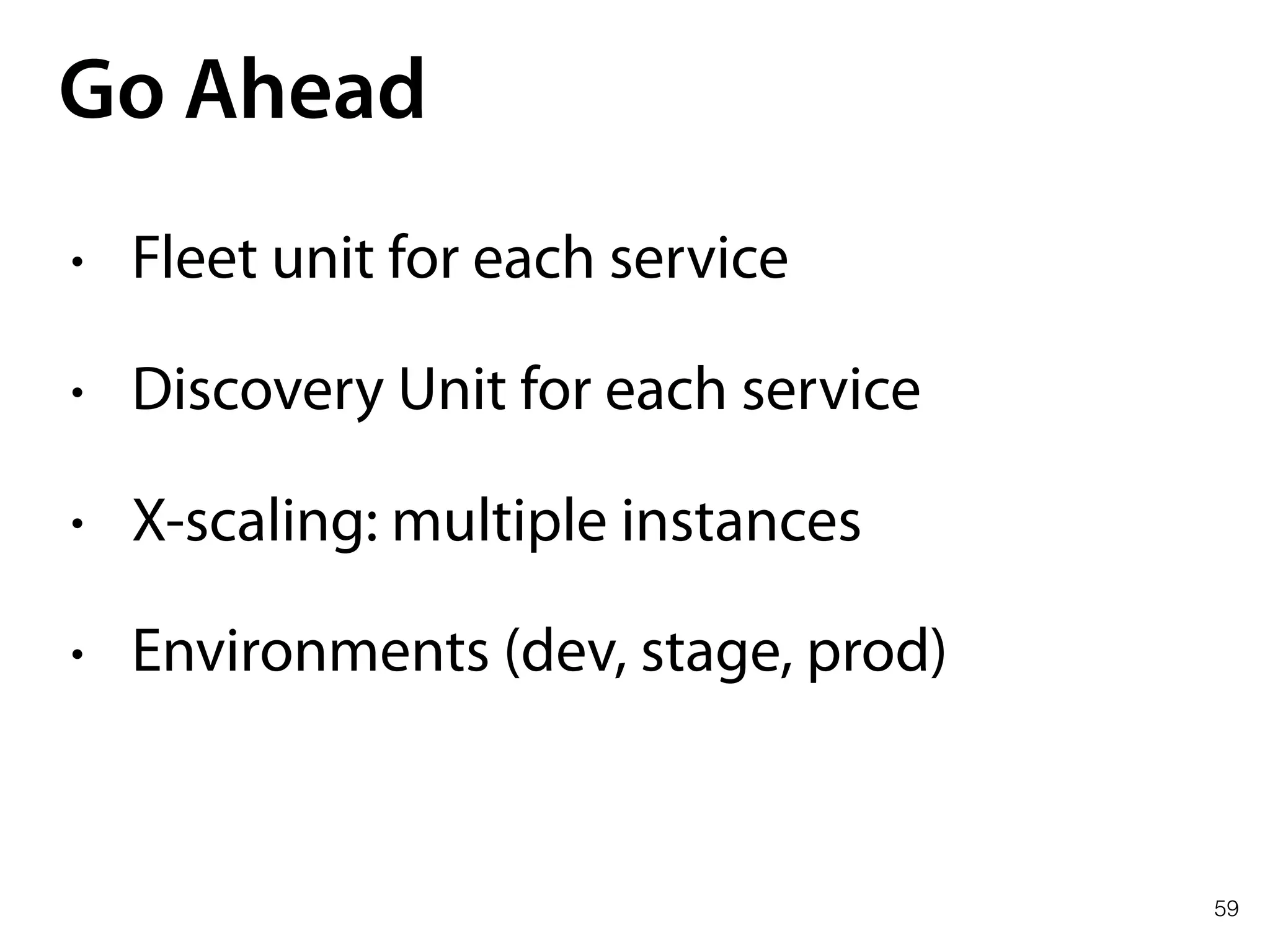

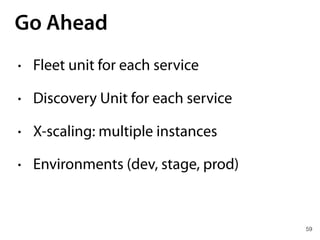

- 59. 59 Go Ahead • Fleetunit for each service • Discovery Unit for each service • X-scaling: multiple instances • Environments (dev, stage, prod)

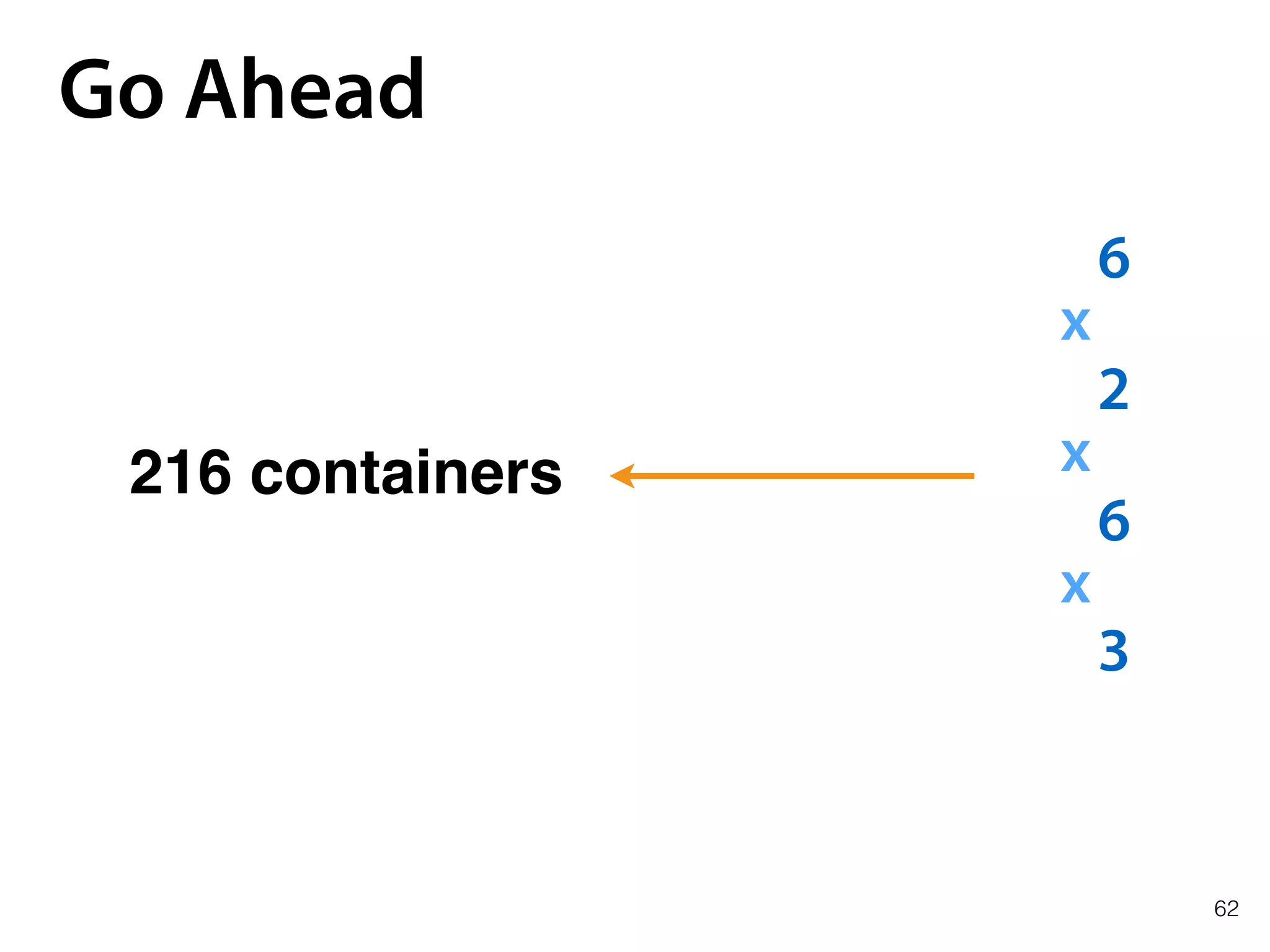

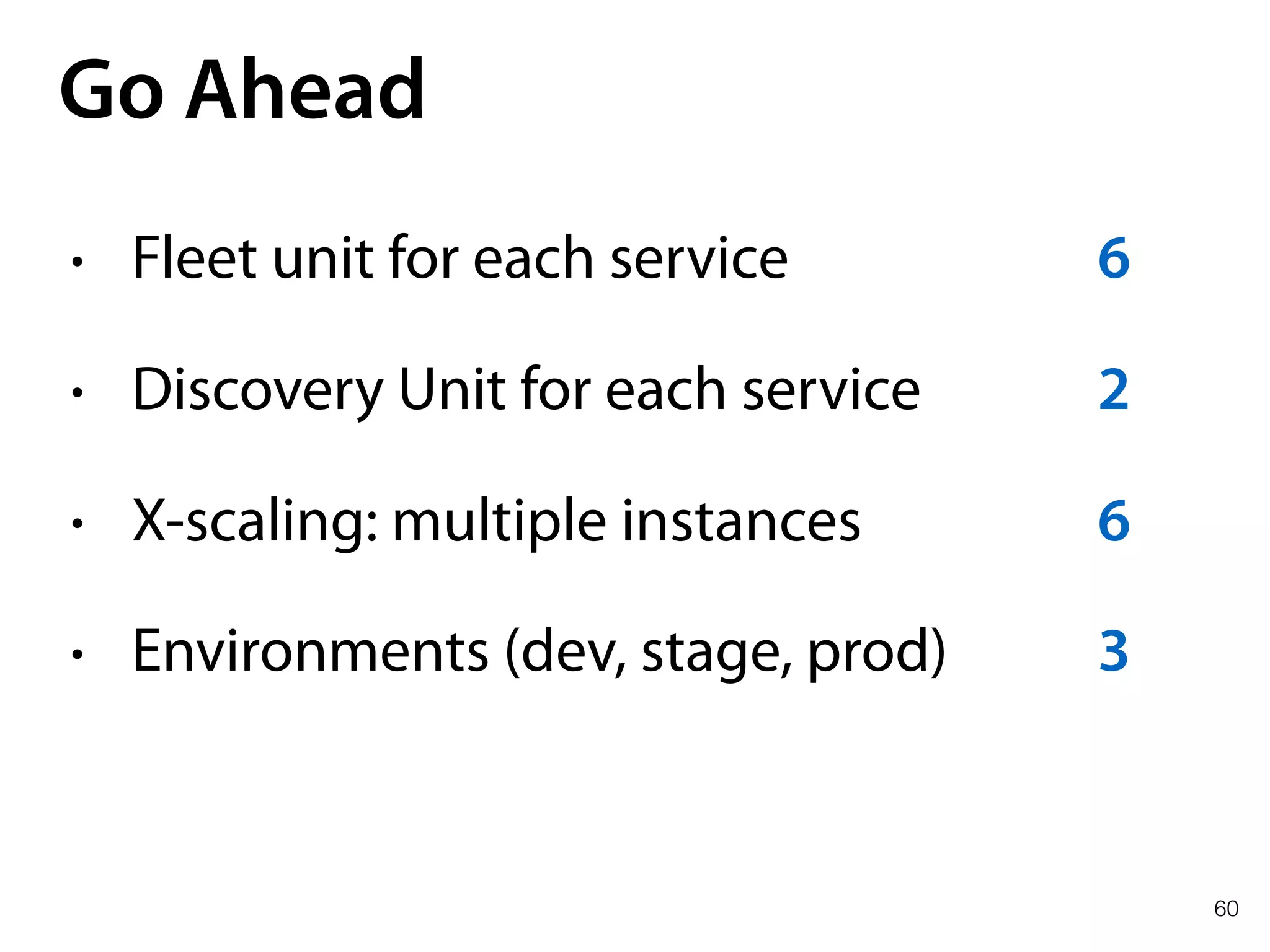

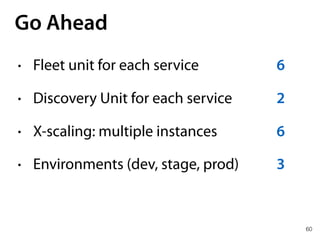

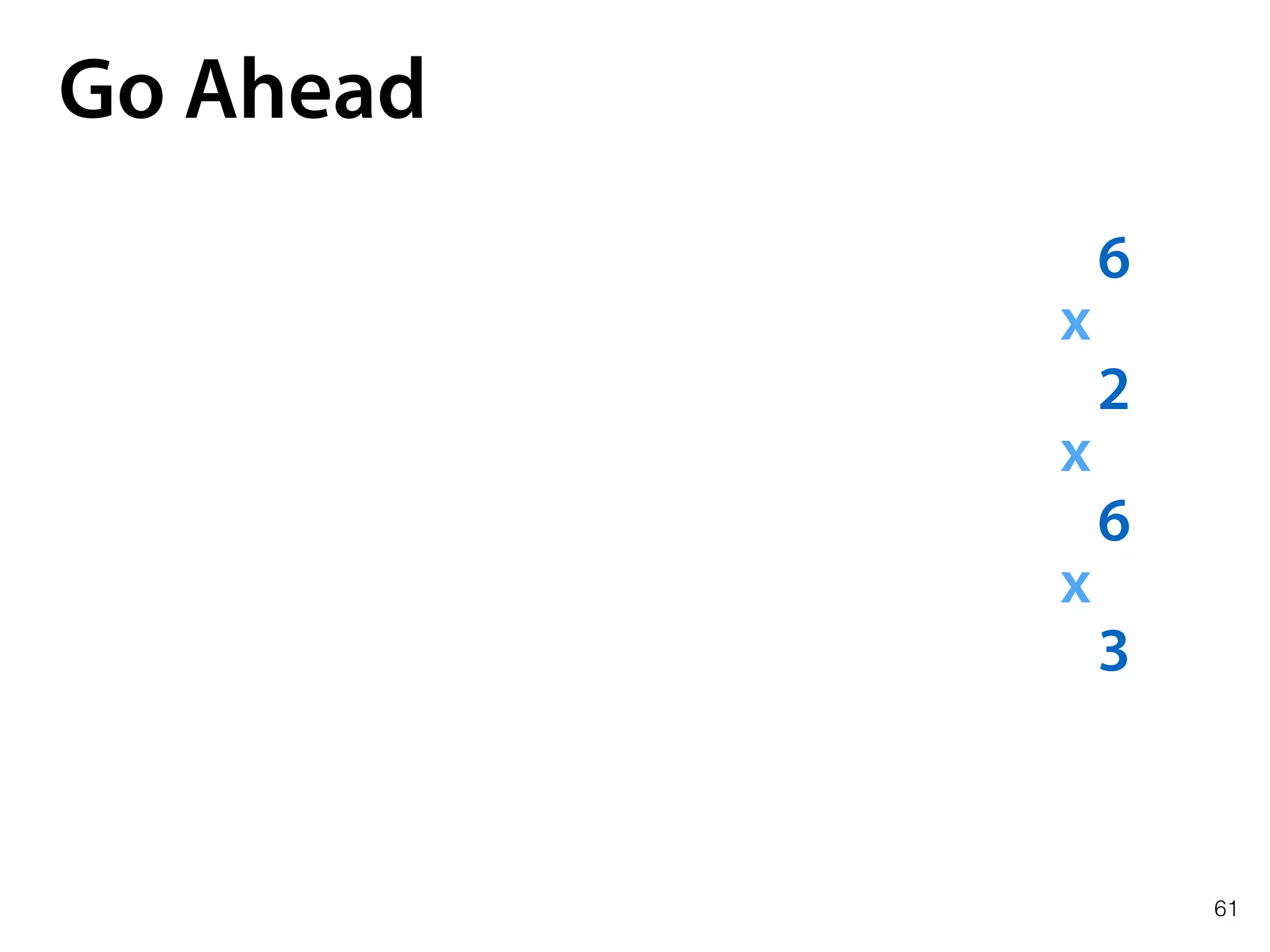

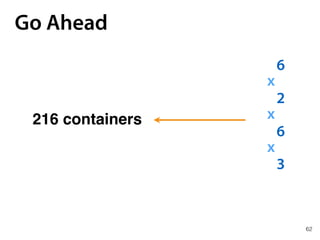

- 60. 60 Go Ahead • Fleetunit for each service • Discovery Unit for each service • X-scaling: multiple instances • Environments (dev, stage, prod) 6 2 6 3

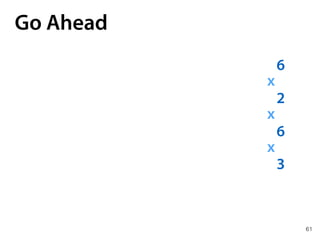

- 61.
- 62.
- 63.
- 64.
- 65. I can’t configureCoreOS anymore

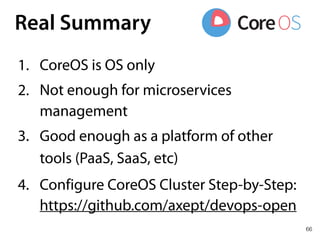

- 66. 66 Real Summary 1. CoreOSis OS only 2. Not enough for microservices management 3. Good enough as a platform of other tools (PaaS, SaaS, etc) 4. Configure CoreOS Cluster Step-by-Step: https://github.com/axept/devops-open
- 67.

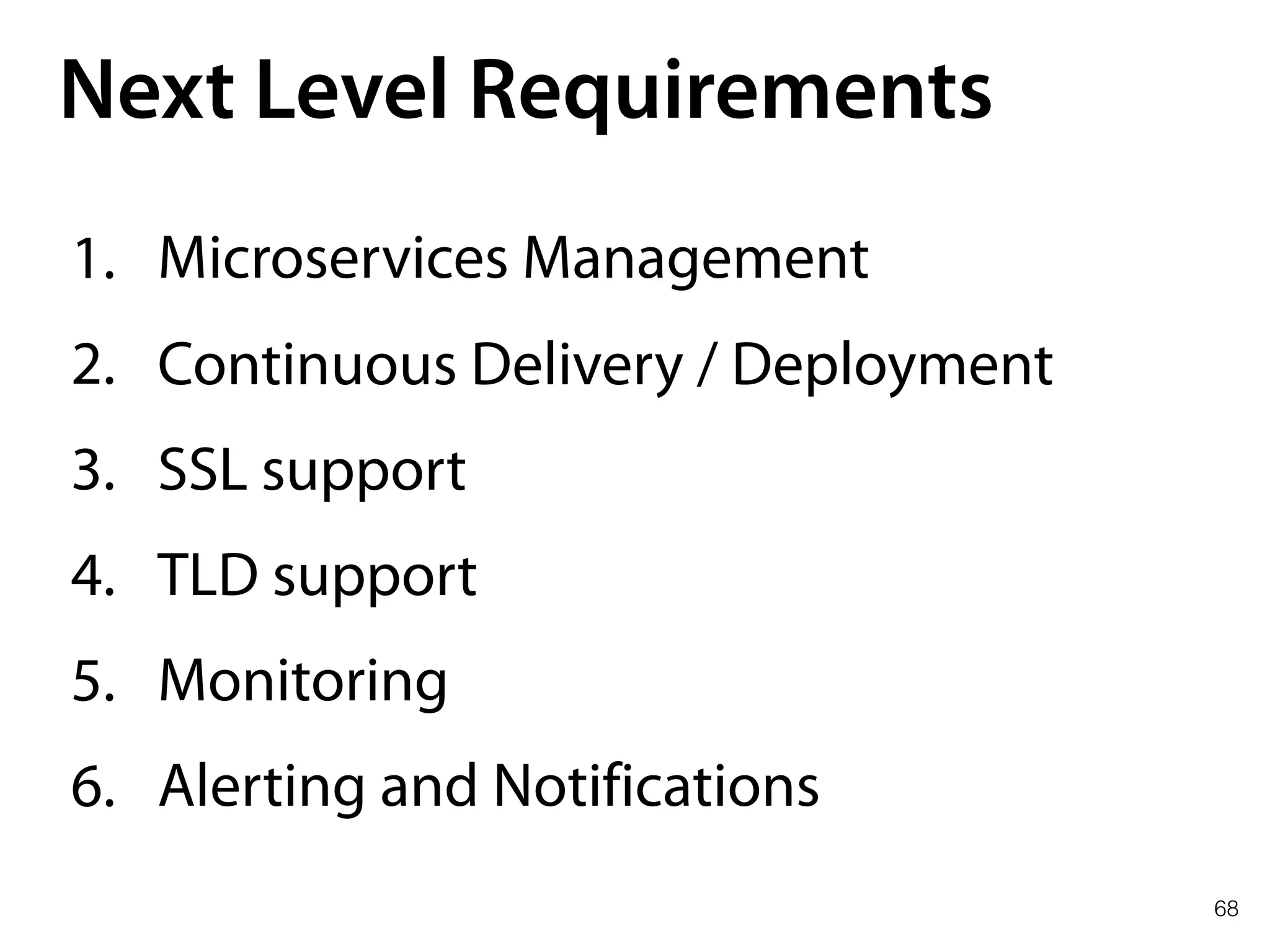

- 68. 68 Next Level Requirements 1.Microservices Management 2. Continuous Delivery / Deployment 3. SSL support 4. TLD support 5. Monitoring 6. Alerting and Notifications
- 69.

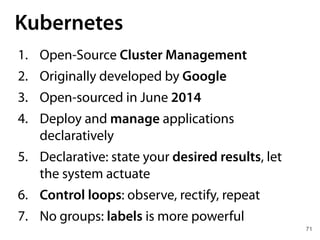

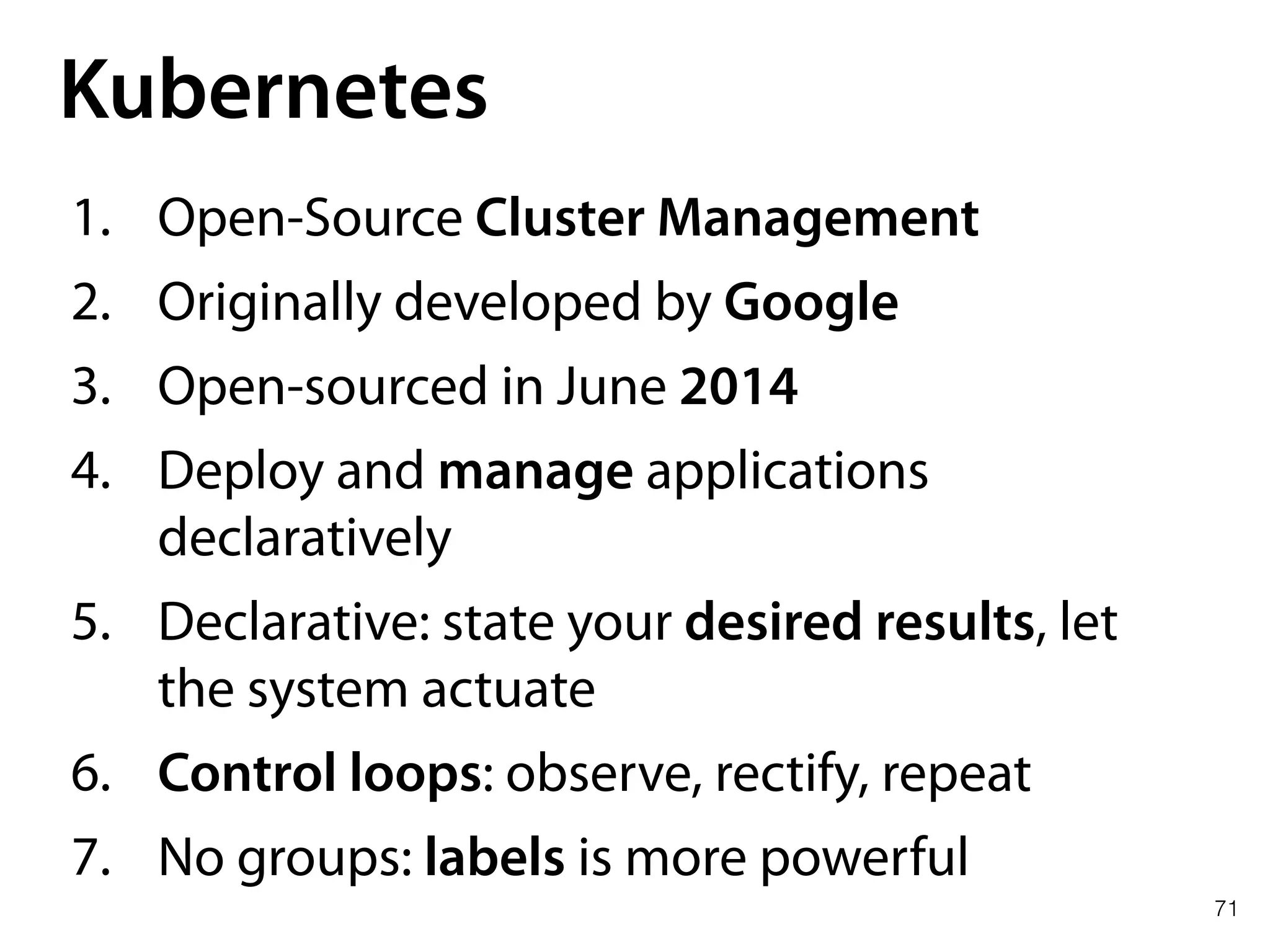

- 71. 71 Kubernetes 1. Open-Source ClusterManagement 2. Originally developed by Google 3. Open-sourced in June 2014 4. Deploy and manage applications declaratively 5. Declarative: state your desired results, let the system actuate 6. Control loops: observe, rectify, repeat 7. No groups: labels is more powerful
- 72. Kubernetes is greekfor“helmsmen”

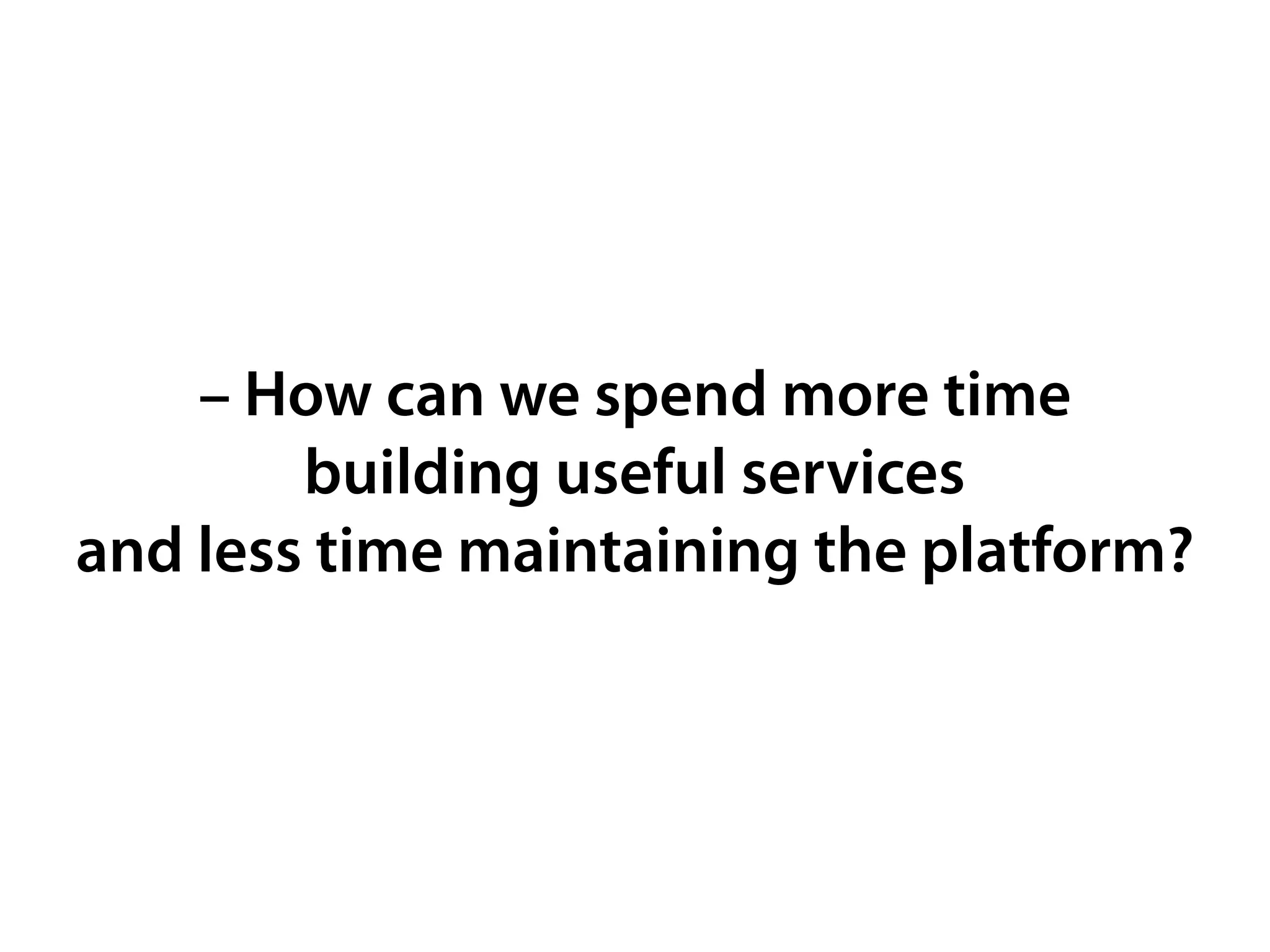

- 73. – How canwe spend more time building useful services and less time maintaining the platform?

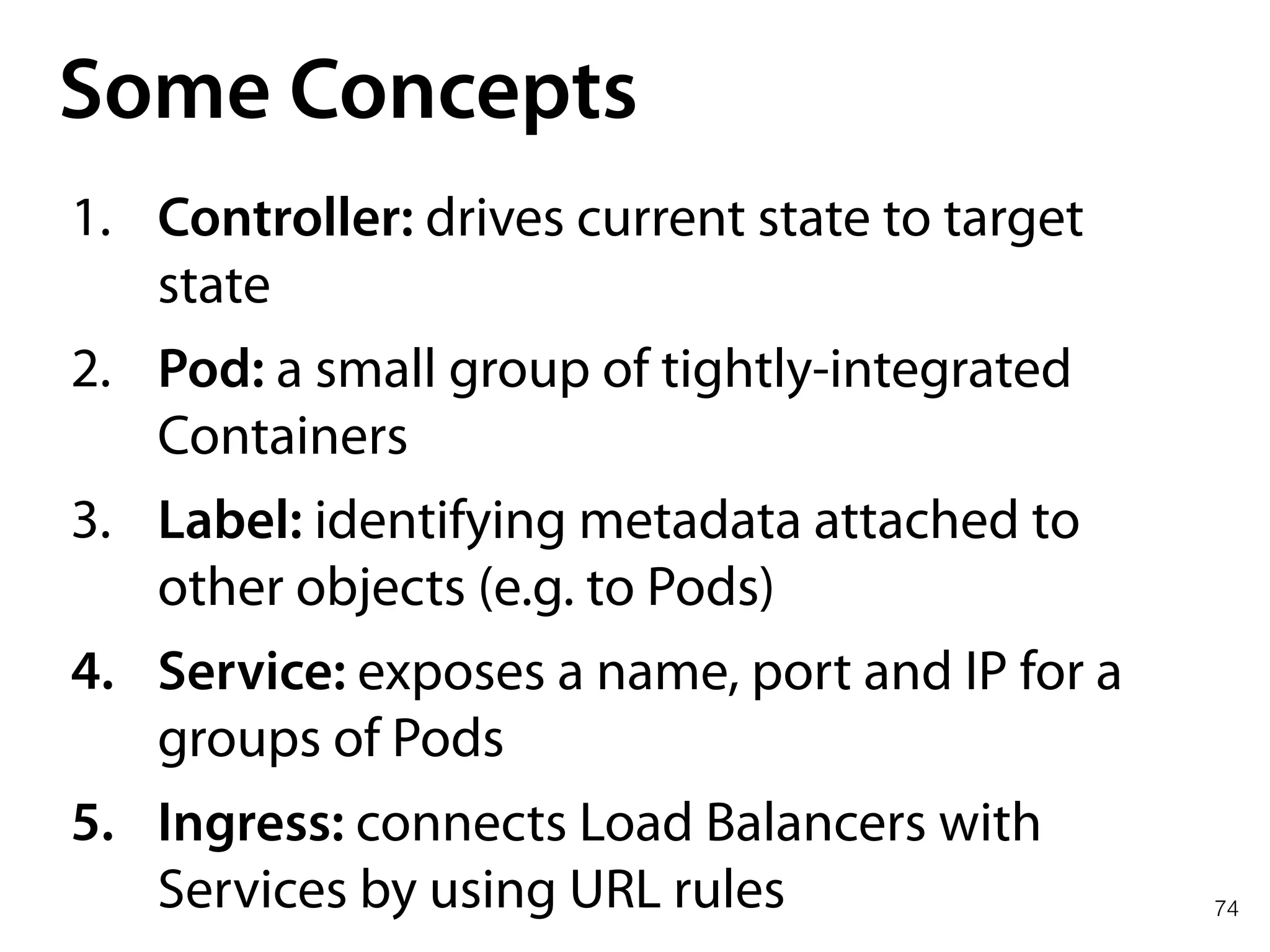

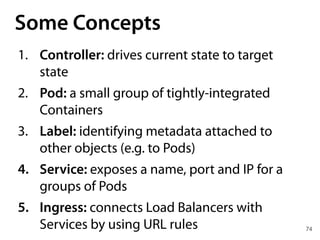

- 74. 74 Some Concepts 1. Controller:drives current state to target state 2. Pod: a small group of tightly-integrated Containers 3. Label: identifying metadata attached to other objects (e.g. to Pods) 4. Service: exposes a name, port and IP for a groups of Pods 5. Ingress: connects Load Balancers with Services by using URL rules

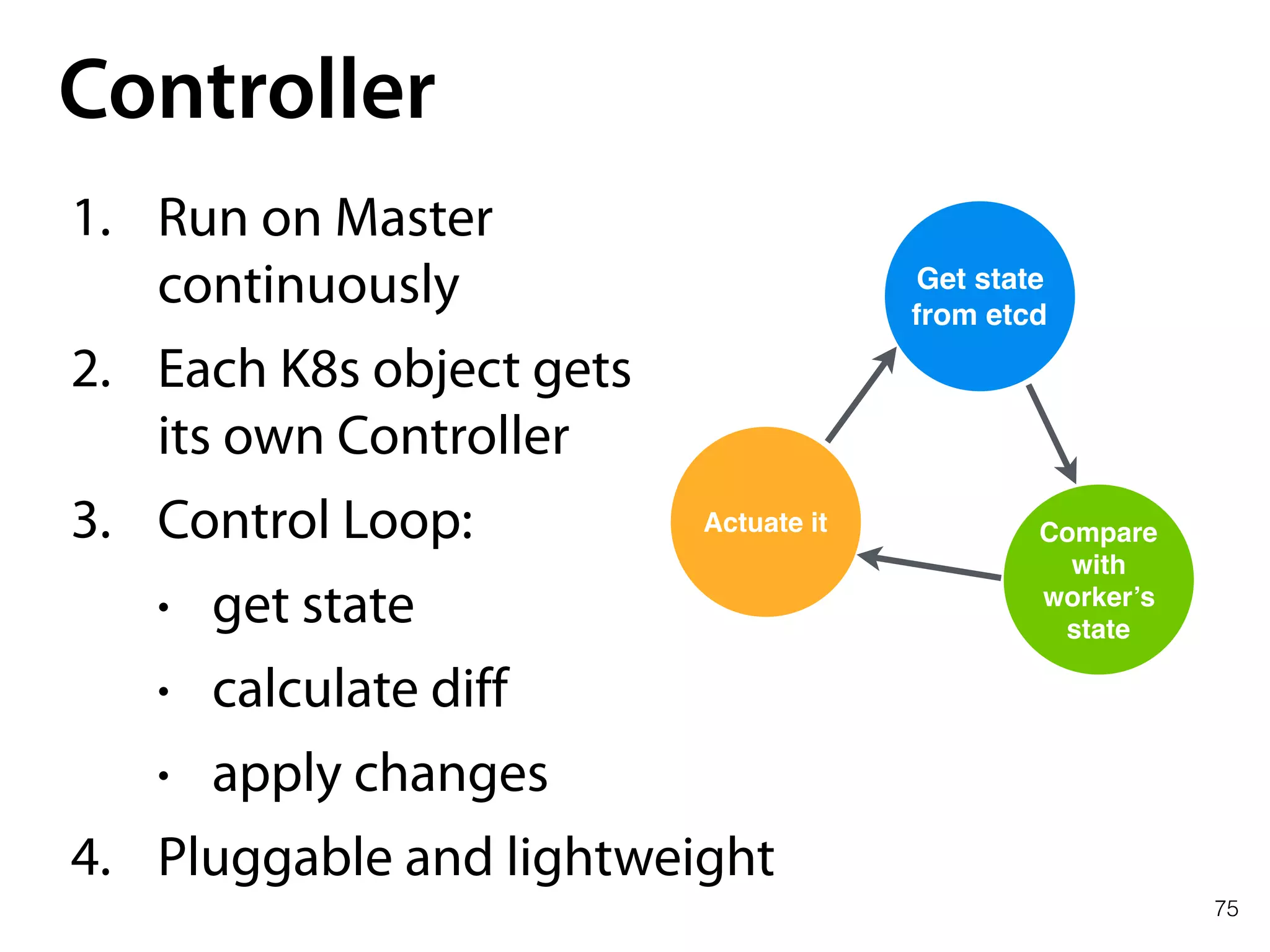

- 75. 75 Controller 1. Run onMaster continuously 2. Each K8s object gets its own Controller 3. Control Loop: • get state • calculate diff • apply changes 4. Pluggable and lightweight Get state from etcd Compare with worker’s state Actuate it

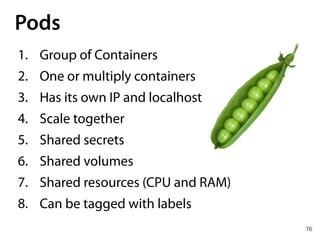

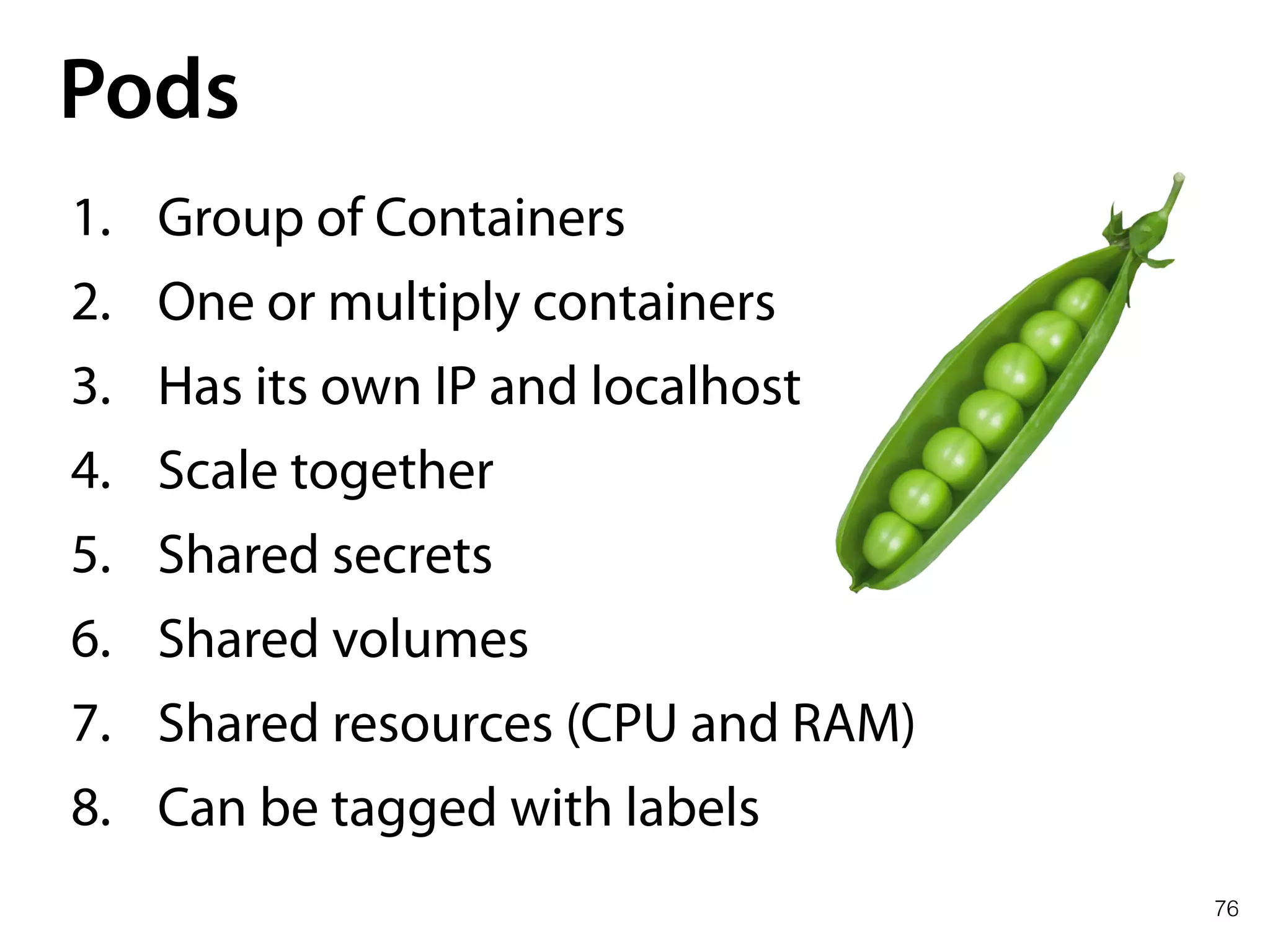

- 76. 76 Pods 1. Group ofContainers 2. One or multiply containers 3. Has its own IP and localhost 4. Scale together 5. Shared secrets 6. Shared volumes 7. Shared resources (CPU and RAM) 8. Can be tagged with labels

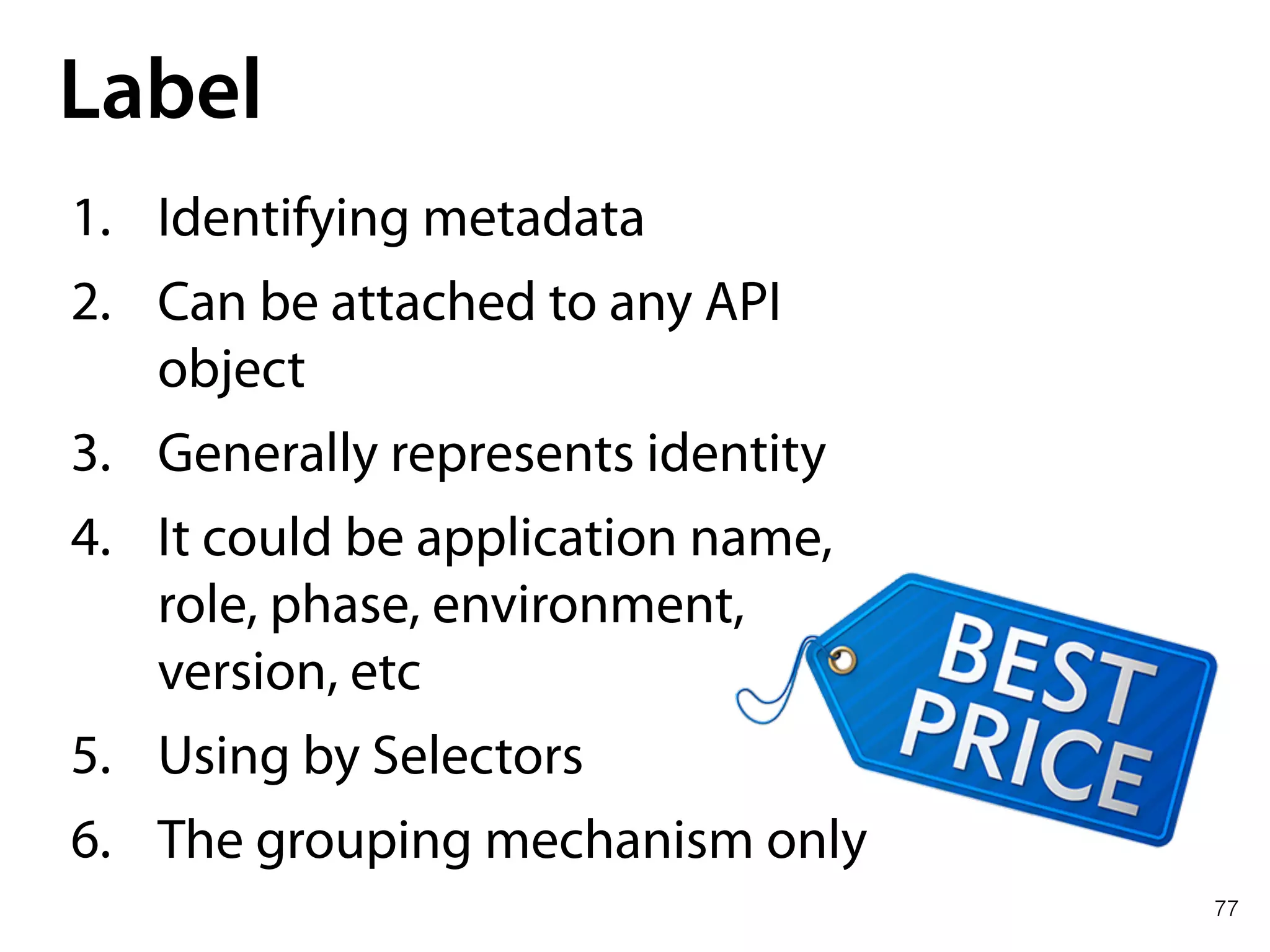

- 77. 77 Label 1. Identifying metadata 2.Can be attached to any API object 3. Generally represents identity 4. It could be application name, role, phase, environment, version, etc 5. Using by Selectors 6. The grouping mechanism only

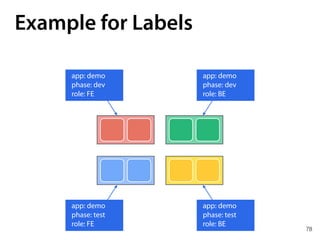

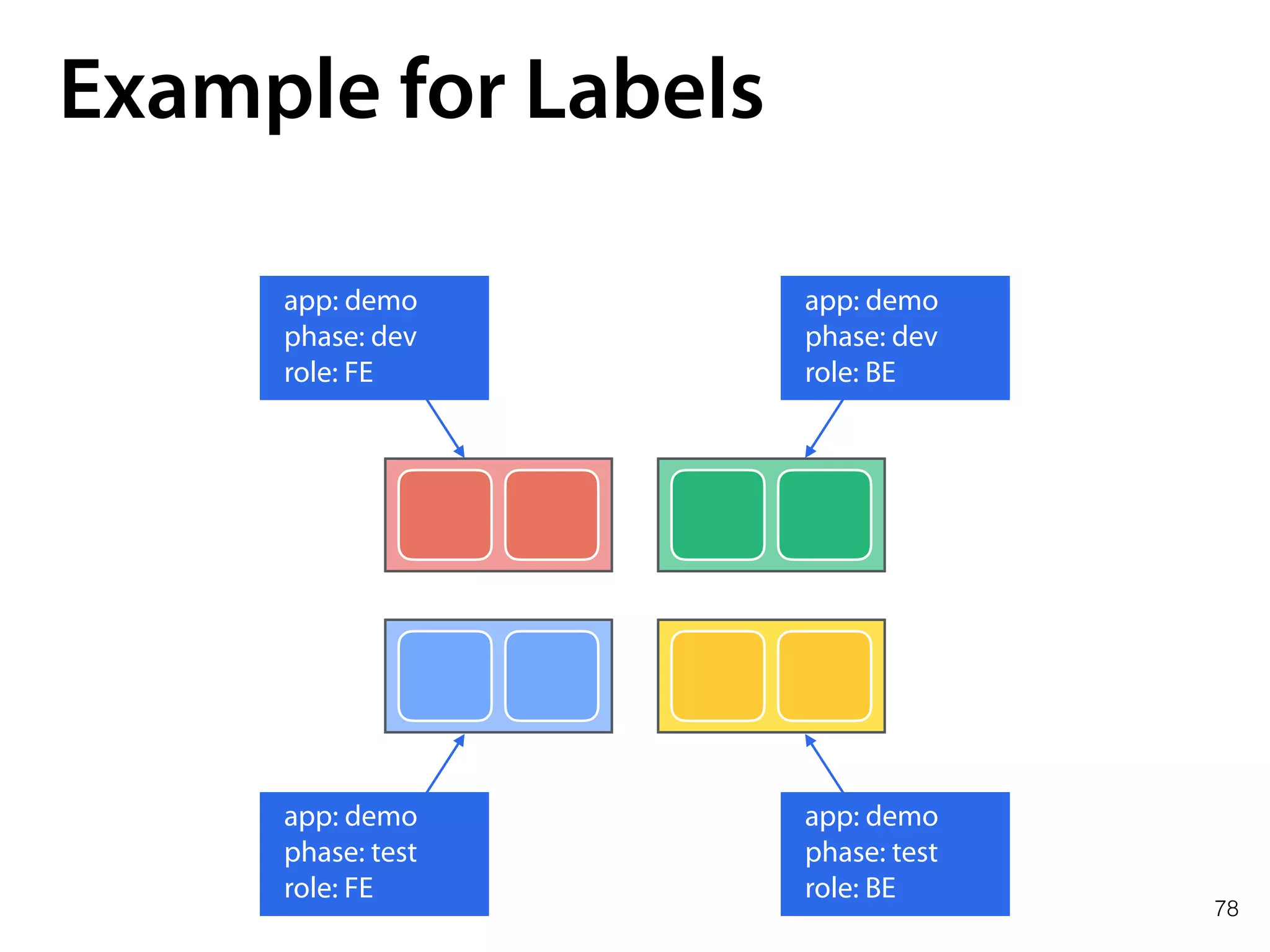

- 78. 78 Example for Labels app:demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE

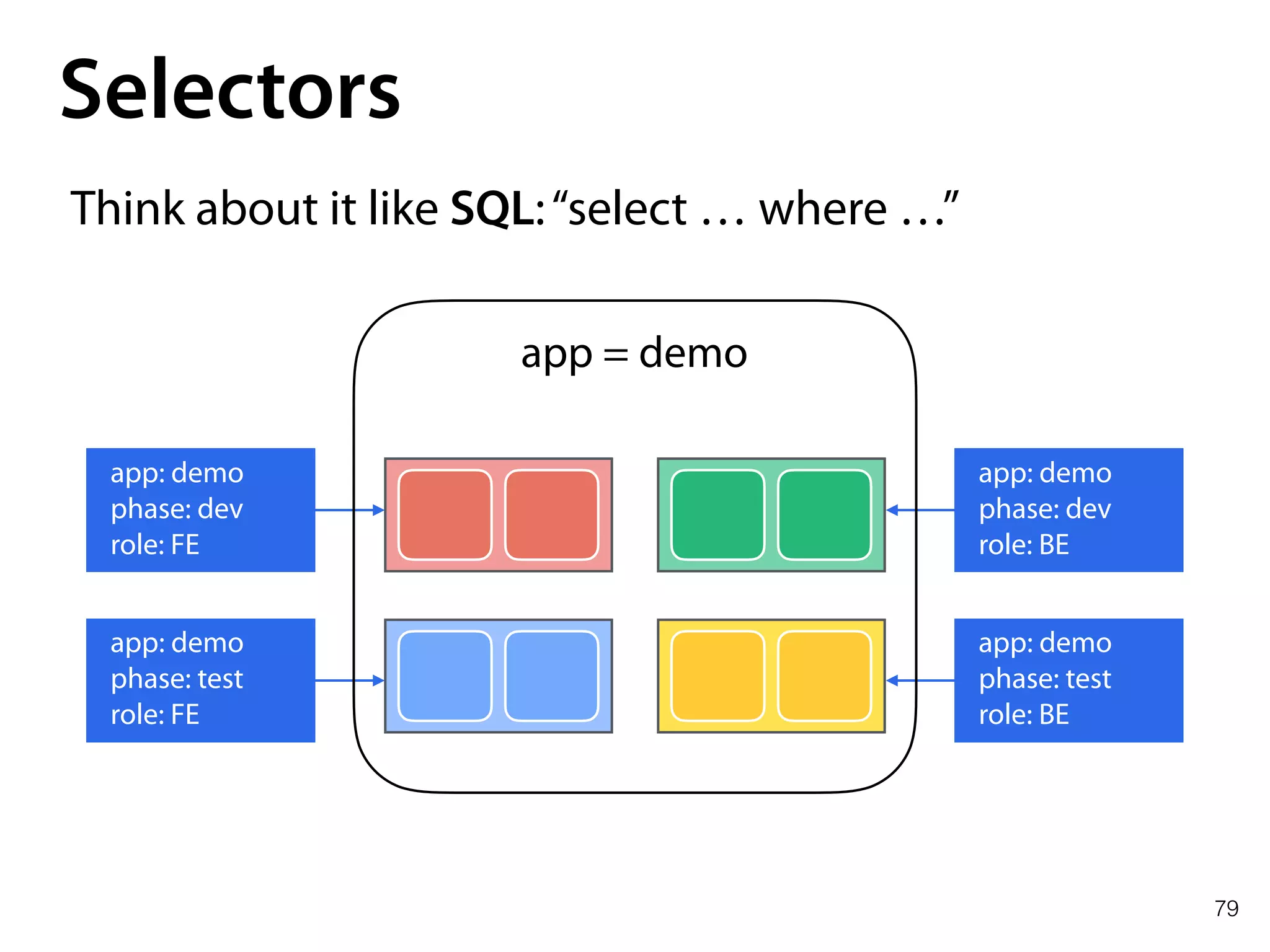

- 79. 79 Selectors Think about itlike SQL:“select … where …” app: demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE app = demo

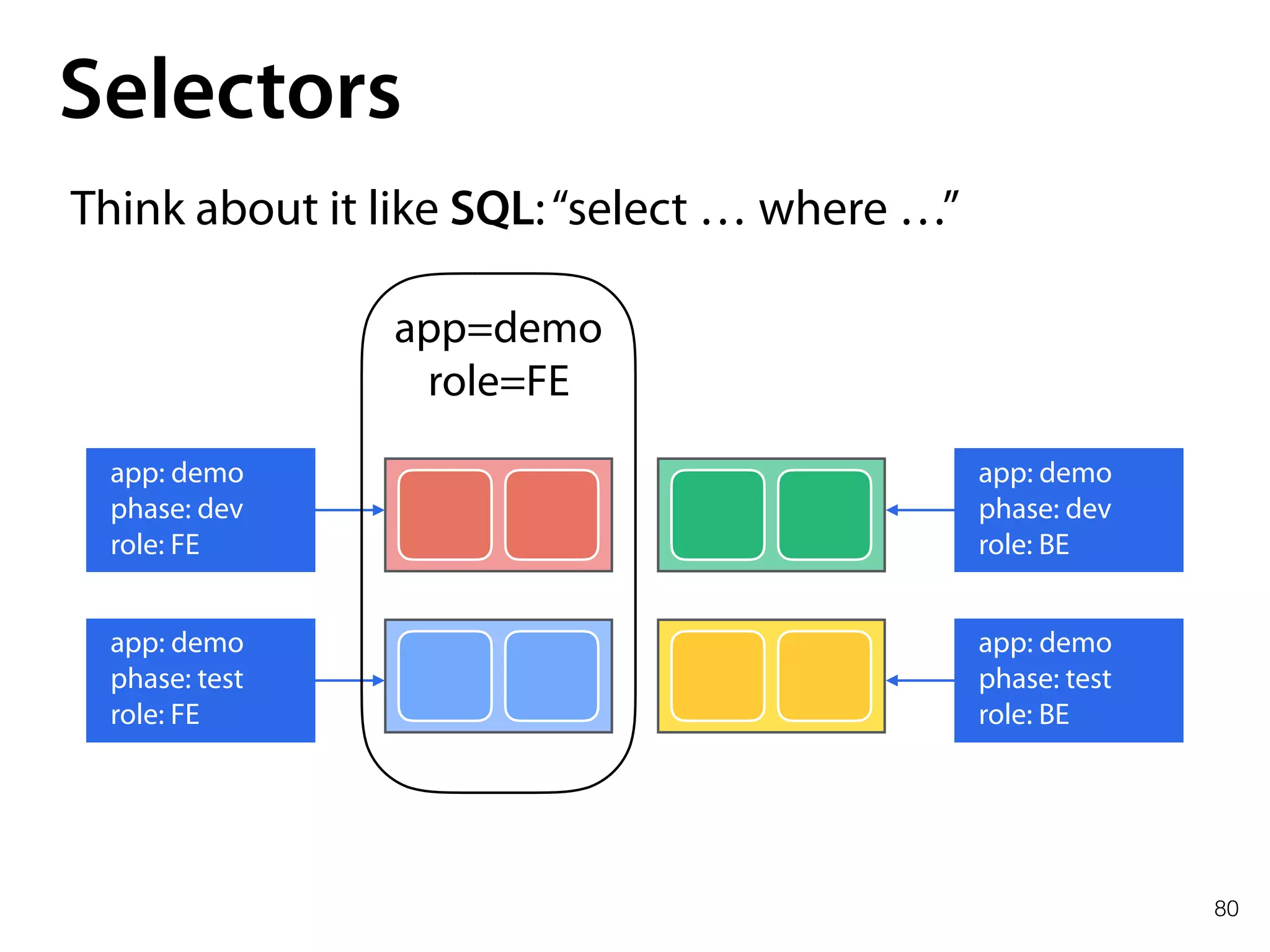

- 80. 80 Selectors Think about itlike SQL:“select … where …” app: demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE app=demo role=FE

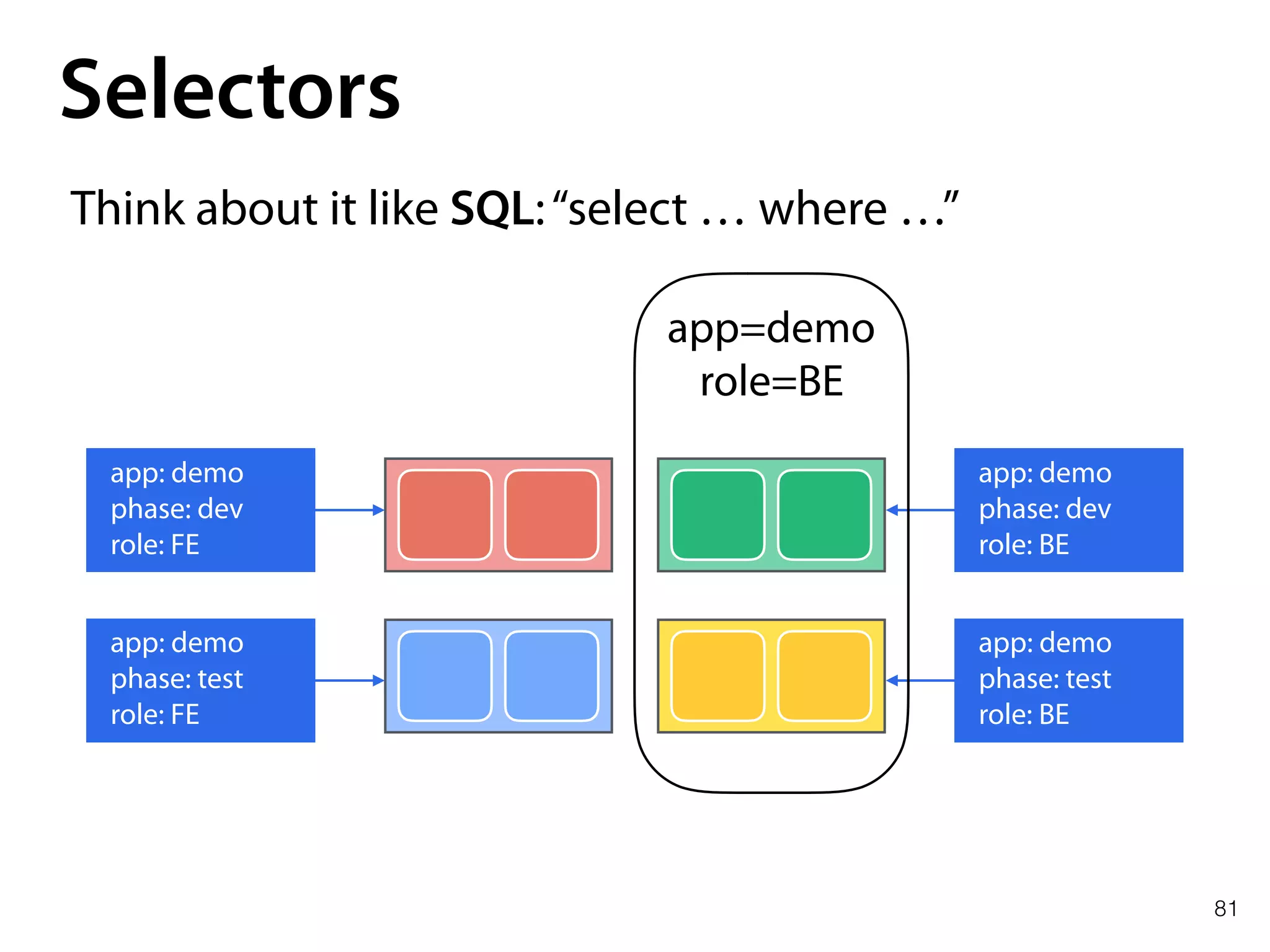

- 81. 81 Selectors Think about itlike SQL:“select … where …” app: demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE app=demo role=BE

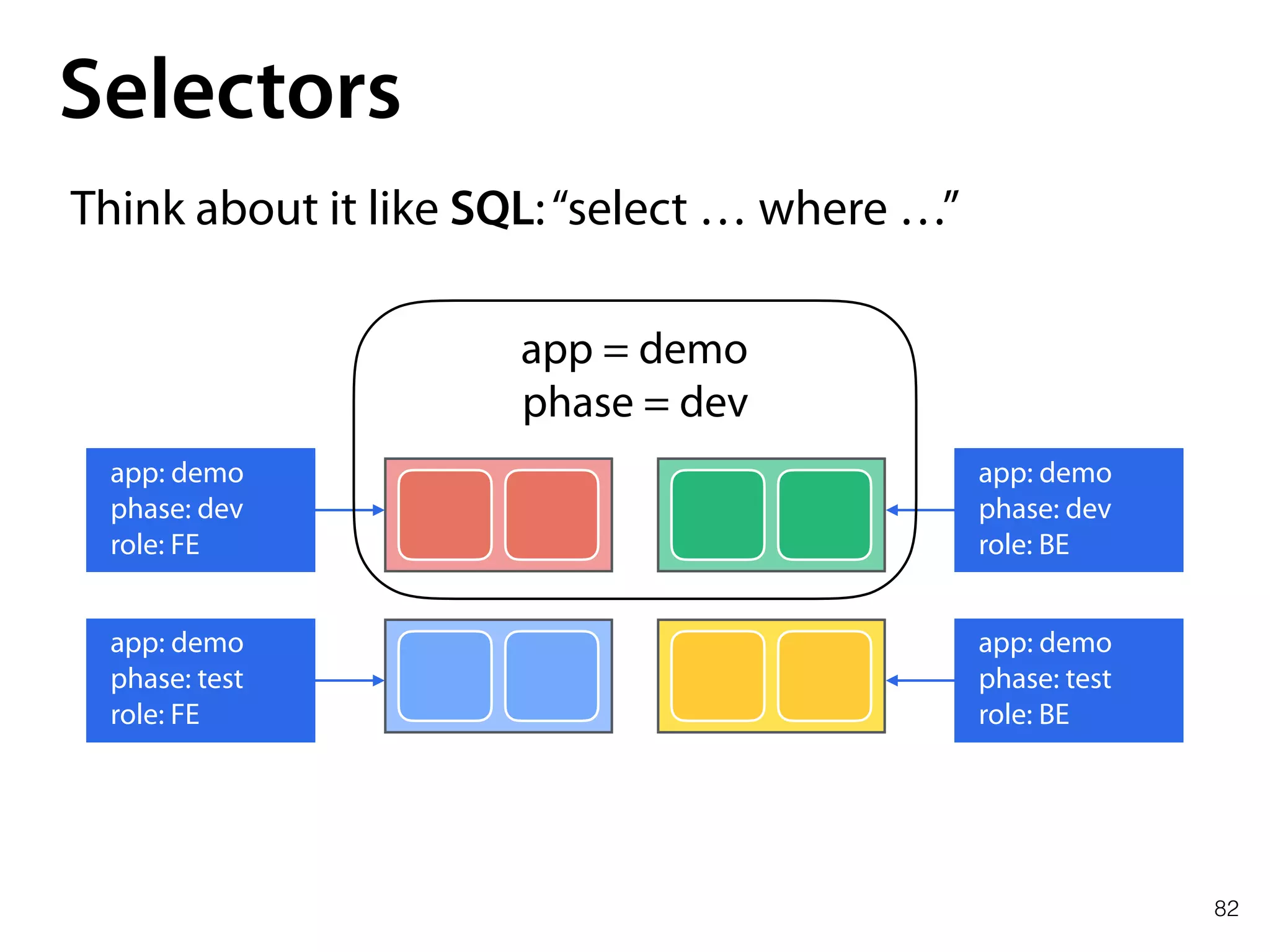

- 82. 82 Selectors Think about itlike SQL:“select … where …” app: demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE app = demo phase = dev

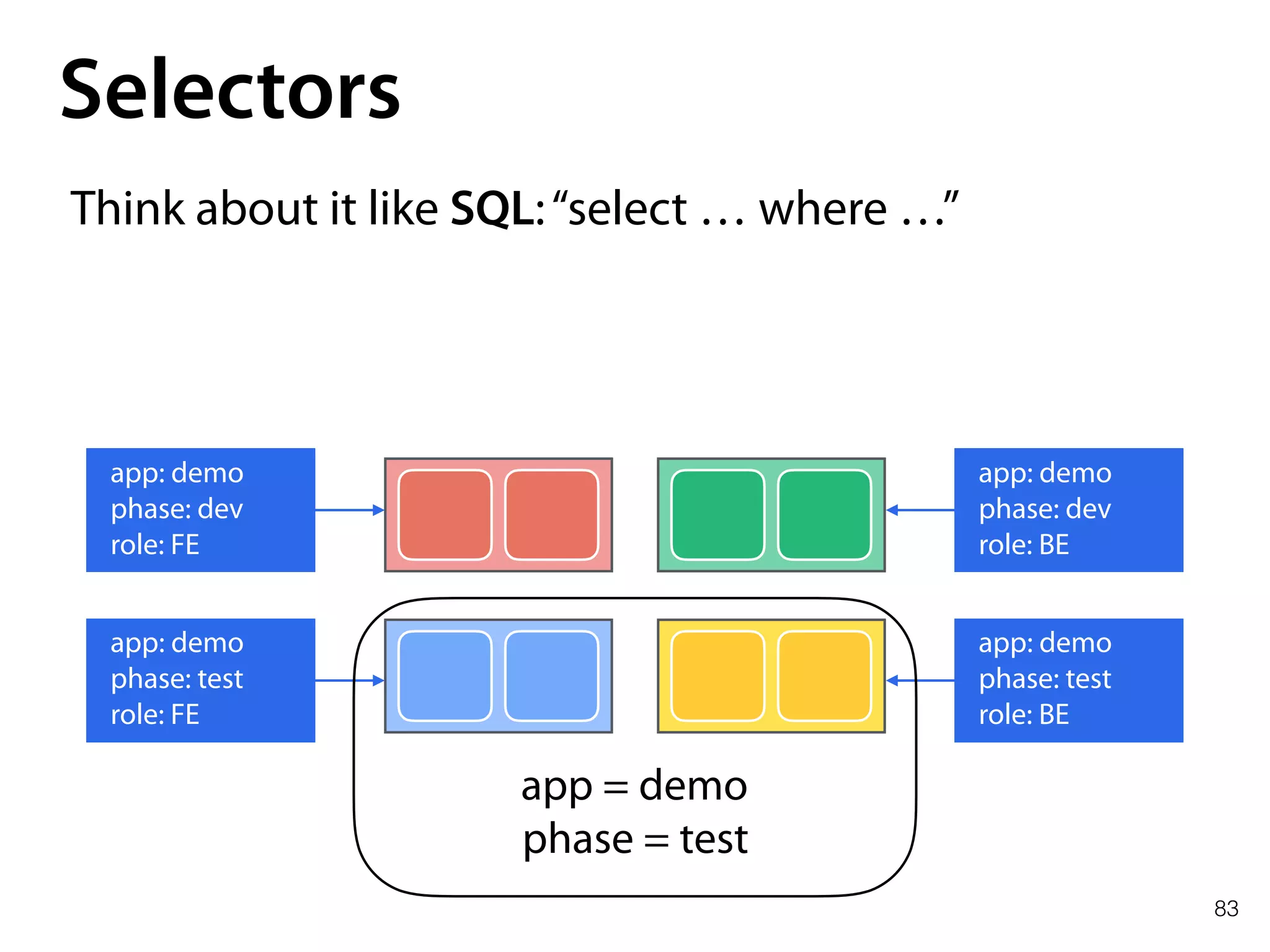

- 83. 83 Selectors Think about itlike SQL:“select … where …” app: demo phase: dev role: FE app: demo phase: dev role: BE app: demo phase: test role: FE app: demo phase: test role: BE app = demo phase = test

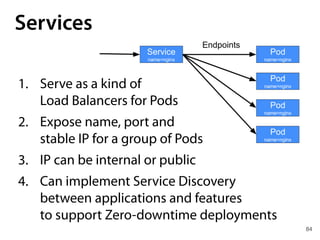

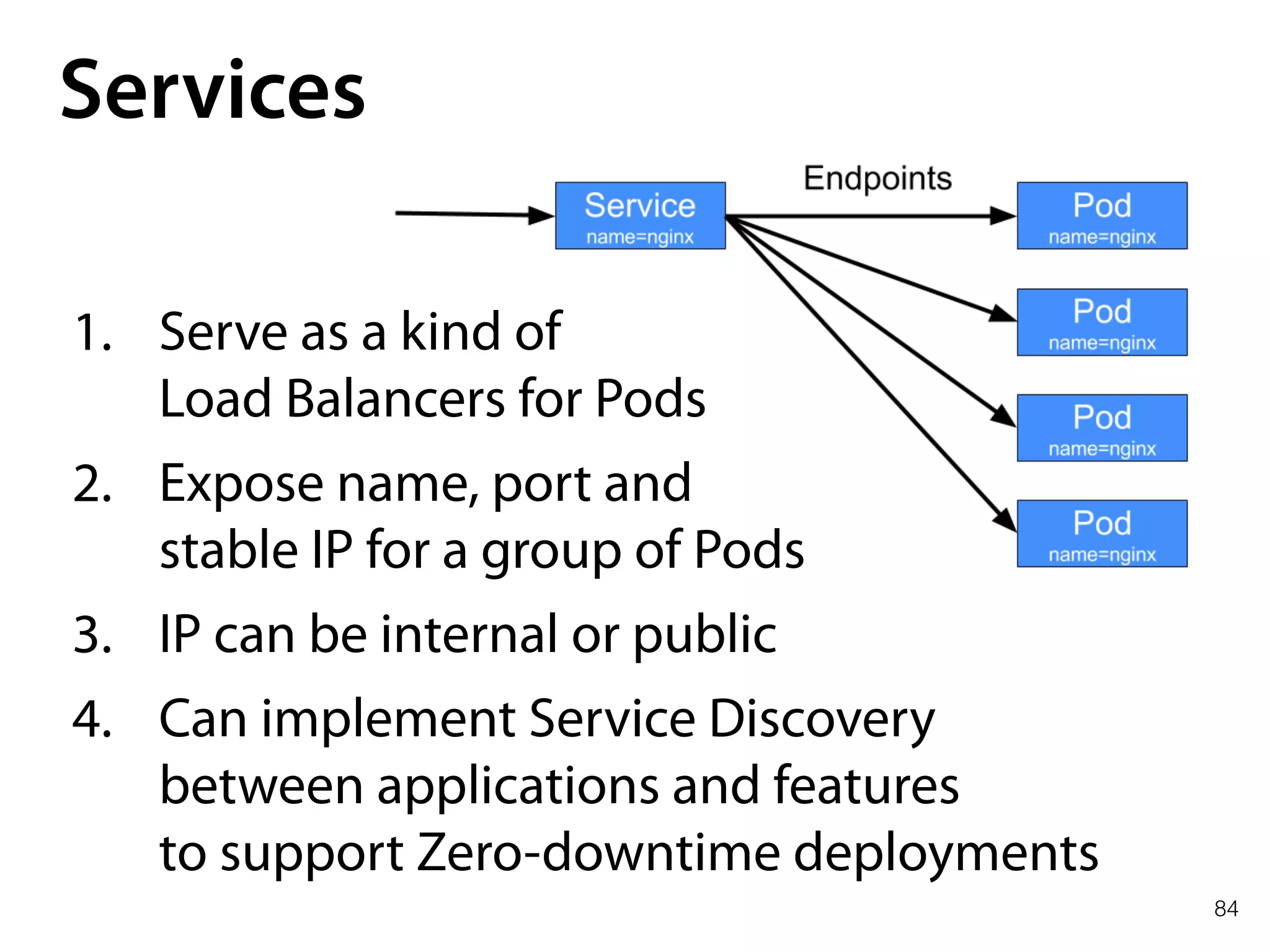

- 84. 84 Services 1. Serve asa kind of Load Balancers for Pods 2. Expose name, port and stable IP for a group of Pods 3. IP can be internal or public 4. Can implement Service Discovery between applications and features to support Zero-downtime deployments

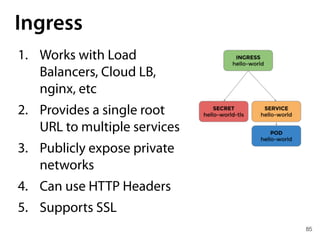

- 85. 85 Ingress 1. Works withLoad Balancers, Cloud LB, nginx, etc 2. Provides a single root URL to multiple services 3. Publicly expose private networks 4. Can use HTTP Headers 5. Supports SSL
- 86. And a lotof other things

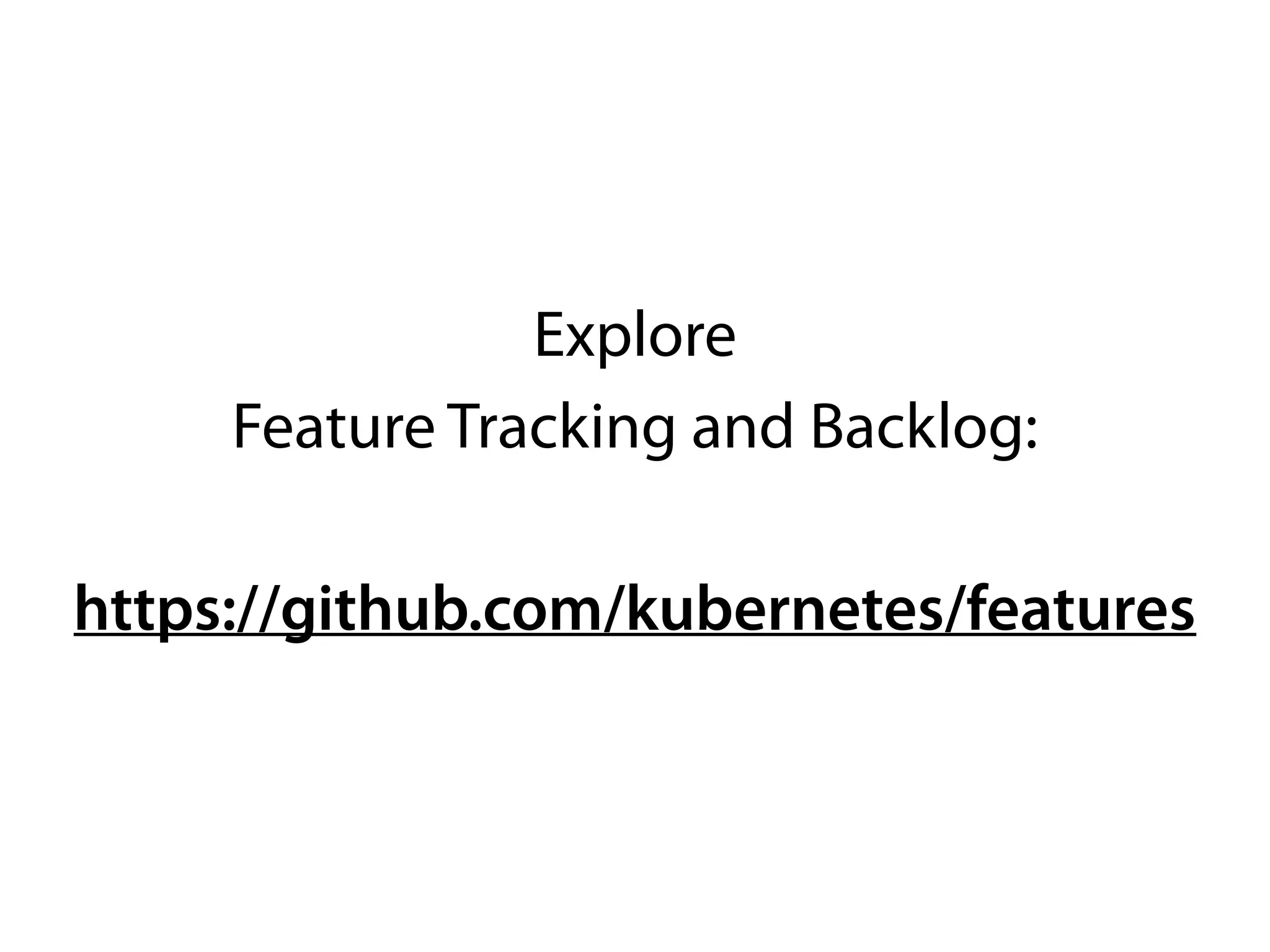

- 87. Explore Feature Tracking andBacklog: https://github.com/kubernetes/features

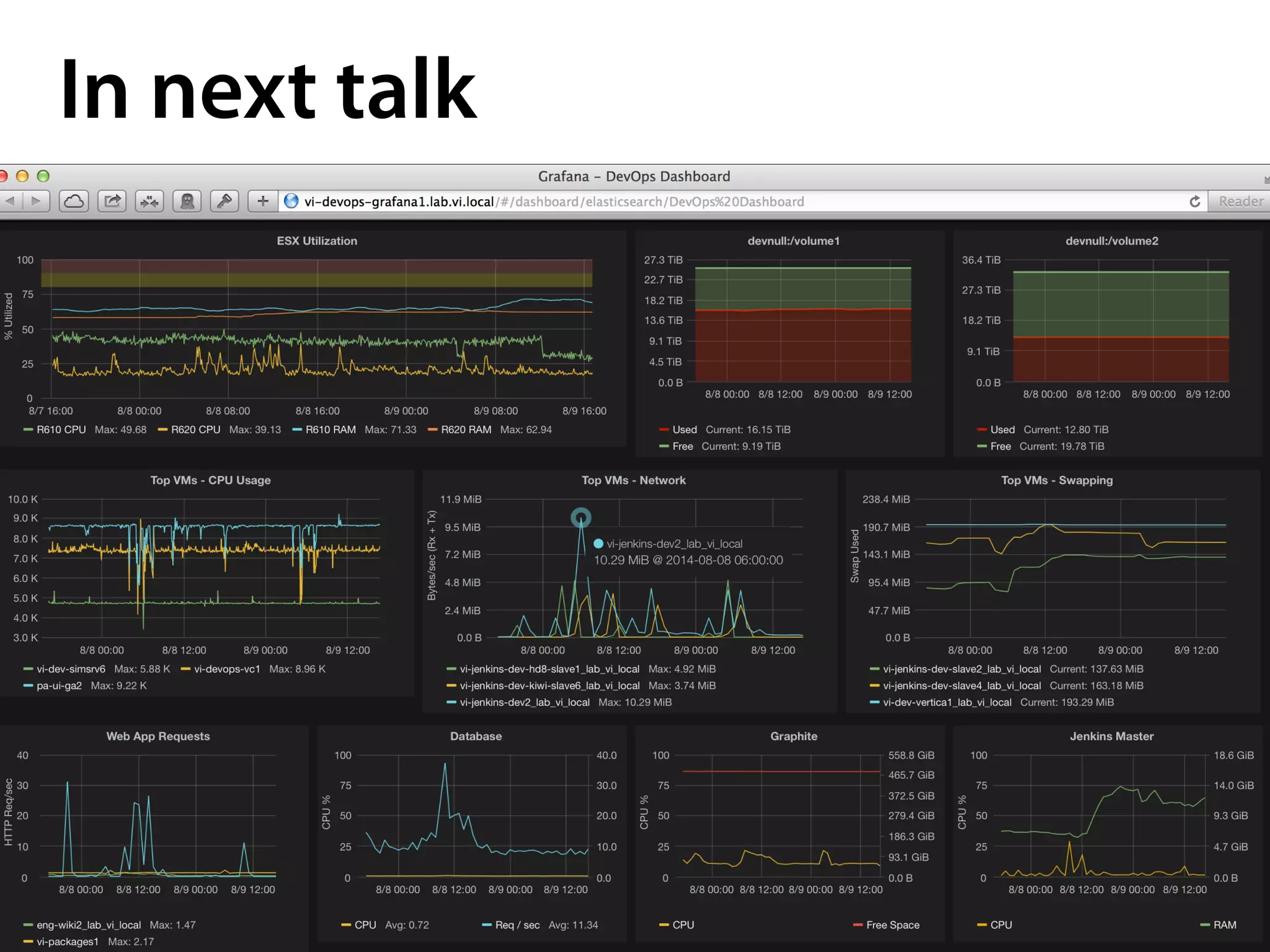

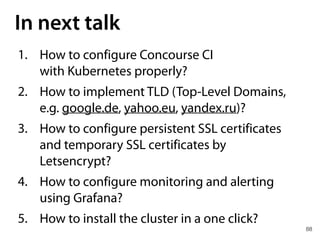

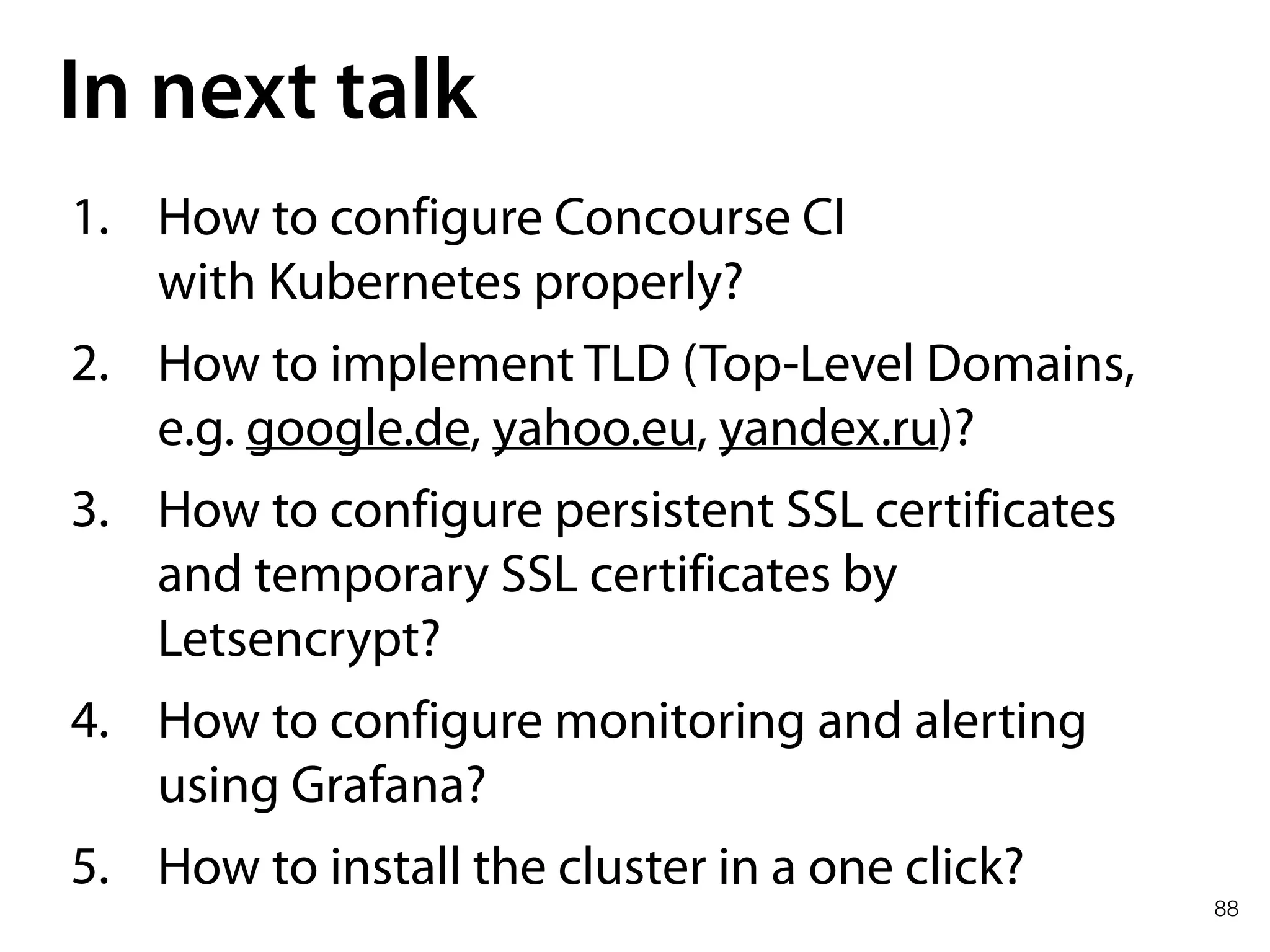

- 88. 88 In next talk 1.How to configure Concourse CI with Kubernetes properly? 2. How to implement TLD (Top-Level Domains, e.g. google.de, yahoo.eu, yandex.ru)? 3. How to configure persistent SSL certificates and temporary SSL certificates by Letsencrypt? 4. How to configure monitoring and alerting using Grafana? 5. How to install the cluster in a one click?
- 89.

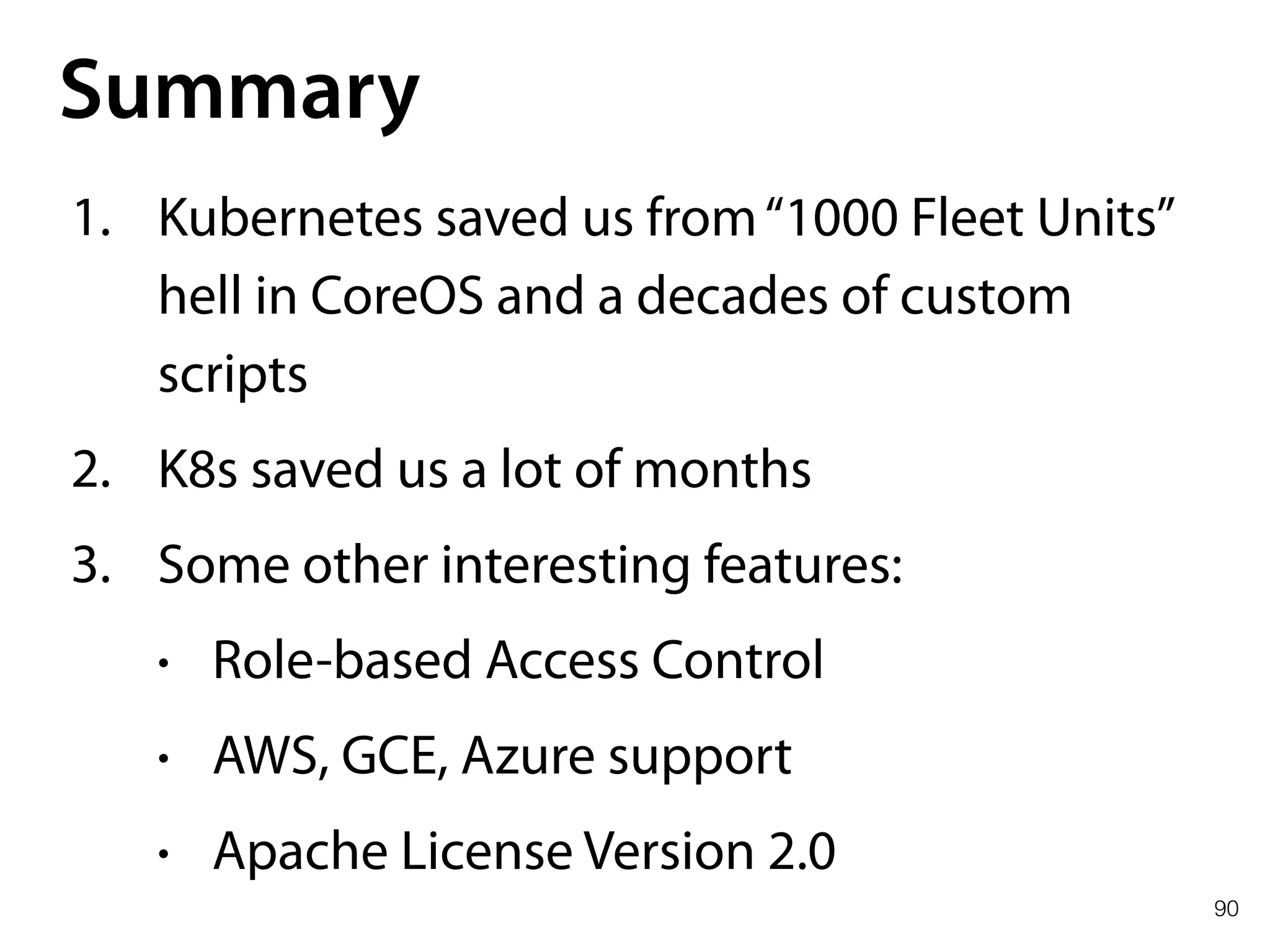

- 90. 90 Summary 1. Kubernetes savedus from“1000 Fleet Units” hell in CoreOS and a decades of custom scripts 2. K8s saved us a lot of months 3. Some other interesting features: • Role-based Access Control • AWS, GCE, Azure support • Apache License Version 2.0
- 91. 91 What We Got 1.Micro-services Management 2. Continuous Delivery / Deployment 3. Easy SSL and TLD management 4. Monitoring 5. Notifications

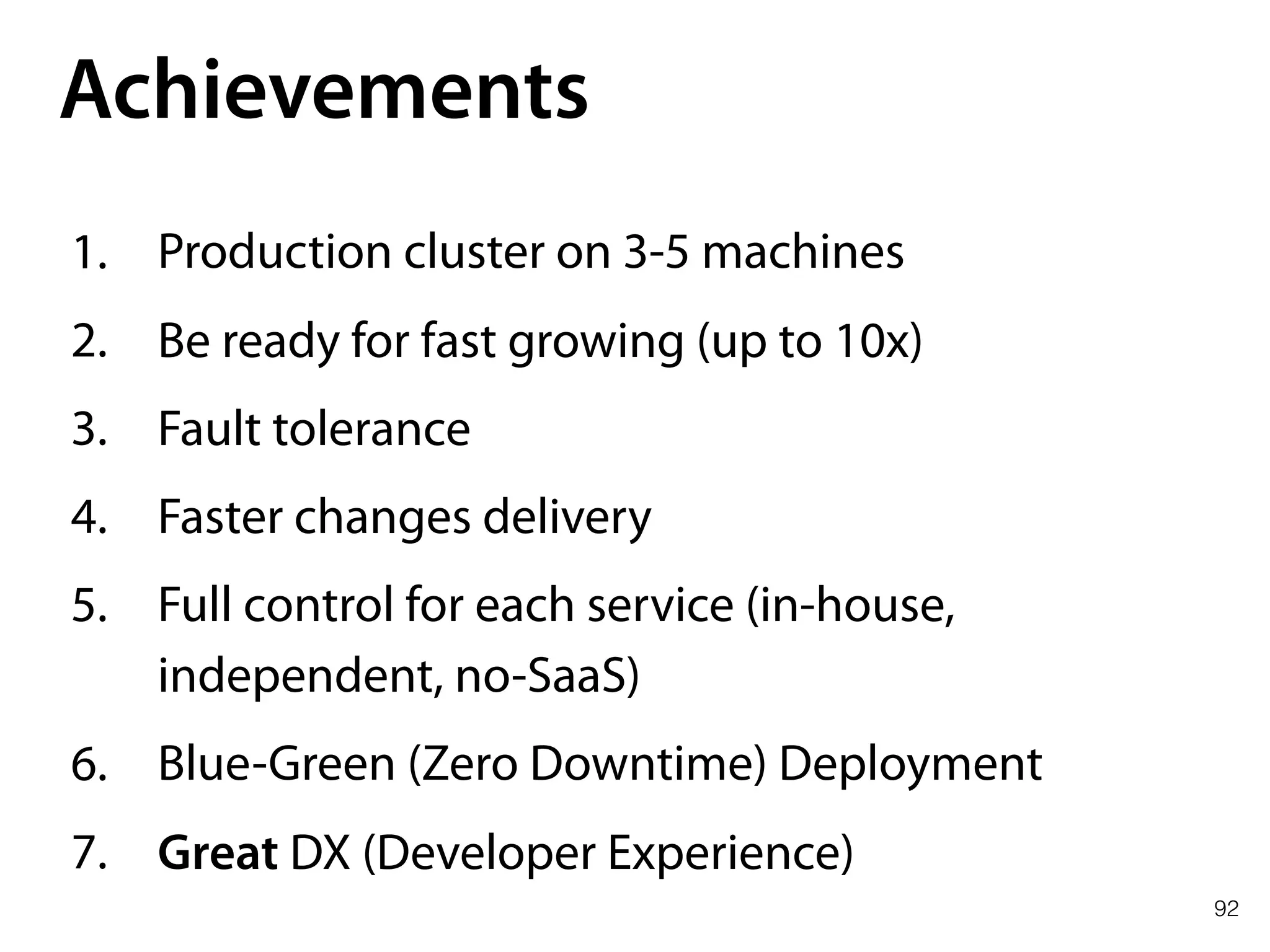

- 92. 92 Achievements 1. Production clusteron 3-5 machines 2. Be ready for fast growing (up to 10x) 3. Fault tolerance 4. Faster changes delivery 5. Full control for each service (in-house, independent, no-SaaS) 6. Blue-Green (Zero Downtime) Deployment 7. Great DX (Developer Experience)
- 93.
- 94.

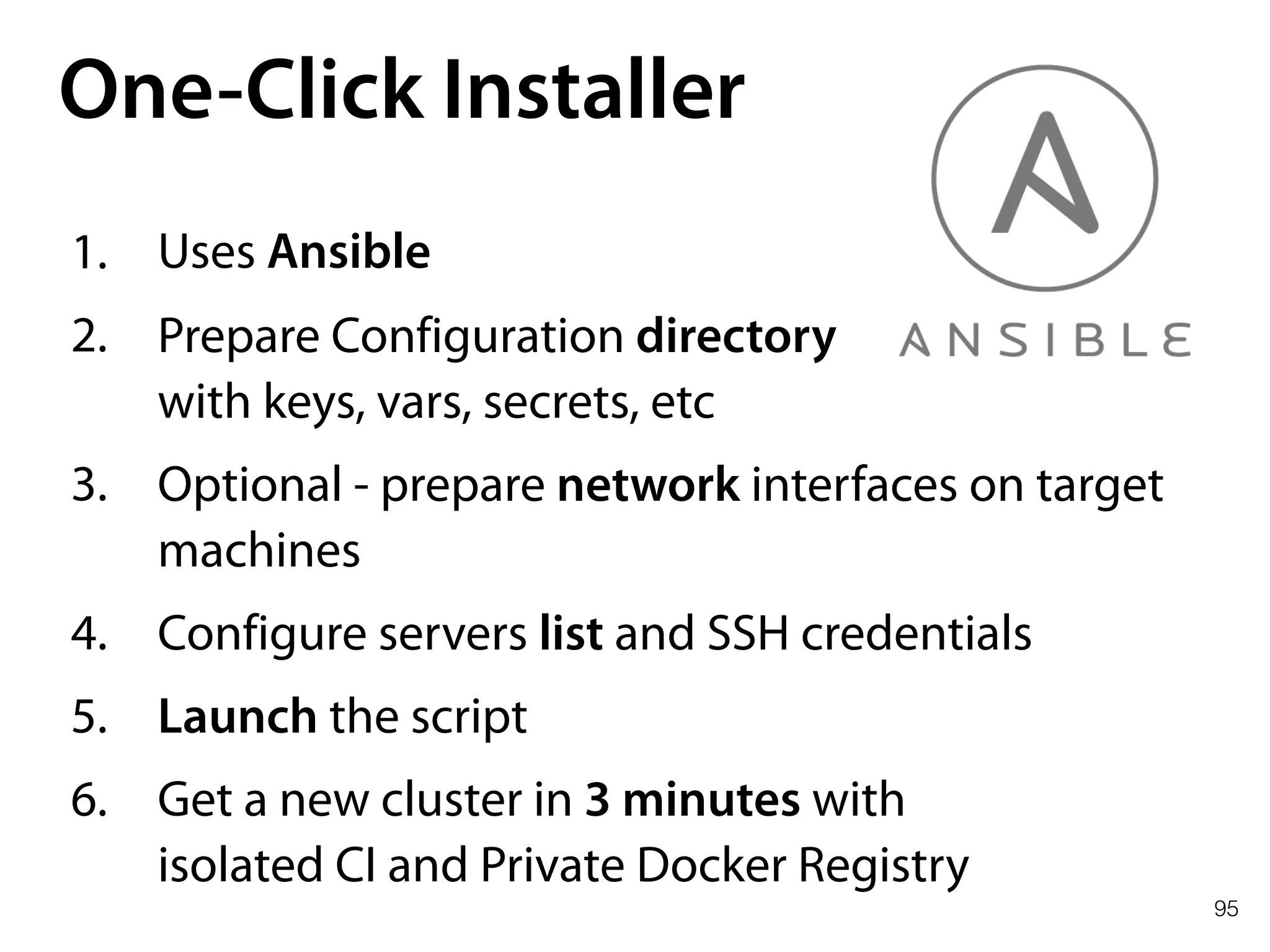

- 95. 95 One-Click Installer 1. UsesAnsible 2. Prepare Configuration directory with keys, vars, secrets, etc 3. Optional - prepare network interfaces on target machines 4. Configure servers list and SSH credentials 5. Launch the script 6. Get a new cluster in 3 minutes with isolated CI and Private Docker Registry

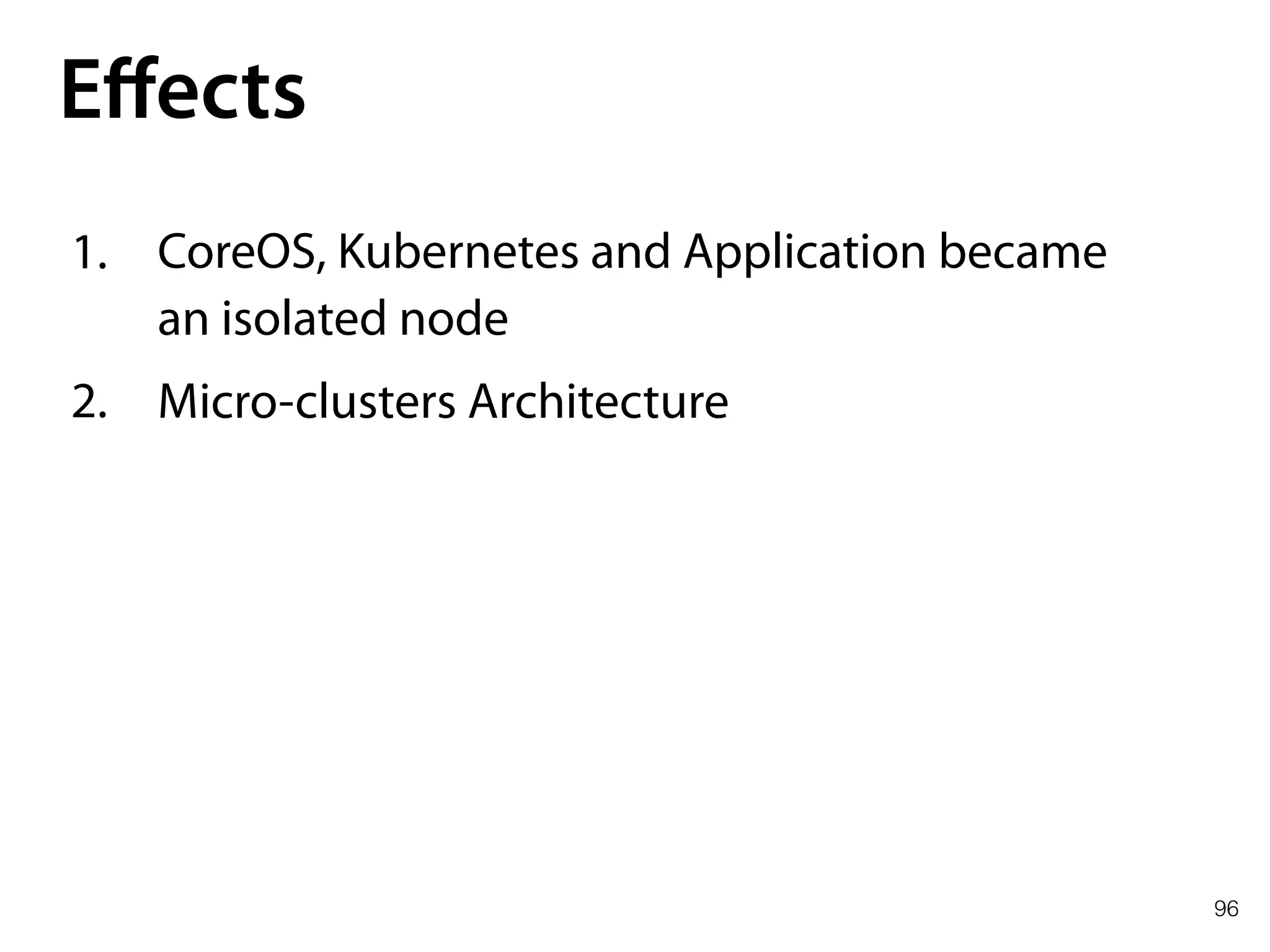

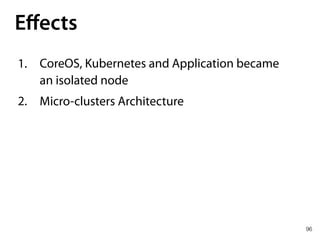

- 96. 96 Effects 1. CoreOS, Kubernetesand Application became an isolated node 2. Micro-clusters Architecture

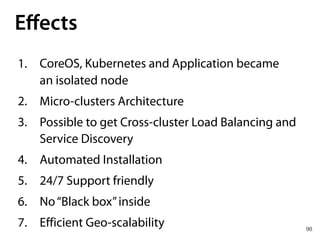

- 98. 98 Effects 1. CoreOS, Kubernetesand Application became an isolated node 2. Micro-clusters Architecture 3. Possible to get Cross-cluster Load Balancing and Service Discovery 4. Automated Installation 5. 24/7 Support friendly 6. No“Black box”inside 7. Efficient Geo-scalability

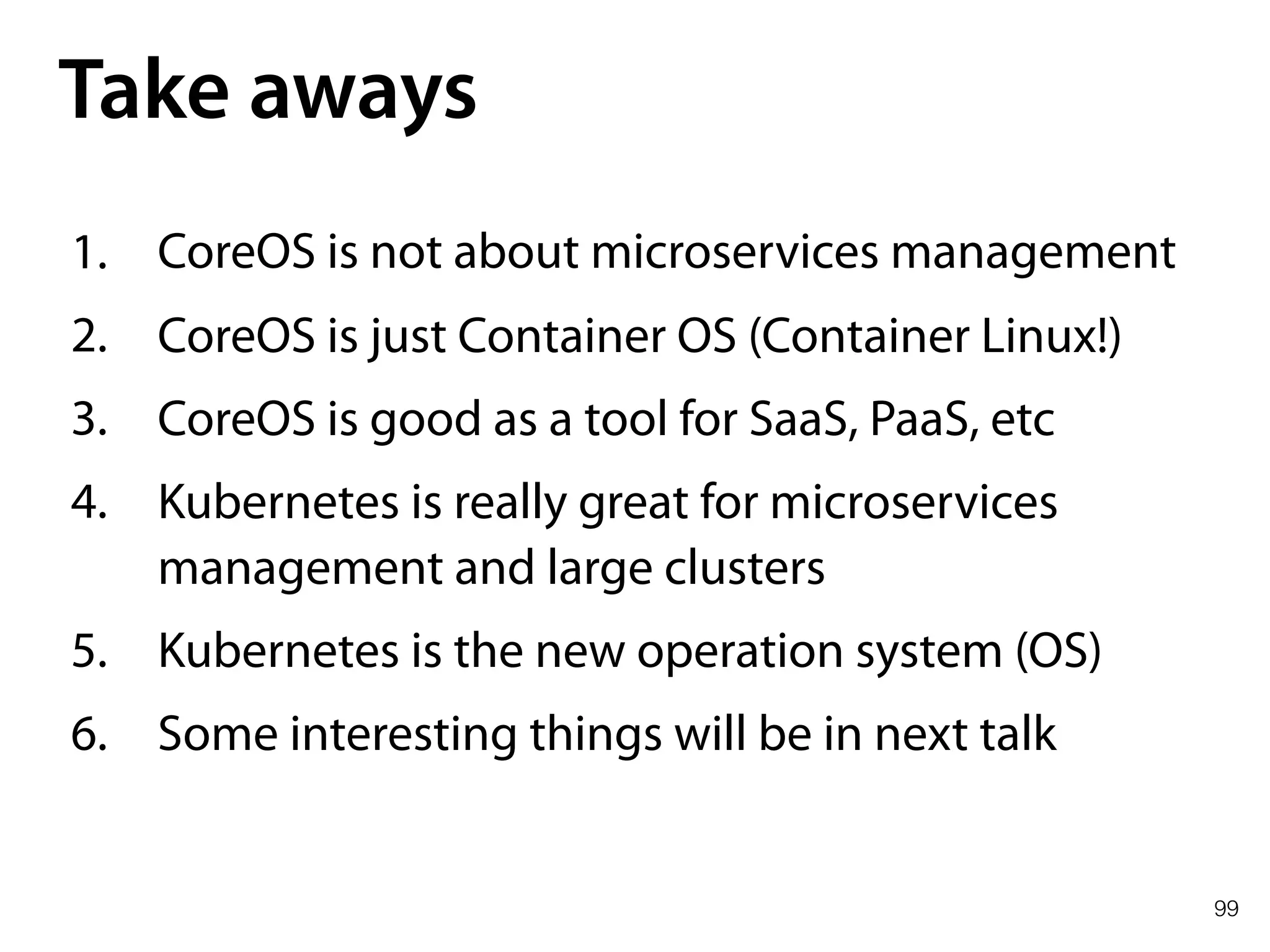

- 99. 99 Take aways 1. CoreOSis not about microservices management 2. CoreOS is just Container OS (Container Linux!) 3. CoreOS is good as a tool for SaaS, PaaS, etc 4. Kubernetes is really great for microservices management and large clusters 5. Kubernetes is the new operation system (OS) 6. Some interesting things will be in next talk
- 100. “Microservices allow engineeringteams to move quickly to grow a product… assuming they don’t get bogged down by the complexity of operating a distributed system” 7.

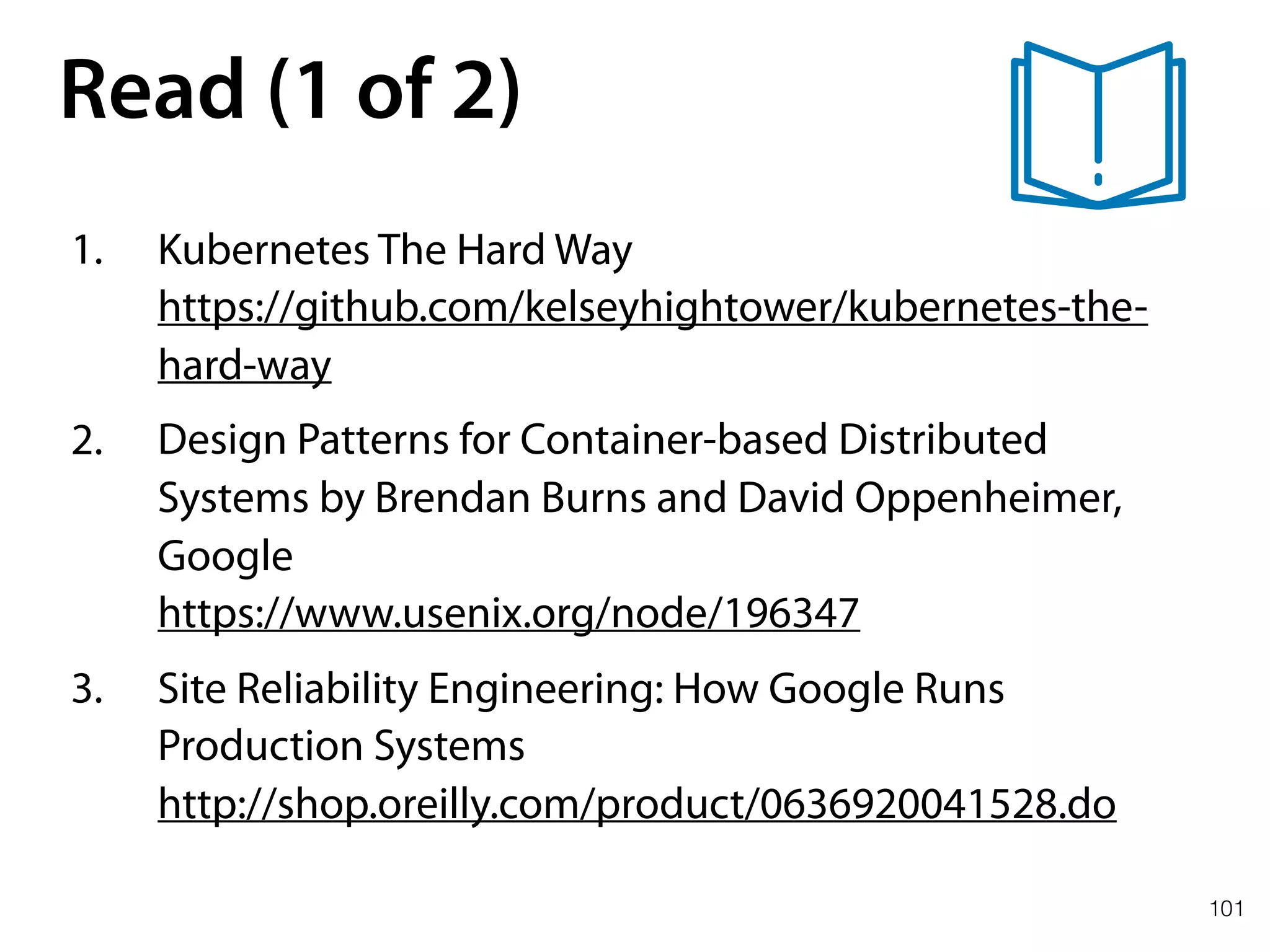

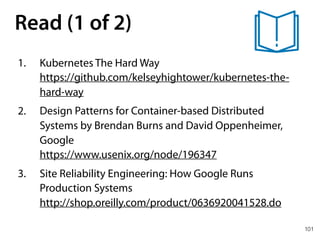

- 101. 101 Read (1 of2) 1. Kubernetes The Hard Way https://github.com/kelseyhightower/kubernetes-the- hard-way 2. Design Patterns for Container-based Distributed Systems by Brendan Burns and David Oppenheimer, Google https://www.usenix.org/node/196347 3. Site Reliability Engineering: How Google Runs Production Systems http://shop.oreilly.com/product/0636920041528.do

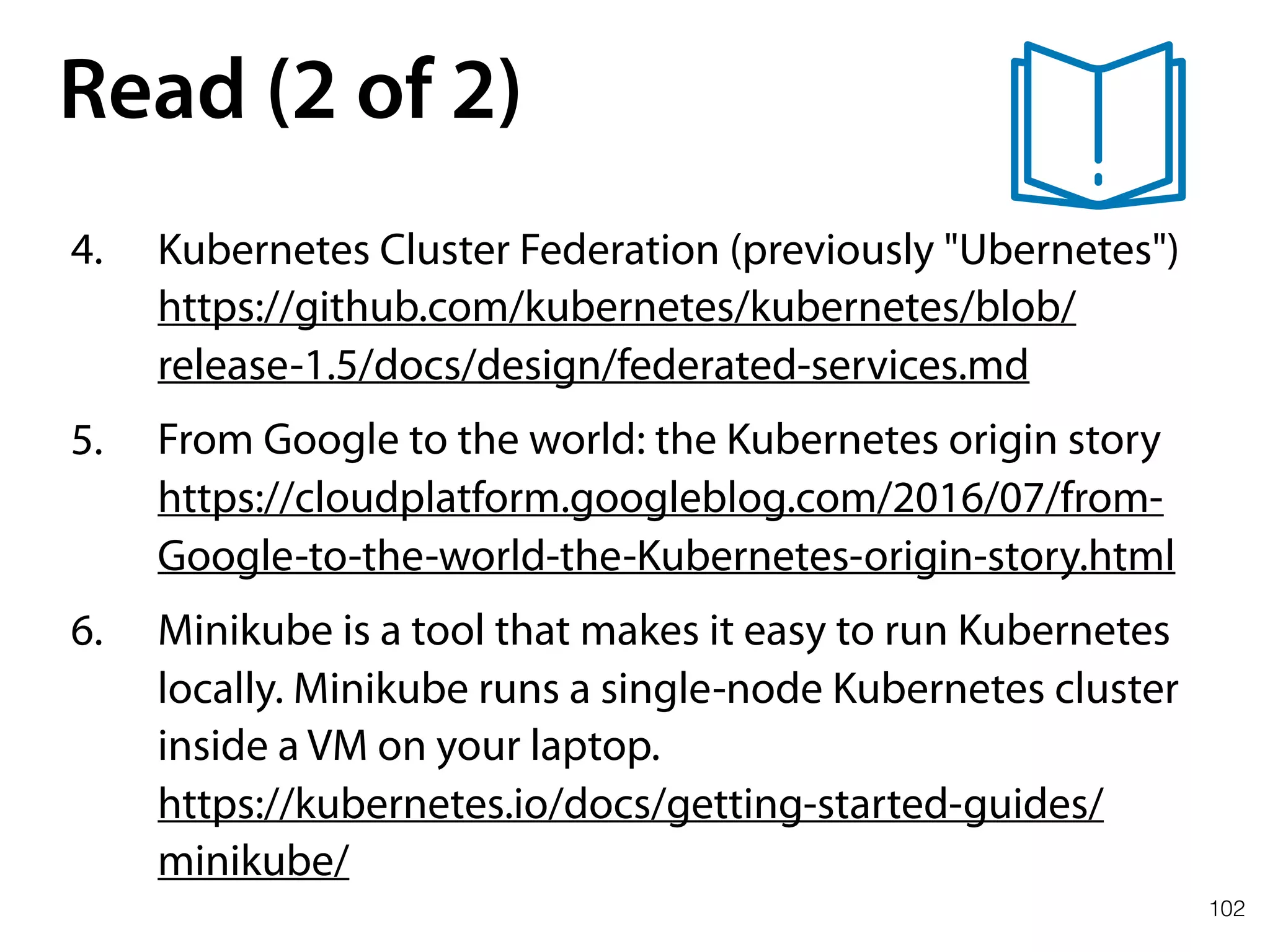

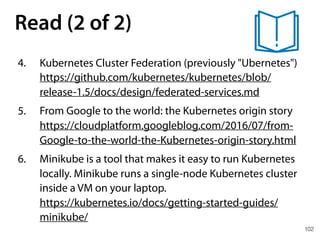

- 102. 102 Read (2 of2) 4. Kubernetes Cluster Federation (previously "Ubernetes") https://github.com/kubernetes/kubernetes/blob/ release-1.5/docs/design/federated-services.md 5. From Google to the world: the Kubernetes origin story https://cloudplatform.googleblog.com/2016/07/from- Google-to-the-world-the-Kubernetes-origin-story.html 6. Minikube is a tool that makes it easy to run Kubernetes locally. Minikube runs a single-node Kubernetes cluster inside a VM on your laptop. https://kubernetes.io/docs/getting-started-guides/ minikube/

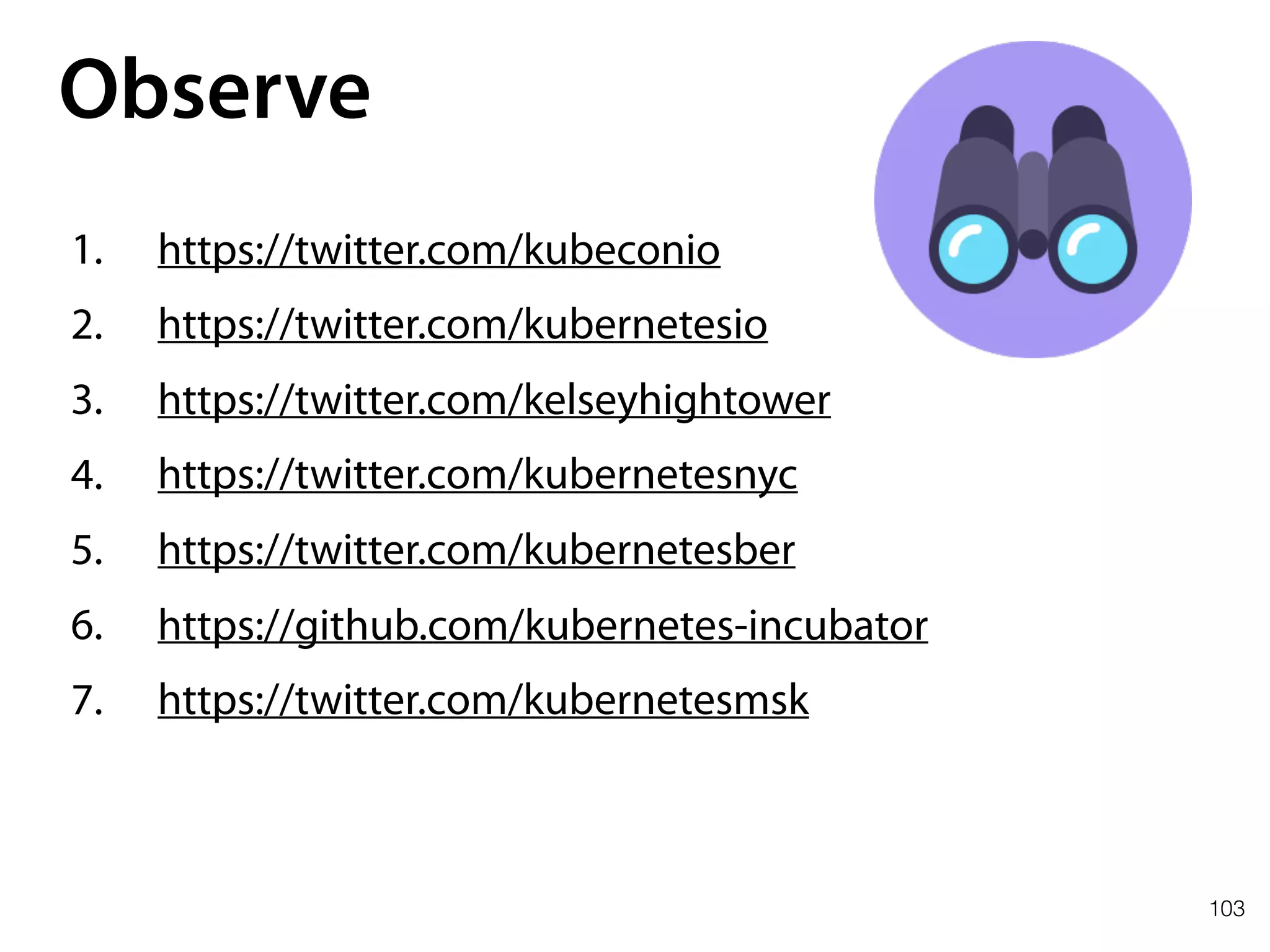

- 103. 103 Observe 1. https://twitter.com/kubeconio 2. https://twitter.com/kubernetesio 3.https://twitter.com/kelseyhightower 4. https://twitter.com/kubernetesnyc 5. https://twitter.com/kubernetesber 6. https://github.com/kubernetes-incubator 7. https://twitter.com/kubernetesmsk

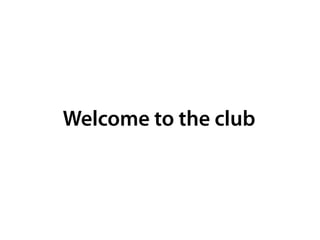

- 104. Welcome to theclub
