micro services architecture (FrosCon2014)

Micro Services
Sebastian Mancke
Creative Commons BY-SA 3.0

24.08.14 2
Monolythic Software
Why are monolythic systems 'evil' ?
Because of their dependencies:
●
Software is not easy to test
●
And hard to refactor
●
Effects of changes can not be isolated
●
Working with multiple developers/teams is challenging
●
No reuse of functionality
●
Runtime and deployment dependencies:
●
Performance and scaling
●
Deployment of features and releases

24.08.14 3

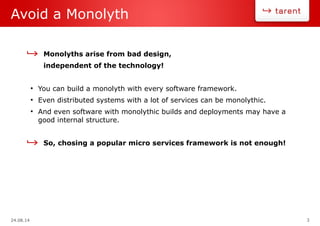

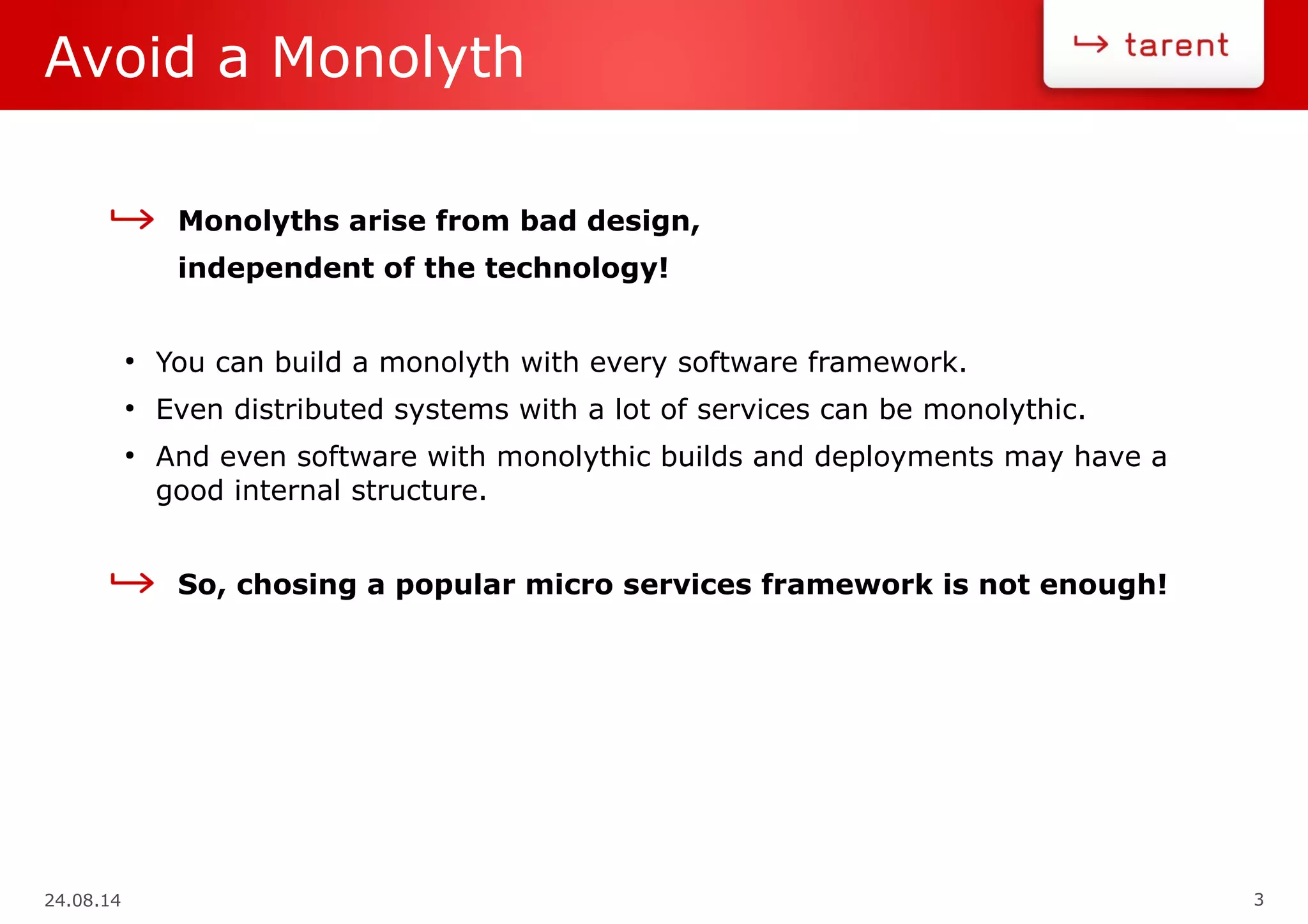

Avoid a Monolyth
Monolyths arise from bad design,
independent of the technology!
●
You can build a monolyth with every software framework.
●
Even distributed systems with a lot of services can be monolythic.
●
And even software with monolythic builds and deployments may have a
good internal structure.
So, chosing a popular micro services framework is not enough!

24.08.14 4

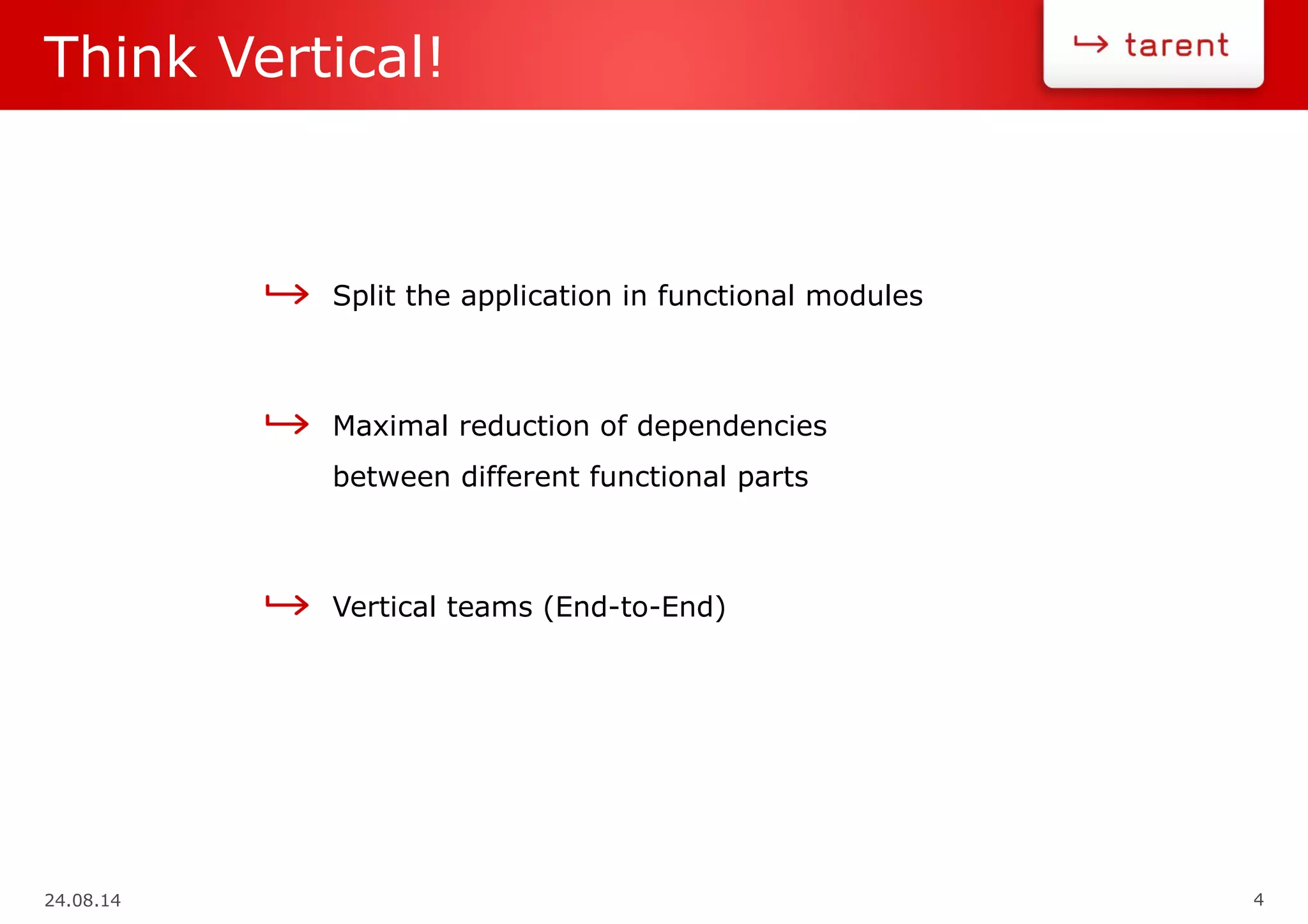

Think Vertical!
Split the application in functional modules
Maximal reduction of dependencies
between different functional parts
Vertical teams (End-to-End)

24.08.14 5

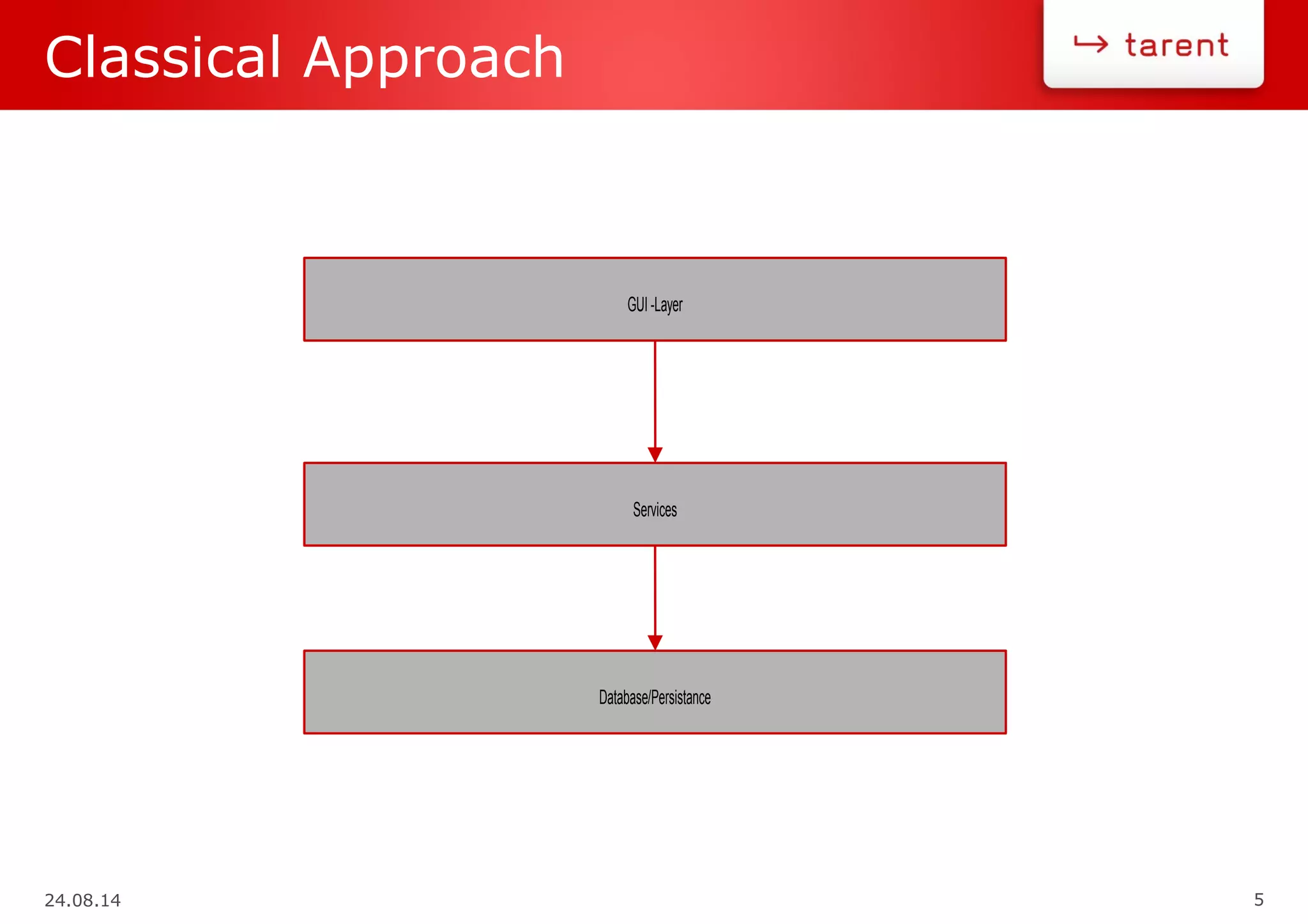

Classical Approach
GUI -Layer
Services
Database/Persistance

24.08.14 6

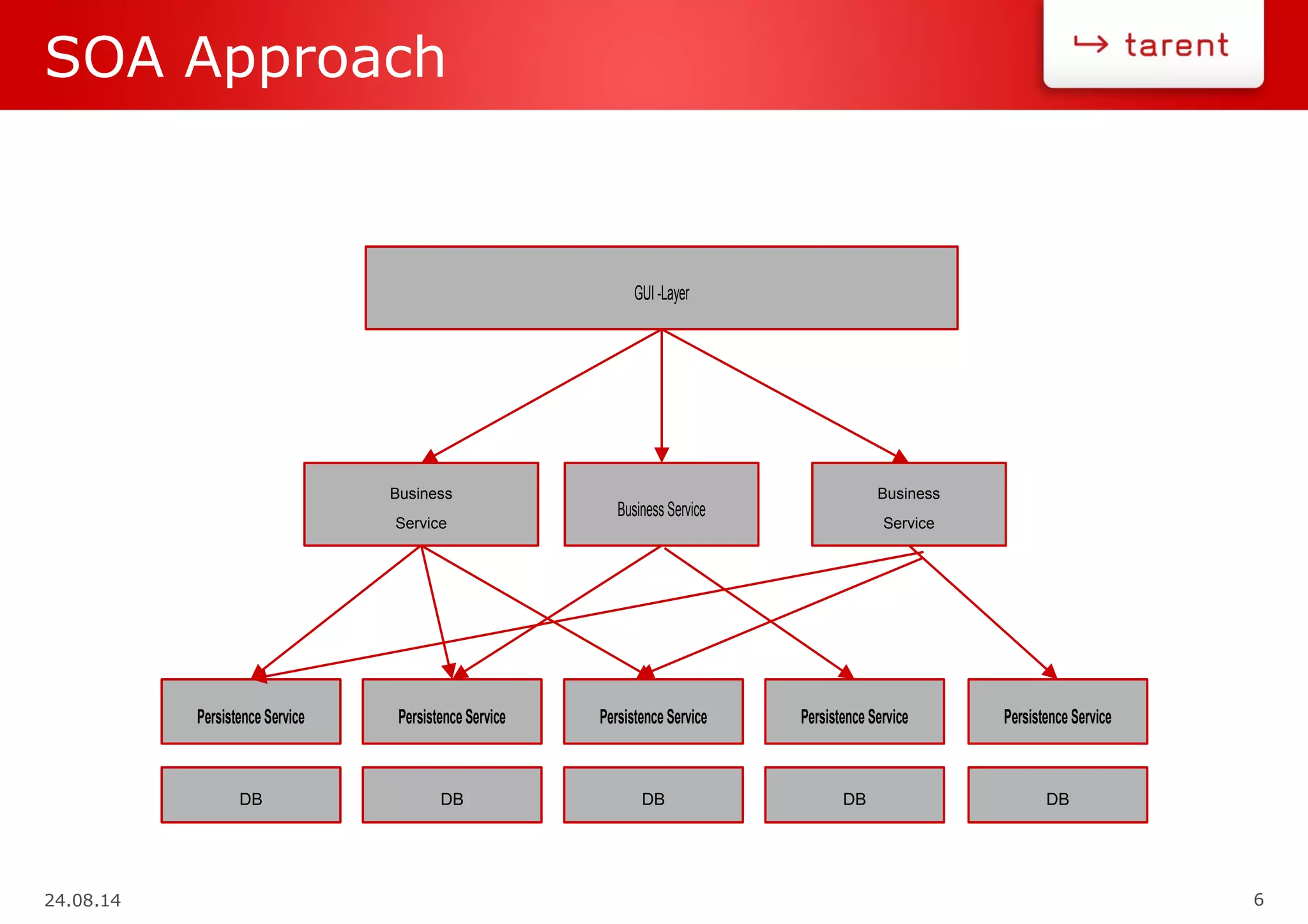

SOA Approach
GUI -Layer
Business
Service
DB
Business Service
Business
Service
Persistence Service
DB
Persistence Service
DB
Persistence Service
DB
Persistence Service
DB
Persistence Service

24.08.14 7

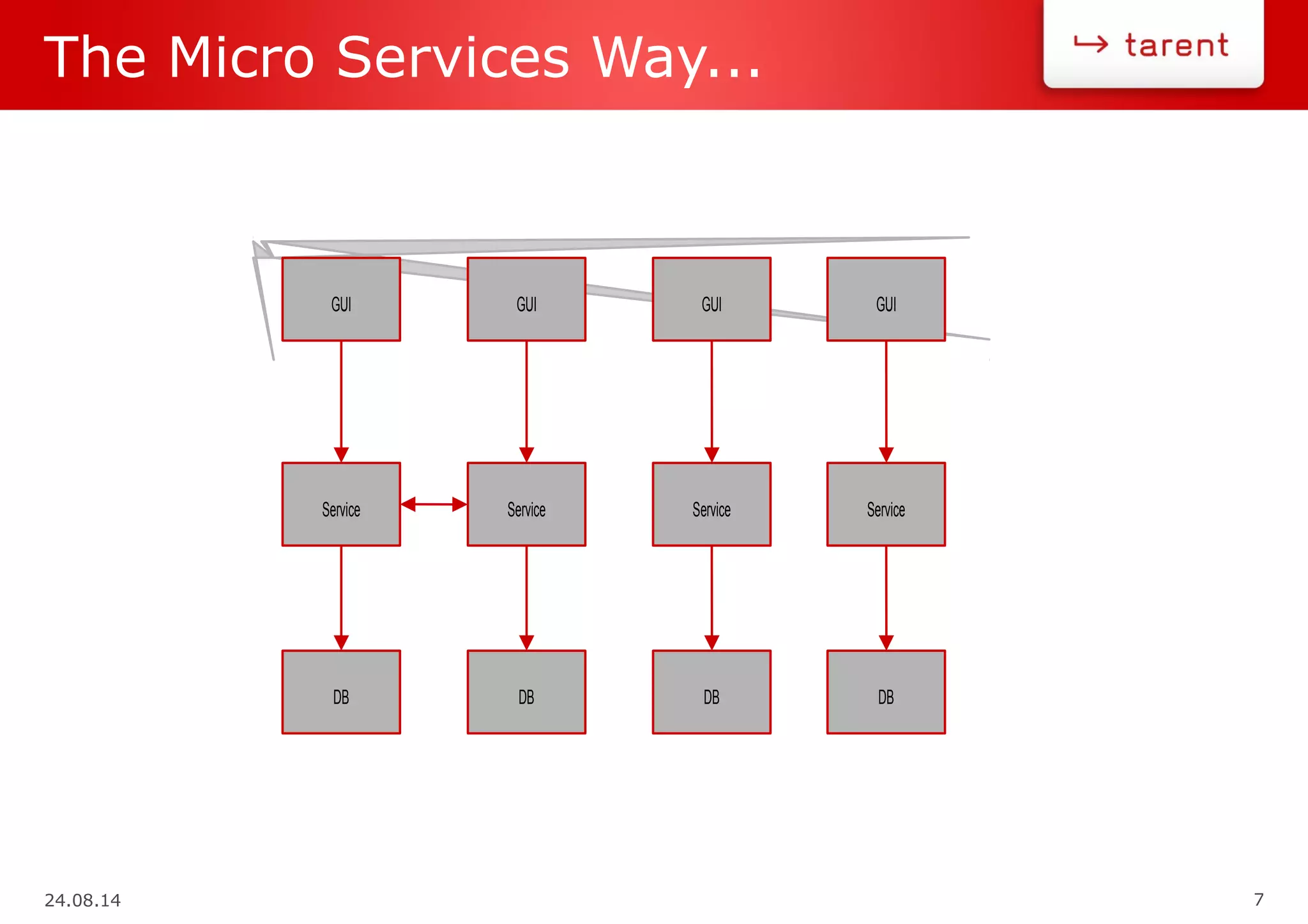

The Micro Services Way...
GUI
Service
DB
GUI
Service
DB
GUI
Service
DB
GUI
Service
DB

24.08.14 10

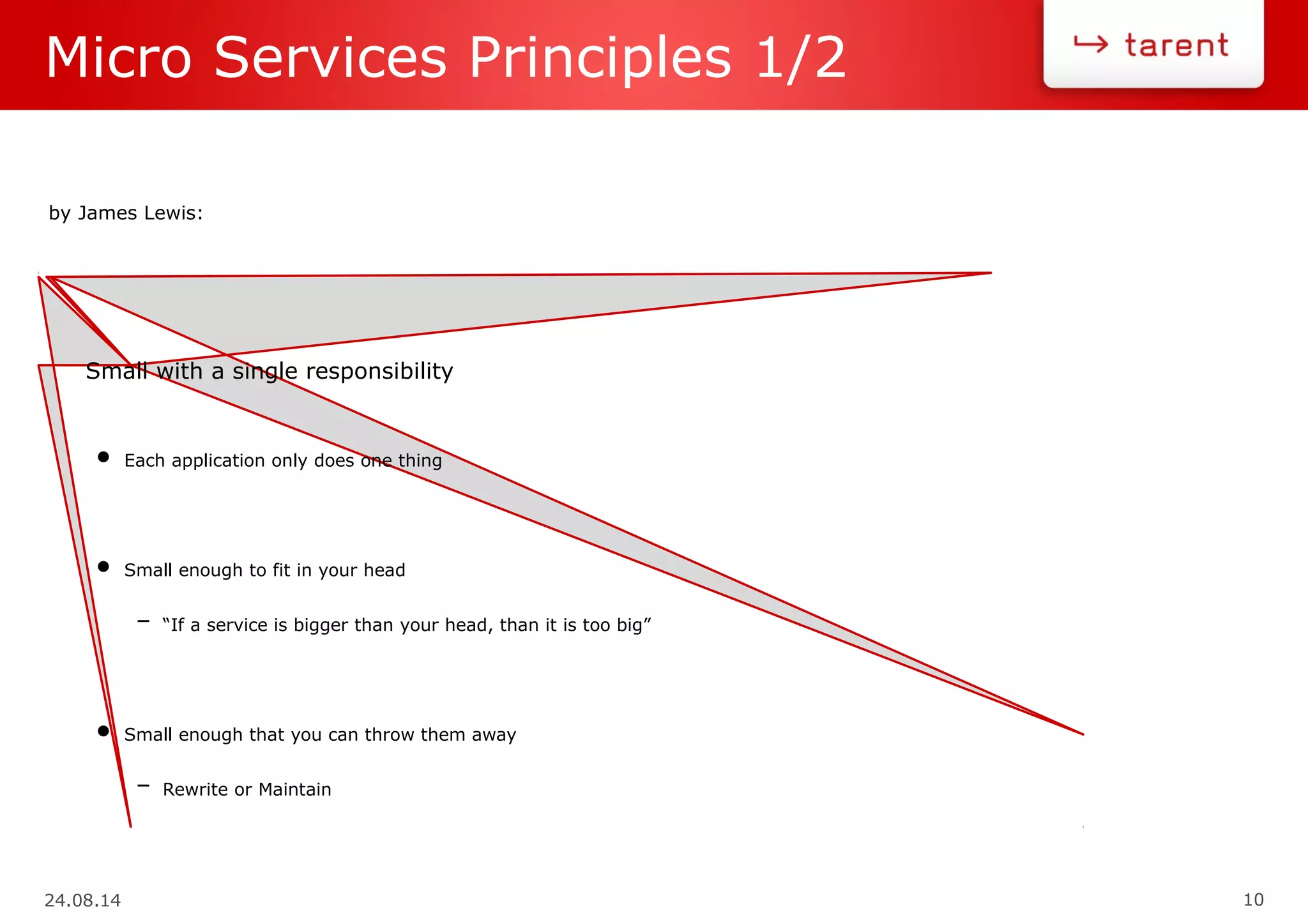

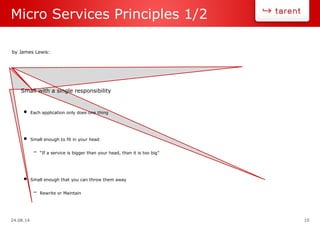

Micro Services Principles 1/2
Small with a single responsibility
• Each application only does one thing
• Small enough to fit in your head
– “If a service is bigger than your head, than it is too big”
• Small enough that you can throw them away
– Rewrite or Maintain
by James Lewis:

24.08.14 11

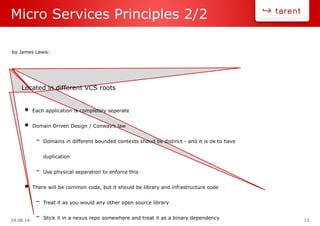

Micro Services Principles 2/2
by James Lewis:
Located in different VCS roots
• Each application is completely seperate
• Domain Driven Design / Conway’s law
– Domains in different bounded contexts shoud be distinct - and it is ok to have
duplication
– Use physical separation to enforce this
• There will be common code, but it should be library and infrastructure code
– Treat it as you would any other open source library
– Stick it in a nexus repo somewhere and treat it as a binary dependency

24.08.14 12

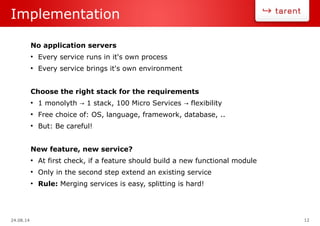

Implementation
No application servers
●
Every service runs in it's own process
●
Every service brings it's own environment
Choose the right stack for the requirements
●
1 monolyth 1 stack, 100 Micro Services flexibility→ →
●
Free choice of: OS, language, framework, database, ..
●
But: Be careful!
New feature, new service?
●
At first check, if a feature should build a new functional module
●
Only in the second step extend an existing service
●
Rule: Merging services is easy, splitting is hard!

24.08.14 13

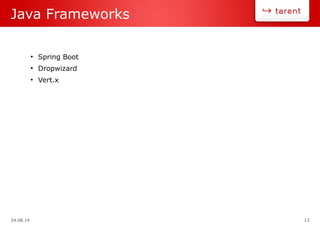

Java Frameworks
●
Spring Boot
●
Dropwizard
●
Vert.x

24.08.14 14

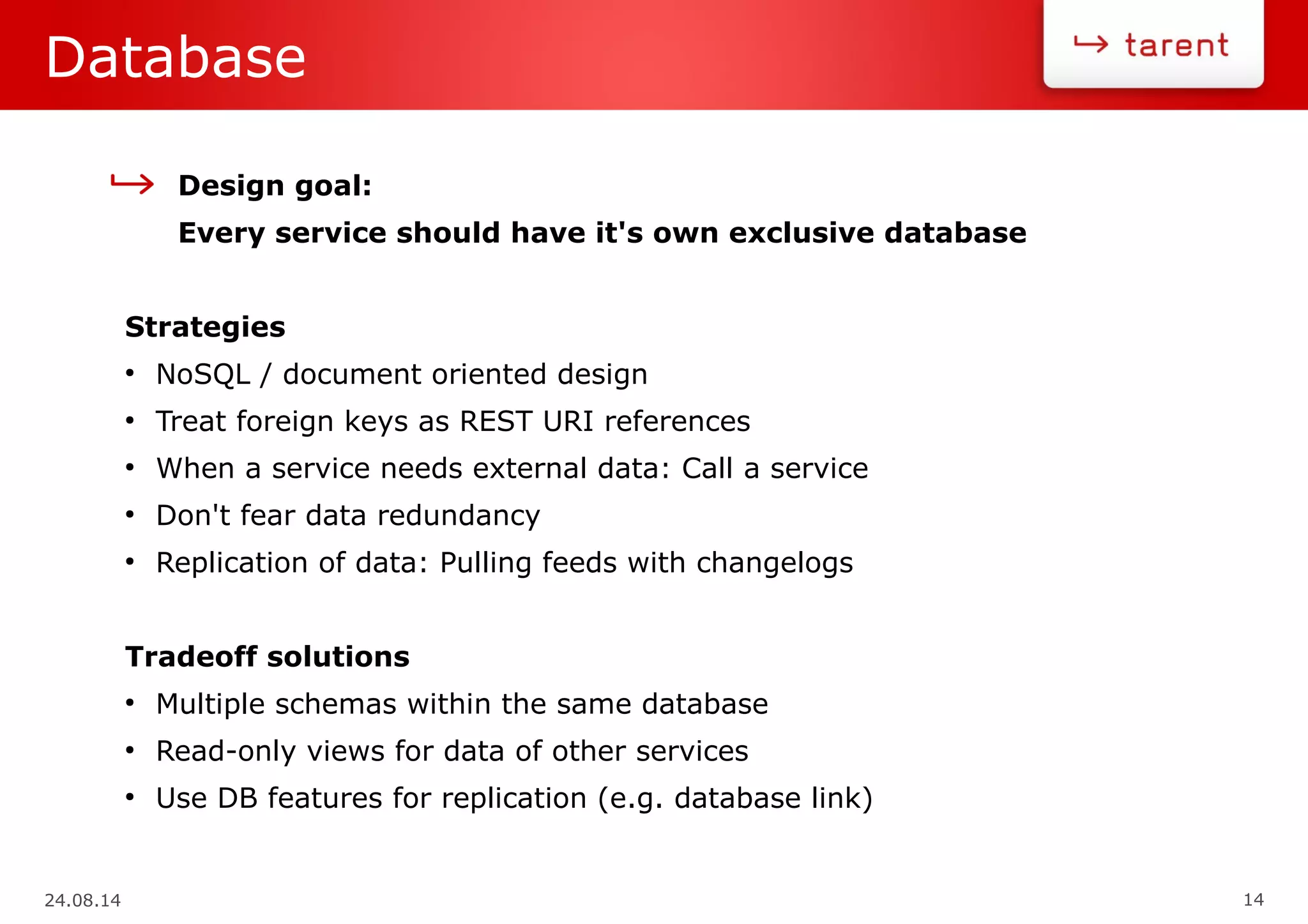

Database
Design goal:
Every service should have it's own exclusive database
Strategies
●
NoSQL / document oriented design
●
Treat foreign keys as REST URI references
●
When a service needs external data: Call a service
●
Don't fear data redundancy
●
Replication of data: Pulling feeds with changelogs
Tradeoff solutions
●
Multiple schemas within the same database
●
Read-only views for data of other services
●
Use DB features for replication (e.g. database link)

24.08.14 15

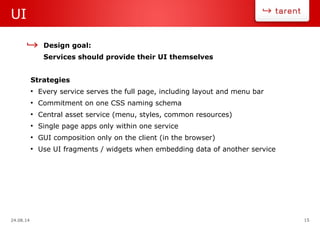

UI
Design goal:
Services should provide their UI themselves
Strategies
●
Every service serves the full page, including layout and menu bar
●
Commitment on one CSS naming schema
●
Central asset service (menu, styles, common resources)
●
Single page apps only within one service
●
GUI composition only on the client (in the browser)
●
Use UI fragments / widgets when embedding data of another service

24.08.14 16

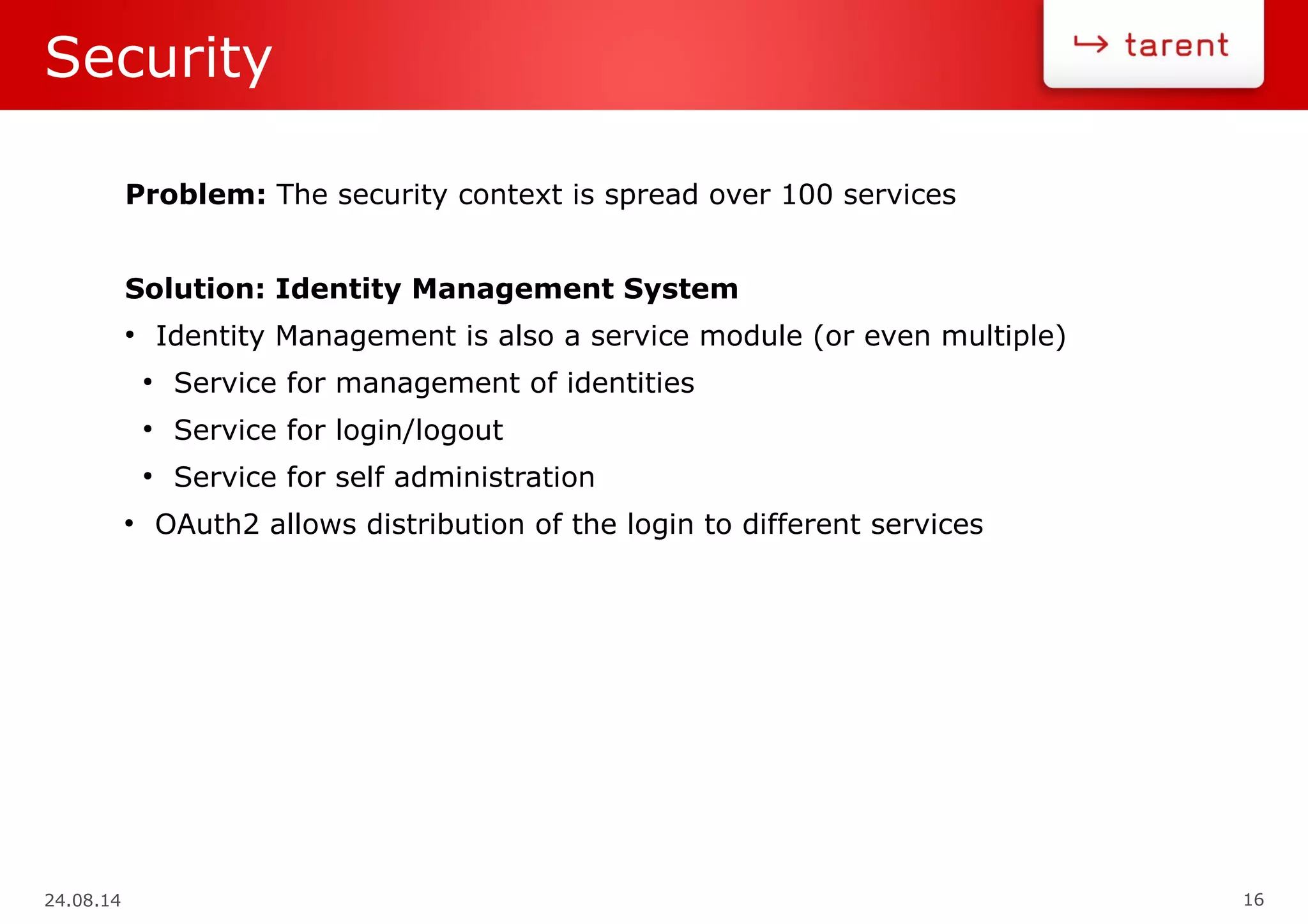

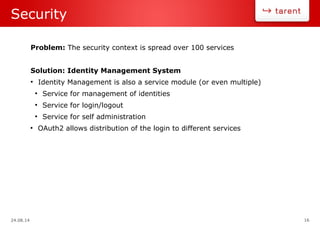

Security
Problem: The security context is spread over 100 services
Solution: Identity Management System
●
Identity Management is also a service module (or even multiple)
●
Service for management of identities
●
Service for login/logout
●
Service for self administration
●
OAuth2 allows distribution of the login to different services

24.08.14 17

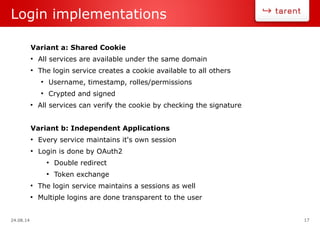

Login implementations
Variant a: Shared Cookie
●
All services are available under the same domain
●
The login service creates a cookie available to all others
●
Username, timestamp, rolles/permissions
●
Crypted and signed
●
All services can verify the cookie by checking the signature
Variant b: Independent Applications
●
Every service maintains it's own session
●
Login is done by OAuth2
●
Double redirect
●
Token exchange
●
The login service maintains a sessions as well
●
Multiple logins are done transparent to the user

24.08.14 18
OSIAM
https://github.com/osiam/

24.08.14 19

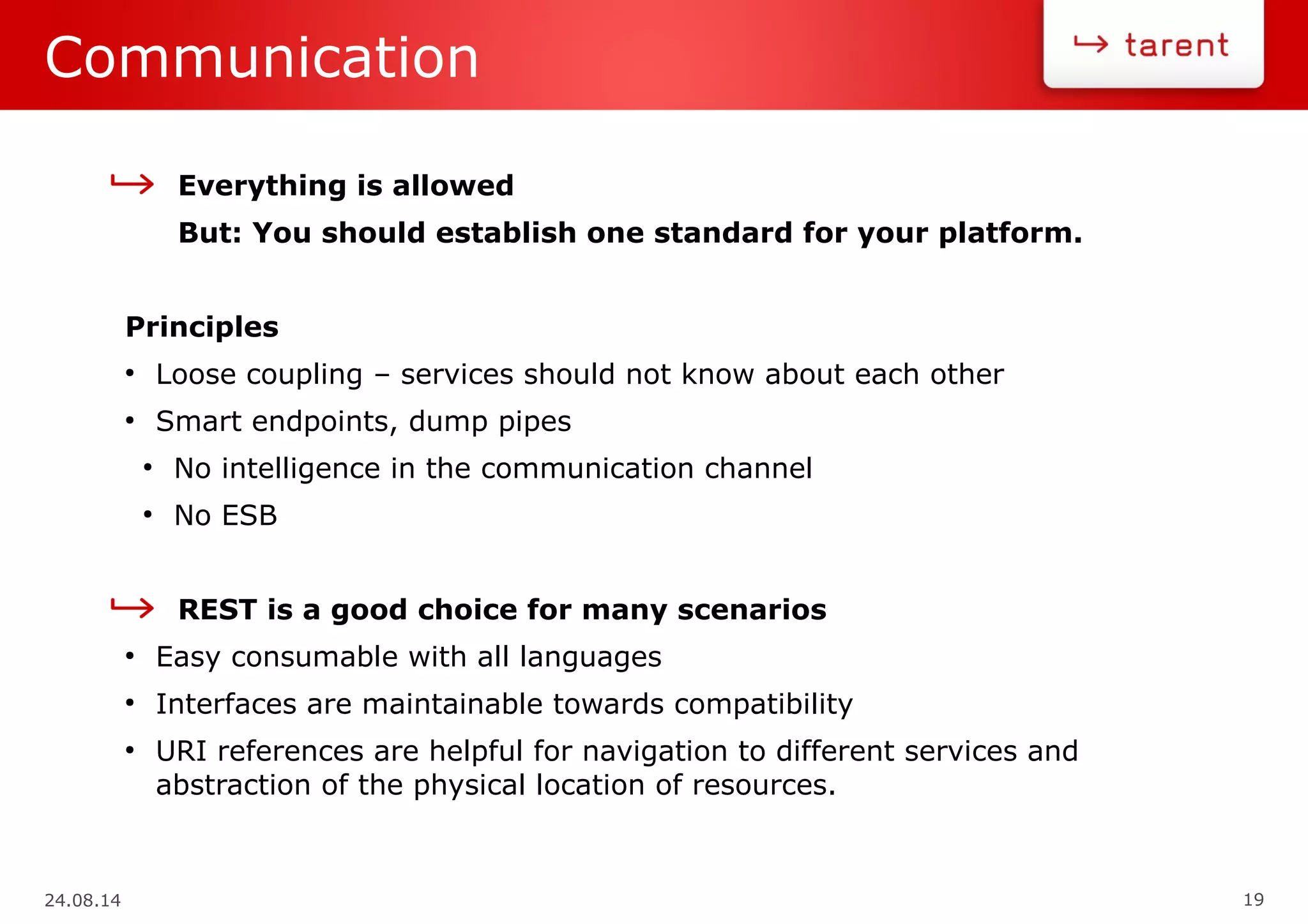

Communication
Everything is allowed
But: You should establish one standard for your platform.
Principles
●
Loose coupling – services should not know about each other
●
Smart endpoints, dump pipes
●
No intelligence in the communication channel
●
No ESB
REST is a good choice for many scenarios
●
Easy consumable with all languages
●
Interfaces are maintainable towards compatibility
●
URI references are helpful for navigation to different services and
abstraction of the physical location of resources.

24.08.14 20

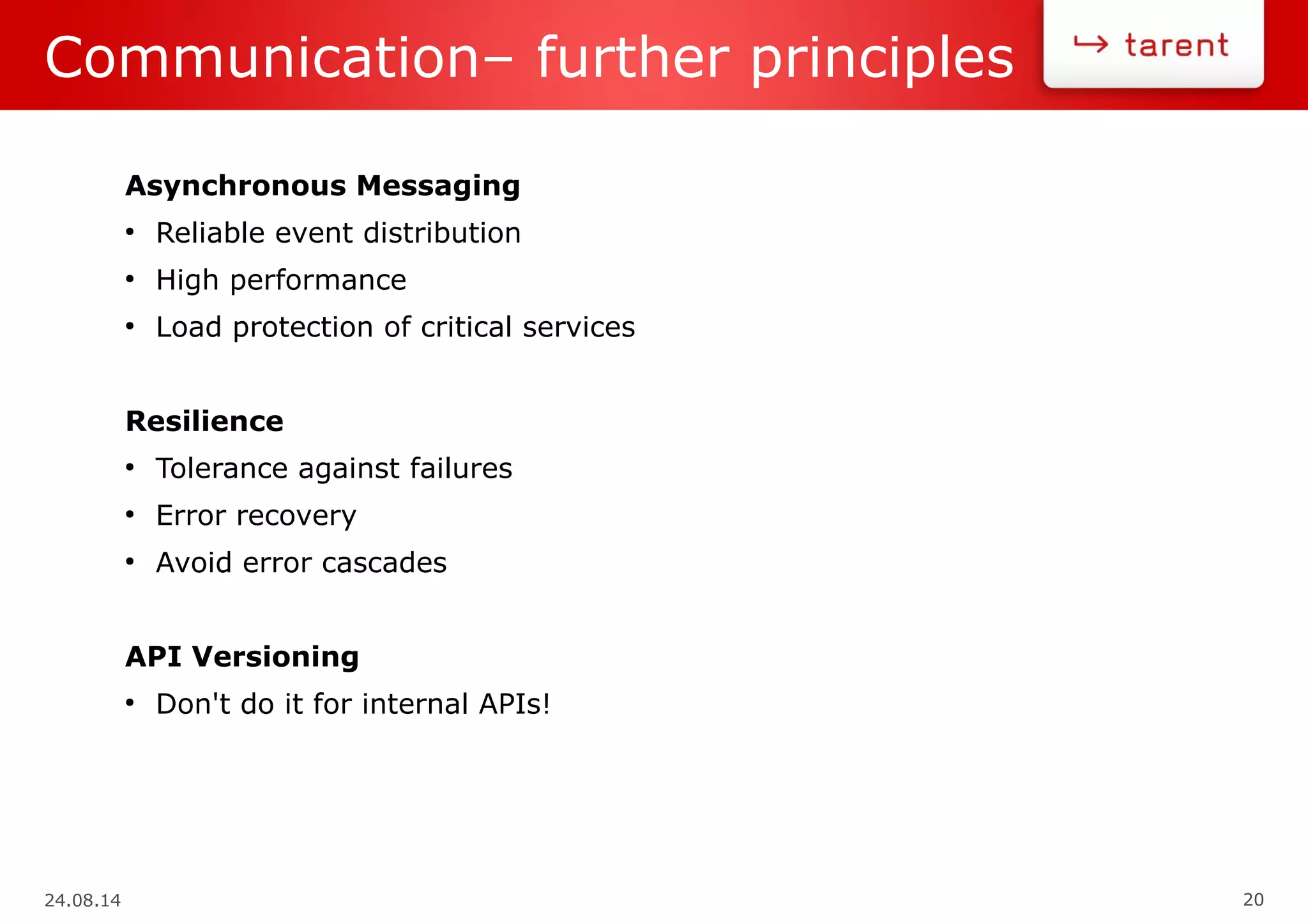

Communication– further principles
Asynchronous Messaging
●
Reliable event distribution
●
High performance
●
Load protection of critical services
Resilience
●
Tolerance against failures
●
Error recovery
●
Avoid error cascades
API Versioning
●
Don't do it for internal APIs!

24.08.14 21

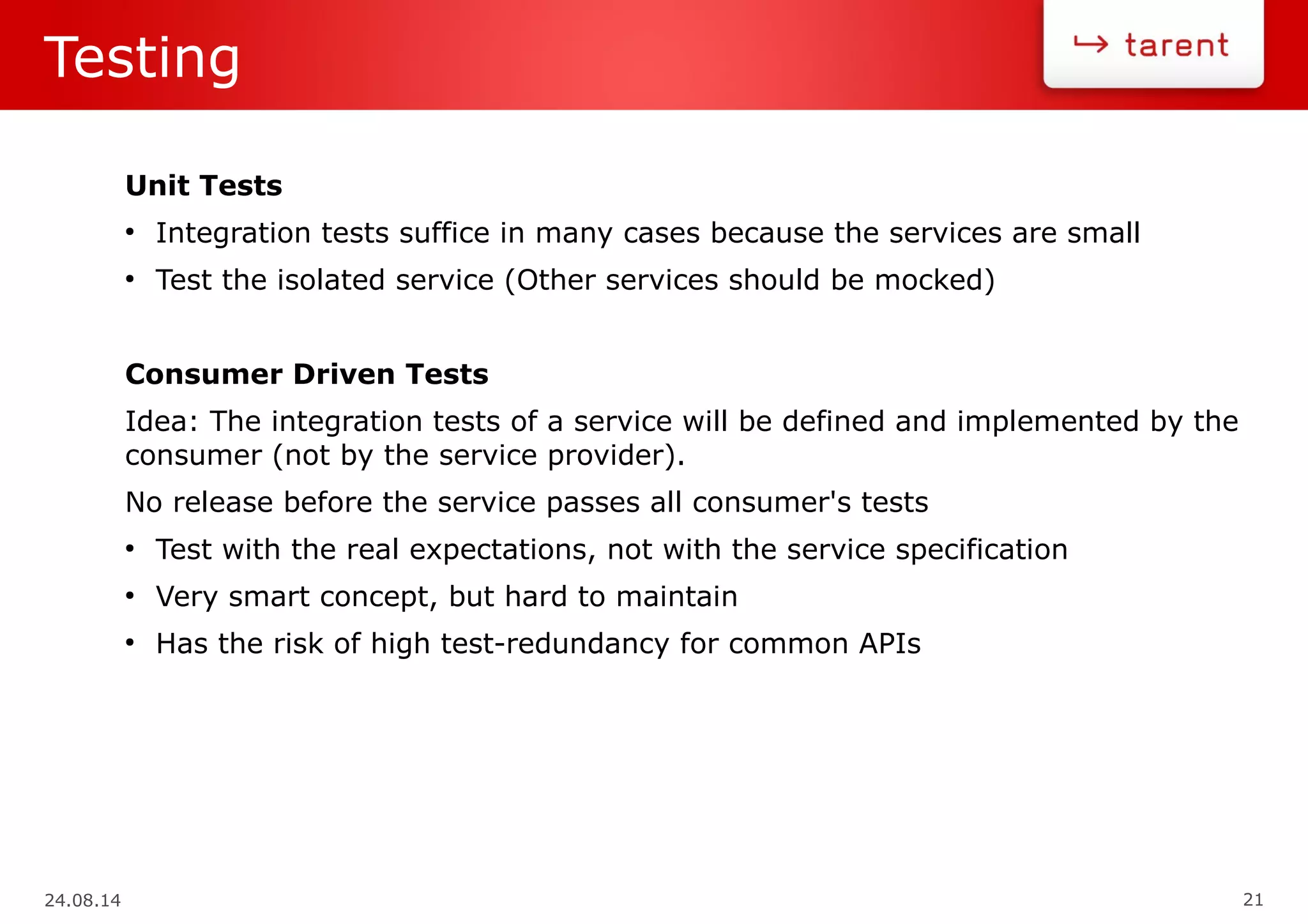

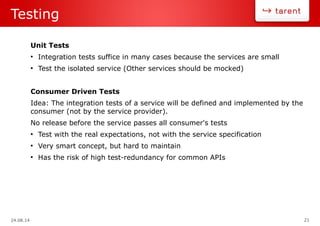

Testing
Unit Tests
●
Integration tests suffice in many cases because the services are small
●
Test the isolated service (Other services should be mocked)
Consumer Driven Tests
Idea: The integration tests of a service will be defined and implemented by the
consumer (not by the service provider).
No release before the service passes all consumer's tests
●
Test with the real expectations, not with the service specification
●
Very smart concept, but hard to maintain
●
Has the risk of high test-redundancy for common APIs

24.08.14 22

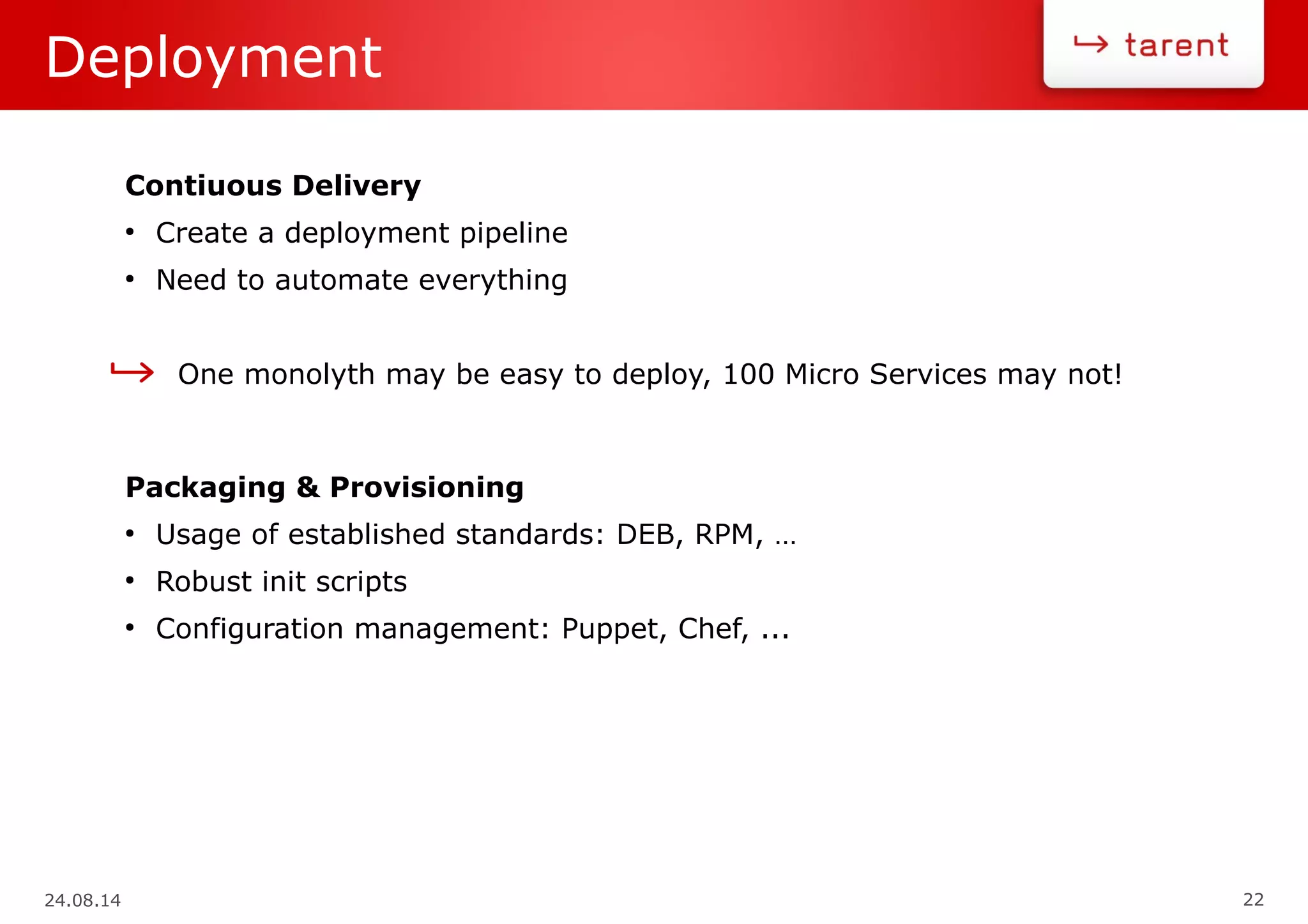

Deployment
Contiuous Delivery
●
Create a deployment pipeline
●
Need to automate everything
One monolyth may be easy to deploy, 100 Micro Services may not!
Packaging & Provisioning
●
Usage of established standards: DEB, RPM, …
●
Robust init scripts
●
Configuration management: Puppet, Chef, ...

24.08.14 23

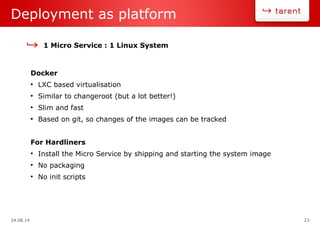

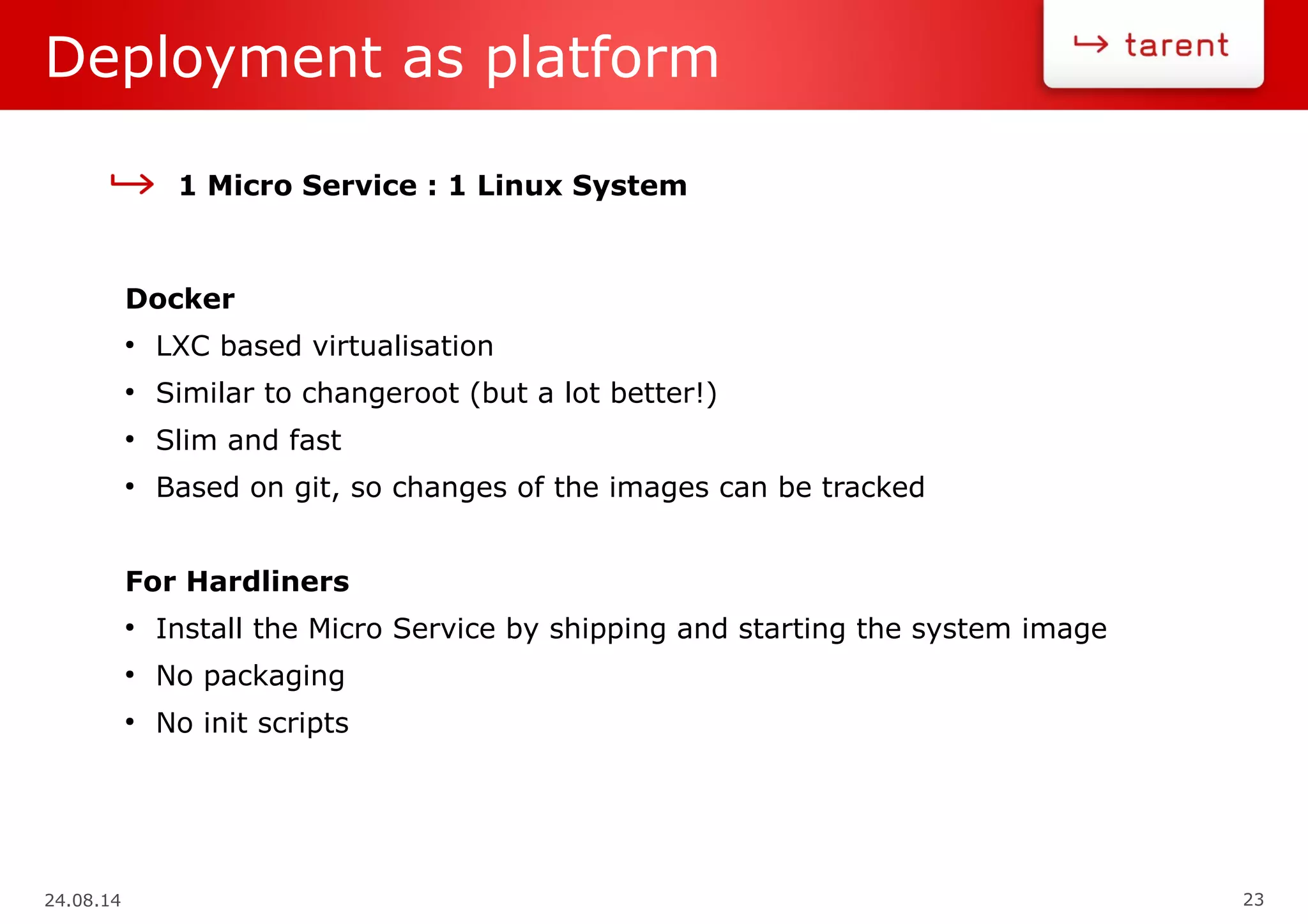

Deployment as platform
1 Micro Service : 1 Linux System
Docker
●
LXC based virtualisation
●
Similar to changeroot (but a lot better!)
●
Slim and fast
●
Based on git, so changes of the images can be tracked
For Hardliners
●
Install the Micro Service by shipping and starting the system image
●
No packaging
●
No init scripts

24.08.14 24

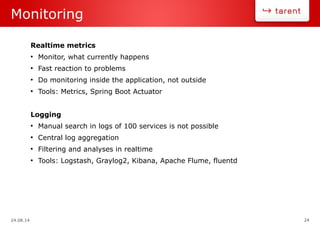

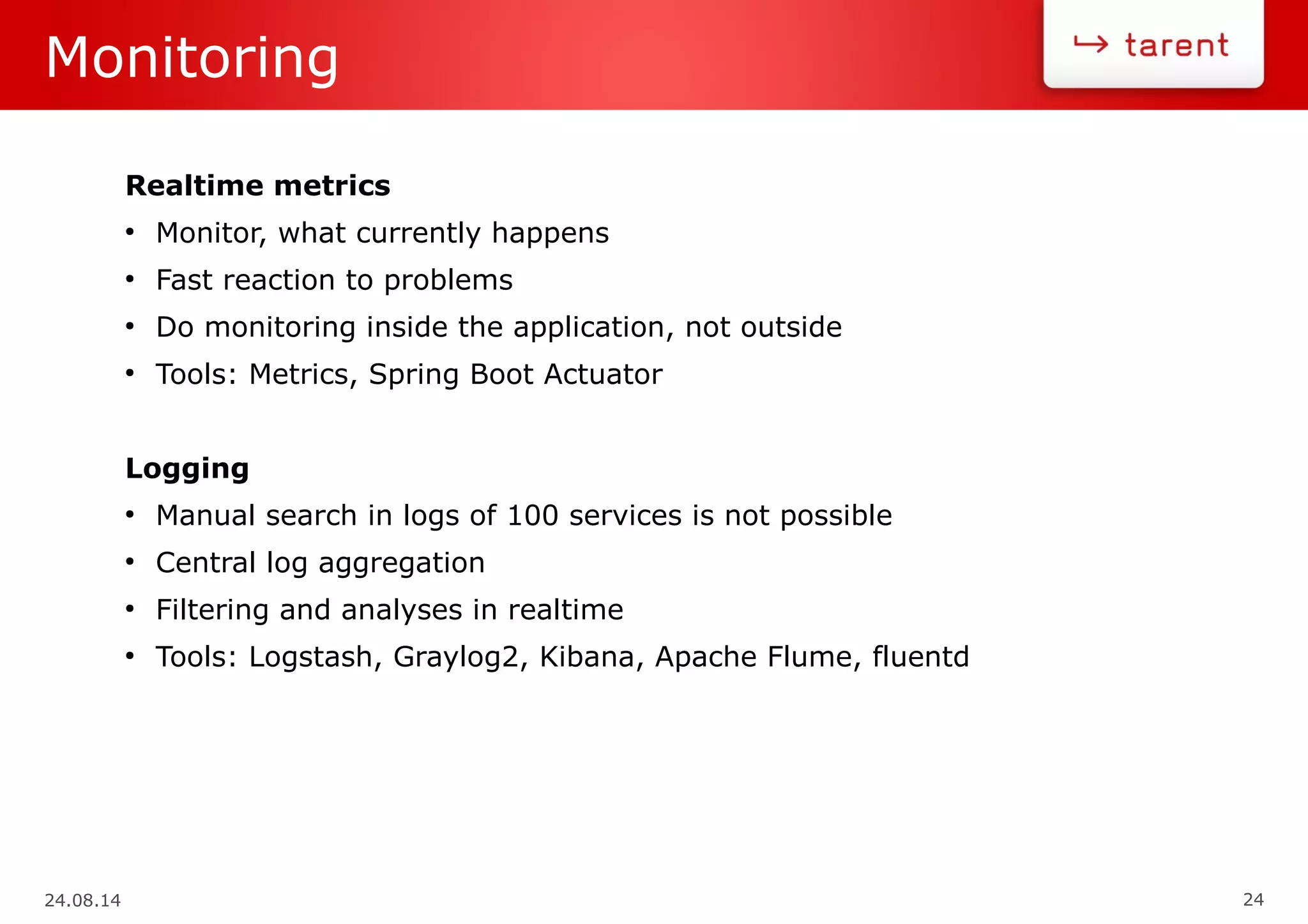

Monitoring
Realtime metrics
●
Monitor, what currently happens
●
Fast reaction to problems
●
Do monitoring inside the application, not outside
●
Tools: Metrics, Spring Boot Actuator
Logging
●
Manual search in logs of 100 services is not possible
●
Central log aggregation
●
Filtering and analyses in realtime
●
Tools: Logstash, Graylog2, Kibana, Apache Flume, fluentd

24.08.14 25

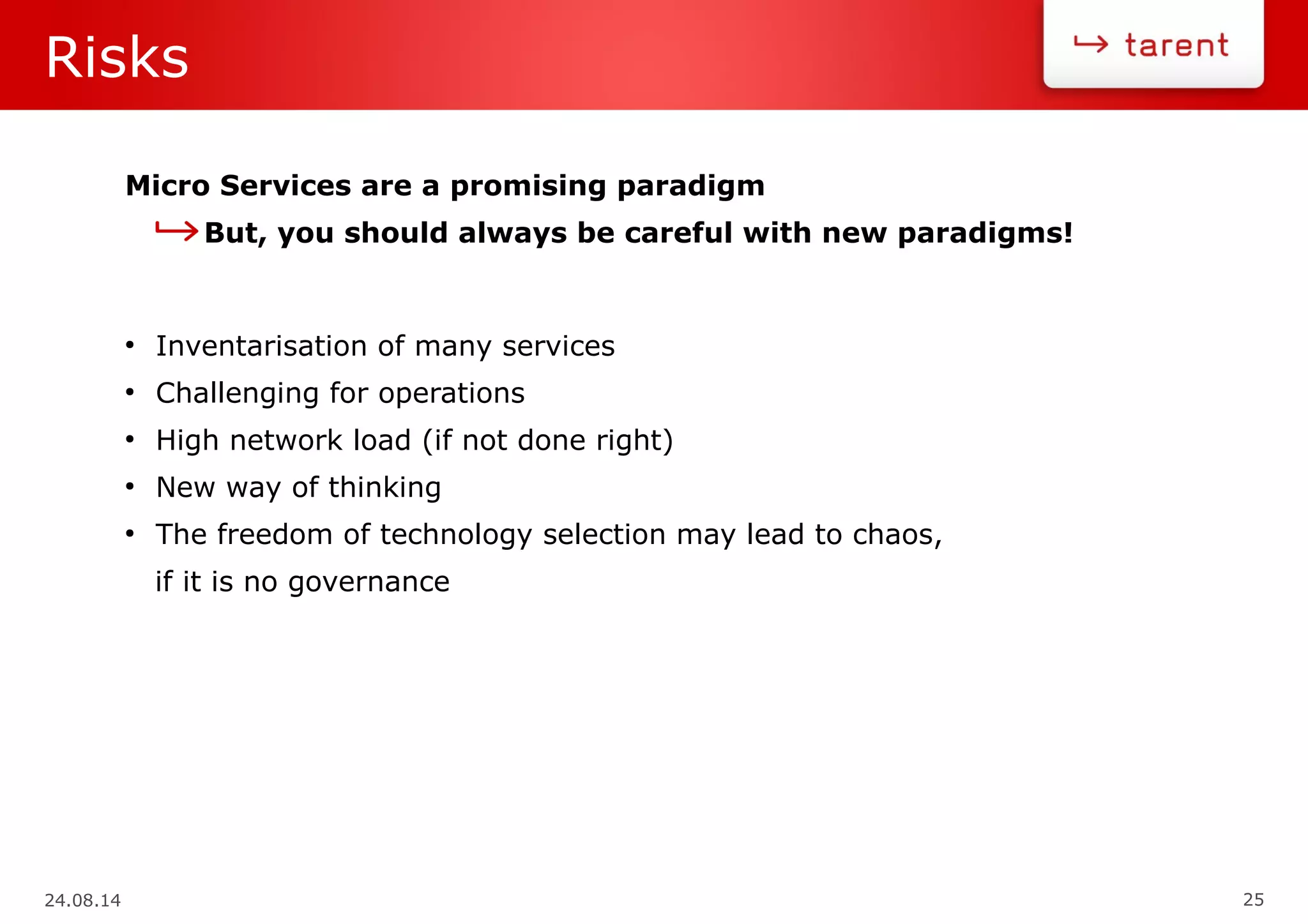

Risks
Micro Services are a promising paradigm
But, you should always be careful with new paradigms!
●
Inventarisation of many services
●
Challenging for operations
●
High network load (if not done right)
●
New way of thinking
●
The freedom of technology selection may lead to chaos,
if it is no governance
