Functional
Vaadin
7
Henri Muurimaa, SVP of Engineering
henri@vaadin.com
@henrimuurimaa
Mission
Why do we exist
Make building amazing
web applications easy

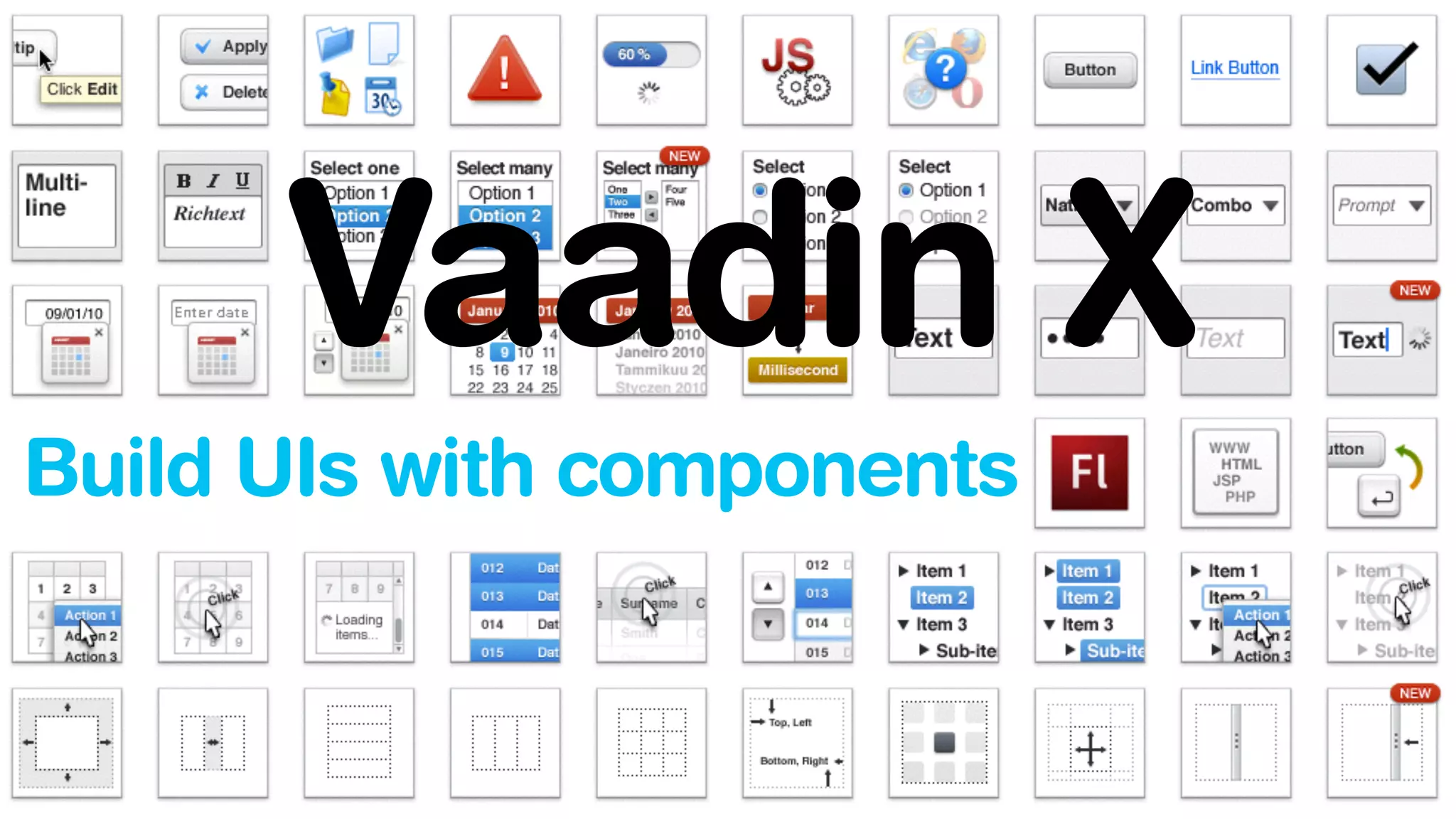

Vaadin X
Build UIs with components
Developer
Productivity
Rich
UX

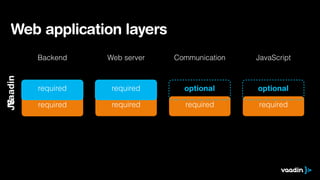

Web application layers
Backend Web server Communication JavaScript
JS
required required required required
Vaadin
required required optional optional

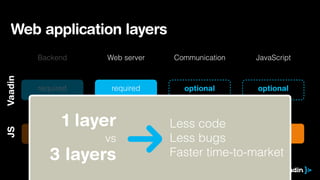

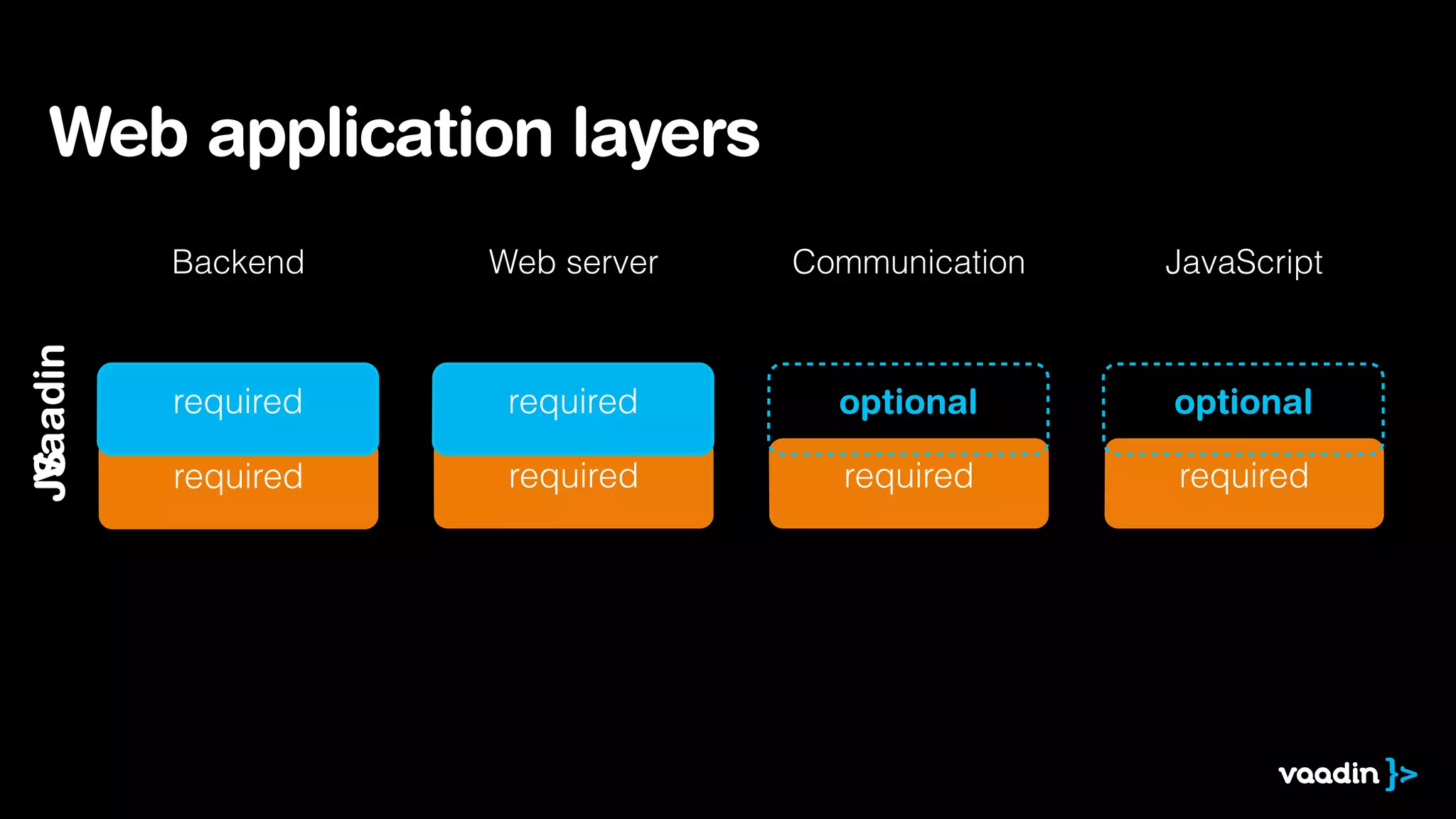

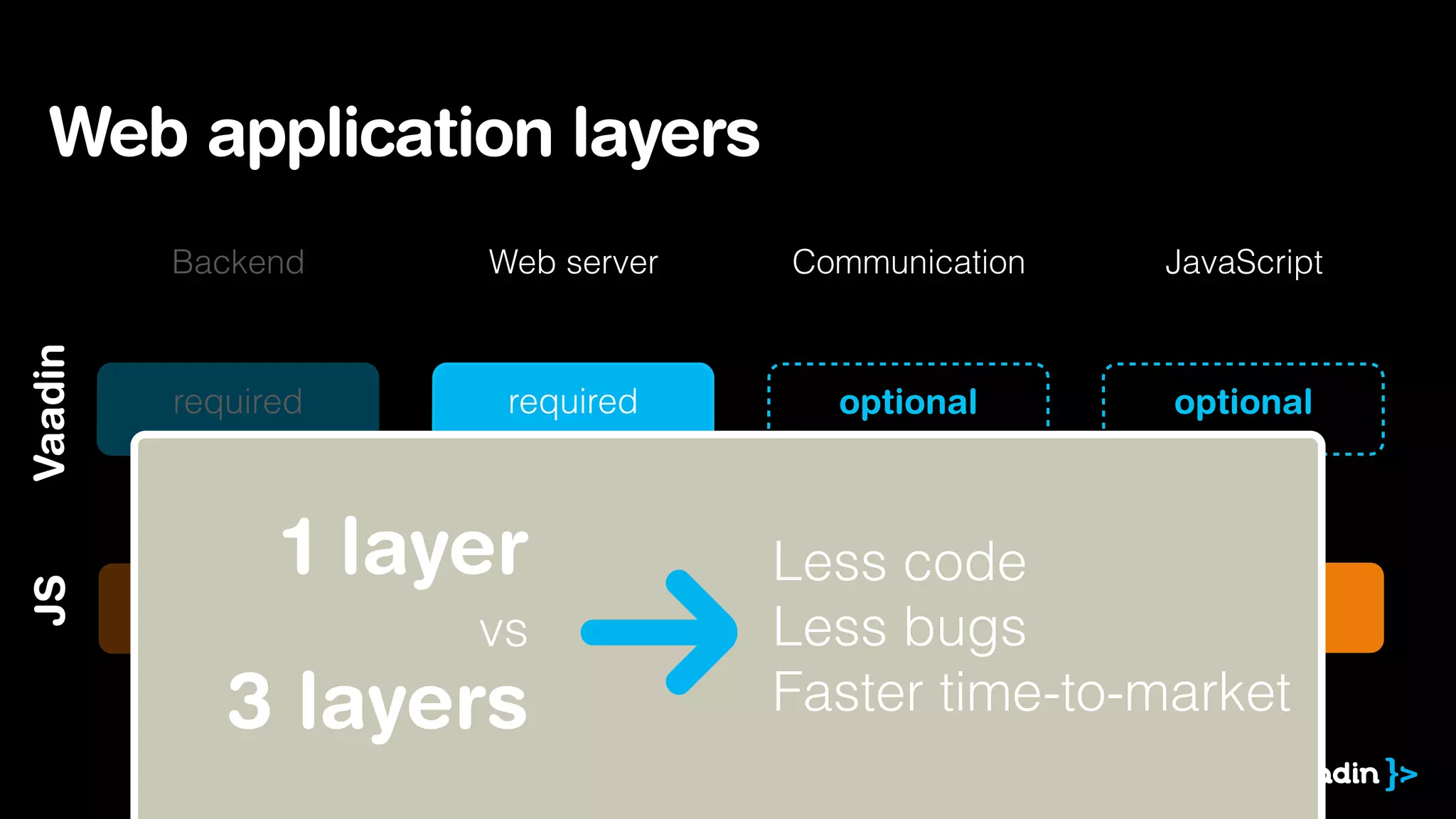

Web application layers
Backend Web server Communication JavaScript
JS
required required required required
Vaadin
required required optional optional
1 layer
vs
3 layers
Less code
Less bugs
Faster time-to-market
But can it
scale?

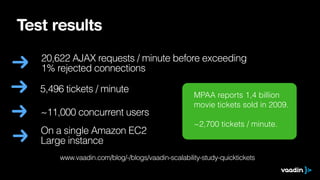

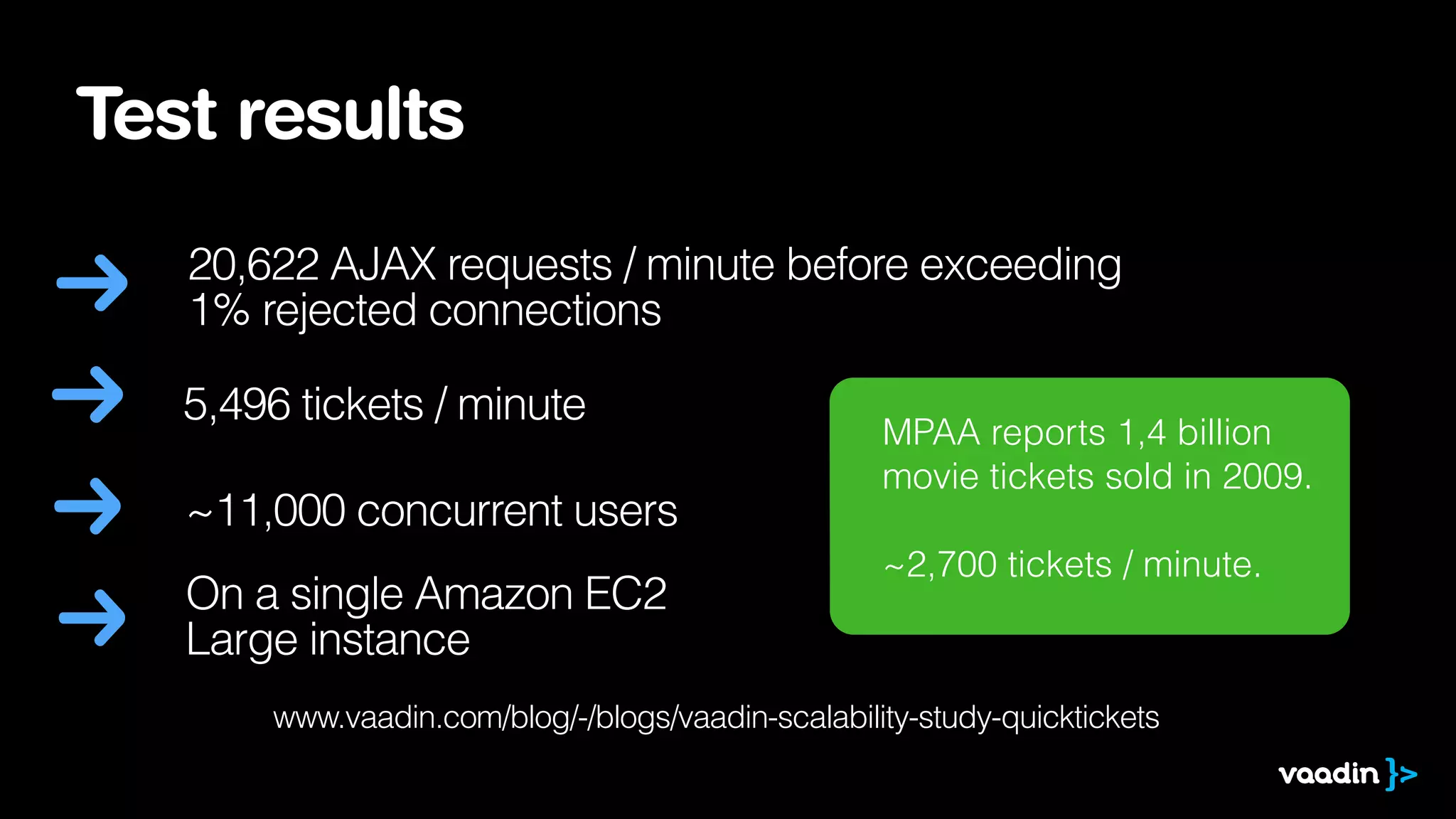

Test results
20,622 AJAX requests / minute before exceeding
1% rejected connections
MPAA reports 1,4 billion
movie tickets sold in 2009.
!
~2,700 tickets / minute.
5,496 tickets / minute
~11,000 concurrent users
On a single Amazon EC2
Large instance
www.vaadin.com/blog/-/blogs/vaadin-scalability-study-quicktickets
very active there

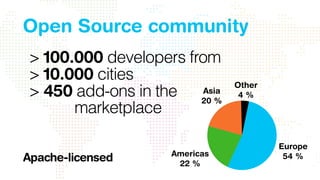

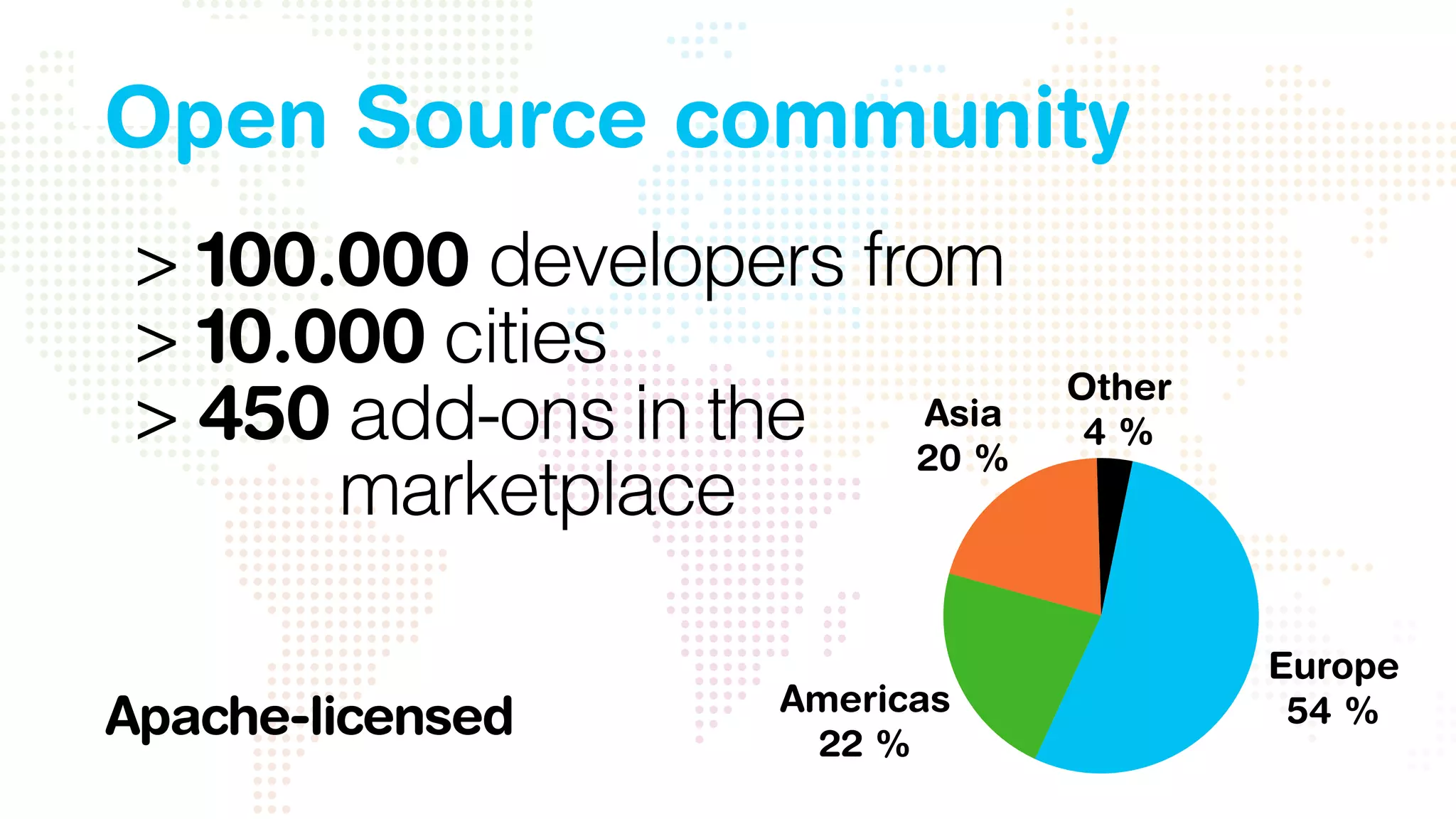

> 100.000 developers from
> 10.000 cities
> 450 add-ons in the
marketplace
Other
Asia 4 %
20 %
Americas
22 %
Europe
54 %
Open Source community
Apache-licensed
Demo time
github.com/hezamu/WorkoutTracker
What is
Functional
Programming?
A style of programming that
expresses computation as the
evaluation of mathematical
functions
Recursion
Lazy evaluation
Lambda expressions
Pattern matching
Type theory
Monads
Referential
transparency
Currying
Entscheidungsproblem
Tuples
Something practical?
Side effects?
State?
Denied
Denied
Okay…

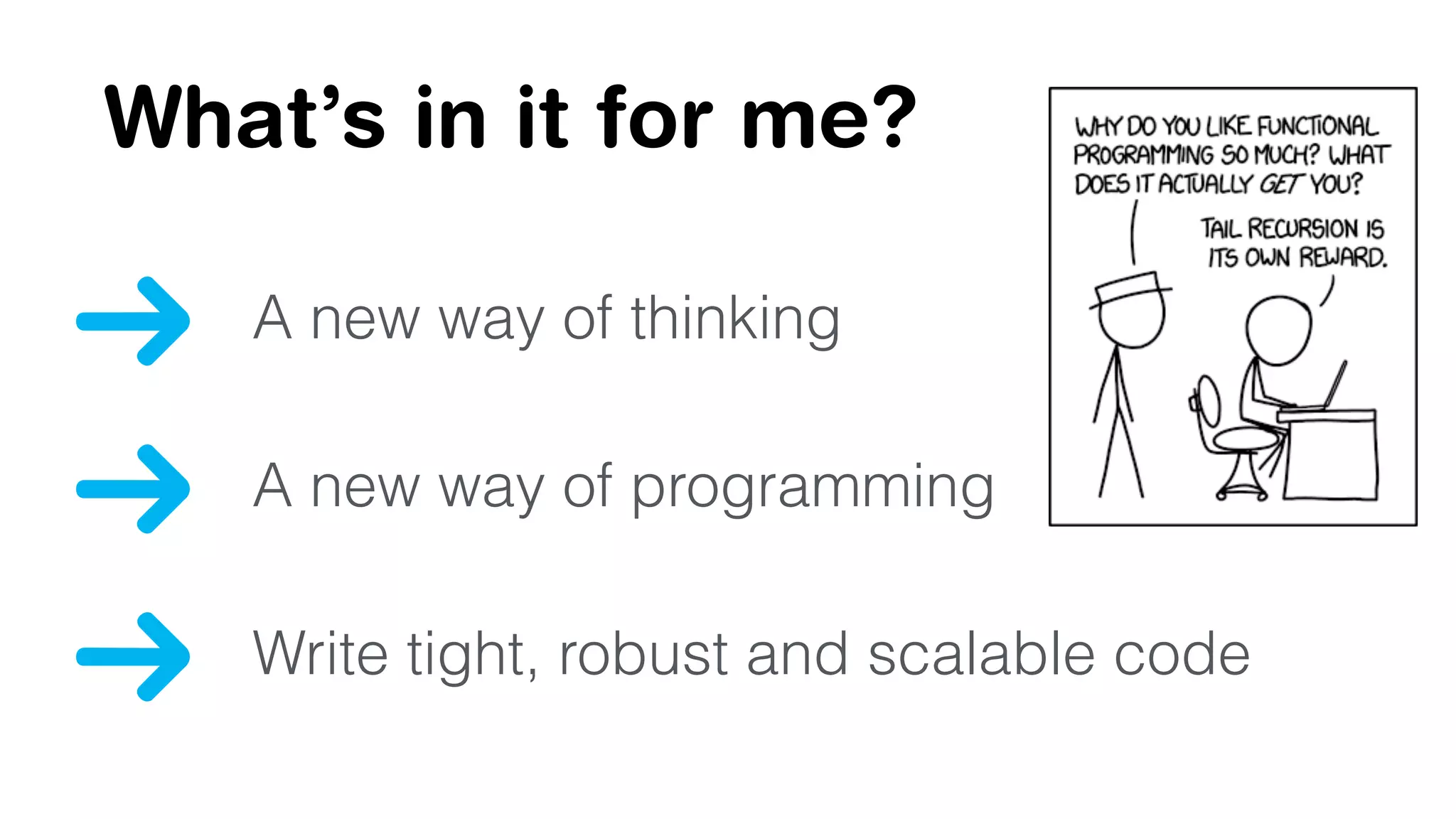

What’s in it for me?
A new way of thinking
A new way of programming
Write tight, robust and scalable code
What’s hot
in Java 8
Improved
Date API

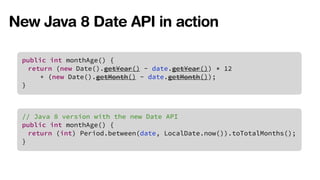

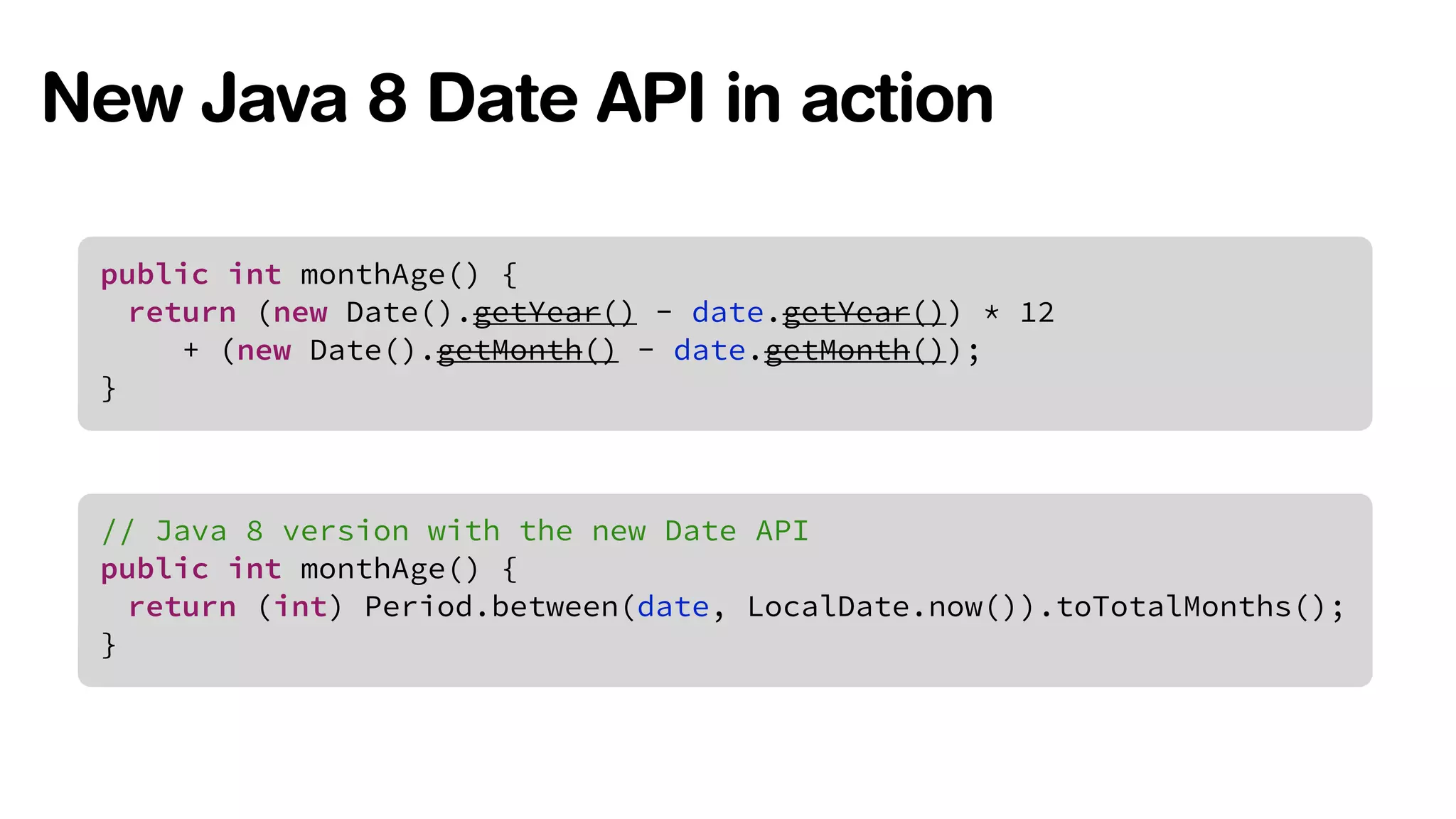

New Java 8 Date API in action
public int monthAge() {
return (new Date().getYear() - date.getYear()) * 12
+ (new Date().getMonth() - date.getMonth());
}
// Java 8 version with the new Date API
public int monthAge() {
return (int) Period.between(date, LocalDate.now()).toTotalMonths();
}
Lambda
expressions

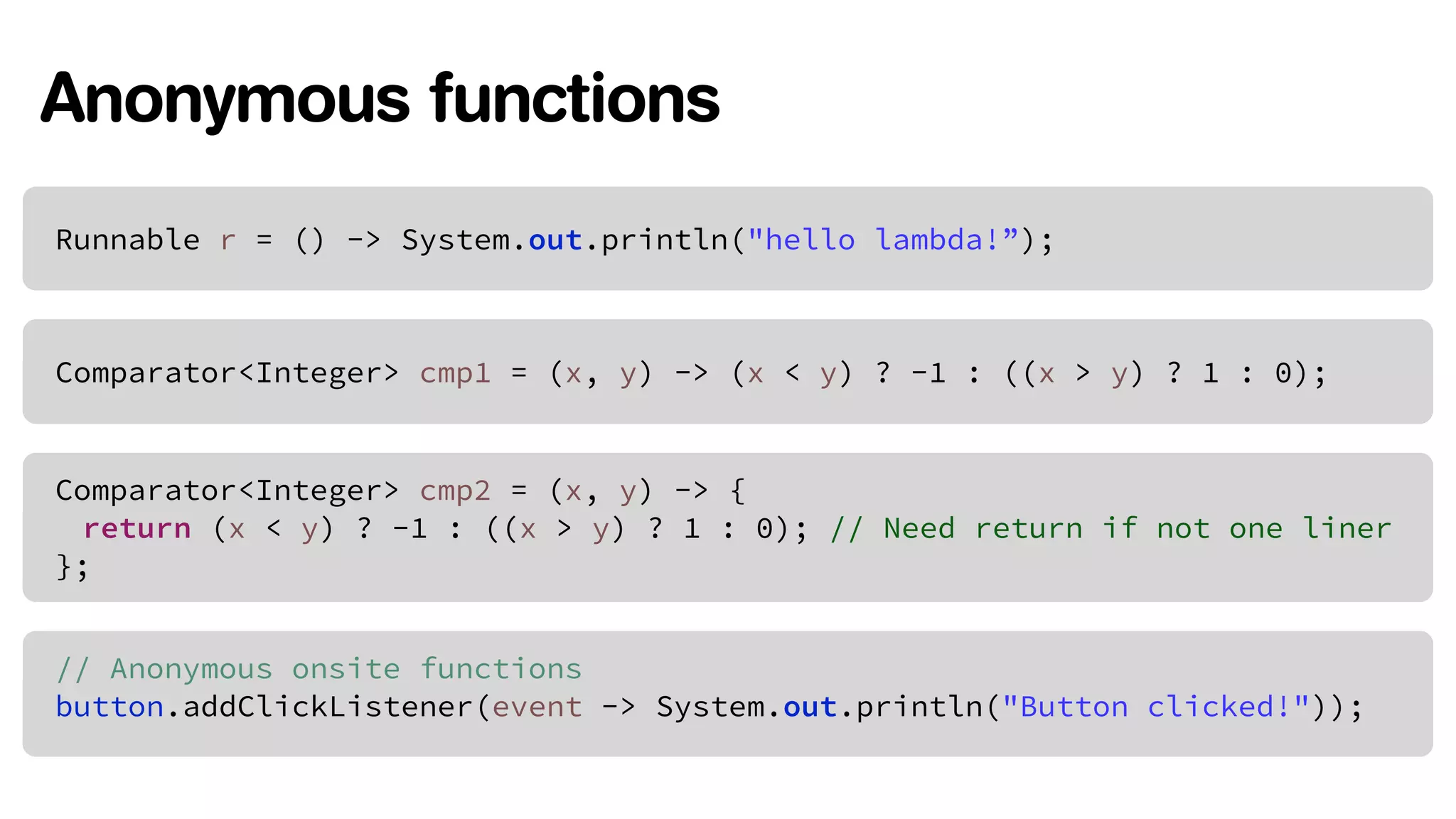

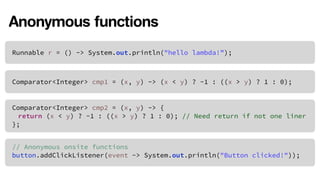

Anonymous functions
Runnable r = () -> System.out.println("hello lambda!”);
Comparator<Integer> cmp1 = (x, y) -> (x < y) ? -1 : ((x > y) ? 1 : 0);
Comparator<Integer> cmp2 = (x, y) -> {
return (x < y) ? -1 : ((x > y) ? 1 : 0); // Need return if not one liner
};
// Anonymous onsite functions
button.addClickListener(event -> System.out.println("Button clicked!"));

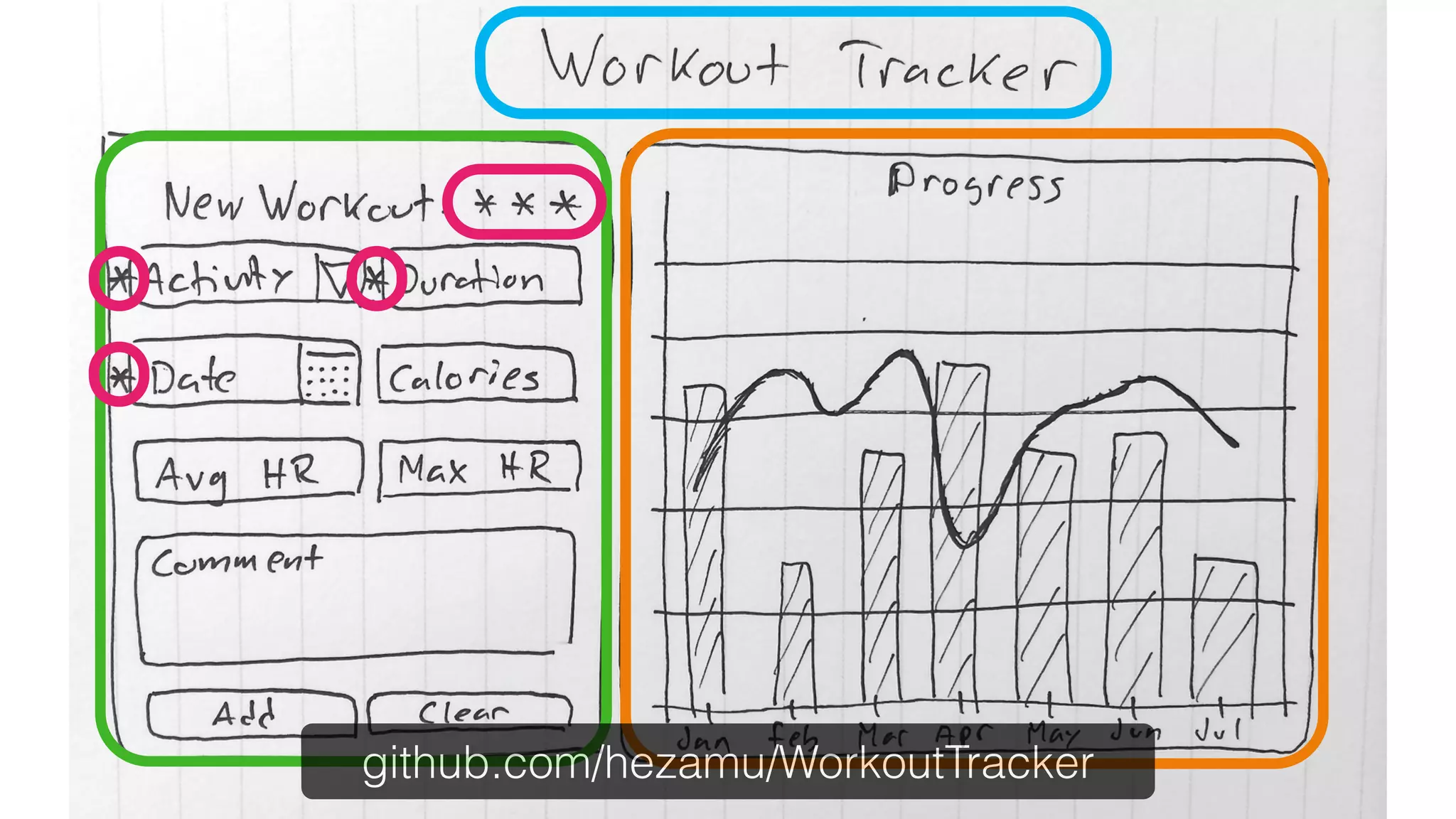

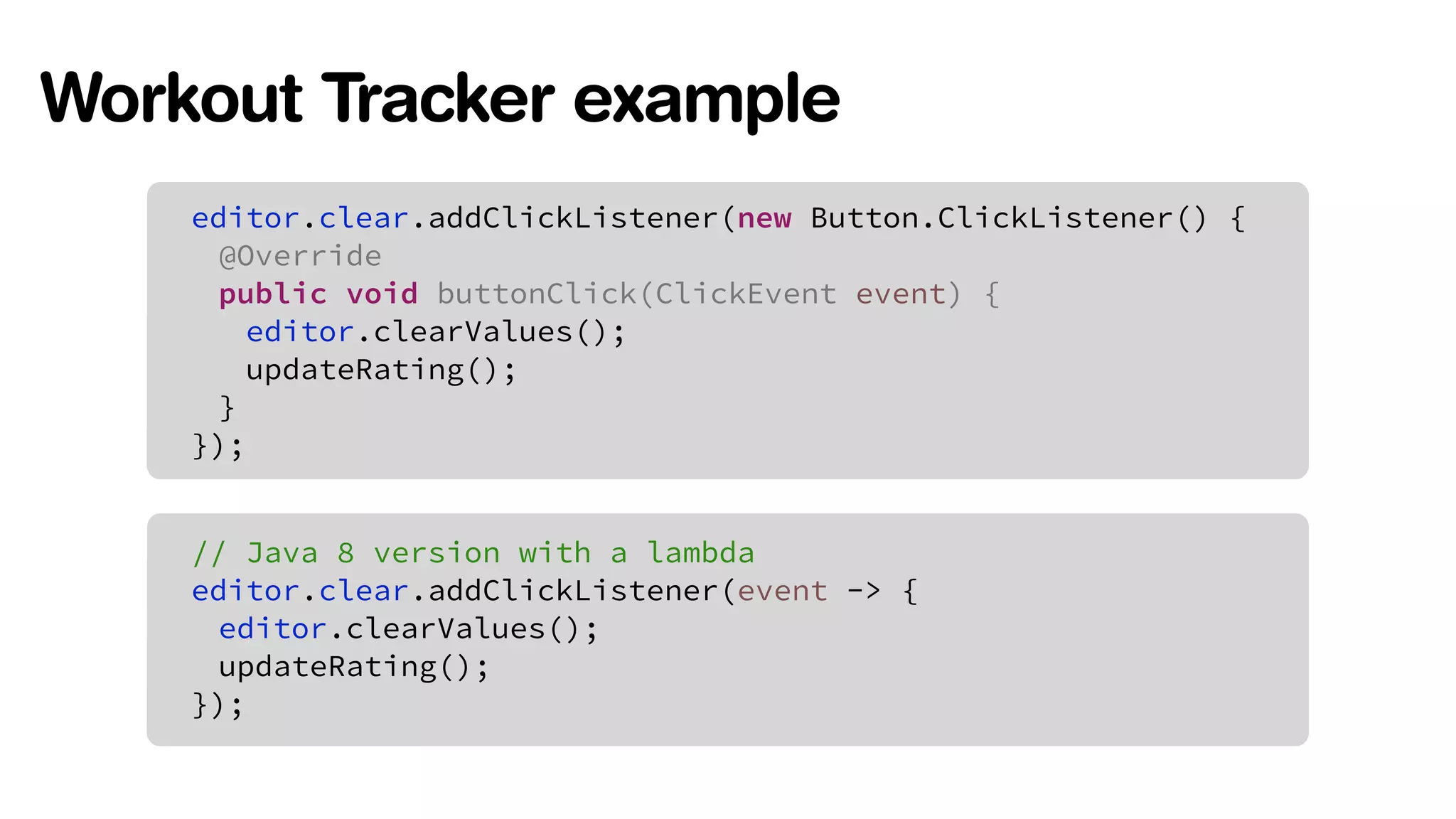

Workout Tracker example
editor.clear.addClickListener(new Button.ClickListener() {
@Override
public void buttonClick(ClickEvent event) {
editor.clearValues();
updateRating();
}
});
// Java 8 version with a lambda
editor.clear.addClickListener(event -> {
editor.clearValues();
updateRating();
});

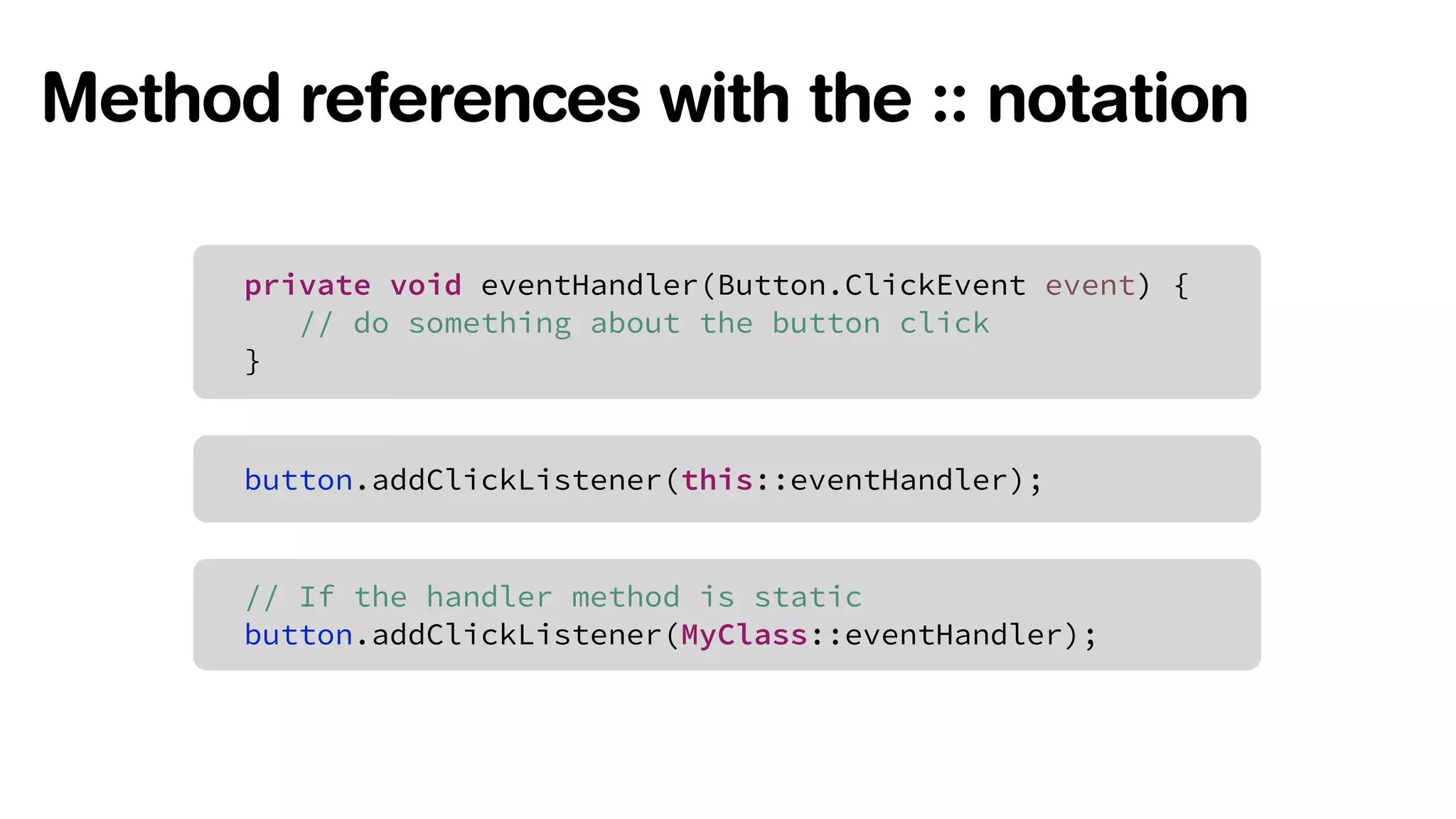

Method references with the :: notation
! private void eventHandler(Button.ClickEvent event) {
// do something about the button click
}
button.addClickListener(this::eventHandler);
// If the handler method is static
button.addClickListener(MyClass::eventHandler);

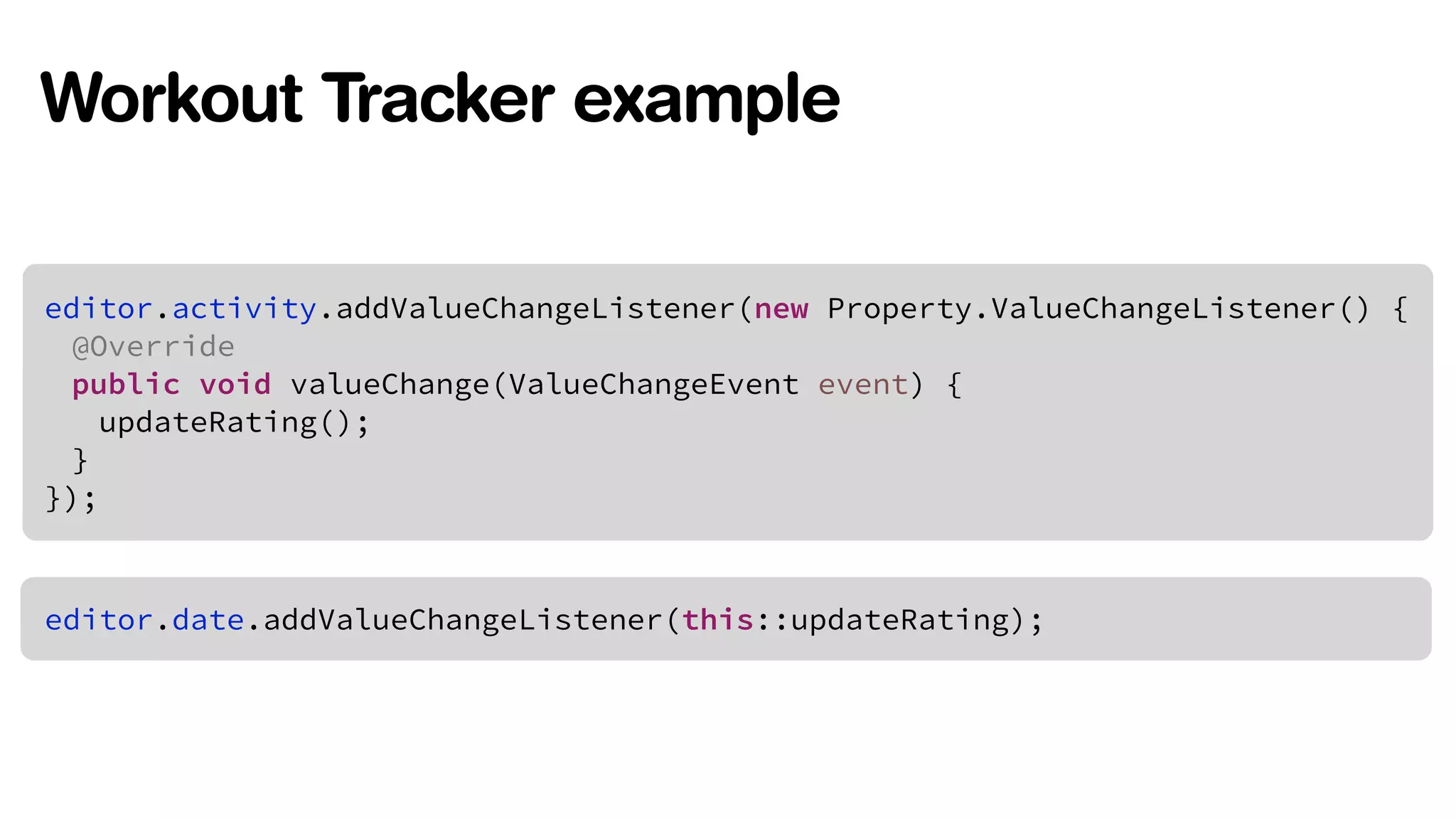

Workout Tracker example
!editor.activity.addValueChangeListener(new Property.ValueChangeListener() {
@Override
public void valueChange(ValueChangeEvent event) {
updateRating();
}
});
editor.date.addValueChangeListener(this::updateRating);

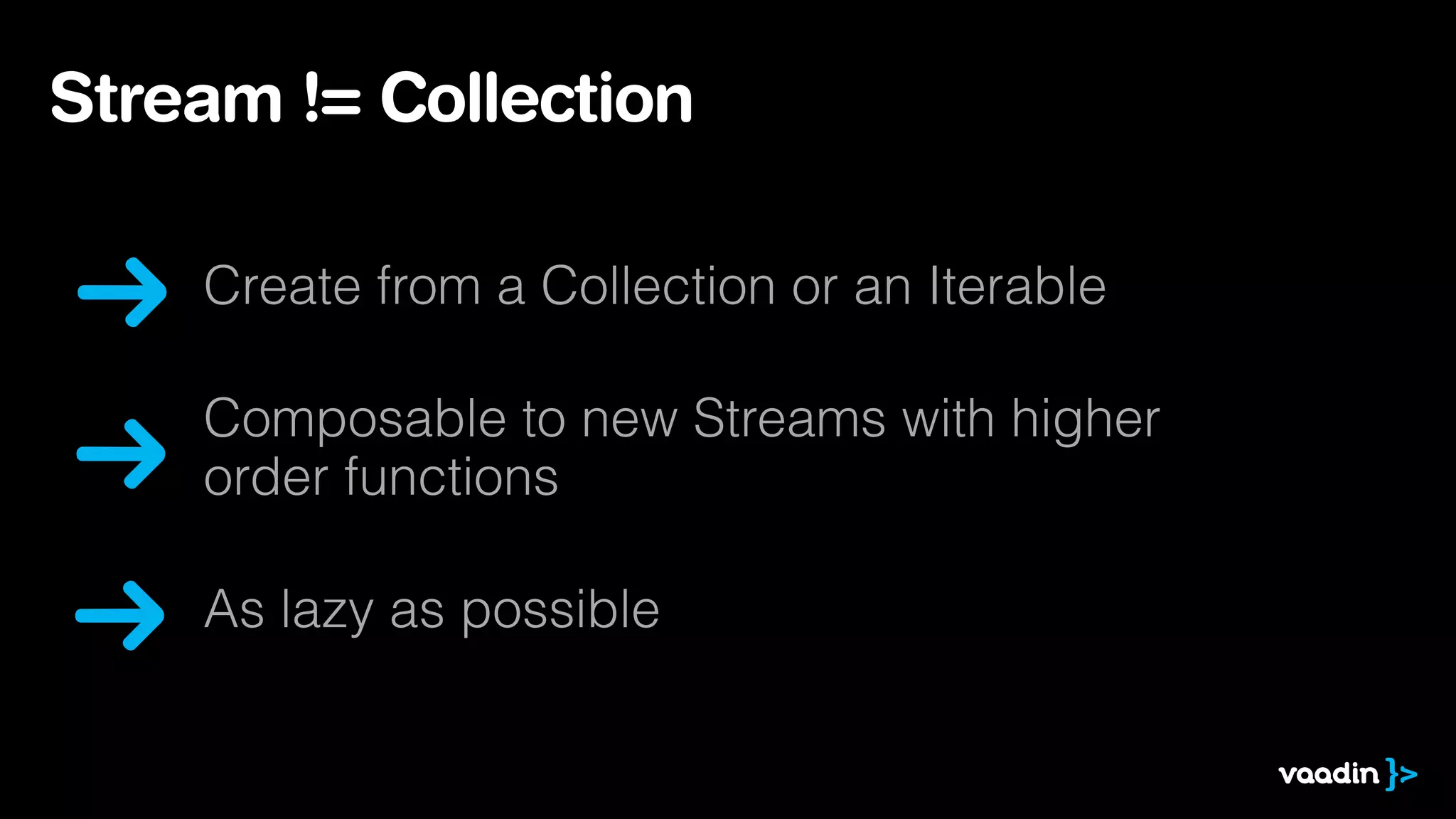

Streams
Stream != Collection
Create from a Collection or an Iterable
Composable to new Streams with higher
order functions
As lazy as possible

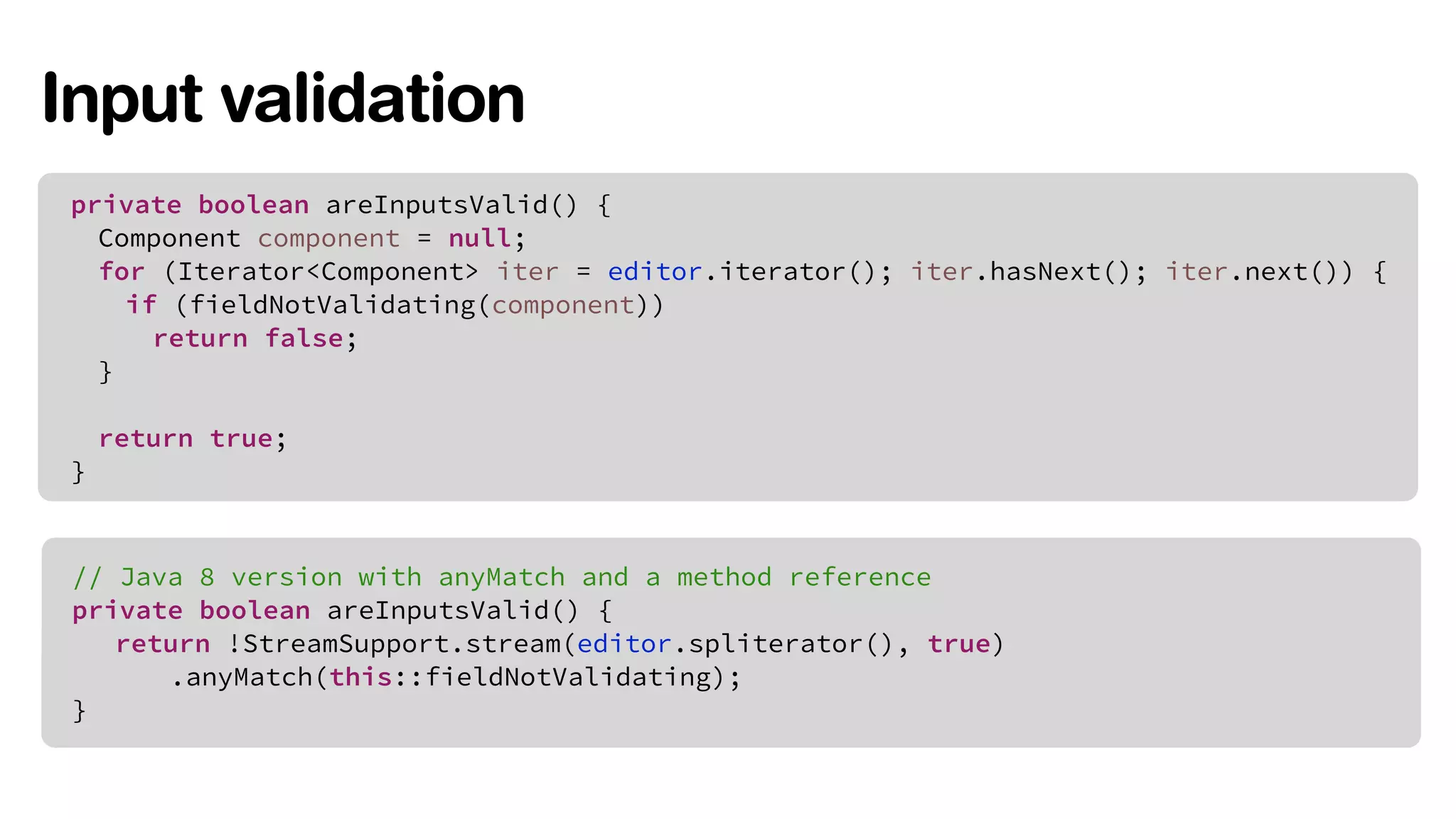

Input validation
private boolean areInputsValid() {
Component component = null;
for (Iterator<Component> iter = editor.iterator(); iter.hasNext(); iter.next()) {
if (fieldNotValidating(component))
return false;
}
return true;
}
// Java 8 version with anyMatch and a method reference
private boolean areInputsValid() {
return !StreamSupport.stream(editor.spliterator(), true)
.anyMatch(this::fieldNotValidating);
}

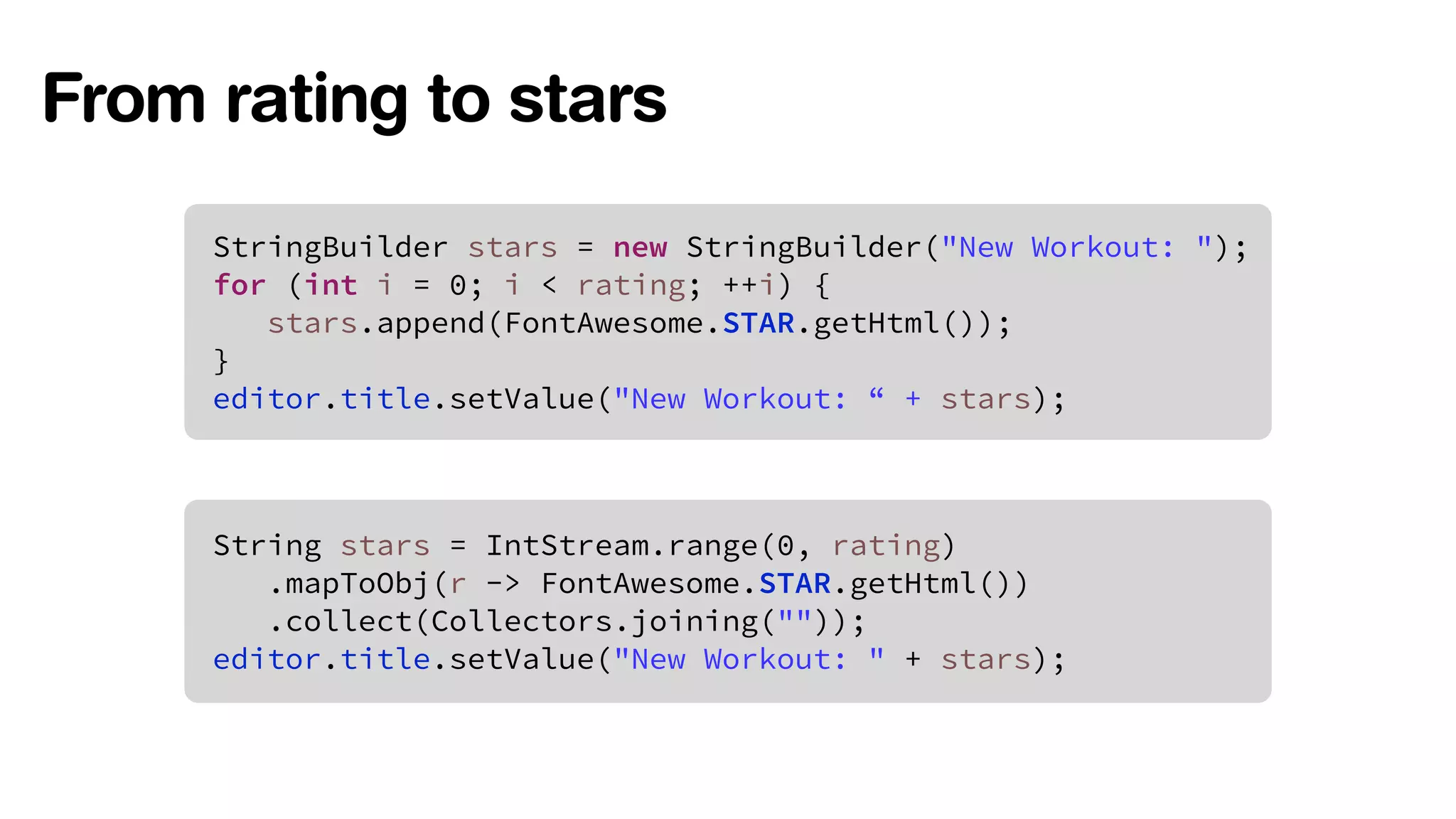

From rating to stars
StringBuilder stars = new StringBuilder("New Workout: ");
for (int i = 0; i < rating; ++i) {
stars.append(FontAwesome.STAR.getHtml());
}
editor.title.setValue("New Workout: “ + stars);
String stars = IntStream.range(0, rating)
.mapToObj(r -> FontAwesome.STAR.getHtml())
.collect(Collectors.joining(""));
editor.title.setValue("New Workout: " + stars);
Higher order
functions
A function that
takes one or more
functions as input

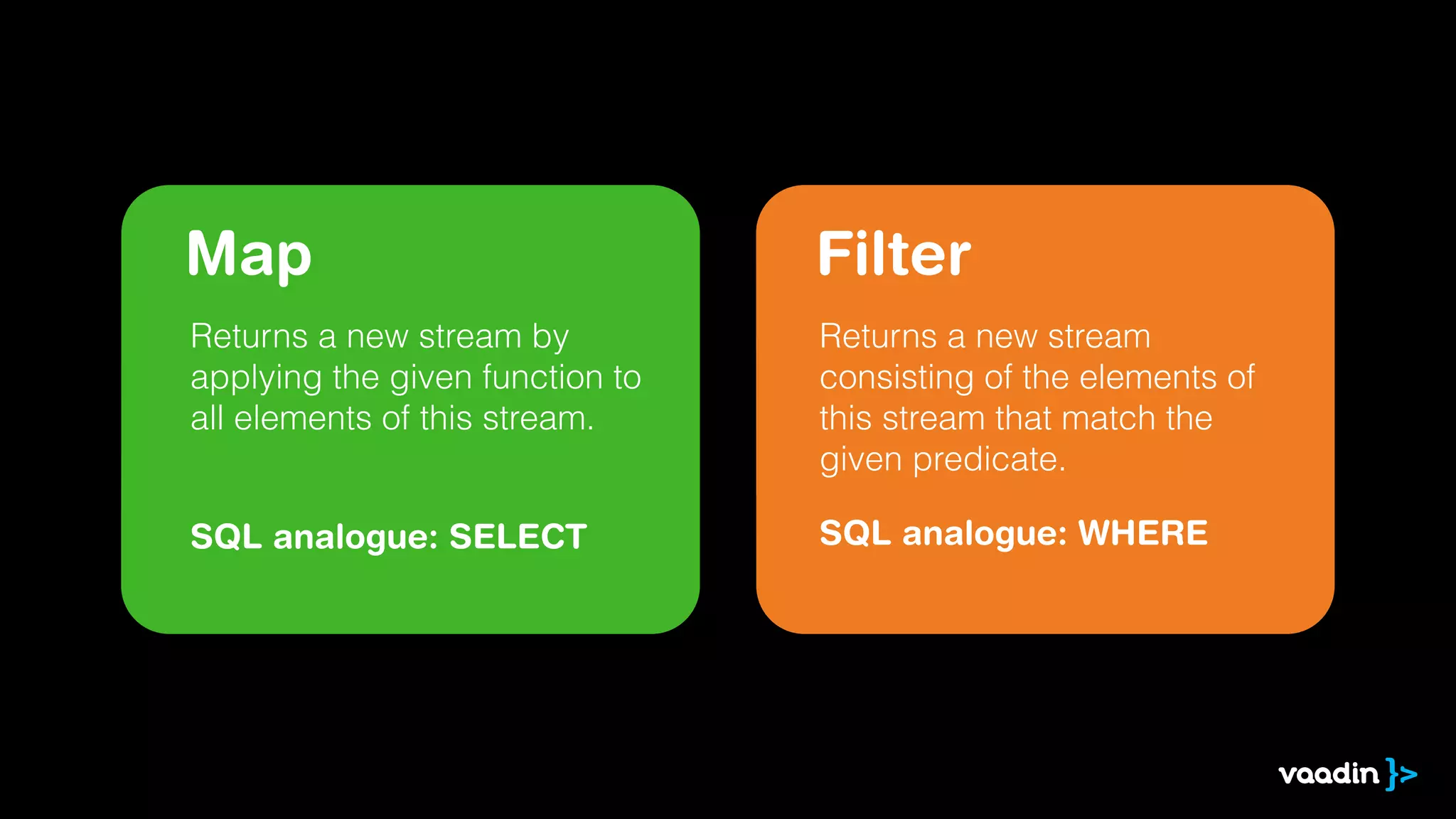

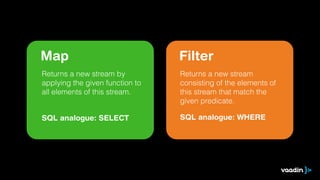

Map
Returns a new stream by
applying the given function to
all elements of this stream.
!
Filter
Returns a new stream
consisting of the elements of
this stream that match the
given predicate.
SQL analogue: SELECT SQL analogue: WHERE

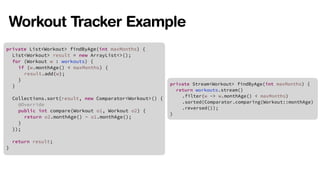

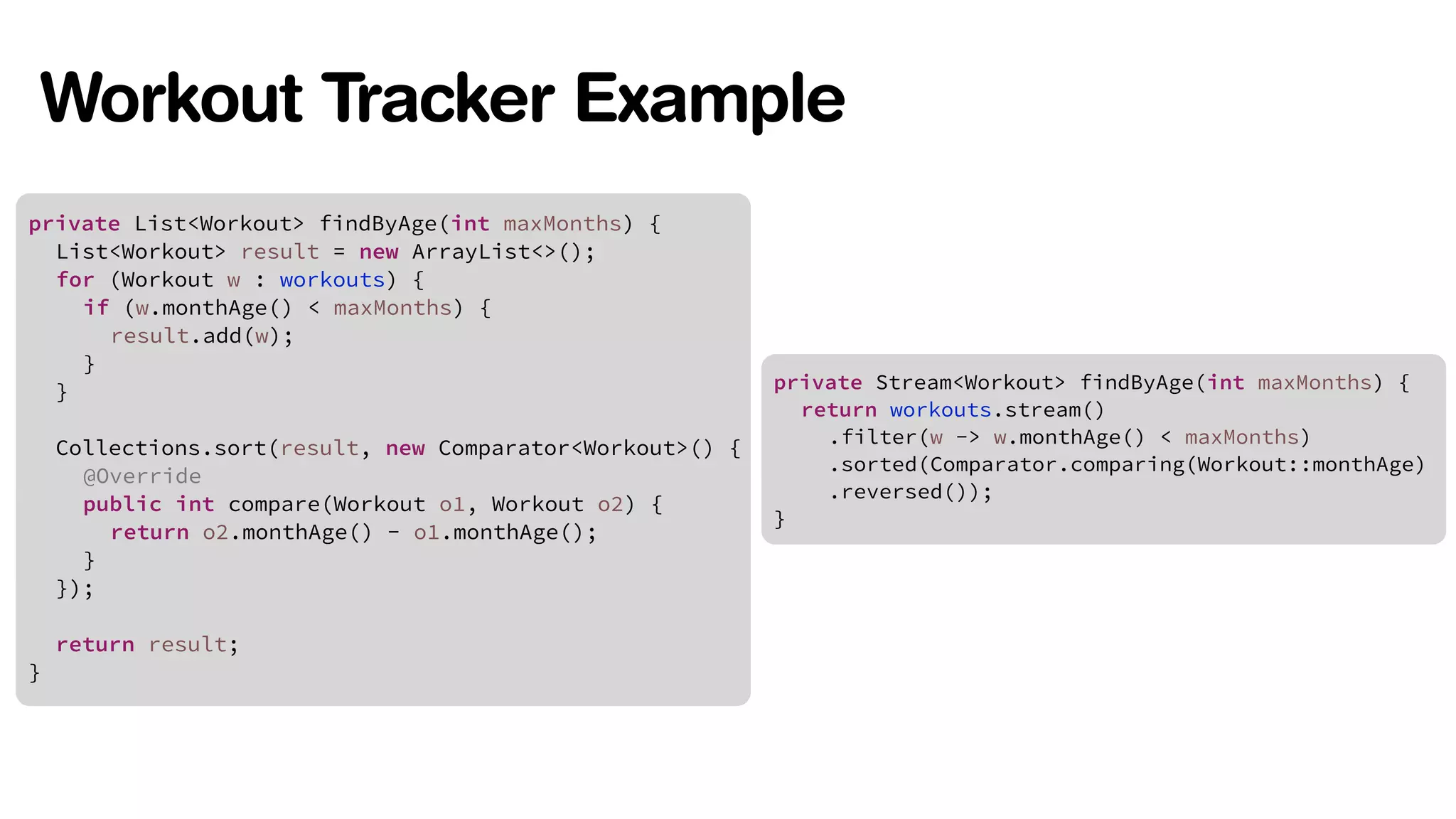

Workout Tracker Example
private List<Workout> findByAge(int maxMonths) {
List<Workout> result = new ArrayList<>();
for (Workout w : workouts) {
!
!
!
if (w.monthAge() < maxMonths) {
result.add(w);
}
}
Collections.sort(result, new Comparator<Workout>() {
@Override
public int compare(Workout o1, Workout o2) {
return o2.monthAge() - o1.monthAge();
}
});
!
return result;
}
private Stream<Workout> findByAge(int maxMonths) {
return workouts.stream()
!
!
!
.filter(w -> w.monthAge() < maxMonths)
.sorted(Comparator.comparing(Workout::monthAge)
.reversed());
}
What is
Functional
Reactive
Programming?
Observable

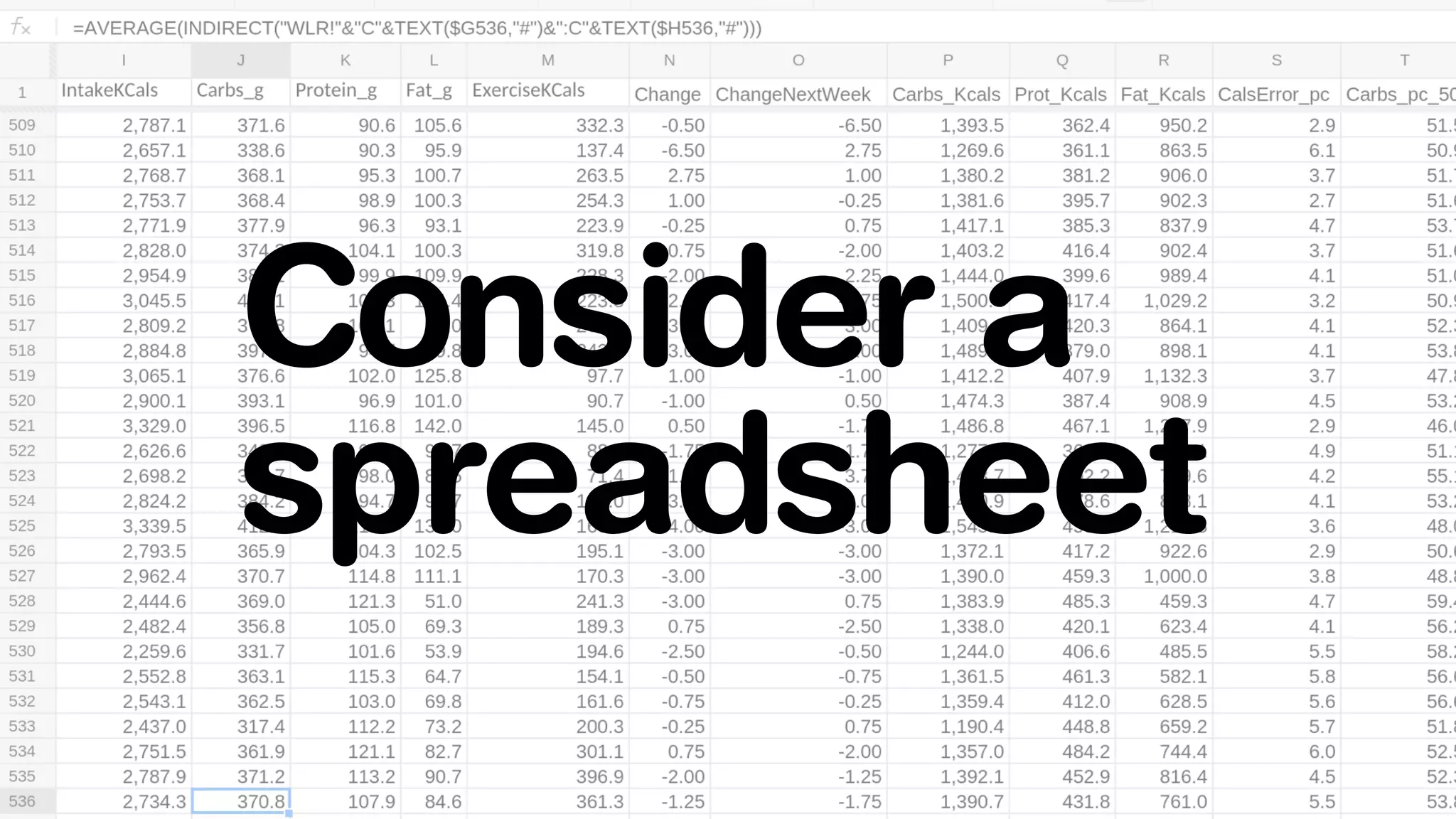

Consider a
spreadsheet
RxJava

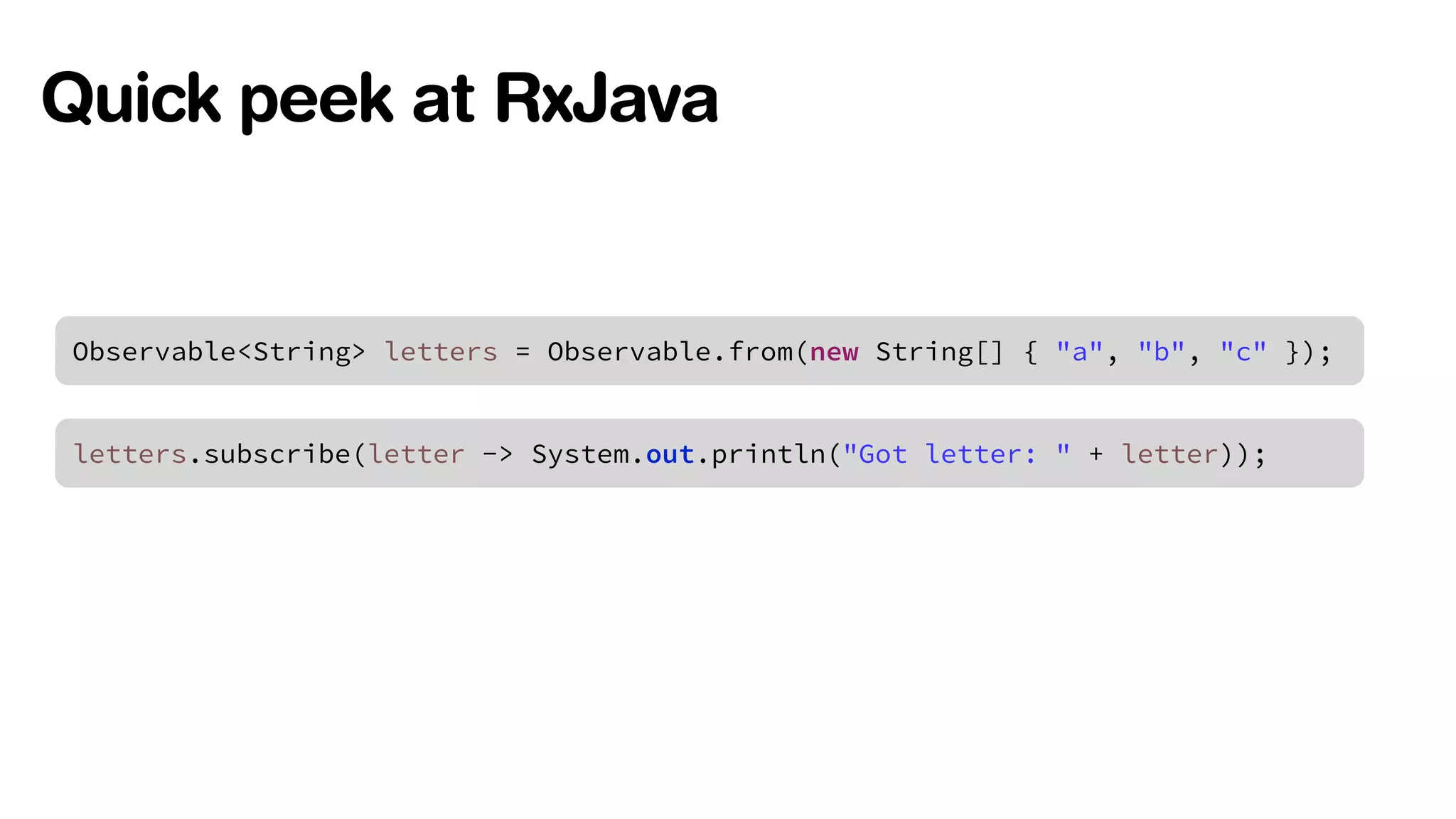

Quick peek at RxJava
Observable<String> letters = Observable.from(new String[] { "a", "b", "c" });
letters.subscribe(letter -> System.out.println("Got letter: " + letter));

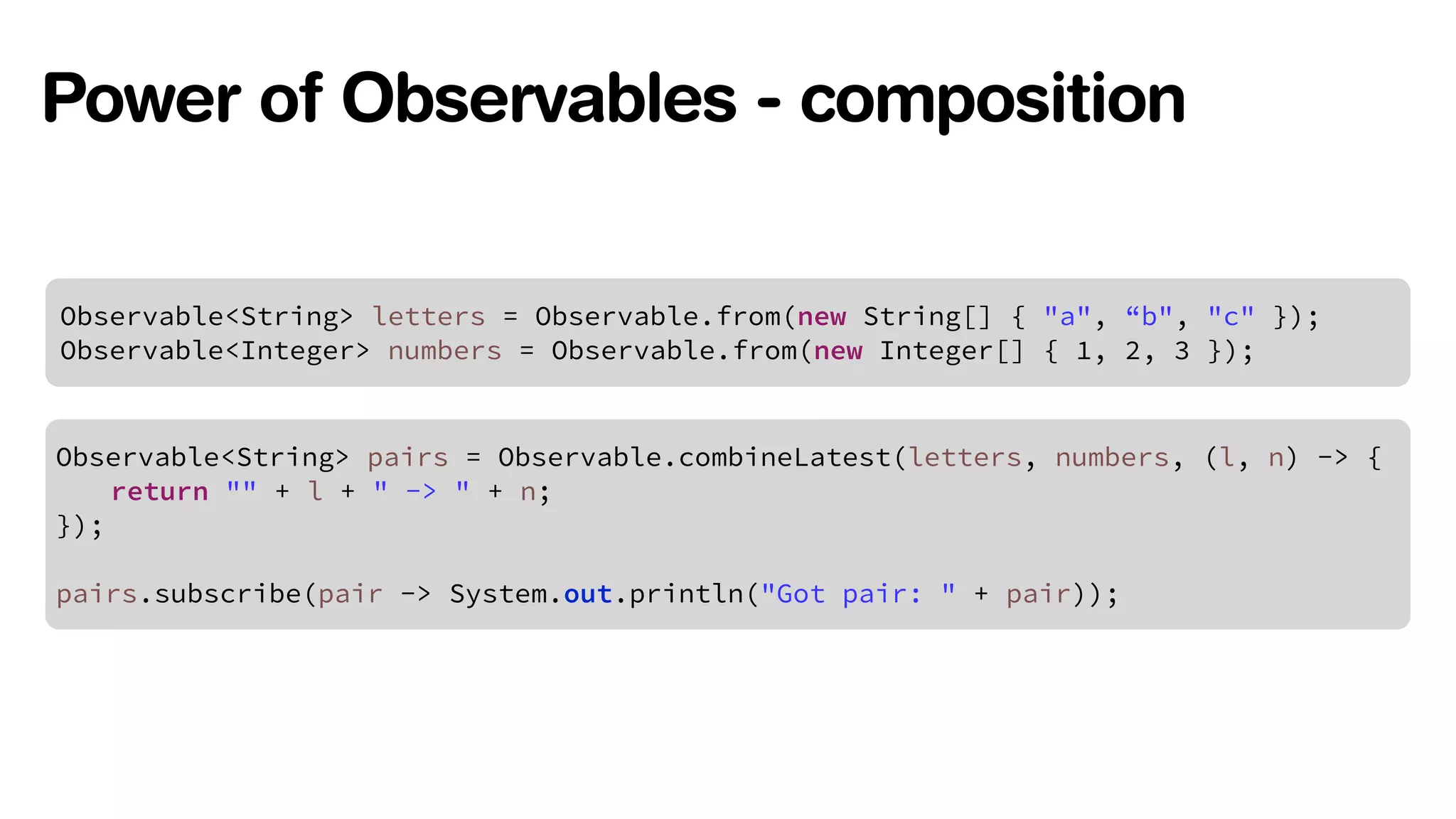

Power of Observables - composition
Observable<String> letters = Observable.from(new String[] { "a", “b", "c" });
Observable<Integer> numbers = Observable.from(new Integer[] { 1, 2, 3 });
Observable<String> pairs = Observable.combineLatest(letters, numbers, (l, n) -> {
return "" + l + " -> " + n;
});
!
pairs.subscribe(pair -> System.out.println("Got pair: " + pair));
RxVaadin www.vaadin.com/blog/-/blogs/reactive-functional-ui-development-with-vaadin

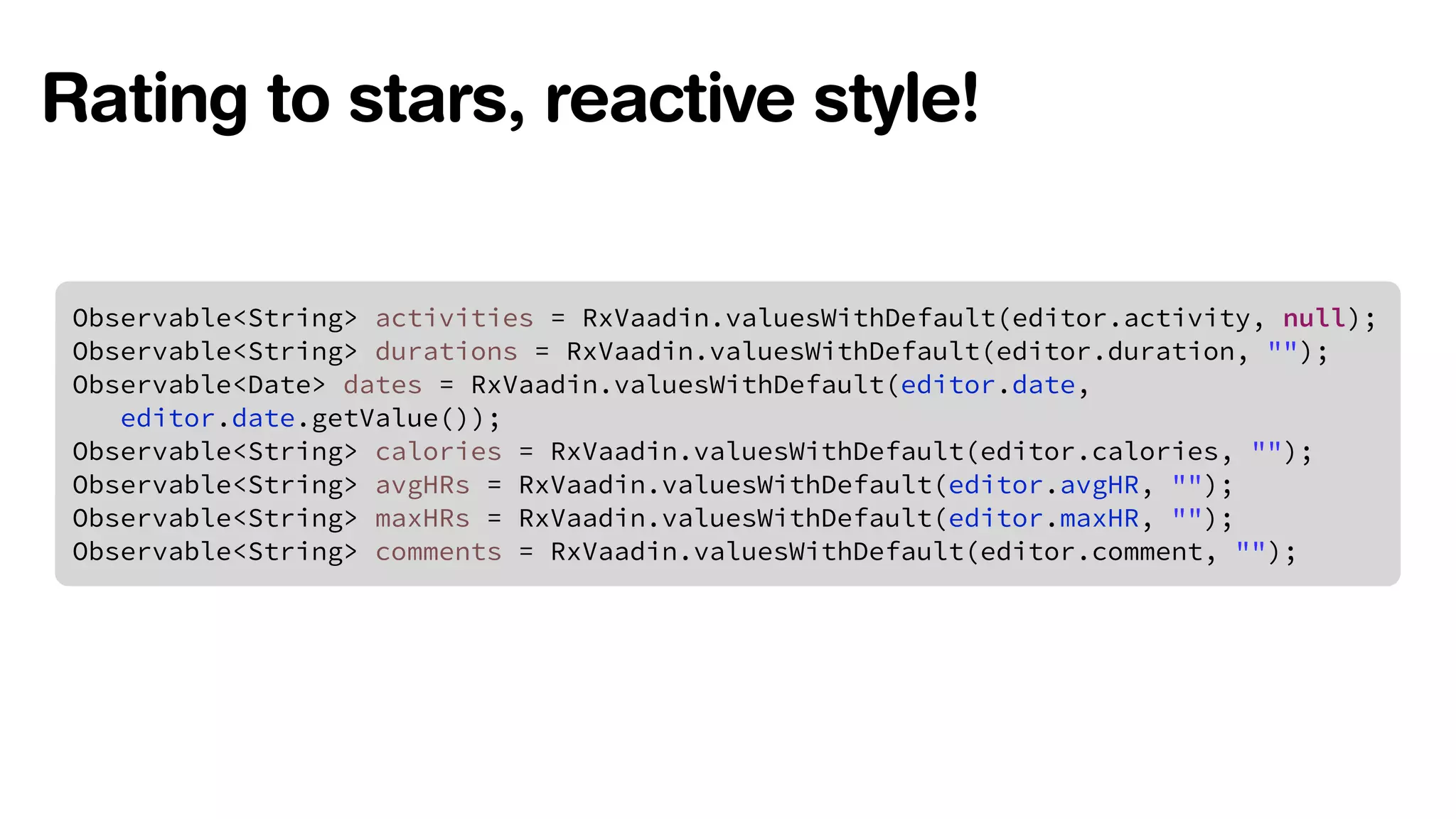

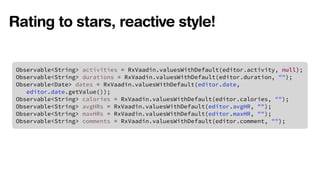

Rating to stars, reactive style!
Observable<String> activities = RxVaadin.valuesWithDefault(editor.activity, null);
Observable<String> durations = RxVaadin.valuesWithDefault(editor.duration, "");
Observable<Date> dates = RxVaadin.valuesWithDefault(editor.date,
editor.date.getValue());
Observable<String> calories = RxVaadin.valuesWithDefault(editor.calories, "");
Observable<String> avgHRs = RxVaadin.valuesWithDefault(editor.avgHR, "");
Observable<String> maxHRs = RxVaadin.valuesWithDefault(editor.maxHR, "");
Observable<String> comments = RxVaadin.valuesWithDefault(editor.comment, "");

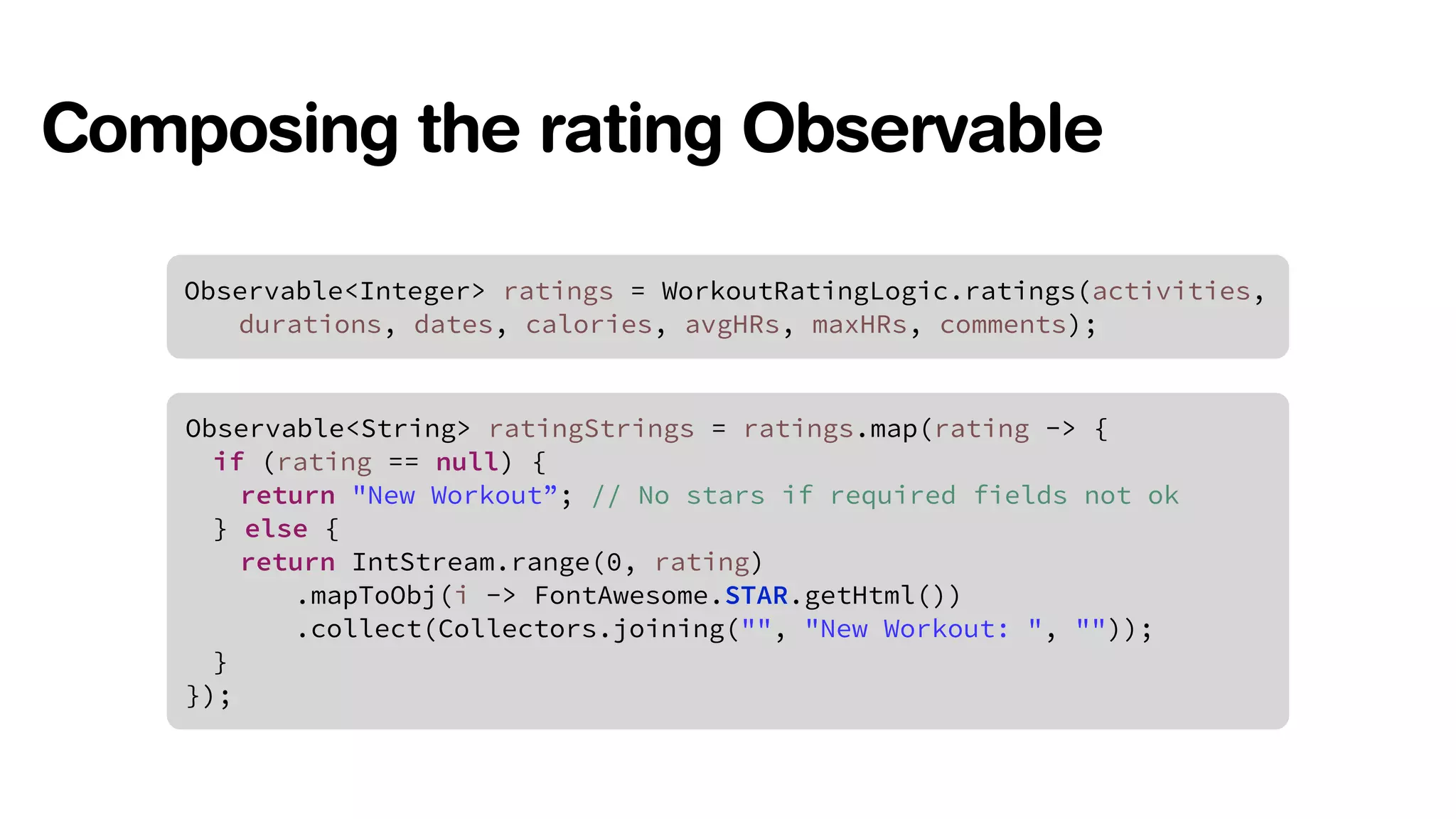

Composing the rating Observable
Observable<Integer> ratings = WorkoutRatingLogic.ratings(activities,
durations, dates, calories, avgHRs, maxHRs, comments);
Observable<String> ratingStrings = ratings.map(rating -> {
if (rating == null) {
return "New Workout”; // No stars if required fields not ok
} else {
return IntStream.range(0, rating)
.mapToObj(i -> FontAwesome.STAR.getHtml())
.collect(Collectors.joining("", "New Workout: ", ""));
}
});

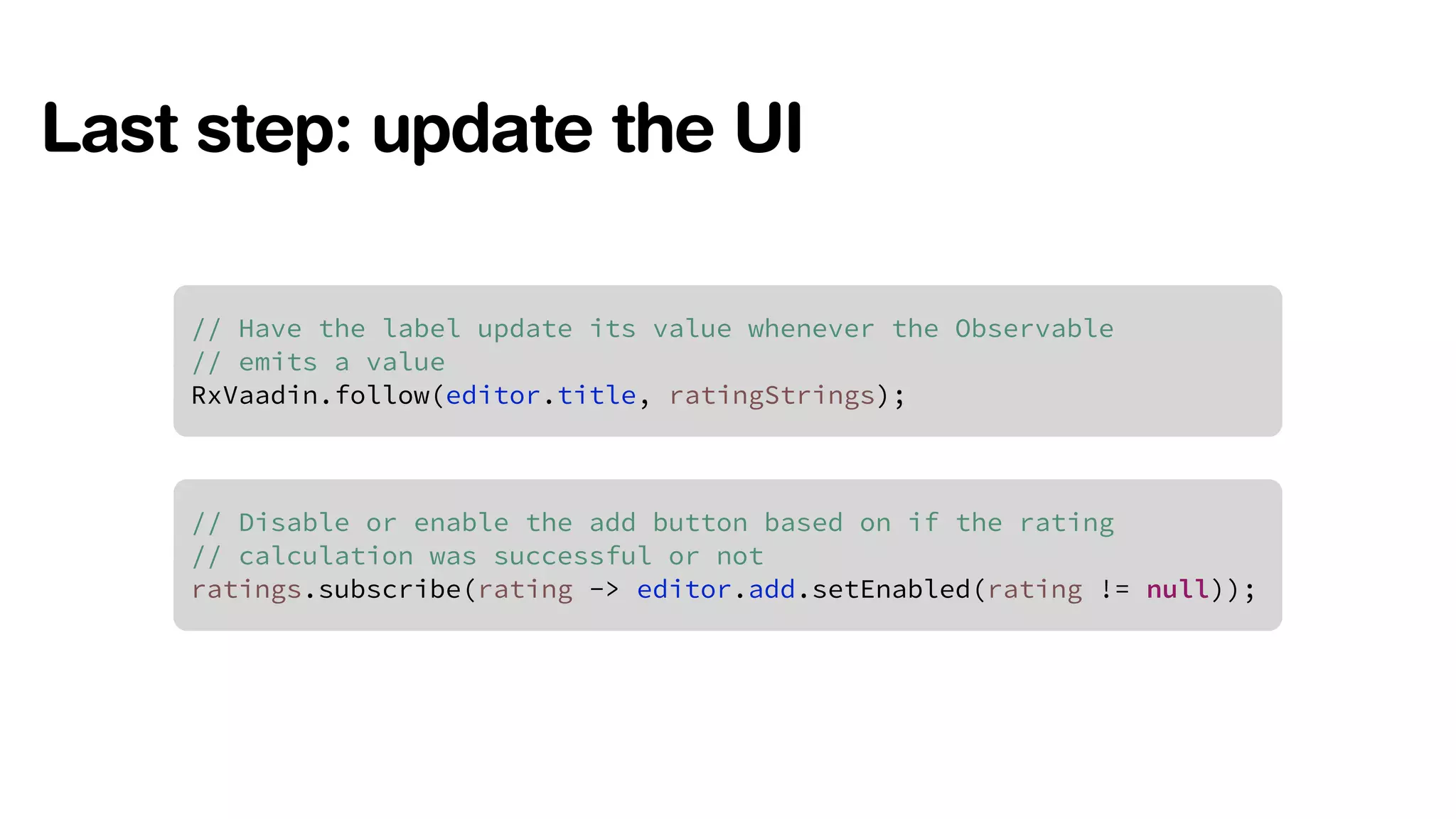

Last step: update the UI
// Have the label update its value whenever the Observable
// emits a value
RxVaadin.follow(editor.title, ratingStrings);
// Disable or enable the add button based on if the rating
// calculation was successful or not
ratings.subscribe(rating -> editor.add.setEnabled(rating != null));

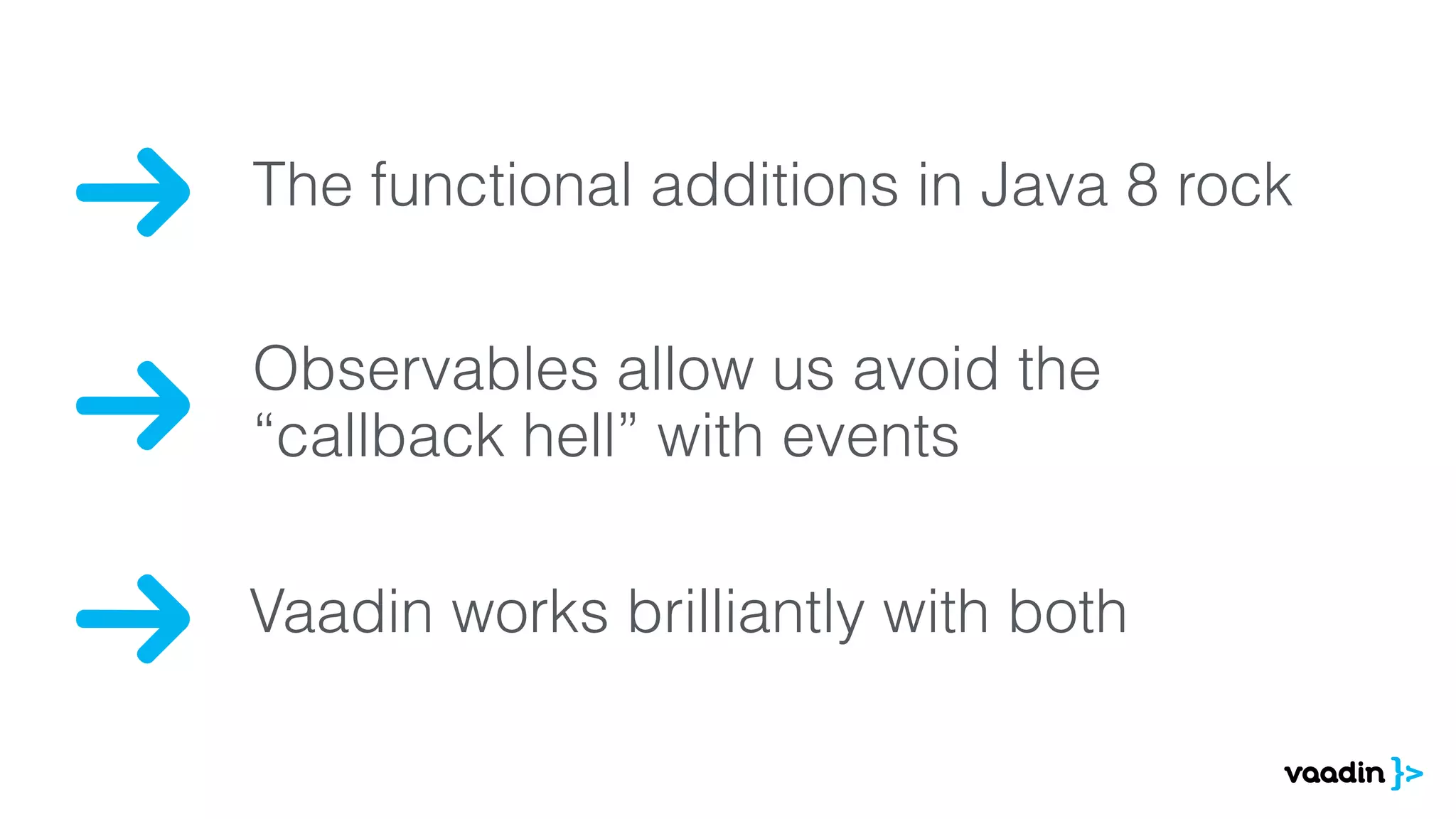

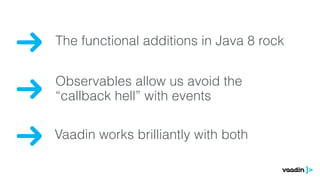

Summary
The functional additions in Java 8 rock
Observables allow us avoid the
“callback hell” with events
Vaadin works brilliantly with both
Thank You!
!
github.com/hezamu
@henrimuurimaa
henri@vaadin.com
!
Join us for a chat
and drinks at the
Vaadin Meetup
!
Hotel Serrano
Right now!
