Automated Test Case Generation and Execution from Models

The document presents an approach for automated test case generation and execution through model-based testing (MBT), aimed at enhancing software quality and reducing testing effort. It discusses the process of creating models from system requirements, generating test cases from these models, and executing them in various systems, including web-based applications and embedded systems. The benefits of this approach include improved test coverage, immediate return on investment, and the ability to detect and address bugs effectively.

Downloaded 305 times
Automated Testcase Generation and Execution from Models Dharmalingam Ganesan, Mikael Lindvall, Christoph Schulze Software Architecture and Embedded Systems Division Fraunhofer Center for Experimental Software Engineering College Park Maryland © 2012 Fraunhofer USA, Inc.

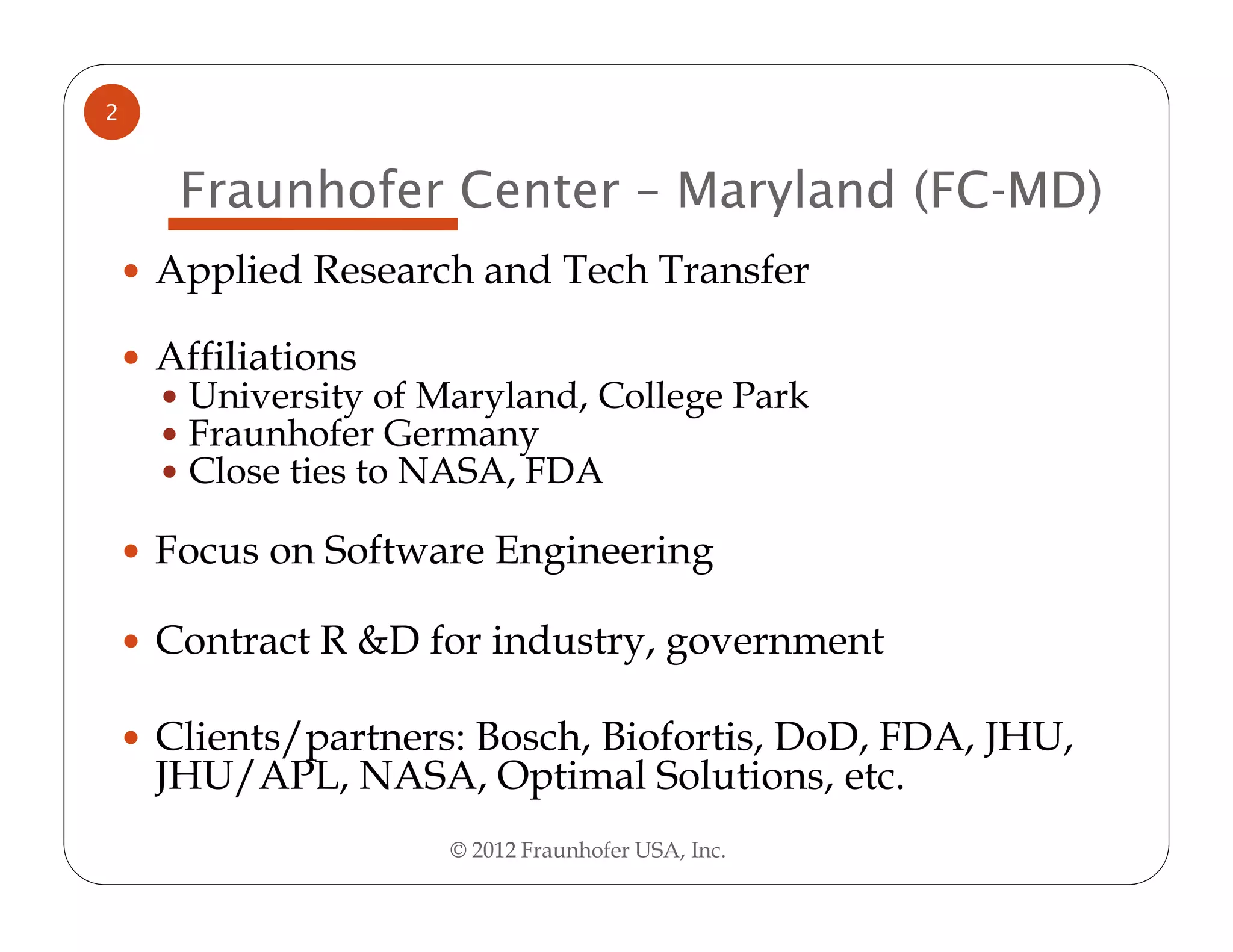

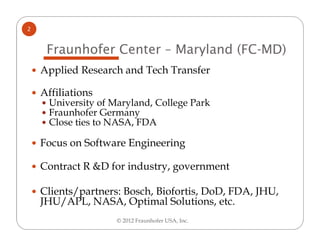

2 Fraunhofer Center – Maryland (FC-MD) Applied Research and Tech Transfer Affiliations University of Maryland, College Park Fraunhofer Germany Close ties to NASA, FDA Focus on Software Engineering Contract R &D for industry, government Clients/partners: Bosch, Biofortis, DoD, FDA, JHU, JHU/APL, NASA, Optimal Solutions, etc. © 2012 Fraunhofer USA, Inc.

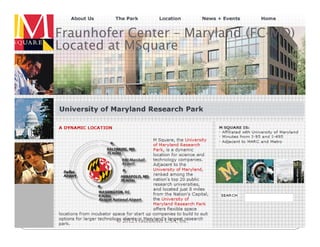

3 Fraunhofer Center – Maryland (FC-MD) Located at MSquare © 2012 Fraunhofer USA, Inc.

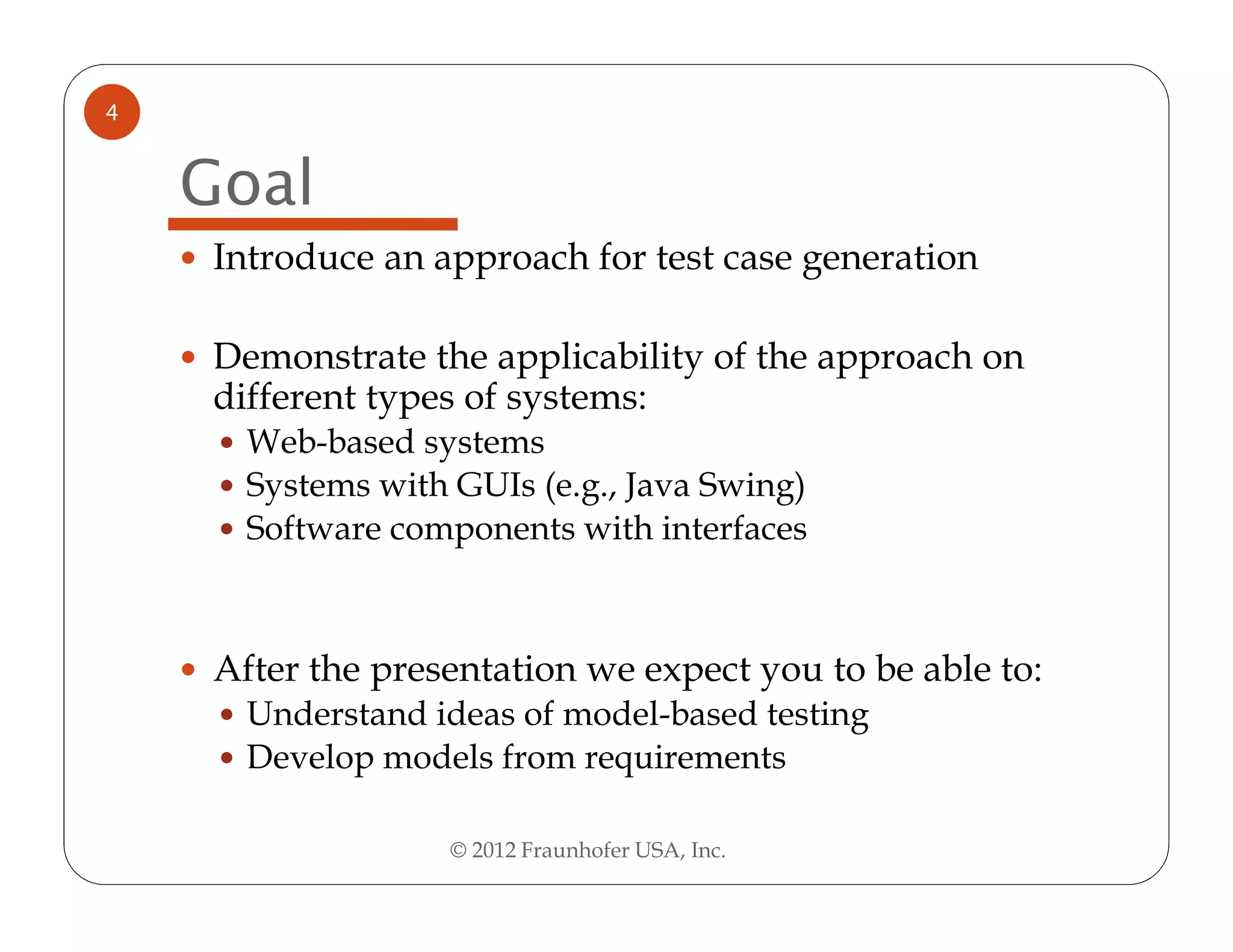

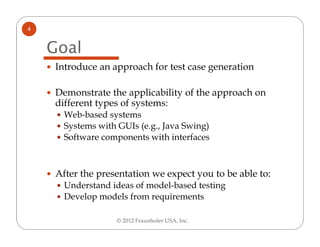

4 Goal Introduce an approach for test case generation Demonstrate the applicability of the approach on different types of systems: Web-based systems Systems with GUIs (e.g., Java Swing) Software components with interfaces After the presentation we expect you to be able to: Understand ideas of model-based testing Develop models from requirements © 2012 Fraunhofer USA, Inc.

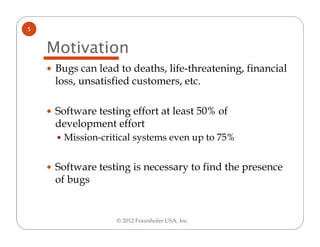

5 Motivation Bugs can lead to deaths, life-threatening, financial loss, unsatisfied customers, etc. Software testing effort at least 50% of development effort Mission-critical systems even up to 75% Software testing is necessary to find the presence of bugs © 2012 Fraunhofer USA, Inc.

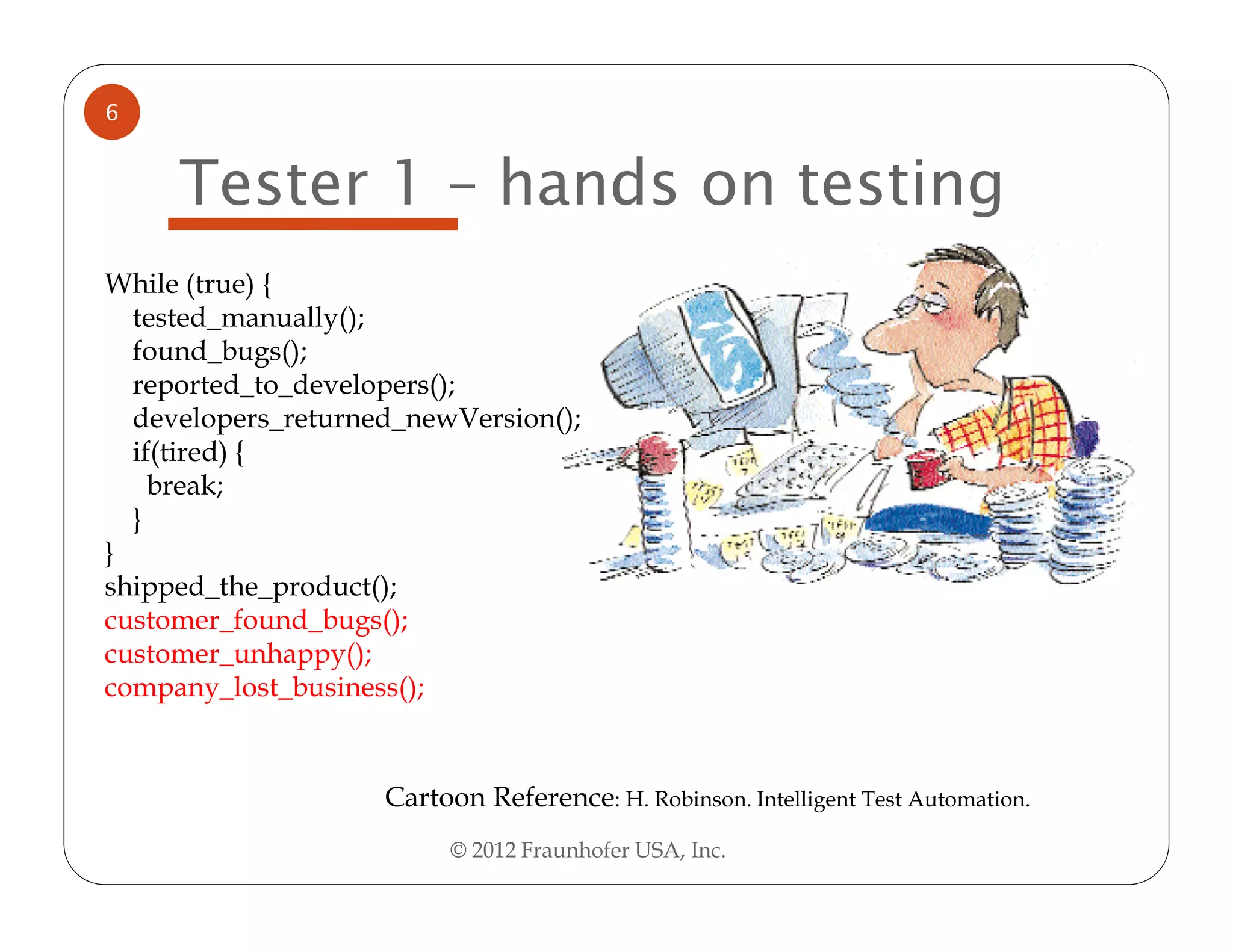

6 Tester 1 – hands on testing While (true) { tested_manually(); found_bugs(); reported_to_developers(); developers_returned_newVersion(); if(tired) { break; } } shipped_the_product(); customer_found_bugs(); customer_unhappy(); company_lost_business(); Cartoon Reference: H. Robinson. Intelligent Test Automation. © 2012 Fraunhofer USA, Inc.

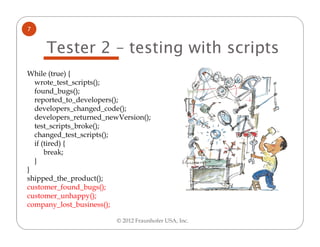

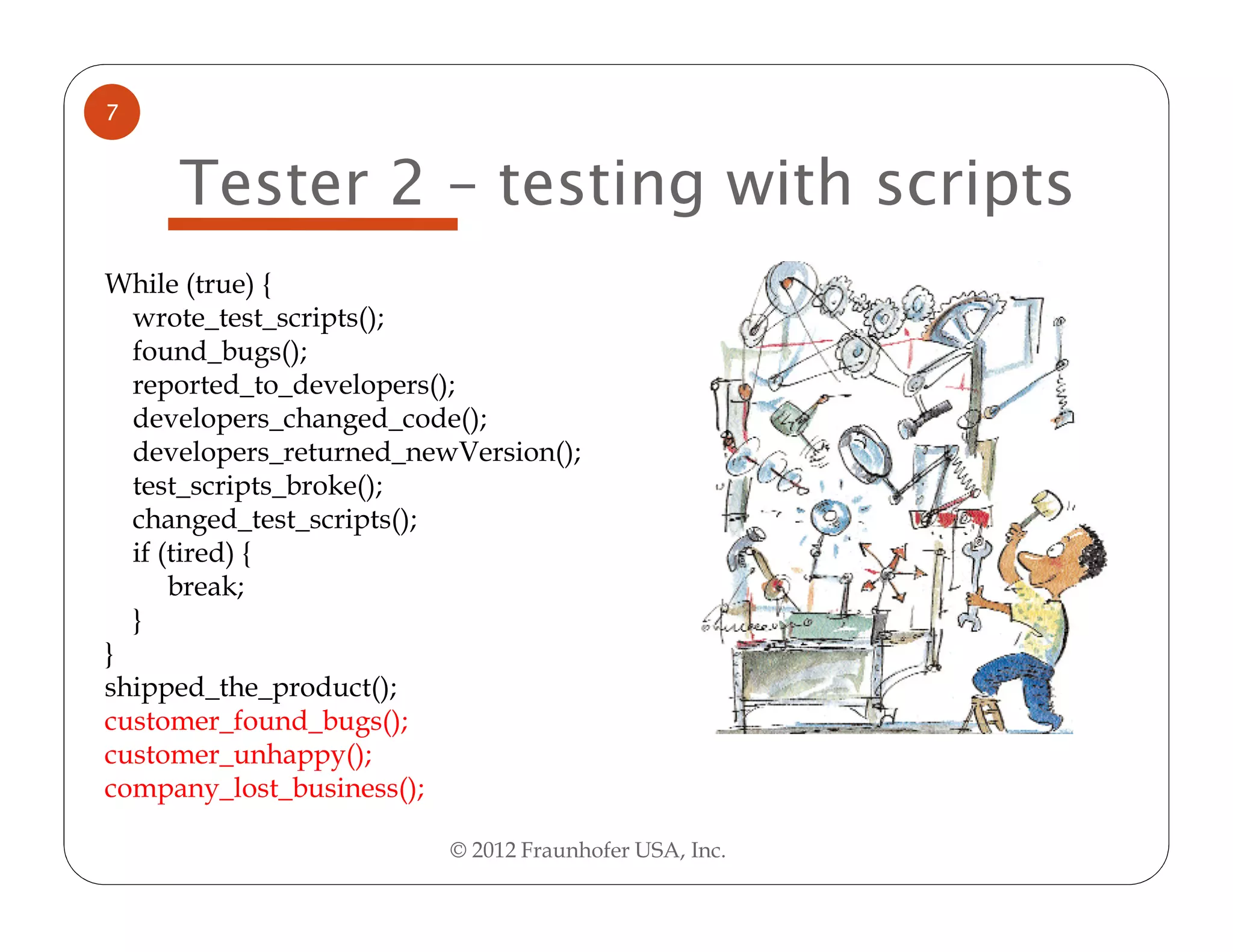

7 Tester 2 – testing with scripts While (true) { wrote_test_scripts(); found_bugs(); reported_to_developers(); developers_changed_code(); developers_returned_newVersion(); test_scripts_broke(); changed_test_scripts(); if (tired) { break; } } shipped_the_product(); customer_found_bugs(); customer_unhappy(); company_lost_business(); © 2012 Fraunhofer USA, Inc.

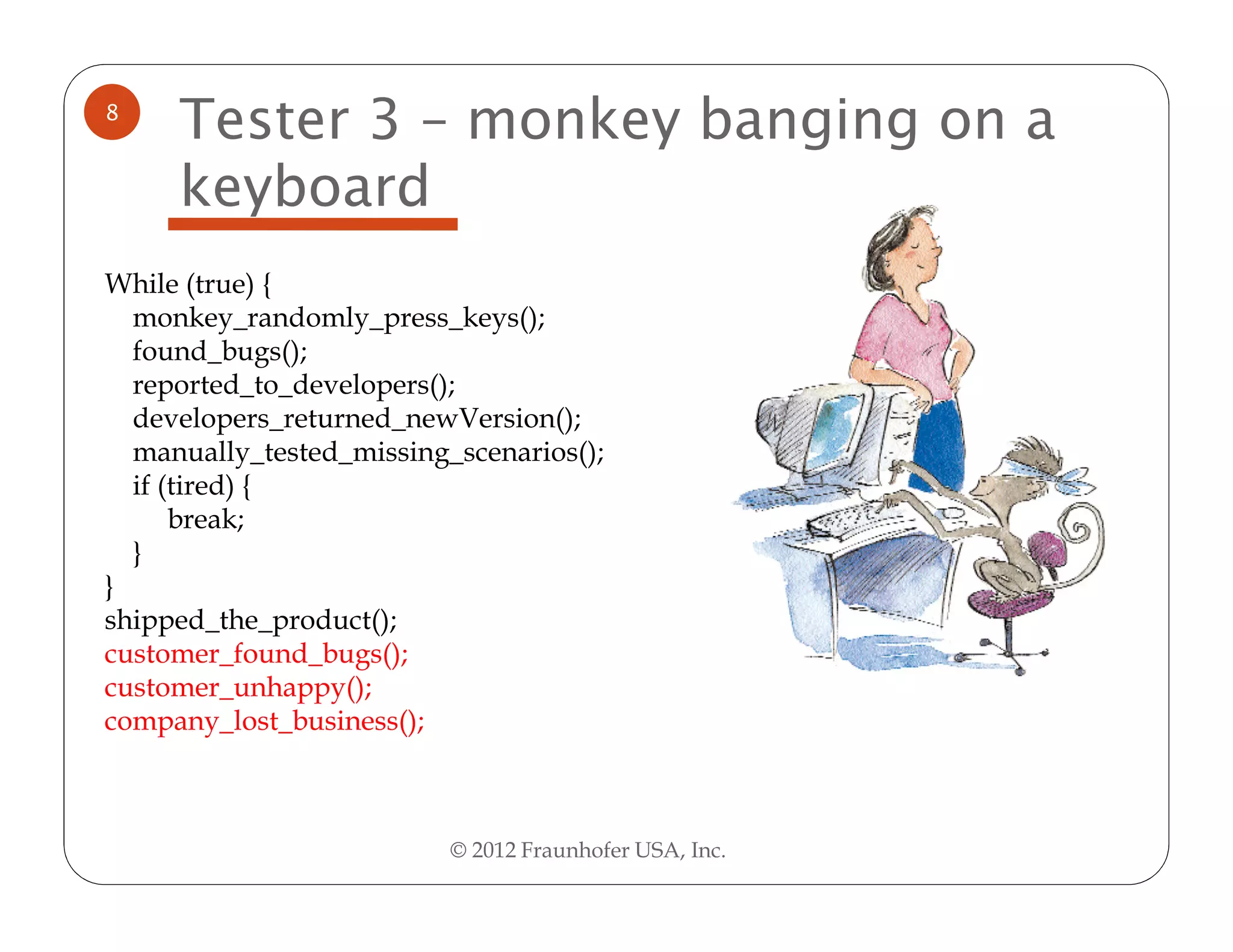

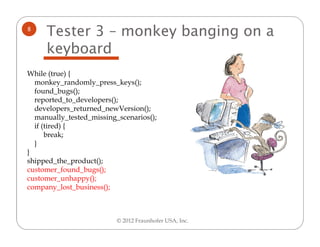

8 Tester 3 – monkey banging on a keyboard While (true) { monkey_randomly_press_keys(); found_bugs(); reported_to_developers(); developers_returned_newVersion(); manually_tested_missing_scenarios(); if (tired) { break; } } shipped_the_product(); customer_found_bugs(); customer_unhappy(); company_lost_business(); © 2012 Fraunhofer USA, Inc.

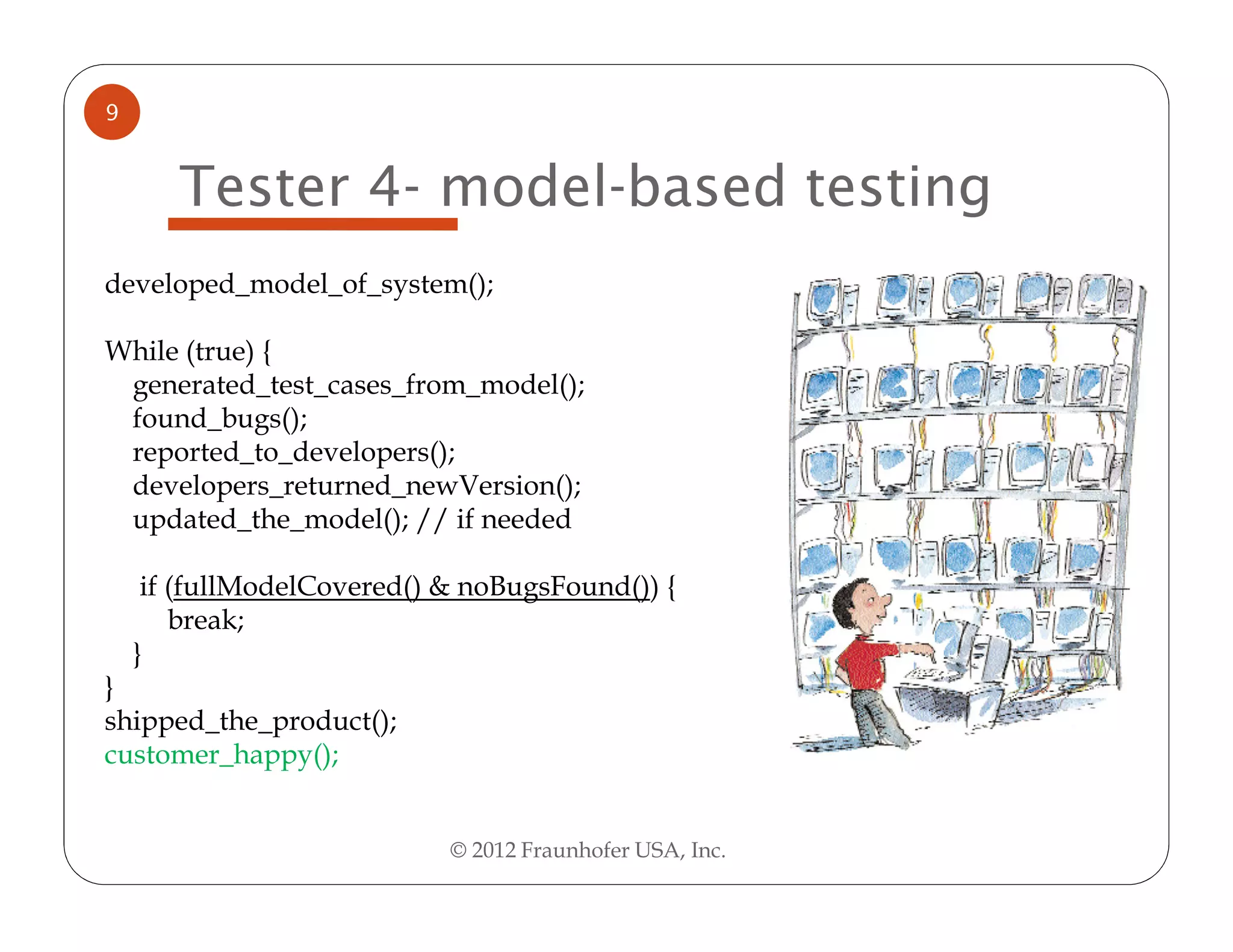

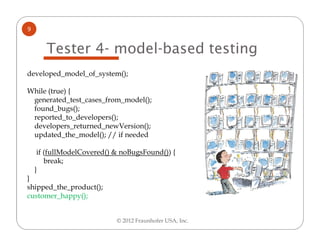

9 Tester 4- model-based testing developed_model_of_system(); While (true) { generated_test_cases_from_model(); found_bugs(); reported_to_developers(); developers_returned_newVersion(); updated_the_model(); // if needed if (fullModelCovered() & noBugsFound()) { break; } } shipped_the_product(); customer_happy(); © 2012 Fraunhofer USA, Inc.

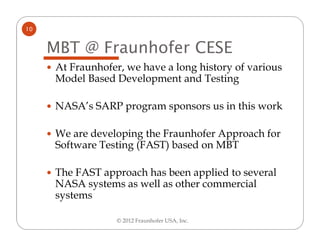

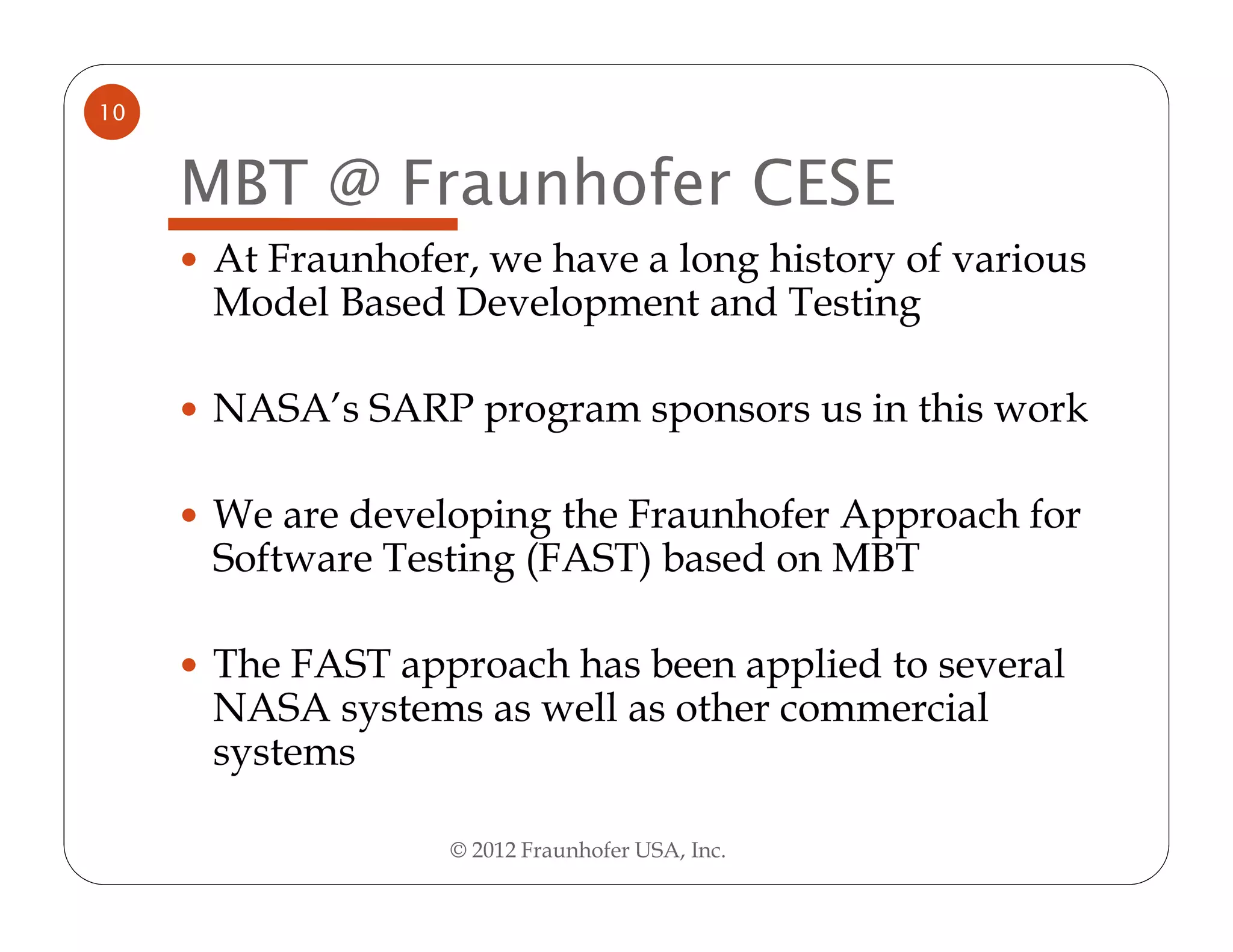

10 MBT @ Fraunhofer CESE At Fraunhofer, we have a long history of various Model Based Development and Testing NASA’s SARP program sponsors us in this work We are developing the Fraunhofer Approach for Software Testing (FAST) based on MBT The FAST approach has been applied to several NASA systems as well as other commercial systems © 2012 Fraunhofer USA, Inc.

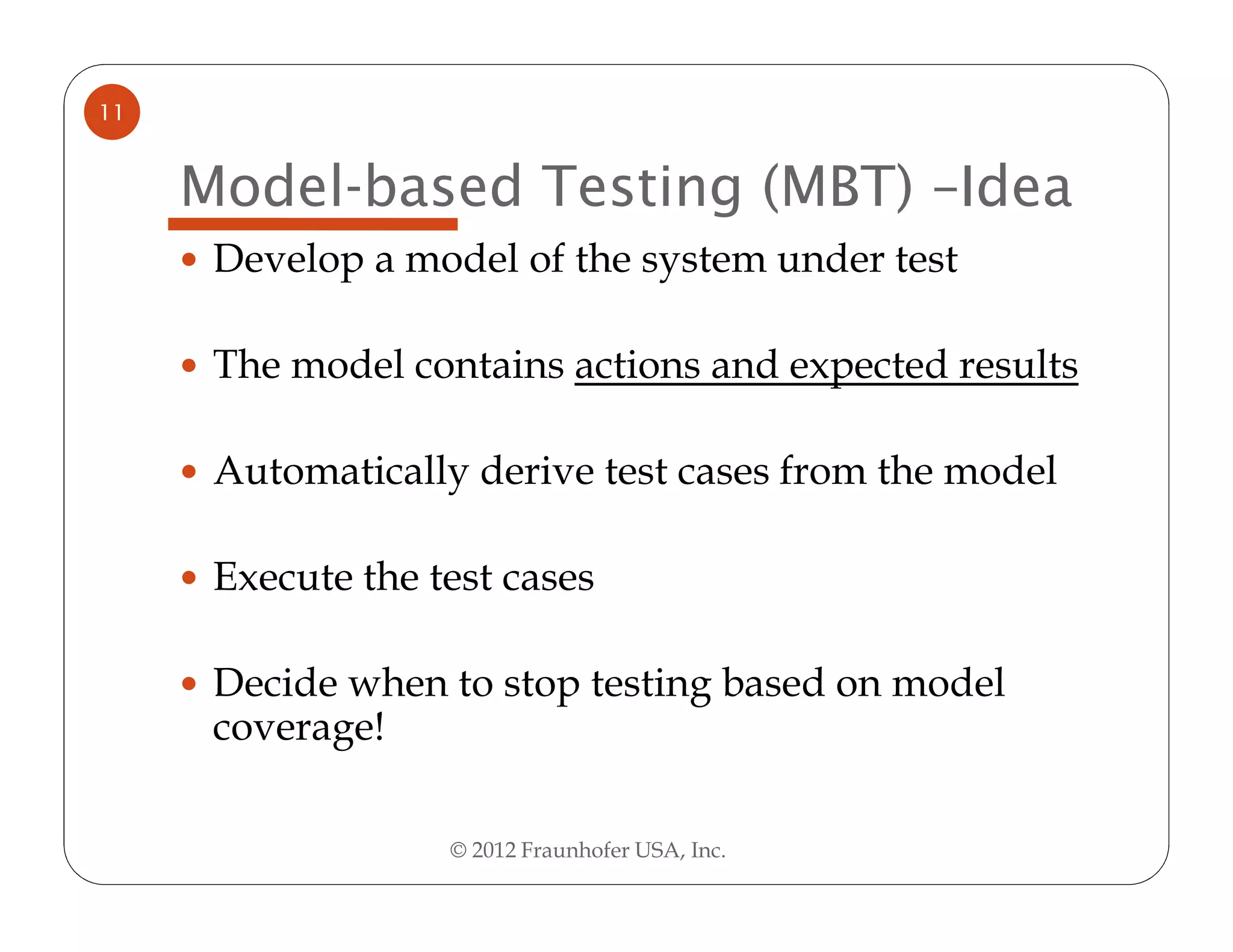

11 Model-based Testing (MBT) –Idea Develop a model of the system under test The model contains actions and expected results Automatically derive test cases from the model Execute the test cases Decide when to stop testing based on model coverage! © 2012 Fraunhofer USA, Inc.

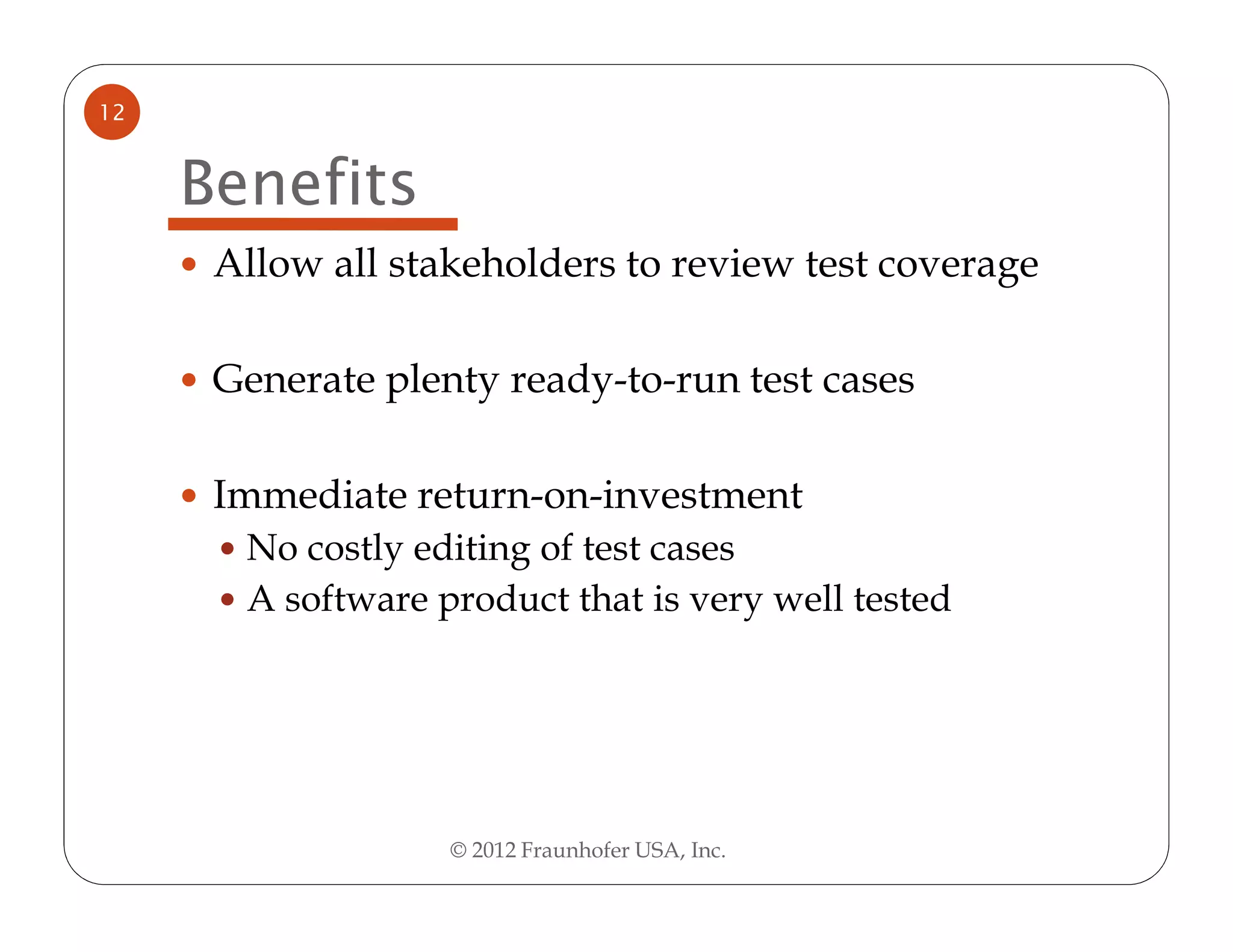

12 Benefits Allow all stakeholders to review test coverage Generate plenty ready-to-run test cases Immediate return-on-investment No costly editing of test cases A software product that is very well tested © 2012 Fraunhofer USA, Inc.

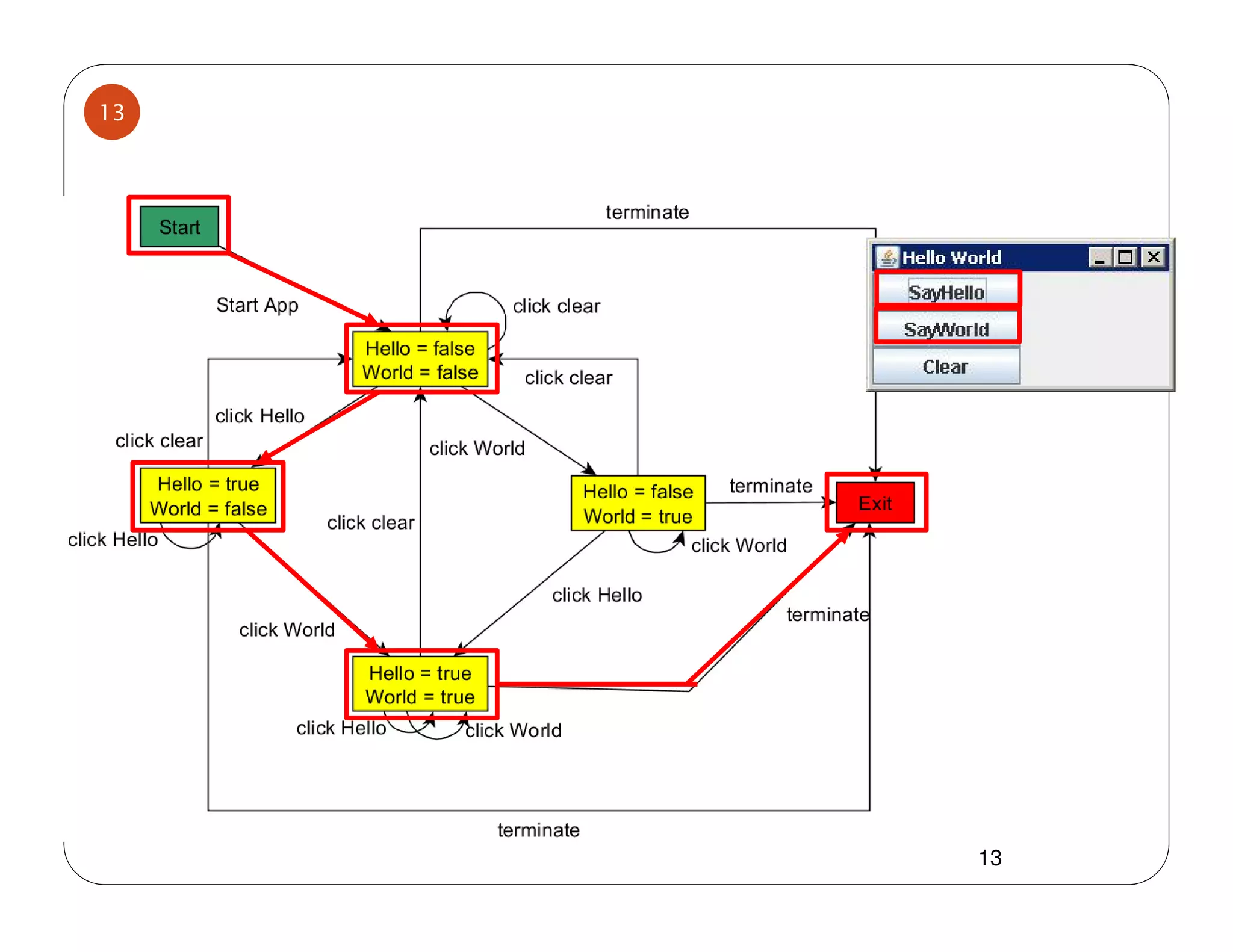

13 13

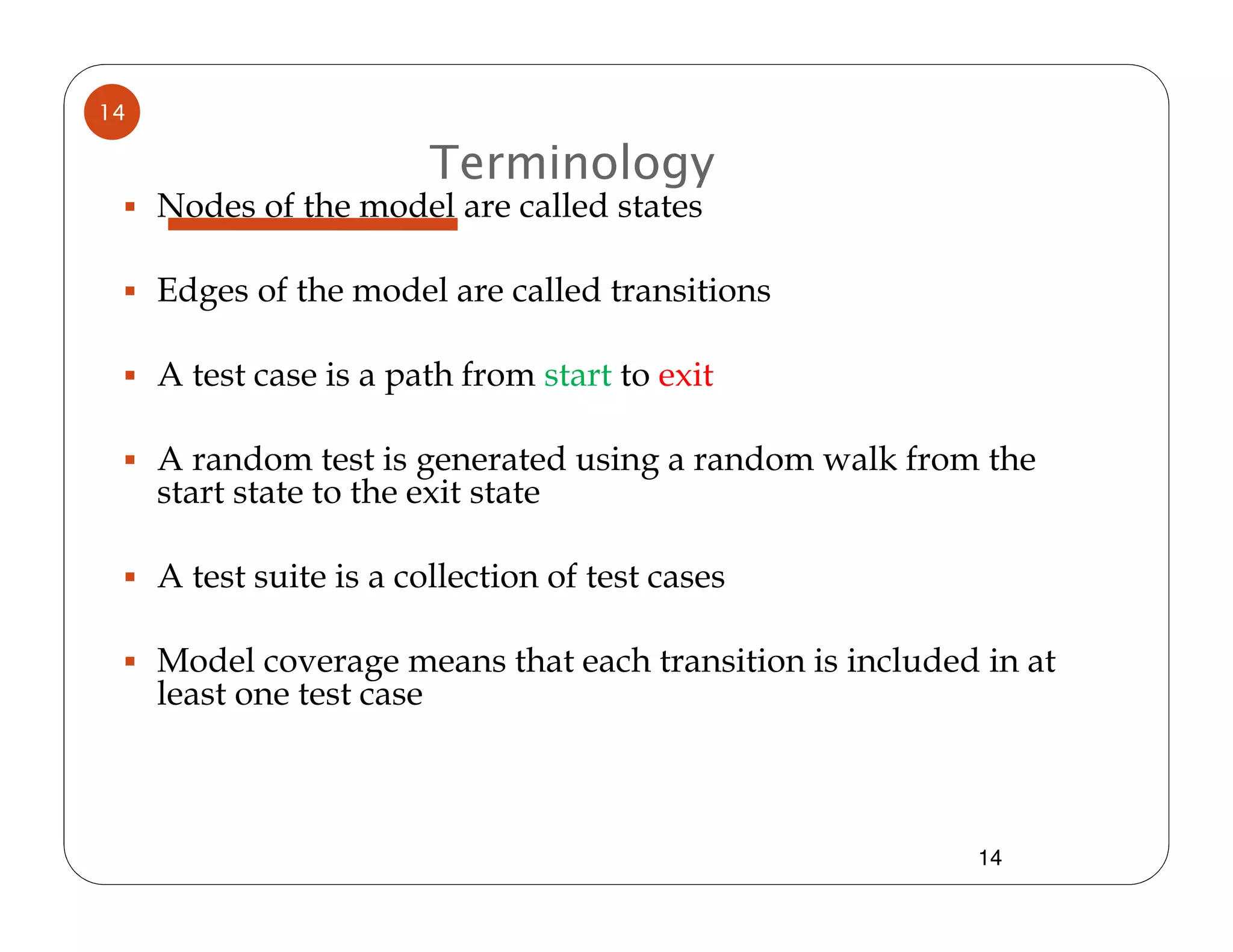

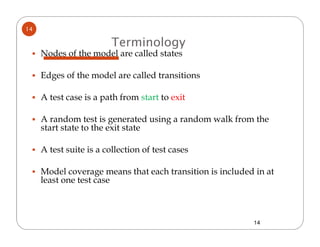

14 Terminology Nodes of the model are called states Edges of the model are called transitions A test case is a path from start to exit A random test is generated using a random walk from the start state to the exit state A test suite is a collection of test cases Model coverage means that each transition is included in at least one test case 14

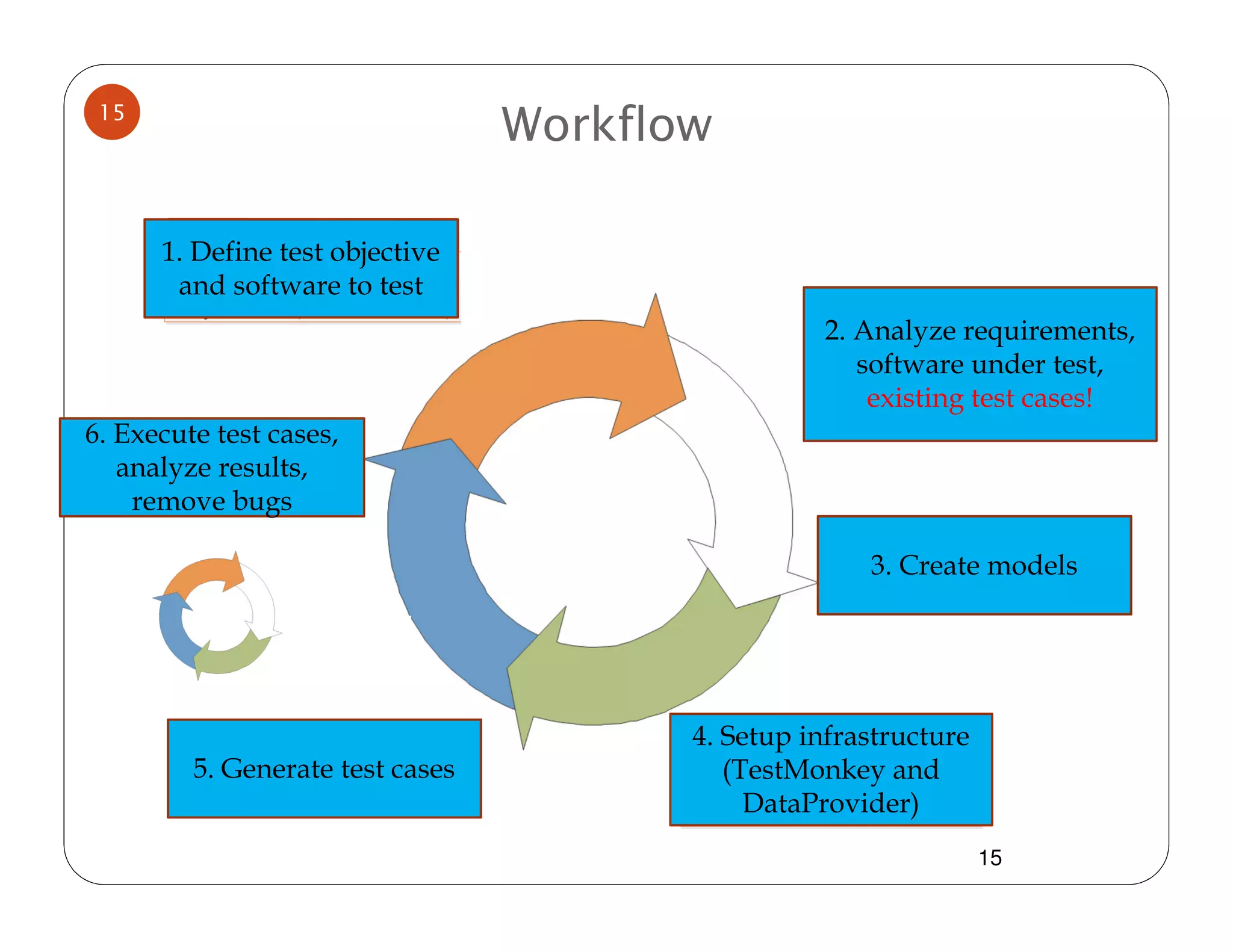

15 Workflow 1. Define test objective and software to test 2. Analyze requirements, software under test, existing test cases! 6. Execute test cases, analyze results, remove bugs 3. Create models 4. Setup infrastructure 5. Generate test cases (TestMonkey and DataProvider) 15

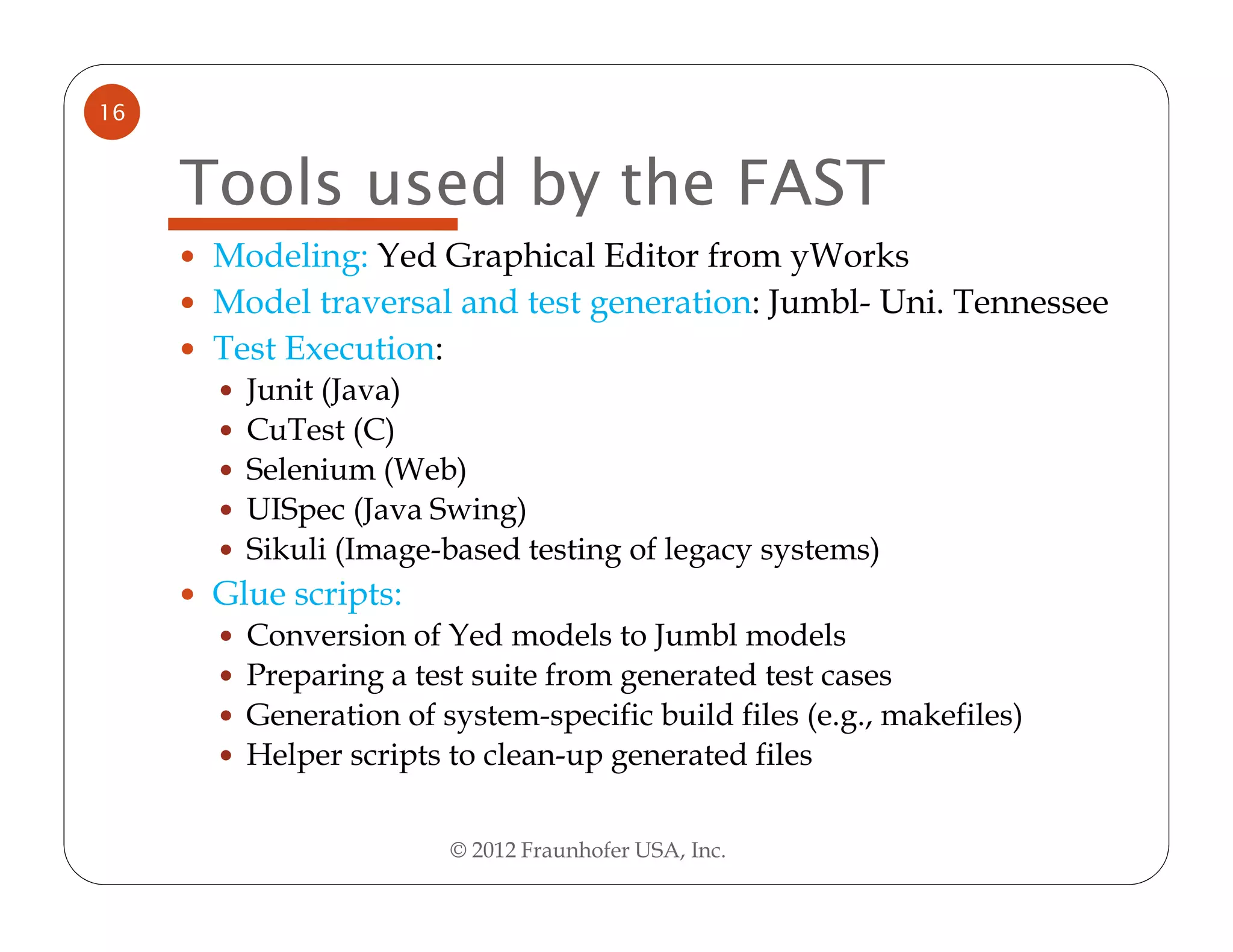

16 Tools used by the FAST Modeling: Yed Graphical Editor from yWorks Model traversal and test generation: Jumbl- Uni. Tennessee Test Execution: Junit (Java) CuTest (C) Selenium (Web) UISpec (Java Swing) Sikuli (Image-based testing of legacy systems) Glue scripts: Conversion of Yed models to Jumbl models Preparing a test suite from generated test cases Generation of system-specific build files (e.g., makefiles) Helper scripts to clean-up generated files © 2012 Fraunhofer USA, Inc.

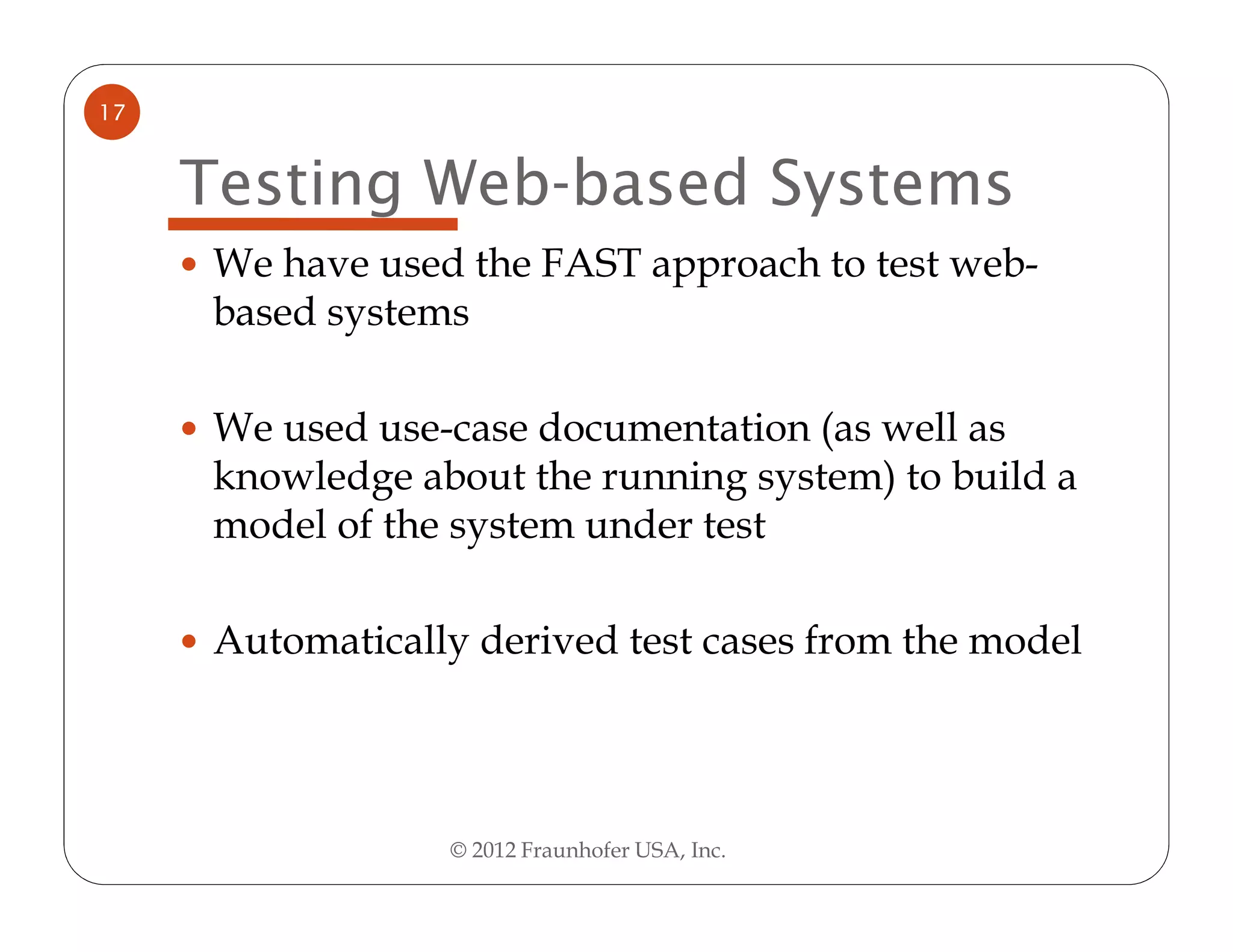

17 Testing Web-based Systems We have used the FAST approach to test web- based systems We used use-case documentation (as well as knowledge about the running system) to build a model of the system under test Automatically derived test cases from the model © 2012 Fraunhofer USA, Inc.

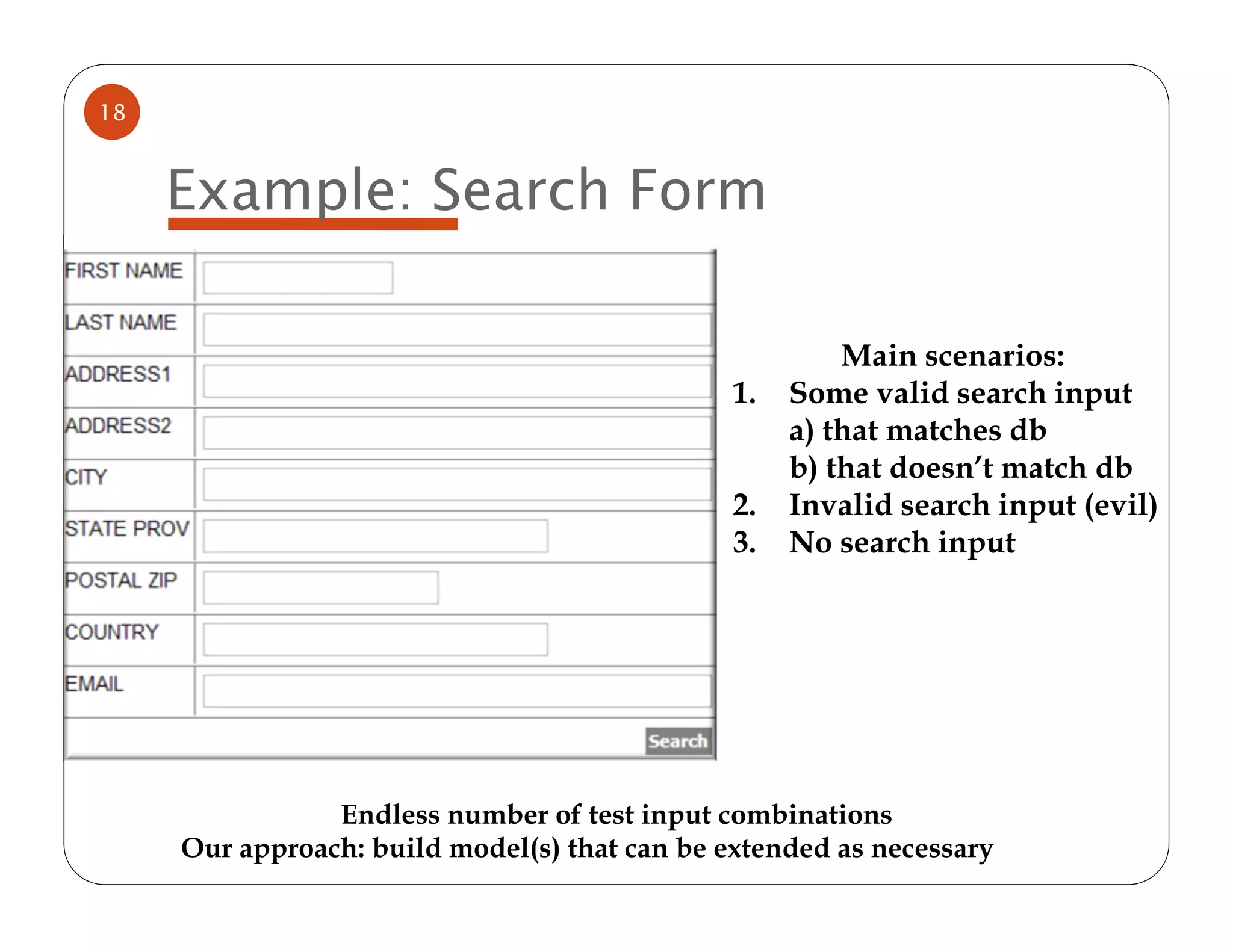

18 Example: Search Form Main scenarios: 1. Some valid search input a) that matches db b) that doesn’t match db 2. Invalid search input (evil) 3. No search input Endless number of test input combinations Our approach: build model(s) that can be extended as necessary

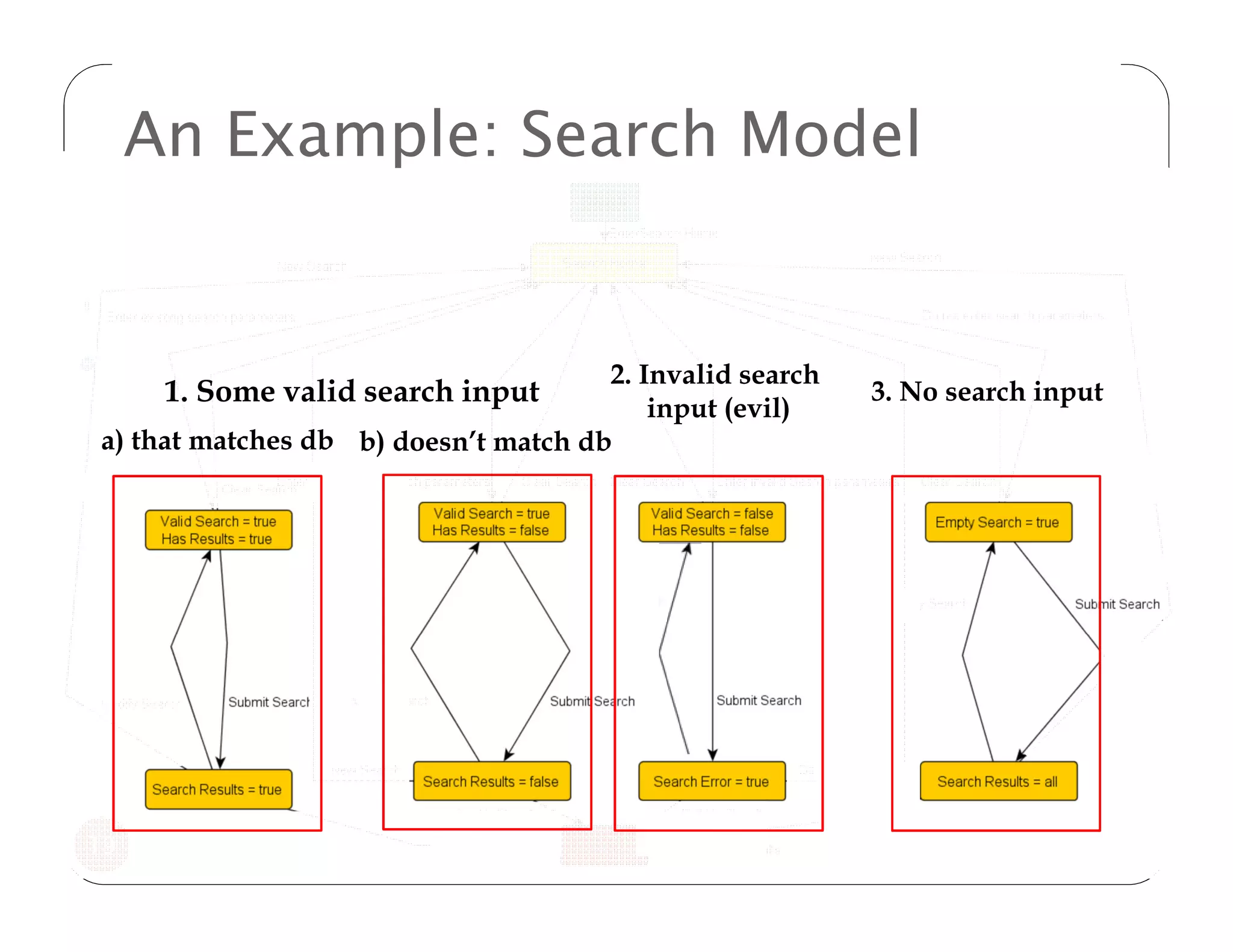

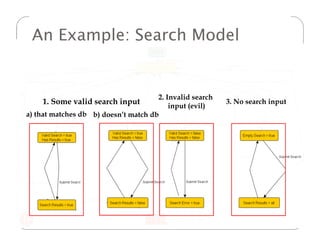

An Example: Search Model 2. Invalid search 1. Some valid search input 3. No search input input (evil) a) that matches db b) doesn’t match db 19 © 2011 Fraunhofer USA, Inc.

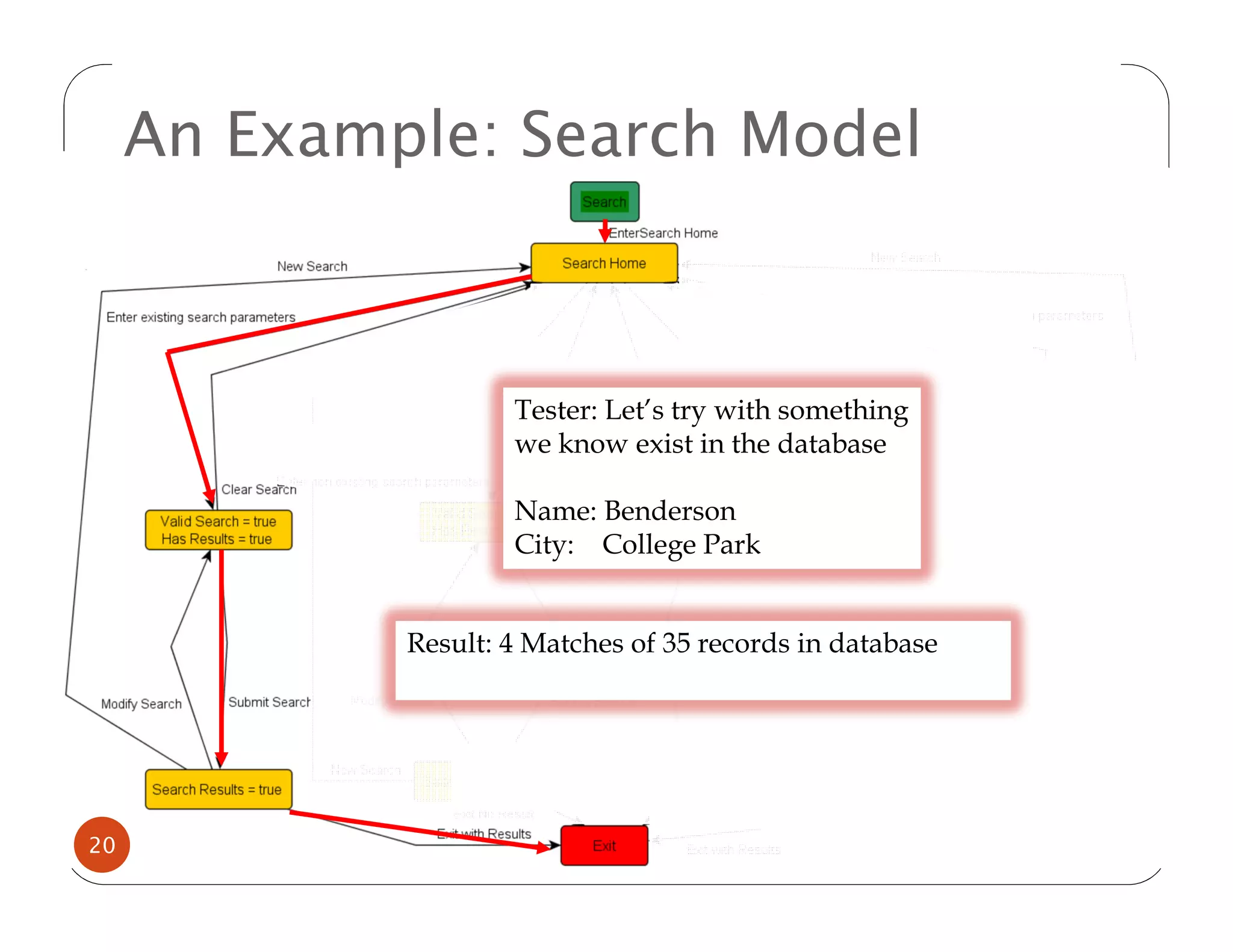

An Example: Search Model Tester: Let’s try with something we know exist in the database Name: Benderson City: College Park Result: 4 Matches of 35 records in database 20 © 2011 Fraunhofer USA, Inc.

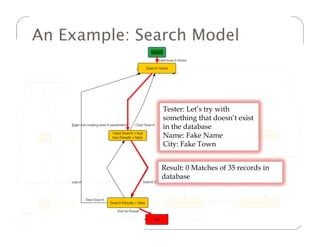

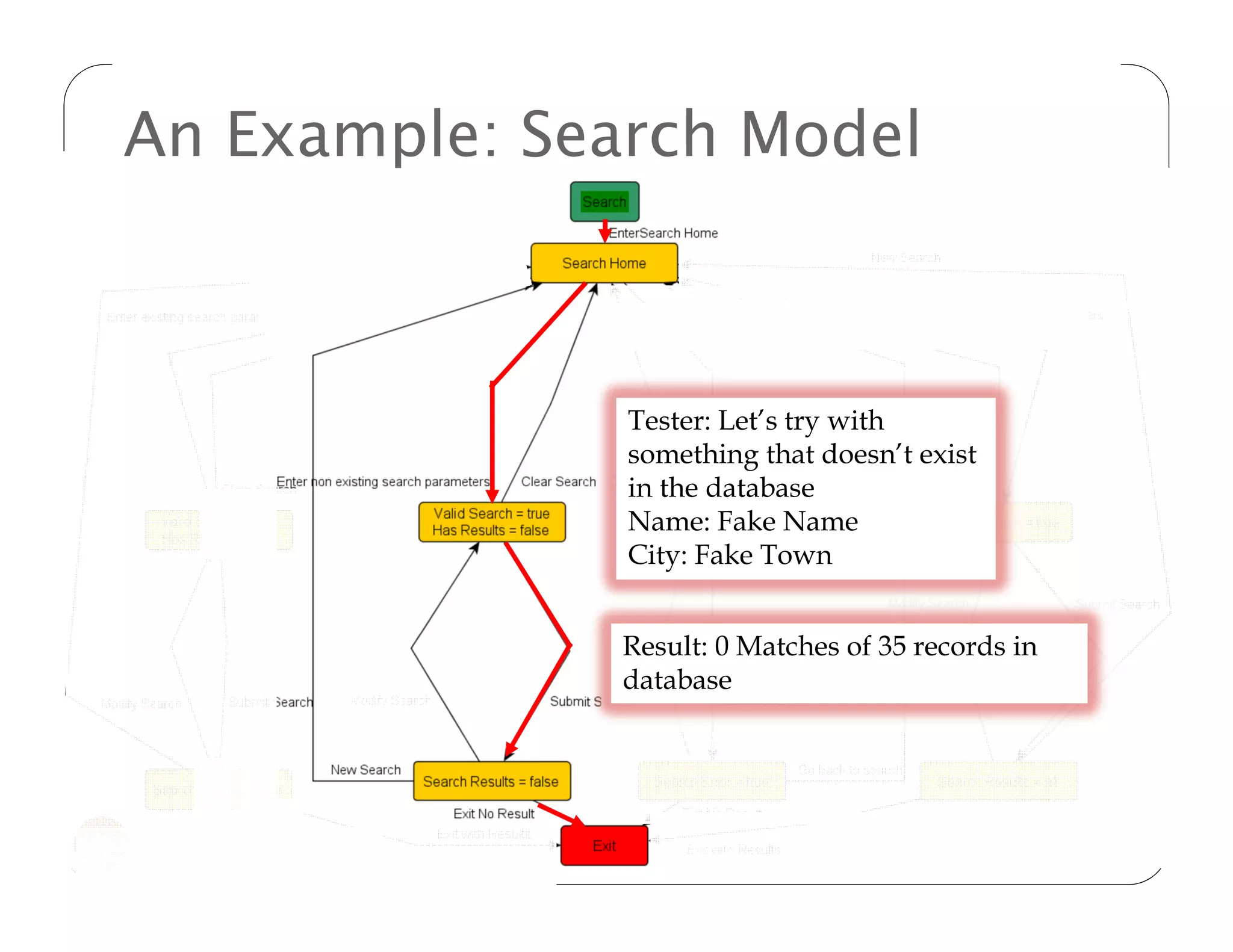

An Example: Search Model Tester: Let’s try with something that doesn’t exist in the database Name: Fake Name City: Fake Town Result: 0 Matches of 35 records in database 21 © 2011 Fraunhofer USA, Inc.

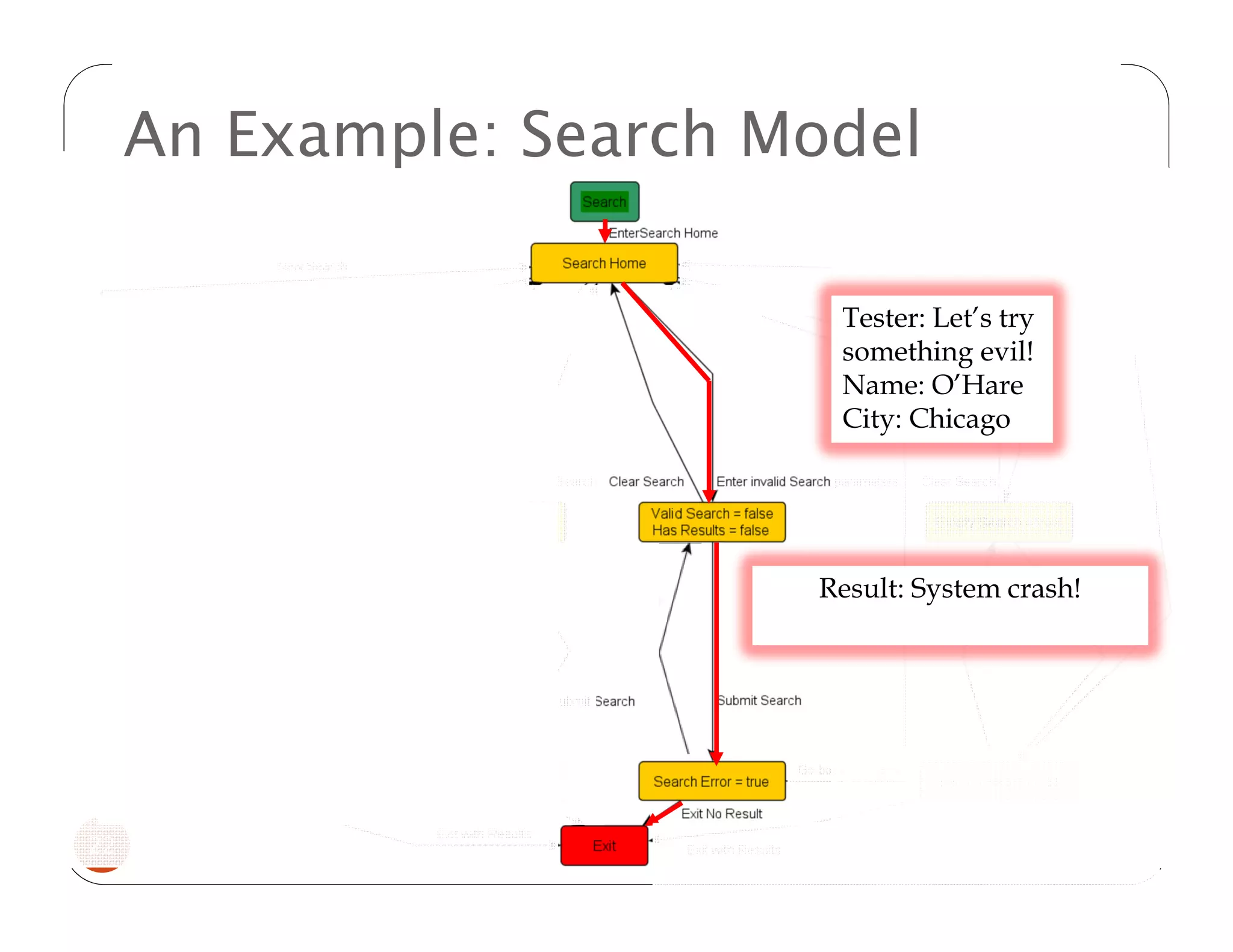

An Example: Search Model Tester: Let’s try something evil! Name: O’Hare City: Chicago Result: System crash! 22 © 2011 Fraunhofer USA, Inc.

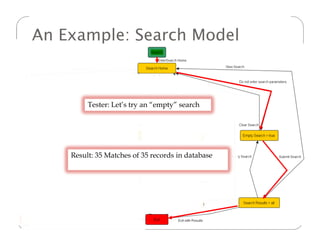

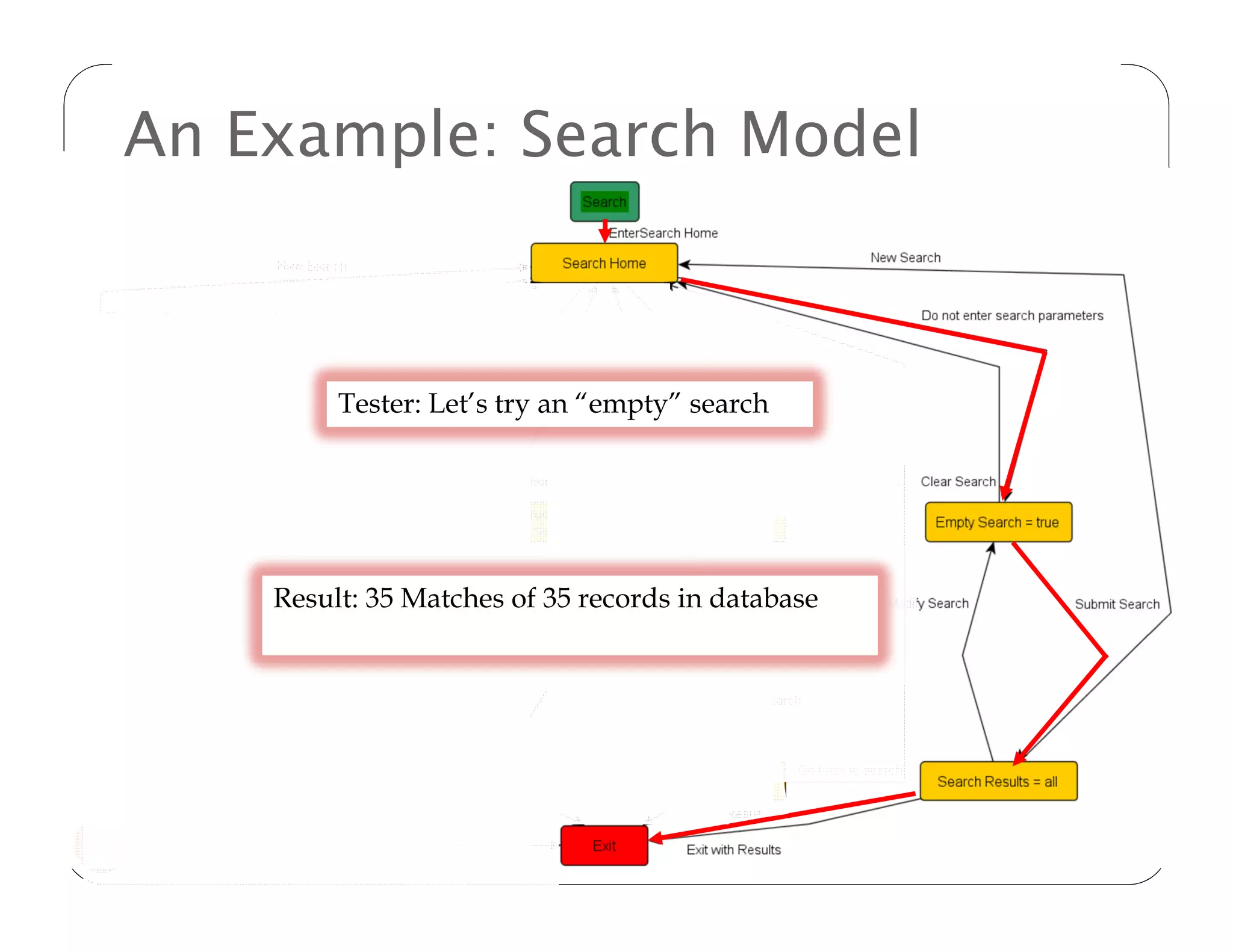

An Example: Search Model Tester: Let’s try an “empty” search Result: 35 Matches of 35 records in database 23 © 2011 Fraunhofer USA, Inc.

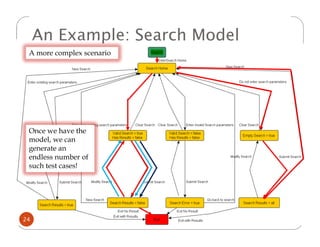

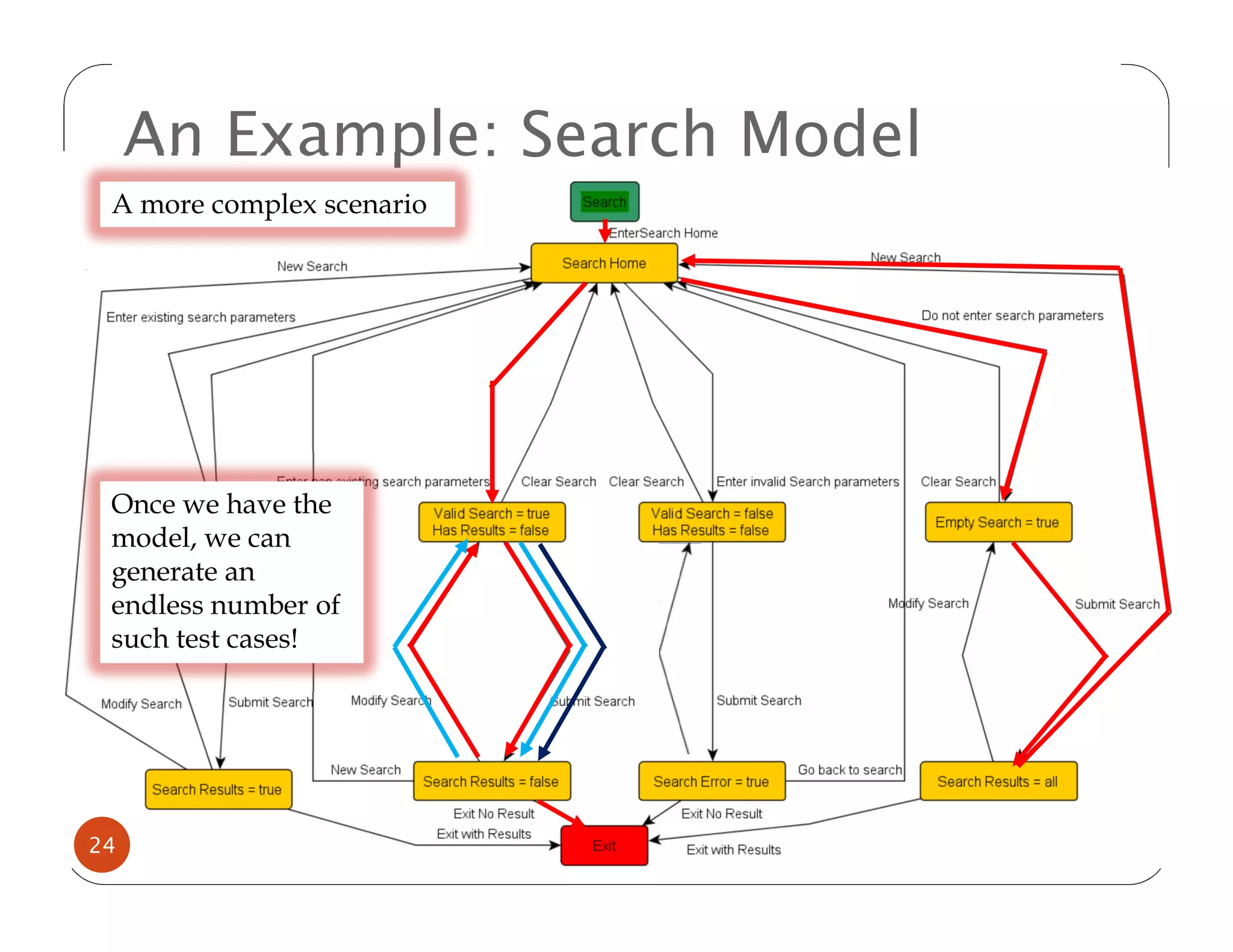

An Example: Search Model A more complex scenario Once we have the model, we can generate an endless number of such test cases! 24 © 2011 Fraunhofer USA, Inc.

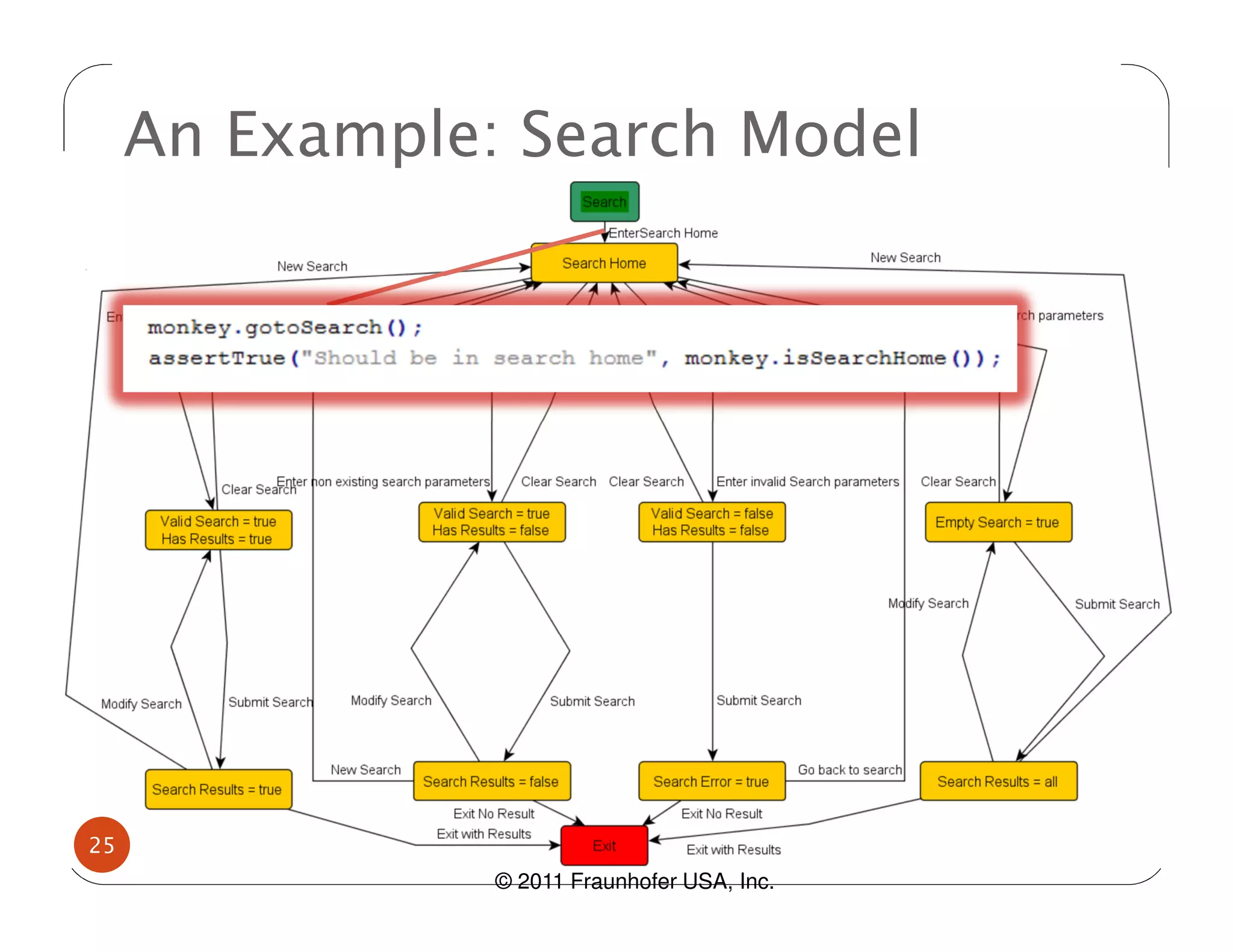

An Example: Search Model 25 © 2011 Fraunhofer USA, Inc. © 2011 Fraunhofer USA, Inc.

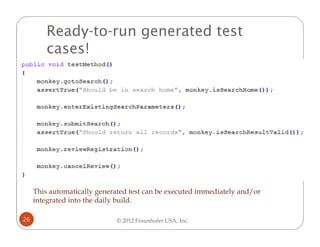

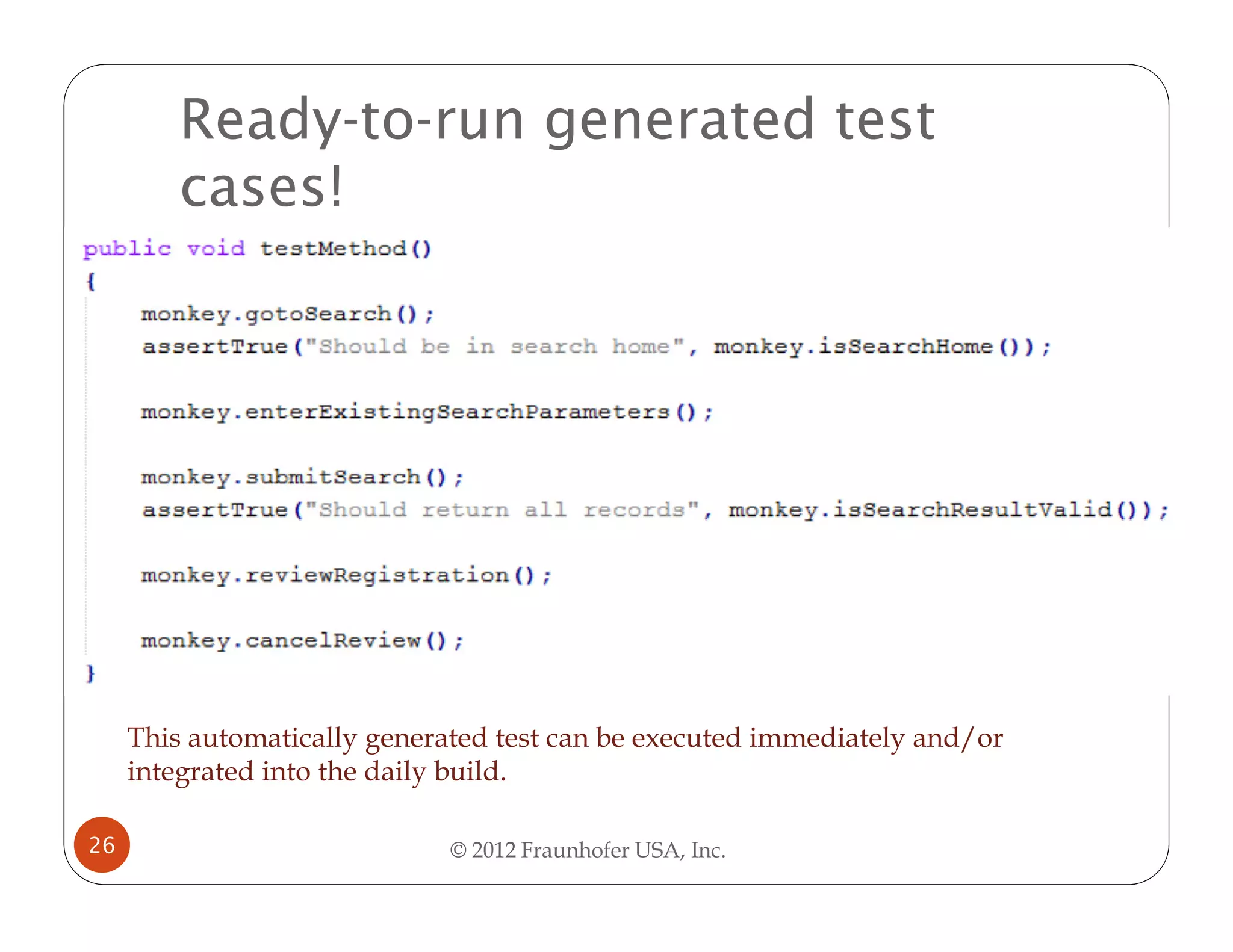

Ready-to-run generated test cases! This automatically generated test can be executed immediately and/or integrated into the daily build. 26 © 2012 Fraunhofer USA, Inc.

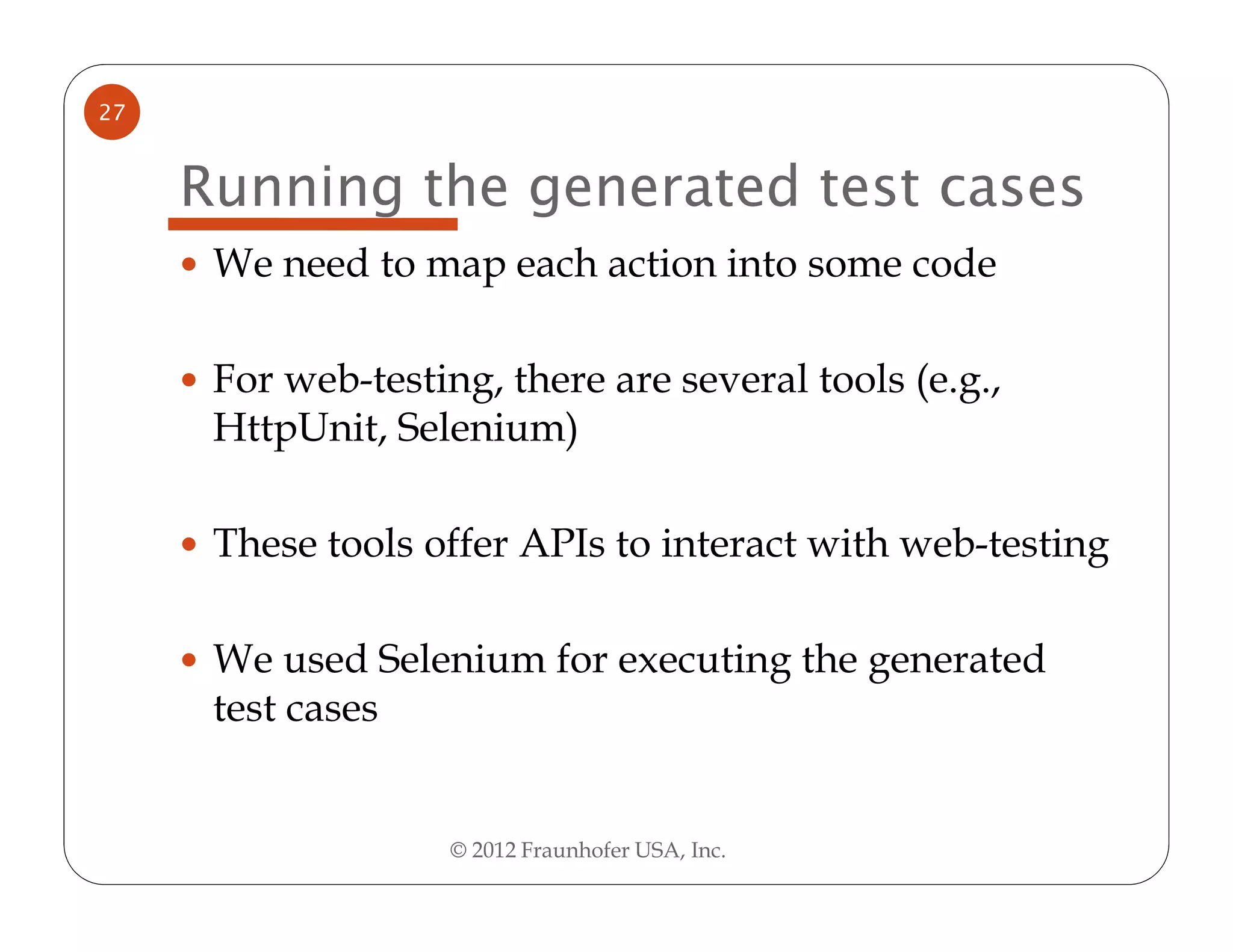

27 Running the generated test cases We need to map each action into some code For web-testing, there are several tools (e.g., HttpUnit, Selenium) These tools offer APIs to interact with web-testing We used Selenium for executing the generated test cases © 2012 Fraunhofer USA, Inc.

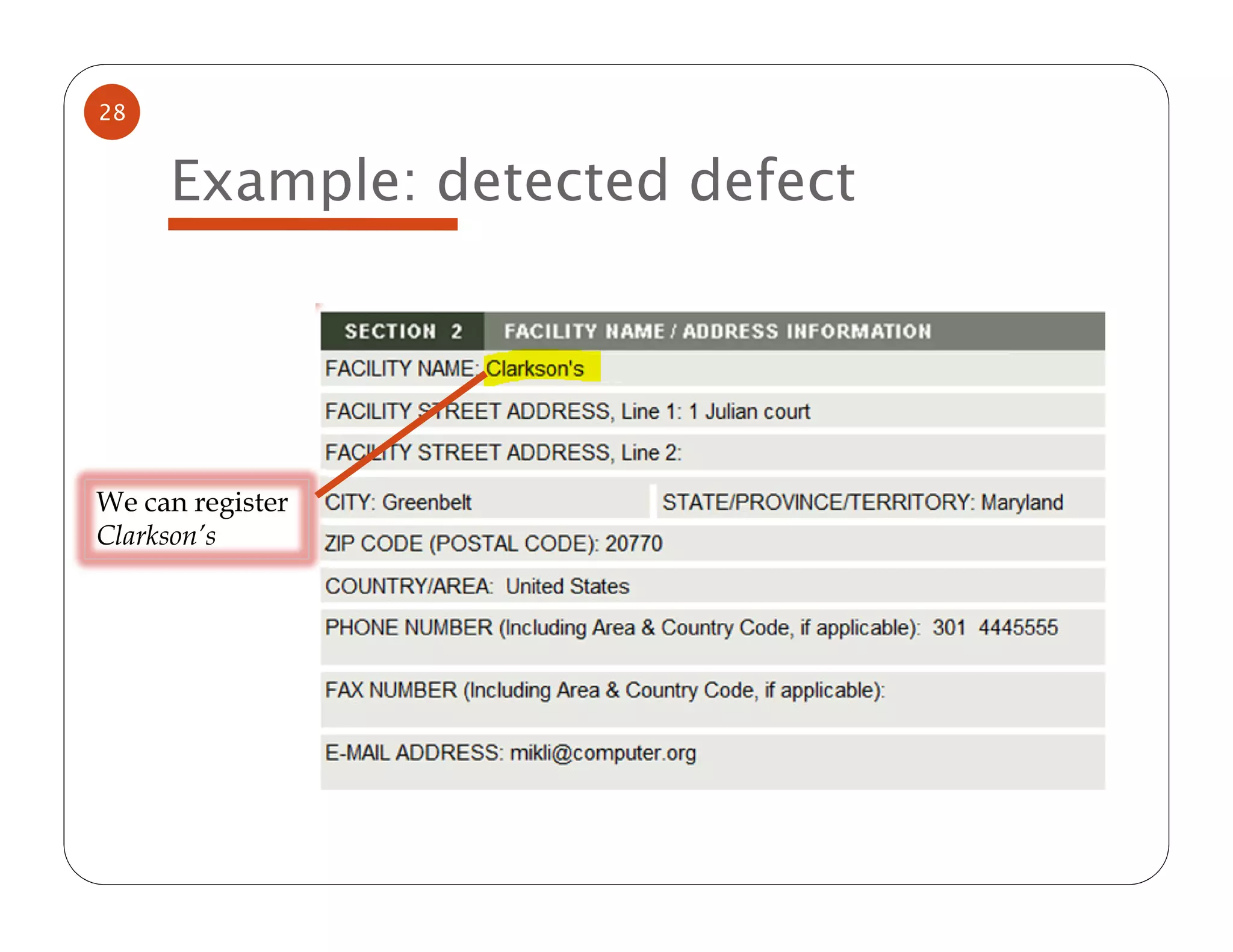

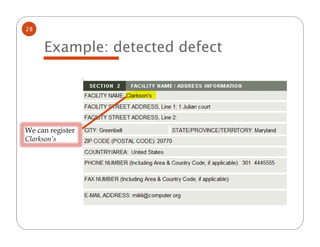

28 Example: detected defect We can register Clarkson’s

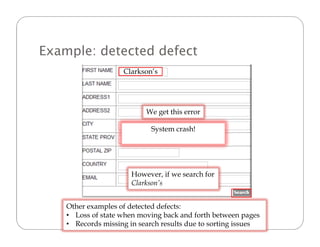

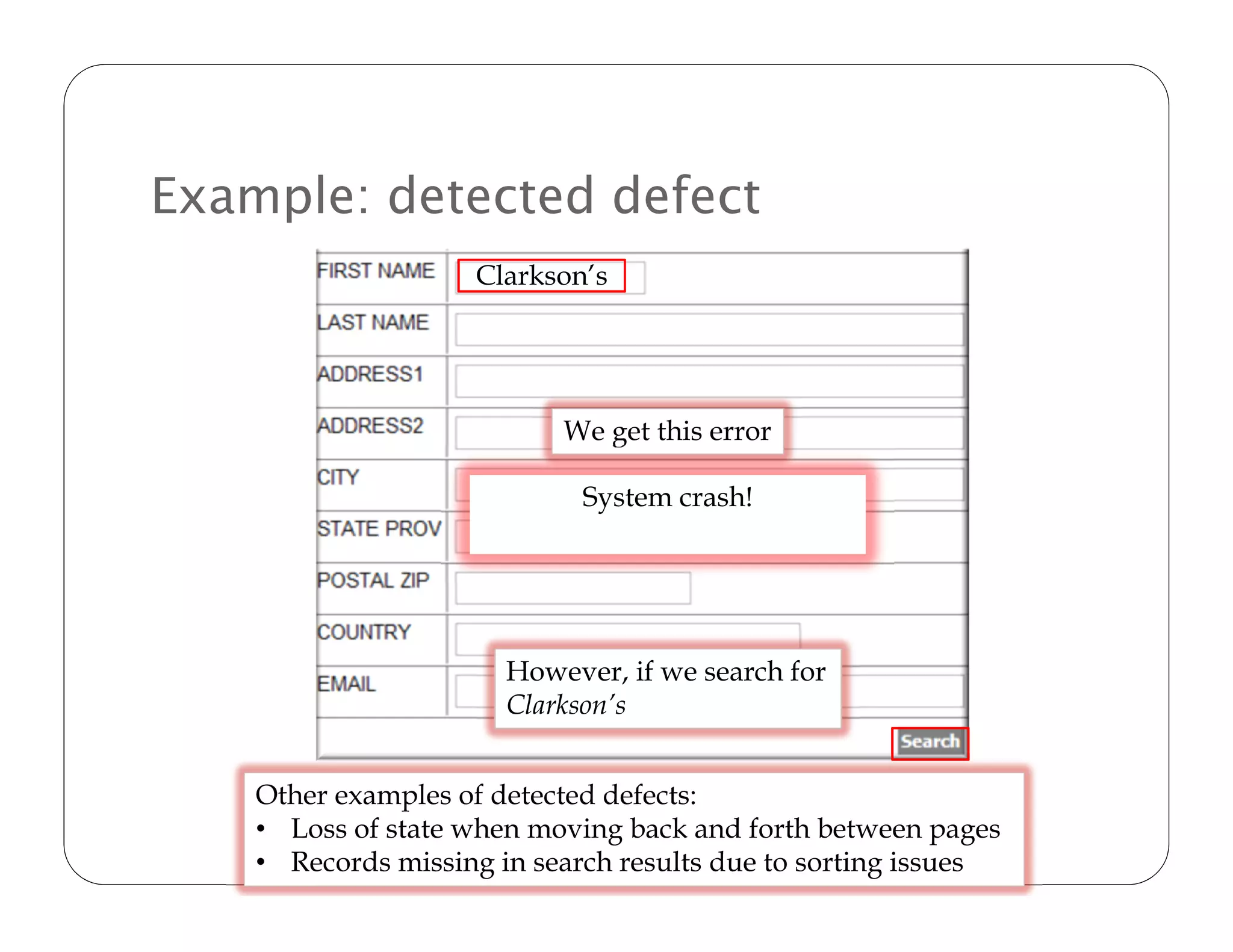

Example: detected defect Clarkson’s We get this error System crash! However, if we search for Clarkson’s Other examples of detected defects: • Loss of state when moving back and forth between pages • Records missing in search results due to sorting issues

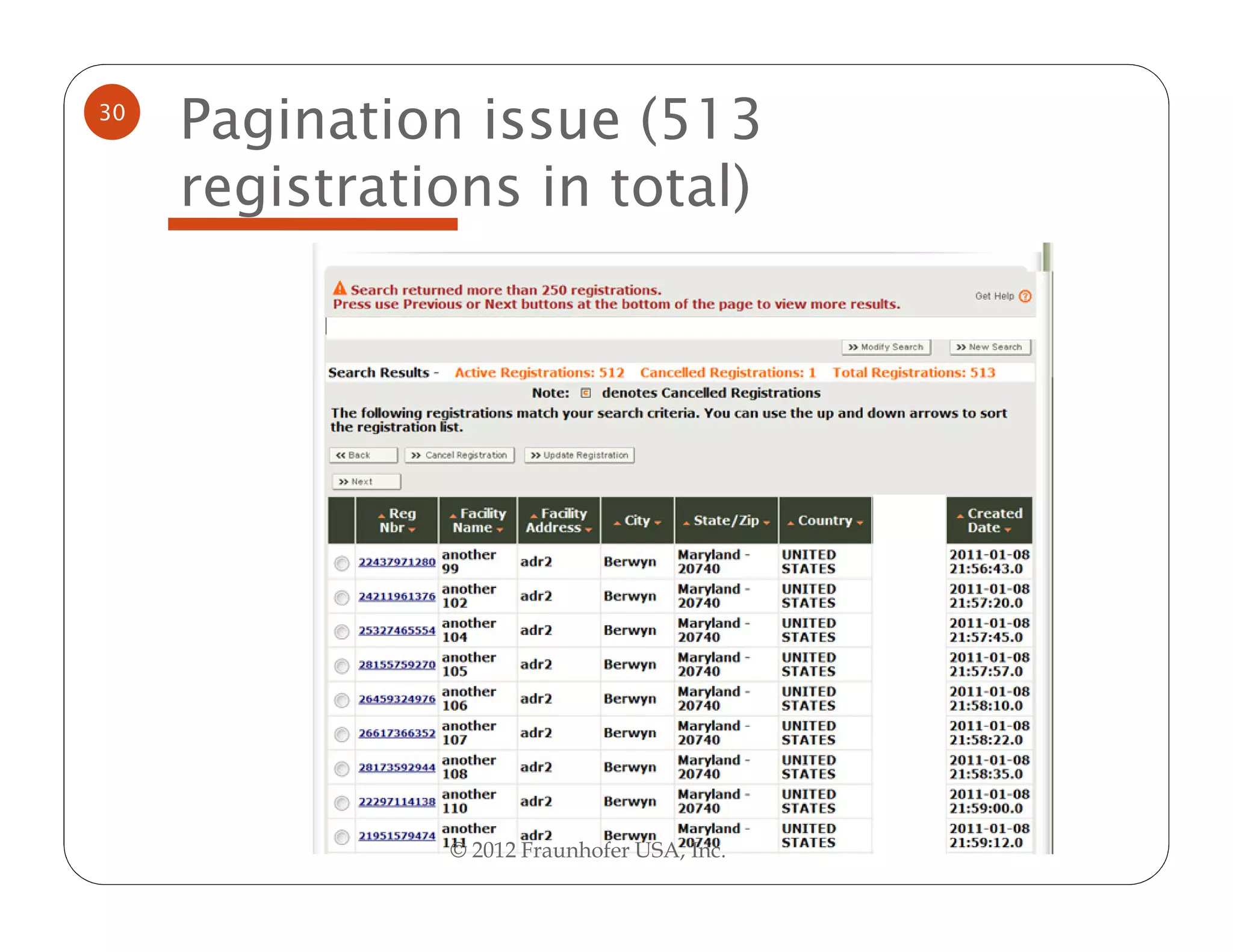

30 Pagination issue (513 registrations in total) © 2012 Fraunhofer USA, Inc.

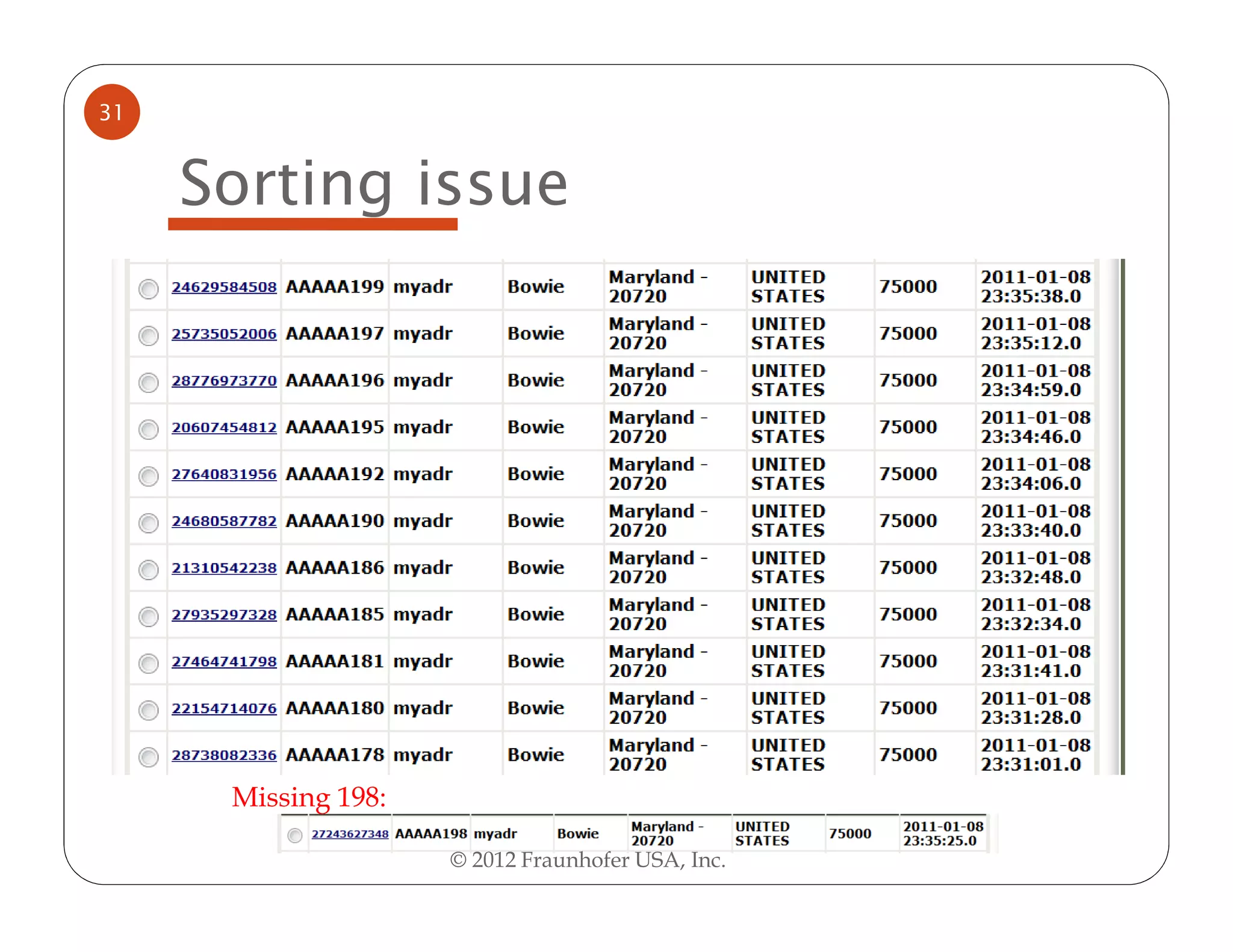

31 Sorting issue Missing 198: © 2012 Fraunhofer USA, Inc.

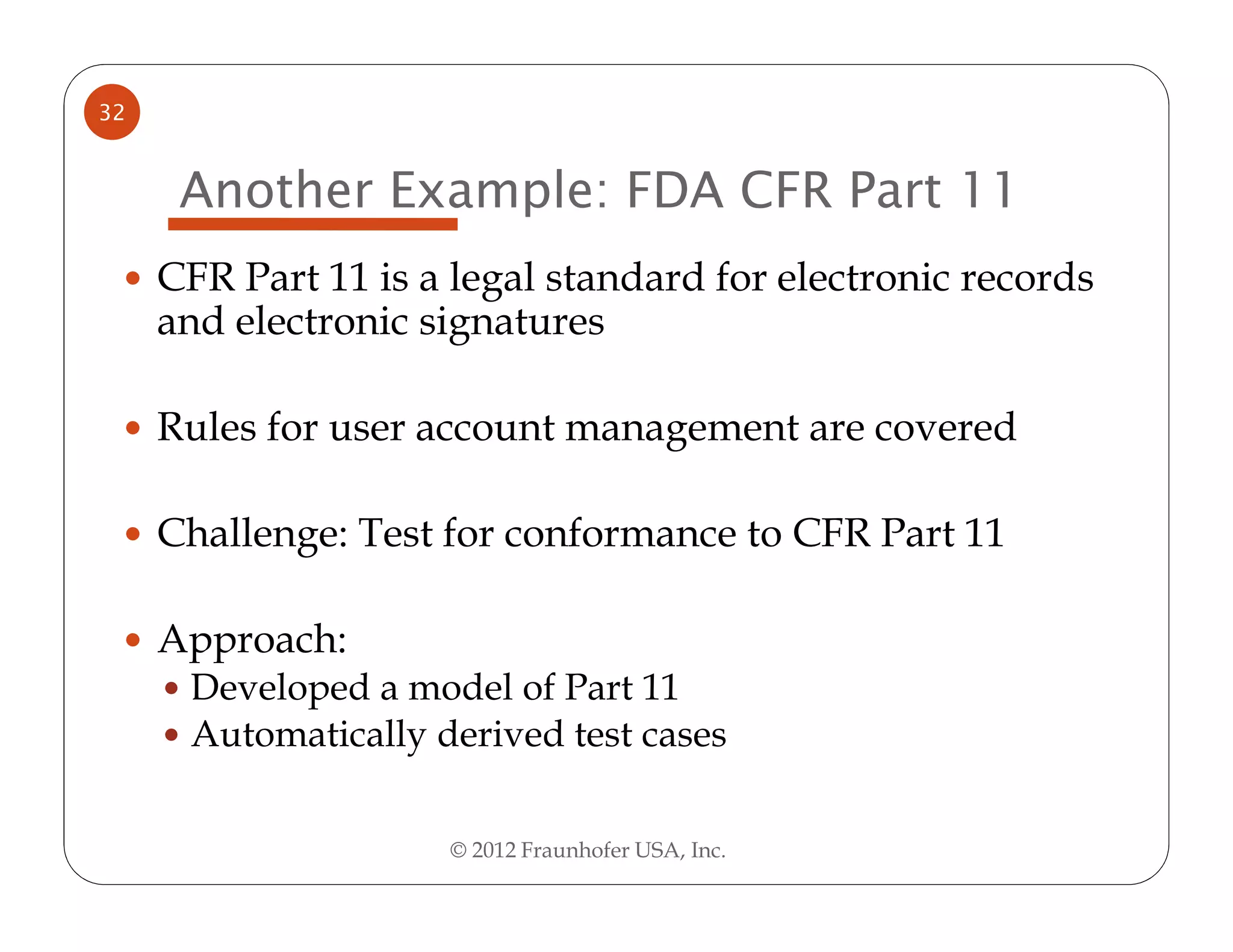

32 Another Example: FDA CFR Part 11 CFR Part 11 is a legal standard for electronic records and electronic signatures Rules for user account management are covered Challenge: Test for conformance to CFR Part 11 Approach: Developed a model of Part 11 Automatically derived test cases © 2012 Fraunhofer USA, Inc.

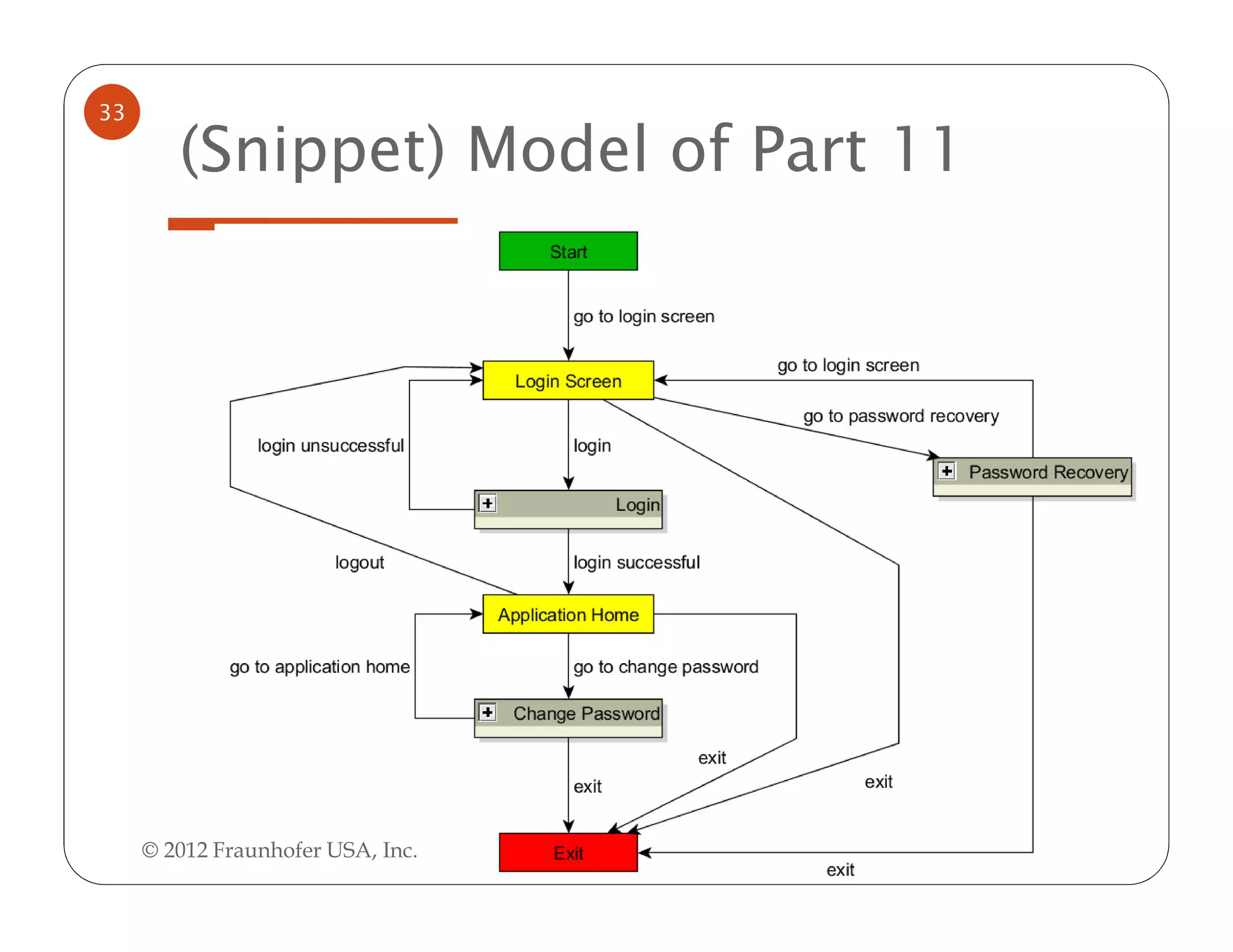

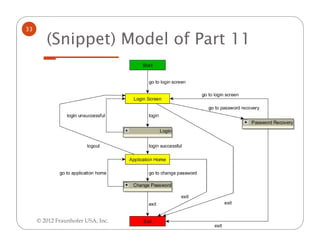

33 (Snippet) Model of Part 11 © 2012 Fraunhofer USA, Inc.

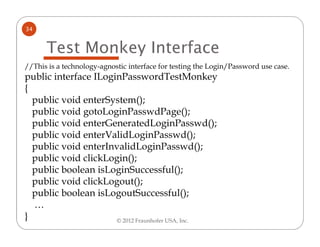

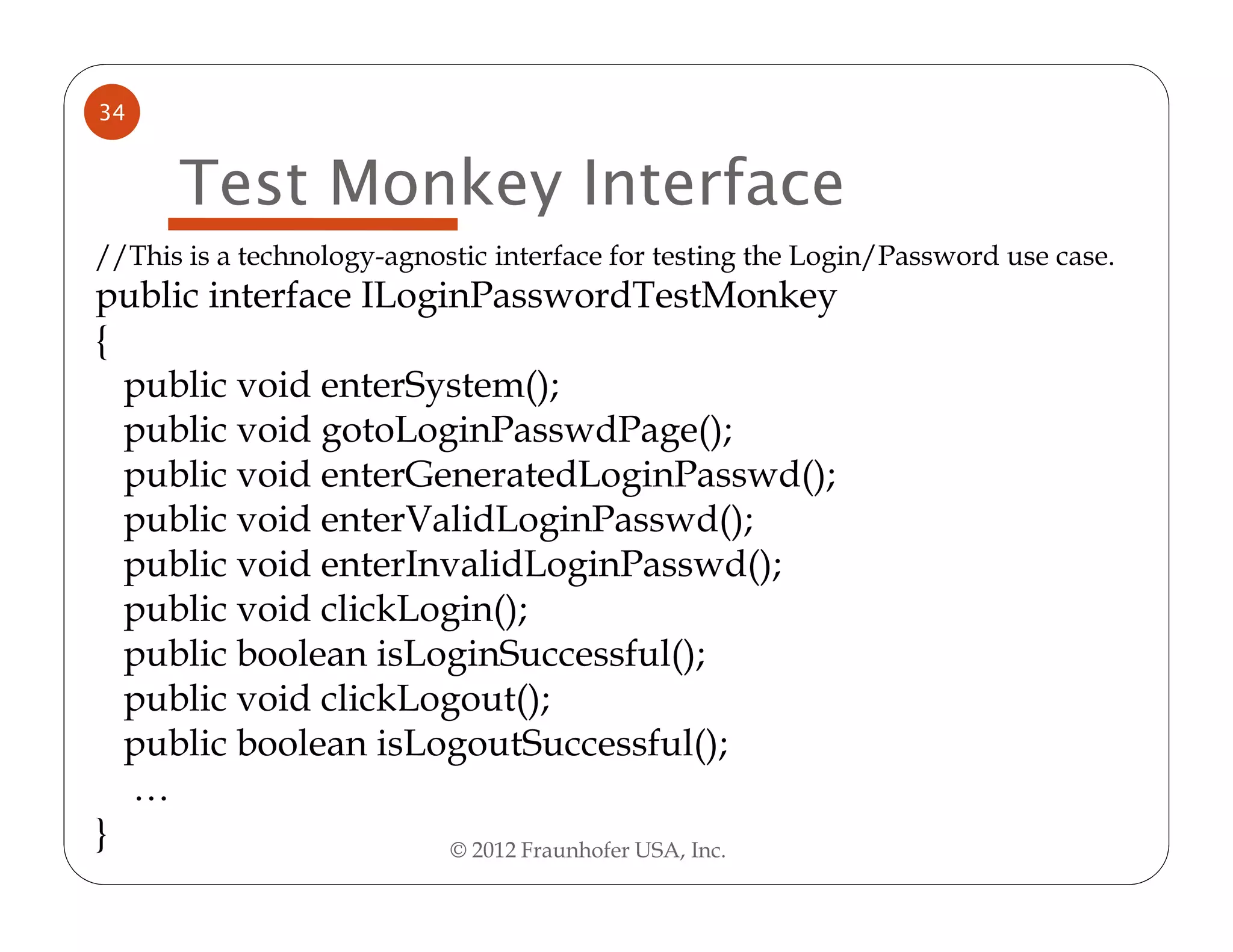

34 Test Monkey Interface //This is a technology-agnostic interface for testing the Login/Password use case. public interface ILoginPasswordTestMonkey { public void enterSystem(); public void gotoLoginPasswdPage(); public void enterGeneratedLoginPasswd(); public void enterValidLoginPasswd(); public void enterInvalidLoginPasswd(); public void clickLogin(); public boolean isLoginSuccessful(); public void clickLogout(); public boolean isLogoutSuccessful(); … } © 2012 Fraunhofer USA, Inc.

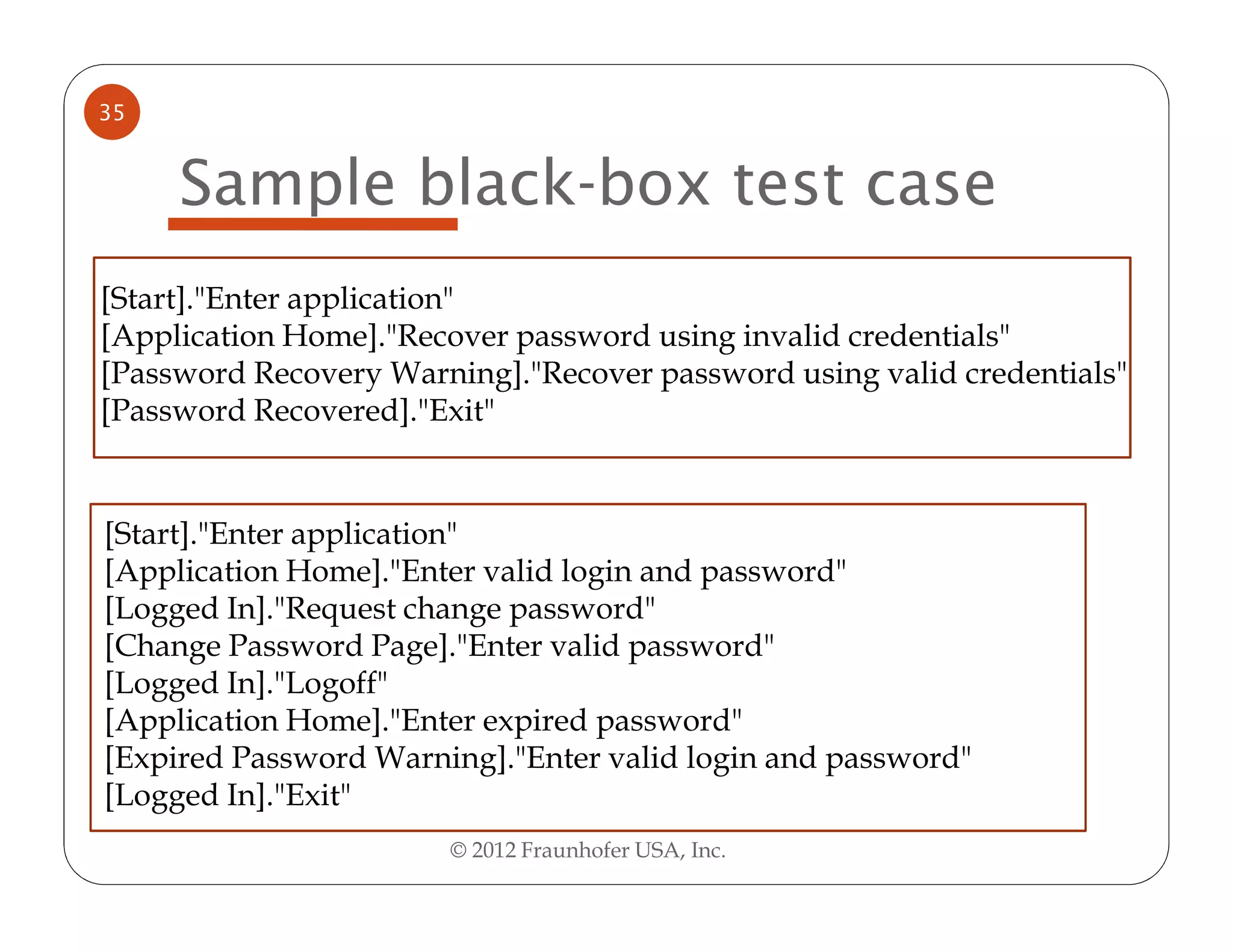

35 Sample black-box test case [Start]."Enter application" [Application Home]."Recover password using invalid credentials" [Password Recovery Warning]."Recover password using valid credentials" [Password Recovered]."Exit" [Start]."Enter application" [Application Home]."Enter valid login and password" [Logged In]."Request change password" [Change Password Page]."Enter valid password" [Logged In]."Logoff" [Application Home]."Enter expired password" [Expired Password Warning]."Enter valid login and password" [Logged In]."Exit" © 2012 Fraunhofer USA, Inc.

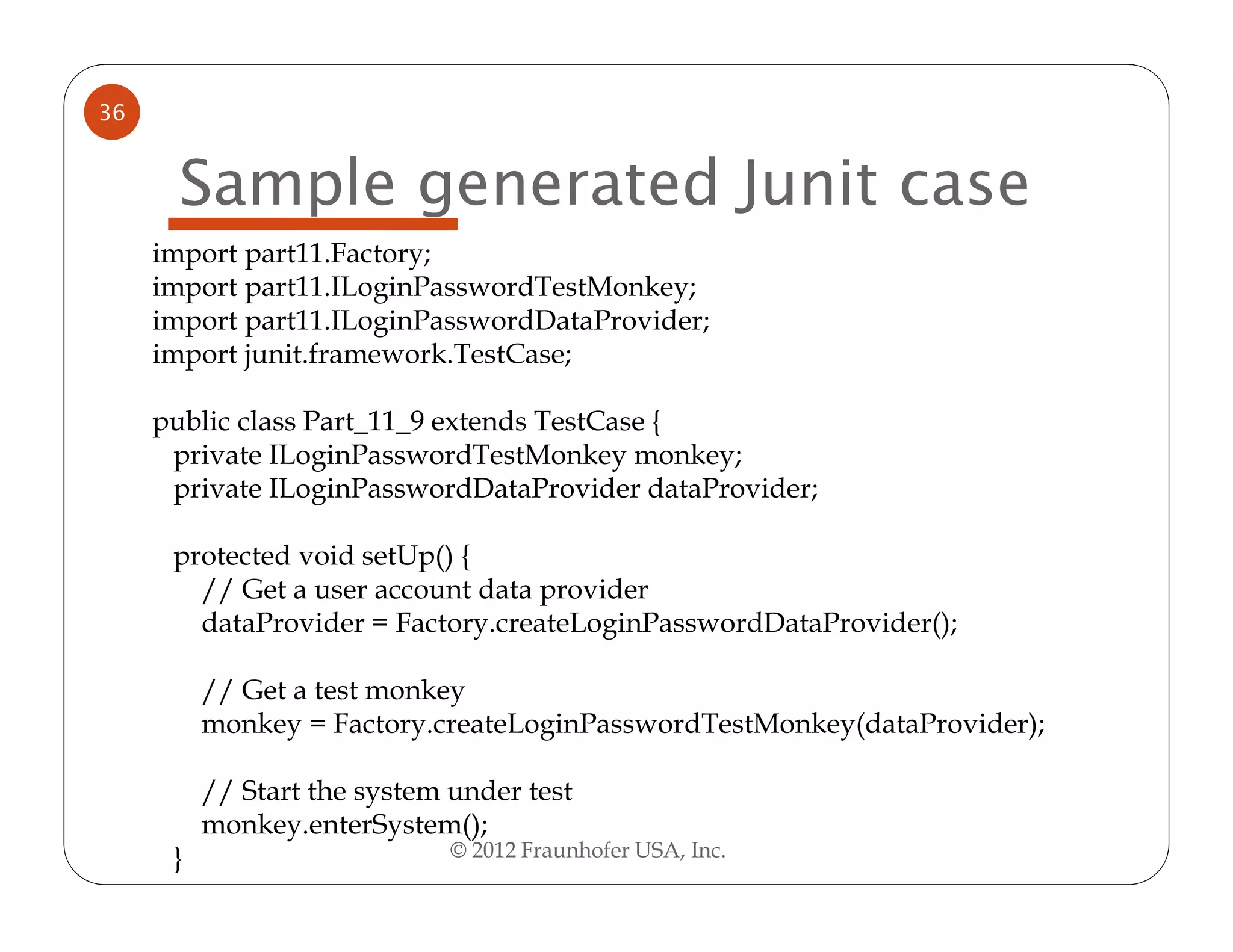

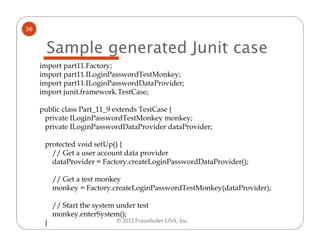

36 Sample generated Junit case import part11.Factory; import part11.ILoginPasswordTestMonkey; import part11.ILoginPasswordDataProvider; import junit.framework.TestCase; public class Part_11_9 extends TestCase { private ILoginPasswordTestMonkey monkey; private ILoginPasswordDataProvider dataProvider; protected void setUp() { // Get a user account data provider dataProvider = Factory.createLoginPasswordDataProvider(); // Get a test monkey monkey = Factory.createLoginPasswordTestMonkey(dataProvider); // Start the system under test monkey.enterSystem(); } © 2012 Fraunhofer USA, Inc.

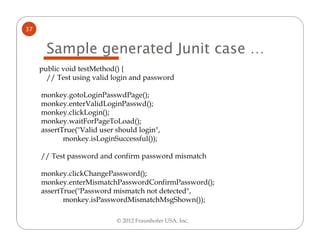

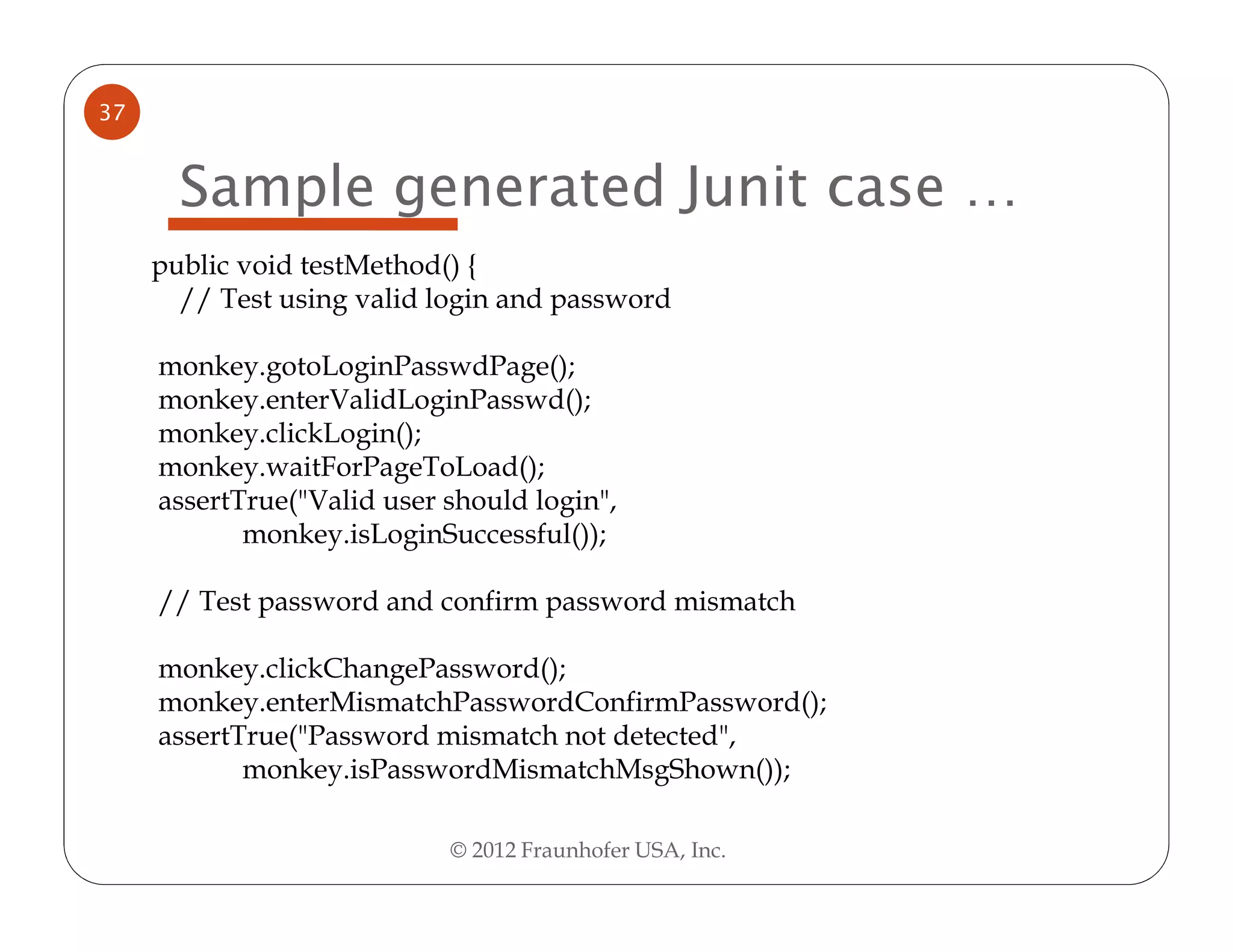

37 Sample generated Junit case … public void testMethod() { // Test using valid login and password monkey.gotoLoginPasswdPage(); monkey.enterValidLoginPasswd(); monkey.clickLogin(); monkey.waitForPageToLoad(); assertTrue("Valid user should login", monkey.isLoginSuccessful()); // Test password and confirm password mismatch monkey.clickChangePassword(); monkey.enterMismatchPasswordConfirmPassword(); assertTrue("Password mismatch not detected", monkey.isPasswordMismatchMsgShown()); © 2012 Fraunhofer USA, Inc.

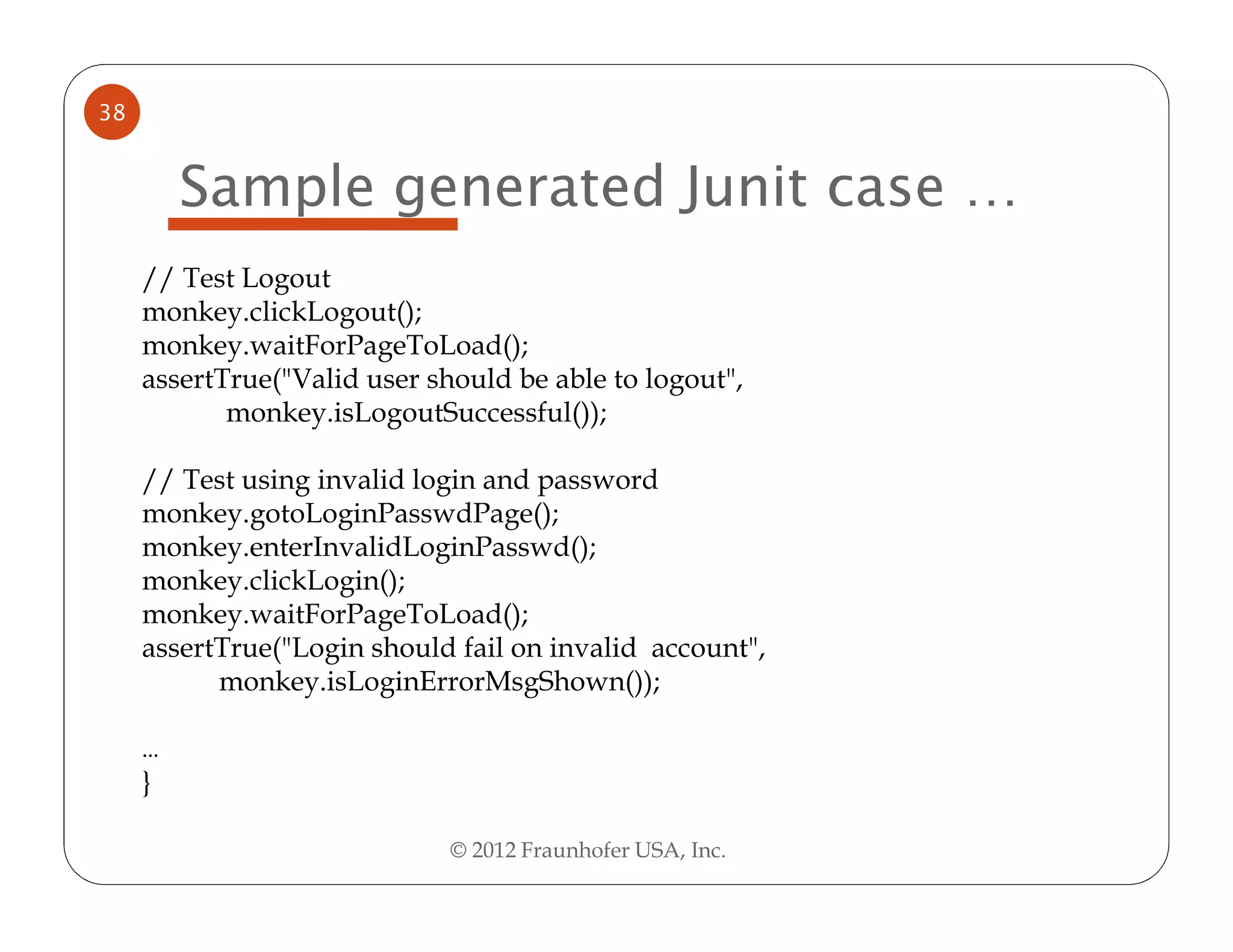

38 Sample generated Junit case … // Test Logout monkey.clickLogout(); monkey.waitForPageToLoad(); assertTrue("Valid user should be able to logout", monkey.isLogoutSuccessful()); // Test using invalid login and password monkey.gotoLoginPasswdPage(); monkey.enterInvalidLoginPasswd(); monkey.clickLogin(); monkey.waitForPageToLoad(); assertTrue("Login should fail on invalid account", monkey.isLoginErrorMsgShown()); … } © 2012 Fraunhofer USA, Inc.

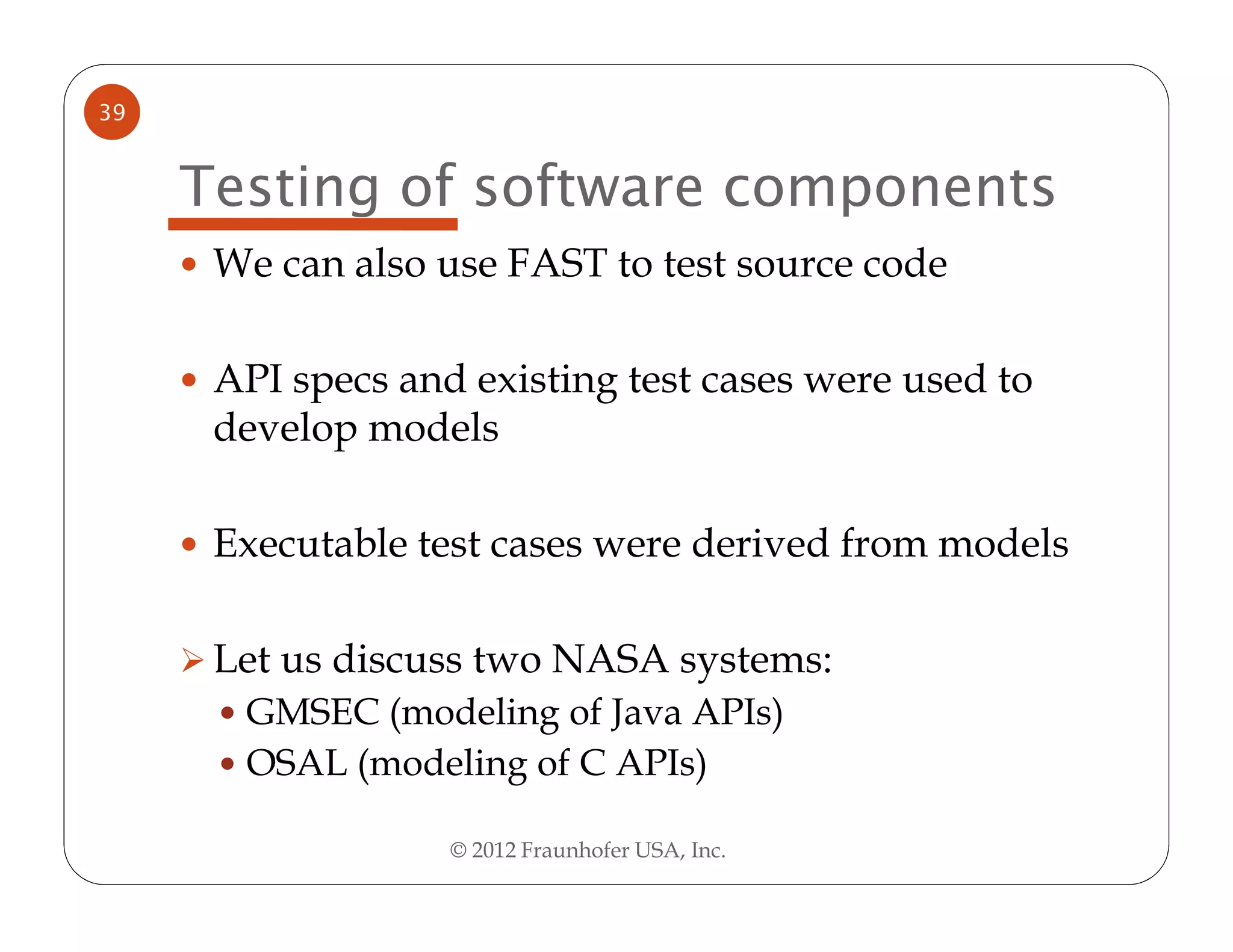

39 Testing of software components We can also use FAST to test source code API specs and existing test cases were used to develop models Executable test cases were derived from models Let us discuss two NASA systems: GMSEC (modeling of Java APIs) OSAL (modeling of C APIs) © 2012 Fraunhofer USA, Inc.

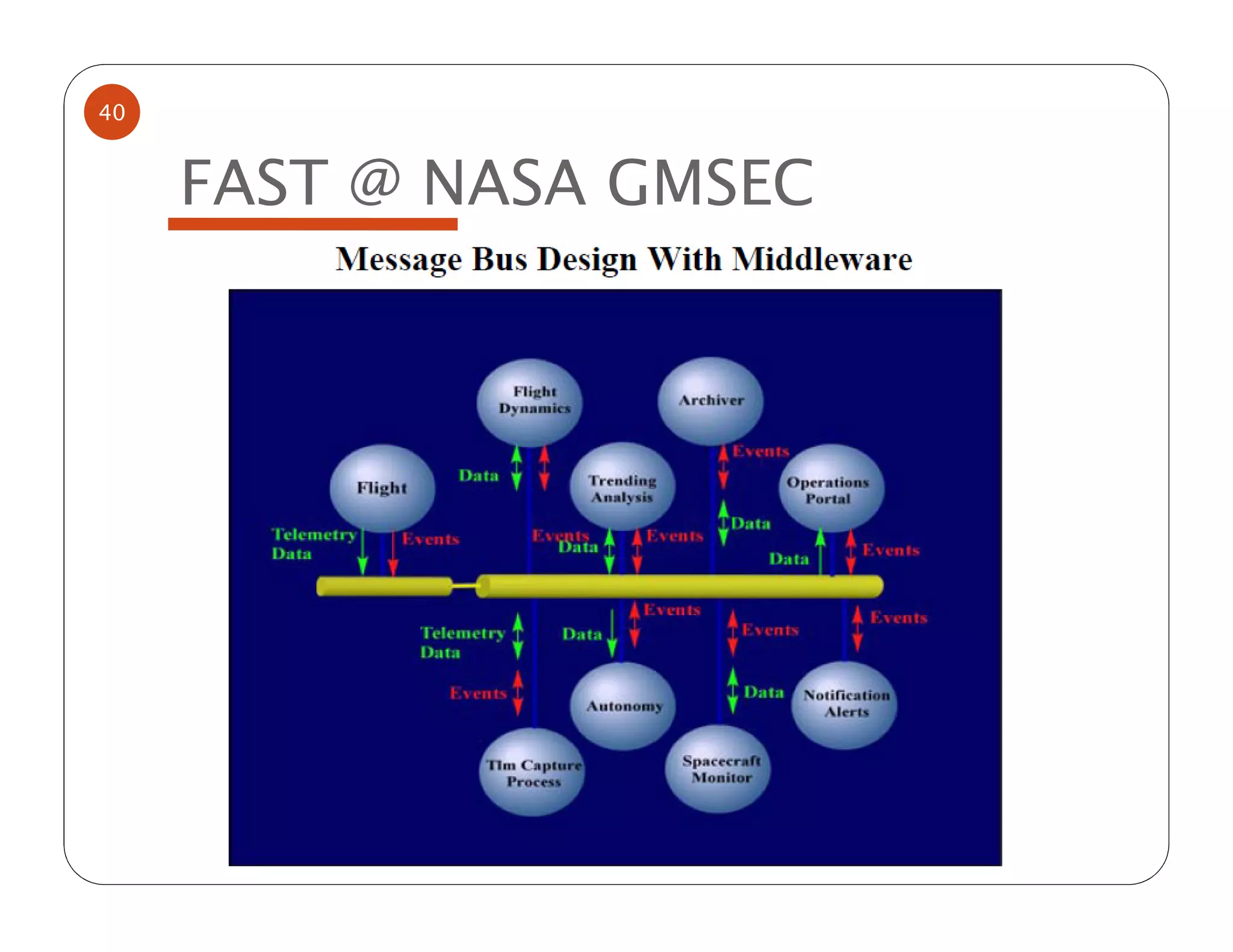

40 FAST @ NASA GMSEC

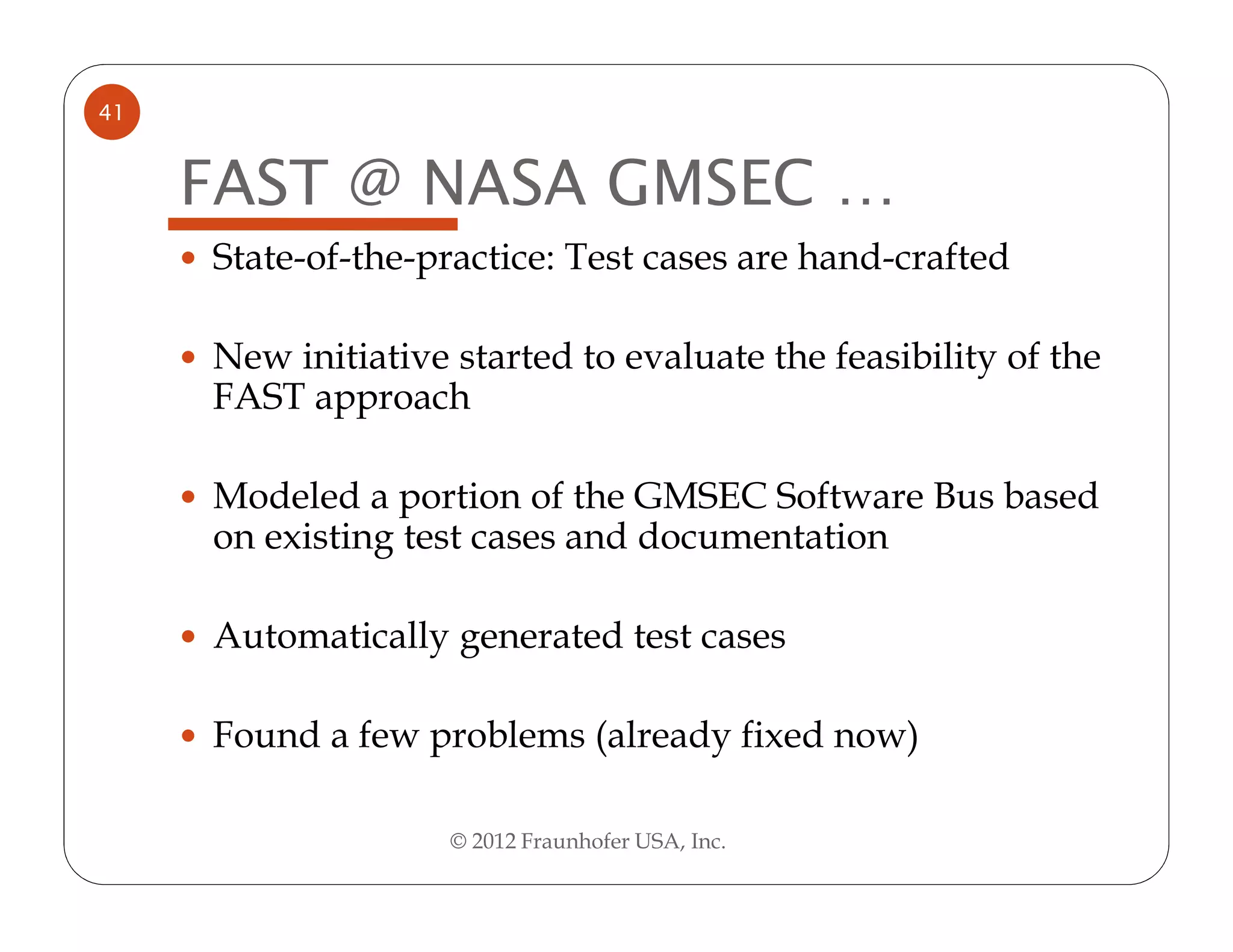

41 FAST @ NASA GMSEC … State-of-the-practice: Test cases are hand-crafted New initiative started to evaluate the feasibility of the FAST approach Modeled a portion of the GMSEC Software Bus based on existing test cases and documentation Automatically generated test cases Found a few problems (already fixed now) © 2012 Fraunhofer USA, Inc.

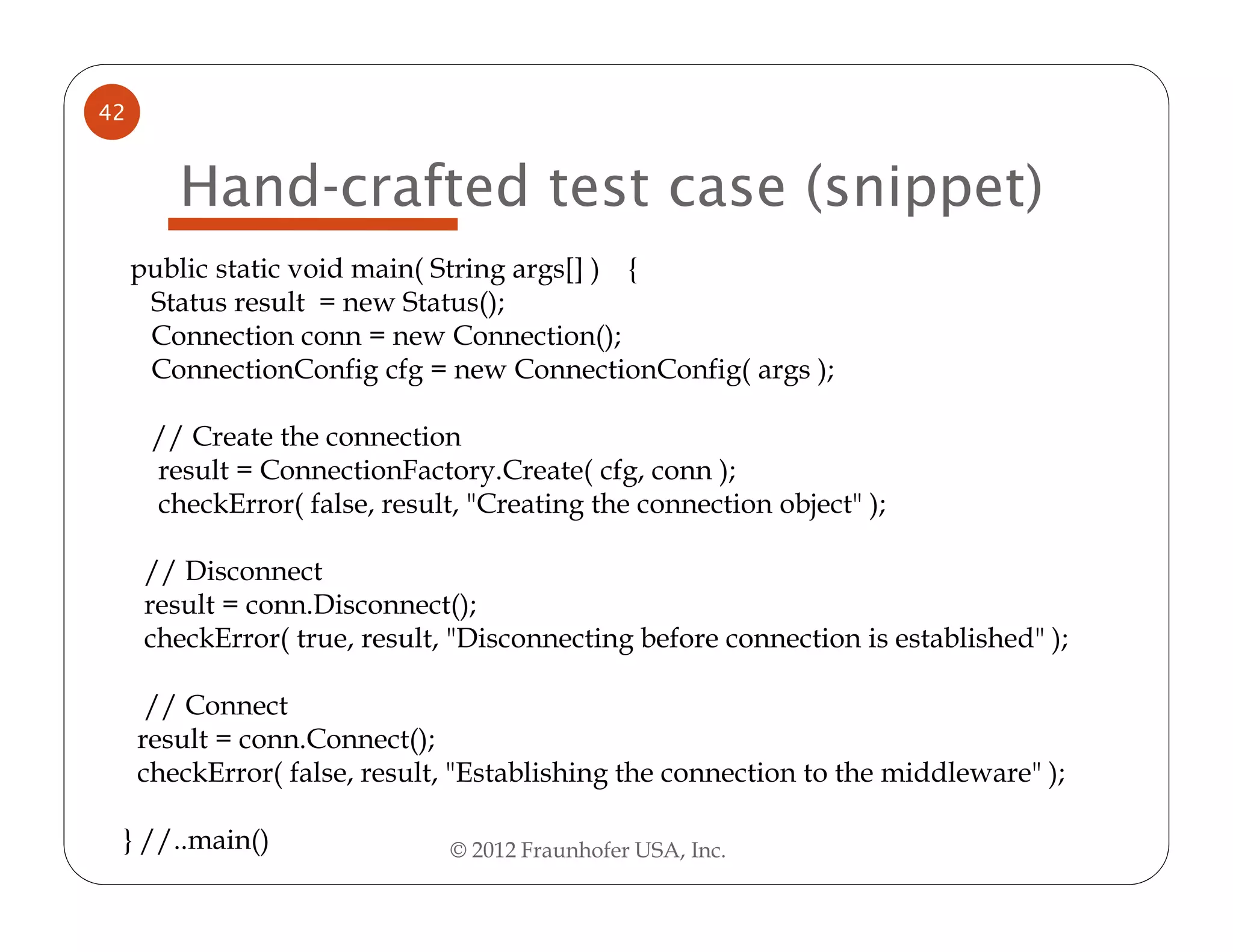

42 Hand-crafted test case (snippet) public static void main( String args[] ) { Status result = new Status(); Connection conn = new Connection(); ConnectionConfig cfg = new ConnectionConfig( args ); // Create the connection result = ConnectionFactory.Create( cfg, conn ); checkError( false, result, "Creating the connection object" ); // Disconnect result = conn.Disconnect(); checkError( true, result, "Disconnecting before connection is established" ); // Connect result = conn.Connect(); checkError( false, result, "Establishing the connection to the middleware" ); } //..main() © 2012 Fraunhofer USA, Inc.

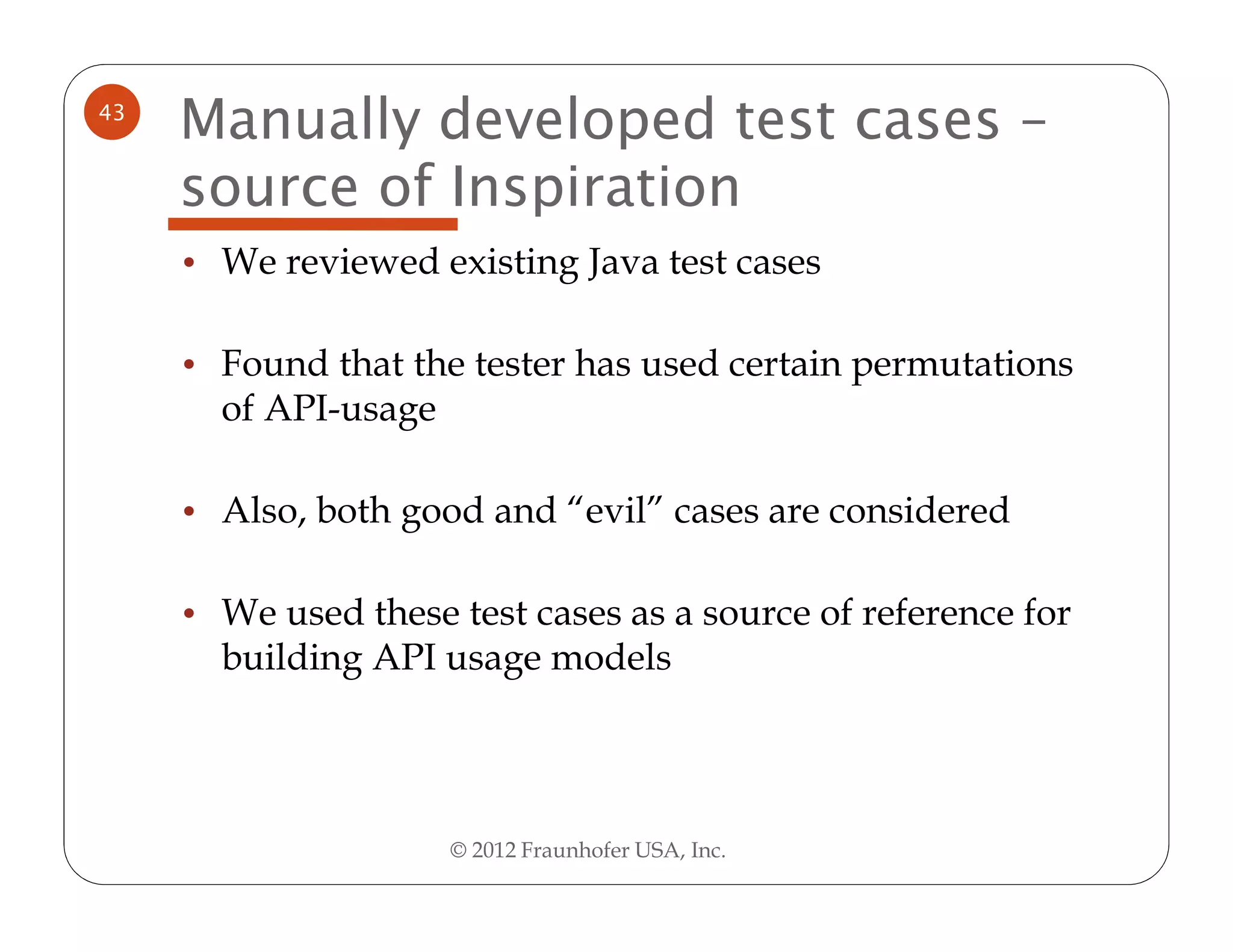

43 Manually developed test cases – source of Inspiration • We reviewed existing Java test cases • Found that the tester has used certain permutations of API-usage • Also, both good and “evil” cases are considered • We used these test cases as a source of reference for building API usage models © 2012 Fraunhofer USA, Inc.

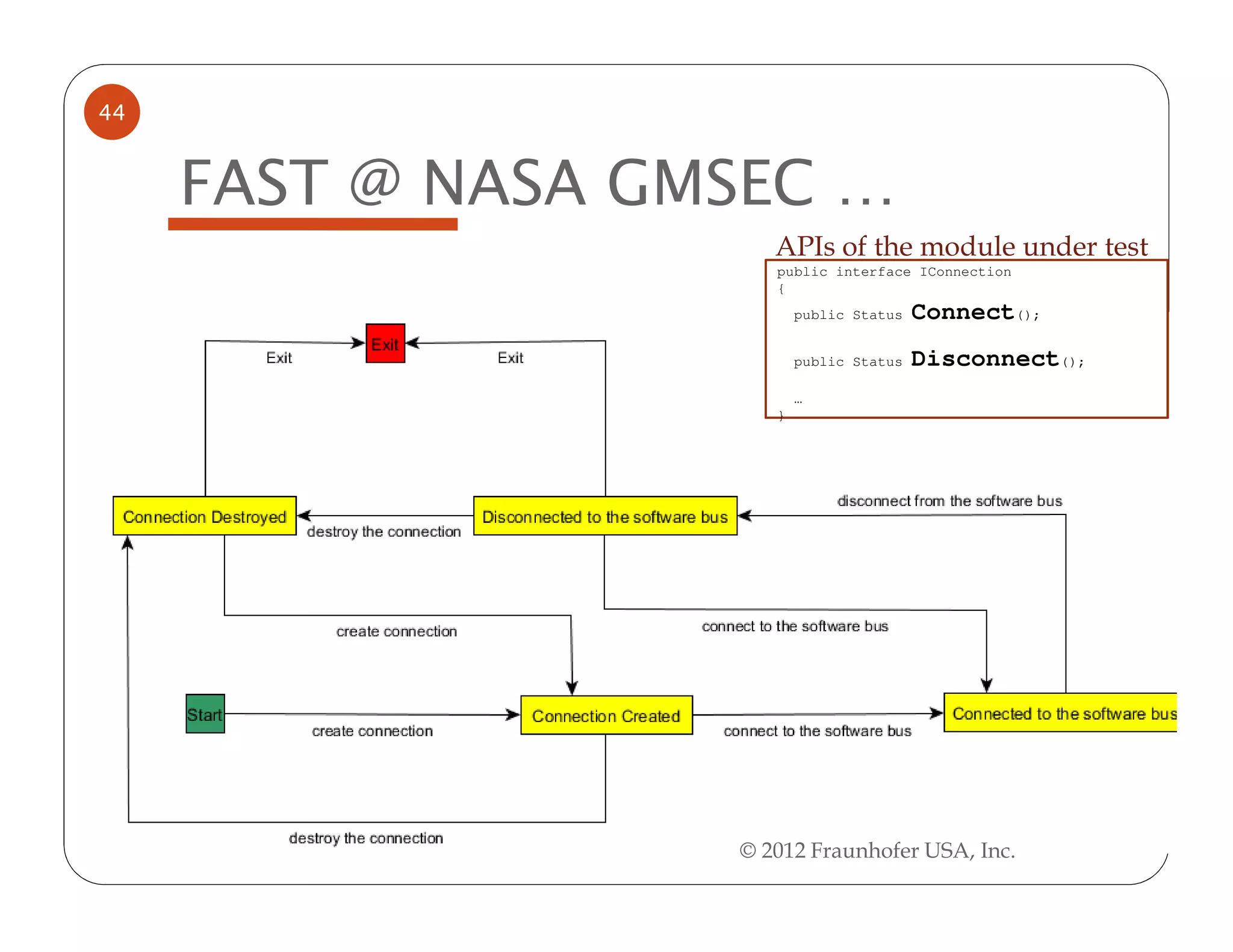

44 FAST @ NASA GMSEC … APIs of the module under test public interface IConnection { public Status Connect(); public Status Disconnect(); … } © 2012 Fraunhofer USA, Inc.

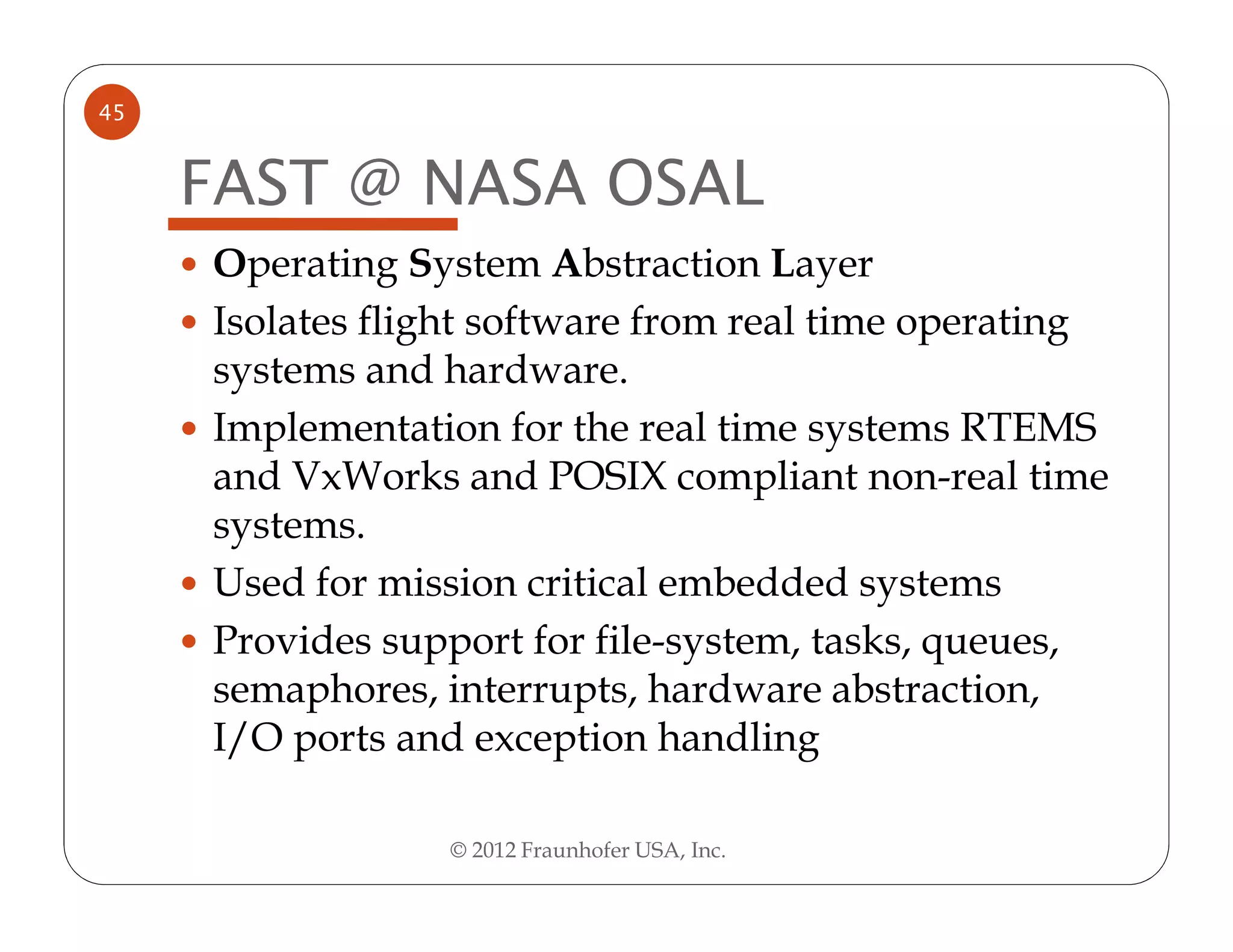

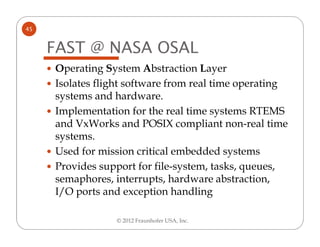

45 FAST @ NASA OSAL Operating System Abstraction Layer Isolates flight software from real time operating systems and hardware. Implementation for the real time systems RTEMS and VxWorks and POSIX compliant non-real time systems. Used for mission critical embedded systems Provides support for file-system, tasks, queues, semaphores, interrupts, hardware abstraction, I/O ports and exception handling © 2012 Fraunhofer USA, Inc.

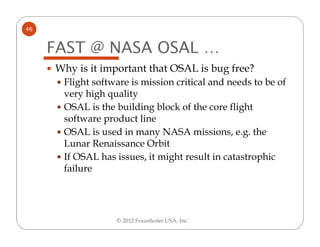

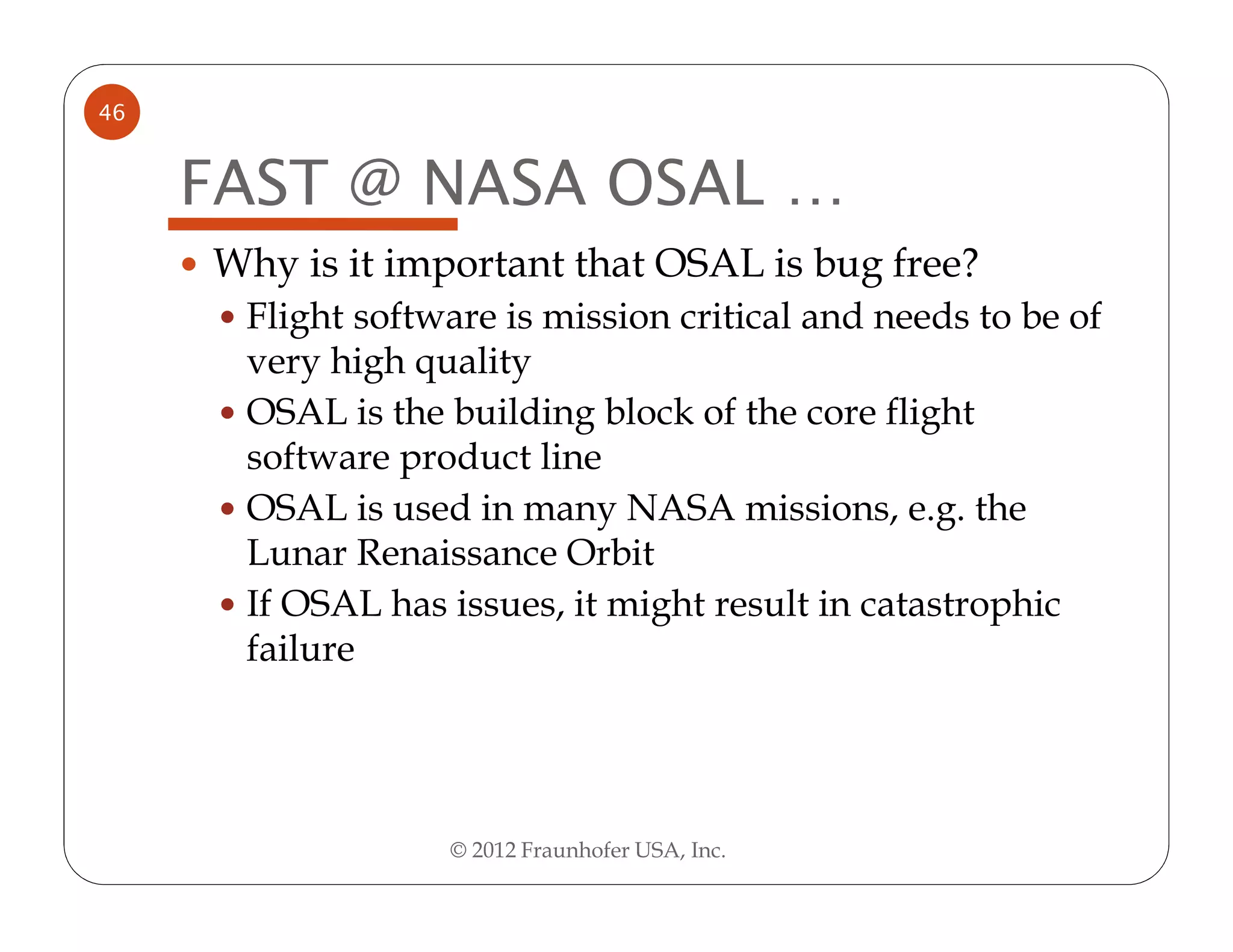

46 FAST @ NASA OSAL … Why is it important that OSAL is bug free? Flight software is mission critical and needs to be of very high quality OSAL is the building block of the core flight software product line OSAL is used in many NASA missions, e.g. the Lunar Renaissance Orbit If OSAL has issues, it might result in catastrophic failure © 2012 Fraunhofer USA, Inc.

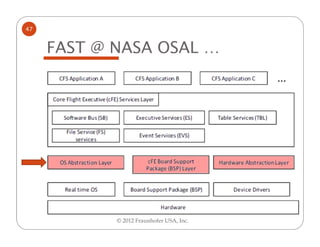

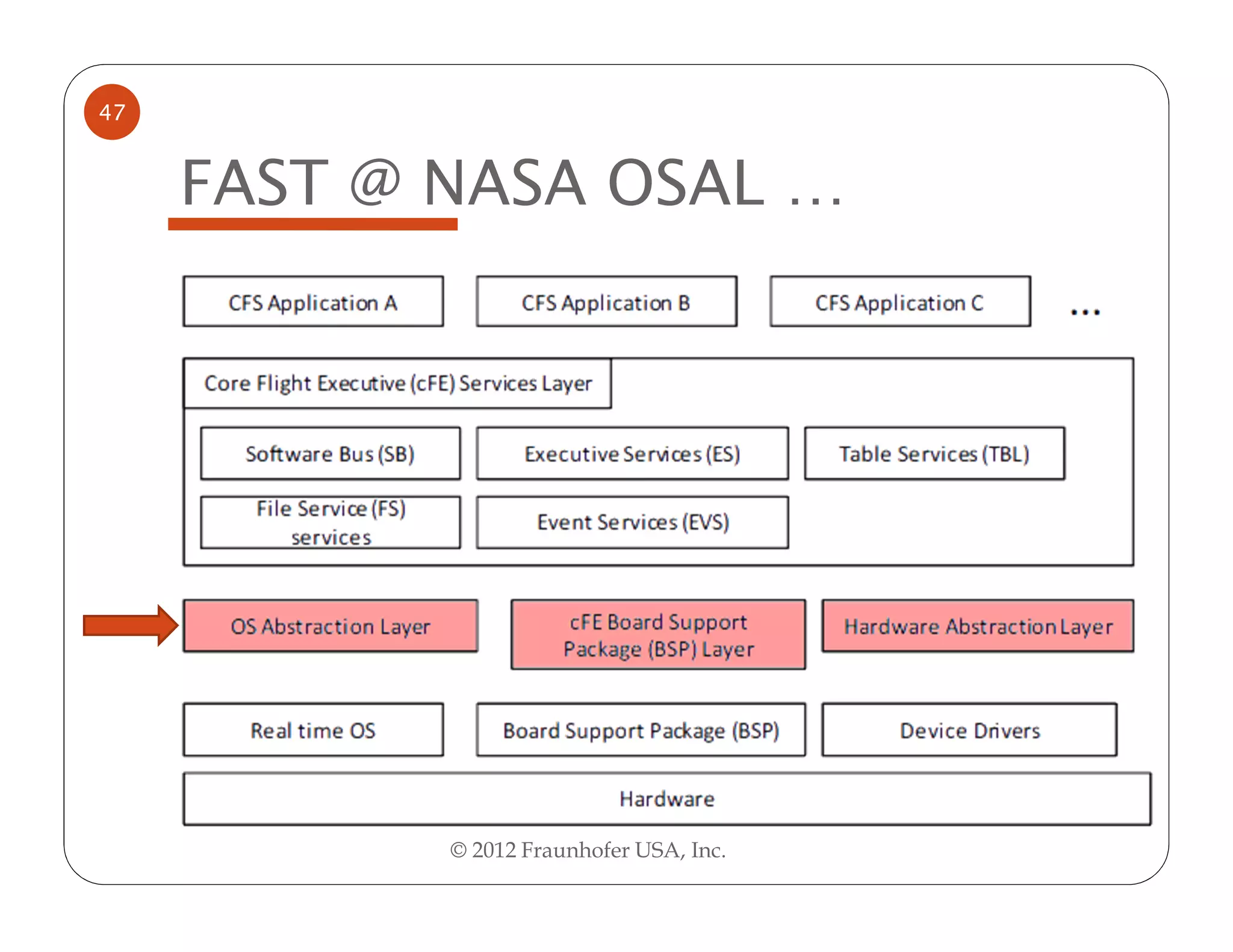

47 FAST @ NASA OSAL … © 2012 Fraunhofer USA, Inc.

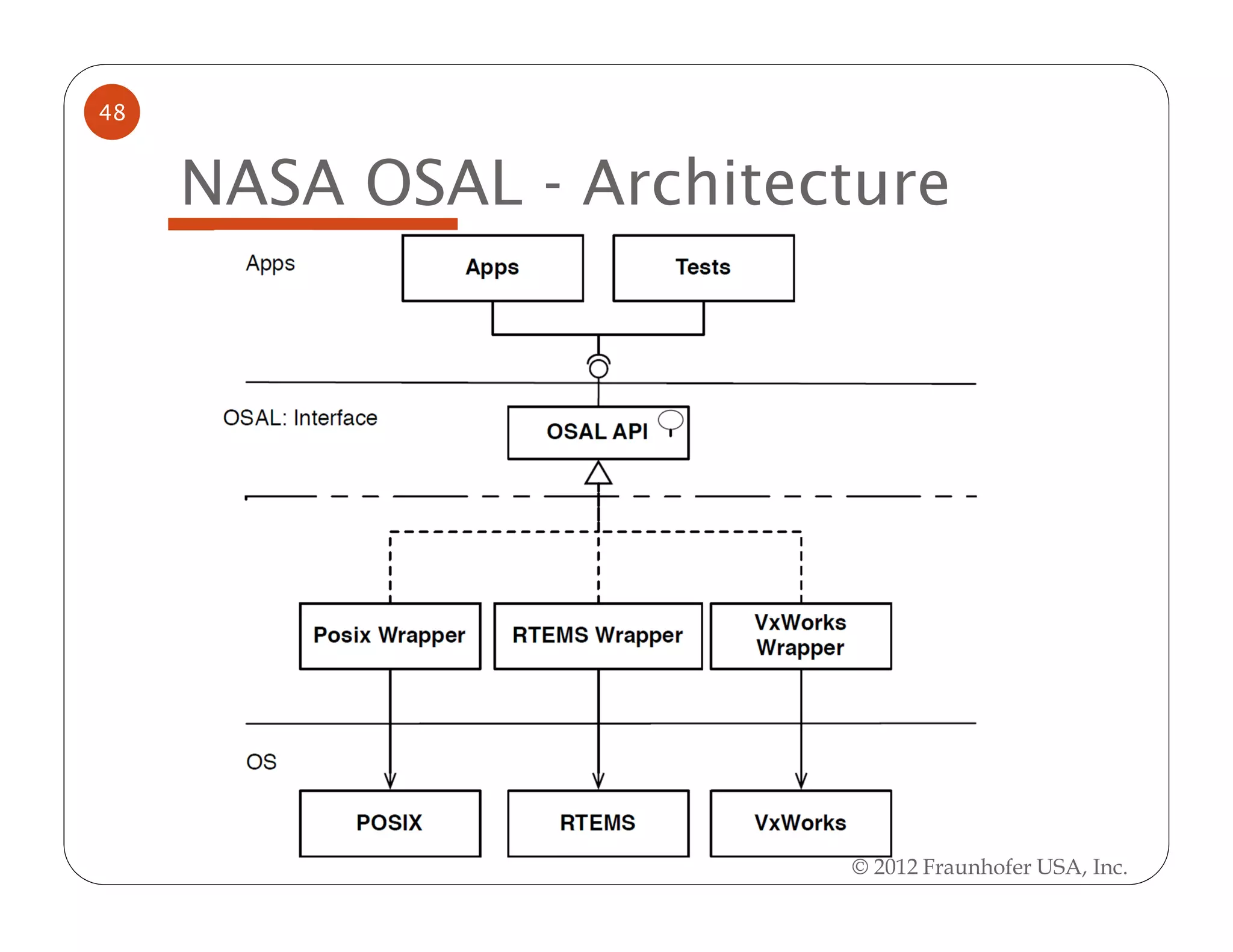

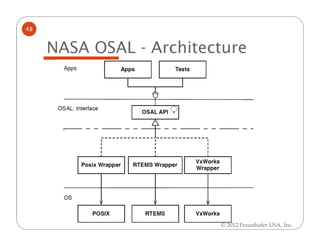

48 NASA OSAL - Architecture © 2012 Fraunhofer USA, Inc.

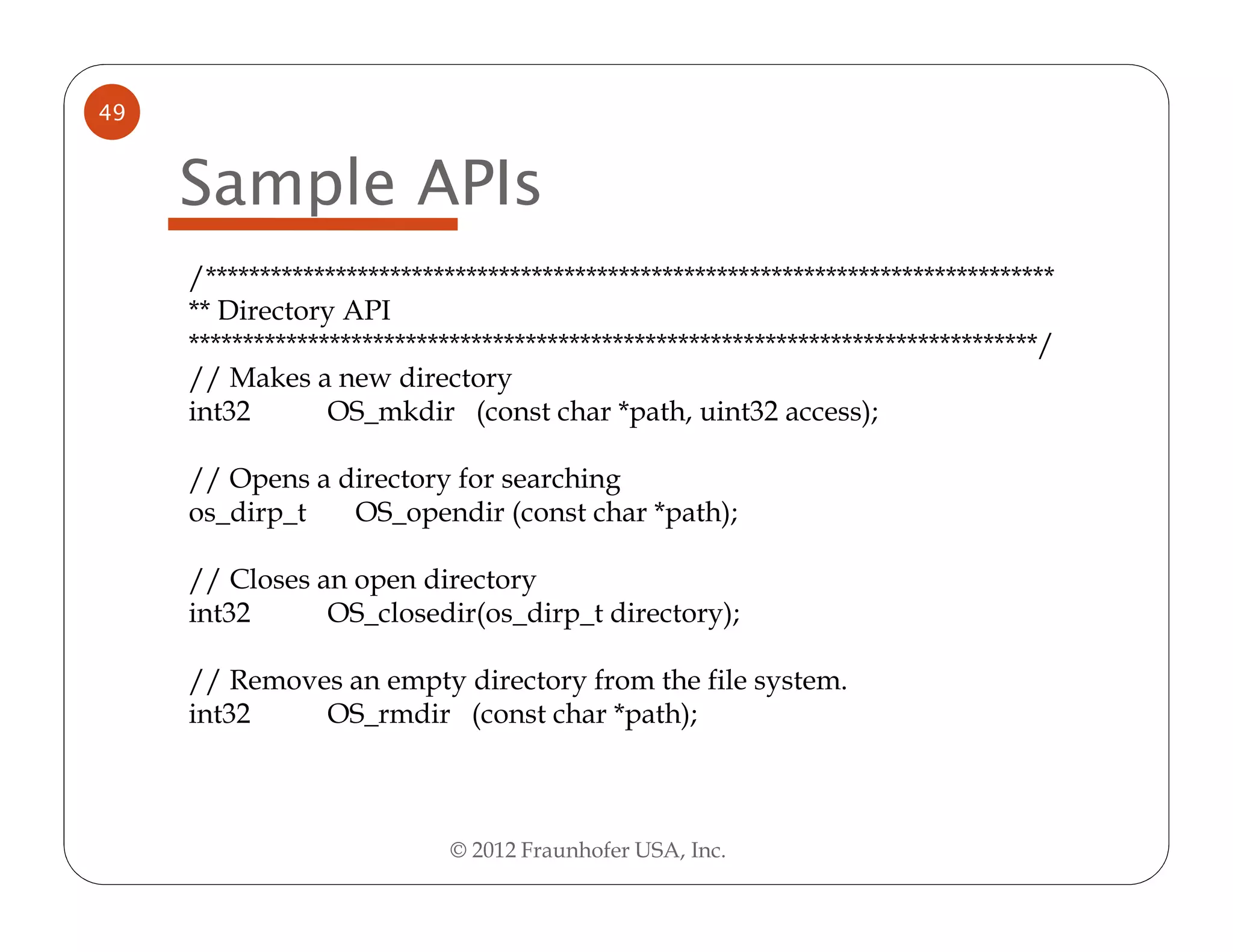

49 Sample APIs /****************************************************************************** ** Directory API ******************************************************************************/ // Makes a new directory int32 OS_mkdir (const char *path, uint32 access); // Opens a directory for searching os_dirp_t OS_opendir (const char *path); // Closes an open directory int32 OS_closedir(os_dirp_t directory); // Removes an empty directory from the file system. int32 OS_rmdir (const char *path); © 2012 Fraunhofer USA, Inc.

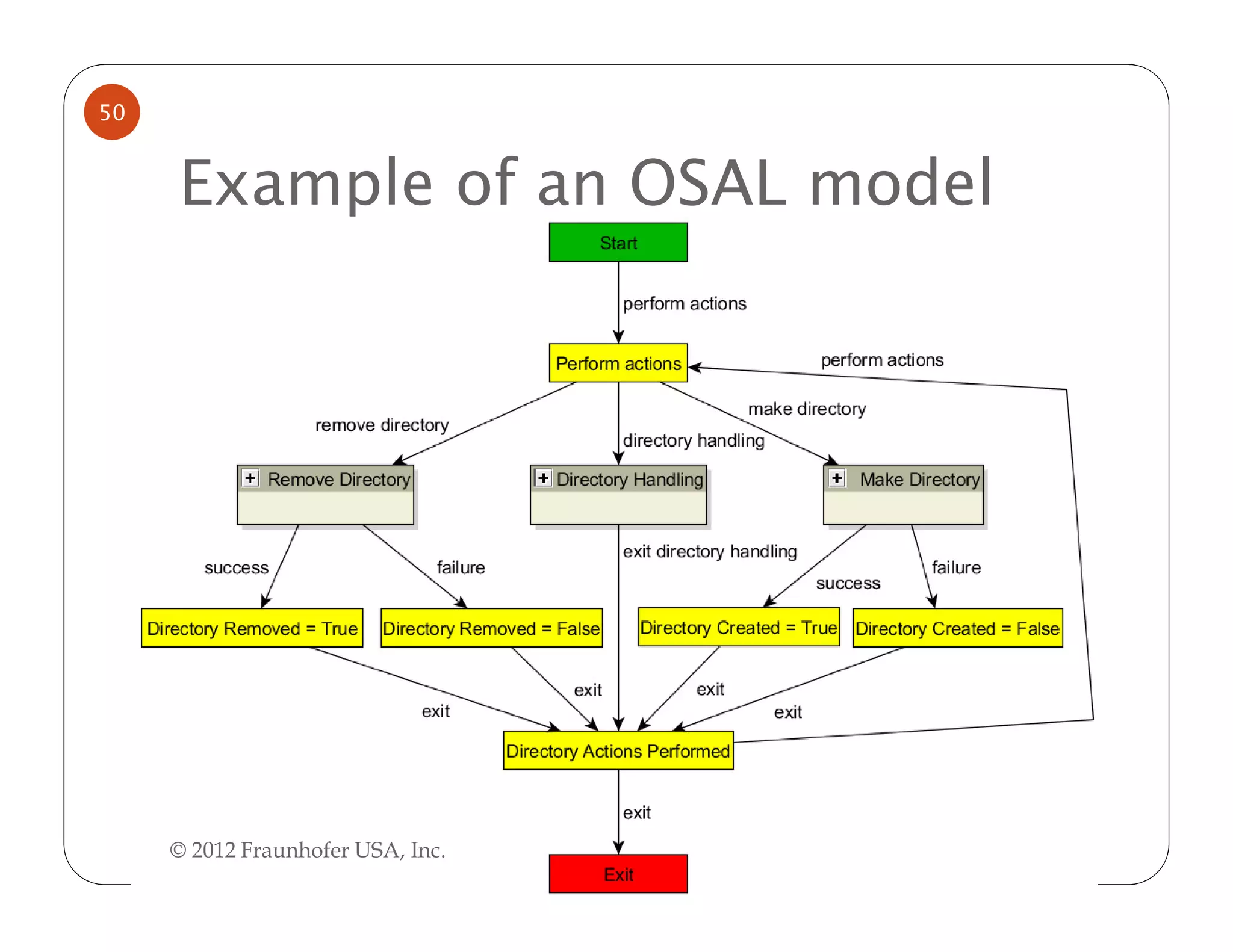

50 Example of an OSAL model © 2012 Fraunhofer USA, Inc.

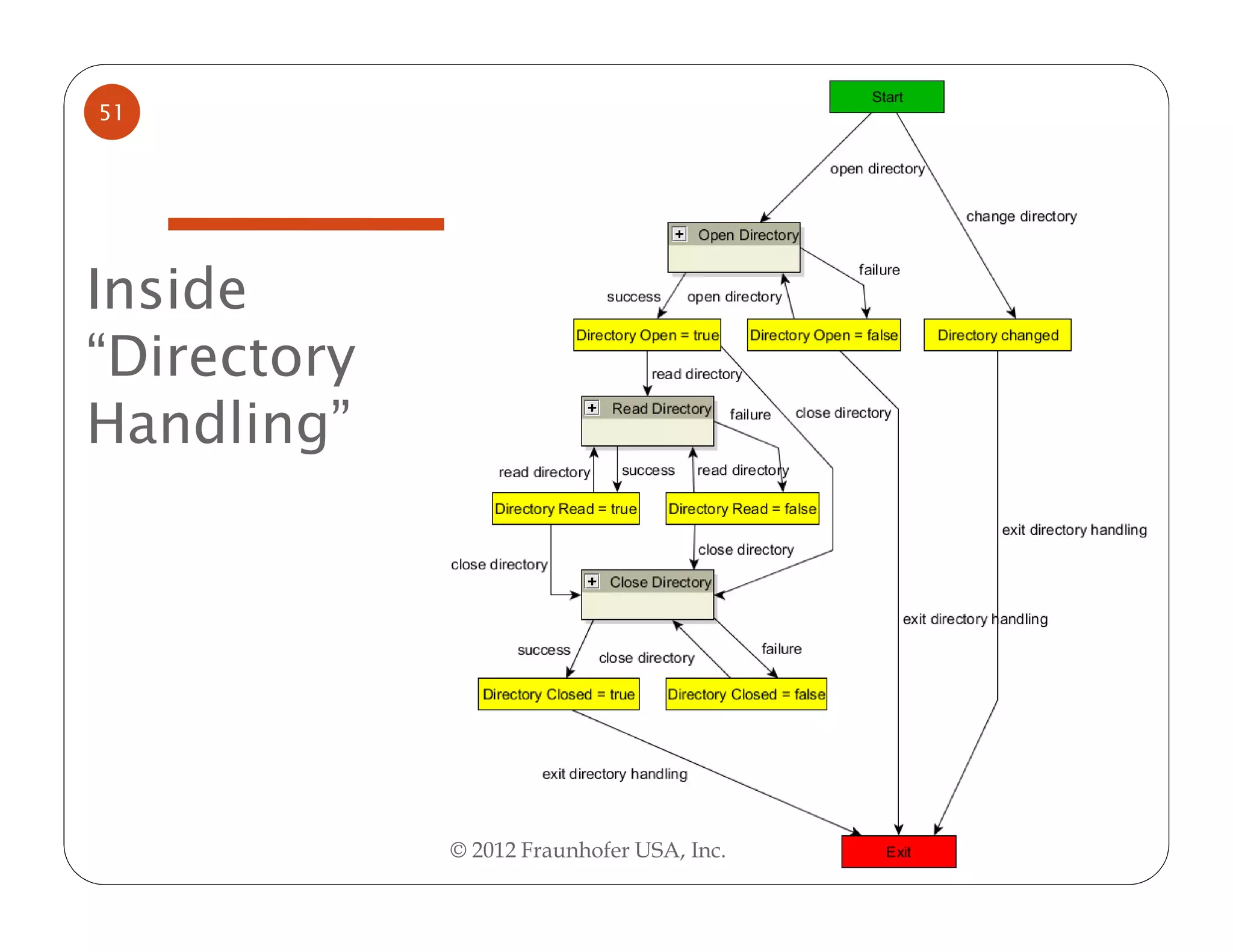

51 Inside “Directory Handling” © 2012 Fraunhofer USA, Inc.

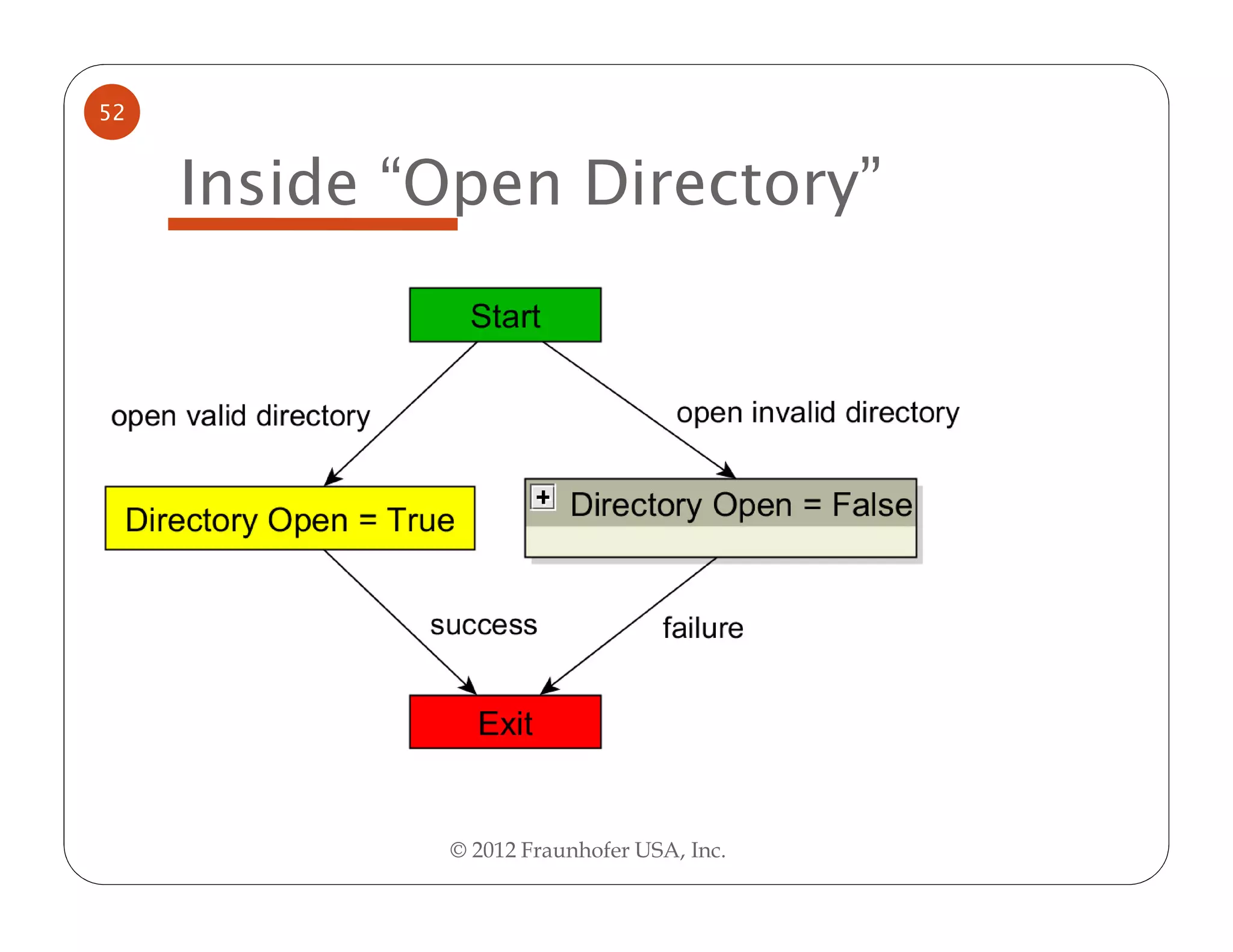

52 Inside “Open Directory” © 2012 Fraunhofer USA, Inc.

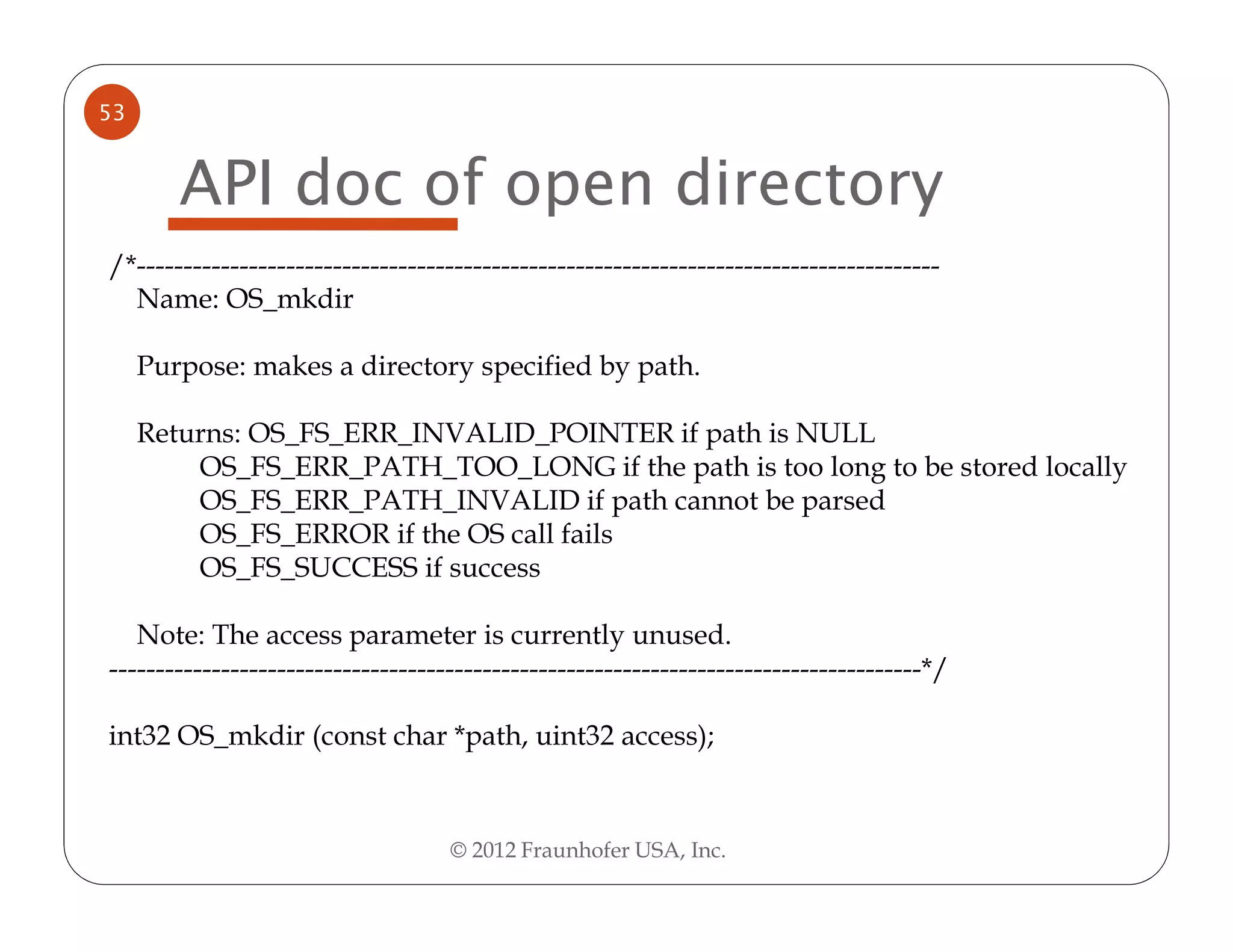

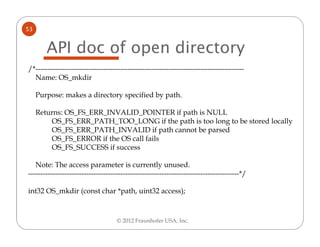

53 API doc of open directory /*-------------------------------------------------------------------------------------- Name: OS_mkdir Purpose: makes a directory specified by path. Returns: OS_FS_ERR_INVALID_POINTER if path is NULL OS_FS_ERR_PATH_TOO_LONG if the path is too long to be stored locally OS_FS_ERR_PATH_INVALID if path cannot be parsed OS_FS_ERROR if the OS call fails OS_FS_SUCCESS if success Note: The access parameter is currently unused. ---------------------------------------------------------------------------------------*/ int32 OS_mkdir (const char *path, uint32 access); © 2012 Fraunhofer USA, Inc.

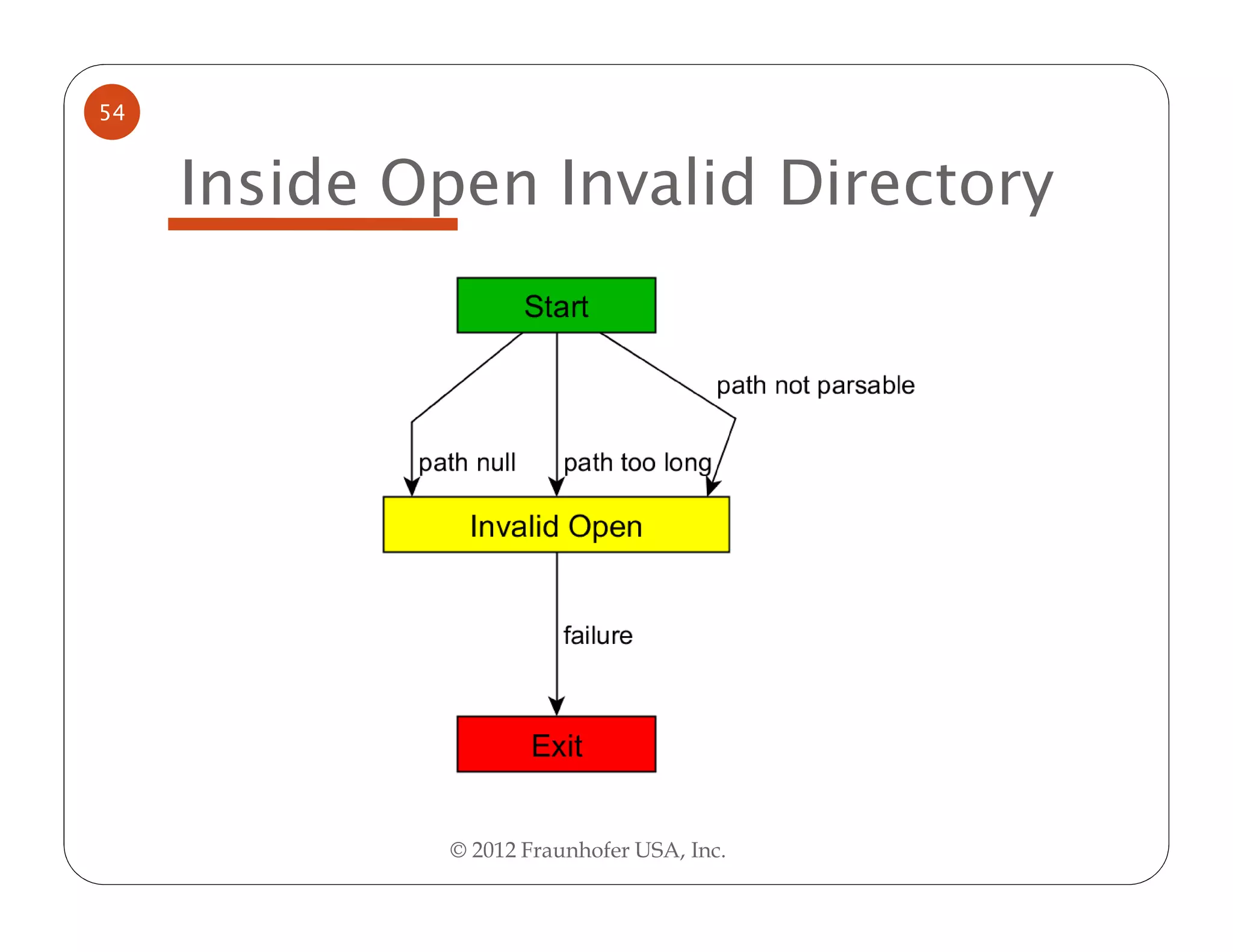

54 Inside Open Invalid Directory © 2012 Fraunhofer USA, Inc.

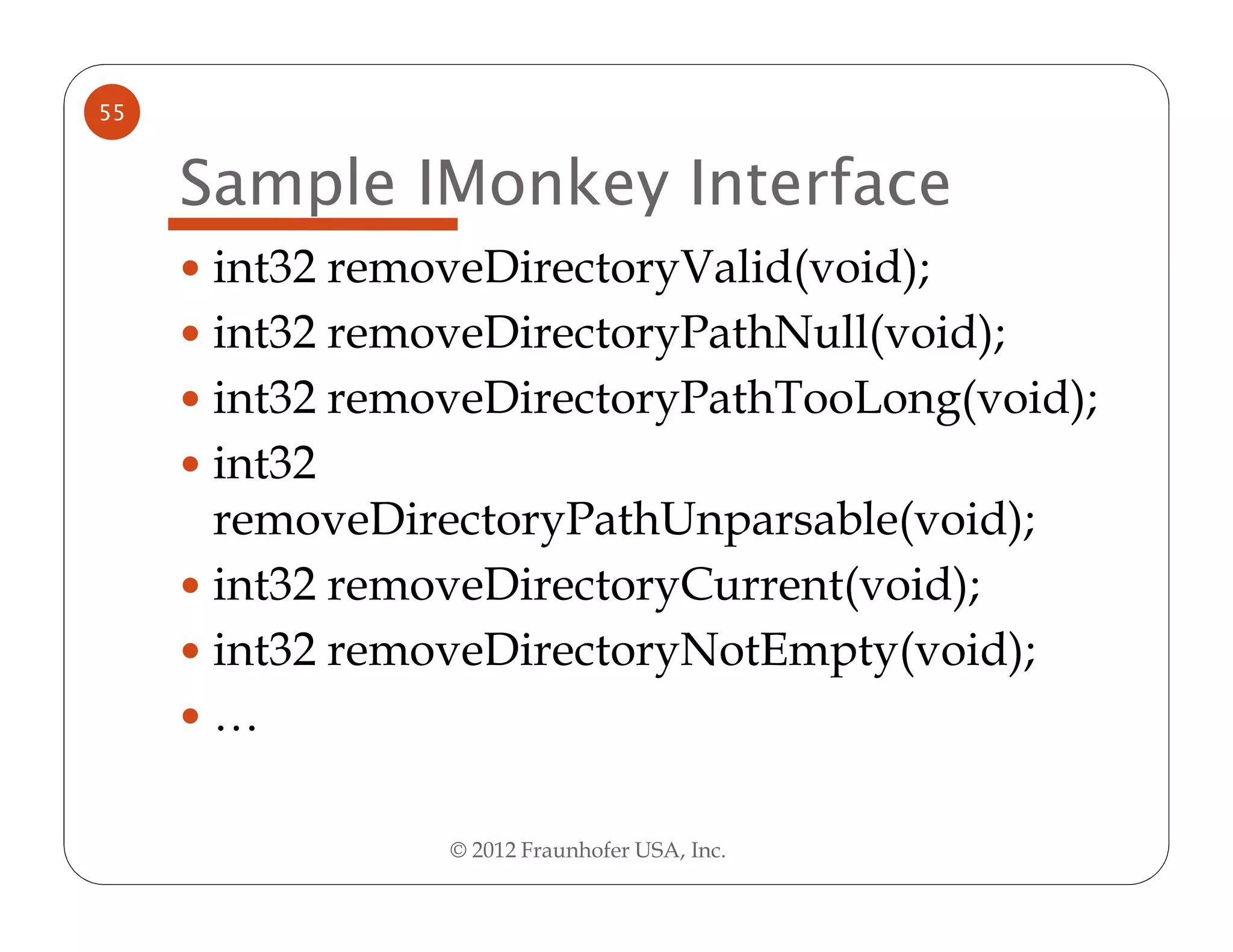

55 Sample IMonkey Interface int32 removeDirectoryValid(void); int32 removeDirectoryPathNull(void); int32 removeDirectoryPathTooLong(void); int32 removeDirectoryPathUnparsable(void); int32 removeDirectoryCurrent(void); int32 removeDirectoryNotEmpty(void); … © 2012 Fraunhofer USA, Inc.

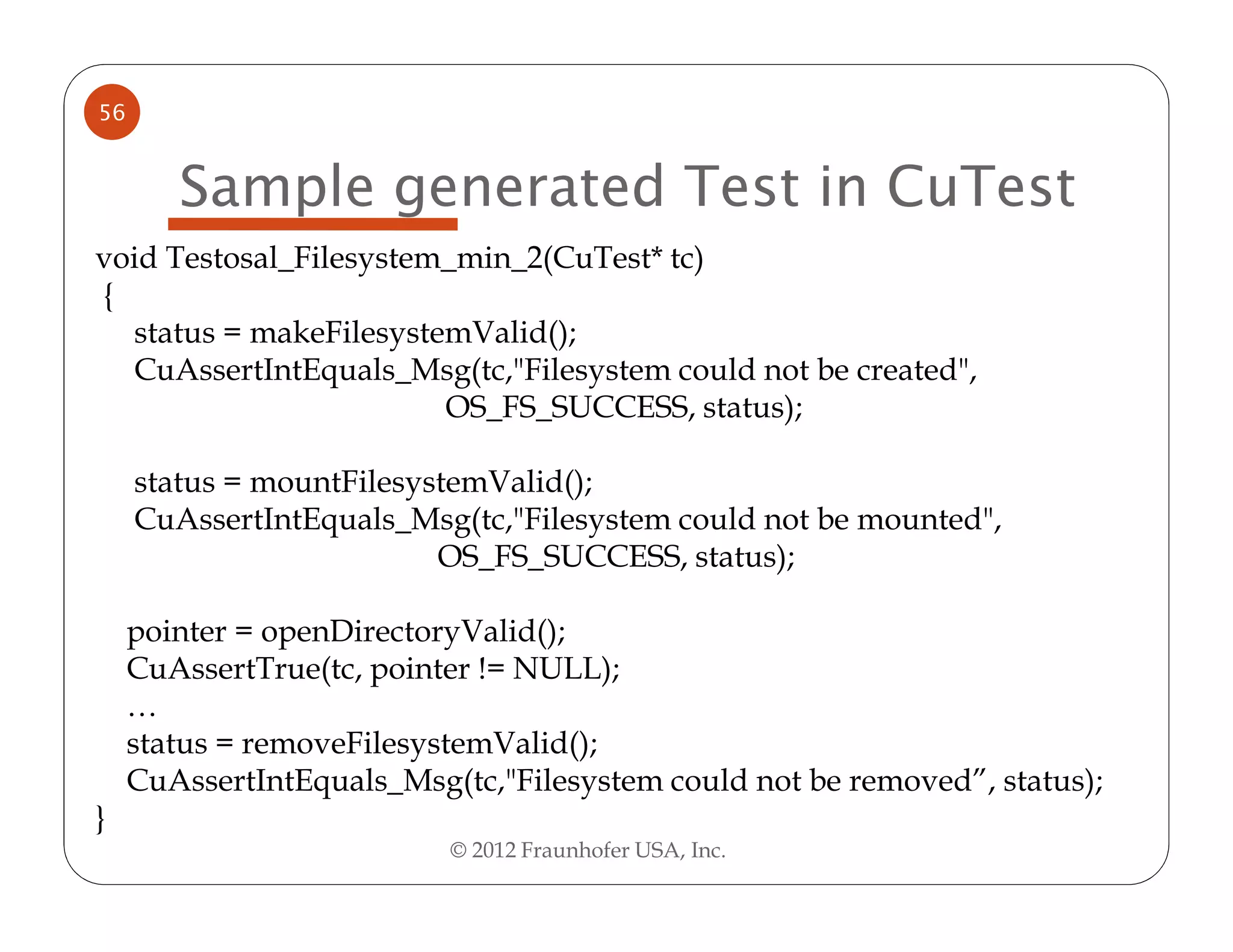

56 Sample generated Test in CuTest void Testosal_Filesystem_min_2(CuTest* tc) { status = makeFilesystemValid(); CuAssertIntEquals_Msg(tc,"Filesystem could not be created", OS_FS_SUCCESS, status); status = mountFilesystemValid(); CuAssertIntEquals_Msg(tc,"Filesystem could not be mounted", OS_FS_SUCCESS, status); pointer = openDirectoryValid(); CuAssertTrue(tc, pointer != NULL); … status = removeFilesystemValid(); CuAssertIntEquals_Msg(tc,"Filesystem could not be removed”, status); } © 2012 Fraunhofer USA, Inc.

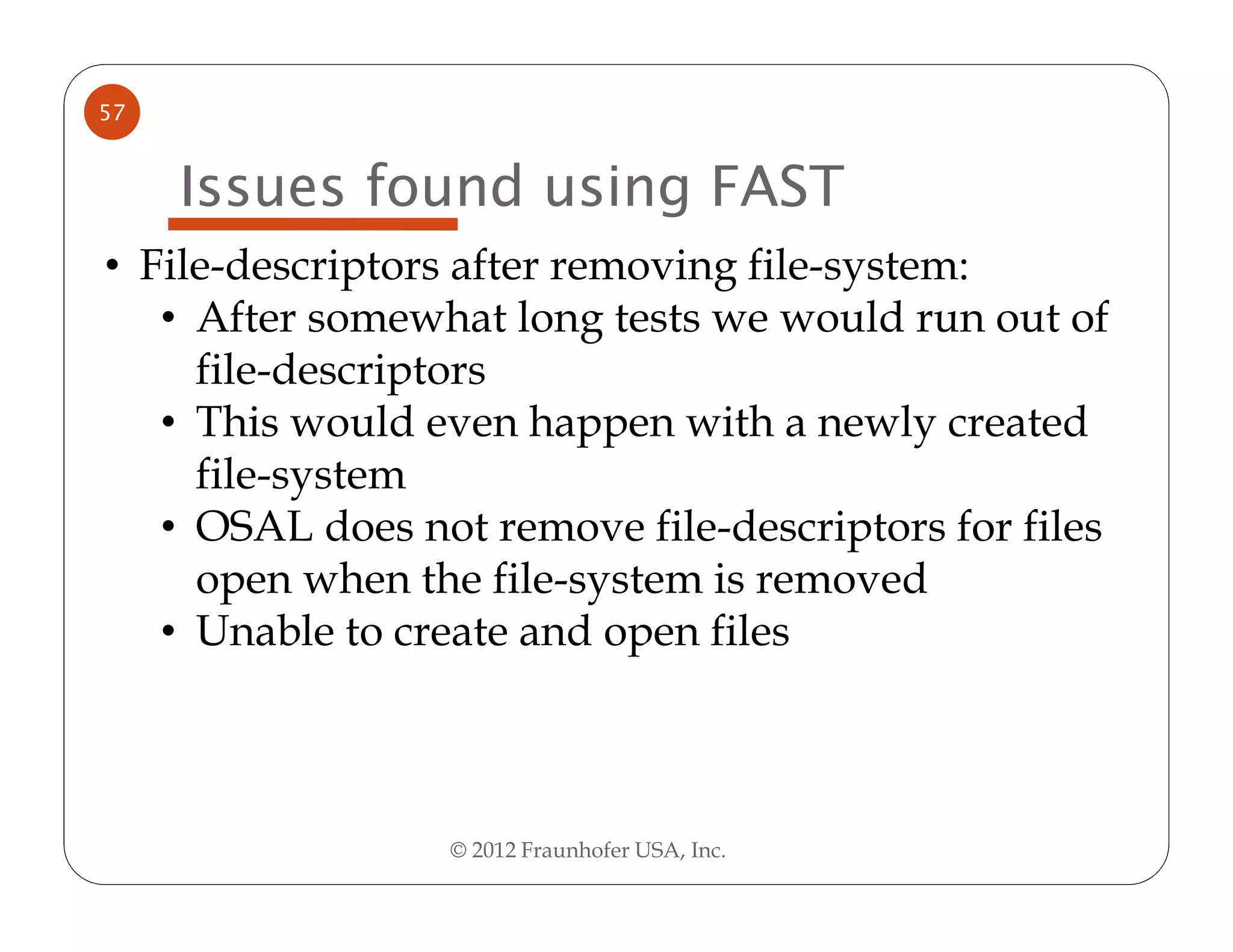

57 Issues found using FAST • File-descriptors after removing file-system: • After somewhat long tests we would run out of file-descriptors • This would even happen with a newly created file-system • OSAL does not remove file-descriptors for files open when the file-system is removed • Unable to create and open files © 2012 Fraunhofer USA, Inc.

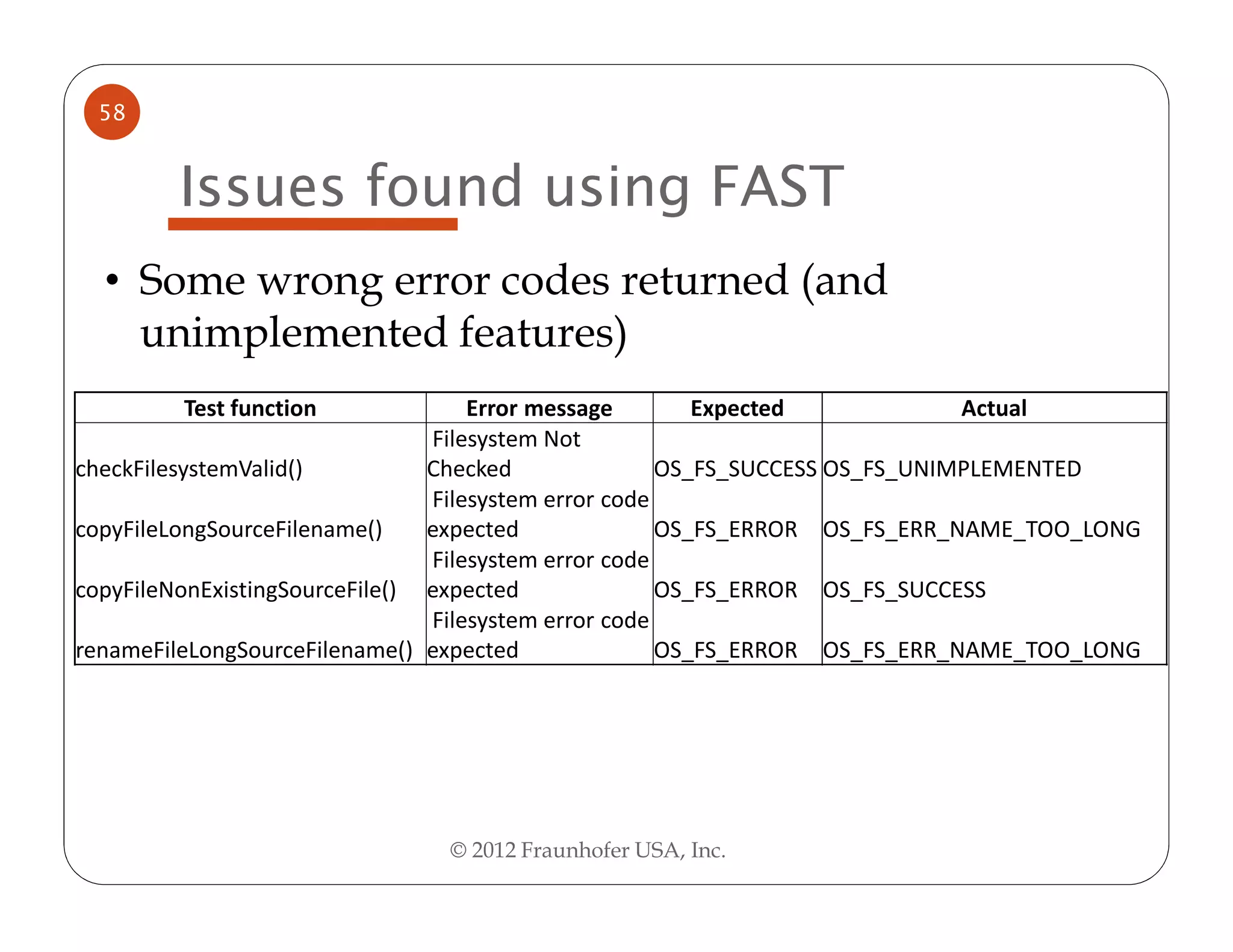

58 Issues found using FAST • Some wrong error codes returned (and unimplemented features) Test function Error message Expected Actual Filesystem Not checkFilesystemValid() Checked OS_FS_SUCCESS OS_FS_UNIMPLEMENTED Filesystem error code copyFileLongSourceFilename() expected OS_FS_ERROR OS_FS_ERR_NAME_TOO_LONG Filesystem error code copyFileNonExistingSourceFile() expected OS_FS_ERROR OS_FS_SUCCESS Filesystem error code renameFileLongSourceFilename() expected OS_FS_ERROR OS_FS_ERR_NAME_TOO_LONG © 2012 Fraunhofer USA, Inc.

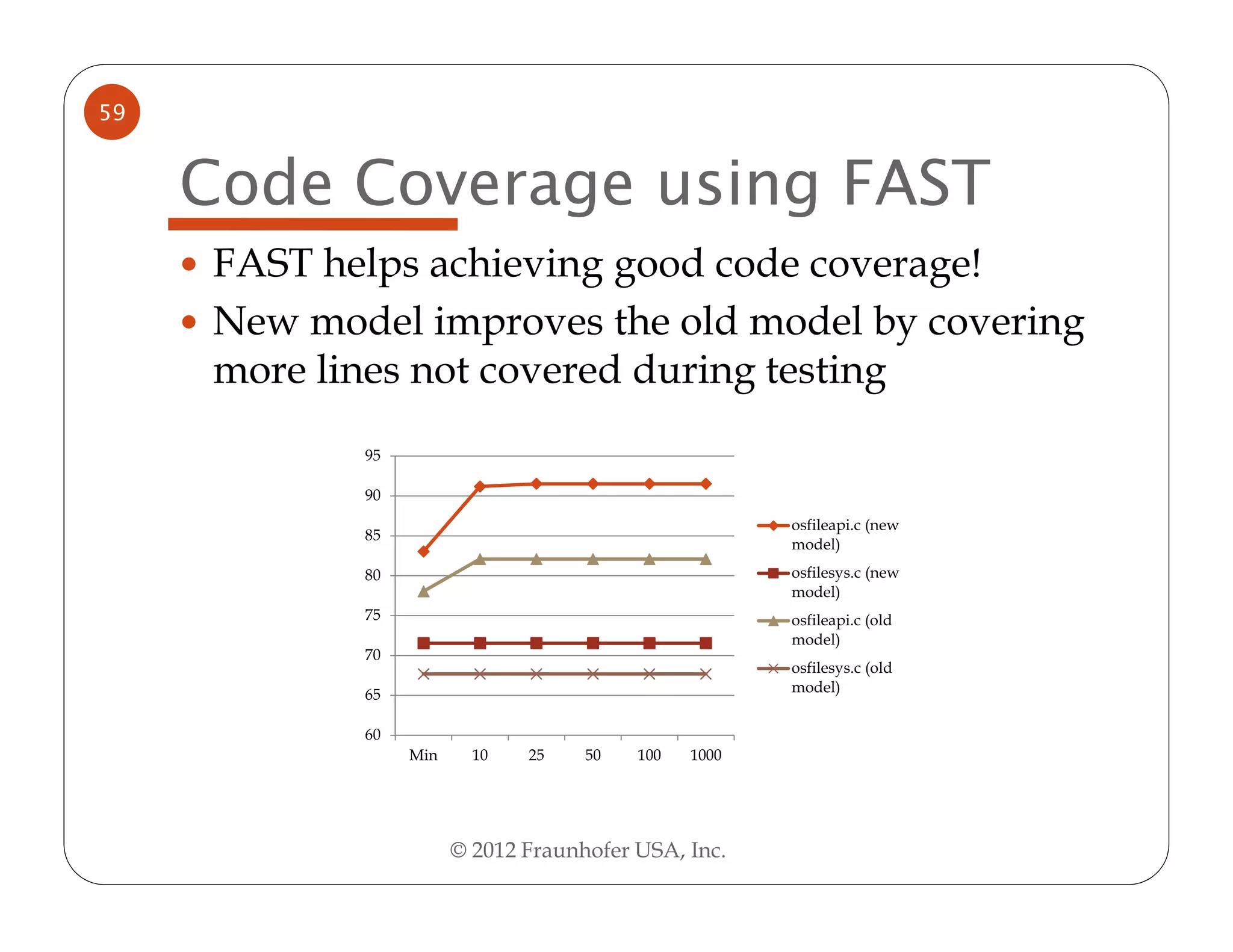

59 Code Coverage using FAST FAST helps achieving good code coverage! New model improves the old model by covering more lines not covered during testing 95 90 osfileapi.c (new 85 model) 80 osfilesys.c (new model) 75 osfileapi.c (old model) 70 osfilesys.c (old 65 model) 60 Min 10 25 50 100 1000 © 2012 Fraunhofer USA, Inc.

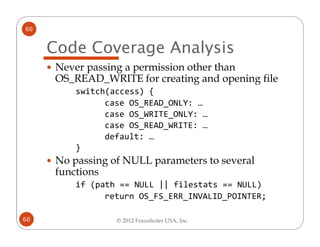

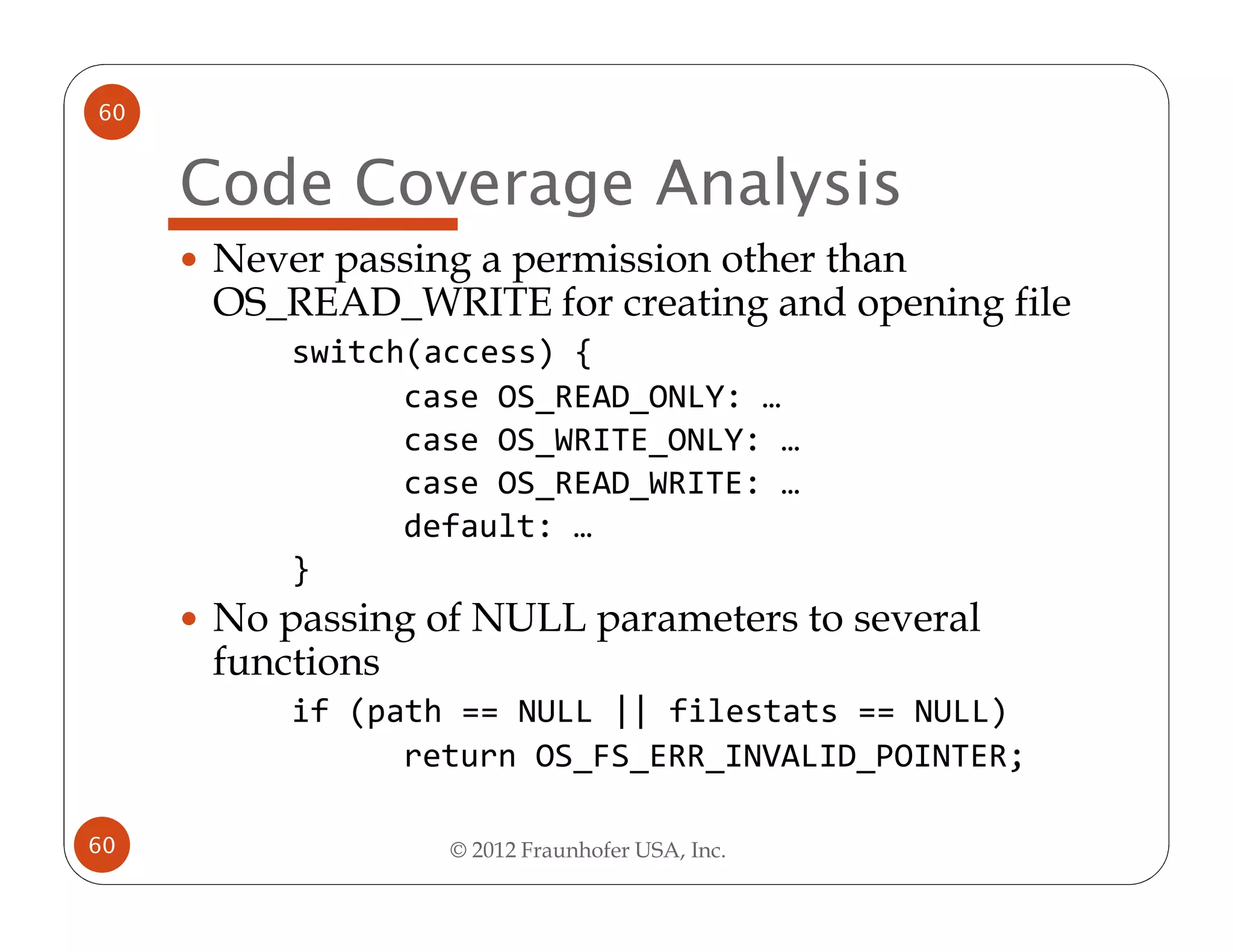

60 Code Coverage Analysis Never passing a permission other than OS_READ_WRITE for creating and opening file switch(access) { case OS_READ_ONLY: … case OS_WRITE_ONLY: … case OS_READ_WRITE: … default: … } No passing of NULL parameters to several functions if (path == NULL || filestats == NULL) return OS_FS_ERR_INVALID_POINTER; 60 © 2012 Fraunhofer USA, Inc.

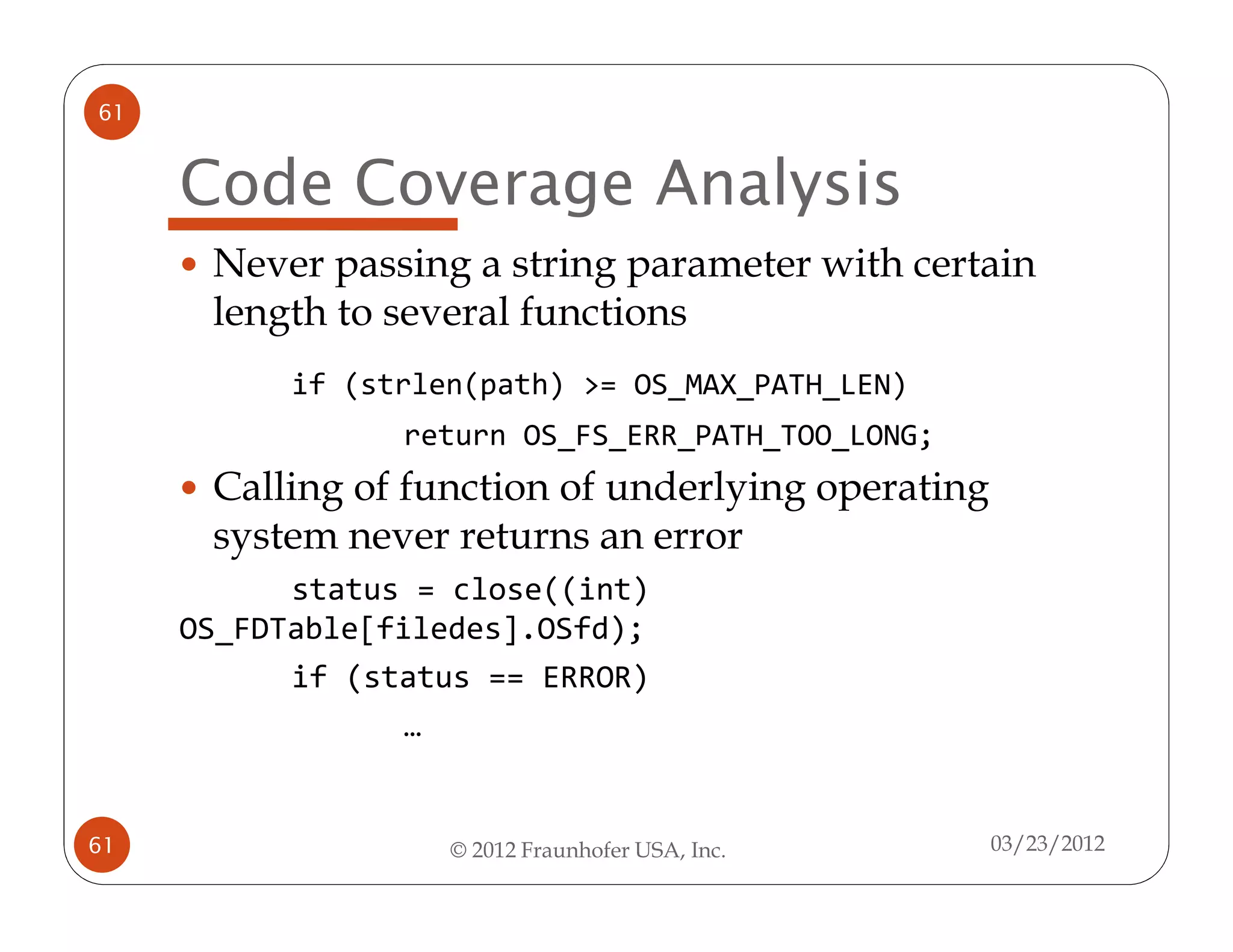

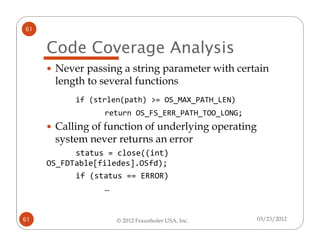

61 Code Coverage Analysis Never passing a string parameter with certain length to several functions if (strlen(path) >= OS_MAX_PATH_LEN) return OS_FS_ERR_PATH_TOO_LONG; Calling of function of underlying operating system never returns an error status = close((int) OS_FDTable[filedes].OSfd); if (status == ERROR) … 61 © 2012 Fraunhofer USA, Inc. 03/23/2012

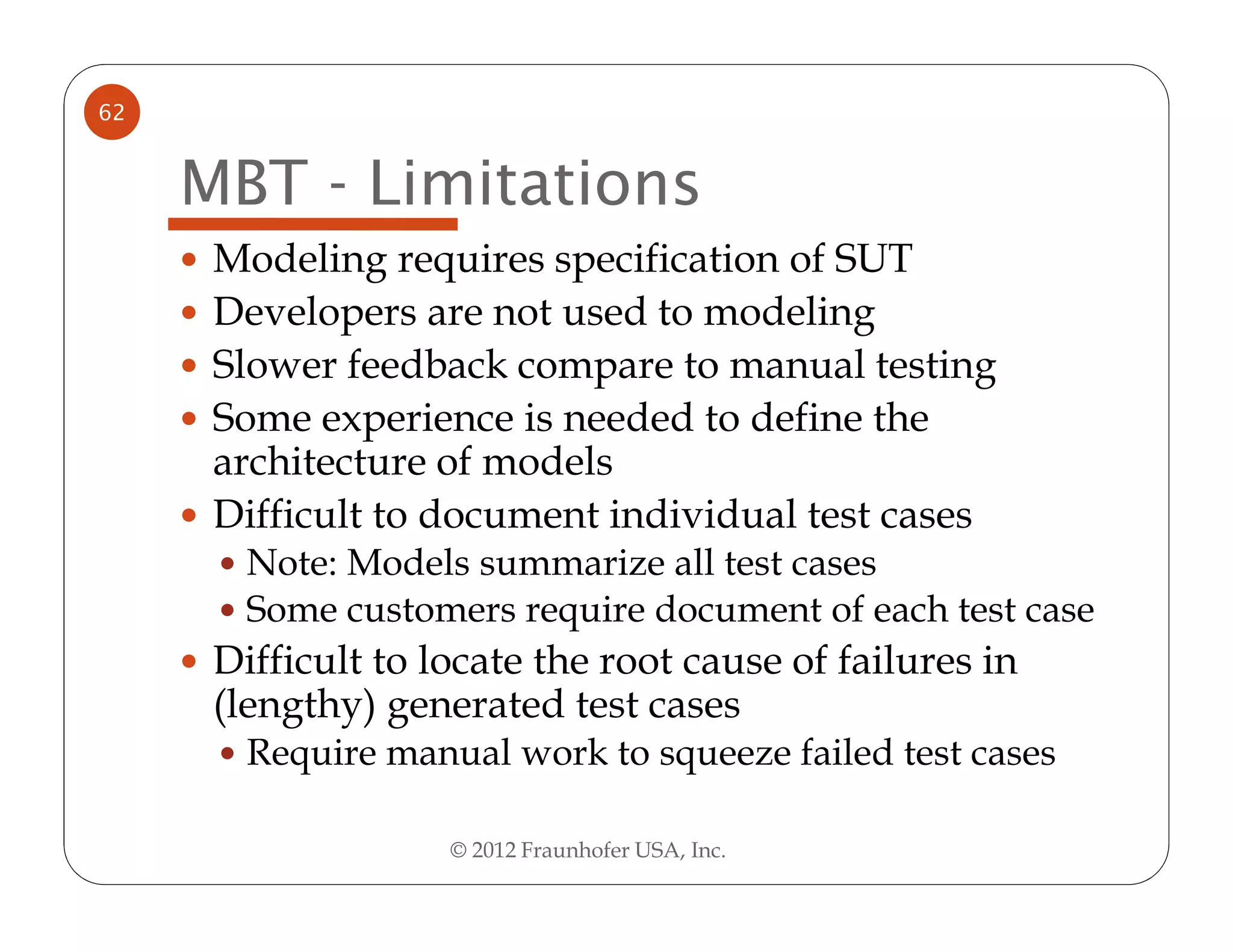

62 MBT - Limitations Modeling requires specification of SUT Developers are not used to modeling Slower feedback compare to manual testing Some experience is needed to define the architecture of models Difficult to document individual test cases Note: Models summarize all test cases Some customers require document of each test case Difficult to locate the root cause of failures in (lengthy) generated test cases Require manual work to squeeze failed test cases © 2012 Fraunhofer USA, Inc.

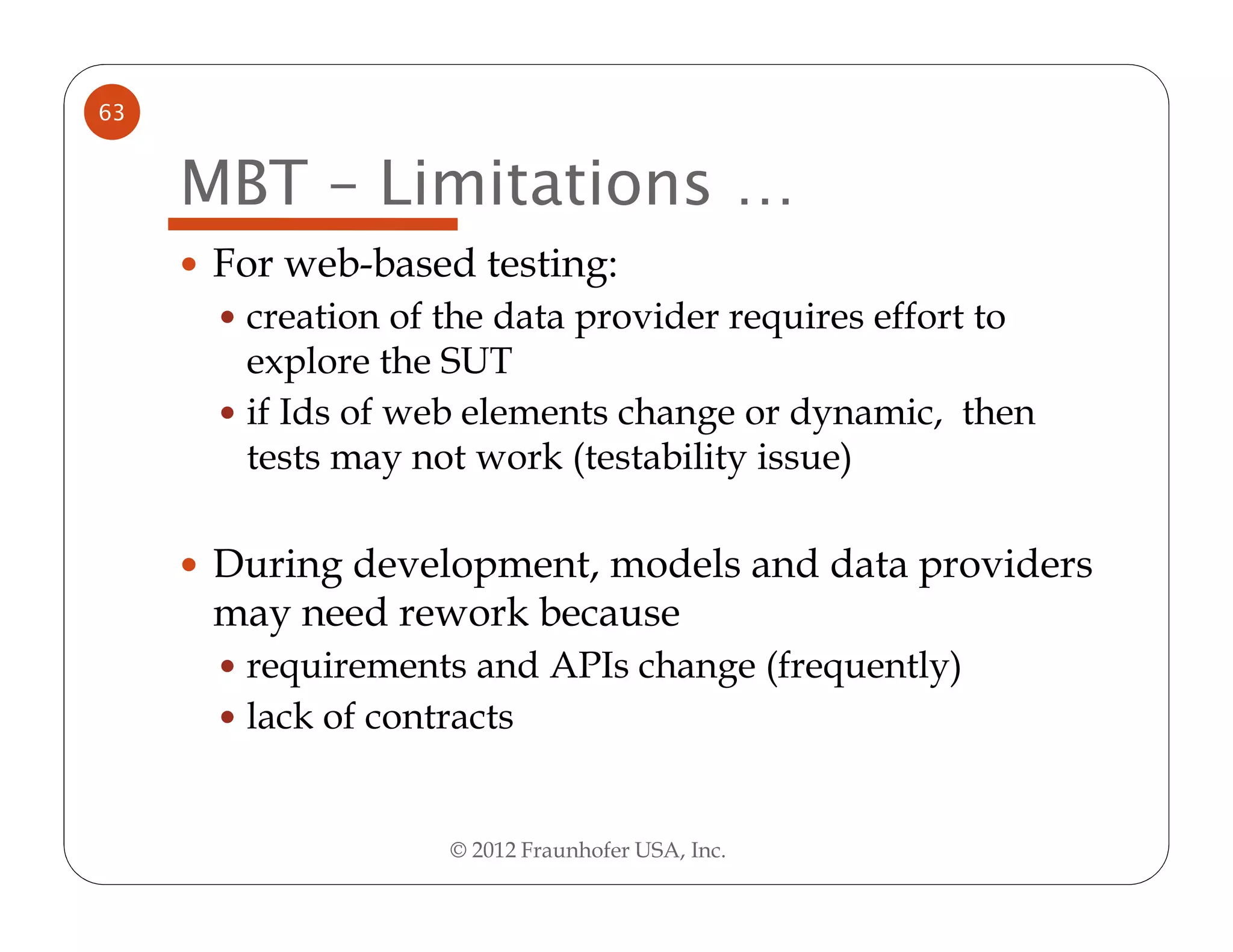

63 MBT – Limitations … For web-based testing: creation of the data provider requires effort to explore the SUT if Ids of web elements change or dynamic, then tests may not work (testability issue) During development, models and data providers may need rework because requirements and APIs change (frequently) lack of contracts © 2012 Fraunhofer USA, Inc.

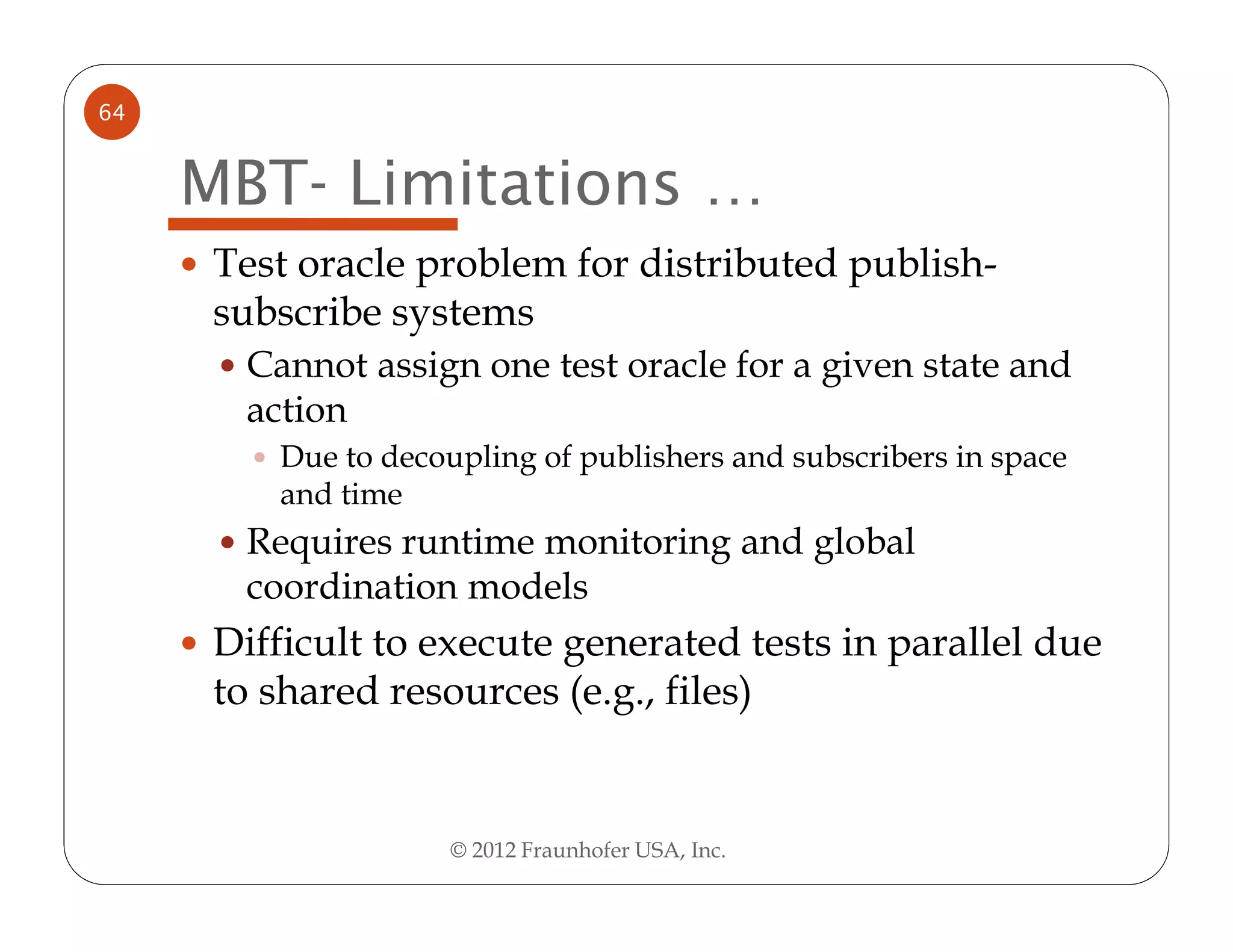

64 MBT- Limitations … Test oracle problem for distributed publish- subscribe systems Cannot assign one test oracle for a given state and action Due to decoupling of publishers and subscribers in space and time Requires runtime monitoring and global coordination models Difficult to execute generated tests in parallel due to shared resources (e.g., files) © 2012 Fraunhofer USA, Inc.

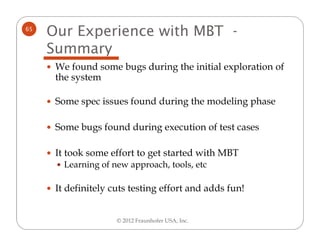

65 Our Experience with MBT - Summary We found some bugs during the initial exploration of the system Some spec issues found during the modeling phase Some bugs found during execution of test cases It took some effort to get started with MBT Learning of new approach, tools, etc It definitely cuts testing effort and adds fun! © 2012 Fraunhofer USA, Inc.

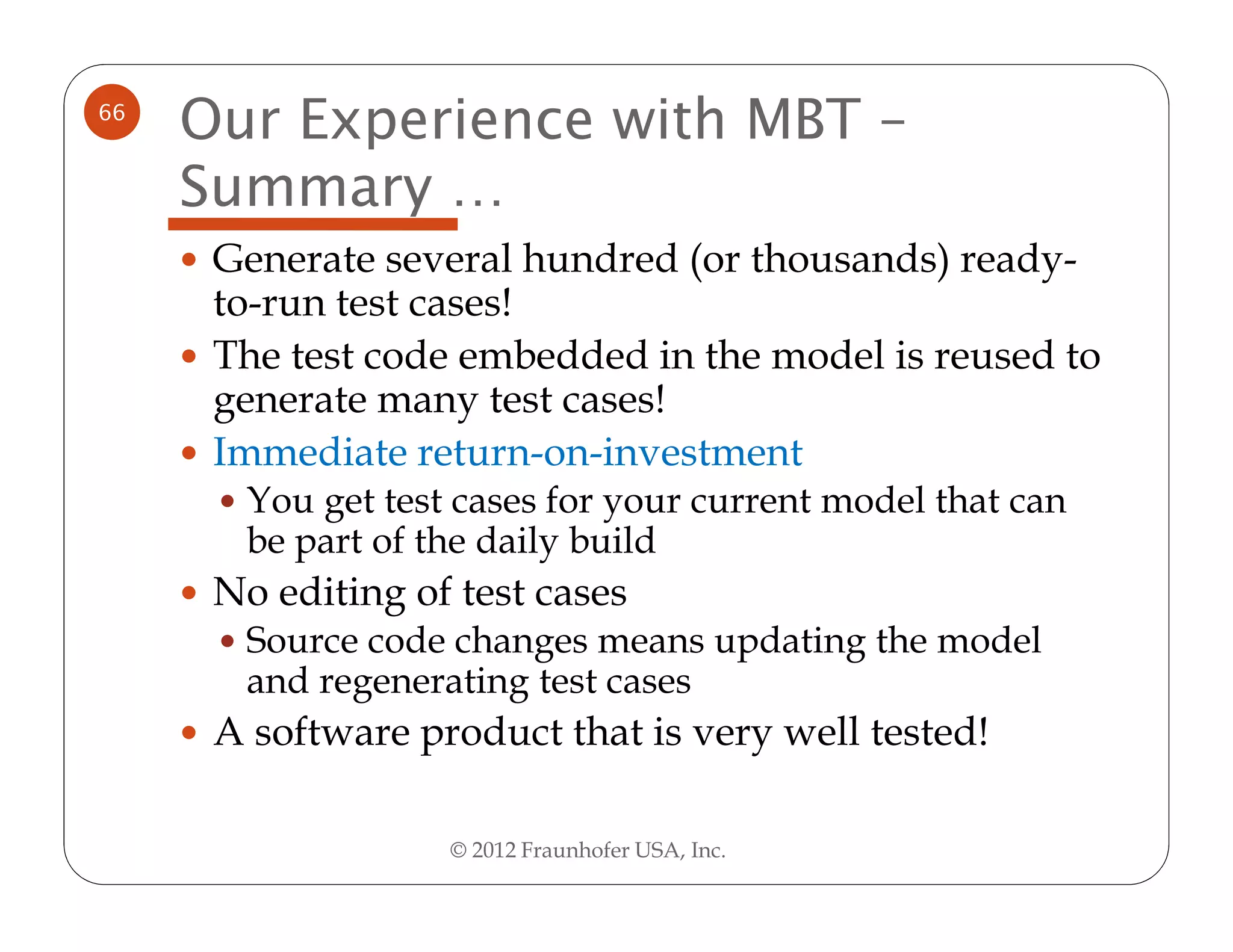

66 Our Experience with MBT – Summary … Generate several hundred (or thousands) ready- to-run test cases! The test code embedded in the model is reused to generate many test cases! Immediate return-on-investment You get test cases for your current model that can be part of the daily build No editing of test cases Source code changes means updating the model and regenerating test cases A software product that is very well tested! © 2012 Fraunhofer USA, Inc.

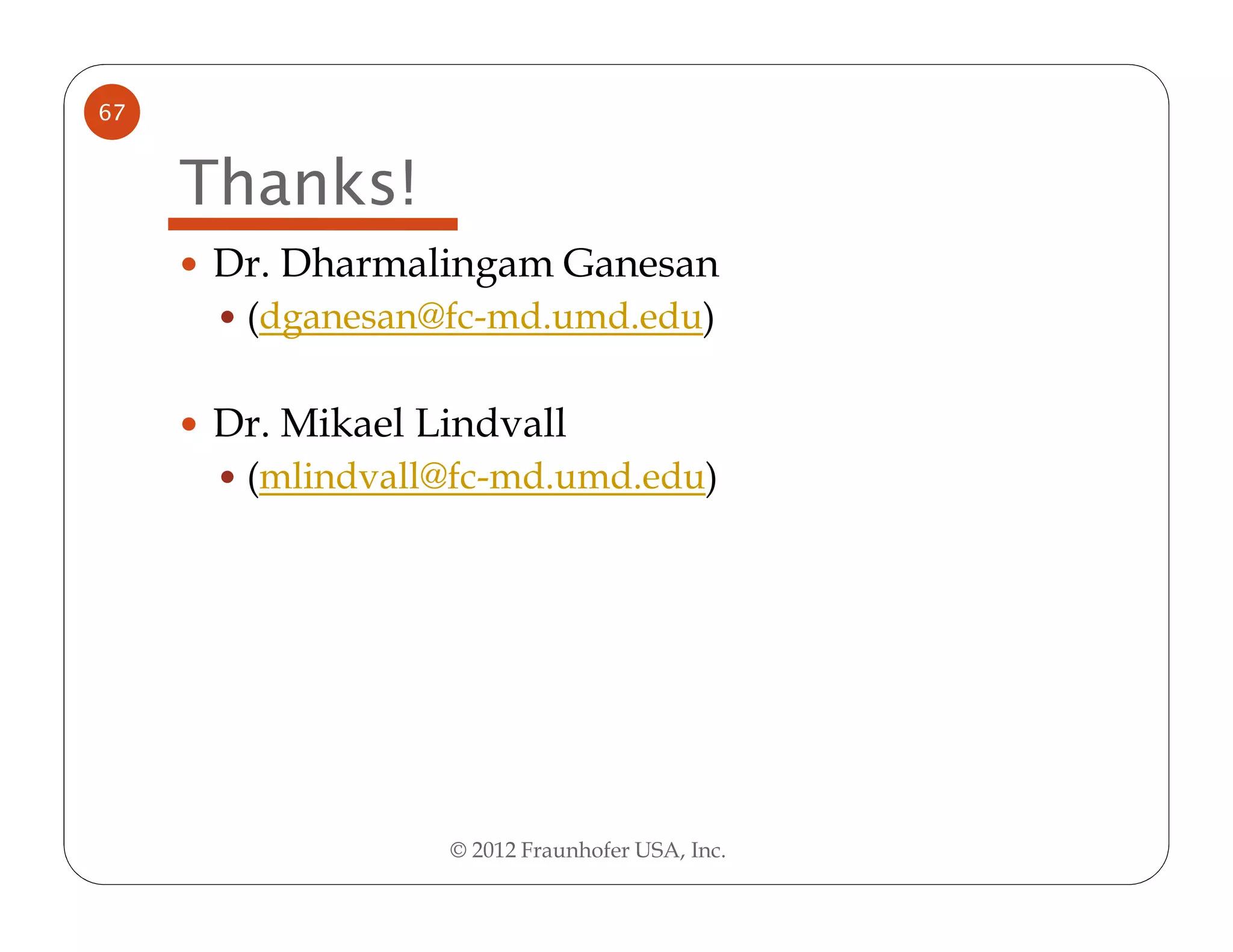

67 Thanks! Dr. Dharmalingam Ganesan (dganesan@fc-md.umd.edu) Dr. Mikael Lindvall (mlindvall@fc-md.umd.edu) © 2012 Fraunhofer USA, Inc.

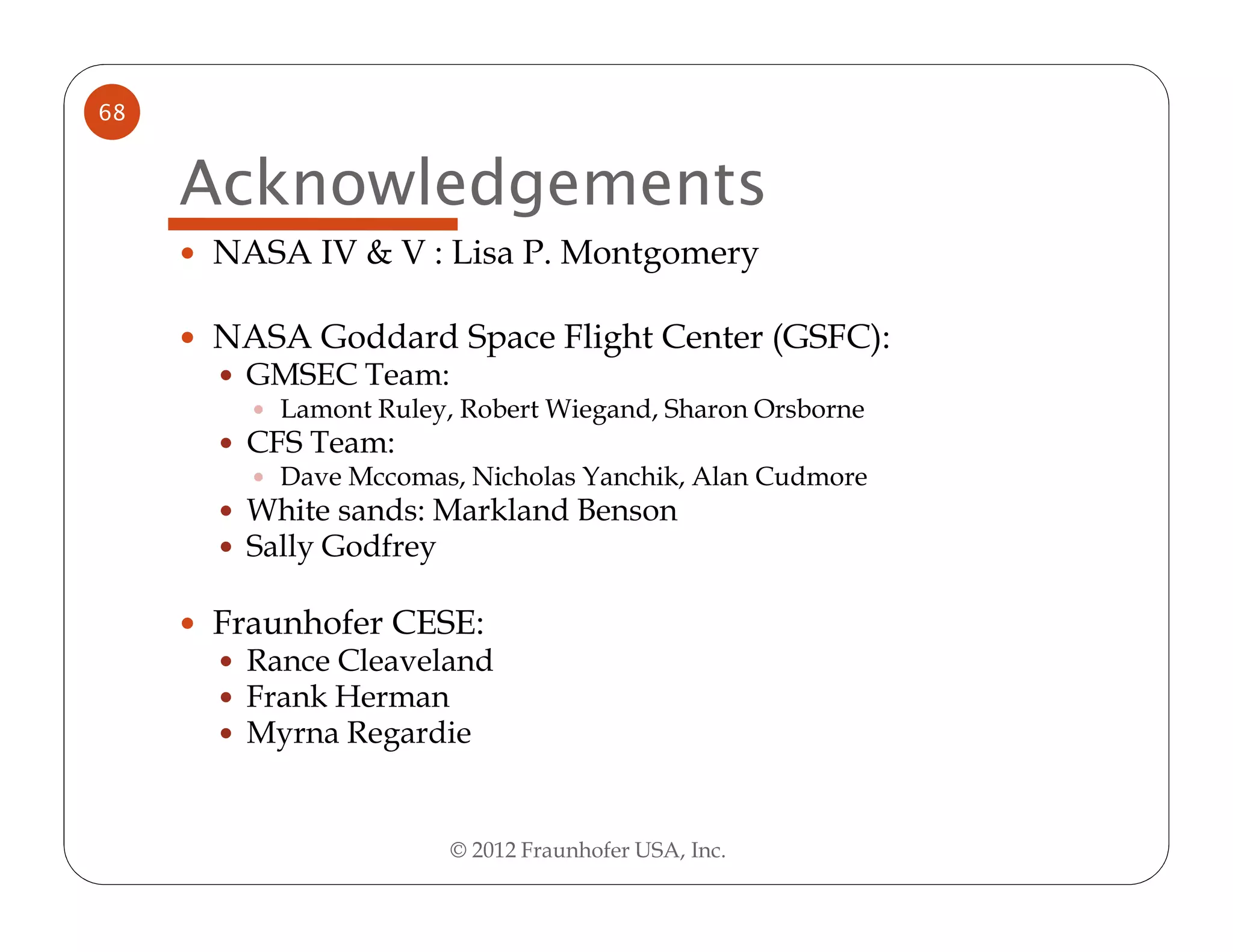

68 Acknowledgements NASA IV & V : Lisa P. Montgomery NASA Goddard Space Flight Center (GSFC): GMSEC Team: Lamont Ruley, Robert Wiegand, Sharon Orsborne CFS Team: Dave Mccomas, Nicholas Yanchik, Alan Cudmore White sands: Markland Benson Sally Godfrey Fraunhofer CESE: Rance Cleaveland Frank Herman Myrna Regardie © 2012 Fraunhofer USA, Inc.

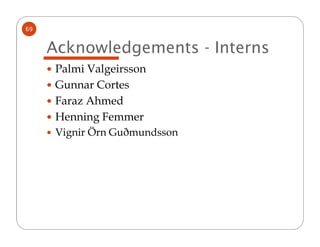

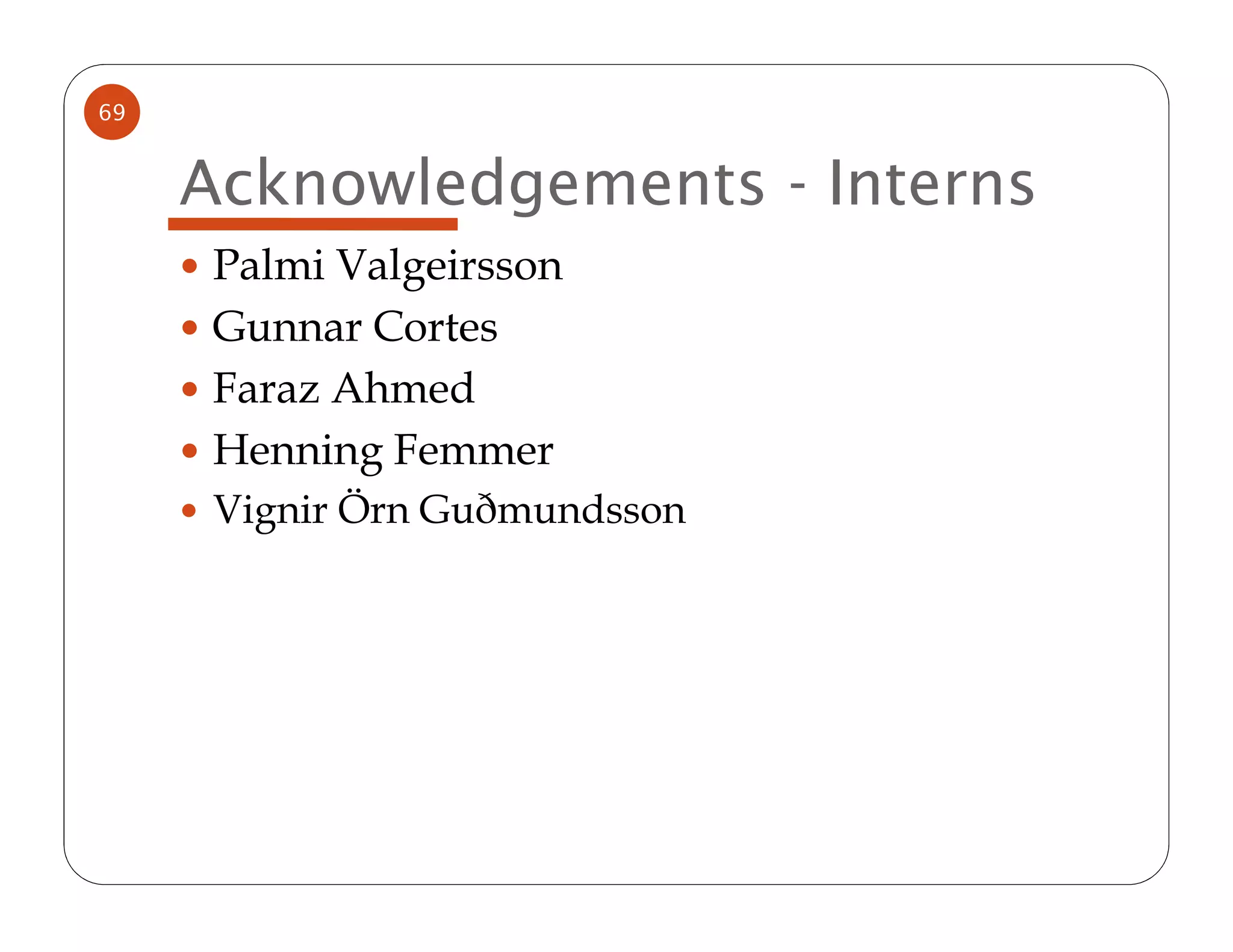

69 Acknowledgements - Interns Palmi Valgeirsson Gunnar Cortes Faraz Ahmed Henning Femmer Vignir Örn Guðmundsson

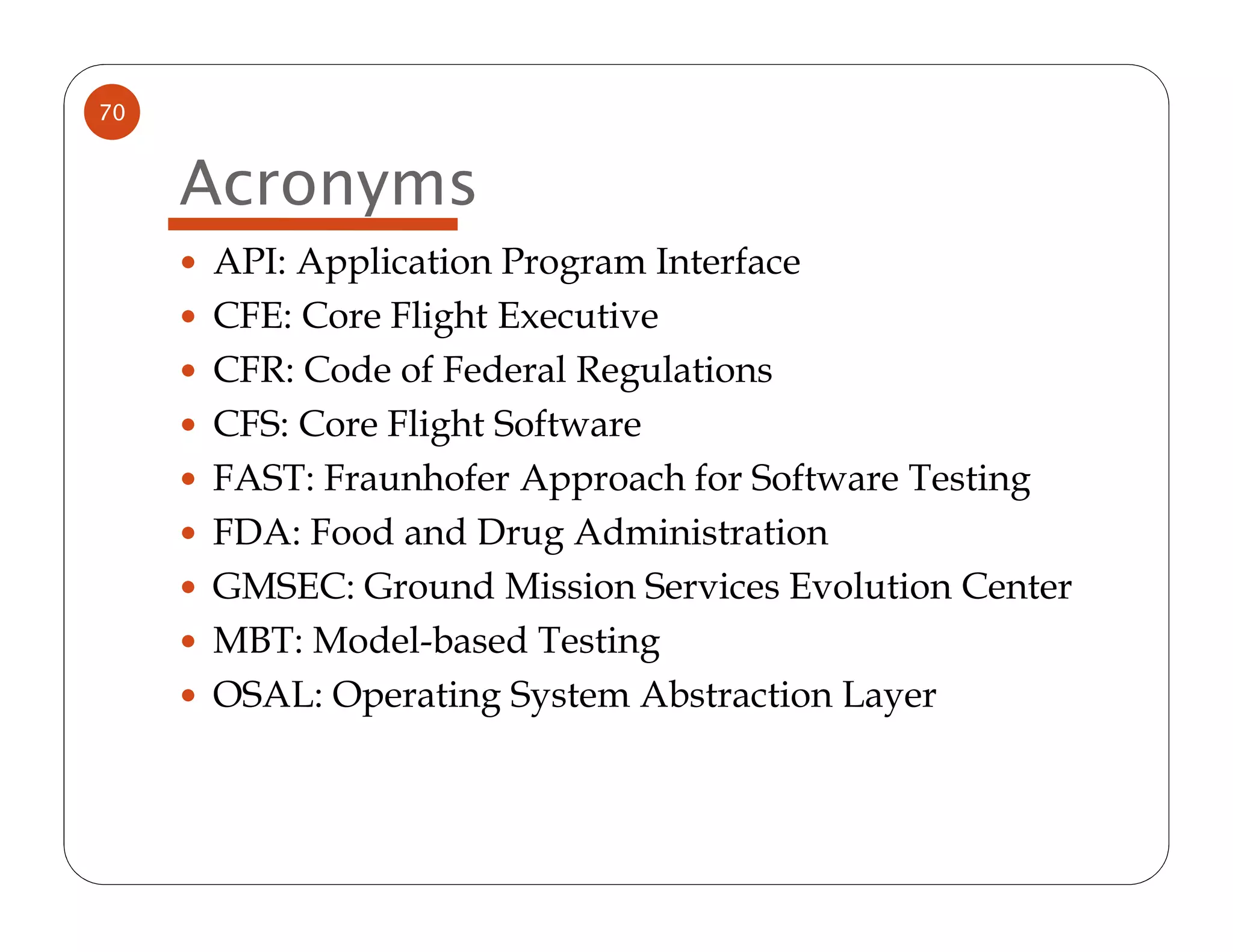

70 Acronyms API: Application Program Interface CFE: Core Flight Executive CFR: Code of Federal Regulations CFS: Core Flight Software FAST: Fraunhofer Approach for Software Testing FDA: Food and Drug Administration GMSEC: Ground Mission Services Evolution Center MBT: Model-based Testing OSAL: Operating System Abstraction Layer
