Gray code to binary conversion
The document explains how to convert Gray code to binary and decimal numbers with examples. It demonstrates the conversion process using specific Gray code inputs (101101 and 010101) and includes truth tables to illustrate the XOR operations involved. The final conversion shows that the binary equivalent of 010101 is 011001, which translates to 25 in decimal.
Related topics:
Gray code to binary conversion
- 1. Gray Code ToBinary Conversion Mukesh N. Tekwani 7

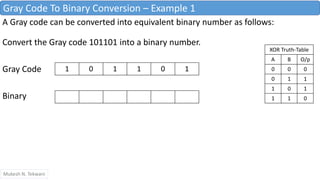

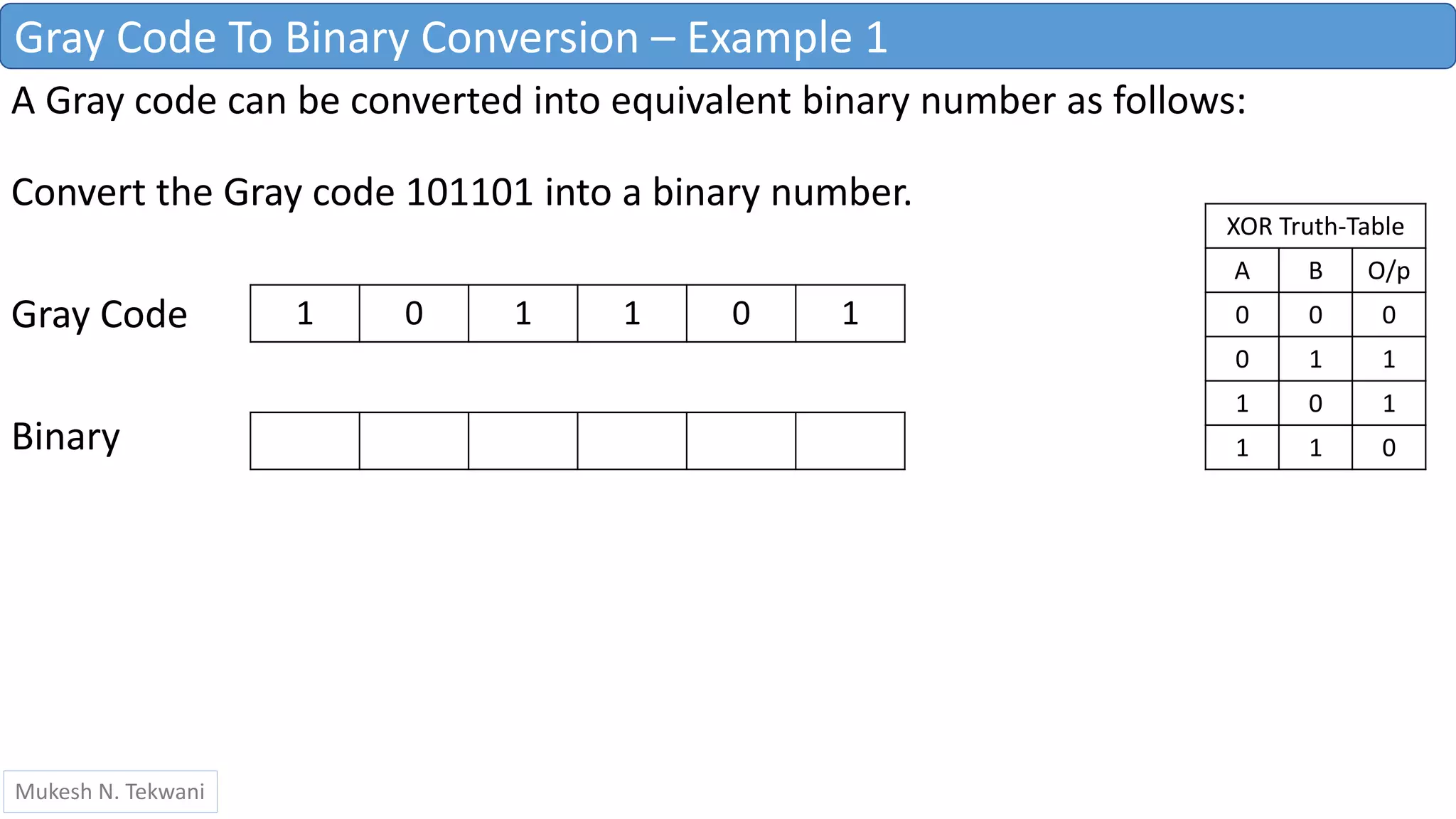

- 2. Gray Code ToBinary Conversion – Example 1 A Gray code can be converted into equivalent binary number as follows: Convert the Gray code 101101 into a binary number. Gray Code Binary Mukesh N. Tekwani 1 0 1 1 0 1 XOR Truth-Table A B O/p 0 0 0 0 1 1 1 0 1 1 1 0
- 3. Gray Code ToBinary Conversion – Example 2 Convert the Gray code 010101 into a binary number. Gray Code Binary Mukesh N. Tekwani 0 1 0 1 0 1 0 1 1 0 0 1 XOR Truth-Table A B O/p 0 0 0 0 1 1 1 0 1 1 1 0

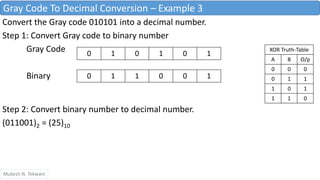

- 4. Gray Code ToDecimal Conversion – Example 3 Convert the Gray code 010101 into a decimal number. Step 1: Convert Gray code to binary number Gray Code Binary Step 2: Convert binary number to decimal number. (011001)2 = (25)10 Mukesh N. Tekwani 0 1 0 1 0 1 0 1 1 0 0 1 XOR Truth-Table A B O/p 0 0 0 0 1 1 1 0 1 1 1 0
