HTTP fundamentals for developers

HTTP Fundamentals
for Developers
Mario Cardinal
Agile Coach & Software Architect
www.mariocardinal.com
@mario_cardinal
October 15

Who am I?
• Agile Coach & Software architect
• Co-Founder of Slingboards Lab
• http://mariocardinal.com

3

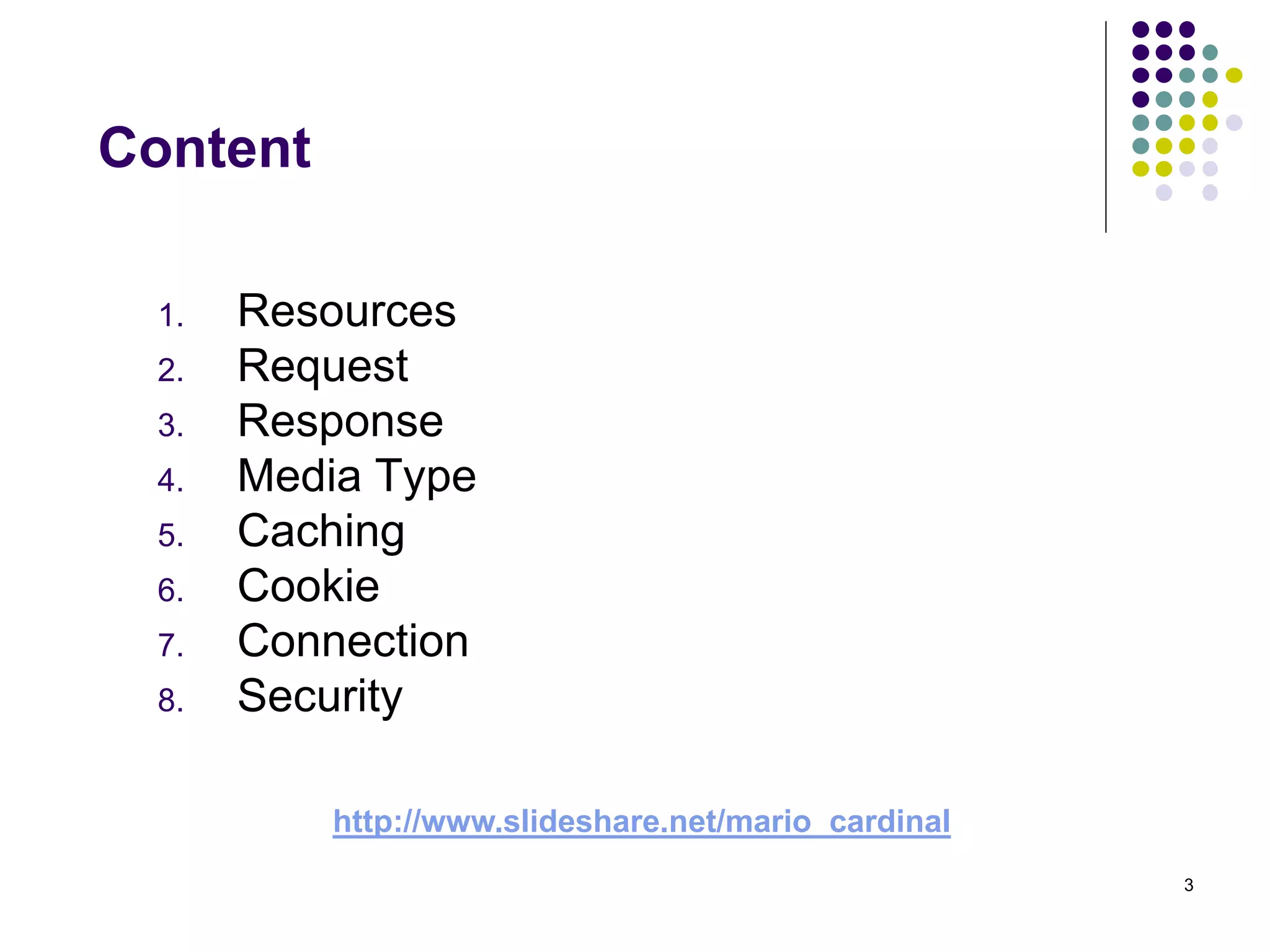

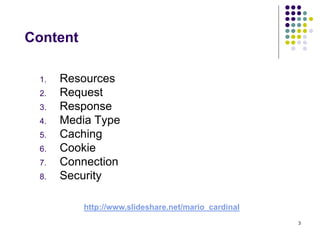

Content
1. Resources
2. Request
3. Response
4. Media Type
5. Caching
6. Cookie
7. Connection
8. Security
http://www.slideshare.net/mario_cardinal

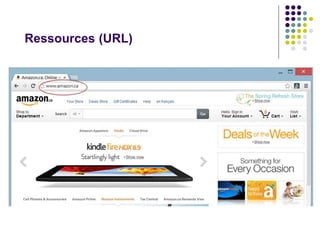

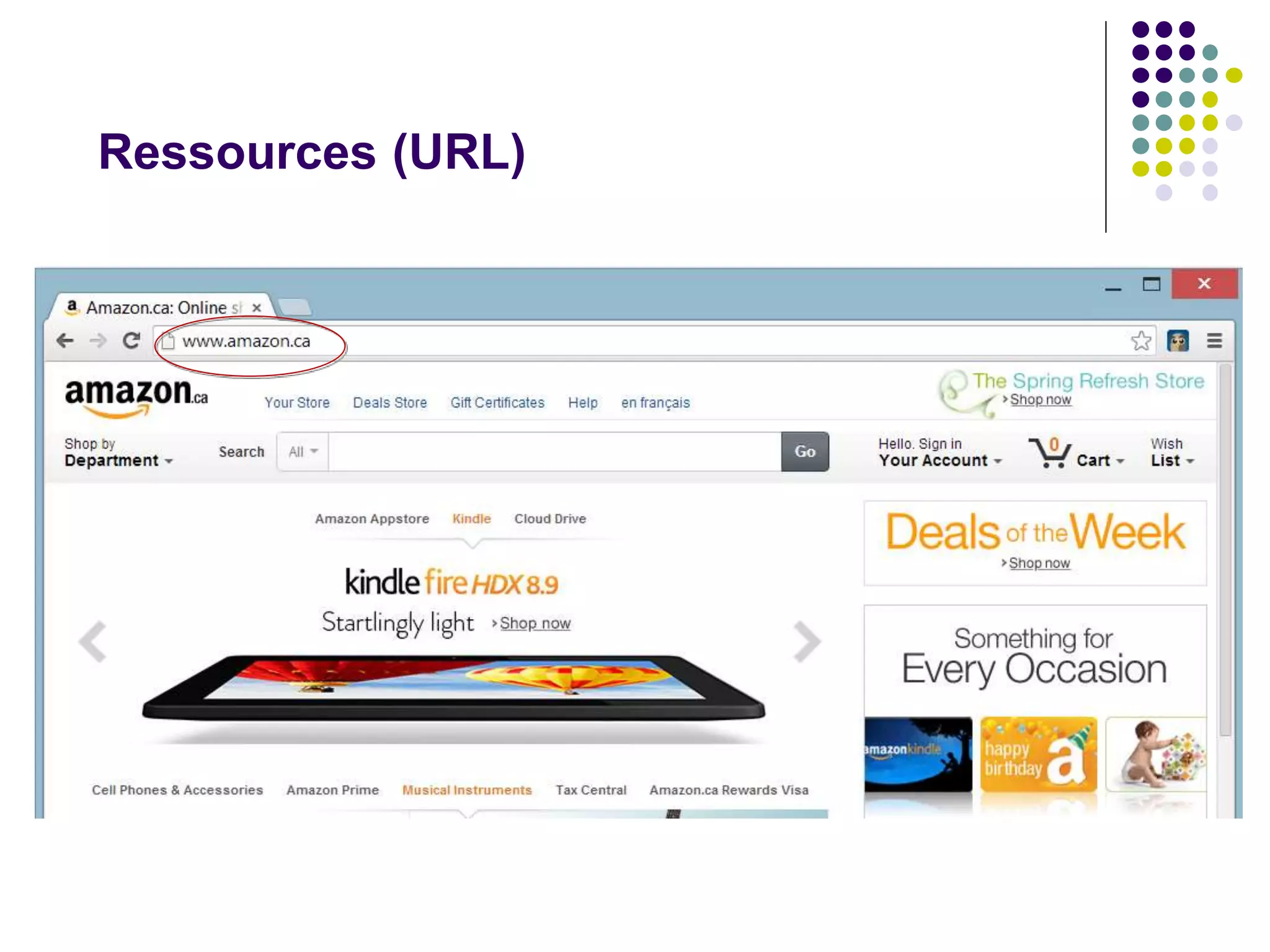

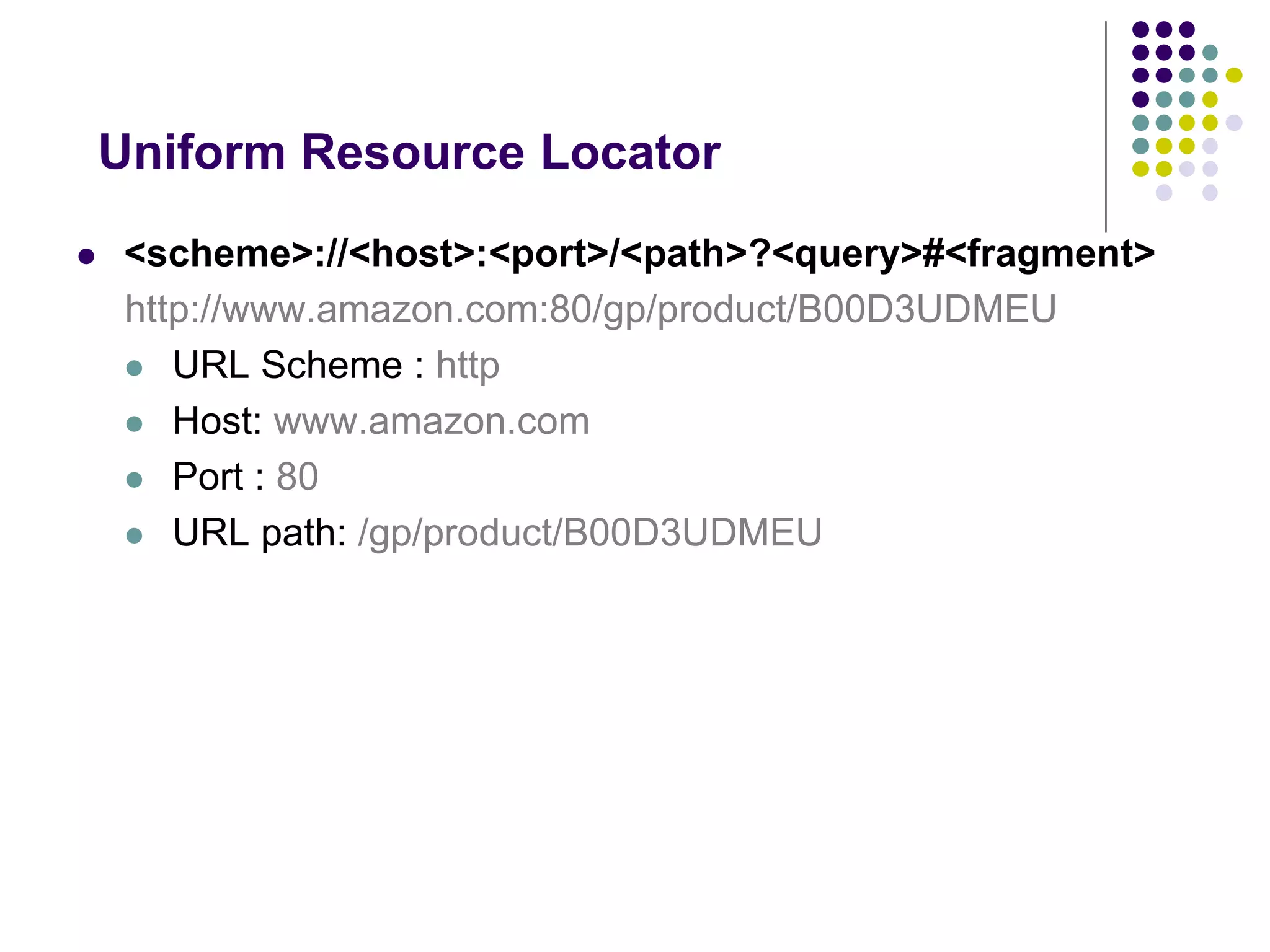

Uniform Resource Locator
 <scheme>://<host>:<port>/<path>?<query>#<fragment>
http://www.amazon.com:80/gp/product/B00D3UDMEU
 URL Scheme : http
 Host: www.amazon.com
 Port : 80
 URL path: /gp/product/B00D3UDMEU

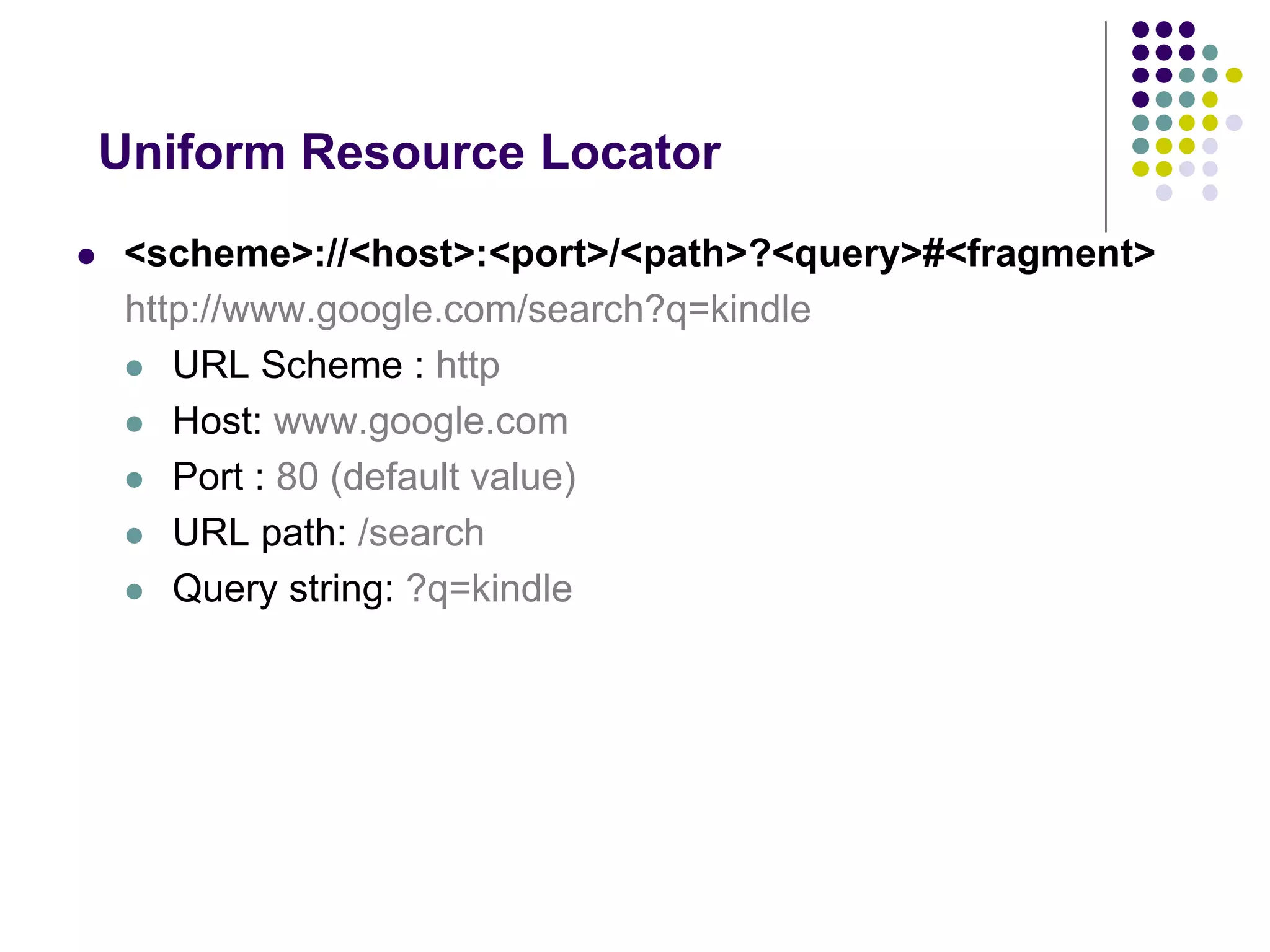

http://www.google.com/search?q=kindle
 URL Scheme : http
 Host: www.google.com
 Port : 80 (default value)
 URL path: /search
 Query string: ?q=kindle

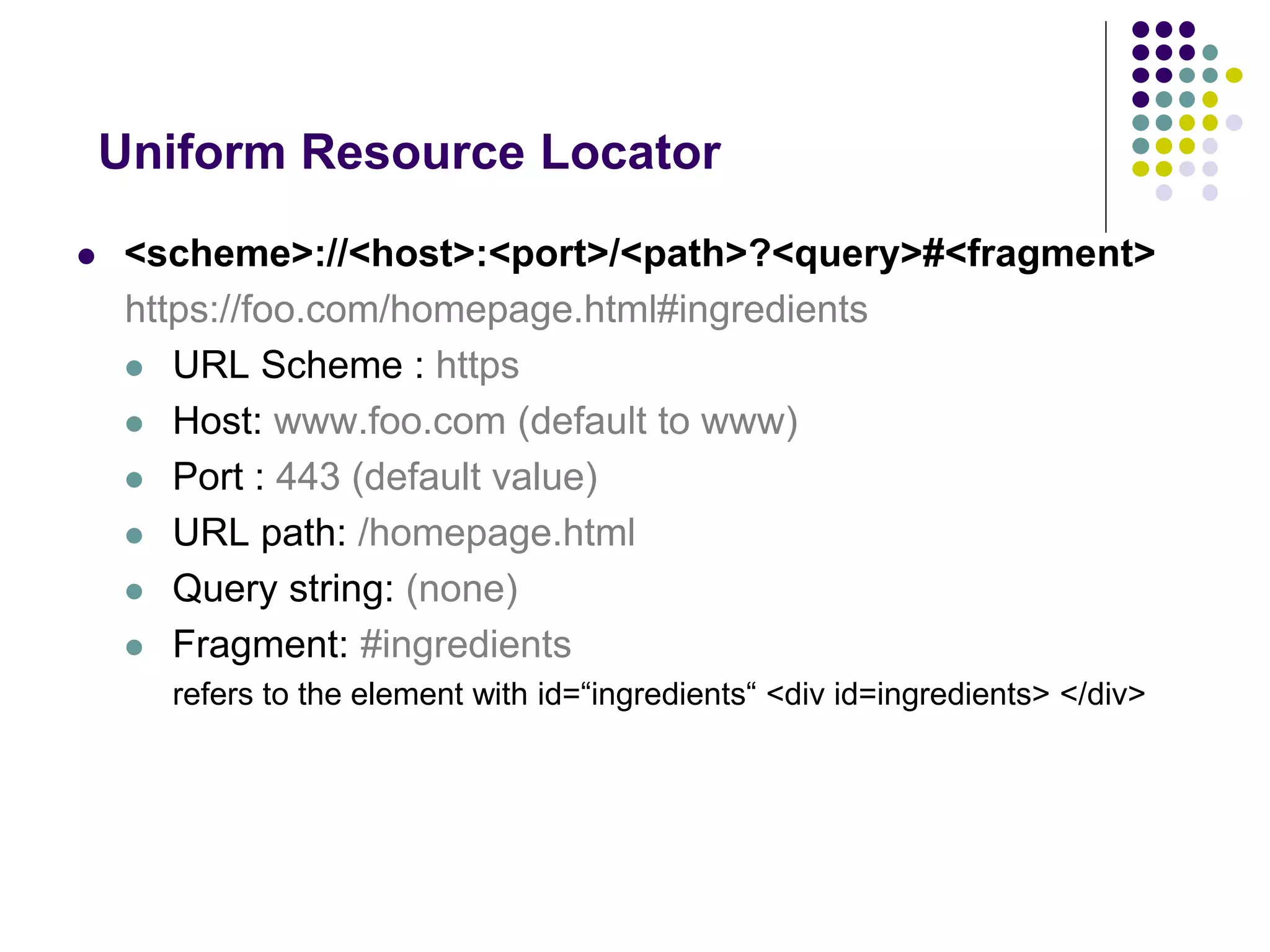

https://foo.com/homepage.html#ingredients
 URL Scheme : https
 Host: www.foo.com (default to www)
 Port : 443 (default value)
 URL path: /homepage.html
 Query string: (none)
 Fragment: #ingredients
refers to the element with id=“ingredients“ <div id=ingredients> </div>

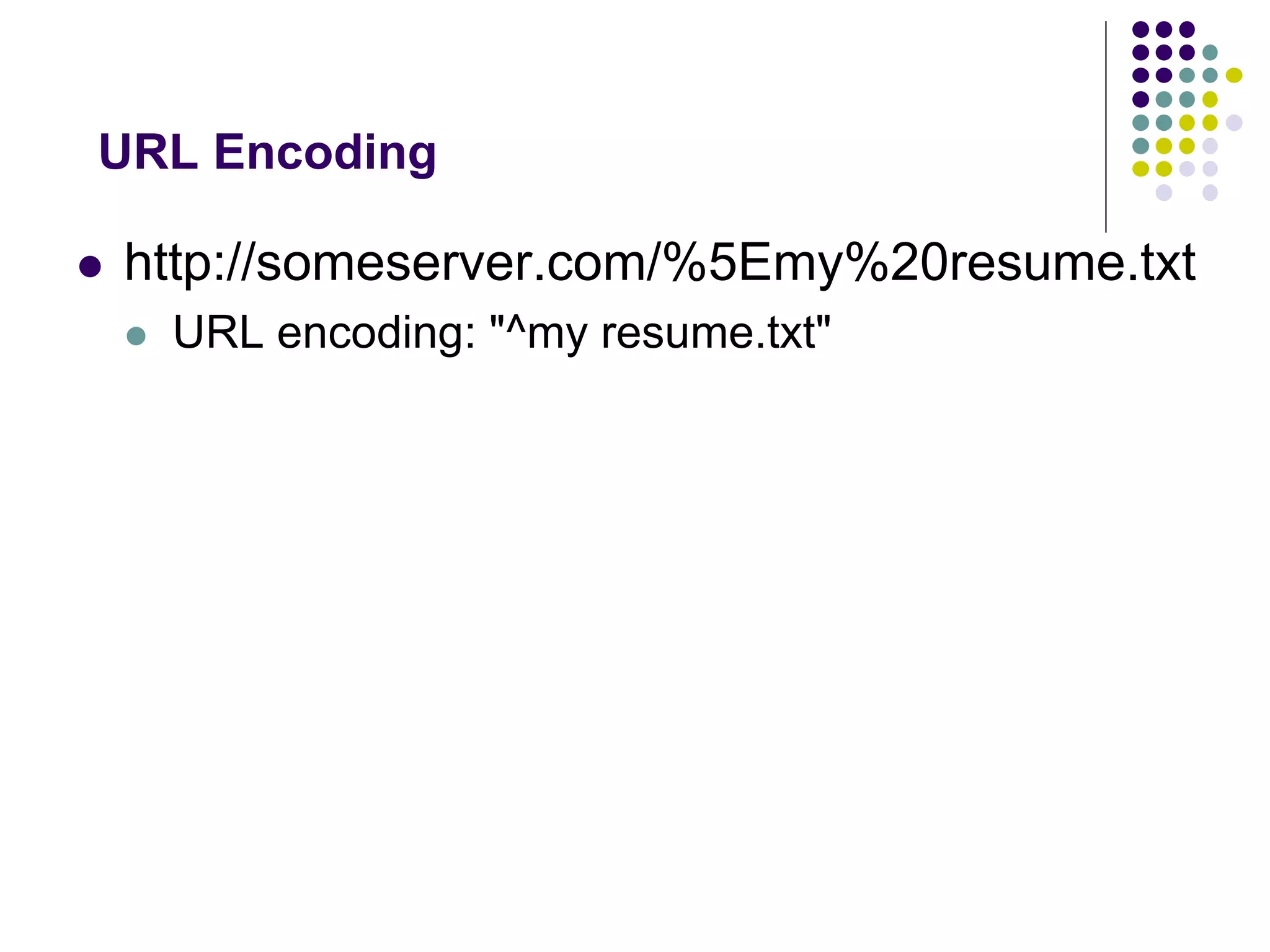

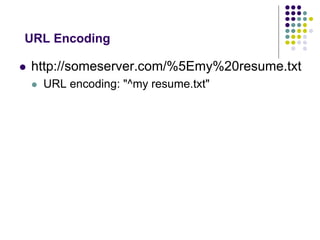

URL Encoding
 http://someserver.com/%5Emy%20resume.txt
 URL encoding: "^my resume.txt"

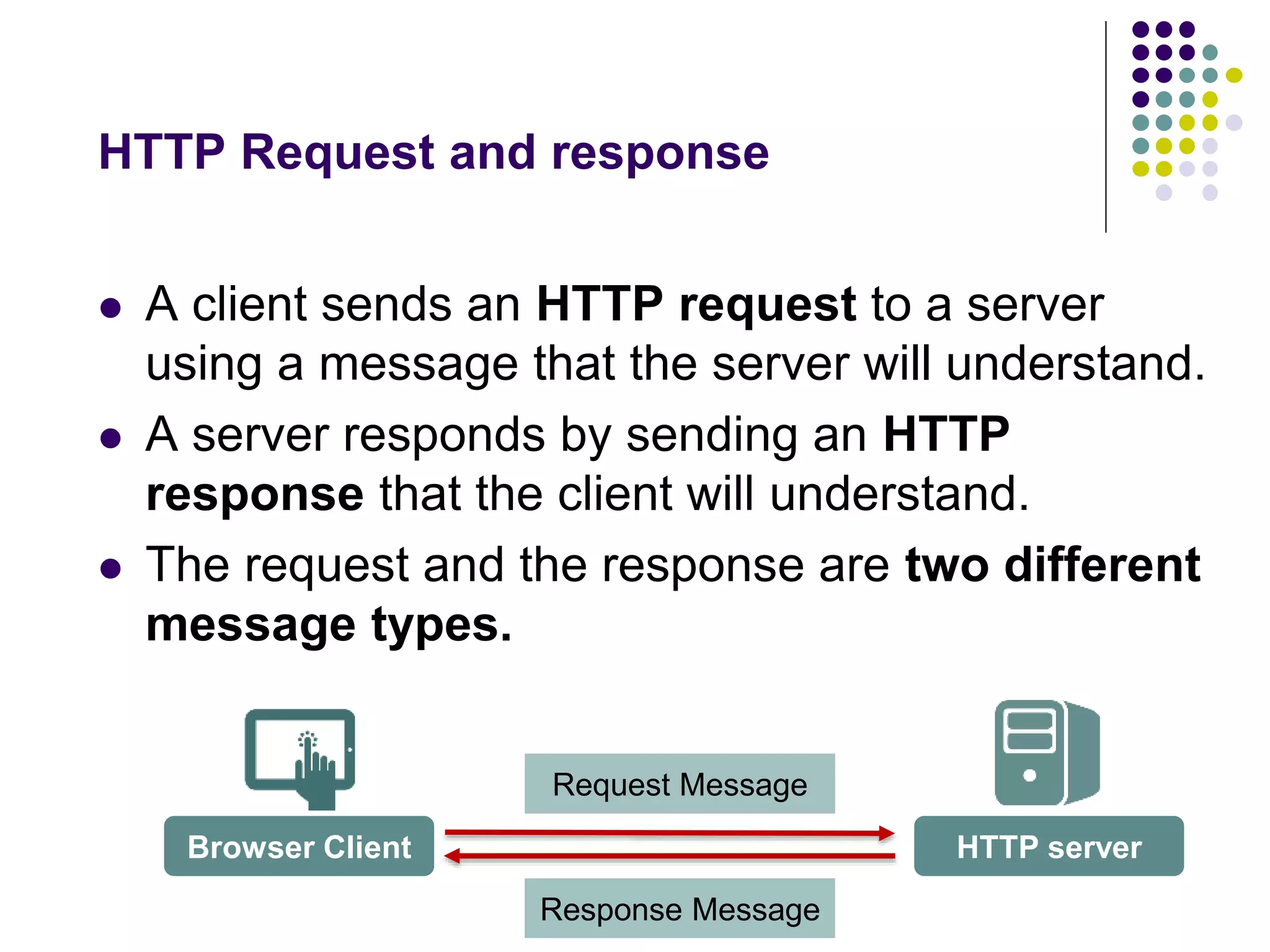

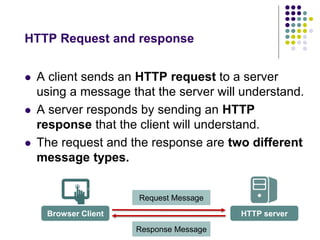

HTTP Request and response
 A client sends an HTTP request to a server
using a message that the server will understand.
 A server responds by sending an HTTP
response that the client will understand.
 The request and the response are two different
message types.
Request Message
Browser Client HTTP server
Response Message

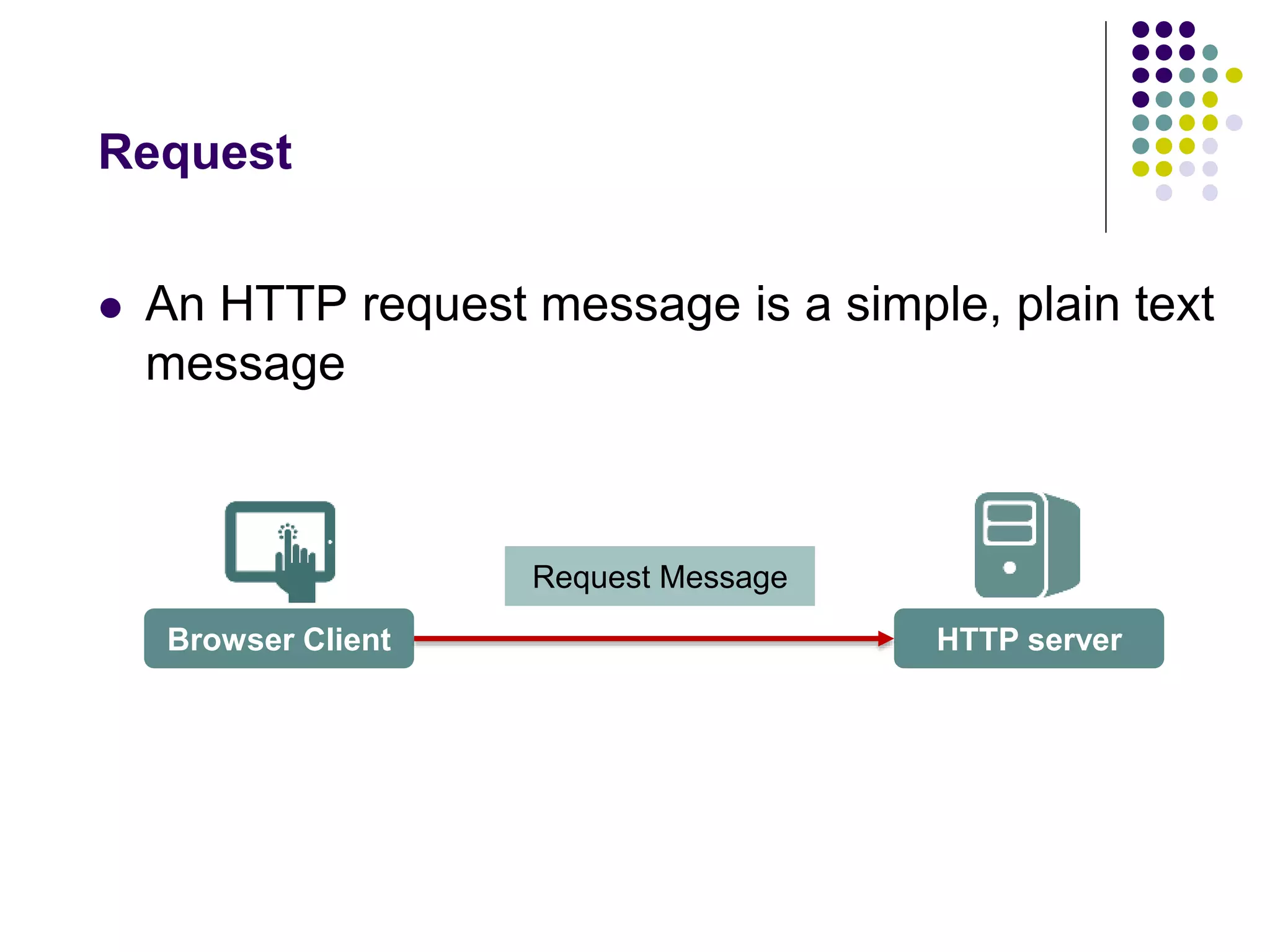

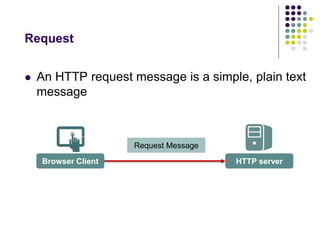

Request
 An HTTP request message is a simple, plain text
message
Request Message

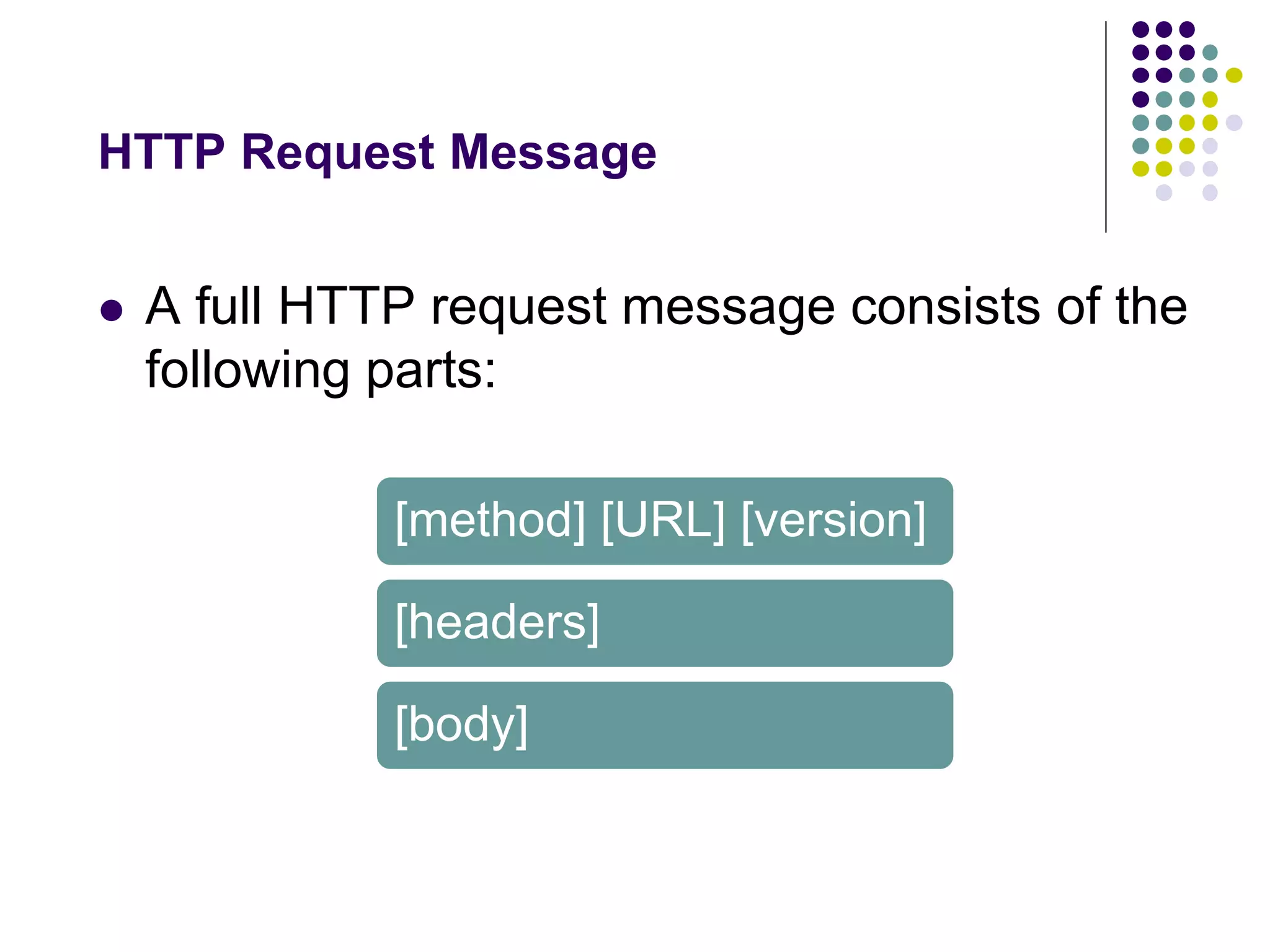

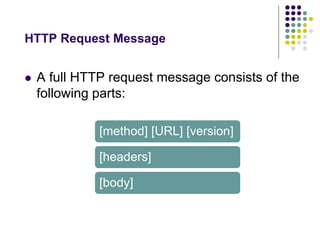

HTTP Request Message
 A full HTTP request message consists of the
following parts:
[method] [URL] [version]
[headers]
[body]

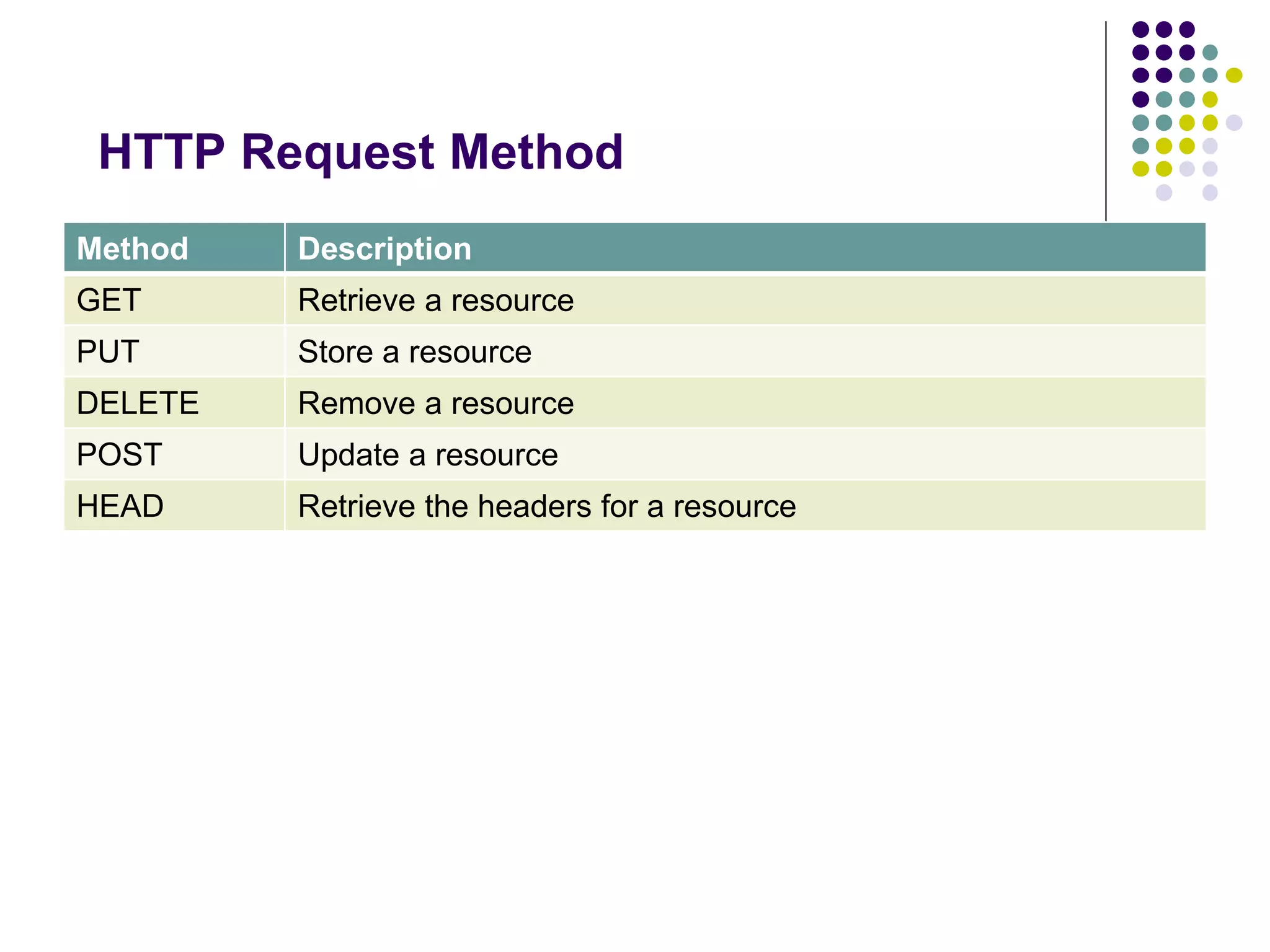

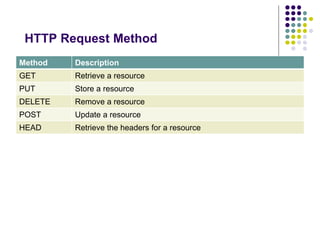

HTTP Request Method
Method Description
GET Retrieve a resource
PUT Store a resource
DELETE Remove a resource
POST Update a resource
HEAD Retrieve the headers for a resource

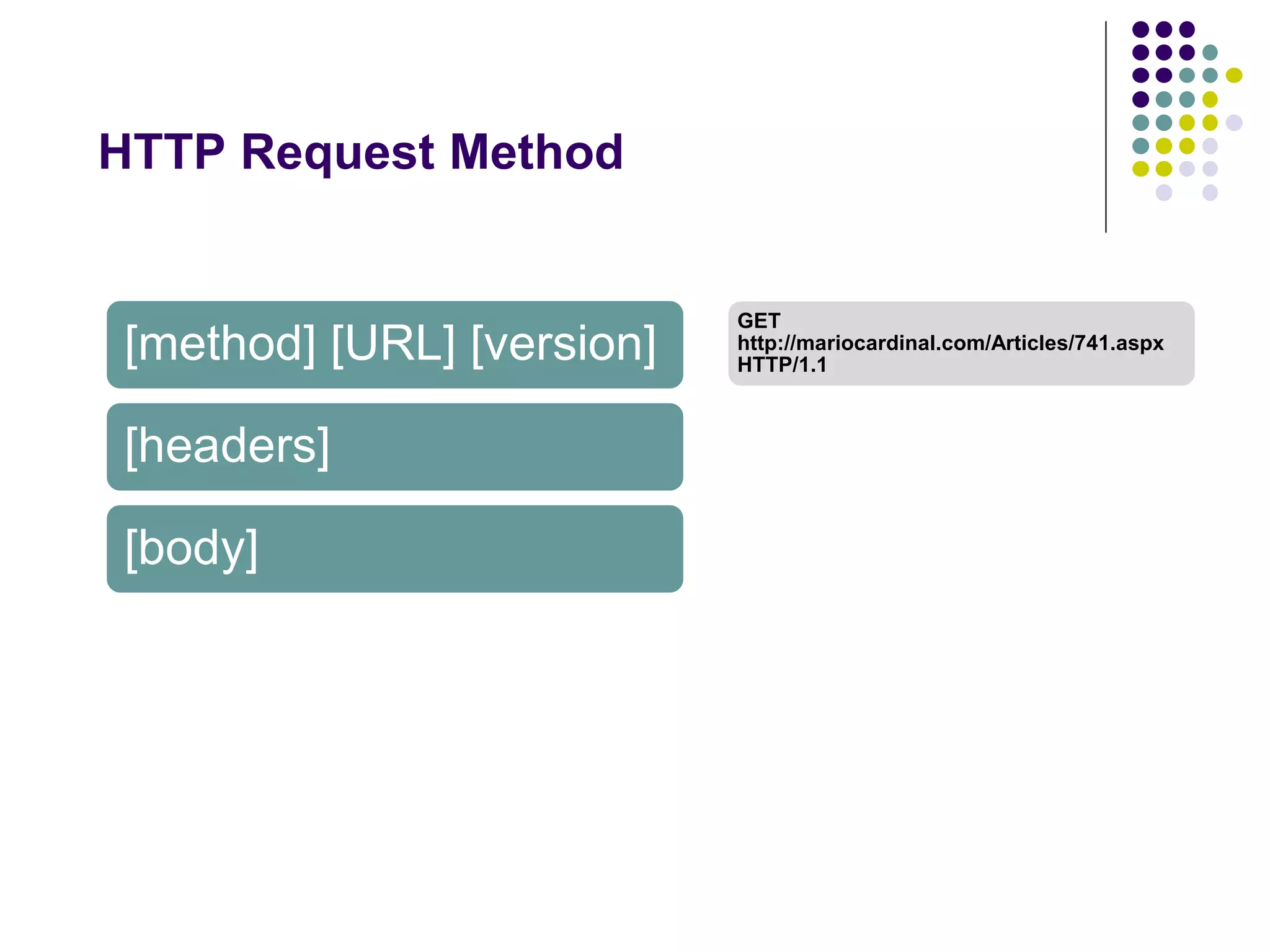

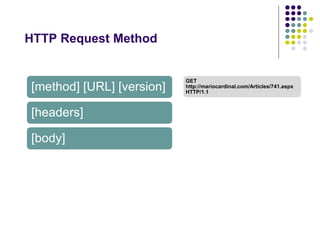

HTTP Request Method
[headers]
[body]
GET
http://mariocardinal.com/Articles/741.aspx
HTTP/1.1

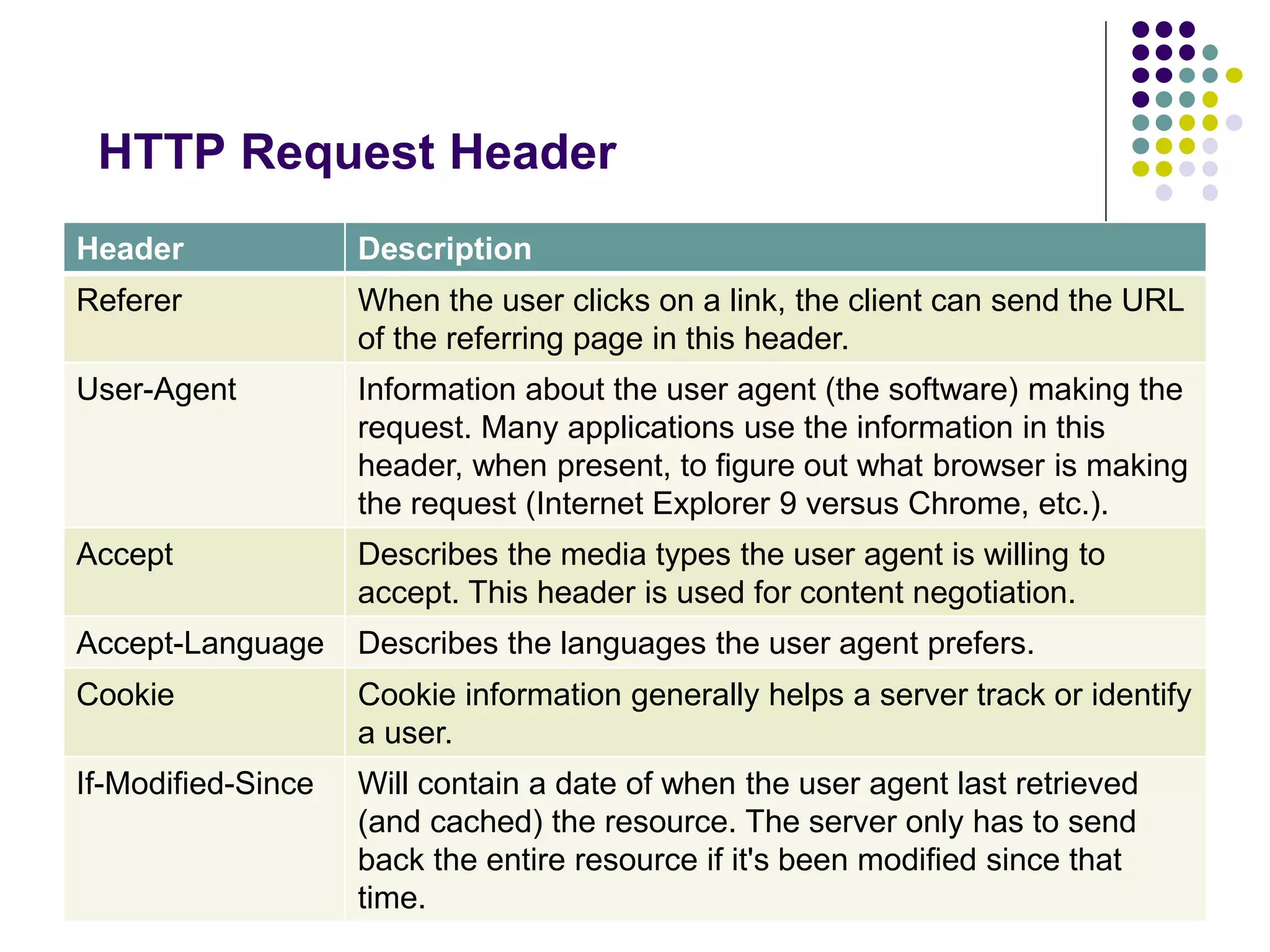

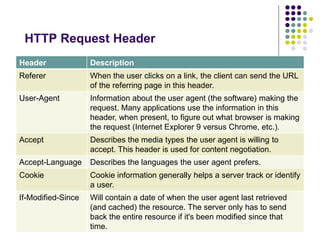

HTTP Request Header
Header Description
Referer When the user clicks on a link, the client can send the URL
of the referring page in this header.
User-Agent Information about the user agent (the software) making the
request. Many applications use the information in this
header, when present, to figure out what browser is making
the request (Internet Explorer 9 versus Chrome, etc.).
Accept Describes the media types the user agent is willing to
accept. This header is used for content negotiation.
Accept-Language Describes the languages the user agent prefers.
Cookie Cookie information generally helps a server track or identify
a user.
If-Modified-Since Will contain a date of when the user agent last retrieved
(and cached) the resource. The server only has to send
back the entire resource if it's been modified since that
time.

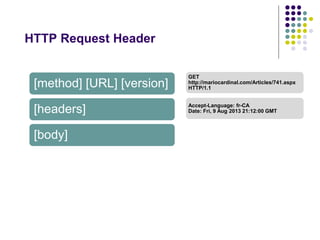

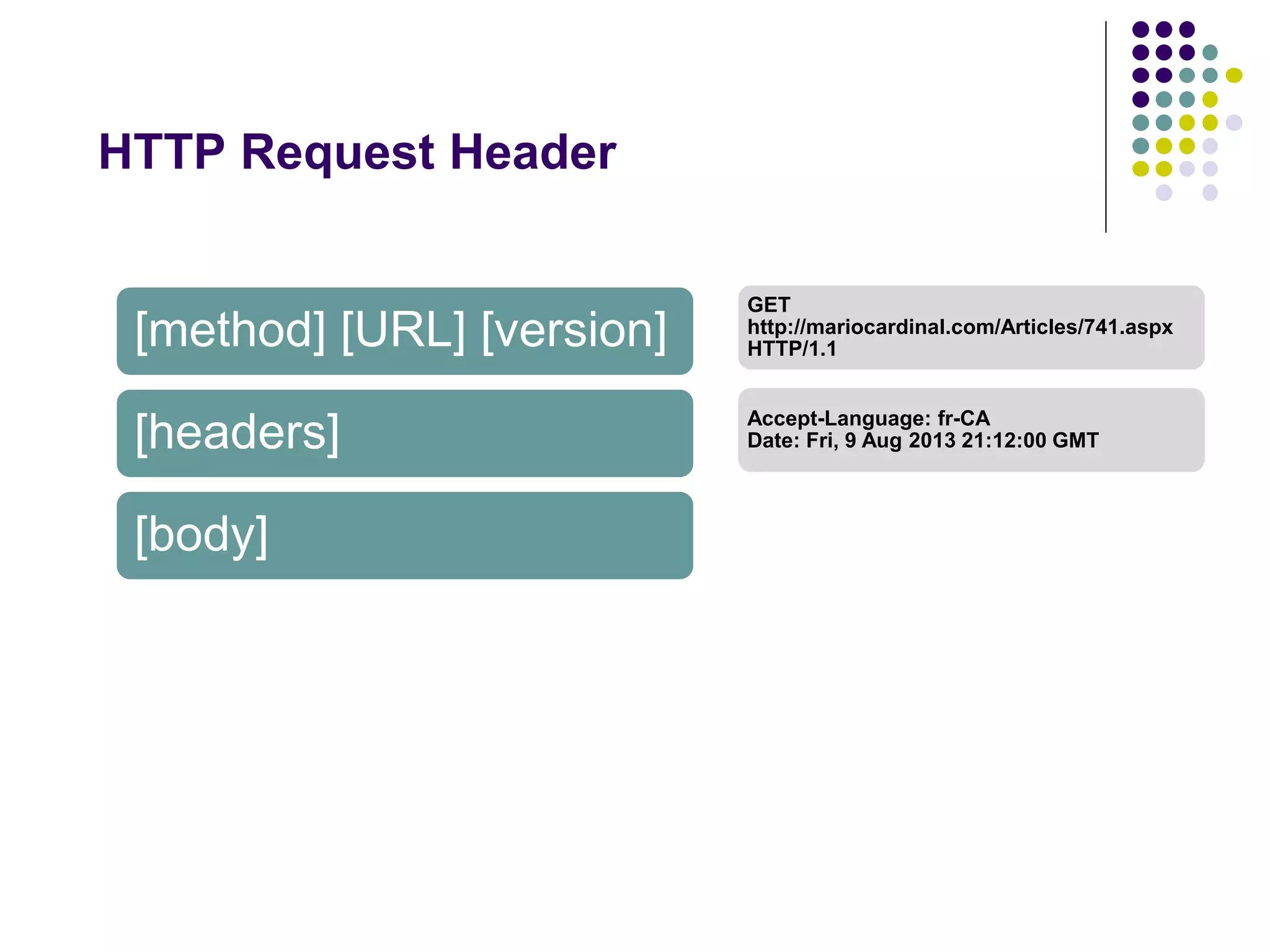

HTTP Request Header
[headers]
[body]
GET
http://mariocardinal.com/Articles/741.aspx
HTTP/1.1
Accept-Language: fr-CA
Date: Fri, 9 Aug 2013 21:12:00 GMT

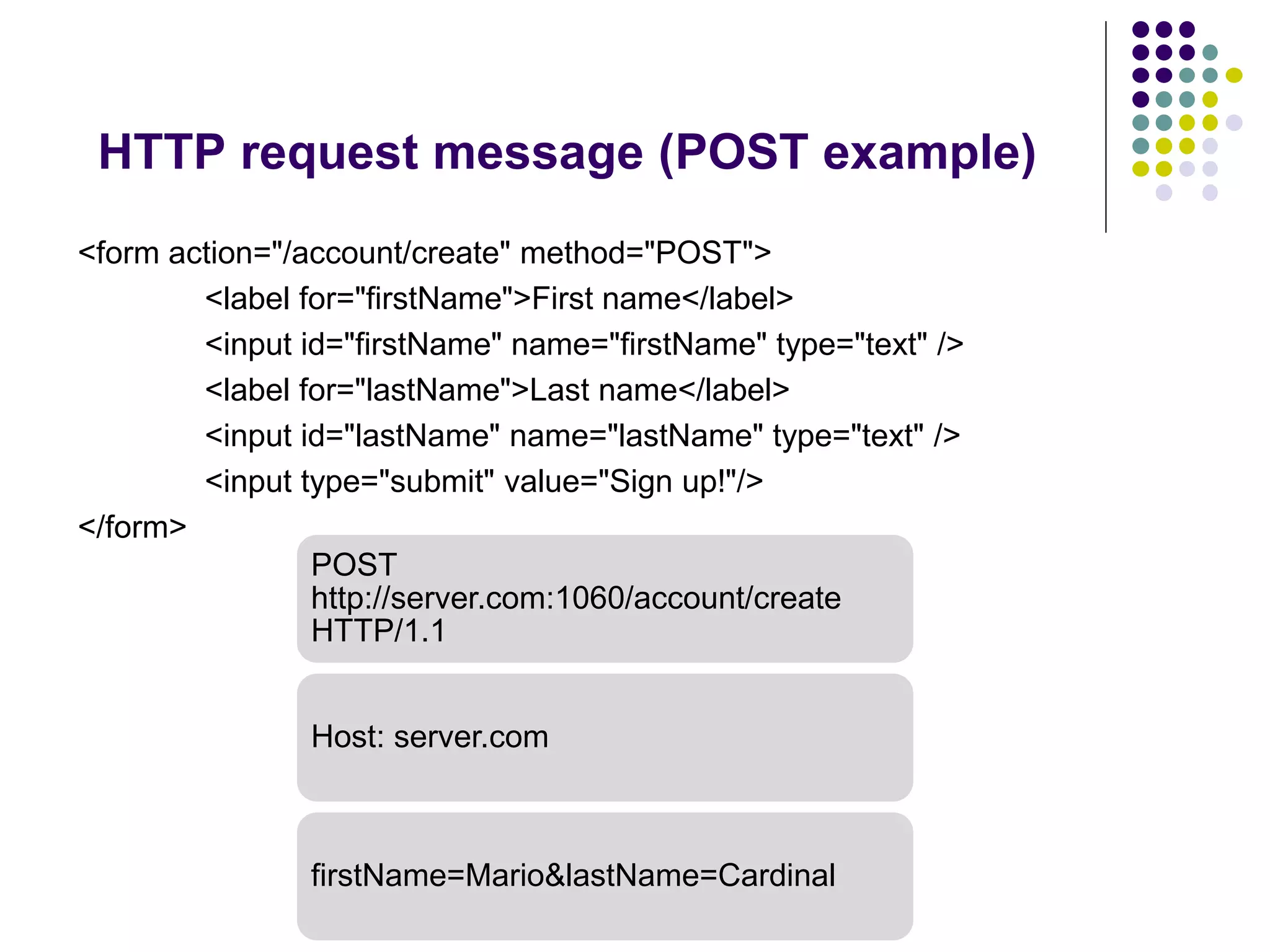

HTTP request message (POST example)
<form action="/account/create" method="POST">
<label for="firstName">First name</label>
<input id="firstName" name="firstName" type="text" />
<label for="lastName">Last name</label>
<input id="lastName" name="lastName" type="text" />
<input type="submit" value="Sign up!"/>
</form>
POST
http://server.com:1060/account/create
HTTP/1.1
Host: server.com
firstName=Mario&lastName=Cardinal

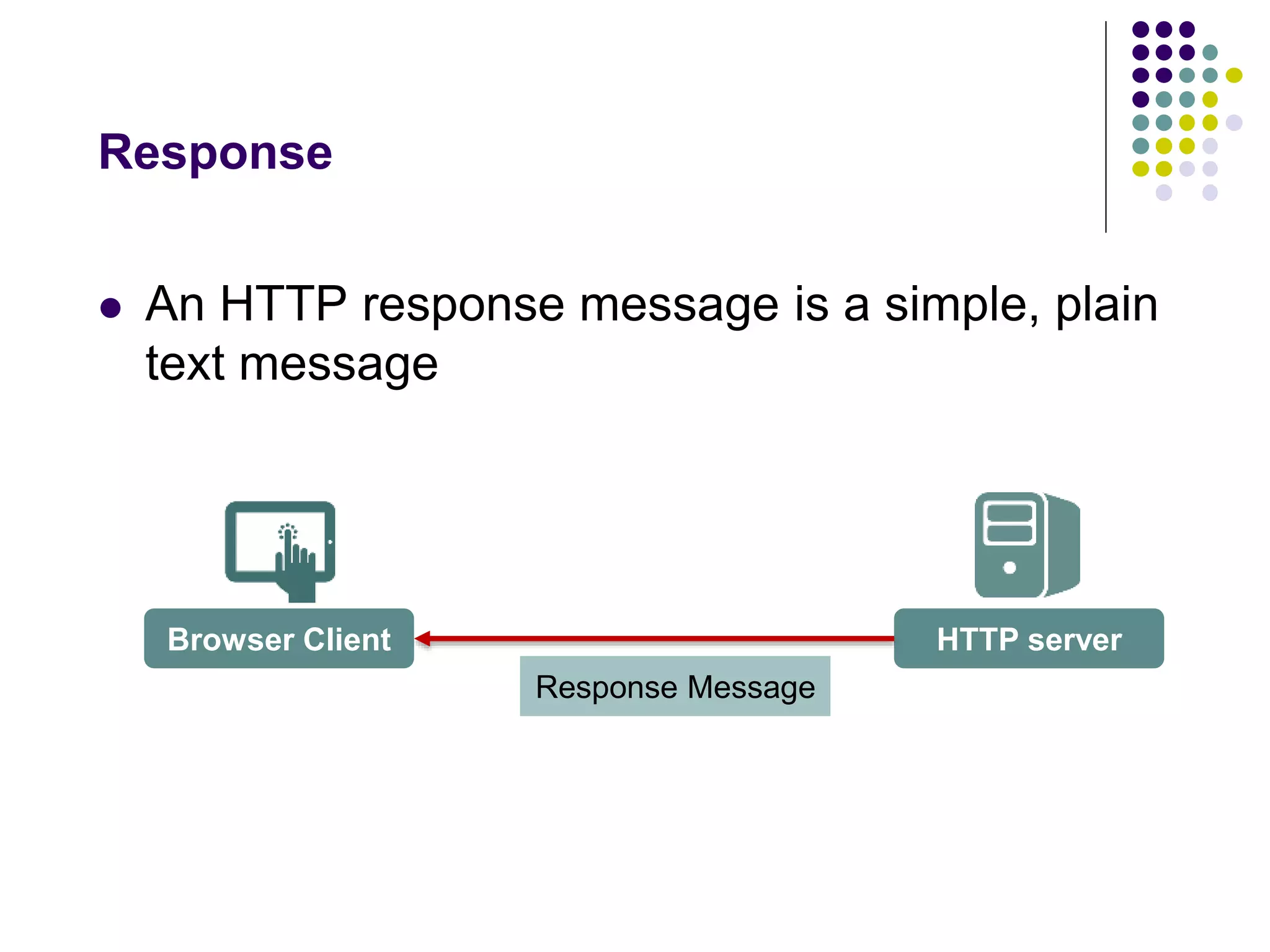

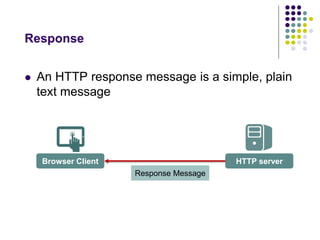

Response
 An HTTP response message is a simple, plain
text message
Response Message

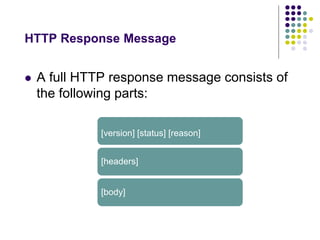

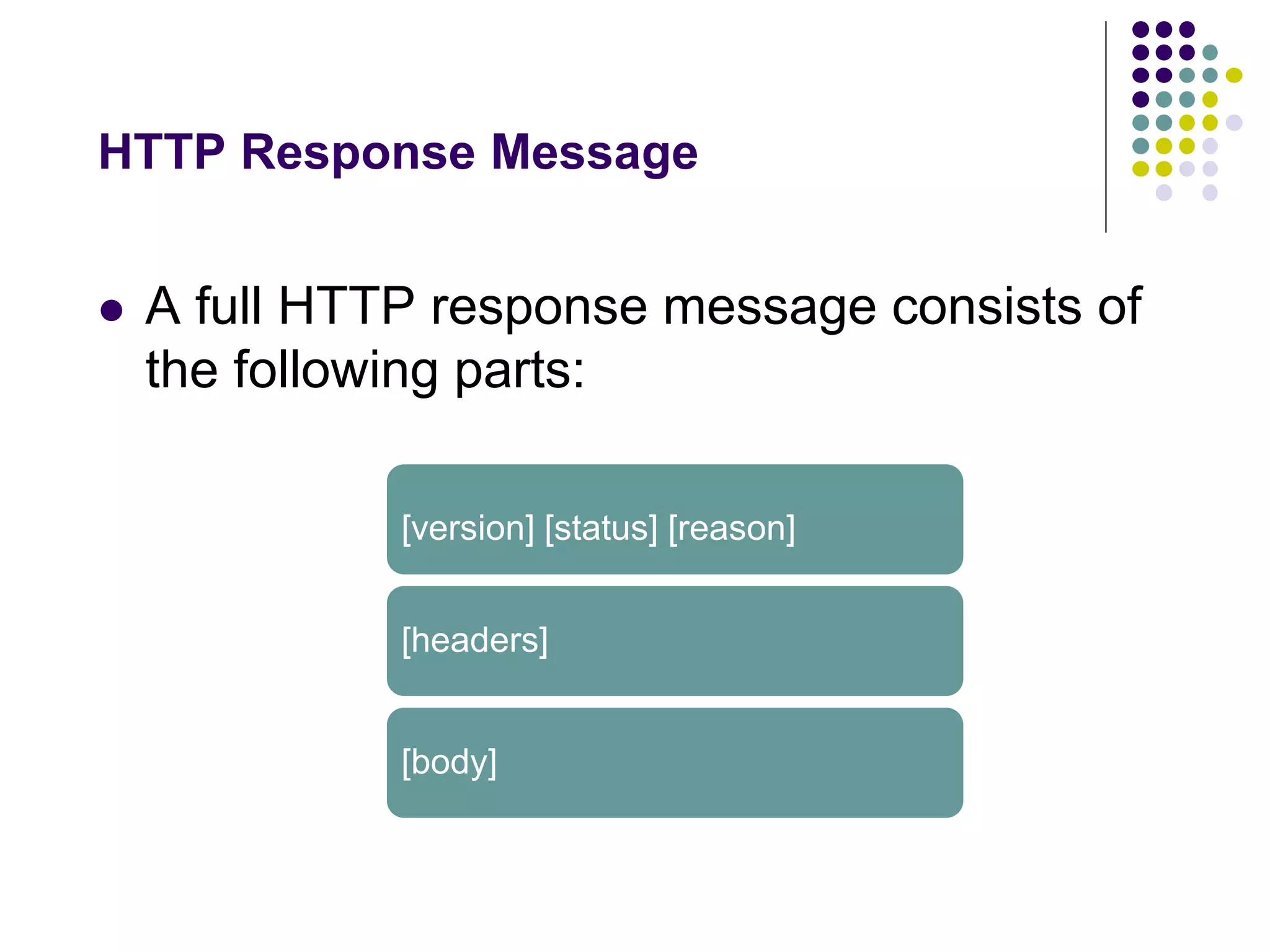

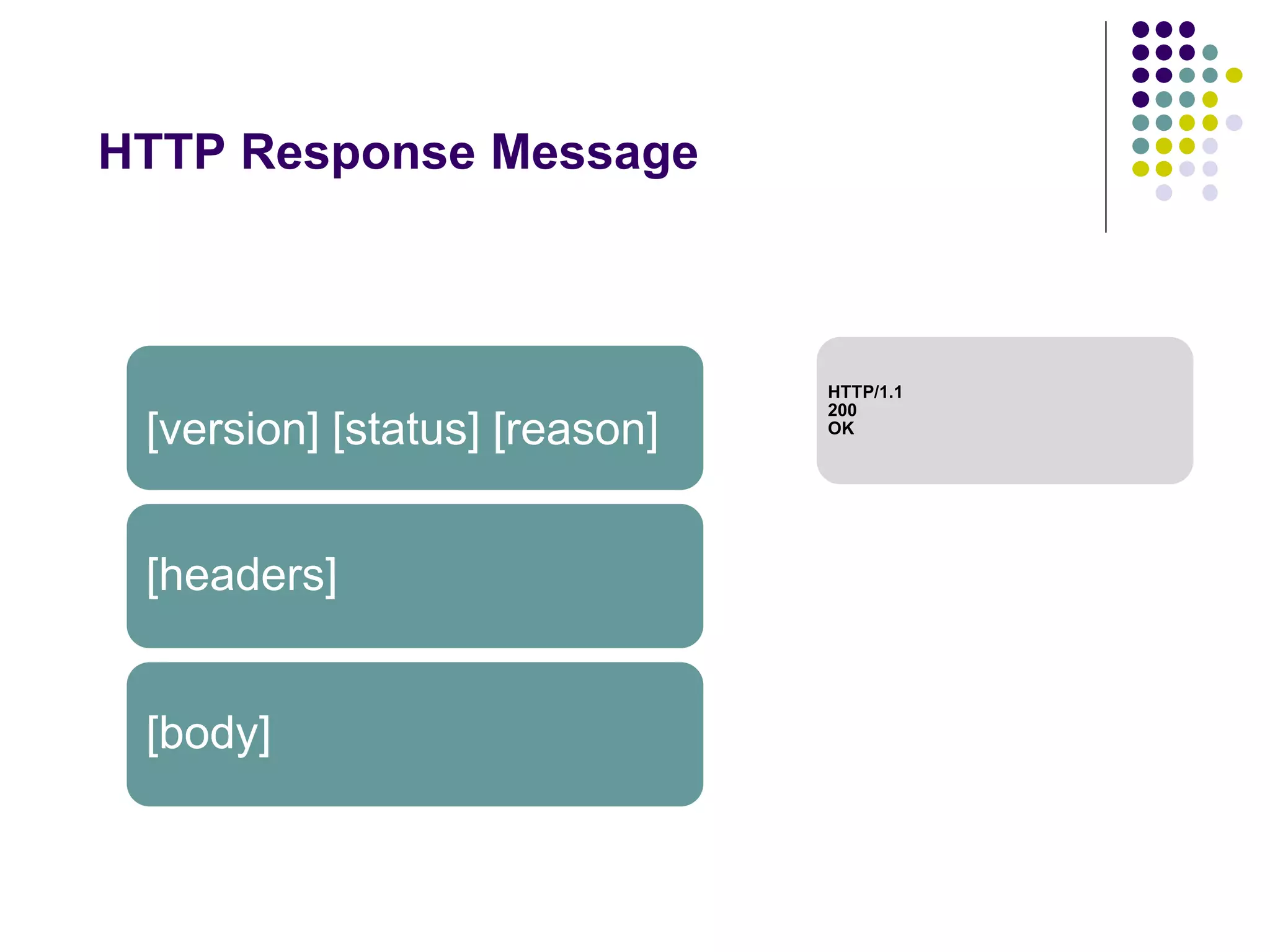

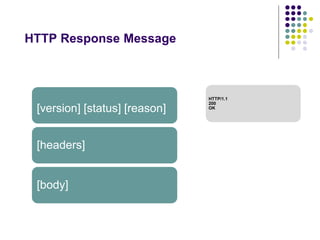

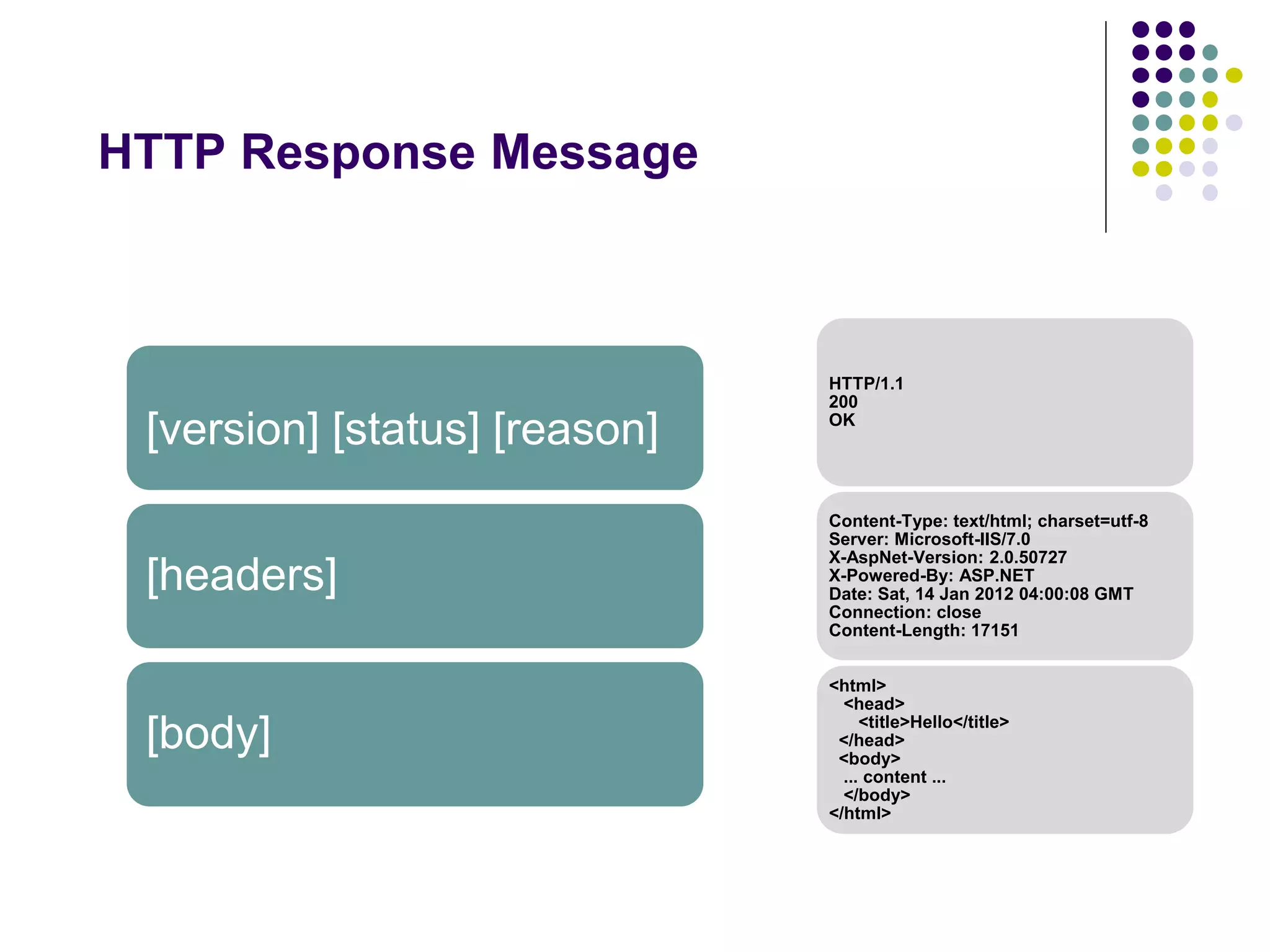

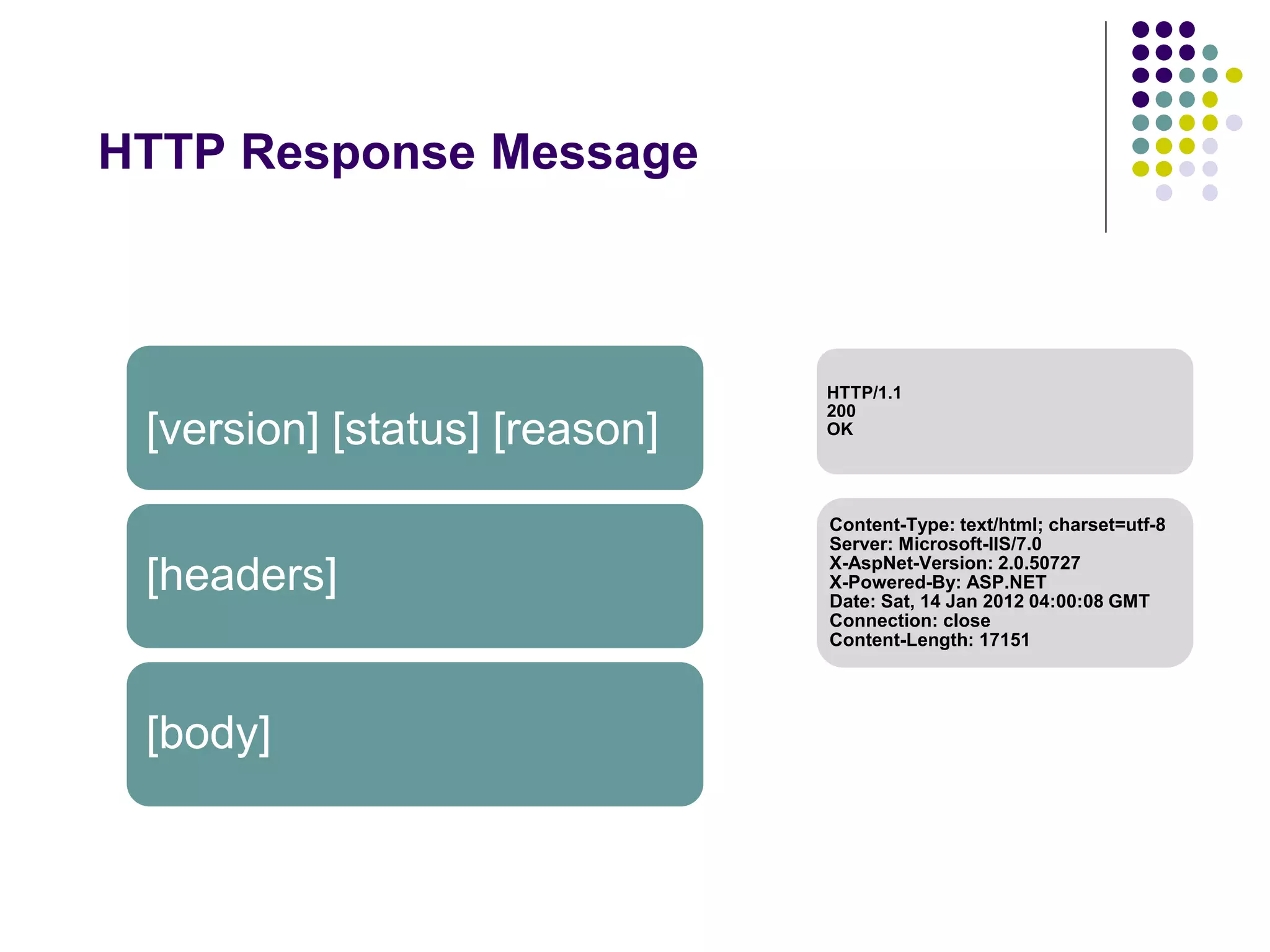

HTTP Response Message
 A full HTTP response message consists of
the following parts:
[version] [status] [reason]
[headers]
[body]

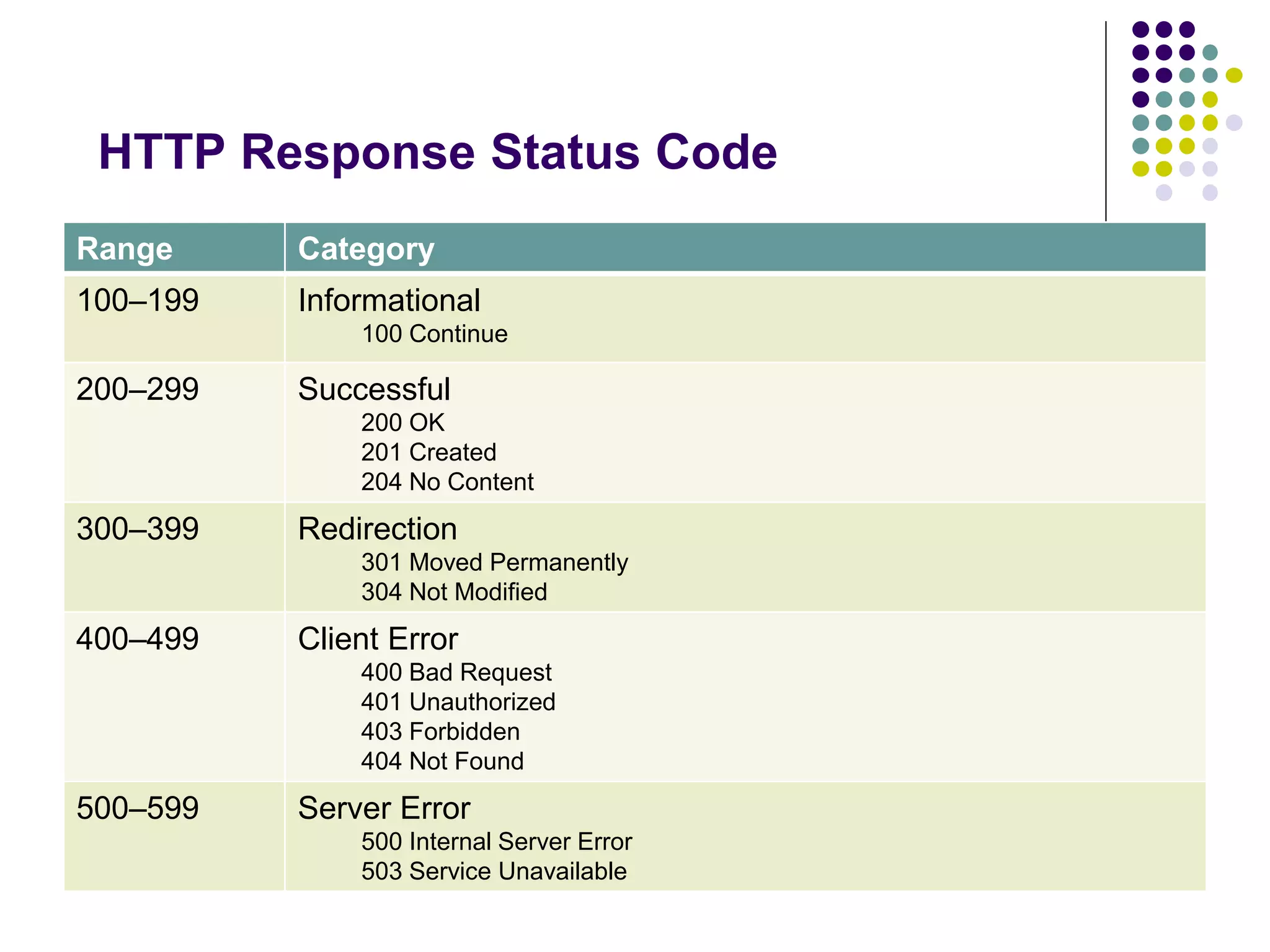

HTTP Response Status Code
Range Category
100–199 Informational
100 Continue
200–299 Successful
200 OK
201 Created
204 No Content
300–399 Redirection
301 Moved Permanently
304 Not Modified
400–499 Client Error
400 Bad Request
401 Unauthorized
403 Forbidden
404 Not Found
500–599 Server Error
500 Internal Server Error
503 Service Unavailable

[headers]
[body]
HTTP/1.1
200
OK

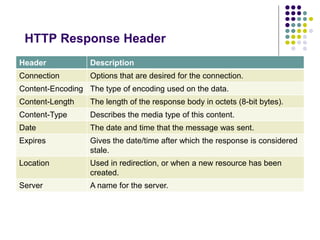

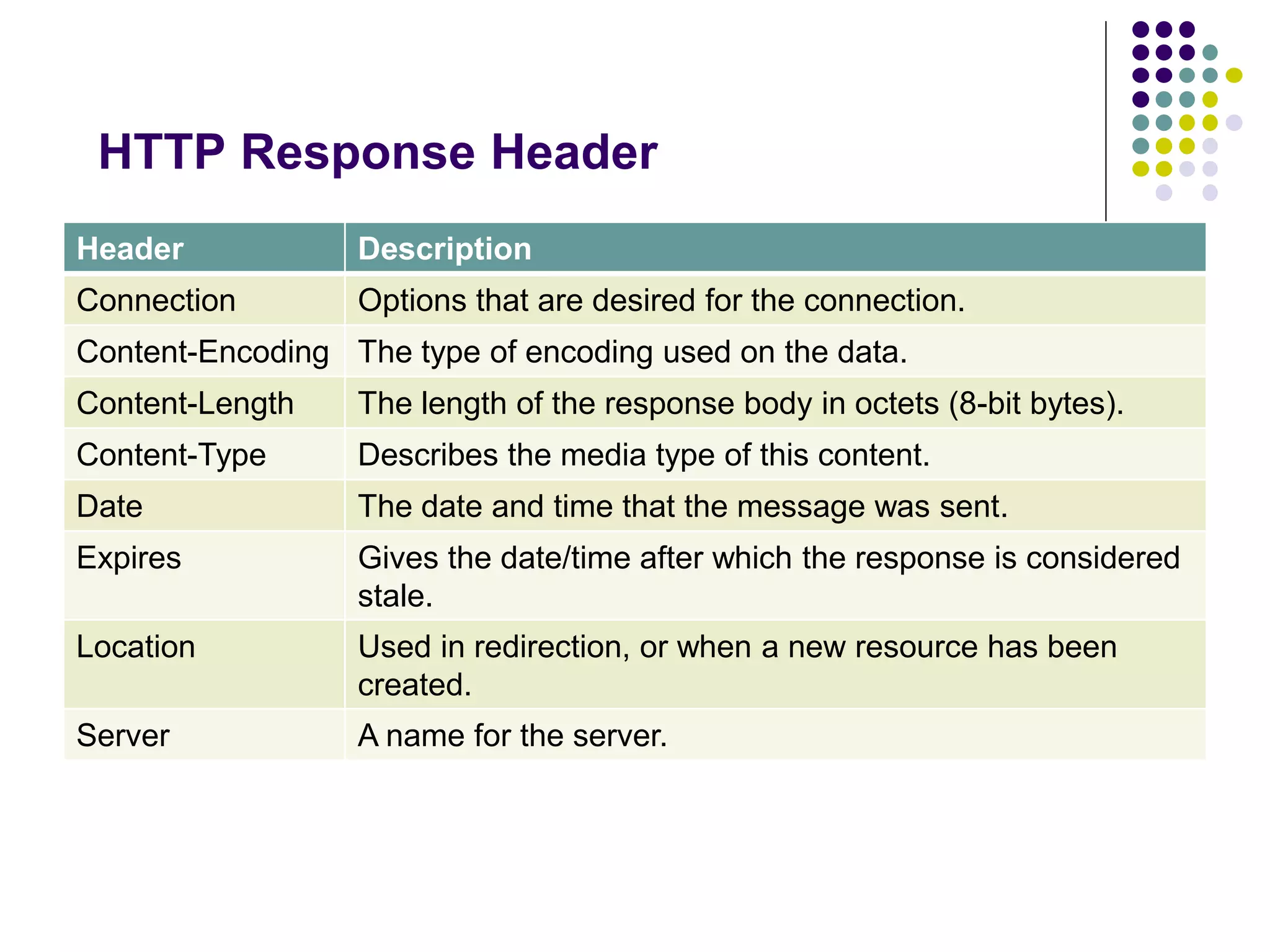

HTTP Response Header
Header Description
Connection Options that are desired for the connection.
Content-Encoding The type of encoding used on the data.
Content-Length The length of the response body in octets (8-bit bytes).
Content-Type Describes the media type of this content.
Date The date and time that the message was sent.
Expires Gives the date/time after which the response is considered
stale.
Location Used in redirection, or when a new resource has been
created.
Server A name for the server.

[headers]
[body]
HTTP/1.1
200
OK
Content-Type: text/html; charset=utf-8
Server: Microsoft-IIS/7.0
X-AspNet-Version: 2.0.50727
X-Powered-By: ASP.NET
Date: Sat, 14 Jan 2012 04:00:08 GMT
Connection: close
Content-Length: 17151

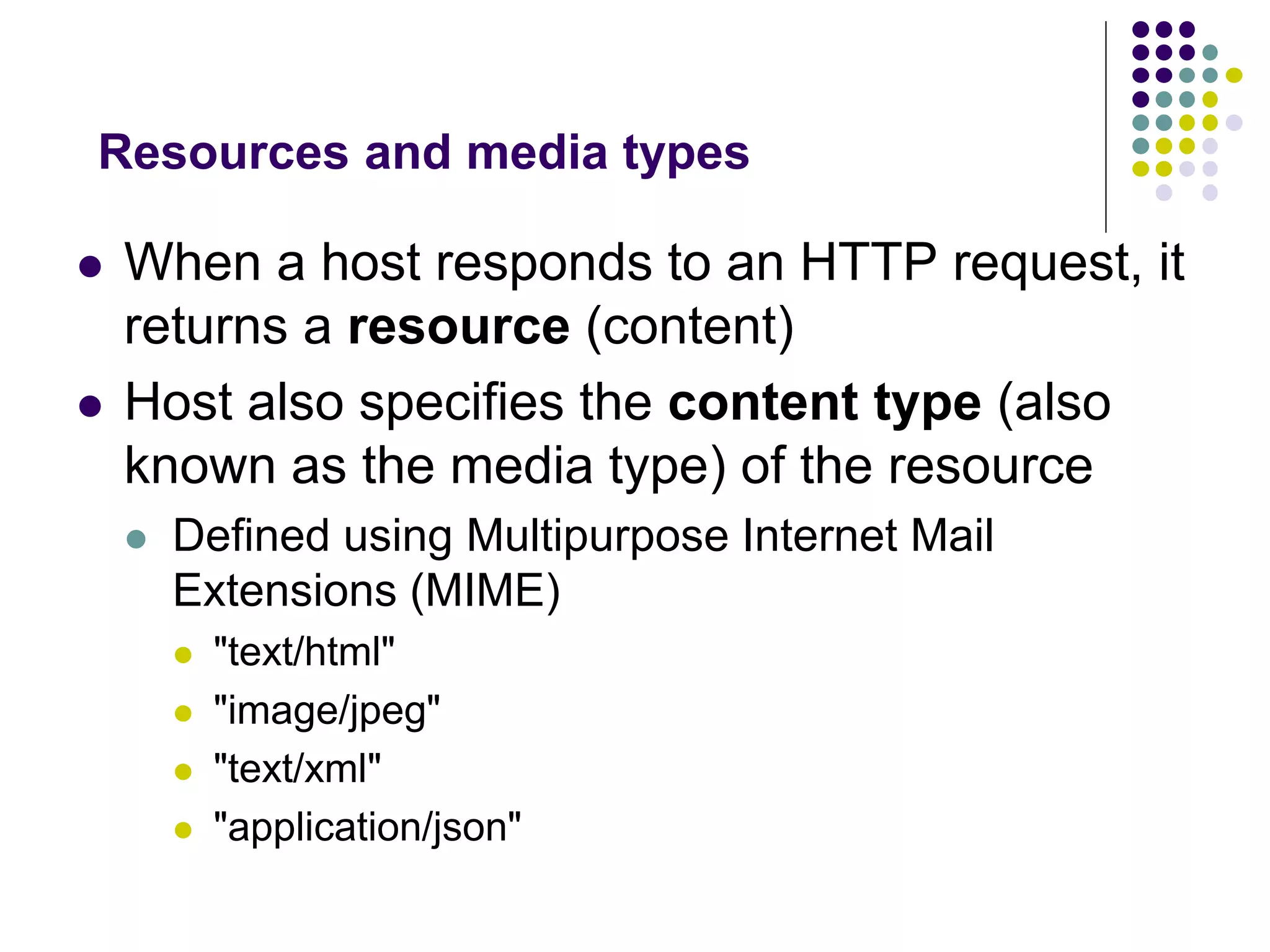

Resources and media types
 When a host responds to an HTTP request, it
returns a resource (content)
 Host also specifies the content type (also
known as the media type) of the resource
 Defined using Multipurpose Internet Mail
Extensions (MIME)
 "text/html"
 "image/jpeg"
 "text/xml"
 "application/json"

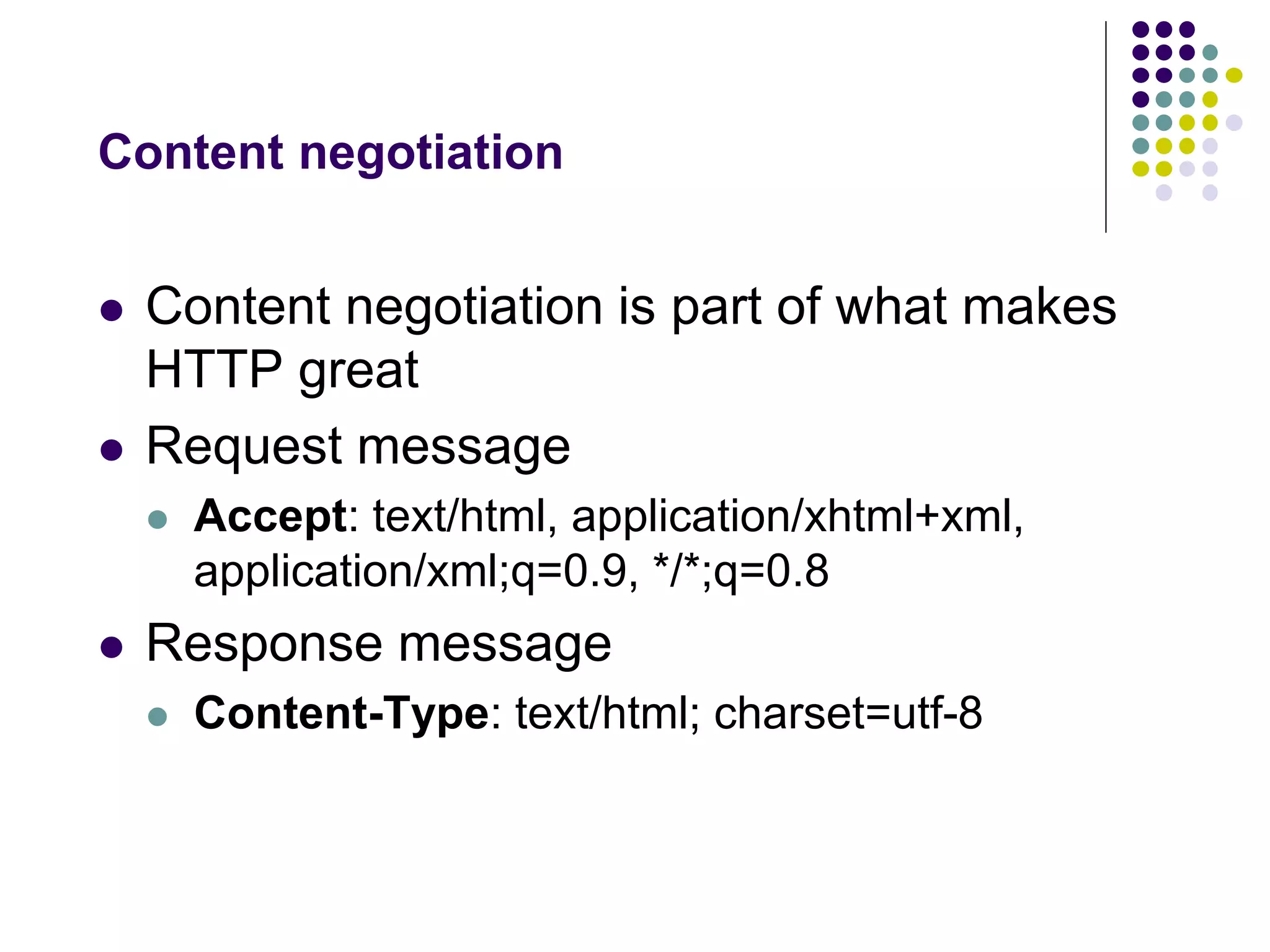

Content negotiation
 Content negotiation is part of what makes
HTTP great
 Request message
 Accept: text/html, application/xhtml+xml,
application/xml;q=0.9, */*;q=0.8
 Response message
 Content-Type: text/html; charset=utf-8

[headers]
[body]
HTTP/1.1
200
OK
X-AspNet-Version: 2.0.50727
X-Powered-By: ASP.NET
Date: Sat, 14 Jan 2012 04:00:08 GMT
Connection: close
Content-Length: 17151
<html>
<head>
<title>Hello</title>
</head>
<body>
... content ...
</body>
</html>

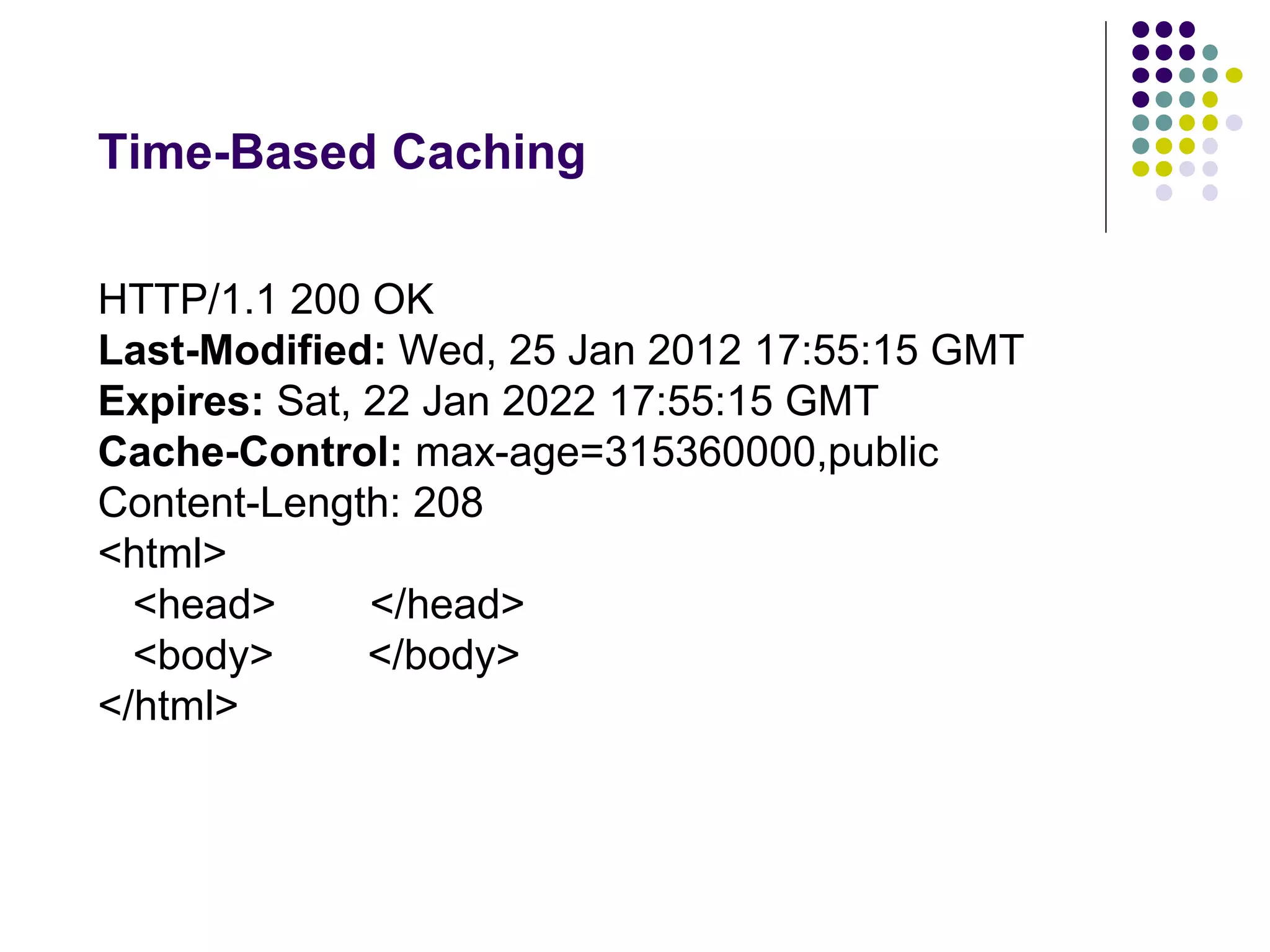

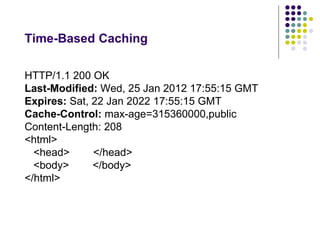

Time-Based Caching
HTTP/1.1 200 OK
Last-Modified: Wed, 25 Jan 2012 17:55:15 GMT
Expires: Sat, 22 Jan 2022 17:55:15 GMT
Cache-Control: max-age=315360000,public
Content-Length: 208
<html>
<head> </head>
<body> </body>
</html>

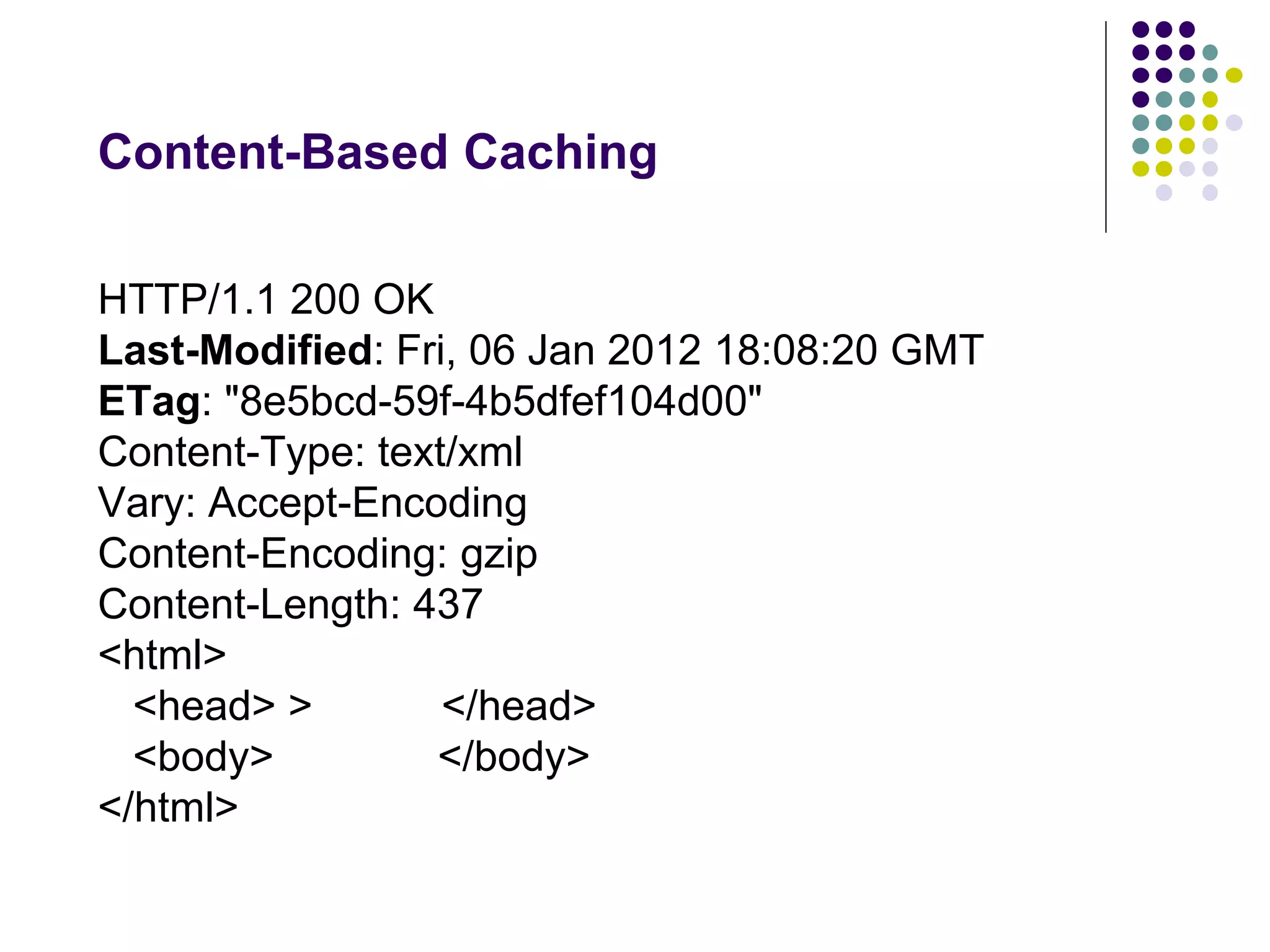

Content-Based Caching
HTTP/1.1 200 OK
Last-Modified: Fri, 06 Jan 2012 18:08:20 GMT
ETag: "8e5bcd-59f-4b5dfef104d00"
Content-Type: text/xml
Vary: Accept-Encoding
Content-Encoding: gzip
Content-Length: 437
<html>
<head> > </head>
<body> </body>
</html>

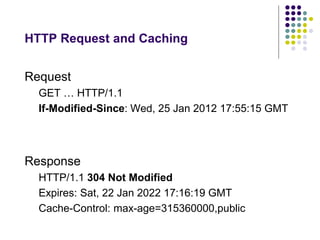

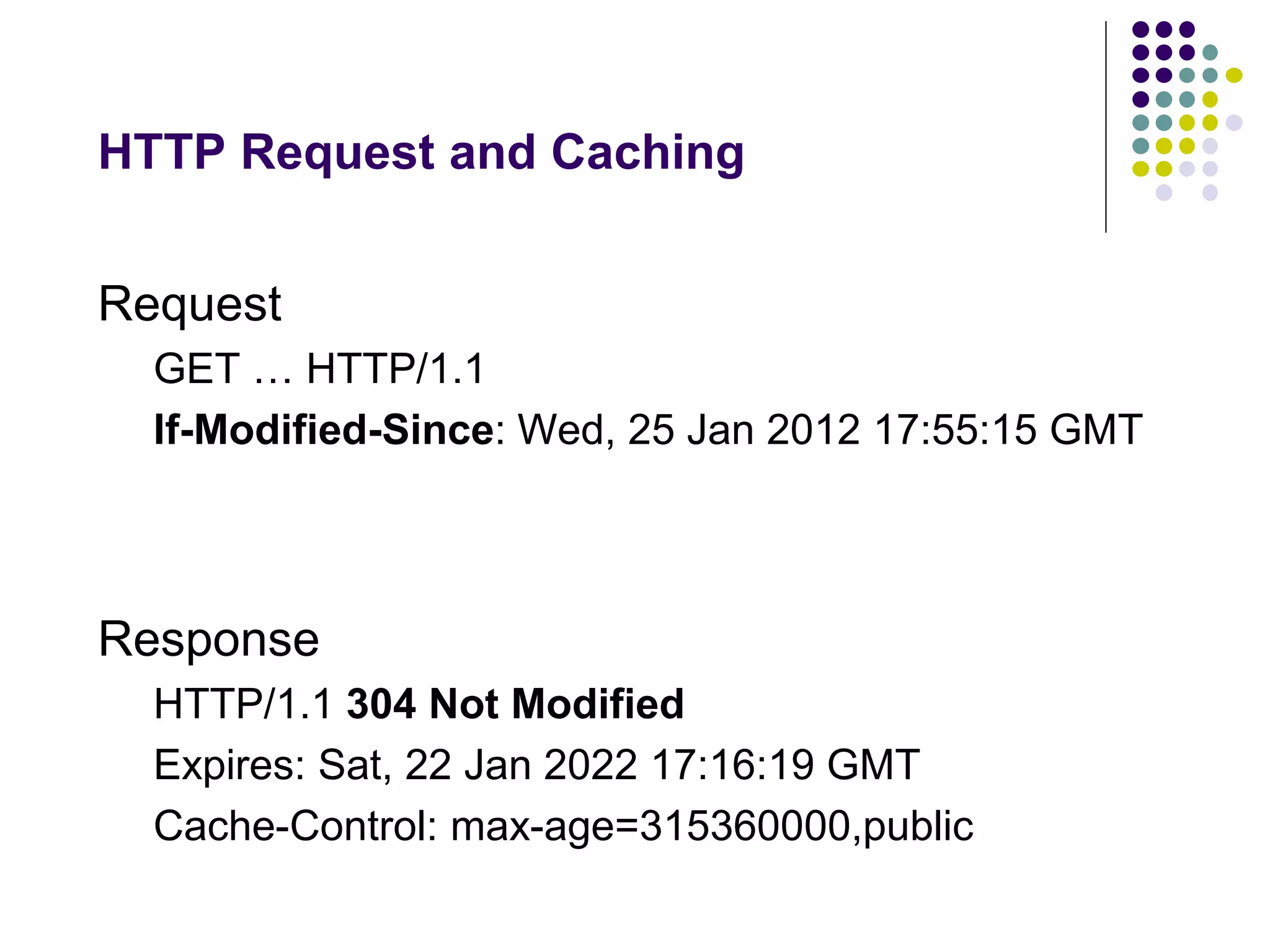

HTTP Request and Caching
Request
GET … HTTP/1.1
If-Modified-Since: Wed, 25 Jan 2012 17:55:15 GMT
Response
HTTP/1.1 304 Not Modified
Expires: Sat, 22 Jan 2022 17:16:19 GMT
Cache-Control: max-age=315360000,public

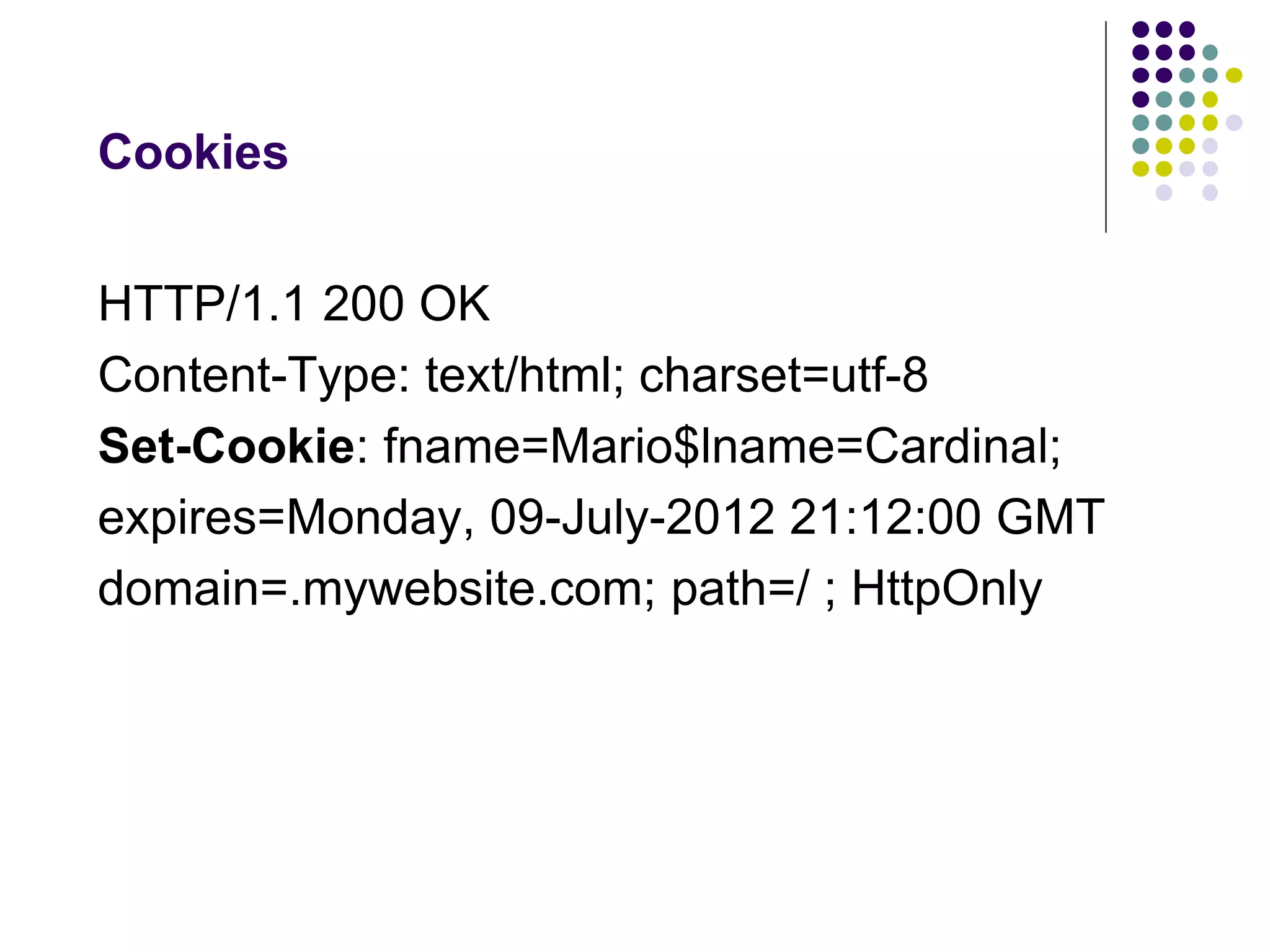

Cookies
HTTP/1.1 200 OK
Set-Cookie: fname=Mario$lname=Cardinal;
expires=Monday, 09-July-2012 21:12:00 GMT
domain=.mywebsite.com; path=/ ; HttpOnly

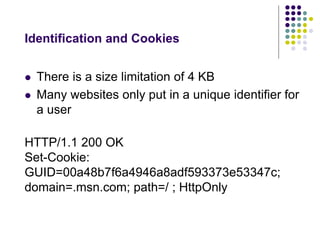

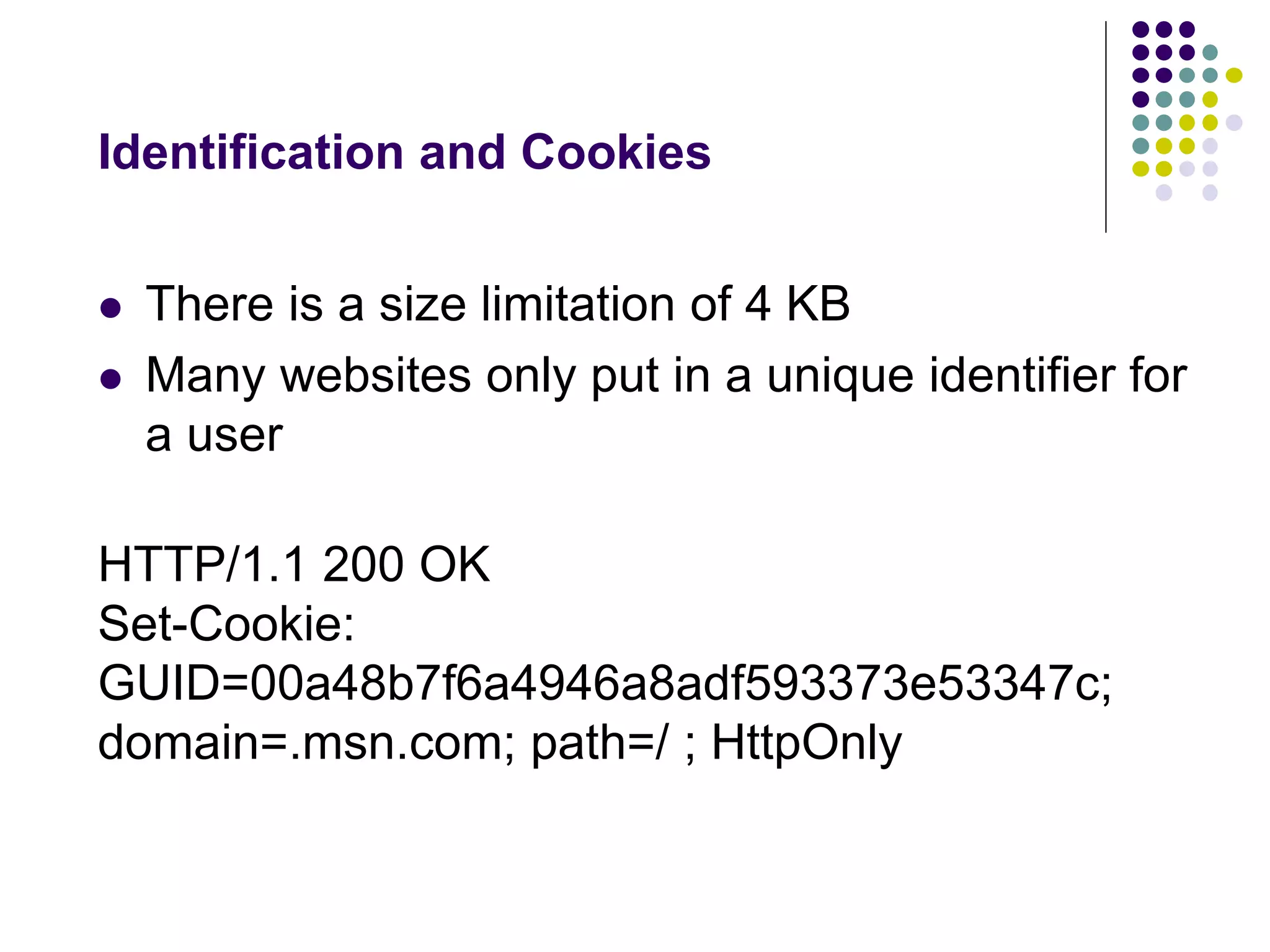

Identification and Cookies
 There is a size limitation of 4 KB
 Many websites only put in a unique identifier for
a user
HTTP/1.1 200 OK
Set-Cookie:
GUID=00a48b7f6a4946a8adf593373e53347c;
domain=.msn.com; path=/ ; HttpOnly

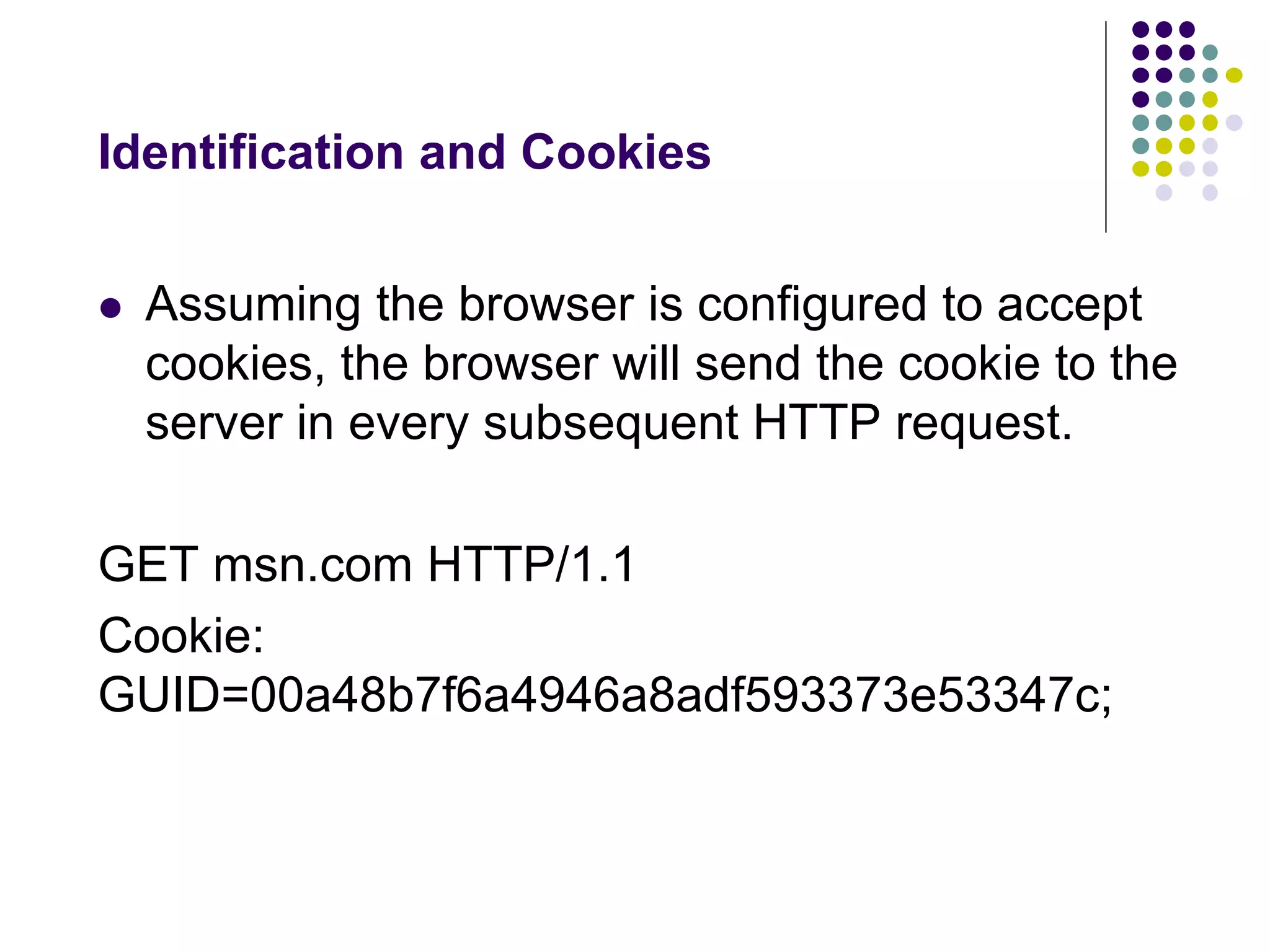

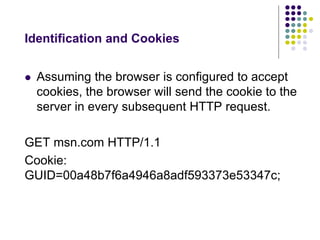

Identification and Cookies
 Assuming the browser is configured to accept
cookies, the browser will send the cookie to the
server in every subsequent HTTP request.
GET msn.com HTTP/1.1
Cookie:
GUID=00a48b7f6a4946a8adf593373e53347c;

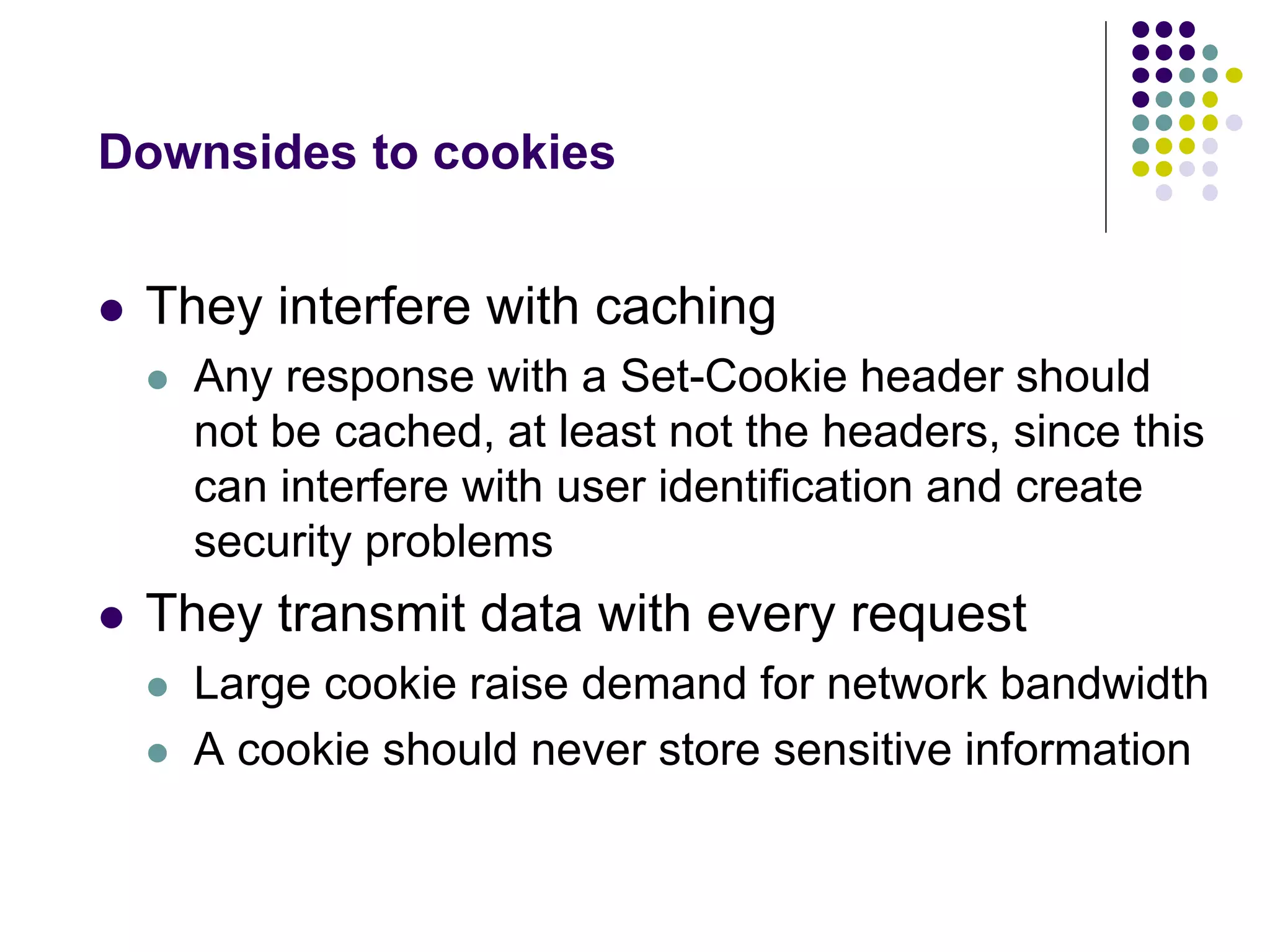

Downsides to cookies
 They interfere with caching
 Any response with a Set-Cookie header should
not be cached, at least not the headers, since this
can interfere with user identification and create
security problems
 They transmit data with every request
 Large cookie raise demand for network bandwidth
 A cookie should never store sensitive information

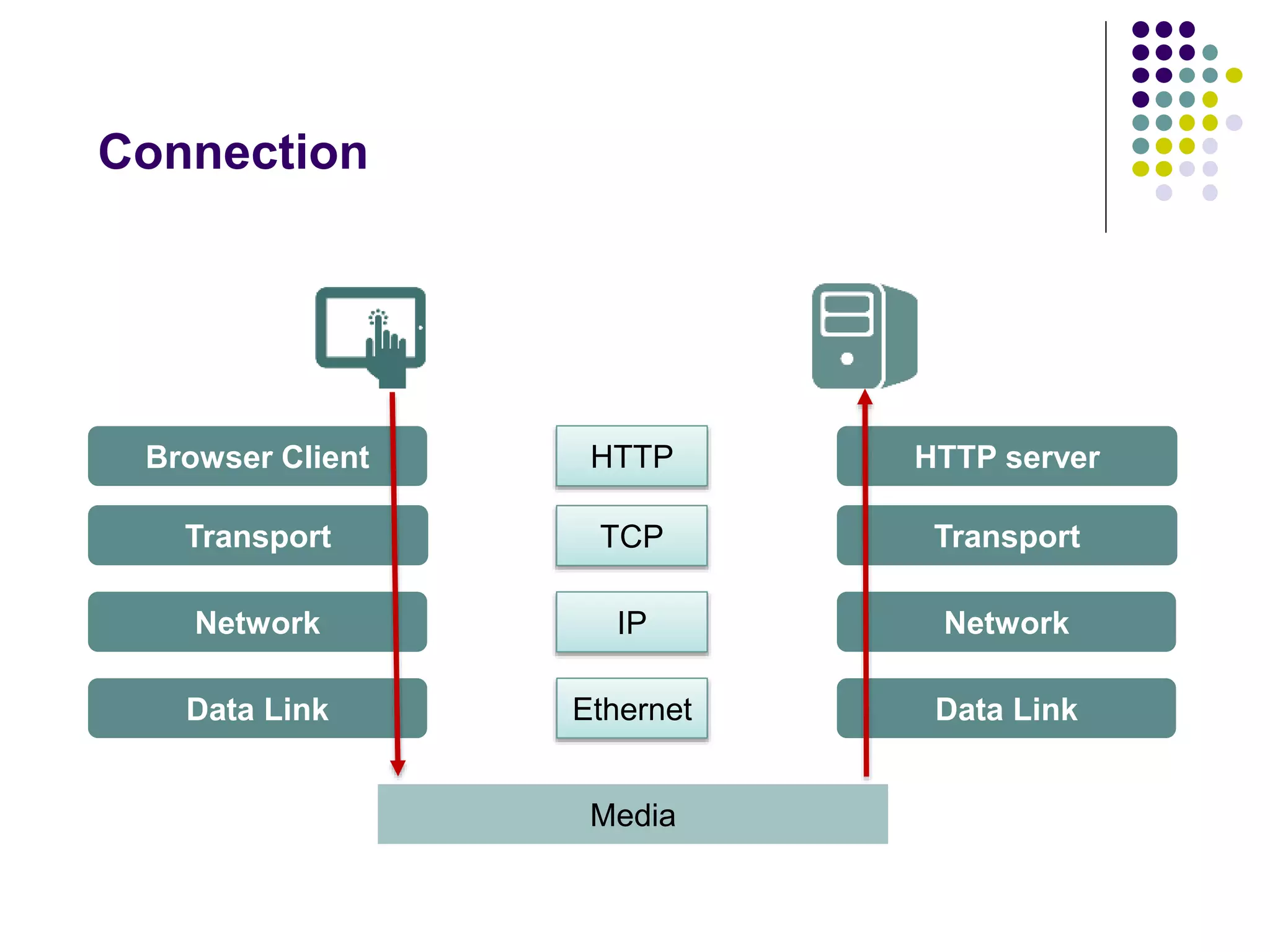

Connection
Browser Client HTTP HTTP server
TCP
Media
Transport
Network
Data Link Ethernet
Transport
Network
Data Link
IP

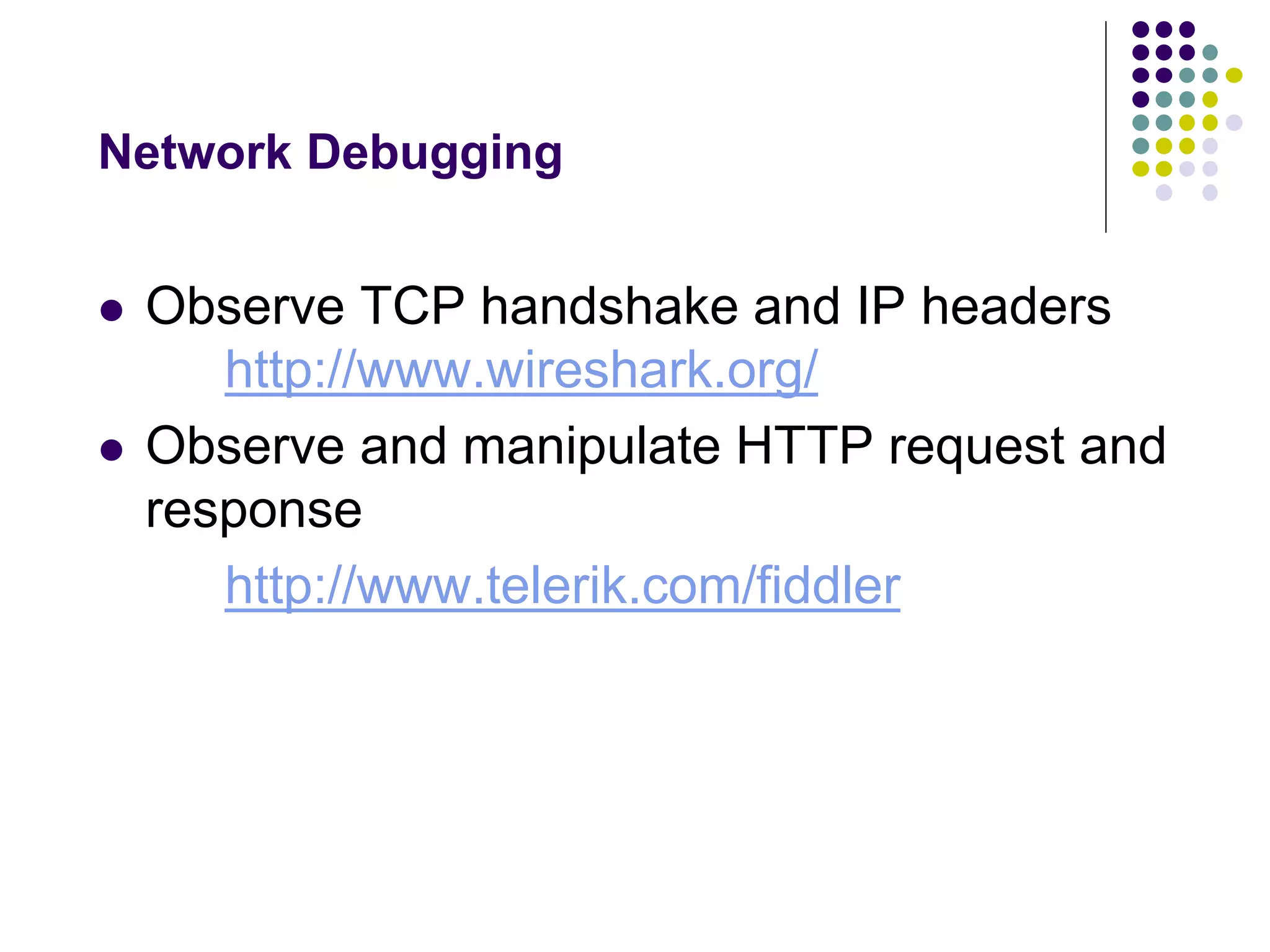

Network Debugging
 Observe TCP handshake and IP headers
http://www.wireshark.org/
 Observe and manipulate HTTP request and
response
http://www.telerik.com/fiddler

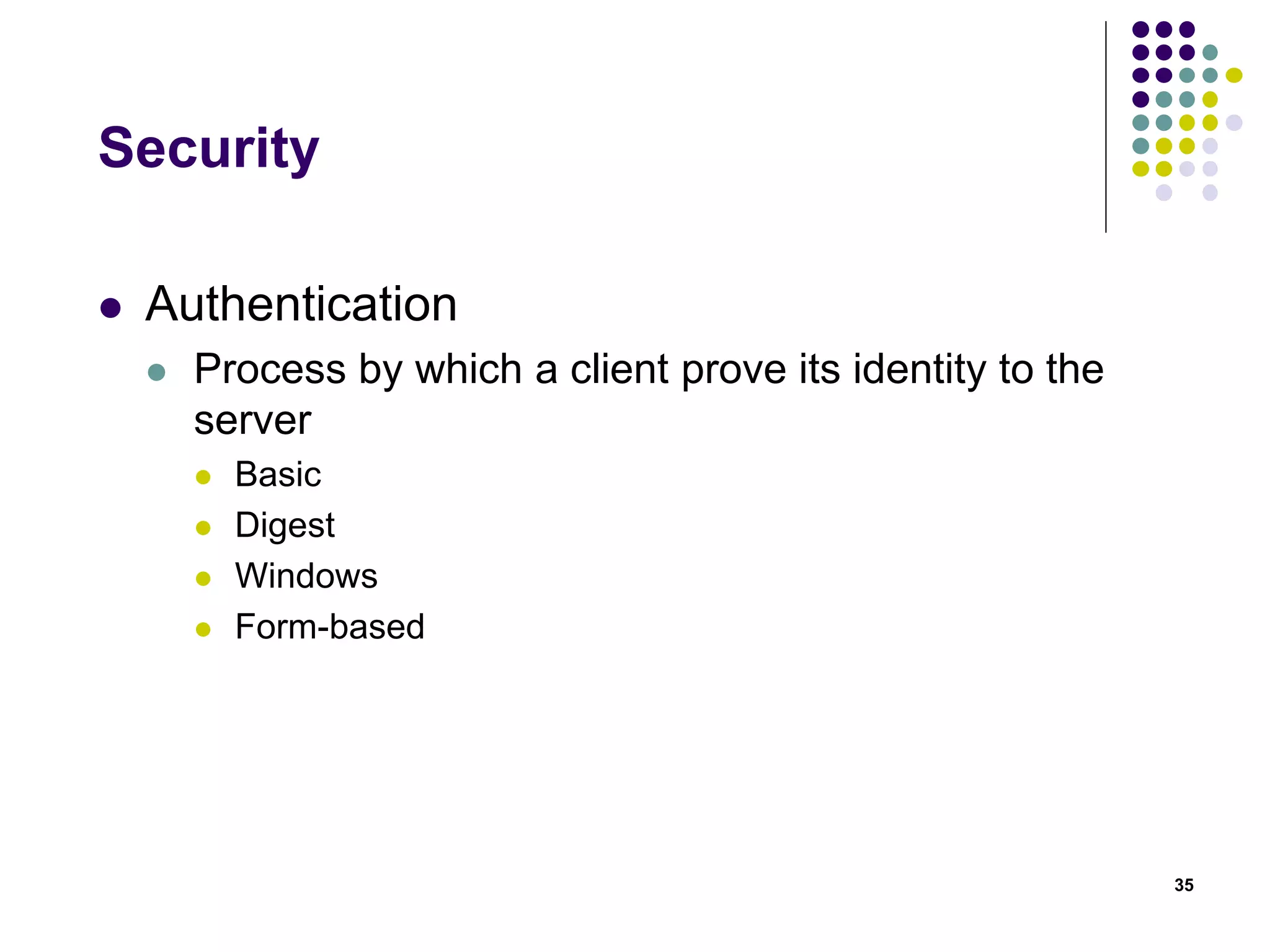

Security
 Authentication
 Process by which a client prove its identity to the
server
 Basic
 Digest
 Windows
 Form-based
35

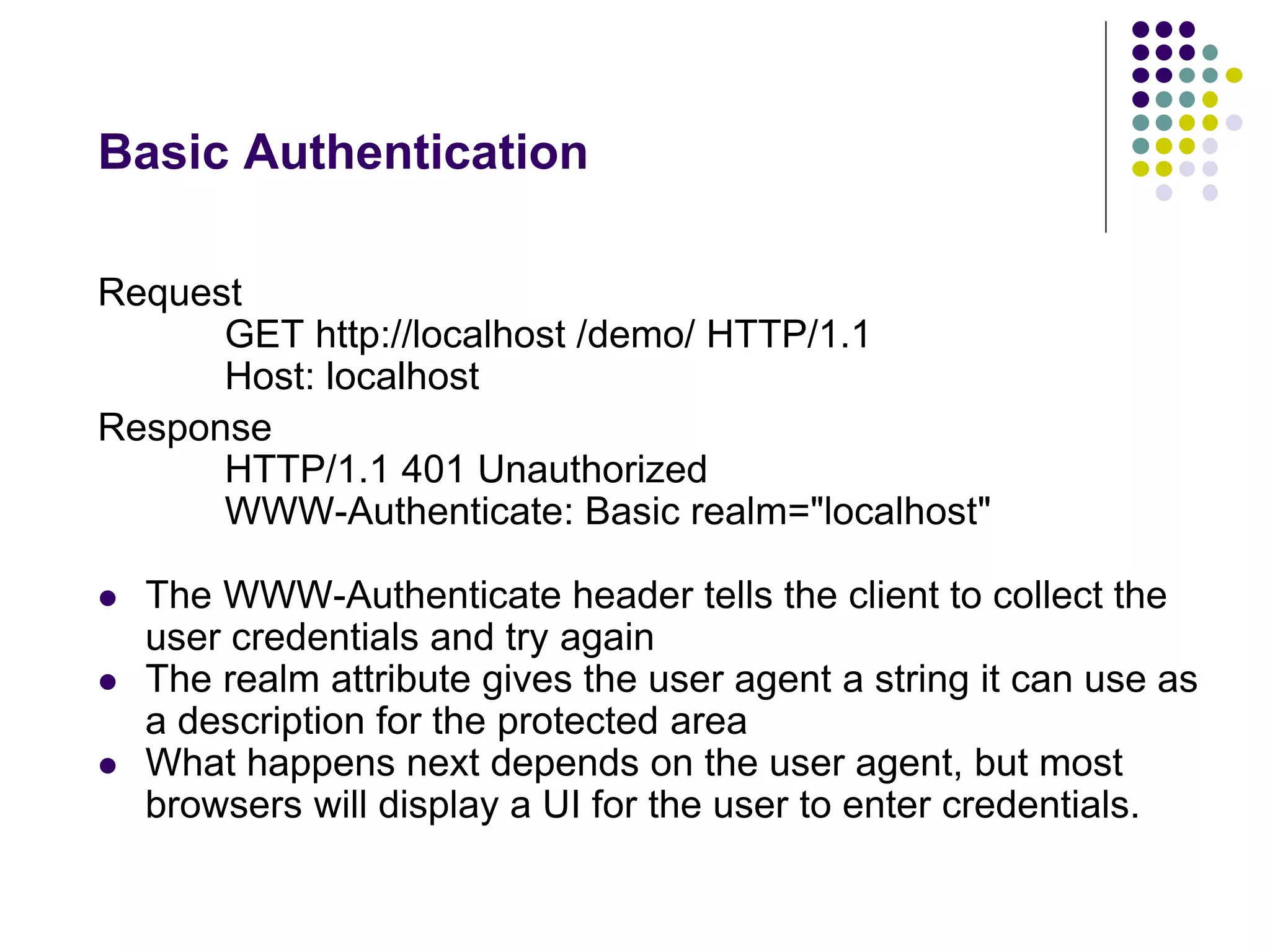

Basic Authentication
Request
GET http://localhost /demo/ HTTP/1.1
Host: localhost
Response
HTTP/1.1 401 Unauthorized
WWW-Authenticate: Basic realm="localhost"
 The WWW-Authenticate header tells the client to collect the
user credentials and try again
 The realm attribute gives the user agent a string it can use as
a description for the protected area
 What happens next depends on the user agent, but most
browsers will display a UI for the user to enter credentials.

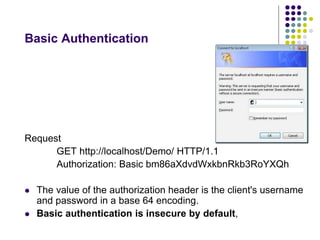

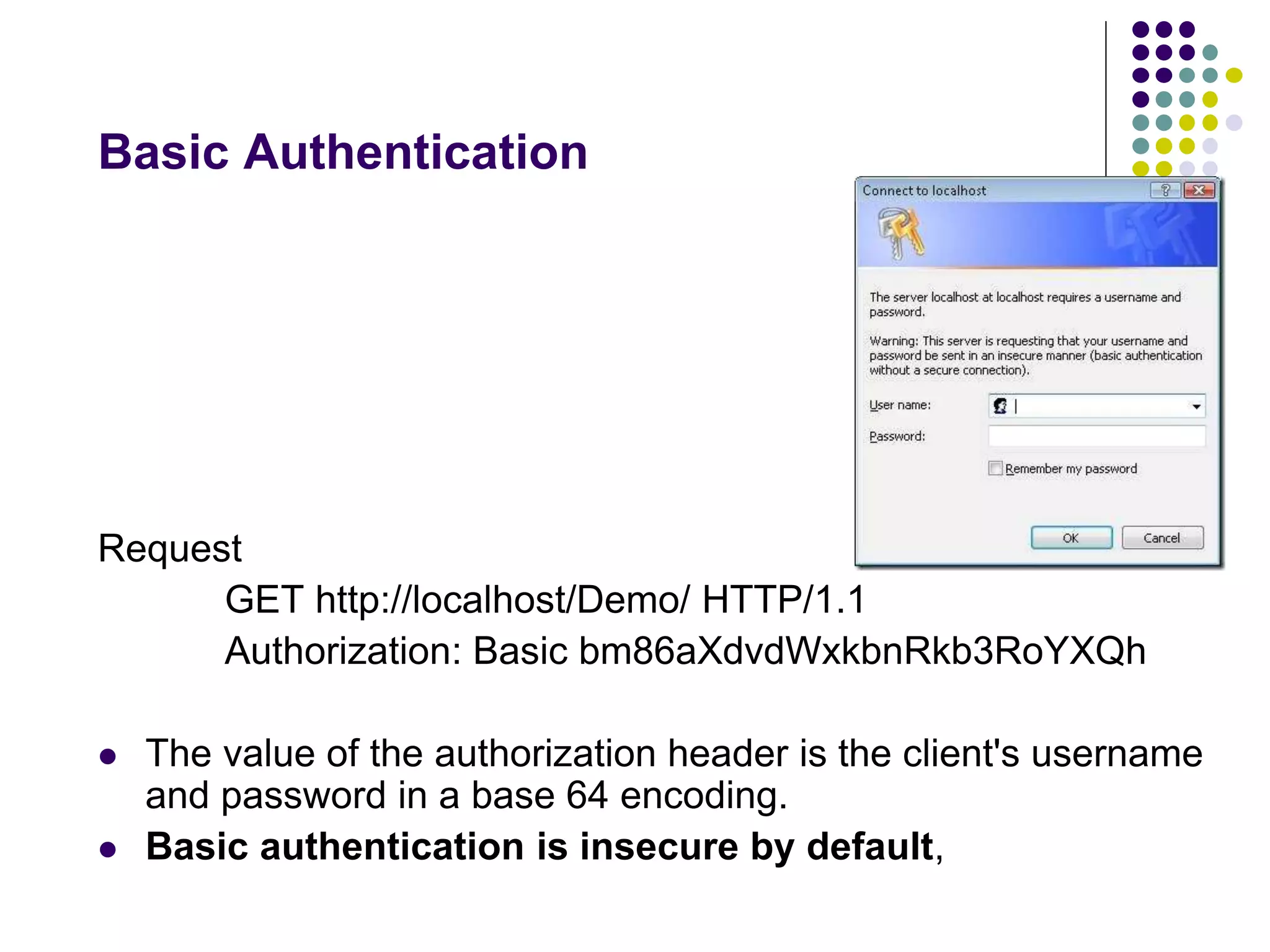

Basic Authentication
Request
GET http://localhost/Demo/ HTTP/1.1
Authorization: Basic bm86aXdvdWxkbnRkb3RoYXQh
 The value of the authorization header is the client's username
and password in a base 64 encoding.
 Basic authentication is insecure by default,

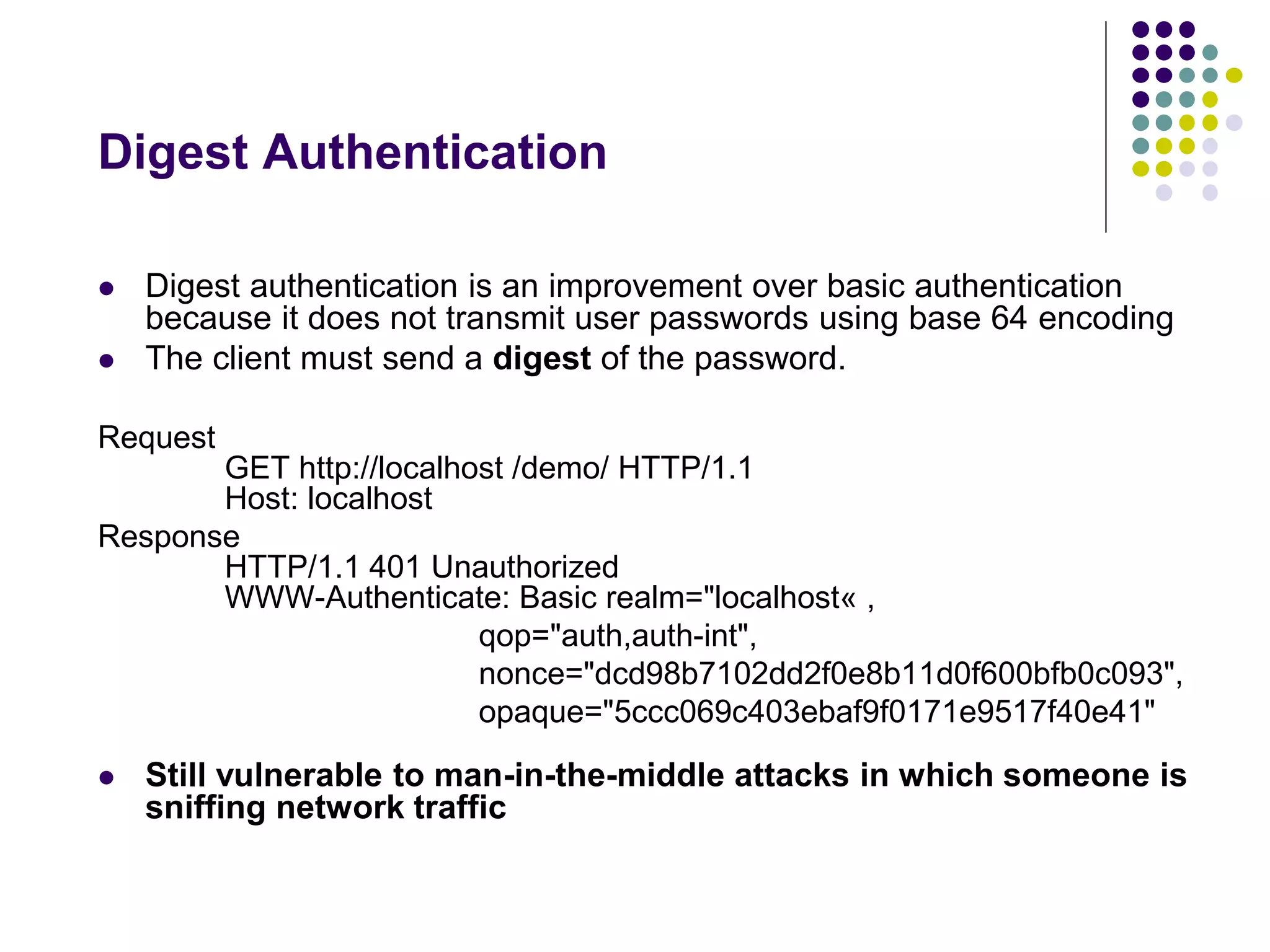

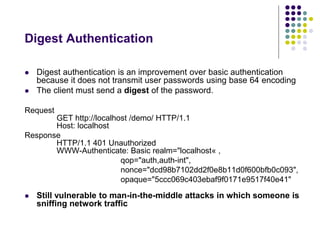

Digest Authentication
 Digest authentication is an improvement over basic authentication
because it does not transmit user passwords using base 64 encoding
 The client must send a digest of the password.
Request
Host: localhost
Response
WWW-Authenticate: Basic realm="localhost« ,
qop="auth,auth-int",
nonce="dcd98b7102dd2f0e8b11d0f600bfb0c093",
opaque="5ccc069c403ebaf9f0171e9517f40e41"
 Still vulnerable to man-in-the-middle attacks in which someone is
sniffing network traffic

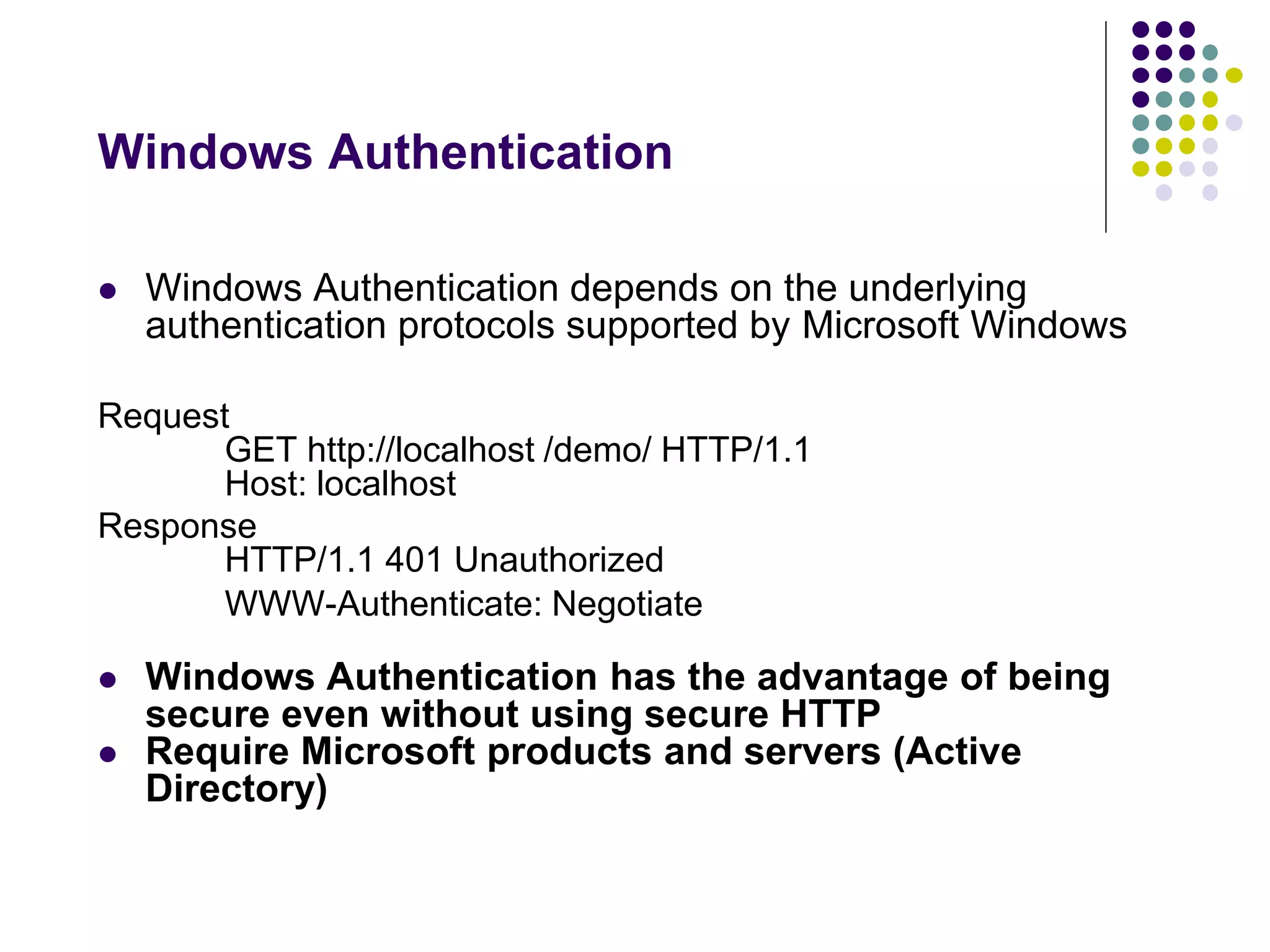

Windows Authentication
 Windows Authentication depends on the underlying
authentication protocols supported by Microsoft Windows
Request
Host: localhost
Response
WWW-Authenticate: Negotiate
 Windows Authentication has the advantage of being
secure even without using secure HTTP
 Require Microsoft products and servers (Active
Directory)

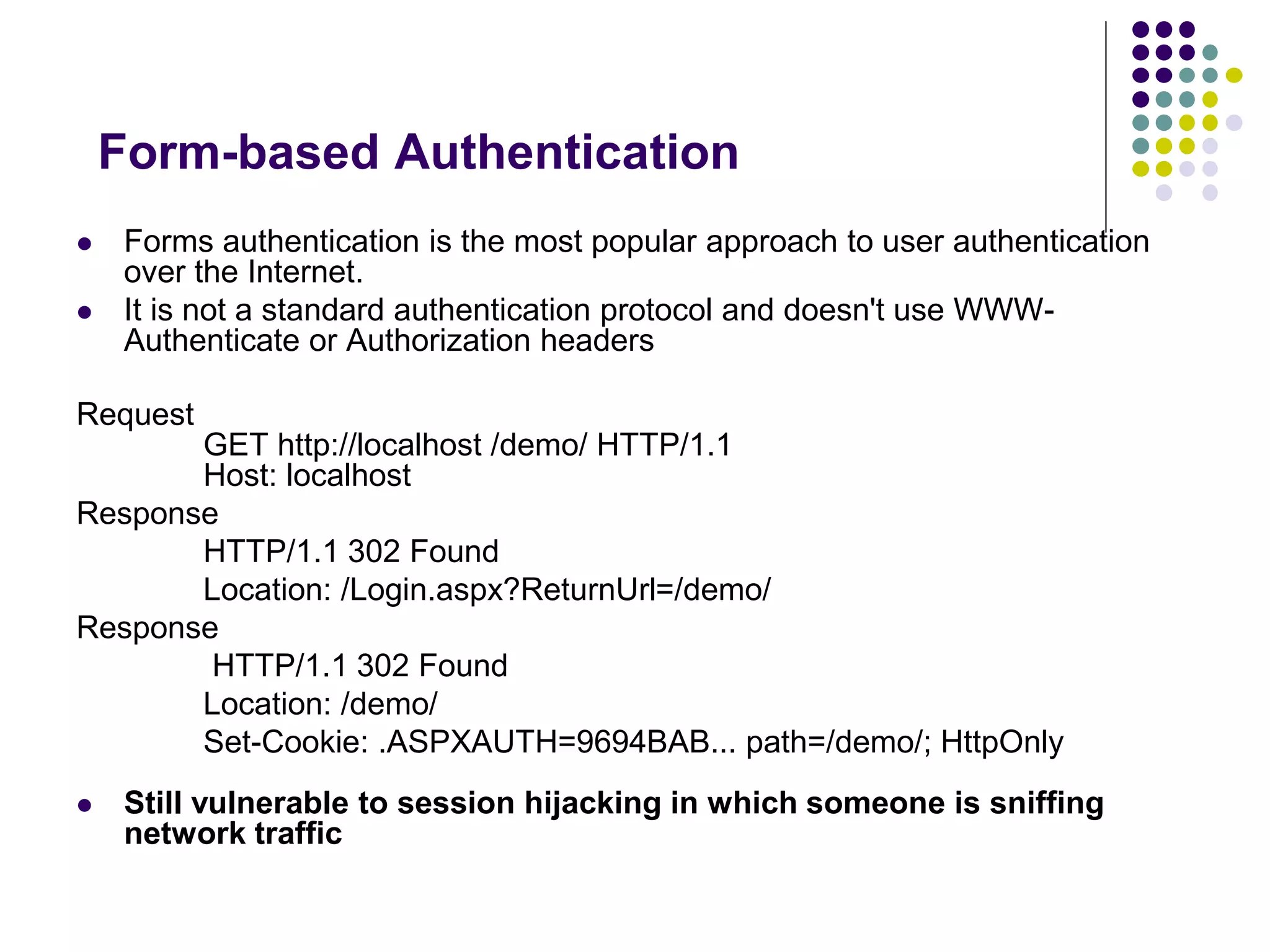

Form-based Authentication
 Forms authentication is the most popular approach to user authentication
over the Internet.
 It is not a standard authentication protocol and doesn't use WWW-Authenticate
or Authorization headers
Request
Host: localhost
Response
HTTP/1.1 302 Found
Location: /Login.aspx?ReturnUrl=/demo/
Response
HTTP/1.1 302 Found
Location: /demo/
Set-Cookie: .ASPXAUTH=9694BAB... path=/demo/; HttpOnly
 Still vulnerable to session hijacking in which someone is sniffing
network traffic

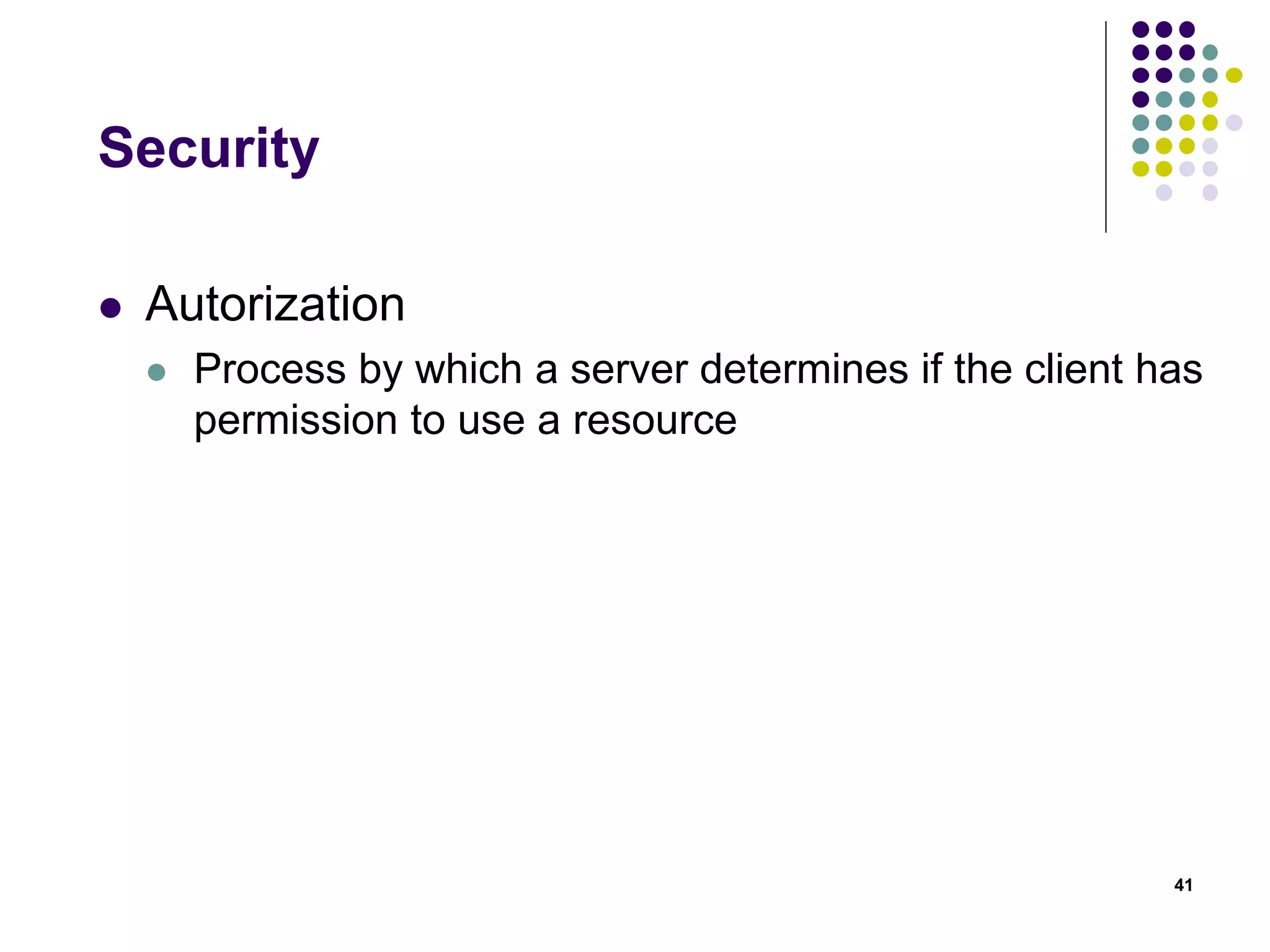

Security
 Autorization
 Process by which a server determines if the client has
permission to use a resource
41

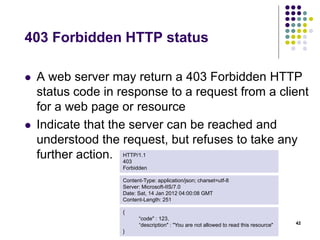

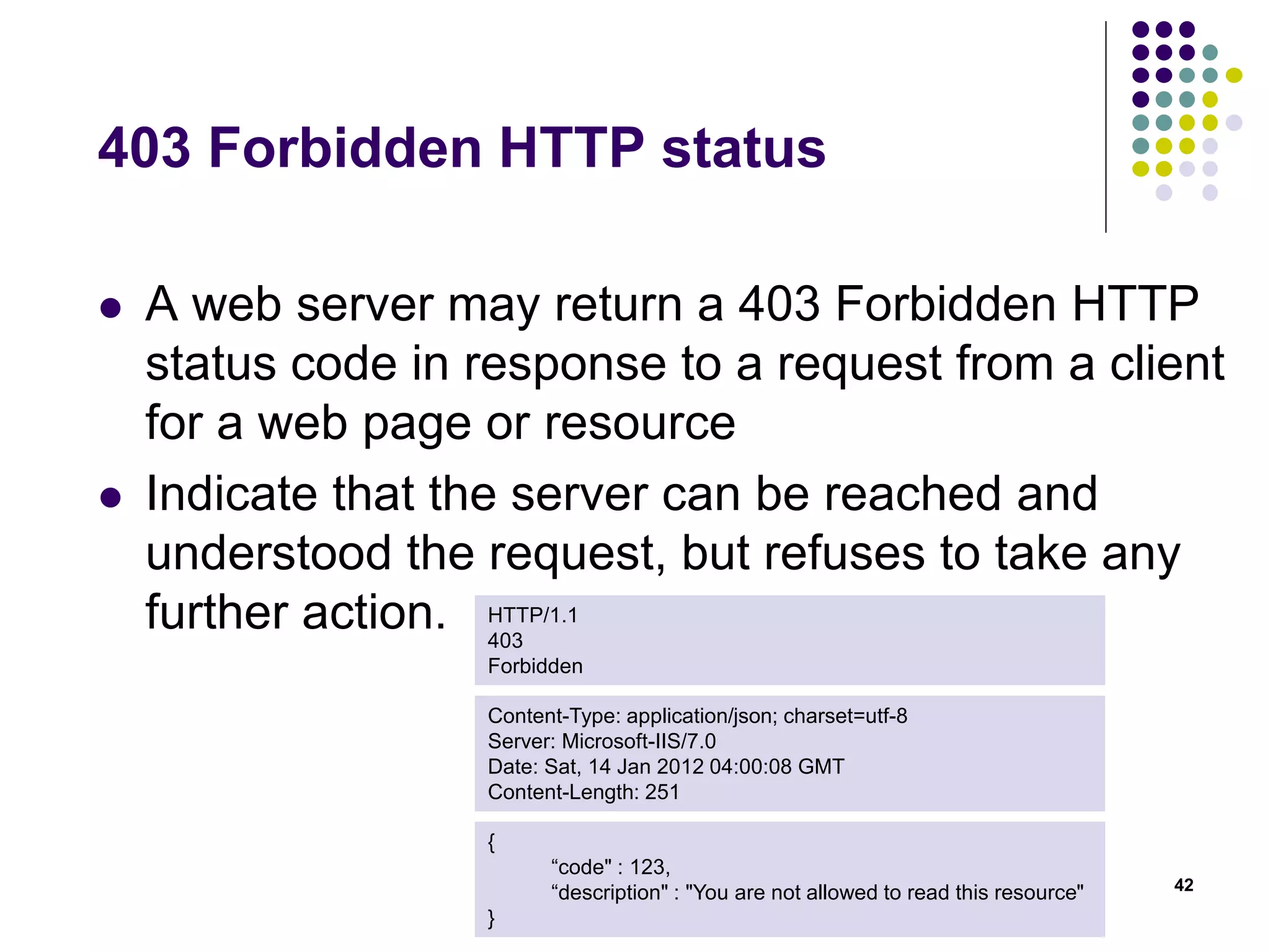

403 Forbidden HTTP status
 A web server may return a 403 Forbidden HTTP
status code in response to a request from a client
for a web page or resource
 Indicate that the server can be reached and
understood the request, but refuses to take any
further action.
42
HTTP/1.1
403
Forbidden
Content-Type: application/json; charset=utf-8
Date: Sat, 14 Jan 2012 04:00:08 GMT
Content-Length: 251
{
“code" : 123,
“description" : "You are not allowed to read this resource"
}

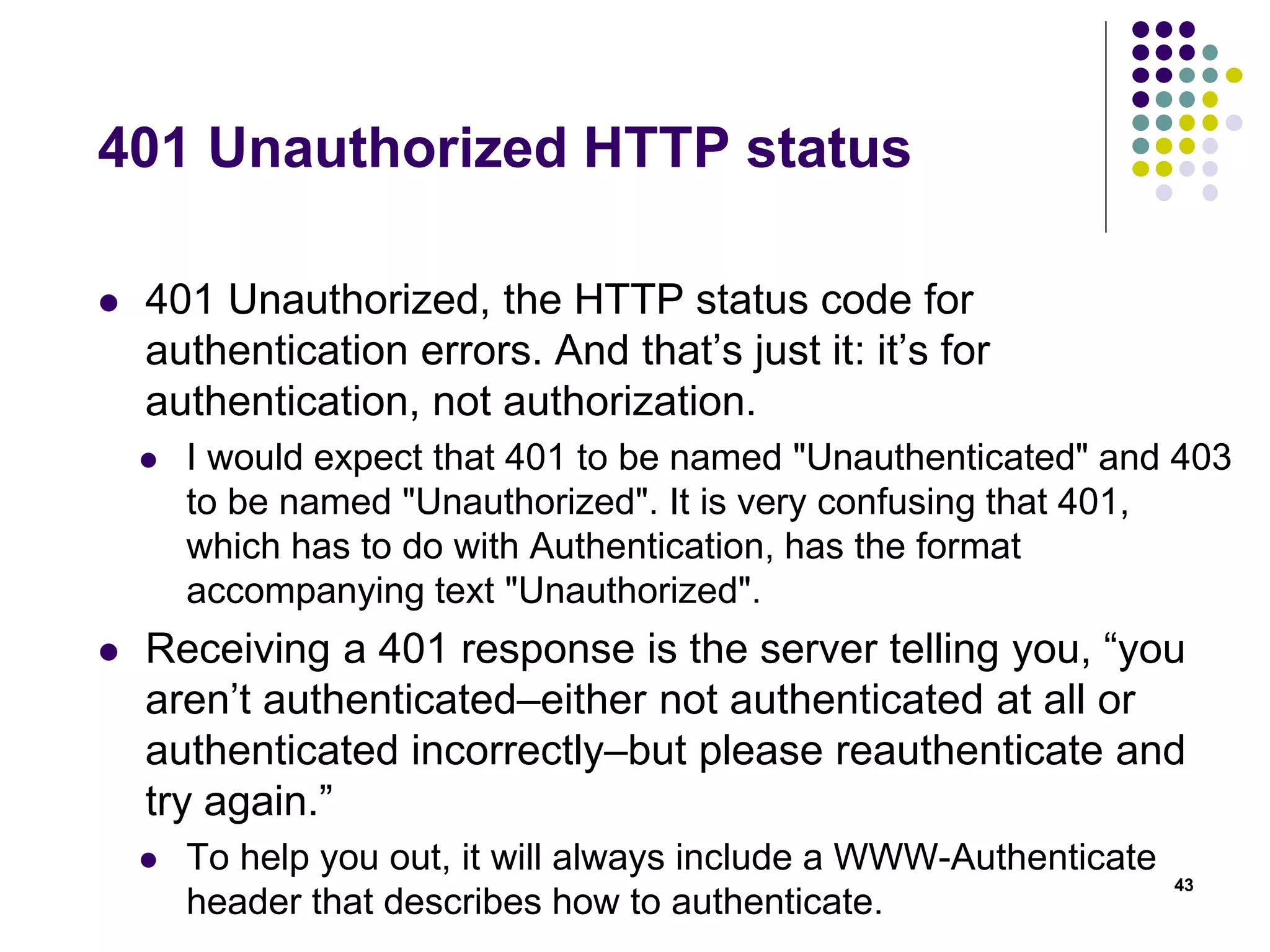

401 Unauthorized HTTP status
 401 Unauthorized, the HTTP status code for
authentication errors. And that’s just it: it’s for
authentication, not authorization.
 I would expect that 401 to be named "Unauthenticated" and 403
to be named "Unauthorized". It is very confusing that 401,
which has to do with Authentication, has the format
accompanying text "Unauthorized".
 Receiving a 401 response is the server telling you, “you
aren’t authenticated–either not authenticated at all or
authenticated incorrectly–but please reauthenticate and
try again.”
 To help you out, it will always include a WWW-Authenticate
header that describes how to authenticate.
43

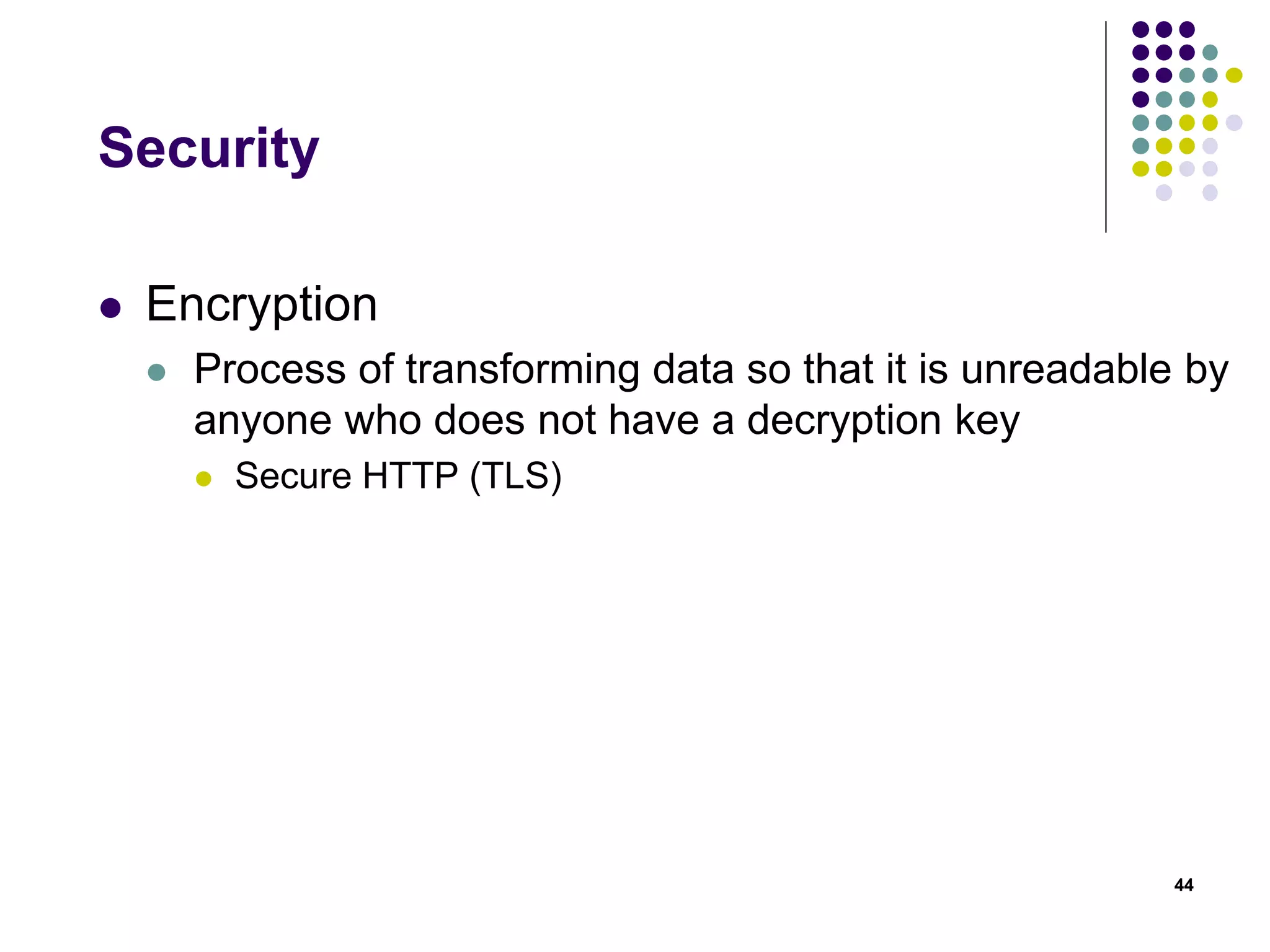

Security
 Encryption
 Process of transforming data so that it is unreadable by
anyone who does not have a decryption key
 Secure HTTP (TLS)
44

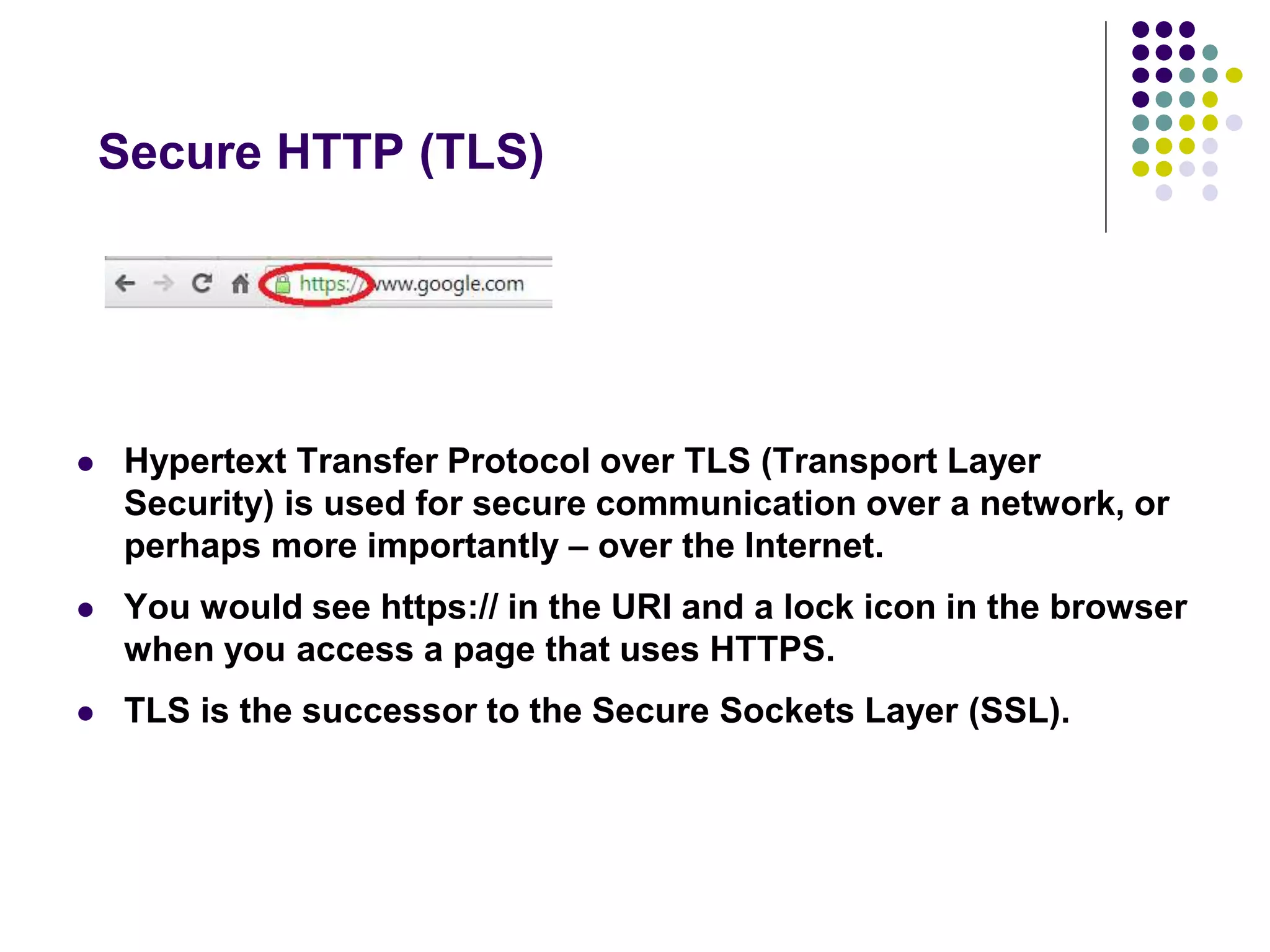

Secure HTTP (TLS)
 Hypertext Transfer Protocol over TLS (Transport Layer
Security) is used for secure communication over a network, or
perhaps more importantly – over the Internet.
 You would see https:// in the URI and a lock icon in the browser
when you access a page that uses HTTPS.
 TLS is the successor to the Secure Sockets Layer (SSL).

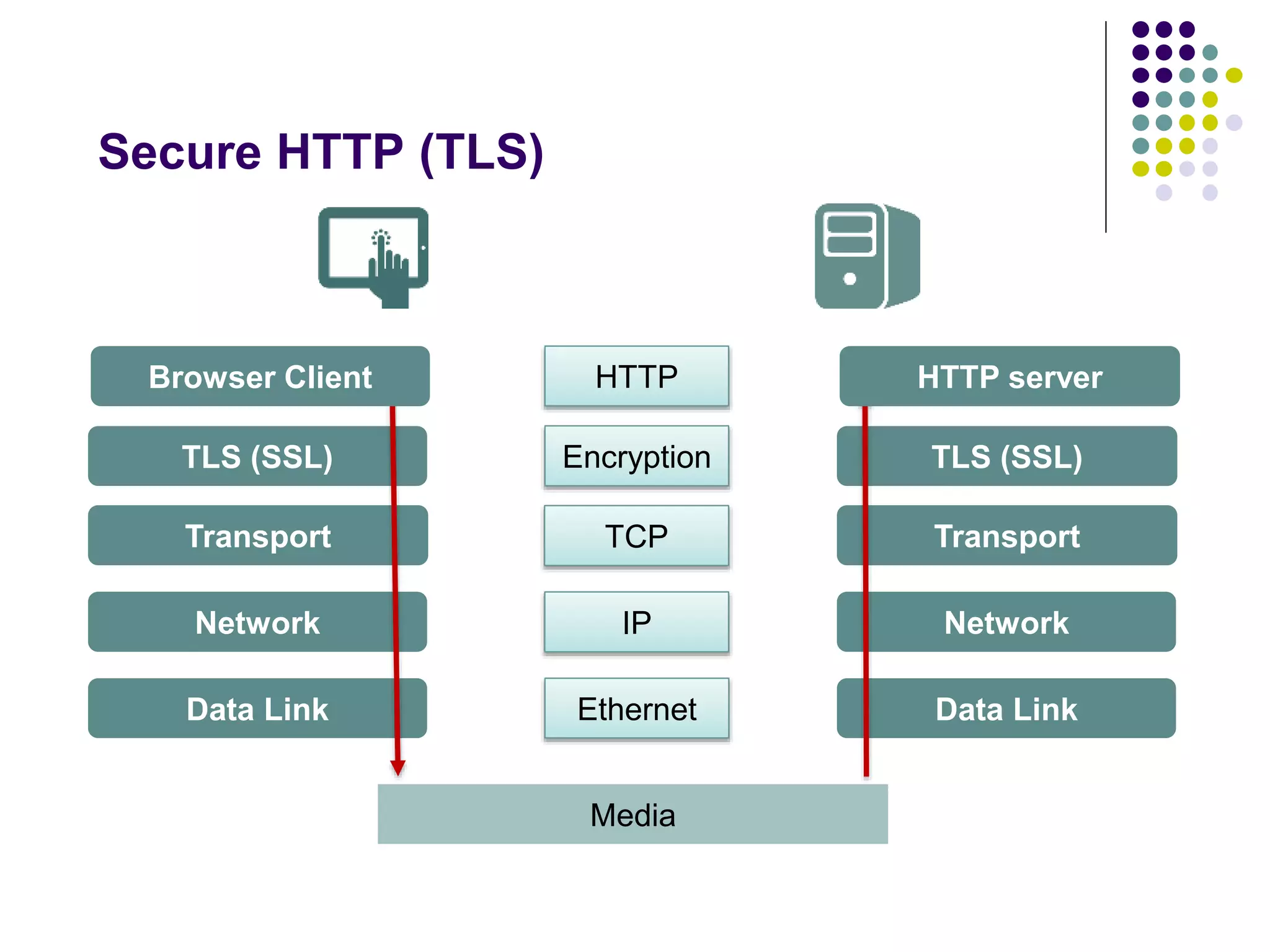

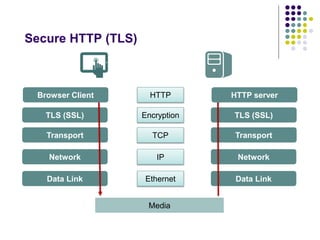

Secure HTTP (TLS)
Browser Client HTTP HTTP server
TLS (SSL) Encryption TLS (SSL)
TCP
Media
Transport
Network
Data Link Ethernet
Transport
Network
Data Link
IP

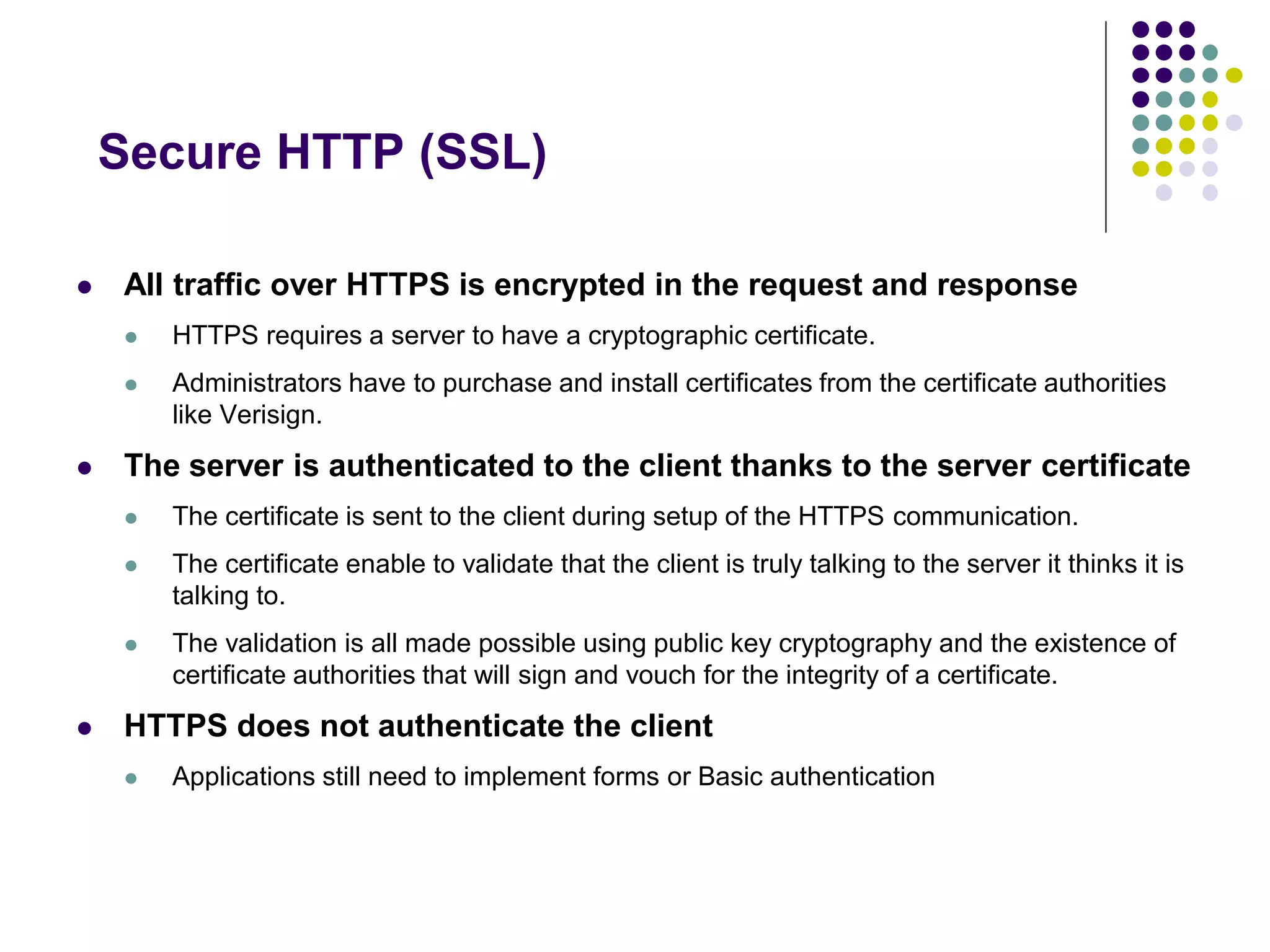

Secure HTTP (SSL)
 All traffic over HTTPS is encrypted in the request and response
 HTTPS requires a server to have a cryptographic certificate.
 Administrators have to purchase and install certificates from the certificate authorities
like Verisign.
 The server is authenticated to the client thanks to the server certificate
 The certificate is sent to the client during setup of the HTTPS communication.
 The certificate enable to validate that the client is truly talking to the server it thinks it is
talking to.
 The validation is all made possible using public key cryptography and the existence of
certificate authorities that will sign and vouch for the integrity of a certificate.
 HTTPS does not authenticate the client
 Applications still need to implement forms or Basic authentication

48
Do not hesitate to contact me
mcardinal@mariocardinal.com
@mario_cardinal
Q & A

HTTP fundamentals for developers

More Related Content

What's hot

Viewers also liked

Similar to HTTP fundamentals for developers

Recently uploaded

In this document

HTTP fundamentals for developers
