Http4s, Doobie and Circe: The Functional Web Stack

THE FUNCTIONAL WEB STACK
HTTP4S, DOOBIE & CIRCE
Gary Coady
gcoady@gilt.com

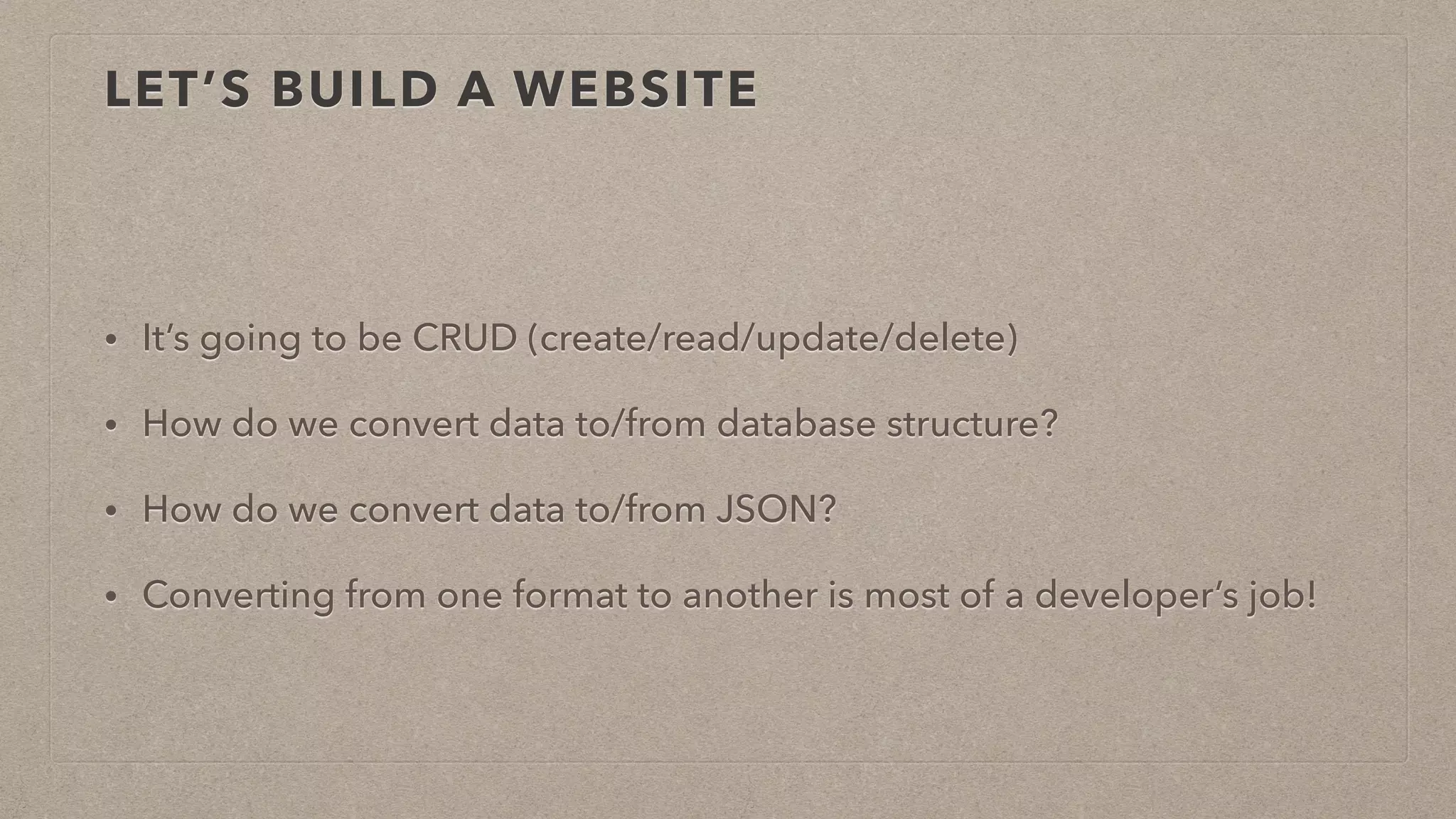

LET’S BUILD A WEBSITE
• It’s going to be CRUD (create/read/update/delete)
• How do we convert data to/from database structure?
• How do we convert data to/from JSON?
• Converting from one format to another is most of a developer’s job!

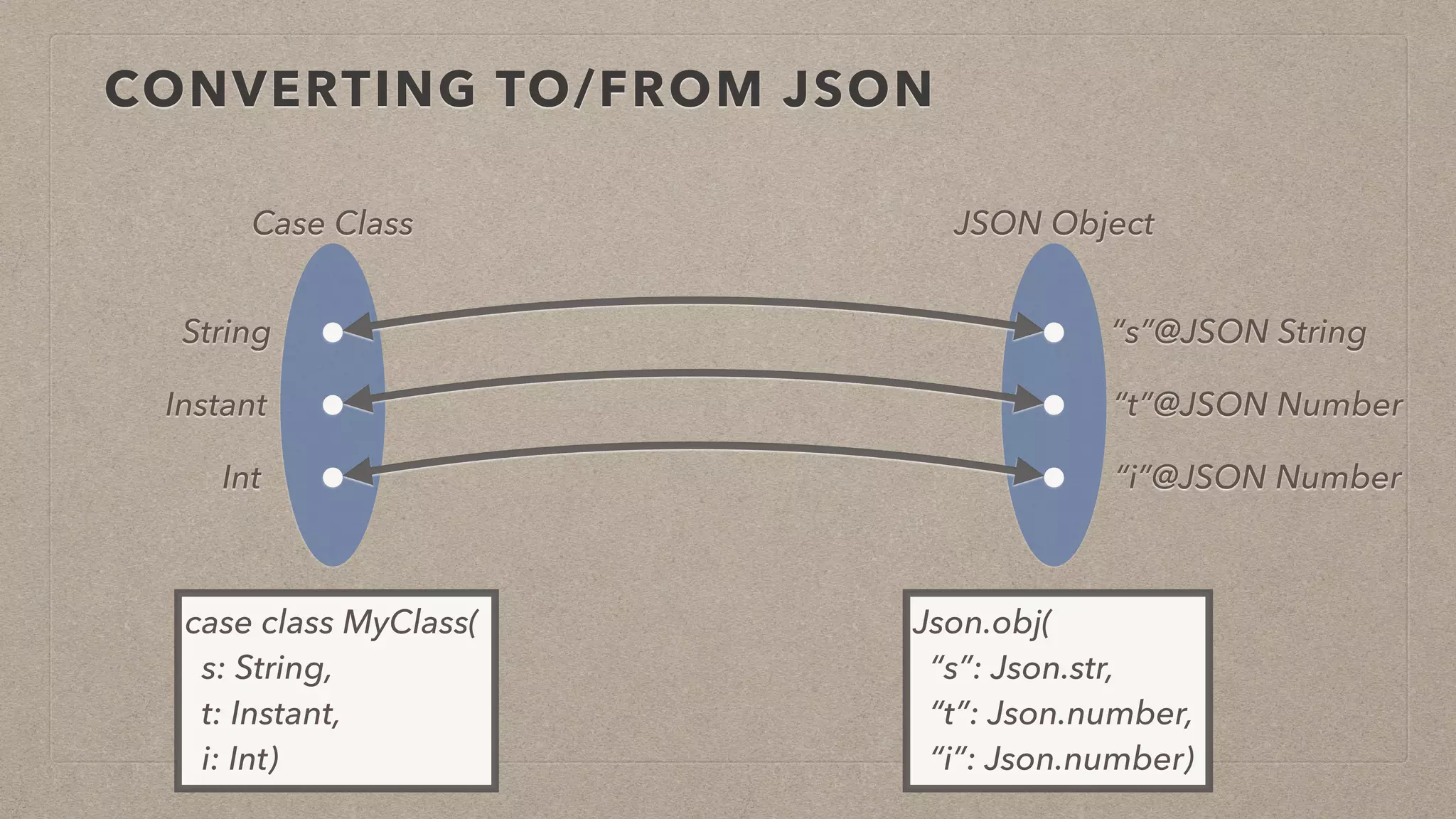

CONVERTING TO/FROM JSON
String
Instant
Int
case class MyClass(
s: String,
t: Instant,
i: Int)
“s”@JSON String
“t”@JSON Number
“i”@JSON Number
Json.obj(
“s”: Json.str,
“t”: Json.number,
“i”: Json.number)
Case Class JSON Object

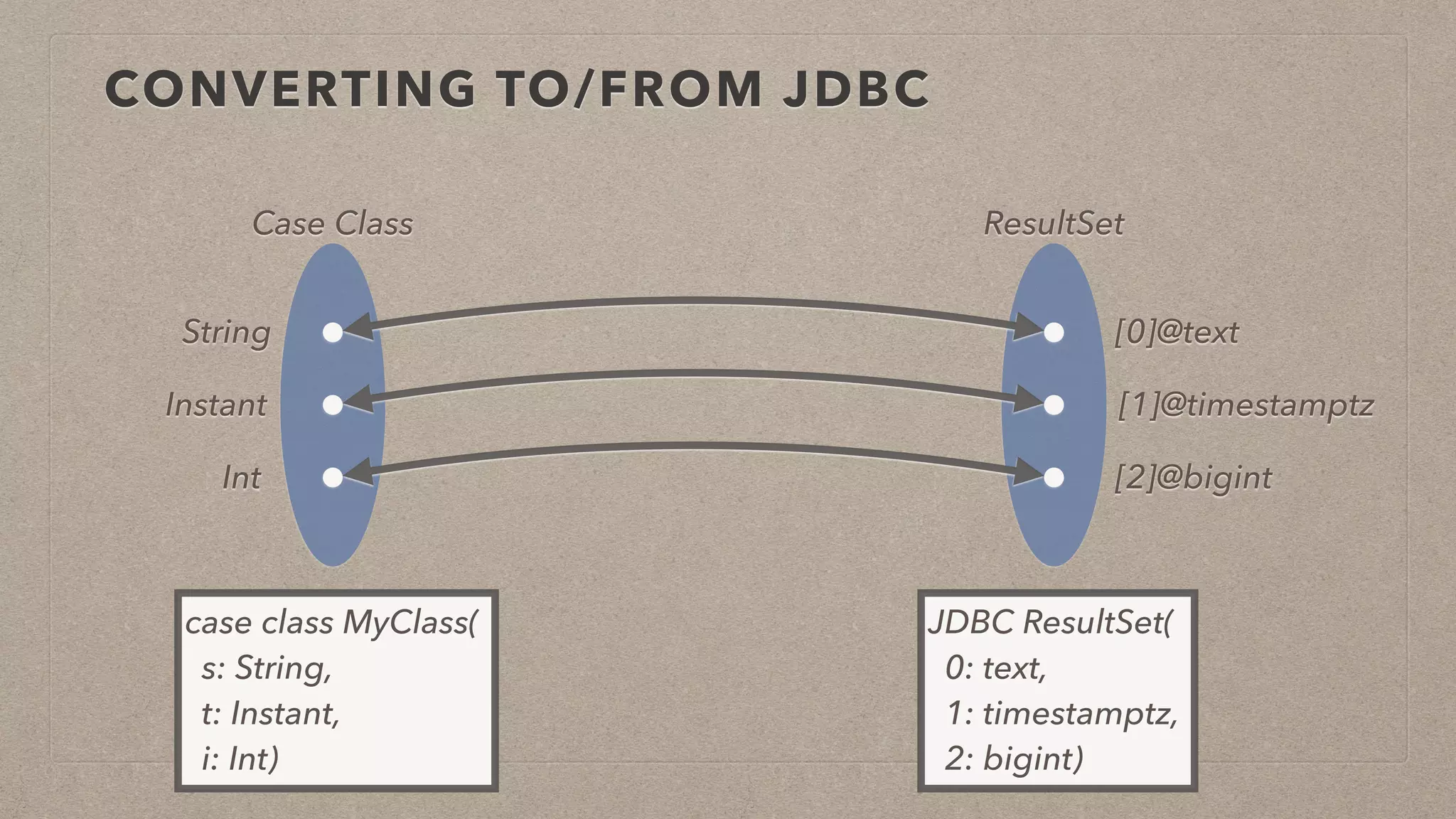

CONVERTING TO/FROM JDBC
String
Instant
Int
case class MyClass(
s: String,
t: Instant,
i: Int)
[0]@text
[1]@timestamptz
[2]@bigint
JDBC ResultSet(
0: text,
1: timestamptz,
2: bigint)
Case Class ResultSet

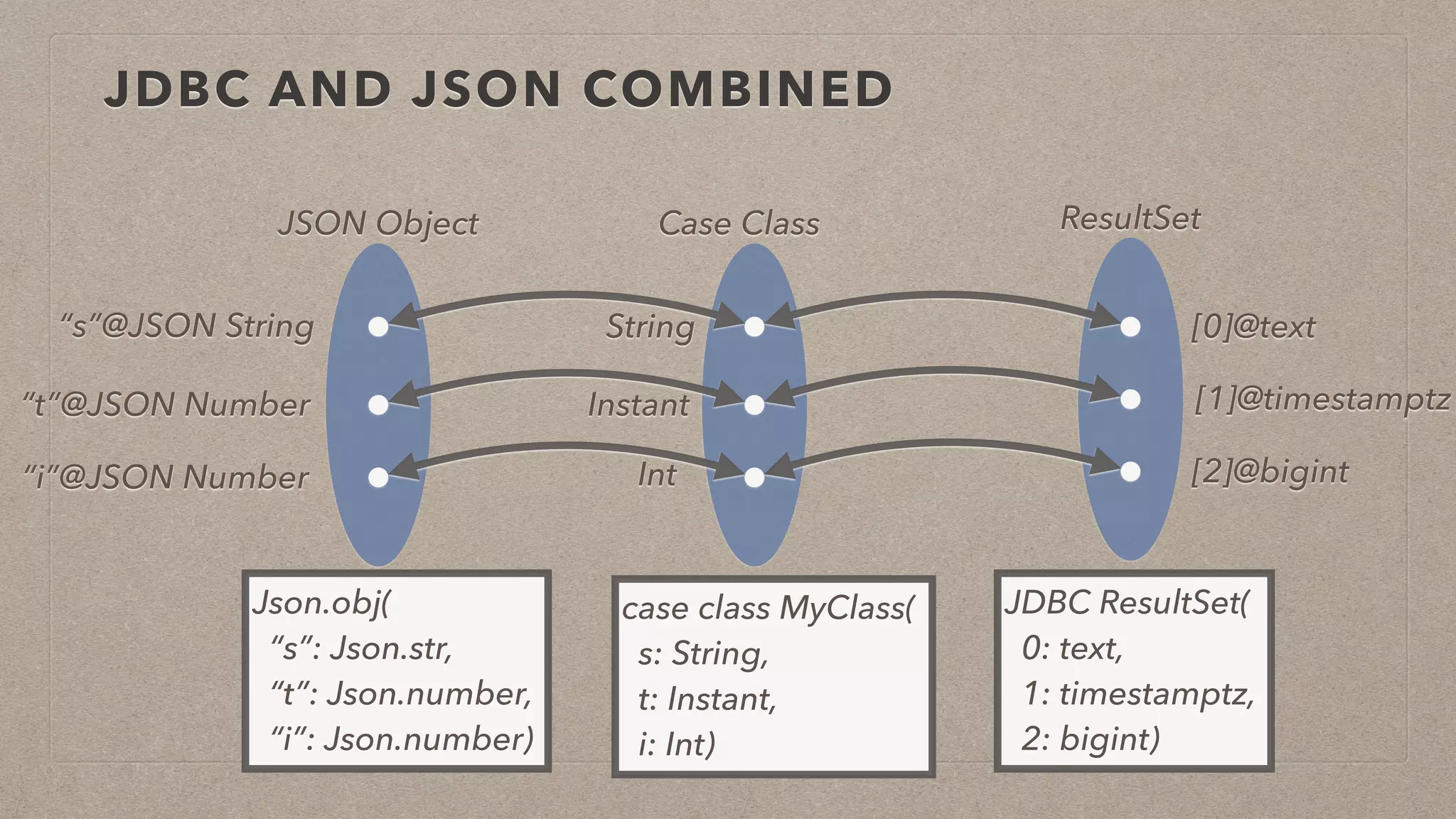

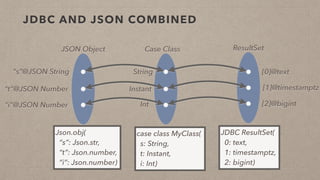

JDBC AND JSON COMBINED
String
Instant
Int
case class MyClass(
s: String,
t: Instant,
i: Int)
[0]@text
[1]@timestamptz
[2]@bigint
JDBC ResultSet(
0: text,
1: timestamptz,
2: bigint)
Case Class ResultSet
“s”@JSON String
“t”@JSON Number
“i”@JSON Number
JSON Object
Json.obj(
“s”: Json.str,
“t”: Json.number,
“i”: Json.number)

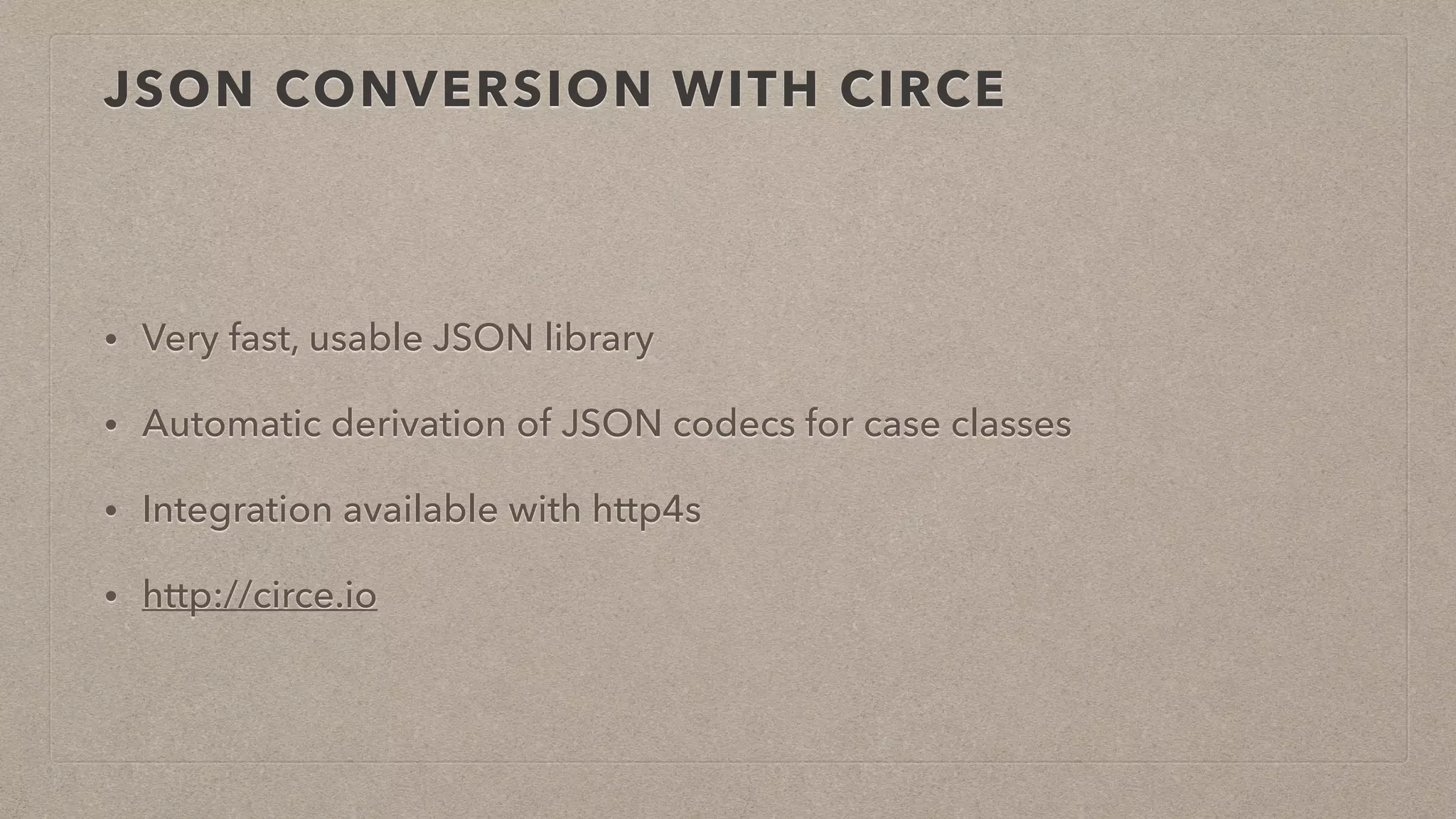

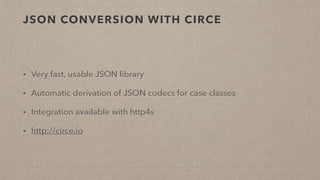

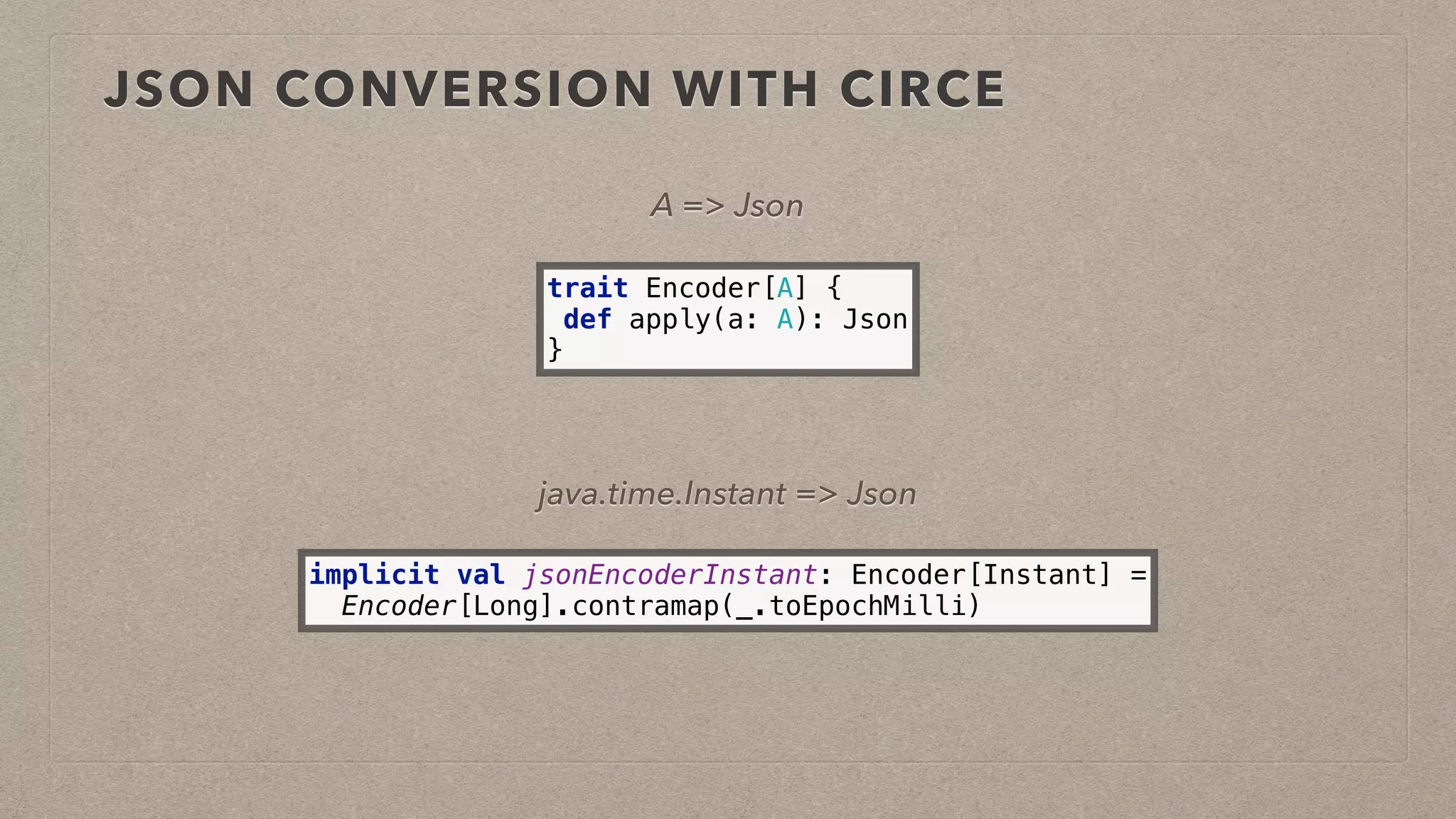

JSON CONVERSION WITH CIRCE
• Very fast, usable JSON library
• Automatic derivation of JSON codecs for case classes
• Integration available with http4s
• http://circe.io

trait Encoder[A] { 
def apply(a: A): Json 
}
A => Json
java.time.Instant => Json
implicit val jsonEncoderInstant: Encoder[Instant] = 
Encoder[Long].contramap(_.toEpochMilli)

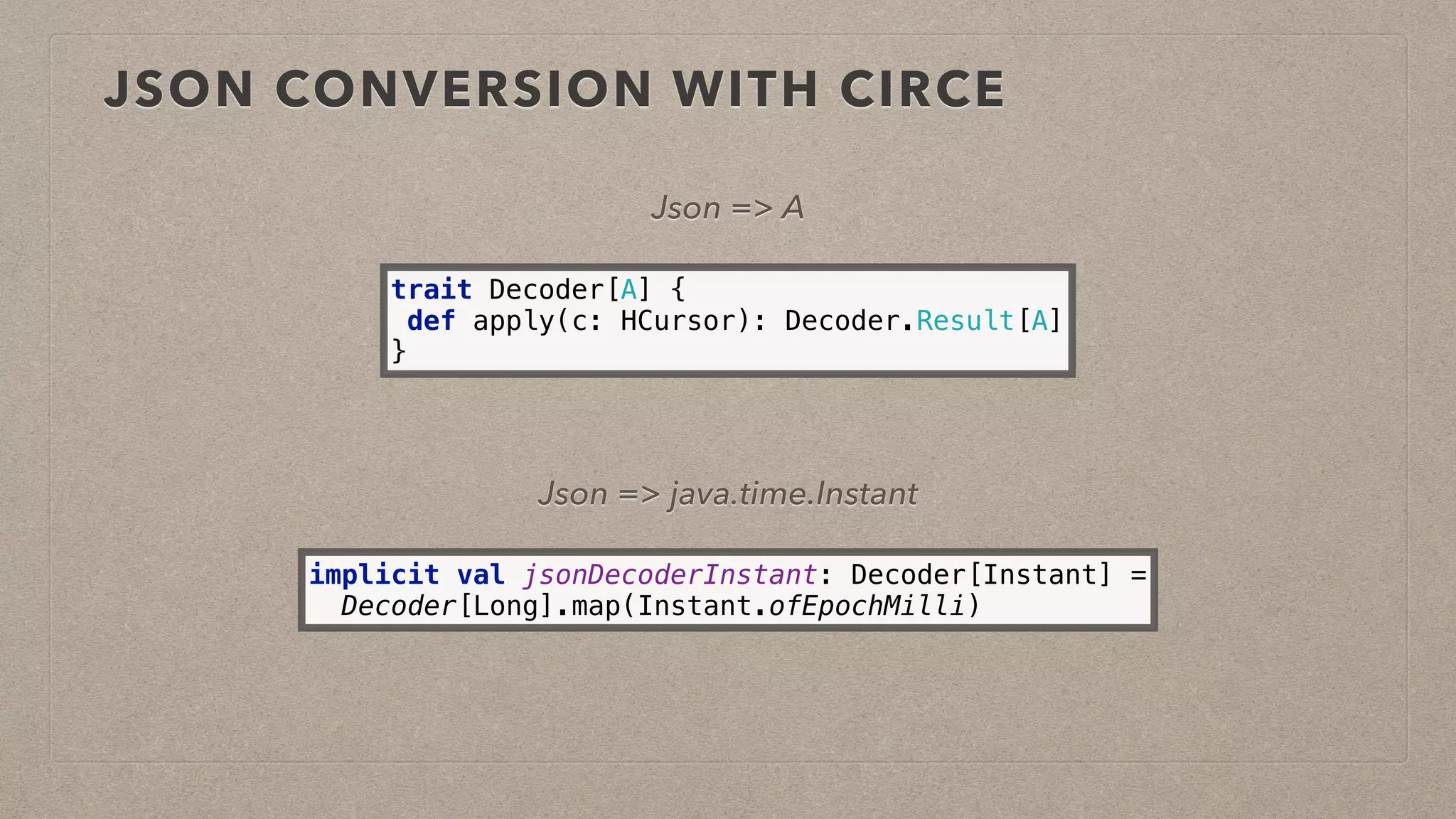

trait Decoder[A] { 
def apply(c: HCursor): Decoder.Result[A] 
}
Json => A
implicit val jsonDecoderInstant: Decoder[Instant] = 
Decoder[Long].map(Instant.ofEpochMilli)
Json => java.time.Instant

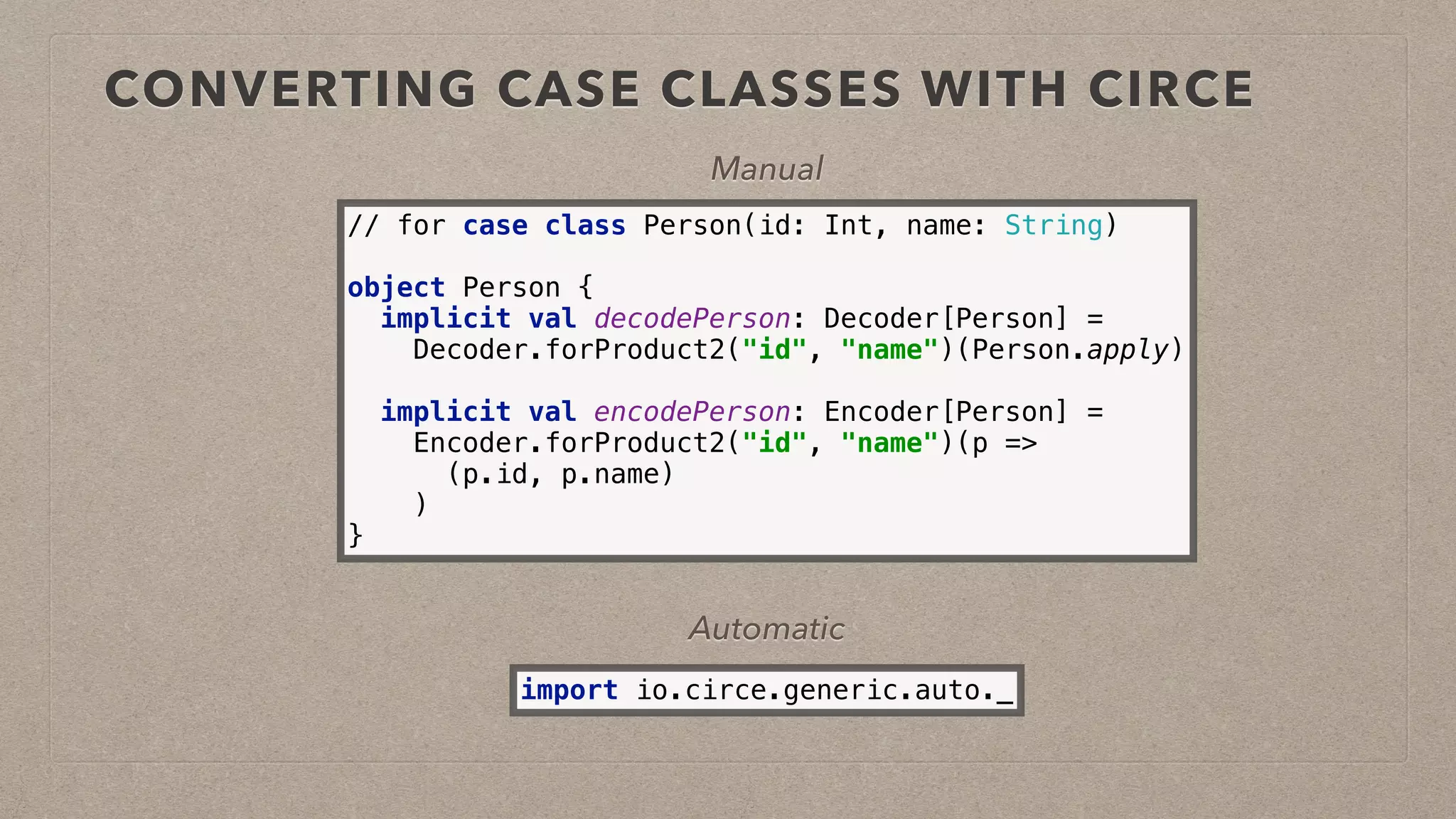

CONVERTING CASE CLASSES WITH CIRCE
Automatic
import io.circe.generic.auto._
Manual
// for case class Person(id: Int, name: String)
object Person { 
implicit val decodePerson: Decoder[Person] = 
Decoder.forProduct2("id", "name")(Person.apply) 
 
implicit val encodePerson: Encoder[Person] = 
Encoder.forProduct2("id", "name")(p => 
(p.id, p.name) 
) 
}

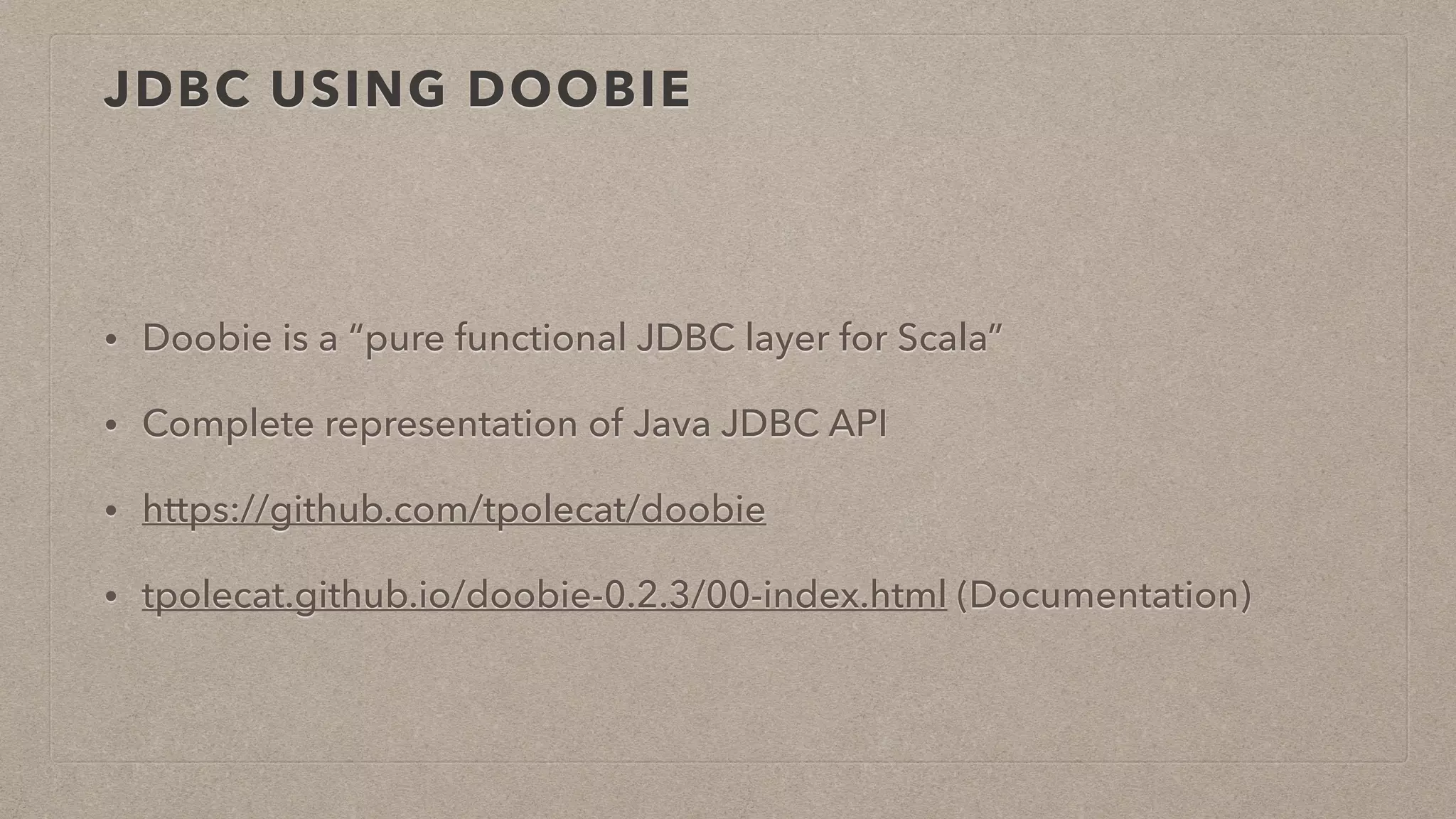

JDBC USING DOOBIE
• Doobie is a “pure functional JDBC layer for Scala”
• Complete representation of Java JDBC API
• https://github.com/tpolecat/doobie
• tpolecat.github.io/doobie-0.2.3/00-index.html (Documentation)

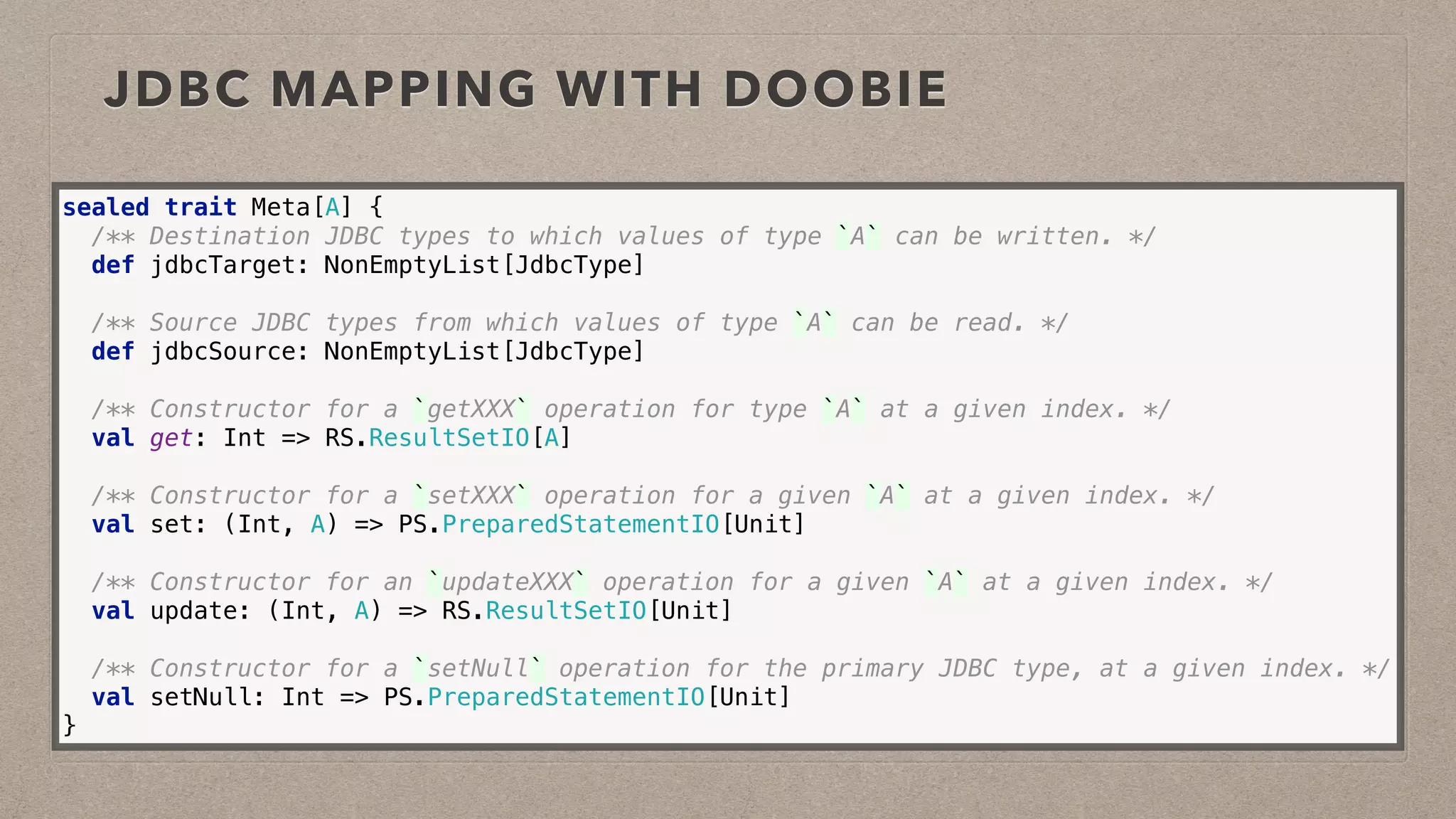

JDBC MAPPING WITH DOOBIE
sealed trait Meta[A] { 
/** Destination JDBC types to which values of type À` can be written. */ 
def jdbcTarget: NonEmptyList[JdbcType] 
 
/** Source JDBC types from which values of type À` can be read. */ 
def jdbcSource: NonEmptyList[JdbcType] 
 
/** Constructor for a `getXXX` operation for type À` at a given index. */ 
val get: Int => RS.ResultSetIO[A]
 
/** Constructor for a `setXXX` operation for a given À` at a given index. */ 
val set: (Int, A) => PS.PreparedStatementIO[Unit]  
 
/** Constructor for an ùpdateXXX` operation for a given À` at a given index. */ 
val update: (Int, A) => RS.ResultSetIO[Unit]  
 
/** Constructor for a `setNull` operation for the primary JDBC type, at a given index. */ 
val setNull: Int => PS.PreparedStatementIO[Unit] 
}

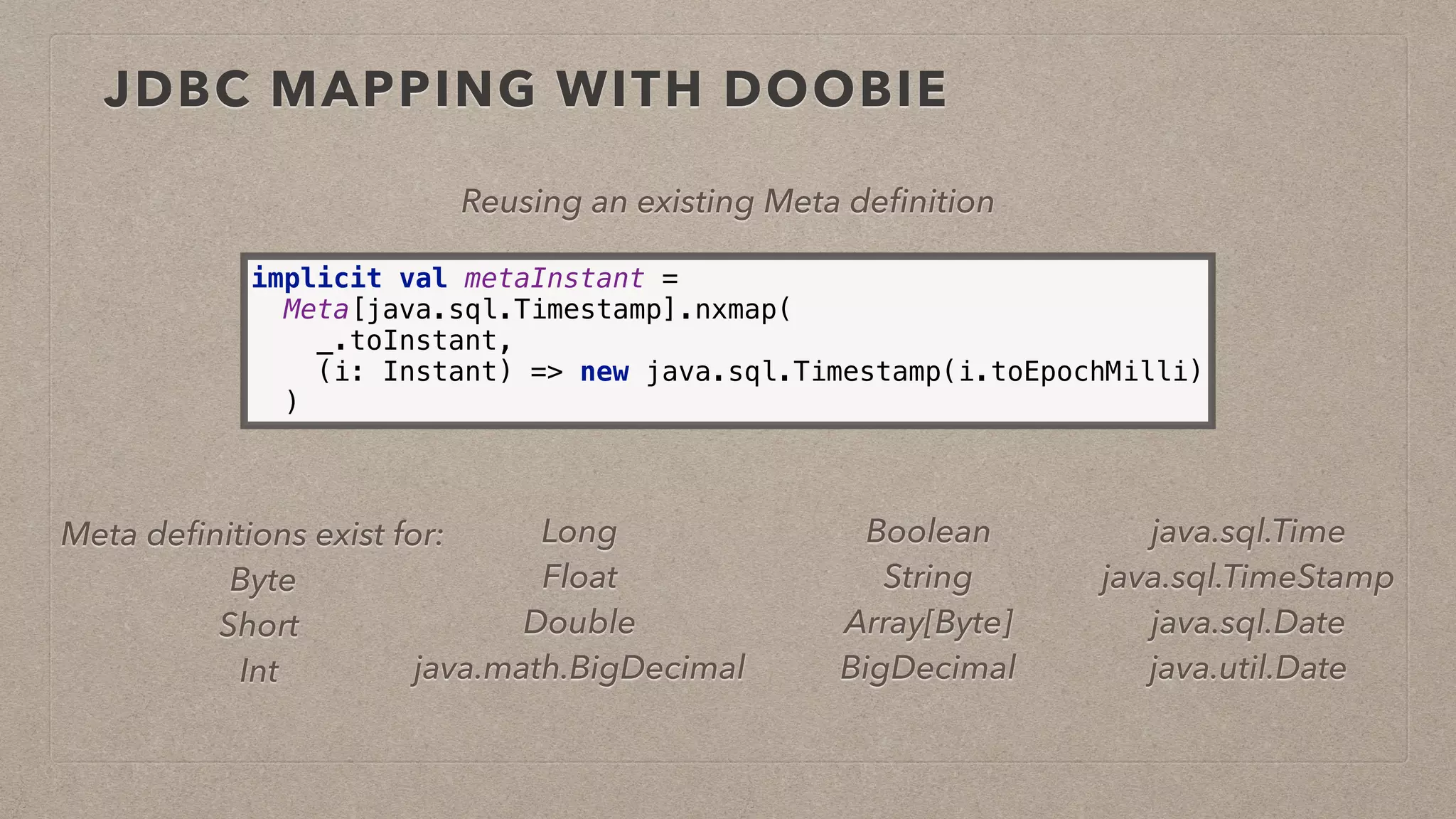

JDBC MAPPING WITH DOOBIE
implicit val metaInstant = 
Meta[java.sql.Timestamp].nxmap( 
_.toInstant, 
(i: Instant) => new java.sql.Timestamp(i.toEpochMilli) 
)
Reusing an existing Meta deﬁnition
Meta deﬁnitions exist for:
Byte
Short
Int
Boolean
String
Array[Byte]
BigDecimal
Long
Float
Double
java.math.BigDecimal
java.sql.Time
java.sql.TimeStamp
java.sql.Date
java.util.Date

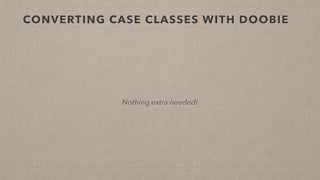

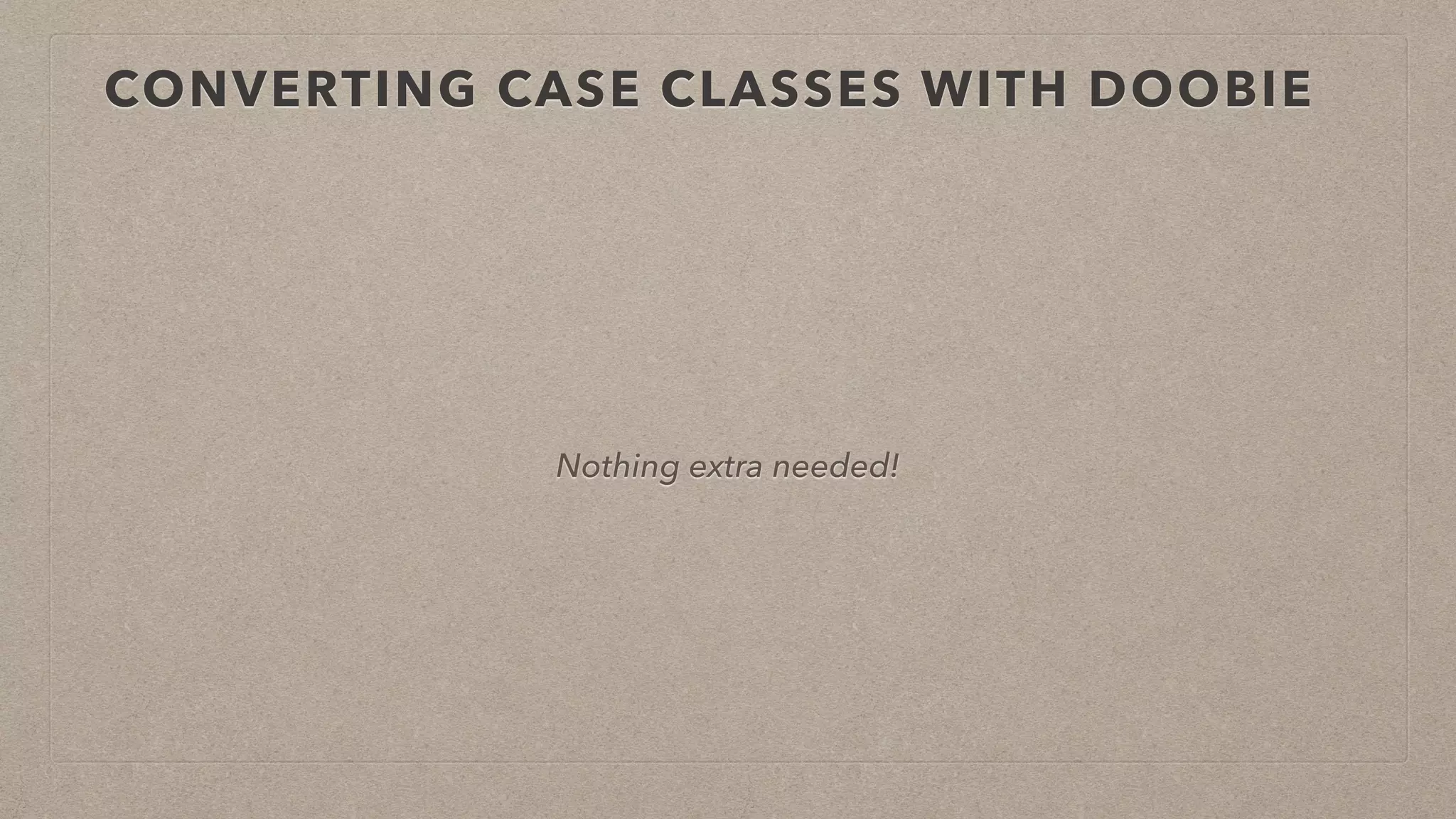

CONVERTING CASE CLASSES WITH DOOBIE
Nothing extra needed!

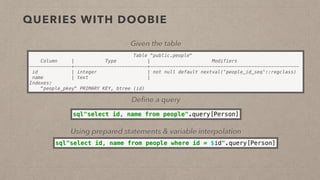

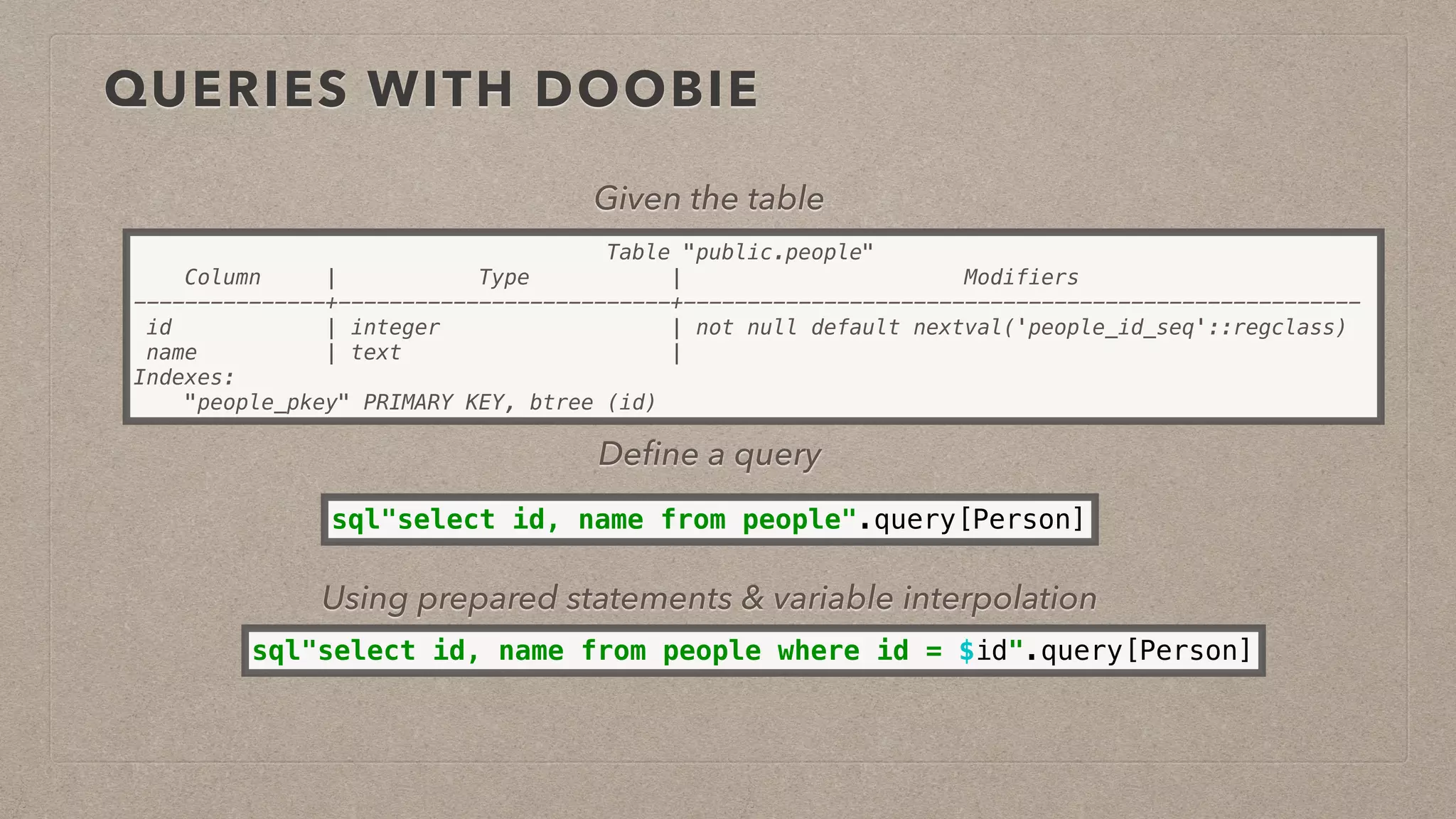

QUERIES WITH DOOBIE
sql"select id, name from people".query[Person]
Table "public.people"
Column | Type | Modifiers
---------------+--------------------------+-----------------------------------------------------
id | integer | not null default nextval('people_id_seq'::regclass)
name | text |
Indexes:
"people_pkey" PRIMARY KEY, btree (id)
Given the table
Deﬁne a query
sql"select id, name from people where id = $id".query[Person]
Using prepared statements & variable interpolation

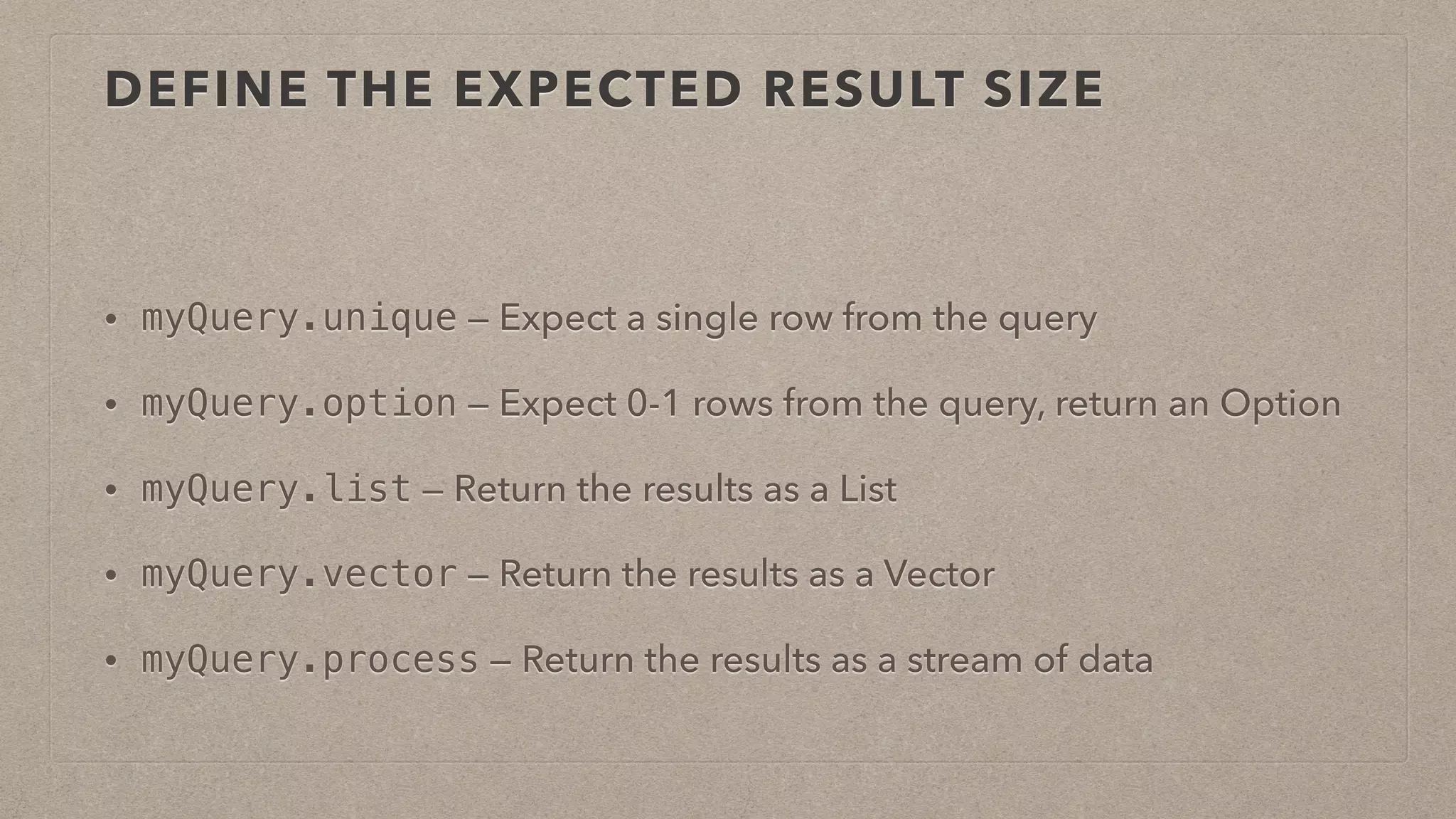

DEFINE THE EXPECTED RESULT SIZE
• myQuery.unique — Expect a single row from the query
• myQuery.option — Expect 0-1 rows from the query, return an Option
• myQuery.list — Return the results as a List
• myQuery.vector — Return the results as a Vector
• myQuery.process — Return the results as a stream of data

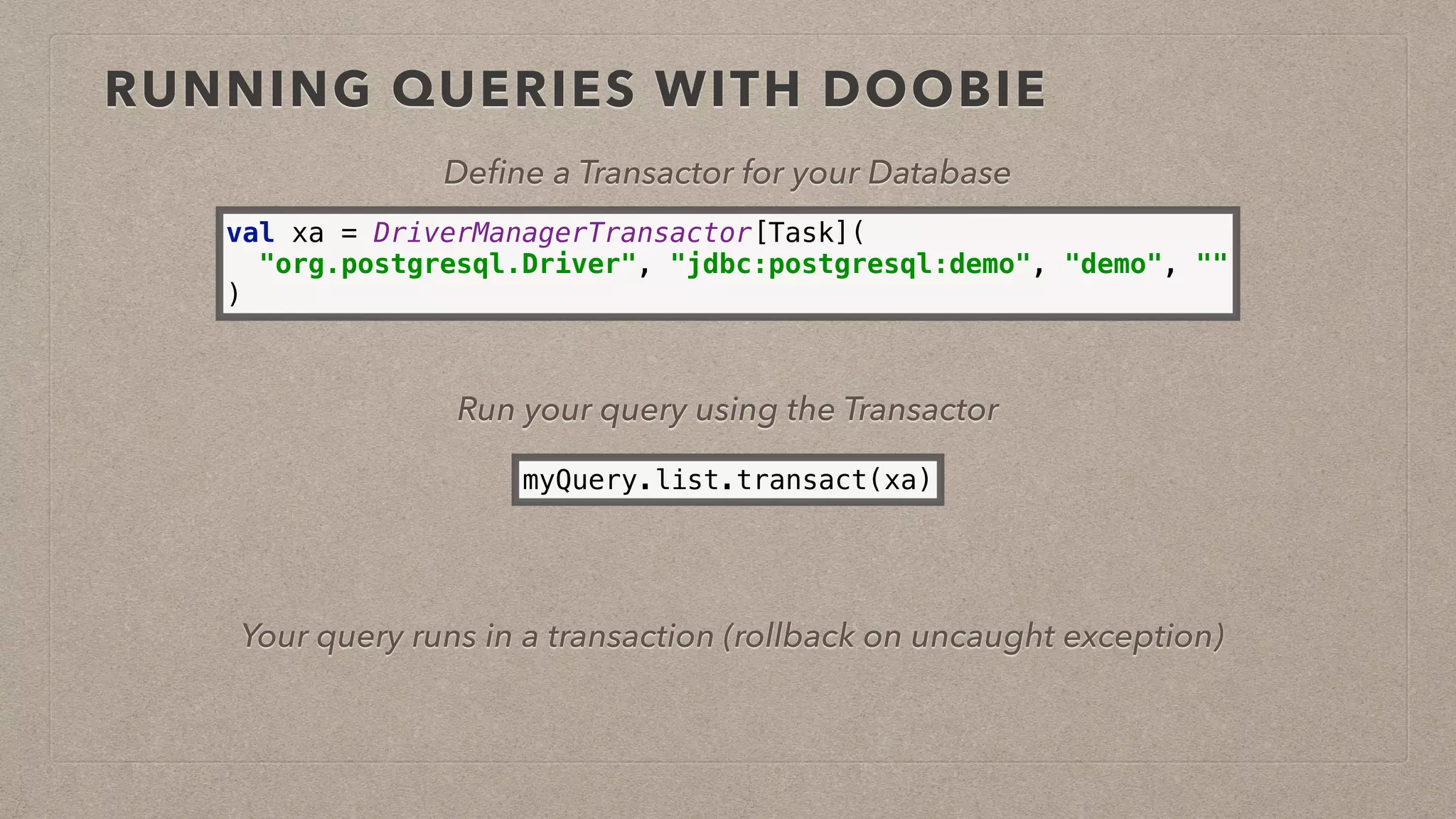

RUNNING QUERIES WITH DOOBIE
Deﬁne a Transactor for your Database
val xa = DriverManagerTransactor[Task]( 
"org.postgresql.Driver", "jdbc:postgresql:demo", "demo", "" 
)
Run your query using the Transactor
myQuery.list.transact(xa)
Your query runs in a transaction (rollback on uncaught exception)

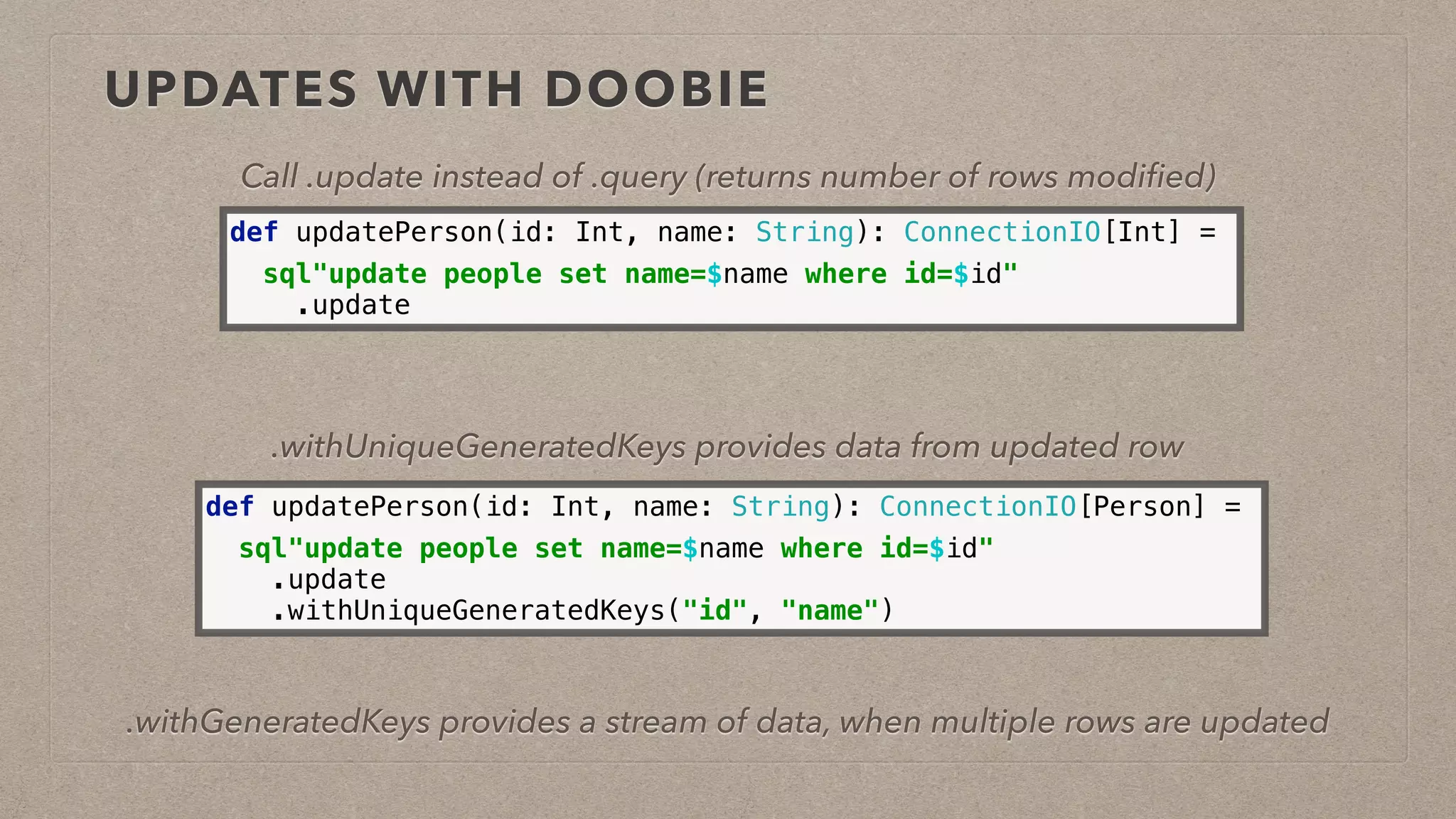

UPDATES WITH DOOBIE
Call .update instead of .query (returns number of rows modiﬁed)
def updatePerson(id: Int, name: String): ConnectionIO[Int] =
sql"update people set name=$name where id=$id" 
.update
def updatePerson(id: Int, name: String): ConnectionIO[Person] =
sql"update people set name=$name where id=$id" 
.update 
.withUniqueGeneratedKeys("id", "name")
.withUniqueGeneratedKeys provides data from updated row
.withGeneratedKeys provides a stream of data, when multiple rows are updated

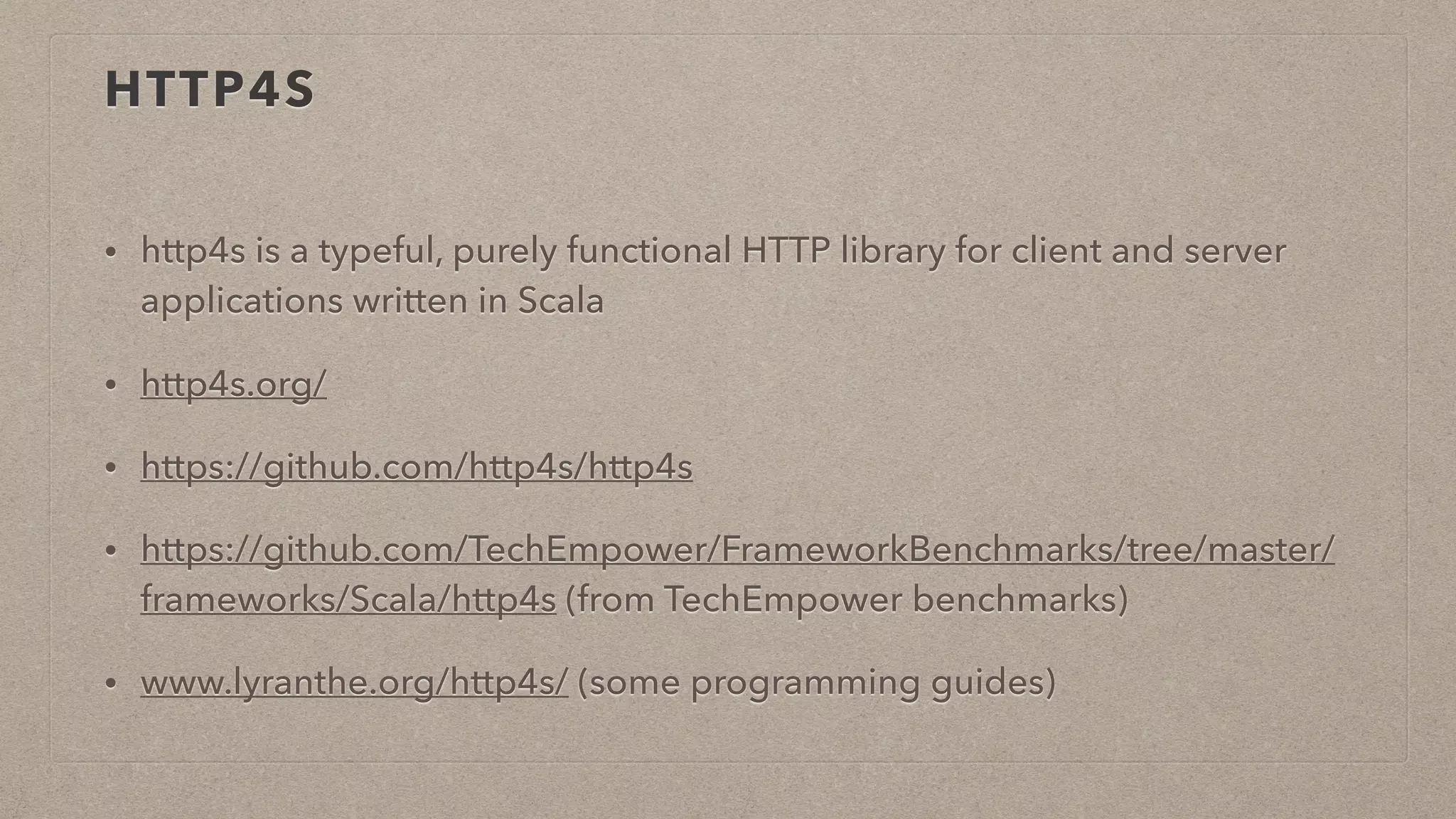

HTTP4S
• http4s is a typeful, purely functional HTTP library for client and server
applications written in Scala
• http4s.org/
• https://github.com/http4s/http4s
• https://github.com/TechEmpower/FrameworkBenchmarks/tree/master/
frameworks/Scala/http4s (from TechEmpower benchmarks)
• www.lyranthe.org/http4s/ (some programming guides)

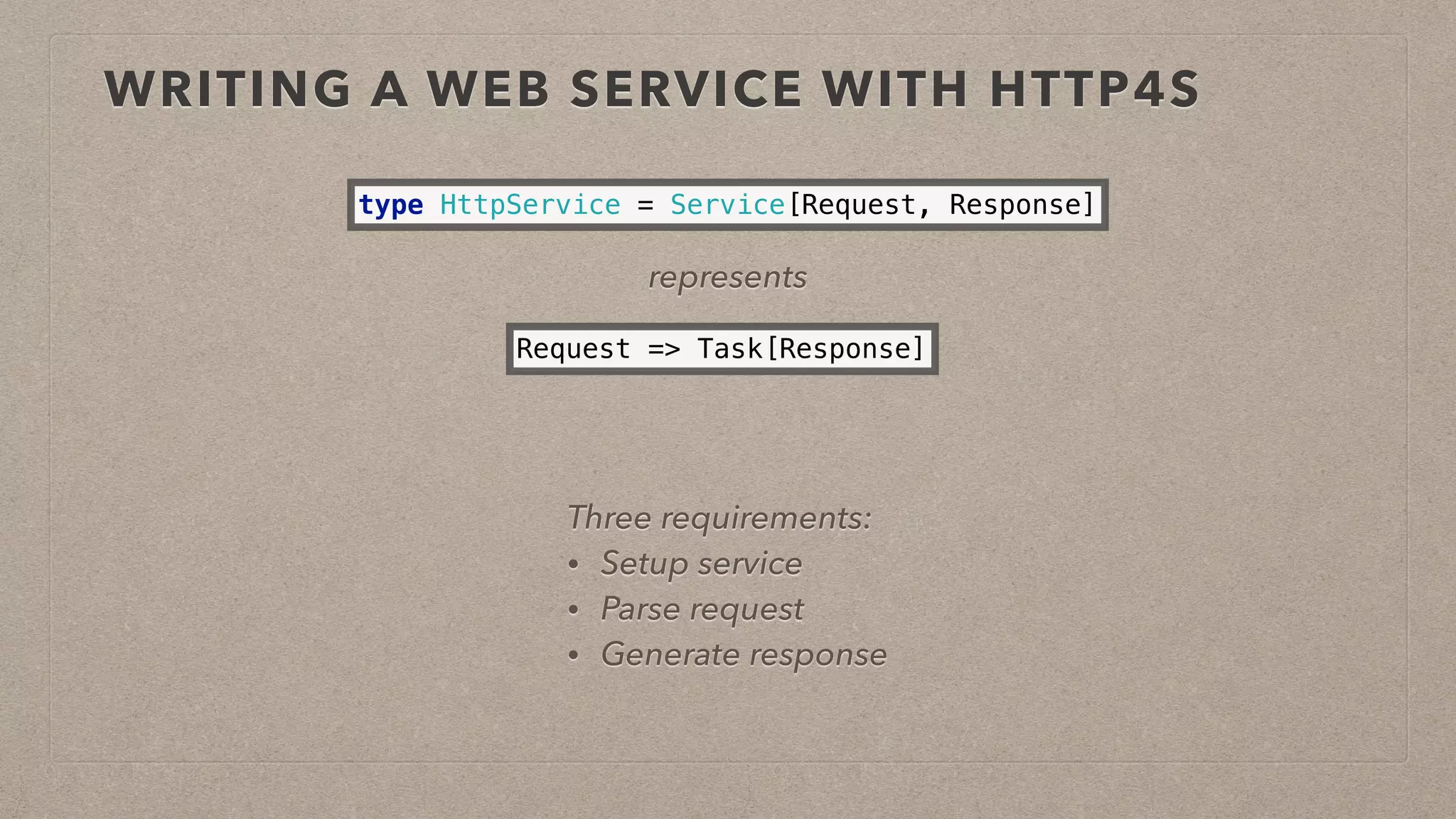

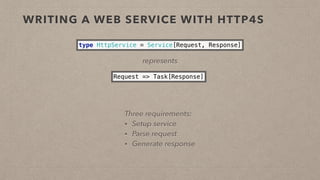

WRITING A WEB SERVICE WITH HTTP4S
type HttpService = Service[Request, Response]
represents
Request => Task[Response]
Three requirements:
• Setup service
• Parse request
• Generate response

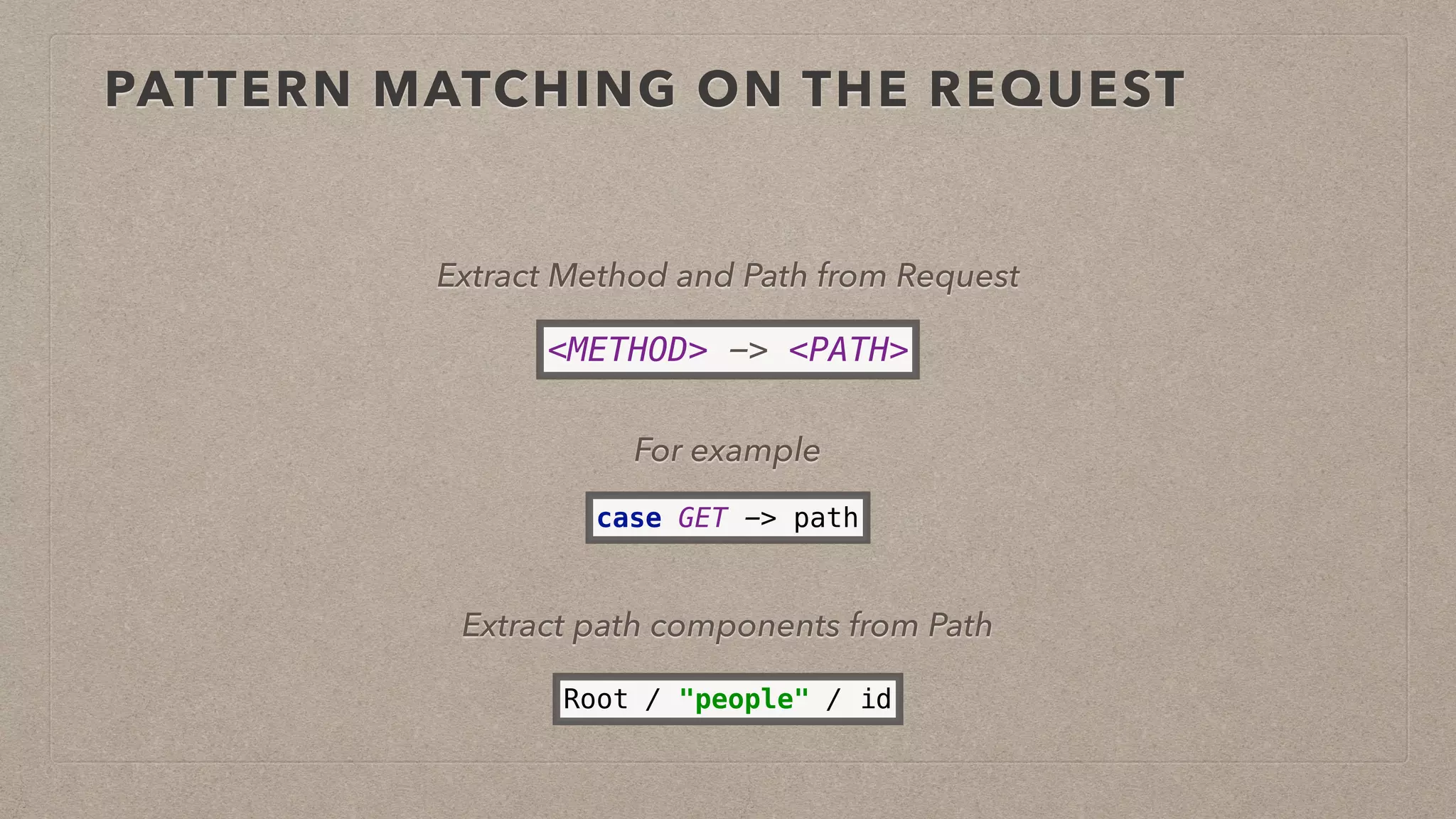

PATTERN MATCHING ON THE REQUEST
<METHOD> -> <PATH>
Extract Method and Path from Request
For example
case GET -> path
Root / "people" / id
Extract path components from Path

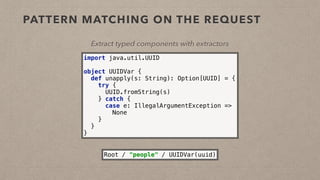

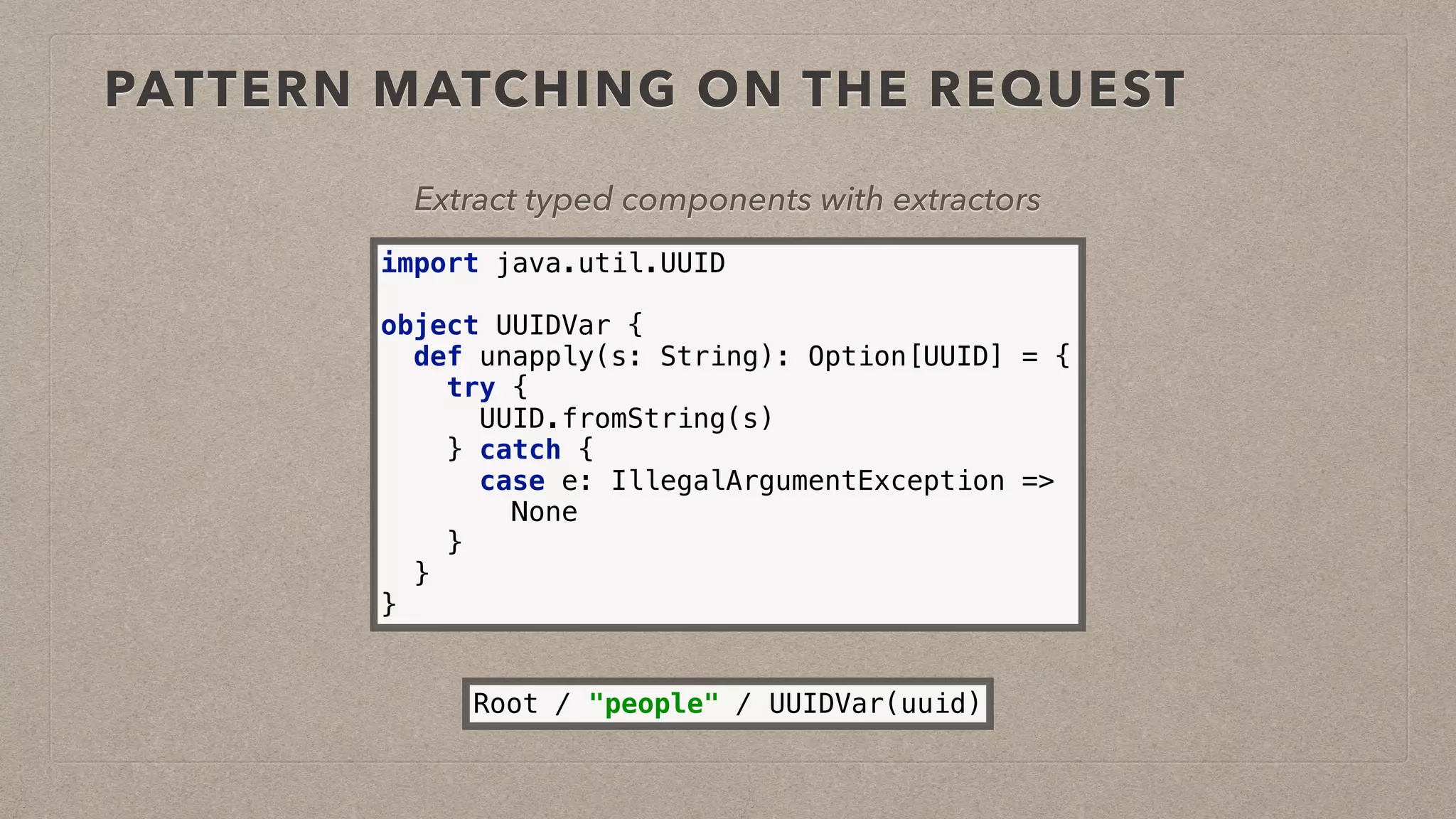

PATTERN MATCHING ON THE REQUEST
Extract typed components with extractors
import java.util.UUID 
 
object UUIDVar { 
def unapply(s: String): Option[UUID] = { 
try { 
UUID.fromString(s) 
} catch { 
case e: IllegalArgumentException => 
None 
} 
} 
}
Root / "people" / UUIDVar(uuid)

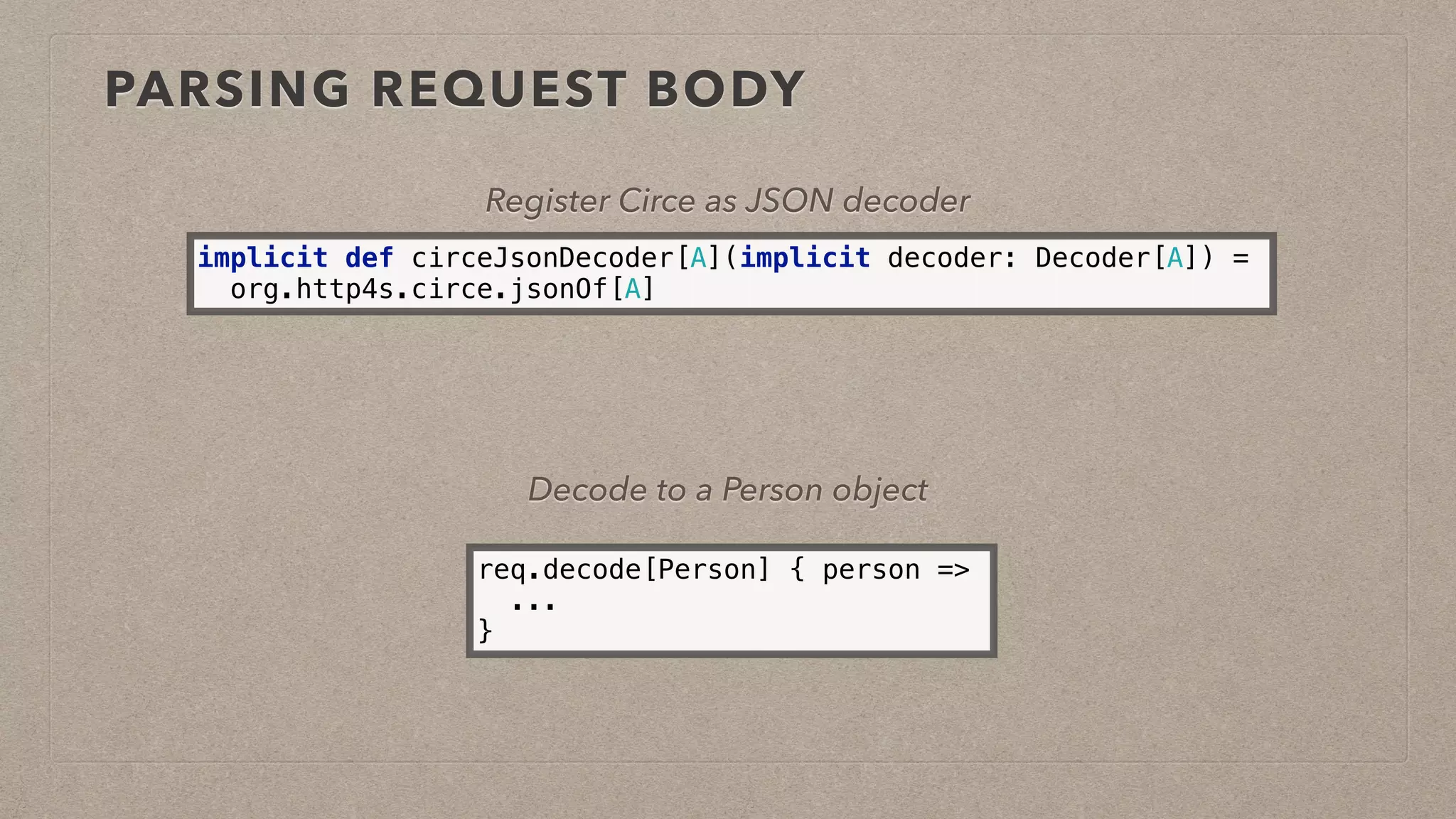

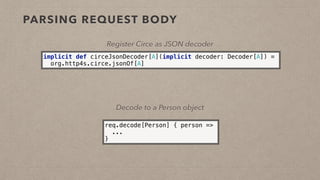

PARSING REQUEST BODY
Register Circe as JSON decoder
implicit def circeJsonDecoder[A](implicit decoder: Decoder[A]) =
org.http4s.circe.jsonOf[A]
req.decode[Person] { person =>
...
}
Decode to a Person object

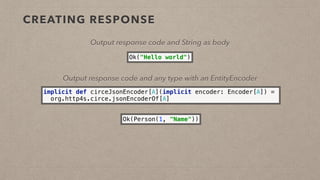

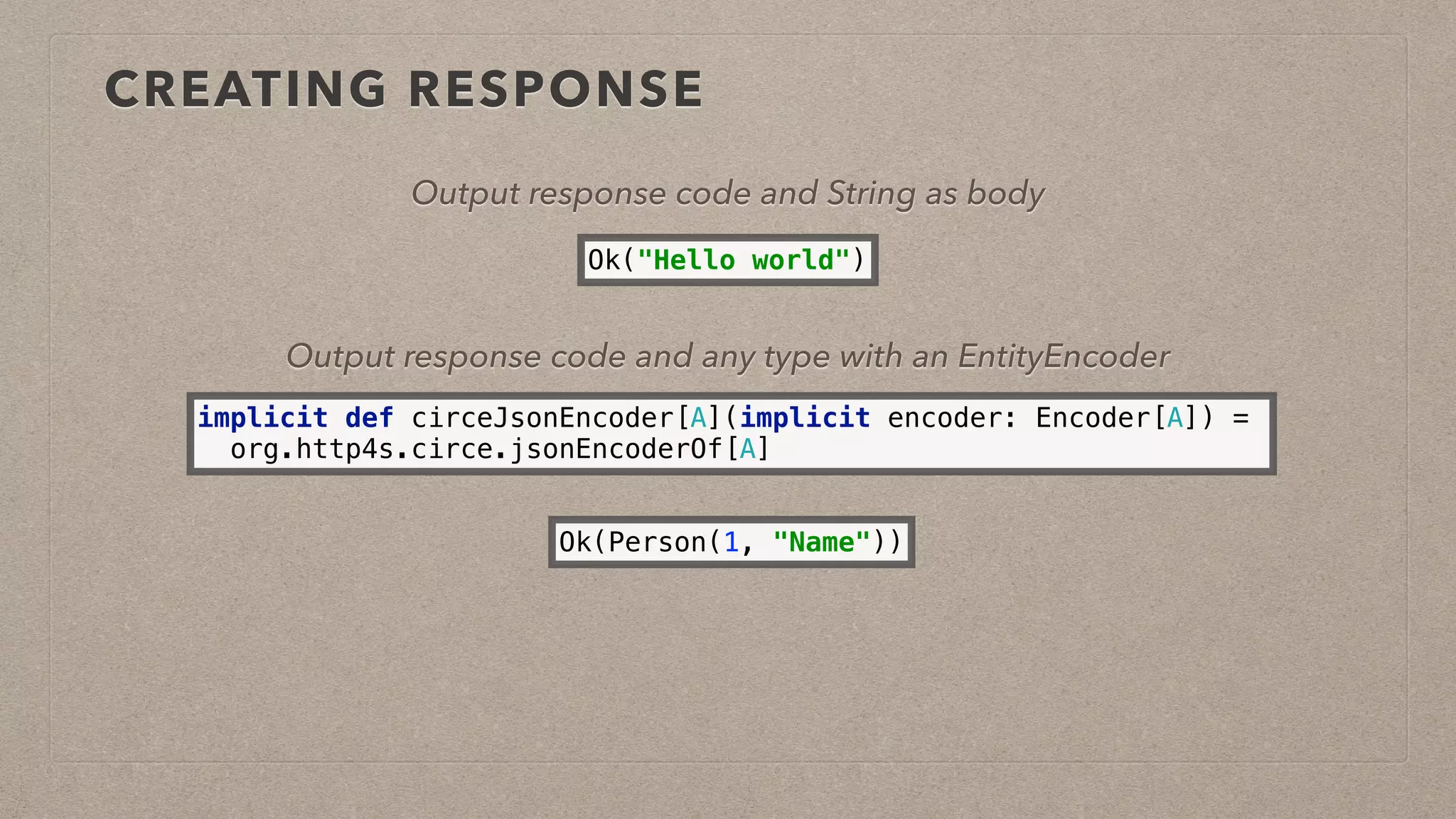

CREATING RESPONSE
Ok(Person(1, "Name"))
Output response code and any type with an EntityEncoder
Ok("Hello world")
Output response code and String as body
implicit def circeJsonEncoder[A](implicit encoder: Encoder[A]) =
org.http4s.circe.jsonEncoderOf[A]

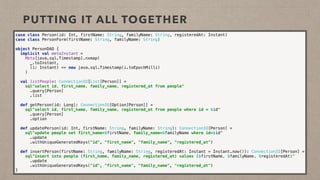

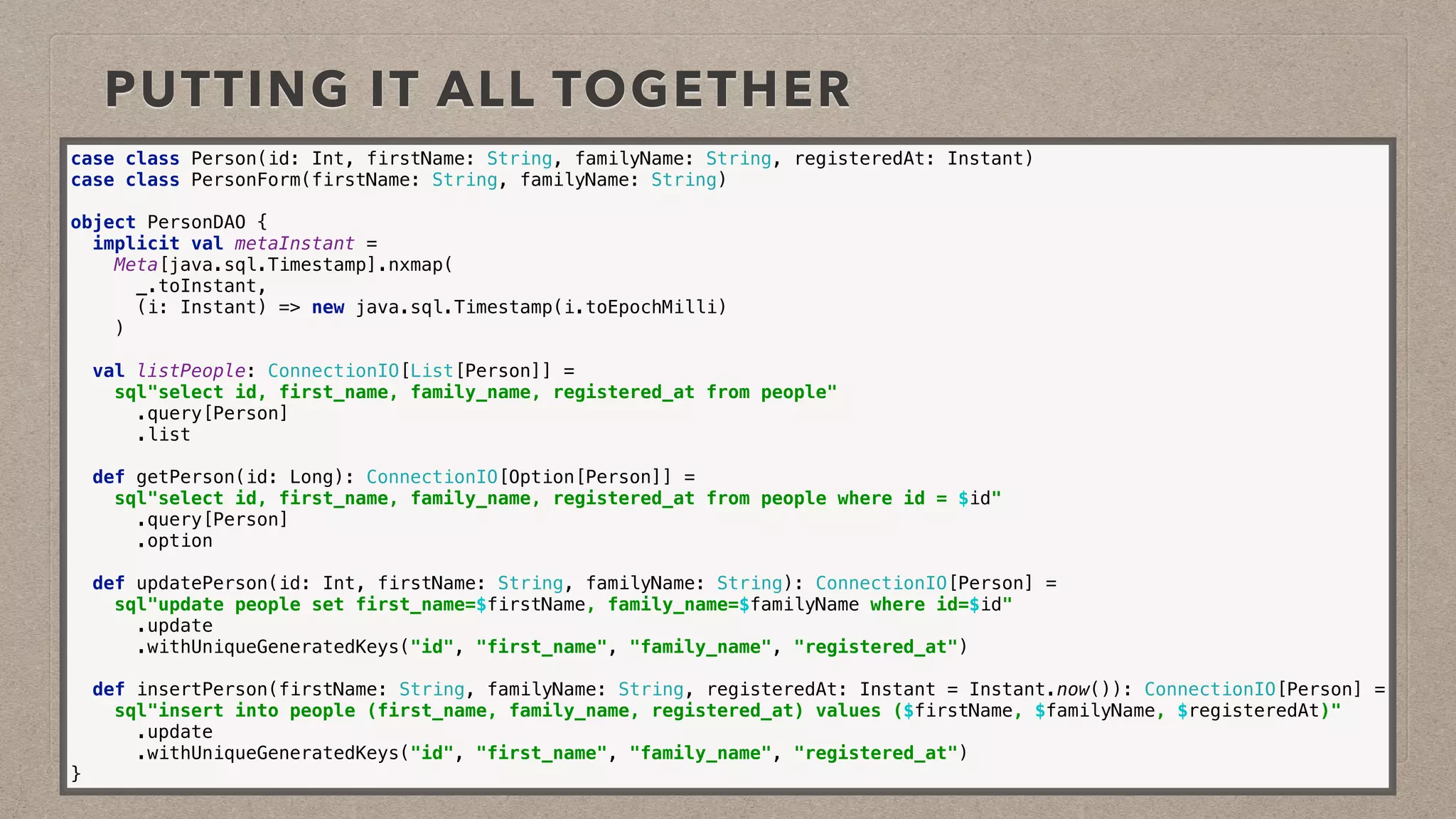

PUTTING IT ALL TOGETHER
case class Person(id: Int, firstName: String, familyName: String, registeredAt: Instant) 
case class PersonForm(firstName: String, familyName: String)
object PersonDAO { 
implicit val metaInstant = 
Meta[java.sql.Timestamp].nxmap( 
_.toInstant, 
(i: Instant) => new java.sql.Timestamp(i.toEpochMilli) 
) 
 
val listPeople: ConnectionIO[List[Person]] = 
sql"select id, first_name, family_name, registered_at from people" 
.query[Person] 
.list 
 
def getPerson(id: Long): ConnectionIO[Option[Person]] = 
sql"select id, first_name, family_name, registered_at from people where id = $id" 
.query[Person] 
.option 
 
def updatePerson(id: Int, firstName: String, familyName: String): ConnectionIO[Person] = 
sql"update people set first_name=$firstName, family_name=$familyName where id=$id" 
.update 
.withUniqueGeneratedKeys("id", "first_name", "family_name", "registered_at") 
 
def insertPerson(firstName: String, familyName: String, registeredAt: Instant = Instant.now()): ConnectionIO[Person] = 
sql"insert into people (first_name, family_name, registered_at) values ($firstName, $familyName, $registeredAt)" 
.update 
.withUniqueGeneratedKeys("id", "first_name", "family_name", "registered_at") 
}

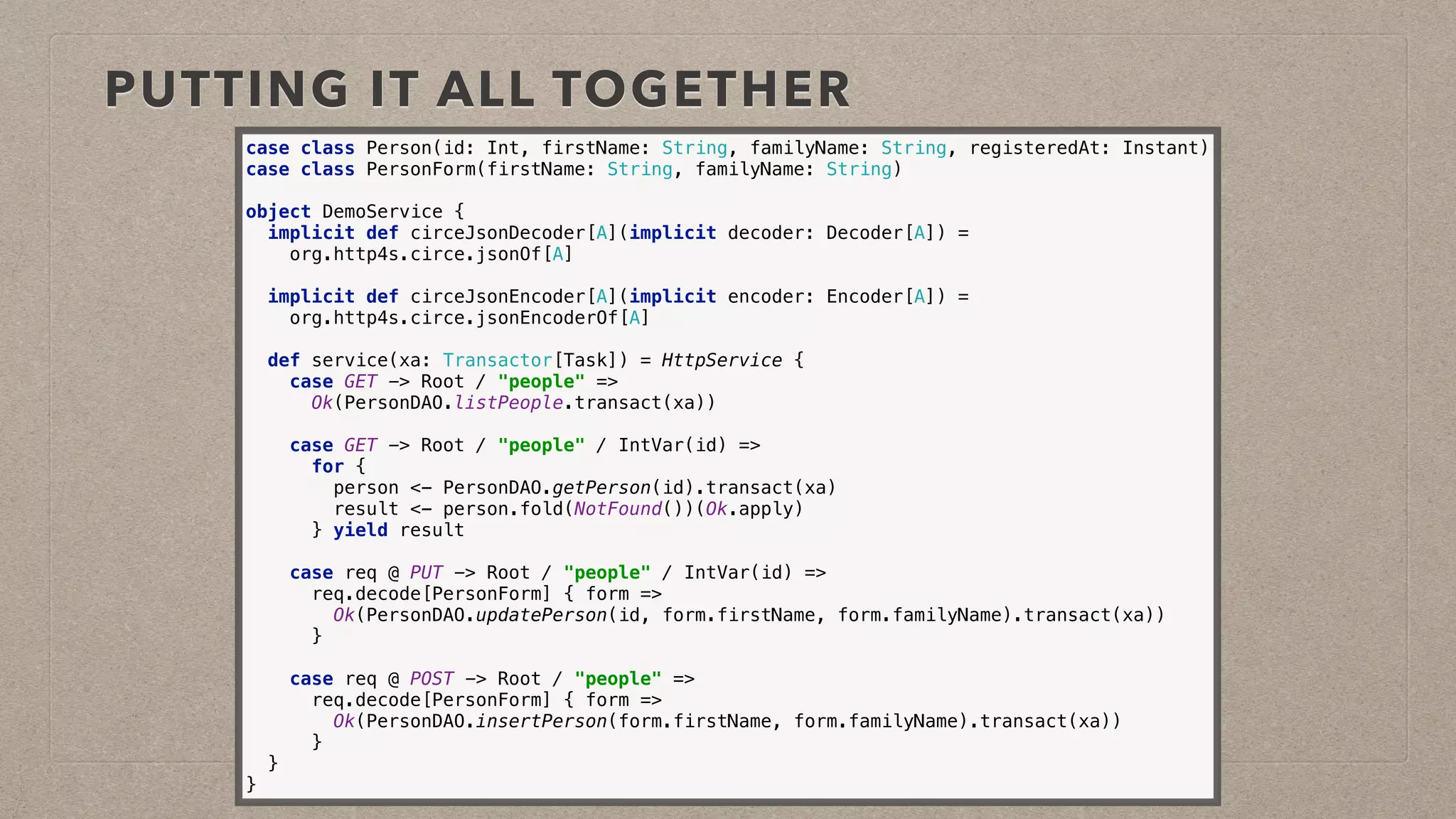

case class Person(id: Int, firstName: String, familyName: String, registeredAt: Instant) 
case class PersonForm(firstName: String, familyName: String)
object DemoService { 
implicit def circeJsonDecoder[A](implicit decoder: Decoder[A]) =
org.http4s.circe.jsonOf[A]
 
implicit def circeJsonEncoder[A](implicit encoder: Encoder[A]) =
org.http4s.circe.jsonEncoderOf[A] 
 
def service(xa: Transactor[Task]) = HttpService { 
case GET -> Root / "people" => 
Ok(PersonDAO.listPeople.transact(xa)) 
 
case GET -> Root / "people" / IntVar(id) => 
for { 
person <- PersonDAO.getPerson(id).transact(xa) 
result <- person.fold(NotFound())(Ok.apply) 
} yield result 
 
case req @ PUT -> Root / "people" / IntVar(id) => 
req.decode[PersonForm] { form => 
Ok(PersonDAO.updatePerson(id, form.firstName, form.familyName).transact(xa)) 
} 
 
case req @ POST -> Root / "people" => 
req.decode[PersonForm] { form => 
Ok(PersonDAO.insertPerson(form.firstName, form.familyName).transact(xa)) 
} 
} 
}

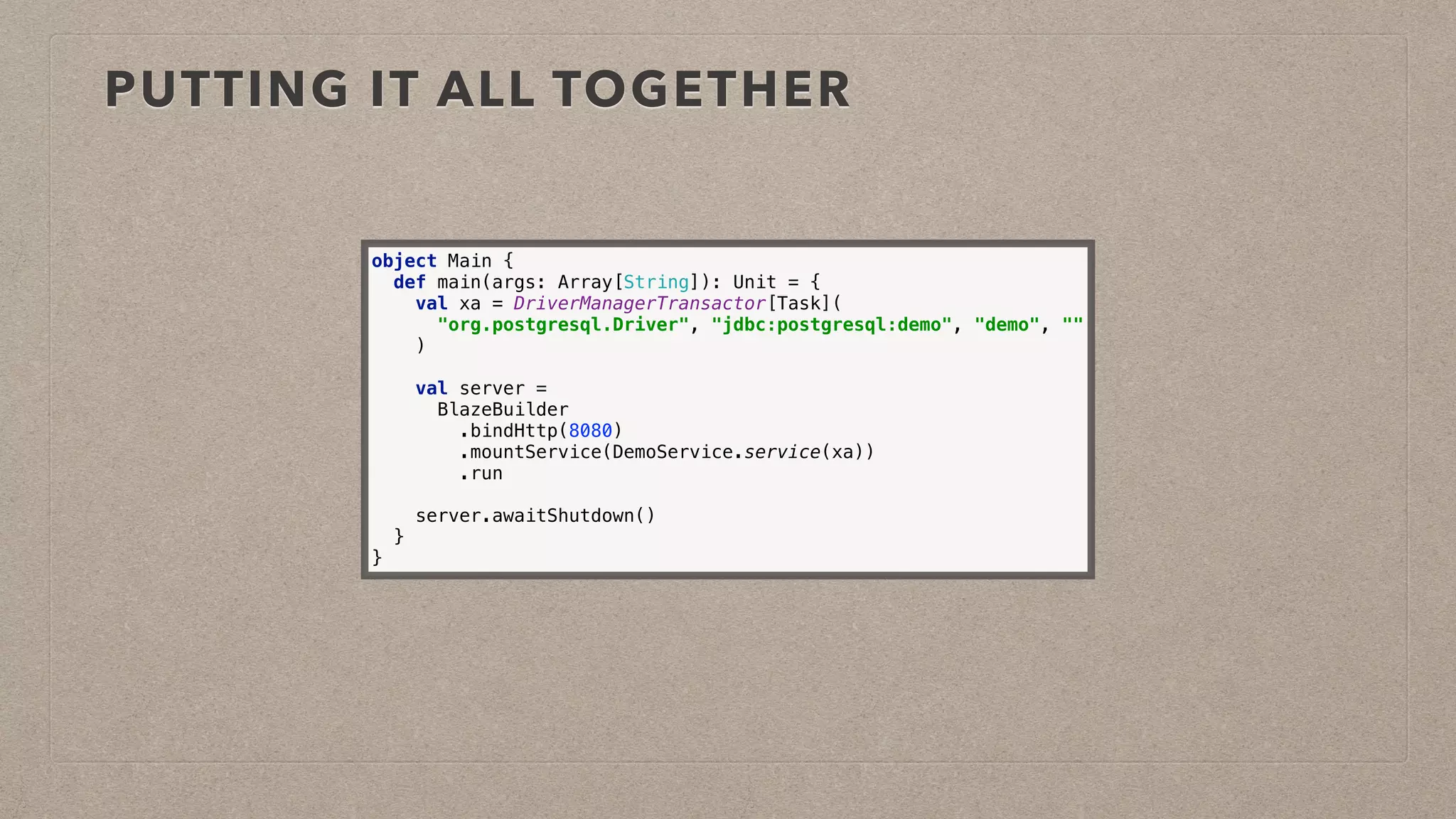

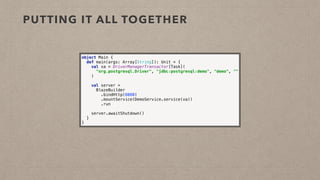

object Main { 
def main(args: Array[String]): Unit = { 
val xa = DriverManagerTransactor[Task]( 
"org.postgresql.Driver", "jdbc:postgresql:demo", "demo", "" 
) 
 
val server = 
BlazeBuilder
.bindHttp(8080) 
.mountService(DemoService.service(xa)) 
.run 
 
server.awaitShutdown() 
} 
}

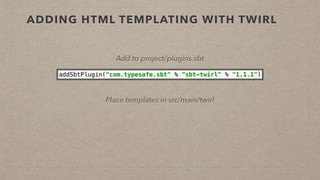

ADDING HTML TEMPLATING WITH TWIRL
Add to project/plugins.sbt
addSbtPlugin("com.typesafe.sbt" % "sbt-twirl" % "1.1.1")
Place templates in src/main/twirl

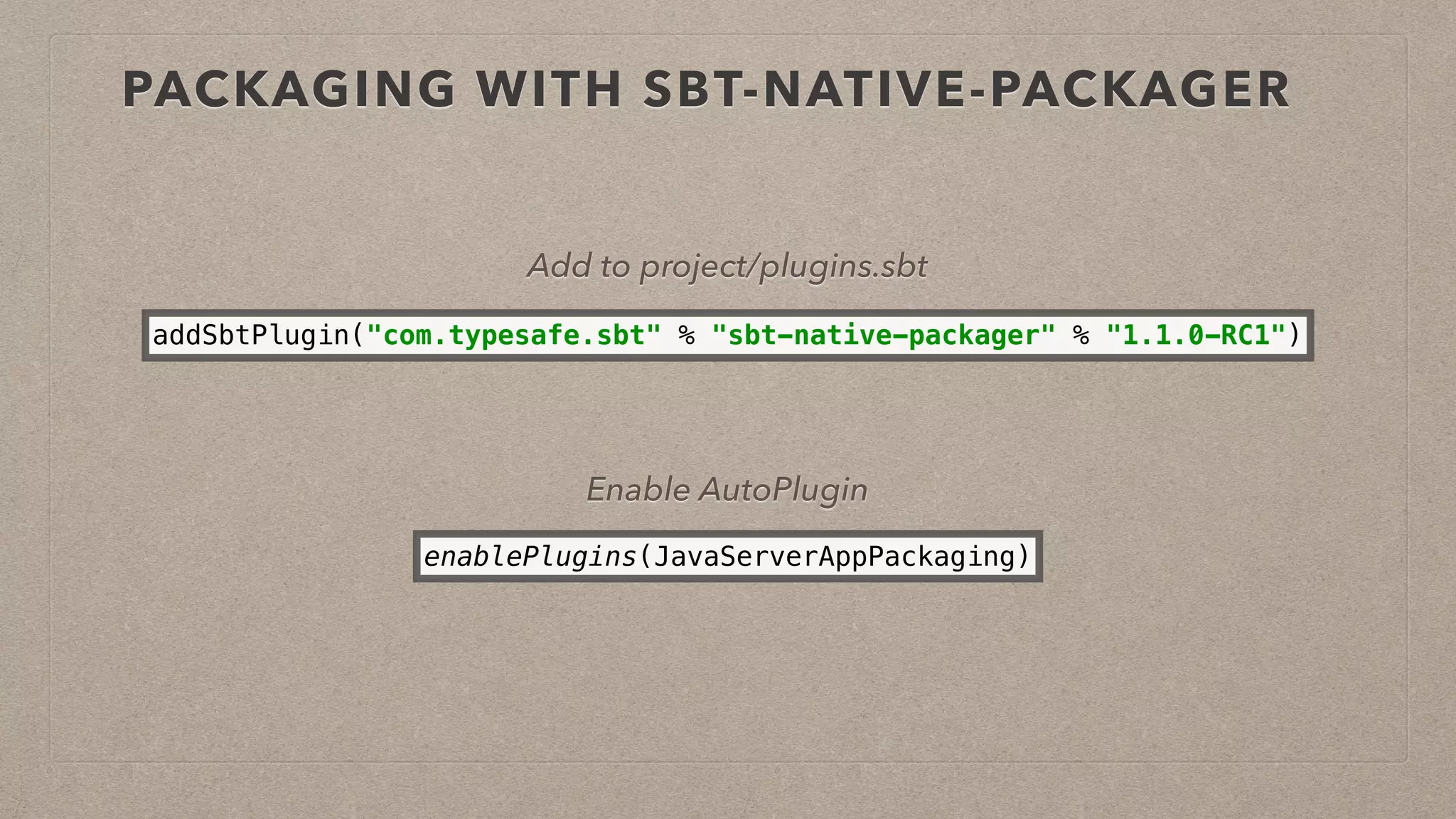

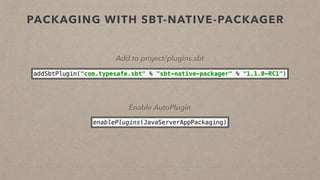

PACKAGING WITH SBT-NATIVE-PACKAGER
Add to project/plugins.sbt
addSbtPlugin("com.typesafe.sbt" % "sbt-native-packager" % "1.1.0-RC1")
Enable AutoPlugin
enablePlugins(JavaServerAppPackaging)

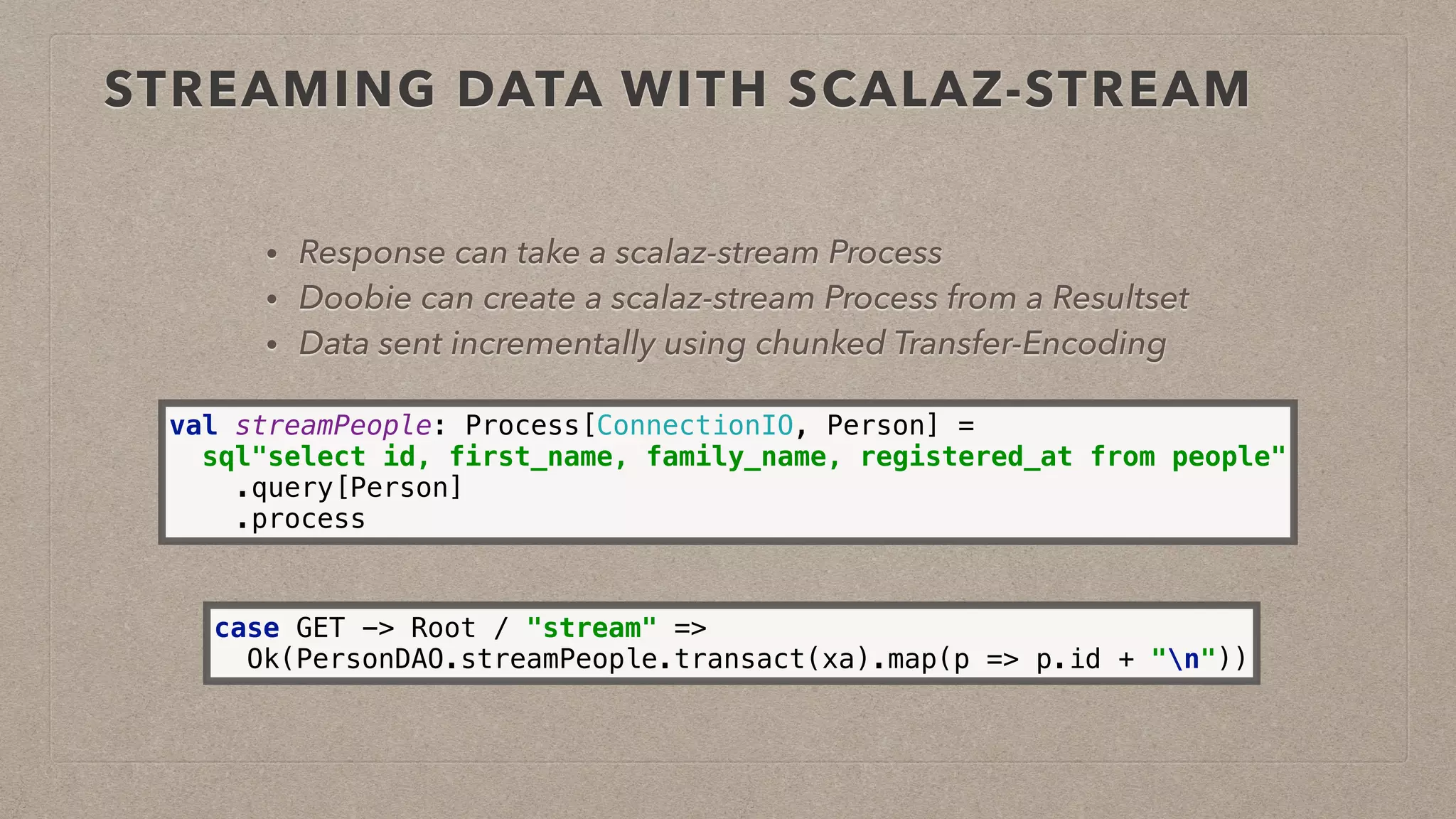

STREAMING DATA WITH SCALAZ-STREAM
• Response can take a scalaz-stream Process
• Doobie can create a scalaz-stream Process from a Resultset
• Data sent incrementally using chunked Transfer-Encoding
val streamPeople: Process[ConnectionIO, Person] = 
sql"select id, first_name, family_name, registered_at from people" 
.query[Person] 
.process
case GET -> Root / "stream" => 
Ok(PersonDAO.streamPeople.transact(xa).map(p => p.id + "n"))

QUESTIONS?
https://github.com/ﬁadliel/http4s-talk
