Interactive System Design Prototype Presentation
- 1.

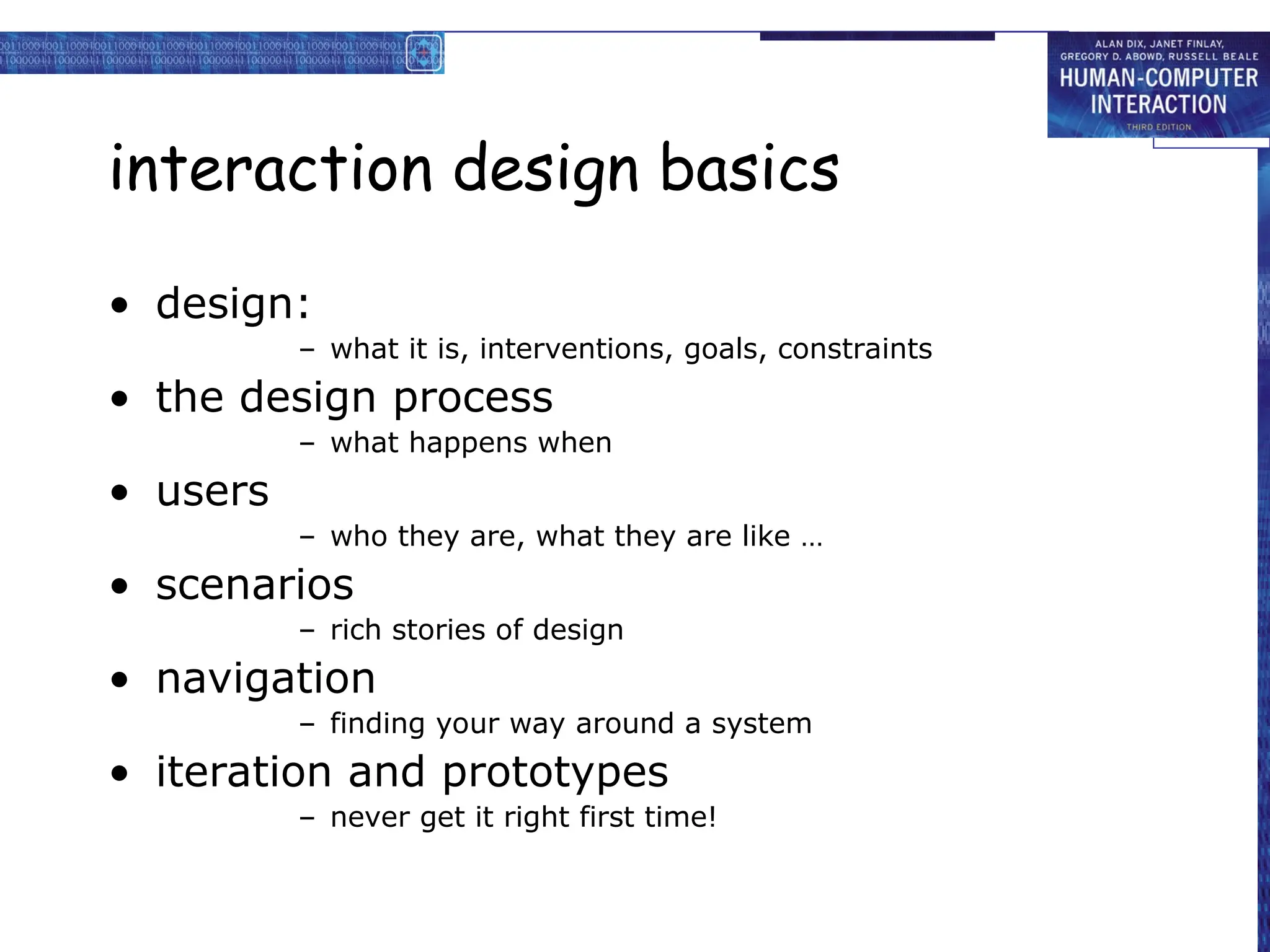

- 2. interaction design basics •design: – what it is, interventions, goals, constraints • the design process – what happens when • users – who they are, what they are like … • scenarios – rich stories of design • navigation – finding your way around a system • iteration and prototypes – never get it right first time!

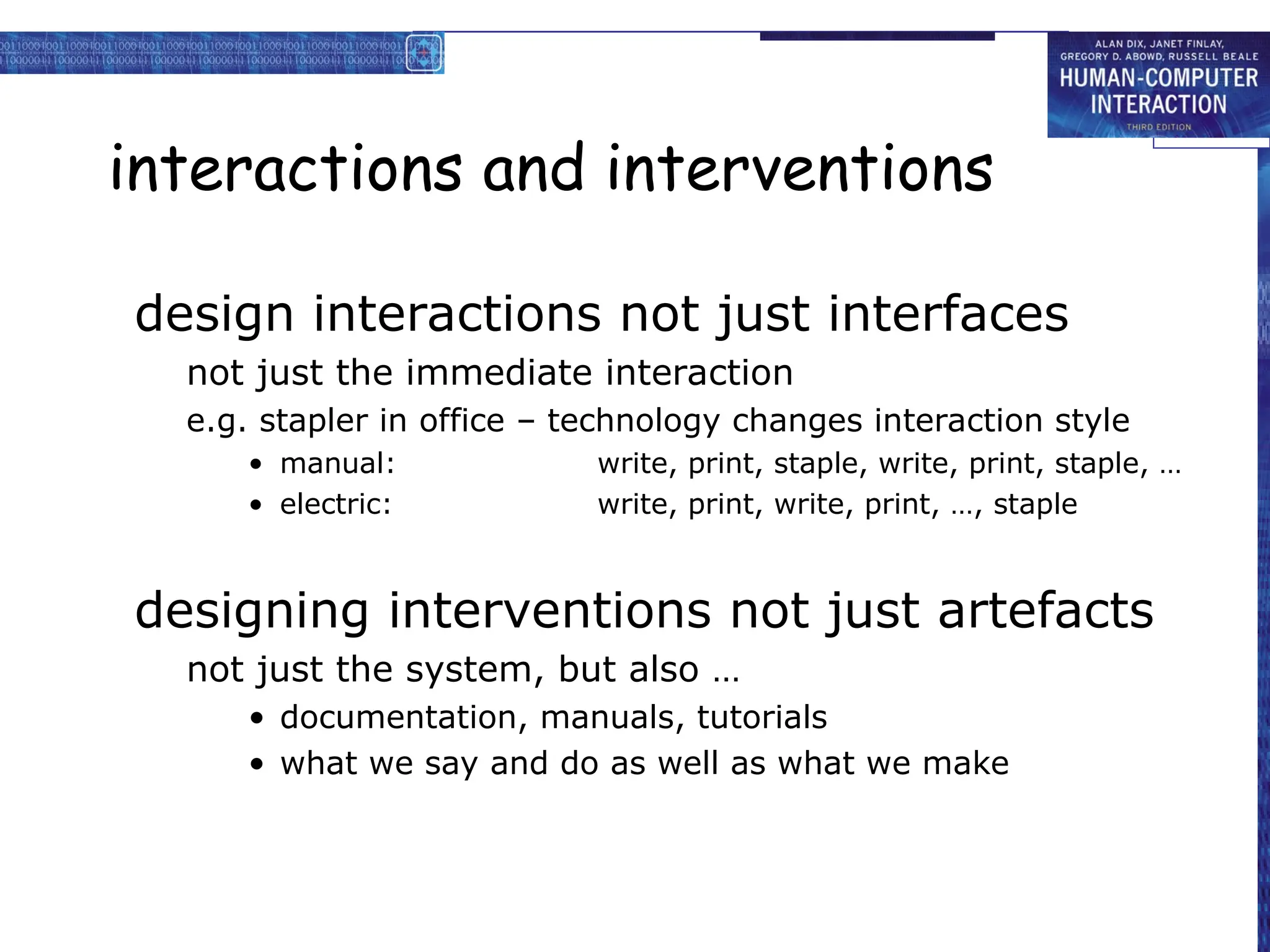

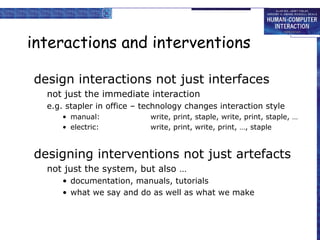

- 3. interactions and interventions designinteractions not just interfaces not just the immediate interaction e.g. stapler in office – technology changes interaction style • manual: write, print, staple, write, print, staple, … • electric: write, print, write, print, …, staple designing interventions not just artefacts not just the system, but also … • documentation, manuals, tutorials • what we say and do as well as what we make

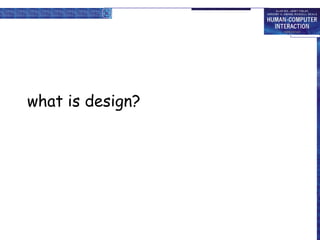

- 4.

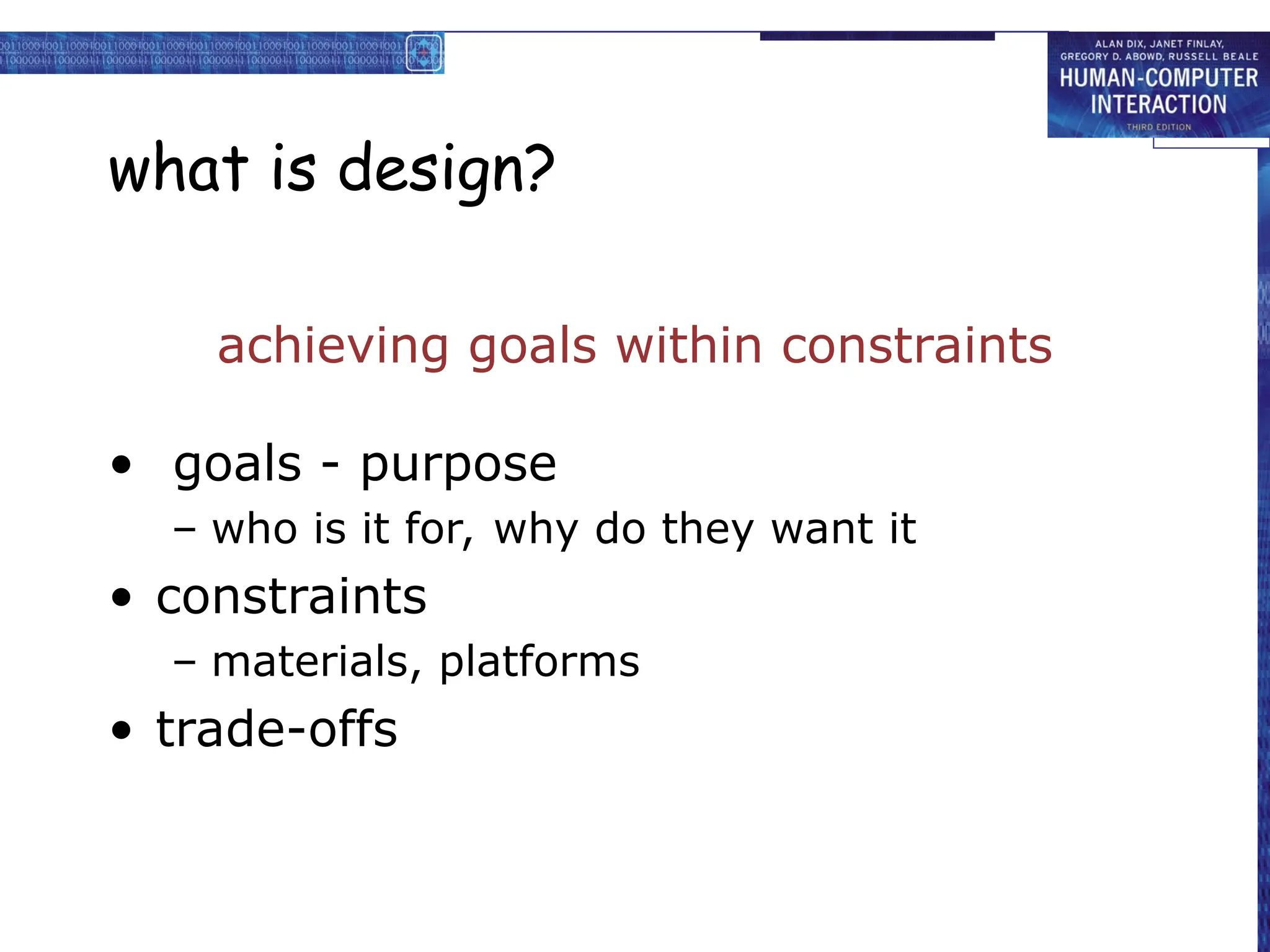

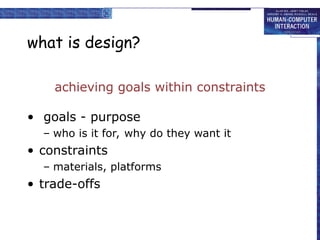

- 5. what is design? achievinggoals within constraints • goals - purpose – who is it for, why do they want it • constraints – materials, platforms • trade-offs

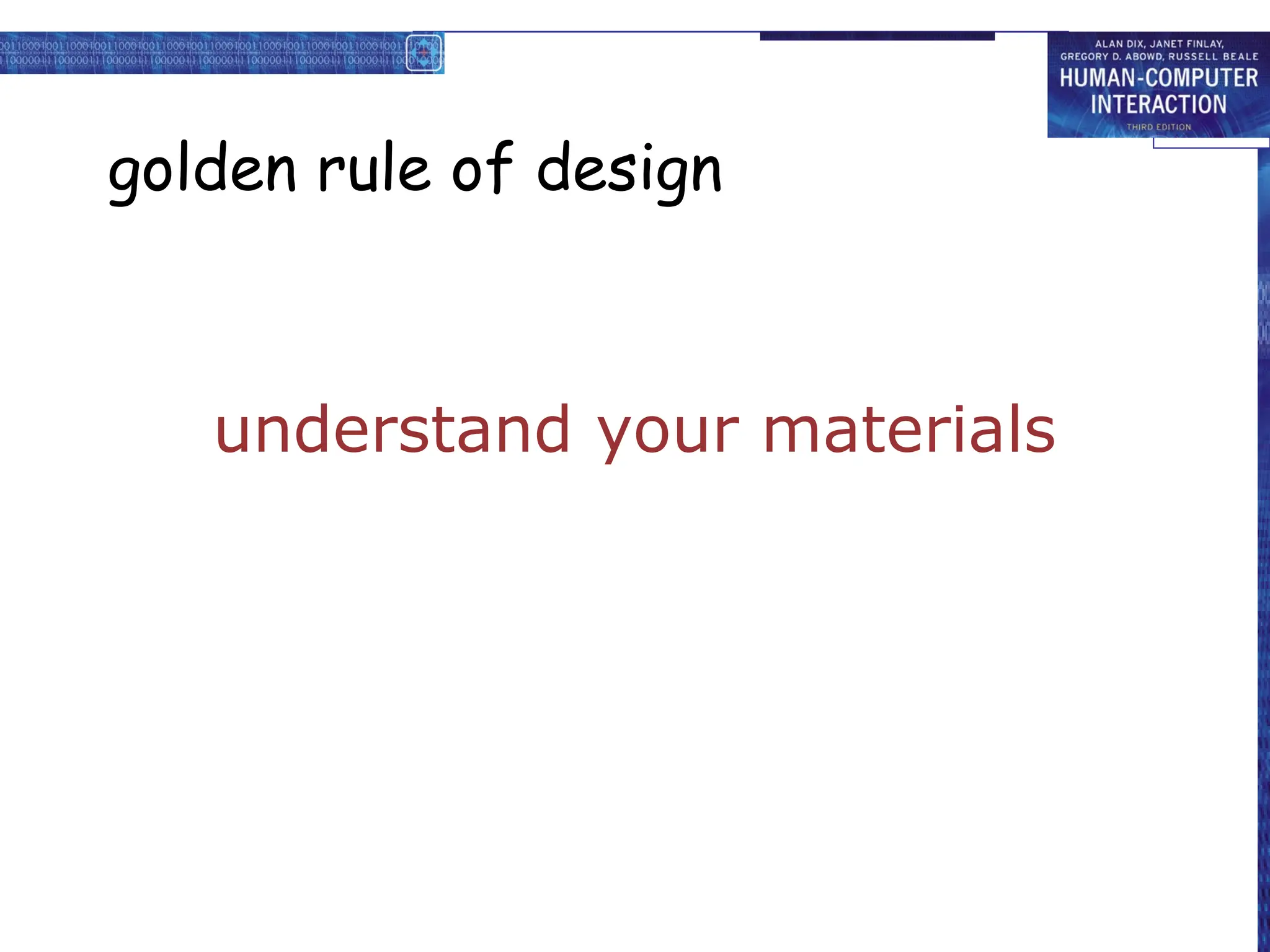

- 6. golden rule ofdesign understand your materials

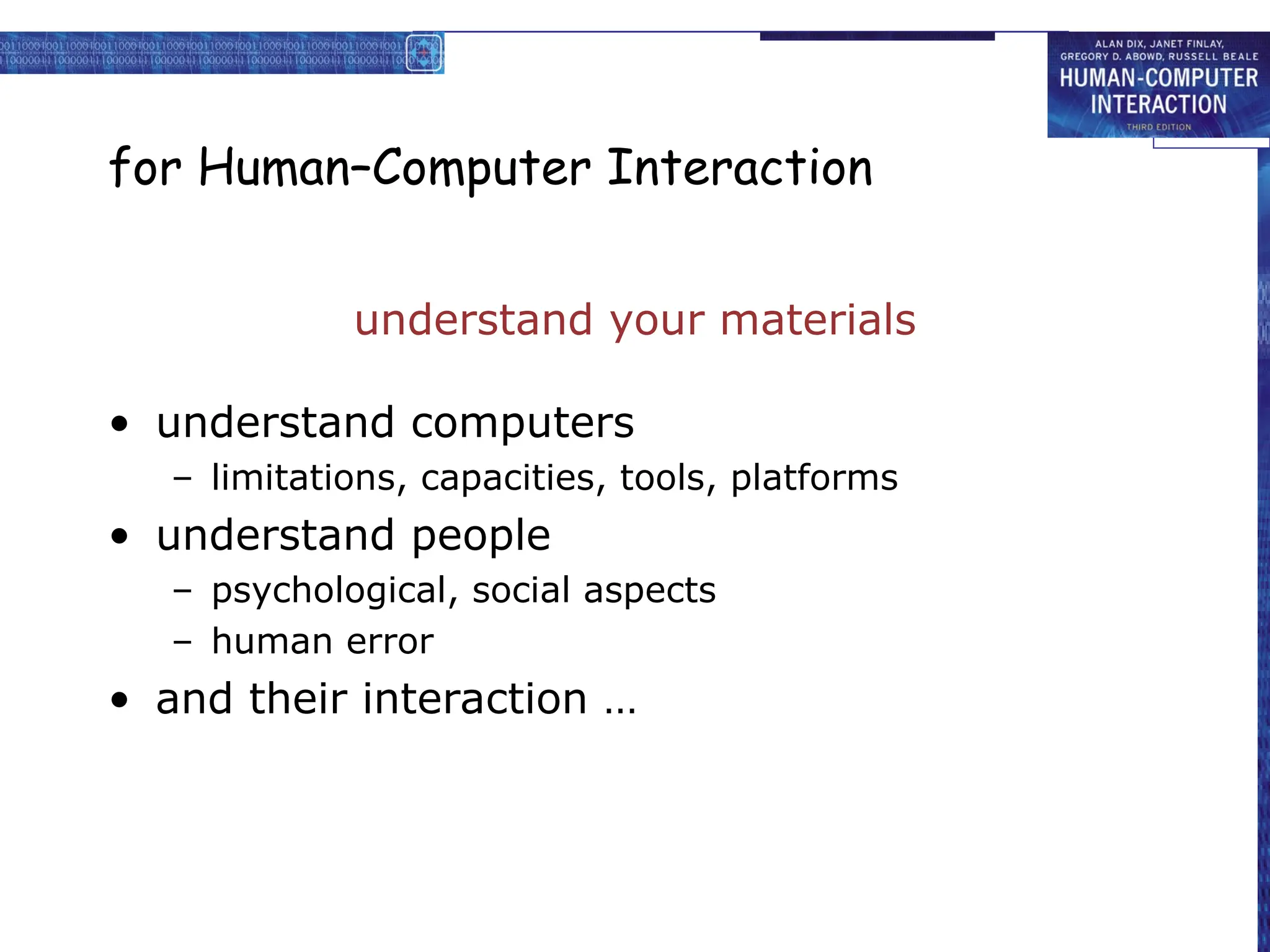

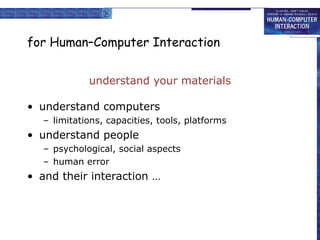

- 7. for Human–Computer Interaction understandyour materials • understand computers – limitations, capacities, tools, platforms • understand people – psychological, social aspects – human error • and their interaction …

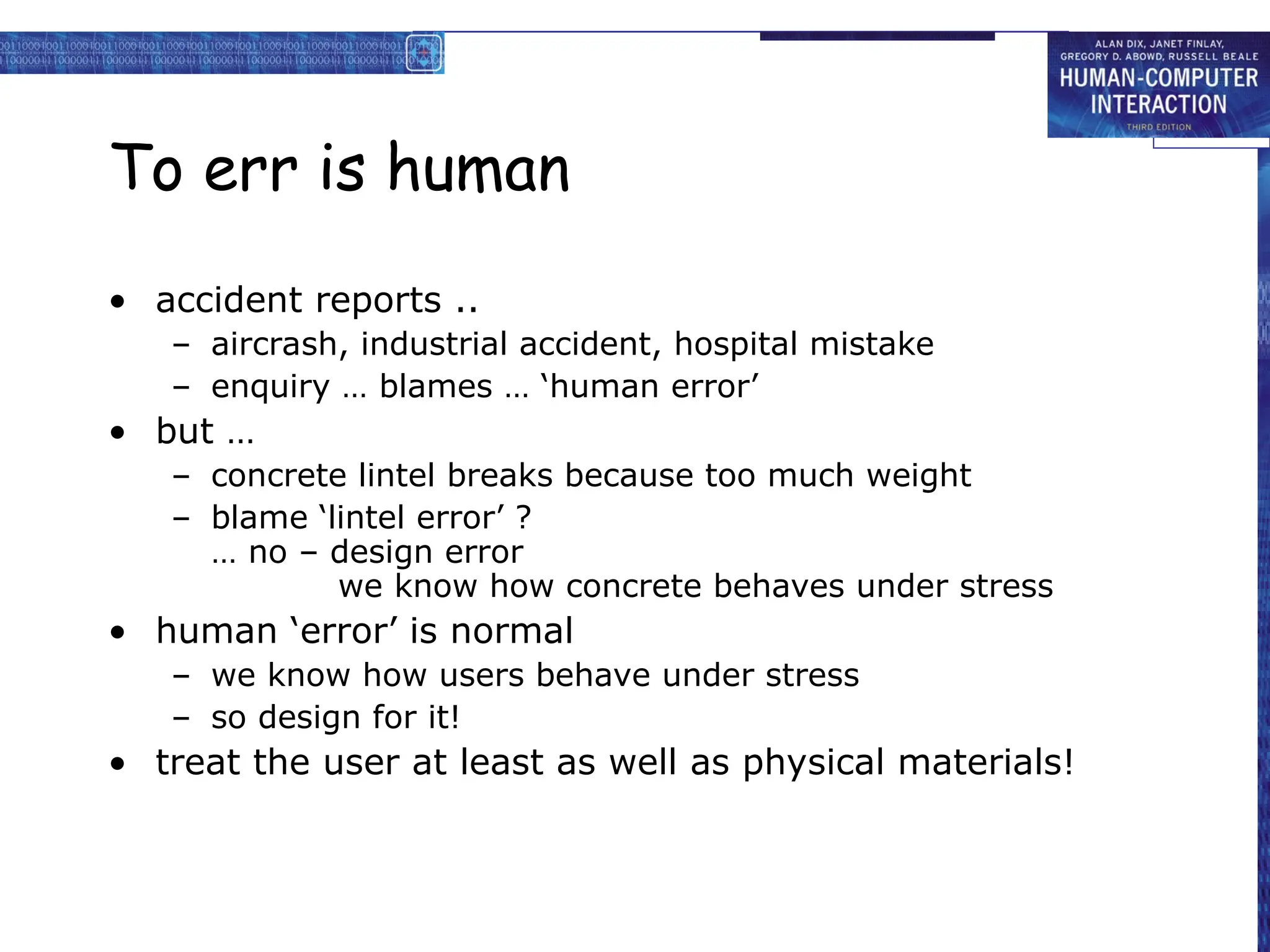

- 8. To err ishuman • accident reports .. – aircrash, industrial accident, hospital mistake – enquiry … blames … ‘human error’ • but … – concrete lintel breaks because too much weight – blame ‘lintel error’ ? … no – design error we know how concrete behaves under stress • human ‘error’ is normal – we know how users behave under stress – so design for it! • treat the user at least as well as physical materials!
- 9.

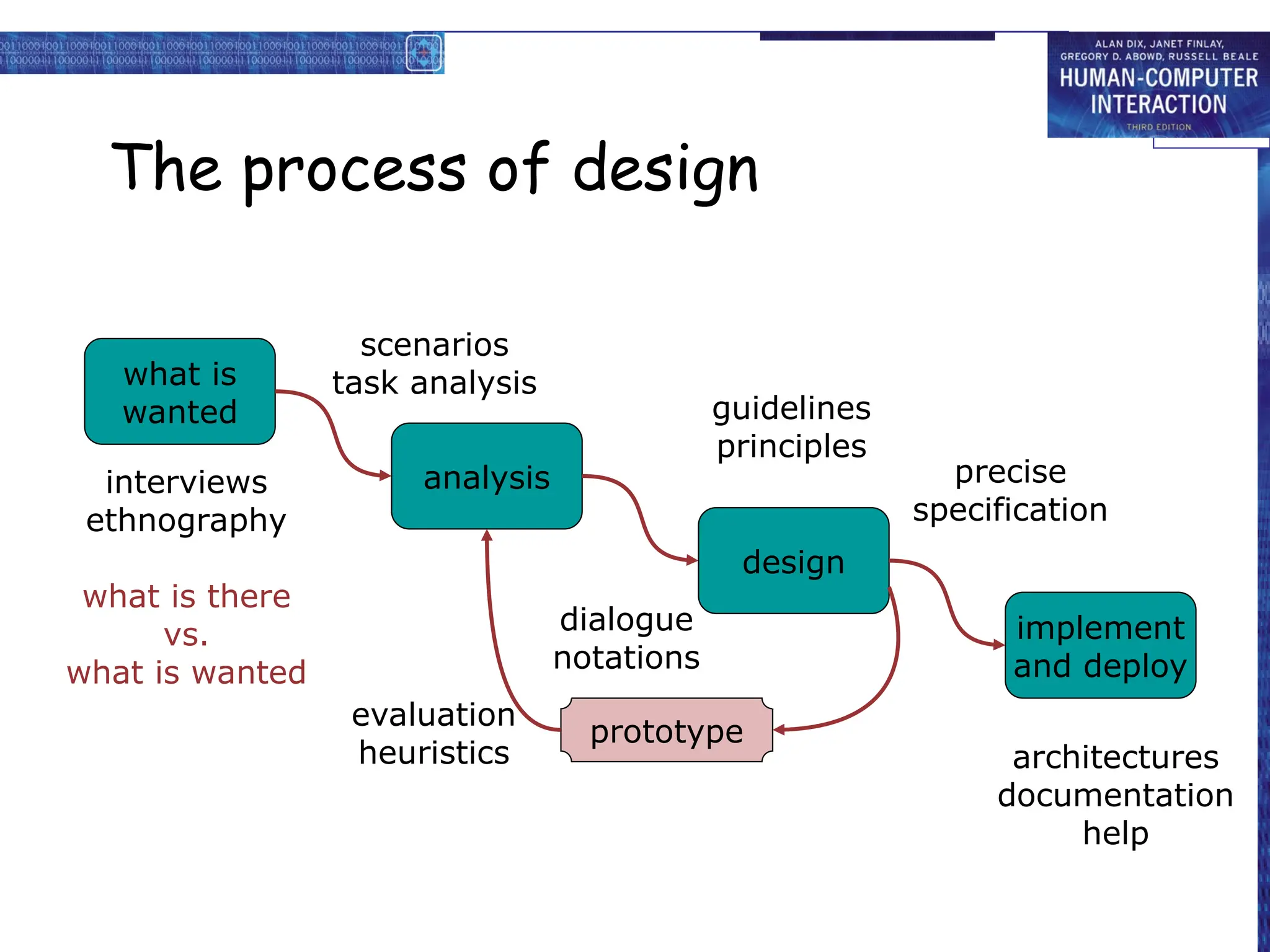

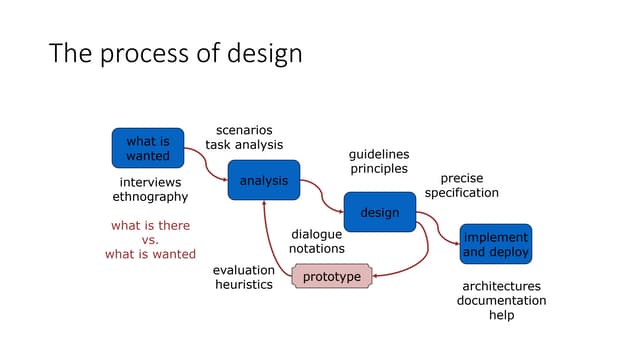

- 10. The process ofdesign what is wanted analysis design implement and deploy prototype interviews ethnography what is there vs. what is wanted guidelines principles dialogue notations precise specification architectures documentation help evaluation heuristics scenarios task analysis

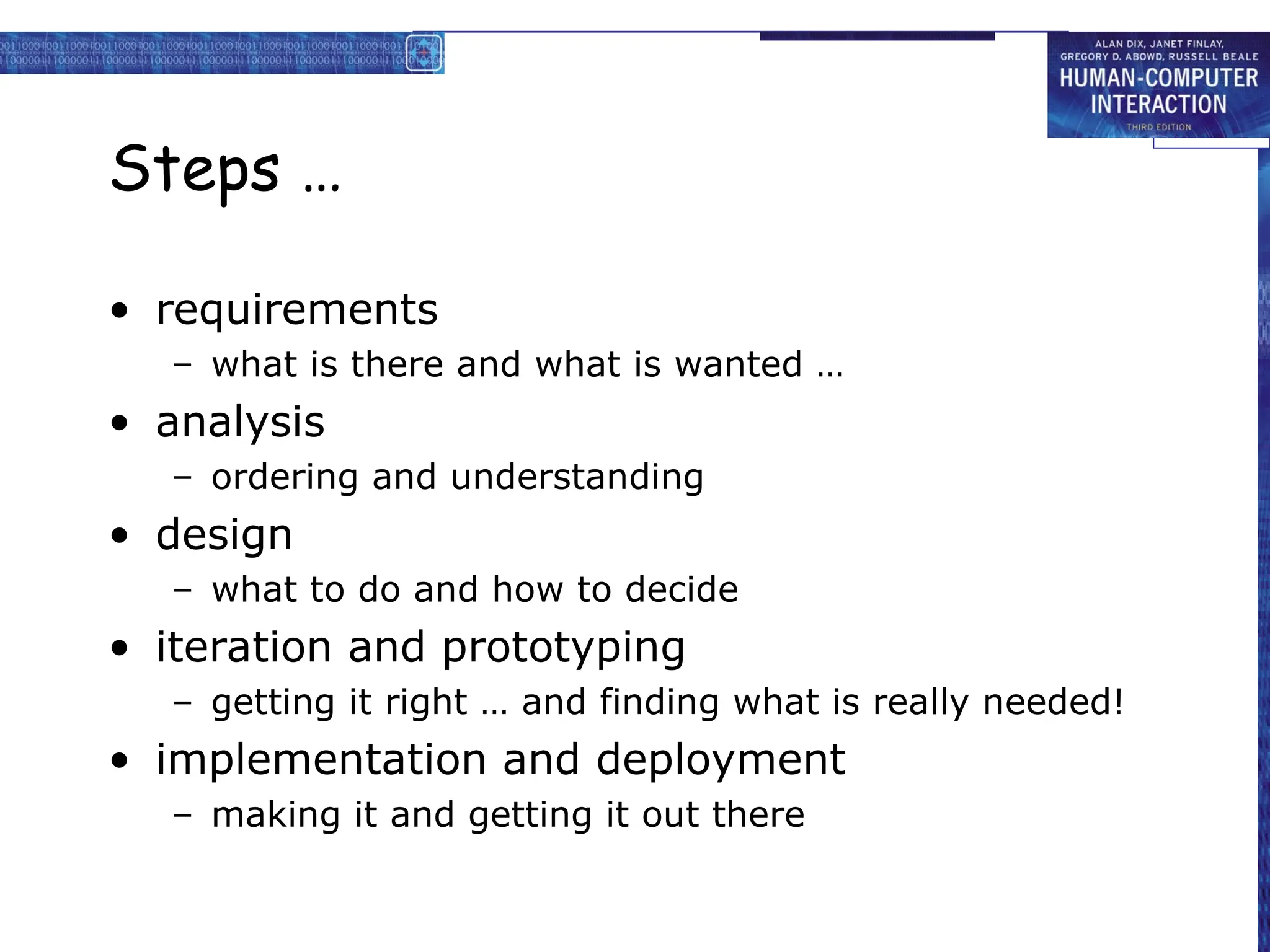

- 11. Steps … • requirements –what is there and what is wanted … • analysis – ordering and understanding • design – what to do and how to decide • iteration and prototyping – getting it right … and finding what is really needed! • implementation and deployment – making it and getting it out there

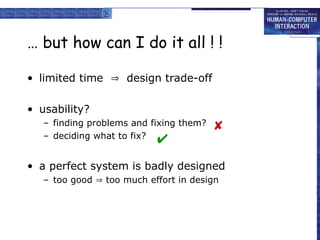

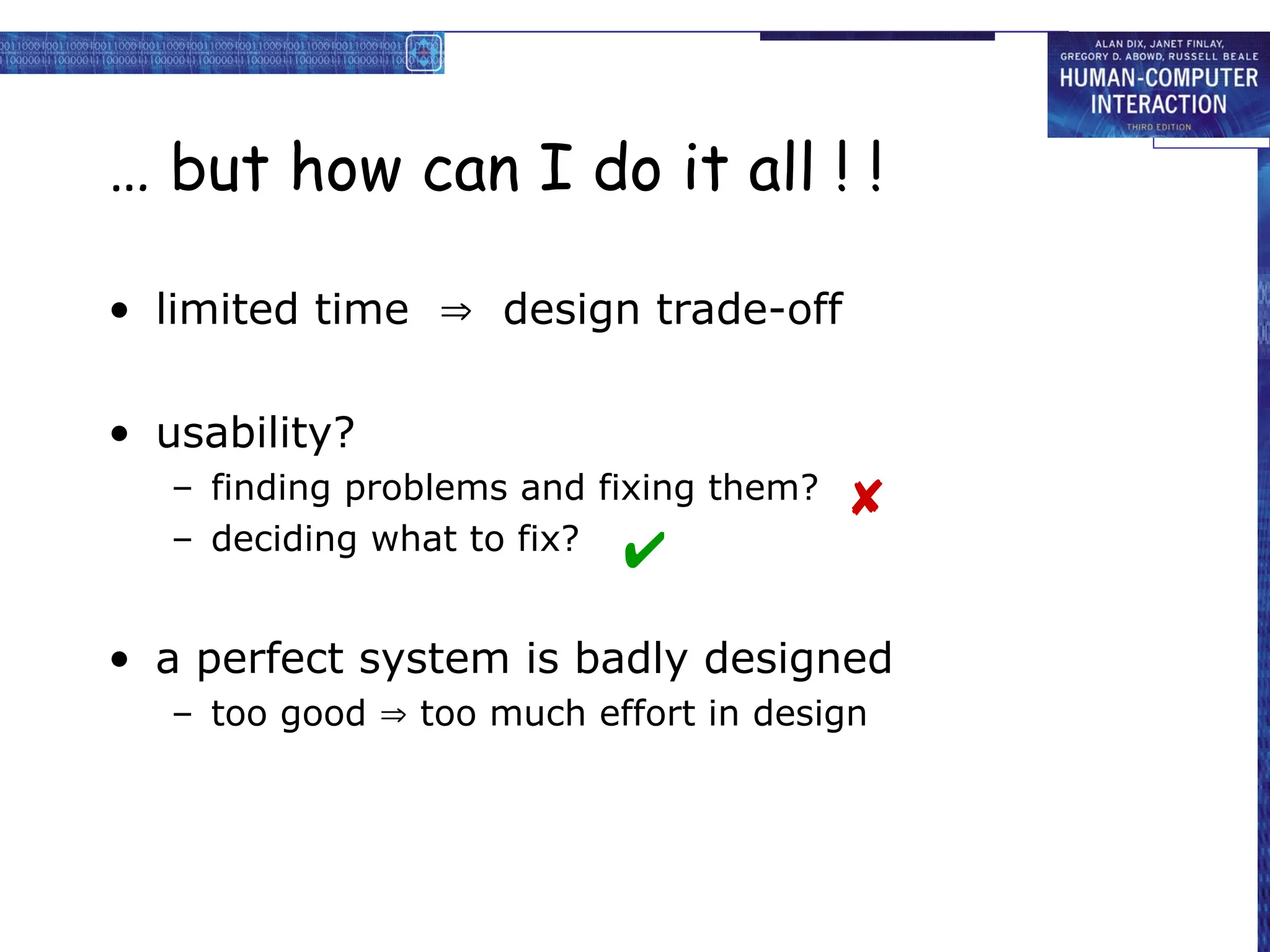

- 12. … but howcan I do it all ! ! • limited time design trade-off • usability? – finding problems and fixing them? – deciding what to fix? • a perfect system is badly designed – too good too much effort in design

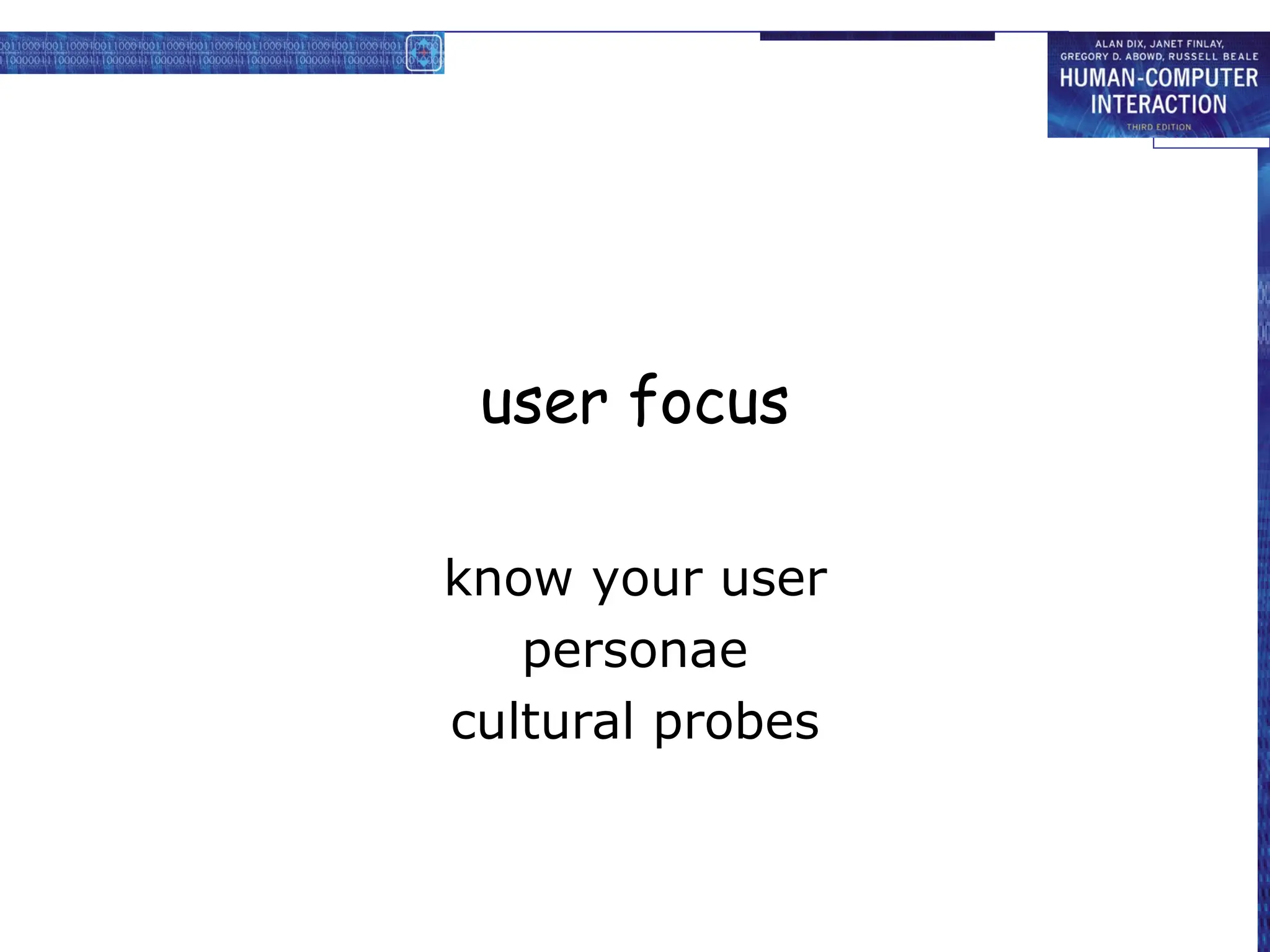

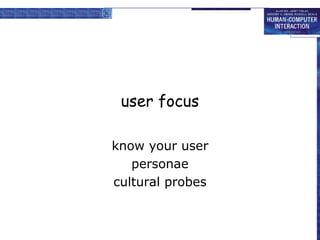

- 14. user focus know youruser personae cultural probes

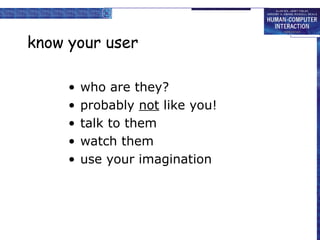

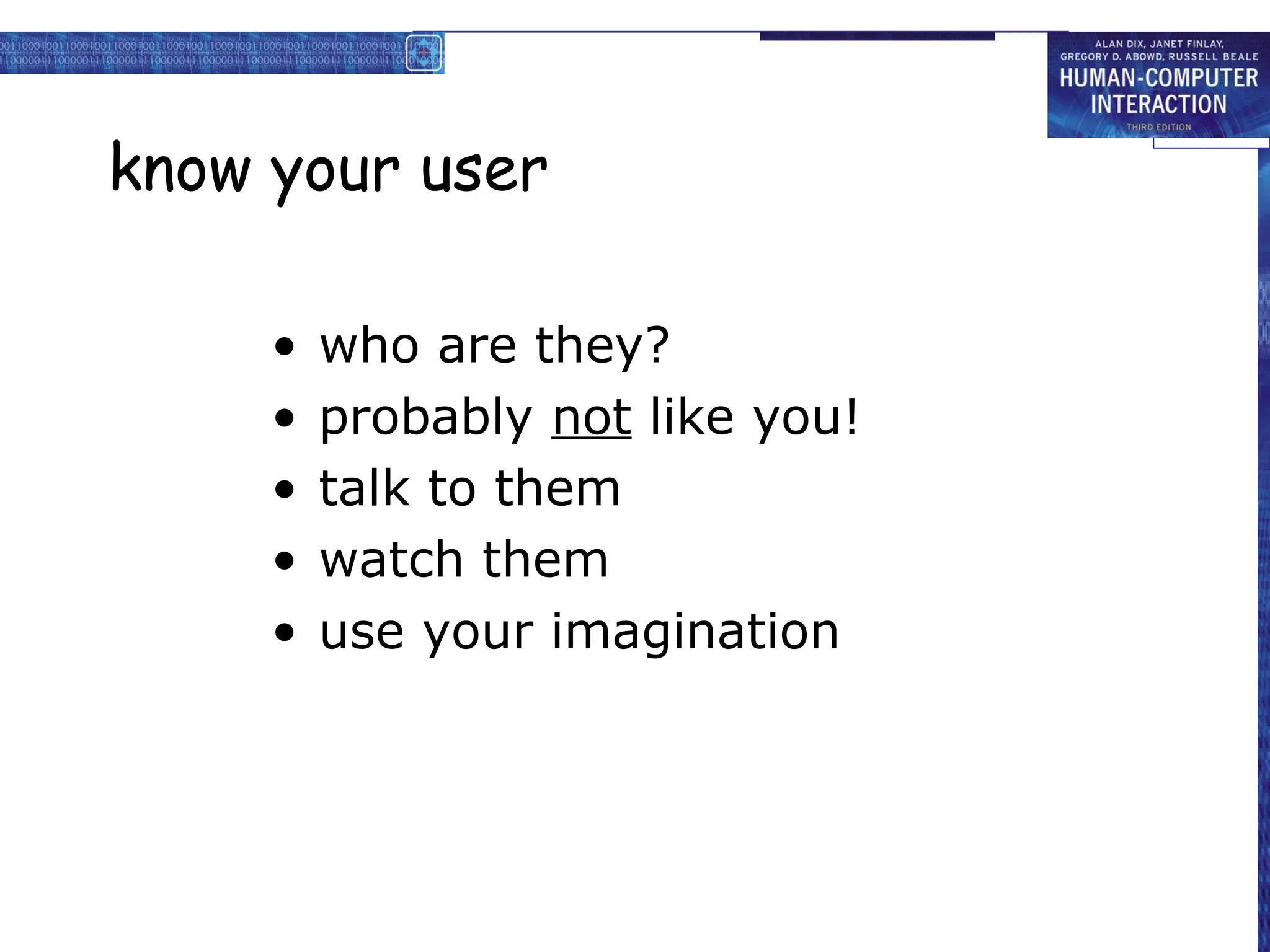

- 15. know your user •who are they? • probably not like you! • talk to them • watch them • use your imagination

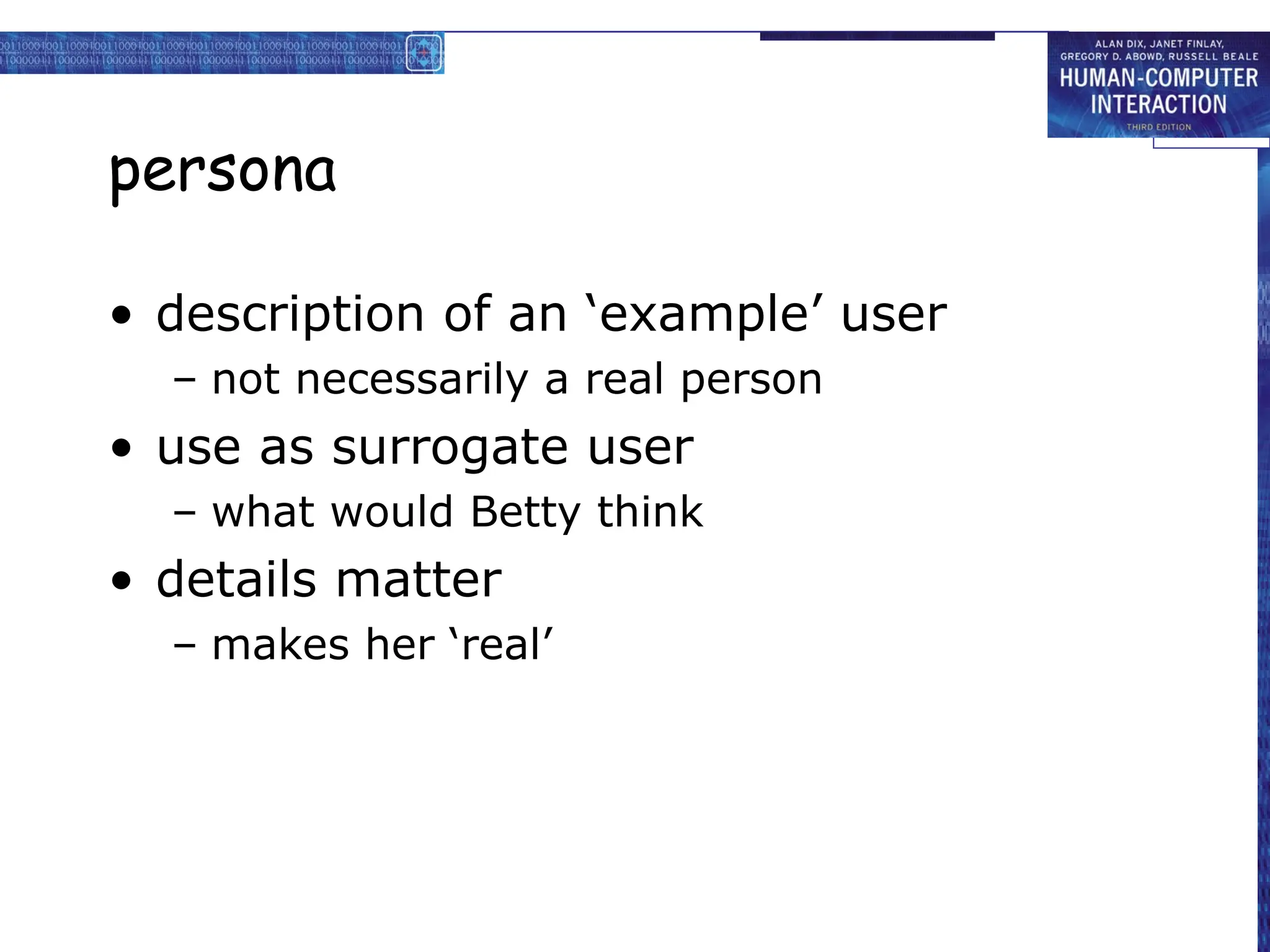

- 16. persona • description ofan ‘example’ user – not necessarily a real person • use as surrogate user – what would Betty think • details matter – makes her ‘real’

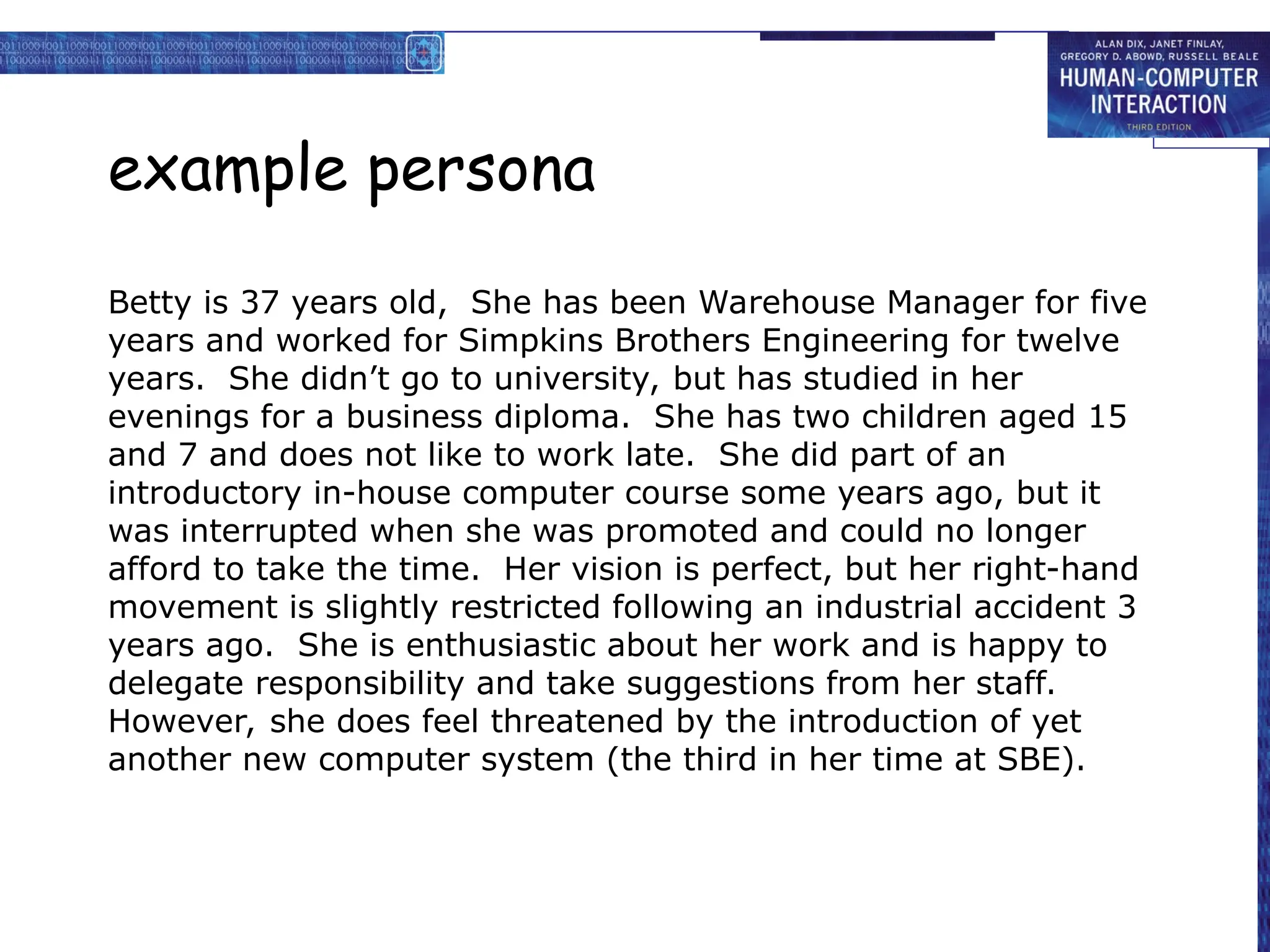

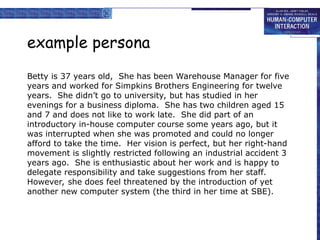

- 17. example persona Betty is37 years old, She has been Warehouse Manager for five years and worked for Simpkins Brothers Engineering for twelve years. She didn’t go to university, but has studied in her evenings for a business diploma. She has two children aged 15 and 7 and does not like to work late. She did part of an introductory in-house computer course some years ago, but it was interrupted when she was promoted and could no longer afford to take the time. Her vision is perfect, but her right-hand movement is slightly restricted following an industrial accident 3 years ago. She is enthusiastic about her work and is happy to delegate responsibility and take suggestions from her staff. However, she does feel threatened by the introduction of yet another new computer system (the third in her time at SBE).

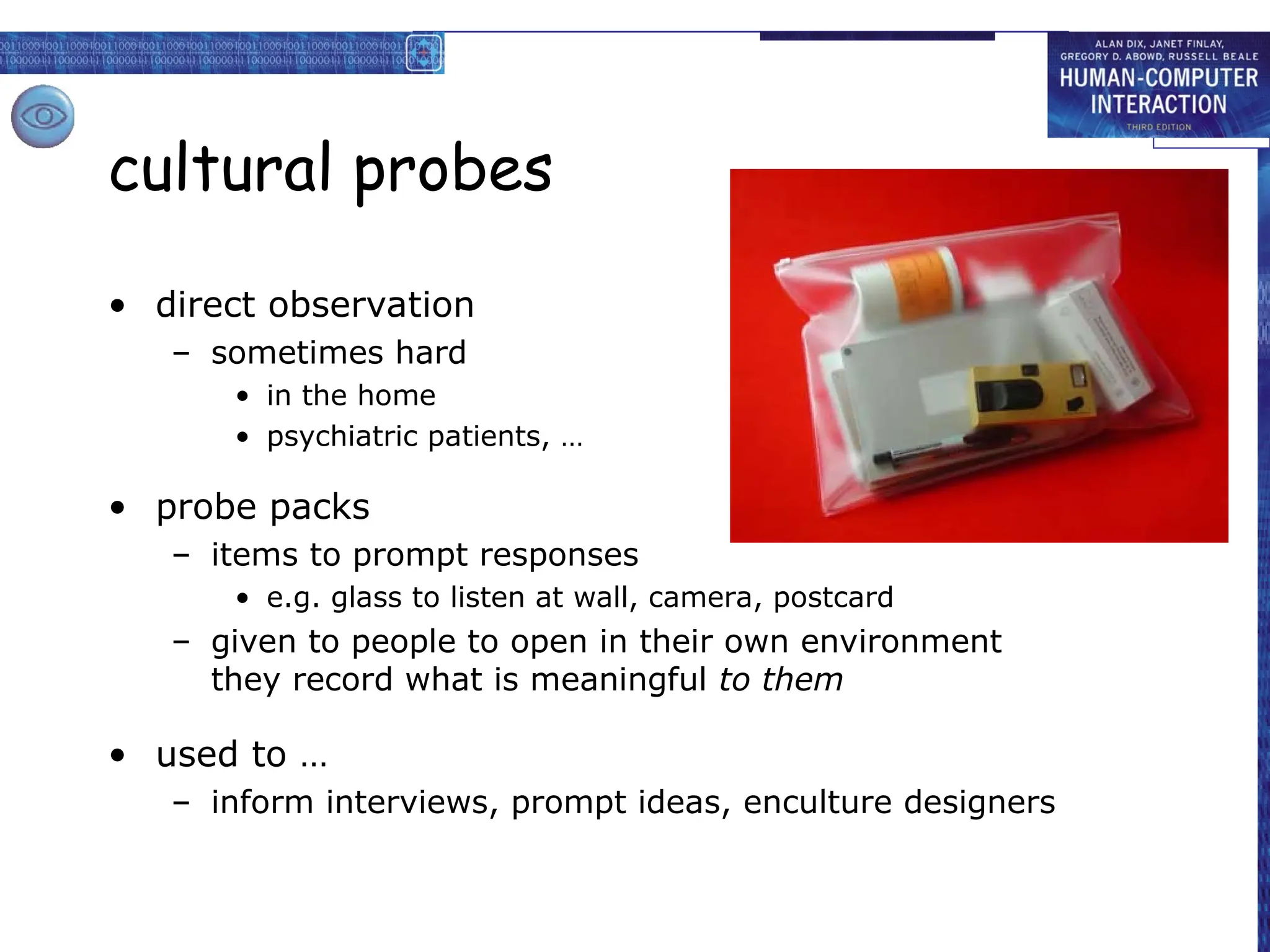

- 18. cultural probes • directobservation – sometimes hard • in the home • psychiatric patients, … • probe packs – items to prompt responses • e.g. glass to listen at wall, camera, postcard – given to people to open in their own environment they record what is meaningful to them • used to … – inform interviews, prompt ideas, enculture designers

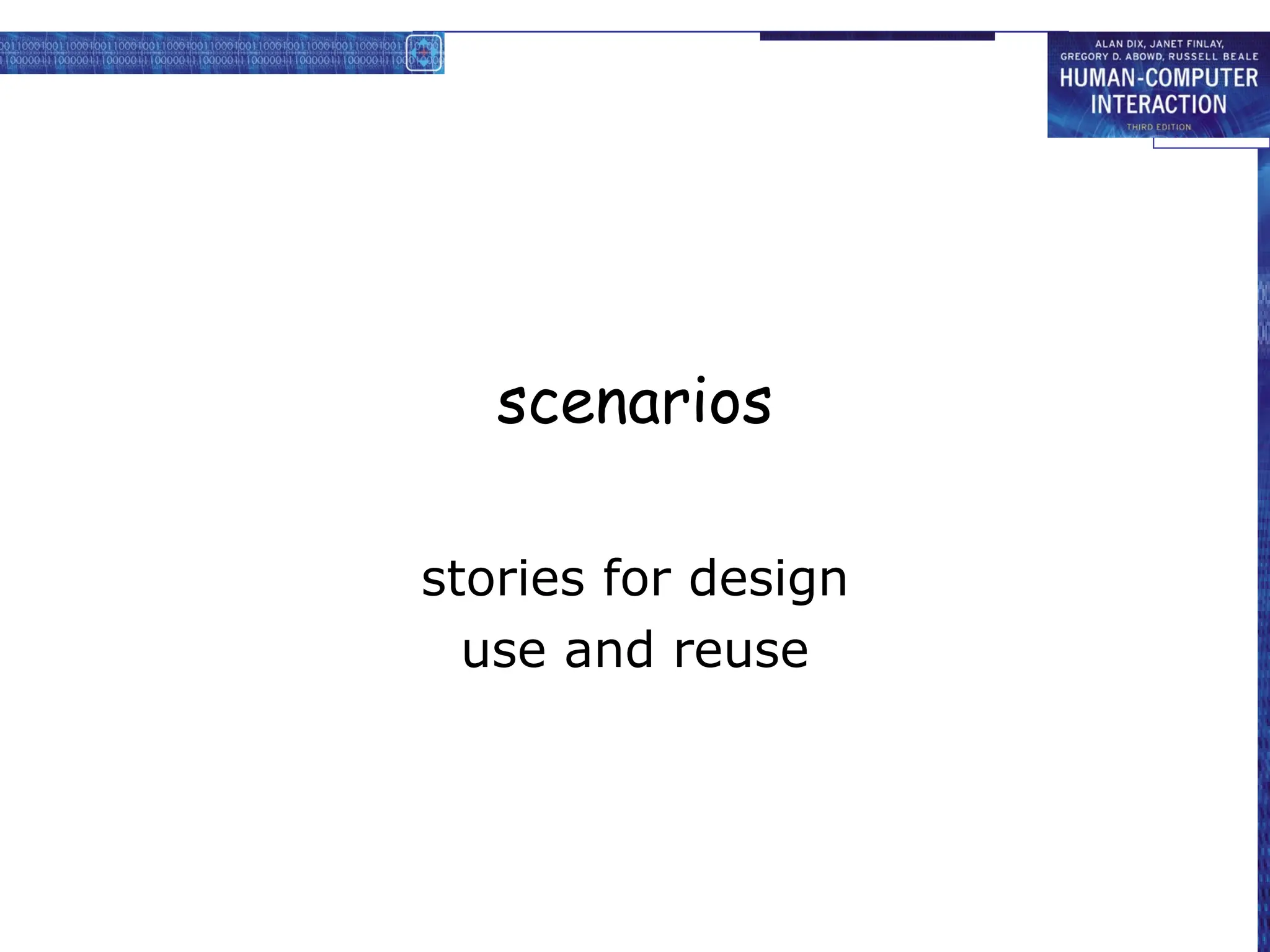

- 19. scenarios stories for design useand reuse

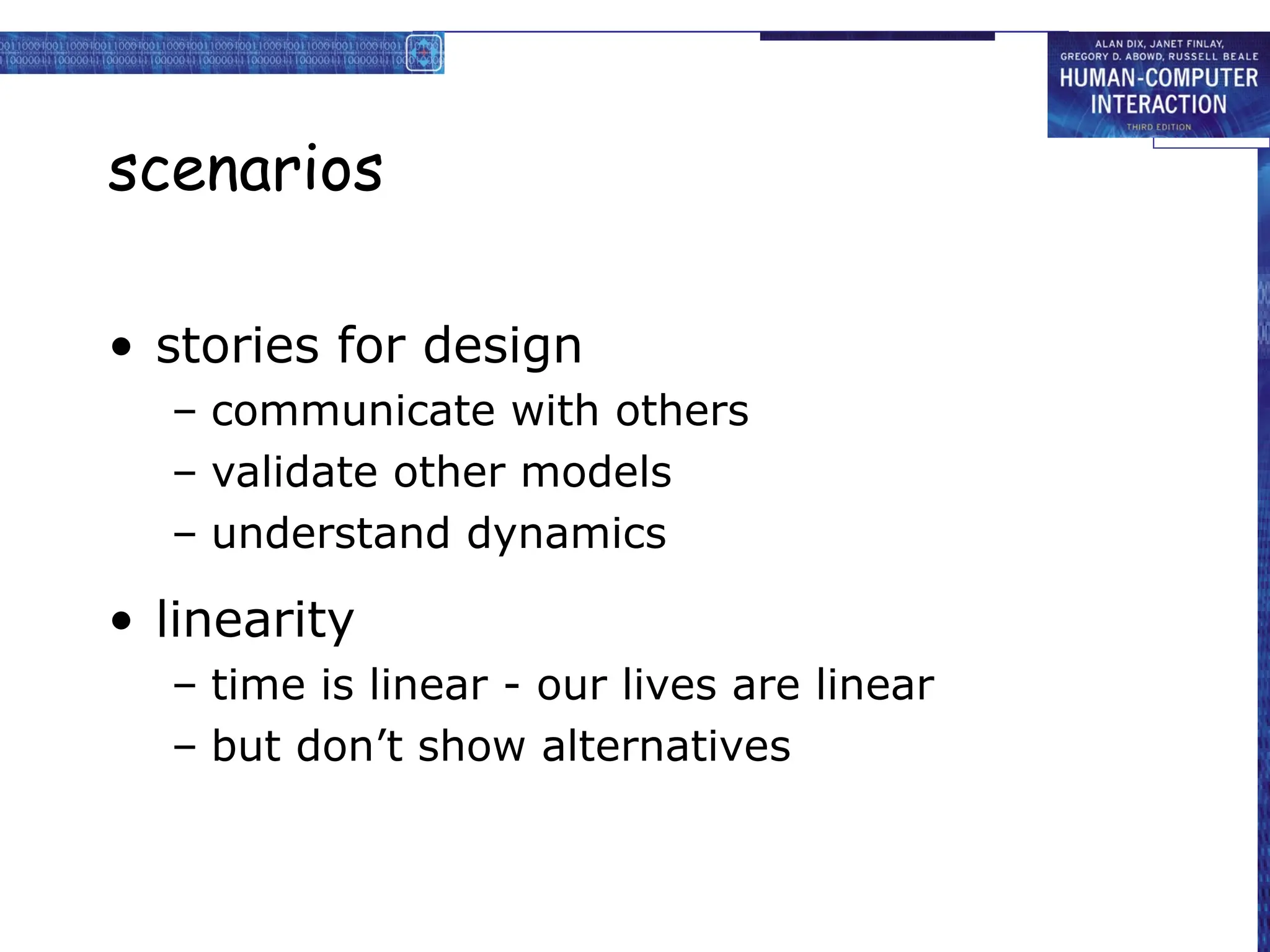

- 20. scenarios • stories fordesign – communicate with others – validate other models – understand dynamics • linearity – time is linear - our lives are linear – but don’t show alternatives

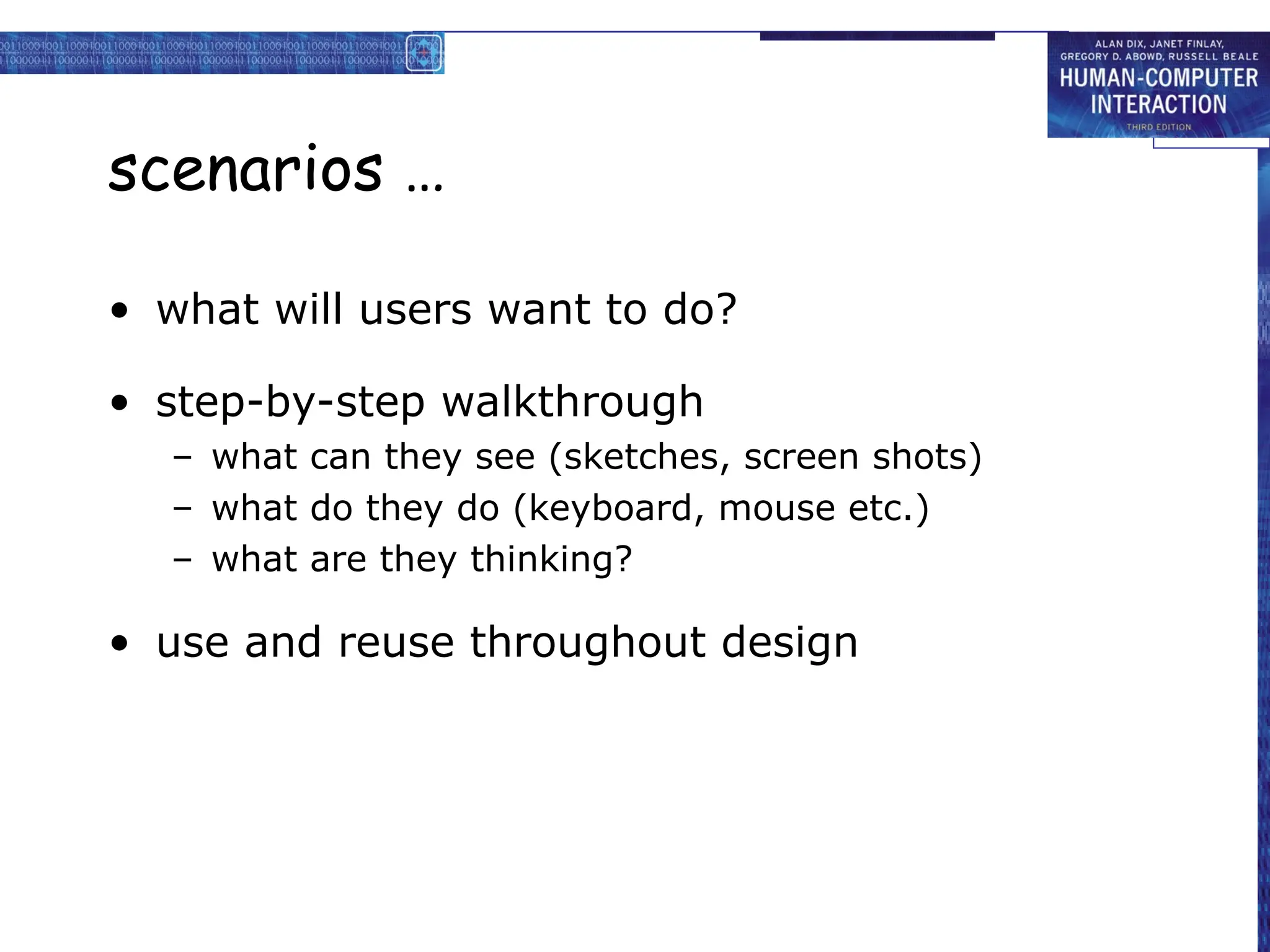

- 21. scenarios … • whatwill users want to do? • step-by-step walkthrough – what can they see (sketches, screen shots) – what do they do (keyboard, mouse etc.) – what are they thinking? • use and reuse throughout design

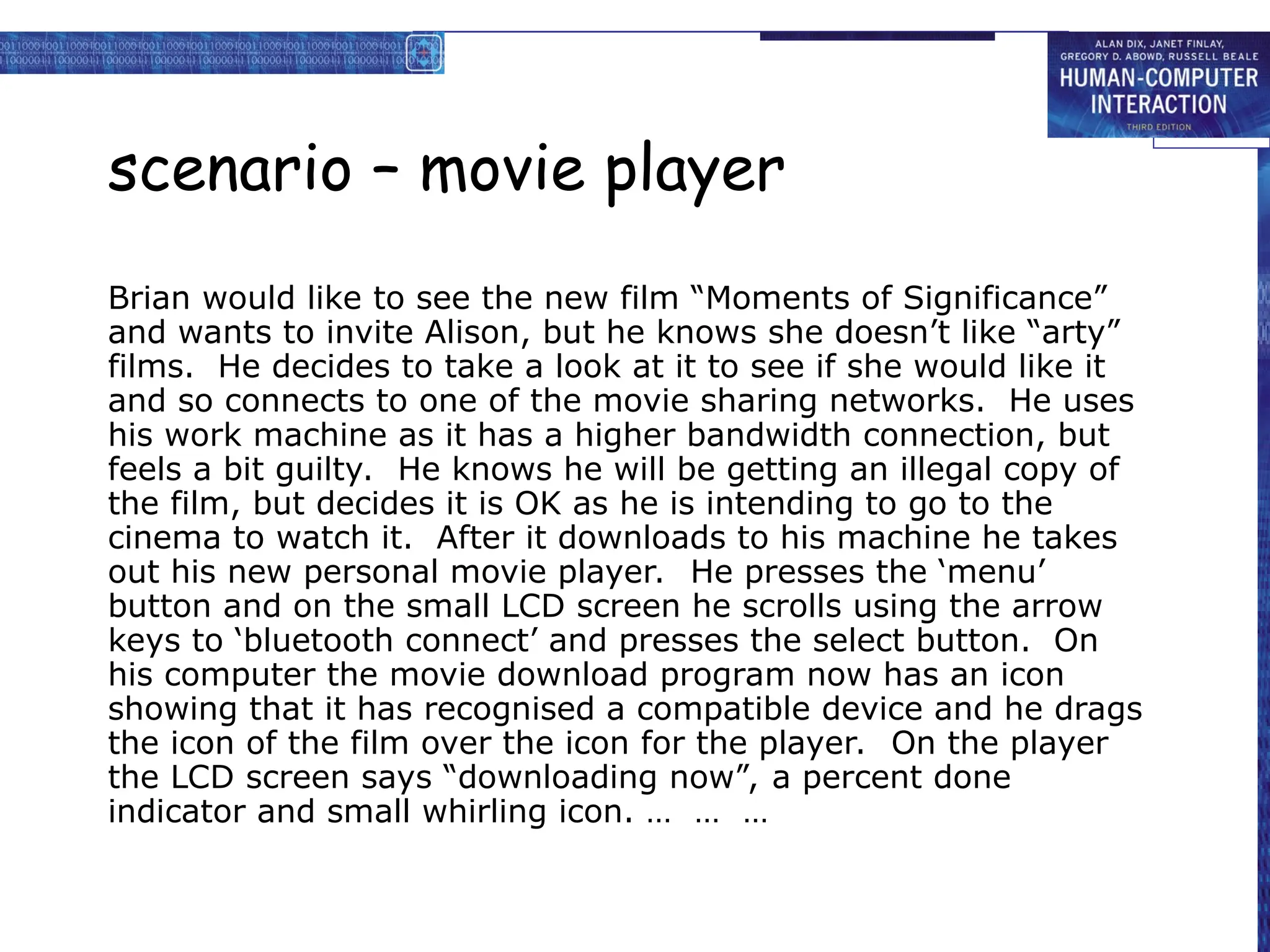

- 22. scenario – movieplayer Brian would like to see the new film “Moments of Significance” and wants to invite Alison, but he knows she doesn’t like “arty” films. He decides to take a look at it to see if she would like it and so connects to one of the movie sharing networks. He uses his work machine as it has a higher bandwidth connection, but feels a bit guilty. He knows he will be getting an illegal copy of the film, but decides it is OK as he is intending to go to the cinema to watch it. After it downloads to his machine he takes out his new personal movie player. He presses the ‘menu’ button and on the small LCD screen he scrolls using the arrow keys to ‘bluetooth connect’ and presses the select button. On his computer the movie download program now has an icon showing that it has recognised a compatible device and he drags the icon of the film over the icon for the player. On the player the LCD screen says “downloading now”, a percent done indicator and small whirling icon. … … …

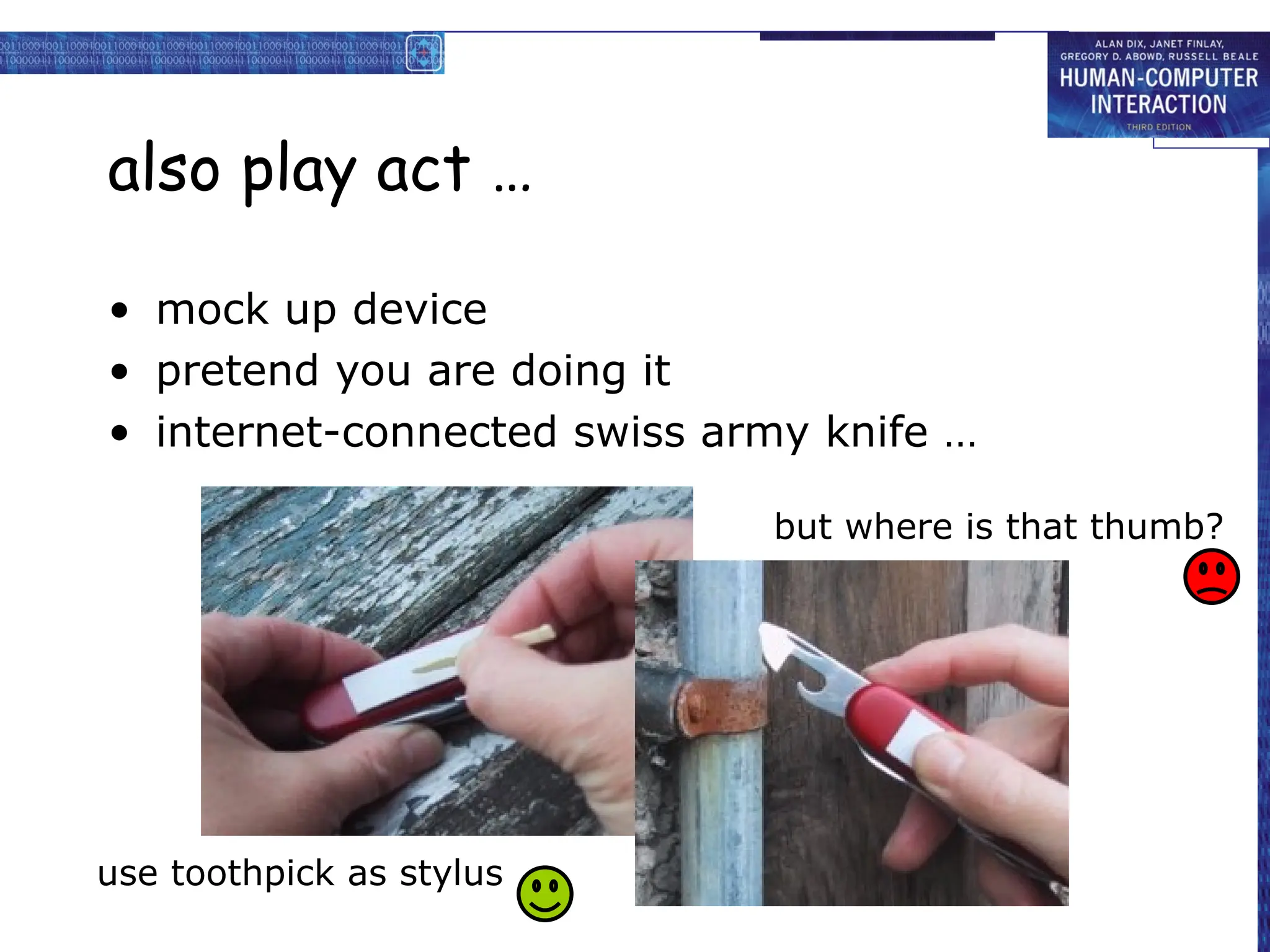

- 23. also play act… • mock up device • pretend you are doing it • internet-connected swiss army knife … use toothpick as stylus but where is that thumb?

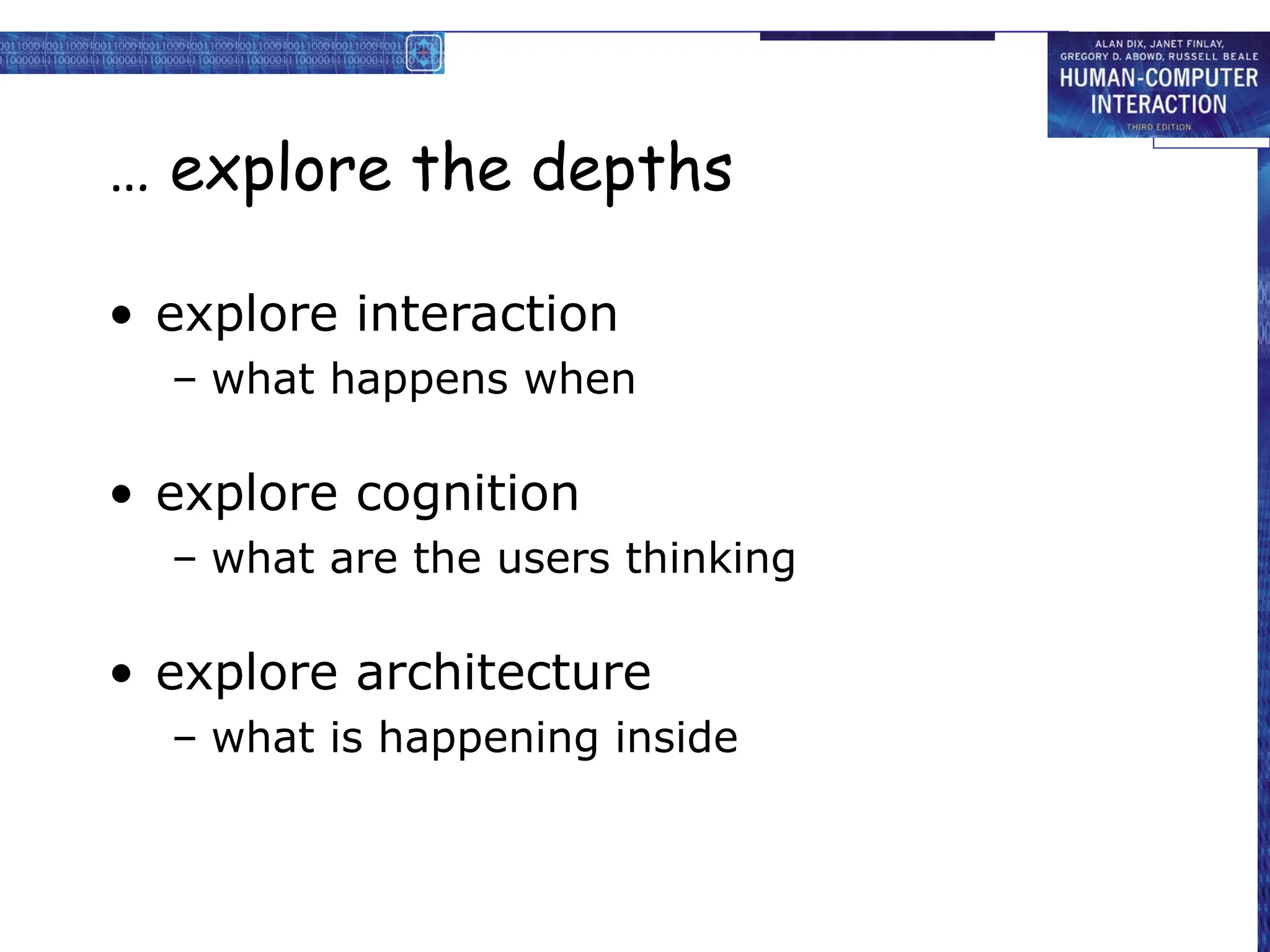

- 24. … explore thedepths • explore interaction – what happens when • explore cognition – what are the users thinking • explore architecture – what is happening inside

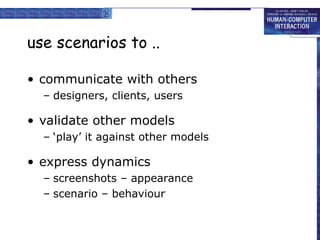

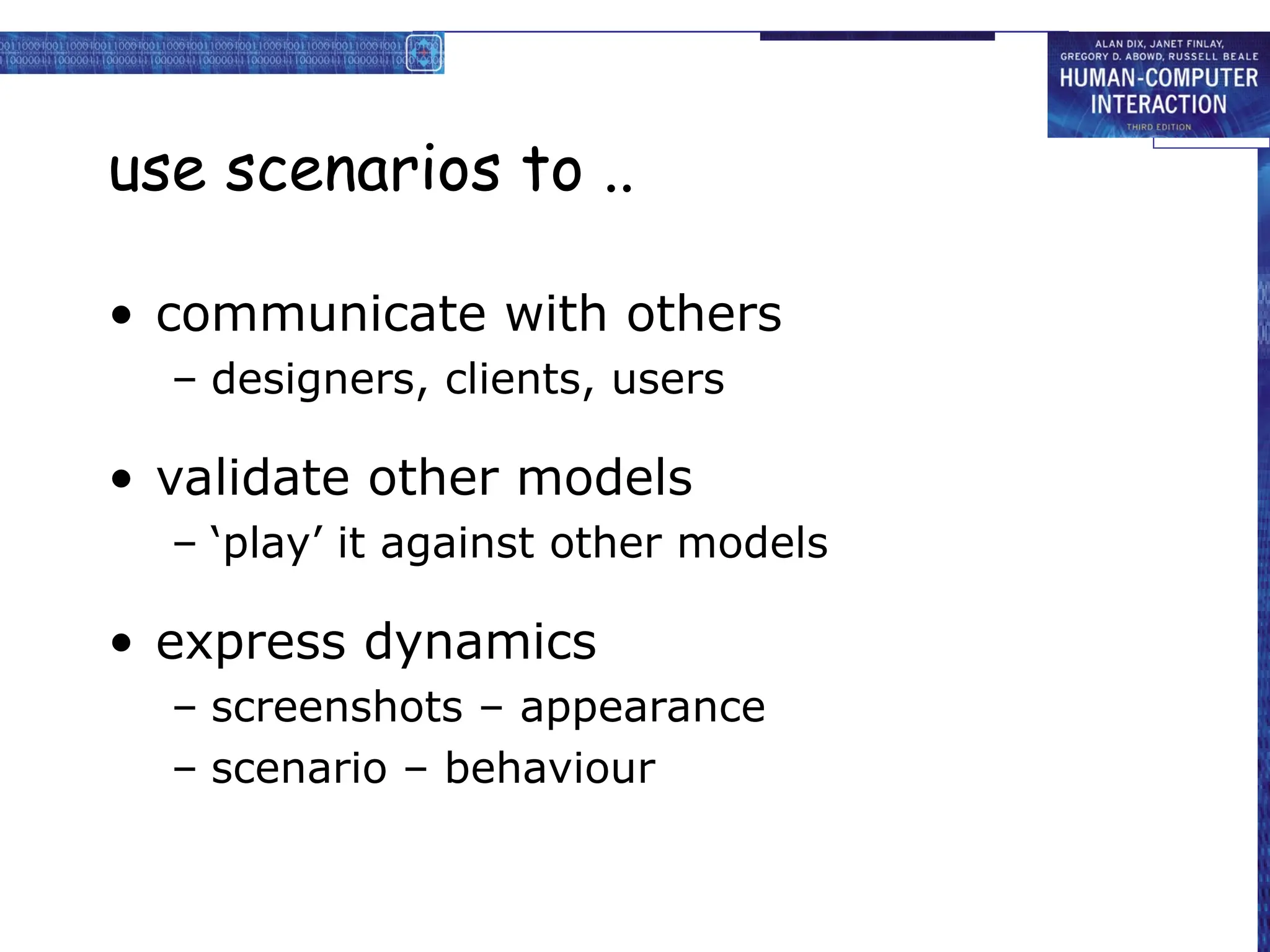

- 25. use scenarios to.. • communicate with others – designers, clients, users • validate other models – ‘play’ it against other models • express dynamics – screenshots – appearance – scenario – behaviour

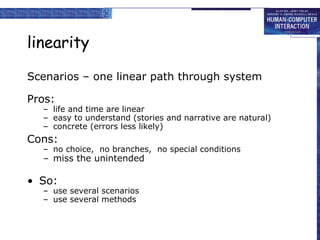

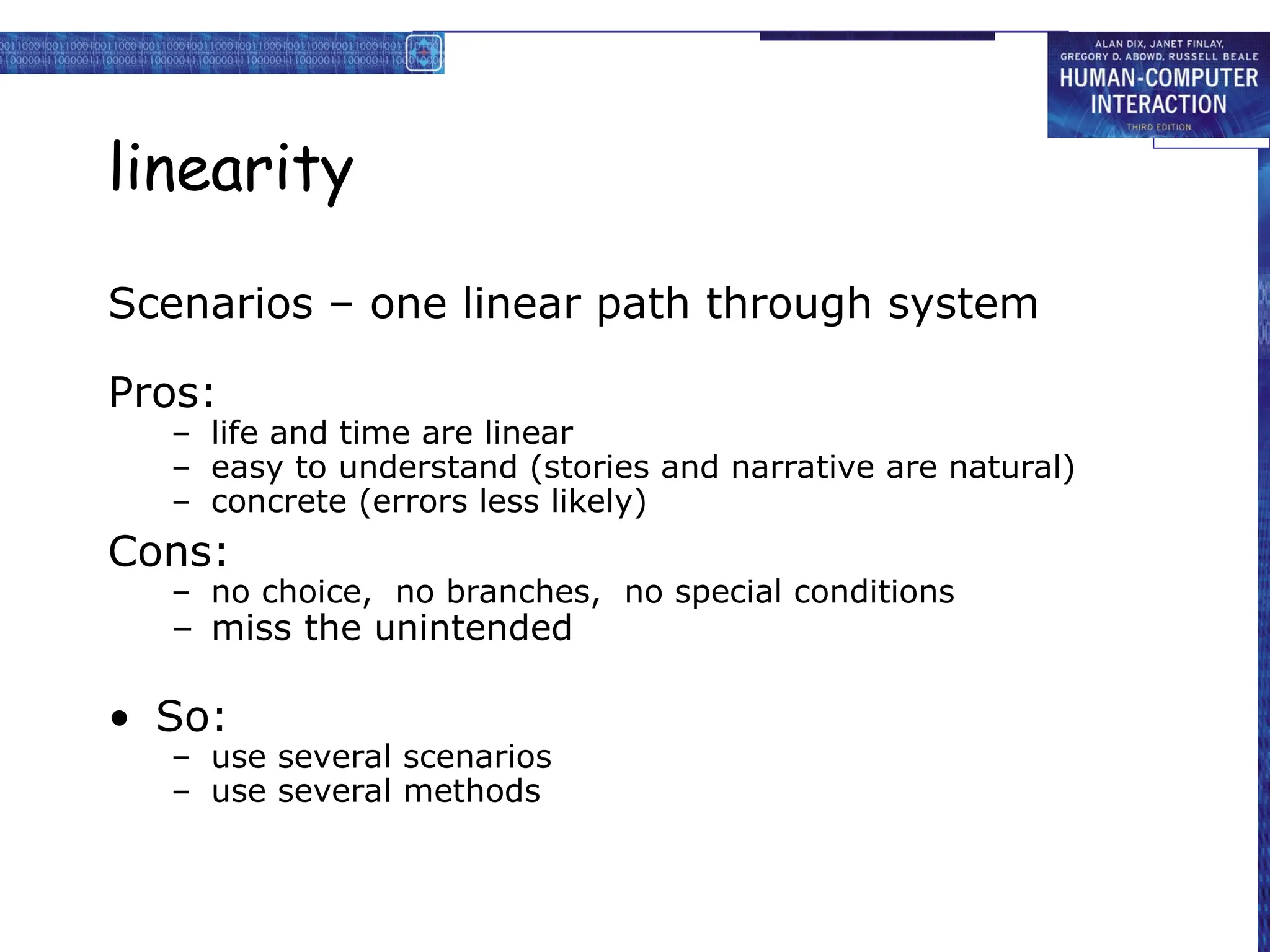

- 26. linearity Scenarios – onelinear path through system Pros: – life and time are linear – easy to understand (stories and narrative are natural) – concrete (errors less likely) Cons: – no choice, no branches, no special conditions – miss the unintended • So: – use several scenarios – use several methods
- 28. navigation design local structure– single screen global structure – whole site start the systems info and help management messages add user remove user main screen remove user confirm add user

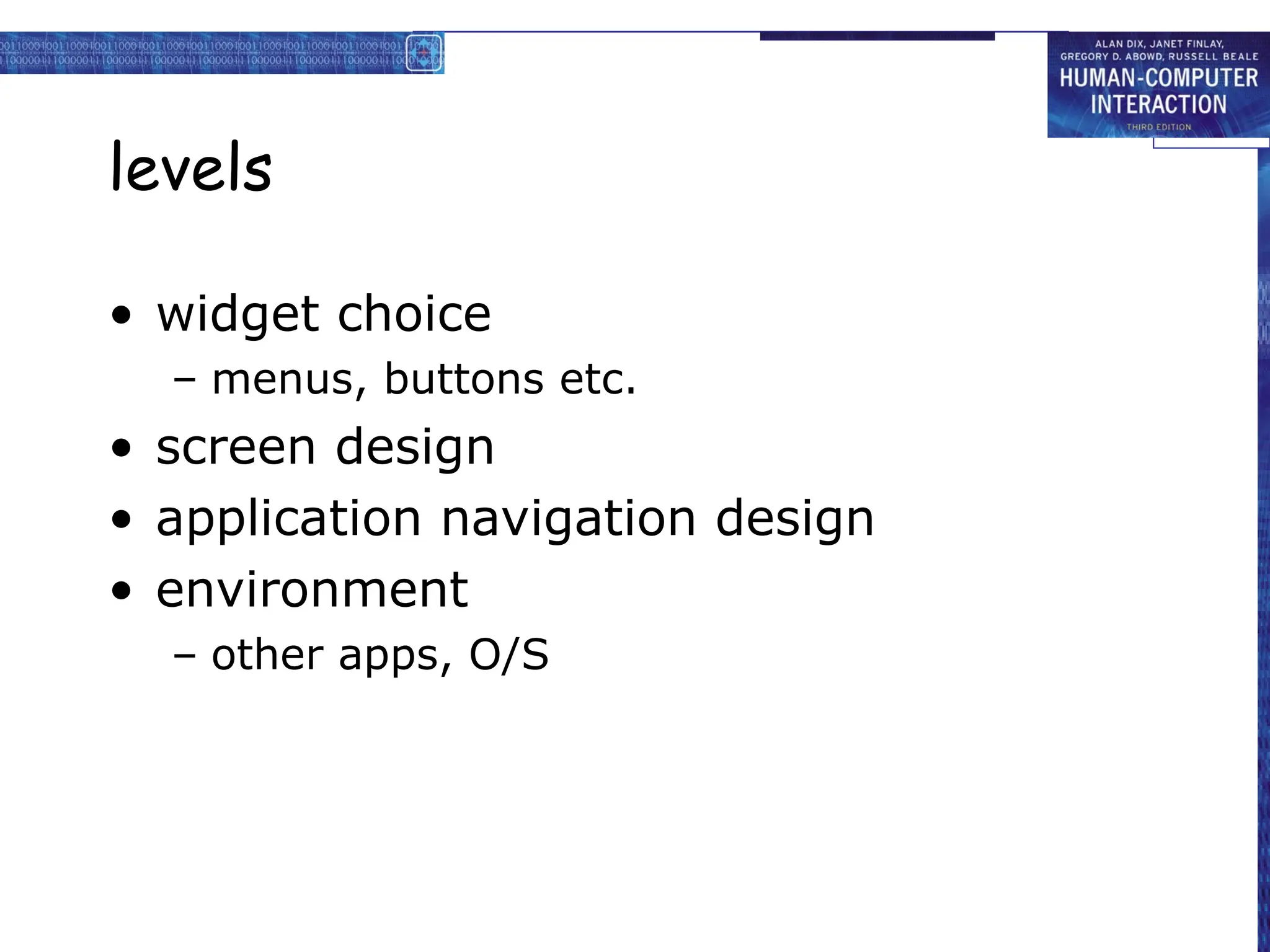

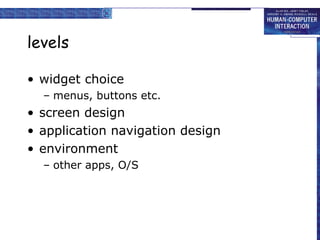

- 29. levels • widget choice –menus, buttons etc. • screen design • application navigation design • environment – other apps, O/S

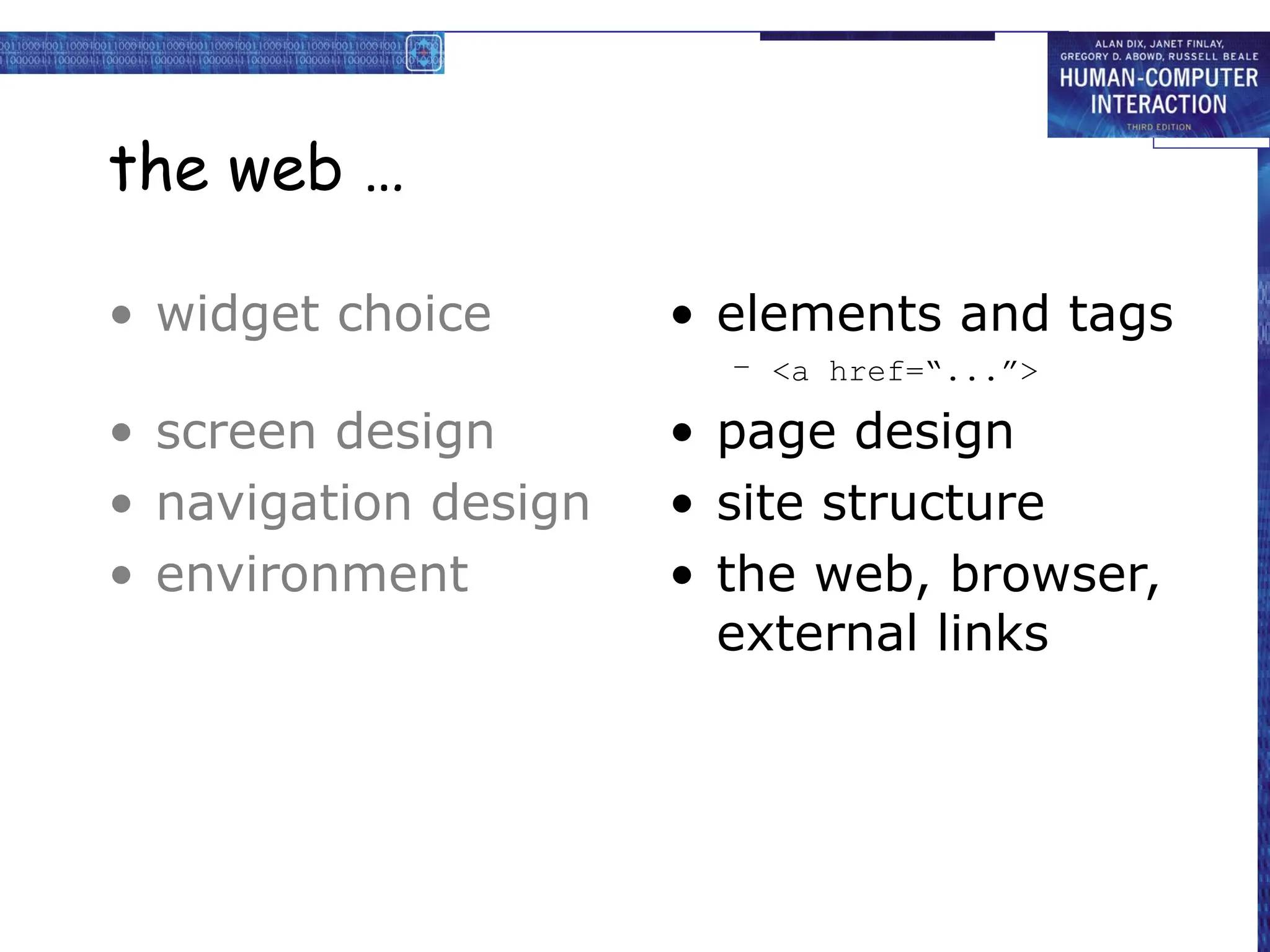

- 30. the web … •widget choice • screen design • navigation design • environment • elements and tags – <a href=“...”> • page design • site structure • the web, browser, external links

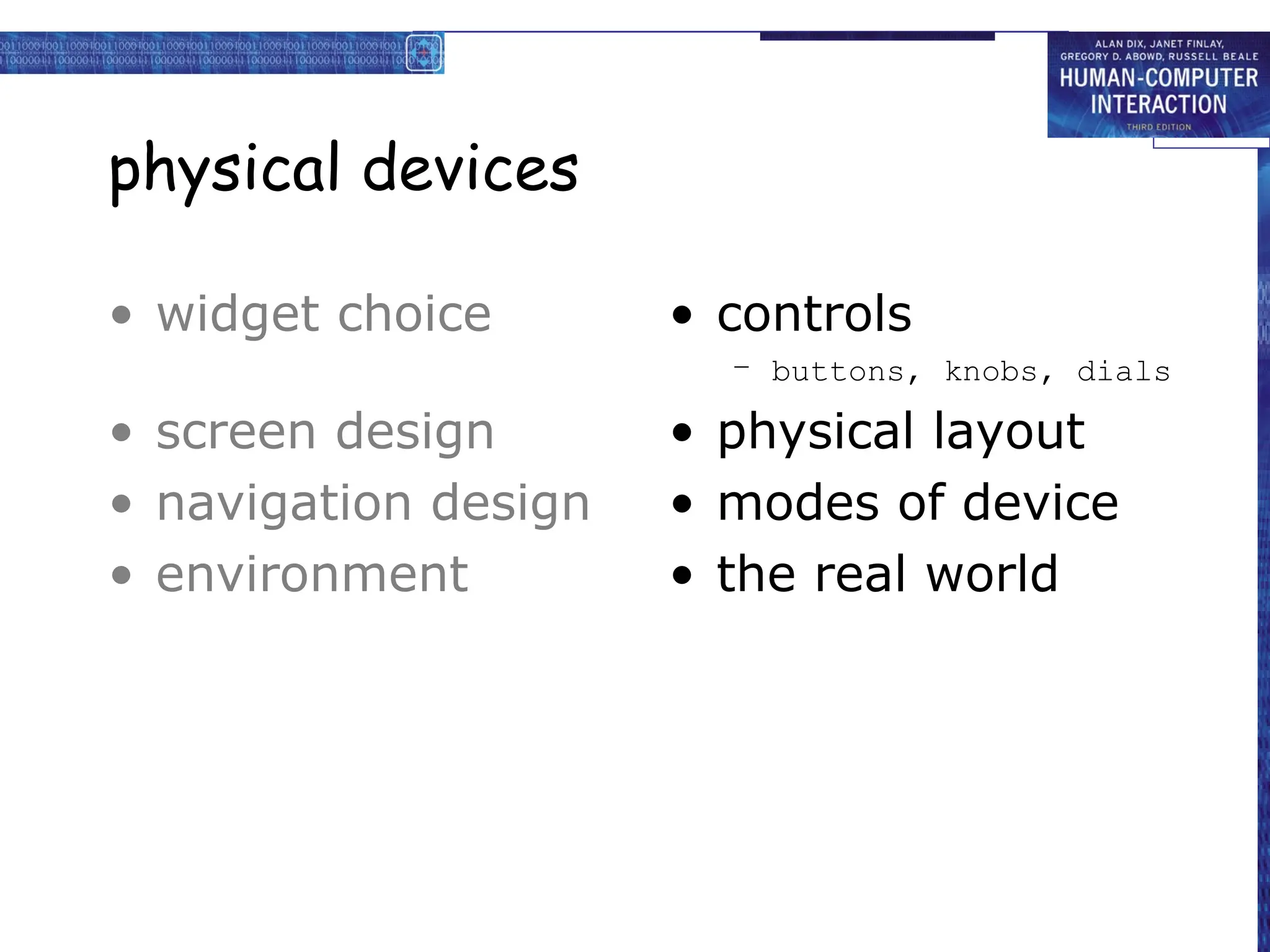

- 31. physical devices • widgetchoice • screen design • navigation design • environment • controls – buttons, knobs, dials • physical layout • modes of device • the real world

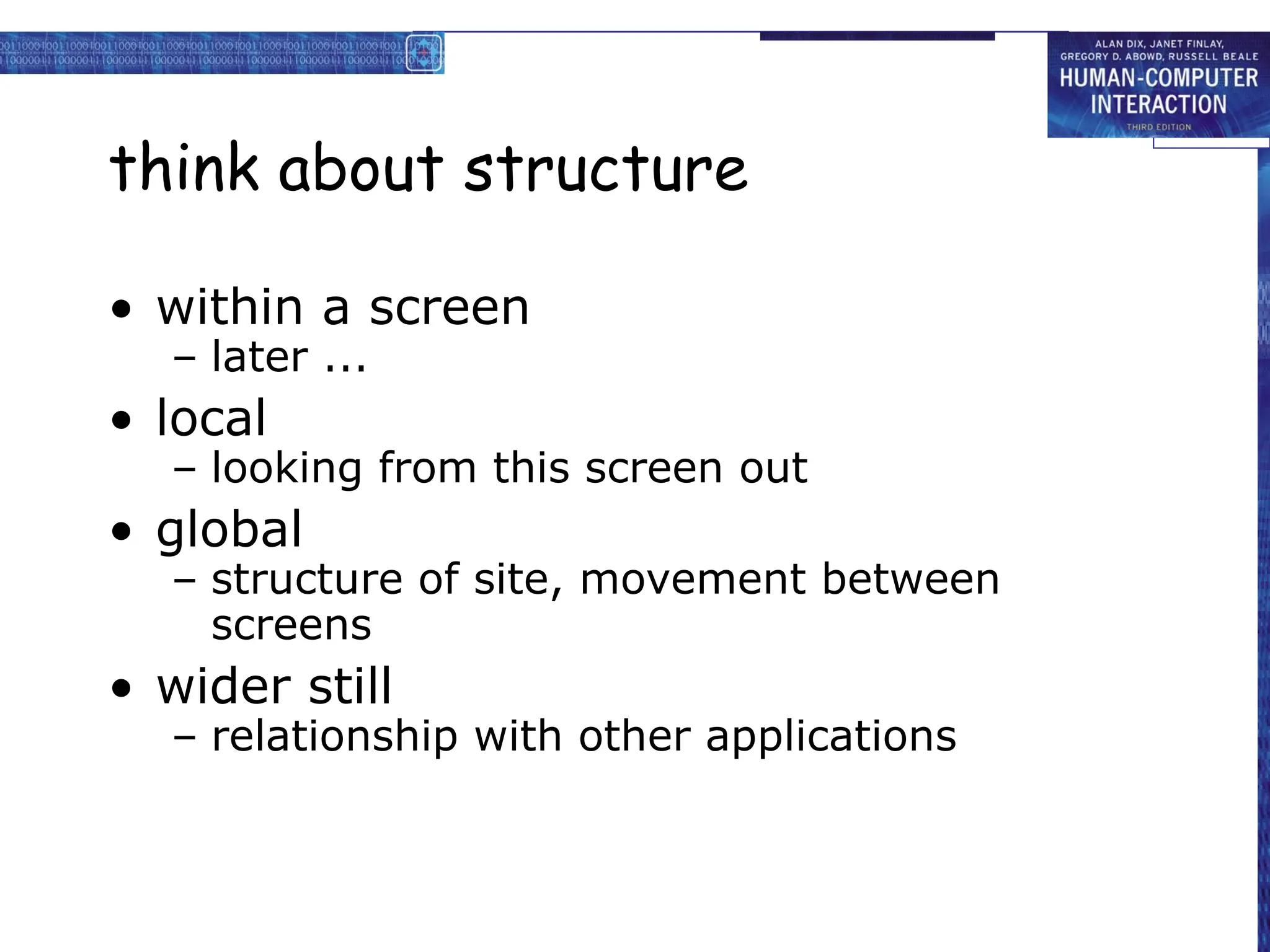

- 32. think about structure •within a screen – later ... • local – looking from this screen out • global – structure of site, movement between screens • wider still – relationship with other applications

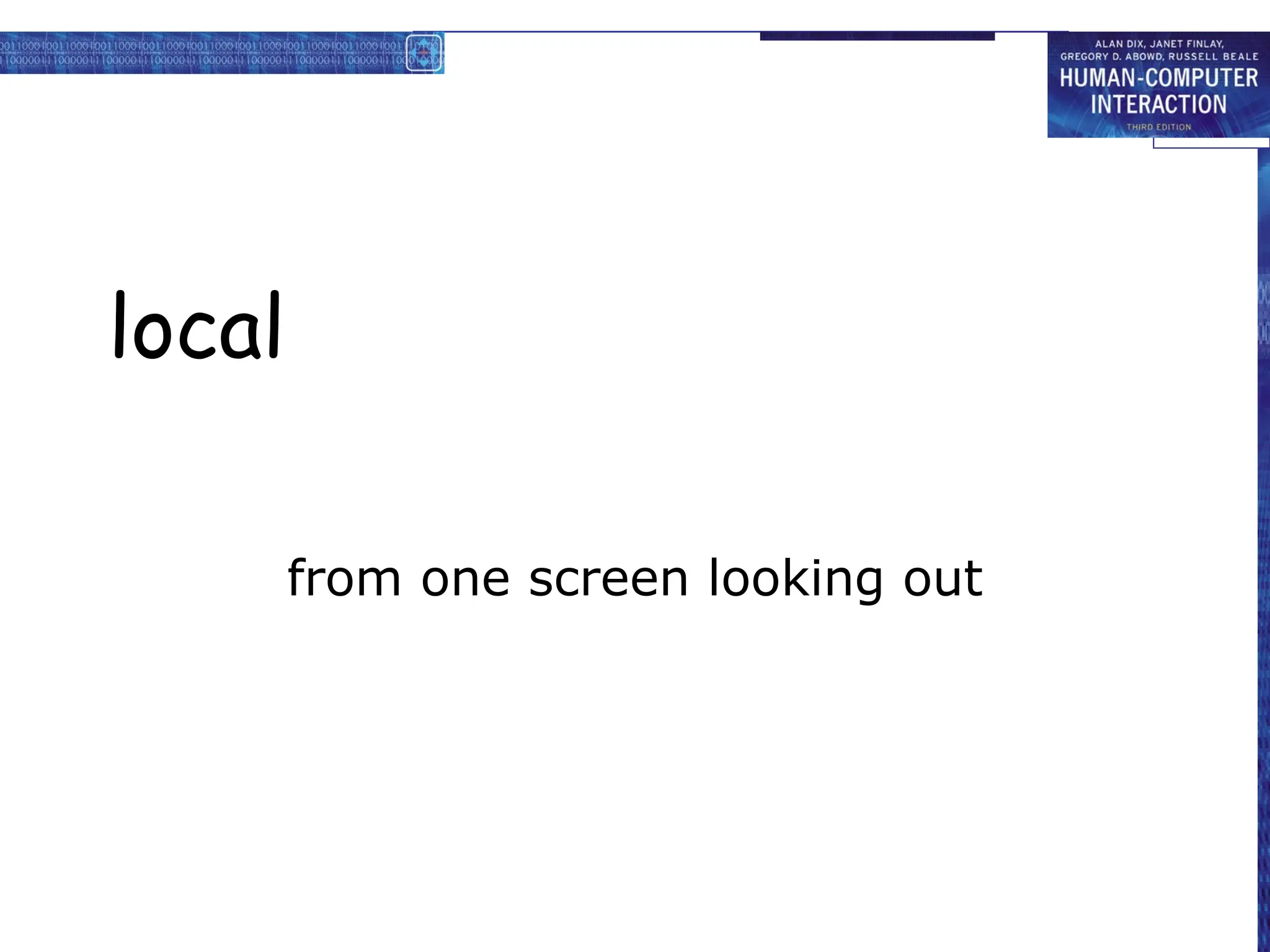

- 33. local from one screenlooking out
- 34.

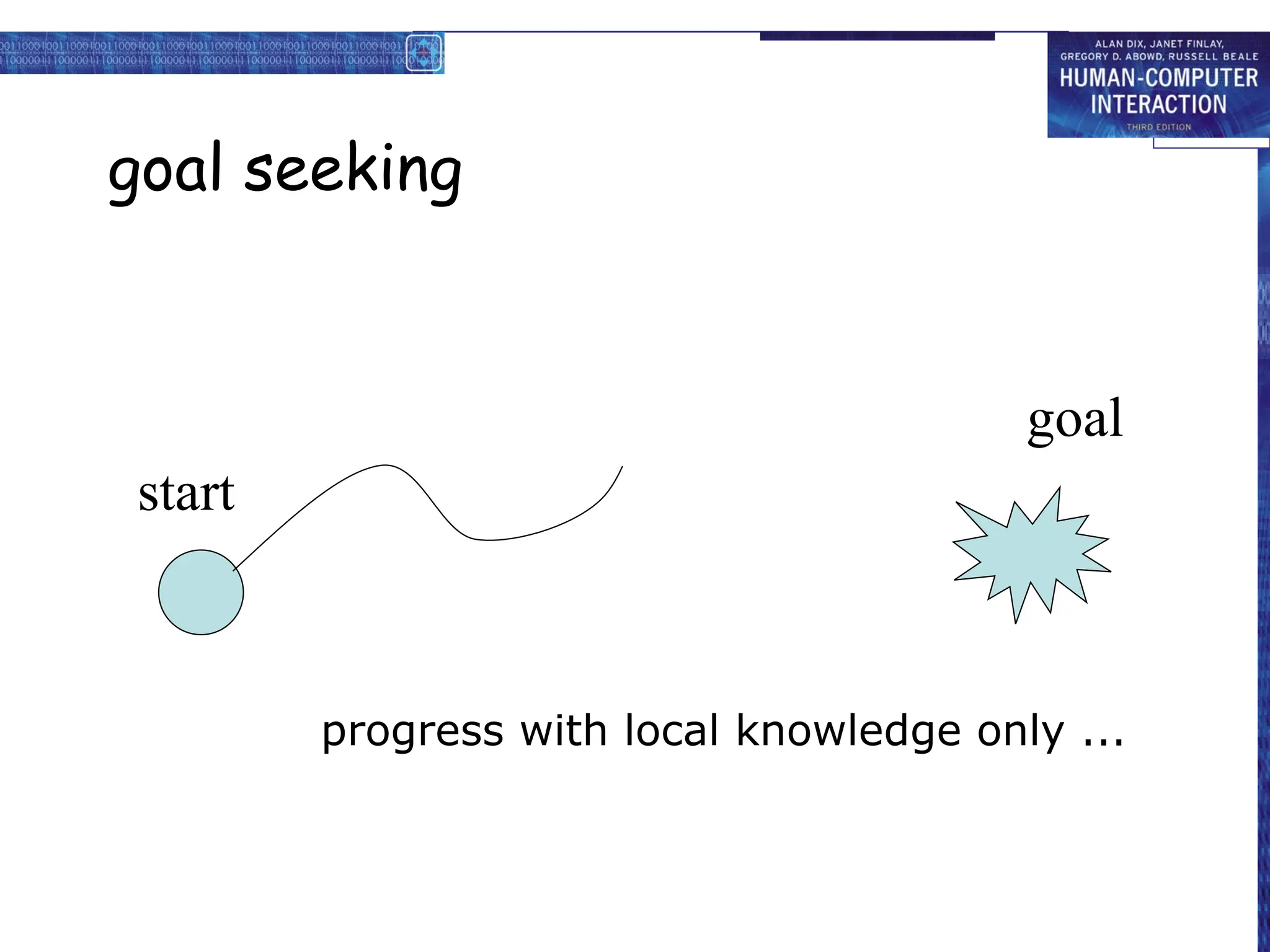

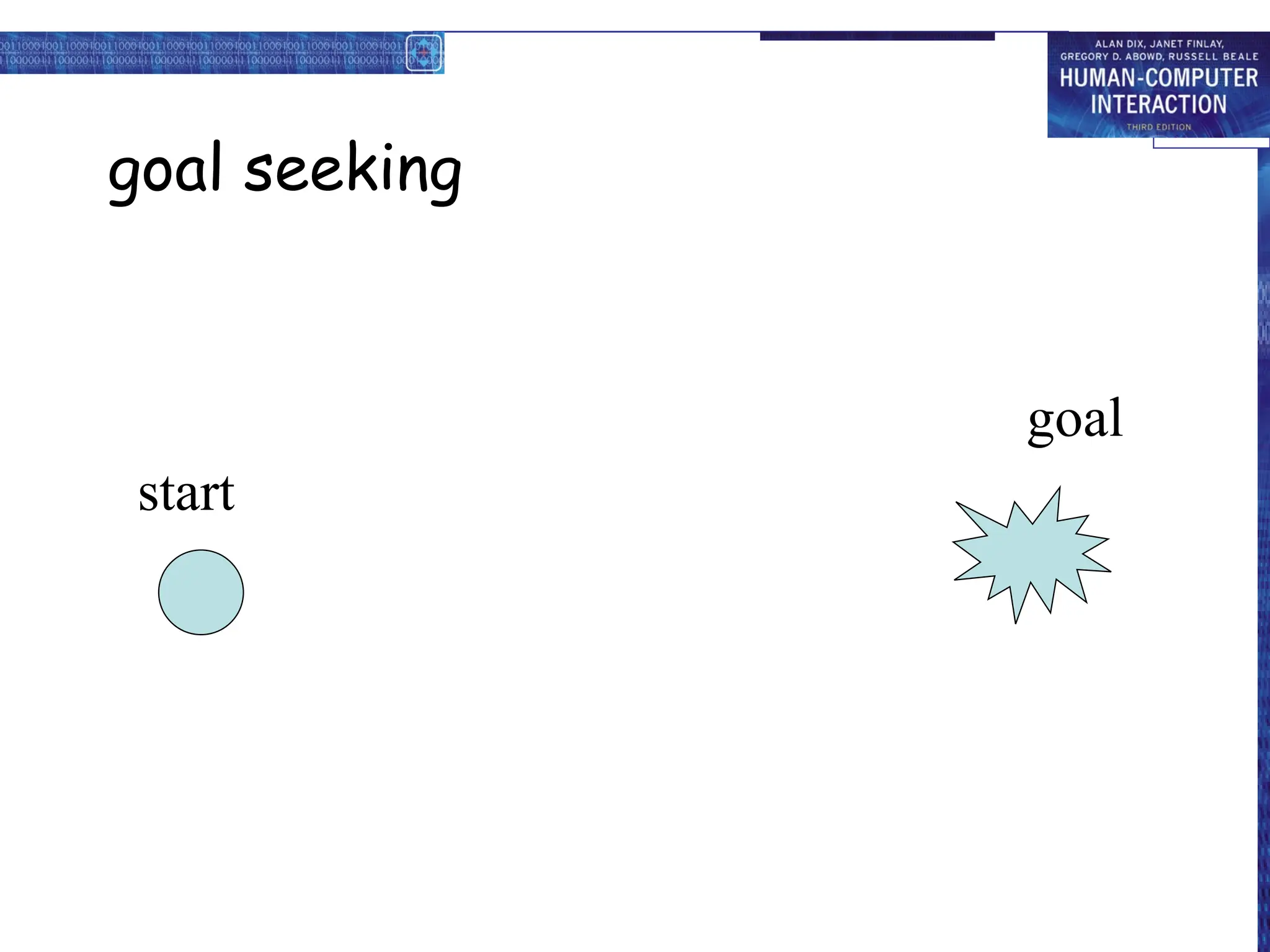

- 35. goal seeking start goal progress withlocal knowledge only ...

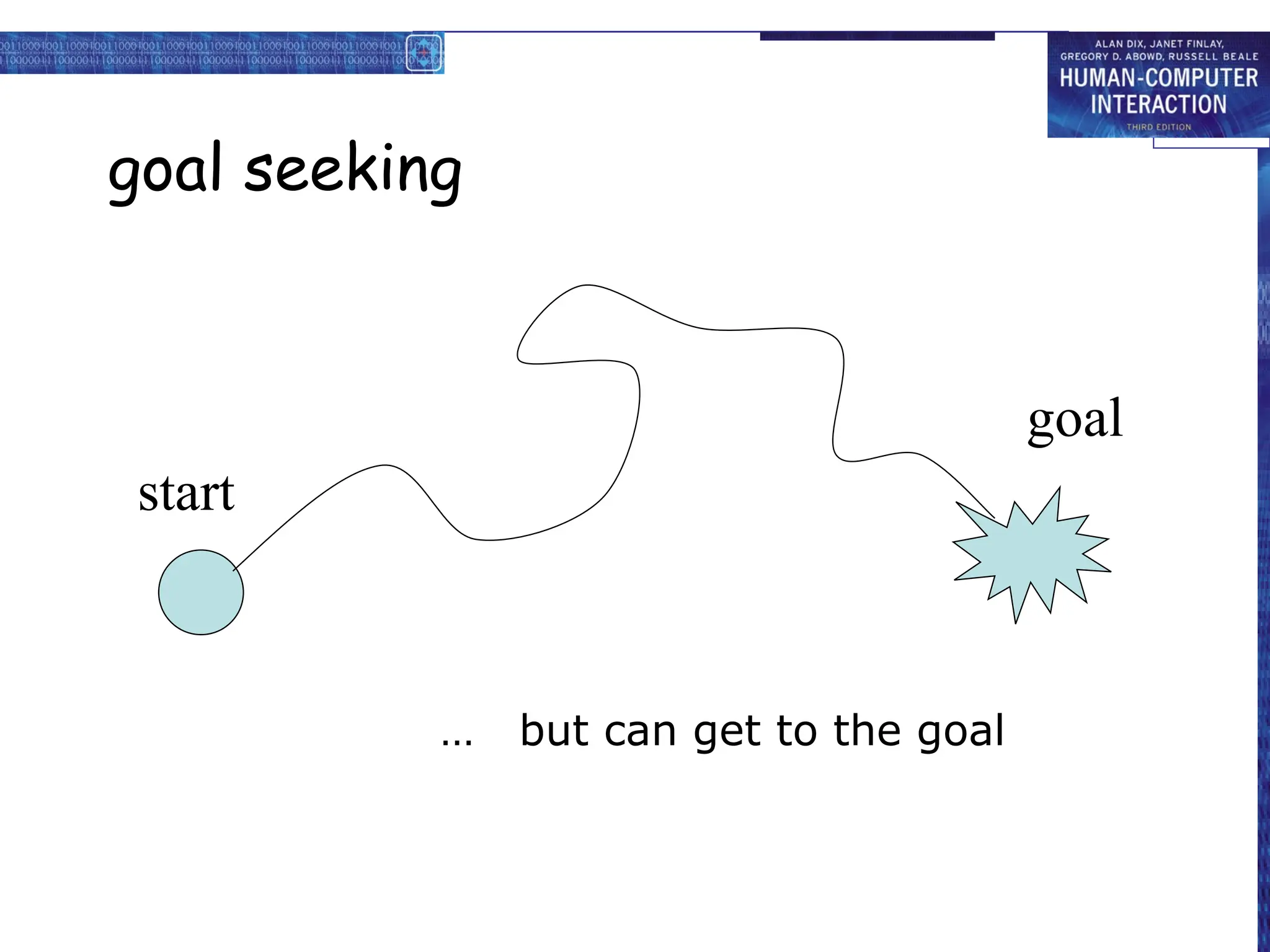

- 36. goal seeking goal start … butcan get to the goal

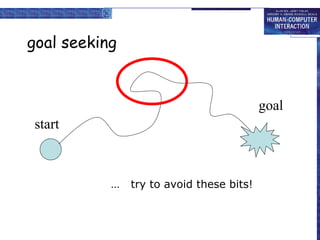

- 37. goal seeking … tryto avoid these bits! goal start

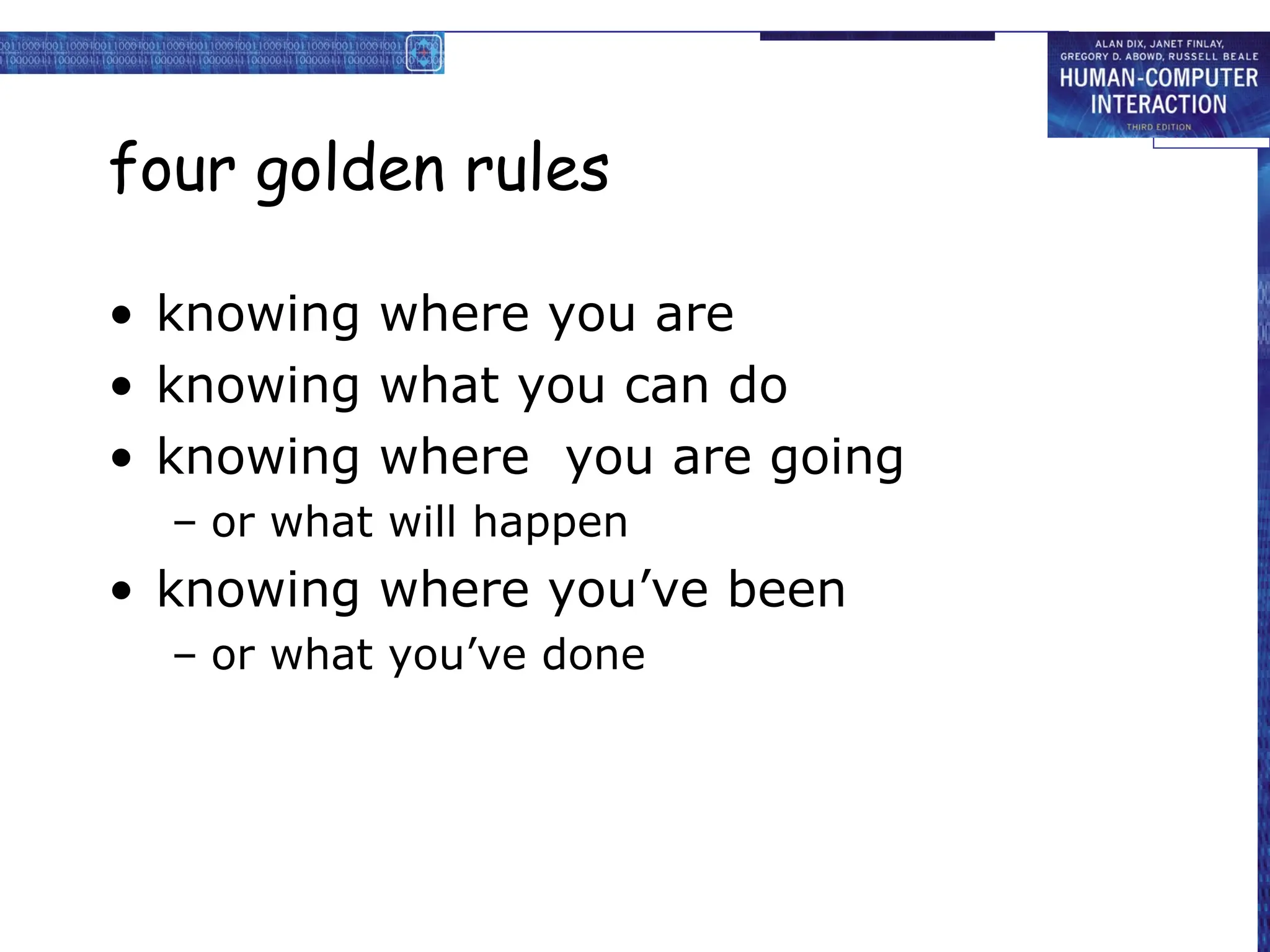

- 38. four golden rules •knowing where you are • knowing what you can do • knowing where you are going – or what will happen • knowing where you’ve been – or what you’ve done

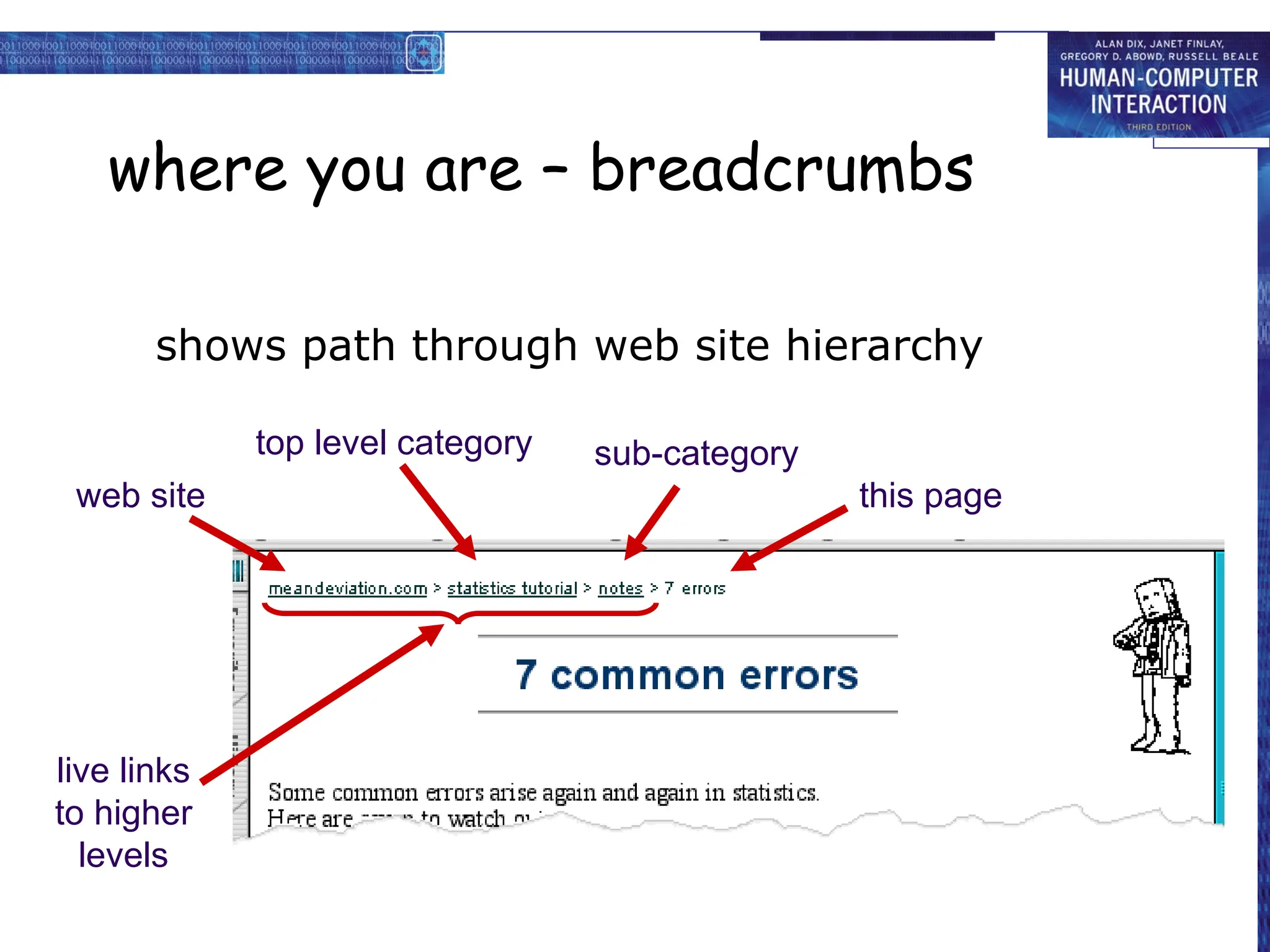

- 39. where you are– breadcrumbs shows path through web site hierarchy web site top level category sub-category this page live links to higher levels

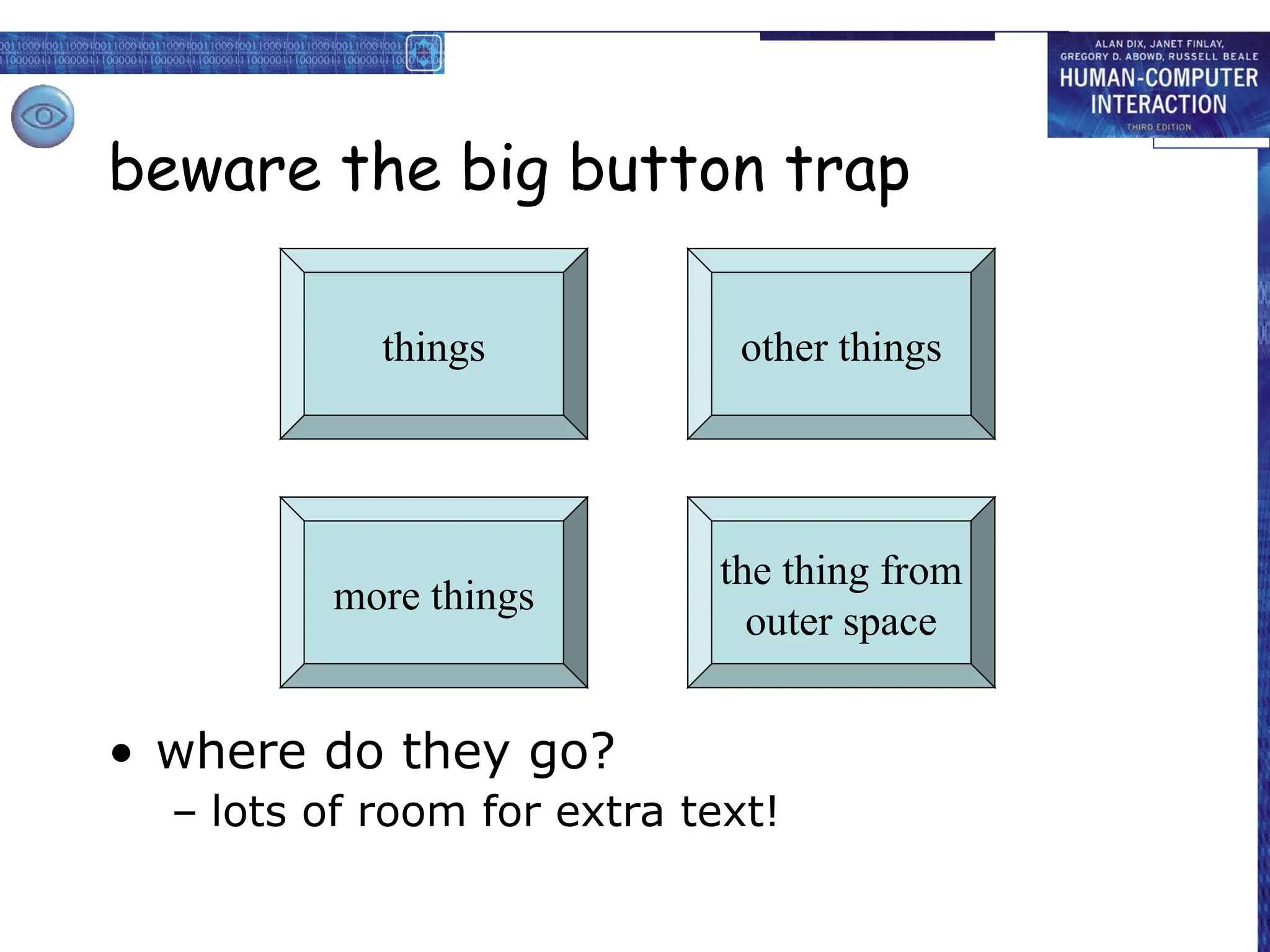

- 40. beware the bigbutton trap • where do they go? – lots of room for extra text! things the thing from outer space more things other things

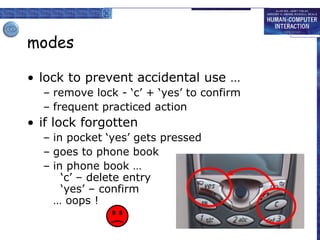

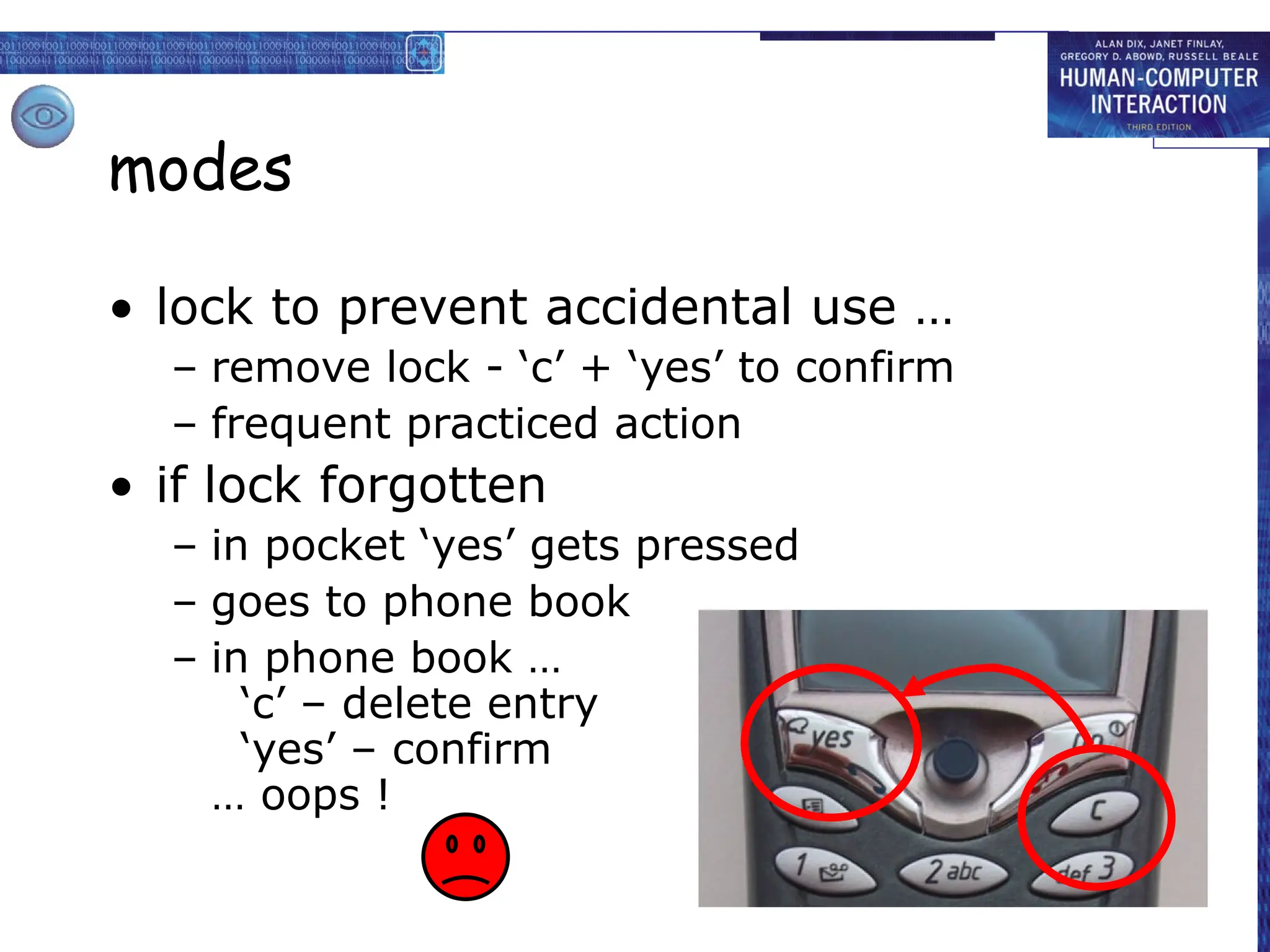

- 41. modes • lock toprevent accidental use … – remove lock - ‘c’ + ‘yes’ to confirm – frequent practiced action • if lock forgotten – in pocket ‘yes’ gets pressed – goes to phone book – in phone book … ‘c’ – delete entry ‘yes’ – confirm … oops !

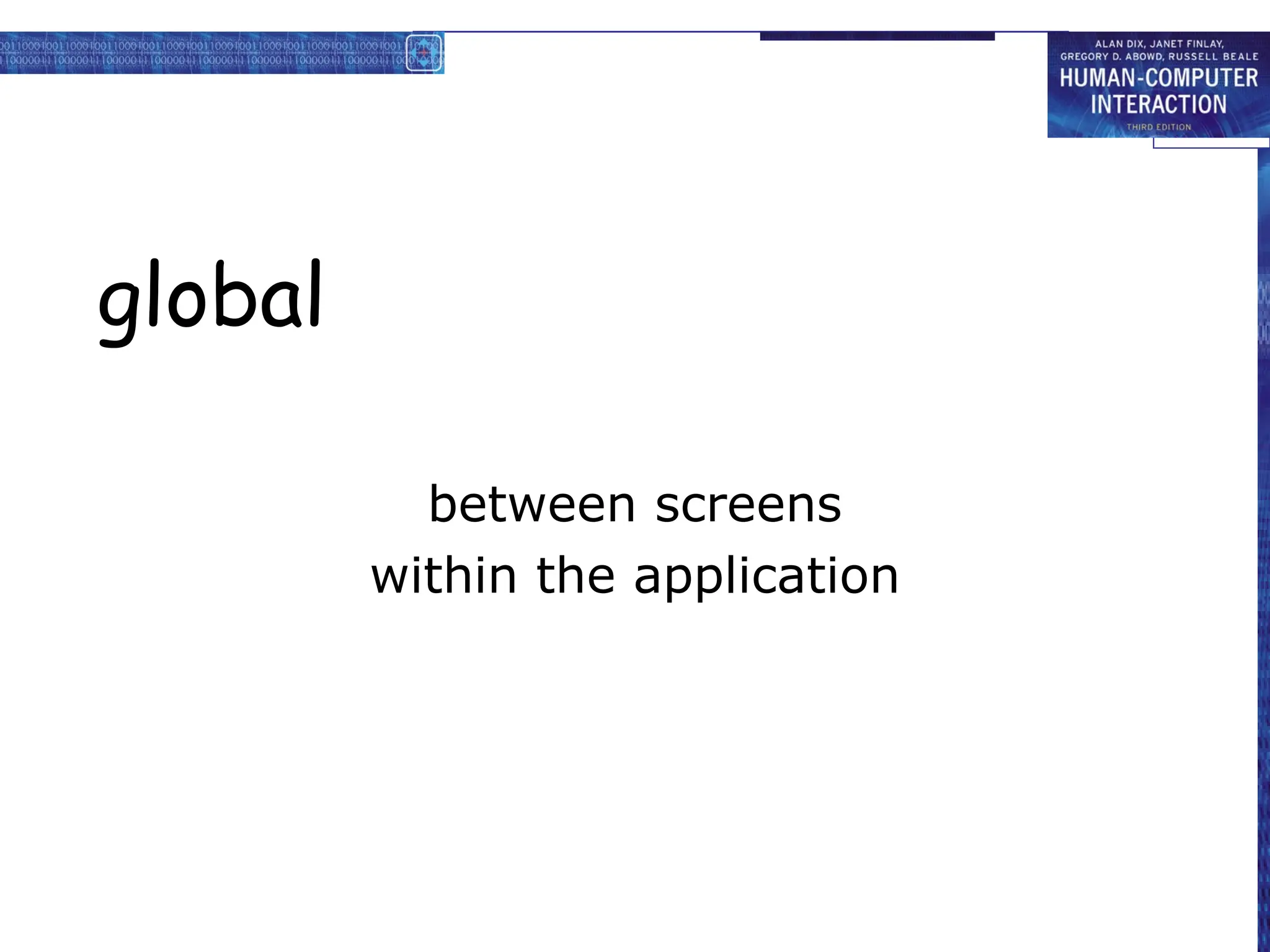

- 42. global between screens within theapplication

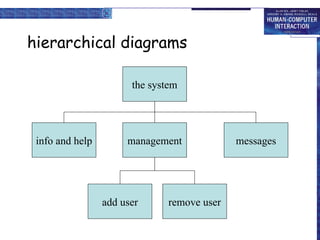

- 43. hierarchical diagrams the system infoand help management messages add user remove user

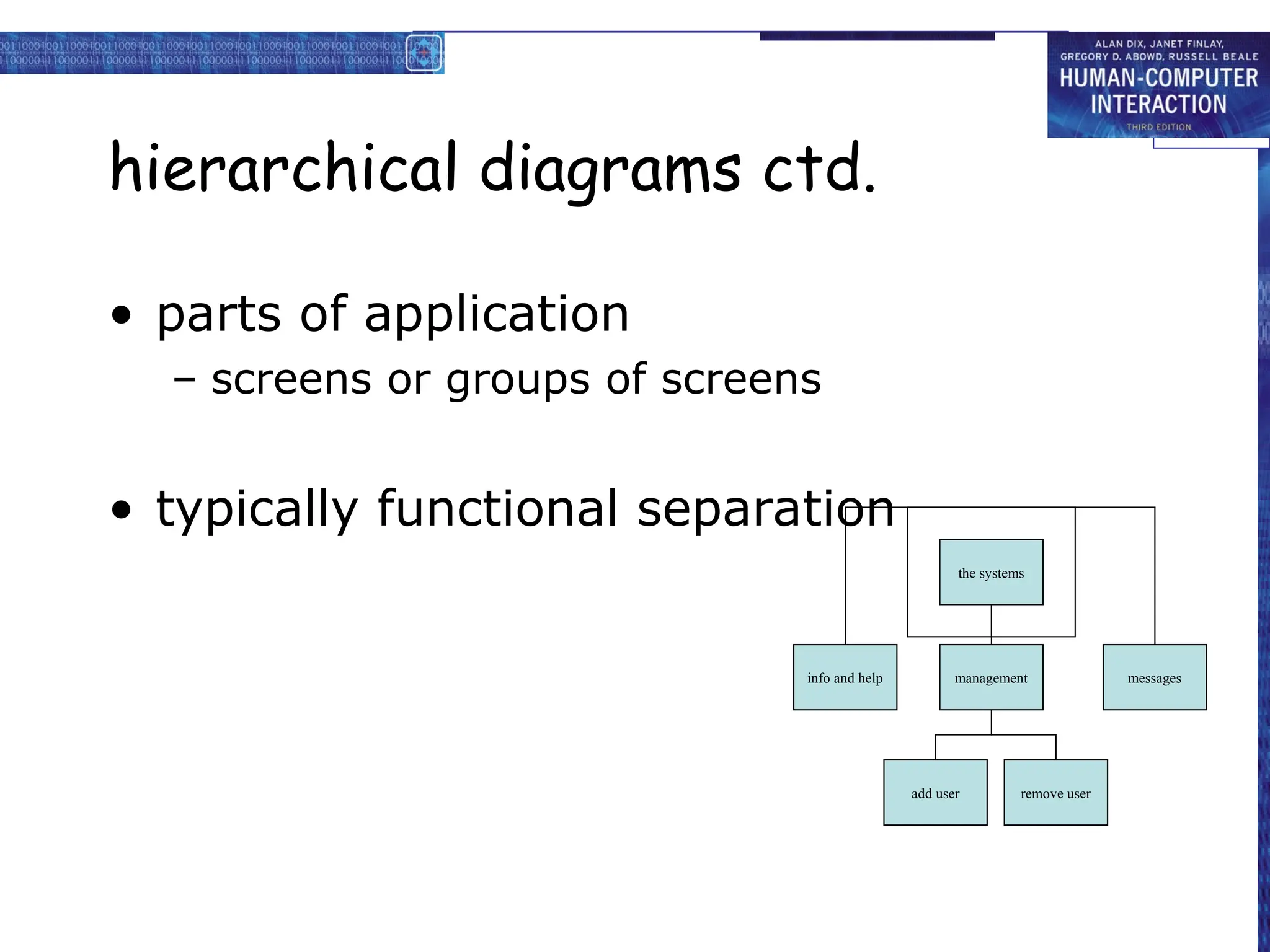

- 44. hierarchical diagrams ctd. •parts of application – screens or groups of screens • typically functional separation the systems info and help management messages add user remove user

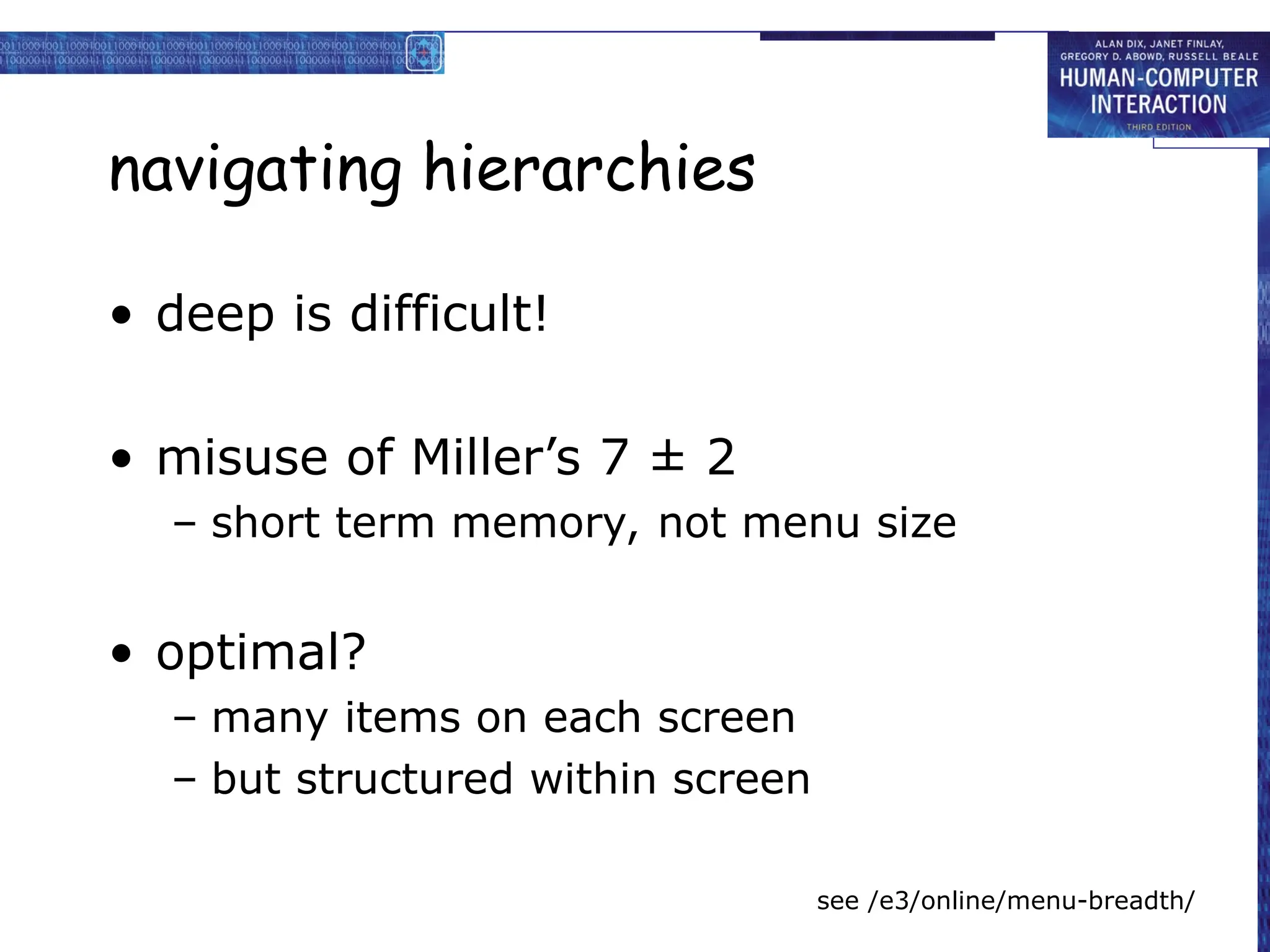

- 45. navigating hierarchies • deepis difficult! • misuse of Miller’s 7 ± 2 – short term memory, not menu size • optimal? – many items on each screen – but structured within screen see /e3/online/menu-breadth/

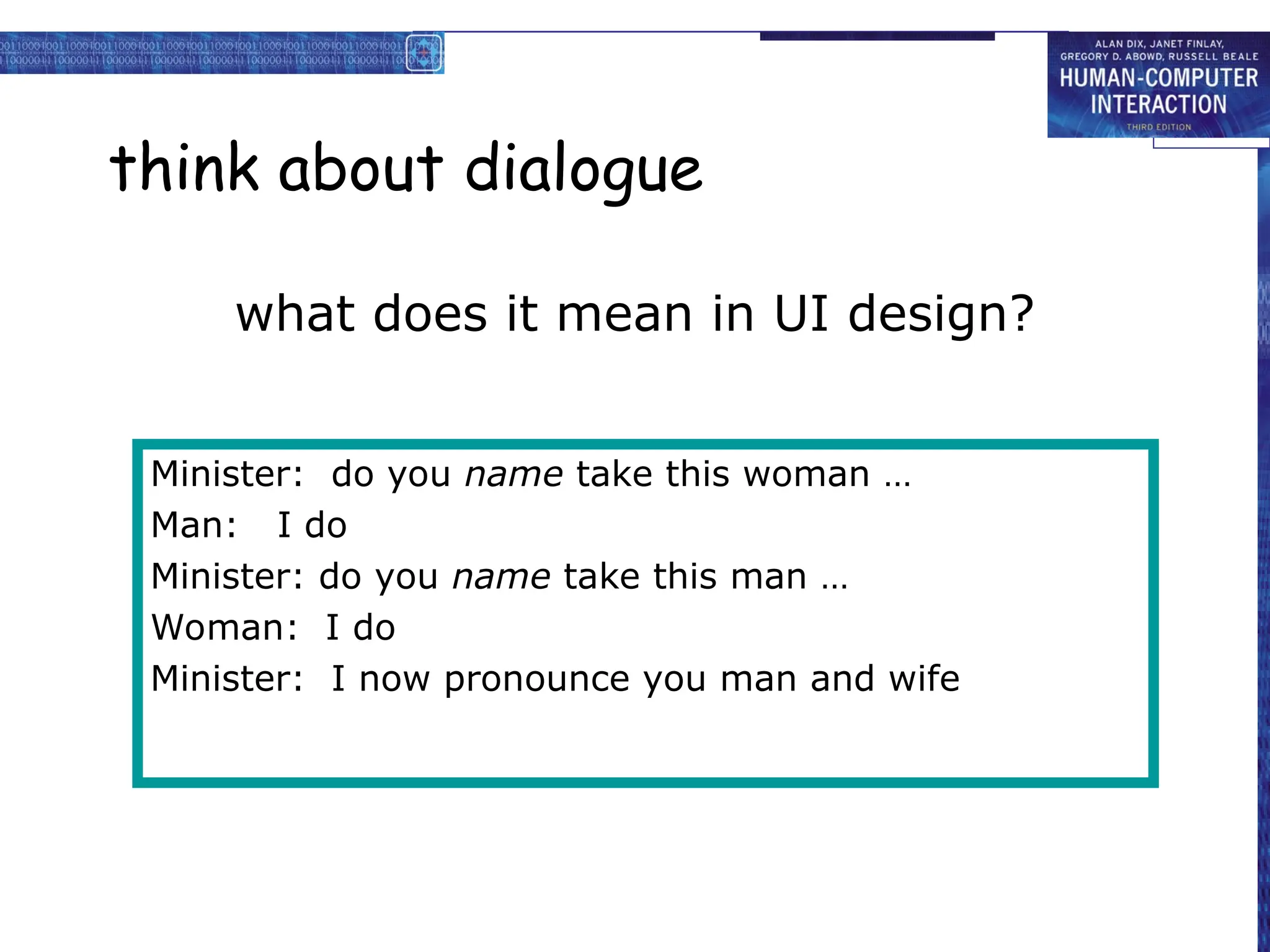

- 46. think about dialogue whatdoes it mean in UI design? Minister: do you name take this woman … Man: I do Minister: do you name take this man … Woman: I do Minister: I now pronounce you man and wife

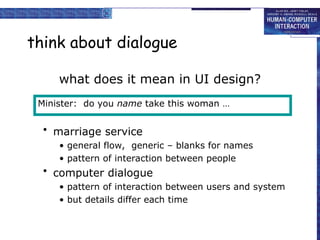

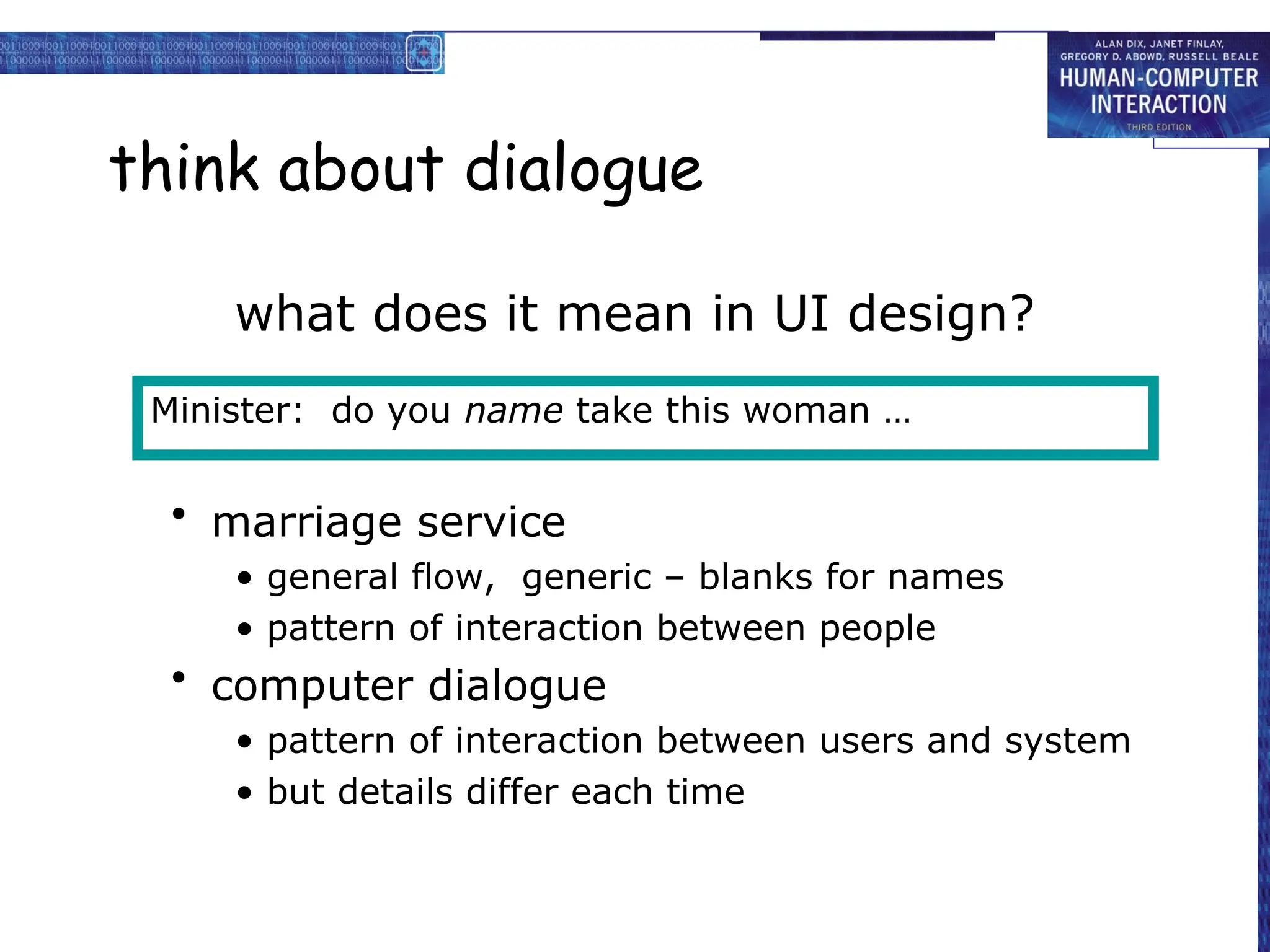

- 47. think about dialogue whatdoes it mean in UI design? • marriage service • general flow, generic – blanks for names • pattern of interaction between people • computer dialogue • pattern of interaction between users and system • but details differ each time Minister: do you name take this woman …

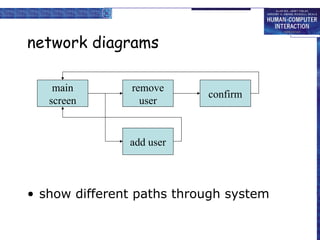

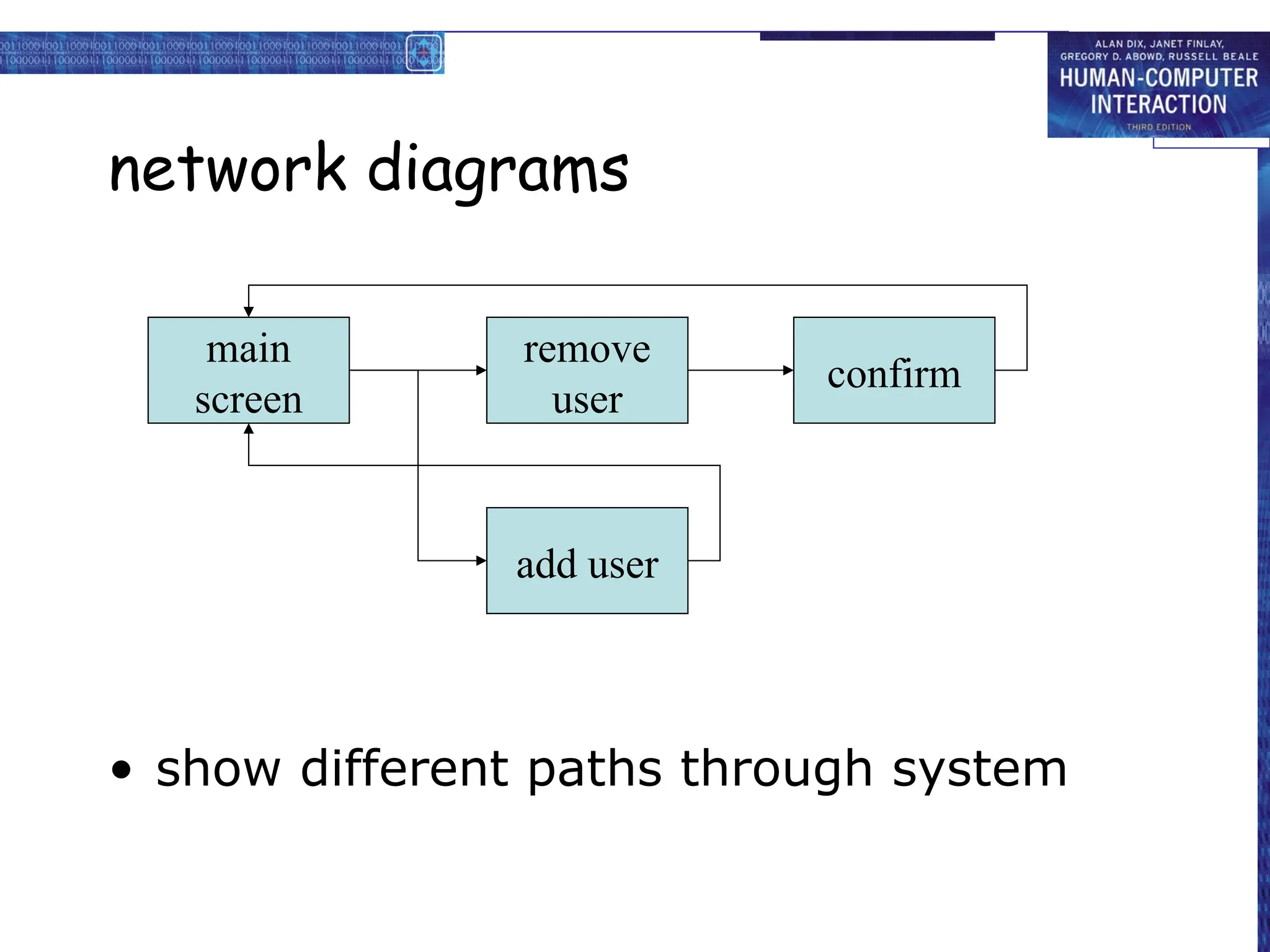

- 48. network diagrams • showdifferent paths through system main screen remove user confirm add user

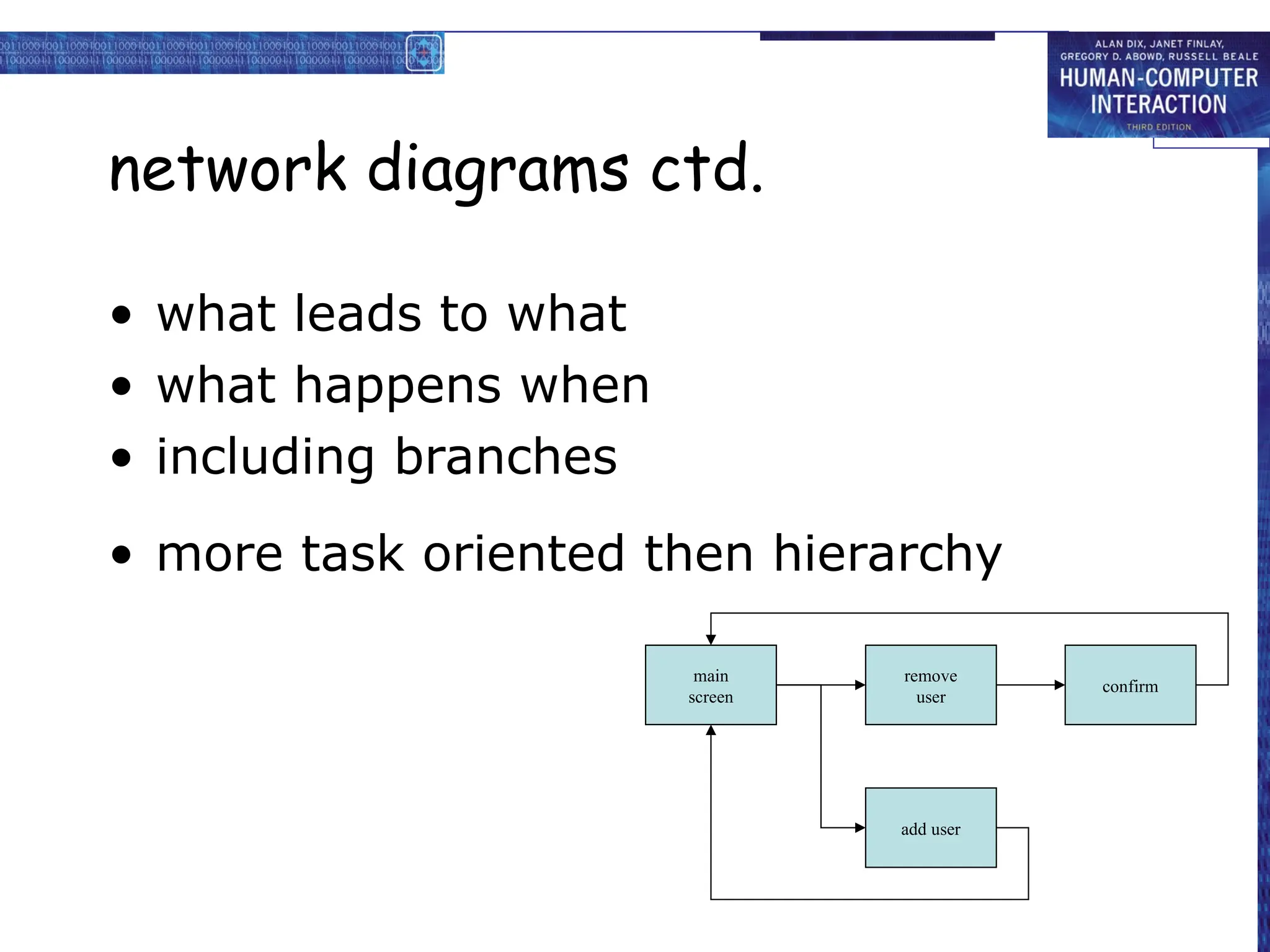

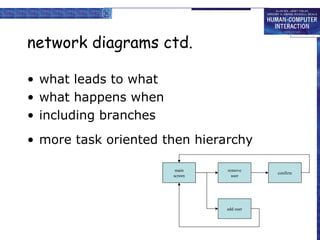

- 49. network diagrams ctd. •what leads to what • what happens when • including branches • more task oriented then hierarchy main screen remove user confirm add user

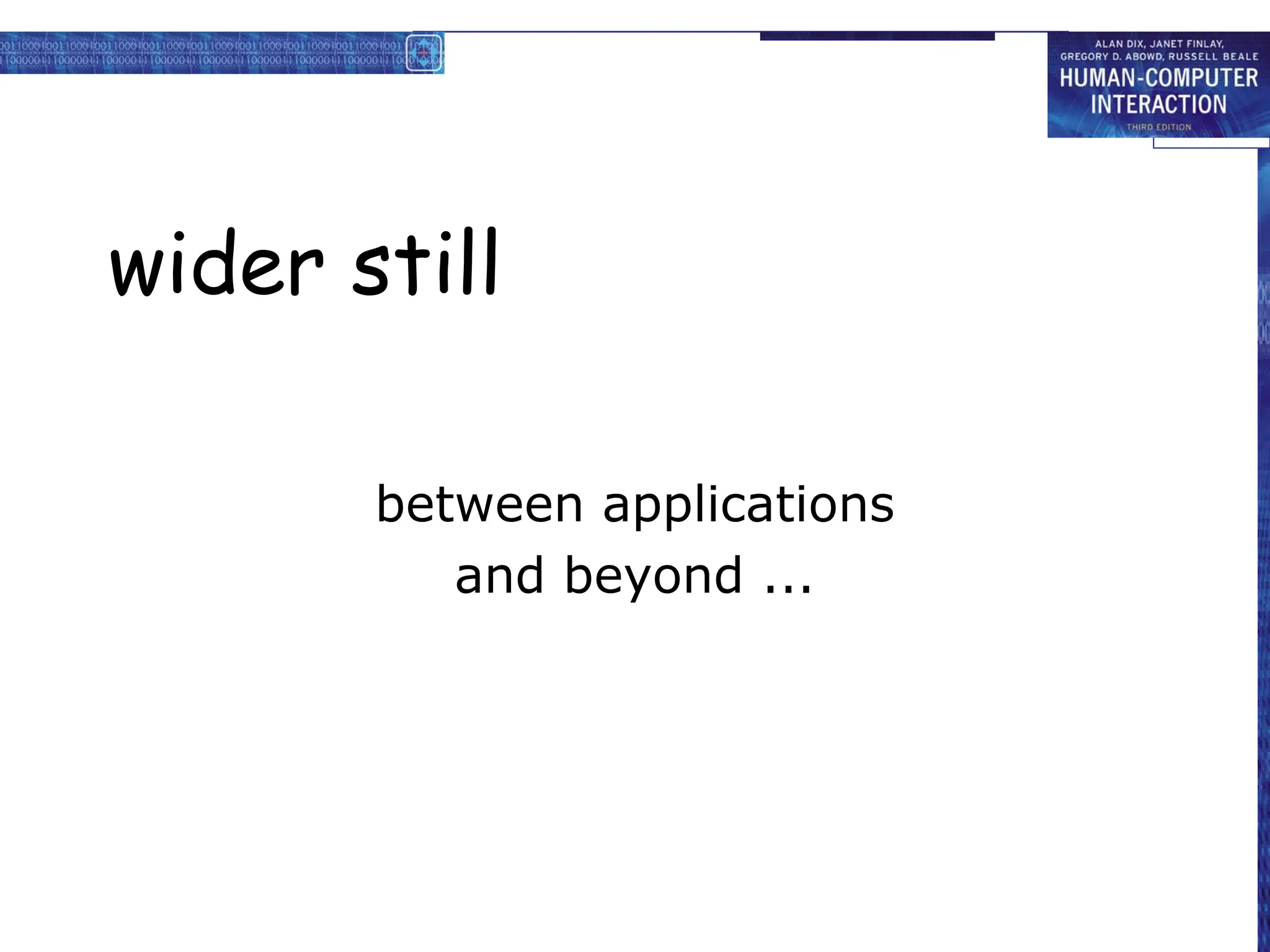

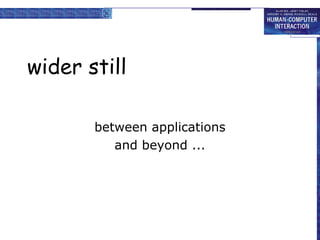

- 50. wider still between applications andbeyond ...

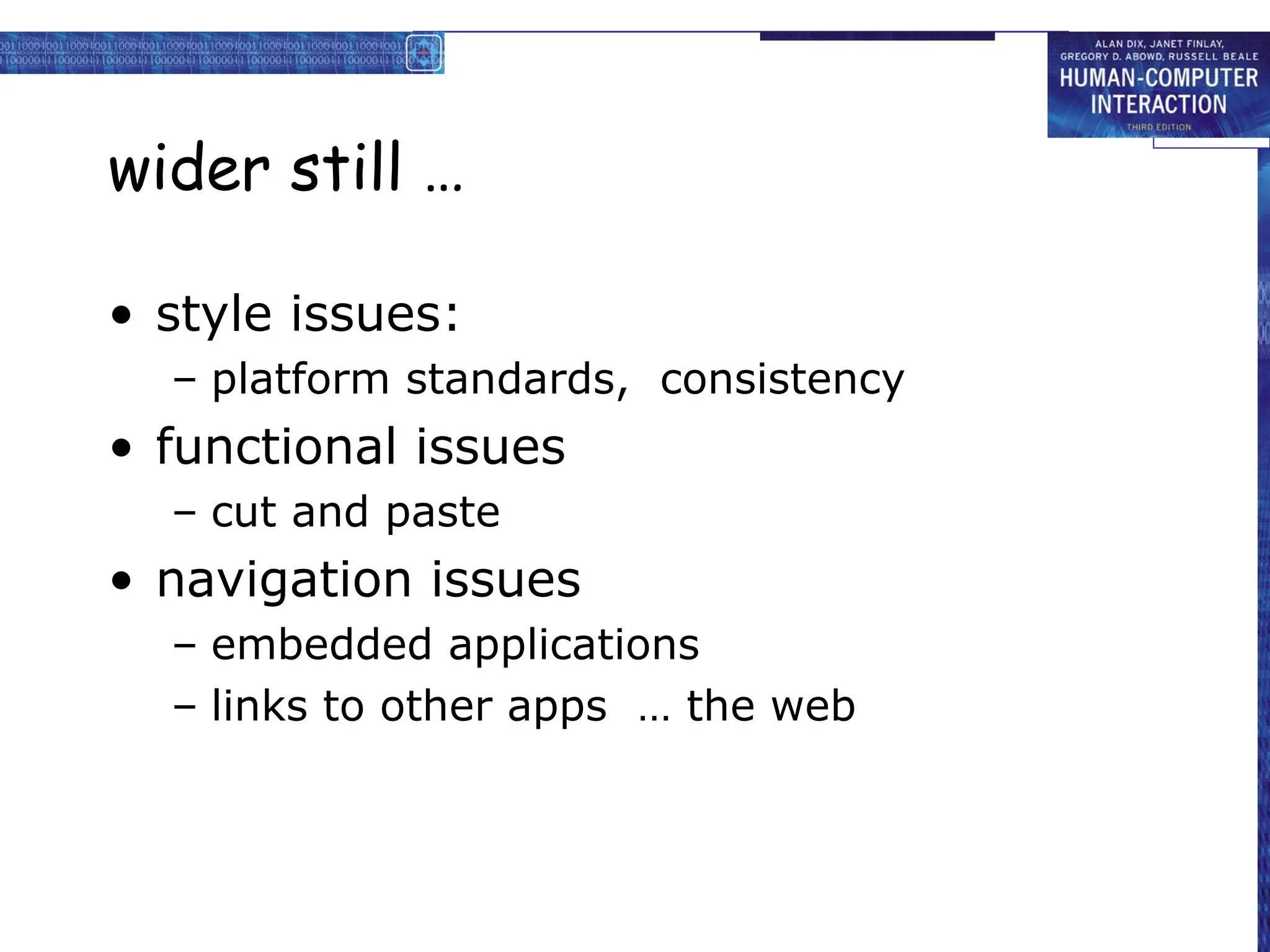

- 51. wider still … •style issues: – platform standards, consistency • functional issues – cut and paste • navigation issues – embedded applications – links to other apps … the web

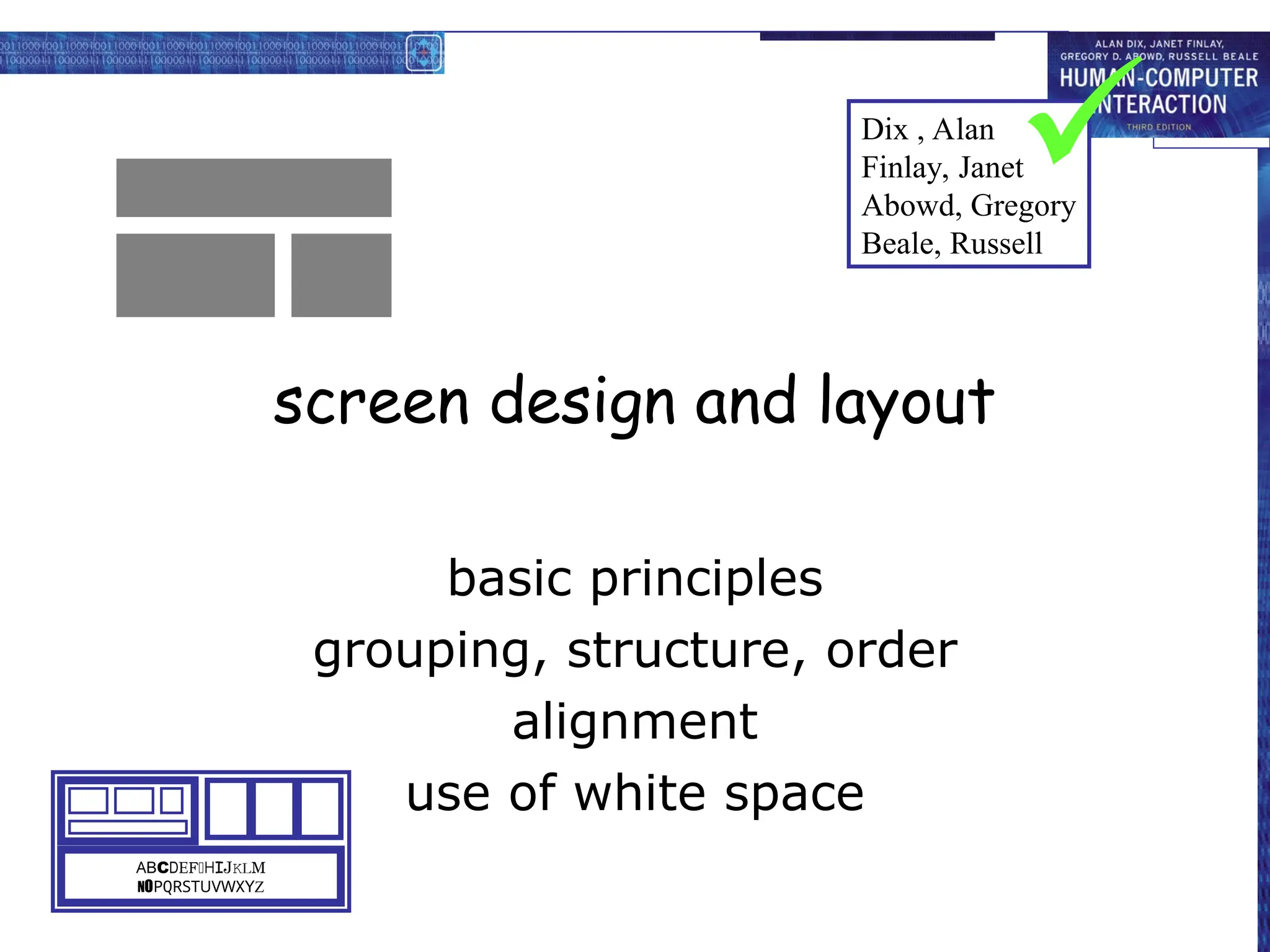

- 53. screen design andlayout basic principles grouping, structure, order alignment use of white space ABCDEFHIJKLM NOPQRSTUVWXYZ Dix , Alan Finlay, Janet Abowd, Gregory Beale, Russell

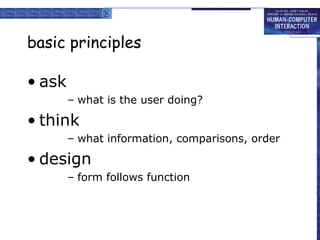

- 54. basic principles • ask –what is the user doing? • think – what information, comparisons, order • design – form follows function

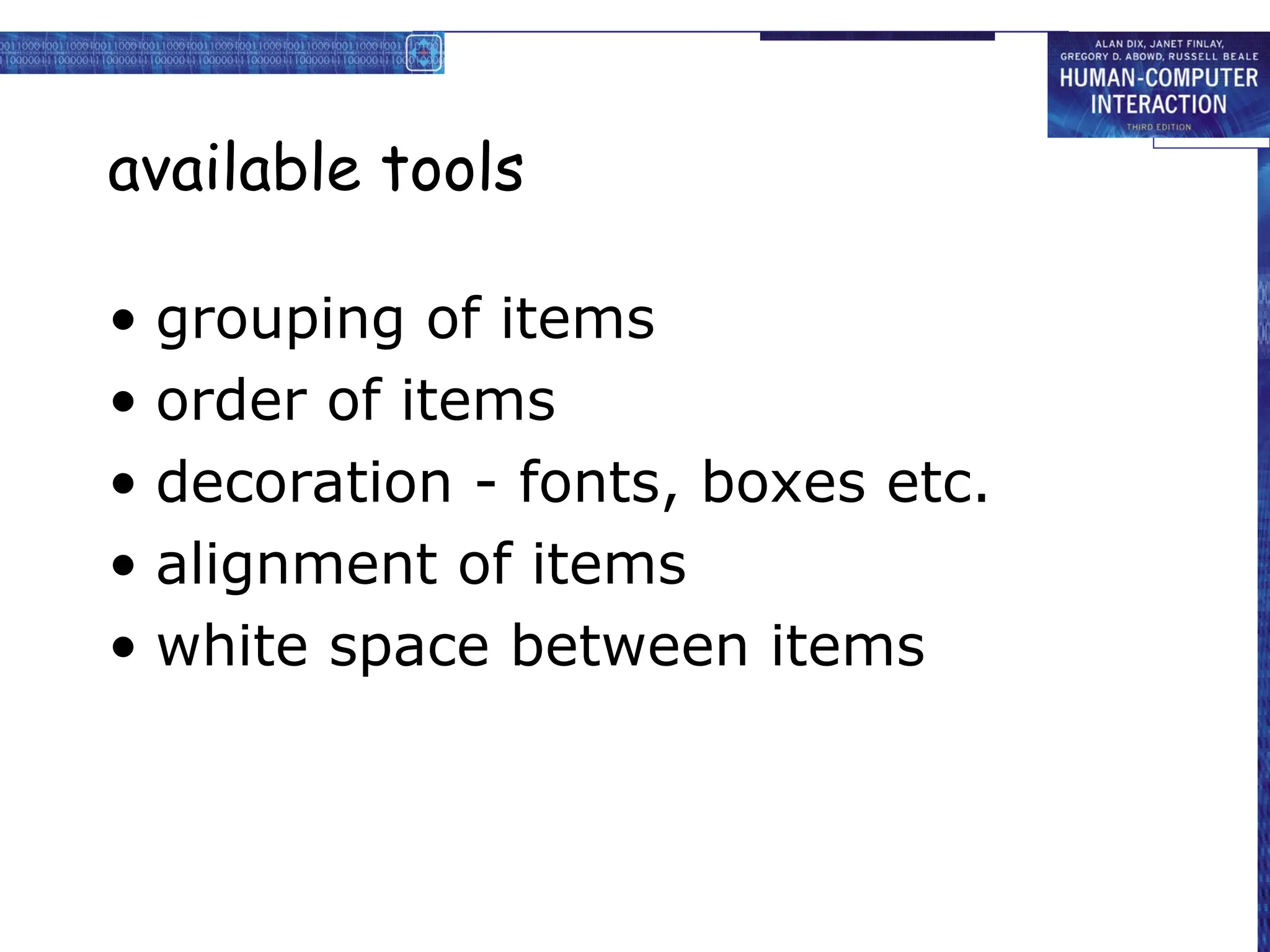

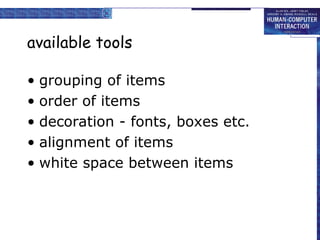

- 55. available tools • groupingof items • order of items • decoration - fonts, boxes etc. • alignment of items • white space between items

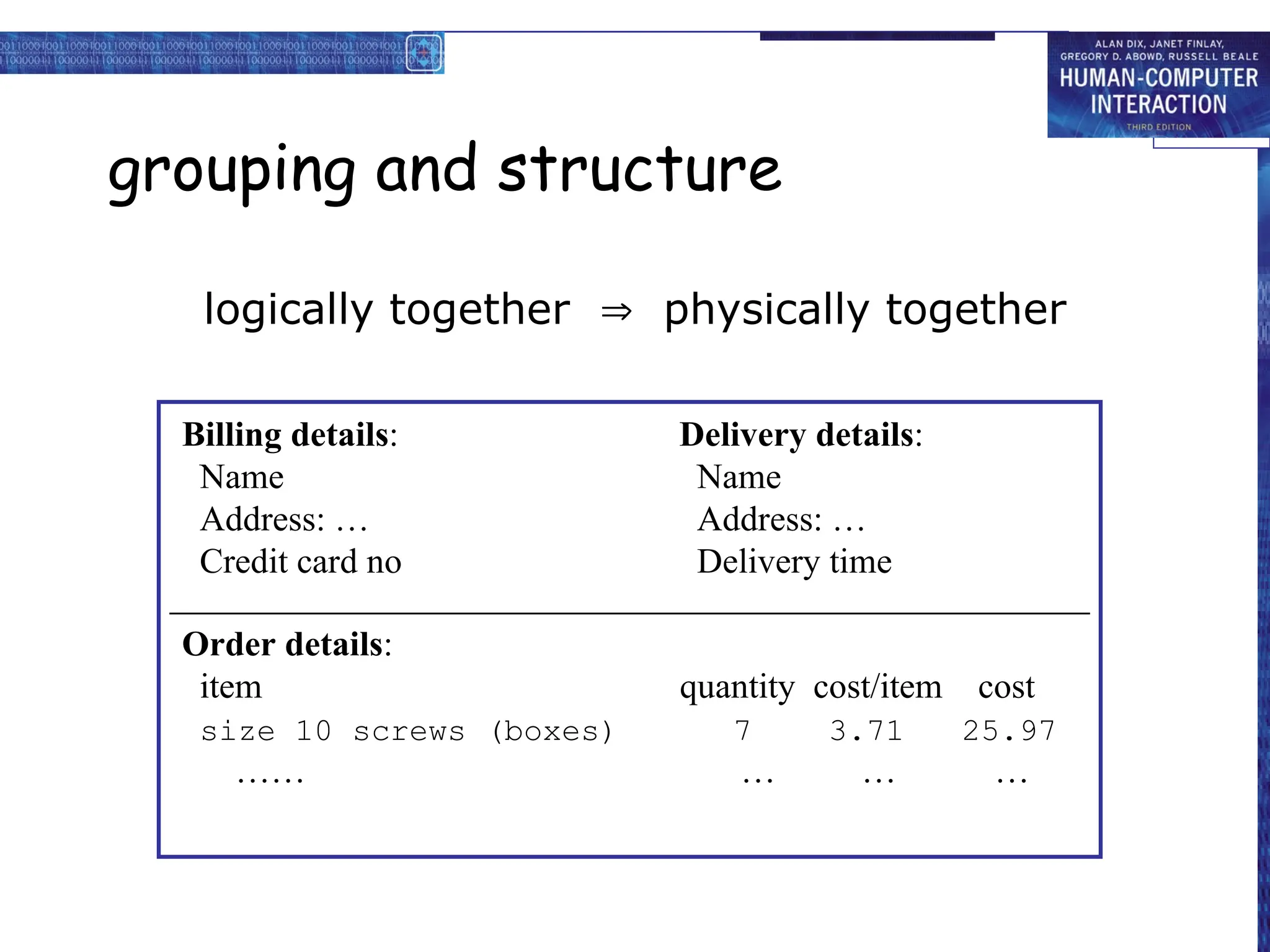

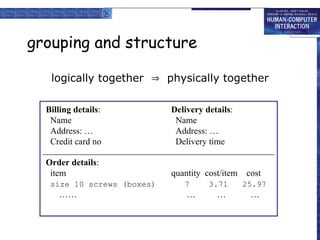

- 56. grouping and structure logicallytogether physically together Billing details: Name Address: … Credit card no Delivery details: Name Address: … Delivery time Order details: item quantity cost/item cost size 10 screws (boxes) 7 3.71 25.97 …… … … …

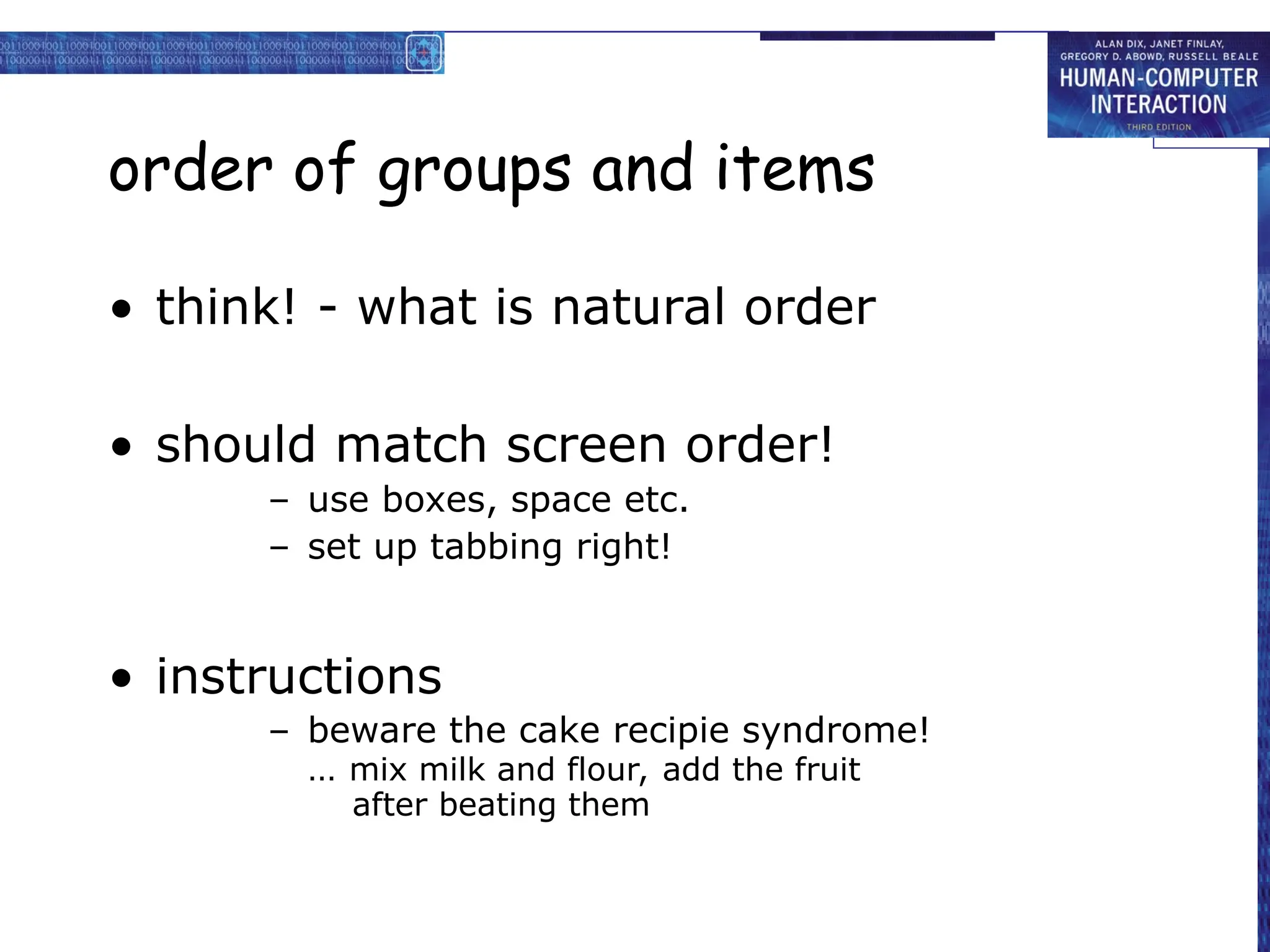

- 57. order of groupsand items • think! - what is natural order • should match screen order! – use boxes, space etc. – set up tabbing right! • instructions – beware the cake recipie syndrome! … mix milk and flour, add the fruit after beating them

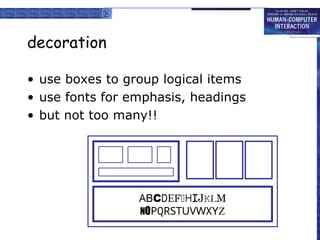

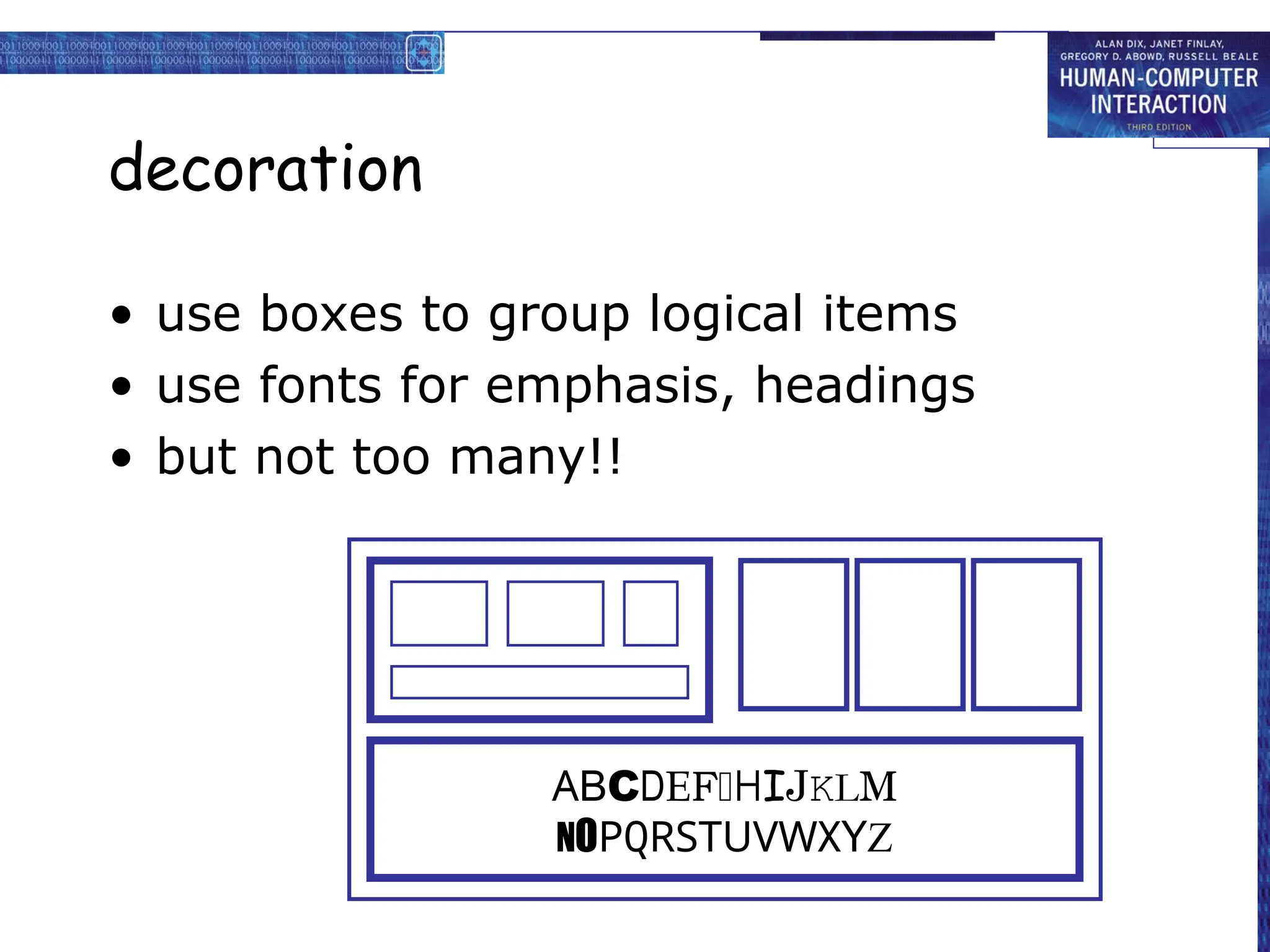

- 58. decoration • use boxesto group logical items • use fonts for emphasis, headings • but not too many!! ABCDEFHIJKLM NOPQRSTUVWXYZ

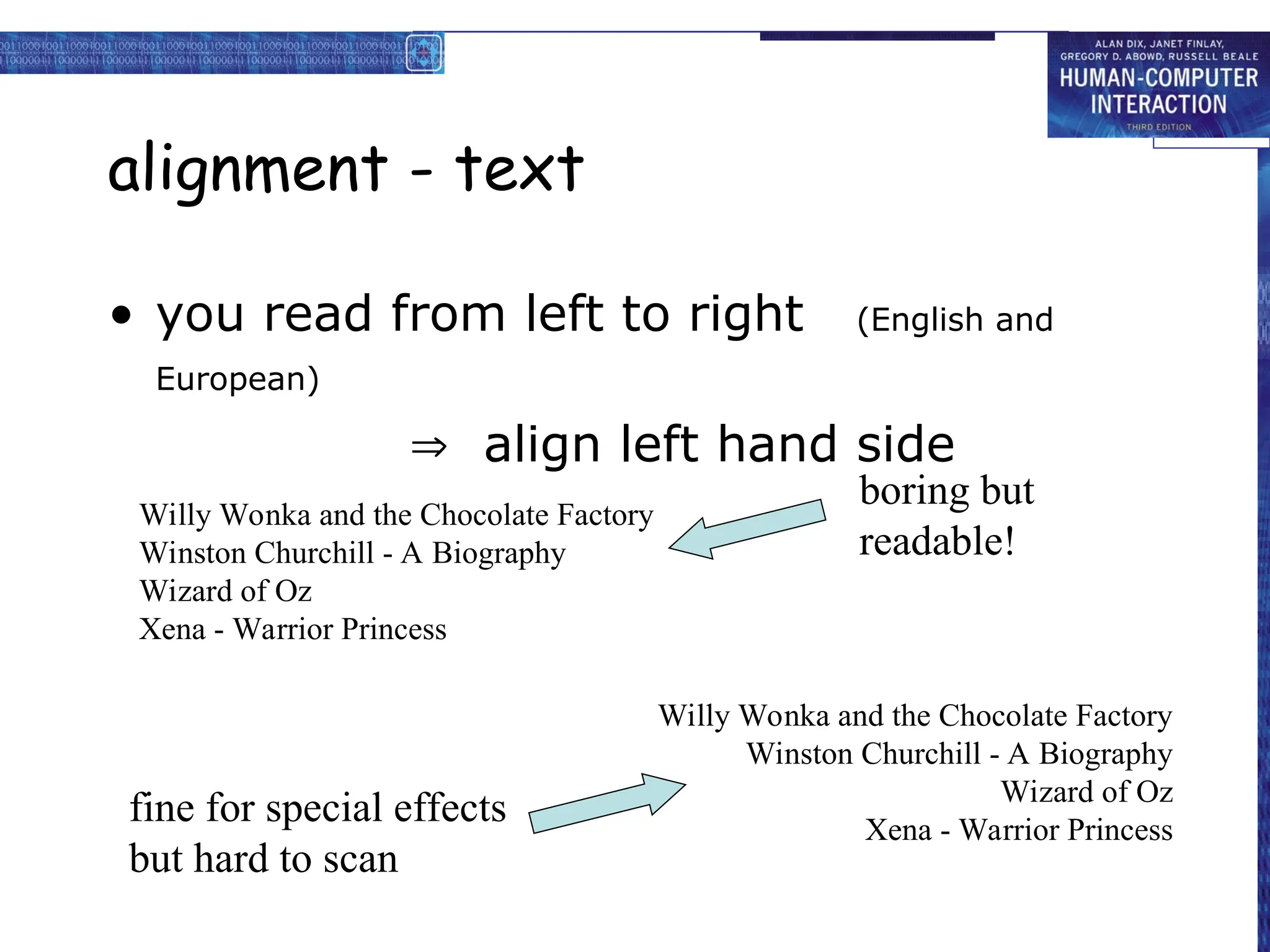

- 59. alignment - text •you read from left to right (English and European) align left hand side Willy Wonka and the Chocolate Factory Winston Churchill - A Biography Wizard of Oz Xena - Warrior Princess Willy Wonka and the Chocolate Factory Winston Churchill - A Biography Wizard of Oz Xena - Warrior Princess fine for special effects but hard to scan boring but readable!

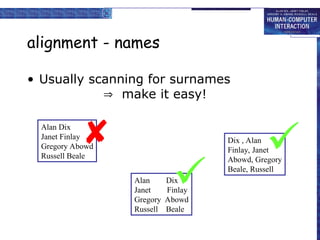

- 60. alignment - names •Usually scanning for surnames make it easy! Alan Dix Janet Finlay Gregory Abowd Russell Beale Alan Dix Janet Finlay Gregory Abowd Russell Beale Dix , Alan Finlay, Janet Abowd, Gregory Beale, Russell

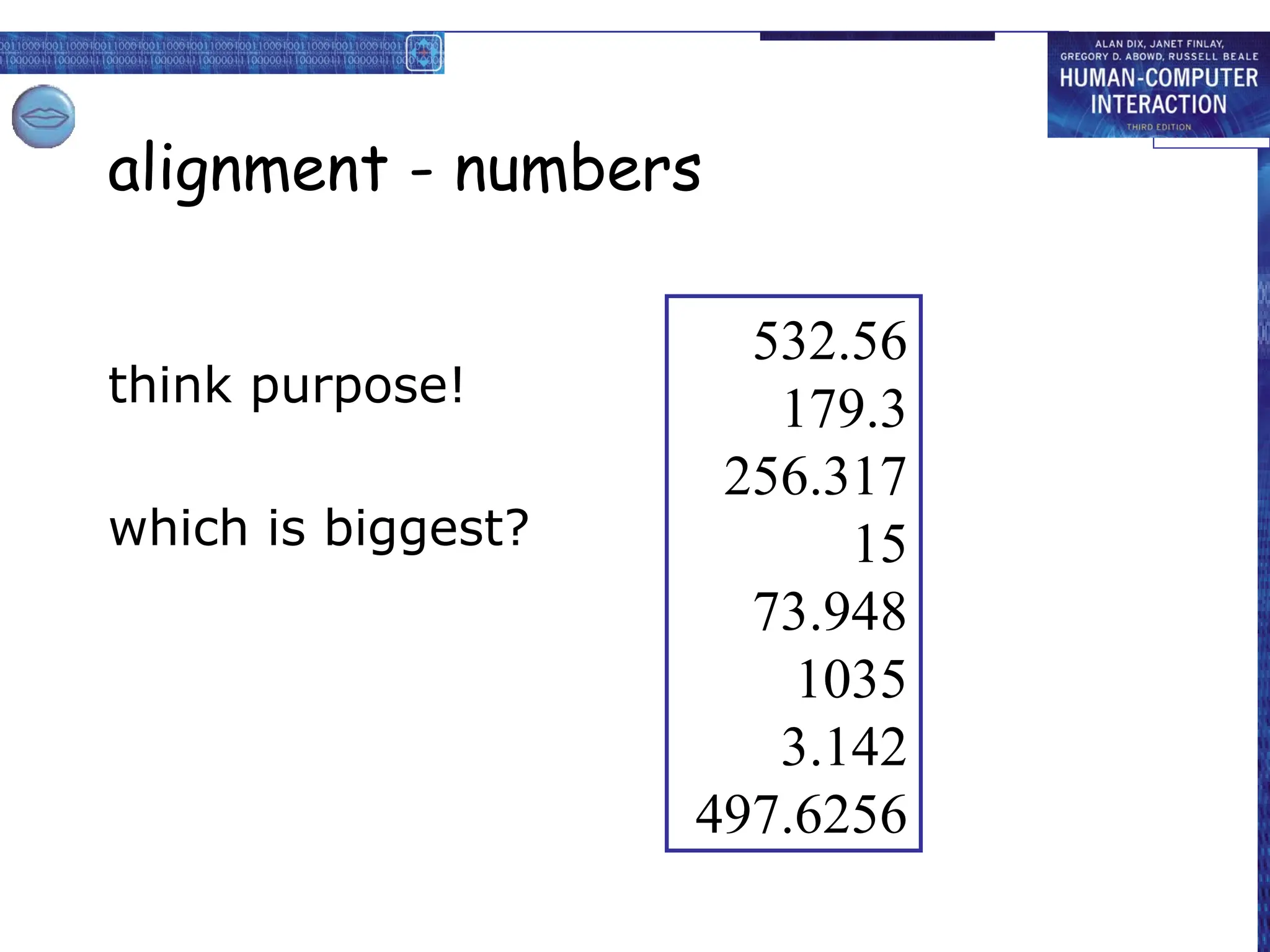

- 61. alignment - numbers thinkpurpose! which is biggest? 532.56 179.3 256.317 15 73.948 1035 3.142 497.6256

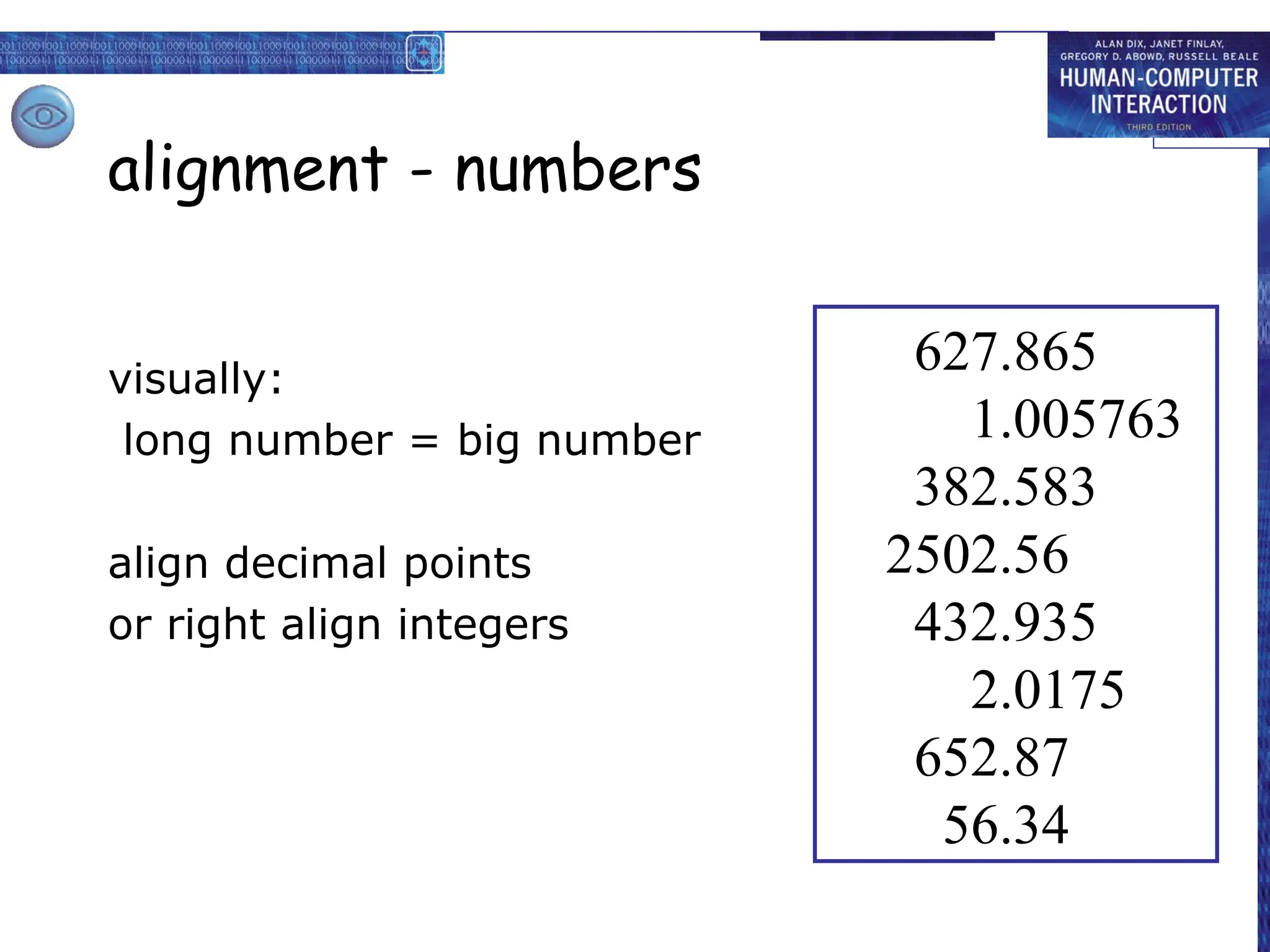

- 62. alignment - numbers visually: longnumber = big number align decimal points or right align integers 627.865 1.005763 382.583 2502.56 432.935 2.0175 652.87 56.34

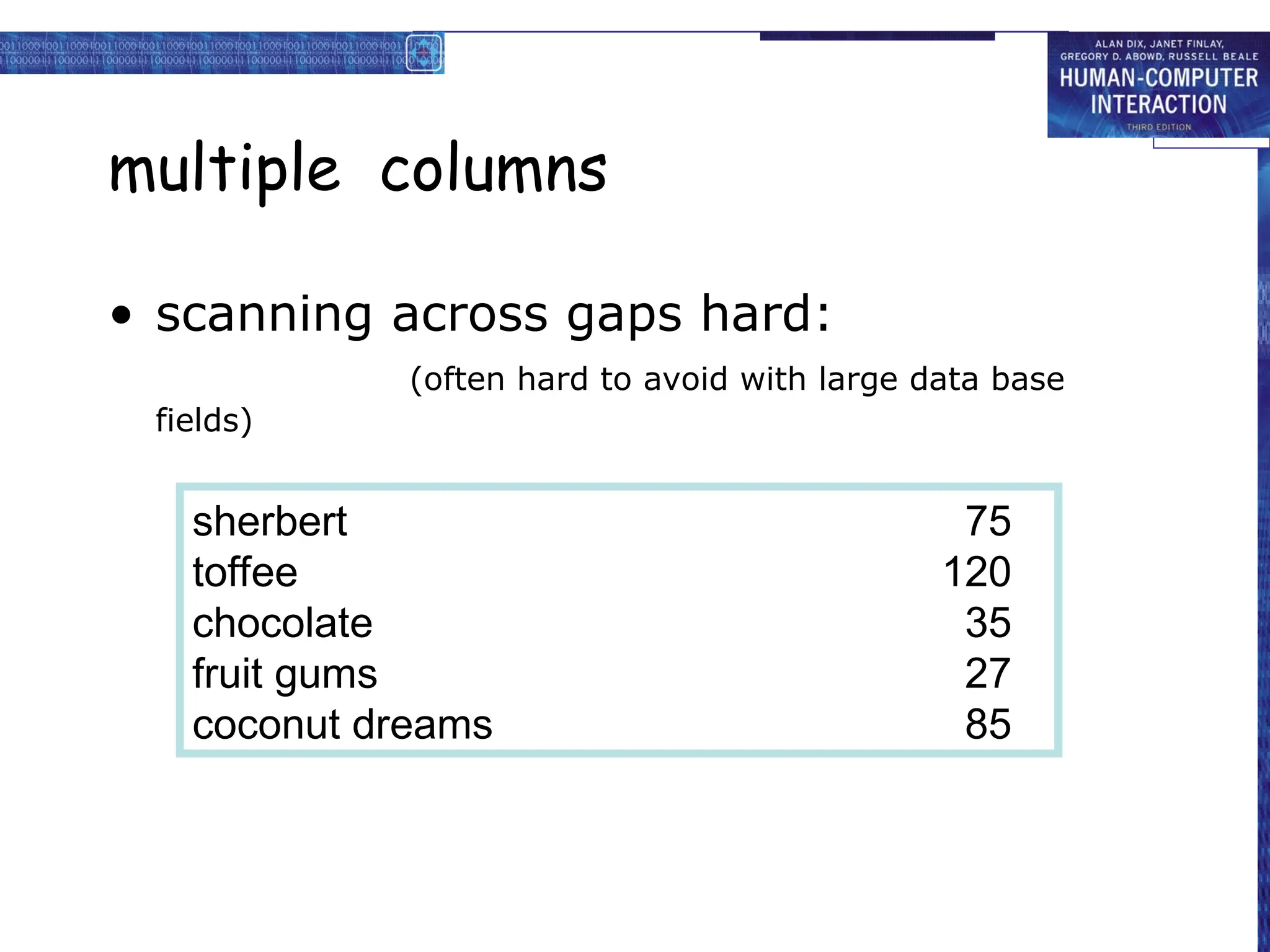

- 63. multiple columns • scanningacross gaps hard: (often hard to avoid with large data base fields) sherbert 75 toffee 120 chocolate 35 fruit gums 27 coconut dreams 85

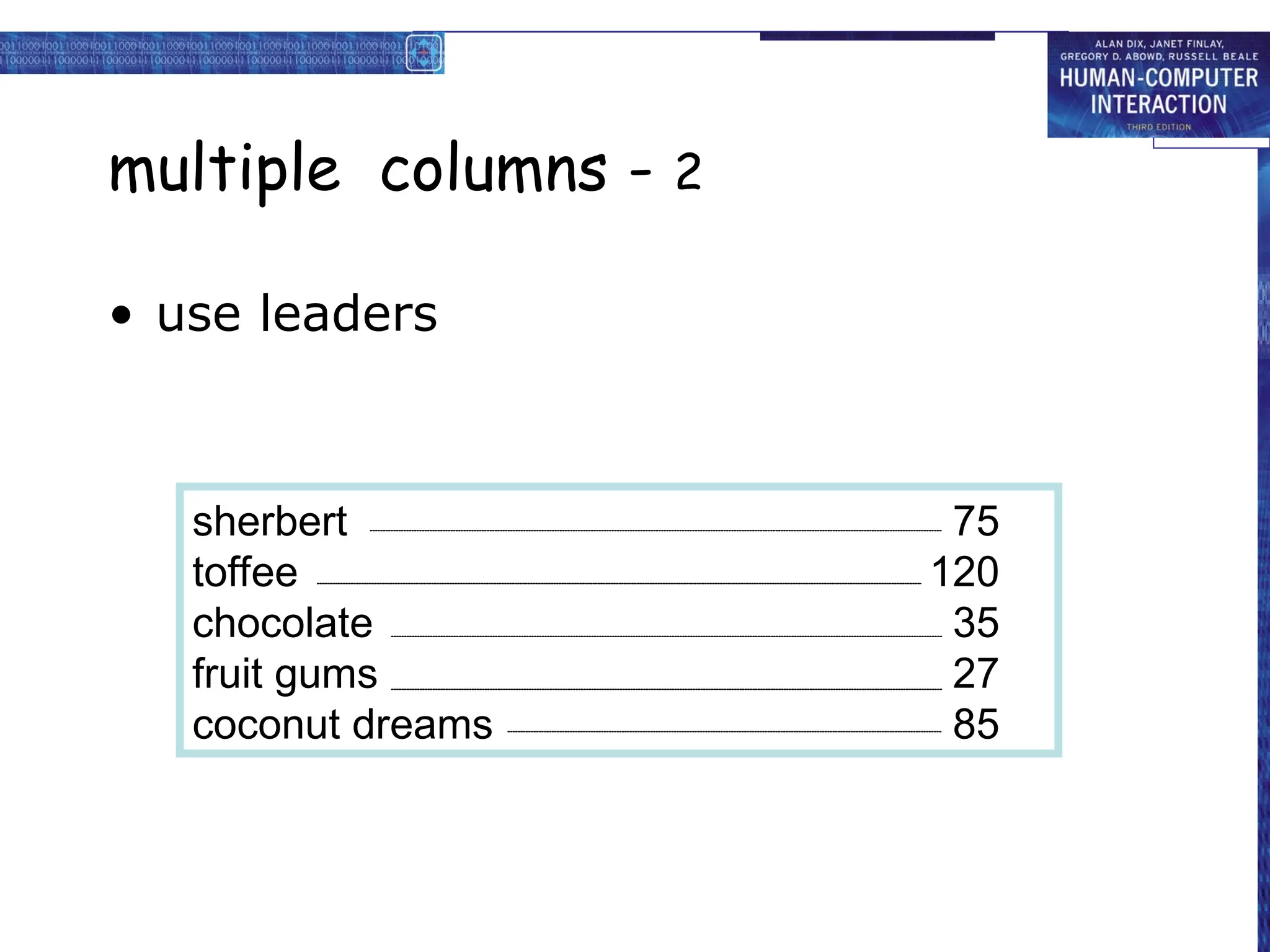

- 64. multiple columns -2 • use leaders sherbert 75 toffee 120 chocolate 35 fruit gums 27 coconut dreams 85

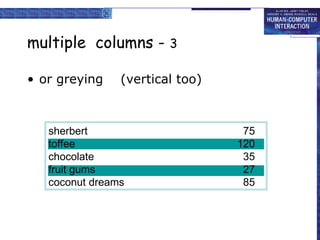

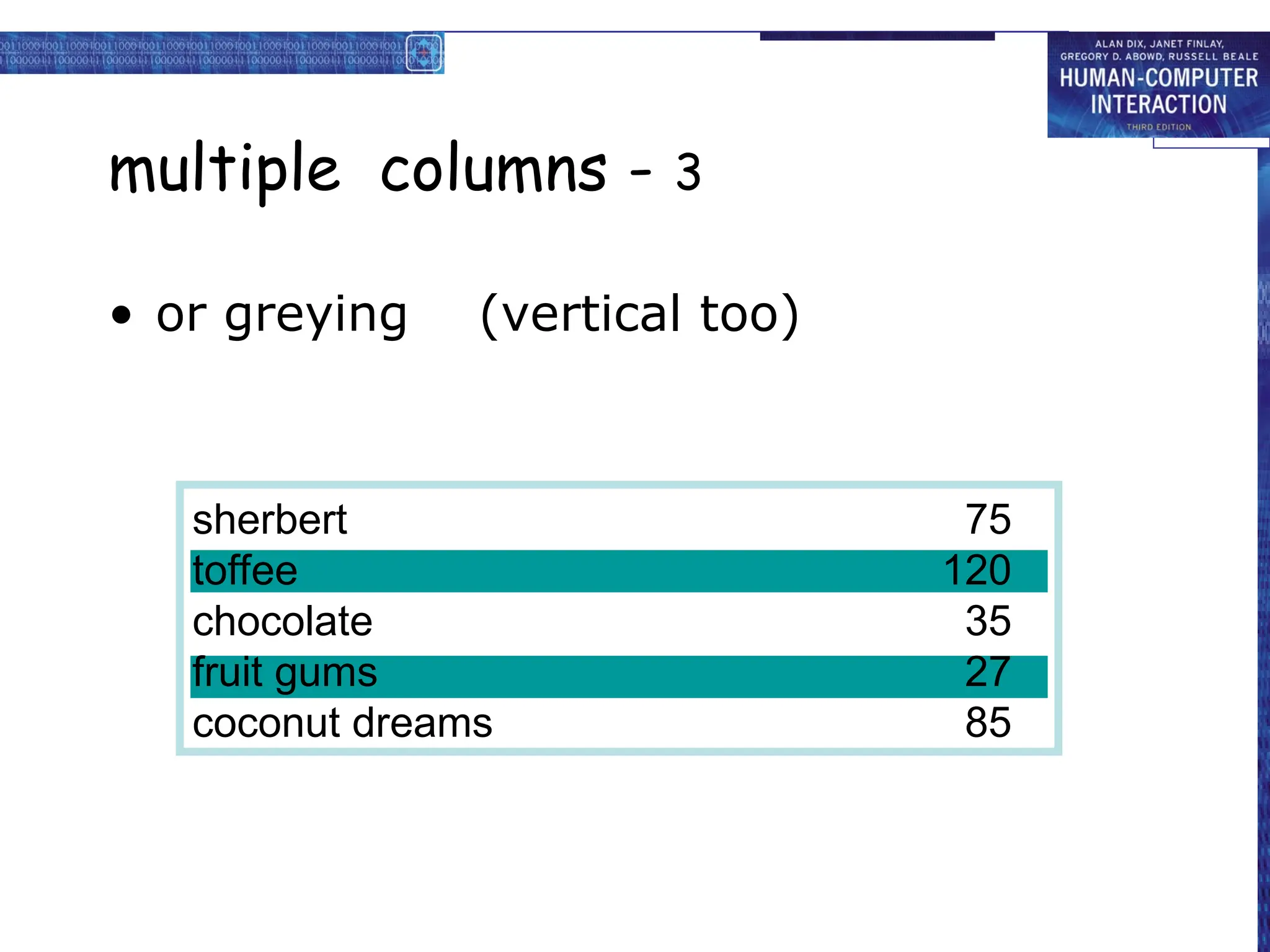

- 65. multiple columns -3 • or greying (vertical too) sherbert 75 toffee 120 chocolate 35 fruit gums 27 coconut dreams 85

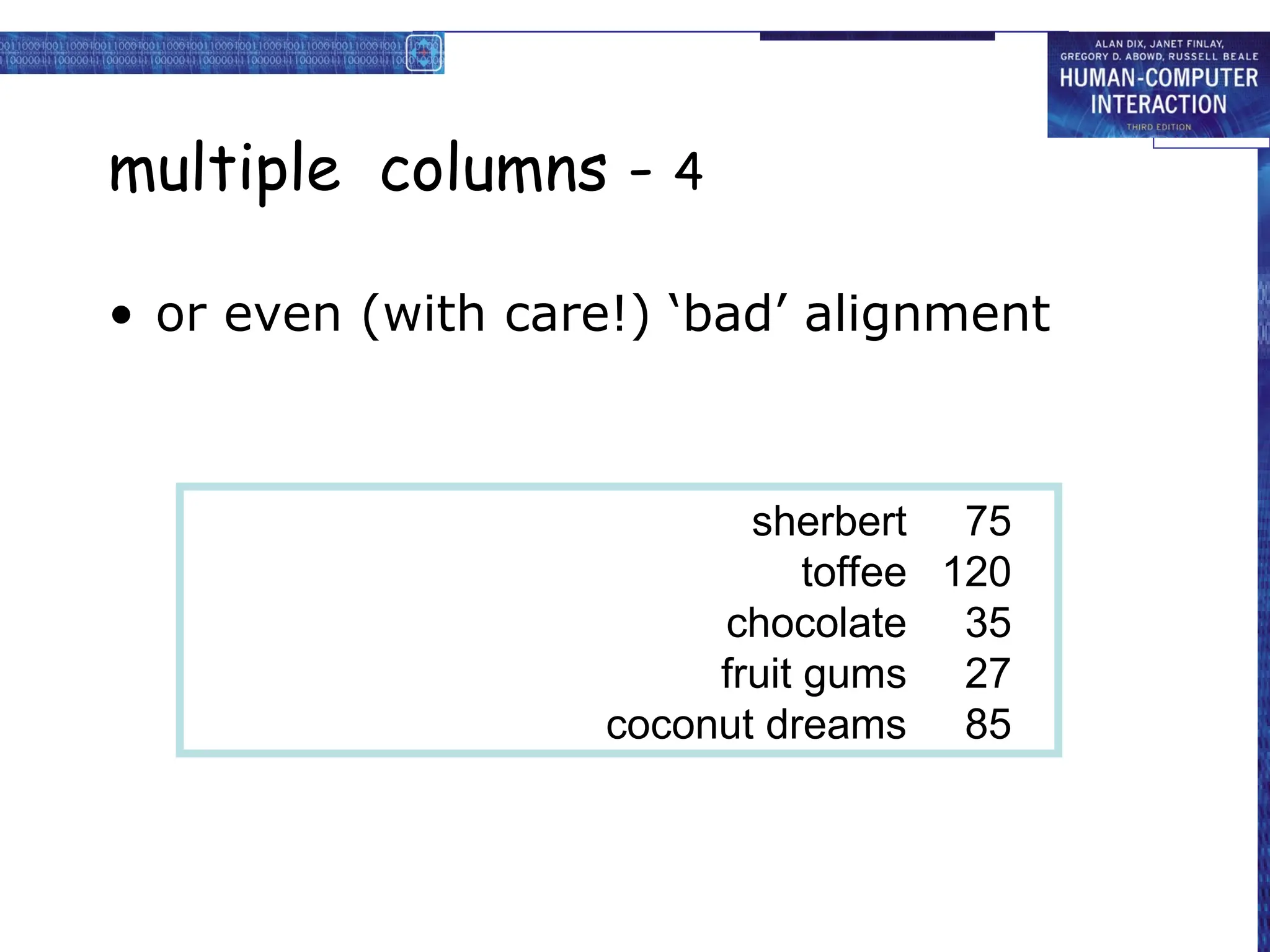

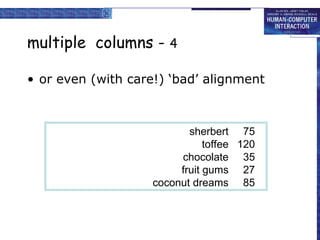

- 66. sherbert 75 toffee 120 chocolate35 fruit gums 27 coconut dreams 85 multiple columns - 4 • or even (with care!) ‘bad’ alignment

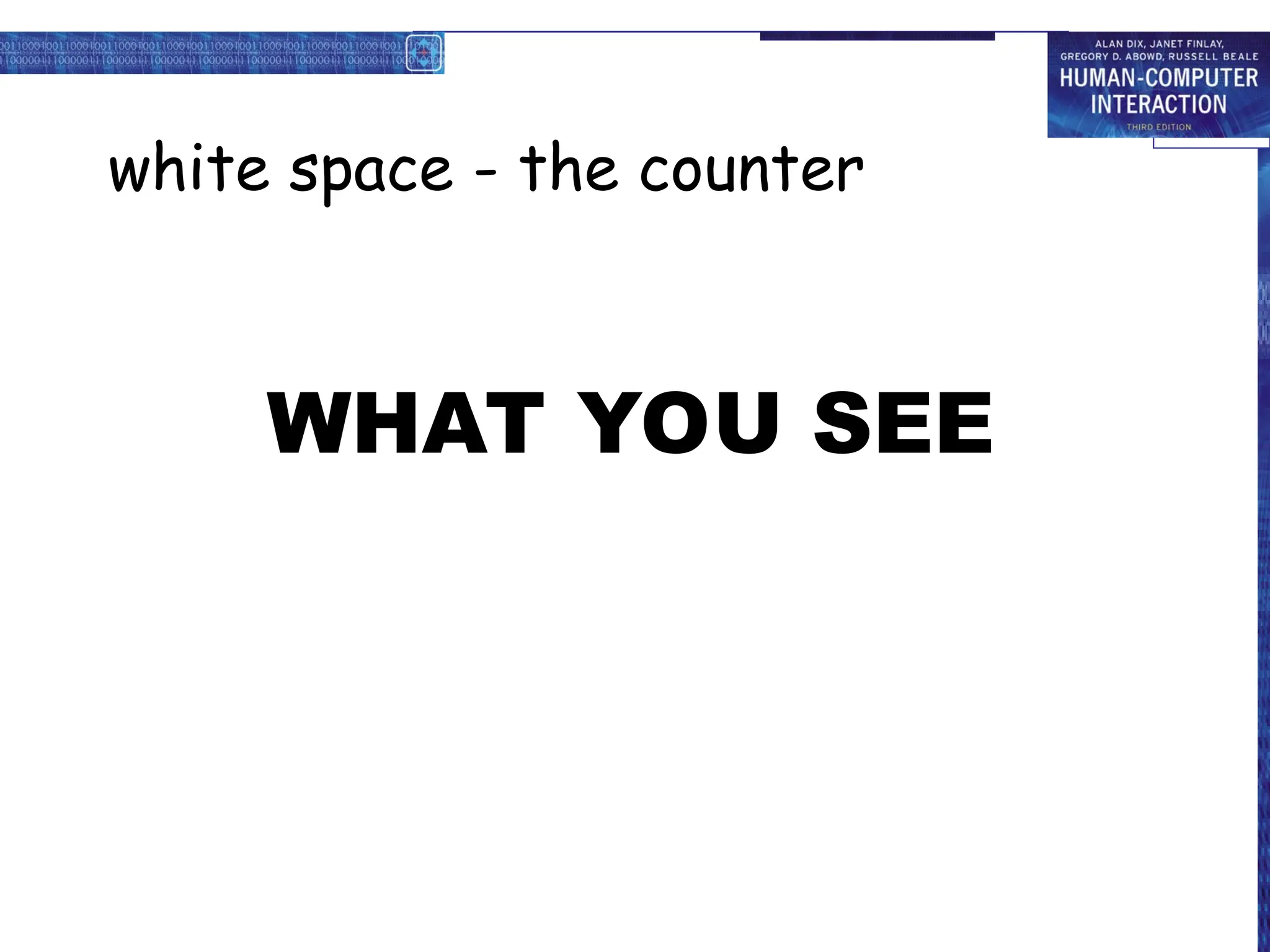

- 67. white space -the counter WHAT YOU SEE
- 68. white space -the counter WHAT YOU SEE THE GAPS BETWEEN

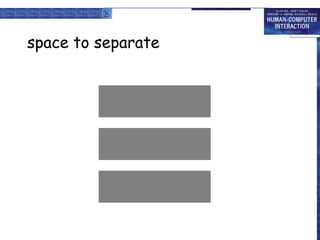

- 69.

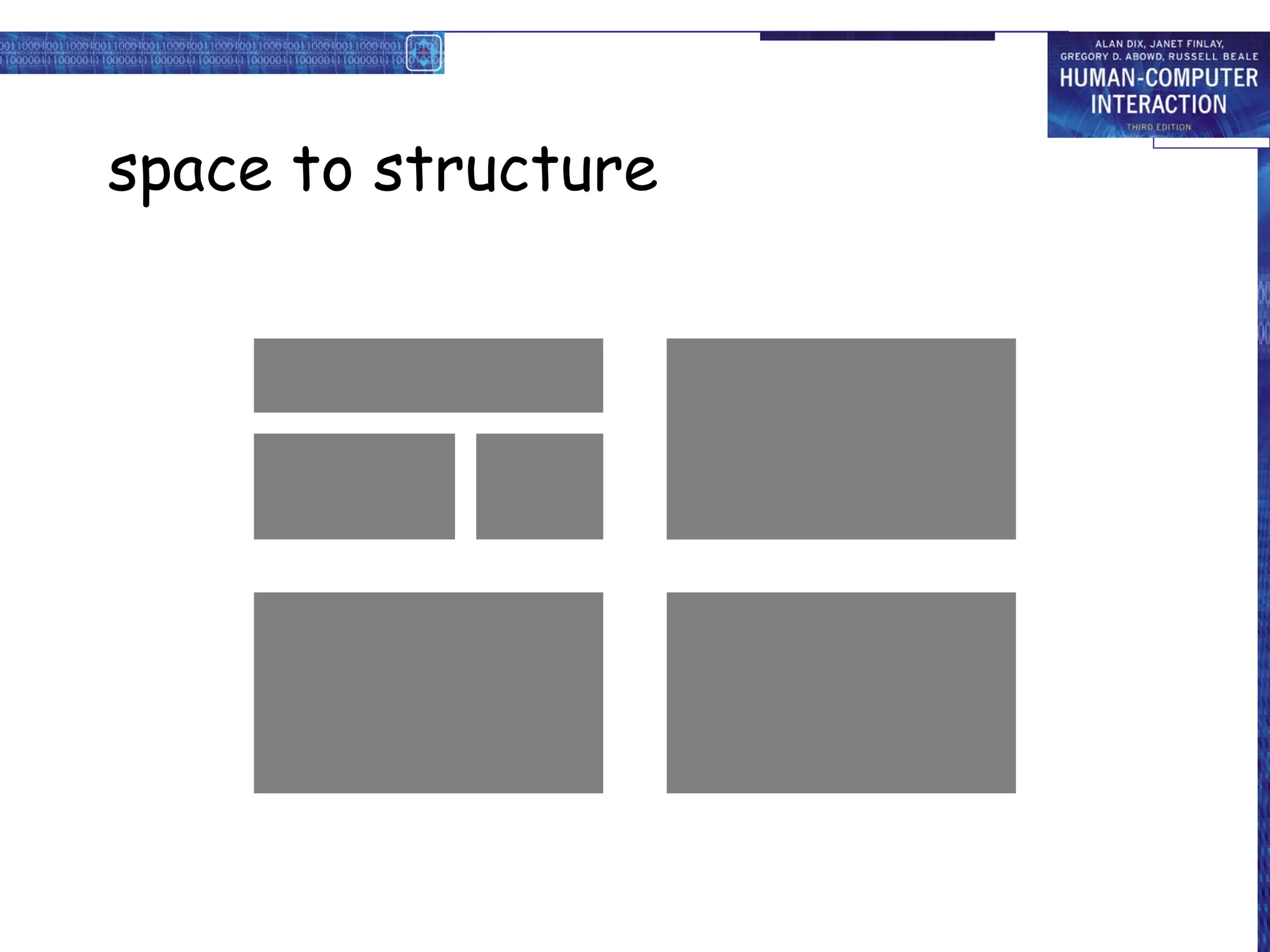

- 70.

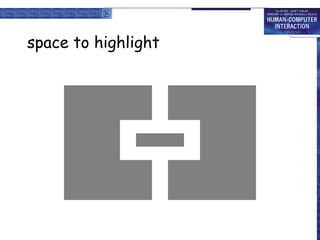

- 71.

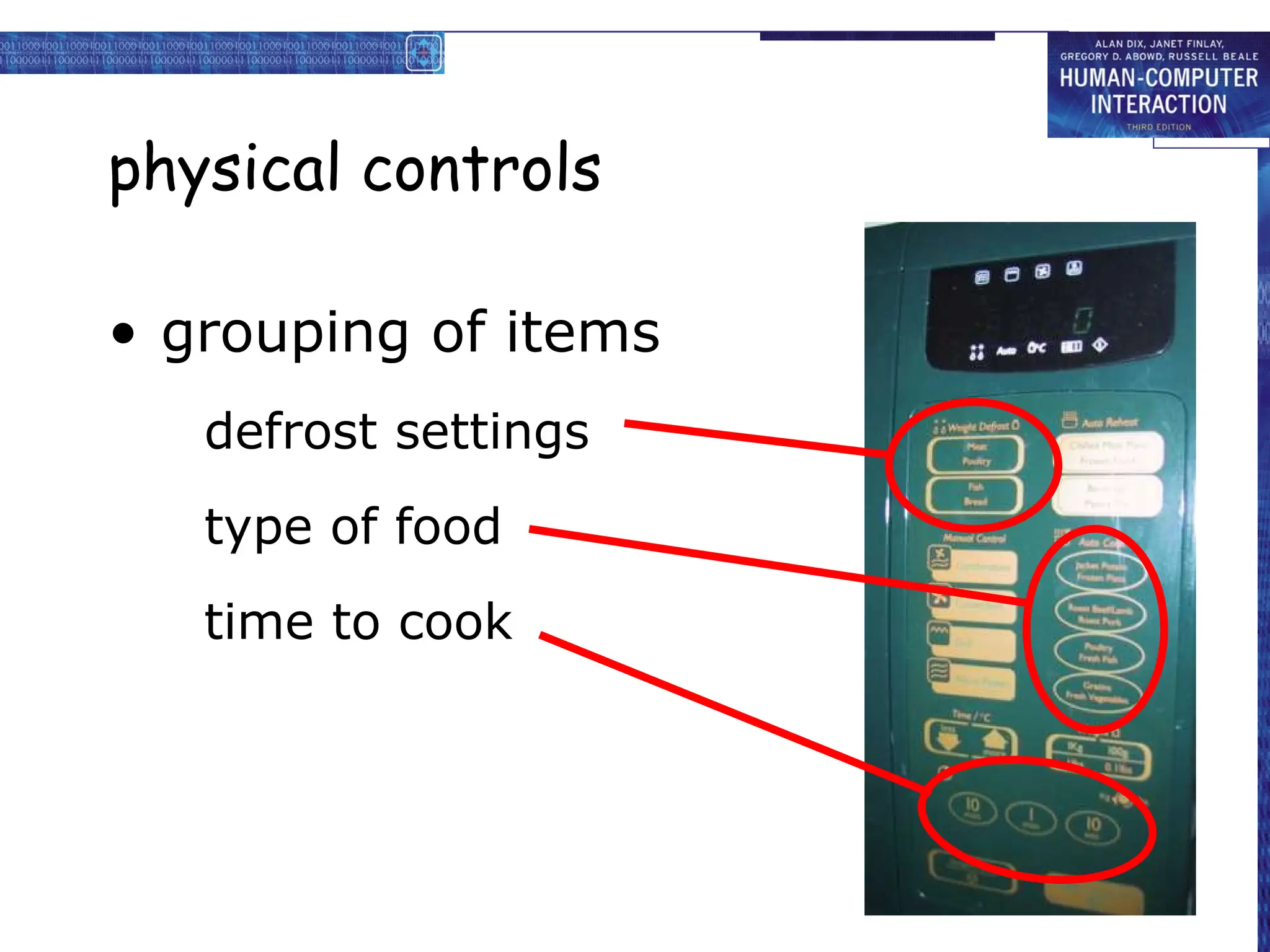

- 72. physical controls • groupingof items – defrost settings – type of food – time to cook type of food time to cook defrost settings

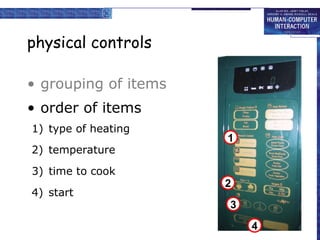

- 73. physical controls • groupingof items • order of items 1) type of heating 2) temperature 3) time to cook 4) start 4 4) start 2 2) temperature 3 3) time to cook 1 1) type of heating
- 74. physical controls • groupingof items • order of items • decoration – different colours for different functions – lines around related buttons different colours for different functions lines around related buttons (temp up/down)

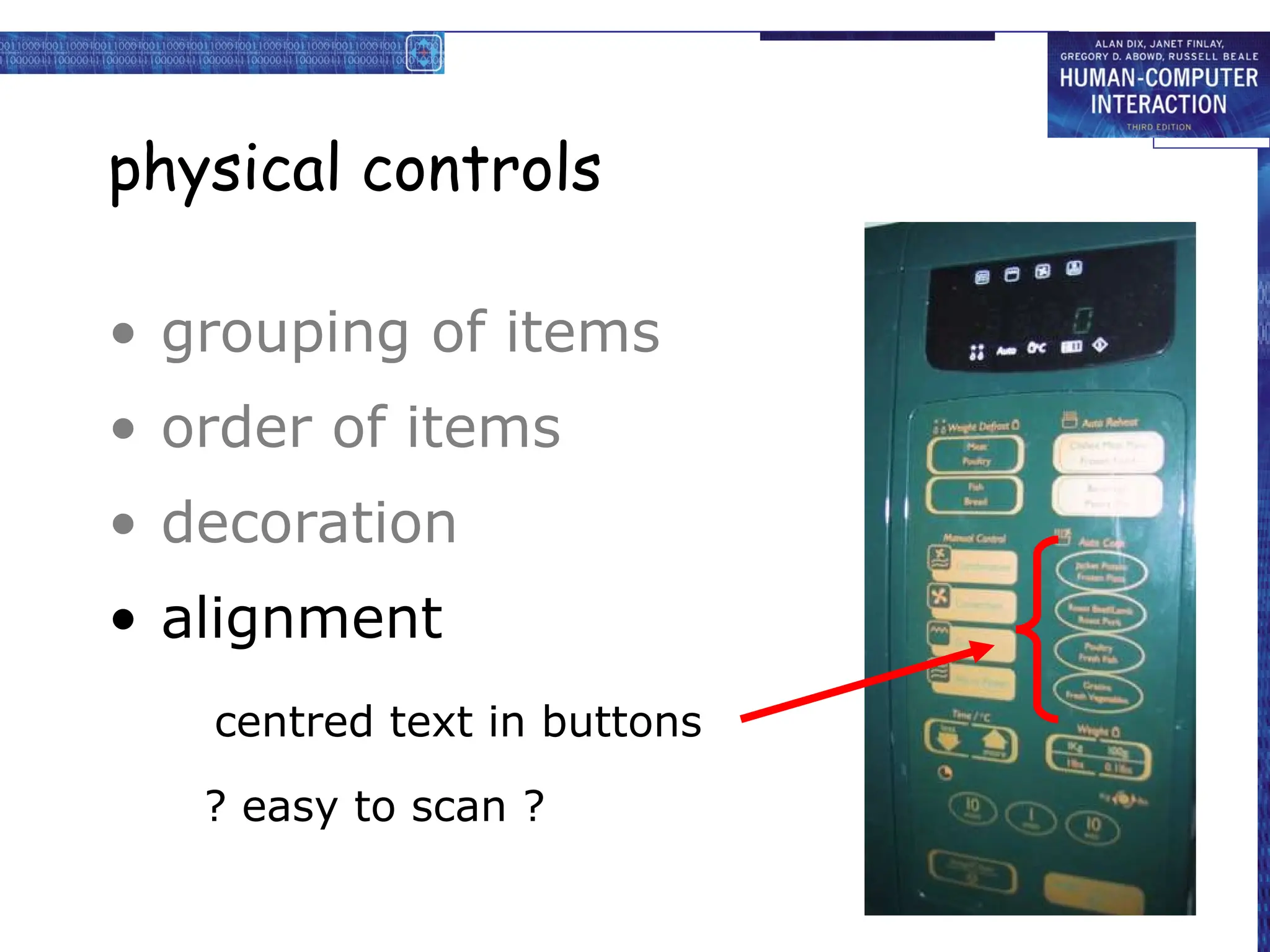

- 75. physical controls • groupingof items • order of items • decoration • alignment – centered text in buttons ? easy to scan ? ? easy to scan ? centred text in buttons

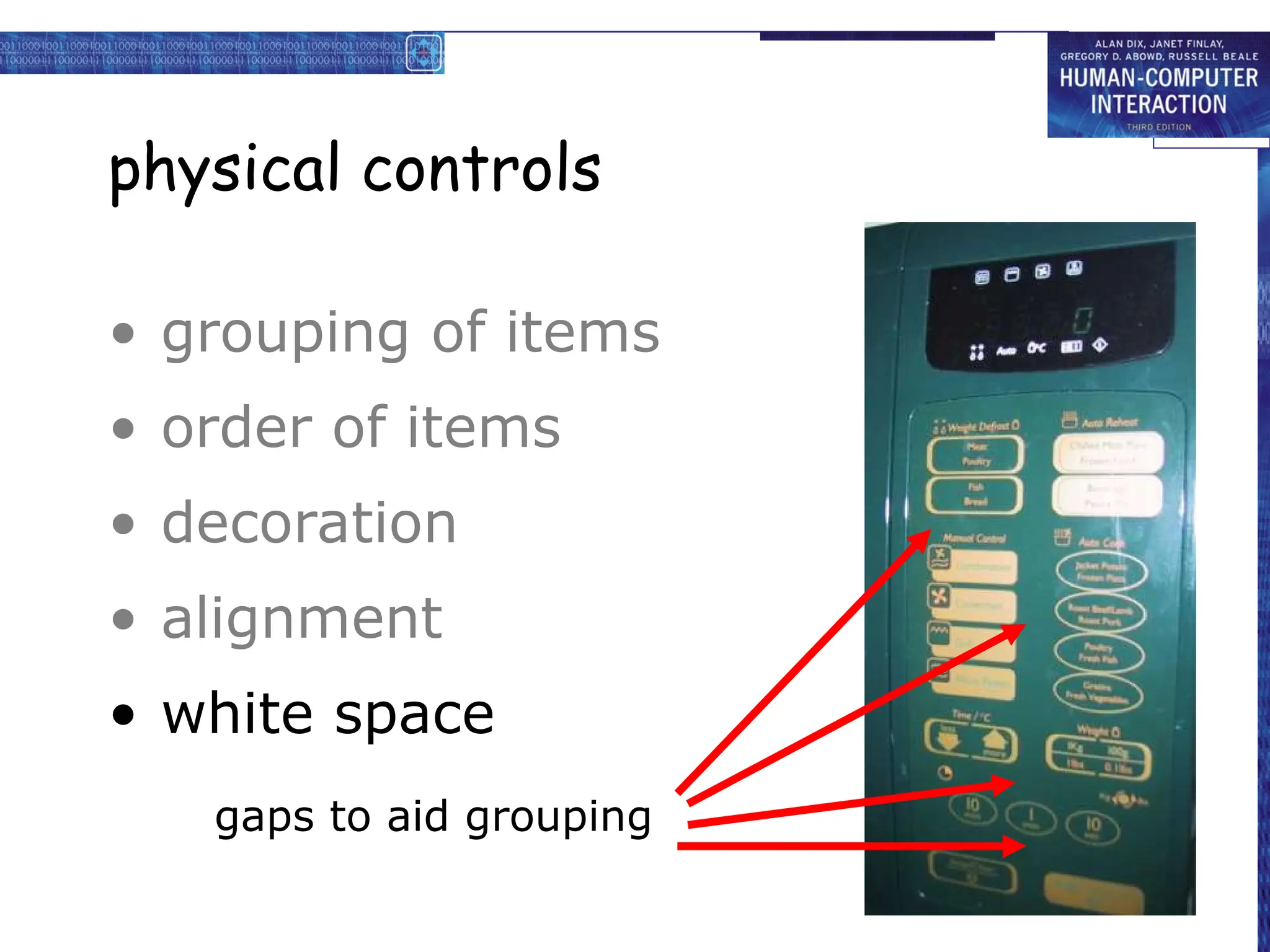

- 76. physical controls • groupingof items • order of items • decoration • alignment • white space – gaps to aid grouping gaps to aid grouping

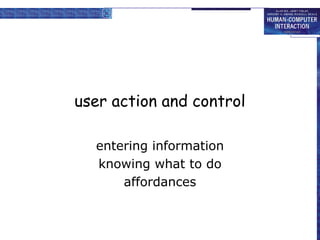

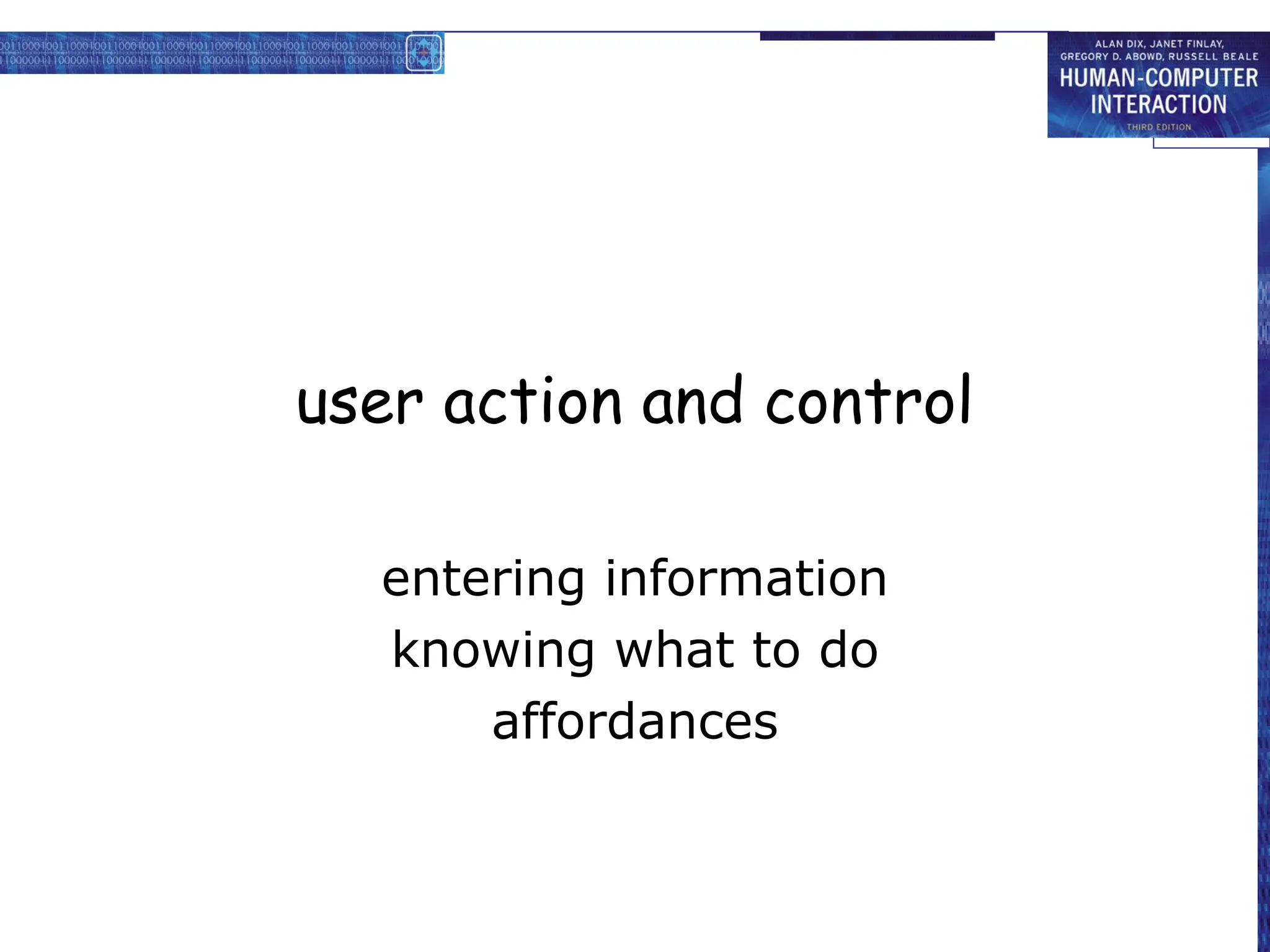

- 78. user action andcontrol entering information knowing what to do affordances

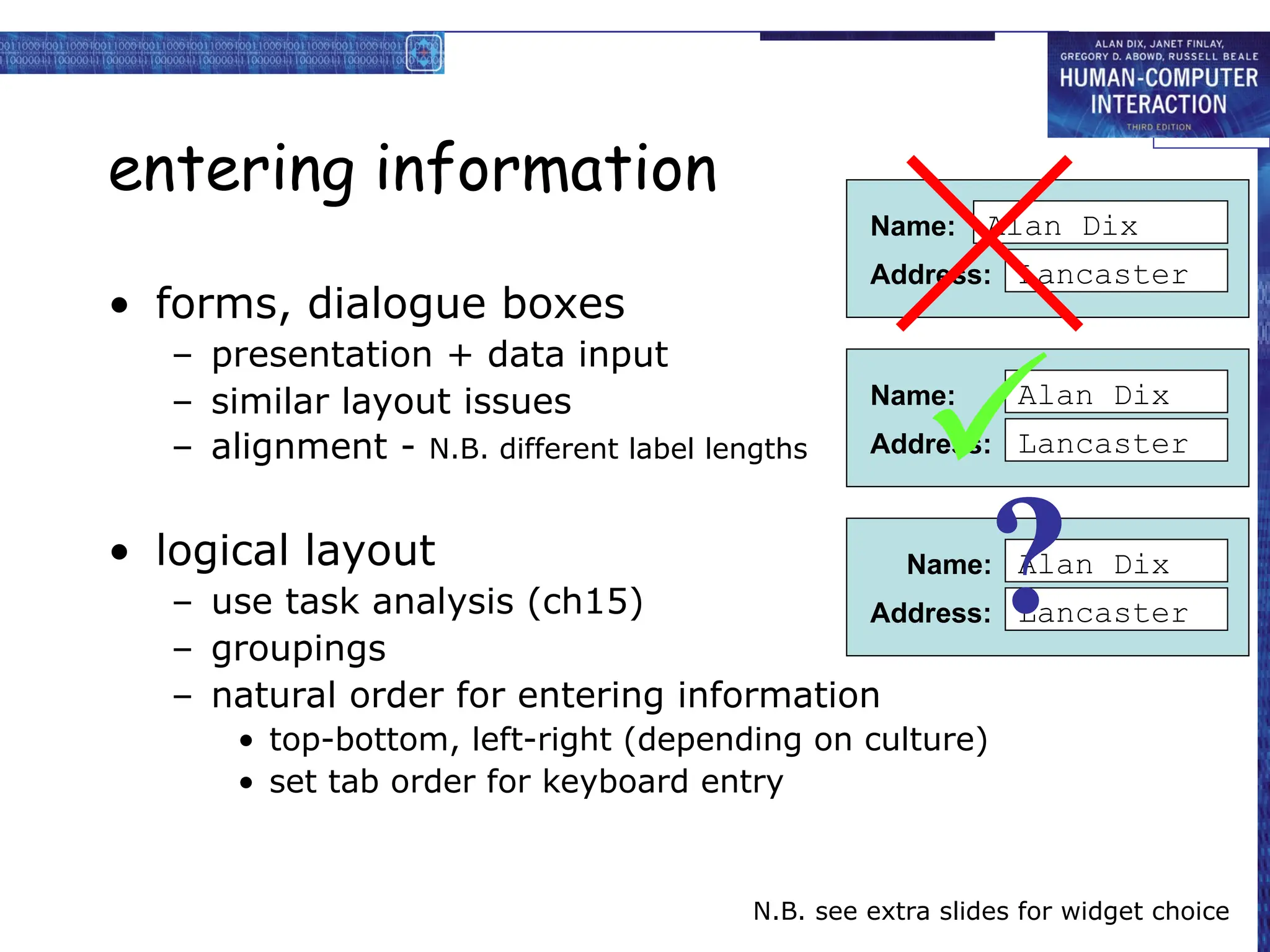

- 79. entering information • forms,dialogue boxes – presentation + data input – similar layout issues – alignment - N.B. different label lengths • logical layout – use task analysis (ch15) – groupings – natural order for entering information • top-bottom, left-right (depending on culture) • set tab order for keyboard entry N.B. see extra slides for widget choice Name: Address: Alan Dix Lancaster Name: Address: Alan Dix Lancaster Name: Address: Alan Dix Lancaster ?

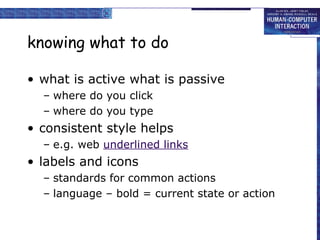

- 80. knowing what todo • what is active what is passive – where do you click – where do you type • consistent style helps – e.g. web underlined links • labels and icons – standards for common actions – language – bold = current state or action

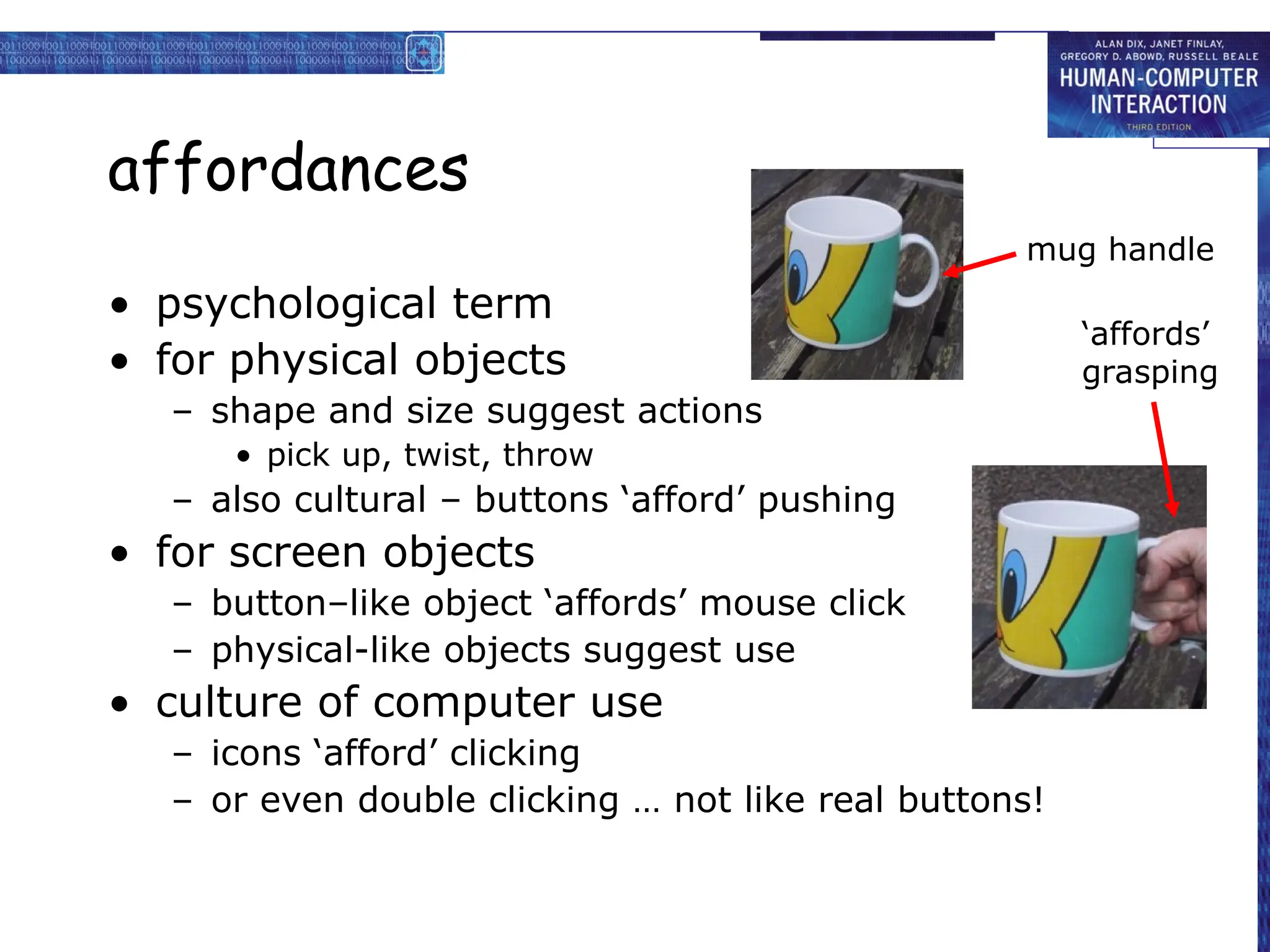

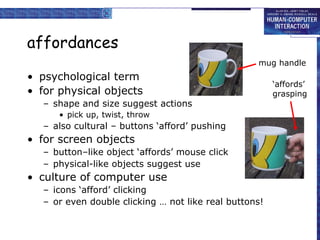

- 81. affordances • psychological term •for physical objects – shape and size suggest actions • pick up, twist, throw – also cultural – buttons ‘afford’ pushing • for screen objects – button–like object ‘affords’ mouse click – physical-like objects suggest use • culture of computer use – icons ‘afford’ clicking – or even double clicking … not like real buttons! mug handle ‘affords’ grasping

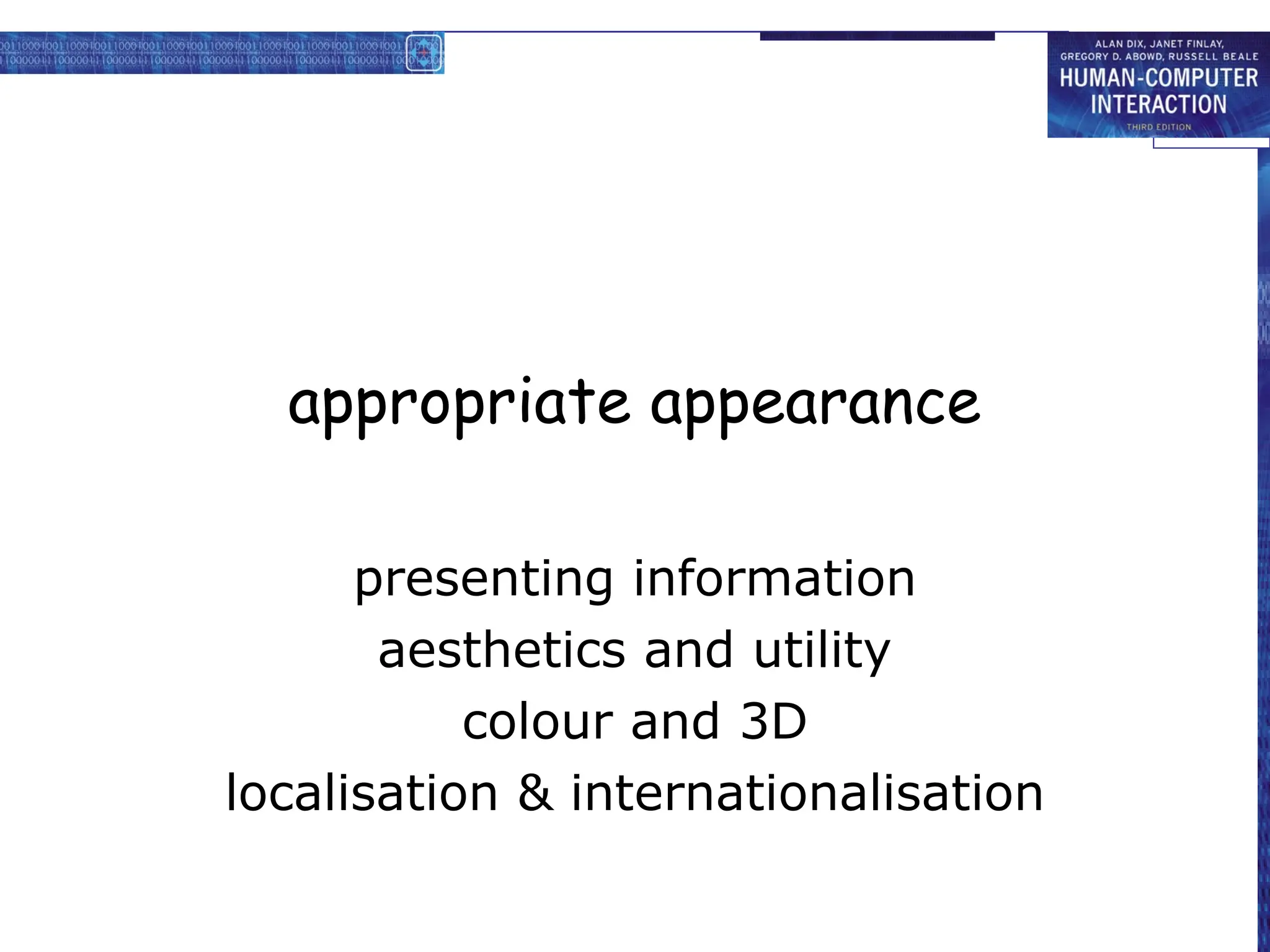

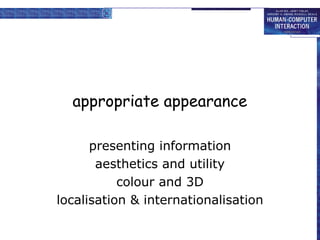

- 82. appropriate appearance presenting information aestheticsand utility colour and 3D localisation & internationalisation

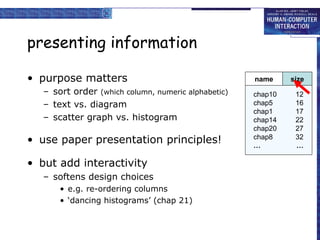

- 83. presenting information • purposematters – sort order (which column, numeric alphabetic) – text vs. diagram – scatter graph vs. histogram • use paper presentation principles! • but add interactivity – softens design choices • e.g. re-ordering columns • ‘dancing histograms’ (chap 21) chap1 chap10 chap11 chap12 chap13 chap14 … 17 12 51 262 83 22 … size name size chap10 chap5 chap1 chap14 chap20 chap8 … 12 16 17 22 27 32 … name size

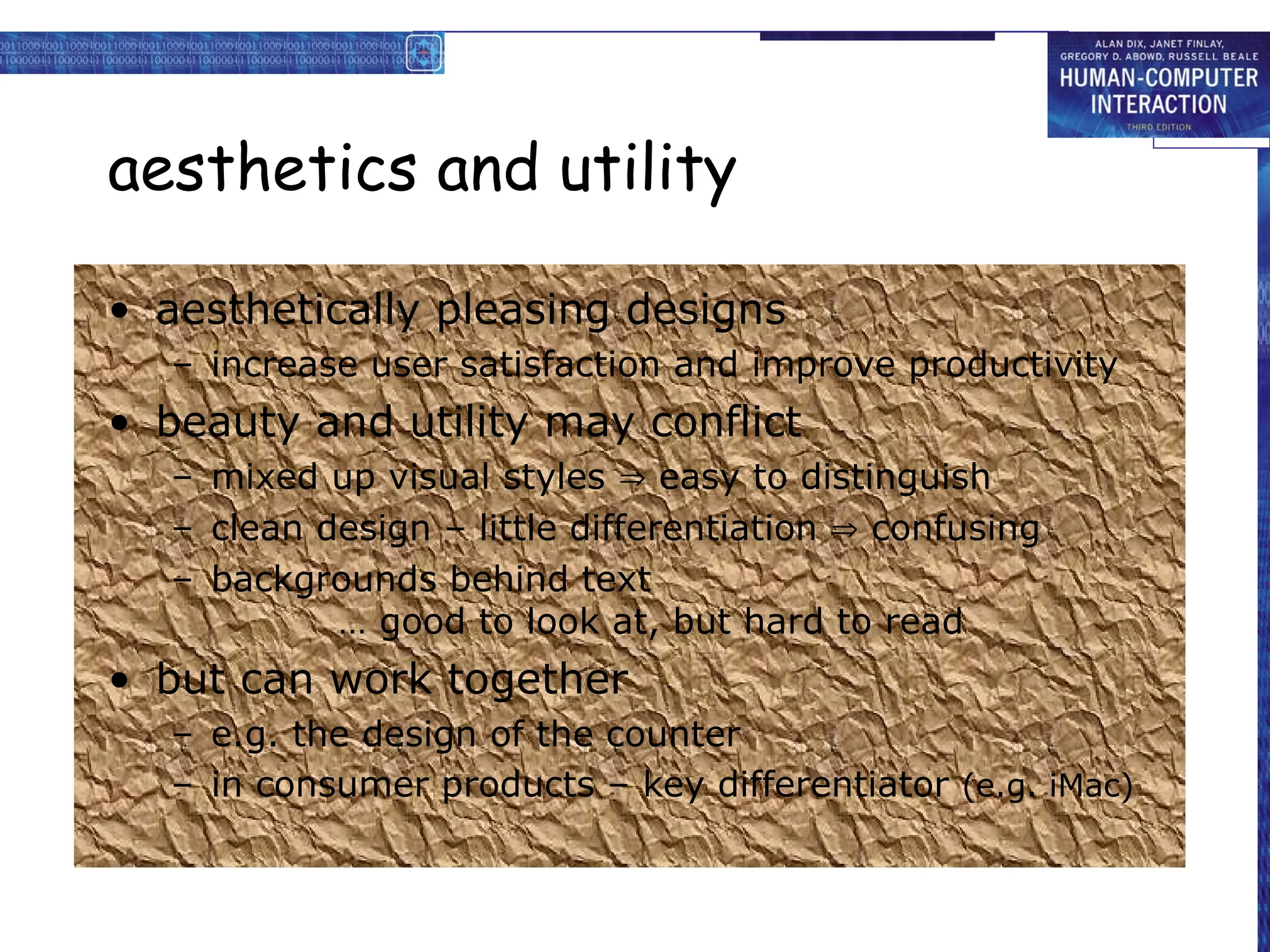

- 84. aesthetics and utility •aesthetically pleasing designs – increase user satisfaction and improve productivity • beauty and utility may conflict – mixed up visual styles easy to distinguish – clean design – little differentiation confusing – backgrounds behind text … good to look at, but hard to read • but can work together – e.g. the design of the counter – in consumer products – key differentiator (e.g. iMac)

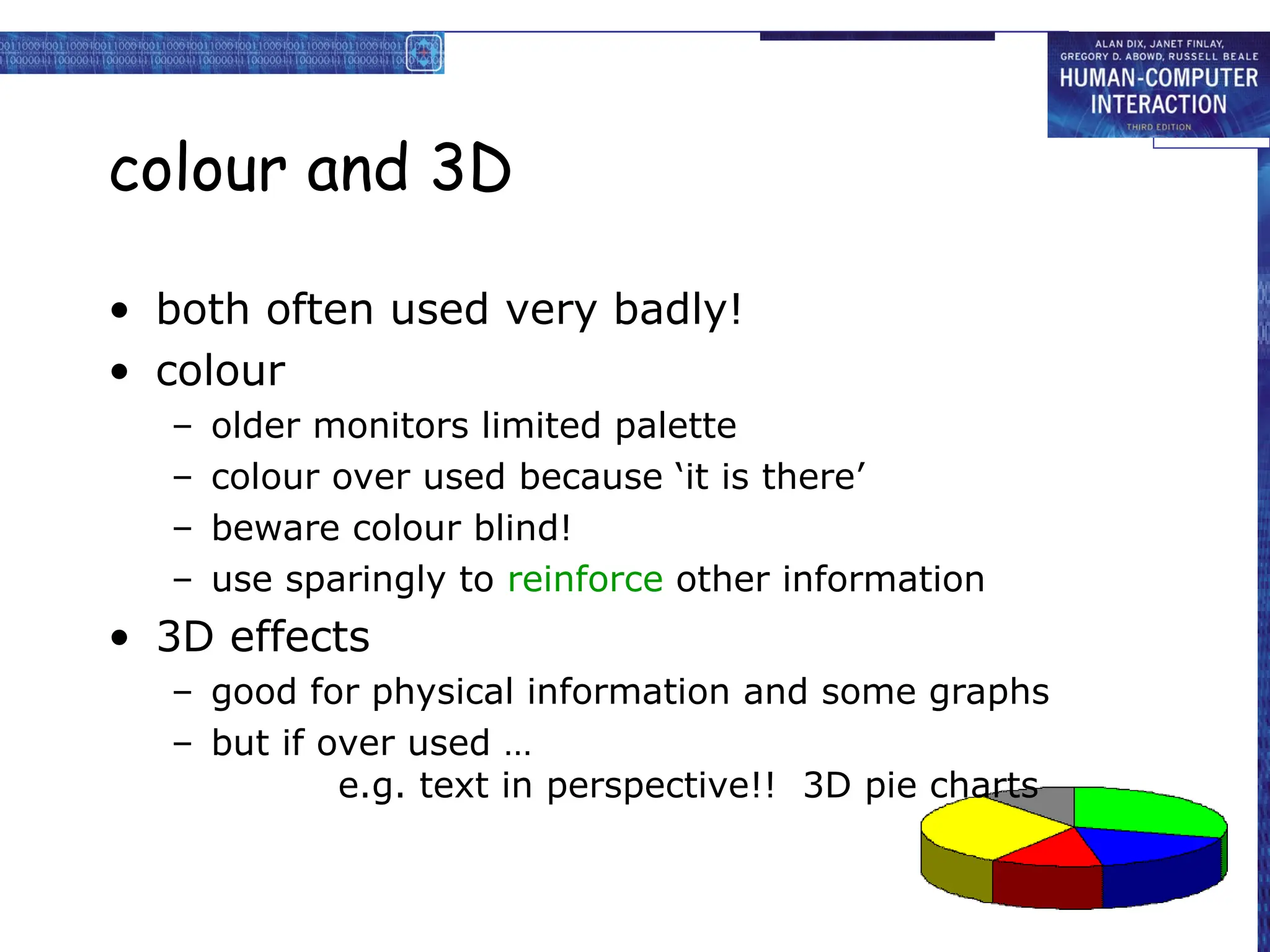

- 85. colour and 3D •both often used very badly! • colour – older monitors limited palette – colour over used because ‘it is there’ – beware colour blind! – use sparingly to reinforce other information • 3D effects – good for physical information and some graphs – but if over used … e.g. text in perspective!! 3D pie charts

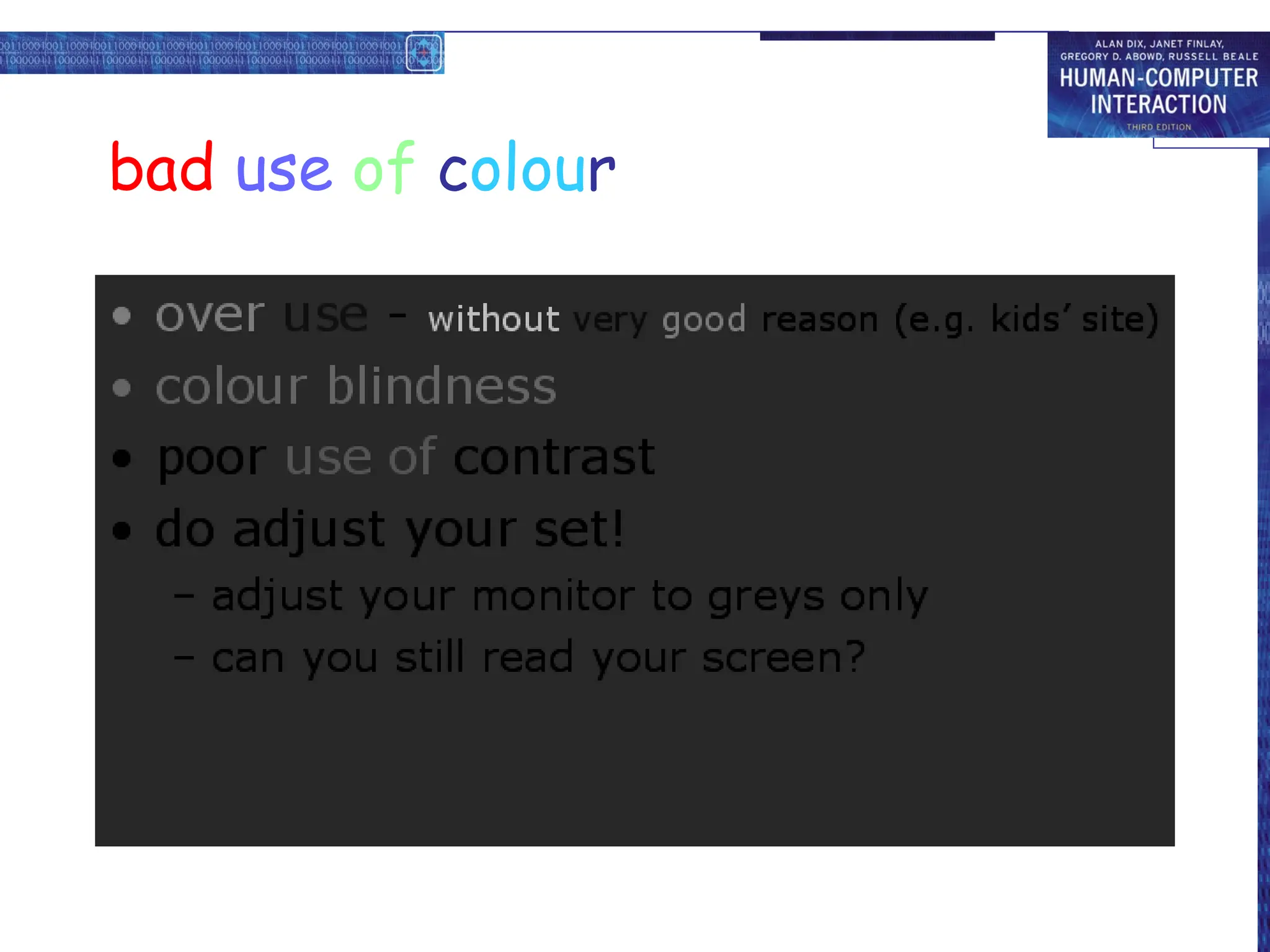

- 86. bad use ofcolour • over use - without very good reason (e.g. kids’ site) • colour blindness • poor use of contrast • do adjust your set! – adjust your monitor to greys only – can you still read your screen?

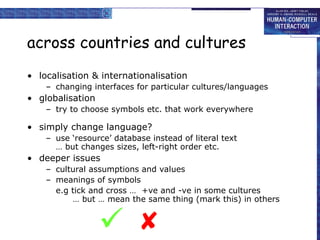

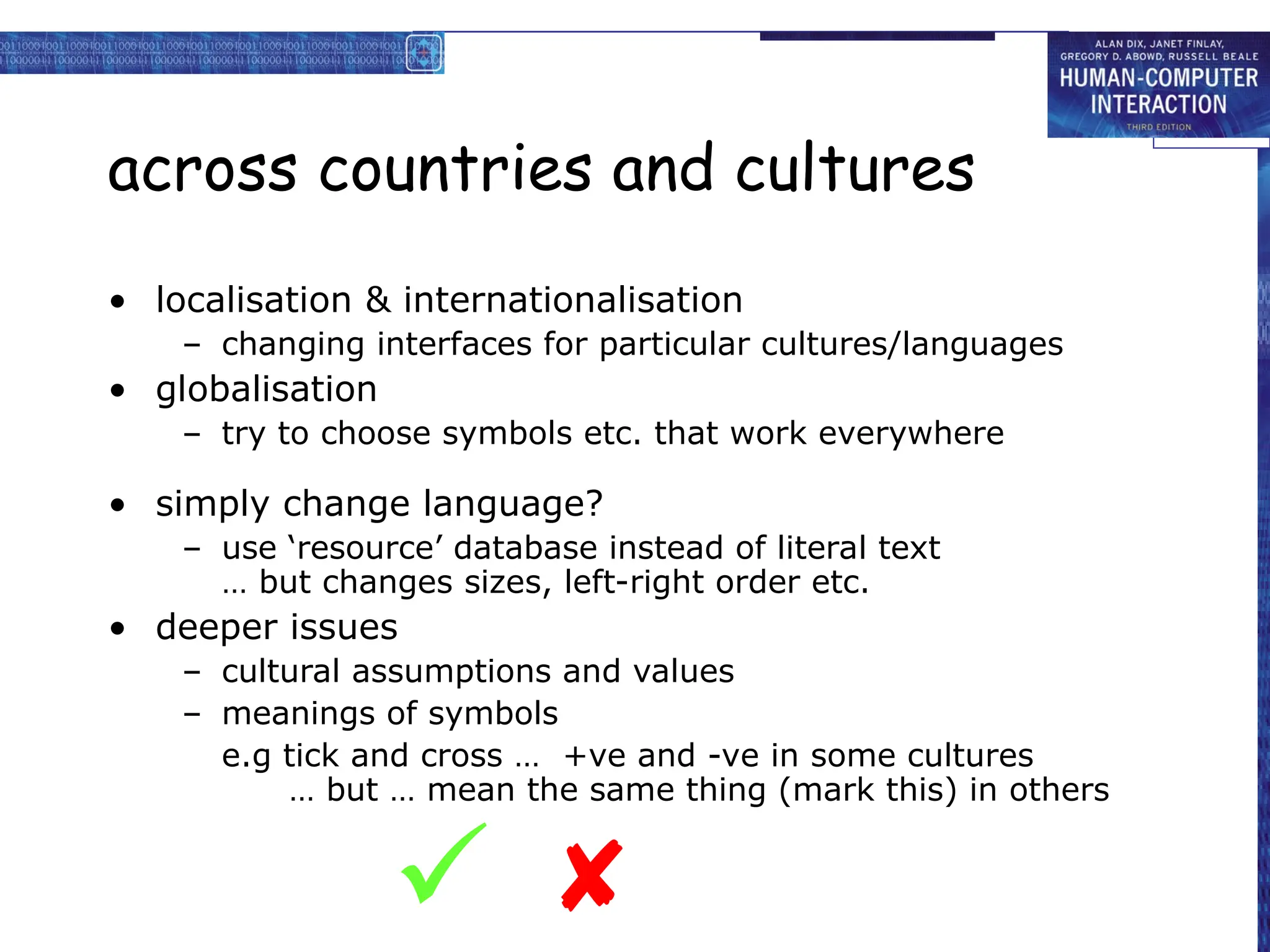

- 87. across countries andcultures • localisation & internationalisation – changing interfaces for particular cultures/languages • globalisation – try to choose symbols etc. that work everywhere • simply change language? – use ‘resource’ database instead of literal text … but changes sizes, left-right order etc. • deeper issues – cultural assumptions and values – meanings of symbols e.g tick and cross … +ve and -ve in some cultures … but … mean the same thing (mark this) in others

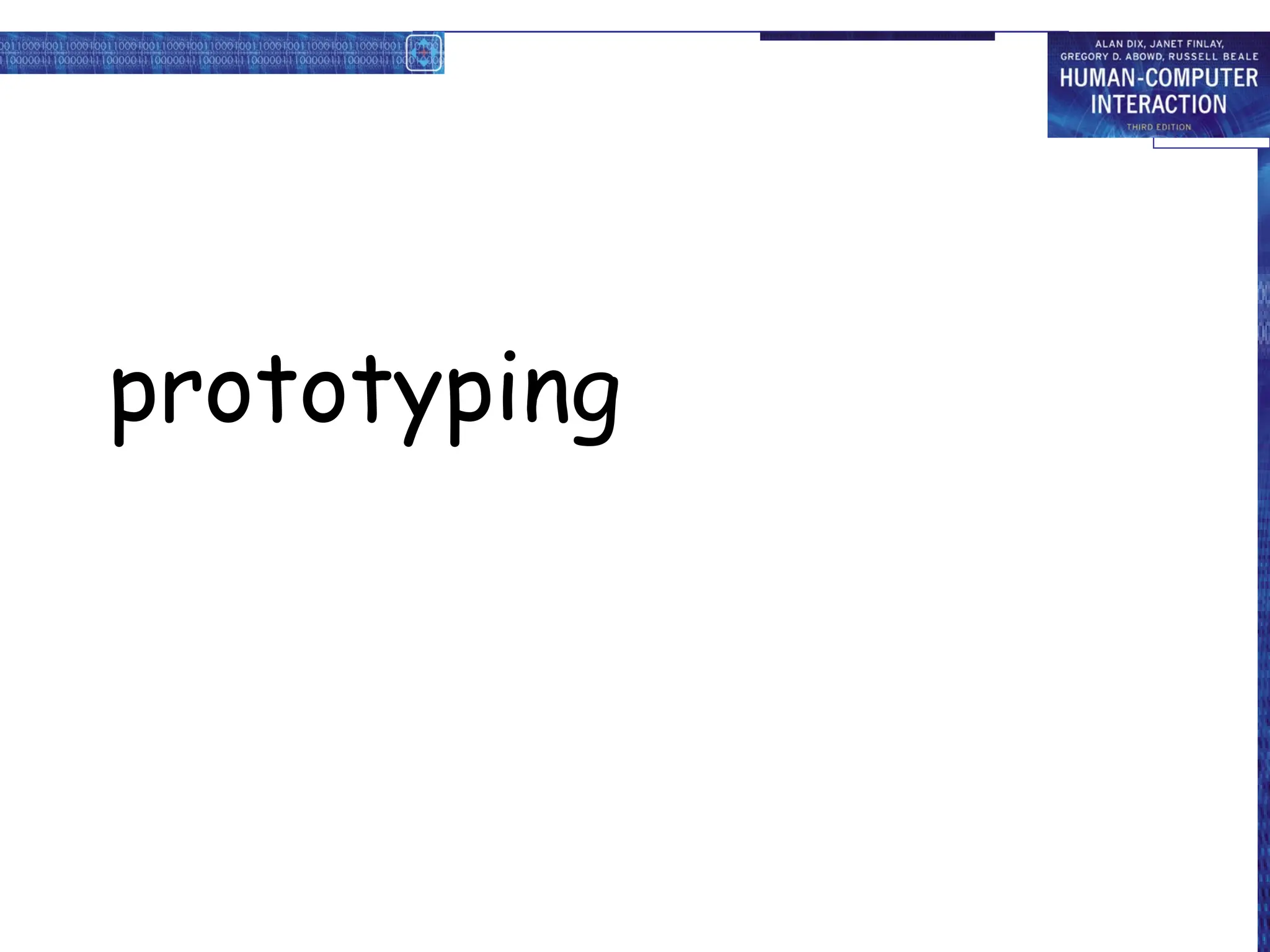

- 89.

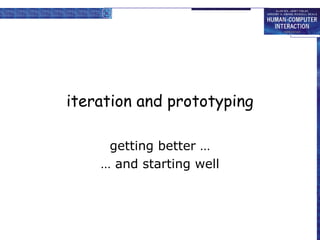

- 90. iteration and prototyping gettingbetter … … and starting well

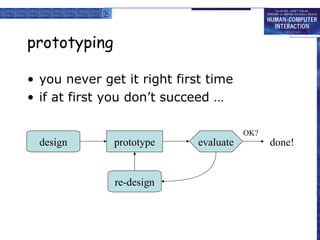

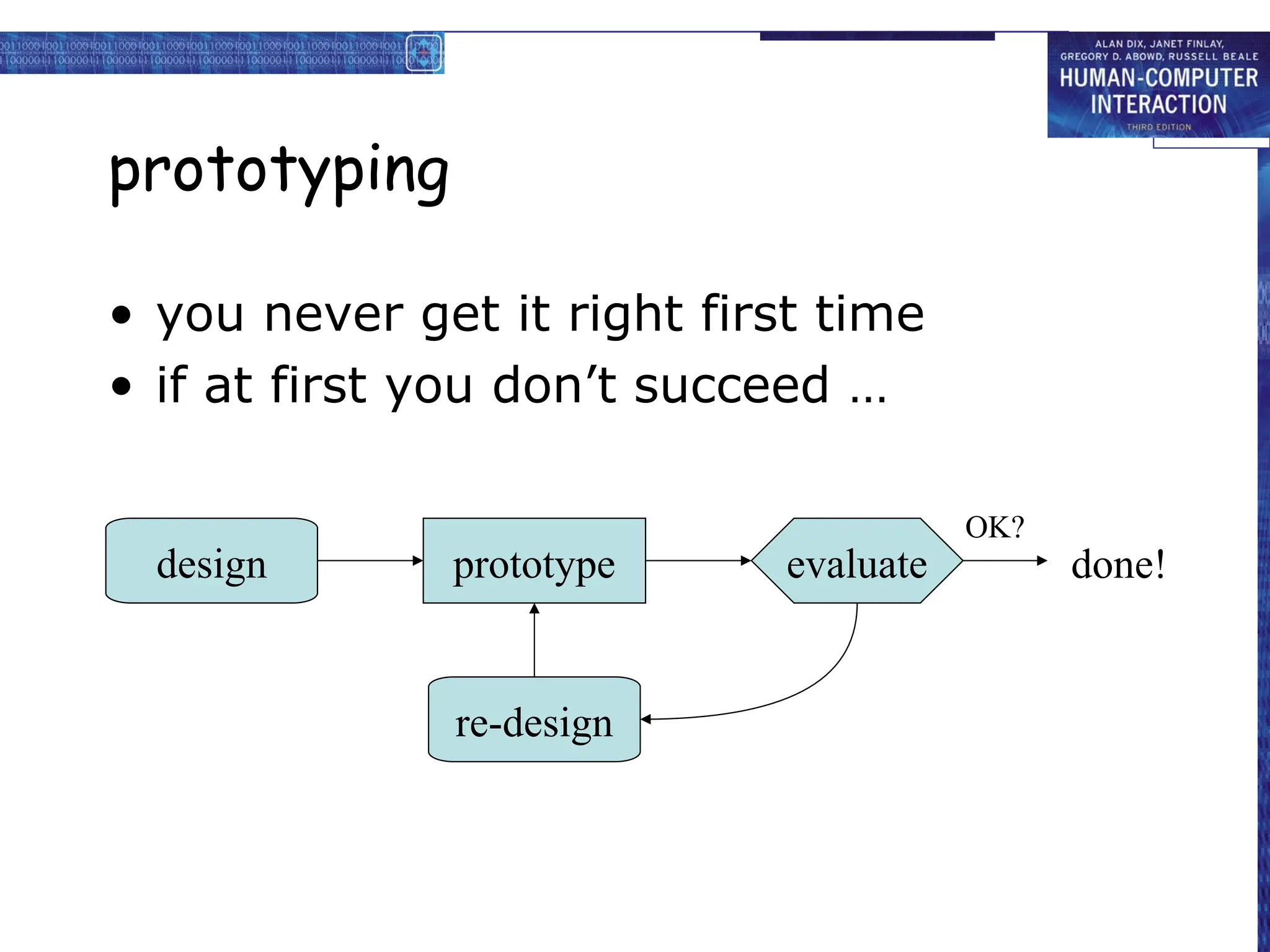

- 91. prototyping • you neverget it right first time • if at first you don’t succeed … prototype evaluate design re-design done! OK?

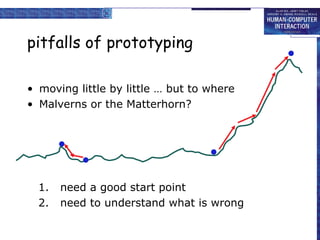

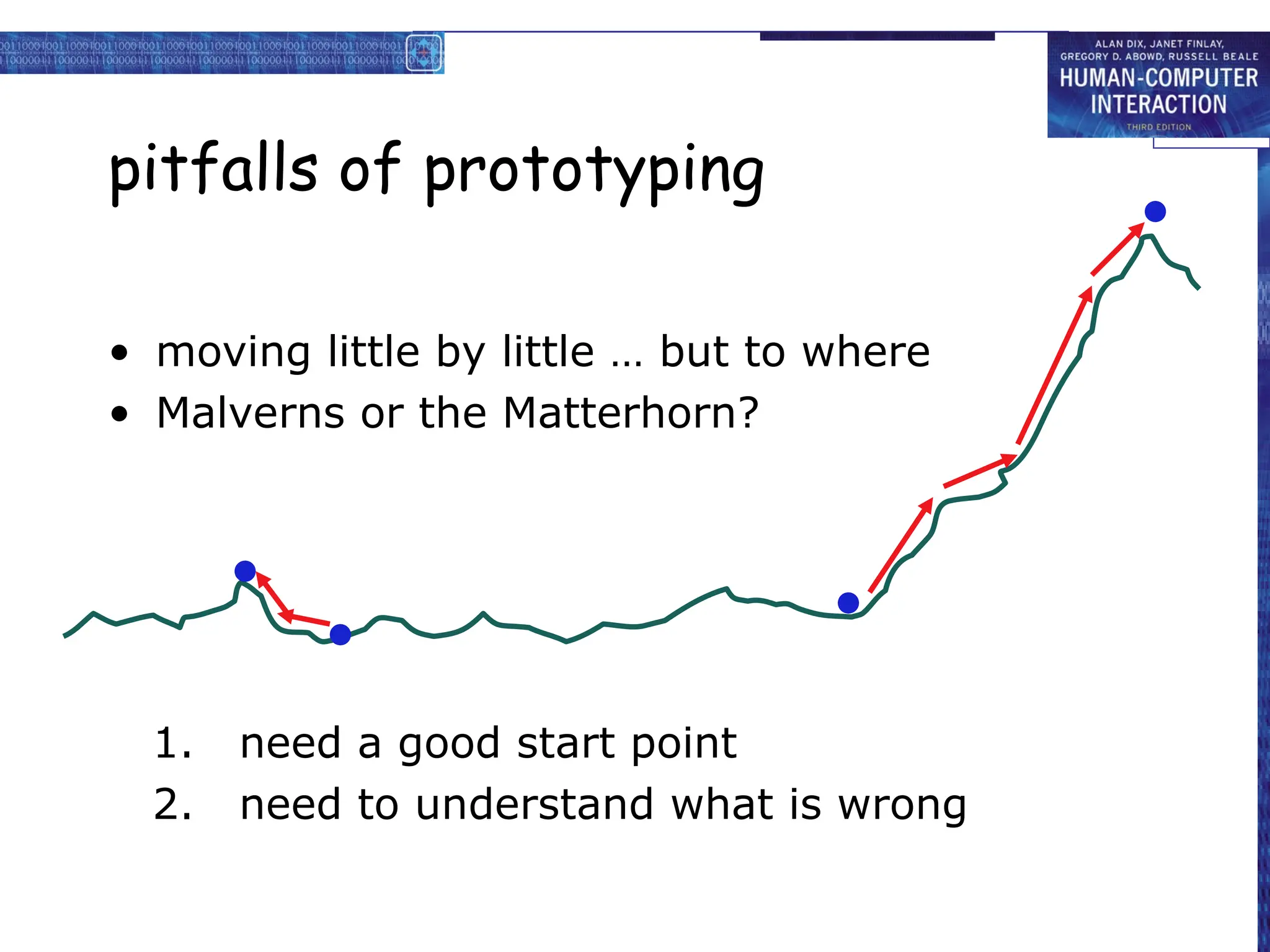

- 92. pitfalls of prototyping •moving little by little … but to where • Malverns or the Matterhorn? 1. need a good start point 2. need to understand what is wrong
