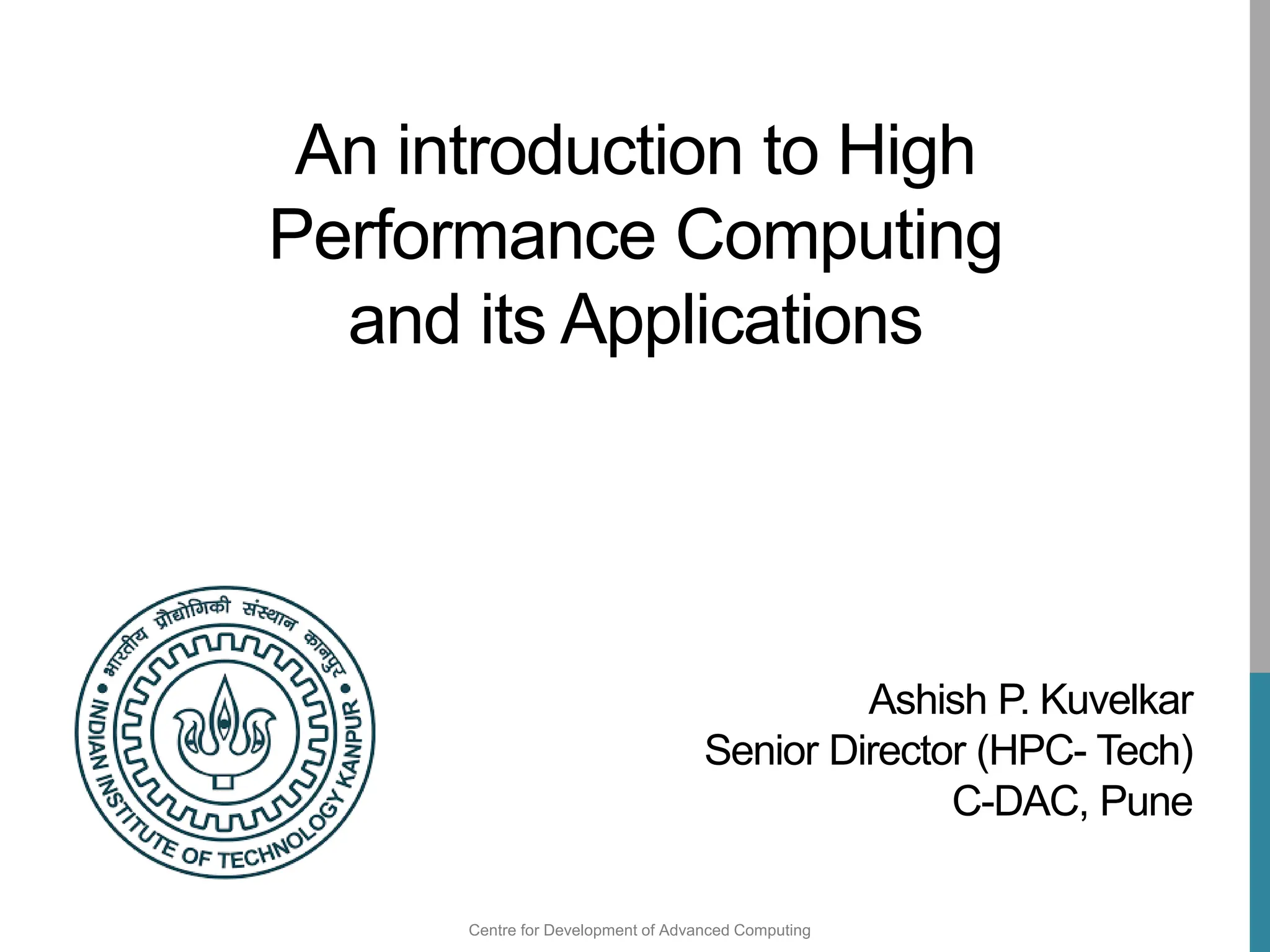

An introduction to High
Performance Computing
and its Applications
Ashish P. Kuvelkar
Senior Director (HPC- Tech)
C-DAC, Pune

© Centre for Development of Advanced Computing

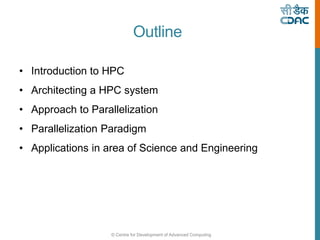

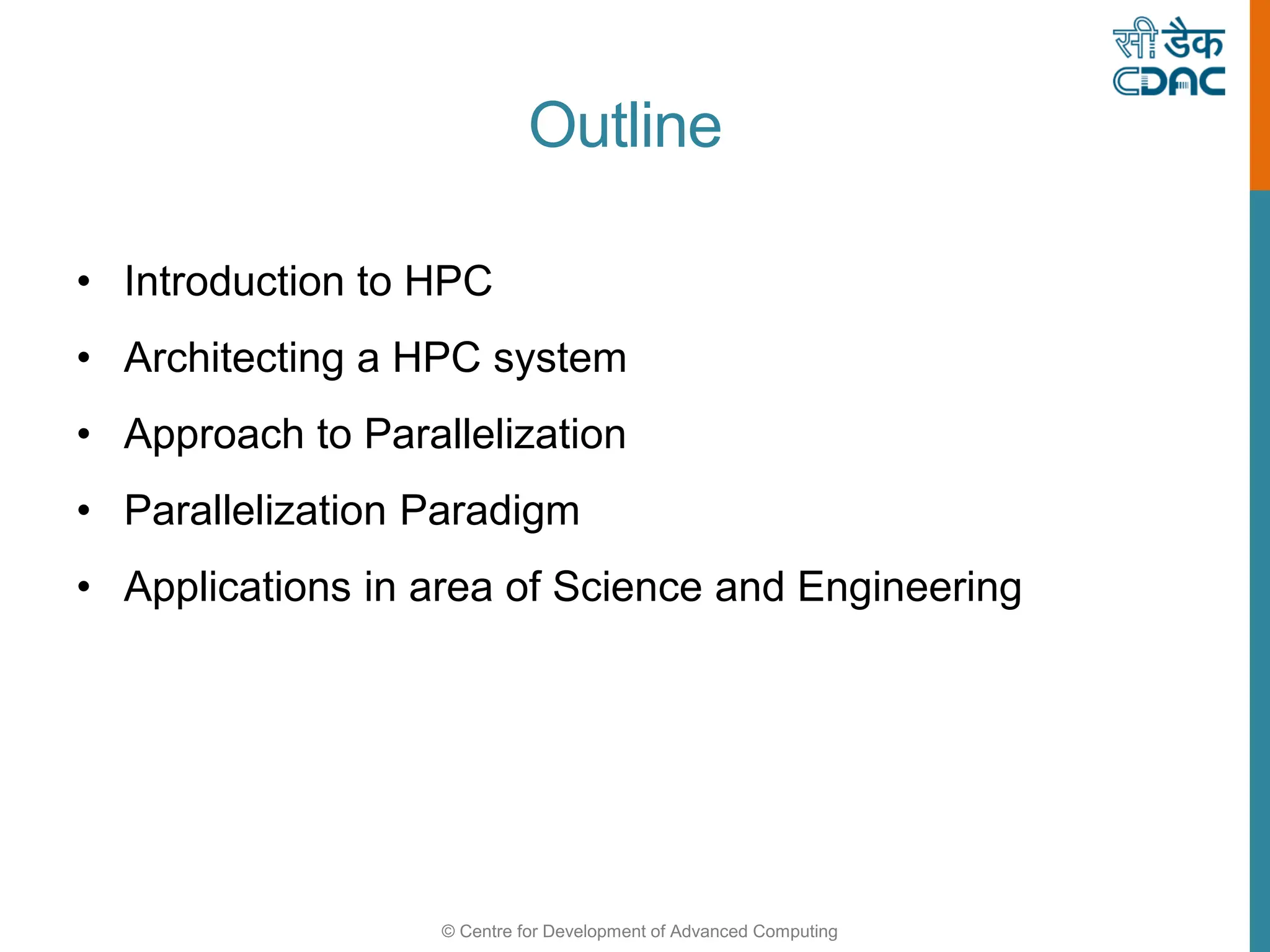

Outline
• Introduction to HPC
• Architecting a HPC system
• Approach to Parallelization
• Parallelization Paradigm
• Applications in area of Science and Engineering

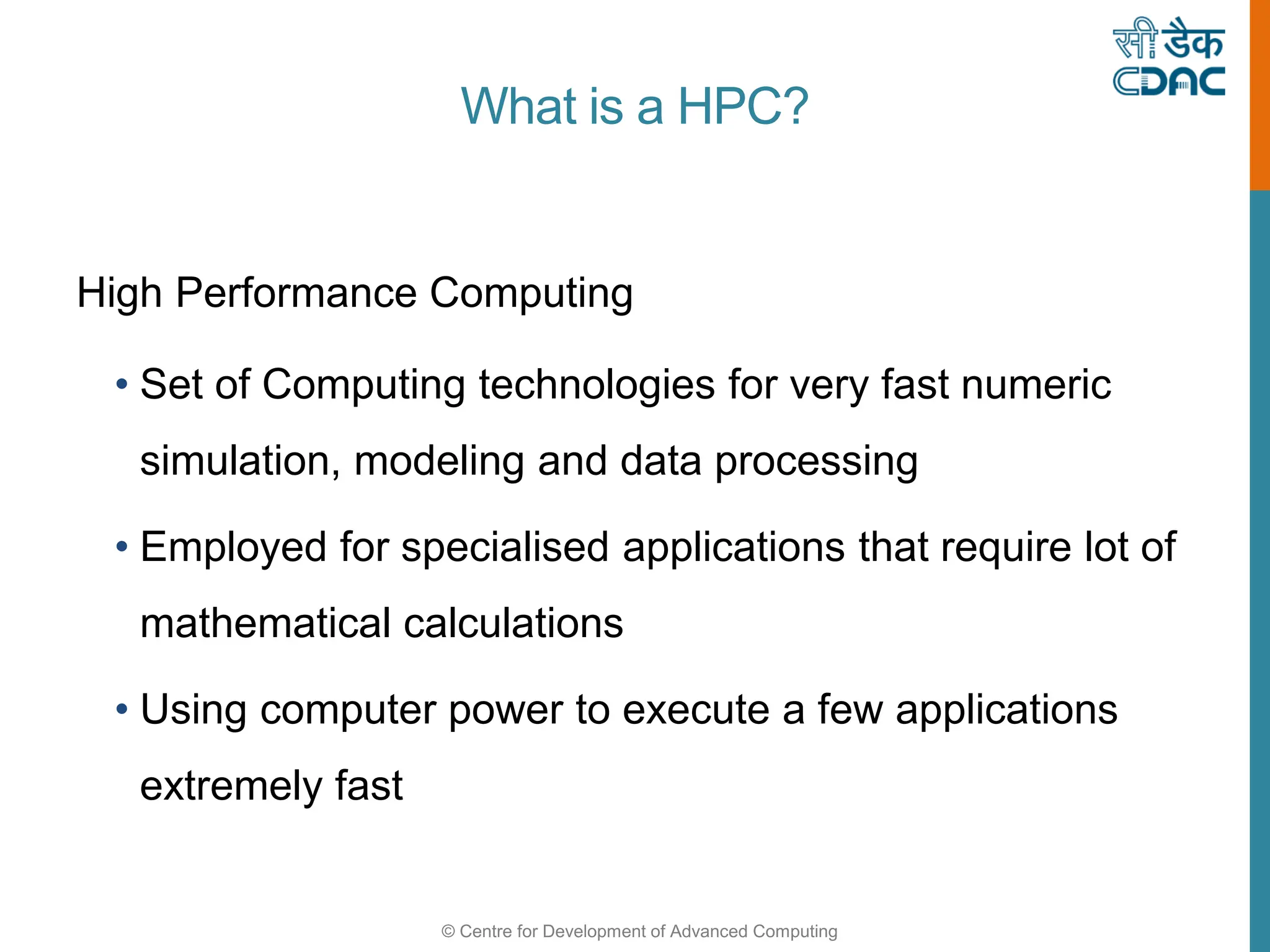

What is a HPC?
High Performance Computing
• Set of Computing technologies for very fast numeric
simulation, modeling and data processing
• Employed for specialised applications that require lot of
mathematical calculations
• Using computer power to execute a few applications
extremely fast

(C) 2001, C-DAC

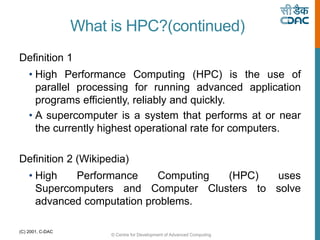

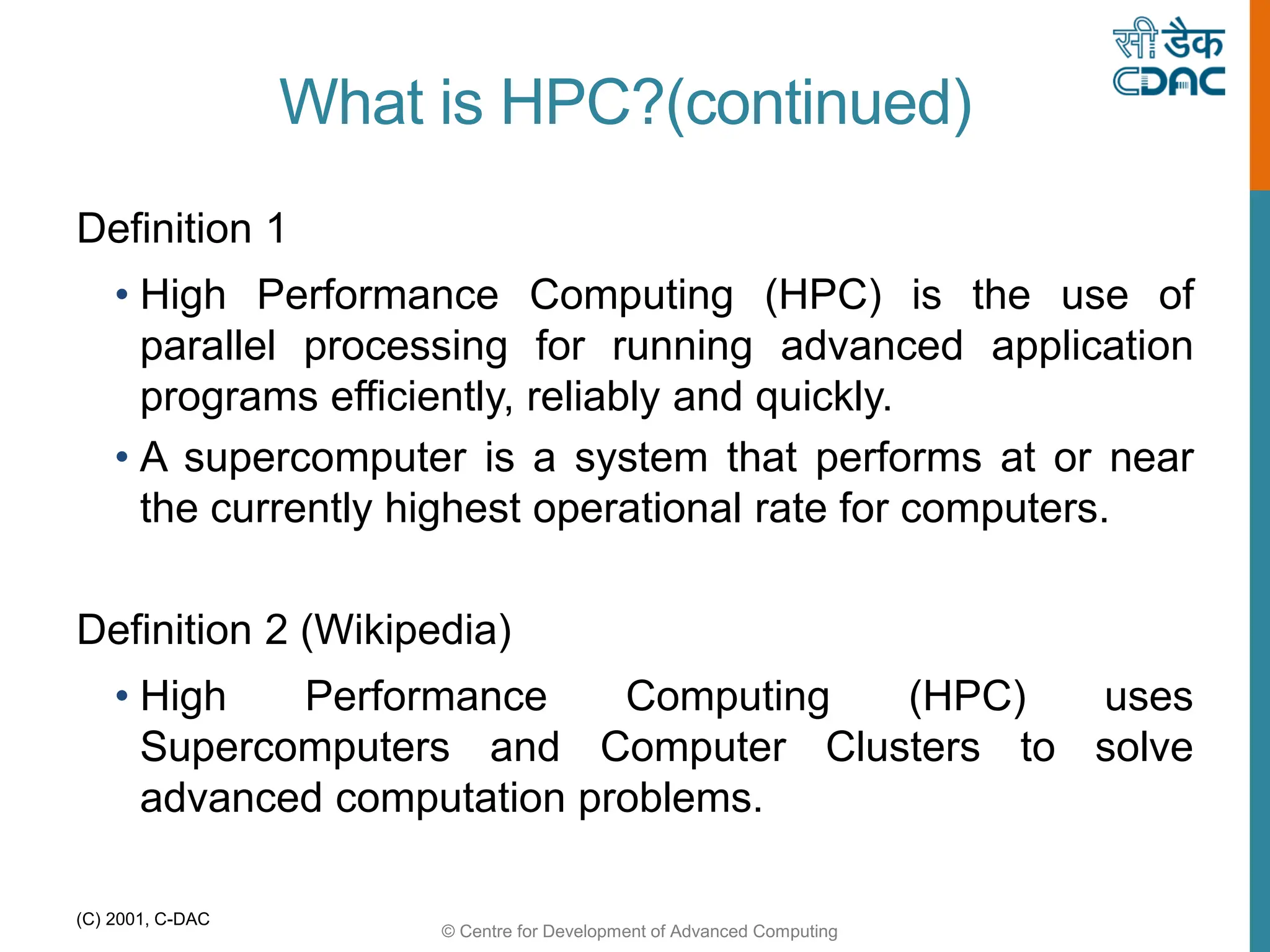

What is HPC?(continued)
Definition 1
• High Performance Computing (HPC) is the use of
parallel processing for running advanced application
programs efficiently, reliably and quickly.
• A supercomputer is a system that performs at or near
the currently highest operational rate for computers.
Definition 2 (Wikipedia)
• High Performance Computing (HPC) uses
Supercomputers and Computer Clusters to solve
advanced computation problems.

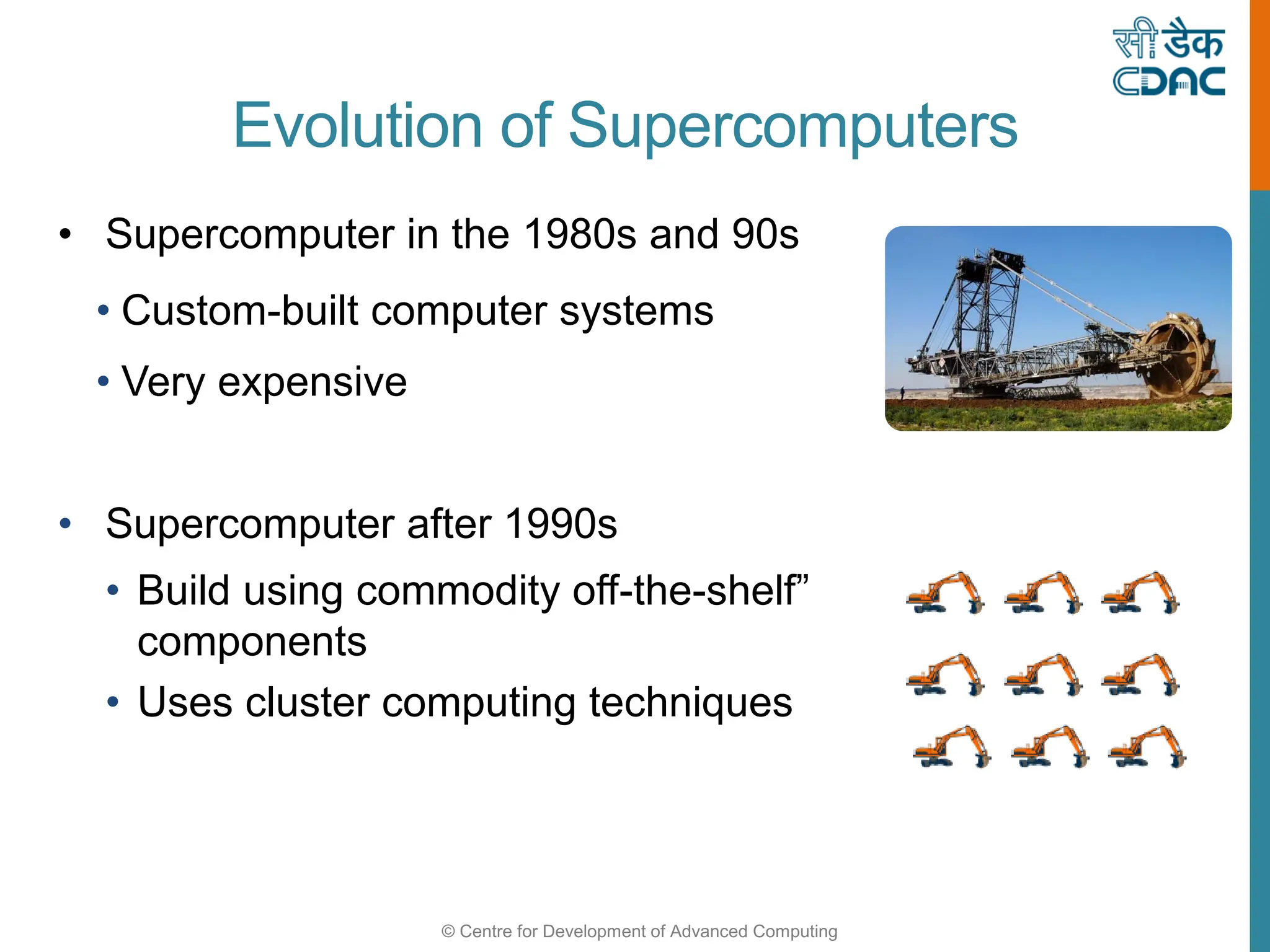

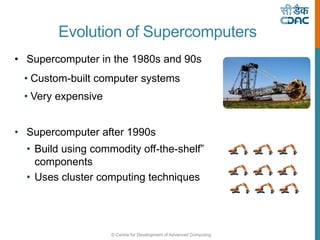

Evolution of Supercomputers
• Supercomputer in the 1980s and 90s
• Custom-built computer systems
• Very expensive
• Supercomputer after 1990s
• Build using commodity off-the-shelf”
components
• Uses cluster computing techniques

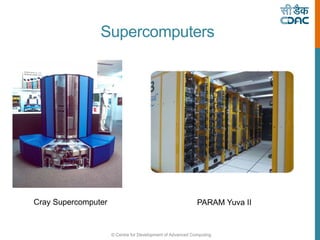

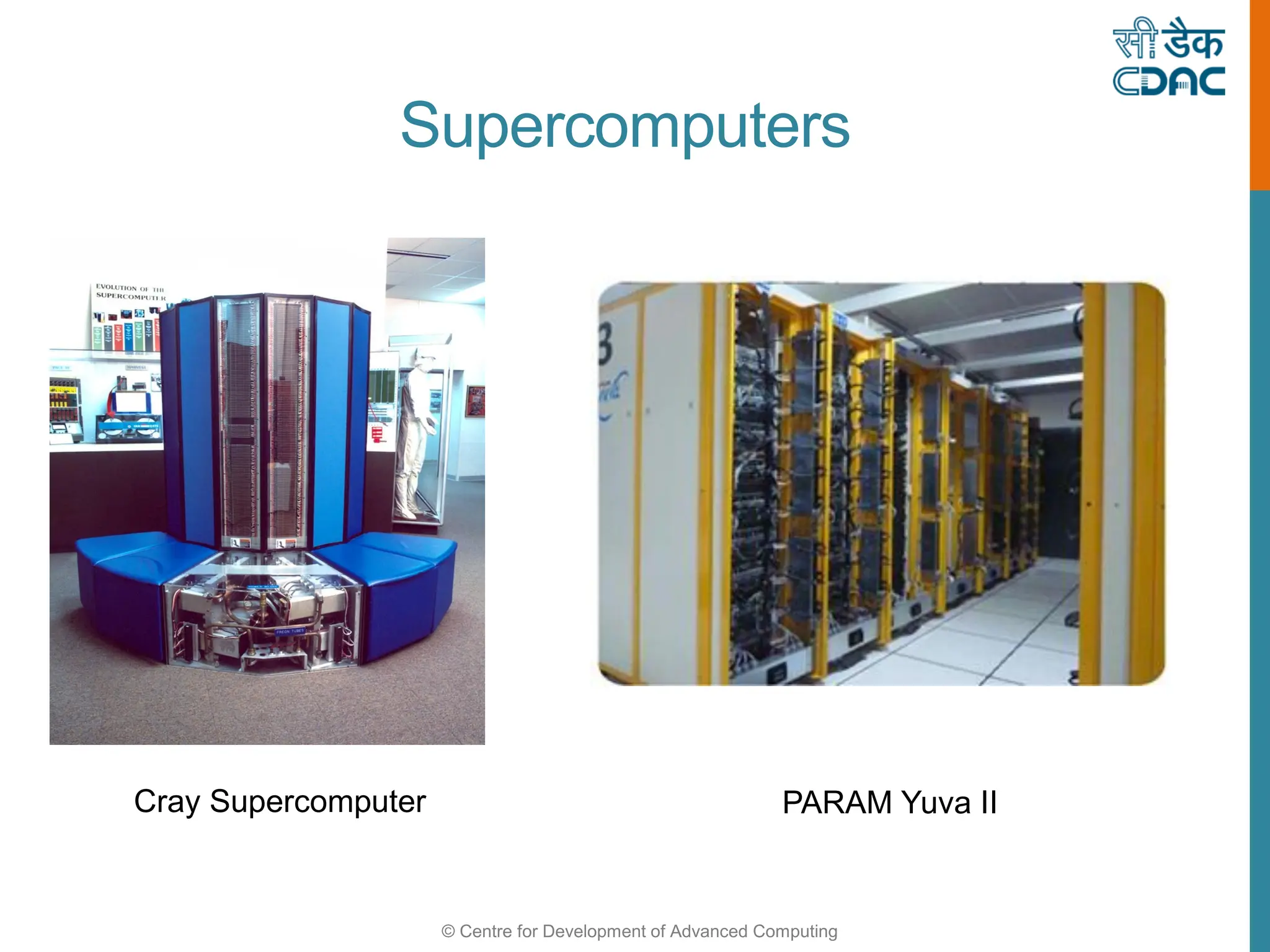

Supercomputers
Cray Supercomputer PARAM Yuva II

Switch
Fabric Compute
Nodes
Parallel File
System
Tape Library/
Backup storage
HSM/
Backup
Server
Login Nodes
Accelerated
Compute
Nodes
Storage
Acceleration
Networking
Gateway
Primary Interconnect
Boot Servers/
Management Nodes
1GbE for
administration
Local
Network

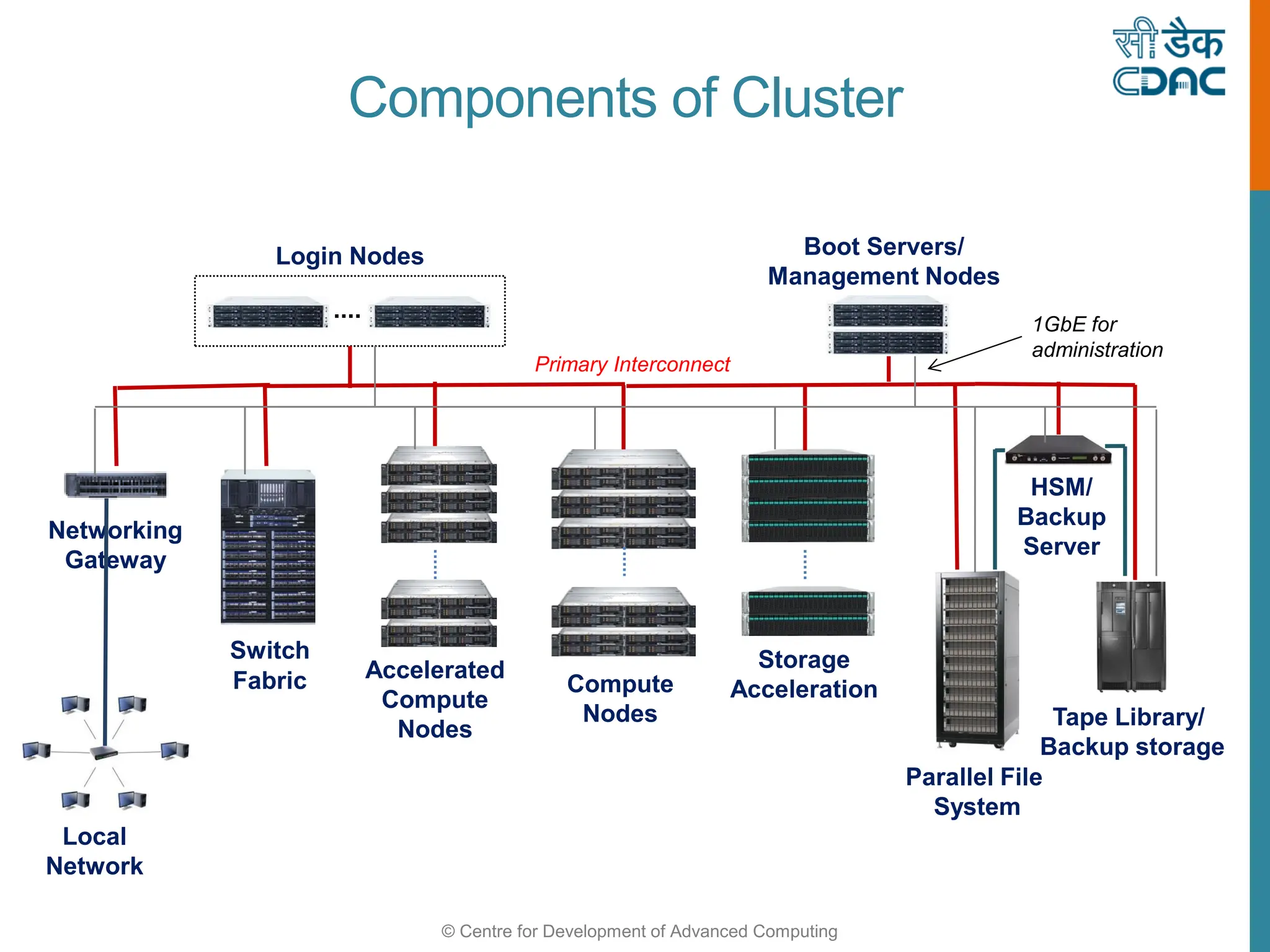

Components of Cluster

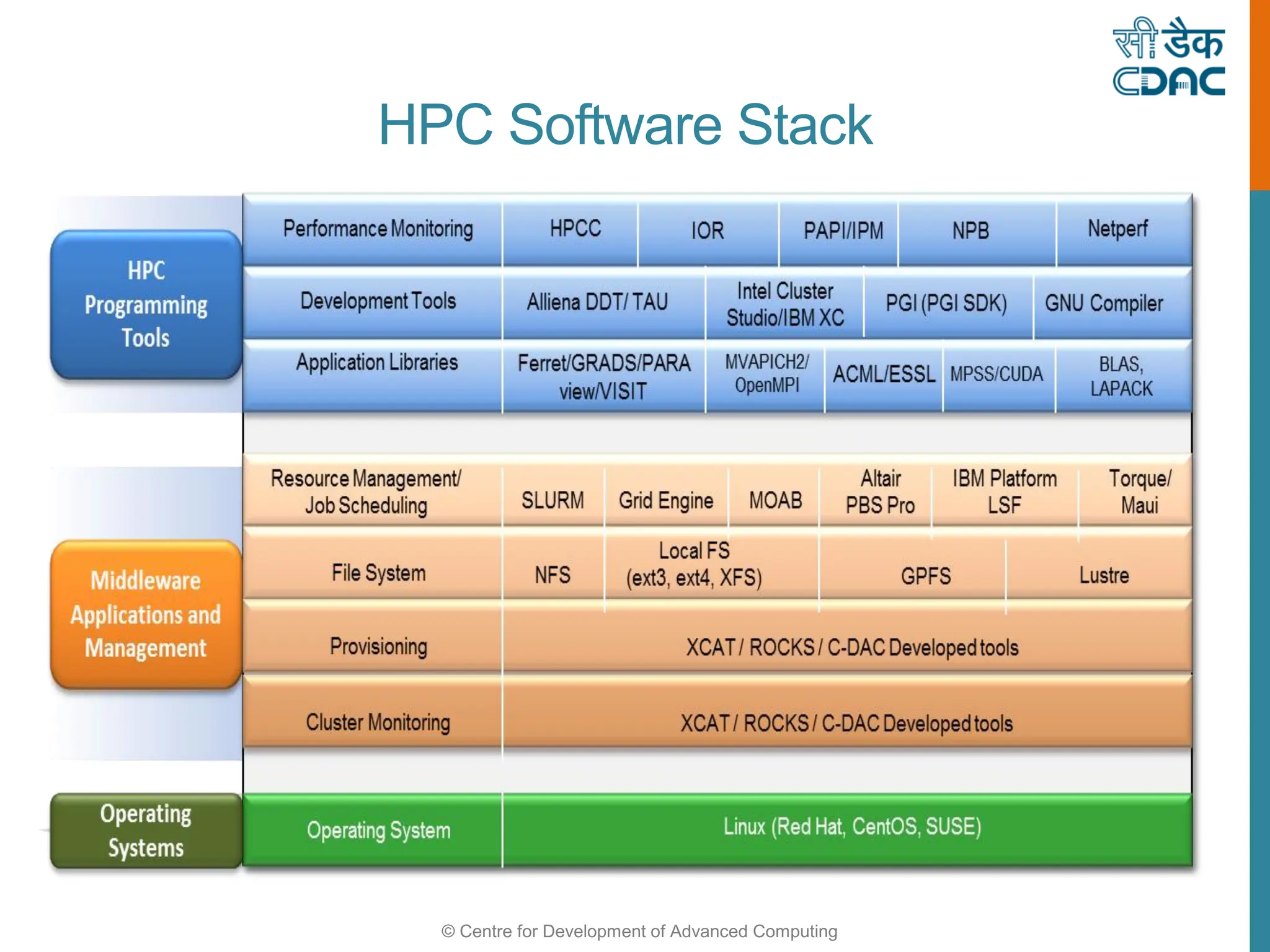

HPC Software Stack

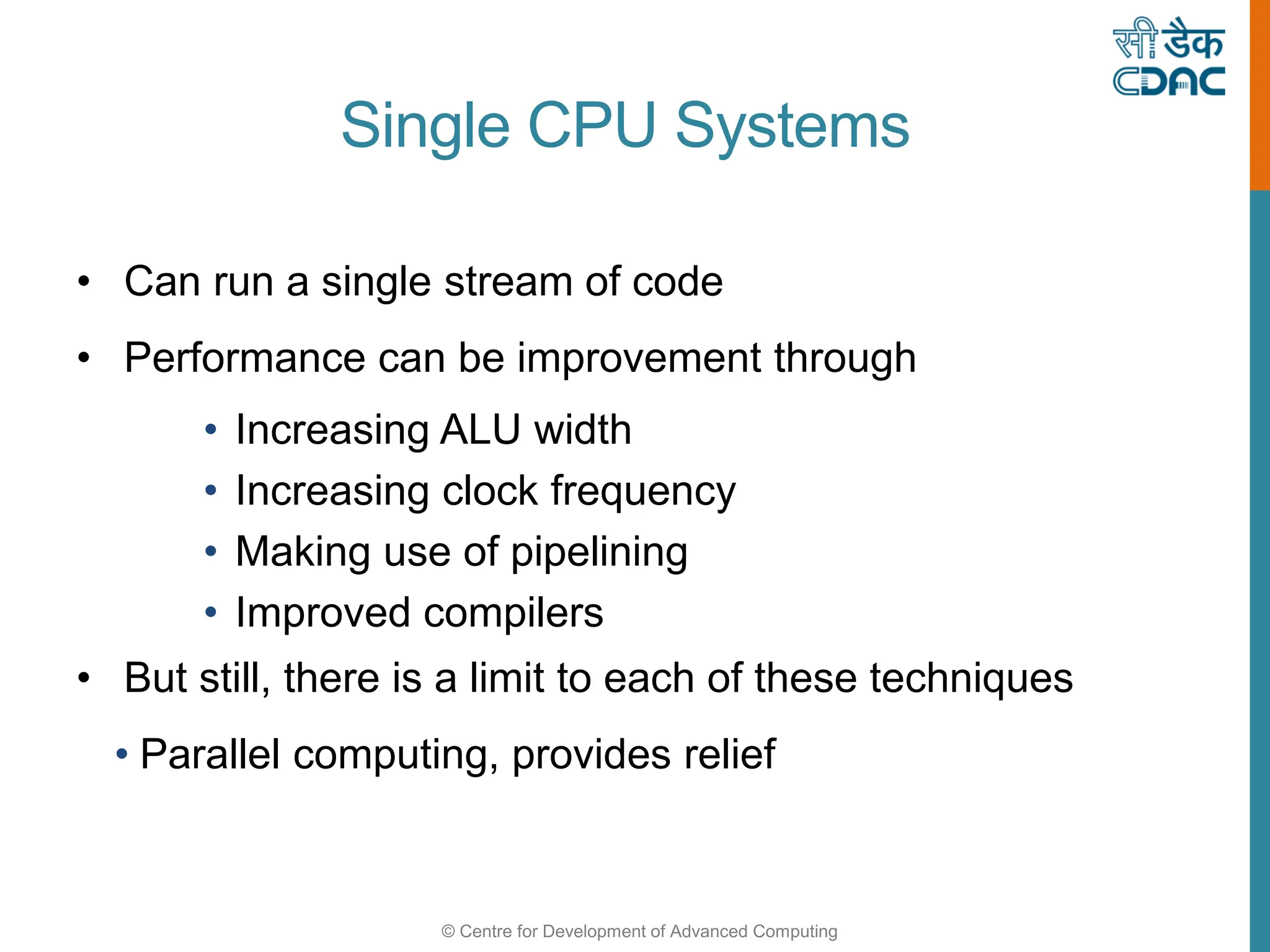

Single CPU Systems
• Can run a single stream of code
• Performance can be improvement through
• Increasing ALU width
• Increasing clock frequency
• Making use of pipelining
• Improved compilers
• But still, there is a limit to each of these techniques
• Parallel computing, provides relief

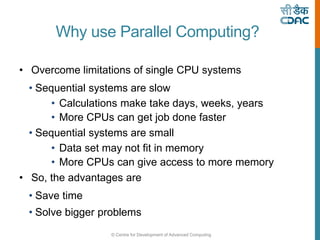

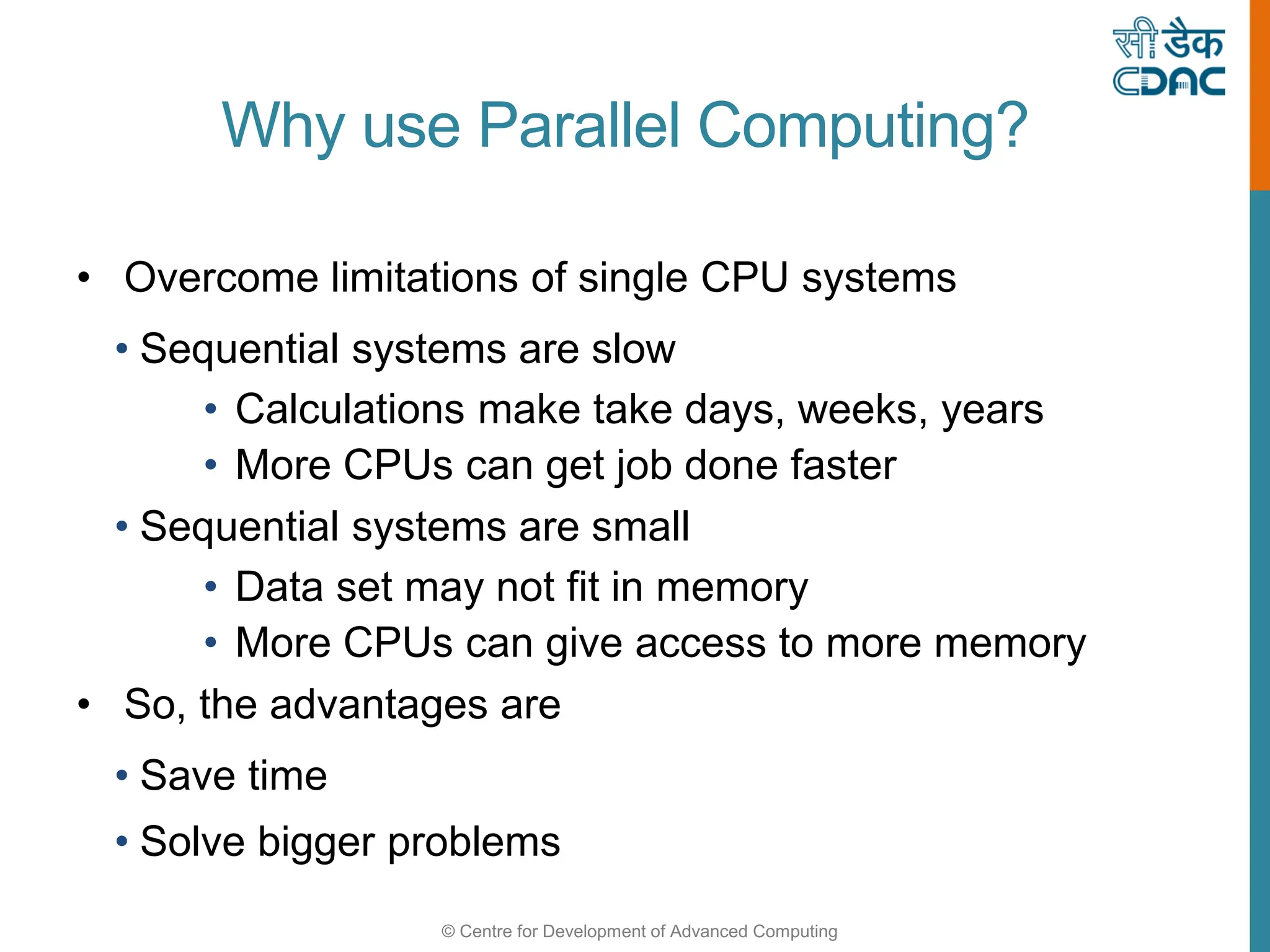

Why use Parallel Computing?
• Overcome limitations of single CPU systems
• Sequential systems are slow
• Calculations make take days, weeks, years
• More CPUs can get job done faster
• Sequential systems are small
• Data set may not fit in memory
• More CPUs can give access to more memory
• So, the advantages are
• Save time
• Solve bigger problems

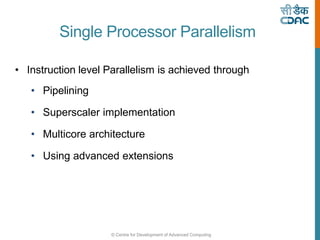

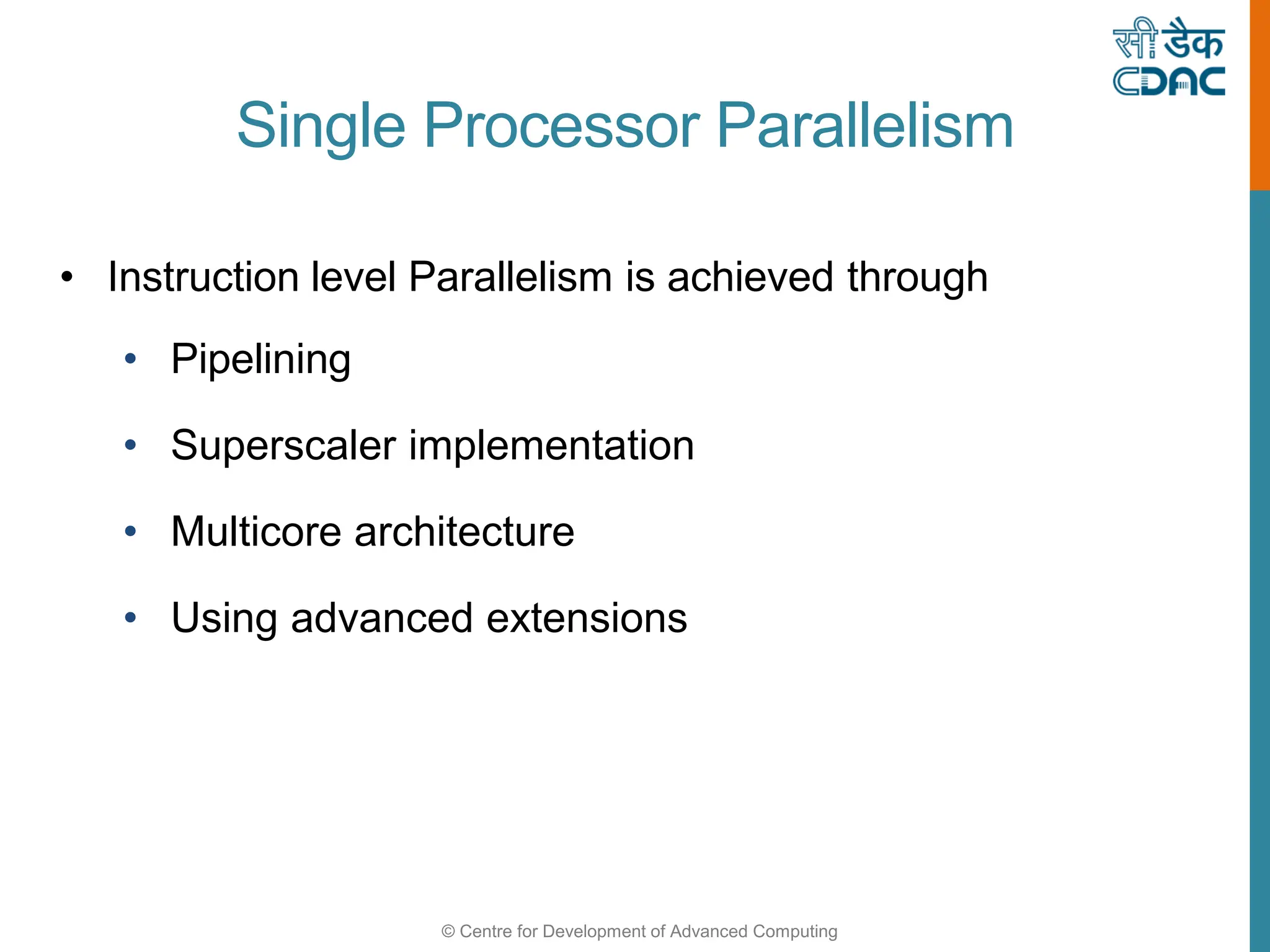

Single Processor Parallelism
• Instruction level Parallelism is achieved through
• Pipelining
• Superscaler implementation
• Multicore architecture
• Using advanced extensions

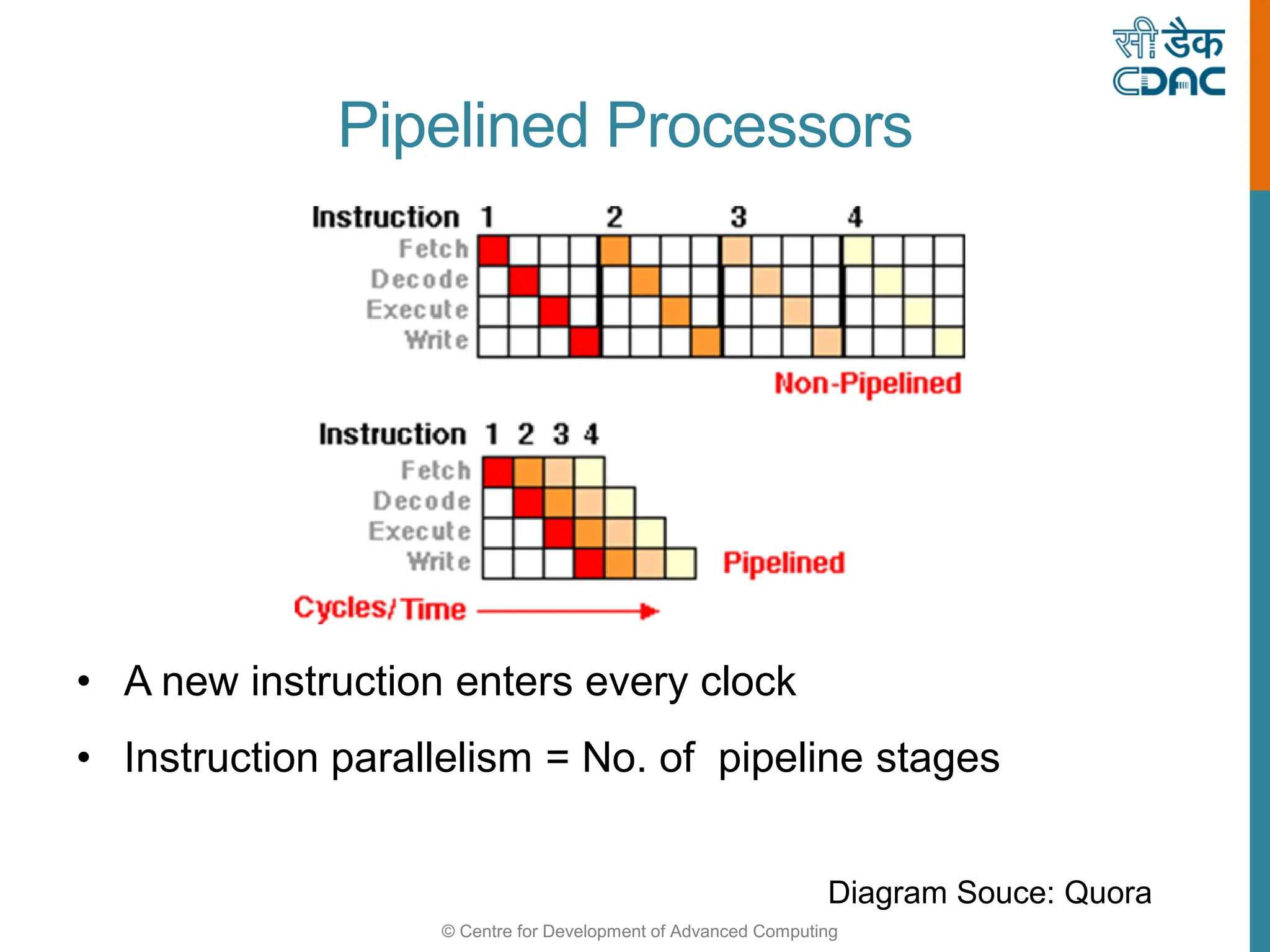

Pipelined Processors
• A new instruction enters every clock
• Instruction parallelism = No. of pipeline stages
Diagram Souce: Quora

13

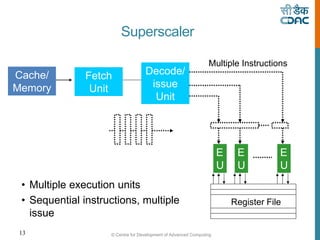

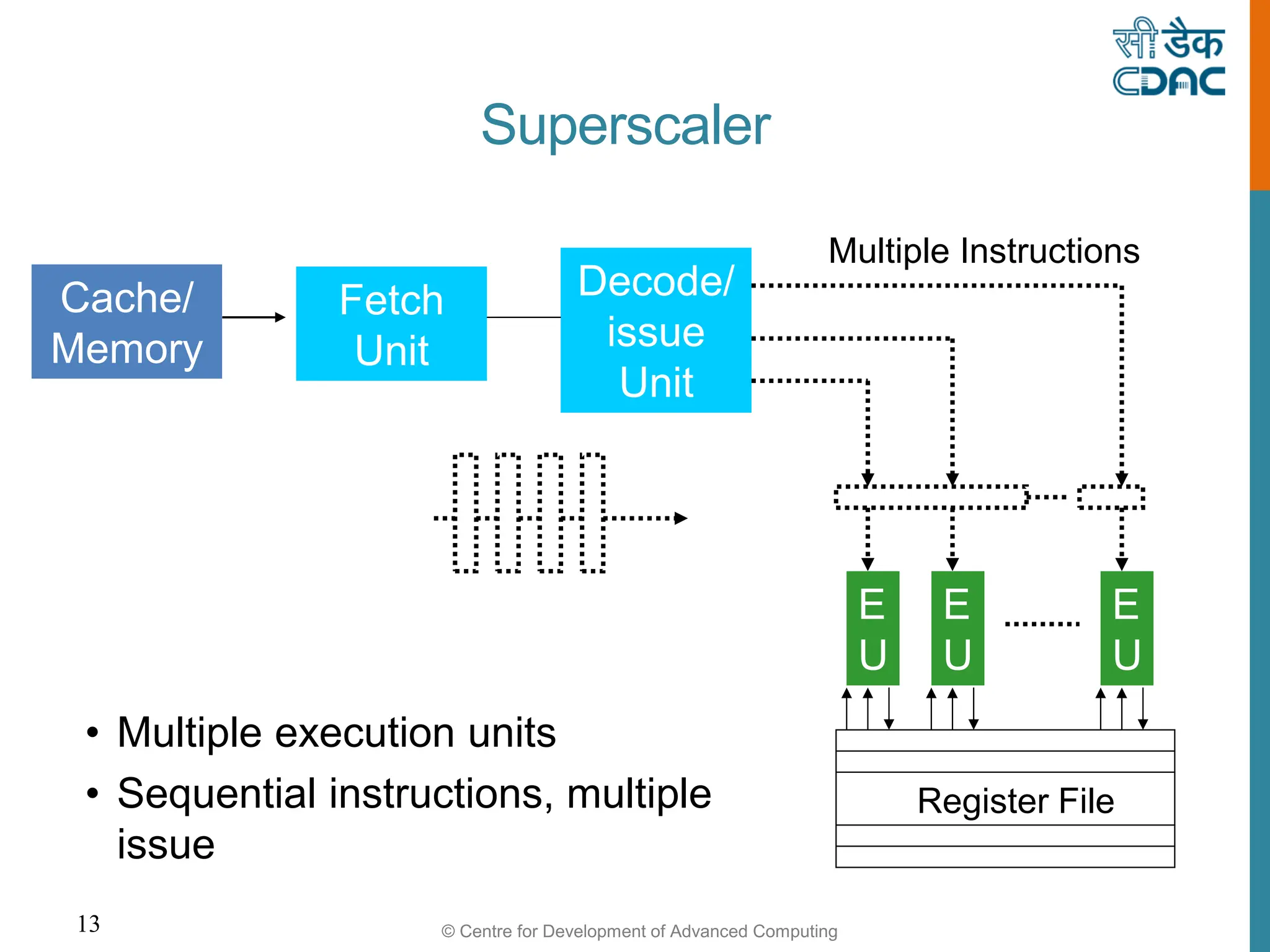

Superscaler
Cache/
Memory
Fetch
Unit
E
U
E
U
E
U
Register File
Decode/
issue
Unit
Multiple Instructions
• Multiple execution units
• Sequential instructions, multiple
issue

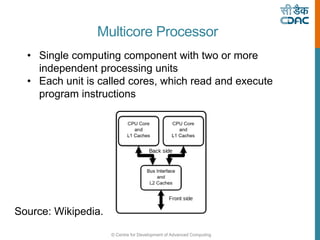

Multicore Processor
• Single computing component with two or more
independent processing units
• Each unit is called cores, which read and execute
program instructions
Source: Wikipedia.

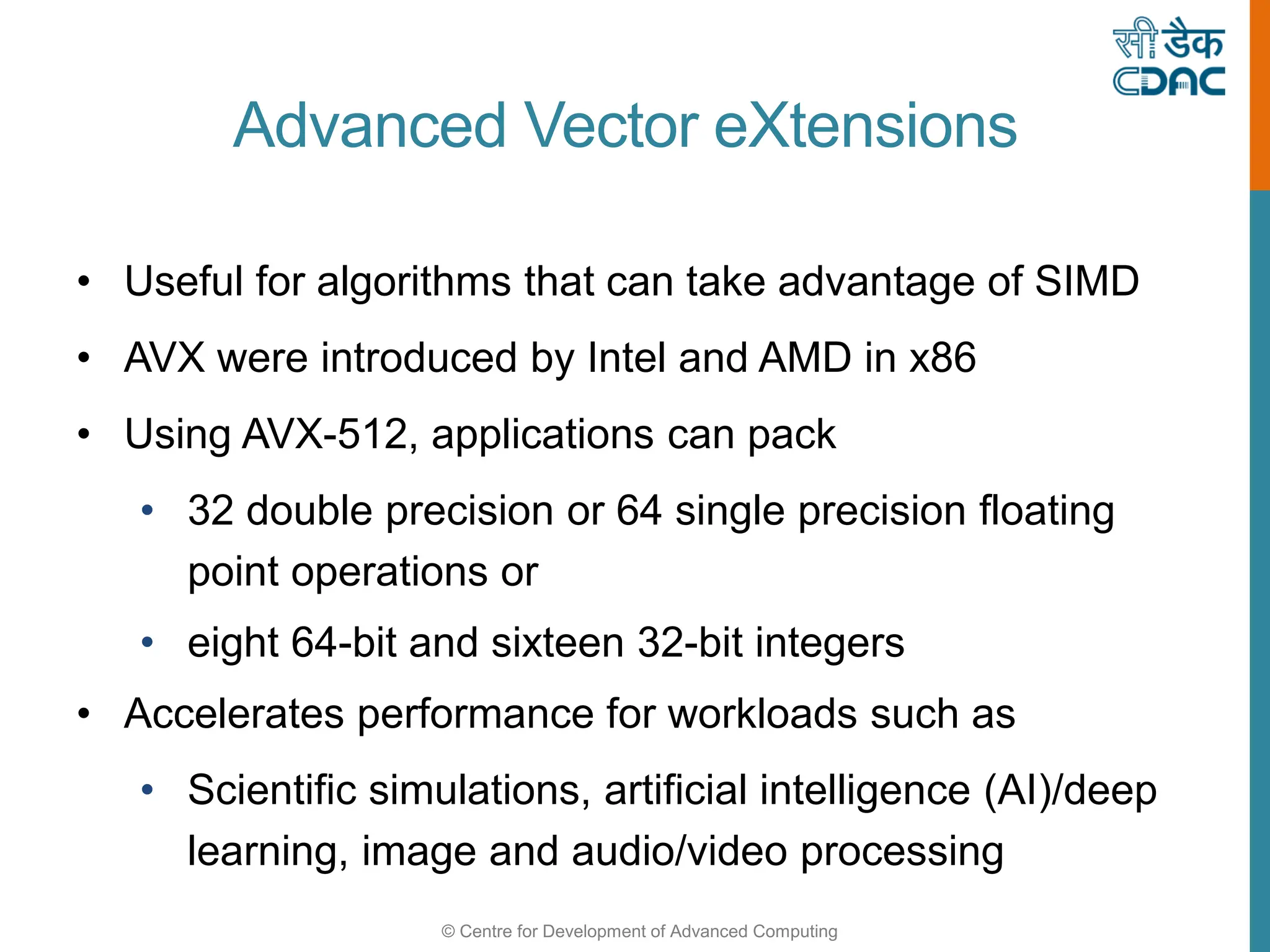

Advanced Vector eXtensions
• Useful for algorithms that can take advantage of SIMD
• AVX were introduced by Intel and AMD in x86
• Using AVX-512, applications can pack
• 32 double precision or 64 single precision floating
point operations or
• eight 64-bit and sixteen 32-bit integers
• Accelerates performance for workloads such as
• Scientific simulations, artificial intelligence (AI)/deep
learning, image and audio/video processing

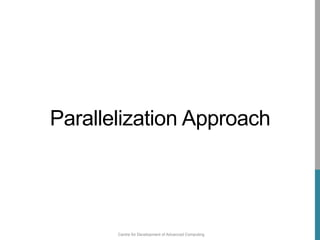

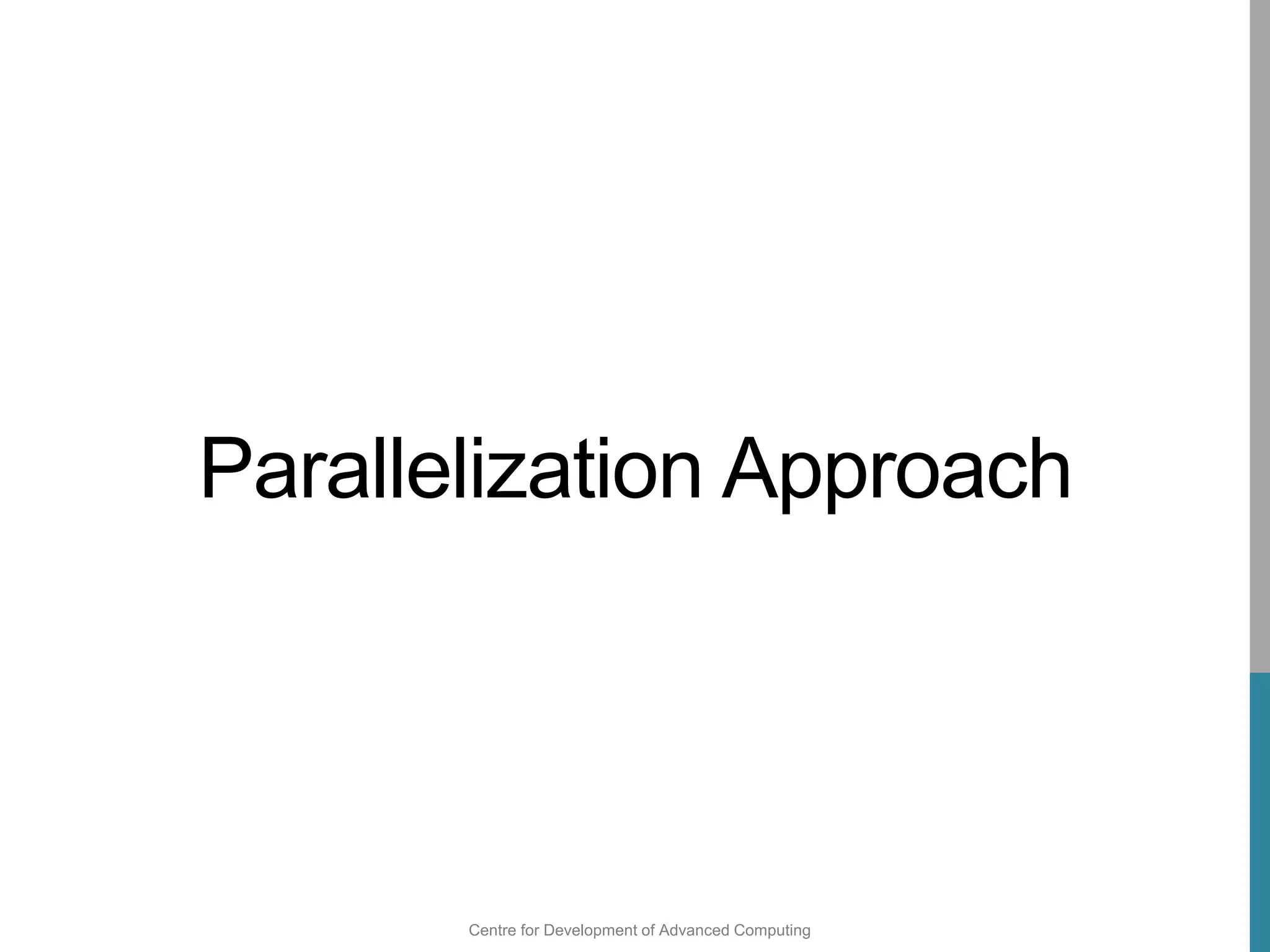

Parallelization Approach

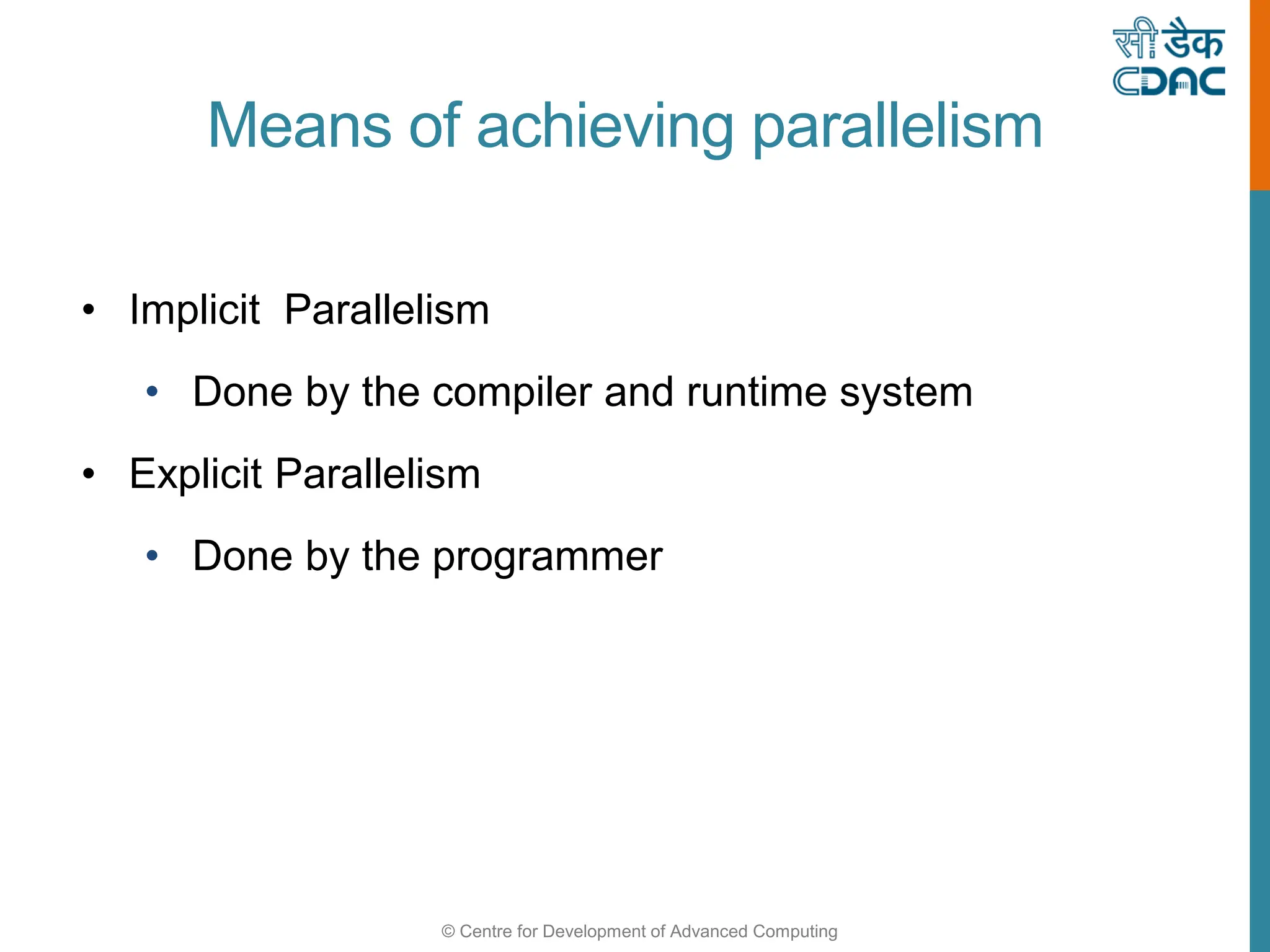

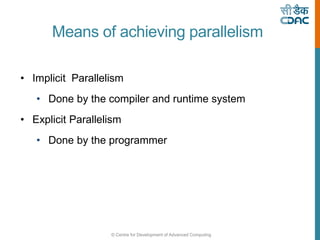

Means of achieving parallelism
• Implicit Parallelism
• Done by the compiler and runtime system
• Explicit Parallelism
• Done by the programmer

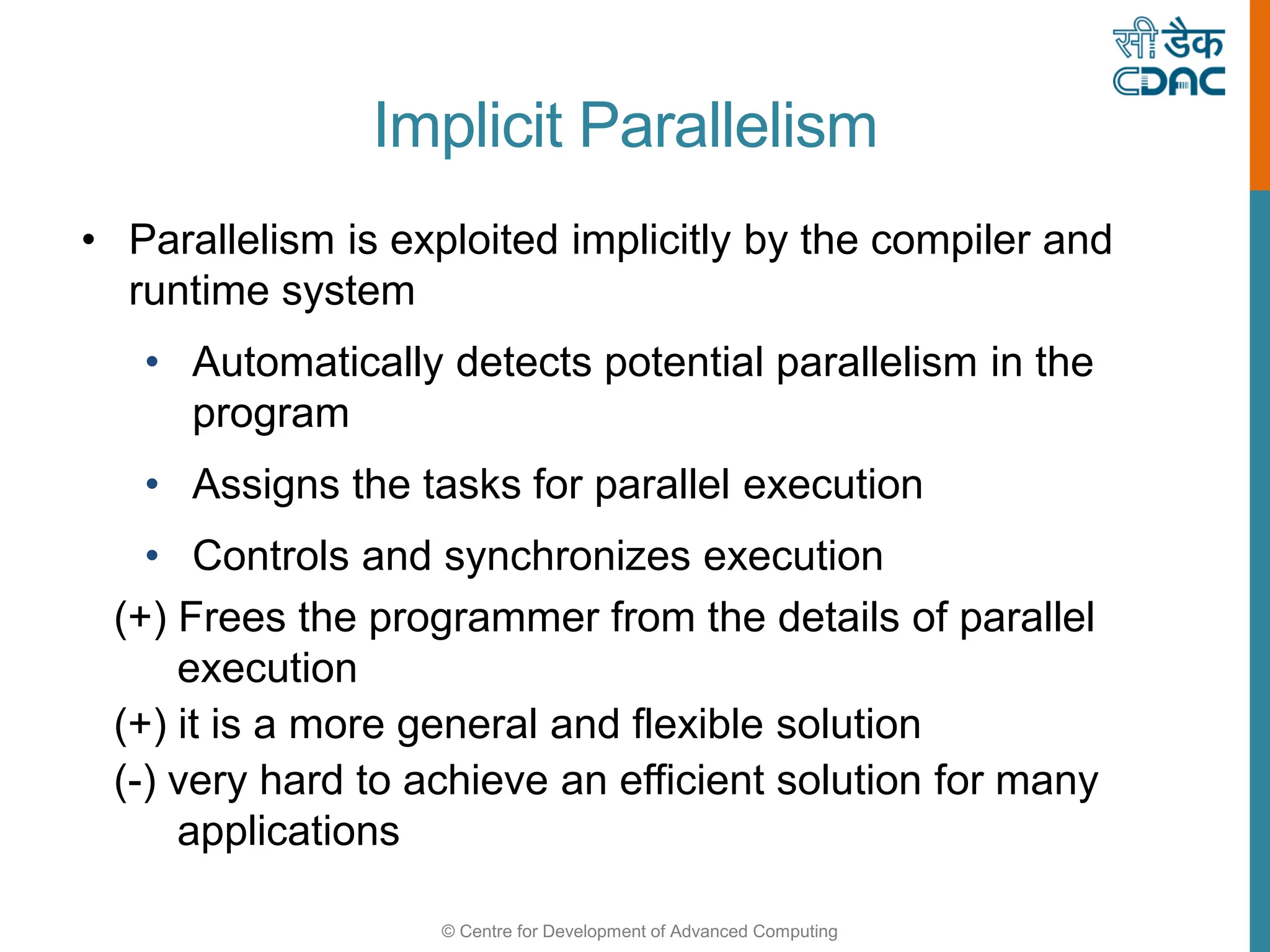

Implicit Parallelism
• Parallelism is exploited implicitly by the compiler and
runtime system
• Automatically detects potential parallelism in the
program
• Assigns the tasks for parallel execution
• Controls and synchronizes execution
(+) Frees the programmer from the details of parallel
execution
(+) it is a more general and flexible solution
(-) very hard to achieve an efficient solution for many
applications

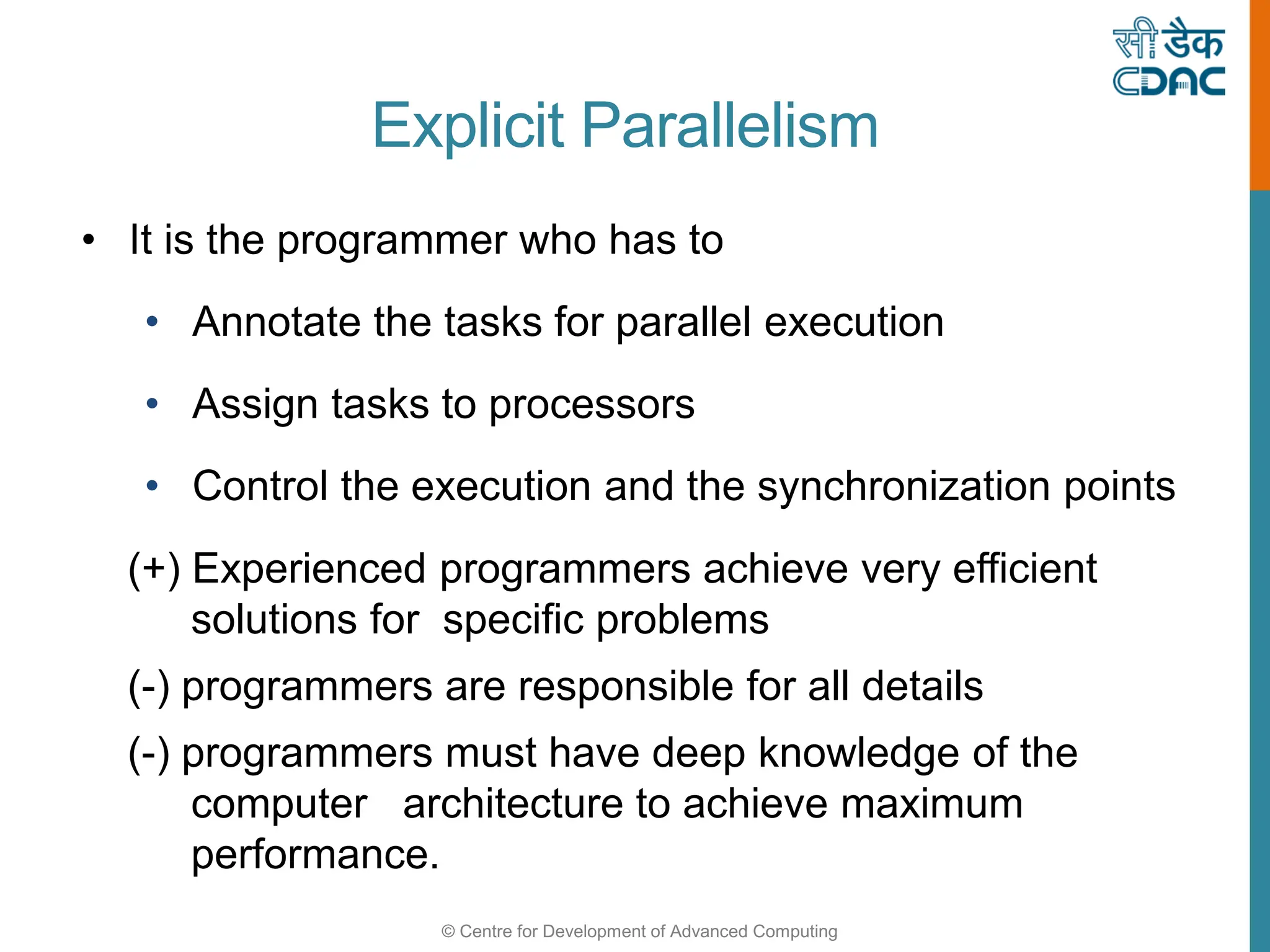

Explicit Parallelism
• It is the programmer who has to
• Annotate the tasks for parallel execution
• Assign tasks to processors
• Control the execution and the synchronization points
(+) Experienced programmers achieve very efficient
solutions for specific problems
(-) programmers are responsible for all details
(-) programmers must have deep knowledge of the
computer architecture to achieve maximum
performance.

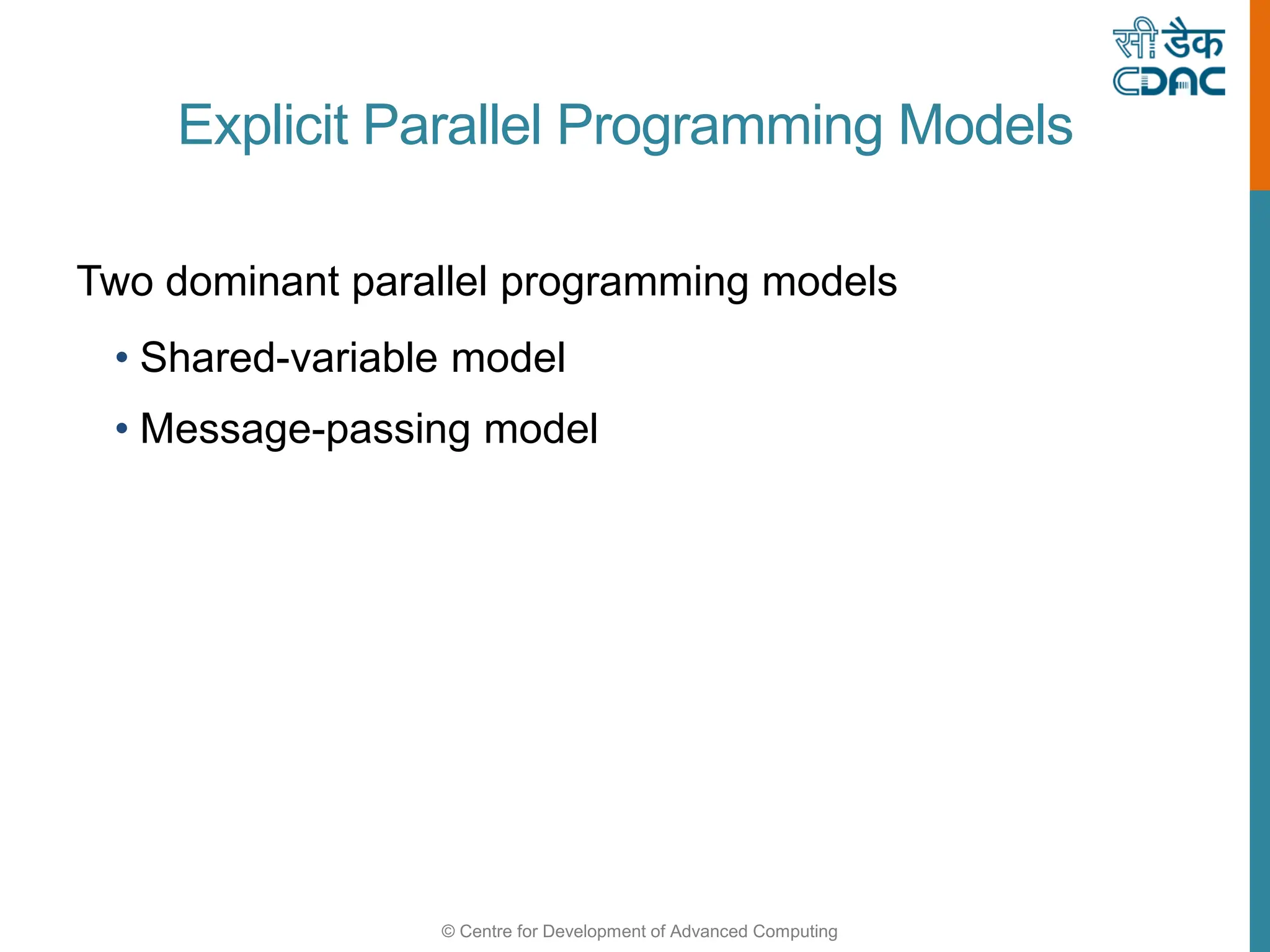

Explicit Parallel Programming Models
Two dominant parallel programming models
• Shared-variable model
• Message-passing model

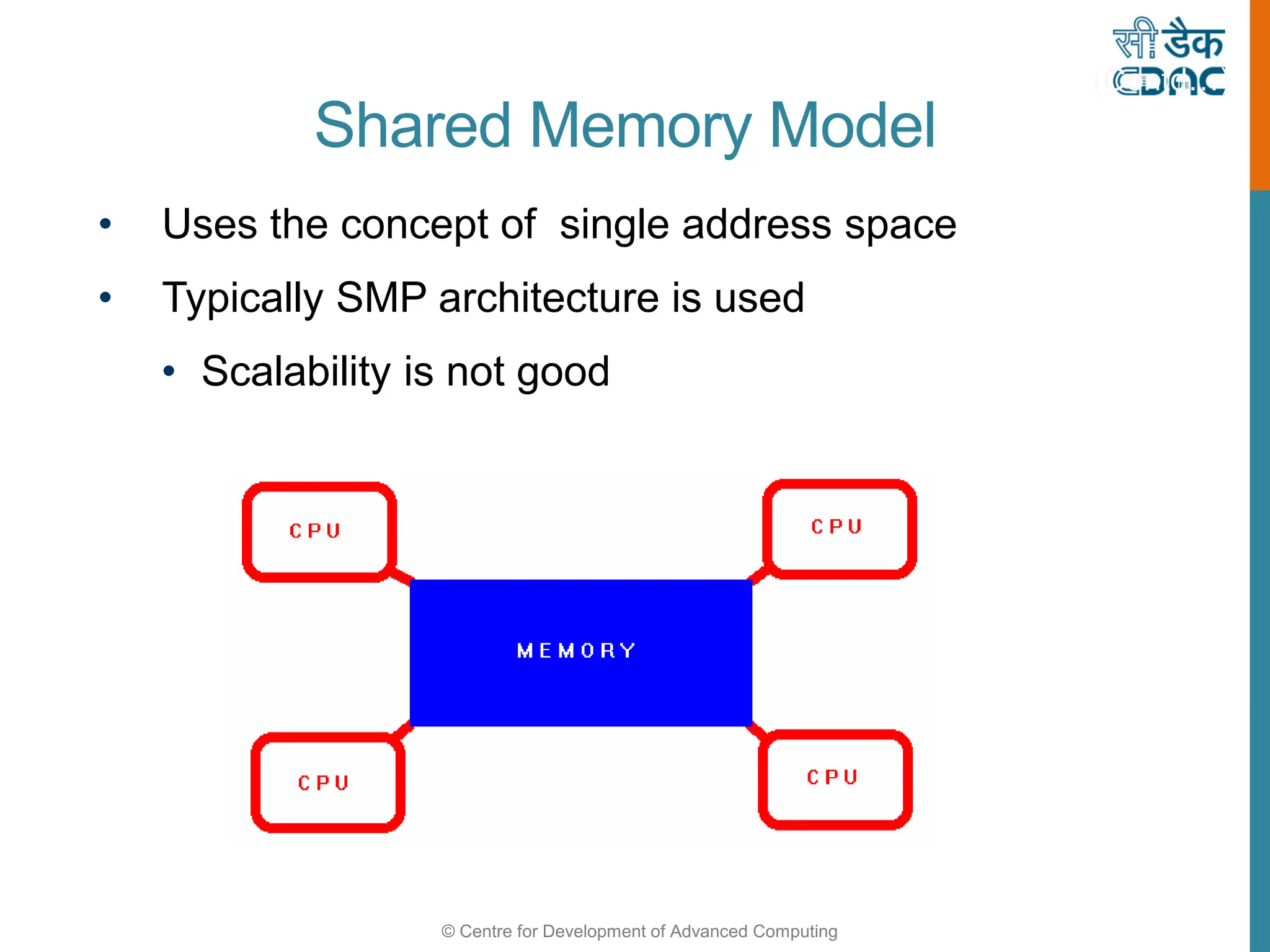

• Uses the concept of single address space
• Typically SMP architecture is used
• Scalability is not good
(Contd…)
Shared Memory Model

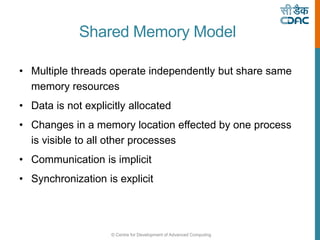

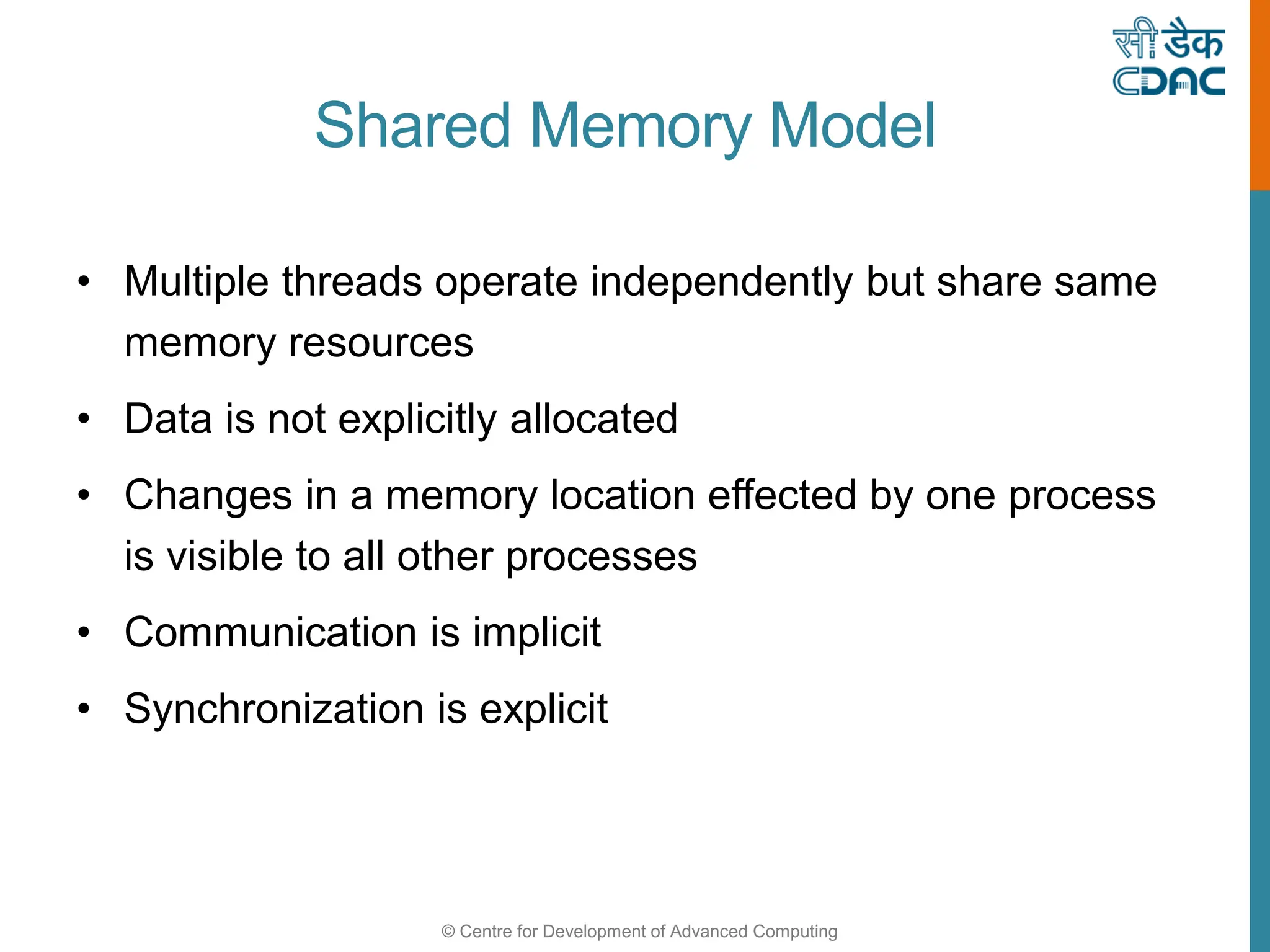

Shared Memory Model
• Multiple threads operate independently but share same
memory resources
• Data is not explicitly allocated
• Changes in a memory location effected by one process
is visible to all other processes
• Communication is implicit
• Synchronization is explicit

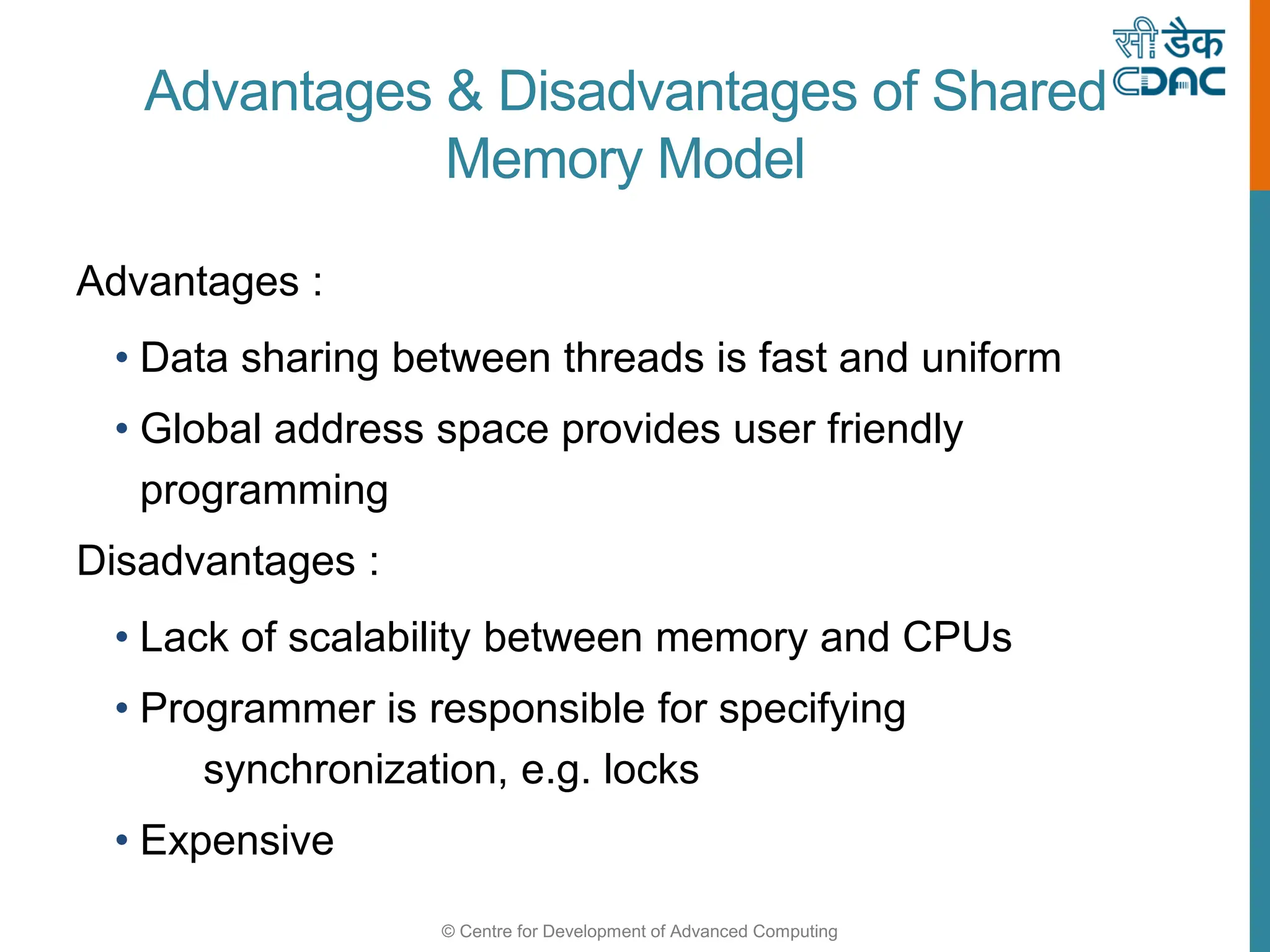

Advantages & Disadvantages of Shared
Memory Model
Advantages :
• Data sharing between threads is fast and uniform
• Global address space provides user friendly
programming
Disadvantages :
• Lack of scalability between memory and CPUs
• Programmer is responsible for specifying
synchronization, e.g. locks
• Expensive

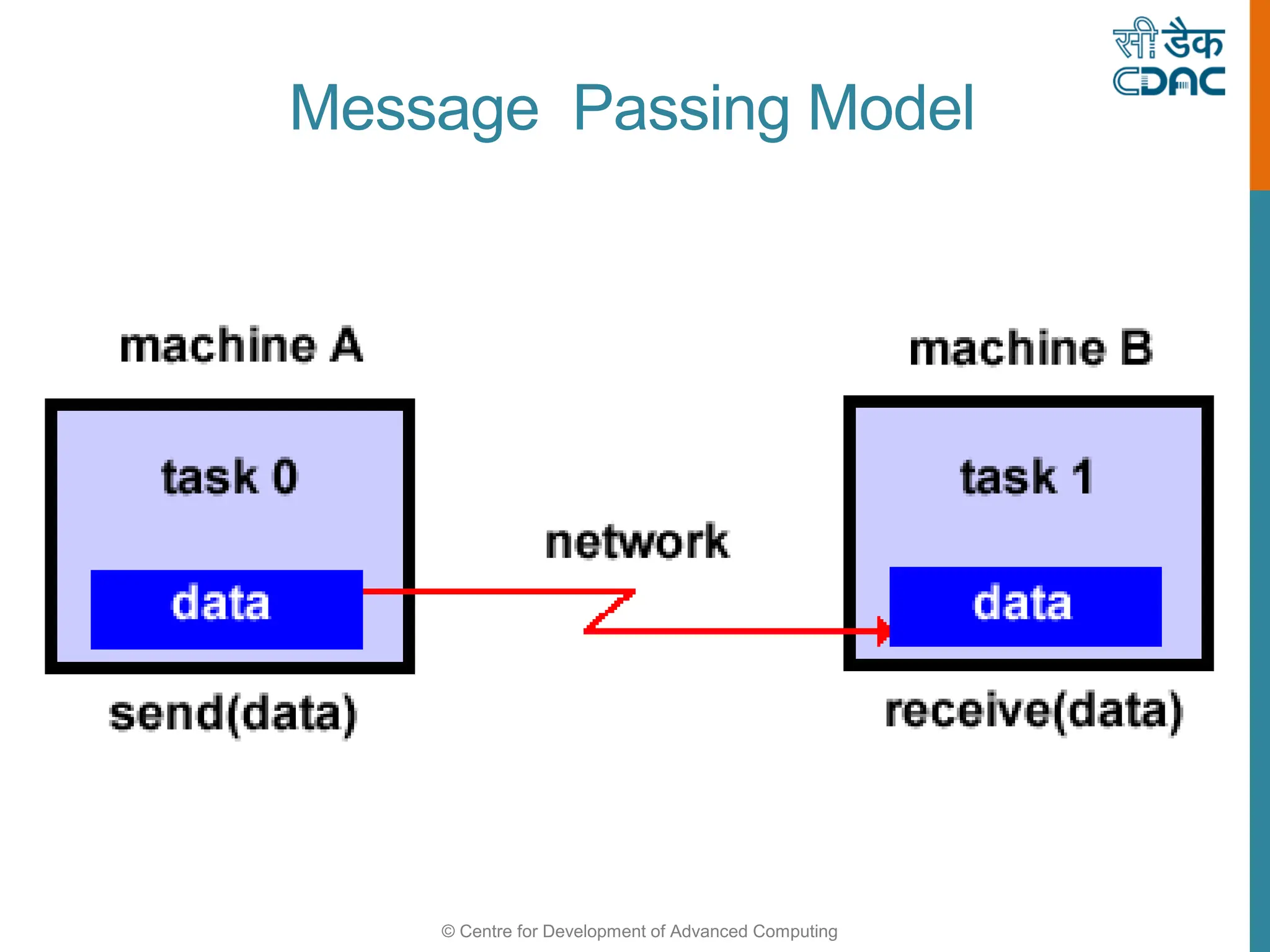

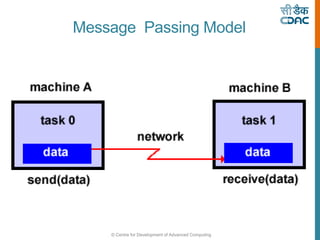

Message Passing Model

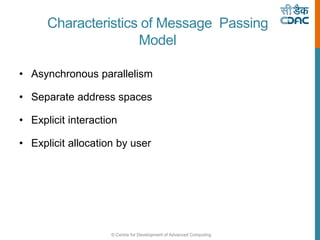

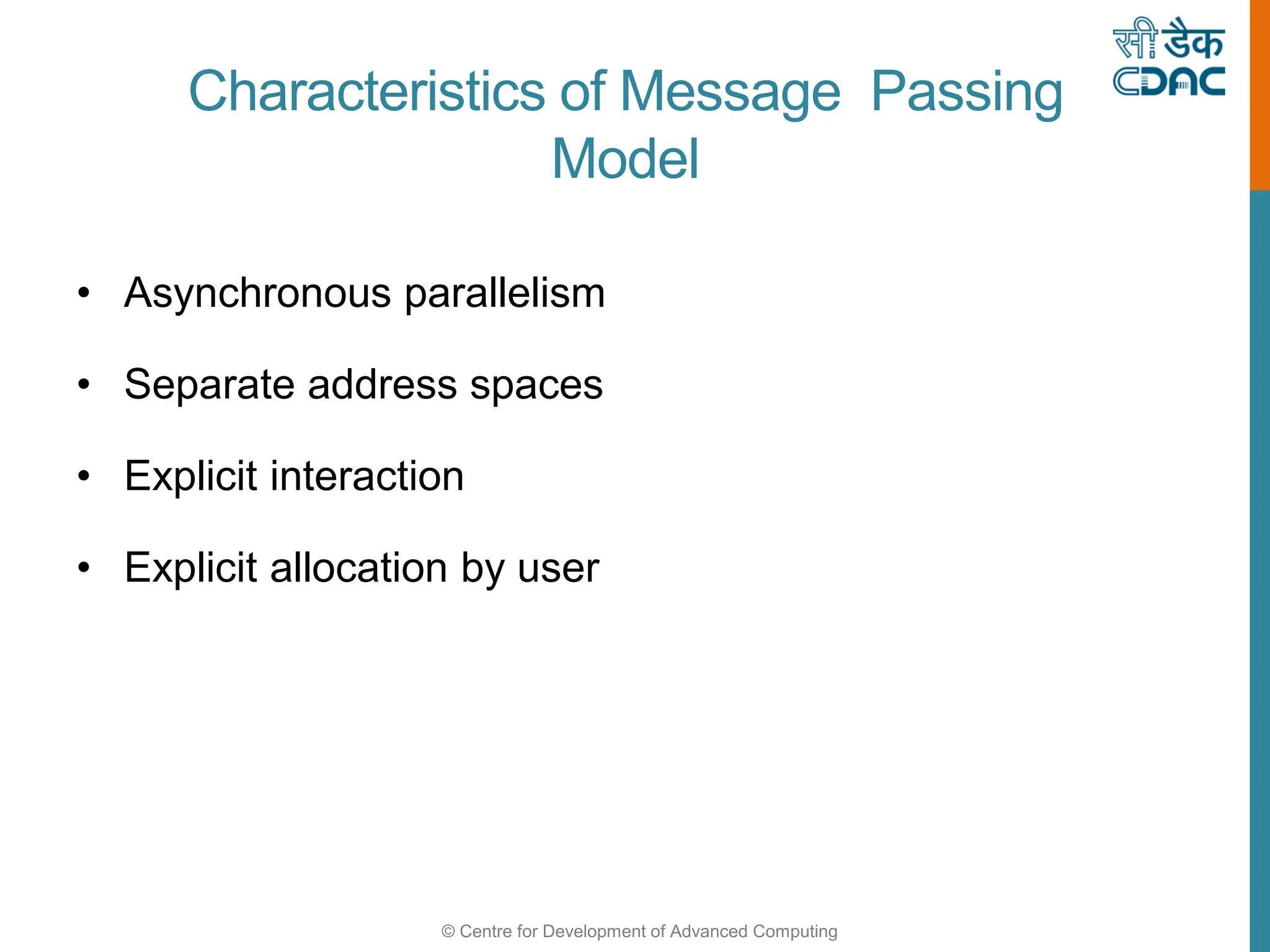

Characteristics of Message Passing
Model
• Asynchronous parallelism
• Separate address spaces
• Explicit interaction
• Explicit allocation by user

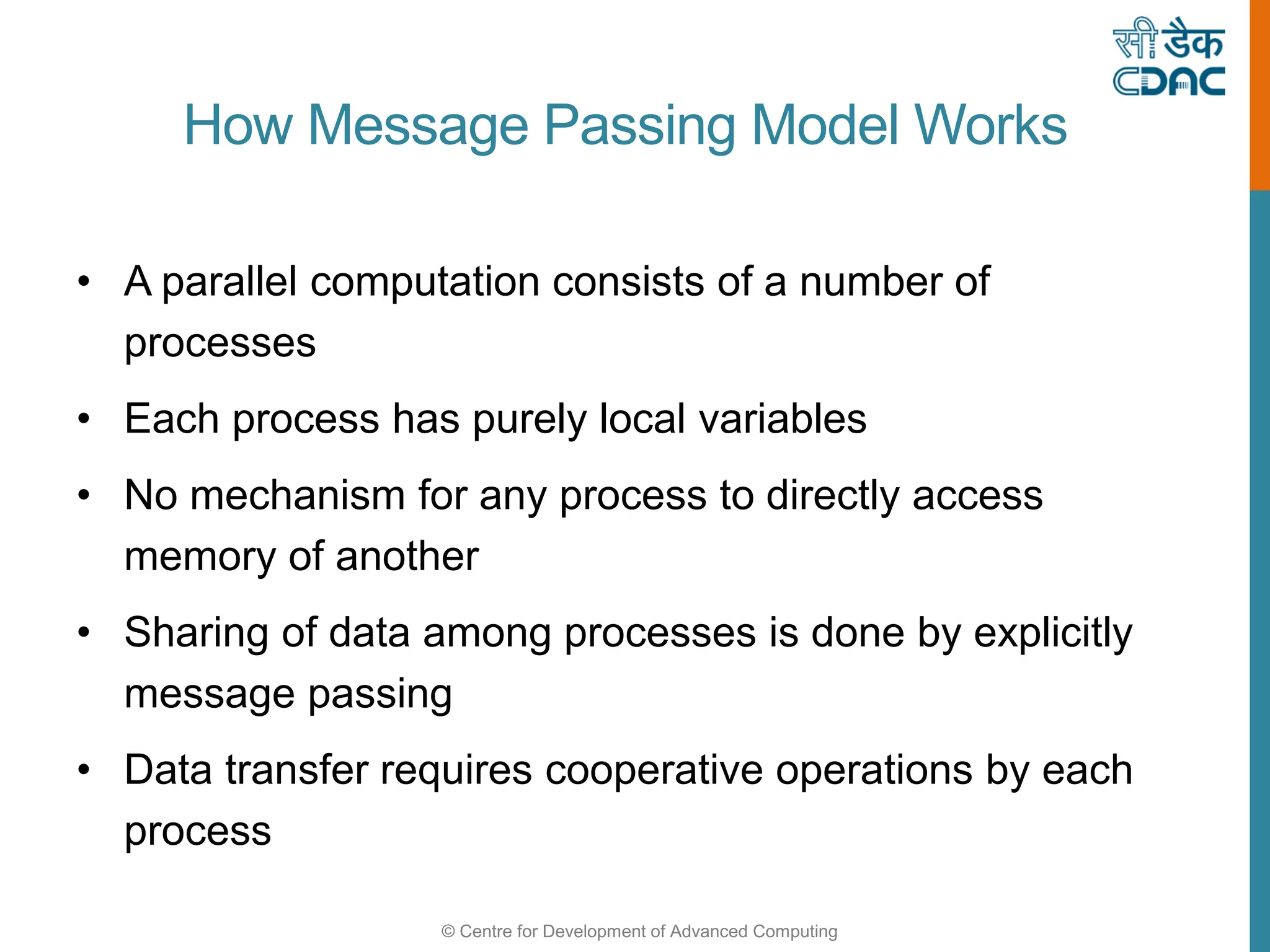

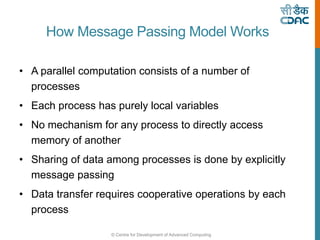

How Message Passing Model Works
• A parallel computation consists of a number of
processes
• Each process has purely local variables
• No mechanism for any process to directly access
memory of another
• Sharing of data among processes is done by explicitly
message passing
• Data transfer requires cooperative operations by each
process

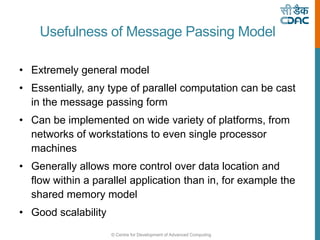

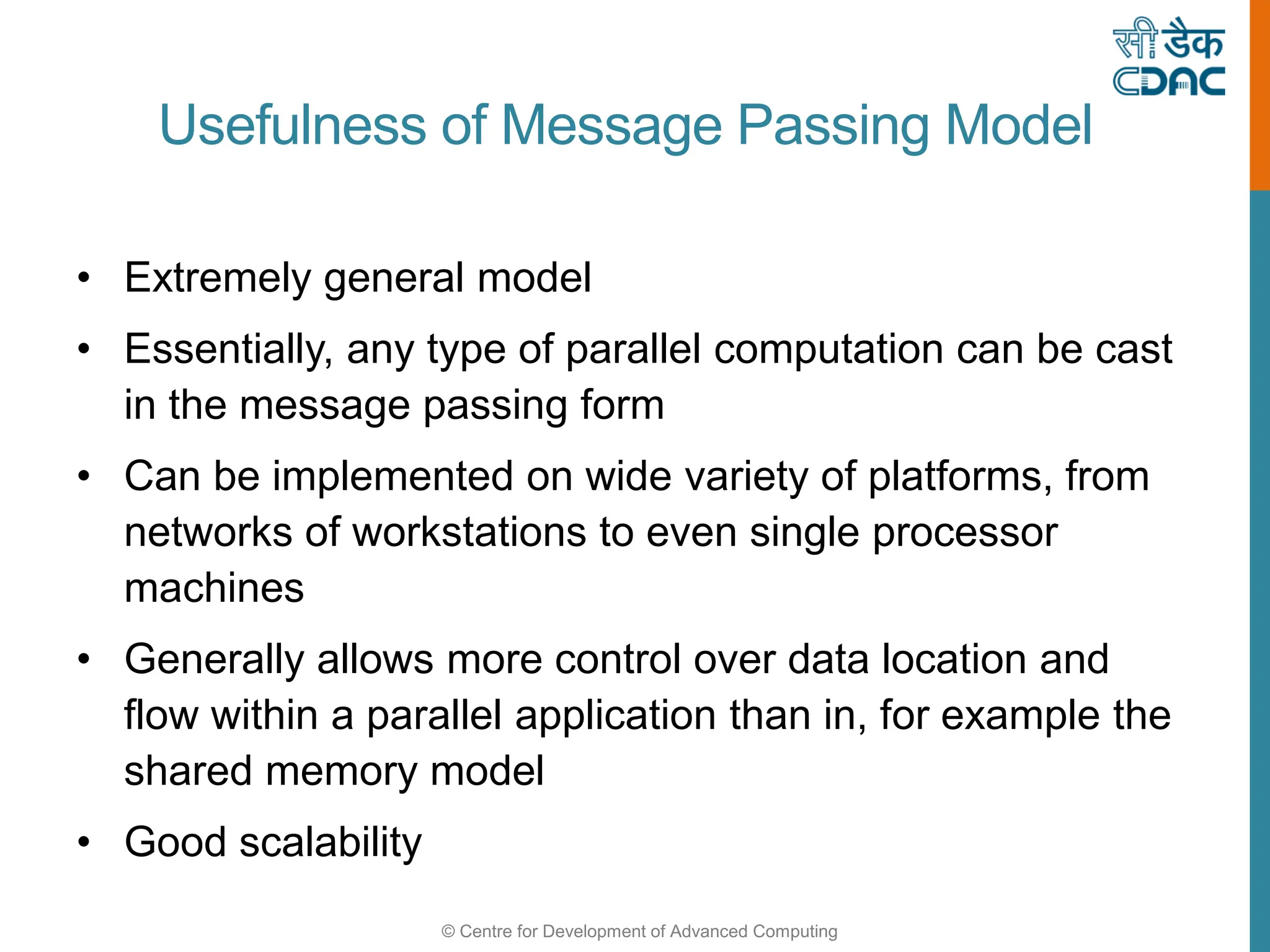

Usefulness of Message Passing Model
• Extremely general model
• Essentially, any type of parallel computation can be cast
in the message passing form
• Can be implemented on wide variety of platforms, from
networks of workstations to even single processor
machines
• Generally allows more control over data location and
flow within a parallel application than in, for example the
shared memory model
• Good scalability

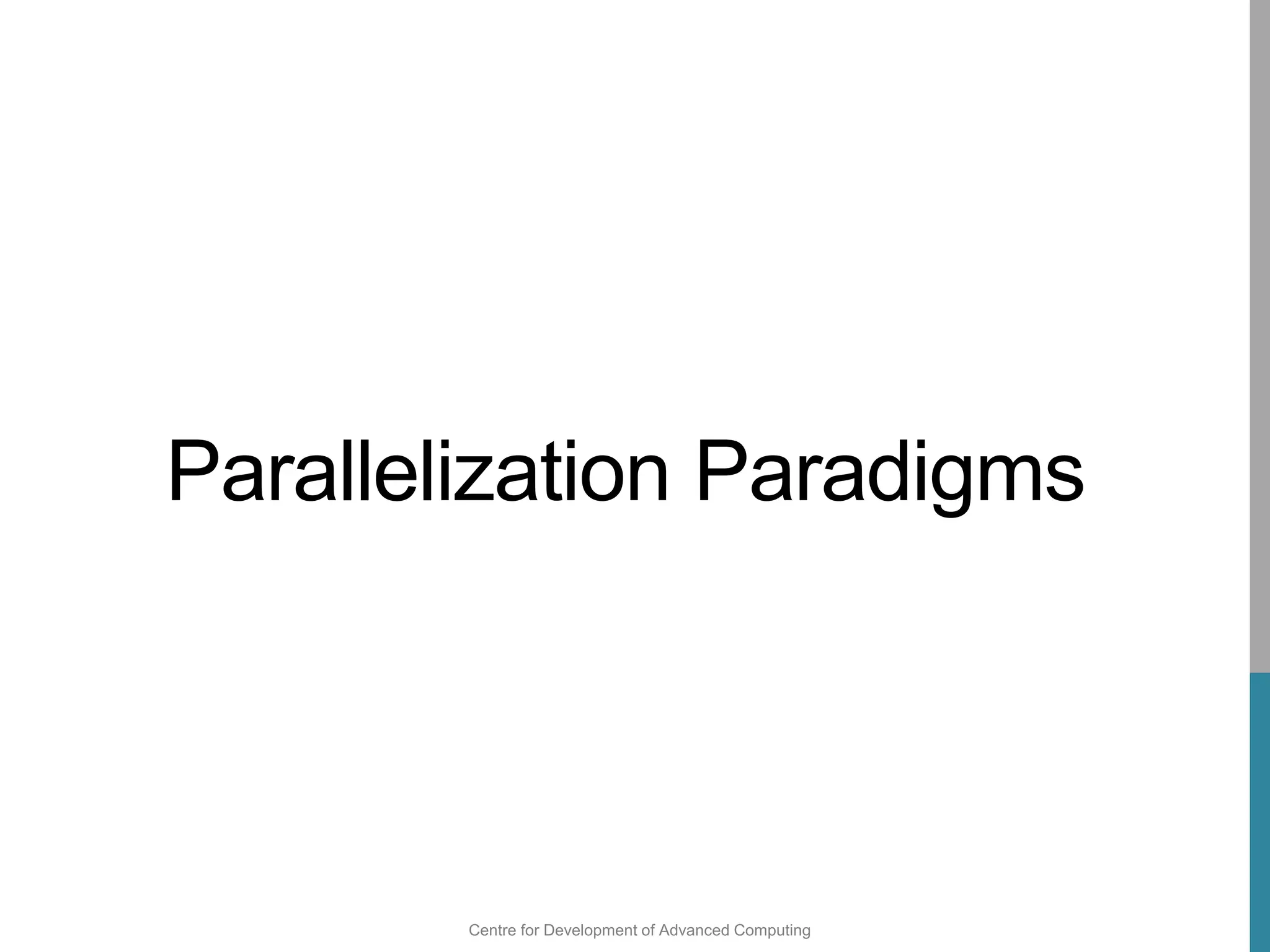

Parallelization Paradigms

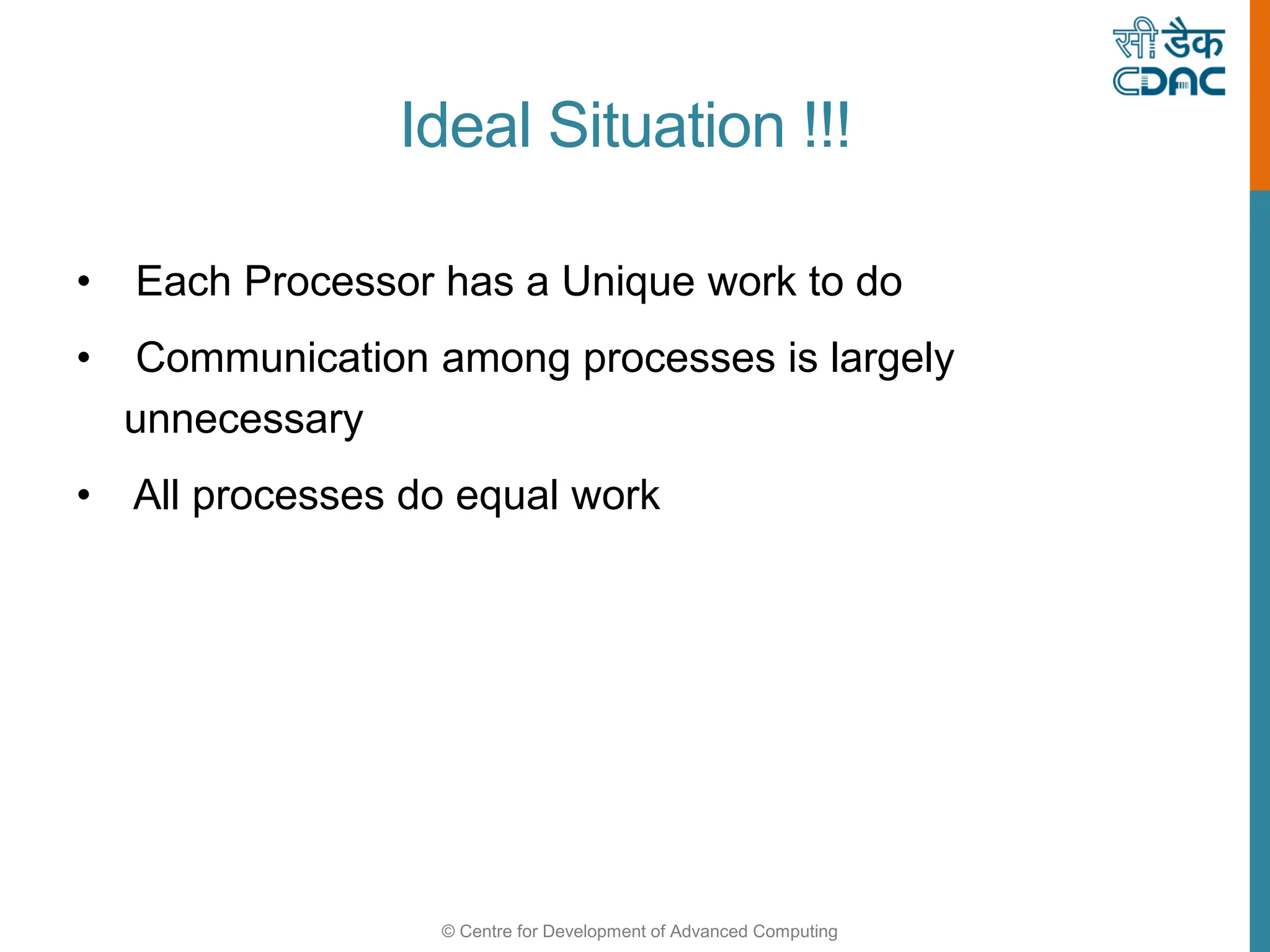

Ideal Situation !!!
• Each Processor has a Unique work to do
• Communication among processes is largely
unnecessary
• All processes do equal work

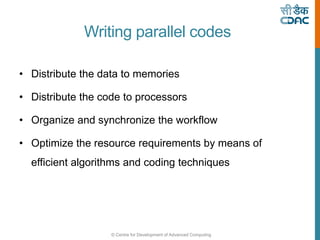

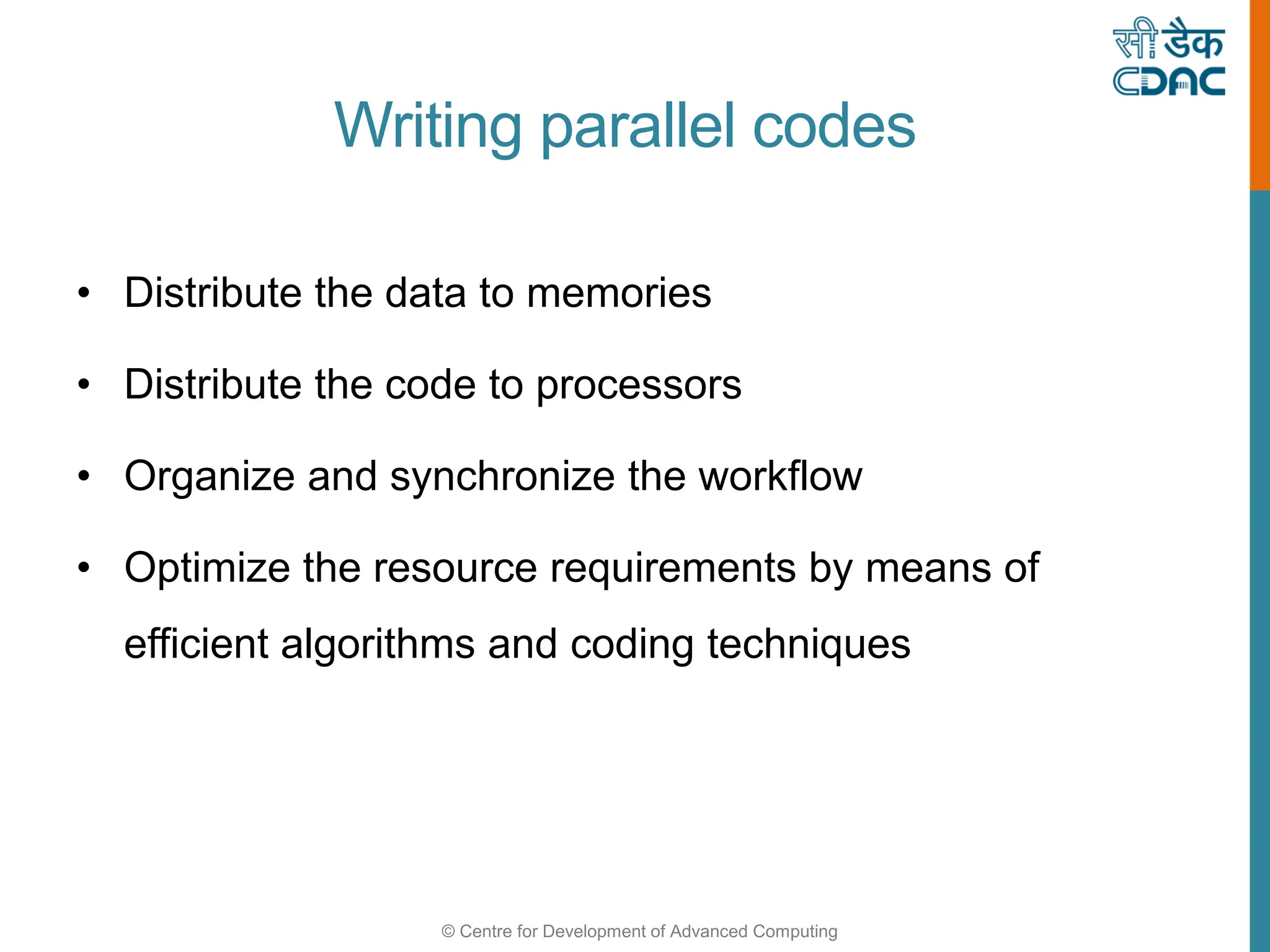

Writing parallel codes
• Distribute the data to memories
• Distribute the code to processors
• Organize and synchronize the workflow
• Optimize the resource requirements by means of
efficient algorithms and coding techniques

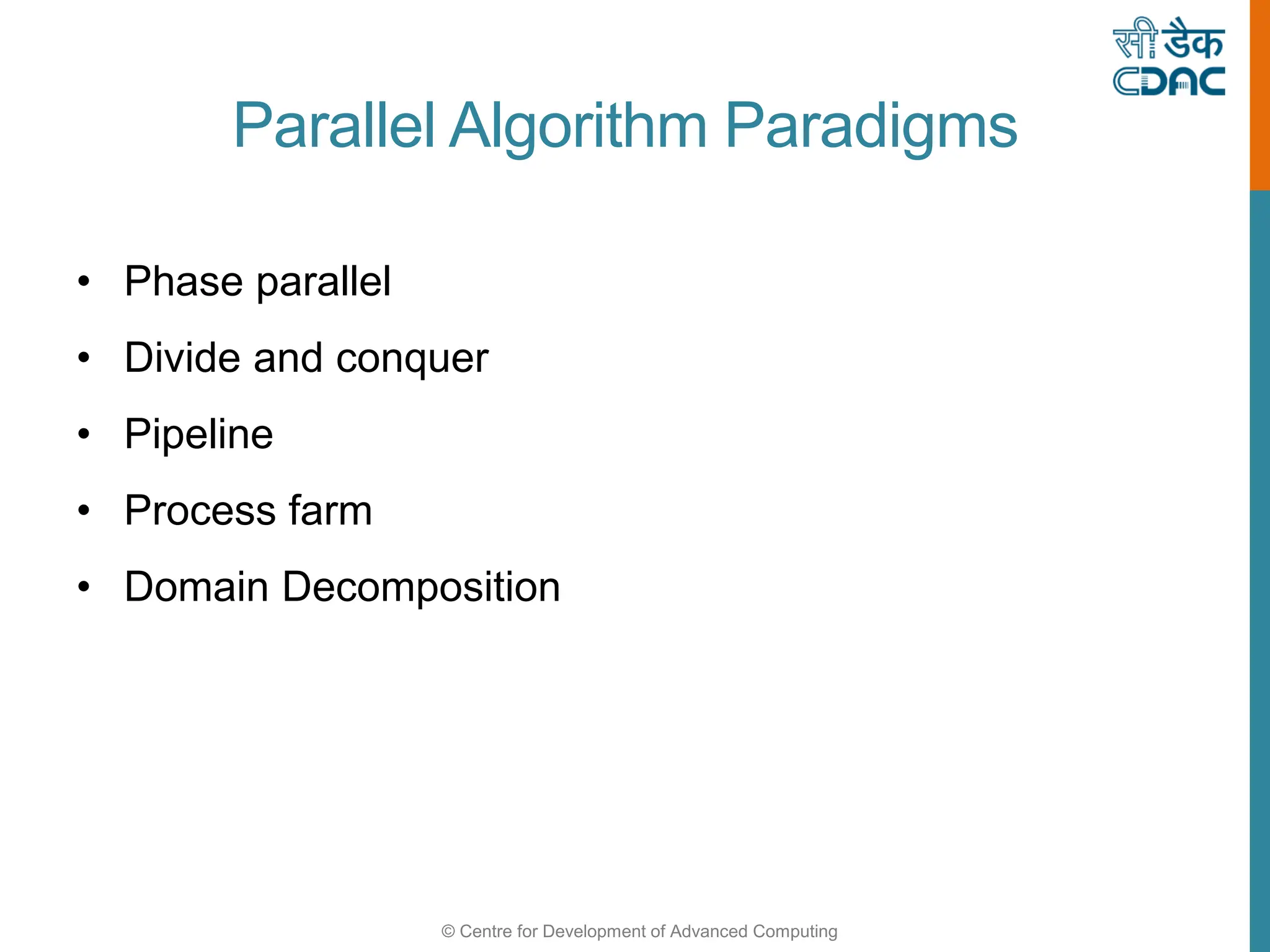

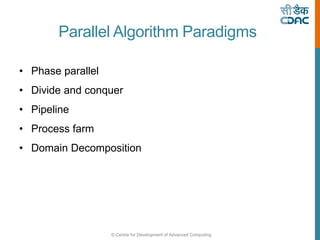

Parallel Algorithm Paradigms
• Phase parallel
• Divide and conquer
• Pipeline
• Process farm
• Domain Decomposition

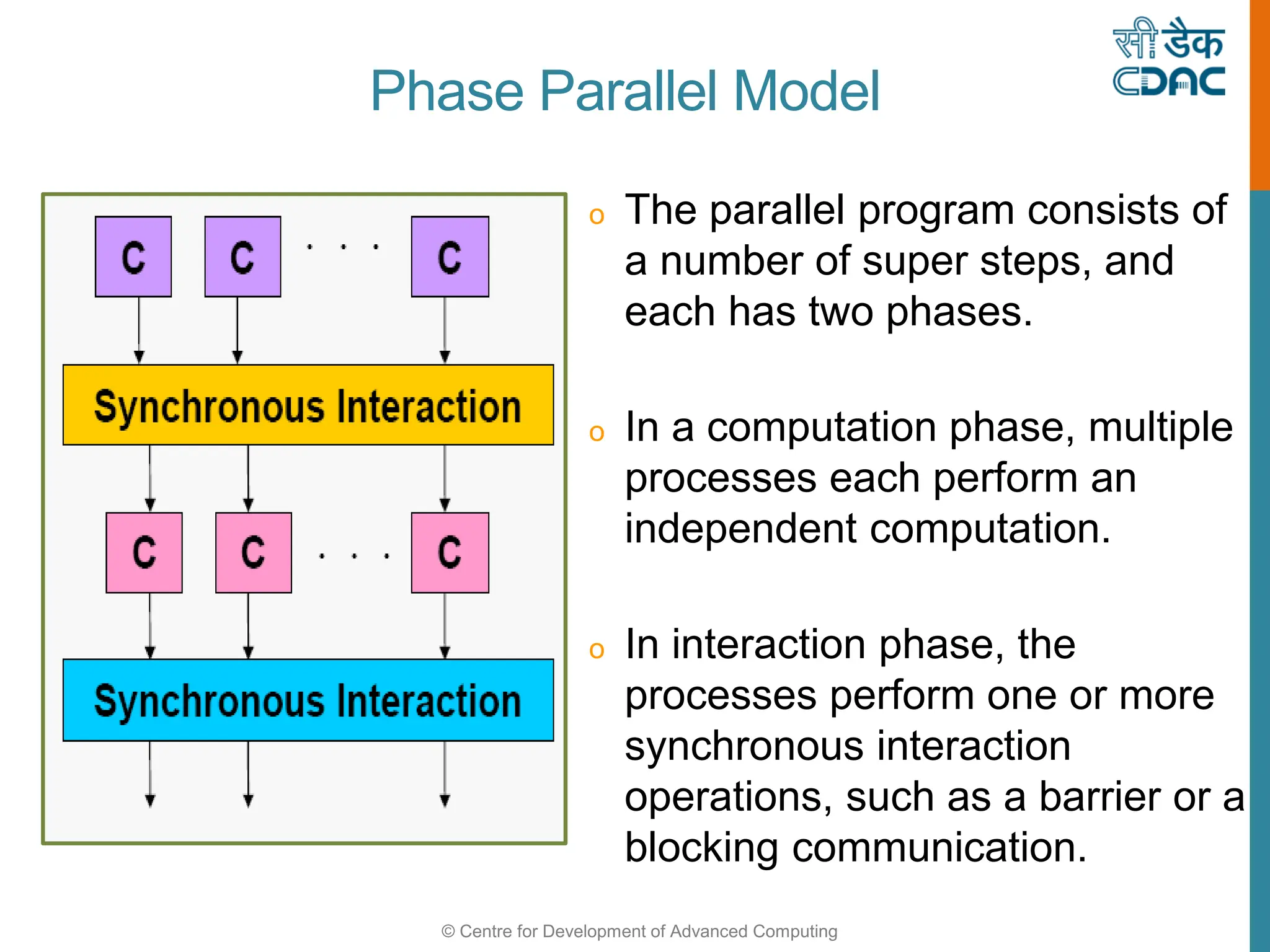

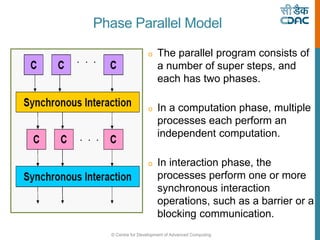

o The parallel program consists of
a number of super steps, and
each has two phases.
o In a computation phase, multiple
processes each perform an
independent computation.
o In interaction phase, the
processes perform one or more
synchronous interaction
operations, such as a barrier or a
blocking communication.
Phase Parallel Model

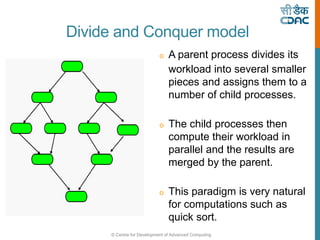

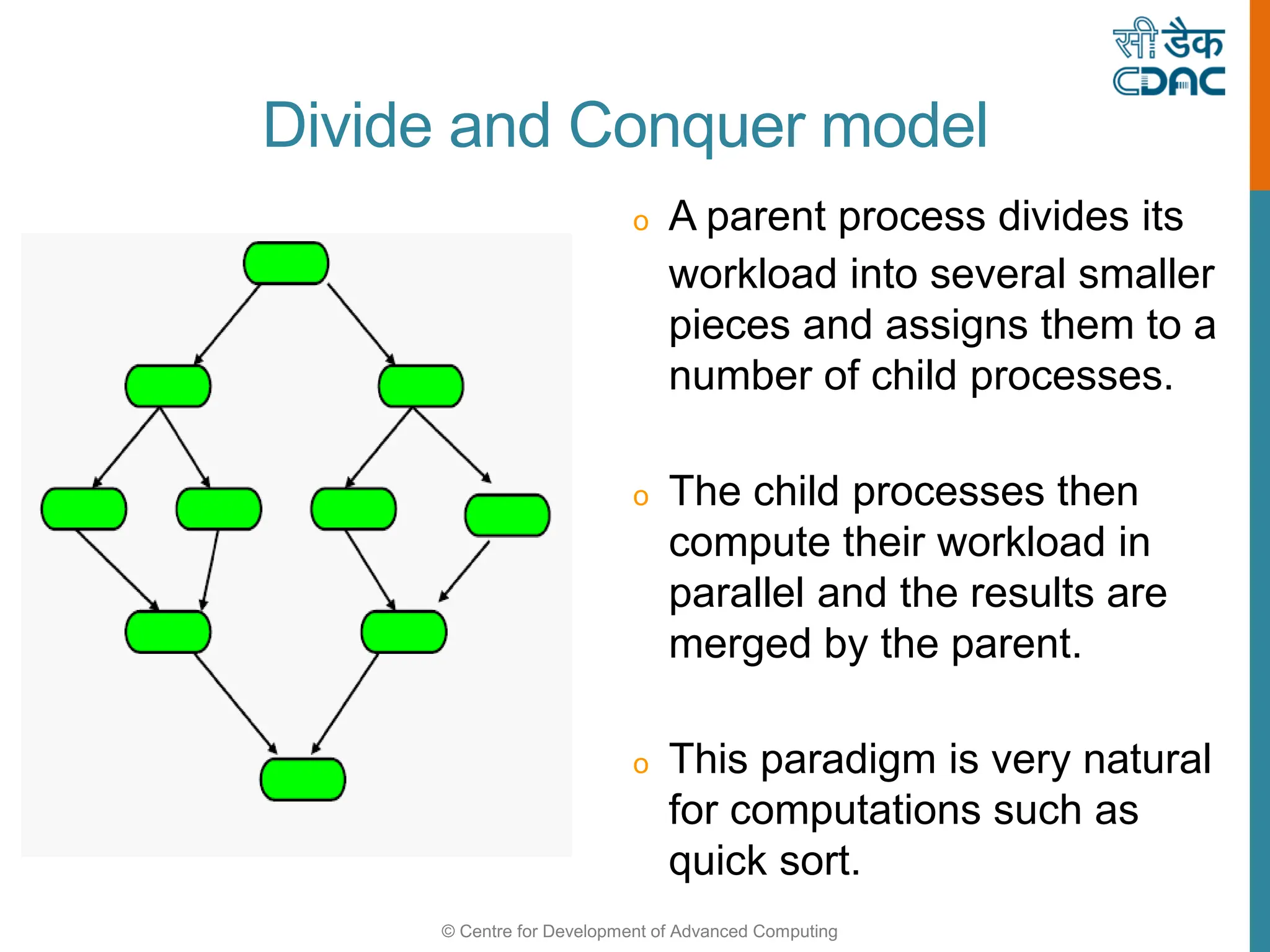

o A parent process divides its
workload into several smaller
pieces and assigns them to a
number of child processes.
o The child processes then
compute their workload in
parallel and the results are
merged by the parent.
o This paradigm is very natural
for computations such as
quick sort.
Divide and Conquer model

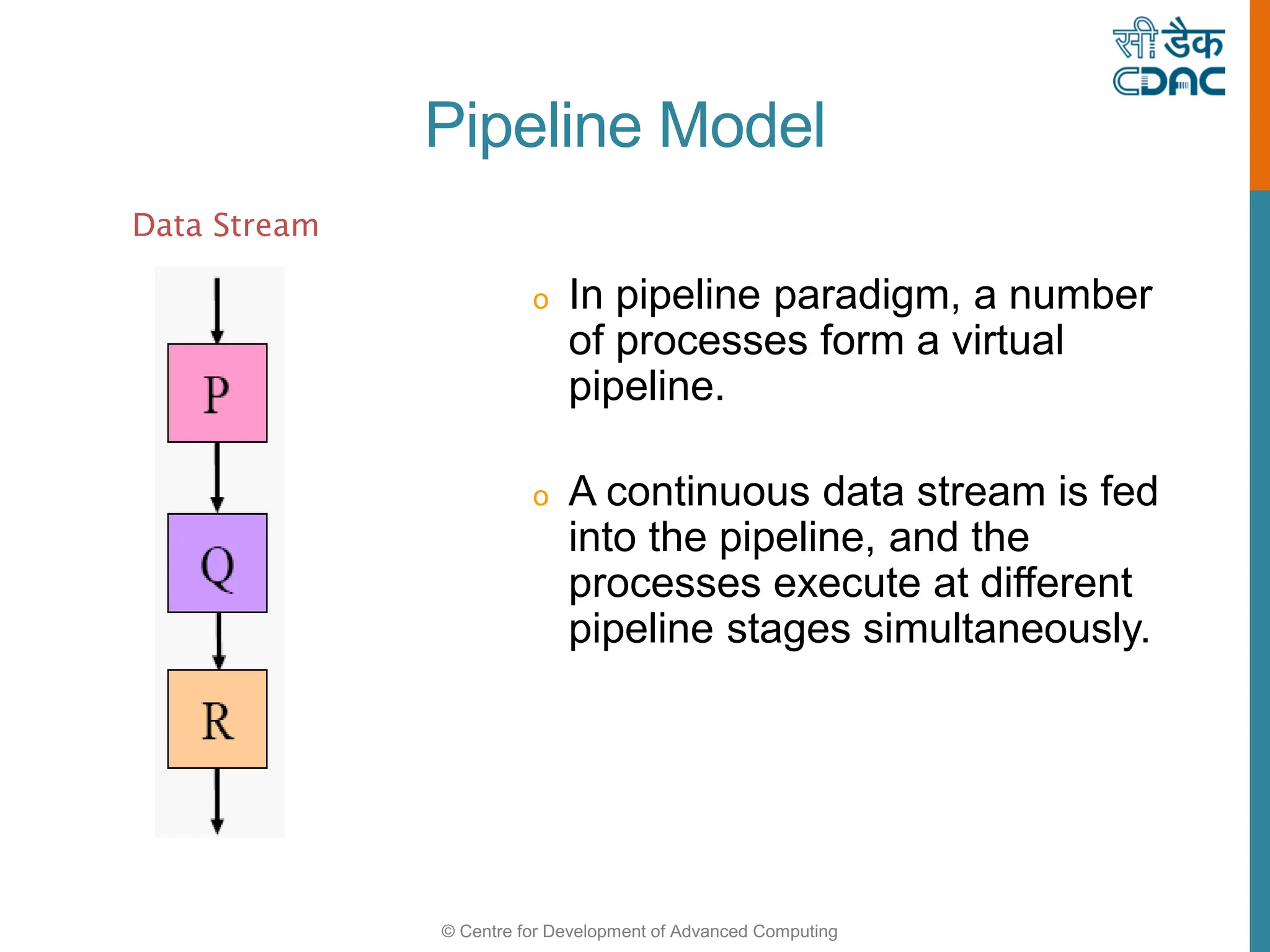

o In pipeline paradigm, a number
of processes form a virtual
pipeline.
o A continuous data stream is fed
into the pipeline, and the
processes execute at different
pipeline stages simultaneously.
Data Stream
Pipeline Model

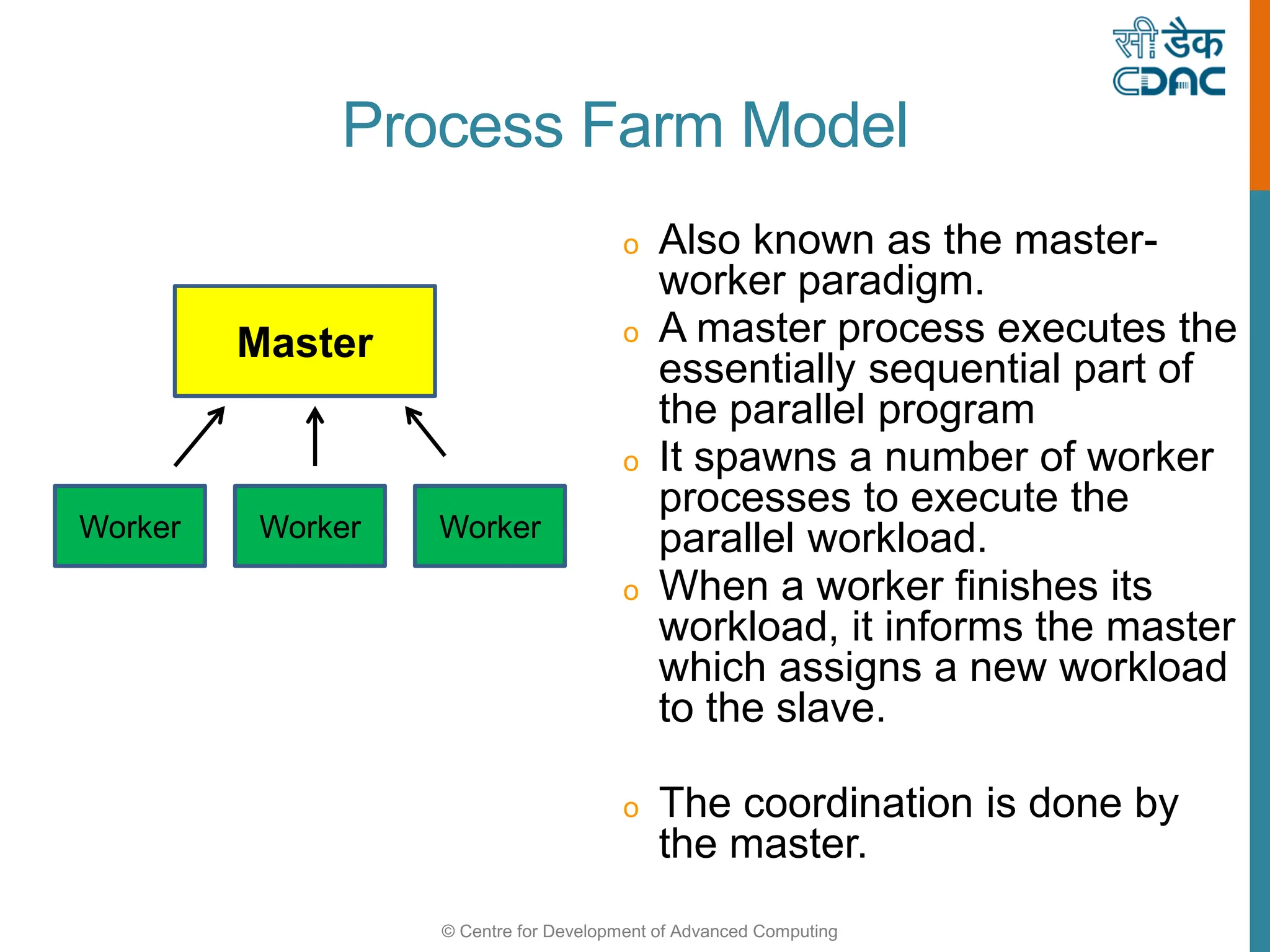

o Also known as the master-
worker paradigm.
o A master process executes the
essentially sequential part of
the parallel program
o It spawns a number of worker
processes to execute the
parallel workload.
o When a worker finishes its
workload, it informs the master
which assigns a new workload
to the slave.
o The coordination is done by
the master.
Master
Worker Worker Worker
Process Farm Model

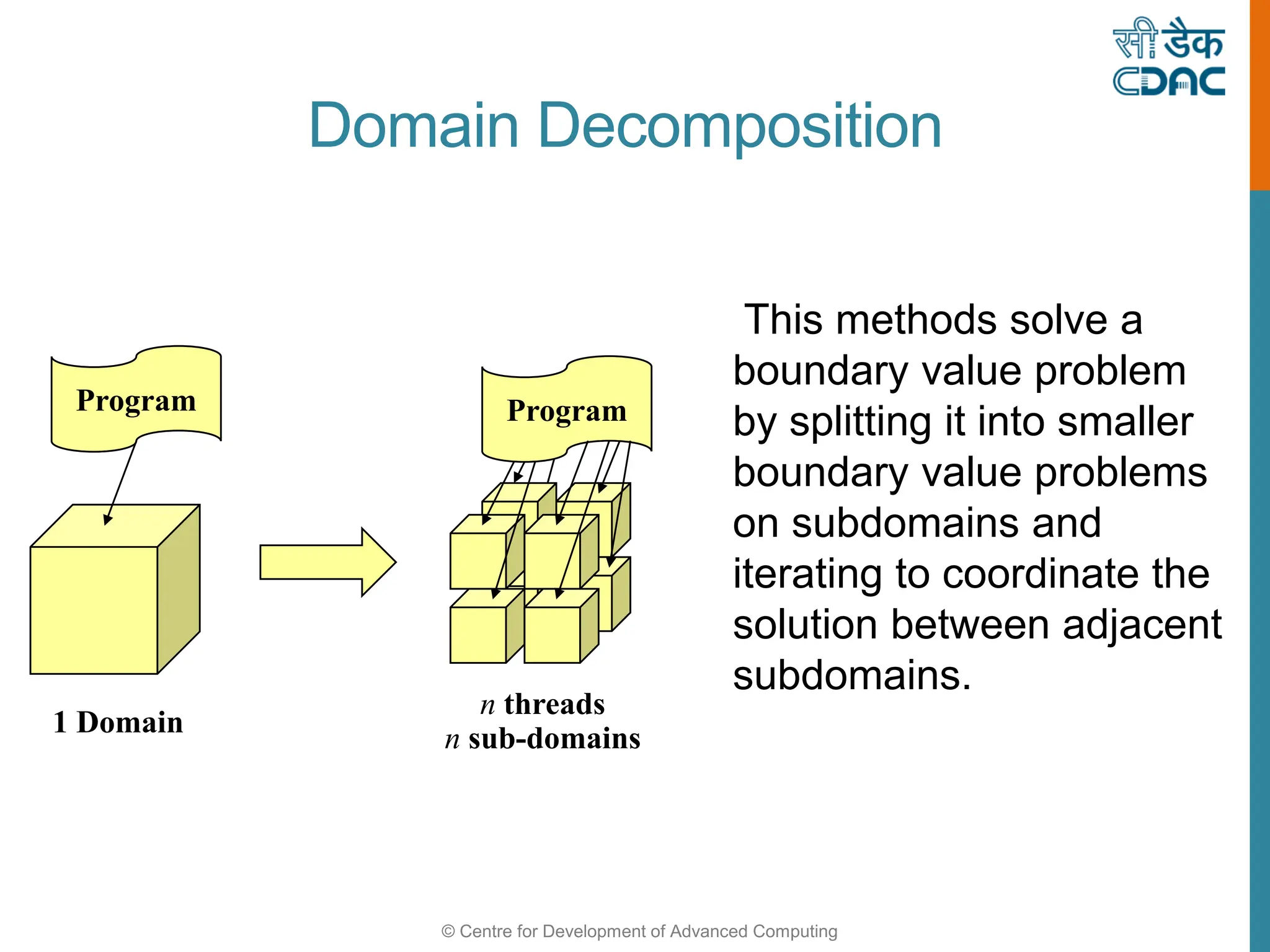

Program
1 Domain
n threads
n sub-domains
Program
This methods solve a
boundary value problem
by splitting it into smaller
boundary value problems
on subdomains and
iterating to coordinate the
solution between adjacent
subdomains.
Domain Decomposition

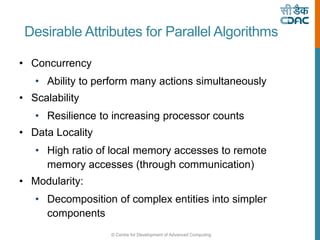

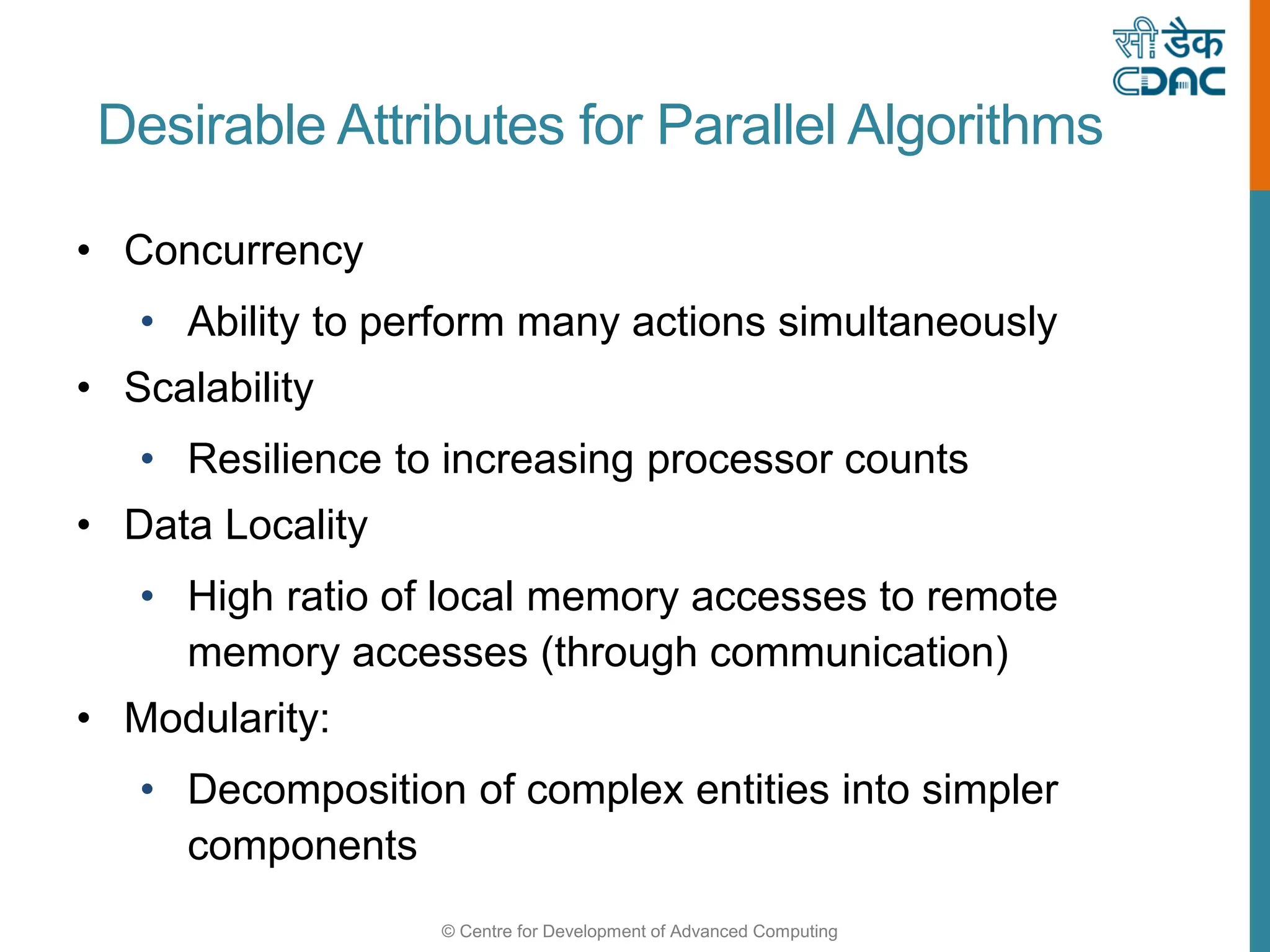

Desirable Attributes for Parallel Algorithms
• Concurrency
• Ability to perform many actions simultaneously
• Scalability
• Resilience to increasing processor counts
• Data Locality
• High ratio of local memory accesses to remote
memory accesses (through communication)
• Modularity:
• Decomposition of complex entities into simpler
components

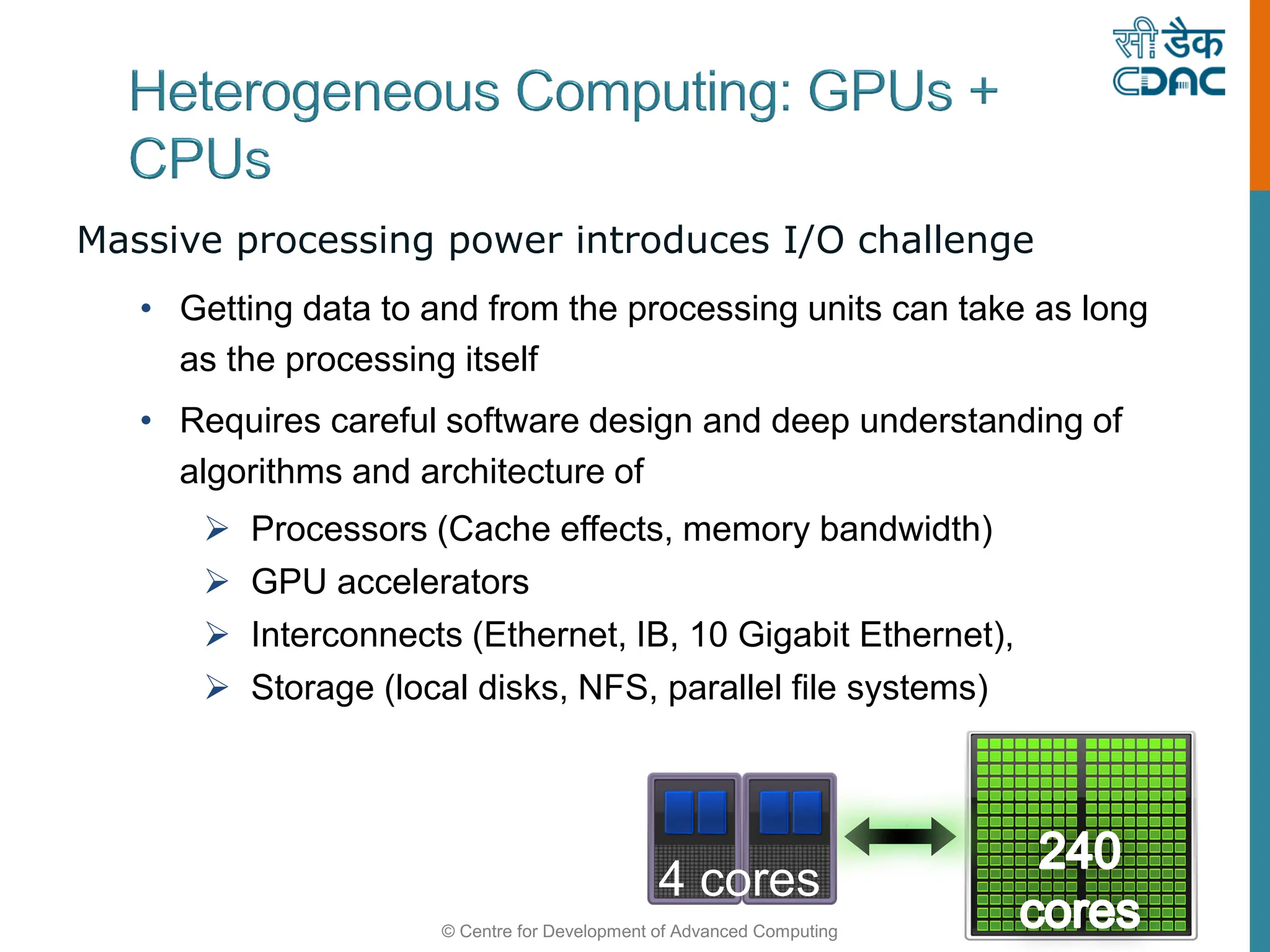

Massive processing power introduces I/O challenge
• Getting data to and from the processing units can take as long
as the processing itself
• Requires careful software design and deep understanding of
algorithms and architecture of
 Processors (Cache effects, memory bandwidth)
 GPU accelerators
 Interconnects (Ethernet, IB, 10 Gigabit Ethernet),
 Storage (local disks, NFS, parallel file systems)
4 cores

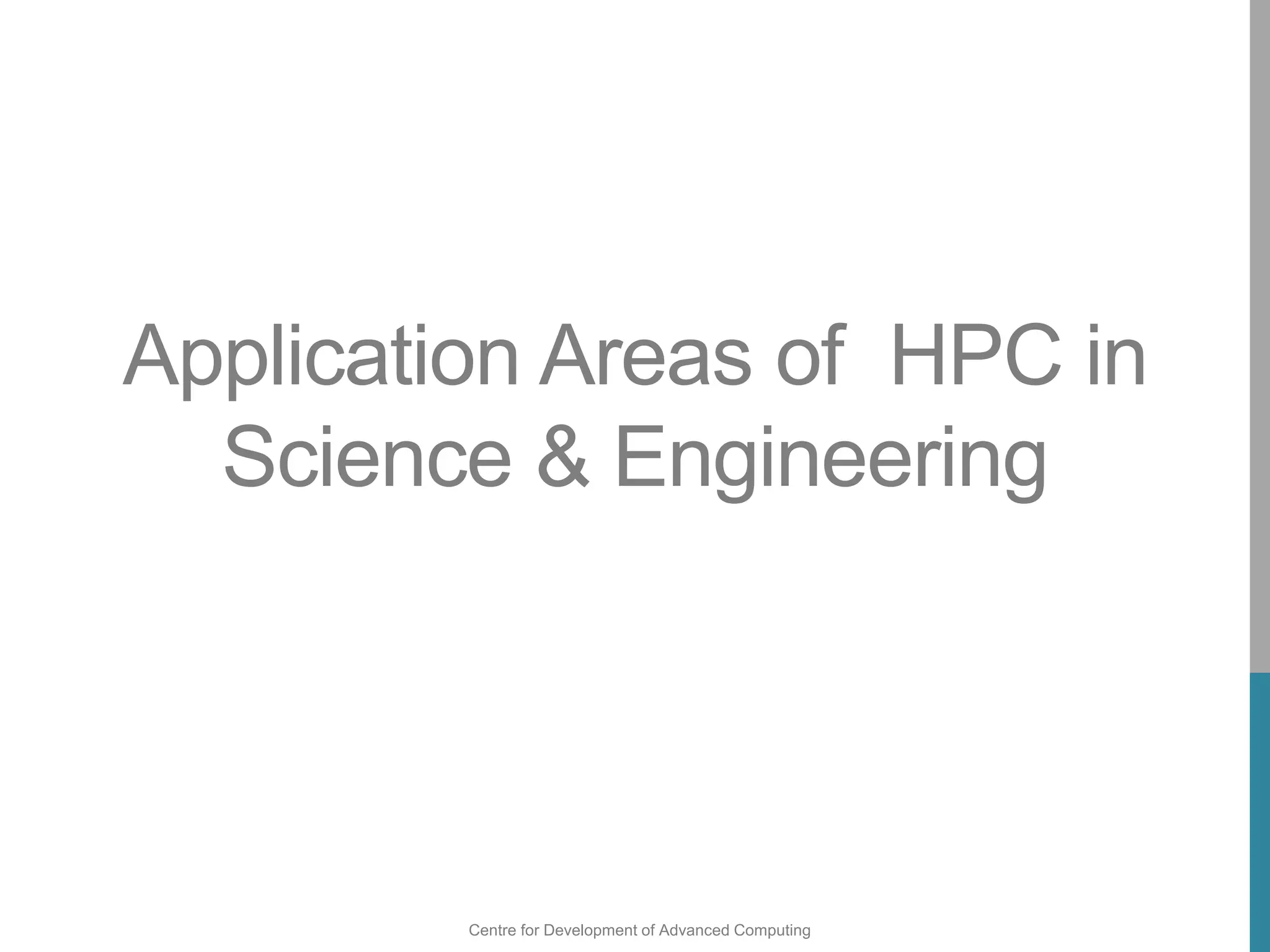

Application Areas of HPC in
Science & Engineering

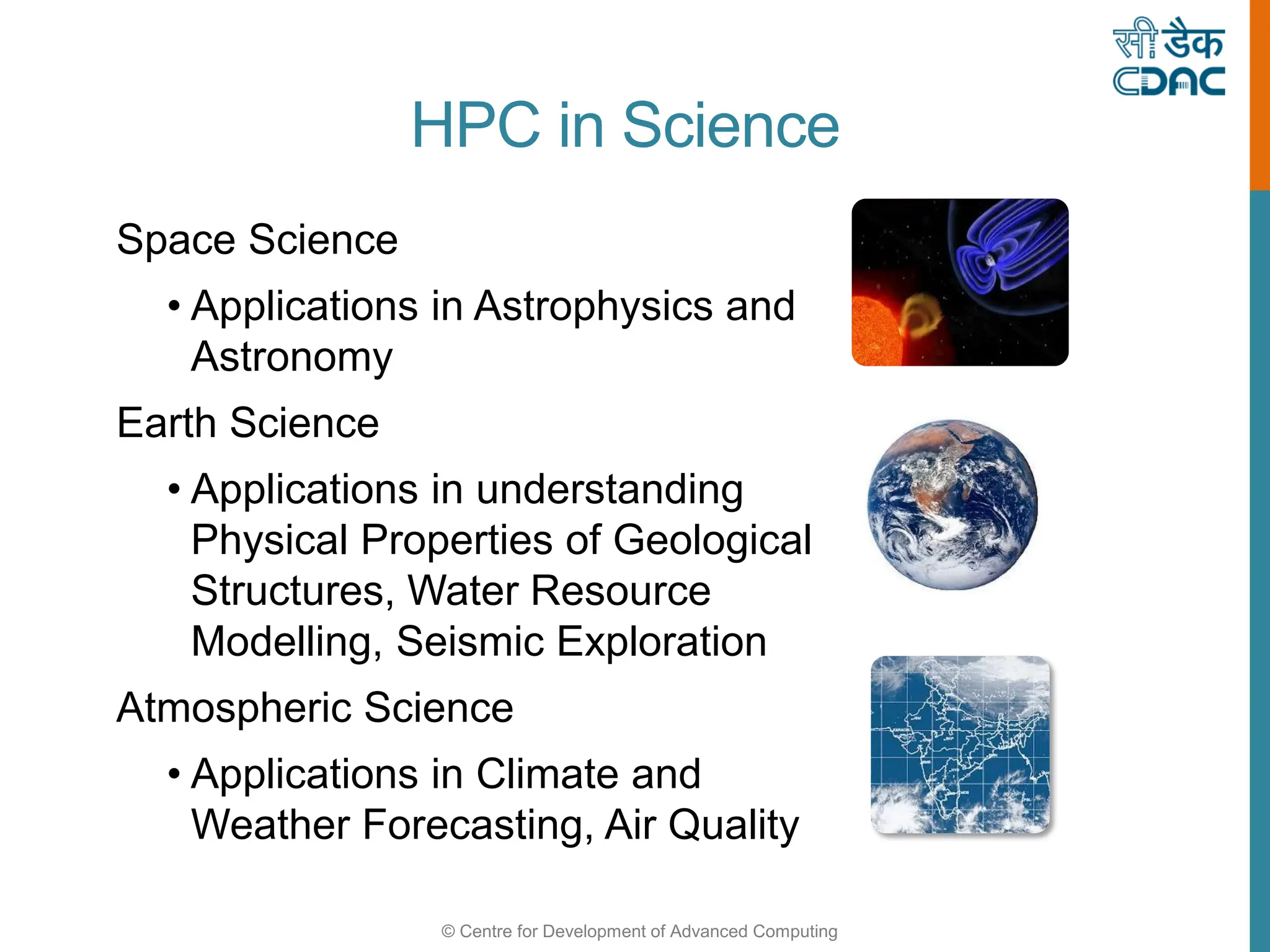

HPC in Science
Space Science
• Applications in Astrophysics and
Astronomy
Earth Science
• Applications in understanding
Physical Properties of Geological
Structures, Water Resource
Modelling, Seismic Exploration
Atmospheric Science
• Applications in Climate and
Weather Forecasting, Air Quality

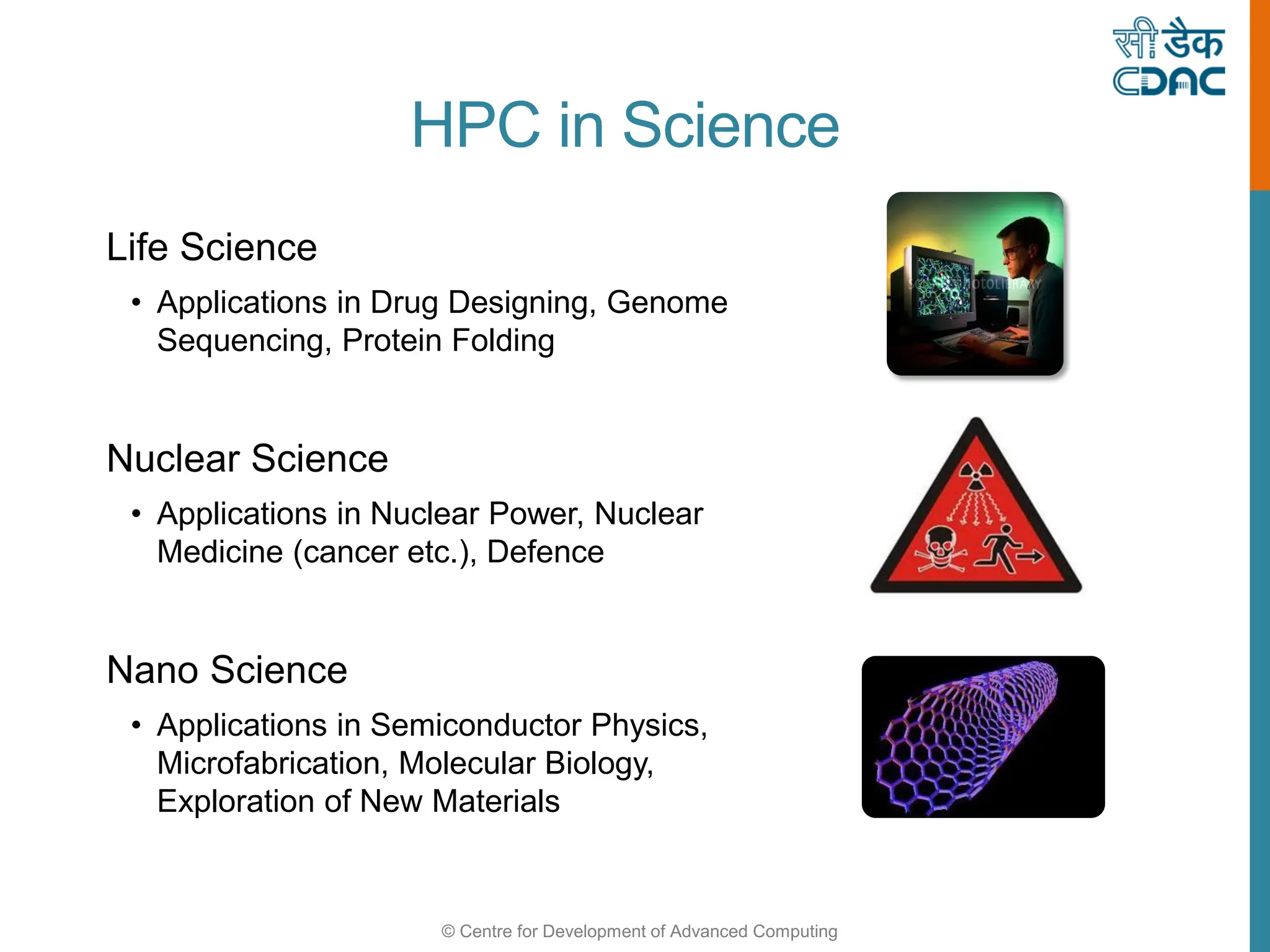

HPC in Science
Life Science
• Applications in Drug Designing, Genome
Sequencing, Protein Folding
Nuclear Science
• Applications in Nuclear Power, Nuclear
Medicine (cancer etc.), Defence
Nano Science
• Applications in Semiconductor Physics,
Microfabrication, Molecular Biology,
Exploration of New Materials

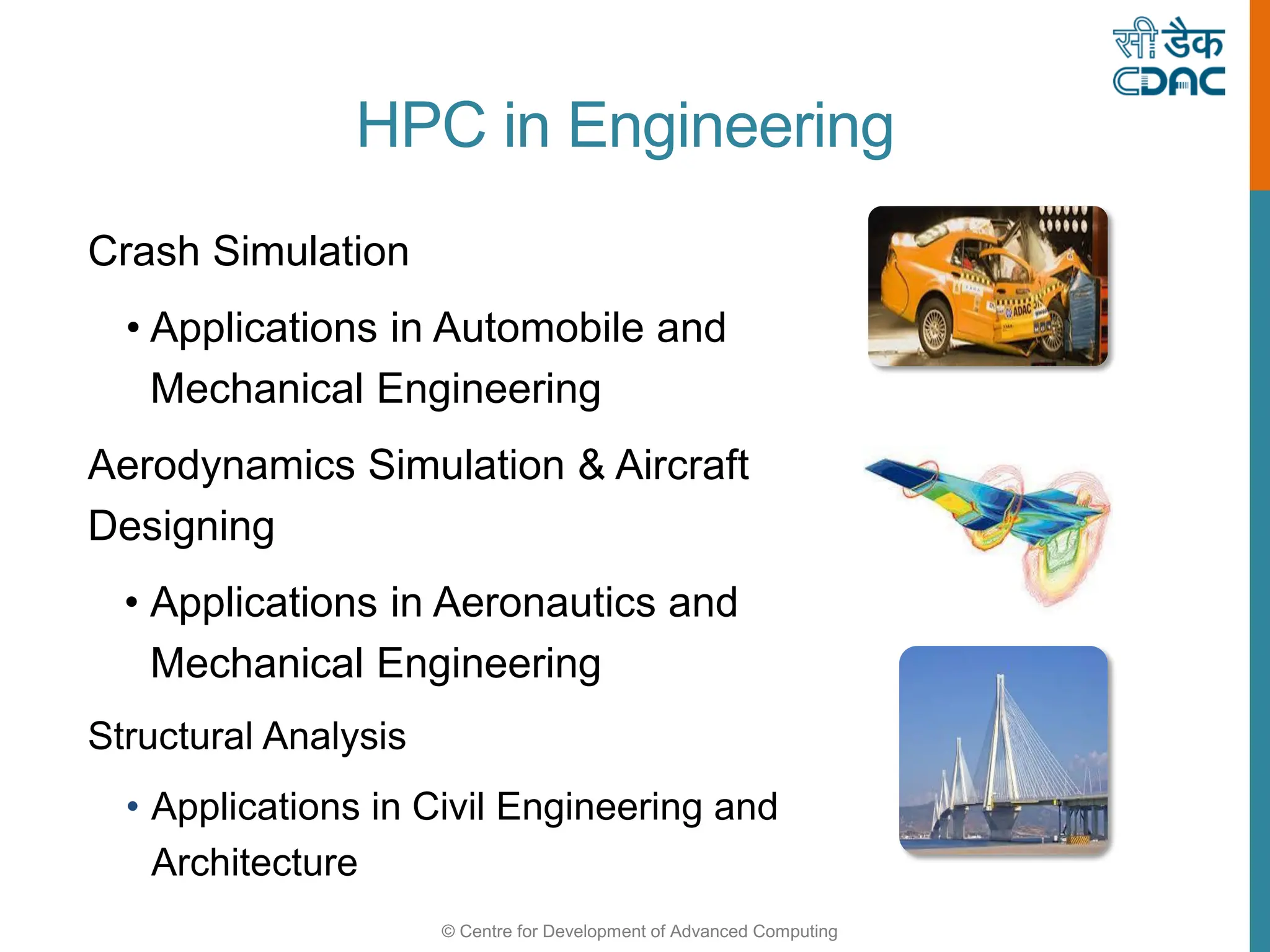

HPC in Engineering
Crash Simulation
• Applications in Automobile and
Mechanical Engineering
Aerodynamics Simulation & Aircraft
Designing
• Applications in Aeronautics and
Mechanical Engineering
Structural Analysis
• Applications in Civil Engineering and
Architecture

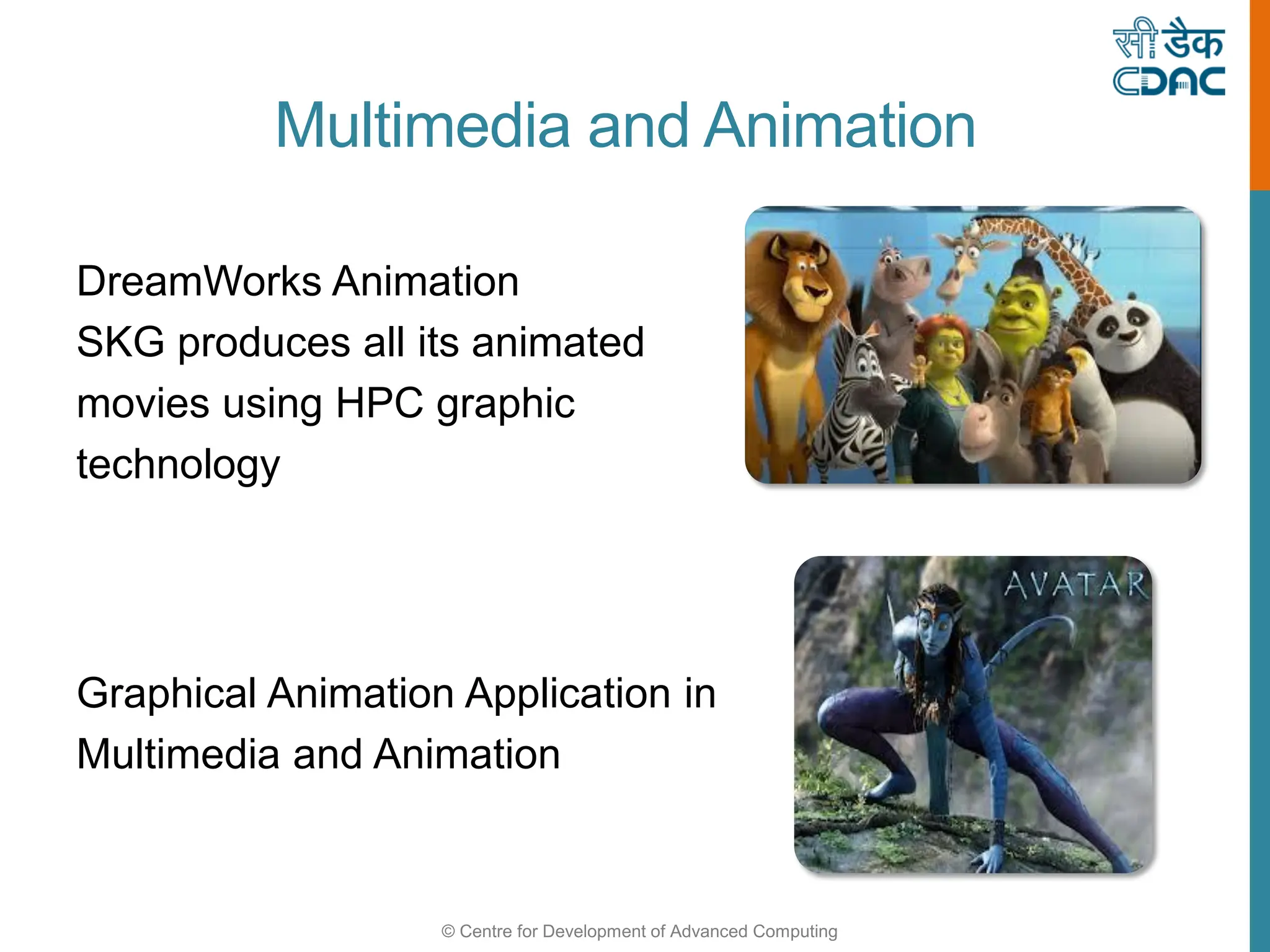

Multimedia and Animation
DreamWorks Animation
SKG produces all its animated
movies using HPC graphic
technology
Graphical Animation Application in
Multimedia and Animation

Thank You
