Introduction to CSS in HTML
THE AMERICAN COLLEGE, MADURAI
(An Autonomous Institution Affiliated to Madurai Kamaraj University)
Reaccredited (3rd cycle)by NAAC with Grade “A” CGPA-3.47 on a 4-POINTS scale
Dr. S.SHAIK PARVEEN
Assistant Professor
Department of BCA
The American College
Madurai

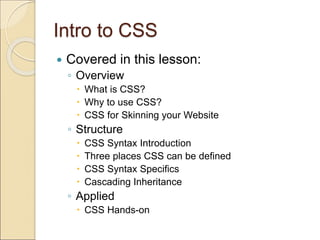

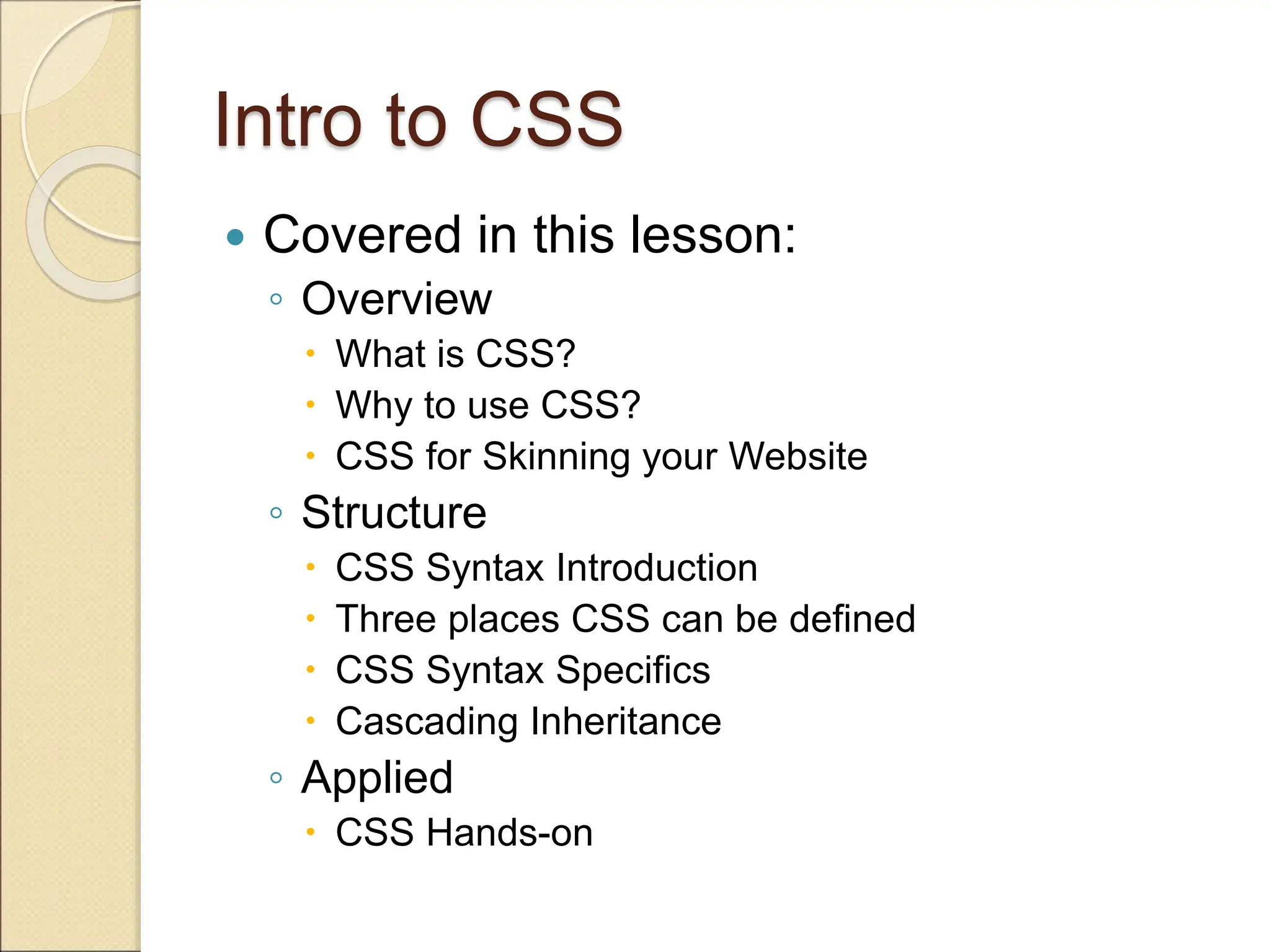

Intro to CSS
 Covered in this lesson:
◦ Overview
 What is CSS?
 Why to use CSS?
 CSS for Skinning your Website
◦ Structure
 CSS Syntax Introduction
 Three places CSS can be defined
 CSS Syntax Specifics
 Cascading Inheritance
◦ Applied
 CSS Hands-on

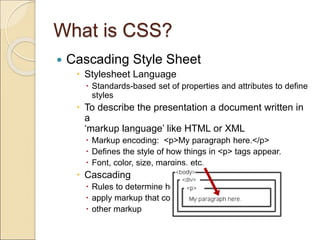

What is CSS?
 Cascading Style Sheet
 Stylesheet Language
 Standards-based set of properties and attributes to define
styles
 To describe the presentation a document written in
a
‘markup language’ like HTML or XML
 Markup encoding: <p>My paragraph here.</p>
 Defines the style of how things in <p> tags appear.
 Font, color, size, margins, etc.
 Cascading
 Rules to determine how to
 apply markup that contains
 other markup

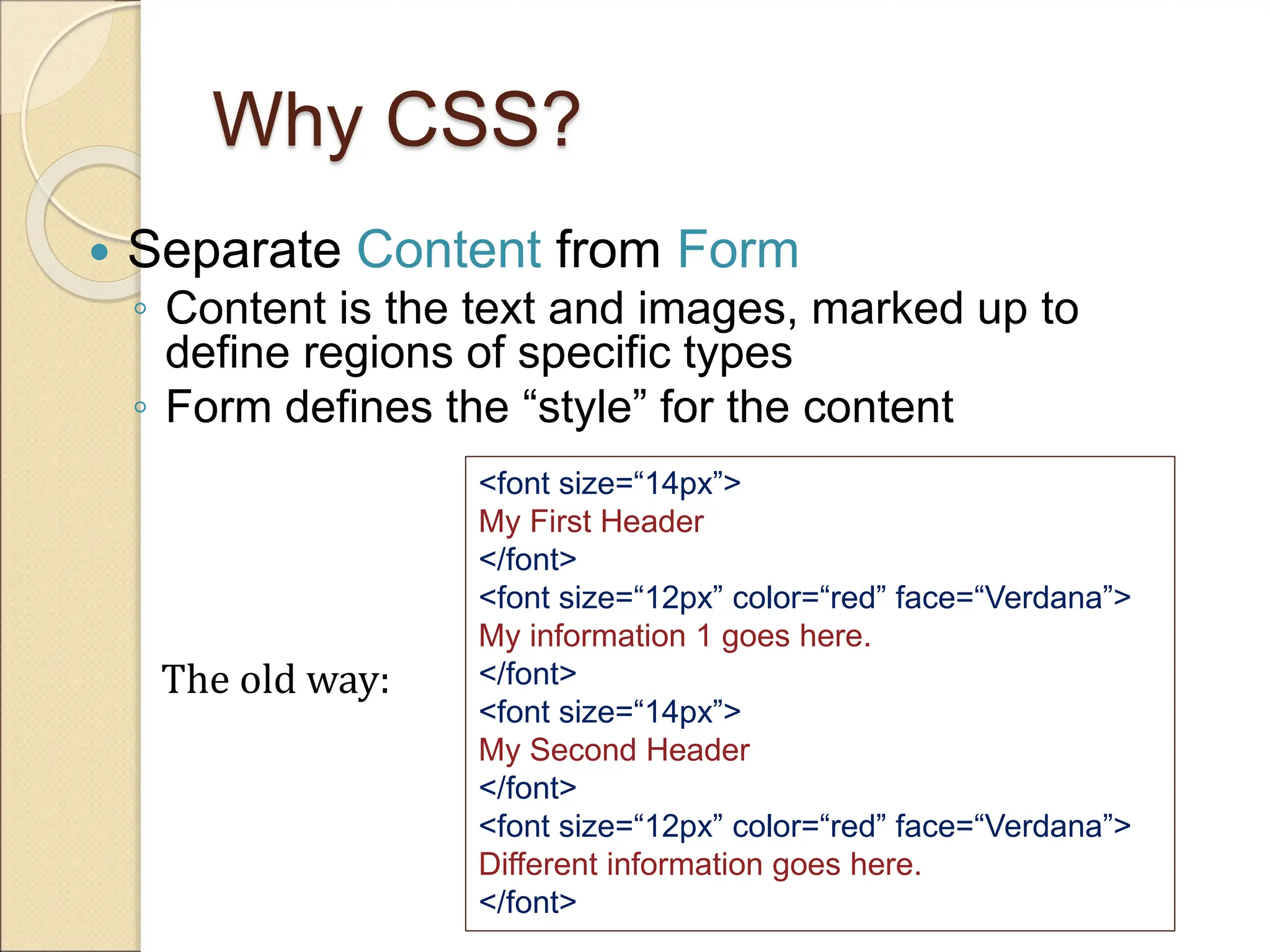

Why CSS?
 Separate Content from Form
◦ Content is the text and images, marked up to
define regions of specific types
◦ Form defines the “style” for the content
<font size=“14px”>
My First Header
</font>
<font size=“12px” color=“red” face=“Verdana”>
My information 1 goes here.
</font>
<font size=“14px”>
My Second Header
</font>
<font size=“12px” color=“red” face=“Verdana”>
Different information goes here.
</font>
The old way:

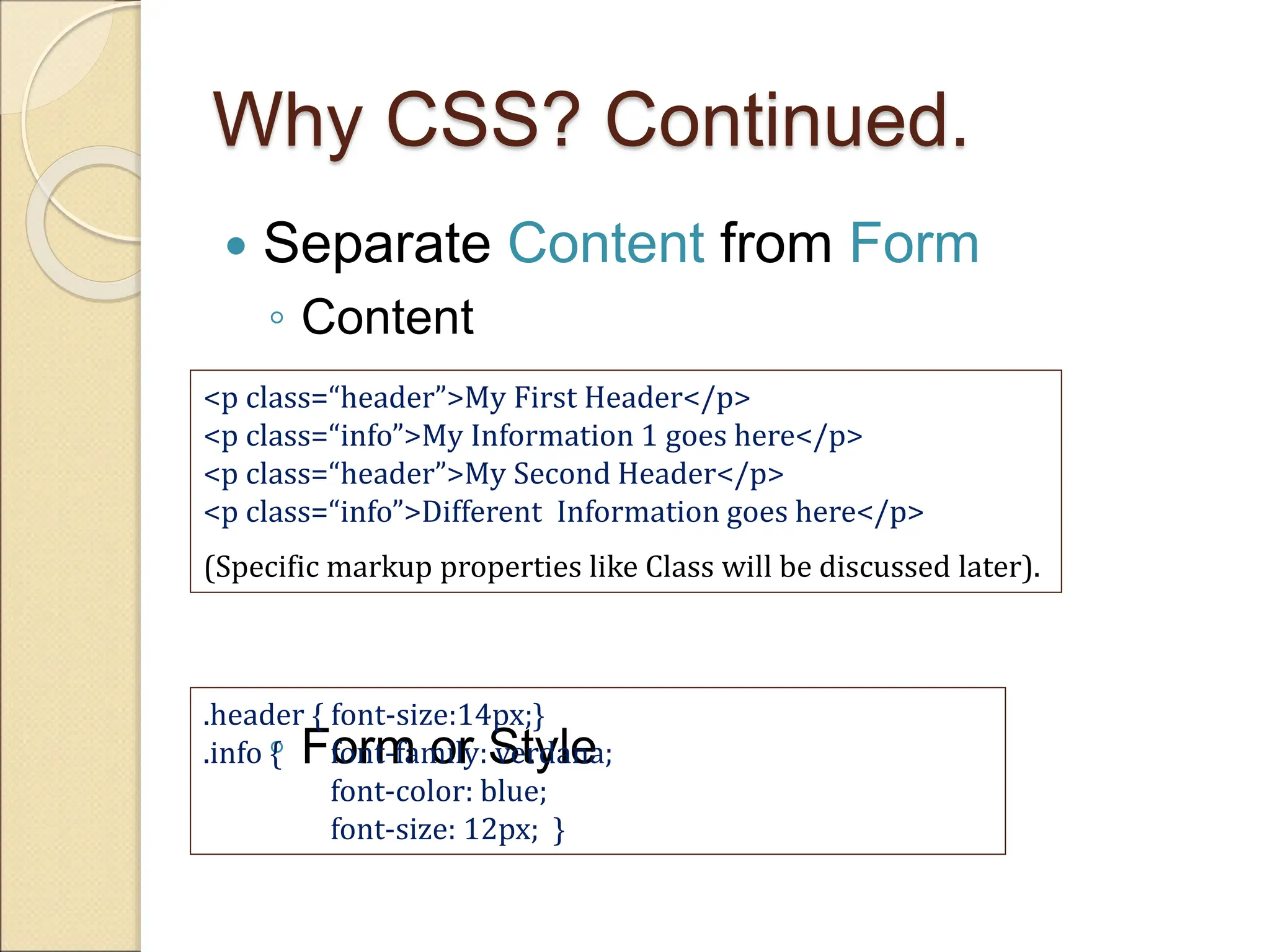

Why CSS? Continued.
 Separate Content from Form
◦ Content
◦ Form or Style
<p class=“header”>My First Header</p>
<p class=“info”>My Information 1 goes here</p>
<p class=“header”>My Second Header</p>
<p class=“info”>Different Information goes here</p>
(Specific markup properties like Class will be discussed later).
.header { font-size:14px;}
.info { font-family: verdana;
font-color: blue;
font-size: 12px; }

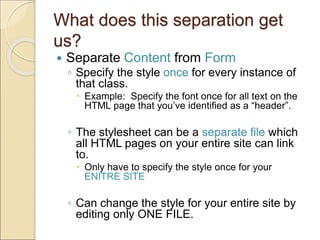

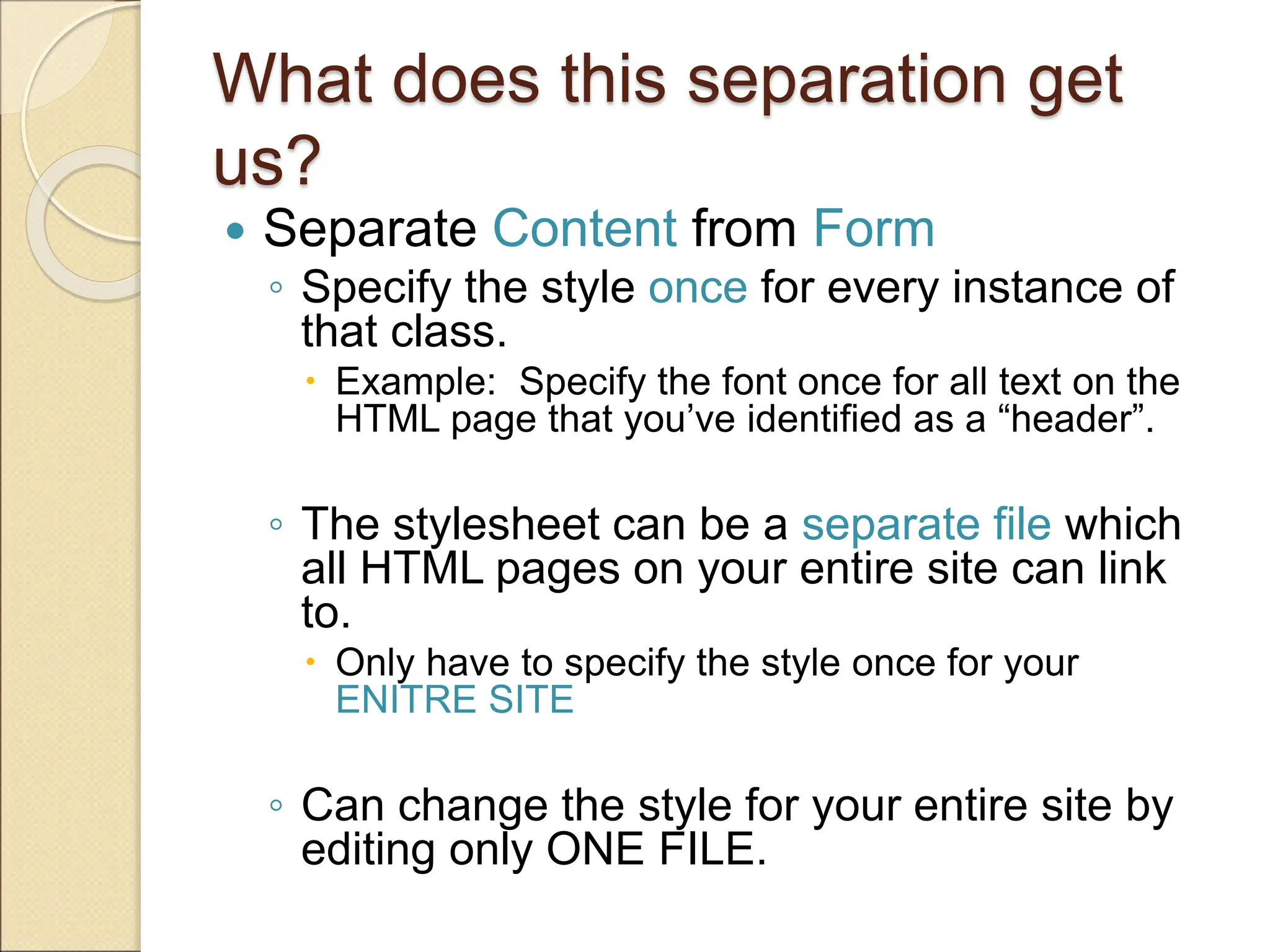

What does this separation get
us?
 Separate Content from Form
◦ Specify the style once for every instance of
that class.
 Example: Specify the font once for all text on the
HTML page that you’ve identified as a “header”.
◦ The stylesheet can be a separate file which
all HTML pages on your entire site can link
to.
 Only have to specify the style once for your
ENITRE SITE
◦ Can change the style for your entire site by
editing only ONE FILE.

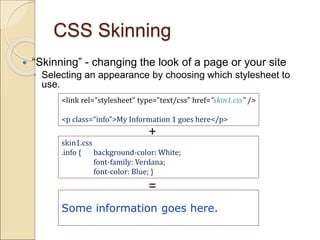

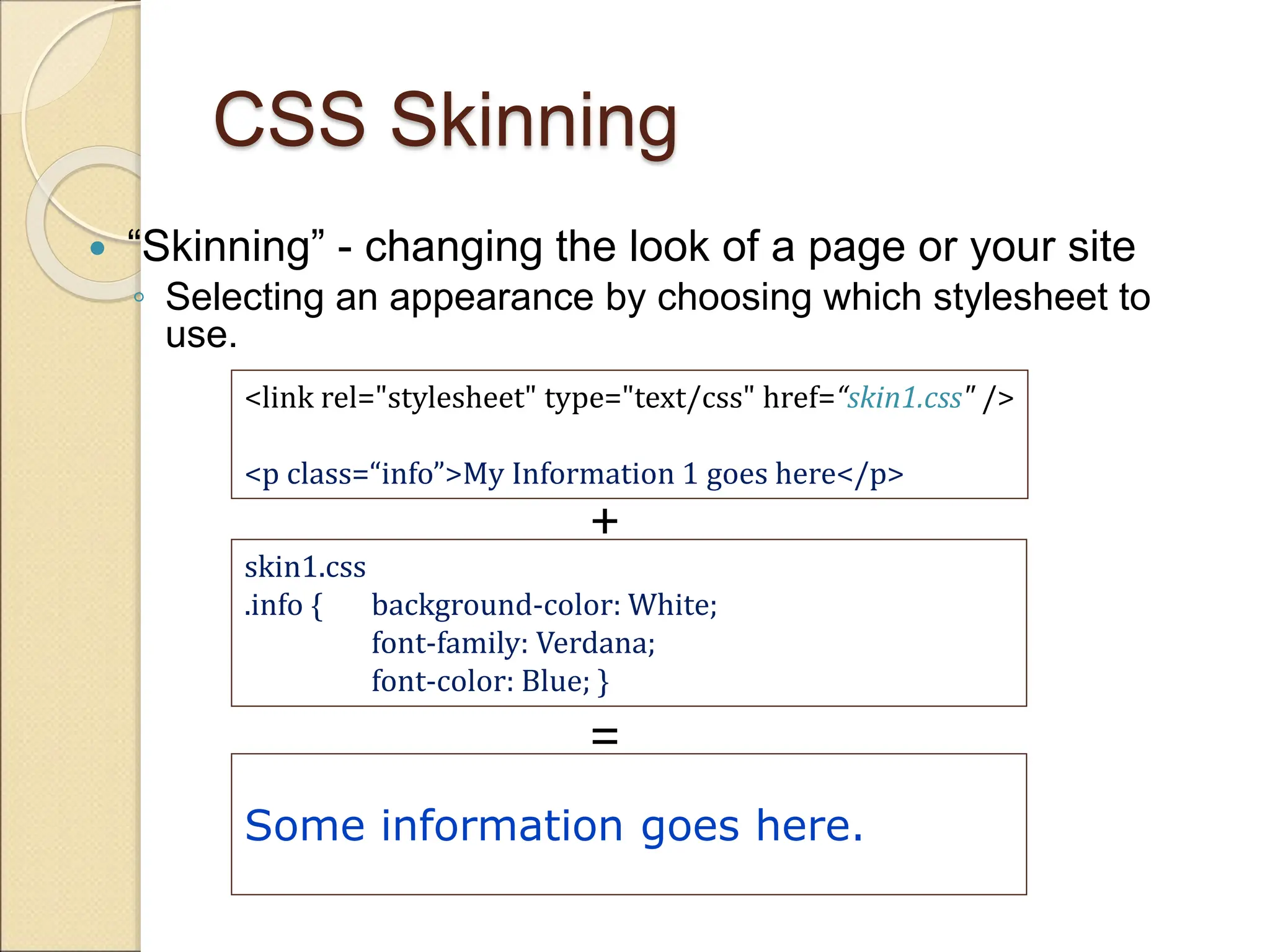

CSS Skinning
 “Skinning” - changing the look of a page or your site
◦ Selecting an appearance by choosing which stylesheet to
use.
<link rel="stylesheet" type="text/css" href=“skin1.css" />
<p class=“info”>My Information 1 goes here</p>
skin1.css
.info { background-color: White;
font-family: Verdana;
font-color: Blue; }
Some information goes here.
+
=

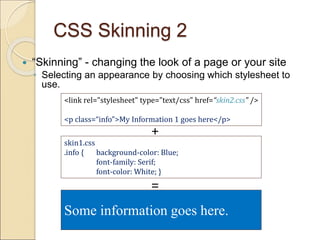

CSS Skinning 2
 “Skinning” - changing the look of a page or your site
◦ Selecting an appearance by choosing which stylesheet to
use.
<link rel="stylesheet" type="text/css" href=“skin2.css" />
<p class=“info”>My Information 1 goes here</p>
skin1.css
.info { background-color: Blue;
font-family: Serif;
font-color: White; }
Some information goes here.
+
=
CSS Syntax
 3 Elements to a CSS Statement
◦ Selector
 What HTML sections does it affect?
◦ Property
 What attribute of that HTML section will be affected?
◦ Value
 What change will be made to that attribute?

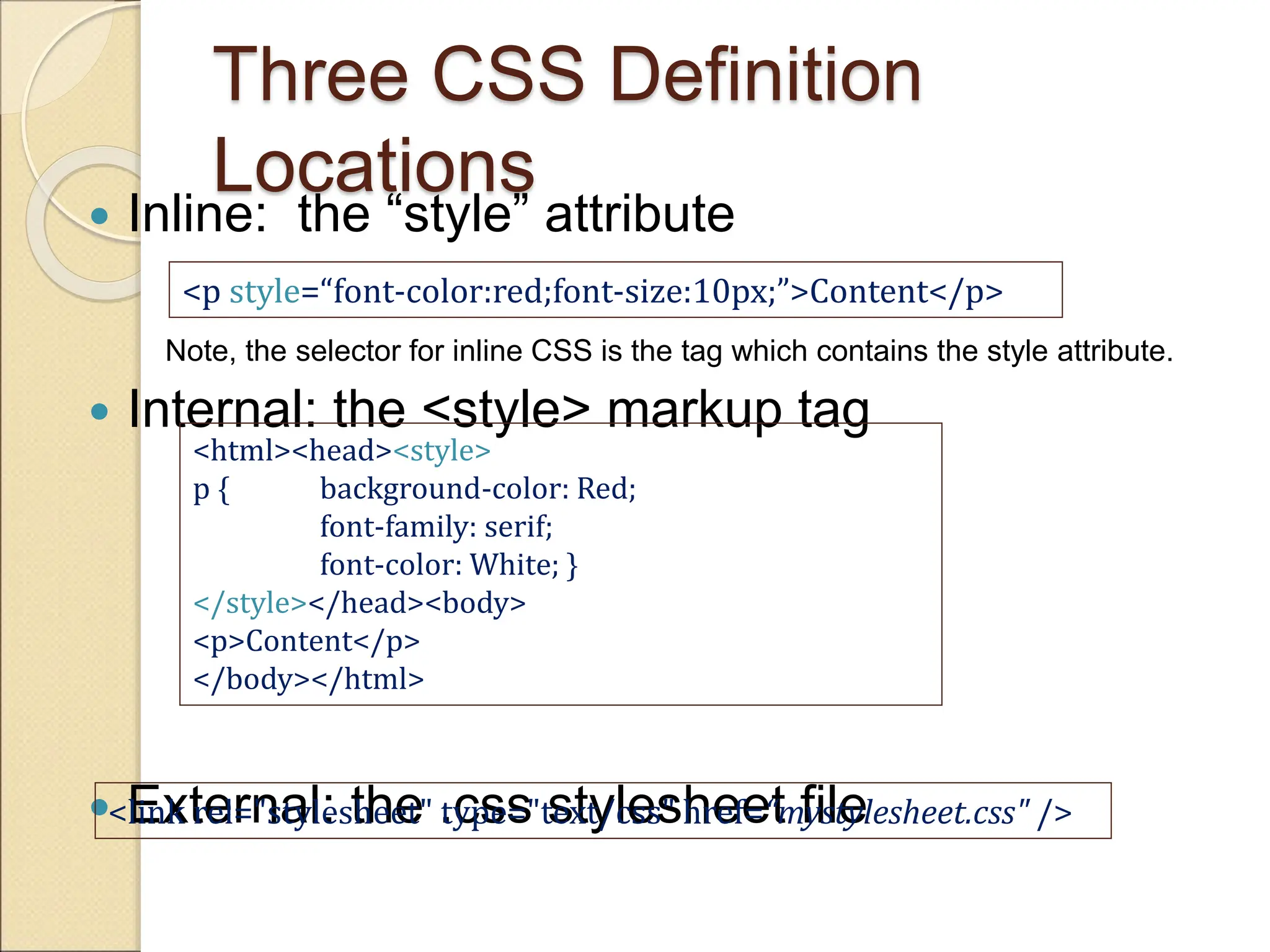

Three CSS Definition
Locations
 Inline: the “style” attribute
Note, the selector for inline CSS is the tag which contains the style attribute.
 Internal: the <style> markup tag
 External: the .css stylesheet file
<p style=“font-color:red;font-size:10px;”>Content</p>
<html><head><style>
p { background-color: Red;
font-family: serif;
font-color: White; }
</style></head><body>
<p>Content</p>
</body></html>
<link rel="stylesheet" type="text/css" href=“mystylesheet.css" />

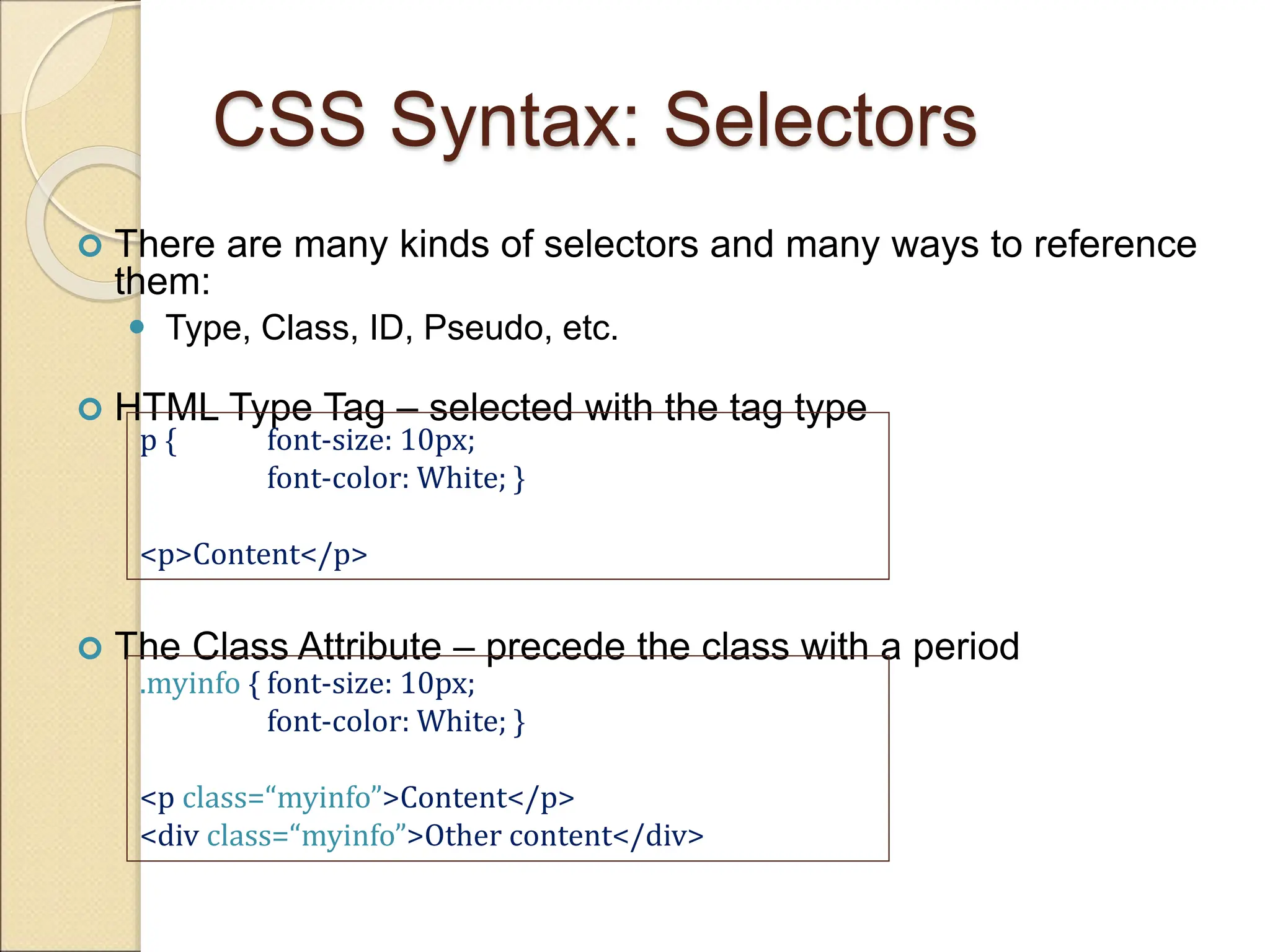

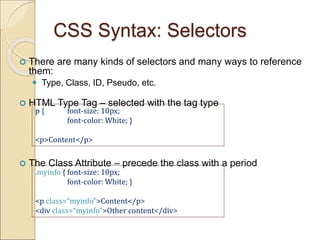

CSS Syntax: Selectors
 There are many kinds of selectors and many ways to reference
them:
 Type, Class, ID, Pseudo, etc.
 HTML Type Tag – selected with the tag type
 The Class Attribute – precede the class with a period
p { font-size: 10px;
font-color: White; }
<p>Content</p>
.myinfo { font-size: 10px;
font-color: White; }
<p class=“myinfo”>Content</p>
<div class=“myinfo”>Other content</div>

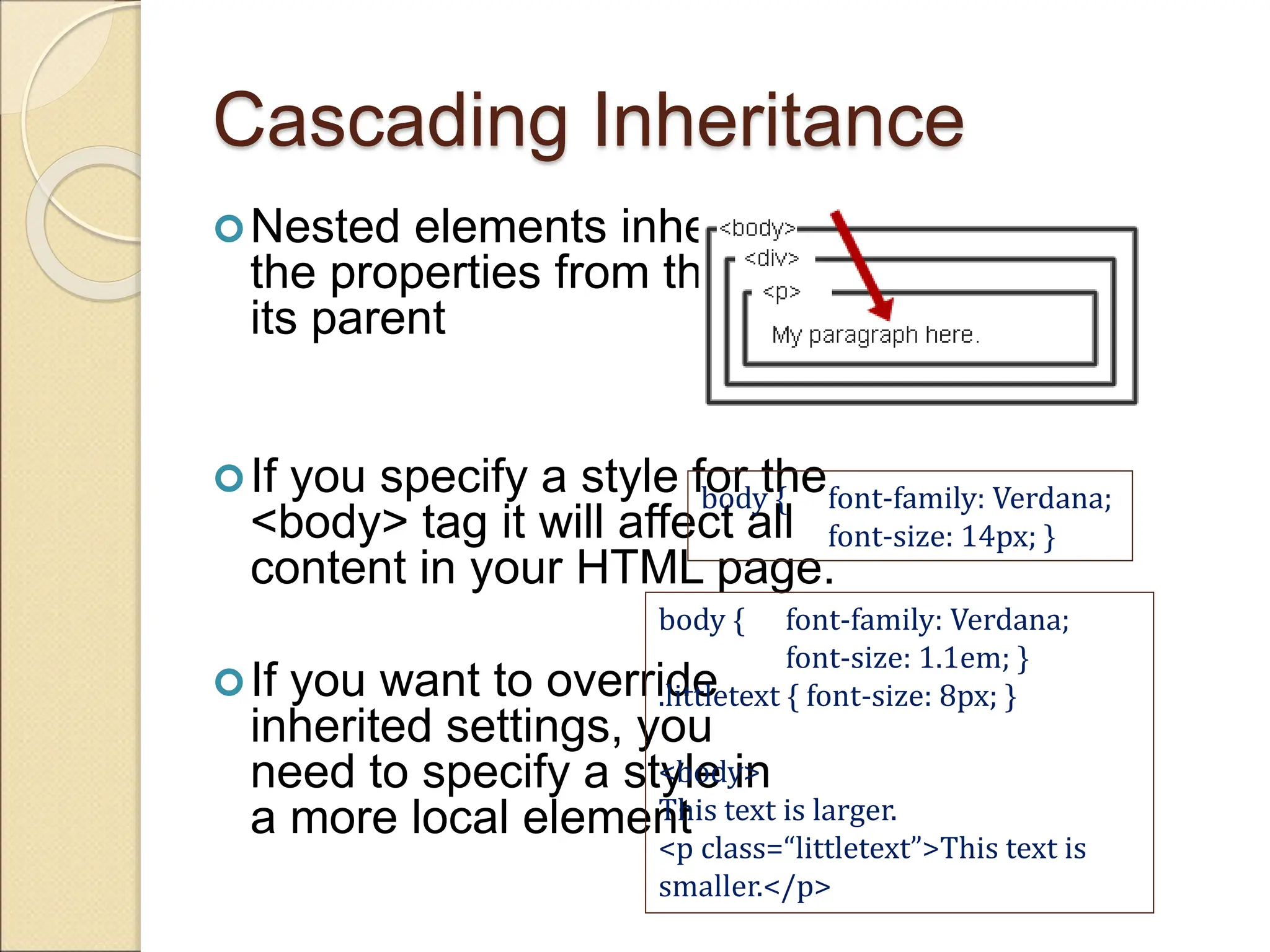

Cascading Inheritance
Nested elements inherit
the properties from the
its parent
If you specify a style for the
<body> tag it will affect all
content in your HTML page.
If you want to override
inherited settings, you
need to specify a style in
a more local element
body { font-family: Verdana;
font-size: 14px; }
body { font-family: Verdana;
font-size: 1.1em; }
.littletext { font-size: 8px; }
<body>
This text is larger.
<p class=“littletext”>This text is
smaller.</p>
Thank You
