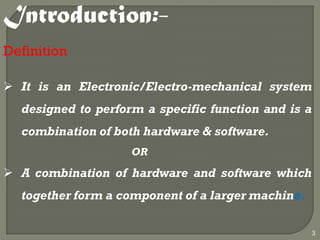

Introduction:-

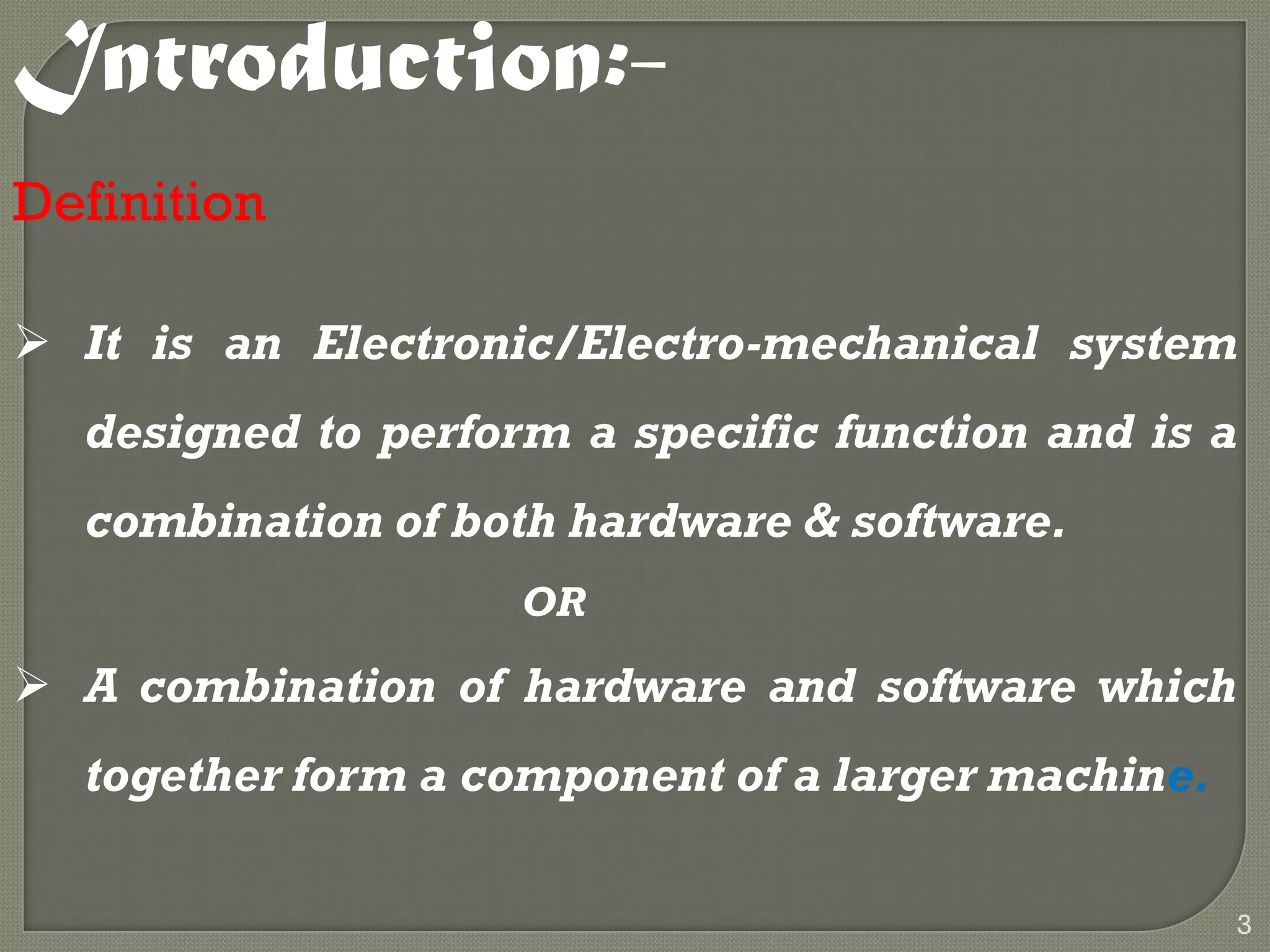

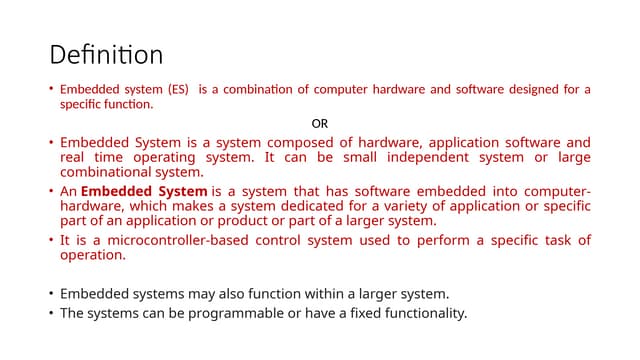

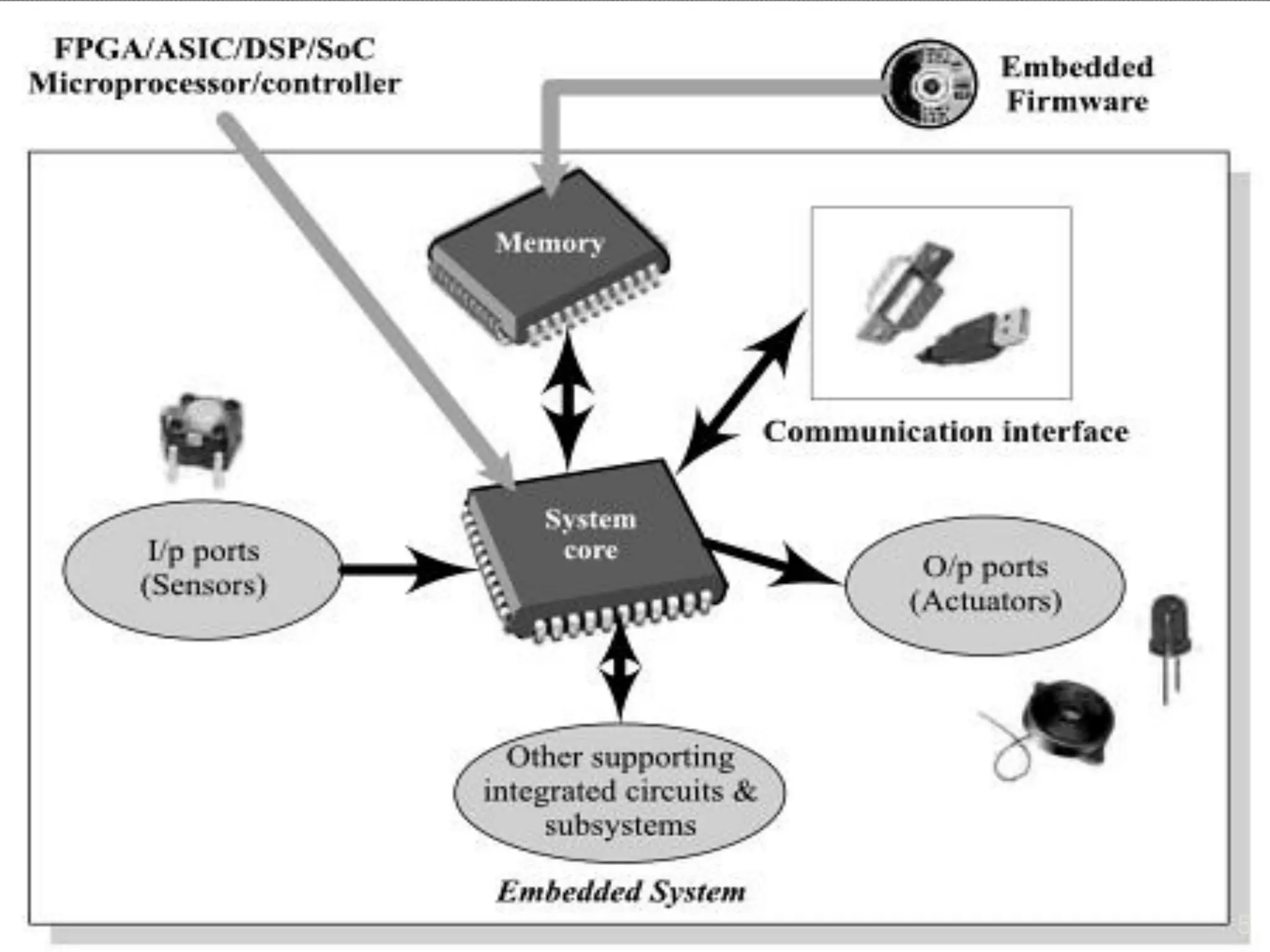

Definition
 It is an Electronic/Electro-mechanical system
designed to perform a specific function and is a
combination of both hardware & software.
OR
 A combination of hardware and software which
together form a component of a larger machine.
3

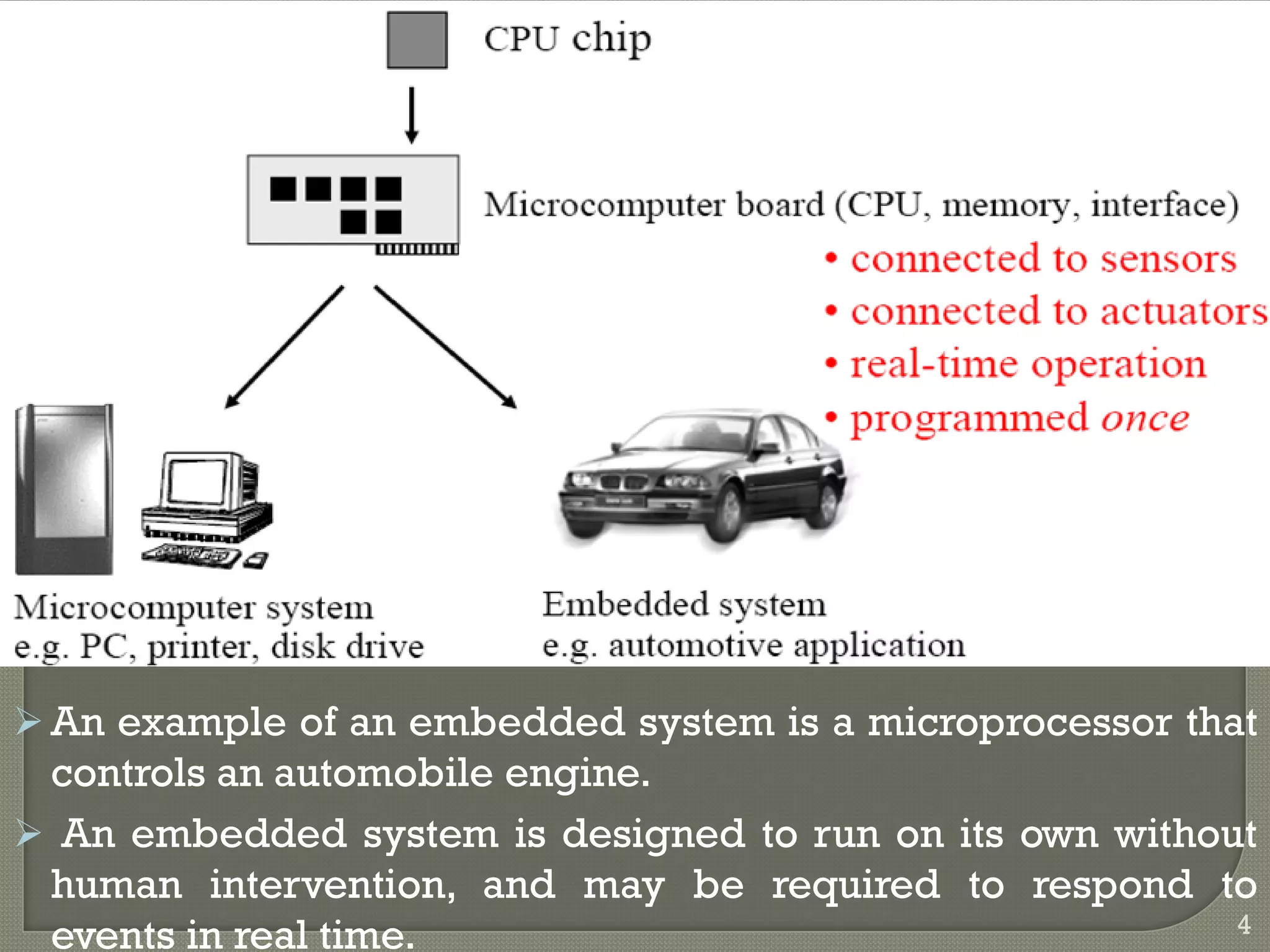

 An example of an embedded system is a microprocessor that
controls an automobile engine.
 An embedded system is designed to run on its own without
human intervention, and may be required to respond to
events in real time. 4

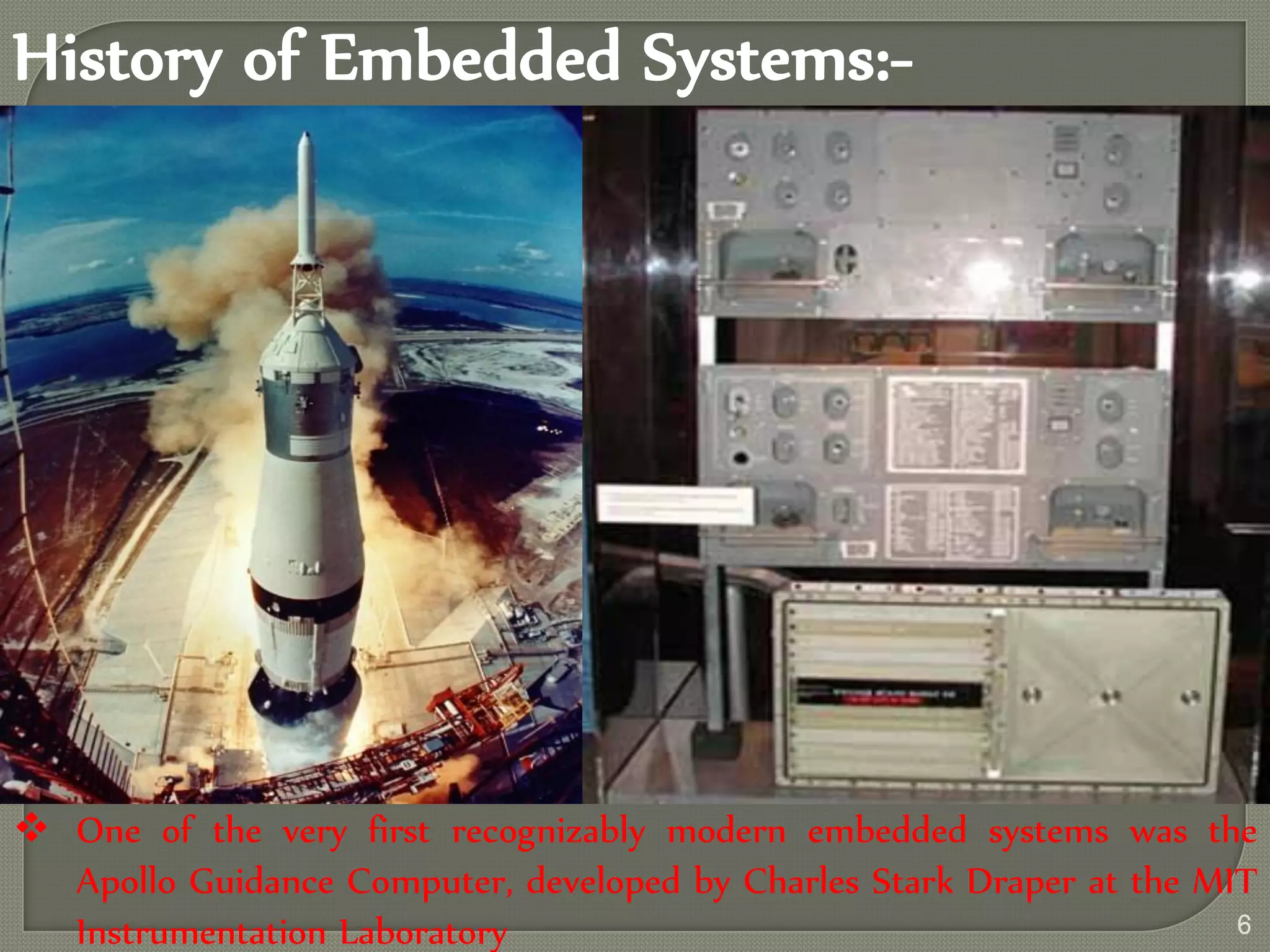

History of Embedded Systems:-
 One of the very first recognizably modern embedded systems was the
Apollo Guidance Computer, developed by Charles Stark Draper at the MIT
Instrumentation Laboratory 6

1. The Apollo Guidance Computer was the first modern system to
collect and provide flight information, and to automatically
control all of the navigational functions of the Apollo spacecraft.
2. It was developed in the early 1960s for the Apollo program by the
MIT Instrumentation Lab under Charles Stark Draper.
3. "The guidance computer made the moon landings possible.
4. It was designed almost entirely by MIT faculty and alumni from
the Draper Lab (then called the Instrumentation Lab) and
contractors staffed by MIT alumni.
5. The man on the moon was a huge milestone in the history of
technology and of the Cold War, made possible entirely by MIT
ingenuity.

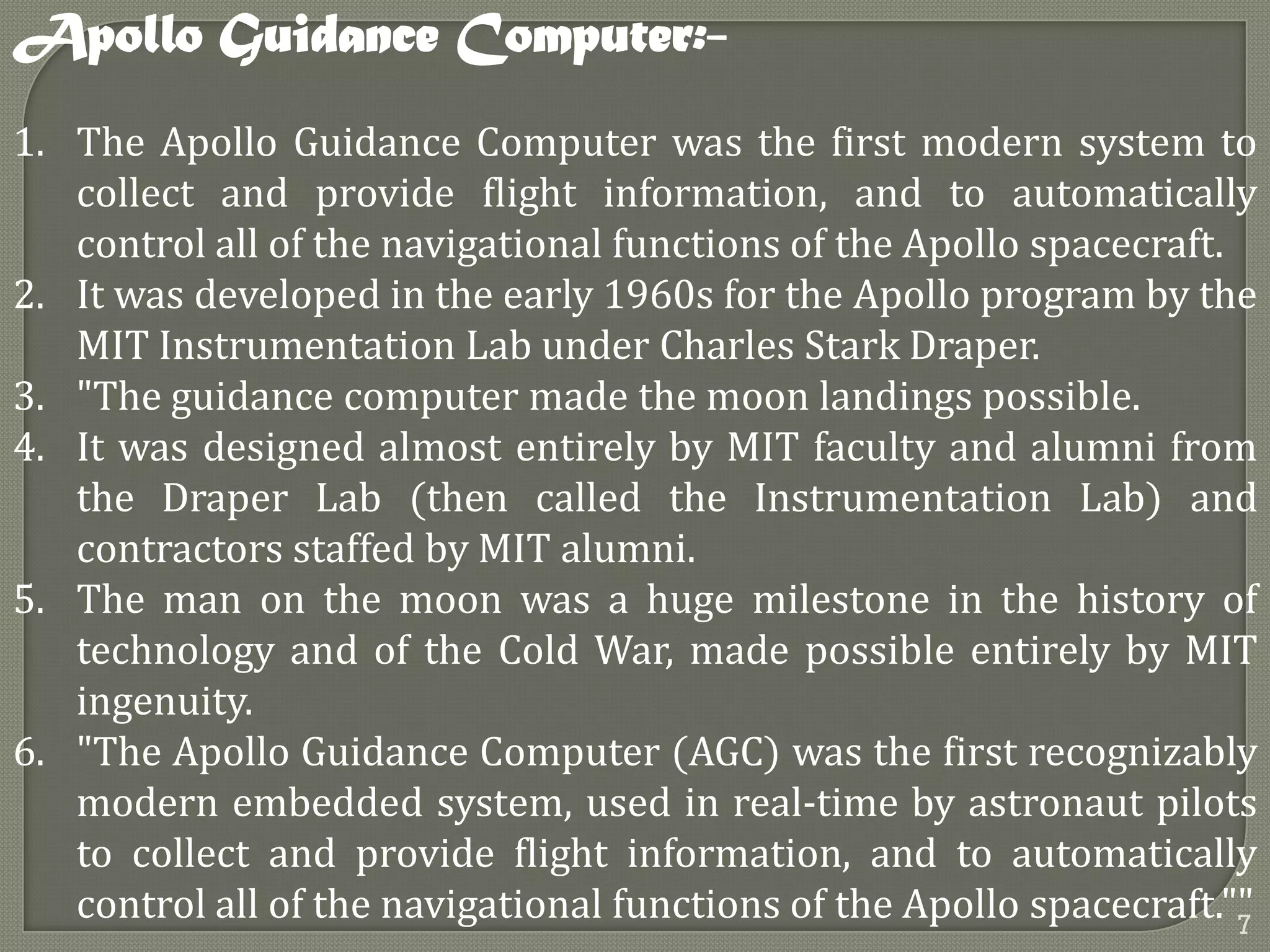

6. "The Apollo Guidance Computer (AGC) was the first recognizably
modern embedded system, used in real-time by astronaut pilots
to collect and provide flight information, and to automatically
control all of the navigational functions of the Apollo spacecraft.""
Apollo Guidance Computer:-
7

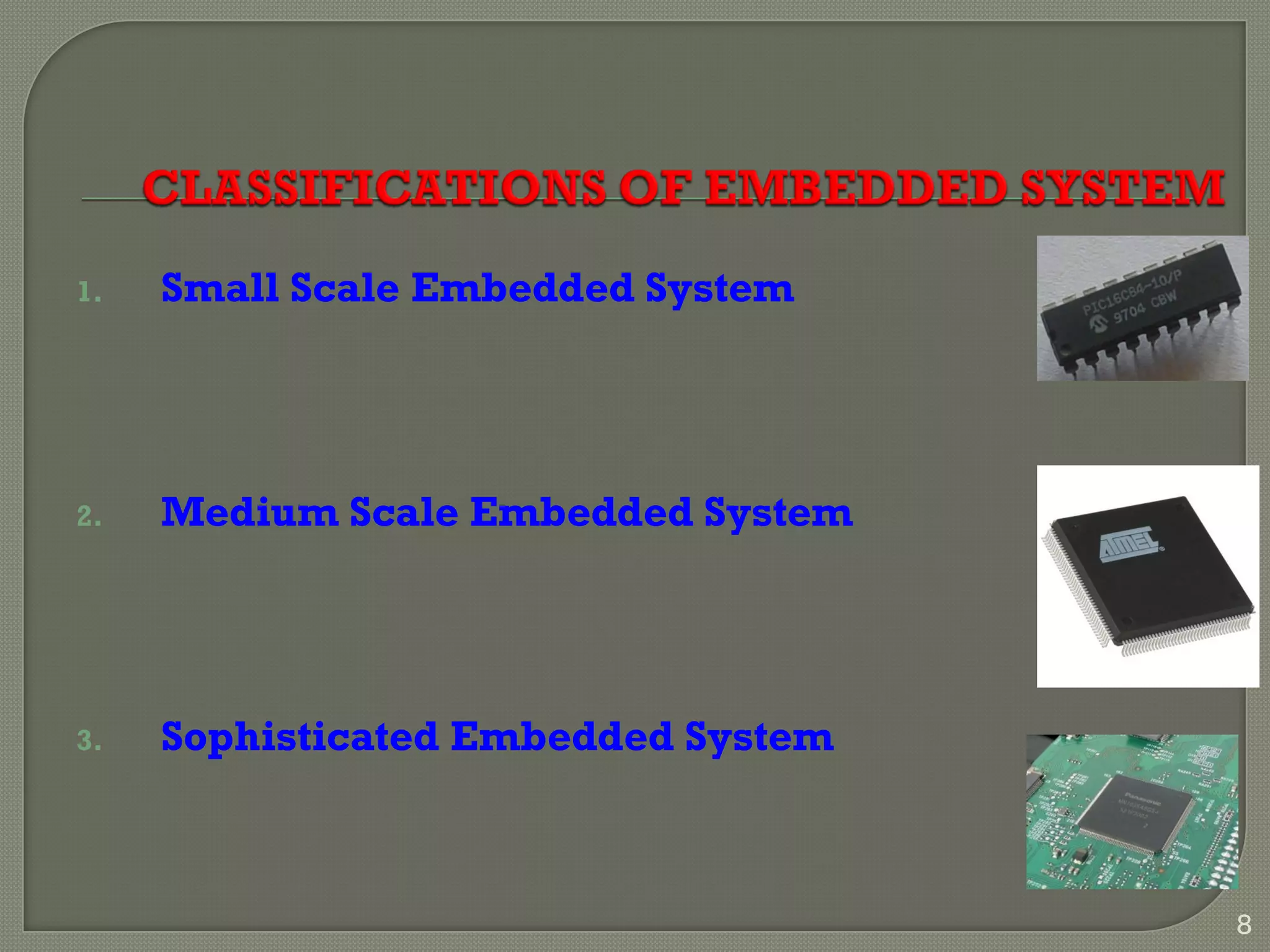

1. Small Scale Embedded System
2. Medium Scale Embedded System
3. Sophisticated Embedded System
8

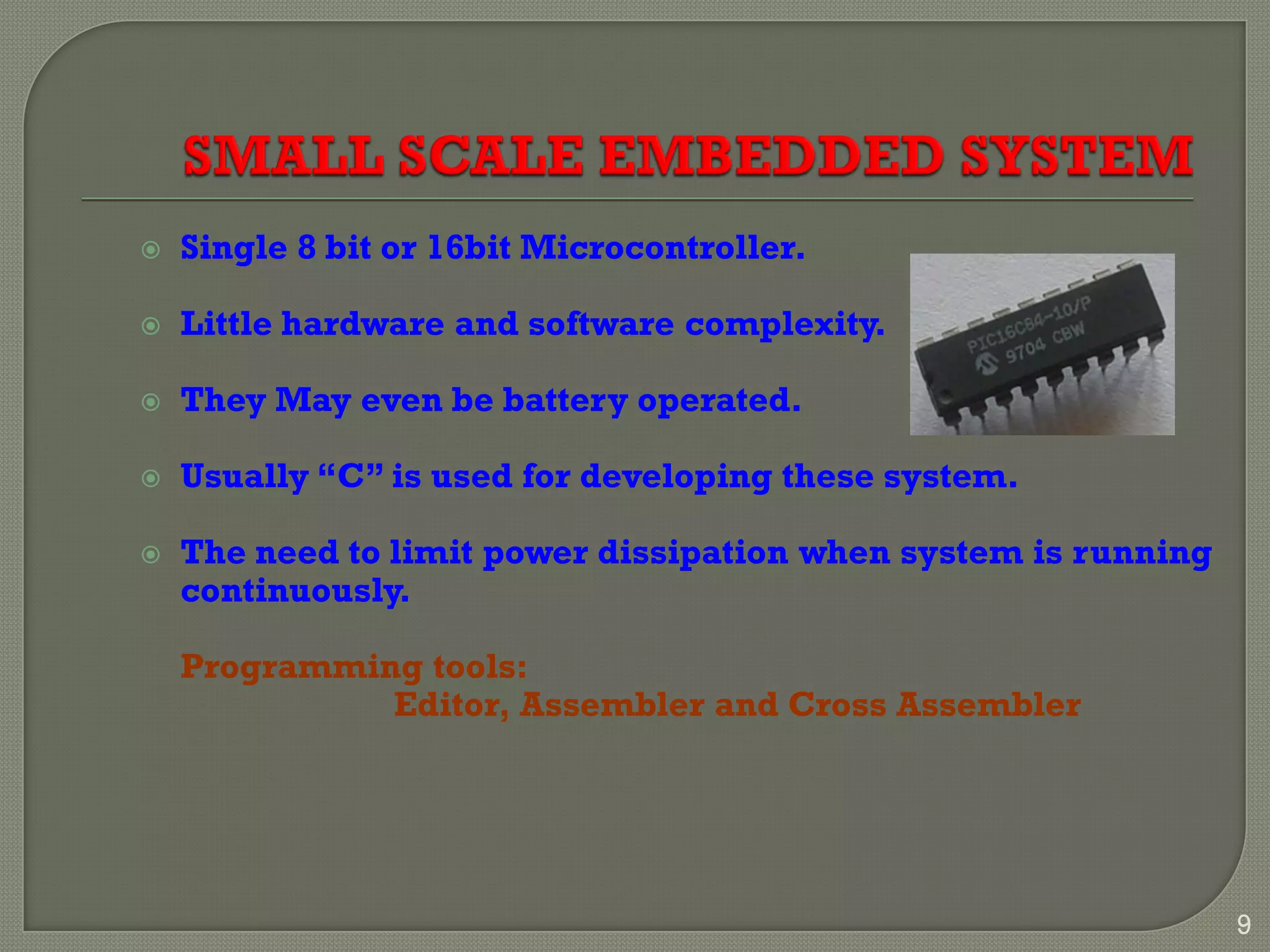

 Single 8 bit or 16bit Microcontroller.
 Little hardware and software complexity.
 They May even be battery operated.
 Usually “C” is used for developing these system.
 The need to limit power dissipation when system is running
continuously.
Programming tools:
Editor, Assembler and Cross Assembler
9

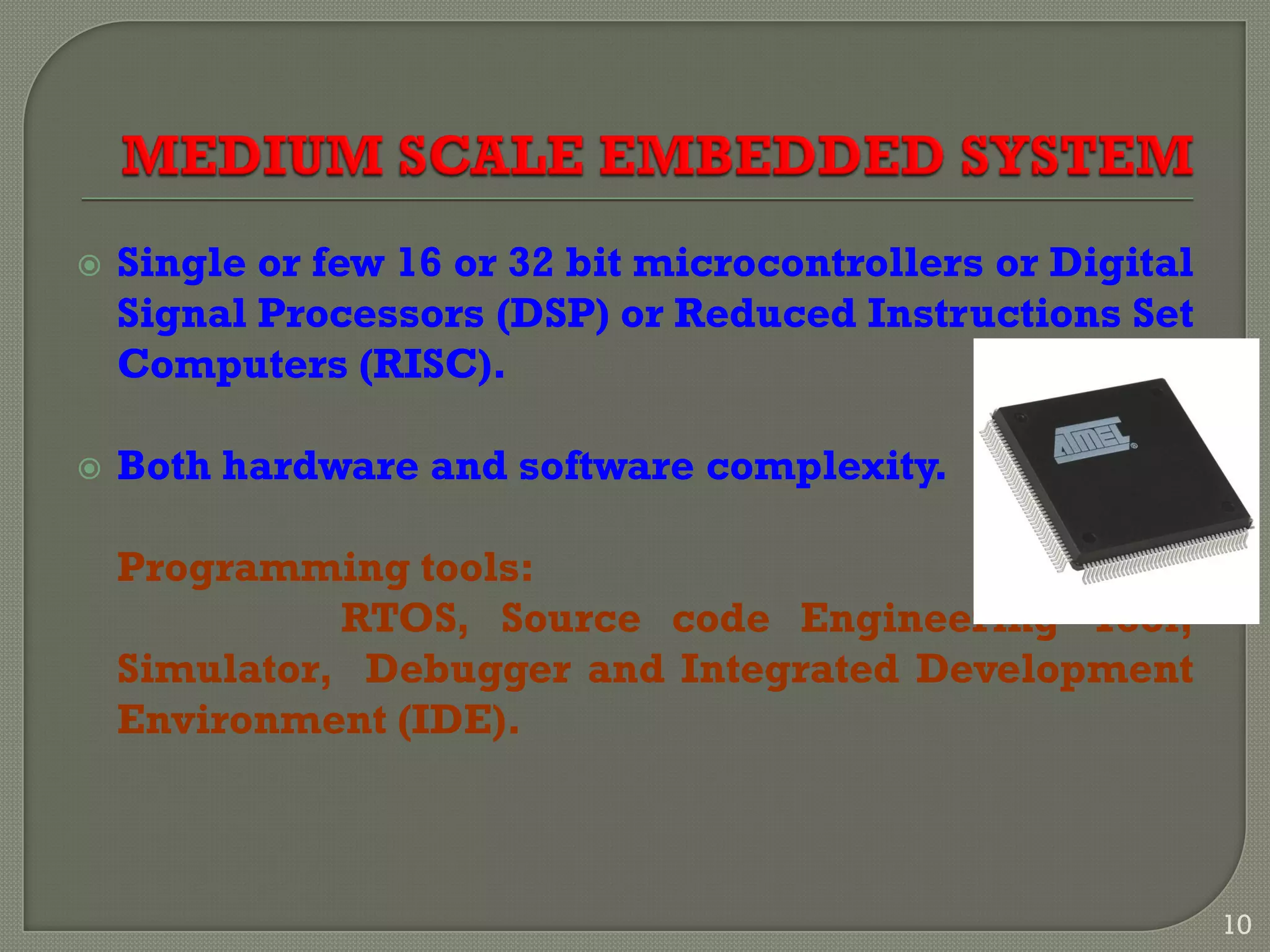

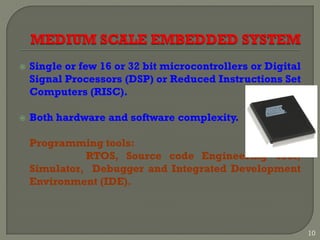

 Single or few 16 or 32 bit microcontrollers or Digital
Signal Processors (DSP) or Reduced Instructions Set
Computers (RISC).
 Both hardware and software complexity.
Programming tools:
RTOS, Source code Engineering Tool,
Simulator, Debugger and Integrated Development
Environment (IDE).
10

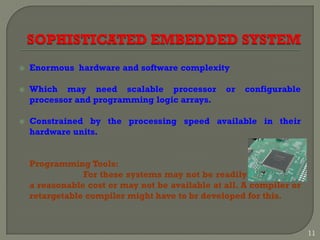

 Enormous hardware and software complexity
 Which may need scalable processor or configurable
processor and programming logic arrays.
 Constrained by the processing speed available in their
hardware units.
Programming Tools:
For these systems may not be readily available at
a reasonable cost or may not be available at all. A compiler or
retargetable compiler might have to br developed for this.
11

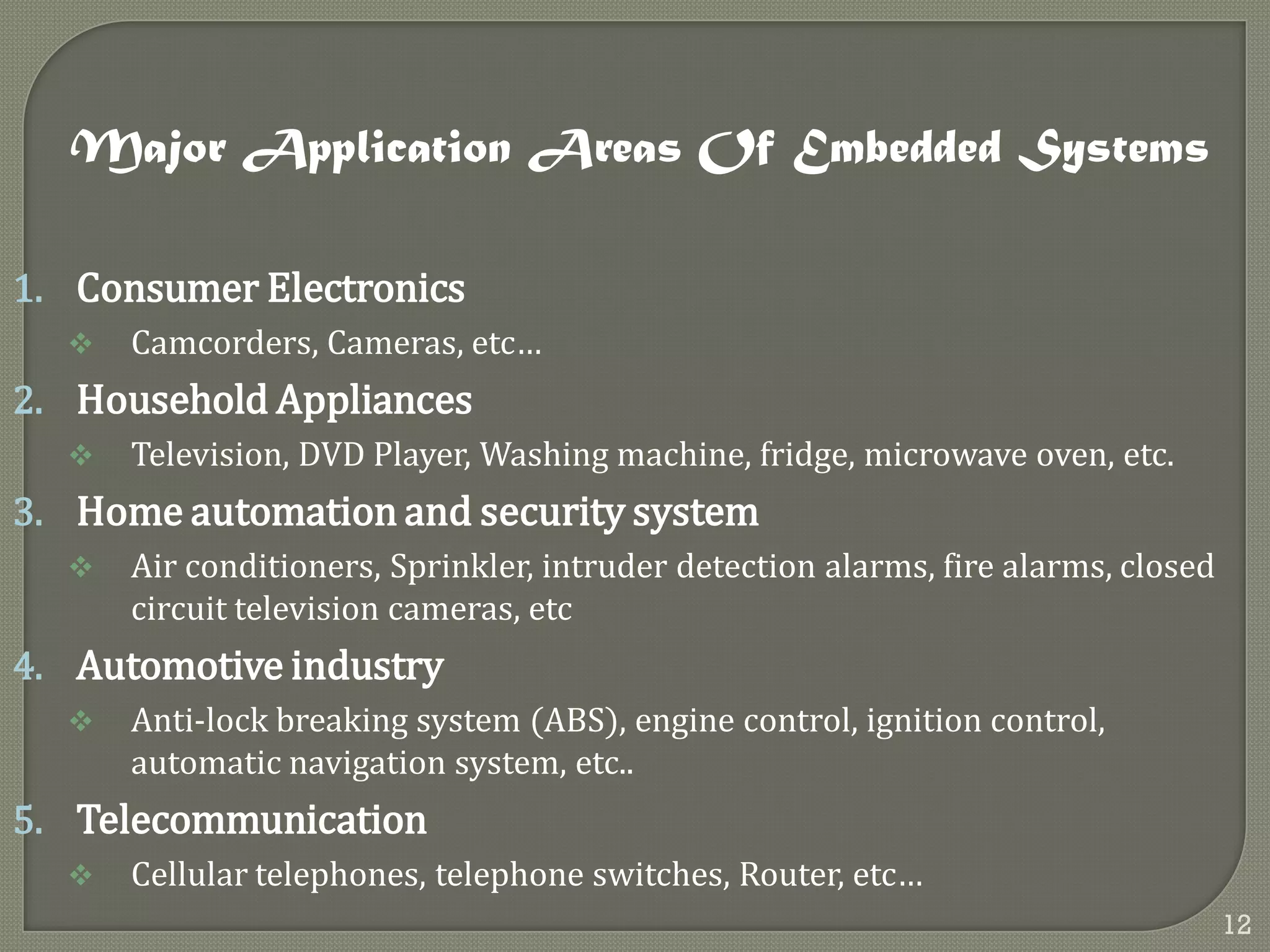

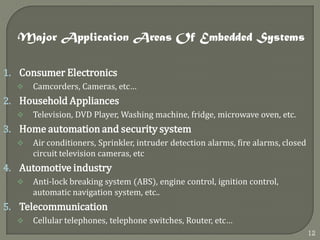

Major Application Areas Of Embedded Systems
1. Consumer Electronics
 Camcorders, Cameras, etc…
2. Household Appliances
 Television, DVD Player, Washing machine, fridge, microwave oven, etc.
3. Home automation and security system
 Air conditioners, Sprinkler, intruder detection alarms, fire alarms, closed
circuit television cameras, etc
4. Automotive industry
 Anti-lock breaking system (ABS), engine control, ignition control,
automatic navigation system, etc..
5. Telecommunication
 Cellular telephones, telephone switches, Router, etc…
12

Continue…

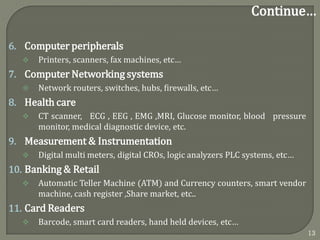

6. Computer peripherals
 Printers, scanners, fax machines, etc…
7. Computer Networking systems
 Network routers, switches, hubs, firewalls, etc…
8. Health care
 CT scanner, ECG , EEG , EMG ,MRI, Glucose monitor, blood pressure
monitor, medical diagnostic device, etc.
9. Measurement & Instrumentation
 Digital multi meters, digital CROs, logic analyzers PLC systems, etc…
10. Banking & Retail
 Automatic Teller Machine (ATM) and Currency counters, smart vendor
machine, cash register ,Share market, etc..
11. Card Readers
 Barcode, smart card readers, hand held devices, etc…
13

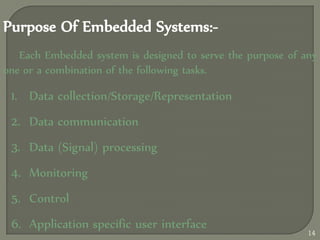

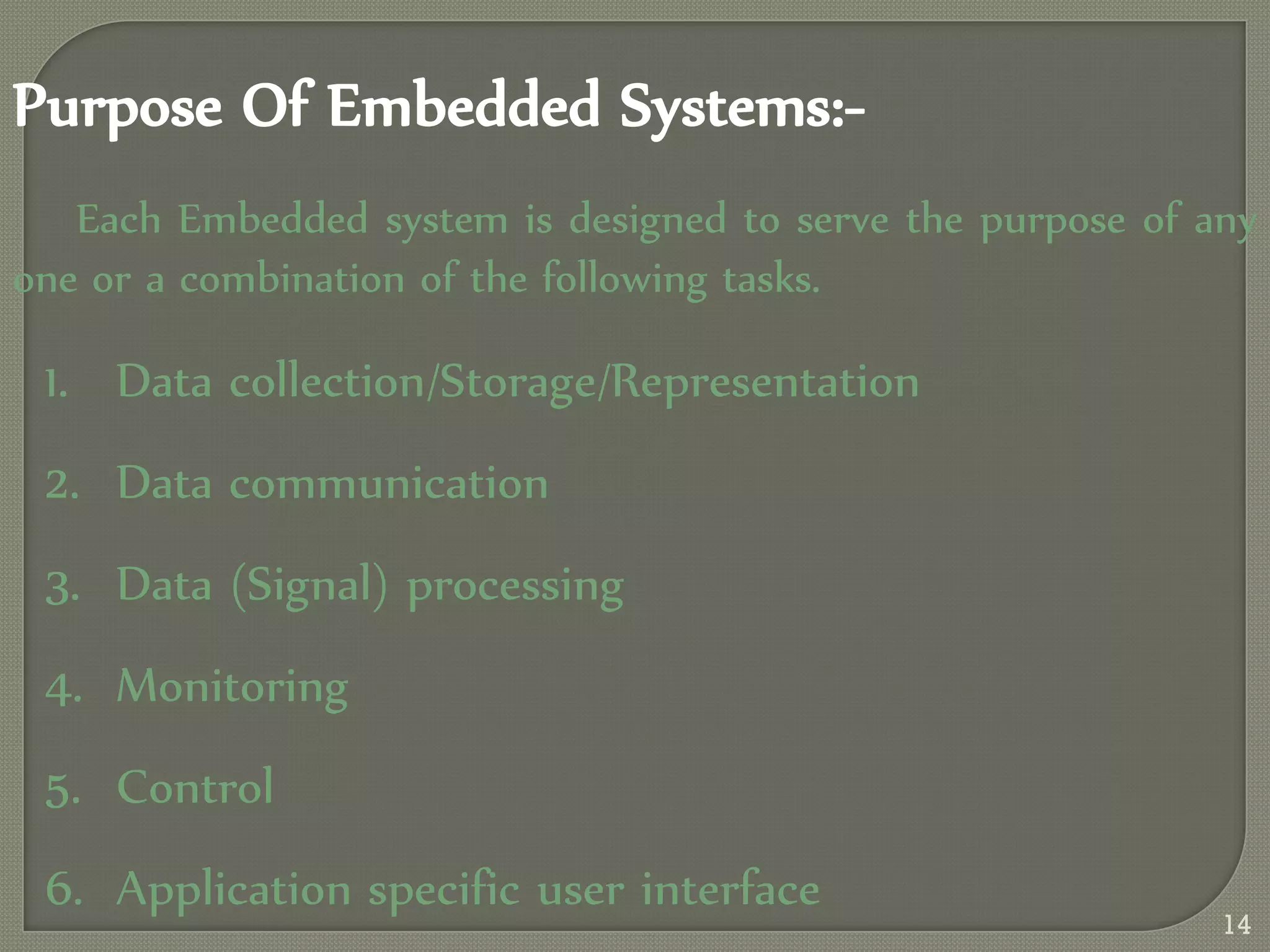

Purpose Of Embedded Systems:-
Each Embedded system is designed to serve the purpose of any
one or a combination of the following tasks.
1. Data collection/Storage/Representation
2. Data communication
3. Data (Signal) processing
4. Monitoring
5. Control
6. Application specific user interface
14

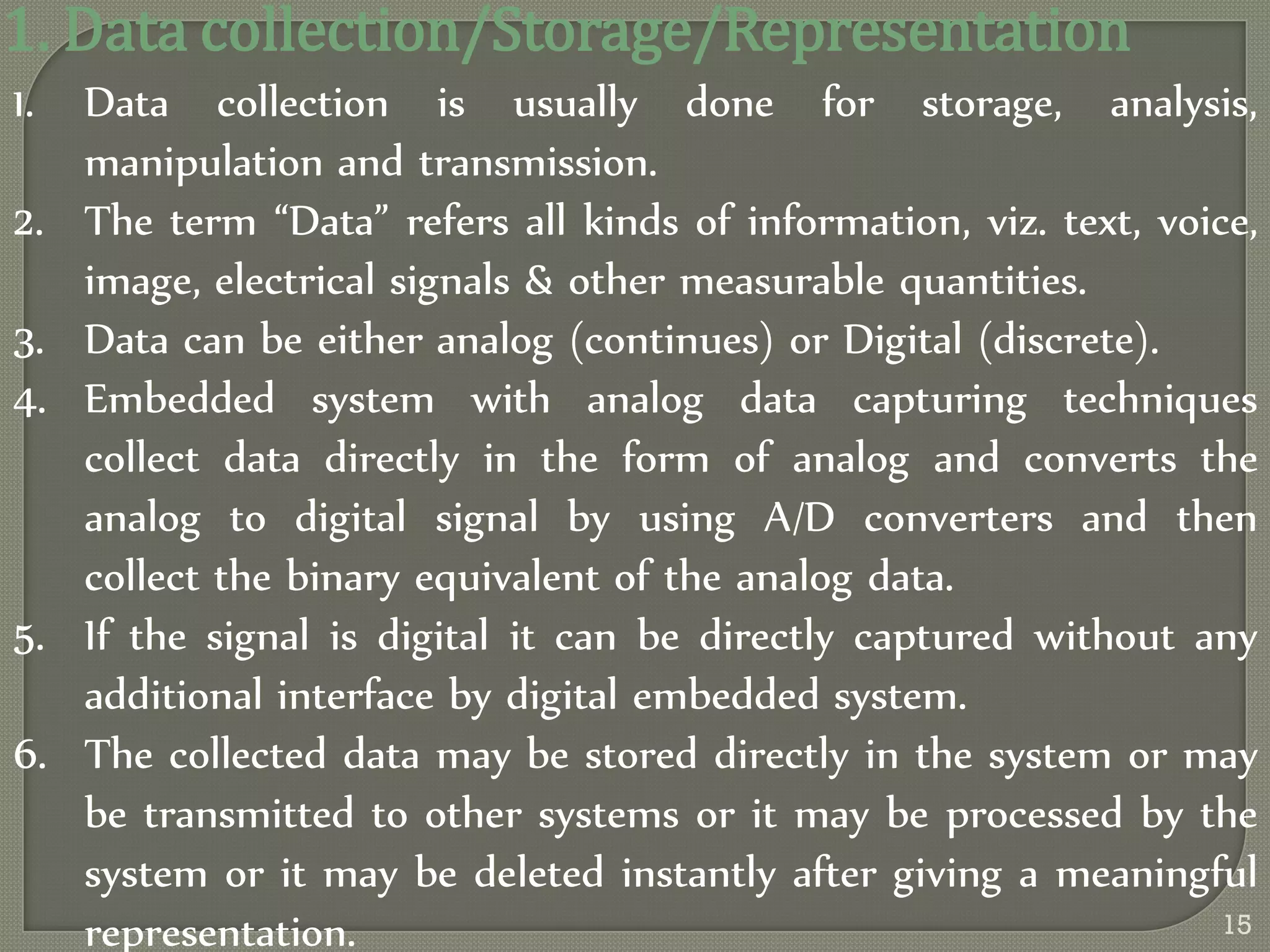

1. Data collection/Storage/Representation
1. Data collection is usually done for storage, analysis,
manipulation and transmission.
2. The term ‚Data‛ refers all kinds of information, viz. text, voice,
image, electrical signals & other measurable quantities.
3. Data can be either analog (continues) or Digital (discrete).
4. Embedded system with analog data capturing techniques
collect data directly in the form of analog and converts the
analog to digital signal by using A/D converters and then
collect the binary equivalent of the analog data.
5. If the signal is digital it can be directly captured without any
additional interface by digital embedded system.
6. The collected data may be stored directly in the system or may
be transmitted to other systems or it may be processed by the
system or it may be deleted instantly after giving a meaningful
representation. 15

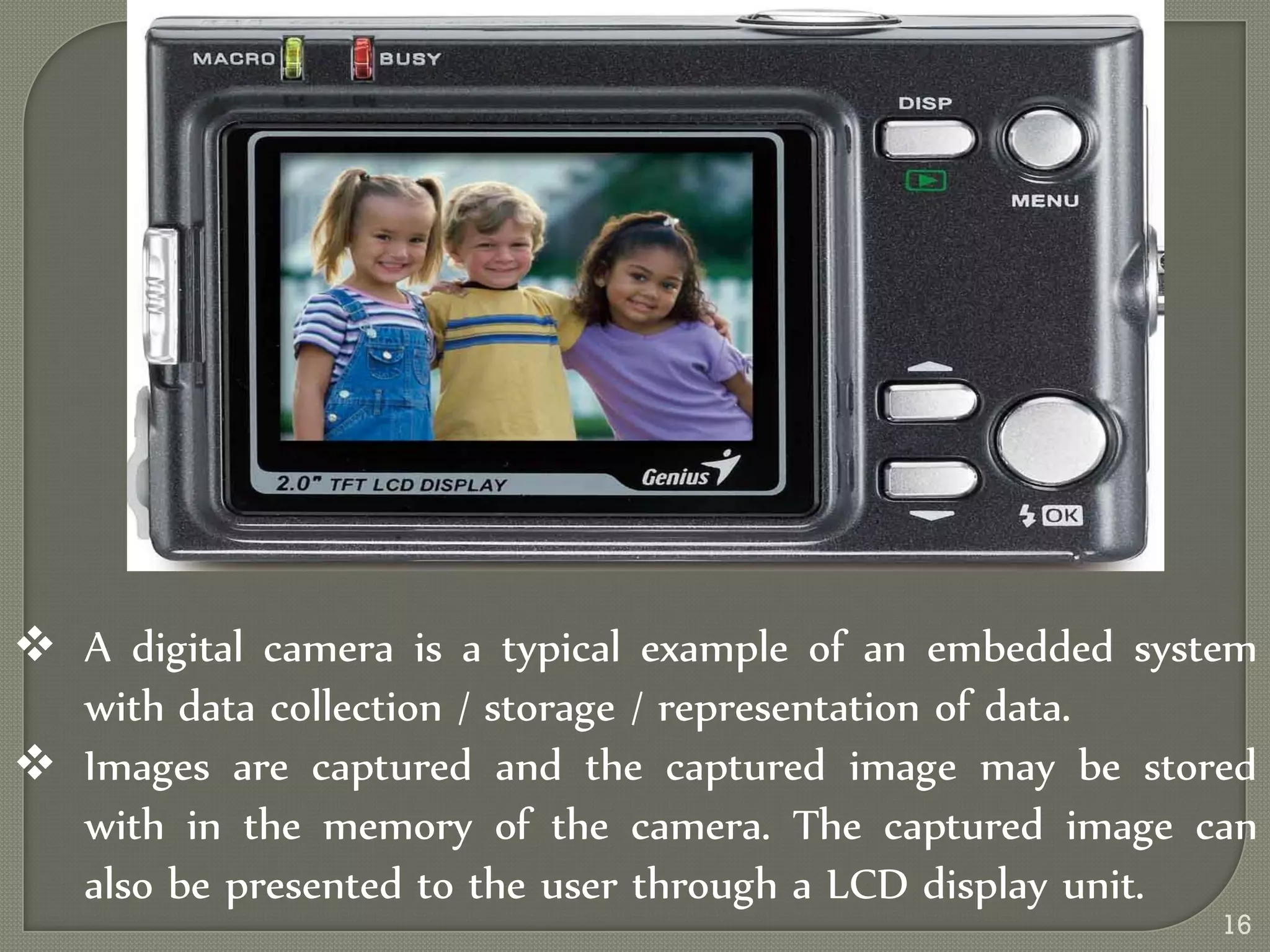

 A digital camera is a typical example of an embedded system
with data collection / storage / representation of data.
 Images are captured and the captured image may be stored
with in the memory of the camera. The captured image can
also be presented to the user through a LCD display unit.
16

2. Data communication
 Embedded data communication systems are developed in
applications ranging from complex satellite communication
systems to simple home networking systems.

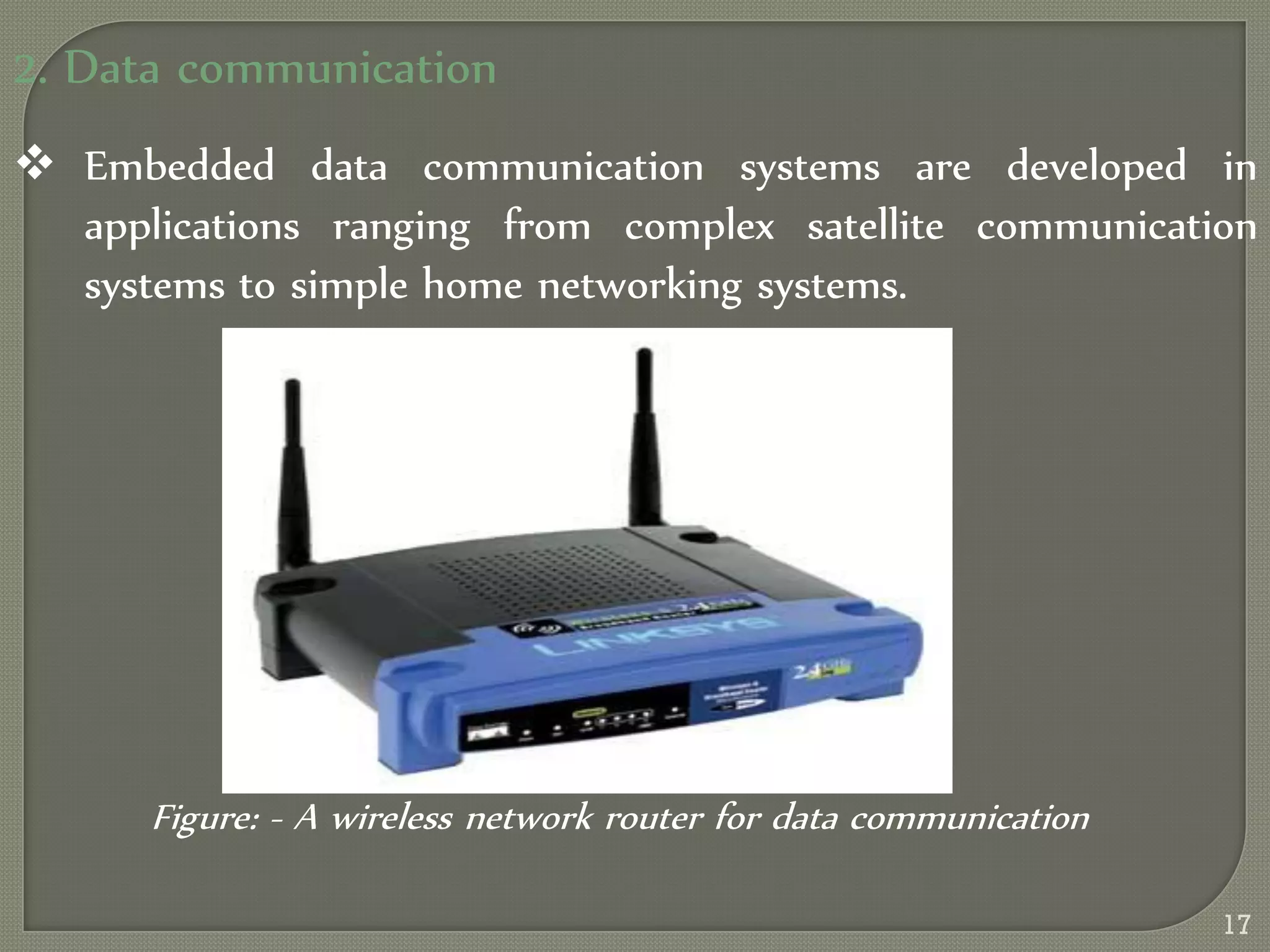

Figure: - A wireless network router for data communication
17

3. Data (Signal) Processing
 The data collected by embedded system may be used for
various kinds of signal processing.

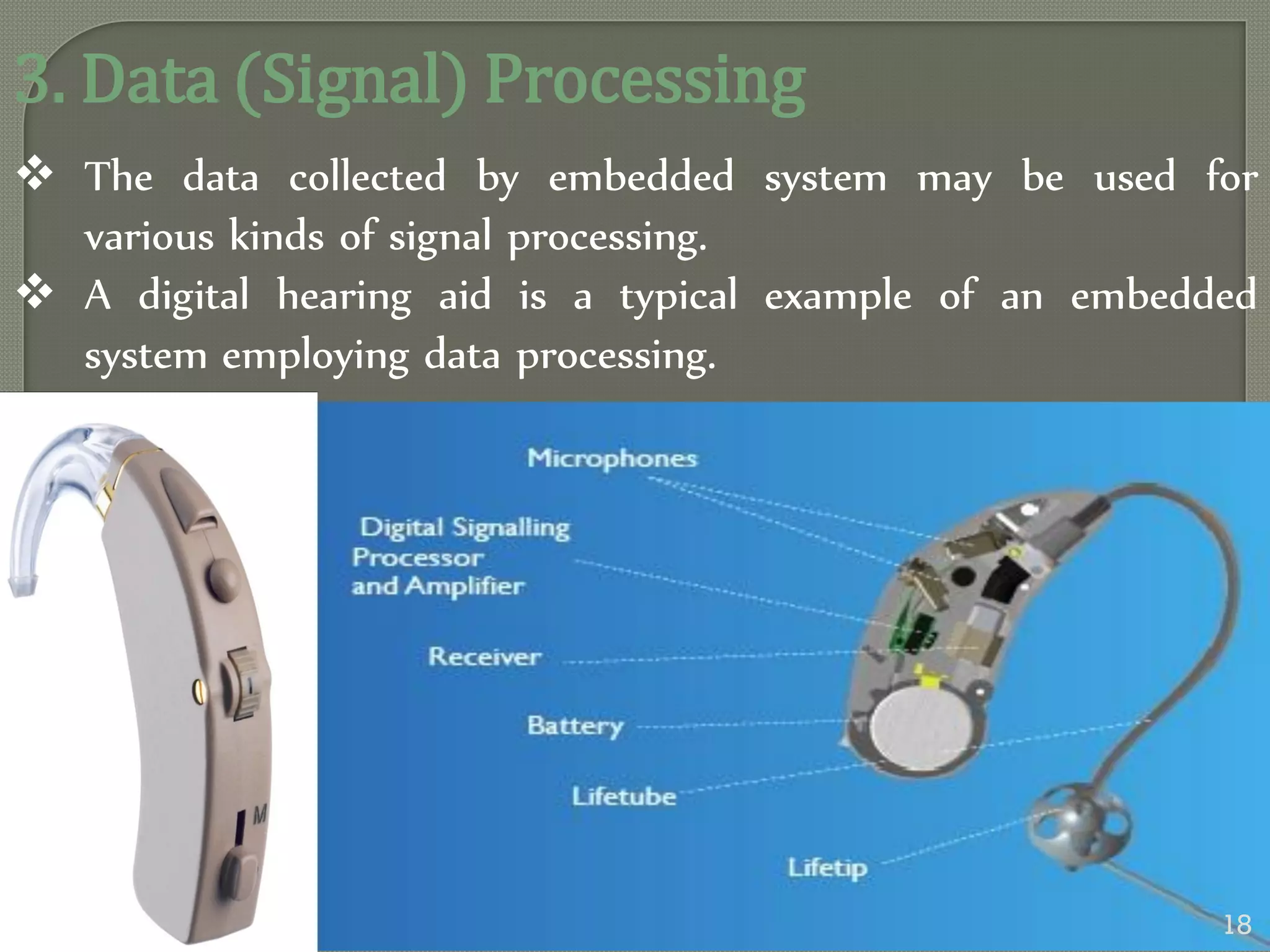

 A digital hearing aid is a typical example of an embedded
system employing data processing.
18

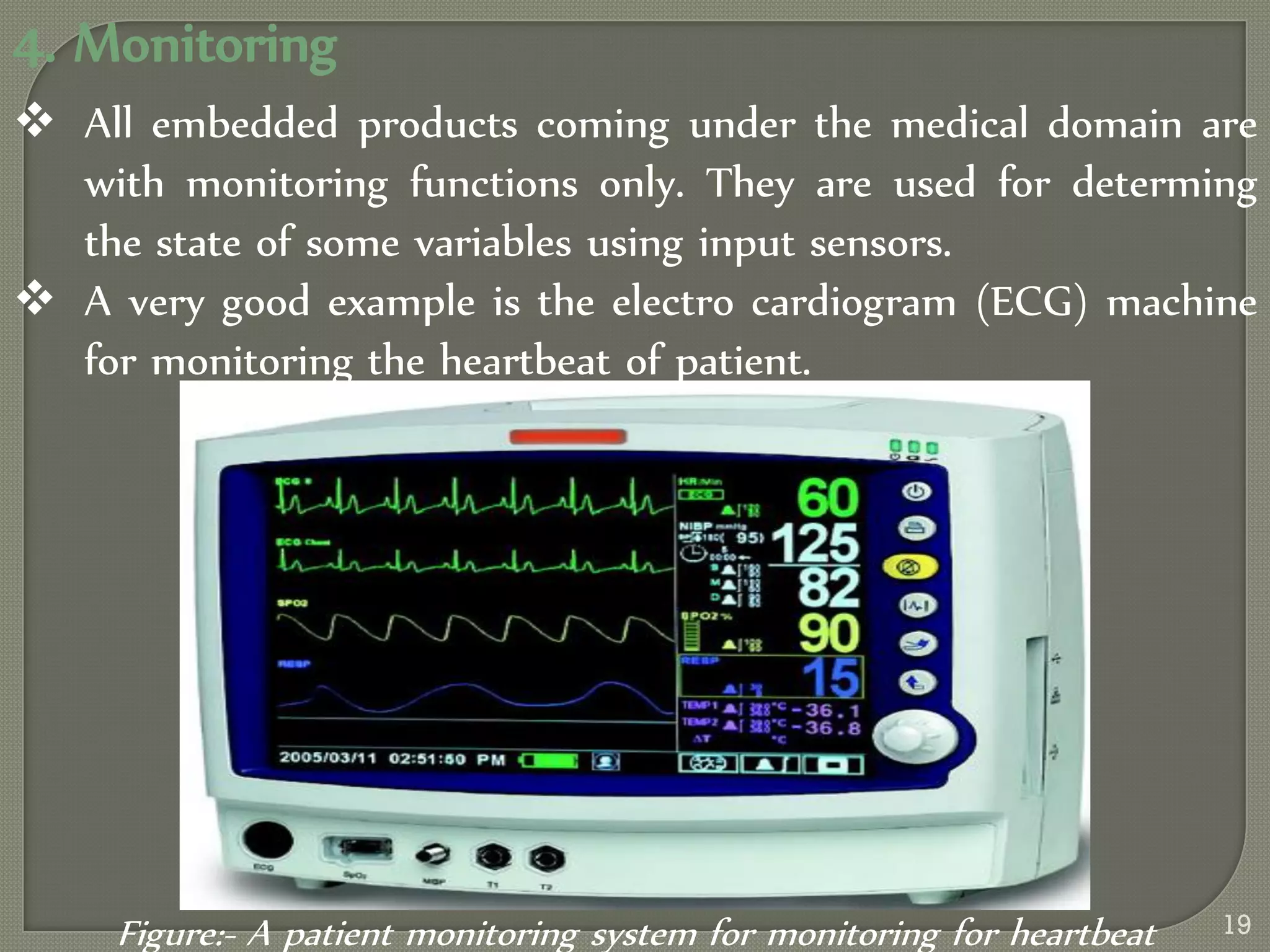

4. Monitoring
 All embedded products coming under the medical domain are
with monitoring functions only. They are used for determing
the state of some variables using input sensors.
 A very good example is the electro cardiogram (ECG) machine
for monitoring the heartbeat of patient.
Figure:- A patient monitoring system for monitoring for heartbeat 19

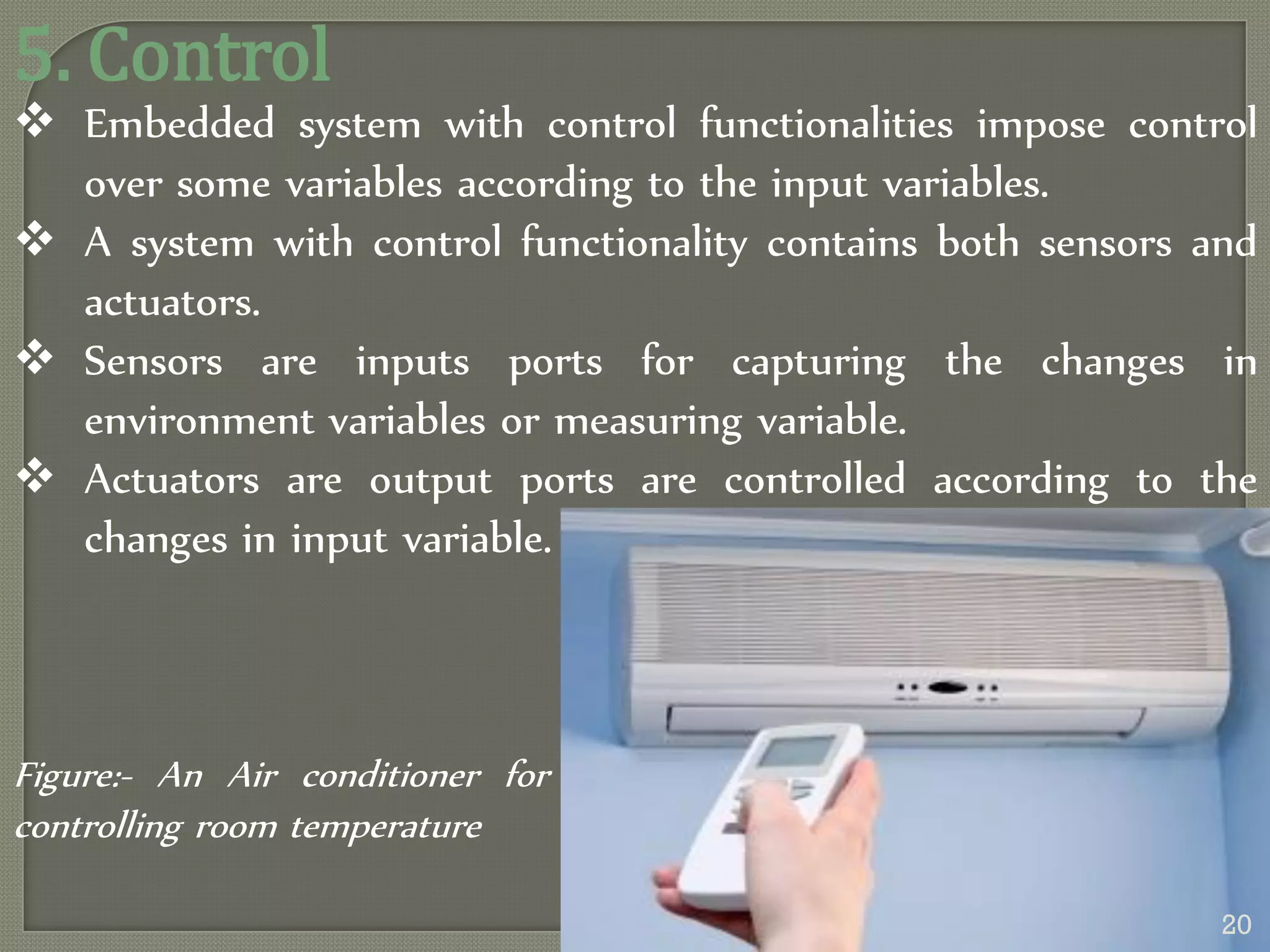

5. Control
 Embedded system with control functionalities impose control
over some variables according to the input variables.
 A system with control functionality contains both sensors and
actuators.
 Sensors are inputs ports for capturing the changes in
environment variables or measuring variable.
 Actuators are output ports are controlled according to the
changes in input variable.
Figure:- An Air conditioner for
controlling room temperature
20

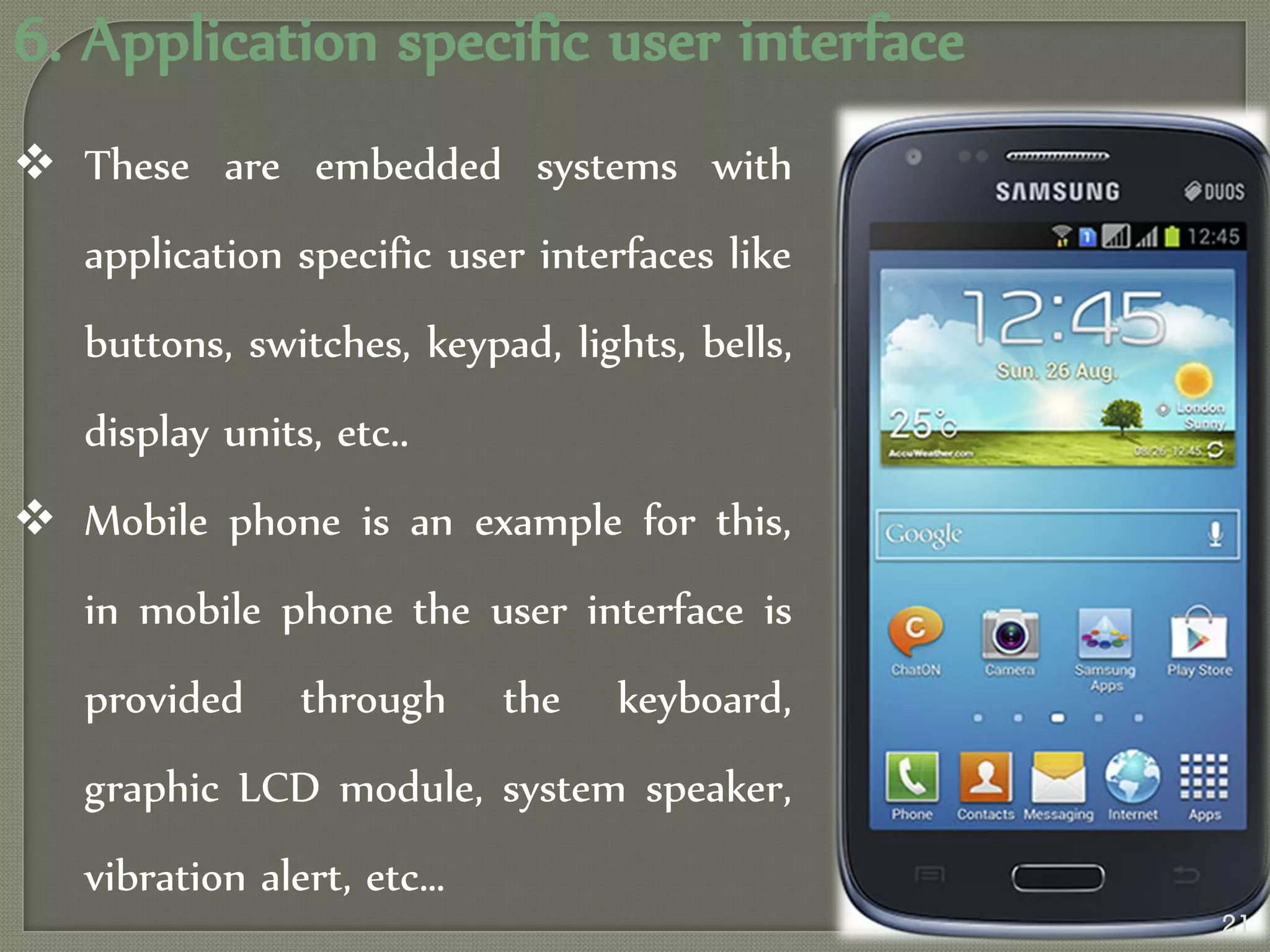

6. Application specific user interface
 These are embedded systems with
application specific user interfaces like
buttons, switches, keypad, lights, bells,
display units, etc..
 Mobile phone is an example for this,
in mobile phone the user interface is
provided through the keyboard,
graphic LCD module, system speaker,
vibration alert, etc…
21

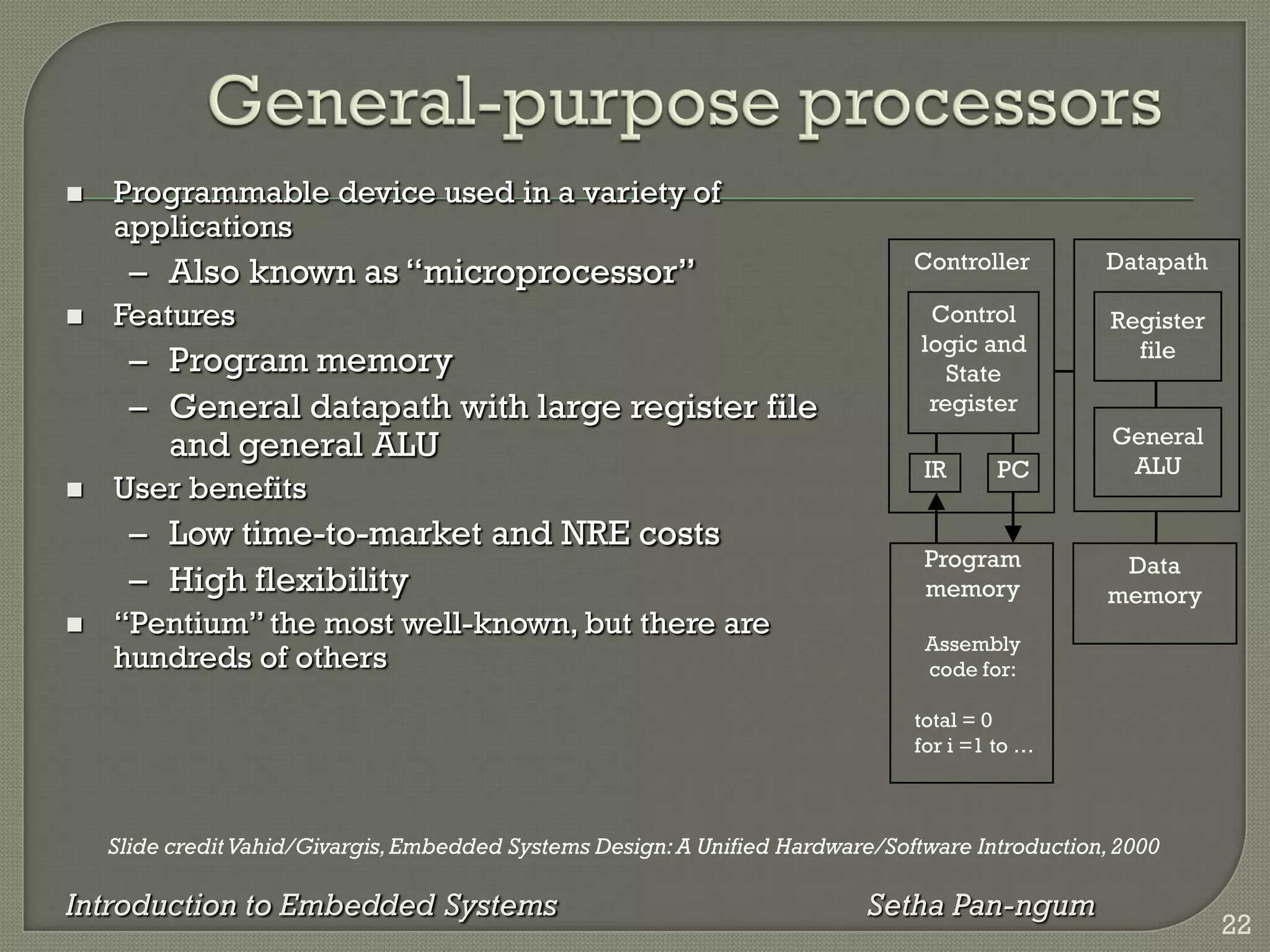

Slide credit Vahid/Givargis,Embedded Systems Design:A Unified Hardware/Software Introduction,2000
Introduction to Embedded Systems Setha Pan-ngum

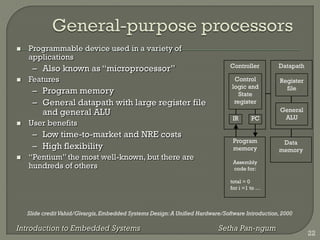

 Programmable device used in a variety of
applications
– Also known as ―microprocessor‖
 Features
– Program memory
– General datapath with large register file
and general ALU
 User benefits
– Low time-to-market and NRE costs
– High flexibility
 ―Pentium‖ the most well-known, but there are
hundreds of others
IR PC
Register
file
General
ALU
Datapath
Controller
Program
memory
Assembly
code for:
total = 0
for i =1 to …
Control
logic and
State
register
Data
memory
22

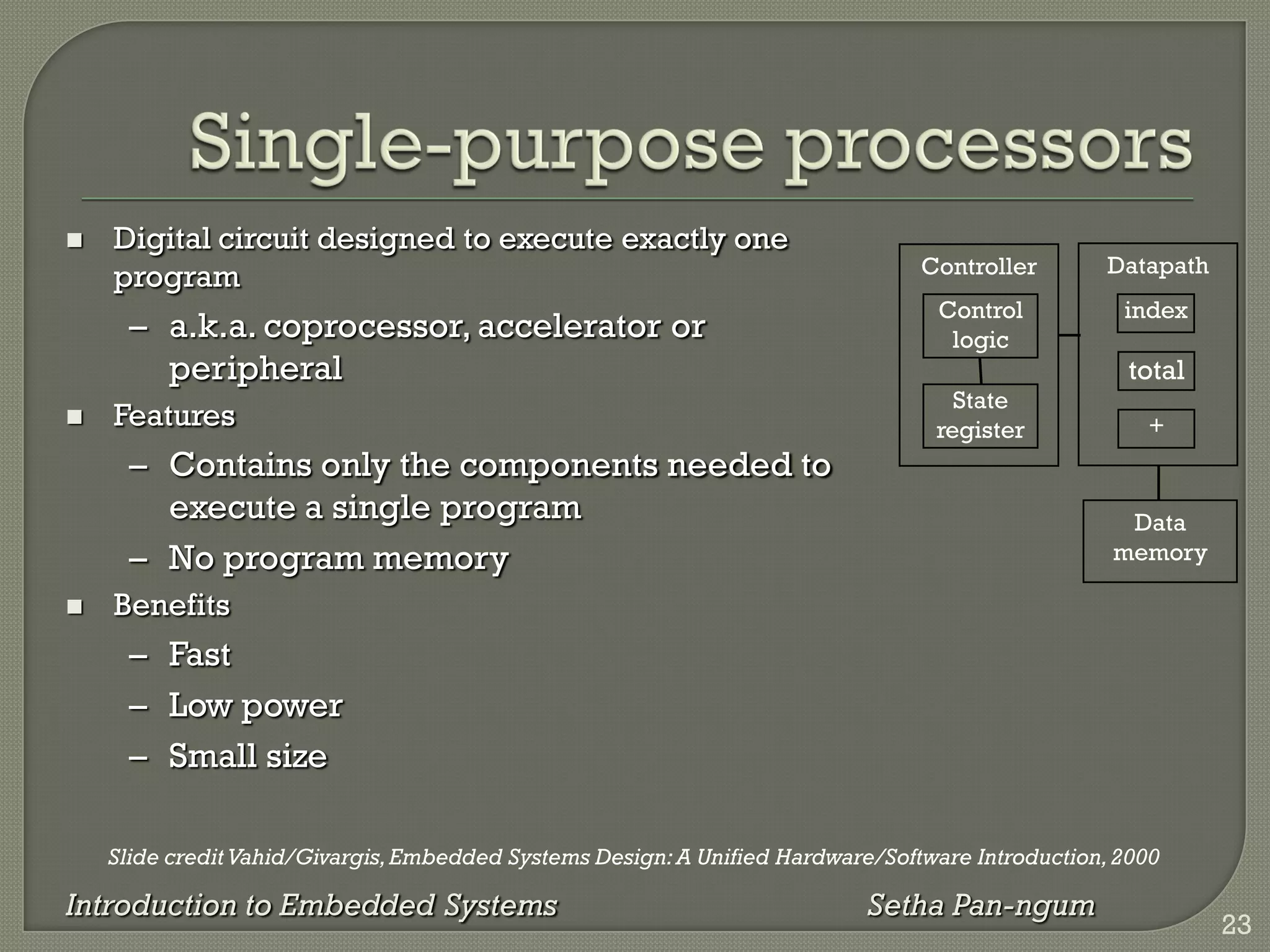

 Digital circuit designed to execute exactly one
program
– a.k.a. coprocessor, accelerator or
peripheral
 Features
– Contains only the components needed to
execute a single program
– No program memory
 Benefits
– Fast
– Low power
– Small size
Datapath
Controller
Control
logic
State
register
Data
memory
index
total
+
23

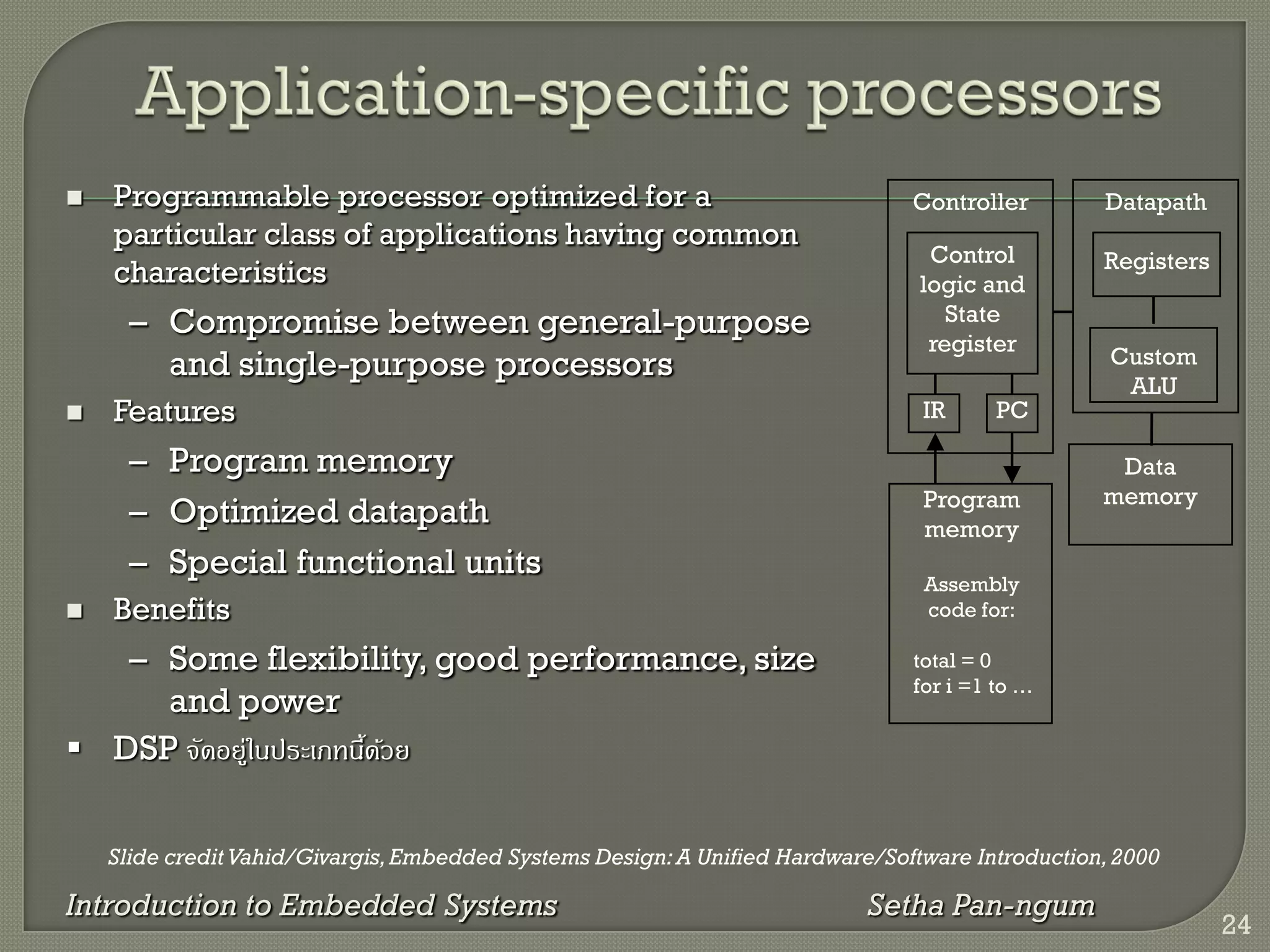

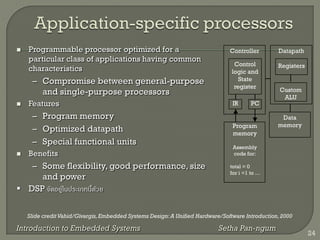

 Programmable processor optimized for a
particular class of applications having common
characteristics
– Compromise between general-purpose
and single-purpose processors
 Features
– Program memory
– Optimized datapath
– Special functional units
 Benefits
– Some flexibility, good performance, size
and power
 DSP จัดอยู่ในประเภทนี้ด้วย
IR PC
Registers
Custom
ALU
Datapath
Controller
Program
memory
Assembly
code for:
total = 0
for i =1 to …
Control
logic and
State
register
Data
memory
24

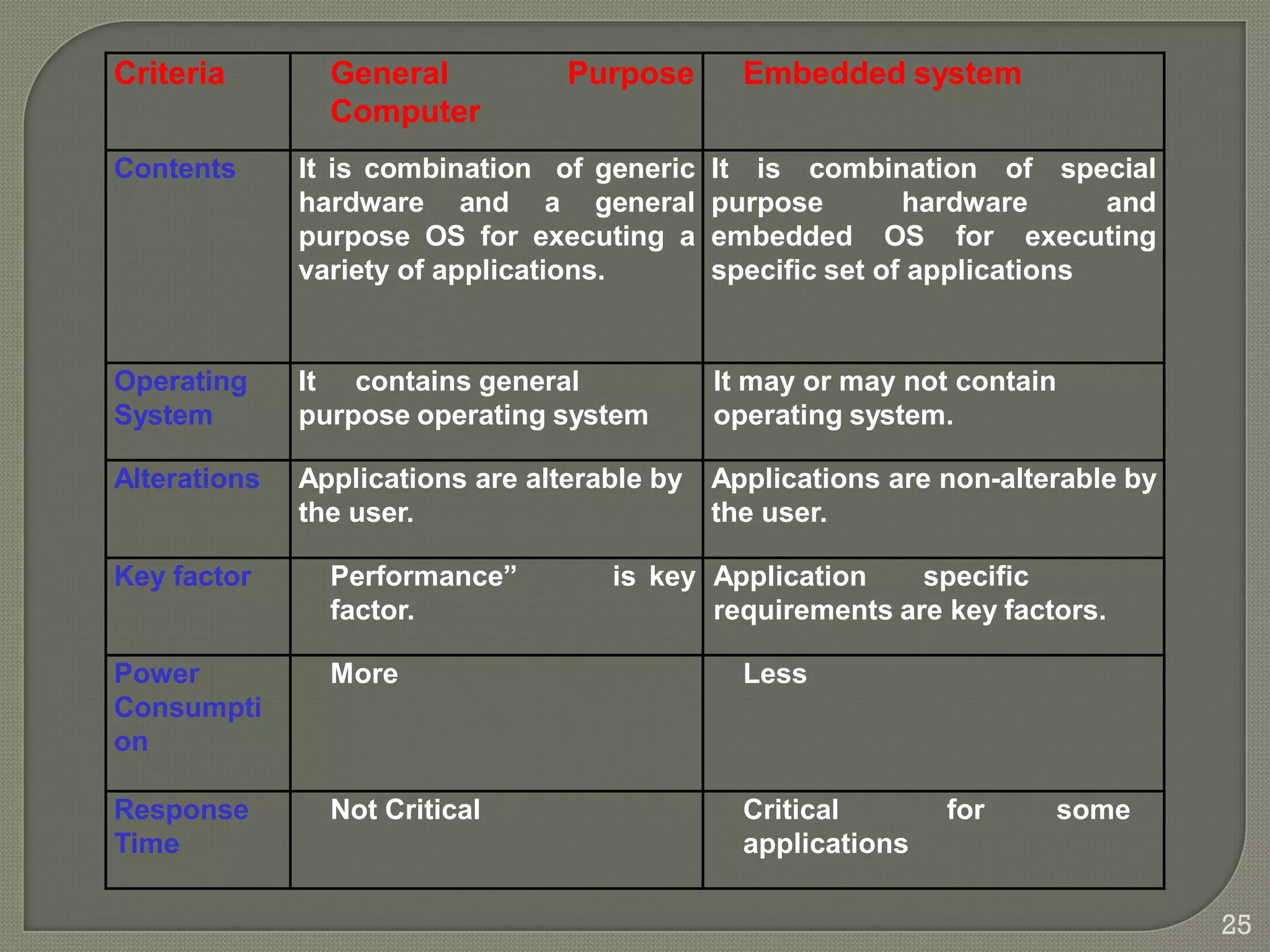

Criteria General
Computer
Purpose Embedded system
Contents It is combination of generic
hardware and a general
purpose OS for executing a
variety of applications.
It is combination of special
purpose hardware and
embedded OS for executing
specific set of applications
Operating
System
It contains general
purpose operating system
It may or may not contain
operating system.
Alterations Applications are alterable by
the user.
Applications are non-alterable by
the user.
Key factor Performance”
factor.
is key Application specific
requirements are key factors.
Power
Consumpti
on
More Less
Response
Time
Not Critical Critical
applications
for some
25

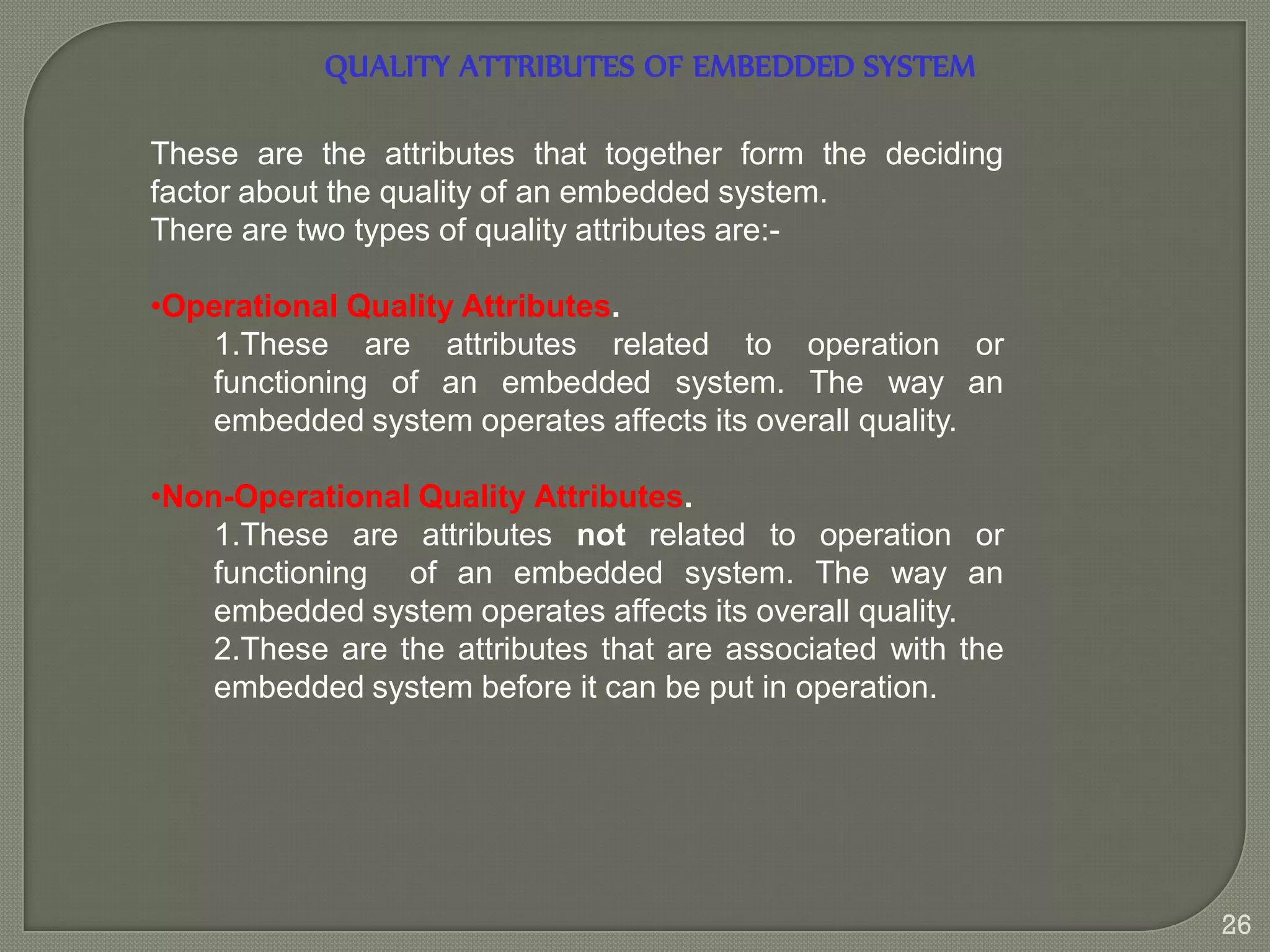

QUALITY ATTRIBUTES OF EMBEDDED SYSTEM
These are the attributes that together form the deciding
factor about the quality of an embedded system.
There are two types of quality attributes are:-
•Operational Quality Attributes.
1.These are attributes related to operation or
functioning of an embedded system. The way an
embedded system operates affects its overall quality.
•Non-Operational Quality Attributes.
1.These are attributes not related to operation or
functioning of an embedded system. The way an
embedded system operates affects its overall quality.
2.These are the attributes that are associated with the
embedded system before it can be put in operation.
26

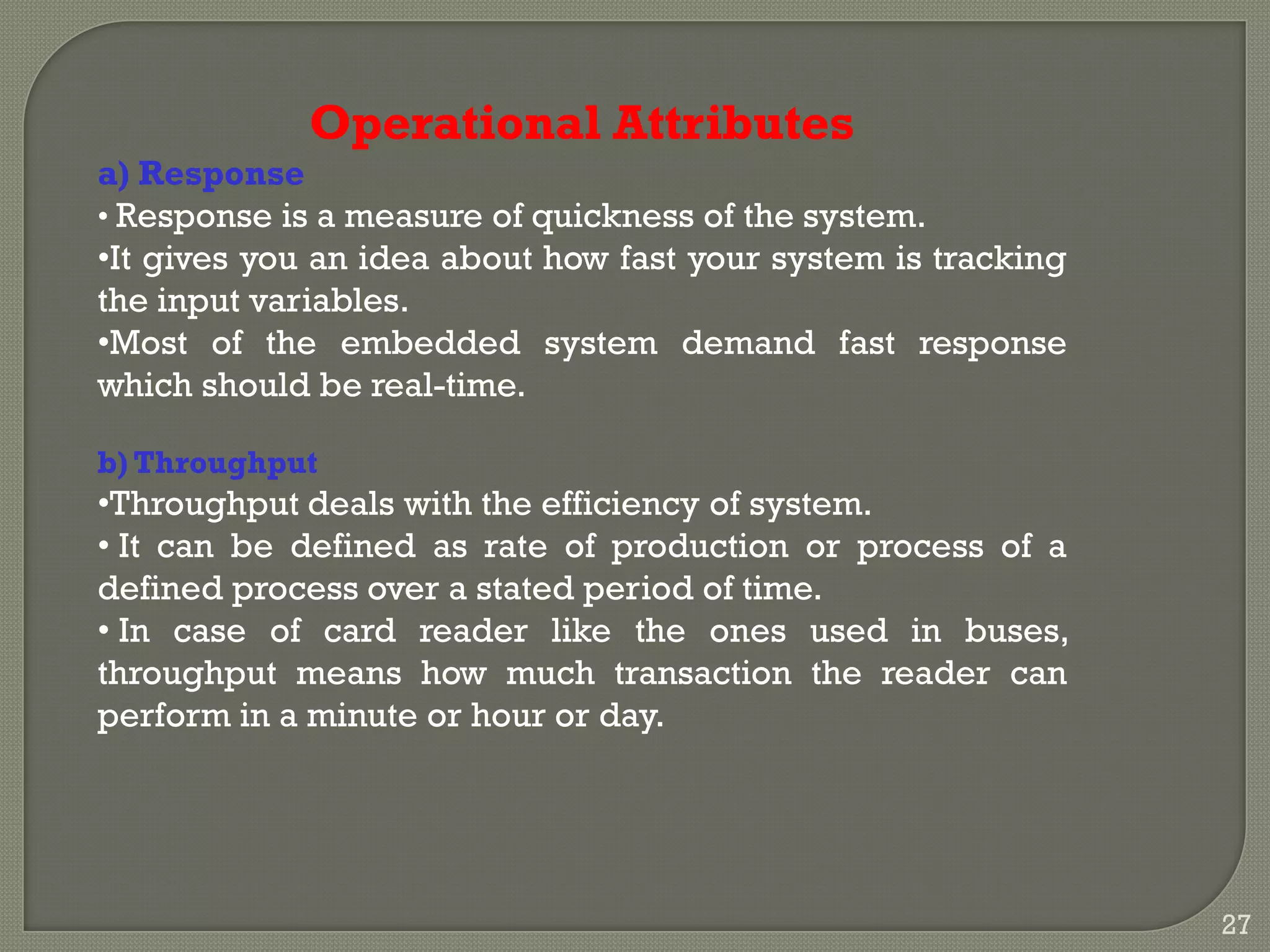

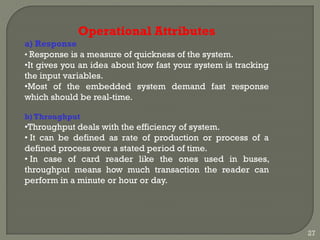

Operational Attributes
a) Response
• Response is a measure of quickness of the system.
•It gives you an idea about how fast your system is tracking
the input variables.
•Most of the embedded system demand fast response
which should be real-time.
b) Throughput
•Throughput deals with the efficiency of system.
• It can be defined as rate of production or process of a
defined process over a stated period of time.
• In case of card reader like the ones used in buses,
throughput means how much transaction the reader can
perform in a minute or hour or day.
27

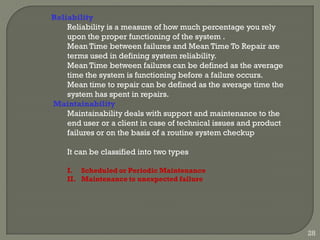

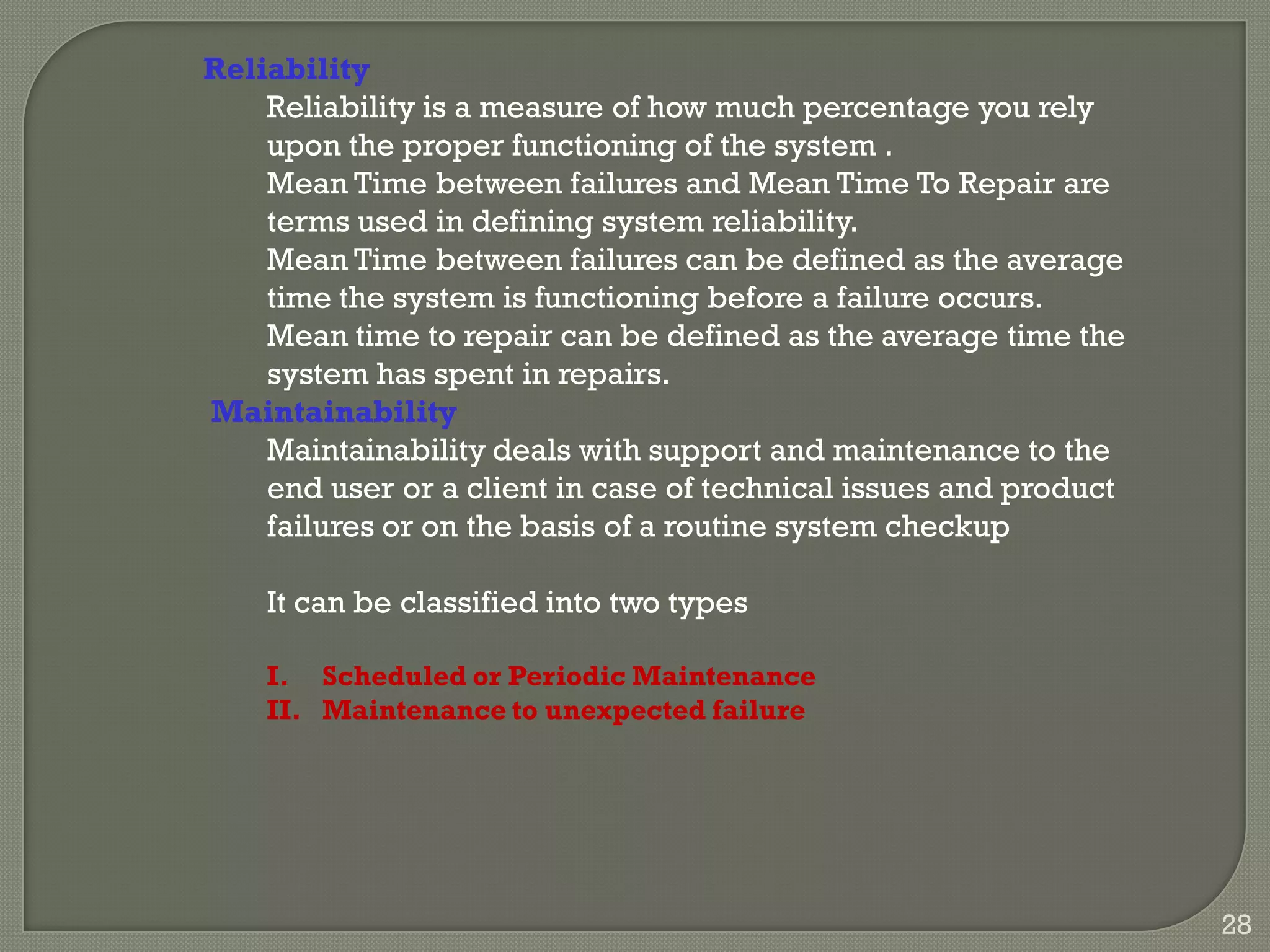

Reliability
Reliability is a measure of how much percentage you rely
upon the proper functioning of the system .
Mean Time between failures and Mean Time To Repair are
terms used in defining system reliability.
Mean Time between failures can be defined as the average
time the system is functioning before a failure occurs.
Mean time to repair can be defined as the average time the
system has spent in repairs.
Maintainability
Maintainability deals with support and maintenance to the
end user or a client in case of technical issues and product
failures or on the basis of a routine system checkup
It can be classified into two types
I. Scheduled or Periodic Maintenance
II. Maintenance to unexpected failure
28

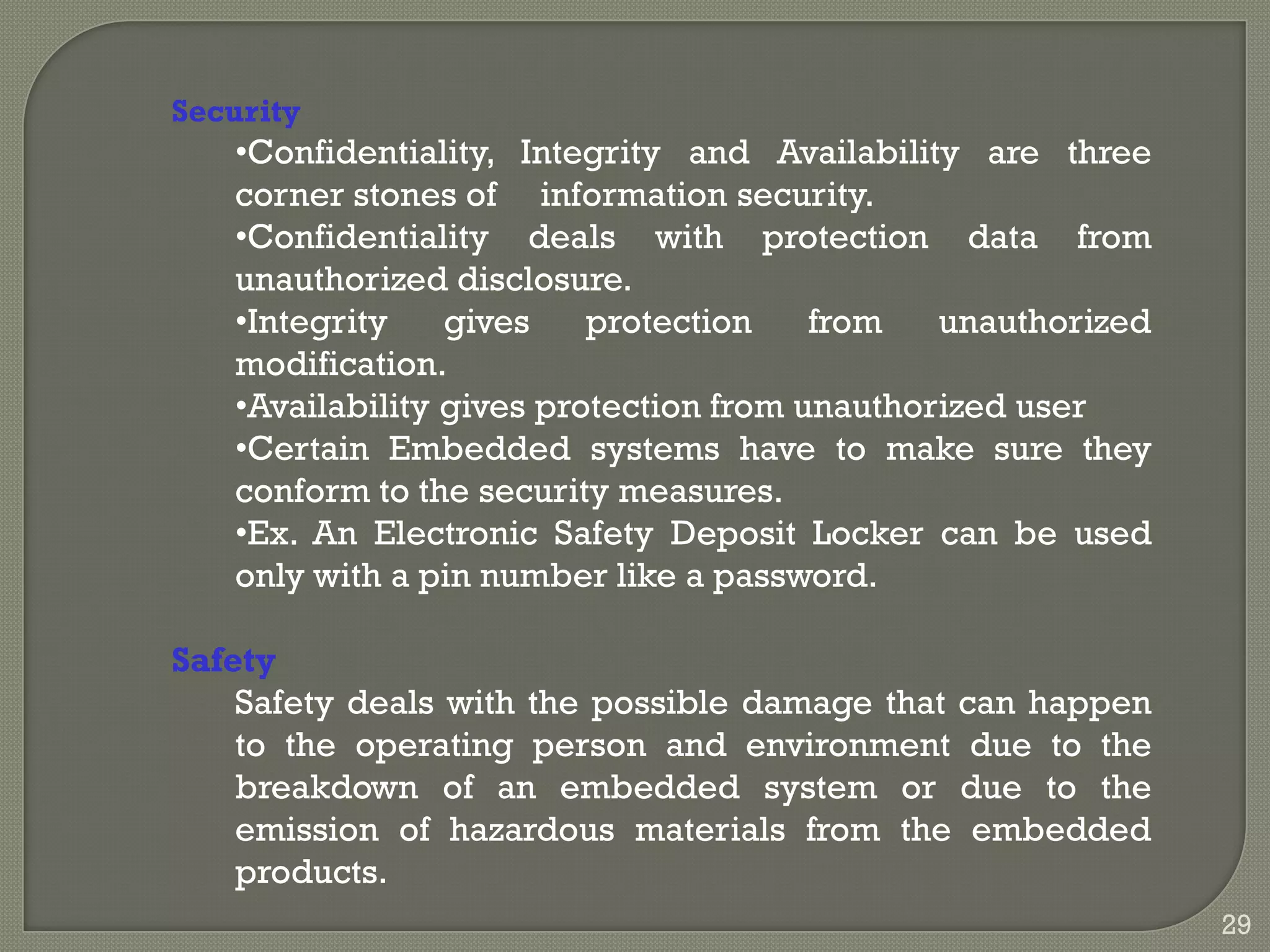

Security
•Confidentiality, Integrity and Availability are three
corner stones of information security.
•Confidentiality deals with protection data from
unauthorized disclosure.
•Integrity gives protection from unauthorized
modification.
•Availability gives protection from unauthorized user
•Certain Embedded systems have to make sure they
conform to the security measures.
•Ex. An Electronic Safety Deposit Locker can be used
only with a pin number like a password.
Safety
Safety deals with the possible damage that can happen
to the operating person and environment due to the
breakdown of an embedded system or due to the
emission of hazardous materials from the embedded
products.
29

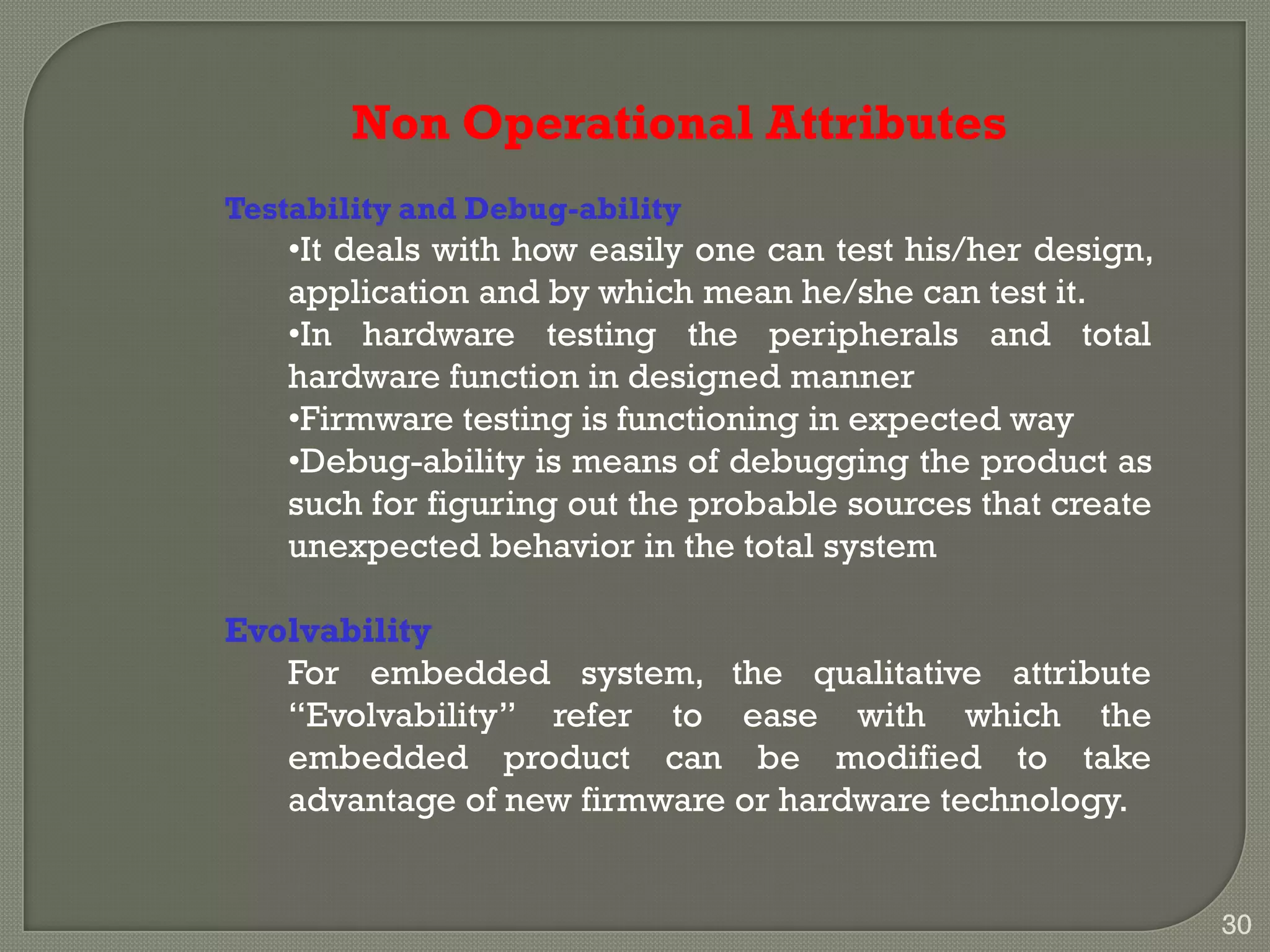

Non Operational Attributes
Testability and Debug-ability
•It deals with how easily one can test his/her design,
application and by which mean he/she can test it.
•In hardware testing the peripherals and total
hardware function in designed manner
•Firmware testing is functioning in expected way
•Debug-ability is means of debugging the product as
such for figuring out the probable sources that create
unexpected behavior in the total system
Evolvability
For embedded system, the qualitative attribute
―Evolvability‖ refer to ease with which the
embedded product can be modified to take
advantage of new firmware or hardware technology.
30

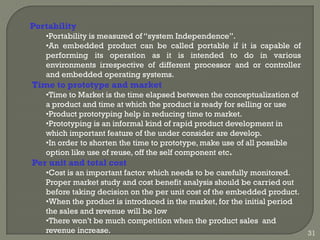

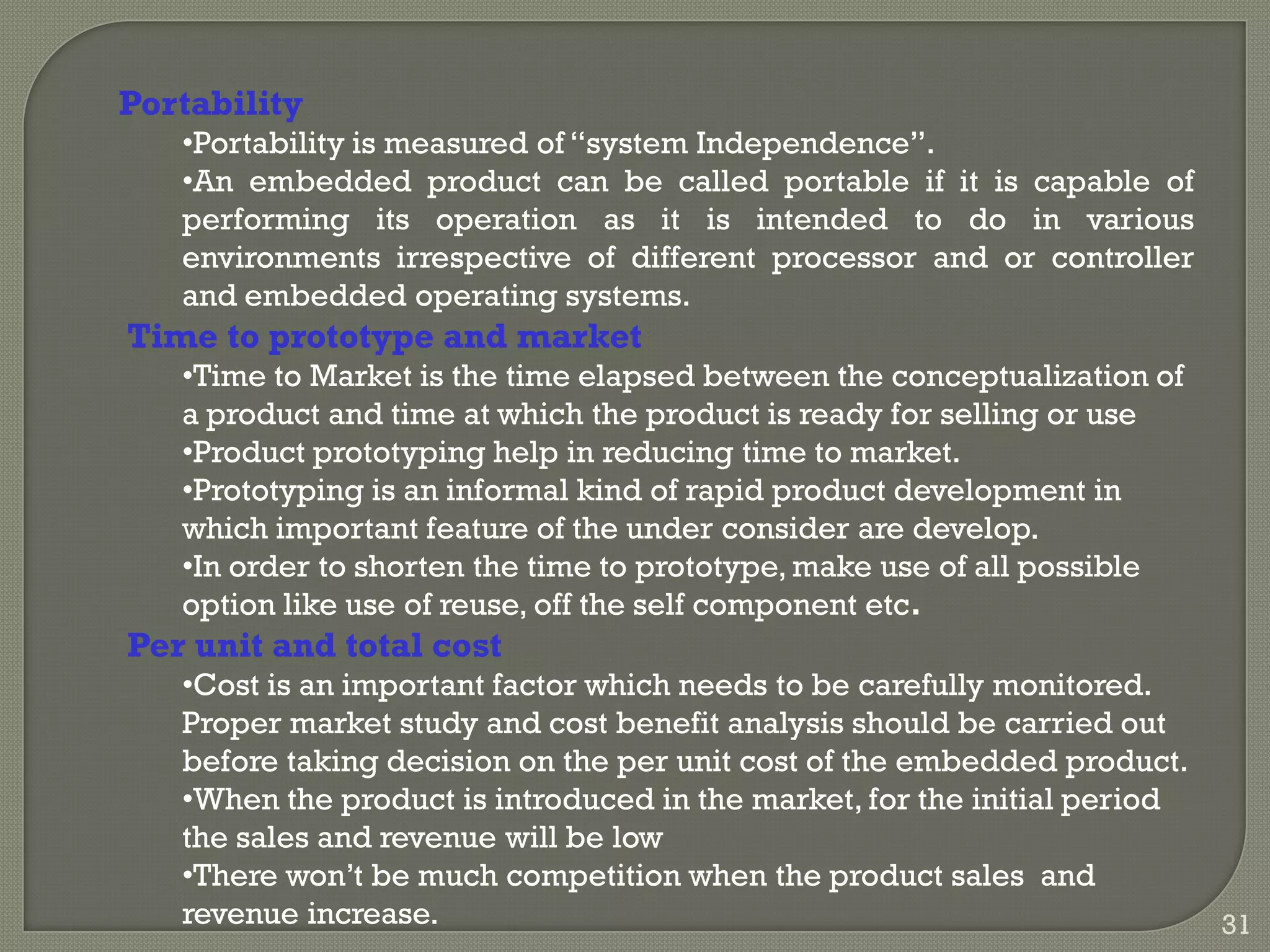

Portability
•Portability is measured of ―system Independence‖.
•An embedded product can be called portable if it is capable of
performing its operation as it is intended to do in various
environments irrespective of different processor and or controller
and embedded operating systems.
Time to prototype and market
•Time to Market is the time elapsed between the conceptualization of
a product and time at which the product is ready for selling or use
•Product prototyping help in reducing time to market.
•Prototyping is an informal kind of rapid product development in
which important feature of the under consider are develop.
•In order to shorten the time to prototype, make use of all possible
option like use of reuse, off the self component etc.
Per unit and total cost
•Cost is an important factor which needs to be carefully monitored.
Proper market study and cost benefit analysis should be carried out
before taking decision on the per unit cost of the embedded product.
•When the product is introduced in the market, for the initial period
the sales and revenue will be low
•There won’t be much competition when the product sales and
revenue increase. 31

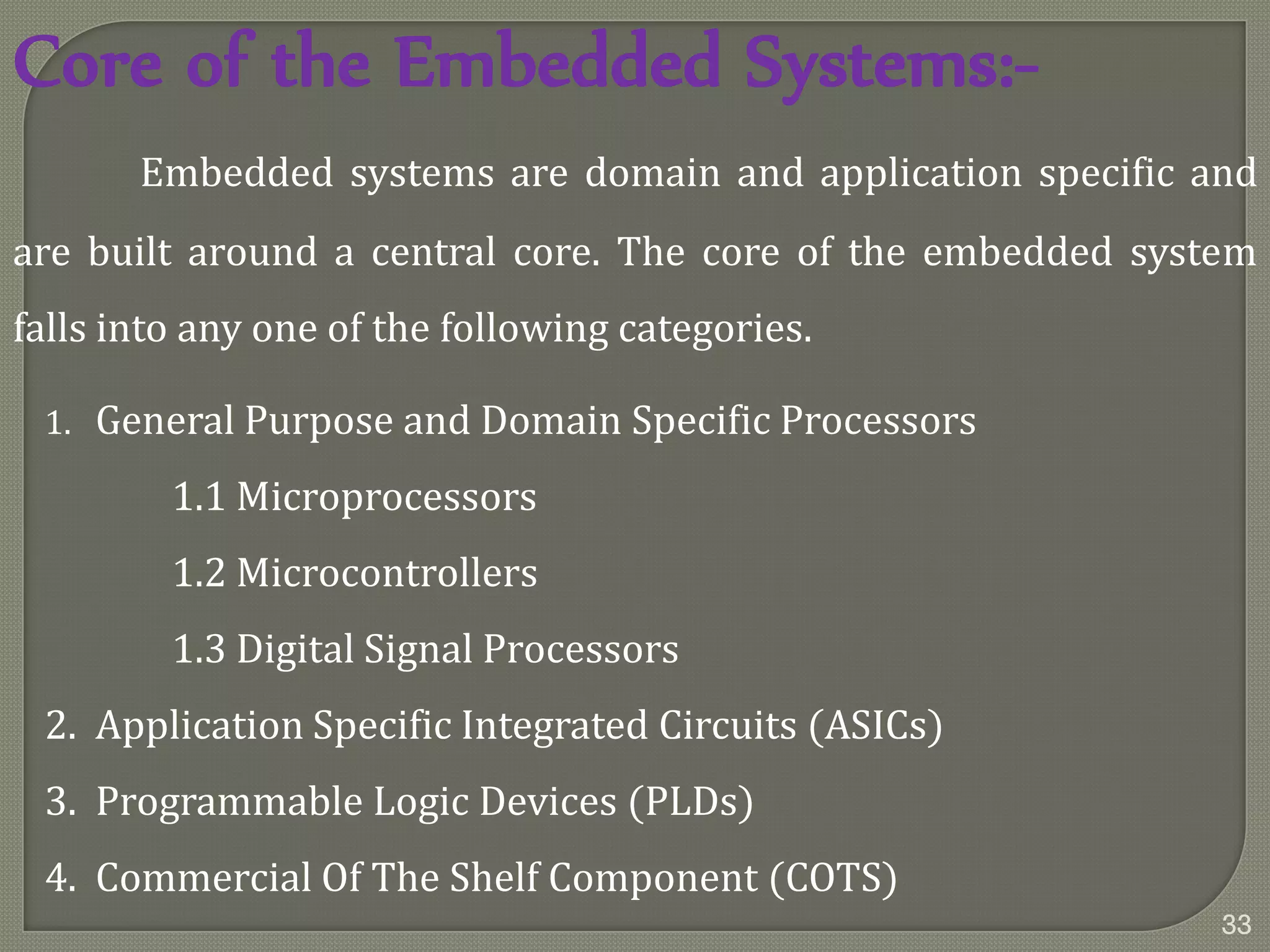

Core of the Embedded Systems:-
Embedded systems are domain and application specific and
are built around a central core. The core of the embedded system
falls into any one of the following categories.
1. General Purpose and Domain Specific Processors
1.1 Microprocessors
1.2 Microcontrollers
1.3 Digital Signal Processors
2. Application Specific Integrated Circuits (ASICs)
3. Programmable Logic Devices (PLDs)
4. Commercial Of The Shelf Component (COTS)
33

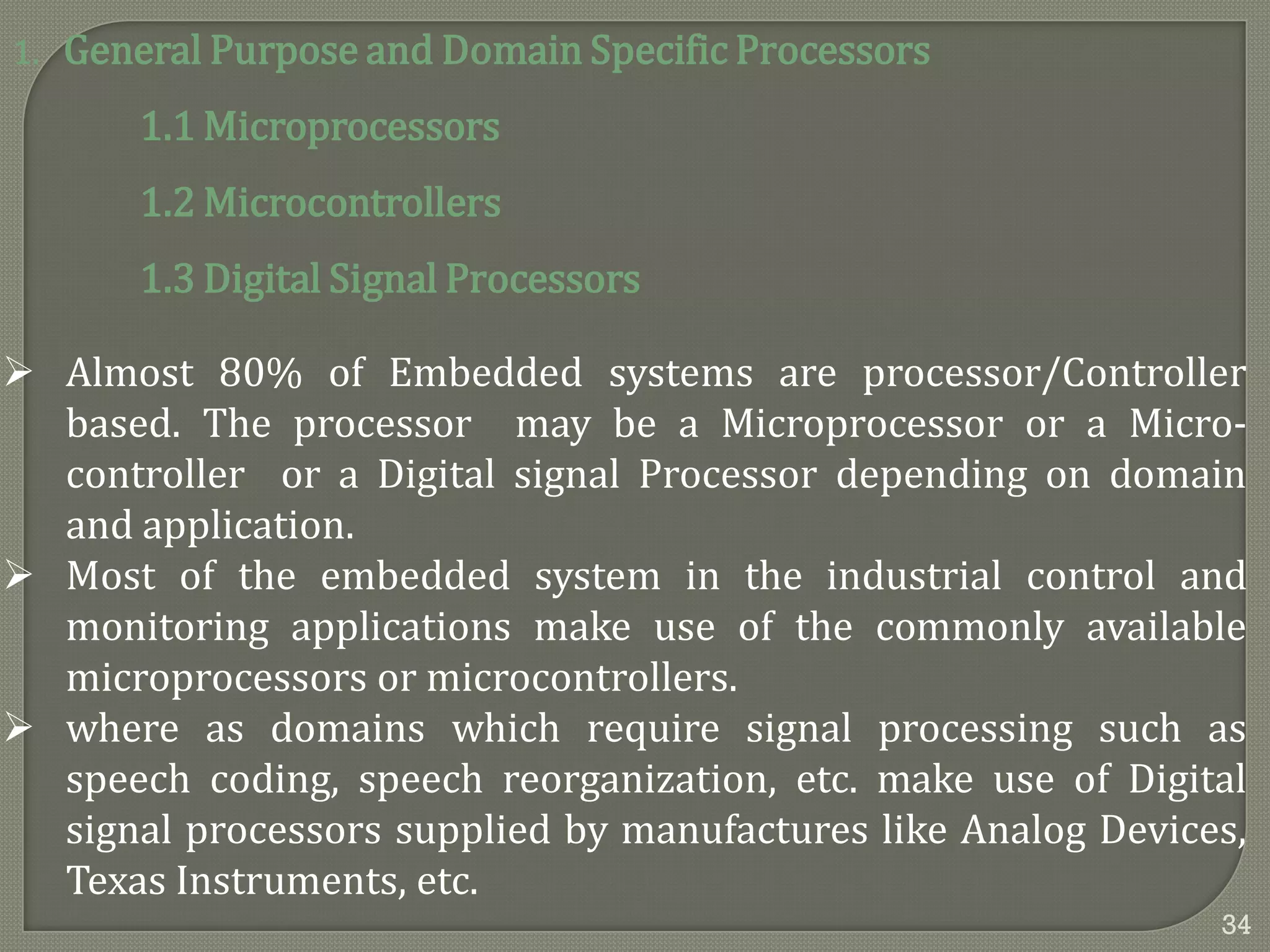

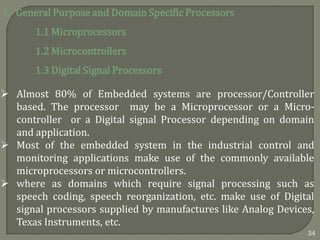

1. General Purpose and Domain Specific Processors
1.1 Microprocessors
1.2 Microcontrollers
1.3 Digital Signal Processors
 Almost 80% of Embedded systems are processor/Controller
based. The processor may be a Microprocessor or a Micro-
controller or a Digital signal Processor depending on domain
and application.
 Most of the embedded system in the industrial control and
monitoring applications make use of the commonly available
microprocessors or microcontrollers.
 where as domains which require signal processing such as
speech coding, speech reorganization, etc. make use of Digital
signal processors supplied by manufactures like Analog Devices,
Texas Instruments, etc.
34

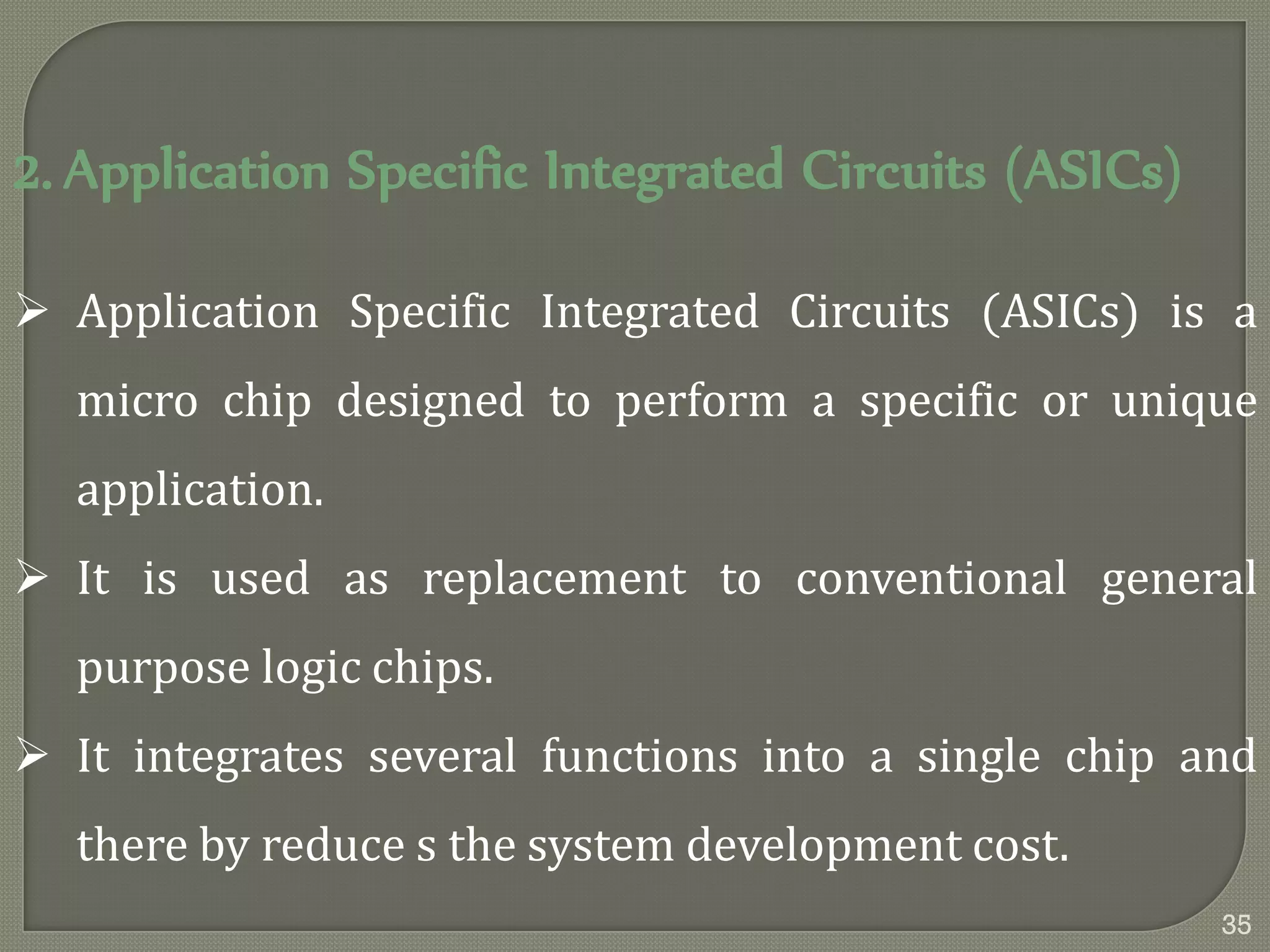

2. Application Specific Integrated Circuits (ASICs)
 Application Specific Integrated Circuits (ASICs) is a
micro chip designed to perform a specific or unique
application.
 It is used as replacement to conventional general
purpose logic chips.
 It integrates several functions into a single chip and
there by reduce s the system development cost.
35

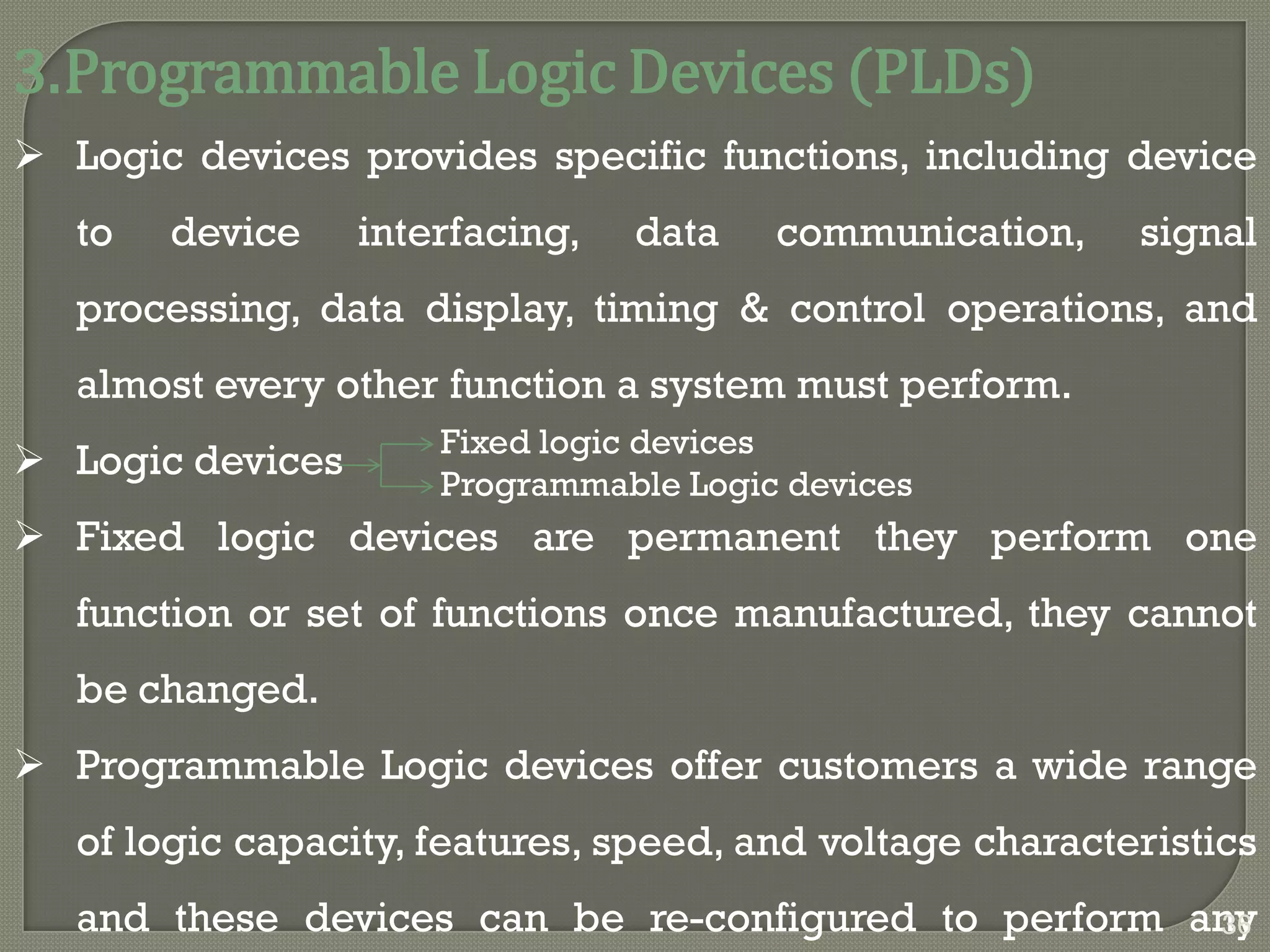

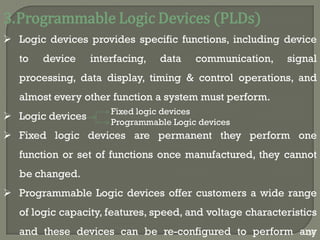

3.Programmable Logic Devices (PLDs)
 Logic devices provides specific functions, including device
to device interfacing, data communication, signal
processing, data display, timing & control operations, and
almost every other function a system must perform.
 Logic devices
 Fixed logic devices are permanent they perform one
function or set of functions once manufactured, they cannot
be changed.
 Programmable Logic devices offer customers a wide range
of logic capacity, features, speed, and voltage characteristics
and these devices can be re-configured to perform any
Fixed logic devices
Programmable Logic devices
36

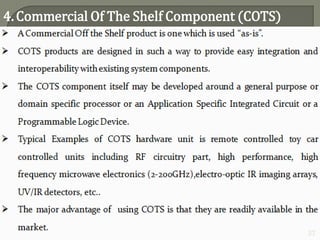

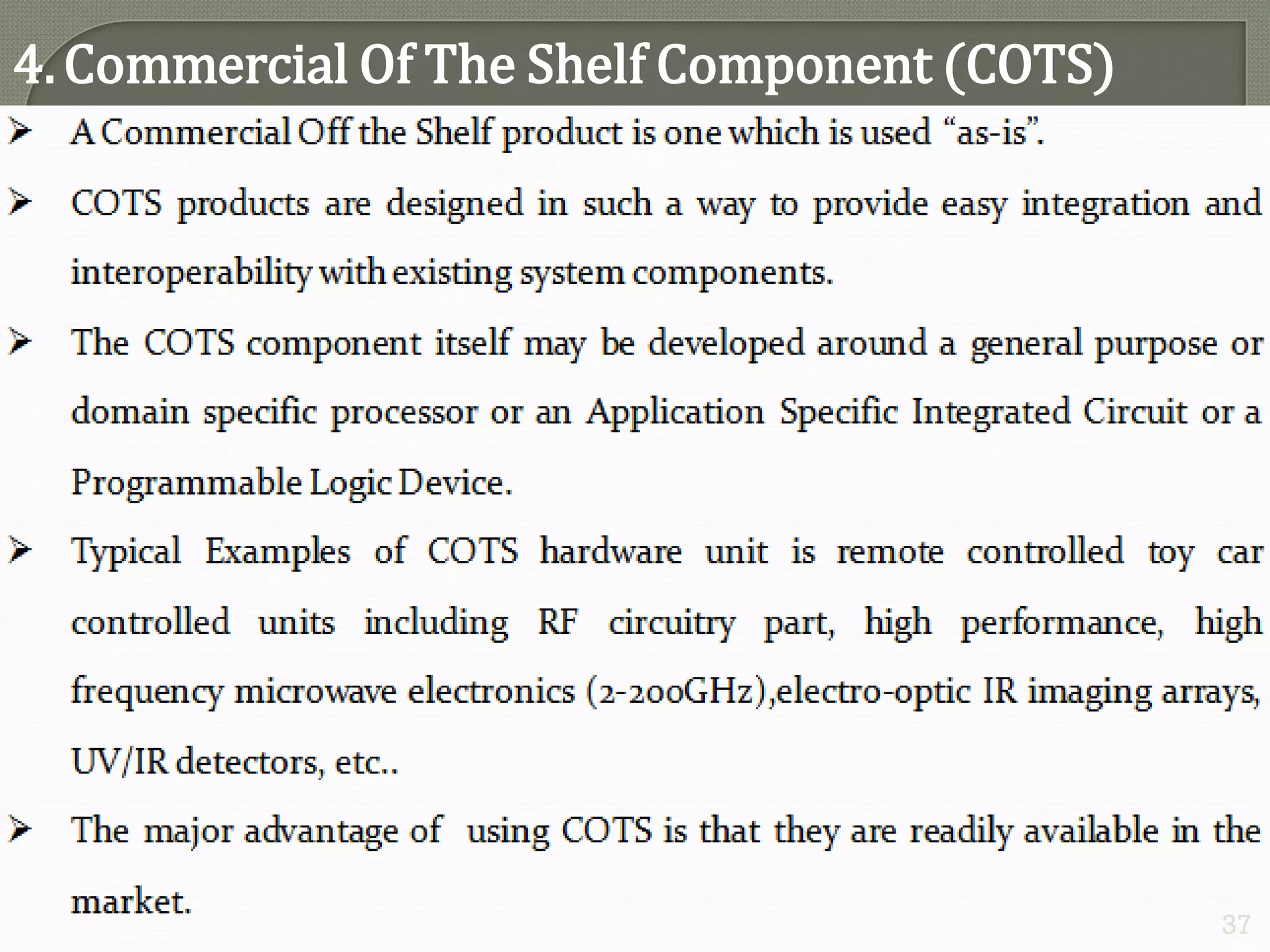

4.Commercial Of The Shelf Component (COTS)
37

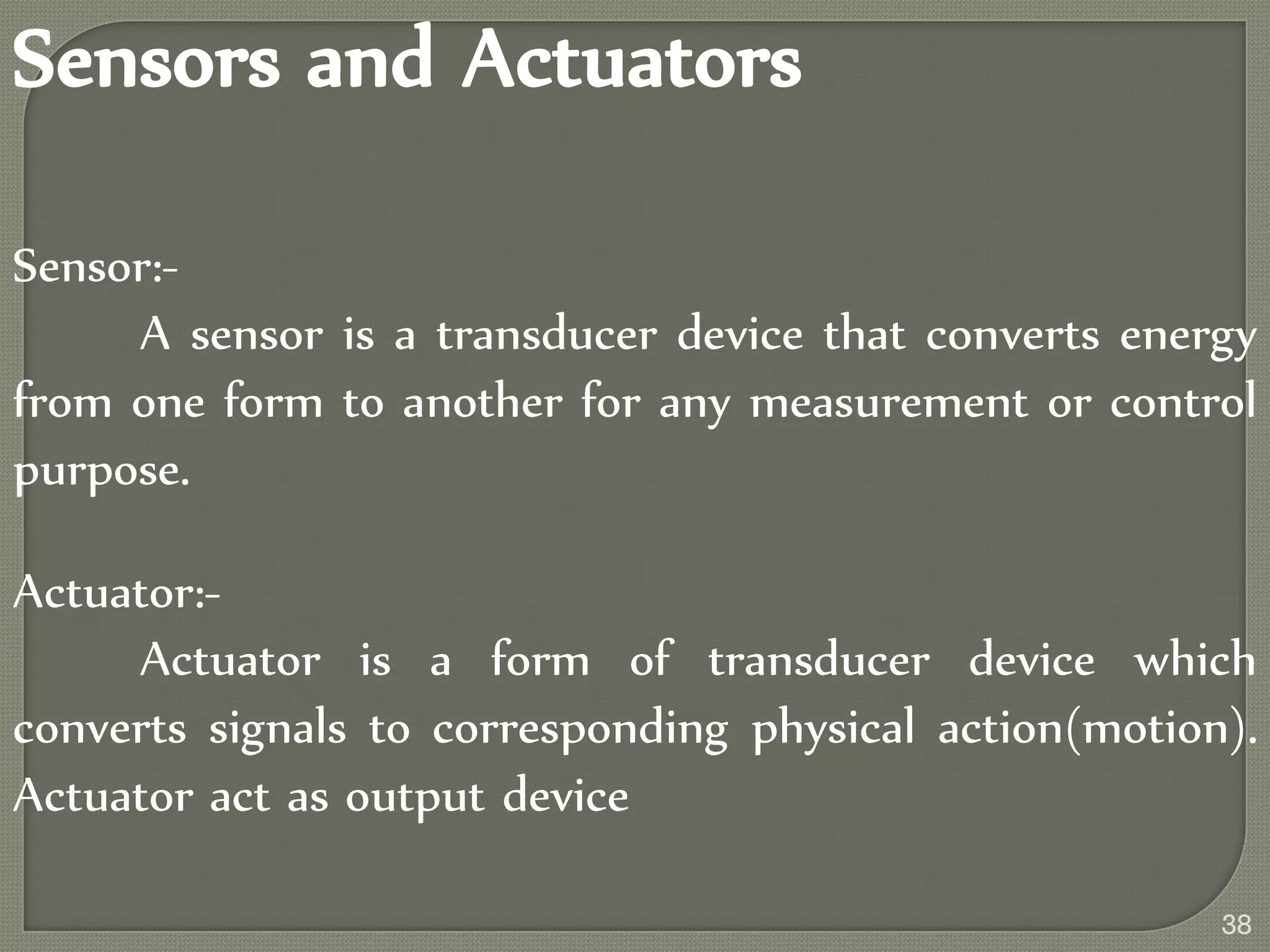

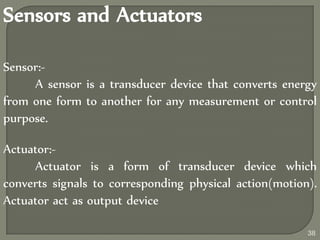

Sensors and Actuators
Sensor:-
A sensor is a transducer device that converts energy
from one form to another for any measurement or control
purpose.
Actuator:-
Actuator is a form of transducer device which
converts signals to corresponding physical action(motion).
Actuator act as output device
38

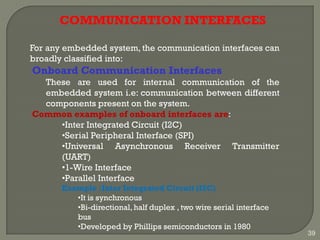

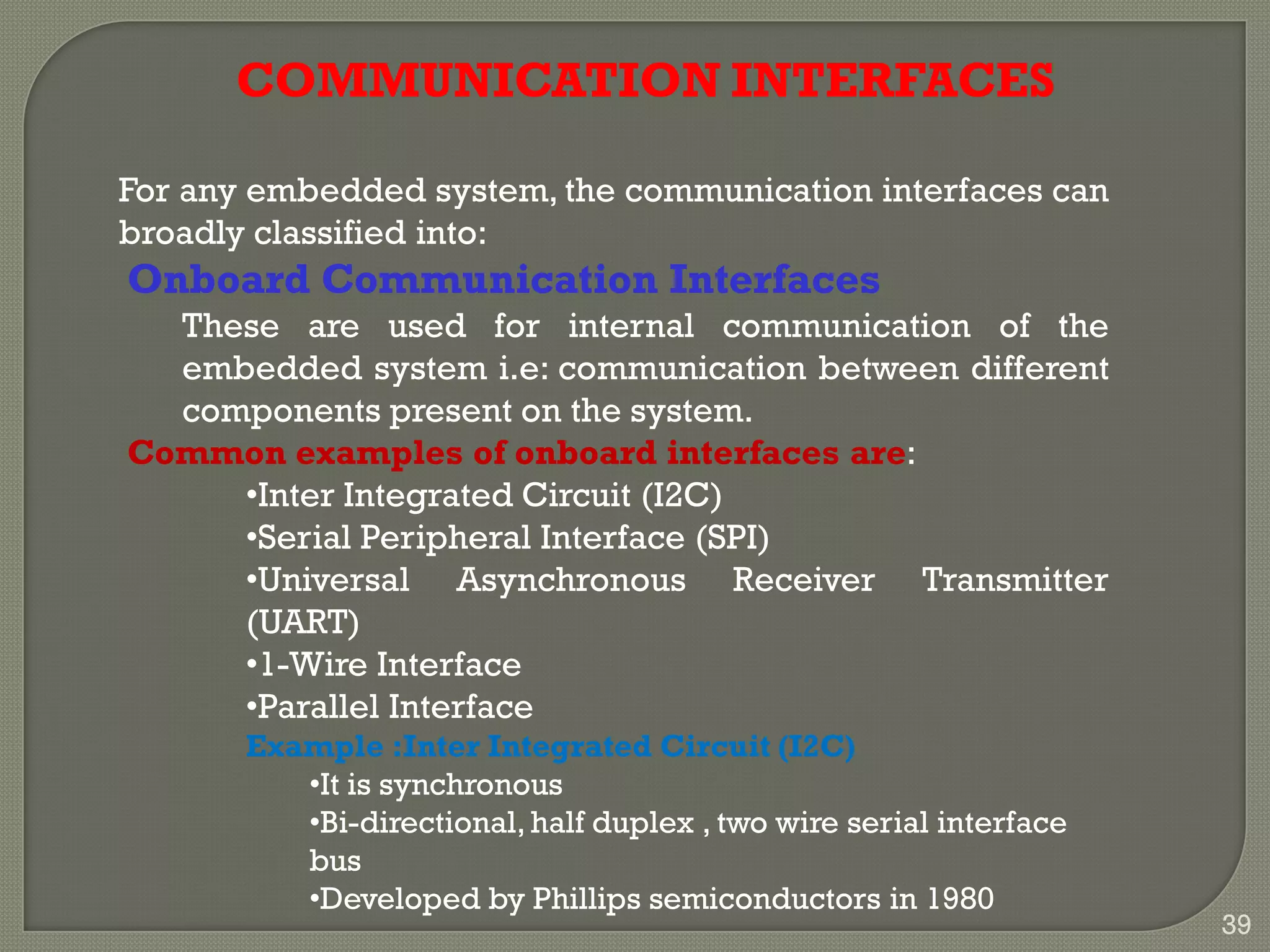

COMMUNICATION INTERFACES
For any embedded system, the communication interfaces can
broadly classified into:
Onboard Communication Interfaces
These are used for internal communication of the
embedded system i.e: communication between different
components present on the system.
Common examples of onboard interfaces are:
•Inter Integrated Circuit (I2C)
•Serial Peripheral Interface (SPI)
•Universal Asynchronous Receiver Transmitter
(UART)
•1-Wire Interface
•Parallel Interface
Example :Inter Integrated Circuit (I2C)
•It is synchronous
•Bi-directional,half duplex , two wire serial interface
bus
•Developed by Phillips semiconductors in 1980
39

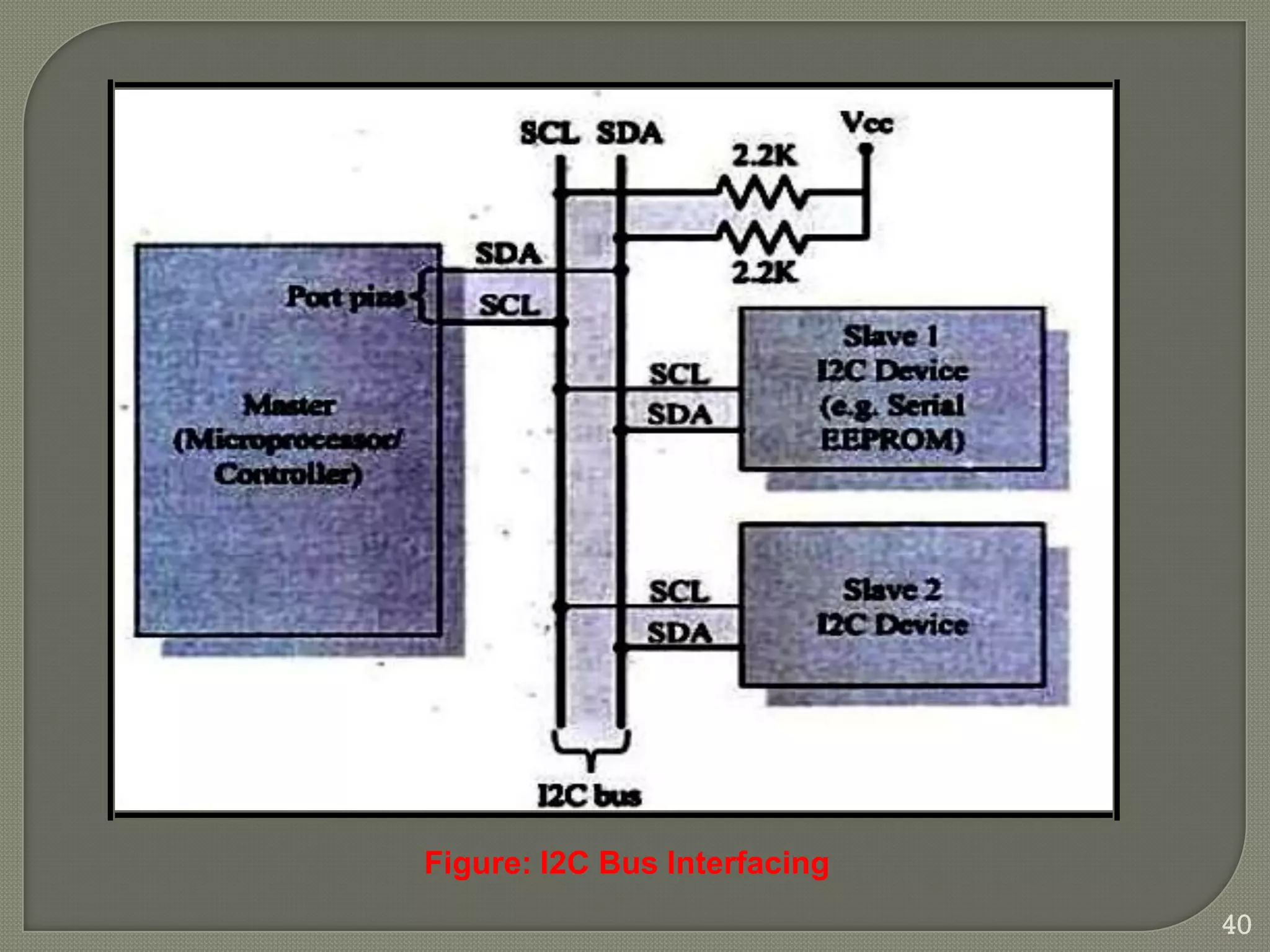

Figure: I2C Bus Interfacing
40

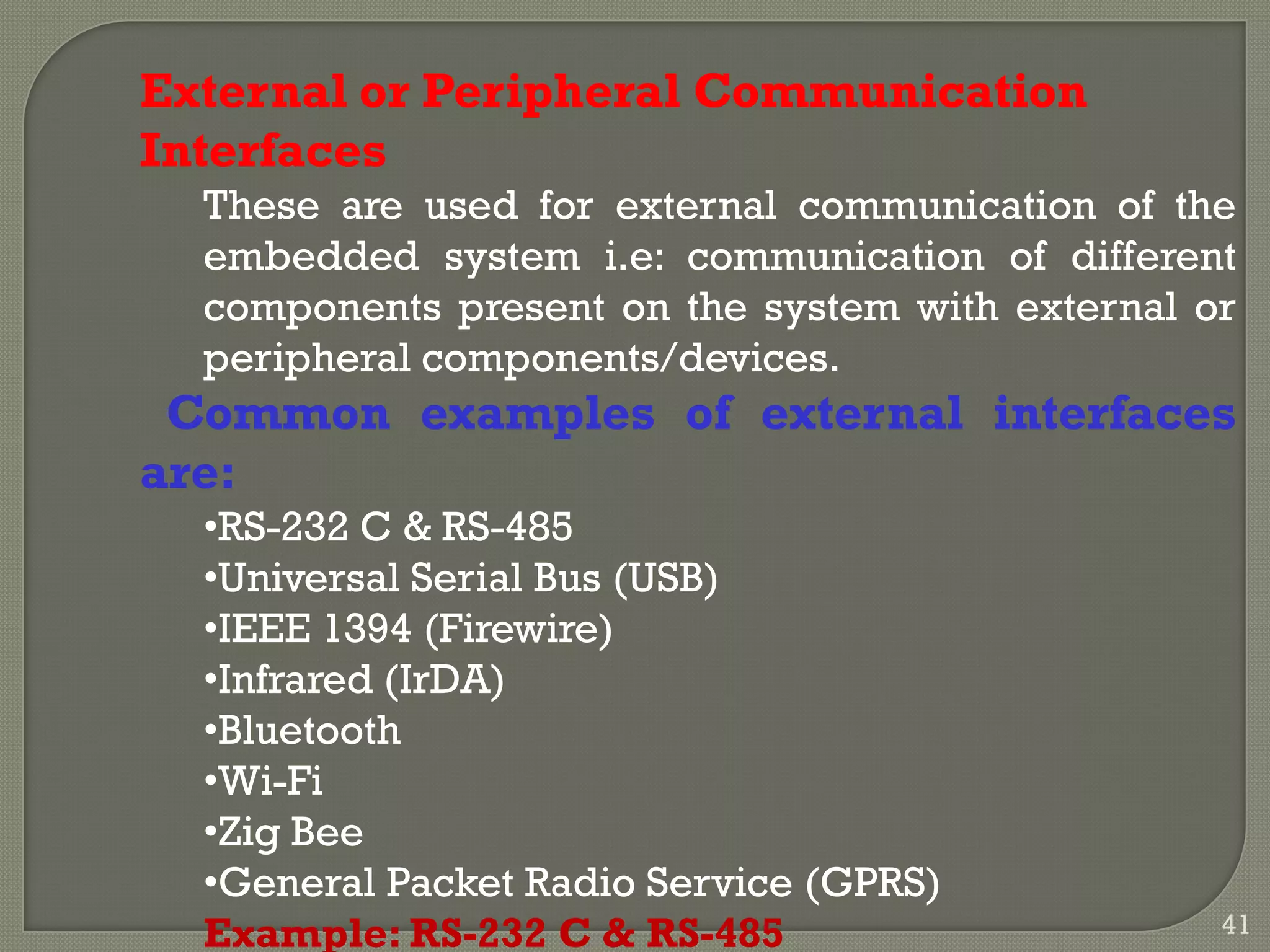

External or Peripheral Communication
Interfaces
These are used for external communication of the
embedded system i.e: communication of different
components present on the system with external or
peripheral components/devices.
Common examples of external interfaces
are:
•RS-232 C & RS-485
•Universal Serial Bus (USB)
•IEEE 1394 (Firewire)
•Infrared (IrDA)
•Bluetooth
•Wi-Fi
•Zig Bee
•General Packet Radio Service (GPRS)
Example: RS-232 C & RS-485 41

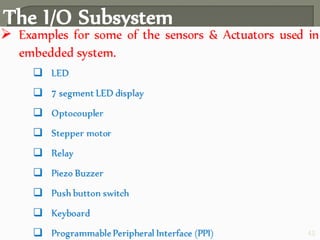

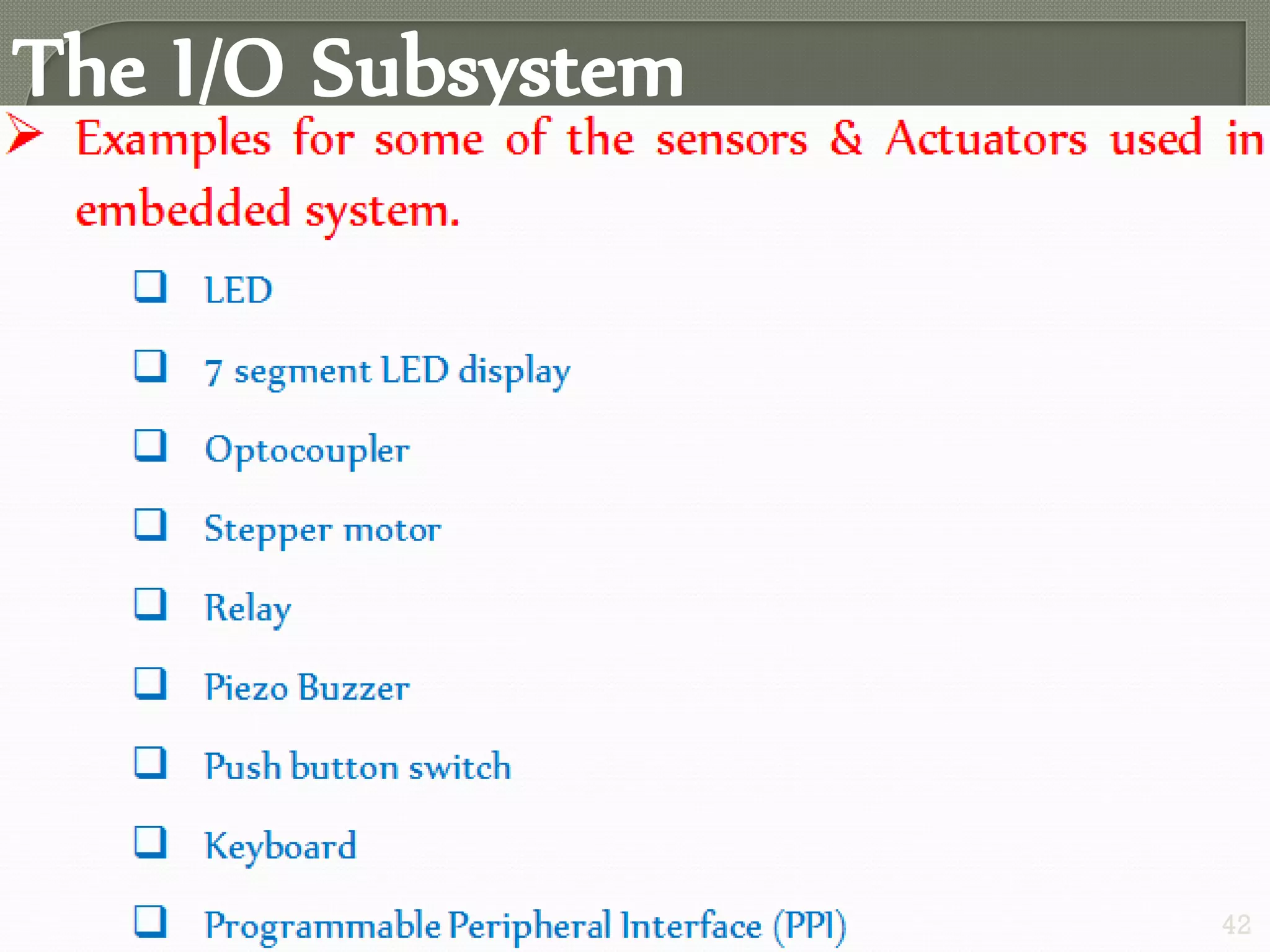

The I/O Subsystem
 The I/O Subsystem of the embedded system facilitates the
interaction of the embedded system with the external world.
Interaction happens through the sensors and actuators
connected to the input and output ports respectively of the
embedded system.
 The sensors may not be directly interfaced with input ports,
instead they may be interfaced through signal conditioning
and translating like ADC, optocouplers, etc..
42

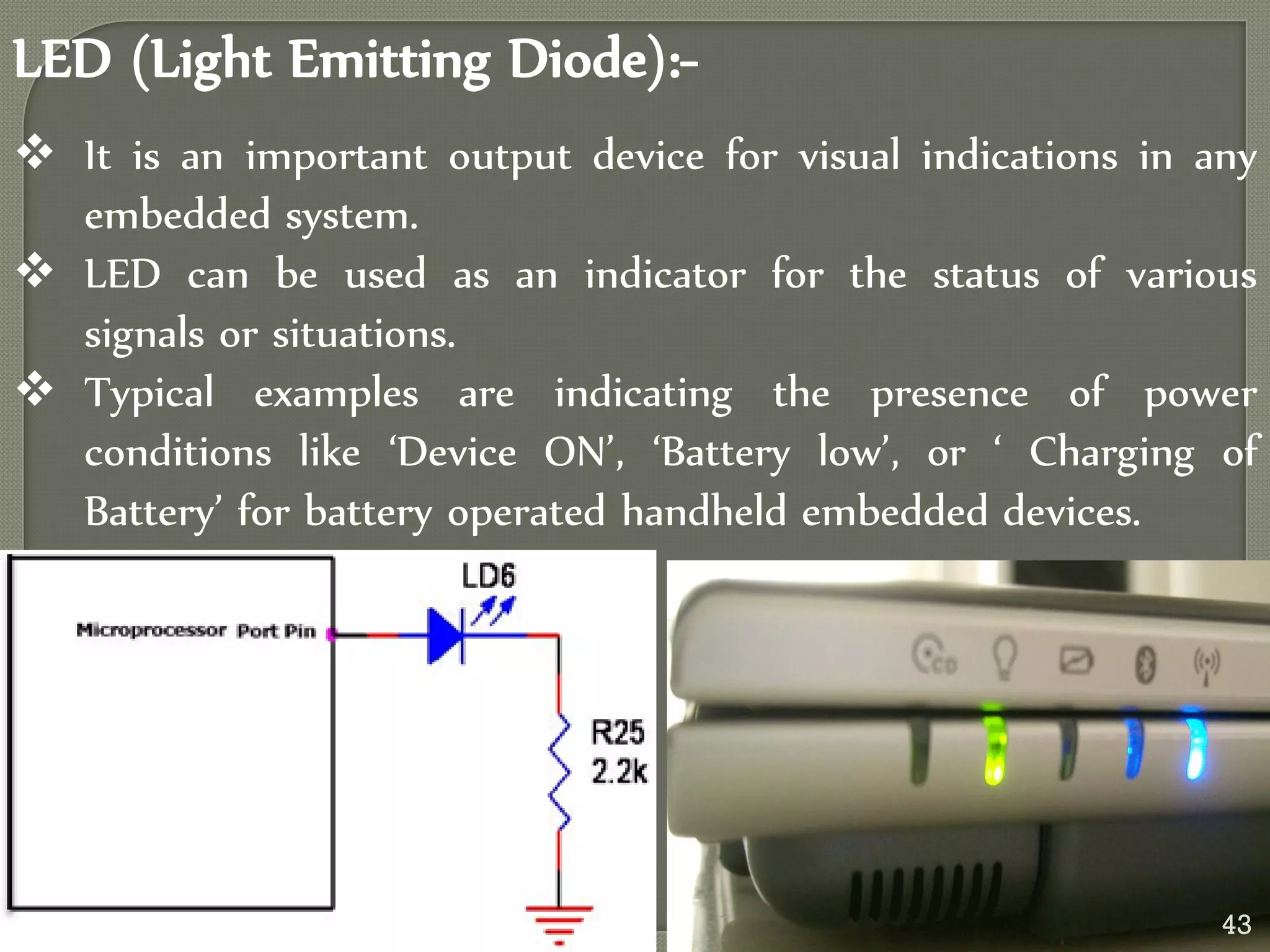

 It is an important output device for visual indications in any
embedded system.
 LED can be used as an indicator for the status of various
signals or situations.
 Typical examples are indicating the presence of power
conditions like ‘Device ON’, ‘Battery low’, or ‘ Charging of
Battery’ for battery operated handheld embedded devices.
LED (Light Emitting Diode):-
43

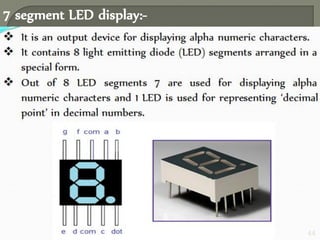

 It is an output device for displaying alpha numeric characters.
 It contains 8 light emitting diode (LED) segments arranged in a
special form.
 Out of 8 LED segments 7 are used for displaying alpha
numeric characters and 1 LED is used for representing ‘decimal
point’ in decimal numbers.
7 segment LED display:-
44

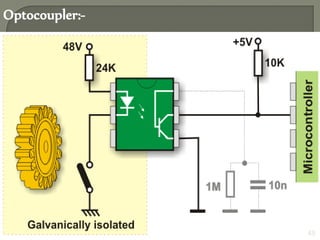

 It is solid state device to isolate two parts of a circuit
 It combines an LED and a photo-transistor in a single
housing (package).
 In electronic circuits an optocoupler is used for
suppressing interface in data communication, circuit
isolation, high voltage separation, etc..
 Optocouplers can be used in either in input circuit or
output circuits.
Optocoupler:-
Figure: Functional block diagram of Optocoupler 45

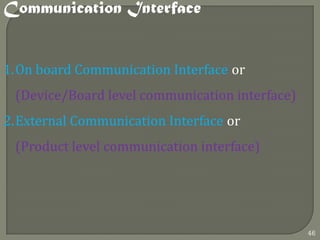

Communication Interface
1.On board Communication Interface or
(Device/Board level communication interface)
2.External Communication Interface or
(Product level communication interface)
46

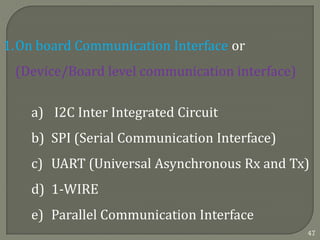

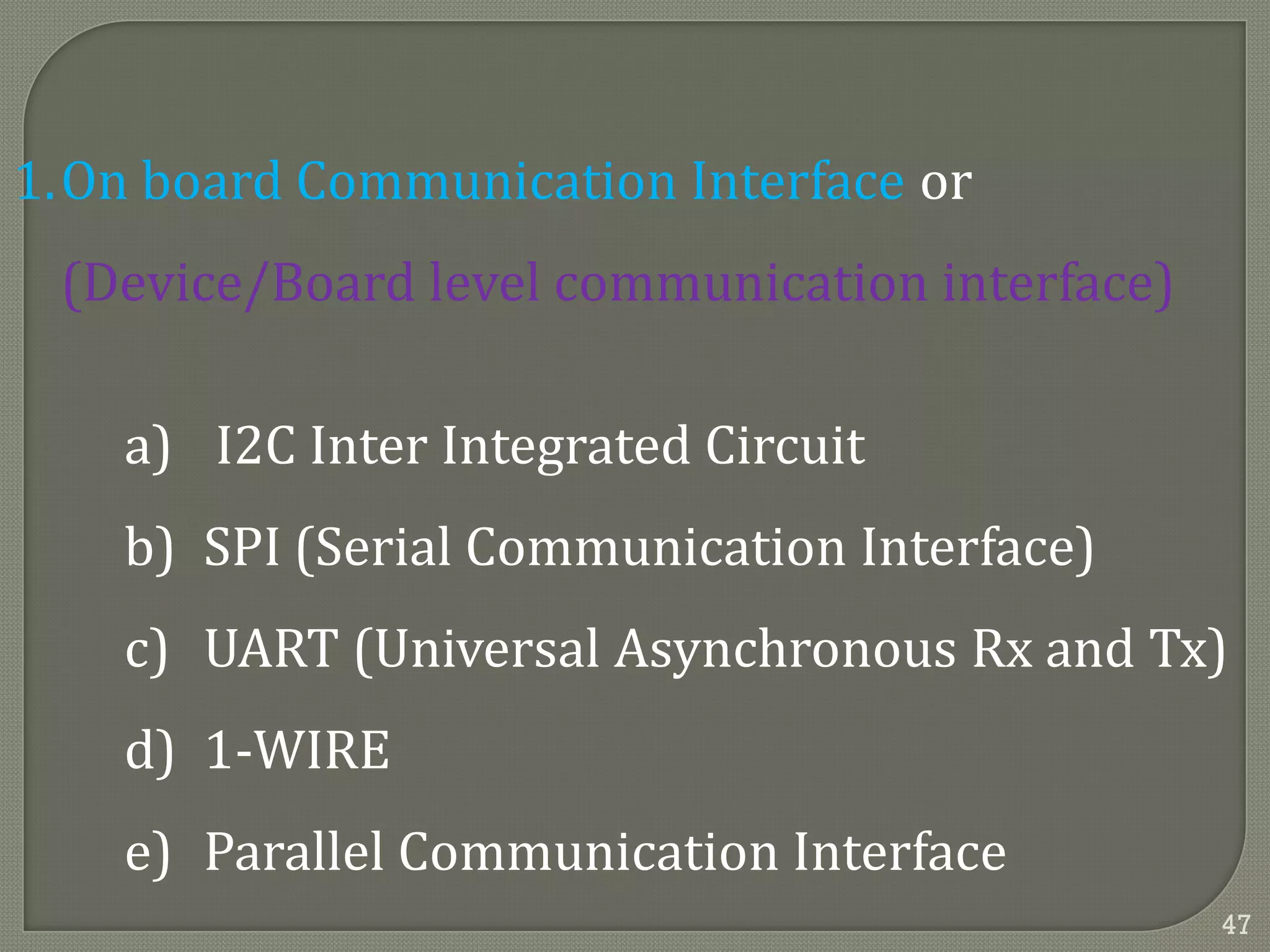

1.On board Communication Interface or
(Device/Board level communication interface)
a) I2C Inter Integrated Circuit
b) SPI (Serial Communication Interface)
c) UART (Universal Asynchronous Rx and Tx)
d) 1-WIRE
e) Parallel Communication Interface
47

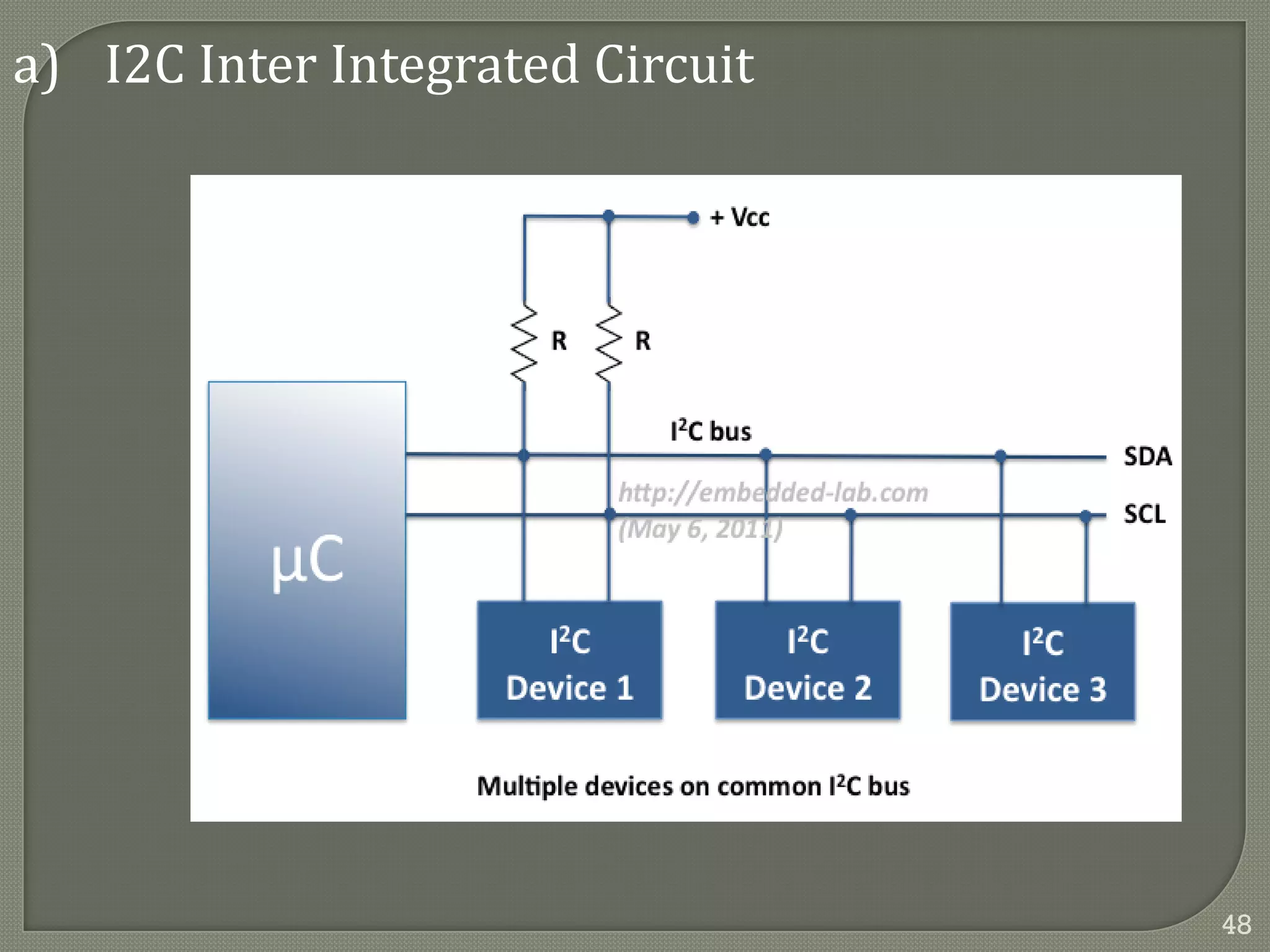

a) I2C Inter Integrated Circuit
48

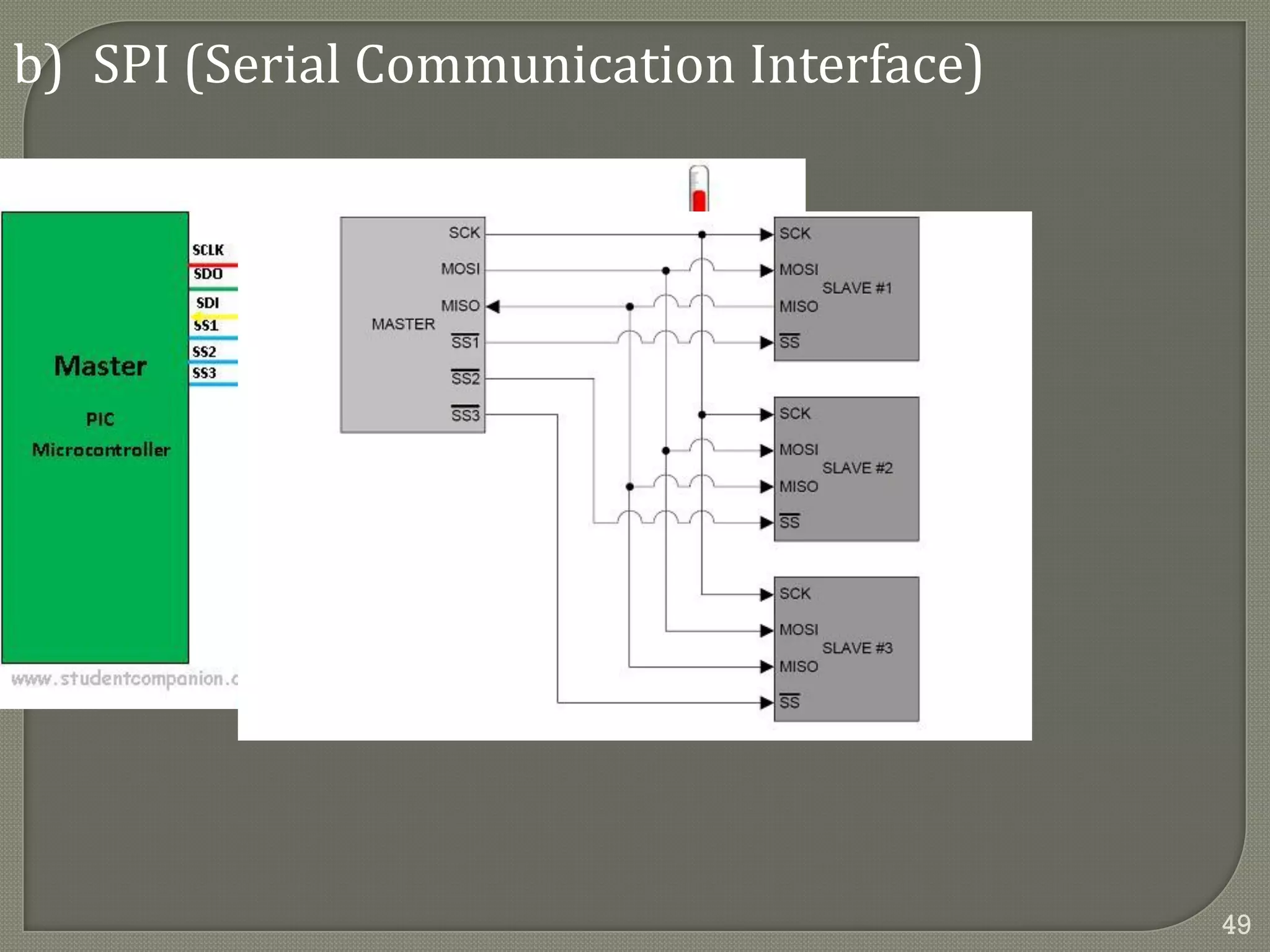

b) SPI (Serial Communication Interface)
49

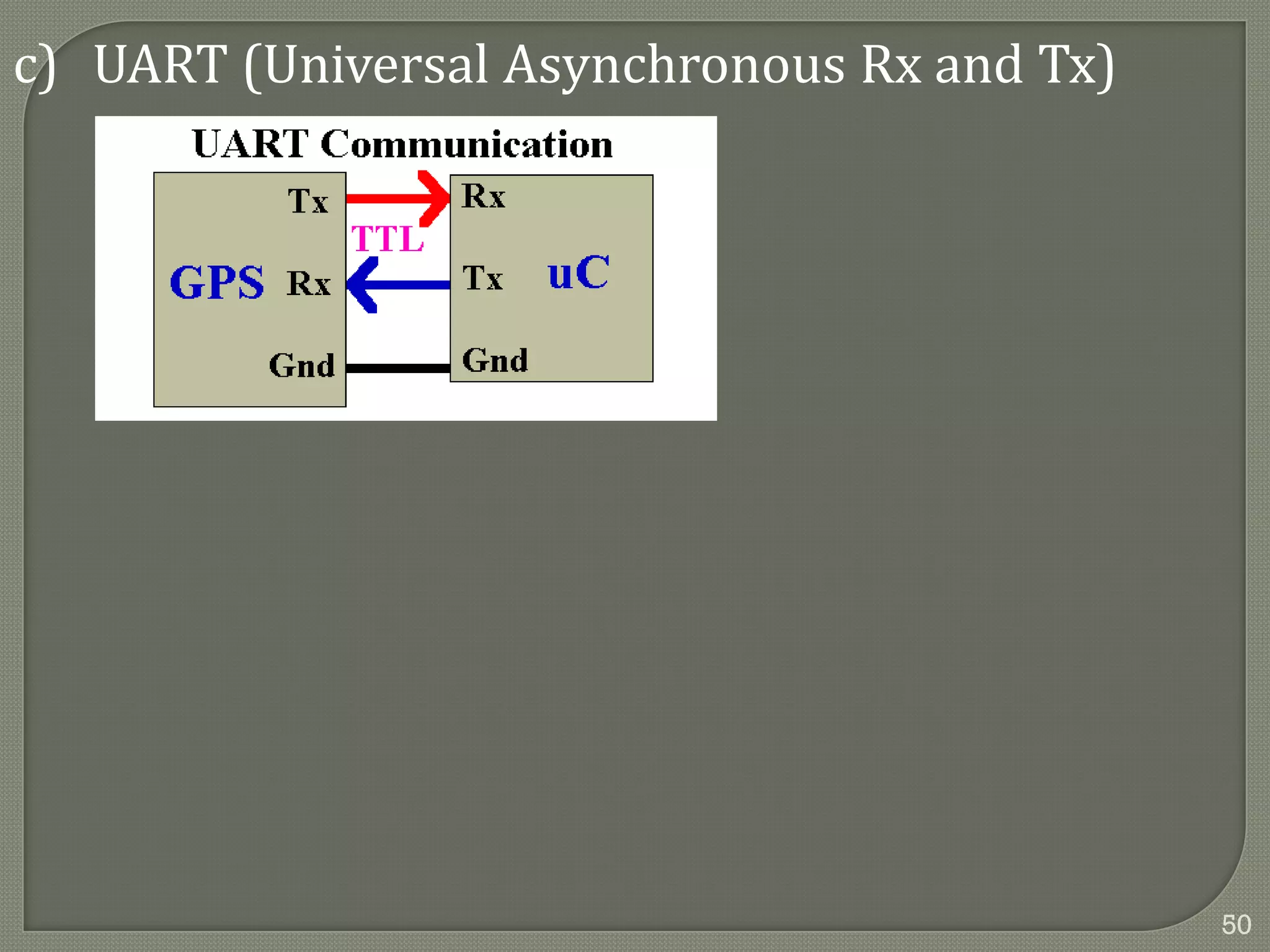

c) UART (Universal Asynchronous Rx and Tx)
50

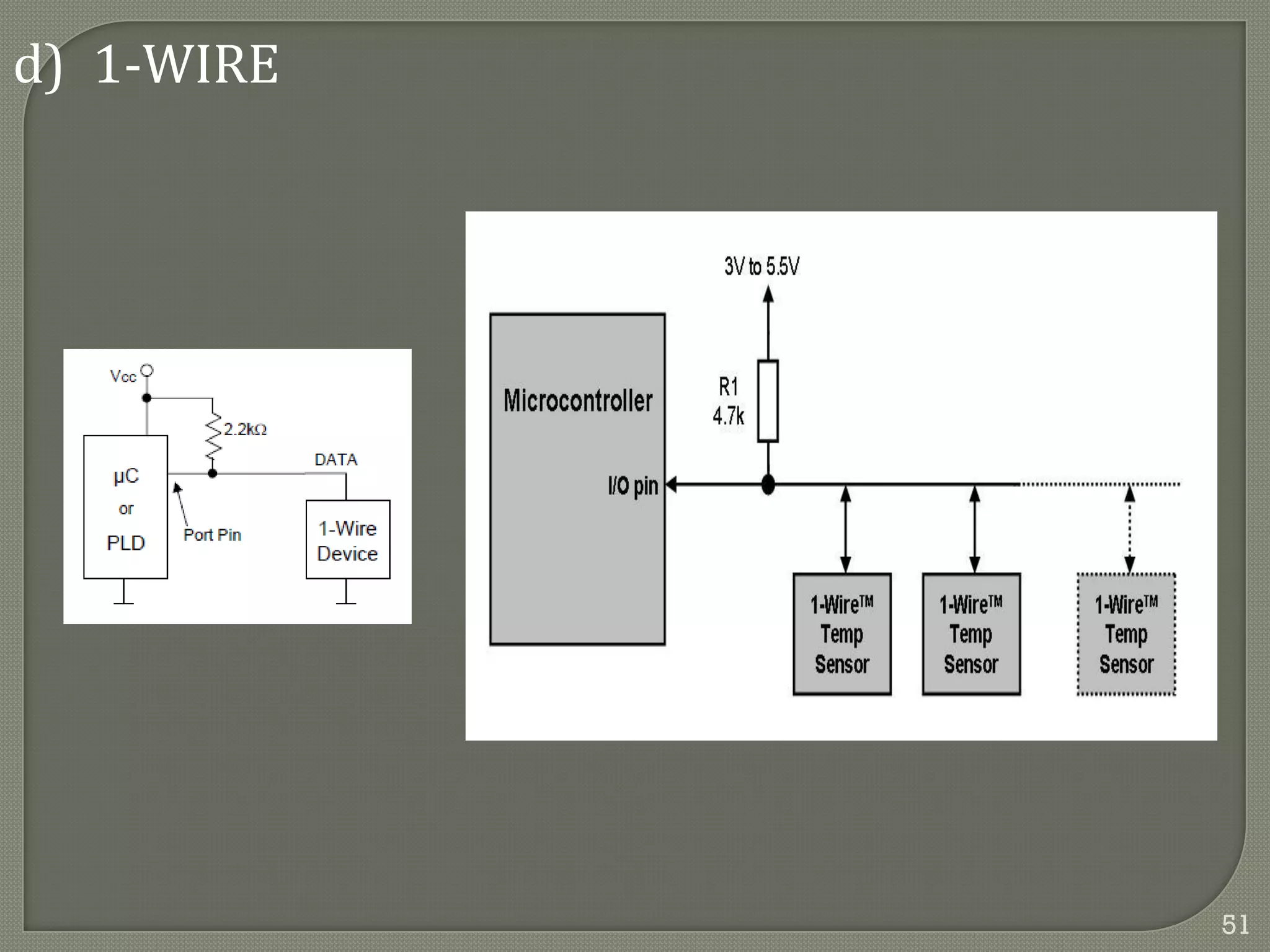

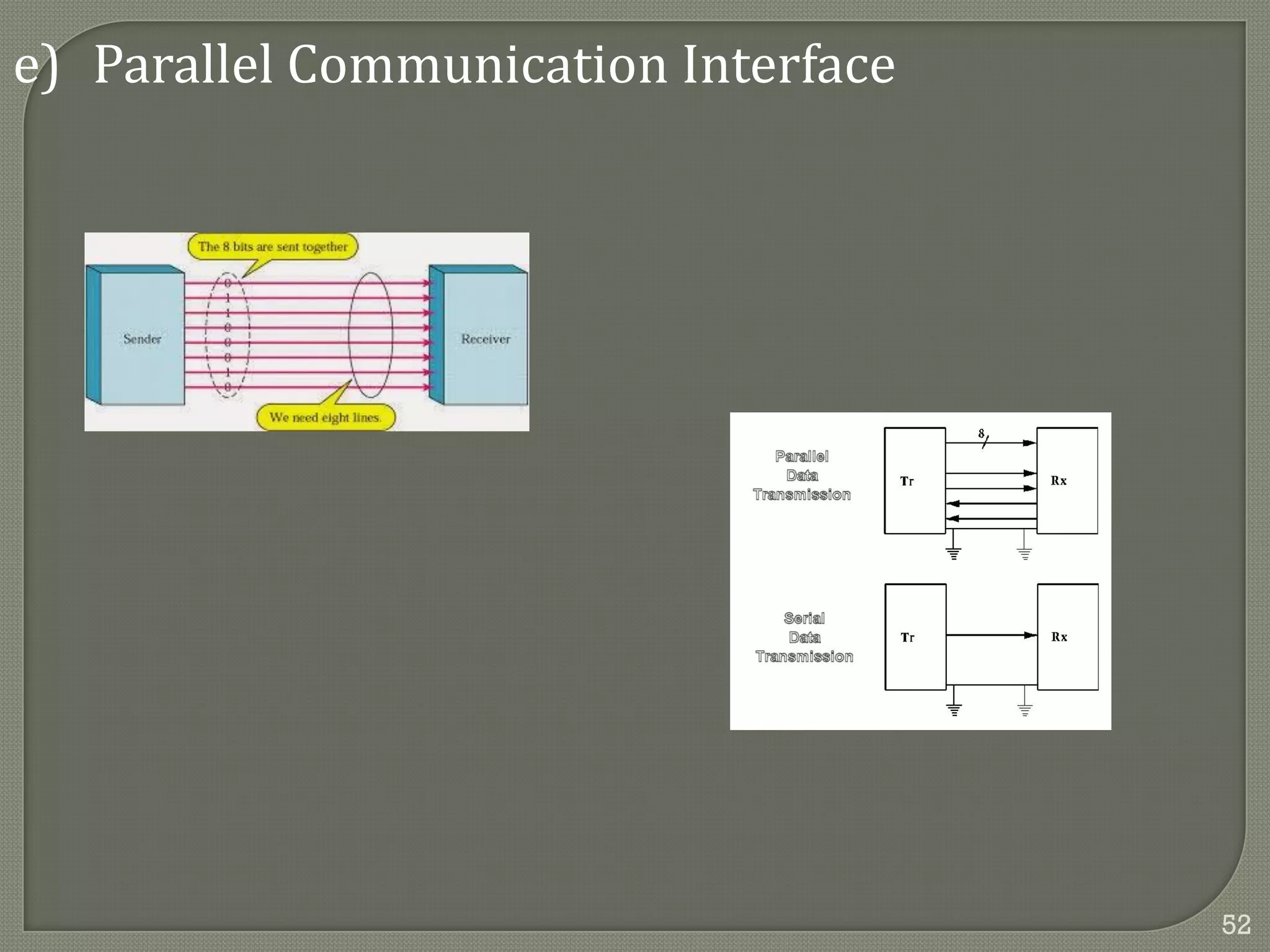

e) Parallel Communication Interface
52

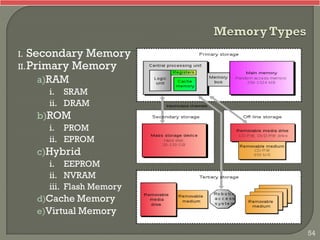

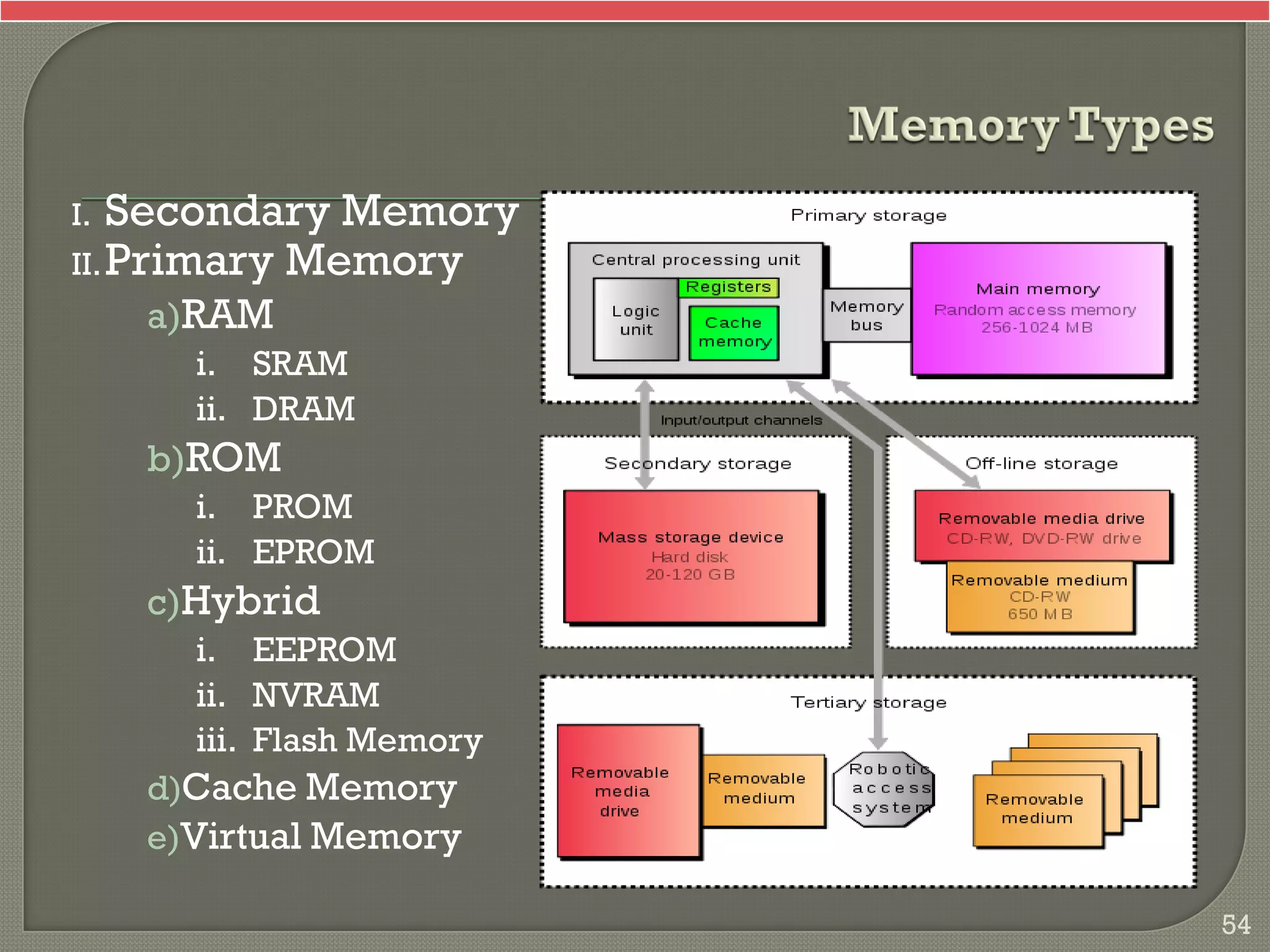

I. Secondary Memory
II.Primary Memory
a)RAM
i. SRAM
ii. DRAM
b)ROM
i. PROM
ii. EPROM
c)Hybrid
i. EEPROM
ii. NVRAM
iii. Flash Memory
d)Cache Memory
e)Virtual Memory
54

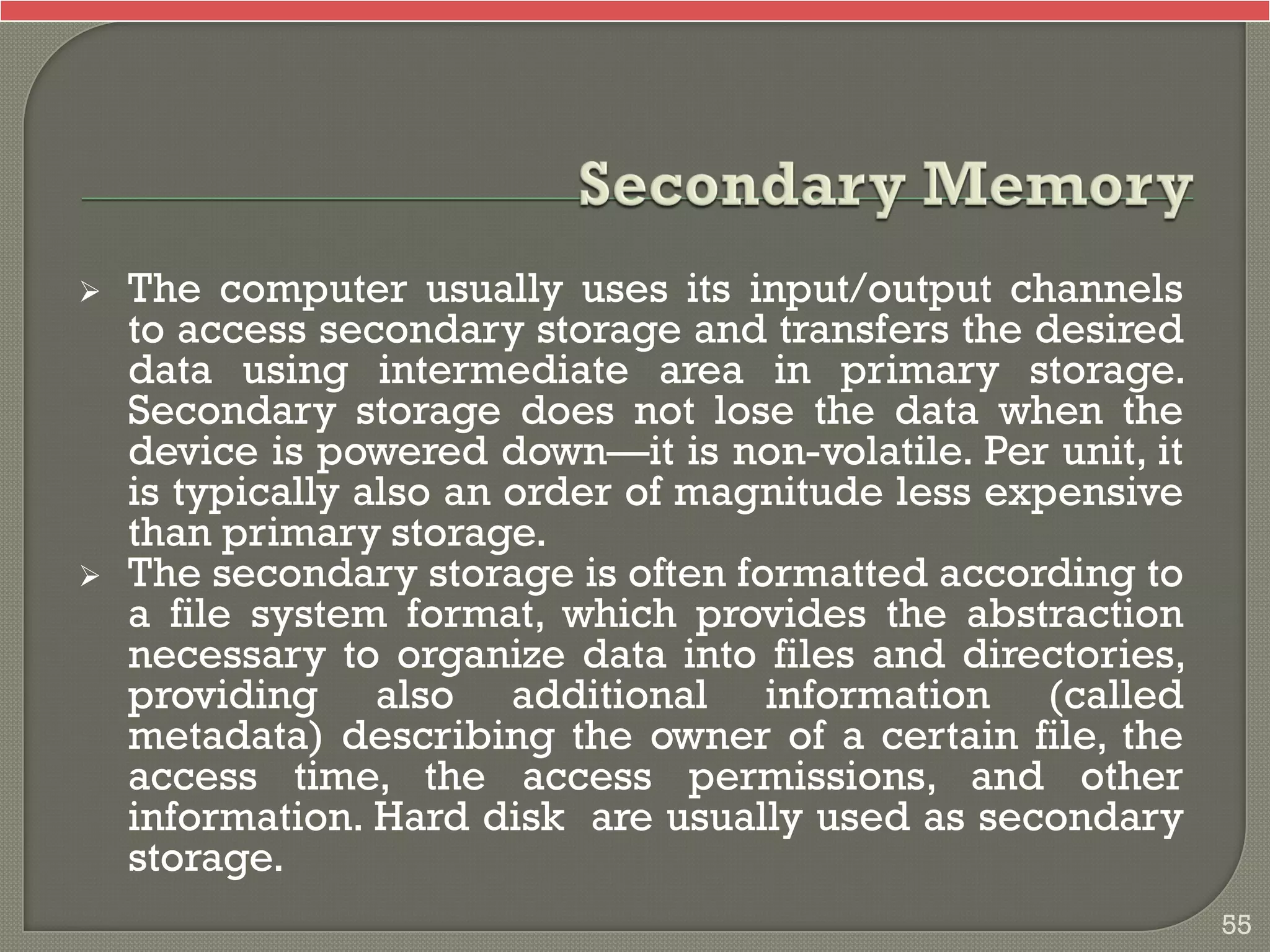

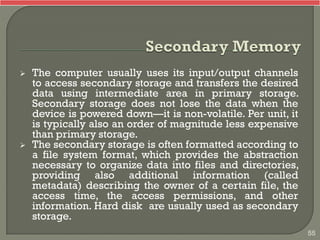

 The computer usually uses its input/output channels
to access secondary storage and transfers the desired
data using intermediate area in primary storage.
Secondary storage does not lose the data when the
device is powered down—it is non-volatile. Per unit, it
is typically also an order of magnitude less expensive
than primary storage.
 The secondary storage is often formatted according to
a file system format, which provides the abstraction
necessary to organize data into files and directories,
providing also additional information (called
metadata) describing the owner of a certain file, the
access time, the access permissions, and other
information. Hard disk are usually used as secondary
storage.
55

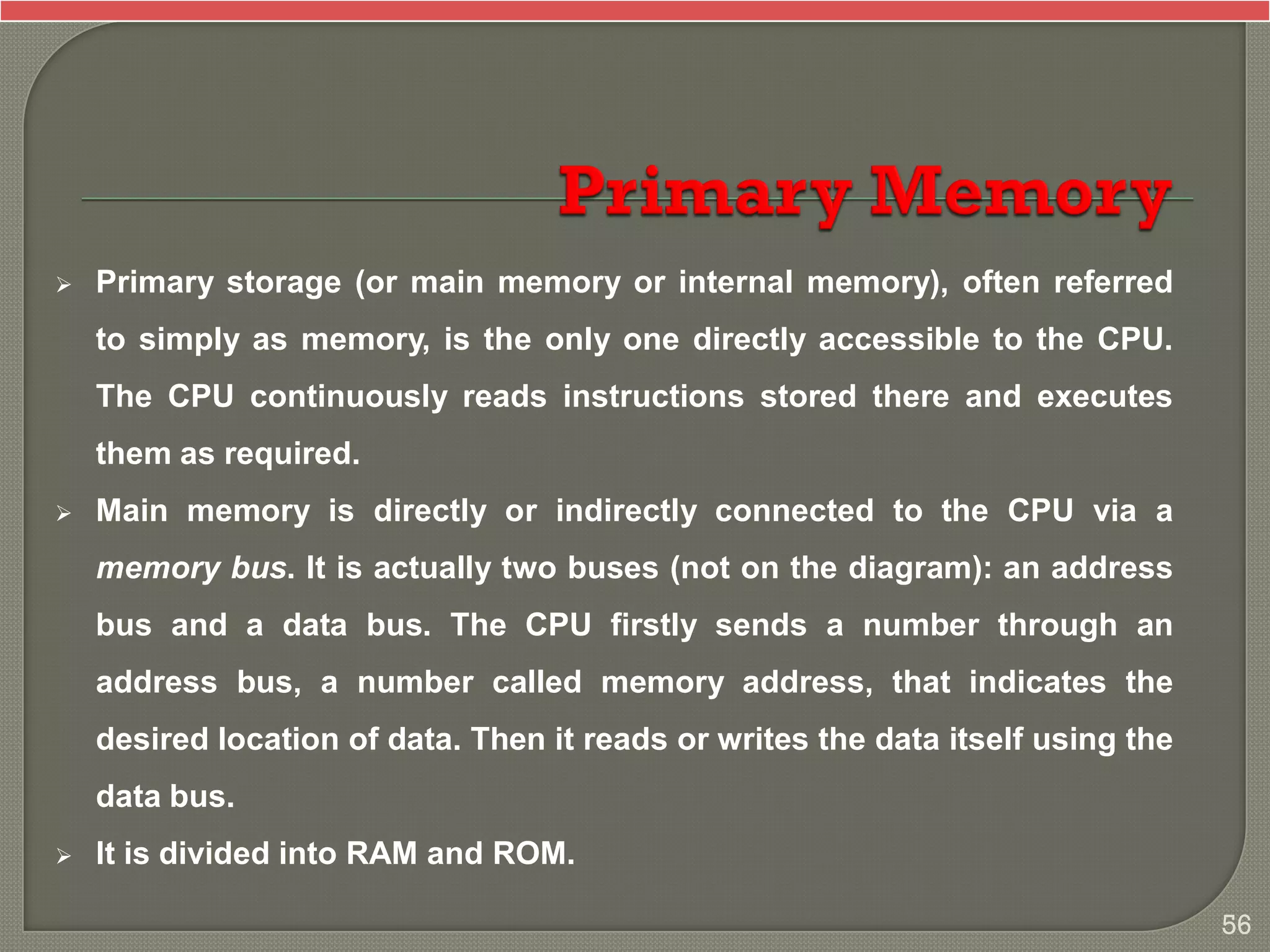

 Primary storage (or main memory or internal memory), often referred
to simply as memory, is the only one directly accessible to the CPU.
The CPU continuously reads instructions stored there and executes
them as required.
 Main memory is directly or indirectly connected to the CPU via a
memory bus. It is actually two buses (not on the diagram): an address
bus and a data bus. The CPU firstly sends a number through an
address bus, a number called memory address, that indicates the
desired location of data. Then it reads or writes the data itself using the
data bus.
 It is divided into RAM and ROM.
56

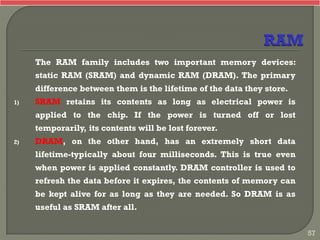

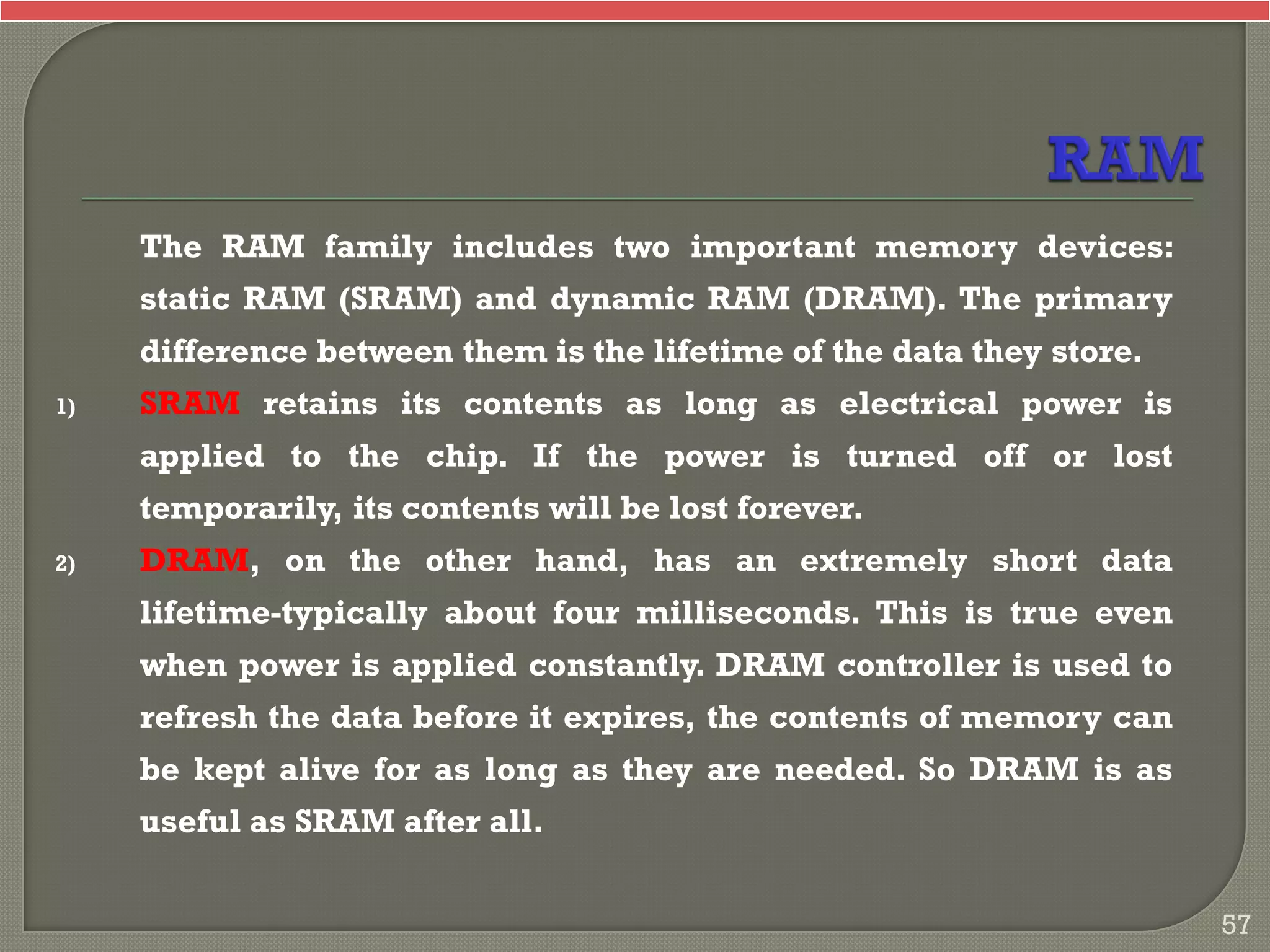

The RAM family includes two important memory devices:
static RAM (SRAM) and dynamic RAM (DRAM). The primary
difference between them is the lifetime of the data they store.
1) SRAM retains its contents as long as electrical power is
applied to the chip. If the power is turned off or lost
temporarily, its contents will be lost forever.
2) DRAM, on the other hand, has an extremely short data
lifetime-typically about four milliseconds. This is true even
when power is applied constantly. DRAM controller is used to
refresh the data before it expires, the contents of memory can
be kept alive for as long as they are needed. So DRAM is as
useful as SRAM after all.

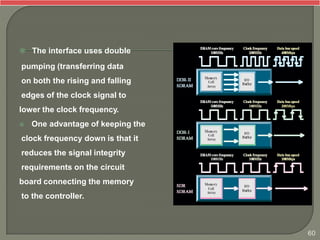

57

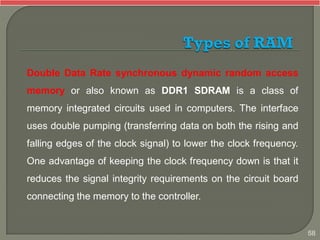

Double Data Rate synchronous dynamic random access
memory or also known as DDR1 SDRAM is a class of
memory integrated circuits used in computers. The interface
uses double pumping (transferring data on both the rising and
falling edges of the clock signal) to lower the clock frequency.
One advantage of keeping the clock frequency down is that it
reduces the signal integrity requirements on the circuit board
connecting the memory to the controller.
58

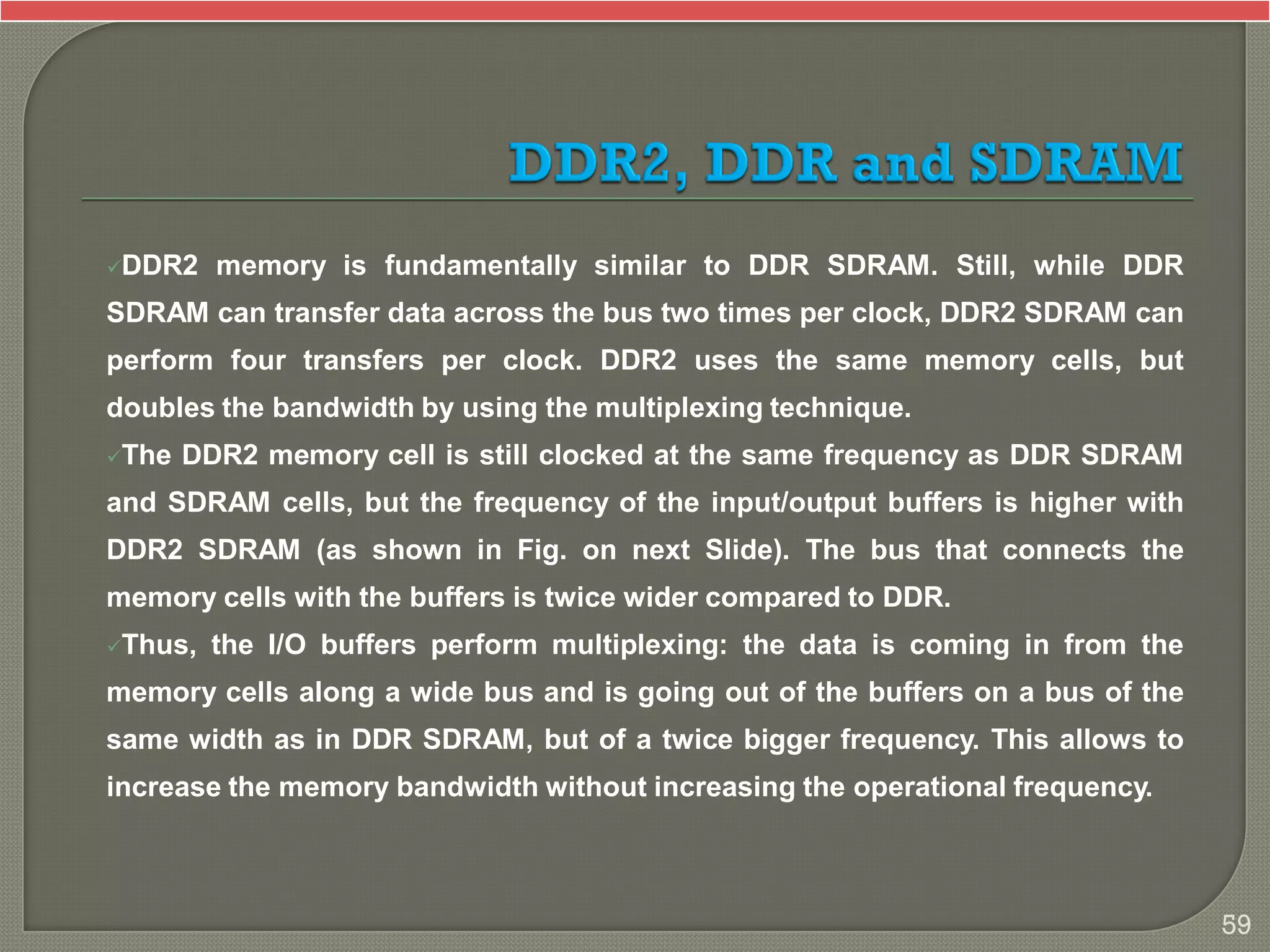

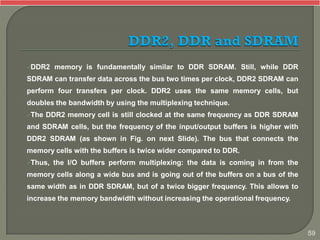

DDR2 memory is fundamentally similar to DDR SDRAM. Still, while DDR
SDRAM can transfer data across the bus two times per clock, DDR2 SDRAM can
perform four transfers per clock. DDR2 uses the same memory cells, but
doubles the bandwidth by using the multiplexing technique.
The DDR2 memory cell is still clocked at the same frequency as DDR SDRAM
and SDRAM cells, but the frequency of the input/output buffers is higher with
DDR2 SDRAM (as shown in Fig. on next Slide). The bus that connects the
memory cells with the buffers is twice wider compared to DDR.
Thus, the I/O buffers perform multiplexing: the data is coming in from the
memory cells along a wide bus and is going out of the buffers on a bus of the
same width as in DDR SDRAM, but of a twice bigger frequency. This allows to
increase the memory bandwidth without increasing the operational frequency.
59

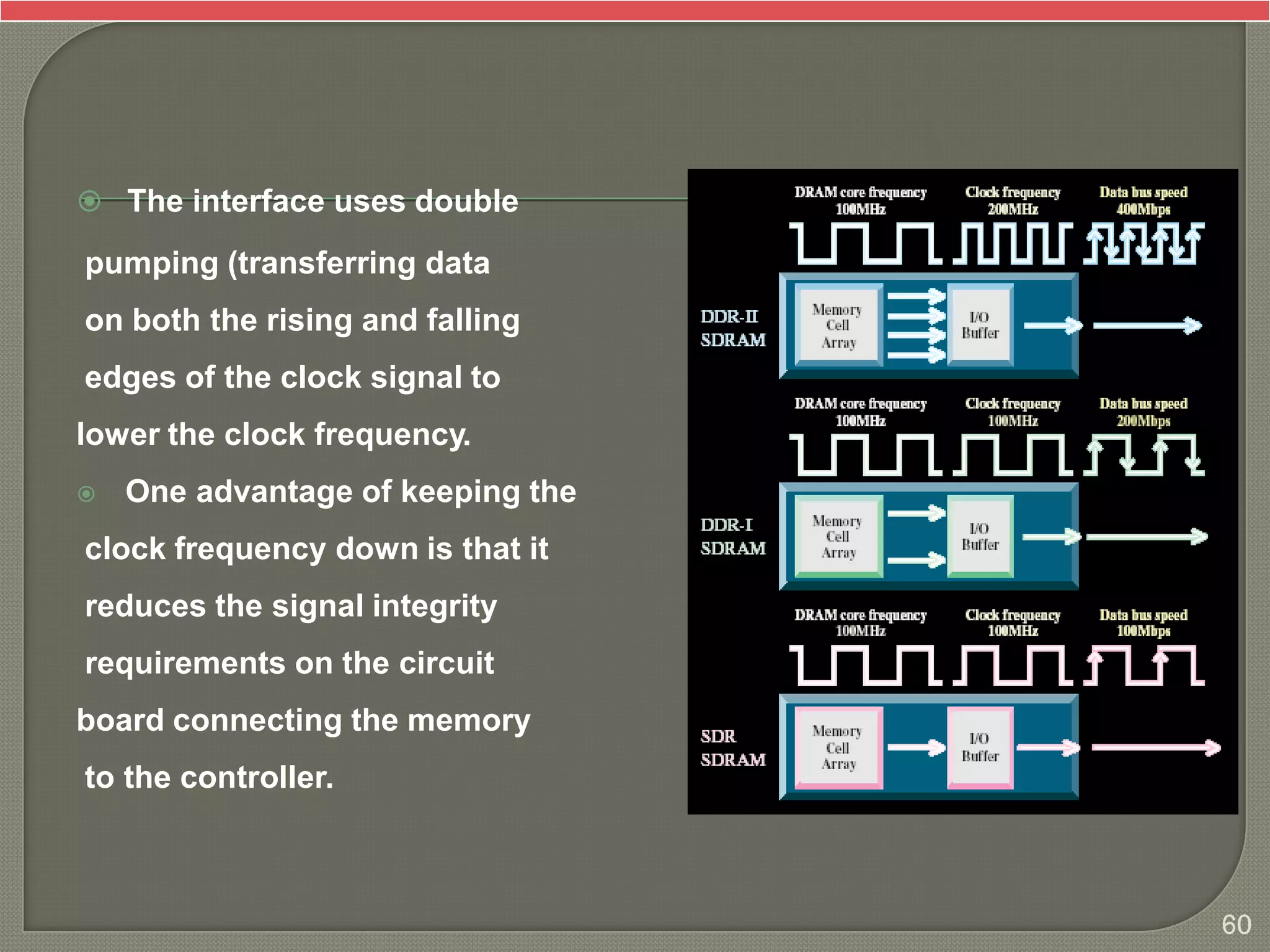

 The interface uses double
pumping (transferring data
on both the rising and falling
edges of the clock signal to
lower the clock frequency.
 One advantage of keeping the
clock frequency down is that it
reduces the signal integrity
requirements on the circuit
board connecting the memory
to the controller.
60

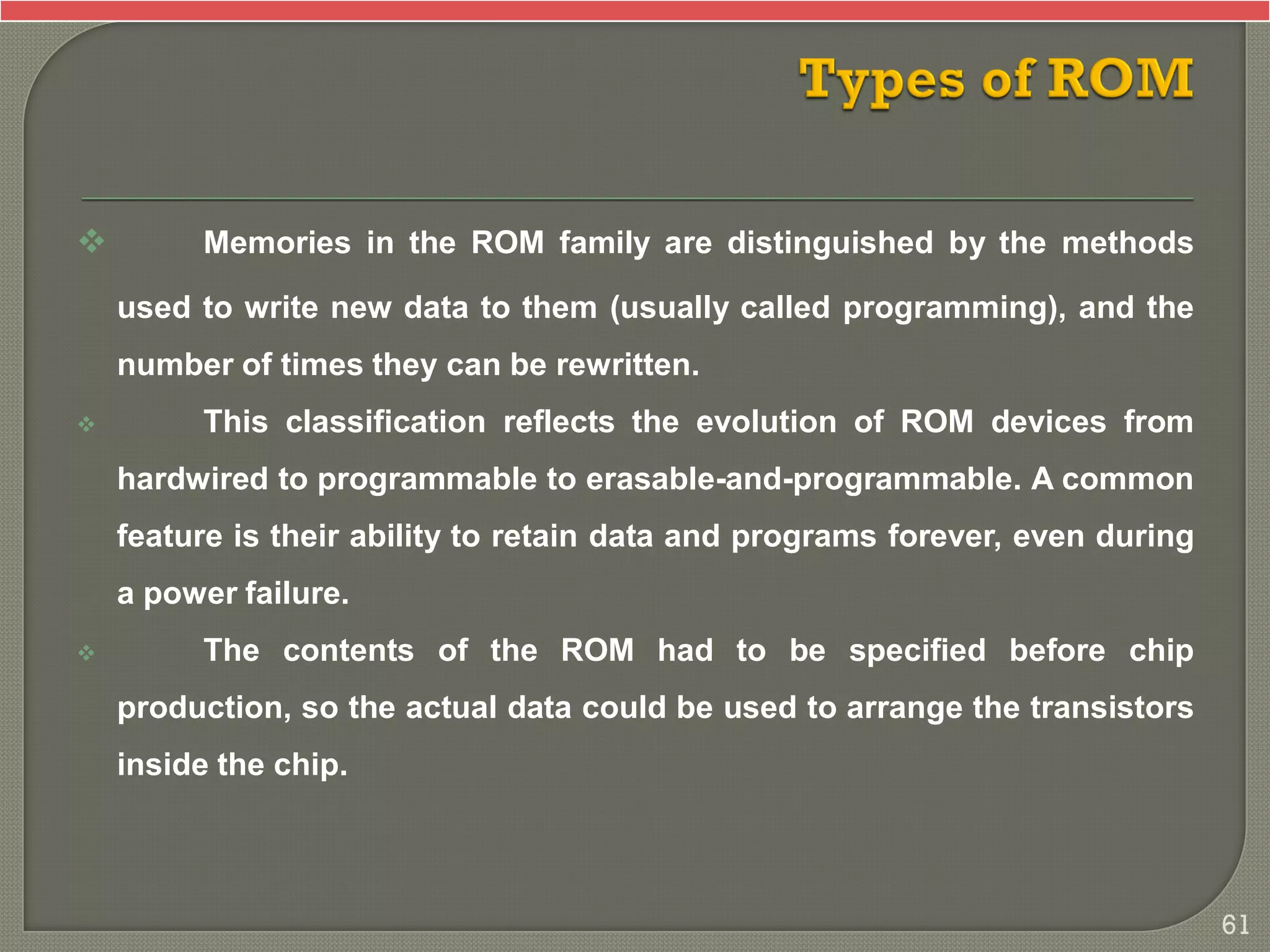

 Memories in the ROM family are distinguished by the methods
used to write new data to them (usually called programming), and the
number of times they can be rewritten.
 This classification reflects the evolution of ROM devices from
hardwired to programmable to erasable-and-programmable. A common
feature is their ability to retain data and programs forever, even during
a power failure.
 The contents of the ROM had to be specified before chip
production, so the actual data could be used to arrange the transistors
inside the chip.
61

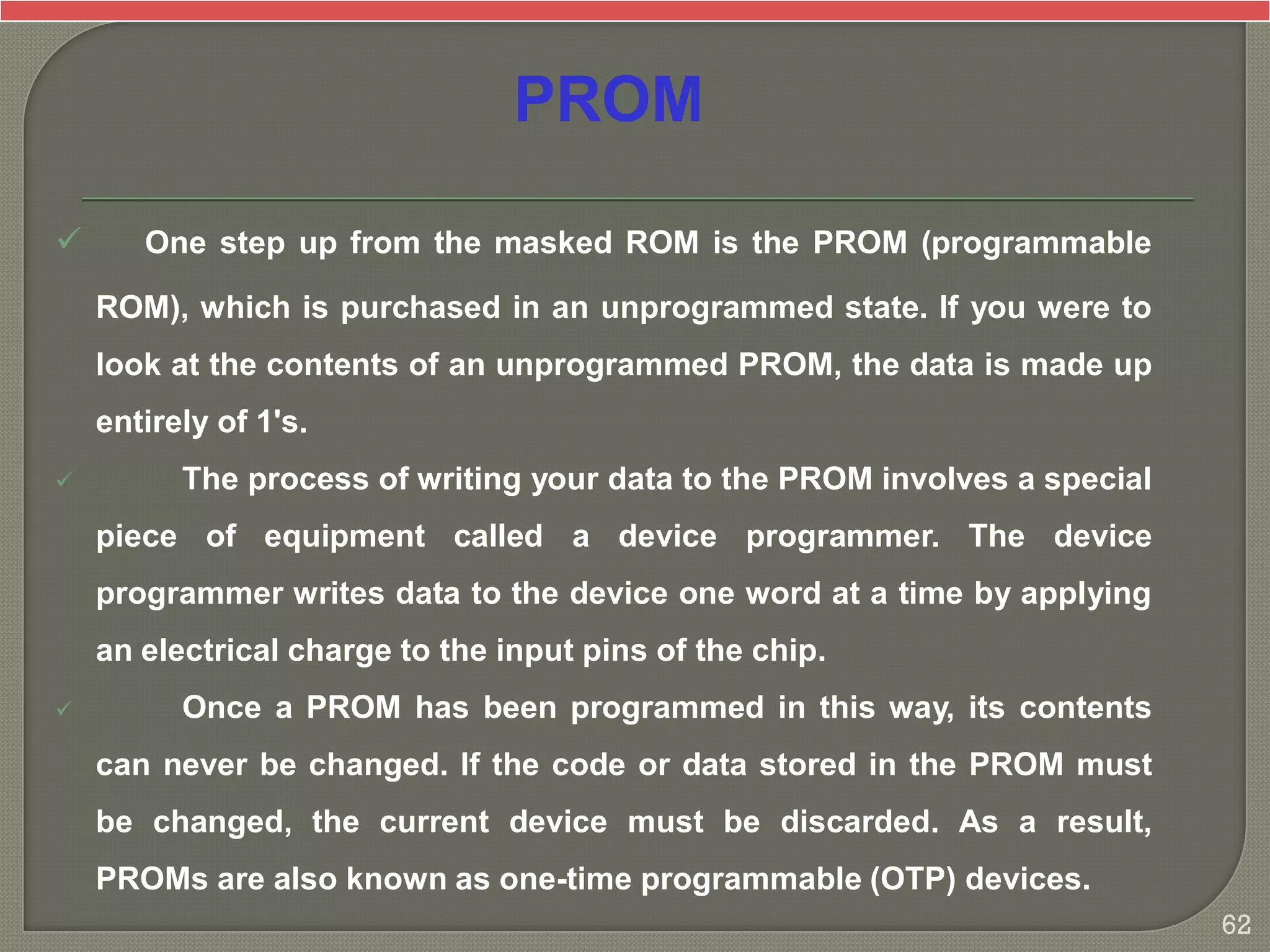

 One step up from the masked ROM is the PROM (programmable
ROM), which is purchased in an unprogrammed state. If you were to
look at the contents of an unprogrammed PROM, the data is made up
entirely of 1's.
 The process of writing your data to the PROM involves a special
piece of equipment called a device programmer. The device
programmer writes data to the device one word at a time by applying
an electrical charge to the input pins of the chip.
 Once a PROM has been programmed in this way, its contents
can never be changed. If the code or data stored in the PROM must
be changed, the current device must be discarded. As a result,
PROMs are also known as one-time programmable (OTP) devices.
PROM
62

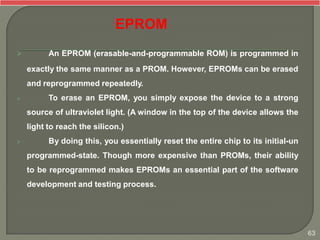

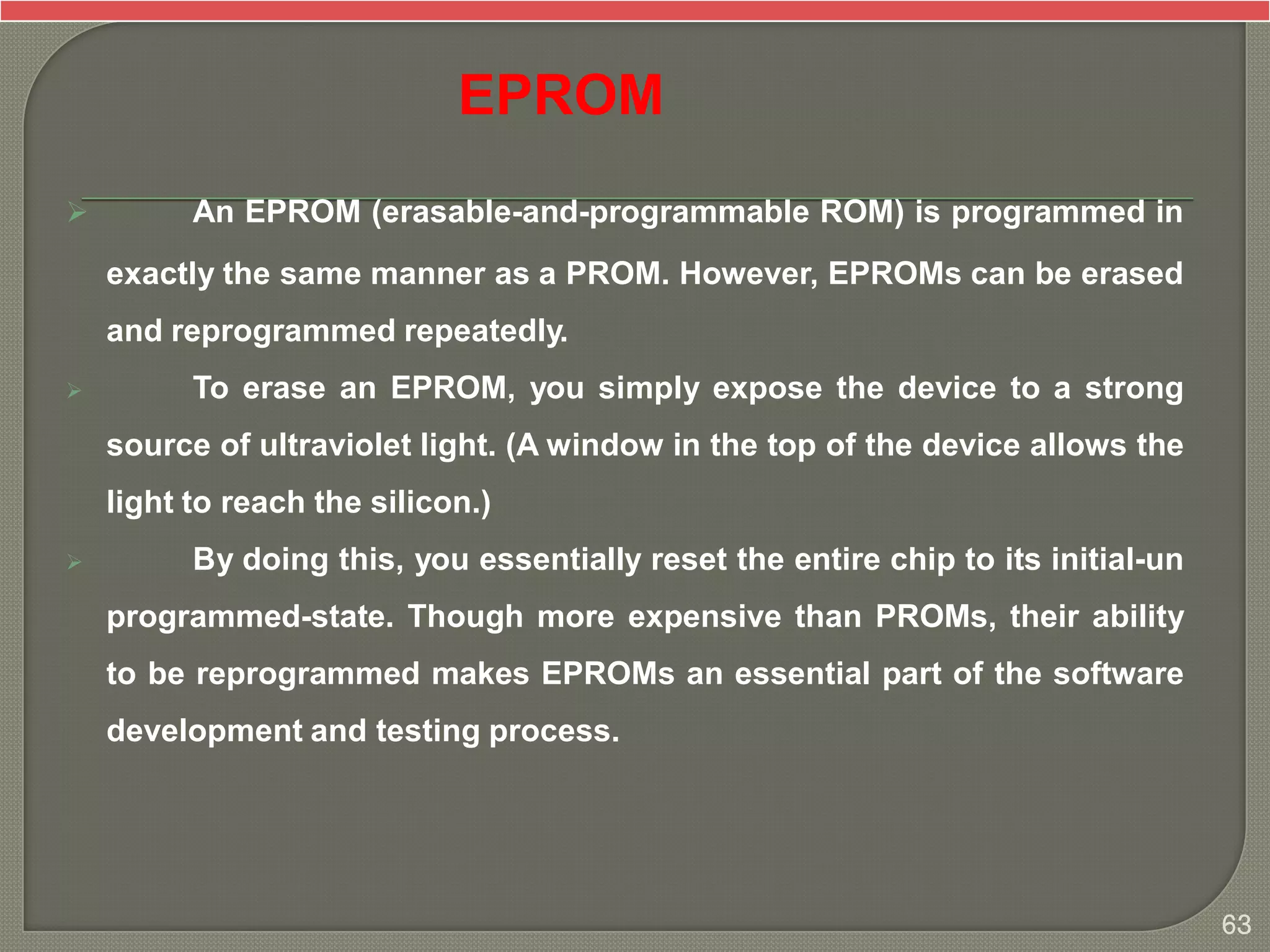

 An EPROM (erasable-and-programmable ROM) is programmed in
exactly the same manner as a PROM. However, EPROMs can be erased
and reprogrammed repeatedly.
 To erase an EPROM, you simply expose the device to a strong
source of ultraviolet light. (A window in the top of the device allows the
light to reach the silicon.)
 By doing this, you essentially reset the entire chip to its initial-un
programmed-state. Though more expensive than PROMs, their ability
to be reprogrammed makes EPROMs an essential part of the software
development and testing process.
EPROM
63

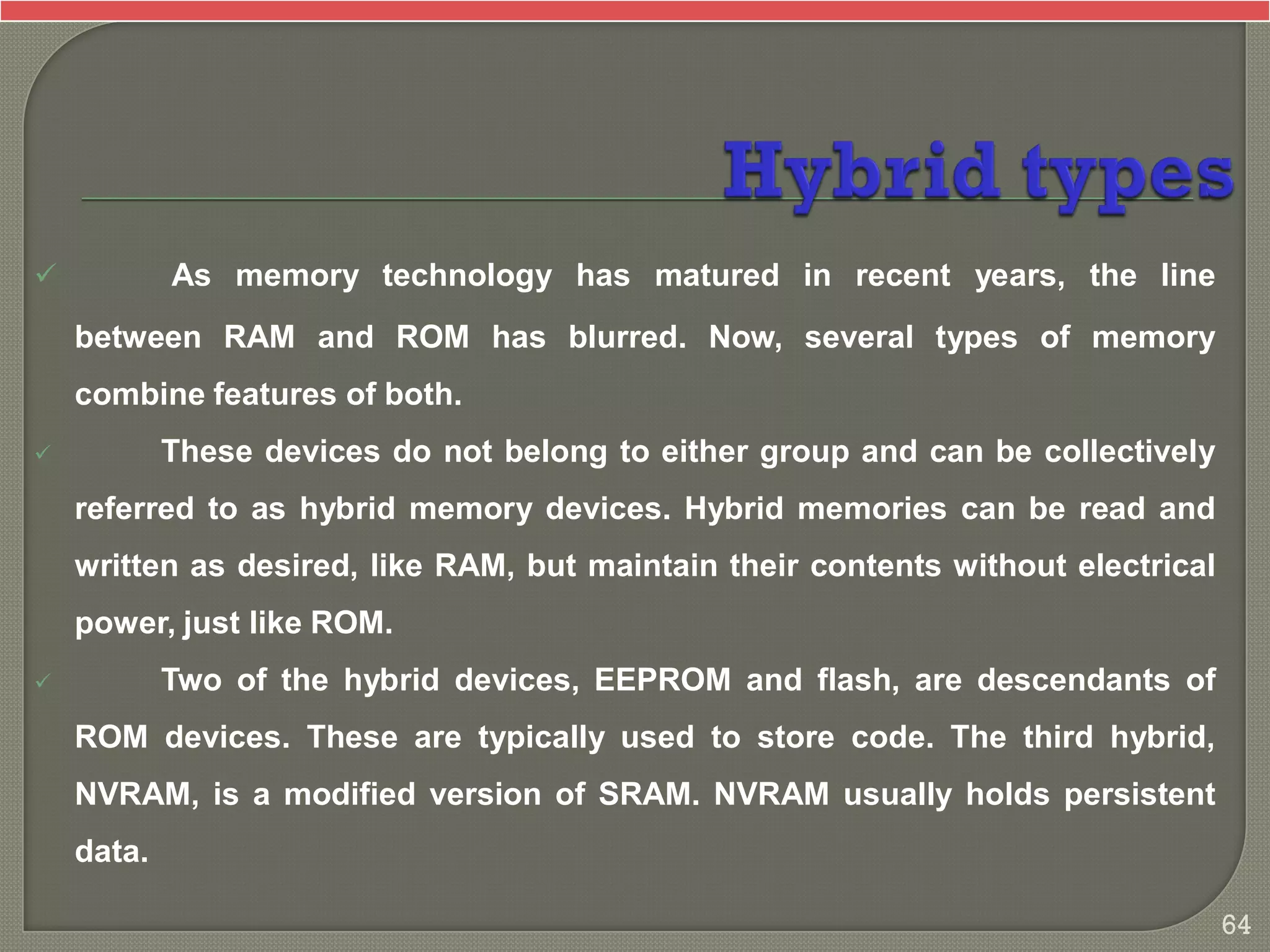

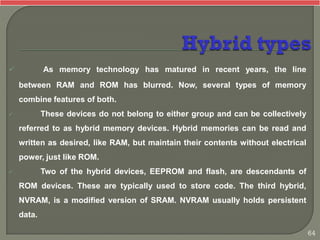

 As memory technology has matured in recent years, the line
between RAM and ROM has blurred. Now, several types of memory
combine features of both.
 These devices do not belong to either group and can be collectively
referred to as hybrid memory devices. Hybrid memories can be read and
written as desired, like RAM, but maintain their contents without electrical
power, just like ROM.
 Two of the hybrid devices, EEPROM and flash, are descendants of
ROM devices. These are typically used to store code. The third hybrid,
NVRAM, is a modified version of SRAM. NVRAM usually holds persistent
data.
64

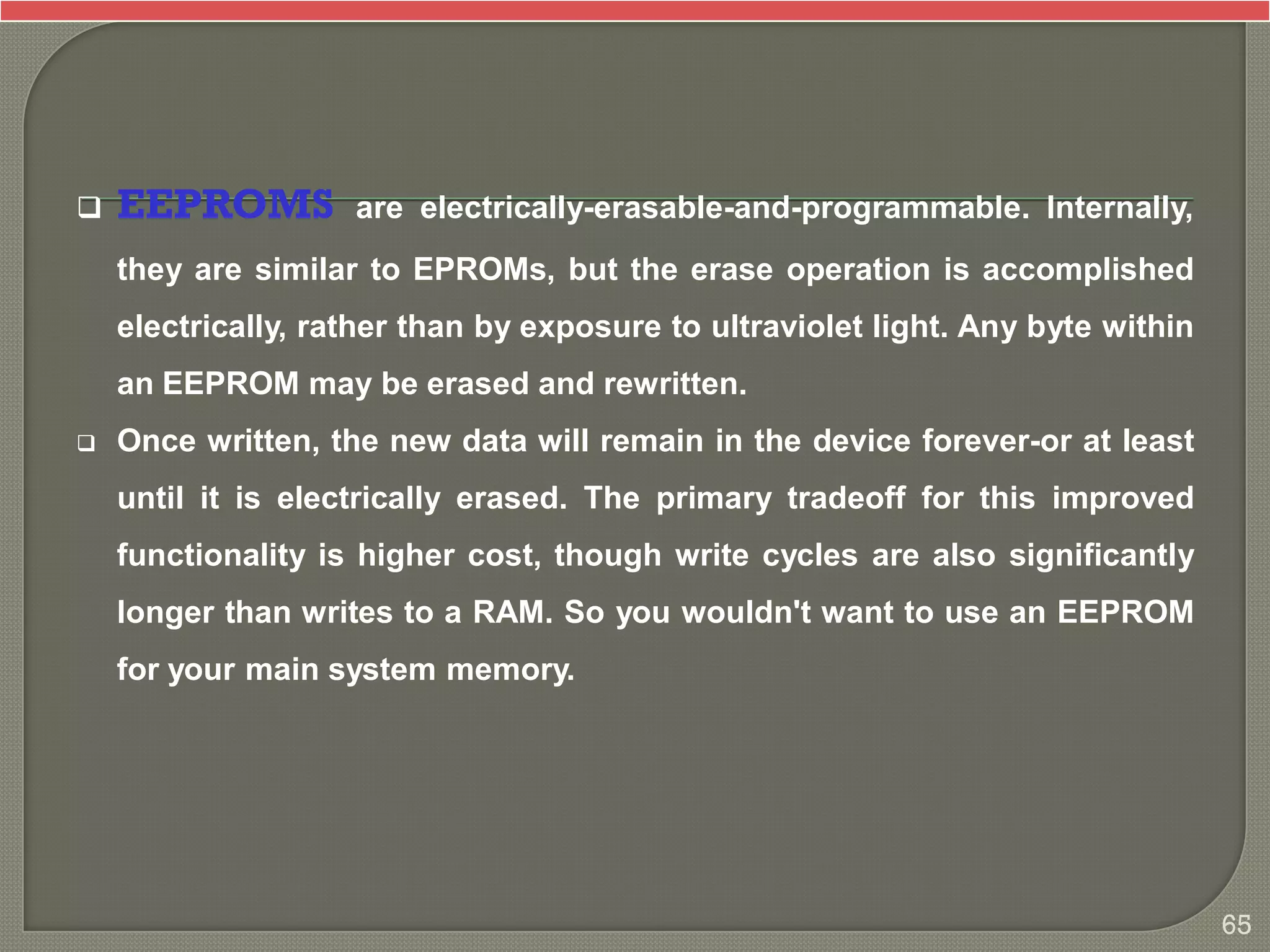

 EEPROMS are electrically-erasable-and-programmable. Internally,
they are similar to EPROMs, but the erase operation is accomplished
electrically, rather than by exposure to ultraviolet light. Any byte within
an EEPROM may be erased and rewritten.
 Once written, the new data will remain in the device forever-or at least
until it is electrically erased. The primary tradeoff for this improved
functionality is higher cost, though write cycles are also significantly
longer than writes to a RAM. So you wouldn't want to use an EEPROM
for your main system memory.
65

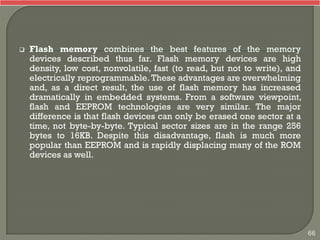

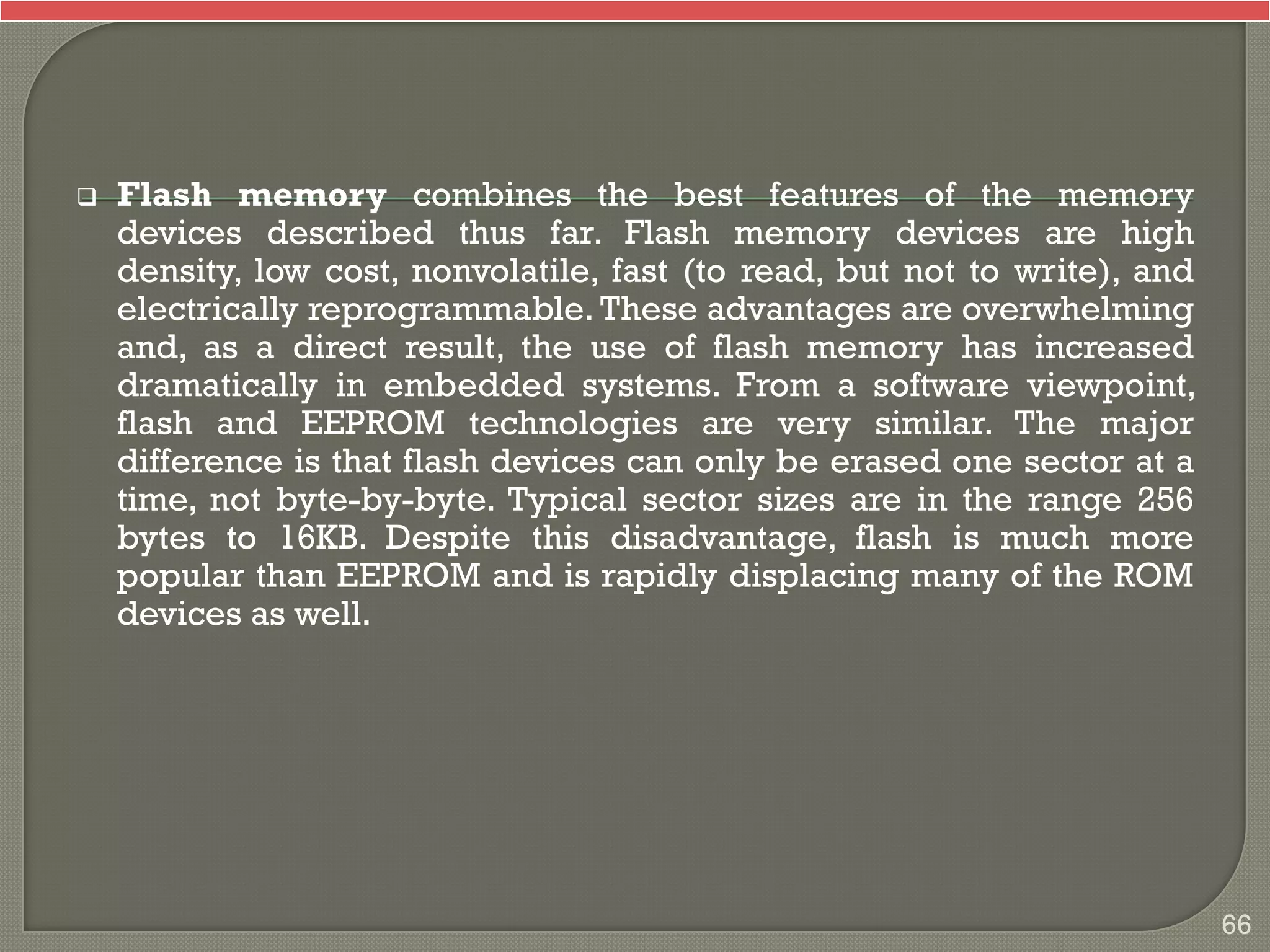

 Flash memory combines the best features of the memory
devices described thus far. Flash memory devices are high
density, low cost, nonvolatile, fast (to read, but not to write), and
electrically reprogrammable. These advantages are overwhelming
and, as a direct result, the use of flash memory has increased
dramatically in embedded systems. From a software viewpoint,
flash and EEPROM technologies are very similar. The major
difference is that flash devices can only be erased one sector at a
time, not byte-by-byte. Typical sector sizes are in the range 256
bytes to 16KB. Despite this disadvantage, flash is much more
popular than EEPROM and is rapidly displacing many of the ROM
devices as well.
66

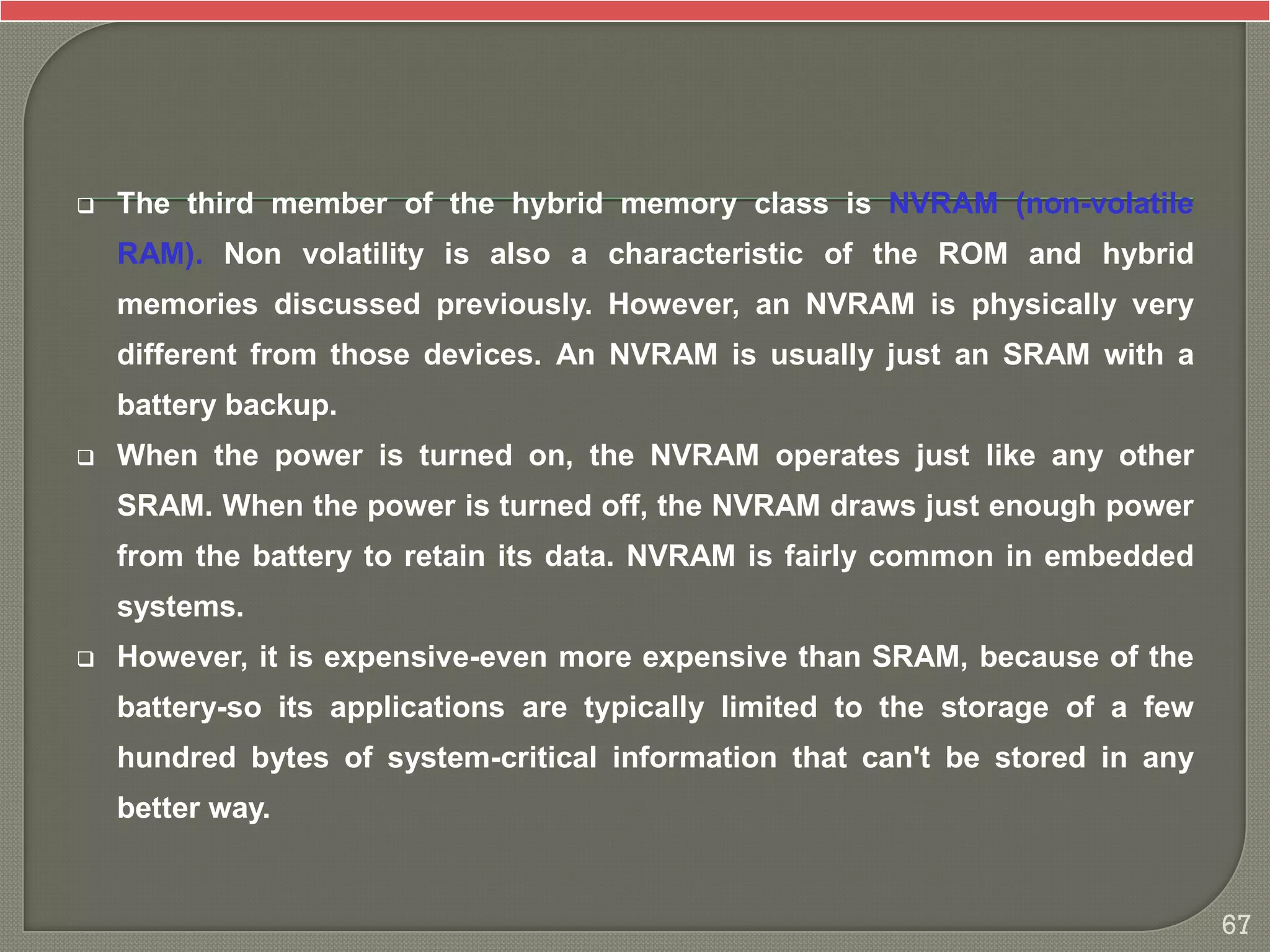

 The third member of the hybrid memory class is NVRAM (non-volatile
RAM). Non volatility is also a characteristic of the ROM and hybrid
memories discussed previously. However, an NVRAM is physically very
different from those devices. An NVRAM is usually just an SRAM with a
battery backup.
 When the power is turned on, the NVRAM operates just like any other
SRAM. When the power is turned off, the NVRAM draws just enough power
from the battery to retain its data. NVRAM is fairly common in embedded
systems.
 However, it is expensive-even more expensive than SRAM, because of the
battery-so its applications are typically limited to the storage of a few
hundred bytes of system-critical information that can't be stored in any
better way.
67

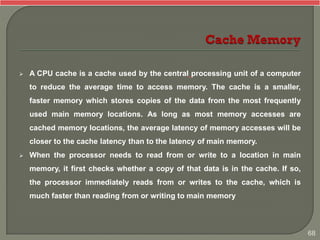

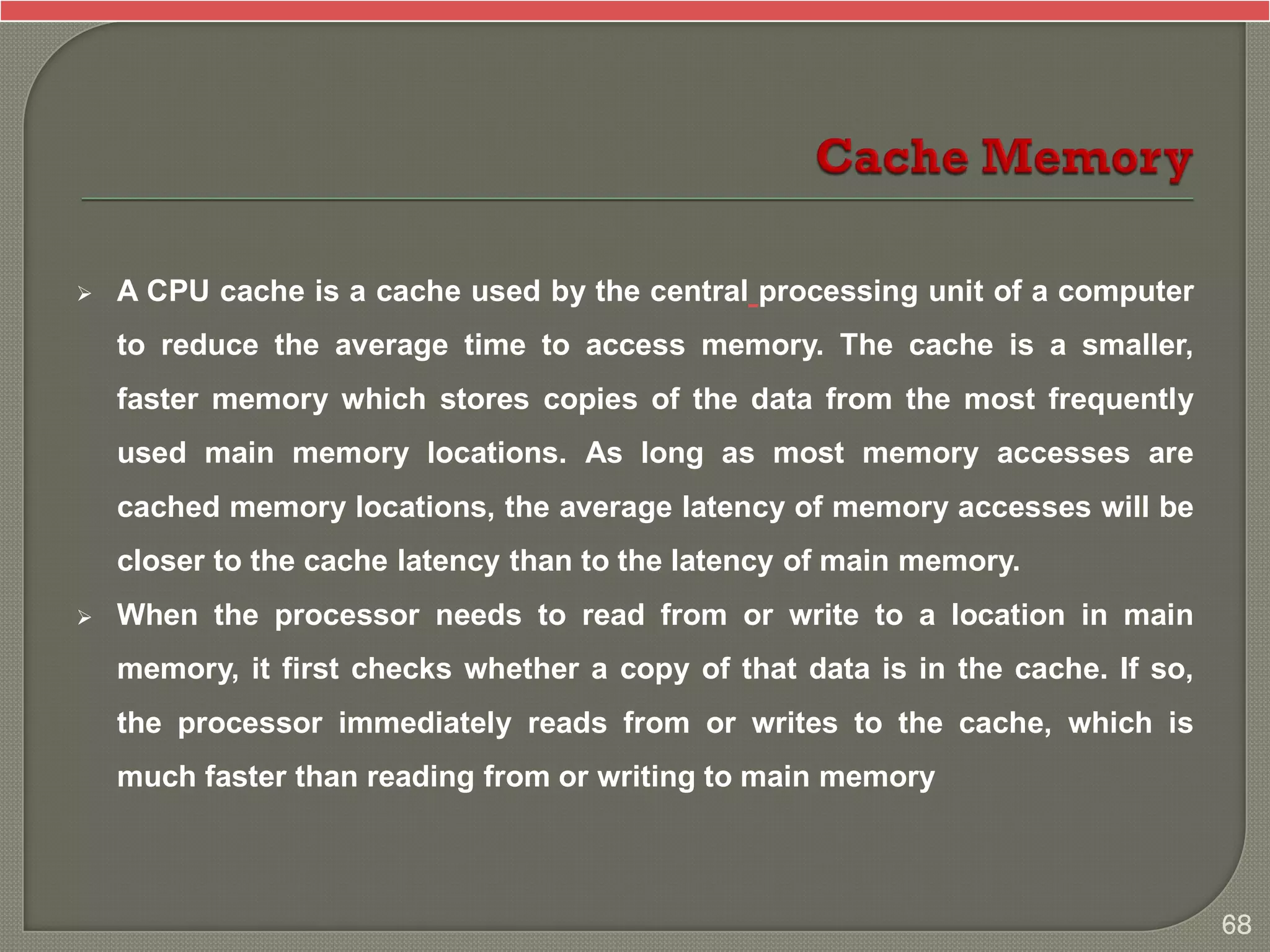

 A CPU cache is a cache used by the central processing unit of a computer
to reduce the average time to access memory. The cache is a smaller,
faster memory which stores copies of the data from the most frequently
used main memory locations. As long as most memory accesses are
cached memory locations, the average latency of memory accesses will be
closer to the cache latency than to the latency of main memory.
 When the processor needs to read from or write to a location in main
memory, it first checks whether a copy of that data is in the cache. If so,
the processor immediately reads from or writes to the cache, which is
much faster than reading from or writing to main memory
68

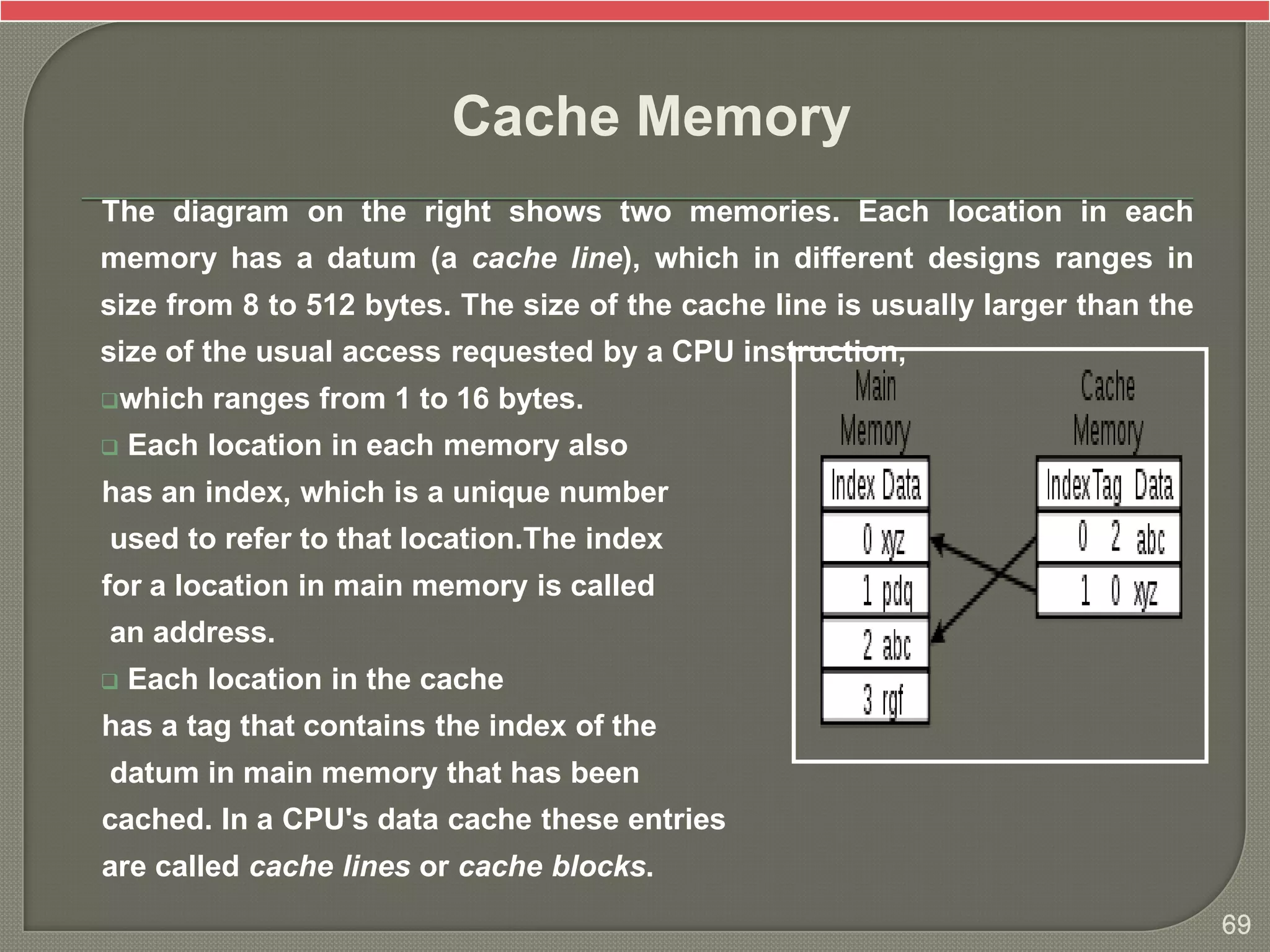

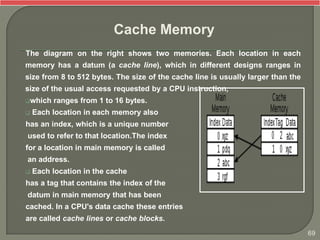

The diagram on the right shows two memories. Each location in each
memory has a datum (a cache line), which in different designs ranges in
size from 8 to 512 bytes. The size of the cache line is usually larger than the
size of the usual access requested by a CPU instruction,
which ranges from 1 to 16 bytes.
 Each location in each memory also
has an index, which is a unique number
used to refer to that location.The index
for a location in main memory is called
an address.
 Each location in the cache
has a tag that contains the index of the
datum in main memory that has been
cached. In a CPU's data cache these entries
are called cache lines or cache blocks.
Cache Memory
69

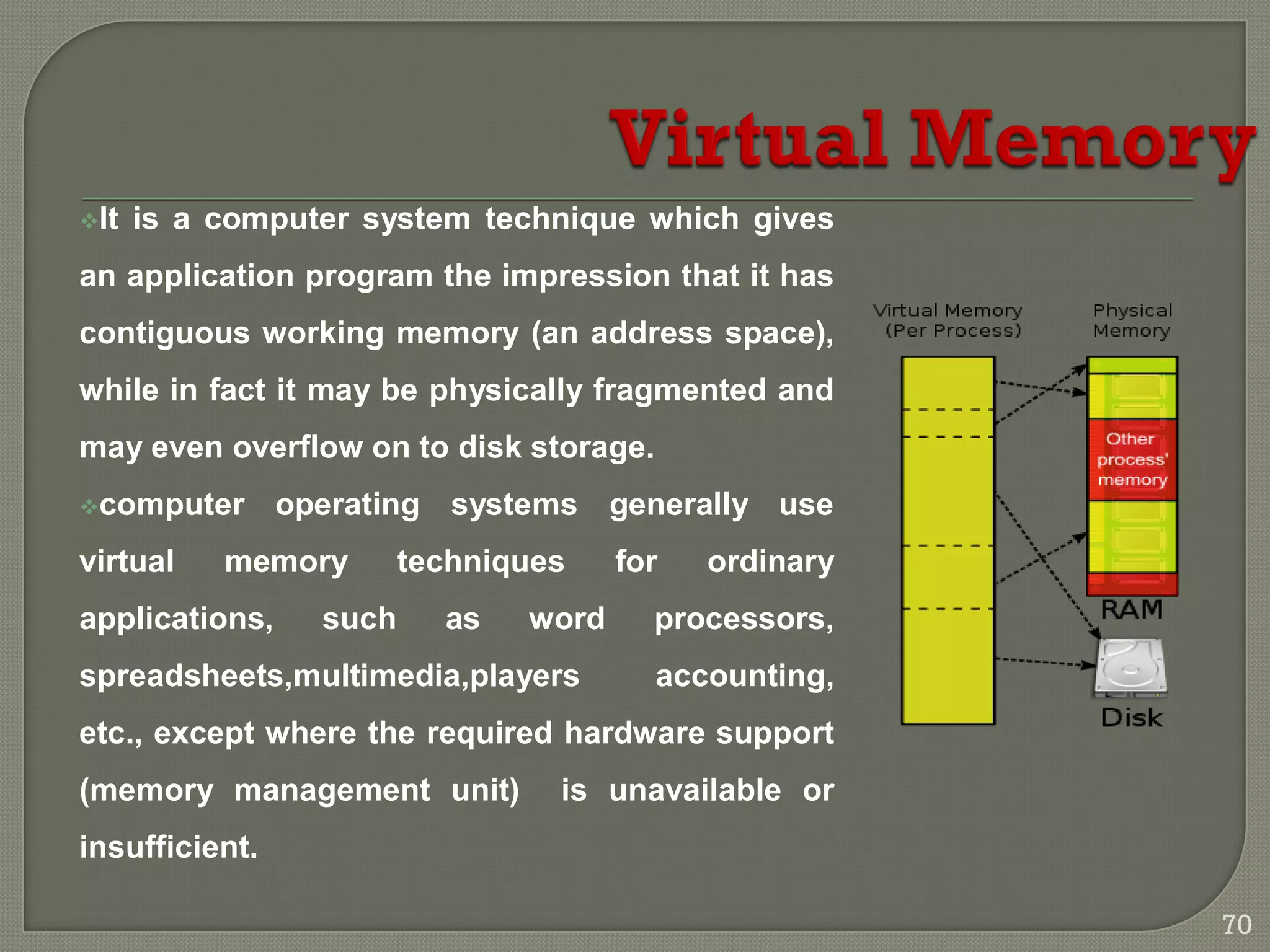

It is a computer system technique which gives
an application program the impression that it has
contiguous working memory (an address space),
while in fact it may be physically fragmented and
may even overflow on to disk storage.
computer operating systems generally use
virtual memory techniques for ordinary
applications, such as word processors,
spreadsheets,multimedia,players accounting,
etc., except where the required hardware support
(memory management unit) is unavailable or
insufficient.
70

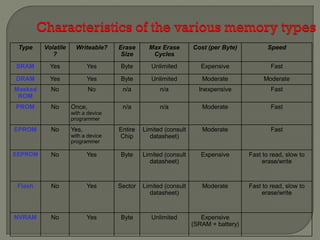

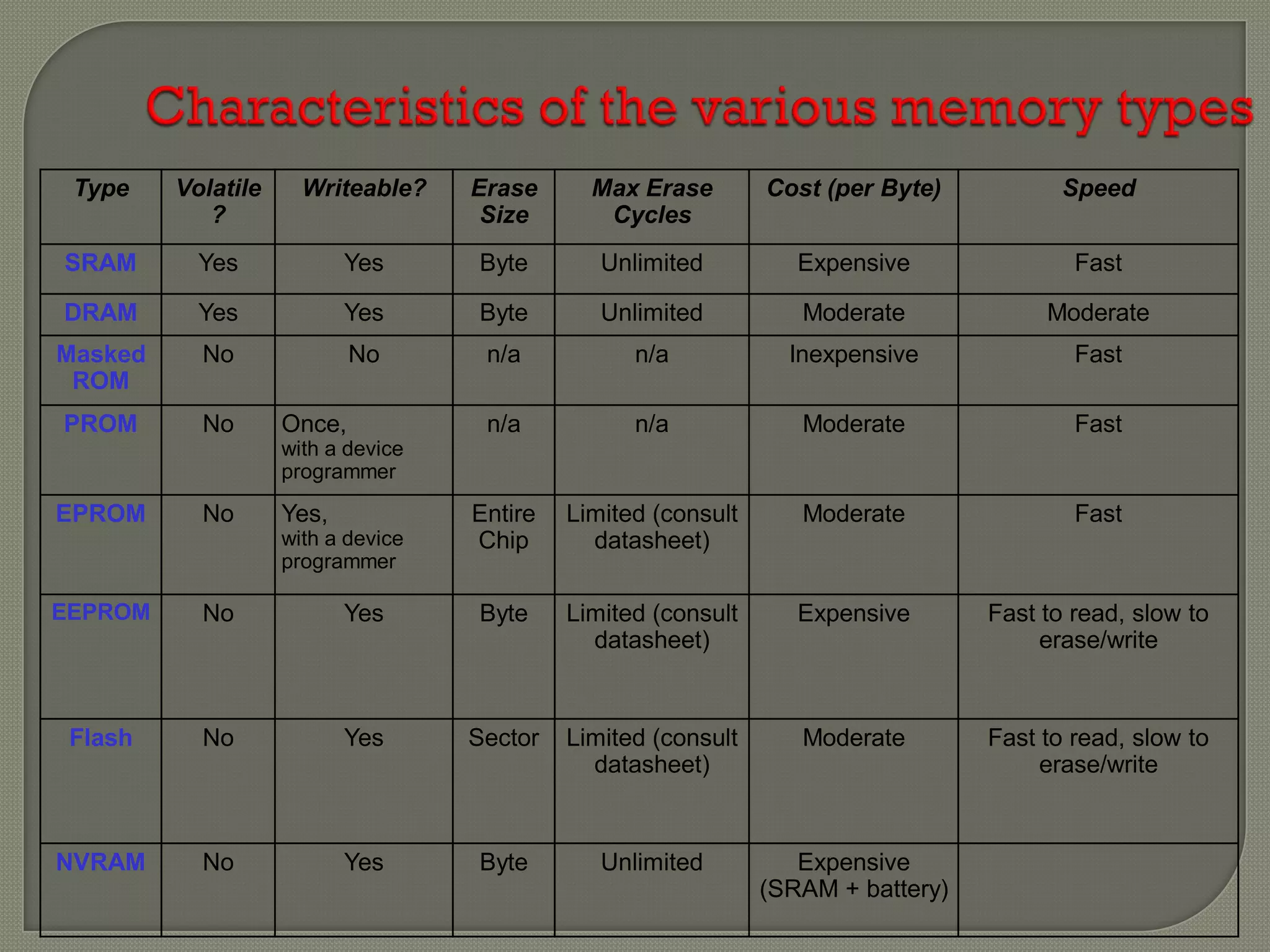

Type Volatile
?
Writeable? Erase
Size
Max Erase
Cycles
Cost (per Byte) Speed
SRAM Yes Yes Byte Unlimited Expensive Fast
DRAM Yes Yes Byte Unlimited Moderate Moderate
Masked
ROM
No No n/a n/a Inexpensive Fast
PROM No Once,
with a device
programmer
n/a n/a Moderate Fast
EPROM No Yes,
with a device
programmer
Entire
Chip
Limited (consult
datasheet)
Moderate Fast
EEPROM No Yes Byte Limited (consult
datasheet)
Expensive Fast to read, slow to
erase/write
Flash No Yes Sector Limited (consult
datasheet)
Moderate Fast to read, slow to
erase/write
NVRAM No Yes Byte Unlimited Expensive
(SRAM + battery)

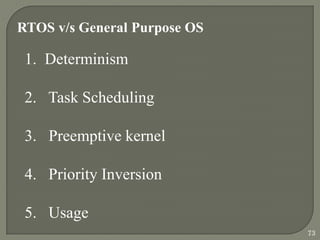

RTOS v/s General Purpose OS
1. Determinism
2. Task Scheduling
3. Preemptive kernel
4. Priority Inversion
5. Usage
73

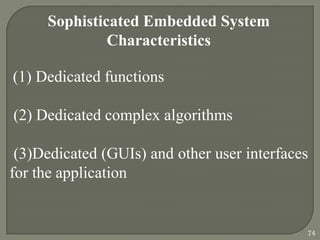

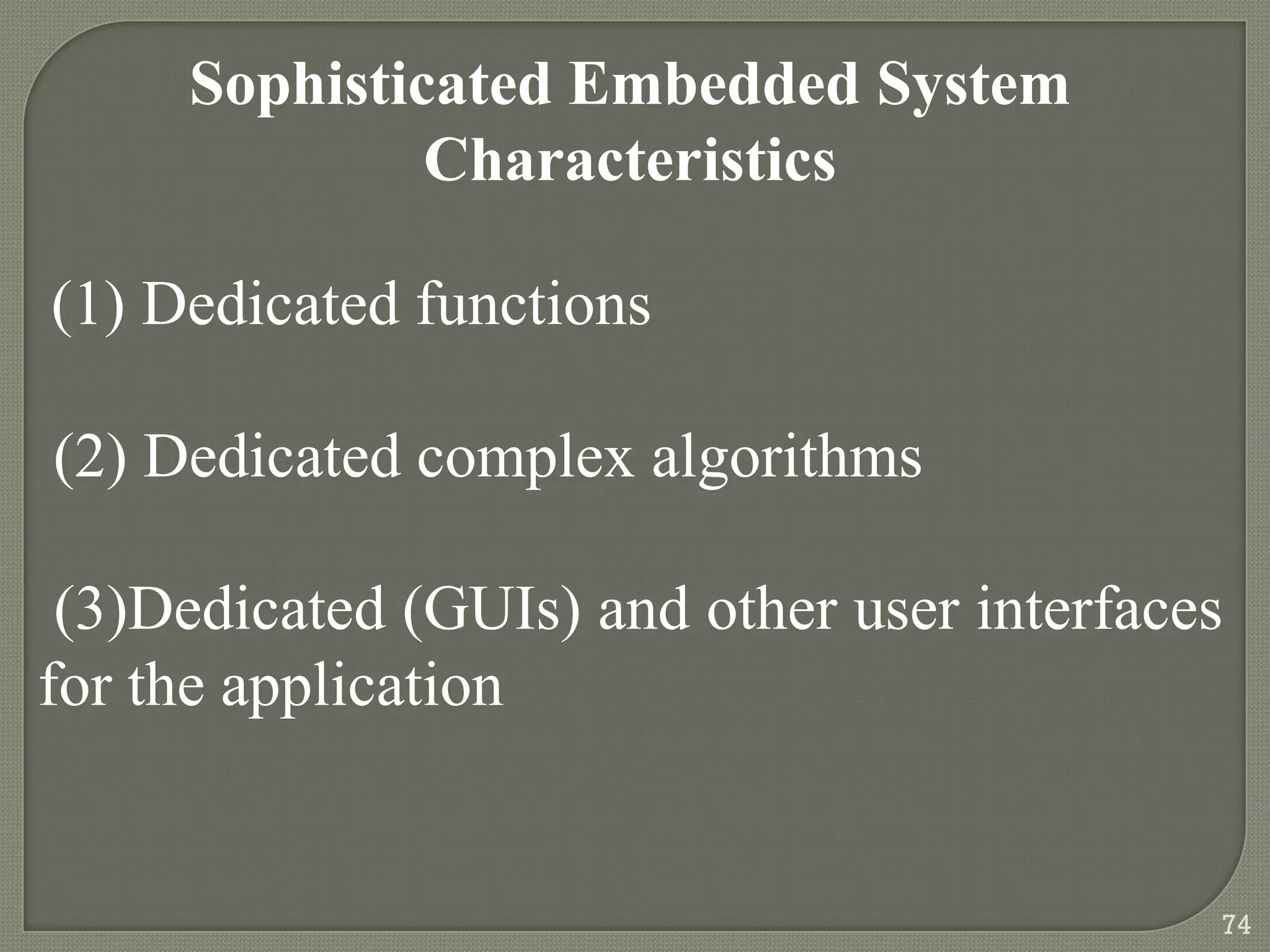

Sophisticated Embedded System
Characteristics
(1) Dedicated functions
(2) Dedicated complex algorithms
(3)Dedicated (GUIs) and other user interfaces
for the application
74

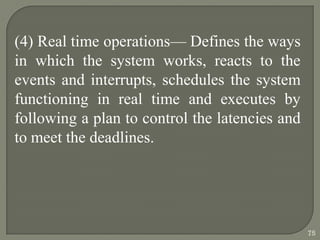

(4) Real time operations— Defines the ways
in which the system works, reacts to the
events and interrupts, schedules the system
functioning in real time and executes by
following a plan to control the latencies and
to meet the deadlines.
75

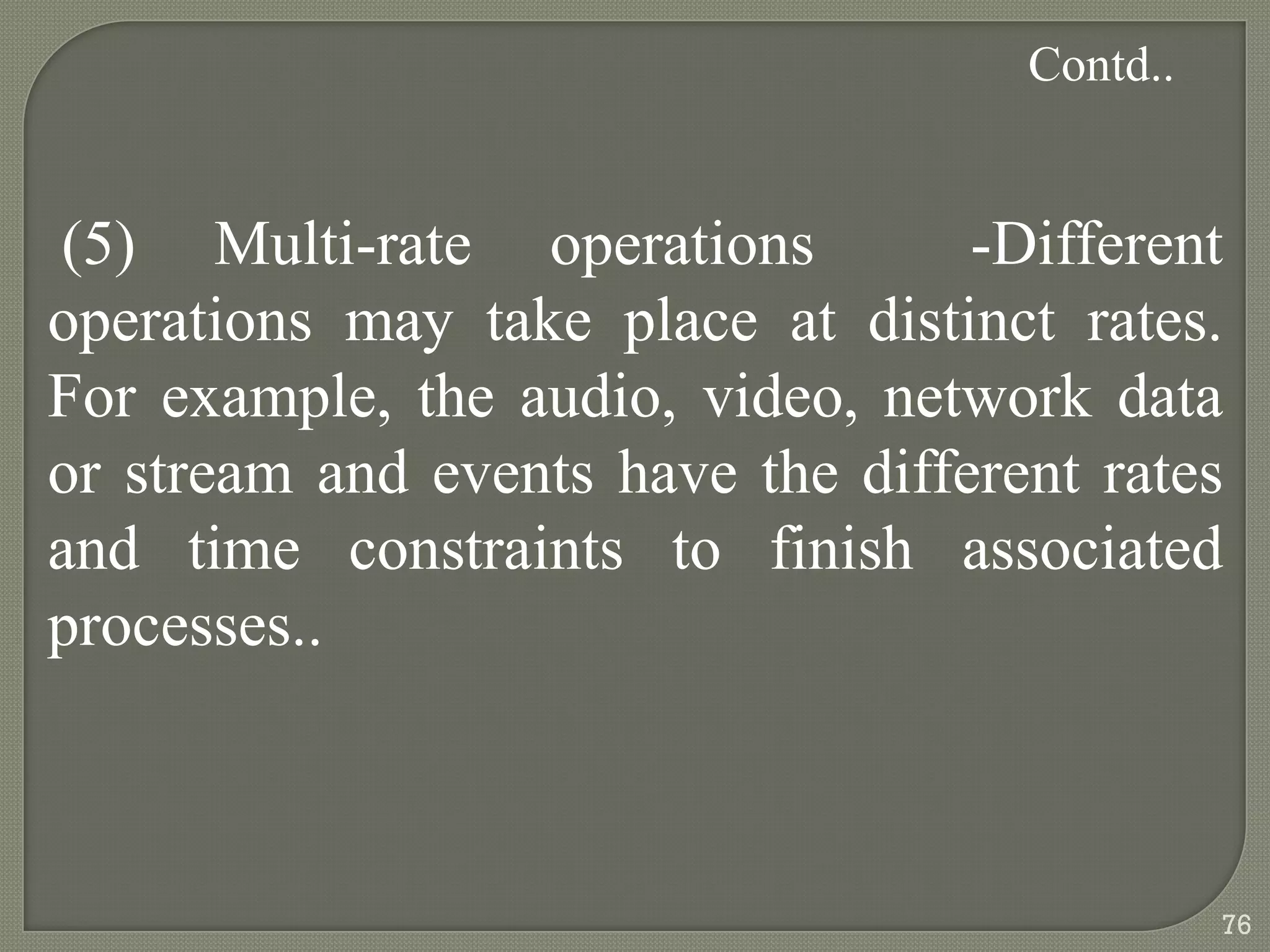

(5) Multi-rate operations -Different
operations may take place at distinct rates.
For example, the audio, video, network data
or stream and events have the different rates
and time constraints to finish associated
processes..
Contd..
76

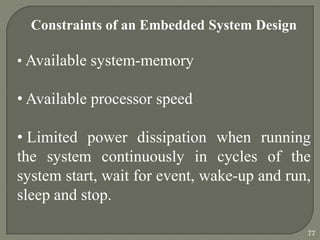

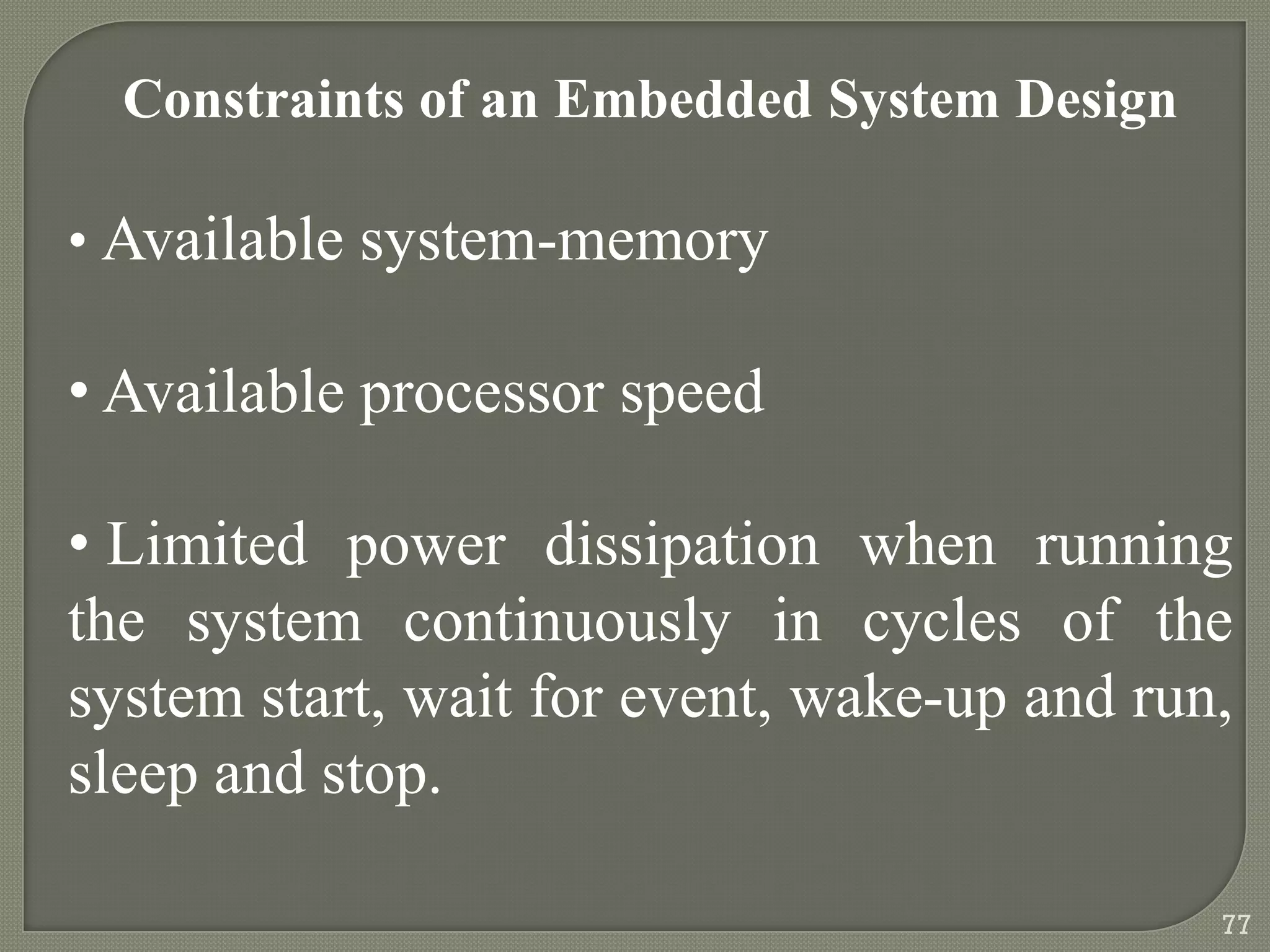

Constraints of an Embedded System Design
• Available system-memory
• Available processor speed
• Limited power dissipation when running
the system continuously in cycles of the
system start, wait for event, wake-up and run,
sleep and stop.
77

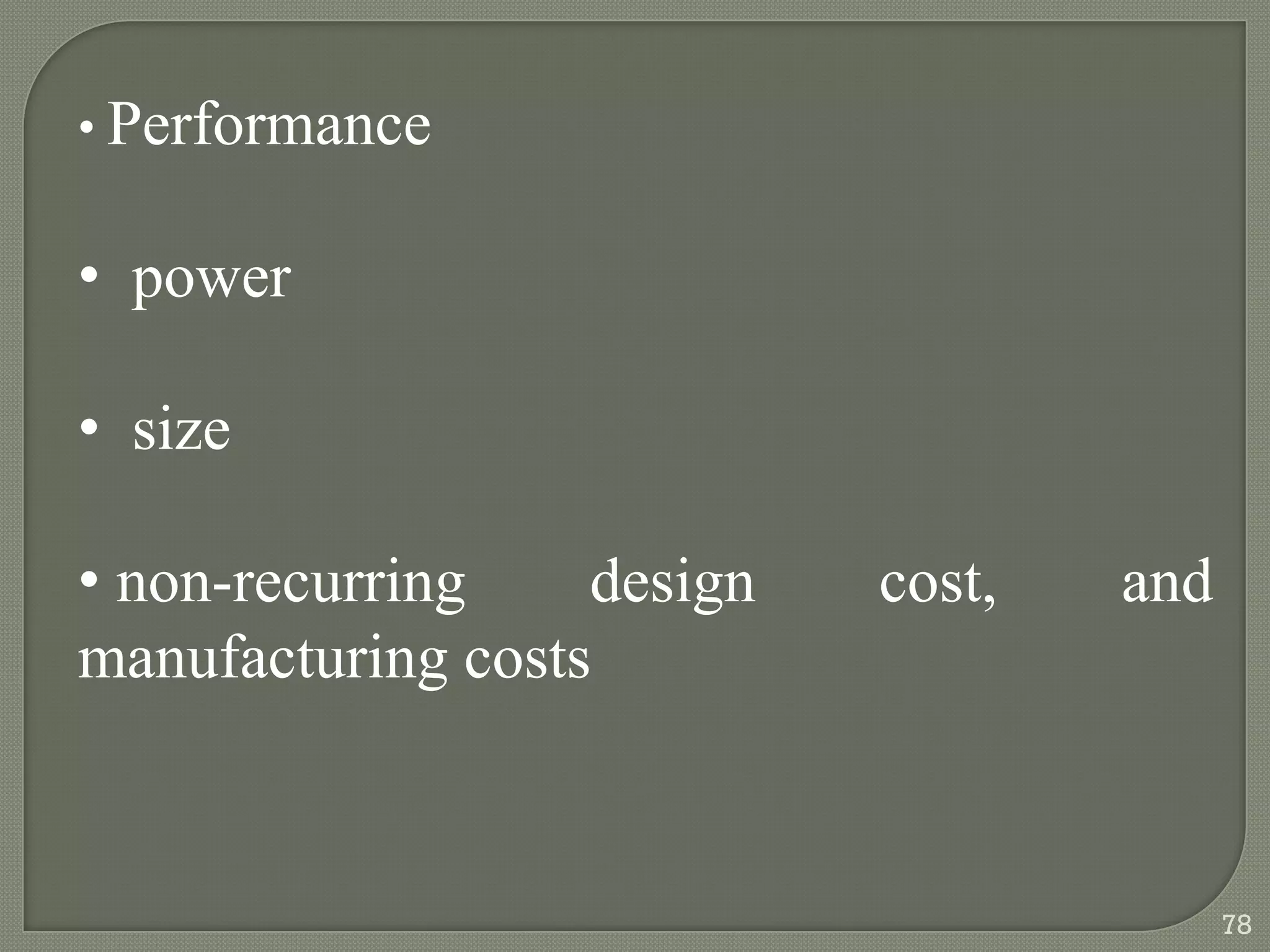

• Performance
• power
• size
• non-recurring design cost, and
manufacturing costs
78

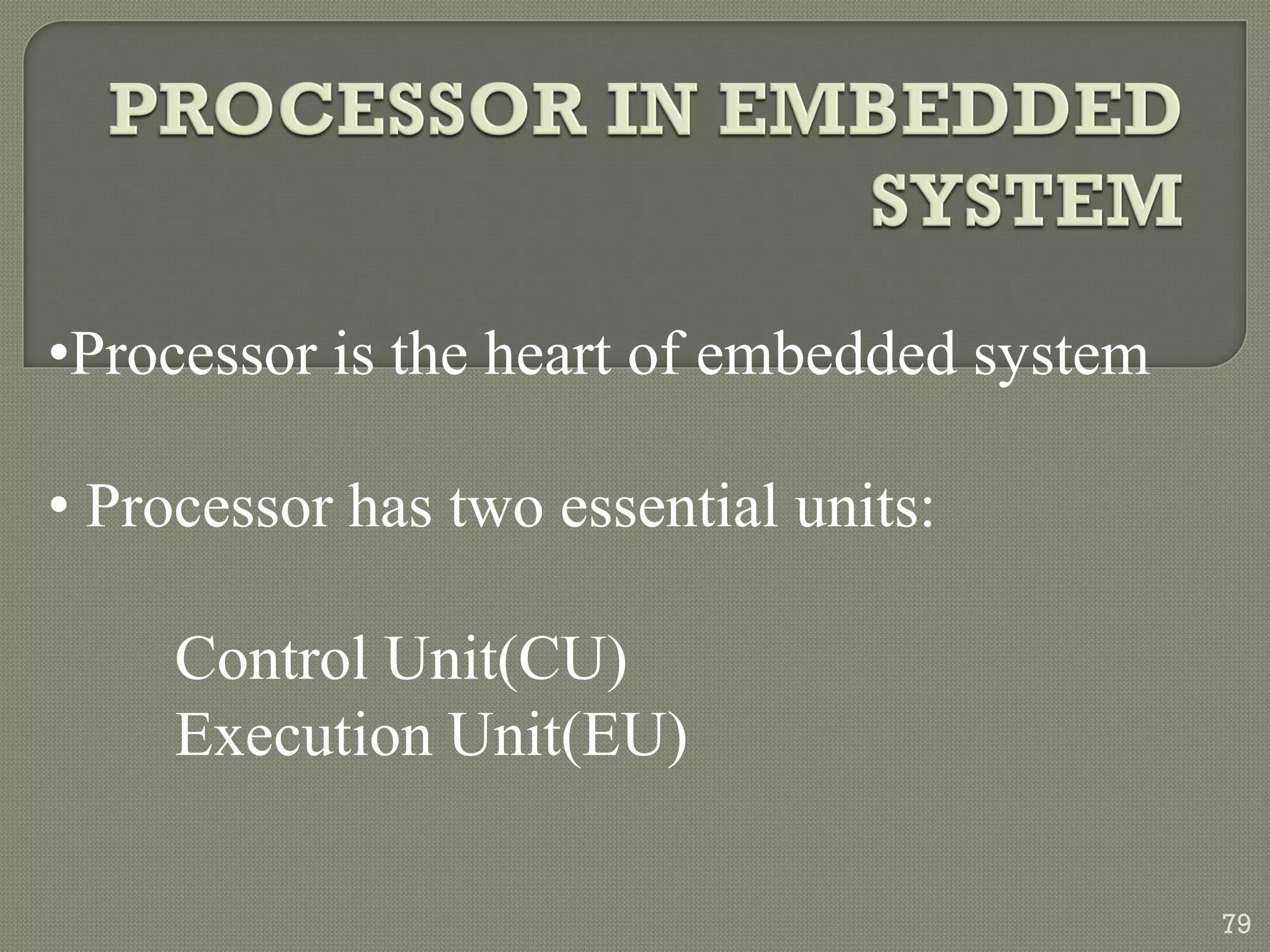

•Processor is the heart of embedded system
• Processor has two essential units:
Control Unit(CU)
Execution Unit(EU)
79

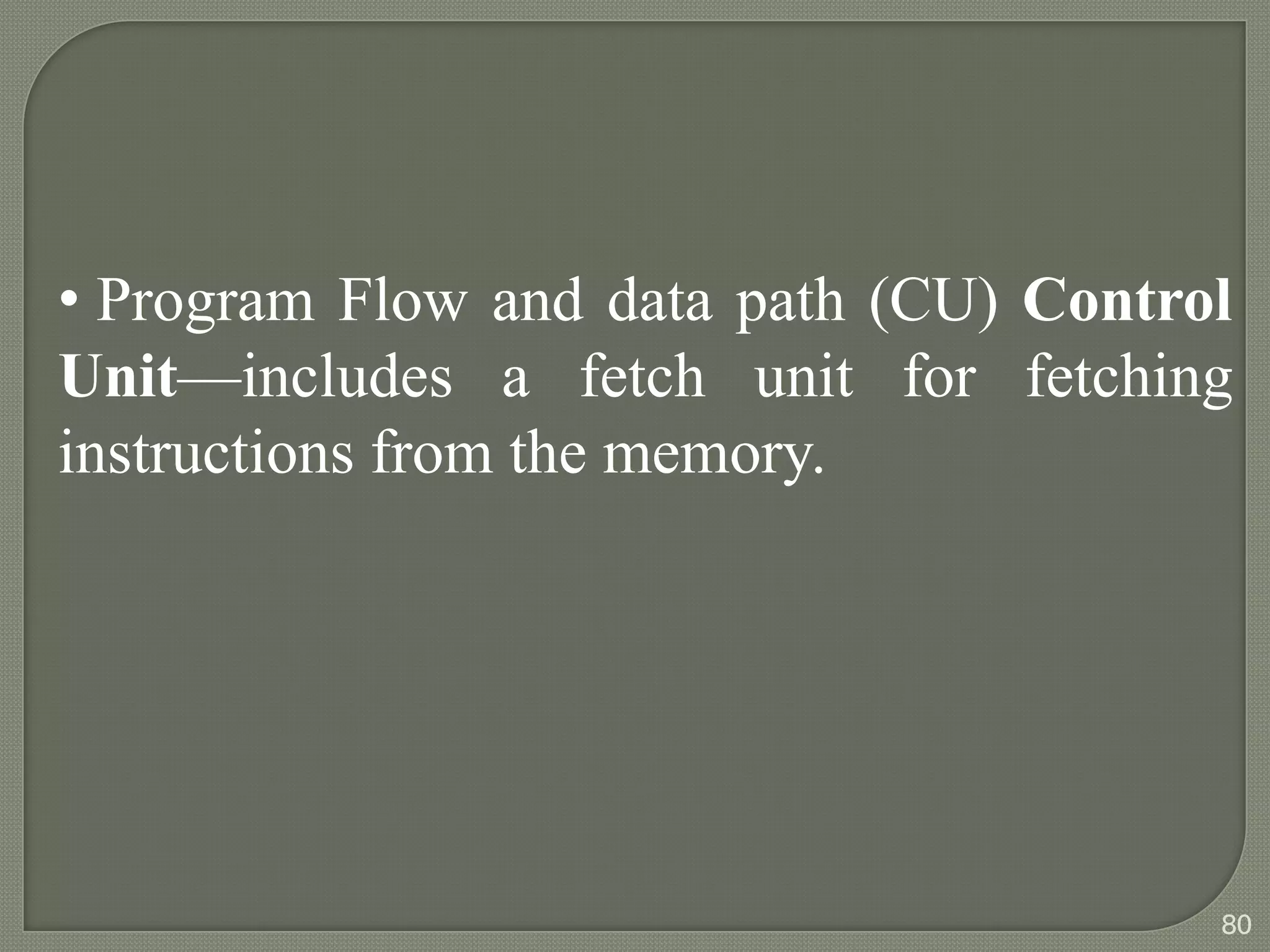

• Program Flow and data path (CU) Control
Unit—includes a fetch unit for fetching
instructions from the memory.
80

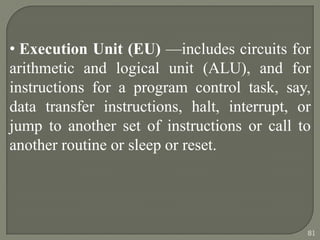

• Execution Unit (EU) —includes circuits for
arithmetic and logical unit (ALU), and for
instructions for a program control task, say,
data transfer instructions, halt, interrupt, or
jump to another set of instructions or call to
another routine or sleep or reset.
81

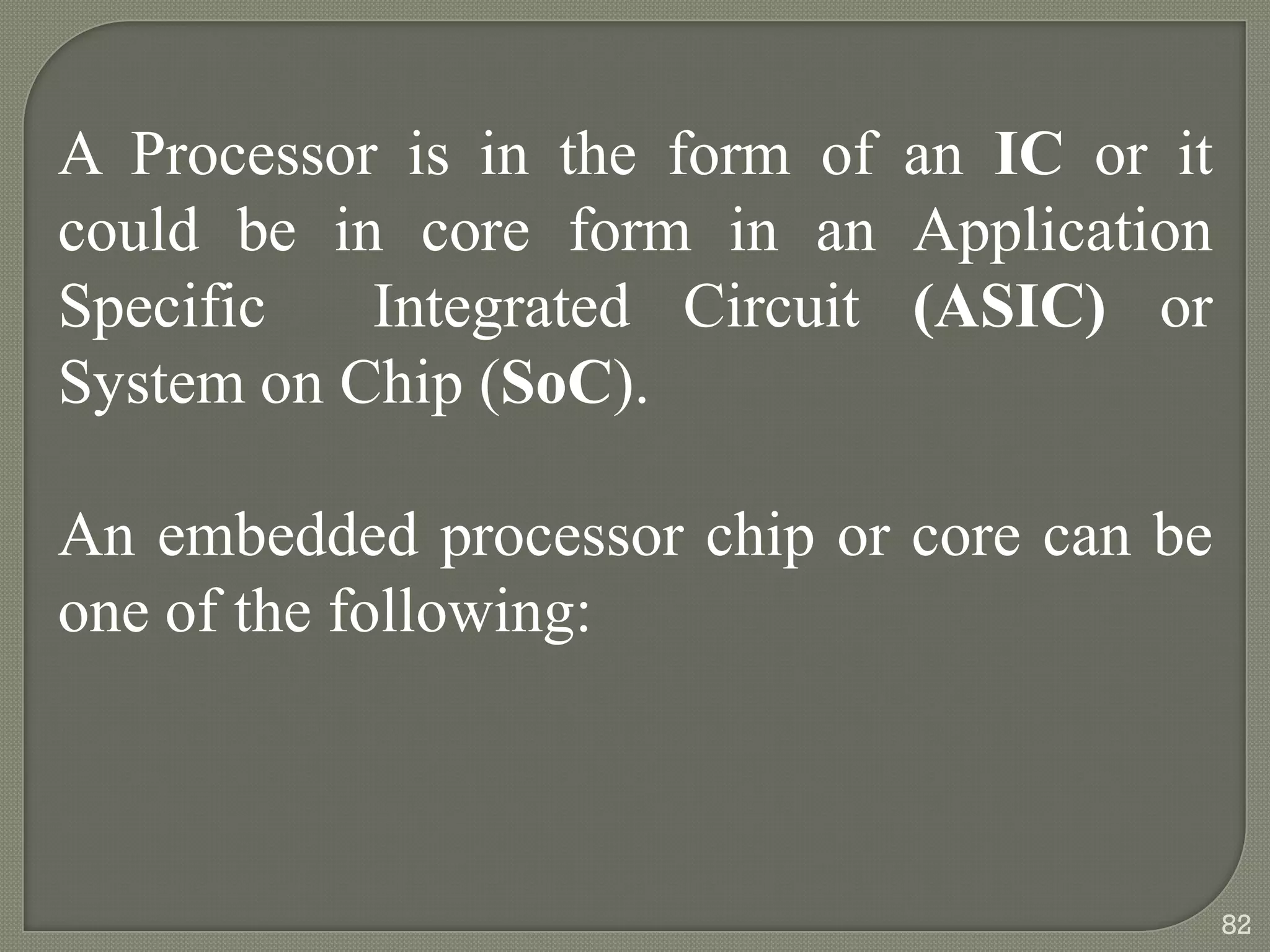

A Processor is in the form of an IC or it
could be in core form in an Application
Specific Integrated Circuit (ASIC) or
System on Chip (SoC).
An embedded processor chip or core can be
one of the following:
82

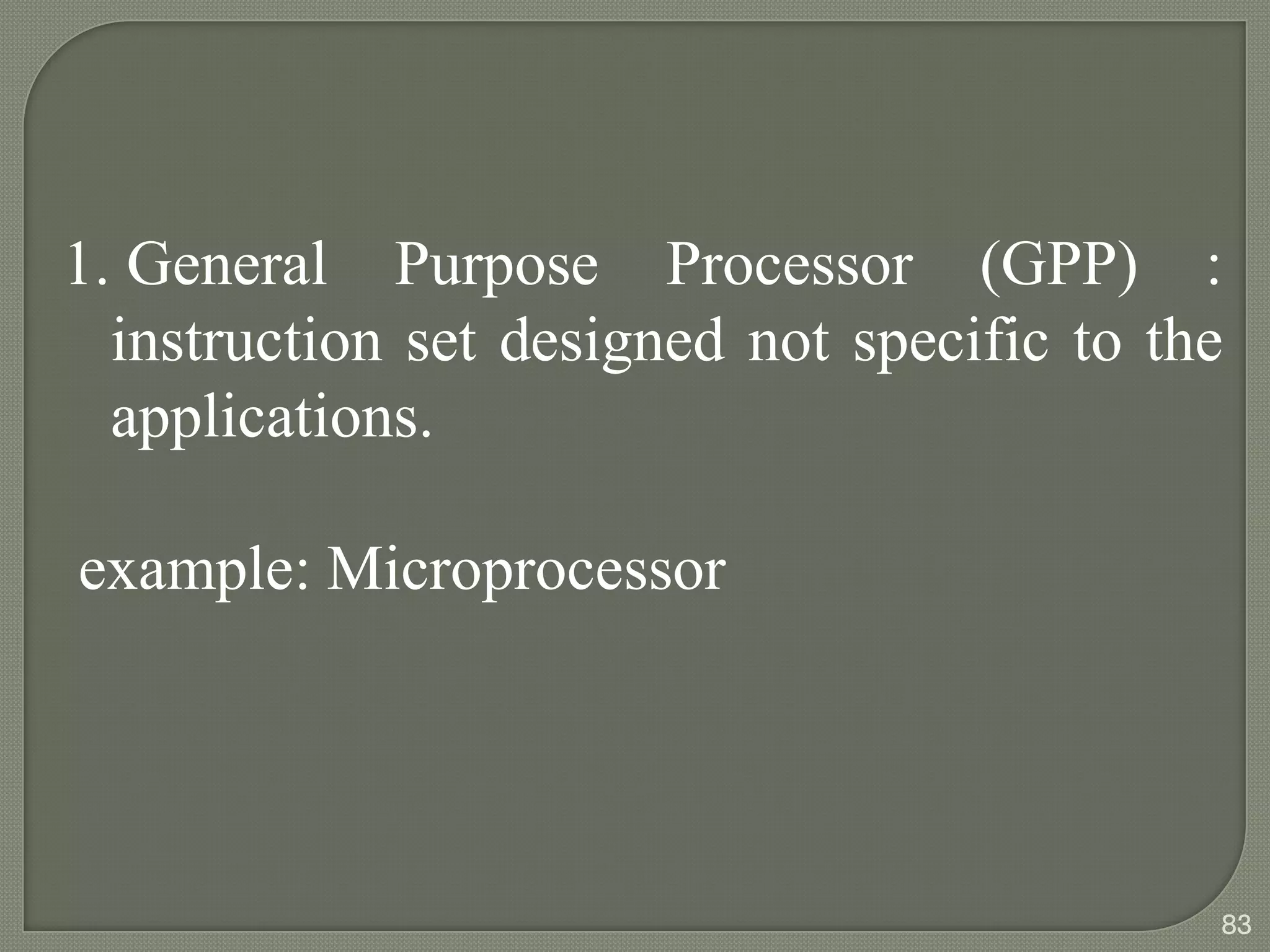

1. General Purpose Processor (GPP) :
instruction set designed not specific to the
applications.
example: Microprocessor
83

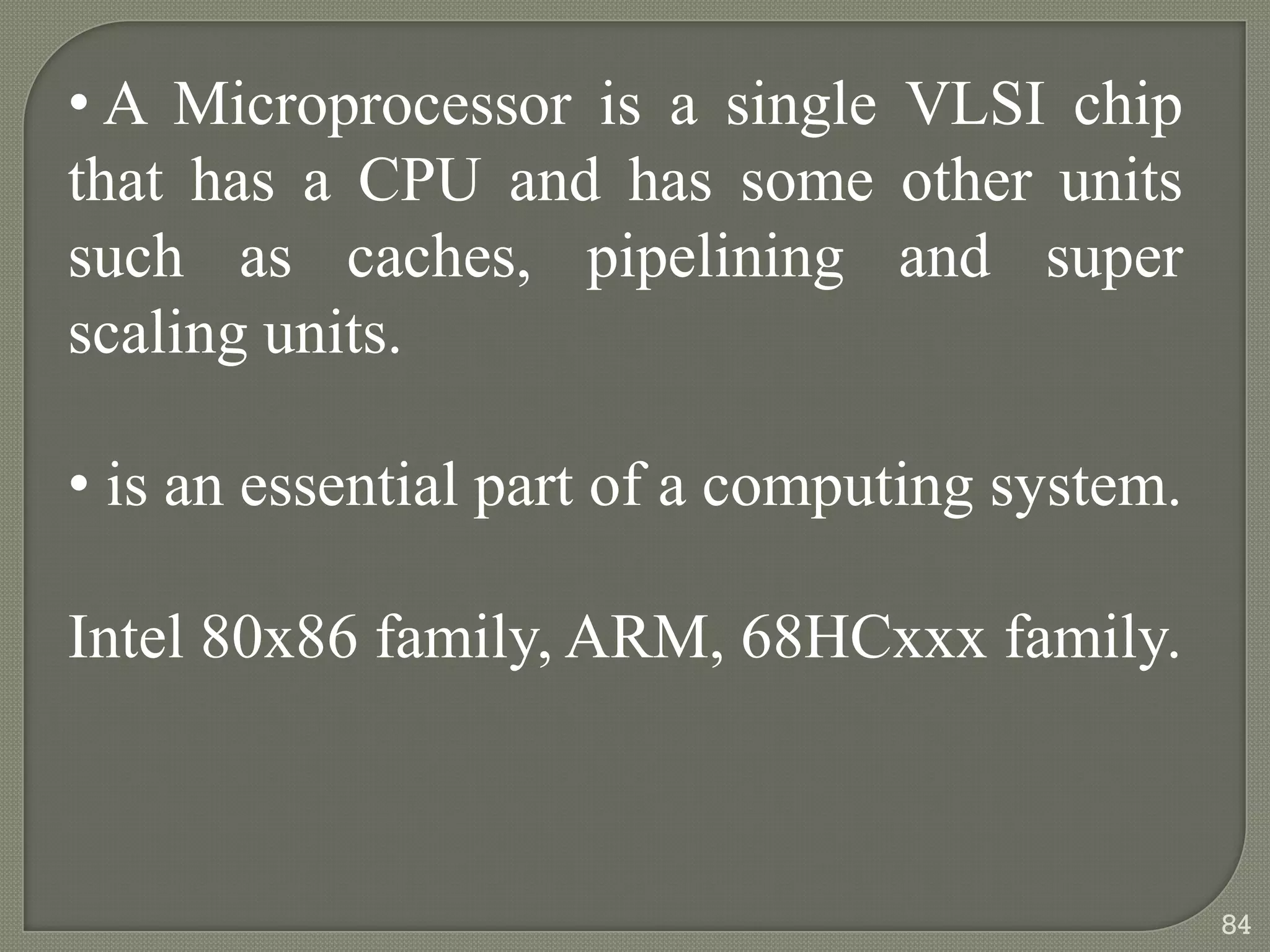

• A Microprocessor is a single VLSI chip
that has a CPU and has some other units
such as caches, pipelining and super
scaling units.
• is an essential part of a computing system.
Intel 80x86 family, ARM, 68HCxxx family.
84

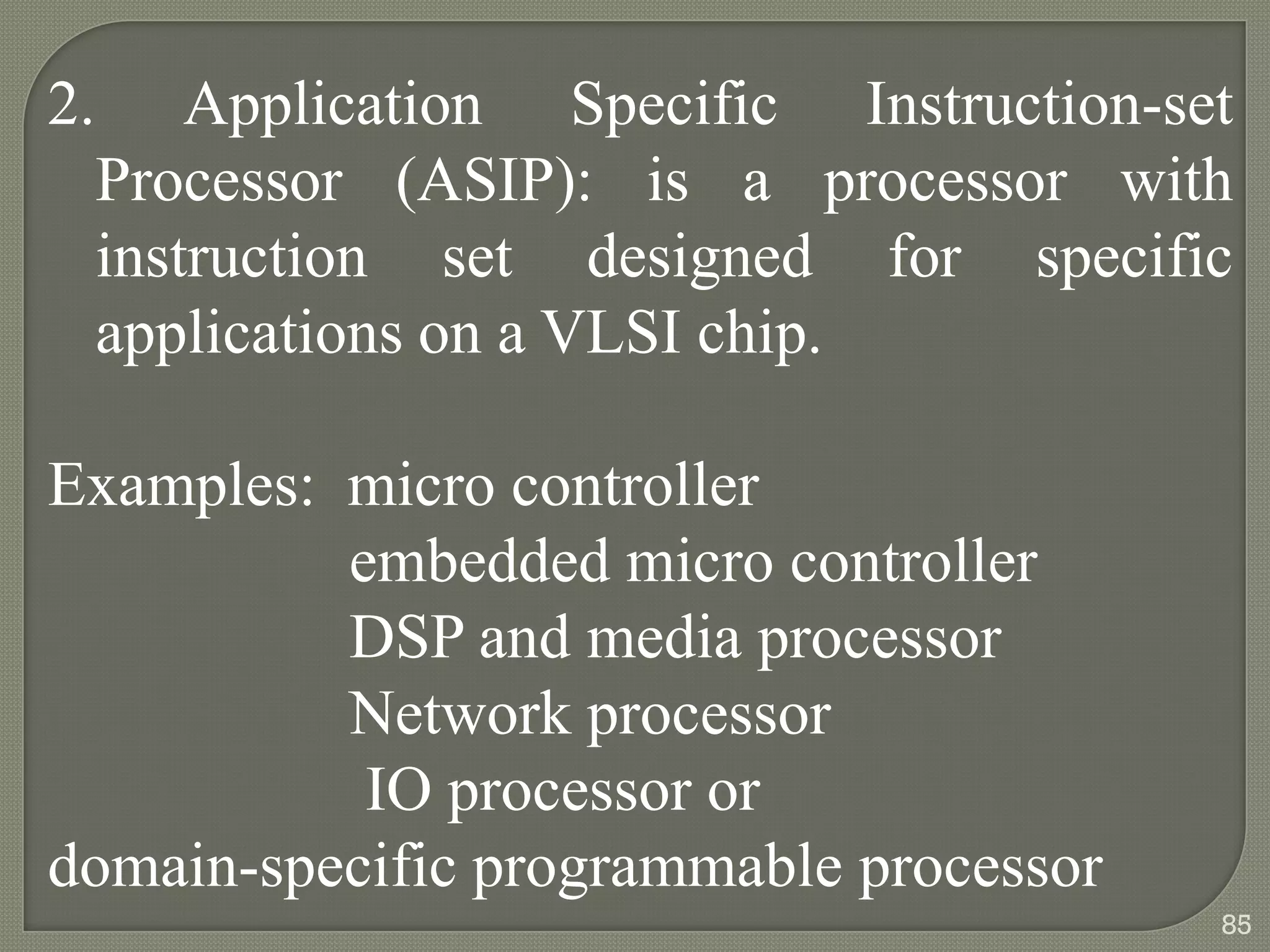

2. Application Specific Instruction-set
Processor (ASIP): is a processor with
instruction set designed for specific
applications on a VLSI chip.
Examples: micro controller
embedded micro controller
DSP and media processor
Network processor
IO processor or
domain-specific programmable processor
85

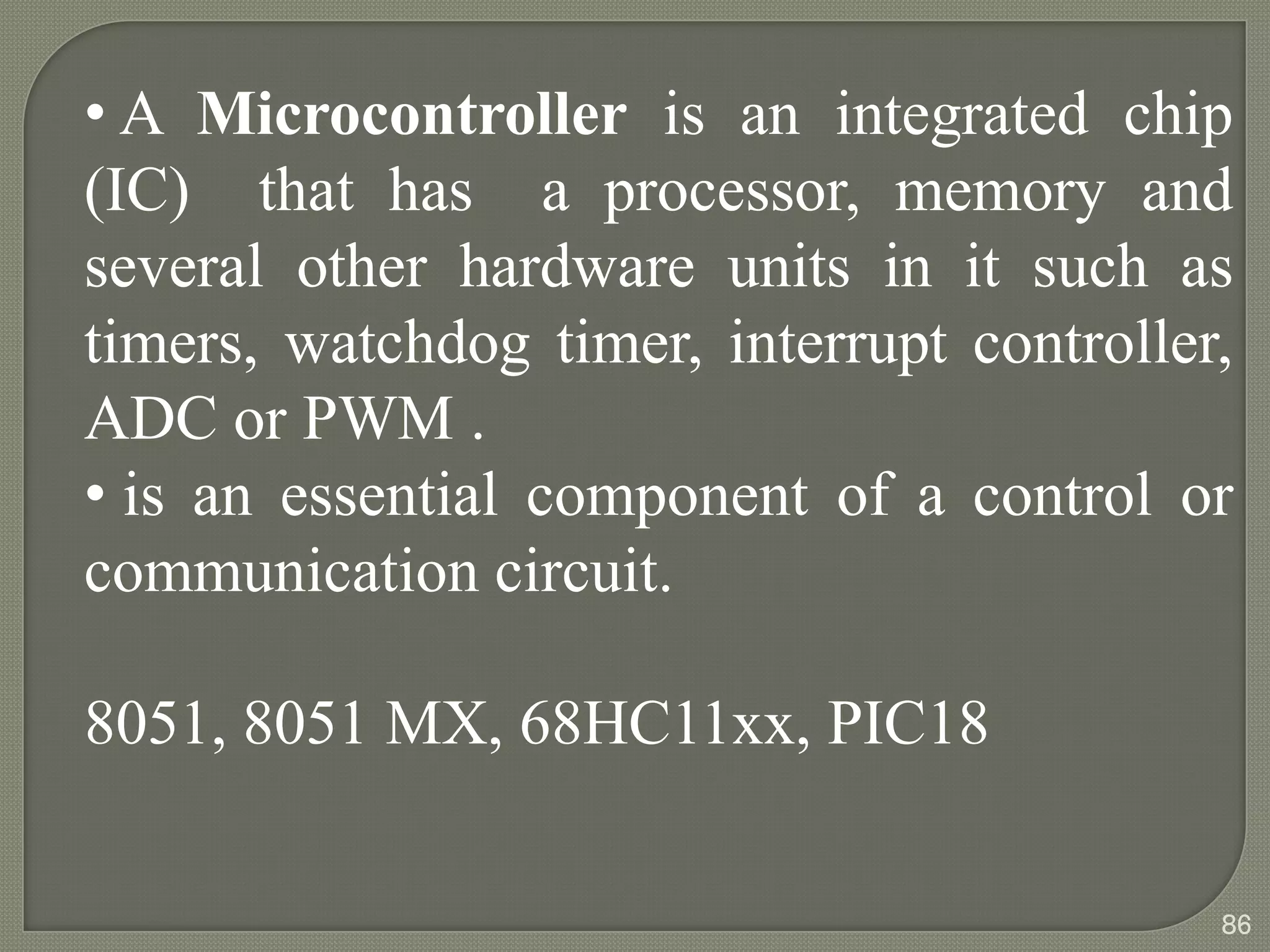

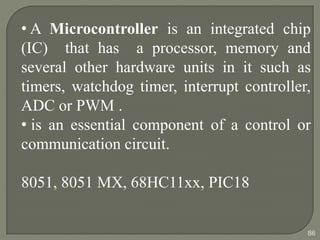

• A Microcontroller is an integrated chip
(IC) that has a processor, memory and
several other hardware units in it such as
timers, watchdog timer, interrupt controller,
ADC or PWM .
• is an essential component of a control or
communication circuit.
8051, 8051 MX, 68HC11xx, PIC18
86

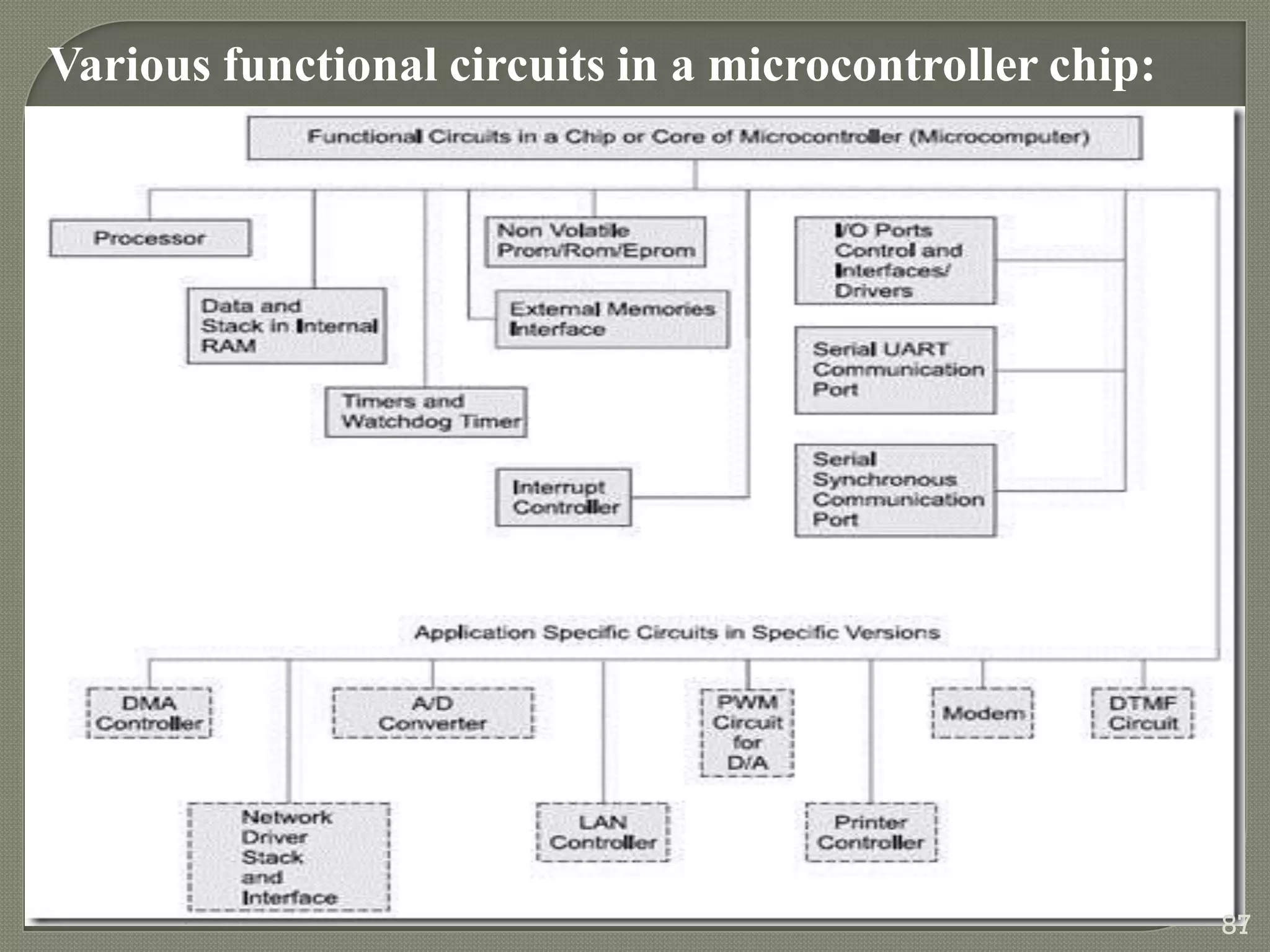

Various functional circuits in a microcontroller chip:
87

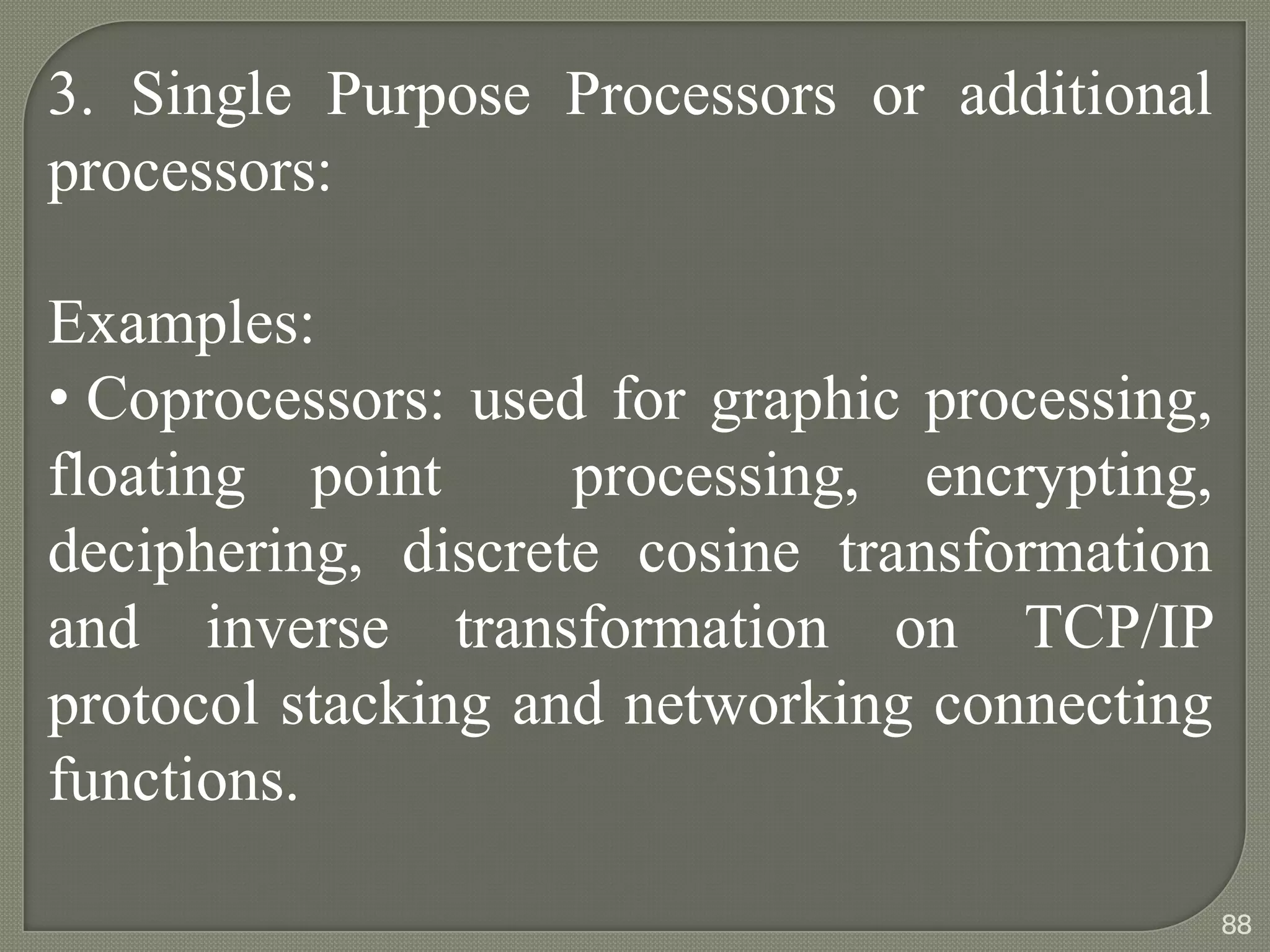

3. Single Purpose Processors or additional
processors:
Examples:
• Coprocessors: used for graphic processing,
floating point processing, encrypting,
deciphering, discrete cosine transformation
and inverse transformation on TCP/IP
protocol stacking and networking connecting
functions.
88

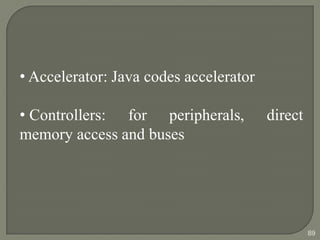

• Accelerator: Java codes accelerator
• Controllers: for peripherals, direct
memory access and buses
89

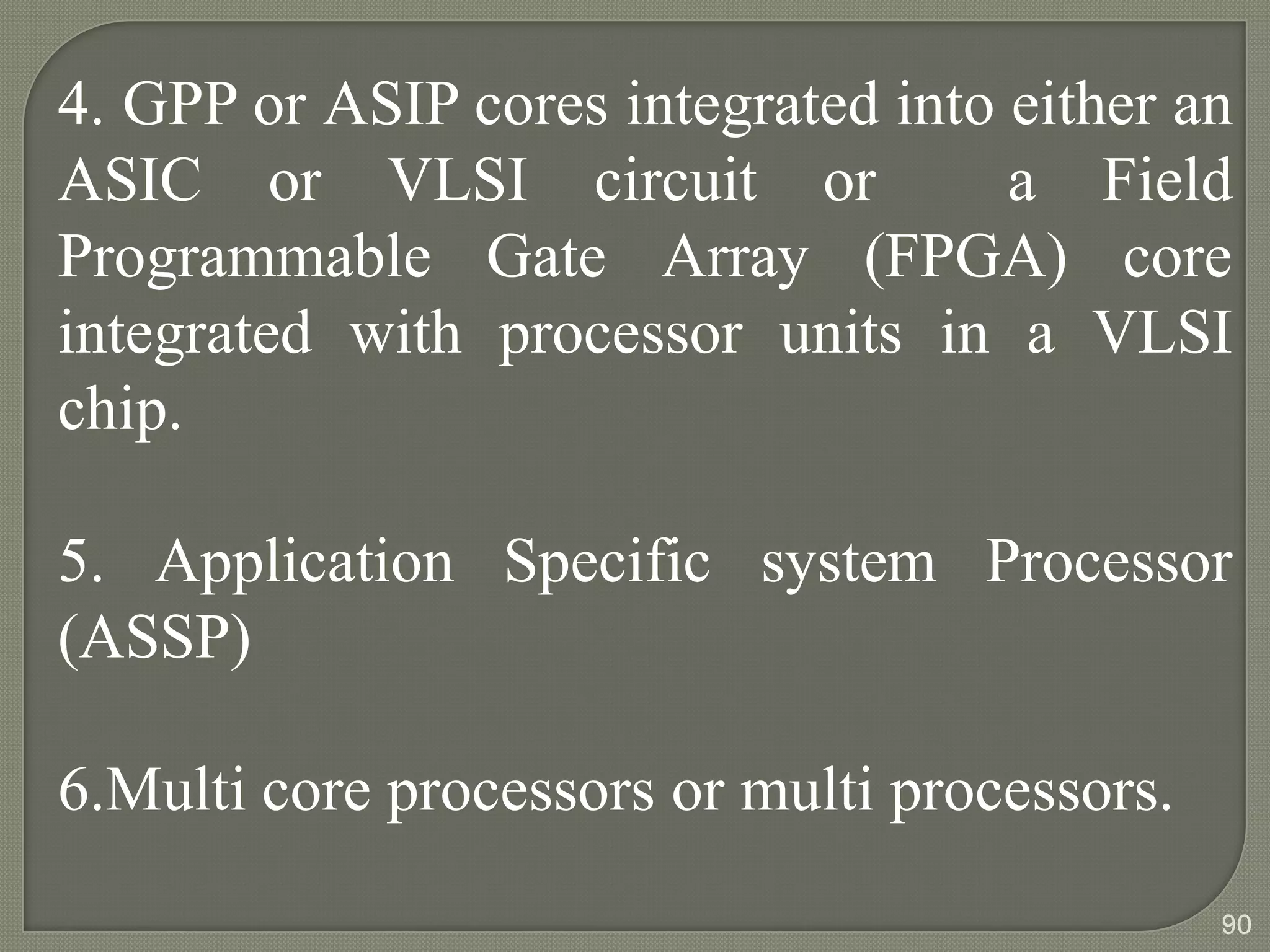

4. GPP or ASIP cores integrated into either an
ASIC or VLSI circuit or a Field
Programmable Gate Array (FPGA) core
integrated with processor units in a VLSI
chip.
5. Application Specific system Processor
(ASSP)
6.Multi core processors or multi processors.
90

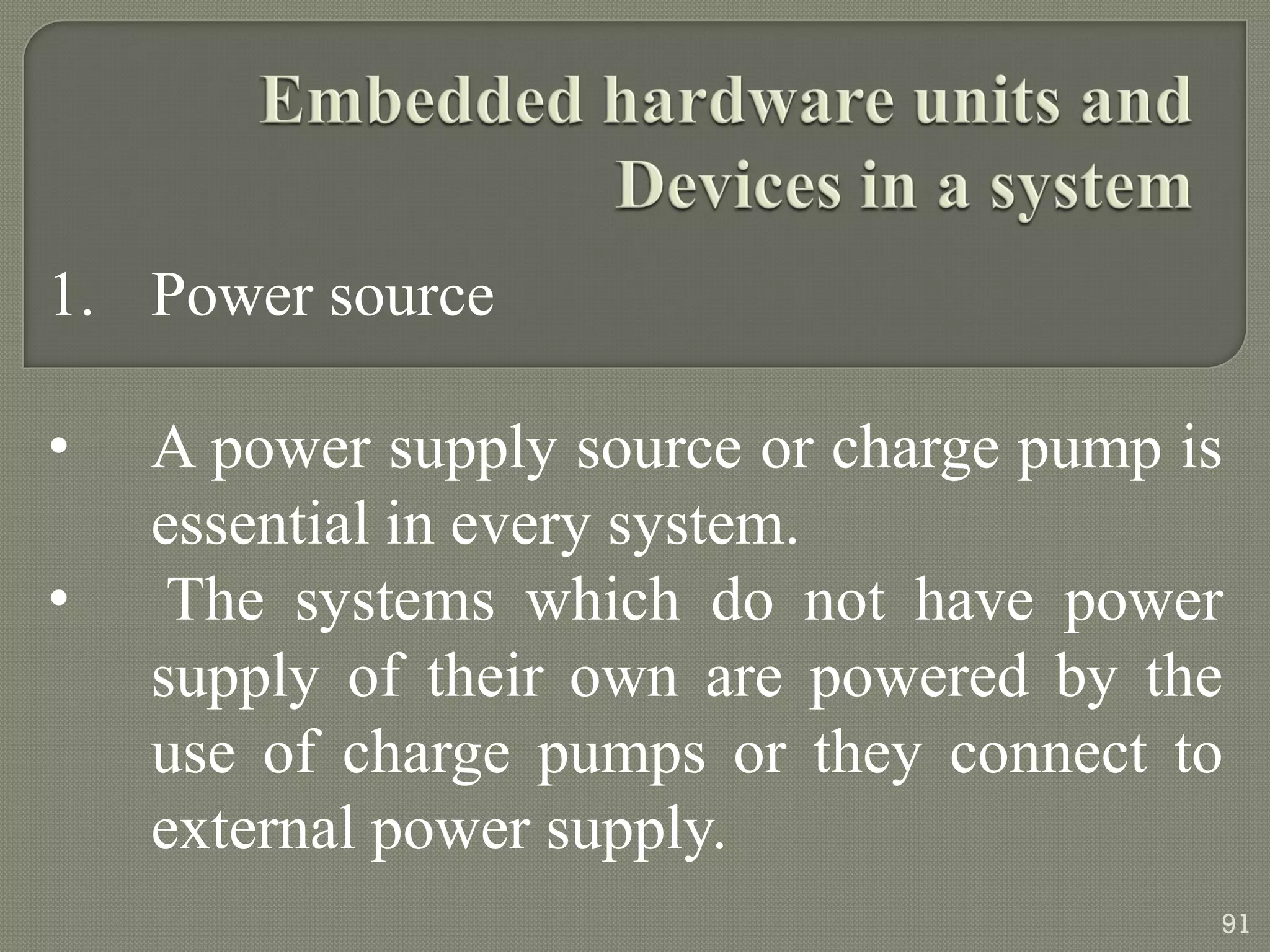

1. Power source
• A power supply source or charge pump is
essential in every system.
• The systems which do not have power
supply of their own are powered by the
use of charge pumps or they connect to
external power supply.
91

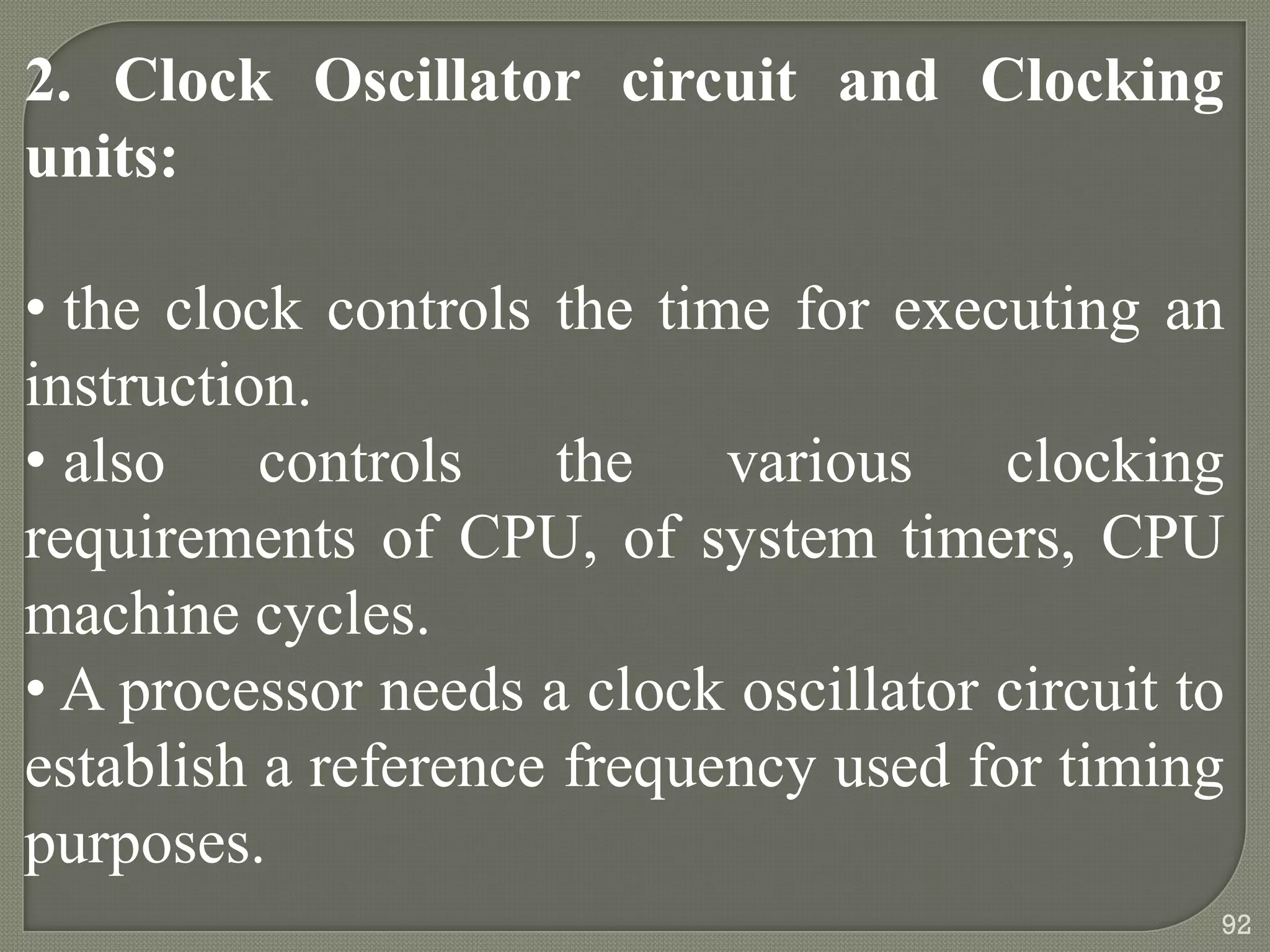

2. Clock Oscillator circuit and Clocking
units:
• the clock controls the time for executing an
instruction.
• also controls the various clocking
requirements of CPU, of system timers, CPU
machine cycles.
• A processor needs a clock oscillator circuit to
establish a reference frequency used for timing
purposes.
92

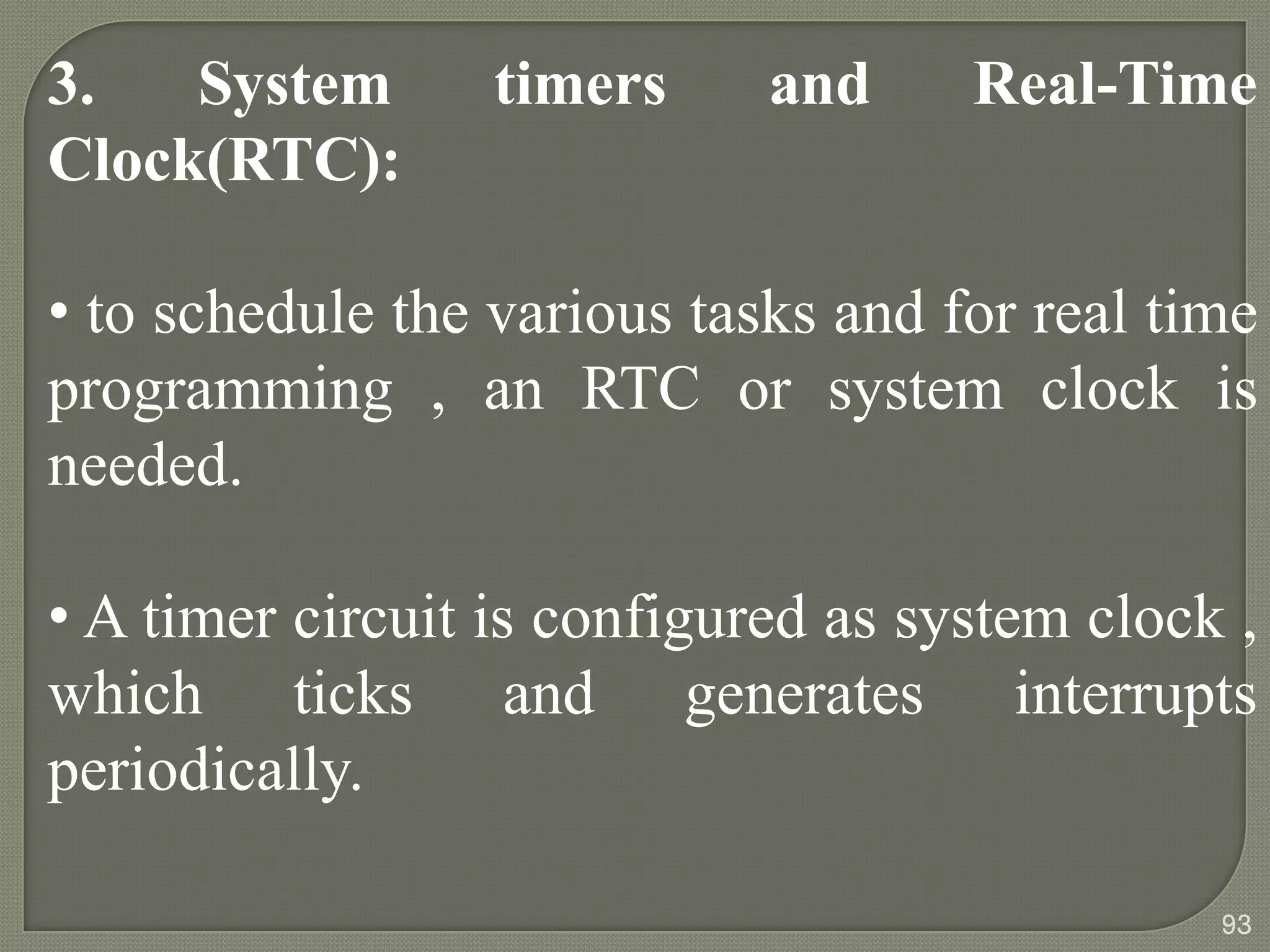

3. System timers and Real-Time
Clock(RTC):
• to schedule the various tasks and for real time
programming , an RTC or system clock is
needed.
• A timer circuit is configured as system clock ,
which ticks and generates interrupts
periodically.
93

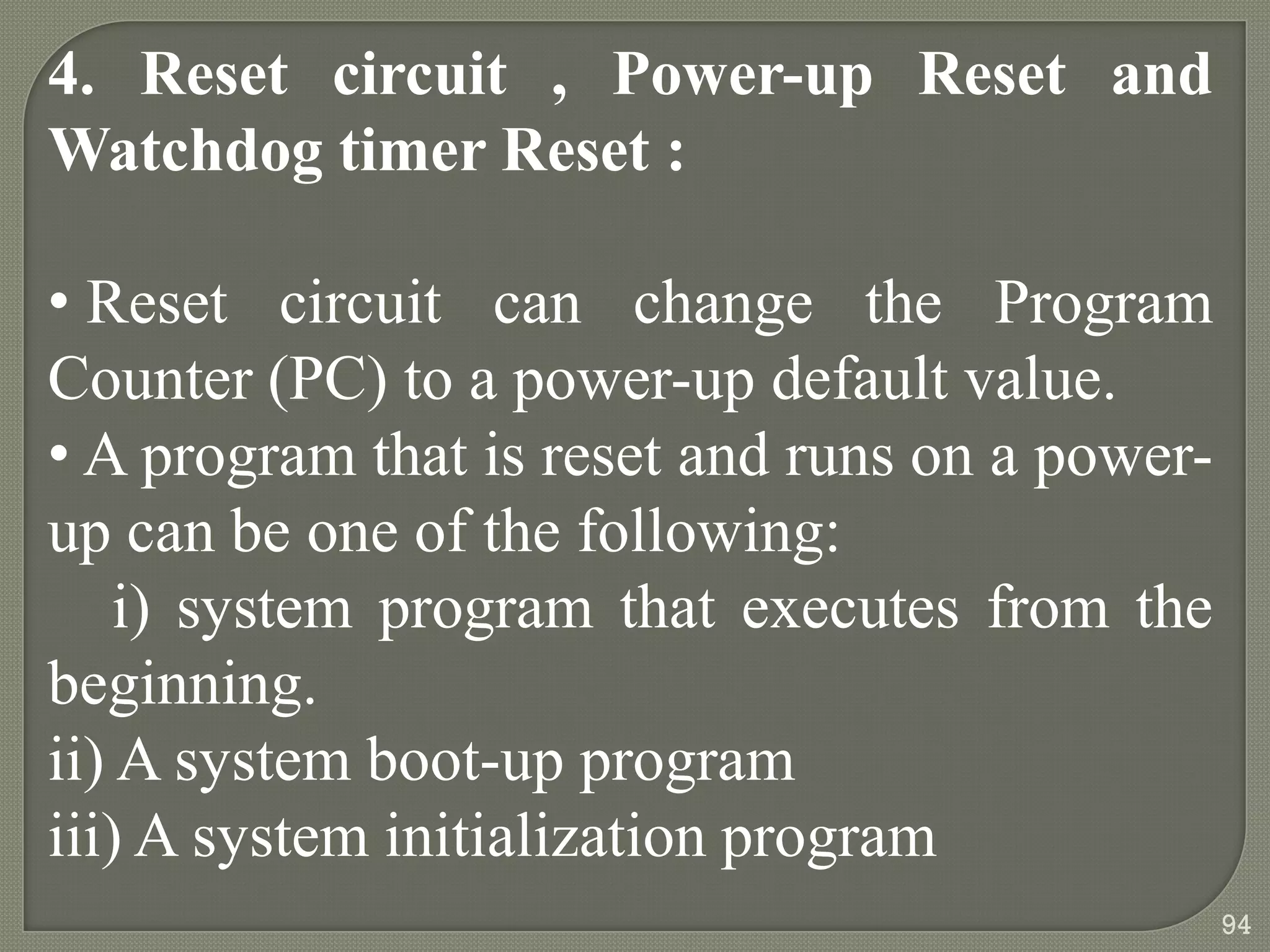

4. Reset circuit , Power-up Reset and
Watchdog timer Reset :
• Reset circuit can change the Program
Counter (PC) to a power-up default value.
• A program that is reset and runs on a power-
up can be one of the following:
i) system program that executes from the
beginning.
ii) A system boot-up program
iii) A system initialization program
94

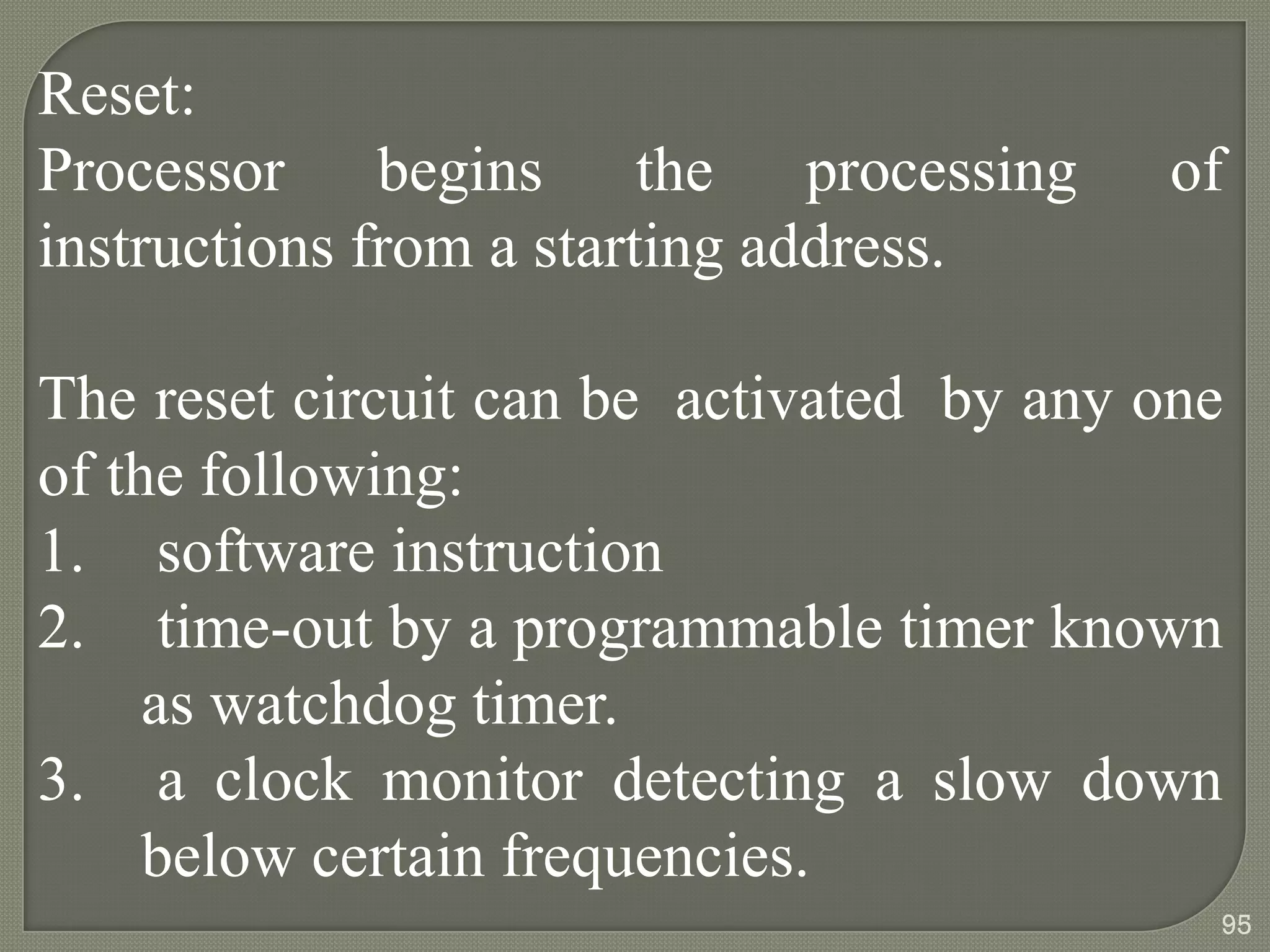

Reset:
Processor begins the processing of
instructions from a starting address.
The reset circuit can be activated by any one
of the following:
1. software instruction
2. time-out by a programmable timer known
as watchdog timer.
3. a clock monitor detecting a slow down
below certain frequencies.
95

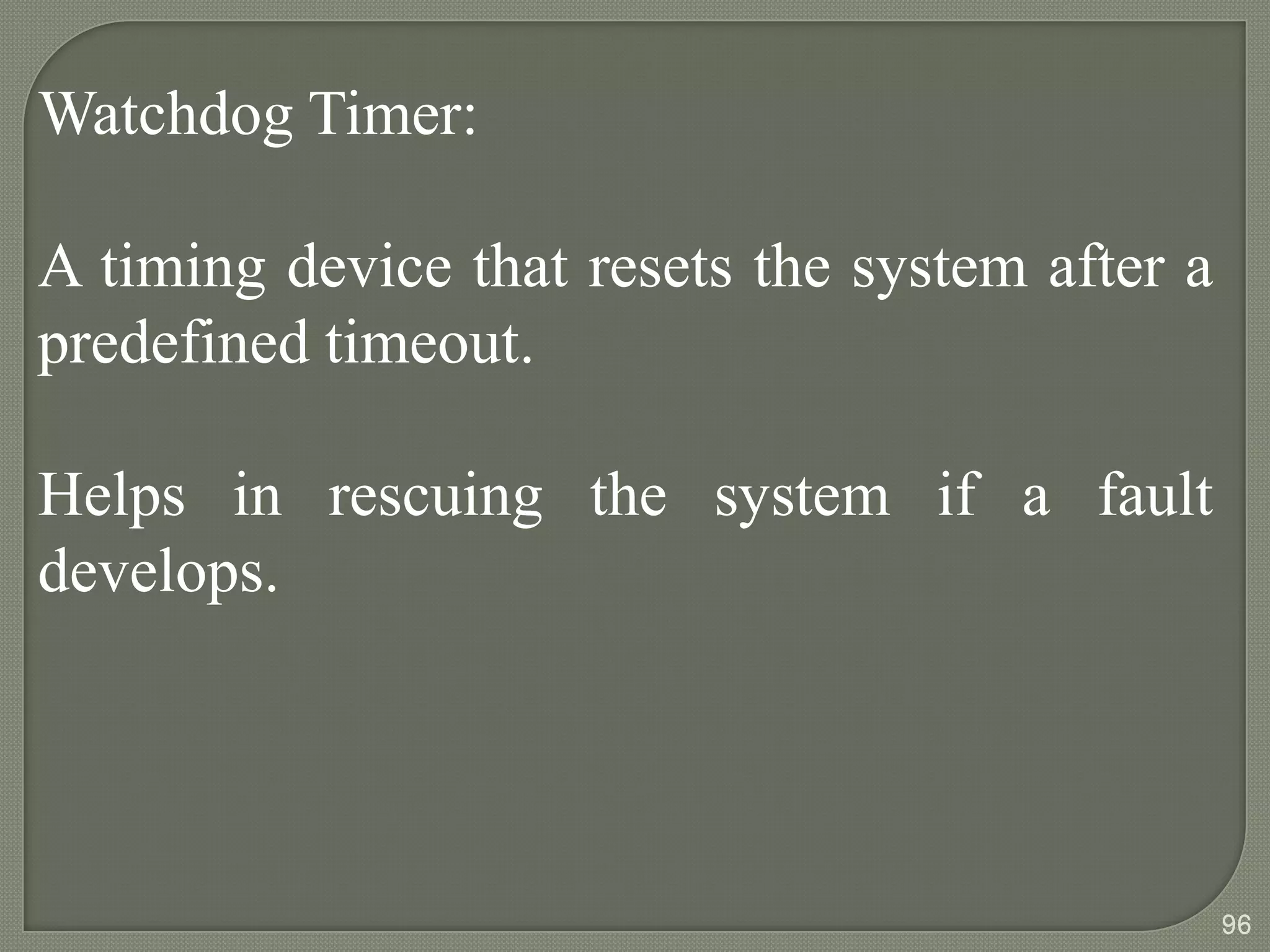

Watchdog Timer:
A timing device that resets the system after a
predefined timeout.
Helps in rescuing the system if a fault
develops.
96

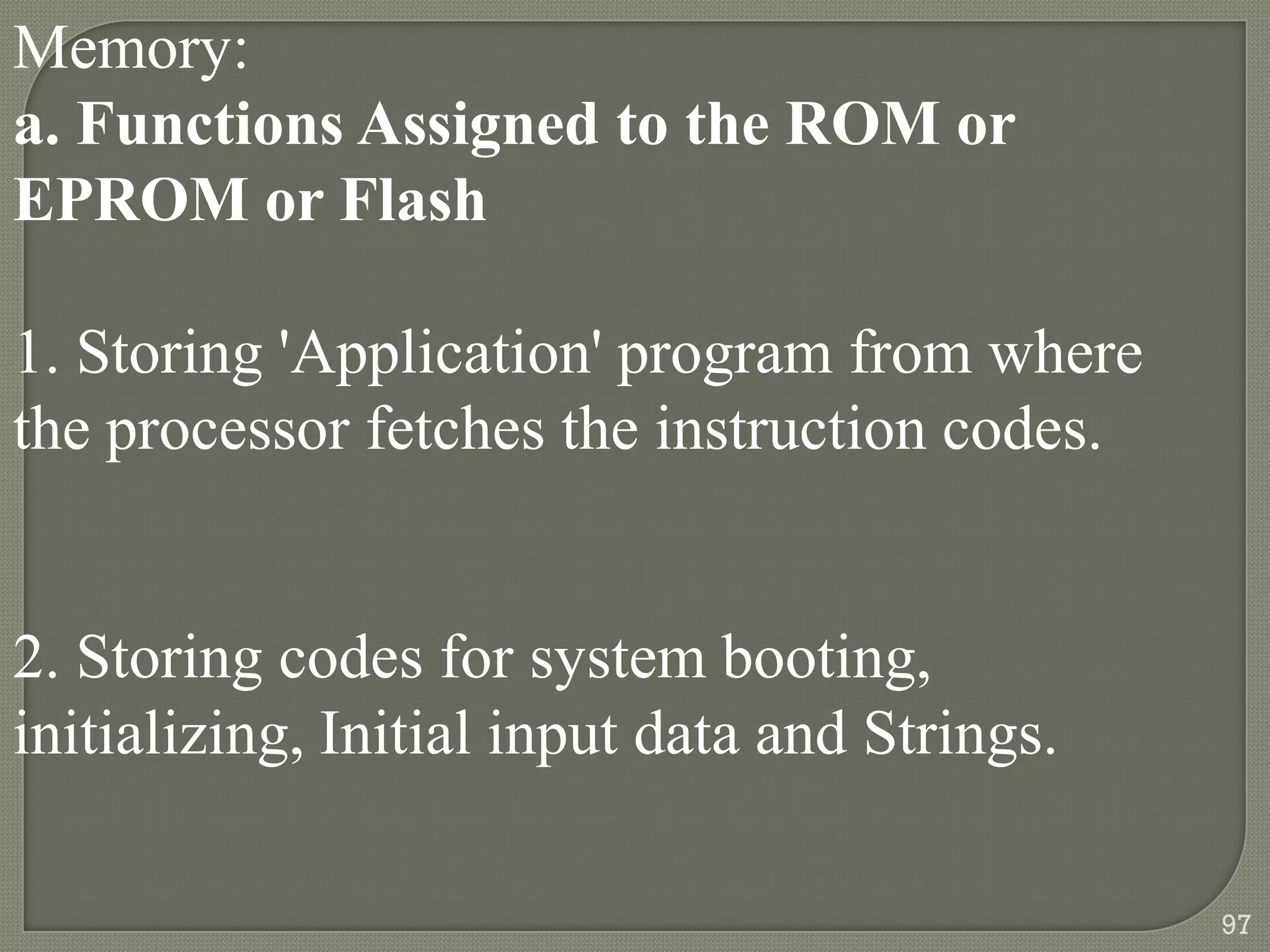

Memory:
a. Functions Assigned to the ROM or
EPROM or Flash
1. Storing 'Application' program from where
the processor fetches the instruction codes.
2. Storing codes for system booting,
initializing, Initial input data and Strings.
97

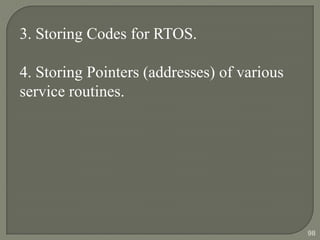

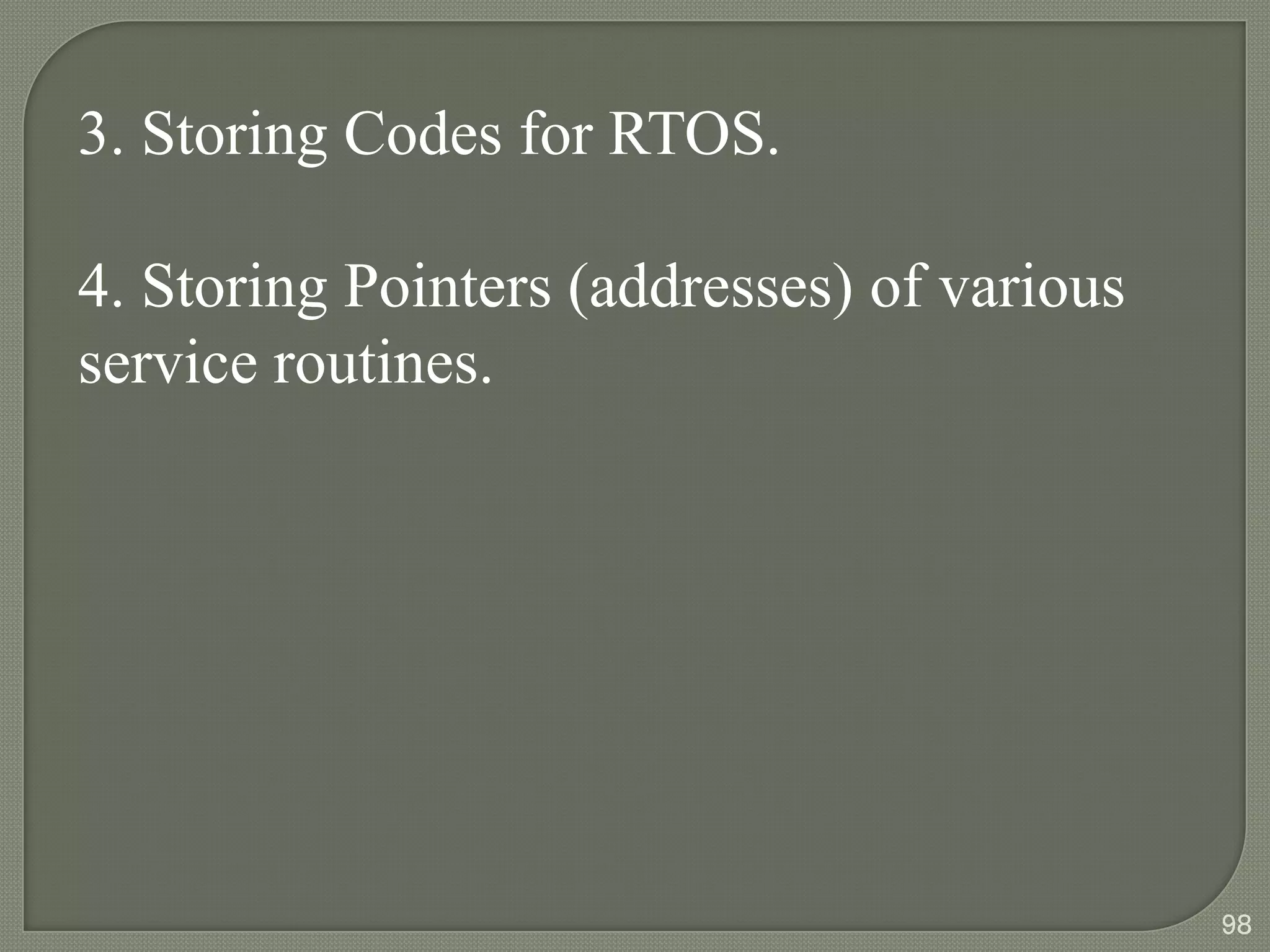

3. Storing Codes for RTOS.
4. Storing Pointers (addresses) of various
service routines.
98

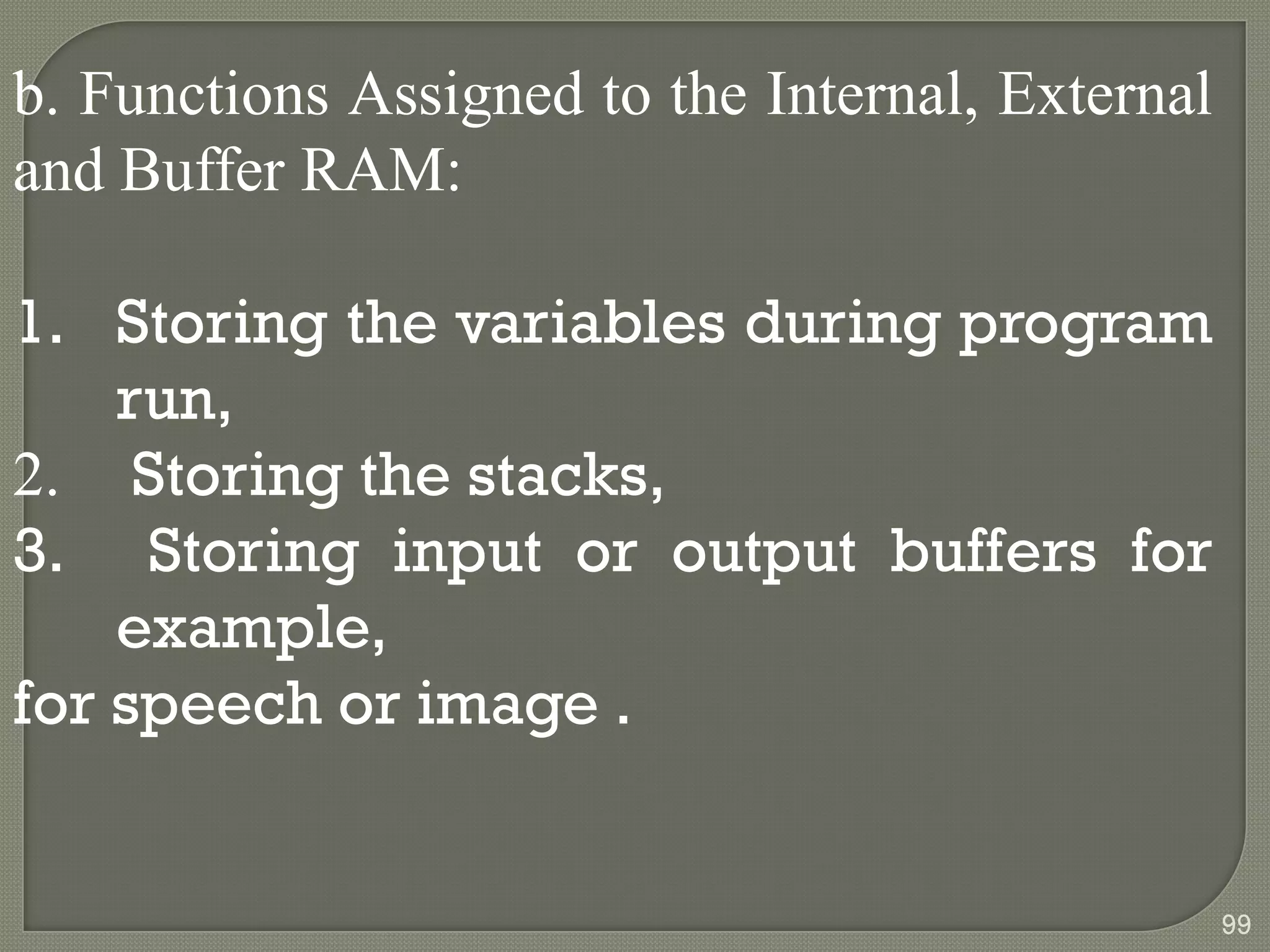

b. Functions Assigned to the Internal, External
and Buffer RAM:
1. Storing the variables during program
run,
2. Storing the stacks,
3. Storing input or output buffers for
example,
for speech or image .
99

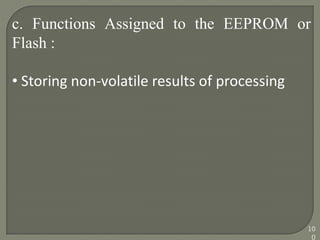

c. Functions Assigned to the EEPROM or
Flash :
• Storing non-volatile results of processing
10
0

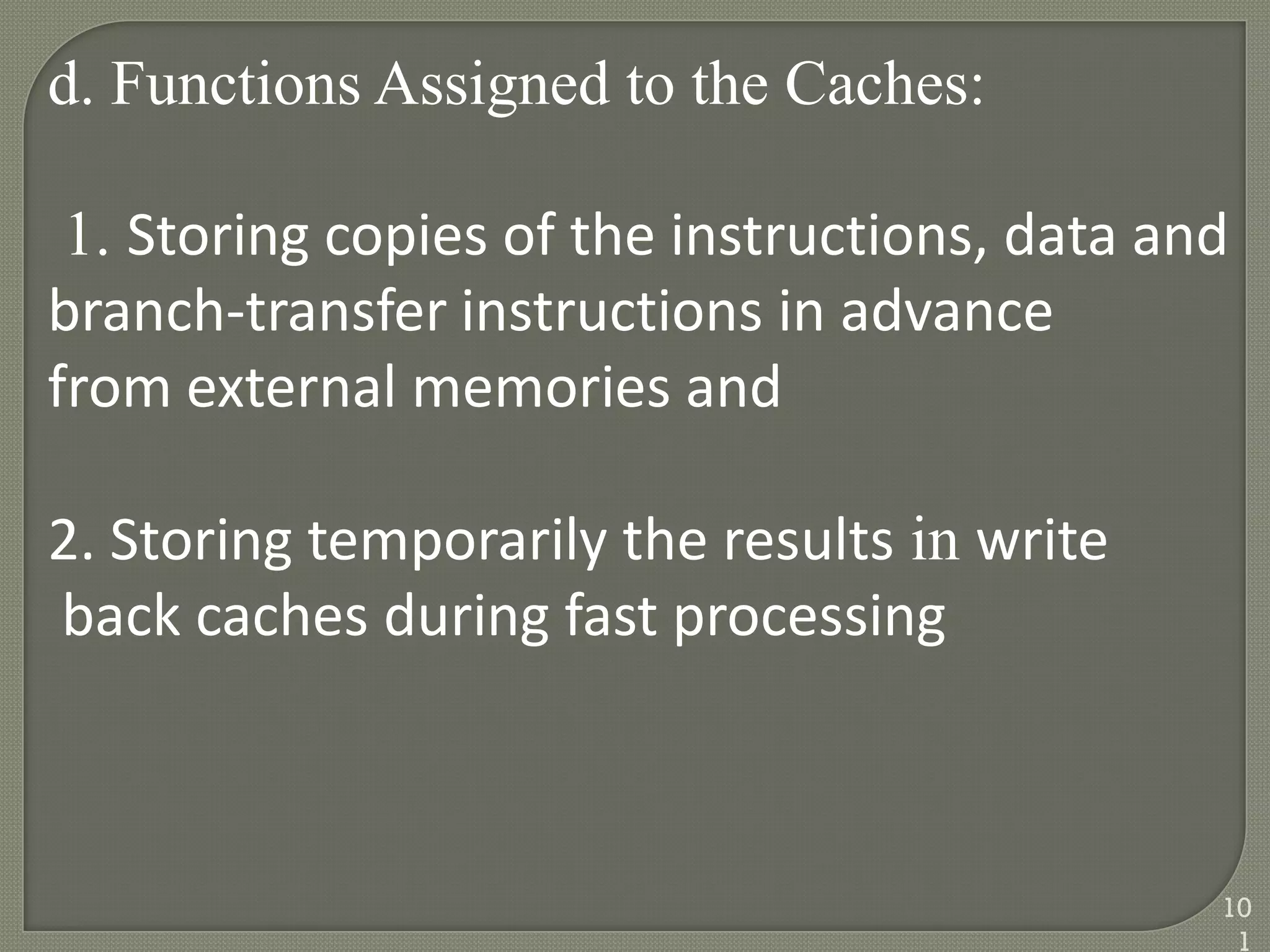

d. Functions Assigned to the Caches:
1. Storing copies of the instructions, data and
branch-transfer instructions in advance
from external memories and
2. Storing temporarily the results in write
back caches during fast processing
10
1

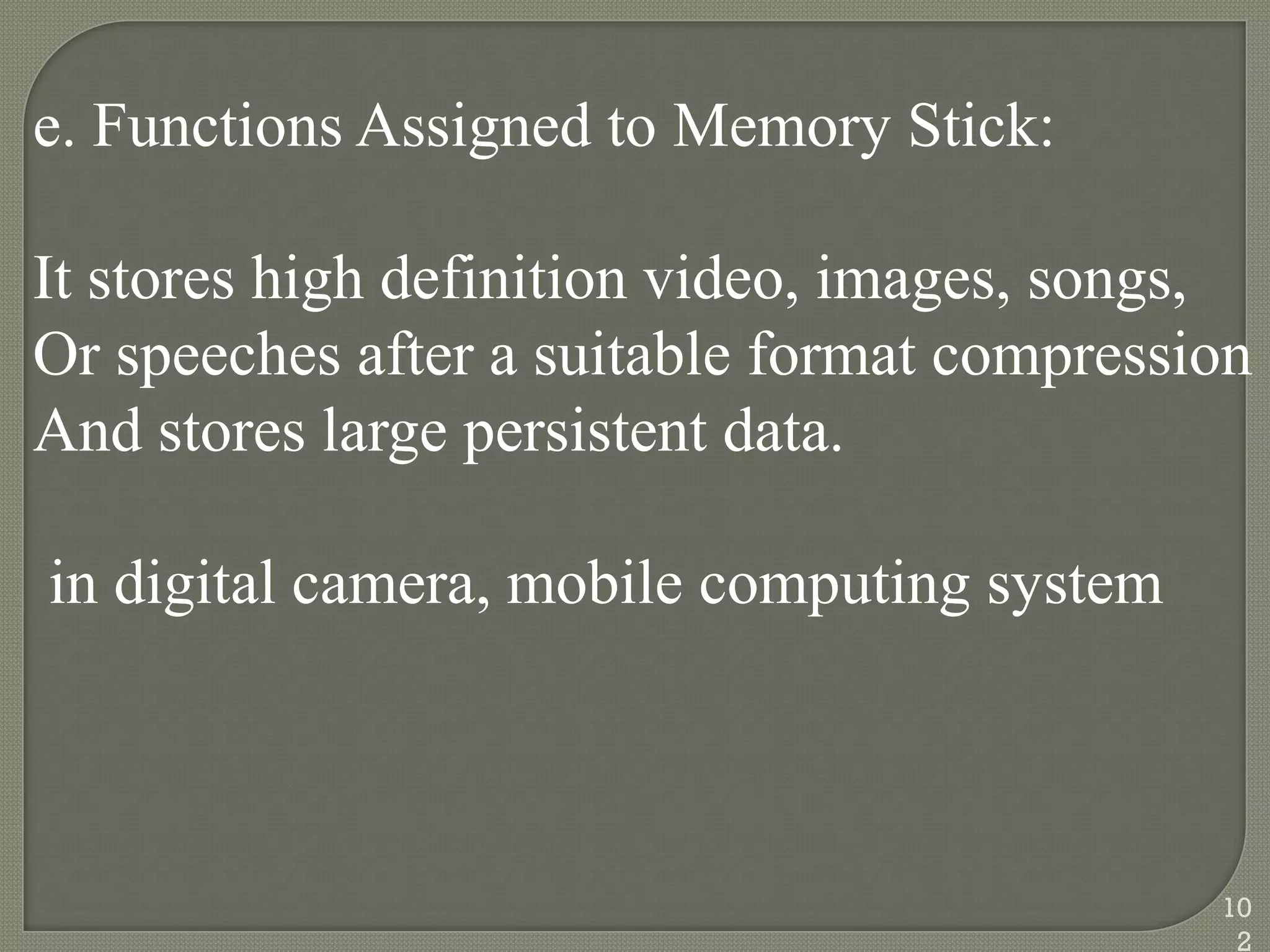

e. Functions Assigned to Memory Stick:
It stores high definition video, images, songs,
Or speeches after a suitable format compression
And stores large persistent data.
in digital camera, mobile computing system
10
2

• Real Time Systems
• Real Time Operating Systems & VxWorks
• Application Development
• Loading Applications
• Testing Applications
10
4

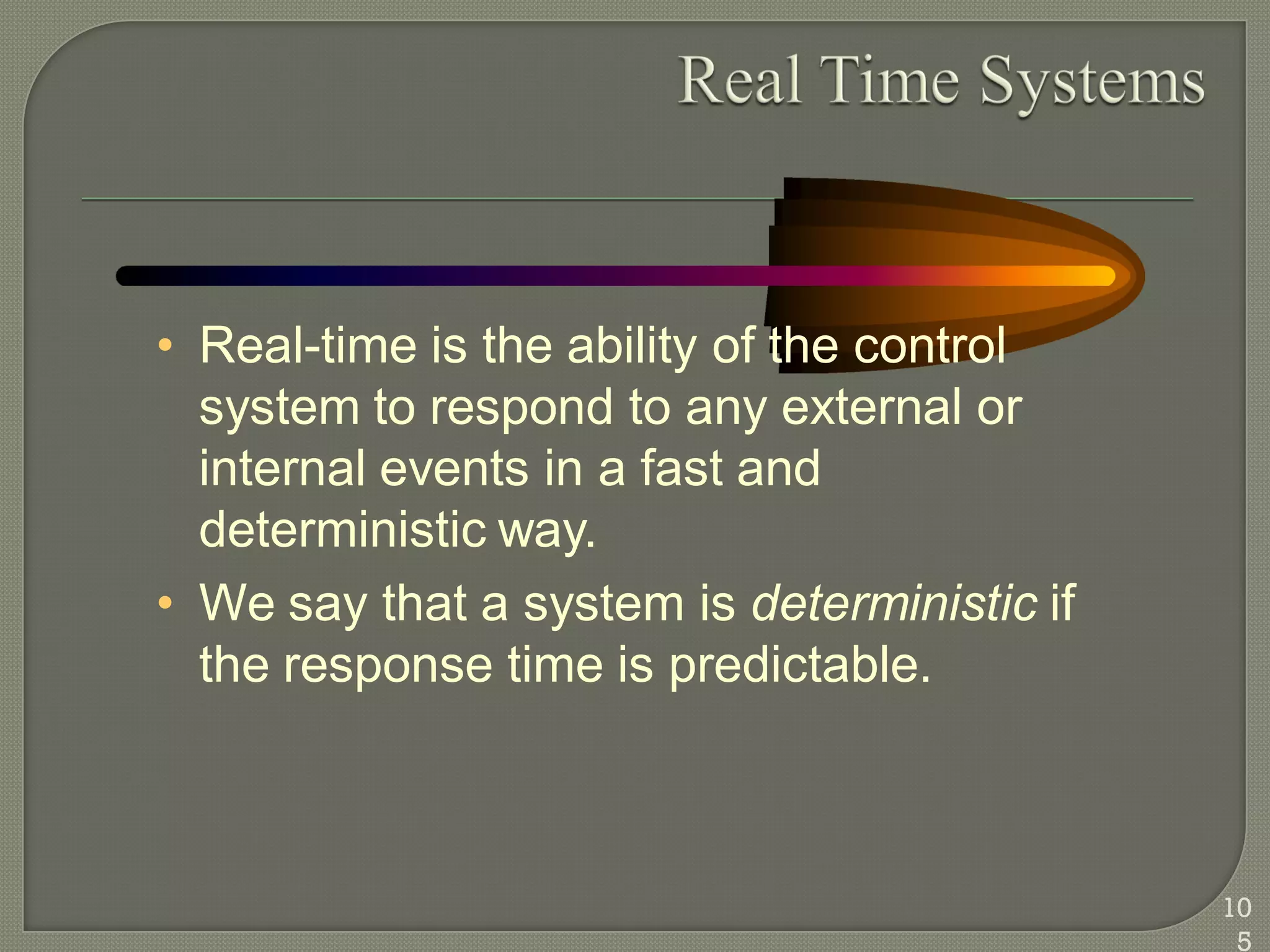

• Real-time is the ability of the control
system to respond to any external or
internal events in a fast and
deterministic way.
• We say that a system is deterministic if
the response time is predictable.
10
5

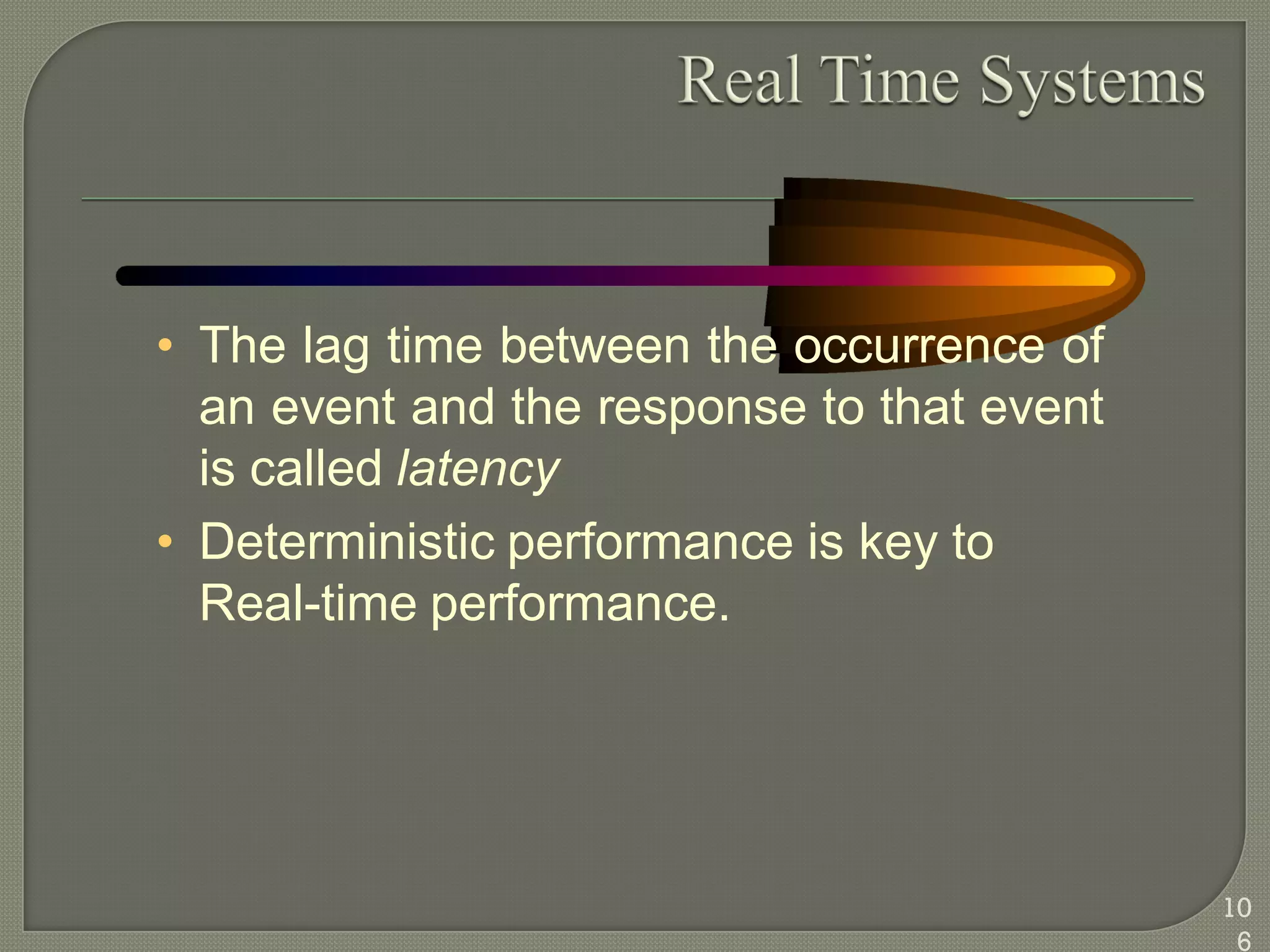

• The lag time between the occurrence of
an event and the response to that event
is called latency
• Deterministic performance is key to
Real-time performance.
10
6

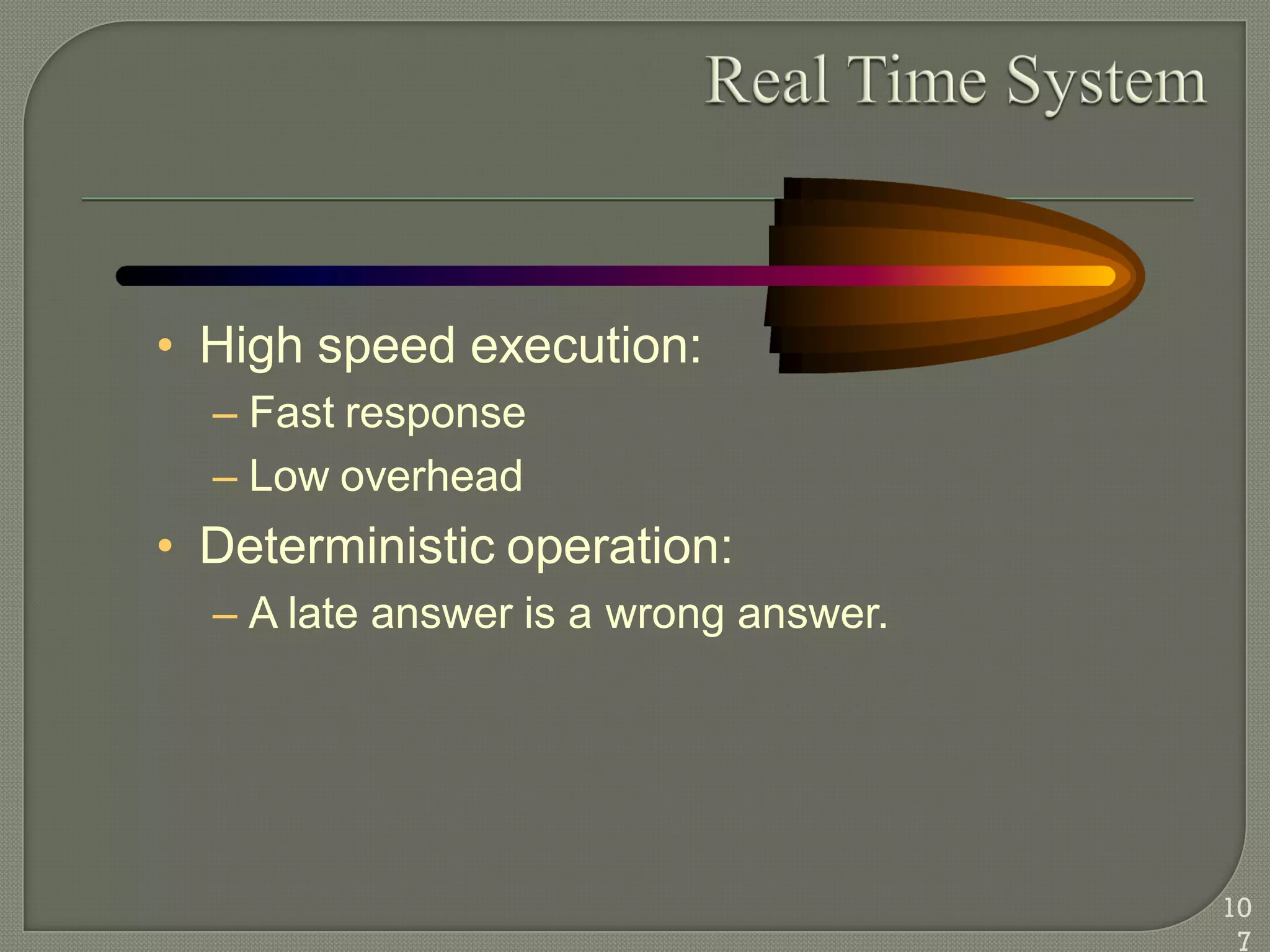

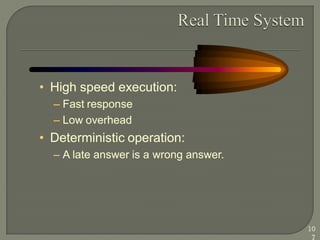

• High speed execution:
– Fast response
– Low overhead
• Deterministic operation:
– A late answer is a wrong answer.
10
7

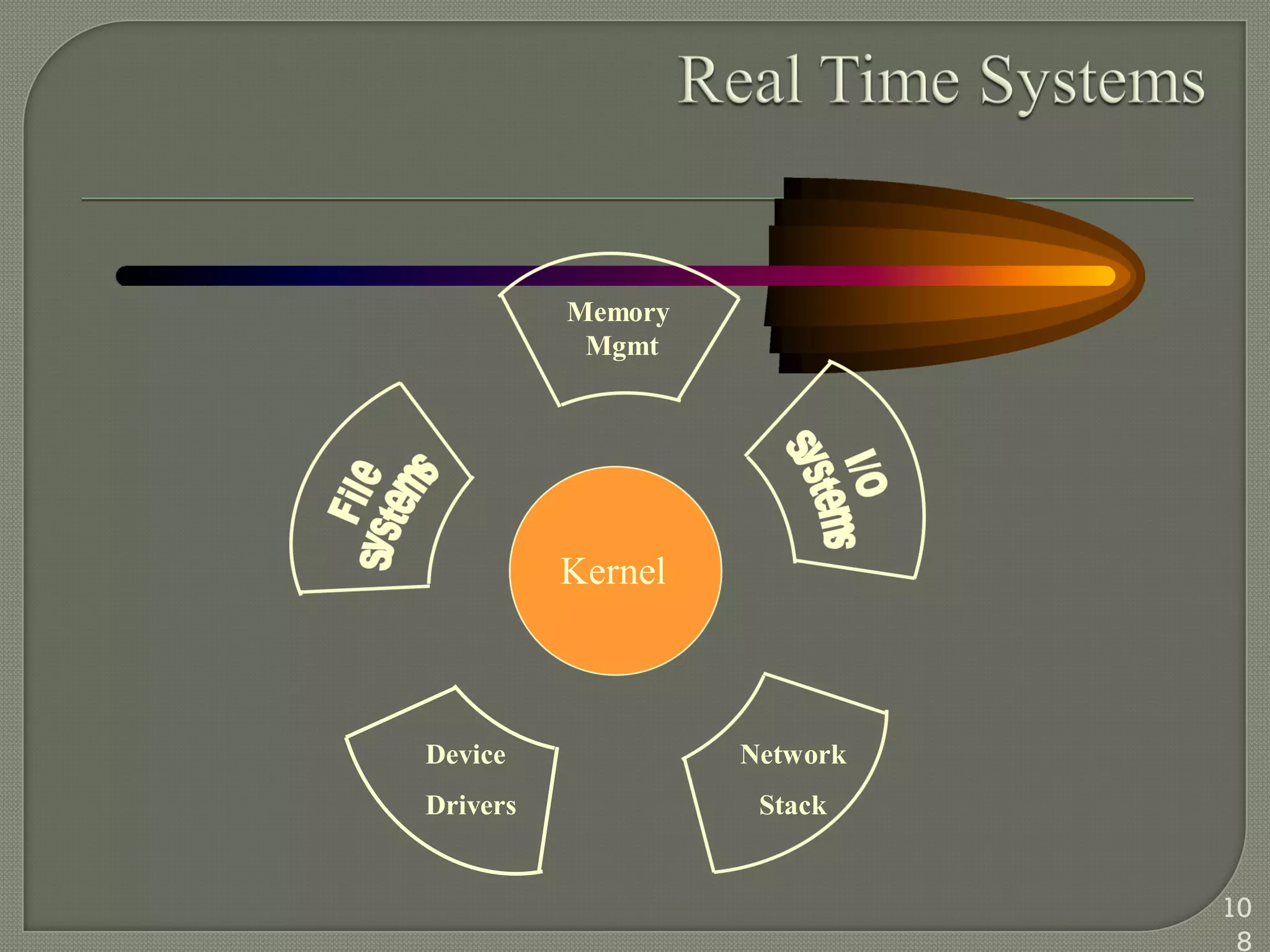

Memory
Mgmt
Device
Drivers
Network
Stack
Kernel
10
8

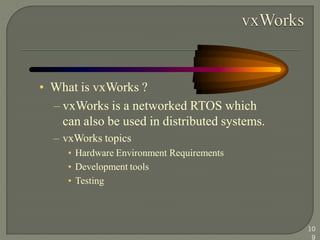

• What is vxWorks ?
– vxWorks is a networked RTOS which
can also be used in distributed systems.
– vxWorks topics
• Hardware Environment Requirements
• Development tools
• Testing
10
9

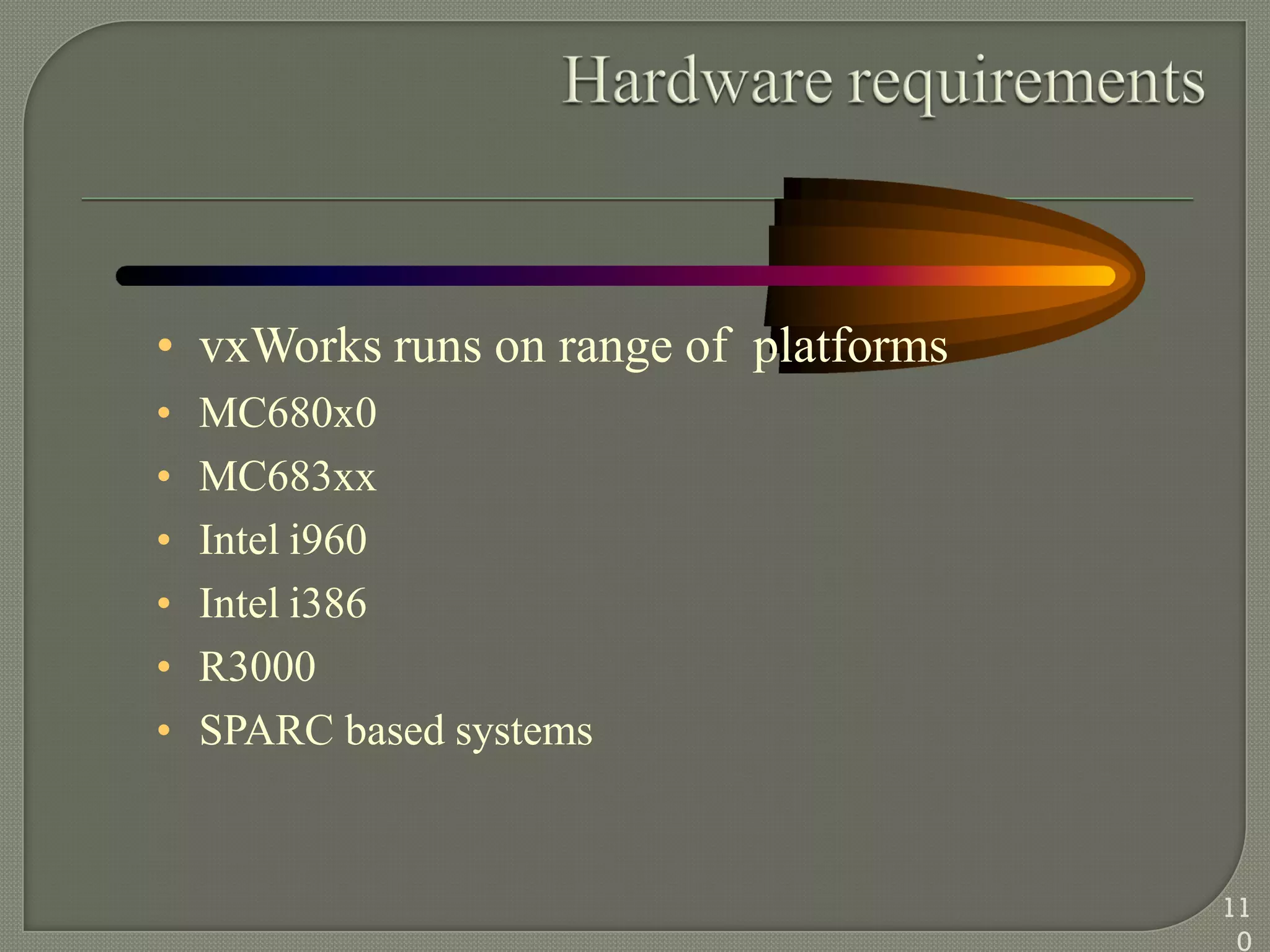

• vxWorks runs on range of platforms
• MC680x0
• MC683xx
• Intel i960
• Intel i386
• R3000
• SPARC based systems
11
0

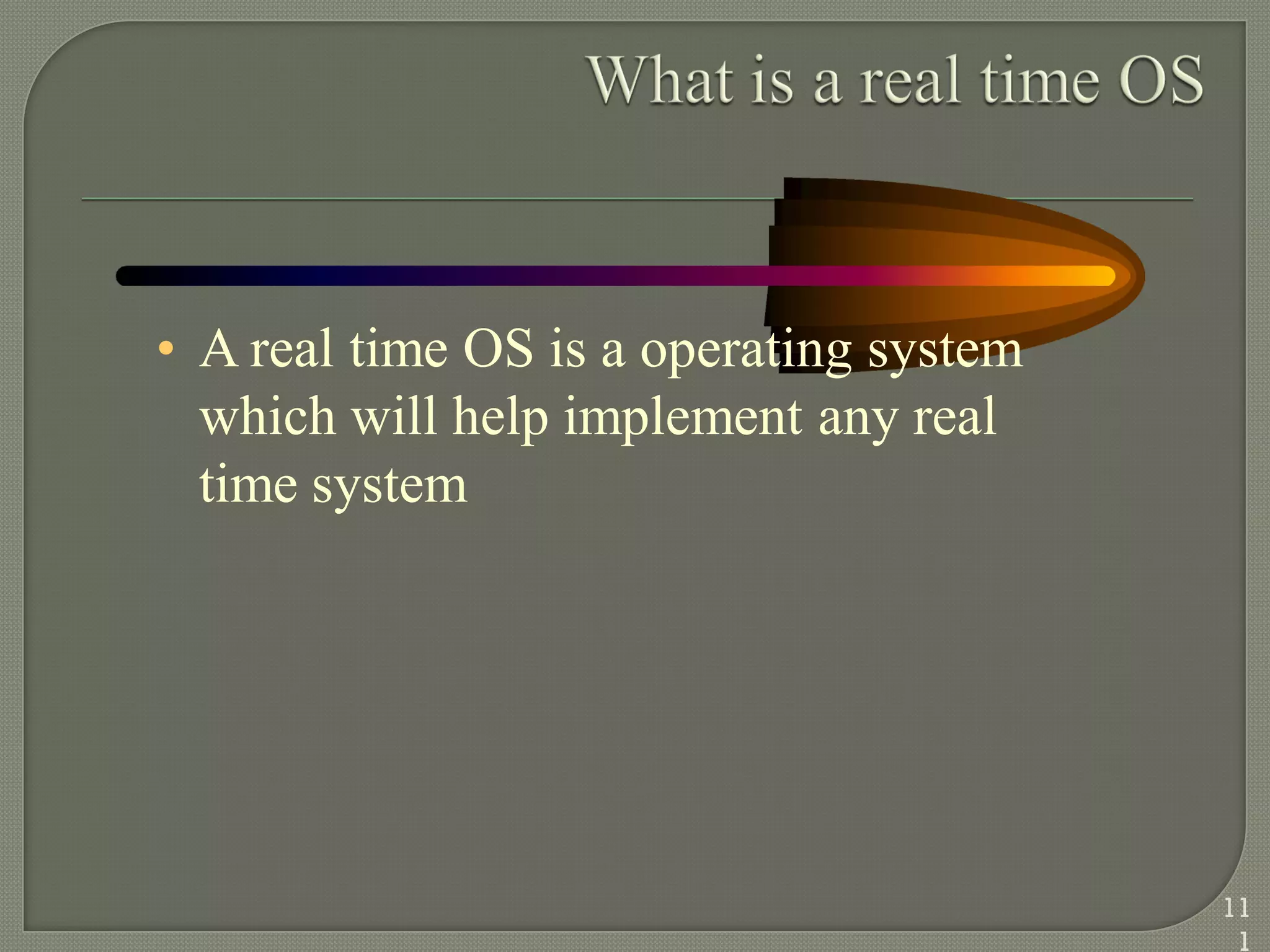

• A real time OS is a operating system
which will help implement any real
time system
11
1

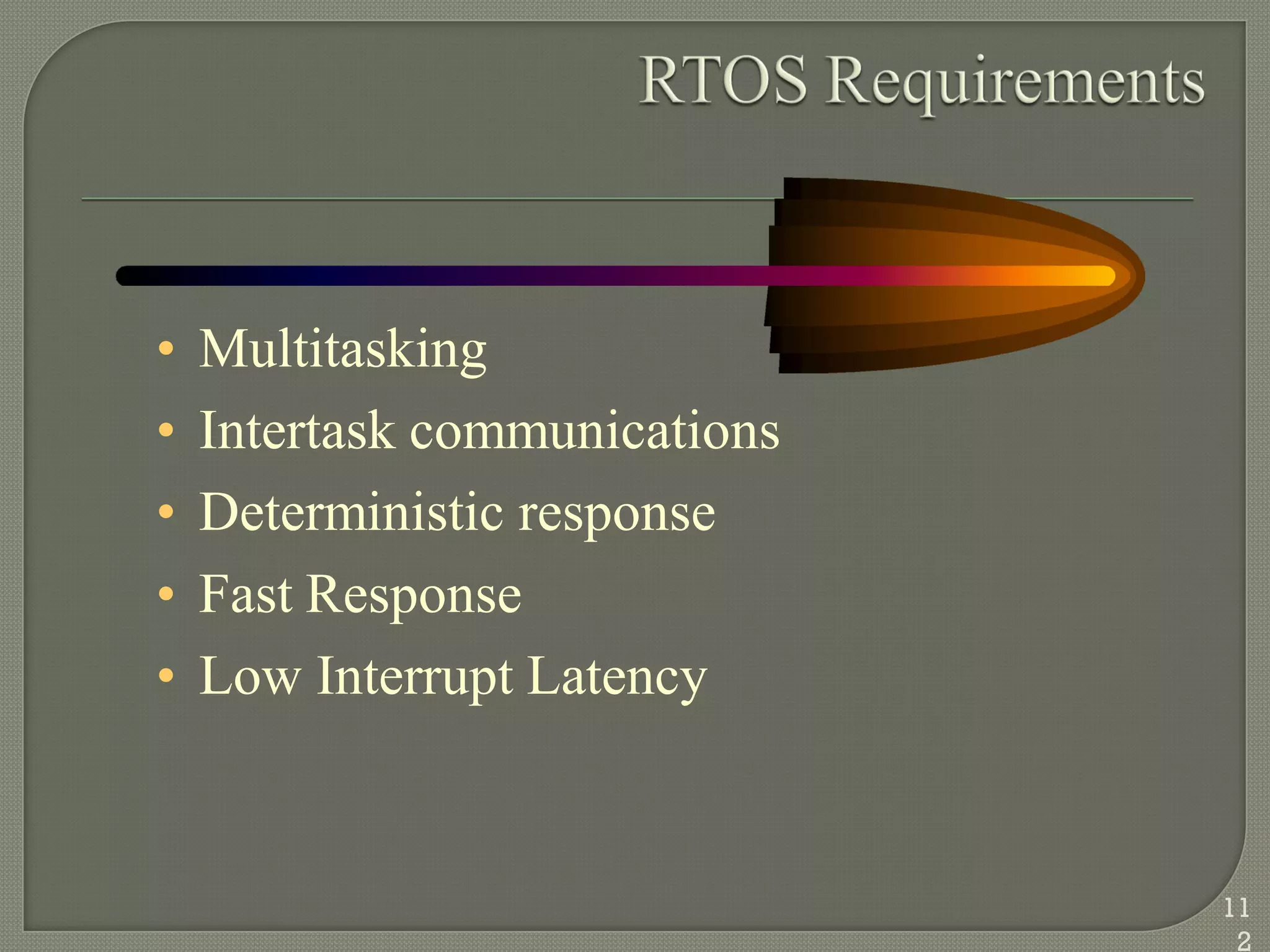

• Multitasking
• Intertask communications
• Deterministic response
• Fast Response
• Low Interrupt Latency
11
2

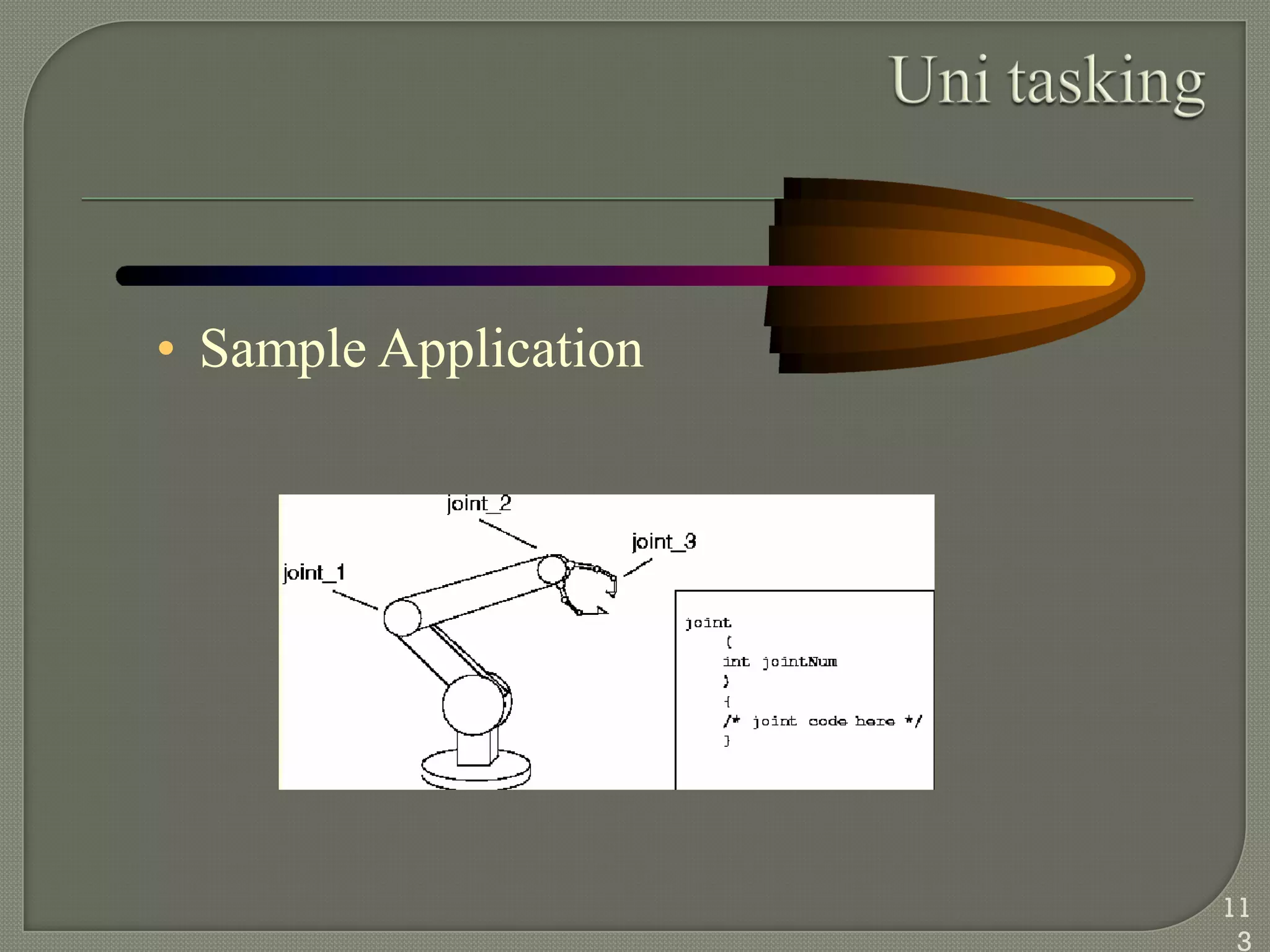

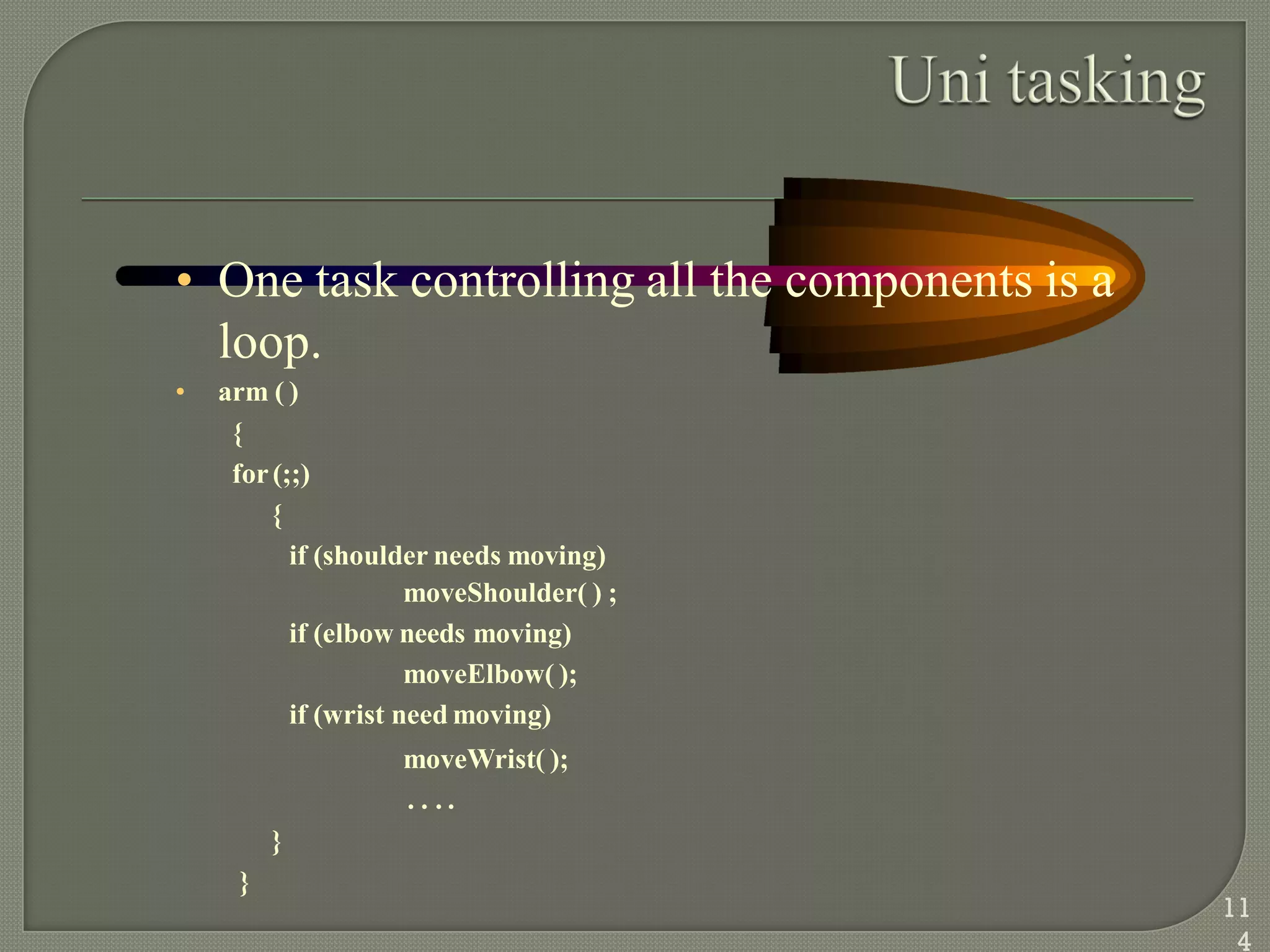

• One task controlling all the components is a
loop.
• arm ( )
{
for(;;)
{
if (shoulder needs moving)
moveShoulder( ) ;
if (elbow needs moving)
moveElbow( );
if (wrist need moving)
moveWrist( );
. . . .
}
}
11
4

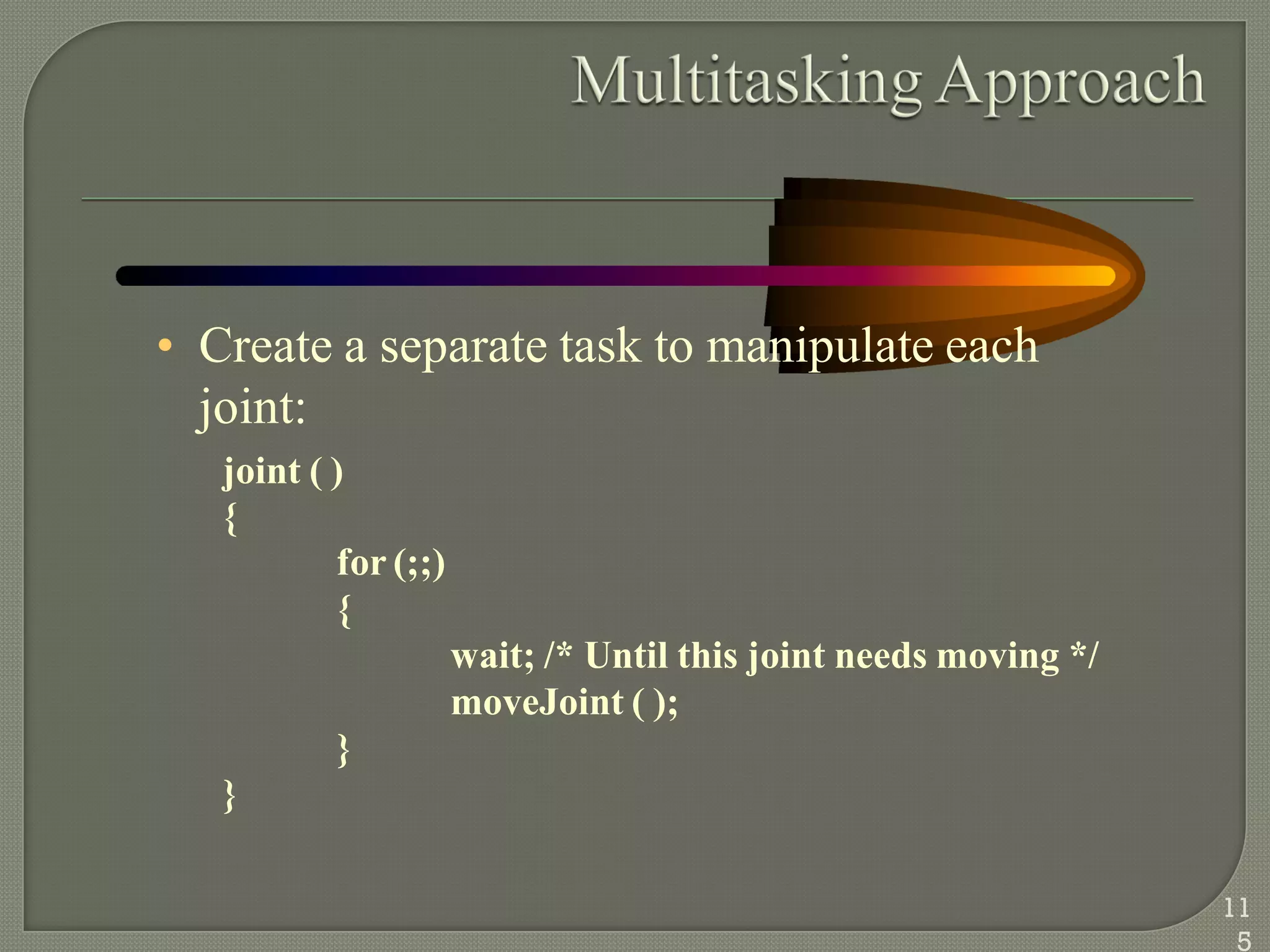

• Create a separate task to manipulate each
joint:
joint ( )
{
for (;;)
{
wait; /* Until this joint needs moving */
moveJoint ( );
}
}
11
5

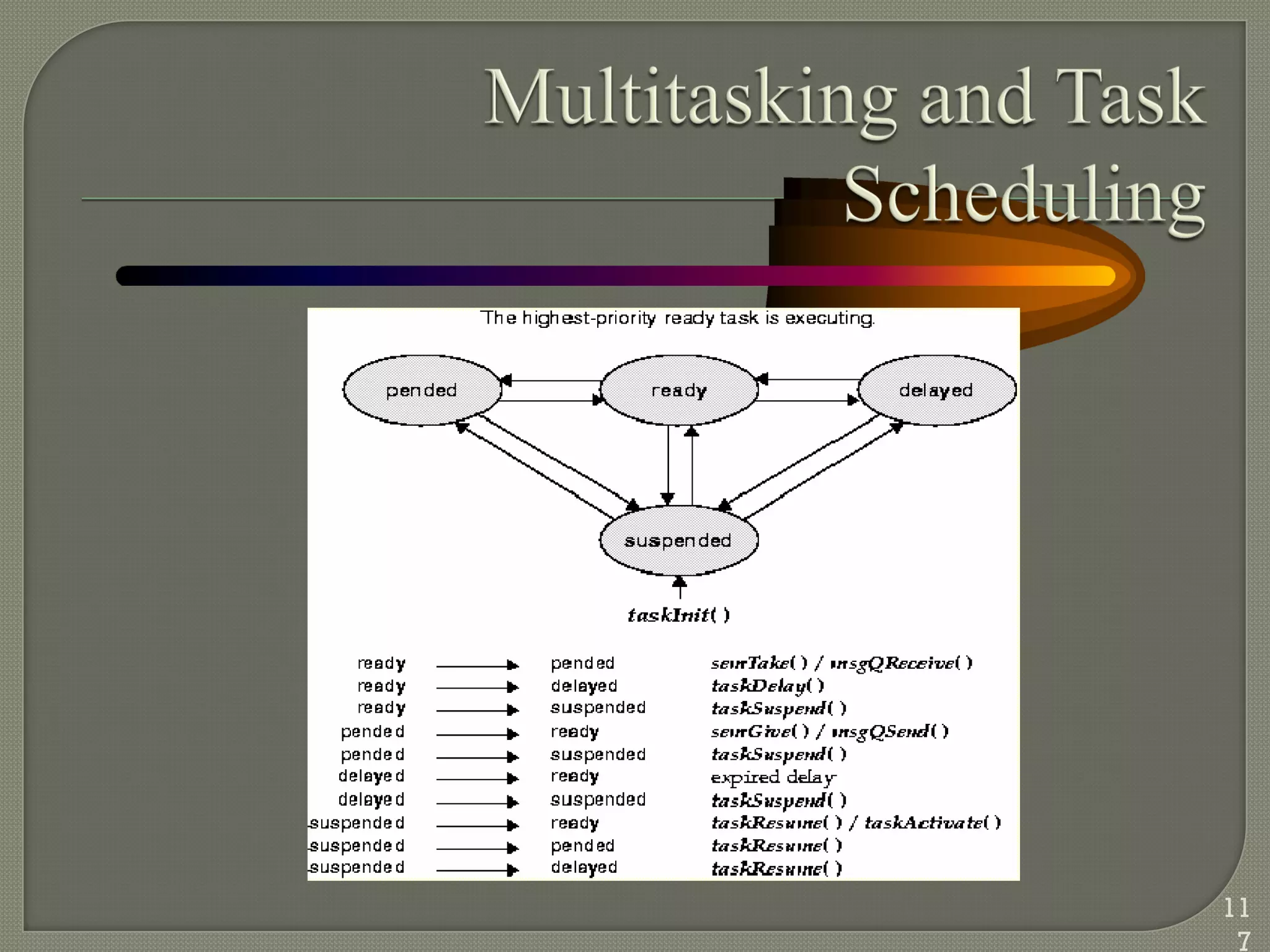

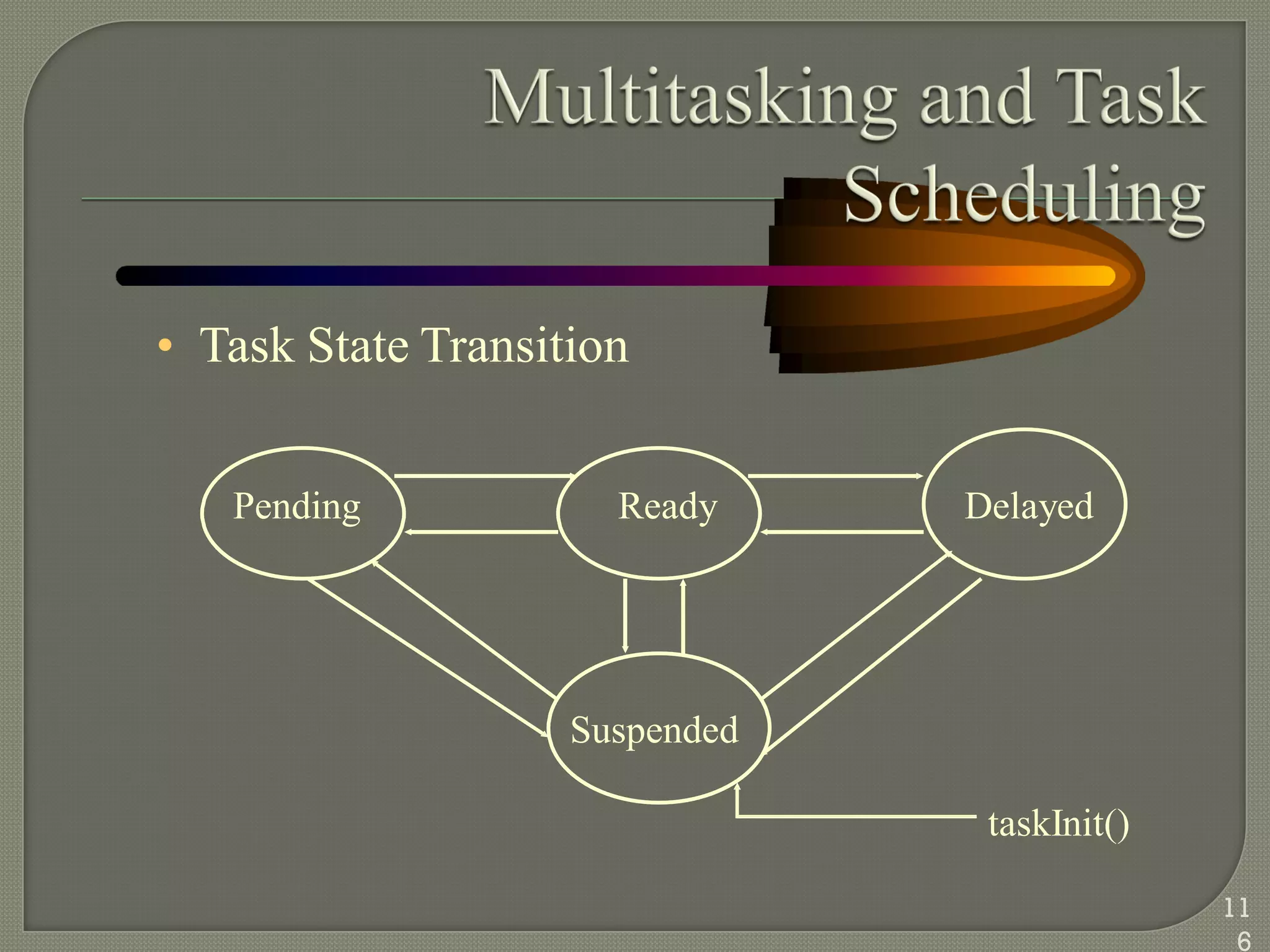

• Task State Transition
Pending Ready Delayed
Suspended
taskInit()
11
6

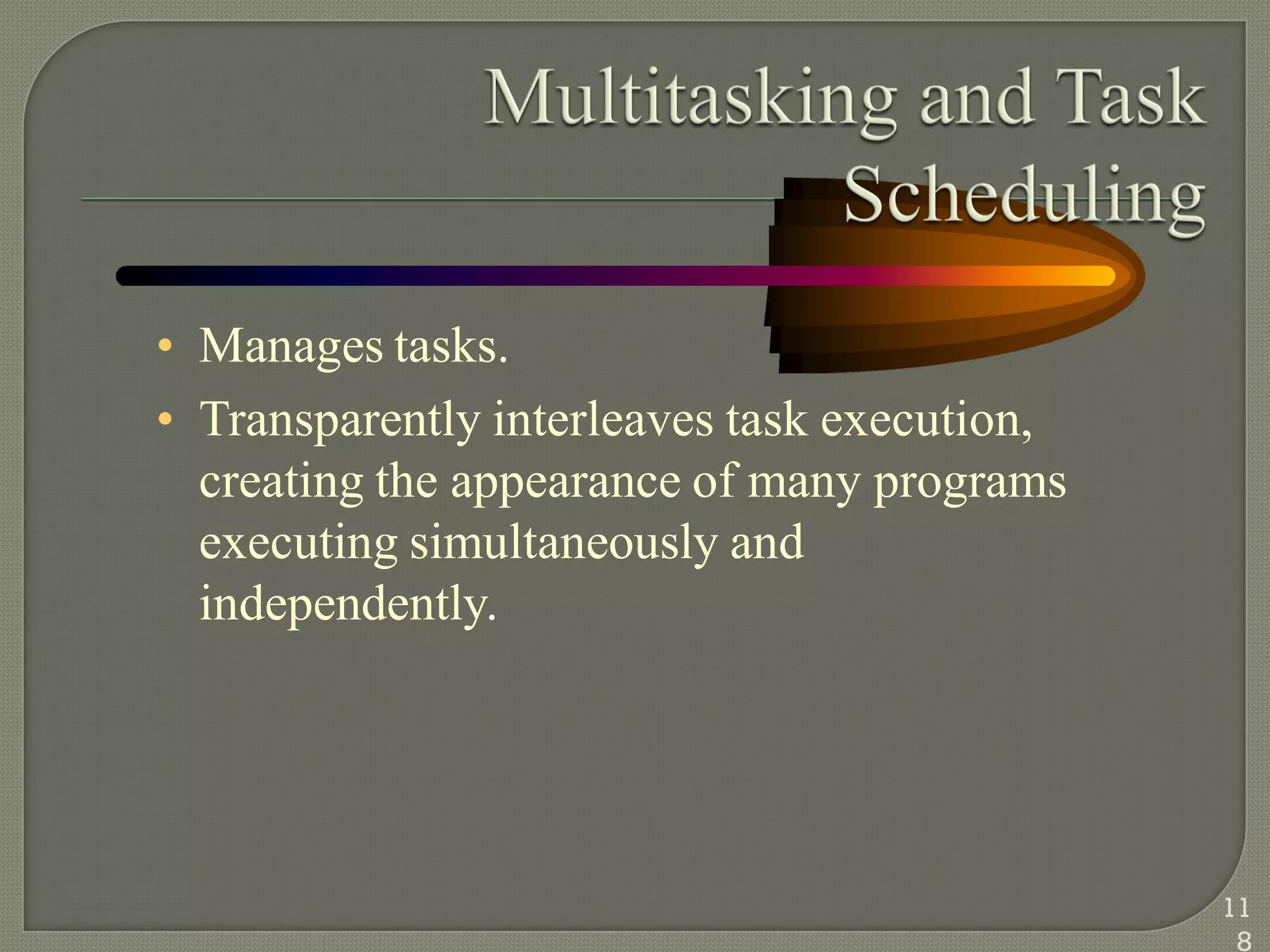

• Manages tasks.
• Transparently interleaves task execution,
creating the appearance of many programs
executing simultaneously and
independently.
11
8

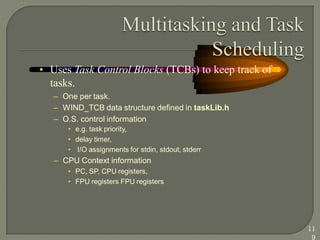

• Uses Task Control Blocks (TCBs) to keep track of
tasks.
– One per task.
– WIND_TCB data structure defined in taskLib.h
– O.S. control information
• e.g. task priority,
• delay timer,
• I/O assignments for stdin, stdout, stderr
– CPU Context information
• PC, SP, CPU registers,
• FPU registers FPU registers
11
9

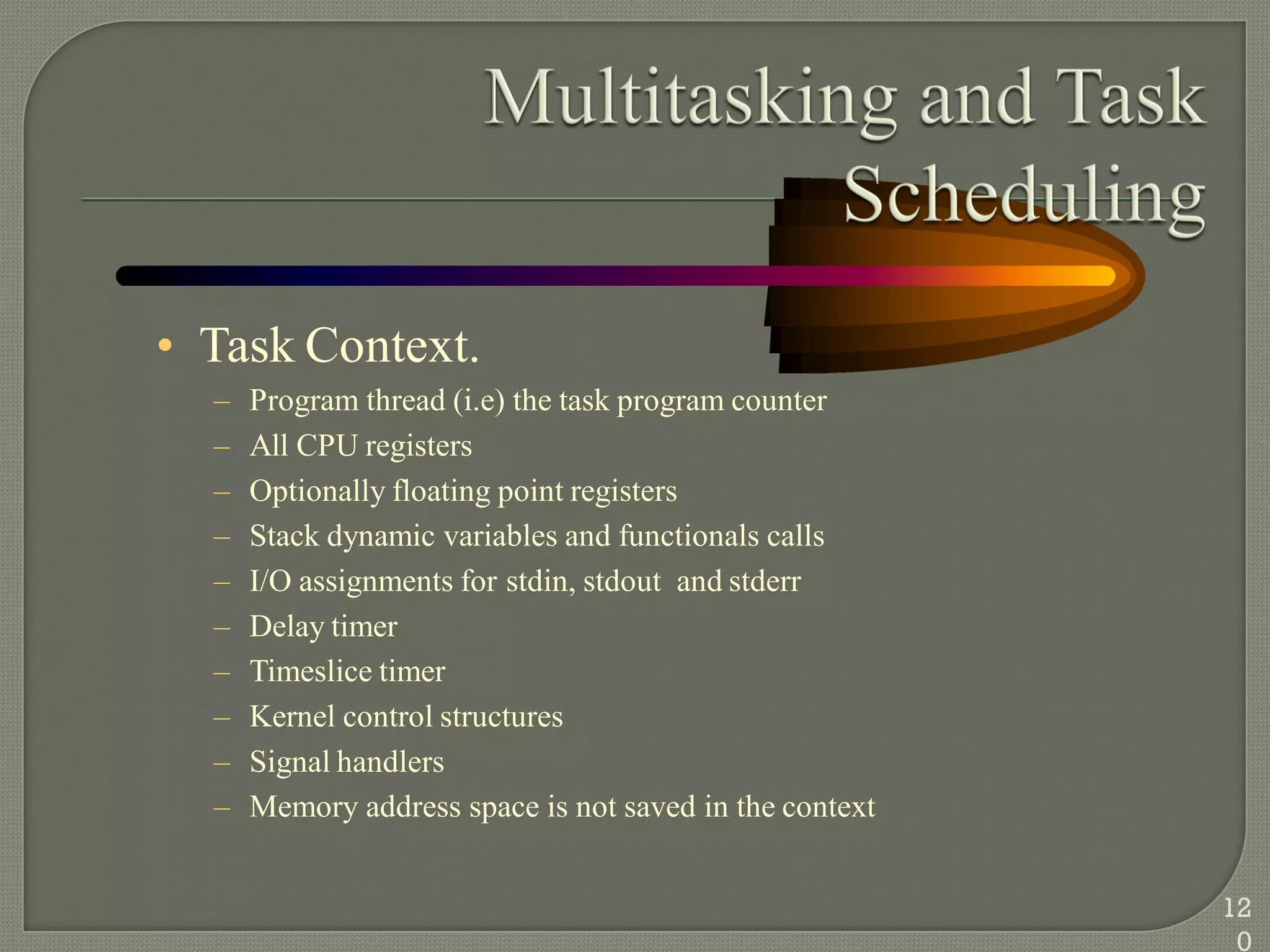

• Task Context.
– Program thread (i.e) the task program counter
– All CPU registers
– Optionally floating point registers
– Stack dynamic variables and functionals calls
– I/O assignments for stdin, stdout and stderr
– Delay timer
– Timeslice timer
– Kernel control structures
– Signal handlers
– Memory address space is not saved in the context
12
0

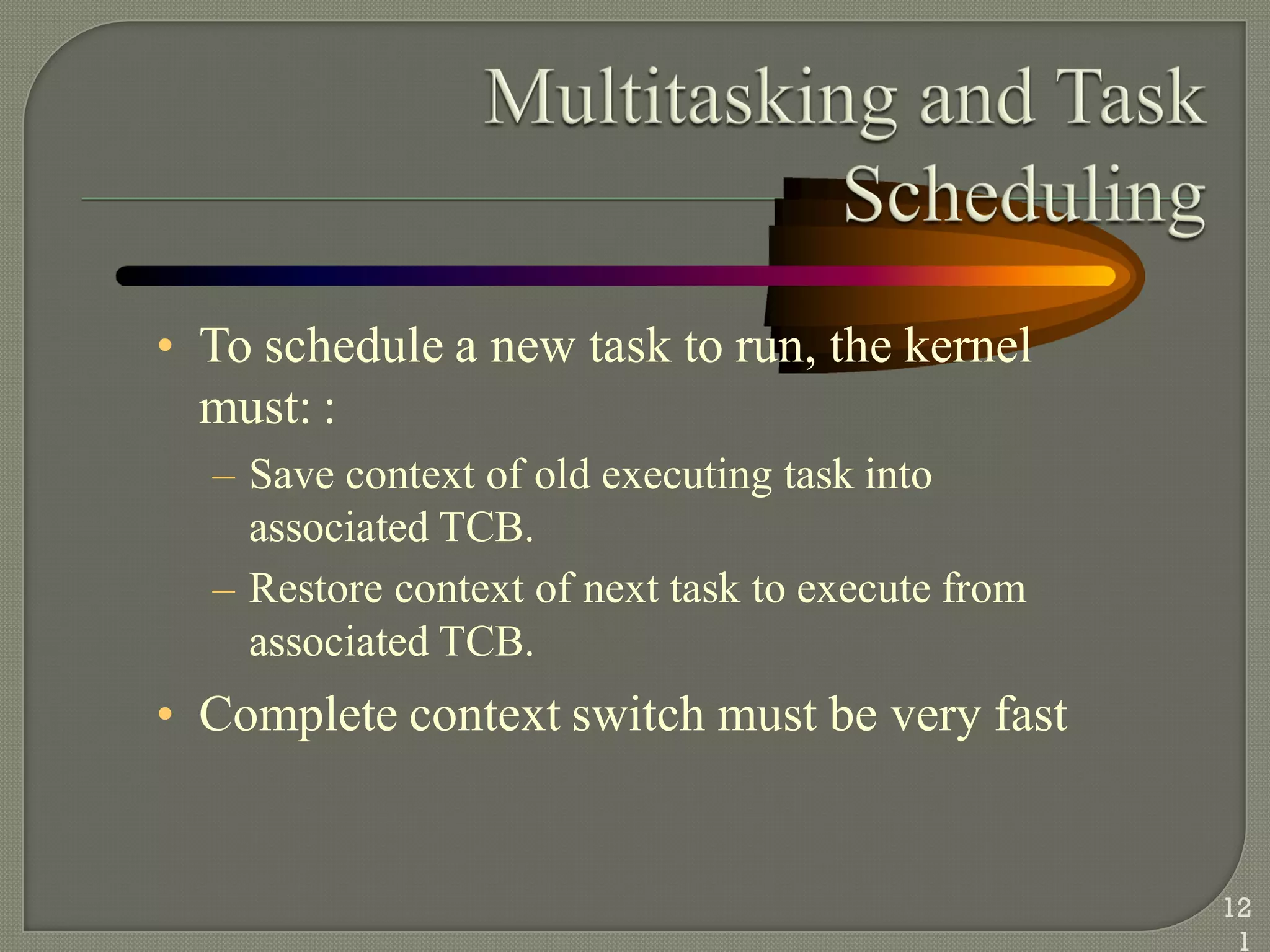

• To schedule a new task to run, the kernel
must: :
– Save context of old executing task into
associated TCB.
– Restore context of next task to execute from
associated TCB.
• Complete context switch must be very fast
12
1

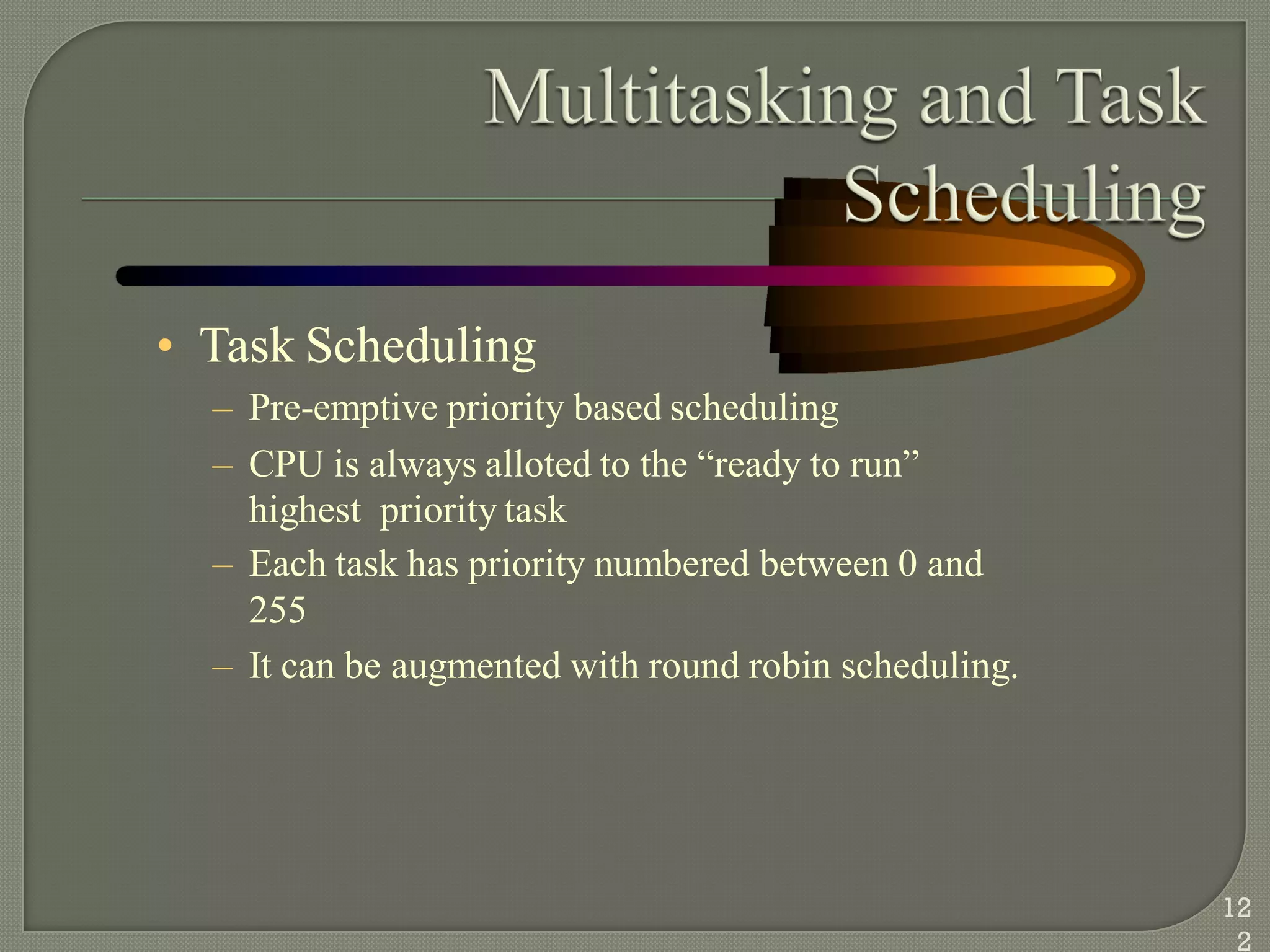

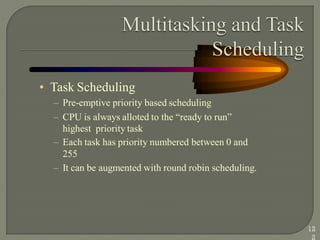

• Task Scheduling
– Pre-emptive priority based scheduling
– CPU is always alloted to the ―ready to run‖
highest priority task
– Each task has priority numbered between 0 and
255
– It can be augmented with round robin scheduling.
12
2

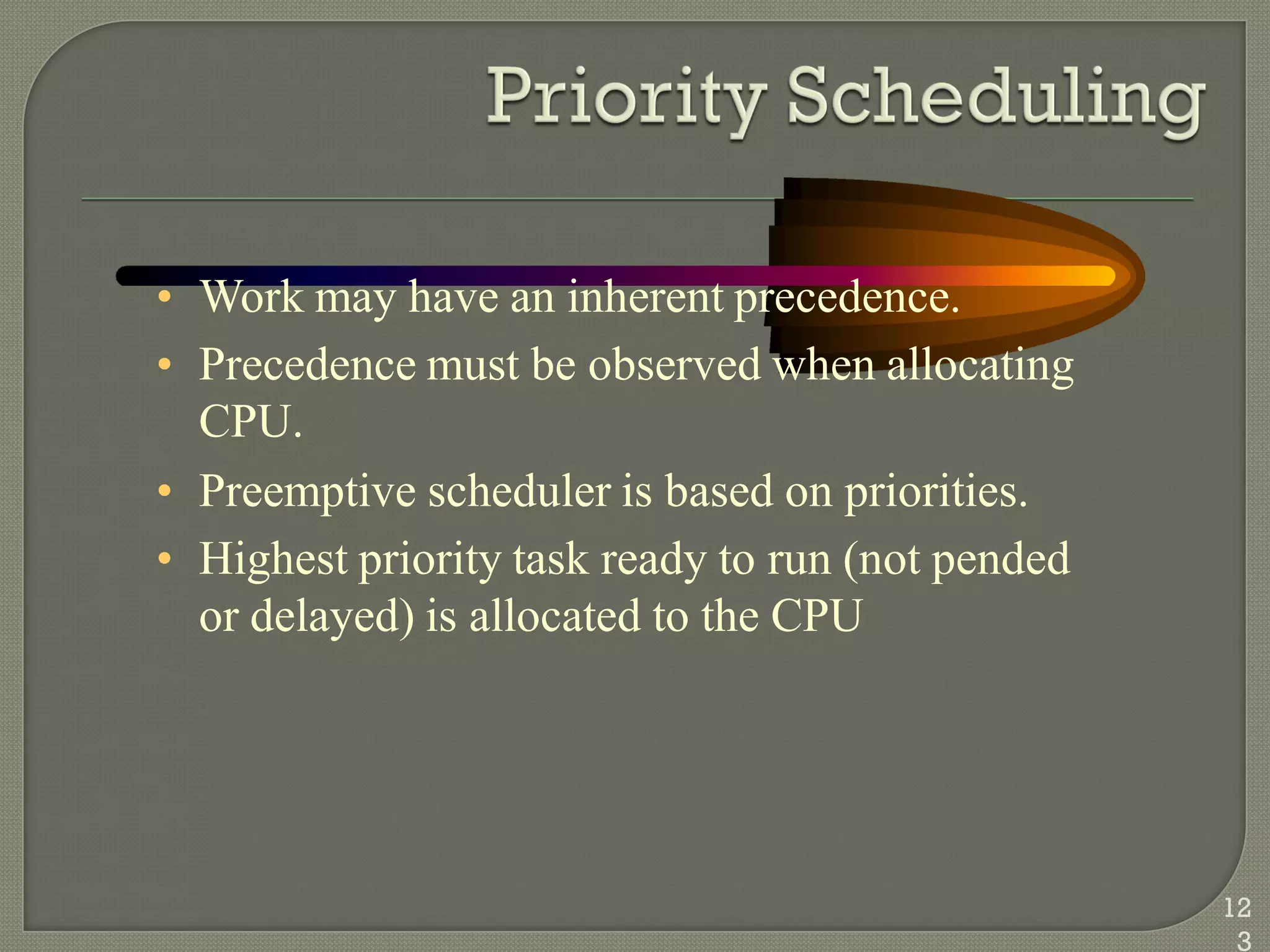

• Work may have an inherent precedence.
• Precedence must be observed when allocating
CPU.
• Preemptive scheduler is based on priorities.
• Highest priority task ready to run (not pended
or delayed) is allocated to the CPU
12
3

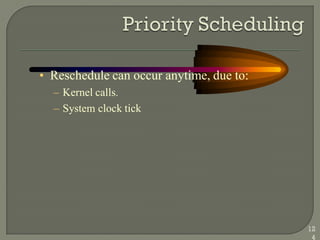

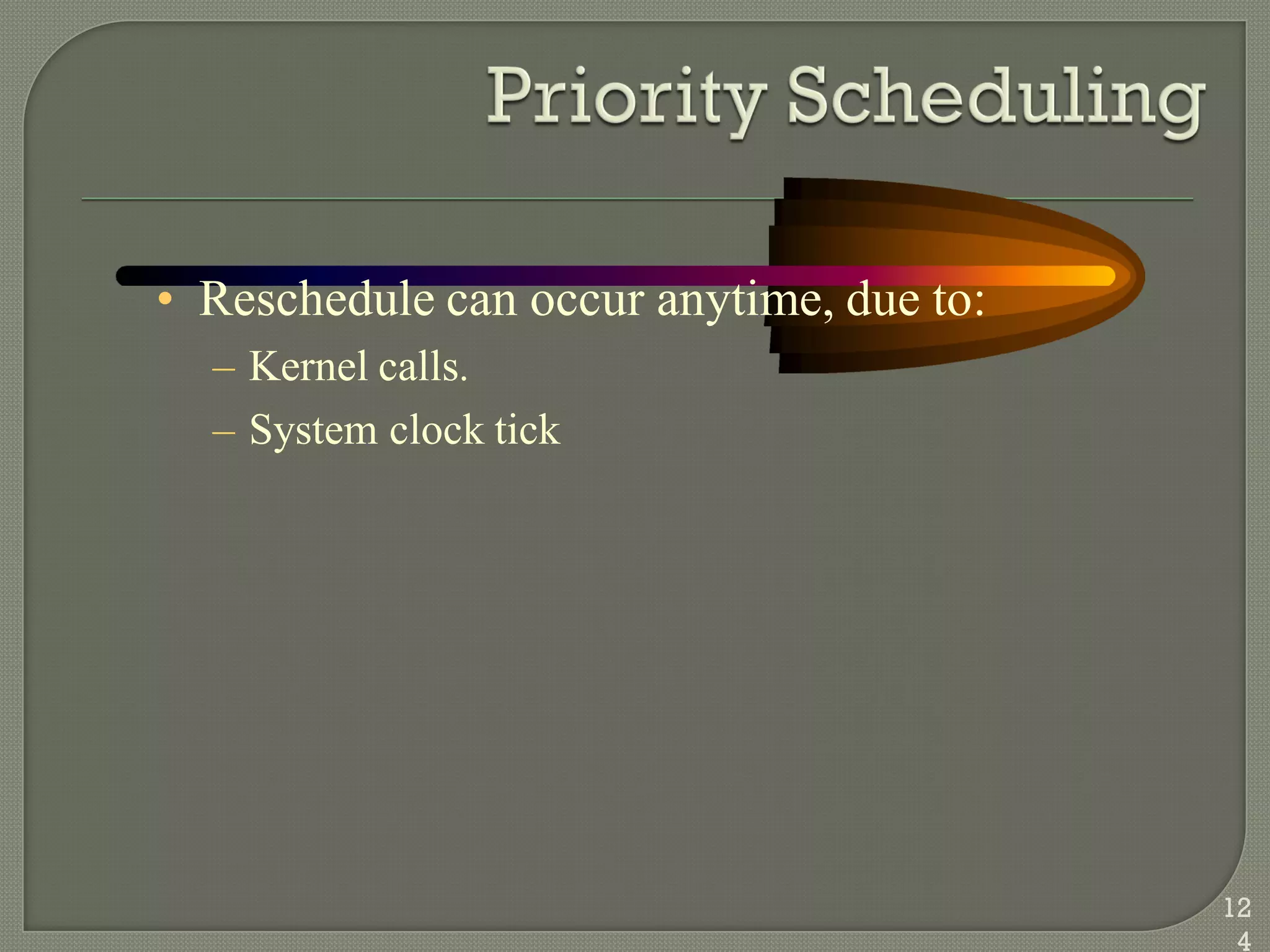

• Reschedule can occur anytime, due to:
– Kernel calls.
– System clock tick
12
4

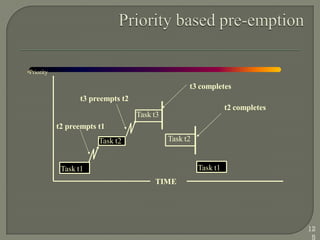

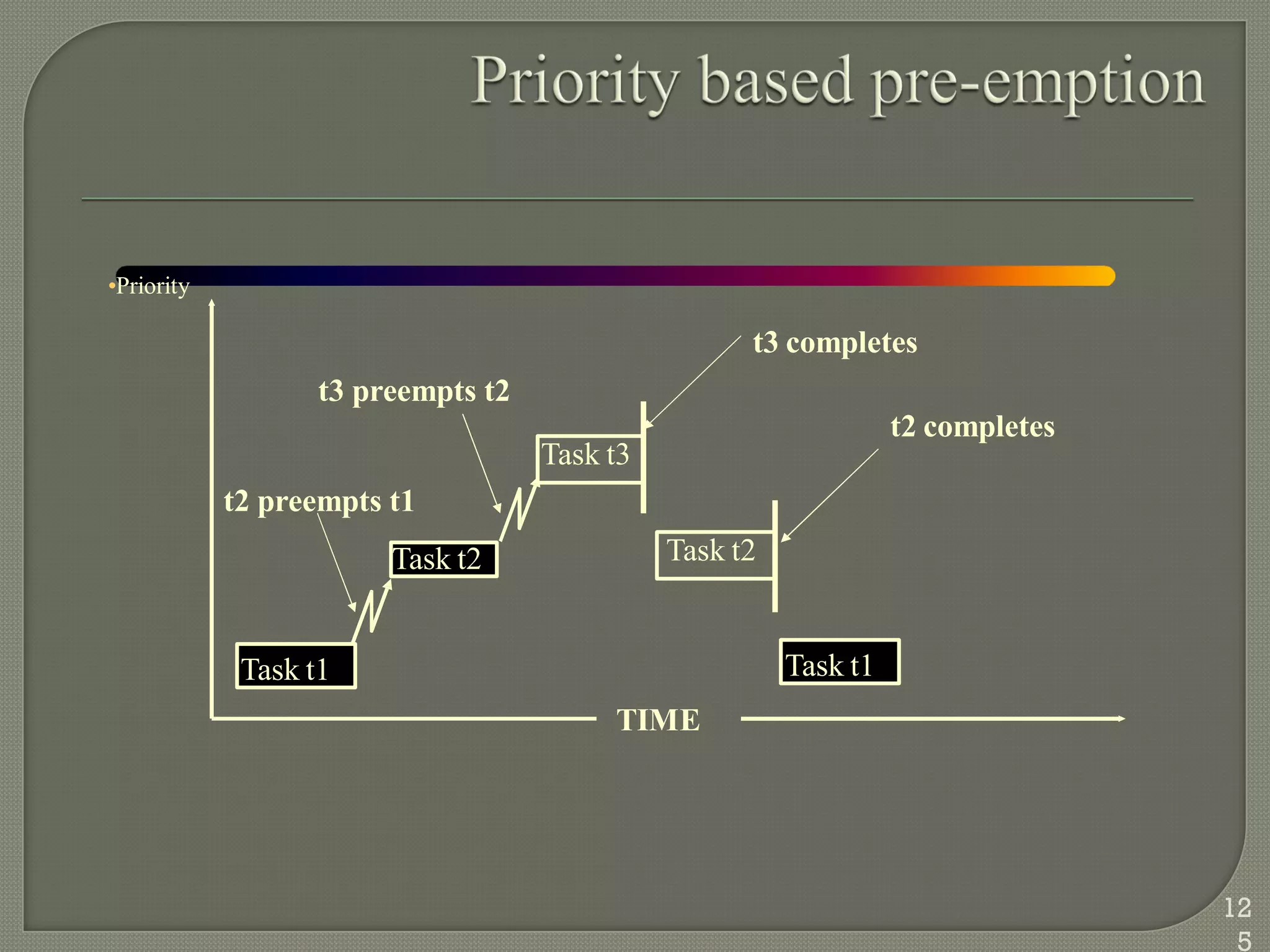

Task t1
Task t2
Task t3
Task t2
Task t1
TIME
t3 completes
t2 completes
t2 preempts t1
t3 preempts t2
•Priority
12
5

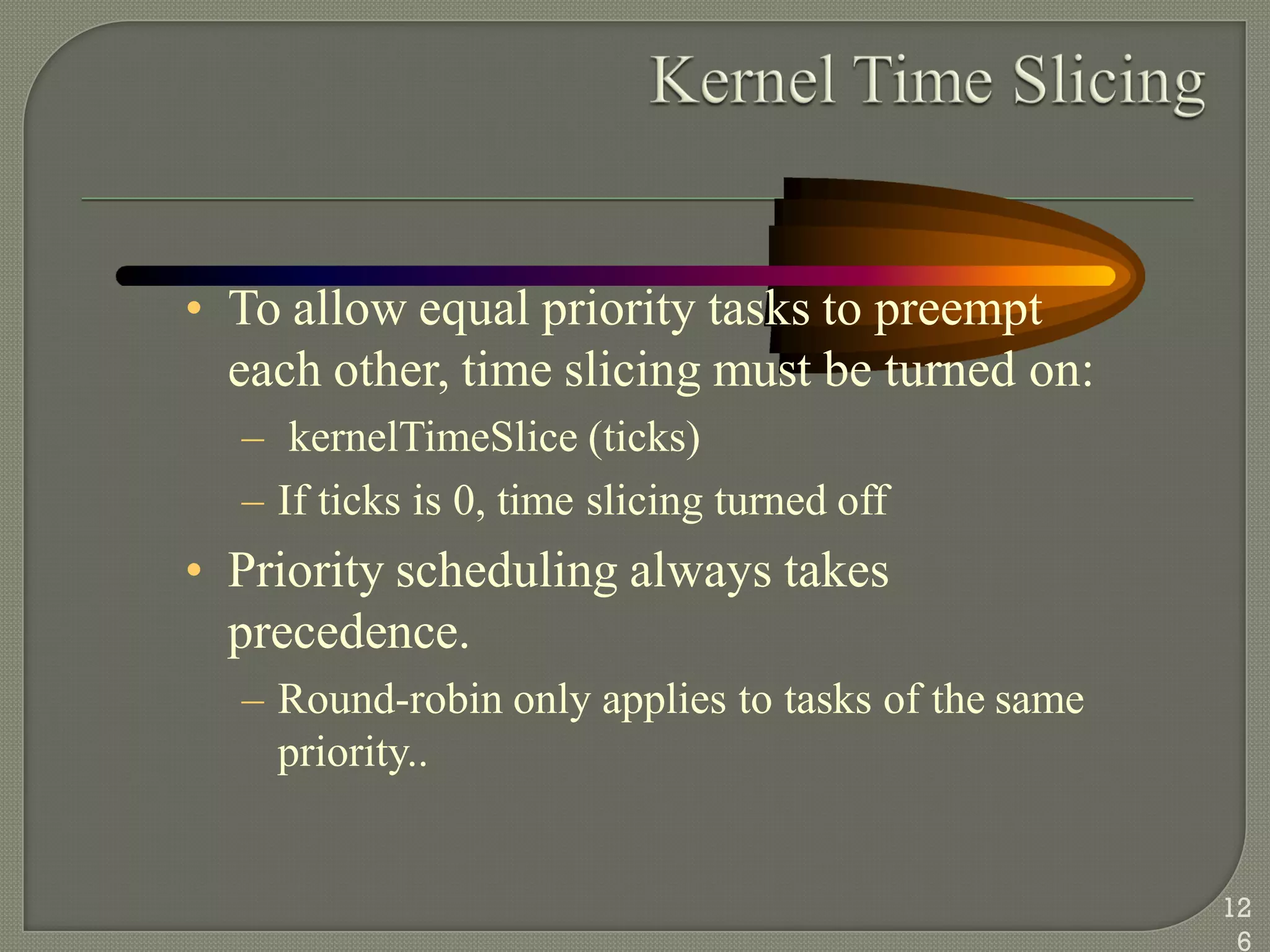

• To allow equal priority tasks to preempt
each other, time slicing must be turned on:
– kernelTimeSlice (ticks)
– If ticks is 0, time slicing turned off
• Priority scheduling always takes
precedence.
– Round-robin only applies to tasks of the same
priority..
12
6

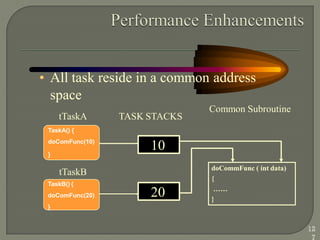

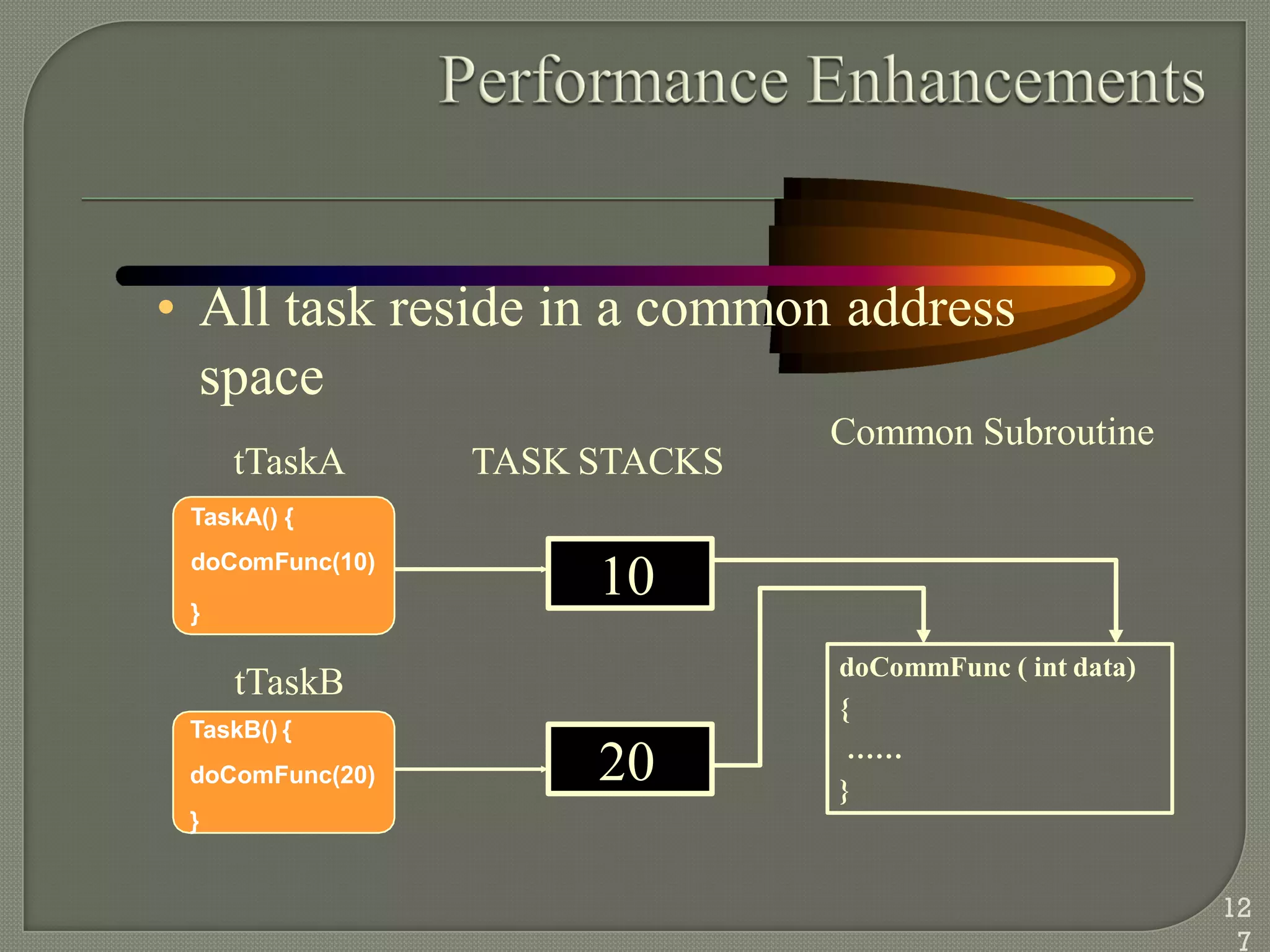

doCommFunc ( int data)
{
……
}
• All task reside in a common address
space
Common Subroutine
tTaskA
TaskA() {
doComFunc(10)
}
tTaskB
TaskB() {
doComFunc(20)
}
10
TASK STACKS
20
12
7

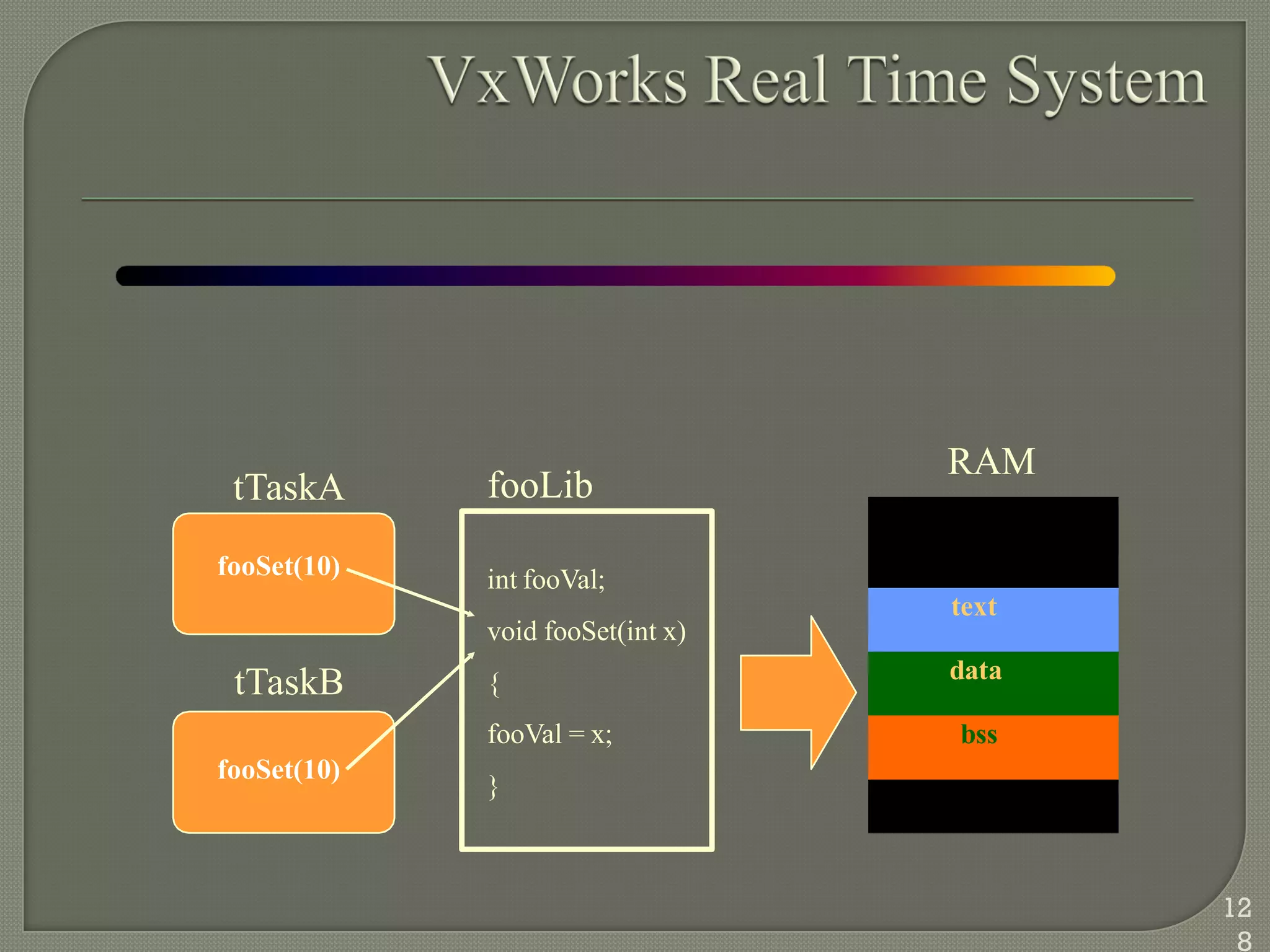

text
data
bss
RAM
tTaskA
fooSet(10)
fooSet(10)
tTaskB
fooLib
int fooVal;
void fooSet(int x)
{
fooVal = x;
}
12
8

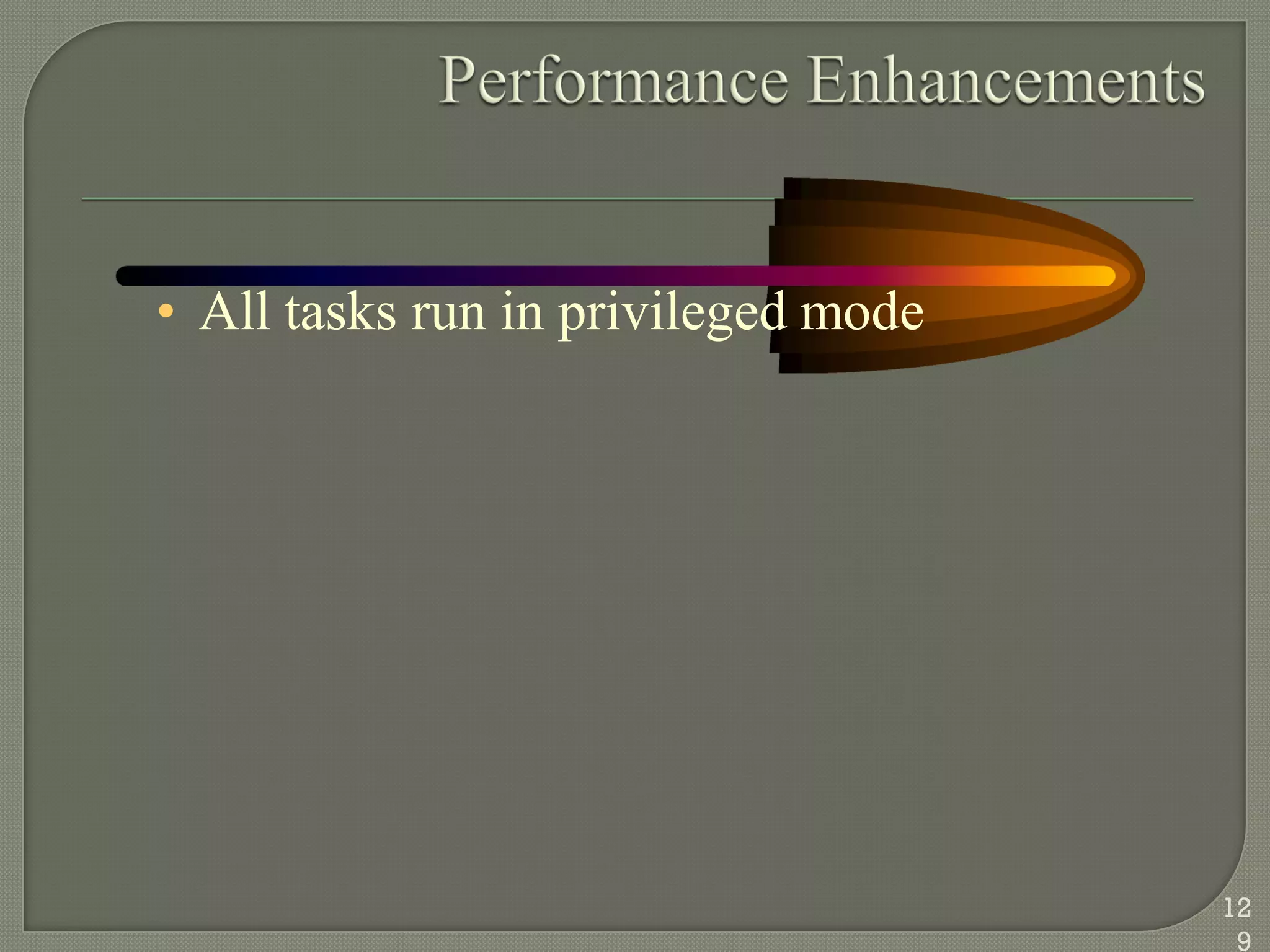

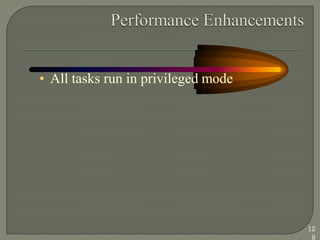

• All tasks run in privileged mode
12
9

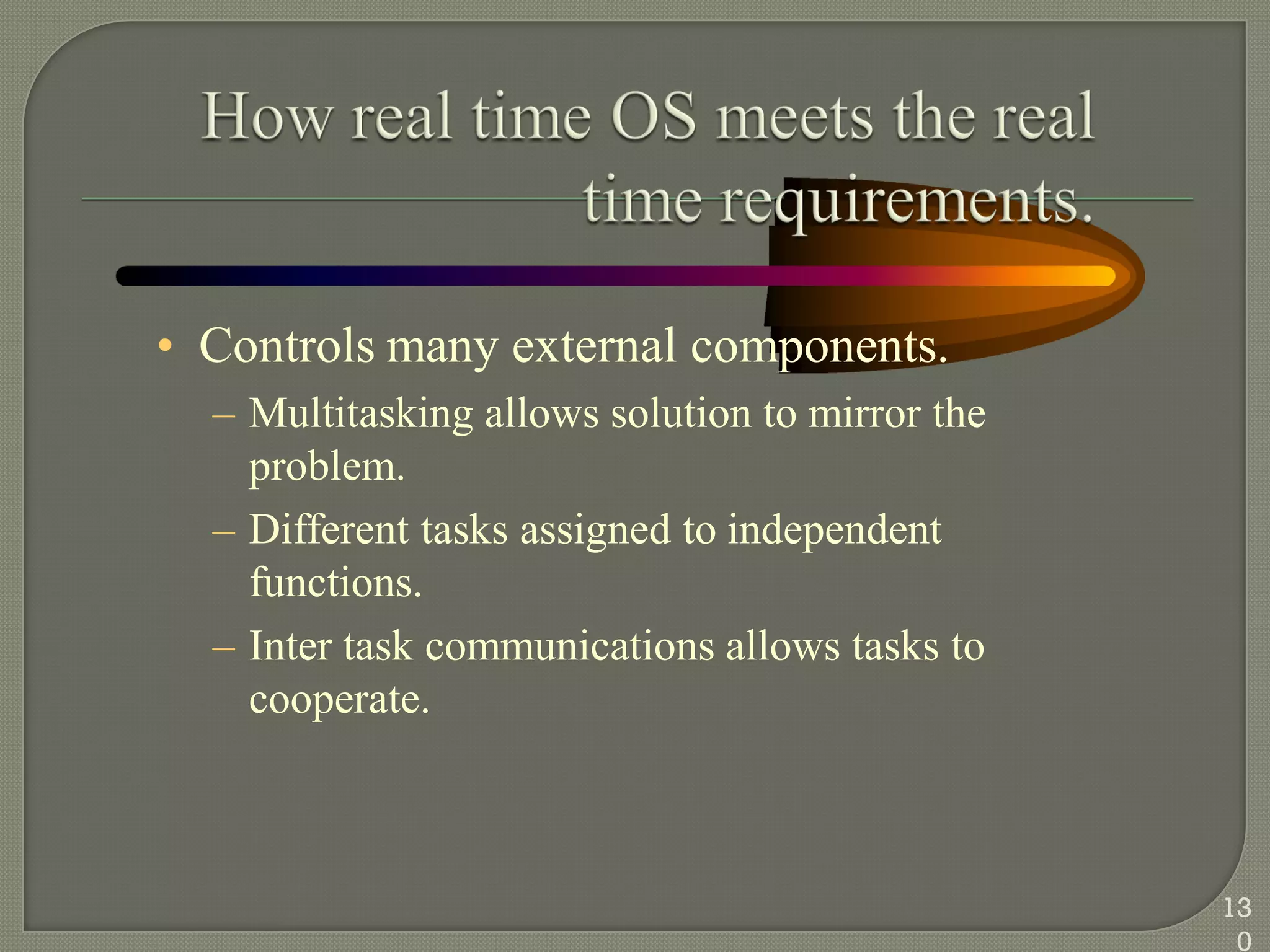

• Controls many external components.
– Multitasking allows solution to mirror the
problem.
– Different tasks assigned to independent
functions.
– Inter task communications allows tasks to
cooperate.
13
0

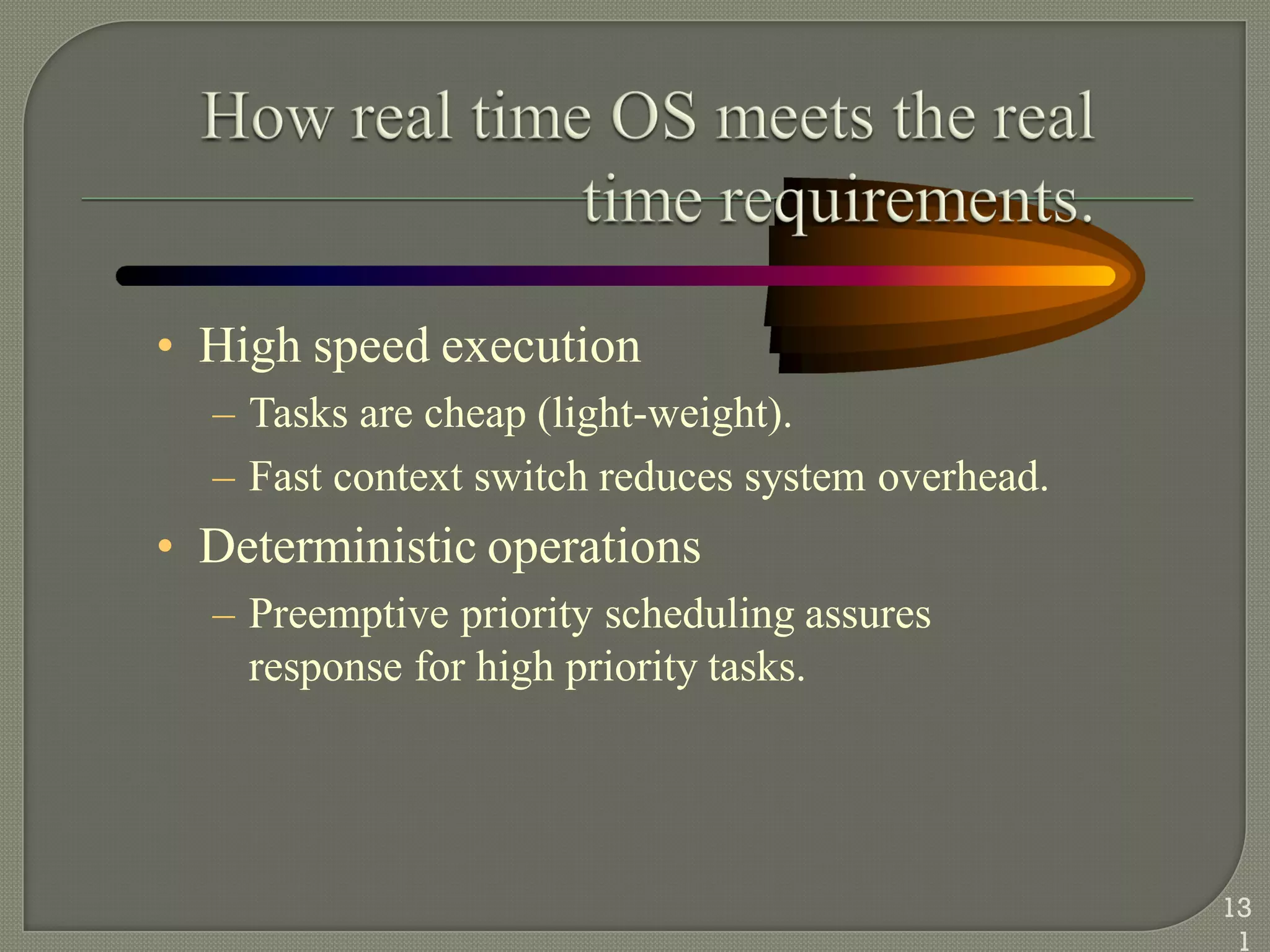

• High speed execution
– Tasks are cheap (light-weight).
– Fast context switch reduces system overhead.
• Deterministic operations
– Preemptive priority scheduling assures
response for high priority tasks.
13
1

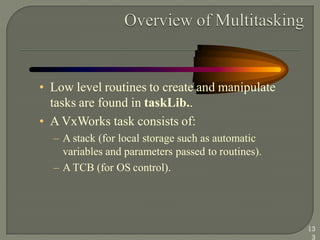

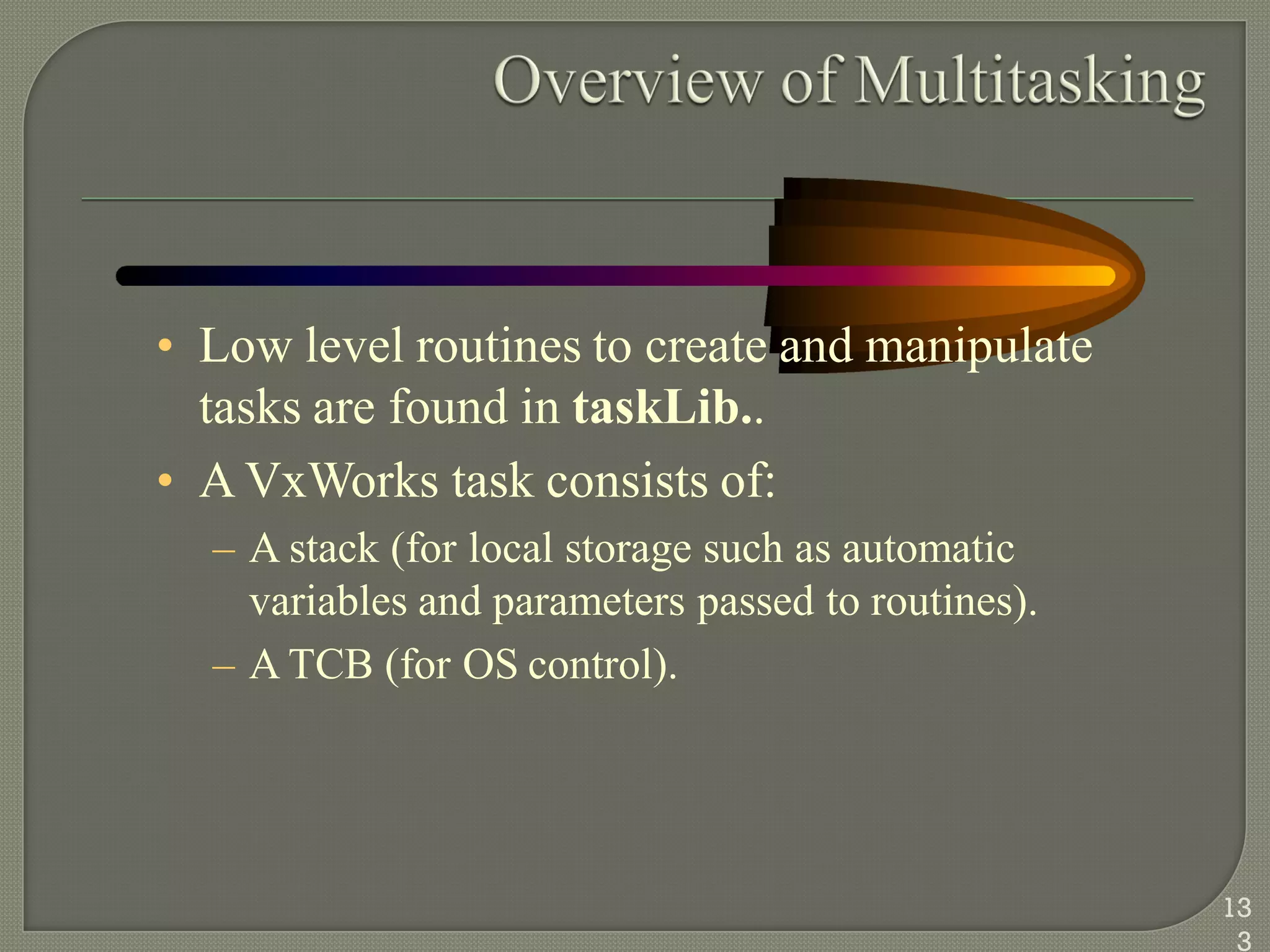

• Low level routines to create and manipulate
tasks are found in taskLib..
• A VxWorks task consists of:
– A stack (for local storage such as automatic
variables and parameters passed to routines).
– A TCB (for OS control).
13
3

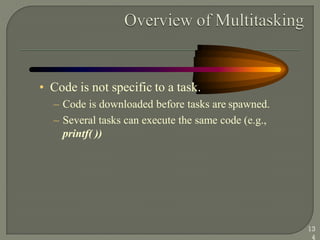

• Code is not specific to a task.
– Code is downloaded before tasks are spawned.
– Several tasks can execute the same code (e.g.,
printf( ))
13
4

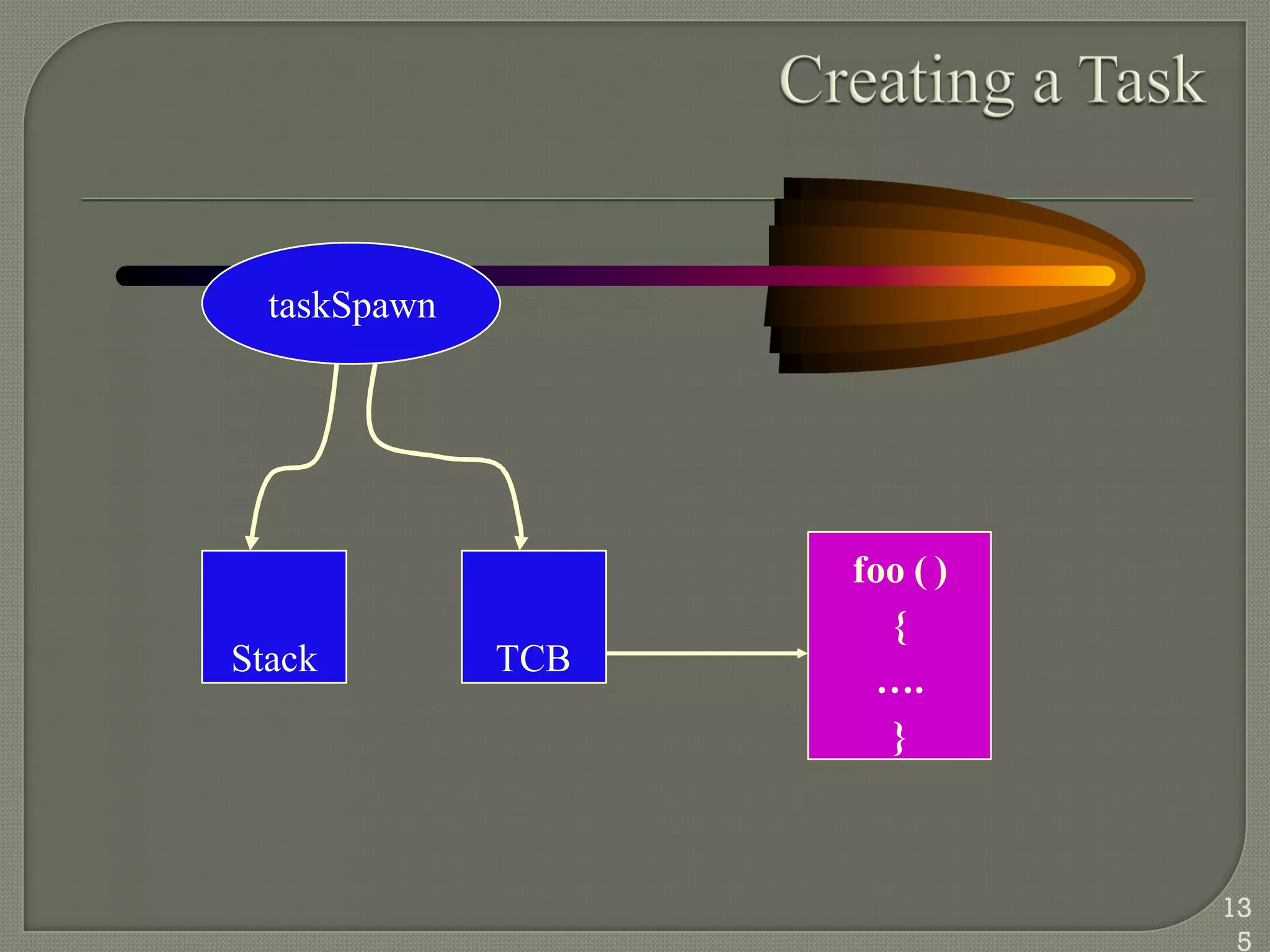

taskSpawn
Stack TCB
foo ( )
{
….
}
13
5

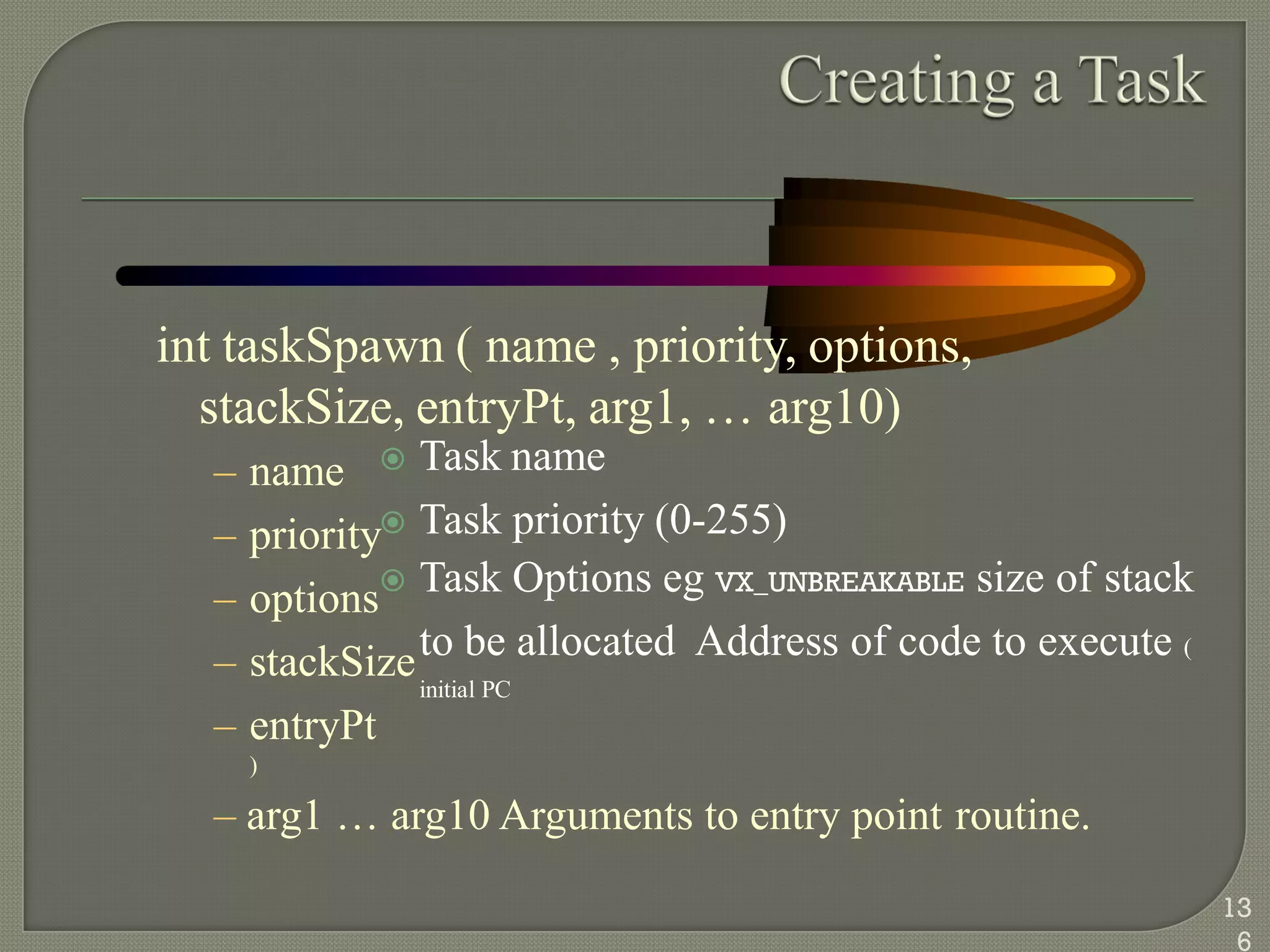

int taskSpawn ( name , priority, options,
stackSize, entryPt, arg1, … arg10)
 Task name
 Task priority (0-255)
 Task Options eg VX_UNBREAKABLE size of stack
to be allocated Address of code to execute (
initial PC
– name
– priority
– options
– stackSize
– entryPt
)
– arg1 … arg10 Arguments to entry point routine.
13
6

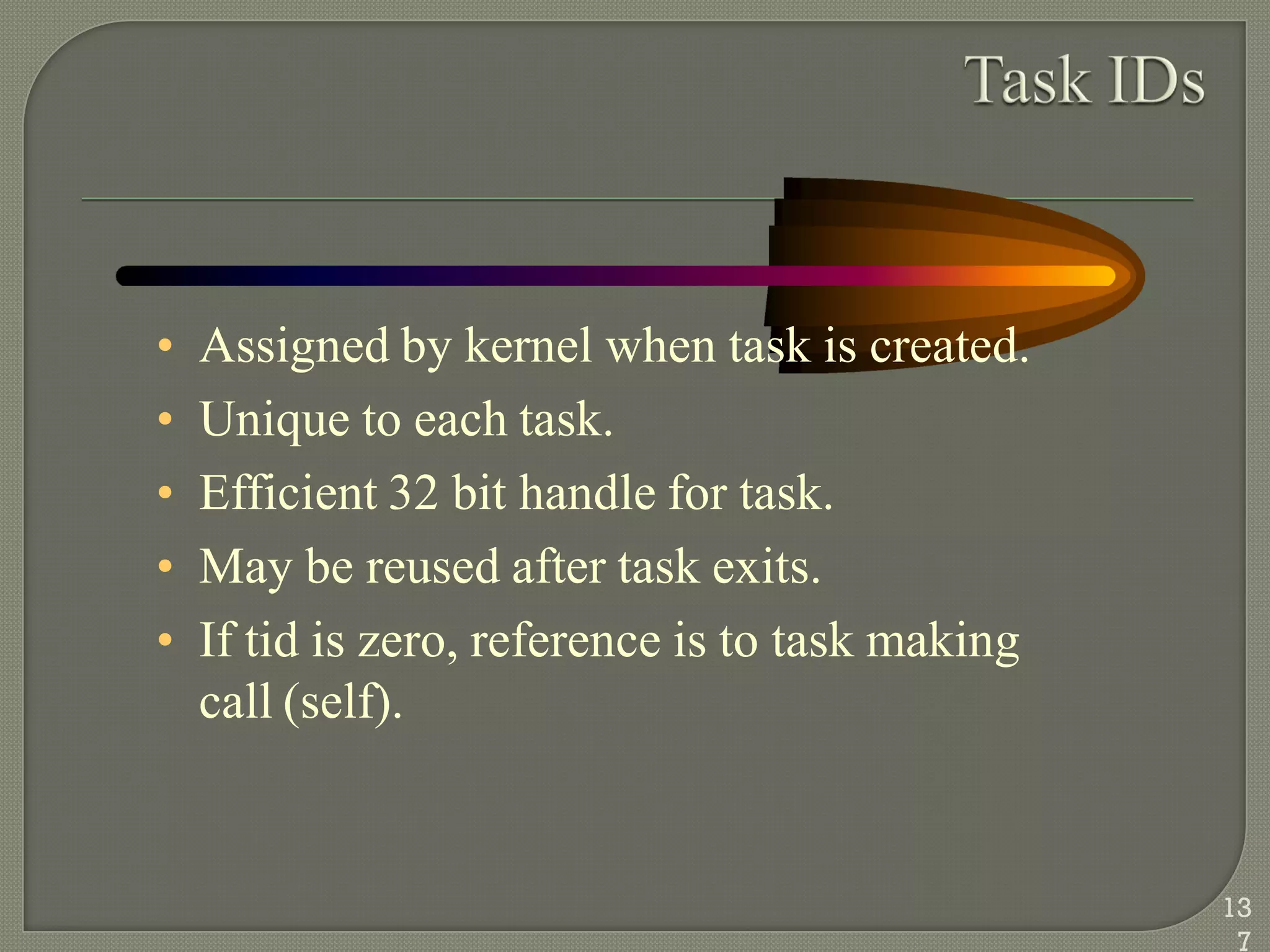

• Assigned by kernel when task is created.
• Unique to each task.
• Efficient 32 bit handle for task.
• May be reused after task exits.
• If tid is zero, reference is to task making
call (self).

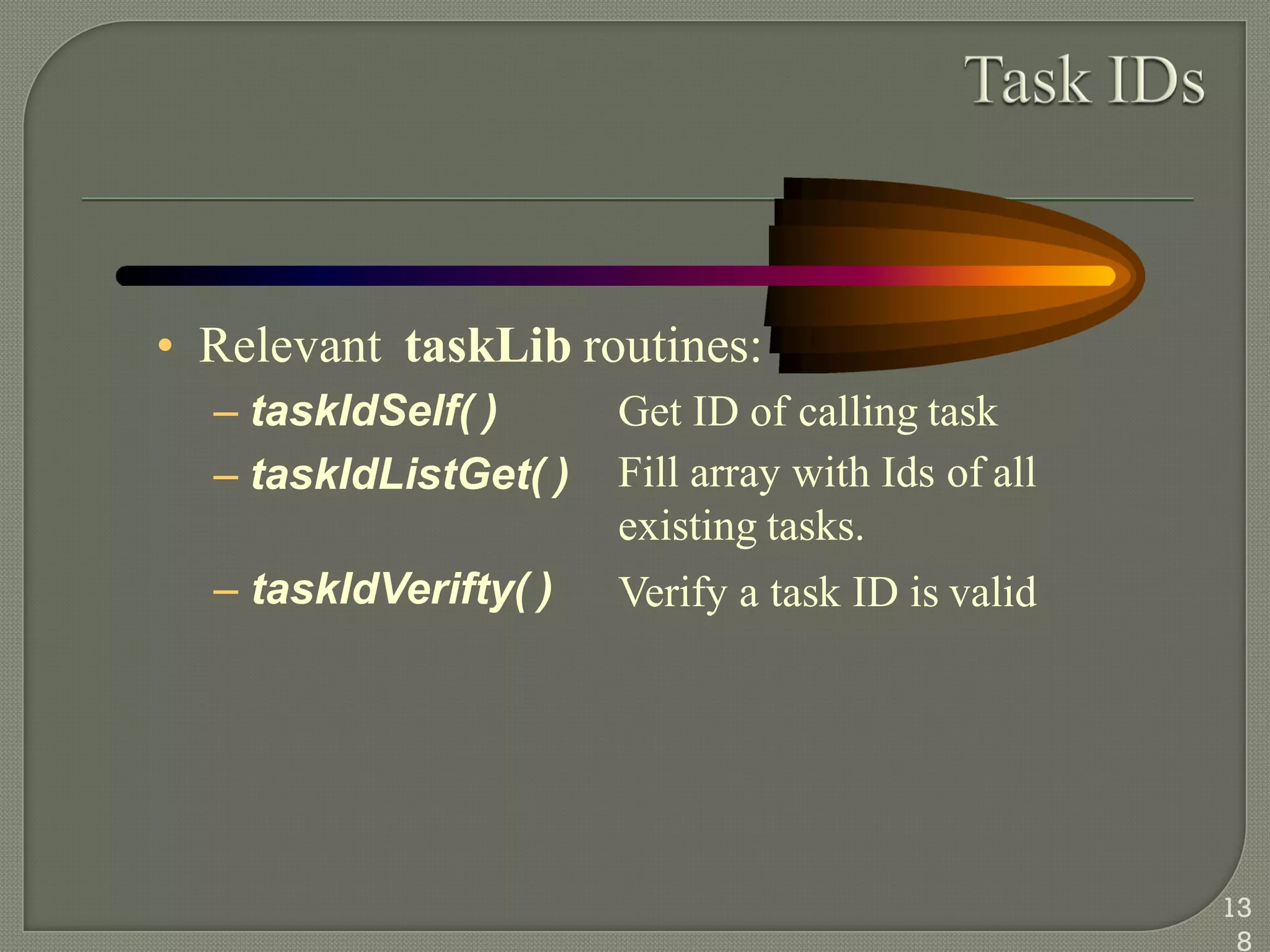

13
7

• Relevant taskLib routines:
– taskIdSelf( )
– taskIdListGet( )
– taskIdVerifty( )
Get ID of calling task
Fill array with Ids of all
existing tasks.
Verify a task ID is valid

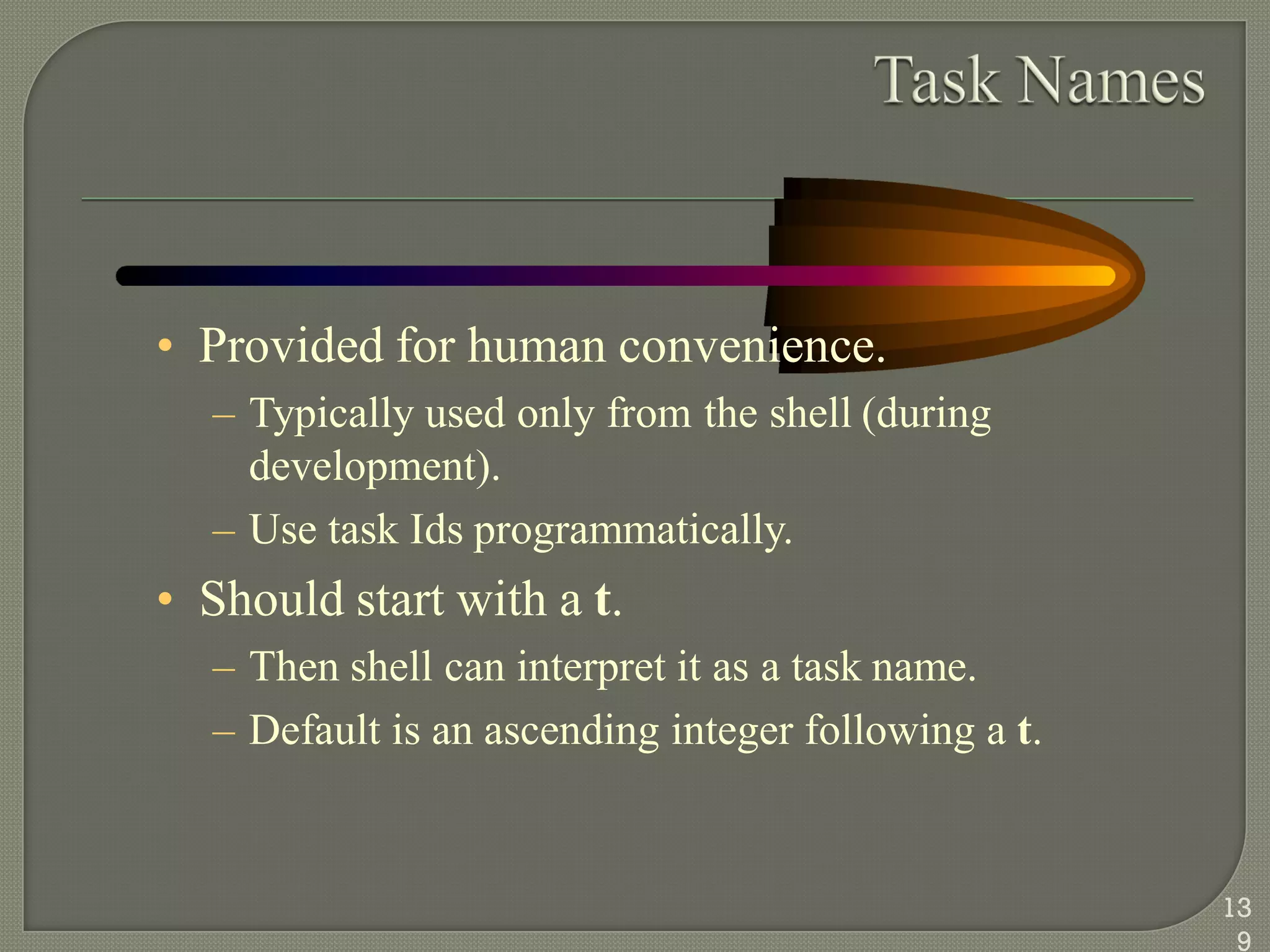

13
8

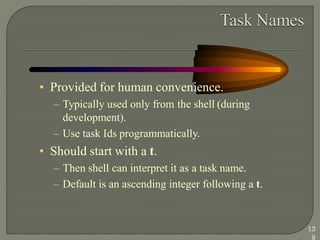

• Provided for human convenience.
– Typically used only from the shell (during
development).
– Use task Ids programmatically.
• Should start with a t.
– Then shell can interpret it as a task name.
– Default is an ascending integer following a t.
13
9

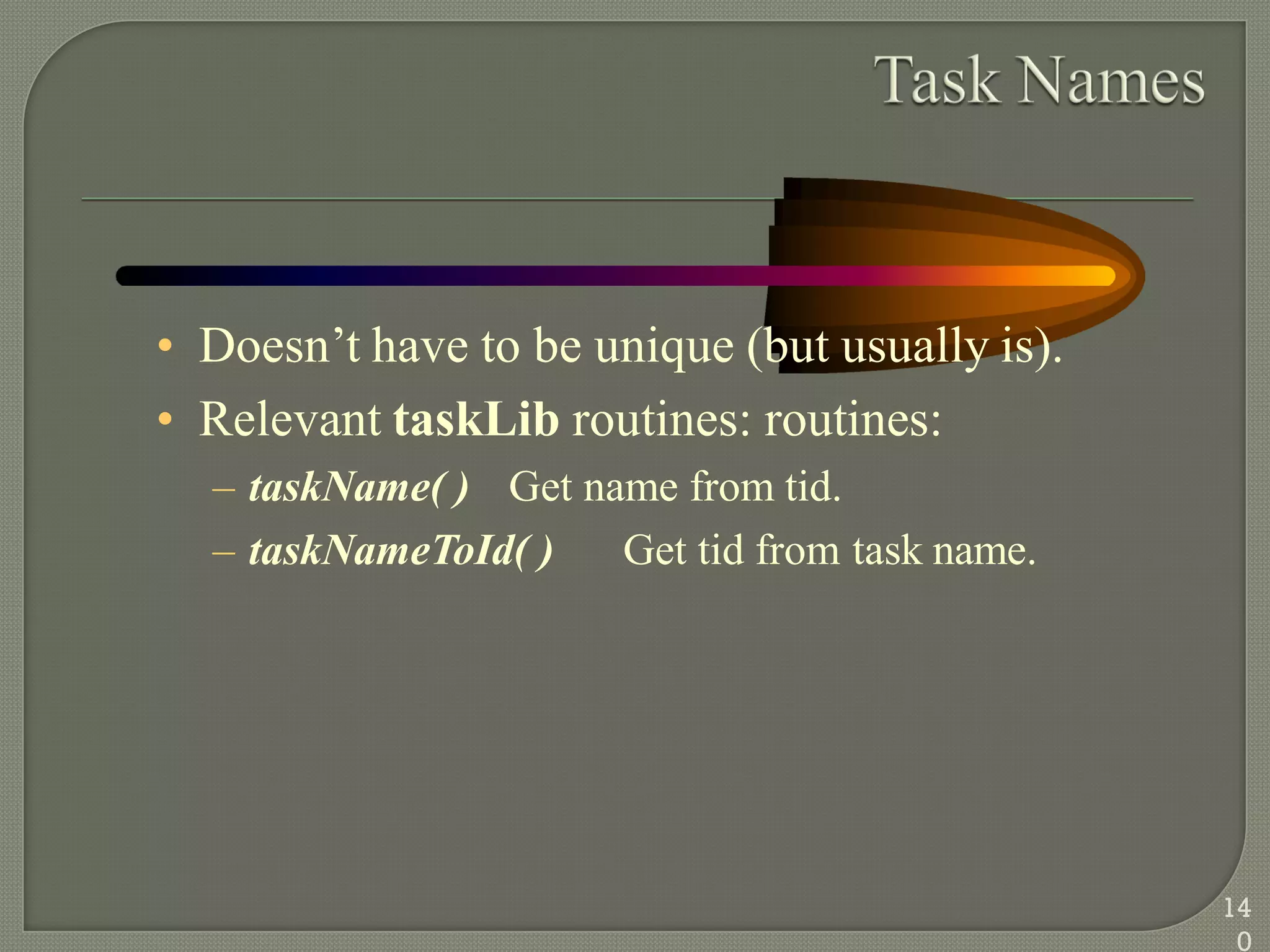

• Doesn‘t have to be unique (but usually is).
• Relevant taskLib routines: routines:
– taskName( ) Get name from tid.
– taskNameToId( ) Get tid from task name.
14
0

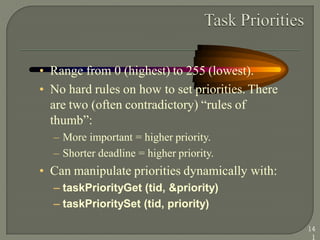

• Range from 0 (highest) to 255 (lowest).
• No hard rules on how to set priorities. There
are two (often contradictory) ―rules of
thumb‖:
– More important = higher priority.
– Shorter deadline = higher priority.
• Can manipulate priorities dynamically with:
– taskPriorityGet (tid, &priority)
– taskPrioritySet (tid, priority)
14
1

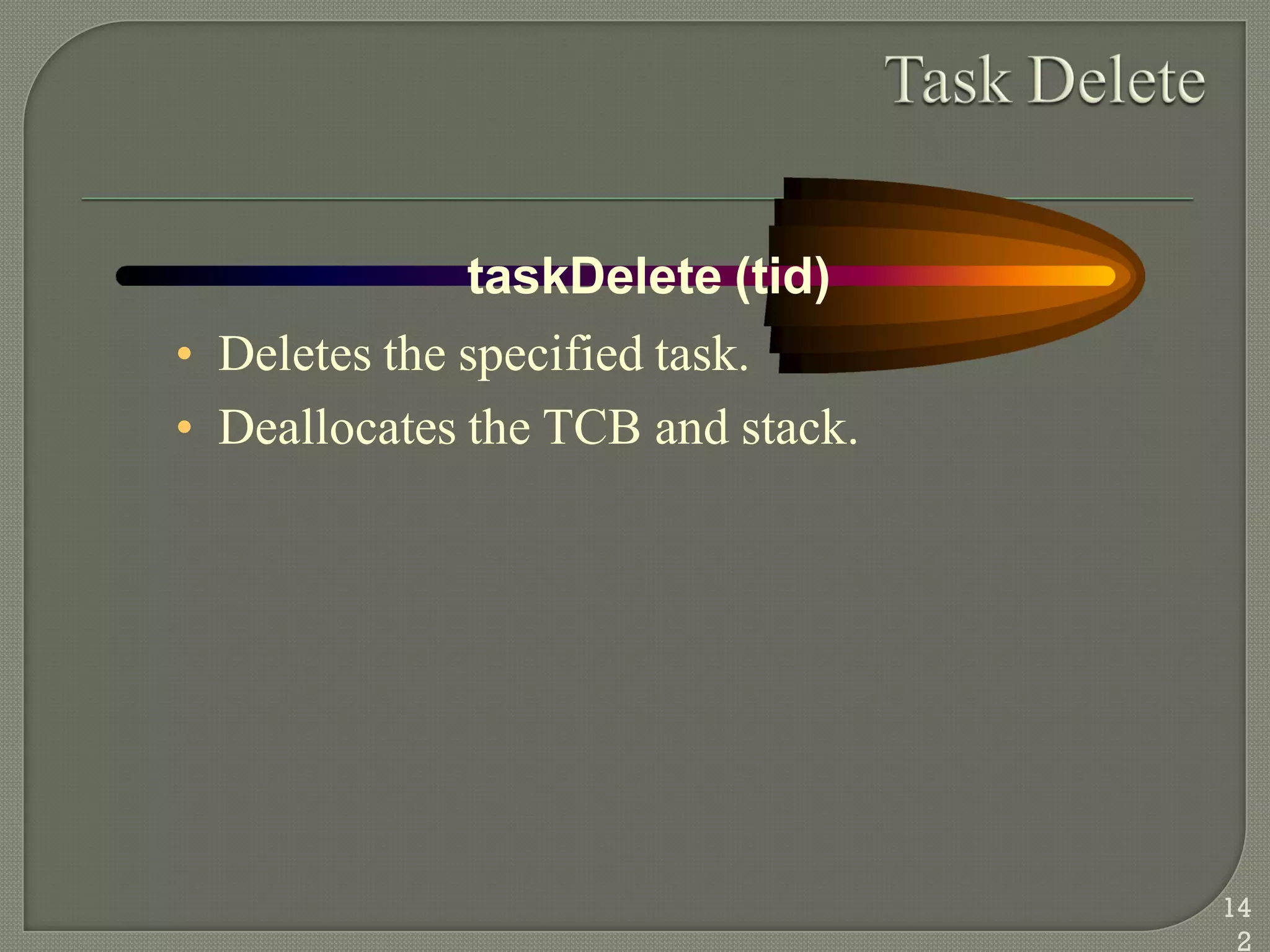

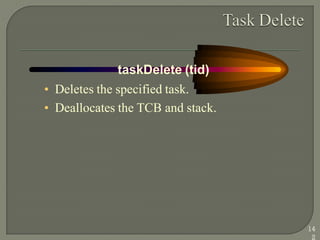

taskDelete (tid)
• Deletes the specified task.
• Deallocates the TCB and stack.
14

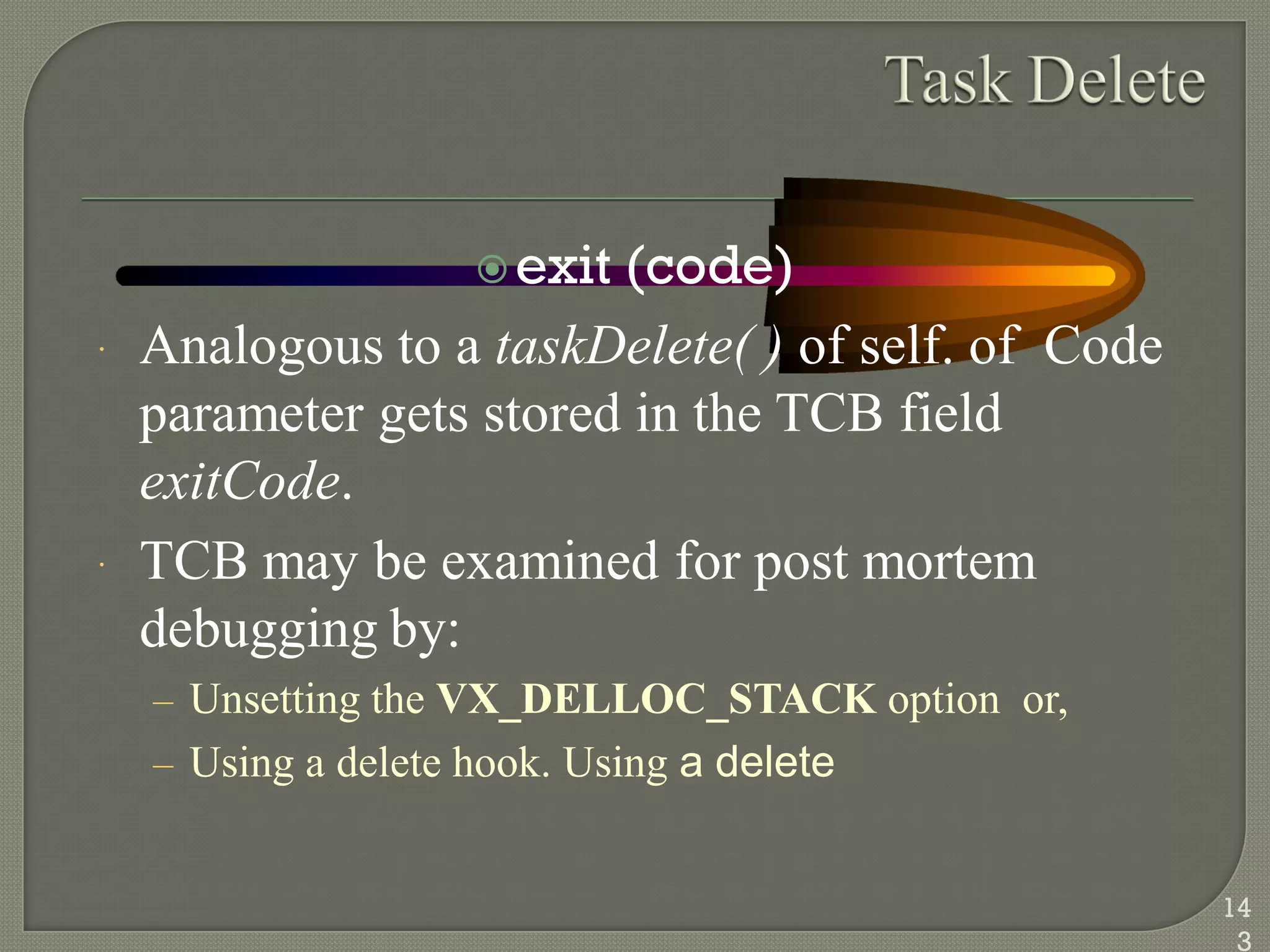

2

exit (code)
 Analogous to a taskDelete( ) of self. of Code
parameter gets stored in the TCB field
exitCode.
 TCB may be examined for post mortem
debugging by:
– Unsetting the VX_DELLOC_STACK option or,
– Using a delete hook. Using a delete
14
3

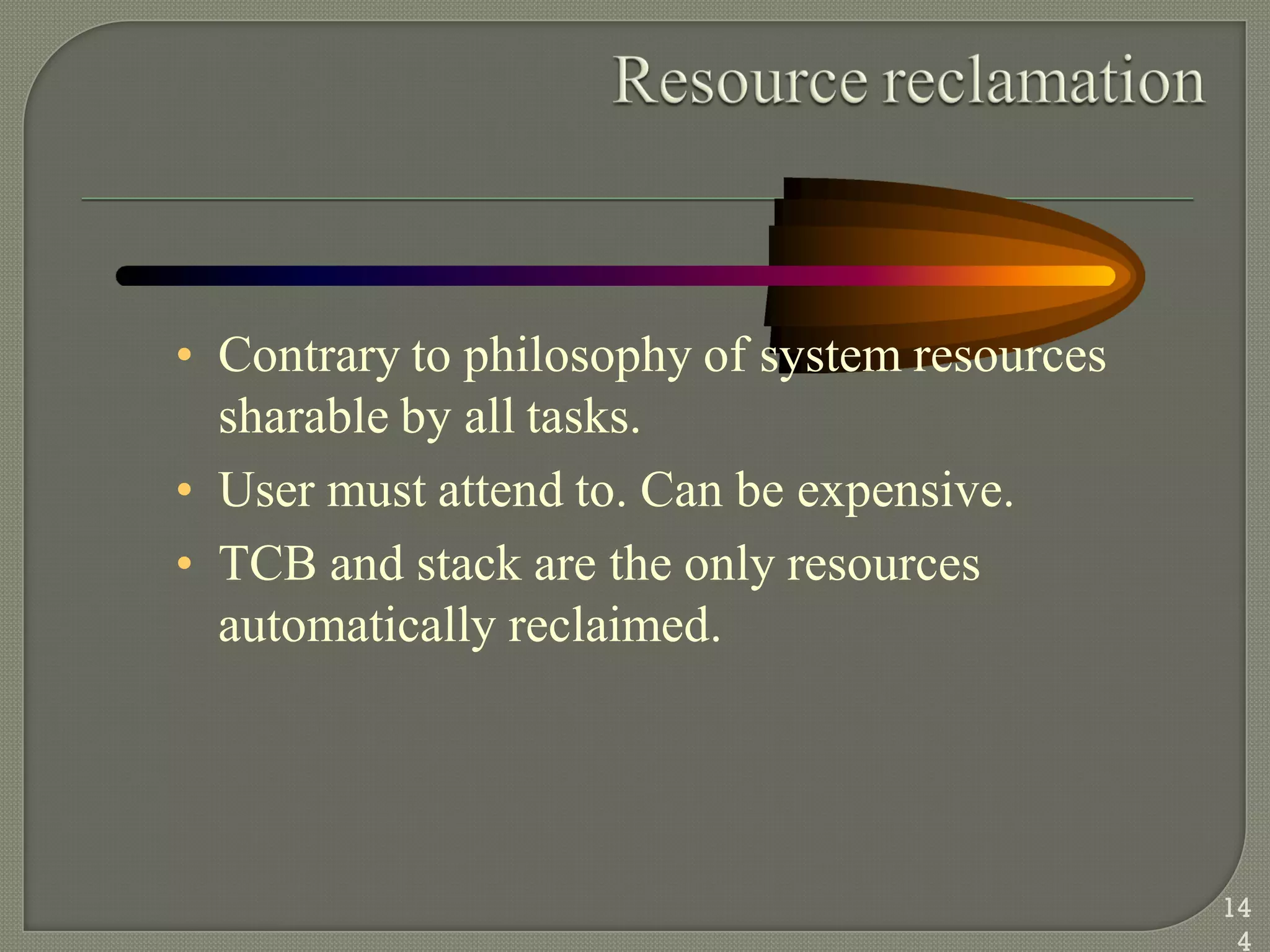

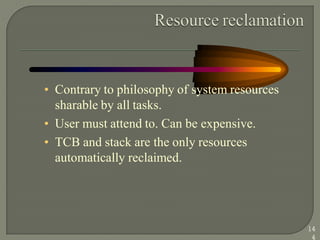

• Contrary to philosophy of system resources
sharable by all tasks.
• User must attend to. Can be expensive.
• TCB and stack are the only resources
automatically reclaimed.
14
4

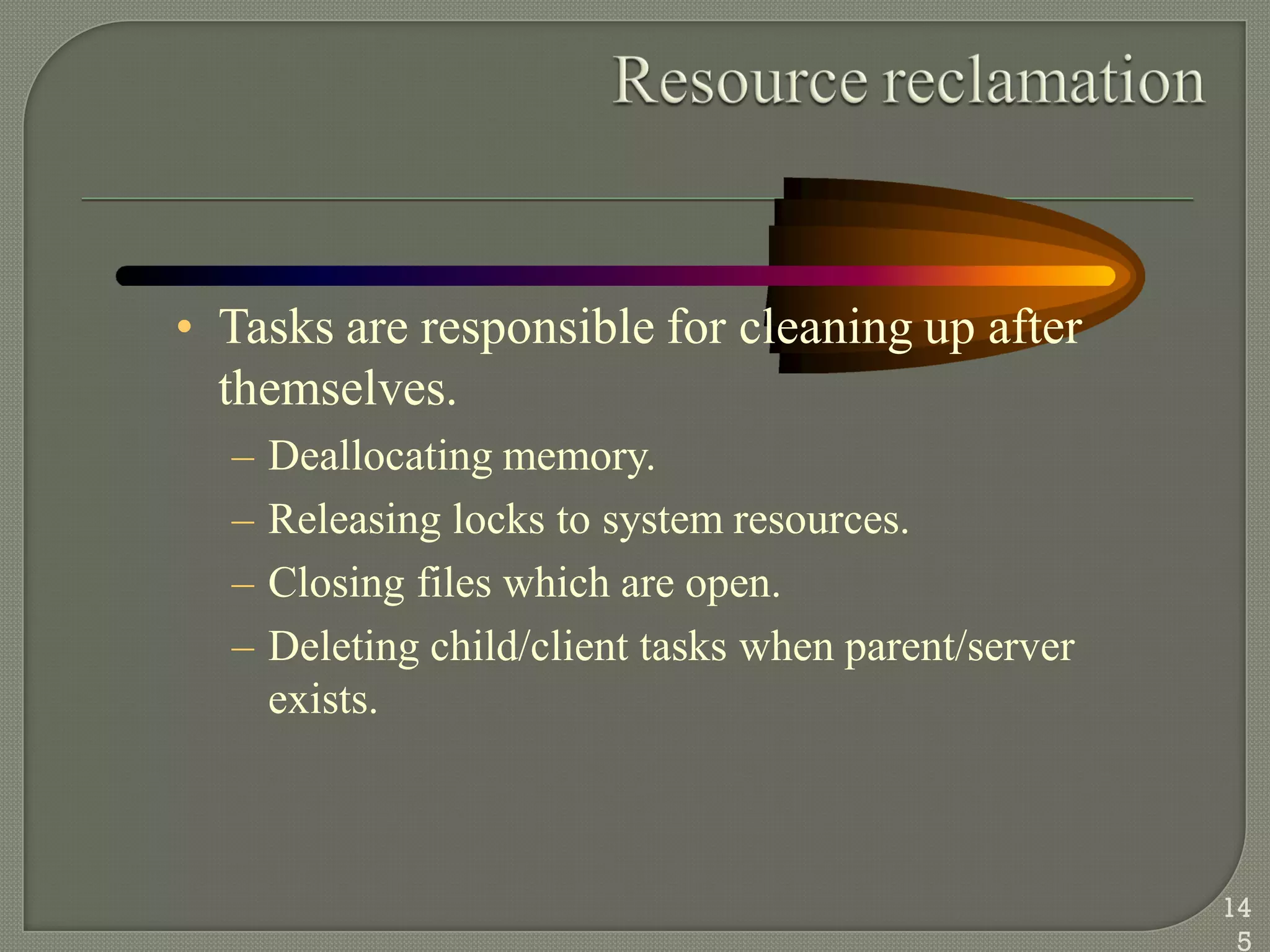

• Tasks are responsible for cleaning up after
themselves.
– Deallocating memory.
– Releasing locks to system resources.
– Closing files which are open.
– Deleting child/client tasks when parent/server
exists.
14
5

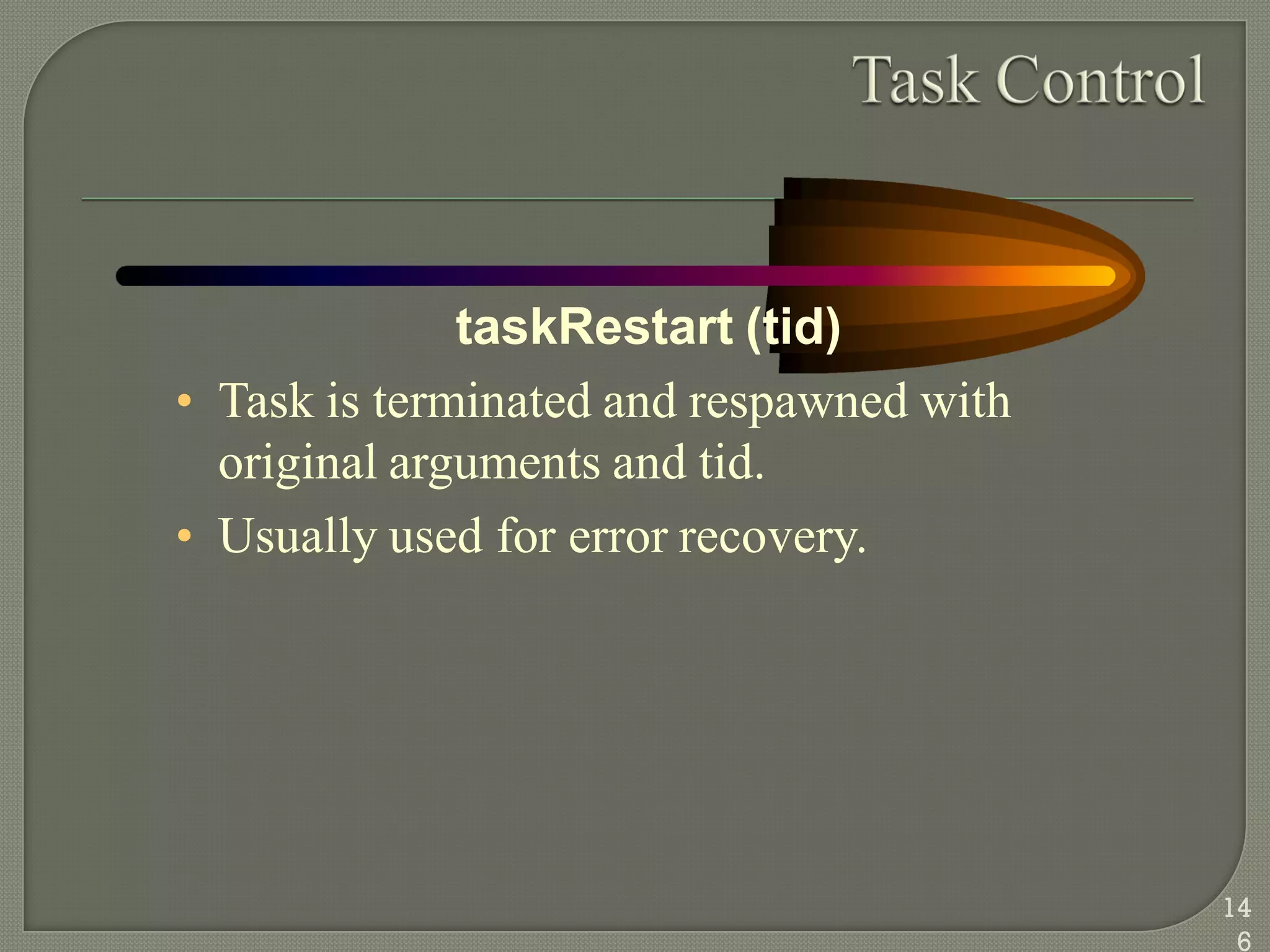

taskRestart (tid)
• Task is terminated and respawned with
original arguments and tid.
• Usually used for error recovery.
14
6

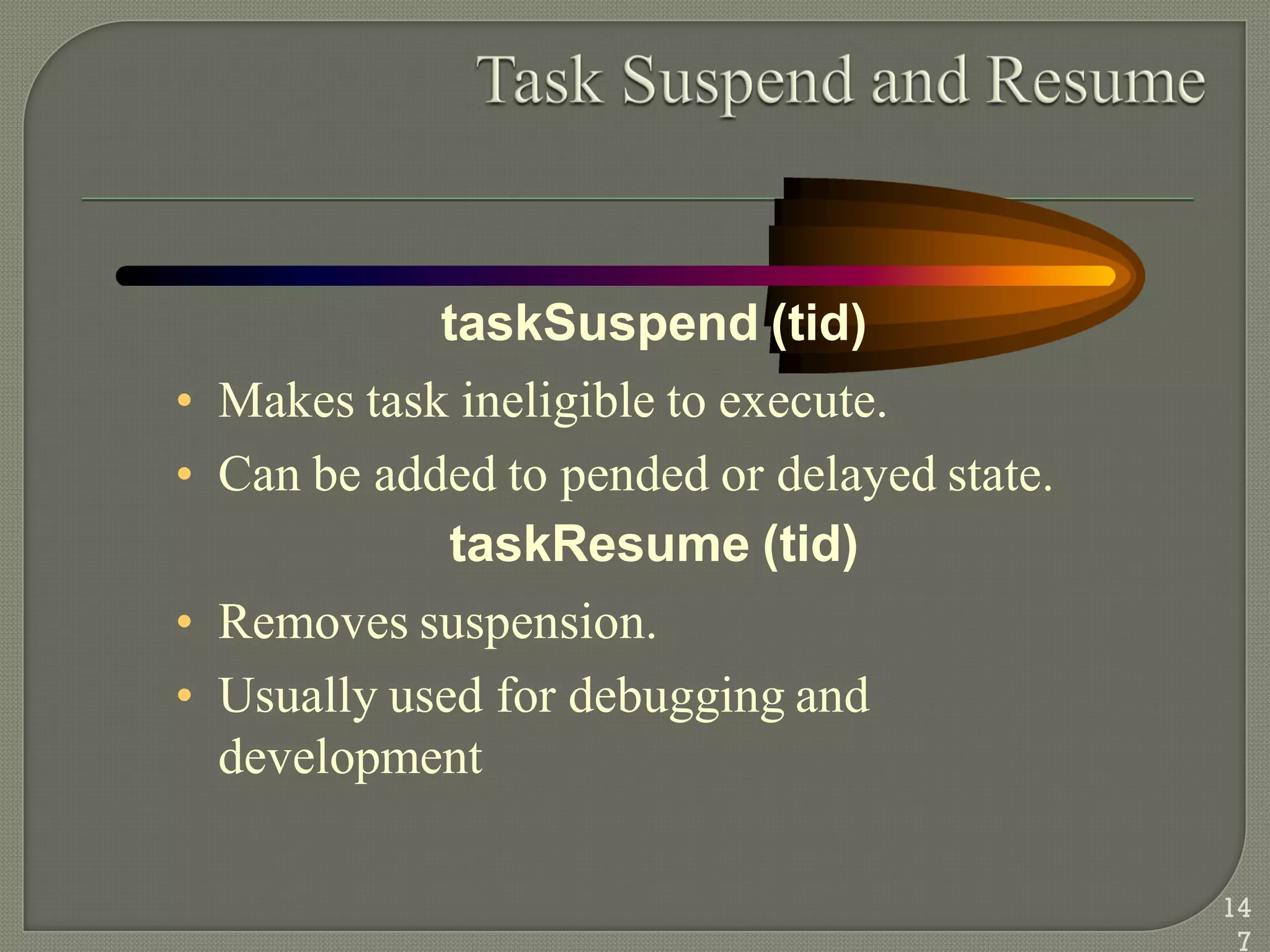

taskSuspend (tid)
• Makes task ineligible to execute.
• Can be added to pended or delayed state.
taskResume (tid)
• Removes suspension.
• Usually used for debugging and
development
14
7

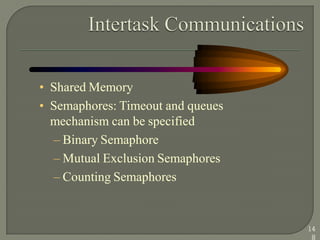

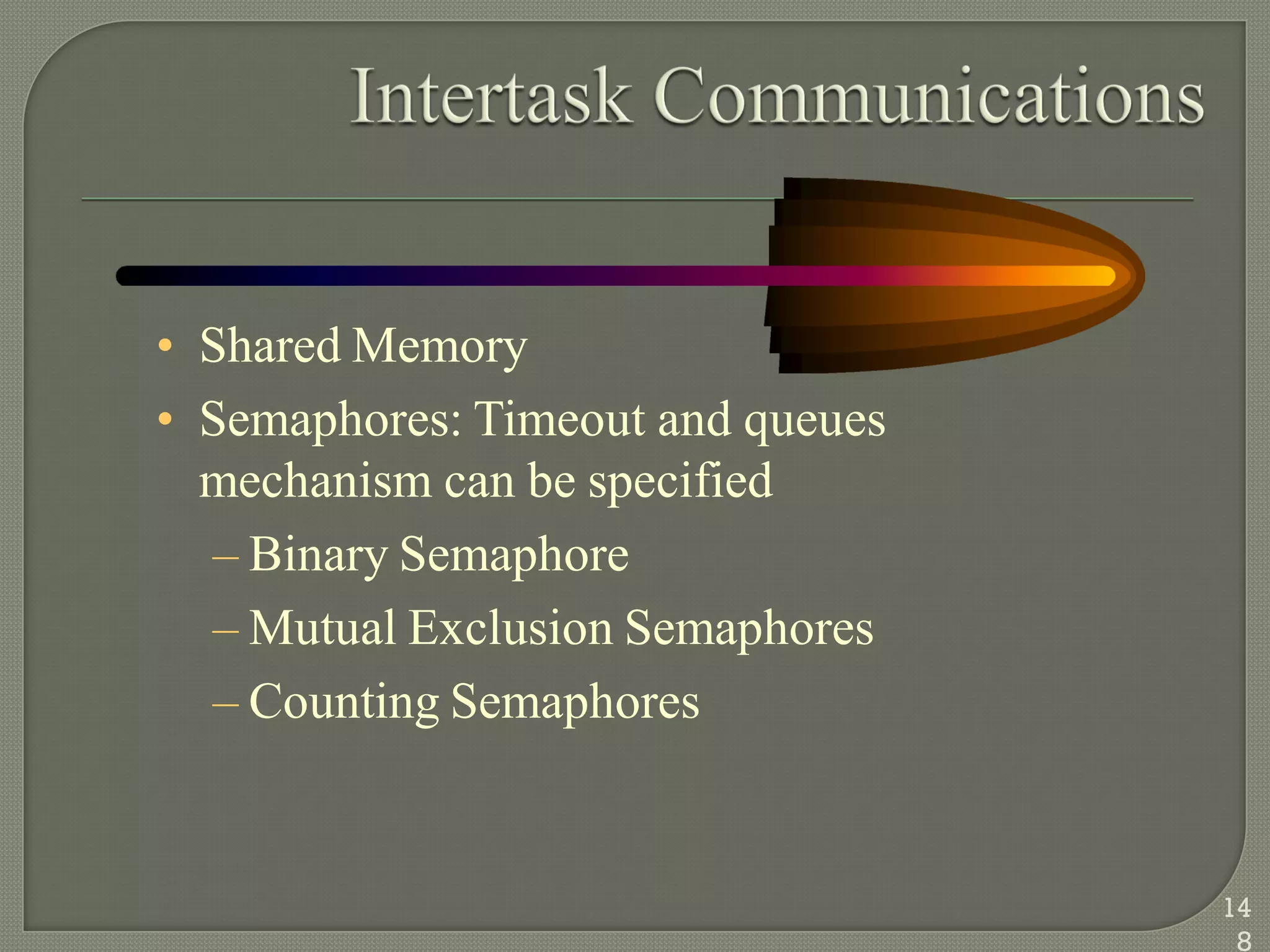

• Shared Memory
• Semaphores: Timeout and queues
mechanism can be specified
– Binary Semaphore
– Mutual Exclusion Semaphores
– Counting Semaphores
14
8

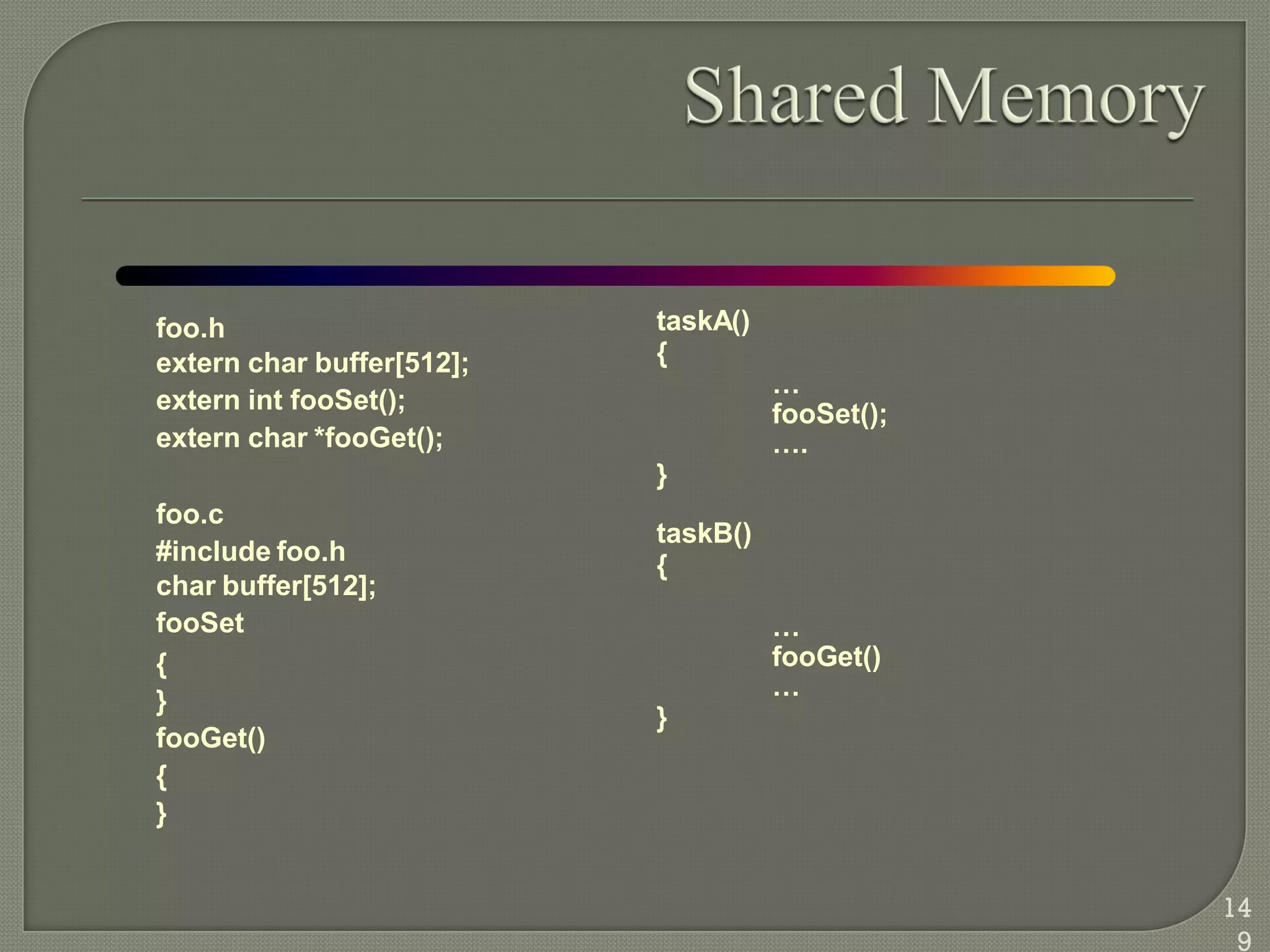

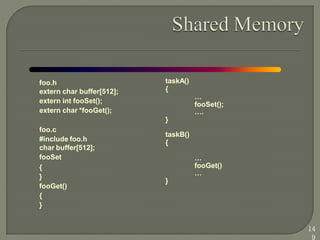

foo.h
extern char buffer[512];
extern int fooSet();
extern char *fooGet();
foo.c
#include foo.h
char buffer[512];
fooSet
{
}
fooGet()
{
}
taskA()
{
…
fooSet();
….
}
taskB()
{
…
fooGet()
…
}
14
9

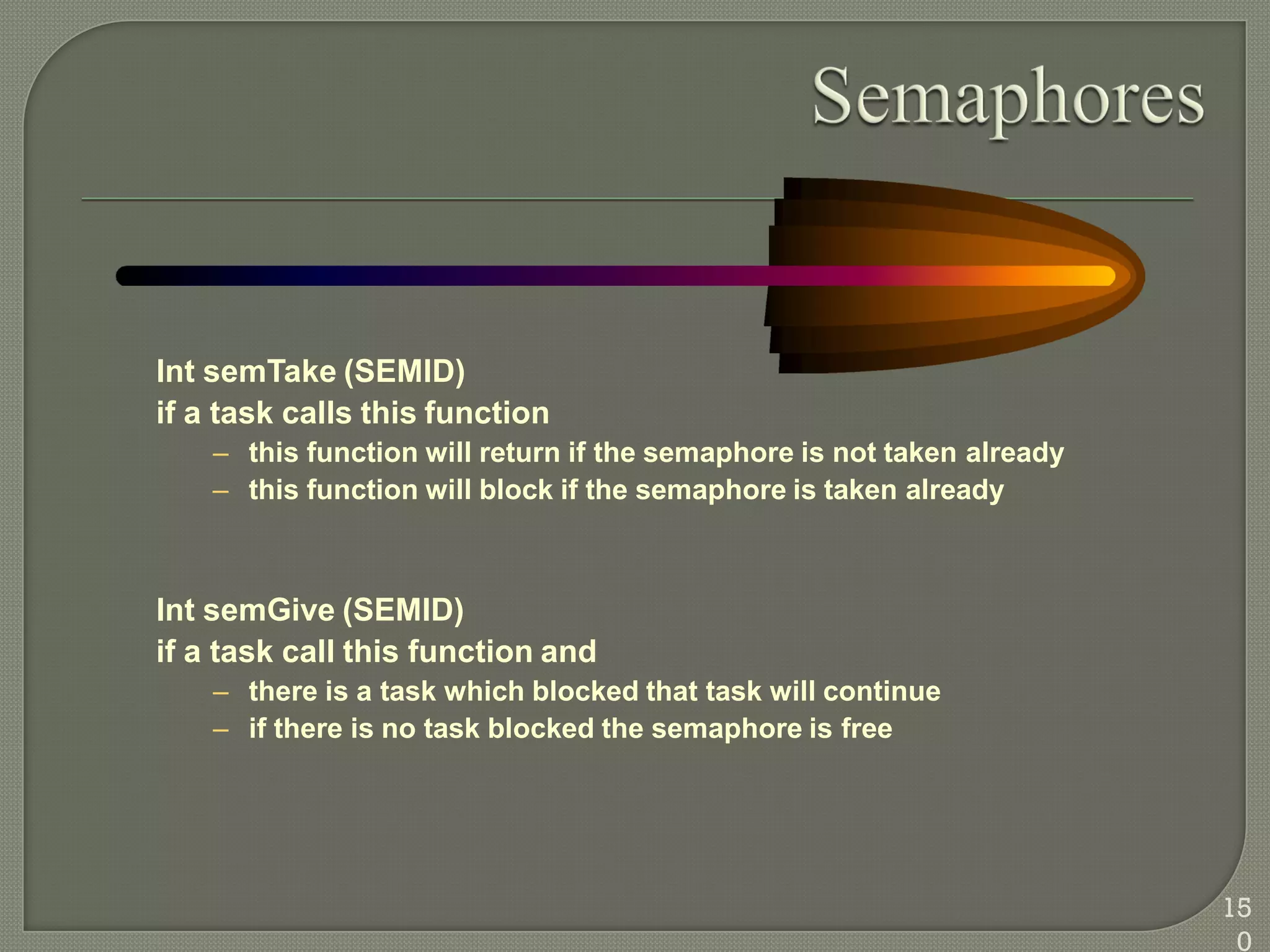

Int semTake (SEMID)
if a task calls this function
– this function will return if the semaphore is not taken already
– this function will block if the semaphore is taken already
Int semGive (SEMID)
if a task call this function and
– there is a task which blocked that task will continue
– if there is no task blocked the semaphore is free
15
0

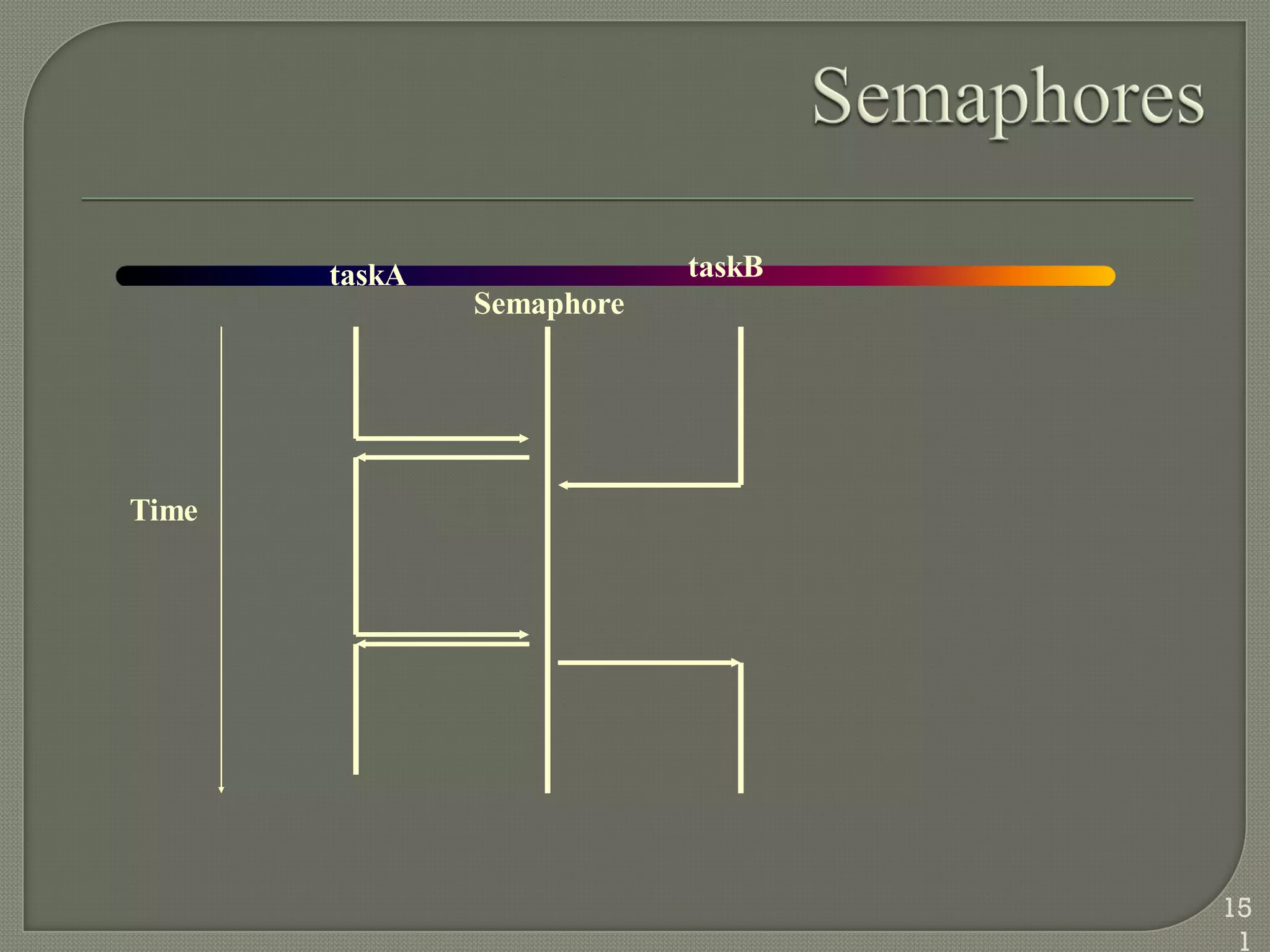

taskA taskB
Semaphore
Time
15
1

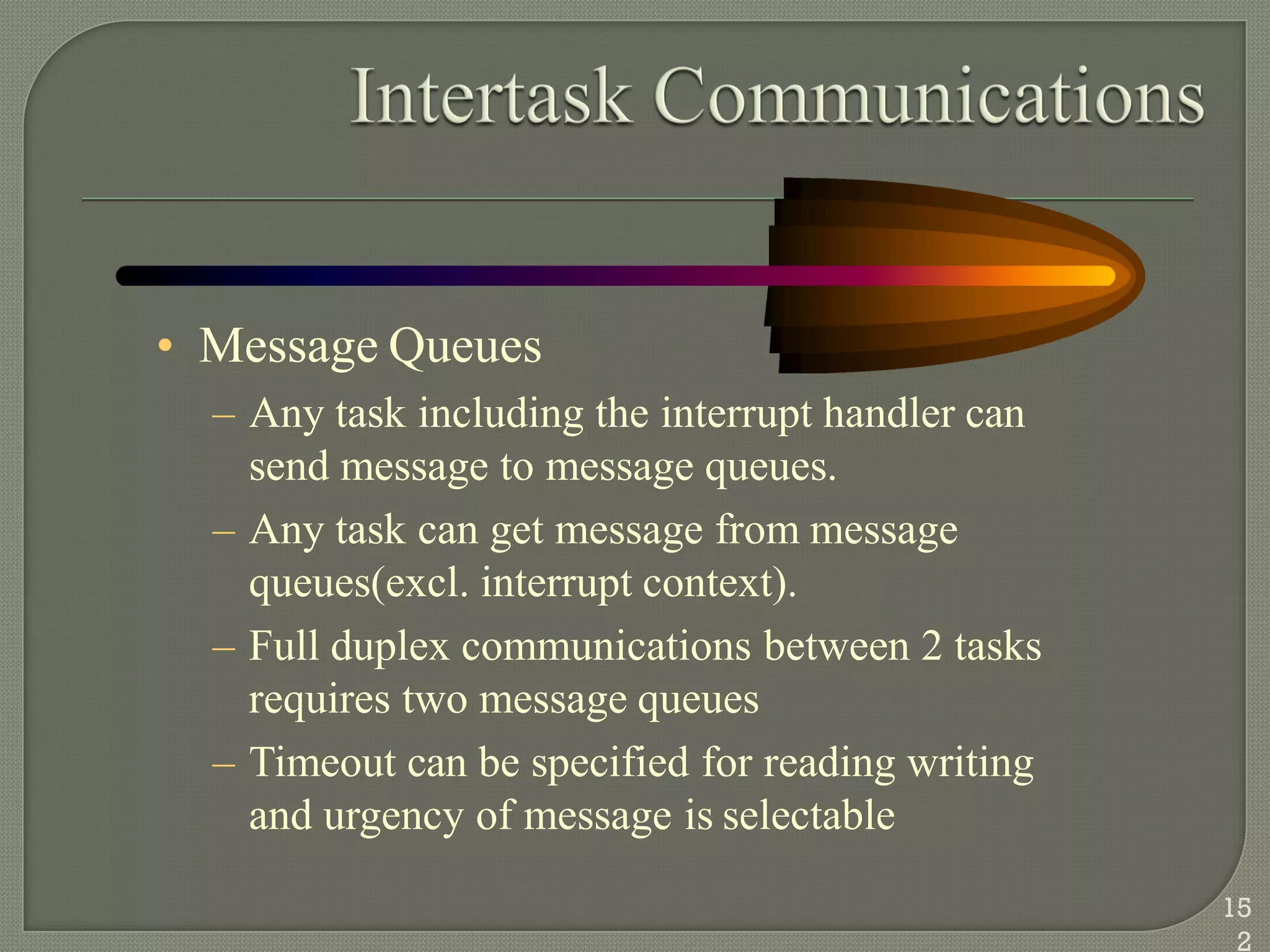

• Message Queues
– Any task including the interrupt handler can
send message to message queues.
– Any task can get message from message
queues(excl. interrupt context).
– Full duplex communications between 2 tasks
requires two message queues
– Timeout can be specified for reading writing
and urgency of message is selectable
15
2

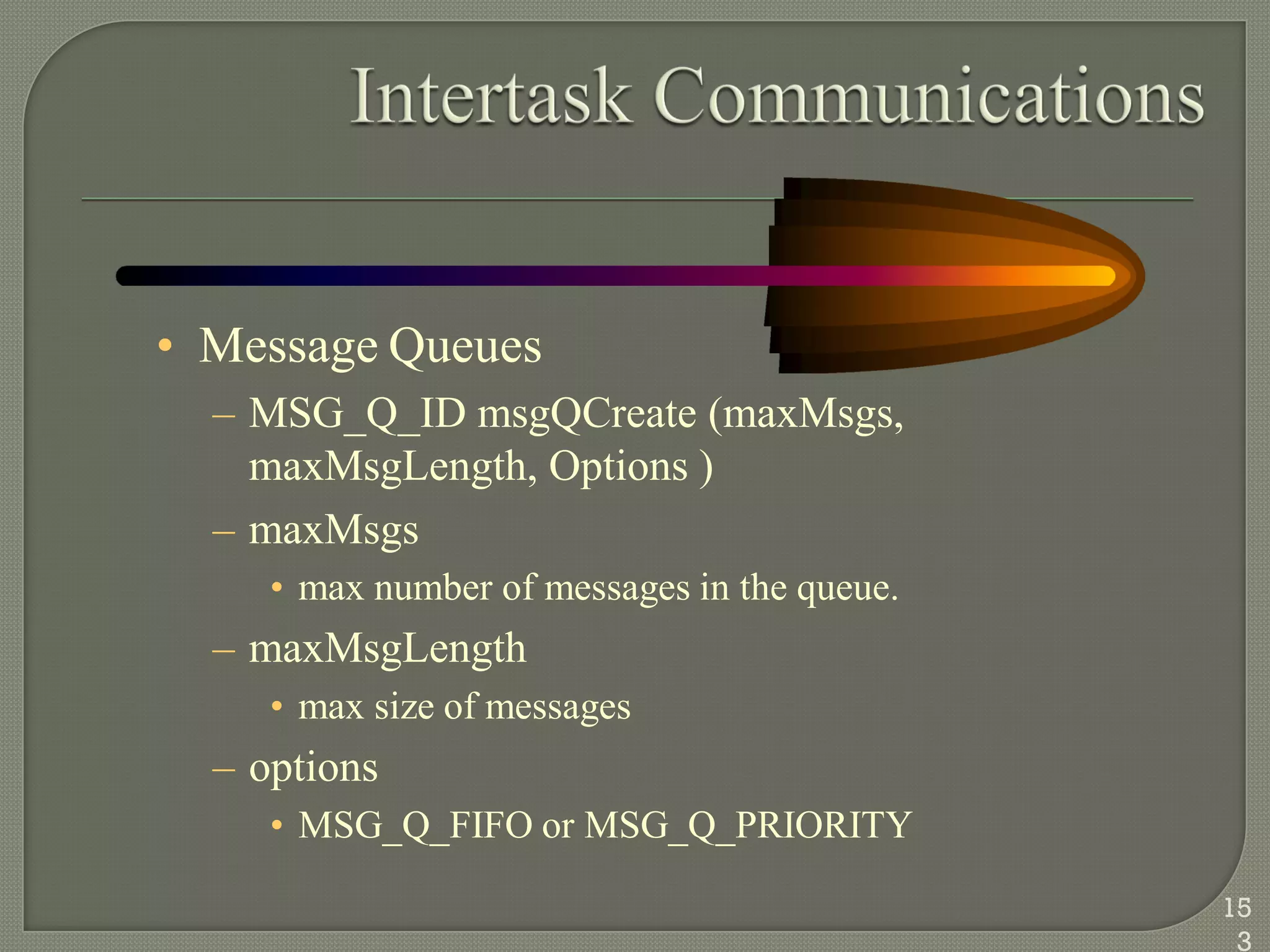

• Message Queues
– MSG_Q_ID msgQCreate (maxMsgs,
maxMsgLength, Options )
– maxMsgs
• max number of messages in the queue.
– maxMsgLength
• max size of messages
– options
• MSG_Q_FIFO or MSG_Q_PRIORITY
15
3

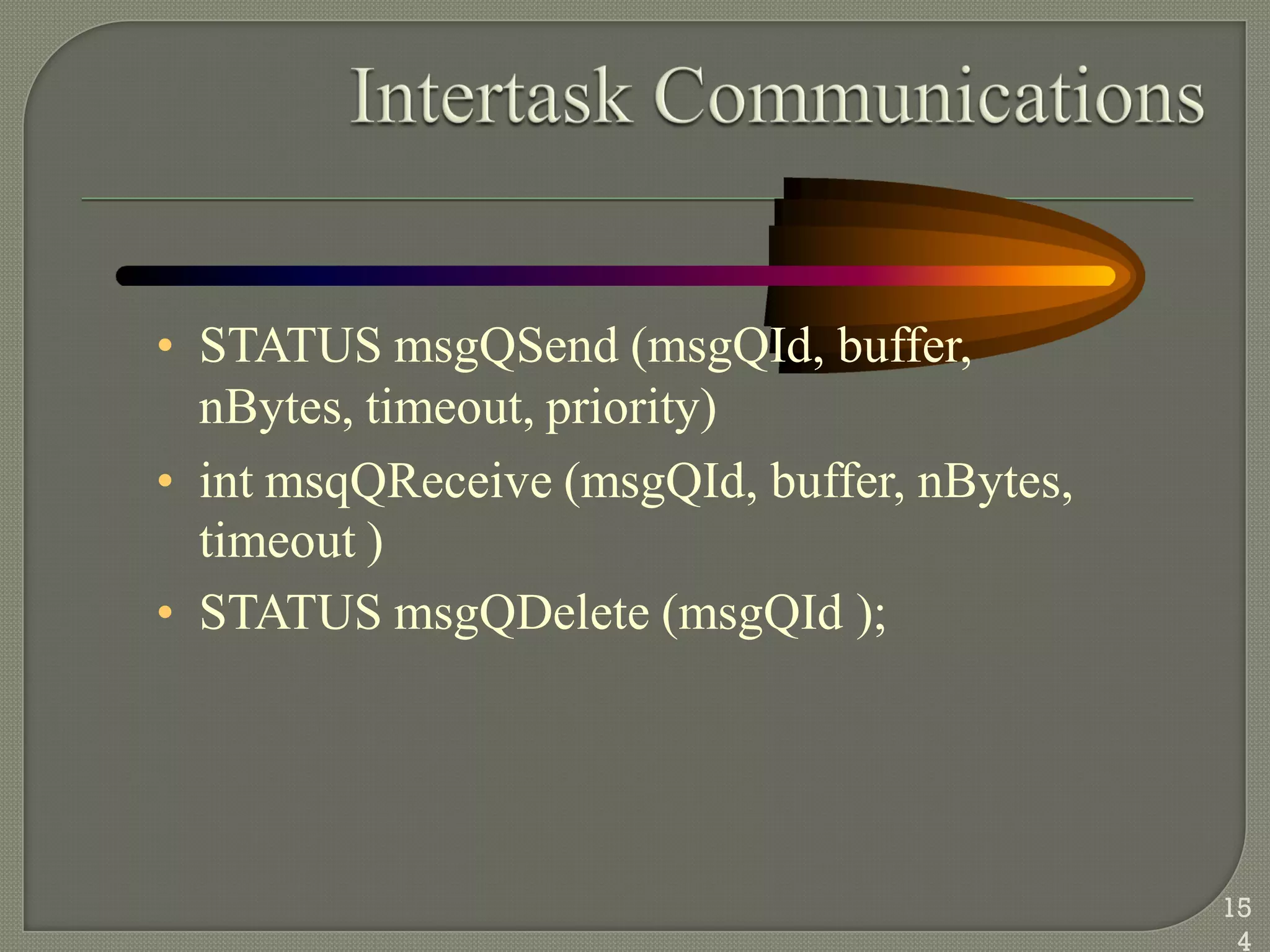

• STATUS msgQSend (msgQId, buffer,
nBytes, timeout, priority)
• int msqQReceive (msgQId, buffer, nBytes,
timeout )
• STATUS msgQDelete (msgQId );
15
4

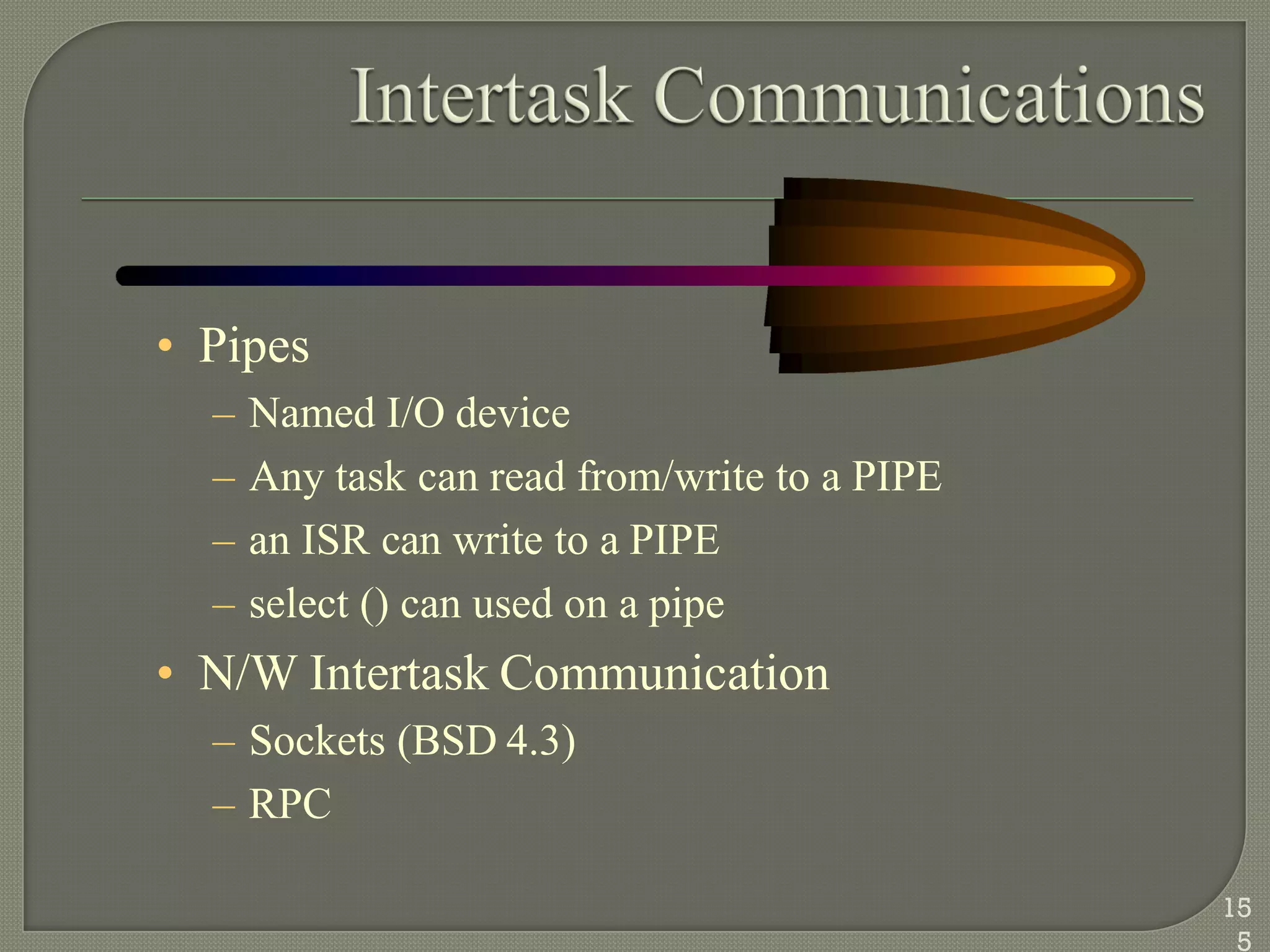

• Pipes
– Named I/O device
– Any task can read from/write to a PIPE
– an ISR can write to a PIPE
– select () can used on a pipe
• N/W Intertask Communication
– Sockets (BSD 4.3)
– RPC
15
5

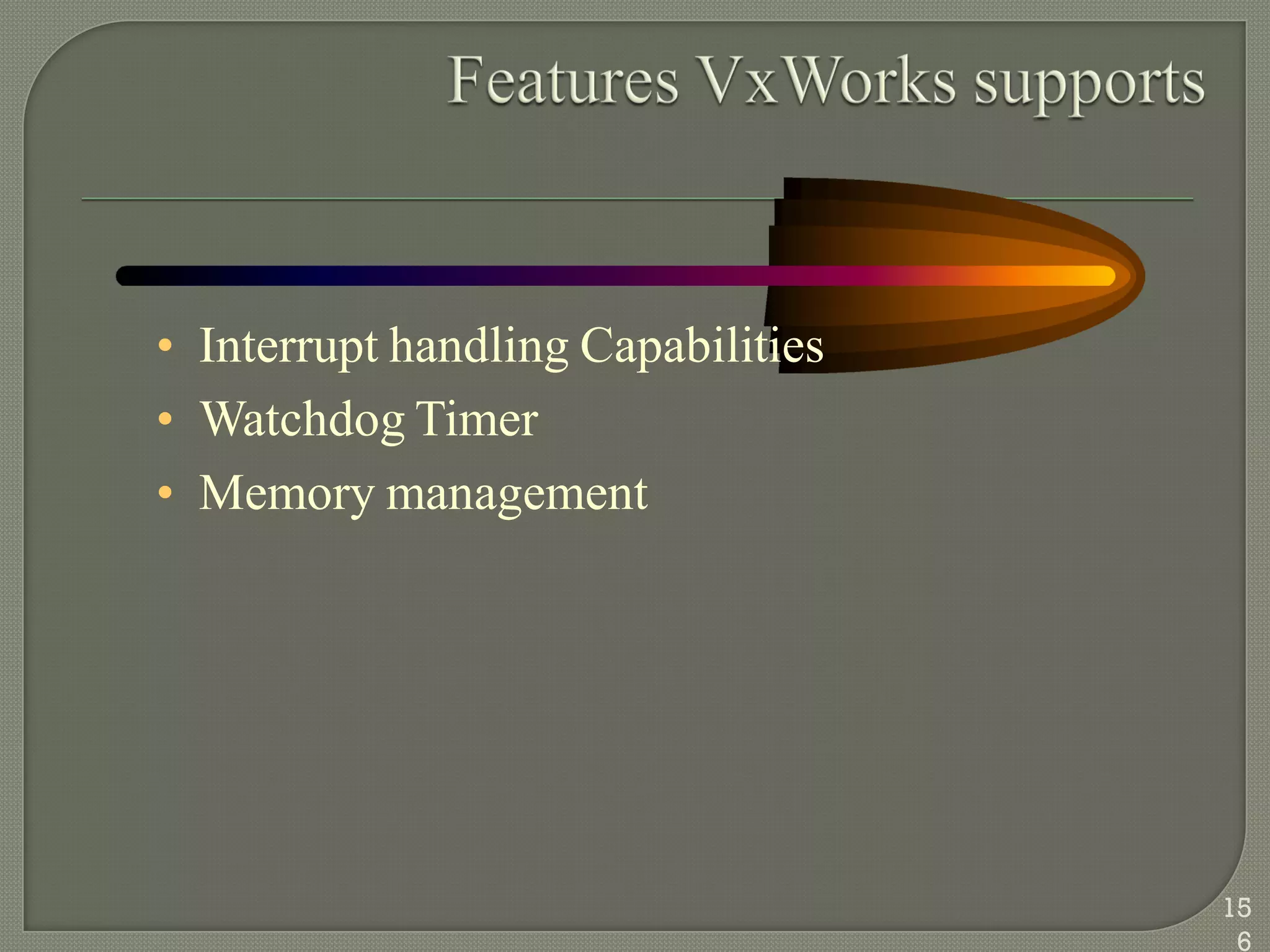

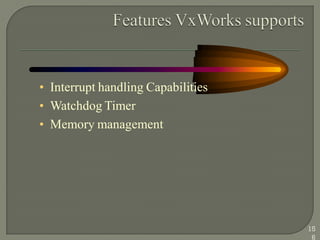

• Interrupt handling Capabilities
• Watchdog Timer
• Memory management
15
6

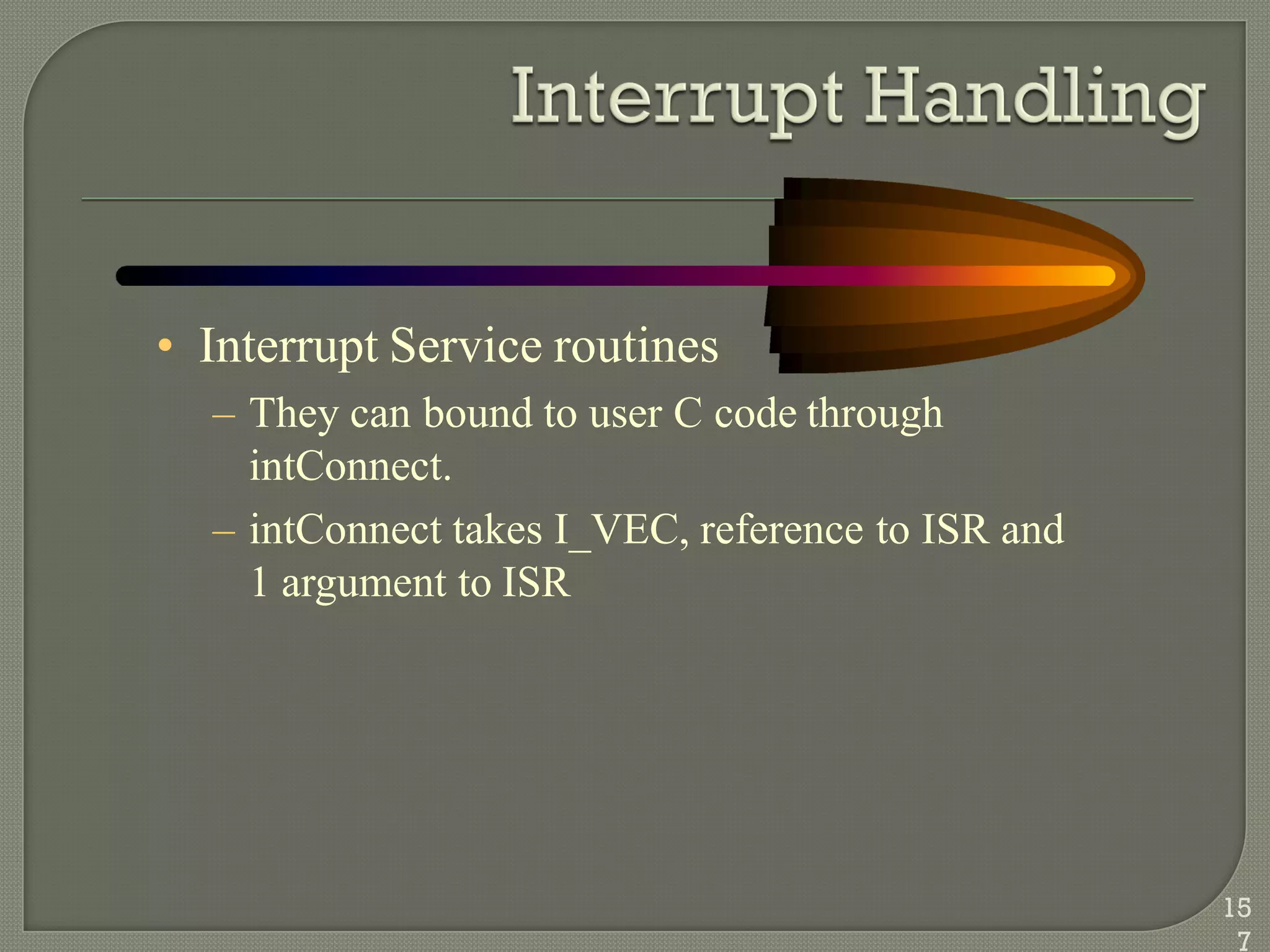

• Interrupt Service routines
– They can bound to user C code through
intConnect.
– intConnect takes I_VEC, reference to ISR and
1 argument to ISR
15
7

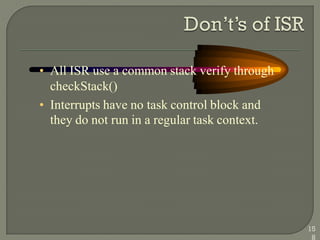

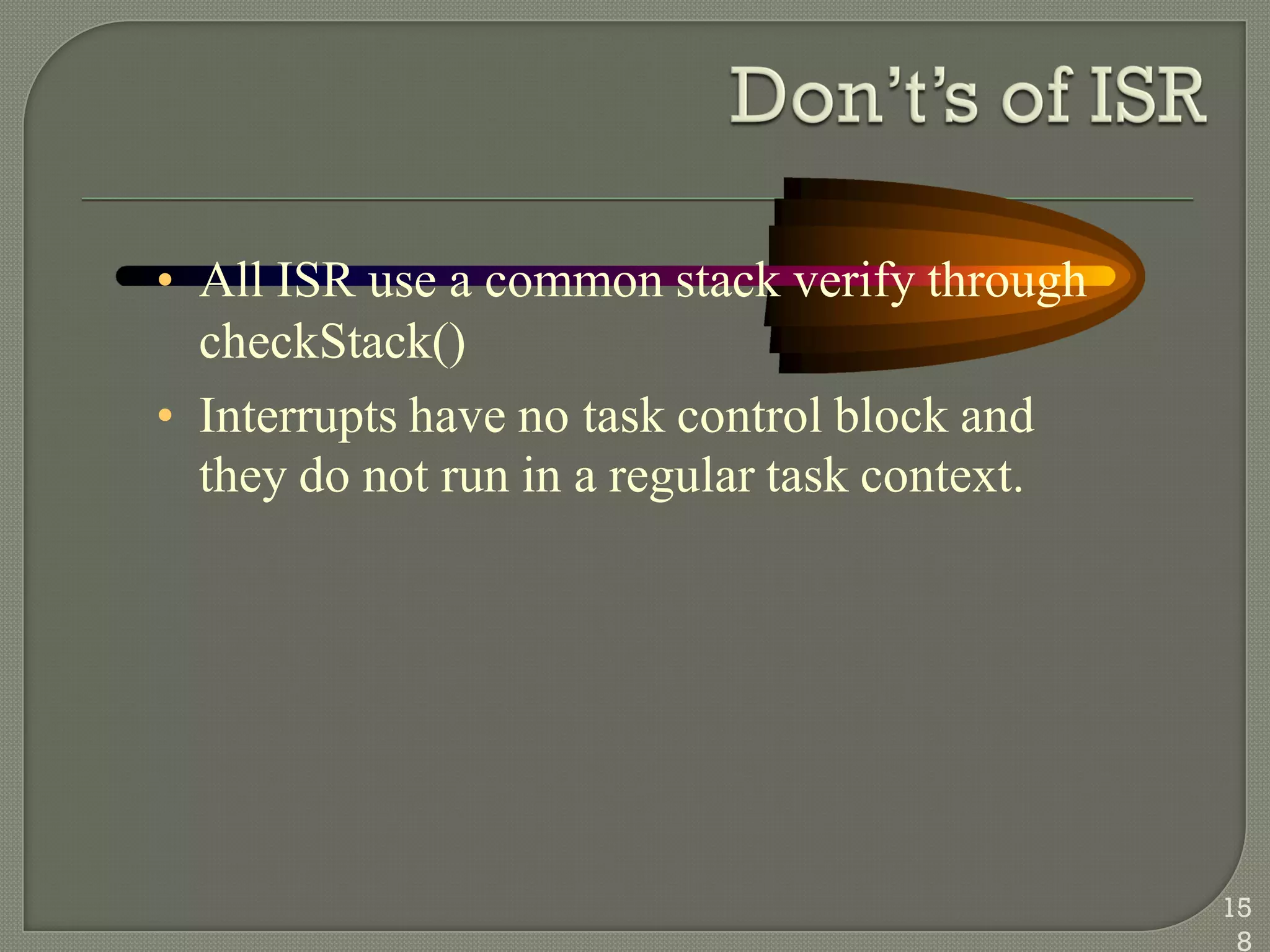

• All ISR use a common stack verify through
checkStack()
• Interrupts have no task control block and
they do not run in a regular task context.
15
8

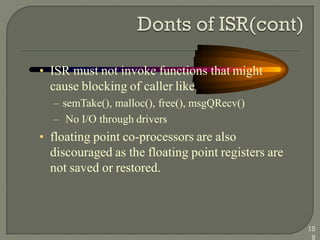

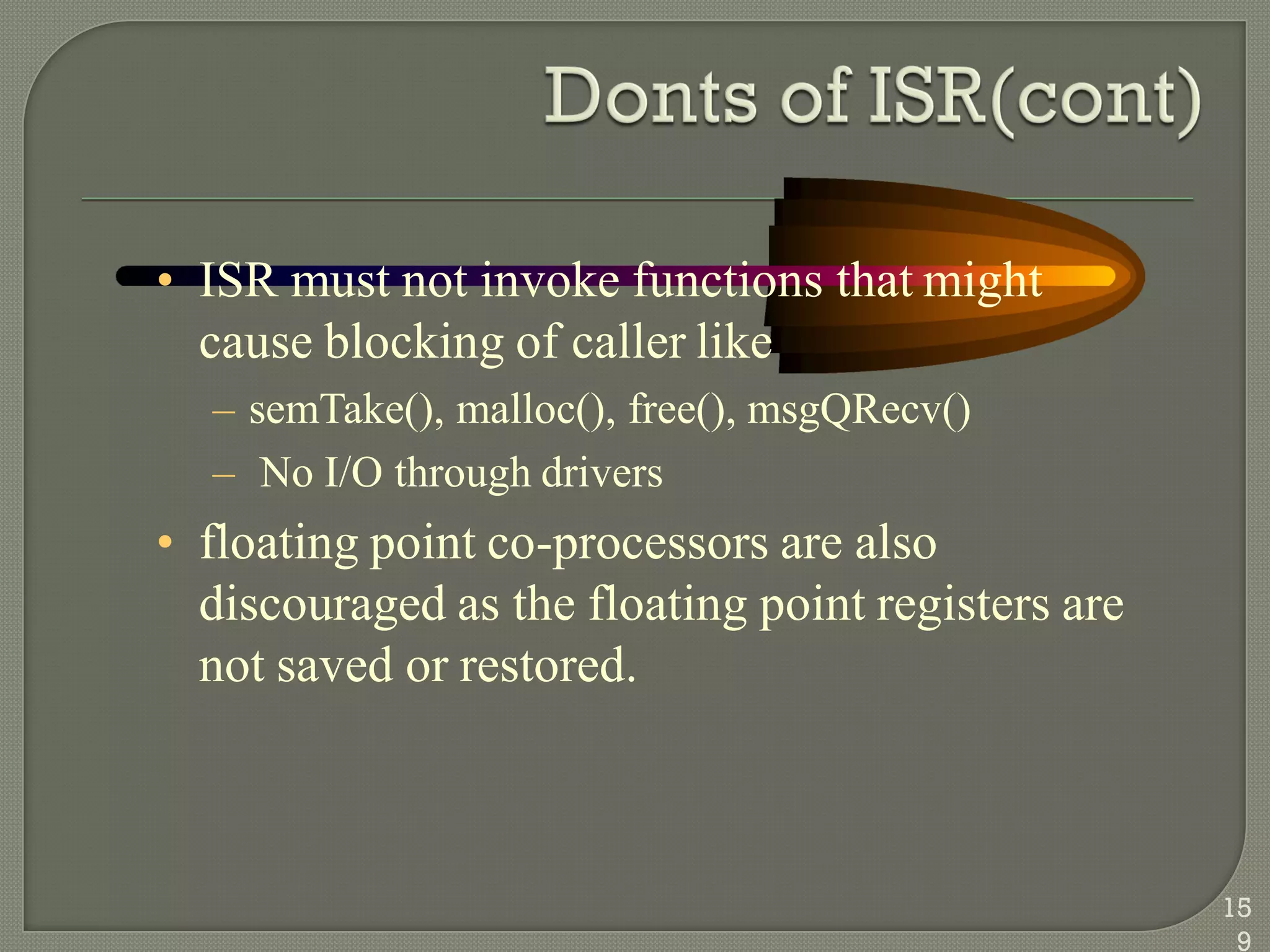

• ISR must not invoke functions that might
cause blocking of caller like
– semTake(), malloc(), free(), msgQRecv()
– No I/O through drivers
• floating point co-processors are also
discouraged as the floating point registers are
not saved or restored.
15
9

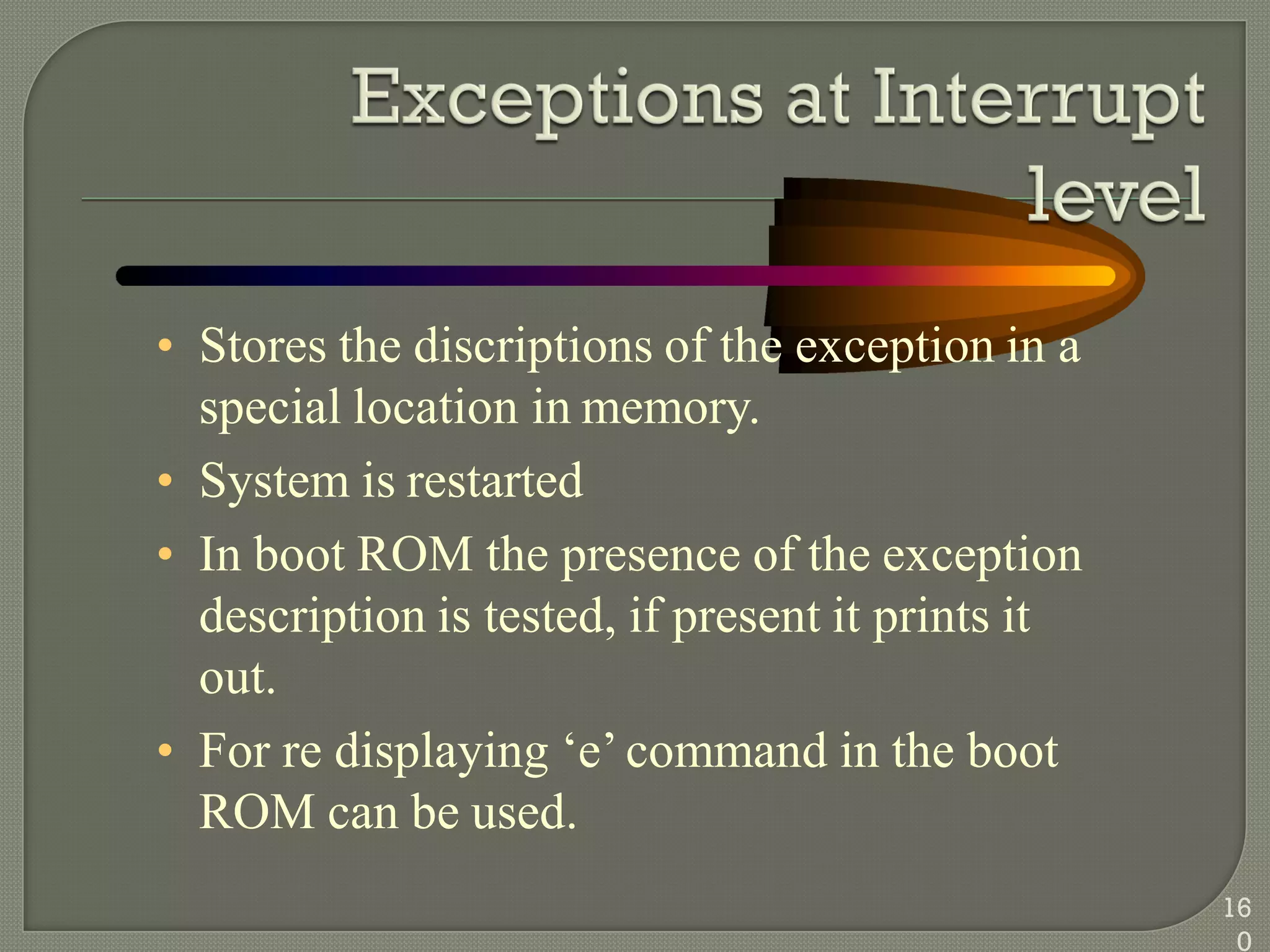

• Stores the discriptions of the exception in a
special location in memory.
• System is restarted
• In boot ROM the presence of the exception
description is tested, if present it prints it
out.
• For re displaying ‗e‘ command in the boot
ROM can be used.
16
0

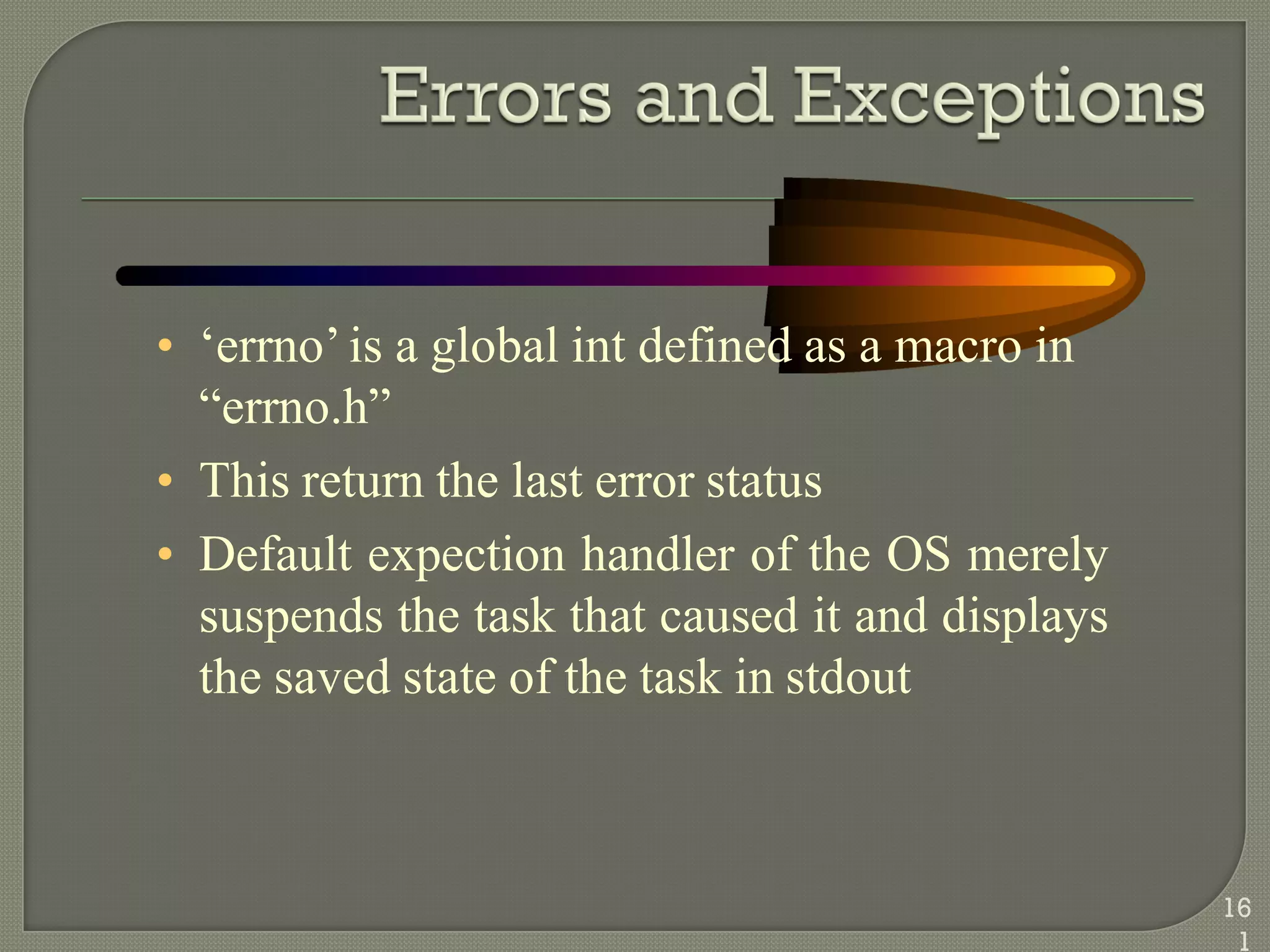

• ‗errno‘is a global int defined as a macro in
―errno.h‖
• This return the last error status
• Default expection handler of the OS merely
suspends the task that caused it and displays
the saved state of the task in stdout
16
1

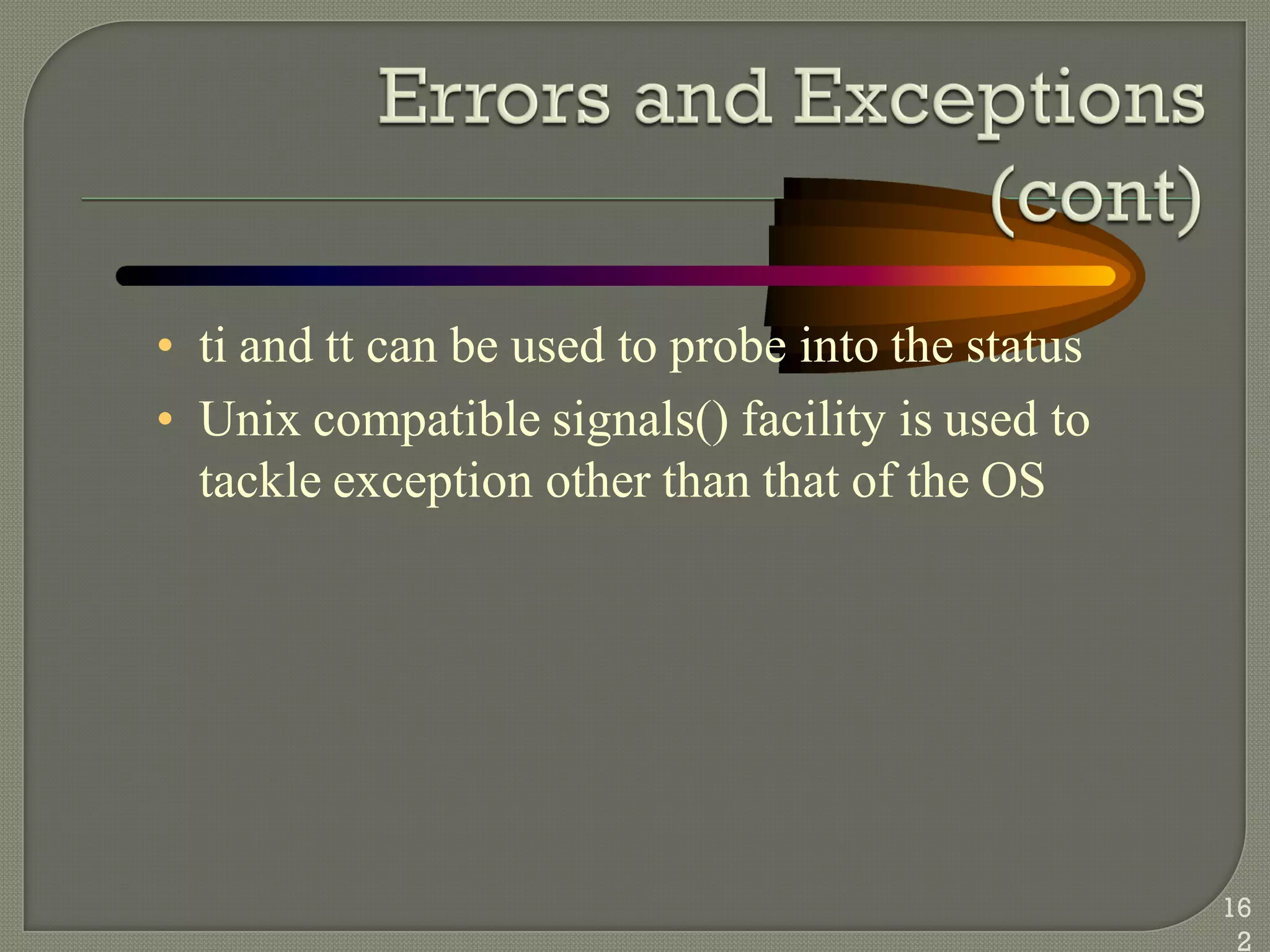

• ti and tt can be used to probe into the status
• Unix compatible signals() facility is used to
tackle exception other than that of the OS
16
2

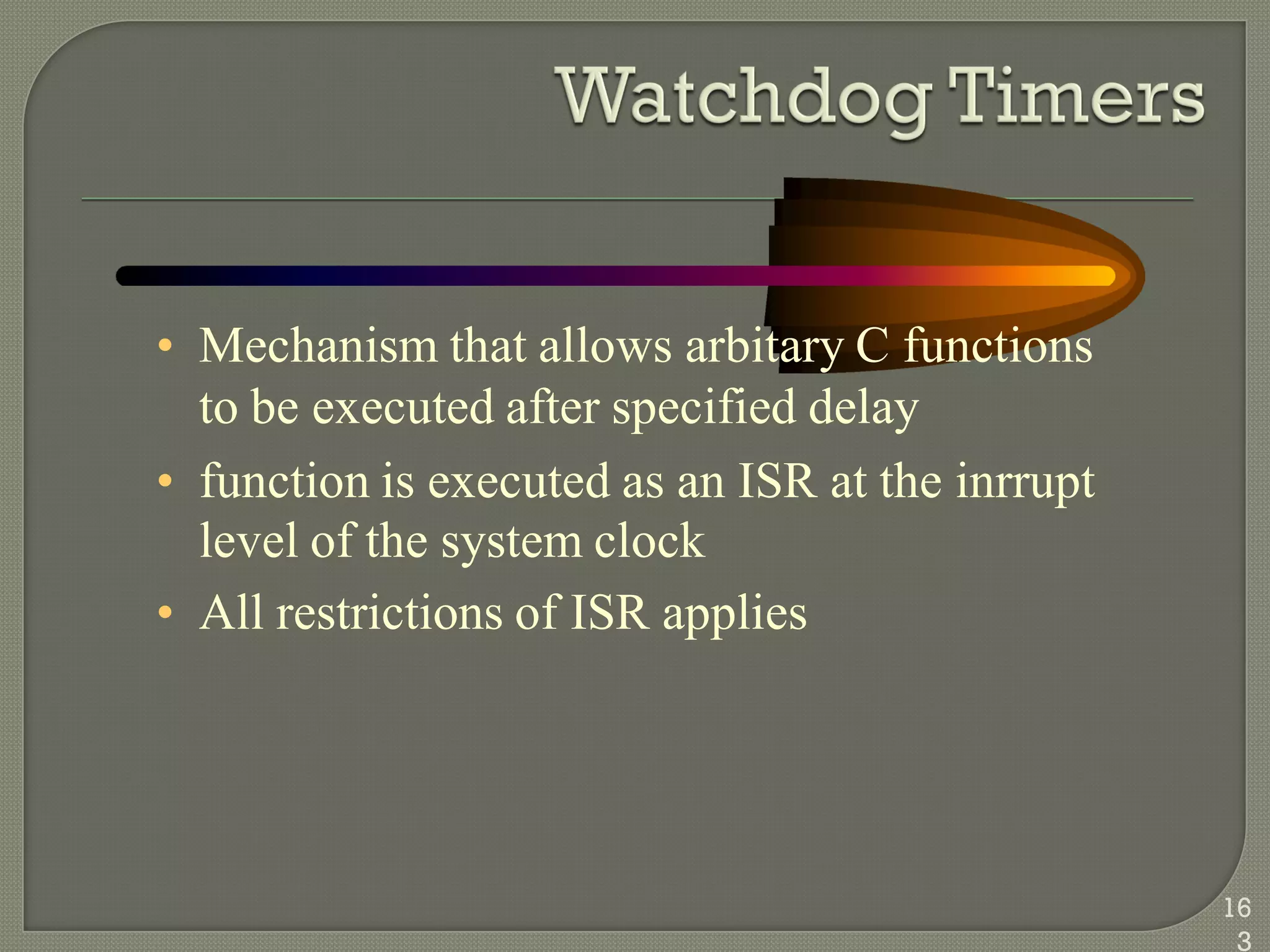

• Mechanism that allows arbitary C functions
to be executed after specified delay
• function is executed as an ISR at the inrrupt
level of the system clock
• All restrictions of ISR applies
16
3

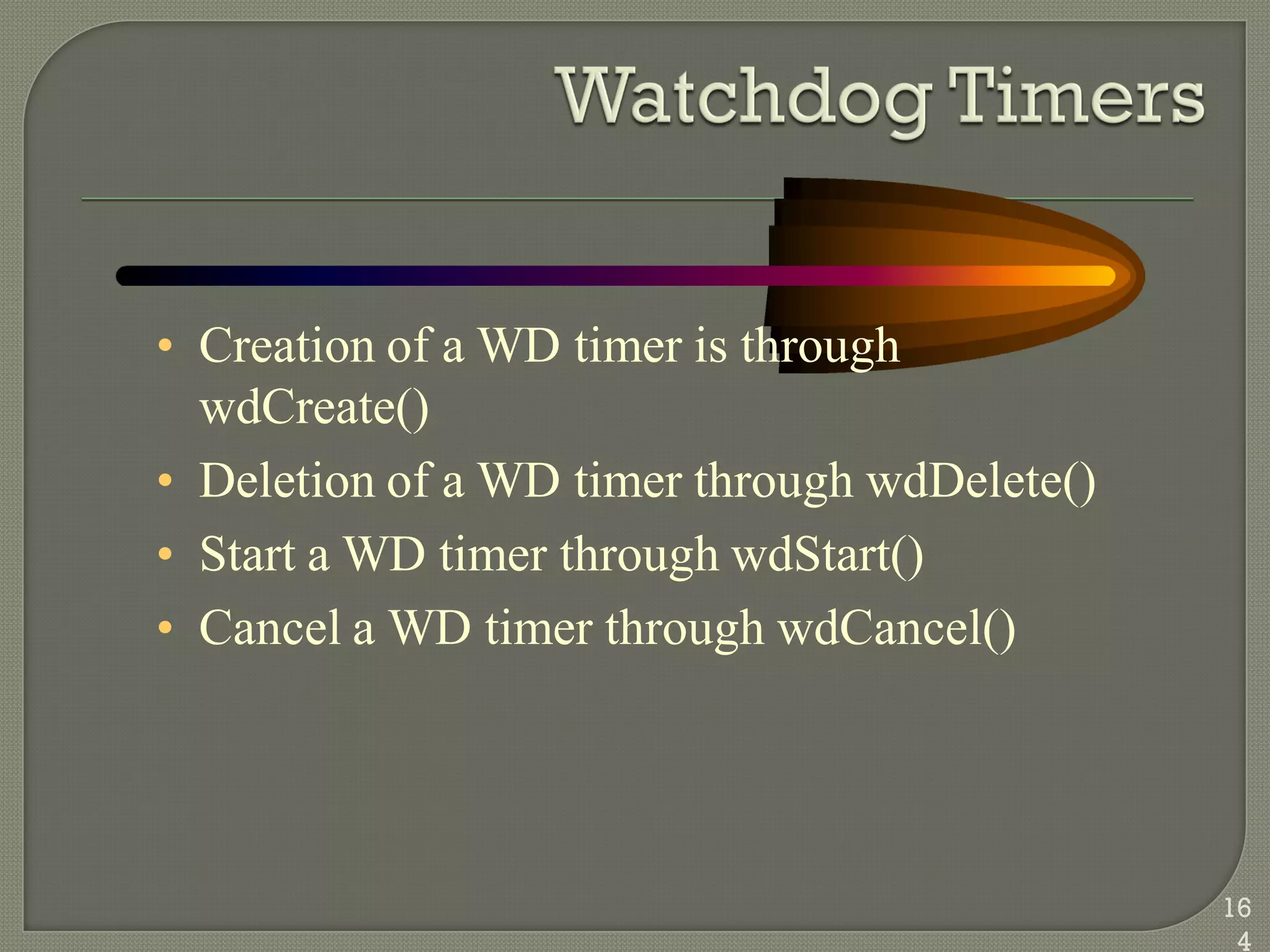

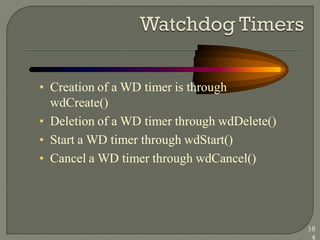

• Creation of a WD timer is through
wdCreate()
• Deletion of a WD timer through wdDelete()
• Start a WD timer through wdStart()
• Cancel a WD timer through wdCancel()
16
4

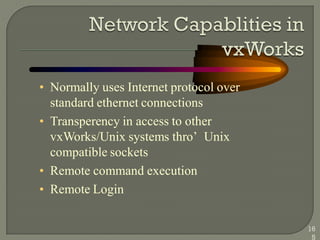

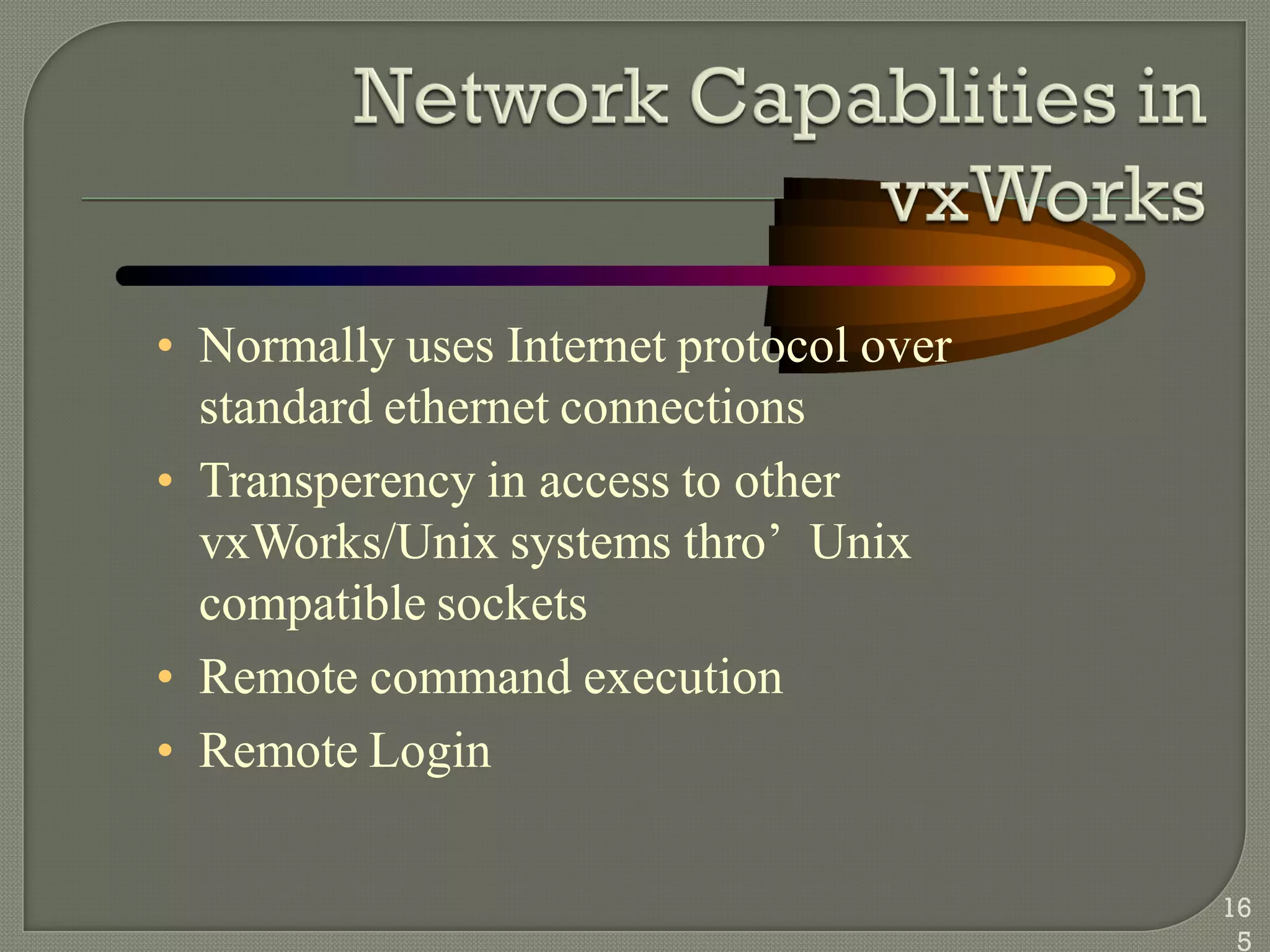

• Normally uses Internet protocol over
standard ethernet connections
• Transperency in access to other
vxWorks/Unix systems thro‘ Unix
compatible sockets
• Remote command execution
• Remote Login
16
5

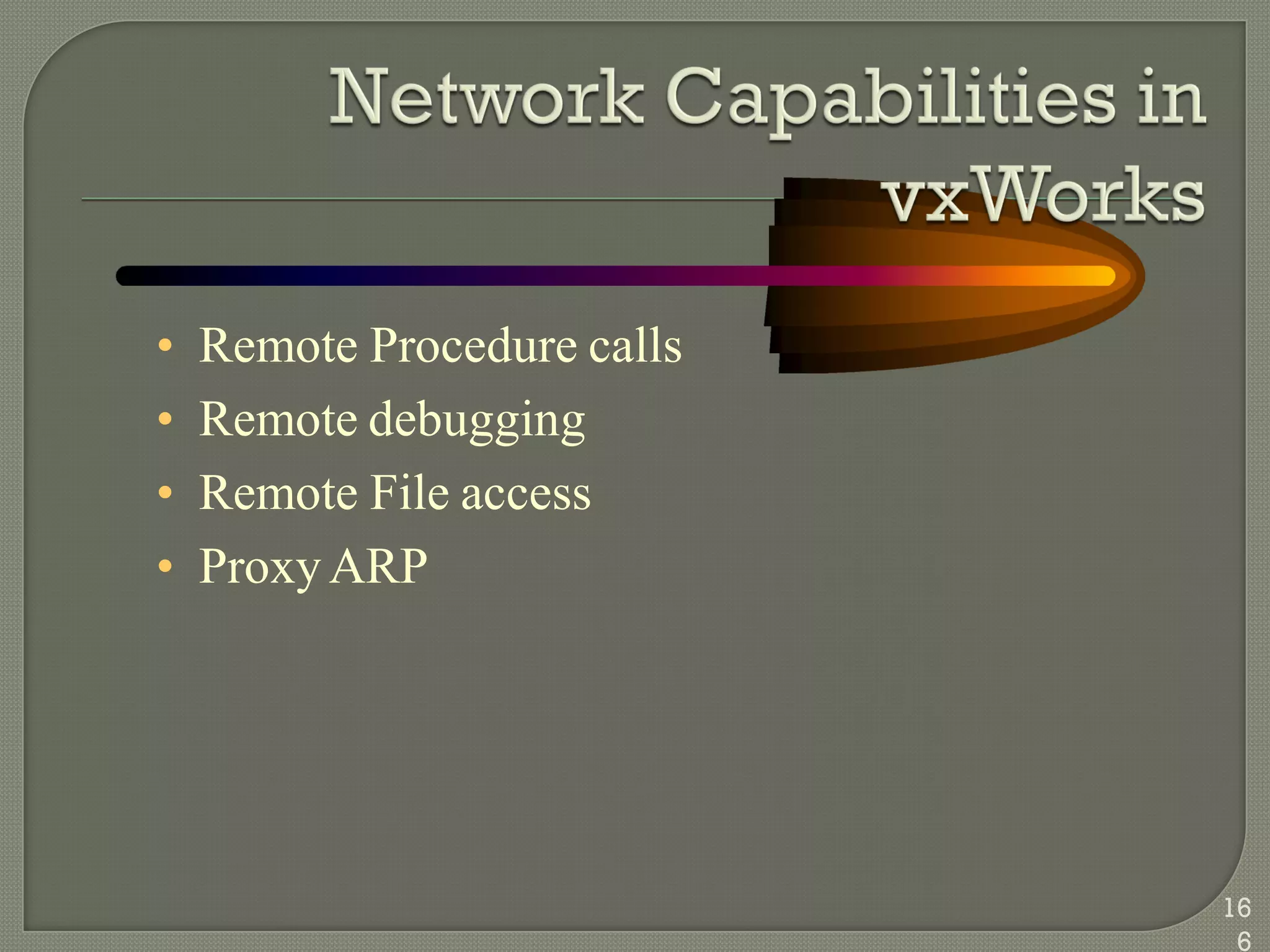

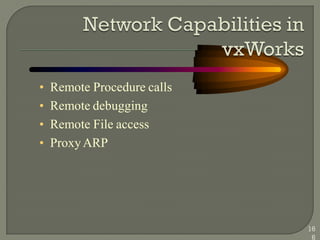

• Remote Procedure calls
• Remote debugging
• Remote File access
• ProxyARP
16
6

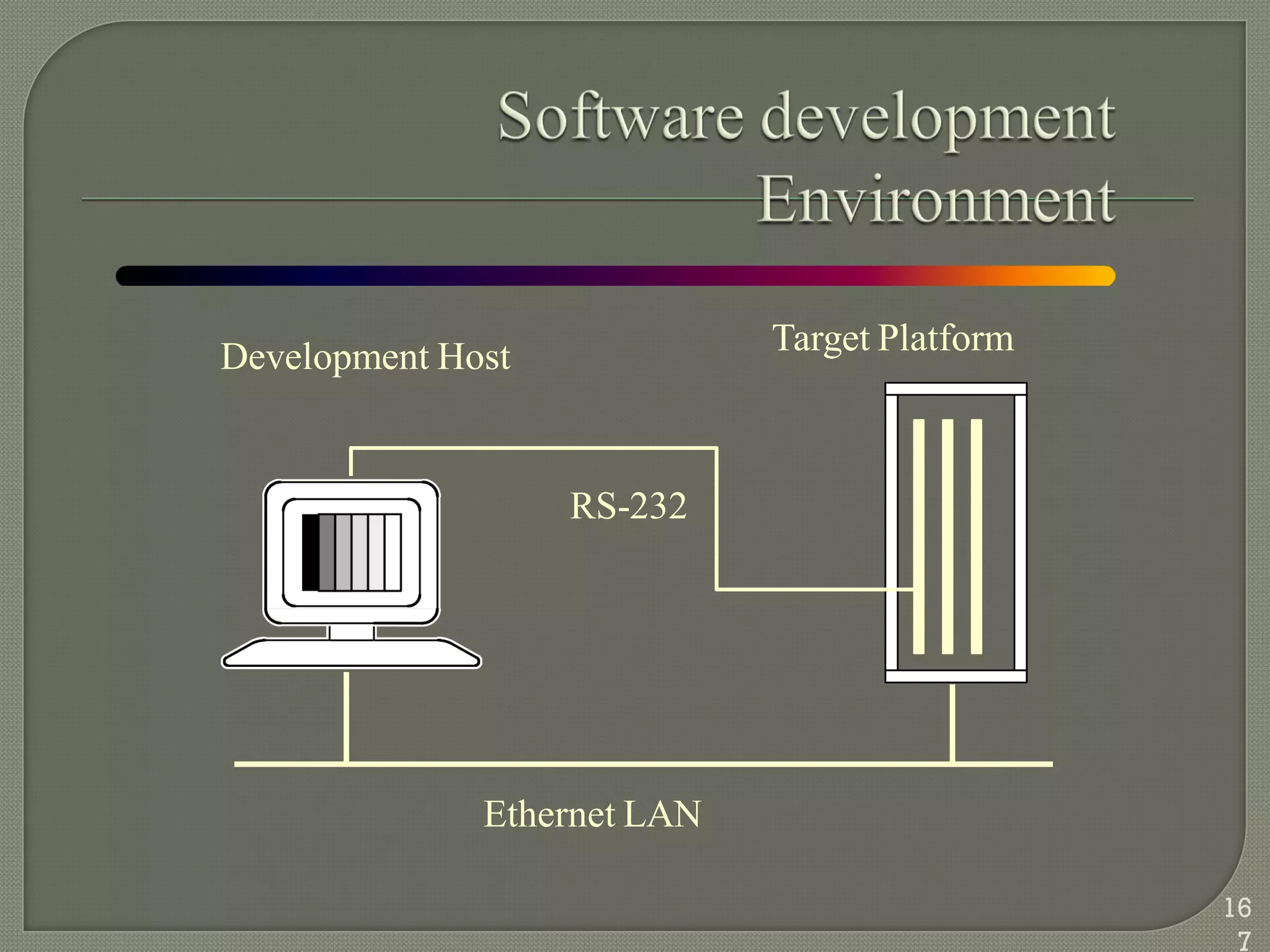

Development Host Target Platform
Ethernet LAN
RS-232
16
7

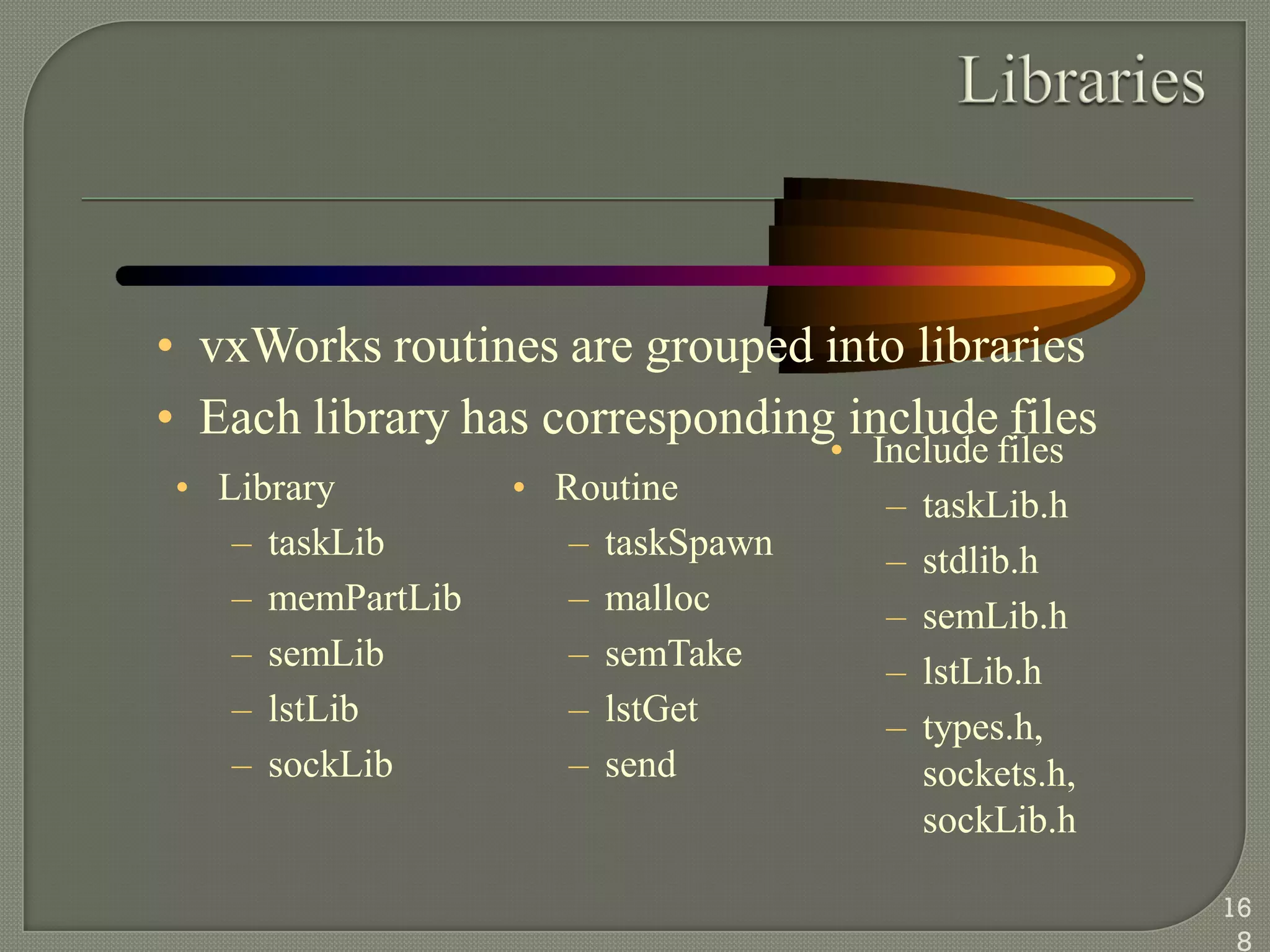

• vxWorks routines are grouped into libraries
• Each library has corresponding include files
• Library
– taskLib
– memPartLib
– semLib
– lstLib
– sockLib
• Routine
– taskSpawn
– malloc
– semTake
– lstGet
– send
• Include files
– taskLib.h
– stdlib.h
– semLib.h
– lstLib.h
– types.h,
sockets.h,
sockLib.h
16
8

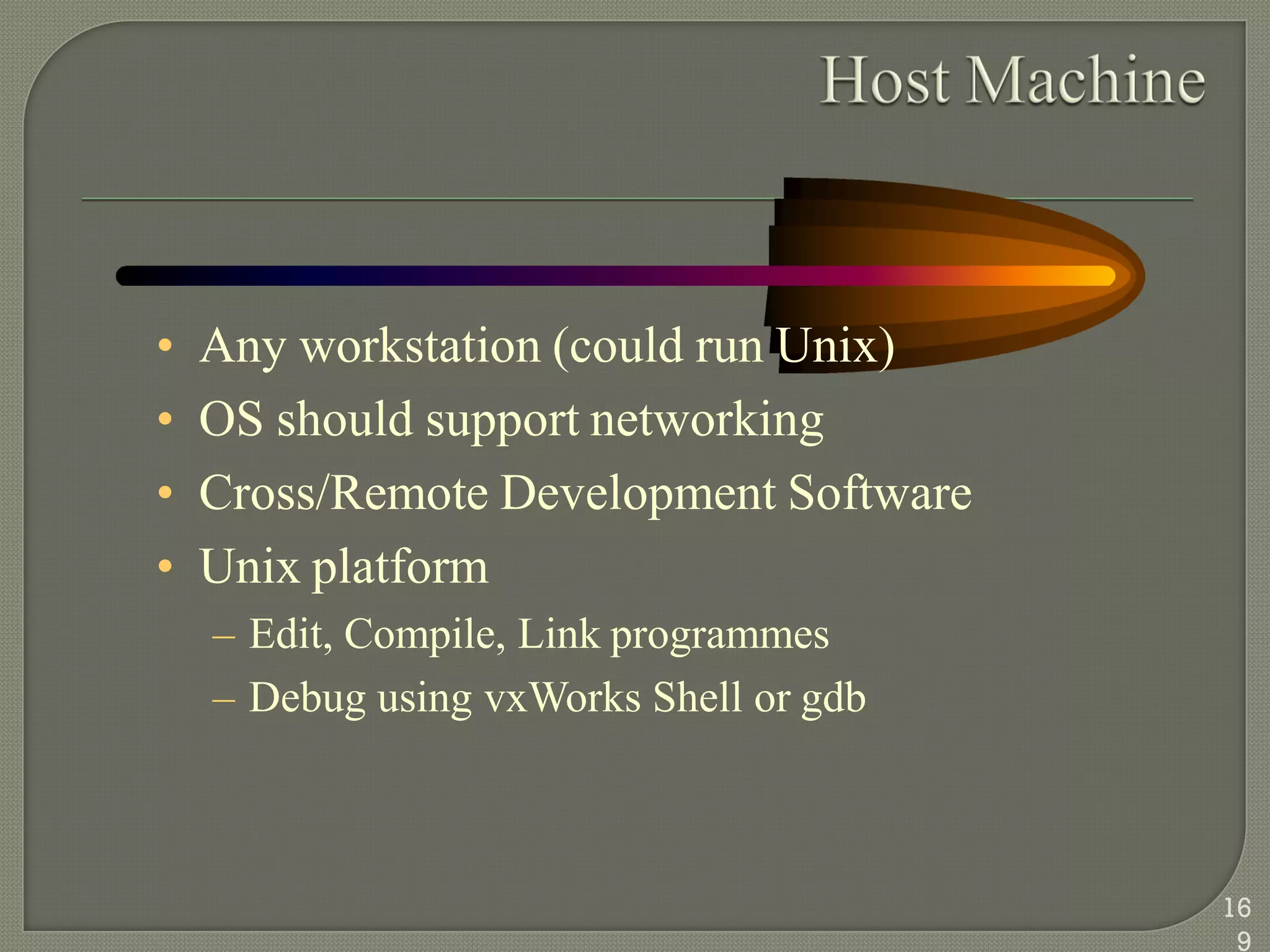

• Any workstation (could run Unix)
• OS should support networking
• Cross/Remote Development Software
• Unix platform
– Edit, Compile, Link programmes
– Debug using vxWorks Shell or gdb
16
9

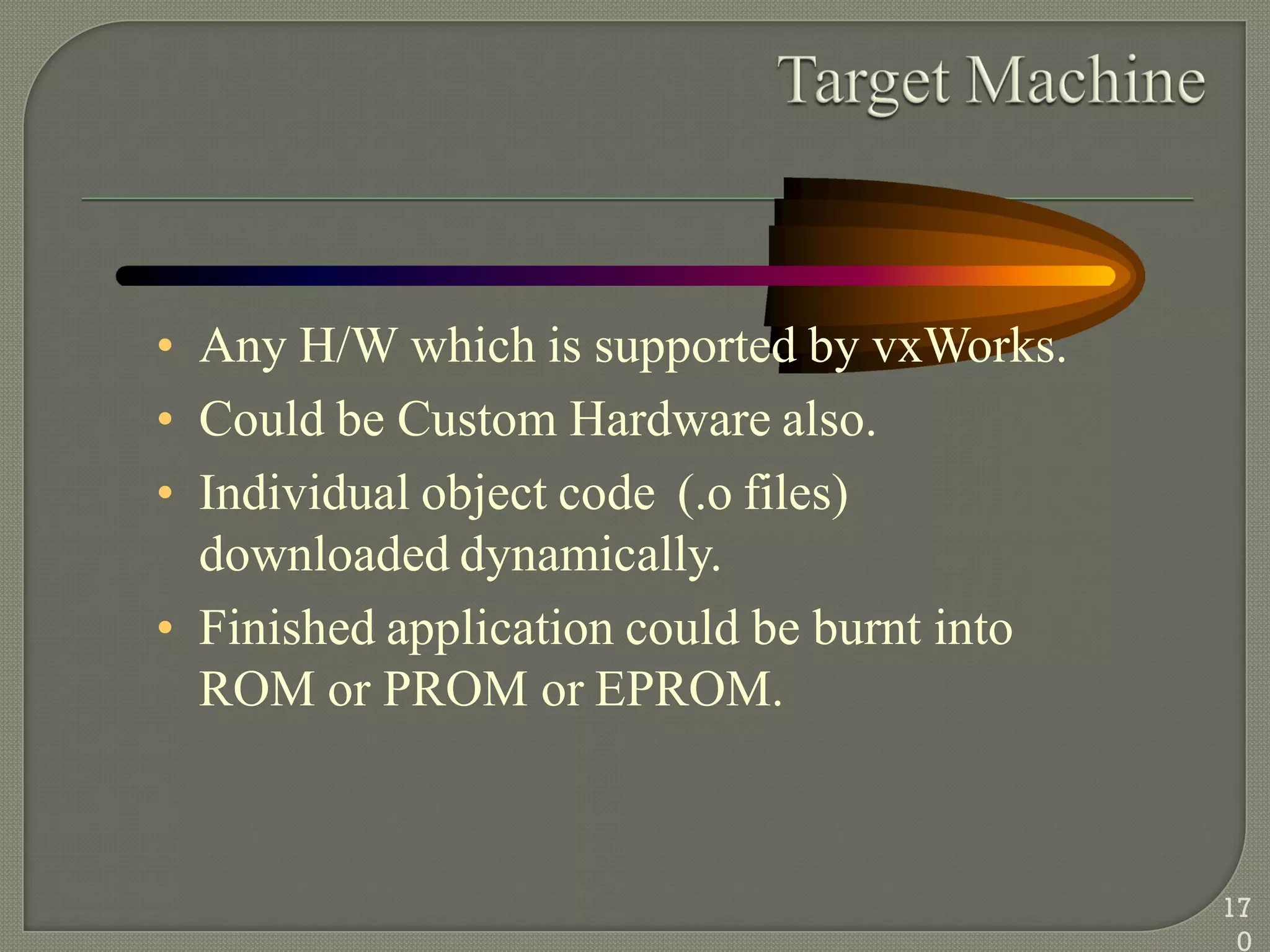

• Any H/W which is supported by vxWorks.
• Could be Custom Hardware also.
• Individual object code (.o files)
downloaded dynamically.
• Finished application could be burnt into
ROM or PROM or EPROM.
17
0

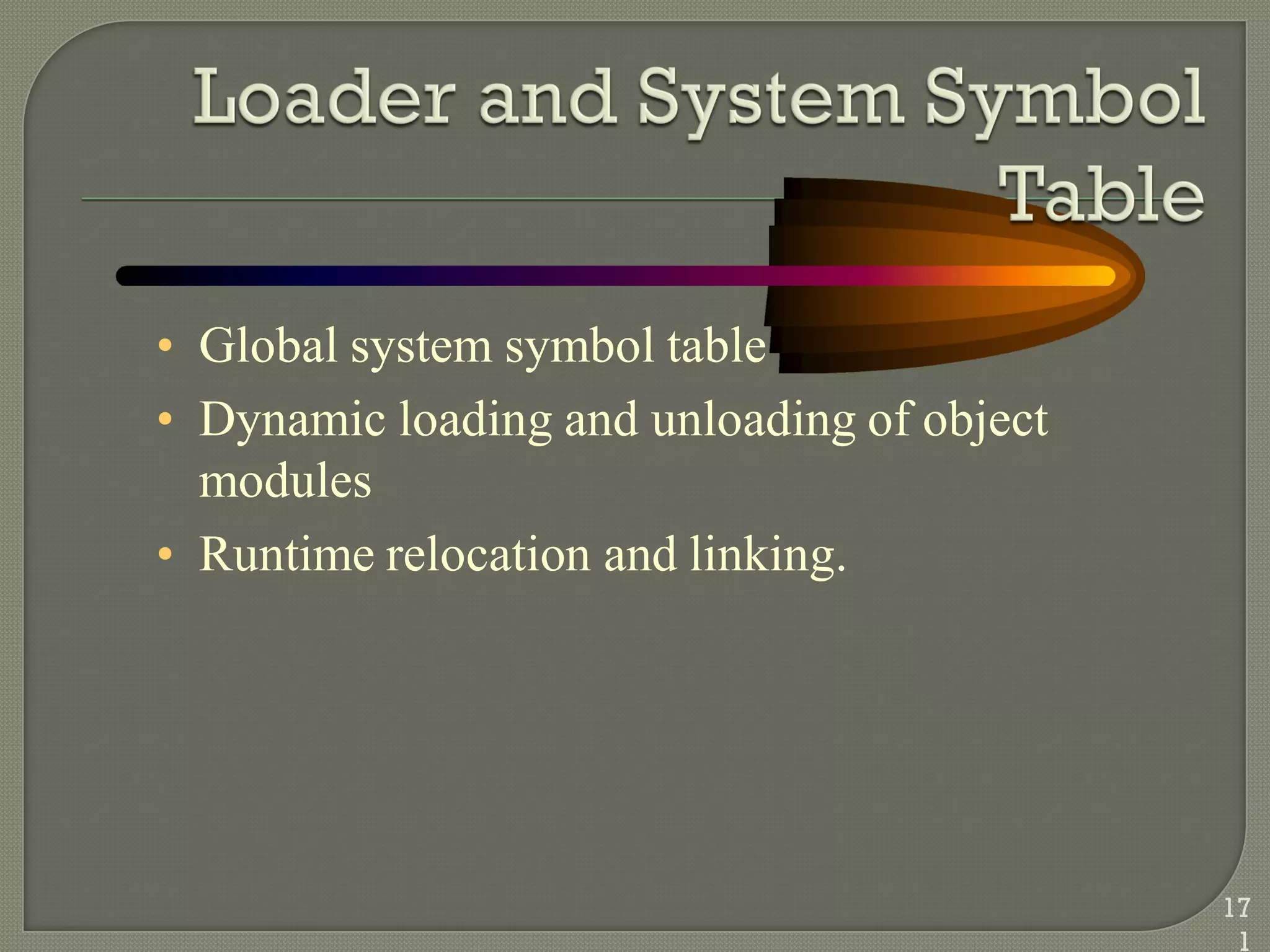

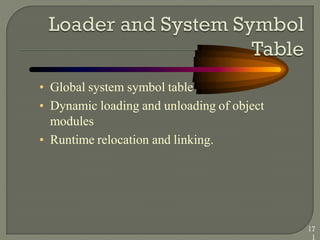

• Global system symbol table
• Dynamic loading and unloading of object
modules
• Runtime relocation and linking.
17
1

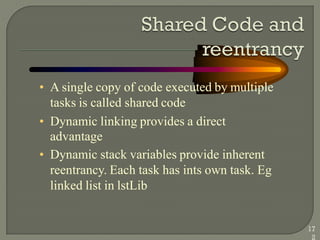

• A single copy of code executed by multiple
tasks is called shared code
• Dynamic linking provides a direct
advantage
• Dynamic stack variables provide inherent
reentrancy. Each task has ints own task. Eg
linked list in lstLib
17
2

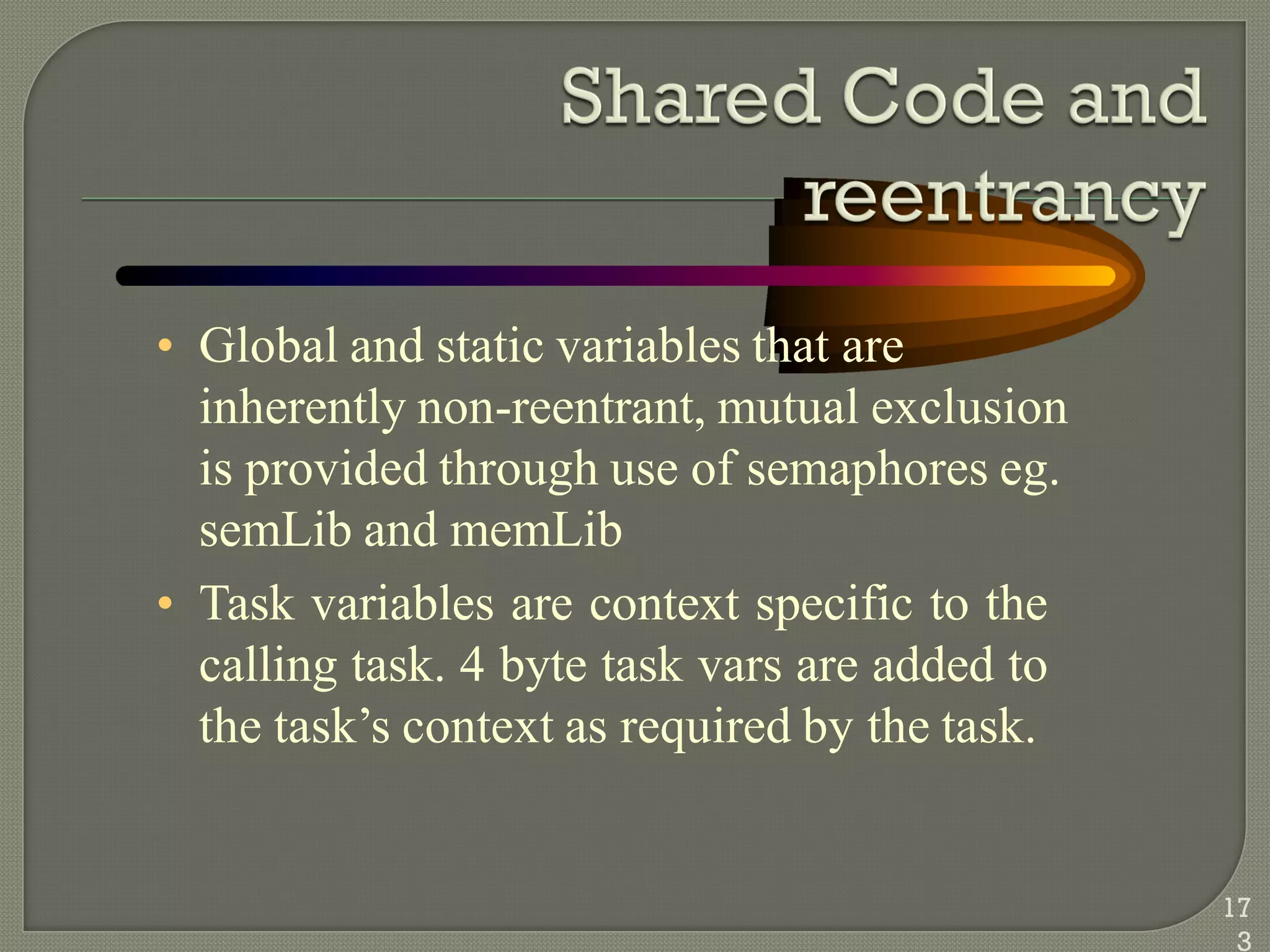

• Global and static variables that are
inherently non-reentrant, mutual exclusion
is provided through use of semaphores eg.
semLib and memLib
• Task variables are context specific to the
calling task. 4 byte task vars are added to
the task‘s context as required by the task.
17
3

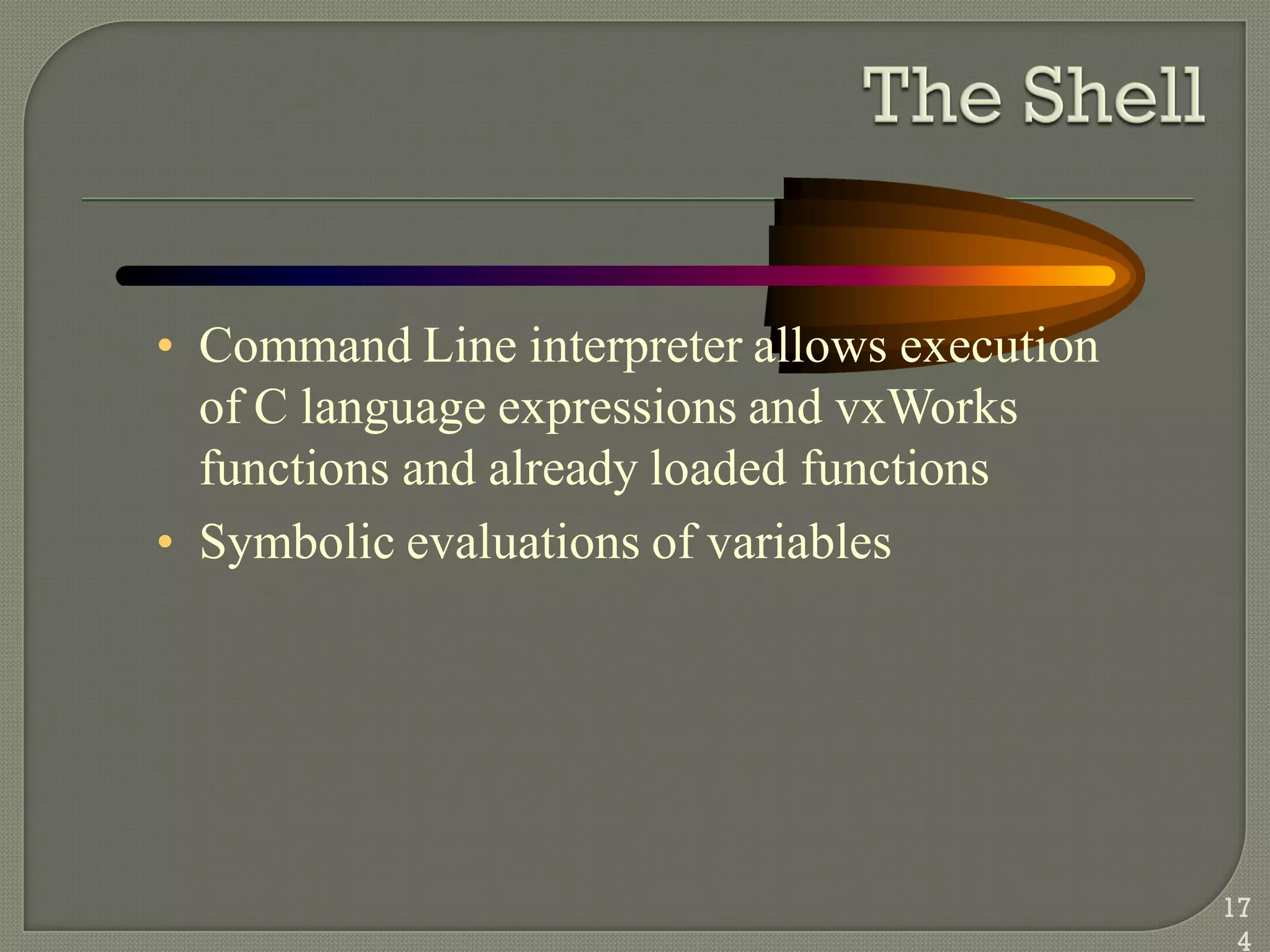

• Command Line interpreter allows execution
of C language expressions and vxWorks
functions and already loaded functions
• Symbolic evaluations of variables
17
4

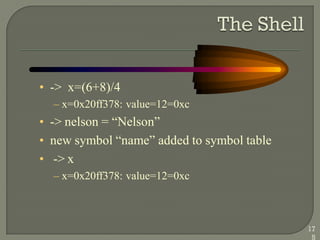

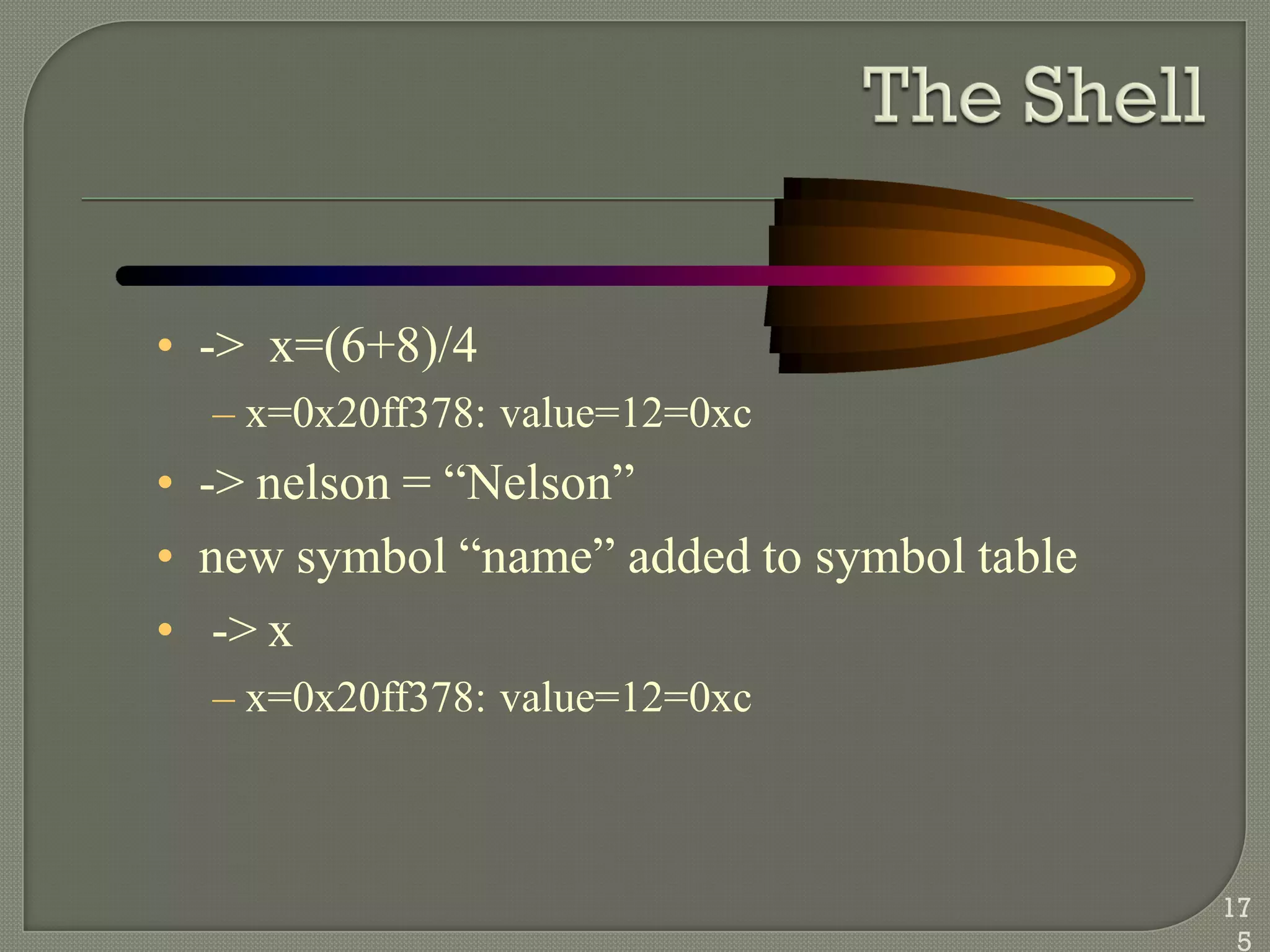

• -> x=(6+8)/4
– x=0x20ff378: value=12=0xc
• -> nelson = ―Nelson‖
• new symbol ―name‖ added to symbol table
• -> x
– x=0x20ff378: value=12=0xc
17
5

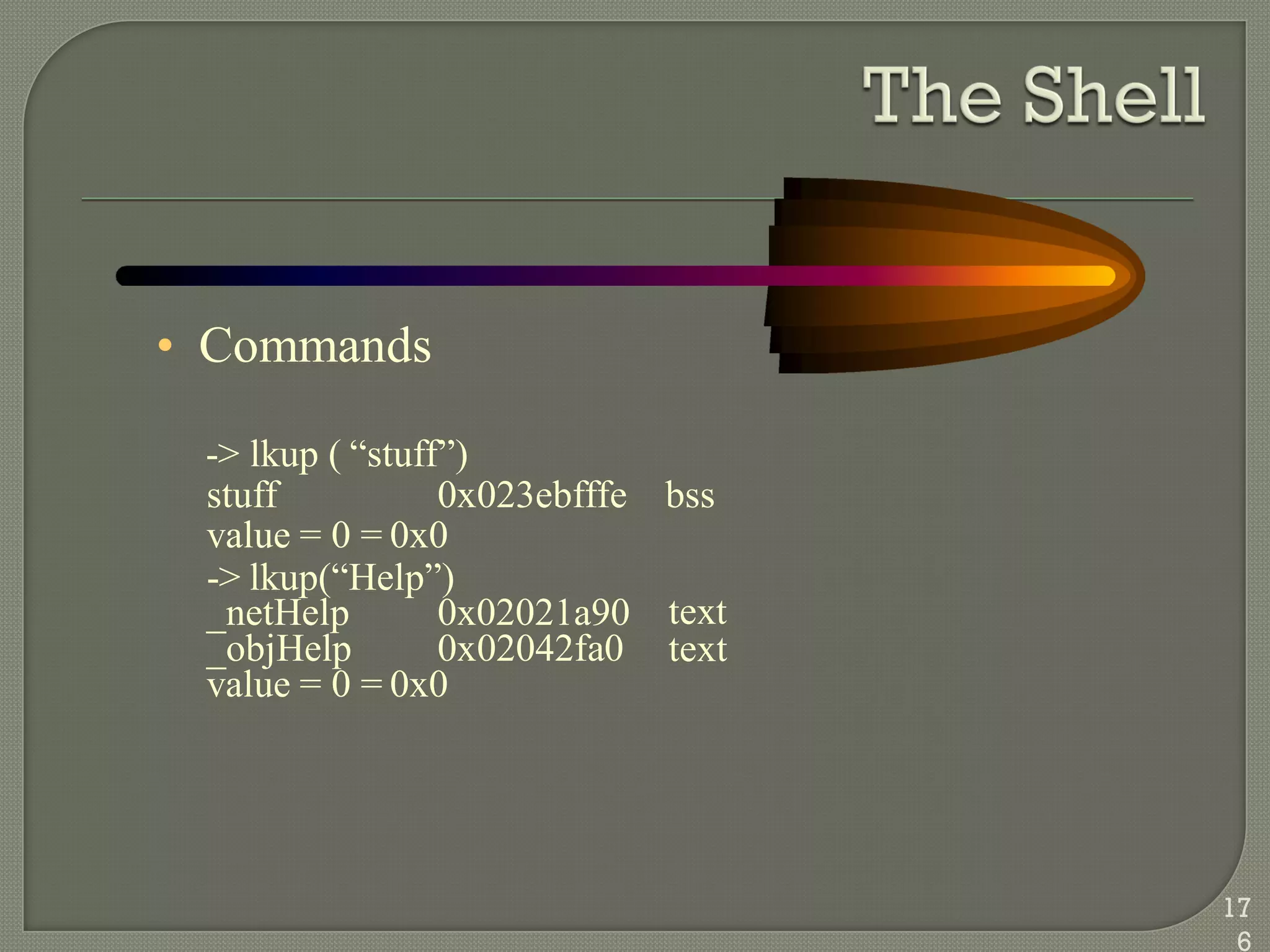

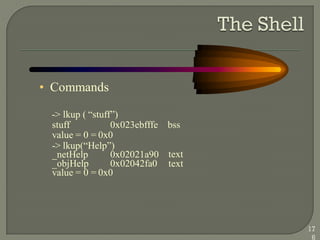

• Commands
-> lkup ( ―stuff‖)
stuff 0x023ebfffe bss
value = 0 = 0x0
-> lkup(―Help‖)
_netHelp 0x02021a90
_objHelp 0x02042fa0
text
text
value = 0 = 0x0
17
6

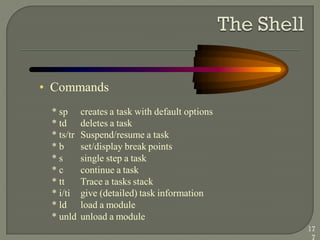

• Commands
* sp creates a task with default options
* td deletes a task
* ts/tr Suspend/resume a task
* b set/display break points
* s single step a task
* c continue a task
* tt Trace a tasks stack
* i/ti give (detailed) task information
* ld load a module
* unld unload a module
17
7

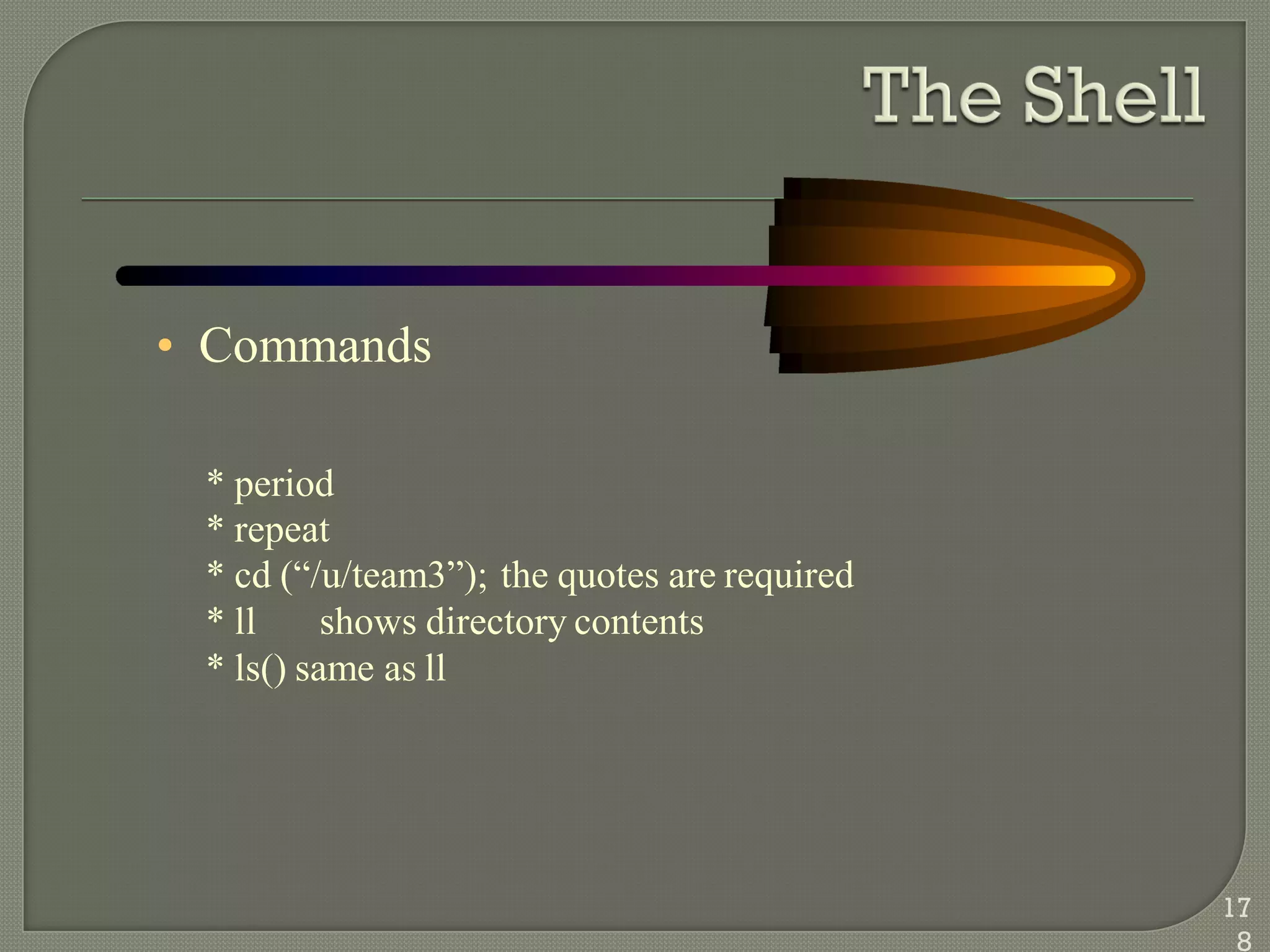

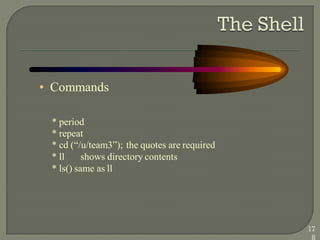

• Commands
* period
* repeat
* cd (―/u/team3‖); the quotes are required
* ll shows directory contents
* ls() same as ll
17
8

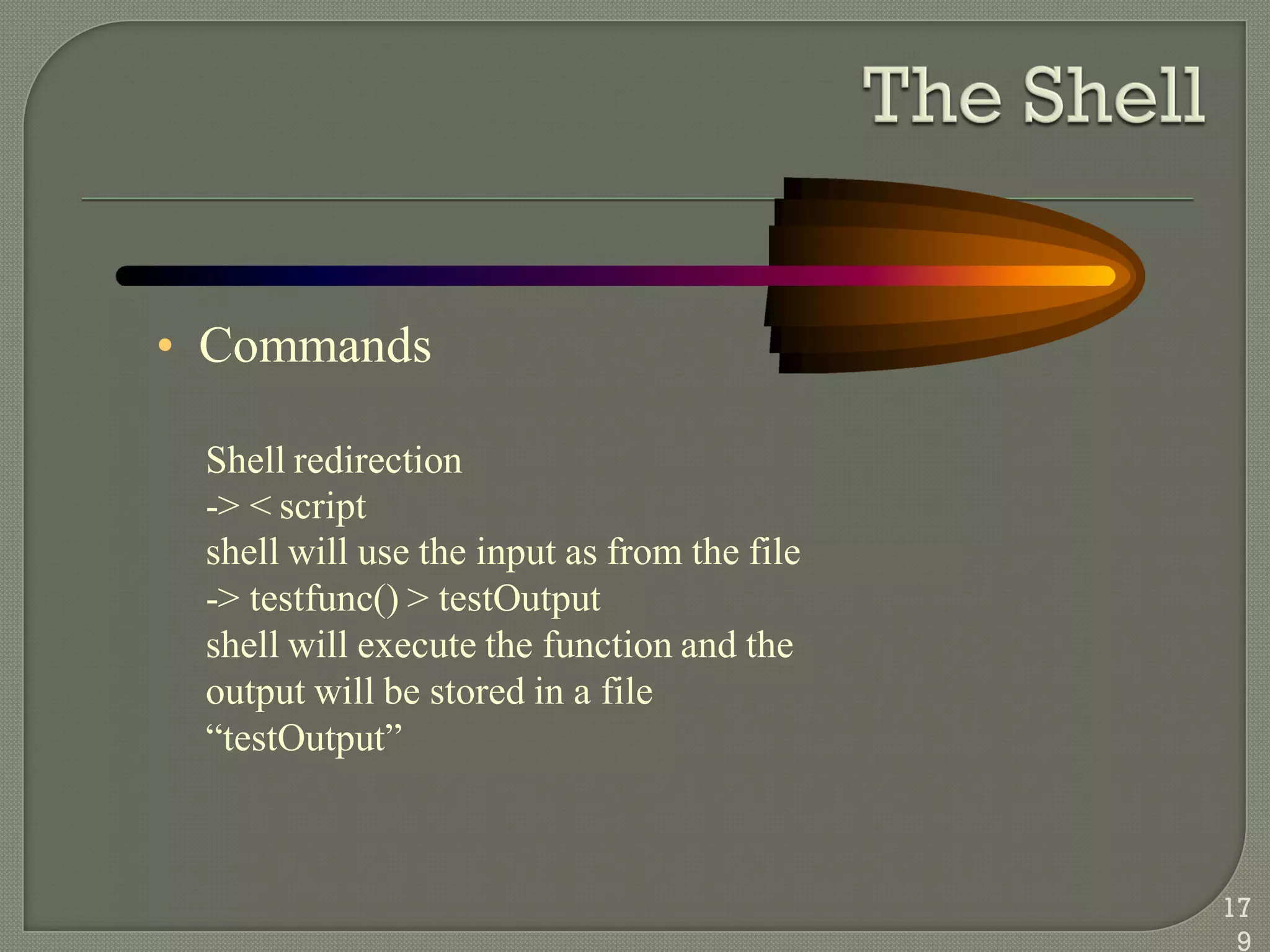

• Commands
Shell redirection
-> < script
shell will use the input as from the file
-> testfunc() > testOutput
shell will execute the function and the
output will be stored in a file
―testOutput‖
17
9

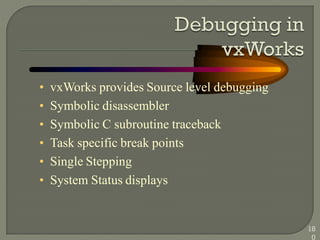

• vxWorks provides Source level debugging
• Symbolic disassembler
• Symbolic C subroutine traceback
• Task specific break points
• Single Stepping
• System Status displays
18
0

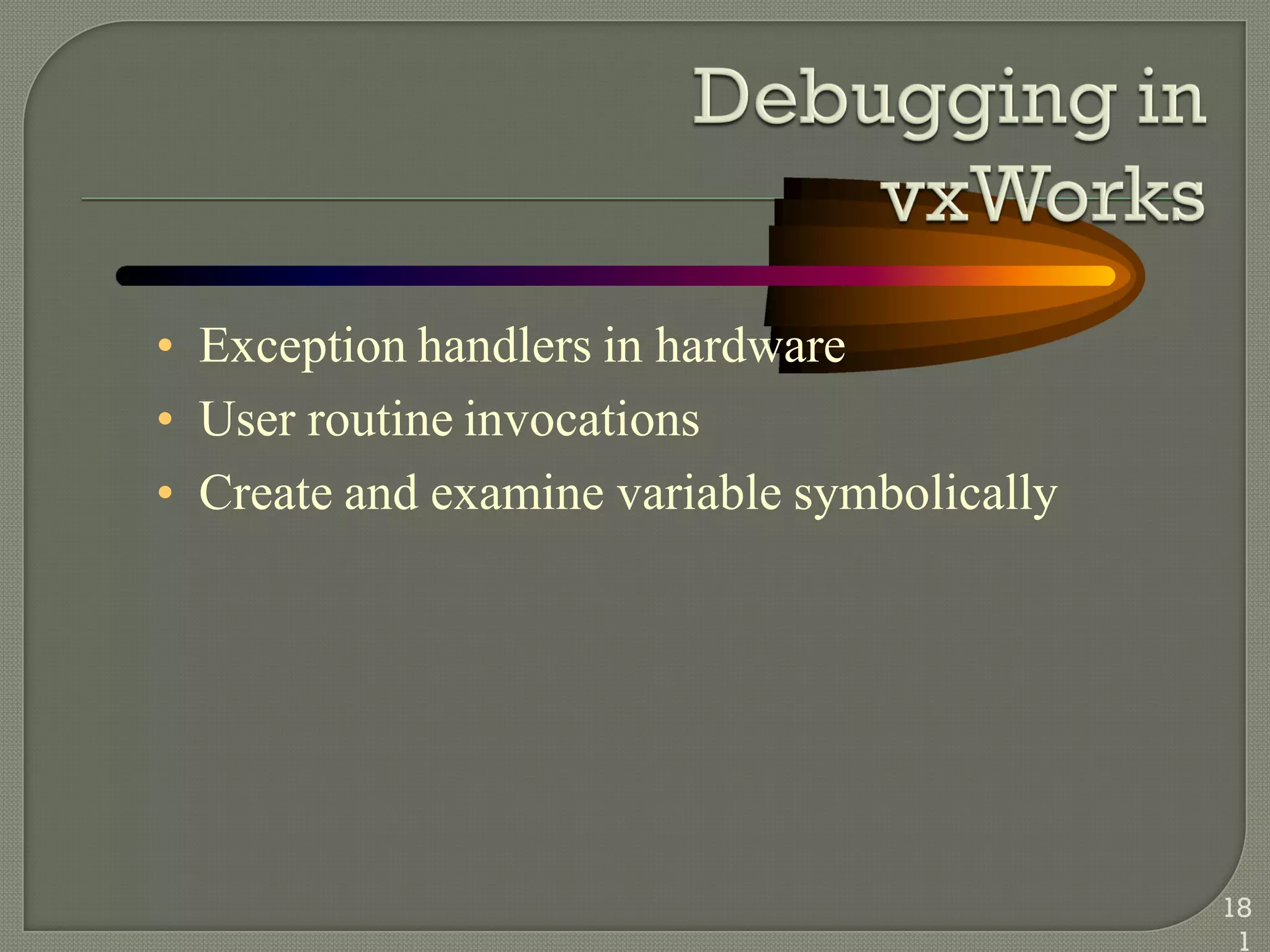

• Exception handlers in hardware
• User routine invocations
• Create and examine variable symbolically
18
1

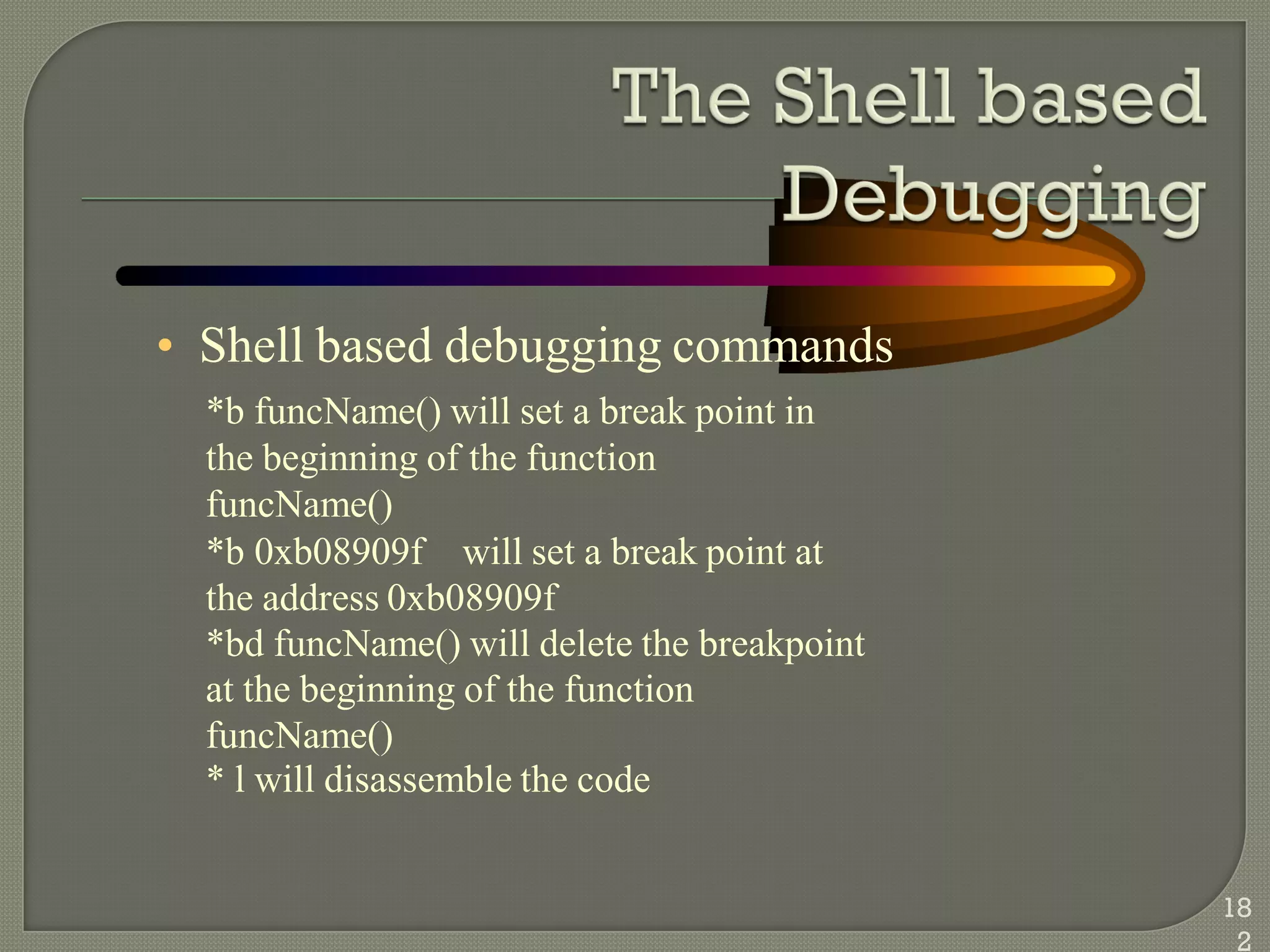

• Shell based debugging commands
*b funcName() will set a break point in
the beginning of the function
funcName()
*b 0xb08909f will set a break point at
the address 0xb08909f
*bd funcName() will delete the breakpoint
at the beginning of the function
funcName()
* l will disassemble the code
18
2

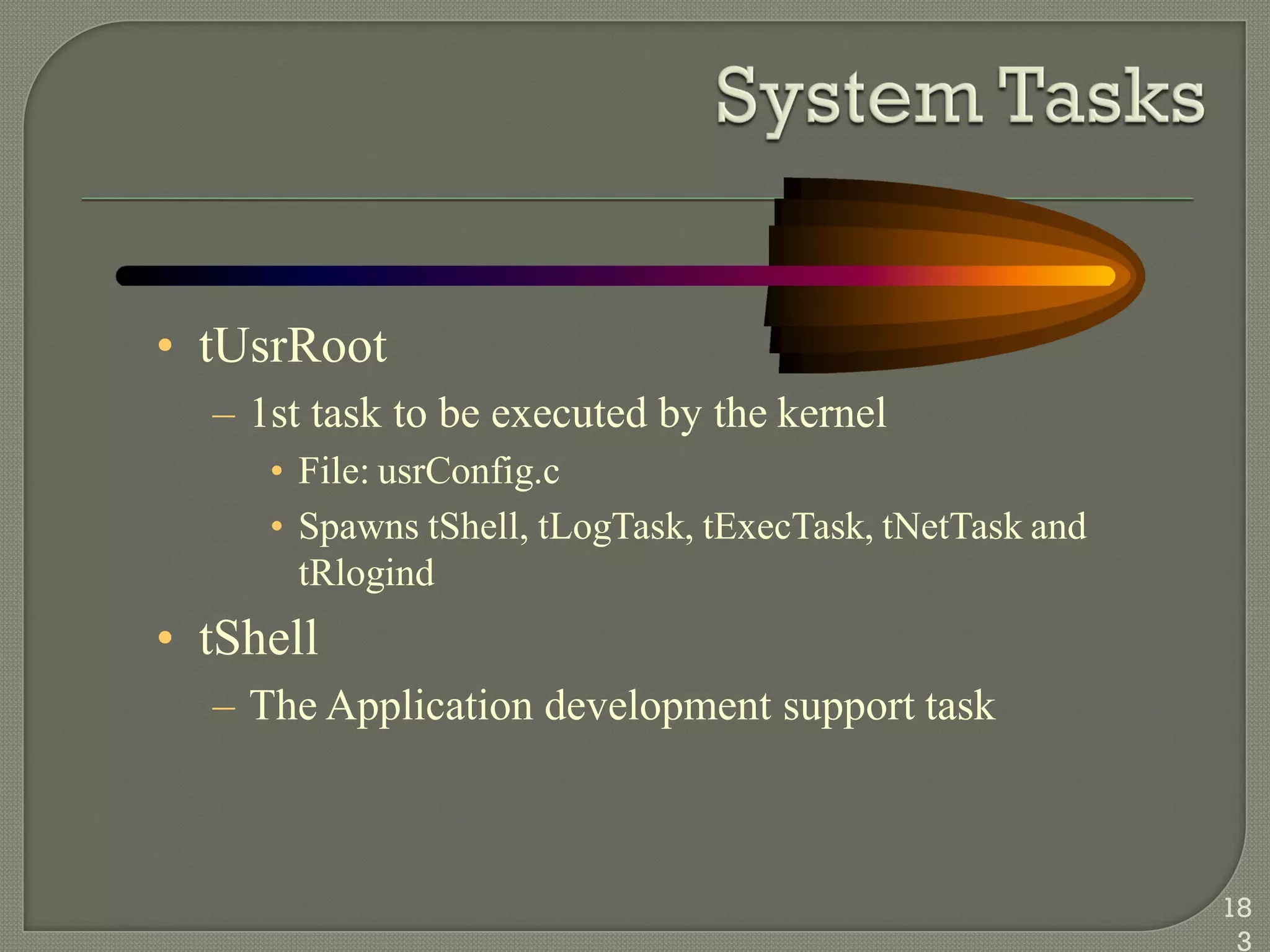

• tUsrRoot
– 1st task to be executed by the kernel
• File: usrConfig.c
• Spawns tShell, tLogTask, tExecTask, tNetTask and
tRlogind
• tShell
– The Application development support task
18
3

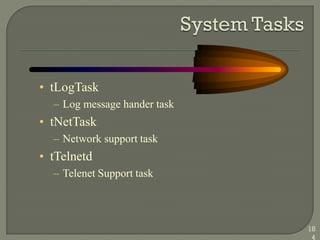

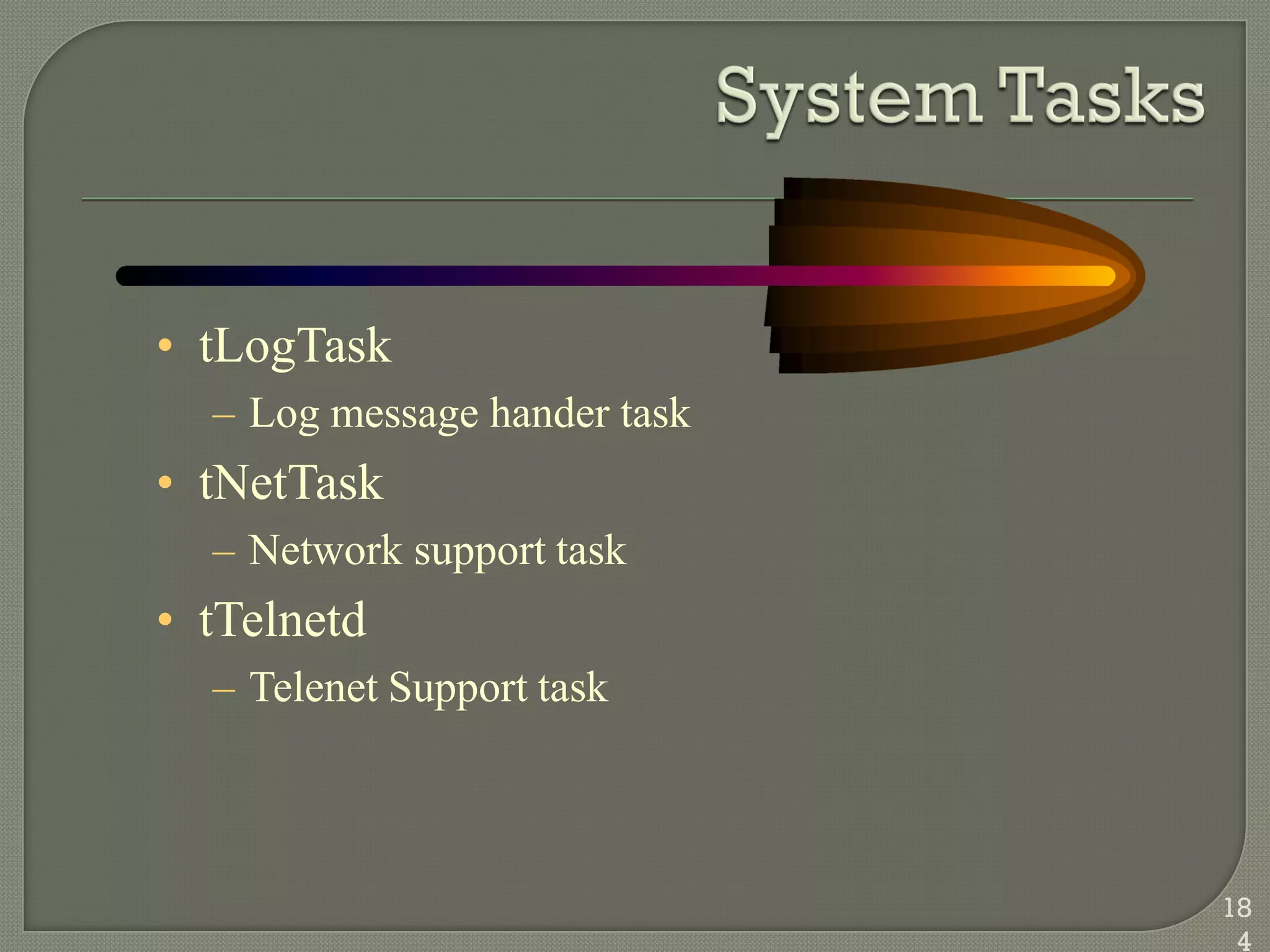

• tLogTask
– Log message hander task
• tNetTask
– Network support task
• tTelnetd
– Telenet Support task
18
4

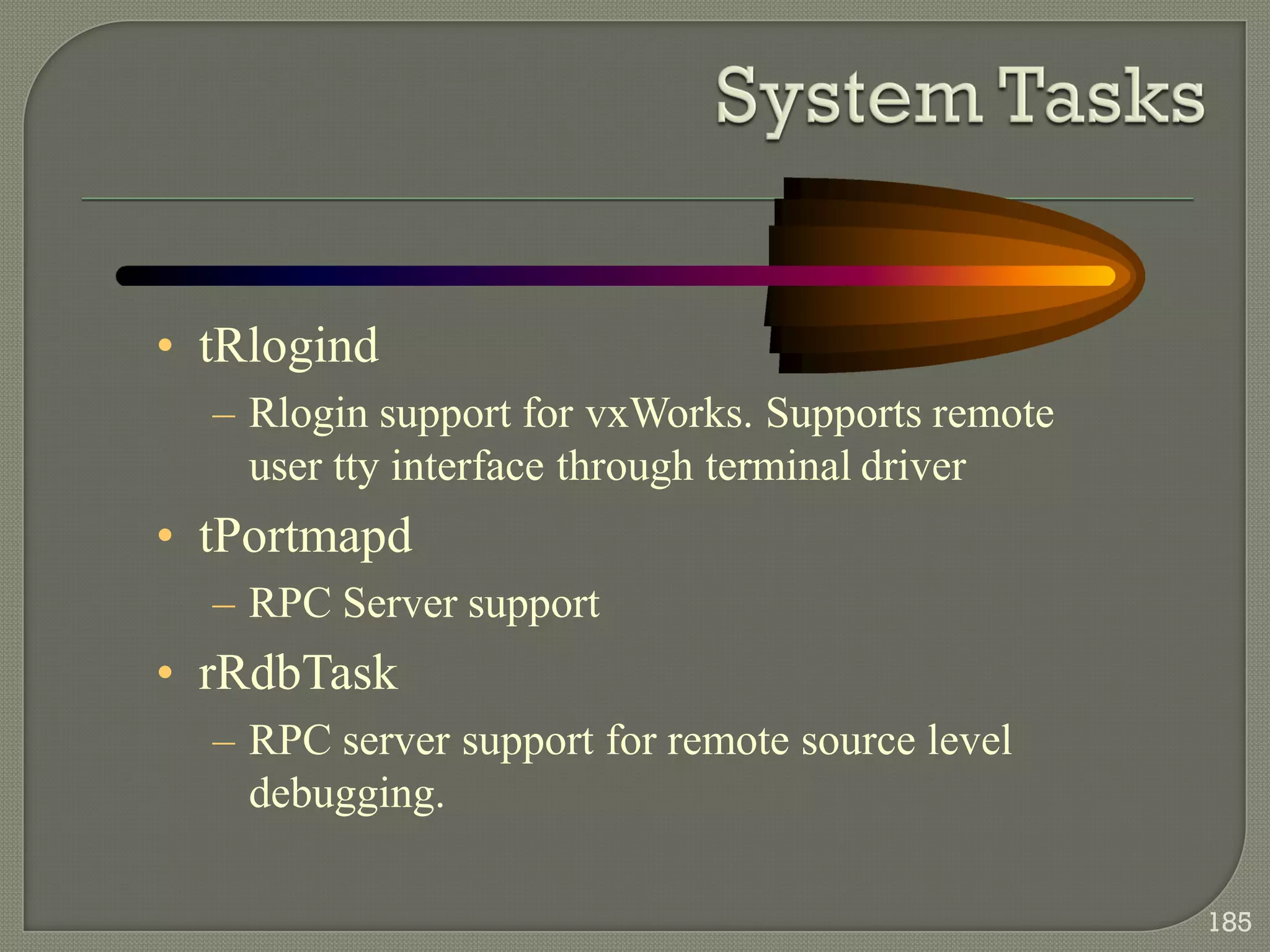

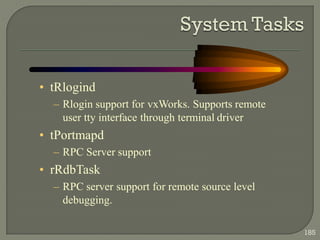

• tRlogind
– Rlogin support for vxWorks. Supports remote
user tty interface through terminal driver
• tPortmapd
– RPC Server support
• rRdbTask
– RPC server support for remote source level
debugging.
185

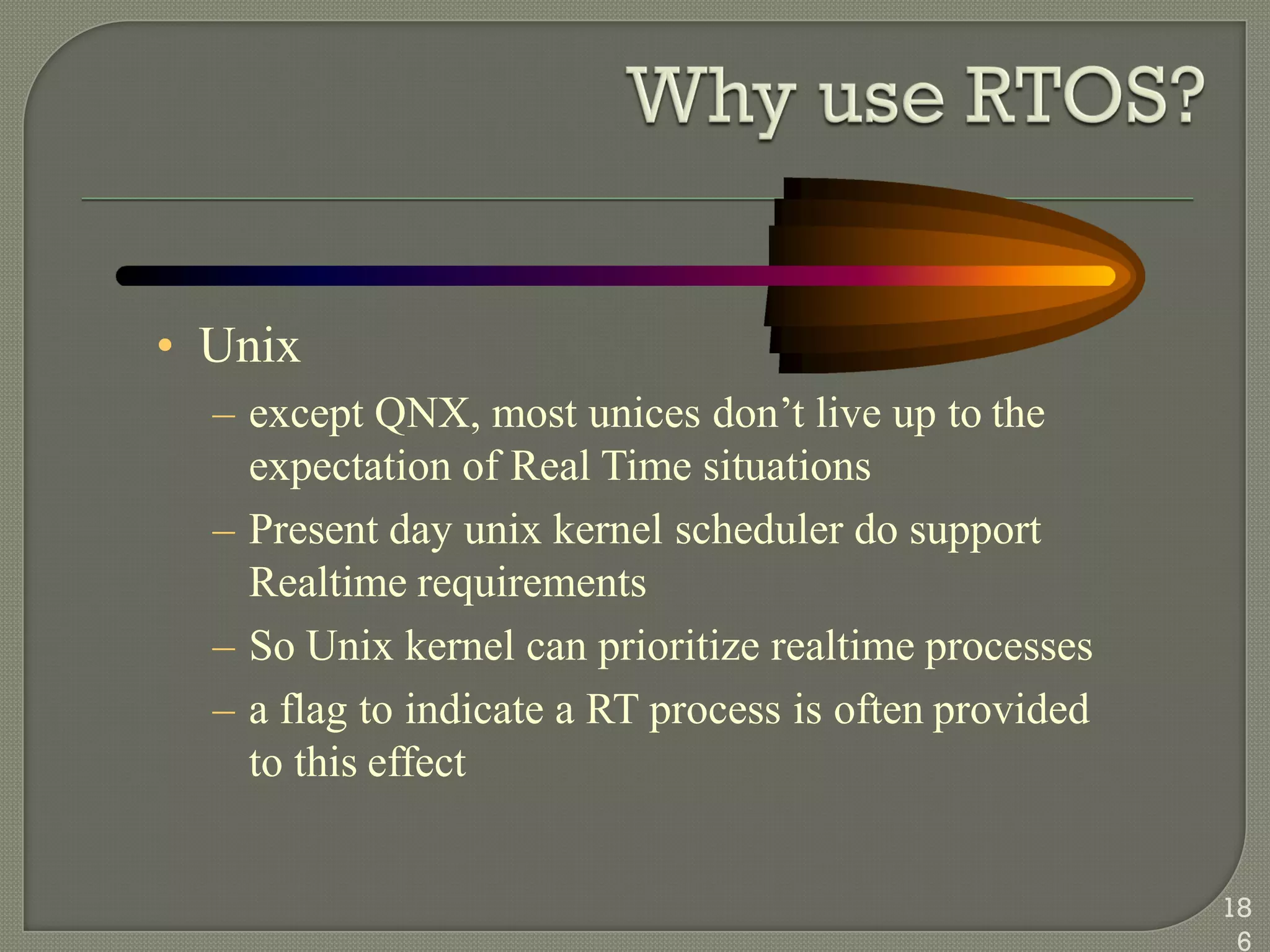

• Unix
– except QNX, most unices don‘t live up to the
expectation of Real Time situations
– Present day unix kernel scheduler do support
Realtime requirements
– So Unix kernel can prioritize realtime processes
– a flag to indicate a RT process is often provided
to this effect
18
6

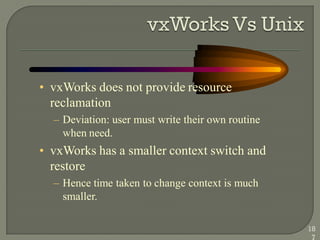

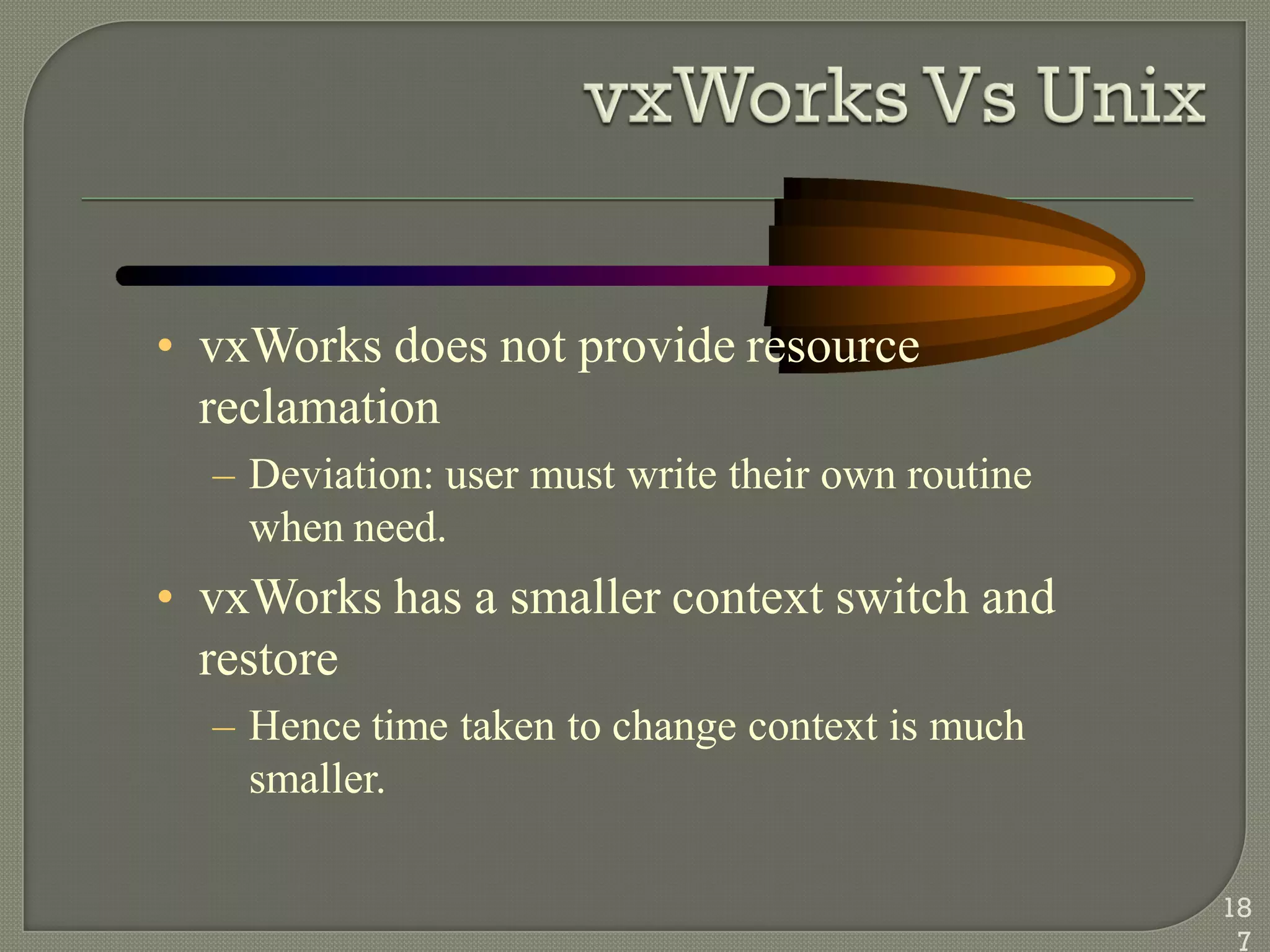

• vxWorks does not provide resource
reclamation
– Deviation: user must write their own routine
when need.
• vxWorks has a smaller context switch and
restore
– Hence time taken to change context is much
smaller.
18
7

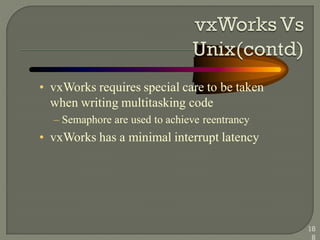

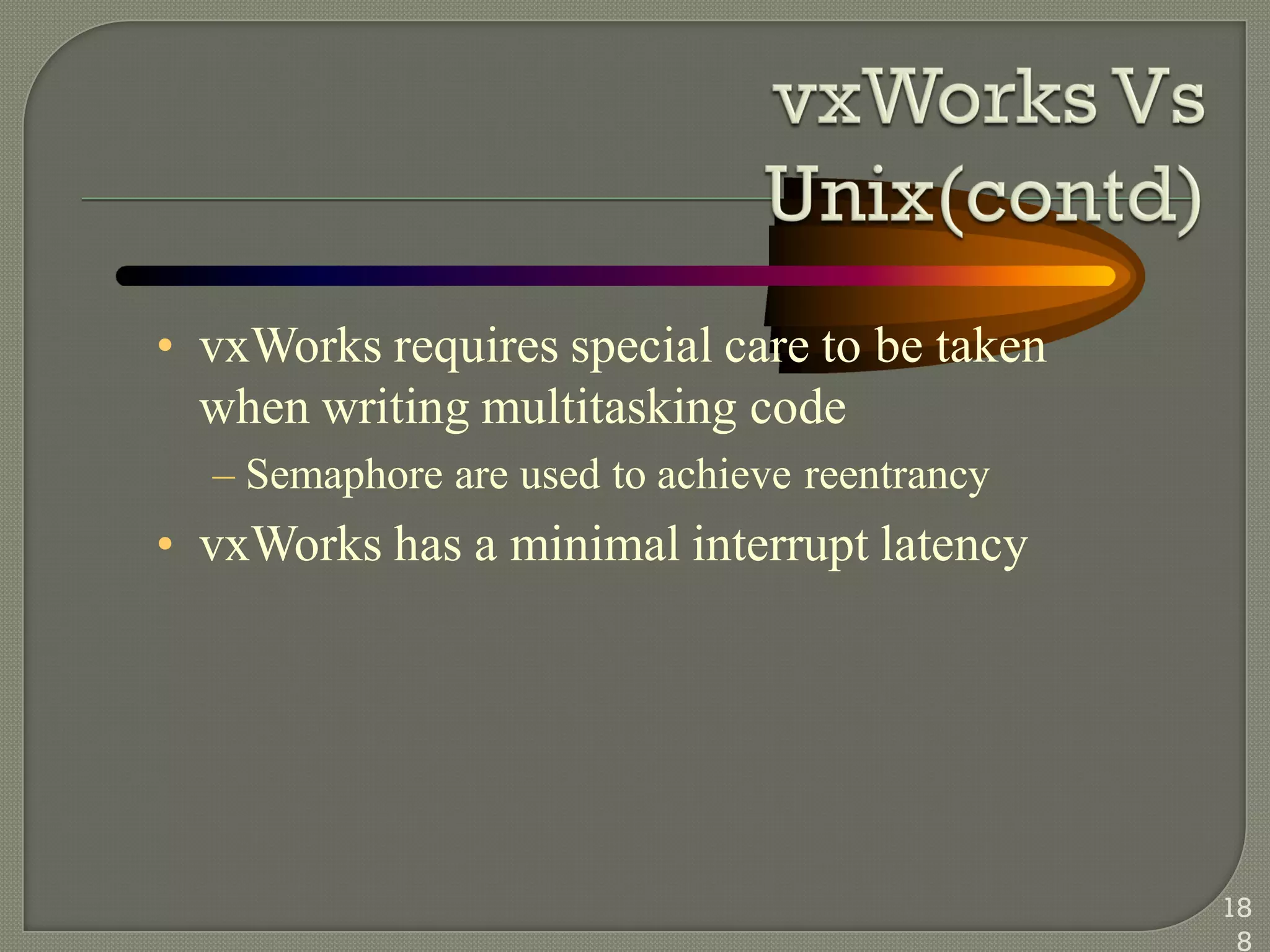

• vxWorks requires special care to be taken
when writing multitasking code
– Semaphore are used to achieve reentrancy
• vxWorks has a minimal interrupt latency
18
8

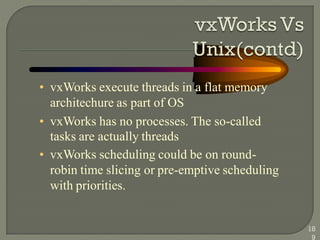

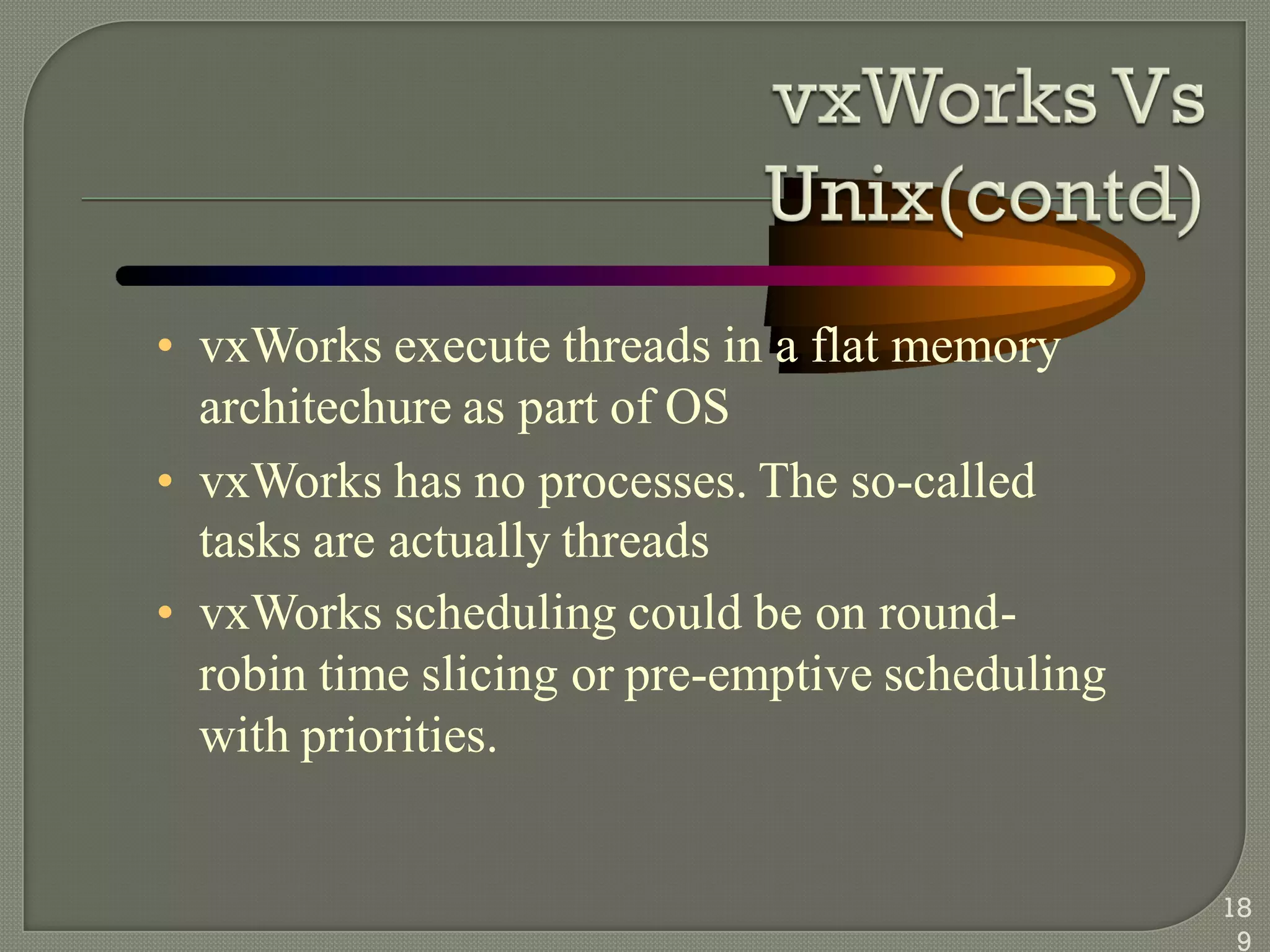

• vxWorks execute threads in a flat memory
architechure as part of OS
• vxWorks has no processes. The so-called
tasks are actually threads
• vxWorks scheduling could be on round-
robin time slicing or pre-emptive scheduling
with priorities.
18
9

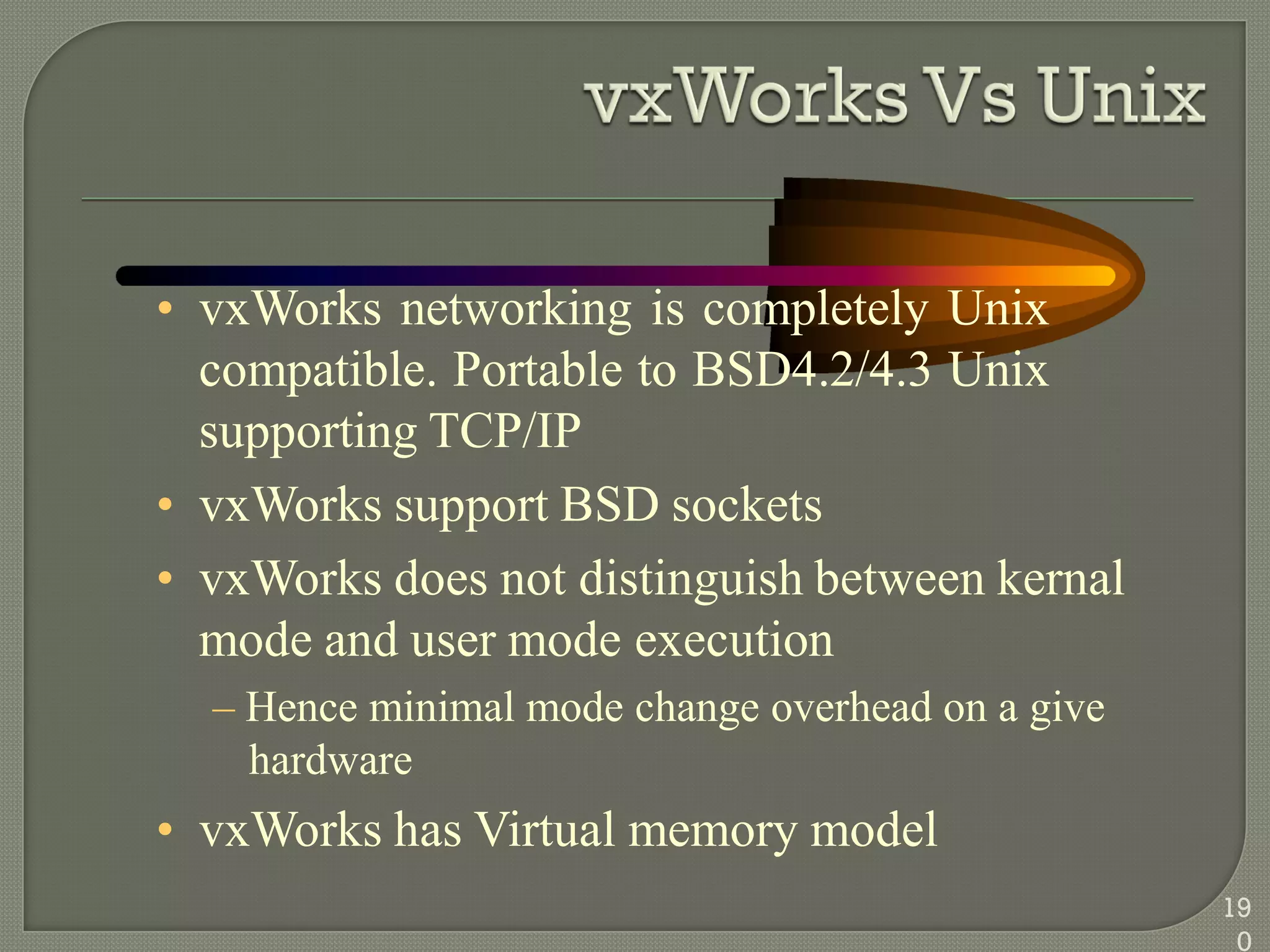

• vxWorks networking is completely Unix
compatible. Portable to BSD4.2/4.3 Unix
supporting TCP/IP
• vxWorks support BSD sockets
• vxWorks does not distinguish between kernal
mode and user mode execution
– Hence minimal mode change overhead on a give
hardware
• vxWorks has Virtual memory model
19
0

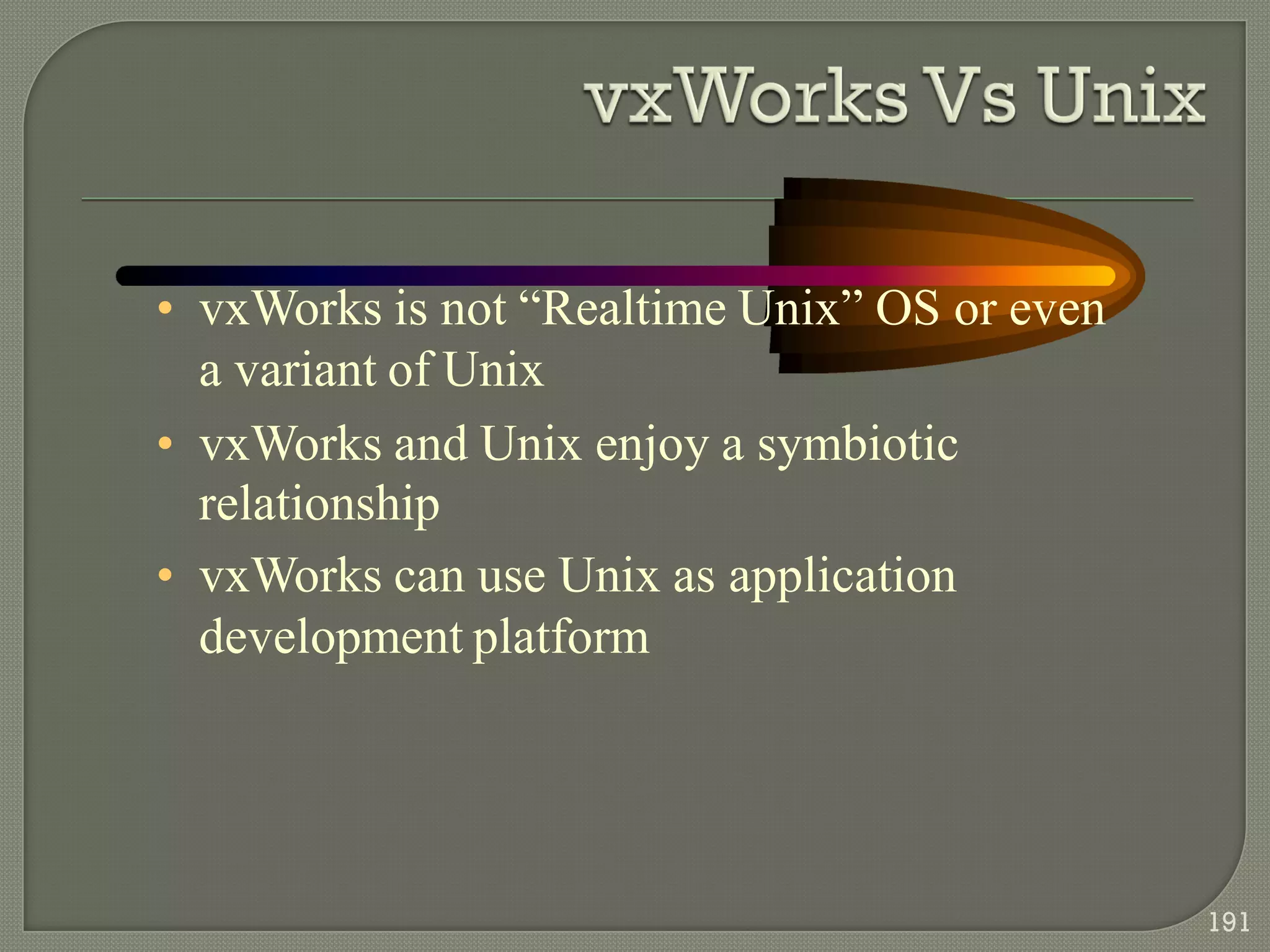

• vxWorks is not ―Realtime Unix‖ OS or even
a variant of Unix
• vxWorks and Unix enjoy a symbiotic
relationship
• vxWorks can use Unix as application
development platform
191

Introduction to EMBEDDED SYSTEM.pdf

More Related Content

Similar to Introduction to EMBEDDED SYSTEM.pdf

Recently uploaded

Introduction to EMBEDDED SYSTEM.pdf
