![Object
Partners
Inc. A Little More on Hbase
Ø
Multi-dimensional Map
Ø
Map<byte[ ]
–
Map<byte[ ]
• Map<byte[ ]
–
Map<Long, byte[]>>>>
Ø
First Map: Row Key to Column Family
Ø
Second Map: Column Family to Column Label
Ø
Third Map: Column Label to Timestamp
Ø
Fourth Map: Timestamp to Value
A Column Family is a grouping of columns of the same data type.](https://image.slidesharecdn.com/hadoopandhbasev5-12724827931552-phpapp02/85/Introduction-to-Hadoop-15-320.jpg)
![Object
Partners
Inc. A Little More on Hbase
Ø
Multi-dimensional Map
Ø
Map<byte[ ]
–
Map<byte[ ]
• Map<byte[ ]
–
Map<Long, byte[]>>>>
Ø
First Map: Row Key to Column Family
Ø
Second Map: Column Family to Column Label
Ø
Third Map: Column Label to Timestamp
Ø
Fourth Map: Timestamp to Value
A Column Family is a grouping of columns of the same data type.](https://image.slidesharecdn.com/hadoopandhbasev5-12724827931552-phpapp02/75/Introduction-to-Hadoop-15-2048.jpg)
More Related Content
Introduction to Hadoop
- 1. Object Partners Inc. Introduction to Hadoop Click to edit Master subtitle style Demo by: Presented by: Nick Adelman Joel Crabb

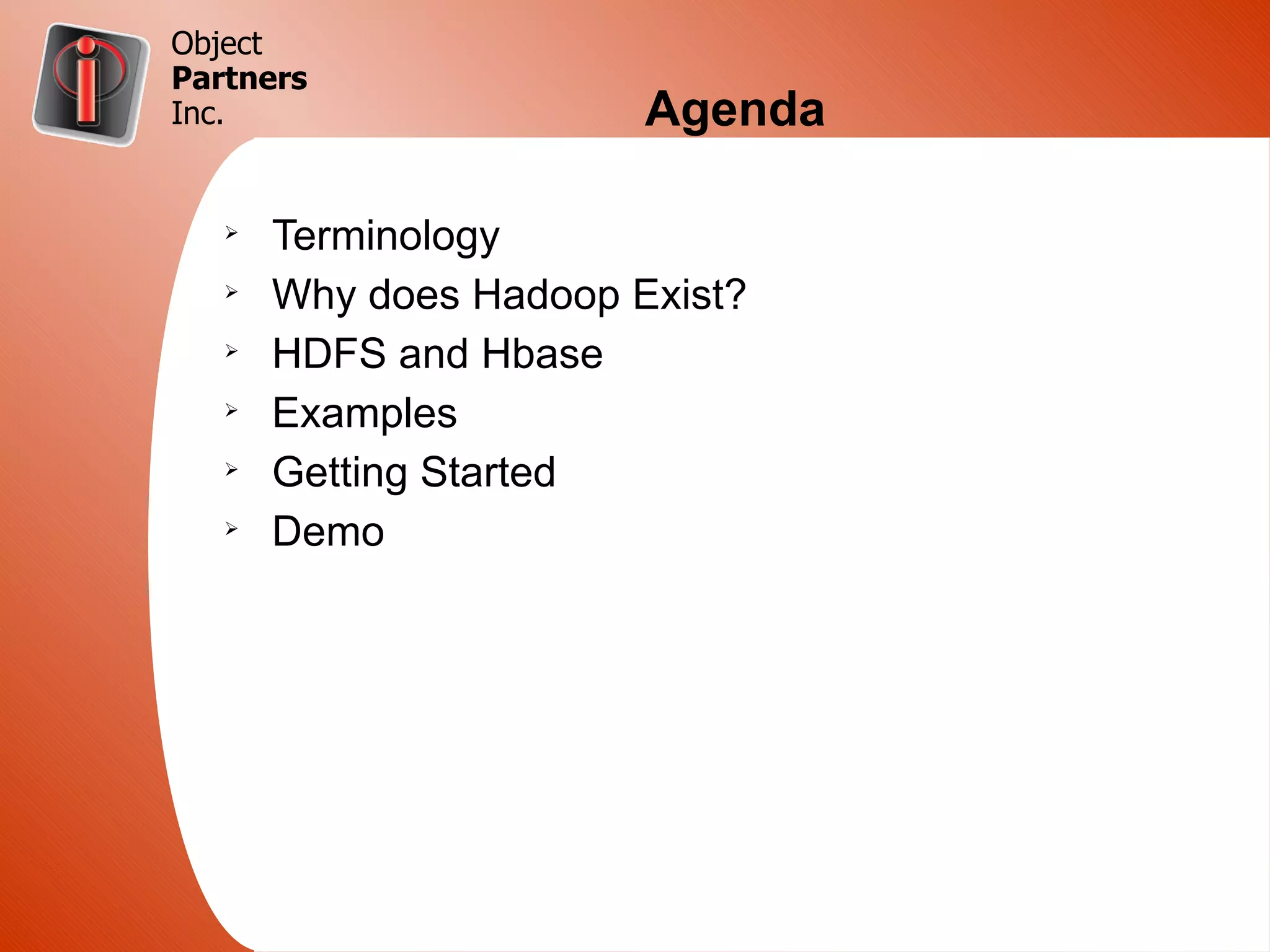

- 2. Object Partners Inc. Agenda Ø Terminology Ø Why does Hadoop Exist? Ø HDFS and Hbase Ø Examples Ø Getting Started Ø Demo

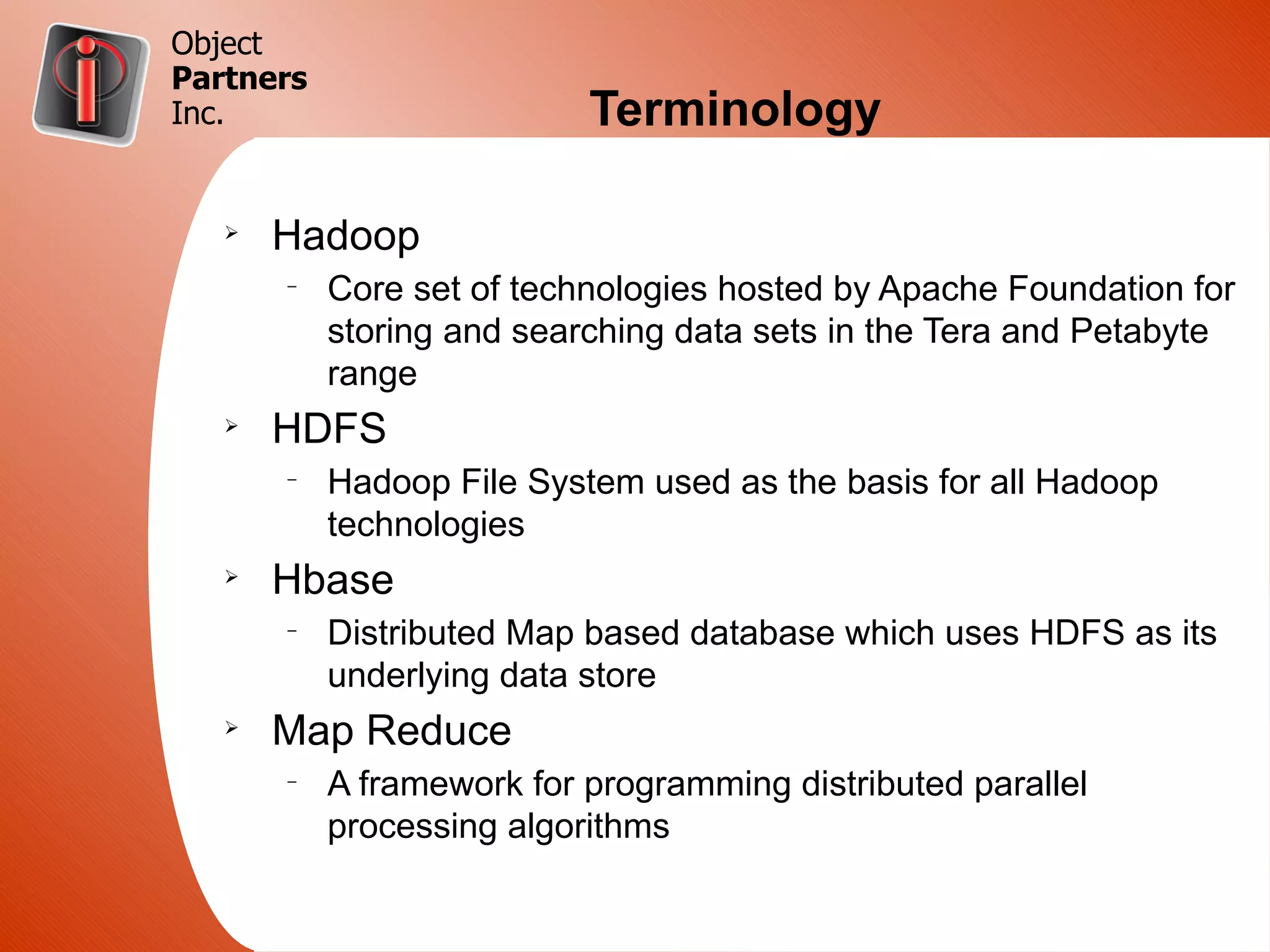

- 3. Object Partners Inc. Terminology Ø Hadoop – Core set of technologies hosted by Apache Foundation for storing and searching data sets in the Tera and Petabyte range Ø HDFS – Hadoop File System used as the basis for all Hadoop technologies Ø Hbase – Distributed Map based database which uses HDFS as its underlying data store Ø Map Reduce – A framework for programming distributed parallel processing algorithms

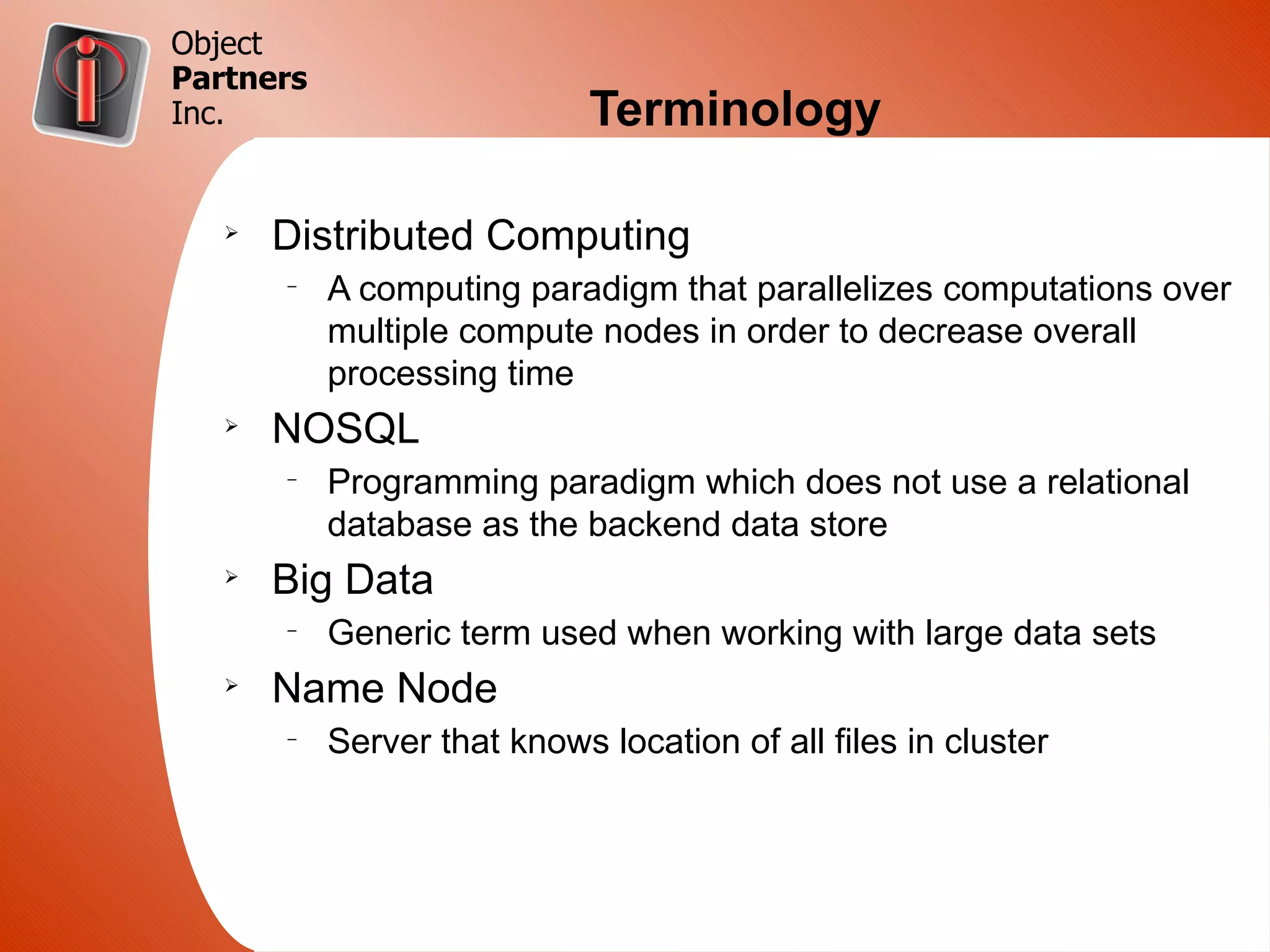

- 4. Object Partners Inc. Terminology Ø Distributed Computing – A computing paradigm that parallelizes computations over multiple compute nodes in order to decrease overall processing time Ø NOSQL – Programming paradigm which does not use a relational database as the backend data store Ø Big Data – Generic term used when working with large data sets Ø Name Node – Server that knows location of all files in cluster

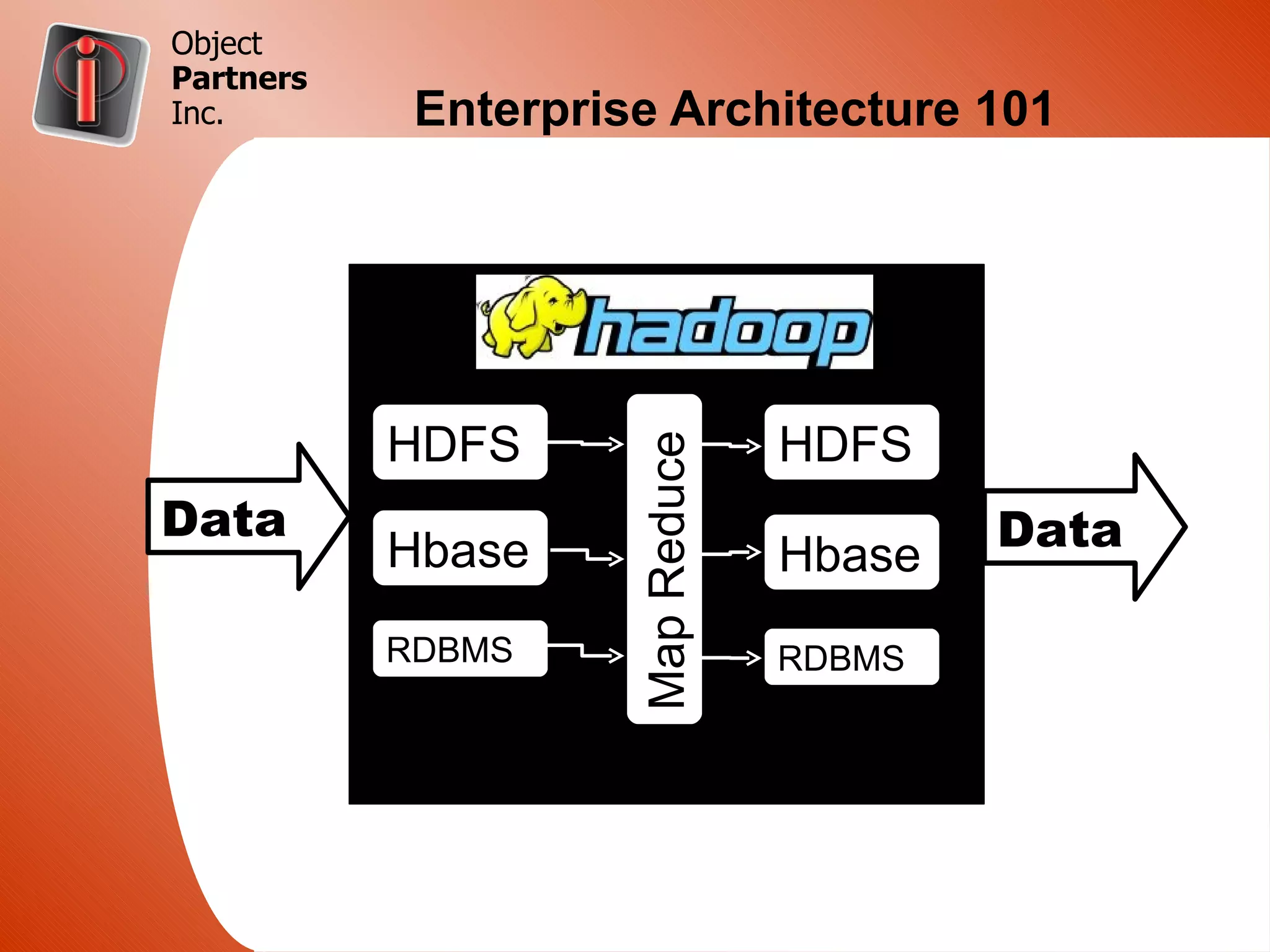

- 5. Object Partners Inc. Enterprise Architecture 101 HDFS HDFS Map Reduce Data Data Hbase Hbase RDBMS RDBMS

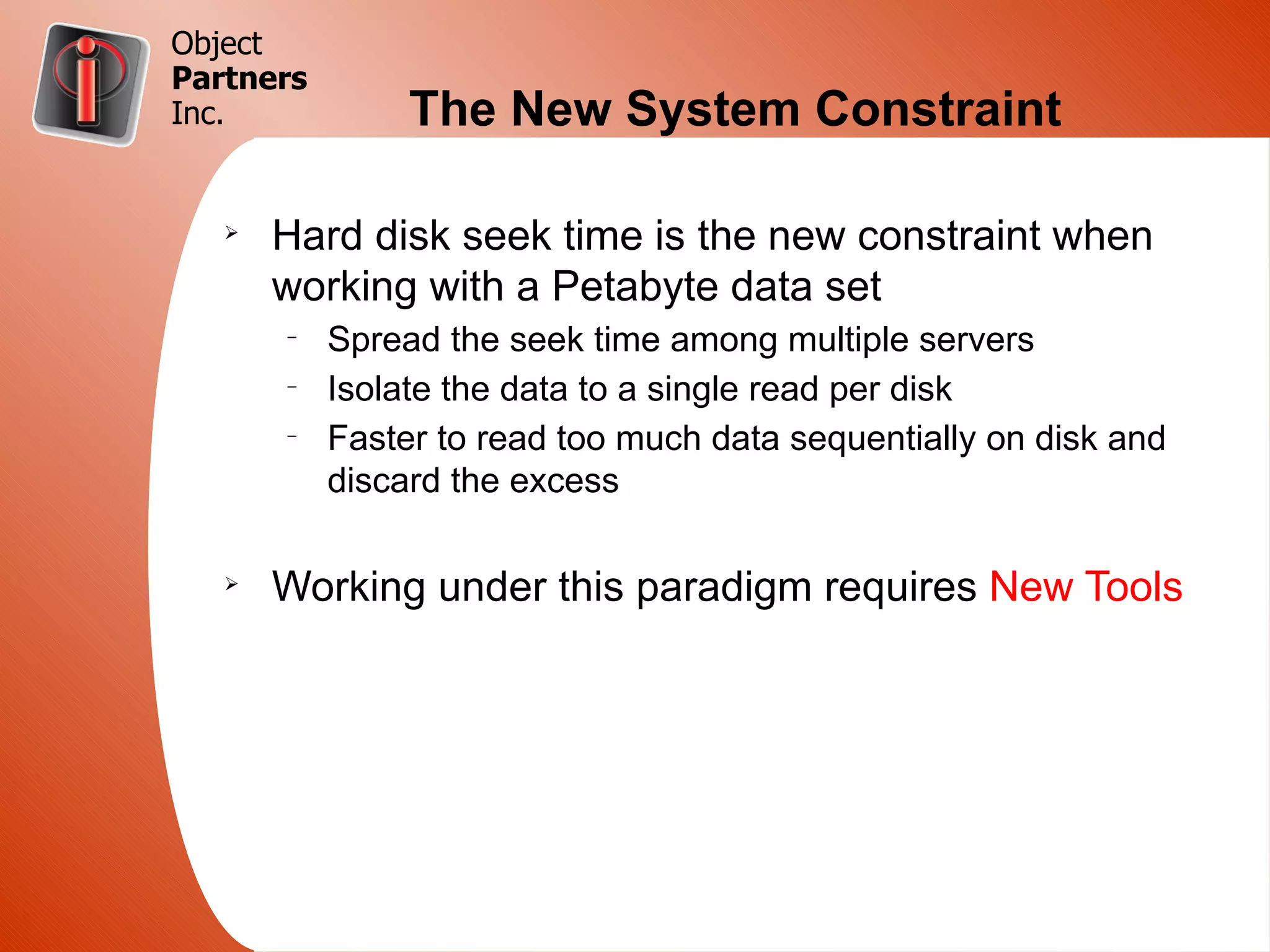

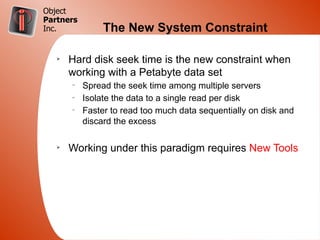

- 6. Object Partners Inc. The New System Constraint Ø Hard disk seek time is the new constraint when working with a Petabyte data set – Spread the seek time among multiple servers – Isolate the data to a single read per disk – Faster to read too much data sequentially on disk and discard the excess Ø Working under this paradigm requires New Tools

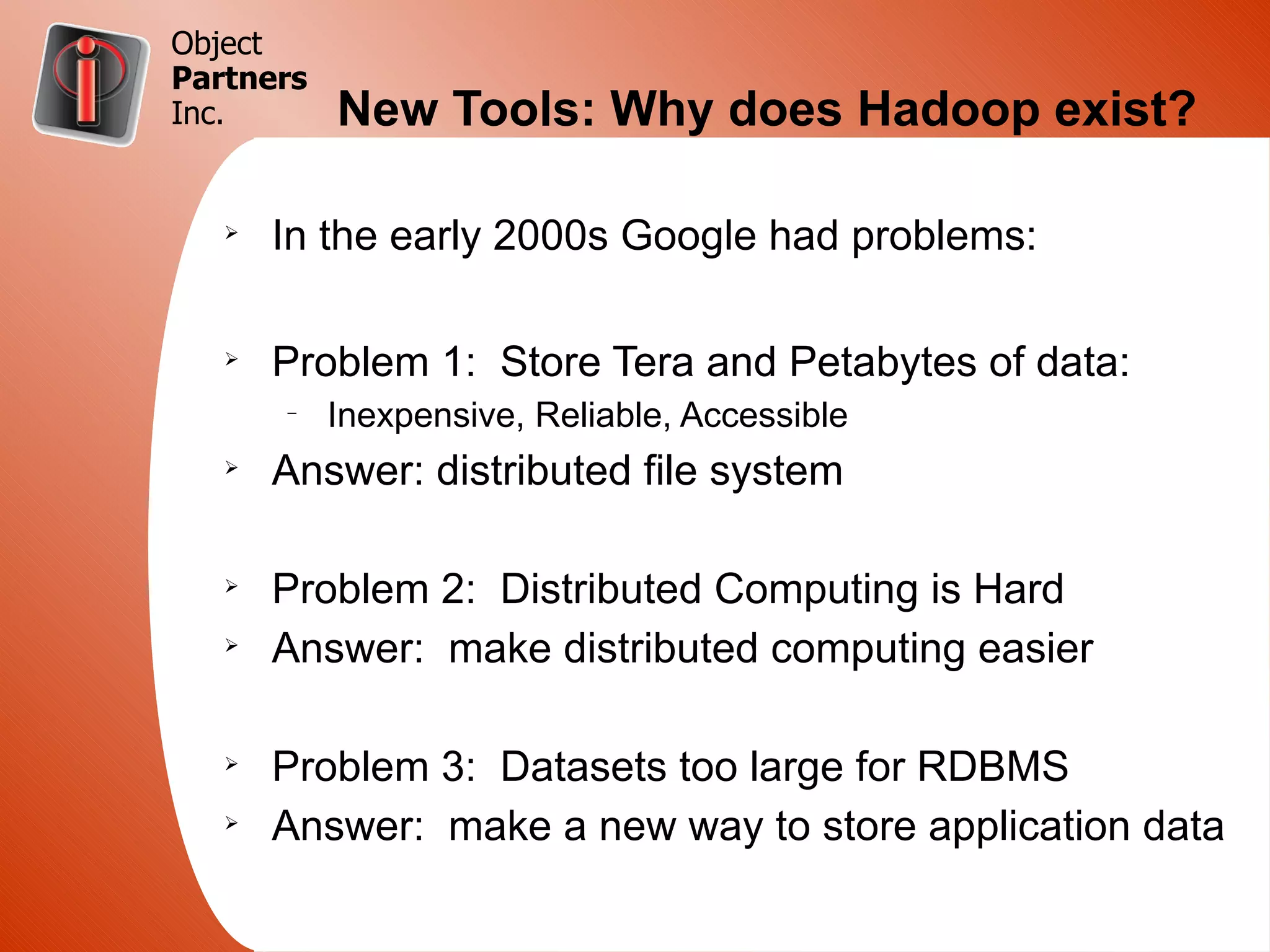

- 7. Object Partners Inc. New Tools: Why does Hadoop exist? Ø In the early 2000s Google had problems: Ø Problem 1: Store Tera and Petabytes of data: – Inexpensive, Reliable, Accessible Ø Answer: distributed file system Ø Problem 2: Distributed Computing is Hard Ø Answer: make distributed computing easier Ø Problem 3: Datasets too large for RDBMS Ø Answer: make a new way to store application data

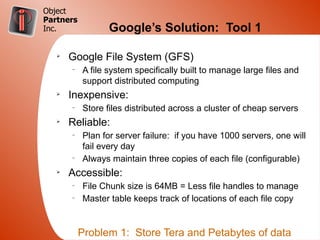

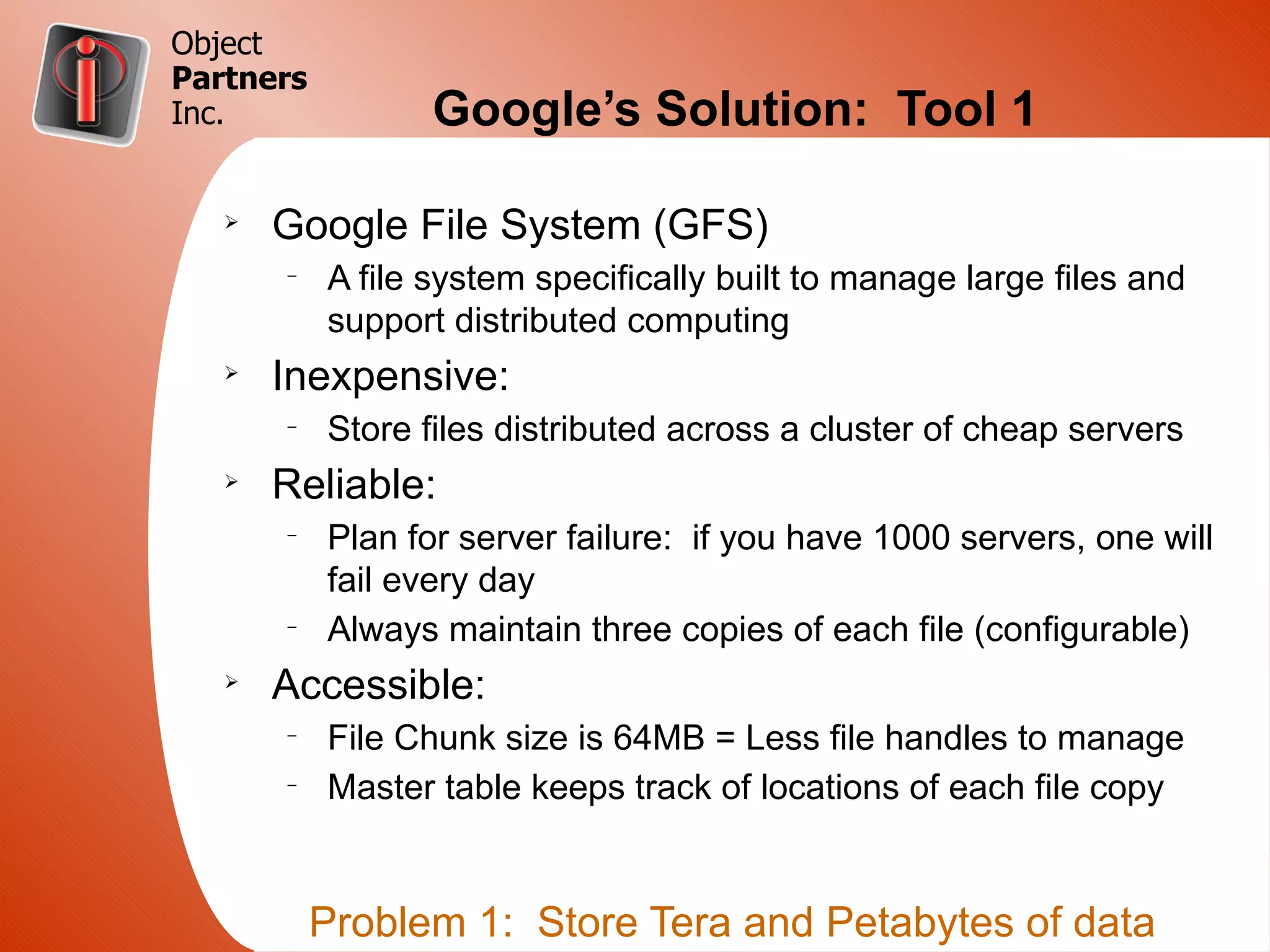

- 8. Object Partners Inc. Google’s Solution: Tool 1 Ø Google File System (GFS) – A file system specifically built to manage large files and support distributed computing Ø Inexpensive: – Store files distributed across a cluster of cheap servers Ø Reliable: – Plan for server failure: if you have 1000 servers, one will fail every day – Always maintain three copies of each file (configurable) Ø Accessible: – File Chunk size is 64MB = Less file handles to manage – Master table keeps track of locations of each file copy Problem 1: Store Tera and Petabytes of data

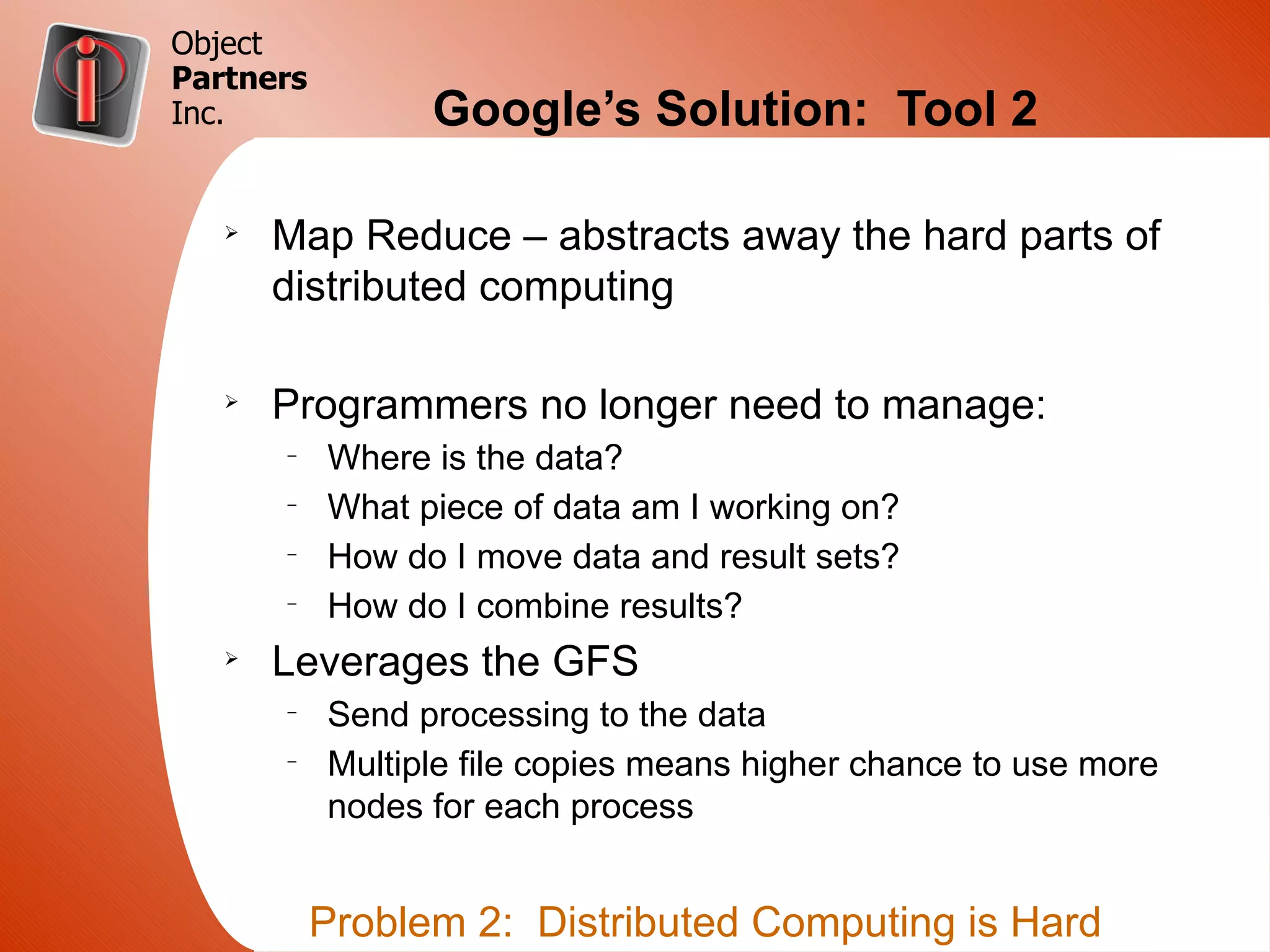

- 9. Object Partners Inc. Google’s Solution: Tool 2 Ø Map Reduce – abstracts away the hard parts of distributed computing Ø Programmers no longer need to manage: – Where is the data? – What piece of data am I working on? – How do I move data and result sets? – How do I combine results? Ø Leverages the GFS – Send processing to the data – Multiple file copies means higher chance to use more nodes for each process Problem 2: Distributed Computing is Hard

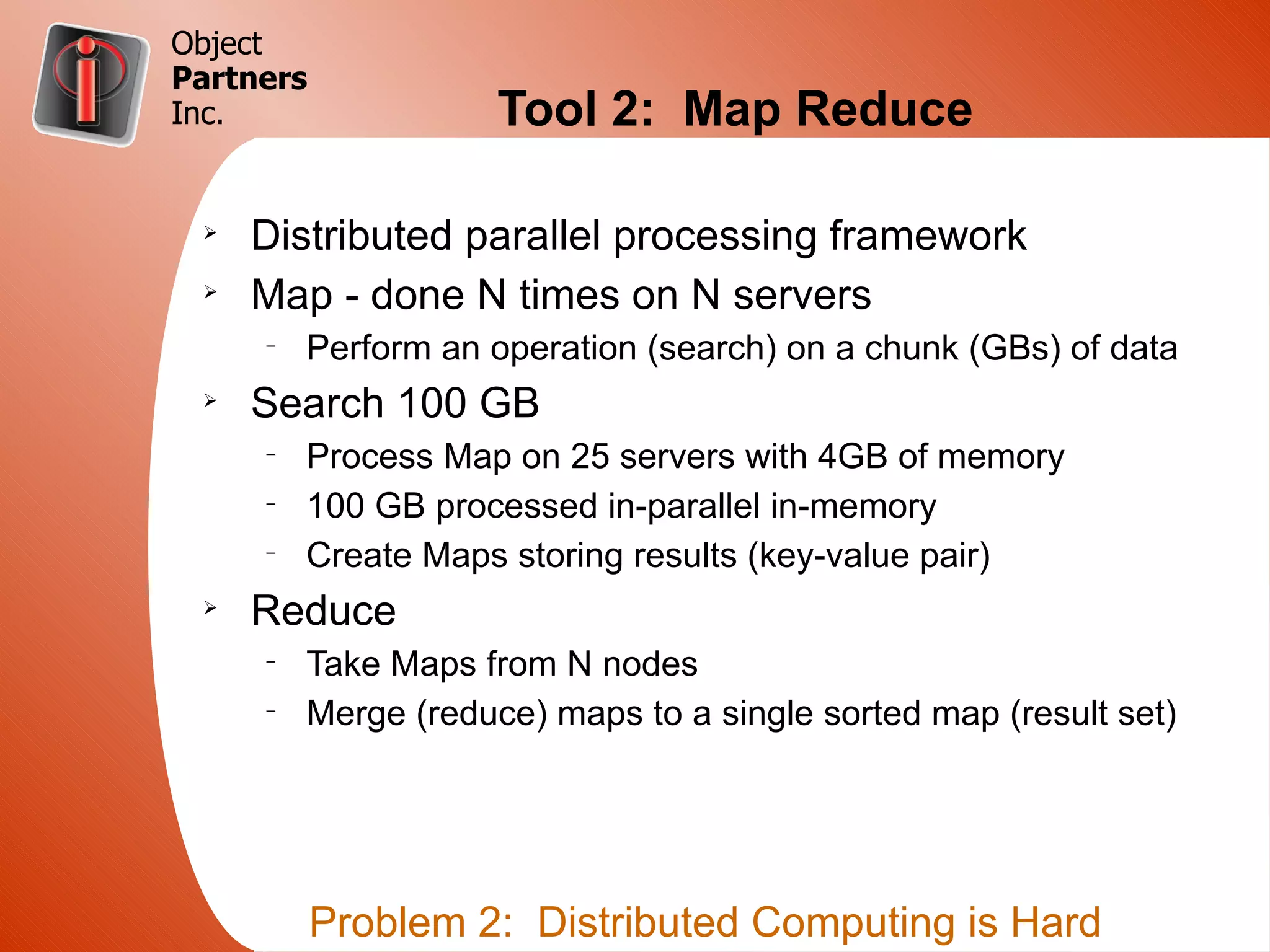

- 10. Object Partners Inc. Tool 2: Map Reduce Ø Distributed parallel processing framework Ø Map - done N times on N servers – Perform an operation (search) on a chunk (GBs) of data Ø Search 100 GB – Process Map on 25 servers with 4GB of memory – 100 GB processed in-parallel in-memory – Create Maps storing results (key-value pair) Ø Reduce – Take Maps from N nodes – Merge (reduce) maps to a single sorted map (result set) Problem 2: Distributed Computing is Hard

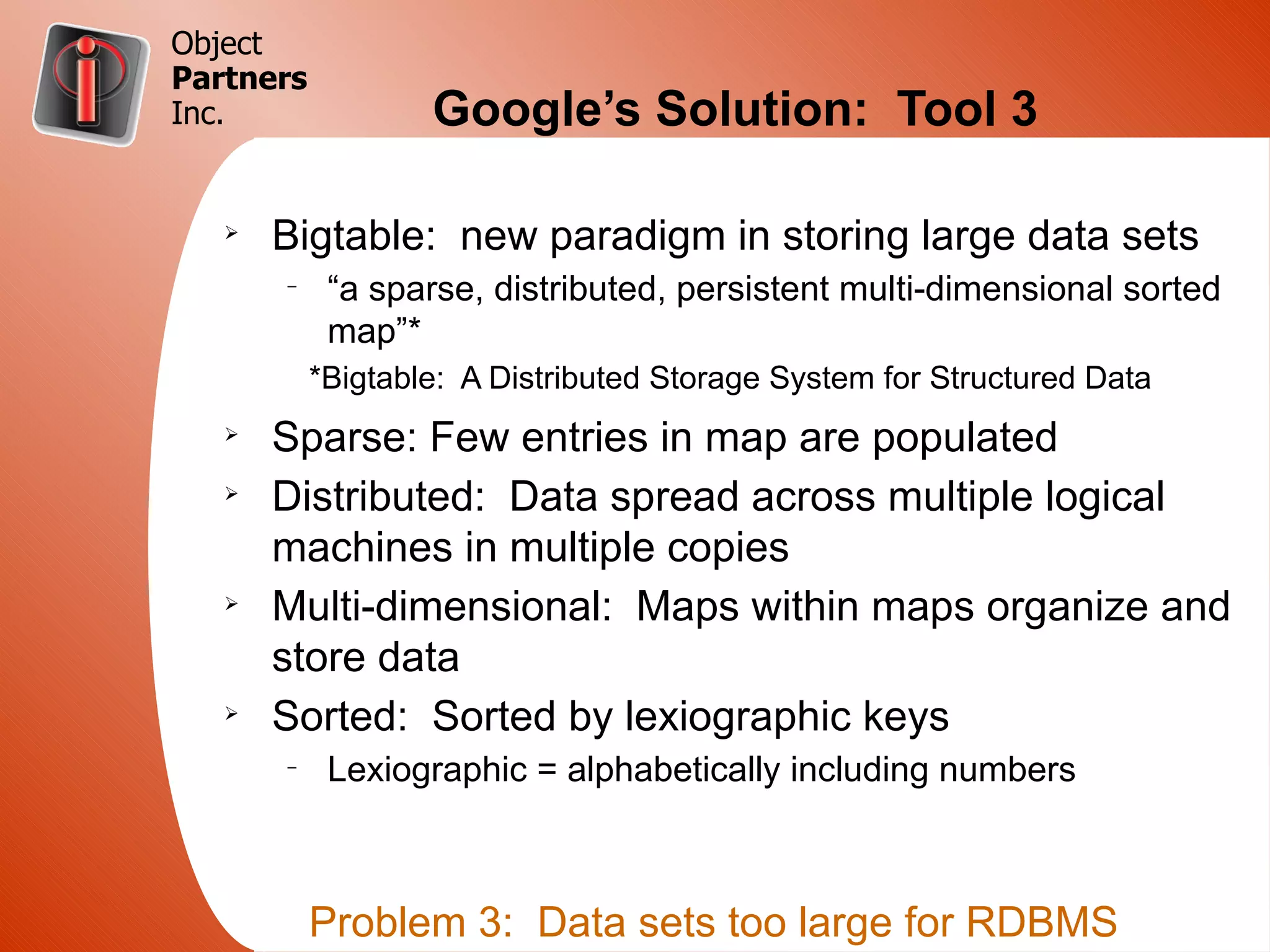

- 11. Object Partners Inc. Google’s Solution: Tool 3 Ø Bigtable: new paradigm in storing large data sets – “a sparse, distributed, persistent multi-dimensional sorted map”* *Bigtable: A Distributed Storage System for Structured Data Ø Sparse: Few entries in map are populated Ø Distributed: Data spread across multiple logical machines in multiple copies Ø Multi-dimensional: Maps within maps organize and store data Ø Sorted: Sorted by lexiographic keys – Lexiographic = alphabetically including numbers Problem 3: Data sets too large for RDBMS

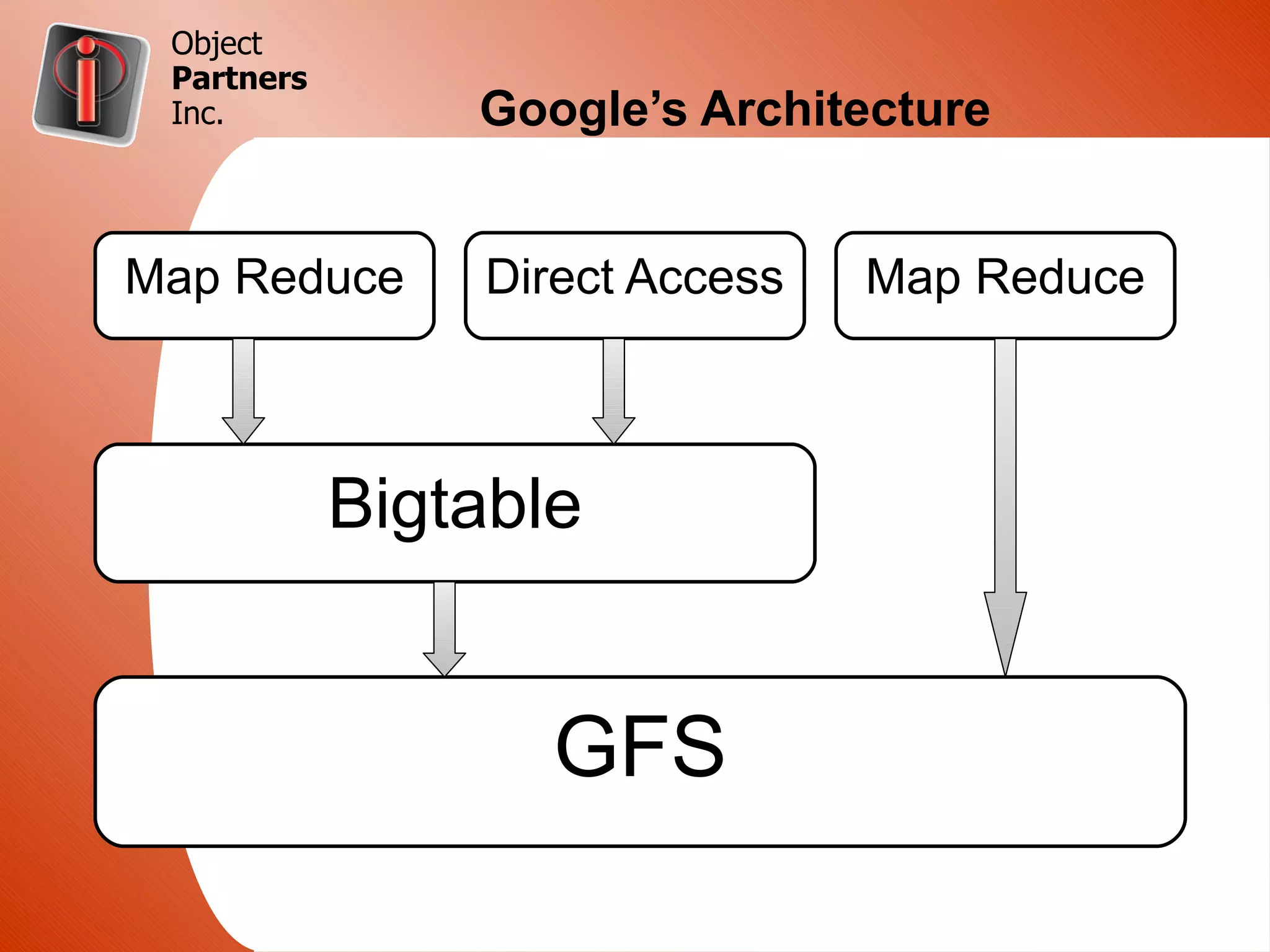

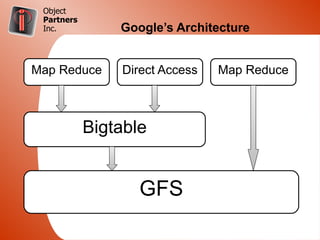

- 12. Object Partners Inc. Google’s Architecture Map Reduce Direct Access Map Reduce Bigtable GFS

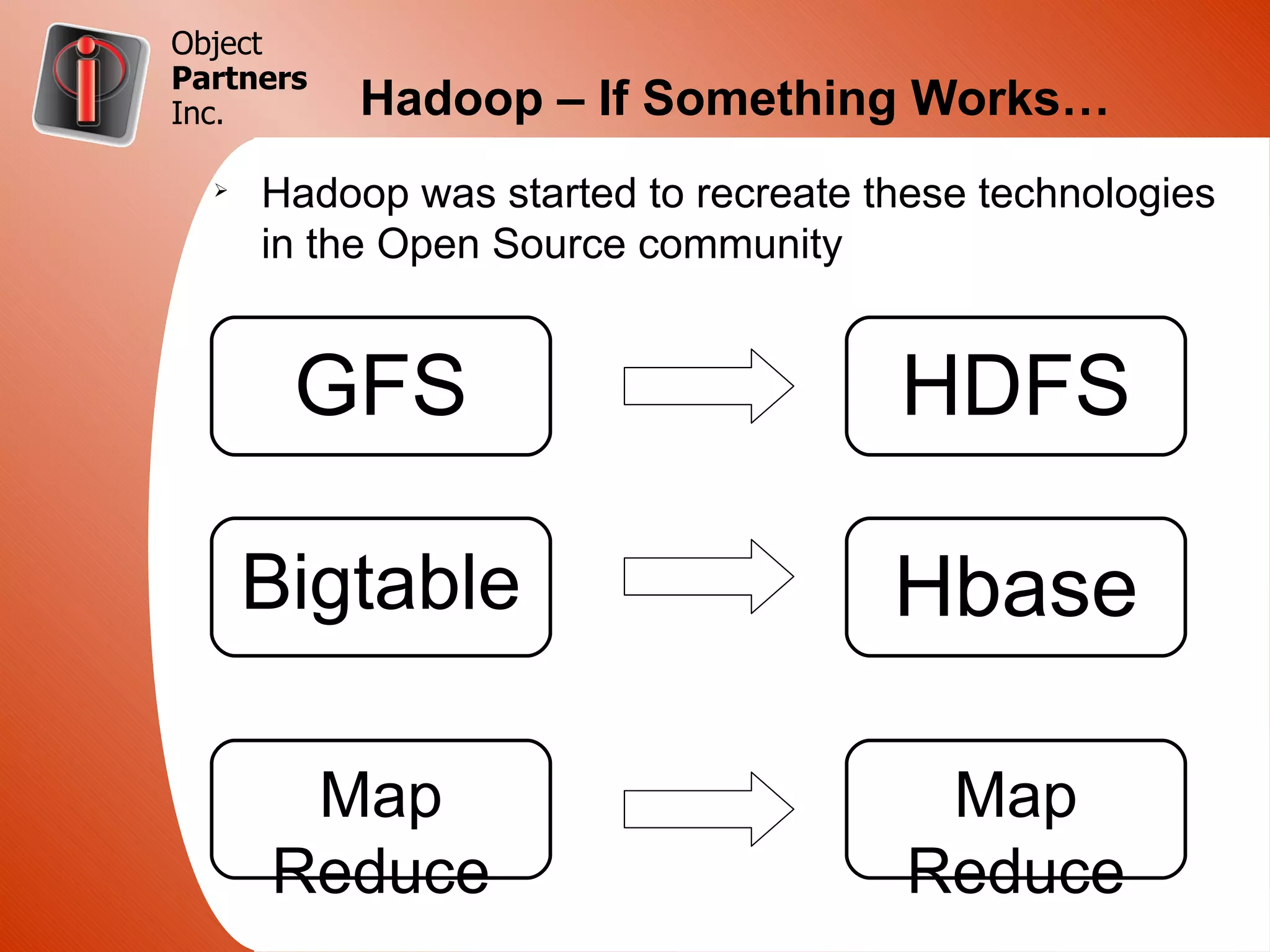

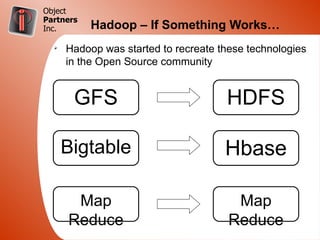

- 13. Object Partners Inc. Hadoop – If Something Works… Ø Hadoop was started to recreate these technologies in the Open Source community GFS HDFS Bigtable Hbase Map Map Reduce Reduce

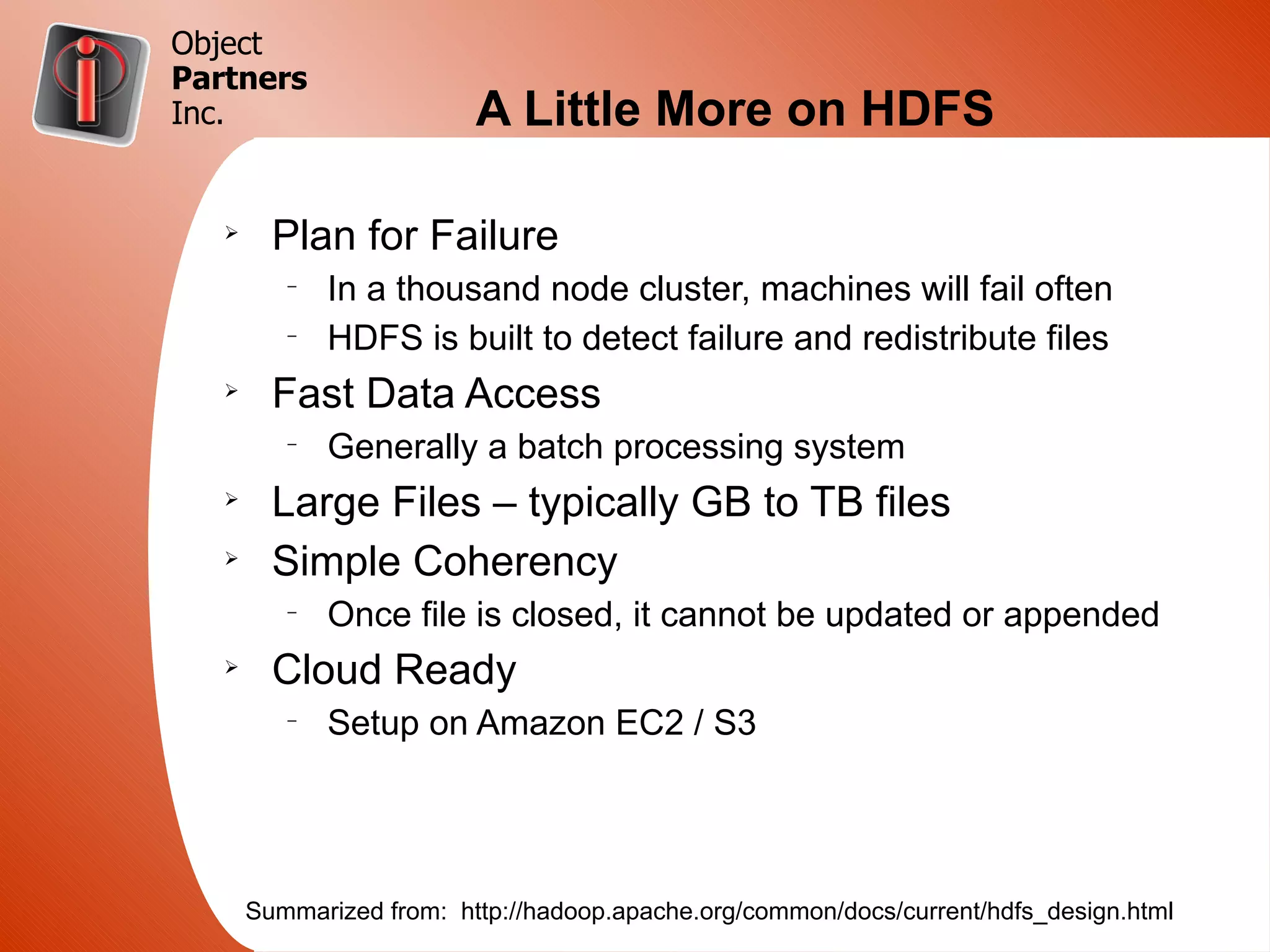

- 14. Object Partners Inc. A Little More on HDFS Ø Plan for Failure – In a thousand node cluster, machines will fail often – HDFS is built to detect failure and redistribute files Ø Fast Data Access – Generally a batch processing system Ø Large Files – typically GB to TB files Ø Simple Coherency – Once file is closed, it cannot be updated or appended Ø Cloud Ready – Setup on Amazon EC2 / S3 Summarized from: http://hadoop.apache.org/common/docs/current/hdfs_design.html

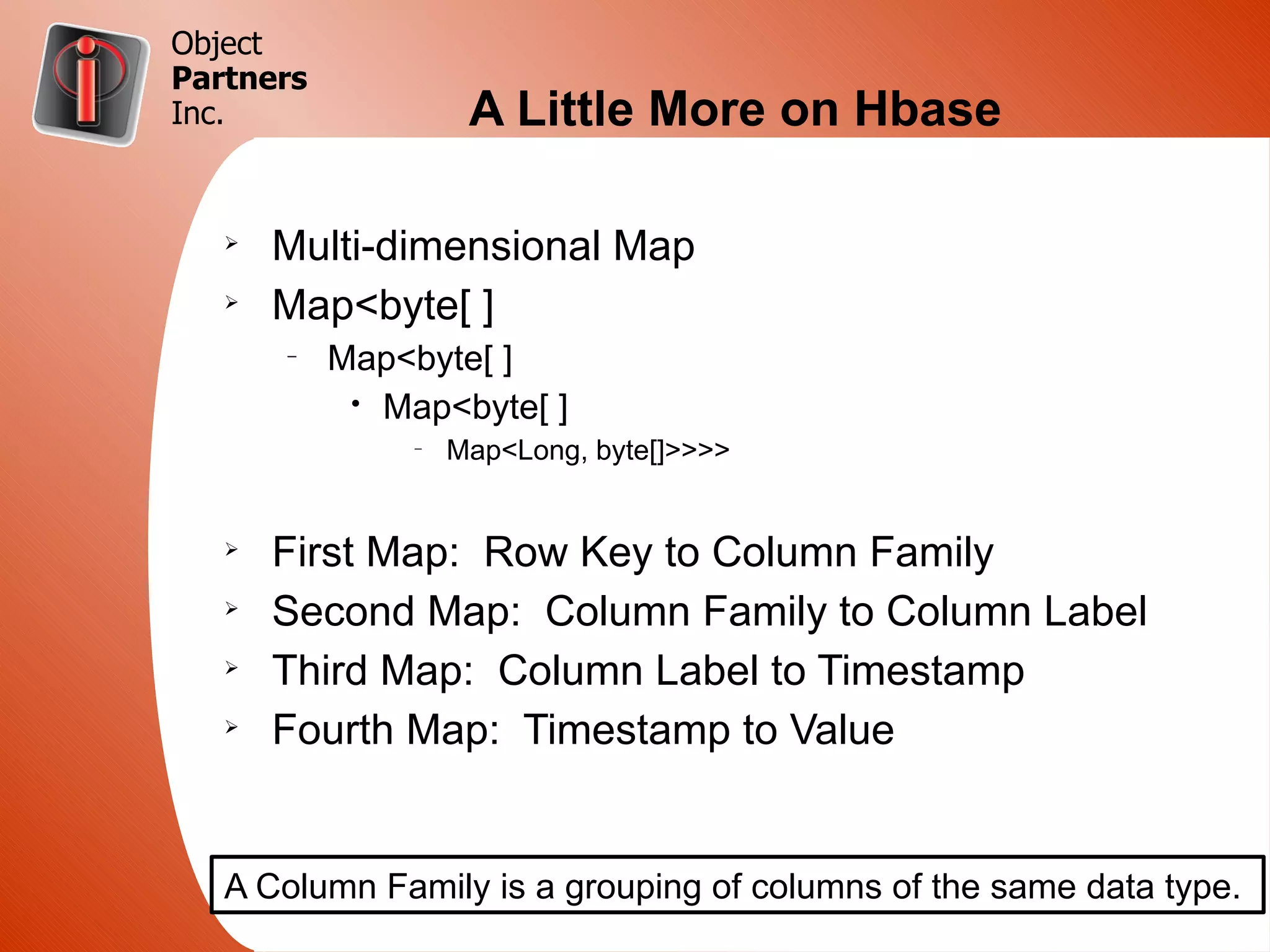

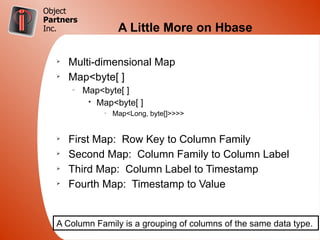

- 15. Object Partners Inc. A Little More on Hbase Ø Multi-dimensional Map Ø Map<byte[ ] – Map<byte[ ] • Map<byte[ ] – Map<Long, byte[]>>>> Ø First Map: Row Key to Column Family Ø Second Map: Column Family to Column Label Ø Third Map: Column Label to Timestamp Ø Fourth Map: Timestamp to Value A Column Family is a grouping of columns of the same data type.
- 16. Object Partners Inc. Hbase Storage Model

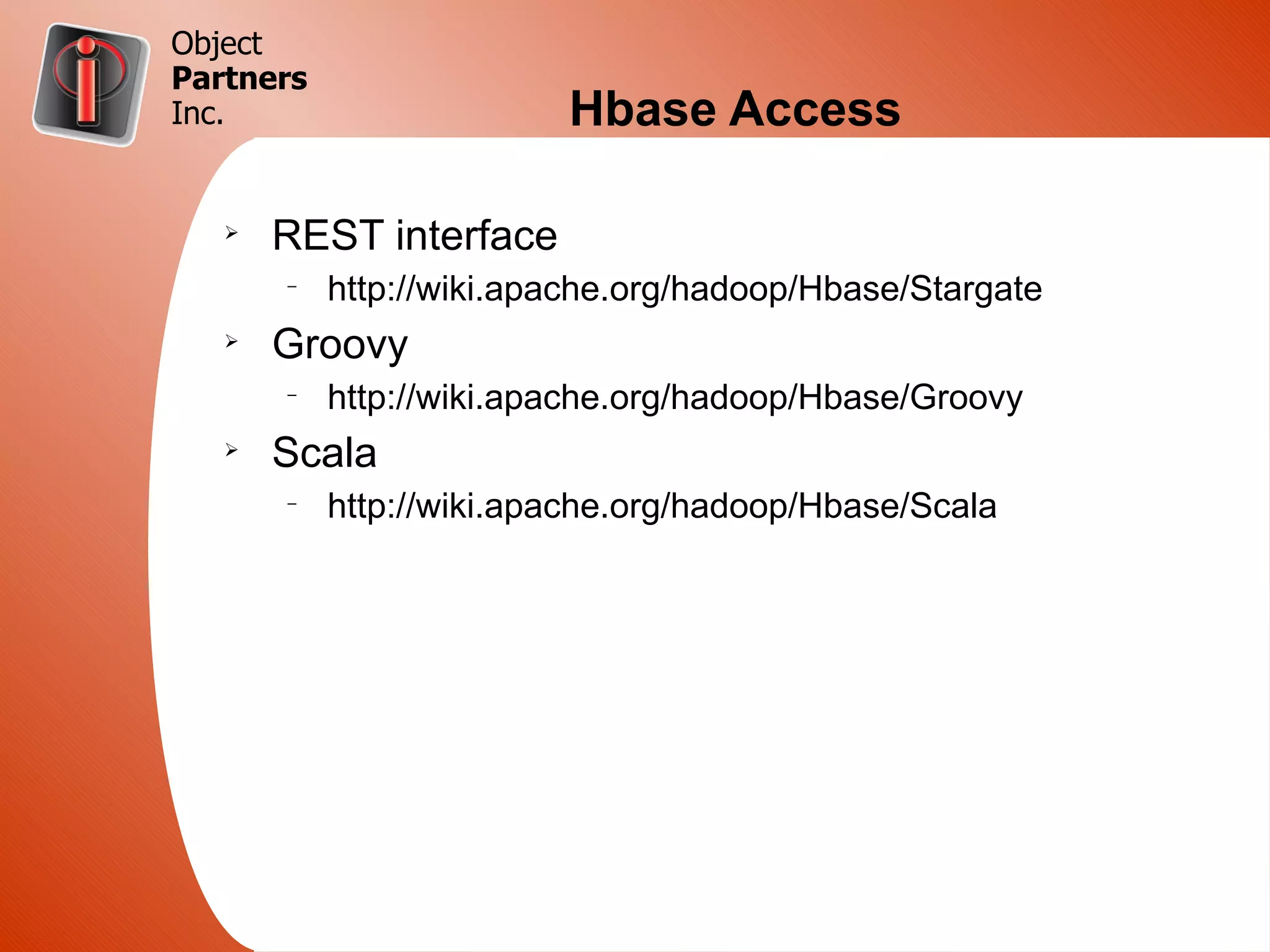

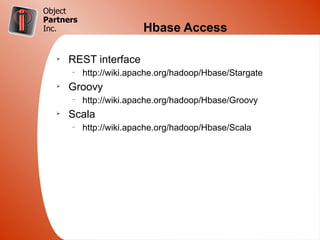

- 17. Object Partners Inc. Hbase Access Ø REST interface – http://wiki.apache.org/hadoop/Hbase/Stargate Ø Groovy – http://wiki.apache.org/hadoop/Hbase/Groovy Ø Scala – http://wiki.apache.org/hadoop/Hbase/Scala

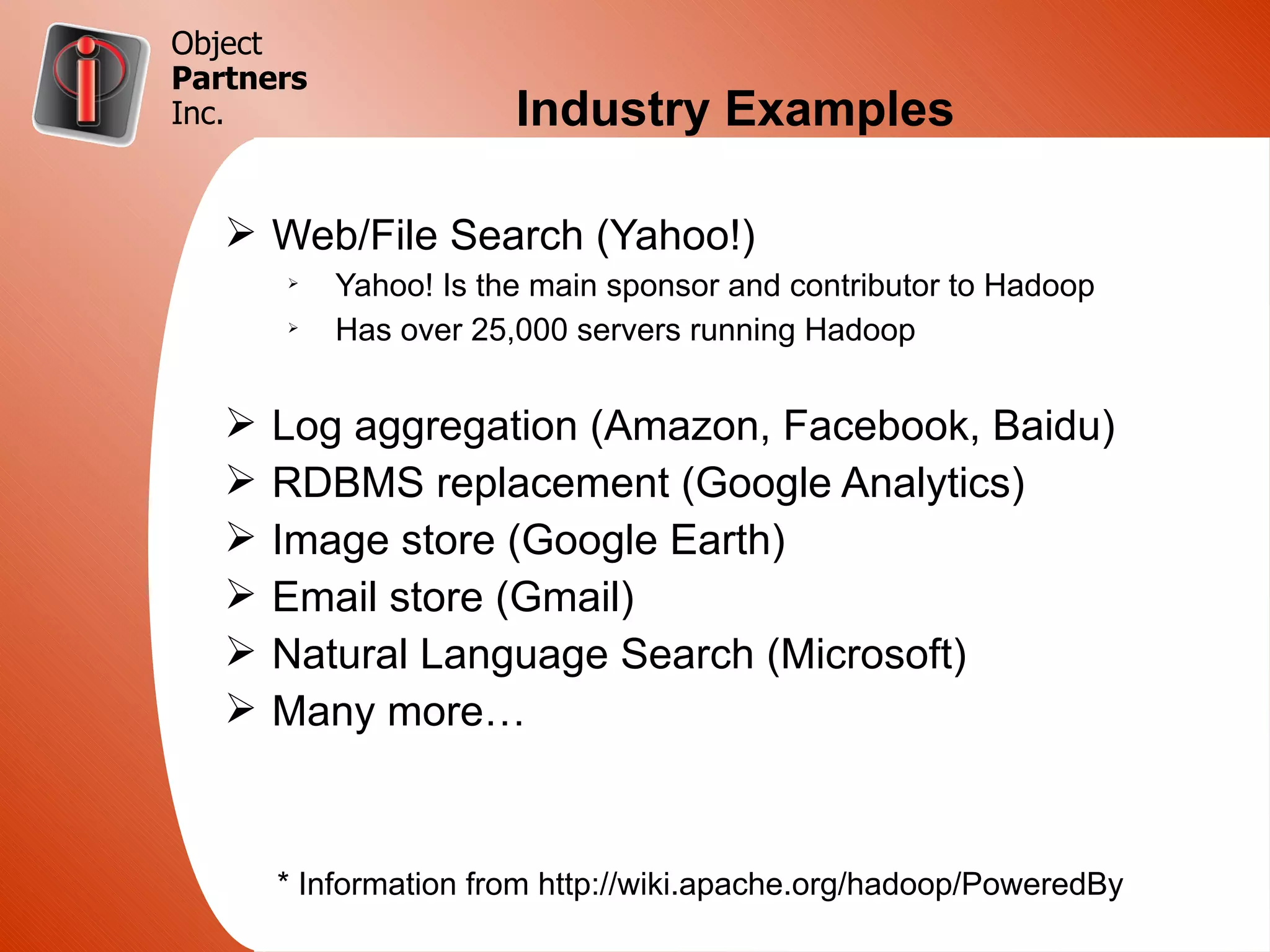

- 18. Object Partners Inc. Industry Examples Ø Web/File Search (Yahoo!) Ø Yahoo! Is the main sponsor and contributor to Hadoop Ø Has over 25,000 servers running Hadoop Ø Log aggregation (Amazon, Facebook, Baidu) Ø RDBMS replacement (Google Analytics) Ø Image store (Google Earth) Ø Email store (Gmail) Ø Natural Language Search (Microsoft) Ø Many more… * Information from http://wiki.apache.org/hadoop/PoweredBy

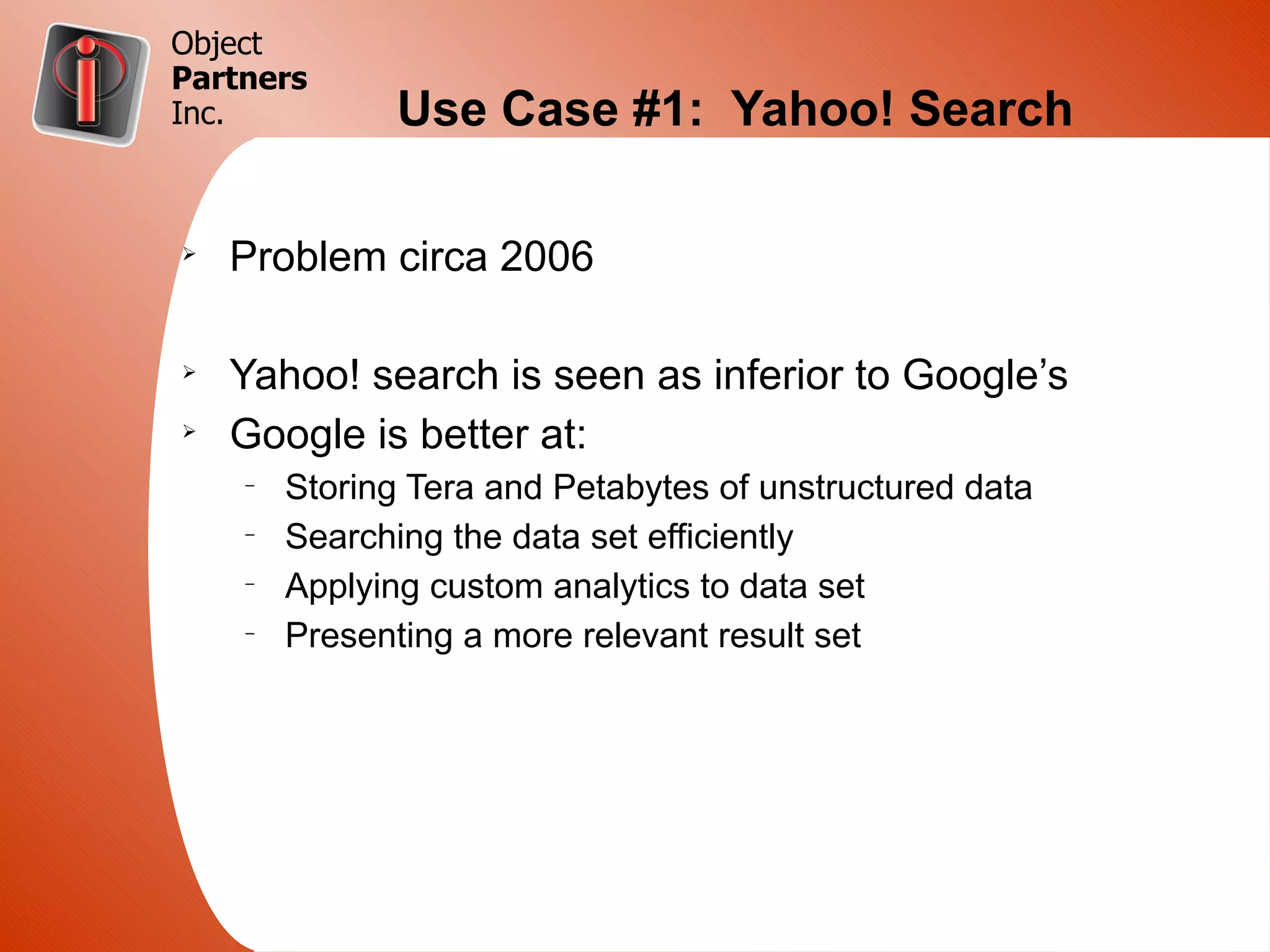

- 19. Object Partners Inc. Use Case #1: Yahoo! Search Ø Problem circa 2006 Ø Yahoo! search is seen as inferior to Google’s Ø Google is better at: – Storing Tera and Petabytes of unstructured data – Searching the data set efficiently – Applying custom analytics to data set – Presenting a more relevant result set

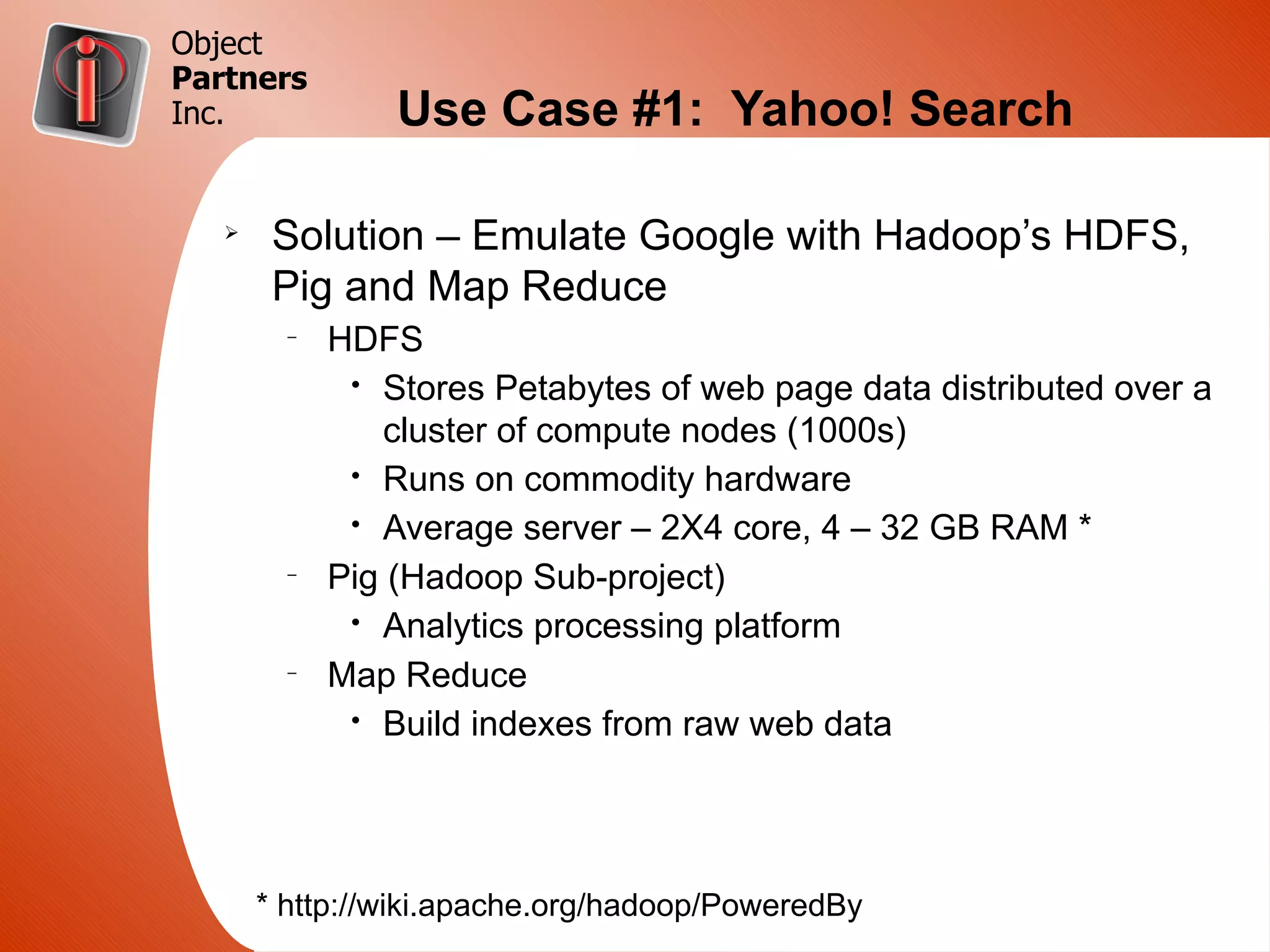

- 20. Object Partners Inc. Use Case #1: Yahoo! Search Ø Solution – Emulate Google with Hadoop’s HDFS, Pig and Map Reduce – HDFS • Stores Petabytes of web page data distributed over a cluster of compute nodes (1000s) • Runs on commodity hardware • Average server – 2X4 core, 4 – 32 GB RAM * – Pig (Hadoop Sub-project) • Analytics processing platform – Map Reduce • Build indexes from raw web data * http://wiki.apache.org/hadoop/PoweredBy

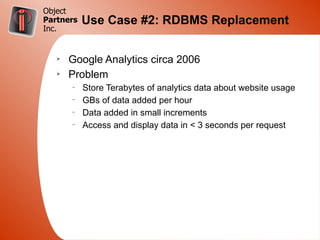

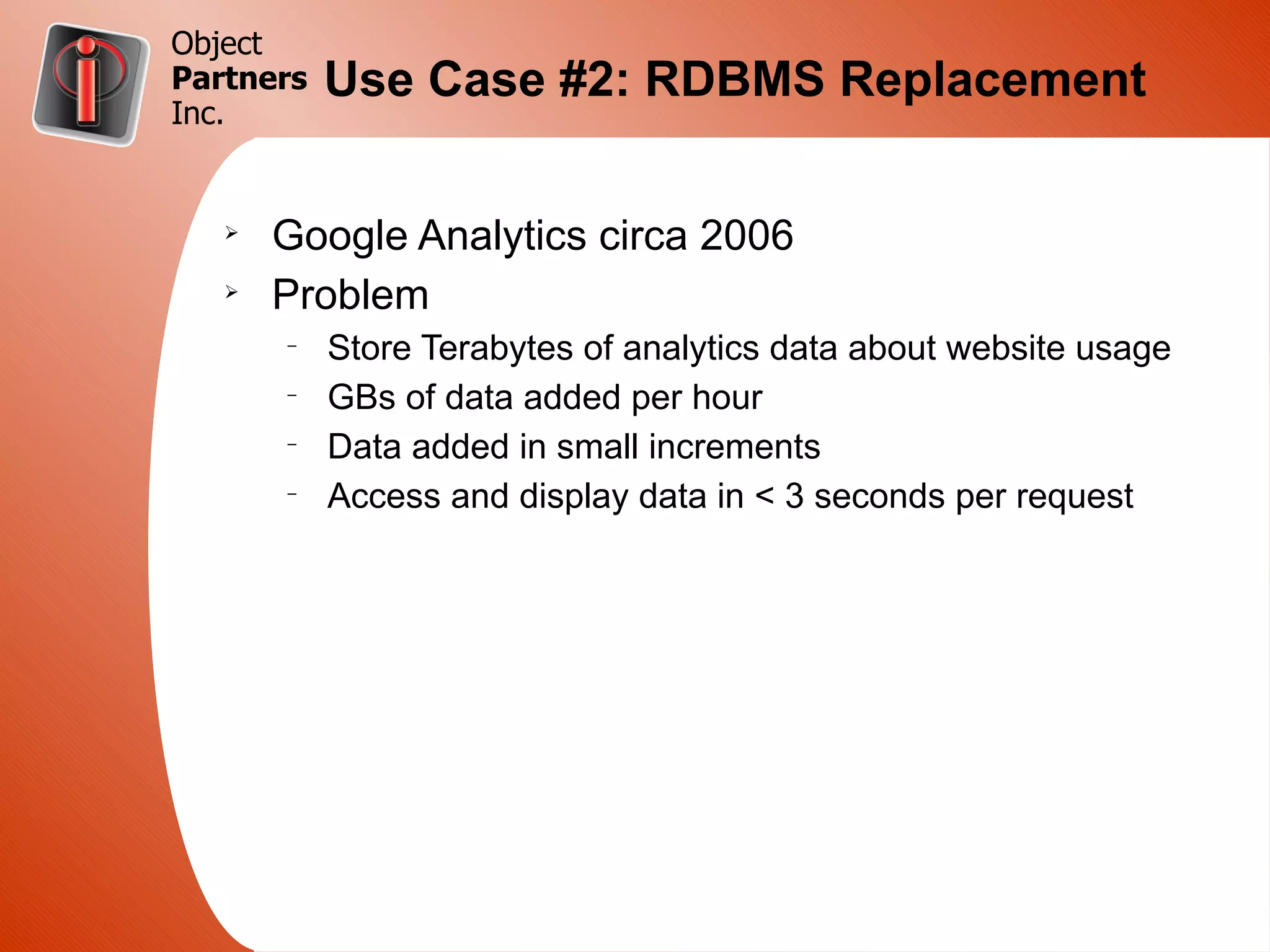

- 21. Object Partners Use Case #2: RDBMS Replacement Inc. Ø Google Analytics circa 2006 Ø Problem – Store Terabytes of analytics data about website usage – GBs of data added per hour – Data added in small increments – Access and display data in < 3 seconds per request

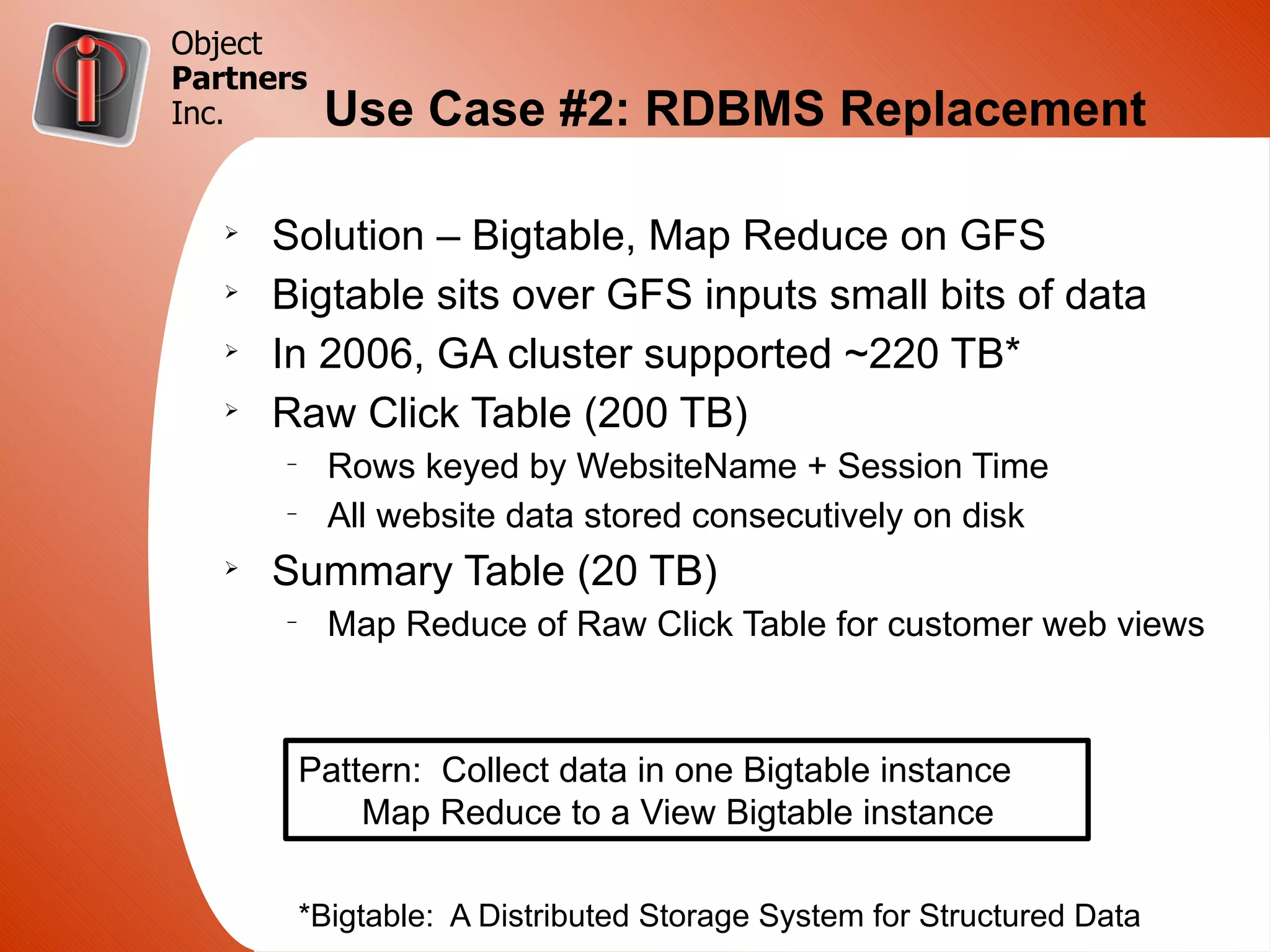

- 22. Object Partners Inc. Use Case #2: RDBMS Replacement Ø Solution – Bigtable, Map Reduce on GFS Ø Bigtable sits over GFS inputs small bits of data Ø In 2006, GA cluster supported ~220 TB* Ø Raw Click Table (200 TB) – Rows keyed by WebsiteName + Session Time – All website data stored consecutively on disk Ø Summary Table (20 TB) – Map Reduce of Raw Click Table for customer web views Pattern: Collect data in one Bigtable instance Map Reduce to a View Bigtable instance *Bigtable: A Distributed Storage System for Structured Data

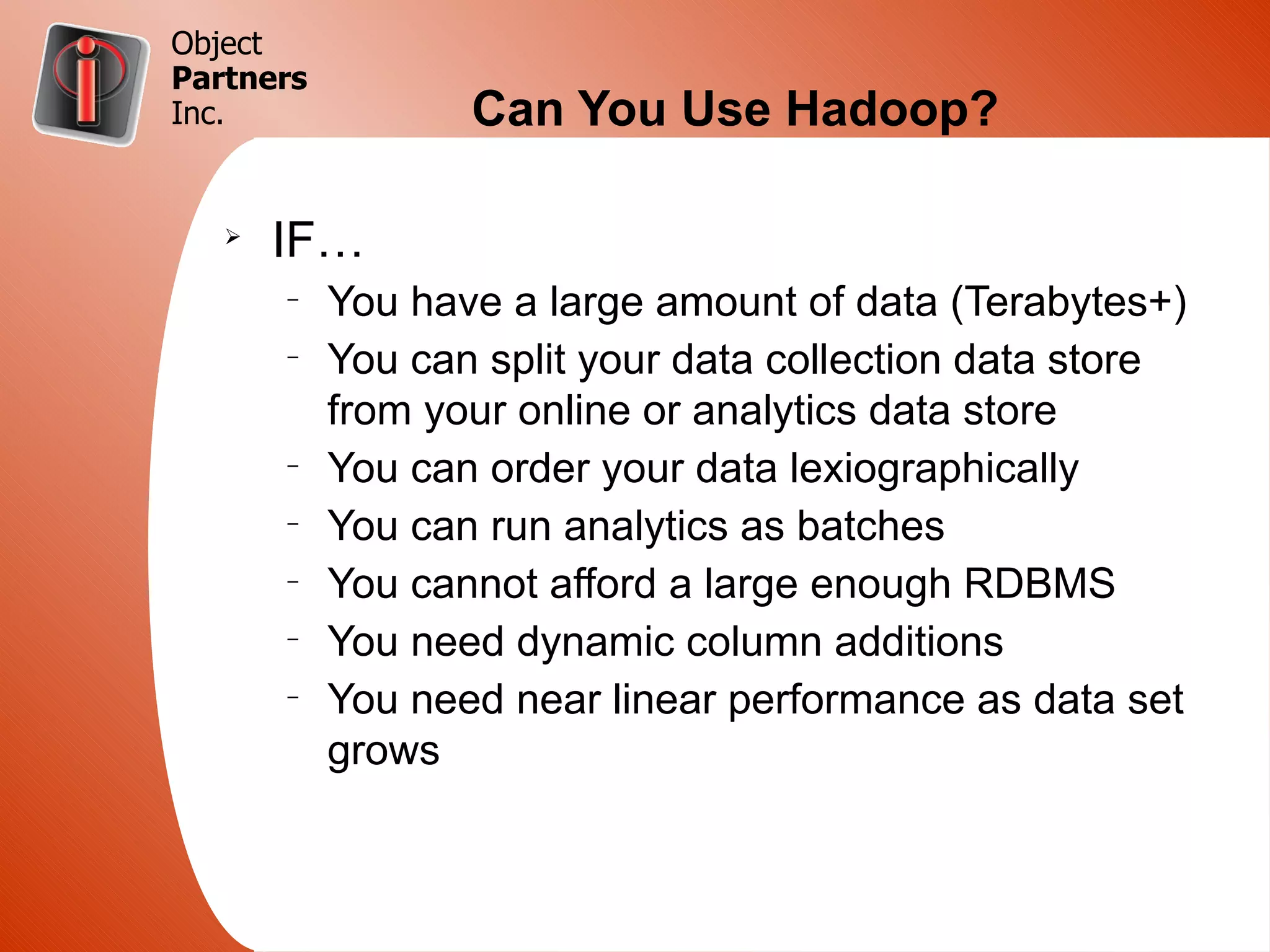

- 23. Object Partners Inc. Can You Use Hadoop? Ø IF… – You have a large amount of data (Terabytes+) – You can split your data collection data store from your online or analytics data store – You can order your data lexiographically – You can run analytics as batches – You cannot afford a large enough RDBMS – You need dynamic column additions – You need near linear performance as data set grows

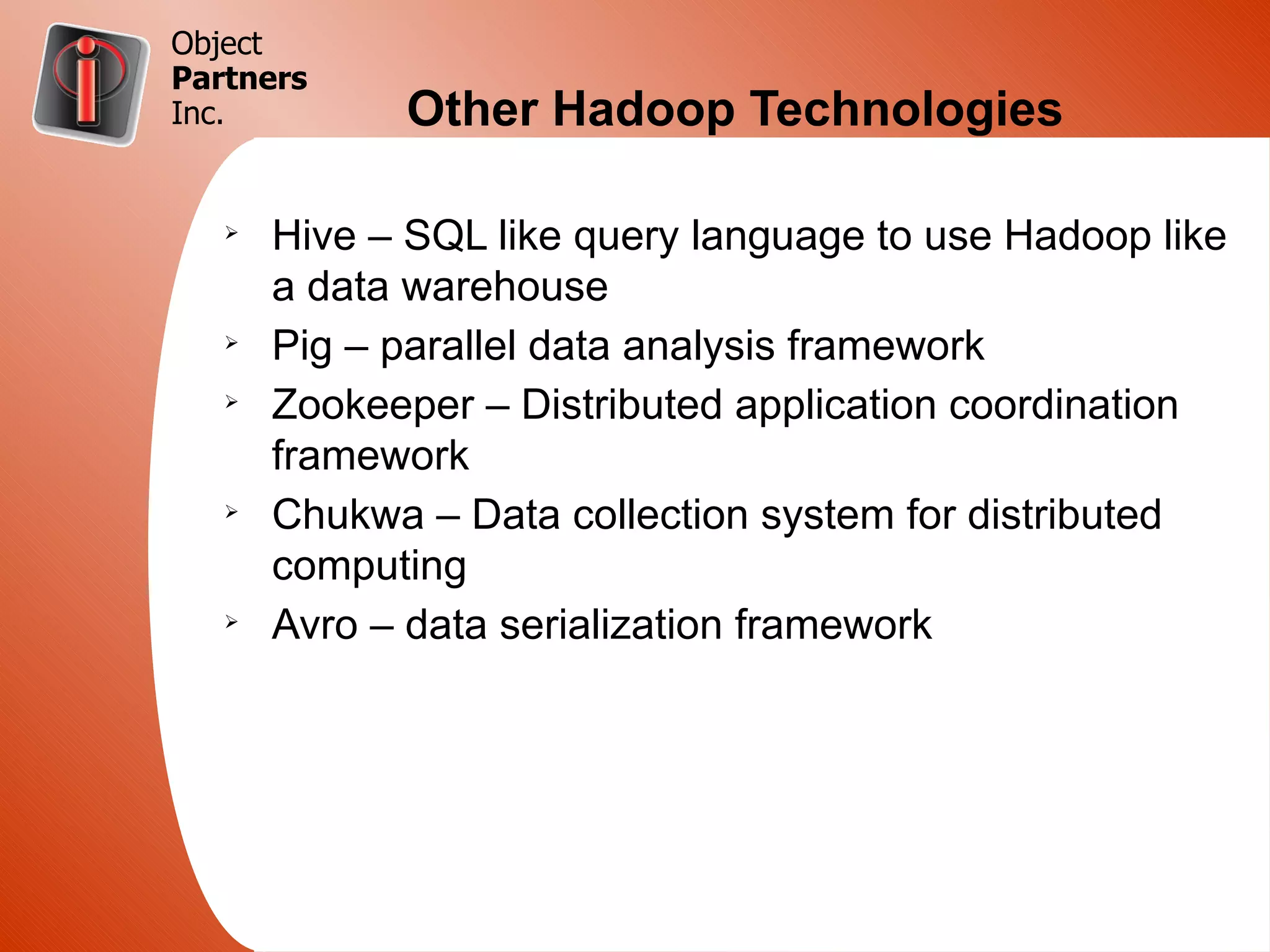

- 24. Object Partners Inc. Other Hadoop Technologies Ø Hive – SQL like query language to use Hadoop like a data warehouse Ø Pig – parallel data analysis framework Ø Zookeeper – Distributed application coordination framework Ø Chukwa – Data collection system for distributed computing Ø Avro – data serialization framework

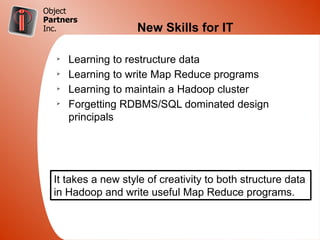

- 25. Object Partners Inc. New Skills for IT Ø Learning to restructure data Ø Learning to write Map Reduce programs Ø Learning to maintain a Hadoop cluster Ø Forgetting RDBMS/SQL dominated design principals It takes a new style of creativity to both structure data in Hadoop and write useful Map Reduce programs.

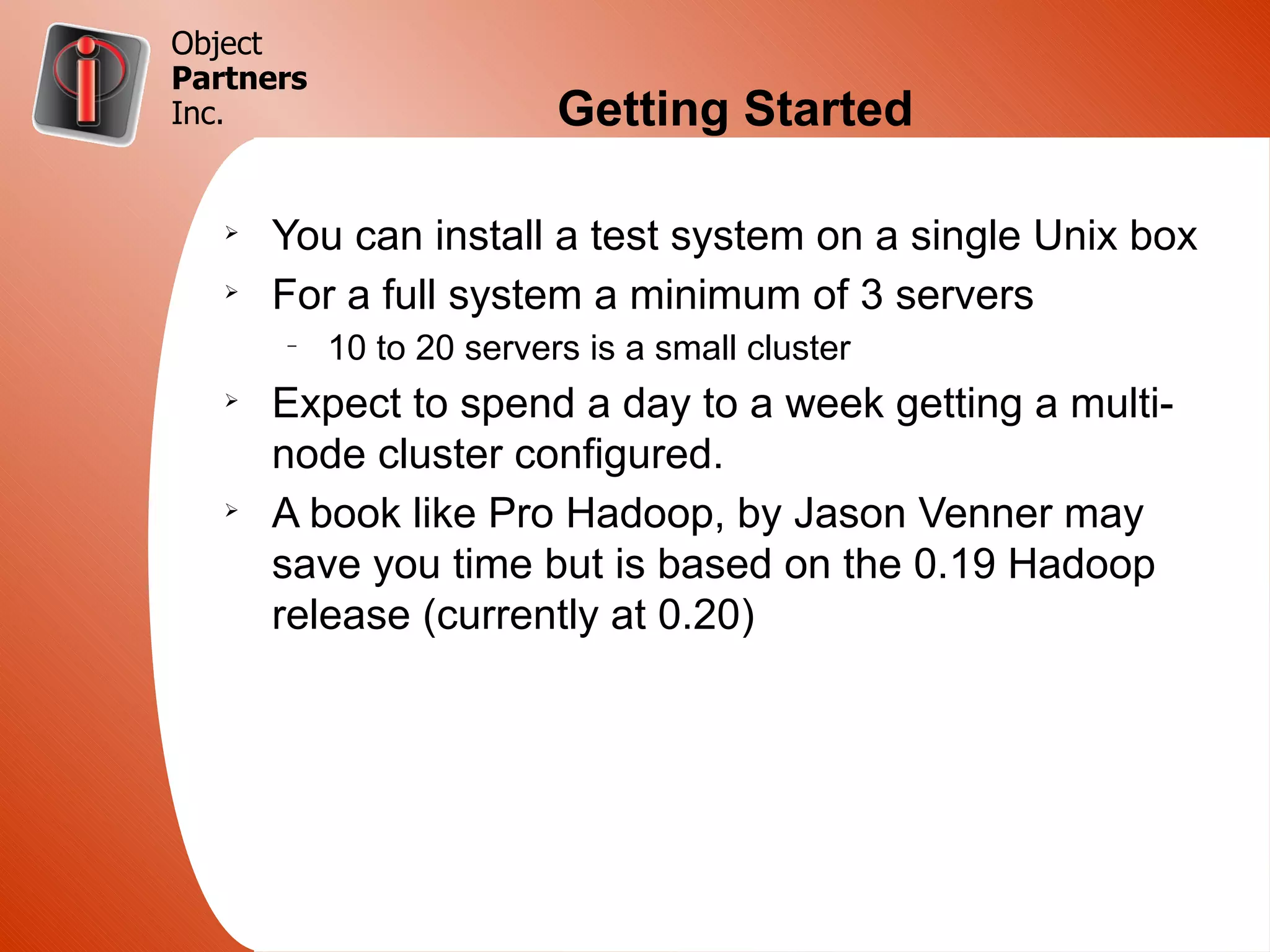

- 26. Object Partners Inc. Getting Started Ø You can install a test system on a single Unix box Ø For a full system a minimum of 3 servers – 10 to 20 servers is a small cluster Ø Expect to spend a day to a week getting a multi- node cluster configured. Ø A book like Pro Hadoop, by Jason Venner may save you time but is based on the 0.19 Hadoop release (currently at 0.20)

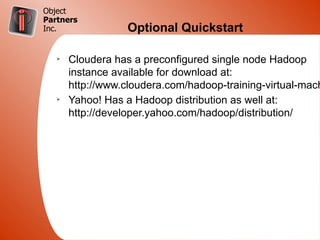

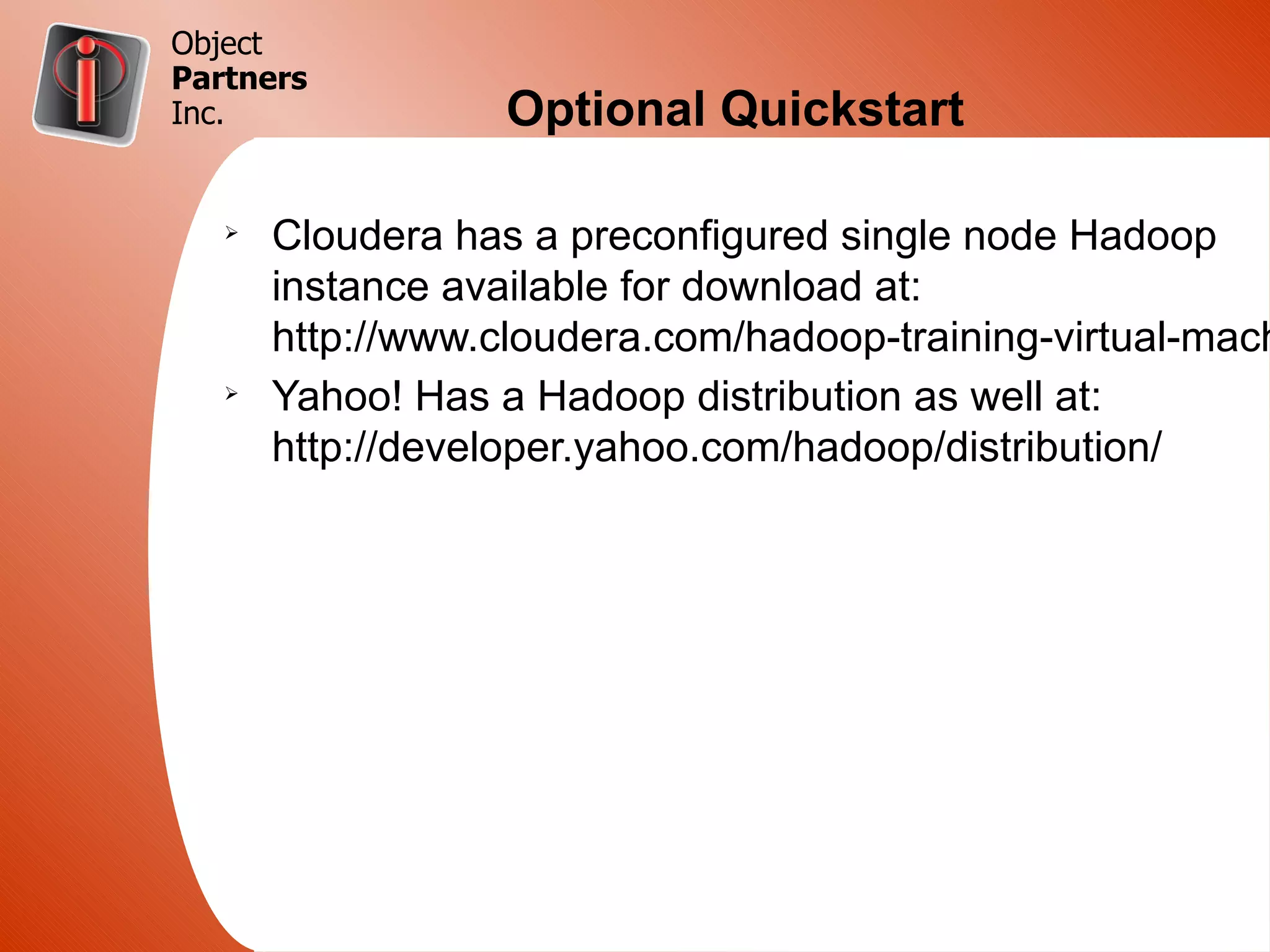

- 27. Object Partners Inc. Optional Quickstart Ø Cloudera has a preconfigured single node Hadoop instance available for download at: http://www.cloudera.com/hadoop-training-virtual-mach Ø Yahoo! Has a Hadoop distribution as well at: http://developer.yahoo.com/hadoop/distribution/

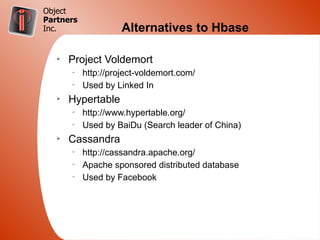

- 28. Object Partners Inc. Alternatives to Hbase Ø Project Voldemort – http://project-voldemort.com/ – Used by Linked In Ø Hypertable – http://www.hypertable.org/ – Used by BaiDu (Search leader of China) Ø Cassandra – http://cassandra.apache.org/ – Apache sponsored distributed database – Used by Facebook

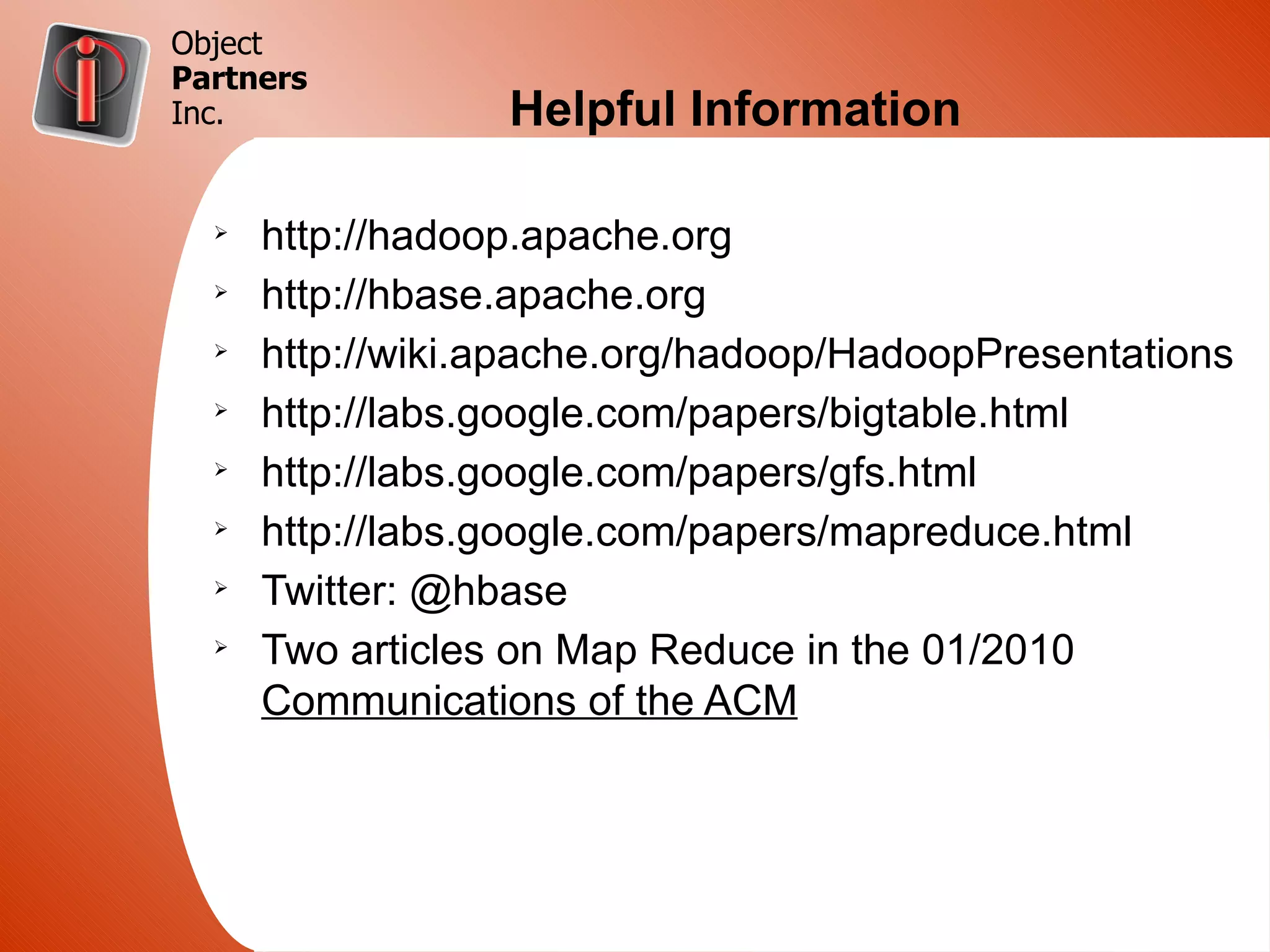

- 29. Object Partners Inc. Helpful Information Ø http://hadoop.apache.org Ø http://hbase.apache.org Ø http://wiki.apache.org/hadoop/HadoopPresentations Ø http://labs.google.com/papers/bigtable.html Ø http://labs.google.com/papers/gfs.html Ø http://labs.google.com/papers/mapreduce.html Ø Twitter: @hbase Ø Two articles on Map Reduce in the 01/2010 Communications of the ACM
- 30.
