Java 101: Intro to Java
Programming

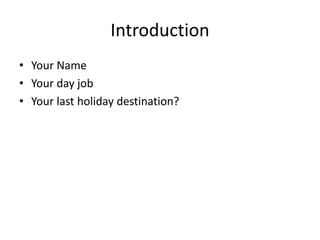

Introduction
• Your Name
• Your day job
• Your last holiday destination?

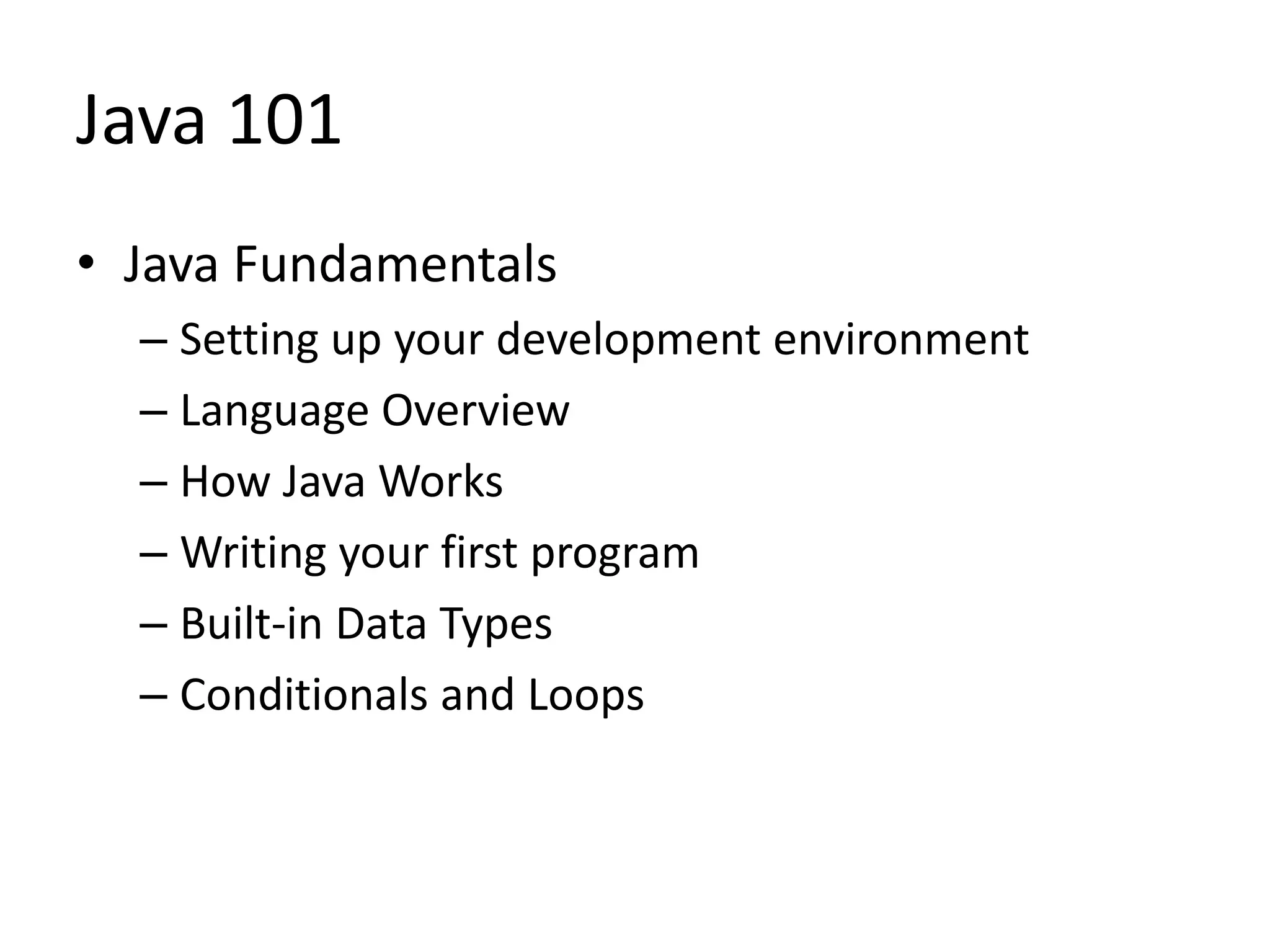

Java 101
• Java Fundamentals
– Setting up your development environment
– Language Overview
– How Java Works
– Writing your first program
– Built-in Data Types
– Conditionals and Loops

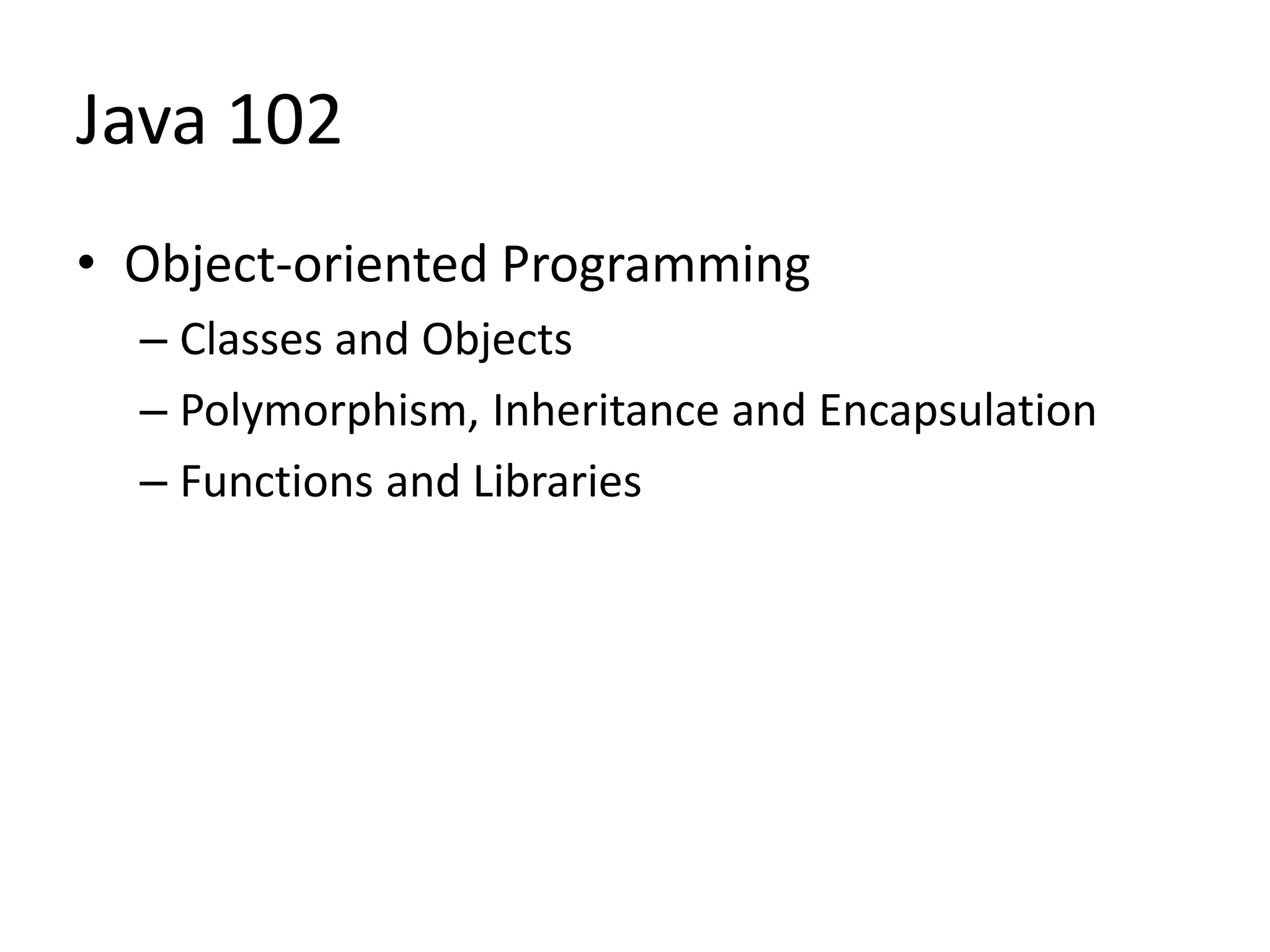

Java 102
• Object-oriented Programming
– Classes and Objects
– Polymorphism, Inheritance and Encapsulation
– Functions and Libraries

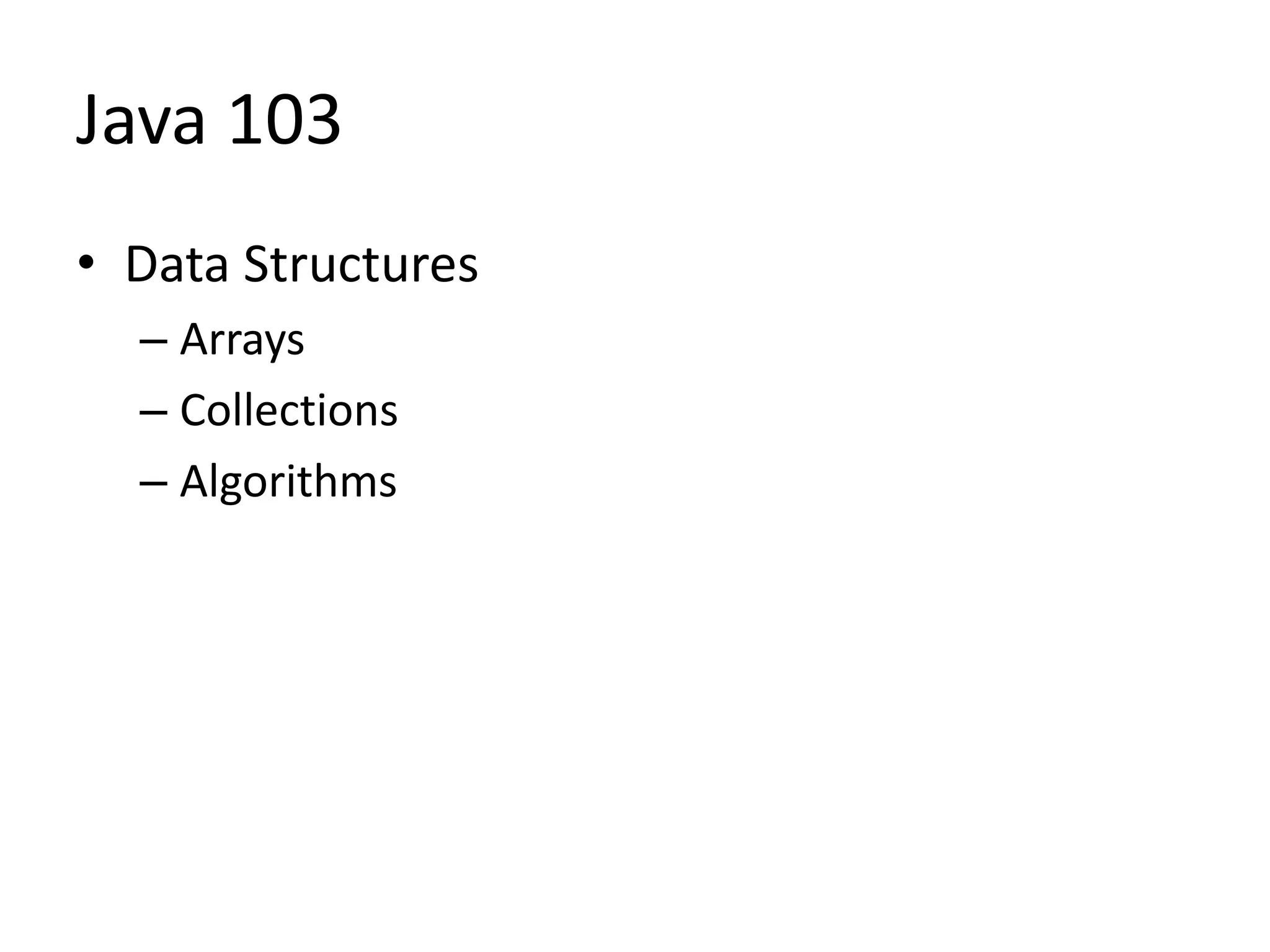

Java 103
• Data Structures
– Arrays
– Collections
– Algorithms

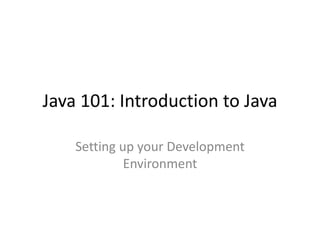

Java 101: Introduction to Java
Setting up your Development
Environment

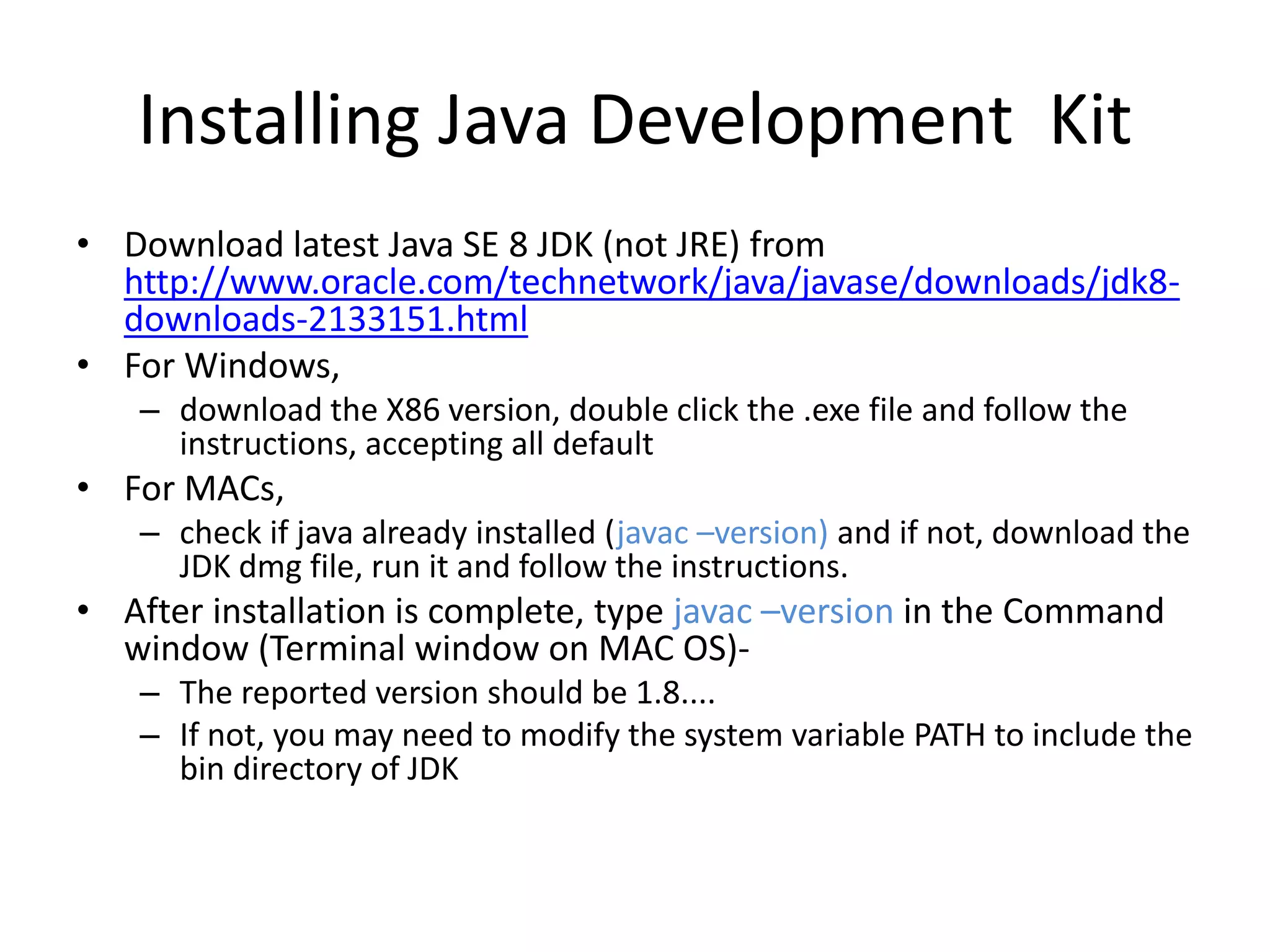

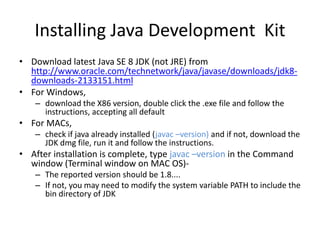

Installing Java Development Kit
• Download latest Java SE 8 JDK (not JRE) from
http://www.oracle.com/technetwork/java/javase/downloads/jdk8-
downloads-2133151.html
• For Windows,
– download the X86 version, double click the .exe file and follow the
instructions, accepting all default
• For MACs,
– check if java already installed (javac –version) and if not, download the
JDK dmg file, run it and follow the instructions.
• After installation is complete, type javac –version in the Command
window (Terminal window on MAC OS)-
– The reported version should be 1.8....
– If not, you may need to modify the system variable PATH to include the
bin directory of JDK

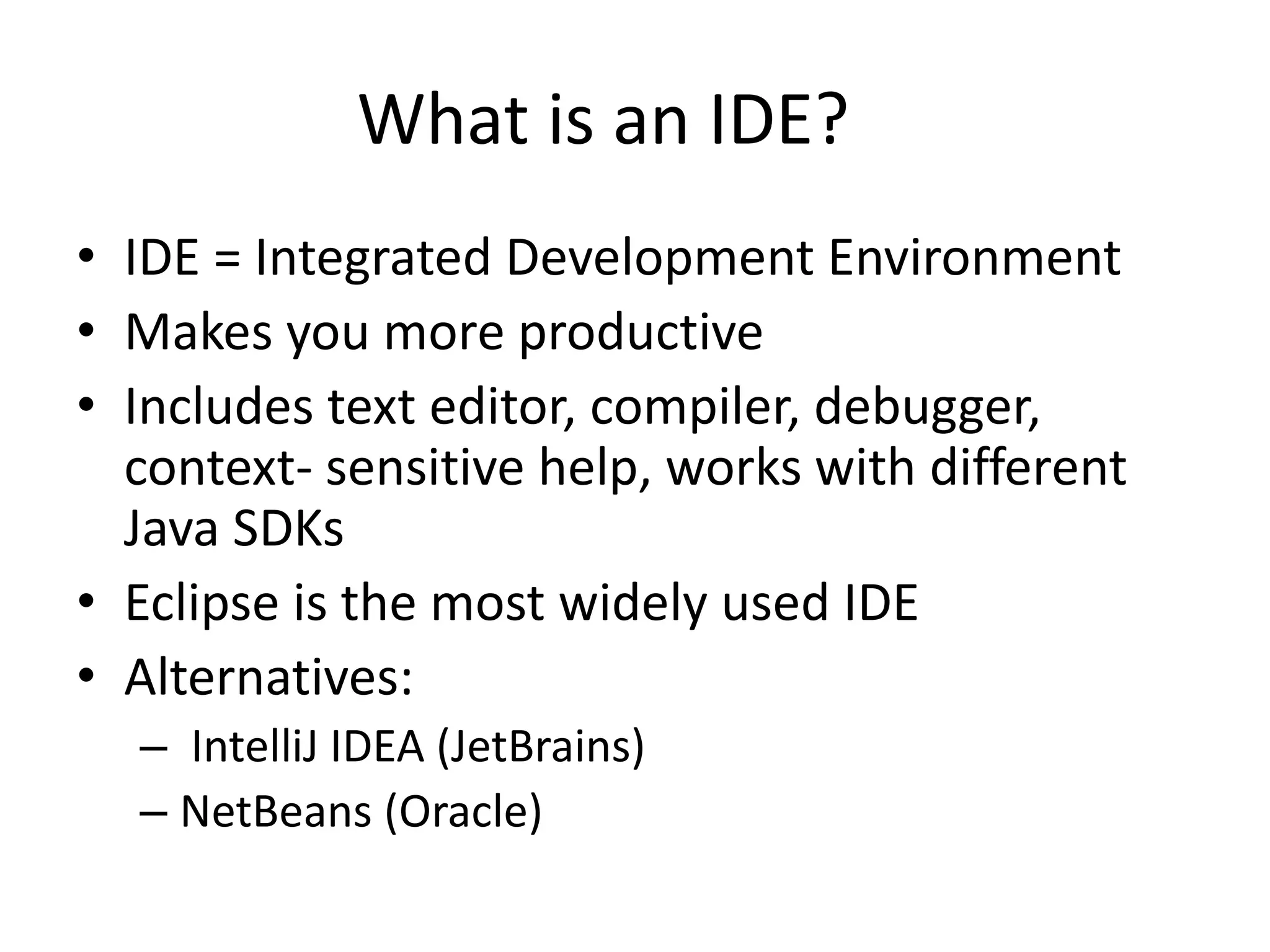

What is an IDE?
• IDE = Integrated Development Environment
• Makes you more productive
• Includes text editor, compiler, debugger,
context- sensitive help, works with different
Java SDKs
• Eclipse is the most widely used IDE
• Alternatives:
– IntelliJ IDEA (JetBrains)
– NetBeans (Oracle)

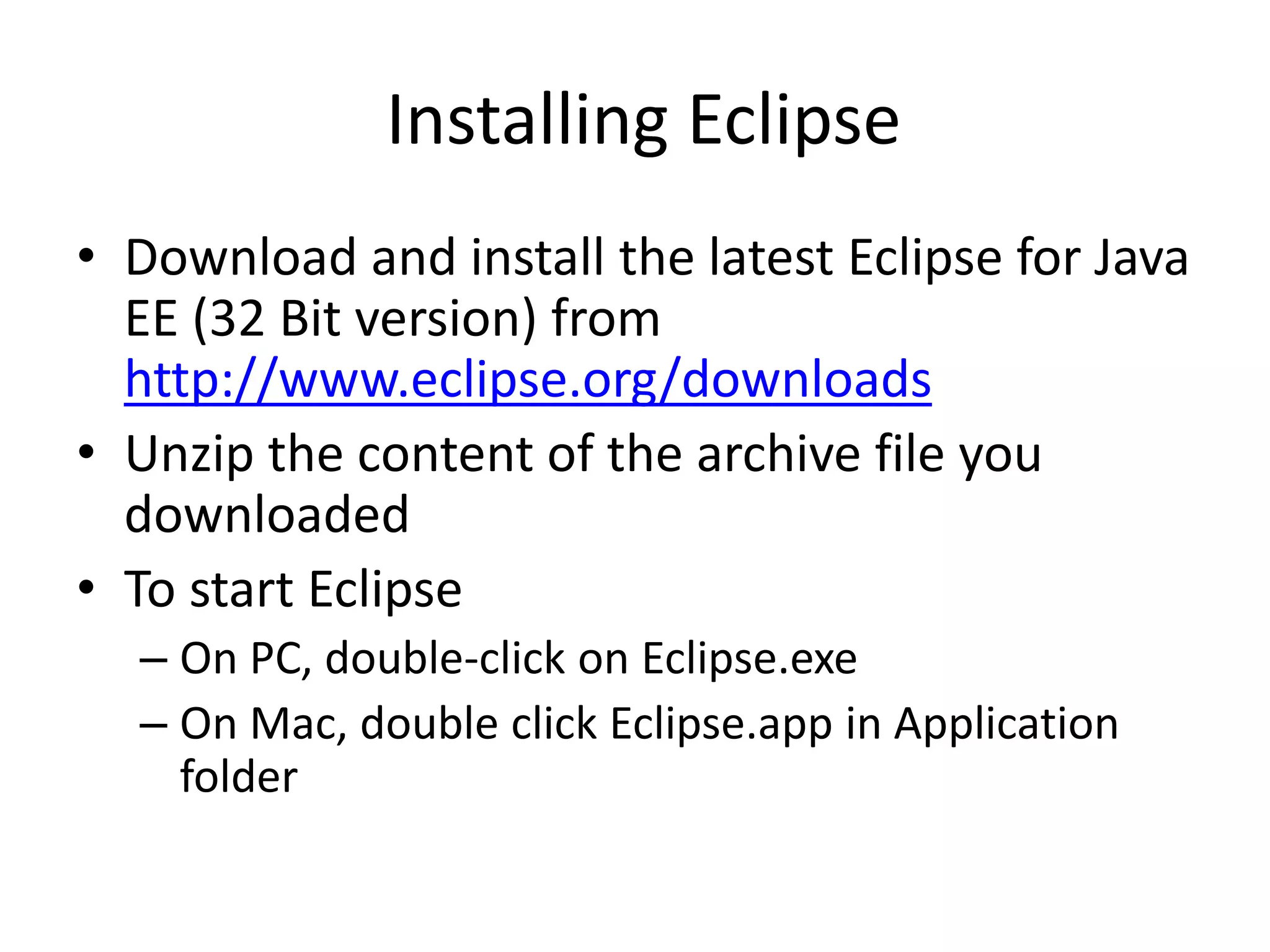

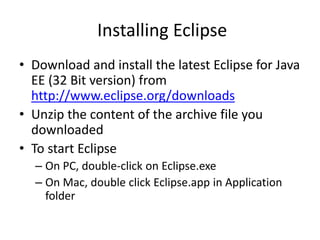

Installing Eclipse
• Download and install the latest Eclipse for Java
EE (32 Bit version) from
http://www.eclipse.org/downloads
• Unzip the content of the archive file you
downloaded
• To start Eclipse
– On PC, double-click on Eclipse.exe
– On Mac, double click Eclipse.app in Application
folder

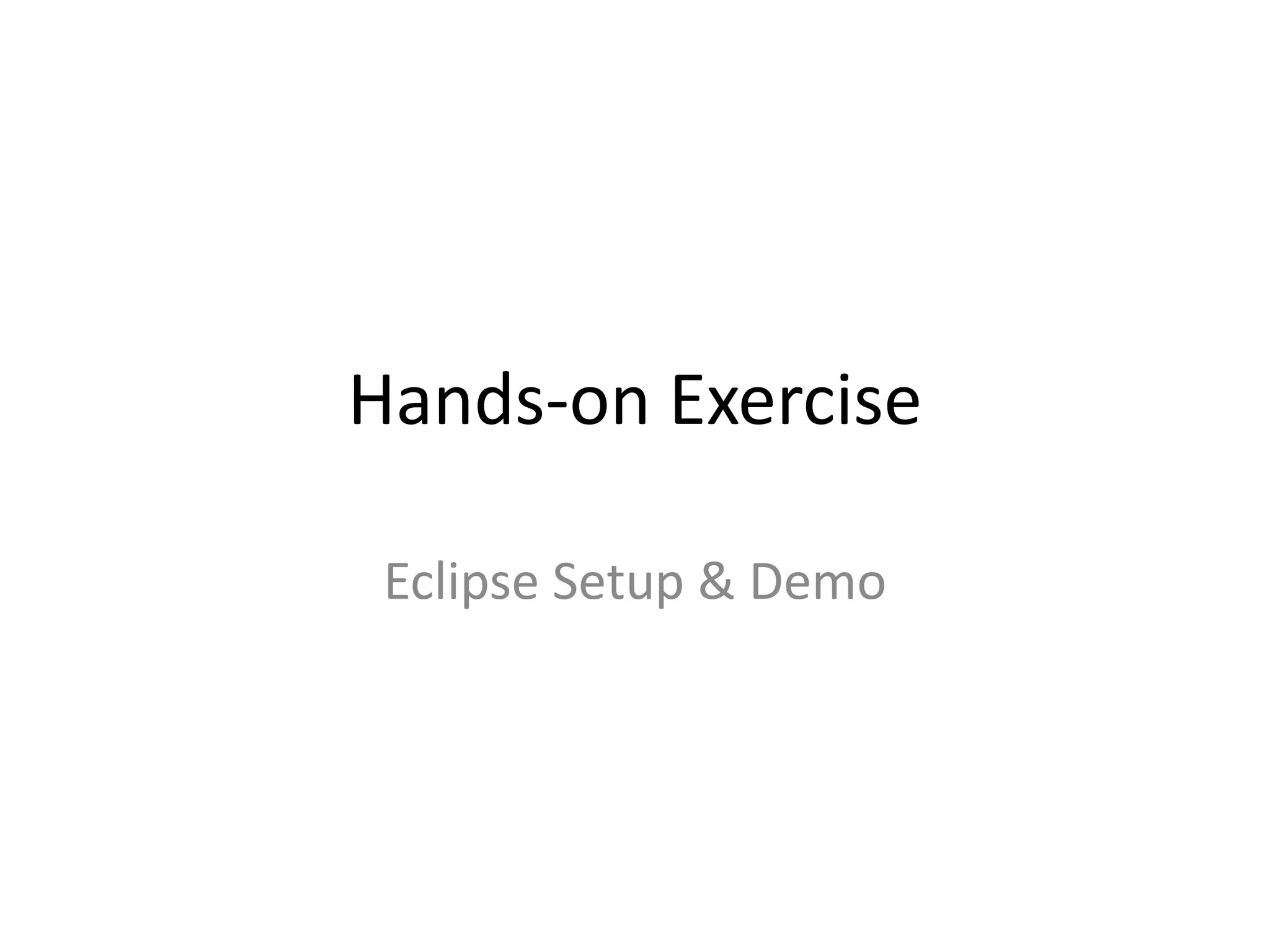

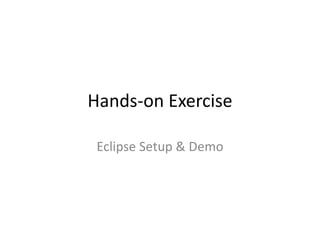

Hands-on Exercise
Eclipse Setup & Demo

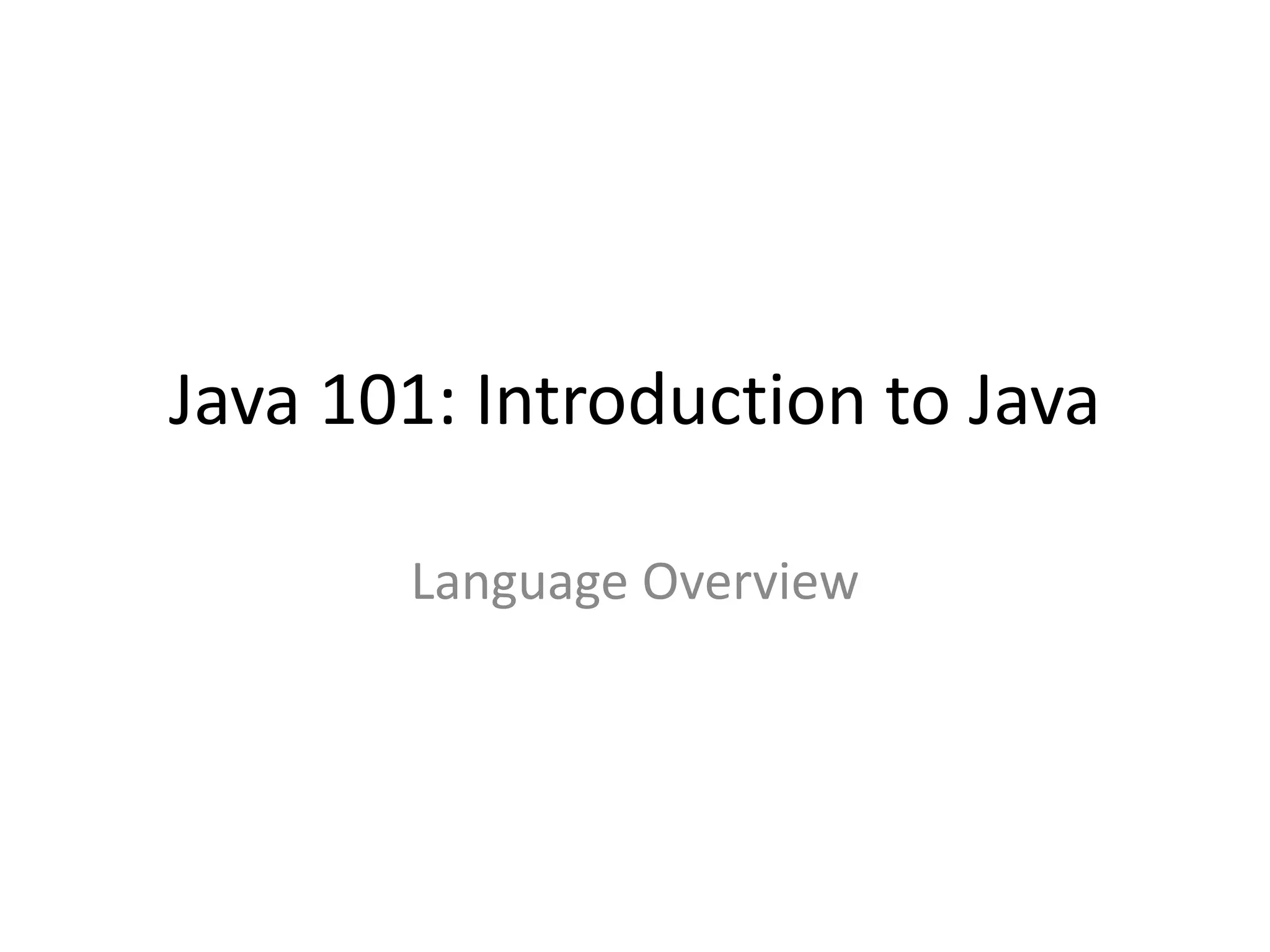

Java 101: Introduction to Java
Language Overview
Java Language Overview
• Object-oriented
• Statically typed
• Widely available
• Widely used

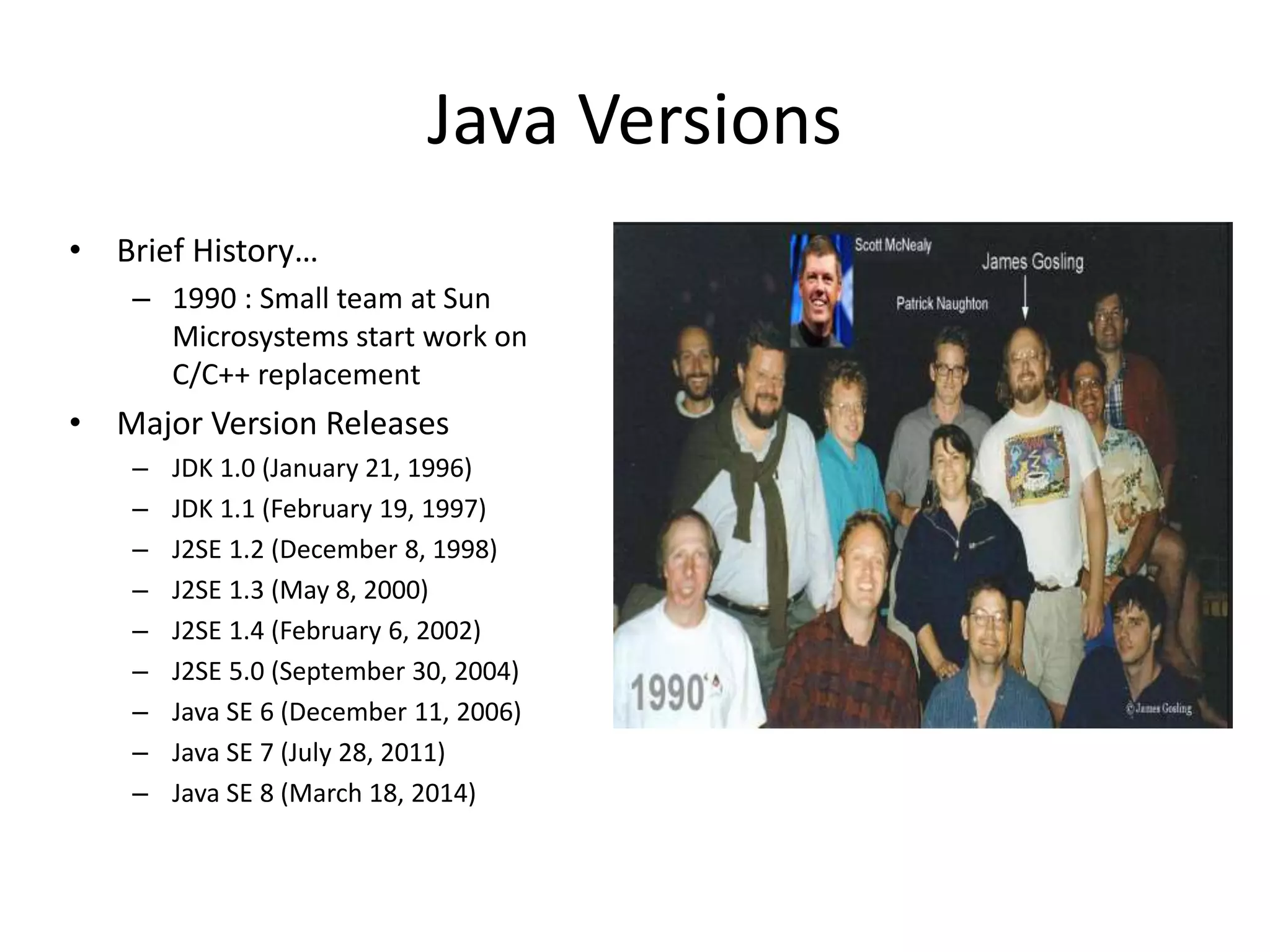

Java Versions
• Brief History…
– 1990 : Small team at Sun
Microsystems start work on
C/C++ replacement
• Major Version Releases
– JDK 1.0 (January 21, 1996)
– JDK 1.1 (February 19, 1997)
– J2SE 1.2 (December 8, 1998)
– J2SE 1.3 (May 8, 2000)
– J2SE 1.4 (February 6, 2002)
– J2SE 5.0 (September 30, 2004)
– Java SE 6 (December 11, 2006)
– Java SE 7 (July 28, 2011)
– Java SE 8 (March 18, 2014)

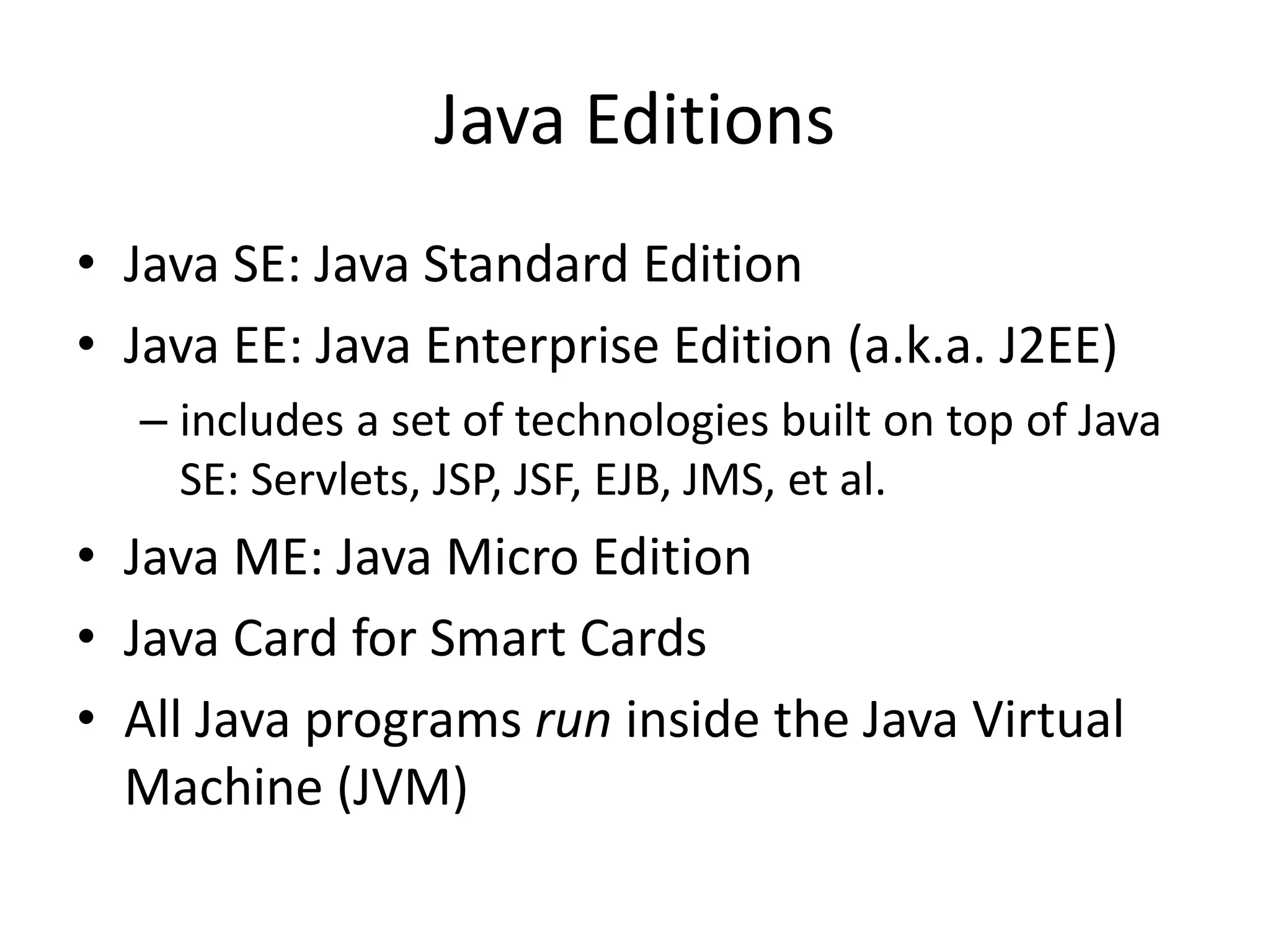

Java Editions
• Java SE: Java Standard Edition
• Java EE: Java Enterprise Edition (a.k.a. J2EE)
– includes a set of technologies built on top of Java
SE: Servlets, JSP, JSF, EJB, JMS, et al.
• Java ME: Java Micro Edition
• Java Card for Smart Cards
• All Java programs run inside the Java Virtual
Machine (JVM)

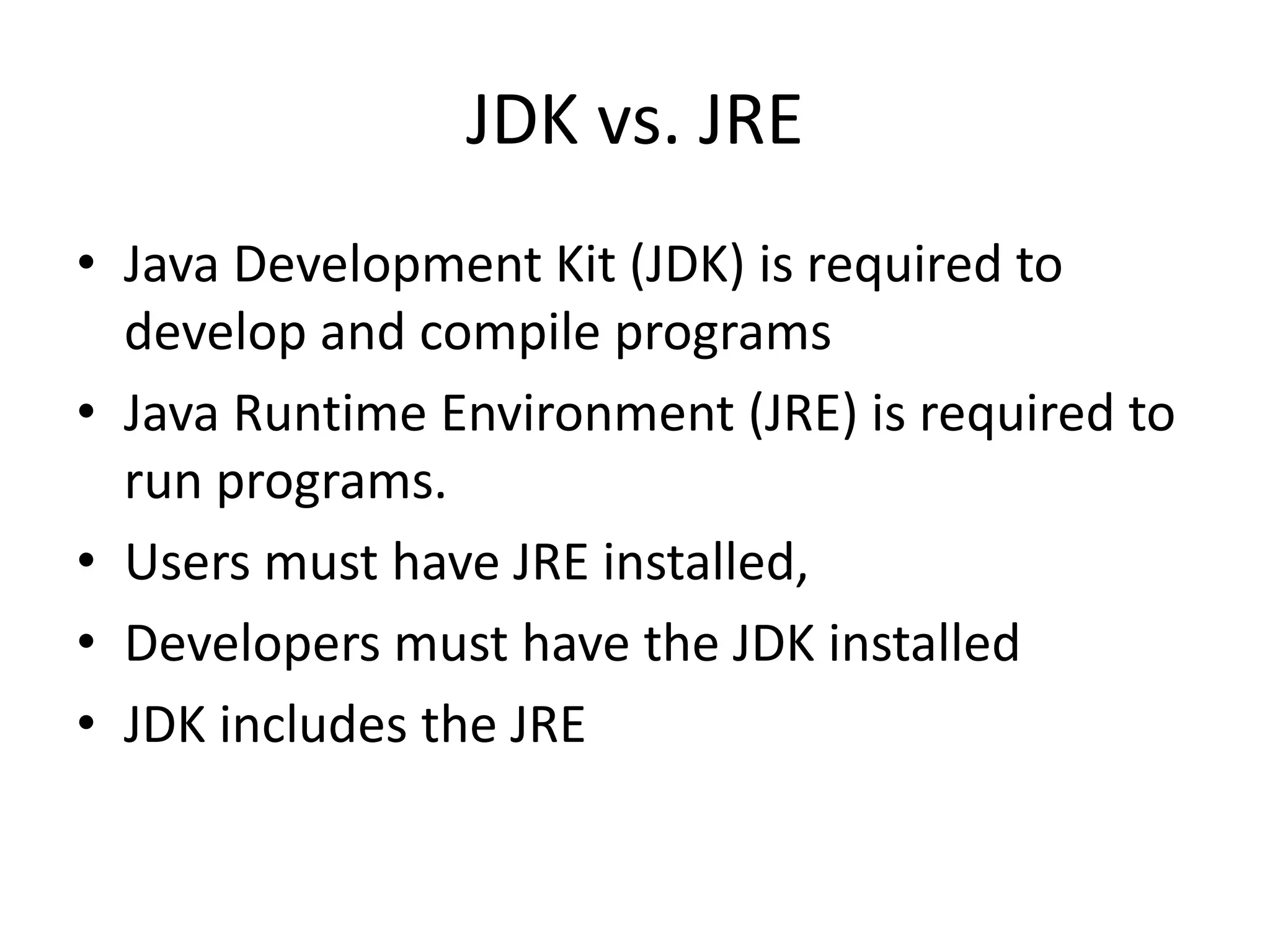

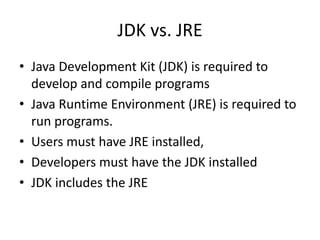

JDK vs. JRE
• Java Development Kit (JDK) is required to
develop and compile programs
• Java Runtime Environment (JRE) is required to
run programs.
• Users must have JRE installed,
• Developers must have the JDK installed
• JDK includes the JRE

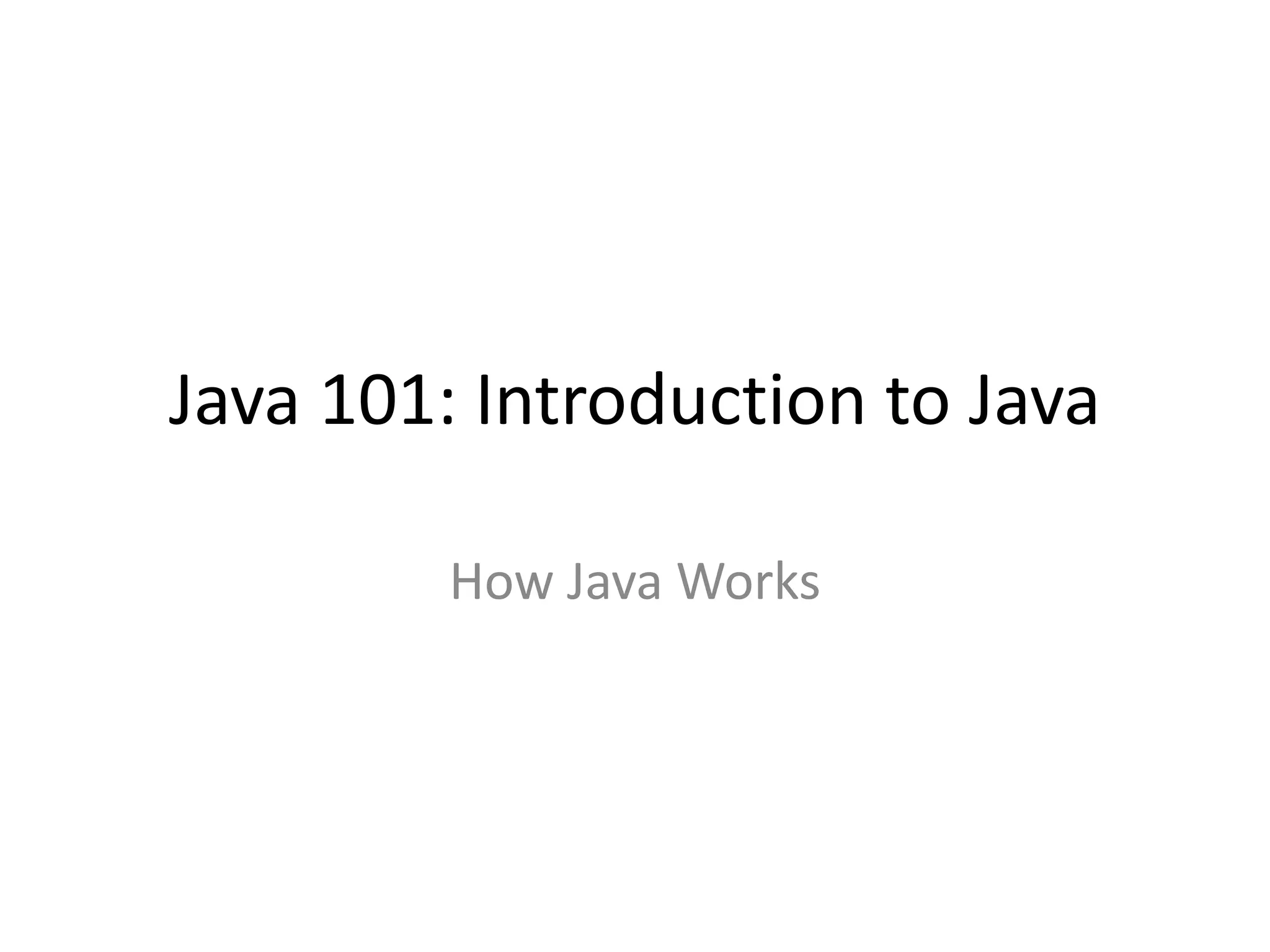

Java 101: Introduction to Java
How Java Works

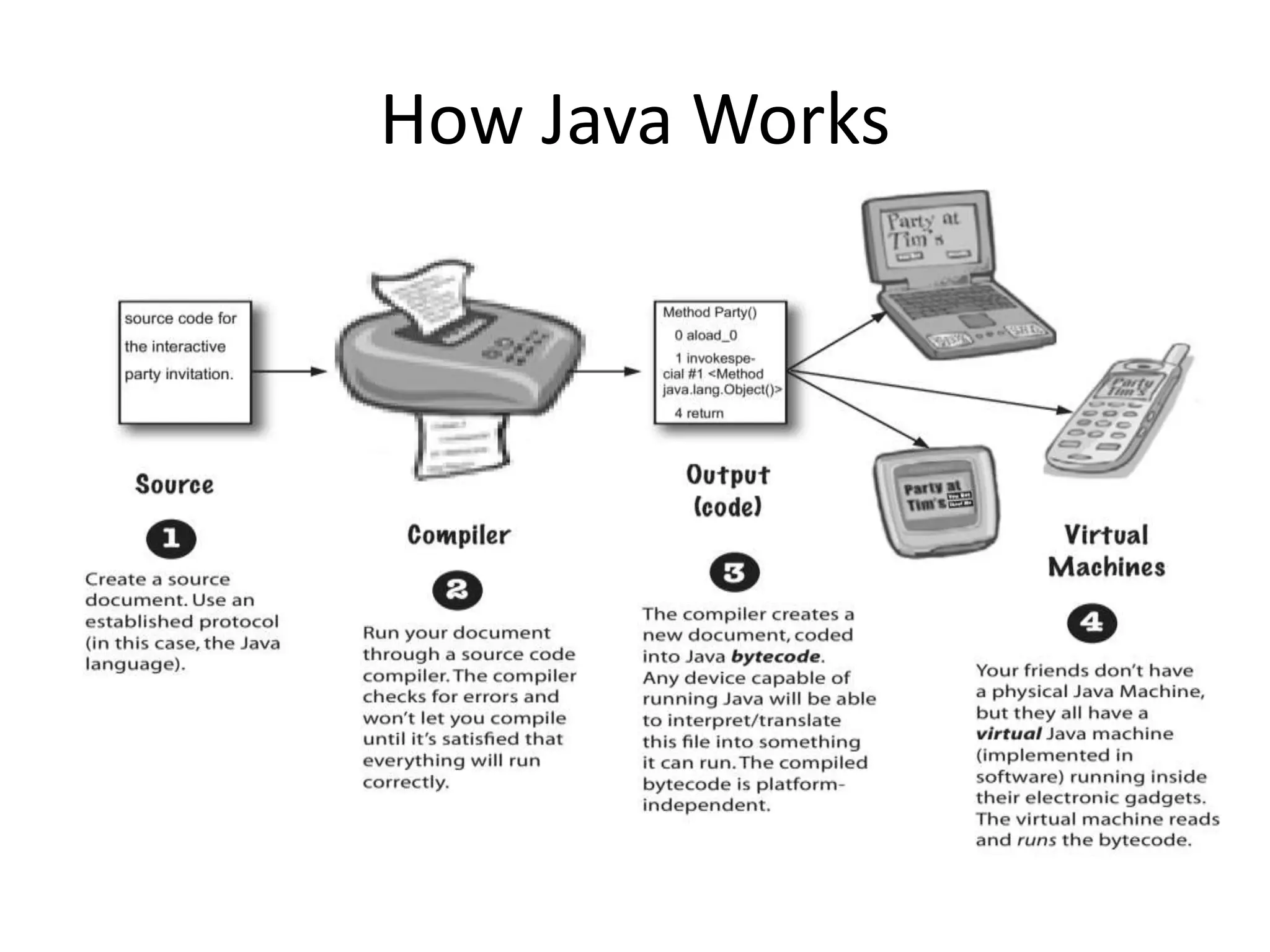

How Java Works

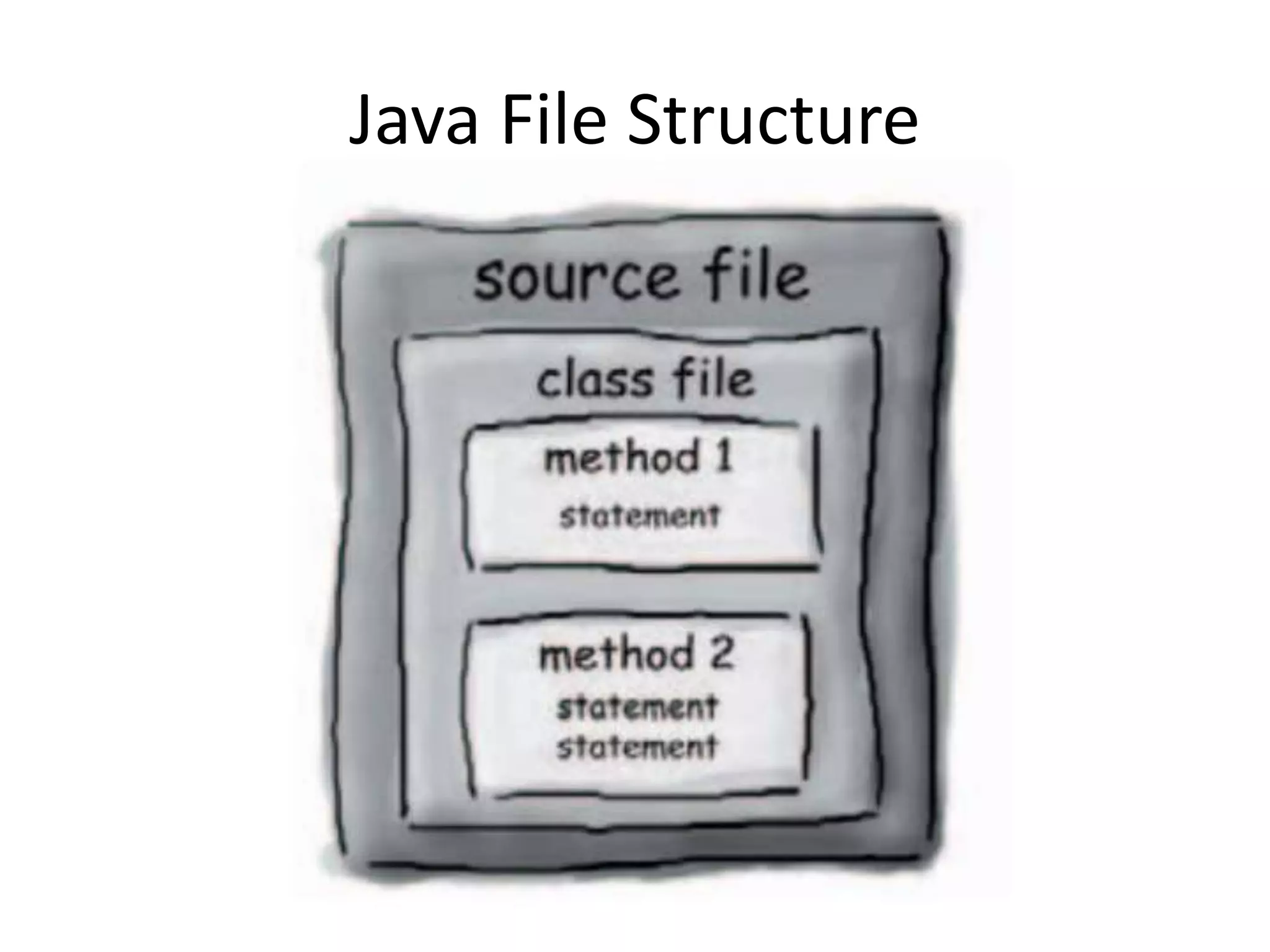

Java File Structure

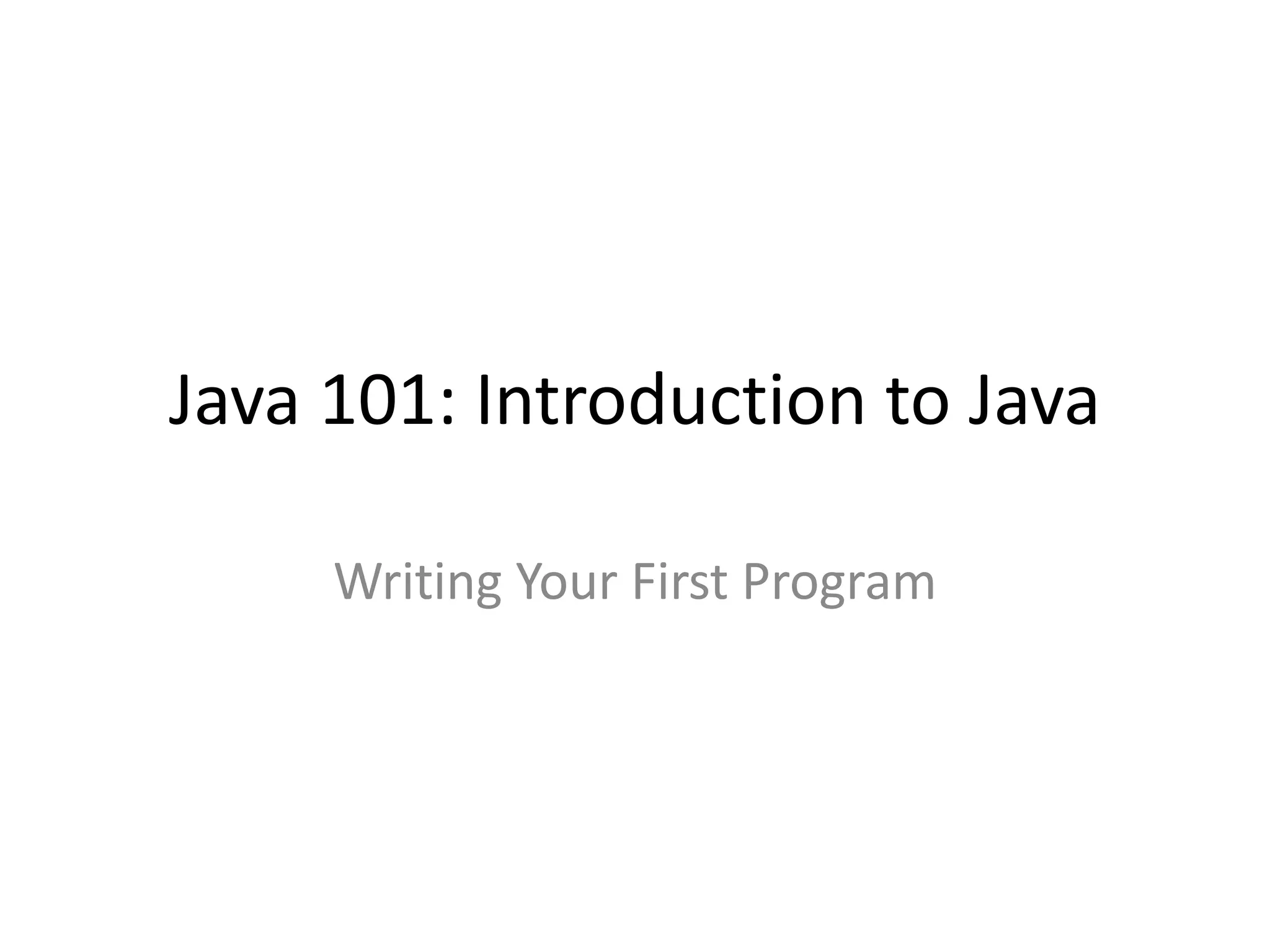

Java 101: Introduction to Java
Writing Your First Program
Hello, World!
Writing Your First Java Program
• Create a new project in your IDE named Java101
• Create a HelloWorld class in the src folder inside the Java101
project as illustrated below.

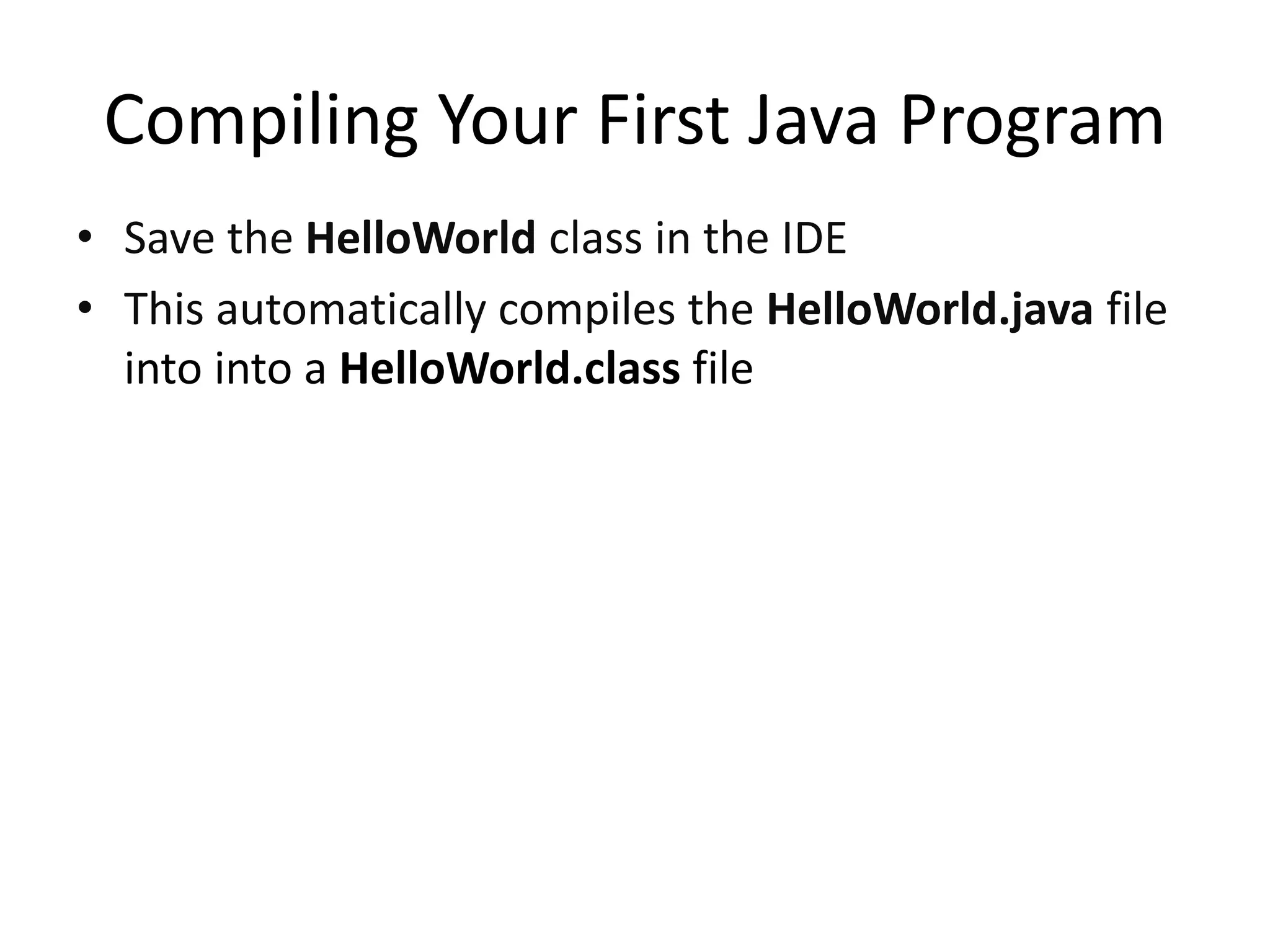

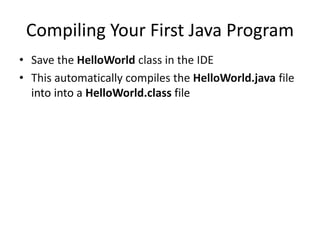

Compiling Your First Java Program
• Save the HelloWorld class in the IDE
• This automatically compiles the HelloWorld.java file
into into a HelloWorld.class file
• Go to the folder you created the Java101 project on
your hard disk and open the src folder.
• What do you see?

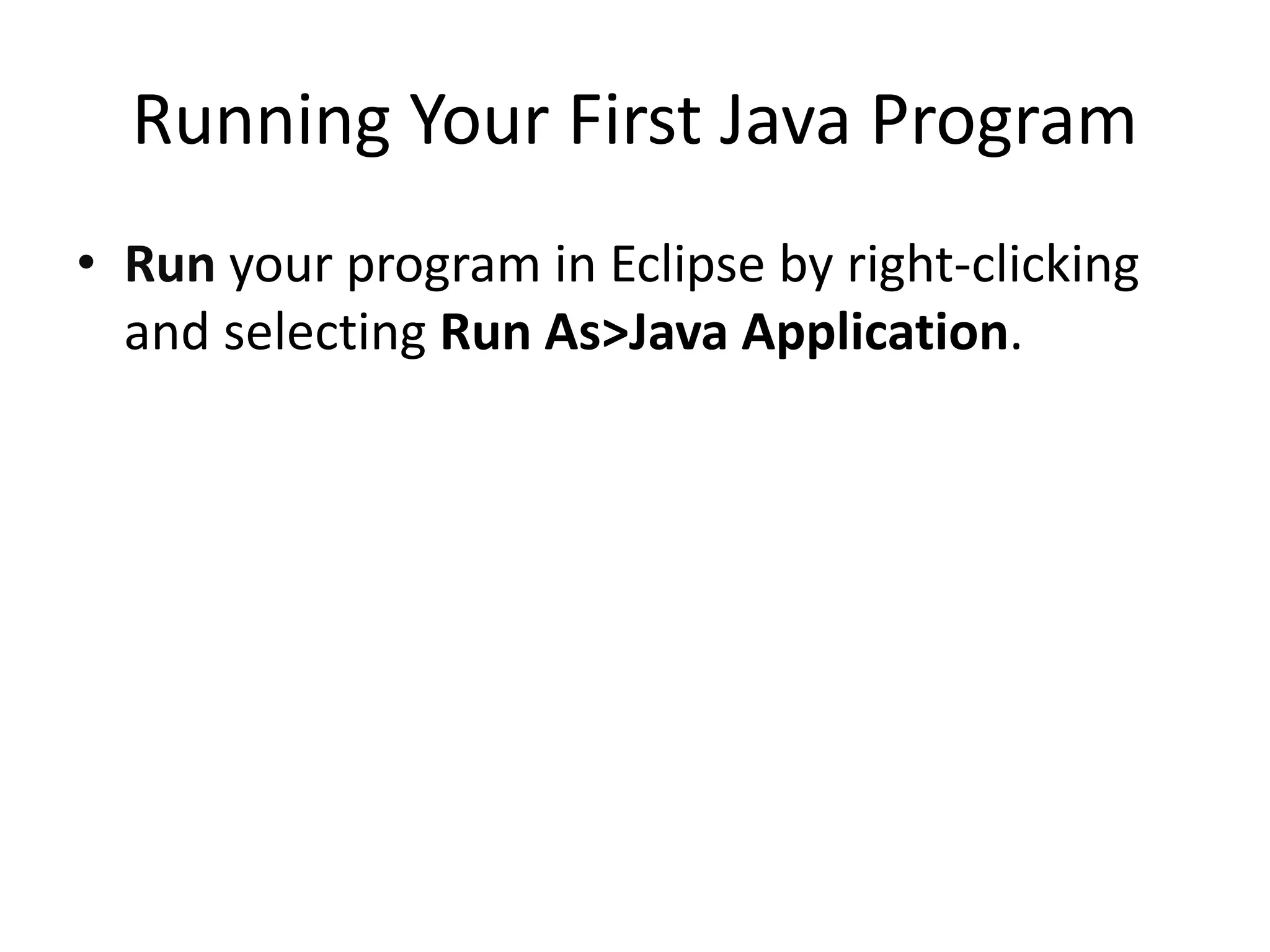

Running Your First Java Program
• Run your program in Eclipse by right-clicking
and selecting Run As>Java Application.

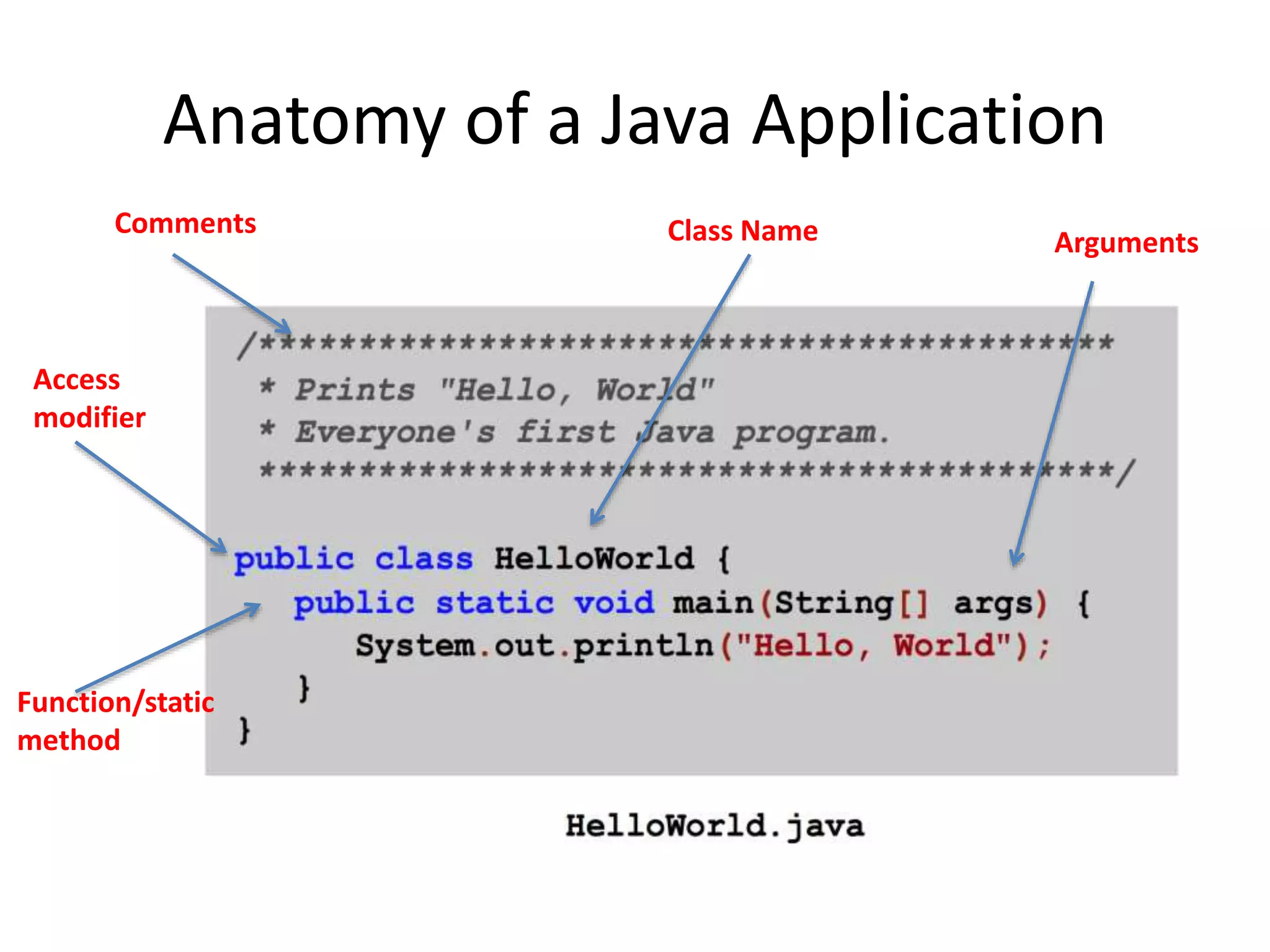

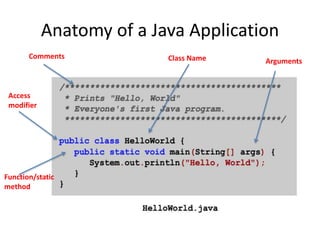

Anatomy of a Java Application
Comments Class Name
Access
modifier
Function/static
method
Arguments

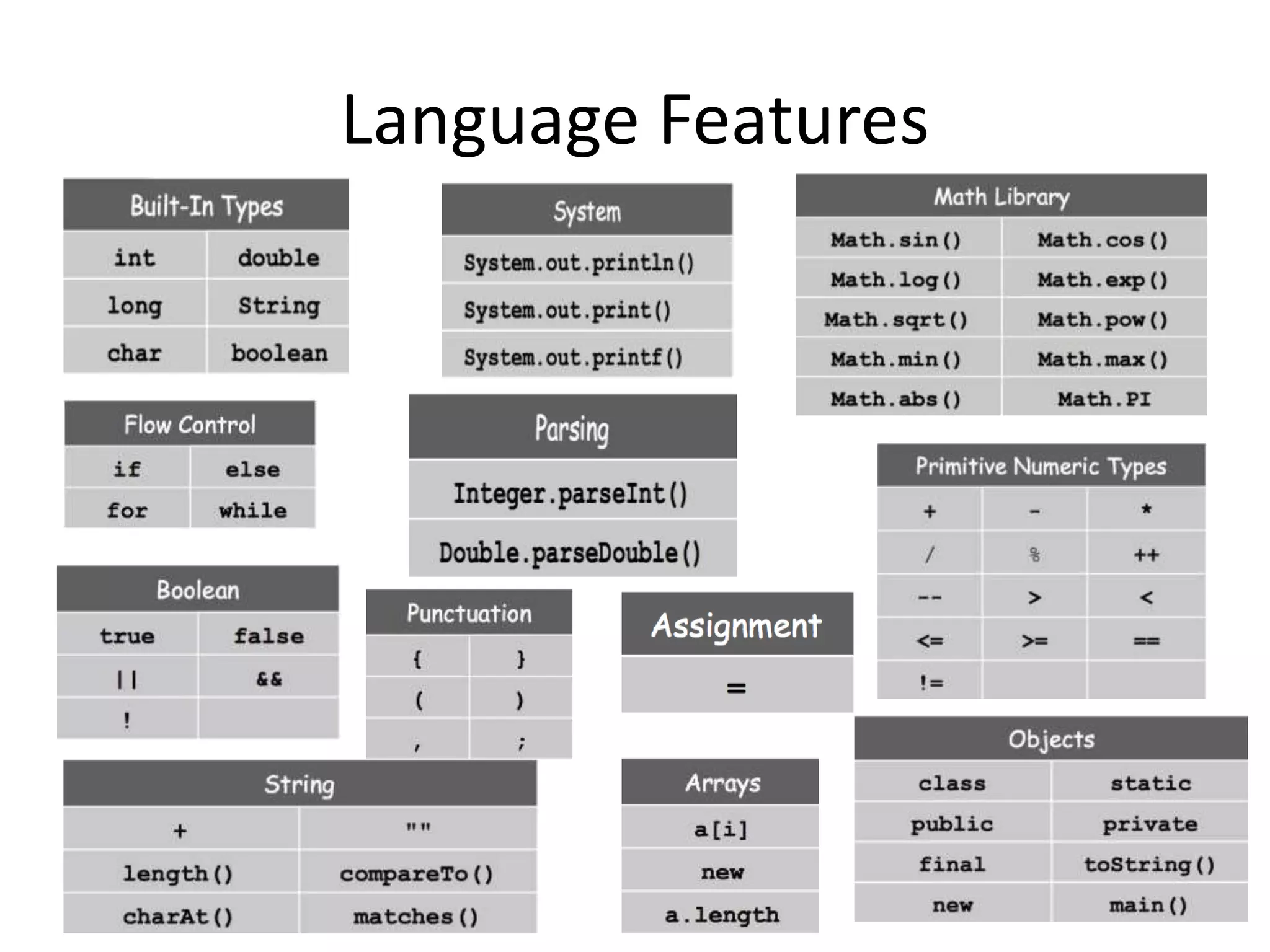

Language Features
Introduction to Java
Built-in Data Types

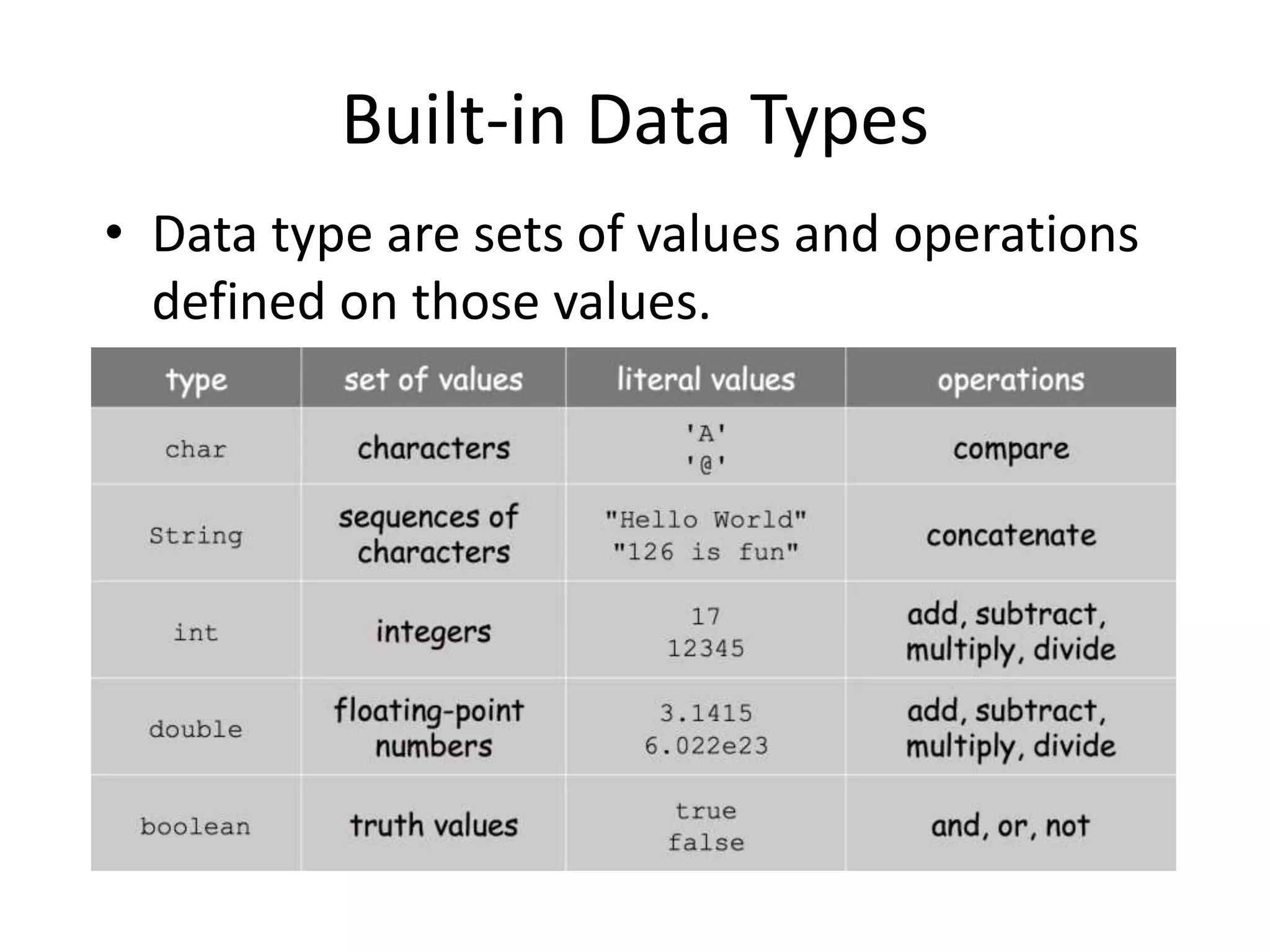

Built-in Data Types
• Data type are sets of values and operations
defined on those values.

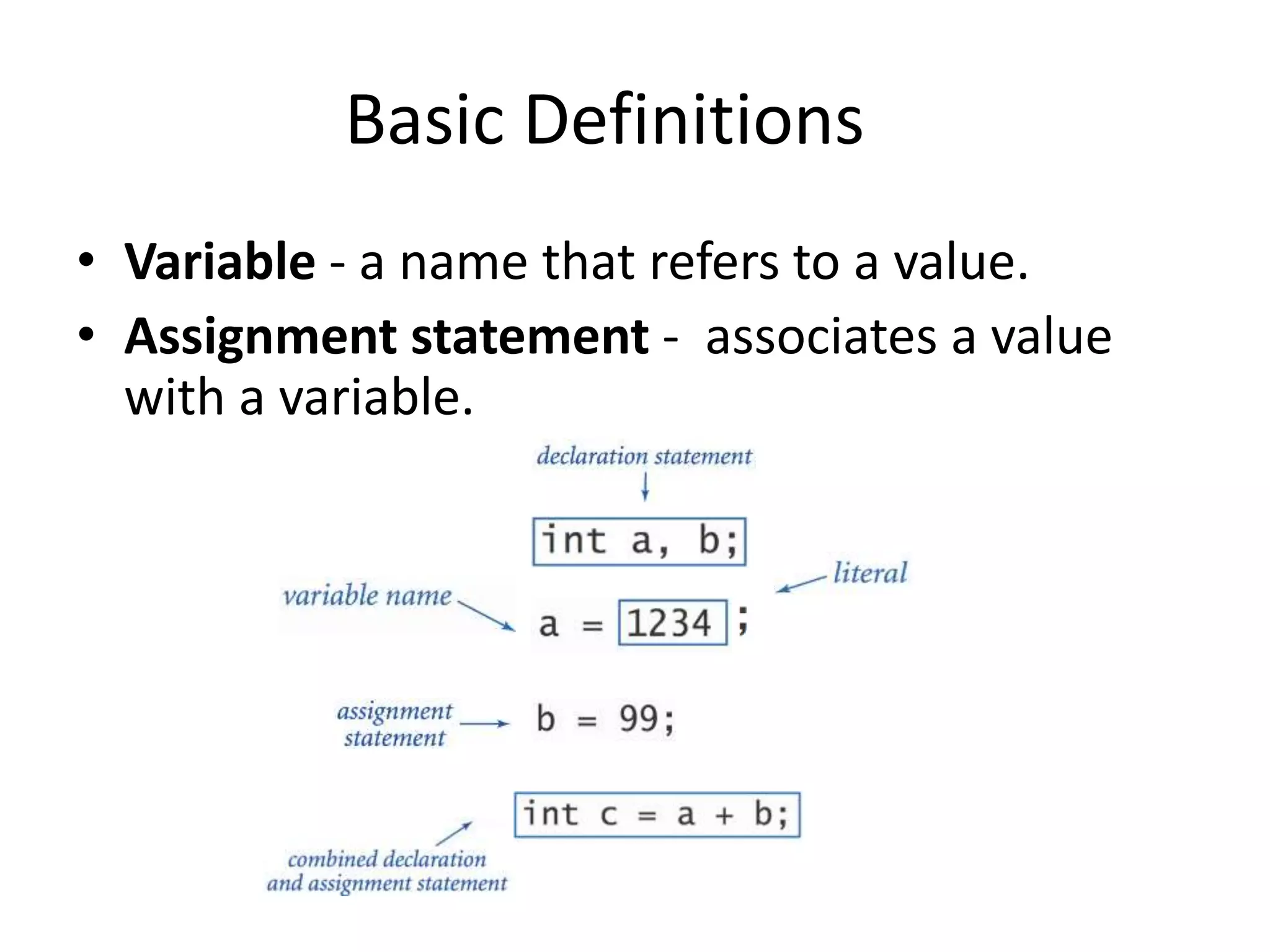

Basic Definitions
• Variable - a name that refers to a value.
• Assignment statement - associates a value
with a variable.

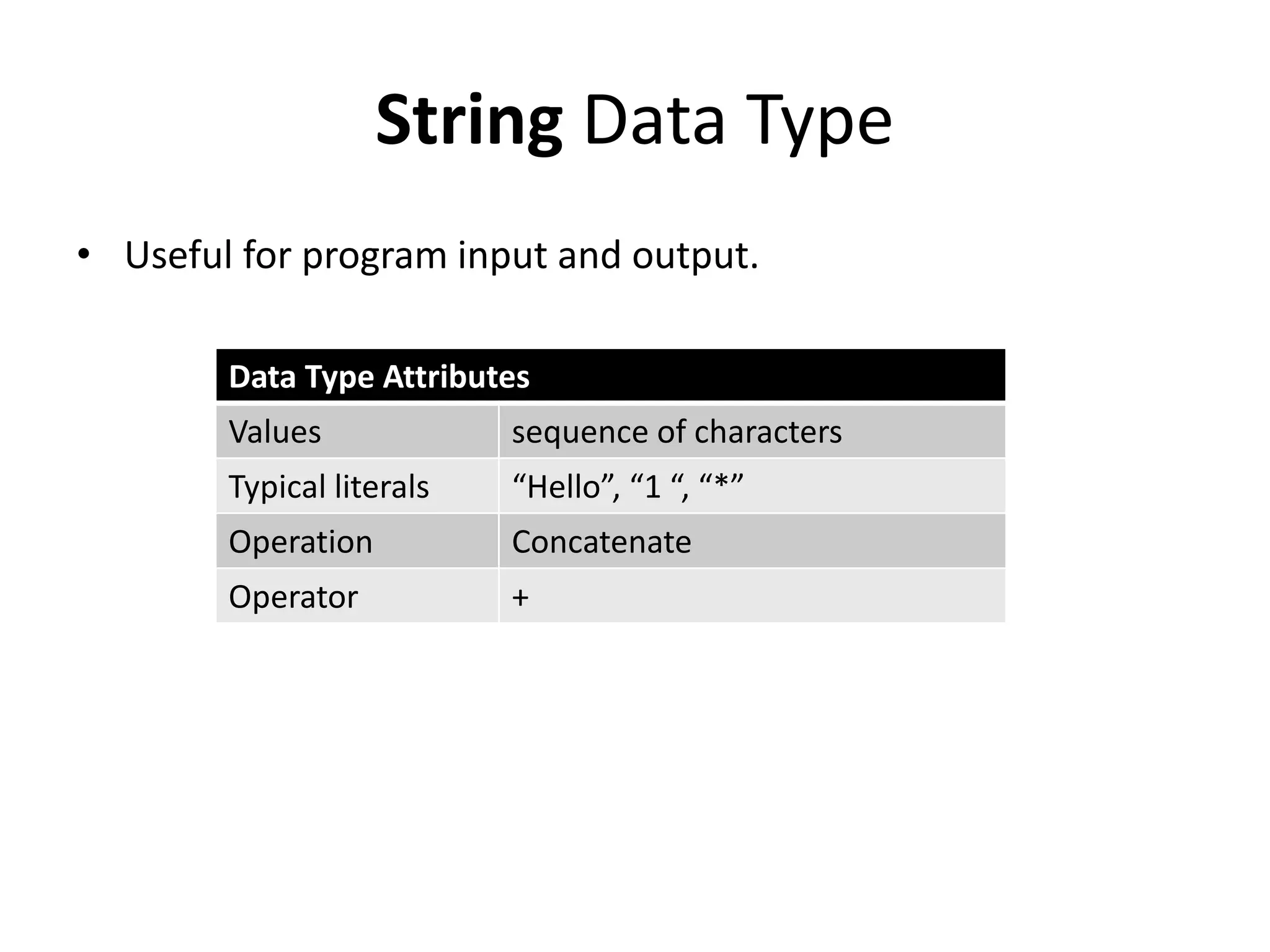

String Data Type
Data Type Attributes
Values sequence of characters
Typical literals “Hello”, “1 “, “*”
Operation Concatenate
Operator +
• Useful for program input and output.

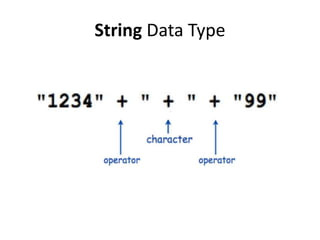

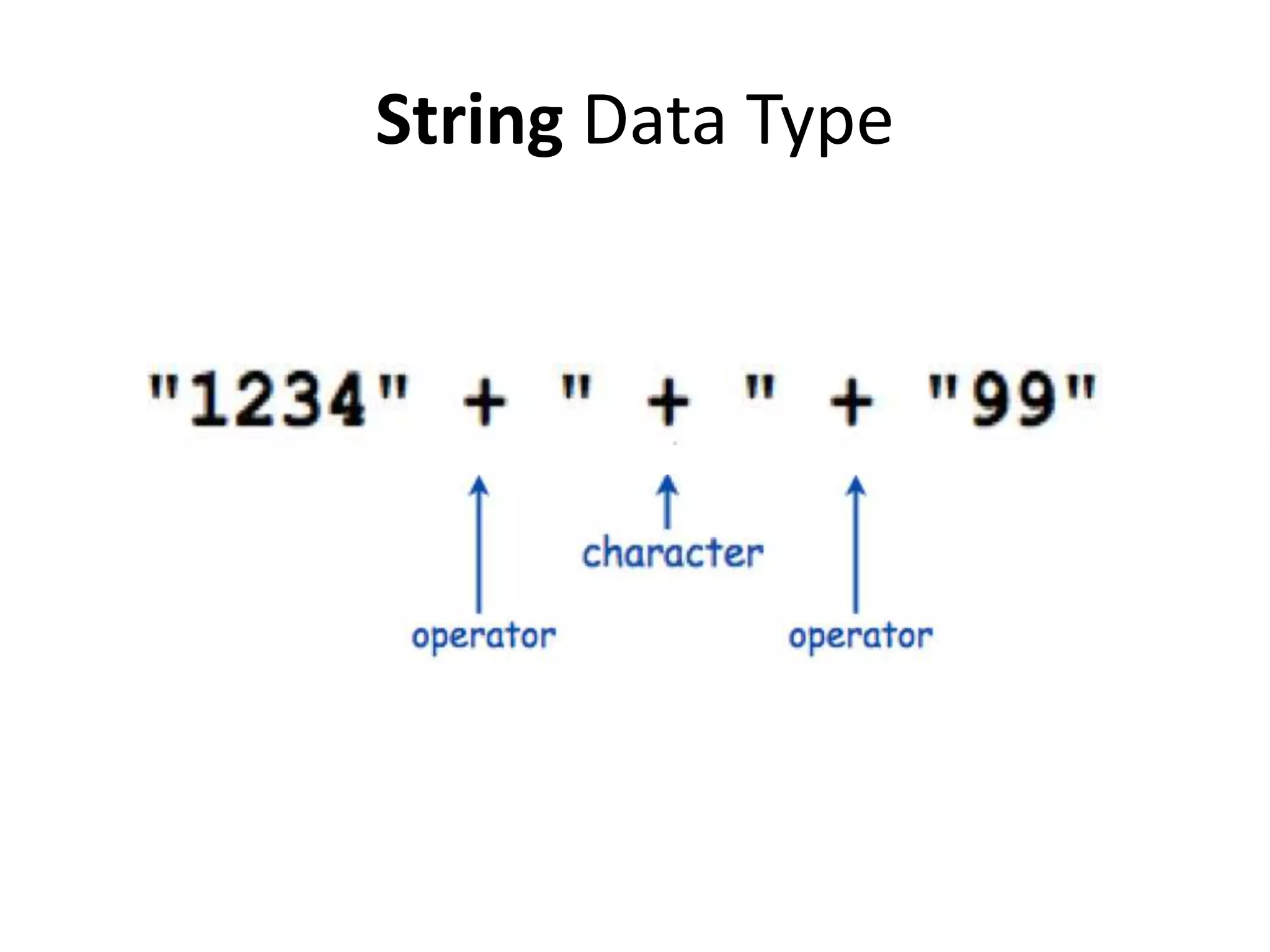

String Data Type

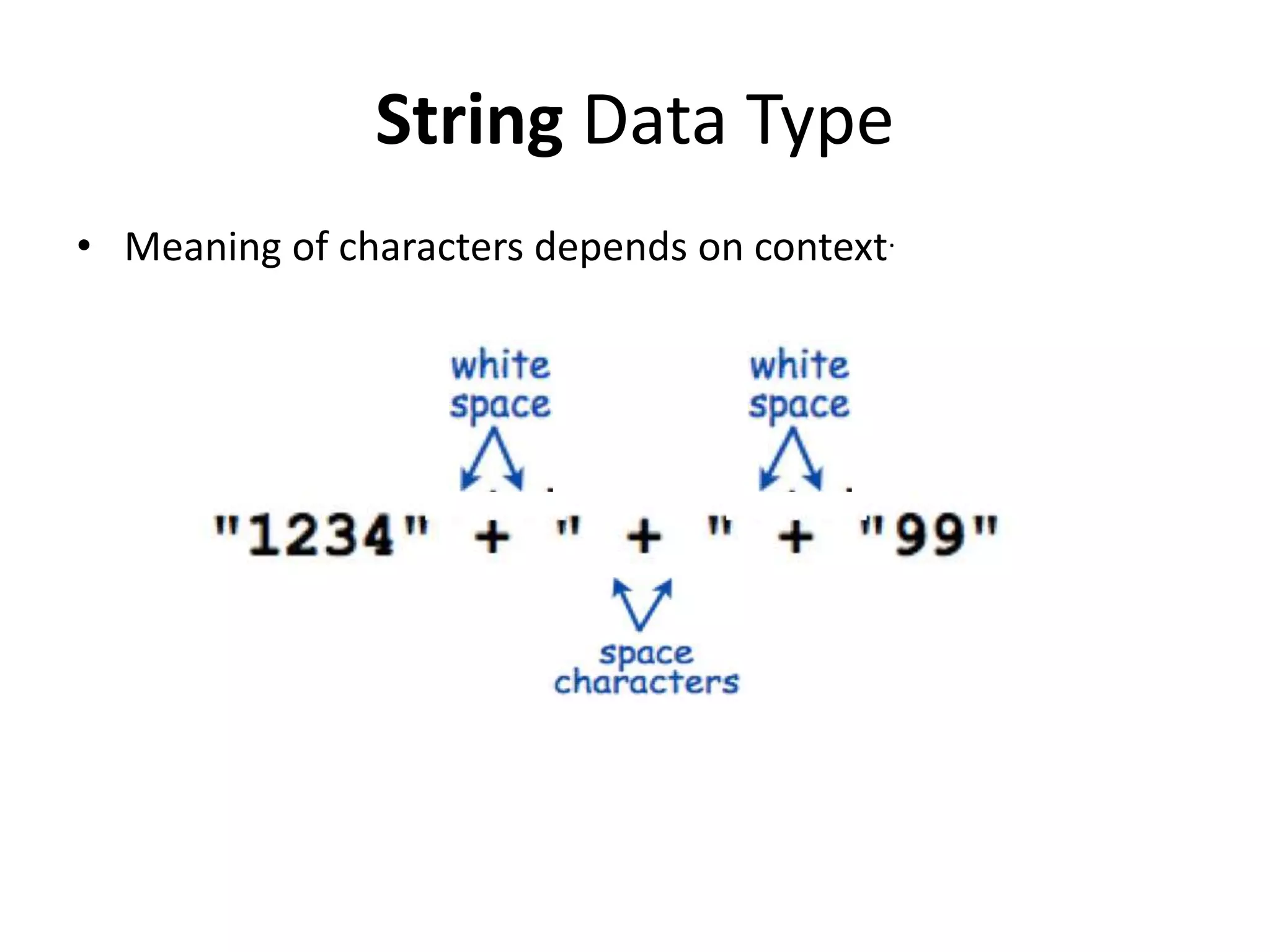

String Data Type
• Meaning of characters depends on context.

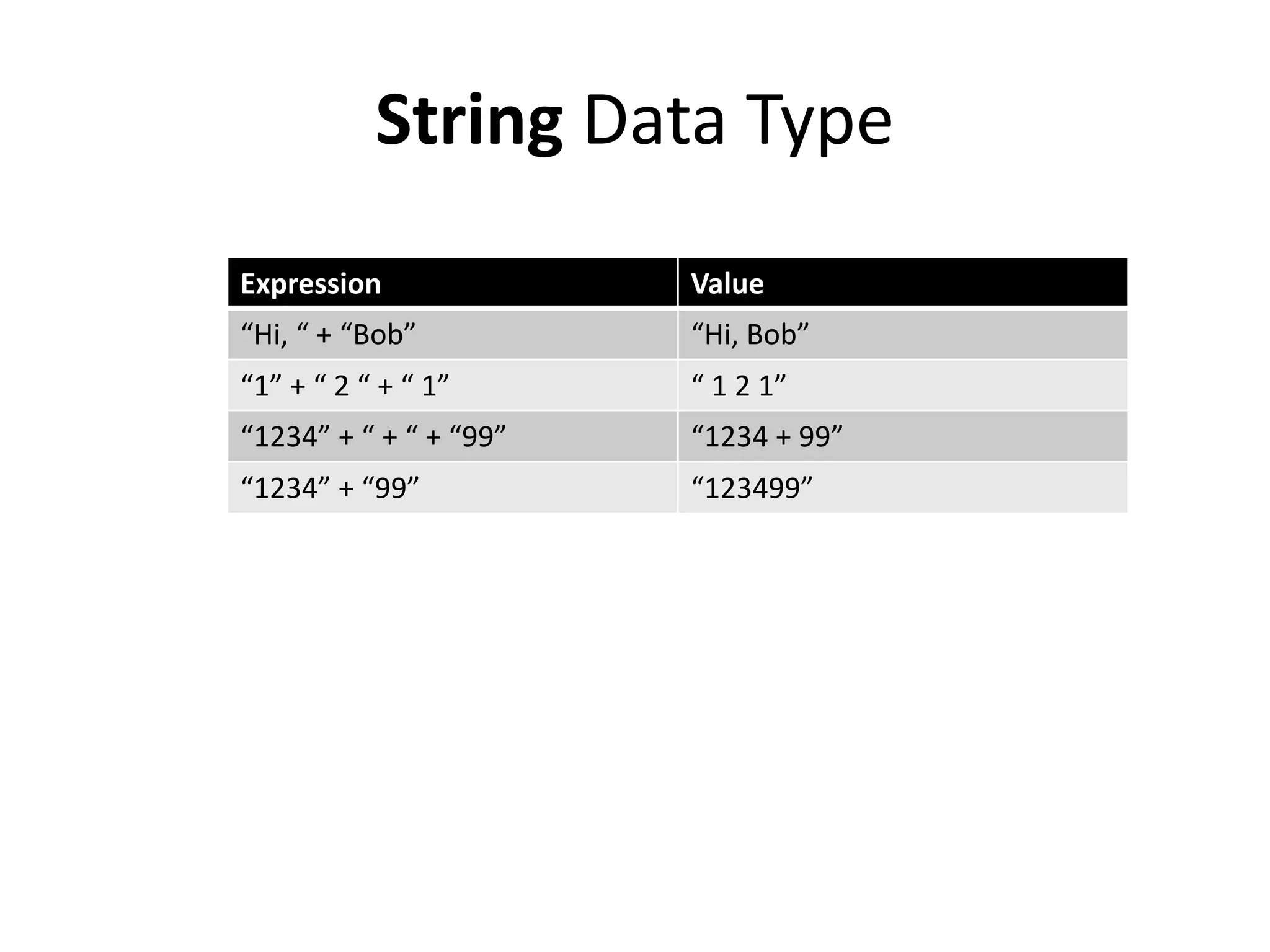

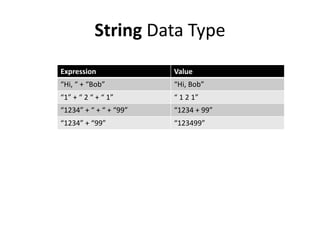

String Data Type
Expression Value
“Hi, “ + “Bob” “Hi, Bob”
“1” + “ 2 “ + “ 1” “ 1 2 1”
“1234” + “ + “ + “99” “1234 + 99”
“1234” + “99” “123499”

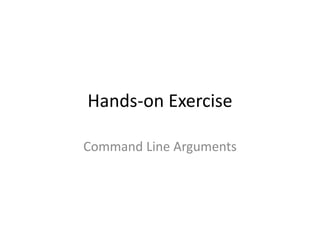

Hands-on Exercise
Command Line Arguments
Exercise: Command Line Arguments
• Create the Java program below that takes a name as command-line
argument and prints “Hi <name>, How are you?”

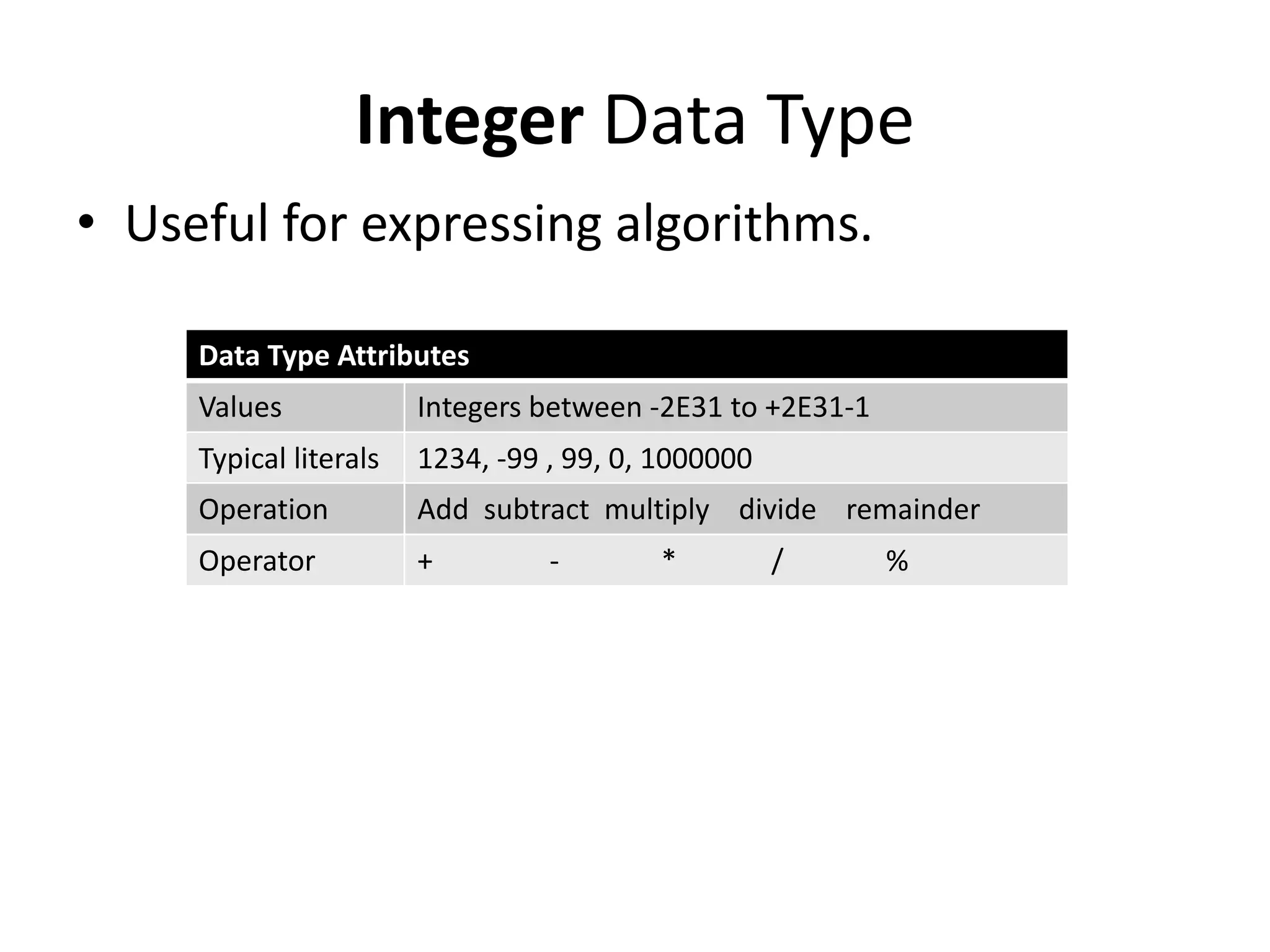

Integer Data Type
Data Type Attributes
Values Integers between -2E31 to +2E31-1
Typical literals 1234, -99 , 99, 0, 1000000
Operation Add subtract multiply divide remainder
Operator + - * / %
• Useful for expressing algorithms.

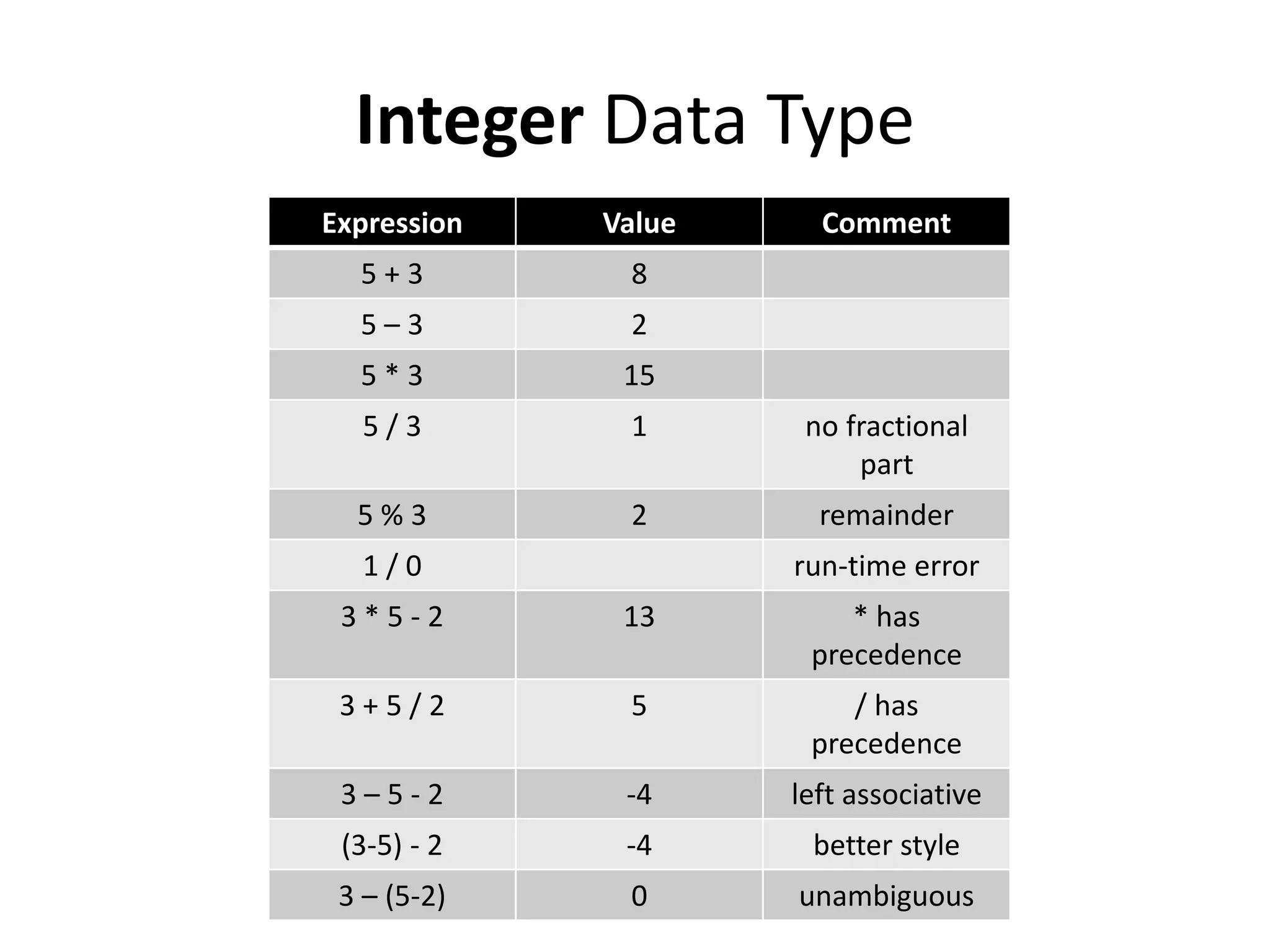

Integer Data Type
Expression Value Comment
5 + 3 8
5 – 3 2
5 * 3 15
5 / 3 1 no fractional
part
5 % 3 2 remainder
1 / 0 run-time error
3 * 5 - 2 13 * has
precedence
3 + 5 / 2 5 / has
precedence
3 – 5 - 2 -4 left associative
(3-5) - 2 -4 better style
3 – (5-2) 0 unambiguous

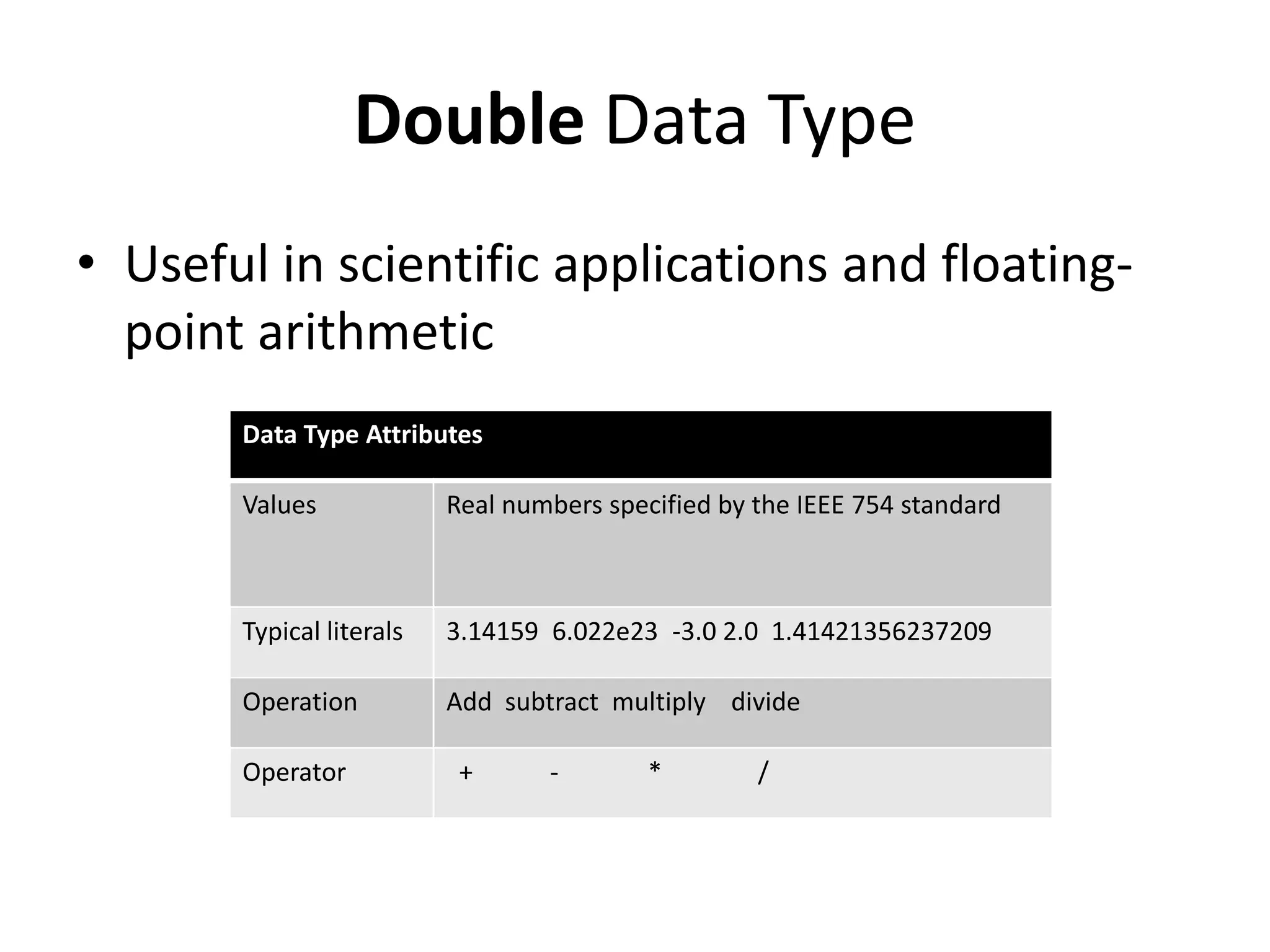

Double Data Type
• Useful in scientific applications and floating-
point arithmetic
Data Type Attributes
Values Real numbers specified by the IEEE 754 standard
Typical literals 3.14159 6.022e23 -3.0 2.0 1.41421356237209
Operation Add subtract multiply divide
Operator + - * /

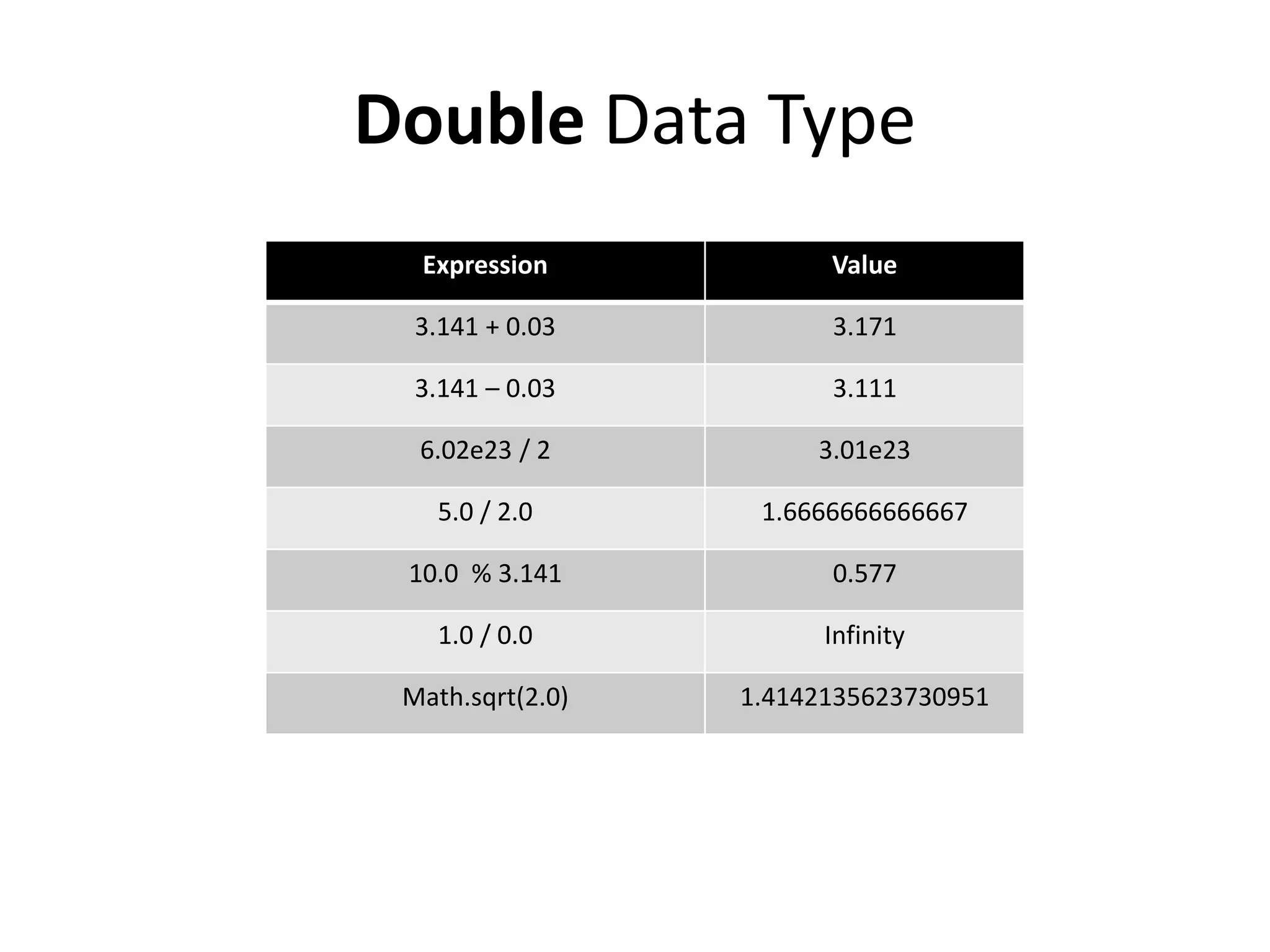

Double Data Type
Expression Value
3.141 + 0.03 3.171
3.141 – 0.03 3.111
6.02e23 / 2 3.01e23
5.0 / 2.0 1.6666666666667
10.0 % 3.141 0.577
1.0 / 0.0 Infinity
Math.sqrt(2.0) 1.4142135623730951

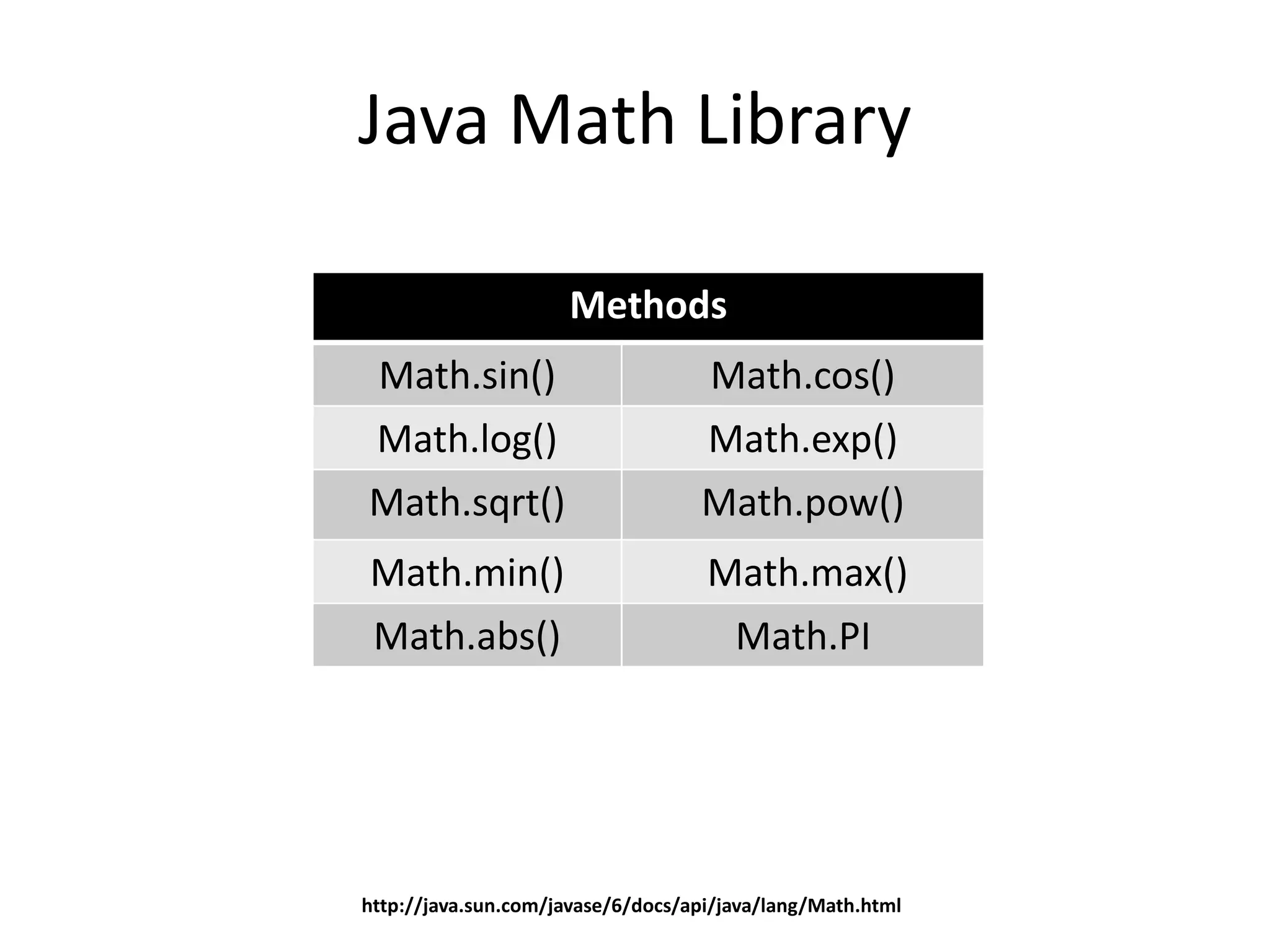

Java Math Library
Methods
Math.sin() Math.cos()
Math.log() Math.exp()
Math.sqrt() Math.pow()
Math.min() Math.max()
Math.abs() Math.PI
http://java.sun.com/javase/6/docs/api/java/lang/Math.html

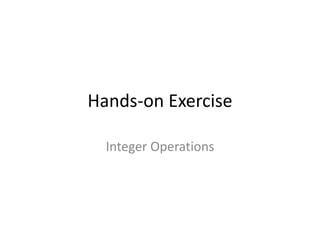

Hands-on Exercise
Integer Operations
Exercise: Integer Operations
• Create a Java class named IntOpsin the Java101 project that performs integer
operations on a pair of integers from the command line and prints the results.
Solution: Integer Operations

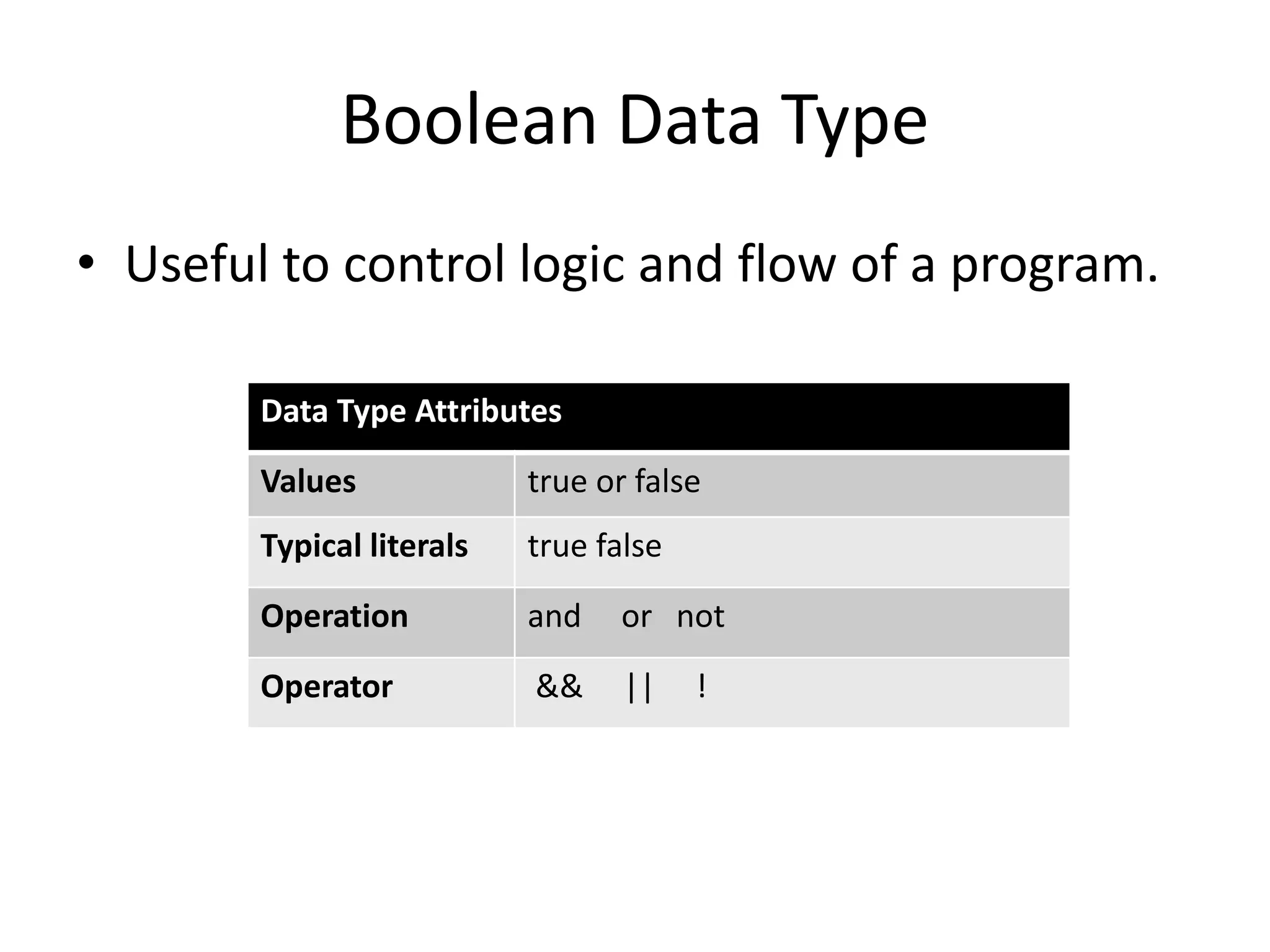

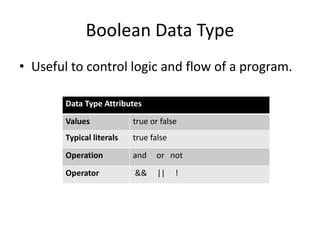

Boolean Data Type
• Useful to control logic and flow of a program.
Data Type Attributes
Values true or false
Typical literals true false
Operation and or not
Operator && || !

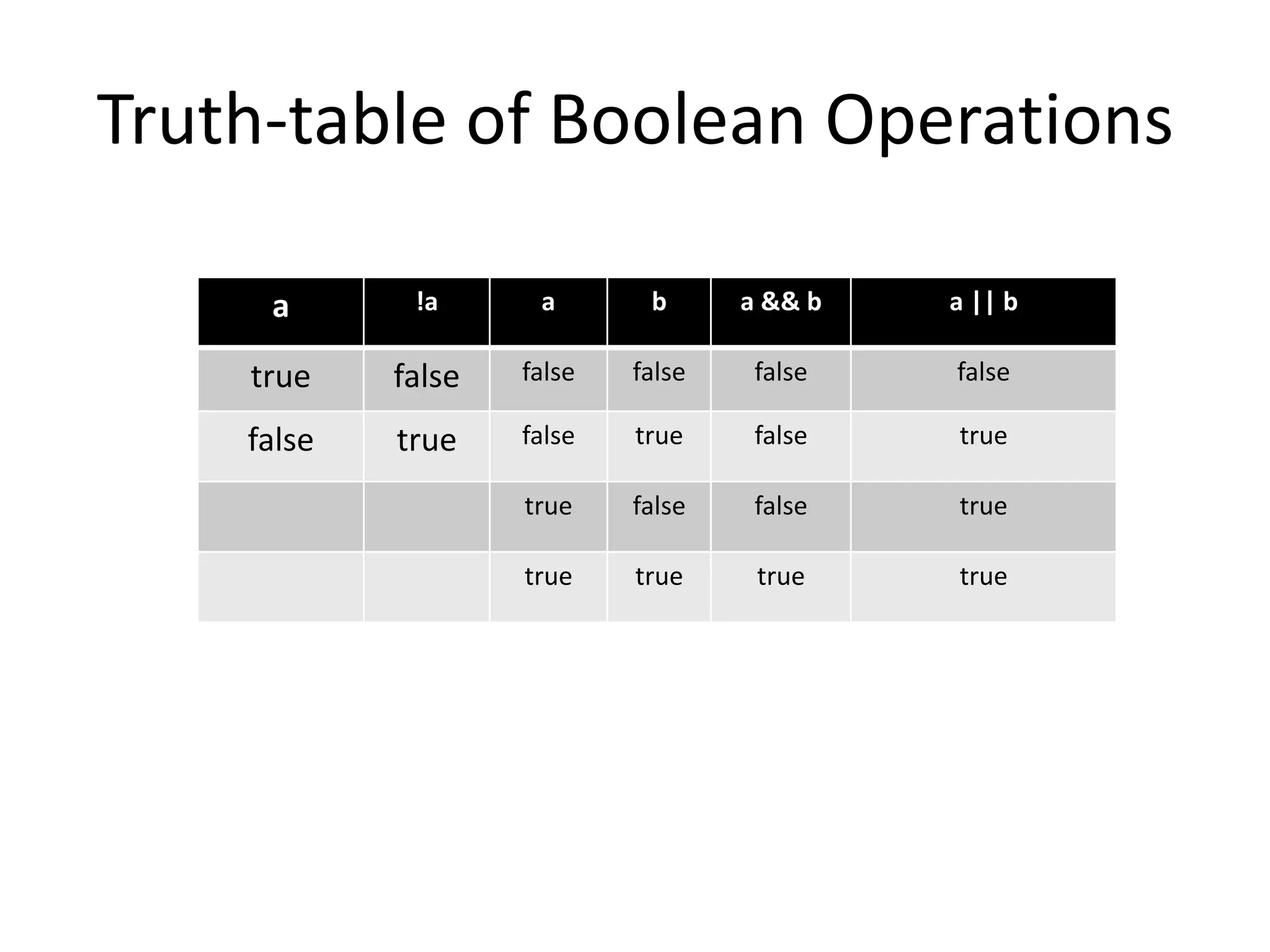

Truth-table of Boolean Operations
a !a a b a && b a || b
true false false false false false
false true false true false true
true false false true
true true true true

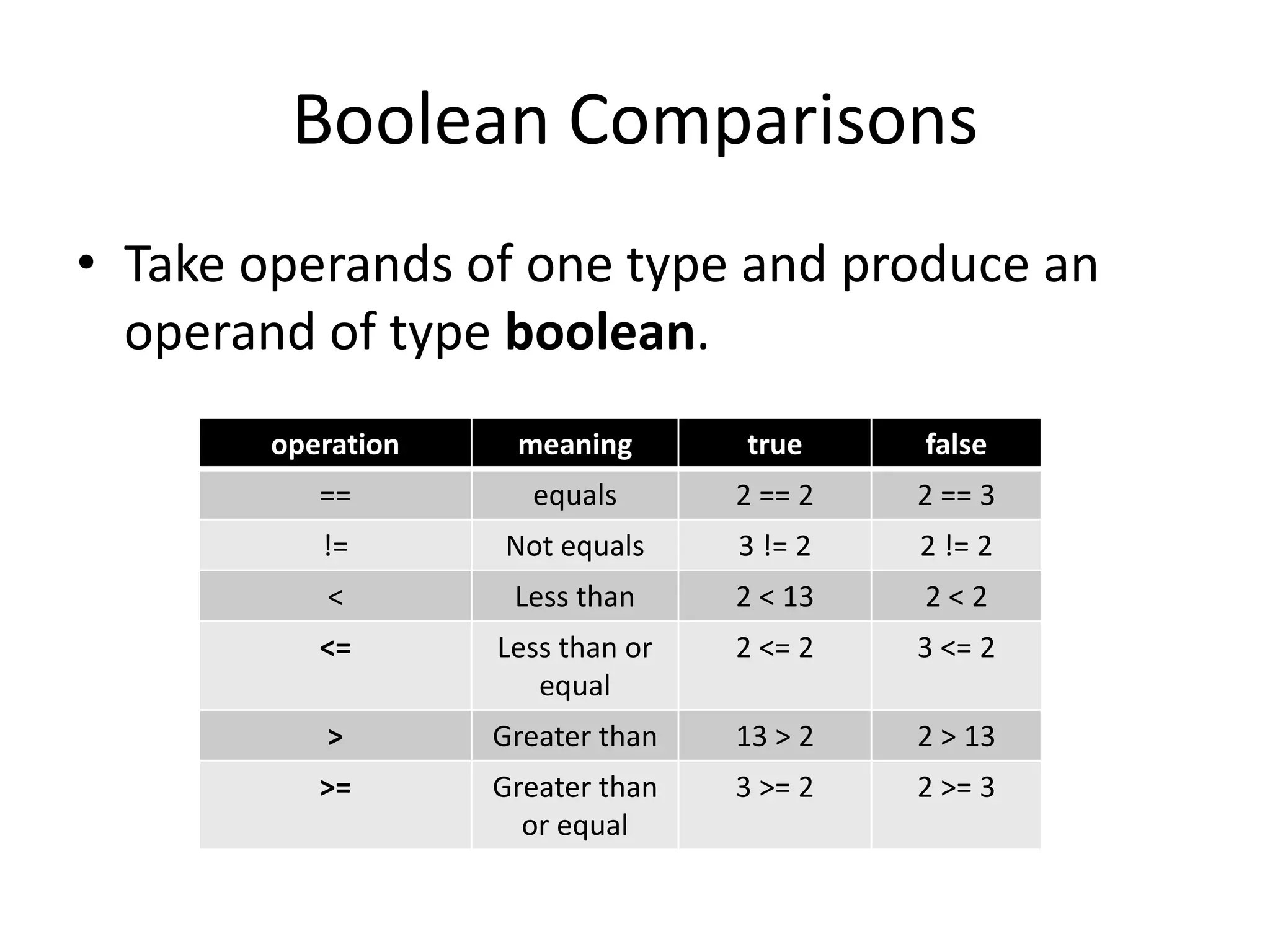

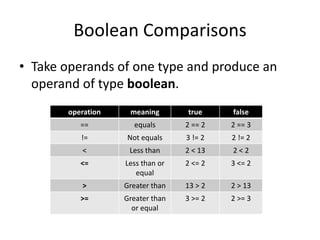

Boolean Comparisons
• Take operands of one type and produce an
operand of type boolean.
operation meaning true false
== equals 2 == 2 2 == 3
!= Not equals 3 != 2 2 != 2
< Less than 2 < 13 2 < 2
<= Less than or
equal
2 <= 2 3 <= 2
> Greater than 13 > 2 2 > 13
>= Greater than
or equal
3 >= 2 2 >= 3

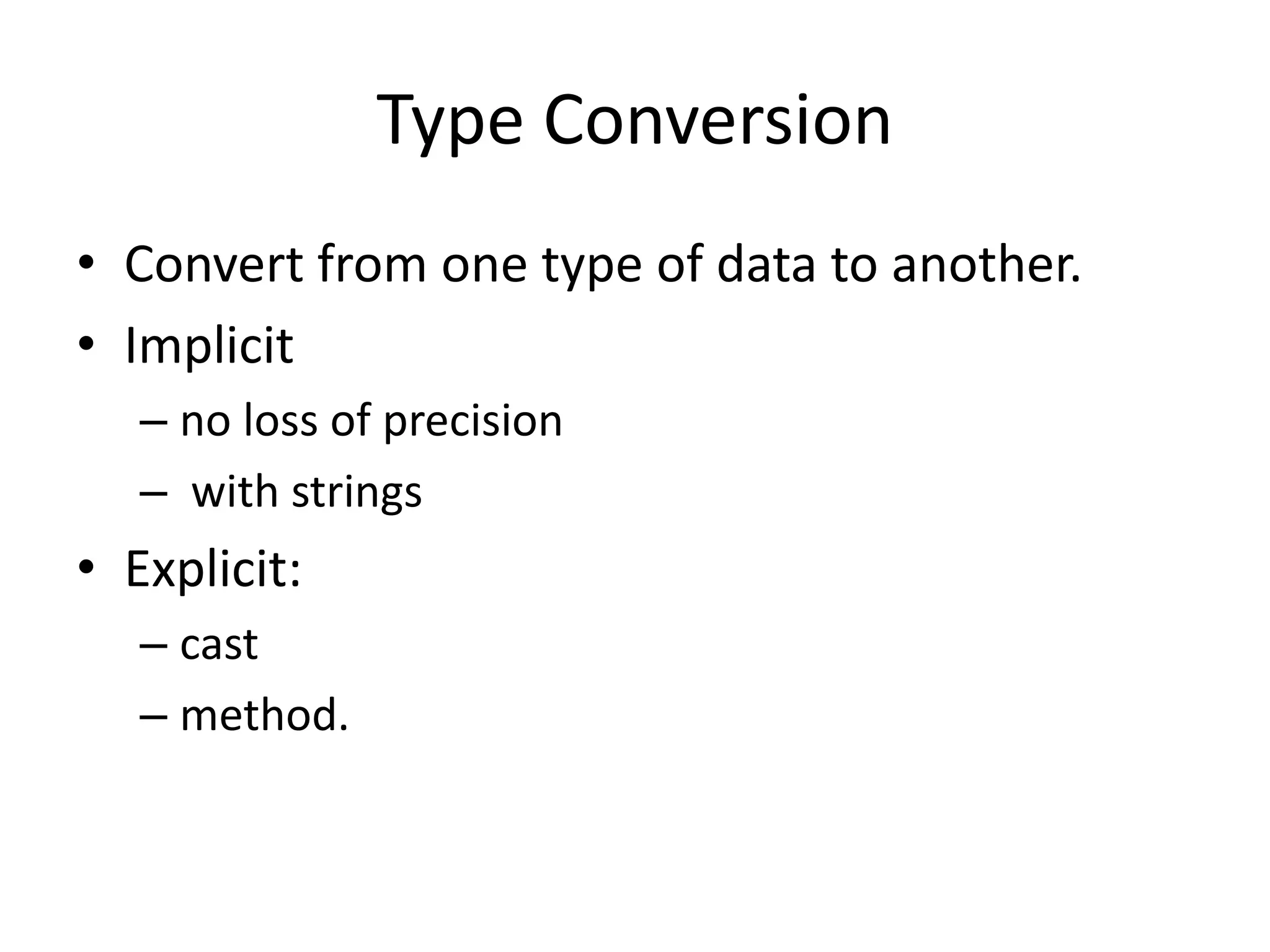

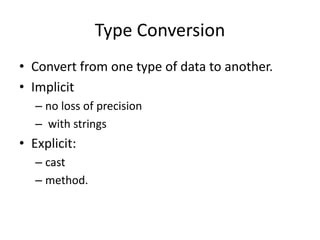

Type Conversion
• Convert from one type of data to another.
• Implicit
– no loss of precision
– with strings
• Explicit:
– cast
– method.

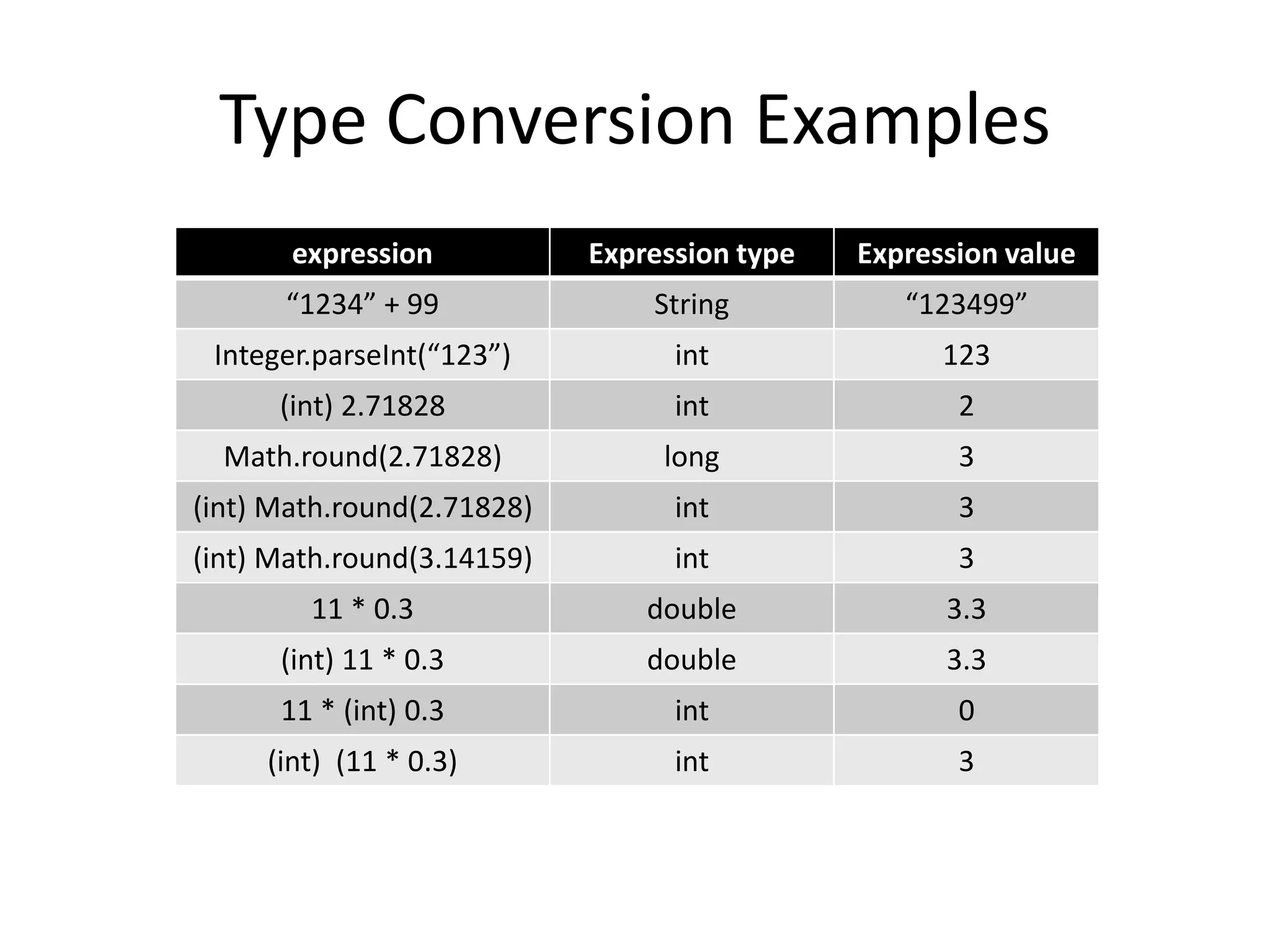

Type Conversion Examples
expression Expression type Expression value
“1234” + 99 String “123499”
Integer.parseInt(“123”) int 123
(int) 2.71828 int 2
Math.round(2.71828) long 3
(int) Math.round(2.71828) int 3
(int) Math.round(3.14159) int 3
11 * 0.3 double 3.3
(int) 11 * 0.3 double 3.3
11 * (int) 0.3 int 0
(int) (11 * 0.3) int 3

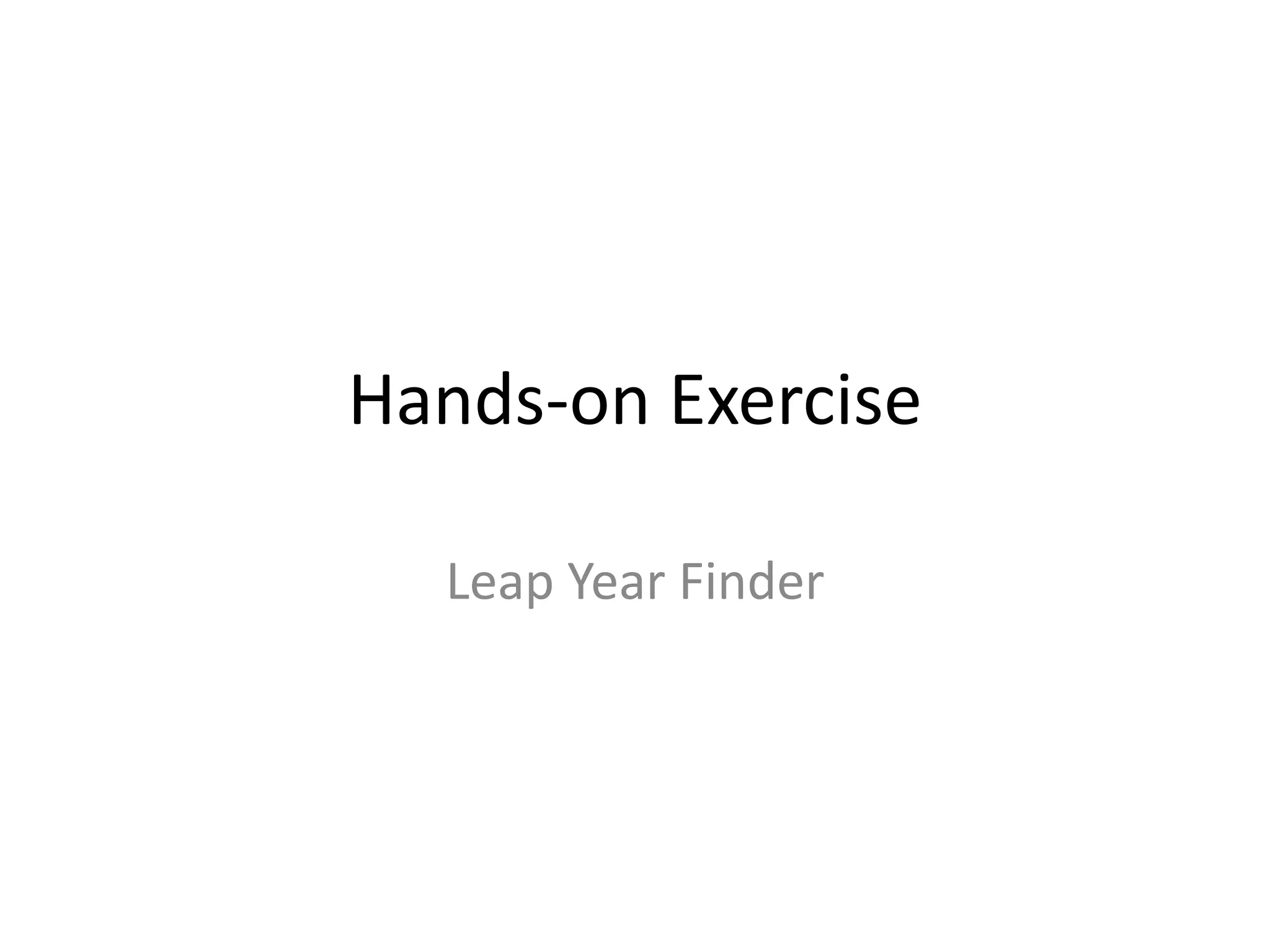

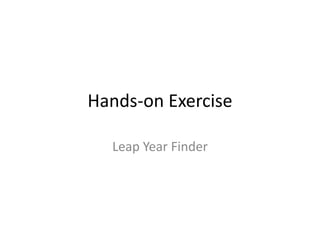

Hands-on Exercise
Leap Year Finder
Exercise: Leap Year Finder
• A year is a leap year if it is either divisible by 400
or divisible by 4 but not 100.
• Write a java class named LeapYear in the Java101
project that takes a numeric year as command
line argument and prints true if it’s a leap year
and false if not
Solution: Leap Year Finder

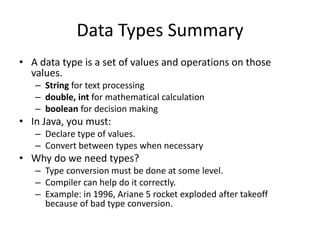

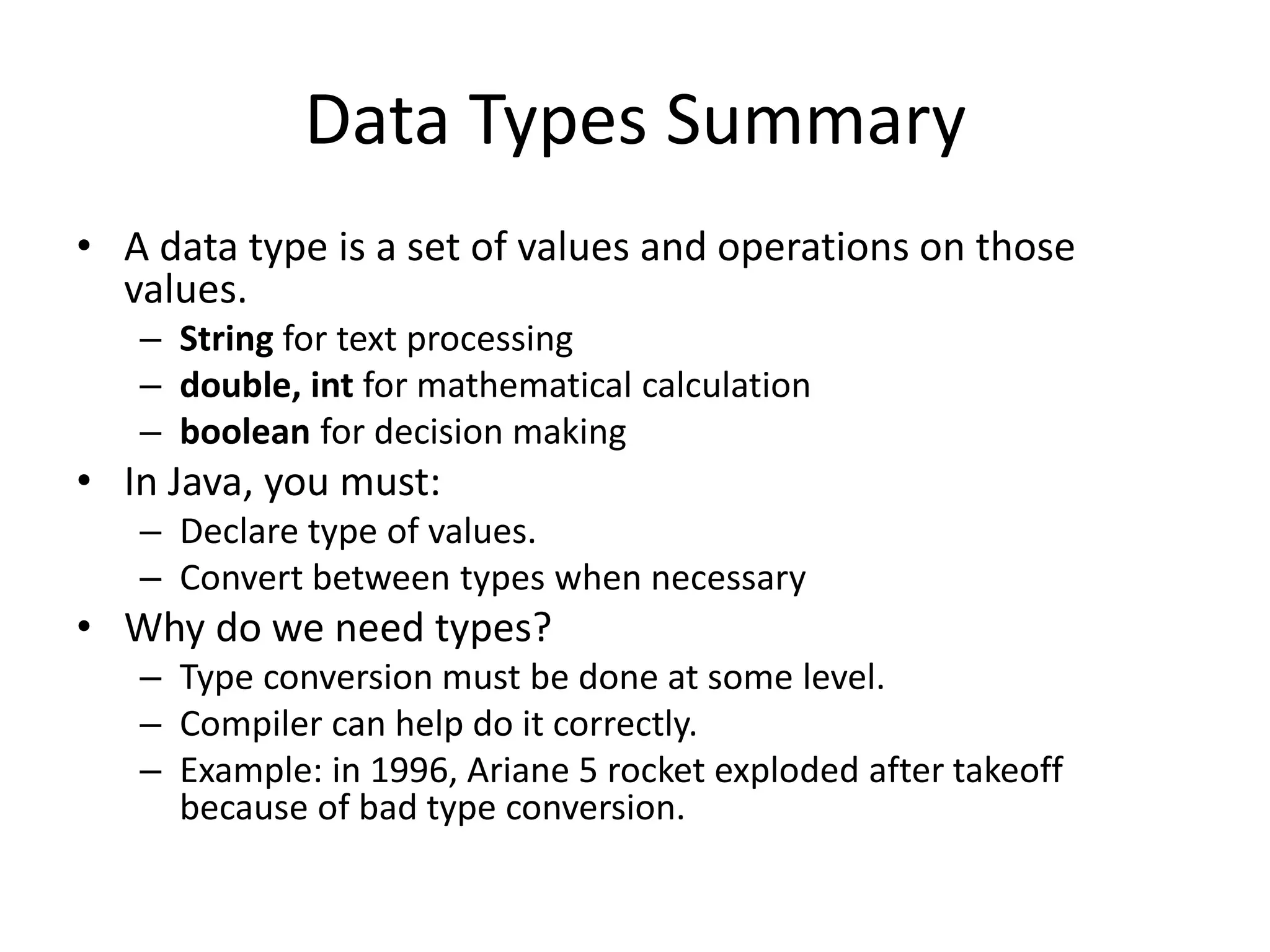

Data Types Summary
• A data type is a set of values and operations on those
values.
– String for text processing
– double, int for mathematical calculation
– boolean for decision making
• In Java, you must:
– Declare type of values.
– Convert between types when necessary
• Why do we need types?
– Type conversion must be done at some level.
– Compiler can help do it correctly.
– Example: in 1996, Ariane 5 rocket exploded after takeoff
because of bad type conversion.

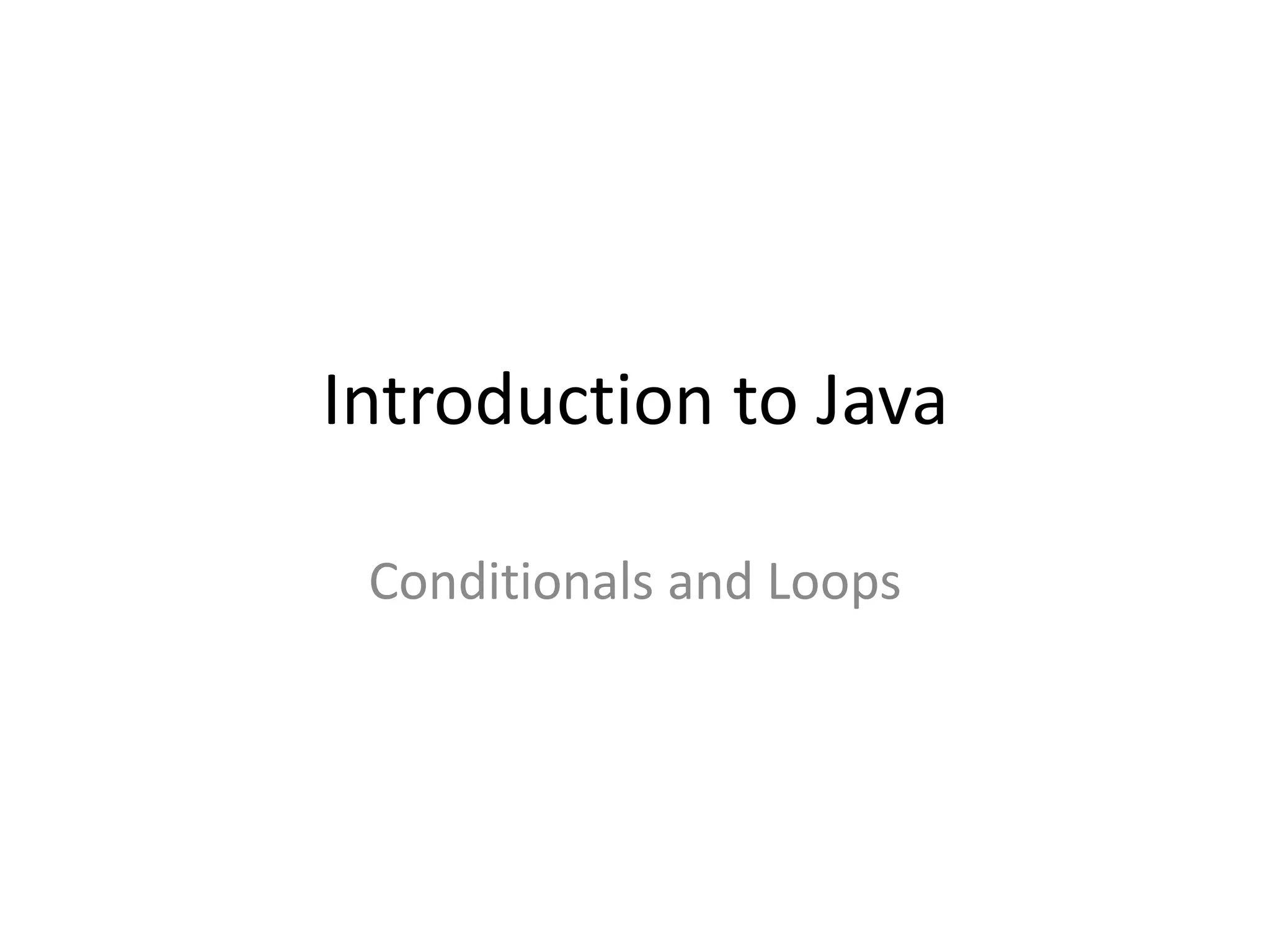

Introduction to Java
Conditionals and Loops

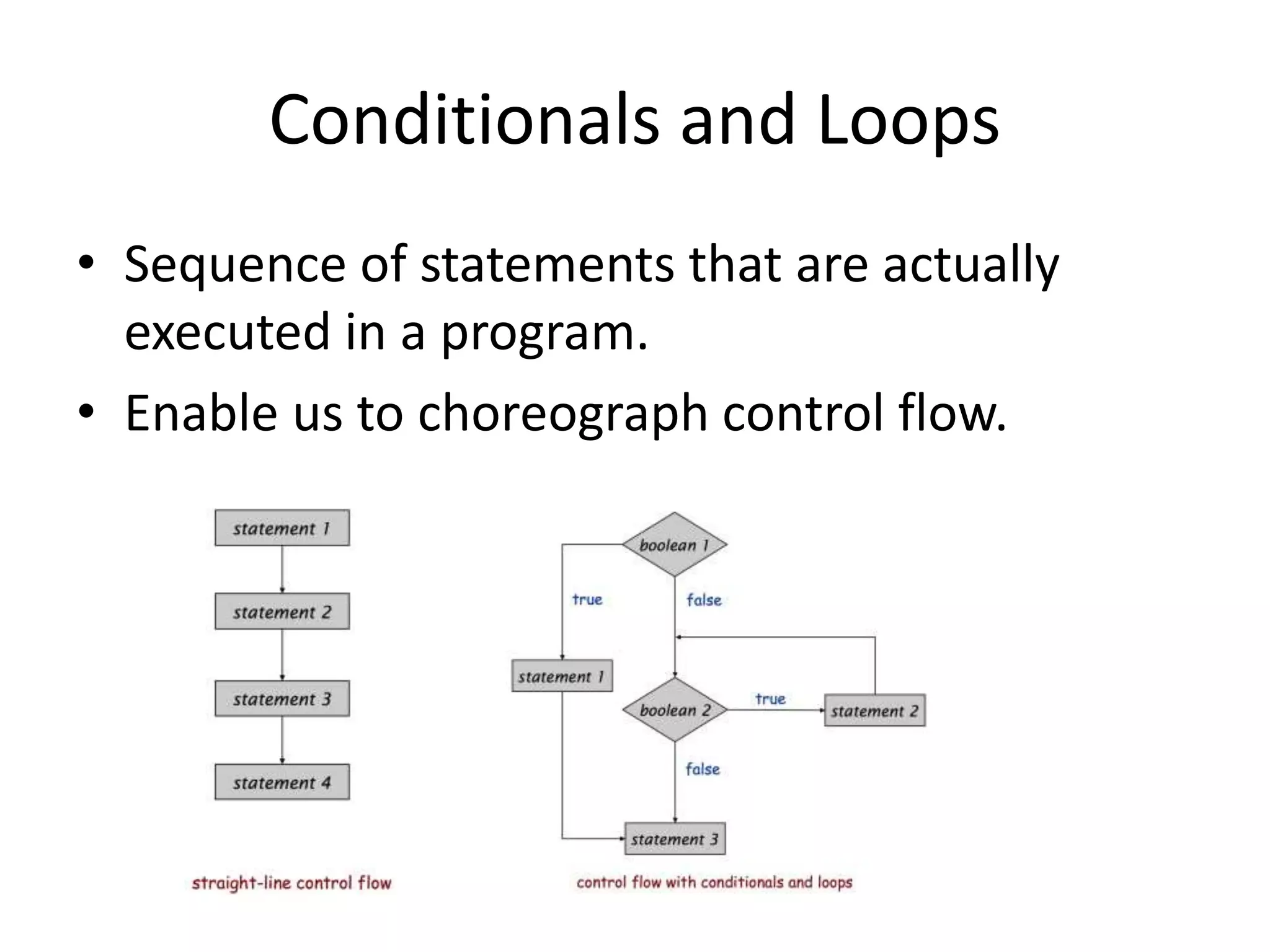

Conditionals and Loops
• Sequence of statements that are actually
executed in a program.
• Enable us to choreograph control flow.

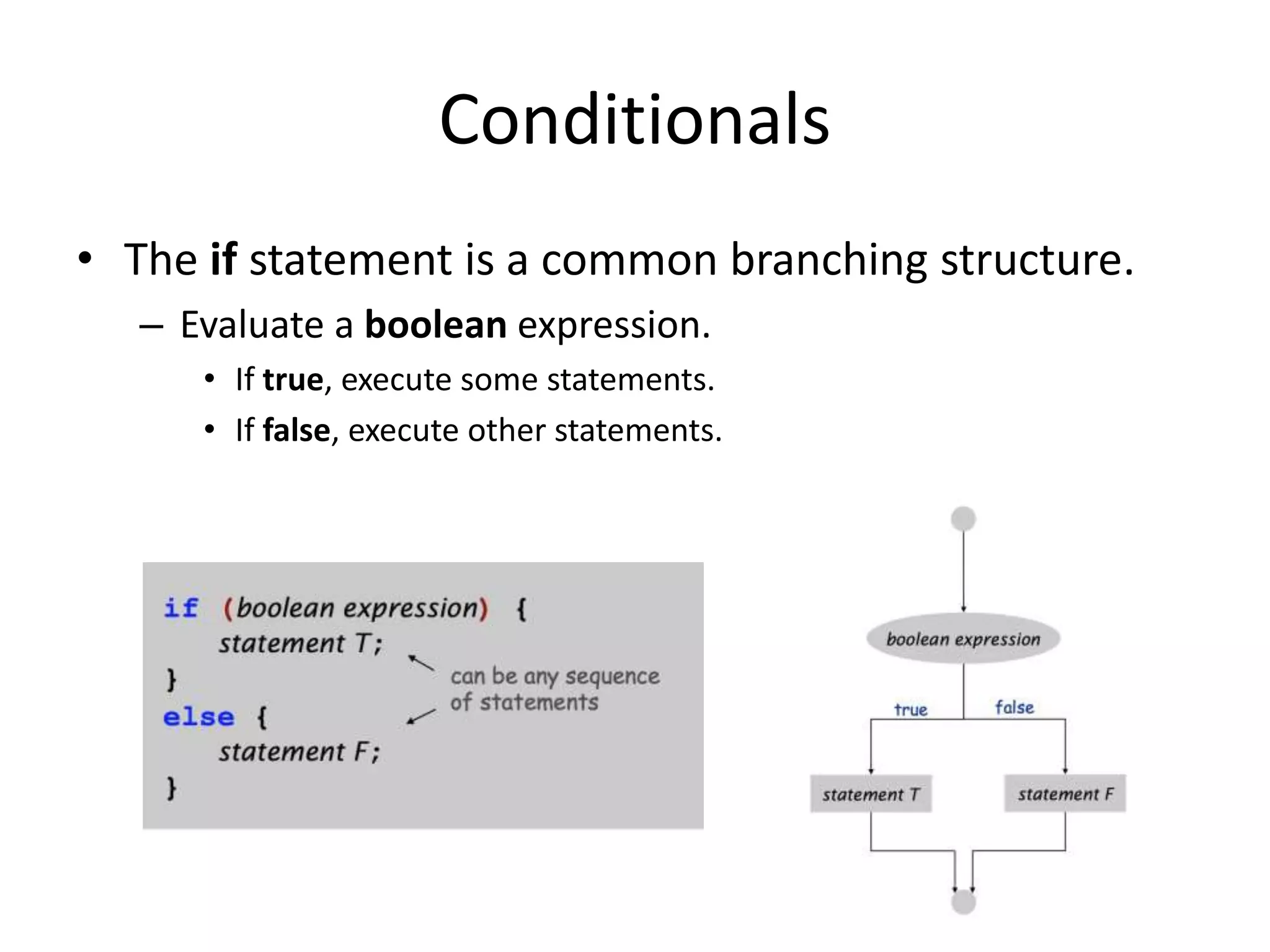

Conditionals
• The if statement is a common branching structure.
– Evaluate a boolean expression.
• If true, execute some statements.
• If false, execute other statements.

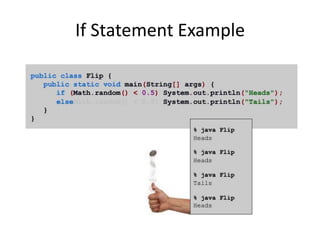

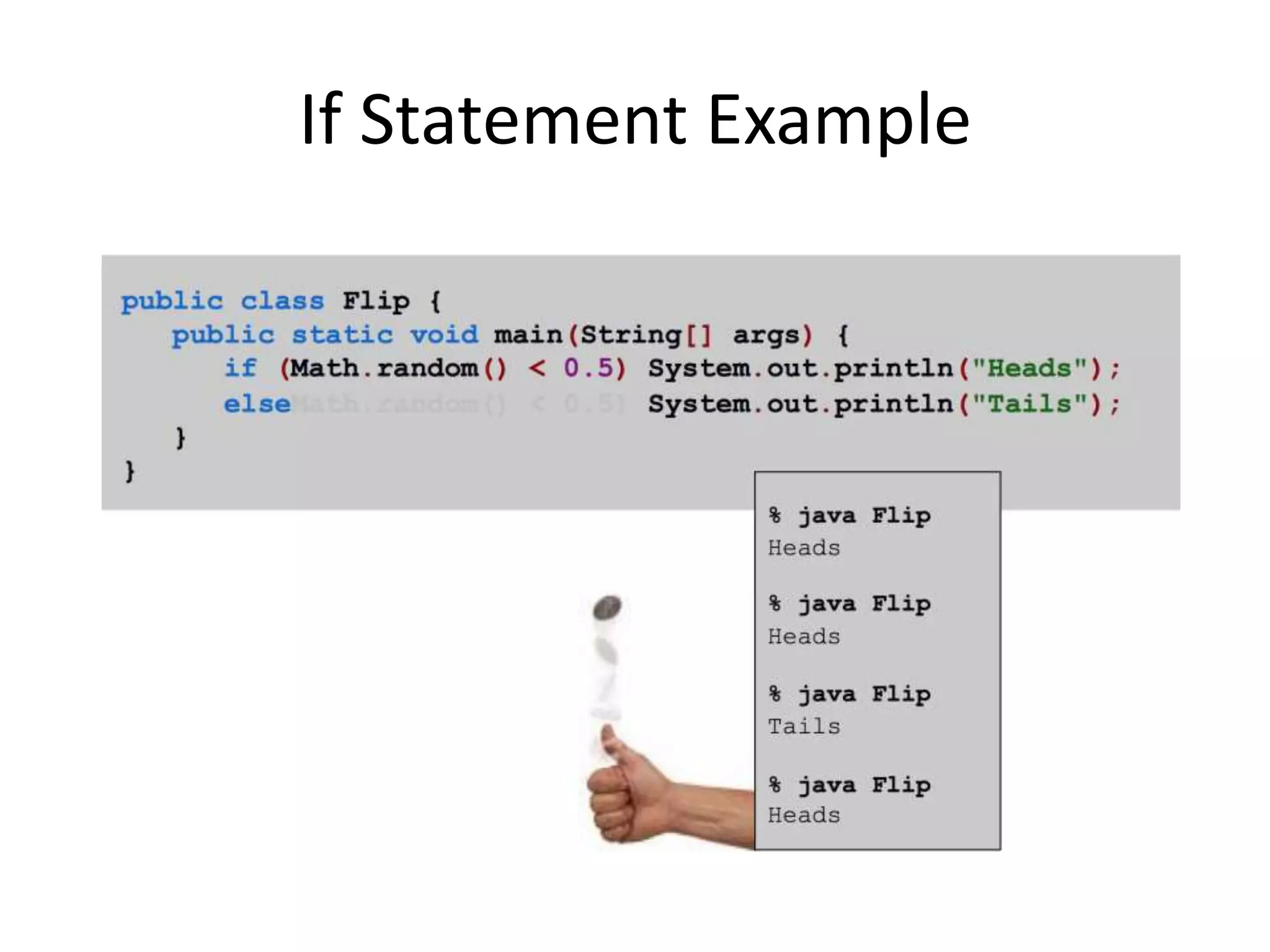

If Statement Example

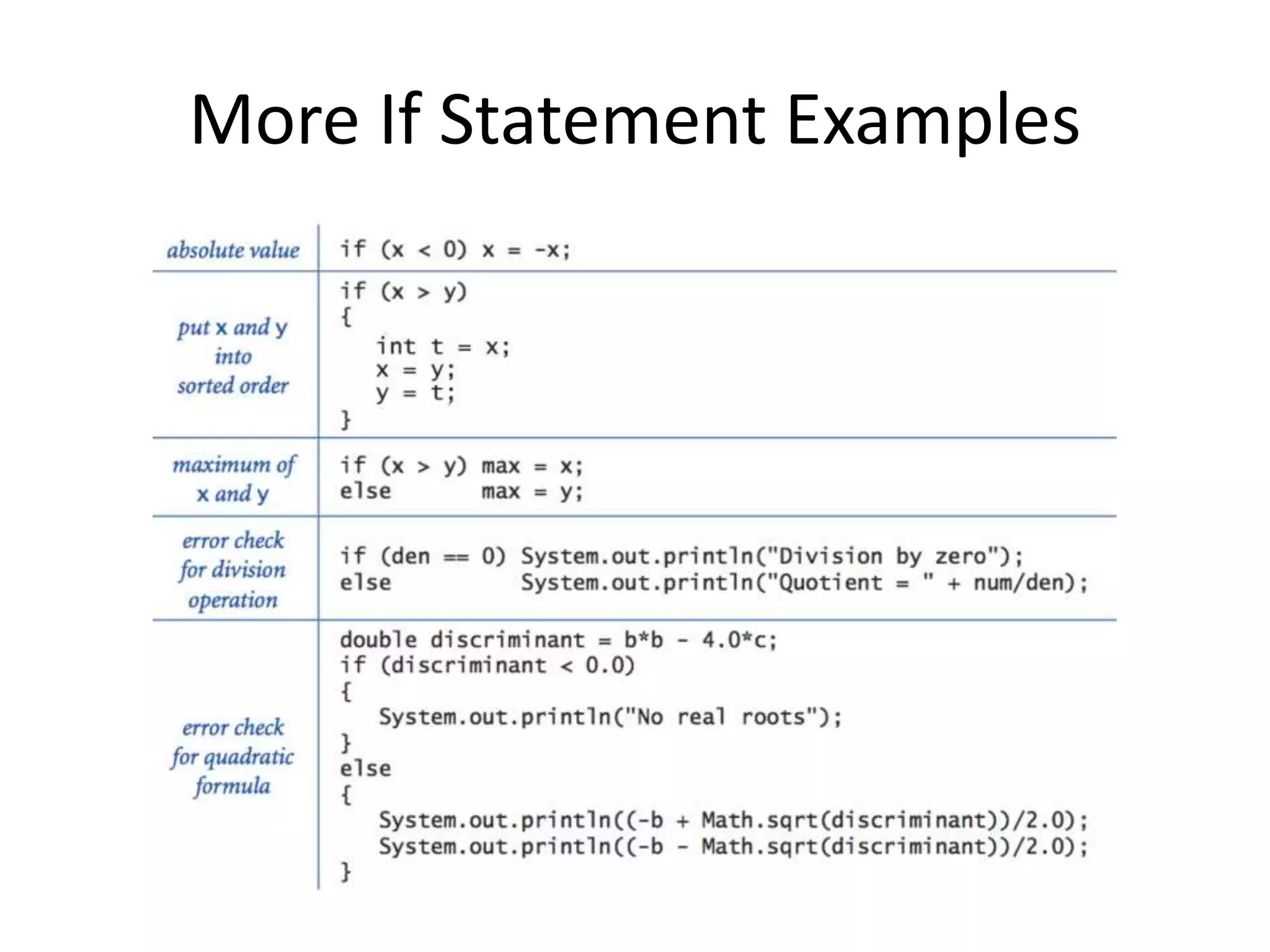

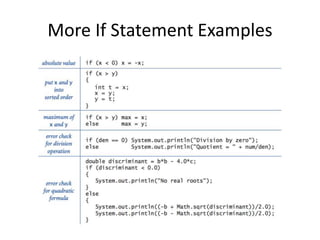

More If Statement Examples

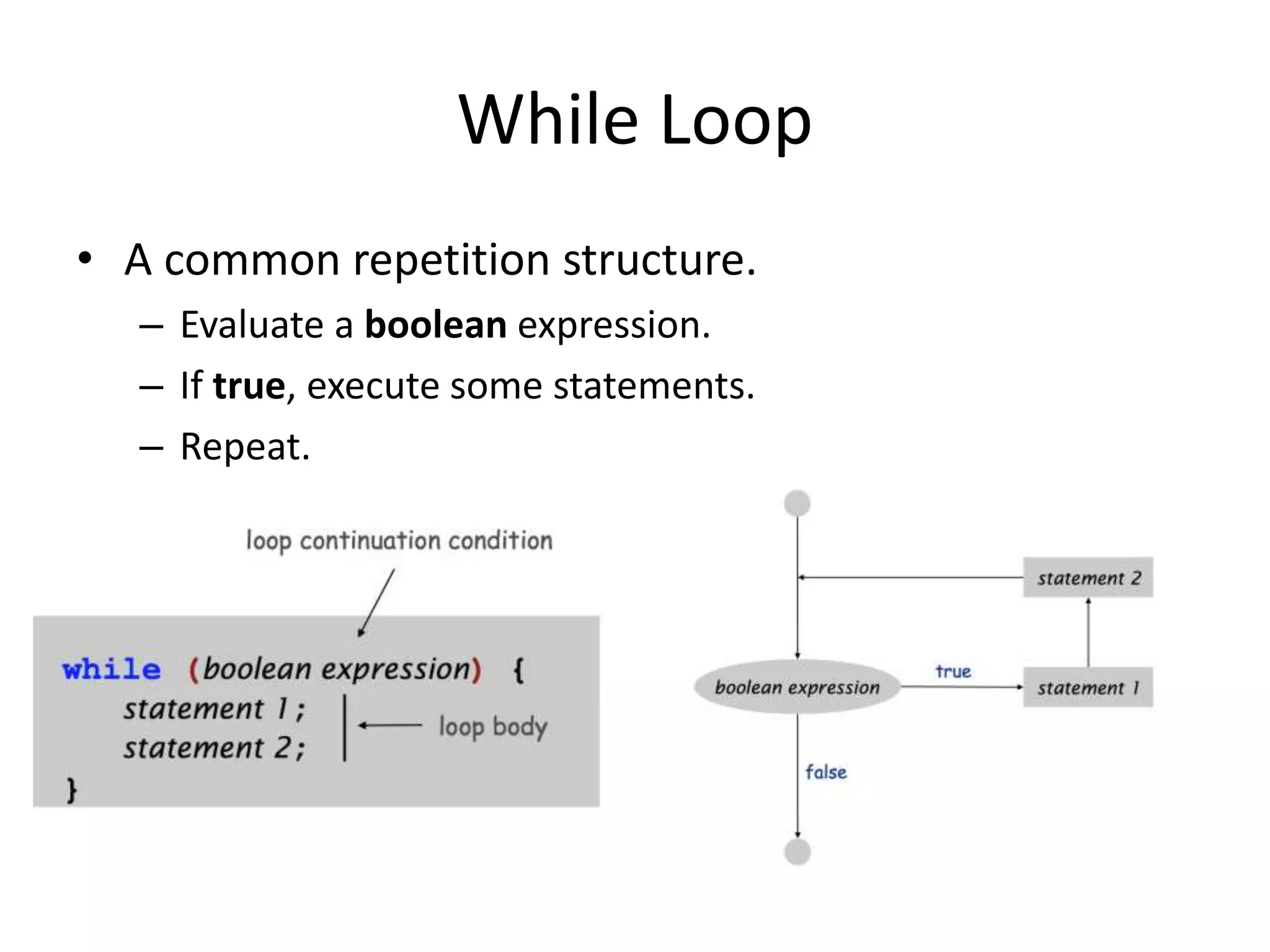

While Loop
• A common repetition structure.
– Evaluate a boolean expression.
– If true, execute some statements.
– Repeat.

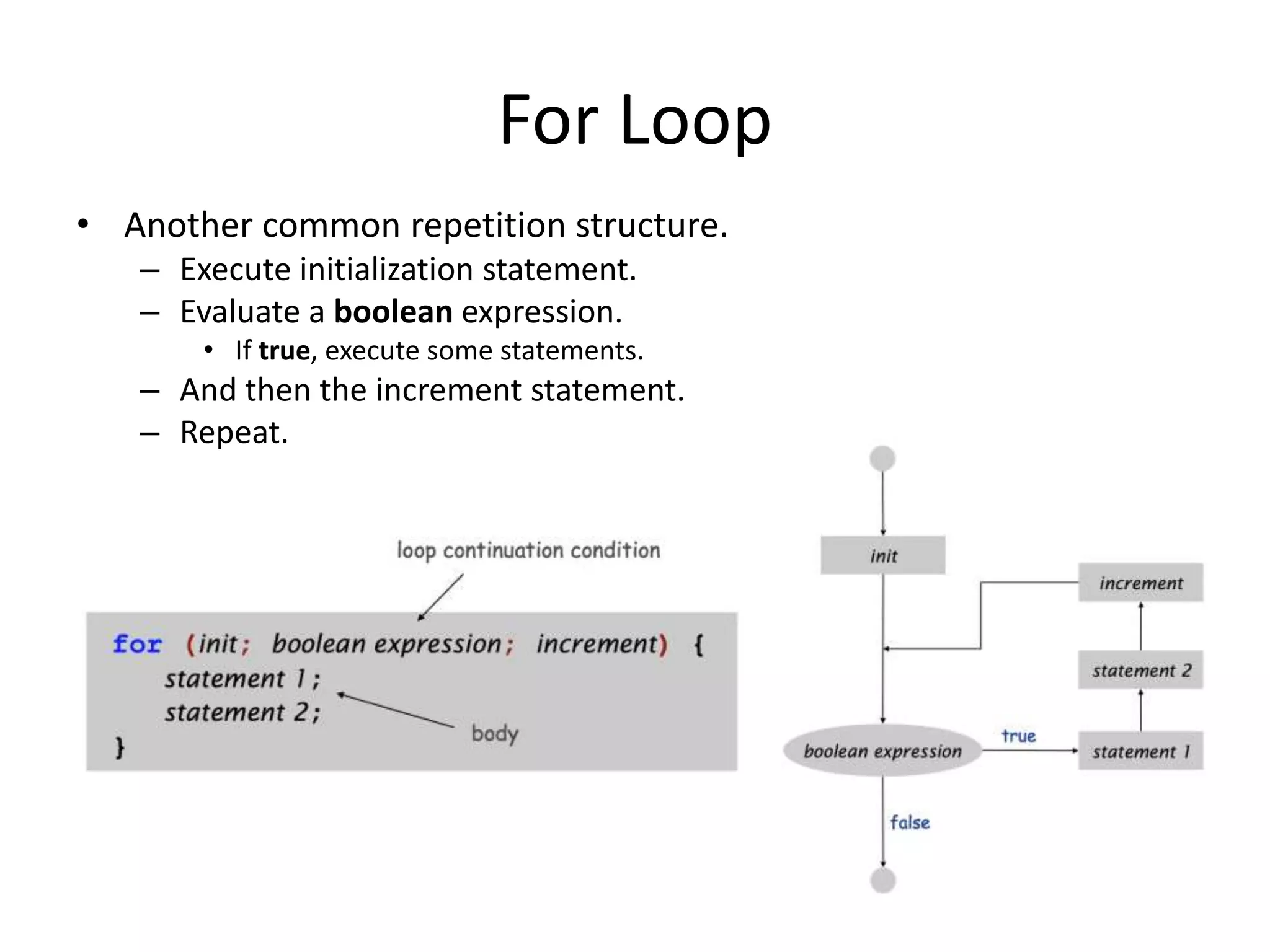

For Loop
• Another common repetition structure.
– Execute initialization statement.
– Evaluate a boolean expression.
• If true, execute some statements.
– And then the increment statement.
– Repeat.

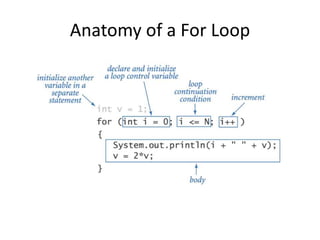

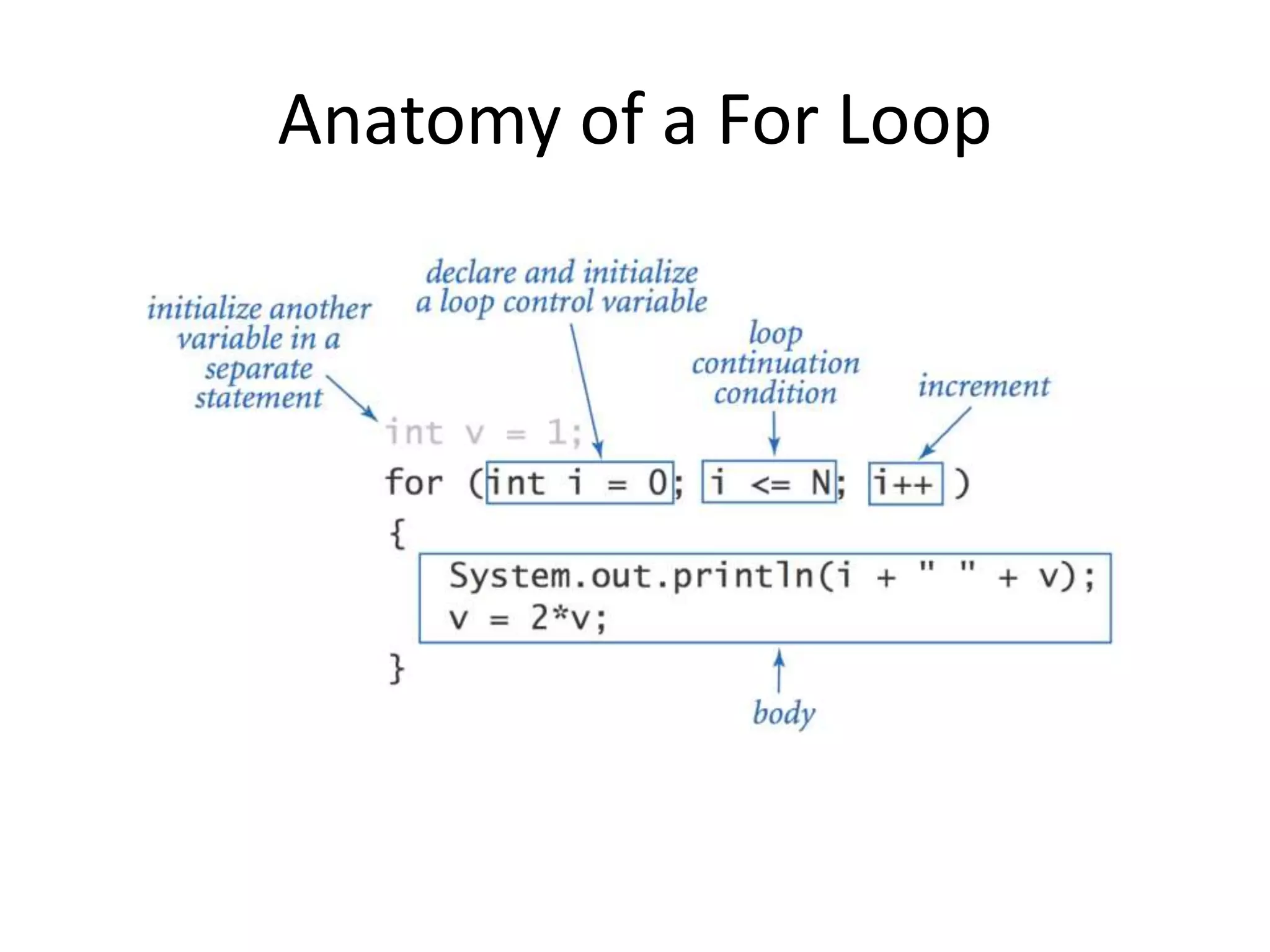

Anatomy of a For Loop

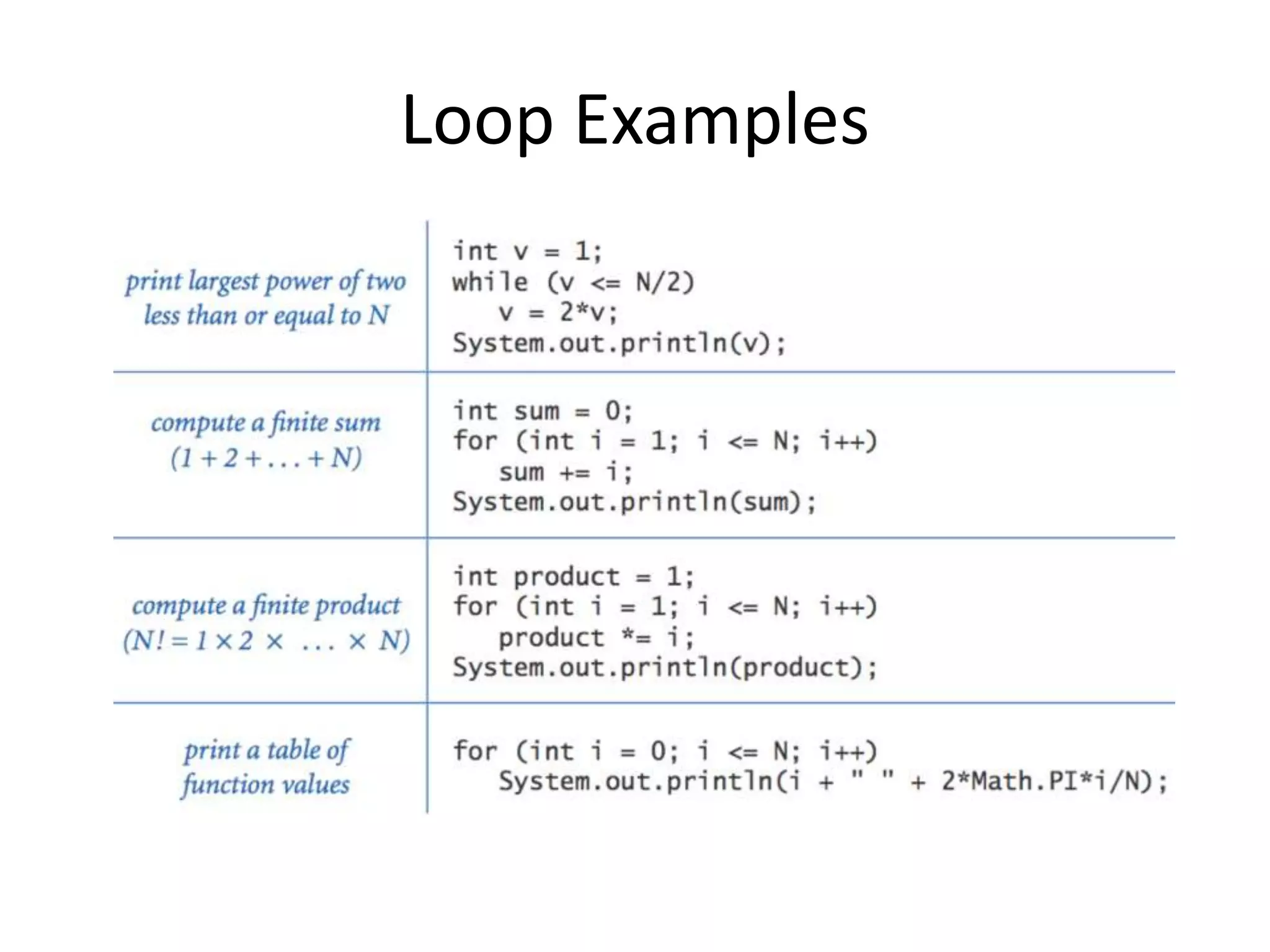

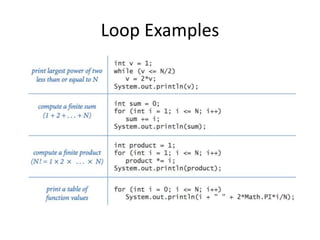

Loop Examples
For Loop

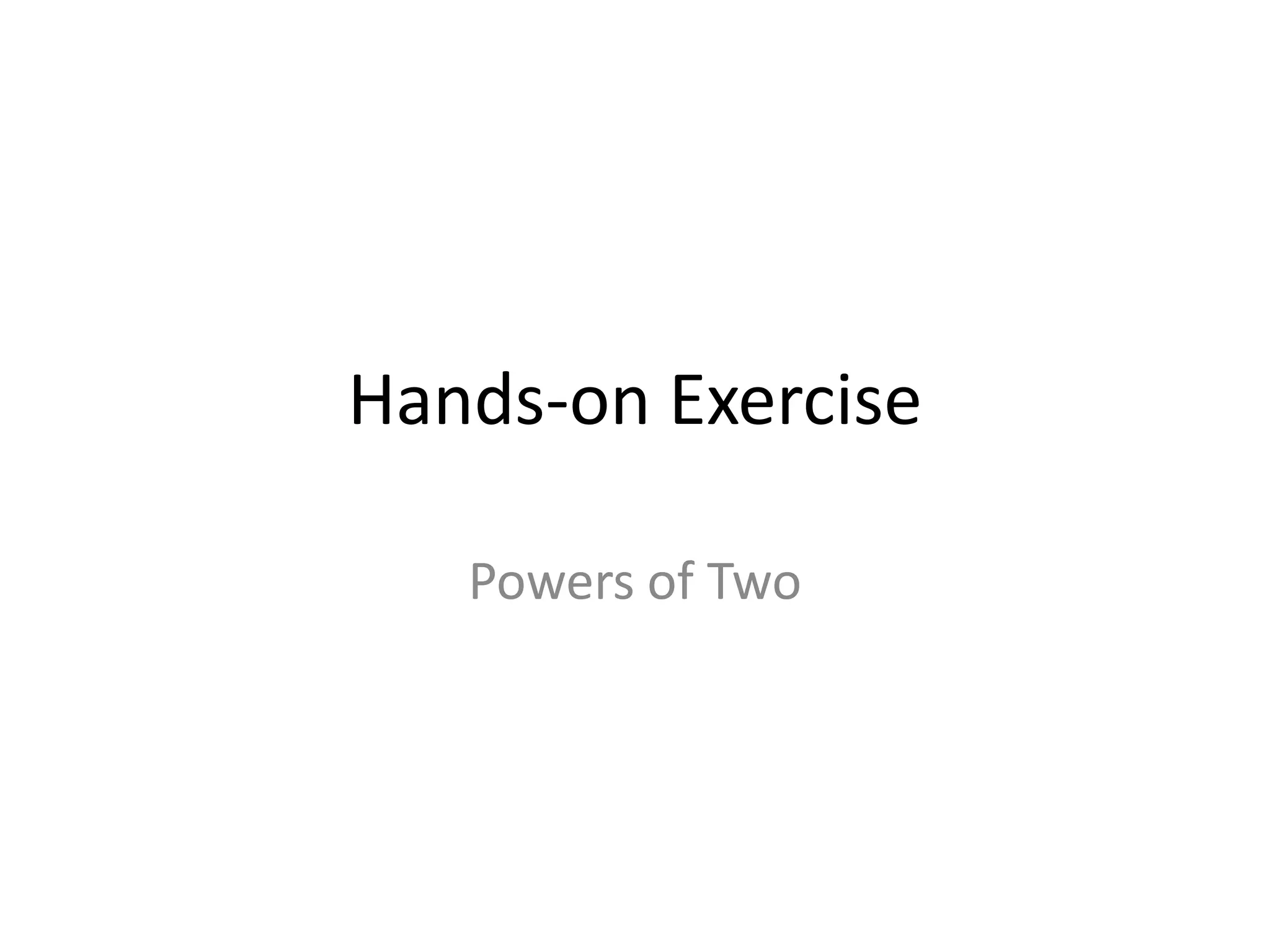

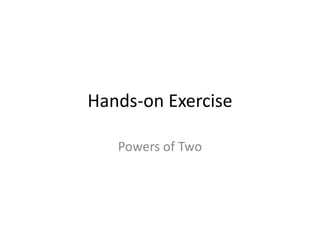

Hands-on Exercise
Powers of Two

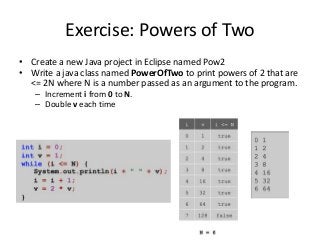

Exercise: Powers of Two
• Create a new Java project in Eclipse named Pow2
• Write a java class named PowerOfTwo to print powers of 2 that are
<= 2N where N is a number passed as an argument to the program.
– Increment i from 0 to N.
– Double v each time
Solution: Power of 2

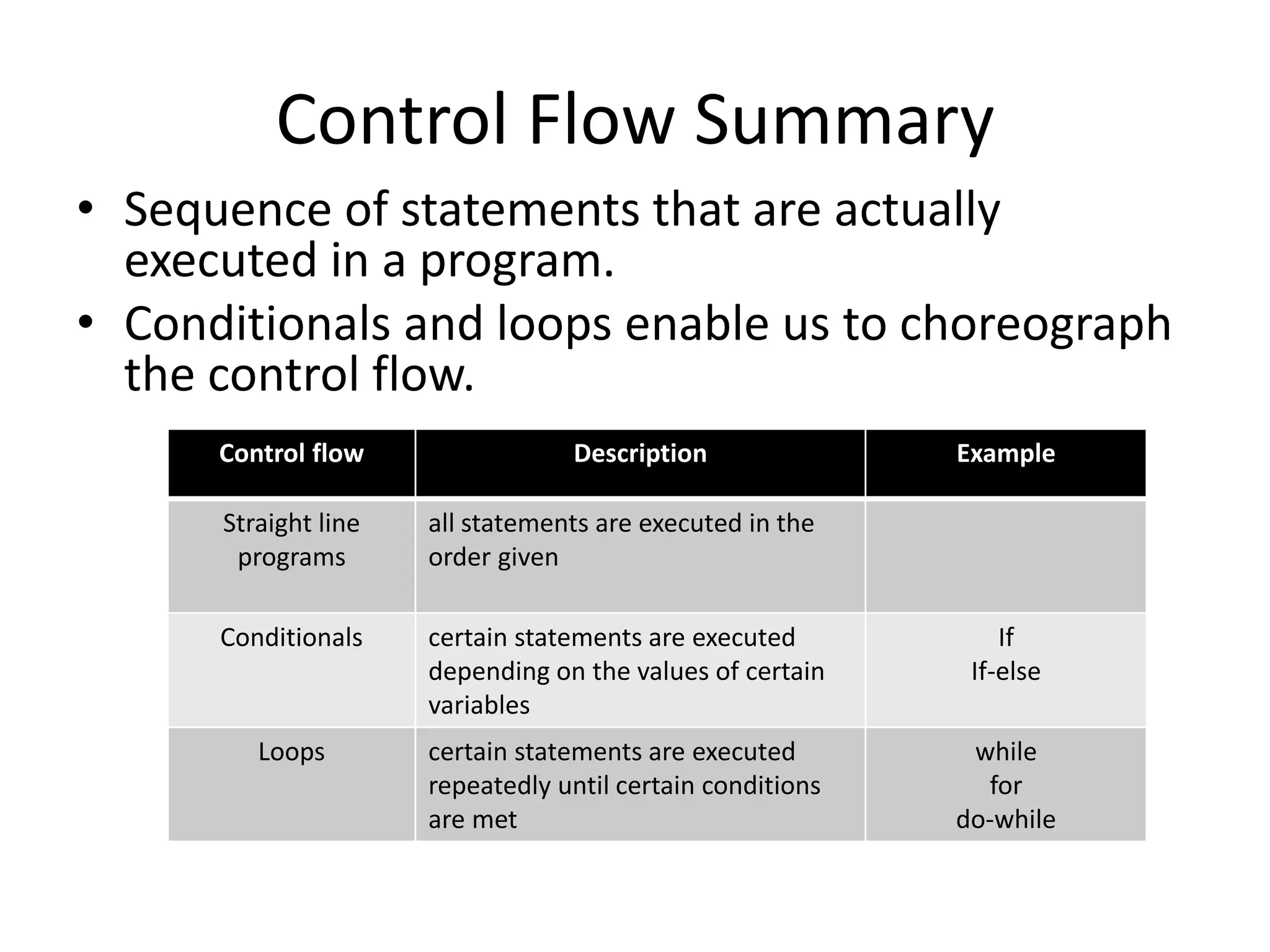

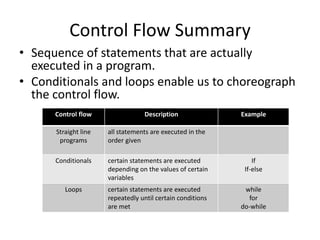

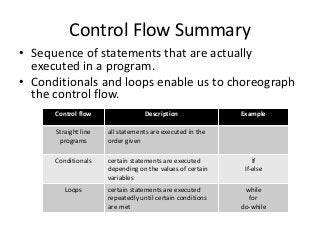

Control Flow Summary
• Sequence of statements that are actually
executed in a program.
• Conditionals and loops enable us to choreograph
the control flow.
Control flow Description Example
Straight line
programs
all statements are executed in the
order given
Conditionals certain statements are executed
depending on the values of certain
variables
If
If-else
Loops certain statements are executed
repeatedly until certain conditions
are met
while
for
do-while
Homework Exercises
Java 101: Introduction to Java
Hands-on Exercise
Random Number Generator

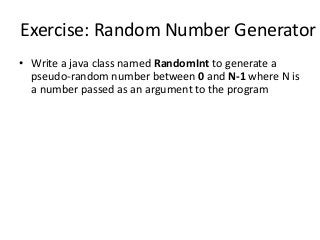

Exercise: Random Number Generator
• Write a java class named RandomInt to generate a
pseudo-random number between 0 and N-1 where N is
a number passed as an argument to the program

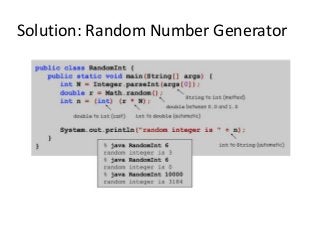

Solution: Random Number Generator

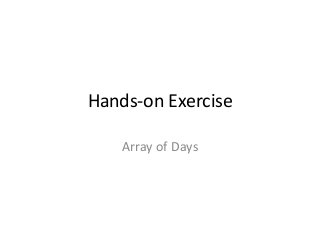

Hands-on Exercise
Array of Days

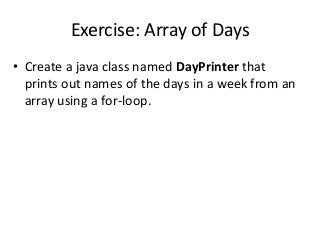

Exercise: Array of Days
• Create a java class named DayPrinter that
prints out names of the days in a week from an
array using a for-loop.

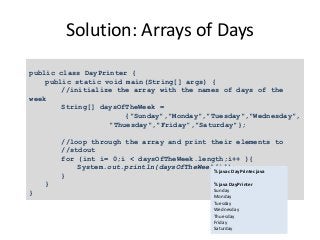

Solution: Arrays of Days
public class DayPrinter {
public static void main(String[] args) {
//initialize the array with the names of days of the
week
String[] daysOfTheWeek =
{"Sunday","Monday","Tuesday","Wednesday",
"Thuesday","Friday”,"Saturday"};
//loop through the array and print their elements to
//stdout
for (int i= 0;i < daysOfTheWeek.length;i++ ){
System.out.println(daysOfTheWeek[i]);
}
}
}
% javac DayPrinter.java
% java DayPrinter
Sunday
Monday
Tuesday
Wednesday
Thuesday
Friday
Saturday

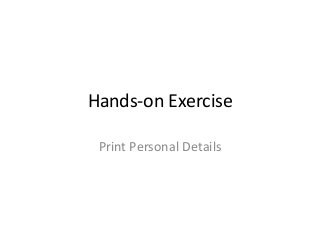

Hands-on Exercise
Print Personal Details

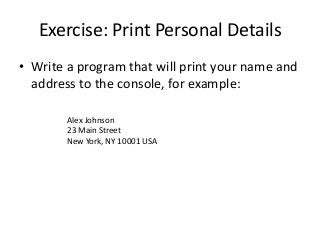

Exercise: Print Personal Details
• Write a program that will print your name and
address to the console, for example:
Alex Johnson
23 Main Street
New York, NY 10001 USA
Hands-on Exercise
Sales Discount
Exercise: Sales Discount
• Create a new project in Eclipse named Sale
• Create, compile, and run the FriendsAndFamily class as illustrated below
• Debug this program in your IDE to find out how it works
Further Reading
• Java Tutorials - https://docs.oracle.com/javase/tutorial/
• Java Language Basics -
http://docs.oracle.com/javase/tutorial/java/nutsandbolts/index.html
• Eclipse IDE Workbench User Guide -
http://help.eclipse.org/kepler/index.jsp
• Eclipse Tutorial - http://www.vogella.com/tutorials/Eclipse/article.html

Java 101 Intro to Java Programming

  • 1.
    Java 101: Introto Java Programming
  • 2.
    Introduction • Your Name •Your day job • Your last holiday destination?
  • 3.
    Java 101 • JavaFundamentals – Setting up your development environment – Language Overview – How Java Works – Writing your first program – Built-in Data Types – Conditionals and Loops
  • 4.
    Java 102 • Object-orientedProgramming – Classes and Objects – Polymorphism, Inheritance and Encapsulation – Functions and Libraries
  • 5.
    Java 103 • DataStructures – Arrays – Collections – Algorithms
  • 6.
    Java 101: Introductionto Java Setting up your Development Environment
  • 7.
    Installing Java DevelopmentKit • Download latest Java SE 8 JDK (not JRE) from http://www.oracle.com/technetwork/java/javase/downloads/jdk8- downloads-2133151.html • For Windows, – download the X86 version, double click the .exe file and follow the instructions, accepting all default • For MACs, – check if java already installed (javac –version) and if not, download the JDK dmg file, run it and follow the instructions. • After installation is complete, type javac –version in the Command window (Terminal window on MAC OS)- – The reported version should be 1.8.... – If not, you may need to modify the system variable PATH to include the bin directory of JDK
  • 8.
    What is anIDE? • IDE = Integrated Development Environment • Makes you more productive • Includes text editor, compiler, debugger, context- sensitive help, works with different Java SDKs • Eclipse is the most widely used IDE • Alternatives: – IntelliJ IDEA (JetBrains) – NetBeans (Oracle)
  • 9.
    Installing Eclipse • Downloadand install the latest Eclipse for Java EE (32 Bit version) from http://www.eclipse.org/downloads • Unzip the content of the archive file you downloaded • To start Eclipse – On PC, double-click on Eclipse.exe – On Mac, double click Eclipse.app in Application folder
  • 10.
  • 11.
    Java 101: Introductionto Java Language Overview
  • 12.
    Java Language Overview •Object-oriented • Statically typed • Widely available • Widely used
  • 13.
    Java Versions • BriefHistory… – 1990 : Small team at Sun Microsystems start work on C/C++ replacement • Major Version Releases – JDK 1.0 (January 21, 1996) – JDK 1.1 (February 19, 1997) – J2SE 1.2 (December 8, 1998) – J2SE 1.3 (May 8, 2000) – J2SE 1.4 (February 6, 2002) – J2SE 5.0 (September 30, 2004) – Java SE 6 (December 11, 2006) – Java SE 7 (July 28, 2011) – Java SE 8 (March 18, 2014)
  • 14.
    Java Editions • JavaSE: Java Standard Edition • Java EE: Java Enterprise Edition (a.k.a. J2EE) – includes a set of technologies built on top of Java SE: Servlets, JSP, JSF, EJB, JMS, et al. • Java ME: Java Micro Edition • Java Card for Smart Cards • All Java programs run inside the Java Virtual Machine (JVM)
  • 15.
    JDK vs. JRE •Java Development Kit (JDK) is required to develop and compile programs • Java Runtime Environment (JRE) is required to run programs. • Users must have JRE installed, • Developers must have the JDK installed • JDK includes the JRE
  • 16.
    Java 101: Introductionto Java How Java Works
  • 17.
  • 18.
  • 19.
    Java 101: Introductionto Java Writing Your First Program
  • 20.
  • 21.
    Writing Your FirstJava Program • Create a new project in your IDE named Java101 • Create a HelloWorld class in the src folder inside the Java101 project as illustrated below.
  • 22.
    Compiling Your FirstJava Program • Save the HelloWorld class in the IDE • This automatically compiles the HelloWorld.java file into into a HelloWorld.class file • Go to the folder you created the Java101 project on your hard disk and open the src folder. • What do you see?
  • 23.
    Running Your FirstJava Program • Run your program in Eclipse by right-clicking and selecting Run As>Java Application.
  • 25.
    Anatomy of aJava Application Comments Class Name Access modifier Function/static method Arguments
  • 26.
  • 27.
  • 28.
    Built-in Data Types •Data type are sets of values and operations defined on those values.
  • 29.
    Basic Definitions • Variable- a name that refers to a value. • Assignment statement - associates a value with a variable.
  • 30.
    String Data Type DataType Attributes Values sequence of characters Typical literals “Hello”, “1 “, “*” Operation Concatenate Operator + • Useful for program input and output.
  • 31.
  • 32.
    String Data Type •Meaning of characters depends on context.
  • 33.
    String Data Type ExpressionValue “Hi, “ + “Bob” “Hi, Bob” “1” + “ 2 “ + “ 1” “ 1 2 1” “1234” + “ + “ + “99” “1234 + 99” “1234” + “99” “123499”
  • 34.
  • 35.
    Exercise: Command LineArguments • Create the Java program below that takes a name as command-line argument and prints “Hi <name>, How are you?”
  • 36.
    Integer Data Type DataType Attributes Values Integers between -2E31 to +2E31-1 Typical literals 1234, -99 , 99, 0, 1000000 Operation Add subtract multiply divide remainder Operator + - * / % • Useful for expressing algorithms.
  • 37.
    Integer Data Type ExpressionValue Comment 5 + 3 8 5 – 3 2 5 * 3 15 5 / 3 1 no fractional part 5 % 3 2 remainder 1 / 0 run-time error 3 * 5 - 2 13 * has precedence 3 + 5 / 2 5 / has precedence 3 – 5 - 2 -4 left associative (3-5) - 2 -4 better style 3 – (5-2) 0 unambiguous
  • 38.
    Double Data Type •Useful in scientific applications and floating- point arithmetic Data Type Attributes Values Real numbers specified by the IEEE 754 standard Typical literals 3.14159 6.022e23 -3.0 2.0 1.41421356237209 Operation Add subtract multiply divide Operator + - * /
  • 39.
    Double Data Type ExpressionValue 3.141 + 0.03 3.171 3.141 – 0.03 3.111 6.02e23 / 2 3.01e23 5.0 / 2.0 1.6666666666667 10.0 % 3.141 0.577 1.0 / 0.0 Infinity Math.sqrt(2.0) 1.4142135623730951
  • 40.
    Java Math Library Methods Math.sin()Math.cos() Math.log() Math.exp() Math.sqrt() Math.pow() Math.min() Math.max() Math.abs() Math.PI http://java.sun.com/javase/6/docs/api/java/lang/Math.html
  • 41.
  • 42.
    Exercise: Integer Operations •Create a Java class named IntOpsin the Java101 project that performs integer operations on a pair of integers from the command line and prints the results.
  • 43.
  • 44.
    Boolean Data Type •Useful to control logic and flow of a program. Data Type Attributes Values true or false Typical literals true false Operation and or not Operator && || !
  • 45.
    Truth-table of BooleanOperations a !a a b a && b a || b true false false false false false false true false true false true true false false true true true true true
  • 46.
    Boolean Comparisons • Takeoperands of one type and produce an operand of type boolean. operation meaning true false == equals 2 == 2 2 == 3 != Not equals 3 != 2 2 != 2 < Less than 2 < 13 2 < 2 <= Less than or equal 2 <= 2 3 <= 2 > Greater than 13 > 2 2 > 13 >= Greater than or equal 3 >= 2 2 >= 3
  • 47.
    Type Conversion • Convertfrom one type of data to another. • Implicit – no loss of precision – with strings • Explicit: – cast – method.
  • 48.
    Type Conversion Examples expressionExpression type Expression value “1234” + 99 String “123499” Integer.parseInt(“123”) int 123 (int) 2.71828 int 2 Math.round(2.71828) long 3 (int) Math.round(2.71828) int 3 (int) Math.round(3.14159) int 3 11 * 0.3 double 3.3 (int) 11 * 0.3 double 3.3 11 * (int) 0.3 int 0 (int) (11 * 0.3) int 3
  • 49.
  • 50.
    Exercise: Leap YearFinder • A year is a leap year if it is either divisible by 400 or divisible by 4 but not 100. • Write a java class named LeapYear in the Java101 project that takes a numeric year as command line argument and prints true if it’s a leap year and false if not
  • 51.
  • 52.
    Data Types Summary •A data type is a set of values and operations on those values. – String for text processing – double, int for mathematical calculation – boolean for decision making • In Java, you must: – Declare type of values. – Convert between types when necessary • Why do we need types? – Type conversion must be done at some level. – Compiler can help do it correctly. – Example: in 1996, Ariane 5 rocket exploded after takeoff because of bad type conversion.
  • 53.
  • 54.
    Conditionals and Loops •Sequence of statements that are actually executed in a program. • Enable us to choreograph control flow.
  • 55.
    Conditionals • The ifstatement is a common branching structure. – Evaluate a boolean expression. • If true, execute some statements. • If false, execute other statements.
  • 56.
  • 57.
  • 58.
    While Loop • Acommon repetition structure. – Evaluate a boolean expression. – If true, execute some statements. – Repeat.
  • 59.
    For Loop • Anothercommon repetition structure. – Execute initialization statement. – Evaluate a boolean expression. • If true, execute some statements. – And then the increment statement. – Repeat.
  • 60.
    Anatomy of aFor Loop
  • 61.
  • 62.
  • 63.
  • 64.
    Exercise: Powers ofTwo • Create a new Java project in Eclipse named Pow2 • Write a java class named PowerOfTwo to print powers of 2 that are <= 2N where N is a number passed as an argument to the program. – Increment i from 0 to N. – Double v each time
  • 65.
  • 66.
    Control Flow Summary •Sequence of statements that are actually executed in a program. • Conditionals and loops enable us to choreograph the control flow. Control flow Description Example Straight line programs all statements are executed in the order given Conditionals certain statements are executed depending on the values of certain variables If If-else Loops certain statements are executed repeatedly until certain conditions are met while for do-while
  • 67.
    Homework Exercises Java 101:Introduction to Java
  • 68.
  • 69.
    Exercise: Random NumberGenerator • Write a java class named RandomInt to generate a pseudo-random number between 0 and N-1 where N is a number passed as an argument to the program
  • 70.
  • 71.
  • 72.
    Exercise: Array ofDays • Create a java class named DayPrinter that prints out names of the days in a week from an array using a for-loop.
  • 73.
    Solution: Arrays ofDays public class DayPrinter { public static void main(String[] args) { //initialize the array with the names of days of the week String[] daysOfTheWeek = {"Sunday","Monday","Tuesday","Wednesday", "Thuesday","Friday”,"Saturday"}; //loop through the array and print their elements to //stdout for (int i= 0;i < daysOfTheWeek.length;i++ ){ System.out.println(daysOfTheWeek[i]); } } } % javac DayPrinter.java % java DayPrinter Sunday Monday Tuesday Wednesday Thuesday Friday Saturday
  • 74.
  • 75.
    Exercise: Print PersonalDetails • Write a program that will print your name and address to the console, for example: Alex Johnson 23 Main Street New York, NY 10001 USA
  • 76.
  • 77.

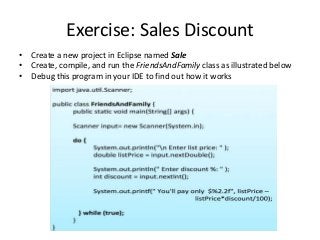

    Exercise: Sales Discount •Create a new project in Eclipse named Sale • Create, compile, and run the FriendsAndFamily class as illustrated below • Debug this program in your IDE to find out how it works
  • 78.

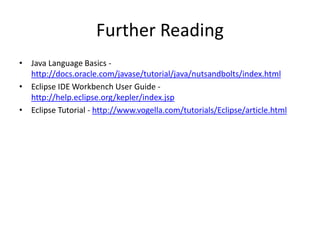

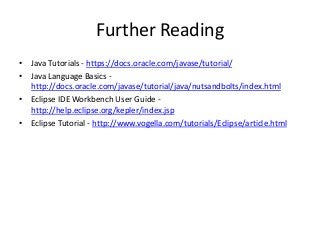

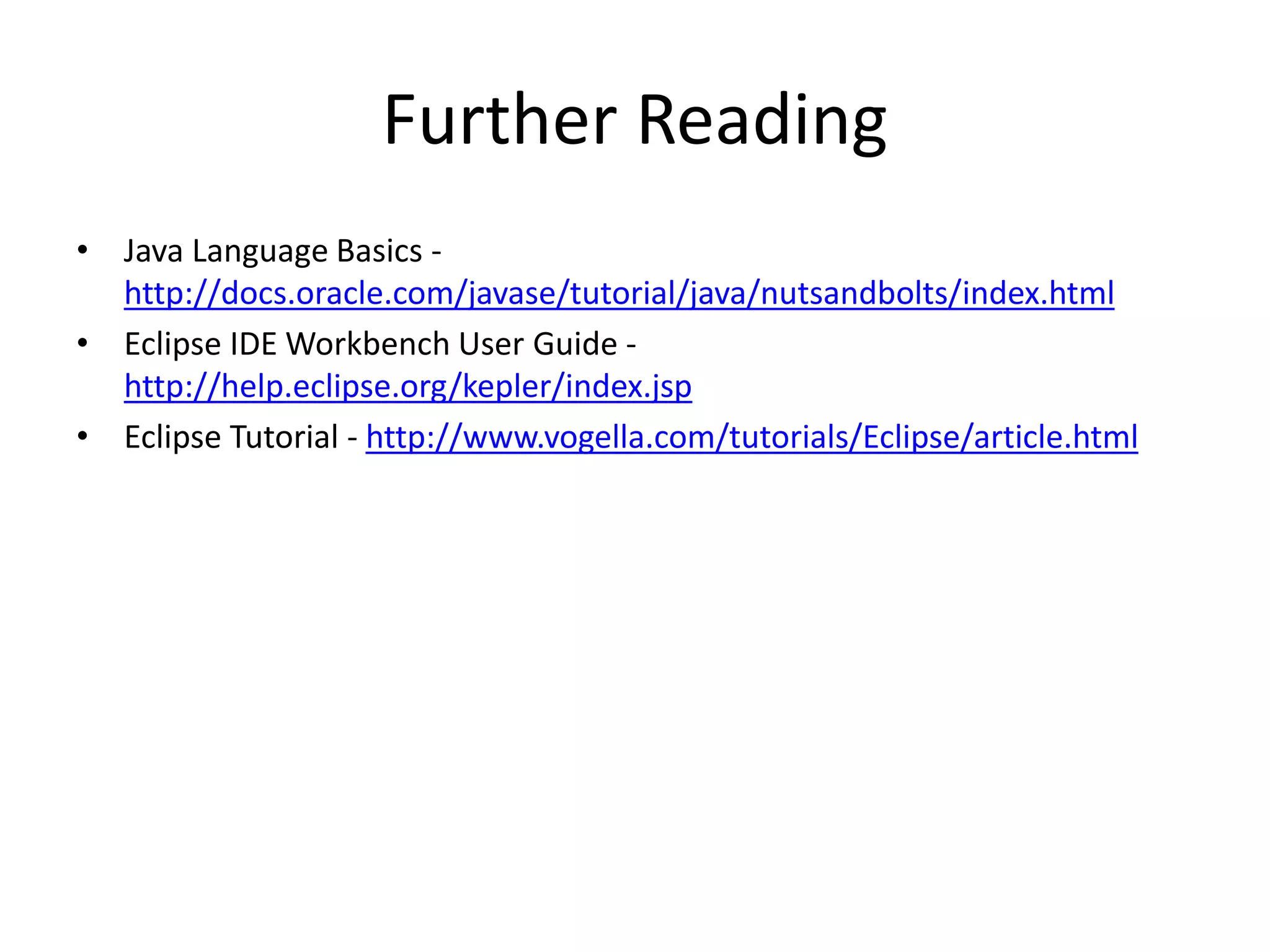

    Further Reading • JavaTutorials - https://docs.oracle.com/javase/tutorial/ • Java Language Basics - http://docs.oracle.com/javase/tutorial/java/nutsandbolts/index.html • Eclipse IDE Workbench User Guide - http://help.eclipse.org/kepler/index.jsp • Eclipse Tutorial - http://www.vogella.com/tutorials/Eclipse/article.html

Editor's Notes

  • #21 Source: http://profitswithjody.com/wp-content/uploads/2012/11/hello_world_Wallpaper_5ze28.jpg
