Introduction to JMS and Message-Driven POJOs
This document provides an overview of JMS and message-driven POJOs. It discusses JMS message types, the JMS API, configuration, sending and receiving messages, request/reply messaging, using Spring's JMS support, and implementing message-driven POJOs with Spring. Code examples are provided to demonstrate sending and receiving messages, request/reply messaging, and implementing message-driven POJOs that receive messages. The presentation includes an agenda, introductions to messaging concepts and models, descriptions of each message type, and discussions of Spring's JMS support and the three options for implementing message-driven POJOs with Spring.
Technologyā¦
In this document
Powered by AI
Introduction to Java Message Service (JMS) by Matt Stine, covering messaging fundamentals.
Explains the importance of messaging, illustrating the flow between sender, channel, and receiver components.
Describes messaging models: Point to Point (P2P) and Publish/Subscribe, highlighting message flow.
Overview of JMS message structure, including headers, properties, and various message payloads.
Details on different JMS message types: TextMessage, ObjectMessage, MapMessage, BytesMessage, StreamMessage, with code examples.
Introduces JMS API, including generic, queue-based, and topic-based interfaces for message handling.
Explains how to configure a JMS provider, focusing on Open Source Project and XML configuration.
Live coding demonstration on sending and receiving messages using JMS provider and asynchronous listeners.
Demonstration of request/reply messaging pattern, modifying listeners for confirmations.
Overview of how Spring simplifies JMS API usage, discussing configuration and JmsTemplate for message production.
Details on Message-Driven POJOs with Spring, enabling asynchronous communication with minimal coupling.
Options for implementing MDPs: using MessageListener, Springās SessionAwareMessageListener, and MessageListenerAdapter.
Live coding on configuring MessageListenerContainer and implementing Message-Driven POJOs with conversions.
References and credits related to the presentation and additional resources.
More Related Content
Similar to Introduction to JMS and Message-Driven POJOs
Introduction to JMS and Message-Driven POJOs
- 1. Introduction to JMSand Message-Driven POJOs Matt Stine Memphis JUG March 19, 2009

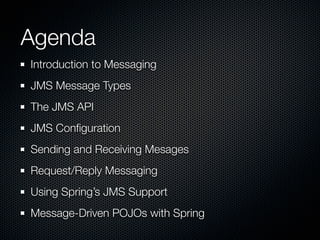

- 2. Agenda Introduction to Messaging JMSMessage Types The JMS API JMS Conļ¬guration Sending and Receiving Mesages Request/Reply Messaging Using Springās JMS Support Message-Driven POJOs with Spring
- 3. Introduction to Messaging Whyuse messaging?

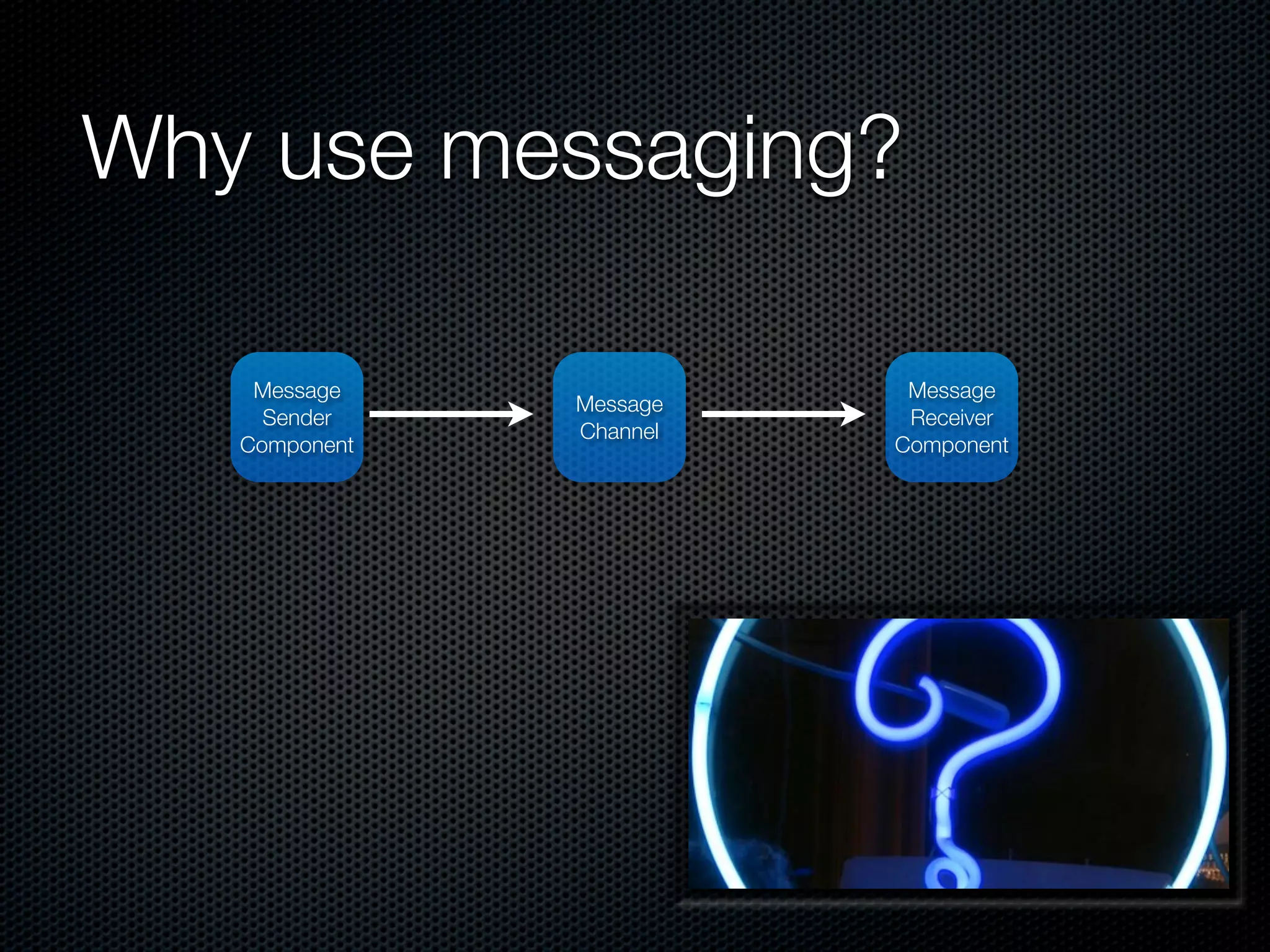

- 4. Why use messaging? Message Message Message Sender Receiver Channel Component Component

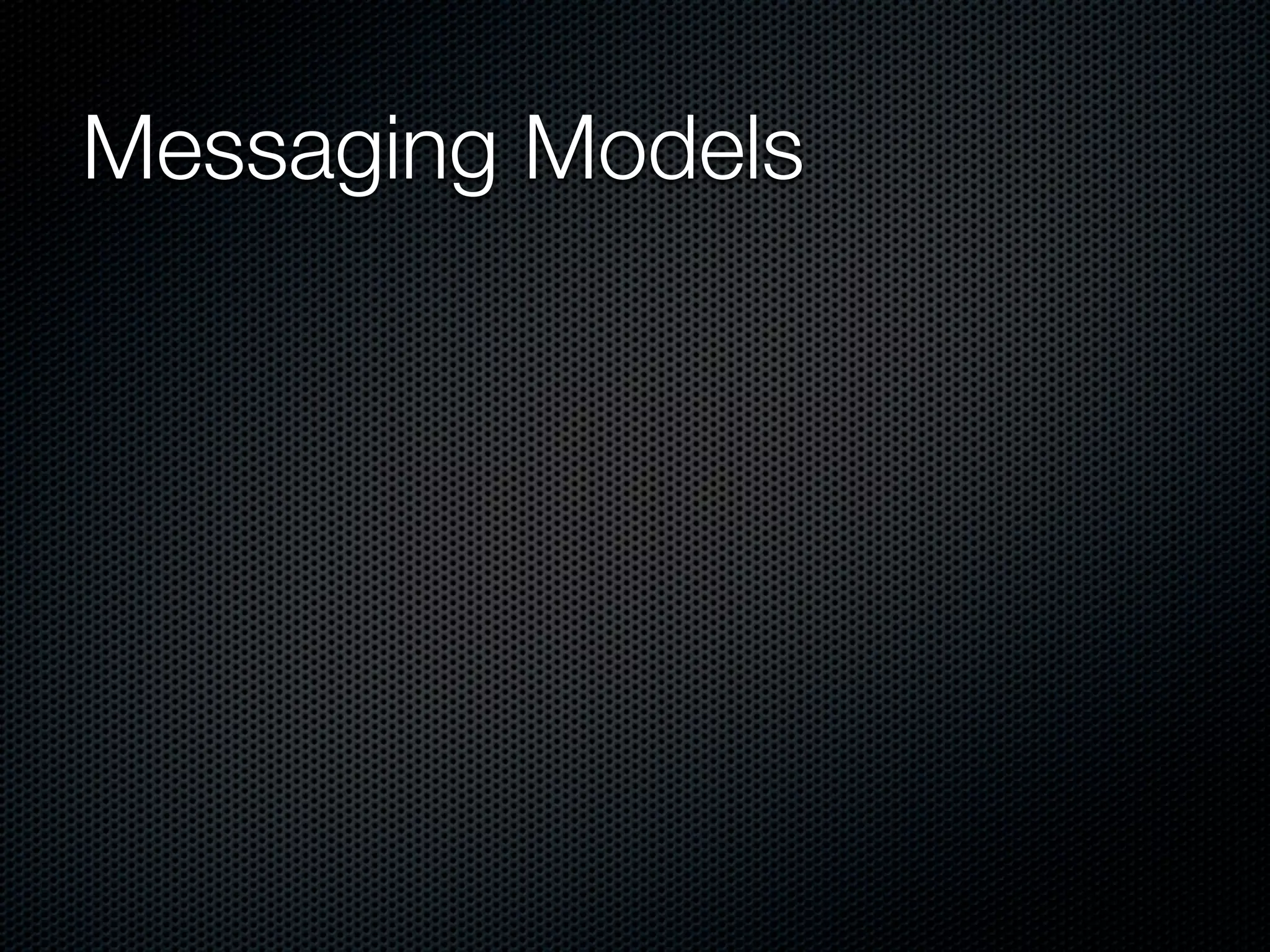

- 5.

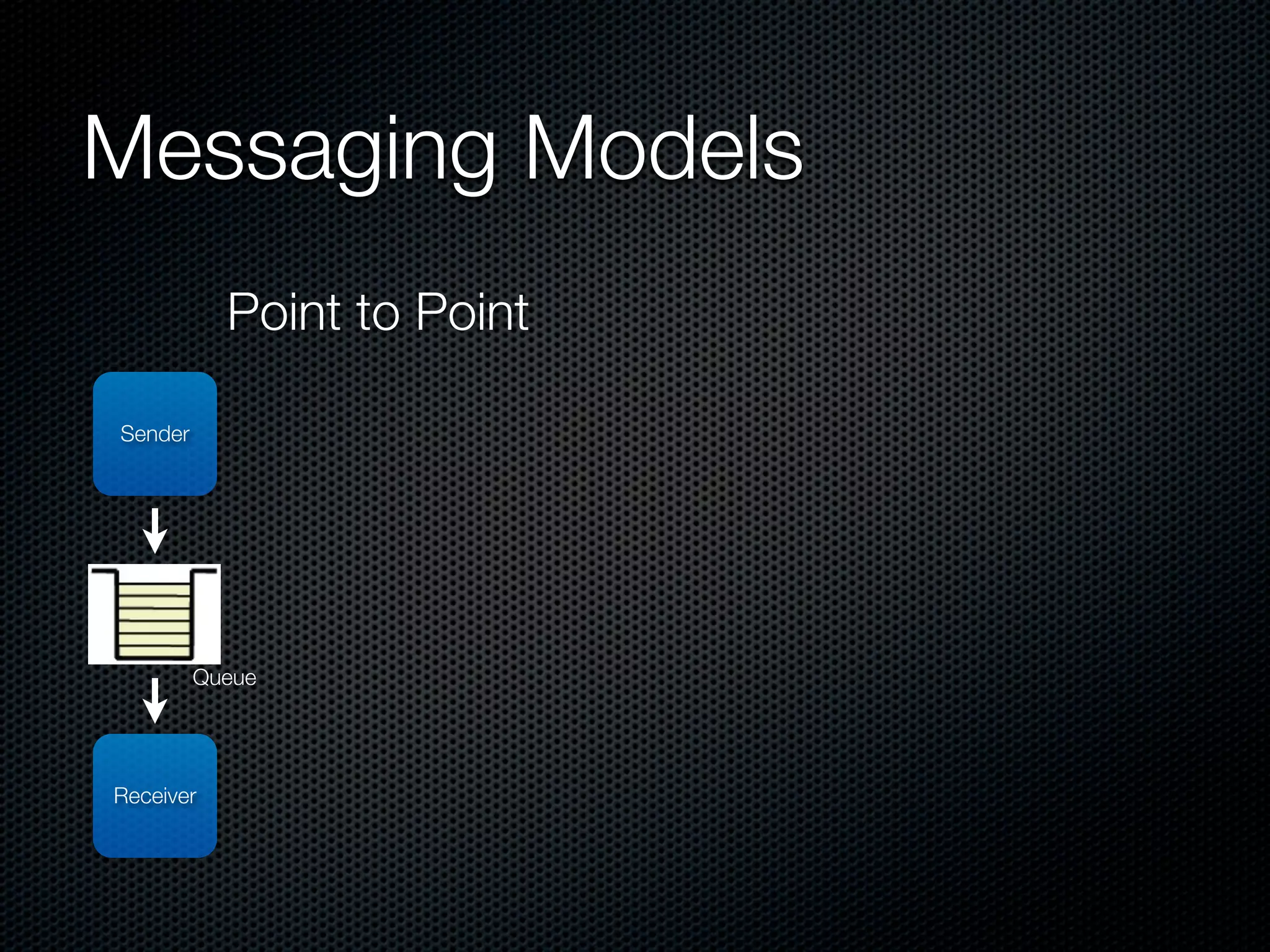

- 6. Messaging Models Point to Point Sender Queue Receiver

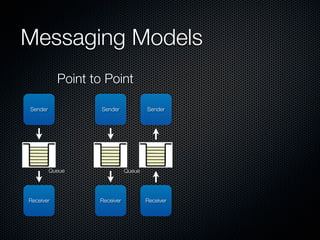

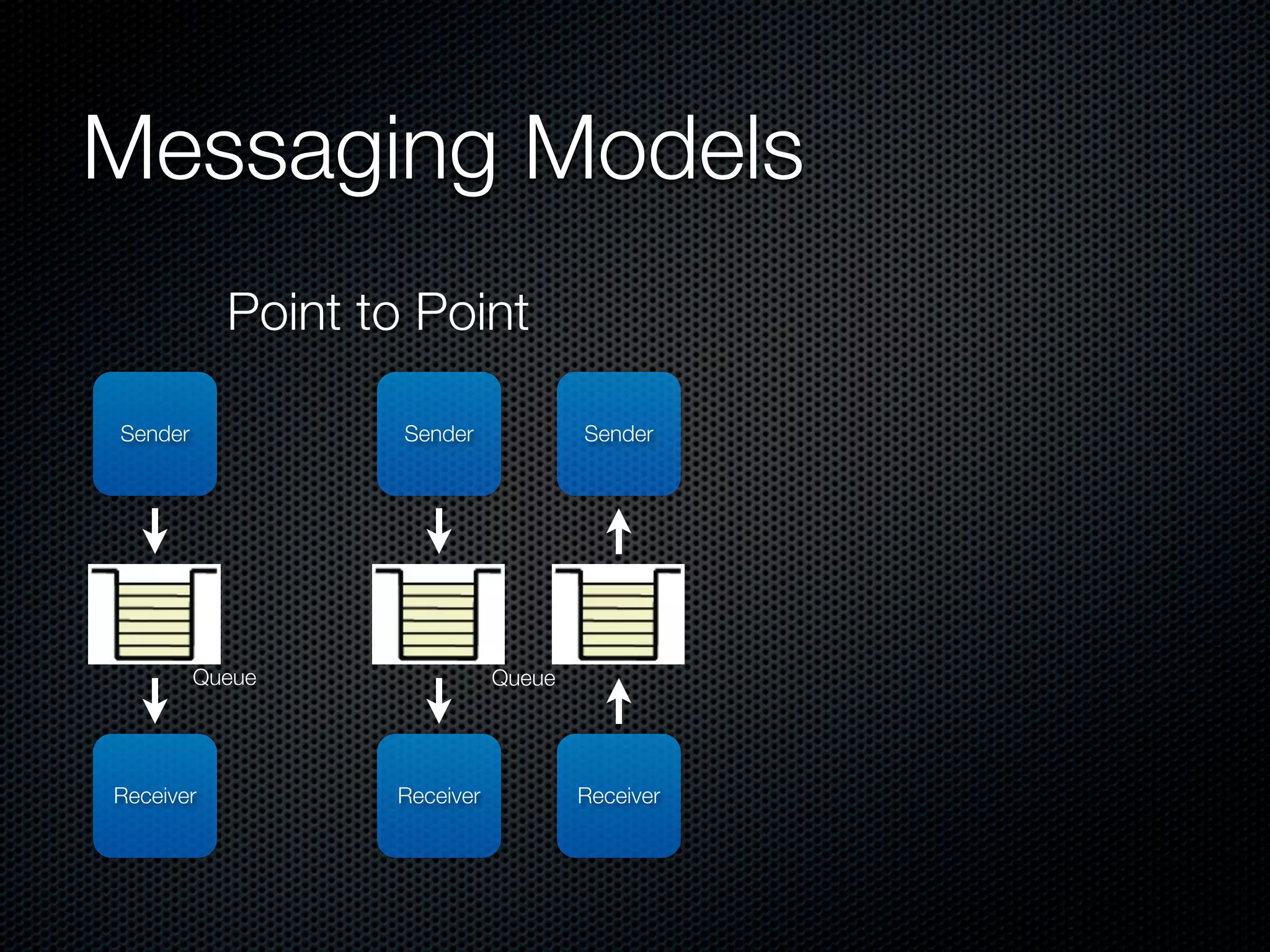

- 7. Messaging Models Point to Point Sender Sender Sender Queue Queue Receiver Receiver Receiver

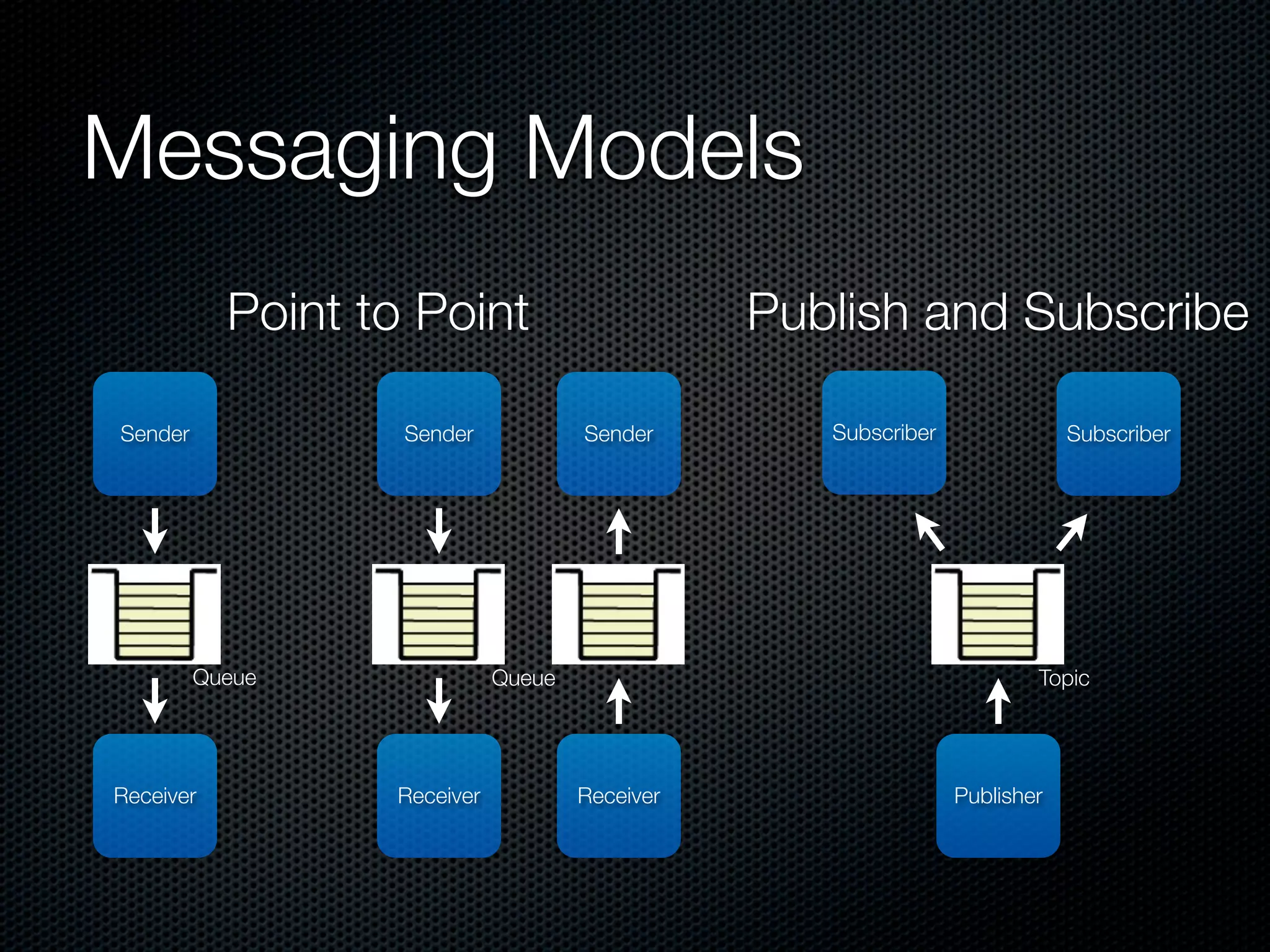

- 8. Messaging Models Point to Point Publish and Subscribe Sender Sender Sender Subscriber Subscriber Queue Queue Topic Receiver Receiver Receiver Publisher

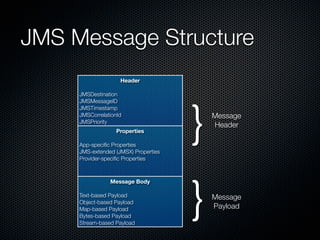

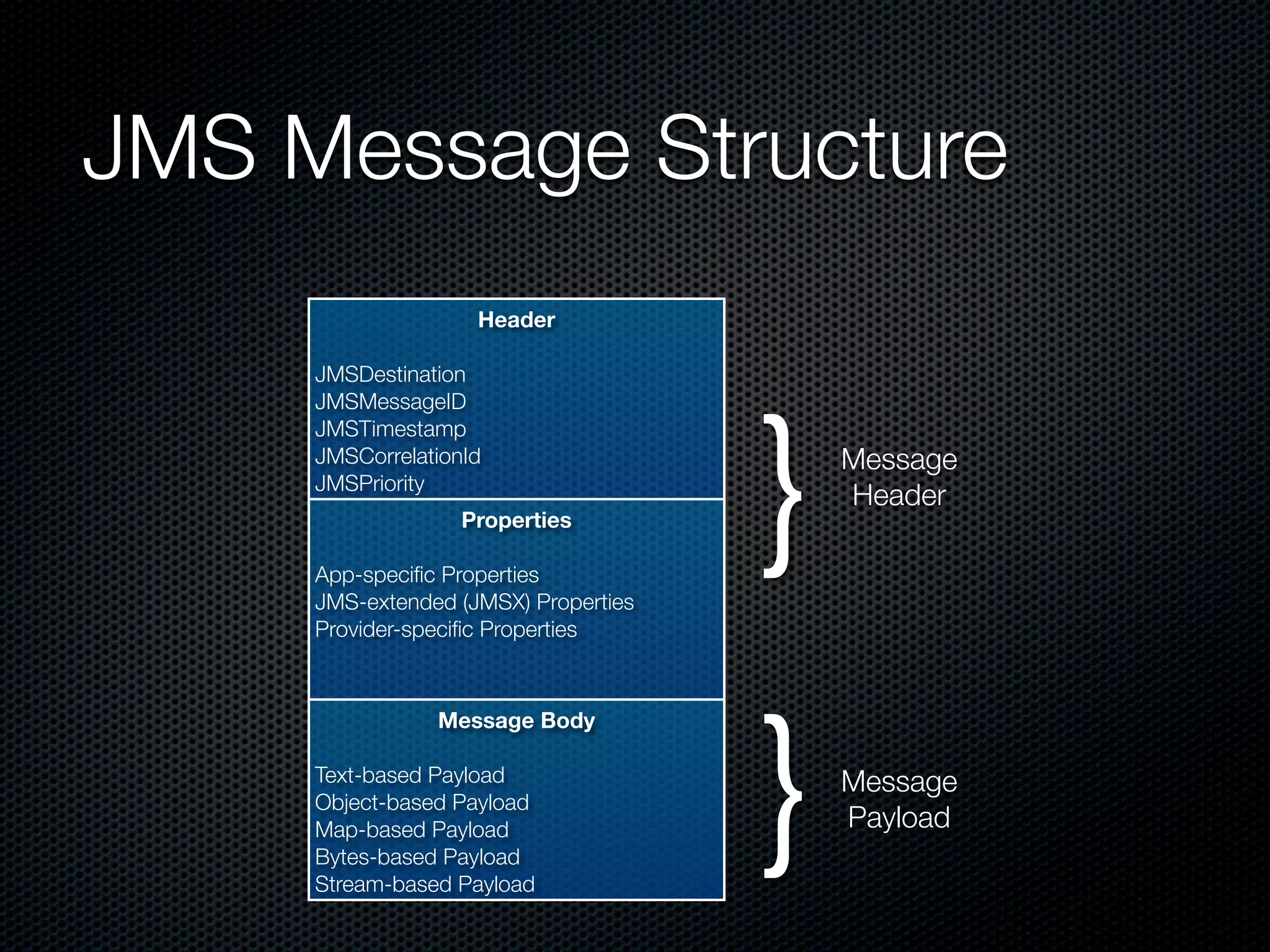

- 9. JMS Message Structure Header JMSDestination } JMSMessageID JMSTimestamp JMSCorrelationId Message JMSPriority Header Properties App-speciļ¬c Properties JMS-extended (JMSX) Properties Provider-speciļ¬c Properties } Message Body Text-based Payload Message Object-based Payload Map-based Payload Payload Bytes-based Payload Stream-based Payload
- 10.

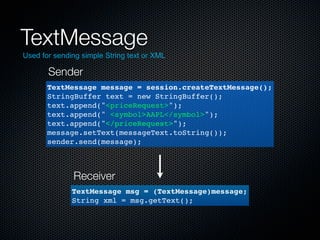

- 11. TextMessage Used for sendingsimple String text or XML Sender TextMessage message = session.createTextMessage(); StringBuffer text = new StringBuffer(); text.append("<priceRequest>"); text.append(" <symbol>AAPL</symbol>"); text.append("</priceRequest>"); message.setText(messageText.toString()); sender.send(message); Receiver TextMessage msg = (TextMessage)message; String xml = msg.getText();

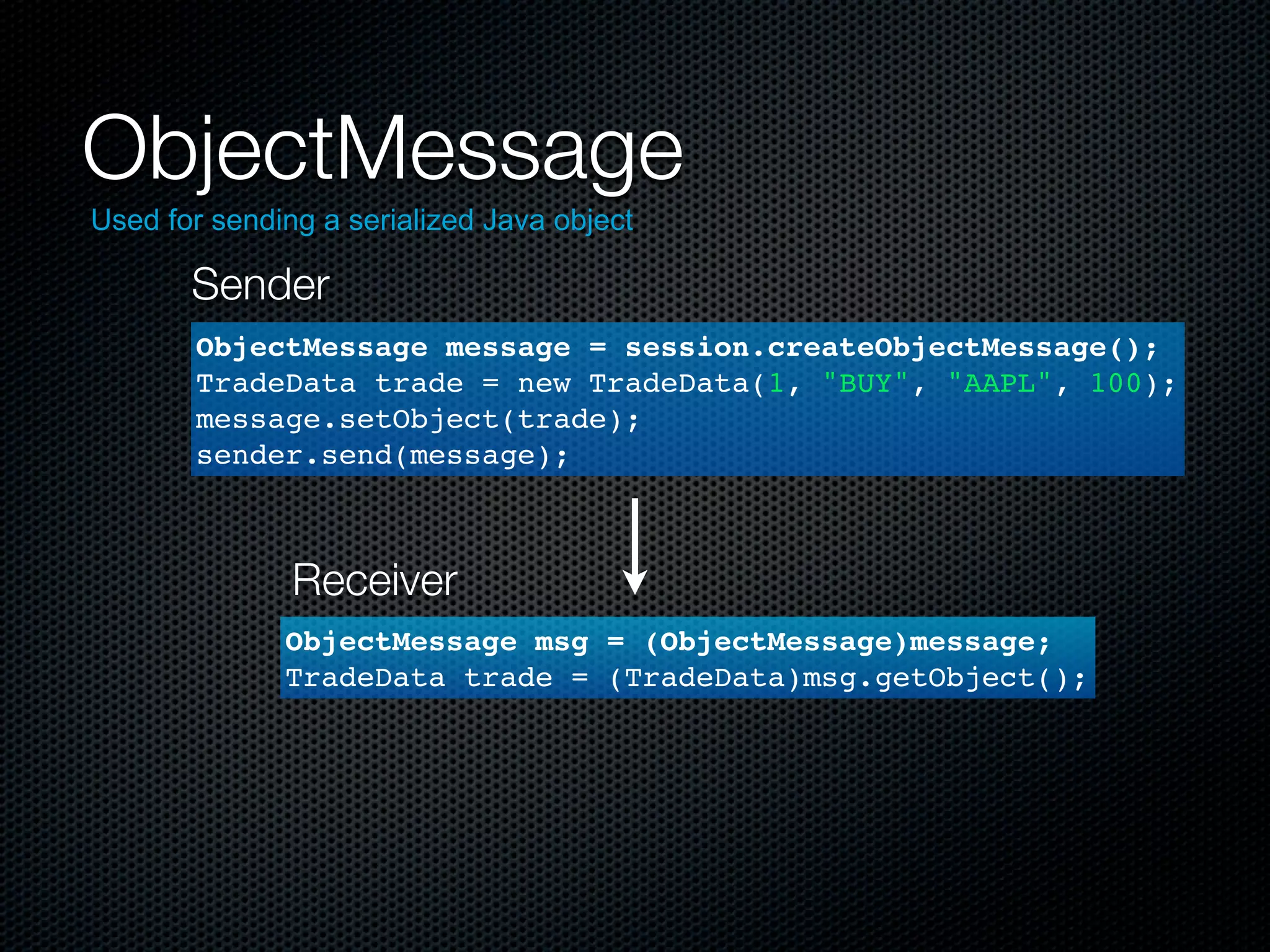

- 12. ObjectMessage Used for sendinga serialized Java object Sender ObjectMessage message = session.createObjectMessage(); TradeData trade = new TradeData(1, "BUY", "AAPL", 100); message.setObject(trade); sender.send(message); Receiver ObjectMessage msg = (ObjectMessage)message; TradeData trade = (TradeData)msg.getObject();

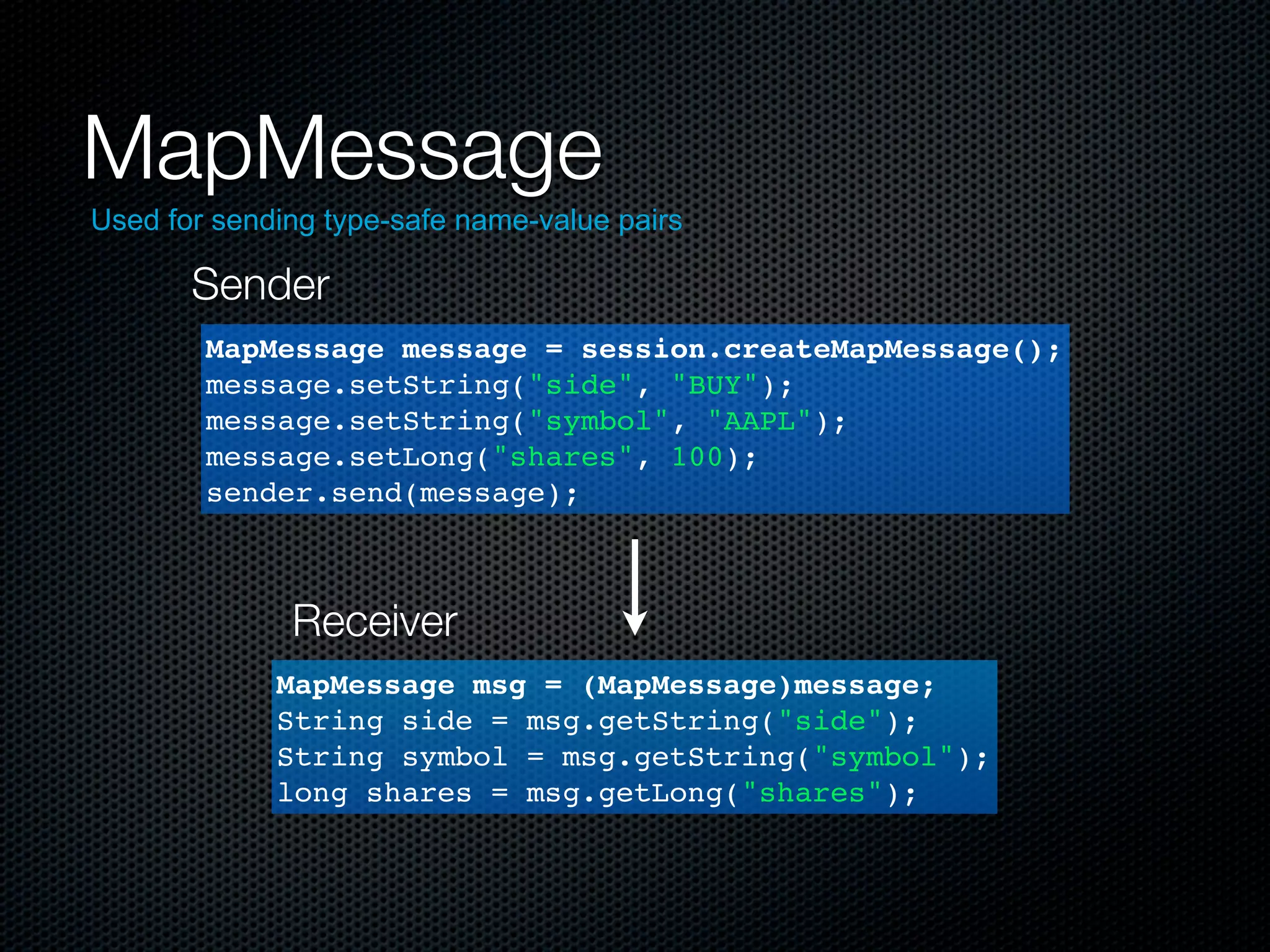

- 13. MapMessage Used for sendingtype-safe name-value pairs Sender MapMessage message = session.createMapMessage(); message.setString("side", "BUY"); message.setString("symbol", "AAPL"); message.setLong("shares", 100); sender.send(message); Receiver MapMessage msg = (MapMessage)message; String side = msg.getString("side"); String symbol = msg.getString("symbol"); long shares = msg.getLong("shares");

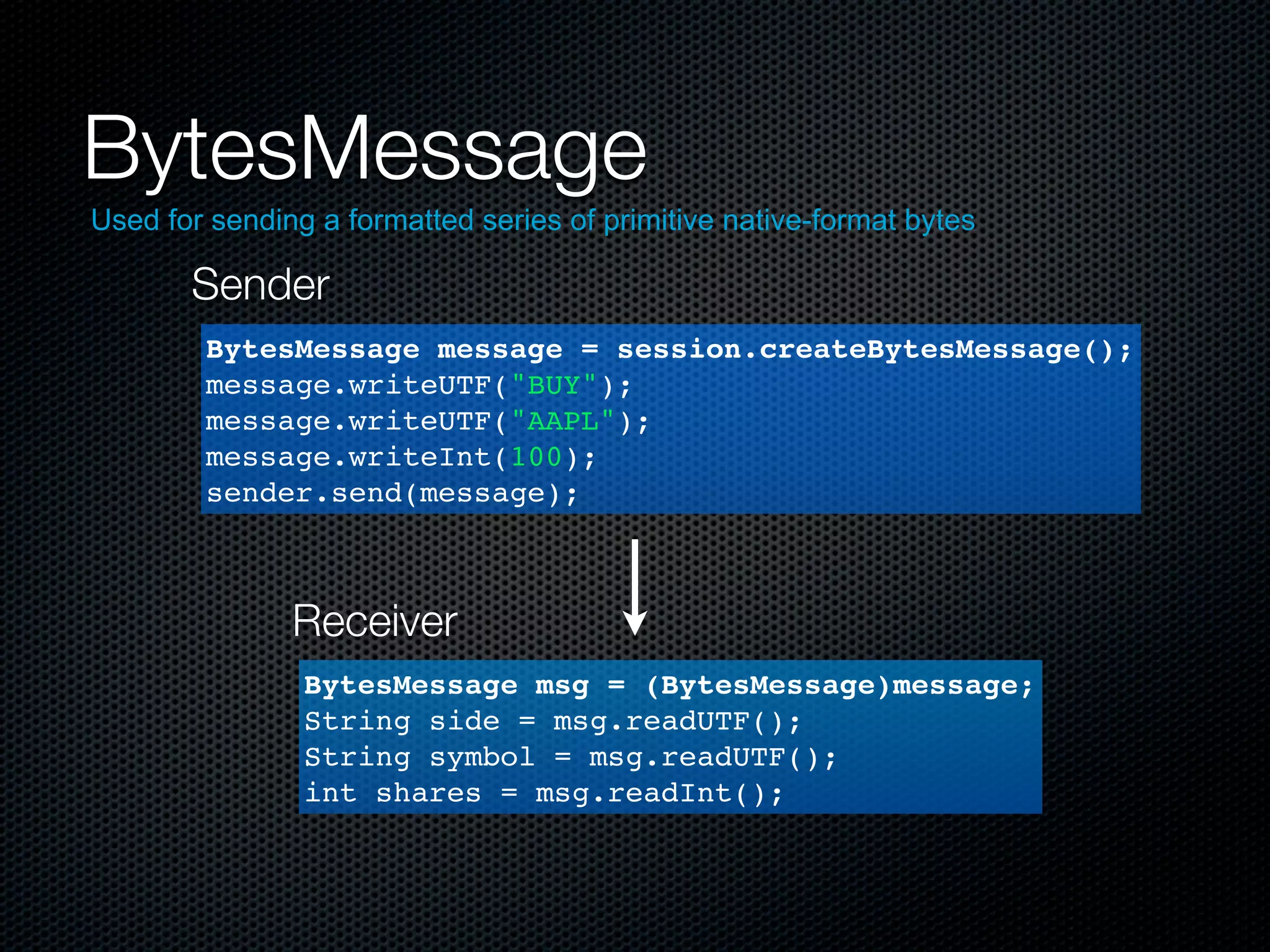

- 14. BytesMessage Used for sendinga formatted series of primitive native-format bytes Sender BytesMessage message = session.createBytesMessage(); message.writeUTF("BUY"); message.writeUTF("AAPL"); message.writeInt(100); sender.send(message); Receiver BytesMessage msg = (BytesMessage)message; String side = msg.readUTF(); String symbol = msg.readUTF(); int shares = msg.readInt();

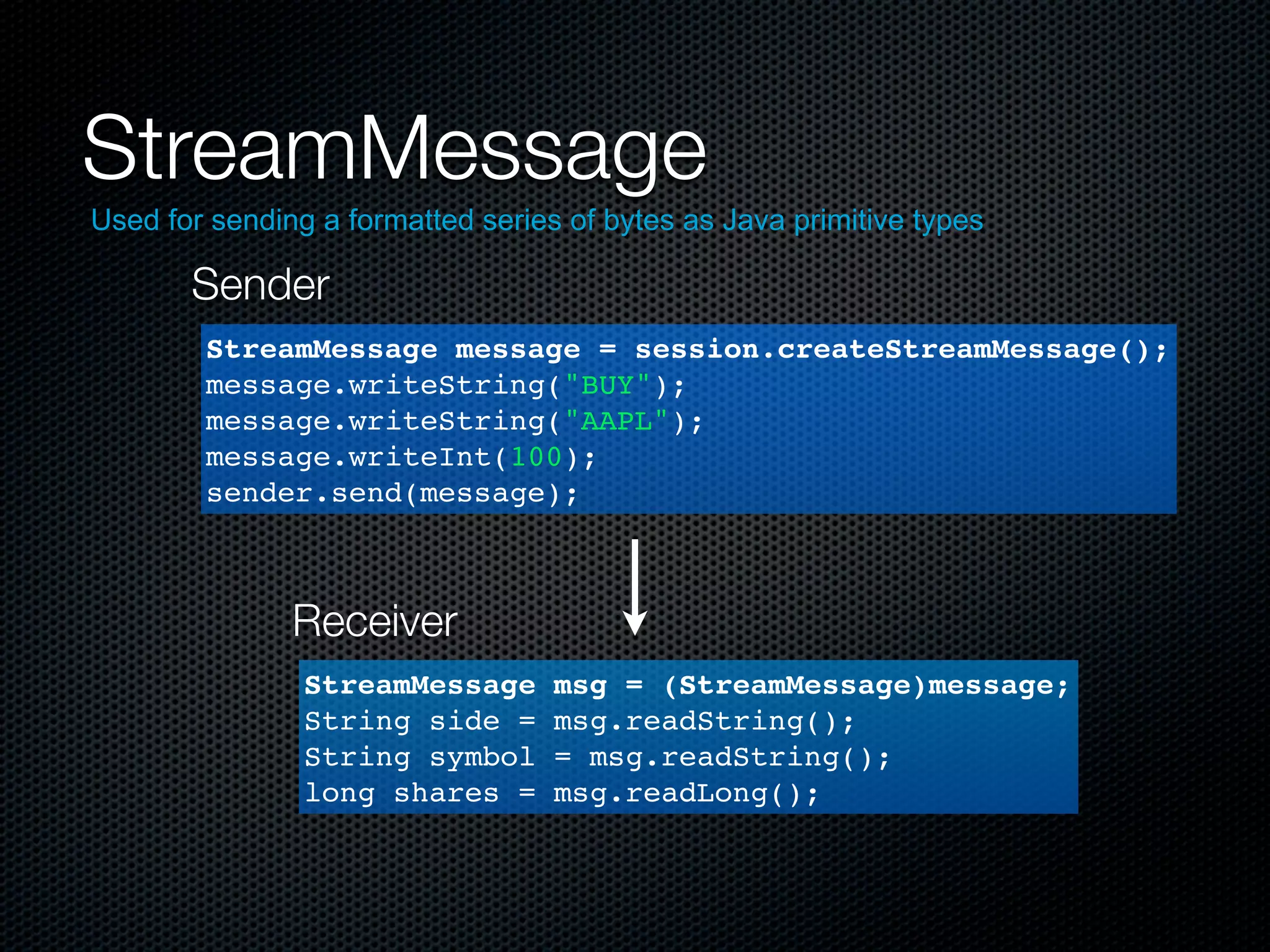

- 15. StreamMessage Used for sendinga formatted series of bytes as Java primitive types Sender StreamMessage message = session.createStreamMessage(); message.writeString("BUY"); message.writeString("AAPL"); message.writeInt(100); sender.send(message); Receiver StreamMessage msg = (StreamMessage)message; String side = msg.readString(); String symbol = msg.readString(); long shares = msg.readLong();
- 16.
- 17.

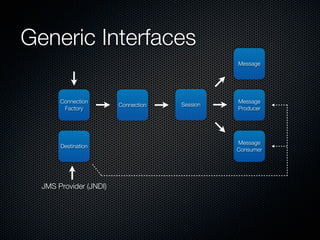

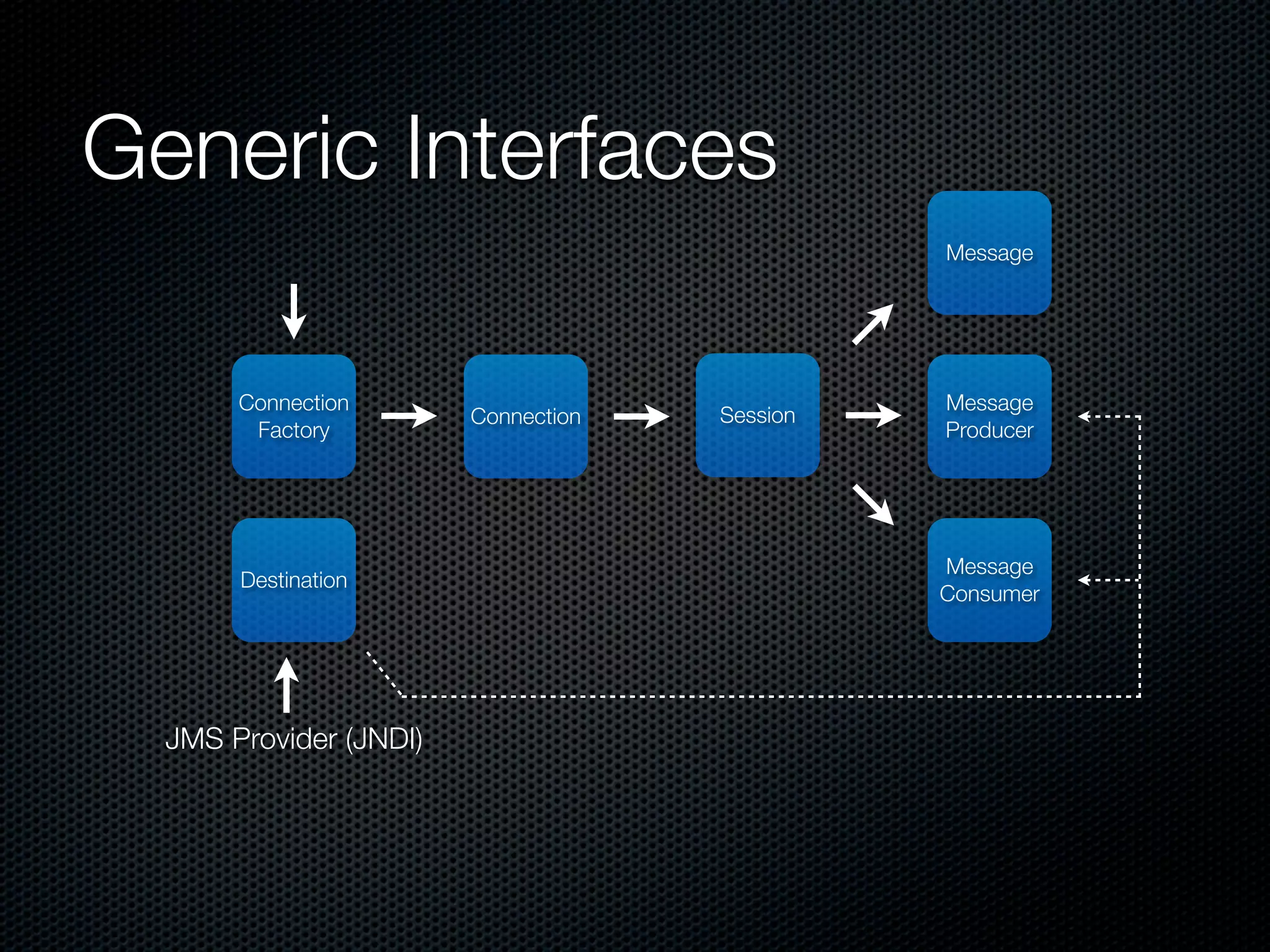

- 18. Generic Interfaces Message Connection Message Connection Session Factory Producer Message Destination Consumer JMS Provider (JNDI)

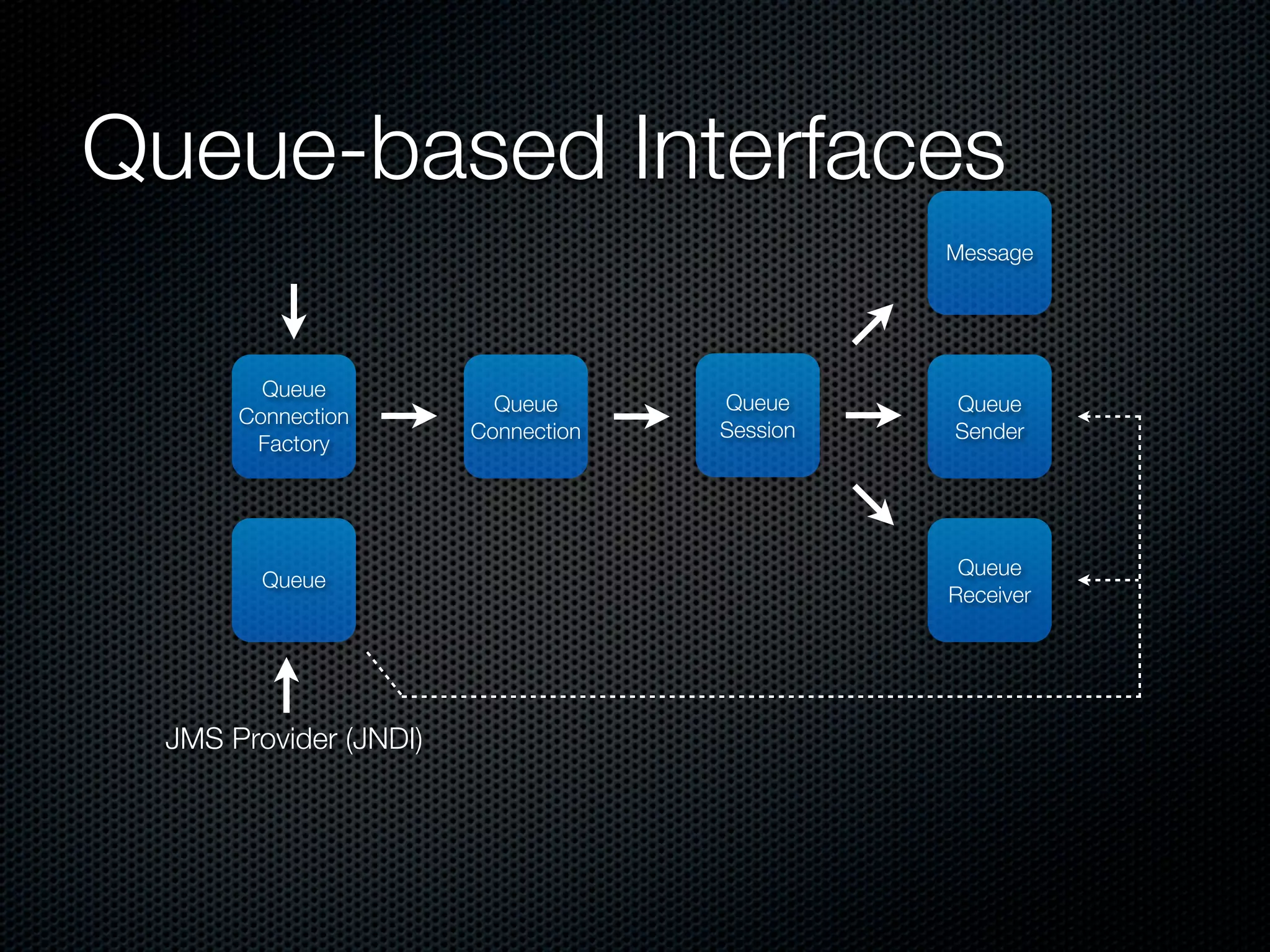

- 19. Queue-based Interfaces Message Queue Queue Queue Queue Connection Connection Session Sender Factory Queue Queue Receiver JMS Provider (JNDI)

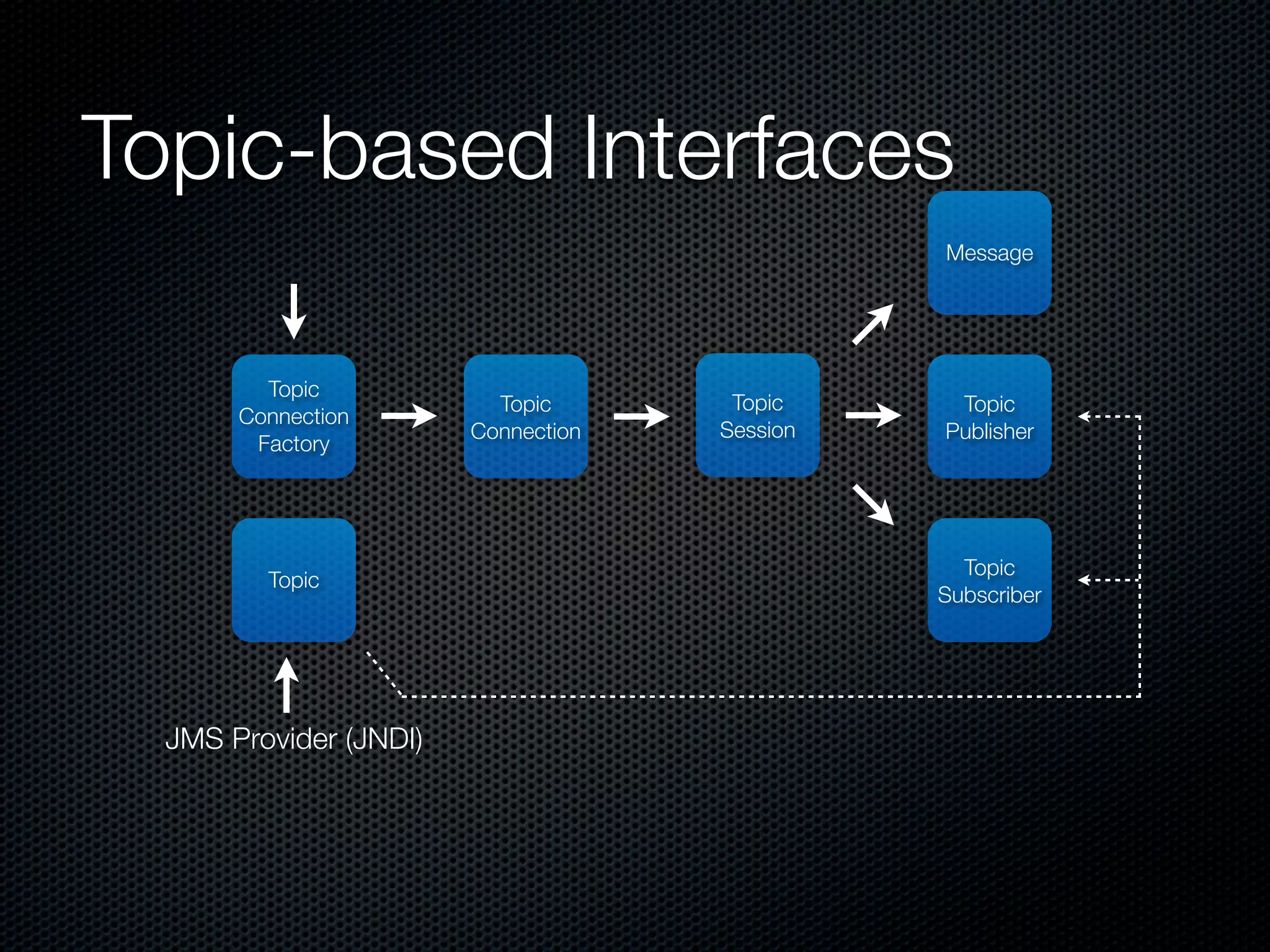

- 20. Topic-based Interfaces Message Topic Topic Topic Topic Connection Connection Session Publisher Factory Topic Topic Subscriber JMS Provider (JNDI)
- 21.

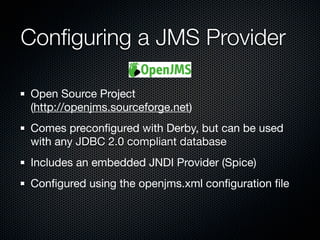

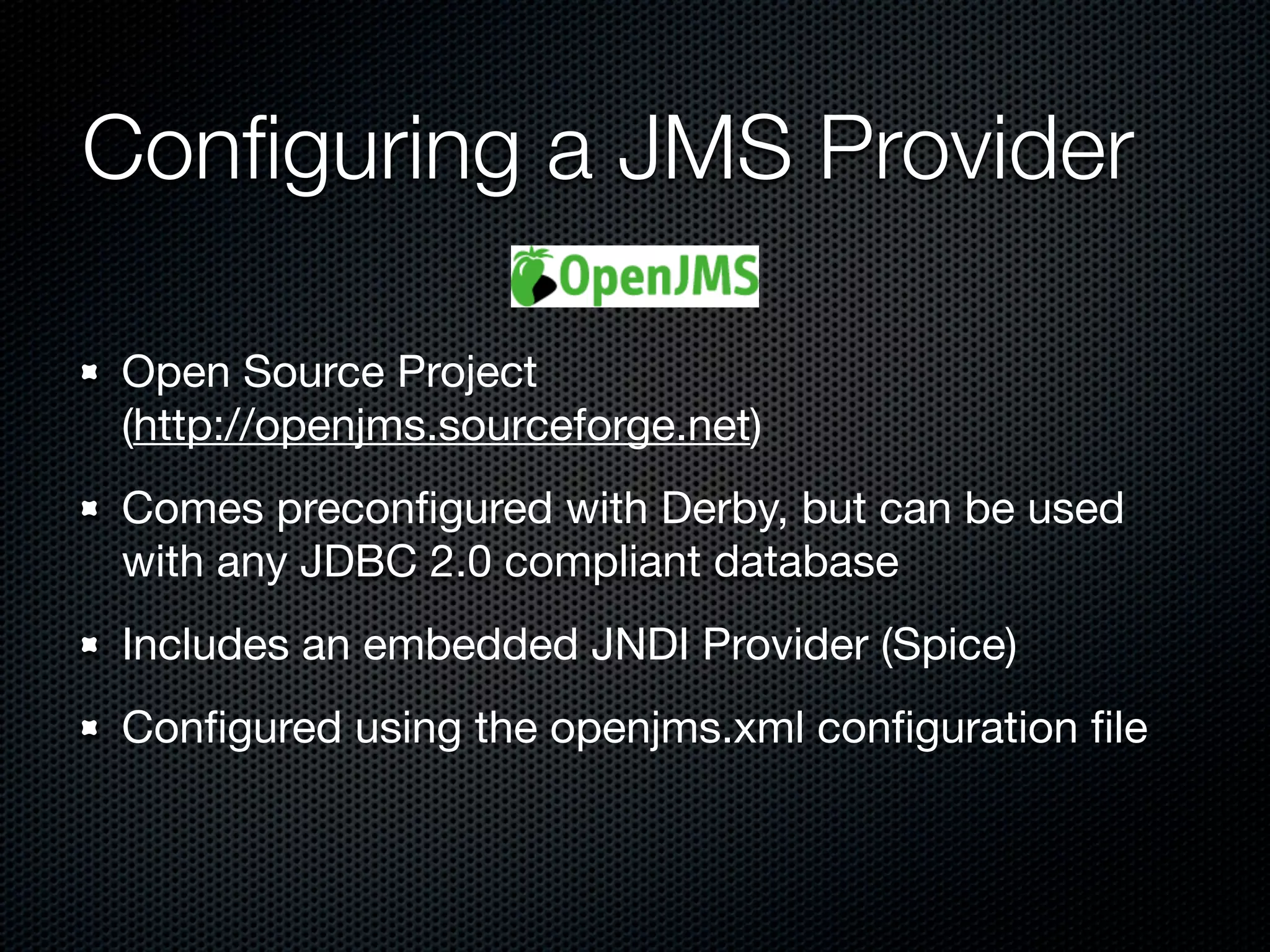

- 22. Conļ¬guring a JMSProvider Open Source Project (http://openjms.sourceforge.net) Comes preconļ¬gured with Derby, but can be used with any JDBC 2.0 compliant database Includes an embedded JNDI Provider (Spice) Conļ¬gured using the openjms.xml conļ¬guration ļ¬le
- 23. Sending and ReceivingMessages Live Coding

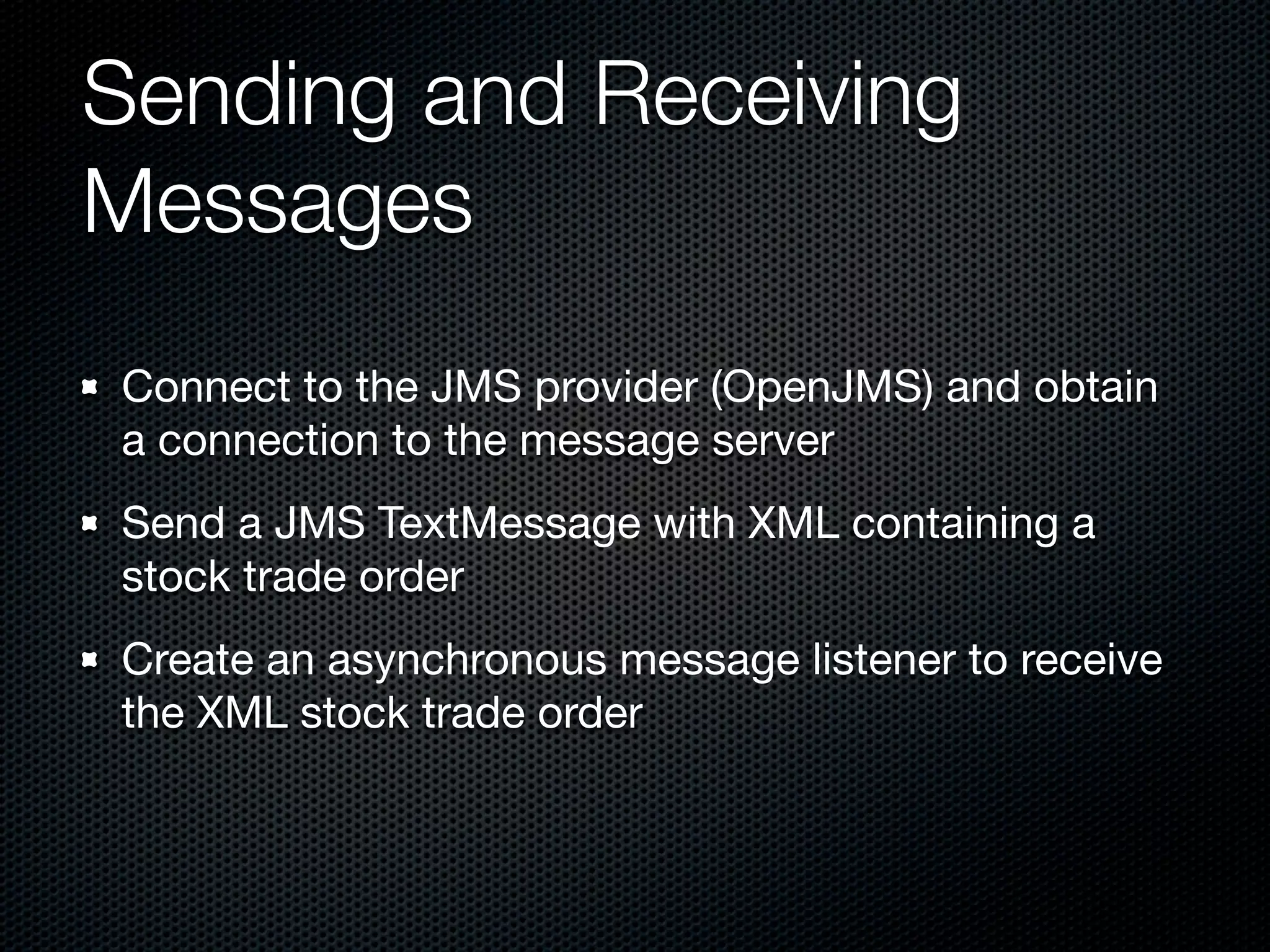

- 24. Sending and Receiving Messages Connectto the JMS provider (OpenJMS) and obtain a connection to the message server Send a JMS TextMessage with XML containing a stock trade order Create an asynchronous message listener to receive the XML stock trade order
- 25.

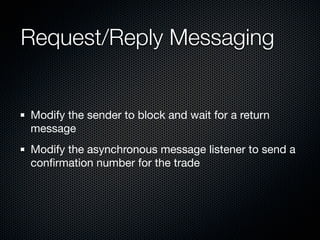

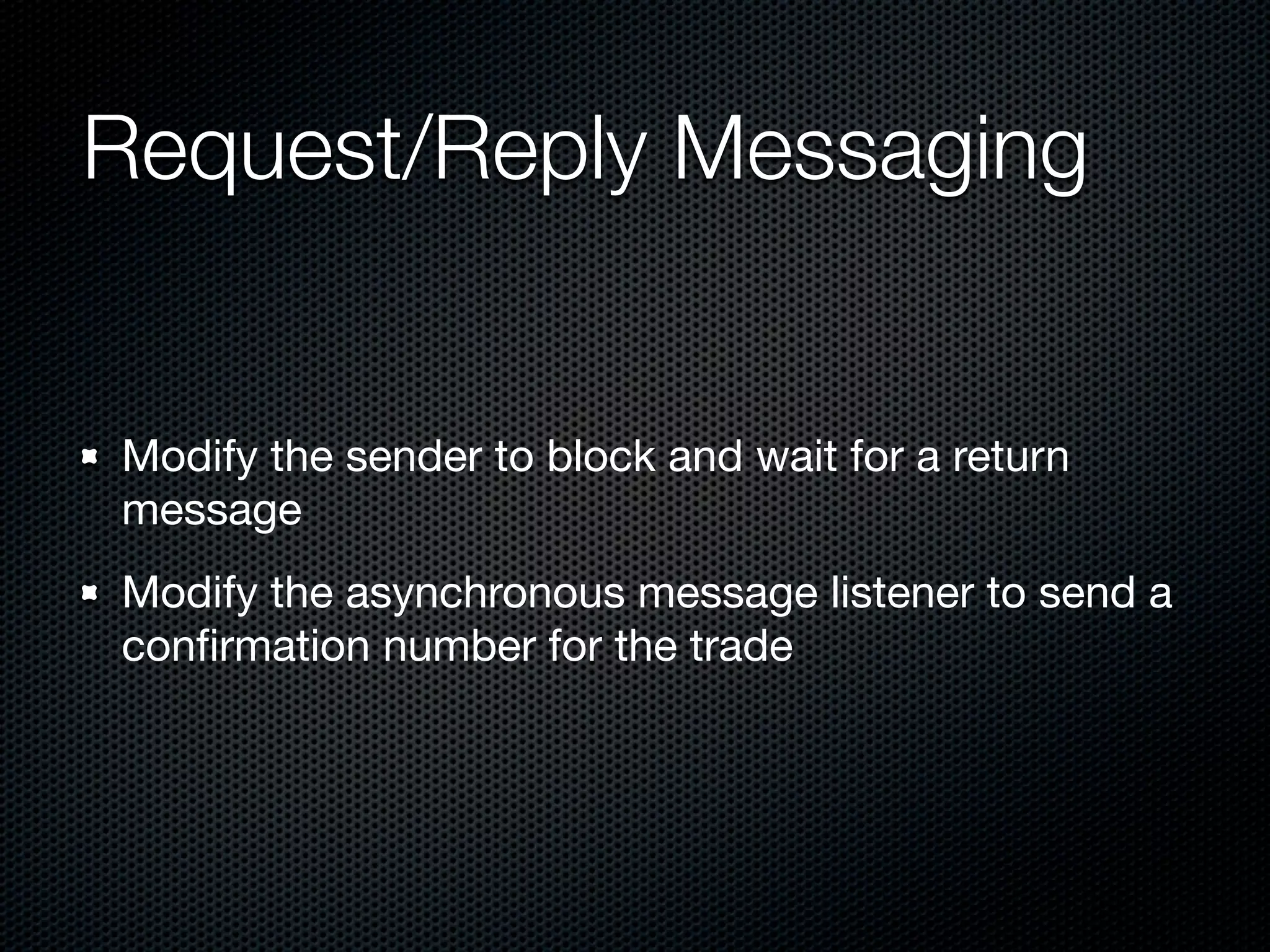

- 26. Request/Reply Messaging Modify thesender to block and wait for a return message Modify the asynchronous message listener to send a conļ¬rmation number for the trade

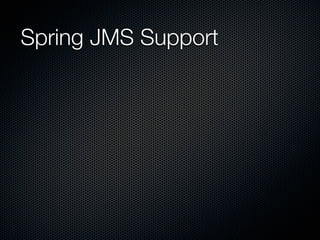

- 27. Using Springās JMSSupport
- 28.

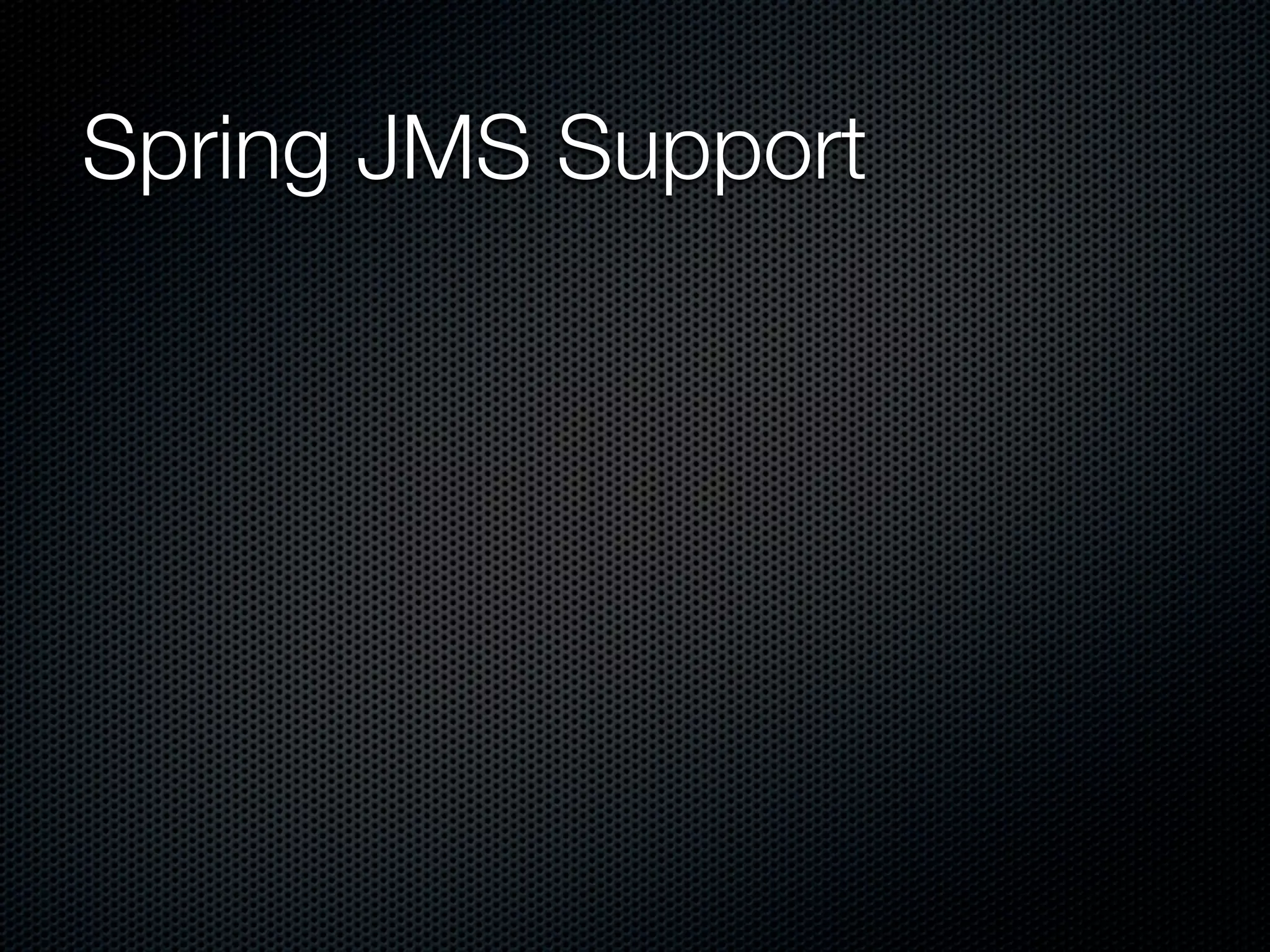

- 29. Spring JMS Support Simpliļ¬esuse of JMS API

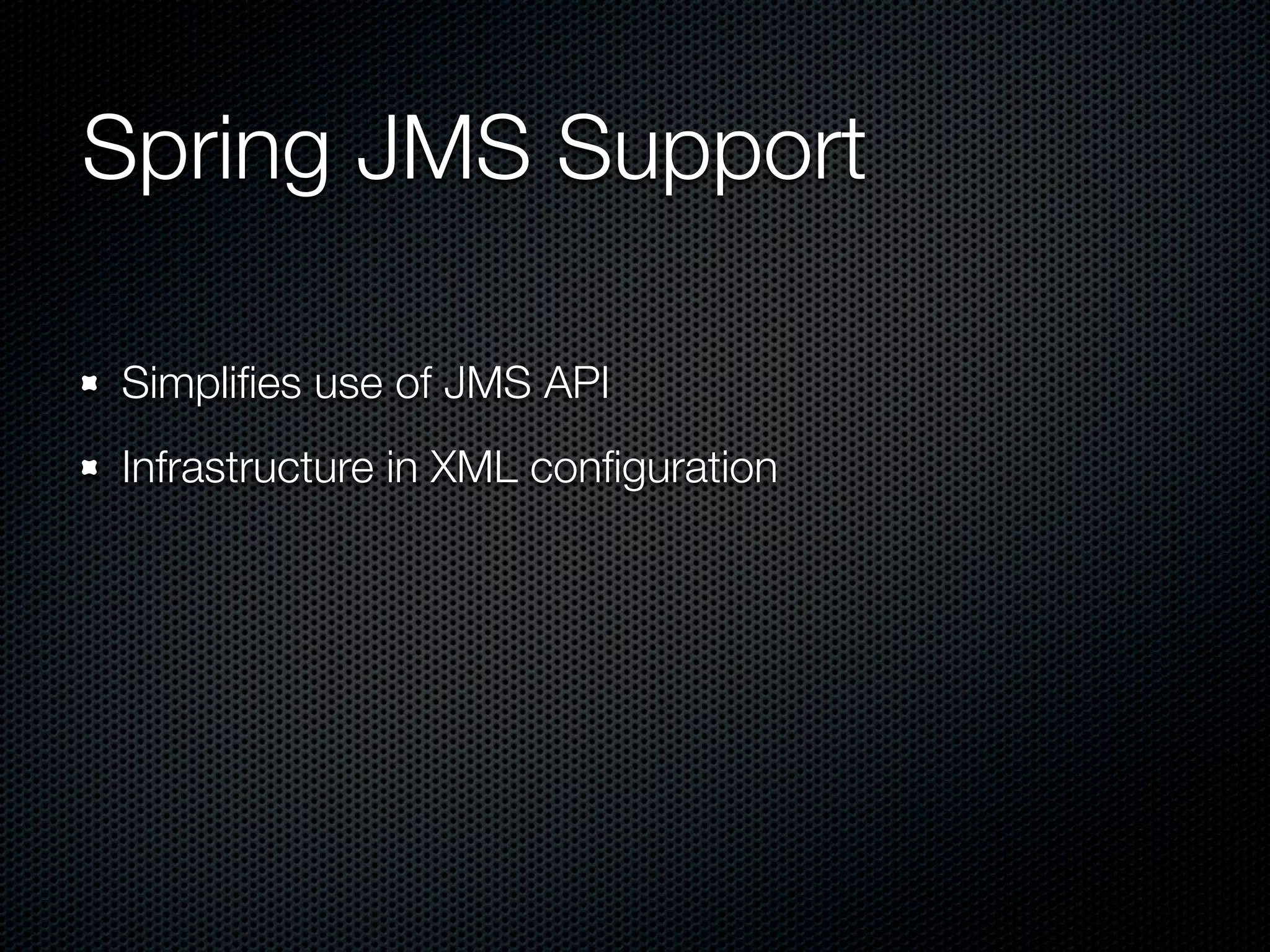

- 30. Spring JMS Support Simpliļ¬esuse of JMS API Infrastructure in XML conļ¬guration

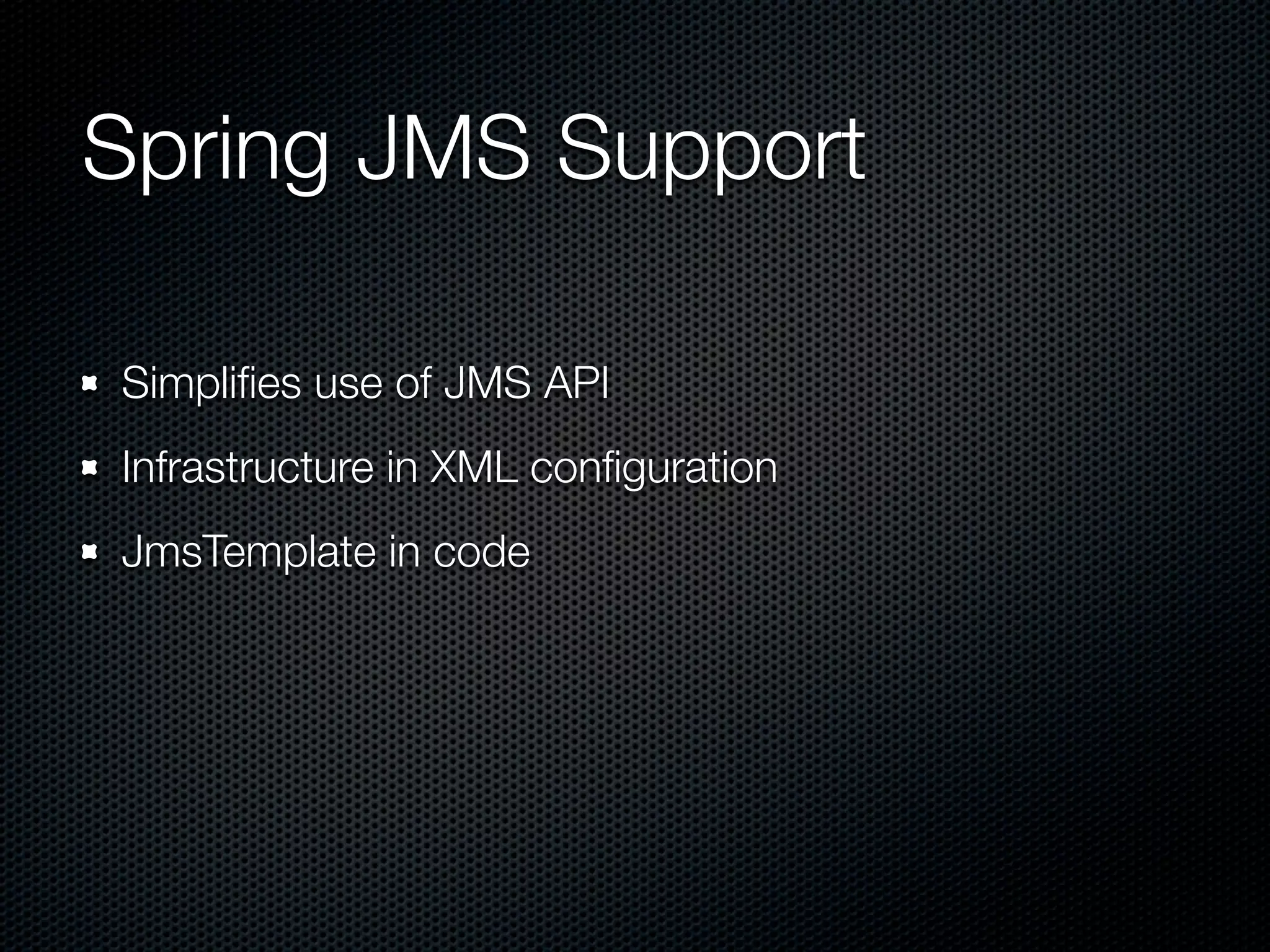

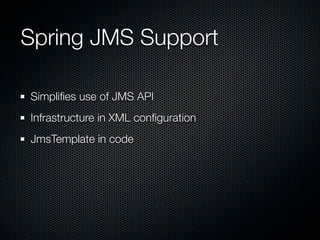

- 31. Spring JMS Support Simpliļ¬esuse of JMS API Infrastructure in XML conļ¬guration JmsTemplate in code

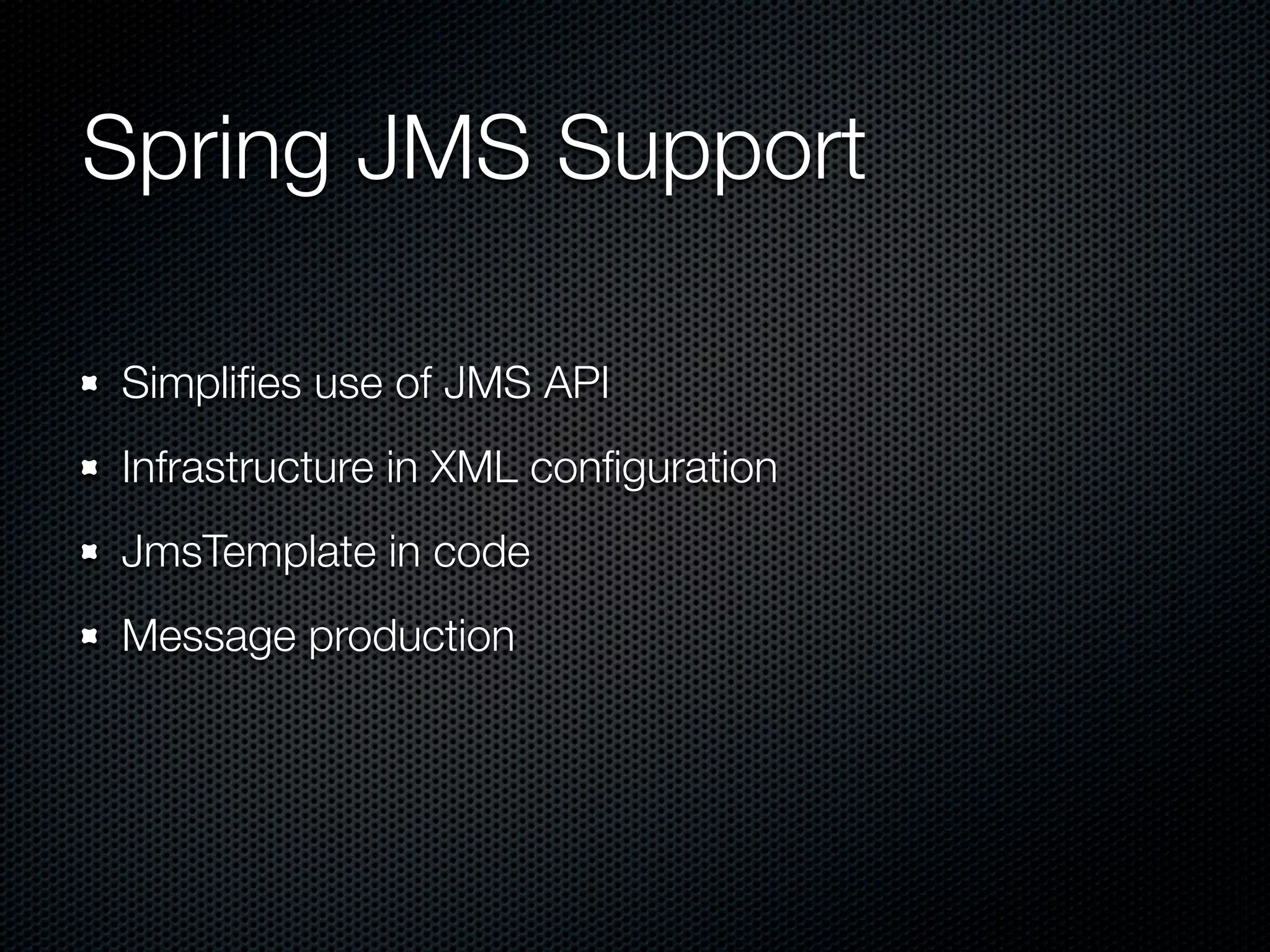

- 32. Spring JMS Support Simpliļ¬esuse of JMS API Infrastructure in XML conļ¬guration JmsTemplate in code Message production

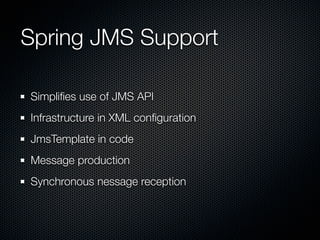

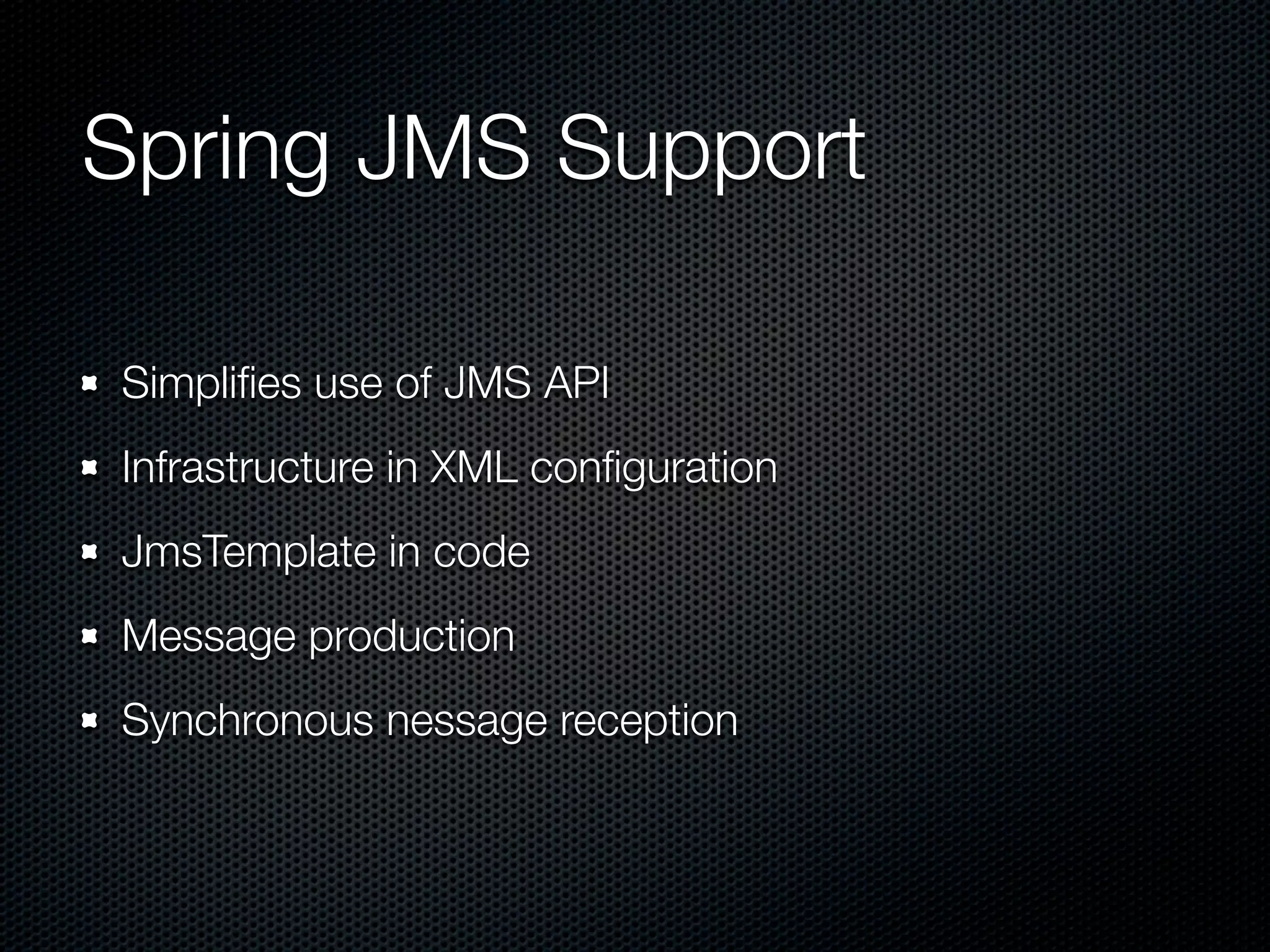

- 33. Spring JMS Support Simpliļ¬esuse of JMS API Infrastructure in XML conļ¬guration JmsTemplate in code Message production Synchronous nessage reception

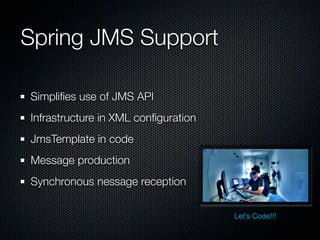

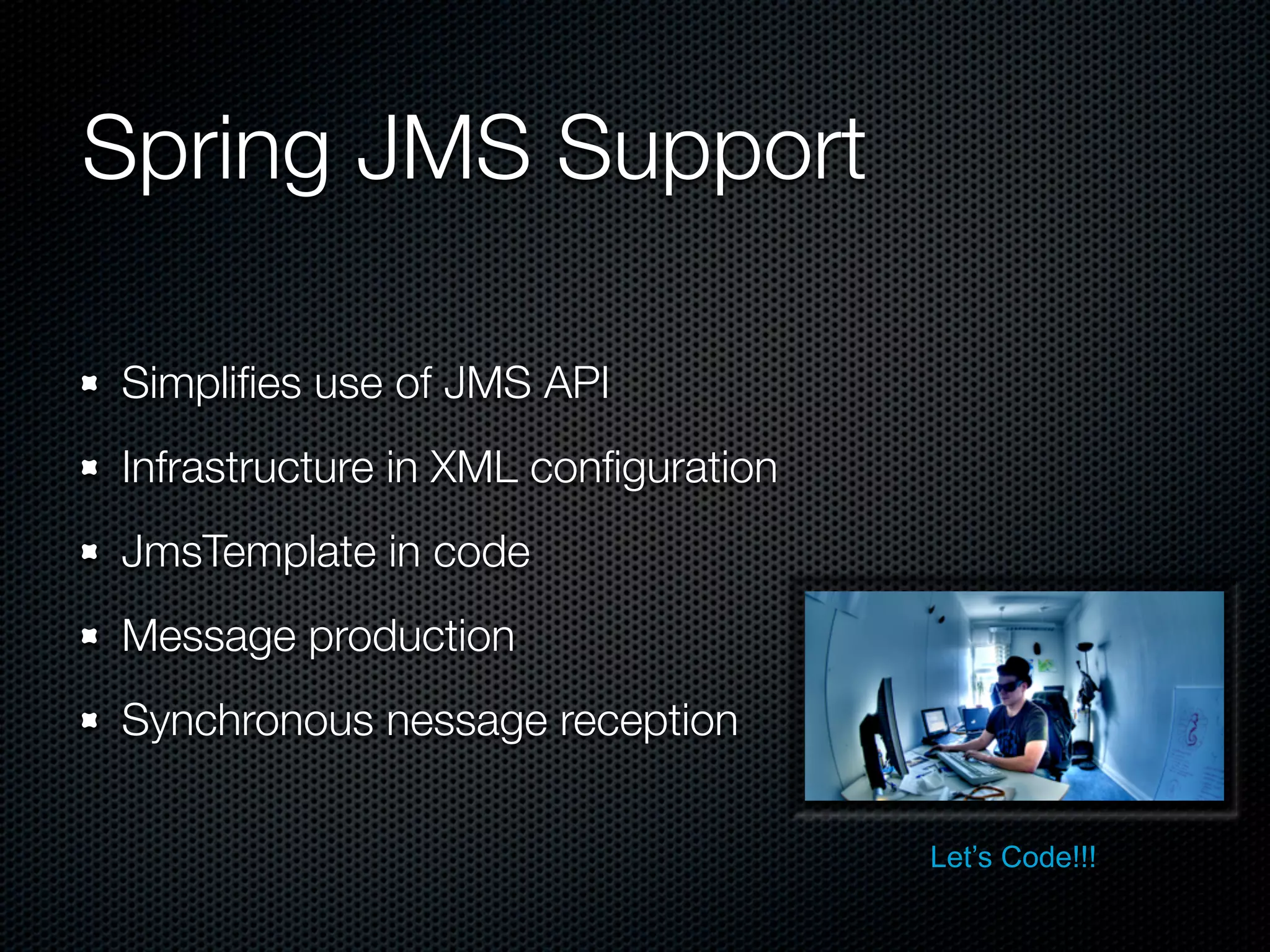

- 34. Spring JMS Support Simpliļ¬esuse of JMS API Infrastructure in XML conļ¬guration JmsTemplate in code Message production Synchronous nessage reception Letās Code!!!
- 35.
- 36.

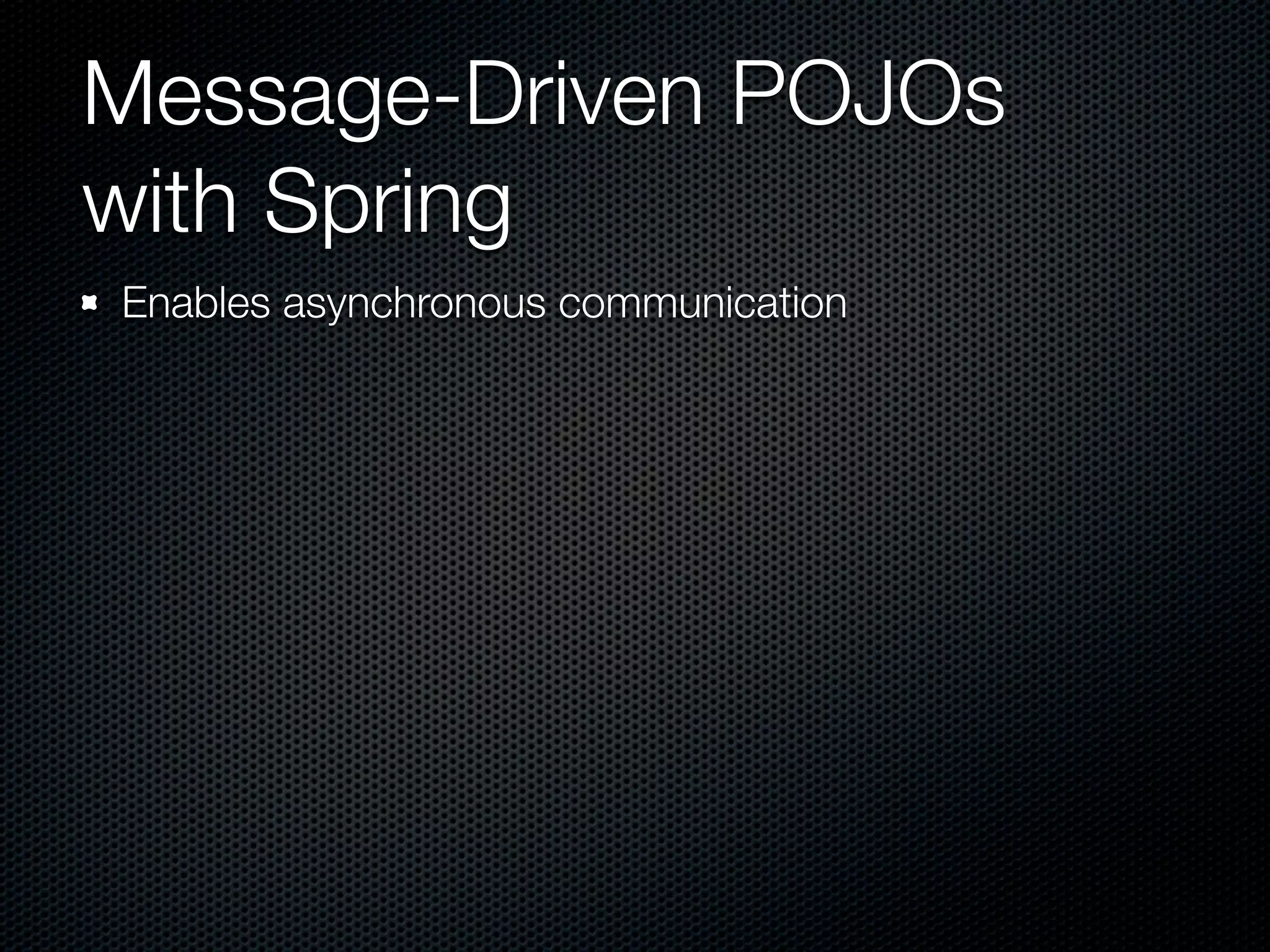

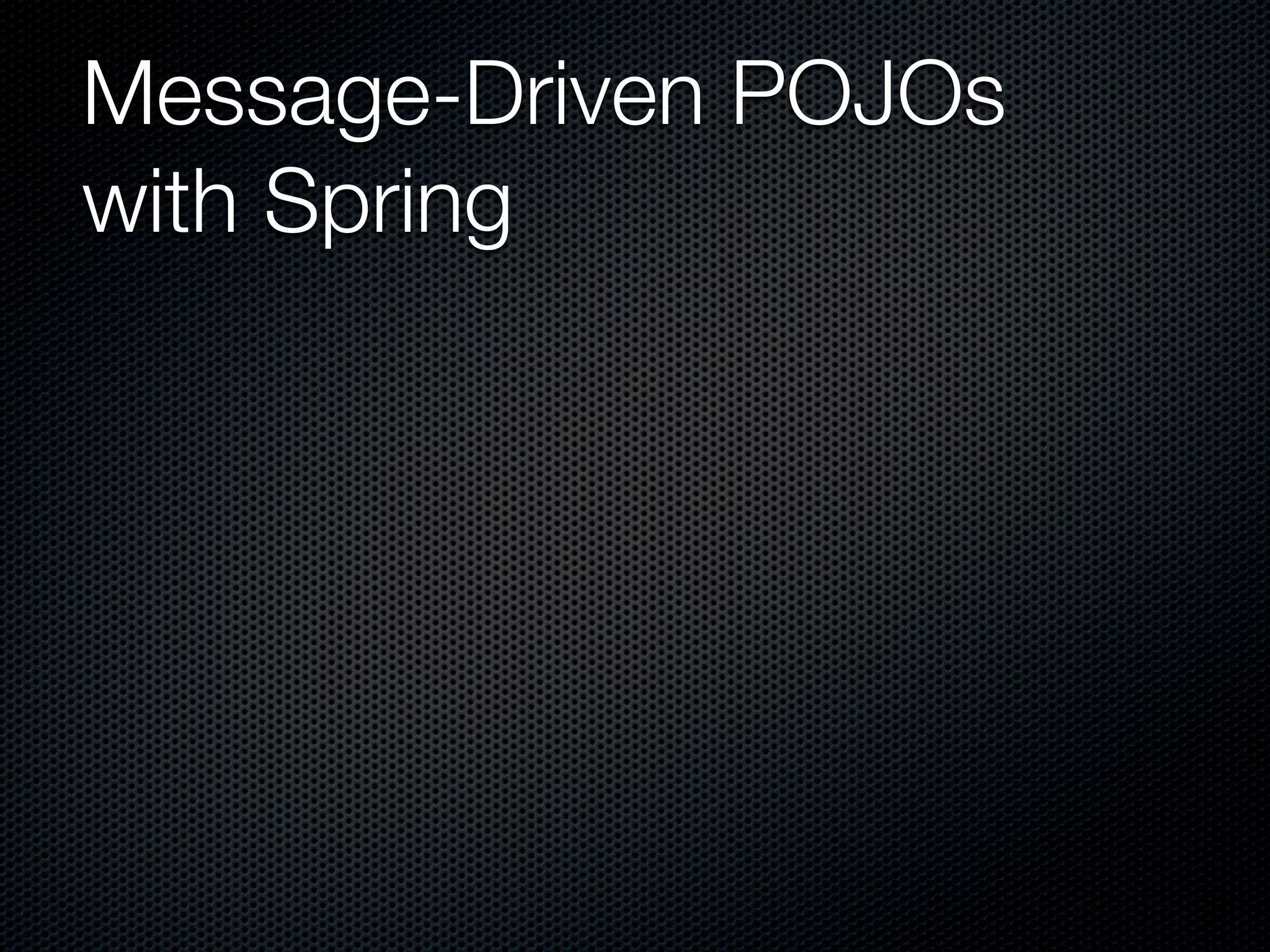

- 37. Message-Driven POJOs with Spring Enablesasynchronous communication

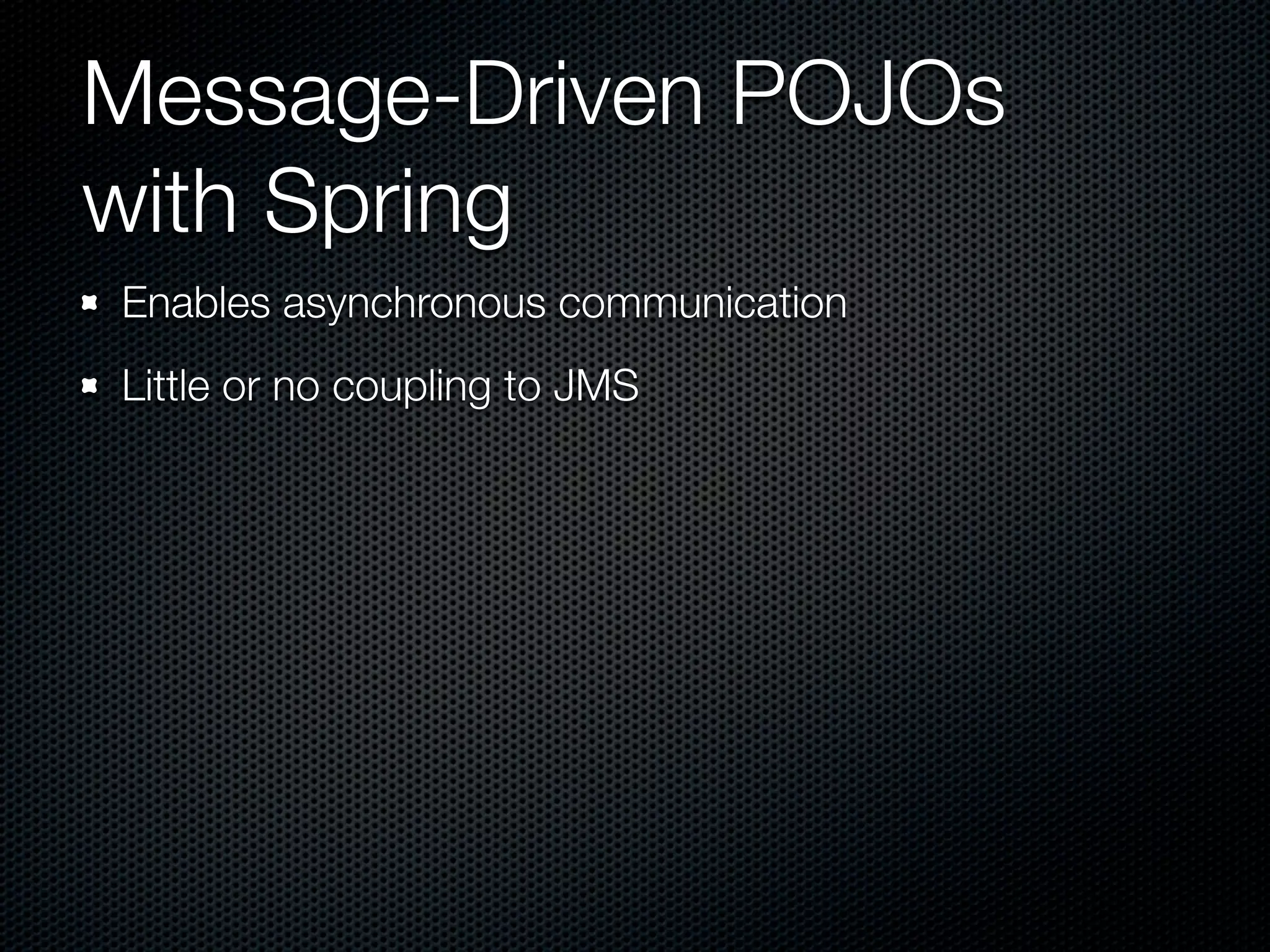

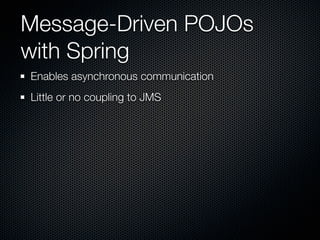

- 38. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS

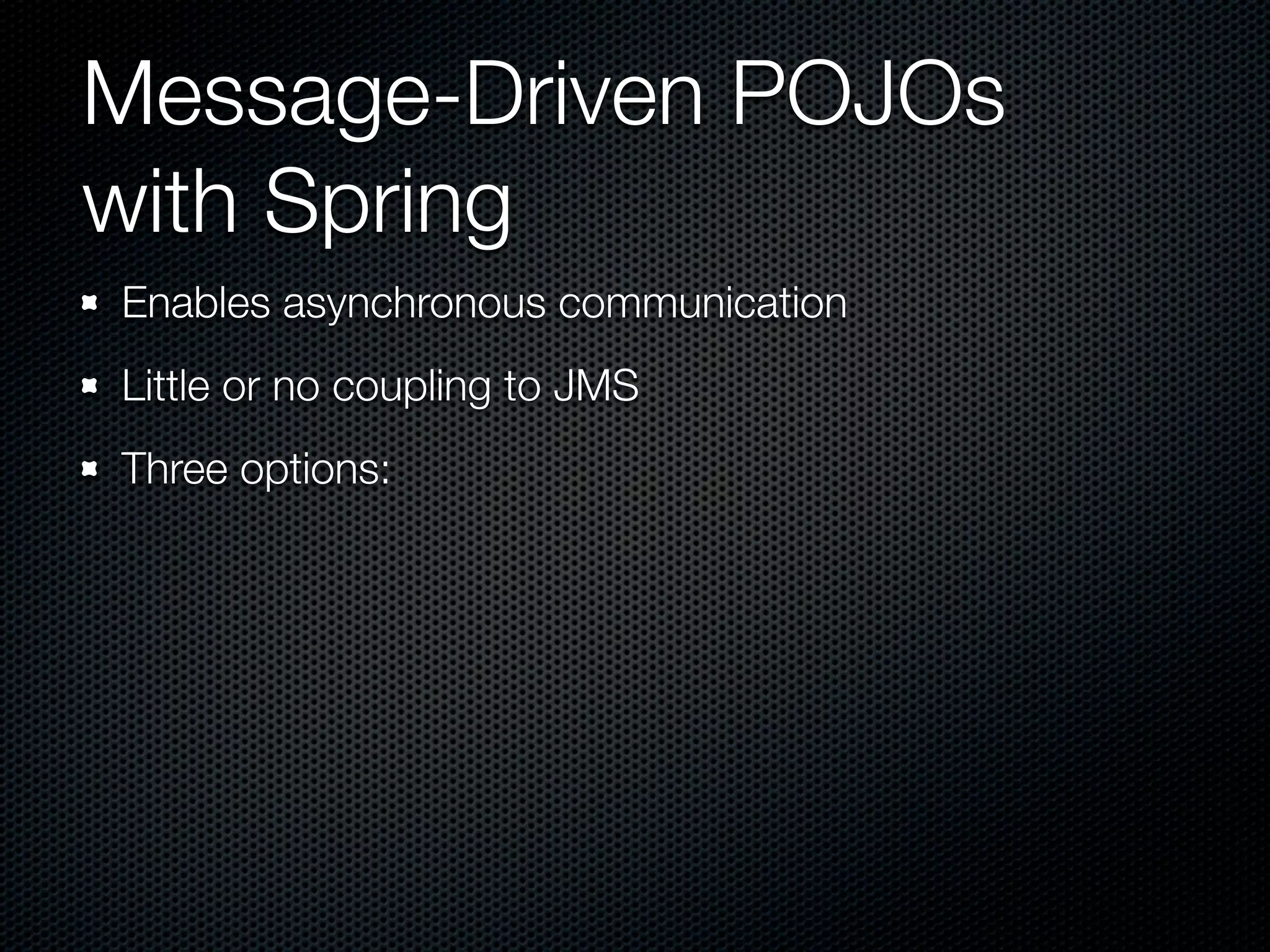

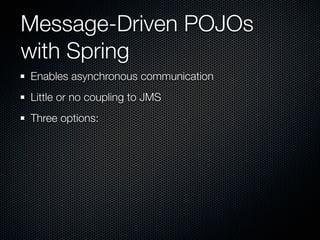

- 39. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS Three options:

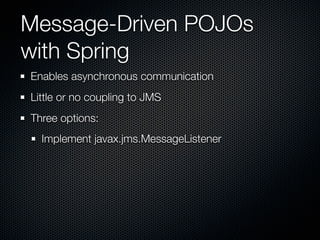

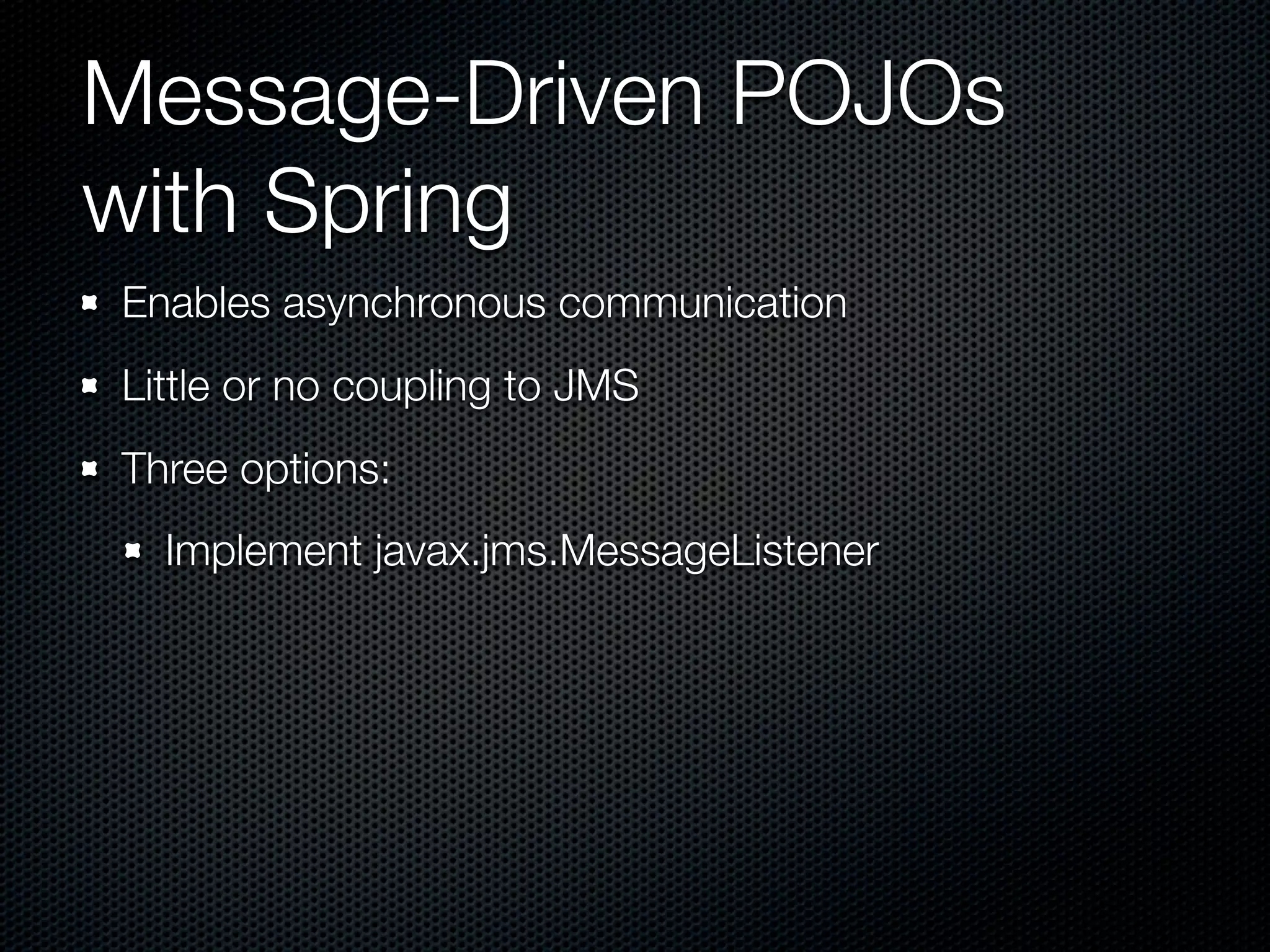

- 40. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS Three options: Implement javax.jms.MessageListener

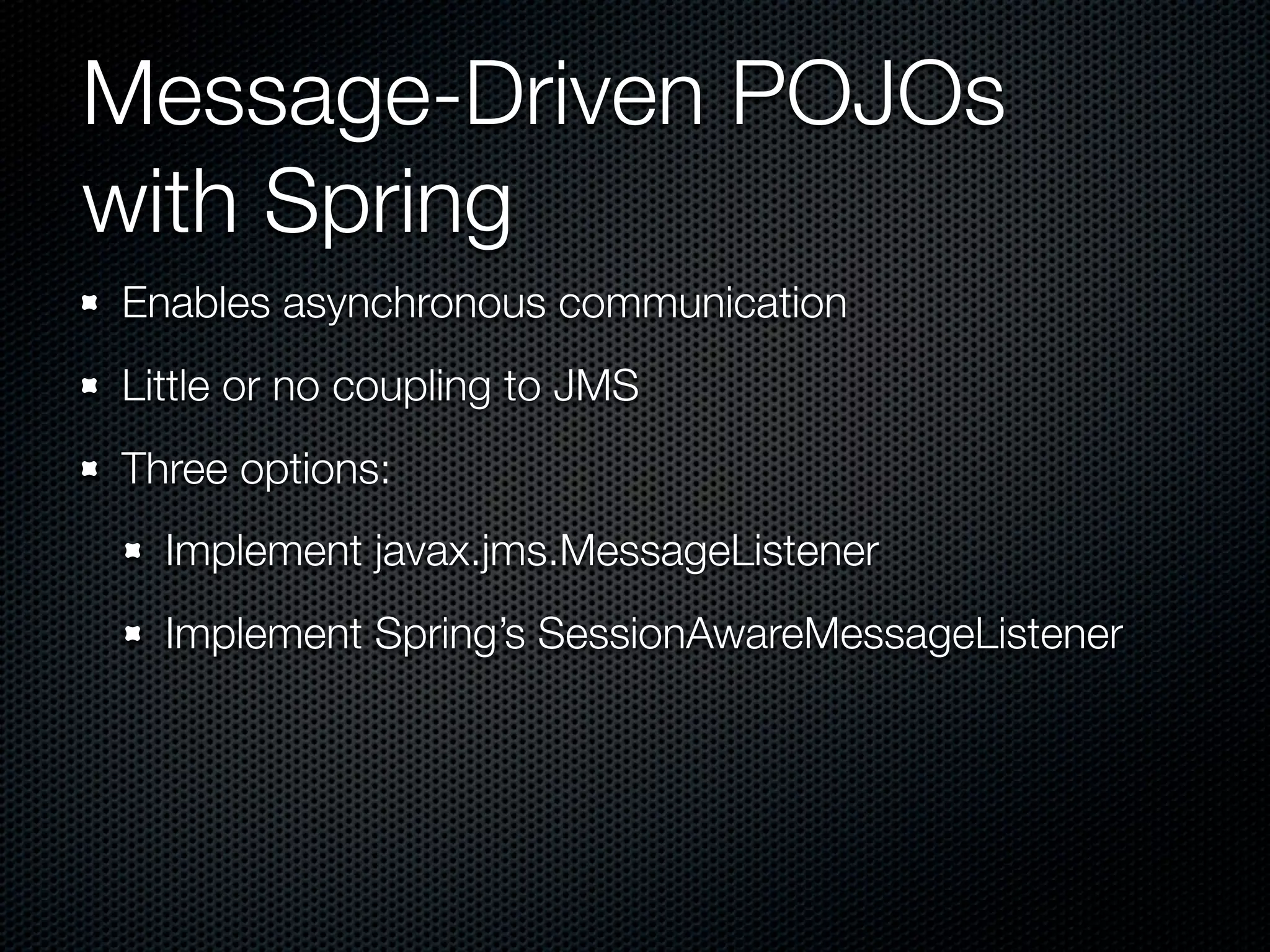

- 41. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS Three options: Implement javax.jms.MessageListener Implement Springās SessionAwareMessageListener

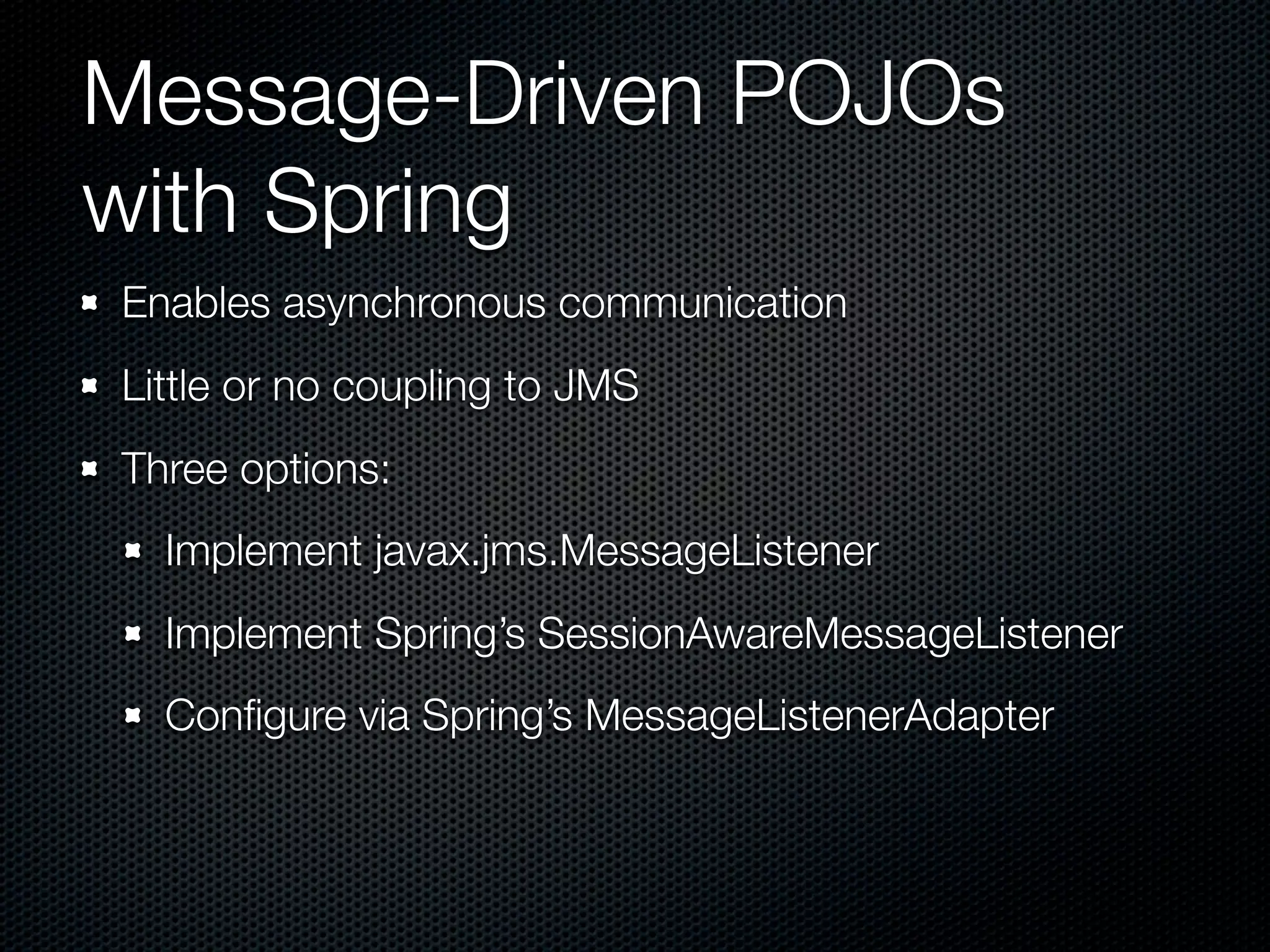

- 42. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS Three options: Implement javax.jms.MessageListener Implement Springās SessionAwareMessageListener Conļ¬gure via Springās MessageListenerAdapter

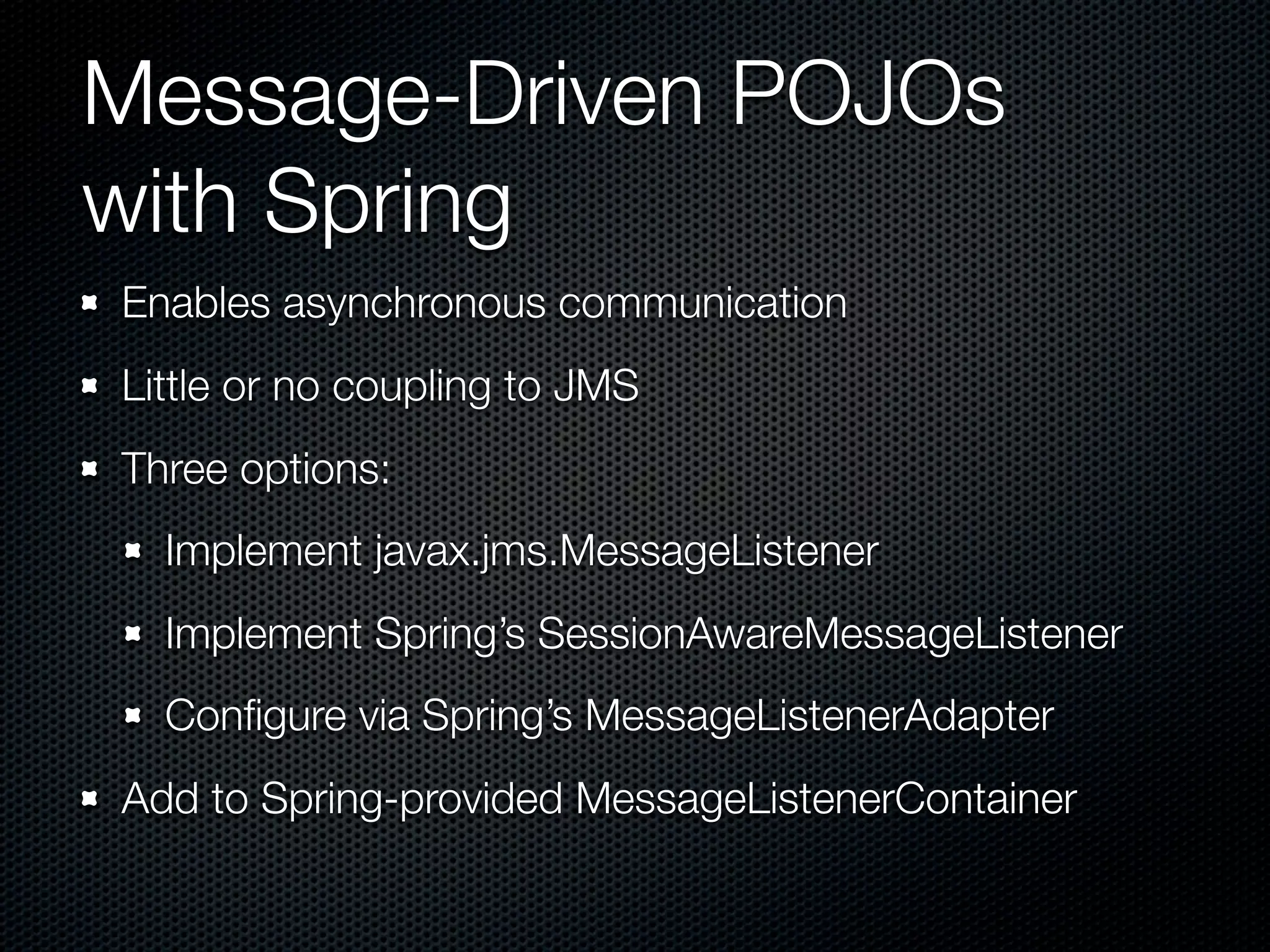

- 43. Message-Driven POJOs with Spring Enablesasynchronous communication Little or no coupling to JMS Three options: Implement javax.jms.MessageListener Implement Springās SessionAwareMessageListener Conļ¬gure via Springās MessageListenerAdapter Add to Spring-provided MessageListenerContainer
- 44.
- 45.

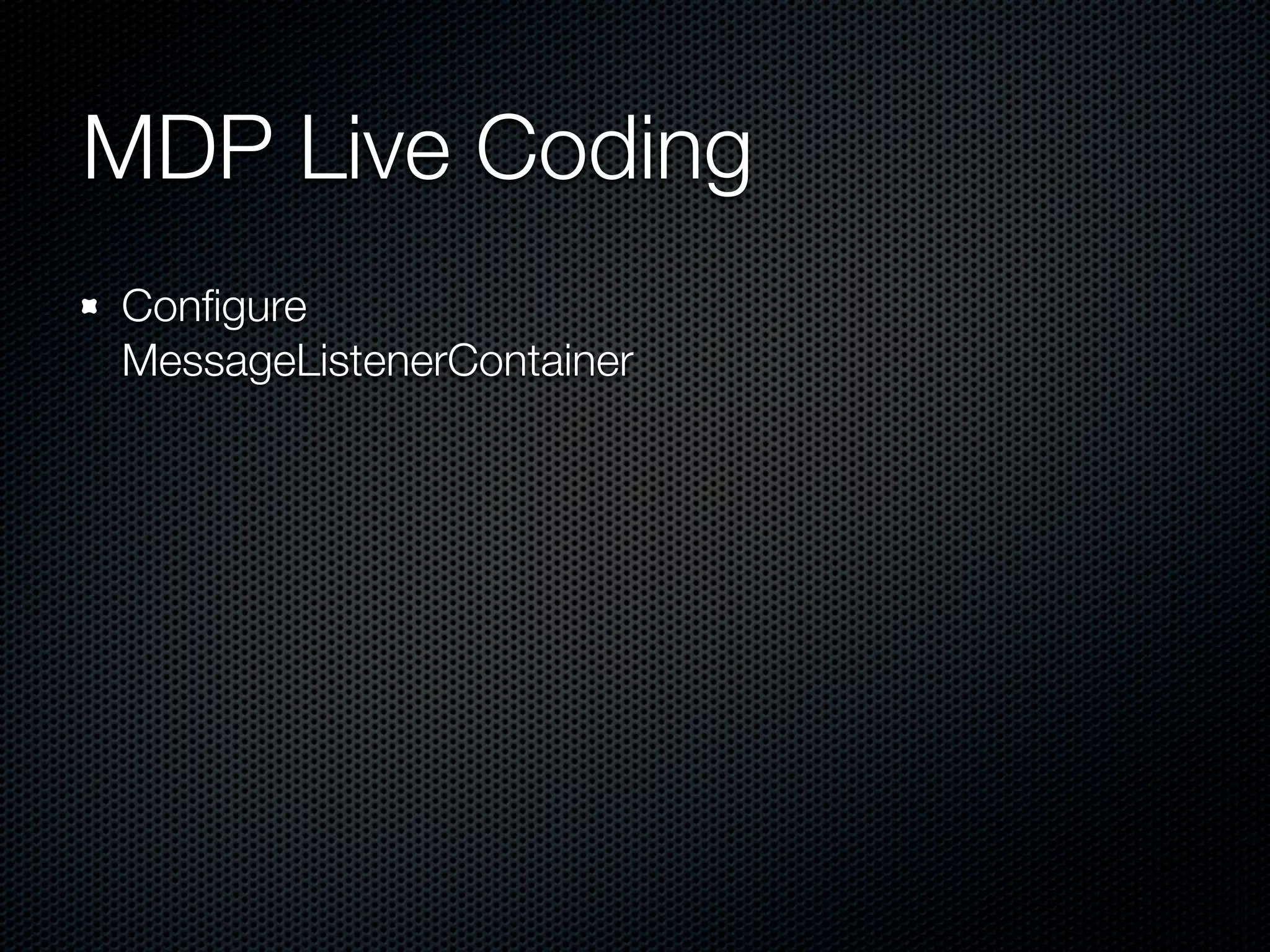

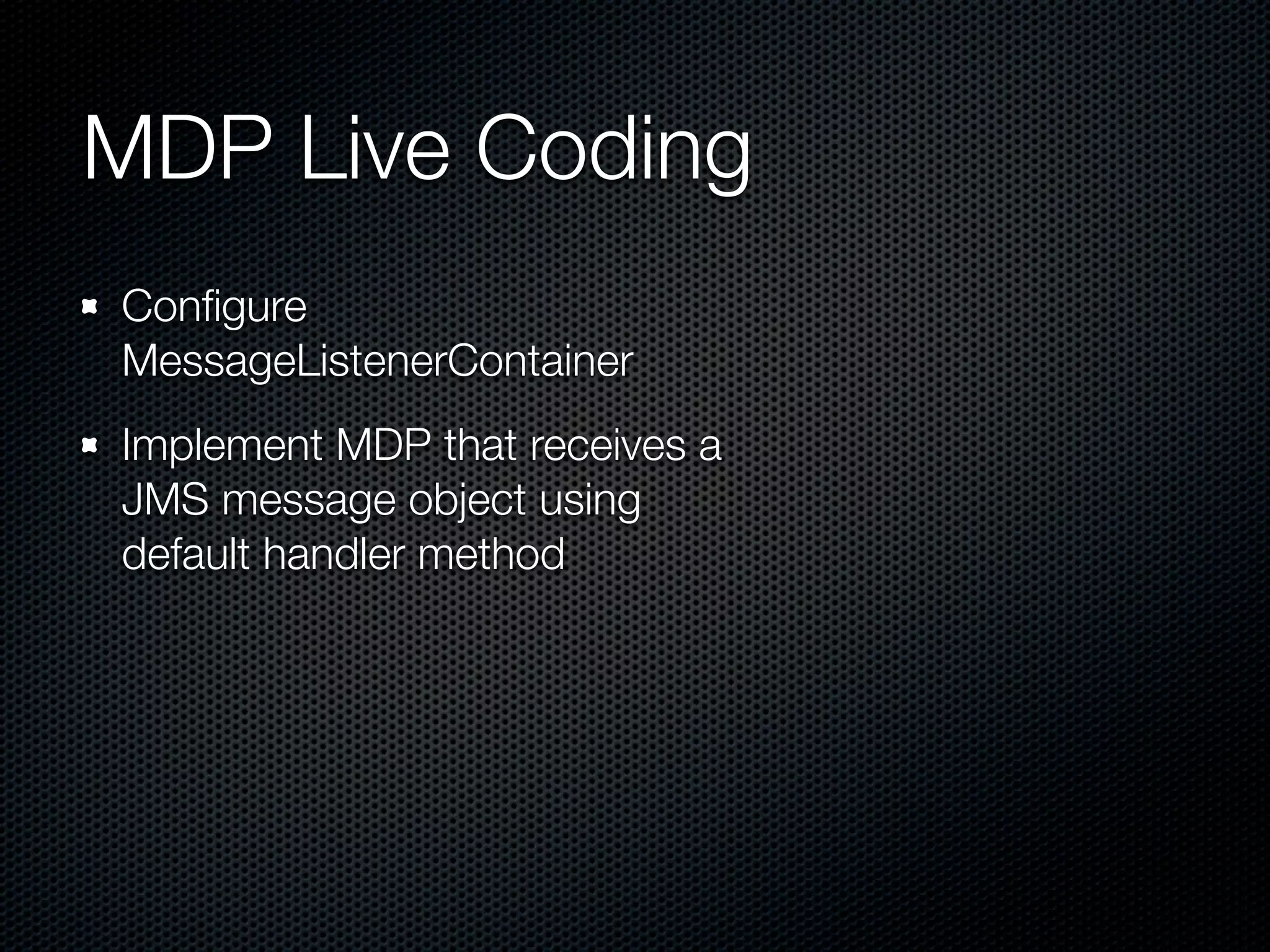

- 46. MDP Live Coding Conļ¬gure MessageListenerContainer ImplementMDP that receives a JMS message object using default handler method

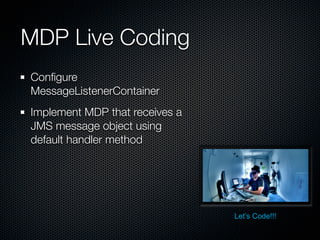

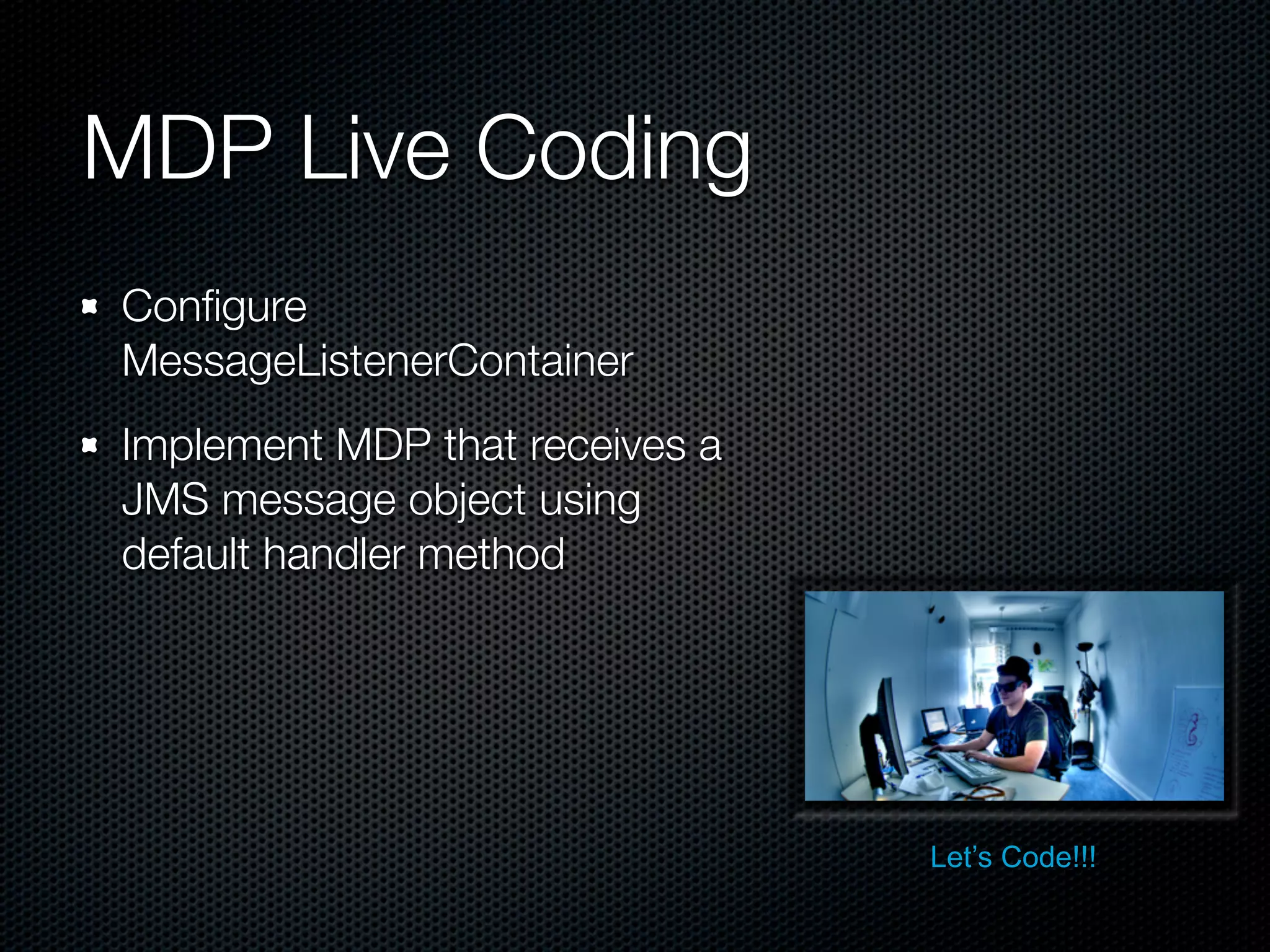

- 47. MDP Live Coding Conļ¬gure MessageListenerContainer ImplementMDP that receives a JMS message object using default handler method Letās Code!!!

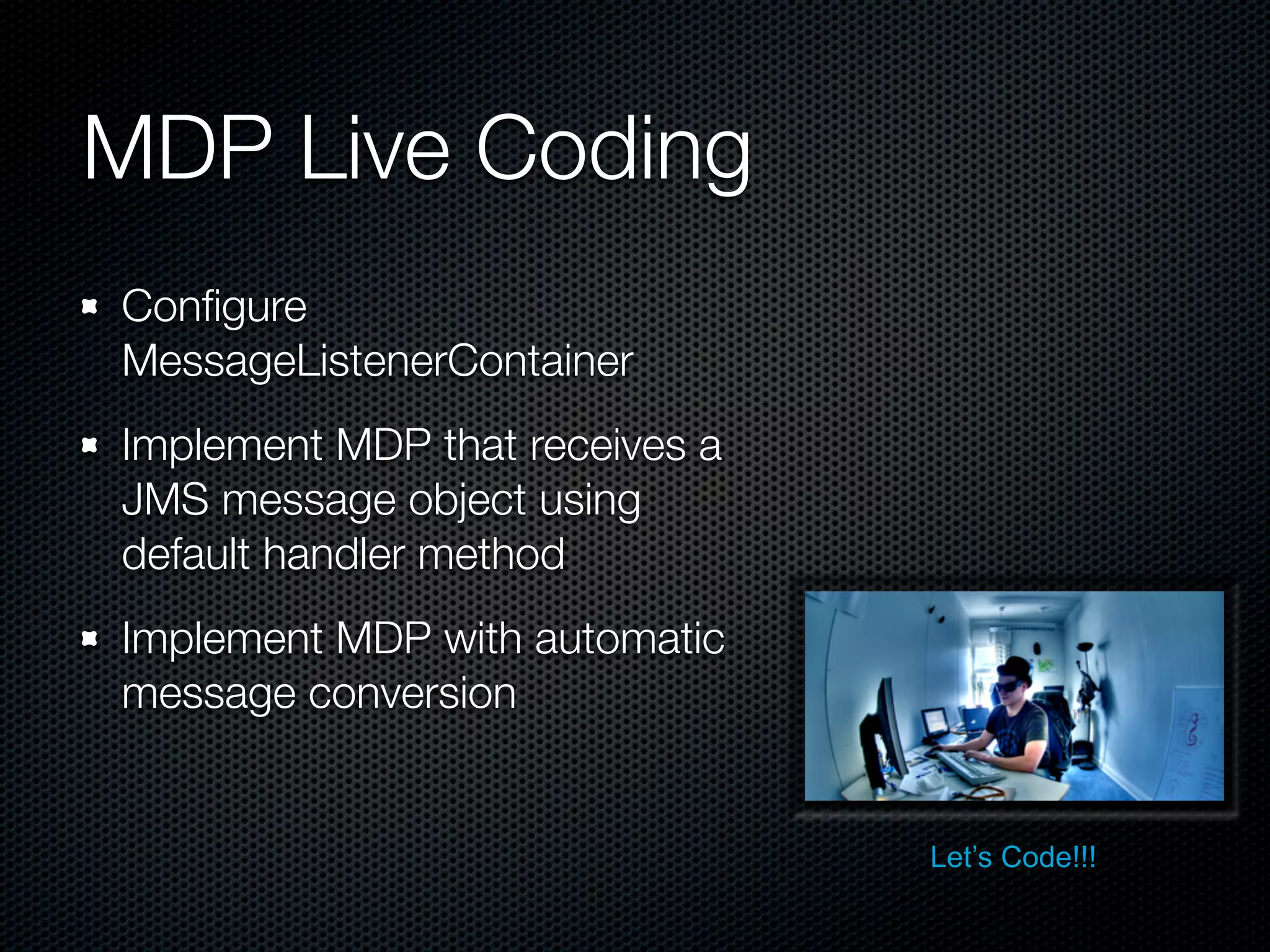

- 48. MDP Live Coding Conļ¬gure MessageListenerContainer ImplementMDP that receives a JMS message object using default handler method Implement MDP with automatic message conversion Letās Code!!!

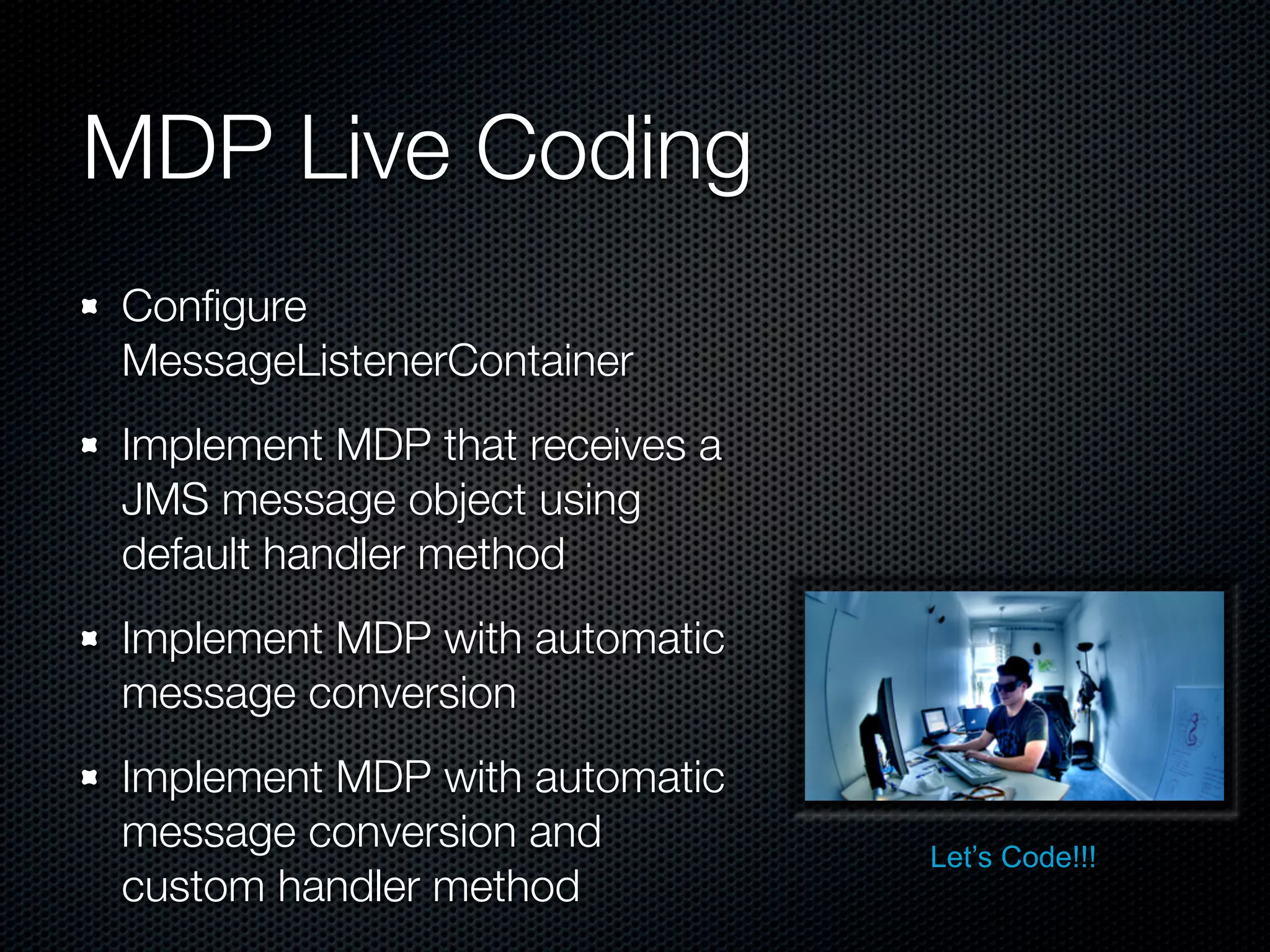

- 49. MDP Live Coding Conļ¬gure MessageListenerContainer ImplementMDP that receives a JMS message object using default handler method Implement MDP with automatic message conversion Implement MDP with automatic message conversion and Letās Code!!! custom handler method

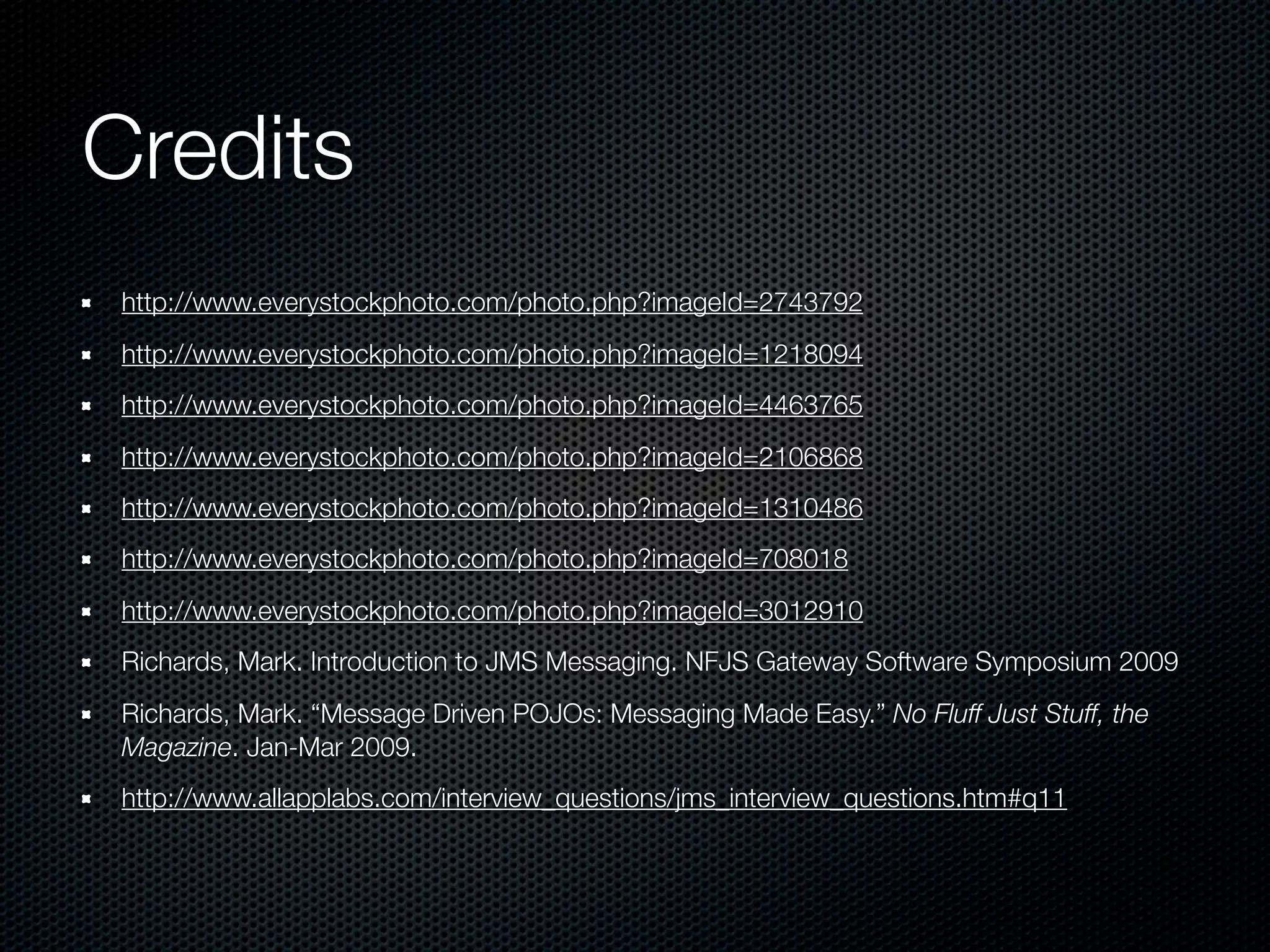

- 50. Credits http://www.everystockphoto.com/photo.php?imageId=2743792 http://www.everystockphoto.com/photo.php?imageId=1218094 http://www.everystockphoto.com/photo.php?imageId=4463765 http://www.everystockphoto.com/photo.php?imageId=2106868 http://www.everystockphoto.com/photo.php?imageId=1310486 http://www.everystockphoto.com/photo.php?imageId=708018 http://www.everystockphoto.com/photo.php?imageId=3012910 Richards, Mark. Introduction to JMS Messaging. NFJS Gateway Software Symposium 2009 Richards, Mark. āMessage Driven POJOs: Messaging Made Easy.ā No Fluff Just Stuff, the Magazine. Jan-Mar 2009. http://www.allapplabs.com/interview_questions/jms_interview_questions.htm#q11
Editor's Notes
- #4Ā So before we get into the details of JMS, let&#x2019;s take a bird&#x2019;s eye view of the landscape. What is messaging all about, and why would we want to use it? Any ideas?
- #5Ā So here&#x2019;s the most basic look at a messaging architecture. You have a component that sends messages, which are sent to some type of message channel. This message channel is charged with routing the messages to other components that receive and process messages. So you have multiple components, maybe even multiple systems. They are decoupled - the sender does not know the details of the receiver, nor does the receiver know the details of the sender. What are some use cases for an architecture like this? Asynchronous processing, remoting, SOA, interoperability, integration....how about increasing user productivity? Tell the story about the guy who sends off a request and the goes to get his coffee, gets distracted, finally comes back vs. the guy who can send off a request, knows he&#x2019;ll get a notification when it&#x2019;s done, and continues working.
- #6Ā So we&#x2019;ll start off with point-to-point (or p2p) models. This first examples is what we&#x2019;ll call Fire and Forget. You send to a queue and move on with your day. A receiver picks up the message from the queue, processes it, and moves on with its day. With p2p you have on and only one receiver per message. You may have multiple receivers load balanced, but only one component can receive each message. The second model is what we&#x2019;ll call request/reply or &#x201C;Pseudosynchronous.&#x201D; Here the sender blocks and waits for a response from the receiver. Finally we have the publish and subscribe or pub/sub model. Here you publish or &#x201C;broadcast&#x201D; to not a queue, but a topic. Multiple subscribers can &#x201C;listen&#x201D; to this topic, and all will get a copy of each message.
- #7Ā So we&#x2019;ll start off with point-to-point (or p2p) models. This first examples is what we&#x2019;ll call Fire and Forget. You send to a queue and move on with your day. A receiver picks up the message from the queue, processes it, and moves on with its day. With p2p you have on and only one receiver per message. You may have multiple receivers load balanced, but only one component can receive each message. The second model is what we&#x2019;ll call request/reply or &#x201C;Pseudosynchronous.&#x201D; Here the sender blocks and waits for a response from the receiver. Finally we have the publish and subscribe or pub/sub model. Here you publish or &#x201C;broadcast&#x201D; to not a queue, but a topic. Multiple subscribers can &#x201C;listen&#x201D; to this topic, and all will get a copy of each message.
- #8Ā So we&#x2019;ll start off with point-to-point (or p2p) models. This first examples is what we&#x2019;ll call Fire and Forget. You send to a queue and move on with your day. A receiver picks up the message from the queue, processes it, and moves on with its day. With p2p you have on and only one receiver per message. You may have multiple receivers load balanced, but only one component can receive each message. The second model is what we&#x2019;ll call request/reply or &#x201C;Pseudosynchronous.&#x201D; Here the sender blocks and waits for a response from the receiver. Finally we have the publish and subscribe or pub/sub model. Here you publish or &#x201C;broadcast&#x201D; to not a queue, but a topic. Multiple subscribers can &#x201C;listen&#x201D; to this topic, and all will get a copy of each message.
- #9Ā So basically you have two parts, the header and the payload. JMS distinguishes within the header between what it calls the &#x201C;Header&#x201D; which includes all of the standard JMS properties, and the &#x201C;Properties&#x201D; which includes application and/or provider-specific extension properties, as well as JMS extensions (otherwise known as JMSX properties), which may or may not be supported by all JMS providers. Finally you have the payload or &#x201C;Message Body,&#x201D; which distinguished what type of JMS message we&#x2019;re talking about and the possible payloads it may carry.
- #10Ā So just as we have many different colors of mailboxes here, there are many different types or &#x201C;colors&#x201D; of JMS messages out there.
- #12Ā This is super cool, huh? Well, what&#x2019;s wrong with this? One of the goals of messaging is decoupling of the sender and receiver. Well, in this case both Sender and Receiver must be aware of TradeData. So we end up with a tightly coupled architecture, we have versioning issues (i.e. if TradeData changes, we have to update multiple systems), and it forces heterogeneity of systems (i.e. I can&#x2019;t have a non-Java consumer). UC - same machine, interservice communication.
- #14Ā This can be useful for transfer of data between two applications in their native format which may not be compatible with other Message types. It&#x2019;s also useful where JMS is used purely as a transport between two systems and the message payload is opaque to the JMS client. There is no type information encoded into the message - for example, it is possible for the sender to encode a long and the sender to read a short, resulting in semantically incorrect interpretation - it is purely up to the receiver to properly interpret the message.
- #15Ā The alternative is the StreamMessage. This type maintains a boundary between the different data types stored, storing the data type information along with the value of the primitive. StreamMessages strictly prohibit reading incorrect types from the data stream.

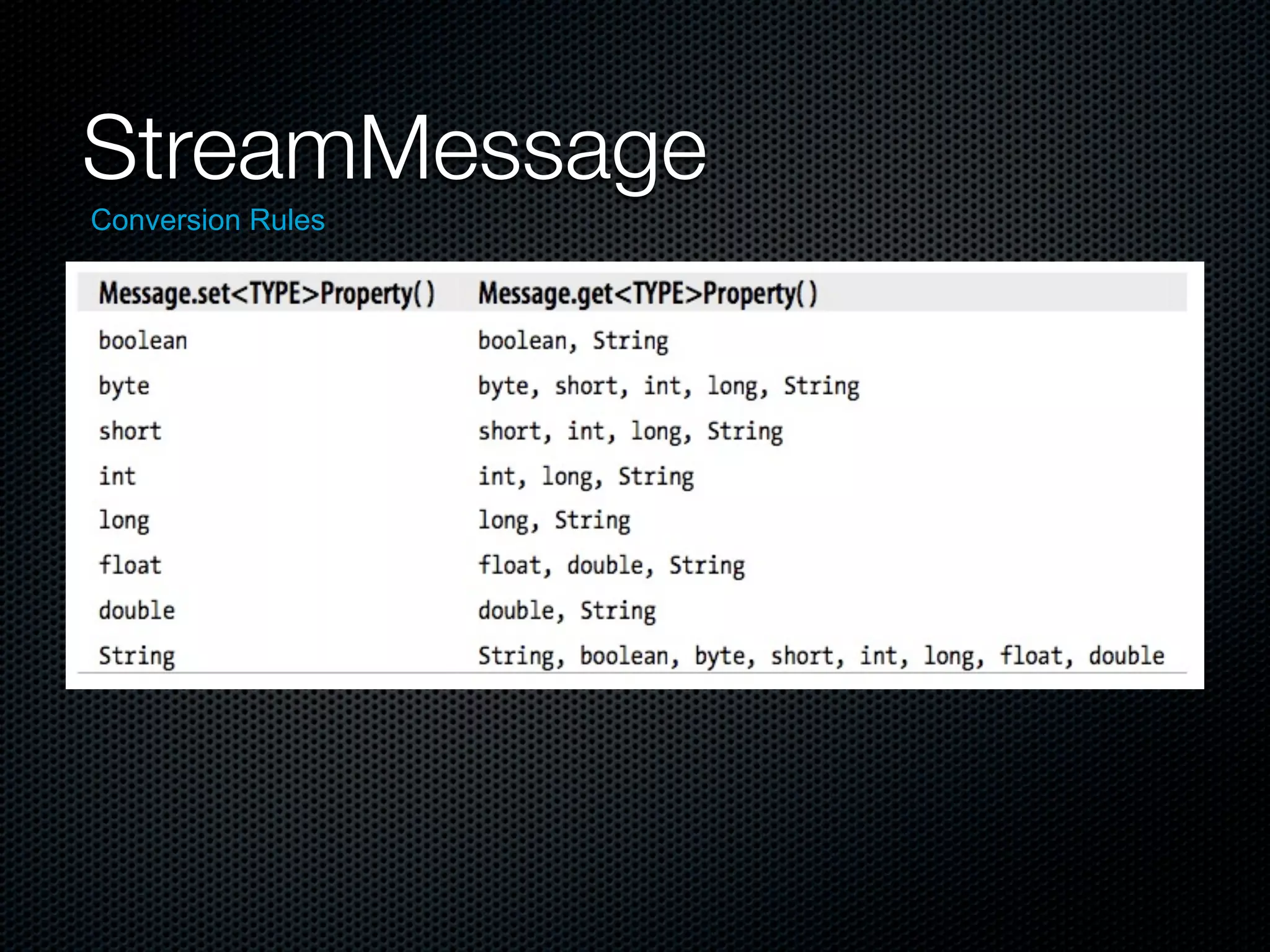

- #16Ā In fact, here are the type conversions that are supported by the StreamMessage. As you can see, just like in regular Java code, you can read to a bigger type but not to a smaller type (with the exception of String, which can be read to any of the supported types).
- #17Ā So a couple of weekends ago I attended the NFJS symposium in St. Louis. While watching the presentations there, I gained a renewed appreciation for what properly placed images can do to enhance a talk. In fact, the use of Creative Commons licensed images came up several times. For this talk, all of the images are actually Creative Commons licensed, meaning in this case that all I have to do to use them legally is run the credits at the end of the talk. So, while searching for images for this slide, I actually entered &#x201C;API&#x201D; as my search criteria, thinking that nothing would come up. Imagine my surprise when I got this really cool photo of a sign. So, with that let&#x2019;s examine the API...
- #18Ā So staring with JMS 1.1, the spec consolidated the various interfaces such that all interfaces descend from common generic types, shown here.
- #19Ā As you can see, there&#x2019;s a one-to-one relationship between all of the interfaces here and the generic ones, with Message carrying over.
- #21Ā So this is probably how many of us feel when it comes to configuration. Thankfully, configuring JMS can be relatively simple depending on your provider.
- #22Ā For this talk we&#x2019;ll be working with OpenJMS, which is great for development and testing, but is not production ready. In fact, it has been in beta for years! Go to TextMate and look at the openjms.xml file!
