Introduction to OSLC and Linked Data

The document introduces OSLC (Open Services for Lifecycle Collaboration) and its application of linked data principles to enhance software lifecycle integration. It discusses the challenges of traditional point-to-point integrations and presents OSLC as a standardized approach that enables greater collaboration and reuse across tools using URIs and RDF data model. Additionally, it outlines OSLC's architecture, specifications, and benefits such as improved visibility, decreased maintenance costs, and better integration across diverse domains.

Related topics:
Linked Data•
Downloaded 151 times
An Introduction to OSLC and Linked Data OSLC: Lifecycle integration inspired by the web

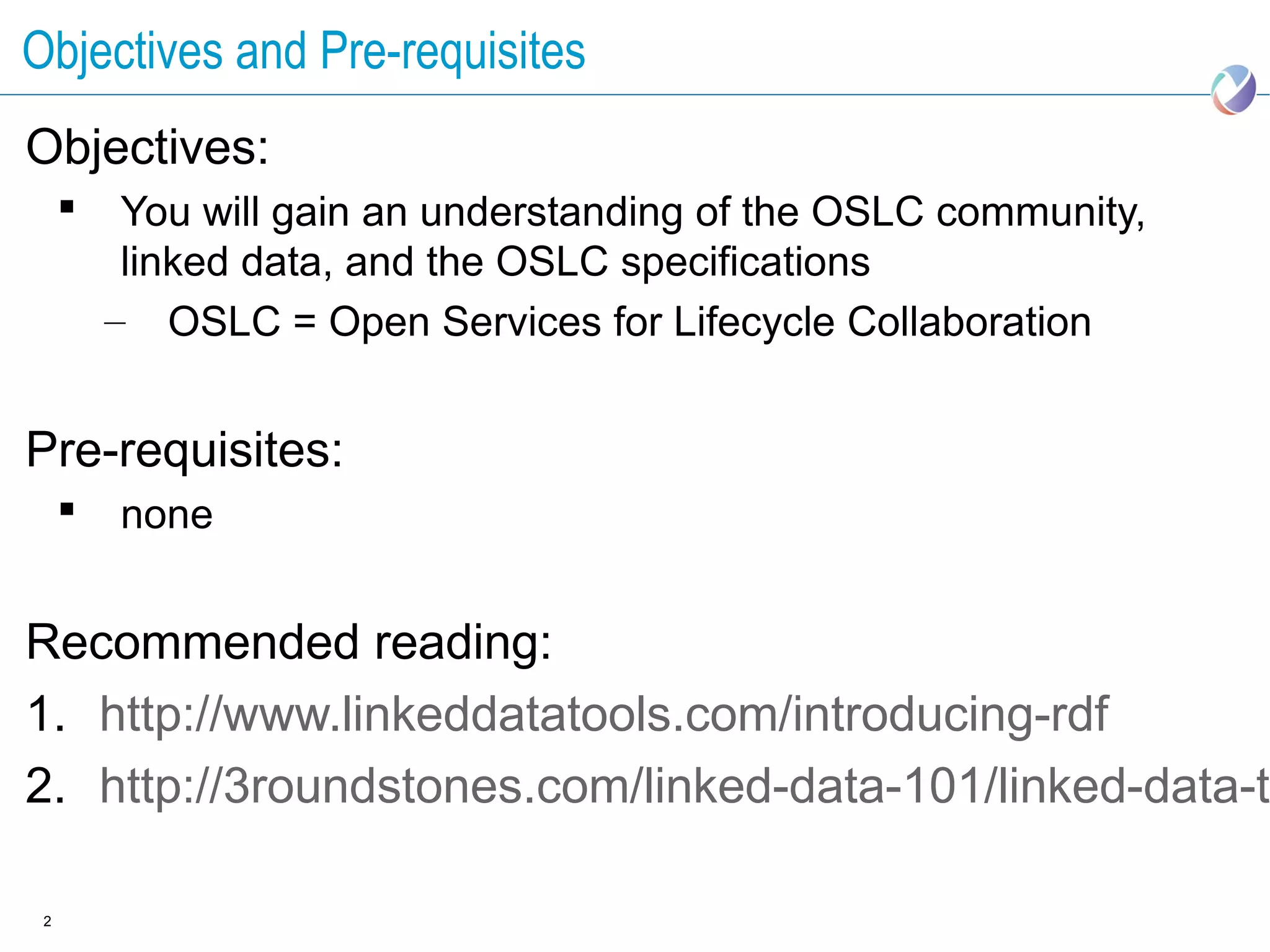

Objectives and Pre-requisites Objectives:  You will gain an understanding of the OSLC community, linked data, and the OSLC specifications – OSLC = Open Services for Lifecycle Collaboration Pre-requisites:  none Recommended reading: 1. http://www.linkeddatatools.com/introducing-rdf 2. http://3roundstones.com/linked-data-101/linked-data-tu 2

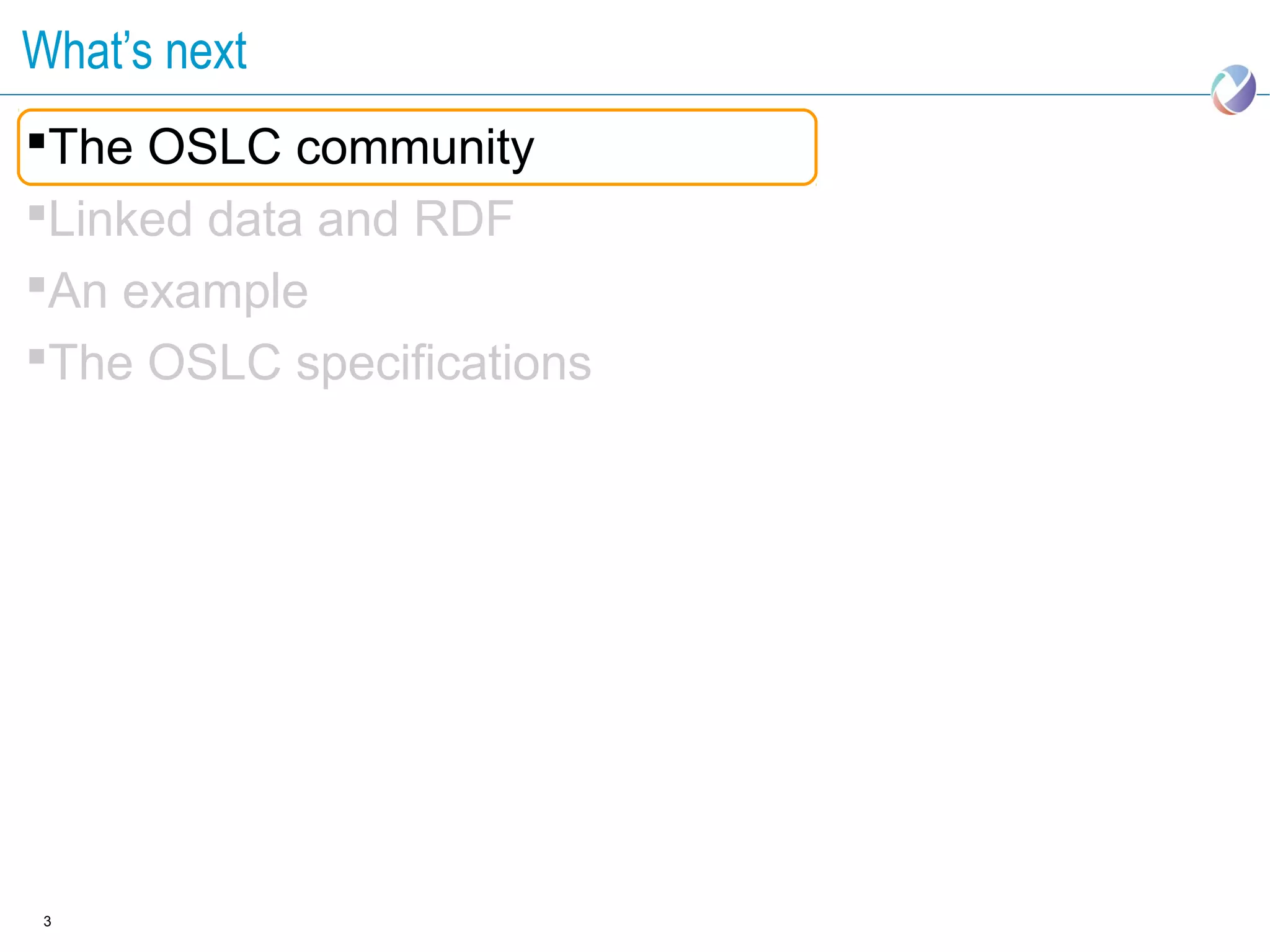

What’s next The OSLC community Linked data and RDF An example The OSLC specifications 3

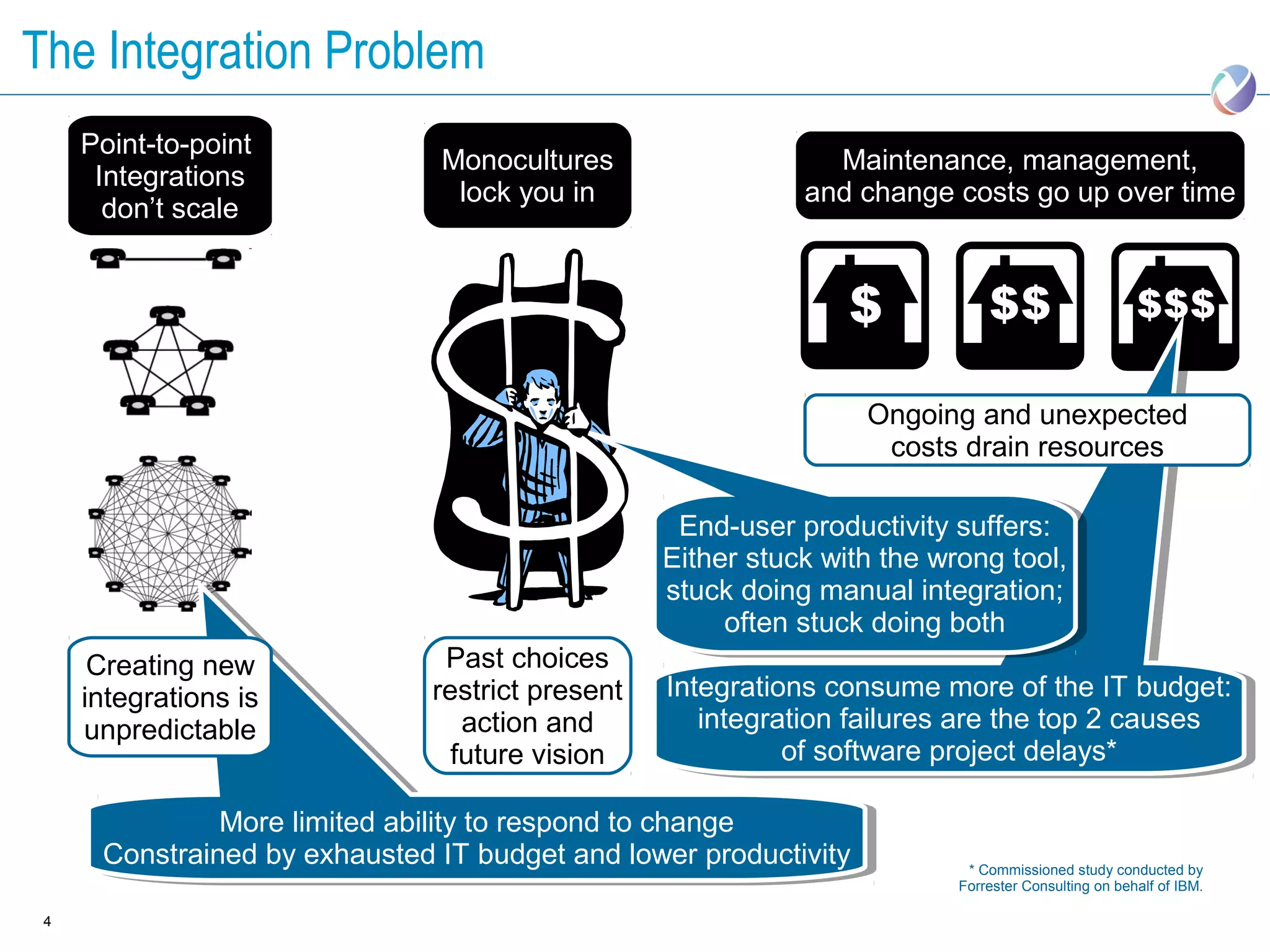

The Integration Problem Point-to-point Monocultures Maintenance, management, Integrations lock you in and change costs go up over time don’t scale Ongoing and unexpected costs drain resources End-user productivity suffers: End-user productivity suffers: Either stuck with the wrong tool, Either stuck with the wrong tool, stuck doing manual integration; stuck doing manual integration; often stuck doing both often stuck doing both Creating new Past choices integrations is restrict present Integrations consume more of the IT budget: Integrations consume more of the IT budget: unpredictable action and integration failures are the top 2 causes integration failures are the top 2 causes future vision of software project delays* of software project delays* More limited ability to respond to change More limited ability to respond to change Constrained by exhausted IT budget and lower productivity Constrained by exhausted IT budget and lower productivity * Commissioned study conducted by Forrester Consulting on behalf of IBM. 4

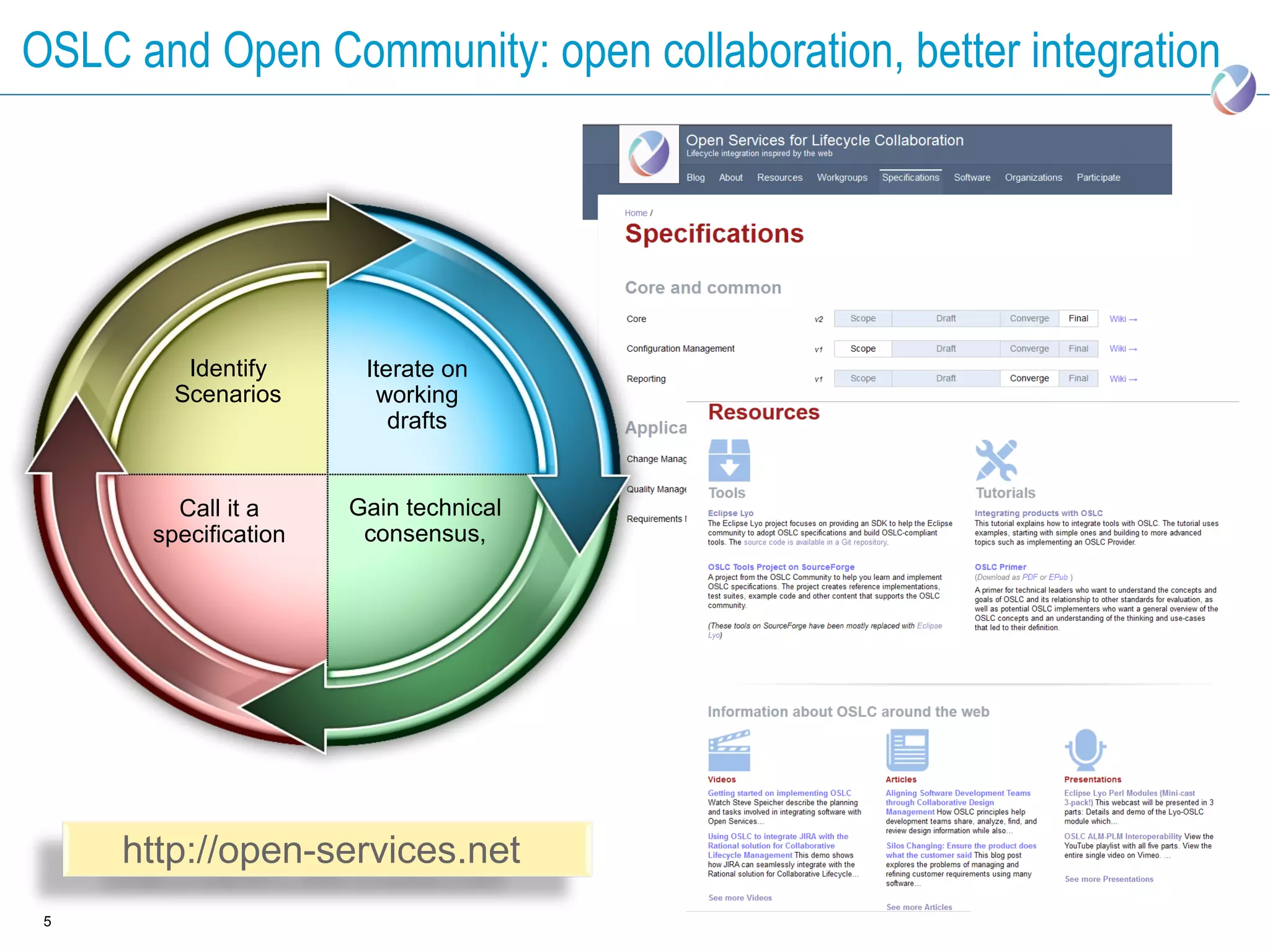

OSLC and Open Community: open collaboration, better integration Identify Iterate on Scenarios working drafts Call it a Gain technical specification consensus, http://open-services.net 5

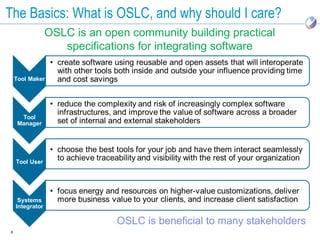

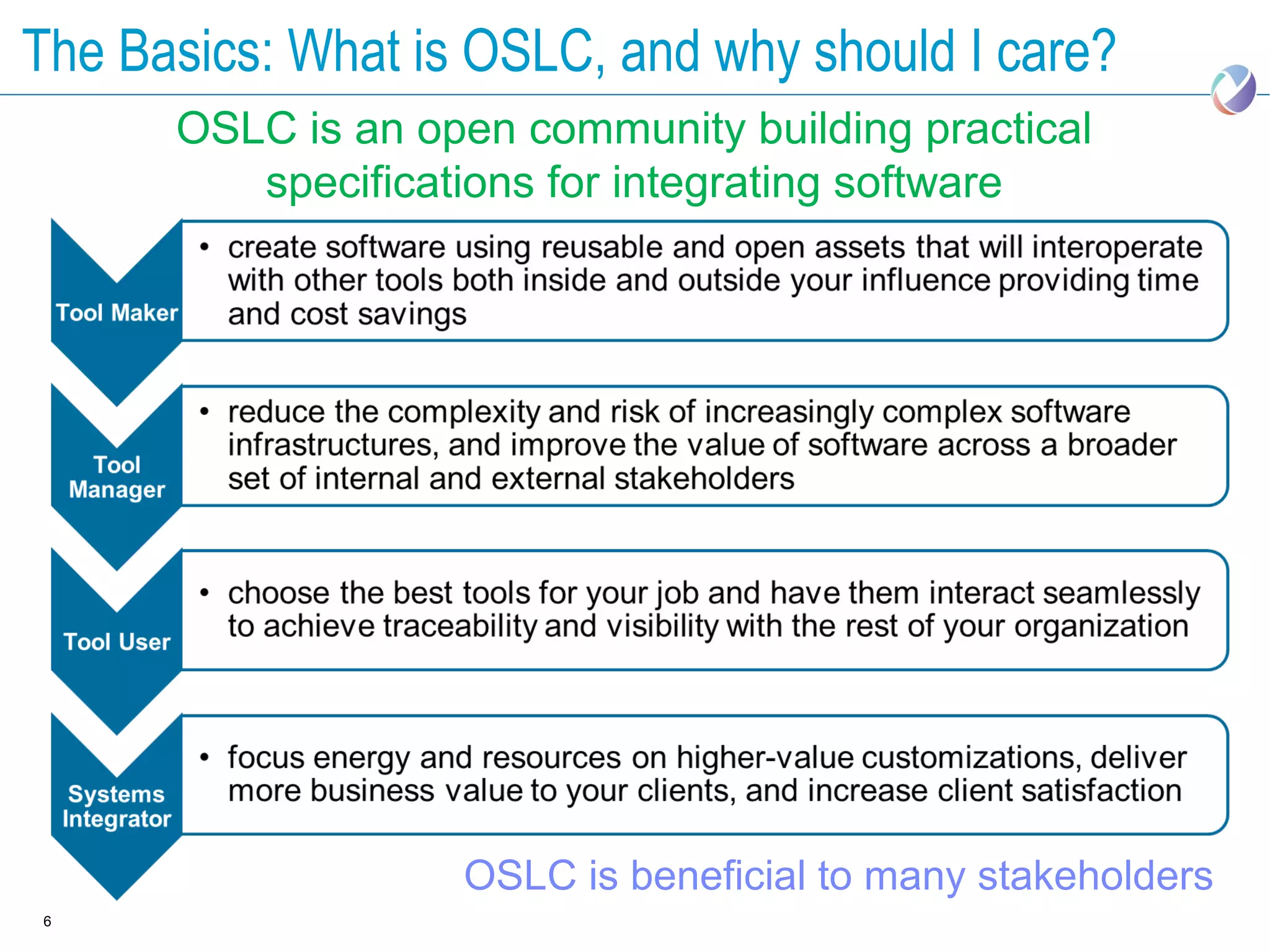

The Basics: What is OSLC, and why should I care? OSLC is an open community building practical specifications for integrating software OSLC is beneficial to many stakeholders 6

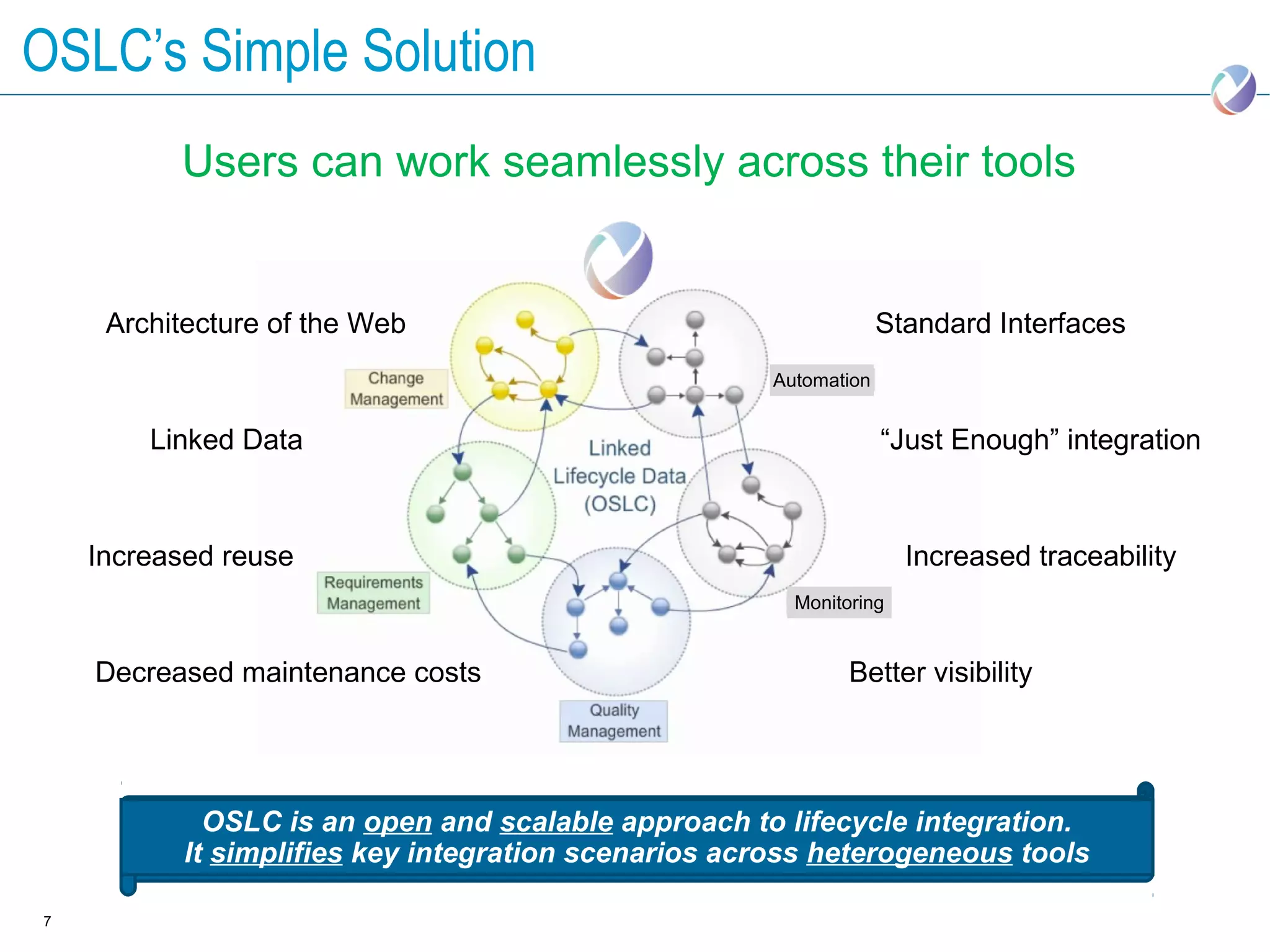

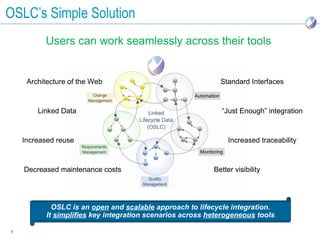

OSLC’s Simple Solution Users can work seamlessly across their tools Architecture of the Web Standard Interfaces Automation Linked Data “Just Enough” integration Increased reuse Increased traceability Monitoring Decreased maintenance costs Better visibility OSLC is an open and scalable approach to lifecycle integration. It simplifies key integration scenarios across heterogeneous tools 7

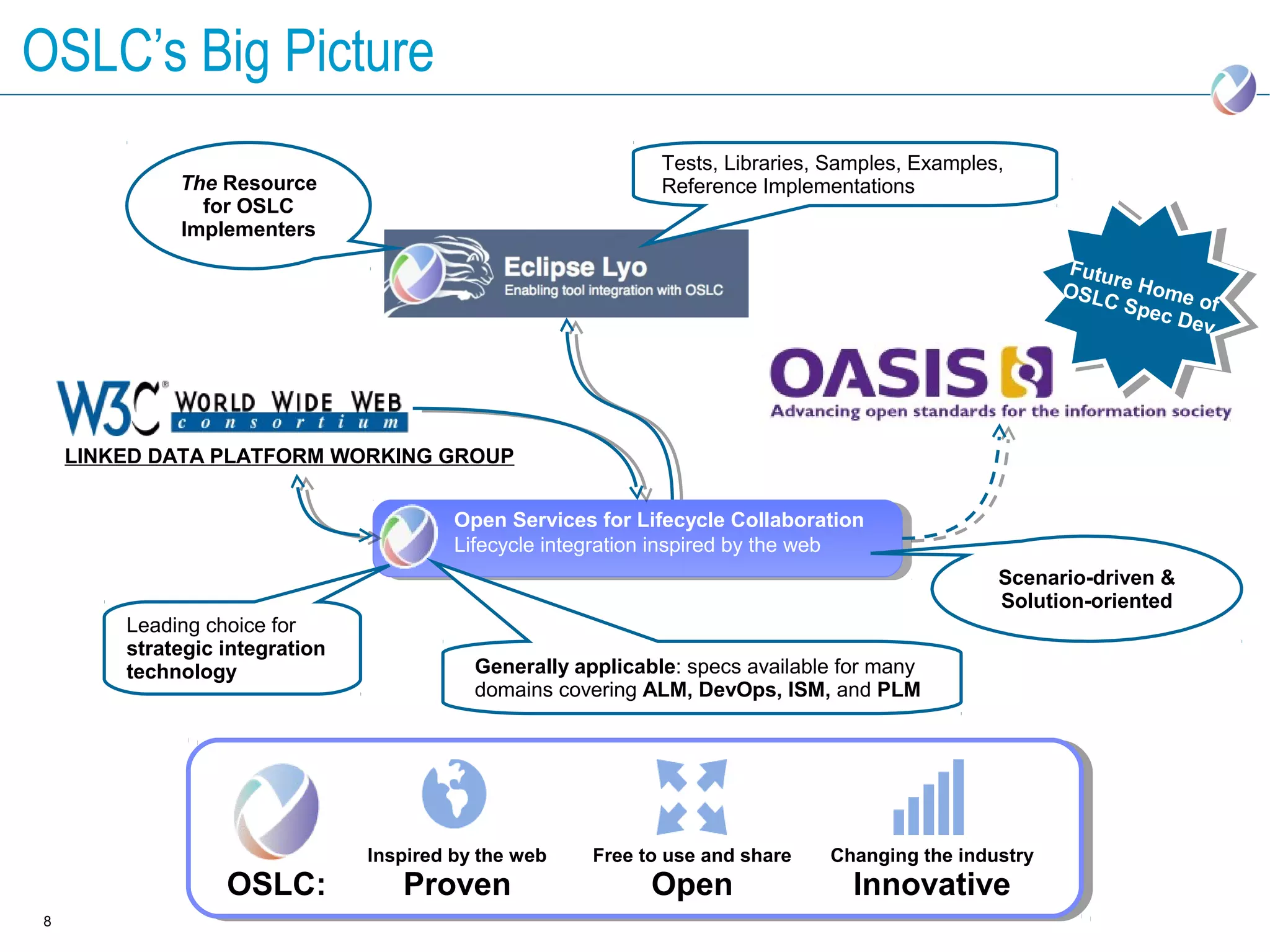

OSLC’s Big Picture Tests, Libraries, Samples, Examples, The Resource Reference Implementations for OSLC Implementers FFuu ut tu rr OSLL eeHoome OS C H me o CSpp S eec off c De Dev v LINKED DATA PLATFORM WORKING GROUP Open Services for Lifecycle Collaboration Lifecycle integration inspired by the web Scenario-driven & Solution-oriented Leading choice for strategic integration technology Generally applicable: specs available for many domains covering ALM, DevOps, ISM, and PLM Inspired by the web Free to use and share Changing the industry OSLC: Proven Open Innovative 8

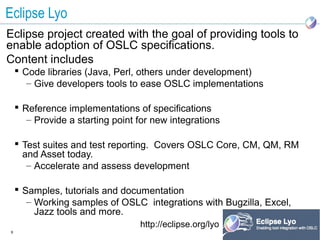

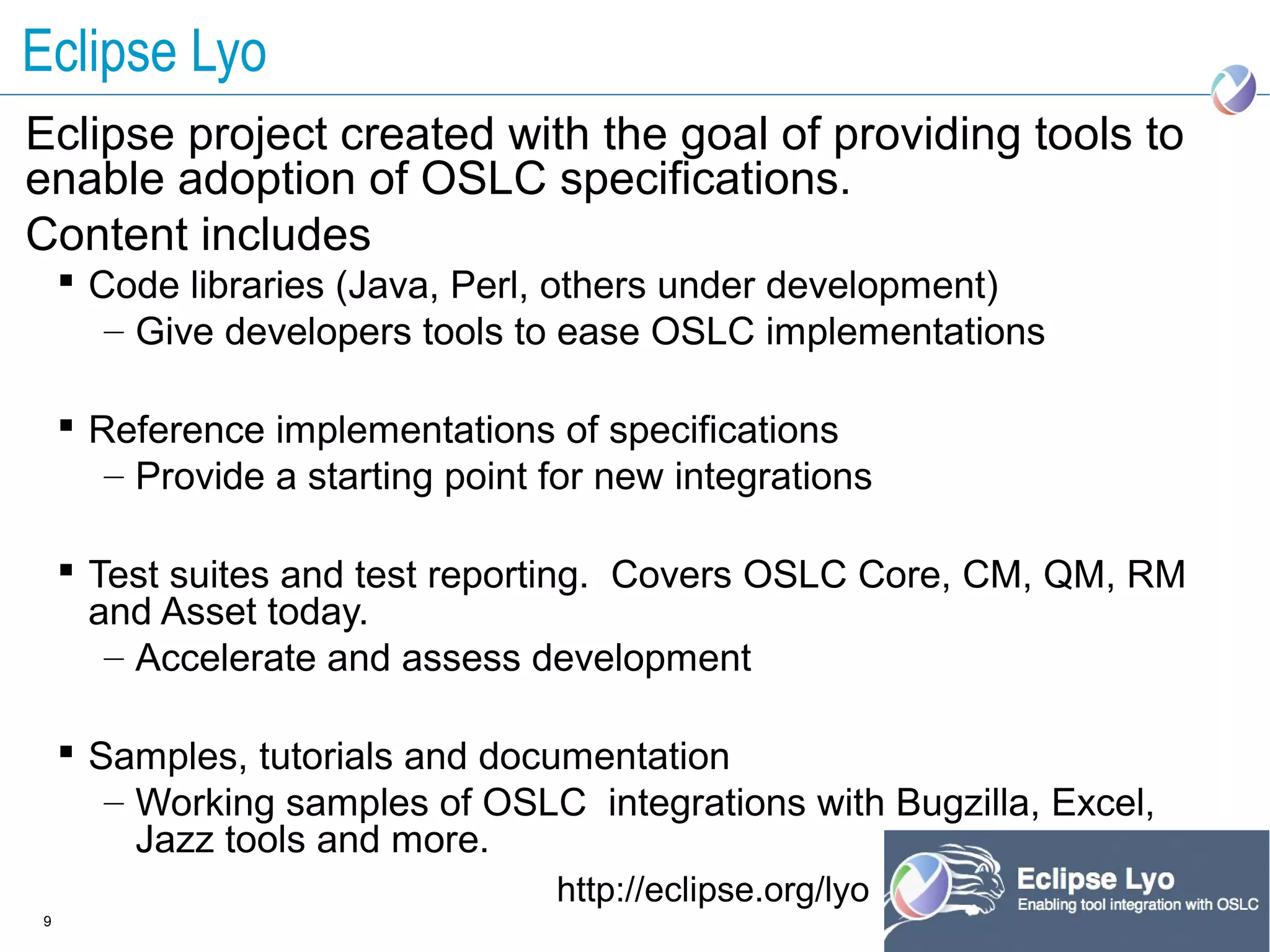

Eclipse Lyo Eclipse project created with the goal of providing tools to enable adoption of OSLC specifications. Content includes  Code libraries (Java, Perl, others under development) – Give developers tools to ease OSLC implementations  Reference implementations of specifications – Provide a starting point for new integrations  Test suites and test reporting. Covers OSLC Core, CM, QM, RM and Asset today. – Accelerate and assess development  Samples, tutorials and documentation – Working samples of OSLC integrations with Bugzilla, Excel, Jazz tools and more. http://eclipse.org/lyo 9

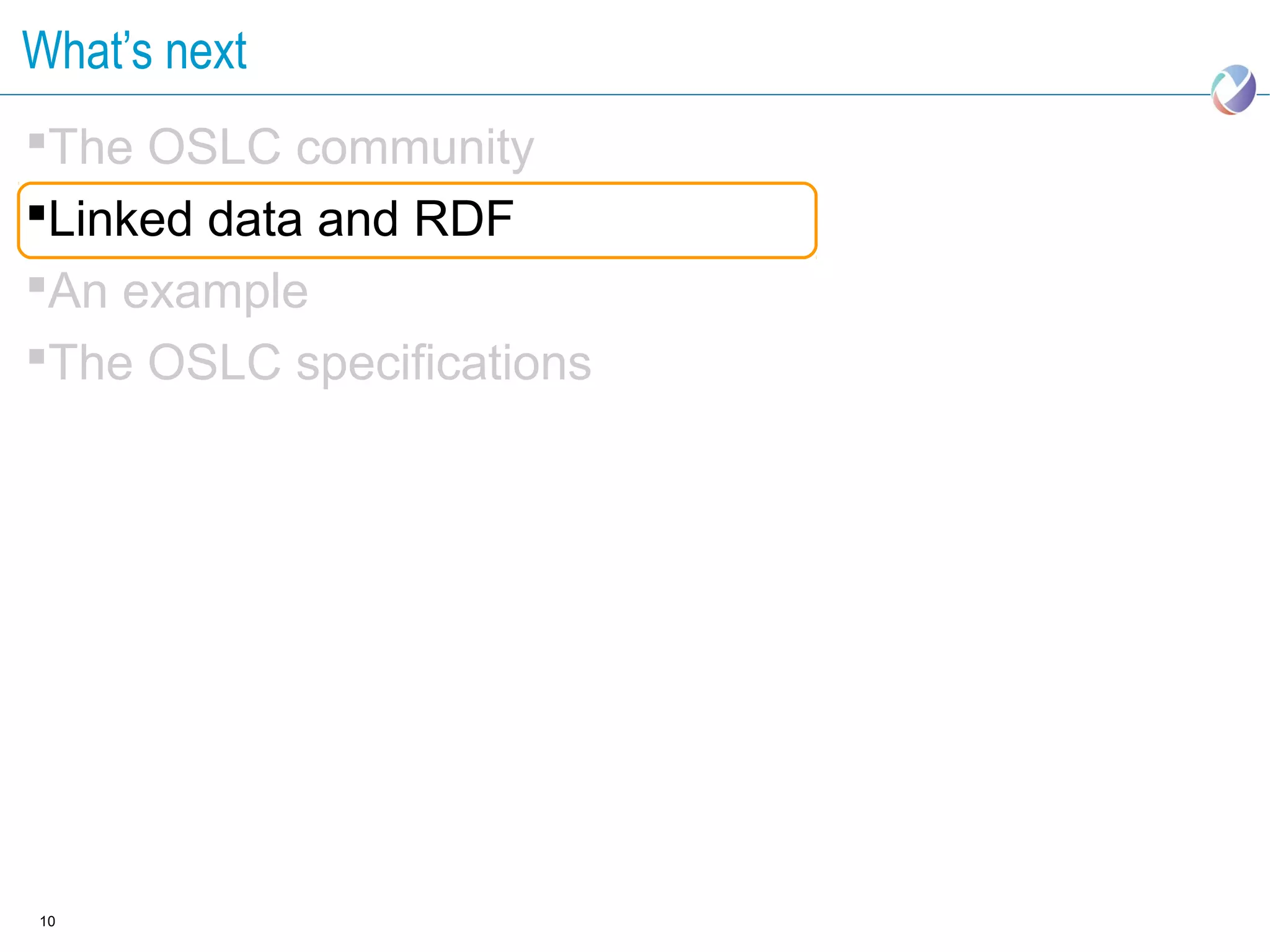

What’s next The OSLC community Linked data and RDF An example The OSLC specifications 10

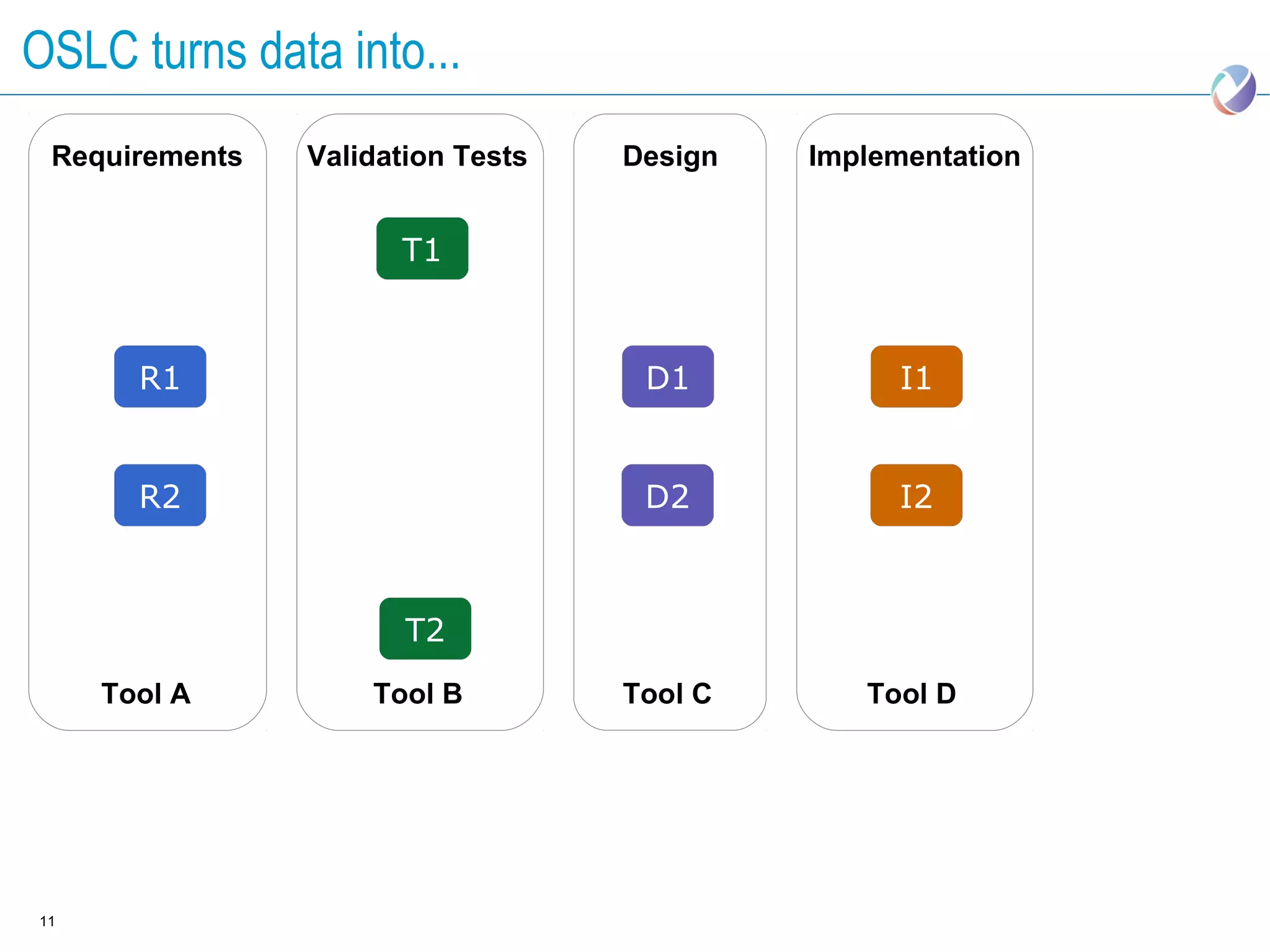

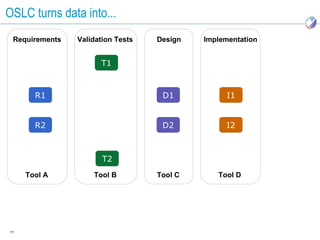

OSLC turns data into... Requirements Validation Tests Design Implementation T1 R1 D1 I1 R2 D2 I2 T2 Tool A Tool B Tool C Tool D 11

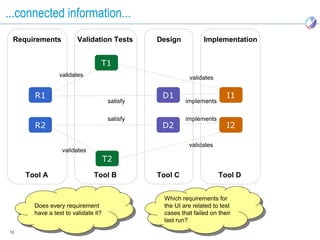

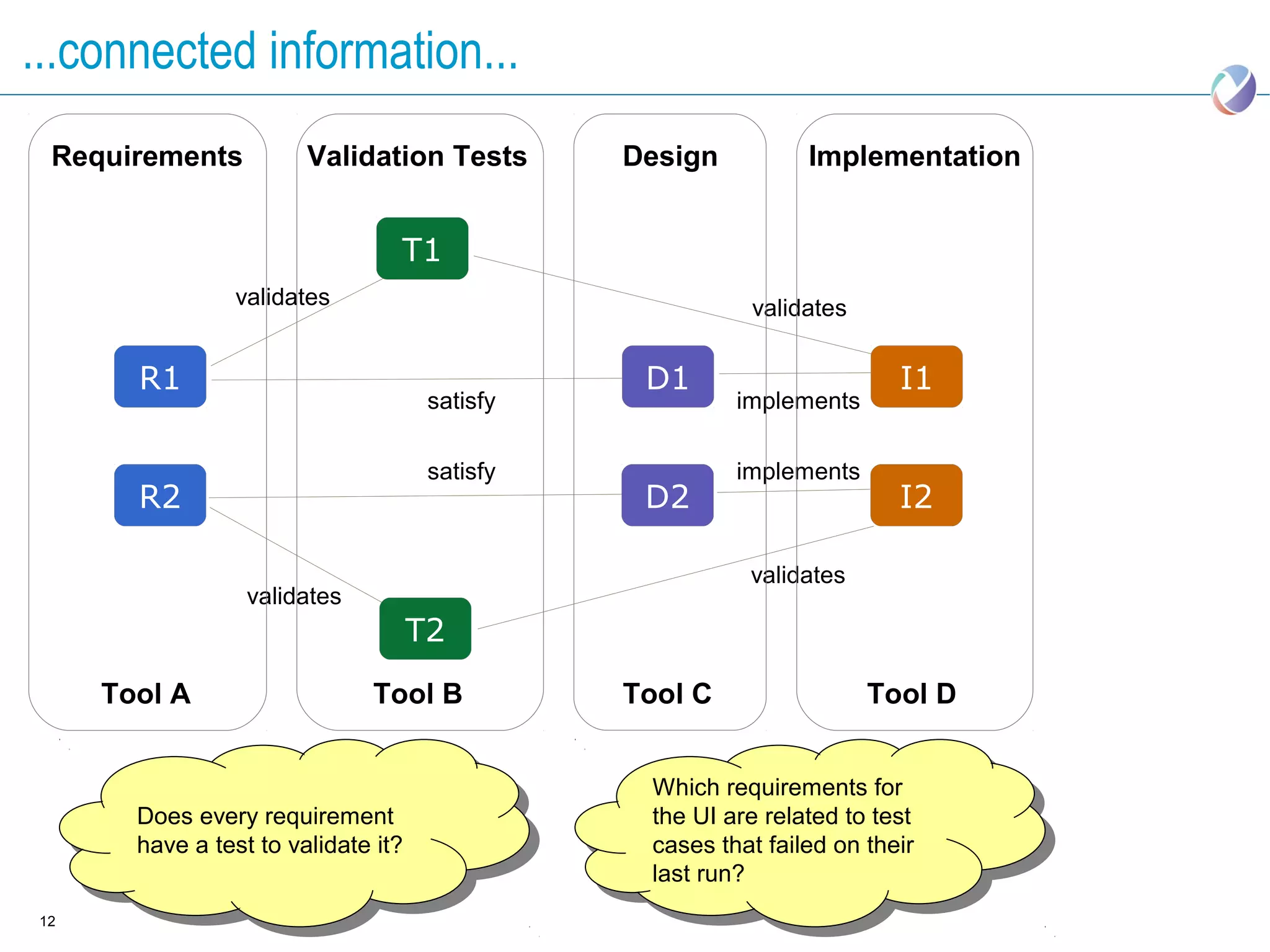

...connected information... Requirements Validation Tests Design Implementation T1 validates validates R1 D1 I1 satisfy implements satisfy implements R2 D2 I2 validates validates T2 Tool A Tool B Tool C Tool D Which requirements for Which requirements for Does every requirement Does every requirement the UI are related to test the UI are related to test have aatest to validate it? have test to validate it? cases that failed on their cases that failed on their last run? last run? 12

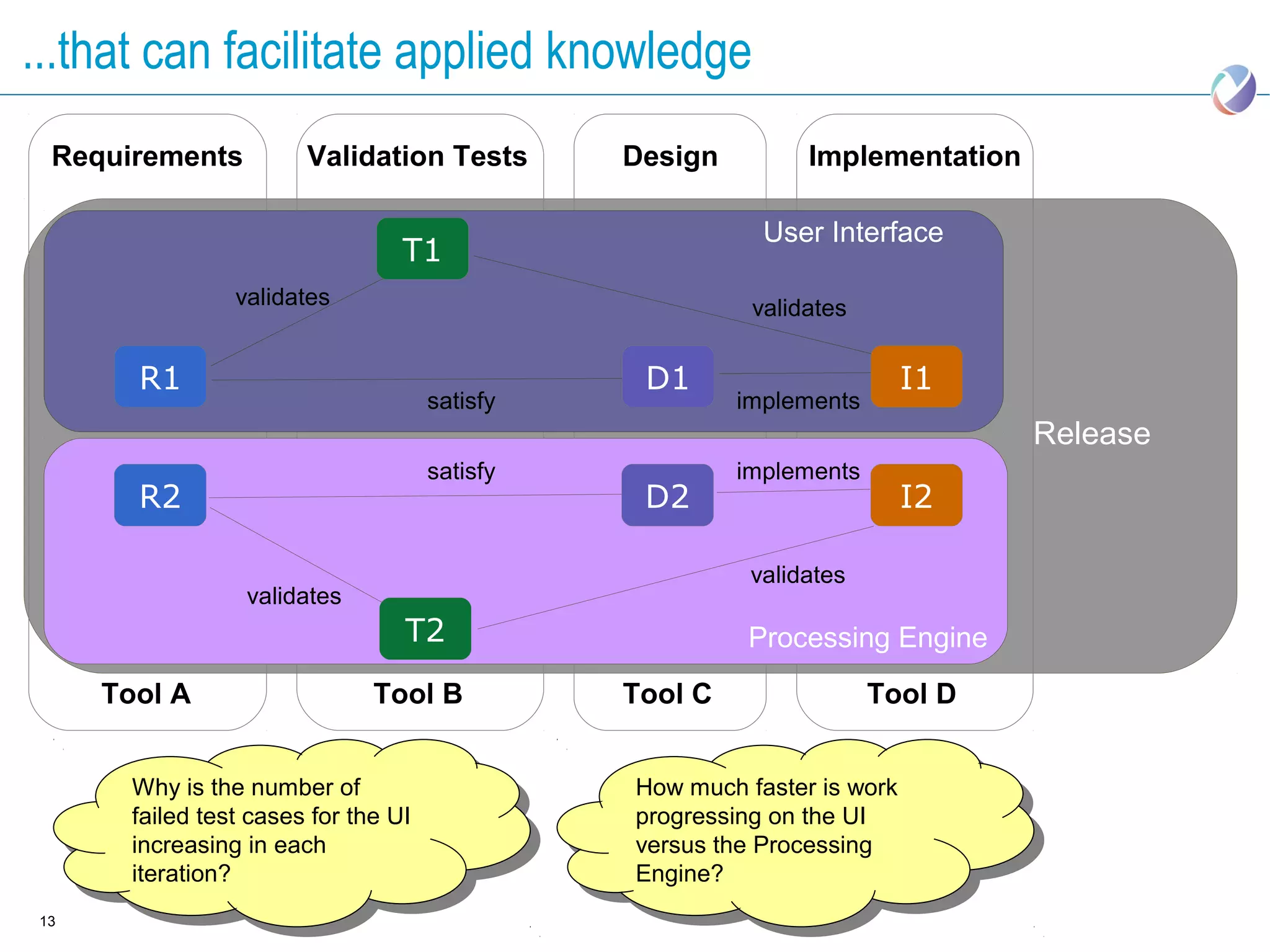

...that can facilitate applied knowledge Requirements Validation Tests Design Implementation User Interface T1 validates validates R1 D1 I1 satisfy implements Release satisfy implements R2 D2 I2 validates validates T2 Processing Engine Tool A Tool B Tool C Tool D Why is the number of Why is the number of How much faster is work How much faster is work failed test cases for the UI failed test cases for the UI progressing on the UI progressing on the UI increasing in each increasing in each versus the Processing versus the Processing iteration? iteration? Engine? Engine? 13

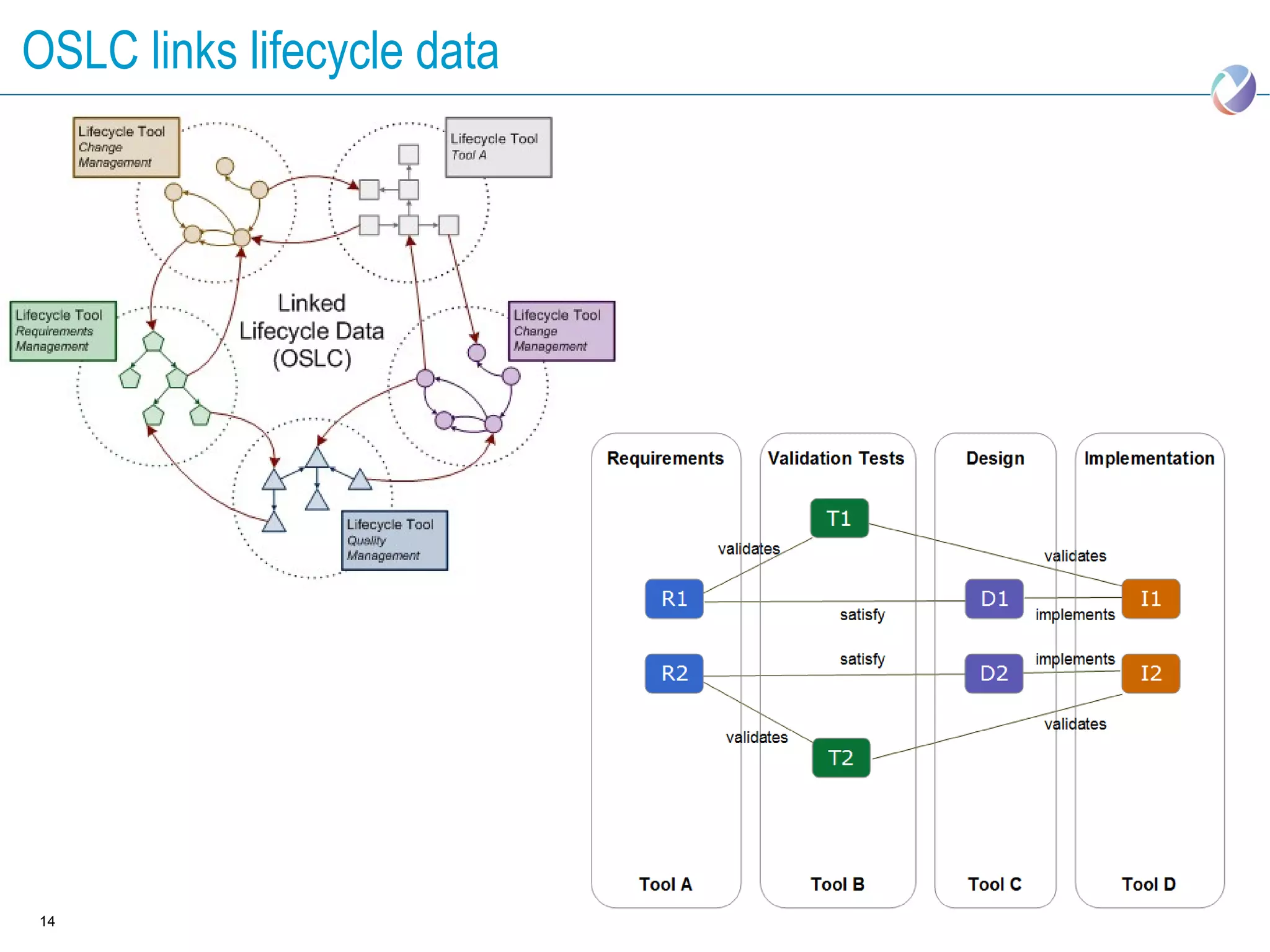

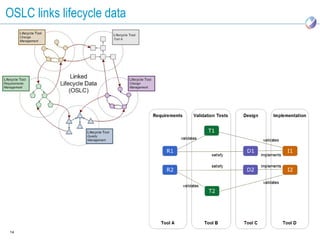

OSLC links lifecycle data 14

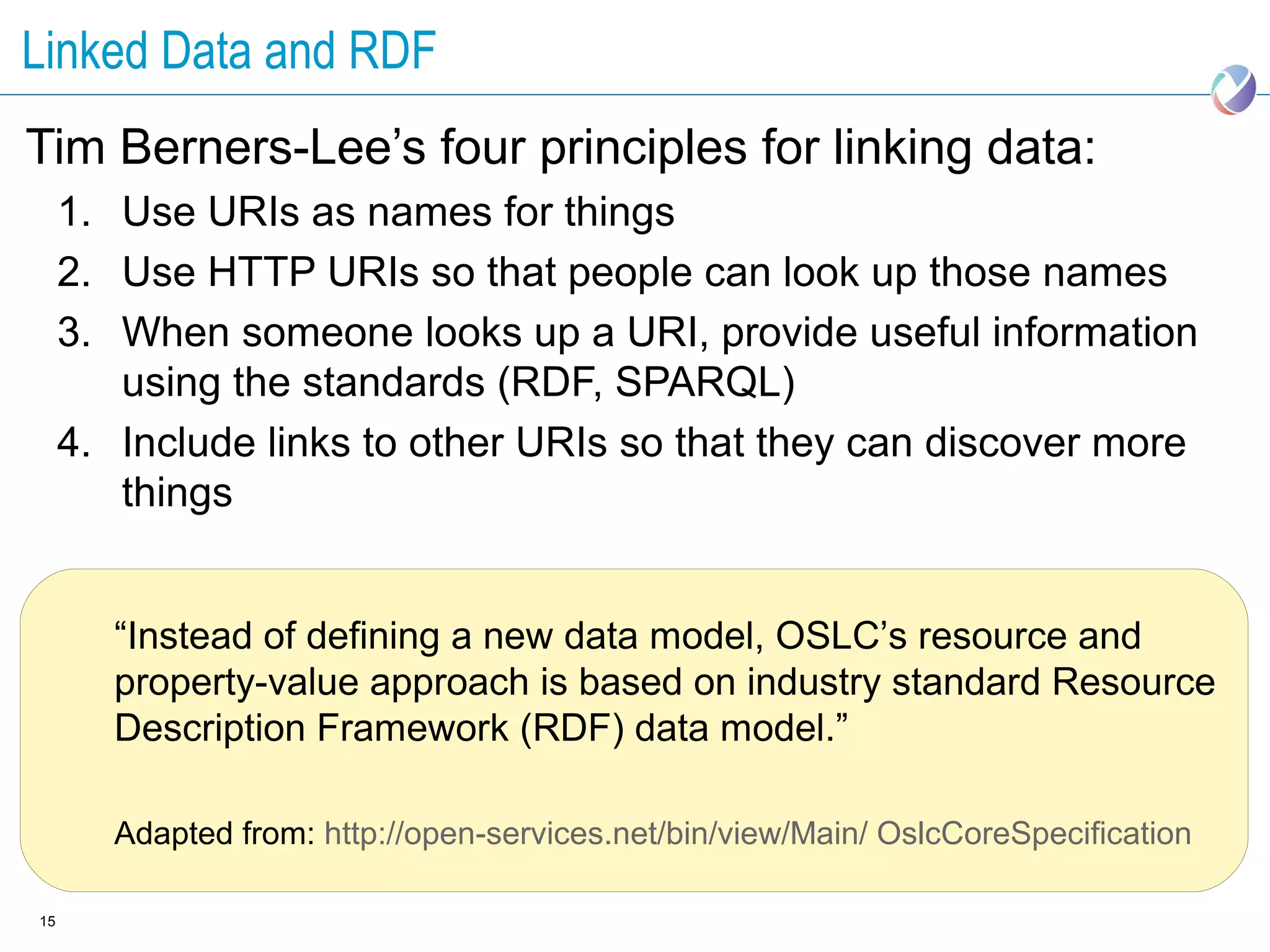

Linked Data and RDF Tim Berners-Lee’s four principles for linking data: 1. Use URIs as names for things 2. Use HTTP URIs so that people can look up those names 3. When someone looks up a URI, provide useful information using the standards (RDF, SPARQL) 4. Include links to other URIs so that they can discover more things “Instead of defining a new data model, OSLC’s resource and property-value approach is based on industry standard Resource Description Framework (RDF) data model.” Adapted from: http://open-services.net/bin/view/Main/ OslcCoreSpecification 15

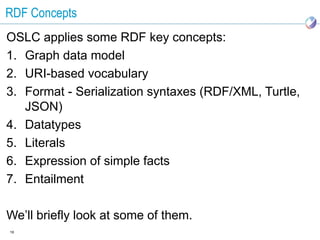

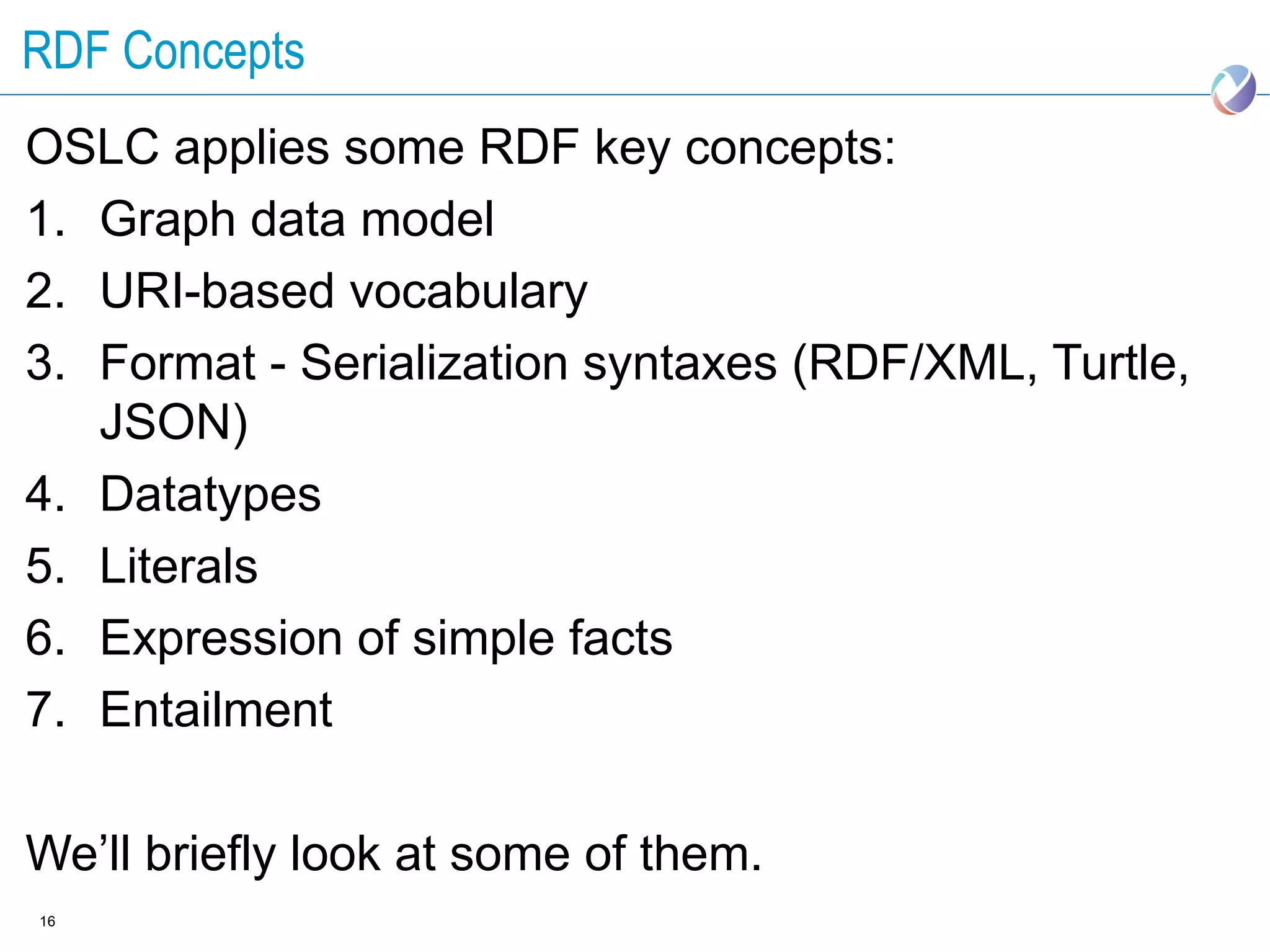

RDF Concepts OSLC applies some RDF key concepts: 1. Graph data model 2. URI-based vocabulary 3. Format - Serialization syntaxes (RDF/XML, Turtle, JSON) 4. Datatypes 5. Literals 6. Expression of simple facts 7. Entailment We’ll briefly look at some of them. 16

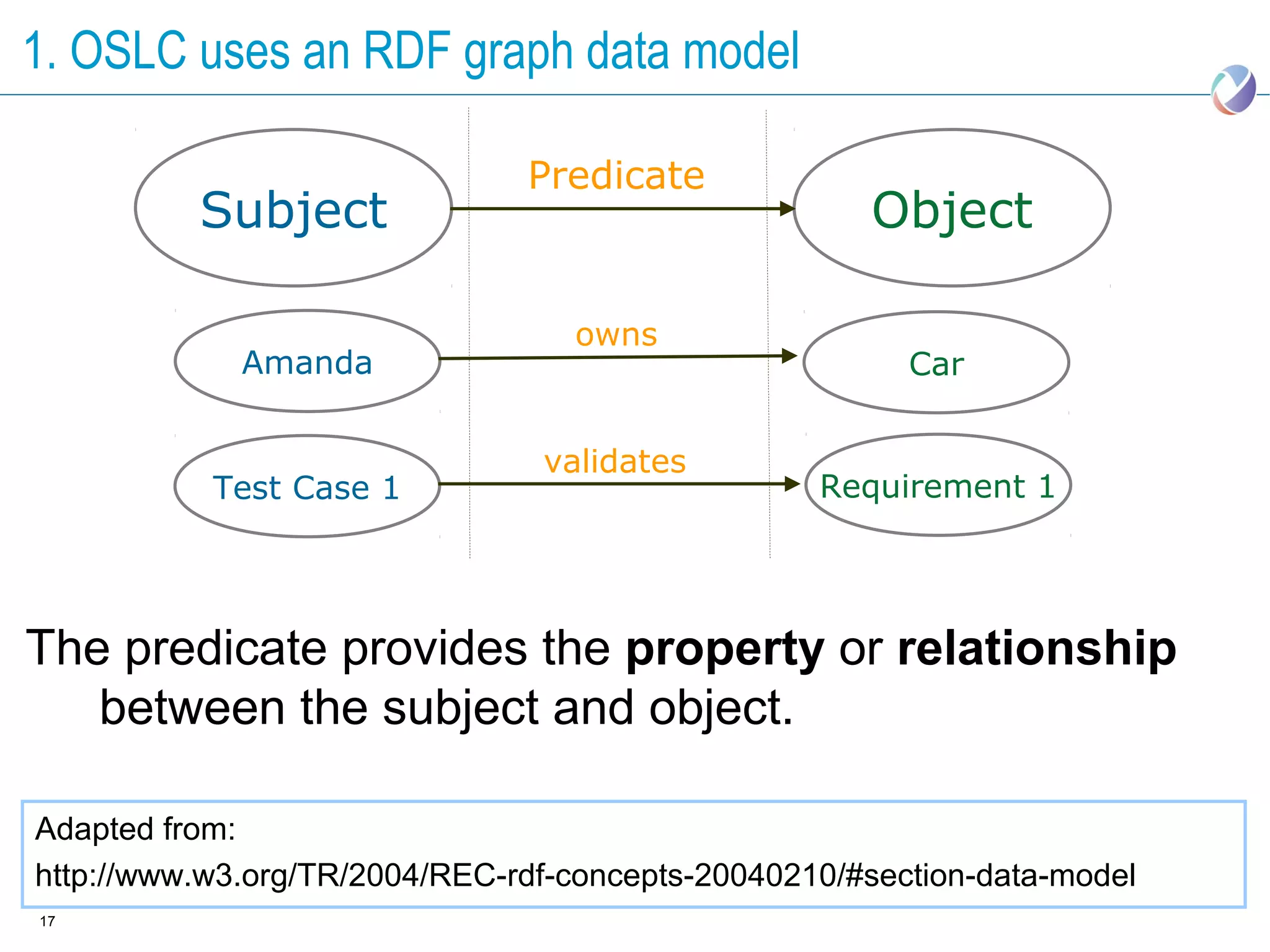

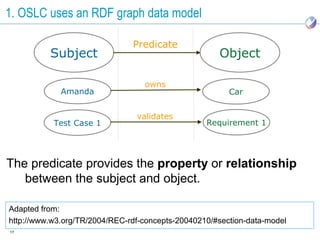

1. OSLC uses an RDF graph data model Predicate Subject Object owns Amanda Car validates Test Case 1 Requirement 1 The predicate provides the property or relationship between the subject and object. Adapted from: http://www.w3.org/TR/2004/REC-rdf-concepts-20040210/#section-data-model 17

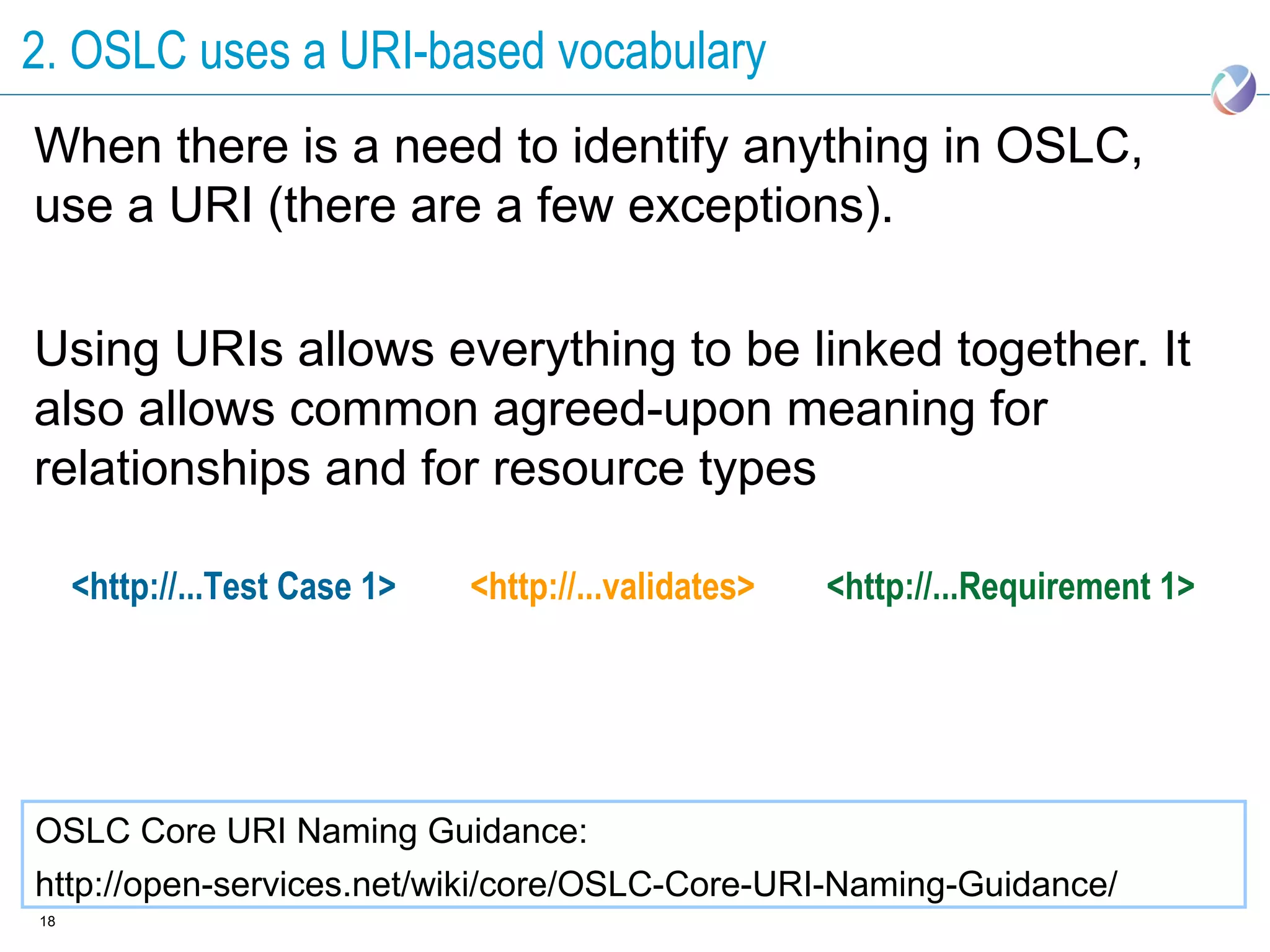

2. OSLC uses a URI-based vocabulary When there is a need to identify anything in OSLC, use a URI (there are a few exceptions). Using URIs allows everything to be linked together. It also allows common agreed-upon meaning for relationships and for resource types <http://...Test Case 1> <http://...validates> <http://...Requirement 1> OSLC Core URI Naming Guidance: http://open-services.net/wiki/core/OSLC-Core-URI-Naming-Guidance/ 18

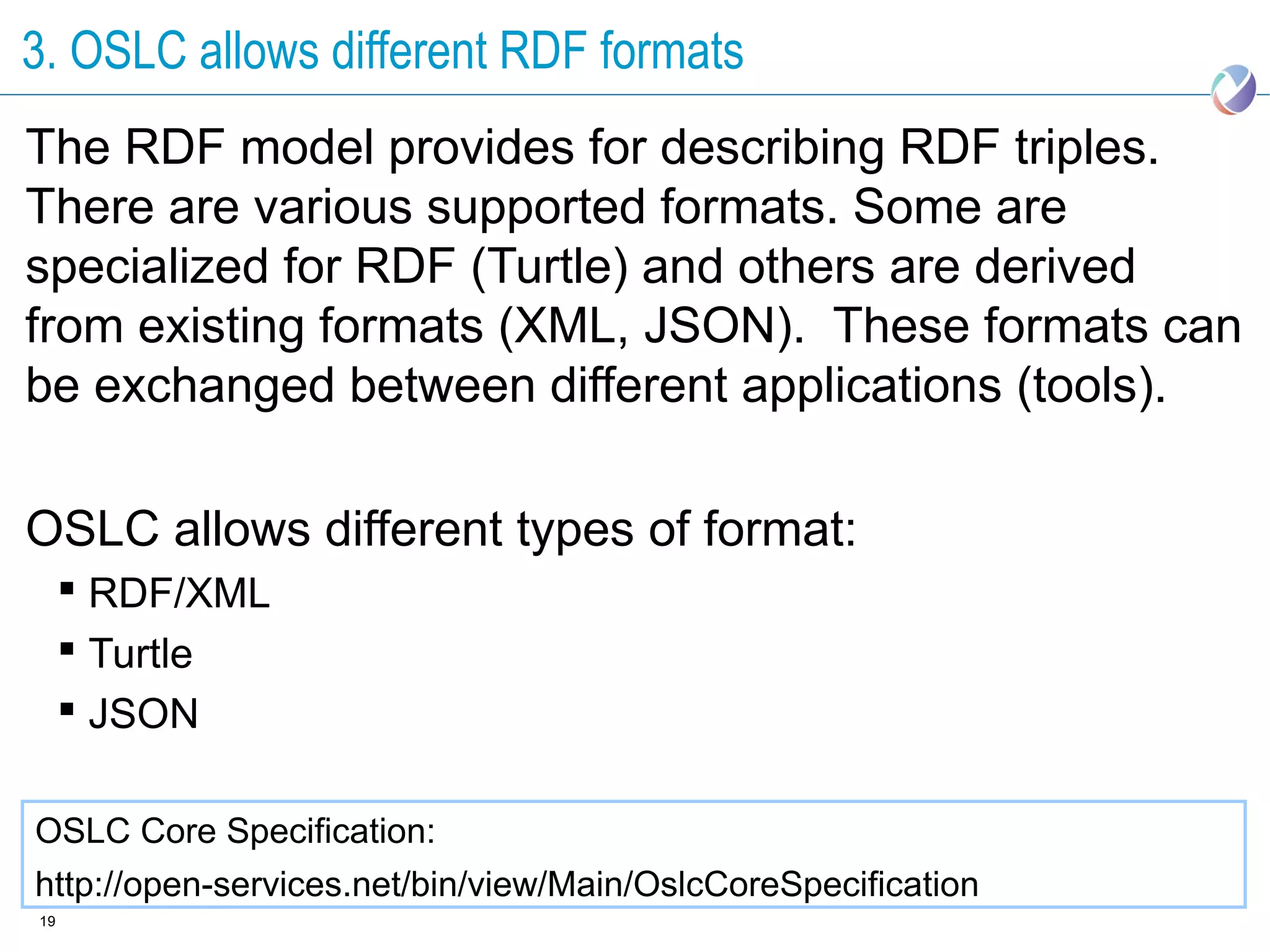

3. OSLC allows different RDF formats The RDF model provides for describing RDF triples. There are various supported formats. Some are specialized for RDF (Turtle) and others are derived from existing formats (XML, JSON). These formats can be exchanged between different applications (tools). OSLC allows different types of format:  RDF/XML  Turtle  JSON OSLC Core Specification: http://open-services.net/bin/view/Main/OslcCoreSpecification 19

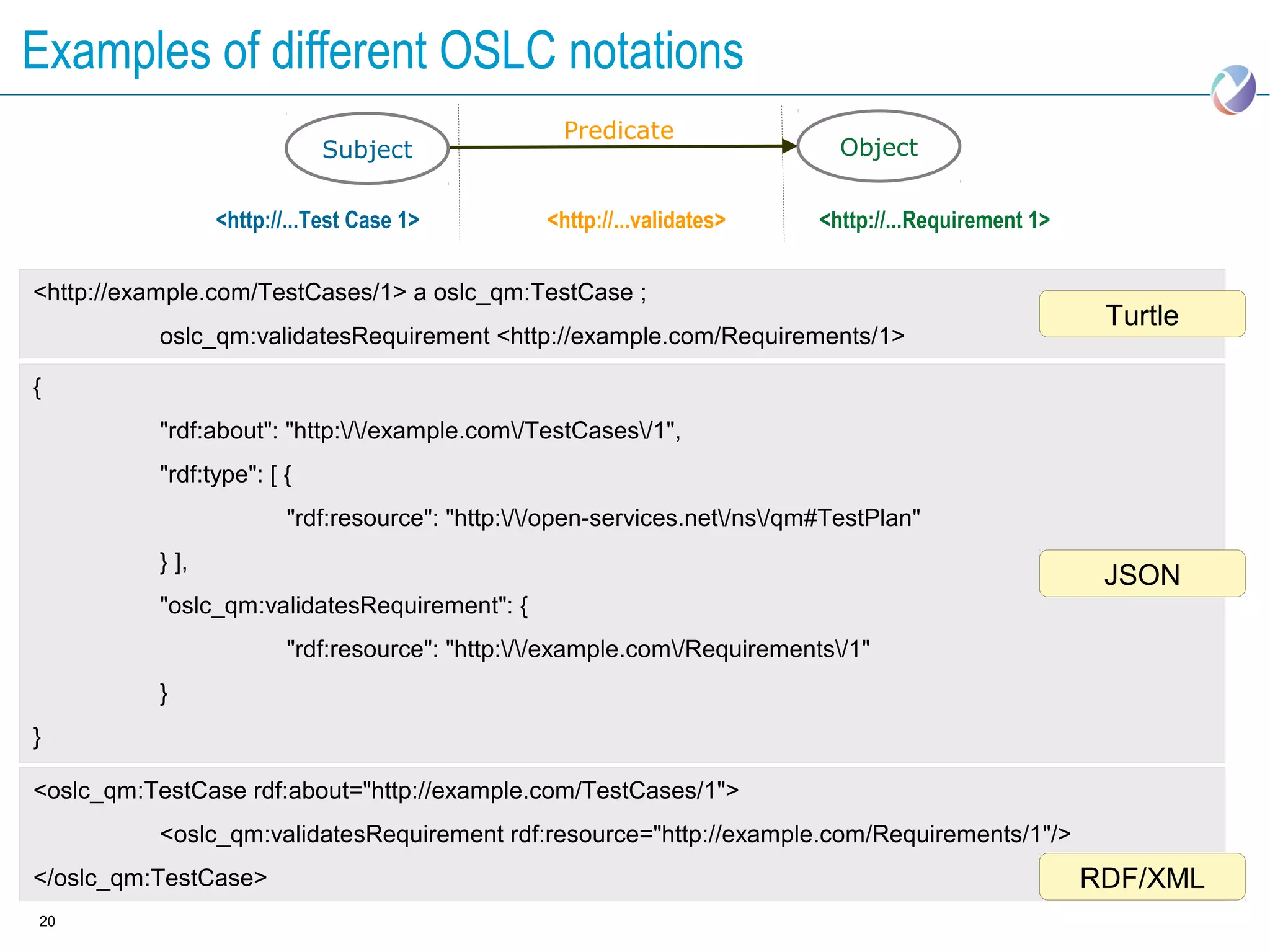

Examples of different OSLC notations Predicate Subject Object <http://...Test Case 1> <http://...validates> <http://...Requirement 1> <http://example.com/TestCases/1> a oslc_qm:TestCase ; Turtle oslc_qm:validatesRequirement <http://example.com/Requirements/1> { "rdf:about": "http://example.com/TestCases/1", "rdf:type": [ { "rdf:resource": "http://open-services.net/ns/qm#TestPlan" } ], JSON "oslc_qm:validatesRequirement": { "rdf:resource": "http://example.com/Requirements/1" } } <oslc_qm:TestCase rdf:about="http://example.com/TestCases/1"> <oslc_qm:validatesRequirement rdf:resource="http://example.com/Requirements/1"/> </oslc_qm:TestCase> RDF/XML 20

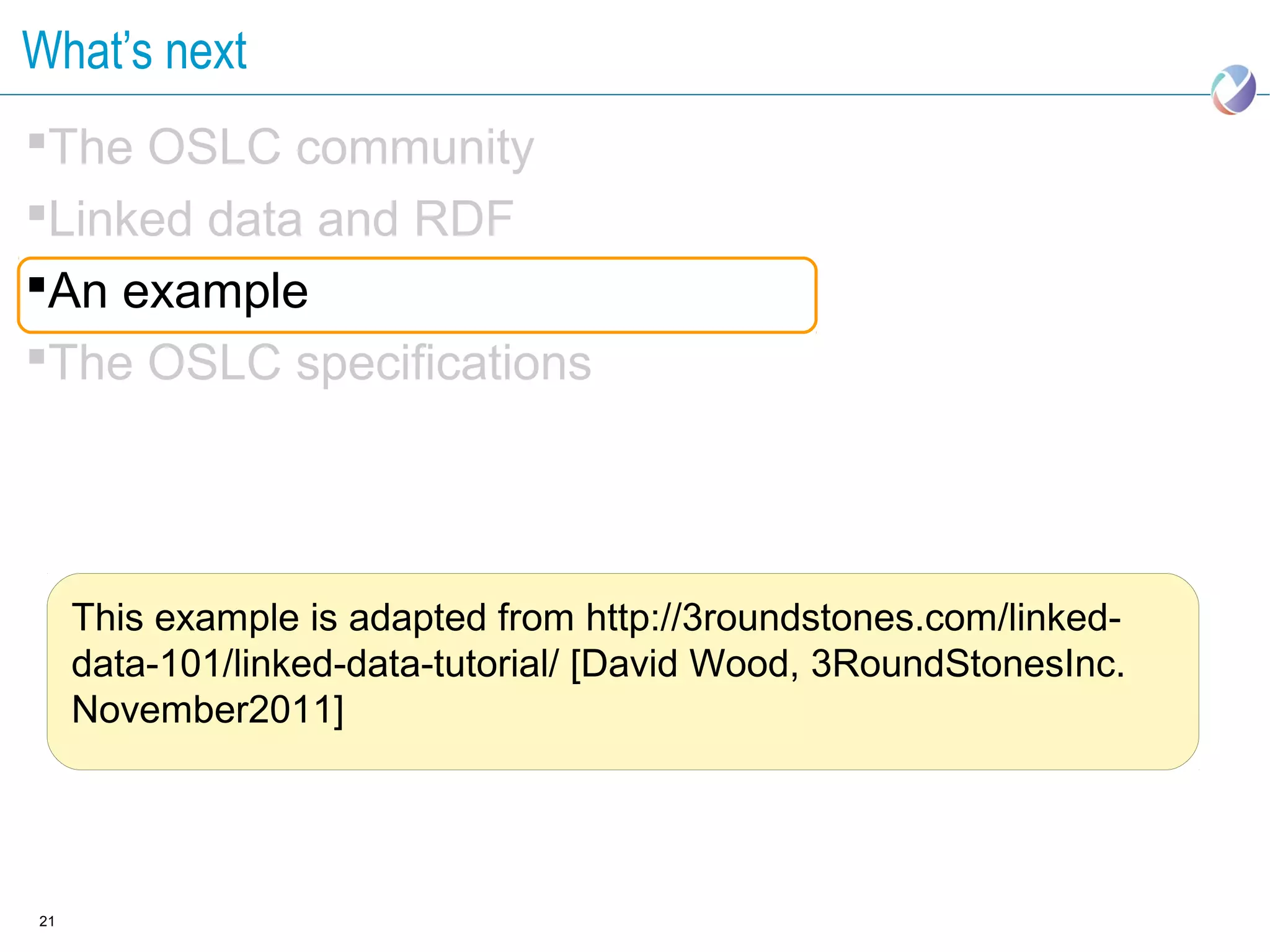

What’s next The OSLC community Linked data and RDF An example The OSLC specifications This example is adapted from http://3roundstones.com/linked- data-101/linked-data-tutorial/ [David Wood, 3RoundStonesInc. November2011] 21

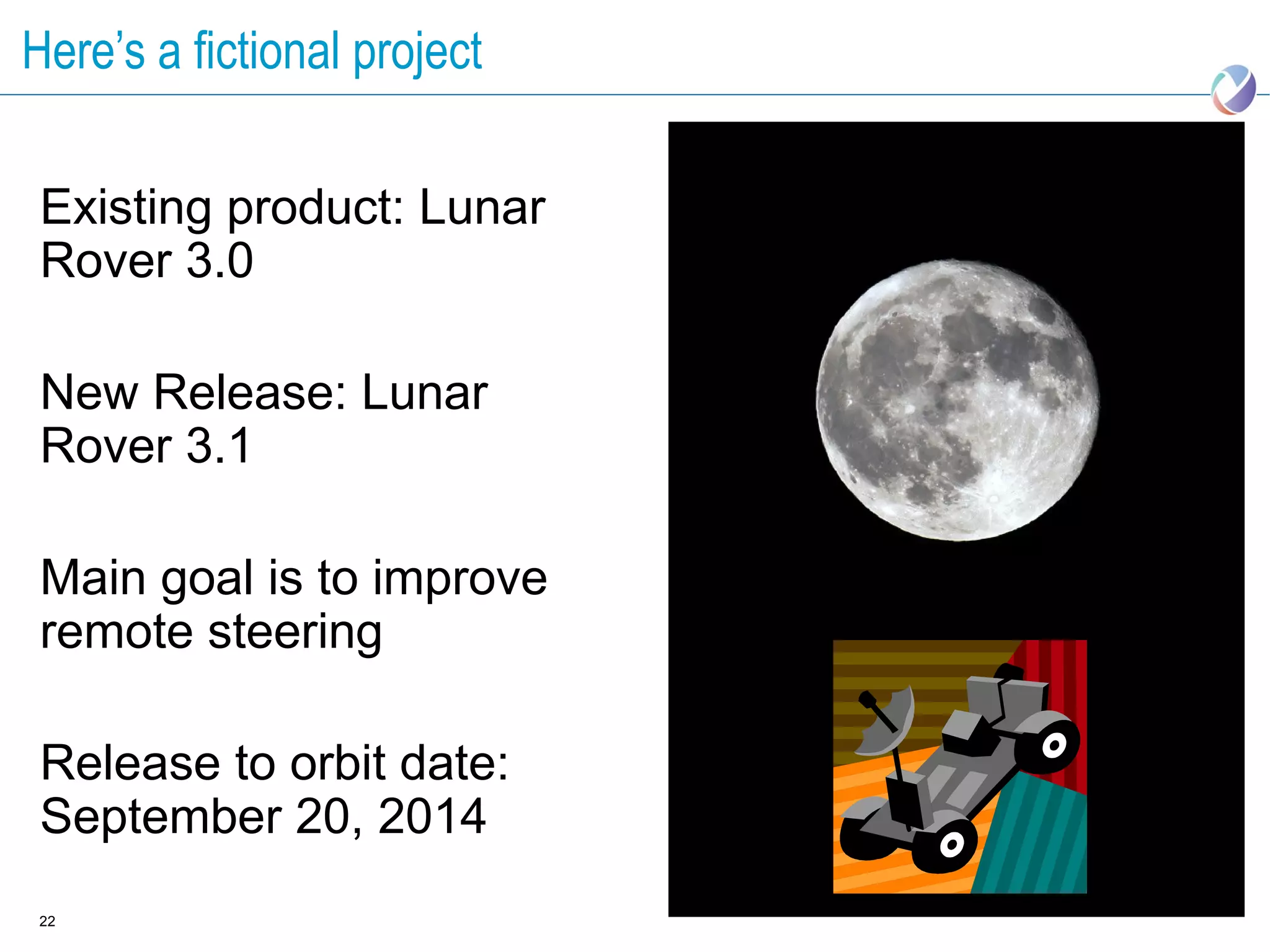

Here’s a fictional project Existing product: Lunar Rover 3.0 New Release: Lunar Rover 3.1 Main goal is to improve remote steering Release to orbit date: September 20, 2014 22

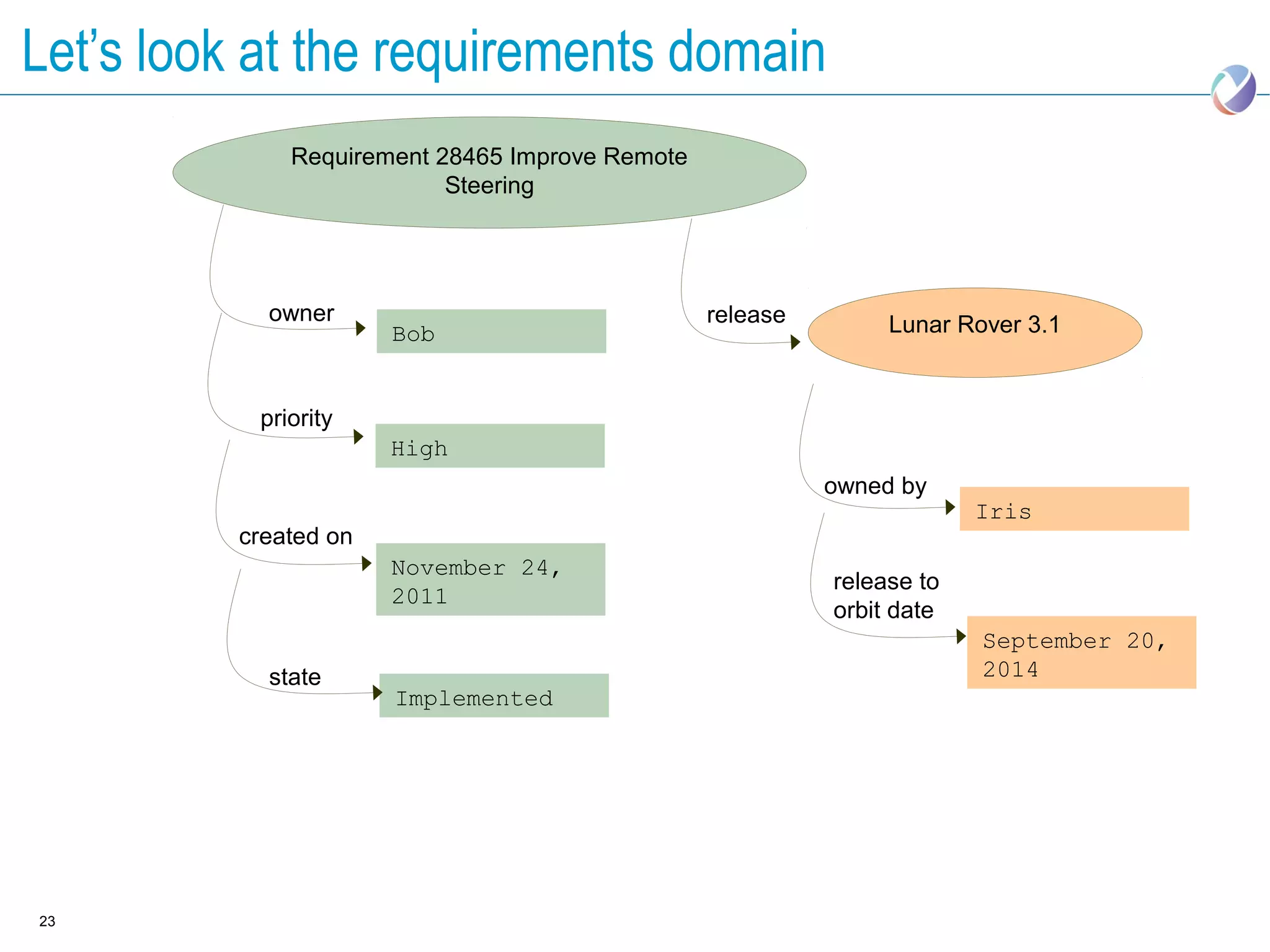

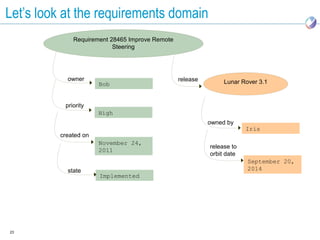

Let’s look at the requirements domain Requirement 28465 Improve Remote Steering owner release Lunar Rover 3.1 Bob priority High owned by Iris created on November 24, release to 2011 orbit date September 20, state 2014 Implemented 23

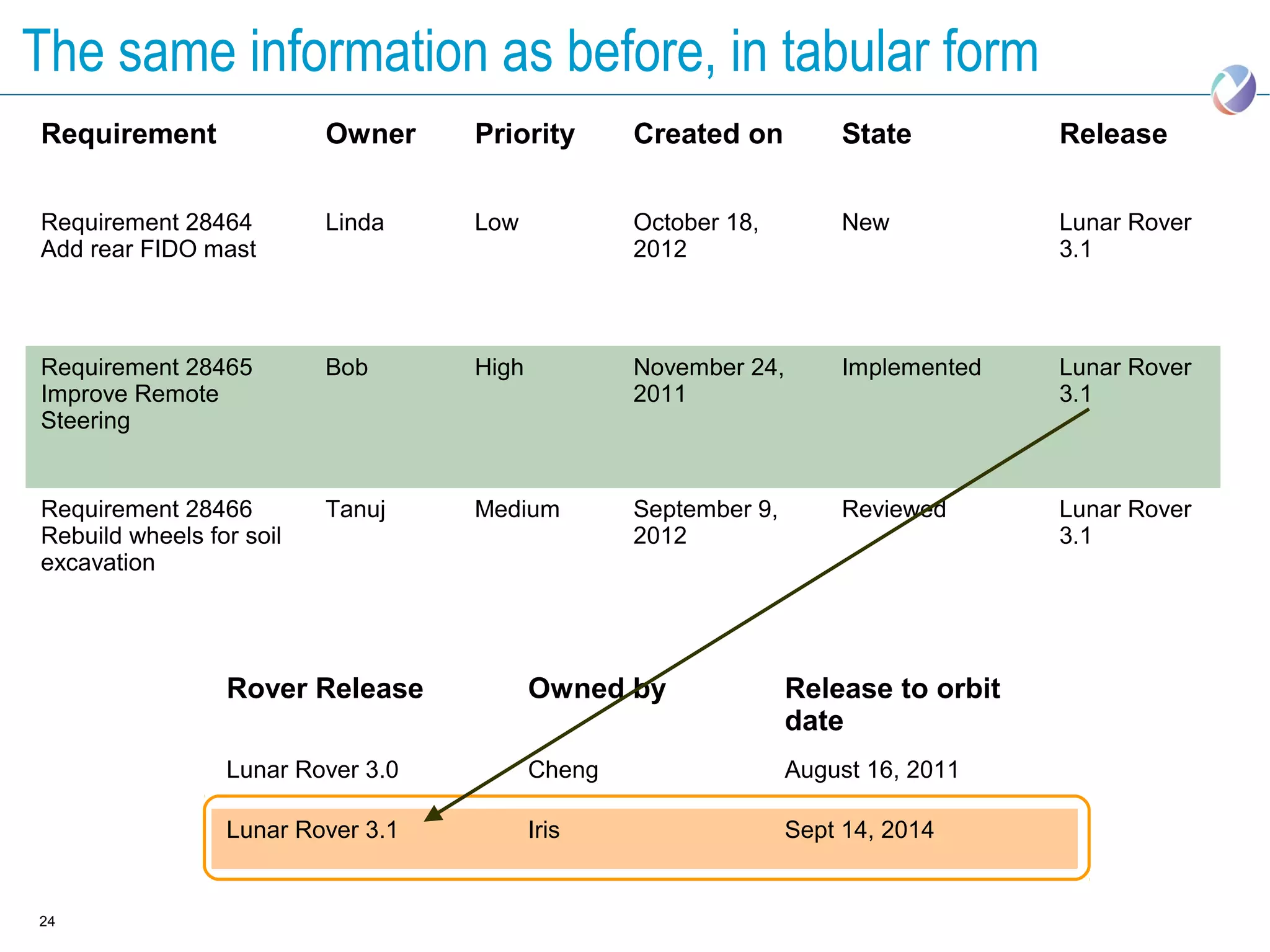

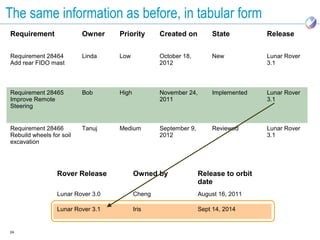

The same information as before, in tabular form Requirement Owner Priority Created on State Release Requirement 28464 Linda Low October 18, New Lunar Rover Add rear FIDO mast 2012 3.1 Requirement 28465 Bob High November 24, Implemented Lunar Rover Improve Remote 2011 3.1 Steering Requirement 28466 Tanuj Medium September 9, Reviewed Lunar Rover Rebuild wheels for soil 2012 3.1 excavation Rover Release Owned by Release to orbit date Lunar Rover 3.0 Cheng August 16, 2011 Lunar Rover 3.1 Iris Sept 14, 2014 24

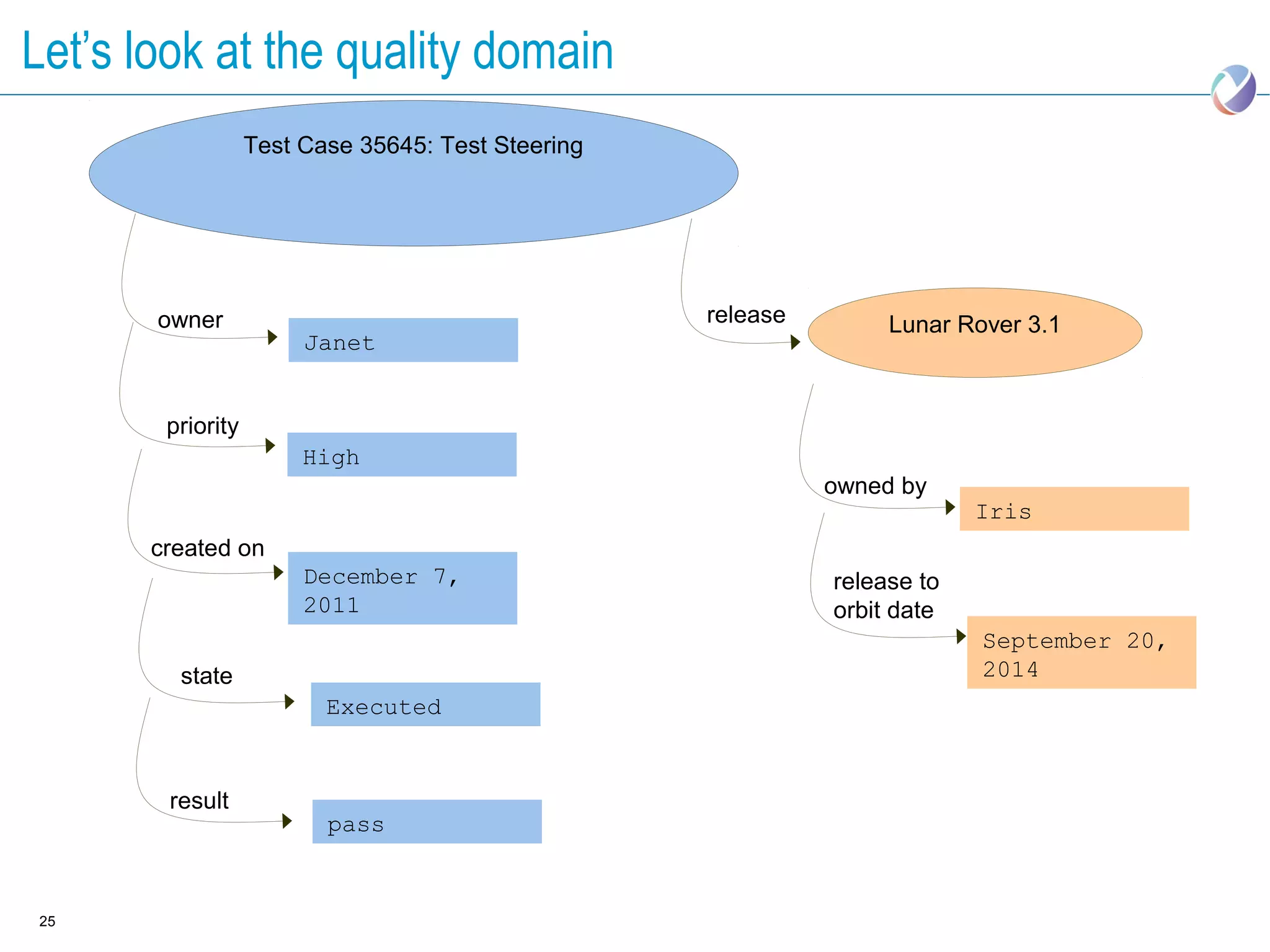

Let’s look at the quality domain Test Case 35645: Test Steering owner release Lunar Rover 3.1 Janet priority High owned by Iris created on December 7, release to 2011 orbit date September 20, state 2014 Executed result pass 25

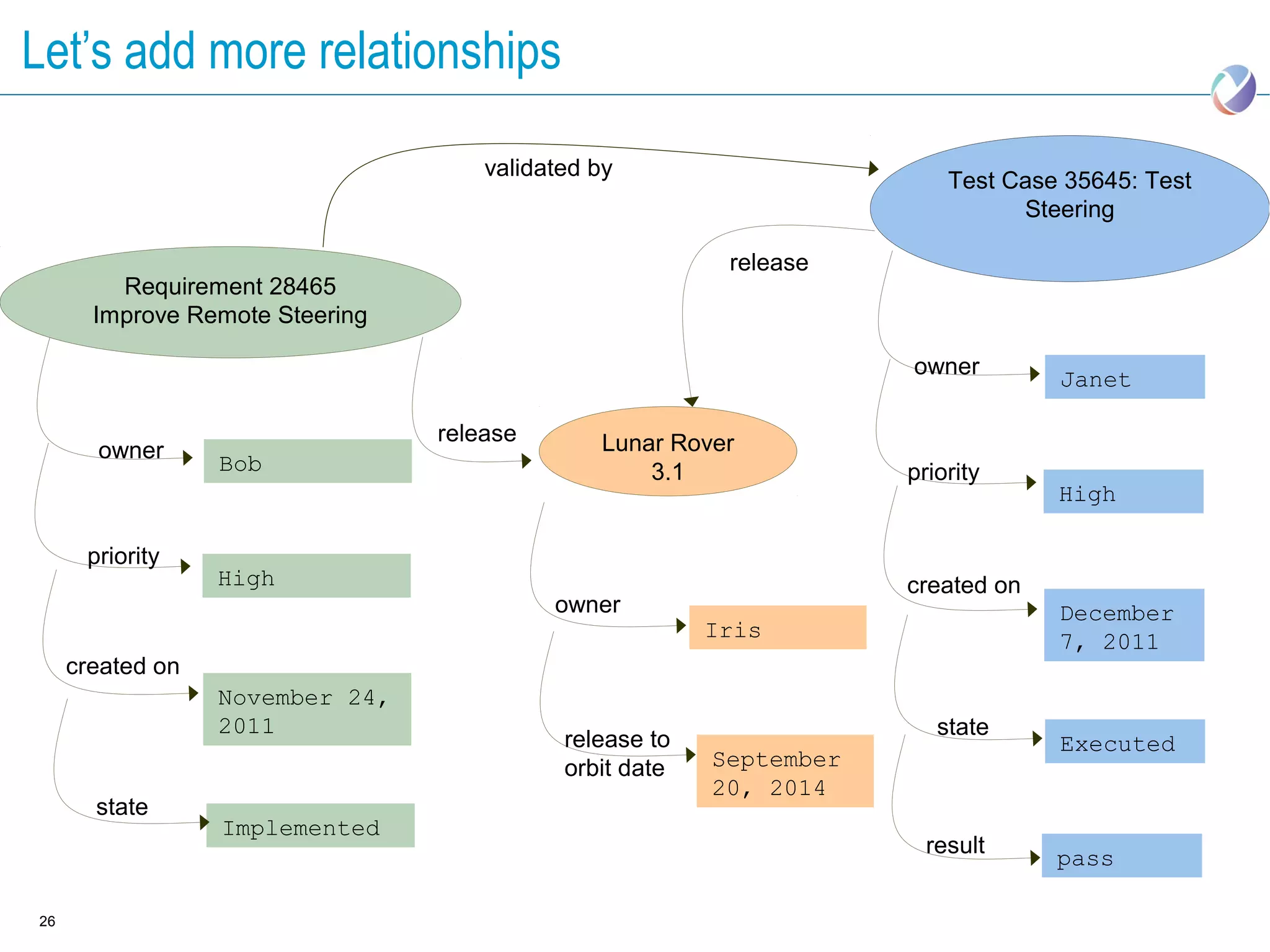

Let’s add more relationships validated by Test Case 35645: Test Steering release Requirement 28465 Improve Remote Steering owner Janet release Lunar Rover owner Bob 3.1 priority High priority High created on owner December Iris 7, 2011 created on November 24, 2011 state release to Executed orbit date September 20, 2014 state Implemented result pass 26

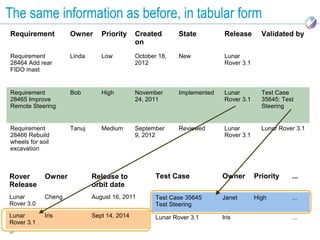

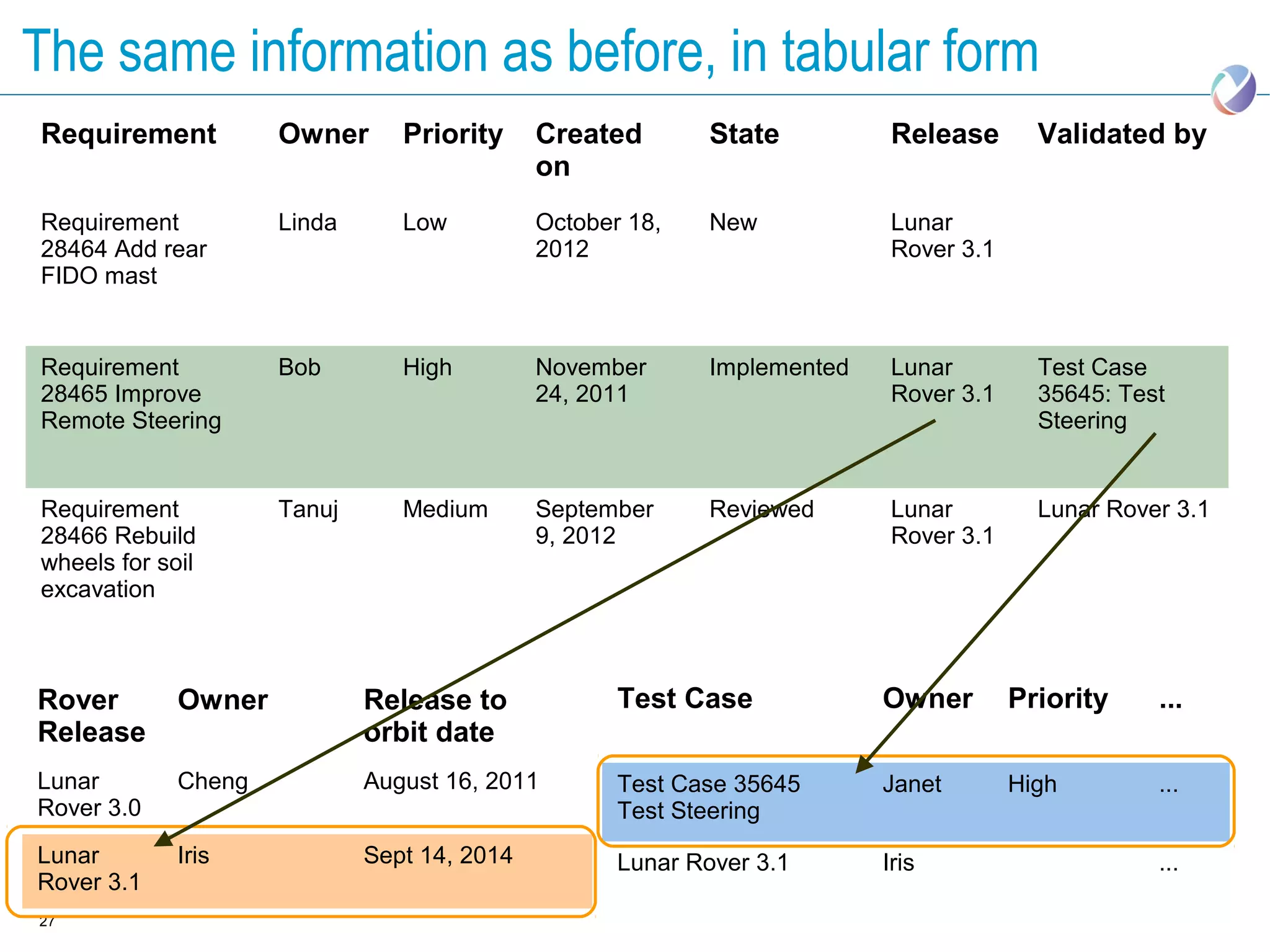

The same information as before, in tabular form Requirement Owner Priority Created State Release Validated by on Requirement Linda Low October 18, New Lunar 28464 Add rear 2012 Rover 3.1 FIDO mast Requirement Bob High November Implemented Lunar Test Case 28465 Improve 24, 2011 Rover 3.1 35645: Test Remote Steering Steering Requirement Tanuj Medium September Reviewed Lunar Lunar Rover 3.1 28466 Rebuild 9, 2012 Rover 3.1 wheels for soil excavation Rover Owner Release to Test Case Owner Priority ... Release orbit date Lunar Cheng August 16, 2011 Test Case 35645 Janet High ... Rover 3.0 Test Steering Lunar Iris Sept 14, 2014 Lunar Rover 3.1 Iris ... Rover 3.1 27

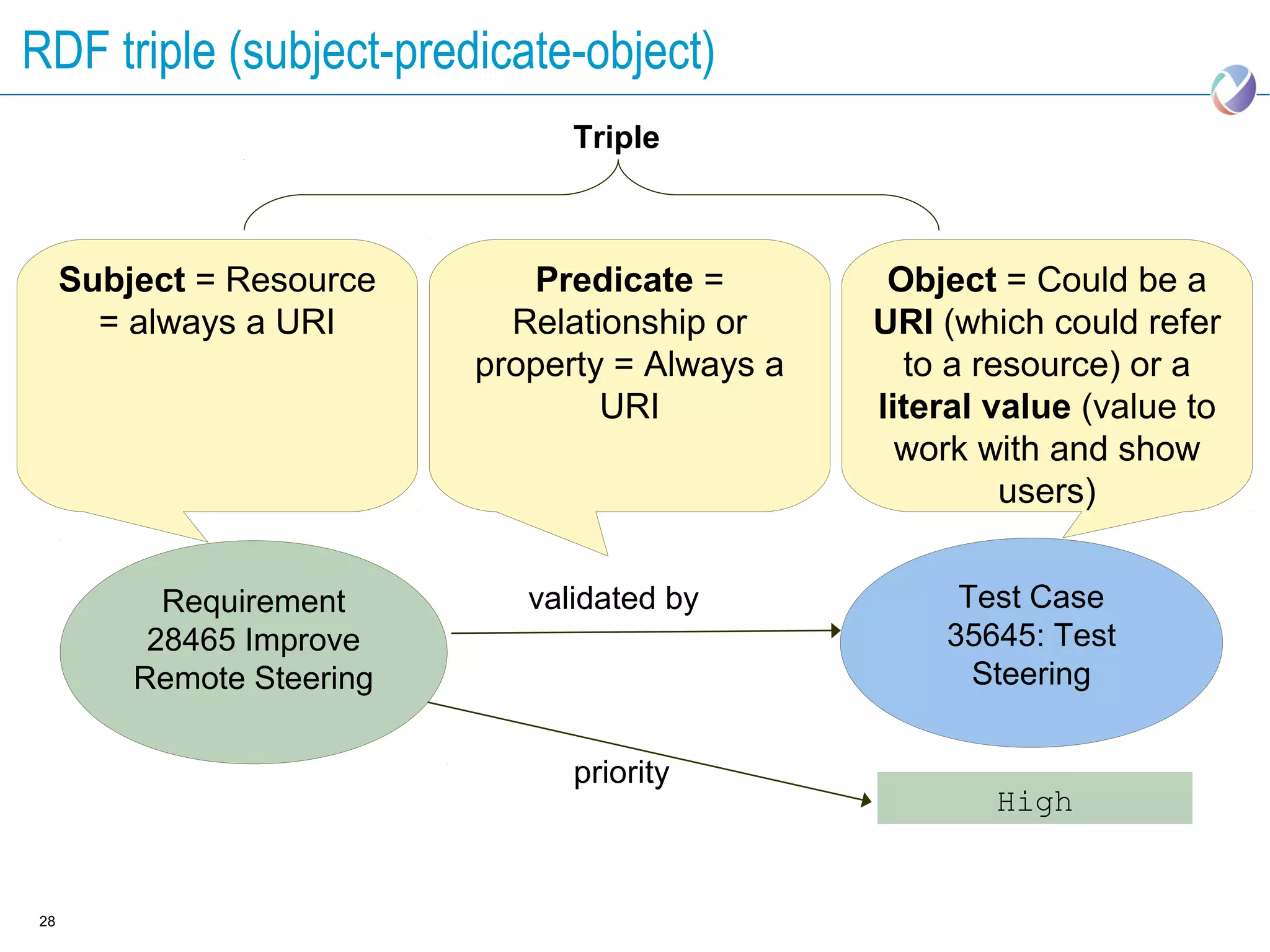

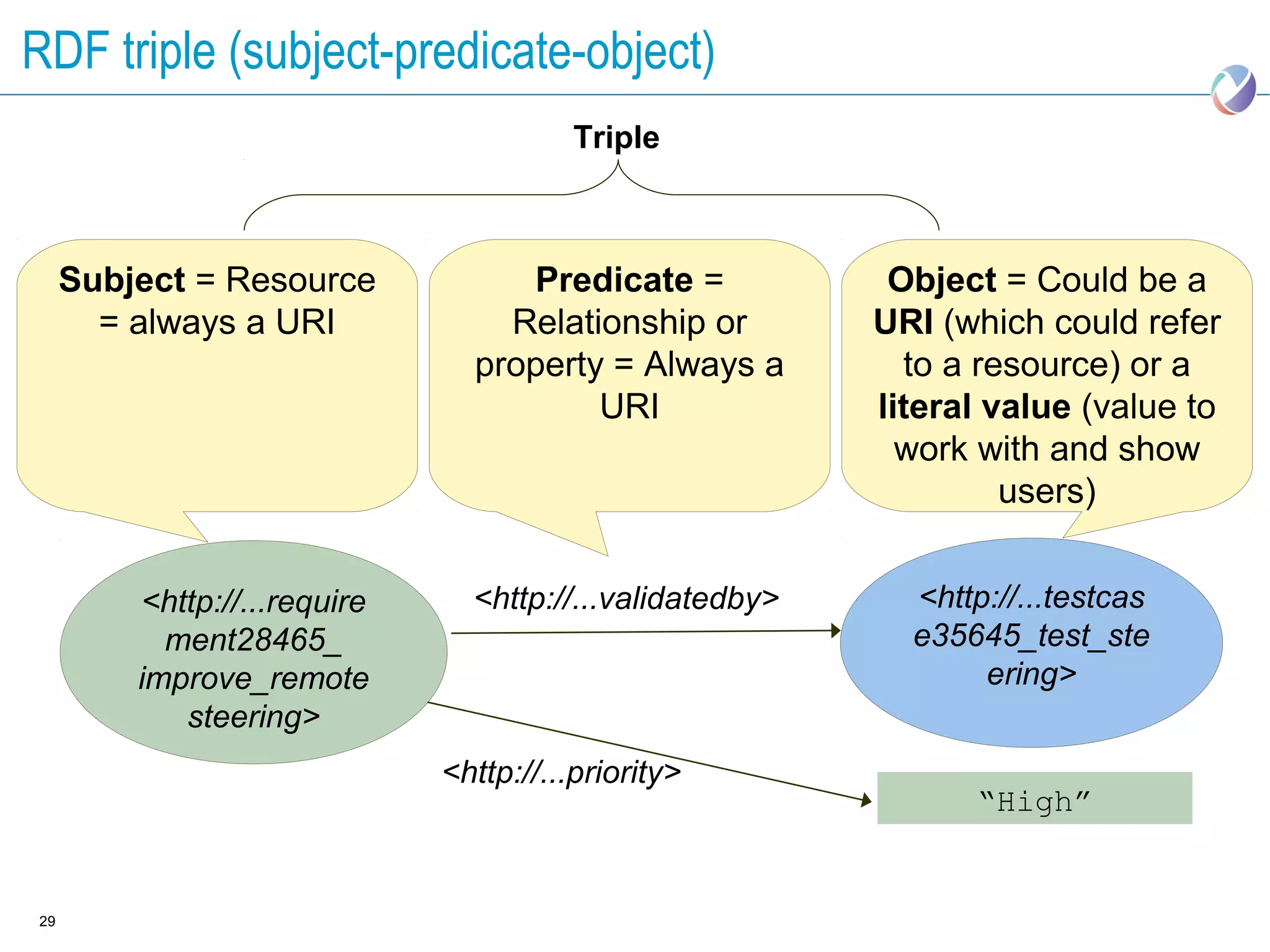

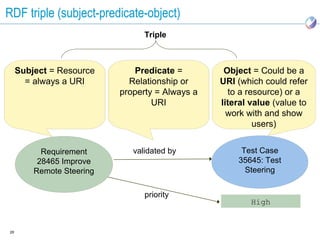

RDF triple (subject-predicate-object) Triple Subject = Resource Predicate = Object = Could be a = always a URI Relationship or URI (which could refer property = Always a to a resource) or a URI literal value (value to work with and show users) Requirement validated by Test Case 28465 Improve 35645: Test Remote Steering Steering priority High 28
RDF triple (subject-predicate-object) Triple Subject = Resource Predicate = Object = Could be a = always a URI Relationship or URI (which could refer property = Always a to a resource) or a URI literal value (value to work with and show users) <http://...require <http://...validatedby> <http://...testcas ment28465_ e35645_test_ste improve_remote ering> steering> <http://...priority> “High” 29

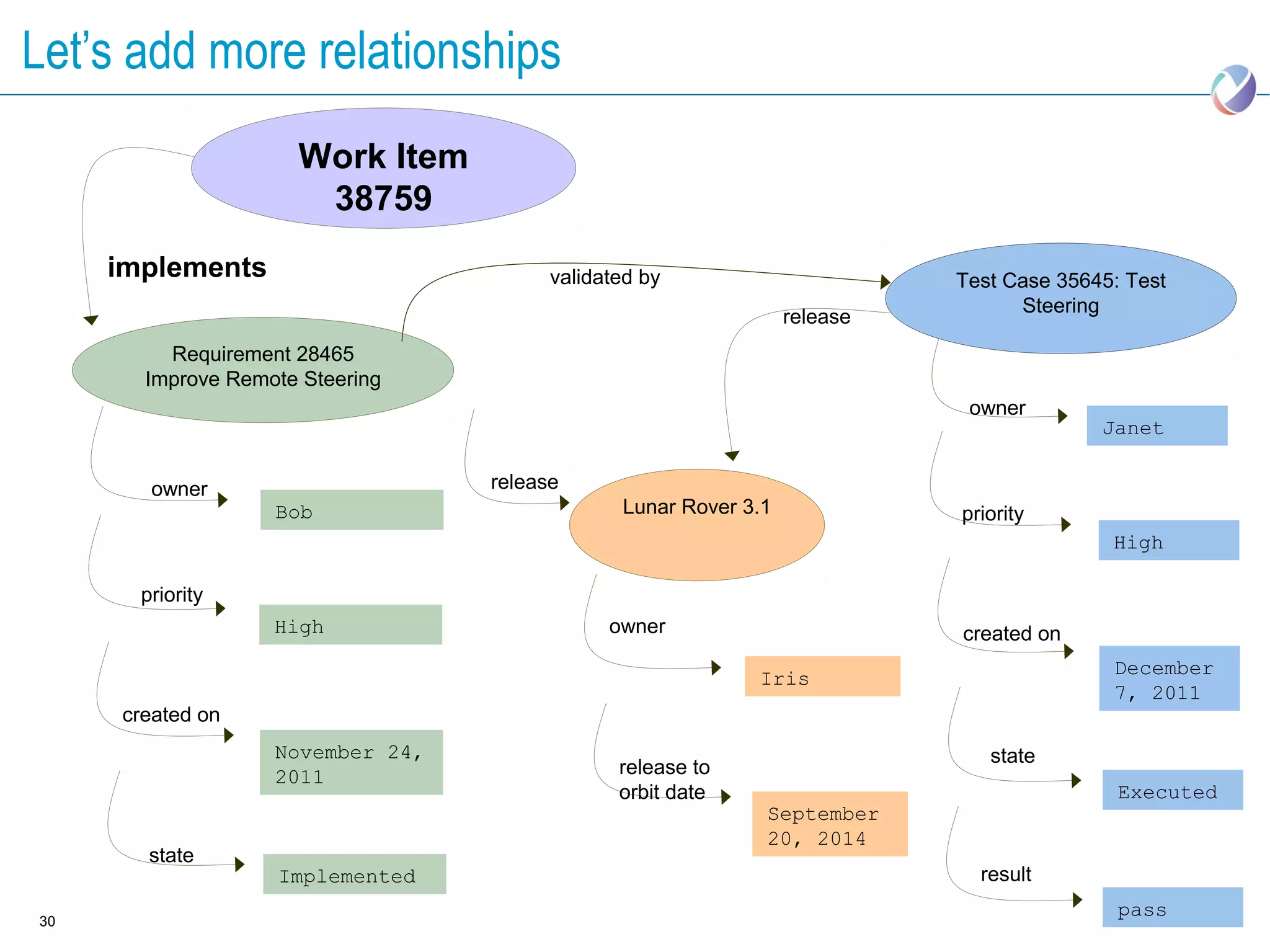

Let’s add more relationships Work Item 38759 implements validated by Test Case 35645: Test Steering release Requirement 28465 Improve Remote Steering owner Janet owner release Bob Lunar Rover 3.1 priority High priority High owner created on December Iris 7, 2011 created on November 24, state 2011 release to orbit date Executed September 20, 2014 state Implemented result pass 30

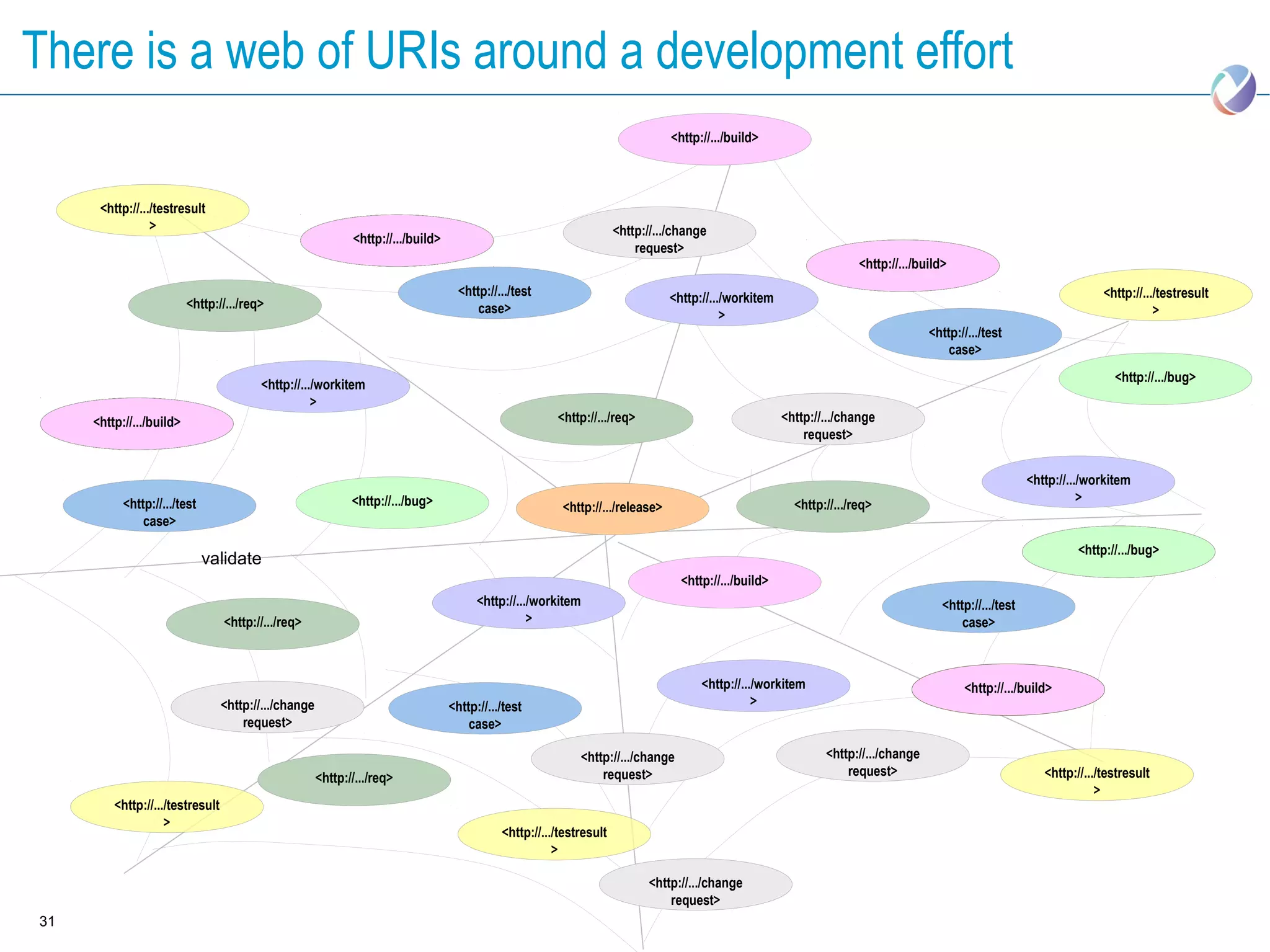

There is a web of URIs around a development effort <http://.../build> <http://.../testresult > <http://.../change <http://.../build> request> <http://.../build> <http://.../test <http://.../workitem <http://.../testresult <http://.../req> case> > > <http://.../test case> <http://.../bug> <http://.../workitem > <http://.../build> <http://.../req> <http://.../change request> <http://.../workitem <http://.../test <http://.../bug> > <http://.../release> <http://.../req> case> <http://.../build> <http://.../bug> validate <http://.../build> <http://.../workitem <http://.../test <http://.../req> > case> <http://.../workitem <http://.../build> <http://.../change <http://.../test > request> case> <http://.../change <http://.../change <http://.../req> request> request> <http://.../testresult > <http://.../testresult > <http://.../testresult > <http://.../change request> 31

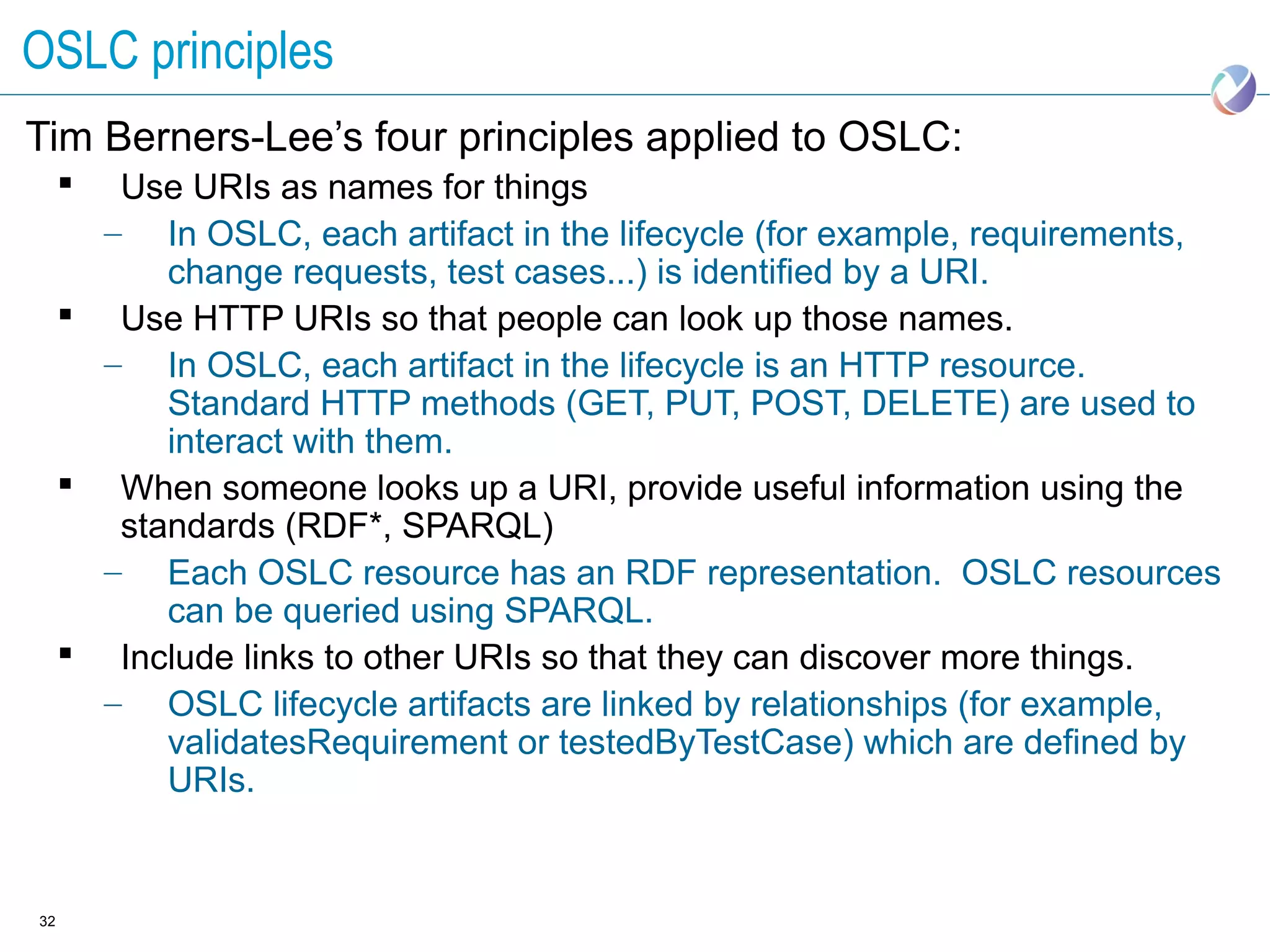

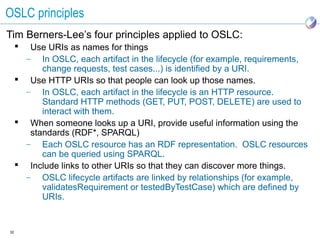

OSLC principles Tim Berners-Lee’s four principles applied to OSLC:  Use URIs as names for things – In OSLC, each artifact in the lifecycle (for example, requirements, change requests, test cases...) is identified by a URI.  Use HTTP URIs so that people can look up those names. – In OSLC, each artifact in the lifecycle is an HTTP resource. Standard HTTP methods (GET, PUT, POST, DELETE) are used to interact with them.  When someone looks up a URI, provide useful information using the standards (RDF*, SPARQL) – Each OSLC resource has an RDF representation. OSLC resources can be queried using SPARQL.  Include links to other URIs so that they can discover more things. – OSLC lifecycle artifacts are linked by relationships (for example, validatesRequirement or testedByTestCase) which are defined by URIs. 32

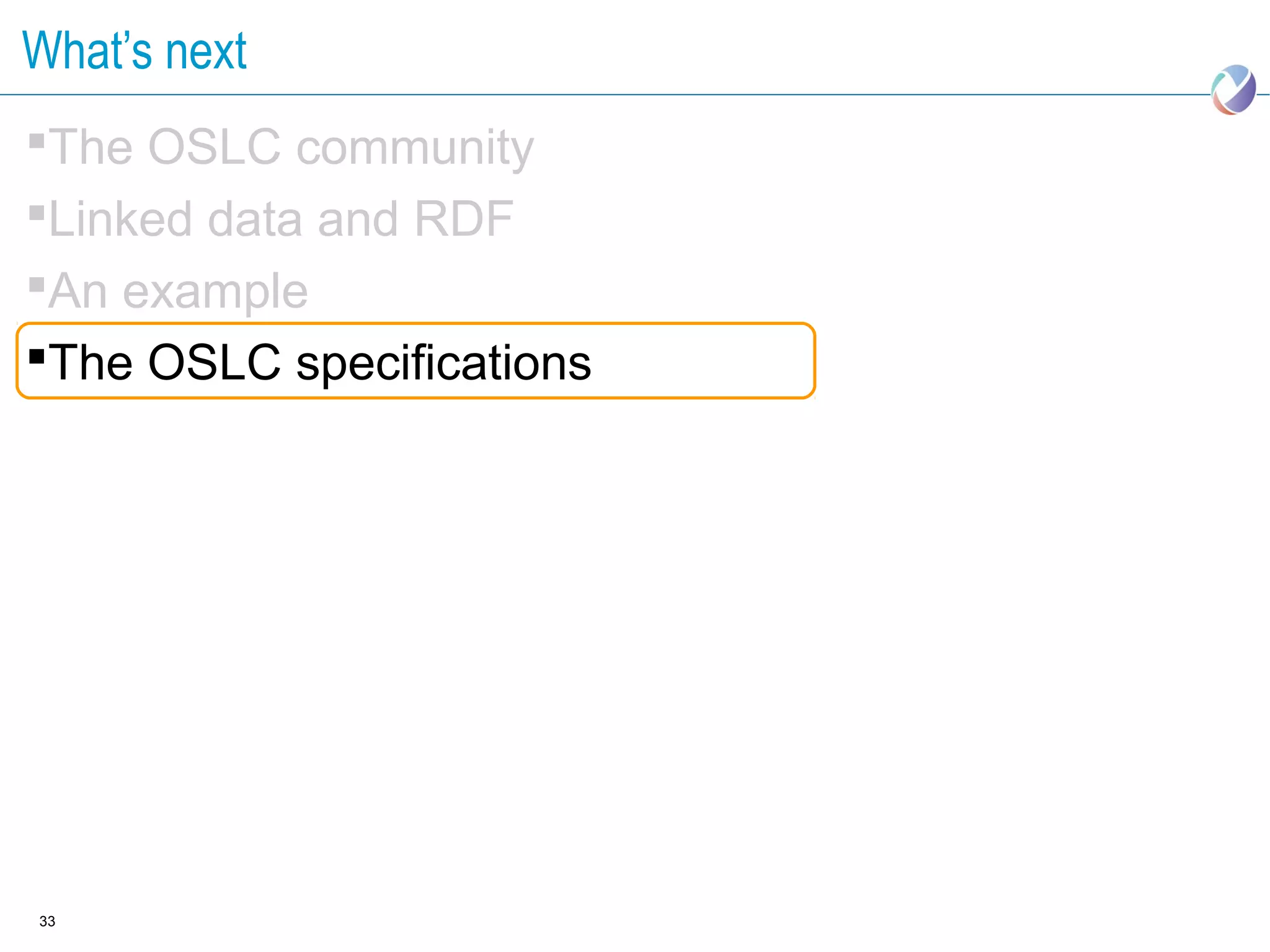

What’s next The OSLC community Linked data and RDF An example The OSLC specifications 33

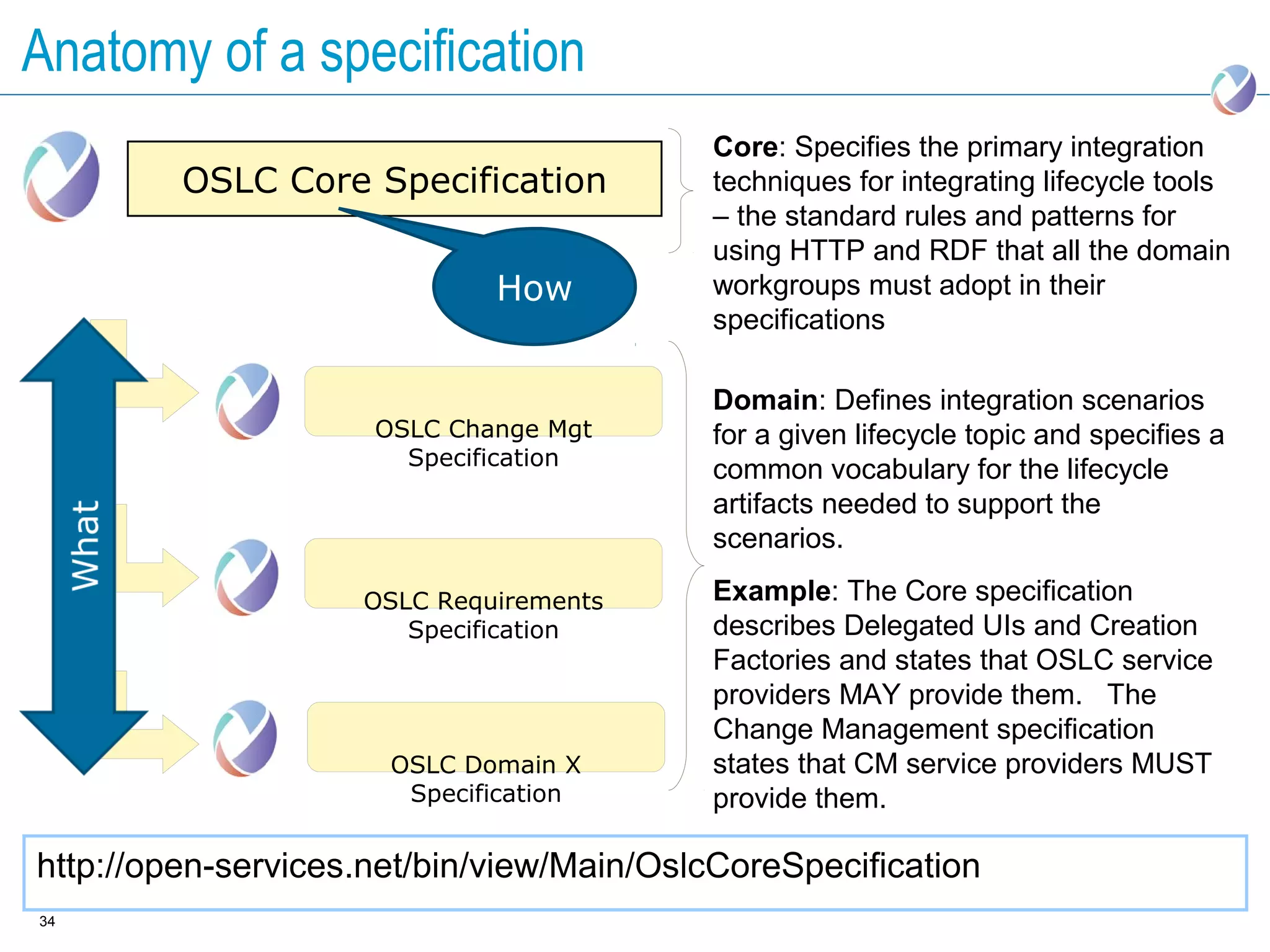

Anatomy of a specification Core: Specifies the primary integration OSLC Core Specification techniques for integrating lifecycle tools – the standard rules and patterns for using HTTP and RDF that all the domain How workgroups must adopt in their specifications Domain: Defines integration scenarios OSLC Change Mgt for a given lifecycle topic and specifies a Specification common vocabulary for the lifecycle artifacts needed to support the scenarios. OSLC Requirements Example: The Core specification Specification describes Delegated UIs and Creation Factories and states that OSLC service providers MAY provide them. The Change Management specification OSLC Domain X states that CM service providers MUST Specification provide them. http://open-services.net/bin/view/Main/OslcCoreSpecification 34

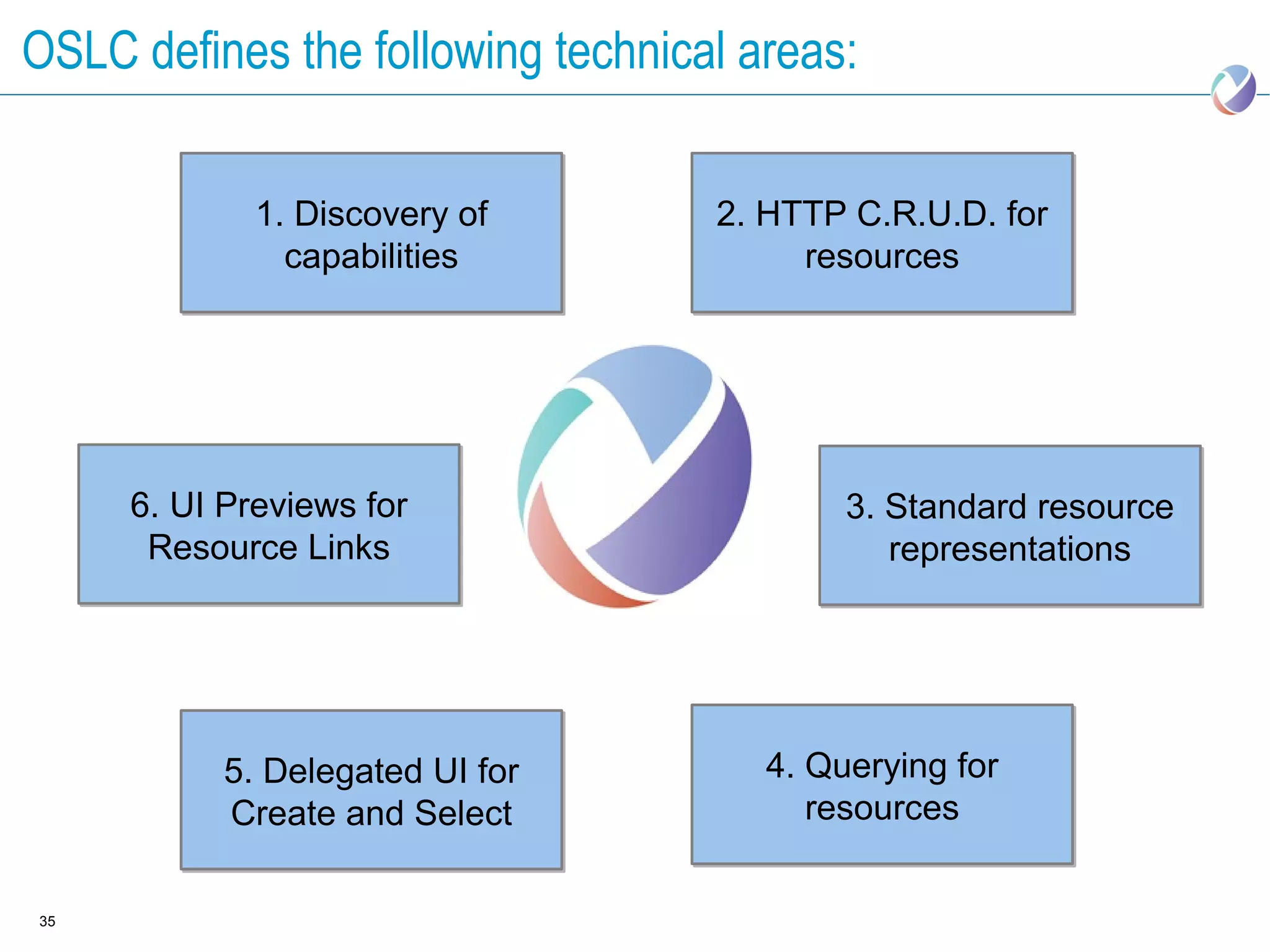

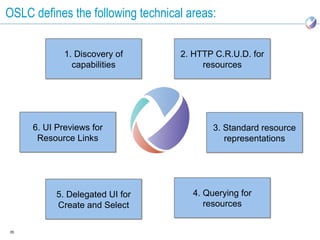

OSLC defines the following technical areas: 1. Discovery of 2. HTTP C.R.U.D. for capabilities resources 6. UI Previews for 3. Standard resource Resource Links representations 5. Delegated UI for 4. Querying for Create and Select resources 35

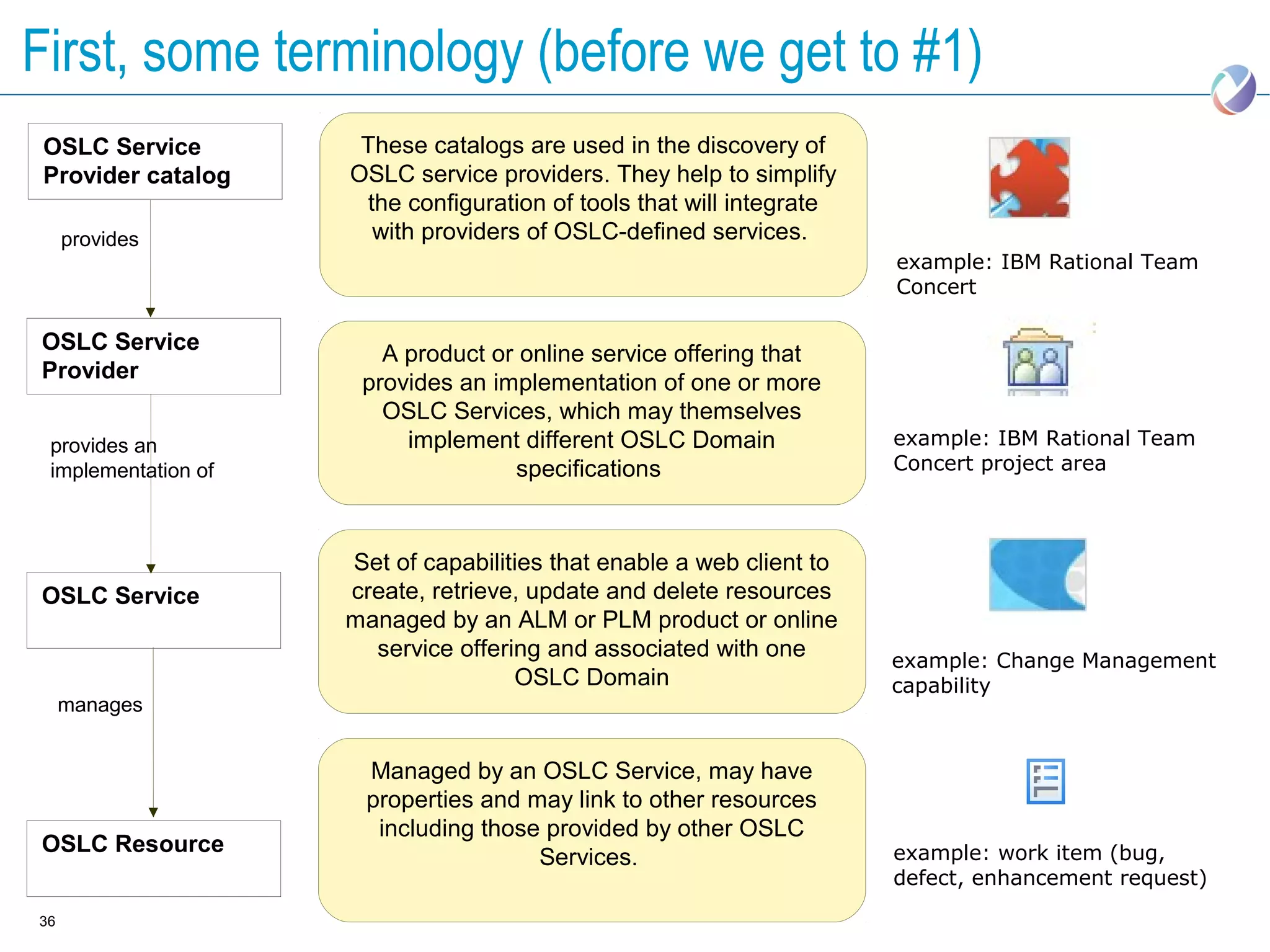

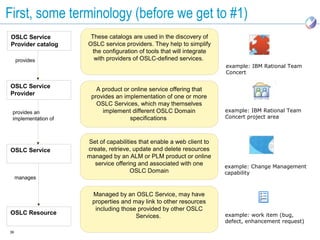

First, some terminology (before we get to #1) OSLC Service These catalogs are used in the discovery of Provider catalog OSLC service providers. They help to simplify the configuration of tools that will integrate provides with providers of OSLC-defined services. example: IBM Rational Team Concert OSLC Service A product or online service offering that Provider provides an implementation of one or more OSLC Services, which may themselves provides an implement different OSLC Domain example: IBM Rational Team implementation of specifications Concert project area Set of capabilities that enable a web client to OSLC Service create, retrieve, update and delete resources managed by an ALM or PLM product or online service offering and associated with one example: Change Management OSLC Domain capability manages Managed by an OSLC Service, may have properties and may link to other resources including those provided by other OSLC OSLC Resource example: work item (bug, Services. defect, enhancement request) 36

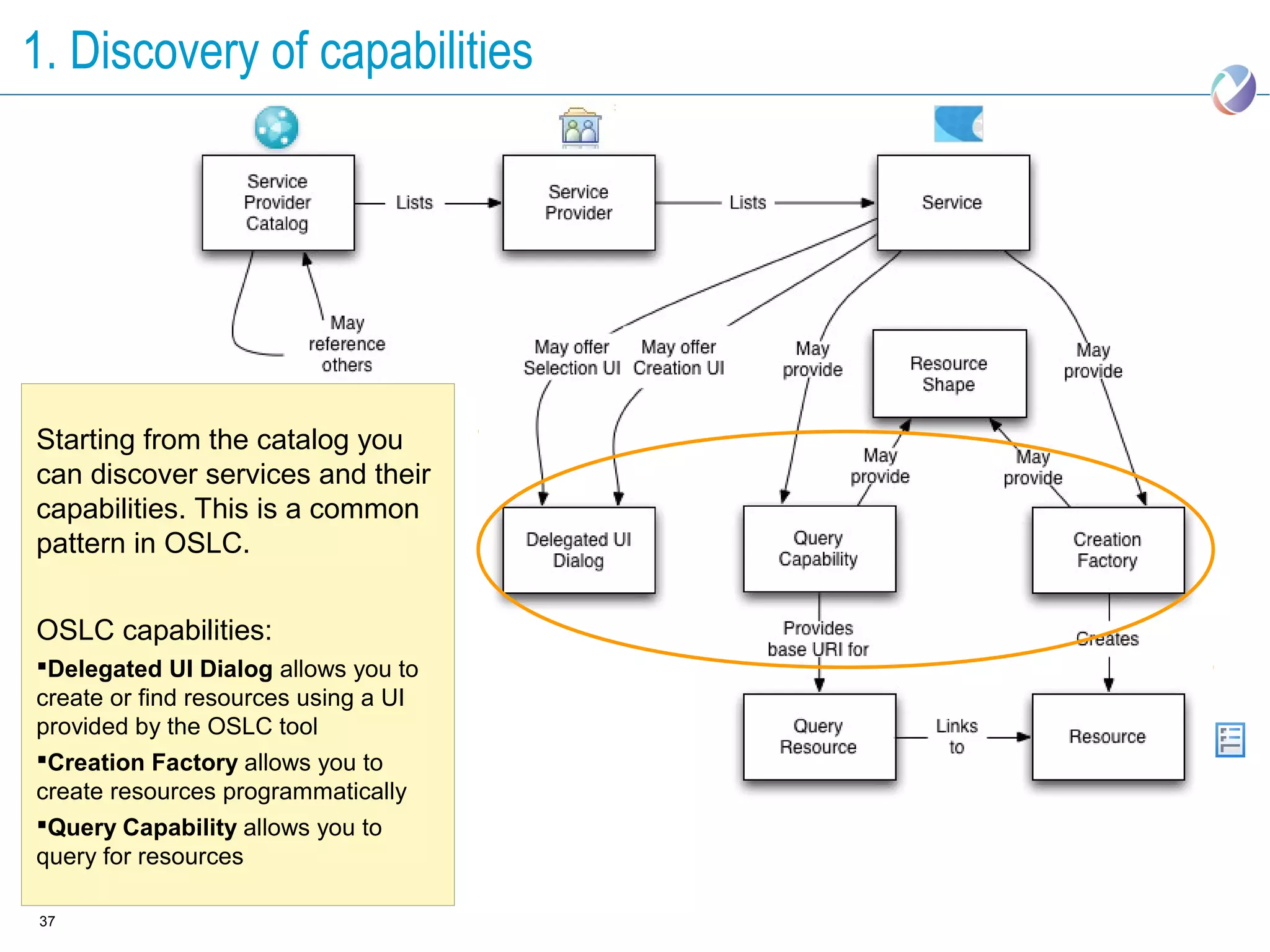

1. Discovery of capabilities Starting from the catalog you can discover services and their capabilities. This is a common pattern in OSLC. OSLC capabilities: Delegated UI Dialog allows you to create or find resources using a UI provided by the OSLC tool Creation Factory allows you to create resources programmatically Query Capability allows you to query for resources 37

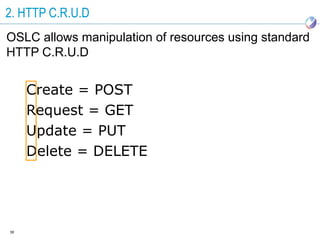

2. HTTP C.R.U.D OSLC allows manipulation of resources using standard HTTP C.R.U.D Create = POST Request = GET Update = PUT Delete = DELETE 38

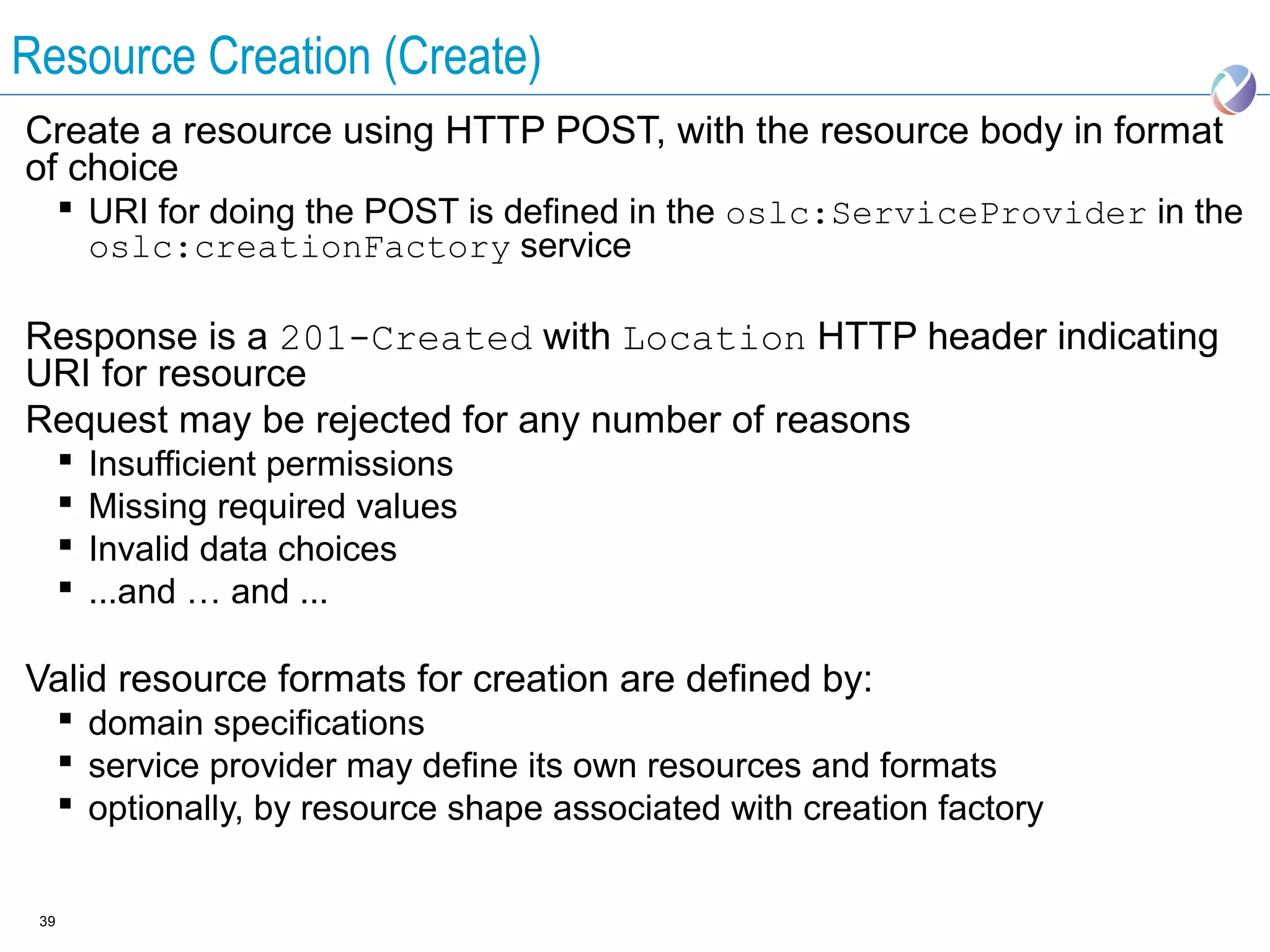

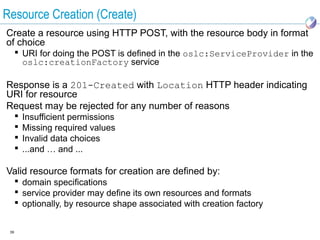

Resource Creation (Create) Create a resource using HTTP POST, with the resource body in format of choice  URI for doing the POST is defined in the oslc:ServiceProvider in the oslc:creationFactory service Response is a 201-Created with Location HTTP header indicating URI for resource Request may be rejected for any number of reasons  Insufficient permissions  Missing required values  Invalid data choices  ...and … and ... Valid resource formats for creation are defined by:  domain specifications  service provider may define its own resources and formats  optionally, by resource shape associated with creation factory 39

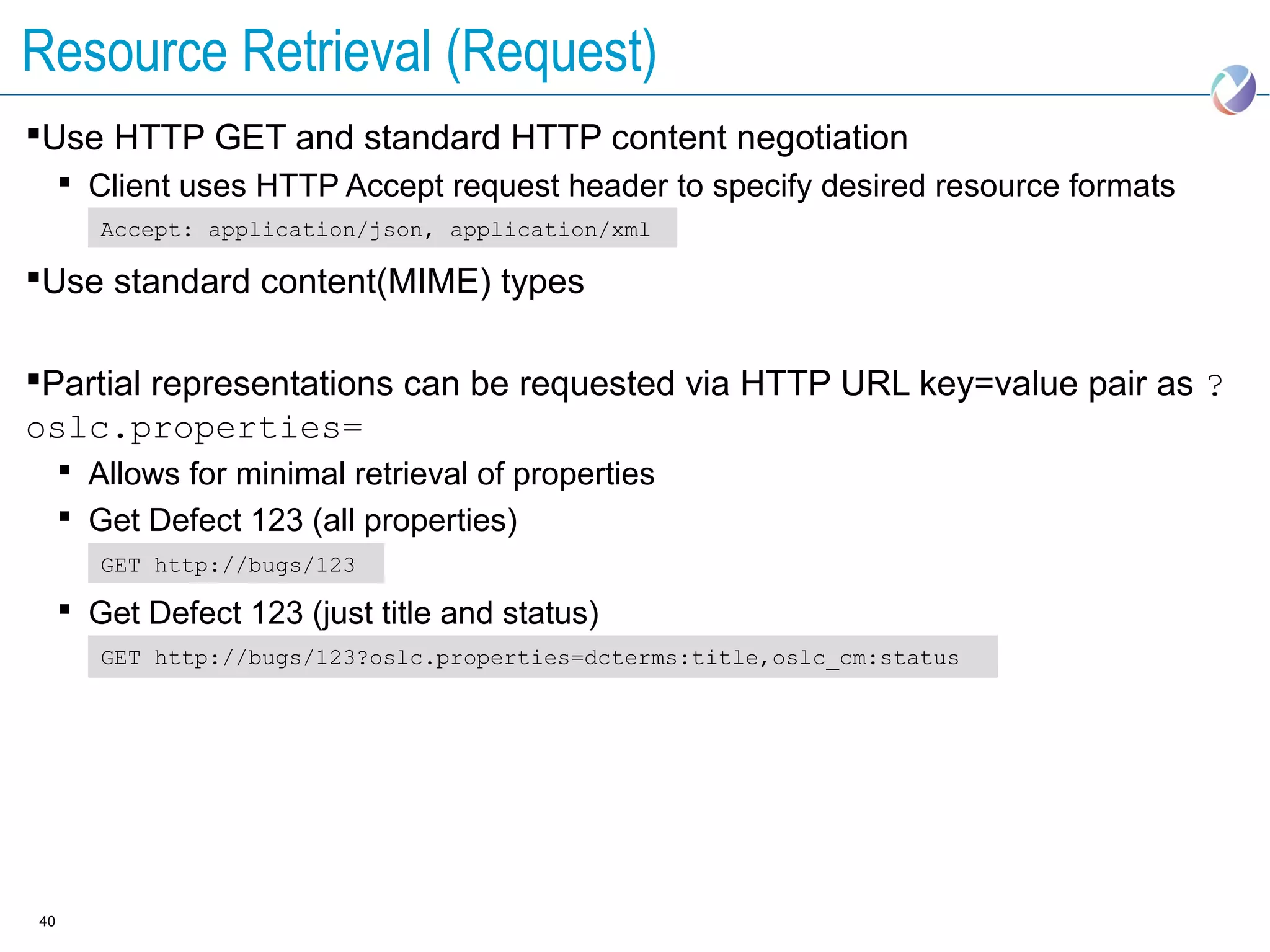

Resource Retrieval (Request) Use HTTP GET and standard HTTP content negotiation  Client uses HTTP Accept request header to specify desired resource formats Accept: application/json, application/xml Use standard content(MIME) types Partial representations can be requested via HTTP URL key=value pair as ? oslc.properties=  Allows for minimal retrieval of properties  Get Defect 123 (all properties) GET http://bugs/123  Get Defect 123 (just title and status) GET http://bugs/123?oslc.properties=dcterms:title,oslc_cm:status 40

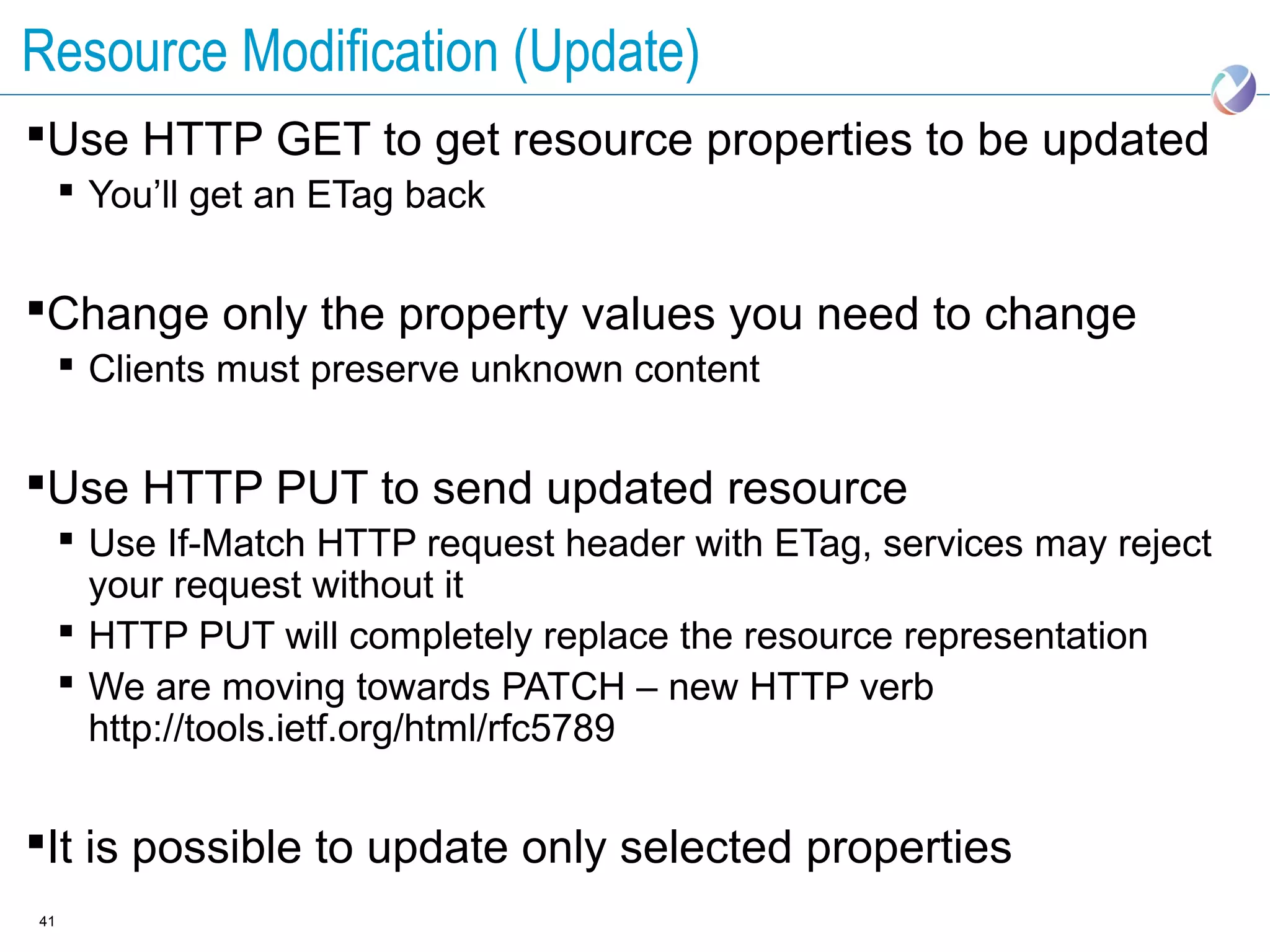

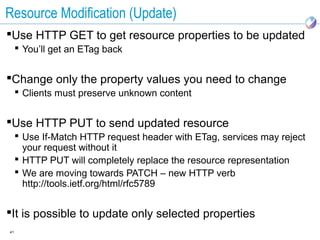

Resource Modification (Update) Use HTTP GET to get resource properties to be updated  You’ll get an ETag back Change only the property values you need to change  Clients must preserve unknown content Use HTTP PUT to send updated resource  Use If-Match HTTP request header with ETag, services may reject your request without it  HTTP PUT will completely replace the resource representation  We are moving towards PATCH – new HTTP verb http://tools.ietf.org/html/rfc5789 It is possible to update only selected properties 41

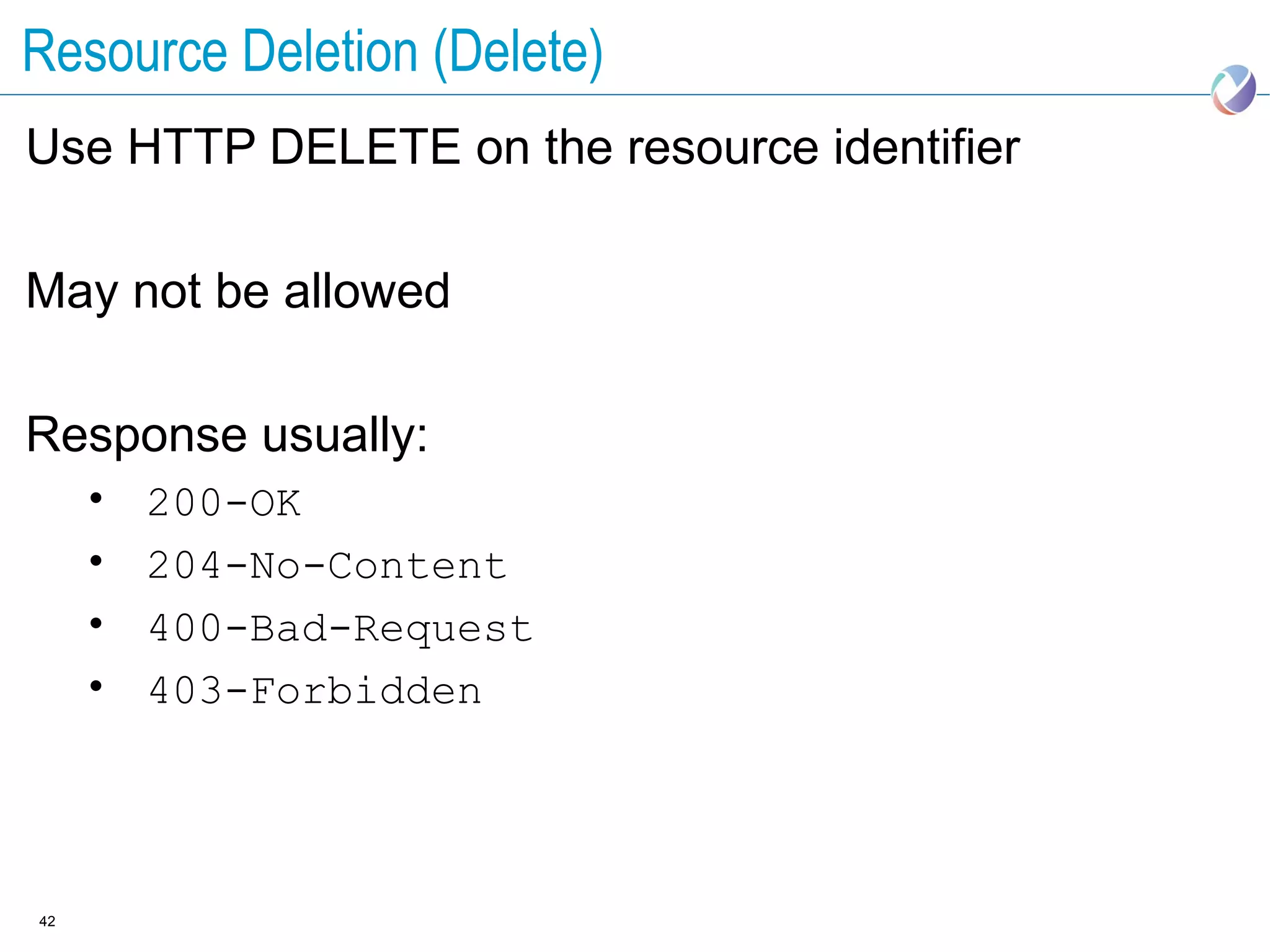

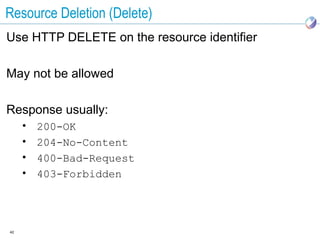

Resource Deletion (Delete) Use HTTP DELETE on the resource identifier May not be allowed Response usually: • 200-OK • 204-No-Content • 400-Bad-Request • 403-Forbidden 42

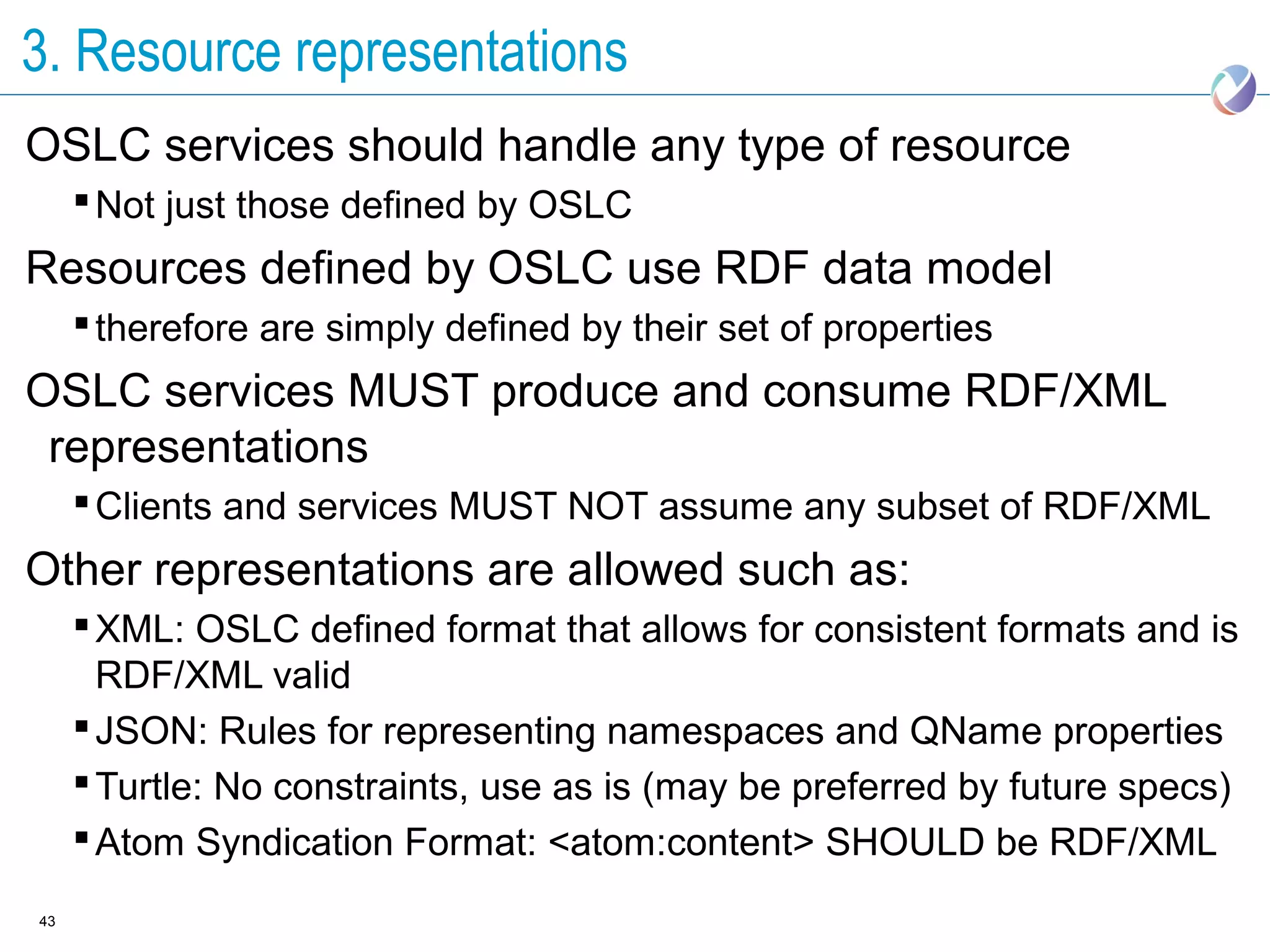

3. Resource representations OSLC services should handle any type of resource  Not just those defined by OSLC Resources defined by OSLC use RDF data model  therefore are simply defined by their set of properties OSLC services MUST produce and consume RDF/XML representations  Clients and services MUST NOT assume any subset of RDF/XML Other representations are allowed such as:  XML: OSLC defined format that allows for consistent formats and is RDF/XML valid  JSON: Rules for representing namespaces and QName properties  Turtle: No constraints, use as is (may be preferred by future specs)  Atom Syndication Format: <atom:content> SHOULD be RDF/XML 43

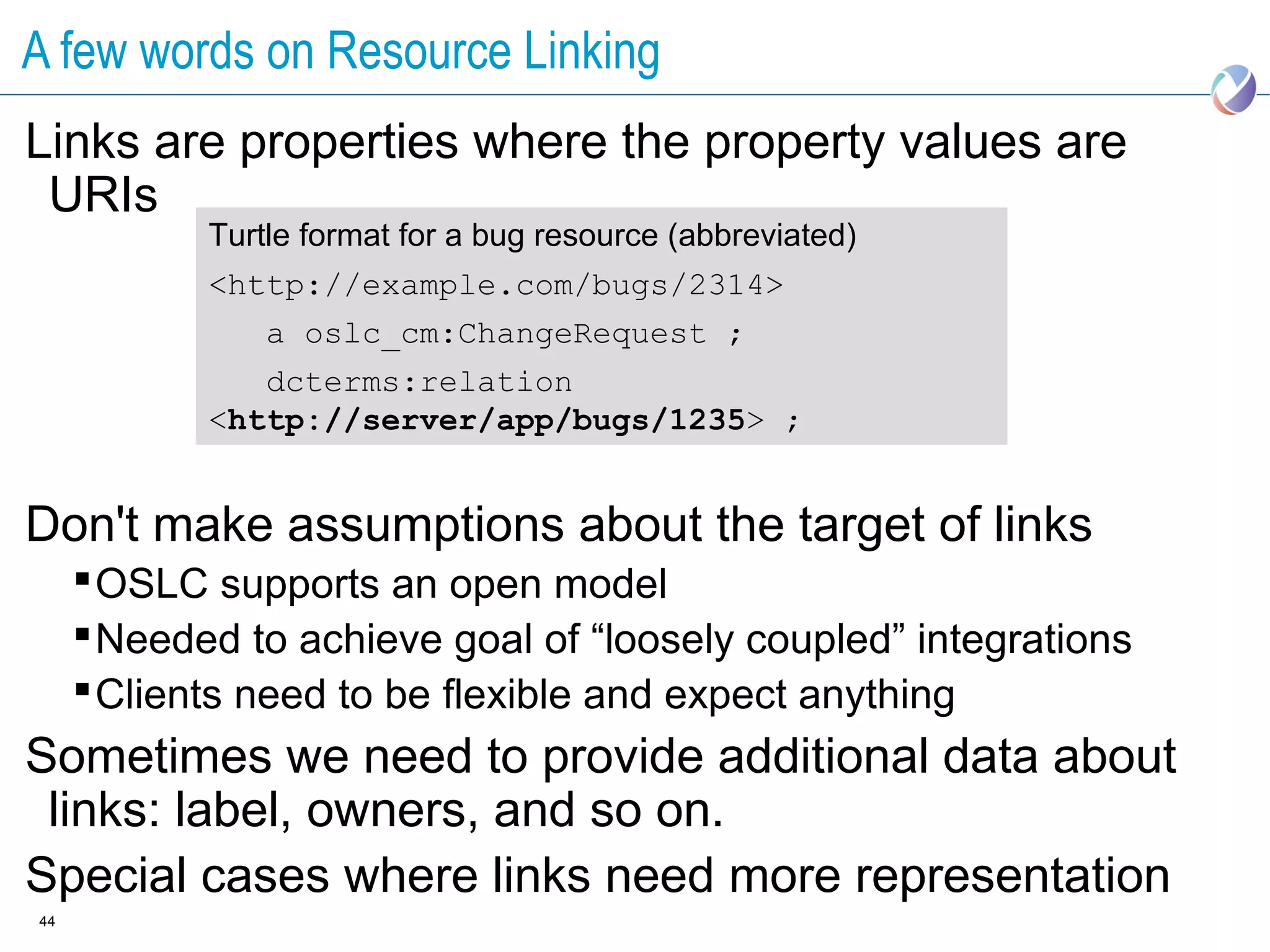

A few words on Resource Linking Links are properties where the property values are URIs Turtle format for a bug resource (abbreviated) <http://example.com/bugs/2314> a oslc_cm:ChangeRequest ; dcterms:relation <http://server/app/bugs/1235> ; Don't make assumptions about the target of links  OSLC supports an open model  Needed to achieve goal of “loosely coupled” integrations  Clients need to be flexible and expect anything Sometimes we need to provide additional data about links: label, owners, and so on. Special cases where links need more representation 44

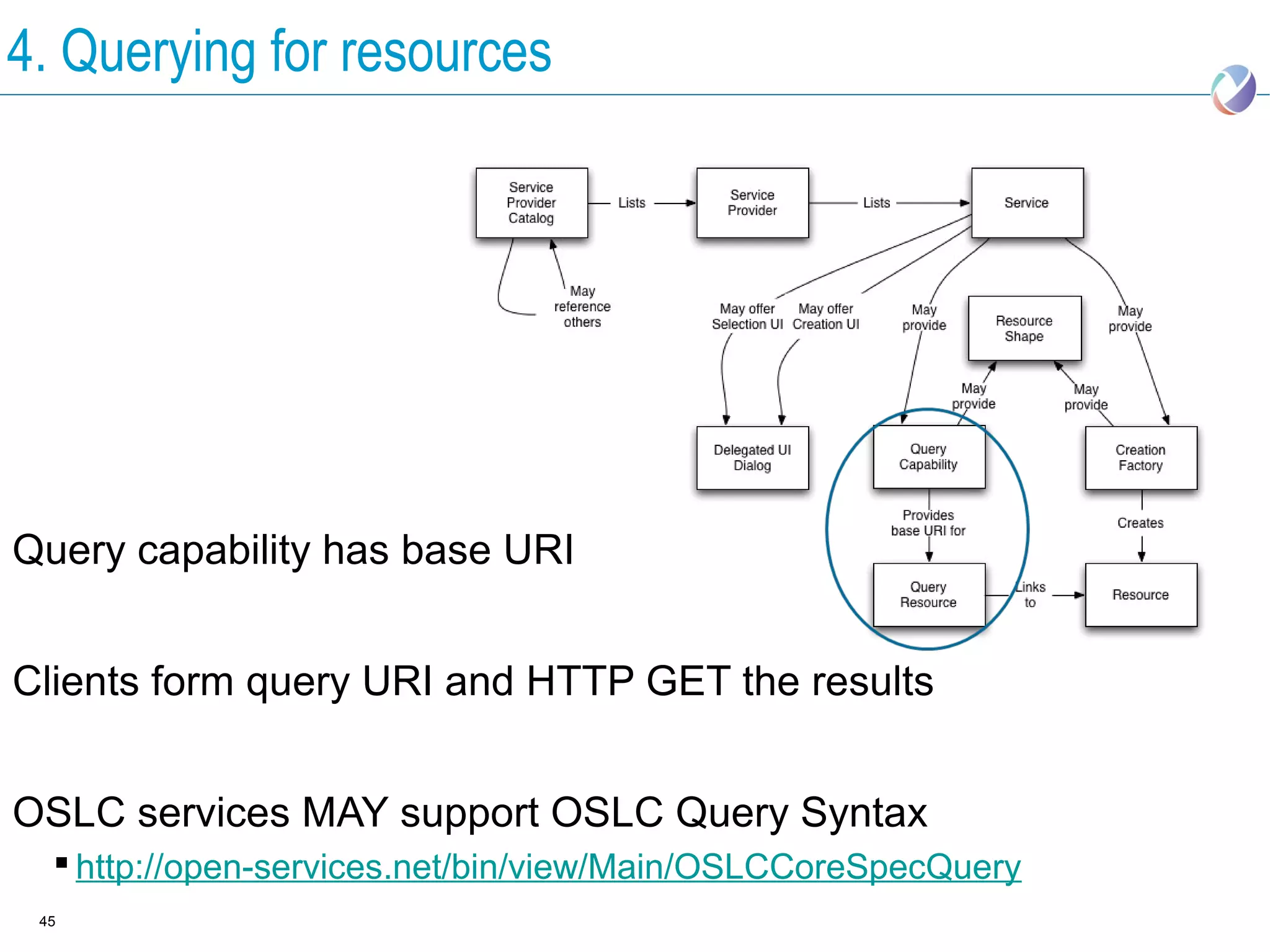

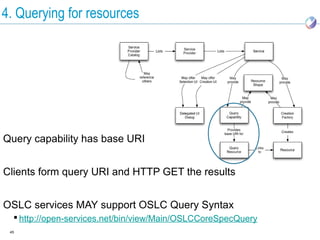

4. Querying for resources Query capability has base URI Clients form query URI and HTTP GET the results OSLC services MAY support OSLC Query Syntax  http://open-services.net/bin/view/Main/OSLCCoreSpecQuery 45

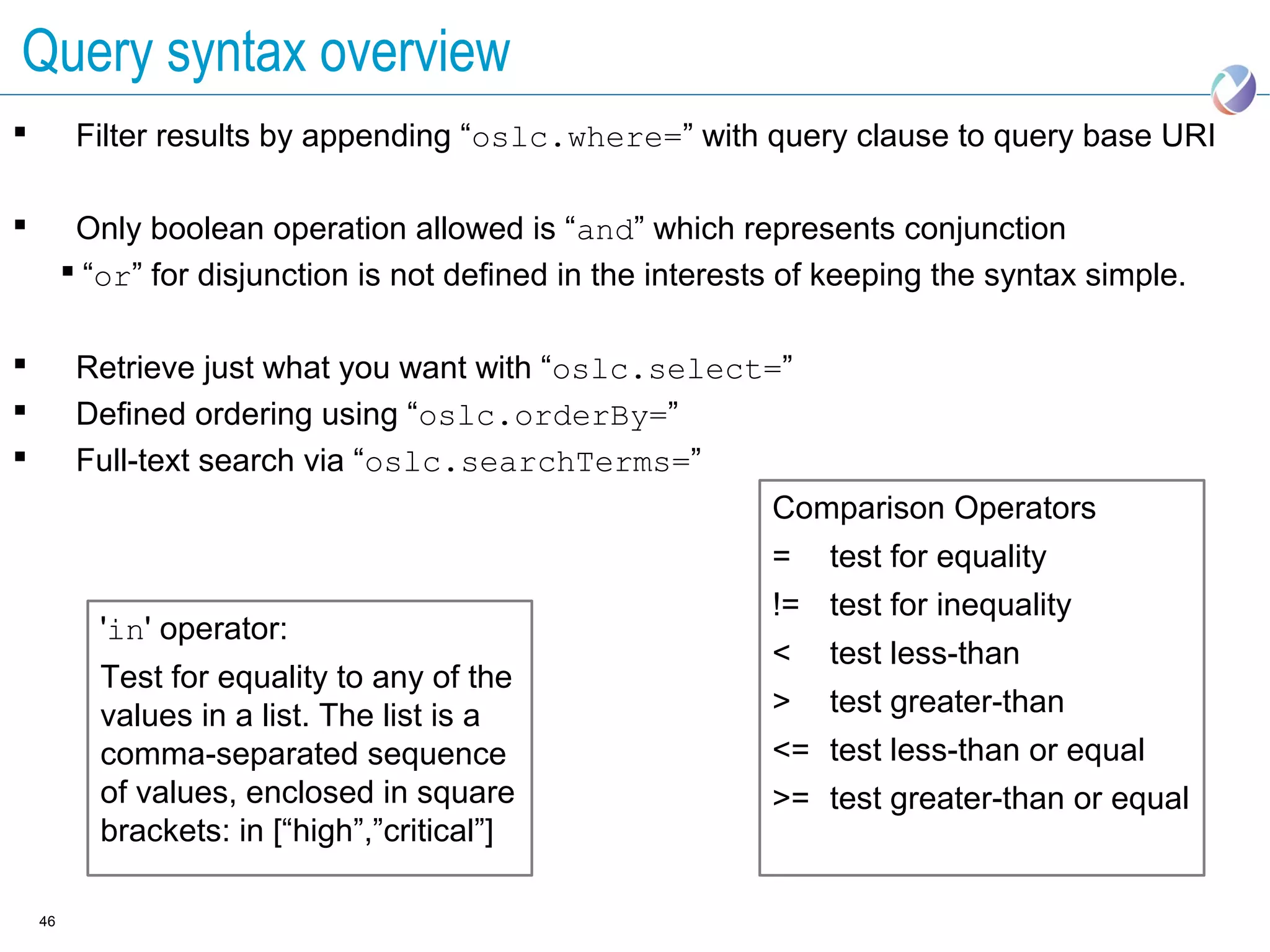

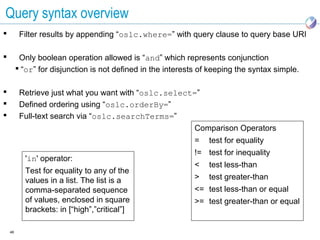

Query syntax overview  Filter results by appending “oslc.where=” with query clause to query base URI  Only boolean operation allowed is “and” which represents conjunction  “or” for disjunction is not defined in the interests of keeping the syntax simple.  Retrieve just what you want with “oslc.select=”  Defined ordering using “oslc.orderBy=”  Full-text search via “oslc.searchTerms=” Comparison Operators = test for equality != test for inequality 'in' operator: < test less-than Test for equality to any of the values in a list. The list is a > test greater-than comma-separated sequence <= test less-than or equal of values, enclosed in square >= test greater-than or equal brackets: in [“high”,”critical”] 46

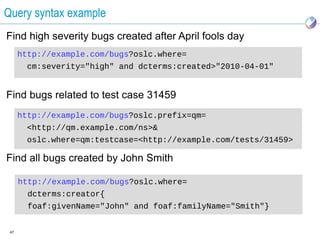

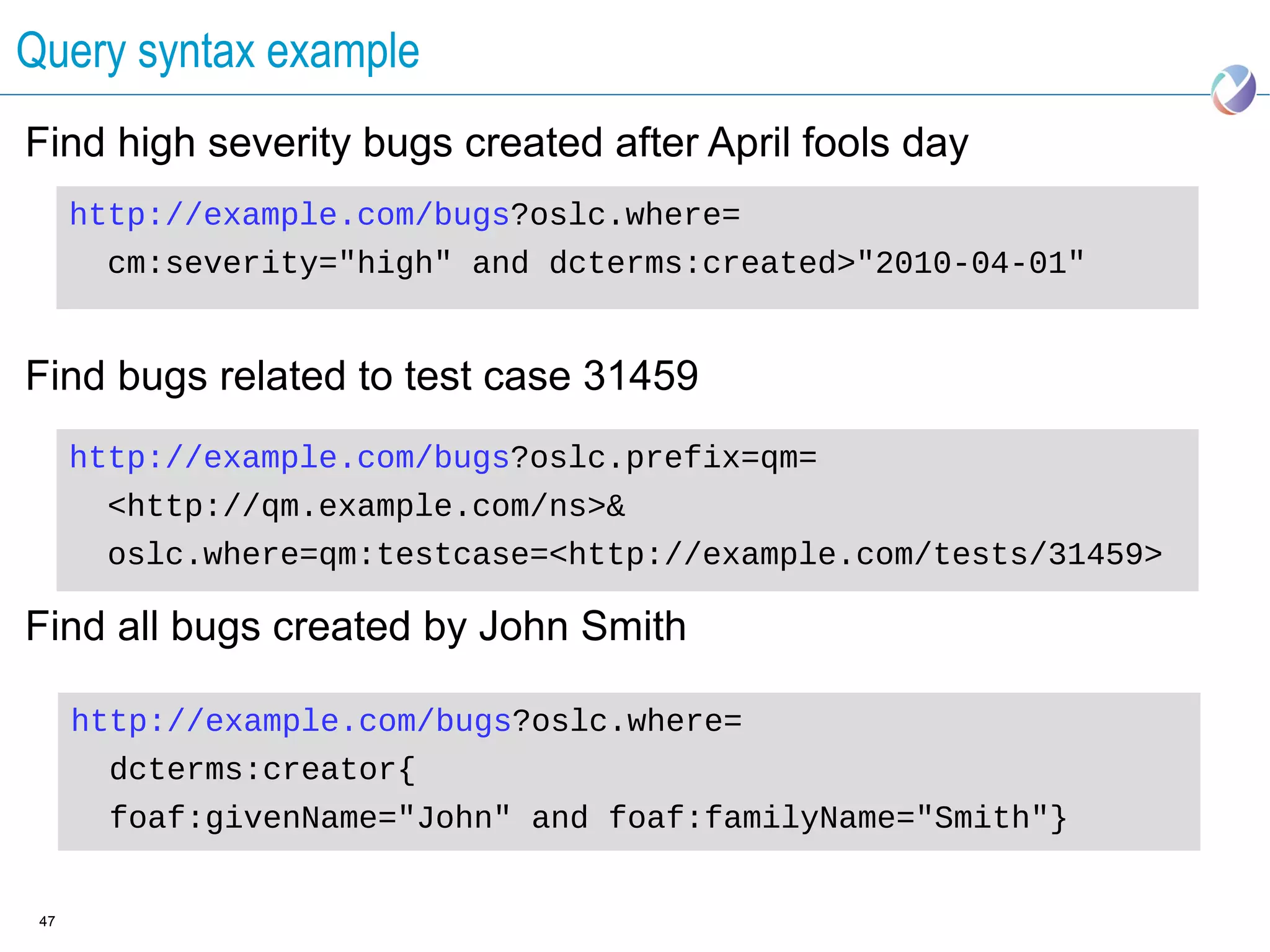

Query syntax example Find high severity bugs created after April fools day http://example.com/bugs?oslc.where= cm:severity="high" and dcterms:created>"2010-04-01" Find bugs related to test case 31459 http://example.com/bugs?oslc.prefix=qm= <http://qm.example.com/ns>& oslc.where=qm:testcase=<http://example.com/tests/31459> Find all bugs created by John Smith http://example.com/bugs?oslc.where= dcterms:creator{ foaf:givenName="John" and foaf:familyName="Smith"} 47

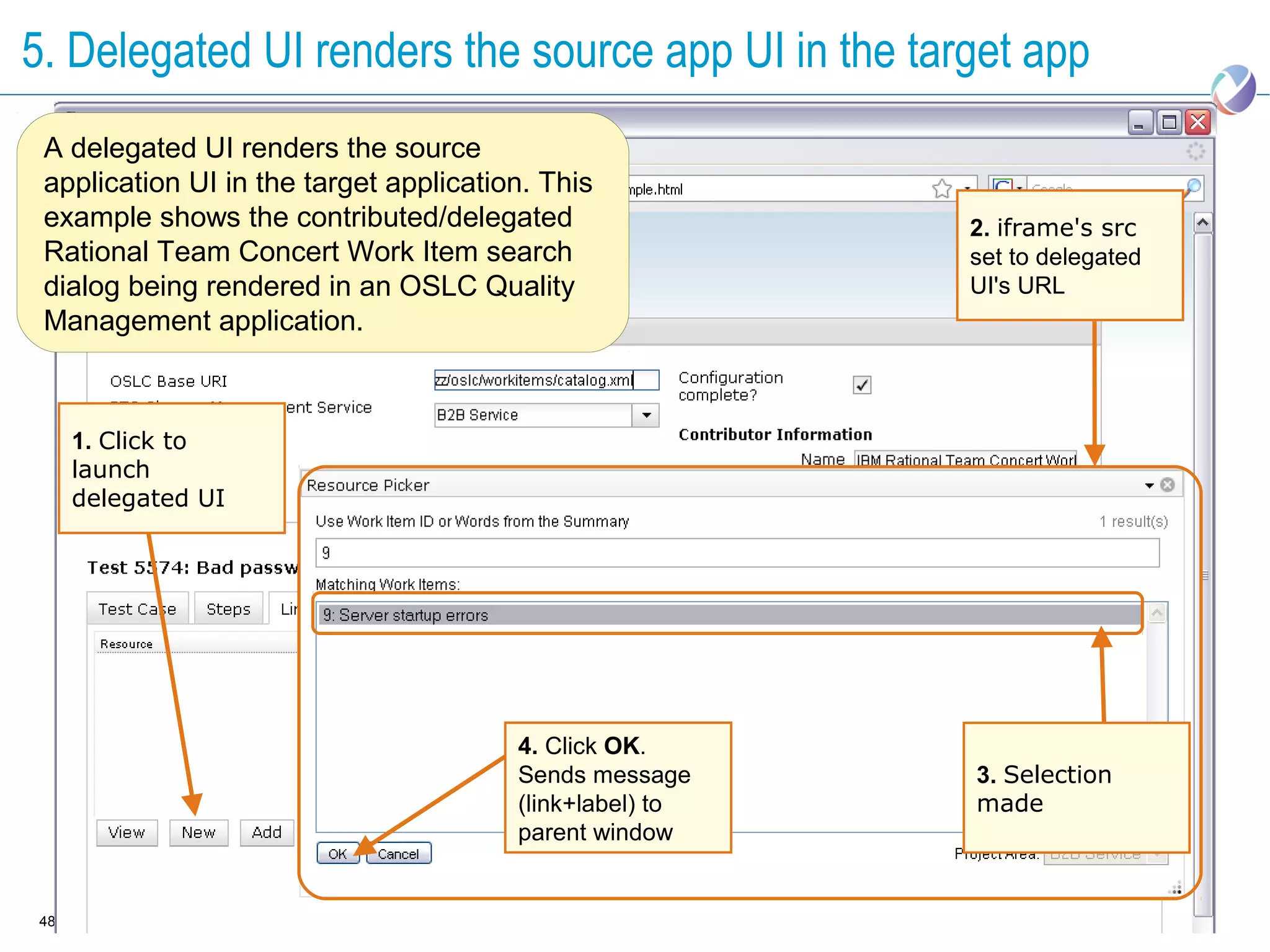

5. Delegated UI renders the source app UI in the target app A delegated UI renders the source application UI in the target application. This example shows the contributed/delegated 2. iframe's src Rational Team Concert Work Item search set to delegated dialog being rendered in an OSLC Quality UI's URL Management application. 1. Click to launch delegated UI 4. Click OK. Sends message 3. Selection (link+label) to made parent window 48

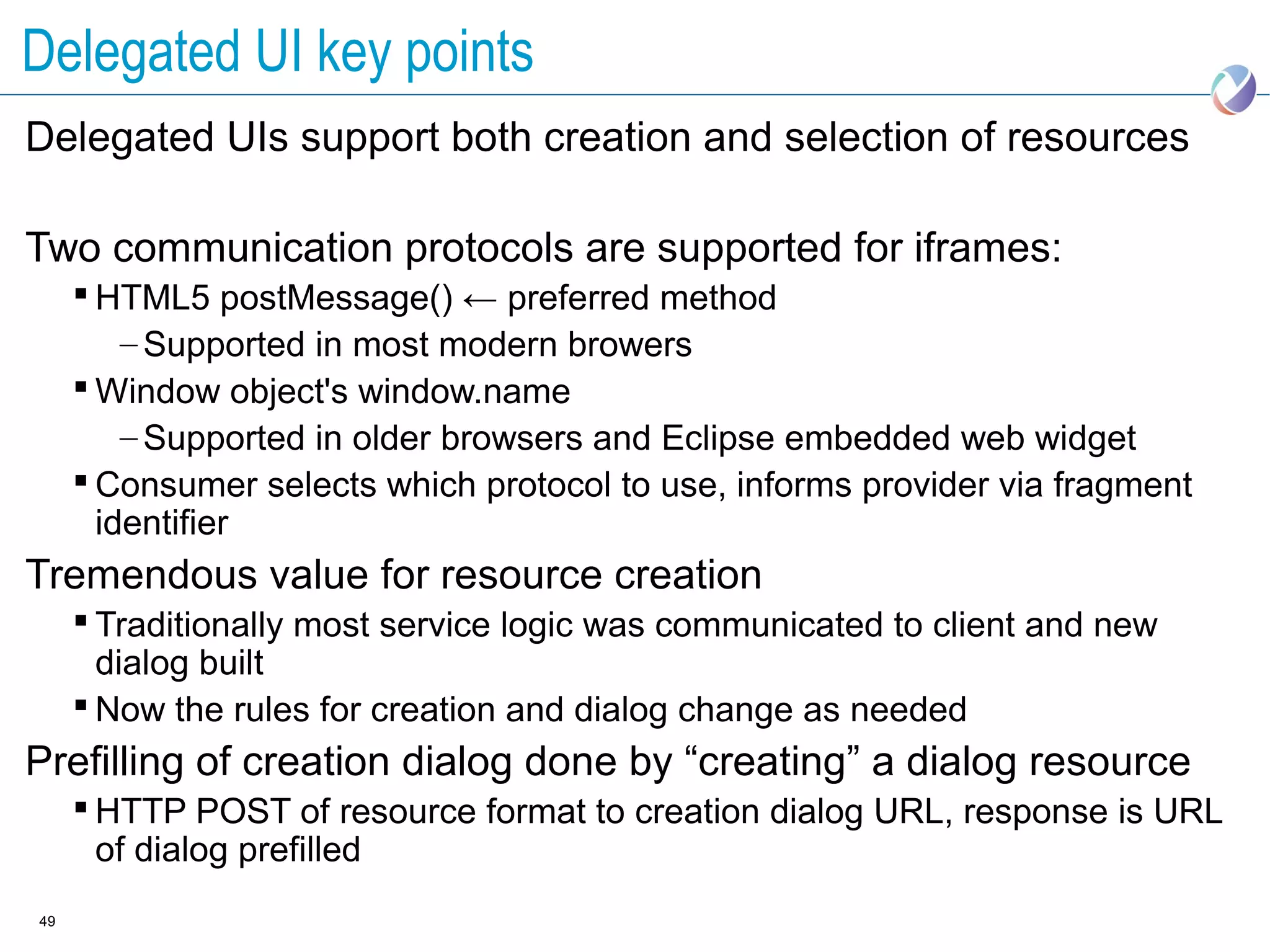

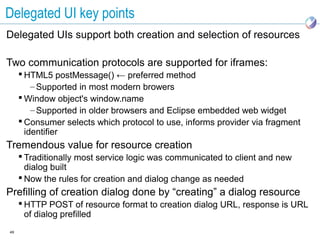

Delegated UI key points Delegated UIs support both creation and selection of resources Two communication protocols are supported for iframes:  HTML5 postMessage() ← preferred method – Supported in most modern browers  Window object's window.name – Supported in older browsers and Eclipse embedded web widget  Consumer selects which protocol to use, informs provider via fragment identifier Tremendous value for resource creation  Traditionally most service logic was communicated to client and new dialog built  Now the rules for creation and dialog change as needed Prefilling of creation dialog done by “creating” a dialog resource  HTTP POST of resource format to creation dialog URL, response is URL of dialog prefilled 49

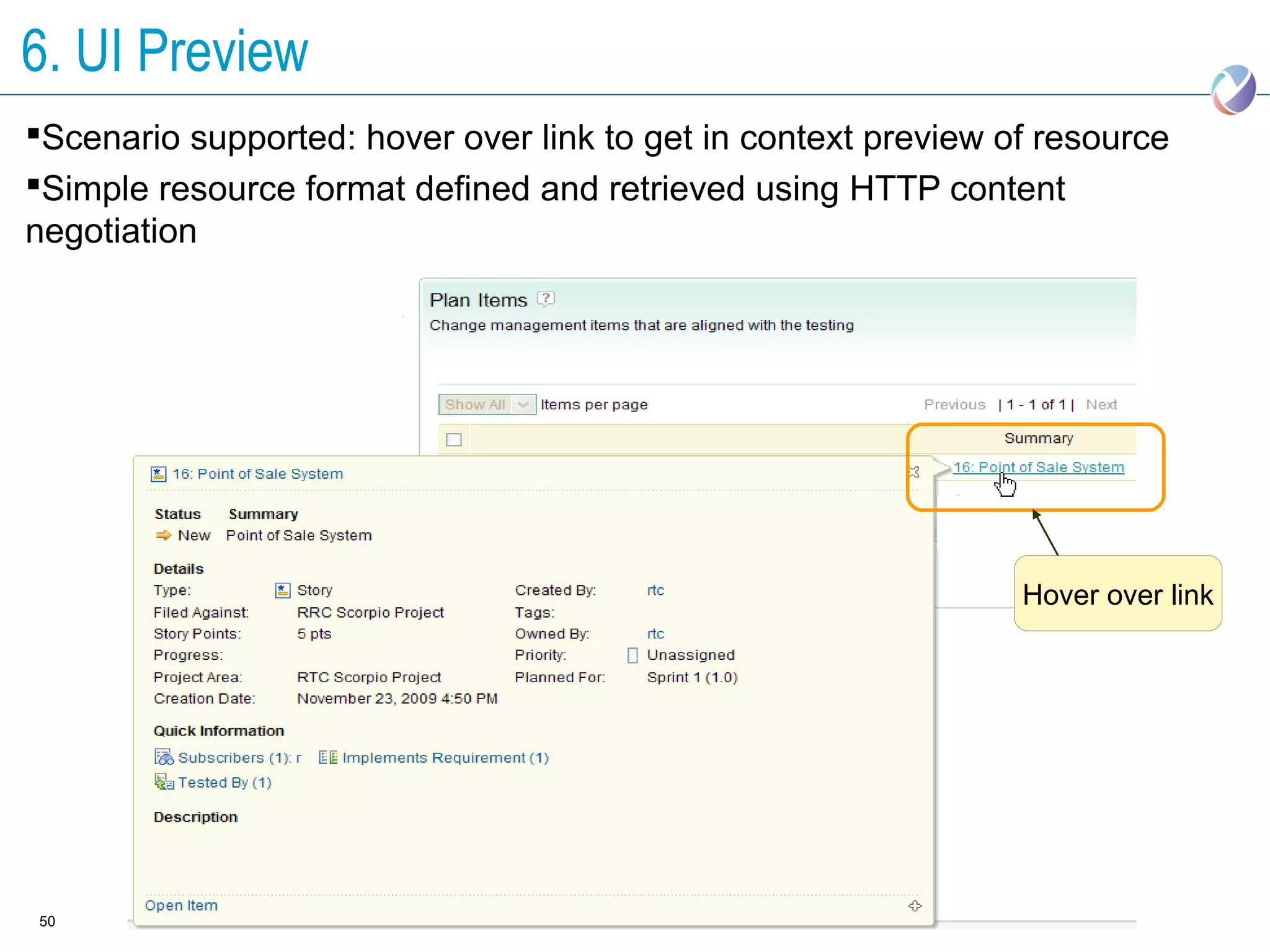

6. UI Preview Scenario supported: hover over link to get in context preview of resource Simple resource format defined and retrieved using HTTP content negotiation Hover over link 50

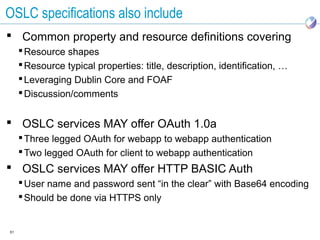

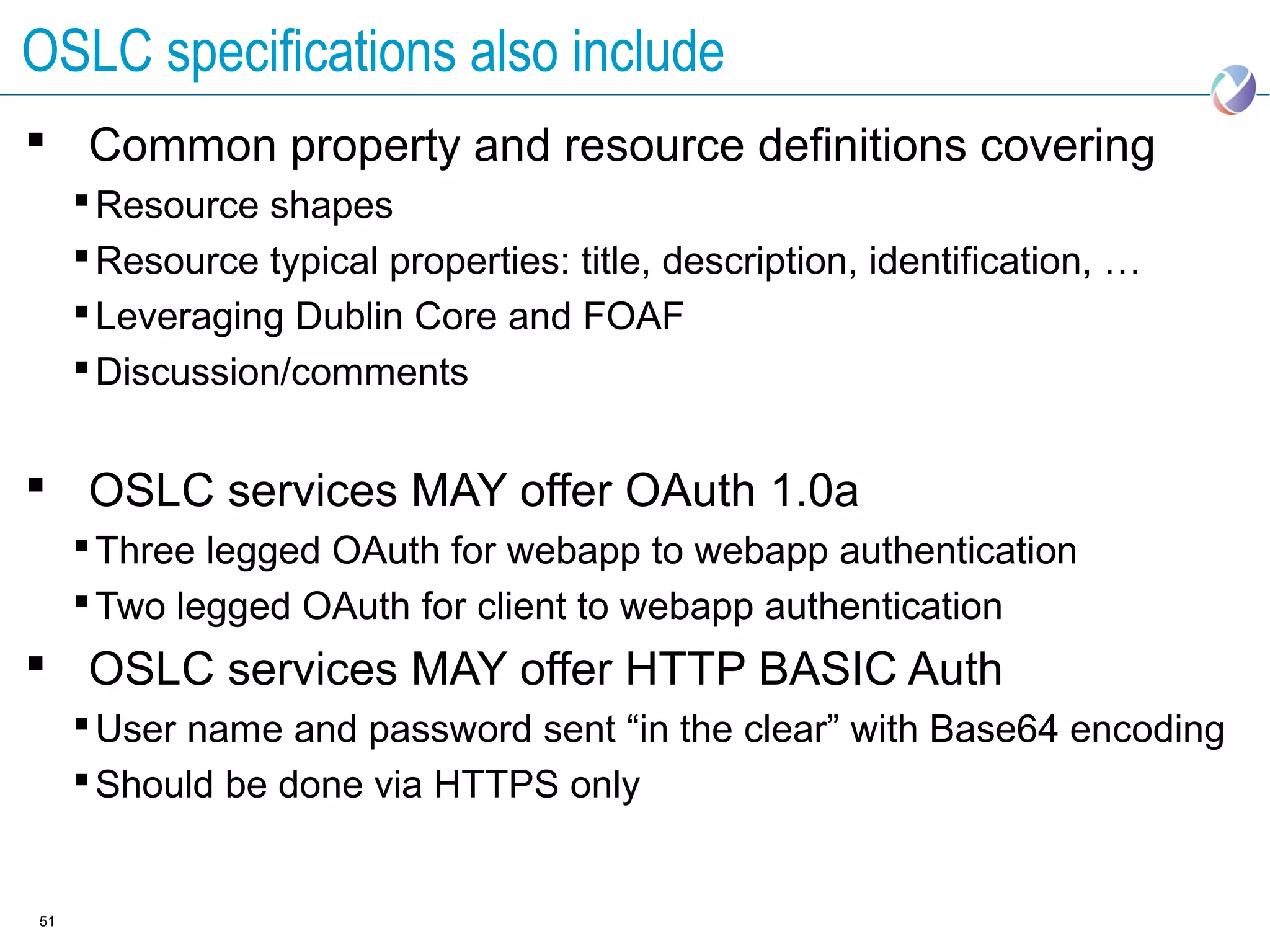

OSLC specifications also include  Common property and resource definitions covering  Resource shapes  Resource typical properties: title, description, identification, …  Leveraging Dublin Core and FOAF  Discussion/comments  OSLC services MAY offer OAuth 1.0a  Three legged OAuth for webapp to webapp authentication  Two legged OAuth for client to webapp authentication  OSLC services MAY offer HTTP BASIC Auth  User name and password sent “in the clear” with Base64 encoding  Should be done via HTTPS only 51

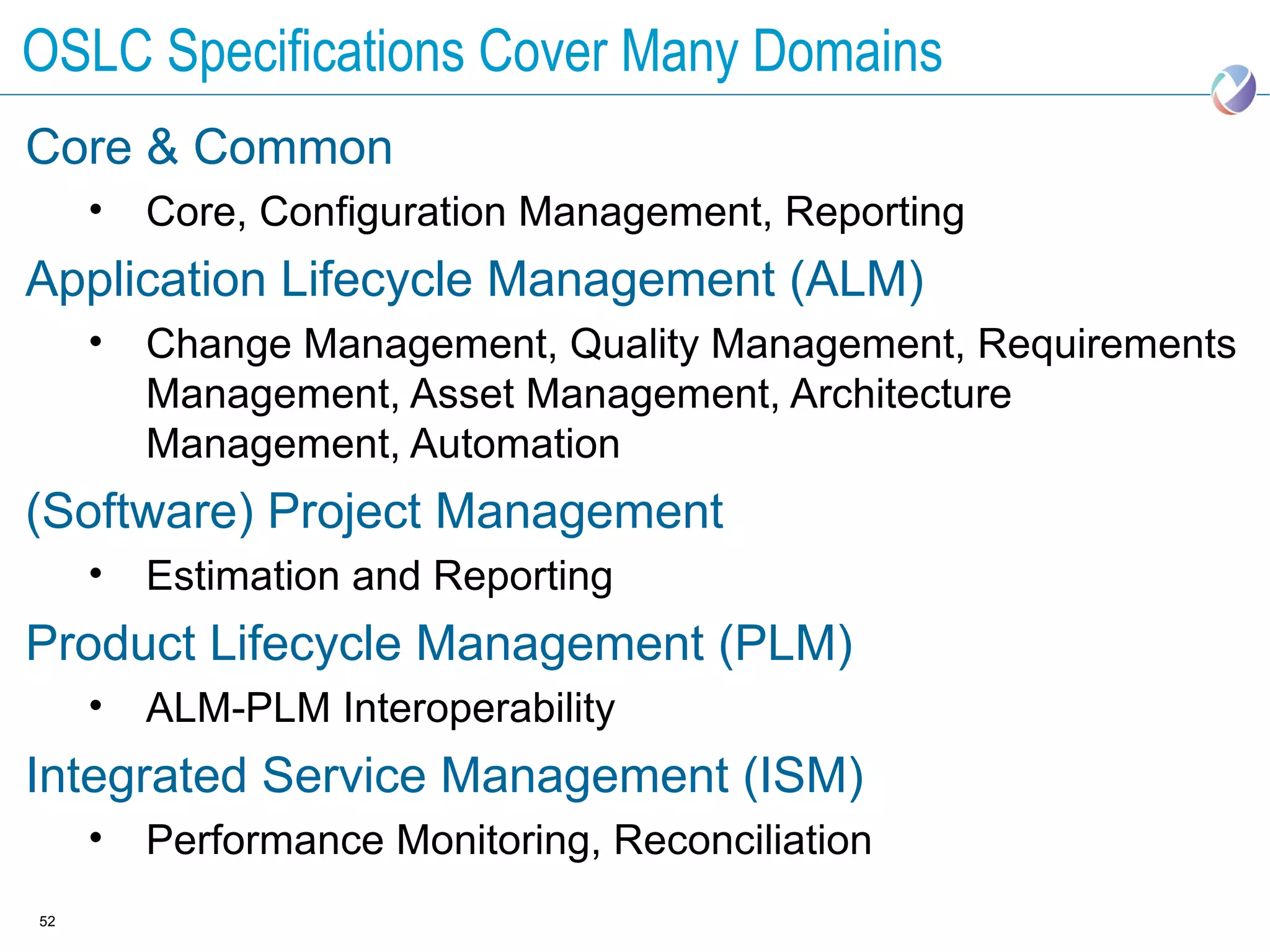

OSLC Specifications Cover Many Domains Core & Common • Core, Configuration Management, Reporting Application Lifecycle Management (ALM) • Change Management, Quality Management, Requirements Management, Asset Management, Architecture Management, Automation (Software) Project Management • Estimation and Reporting Product Lifecycle Management (PLM) • ALM-PLM Interoperability Integrated Service Management (ISM) • Performance Monitoring, Reconciliation 52

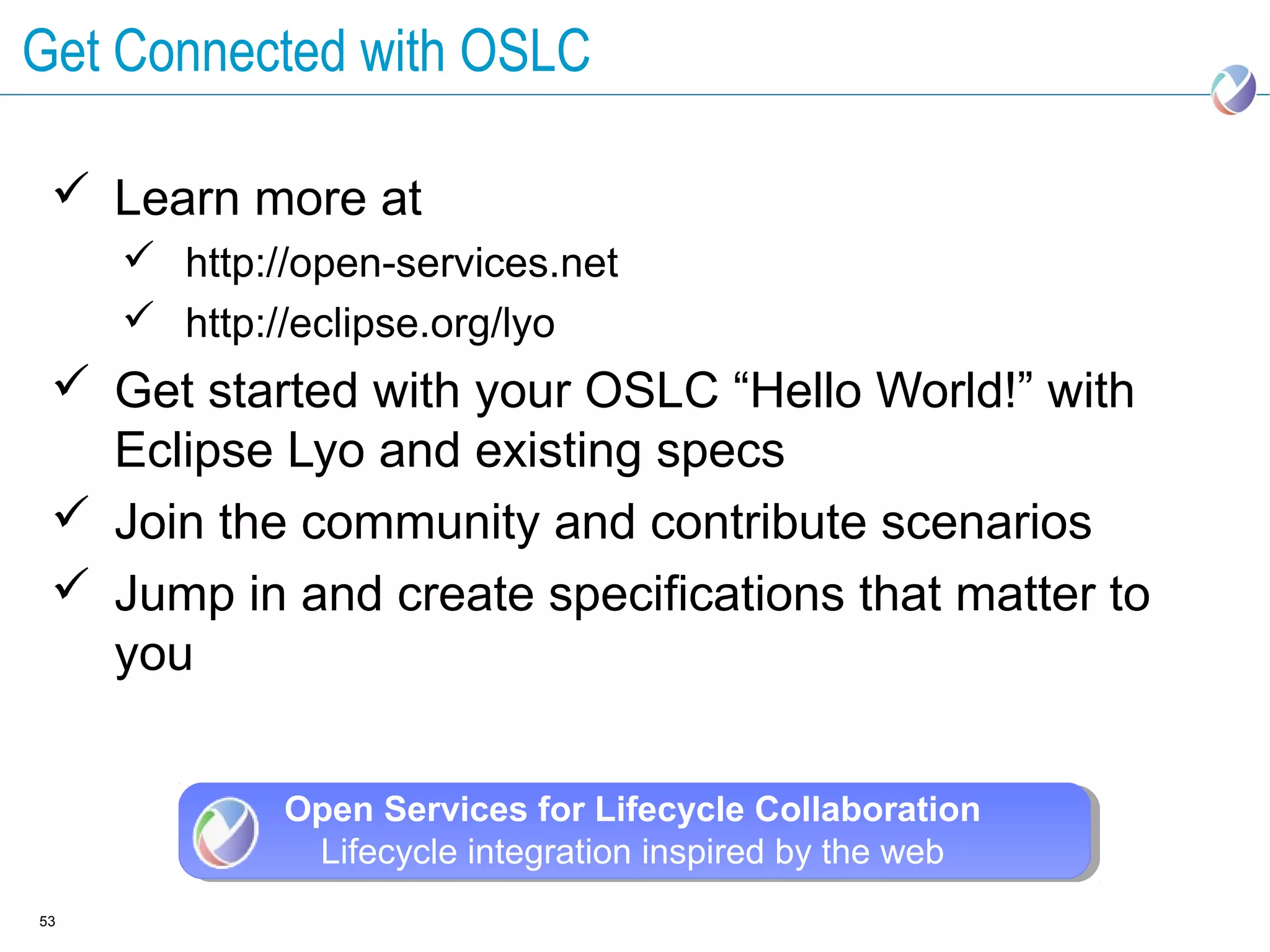

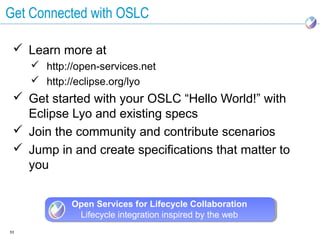

Get Connected with OSLC  Learn more at  http://open-services.net  http://eclipse.org/lyo  Get started with your OSLC “Hello World!” with Eclipse Lyo and existing specs  Join the community and contribute scenarios  Jump in and create specifications that matter to you Open Services for Lifecycle Collaboration Lifecycle integration inspired by the web 53

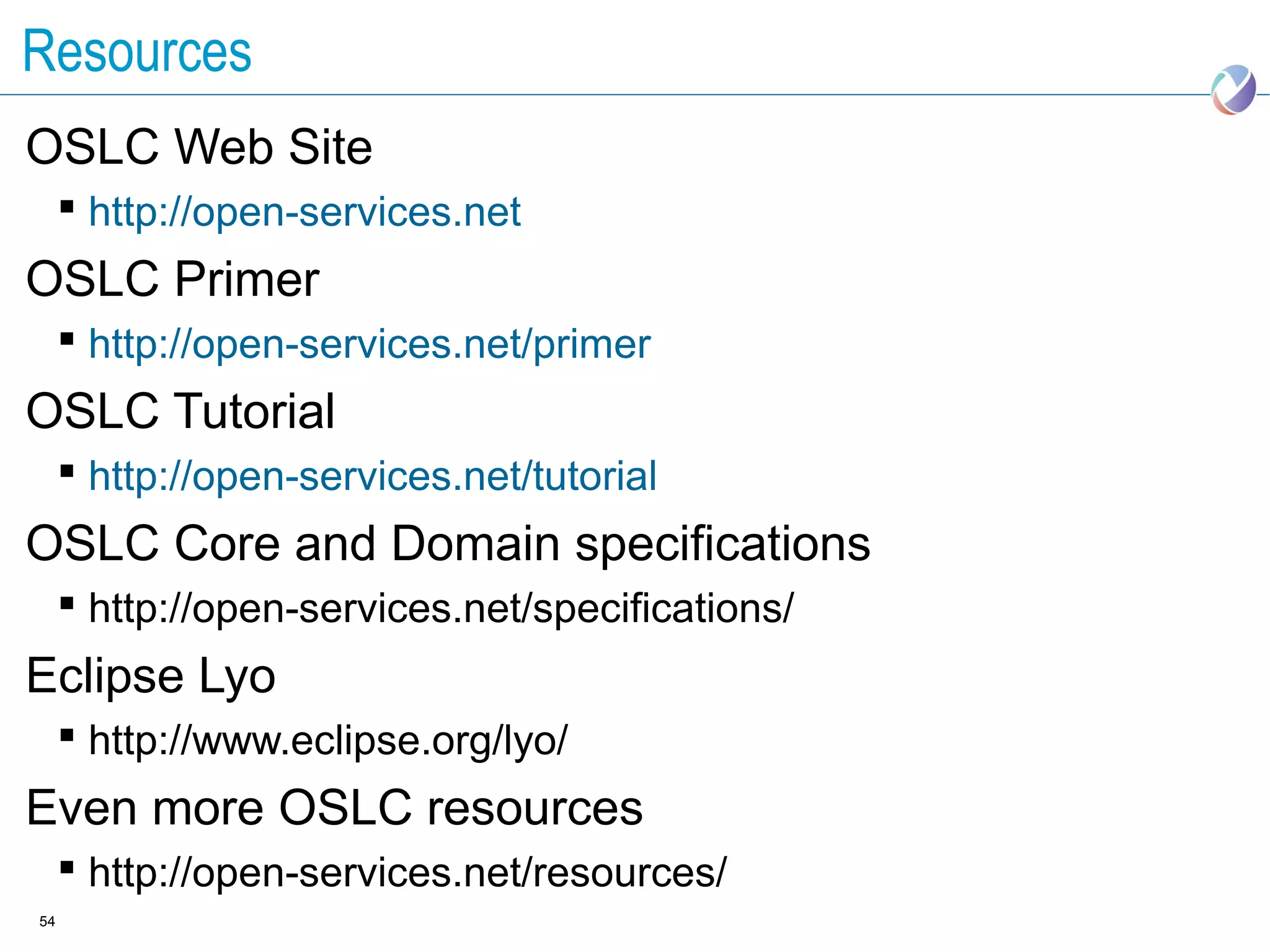

Resources OSLC Web Site  http://open-services.net OSLC Primer  http://open-services.net/primer OSLC Tutorial  http://open-services.net/tutorial OSLC Core and Domain specifications  http://open-services.net/specifications/ Eclipse Lyo  http://www.eclipse.org/lyo/ Even more OSLC resources  http://open-services.net/resources/ 54
BACKUP 55

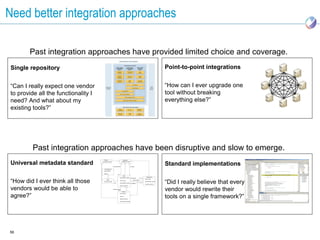

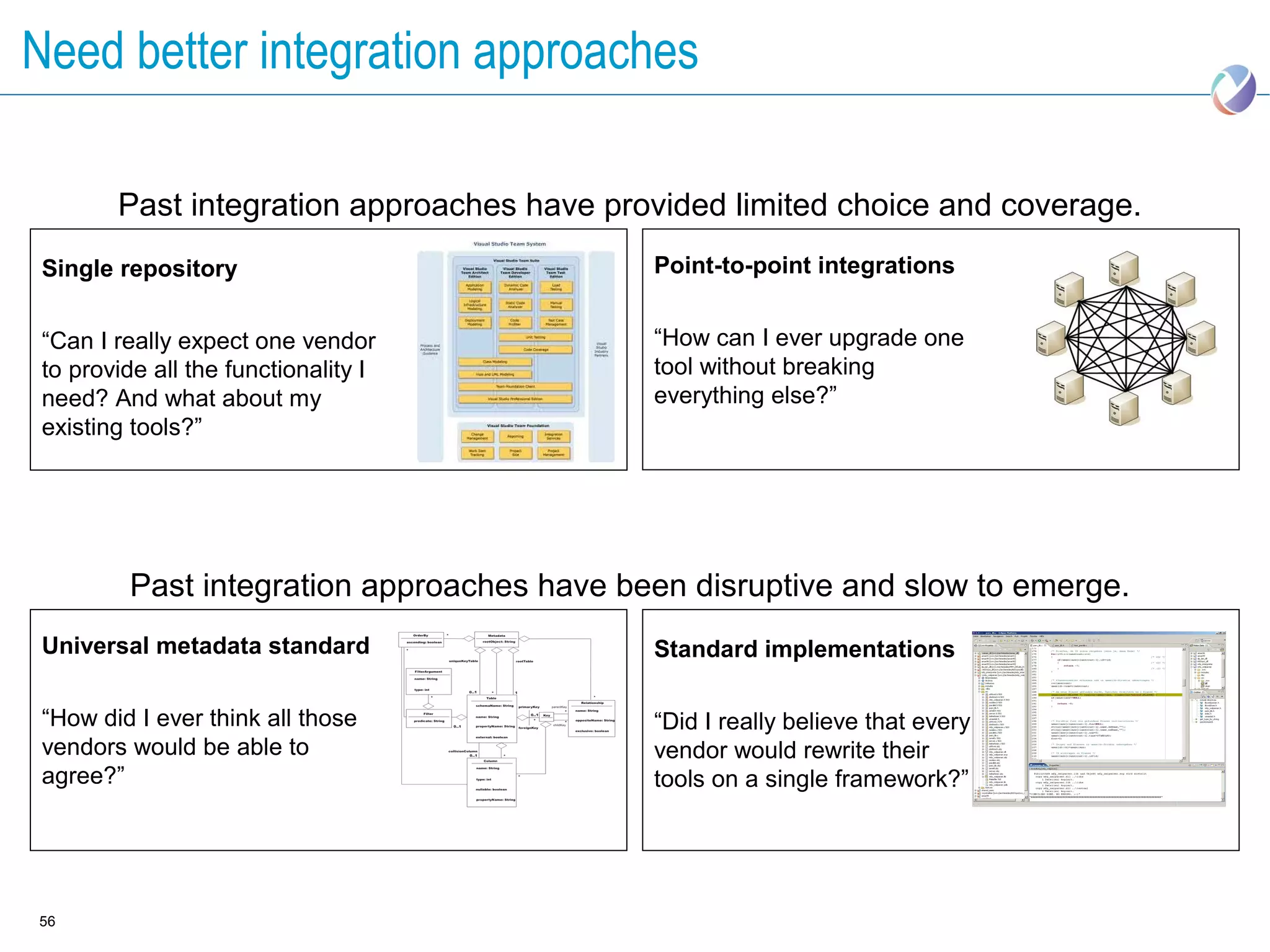

Need better integration approaches Past integration approaches have provided limited choice and coverage. Single repository Point-to-point integrations “Can I really expect one vendor “How can I ever upgrade one to provide all the functionality I tool without breaking need? And what about my everything else?” existing tools?” Past integration approaches have been disruptive and slow to emerge. Universal metadata standard Standard implementations “How did I ever think all those “Did I really believe that every vendors would be able to vendor would rewrite their agree?” tools on a single framework?” 56

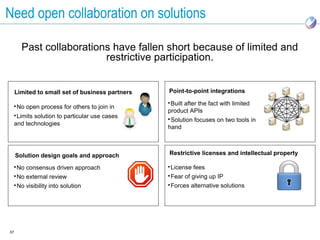

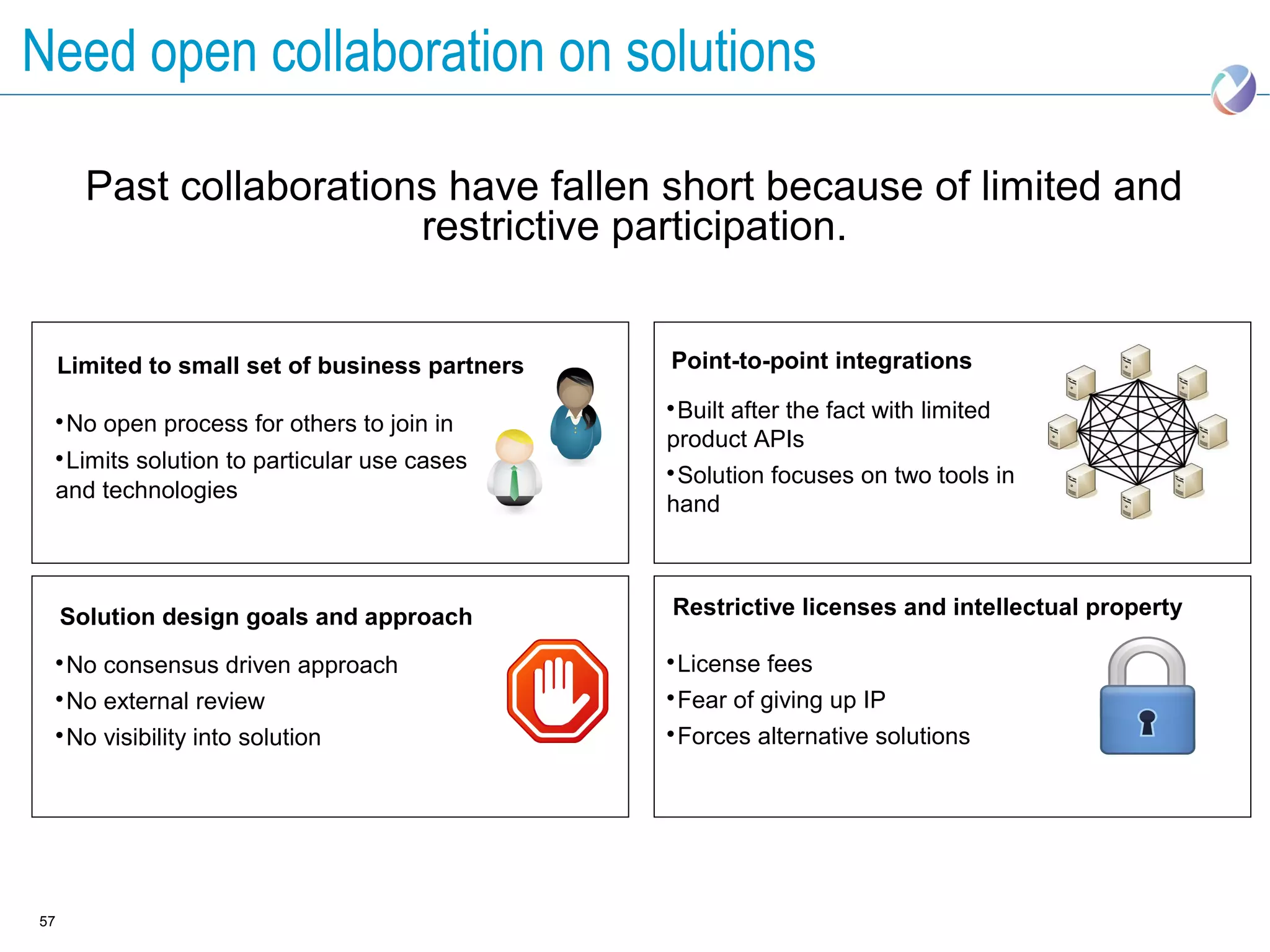

Need open collaboration on solutions Past collaborations have fallen short because of limited and restrictive participation. Limited to small set of business partners Point-to-point integrations  Built after the fact with limited  No open process for others to join in product APIs  Limits solution to particular use cases  Solution focuses on two tools in and technologies hand Solution design goals and approach Restrictive licenses and intellectual property  No consensus driven approach  License fees  No external review  Fear of giving up IP  No visibility into solution  Forces alternative solutions 57

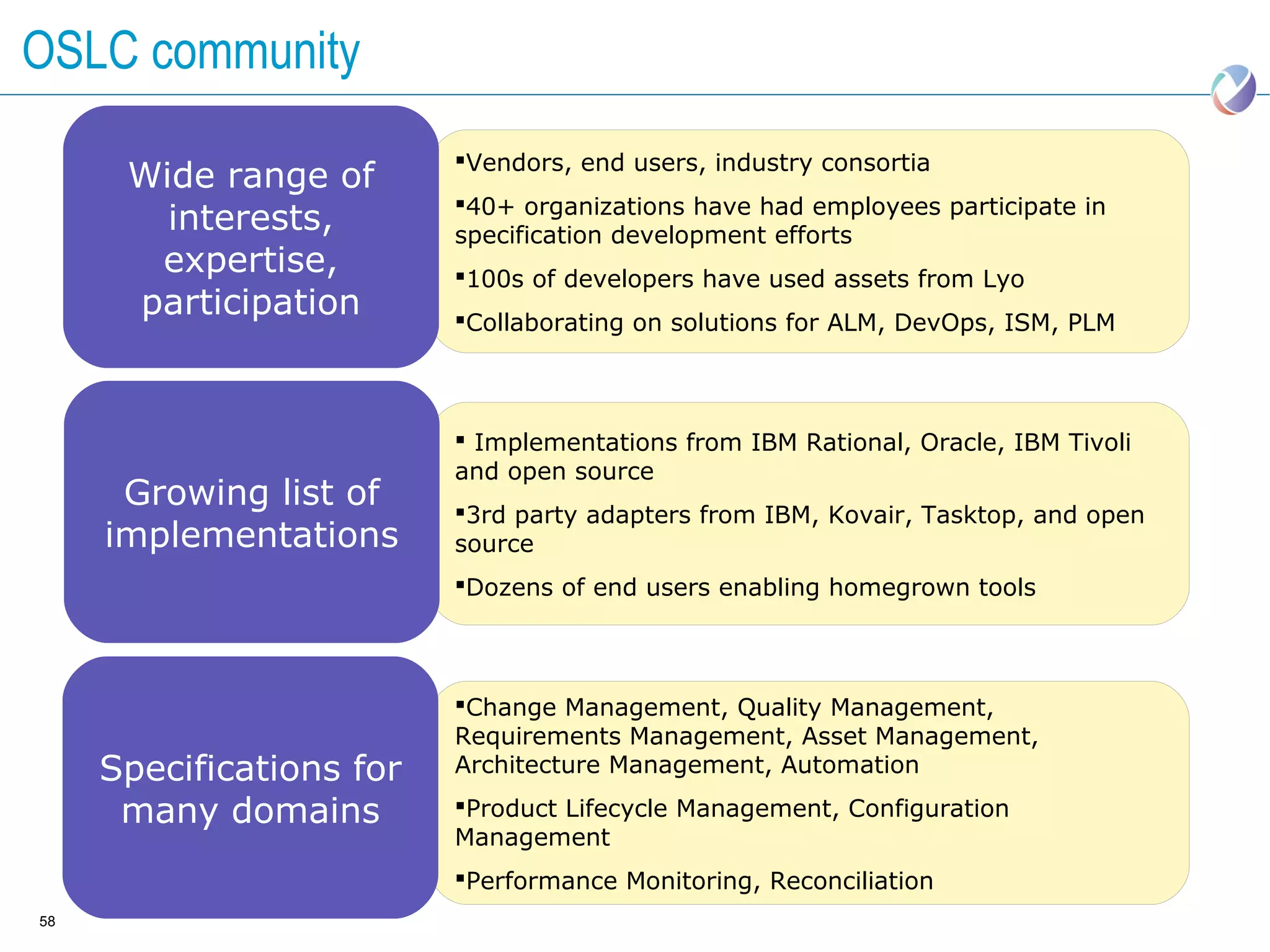

OSLC community Vendors, end users, industry consortia Wide range of 40+ organizations have had employees participate in interests, specification development efforts expertise, 100s of developers have used assets from Lyo participation Collaborating on solutions for ALM, DevOps, ISM, PLM  Implementations from IBM Rational, Oracle, IBM Tivoli and open source Growing list of 3rd party adapters from IBM, Kovair, Tasktop, and open implementations source Dozens of end users enabling homegrown tools Change Management, Quality Management, Requirements Management, Asset Management, Specifications for Architecture Management, Automation many domains Product Lifecycle Management, Configuration Management Performance Monitoring, Reconciliation 58

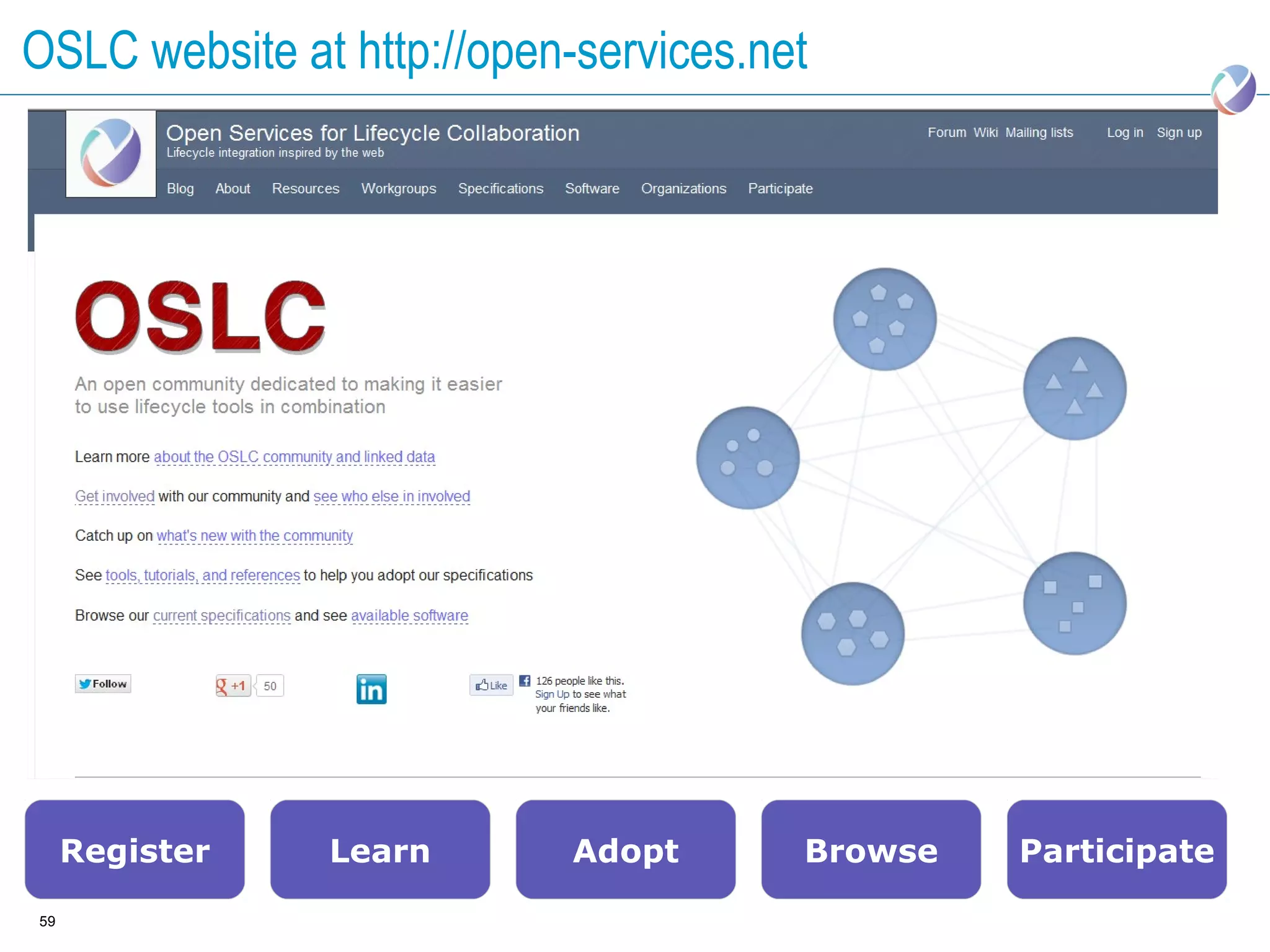

OSLC website at http://open-services.net Register Learn Adopt Browse Participate 59
