Introduction to Windows IoT via Raspberry Pi 3

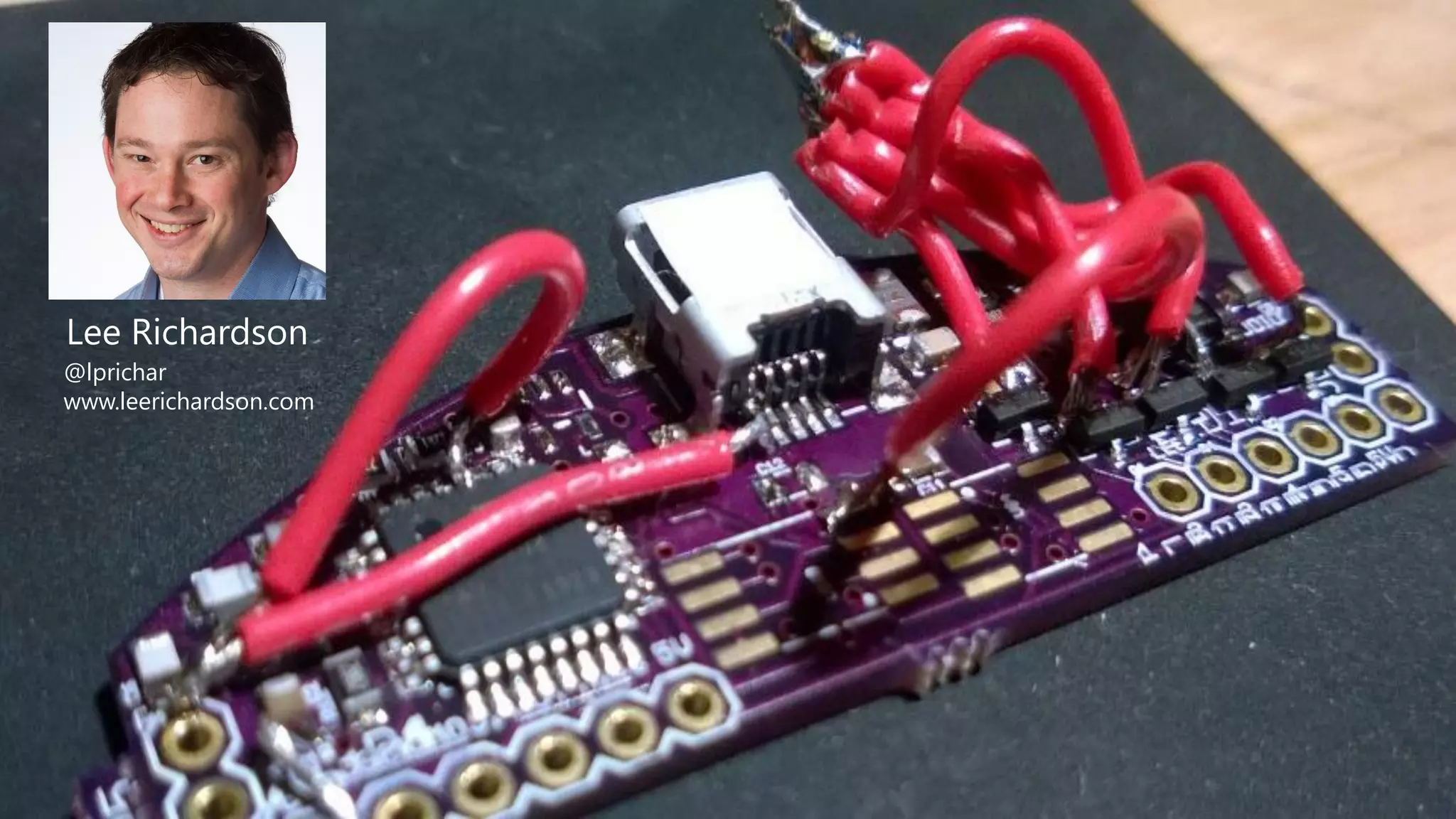

- 1. Lee Richardson @lprichar http://www.leerichardson.com Introduction to WindowsIoT via Raspberry Pi 3 Microsoft Maniacs Metup – January 19, 2017
- 2.
- 3.
- 4.
- 5.

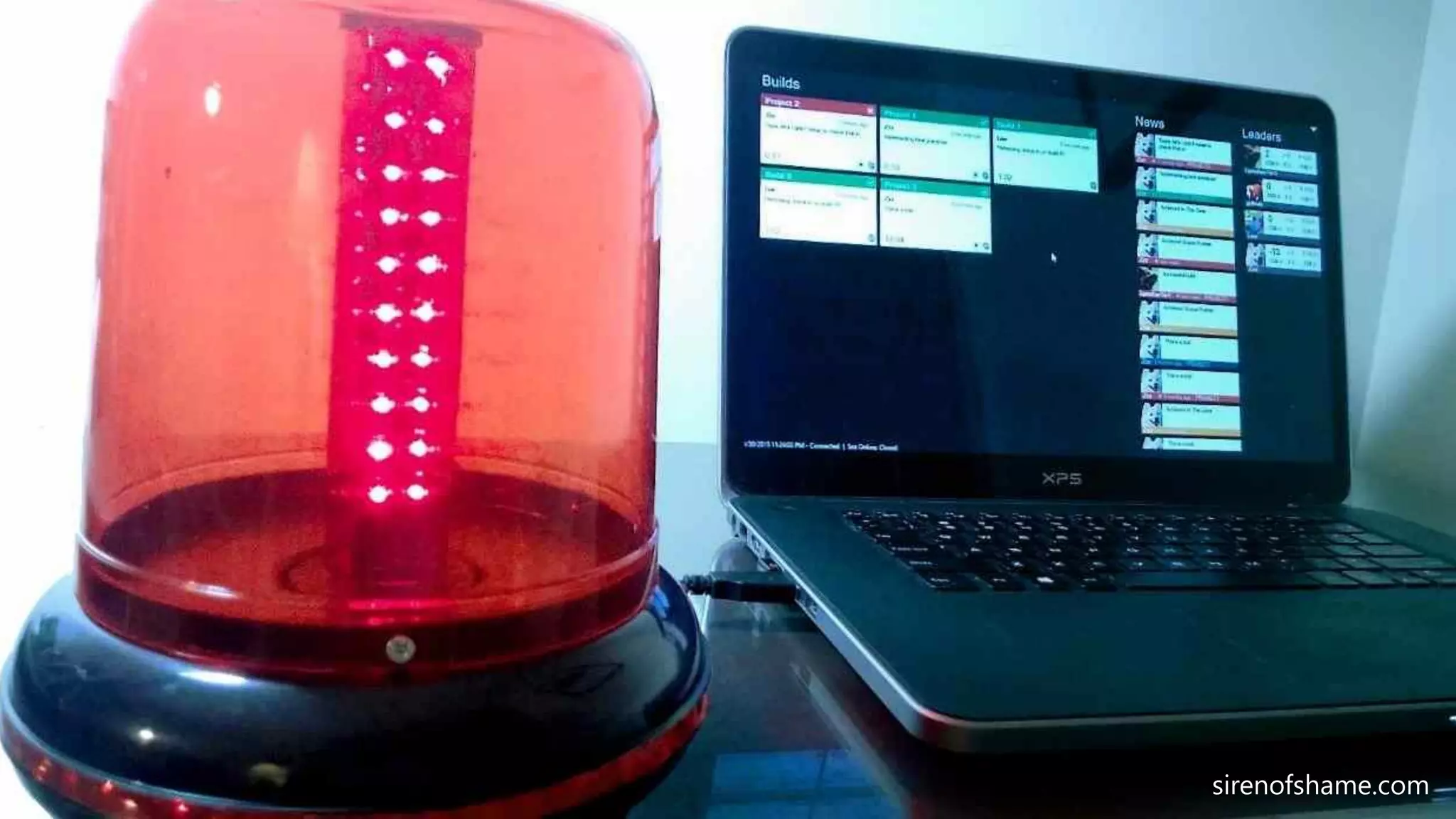

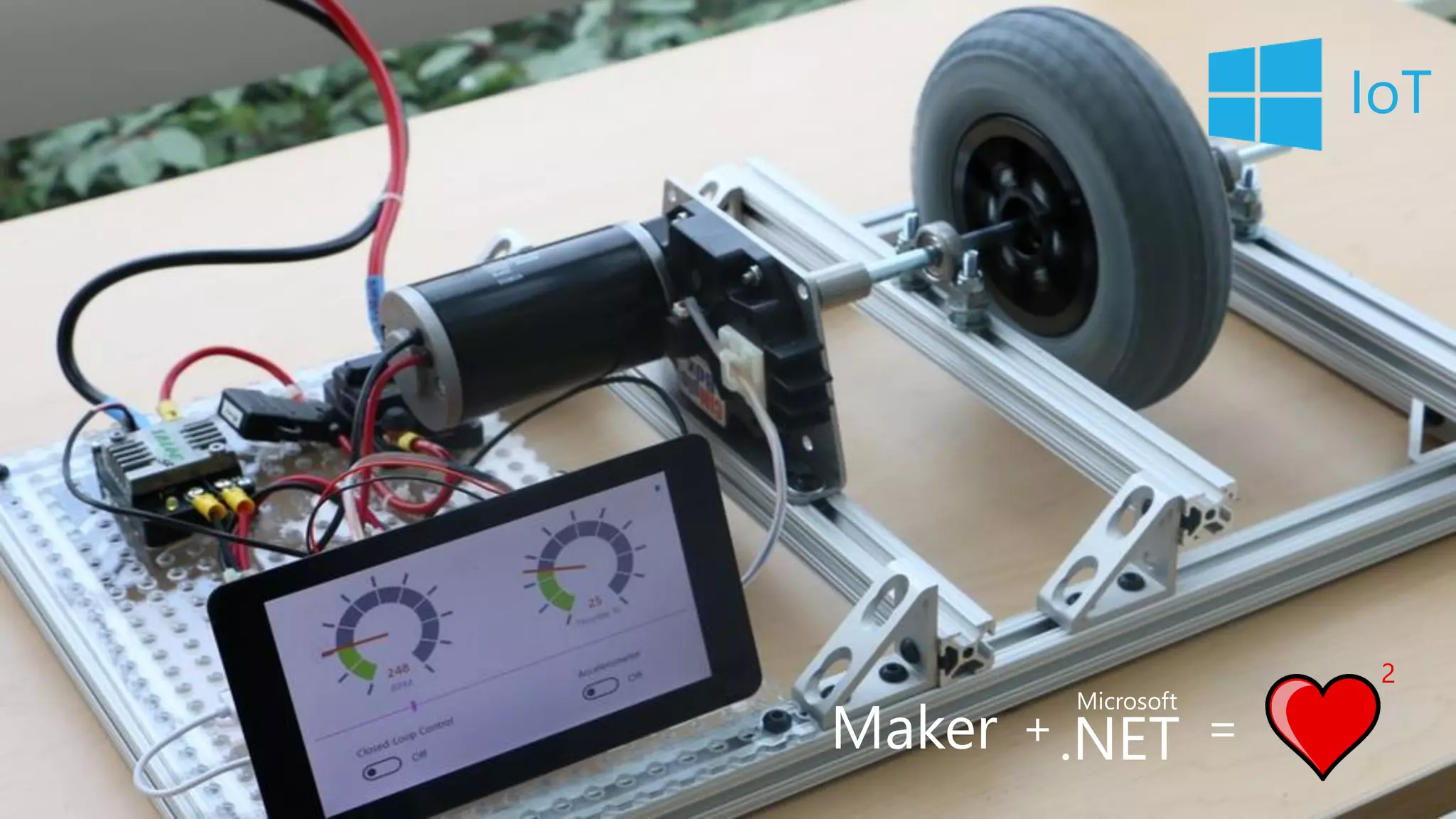

- 6.
- 7. Overview • Part 1:What, Why • Part 2: How • Part 3: Connectivity • Part 4: GPIO • Part 5: Remote Controlled Car

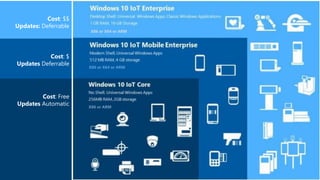

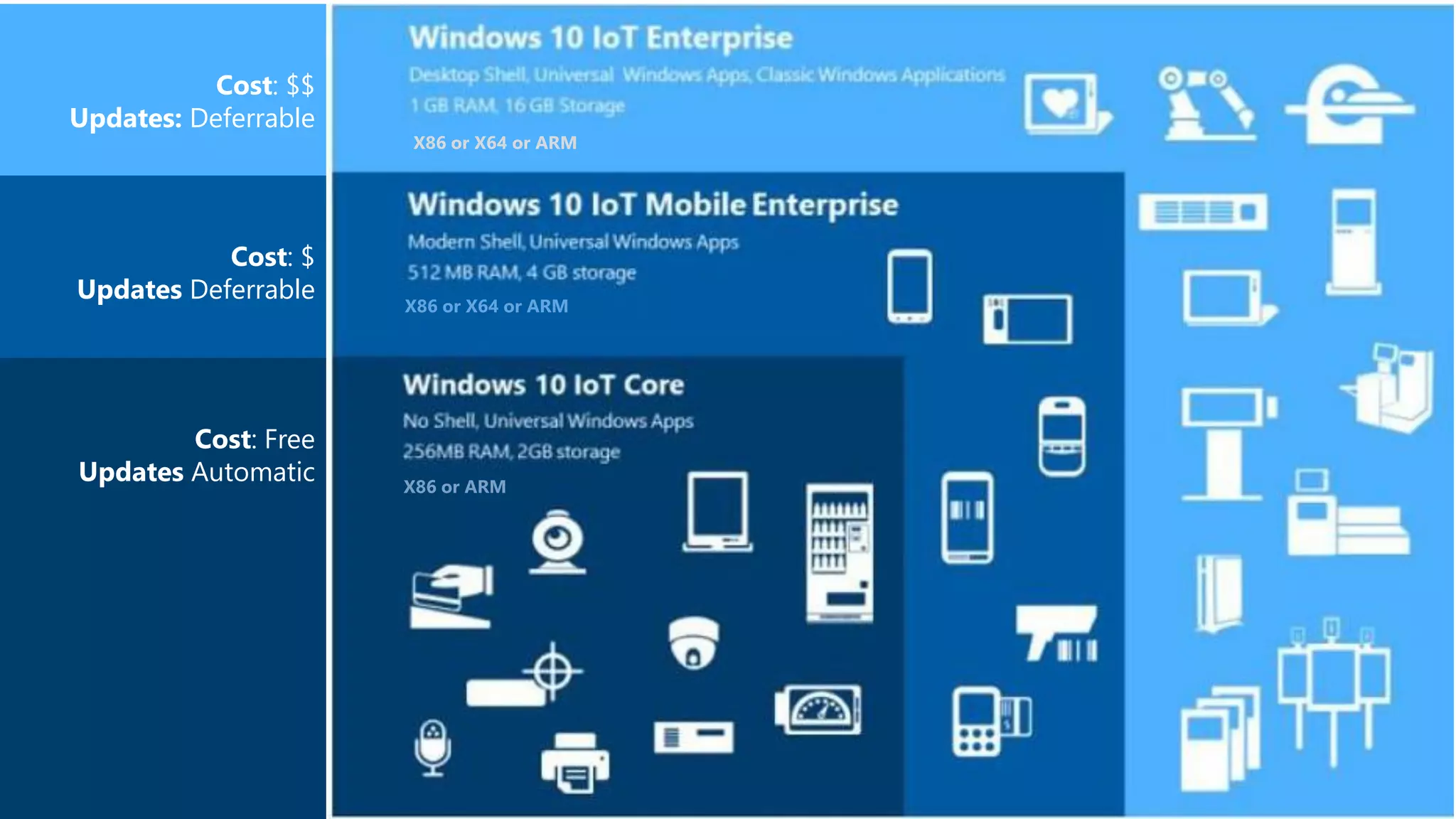

- 8. Cost: $$ Updates: Deferrable Cost:$ Updates Deferrable Cost: Free Updates Automatic X86 or X64 or ARM X86 or X64 or ARM X86 or ARM

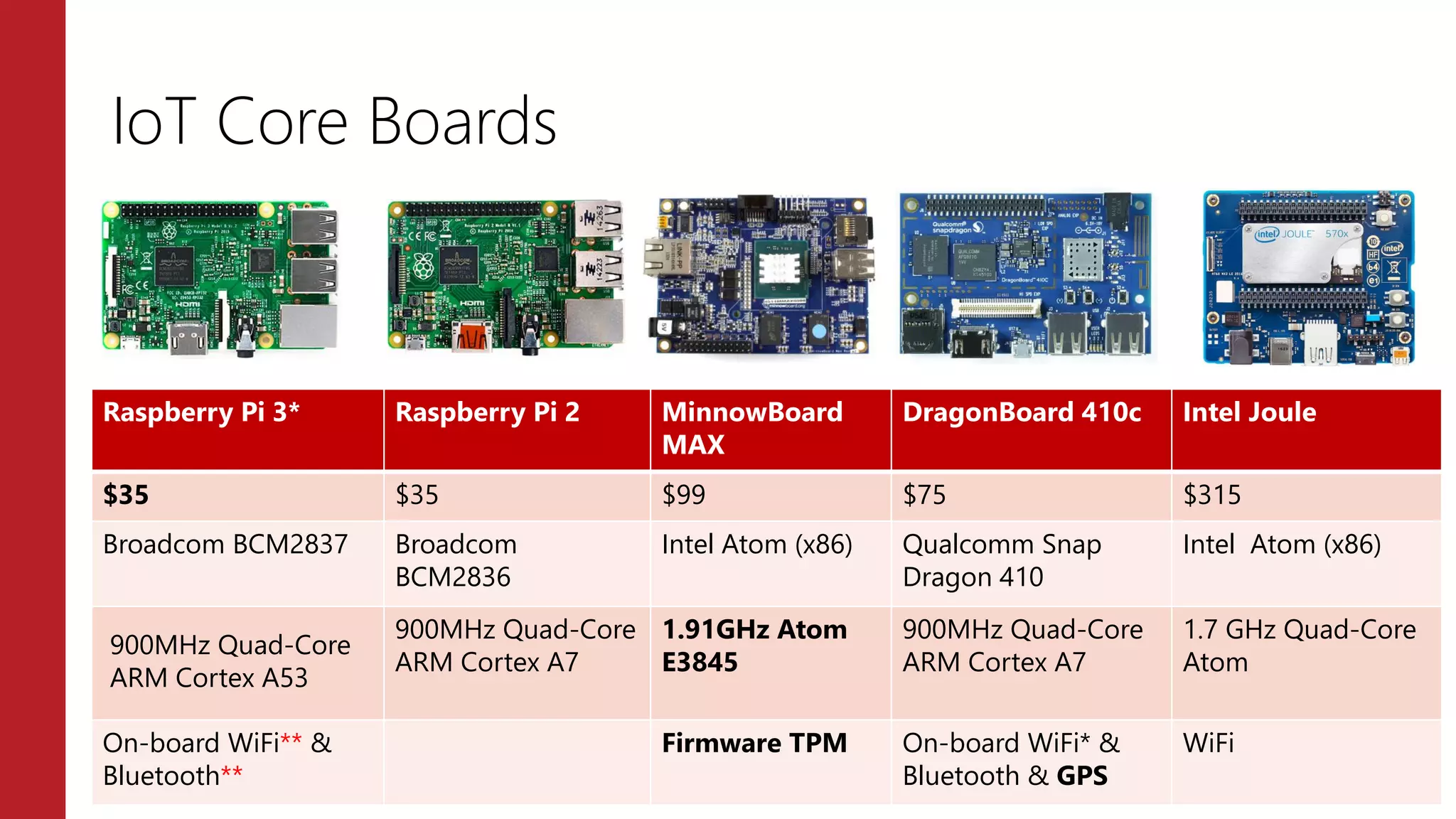

- 9. Raspberry Pi 3*Raspberry Pi 2 MinnowBoard MAX DragonBoard 410c Intel Joule $35 $35 $99 $75 $315 Broadcom BCM2837 Broadcom BCM2836 Intel Atom (x86) Qualcomm Snap Dragon 410 Intel Atom (x86) 900MHz Quad-Core ARM Cortex A53 900MHz Quad-Core ARM Cortex A7 1.91GHz Atom E3845 900MHz Quad-Core ARM Cortex A7 1.7 GHz Quad-Core Atom On-board WiFi** & Bluetooth** Firmware TPM On-board WiFi* & Bluetooth & GPS WiFi IoT Core Boards

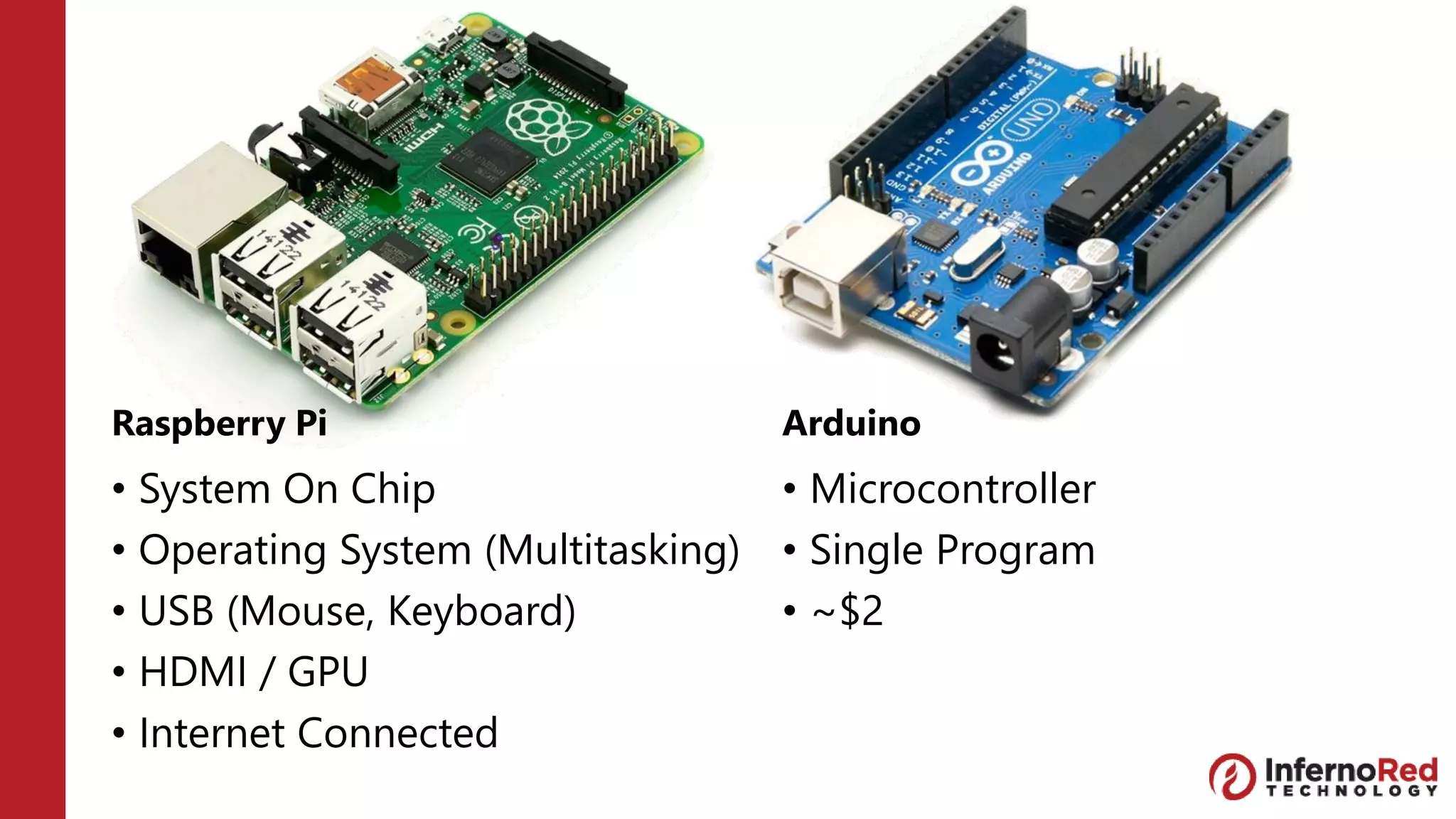

- 10. • System OnChip • Operating System (Multitasking) • USB (Mouse, Keyboard) • HDMI / GPU • Internet Connected Arduino • Microcontroller • Single Program • ~$2 Raspberry Pi

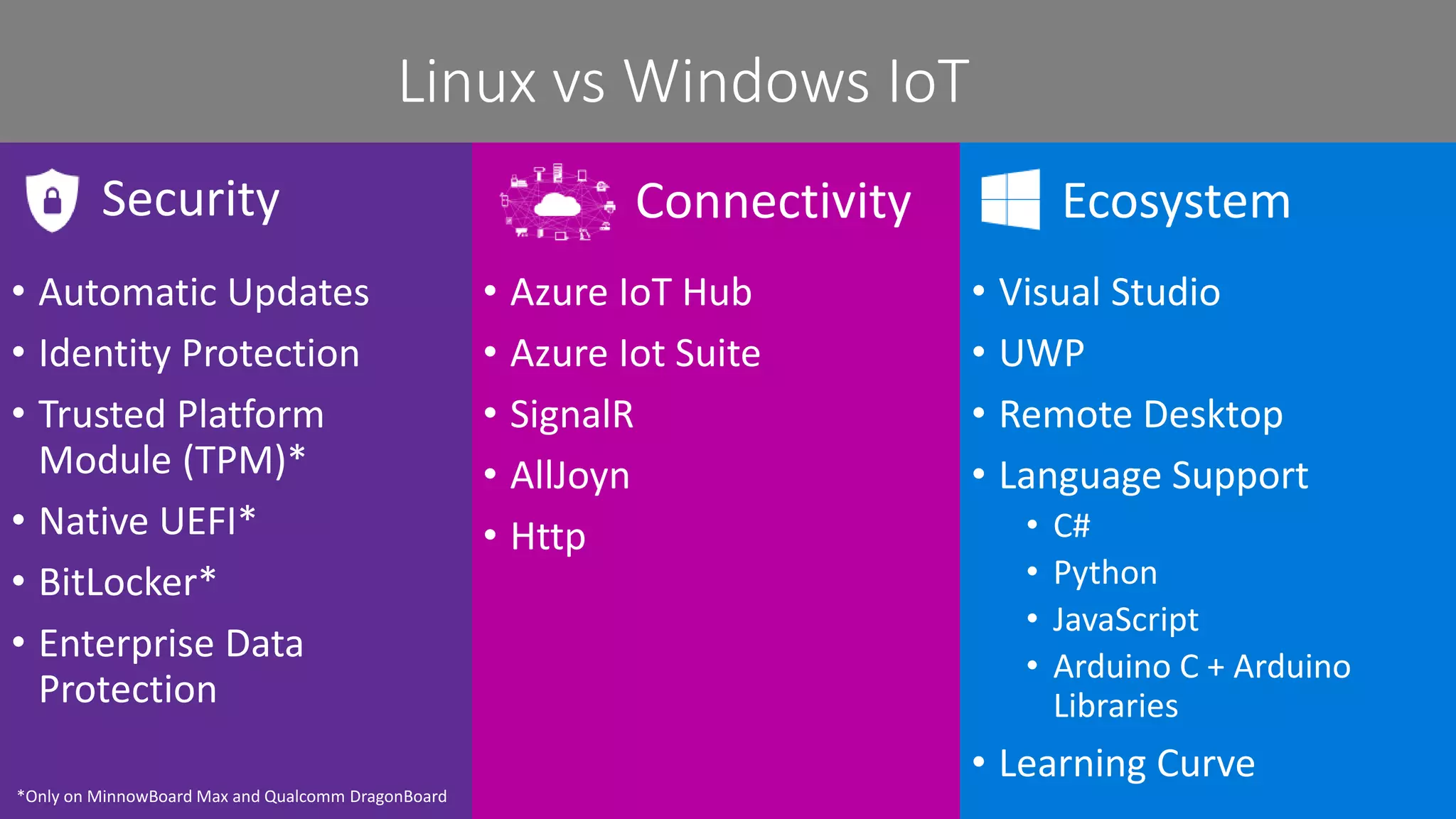

- 11. Linux vs WindowsIoT • Automatic Updates • Identity Protection • Trusted Platform Module (TPM)* • Native UEFI* • BitLocker* • Enterprise Data Protection • Azure IoT Hub • Azure Iot Suite • SignalR • AllJoyn • Http • Visual Studio • UWP • Remote Desktop • Language Support • C# • Python • JavaScript • Arduino C + Arduino Libraries • Learning Curve Security Connectivity Ecosystem *Only on MinnowBoard Max and Qualcomm DragonBoard
- 12. $1.3 trillionMarket forIoT by 2020 IDC 25 billionConnected “things” by 2020 Gartner

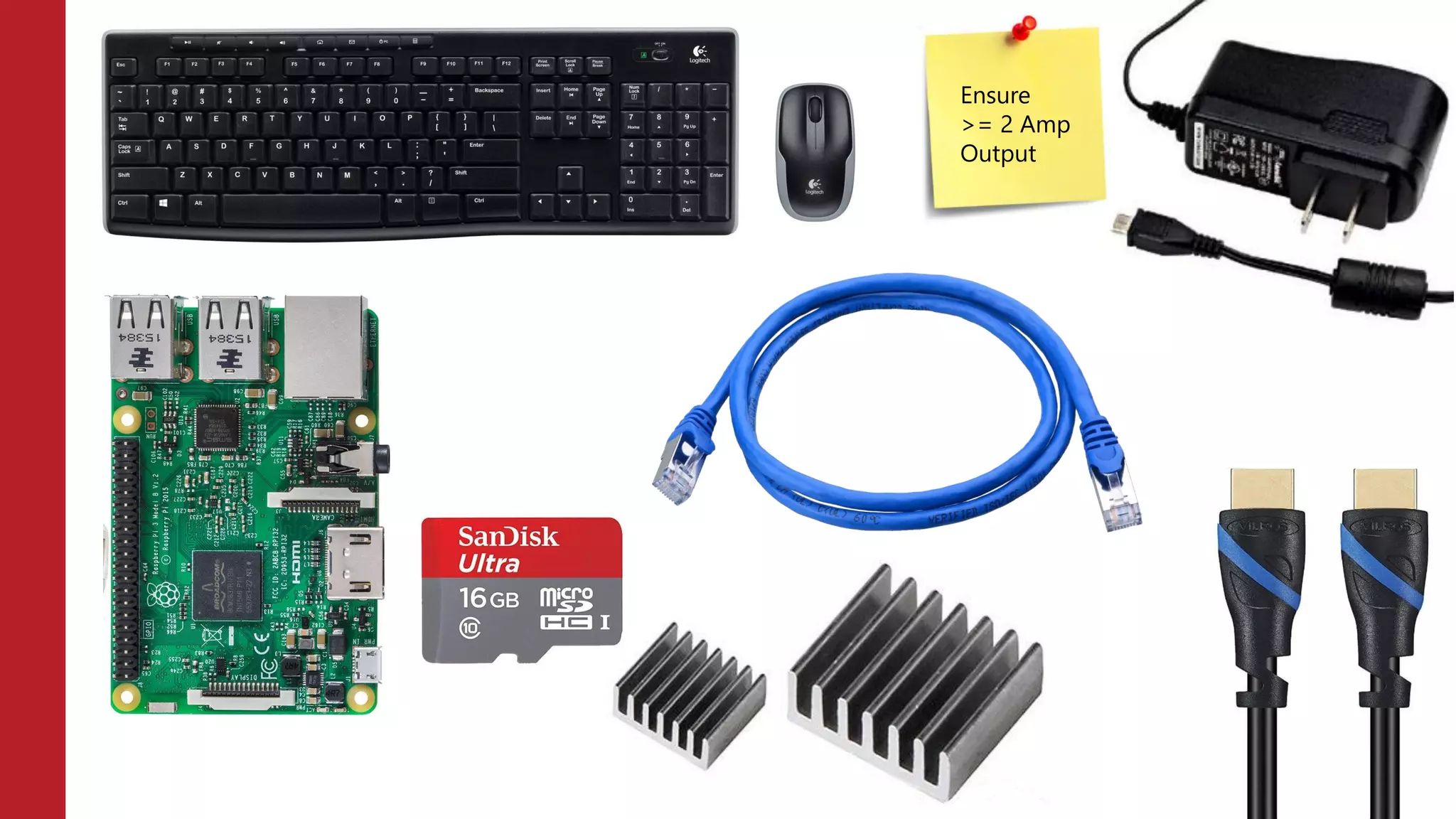

- 13. Part 2: How •Stuff You Need • Device Setup • Dev Environment Setup • Hello World
- 14.

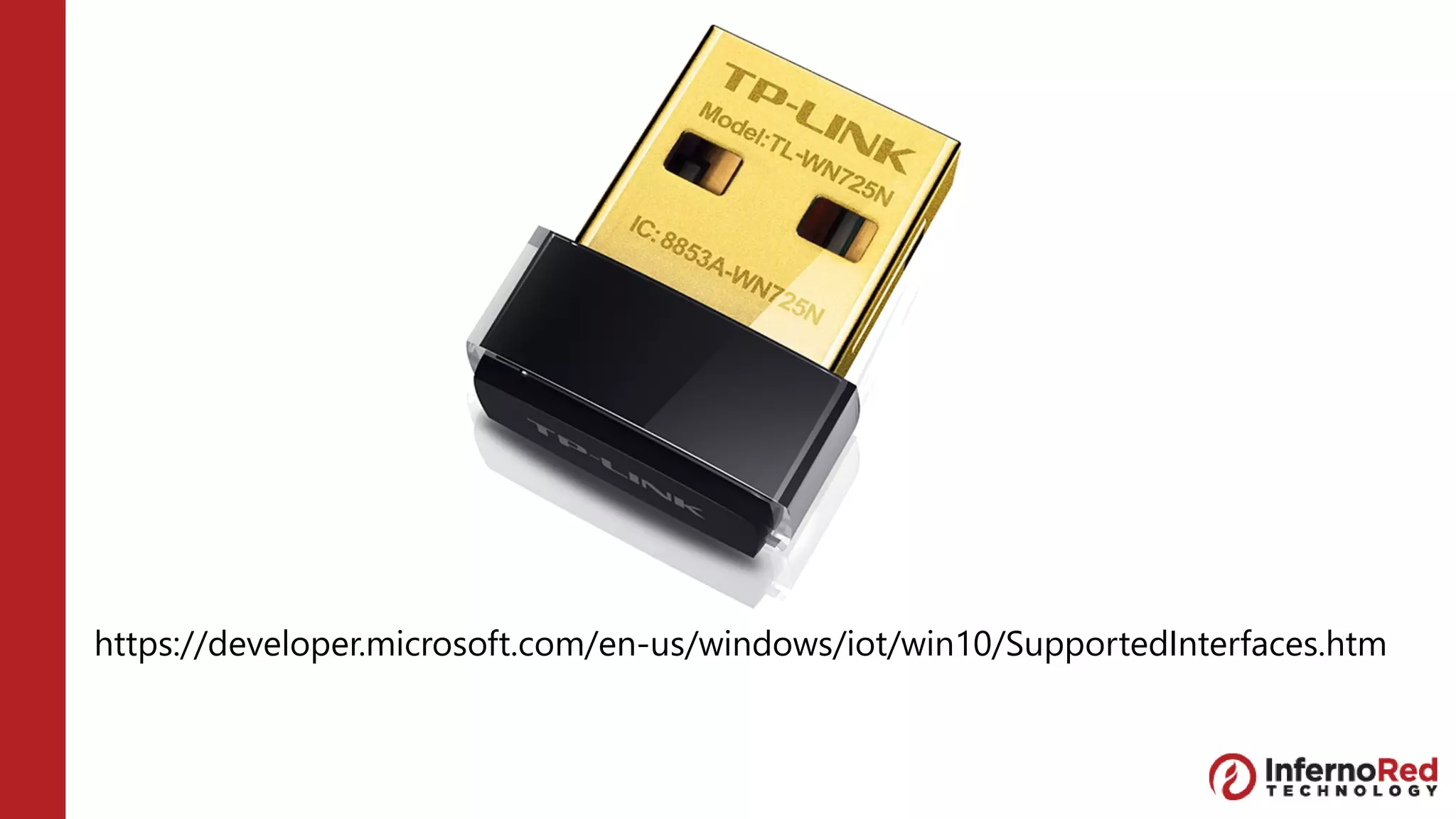

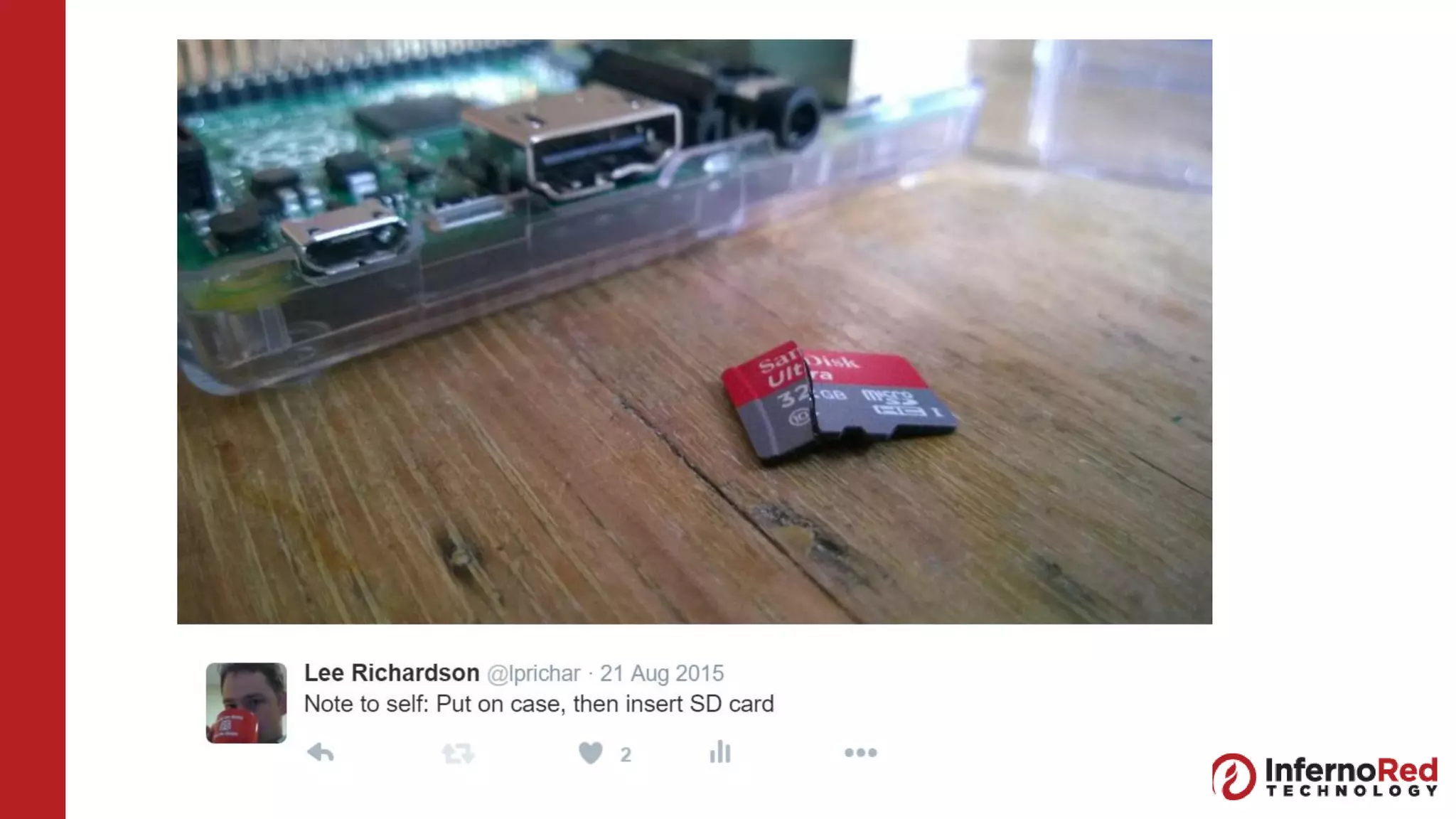

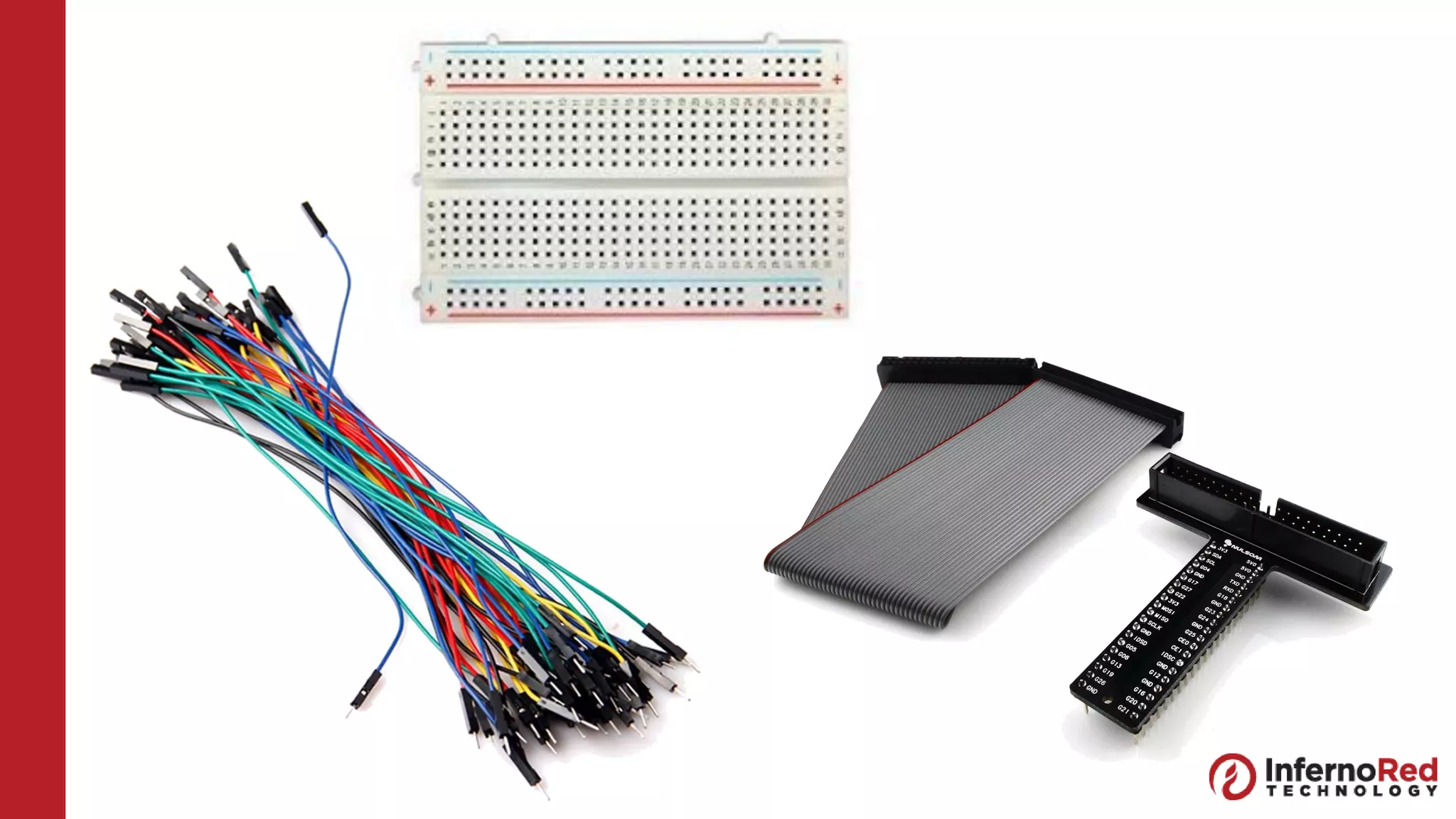

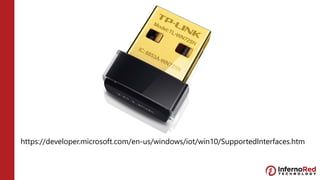

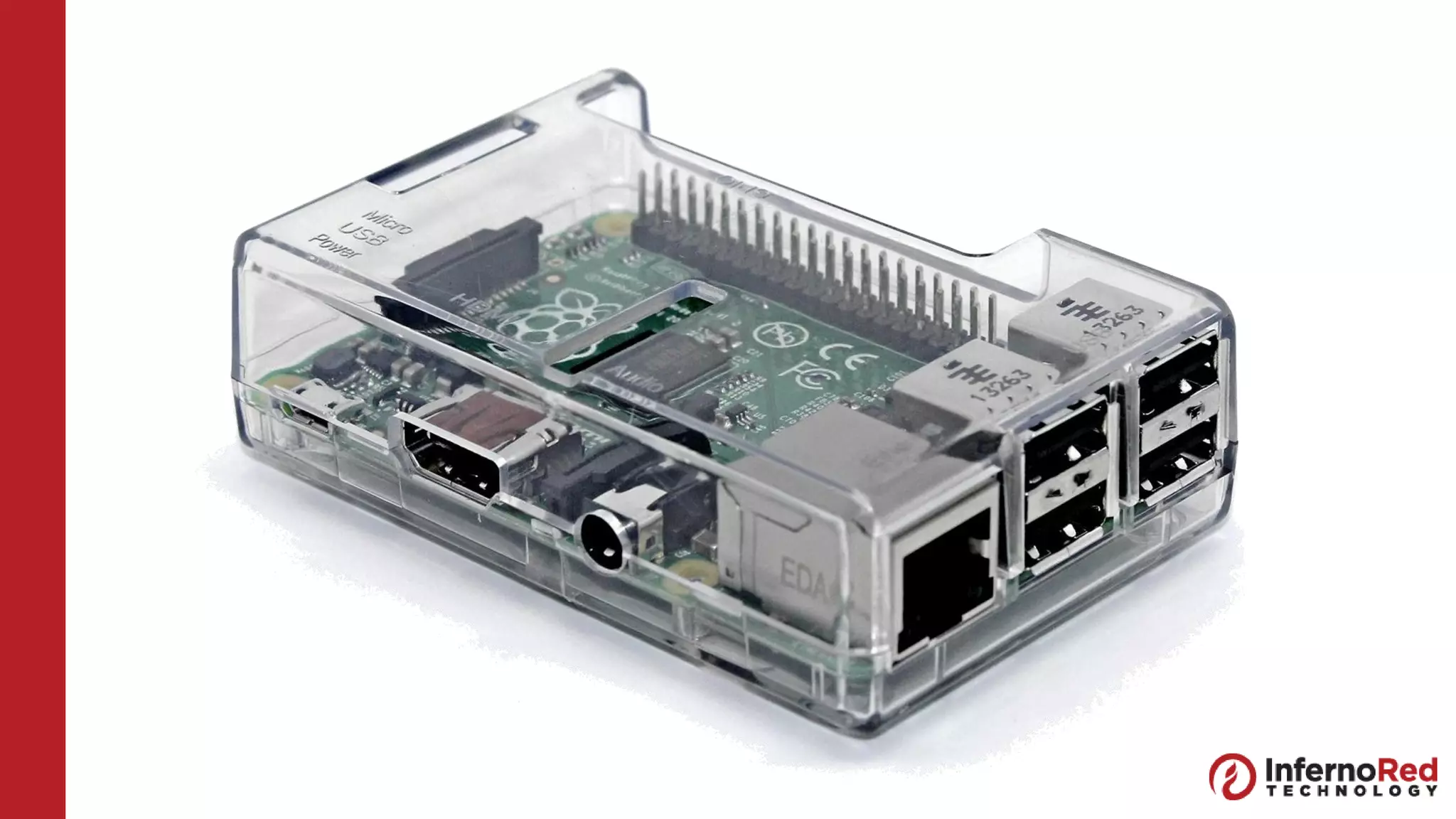

- 17.
- 19. Part 2: How •Stuff You Need • Device Setup • Dev Environment Setup • Hello World

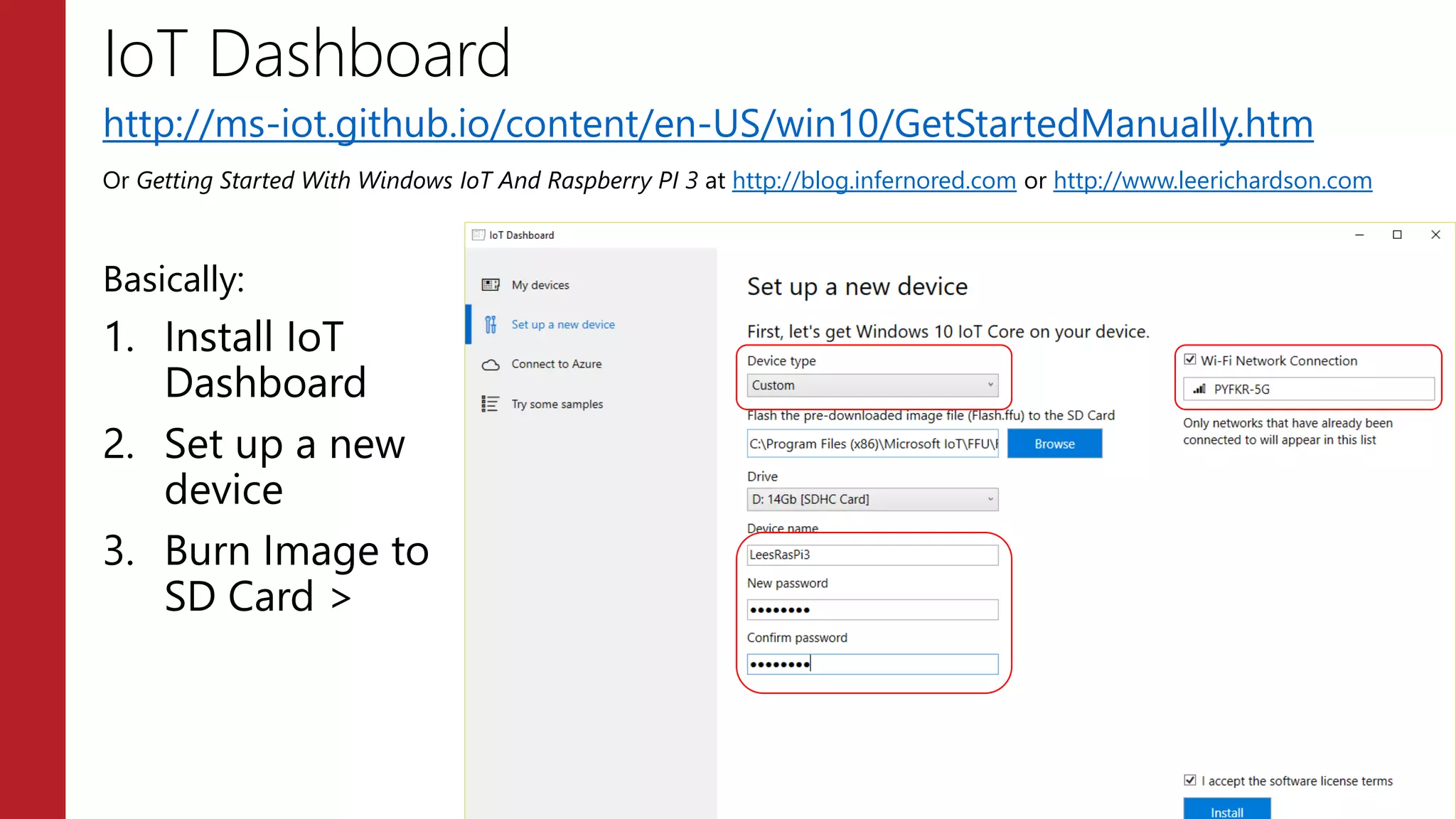

- 20. IoT Dashboard http://ms-iot.github.io/content/en-US/win10/GetStartedManually.htm Or GettingStarted With Windows IoT And Raspberry PI 3 at http://blog.infernored.com or http://www.leerichardson.com Basically: 1. Install IoT Dashboard 2. Set up a new device 3. Burn Image to SD Card >

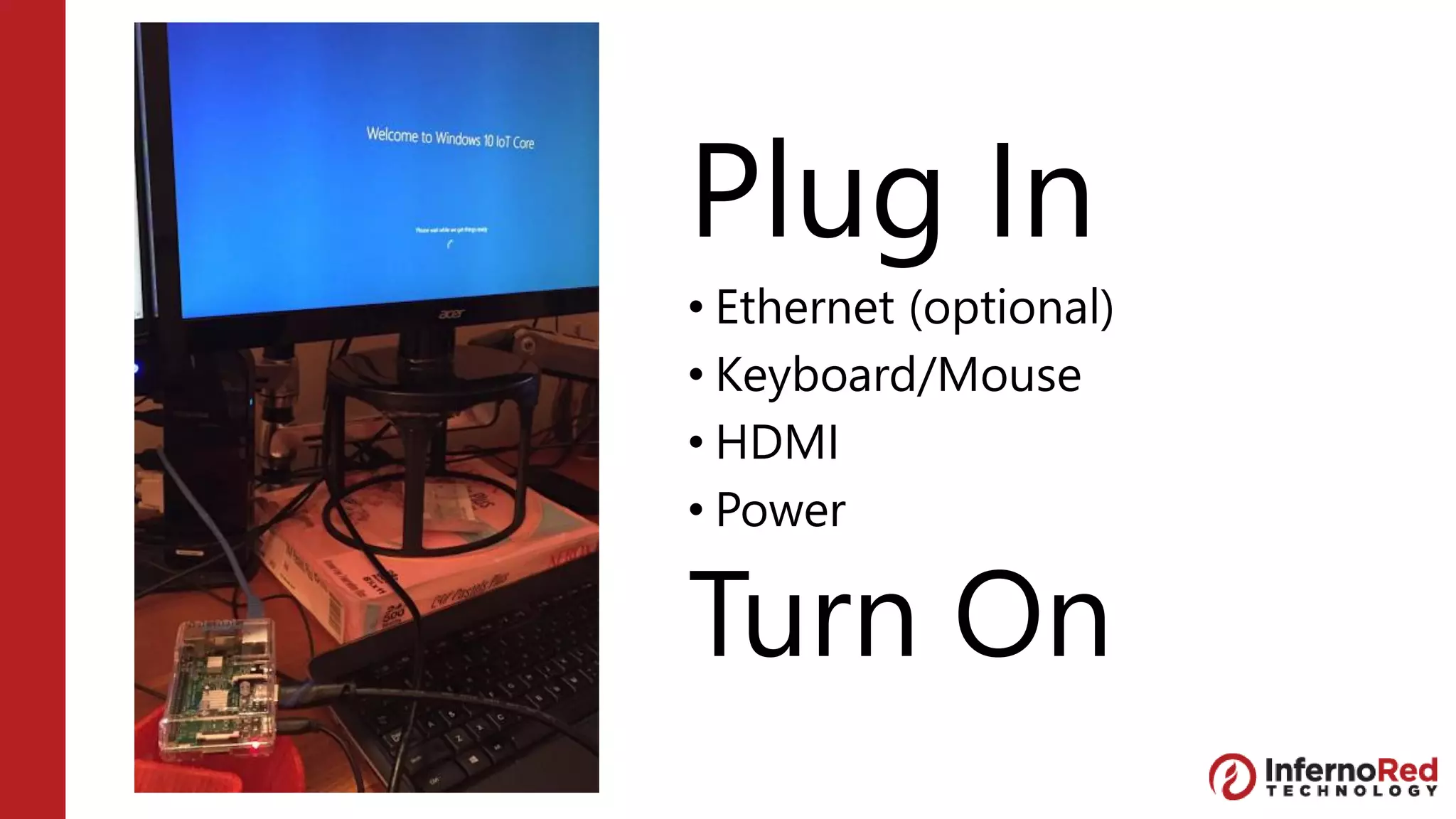

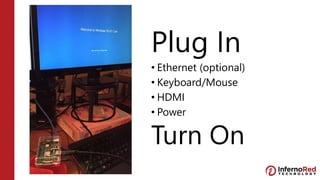

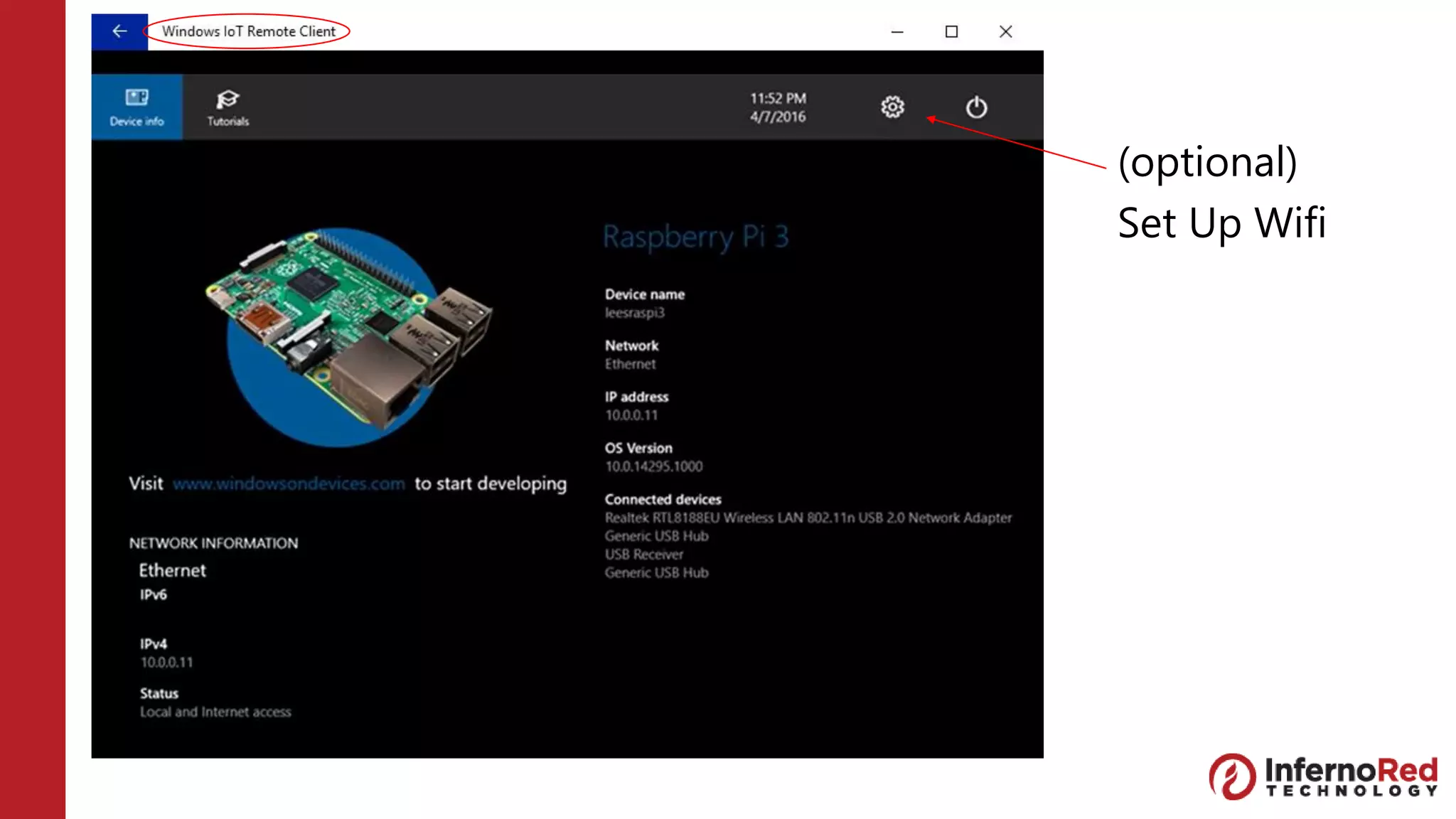

- 21. Plug In • Ethernet(optional) • Keyboard/Mouse • HDMI • Power Turn On
- 22.

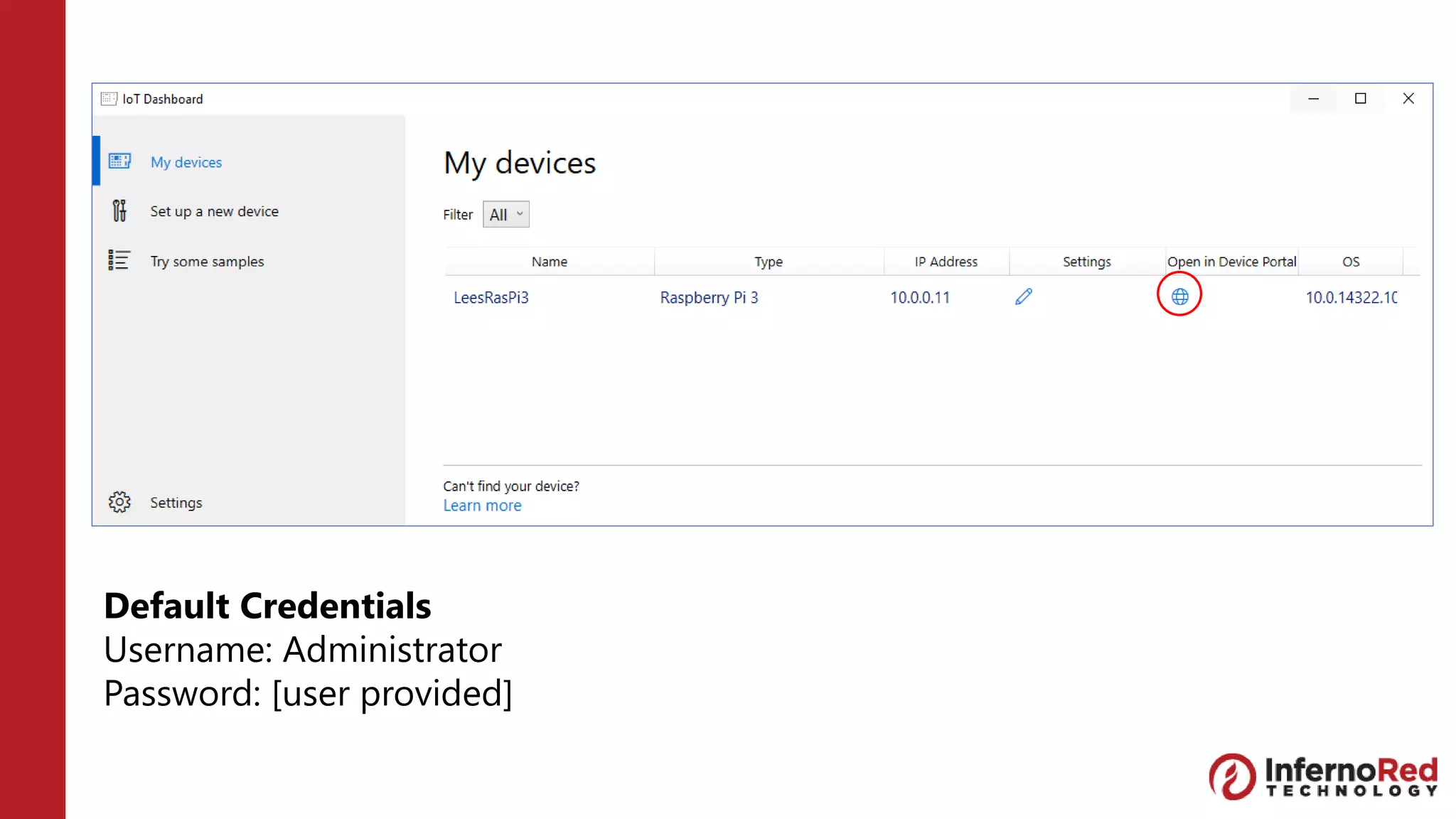

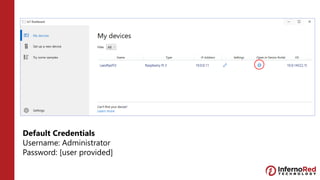

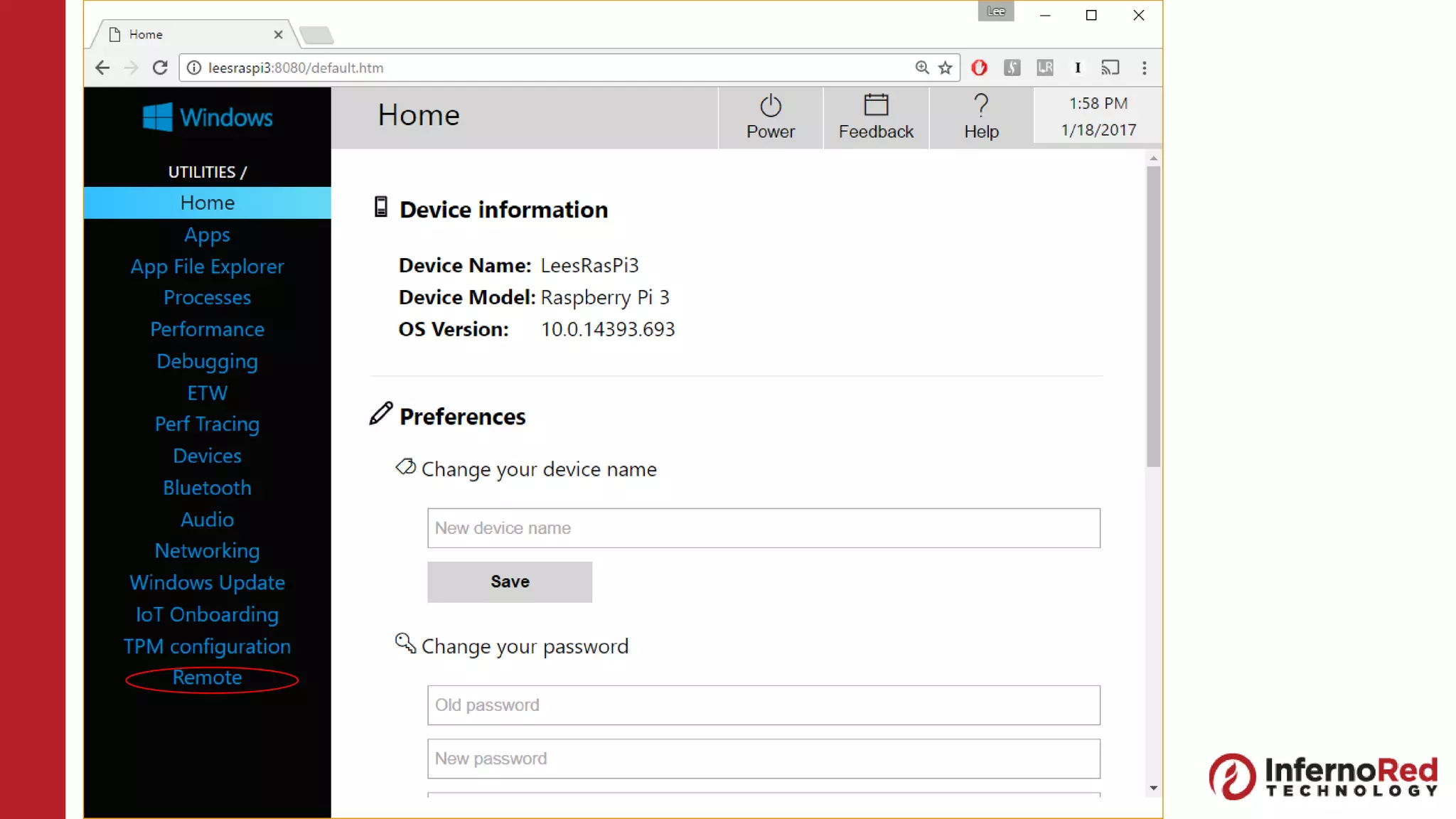

- 23. Default Credentials Username: Administrator Password:[user provided]
- 25. Part 2: How •Stuff You Need • Device Setup • Dev Environment Setup • Hello World

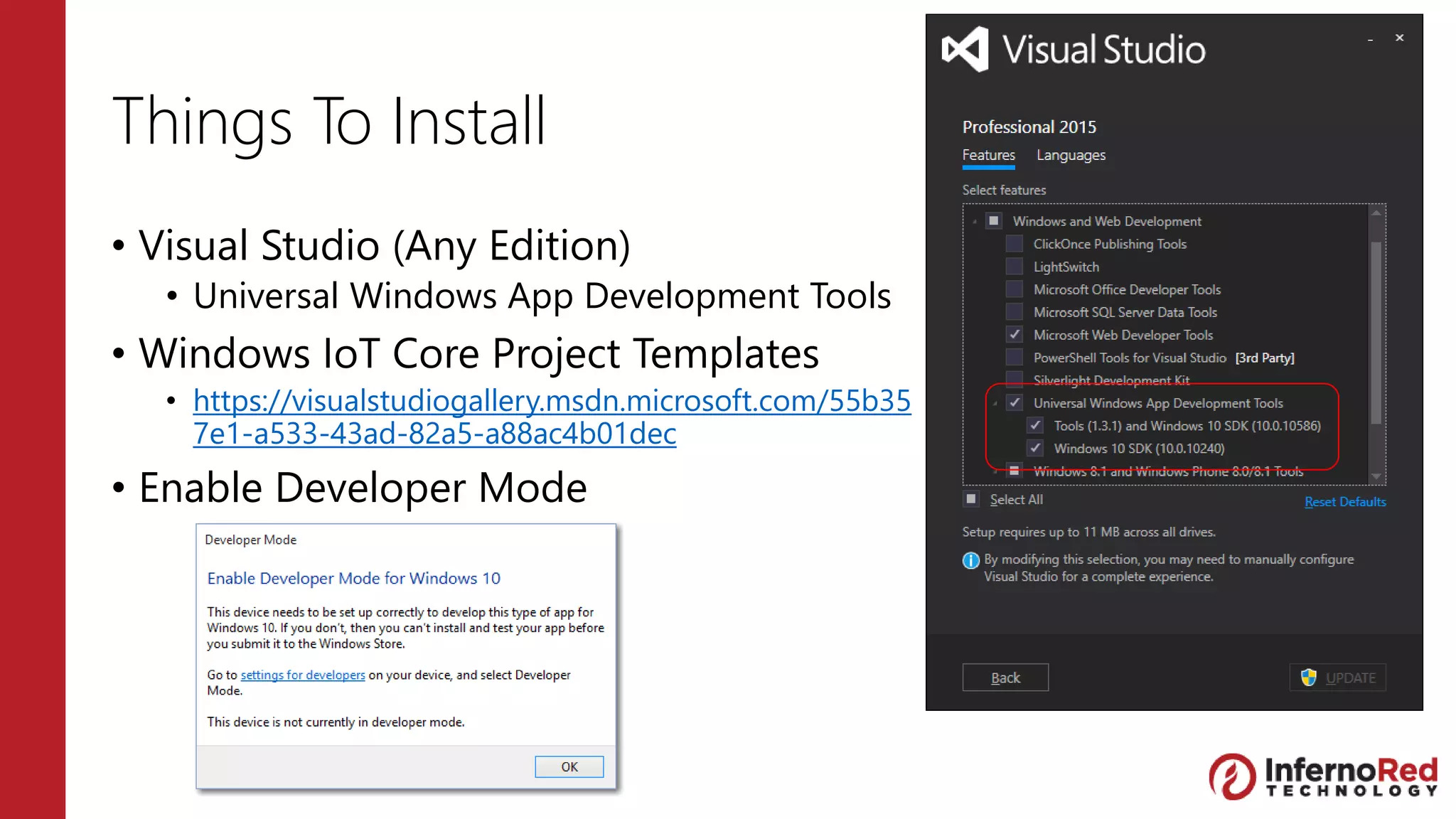

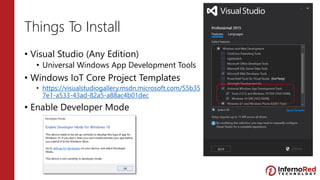

- 26. Things To Install •Visual Studio (Any Edition) • Universal Windows App Development Tools • Windows IoT Core Project Templates • https://visualstudiogallery.msdn.microsoft.com/55b35 7e1-a533-43ad-82a5-a88ac4b01dec • Enable Developer Mode
- 27. Demo Time –Hello World
- 28. Part 3: Connectivity •SignalR • Azure IoT • Alljoyn • Web Server

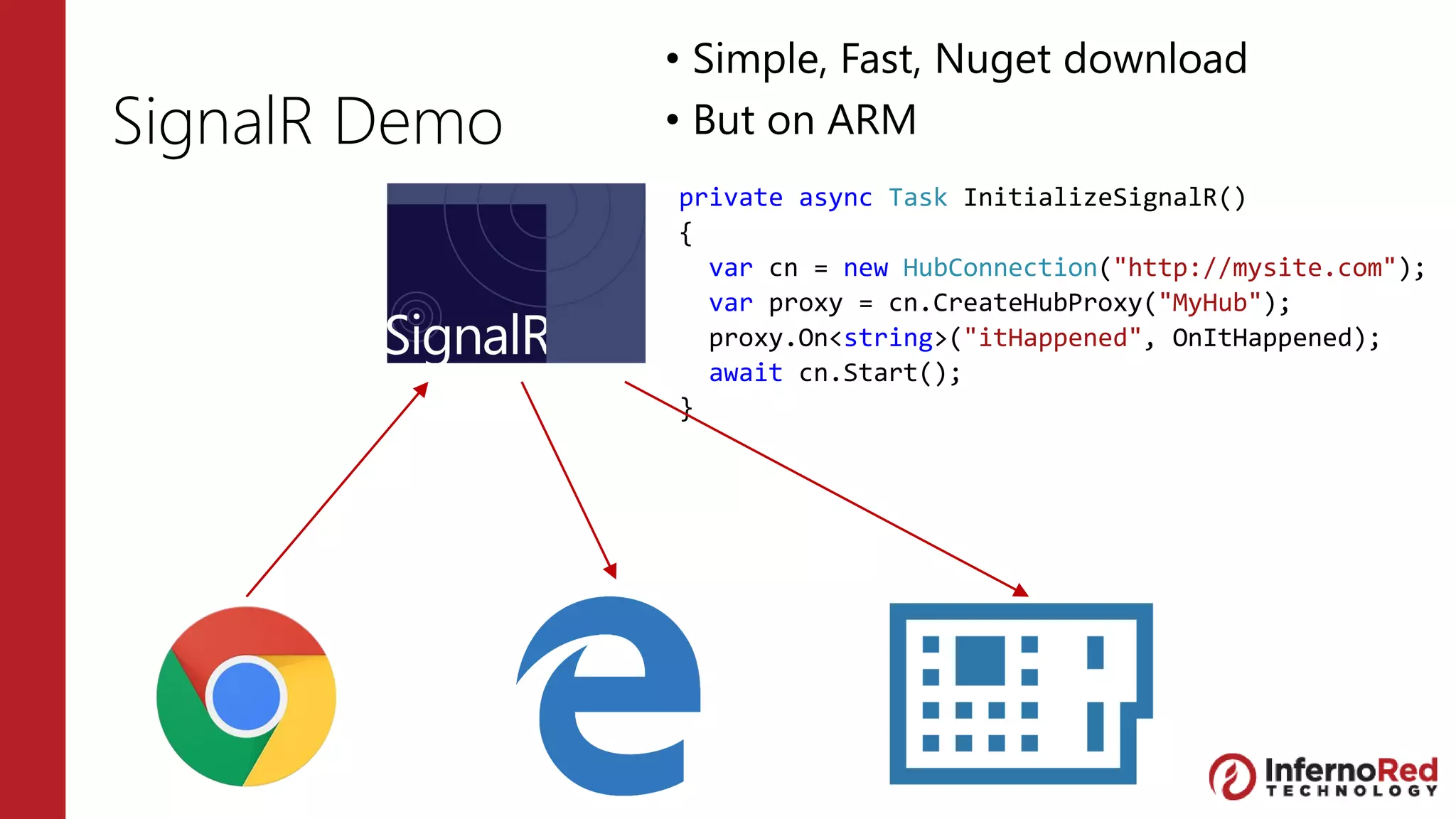

- 29. SignalR Demo • Simple,Fast, Nuget download • But on ARM private async Task InitializeSignalR() { var cn = new HubConnection("http://mysite.com"); var proxy = cn.CreateHubProxy("MyHub"); proxy.On<string>("itHappened", OnItHappened); await cn.Start(); }

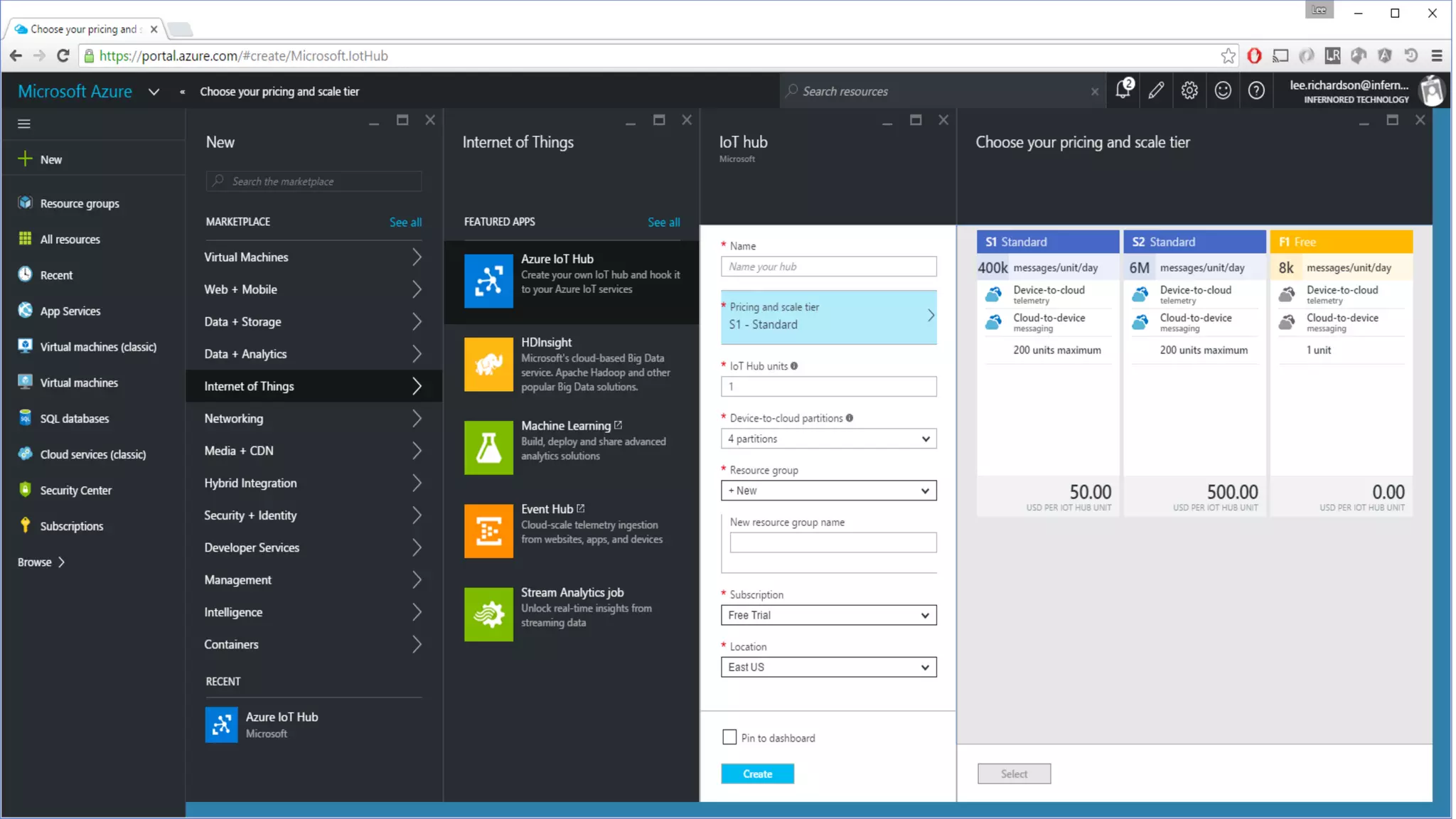

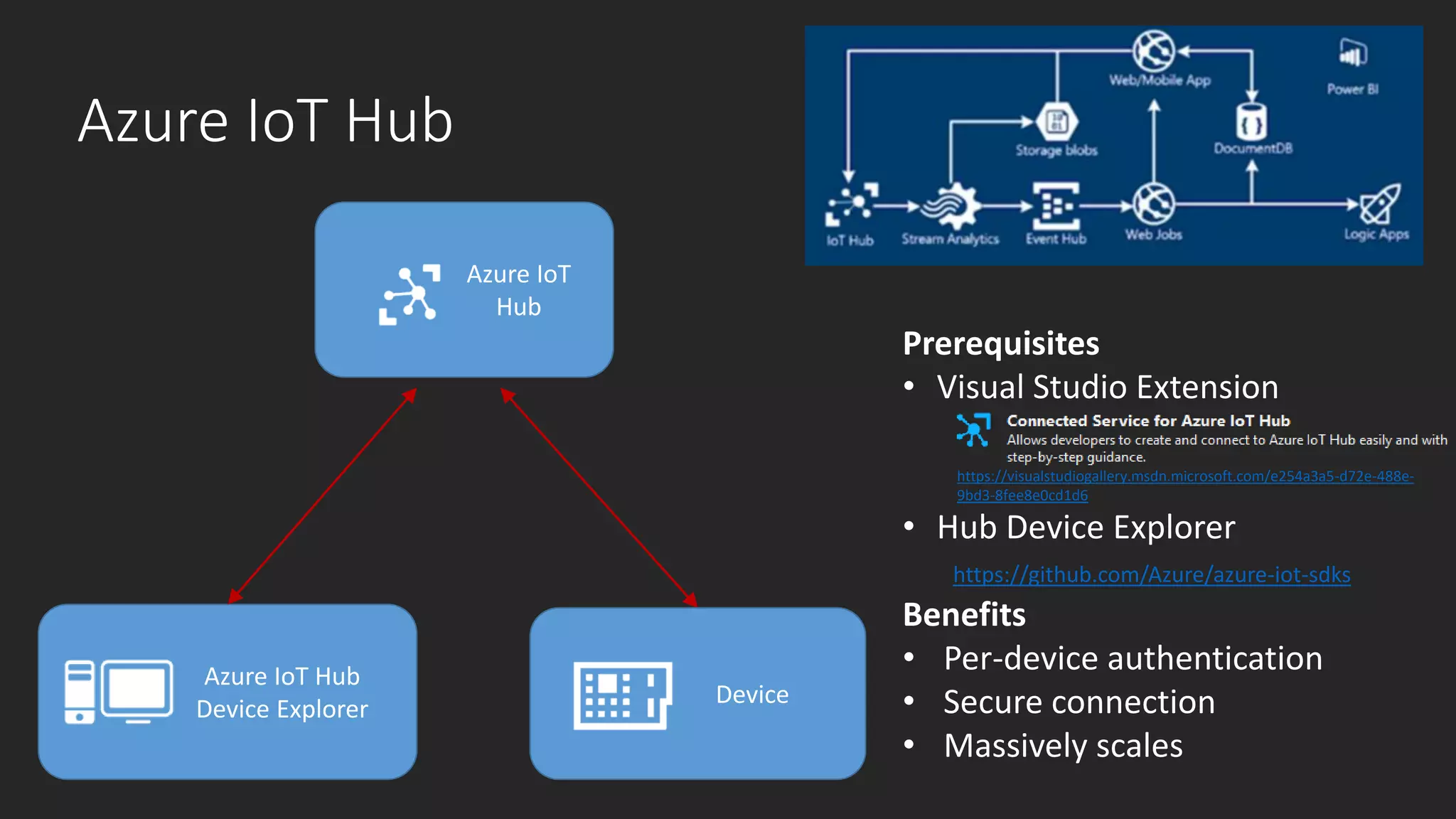

- 30. Azure IoT Hub AzureIoT Hub Device Explorer Device Azure IoT Hub Prerequisites • Visual Studio Extension https://visualstudiogallery.msdn.microsoft.com/e254a3a5-d72e-488e- 9bd3-8fee8e0cd1d6 • Hub Device Explorer https://github.com/Azure/azure-iot-sdks Benefits • Per-device authentication • Secure connection • Massively scales

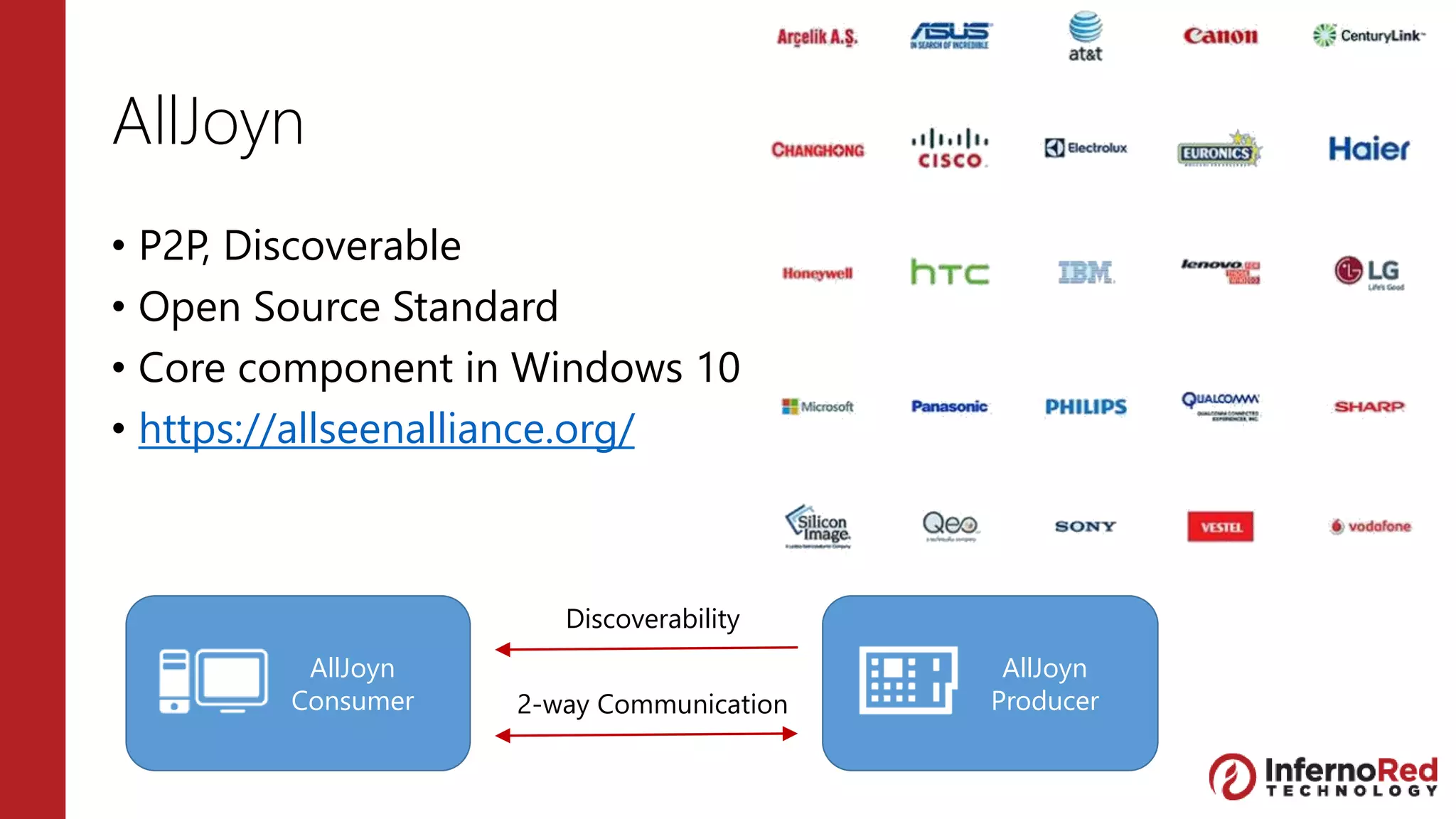

- 32. AllJoyn • P2P, Discoverable •Open Source Standard • Core component in Windows 10 • https://allseenalliance.org/ AllJoyn Consumer Discoverability 2-way Communication AllJoyn Producer

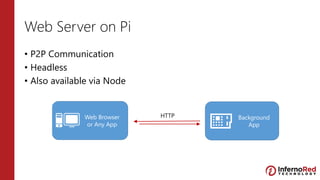

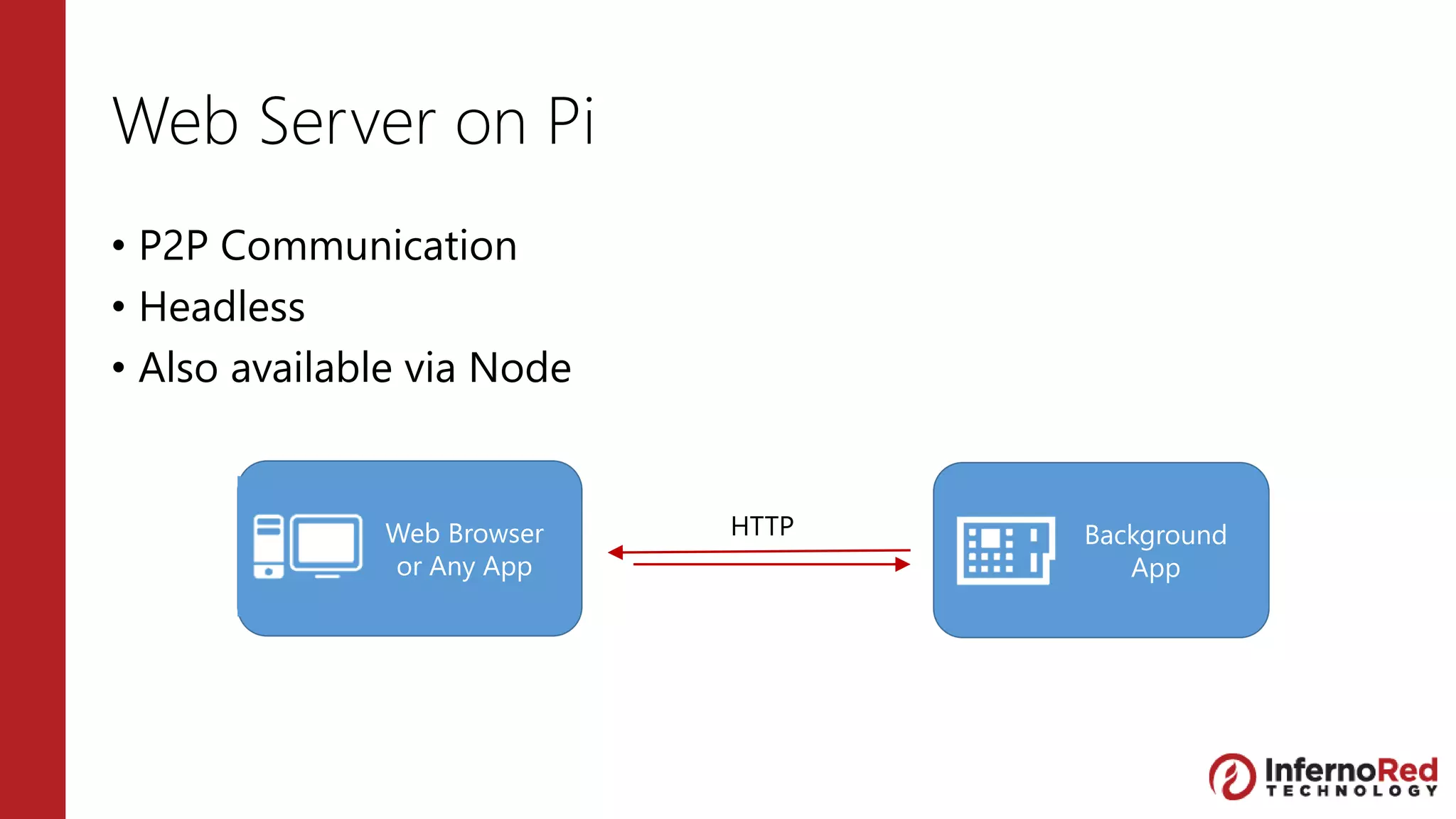

- 33. Web Browser or AnyApp HTTP Web Server on Pi • P2P Communication • Headless • Also available via Node Background App
- 34.

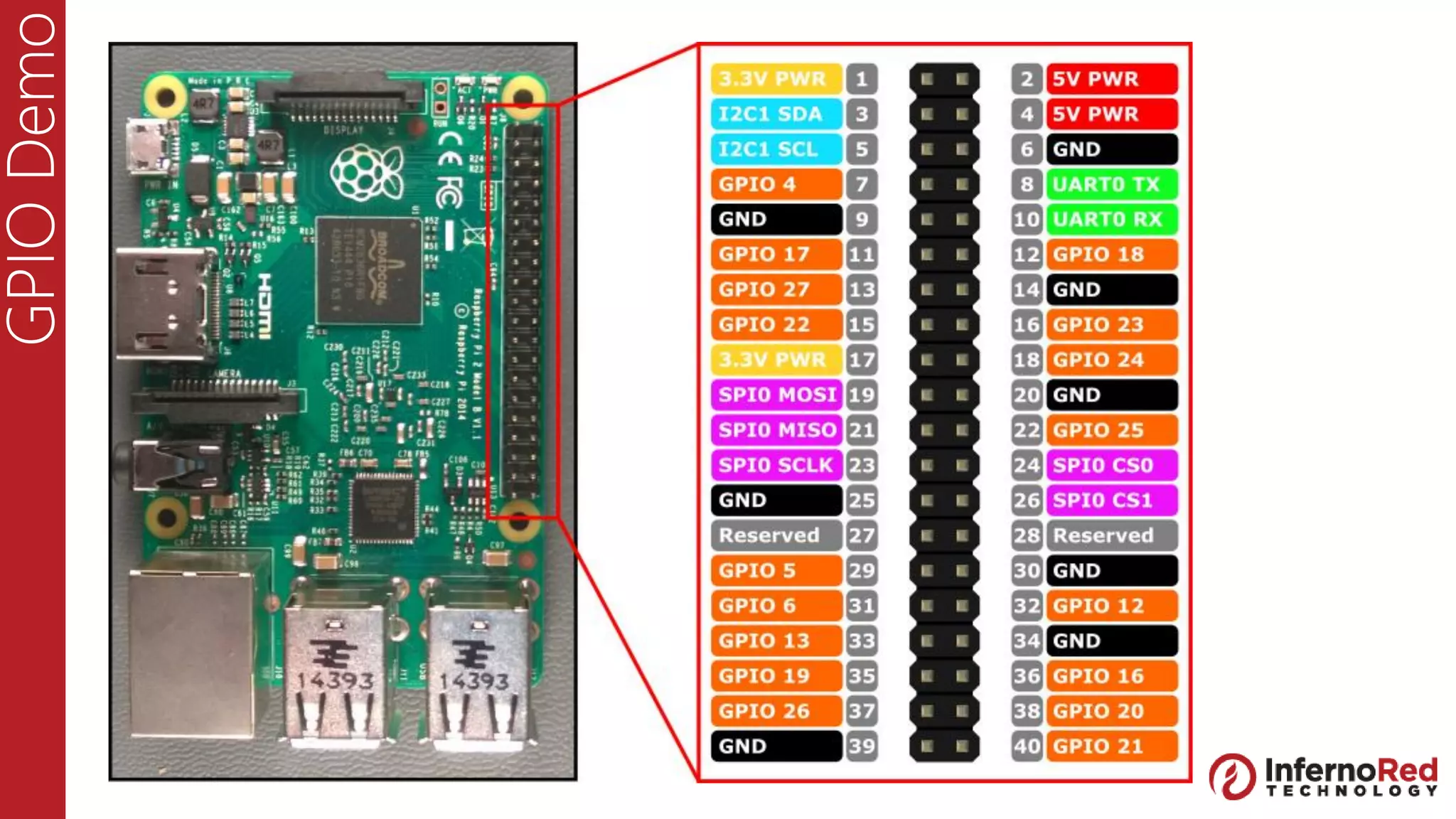

- 35.

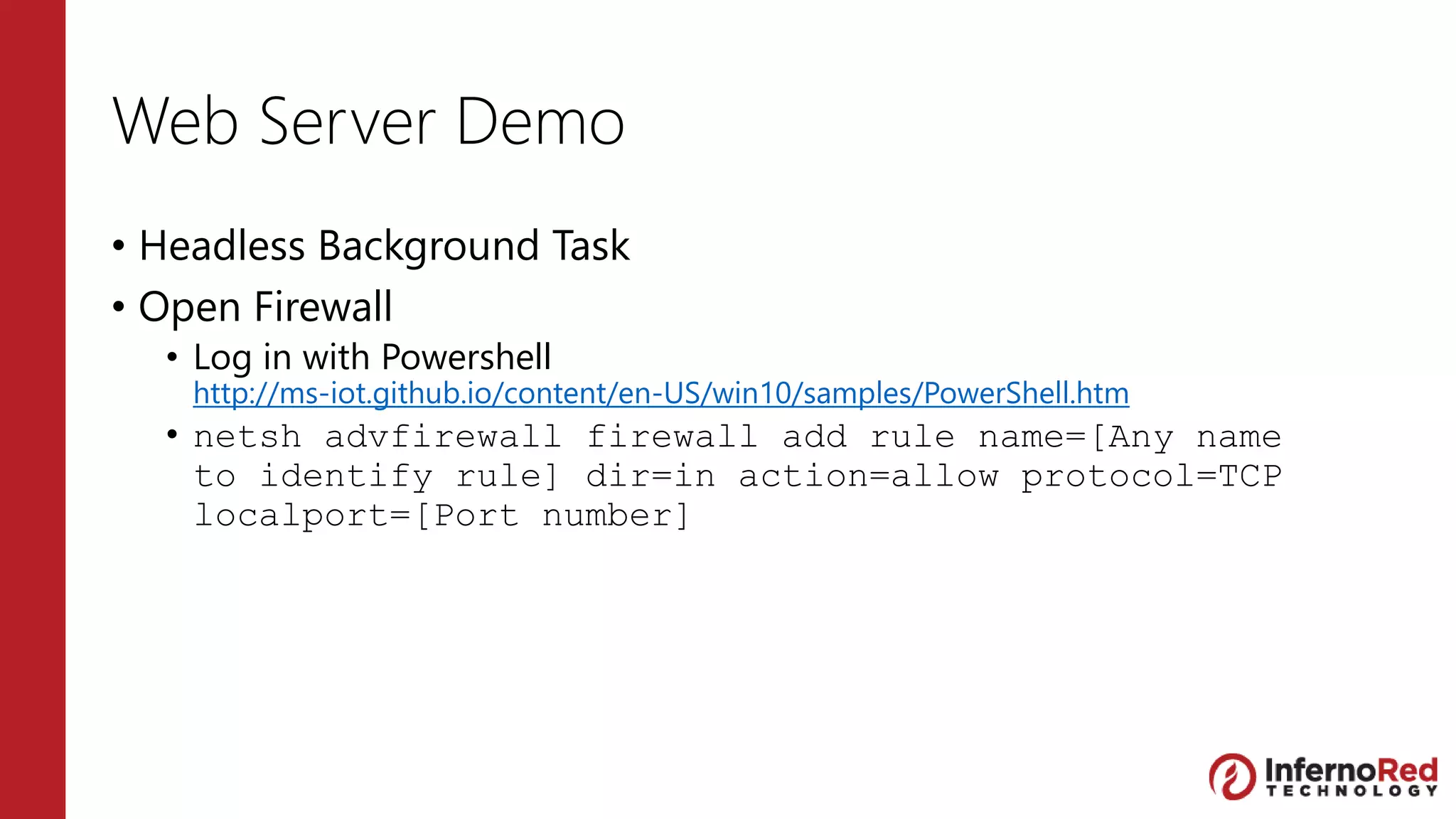

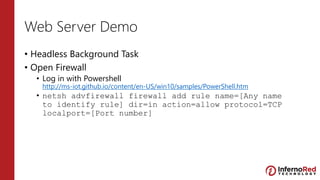

- 36. Web Server Demo •Headless Background Task • Open Firewall • Log in with Powershell http://ms-iot.github.io/content/en-US/win10/samples/PowerShell.htm • netsh advfirewall firewall add rule name=[Any name to identify rule] dir=in action=allow protocol=TCP localport=[Port number]

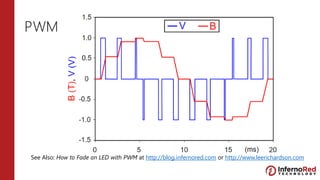

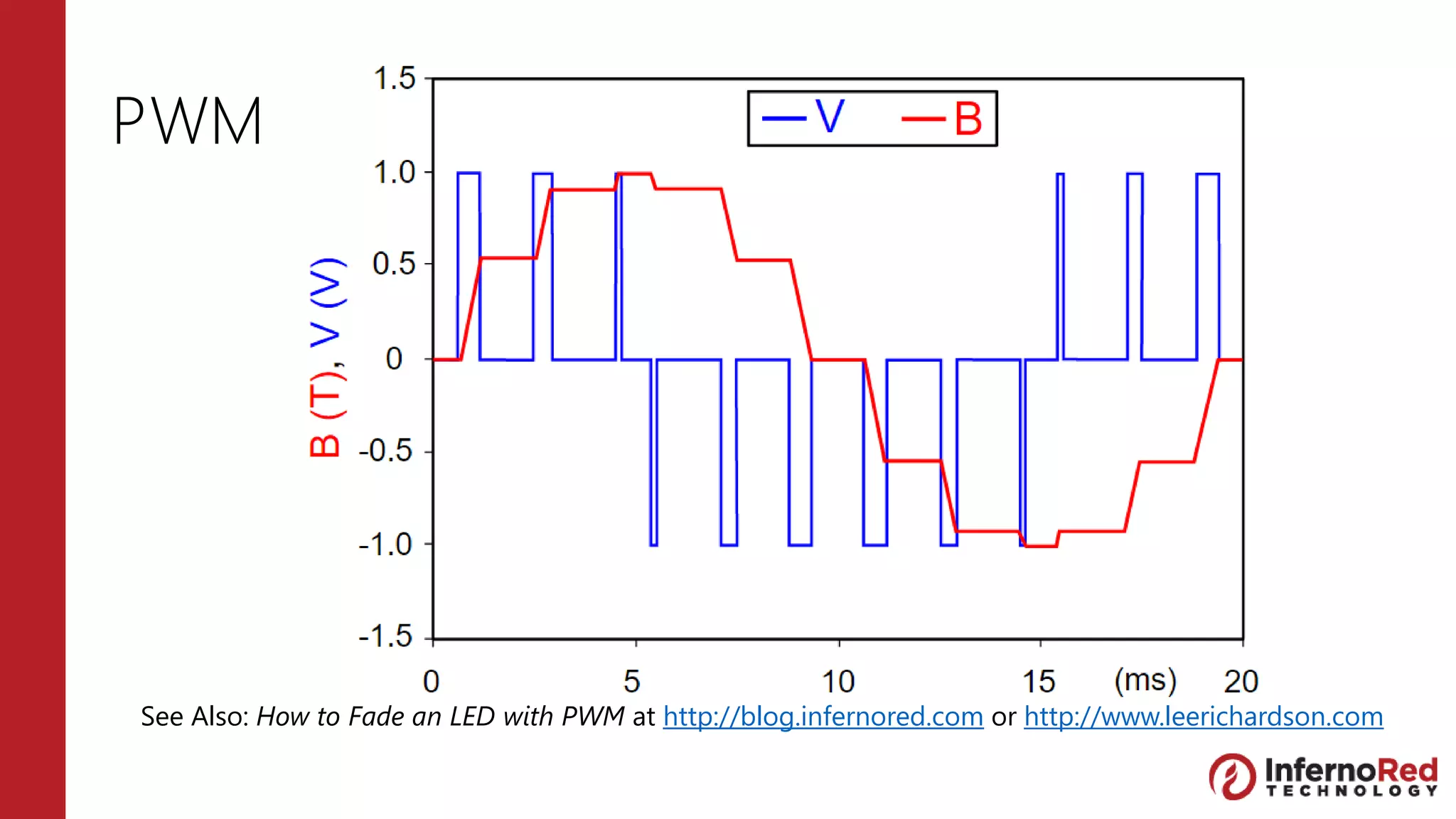

- 37. PWM See Also: Howto Fade an LED with PWM at http://blog.infernored.com or http://www.leerichardson.com

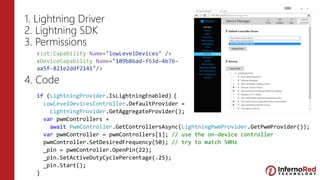

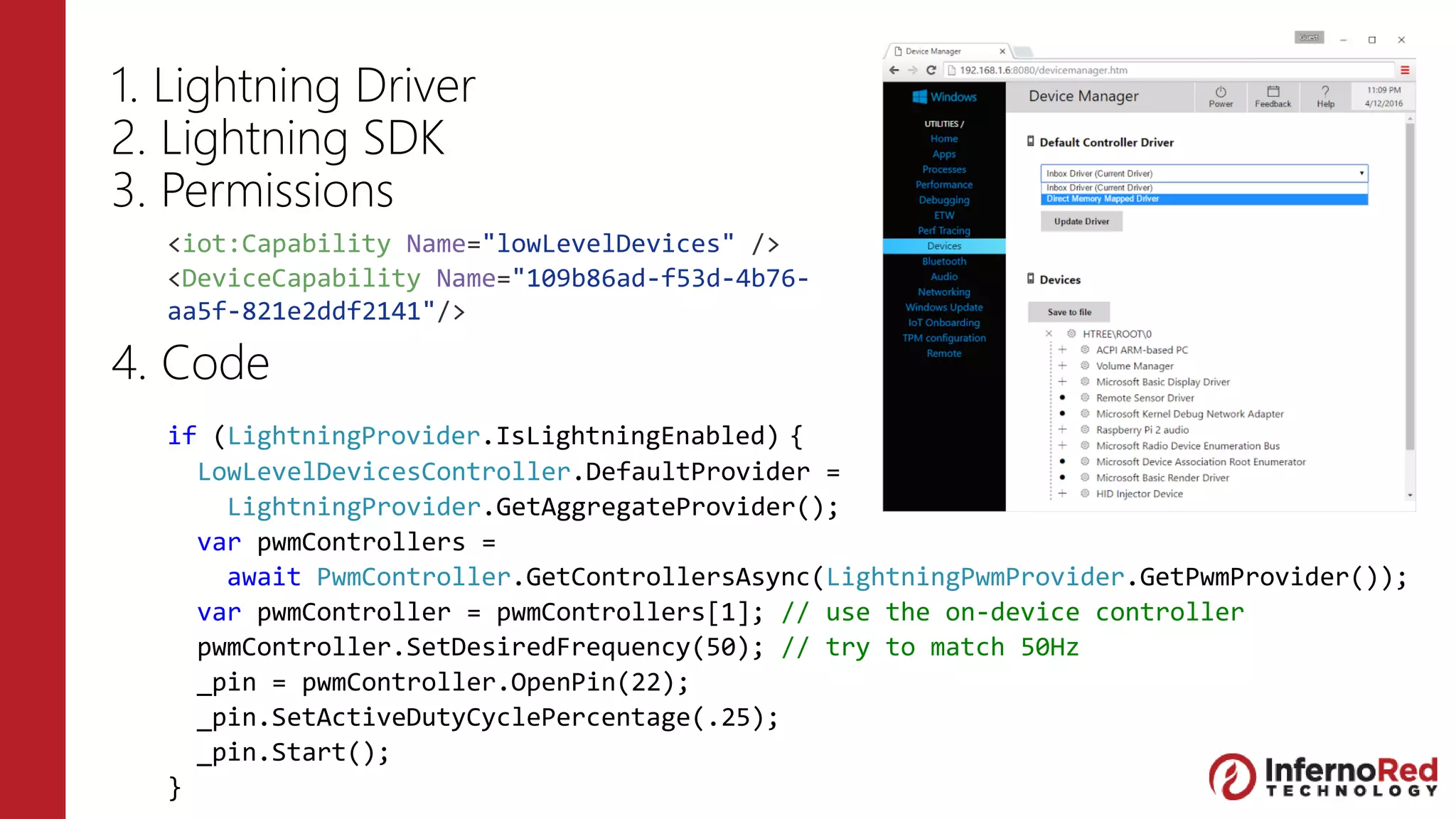

- 38. 1. Lightning Driver 2.Lightning SDK 3. Permissions 4. Code <iot:Capability Name="lowLevelDevices" /> <DeviceCapability Name="109b86ad-f53d-4b76- aa5f-821e2ddf2141"/> if (LightningProvider.IsLightningEnabled) { LowLevelDevicesController.DefaultProvider = LightningProvider.GetAggregateProvider(); var pwmControllers = await PwmController.GetControllersAsync(LightningPwmProvider.GetPwmProvider()); var pwmController = pwmControllers[1]; // use the on-device controller pwmController.SetDesiredFrequency(50); // try to match 50Hz _pin = pwmController.OpenPin(22); _pin.SetActiveDutyCyclePercentage(.25); _pin.Start(); }

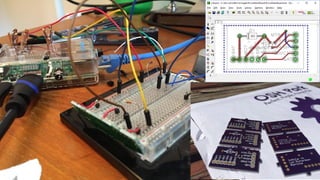

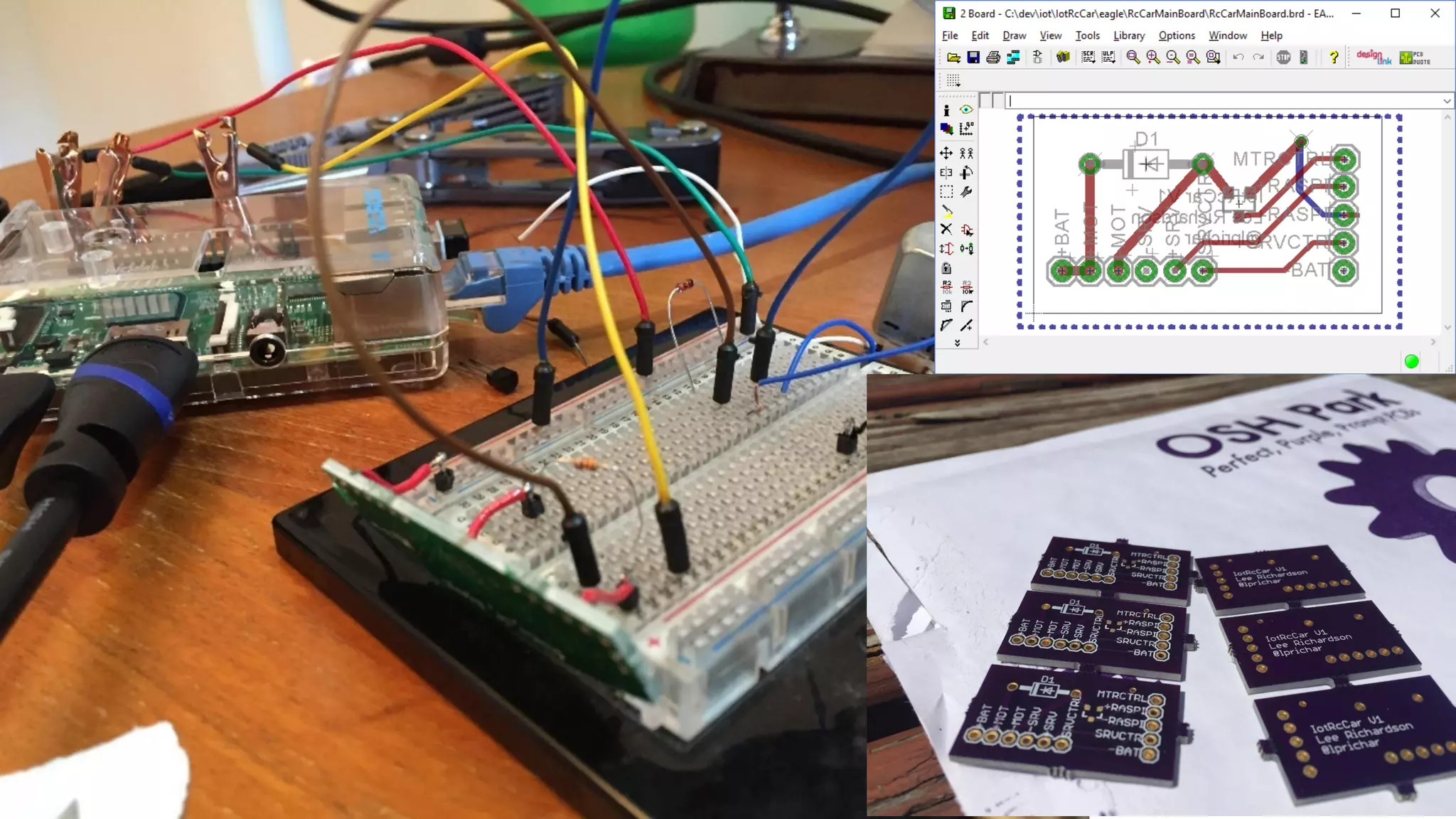

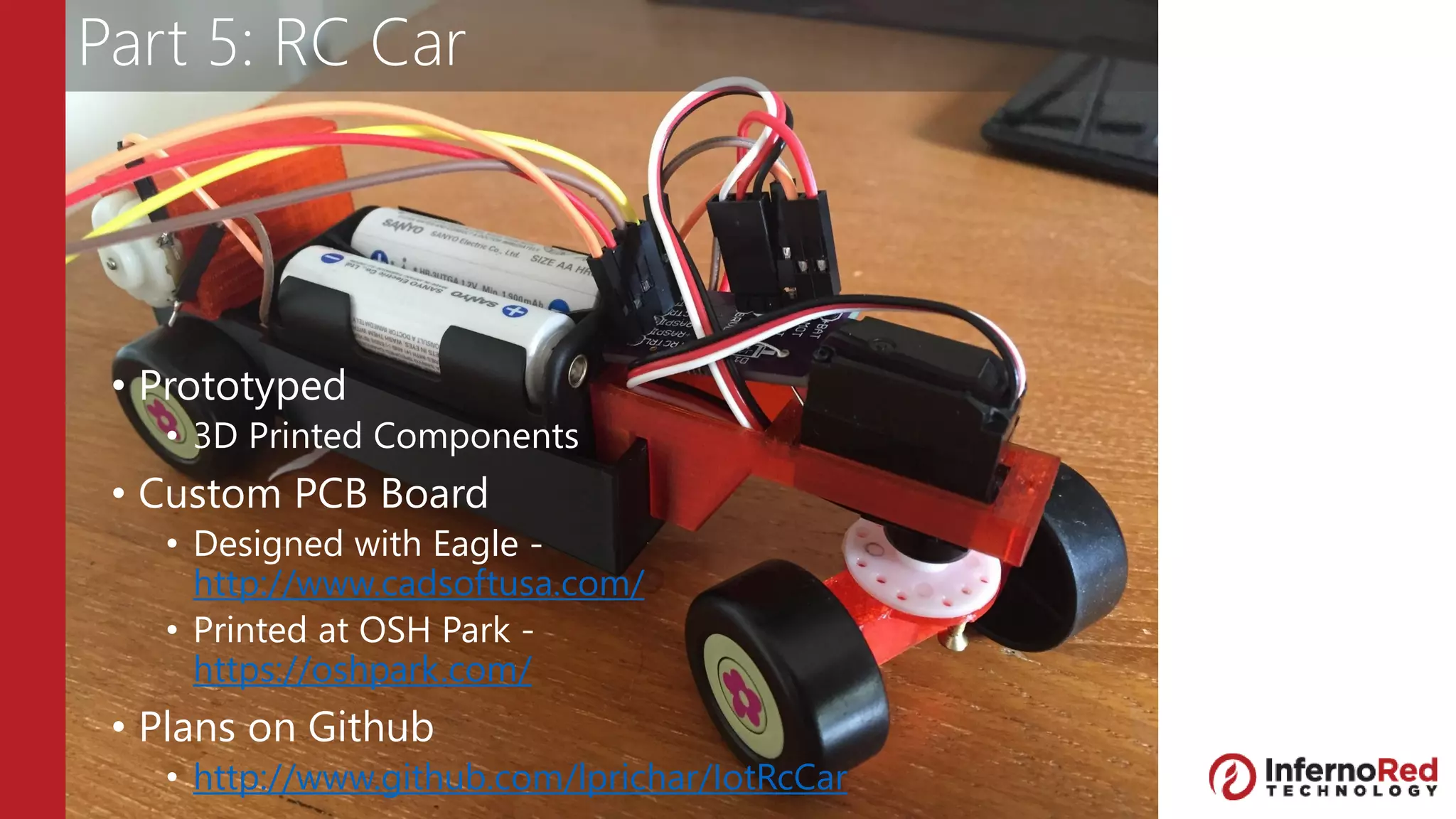

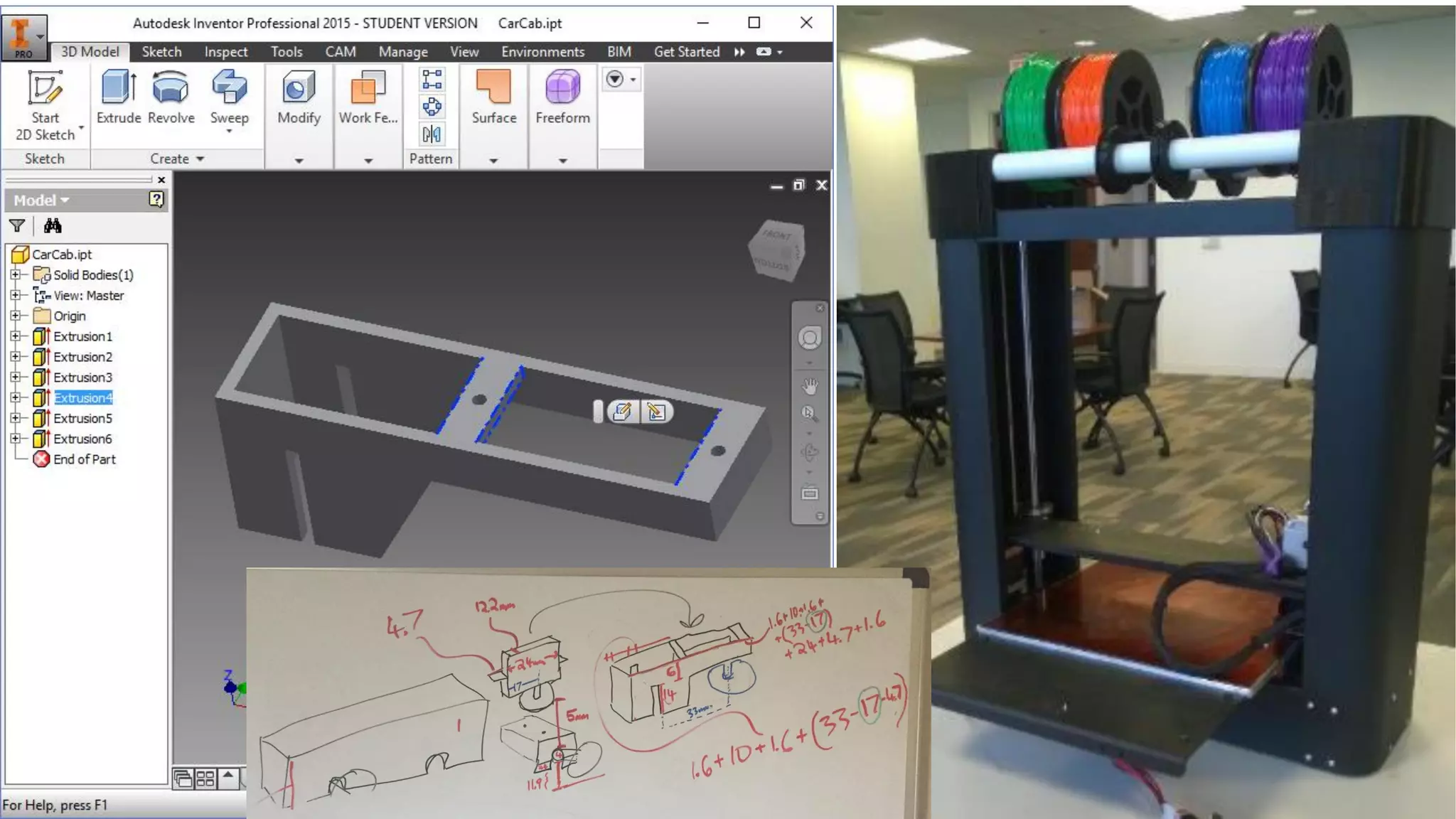

- 39. Part 5: RCCar • Prototyped • 3D Printed Components • Custom PCB Board • Designed with Eagle - http://www.cadsoftusa.com/ • Printed at OSH Park - https://oshpark.com/ • Plans on Github • http://www.github.com/lprichar/IotRcCar

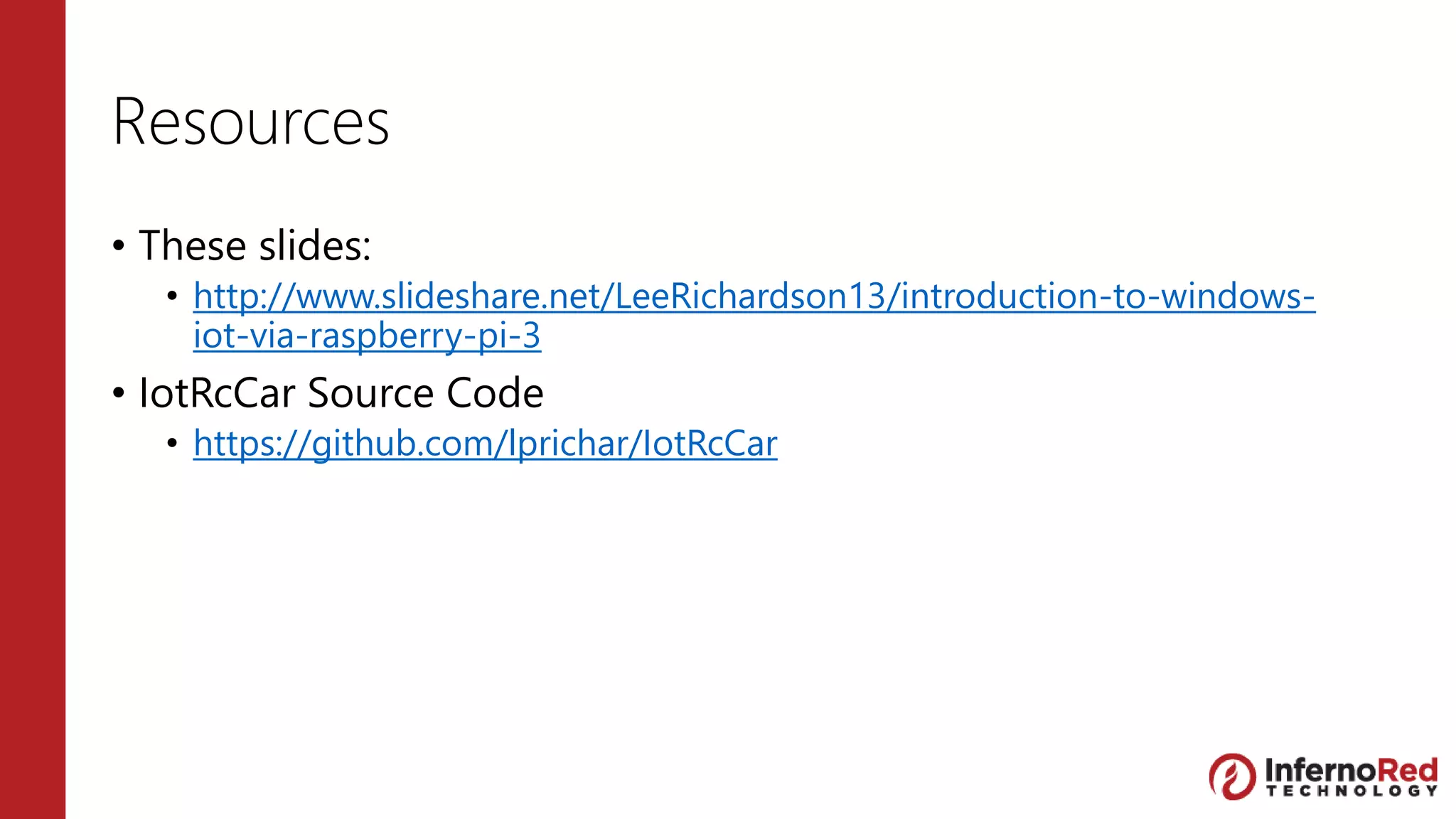

- 42. Resources • These slides: •http://www.slideshare.net/LeeRichardson13/introduction-to-windows- iot-via-raspberry-pi-3 • IotRcCar Source Code • https://github.com/lprichar/IotRcCar
- 43. http://www.nova-labs.org/ 1916 IsaacNewton Square West Reston, VA 20190 • 3D Printers • Laser Cutter • Arduino Classes • CNC Mill

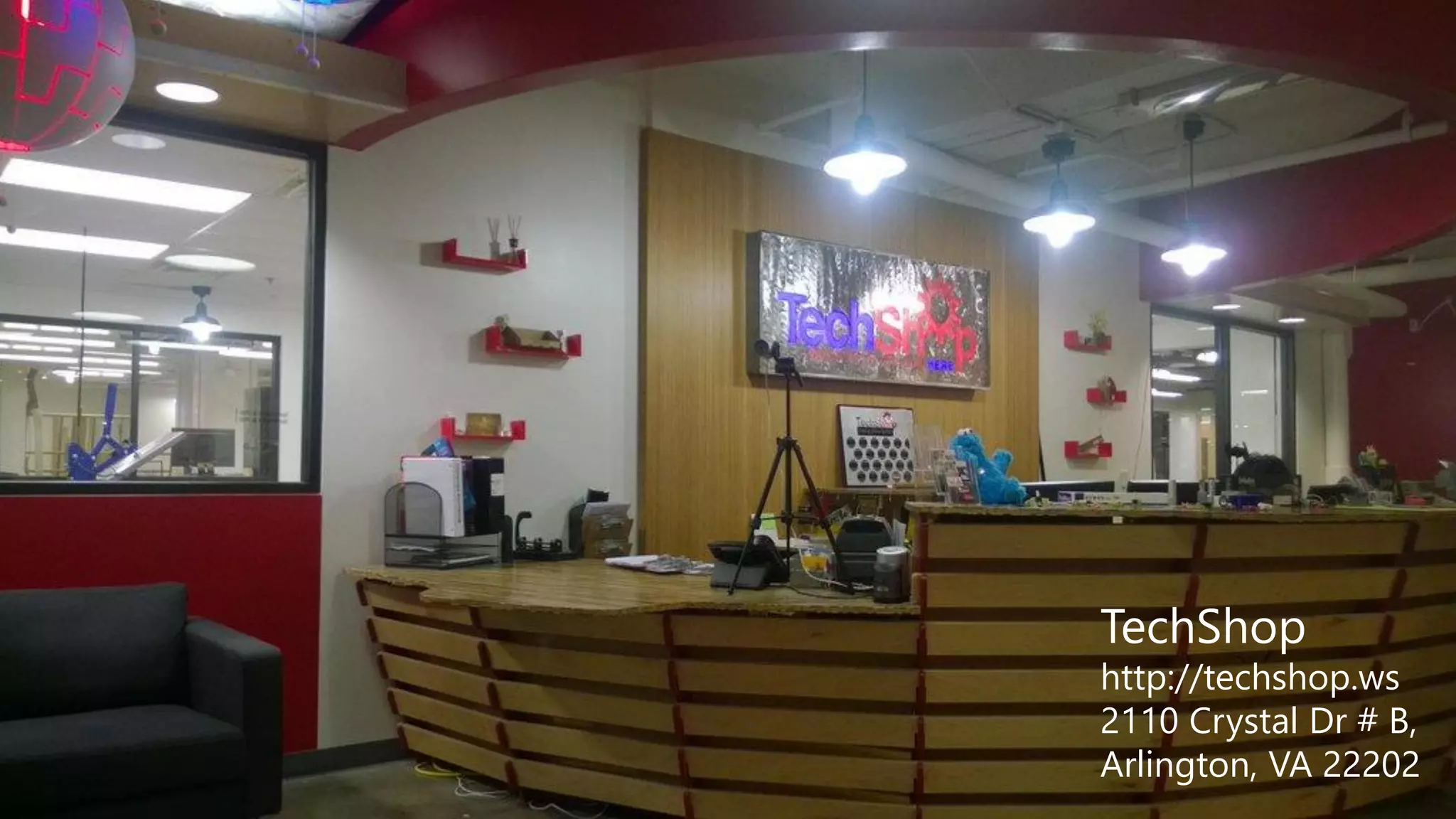

- 44. TechShop http://techshop.ws 2110 Crystal Dr# B, Arlington, VA 22202

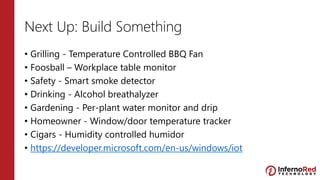

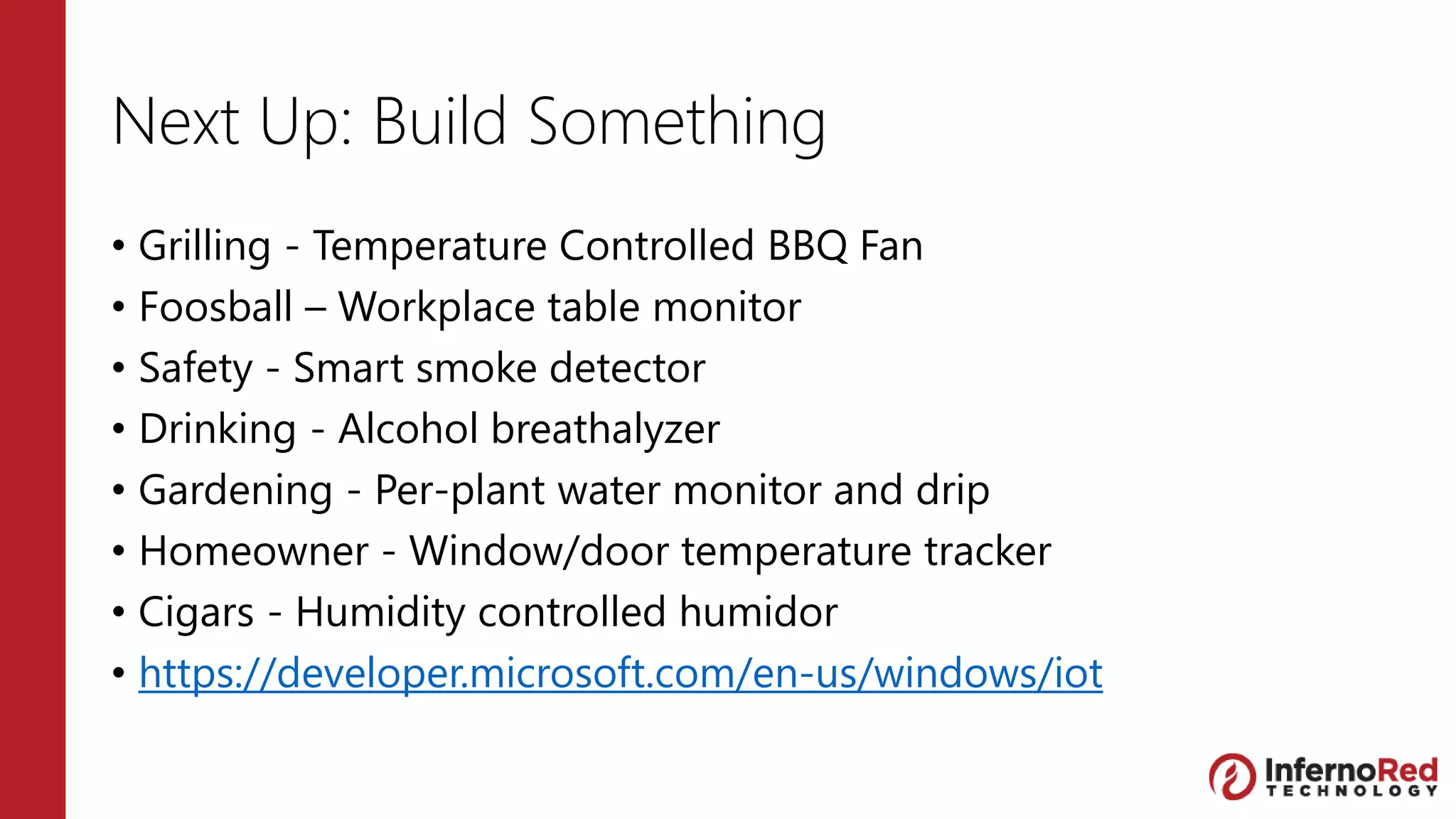

- 45. Next Up: BuildSomething • Grilling - Temperature Controlled BBQ Fan • Foosball – Workplace table monitor • Safety - Smart smoke detector • Drinking - Alcohol breathalyzer • Gardening - Per-plant water monitor and drip • Homeowner - Window/door temperature tracker • Cigars - Humidity controlled humidor • https://developer.microsoft.com/en-us/windows/iot
- 46. Lee Richardson @lprichar http://www.leerichardson.com Introduction to WindowsIoT via Raspberry Pi 3
