Is2215 lecture7 lecturer_ado_intro
- 1. DATABASES IN VISUALBASIC.NET ADO.NET

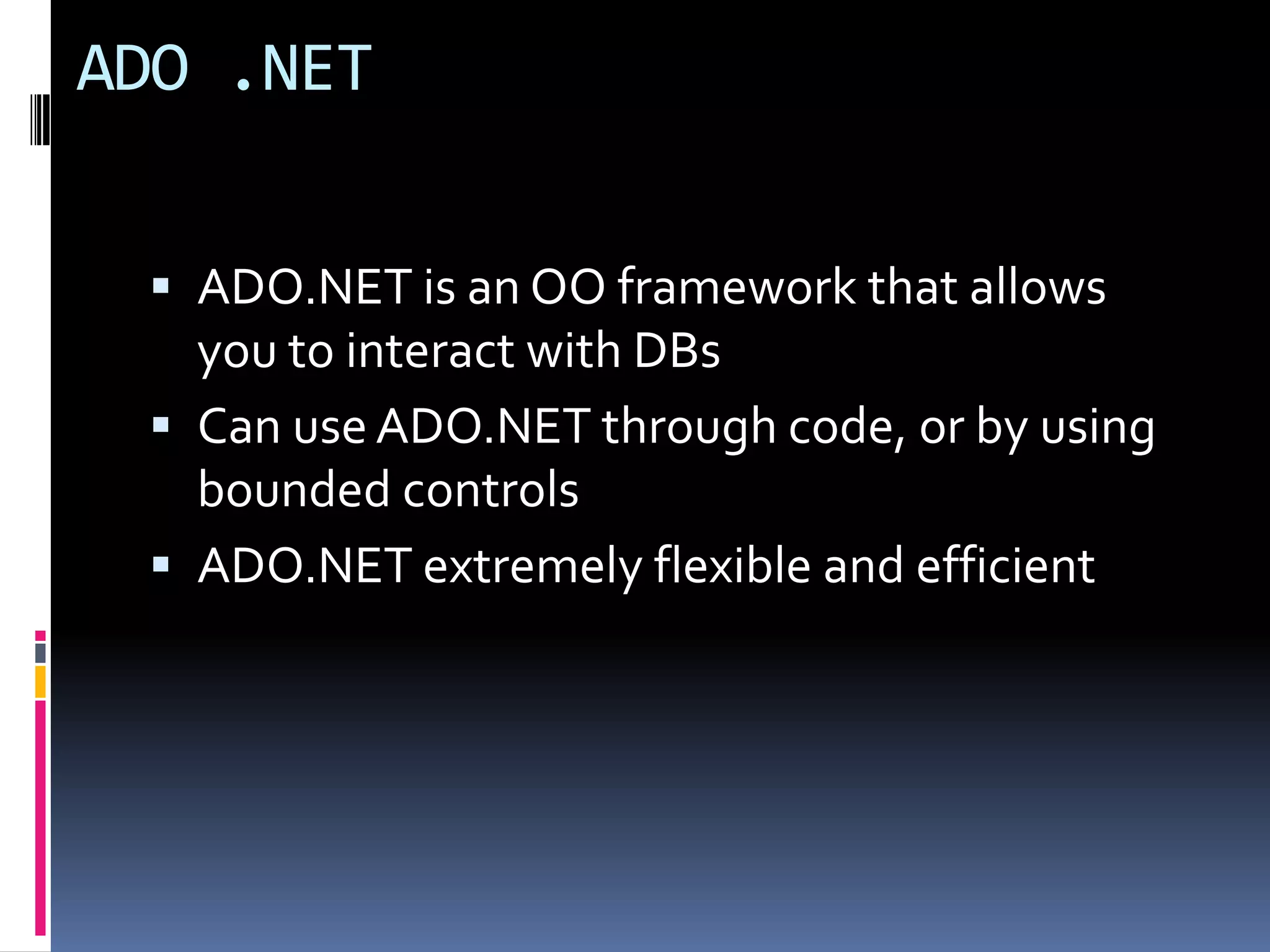

- 2. ADO .NET ADO.NET is an OO framework that allows you to interact with DBs Can use ADO.NET through code, or by using bounded controls ADO.NET extremely flexible and efficient

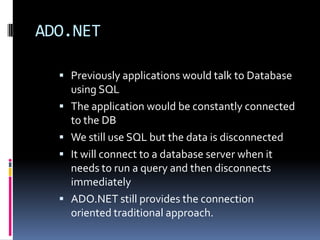

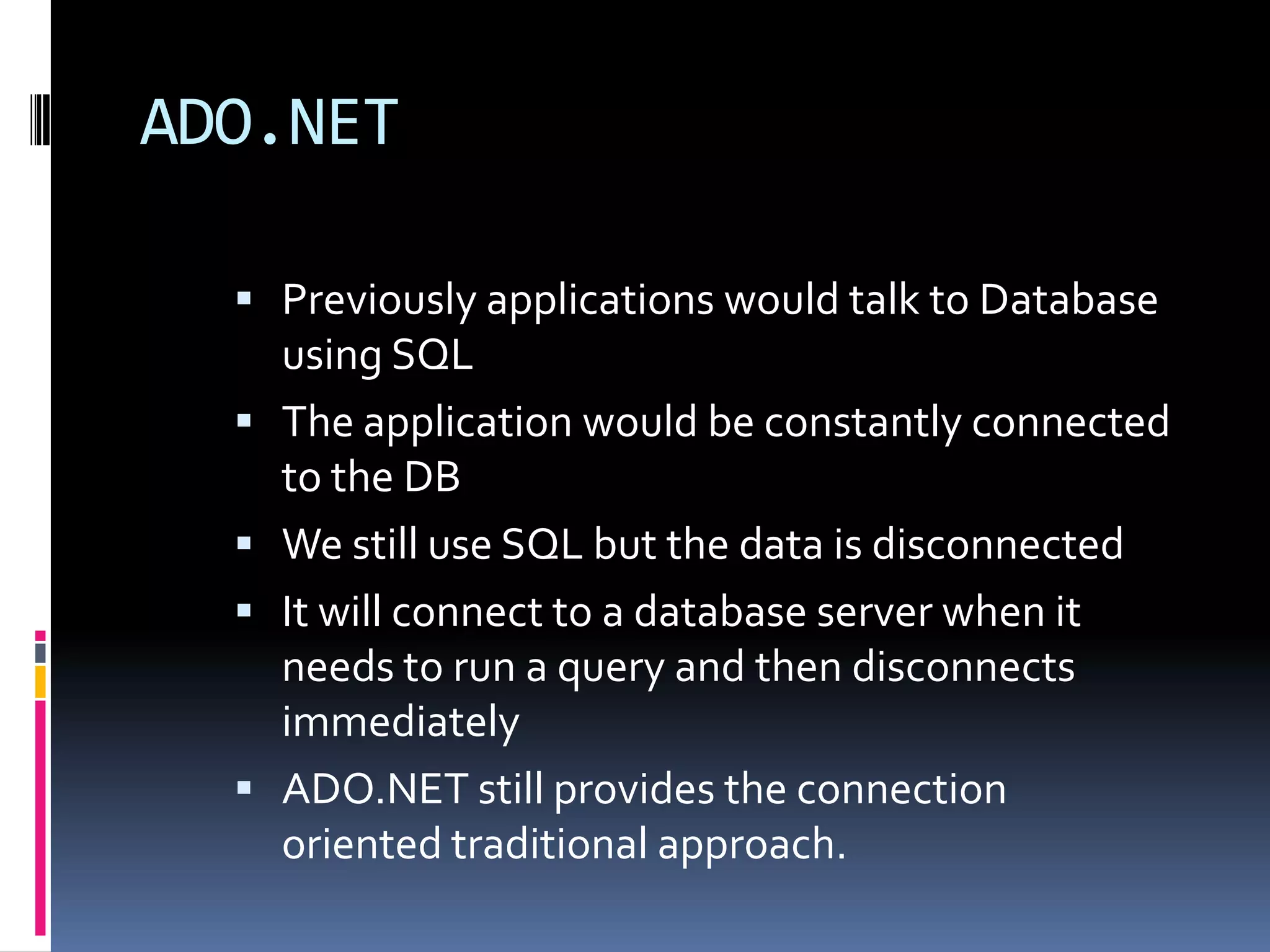

- 3. ADO.NET Previously applications would talk to Database using SQL The application would be constantly connected to the DB We still use SQL but the data is disconnected It will connect to a database server when it needs to run a query and then disconnects immediately ADO.NET still provides the connection oriented traditional approach.

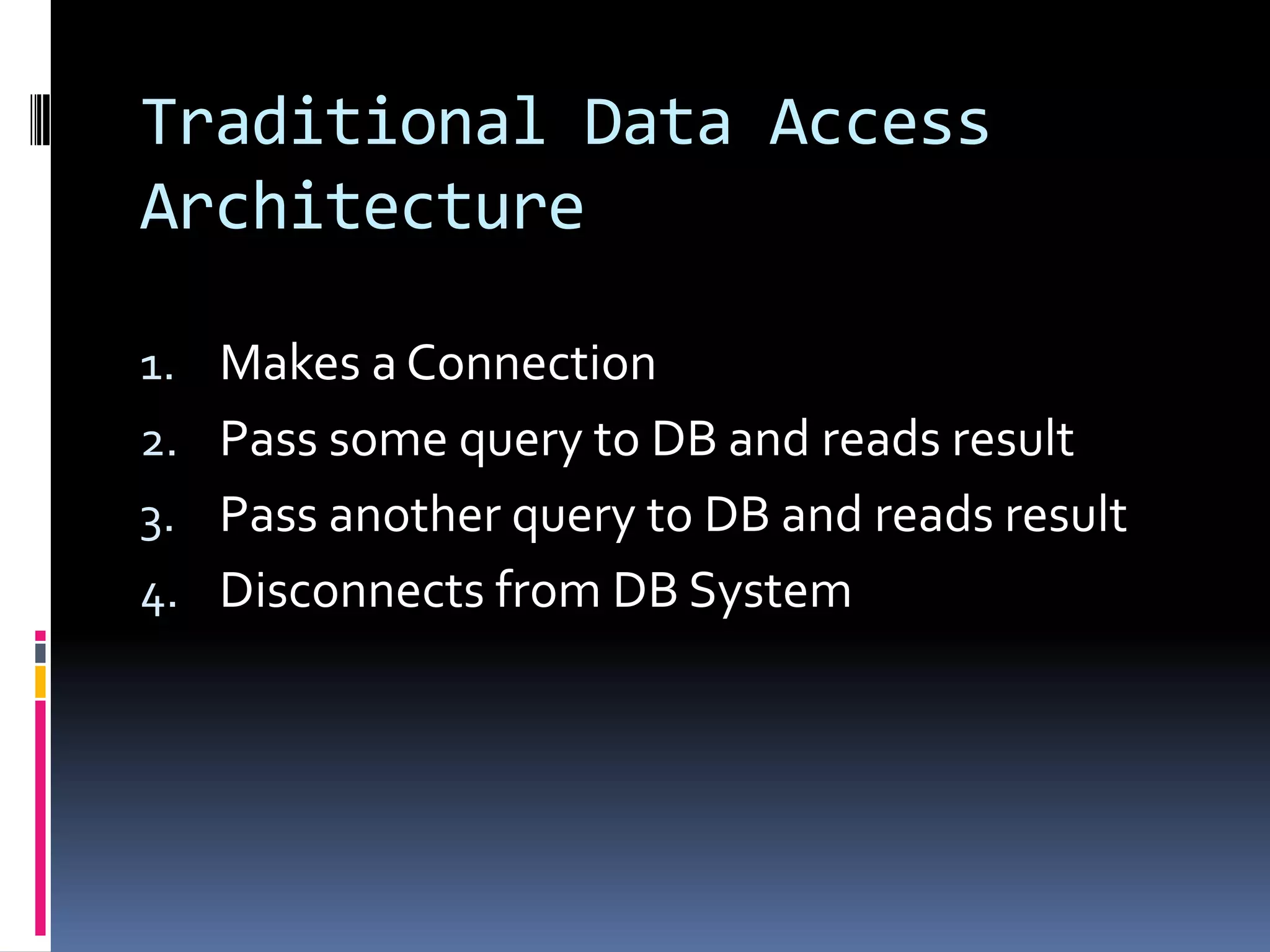

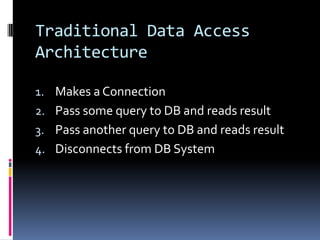

- 4. Traditional Data Access Architecture 1.Makes a Connection 2. Pass some query to DB and reads result 3. Pass another query to DB and reads result 4. Disconnects from DB System

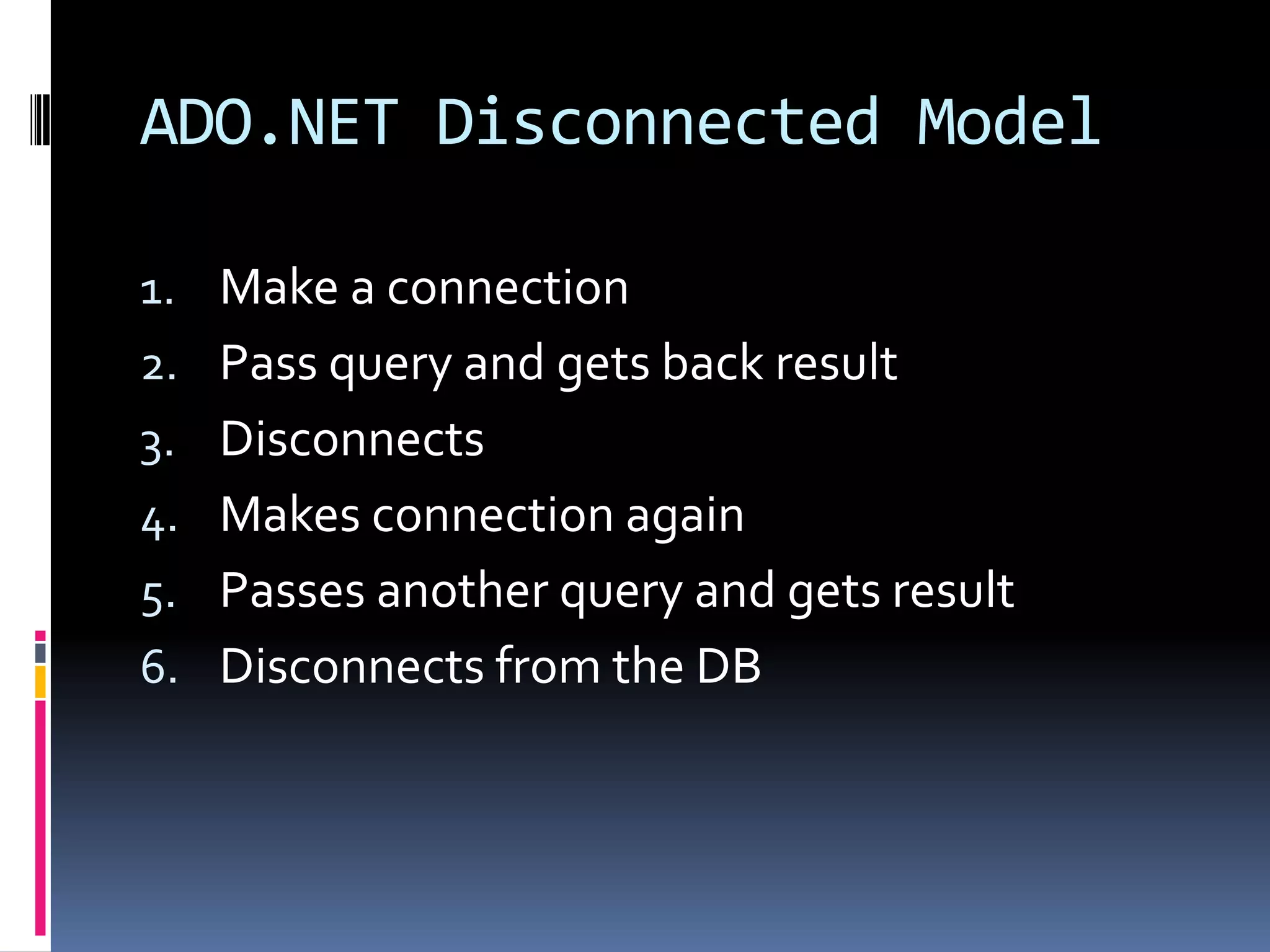

- 5. ADO.NET Disconnected Model 1.Make a connection 2. Pass query and gets back result 3. Disconnects 4. Makes connection again 5. Passes another query and gets result 6. Disconnects from the DB

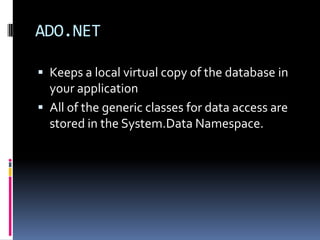

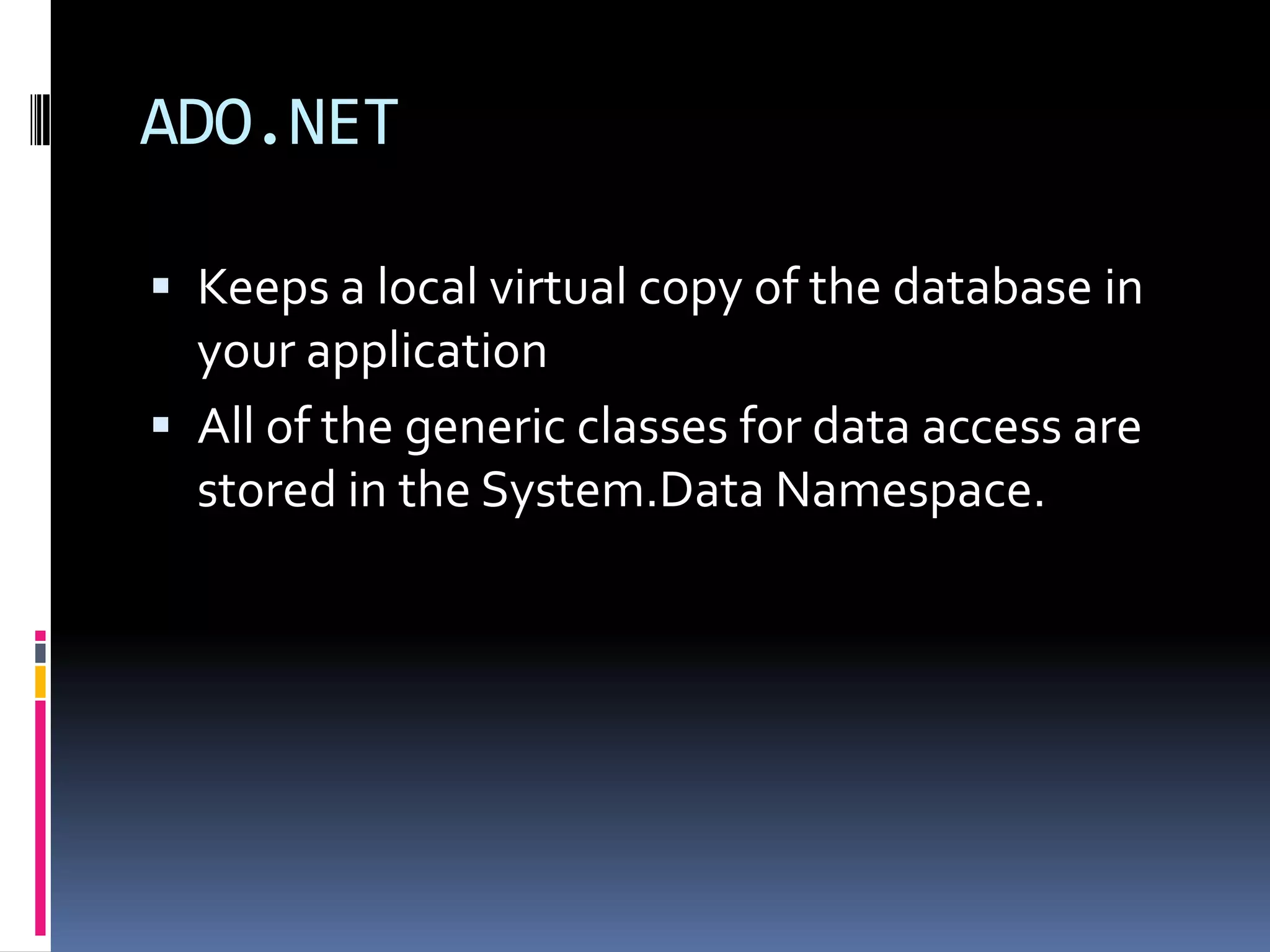

- 6. ADO.NET Keeps alocal virtual copy of the database in your application All of the generic classes for data access are stored in the System.Data Namespace.

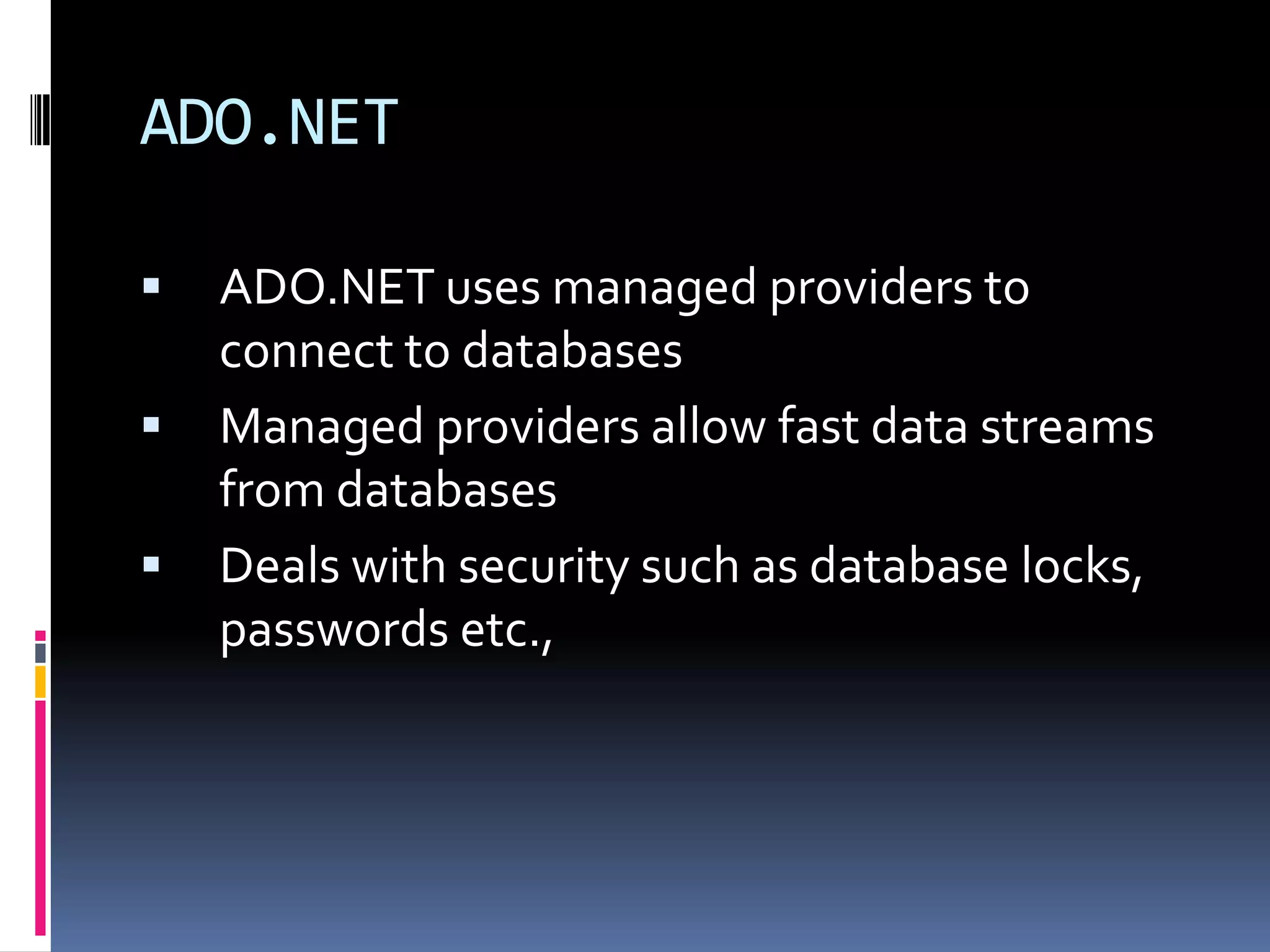

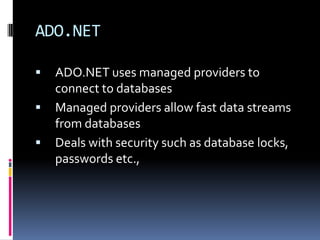

- 7. ADO.NET ADO.NET uses managed providers to connect to databases Managed providers allow fast data streams from databases Deals with security such as database locks, passwords etc.,

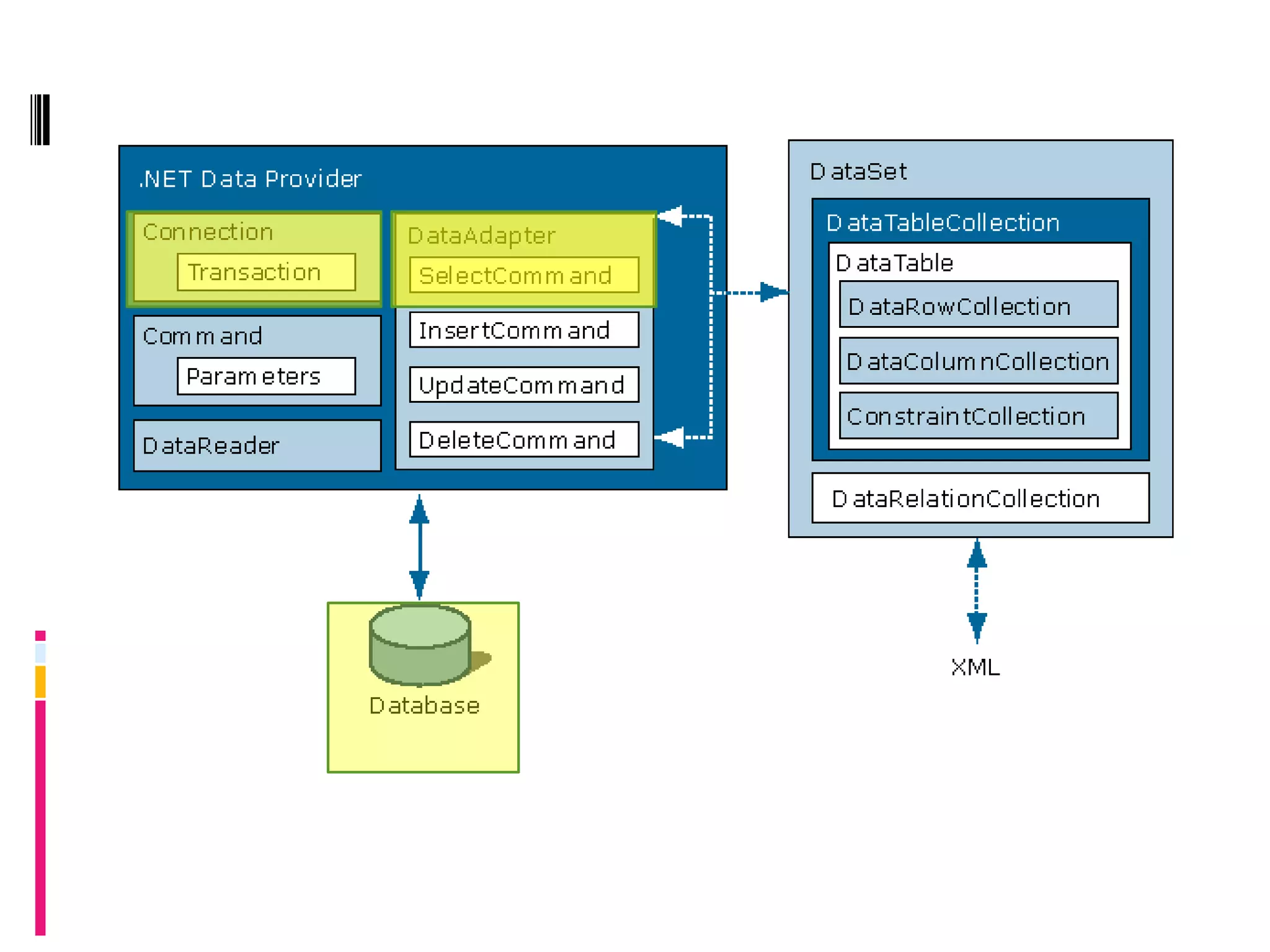

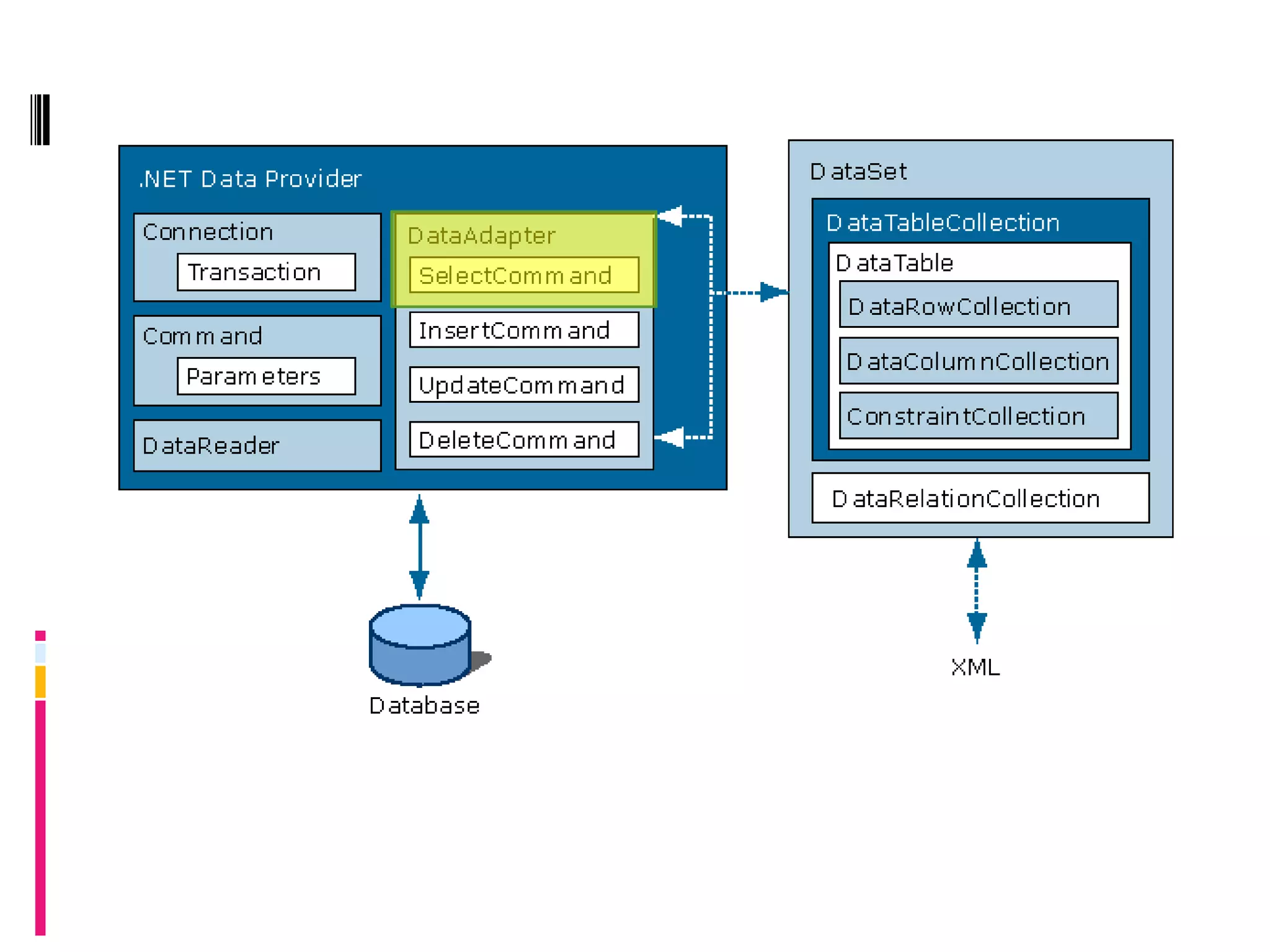

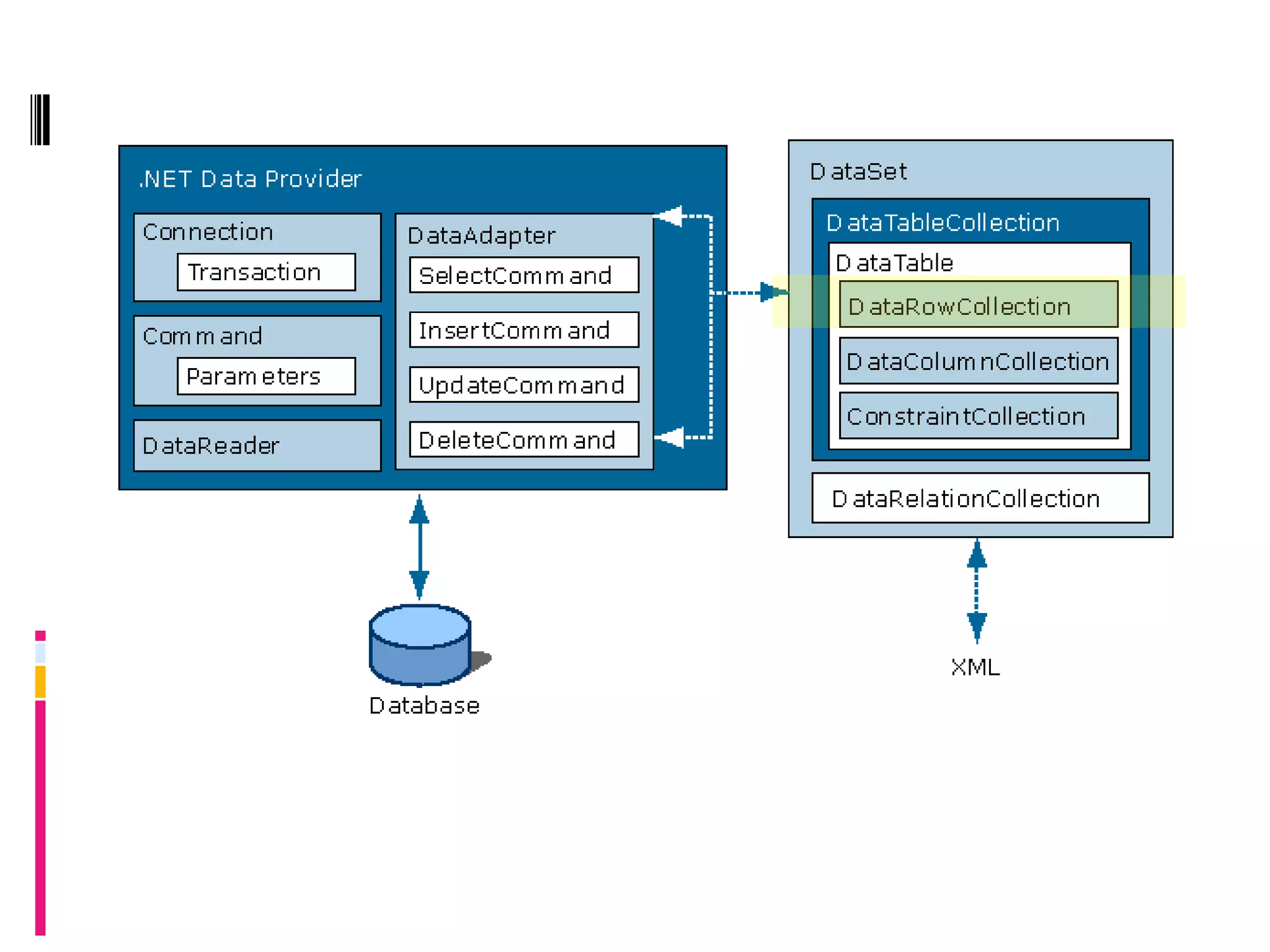

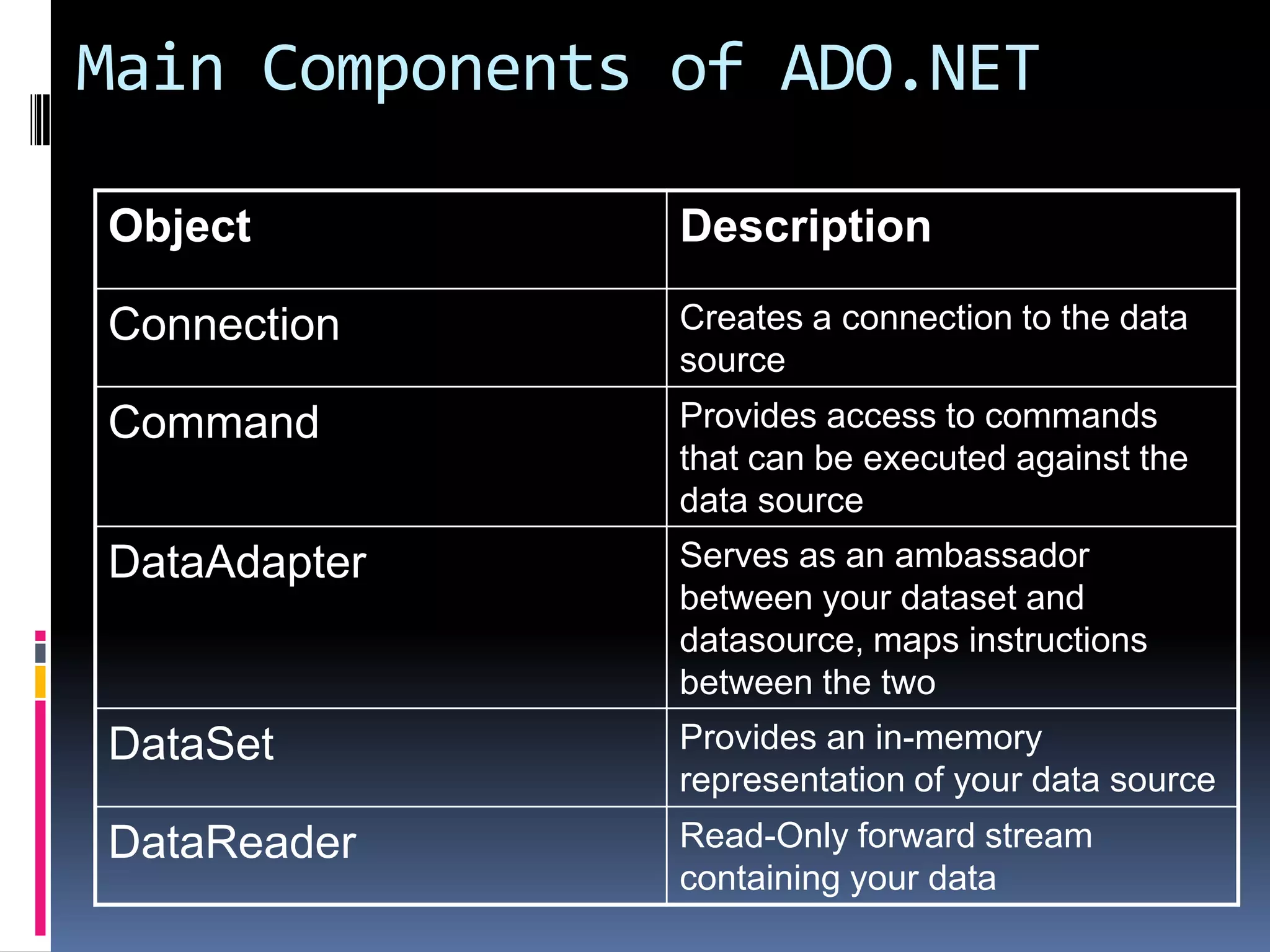

- 8. Main Components ofADO.NET Object Description Connection Creates a connection to the data source Command Provides access to commands that can be executed against the data source DataAdapter Serves as an ambassador between your dataset and datasource, maps instructions between the two DataSet Provides an in-memory representation of your data source DataReader Read-Only forward stream containing your data

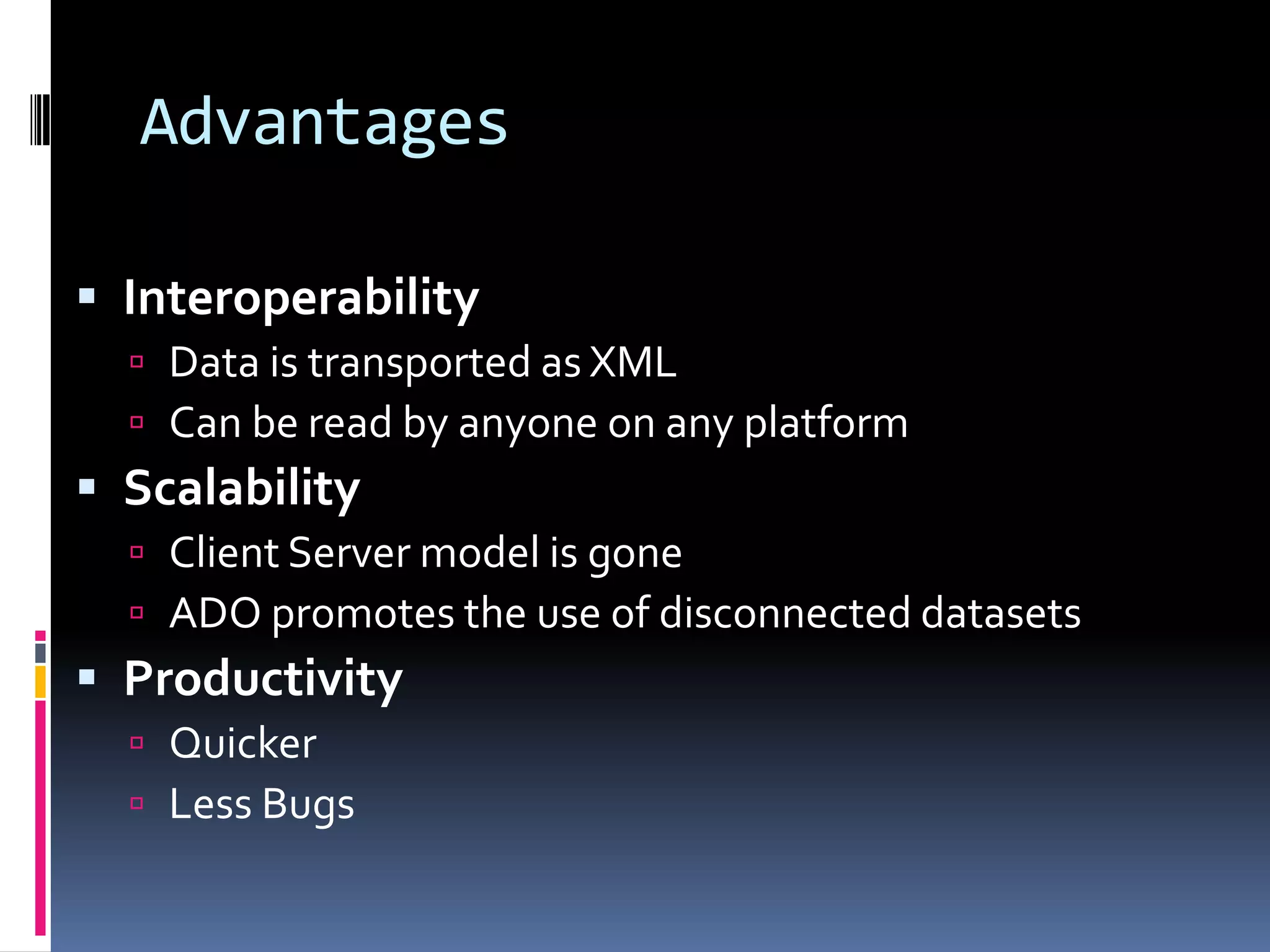

- 9. Advantages Interoperability Data is transported as XML Can be read by anyone on any platform Scalability Client Server model is gone ADO promotes the use of disconnected datasets Productivity Quicker Less Bugs

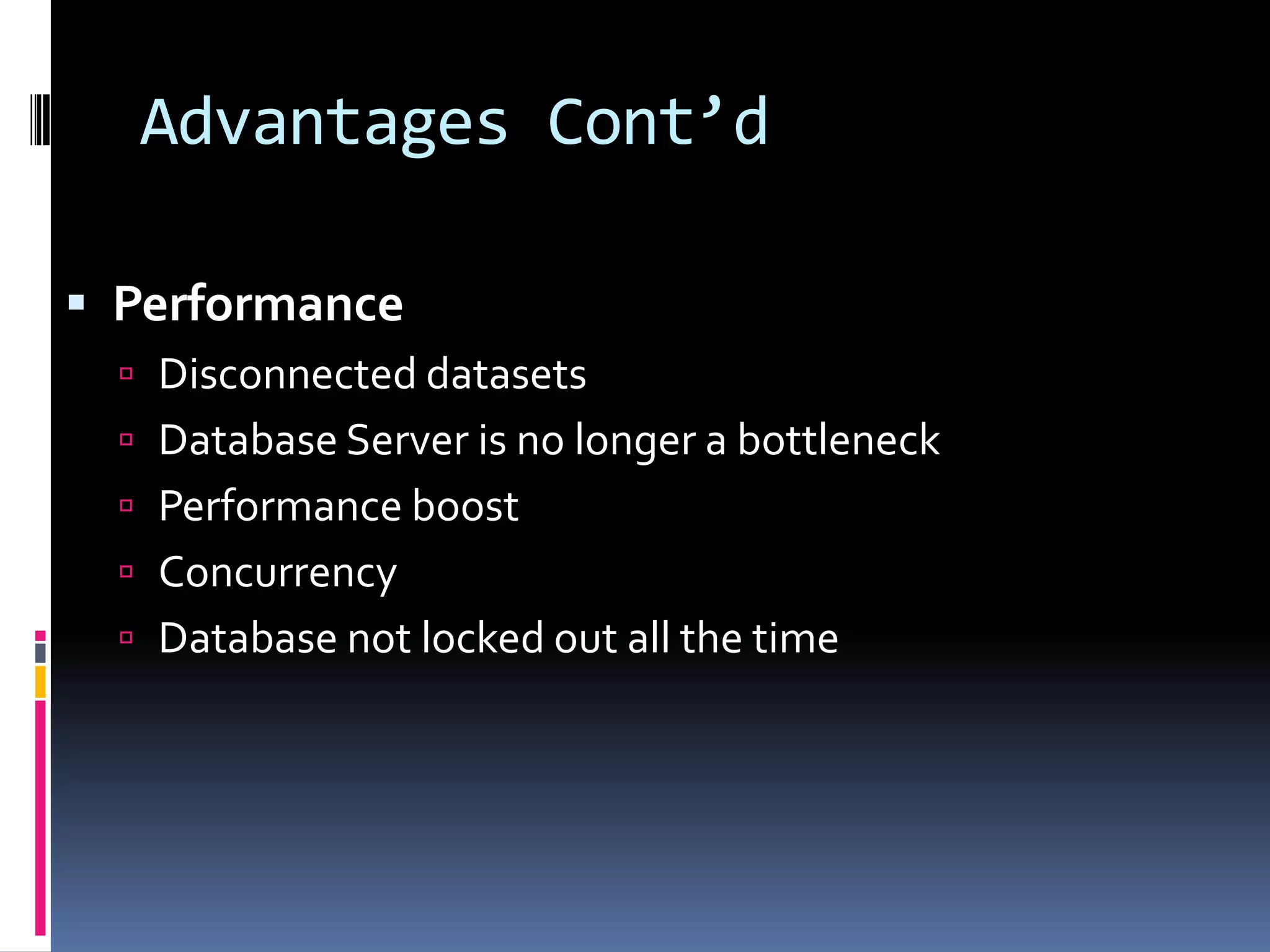

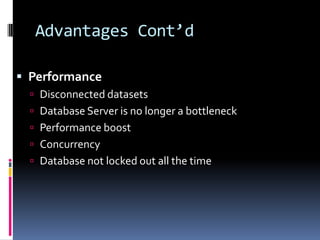

- 10. Advantages Cont’d Performance Disconnected datasets Database Server is no longer a bottleneck Performance boost Concurrency Database not locked out all the time

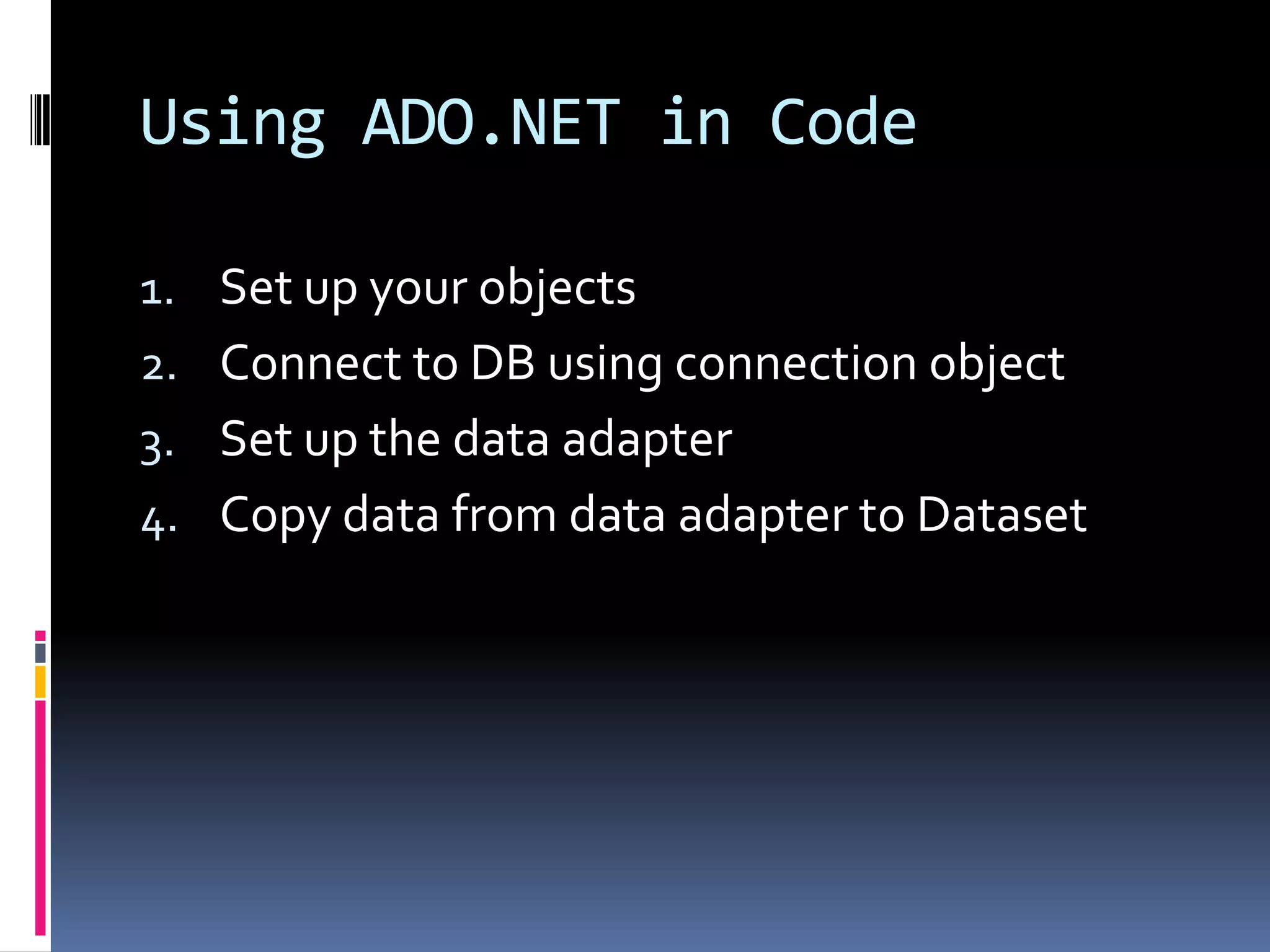

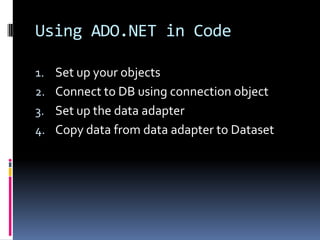

- 11. Using ADO.NET inCode 1. Set up your objects 2. Connect to DB using connection object 3. Set up the data adapter 4. Copy data from data adapter to Dataset

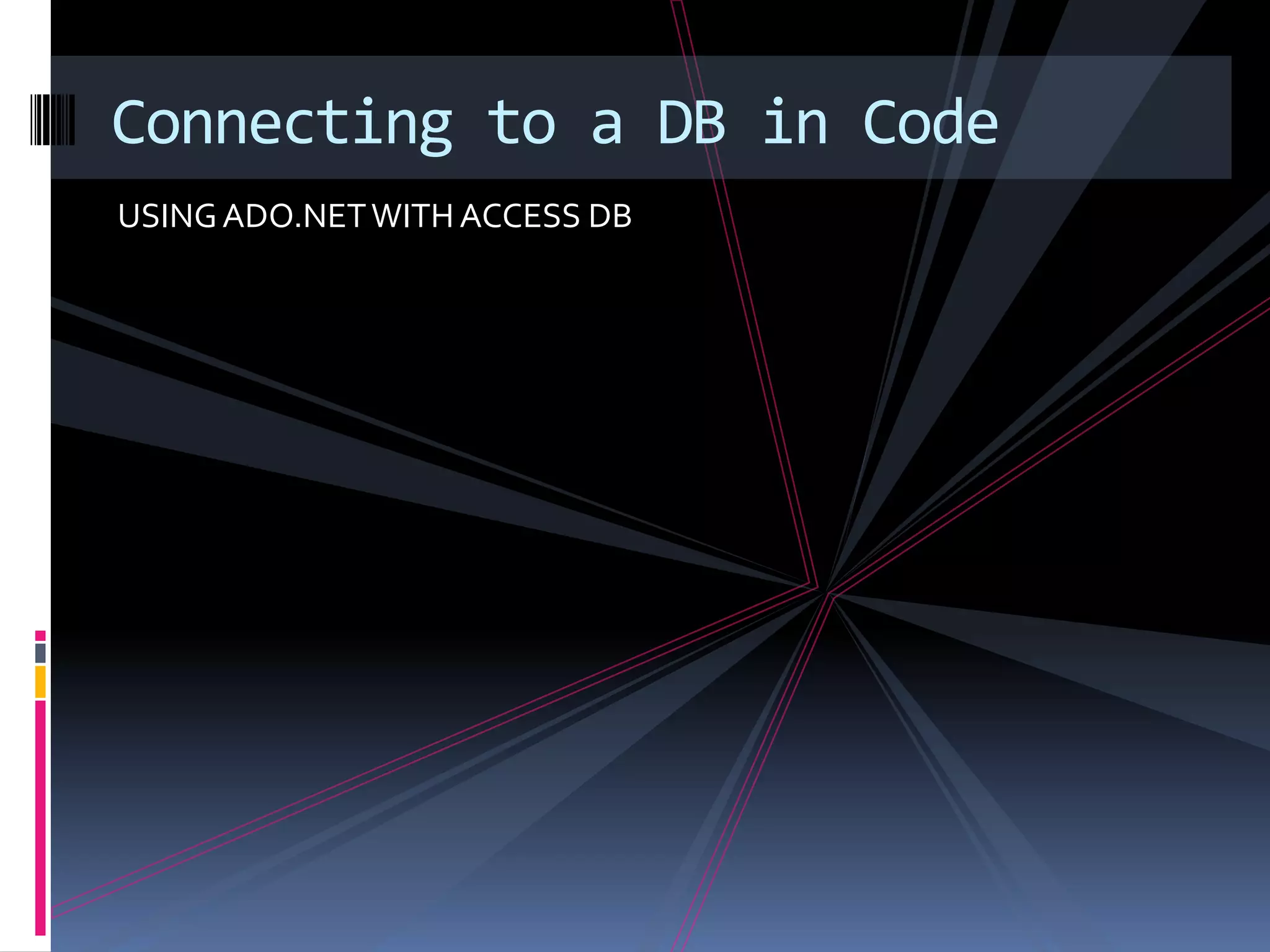

- 13. Connecting to aDB in Code USING ADO.NET WITH ACCESS DB

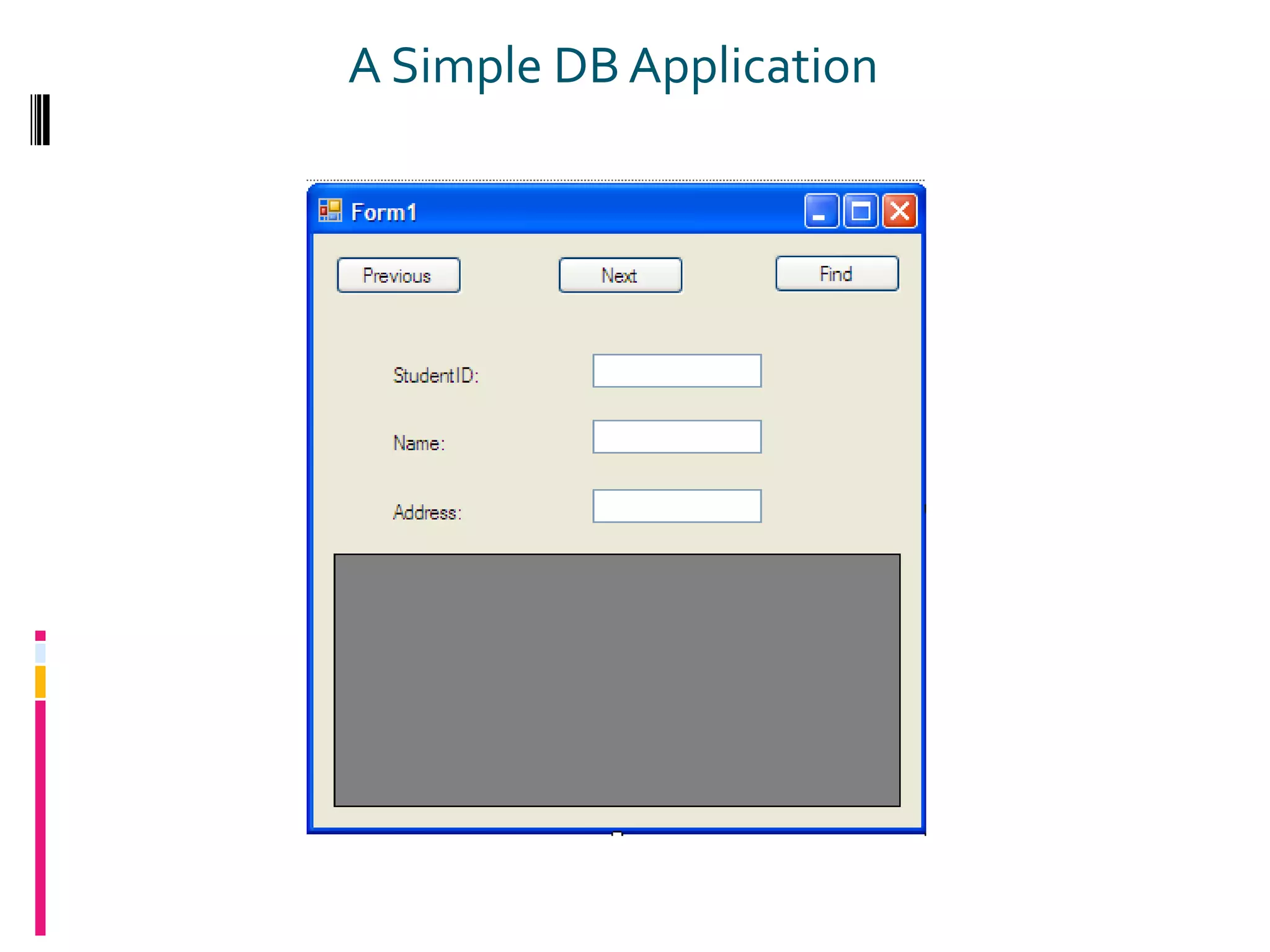

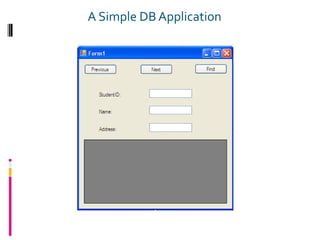

- 14. A Simple DBApplication
- 15.
- 16.
- 17.

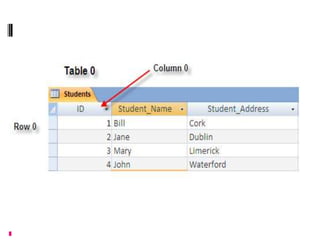

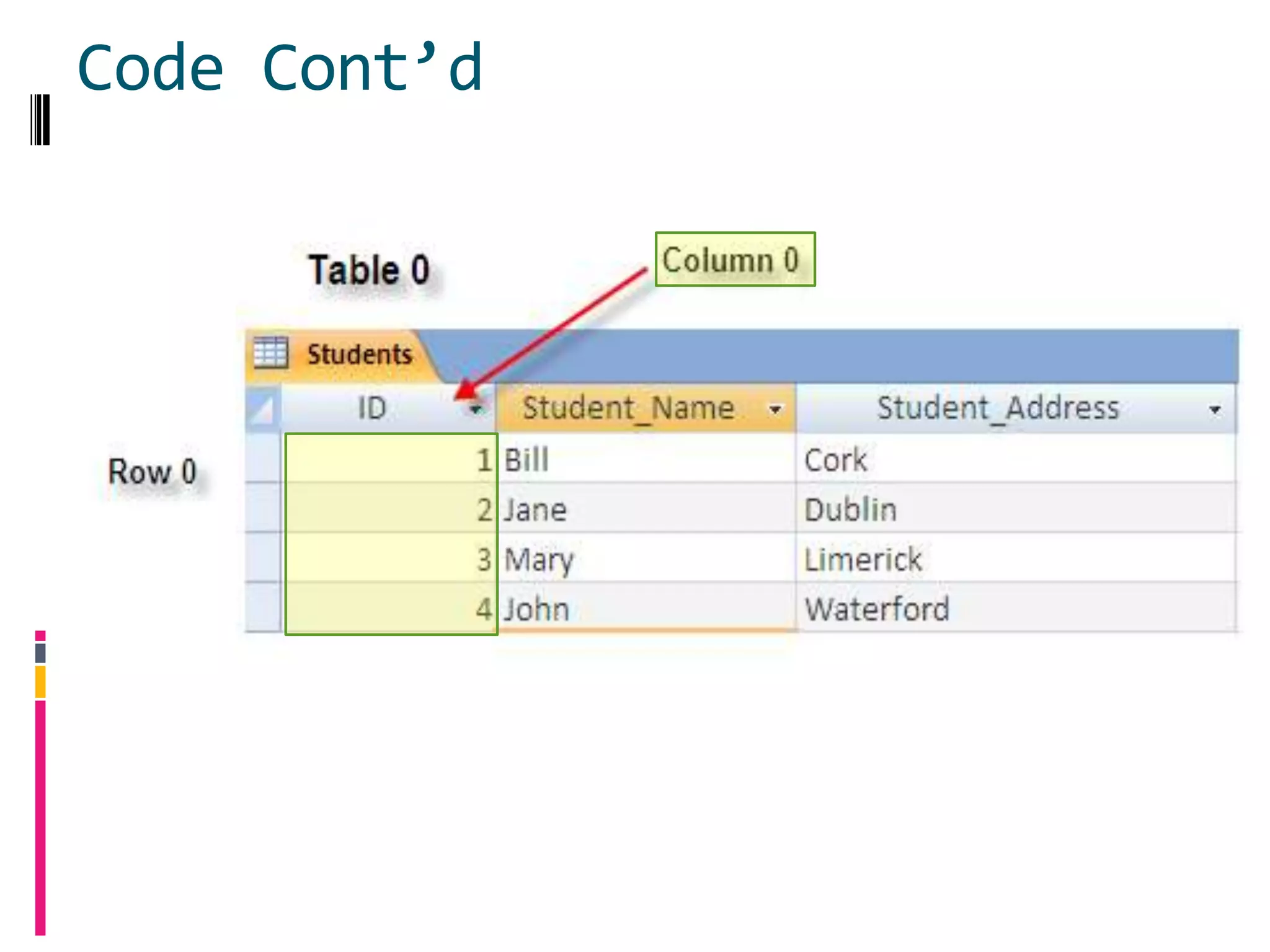

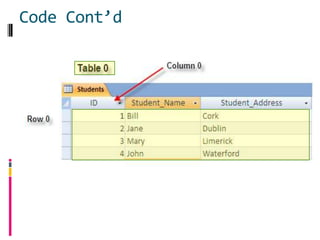

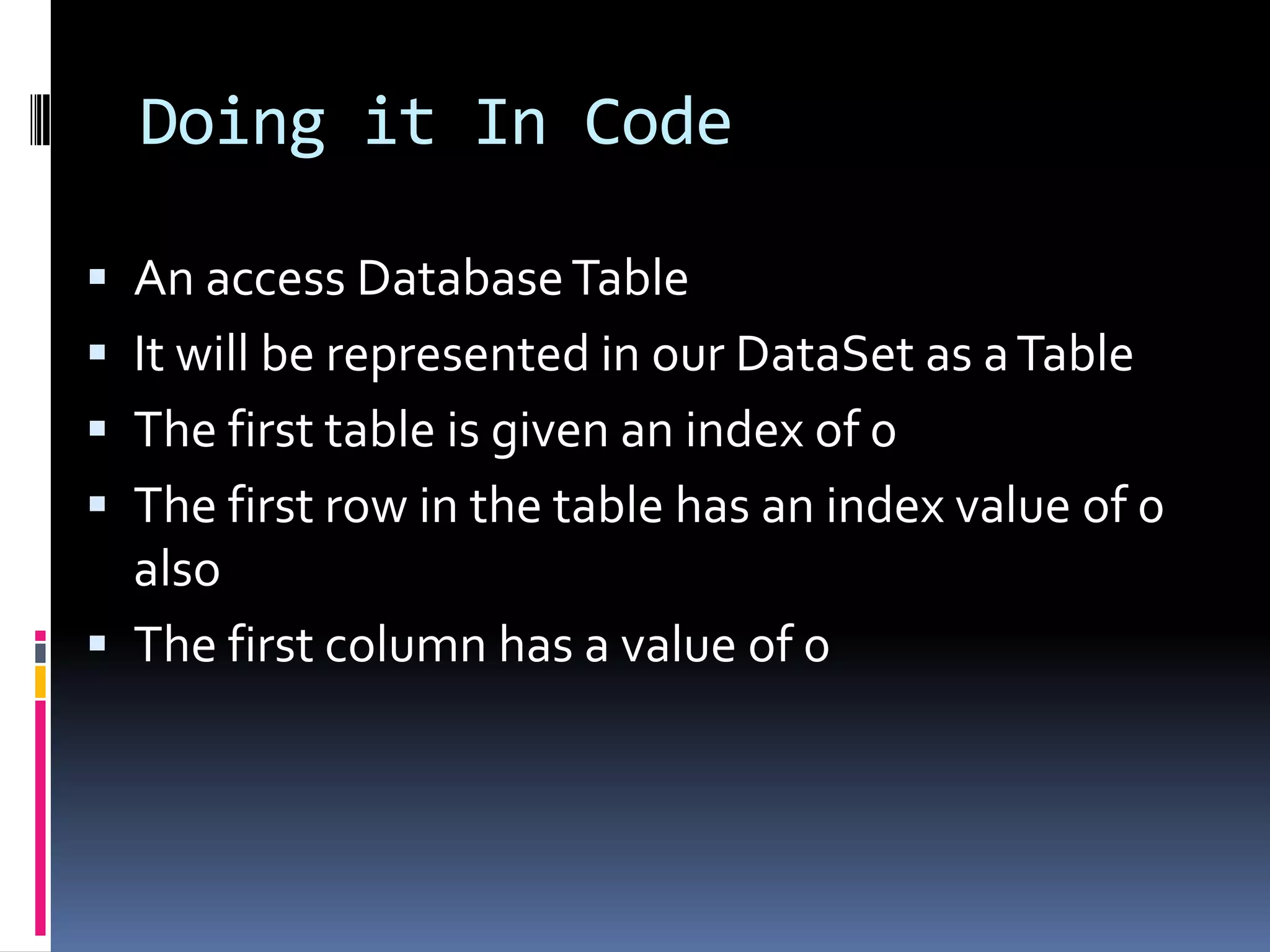

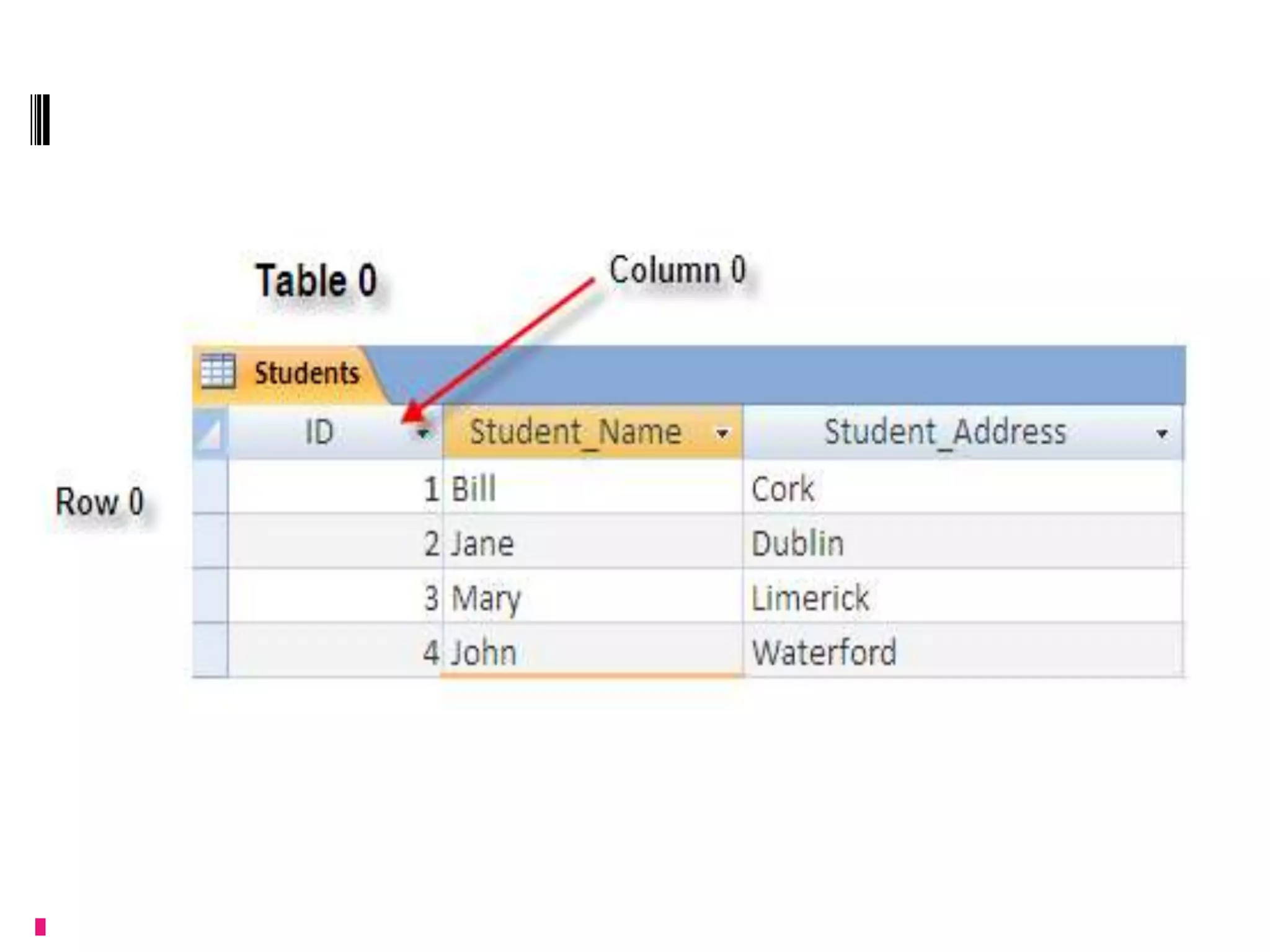

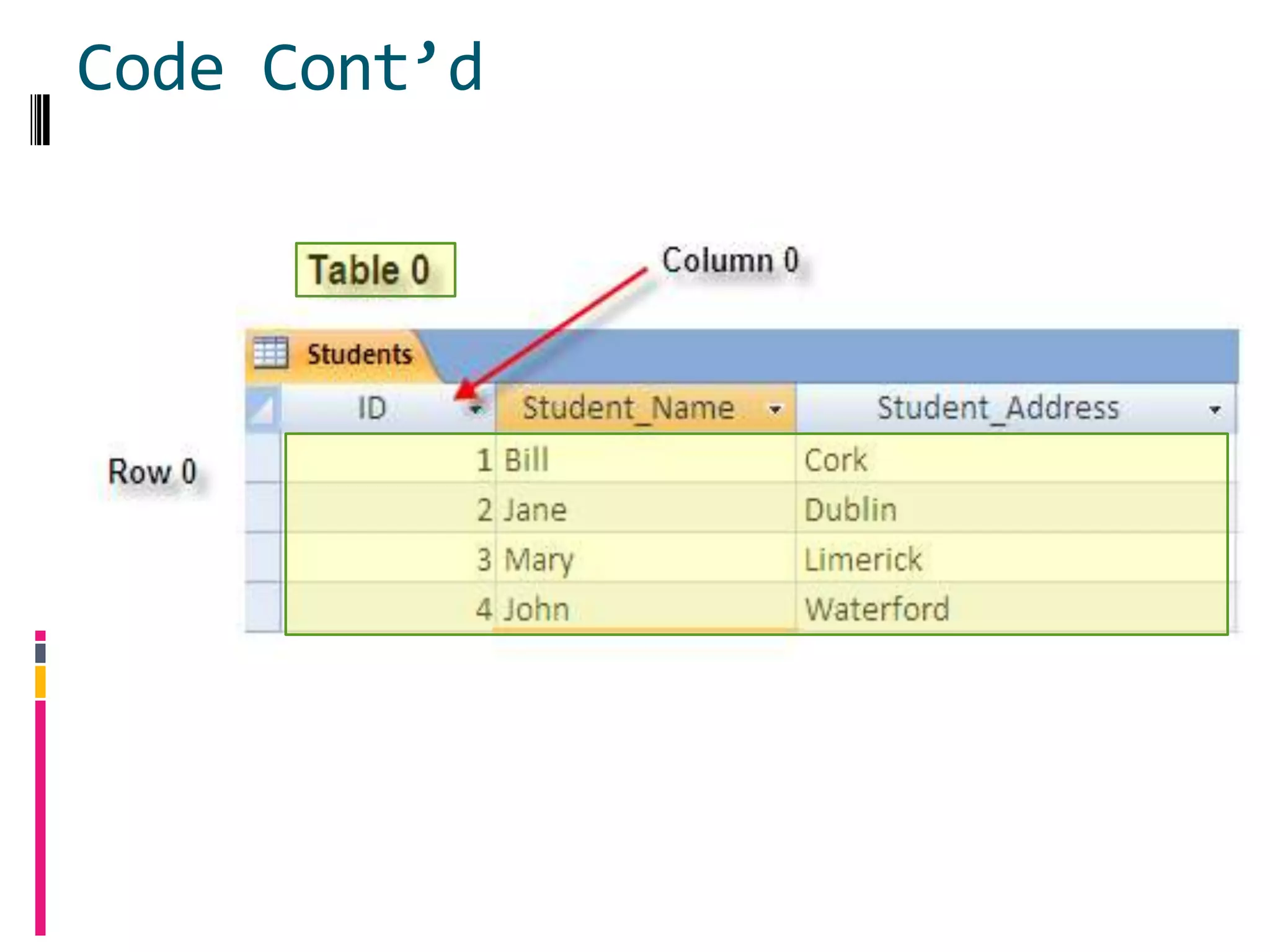

- 18. Doing it InCode An access Database Table It will be represented in our DataSet as a Table The first table is given an index of 0 The first row in the table has an index value of 0 also The first column has a value of 0
- 20.

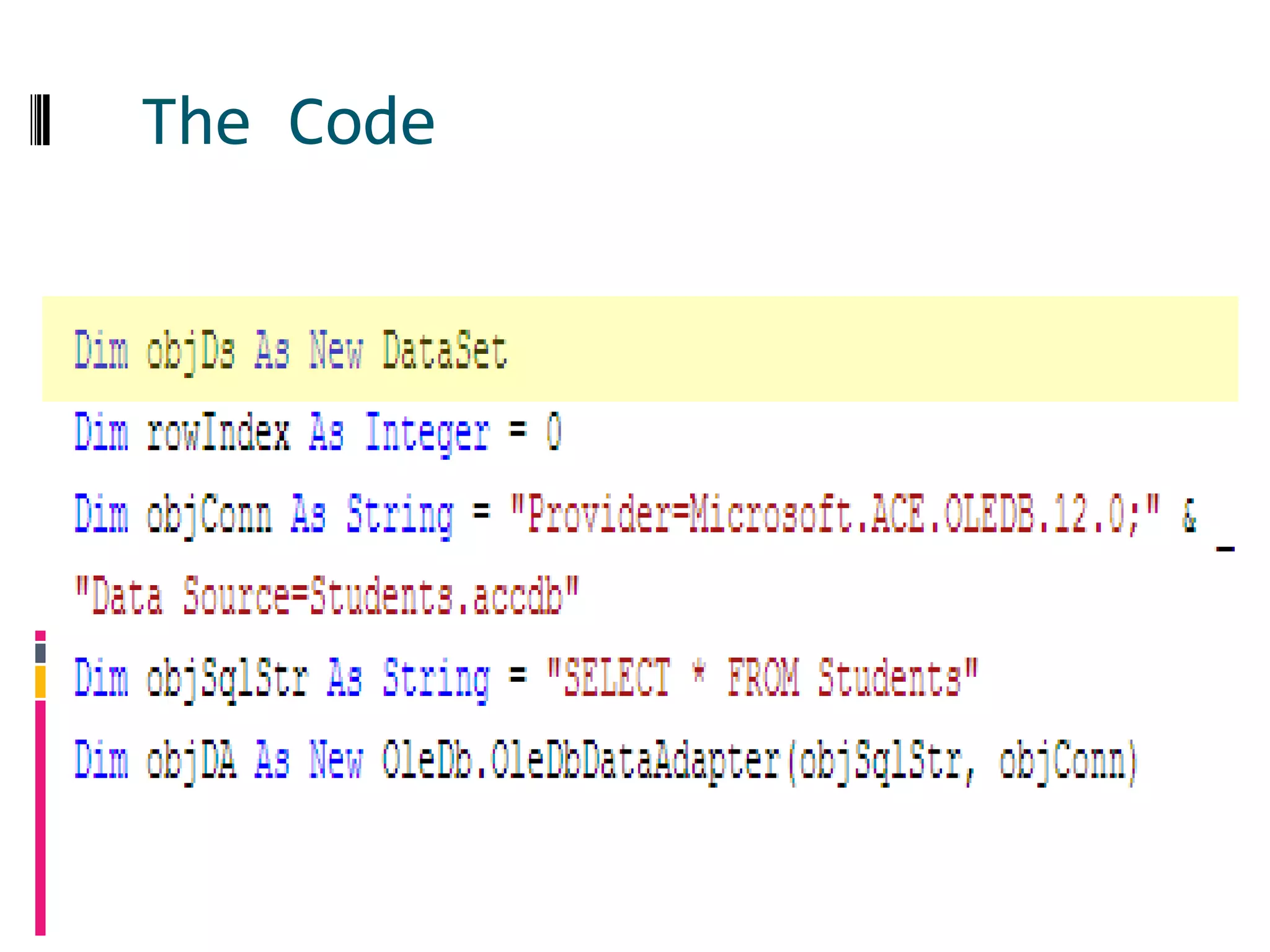

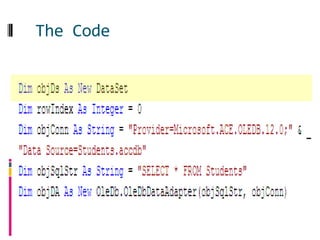

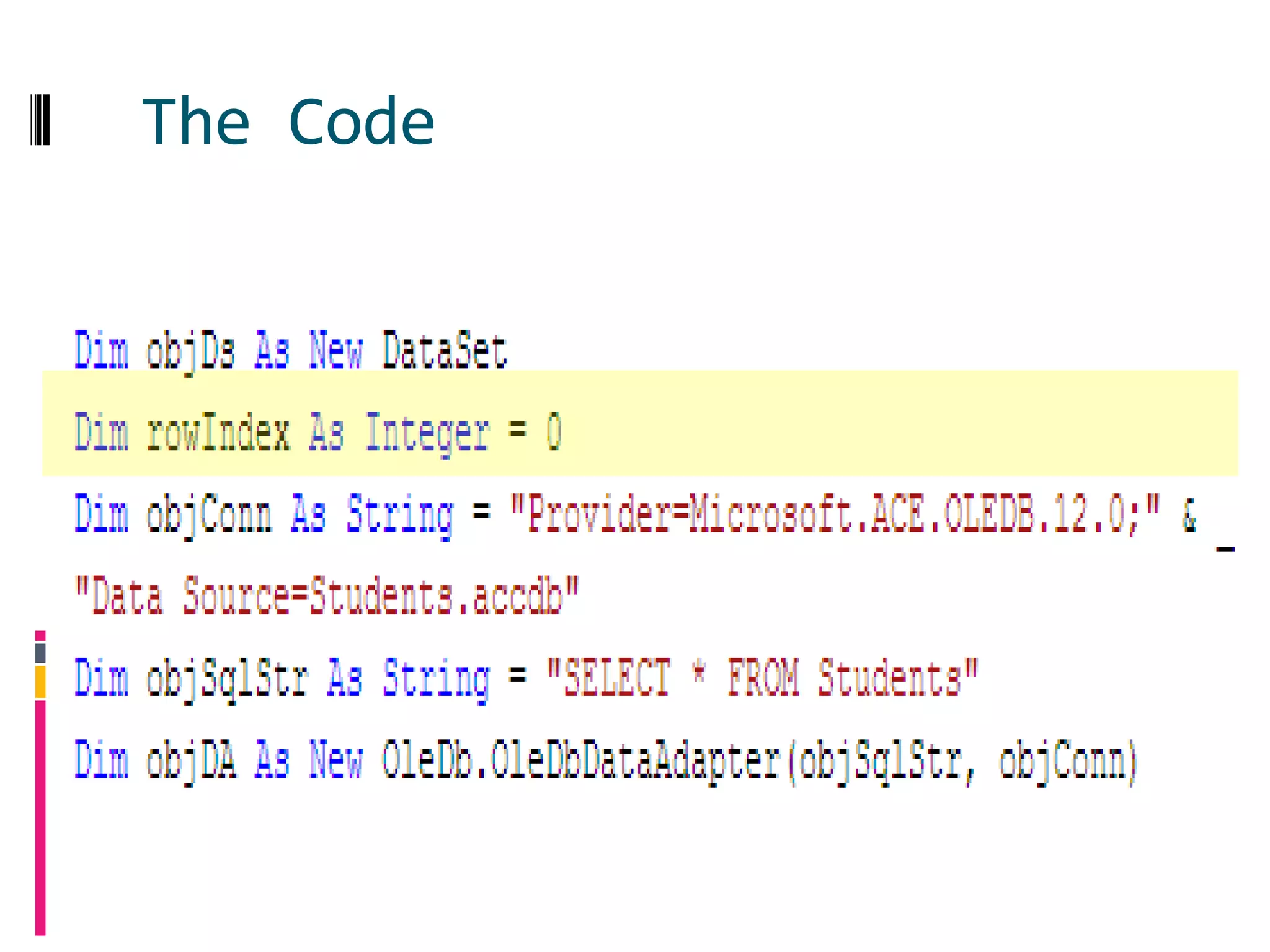

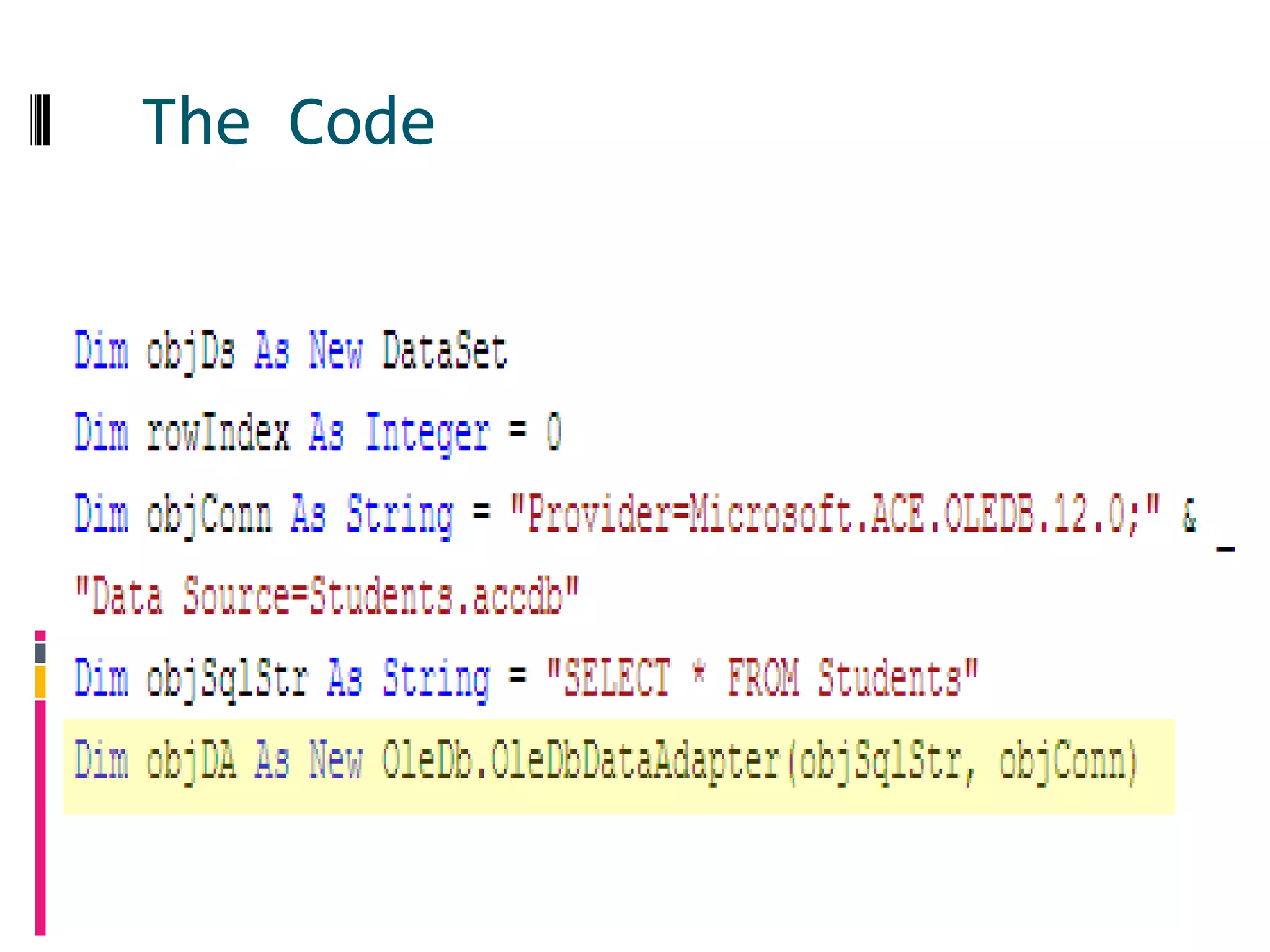

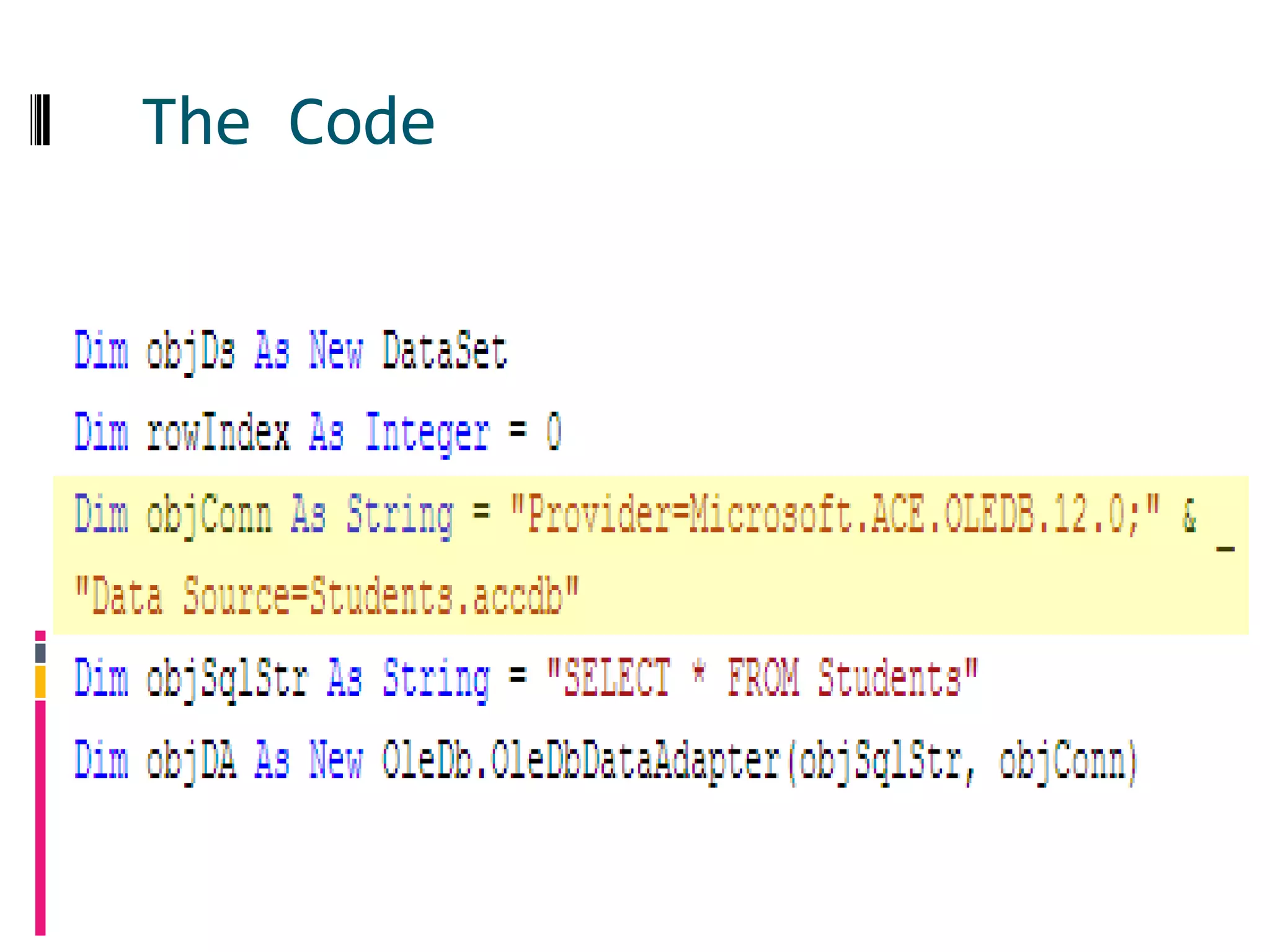

- 21. The Code Set upthe objects
- 23. The Code Set upthe objects
- 25. The Code Set upthe objects

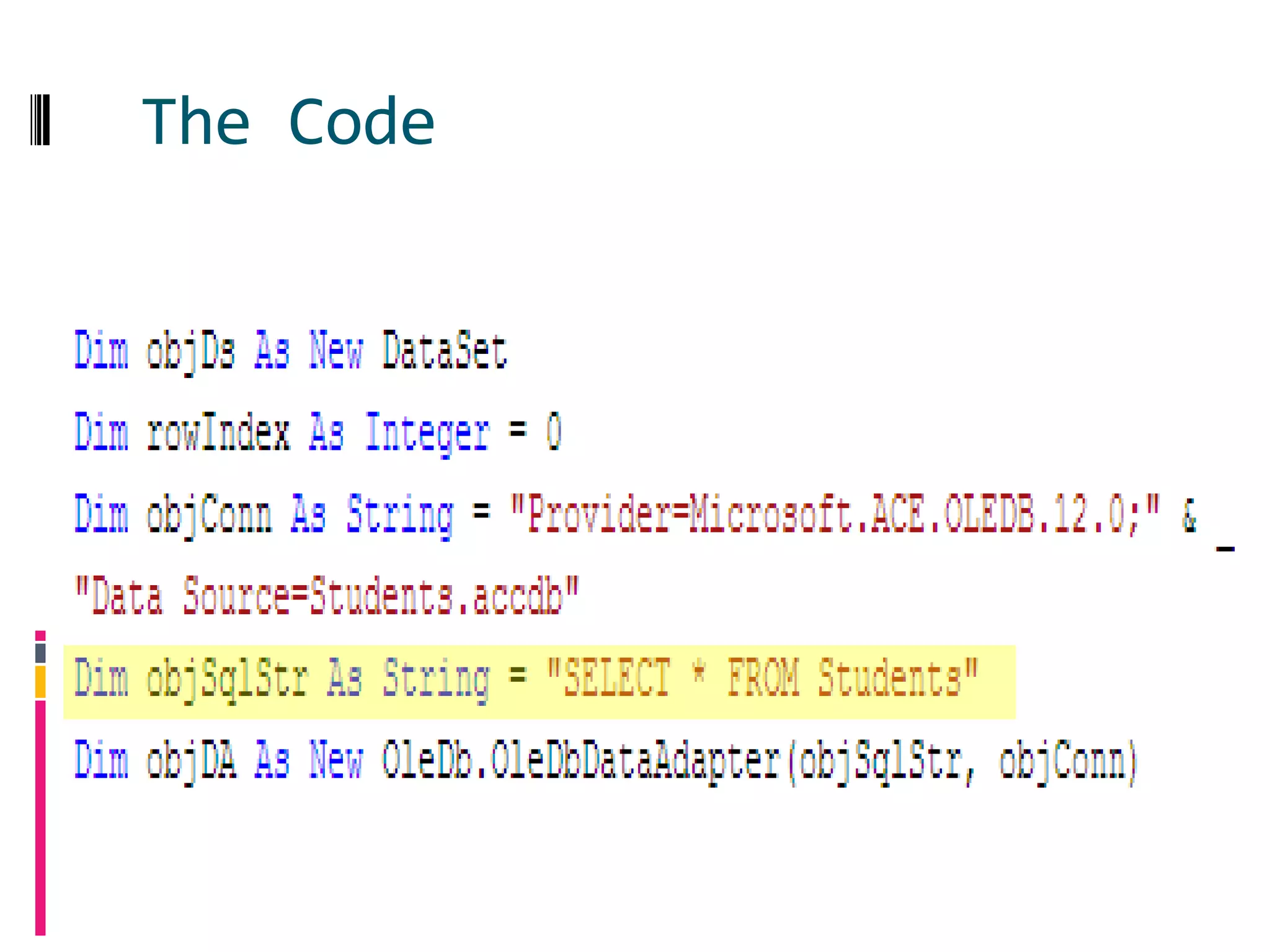

- 27. The Code Set upthe objects
- 29. The Code Set upthe objects

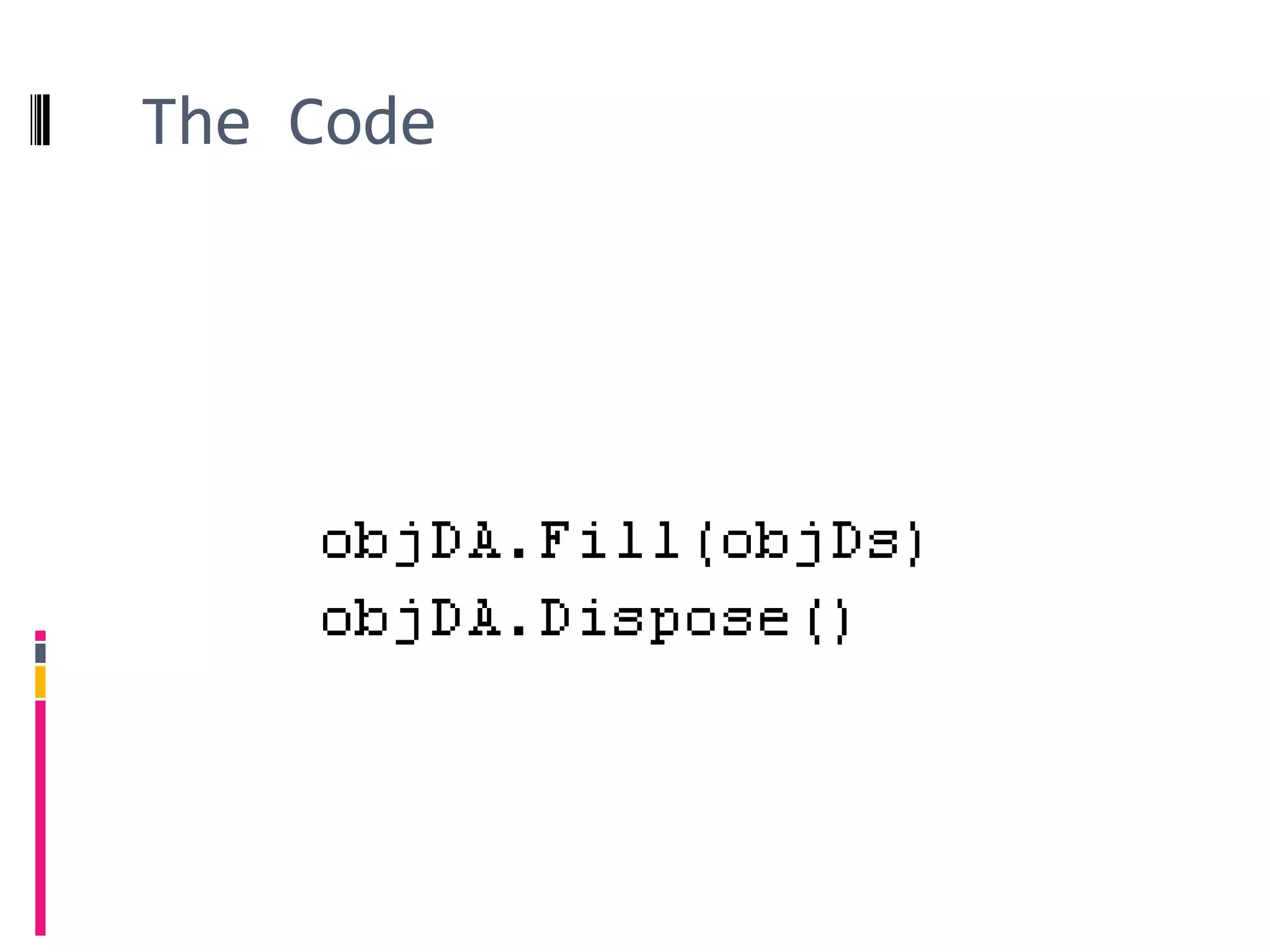

- 31. The Code Fill theDataSet using the DataAdapter

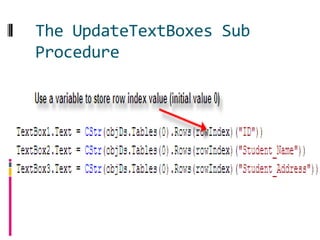

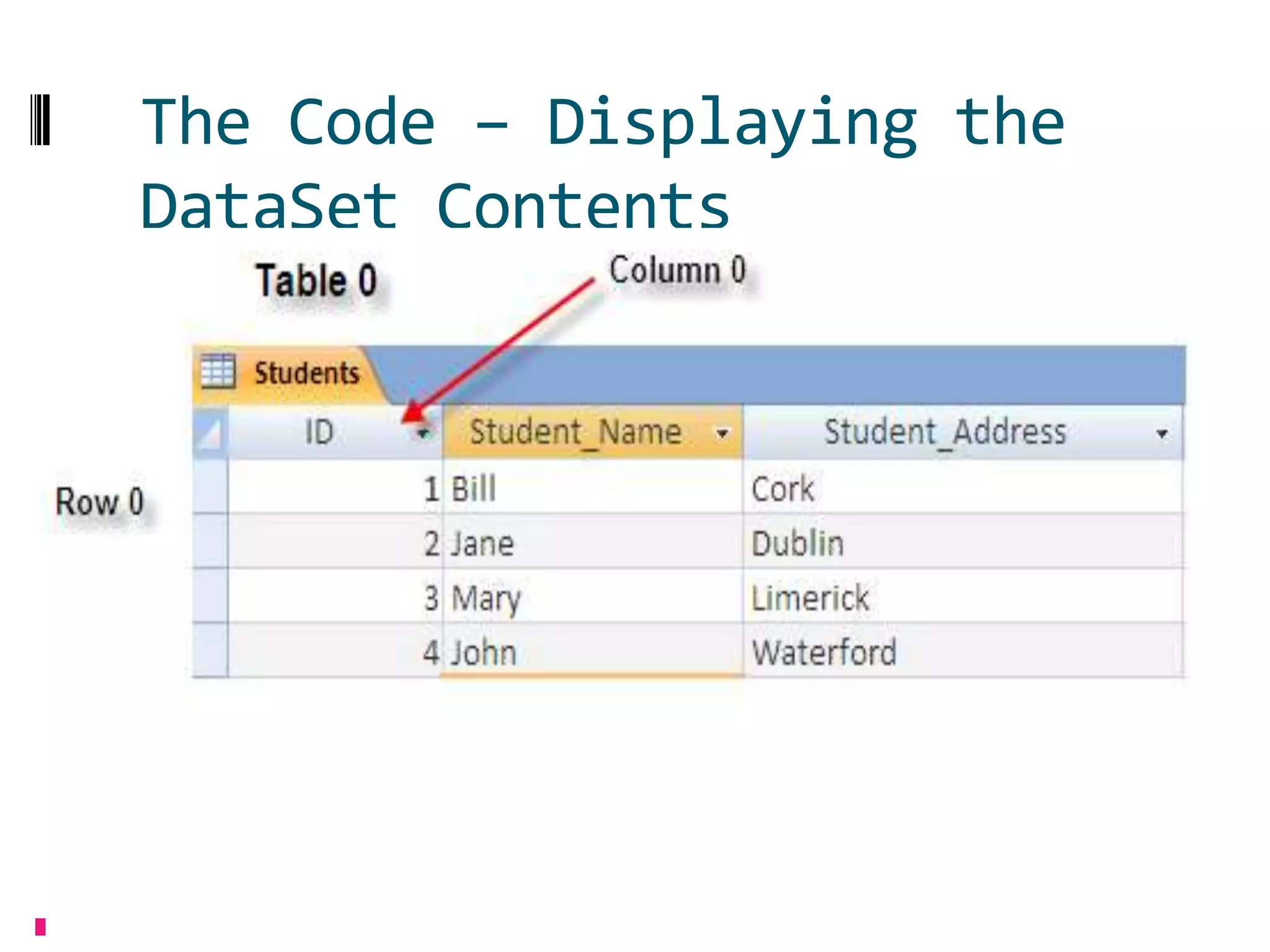

- 32. The Code –Displaying the DataSet Contents Point a textbox to a row and column of the dataset Table Point a DataGrid control at a DataSet ......................................................................................................... .

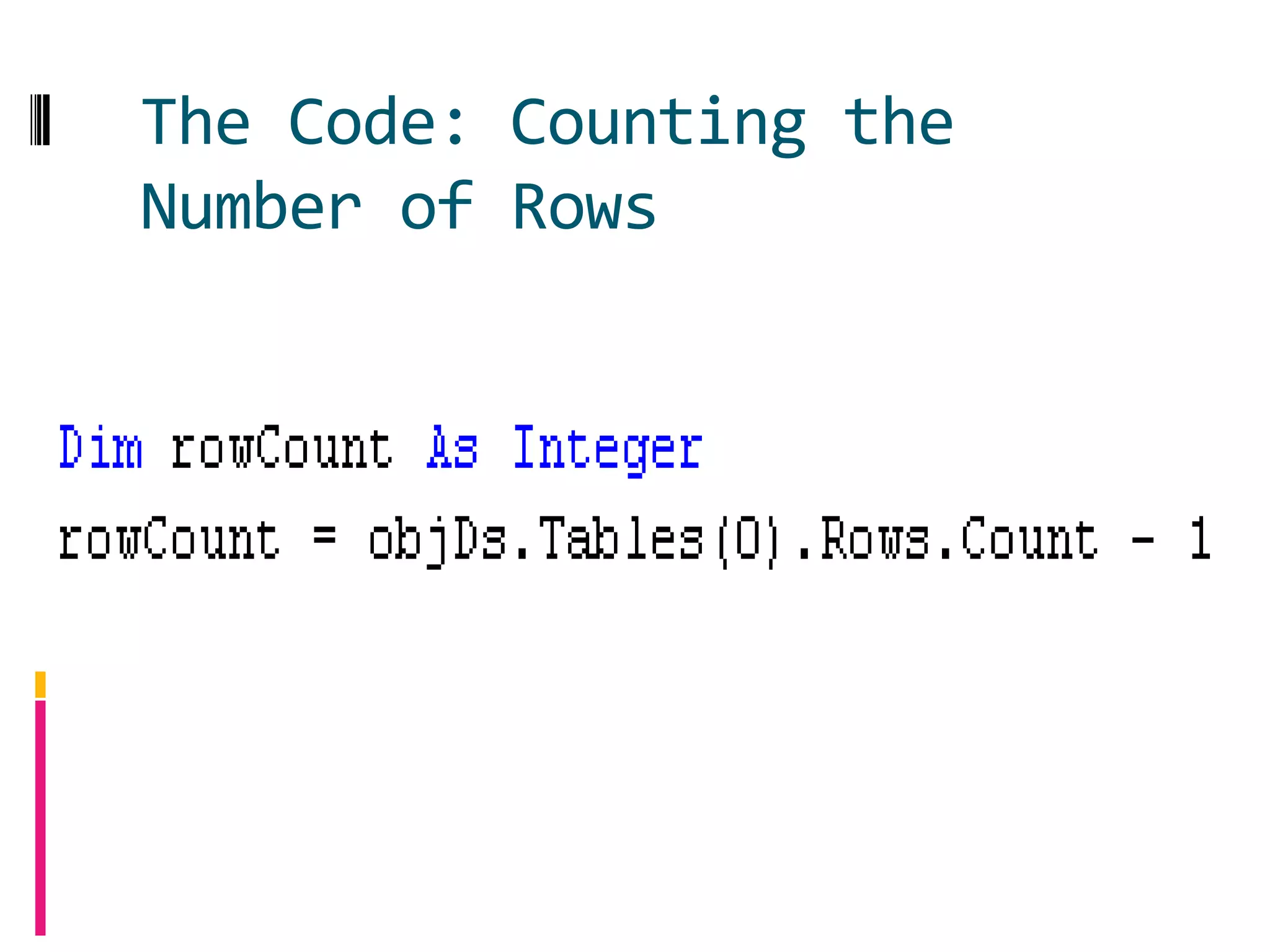

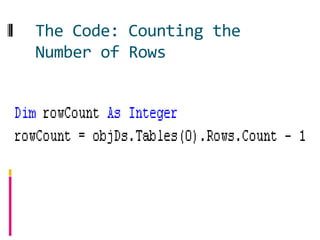

- 33. The Code: Countingthe Number of Rows
- 34. Point atextbox to a row and column of the dataset Table Point a DataGrid control at a DataSet ......................................................................................................... .
- 35.

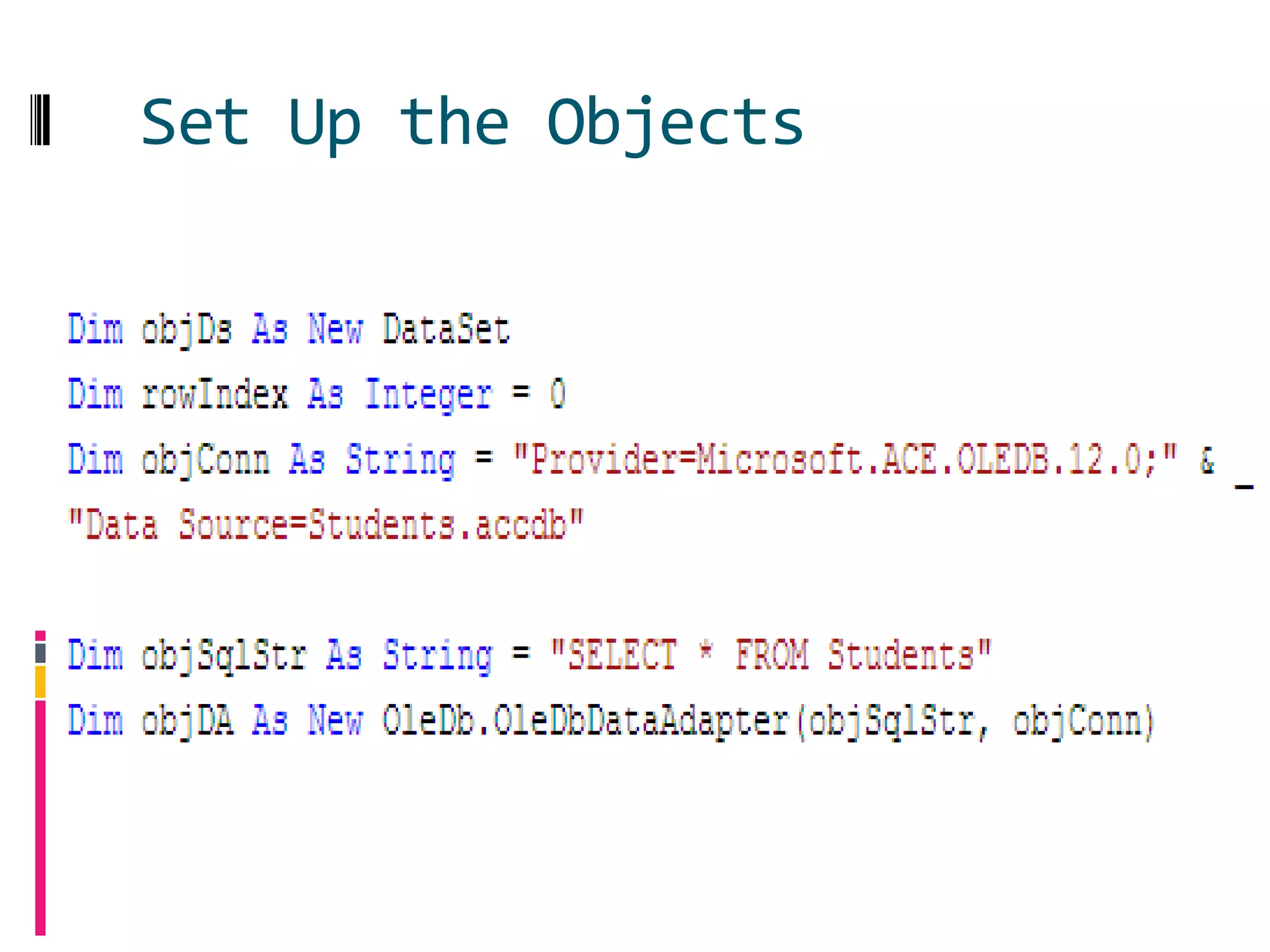

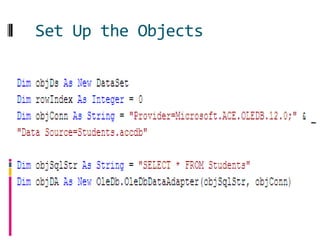

- 36. Set Up theObjects

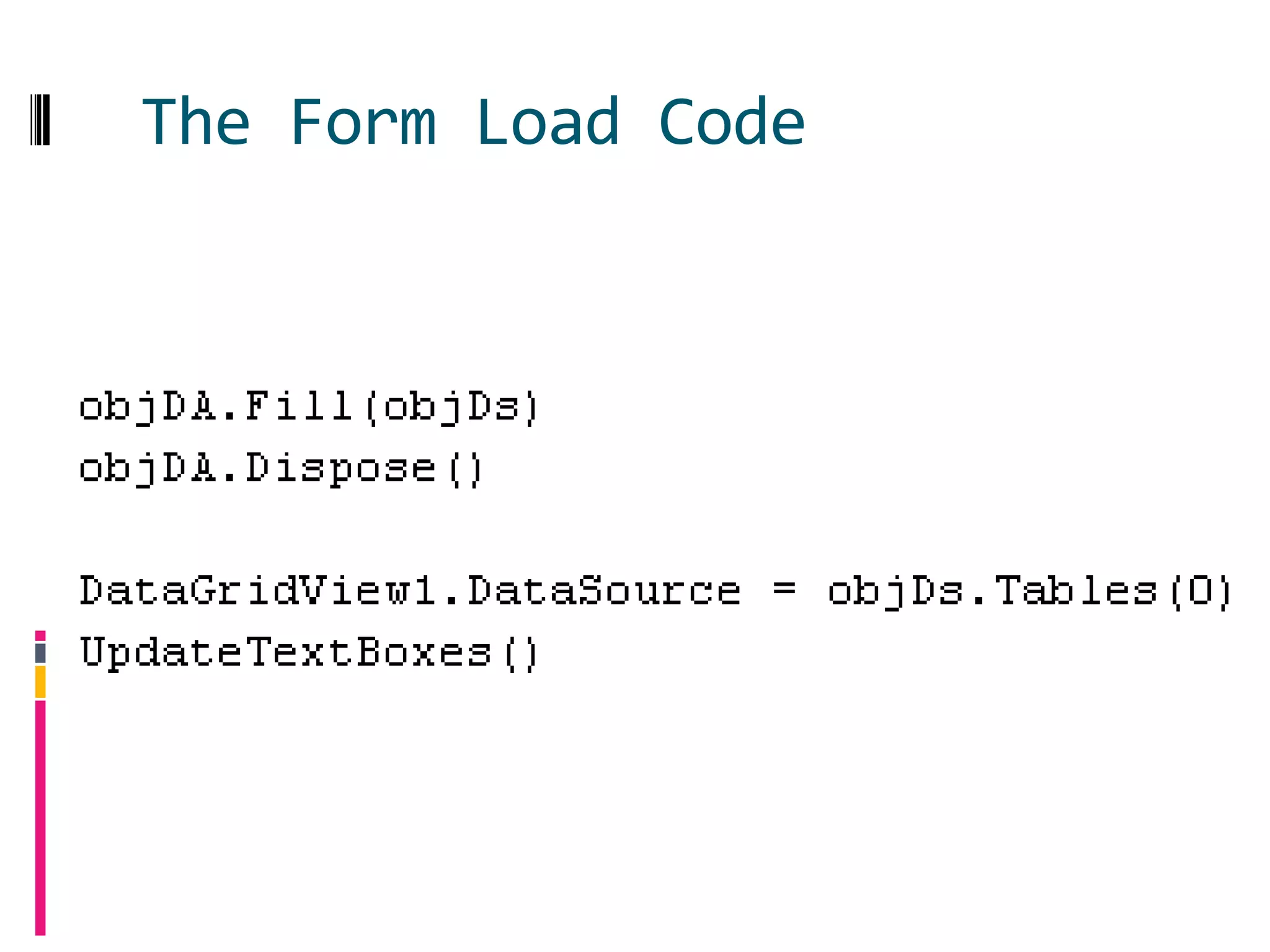

- 37. The Form LoadCode
- 38.
- 39.

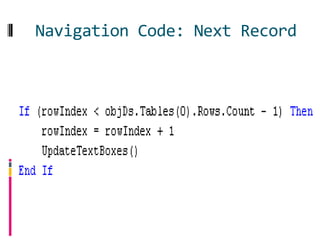

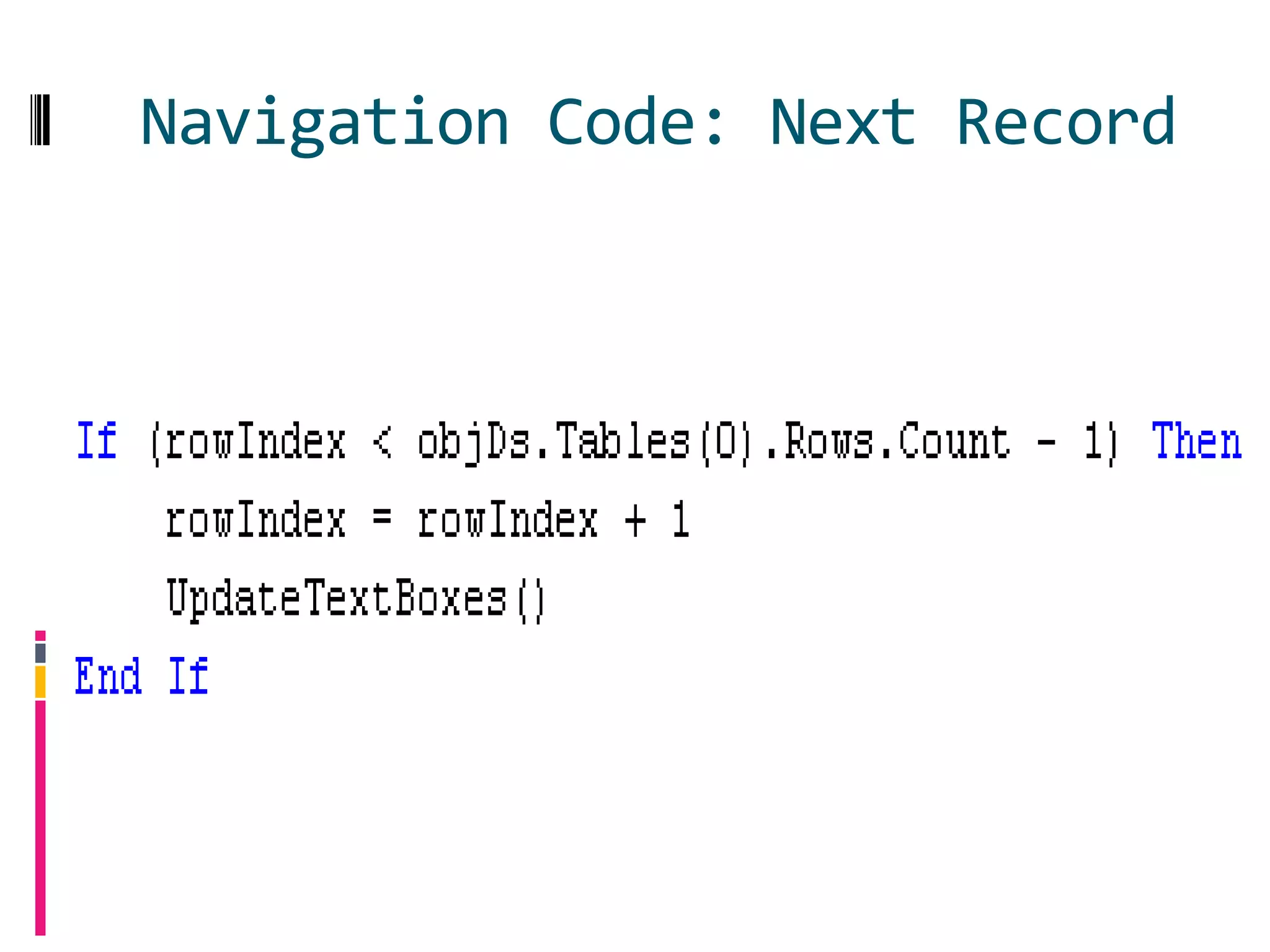

- 40. Navigation Code: NextRecord

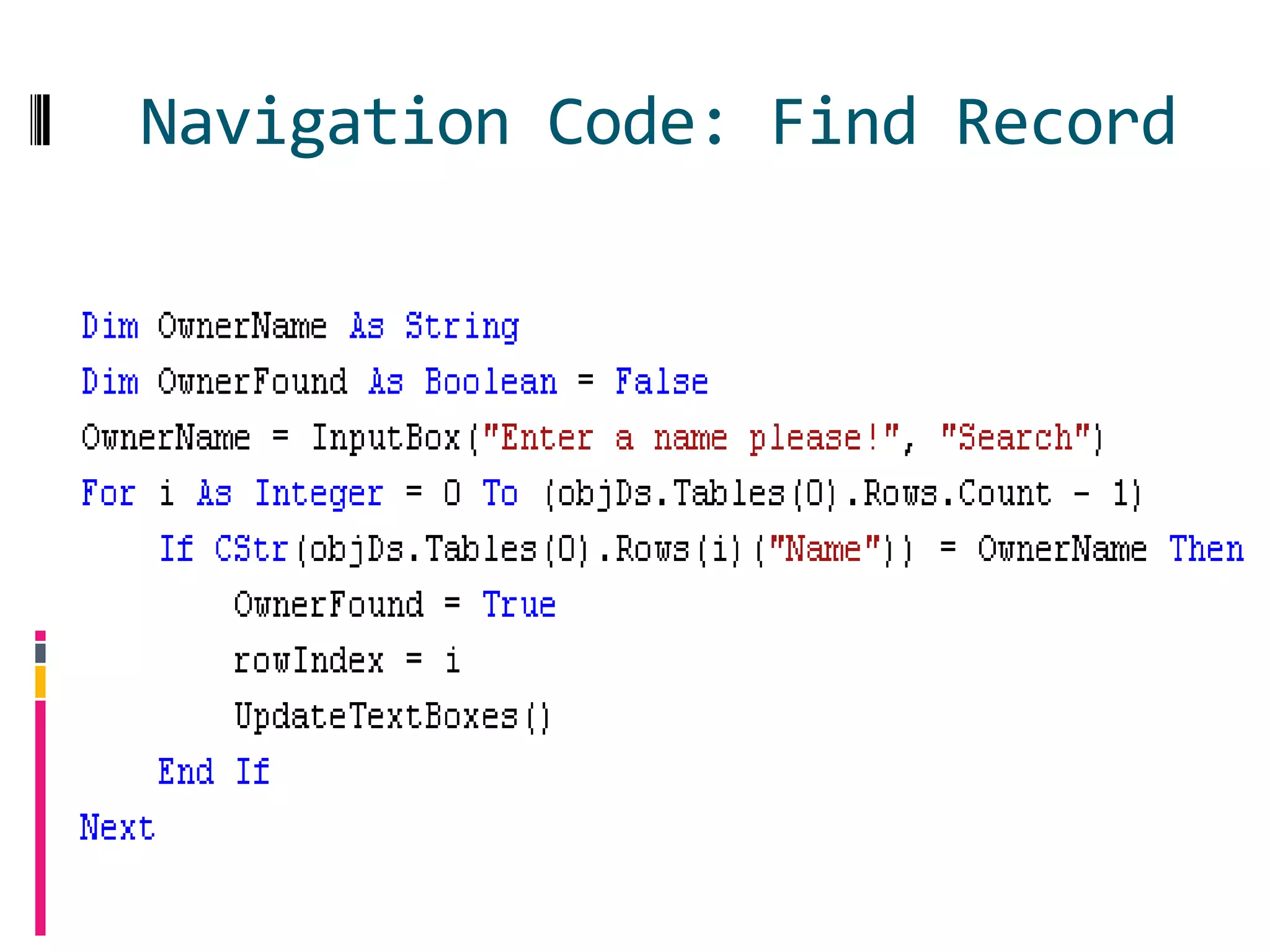

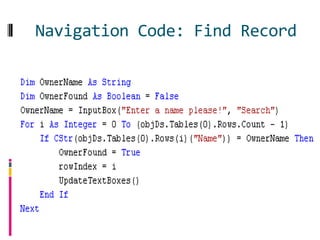

- 41. Navigation Code: FindRecord
