Java design patterns
The document discusses the Singleton design pattern in software engineering. The Singleton pattern ensures a class has only one instance and provides a global access point to it. All references to the singleton class refer to the same underlying instance. The summary explains how the pattern works by having a private constructor, static method to retrieve the instance, and static property to hold the sole instance of the class. This allows objects to safely access a shared resource like a database connection without creating multiple instances.
Java design patterns
- 2.
- 3. Design Patterns inJAVA Brian Zitzow, @bzitzow Web Developer, Student, Father Michael Kirby
- 4. Sasiwipa Nakdee Twitter: @lilwipa ●Girlfriend ● Puts up with me ● Feeds me after class ● Thank You Sasi!

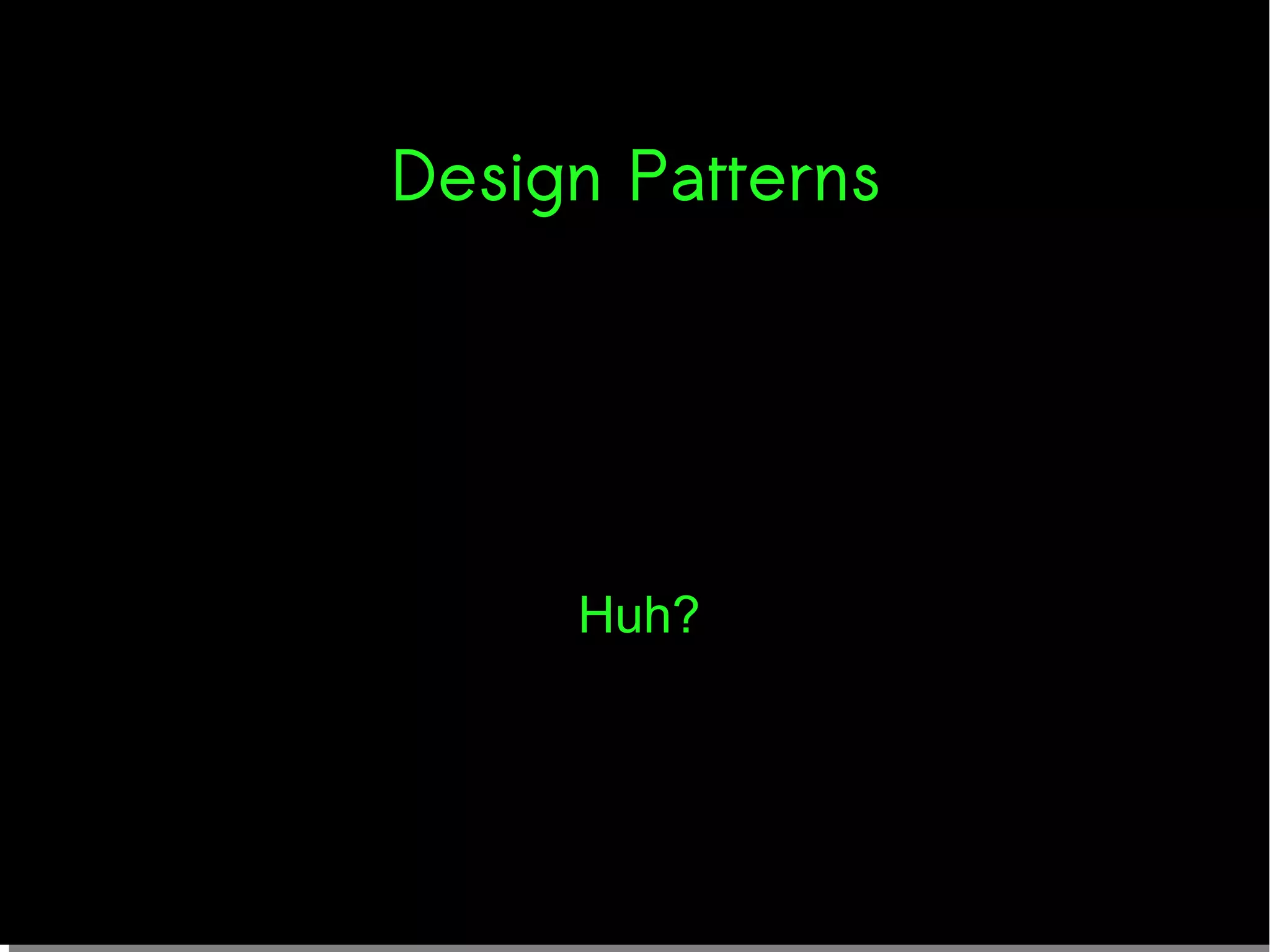

- 5.

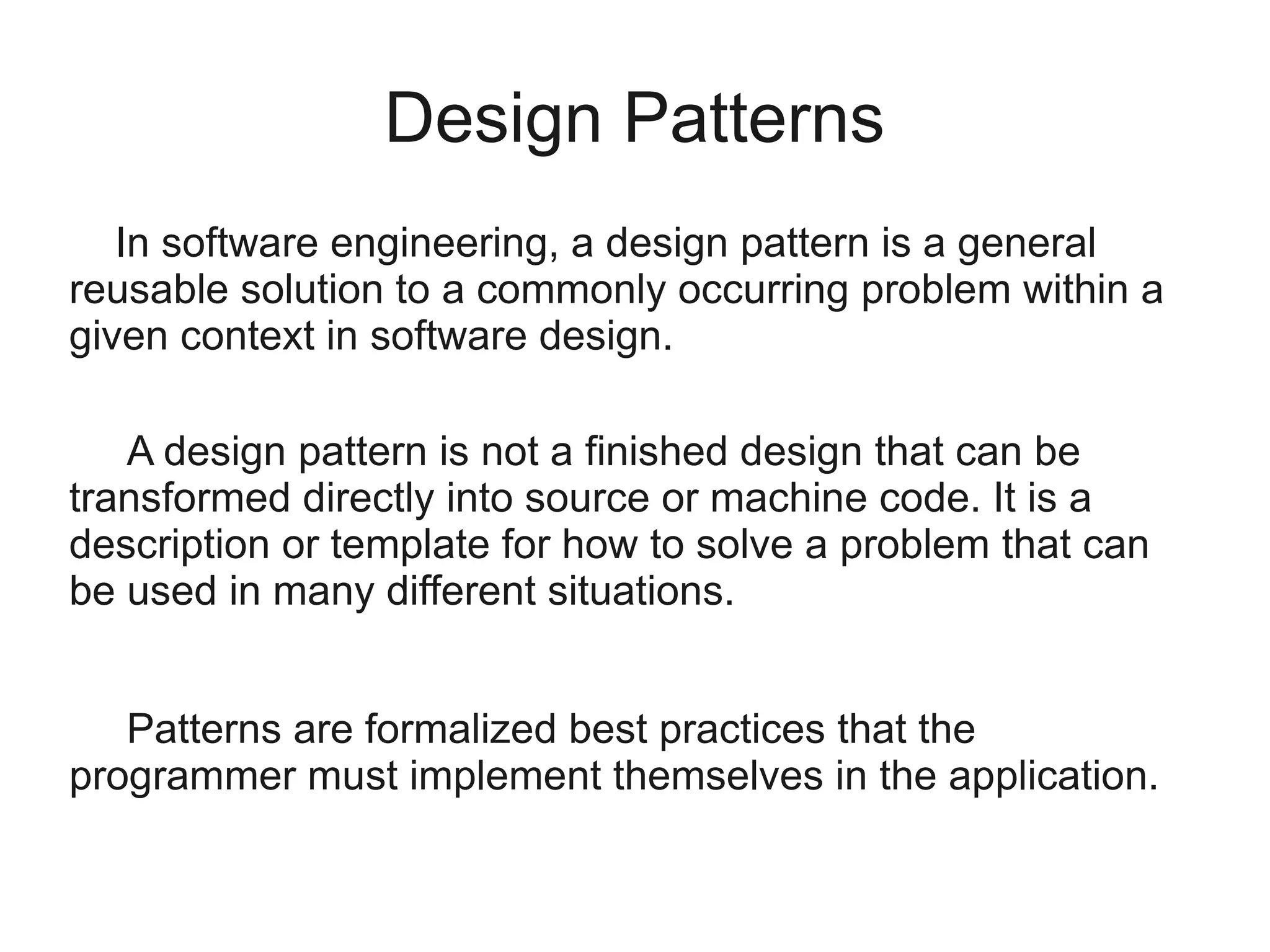

- 6. Design Patterns In softwareengineering, a design pattern is a general reusable solution to a commonly occurring problem within a given context in software design. A design pattern is not a finished design that can be transformed directly into source or machine code. It is a description or template for how to solve a problem that can be used in many different situations. Patterns are formalized best practices that the programmer must implement themselves in the application.

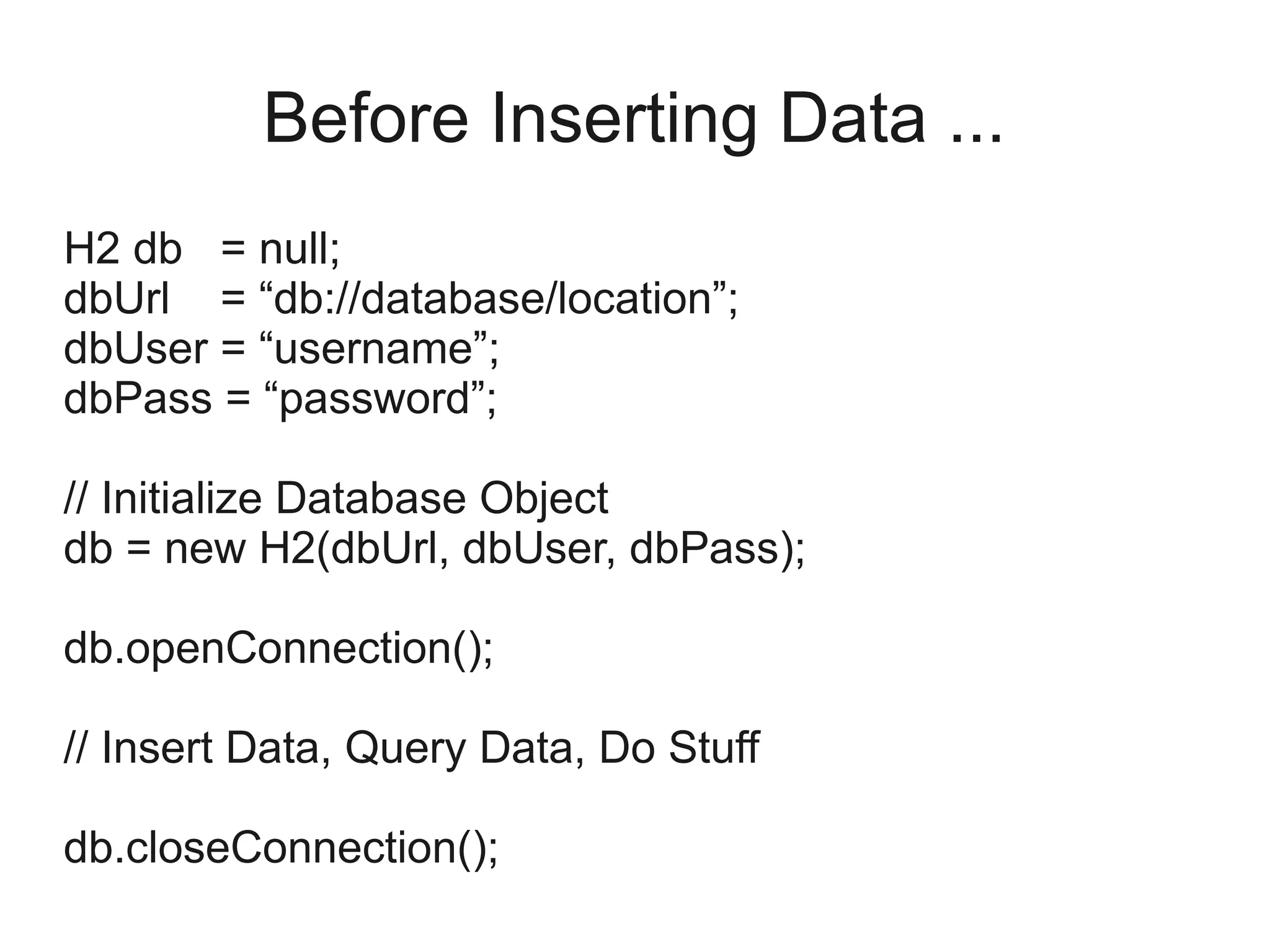

- 7. Before Inserting Data... H2 db = null; dbUrl = “db://database/location”; dbUser = “username”; dbPass = “password”; // Initialize Database Object db = new H2(dbUrl, dbUser, dbPass); db.openConnection(); // Insert Data, Query Data, Do Stuff db.closeConnection();

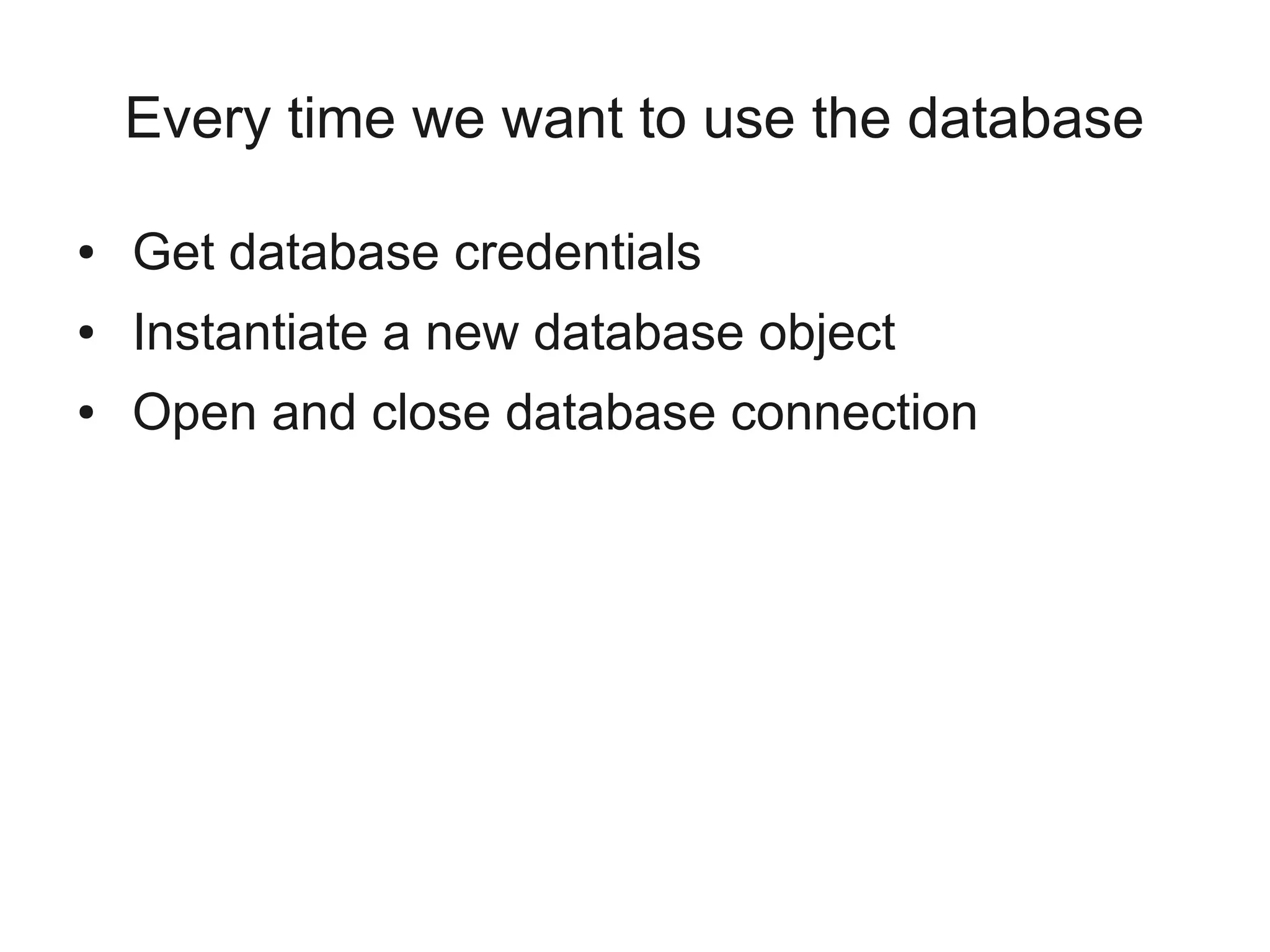

- 8. Every time wewant to use the database ● Get database credentials ● Instantiate a new database object ● Open and close database connection

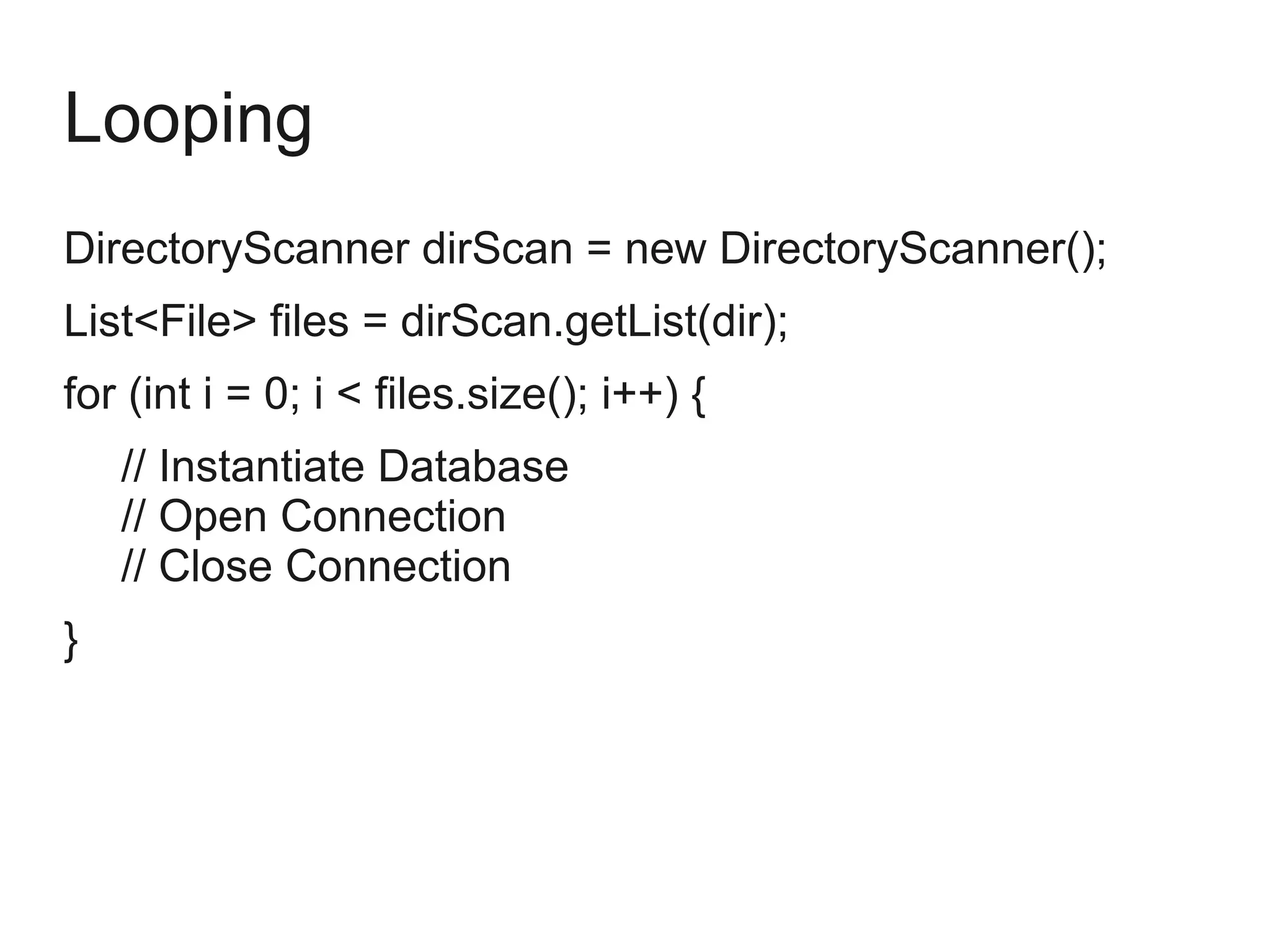

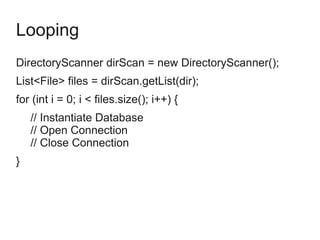

- 9. Looping DirectoryScanner dirScan =new DirectoryScanner(); List<File> files = dirScan.getList(dir); for (int i = 0; i < files.size(); i++) { // Instantiate Database // Open Connection // Close Connection }

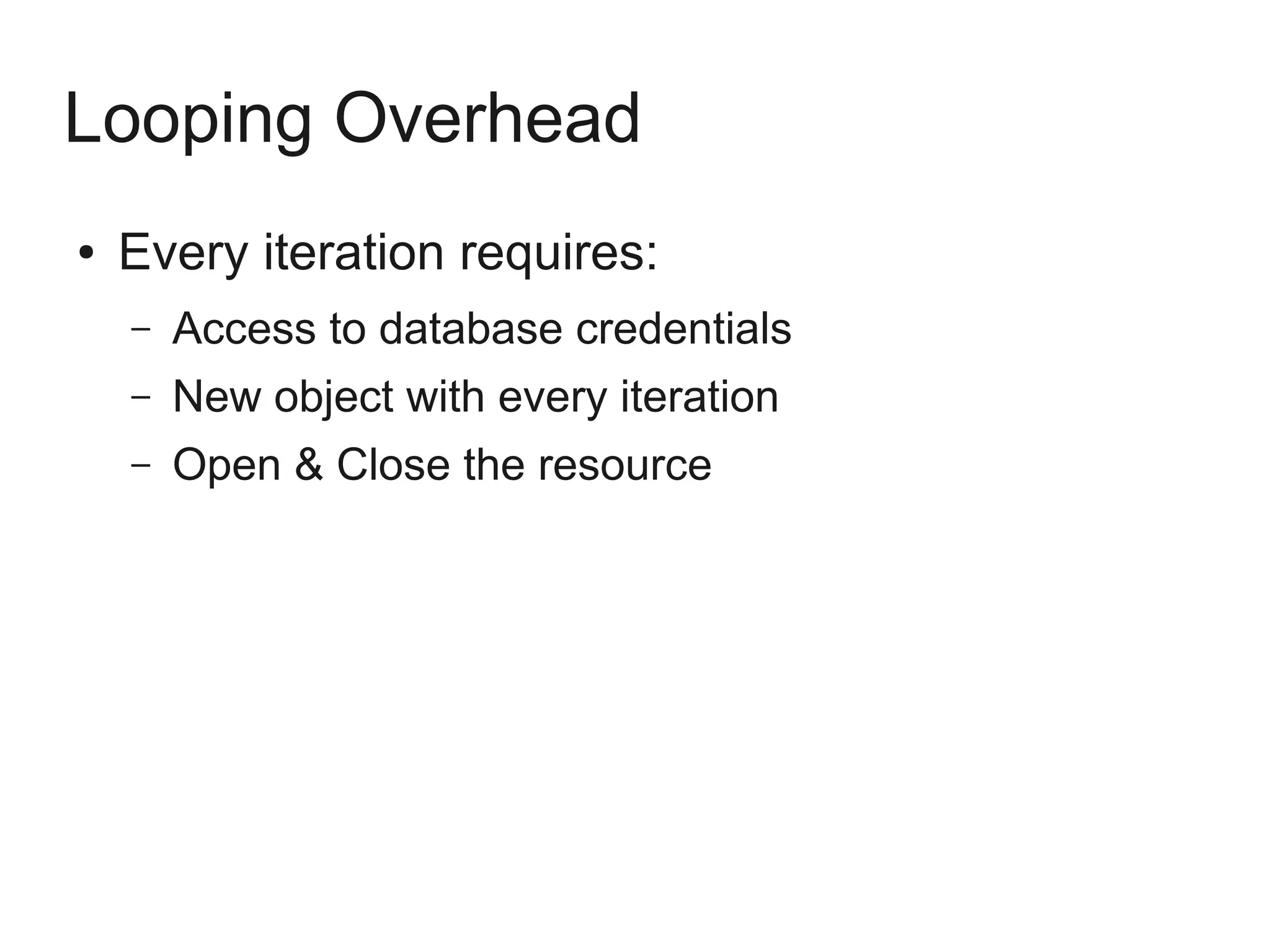

- 10. Looping Overhead ● Everyiteration requires: – Access to database credentials – New object with every iteration – Open & Close the resource

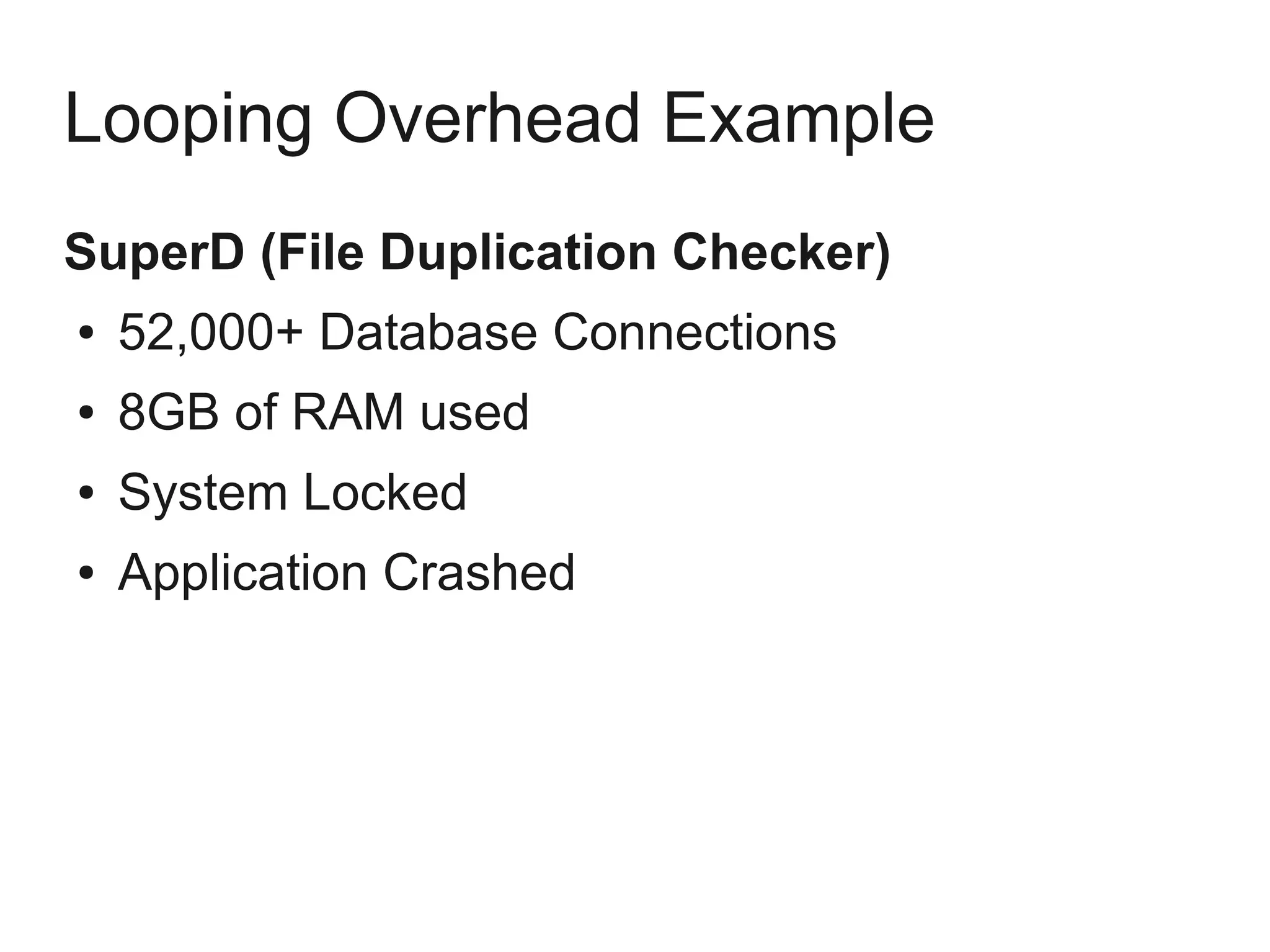

- 11. Looping Overhead Example SuperD(File Duplication Checker) ● 52,000+ Database Connections ● 8GB of RAM used ● System Locked ● Application Crashed

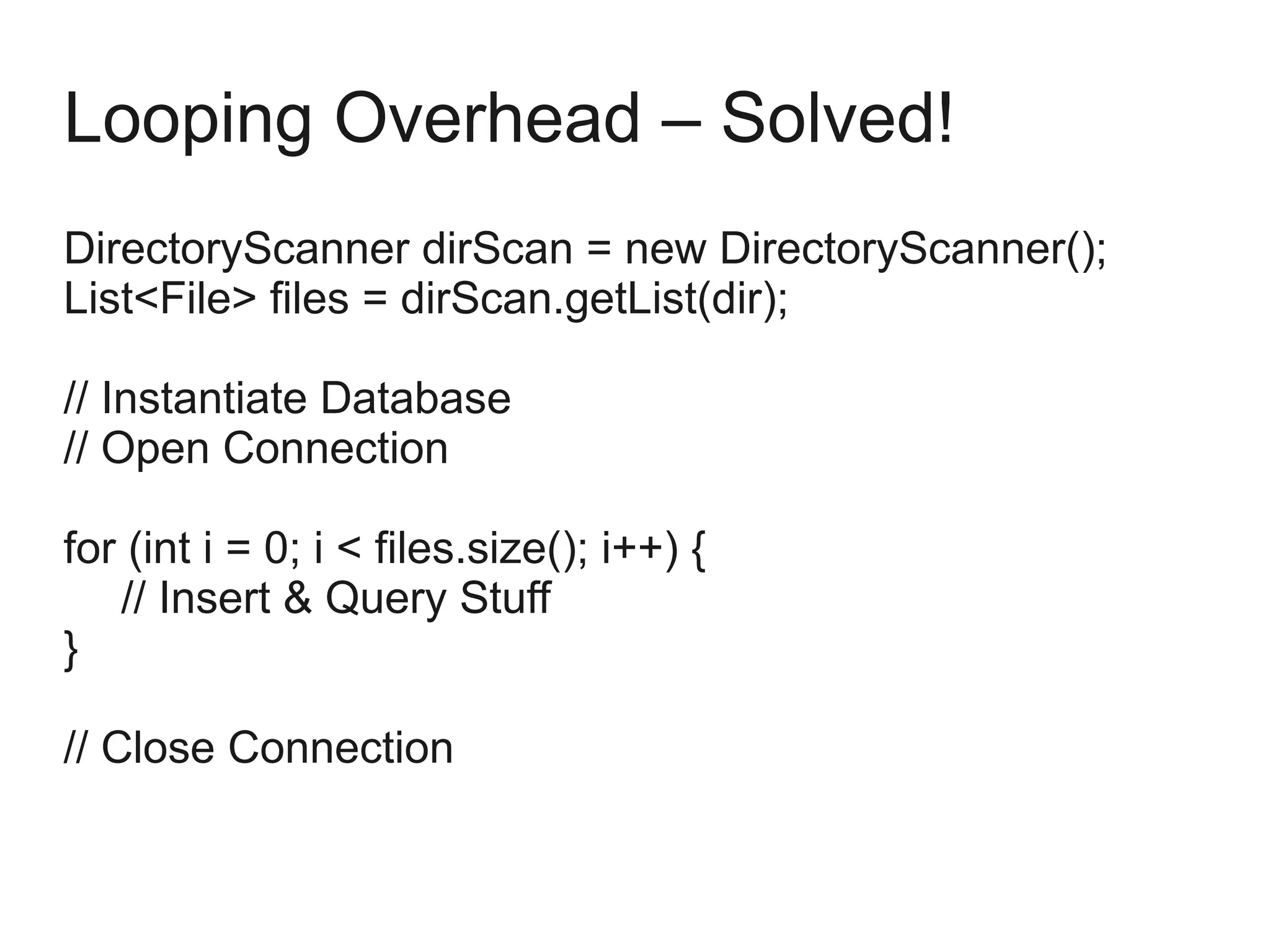

- 12. Looping Overhead –Solved! DirectoryScanner dirScan = new DirectoryScanner(); List<File> files = dirScan.getList(dir); // Instantiate Database // Open Connection for (int i = 0; i < files.size(); i++) { // Insert & Query Stuff } // Close Connection

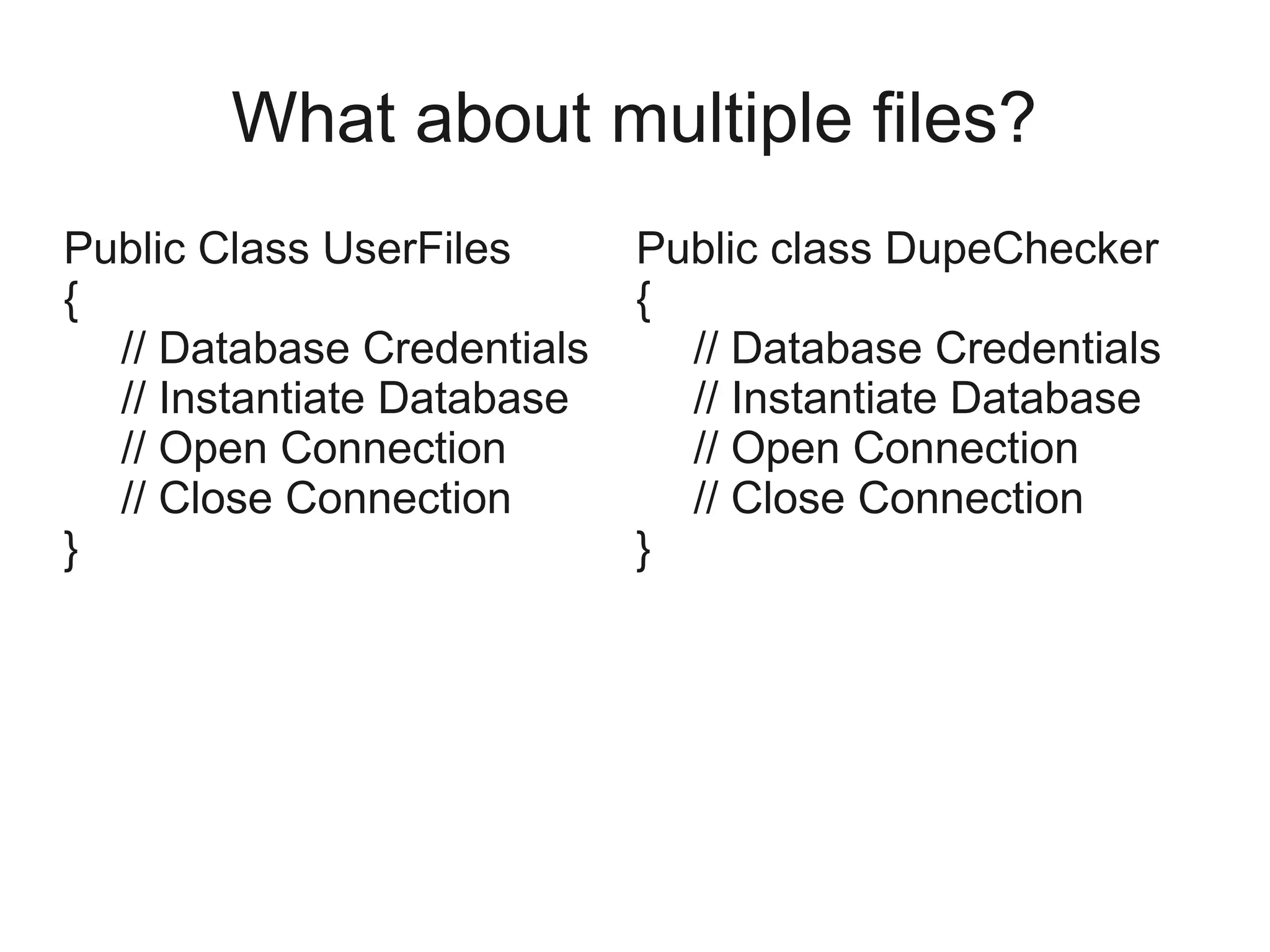

- 13. What about multiplefiles? Public Class UserFiles { // Database Credentials // Instantiate Database // Open Connection // Close Connection } Public class DupeChecker { // Database Credentials // Instantiate Database // Open Connection // Close Connection }

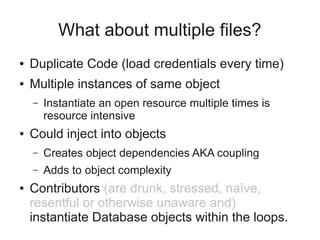

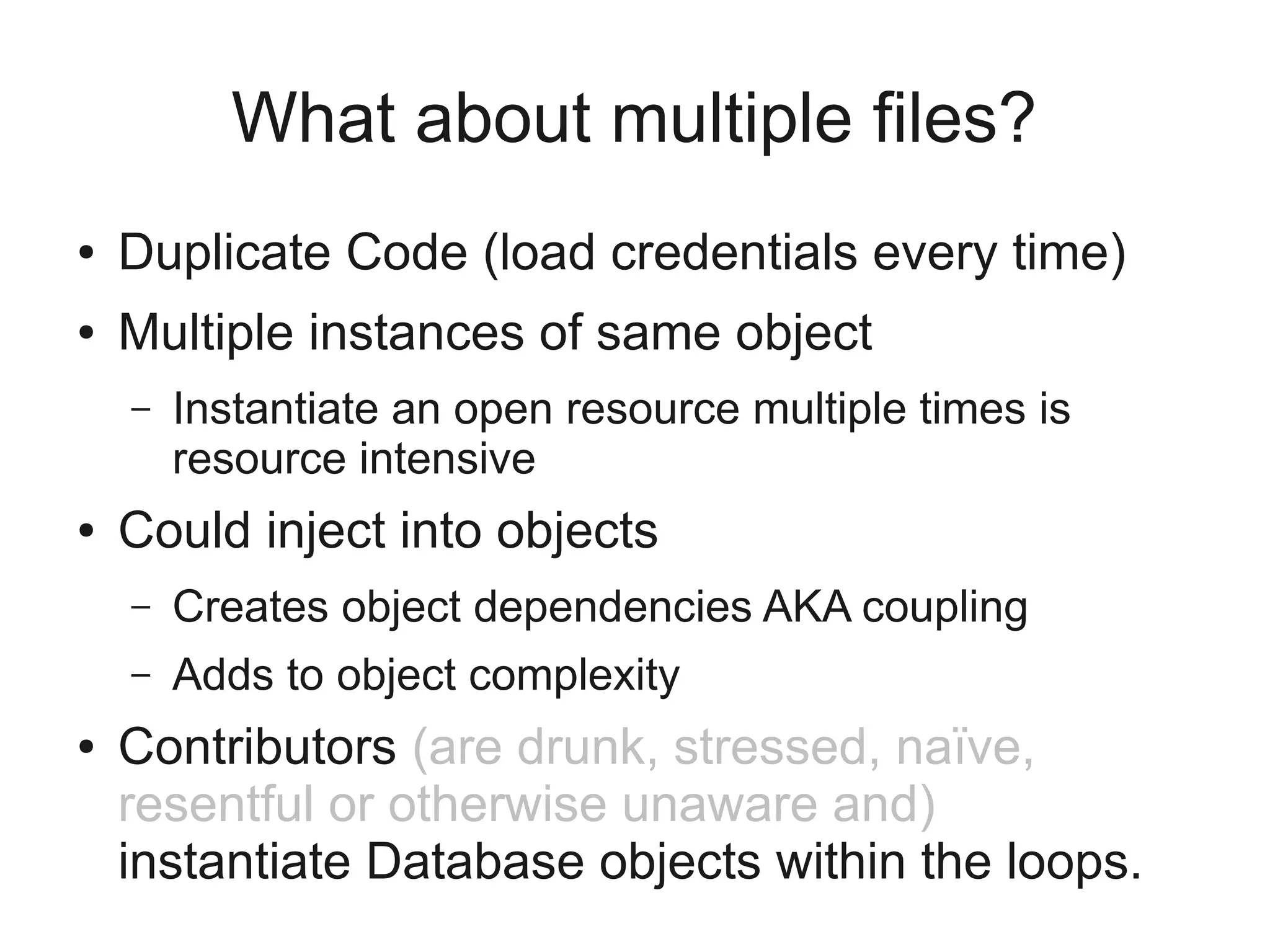

- 14. What about multiplefiles? ● Duplicate Code (load credentials every time) ● Multiple instances of same object – Instantiate an open resource multiple times is resource intensive ● Could inject into objects – Creates object dependencies AKA coupling – Adds to object complexity ● Contributors (are drunk, stressed, naïve, resentful or otherwise unaware and) instantiate Database objects within the loops.
- 15.
- 18.

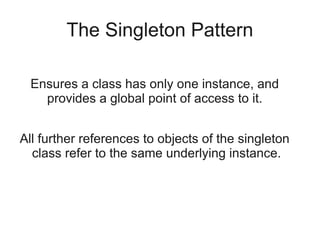

- 19. The Singleton Pattern Ensuresa class has only one instance, and provides a global point of access to it. All further references to objects of the singleton class refer to the same underlying instance.

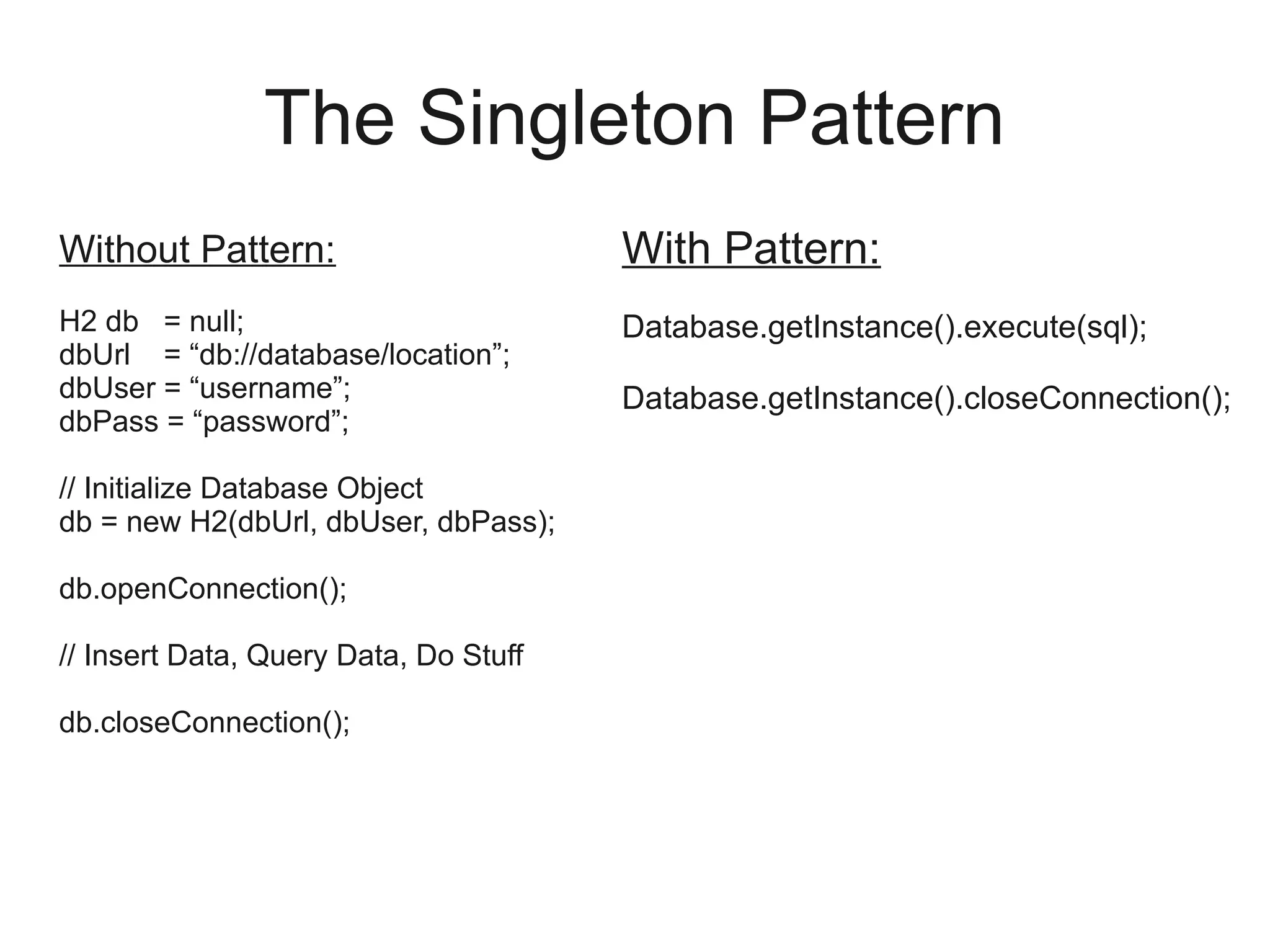

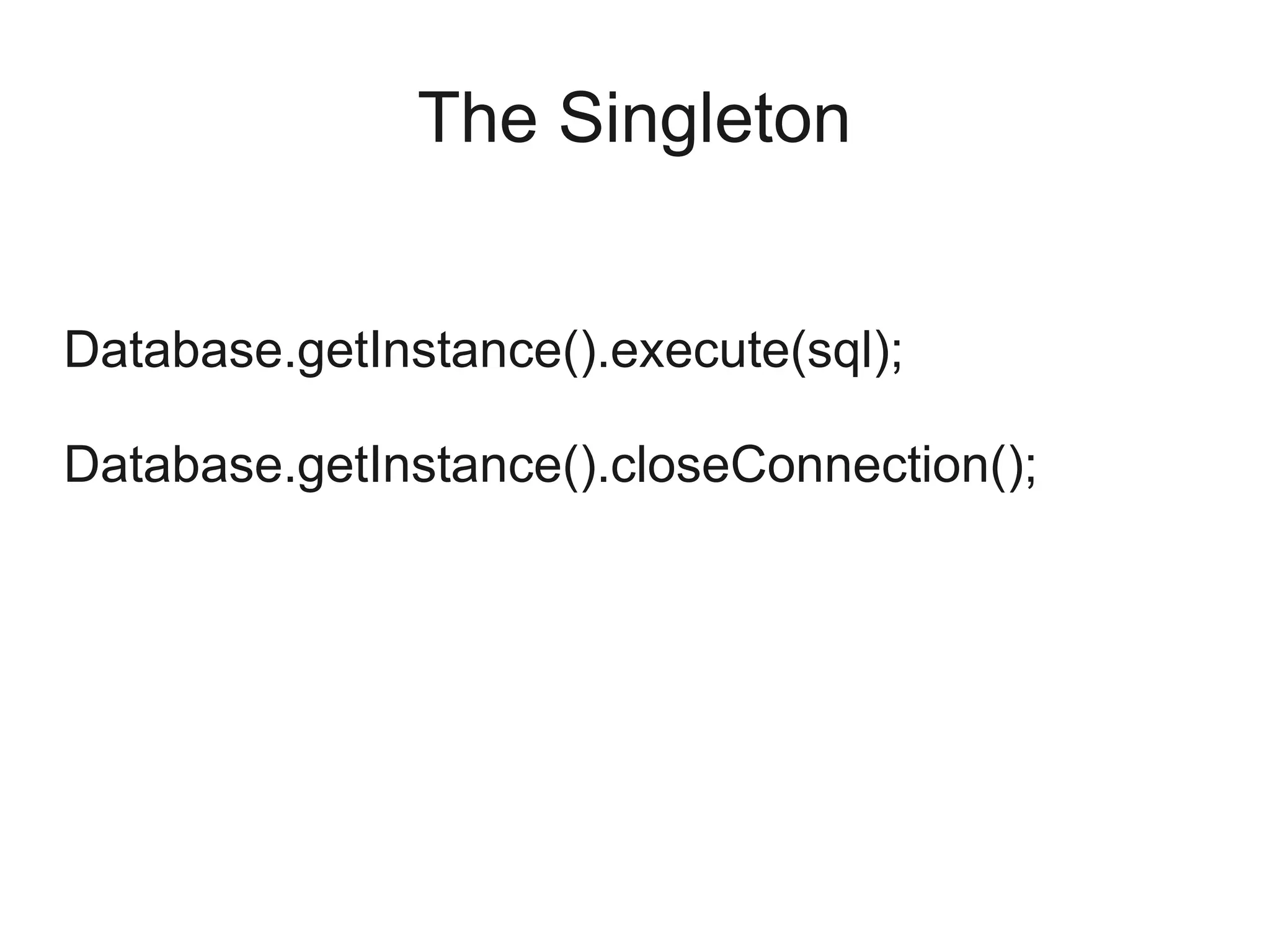

- 20. The Singleton Pattern WithoutPattern: H2 db = null; dbUrl = “db://database/location”; dbUser = “username”; dbPass = “password”; // Initialize Database Object db = new H2(dbUrl, dbUser, dbPass); db.openConnection(); // Insert Data, Query Data, Do Stuff db.closeConnection(); With Pattern: Database.getInstance().execute(sql); Database.getInstance().closeConnection();

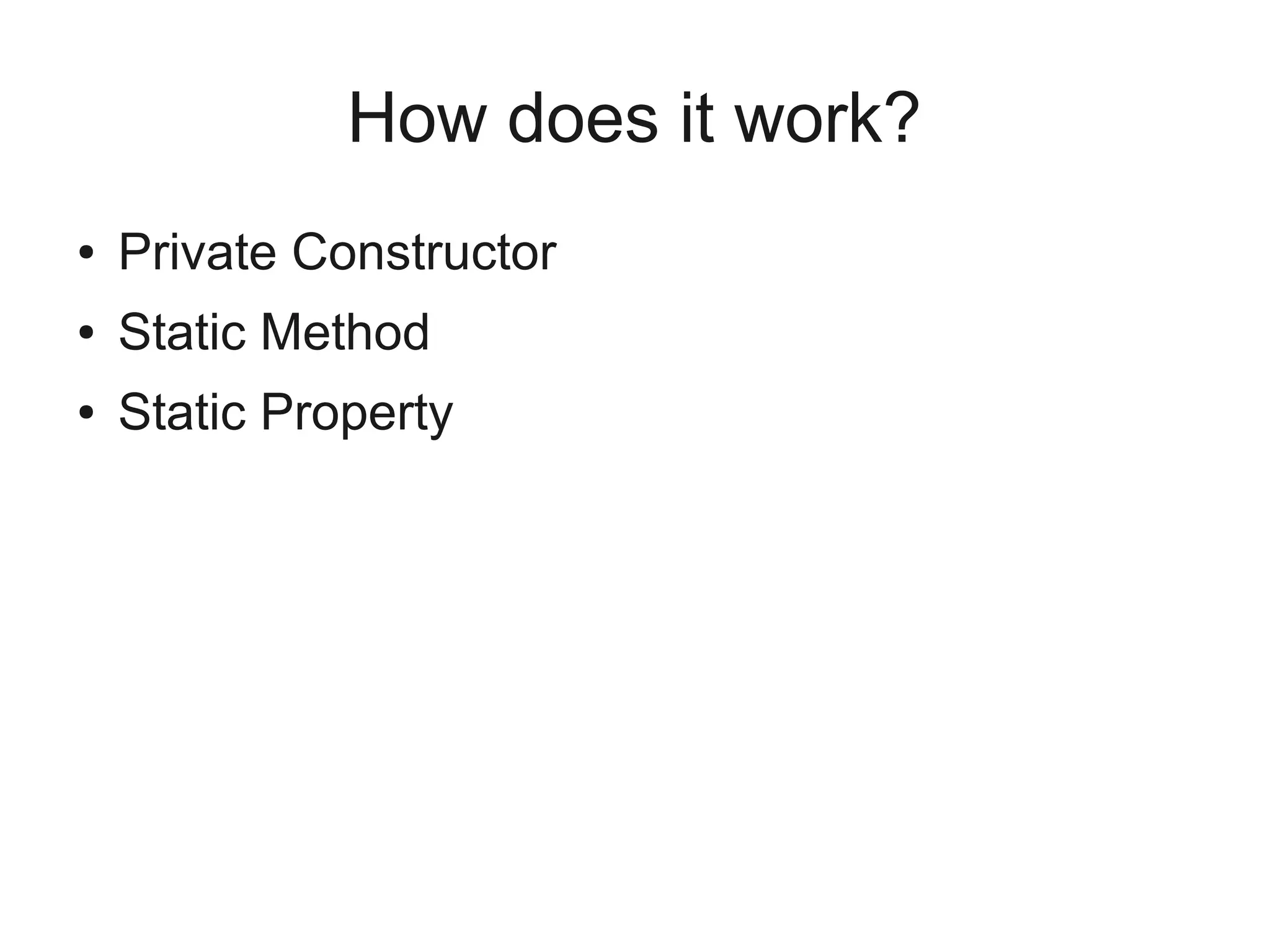

- 21. How does itwork? ● Private Constructor ● Static Method ● Static Property

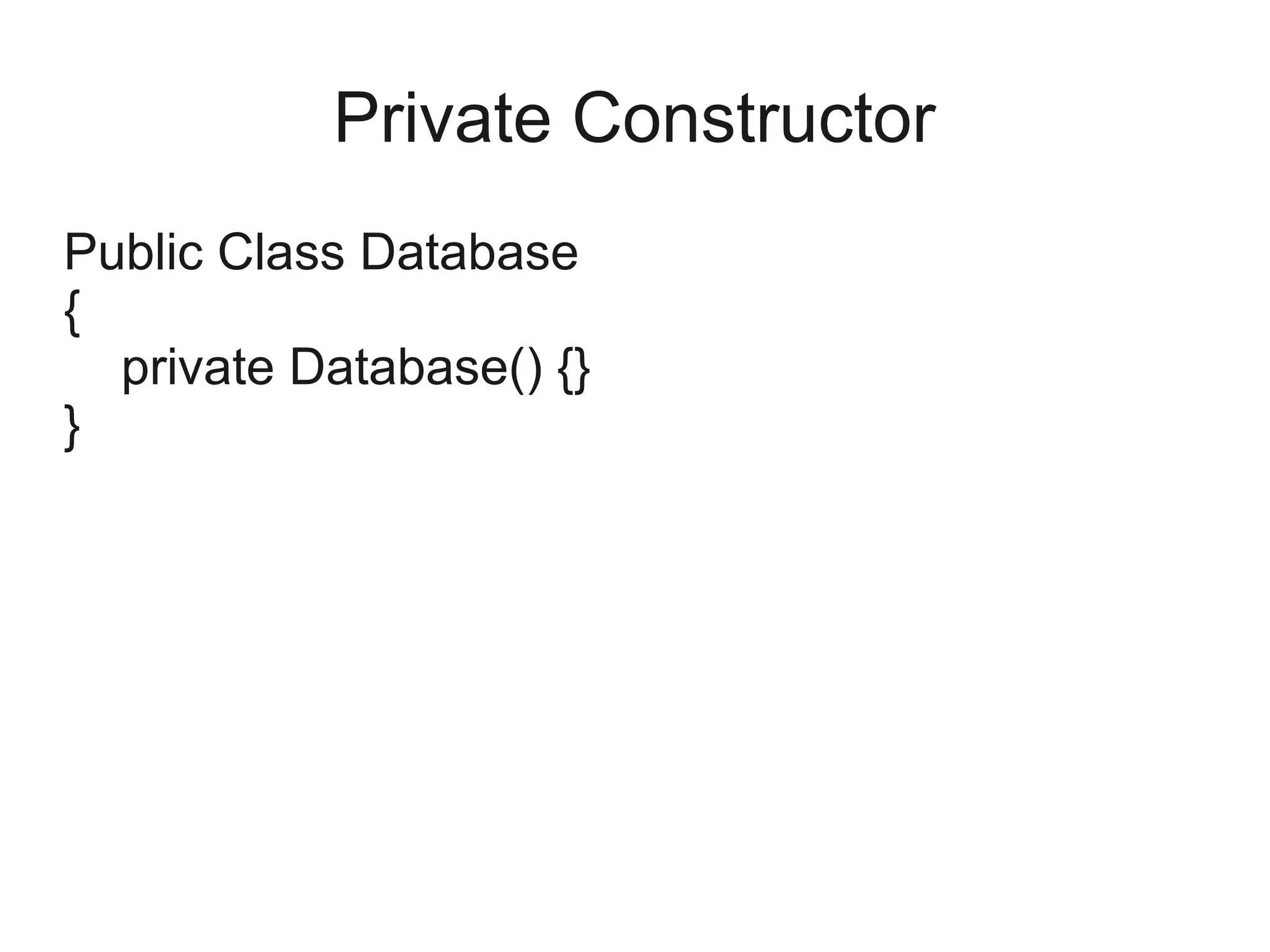

- 22. Private Constructor Public ClassDatabase { private Database() {} }

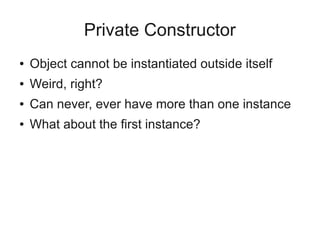

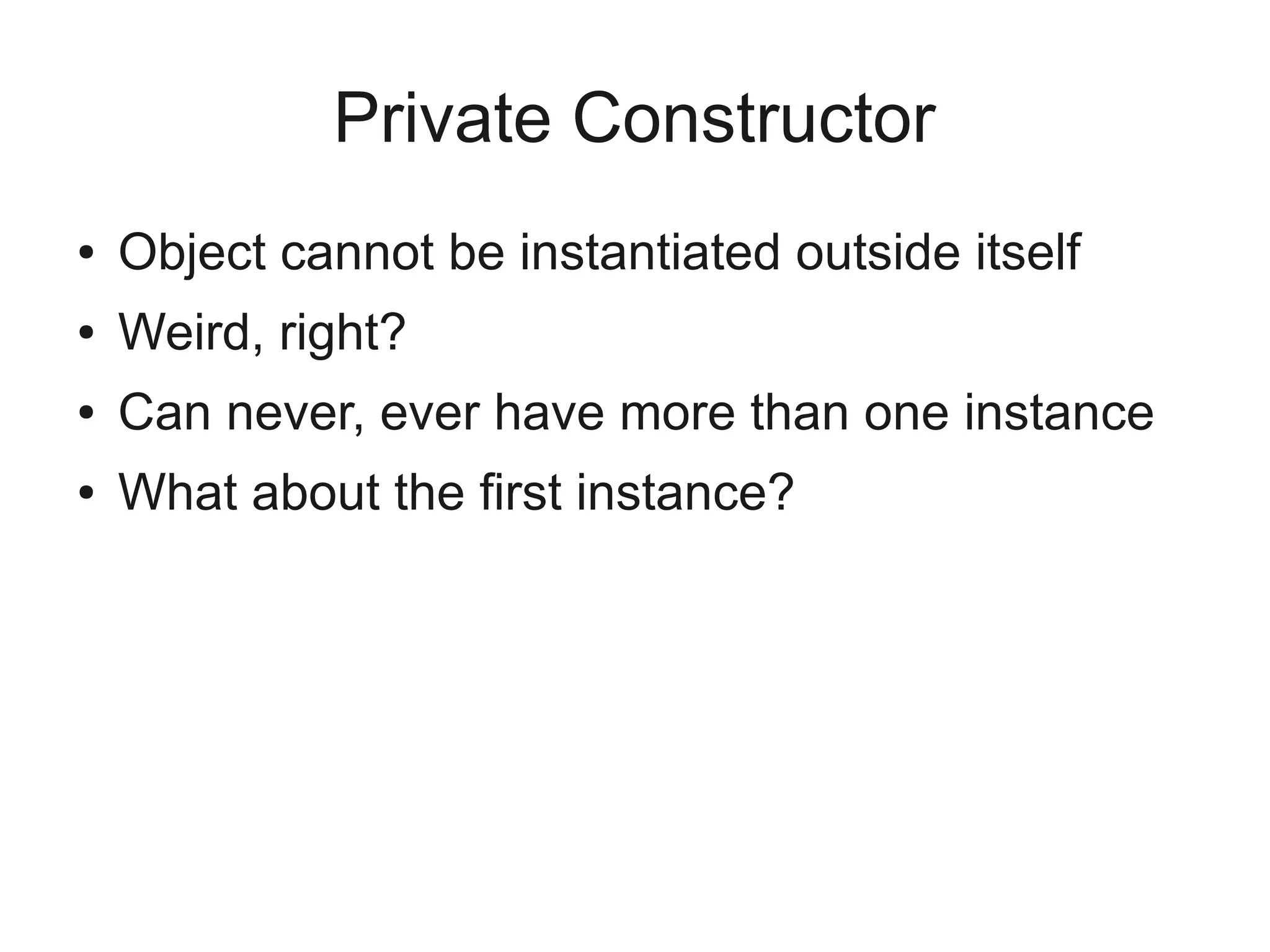

- 23. Private Constructor ● Objectcannot be instantiated outside itself ● Weird, right? ● Can never, ever have more than one instance ● What about the first instance?

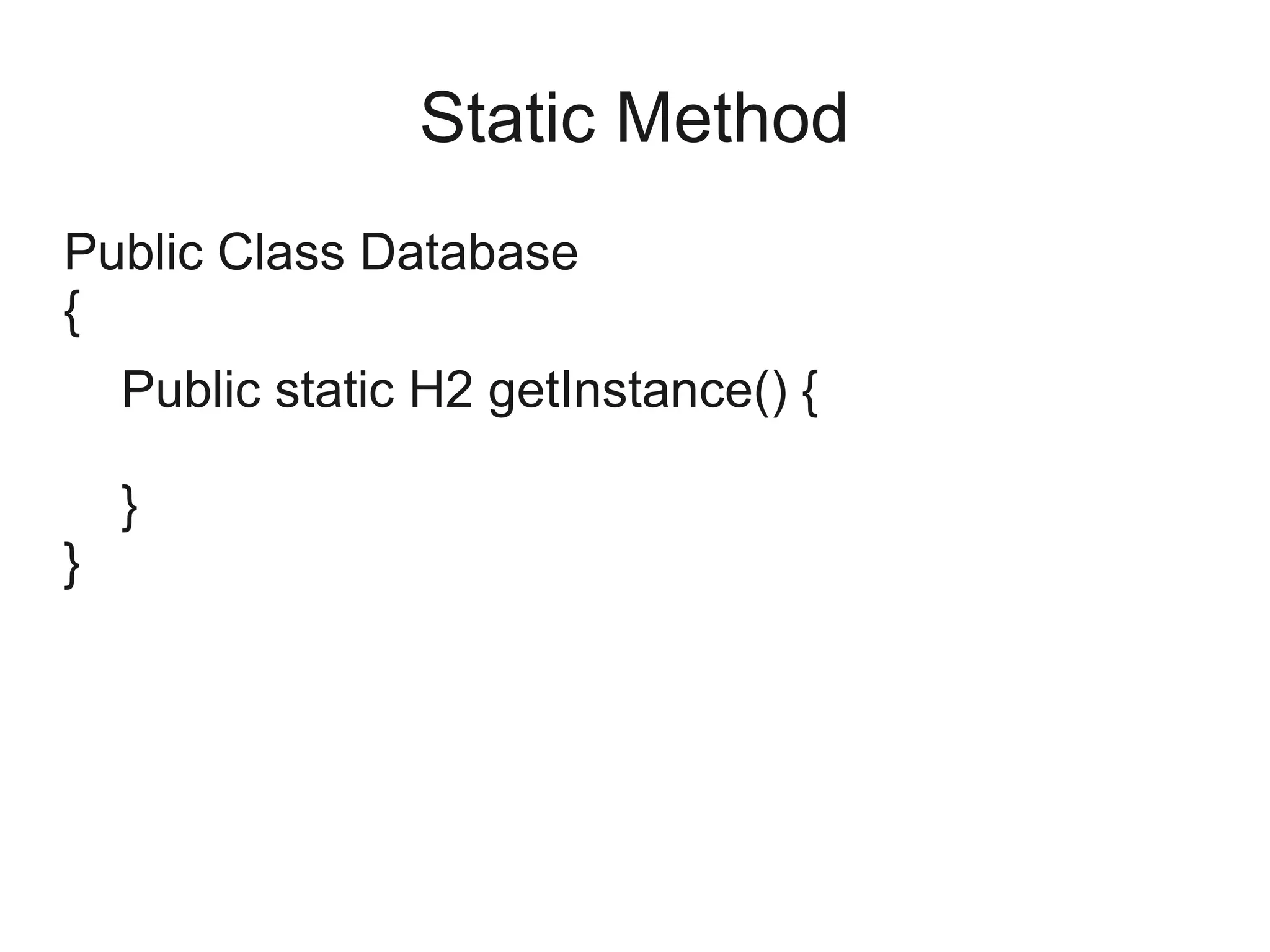

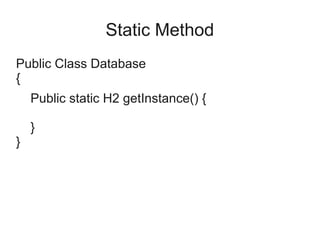

- 24. Static Method Public ClassDatabase { Public static H2 getInstance() { } }

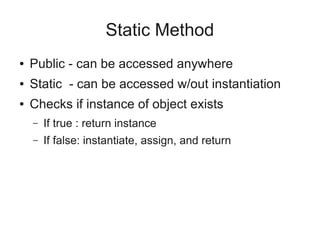

- 25. Static Method ● Public- can be accessed anywhere ● Static - can be accessed w/out instantiation ● Checks if instance of object exists – If true : return instance – If false: instantiate, assign, and return

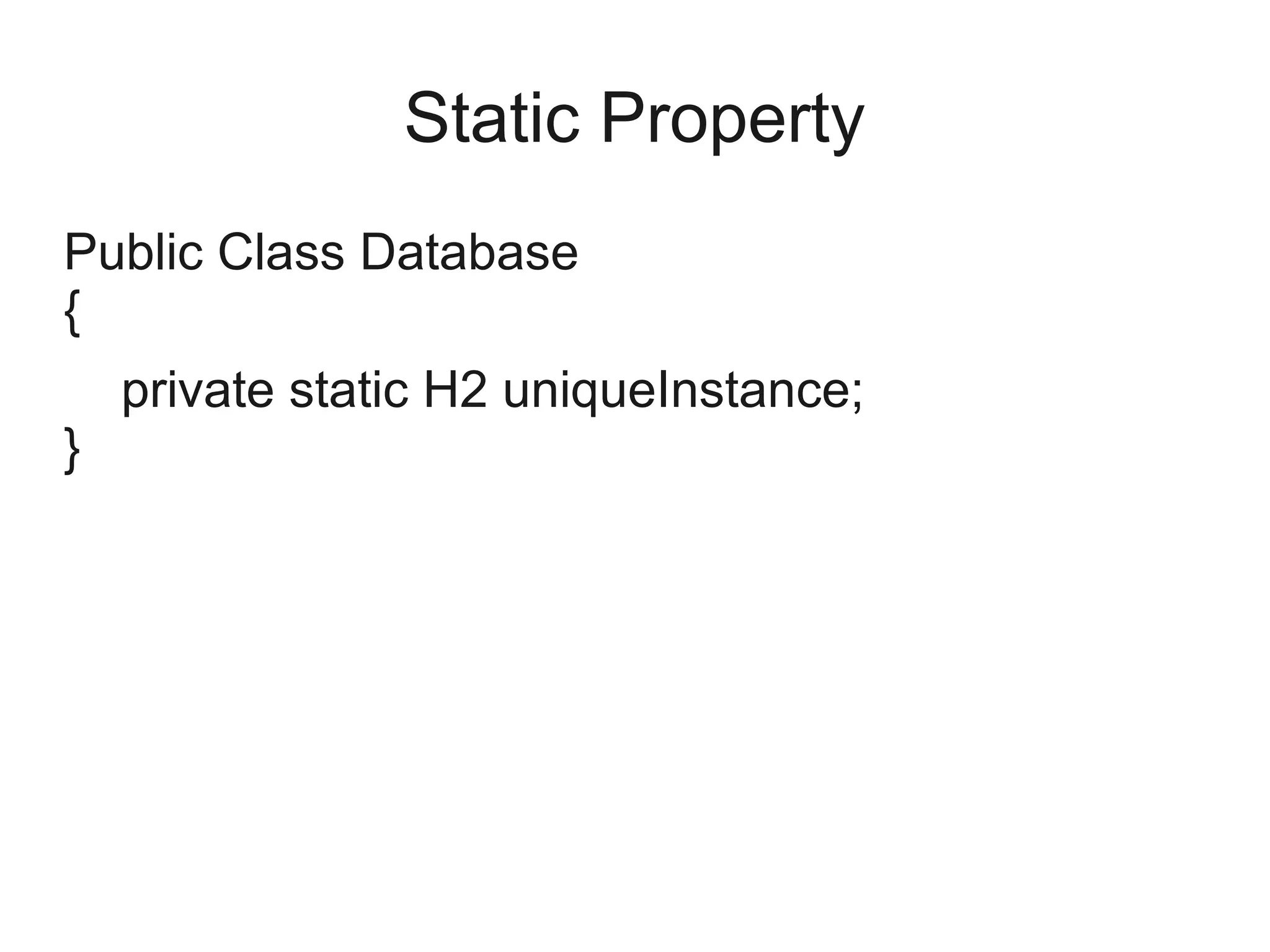

- 26. Static Property Public ClassDatabase { private static H2 uniqueInstance; }

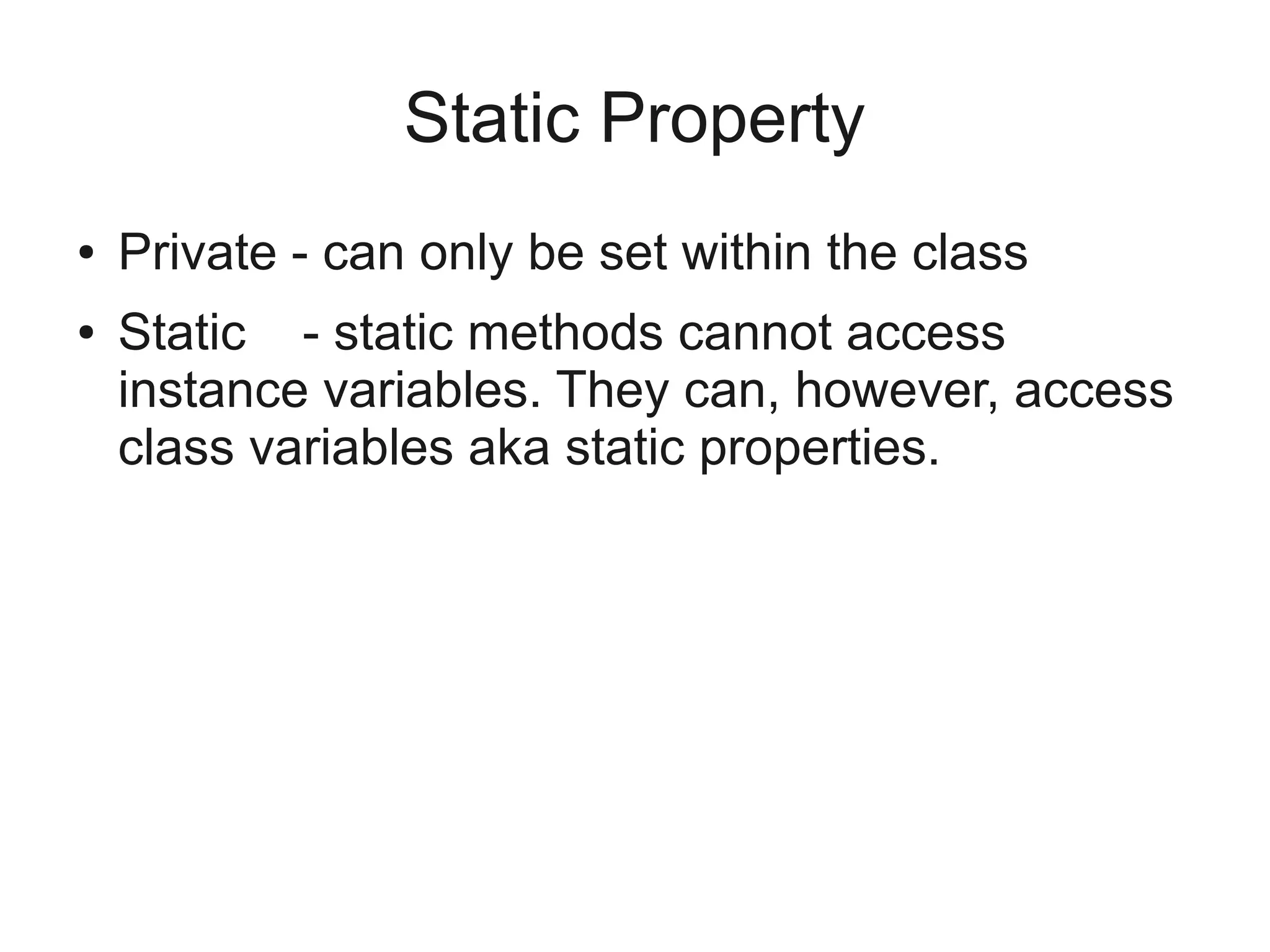

- 27. Static Property ● Private- can only be set within the class ● Static - static methods cannot access instance variables. They can, however, access class variables aka static properties.

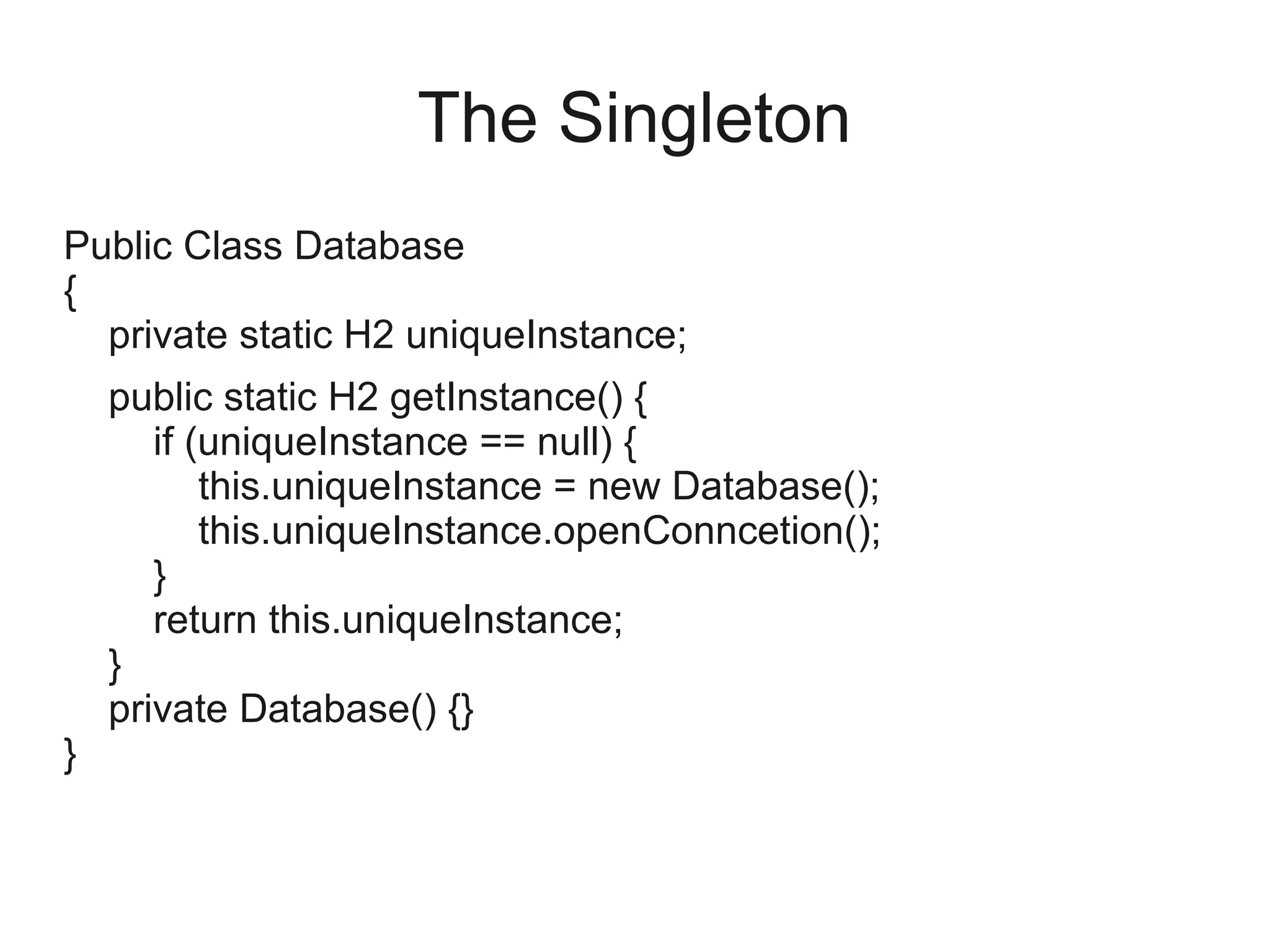

- 28. The Singleton Public ClassDatabase { private static H2 uniqueInstance; public static H2 getInstance() { if (uniqueInstance == null) { this.uniqueInstance = new Database(); this.uniqueInstance.openConncetion(); } return this.uniqueInstance; } private Database() {} }
- 29.

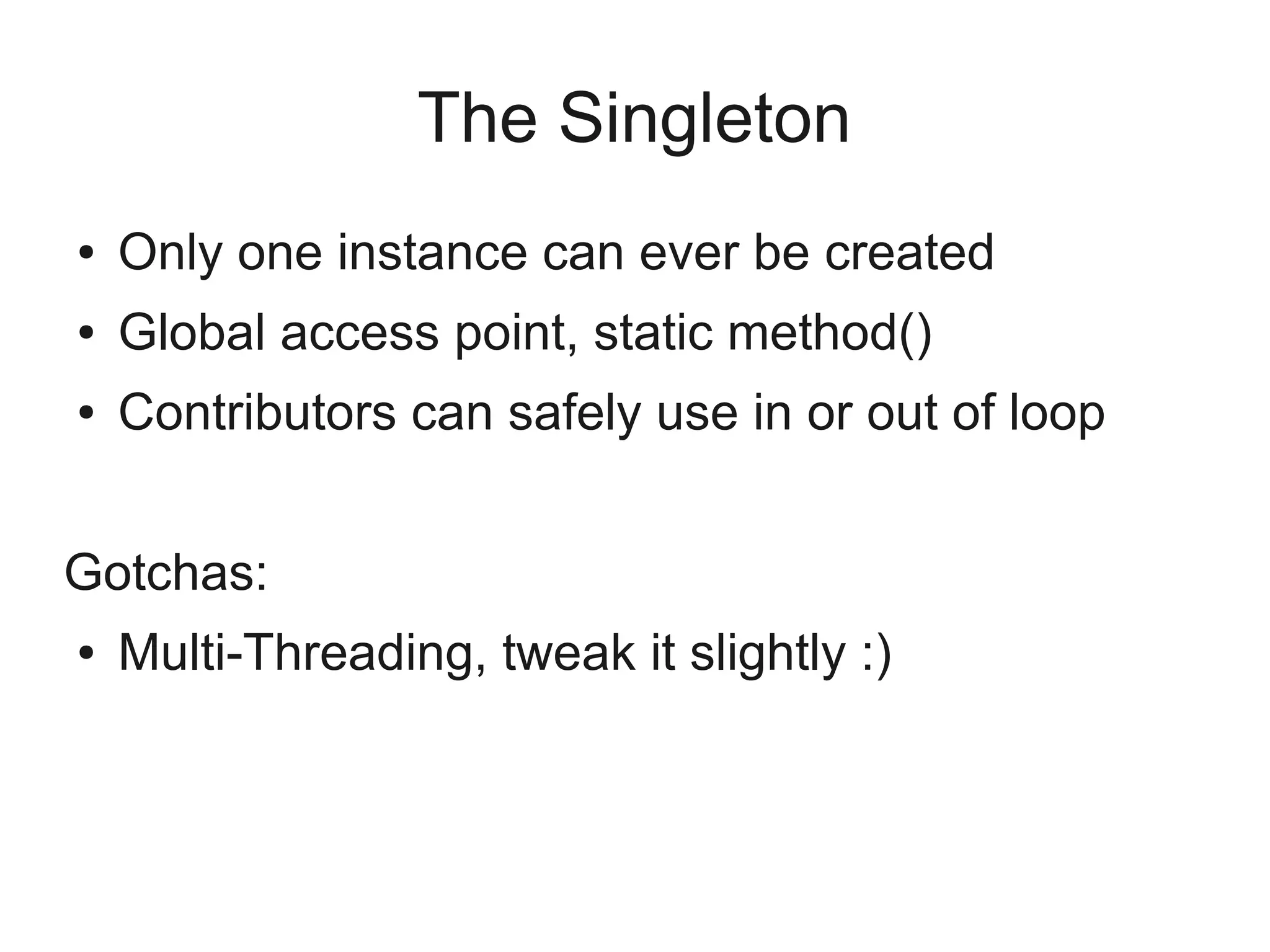

- 30. The Singleton ● Onlyone instance can ever be created ● Global access point, static method() ● Contributors can safely use in or out of loop Gotchas: ● Multi-Threading, tweak it slightly :)
- 31.
