Java EE 7 - Overview and Status

Java EE 7
Overview and Status

Peter Doschkinow
Senior Java Architect

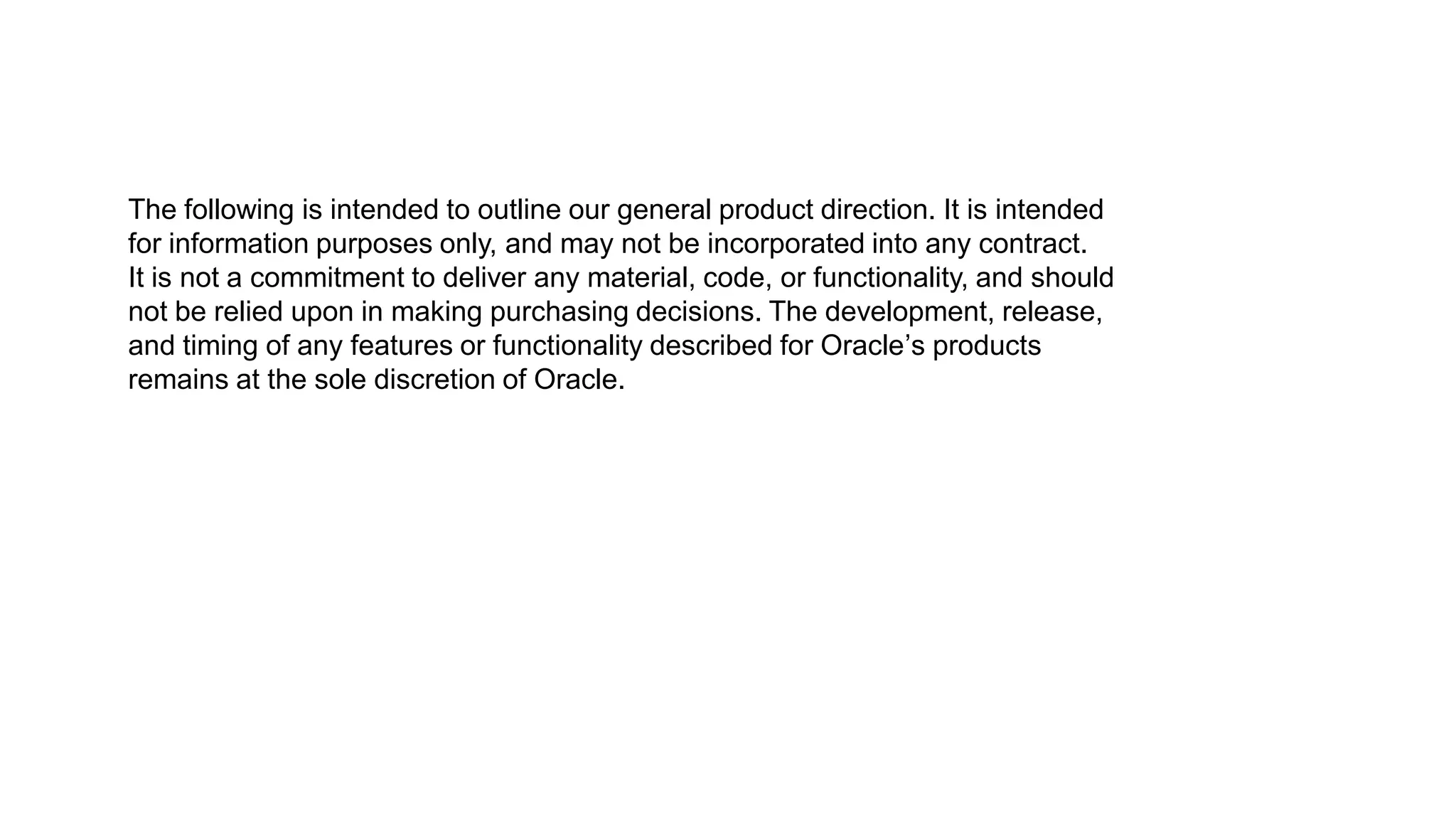

The following is intended to outline our general product direction. It is intended
for information purposes only, and may not be incorporated into any contract.
It is not a commitment to deliver any material, code, or functionality, and should
not be relied upon in making purchasing decisions. The development, release,
and timing of any features or functionality described for Oracle’s products
remains at the sole discretion of Oracle.

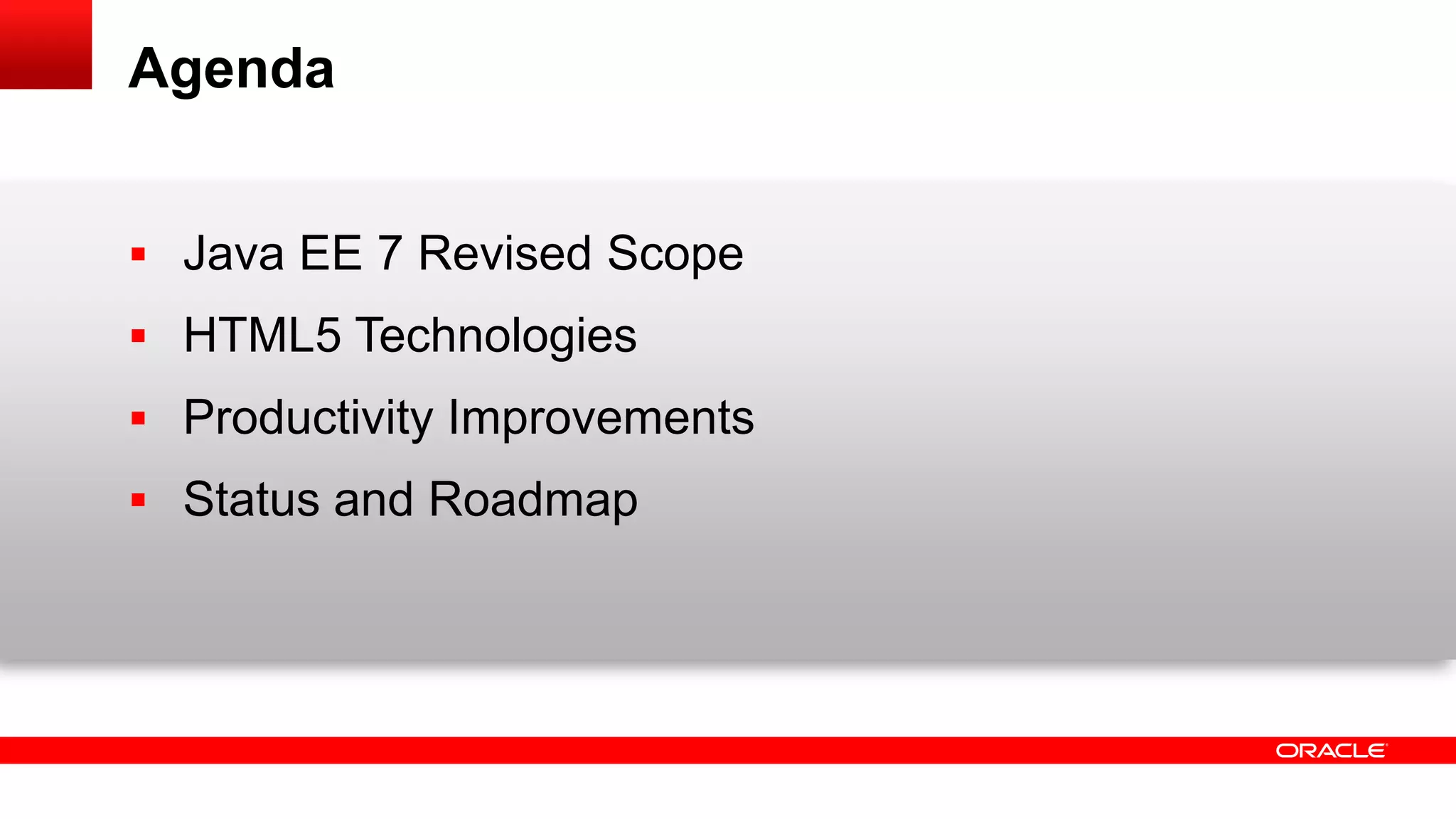

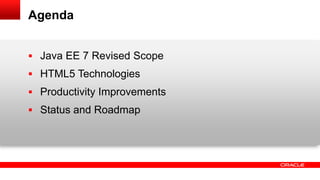

Agenda

 Java EE 7 Revised Scope
 HTML5 Technologies
 Productivity Improvements
 Status and Roadmap

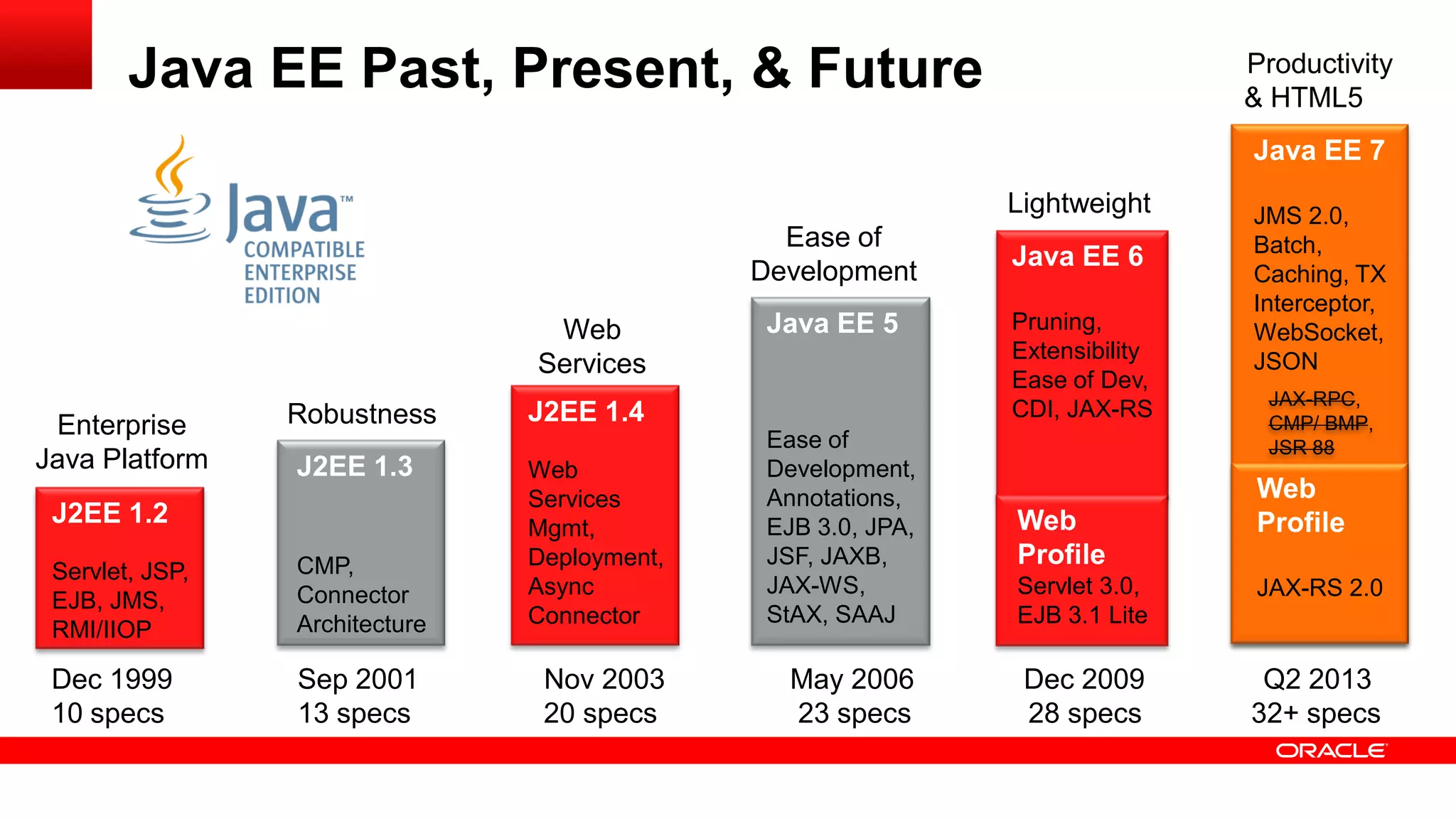

Java EE Past, Present, & Future Productivity
& HTML5
Java EE 7
Lightweight JMS 2.0,
Ease of Batch,
Java EE 6
Development Caching, TX
Interceptor,
Web Java EE 5 Pruning, WebSocket,
Extensibility JSON
Services
Ease of Dev,
JAX-RPC,
Robustness J2EE 1.4 CDI, JAX-RS
Enterprise Ease of
CMP/ BMP,
JSR 88
Java Platform J2EE 1.3 Web Development,
Services Annotations, Web
J2EE 1.2 Mgmt, EJB 3.0, JPA, Web Profile
CMP, Deployment, JSF, JAXB, Profile
Servlet, JSP,
Connector Async JAX-WS, Servlet 3.0, JAX-RS 2.0
EJB, JMS,
Architecture Connector StAX, SAAJ EJB 3.1 Lite
RMI/IIOP

Dec 1999 Sep 2001 Nov 2003 May 2006 Dec 2009 Q2 2013
10 specs 13 specs 20 specs 23 specs 28 specs 32+ specs

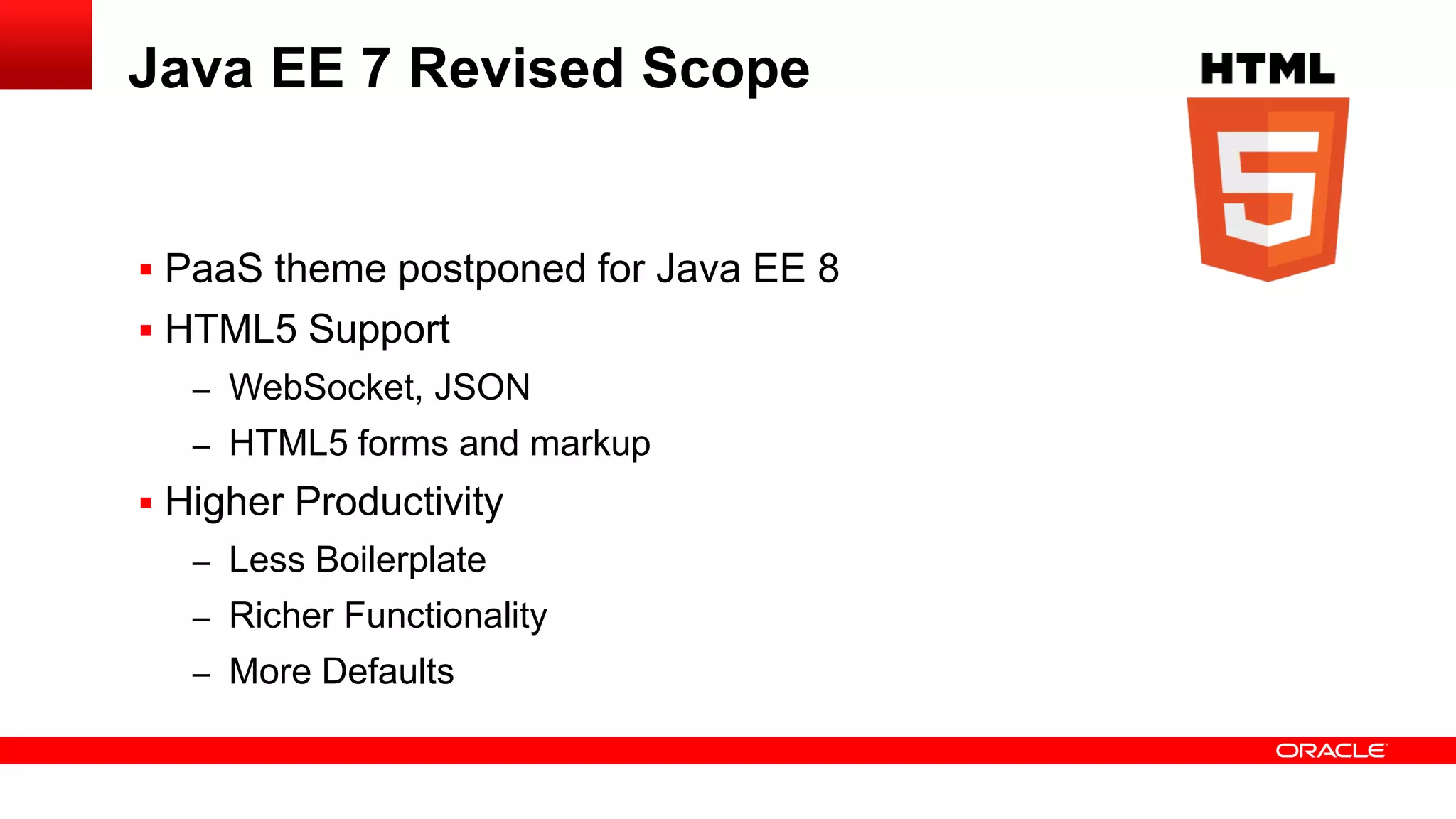

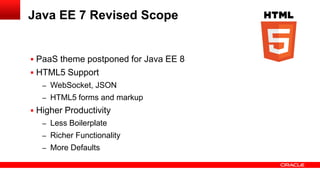

Java EE 7 Revised Scope

 PaaS theme postponed for Java EE 8
 HTML5 Support
– WebSocket, JSON
– HTML5 forms and markup
 Higher Productivity
– Less Boilerplate
– Richer Functionality
– More Defaults

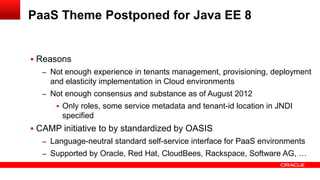

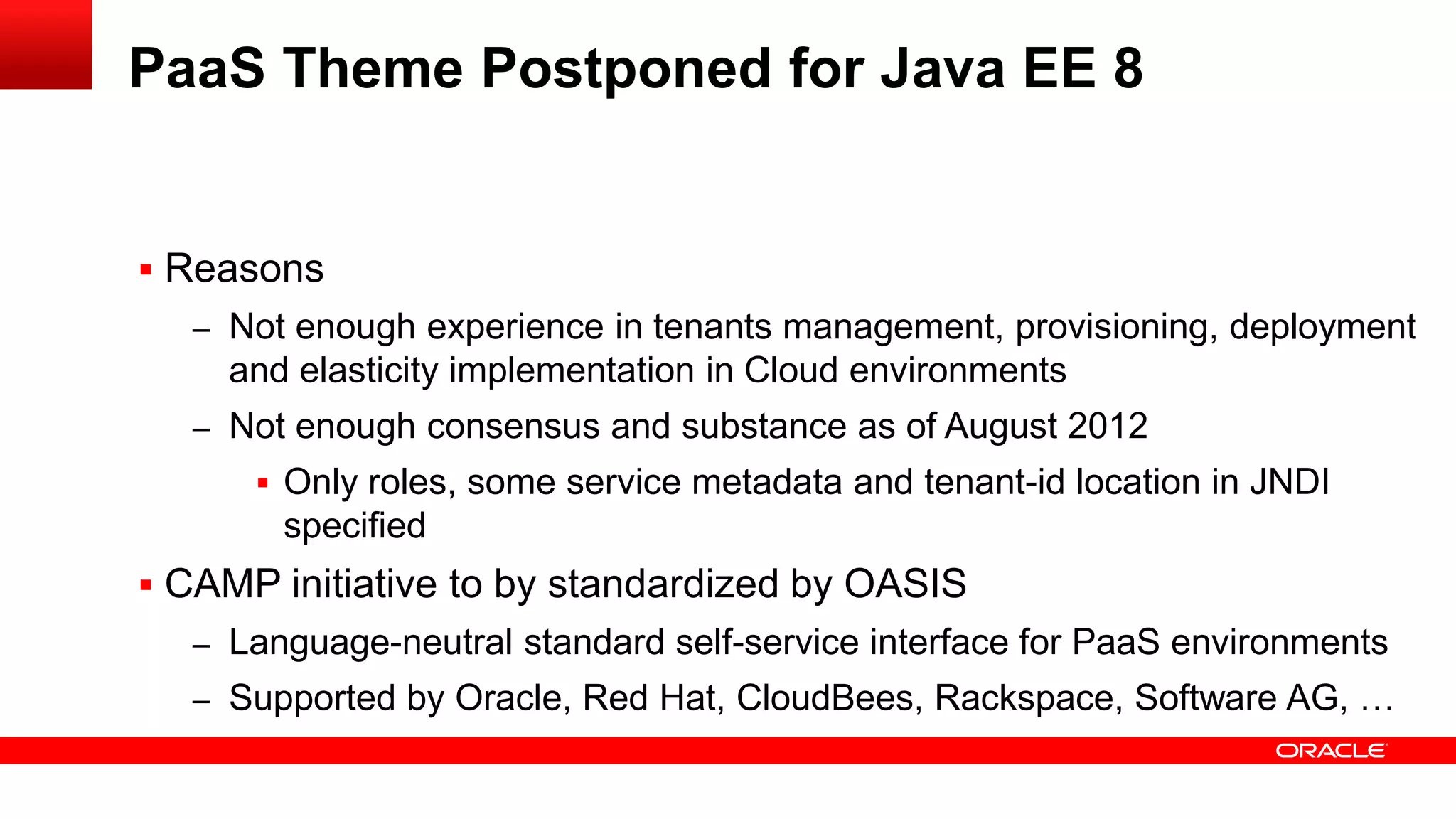

PaaS Theme Postponed for Java EE 8

 Reasons
– Not enough experience in tenants management, provisioning, deployment
and elasticity implementation in Cloud environments
– Not enough consensus and substance as of August 2012
 Only roles, some service metadata and tenant-id location in JNDI
specified
 CAMP initiative to by standardized by OASIS
– Language-neutral standard self-service interface for PaaS environments
– Supported by Oracle, Red Hat, CloudBees, Rackspace, Software AG, …

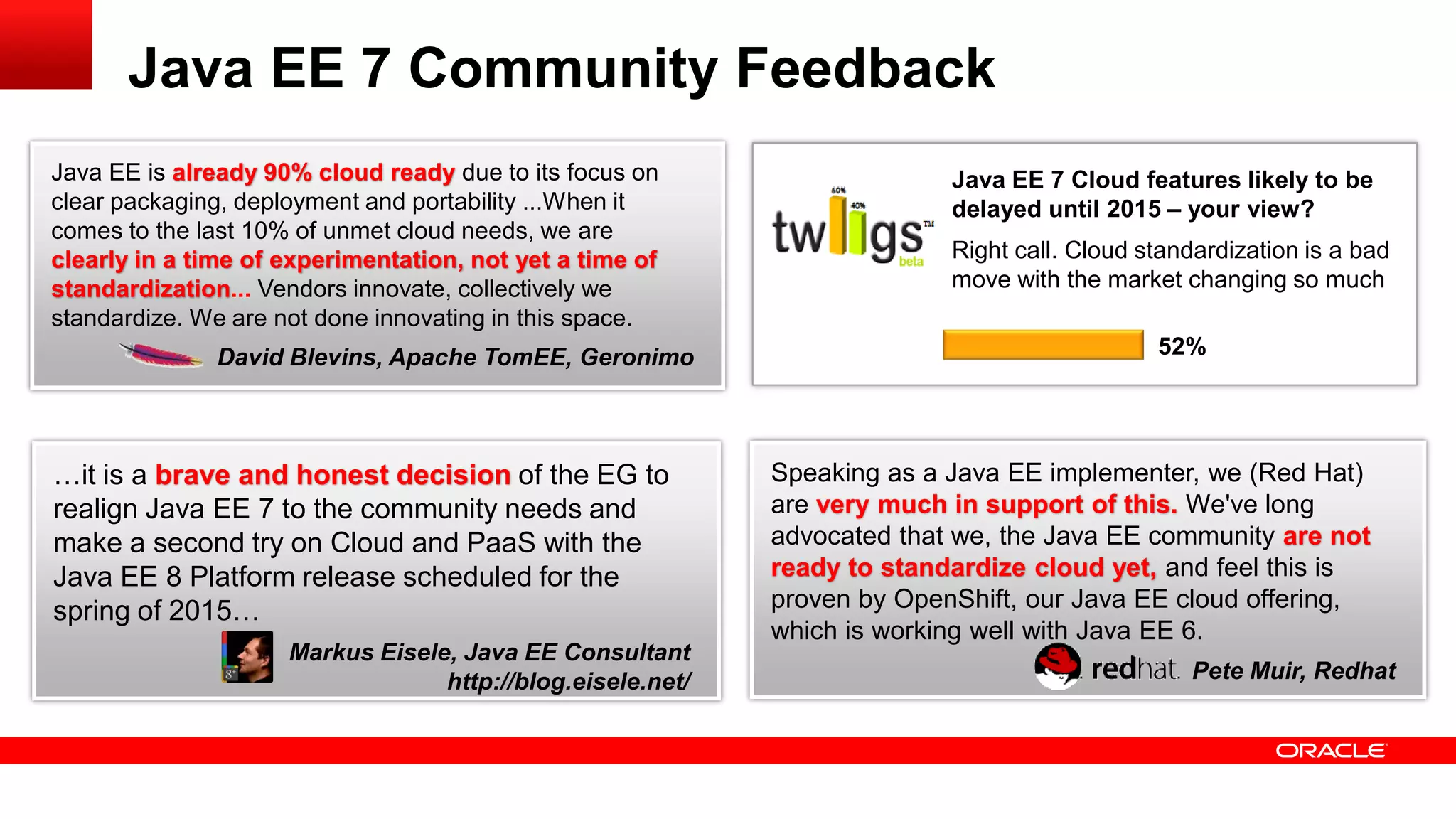

Java EE 7 Community Feedback
Java EE is already 90% cloud ready due to its focus on Java EE 7 Cloud features likely to be
clear packaging, deployment and portability ...When it delayed until 2015 – your view?
comes to the last 10% of unmet cloud needs, we are
clearly in a time of experimentation, not yet a time of Right call. Cloud standardization is a bad
standardization... Vendors innovate, collectively we move with the market changing so much
standardize. We are not done innovating in this space.
David Blevins, Apache TomEE, Geronimo 52%

…it is a brave and honest decision of the EG to Speaking as a Java EE implementer, we (Red Hat)
realign Java EE 7 to the community needs and are very much in support of this. We've long
make a second try on Cloud and PaaS with the advocated that we, the Java EE community are not
Java EE 8 Platform release scheduled for the ready to standardize cloud yet, and feel this is
spring of 2015… proven by OpenShift, our Java EE cloud offering,
which is working well with Java EE 6.
Markus Eisele, Java EE Consultant
http://blog.eisele.net/ Pete Muir, Redhat

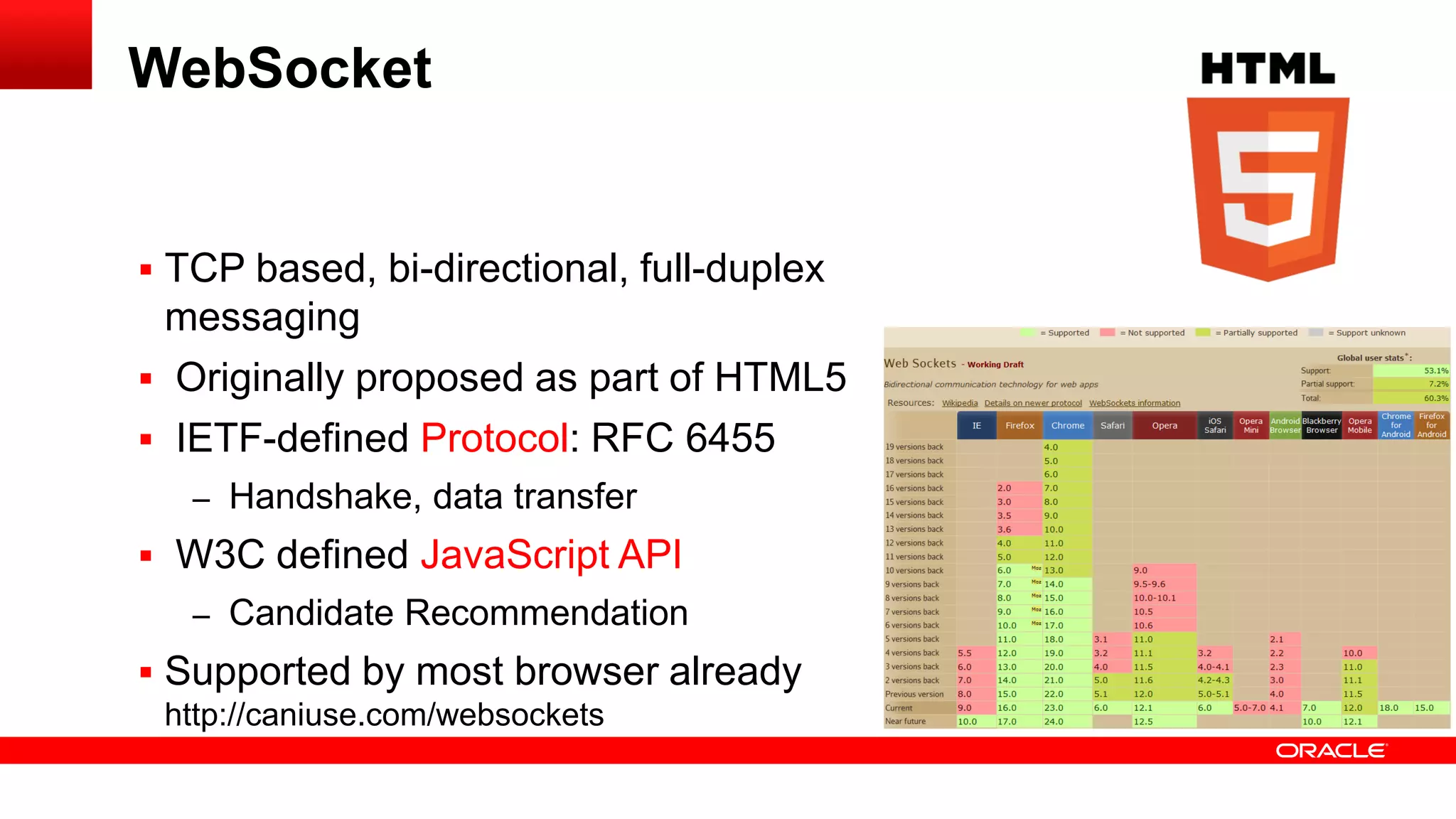

WebSocket

 TCP based, bi-directional, full-duplex
messaging
 Originally proposed as part of HTML5
 IETF-defined Protocol: RFC 6455
– Handshake, data transfer
 W3C defined JavaScript API
– Candidate Recommendation
 Supported by most browser already
http://caniuse.com/websockets

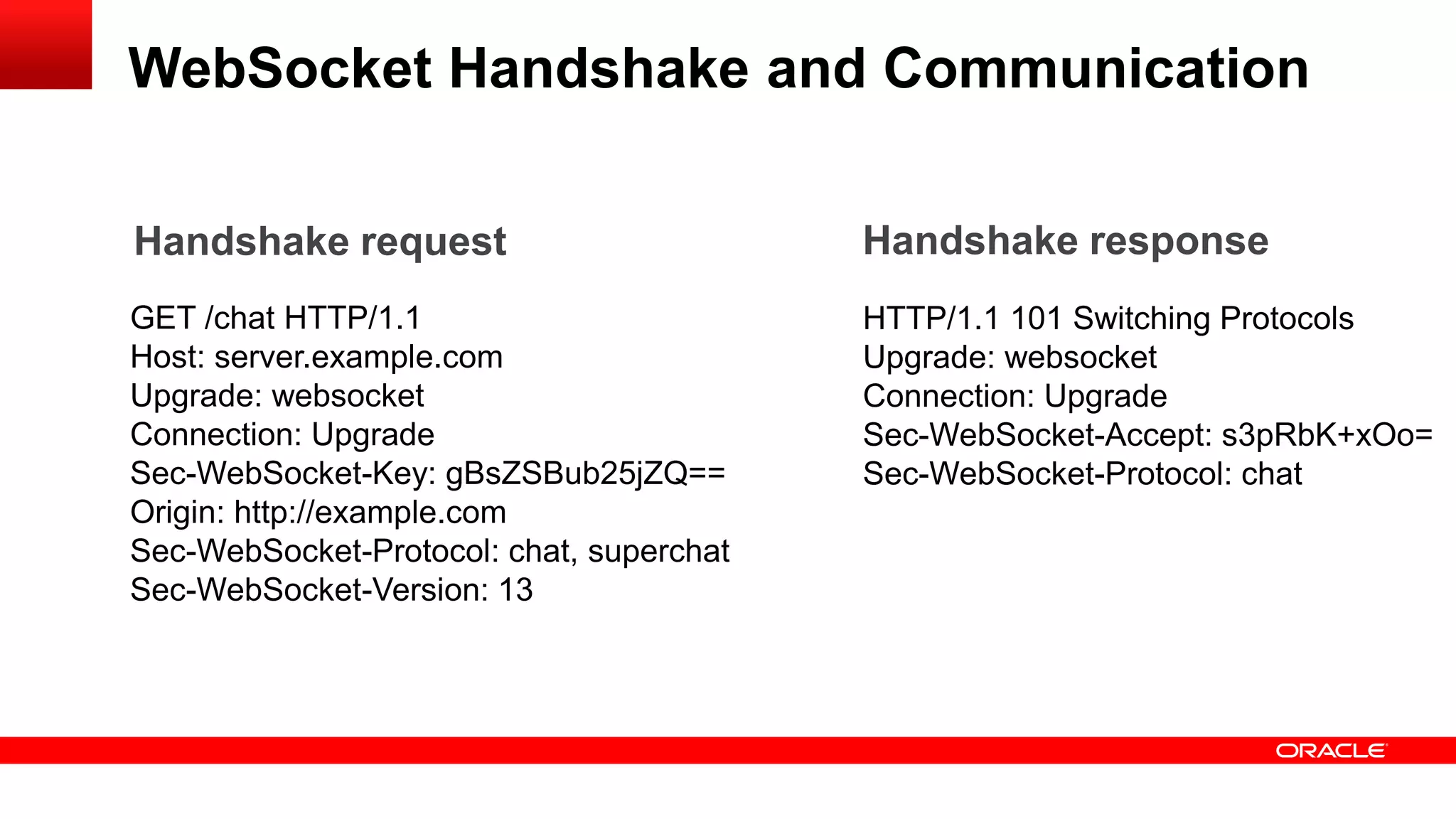

WebSocket Handshake and Communication

Handshake request Handshake response
GET /chat HTTP/1.1 HTTP/1.1 101 Switching Protocols
Host: server.example.com Upgrade: websocket
Upgrade: websocket Connection: Upgrade
Connection: Upgrade Sec-WebSocket-Accept: s3pRbK+xOo=
Sec-WebSocket-Key: gBsZSBub25jZQ== Sec-WebSocket-Protocol: chat
Origin: http://example.com
Sec-WebSocket-Protocol: chat, superchat
Sec-WebSocket-Version: 13

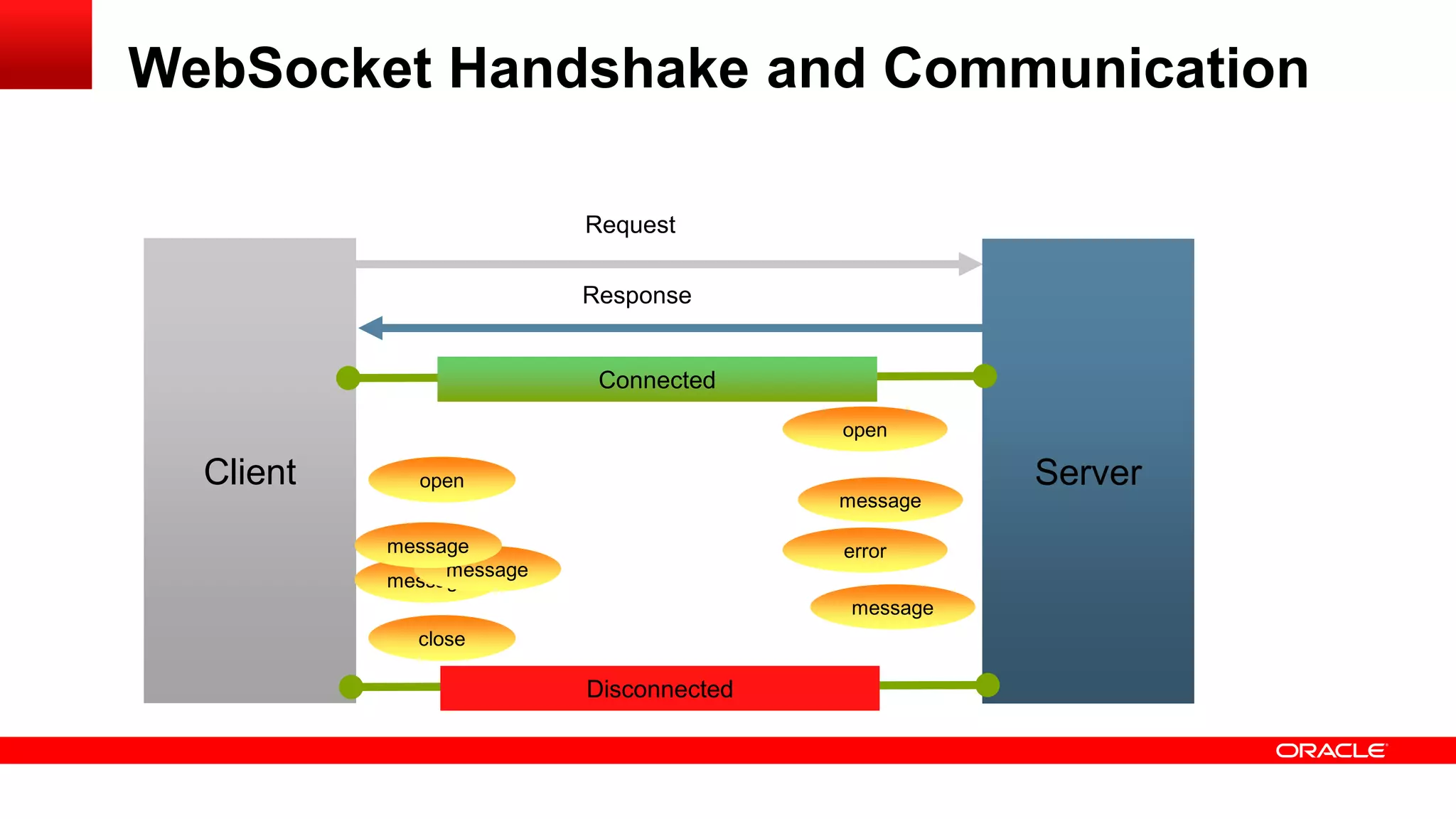

WebSocket Handshake and Communication

Request

Response

Connected
open

Client open Server
message

message error
message
message
message
close

Disconnected

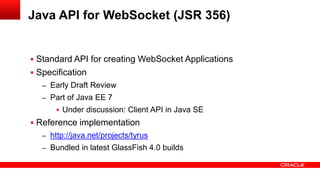

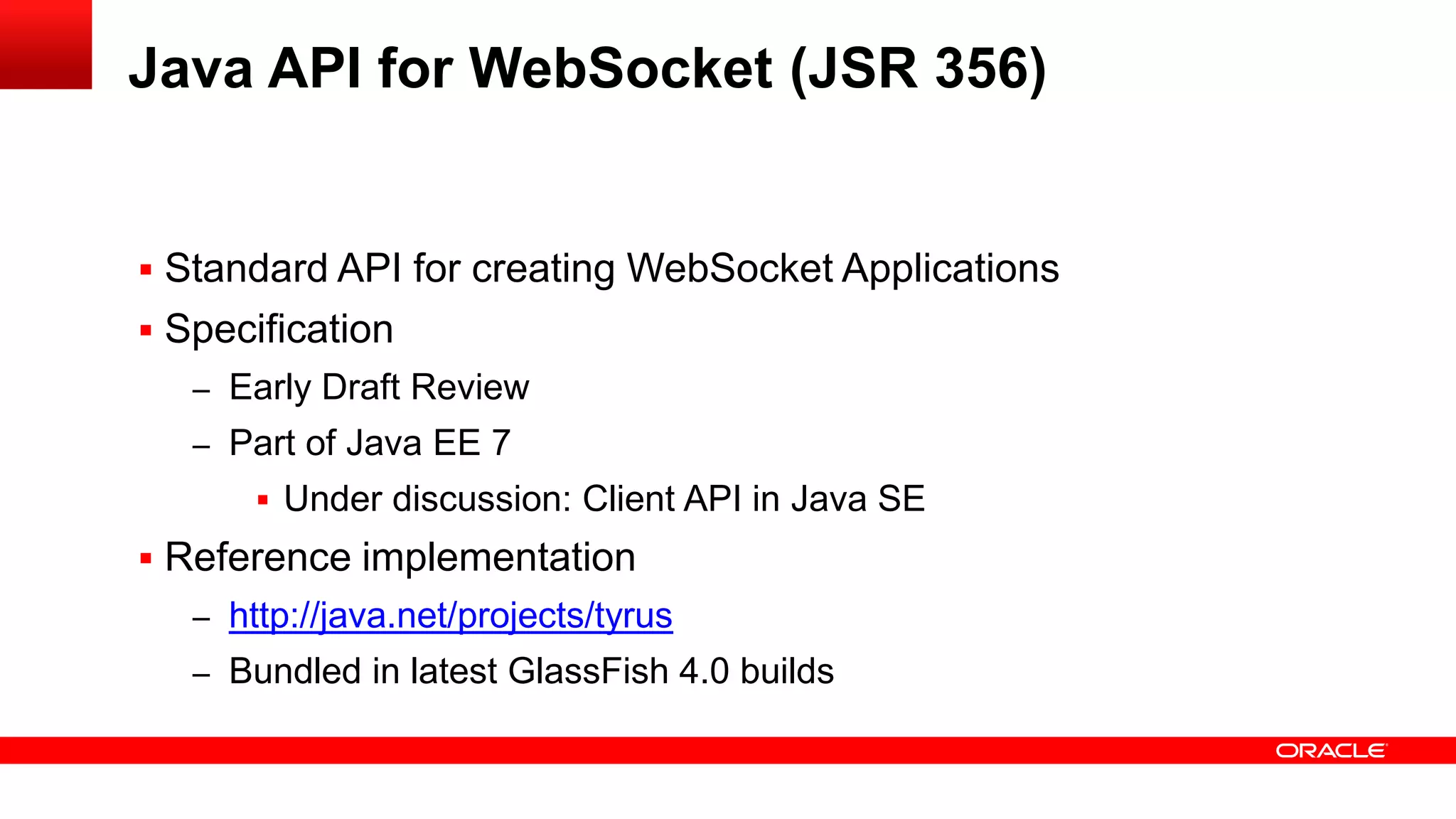

Java API for WebSocket (JSR 356)

 Standard API for creating WebSocket Applications
 Specification
– Early Draft Review
– Part of Java EE 7
 Under discussion: Client API in Java SE
 Reference implementation
– http://java.net/projects/tyrus
– Bundled in latest GlassFish 4.0 builds

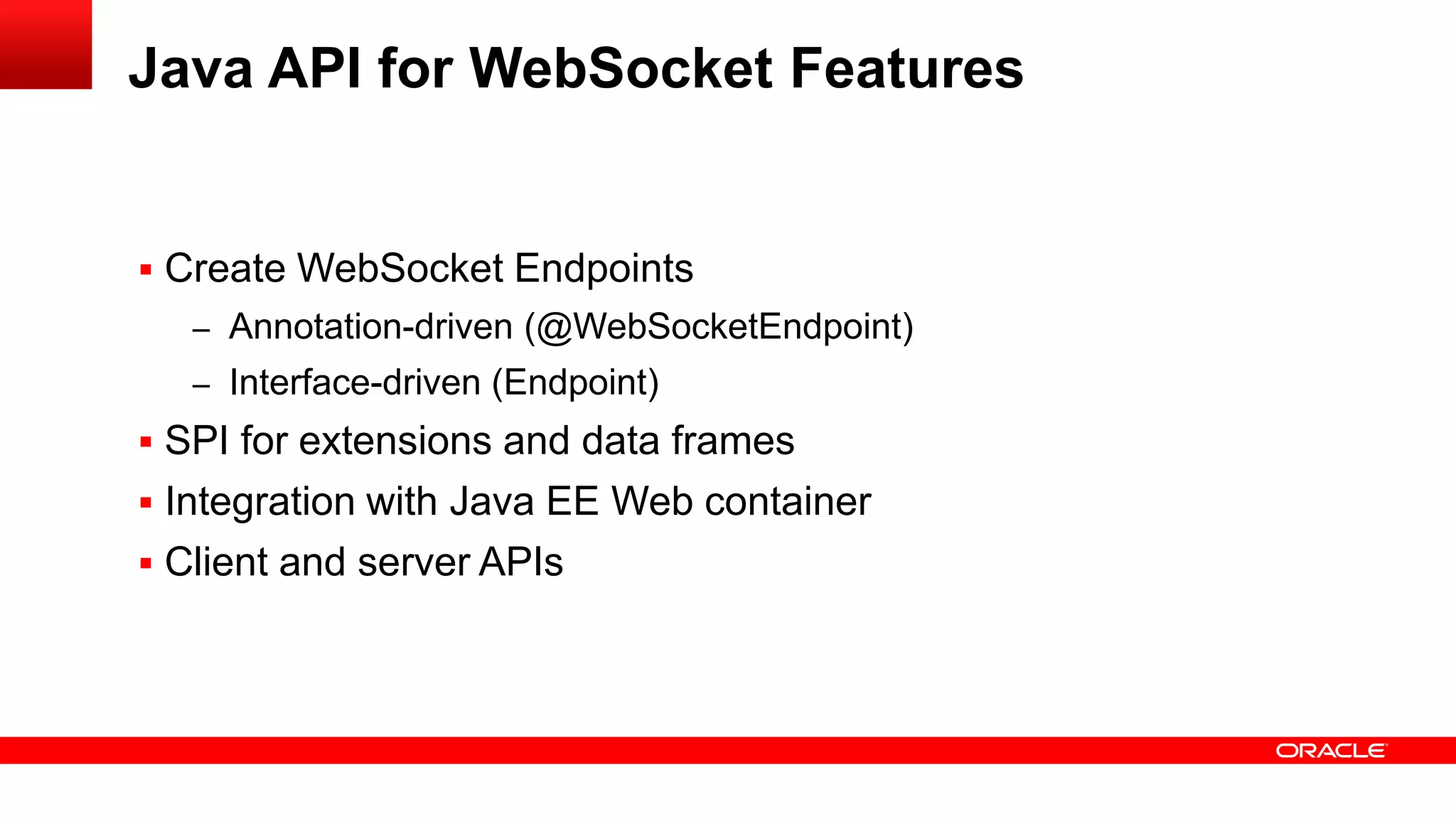

Java API for WebSocket Features

 Create WebSocket Endpoints
– Annotation-driven (@WebSocketEndpoint)
– Interface-driven (Endpoint)
 SPI for extensions and data frames
 Integration with Java EE Web container
 Client and server APIs

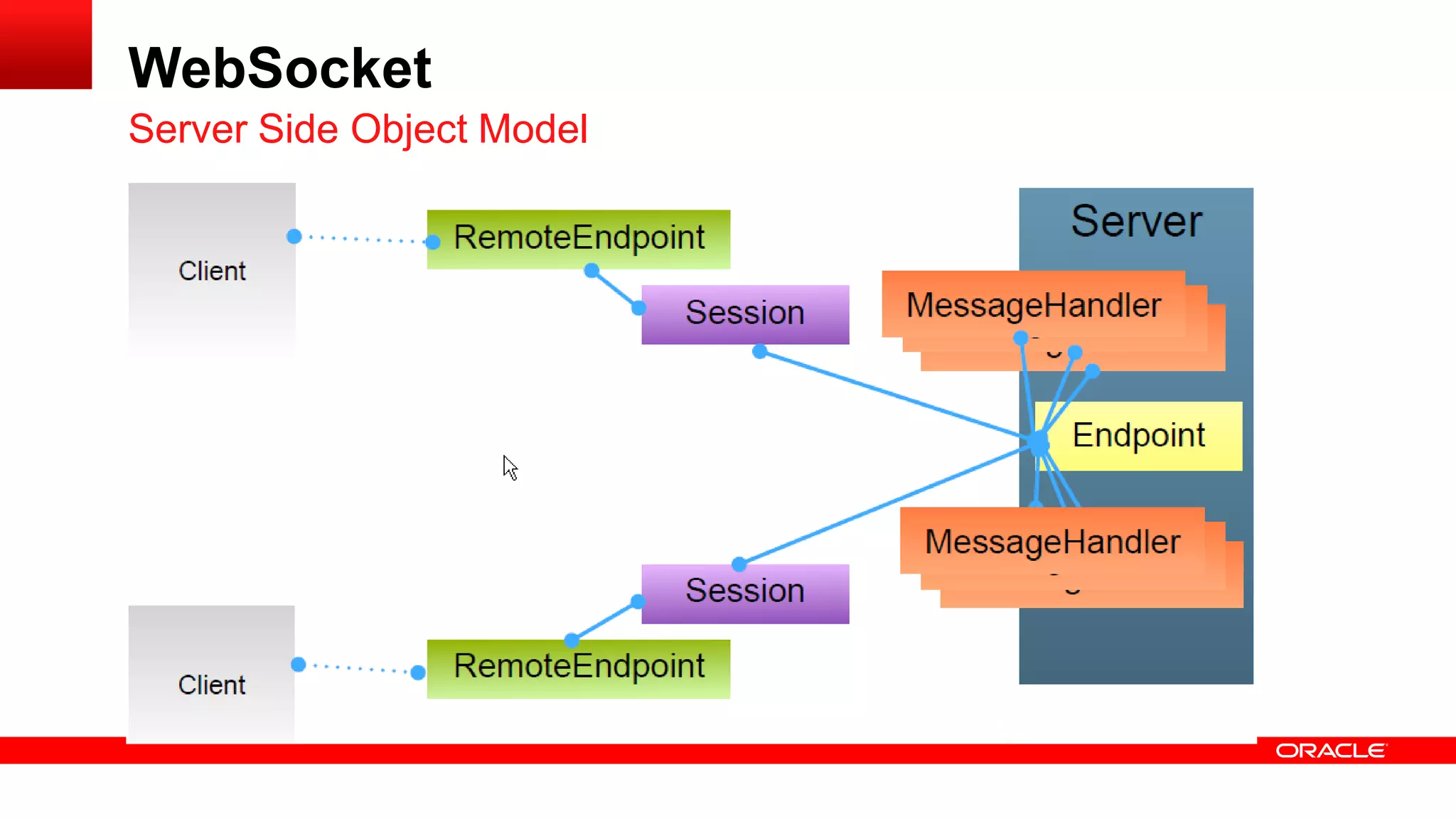

WebSocket
Server Side Object Model

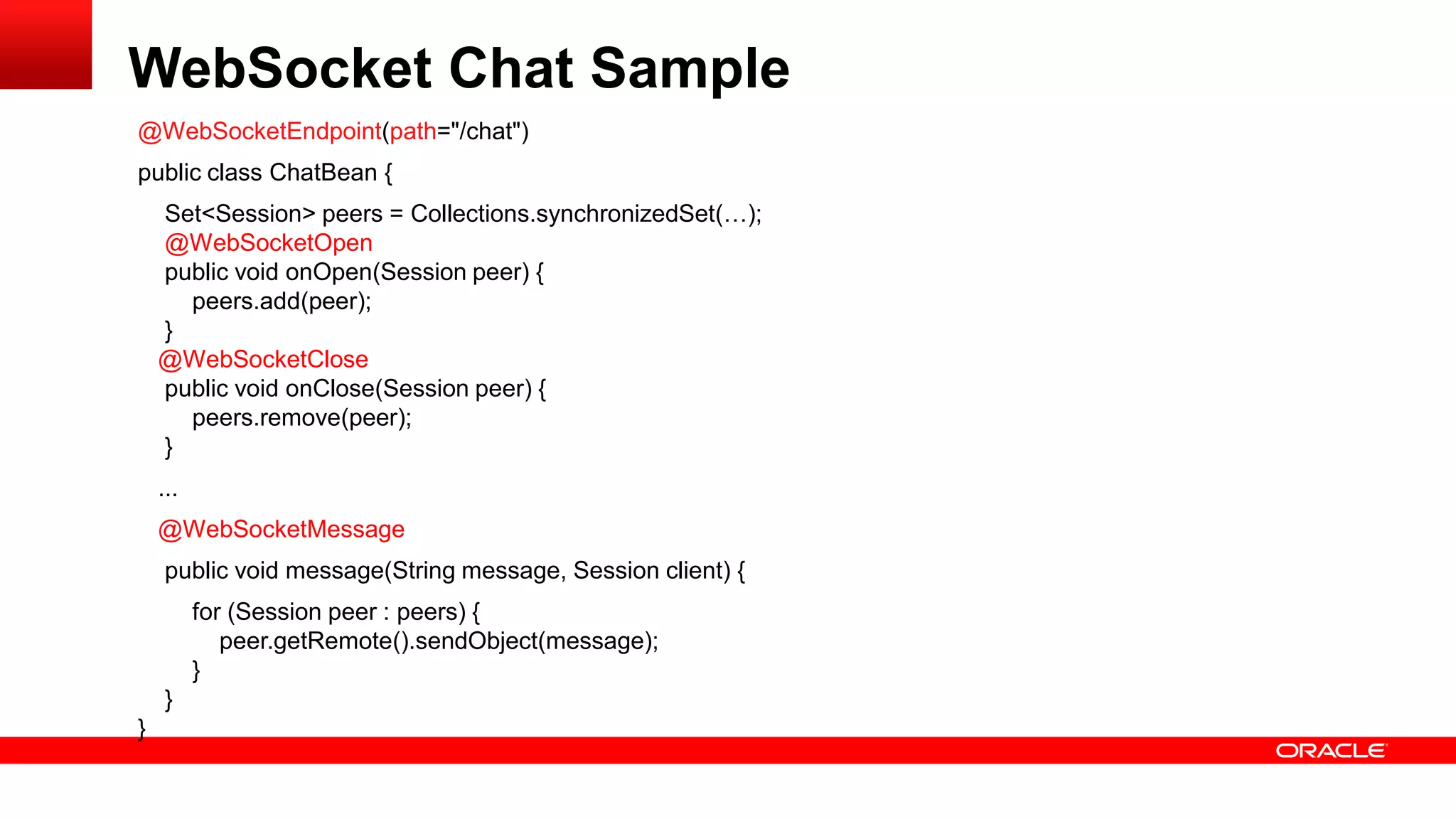

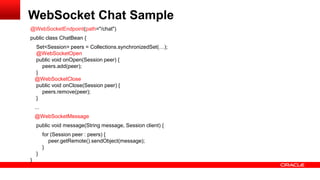

WebSocket Chat Sample
@WebSocketEndpoint(path="/chat")
public class ChatBean {
Set<Session> peers = Collections.synchronizedSet(…);
@WebSocketOpen
public void onOpen(Session peer) {
peers.add(peer);
}
@WebSocketClose
public void onClose(Session peer) {
peers.remove(peer);
}
...
@WebSocketMessage
public void message(String message, Session client) {
for (Session peer : peers) {
peer.getRemote().sendObject(message);
}
}
}

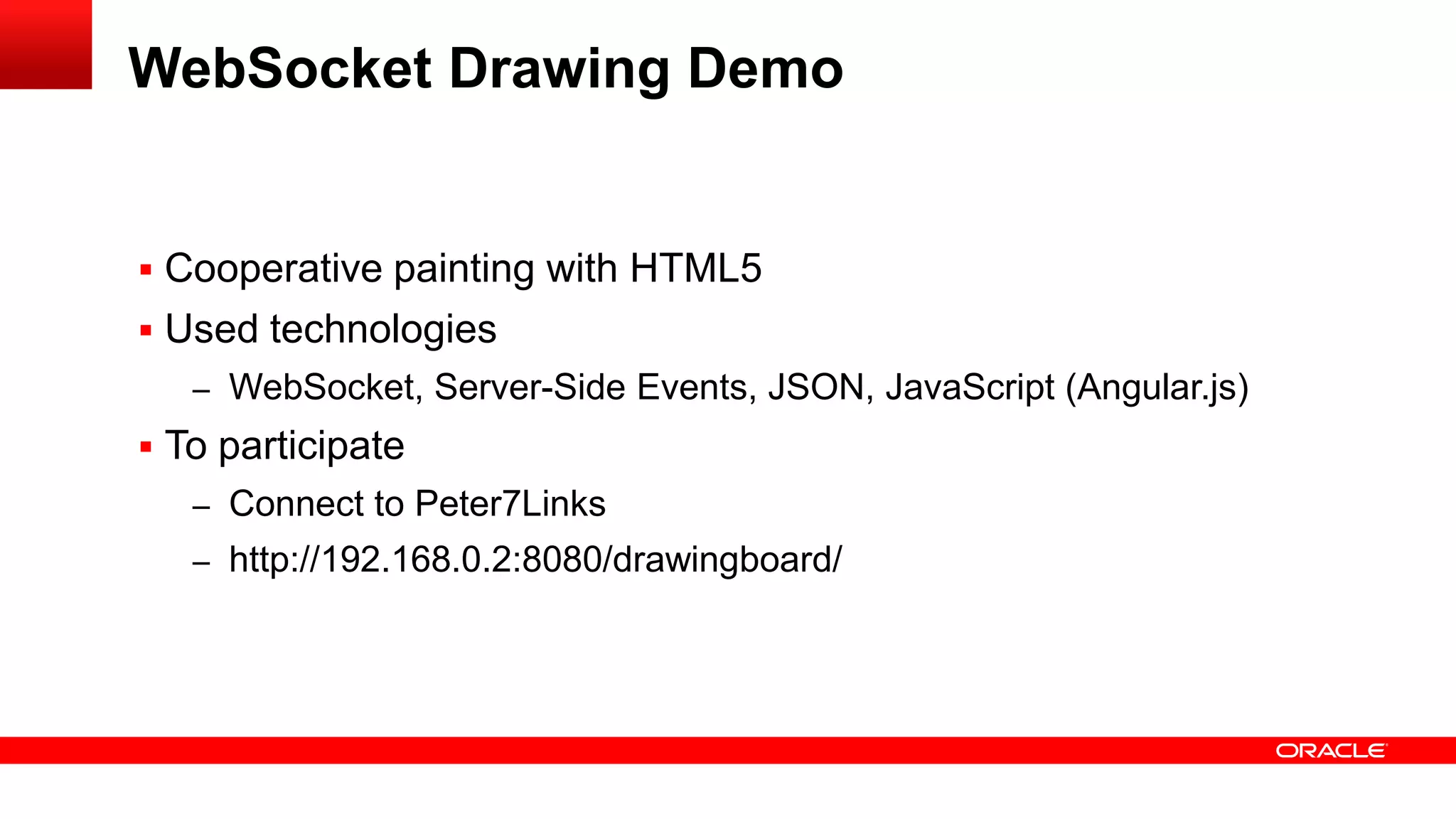

WebSocket Drawing Demo

 Cooperative painting with HTML5
 Used technologies
– WebSocket, Server-Side Events, JSON, JavaScript (Angular.js)
 To participate
– Connect to Peter7Links
– http://192.168.0.2:8080/drawingboard/

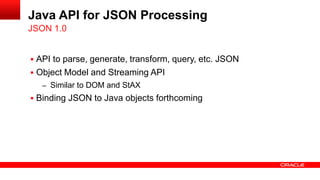

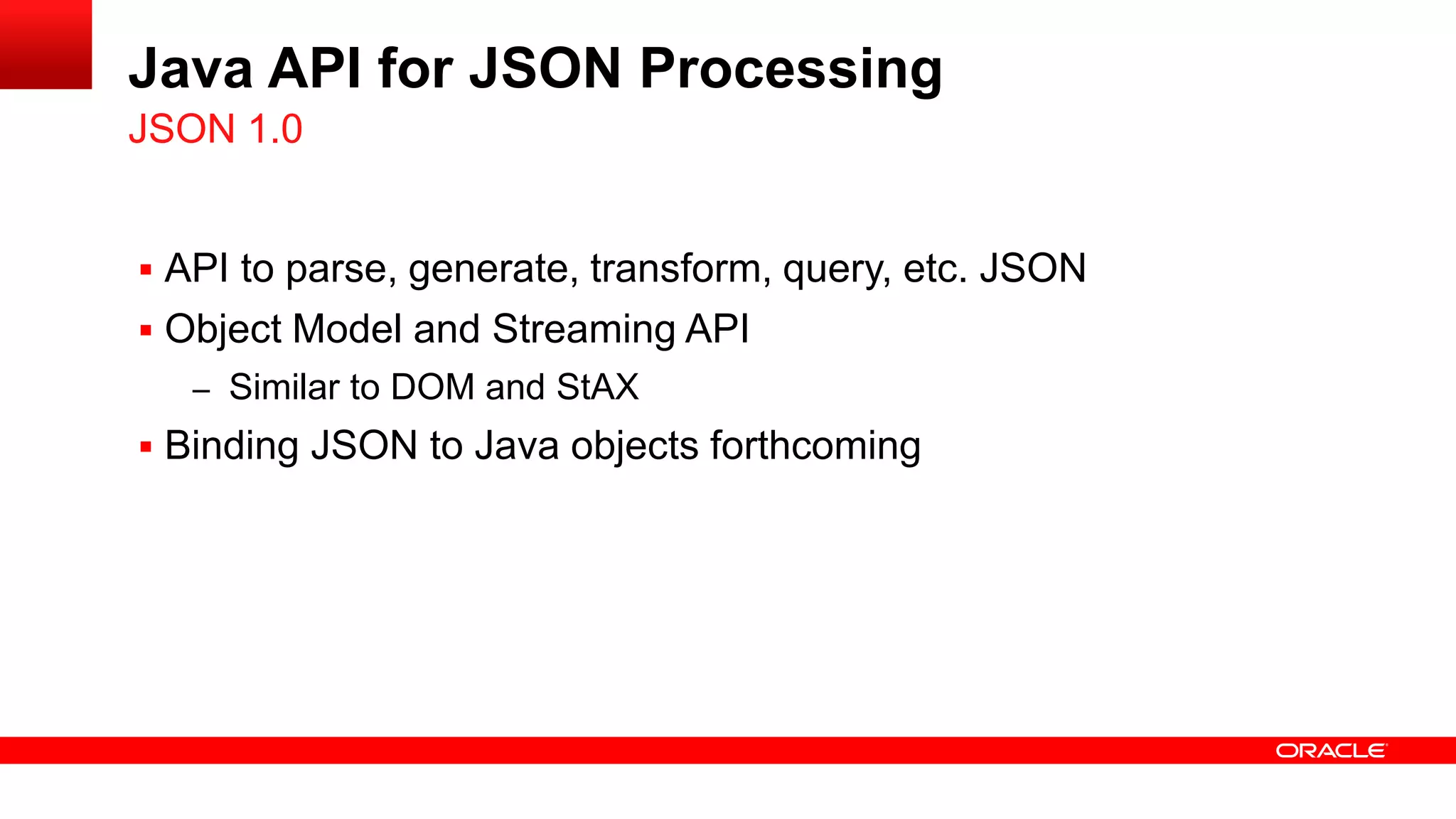

Java API for JSON Processing
JSON 1.0

 API to parse, generate, transform, query, etc. JSON
 Object Model and Streaming API
– Similar to DOM and StAX
 Binding JSON to Java objects forthcoming

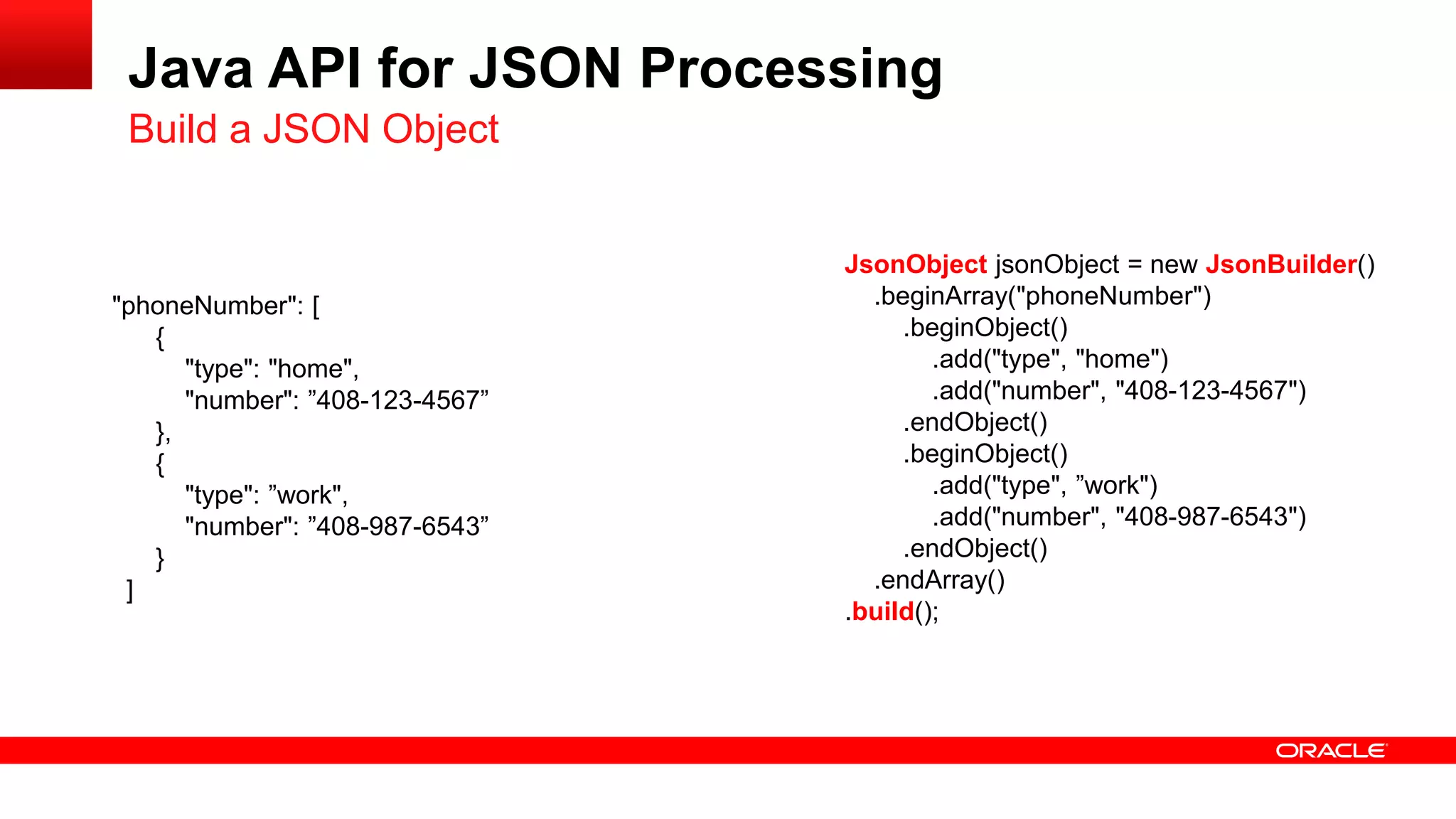

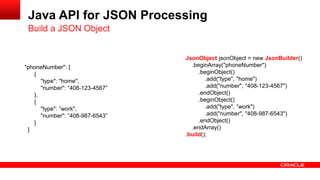

Java API for JSON Processing
Build a JSON Object

JsonObject jsonObject = new JsonBuilder()
"phoneNumber": [ .beginArray("phoneNumber")
{ .beginObject()
"type": "home", .add("type", "home")
"number": ”408-123-4567” .add("number", "408-123-4567")
}, .endObject()
{ .beginObject()
"type": ”work", .add("type", ”work")
"number": ”408-987-6543” .add("number", "408-987-6543")
} .endObject()
] .endArray()
.build();

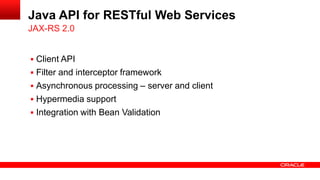

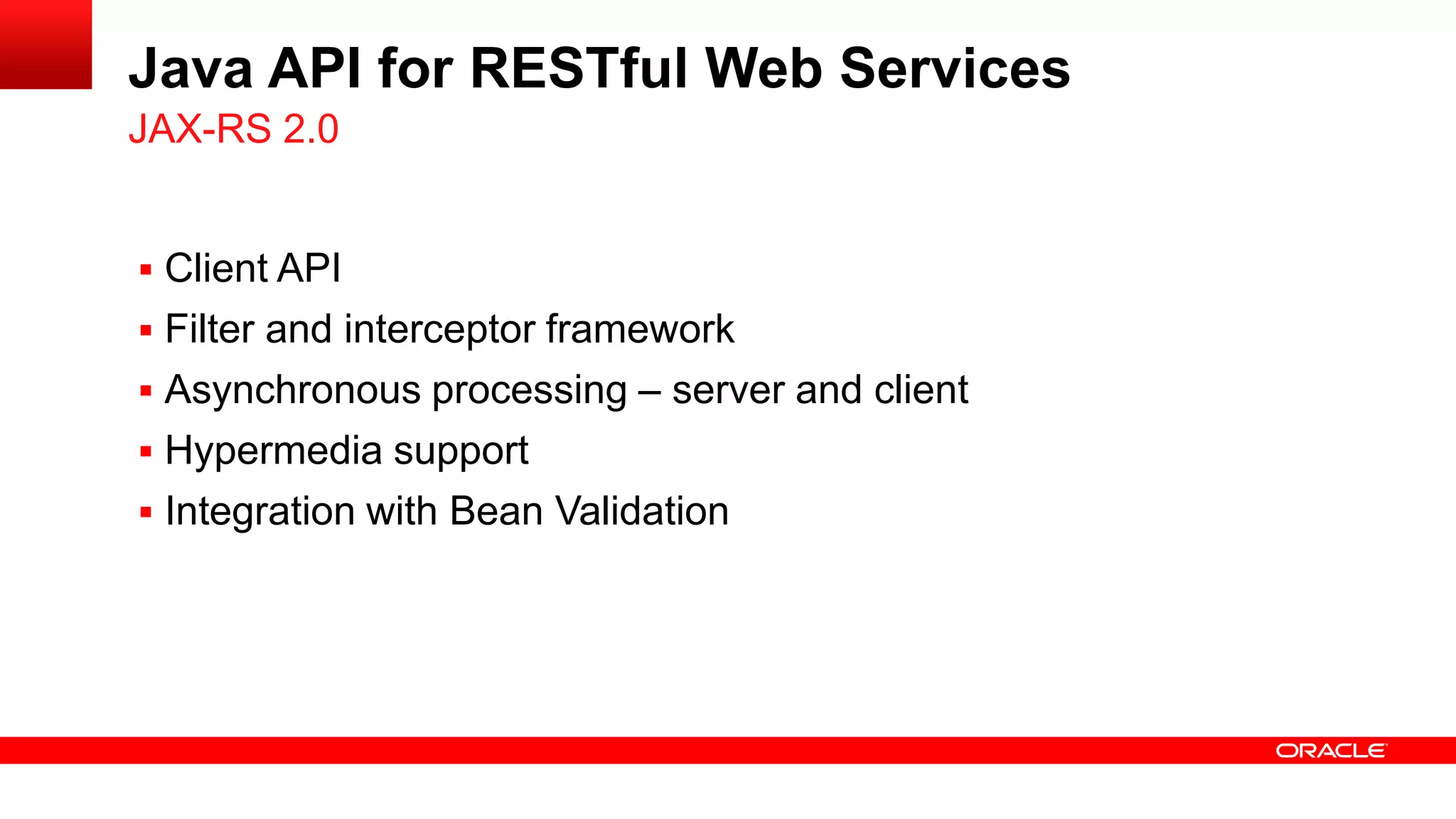

Java API for RESTful Web Services
JAX-RS 2.0

 Client API
 Filter and interceptor framework
 Asynchronous processing – server and client
 Hypermedia support
 Integration with Bean Validation

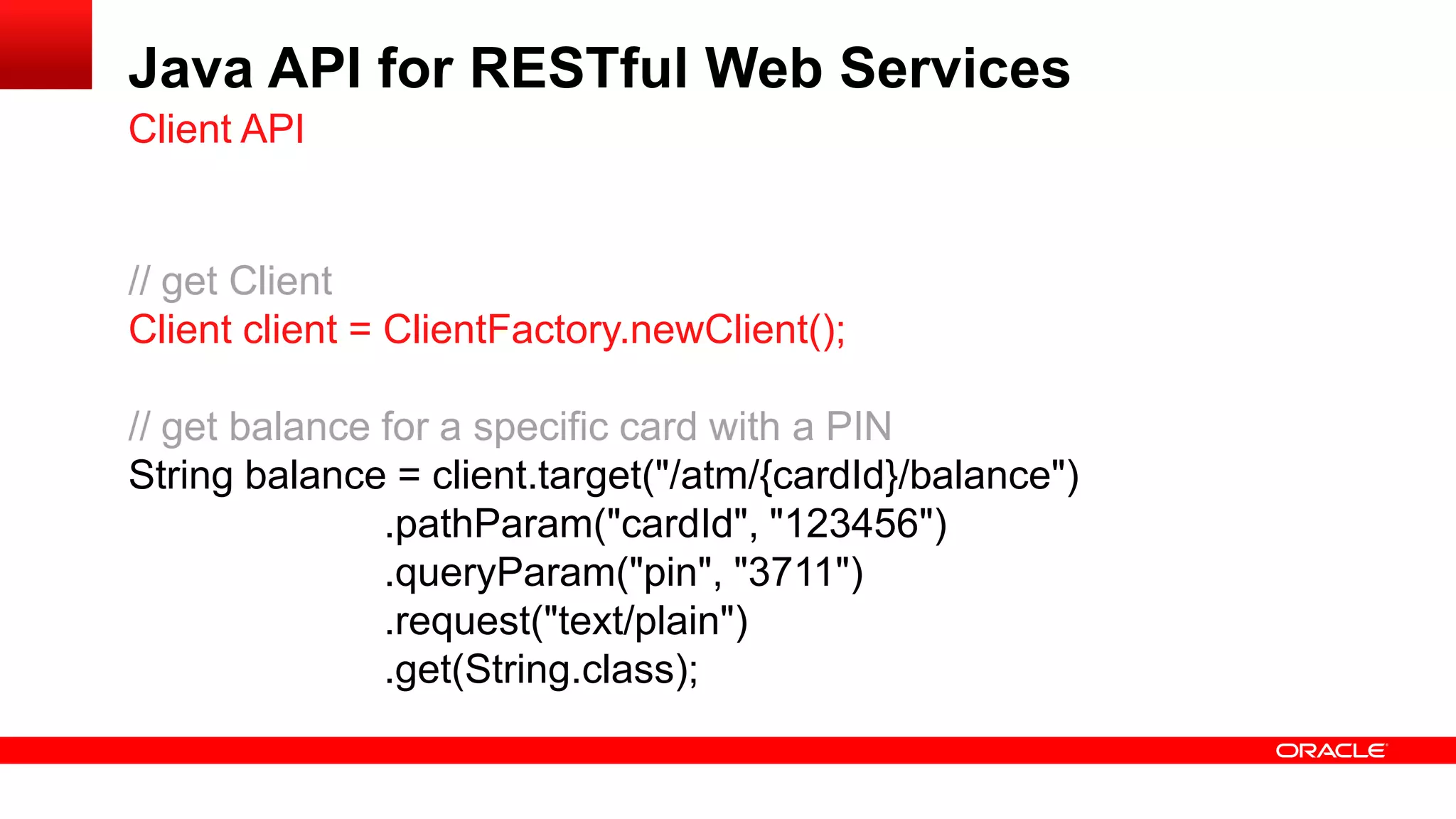

Java API for RESTful Web Services
Client API

// get Client
Client client = ClientFactory.newClient();

// get balance for a specific card with a PIN
String balance = client.target("/atm/{cardId}/balance")
.pathParam("cardId", "123456")
.queryParam("pin", "3711")
.request("text/plain")
.get(String.class);

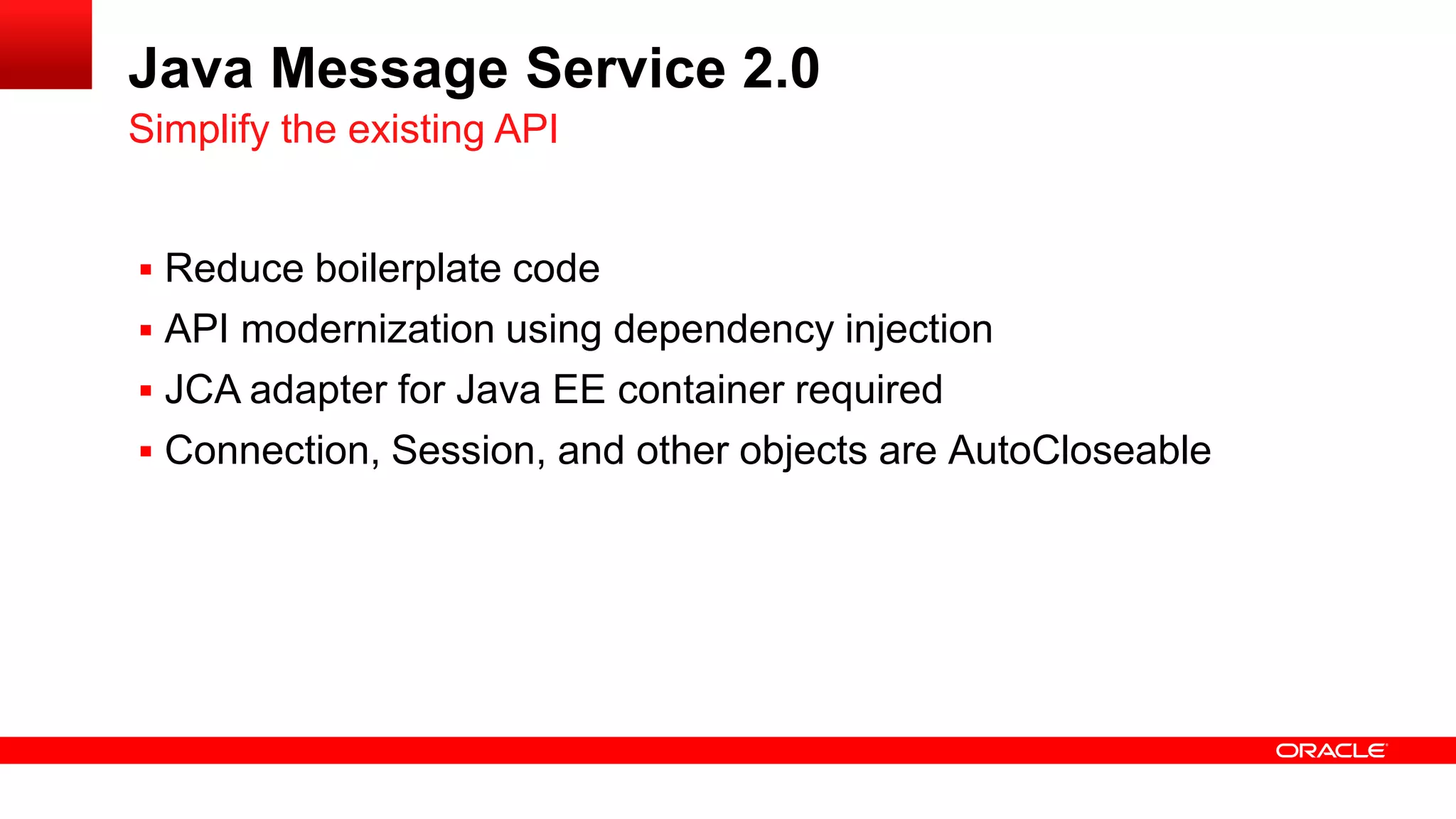

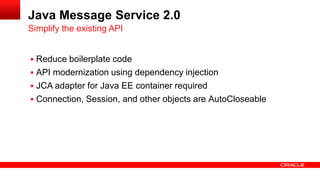

Java Message Service 2.0
Simplify the existing API

 Reduce boilerplate code
 API modernization using dependency injection
 JCA adapter for Java EE container required
 Connection, Session, and other objects are AutoCloseable

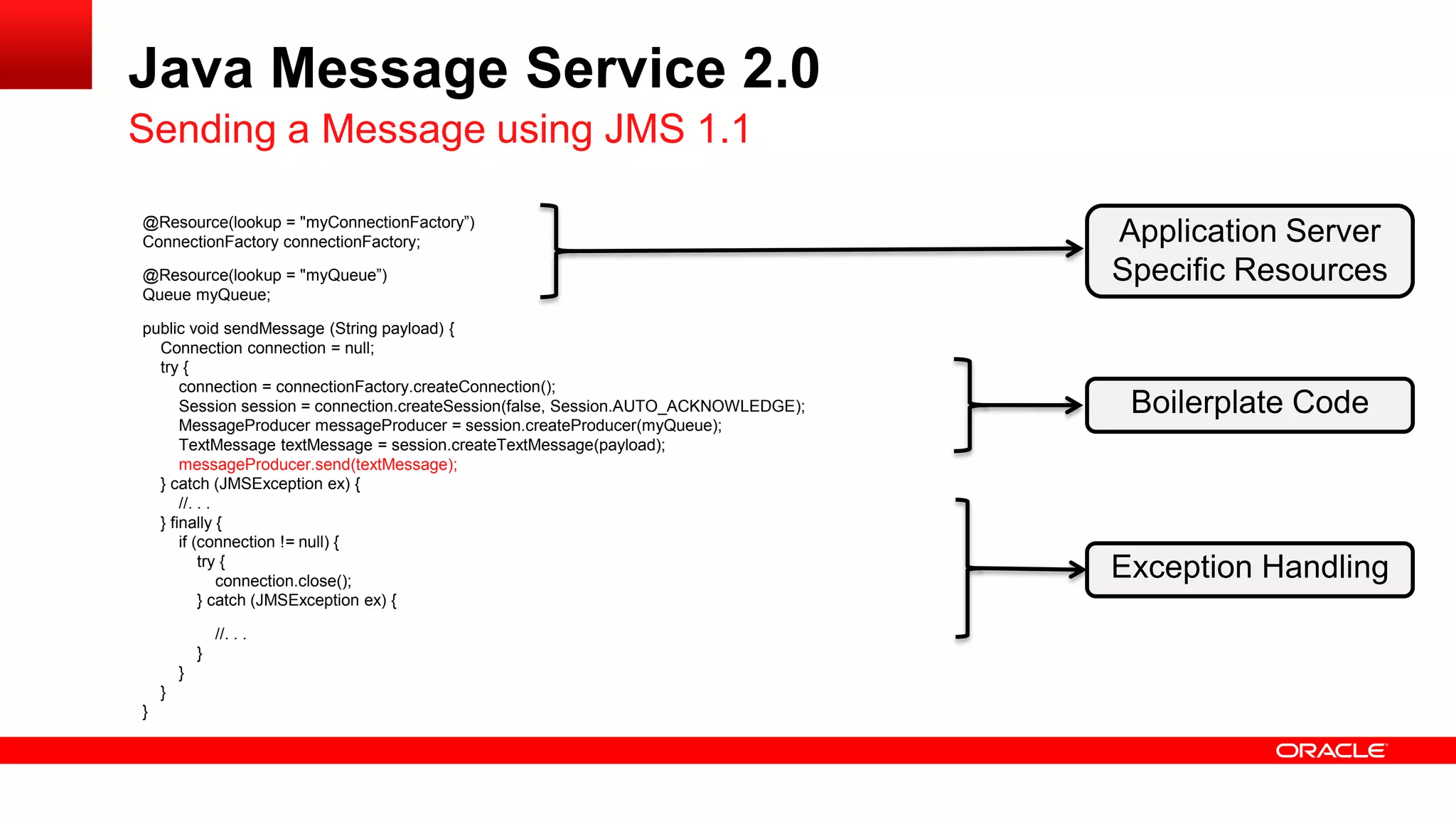

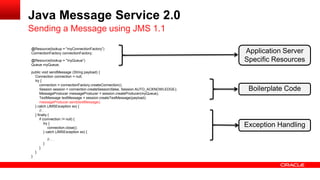

Sending a Message using JMS 1.1

@Resource(lookup = "myConnectionFactory”)
ConnectionFactory connectionFactory; Application Server
@Resource(lookup = "myQueue”) Specific Resources
Queue myQueue;

public void sendMessage (String payload) {
Connection connection = null;
try {
connection = connectionFactory.createConnection();
Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE); Boilerplate Code
MessageProducer messageProducer = session.createProducer(myQueue);
TextMessage textMessage = session.createTextMessage(payload);
messageProducer.send(textMessage);
} catch (JMSException ex) {
//. . .
} finally {
if (connection != null) {
try {
connection.close();
Exception Handling
} catch (JMSException ex) {

//. . .
}
}
}
}

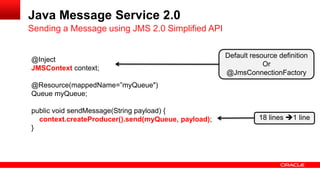

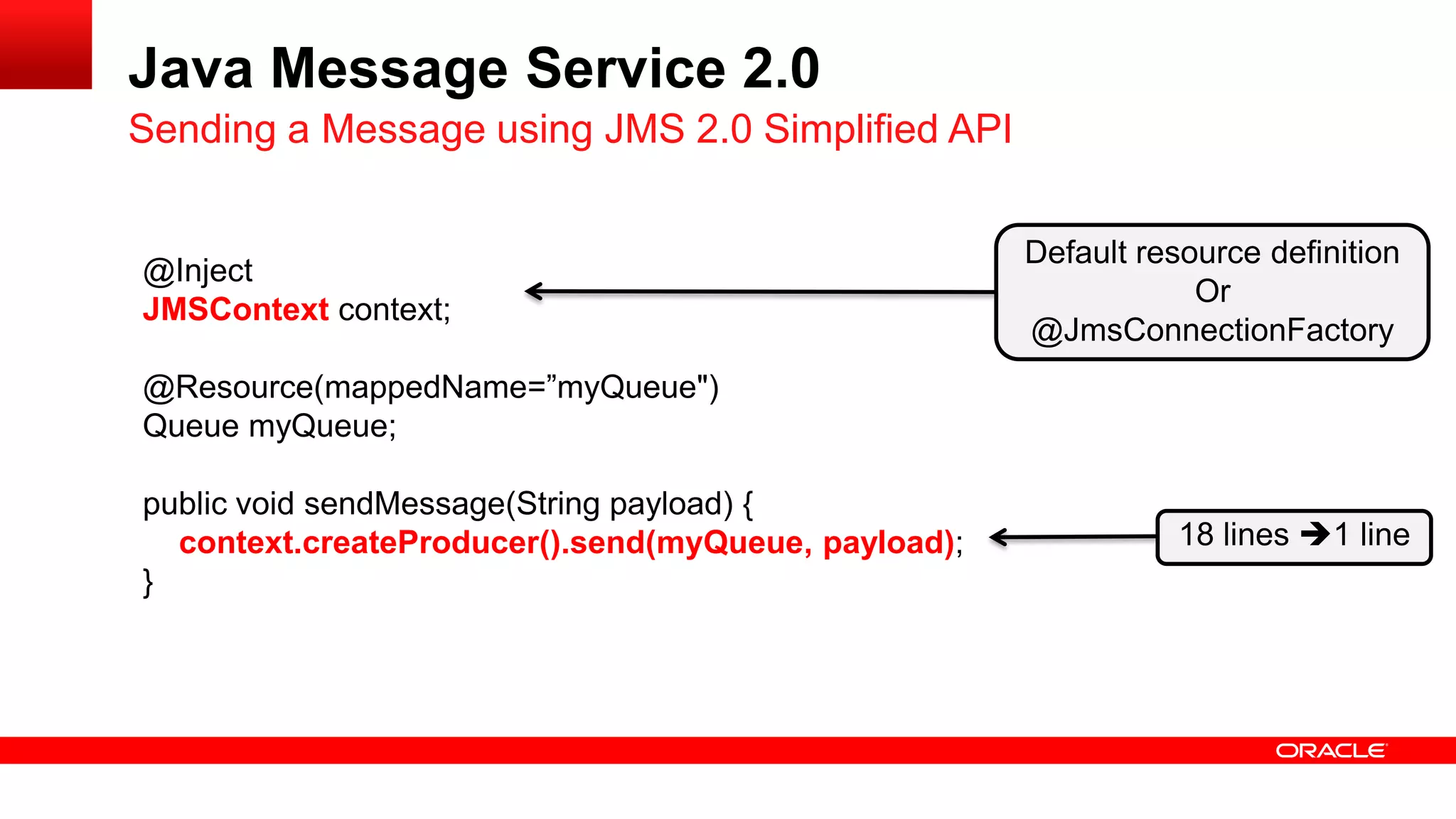

Sending a Message using JMS 2.0 Simplified API

Default resource definition
@Inject
Or
JMSContext context;
@JmsConnectionFactory
@Resource(mappedName=”myQueue")
Queue myQueue;

public void sendMessage(String payload) {
context.createProducer().send(myQueue, payload); 18 lines 1 line
}

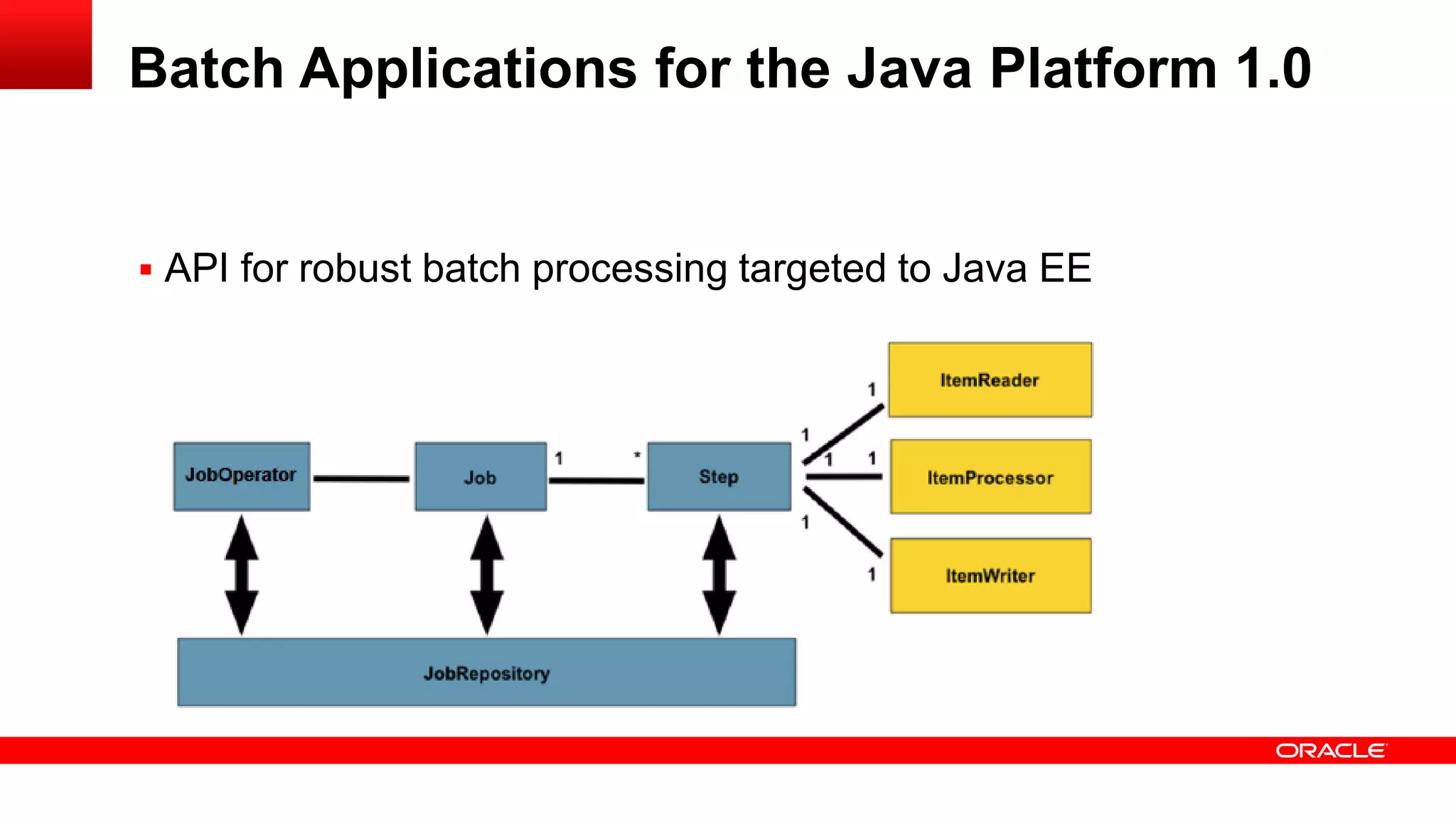

Batch Applications for the Java Platform 1.0

 API for robust batch processing targeted to Java EE

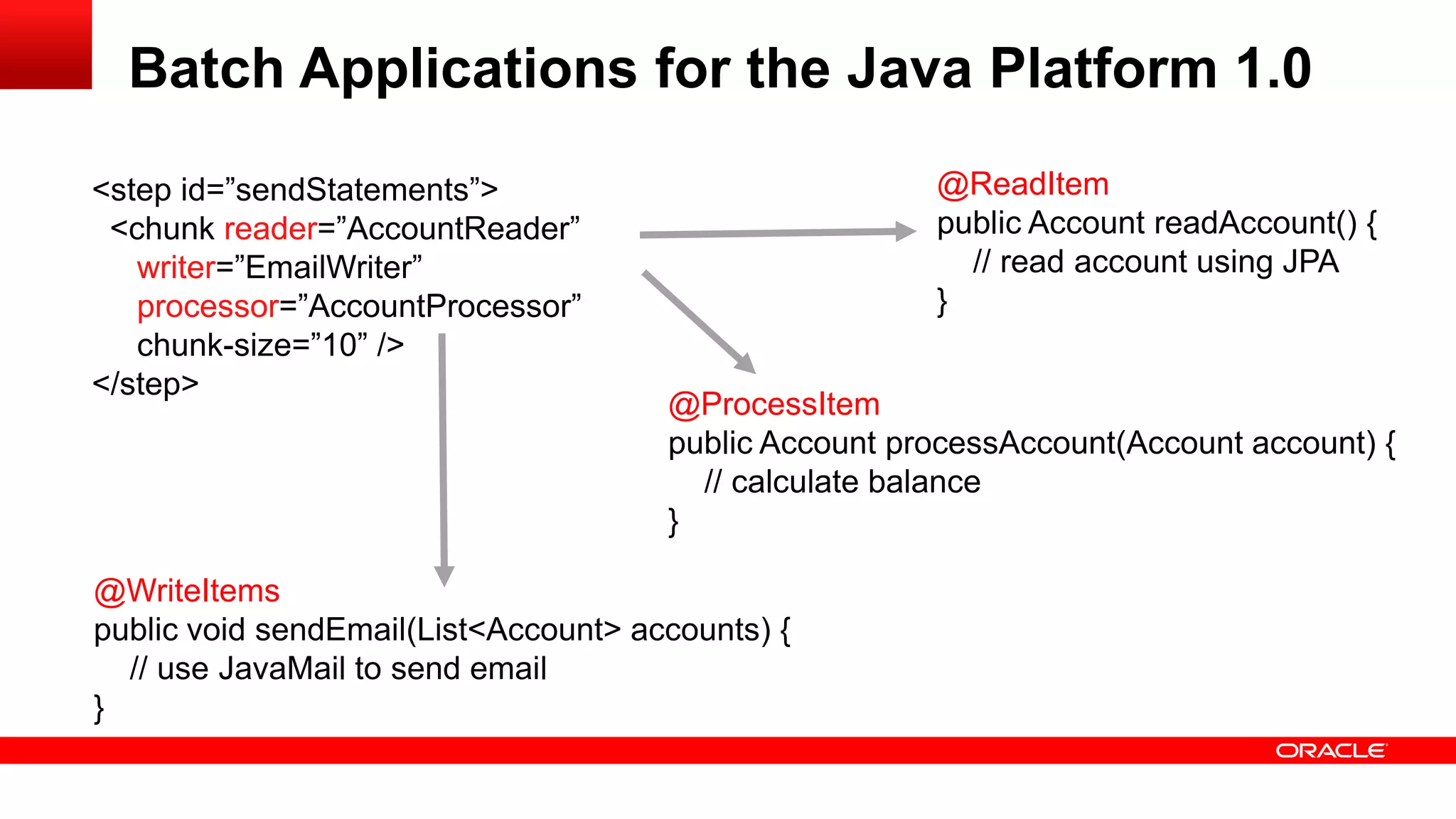

Batch Applications for the Java Platform 1.0
<step id=”sendStatements”> @ReadItem
<chunk reader=”AccountReader” public Account readAccount() {
writer=”EmailWriter” // read account using JPA
processor=”AccountProcessor” }
chunk-size=”10” />
</step>
@ProcessItem
public Account processAccount(Account account) {
// calculate balance
}

@WriteItems
public void sendEmail(List<Account> accounts) {
// use JavaMail to send email
}

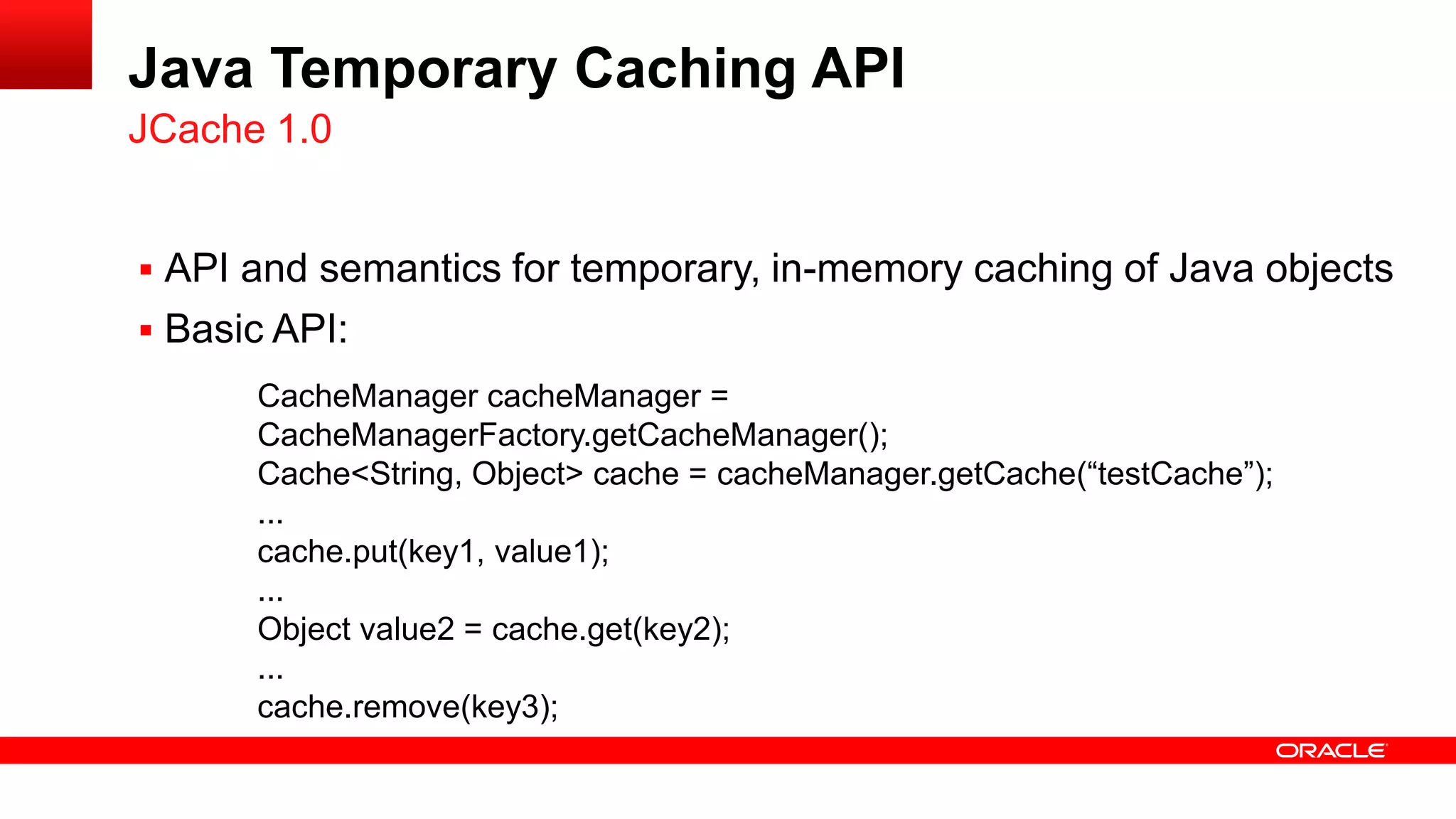

Java Temporary Caching API
JCache 1.0

 API and semantics for temporary, in-memory caching of Java objects
 Basic API:
CacheManager cacheManager =
CacheManagerFactory.getCacheManager();
Cache<String, Object> cache = cacheManager.getCache(“testCache”);
...
cache.put(key1, value1);
...
Object value2 = cache.get(key2);
...
cache.remove(key3);

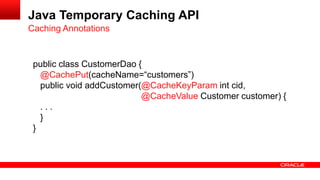

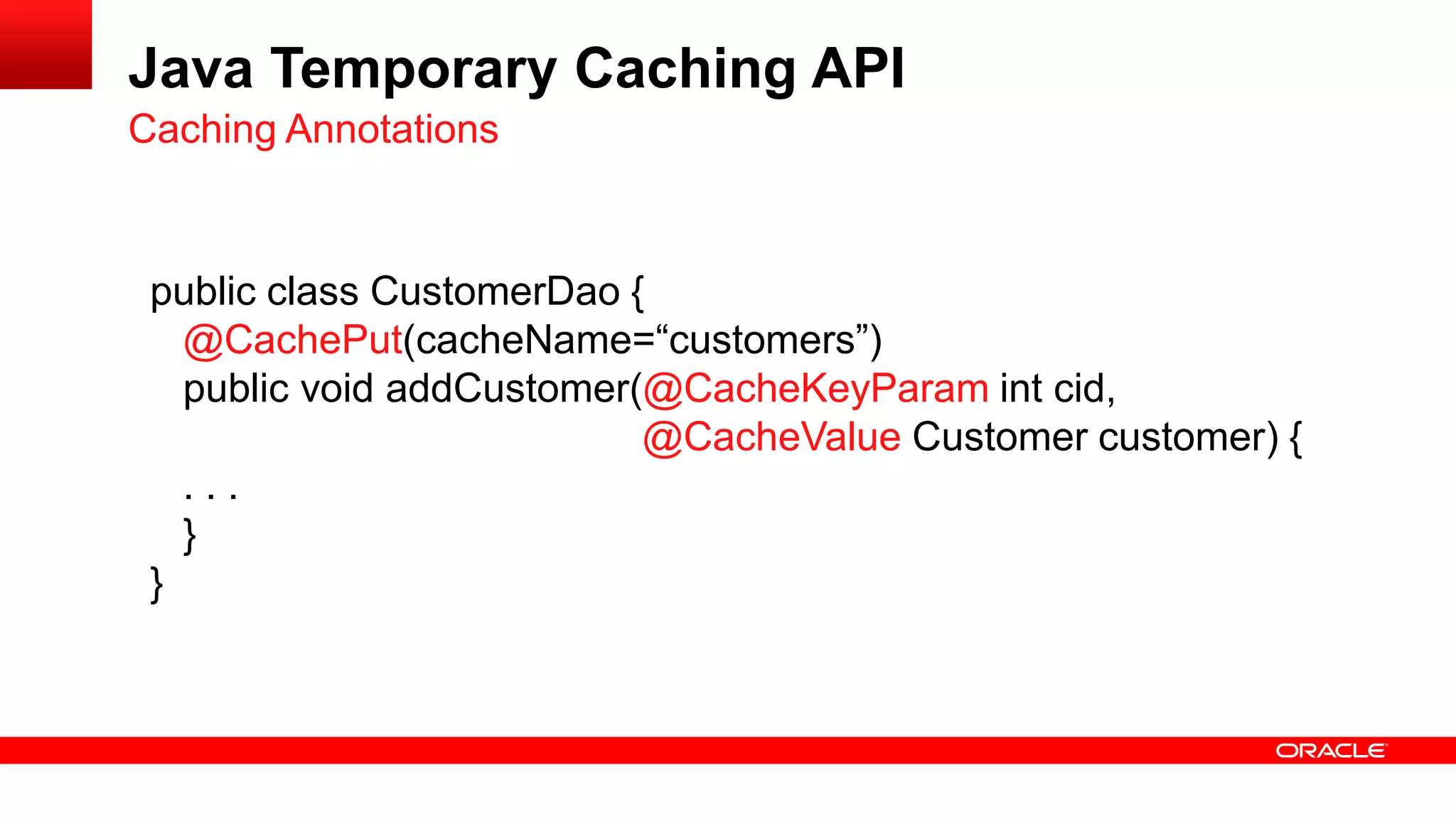

Java Temporary Caching API
Caching Annotations

public class CustomerDao {
@CachePut(cacheName=“customers”)
public void addCustomer(@CacheKeyParam int cid,
@CacheValue Customer customer) {
...
}
}

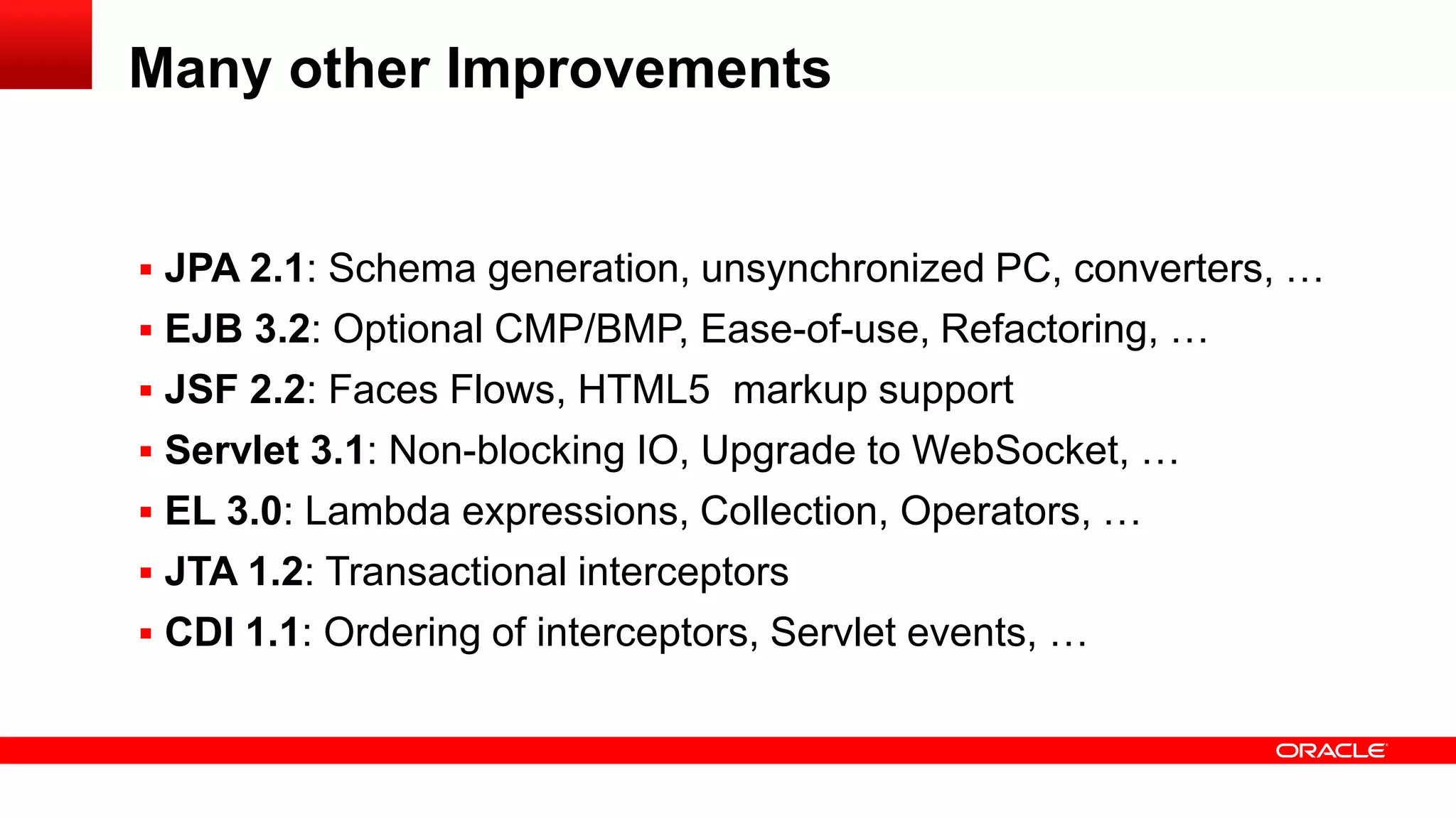

Many other Improvements

 JPA 2.1: Schema generation, unsynchronized PC, converters, …
 EJB 3.2: Optional CMP/BMP, Ease-of-use, Refactoring, …
 JSF 2.2: Faces Flows, HTML5 markup support
 Servlet 3.1: Non-blocking IO, Upgrade to WebSocket, …
 EL 3.0: Lambda expressions, Collection, Operators, …
 JTA 1.2: Transactional interceptors
 CDI 1.1: Ordering of interceptors, Servlet events, …

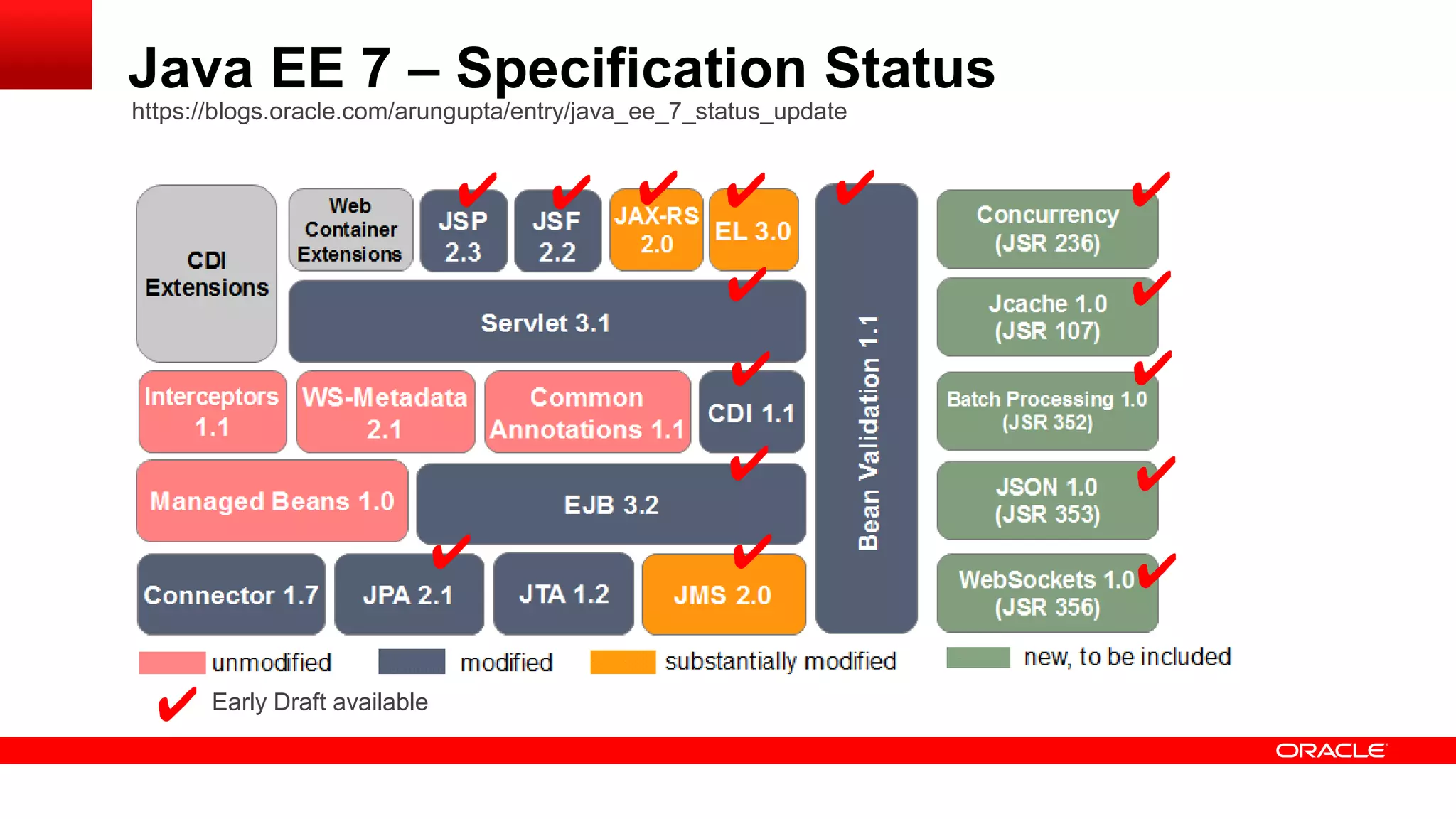

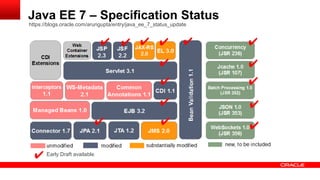

Java EE 7 – Specification Status
https://blogs.oracle.com/arungupta/entry/java_ee_7_status_update

✔ ✔ ✔ ✔ ✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔ ✔

✔ Early Draft available

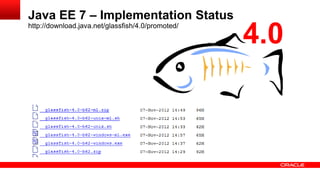

Java EE 7 – Implementation Status
4.0
http://download.java.net/glassfish/4.0/promoted/

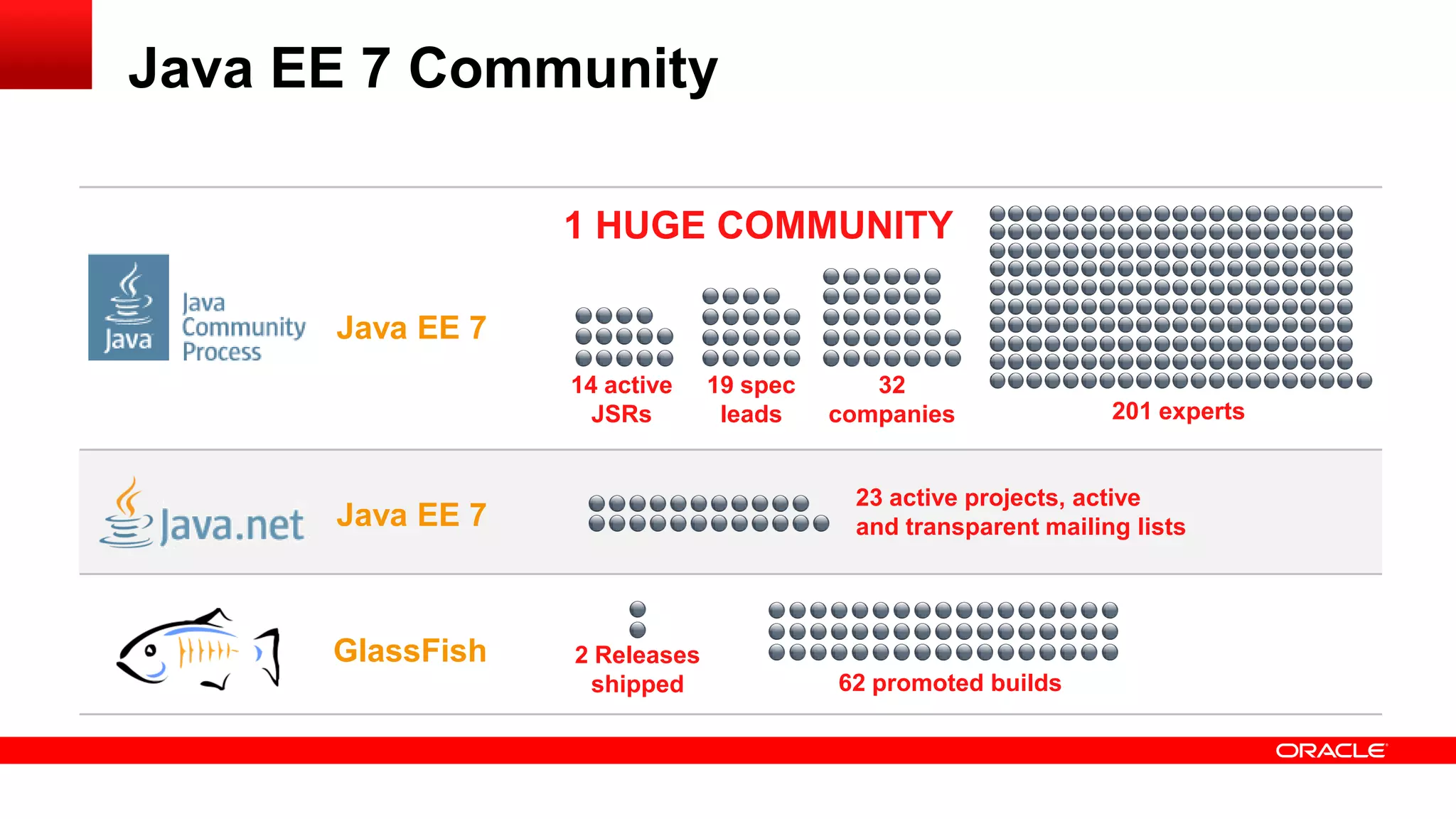

Java EE 7 Community

1 HUGE COMMUNITY

Java EE 7
14 active 19 spec 32
JSRs leads companies 201 experts

23 active projects, active
Java EE 7 and transparent mailing lists

GlassFish 2 Releases
shipped 62 promoted builds

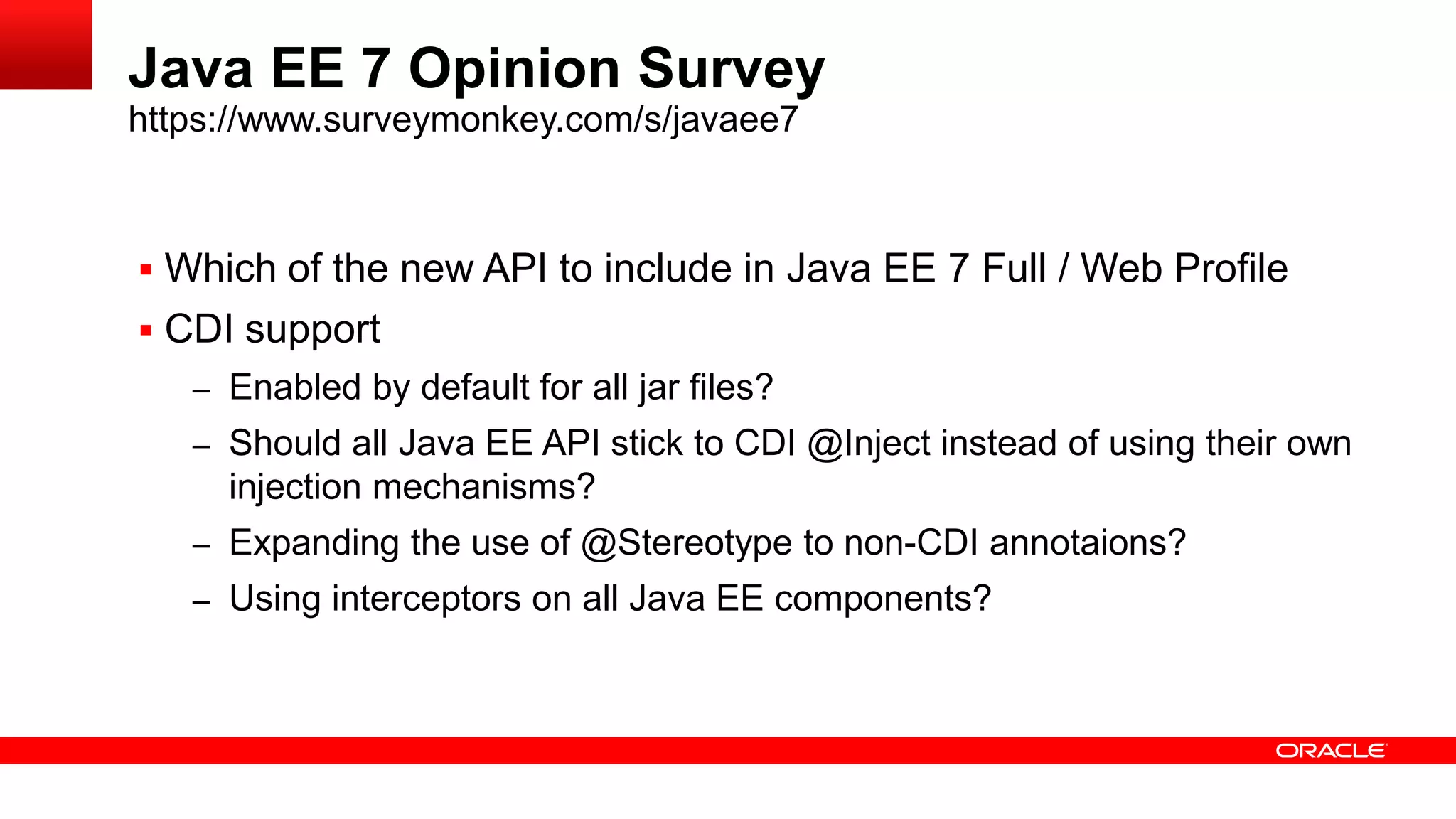

Java EE 7 Opinion Survey
https://www.surveymonkey.com/s/javaee7

 Which of the new API to include in Java EE 7 Full / Web Profile
 CDI support
– Enabled by default for all jar files?
– Should all Java EE API stick to CDI @Inject instead of using their own
injection mechanisms?
– Expanding the use of @Stereotype to non-CDI annotaions?
– Using interceptors on all Java EE components?

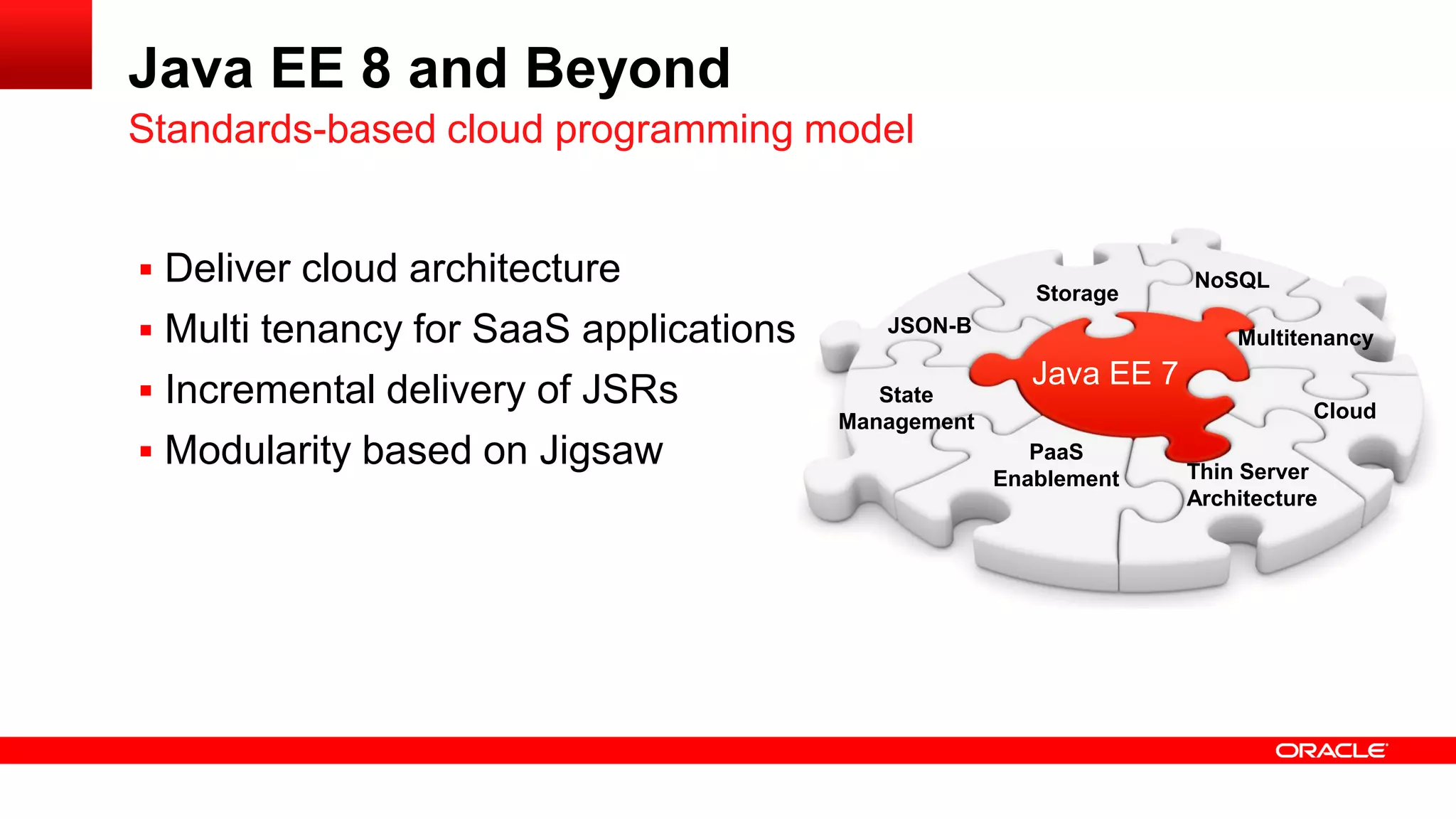

Java EE 8 and Beyond
Standards-based cloud programming model

 Deliver cloud architecture NoSQL
Storage
 Multi tenancy for SaaS applications JSON-B
Multitenancy
Java EE 7
 Incremental delivery of JSRs State
Cloud
Management
 Modularity based on Jigsaw PaaS
Thin Server
Enablement
Architecture

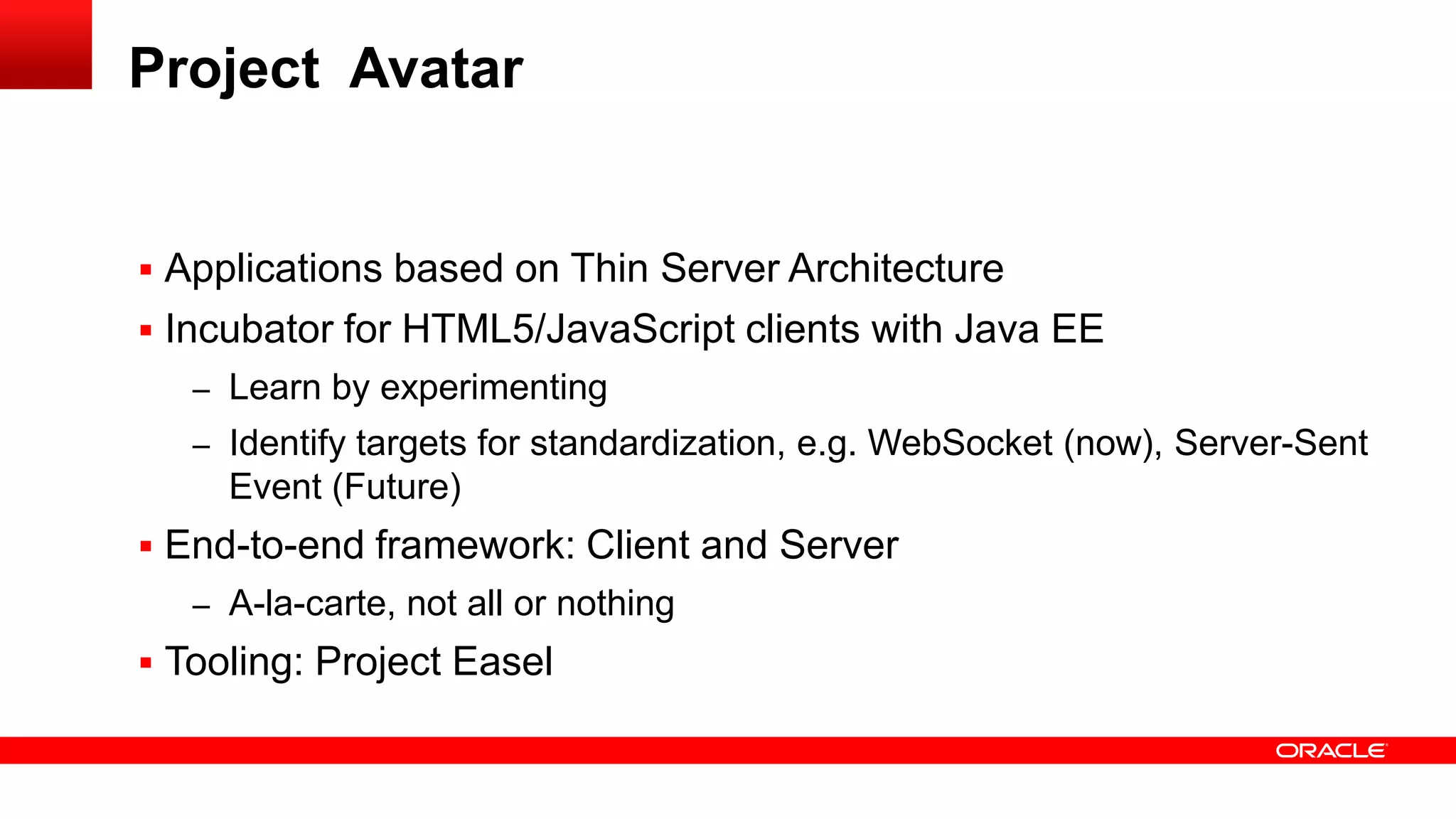

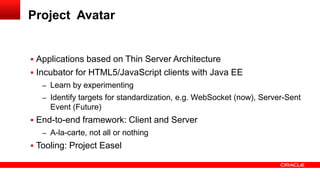

Project Avatar

 Applications based on Thin Server Architecture
 Incubator for HTML5/JavaScript clients with Java EE
– Learn by experimenting
– Identify targets for standardization, e.g. WebSocket (now), Server-Sent
Event (Future)
 End-to-end framework: Client and Server
– A-la-carte, not all or nothing
 Tooling: Project Easel

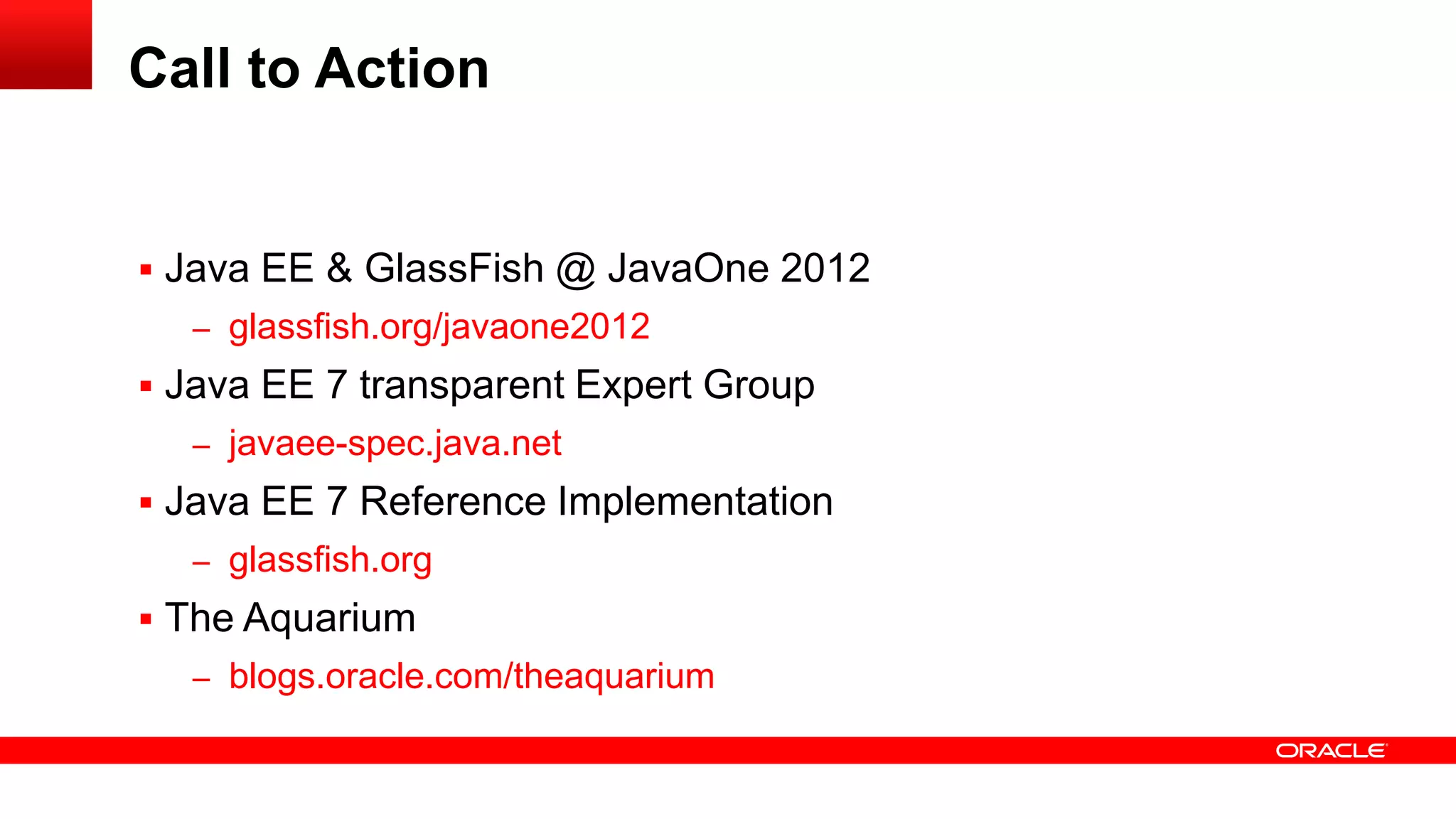

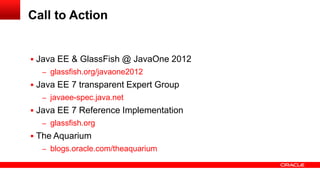

Call to Action

 Java EE & GlassFish @ JavaOne 2012
– glassfish.org/javaone2012
 Java EE 7 transparent Expert Group
– javaee-spec.java.net
 Java EE 7 Reference Implementation
– glassfish.org
 The Aquarium
– blogs.oracle.com/theaquarium
