JavaFX and WidgetFX at SVCodeCamp
This document discusses JavaFX and WidgetFX frameworks. It provides an overview of developing widgets for the WidgetFX platform, including building a movie widget tutorial. It also describes features of the WidgetFX dock and results from a WidgetFX development contest, where the top prize was a Pro JavaFX book.
More Related Content
Similar to JavaFX and WidgetFX at SVCodeCamp
JavaFX and WidgetFX at SVCodeCamp
- 1. Getting Started withJavaFX and WidgetFXStephen ChinInovis, Inc.Keith CombsInovis, Inc.
- 2.
- 3.
- 4.
- 5.
- 6.

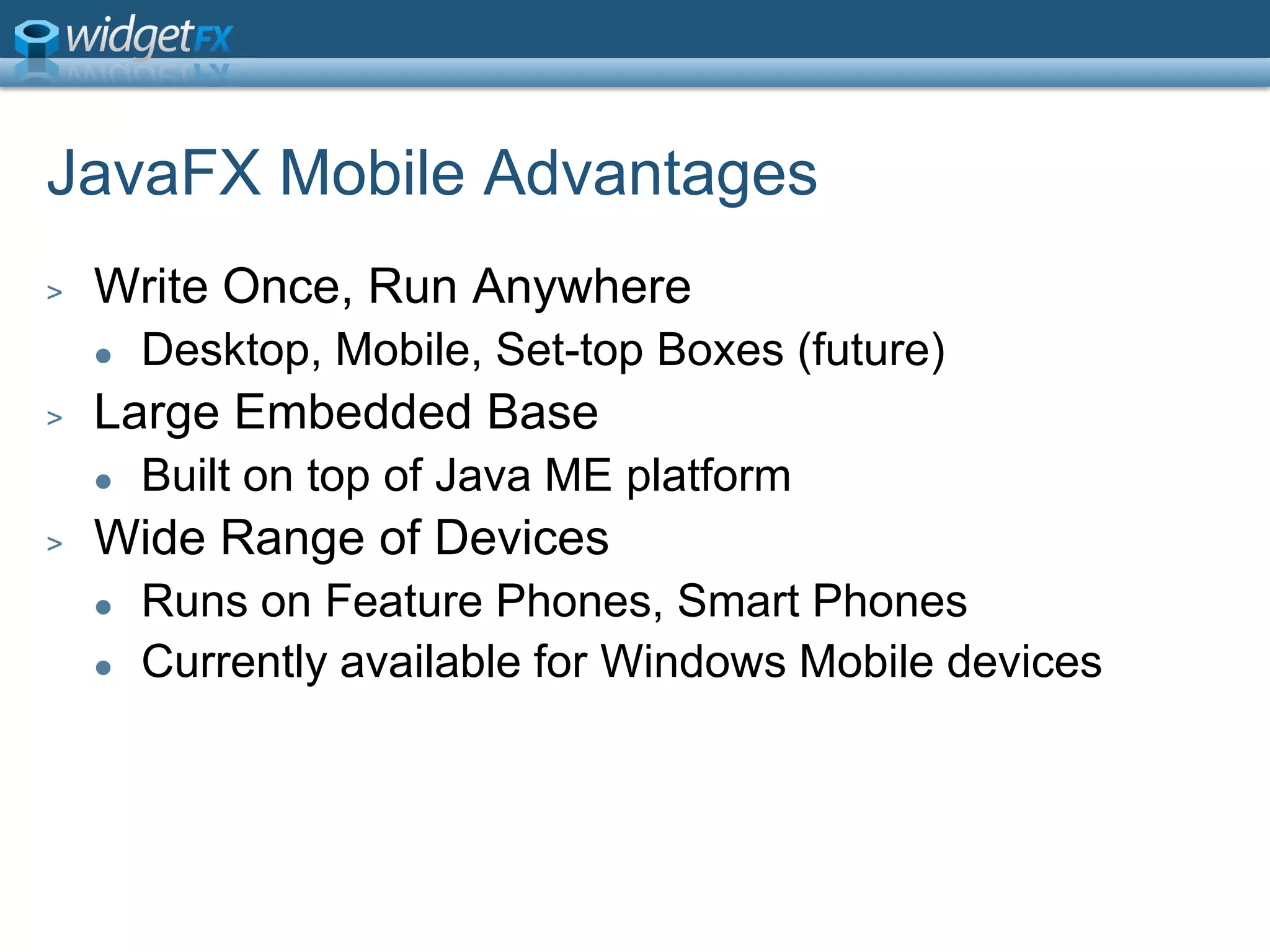

- 7. JavaFX Mobile AdvantagesWriteOnce, Run AnywhereDesktop, Mobile, Set-top Boxes (future)Large Embedded BaseBuilt on top of Java ME platformWide Range of DevicesRuns on Feature Phones, Smart PhonesCurrently available for Windows Mobile devices

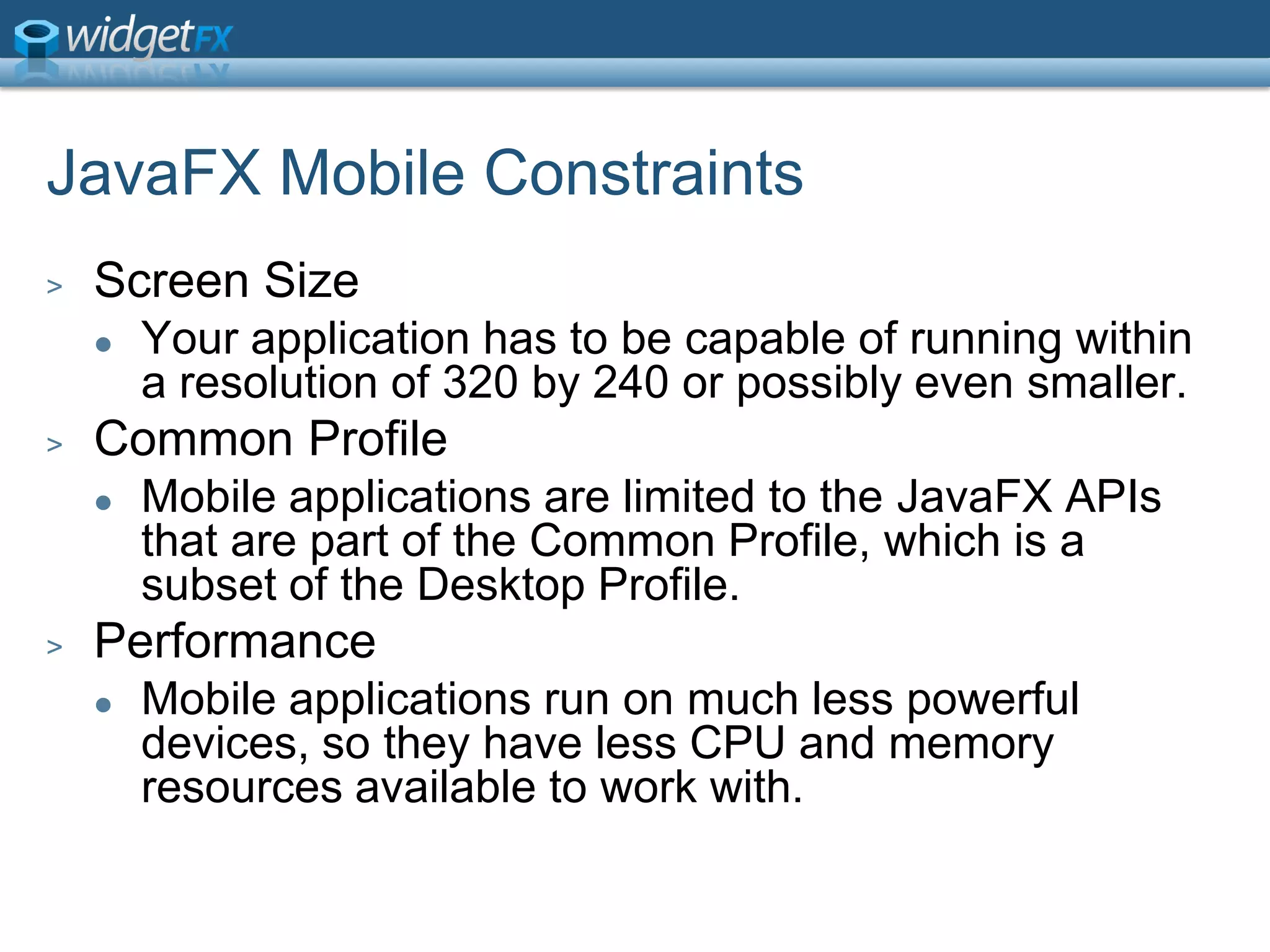

- 8. JavaFX Mobile ConstraintsScreenSizeYour application has to be capable of running within a resolution of 320 by 240 or possibly even smaller.Common ProfileMobile applications are limited to the JavaFX APIs that are part of the Common Profile, which is a subset of the Desktop Profile.PerformanceMobile applications run on much less powerful devices, so they have less CPU and memory resources available to work with.

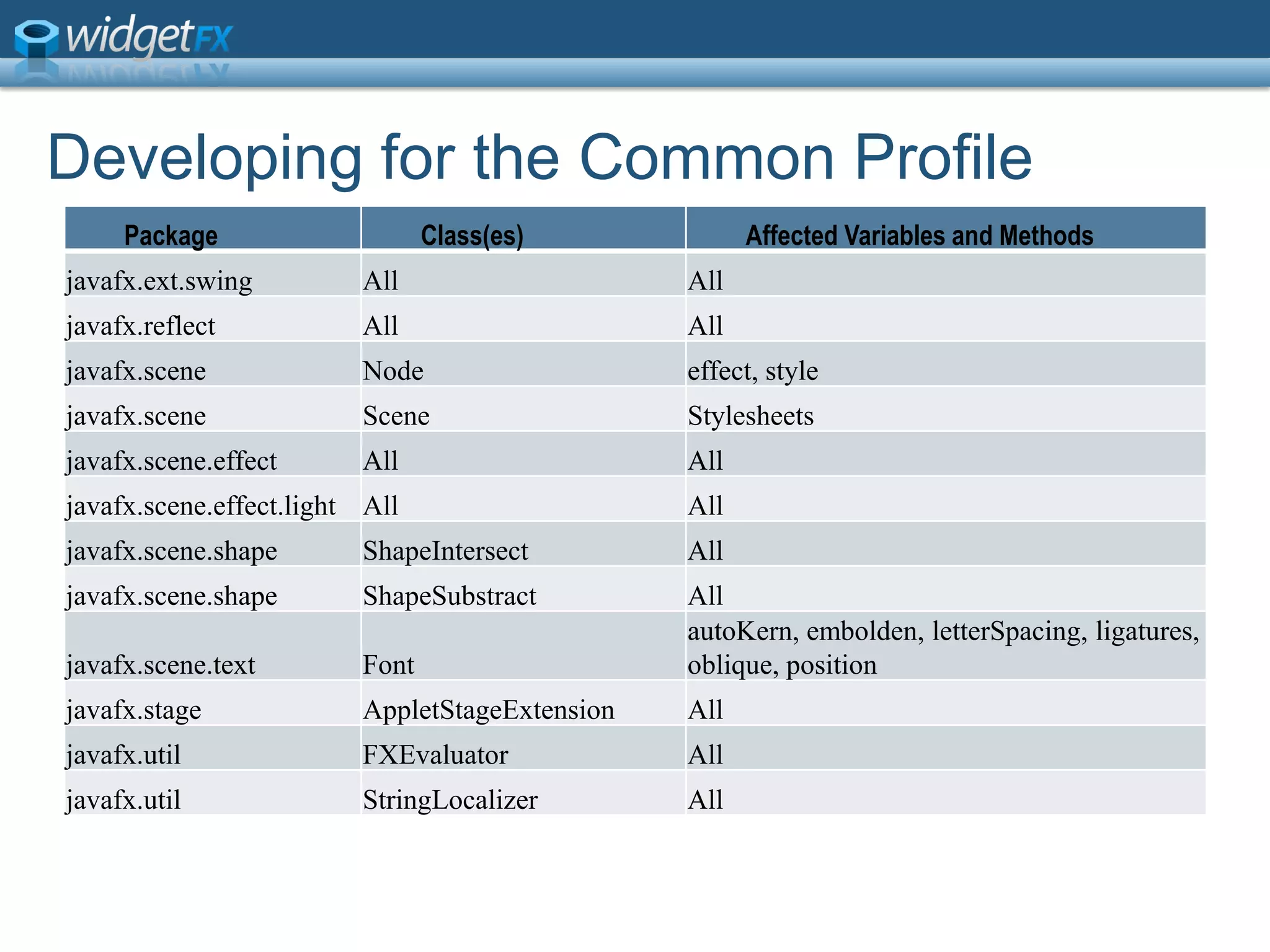

- 9. Developing for theCommon Profile

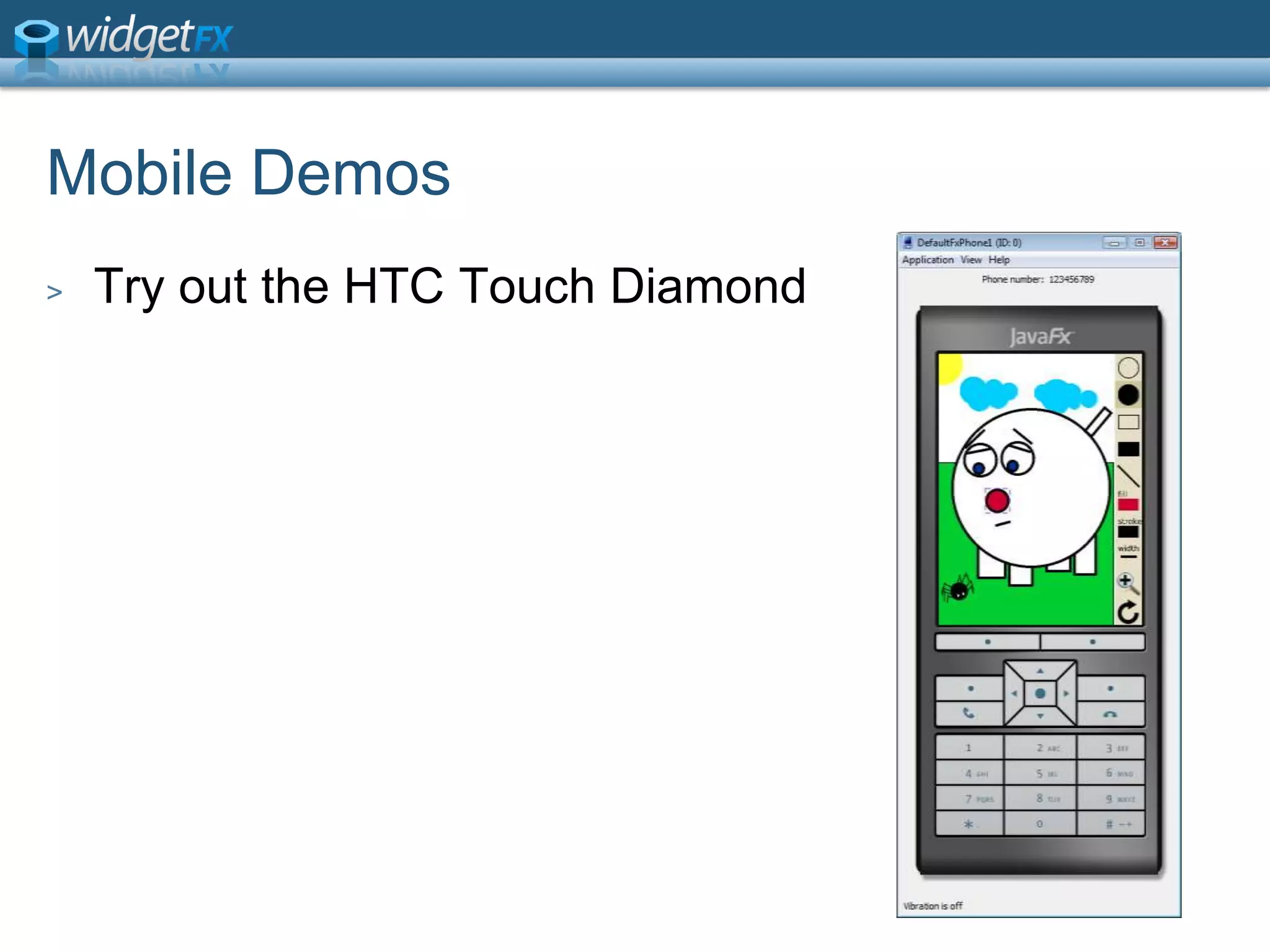

- 10. Mobile DemosTry outthe HTC Touch Diamond

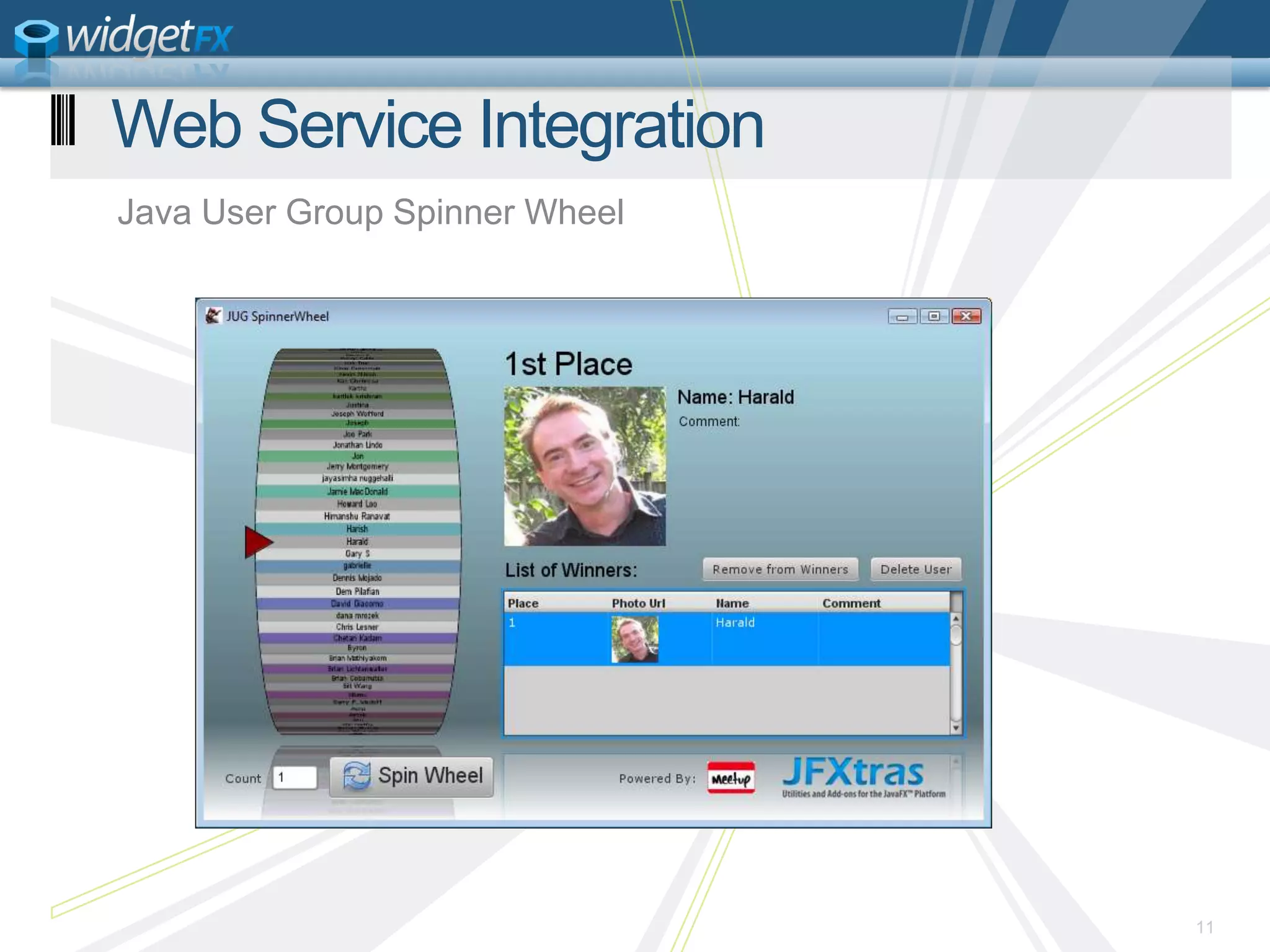

- 11. Java User GroupSpinner Wheel11Web Service Integration

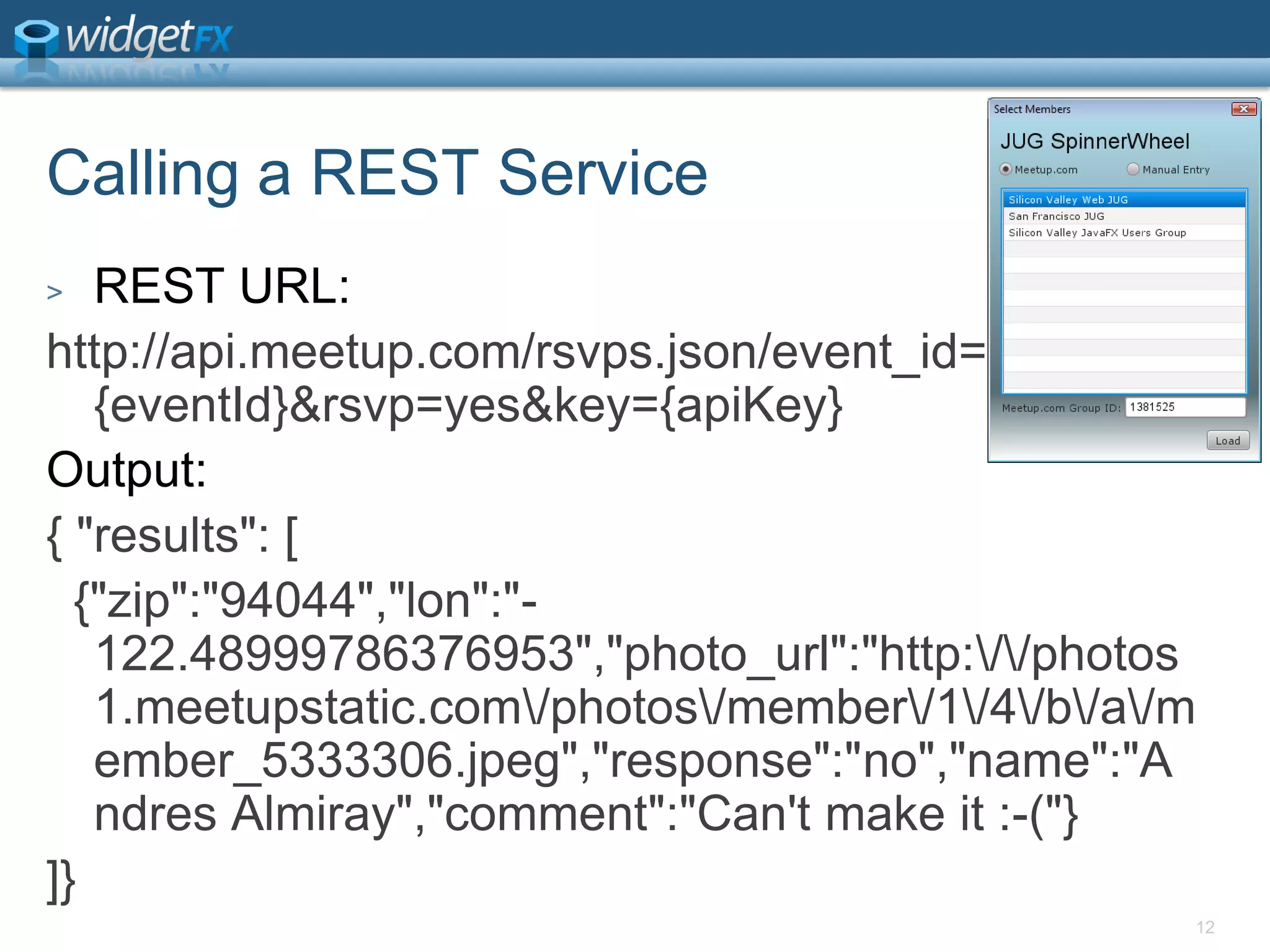

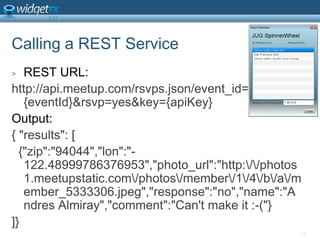

- 12. Calling a RESTServiceREST URL:http://api.meetup.com/rsvps.json/event_id={eventId}&rsvp=yes&key={apiKey}Output:{ "results": [ {"zip":"94044","lon":"-122.48999786376953","photo_url":"http:\/\/photos1.meetupstatic.com\/photos\/member\/1\/4\/b\/a\/member_5333306.jpeg","response":"no","name":"Andres Almiray","comment":"Can't make it :-("}]}12

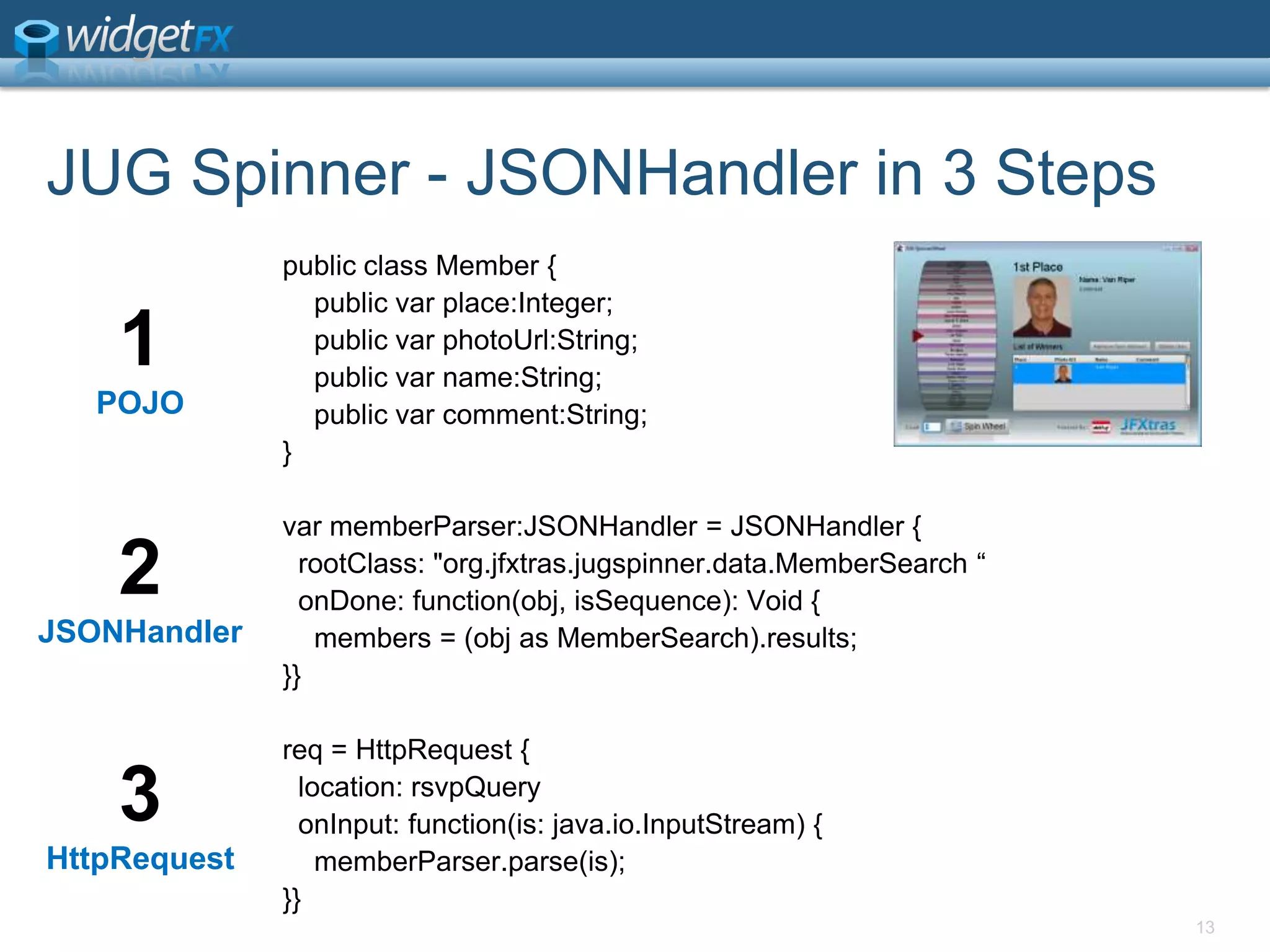

- 13. JUG Spinner -JSONHandler in 3 Stepspublic class Member { public varplace:Integer; public varphotoUrl:String; public varname:String; public varcomment:String;}varmemberParser:JSONHandler= JSONHandler { rootClass: "org.jfxtras.jugspinner.data.MemberSearch “ onDone: function(obj, isSequence): Void { members = (obj as MemberSearch).results;}}req = HttpRequest { location: rsvpQueryonInput: function(is: java.io.InputStream) {memberParser.parse(is);}}131POJO2JSONHandler3HttpRequest
- 14.

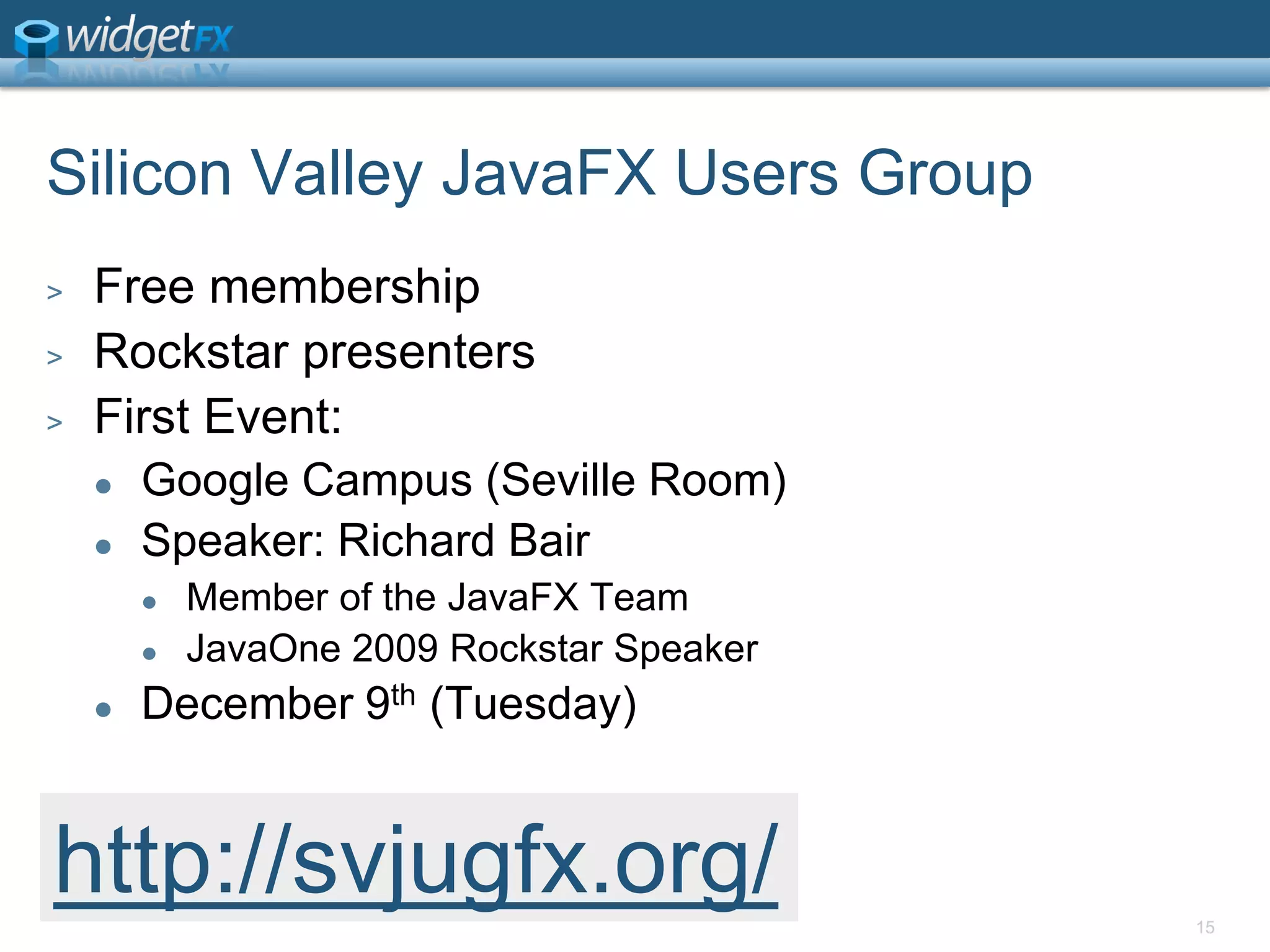

- 15. Silicon Valley JavaFXUsers GroupFree membershipRockstar presentersFirst Event:Google Campus (Seville Room)Speaker: Richard BairMember of the JavaFX TeamJavaOne 2009 Rockstar SpeakerDecember 9th (Tuesday)15http://svjugfx.org/

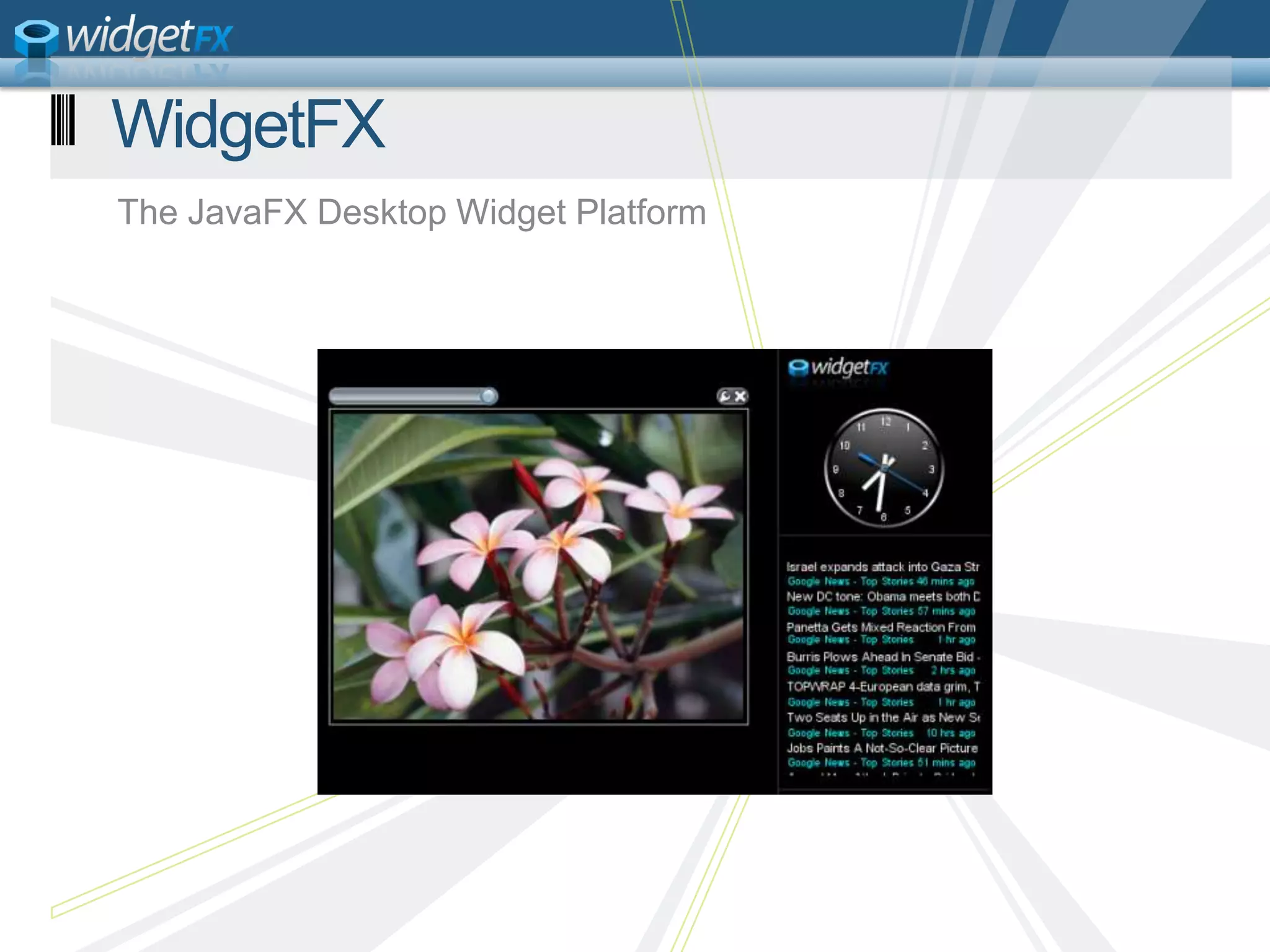

- 16. The JavaFX DesktopWidget PlatformWidgetFX
- 17.

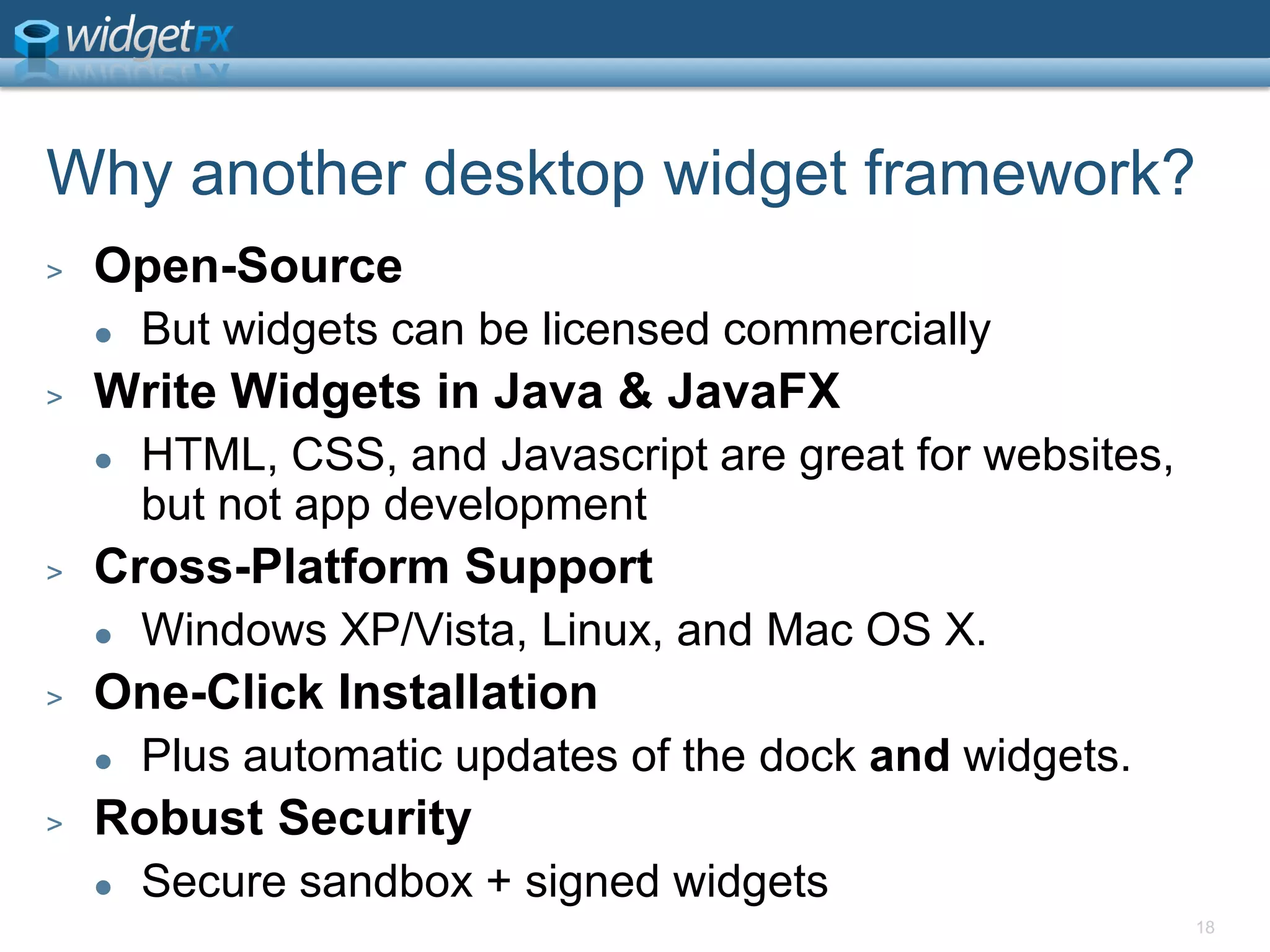

- 18. 18Why another desktopwidget framework?Open-SourceBut widgets can be licensed commerciallyWrite Widgets in Java & JavaFXHTML, CSS, and Javascript are great for websites, but not app developmentCross-Platform SupportWindows XP/Vista, Linux, and Mac OS X. One-Click InstallationPlus automatic updates of the dock and widgets. Robust SecuritySecure sandbox + signed widgets

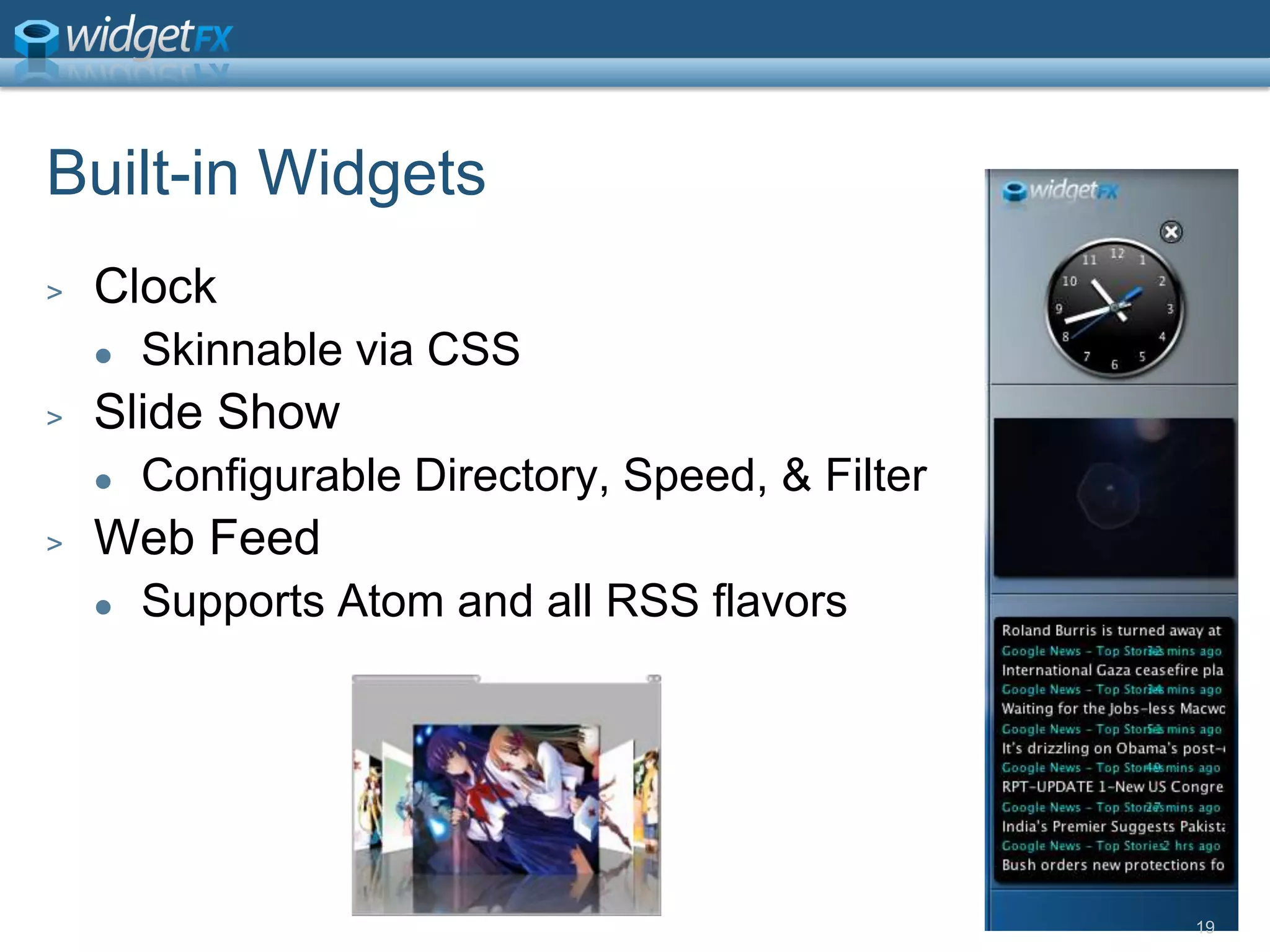

- 19. Built-in WidgetsClockSkinnable viaCSSSlide ShowConfigurable Directory, Speed, & FilterWeb FeedSupports Atom and all RSS flavors19

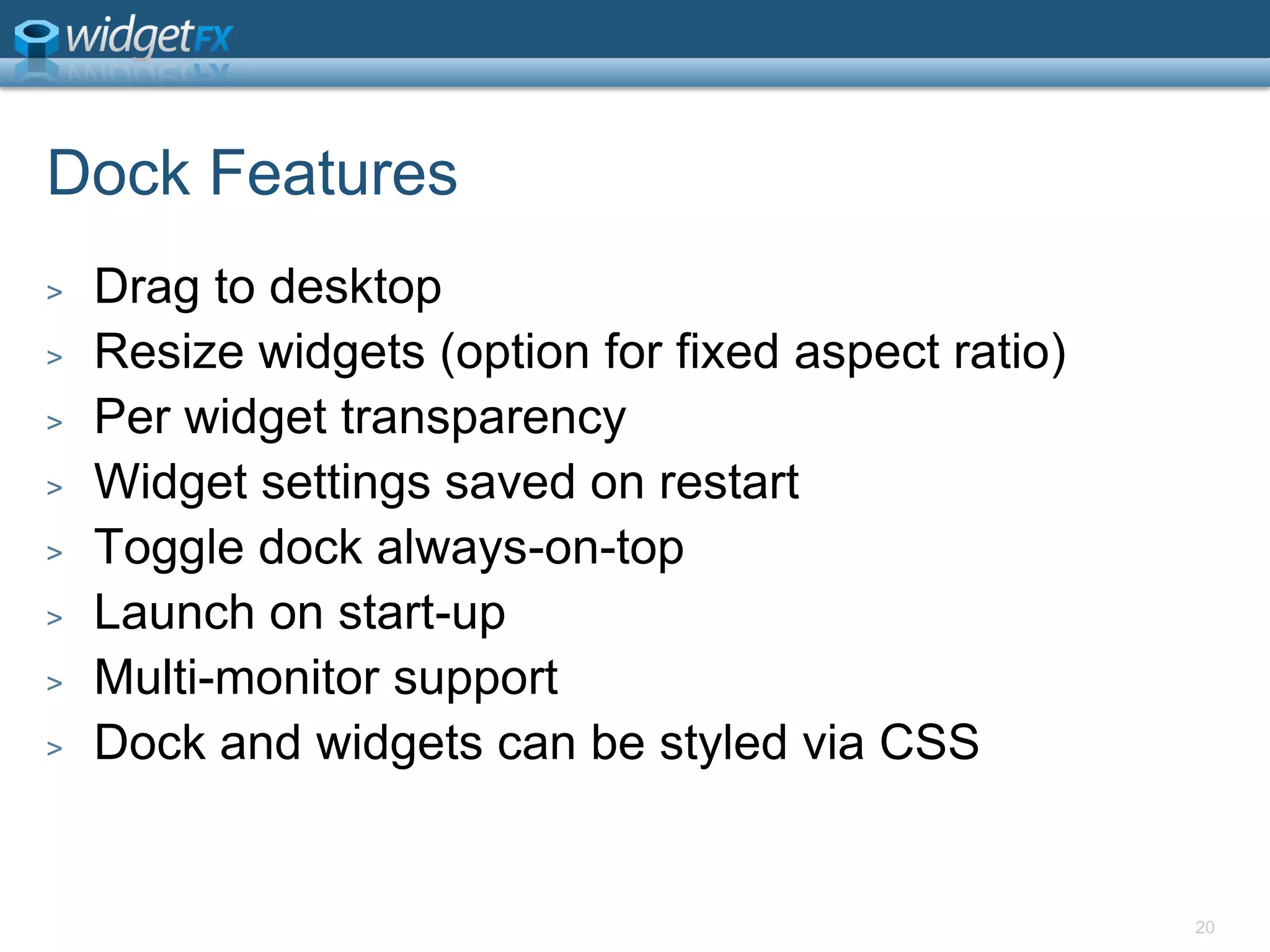

- 20. Dock FeaturesDrag todesktopResize widgets (option for fixed aspect ratio)Per widget transparencyWidget settings saved on restartToggle dock always-on-topLaunch on start-upMulti-monitor supportDock and widgets can be styled via CSS20
- 21.
- 22.

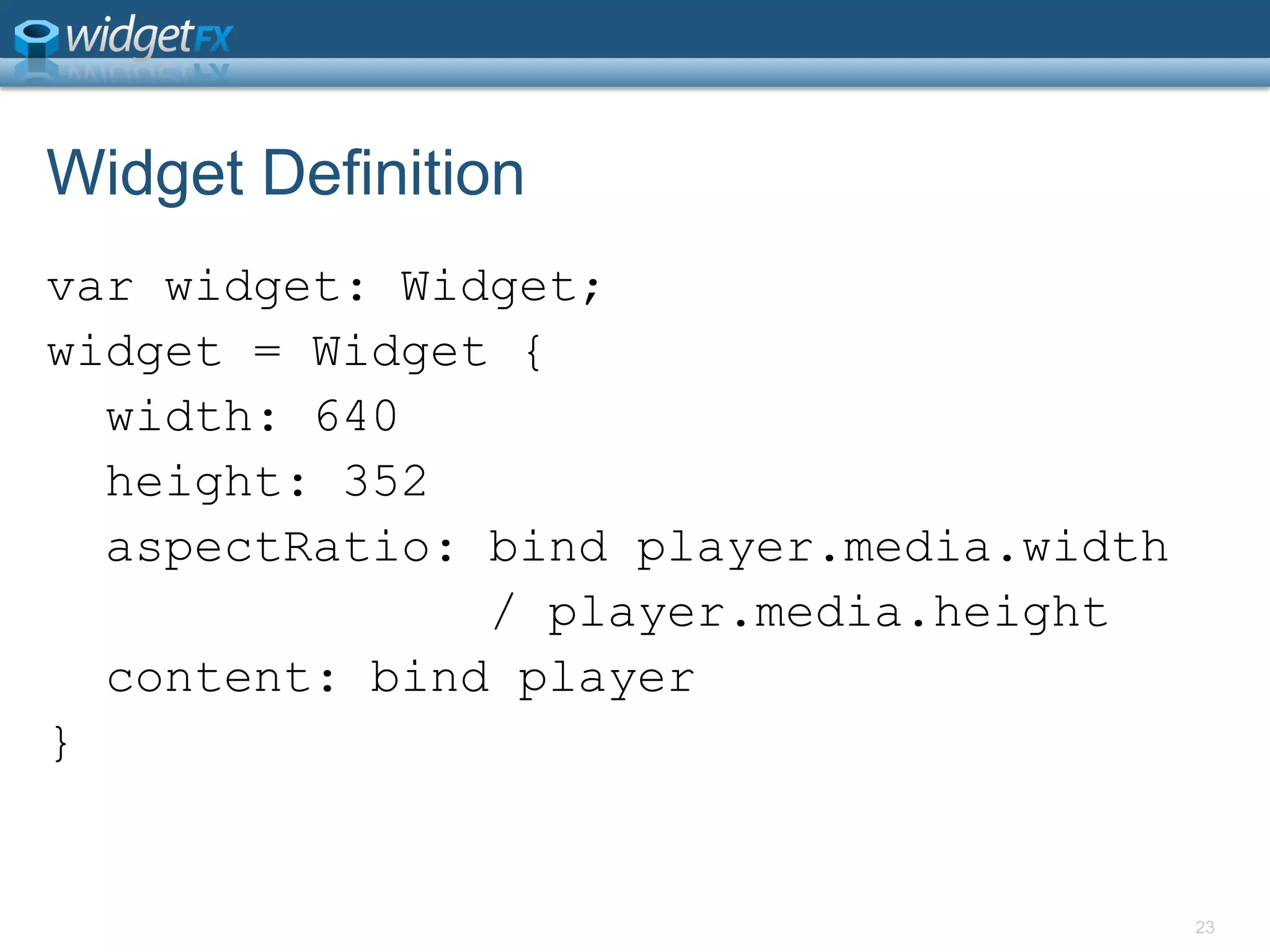

- 23. Widget Definitionvar widget:Widget;widget = Widget { width: 640 height: 352aspectRatio: bind player.media.width / player.media.height content: bind player}23

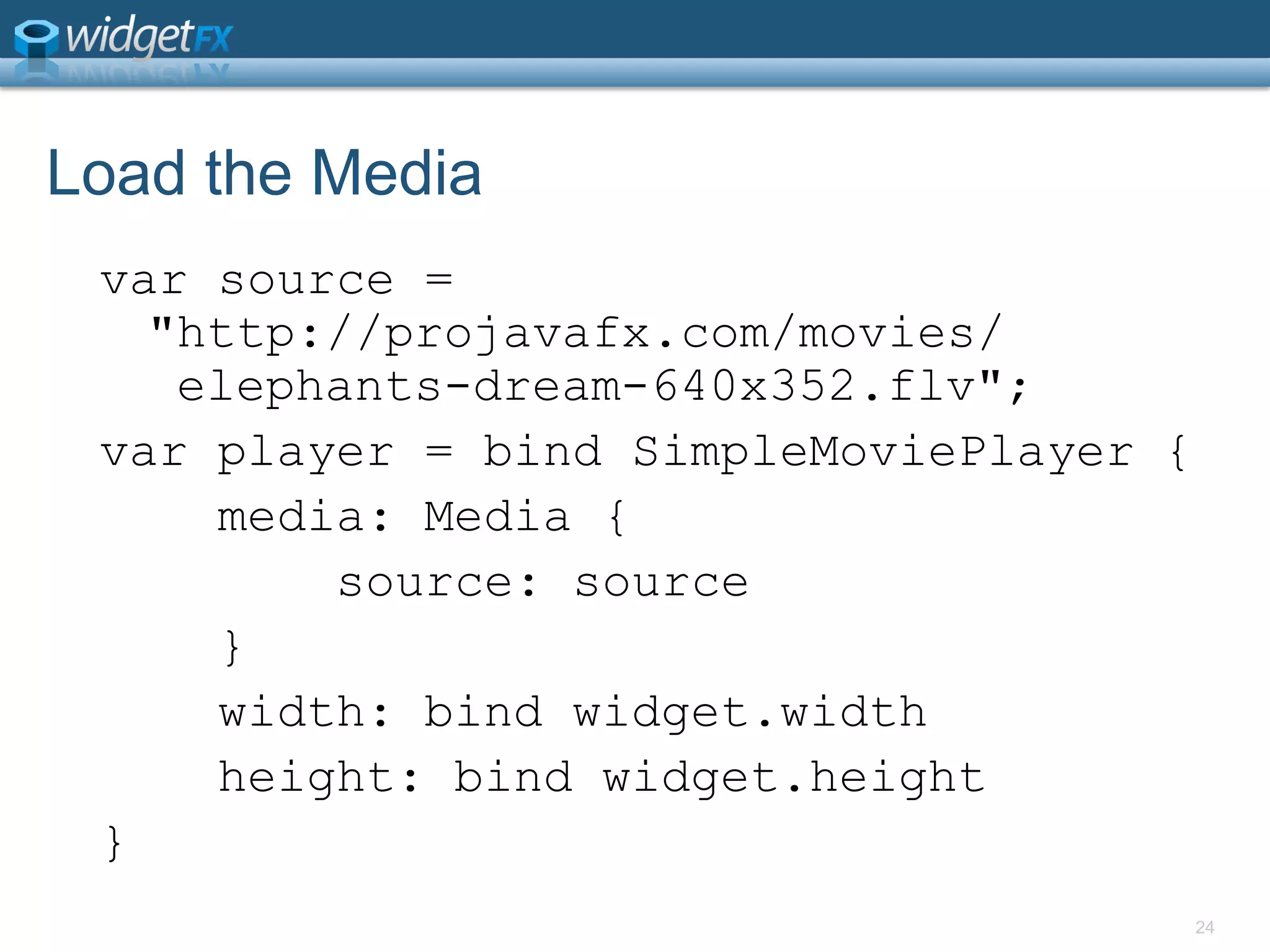

- 24. Load the Mediavarsource = "http://projavafx.com/movies/ elephants-dream-640x352.flv";var player = bind SimpleMoviePlayer { media: Media { source: source } width: bind widget.width height: bind widget.height}24

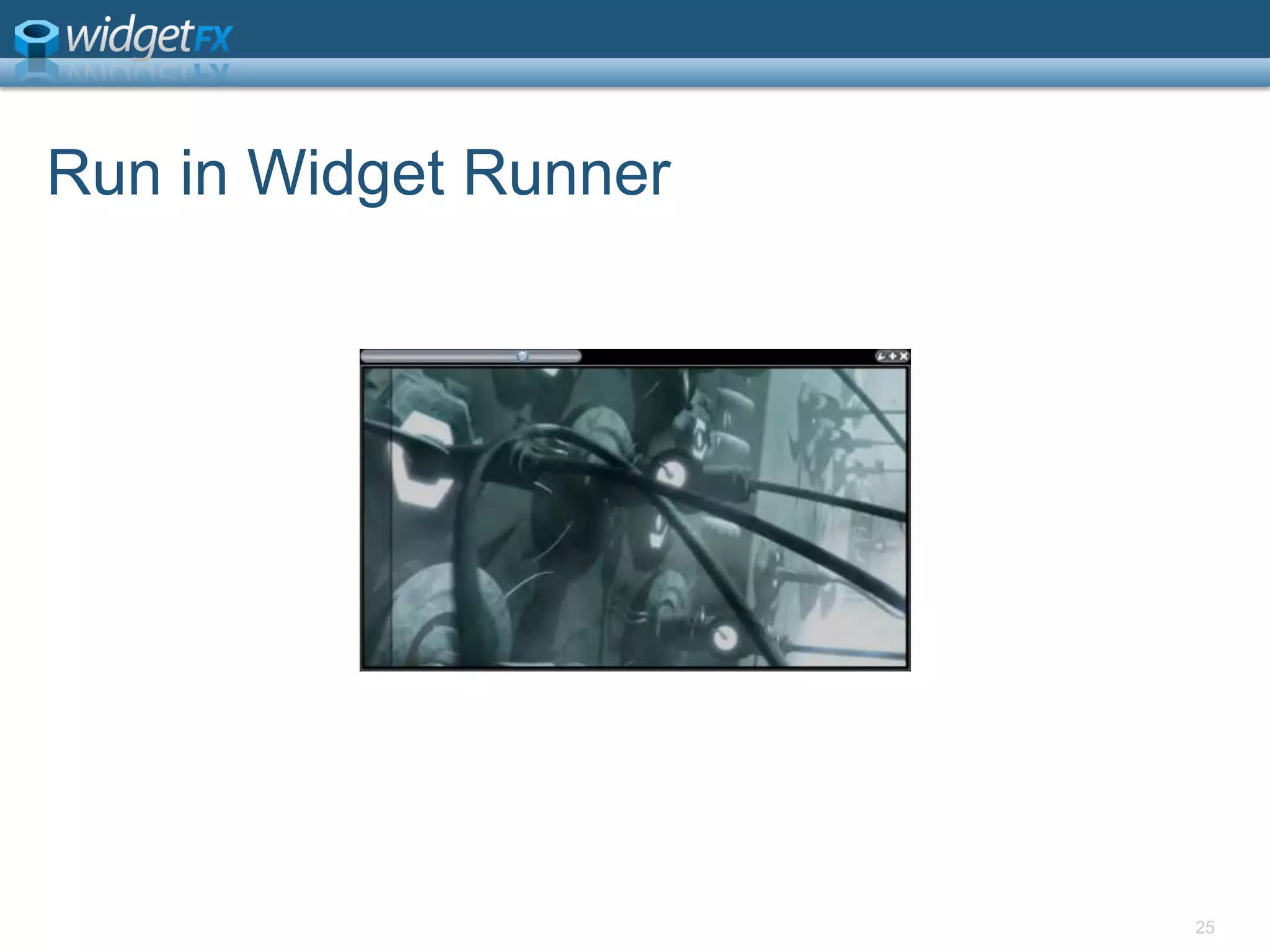

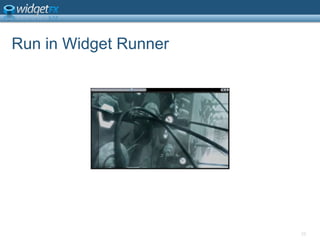

- 25. Run in WidgetRunner25
- 26.

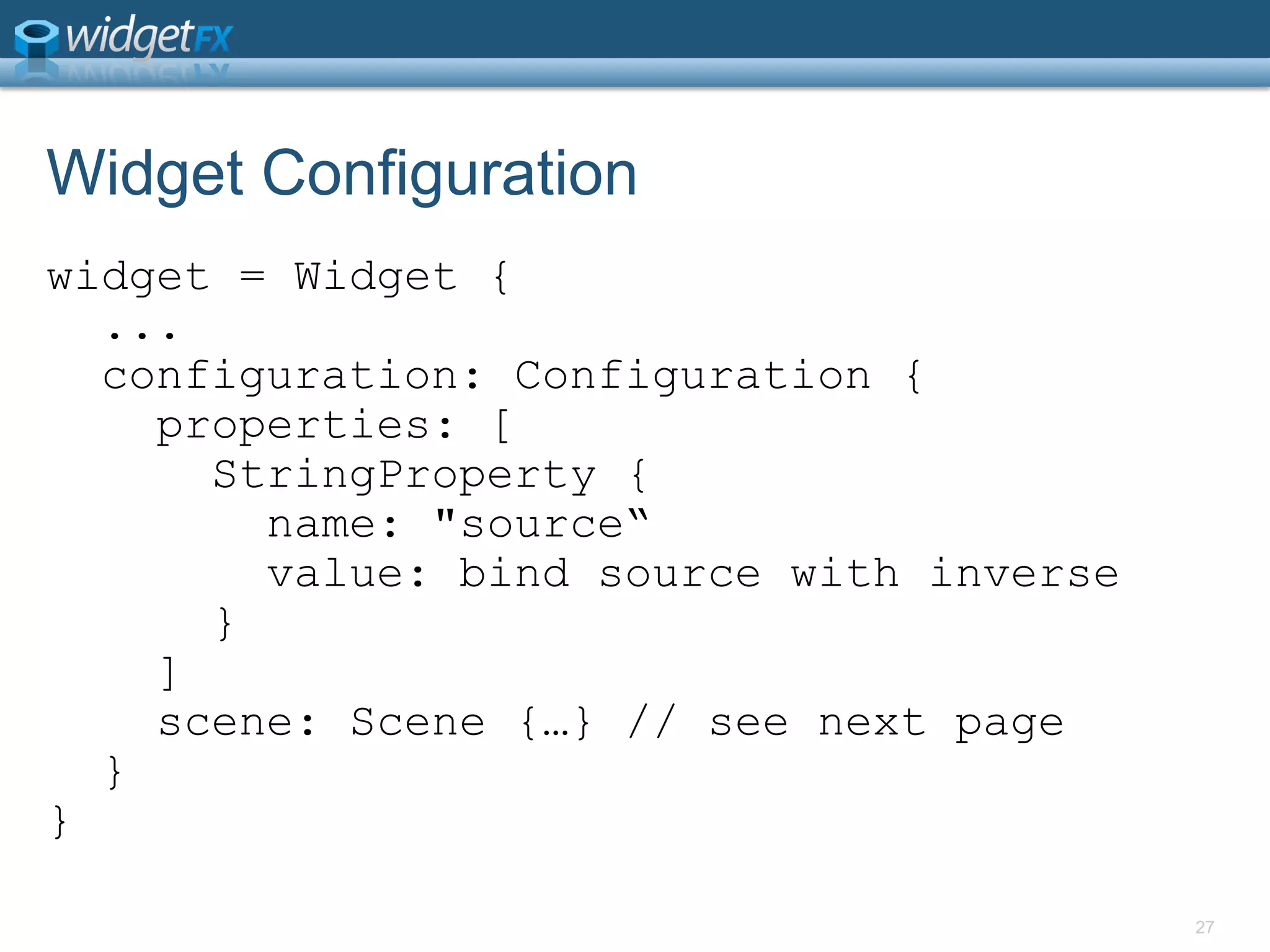

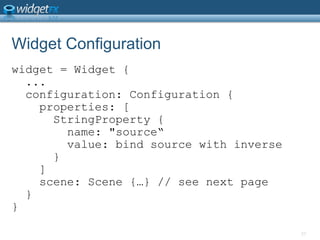

- 27. Widget Configurationwidget =Widget { ... configuration: Configuration { properties: [StringProperty { name: "source“ value: bind source with inverse } ] scene: Scene {…} // see next page }}27

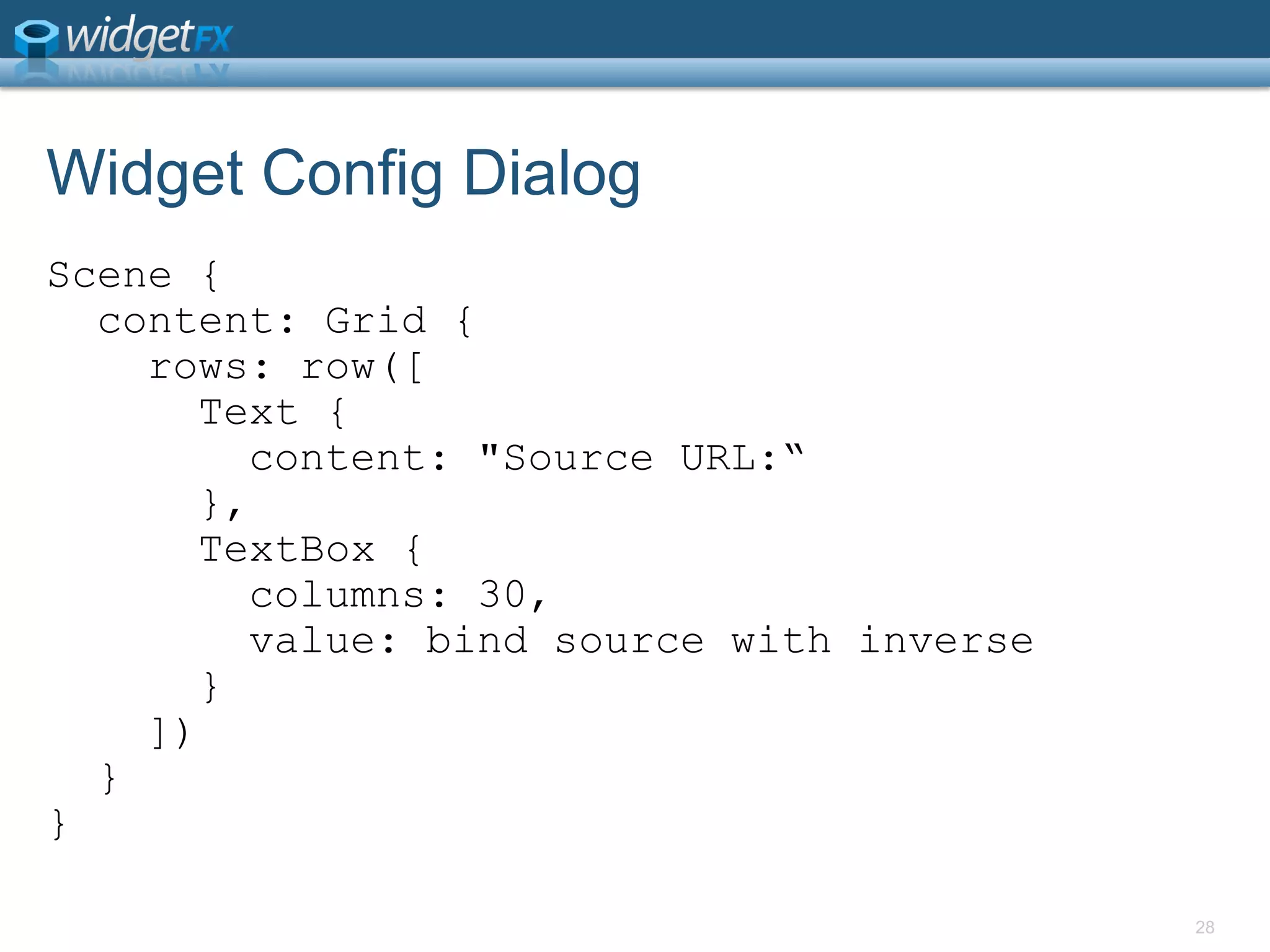

- 28. Widget Config DialogScene{ content: Grid { rows: row([ Text { content: "Source URL:“ },TextBox { columns: 30, value: bind source with inverse } ]) }}28

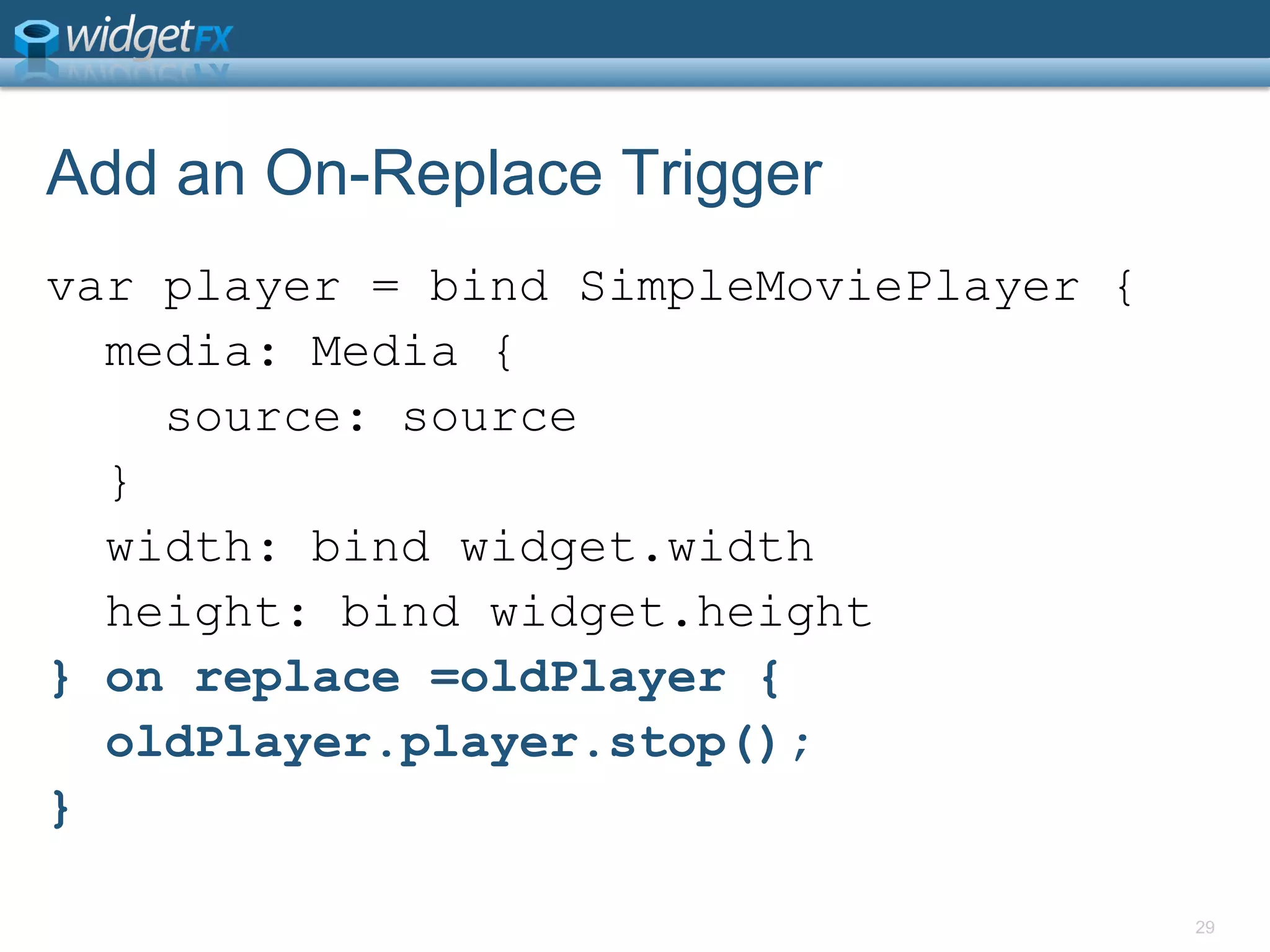

- 29. Add an On-ReplaceTriggervar player = bind SimpleMoviePlayer { media: Media { source: source } width: bind widget.width height: bind widget.height} on replace =oldPlayer {oldPlayer.player.stop();}29
- 30.
- 31.

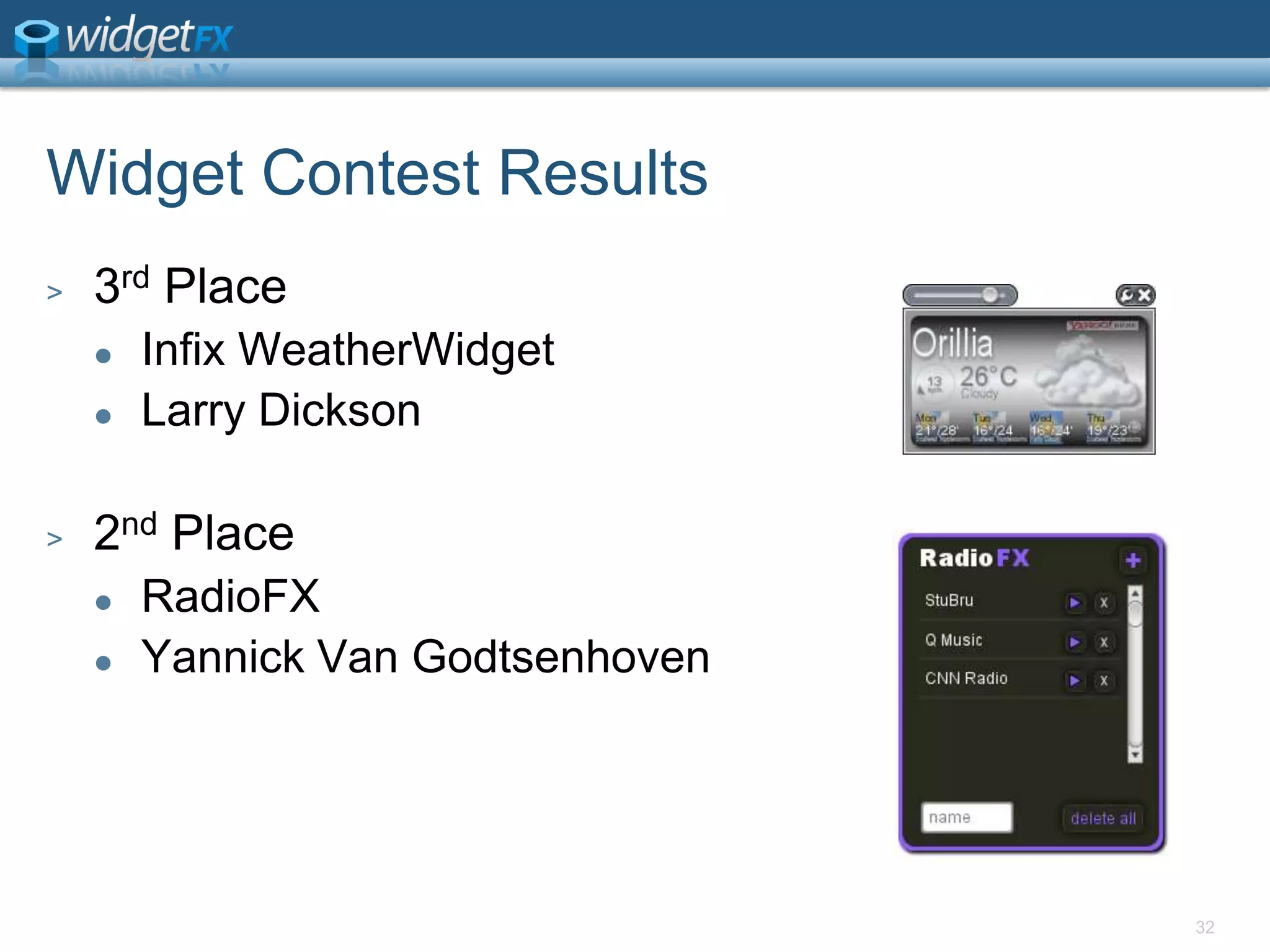

- 32. Widget Contest Results3rdPlaceInfix WeatherWidgetLarry Dickson2nd PlaceRadioFXYannick Van Godtsenhoven32

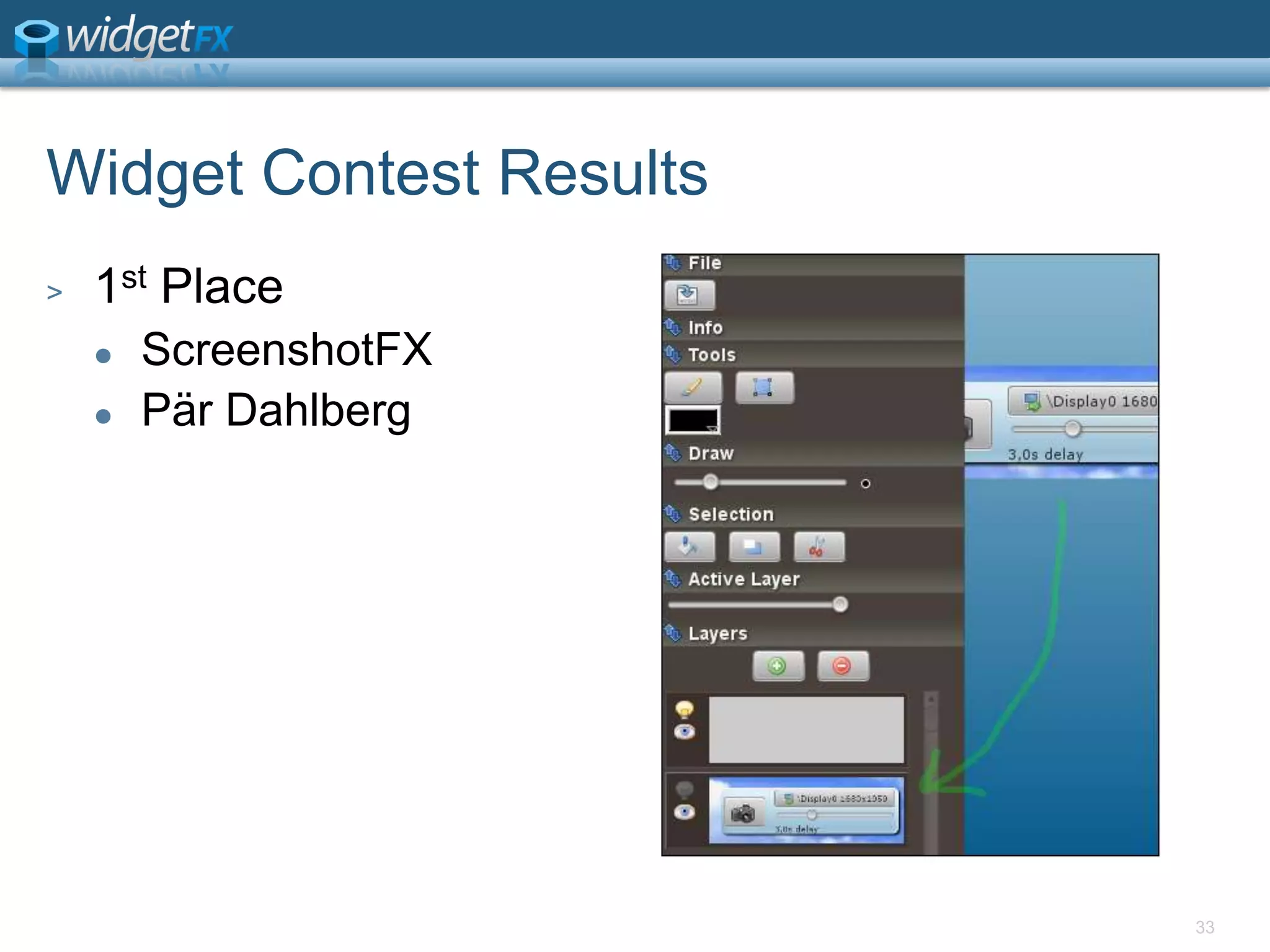

- 33. Widget Contest Results1stPlaceScreenshotFXPär Dahlberg33
- 34. Pro JavaFX BookGiveaway!34
- 35. 35Thank YouStephen Chinhttp://steveonjava.com/Tweet:steveonjavaKeith Combs
