  Lambda Architecture Una soluzioneper i Big Data Mario A. Santini
• 3.

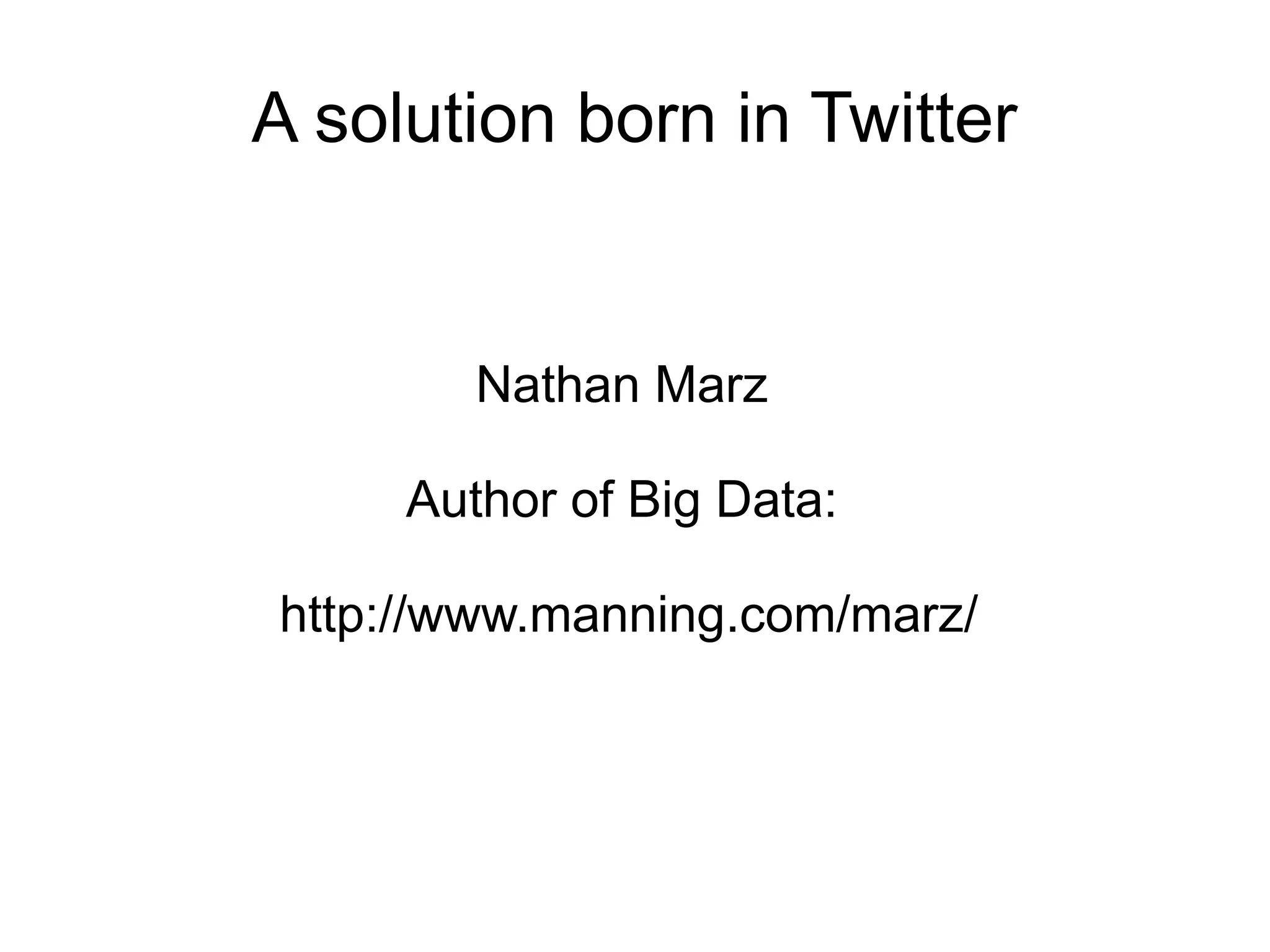

  A solution bornin Twitter Nathan Marz Author of Big Data: http://www.manning.com/marz/
• 4.

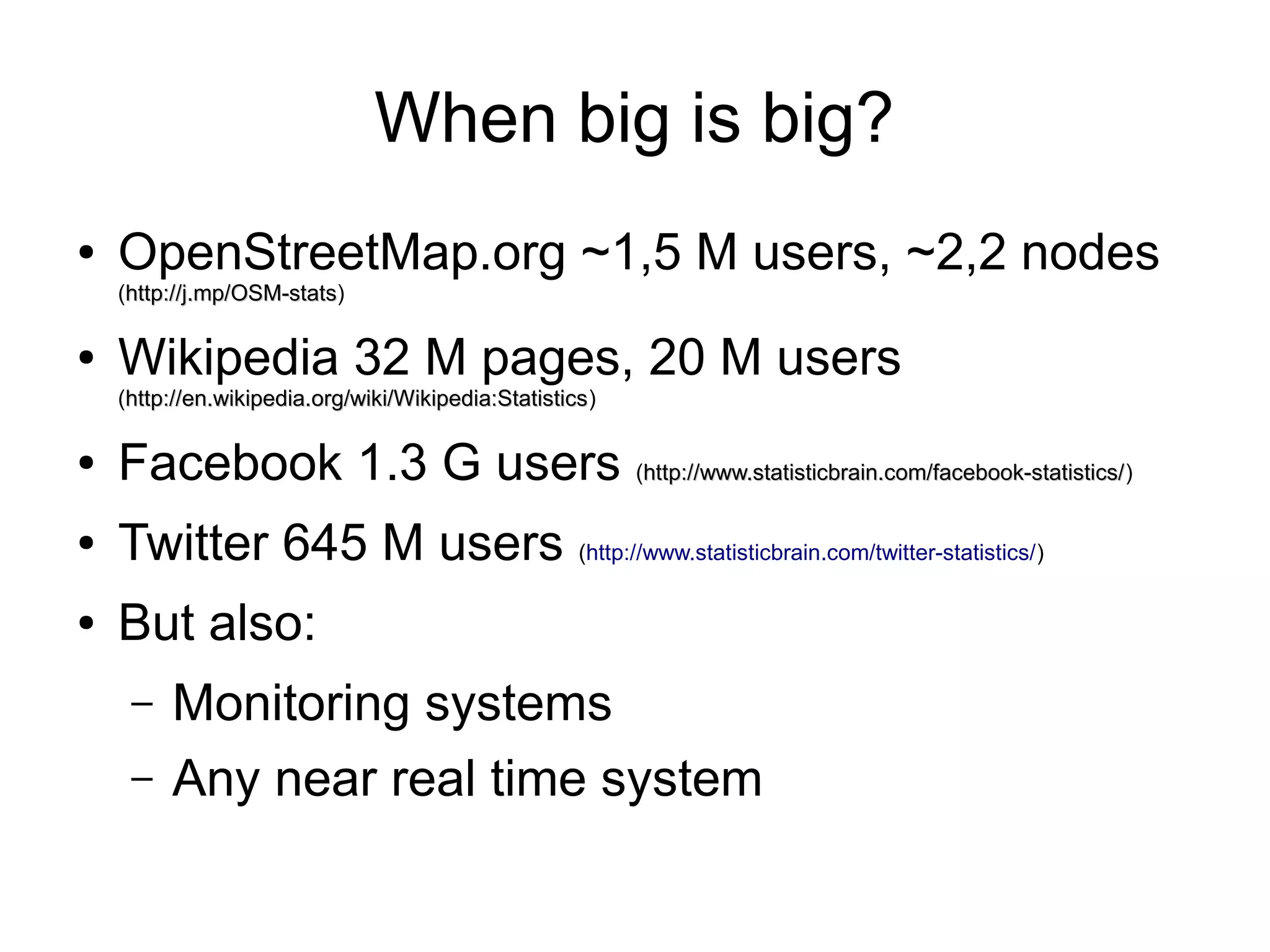

  When big isbig? ● OpenStreetMap.org ~1,5 M users, ~2,2 nodes (http://j.mp/OSM-stats) http://j.mp/OSM-stats ● Wikipedia 32 M pages, 20 M users (http://en.wikipedia.org/wiki/Wikipedia:Statistics) http://en.wikipedia.org/wiki/Wikipedia:Statistics ● Facebook 1.3 G users (http://www.statisticbrain.com/facebook-statistics/) http://www.statisticbrain.com/facebook-statistics/ ● Twitter 645 M users (http://www.statisticbrain.com/twitter-statistics/) ● But also: – – Monitoring systems Any near real time system
• 5.

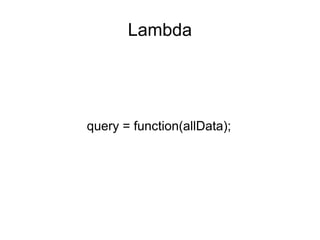

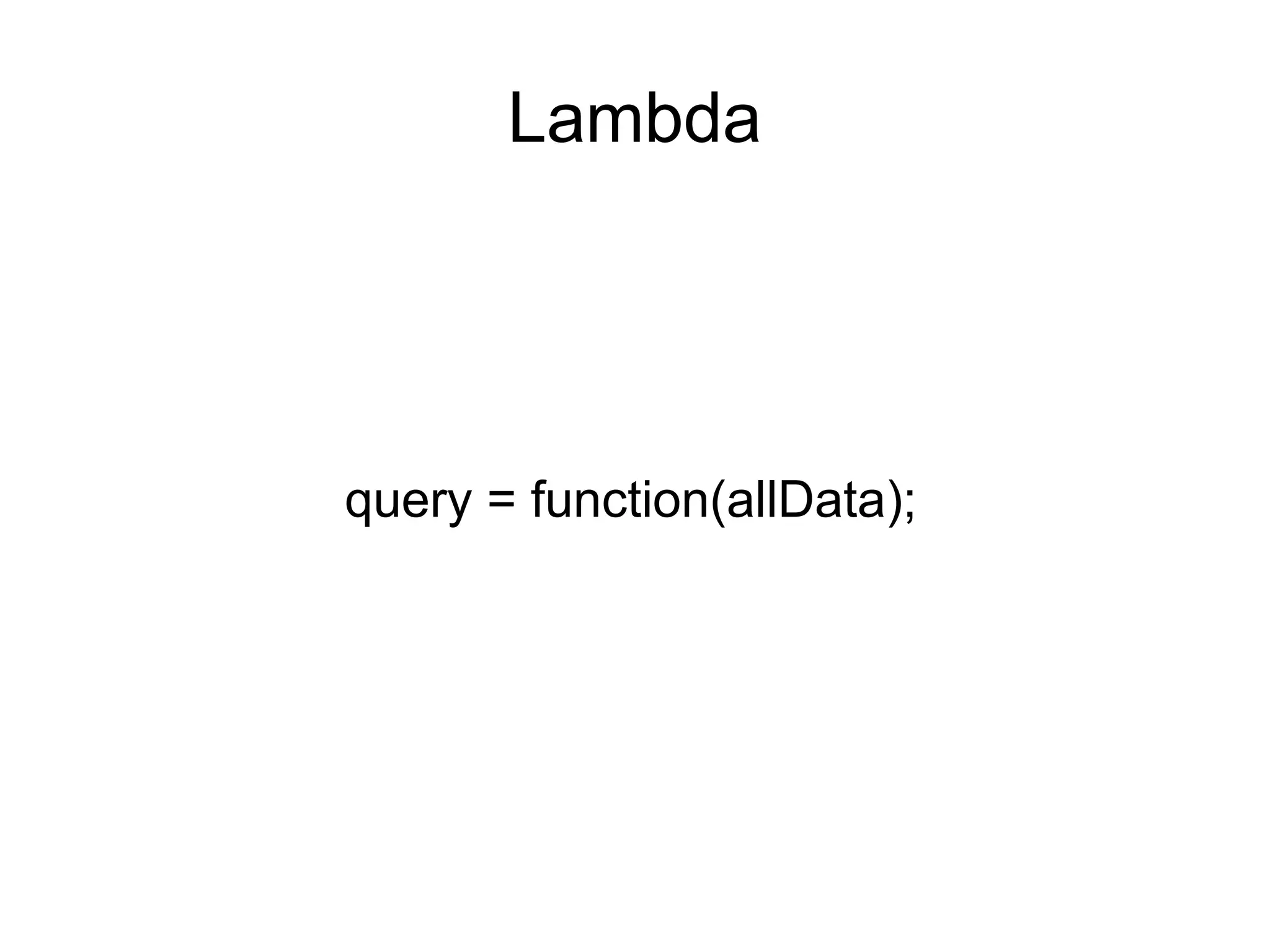

  Lambda query = function(allData);
• 6.

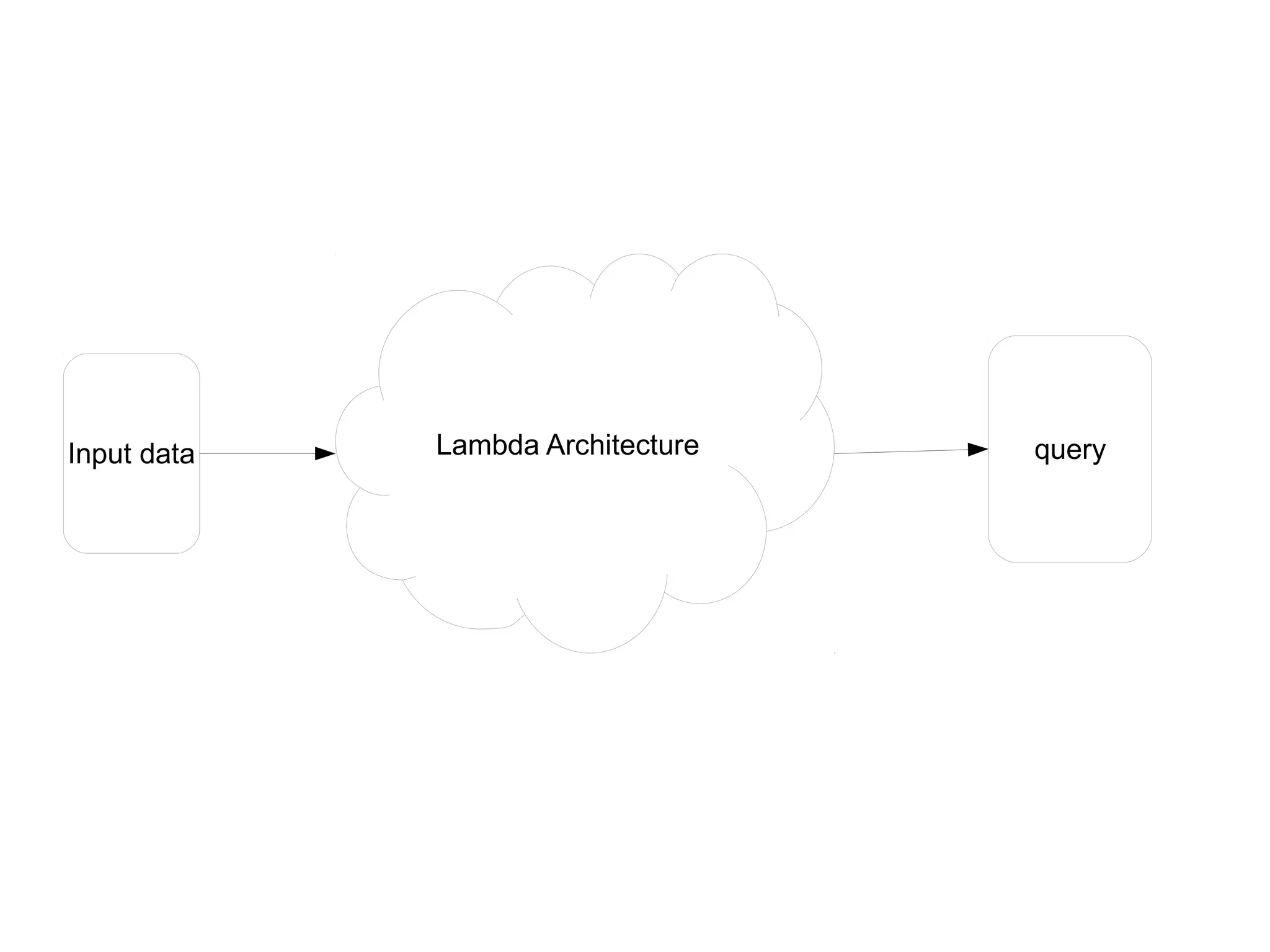

  Input data Lambda Architecture query
• 7.

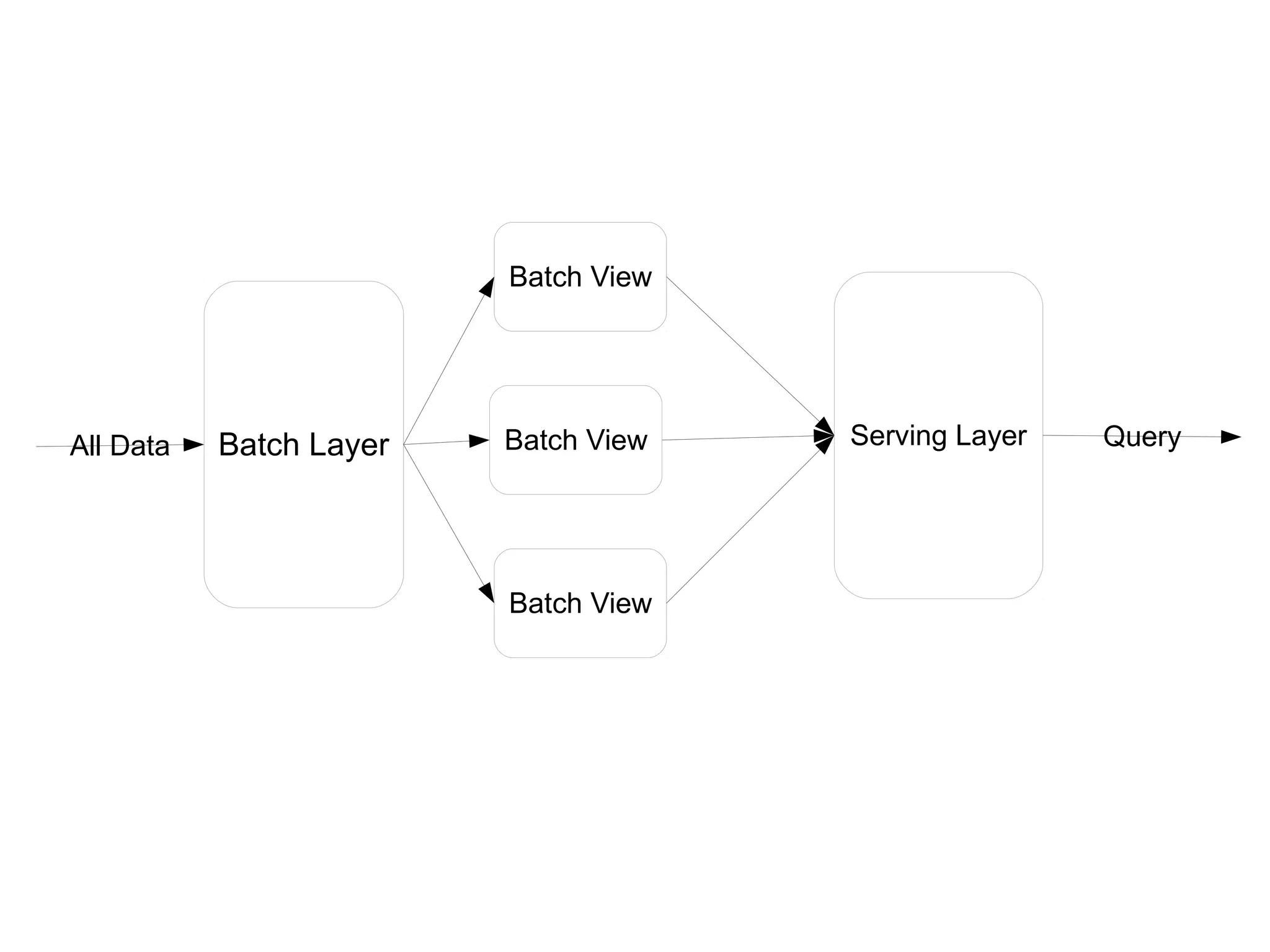

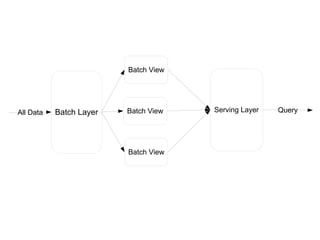

  Batch View All Data BatchLayer Batch View Batch View Serving Layer Query
• 8.

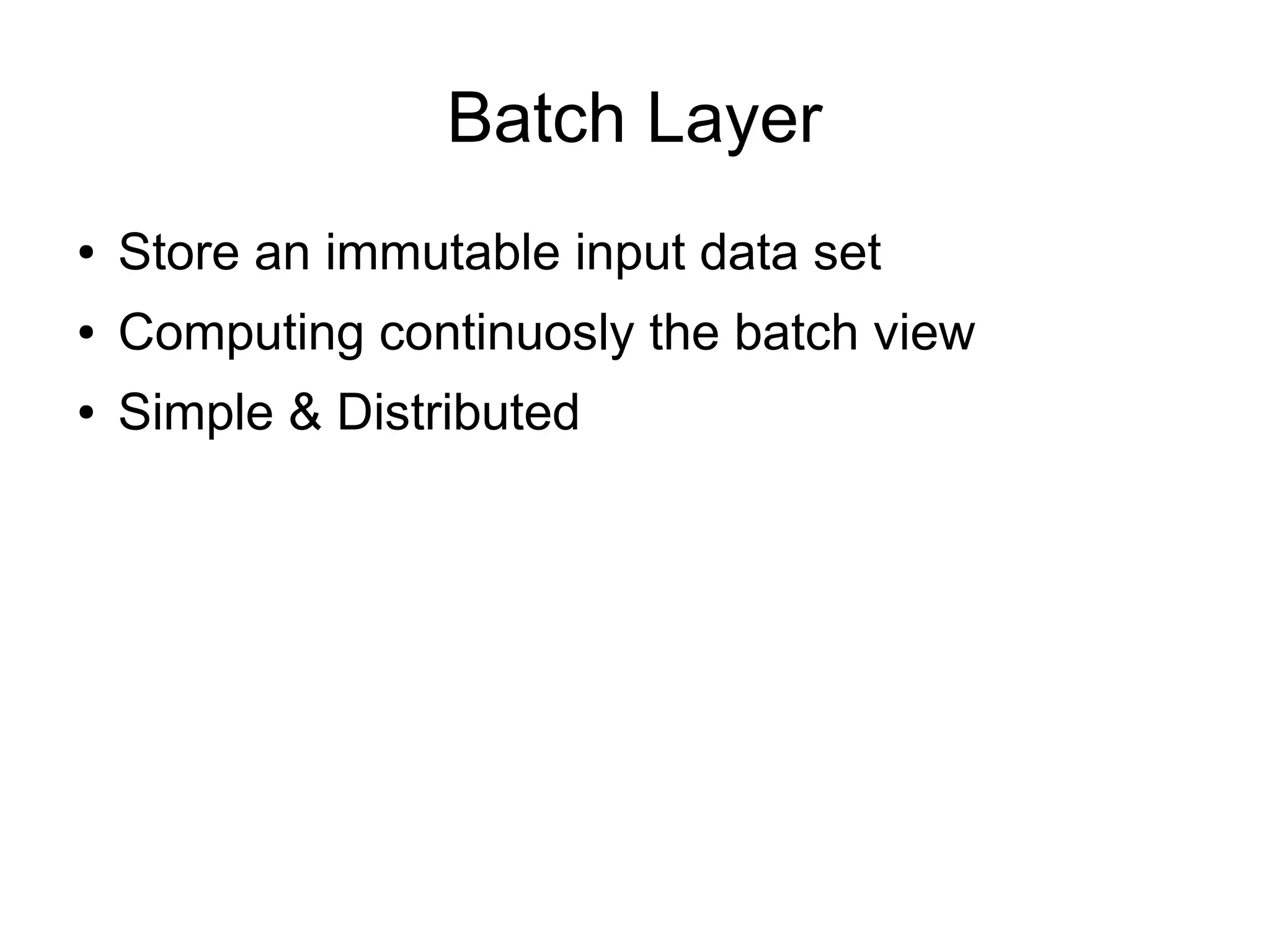

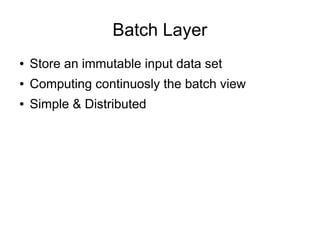

  Batch Layer ● Store animmutable input data set ● Computing continuosly the batch view ● Simple & Distributed
• 9.

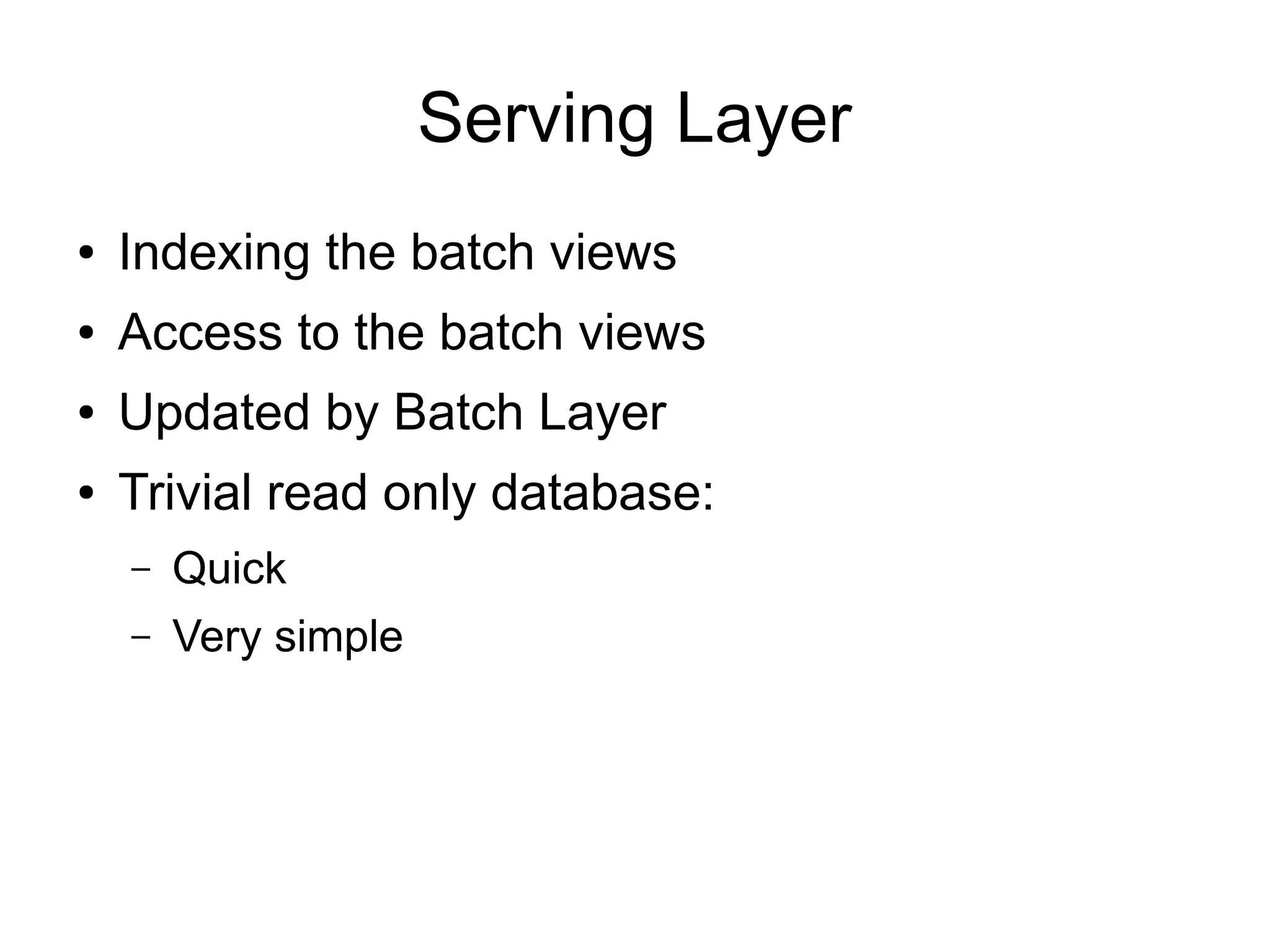

  Serving Layer ● Indexing thebatch views ● Access to the batch views ● Updated by Batch Layer ● Trivial read only database: – Quick – Very simple

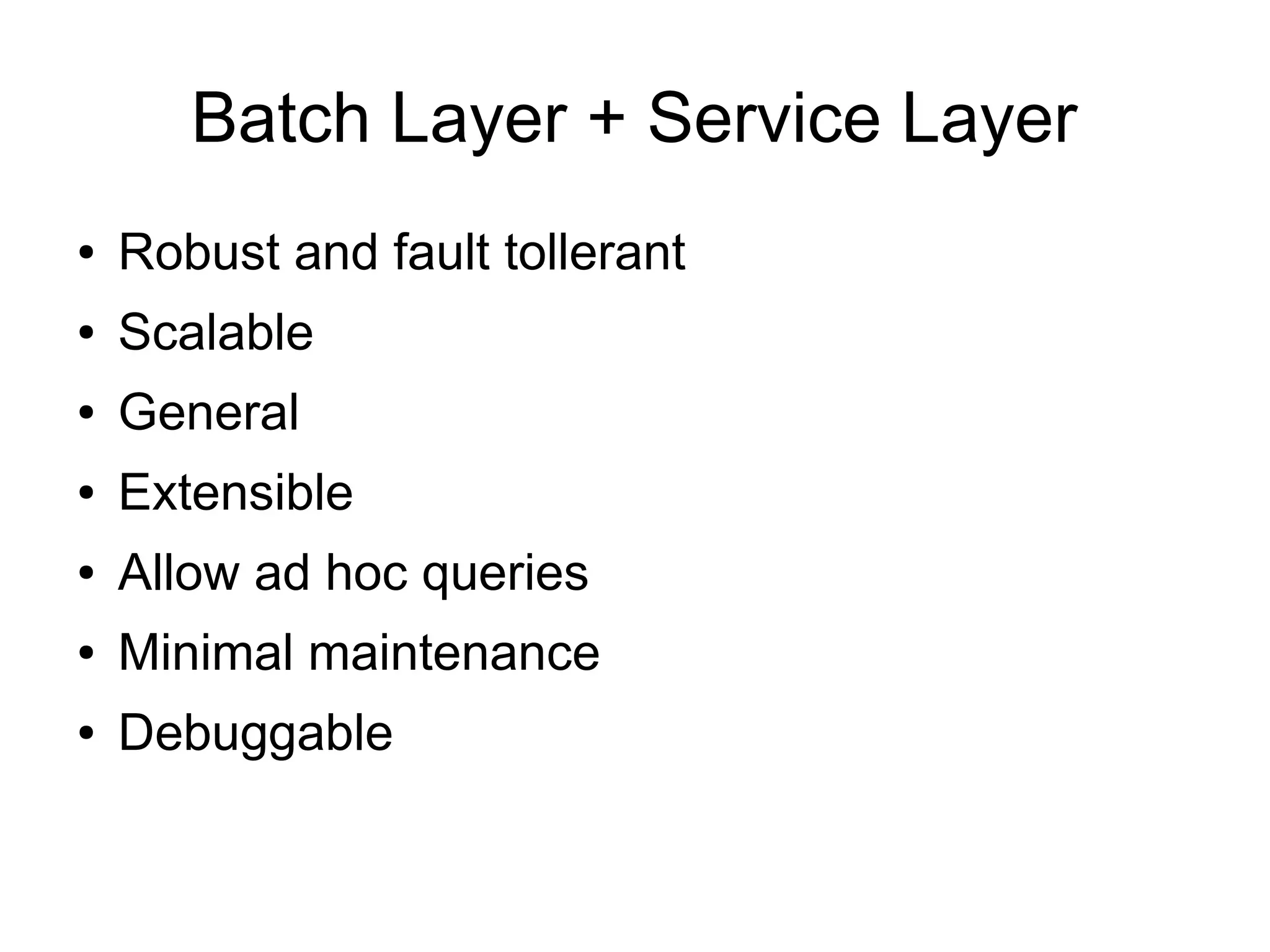

• 10.
  Batch Layer +Service Layer ● Robust and fault tollerant ● Scalable ● General ● Extensible ● Allow ad hoc queries ● Minimal maintenance ● Debuggable
• 11.

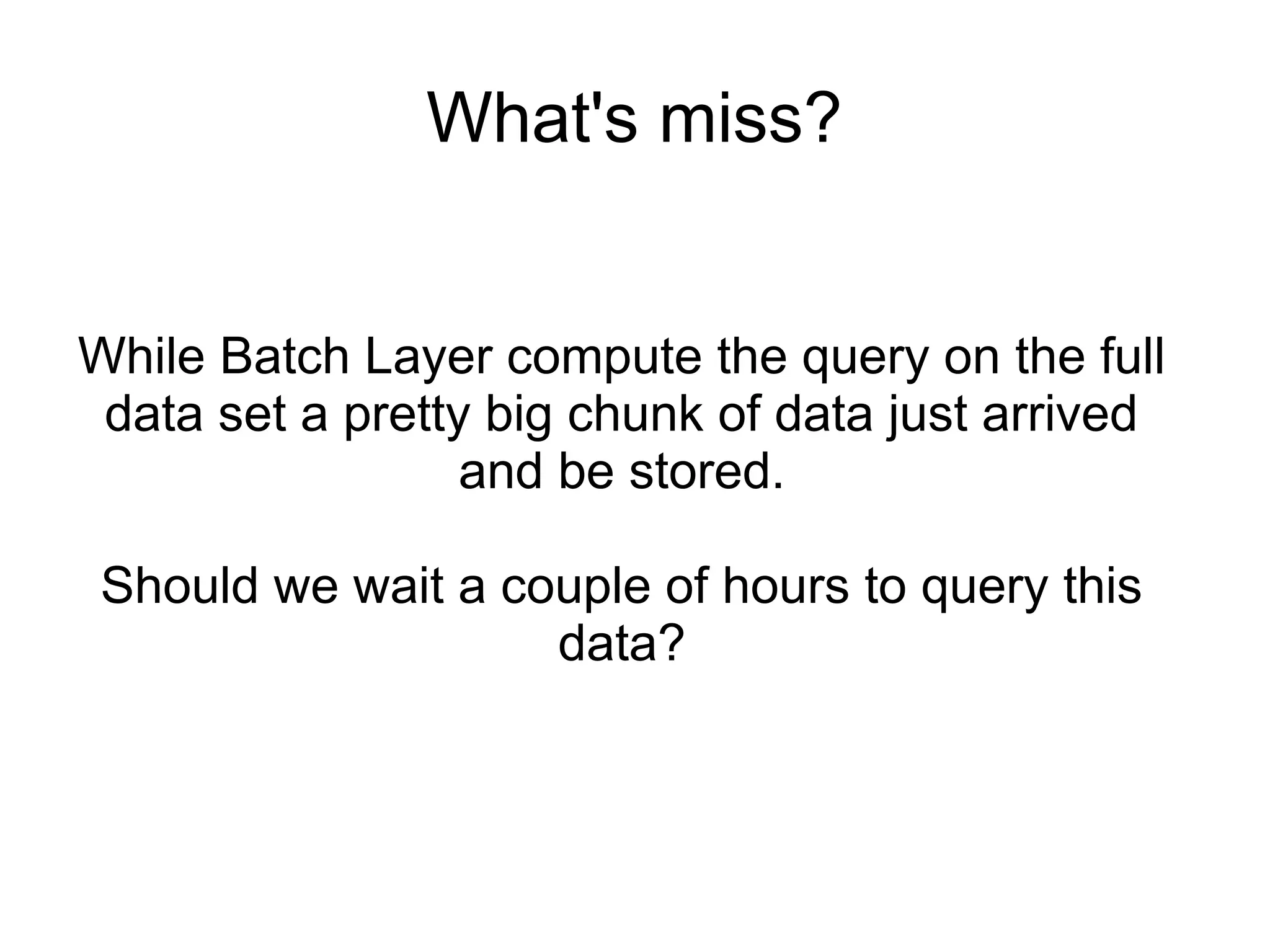

  What's miss? While BatchLayer compute the query on the full data set a pretty big chunk of data just arrived and be stored. Should we wait a couple of hours to query this data?
• 12.

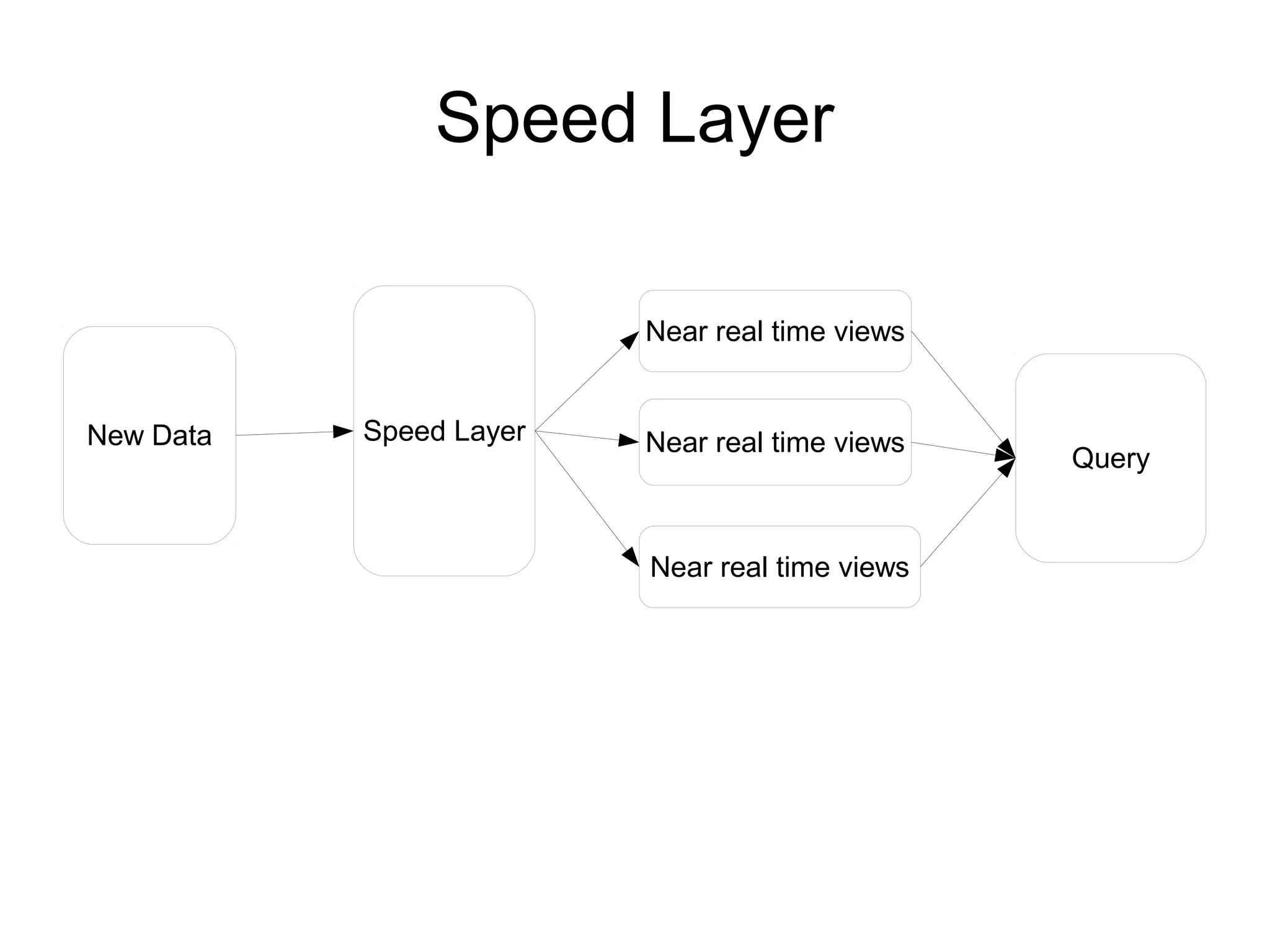

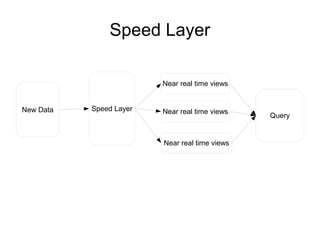

  Speed Layer Near realtime views New Data Speed Layer Near real time views Near real time views Query

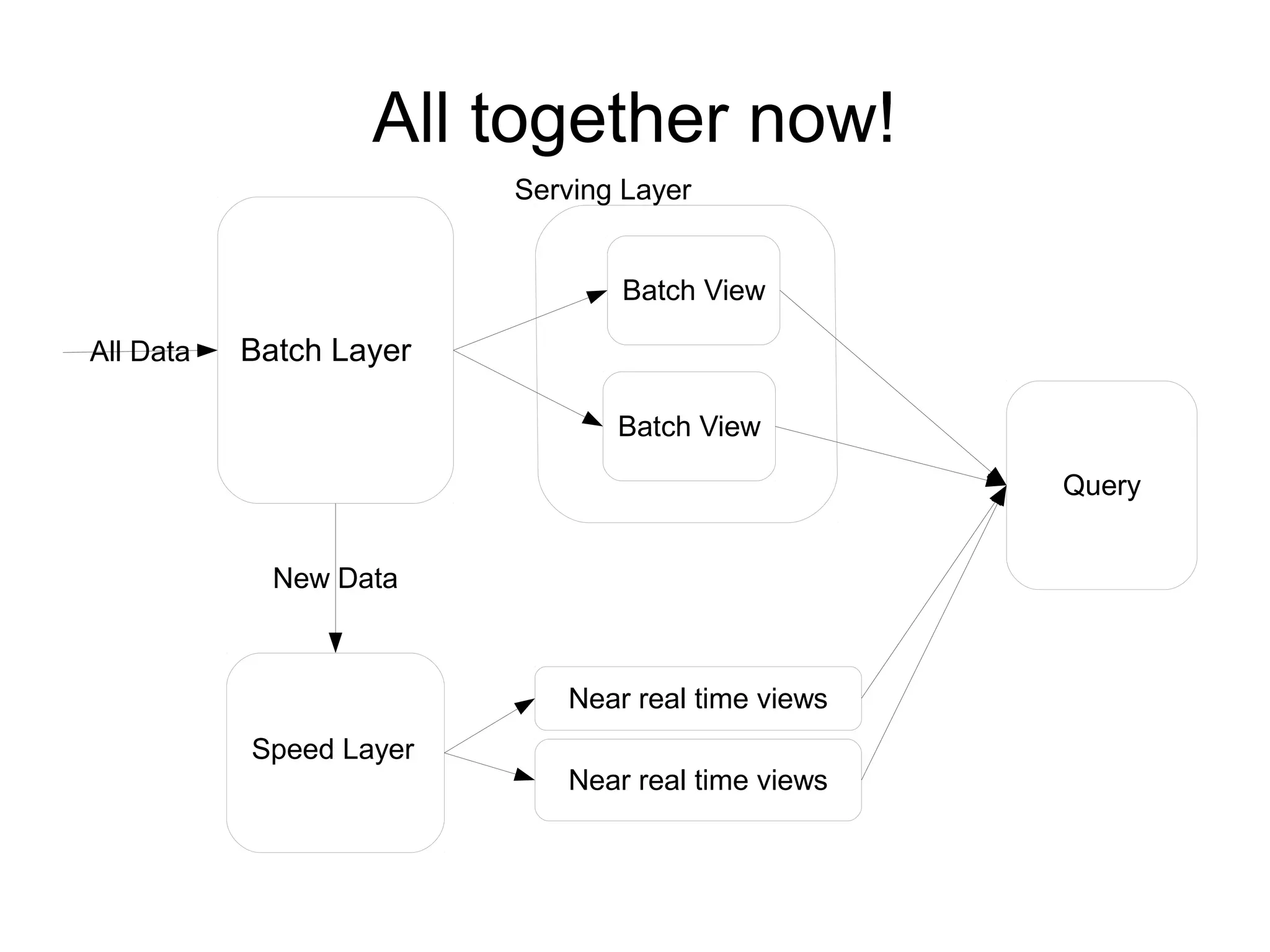

• 13.

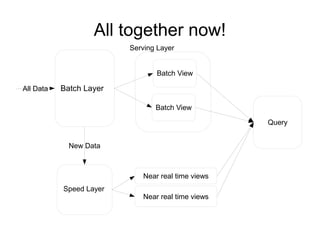

  All together now! ServingLayer Batch View All Data Batch Layer Batch View Query New Data Near real time views Speed Layer Near real time views
• 14.

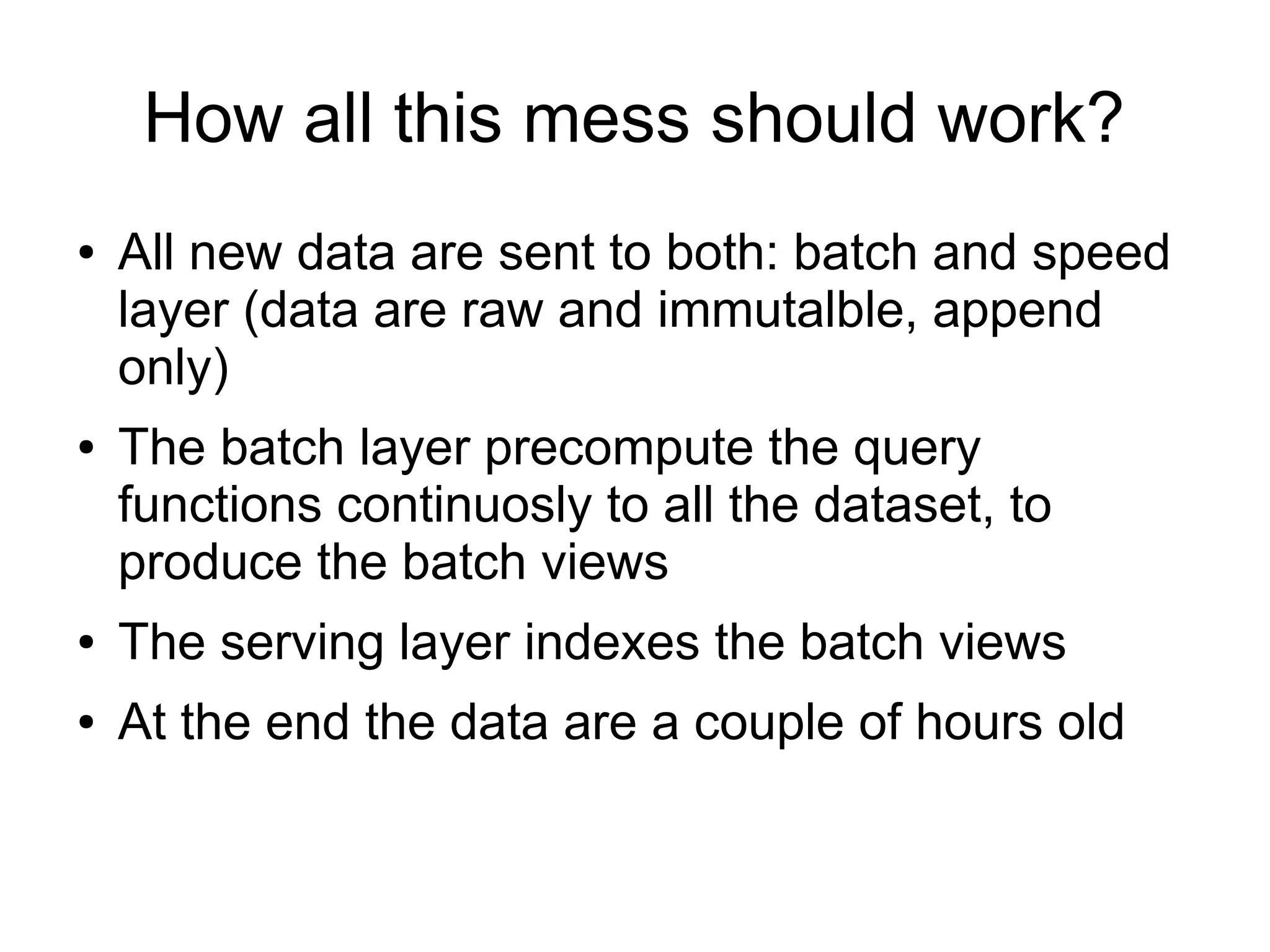

  How all thismess should work? ● ● All new data are sent to both: batch and speed layer (data are raw and immutalble, append only) The batch layer precompute the query functions continuosly to all the dataset, to produce the batch views ● The serving layer indexes the batch views ● At the end the data are a couple of hours old

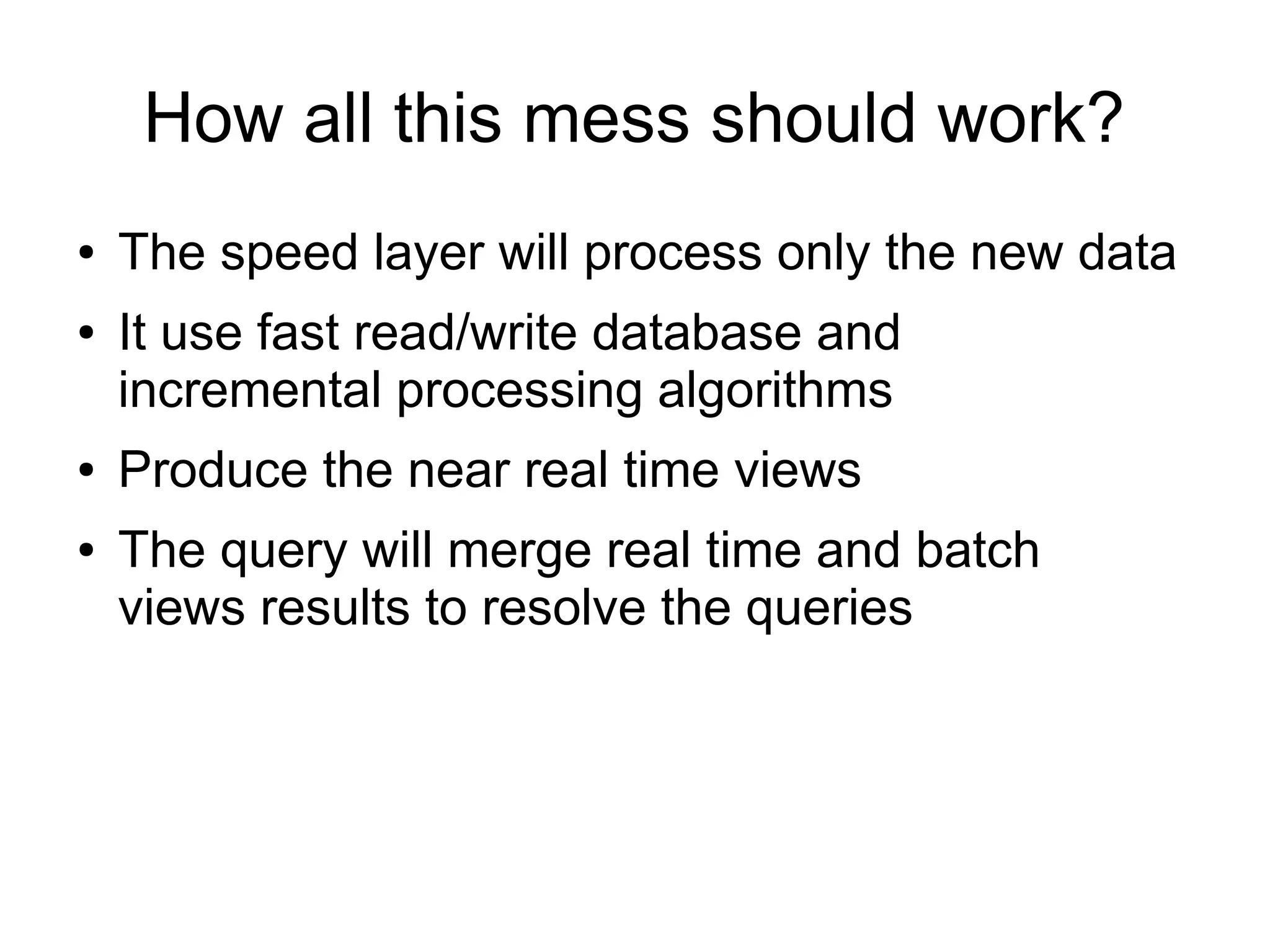

• 15.

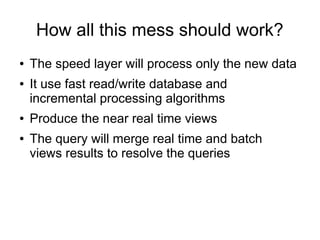

  How all thismess should work? ● ● ● ● The speed layer will process only the new data It use fast read/write database and incremental processing algorithms Produce the near real time views The query will merge real time and batch views results to resolve the queries
• 16.

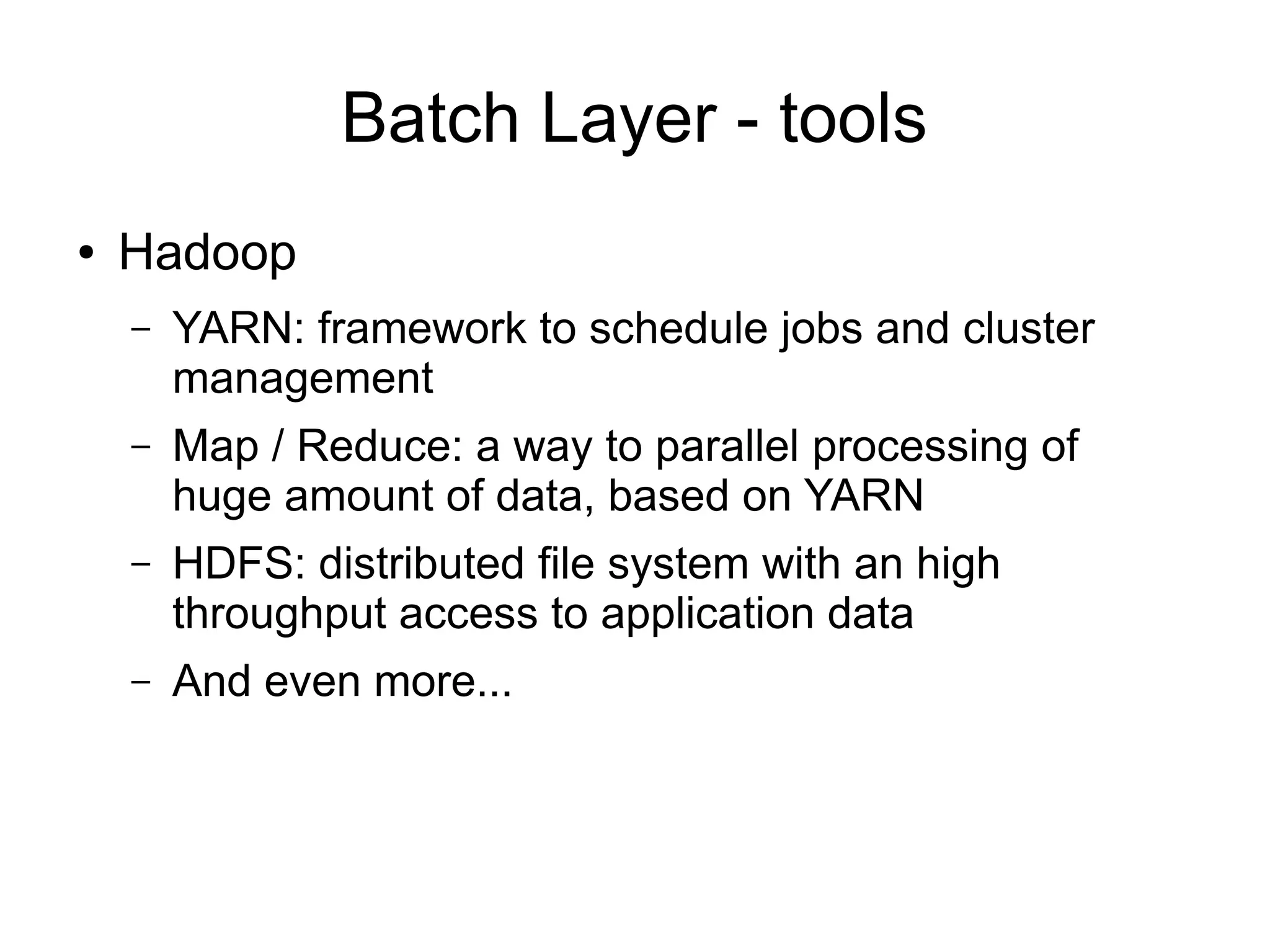

  Batch Layer -tools ● Hadoop – YARN: framework to schedule jobs and cluster management – Map / Reduce: a way to parallel processing of huge amount of data, based on YARN – HDFS: distributed file system with an high throughput access to application data – And even more...
• 17.

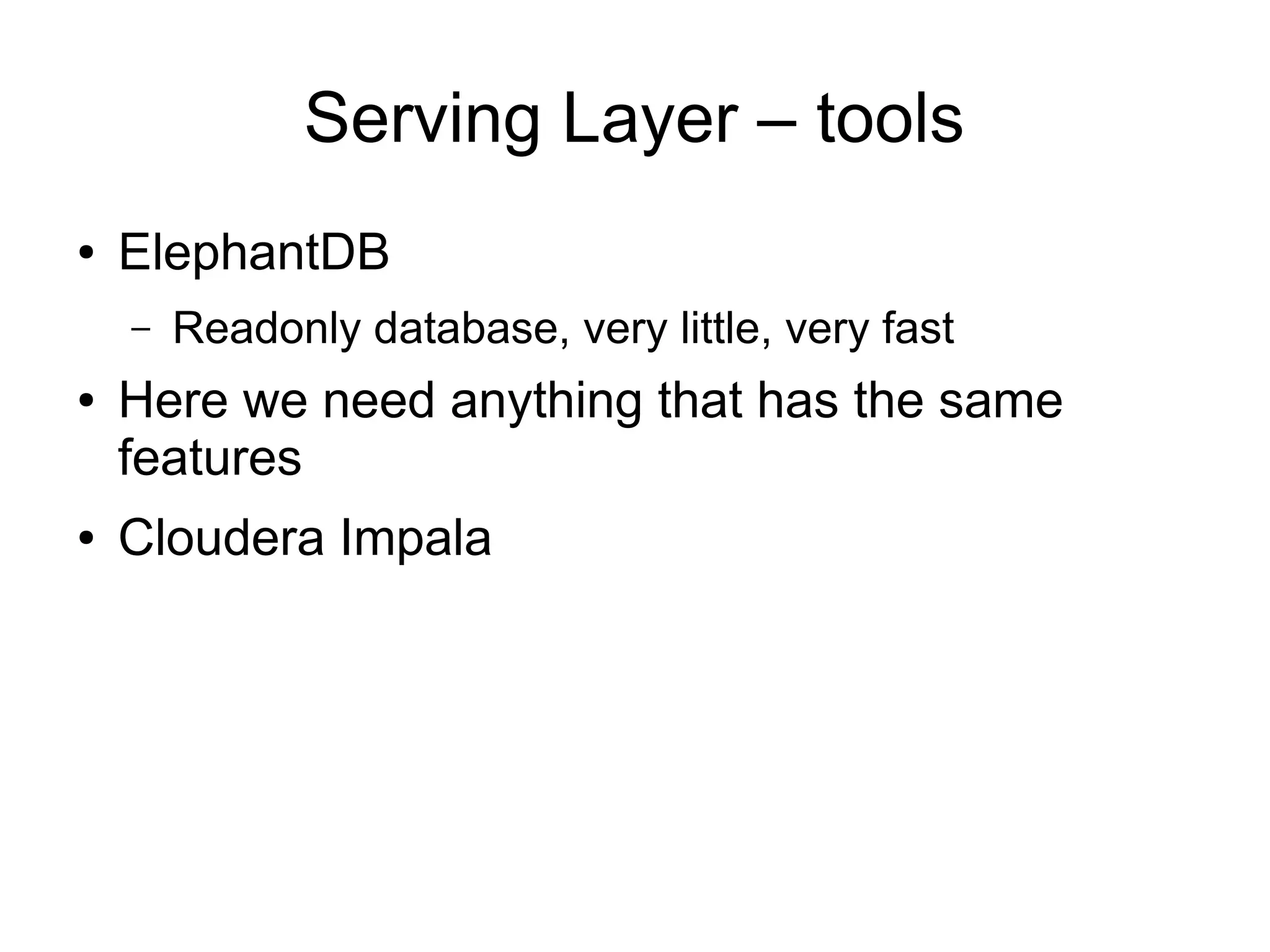

  Serving Layer –tools ● ElephantDB – ● ● Readonly database, very little, very fast Here we need anything that has the same features Cloudera Impala
• 18.

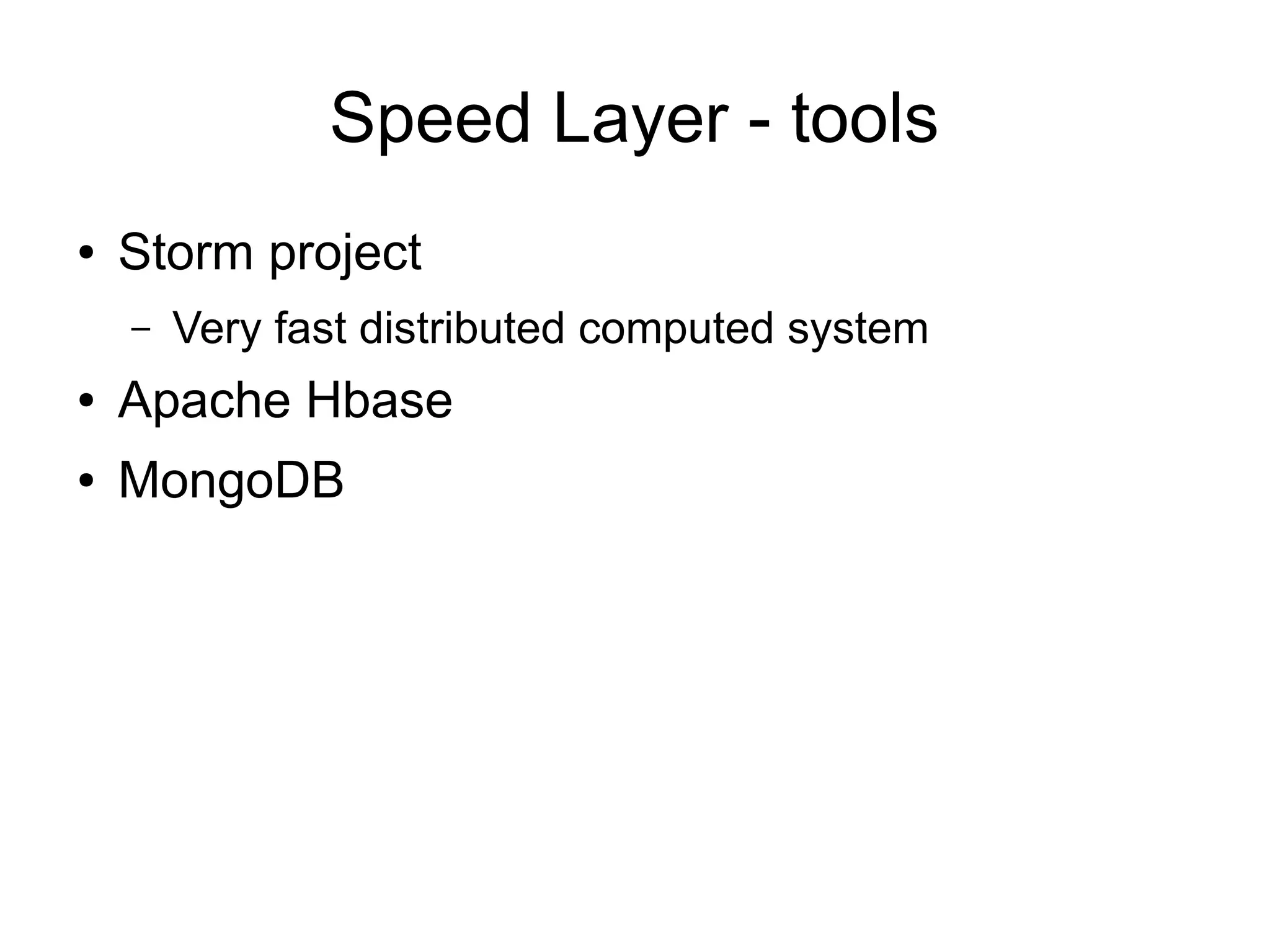

  Speed Layer -tools ● Storm project – Very fast distributed computed system ● Apache Hbase ● MongoDB

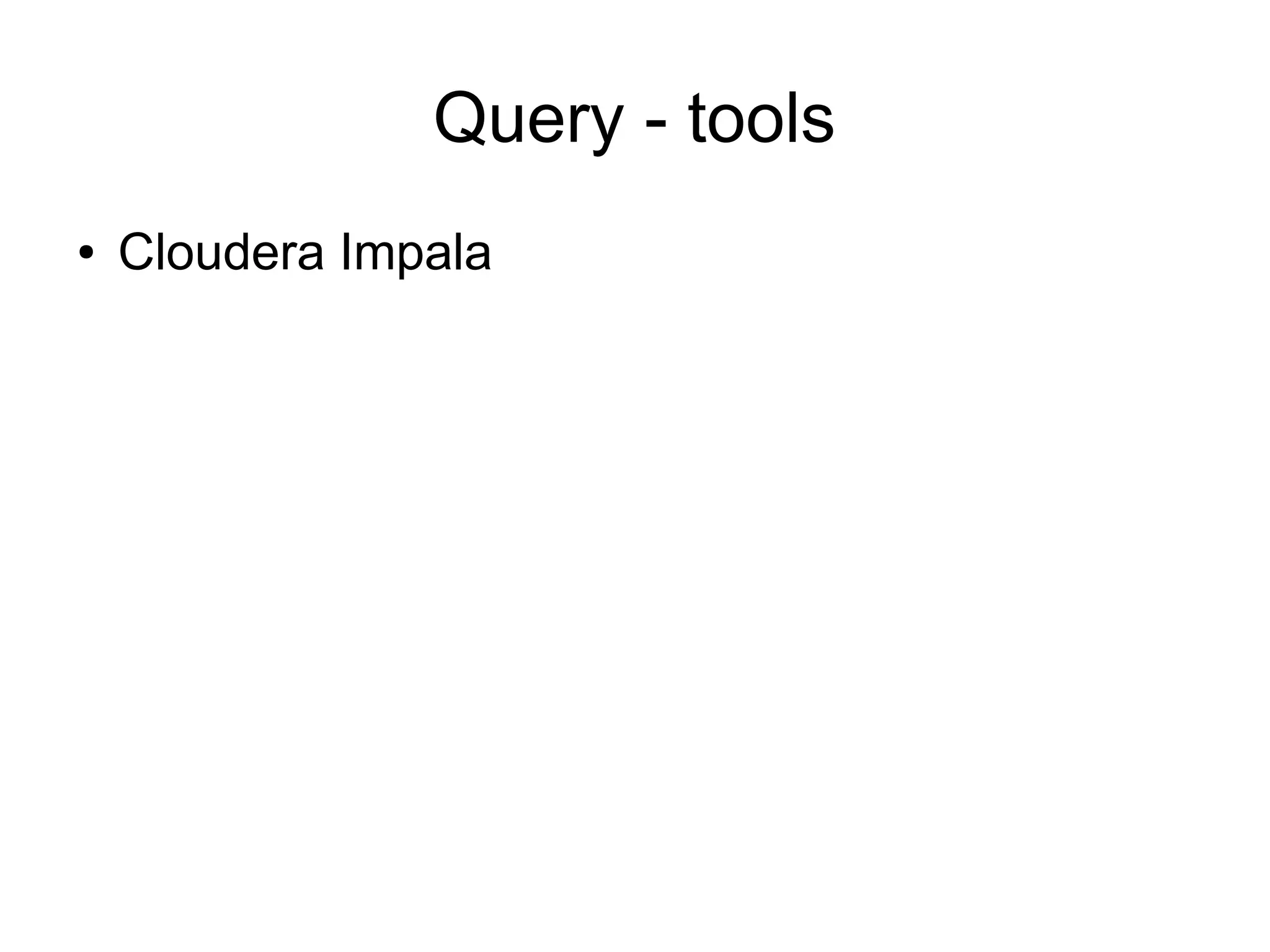

• 19.
  Query - tools ● ClouderaImpala
