Chapter 2
Chapter 2
Complexity analysis
Complexity analysis
01/29/18 BY MS. SHAISTA QADIR 1
PRESENTED BY
Shaista Qadir
Lecturer king khalid university

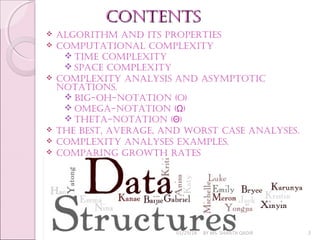

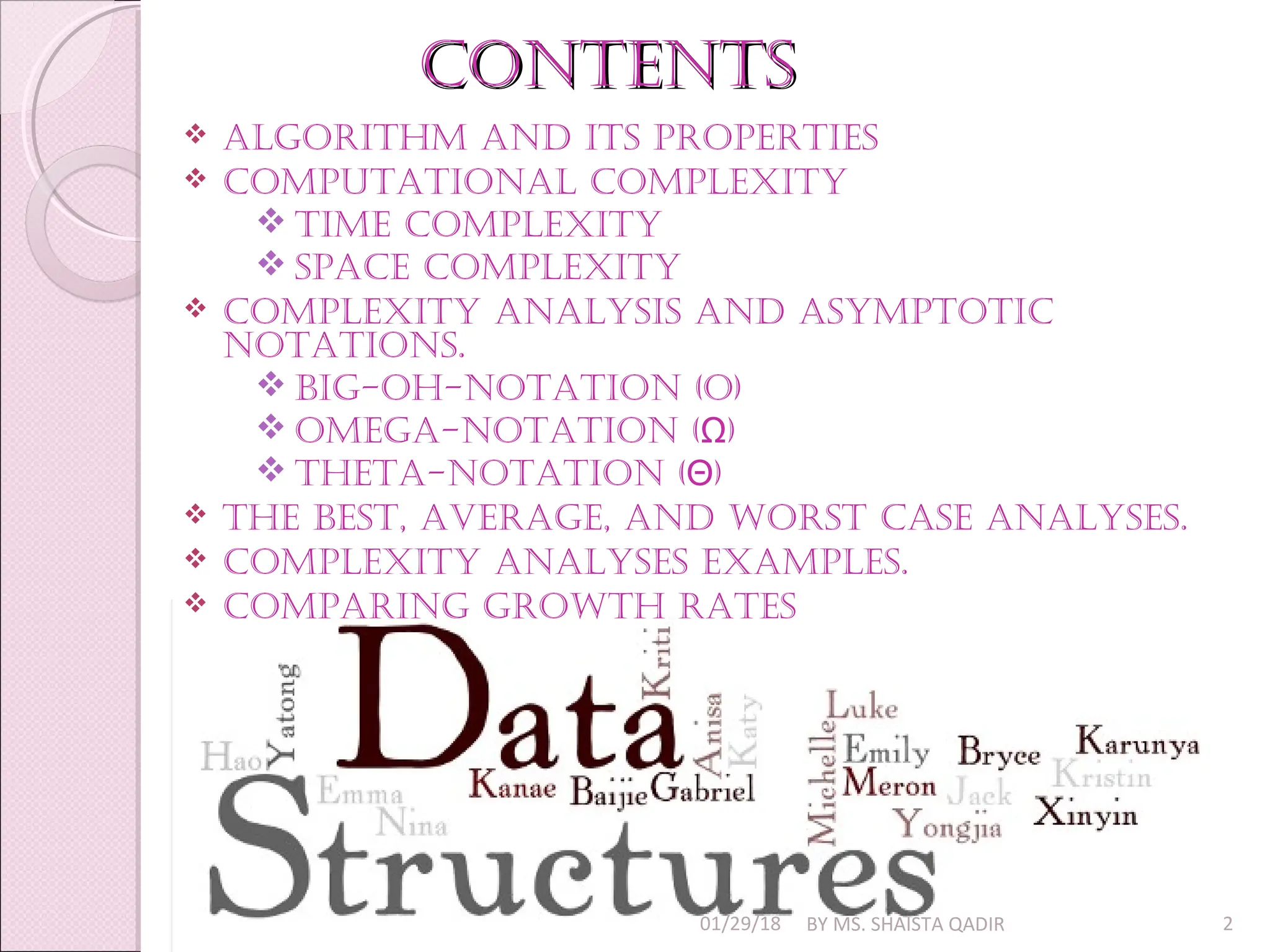

Contents
Contents
 algorithm and its properties
 Computational Complexity
 time Complexity
 spaCe Complexity
 Complexity analysis and asymptotiC
notations.
 Big-oh-notation (o)
 omega-notation ( )
Ω
 theta-notation ( )
Θ
 the Best, average, and Worst Case analyses.
 Complexity analyses examples.
 Comparing groWth rates

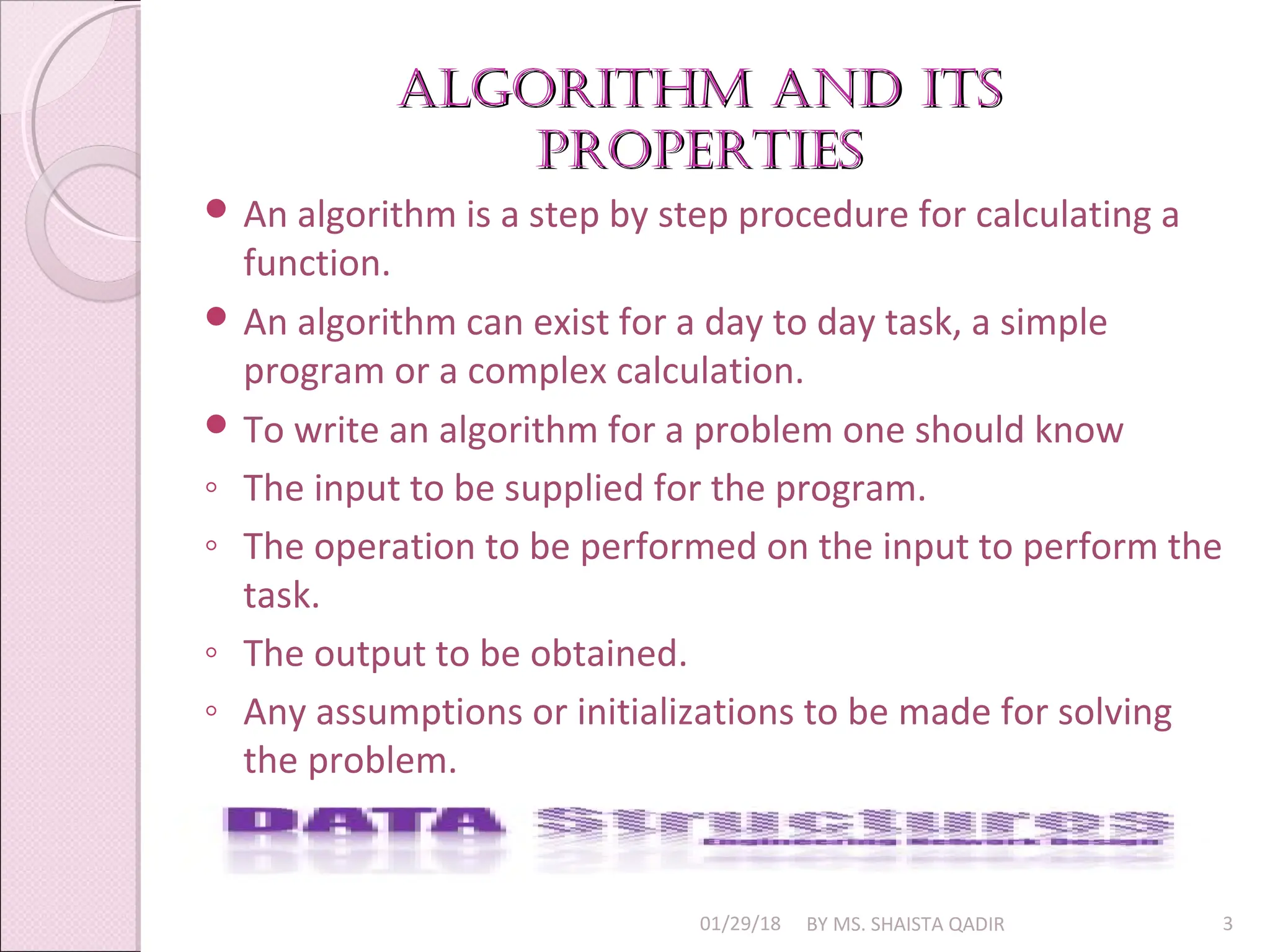

algorithm and its
algorithm and its
properties
properties
 An algorithm is a step by step procedure for calculating a
function.
 An algorithm can exist for a day to day task, a simple
program or a complex calculation.
 To write an algorithm for a problem one should know
◦ The input to be supplied for the program.
◦ The operation to be performed on the input to perform the
task.
◦ The output to be obtained.
◦ Any assumptions or initializations to be made for solving
the problem.

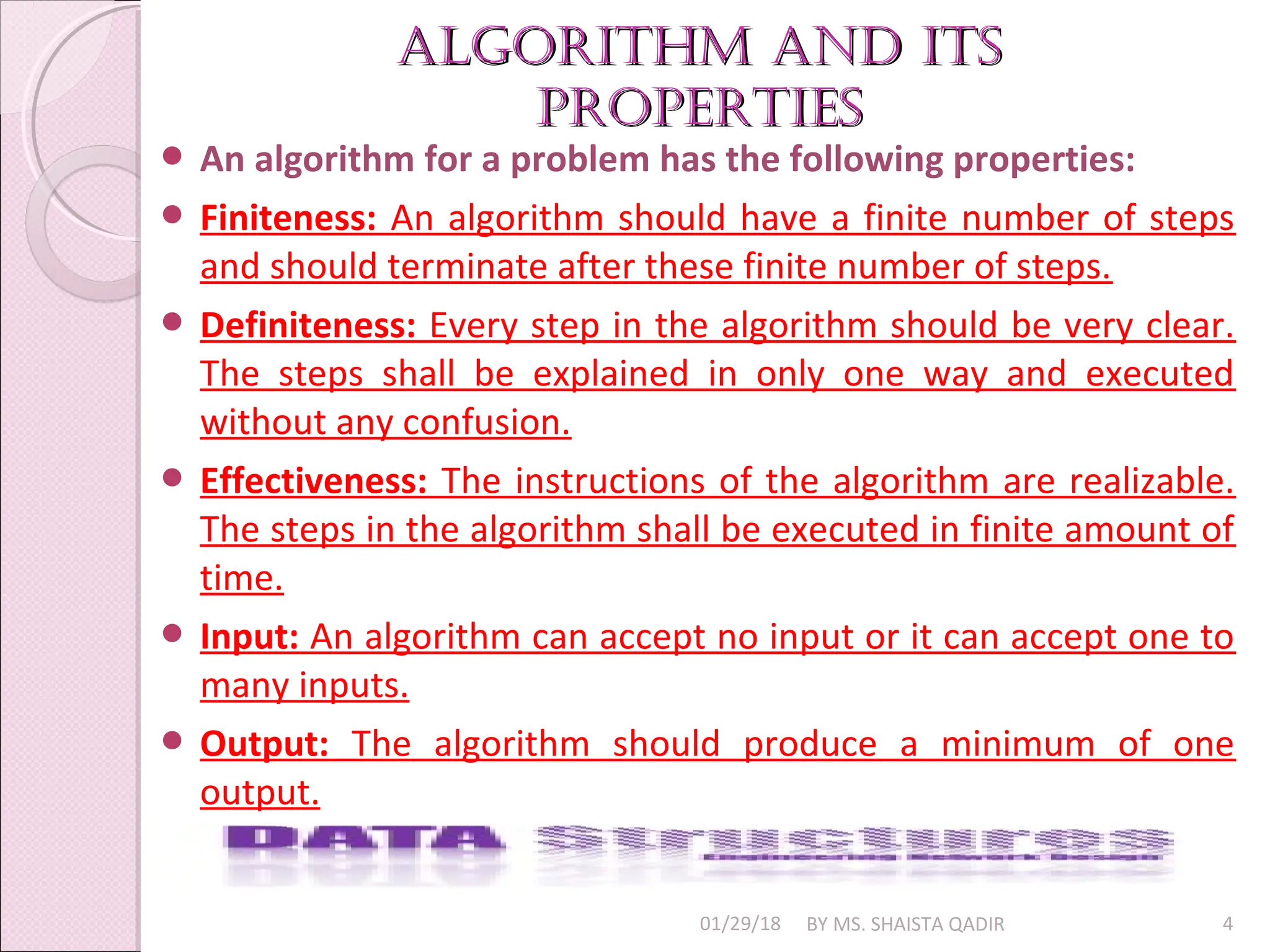

algorithm and its
algorithm and its
properties
properties
 An algorithm for a problem has the following properties:
 Finiteness: An algorithm should have a finite number of steps
and should terminate after these finite number of steps.
 Definiteness: Every step in the algorithm should be very clear.
The steps shall be explained in only one way and executed
without any confusion.
 Effectiveness: The instructions of the algorithm are realizable.
The steps in the algorithm shall be executed in finite amount of
time.
 Input: An algorithm can accept no input or it can accept one to
many inputs.
 Output: The algorithm should produce a minimum of one
output.

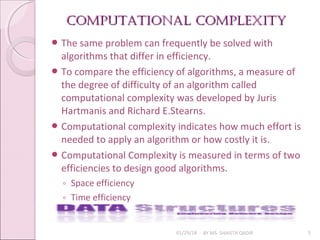

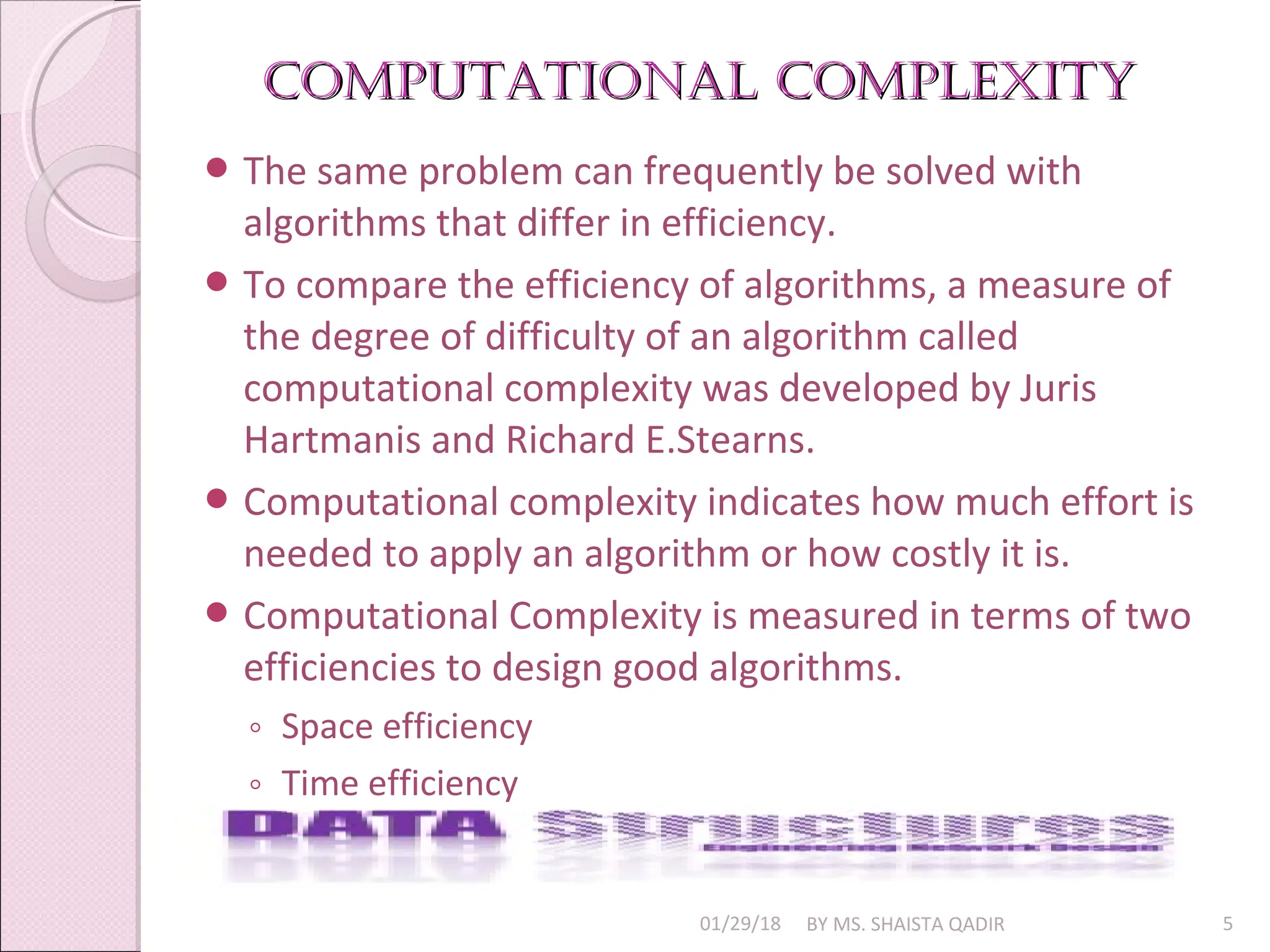

Computational Complexity
 The same problem can frequently be solved with
algorithms that differ in efficiency.
 To compare the efficiency of algorithms, a measure of
the degree of difficulty of an algorithm called
computational complexity was developed by Juris
Hartmanis and Richard E.Stearns.
 Computational complexity indicates how much effort is
needed to apply an algorithm or how costly it is.
 Computational Complexity is measured in terms of two
efficiencies to design good algorithms.
◦ Space efficiency
◦ Time efficiency

(

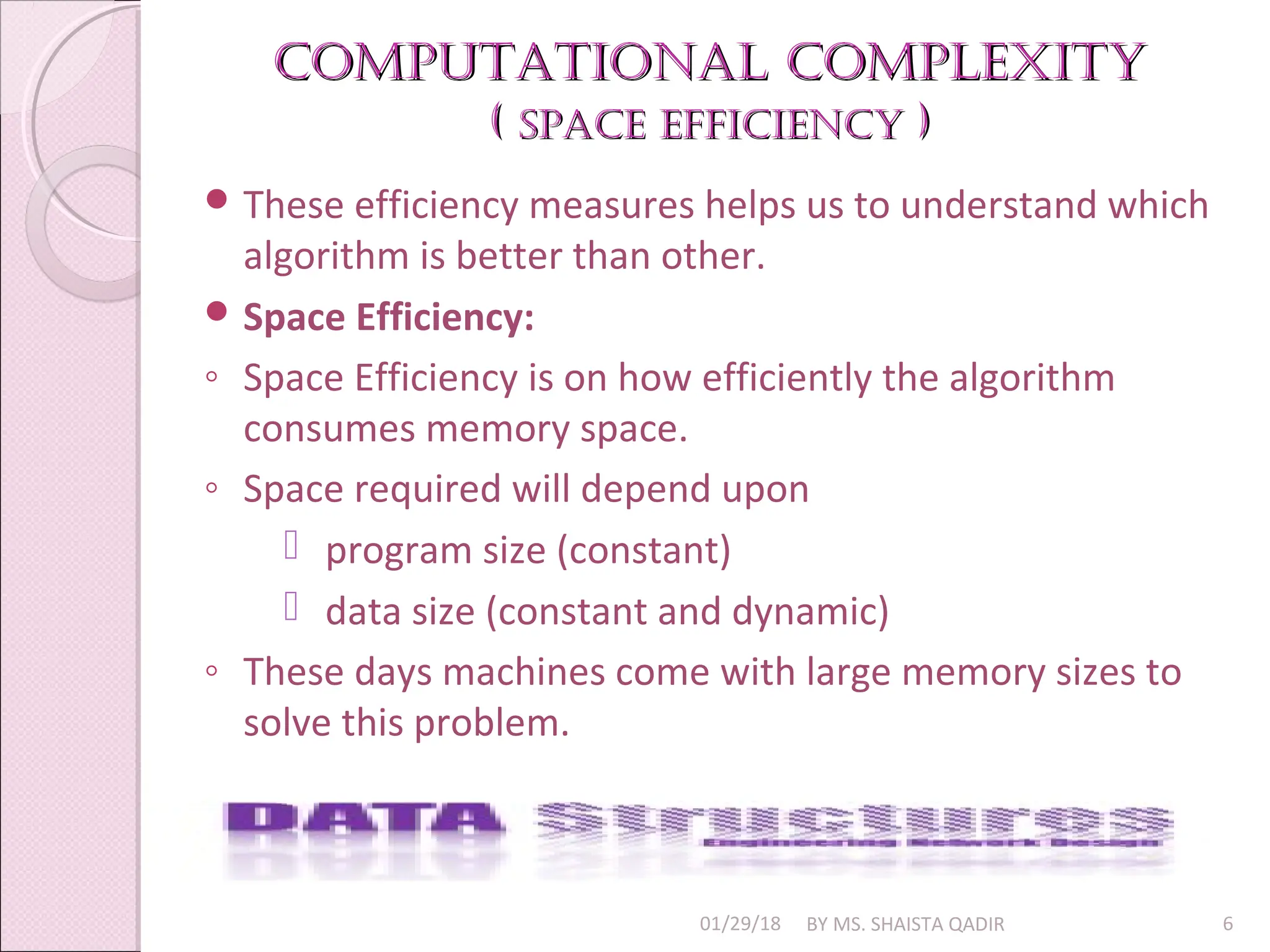

( SpaCe effiCienCy
SpaCe effiCienCy )
)
 These efficiency measures helps us to understand which
algorithm is better than other.
 Space Efficiency:
◦ Space Efficiency is on how efficiently the algorithm
consumes memory space.
◦ Space required will depend upon
 program size (constant)
 data size (constant and dynamic)
◦ These days machines come with large memory sizes to
solve this problem.

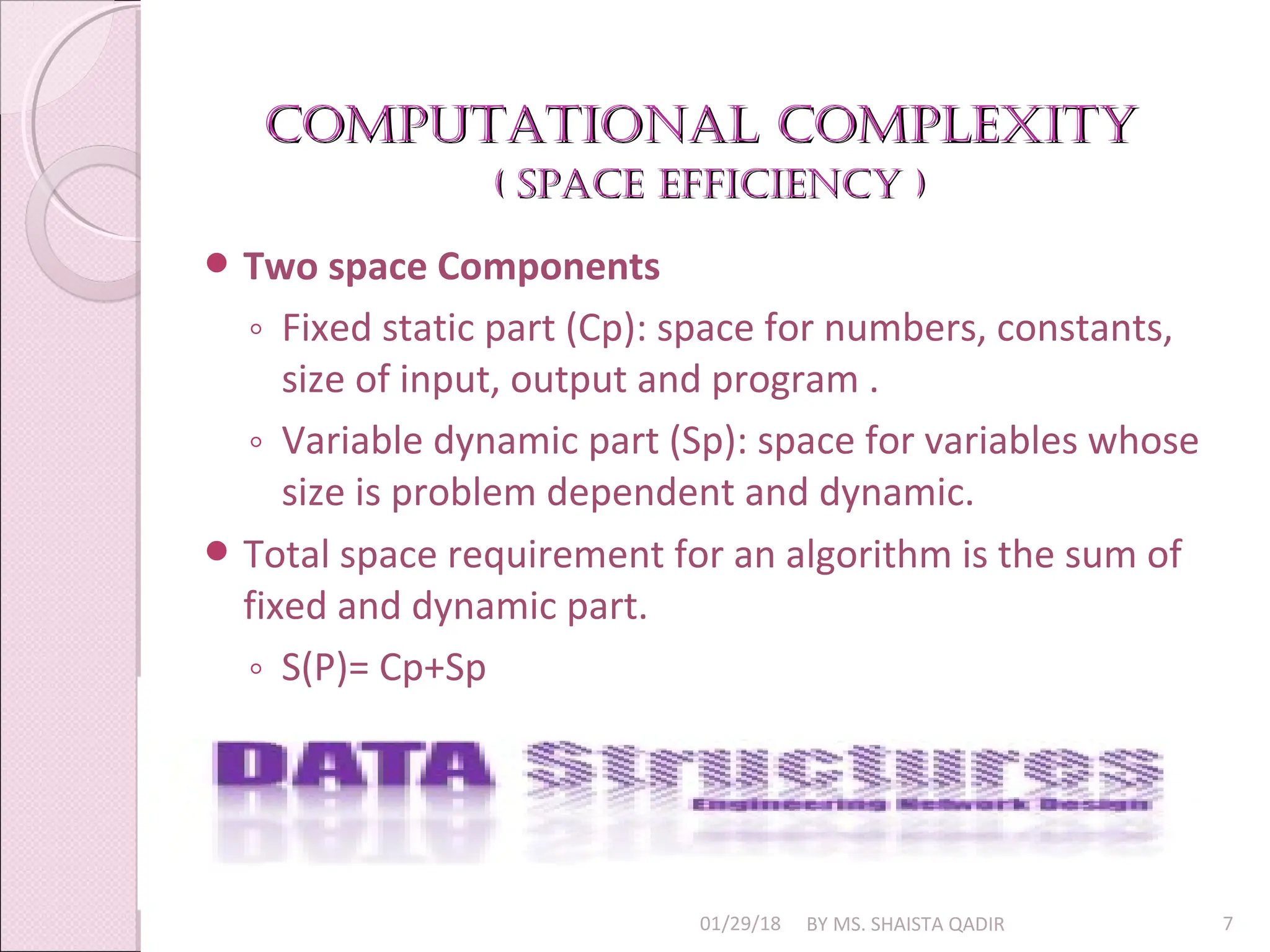

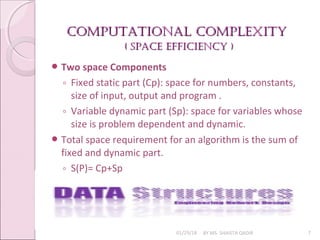

( SpaCe effiCienCy )
( SpaCe effiCienCy )
 Two space Components
◦ Fixed static part (Cp): space for numbers, constants,
size of input, output and program .
◦ Variable dynamic part (Sp): space for variables whose
size is problem dependent and dynamic.
 Total space requirement for an algorithm is the sum of
fixed and dynamic part.
◦ S(P)= Cp+Sp

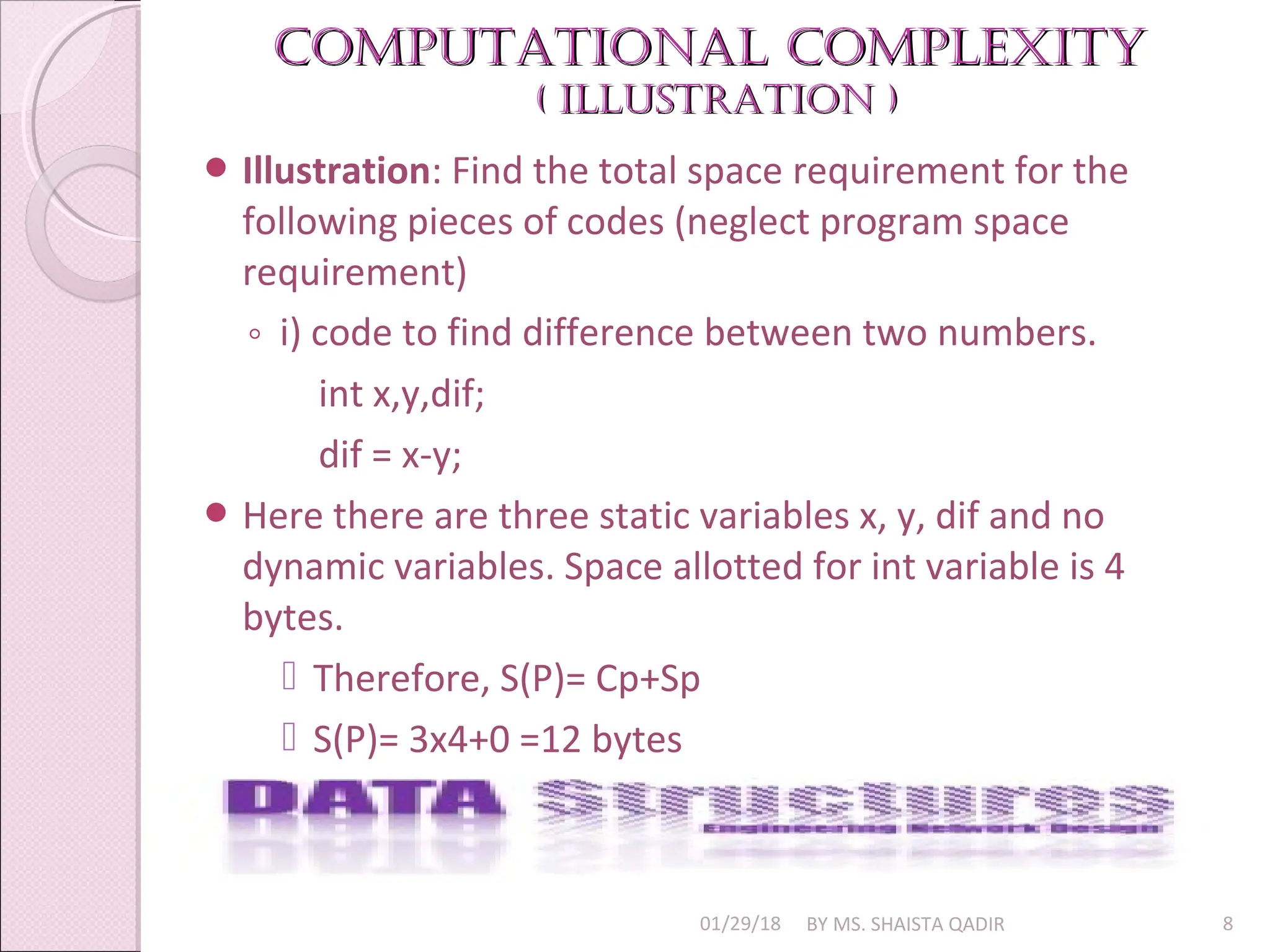

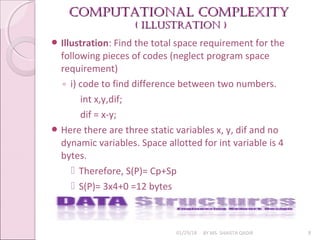

( illuStration )
( illuStration )
 Illustration: Find the total space requirement for the
following pieces of codes (neglect program space
requirement)
◦ i) code to find difference between two numbers.
int x,y,dif;
dif = x-y;
 Here there are three static variables x, y, dif and no
dynamic variables. Space allotted for int variable is 4
bytes.
 Therefore, S(P)= Cp+Sp
 S(P)= 3x4+0 =12 bytes

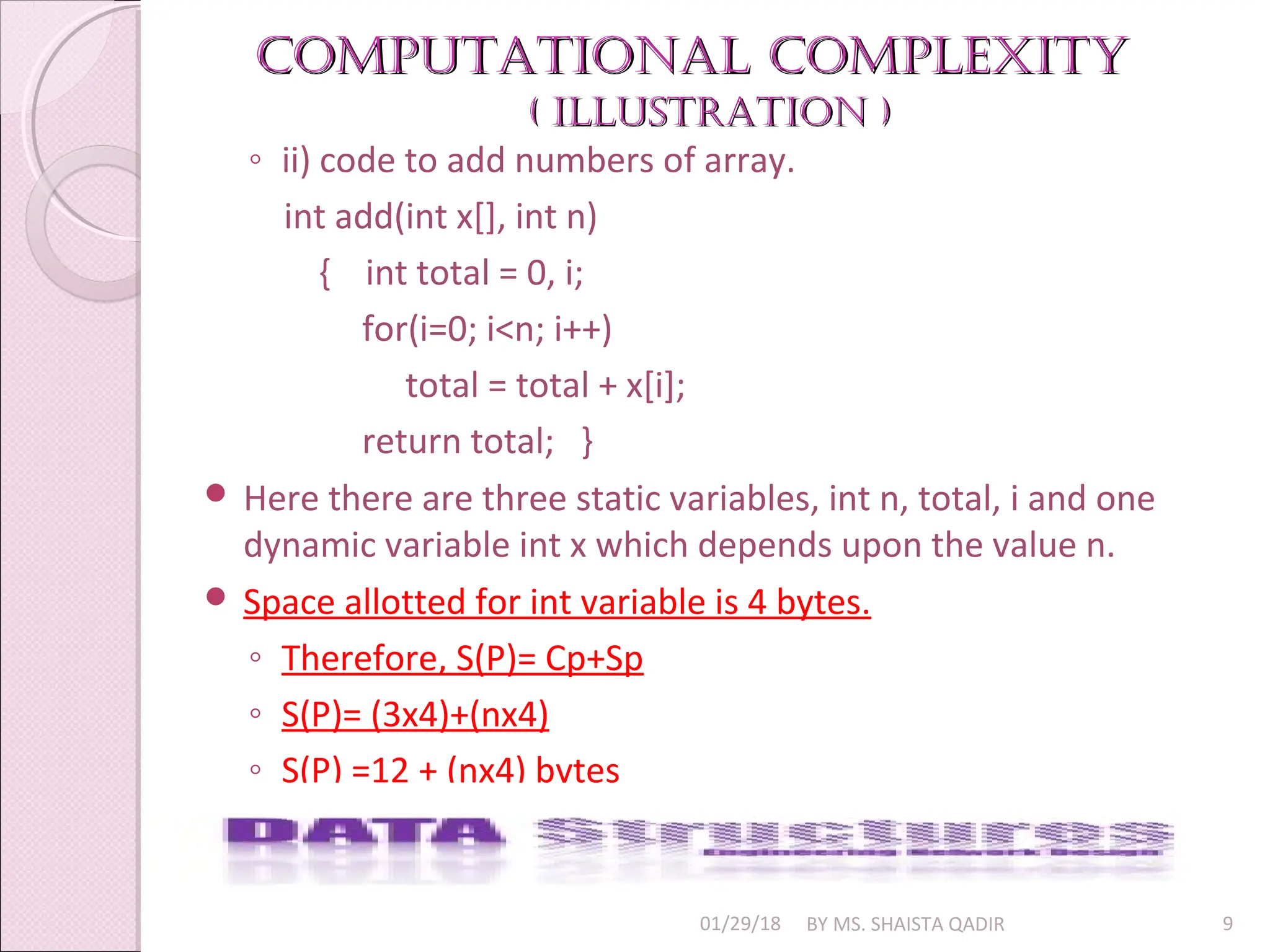

( illuStration )
( illuStration )

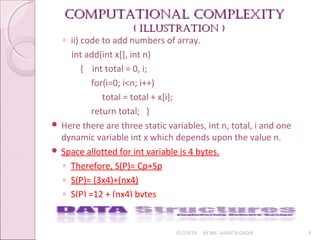

◦ ii) code to add numbers of array.
int add(int x[], int n)
{ int total = 0, i;
for(i=0; i<n; i++)
total = total + x[i];
return total; }
 Here there are three static variables, int n, total, i and one
dynamic variable int x which depends upon the value n.
 Space allotted for int variable is 4 bytes.
◦ Therefore, S(P)= Cp+Sp
◦ S(P)= (3x4)+(nx4)
◦ S(P) =12 + (nx4) bytes

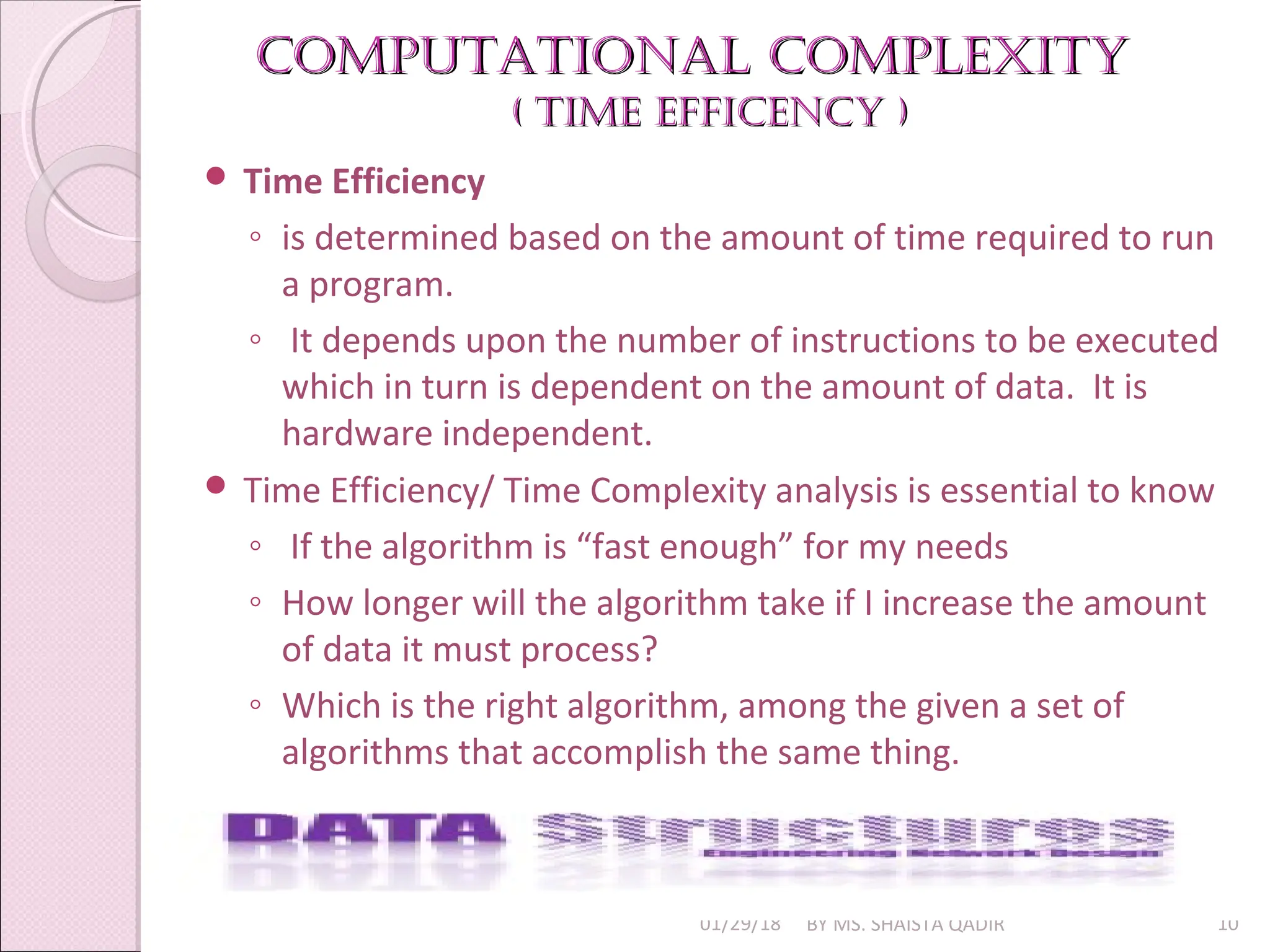

( time effiCenCy )
( time effiCenCy )
 Time Efficiency
◦ is determined based on the amount of time required to run
a program.
◦ It depends upon the number of instructions to be executed
which in turn is dependent on the amount of data. It is
hardware independent.
 Time Efficiency/ Time Complexity analysis is essential to know
◦ If the algorithm is “fast enough” for my needs
◦ How longer will the algorithm take if I increase the amount
of data it must process?
◦ Which is the right algorithm, among the given a set of
algorithms that accomplish the same thing.

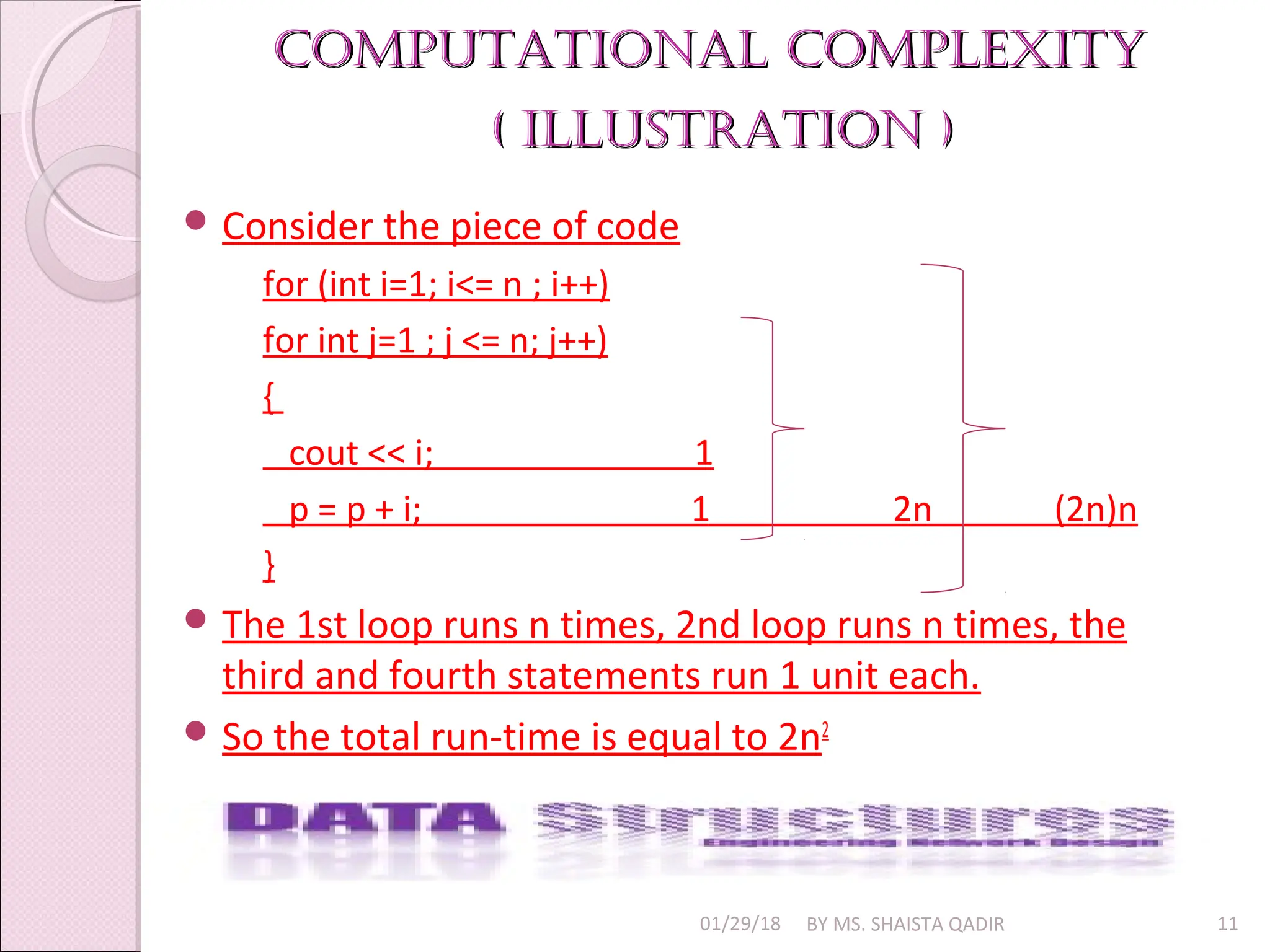

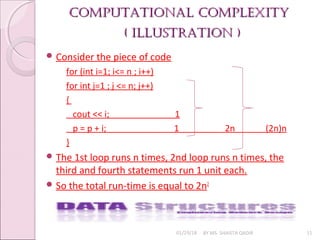

( illustration )
( illustration )
 Consider the piece of code
for (int i=1; i<= n ; i++)
for int j=1 ; j <= n; j++)
{
cout << i; 1
p = p + i; 1 2n (2n)n
}
 The 1st loop runs n times, 2nd loop runs n times, the
third and fourth statements run 1 unit each.
 So the total run-time is equal to 2n2

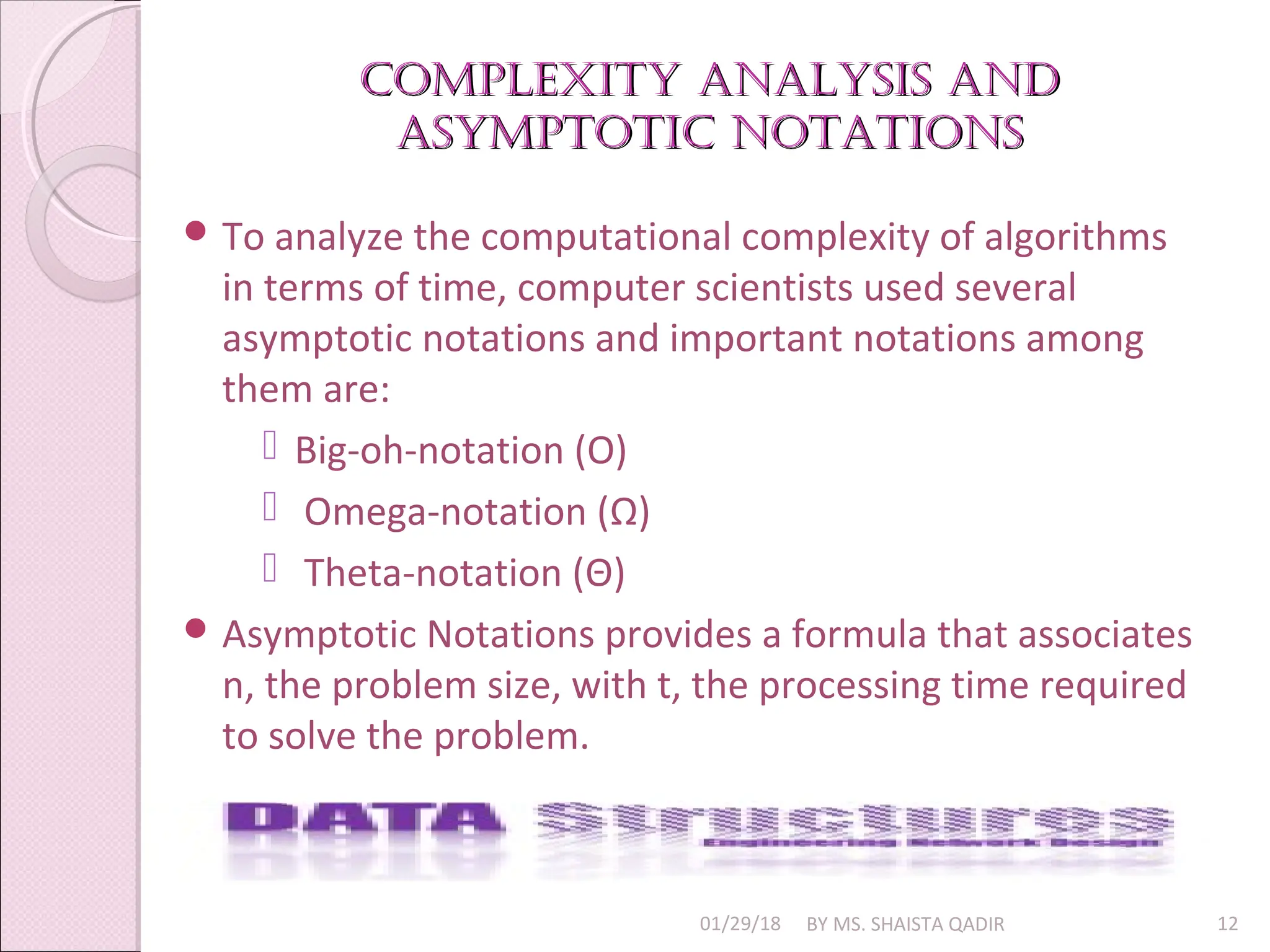

Complexity analysis and
Complexity analysis and
asymptotiC notations
asymptotiC notations
 To analyze the computational complexity of algorithms
in terms of time, computer scientists used several
asymptotic notations and important notations among
them are:
 Big-oh-notation (O)
 Omega-notation (Ω)
 Theta-notation (Θ)
 Asymptotic Notations provides a formula that associates
n, the problem size, with t, the processing time required
to solve the problem.

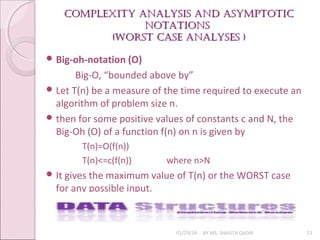

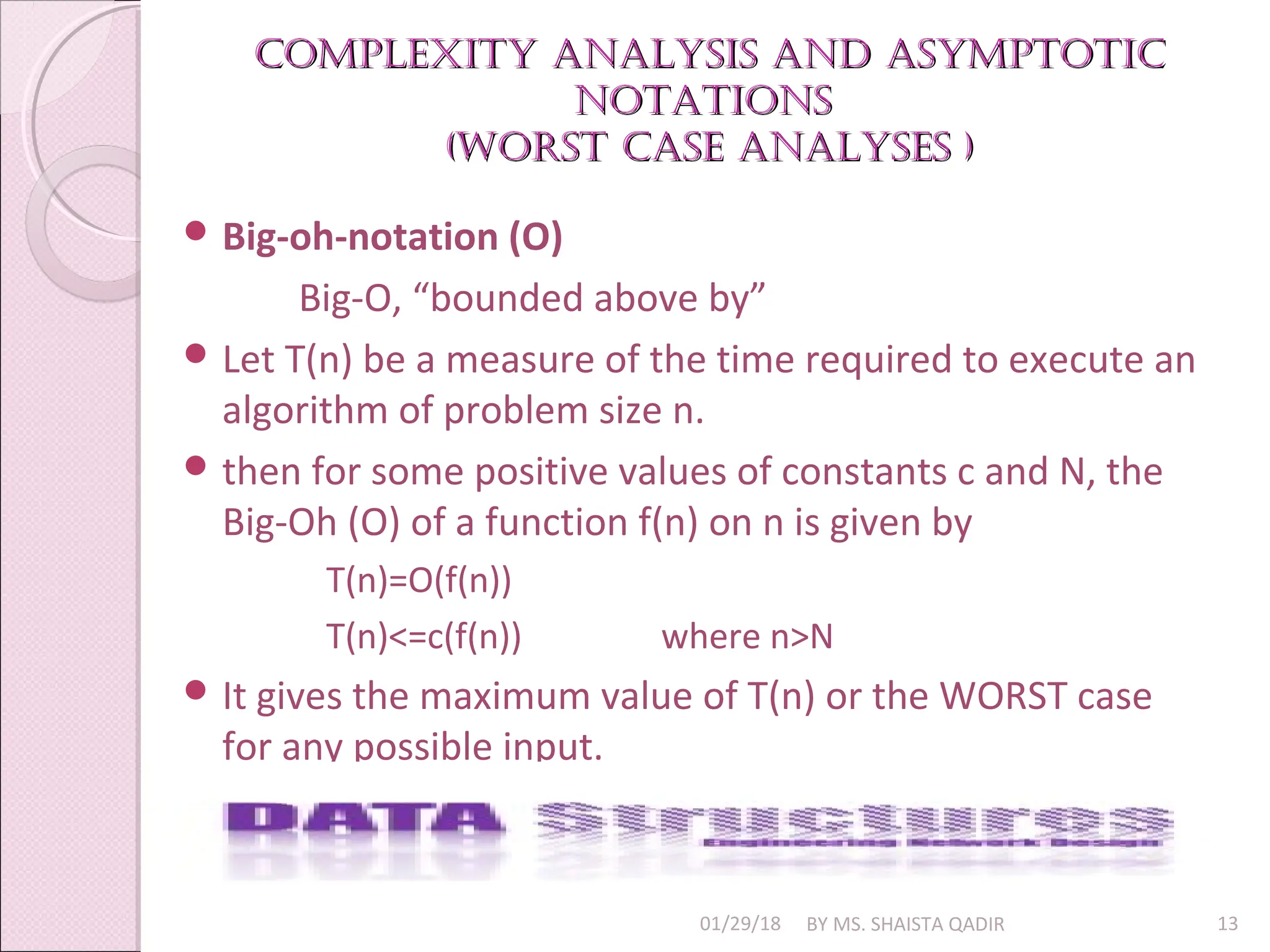

Complexity analysis and asymptotiC
notations
notations
(Worst Case analyses )
(Worst Case analyses )
 Big-oh-notation (O)
Big-O, “bounded above by”
 Let T(n) be a measure of the time required to execute an
algorithm of problem size n.
 then for some positive values of constants c and N, the
Big-Oh (O) of a function f(n) on n is given by
T(n)=O(f(n))
T(n)<=c(f(n)) where n>N
 It gives the maximum value of T(n) or the WORST case
for any possible input.

notations
notations

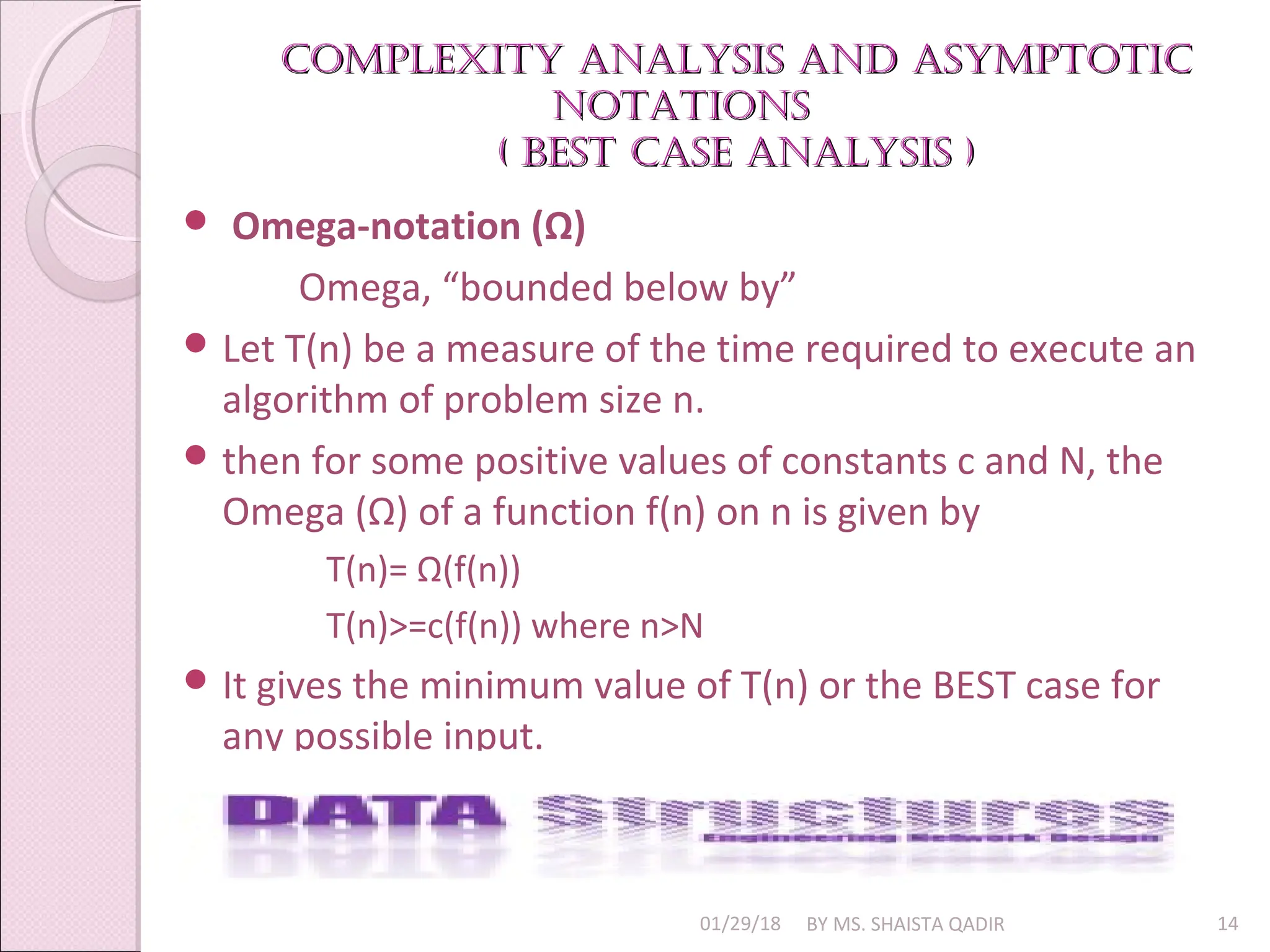

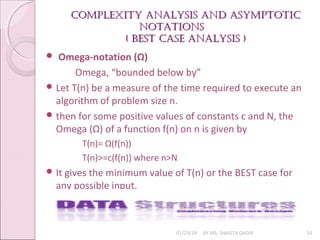

( Best
( Best Case analysis )
Case analysis )
 Omega-notation (Ω)
Omega, “bounded below by”
 then for some positive values of constants c and N, the
Omega (Ω) of a function f(n) on n is given by
T(n)= Ω(f(n))
T(n)>=c(f(n)) where n>N
 It gives the minimum value of T(n) or the BEST case for
any possible input.

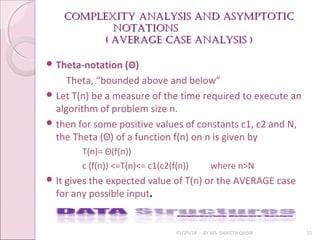

notations
notations
( aVeraGe Case analysis )
( aVeraGe Case analysis )

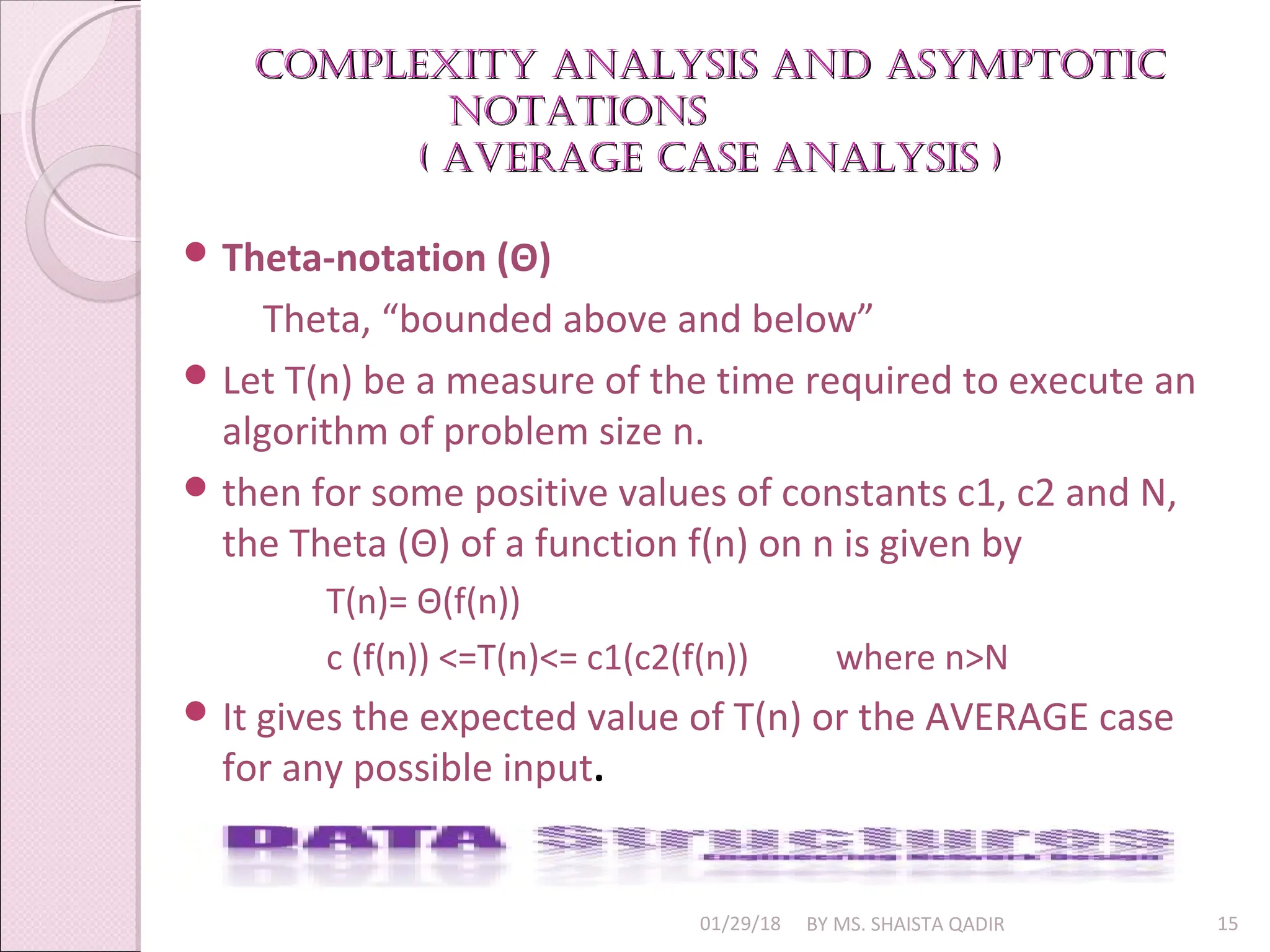

 Theta-notation (Θ)
Theta, “bounded above and below”
 then for some positive values of constants c1, c2 and N,
the Theta (Θ) of a function f(n) on n is given by
T(n)= Θ(f(n))
c (f(n)) <=T(n)<= c1(c2(f(n)) where n>N
 It gives the expected value of T(n) or the AVERAGE case
for any possible input.

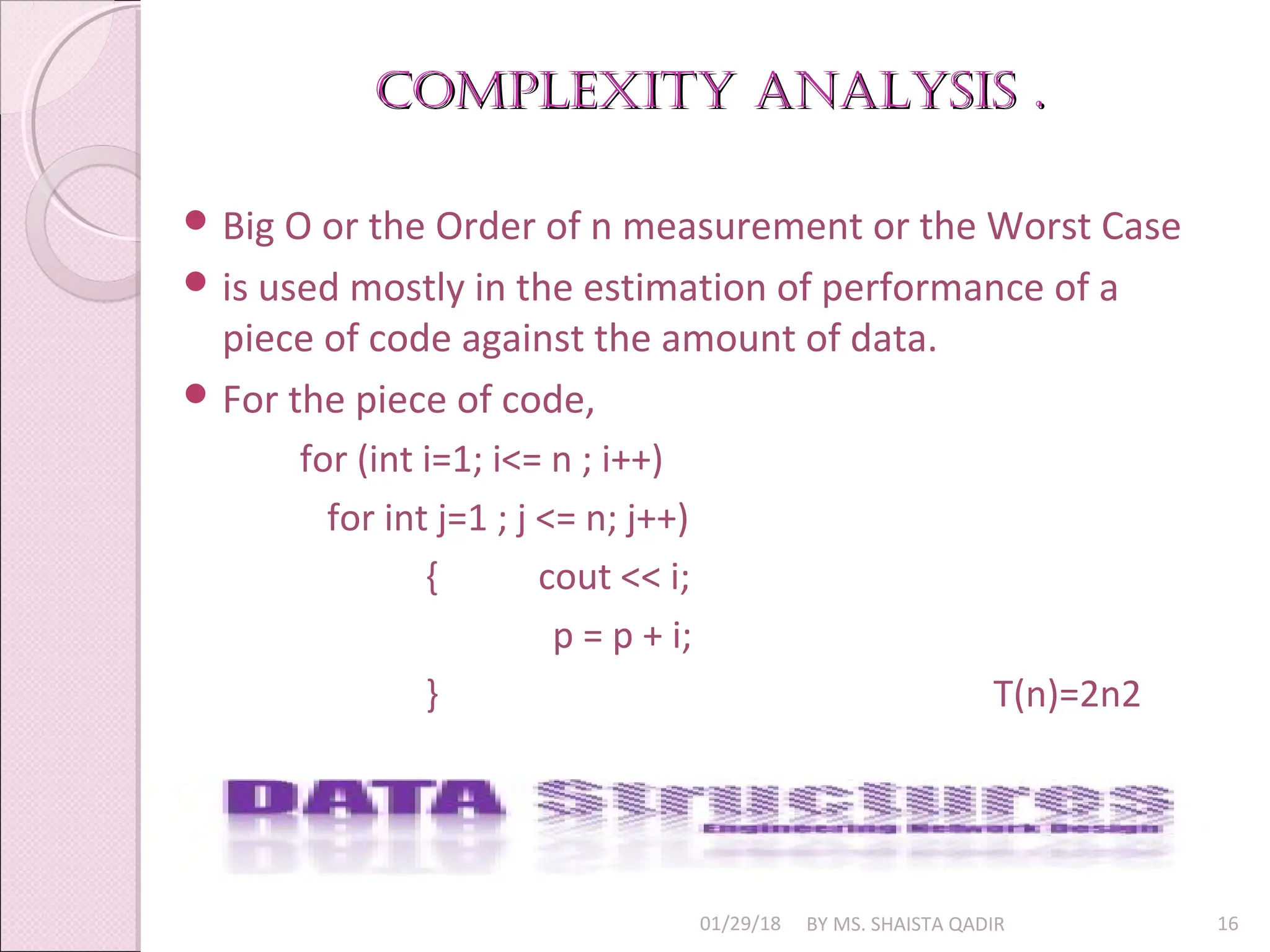

Complexity AnAlysis .
Complexity AnAlysis .
 Big O or the Order of n measurement or the Worst Case
 is used mostly in the estimation of performance of a
piece of code against the amount of data.
 For the piece of code,
for (int i=1; i<= n ; i++)
for int j=1 ; j <= n; j++)
{ cout << i;
p = p + i;
} T(n)=2n2

Complexity AnAlysis
Complexity AnAlysis
( exAmple )
( exAmple )

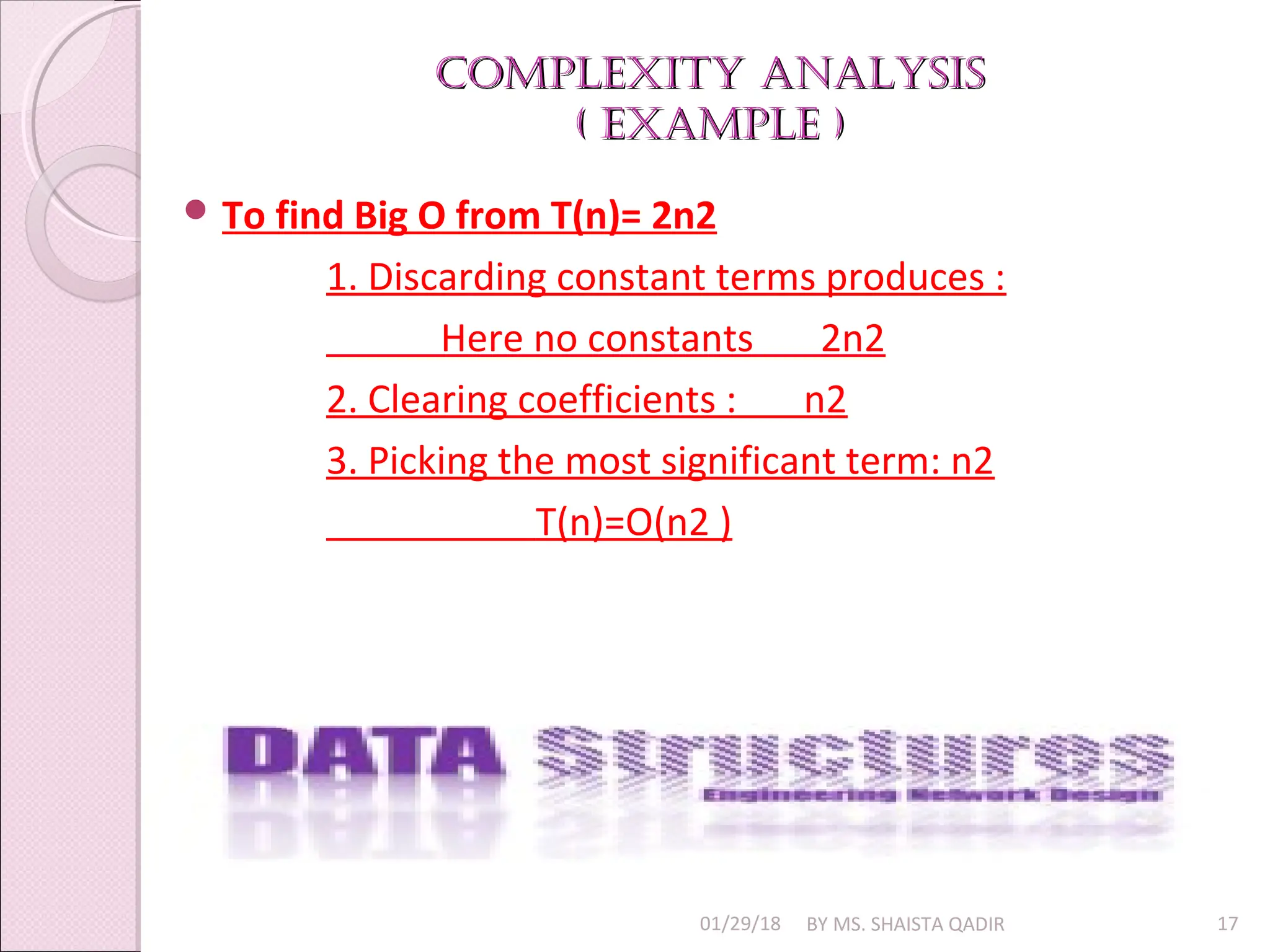

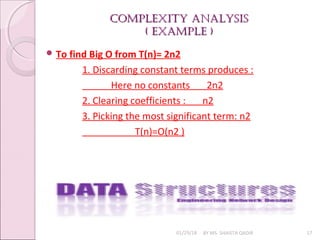

 To find Big O from T(n)= 2n2
1. Discarding constant terms produces :
Here no constants 2n2
2. Clearing coefficients : n2
3. Picking the most significant term: n2
T(n)=O(n2 )

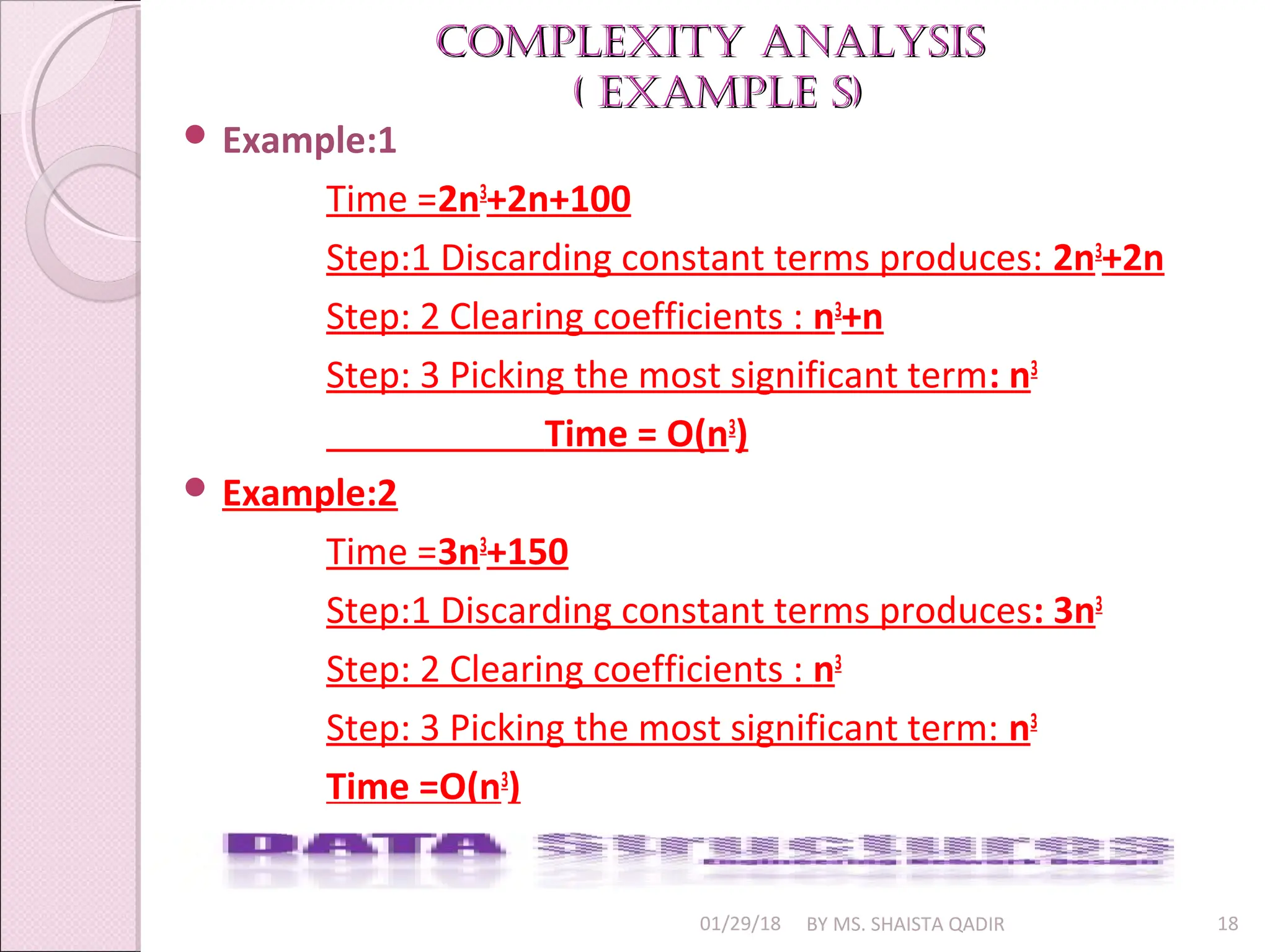

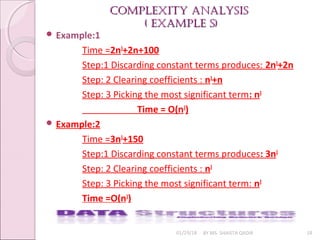

Complexity AnAlysis
Complexity AnAlysis
( exAmple s)
( exAmple s)
 Example:1
Time =2n3
+2n+100
Step:1 Discarding constant terms produces: 2n3
+2n
Step: 2 Clearing coefficients : n3
+n
Step: 3 Picking the most significant term: n3
Time = O(n3
)
 Example:2
Time =3n3
+150
Step:1 Discarding constant terms produces: 3n3
Step: 2 Clearing coefficients : n3
Step: 3 Picking the most significant term: n3
Time =O(n3
)

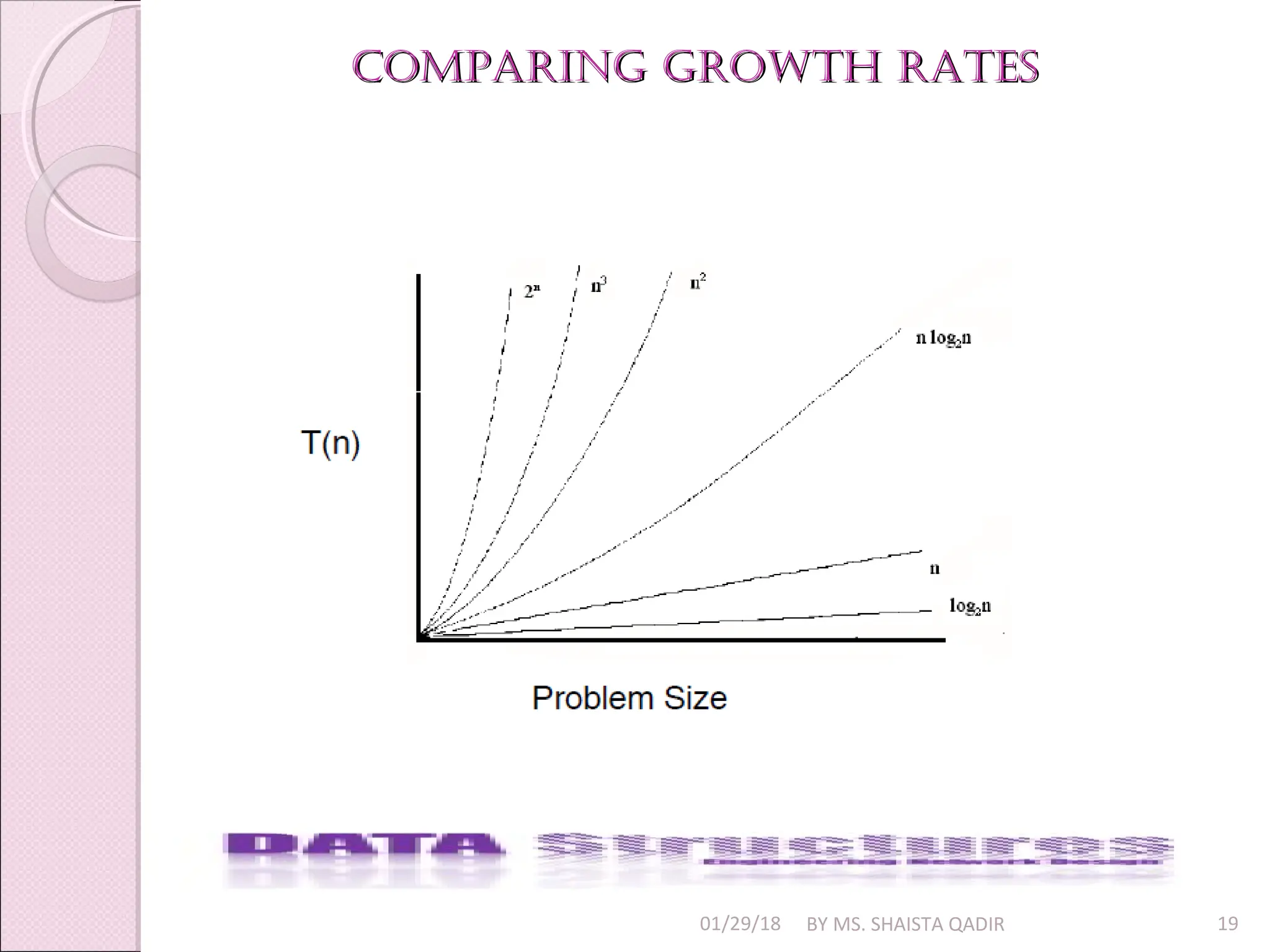

CompAring groWtH rAtes
CompAring groWtH rAtes

THANK YOU
THANK YOU
