• 1.

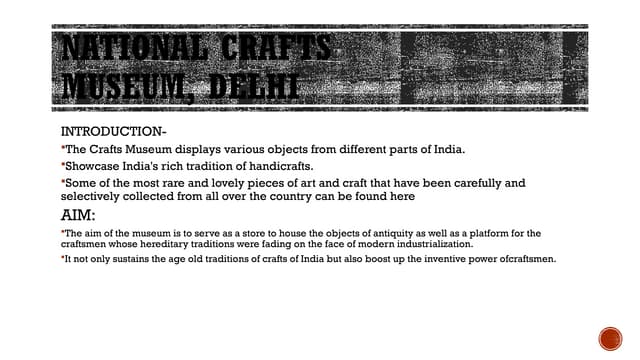

  NATIONAL CRAFTS MUSEUM, DELHI INTRODUCTION- TheCrafts Museum displays various objects from different parts of India. Showcase India's rich tradition of handicrafts. Some of the most rare and lovely pieces of art and craft that have been carefully and selectively collected from all over the country can be found here AIM: The aim of the museum is to serve as a store to house the objects of antiquity as well as a platform for the craftsmen whose hereditary traditions were fading on the face of modern industrialization. It not only sustains the age old traditions of crafts of India but also boost up the inventive power ofcraftsmen.
• 2.

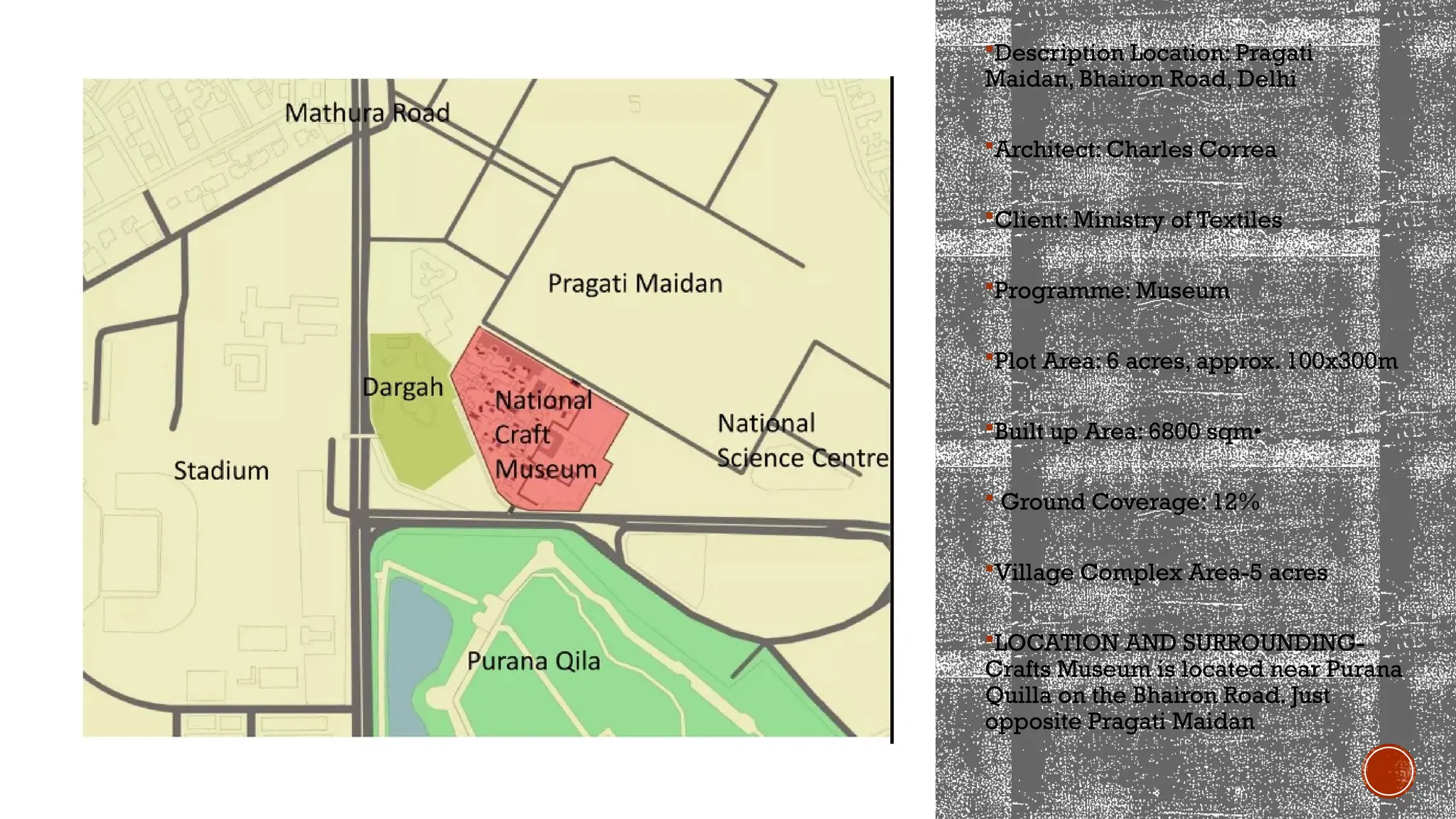

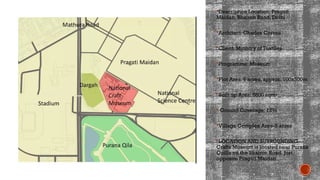

  Description Location: Pragati Maidan,Bhairon Road, Delhi Architect: Charles Correa Client: Ministry of Textiles Programme: Museum Plot Area: 6 acres, approx. 100x300m Built up Area: 6800 sqm•  Ground Coverage: 12% Village Complex Area-5 acres LOCATION AND SURROUNDING- Crafts Museum is located near Purana Quilla on the Bhairon Road. Just opposite Pragati Maidan
• 3.

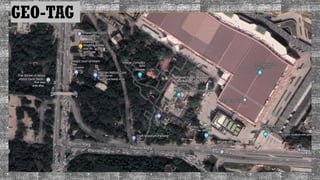

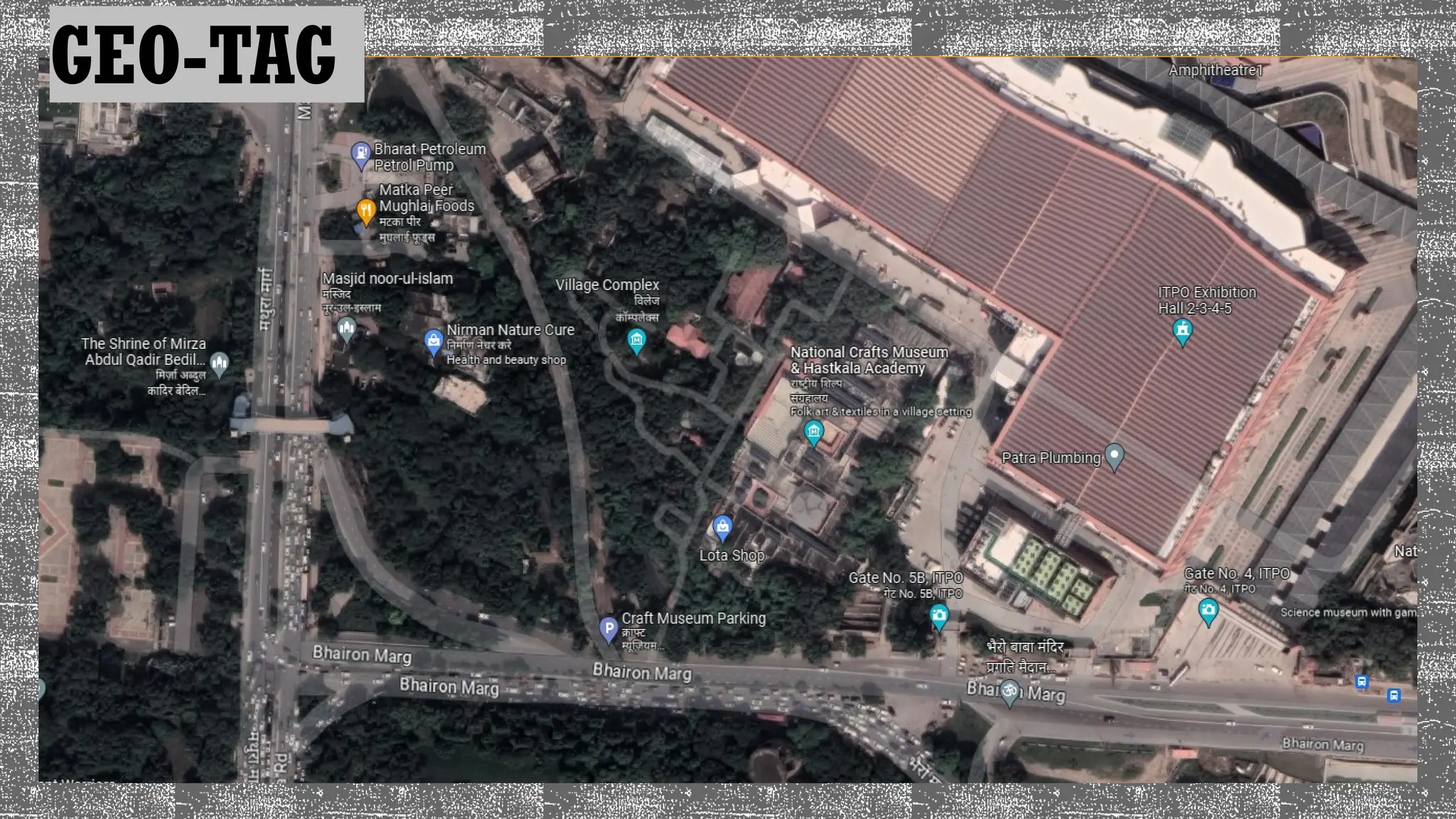

  GEO-TAG
• 4.

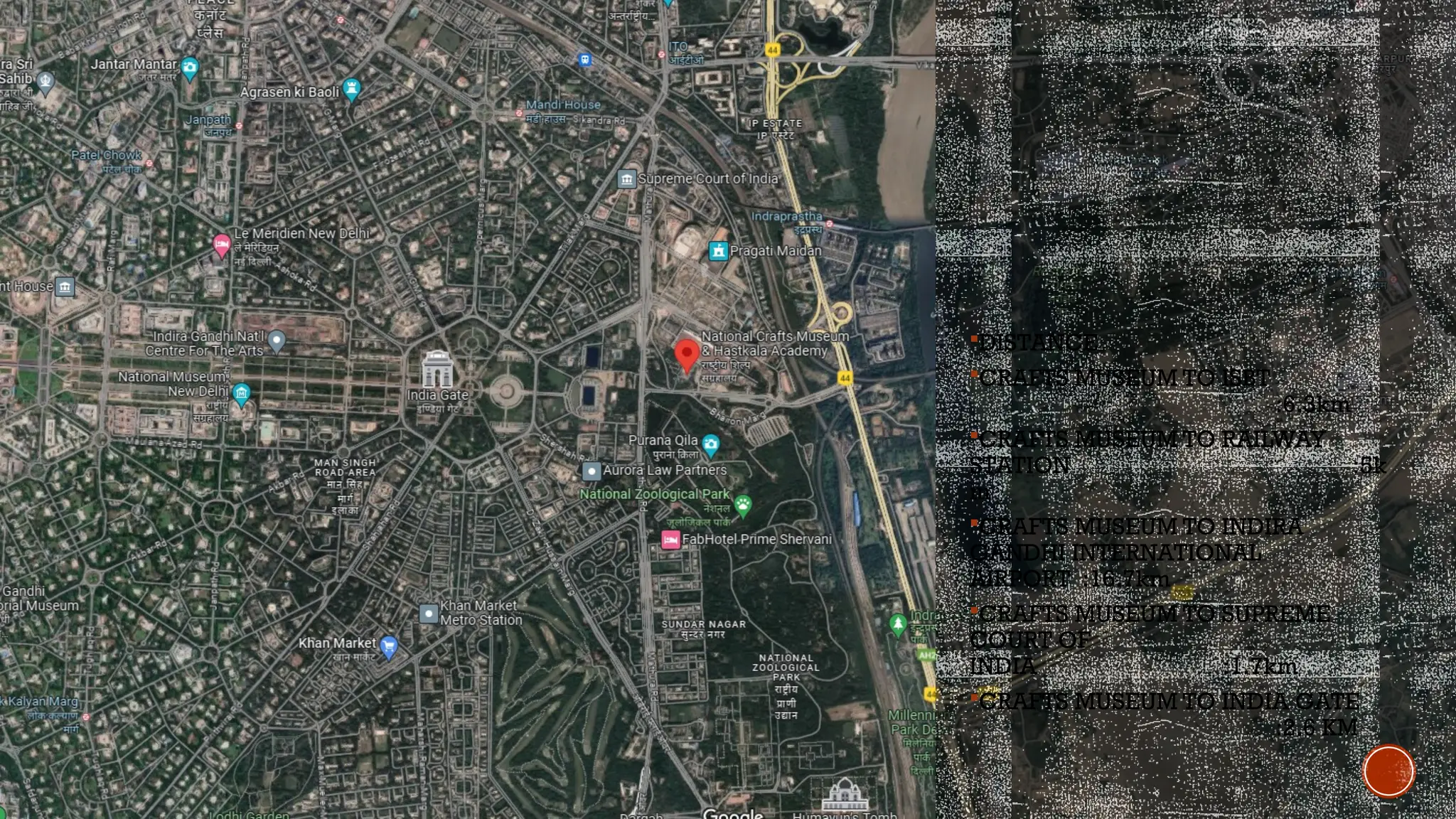

  DISTANCE CRAFTS MUSEUM TOISBT :6.3km CRAFTS MUSEUM TO RAILWAY STATION :5k m CRAFTS MUSEUM TO INDIRA GANDHI INTERNATIONAL AIRPORT :16.7km CRAFTS MUSEUM TO SUPREME COURT OF INDIA :1.7km CRAFTS MUSEUM TO INDIA GATE :2.6 KM
• 5.

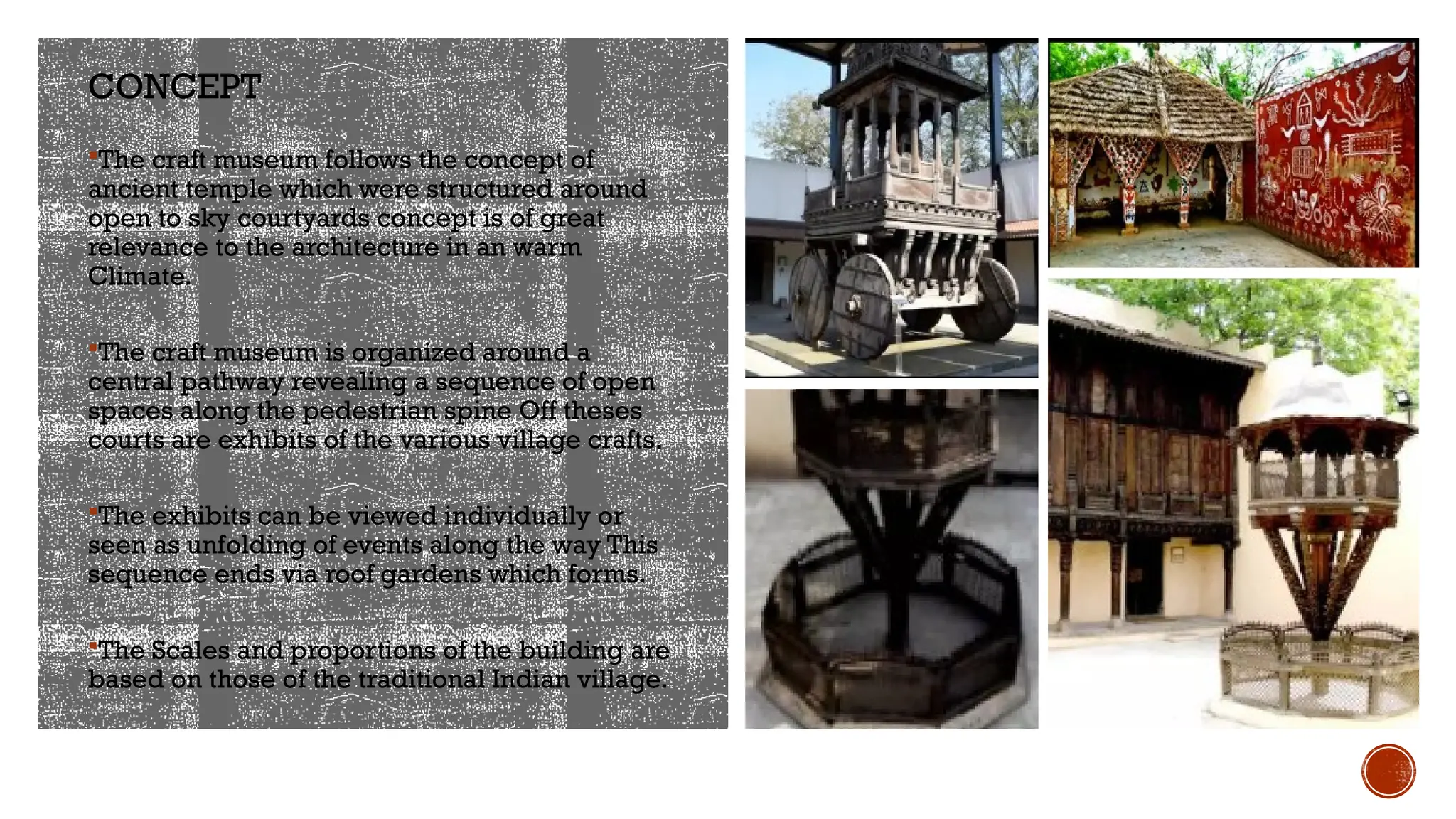

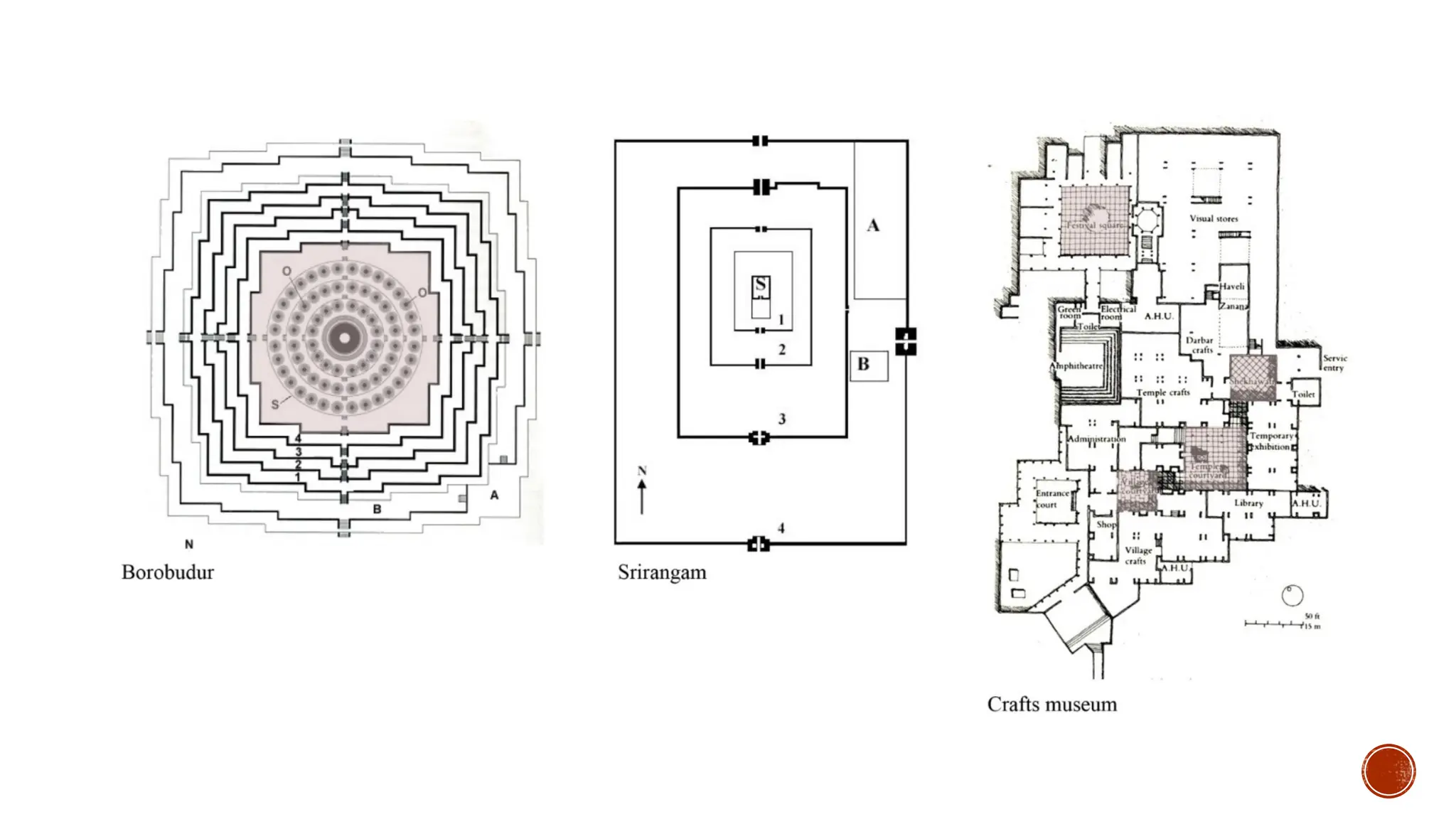

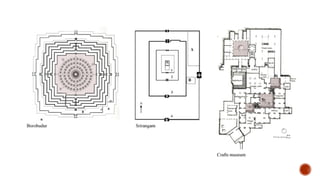

  CONCEPT The craft museumfollows the concept of ancient temple which were structured around open to sky courtyards concept is of great relevance to the architecture in an warm Climate. The craft museum is organized around a central pathway revealing a sequence of open spaces along the pedestrian spine Off theses courts are exhibits of the various village crafts. The exhibits can be viewed individually or seen as unfolding of events along the way This sequence ends via roof gardens which forms. The Scales and proportions of the building are based on those of the traditional Indian village.
• 6.

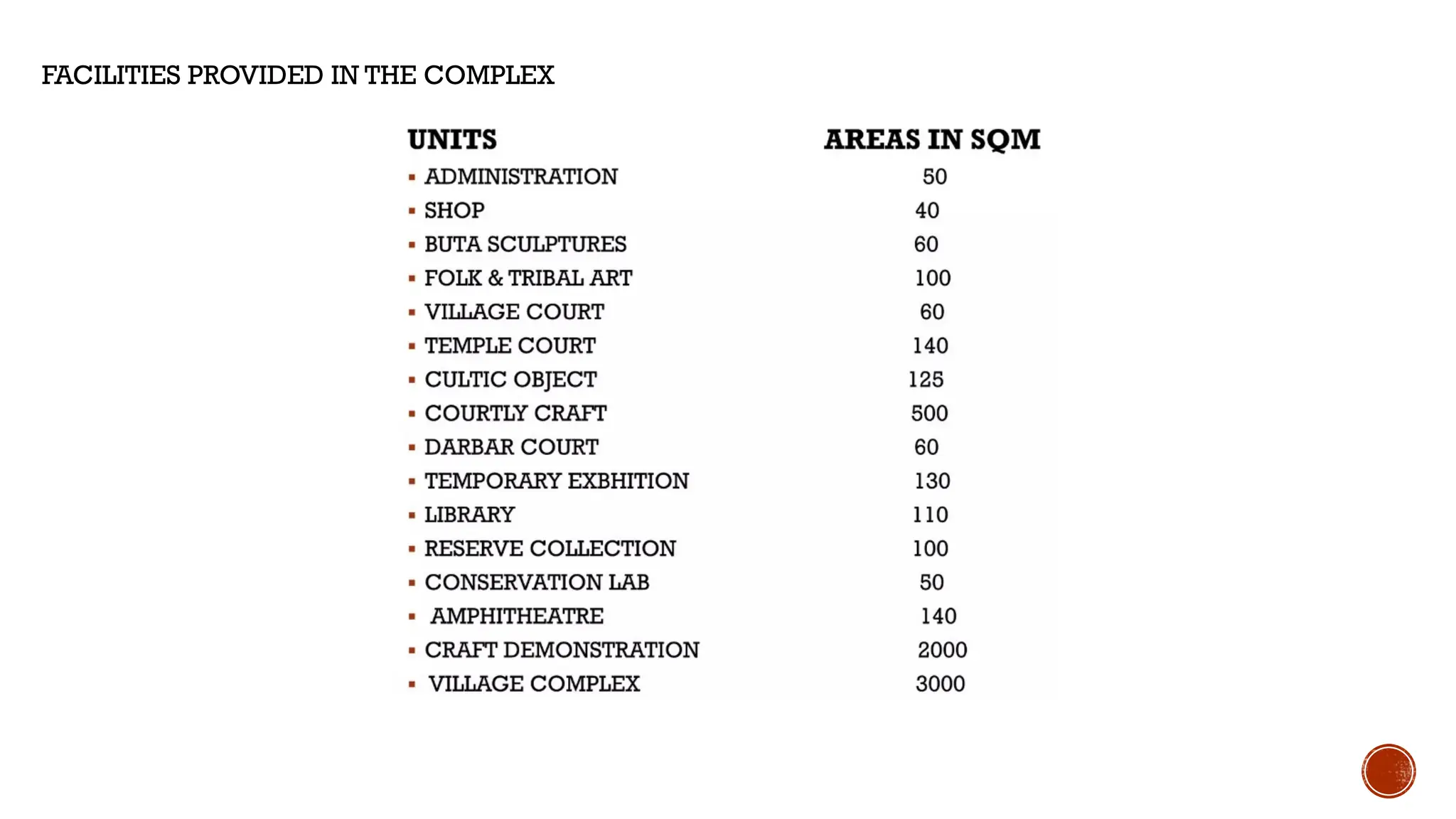

  FACILITIES PROVIDED INTHE COMPLEX
• 7.

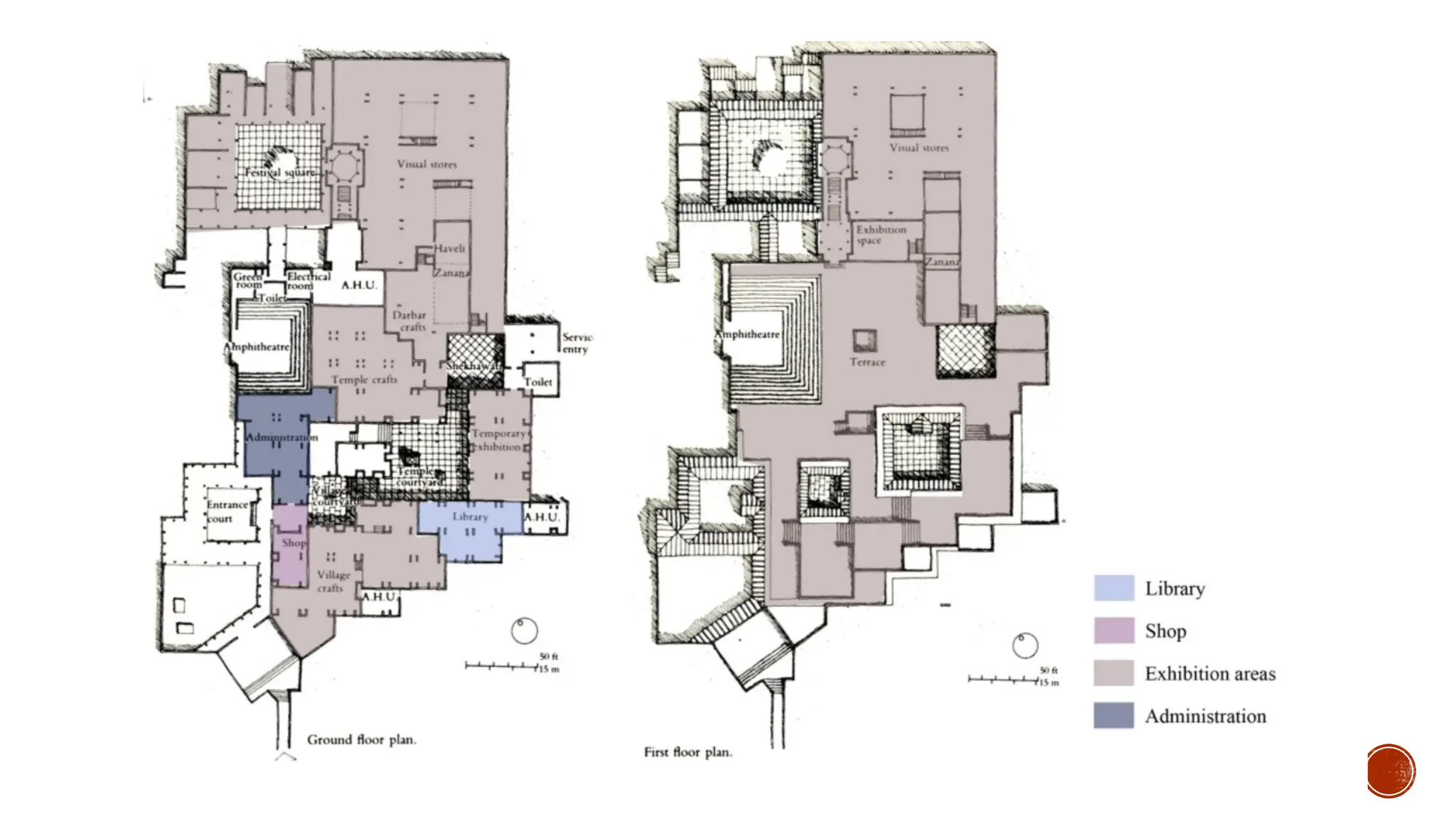

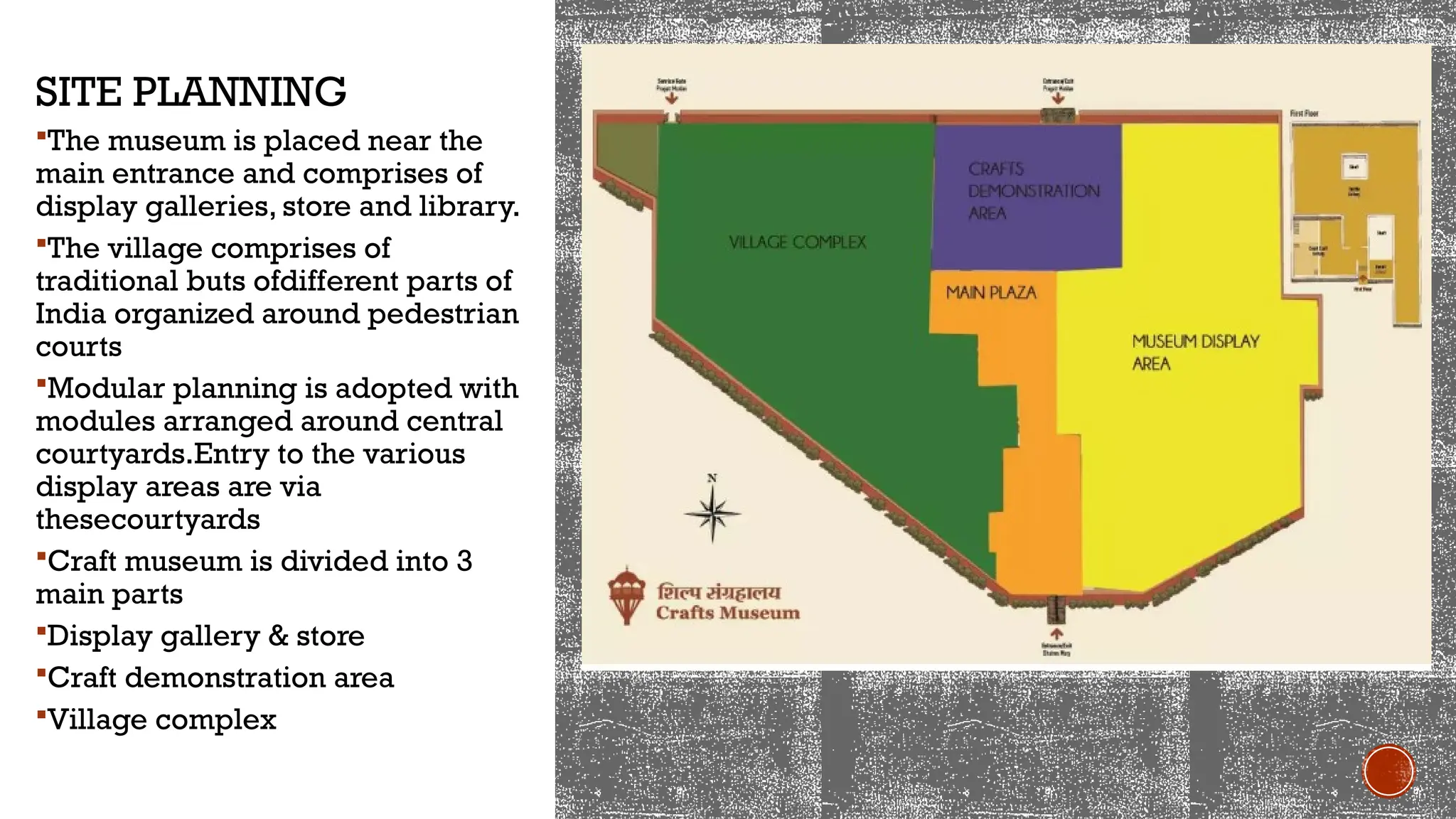

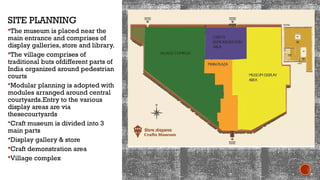

  SITE PLANNING The museumis placed near the main entrance and comprises of display galleries, store and library. The village comprises of traditional buts ofdifferent parts of India organized around pedestrian courts Modular planning is adopted with modules arranged around central courtyards.Entry to the various display areas are via thesecourtyards Craft museum is divided into 3 main parts Display gallery & store Craft demonstration area Village complex
• 8.

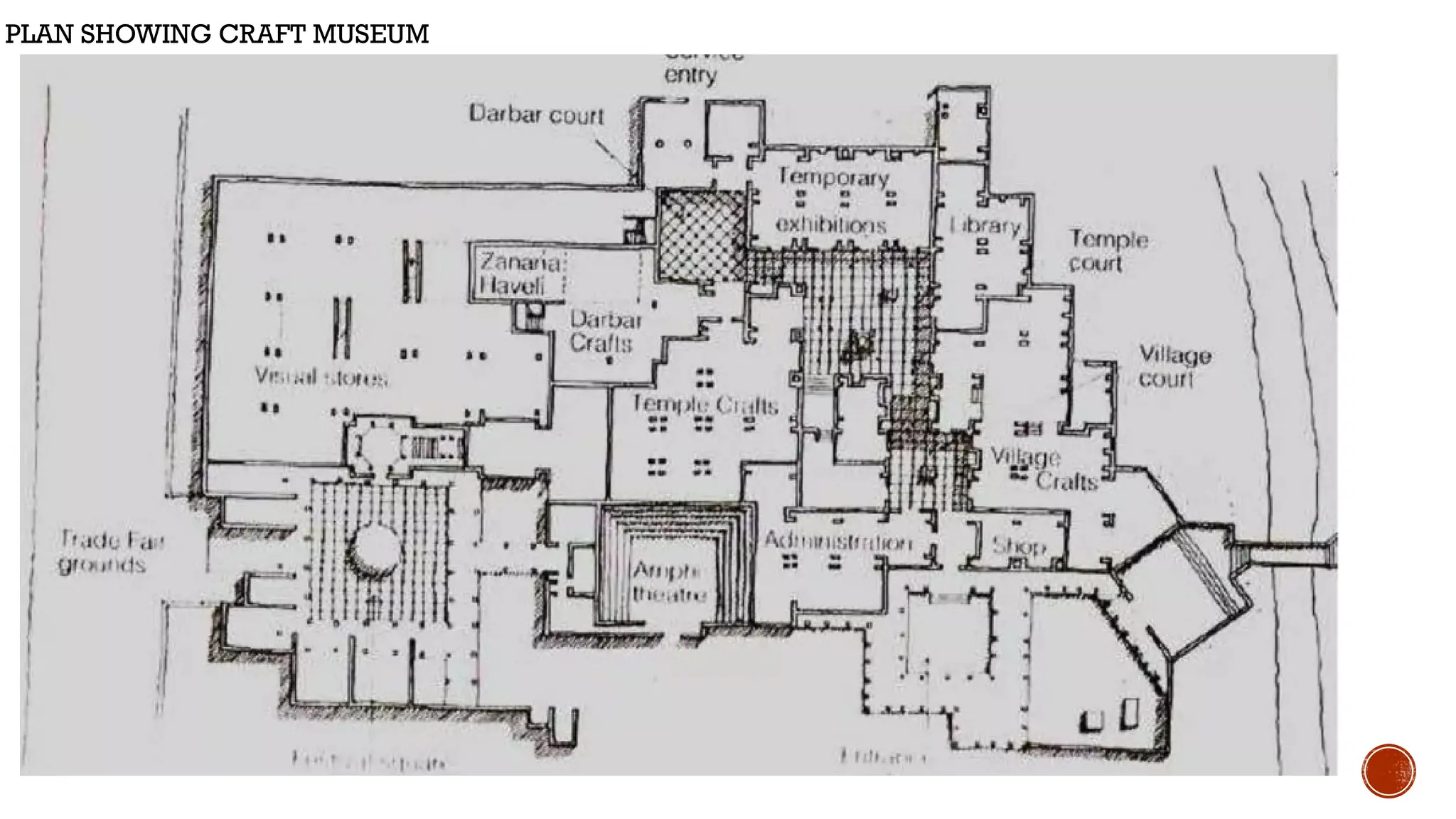

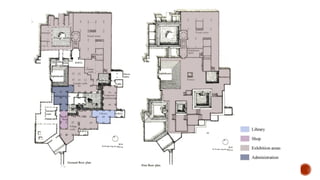

  PLAN SHOWING CRAFTMUSEUM
• 12.

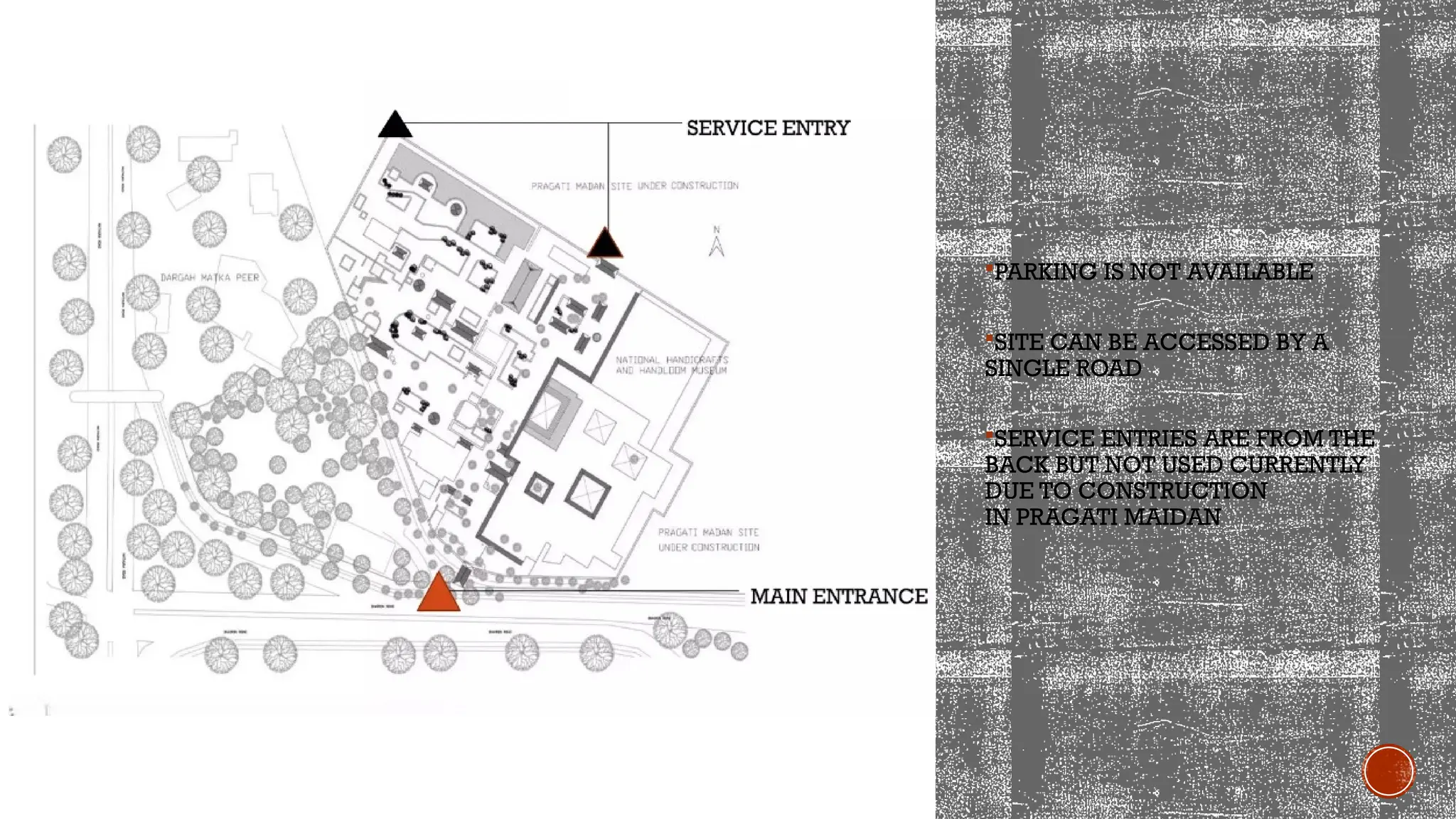

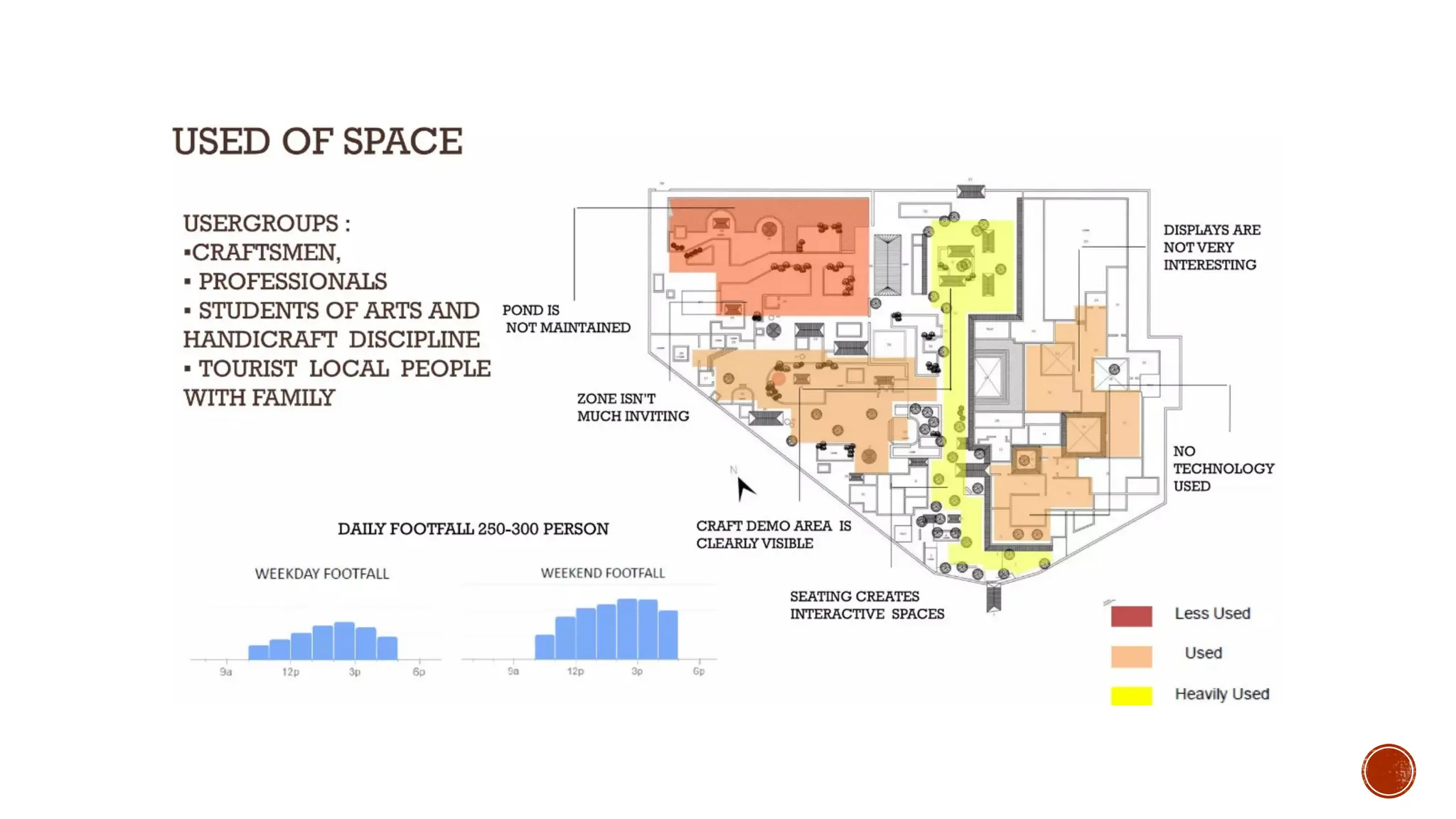

  PARKING IS NOTAVAILABLE SITE CAN BE ACCESSED BY A SINGLE ROAD SERVICE ENTRIES ARE FROM THE BACK BUT NOT USED CURRENTLY DUE TO CONSTRUCTION IN PRAGATI MAIDAN
• 14.

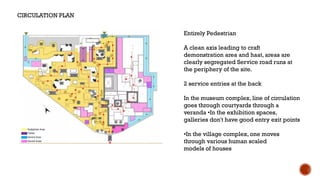

  Entirely Pedestrian A cleanaxis leading to craft demonstration area and haat, areas are clearly segregated Service road runs at the periphery of the site. 2 service entries at the back In the museum complex, line of circulation goes through courtyards through a veranda •In the exhibition spaces, galleries don't have good entry exit points •In the village complex, one moves through various human scaled models of houses CIRCULATION PLAN
• 15.

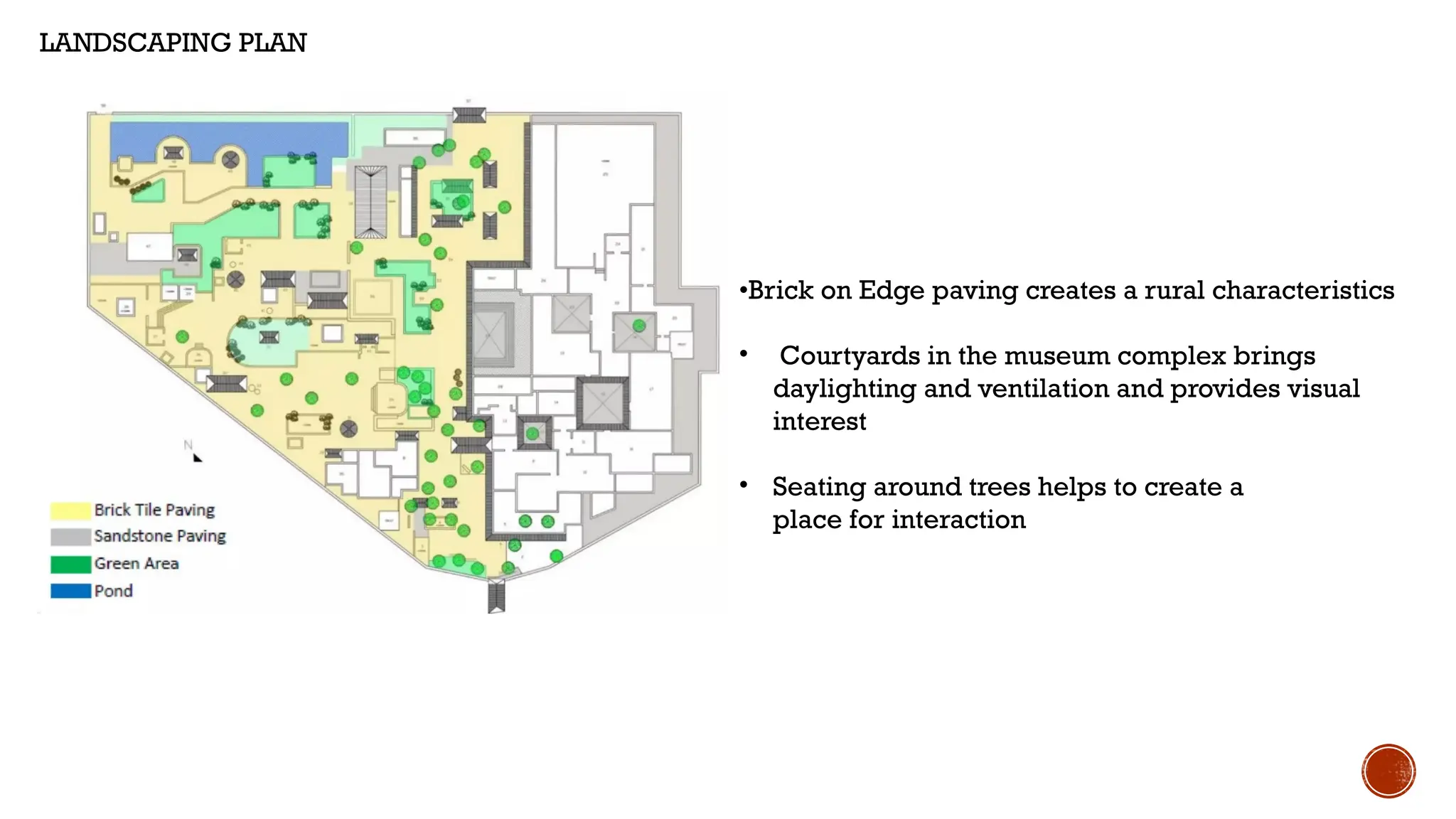

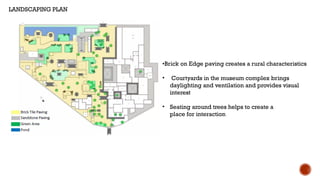

  •Brick on Edgepaving creates a rural characteristics • Courtyards in the museum complex brings daylighting and ventilation and provides visual interest • Seating around trees helps to create a place for interaction LANDSCAPING PLAN
• 17.

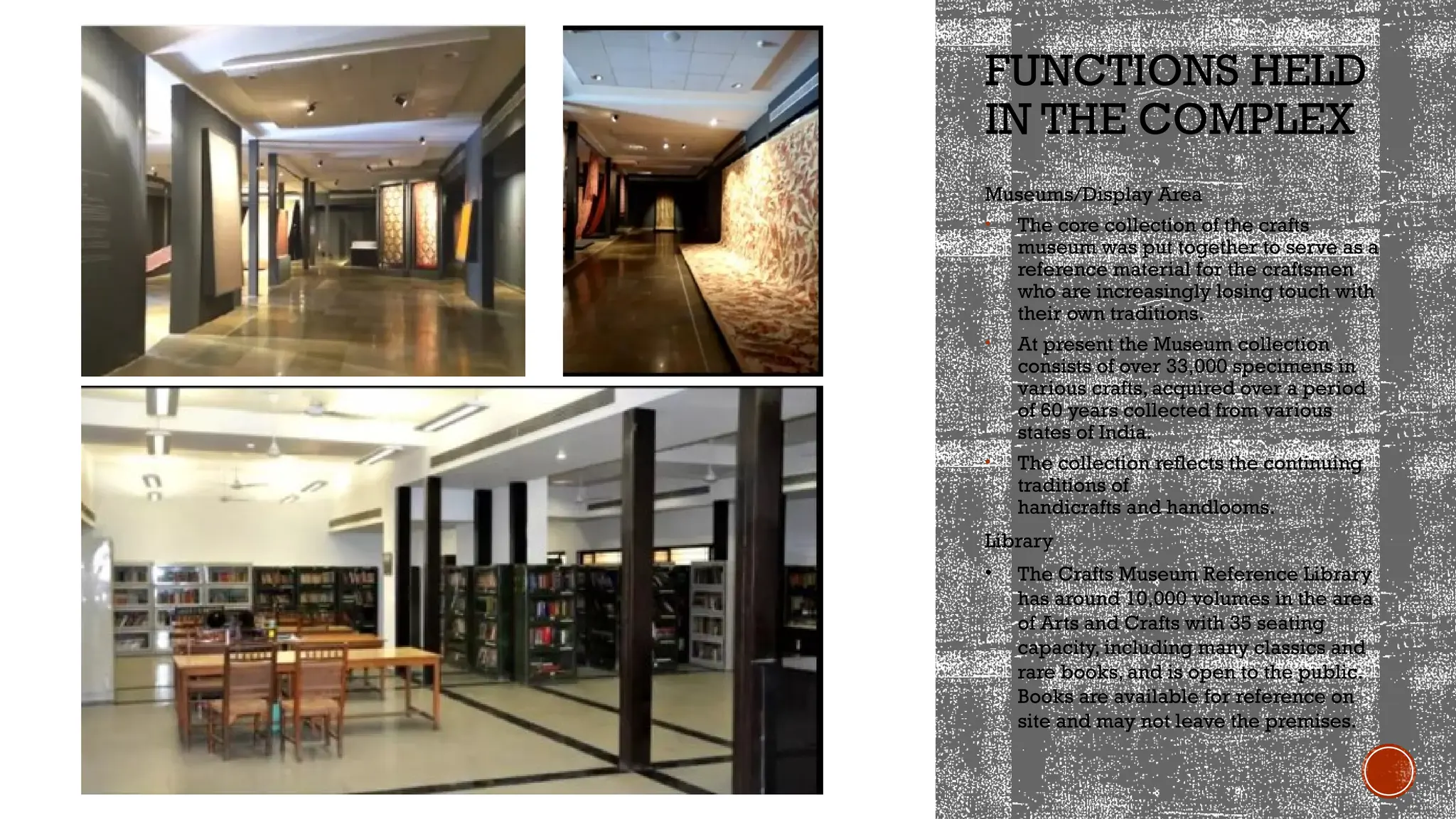

  FUNCTIONS HELD IN THECOMPLEX Museums/Display Area • The core collection of the crafts museum was put together to serve as a reference material for the craftsmen who are increasingly losing touch with their own traditions. • At present the Museum collection consists of over 33,000 specimens in various crafts, acquired over a period of 60 years collected from various states of India. • The collection reflects the continuing traditions of handicrafts and handlooms. Library • The Crafts Museum Reference Library has around 10,000 volumes in the area of Arts and Crafts with 35 seating capacity, including many classics and rare books, and is open to the public. Books are available for reference on site and may not leave the premises.
• 18.
  Demonstration Area The demonstrationprogram provides visitors an opportunity to see the craft creation unfold before them. The architect has brought about the rustic in the complex by use of mud and plastered walls; brick paved flooring and by getting the structure built in their respective authentic style. The open walls within and outside the building is prominently outlined by terracotta tile roofs giving it a rustic ambience.  Each month the Museum invites around 50 craftsperson, except monsoon period of three months when only 10 crafts persons, to be in residence, to demonstrate their skills and sell their wares.
• 19.

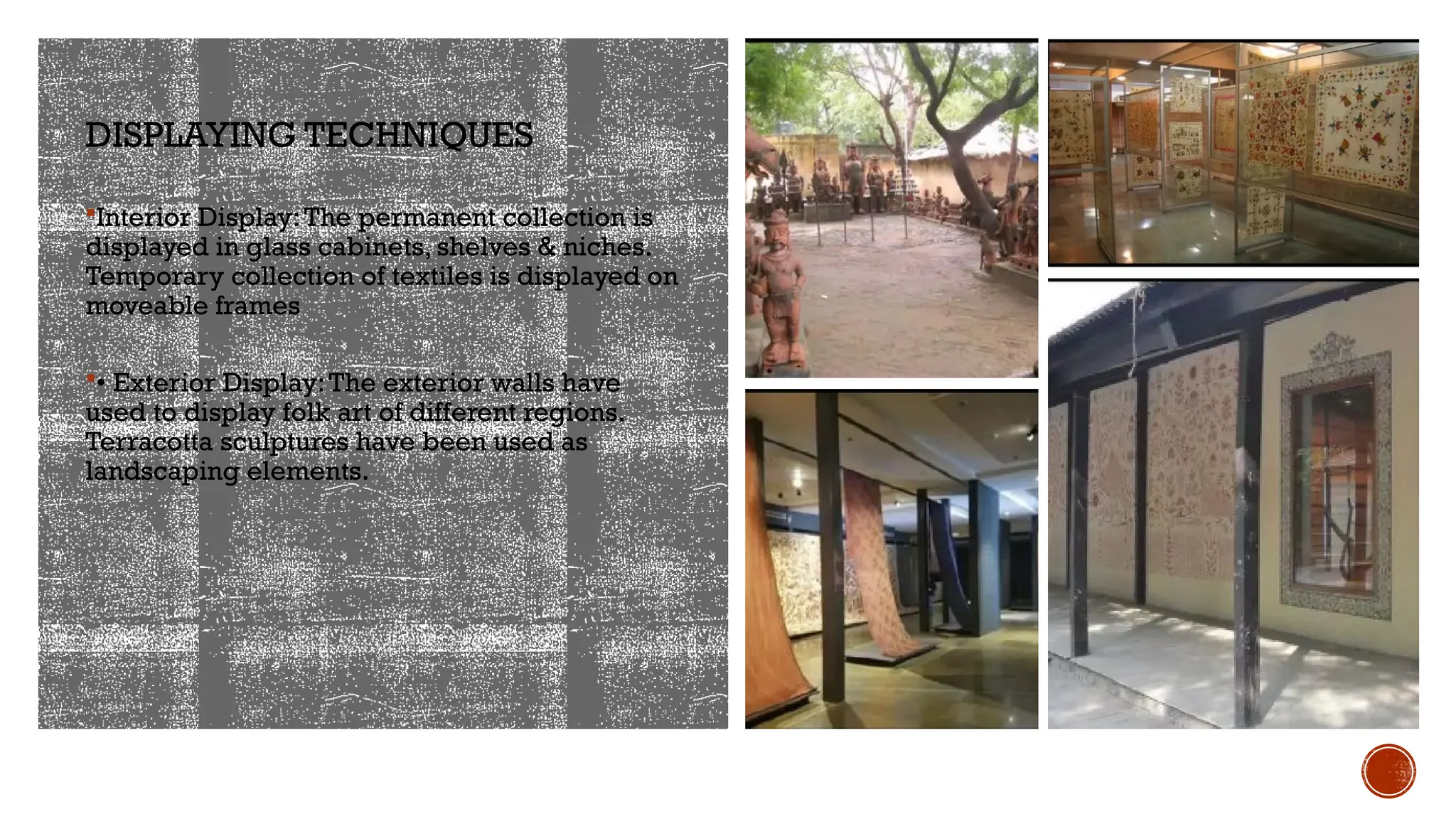

  DISPLAYING TECHNIQUES Interior Display:Thepermanent collection is displayed in glass cabinets, shelves & niches. Temporary collection of textiles is displayed on moveable frames • Exterior Display:The exterior walls have used to display folk art of different regions. Terracotta sculptures have been used as landscaping elements.
• 20.

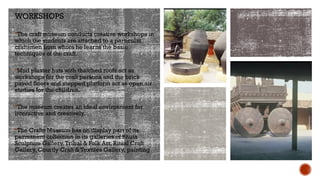

  WORKSHOPS The craft museumconducts creative workshops in which the students are attached to a particular craftsmen from whom he learns the basic techniques of the craft. Mud plaster huts with thatched roofs act as workshops for the craft persons and the brick paved floors and stepped platform act as open air studies for the children. The museum creates an ideal environment for interactive and creatively. The Crafts Museum has on display part of its permanent collection in its galleries of Bhuta Sculpture Gallery,Tribal & Folk Art, Ritual Craft Gallery, Courtly Craft & Textiles Gallery, painting
• 21.

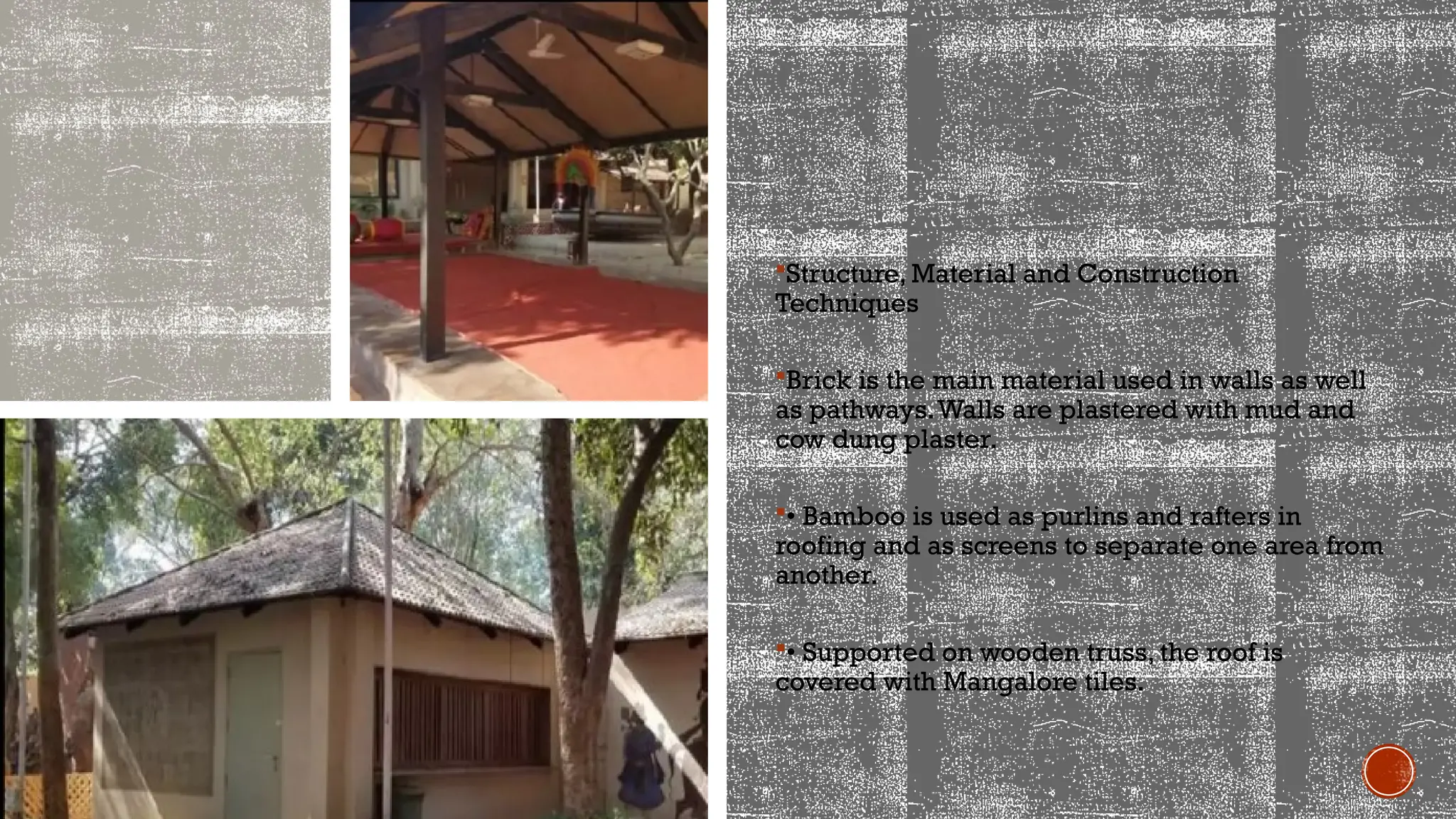

  Structure, Material andConstruction Techniques Brick is the main material used in walls as well as pathways.Walls are plastered with mud and cow dung plaster. • Bamboo is used as purlins and rafters in roofing and as screens to separate one area from another. • Supported on wooden truss, the roof is covered with Mangalore tiles.
• 22.

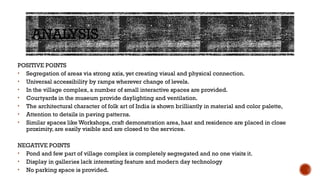

  POSITIVE POINTS • Segregationof areas via strong axis, yet creating visual and physical connection. • Universal accessibility by ramps wherever change of levels. • In the village complex, a number of small interactive spaces are provided. • Courtyards in the museum provide daylighting and ventilation. • The architectural character of folk art of India is shown brilliantly in material and color palette, • Attention to details in paving patterns. • Similar spaces like Workshops, craft demonstration area, haat and residence are placed in close proximity, are easily visible and are closed to the services. NEGATIVE POINTS • Pond and few part of village complex is completely segregated and no one visits it. • Display in galleries lack interesting feature and modern day technology • No parking space is provided. ANALYSIS
